PDSB077007073100

CONFIDENTIAL

Copyright © Creative Technology Ltd, 2007. All rights reserved.

Information is subject to change without prior notice July 2007

Pg

1of 7

Sound Blaster







X-Fi

TM

Audio Card

Model SB0770 / SB0772

Datasheet

Revision 1.2

July 2007

This document is for informational purposes only.

No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical,

including photocopying and recording, for any purpose without the express written permission of Creative Technology

Ltd. Creative logo and the Sound Blaster banner are registered trademarks of Creative Technology Ltd.

Products furnished by Creative are believed to be accurate and reliable. However, Creative reserves the right to make

changes in its sole discretion, at any time to the products. CREATIVE DISCLAIMS ALL EXPRESS OR IMPLIED

WARRANTIES FOR THE PRODUCTS PROVIDED HEREUNDER, INCLUDING WITHOUT LIMITATION THE

WARRANTIES OF MERCHANTABILIT AND FITNESS FOR A PARTICULAR PURPOSE, NOR DOES IT MAKE

ANY WARRANTY FOR ANY INFRINGEMENT OF PATENTS OR OTHER RIGHTS OF THIRD PARTIES

WHICH MAY RESULT FORM THE PRODUCTS. Creative assumes no obligation to correct any errors contained in

the products provided hereunder or to advise users of the products of any correction if such be made. Customers are

advised to obtain the latest version of product specification, and Creative makes no assurance that Creative’s products

are appropriate for any application by any customer. Creative products provided hereunder are subject to the restrictions

set forth in the accompanying NDA. Creative products are not intended for use in life support appliances, devices, or

systems. Use of Creative products for purposes other than those set forth in the accompanying NDA without the written

consent of an appropriate Creative officer is prohibited.

Released by Product Marketing – Audio/VLSI Products Group, Creative Technology Ltd.

Confidential

Sound Blaster X-Fi

Model SB0770 / SB0772

Revision 1.2

This information is Confidential and Proprietary to Creative Technology Ltd. This information subject to change without prior notice.

Released by Product Marketing. Patent pending. July 2007

PDSB077007073100 Pg

2 of 7

Figure1: SB X-Fi Audio Card

Confidential

Sound Blaster X-Fi

Model SB0770 / SB0772

Revision 1.2

This information is Confidential and Proprietary to Creative Technology Ltd. This information subject to change without prior notice.

Released by Product Marketing. Patent pending. July 2007

PDSB077007073100 Pg

3 of 7

Introduction

Creative Labs has a long heritage of providing top

quality and leading edge audio solutions to the mass PC

population with the Sound Blaster® range of both

internal and external sound cards and devices.

It all began in 1981 with the founding of Creative Labs,

although it would be another eight years before the

Sound Blaster® card would be born. There have been

many cards along the way; the Sound Blaster® 16

exploded onto the market and with the Sound Blaster®

AWE32 everyone realized that a sound card could not

only make “sounds” but also music. The Sound

Blaster® Live! was a major leap forward bringing

multi-channel audio and immense processing power to

the audio platform and the Sound Blaster® Audigy®

added more power and EAX® ADVANCED HD™

effects while also providing a quality of audio never

experienced before.

Along the way Creative has reached out to a whole new

audience with our USB Sound Blaster and PCMCIA

Sound Blaster range of products. Now comes a truly

revolutionary new product. It’s so revolutionary that

the only comparison we have in terms of the leap

forward being made is with Sound Blaster Live! back

in 1998!

The Creative X-Fi processor is a truly revolutionary

platform that delivers the new “Xtreme Fidelity” audio

standard. It is revolutionary because of the raw power

that it delivers (over 10,000 MIPS) generated from

more than 51 million transistors! This is the equivalent

to running 24 Sound Blaster Audigy cards in your PC

all parallel processing audio! This incredible power

allows us to deliver the Xtreme Fidelity audio standard,

which unlike any other standard does not require you to

do anything different than before or buy any new

content. Sound Blaster X-Fi Fatal1ty Platinum as a

revolutionary platform therefore delivers a whole host

of revolutionary new features.

SB0770 is a new iteration of PCI Sound Blaster X-Fi

that is designed to meet new requirement of Windows

Vista. A new ASIC chip CA0112 is developed to meet

the Microsoft Universal Audio Architecture (UAA)

initiative. With UAA compliant hardware, the product

is able to “just work” (basic feature) with the class

driver provided by the operating system.

SB0770 Configurations

The SB0770 is fully configurable as a professional

quality audio product. The features shown in the table

below are described in detail in the section as below.

The SB0770 is basically available in the following

configurations:

METAL BRACKET CONNECTORS

LINE_IN/MIC_IN 3.5mm Stereo

Colour: Pink

LINE_OUT 1 3.5mm stereo

Colour: Lime

LINE_OUT 2 3.5mm Stereo

Colour: Grey

LINE_OUT 3 3.5mm Stereo

Colour: Light Orange

LINE_OUT 4 3.5mm Stereo

Colour: Black

Optical Out Conventional Toslink Black

housing, Grey shutter

Optical In Conventional Toslink Black

housing, Black shutter

ON BOARD HEADERS / CONNECTORS

HDAudio_FP 2x5 header

System Requirements

In order to install the SB0770, the target system has to

meet the following minimum requirements:

Creative Sound Blaster X-Fi card

Basic: • Modern Mid to High end Processor from

Intel and AMD.

• RAM – 512MB

• DVD-ROM Drive

OS supported:

Confidential

Sound Blaster X-Fi

Model SB0770 / SB0772

Revision 1.2

This information is Confidential and Proprietary to Creative Technology Ltd. This information subject to change without prior notice.

Released by Product Marketing. Patent pending. July 2007

PDSB077007073100 Pg

4 of 7

• Windows Vista 32-bit and 64-bit version.

• Windows XP 32-bit, 64-bit and Media

Center Edition’ version

SB0770 Features

PCI Bus Mastering

• PCI Specification up to Version 2.3 compliant

• Bus mastering reduces latency and speeds up

system performance

Sound Blaster X-Fi Audio Processor

• Advanced hardware accelerated digital effects

processing

• All new dedicated DSP capable of both time

and frequency domain audio processing

• 128 3D voices with advanced 3D positional

audio rendering algorithms

• Professional quality digital mixing and

equalization maintaining 24-bit accuracy

• User-selectable Master Sampling Rate for bit-

matched professional audio applications

• Ultra-high quality sample rate conversion for

gaming and professional audio applications

Professional Digital Audio Processing

• 24-bit Analog-to-Digital conversion of analog

inputs at 96 kHz sample rate

• 24-bit Digital-to-Analog conversion of digital

sources at 96 kHz to analog 7.1 speaker output

• 24-bit Digital-to-Analog conversion of stereo

digital sources at 192 kHz to stereo output

• 16-bit to 24-bit recording sampling rates: 8,

11.025, 16, 22.05, 24, 32, 44.1, 48 and 96 kHz

• ASIO 2.0 support at 16-bit/44.1kHz, 16-

bit/48kHz, 24-bit/44.1kHz 24-bit/48kHz and

24-bit/96kHz

• Supports Sony/Philips Digital Interface

(SPDIF) format of up to 24-bit/96 kHz quality

• SPDIF output at selectable sampling rate of

44.1, 48 or 96 kHz

• SPDIF output not available during playback of

protected digital audio content authored with

DRM (Digital Rights Management)

technology

• ASIO 2.0 with direct monitoring

• Accelerated ASIO for ultra low latency

• Enhanced SoundFont support of up to 24-bit

resolution

Flexible Mixer Control

• Selectable input source or mixing of various

audio sources for recording

• Adjustable master volume control

• Separate bass and treble control

• Front and rear balance control

• Muting, soloing and panning control for mixer

sources

Mode Selector Control

• Three exclusive working modes

(Entertainment Mode, Audio Creation Mode

and Game Mode), optimized to perform key

tasks within each category of usage

Entertainment Mode

For the digital music lover orthe movie buff, this is

the place to be – a one-stop console for

experiencing extreme fidelity music and movie

playback.

Audio Creation Mode

This mode offers Extreme Flexibility in a studio-

style environment with powerful aux/insert effects

routing and mixing.

Gaming Mode

Without a doubt, this is where a gamer’s wildest

fantasy comes true. Full-power gaming, extreme

acceleration plus advanced 3D audio features

Creative MultiSpeaker Surround (CMSS)

• CMSS-3DSurround: Upmixes mono or stereo

sources to 4, 5.1 or 7.1 channels

Confidential

Sound Blaster X-Fi

Model SB0770 / SB0772

Revision 1.2

This information is Confidential and Proprietary to Creative Technology Ltd. This information subject to change without prior notice.

Released by Product Marketing. Patent pending. July 2007

PDSB077007073100 Pg

5 of 7

• CMSS-3DHeadphone: Provides a

multichannel playback experience over

headphones for all types of content

• CMSS-3DVirtual: Provides a multichannel

playback experience over two loudspeakers

for all types of content

• CMSS-3DInteractive: Delivers multichannel

3D audio positioning for 3D games. Works in

conjunction with CMSS-3DHeadphone and

CMSS-3DVirtual to provide advanced 3D

positional audio over headphones and two or

four loudspeakers

THX Certification

• Sound Blaster X-Fi has received the

prestigious THX Multimedia Certification

award, making it the perfect choice for PC

audiophiles seeking the very best music and

movie experiences.

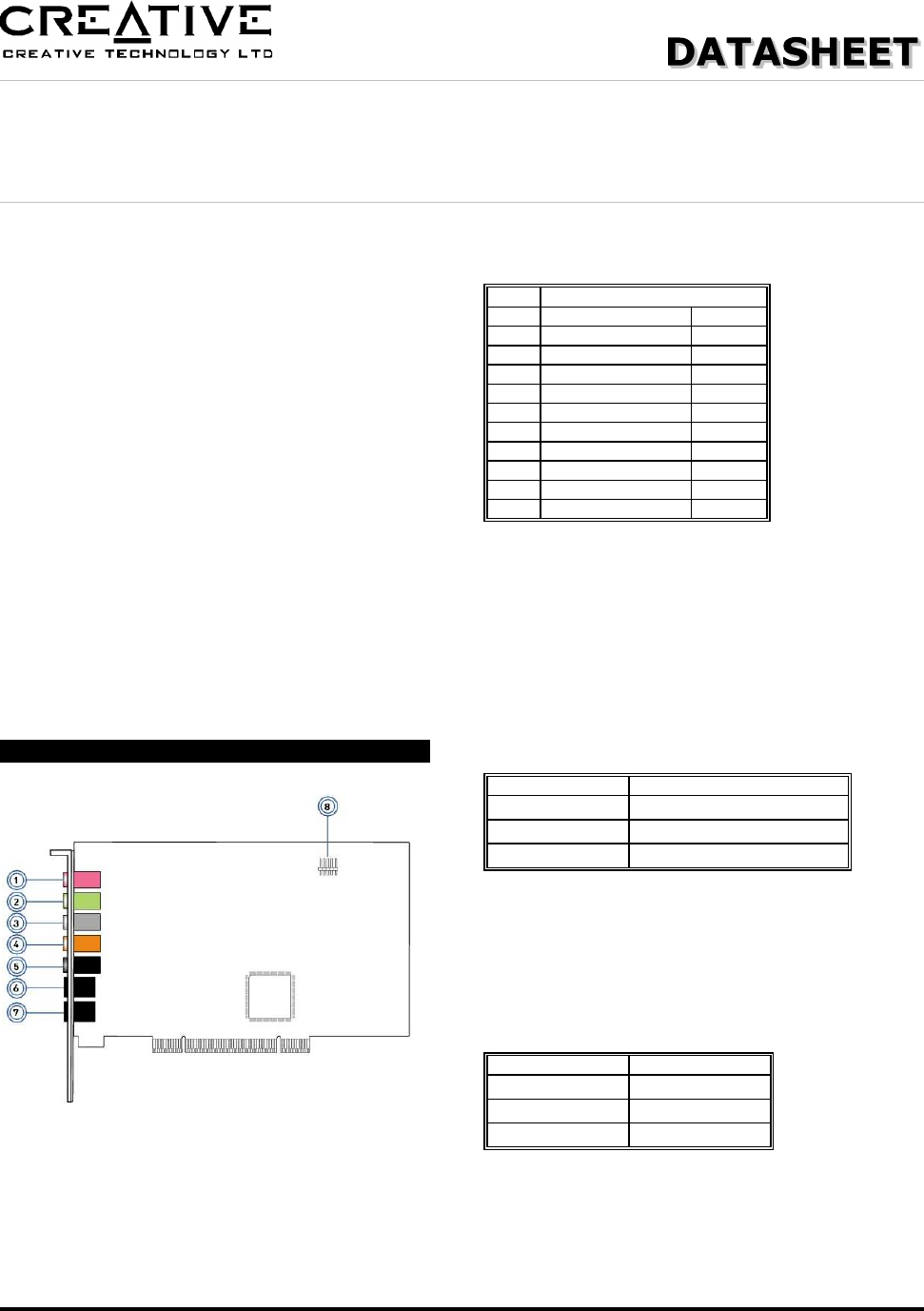

SB0770 Connections and Jumpers

The board consists of the following headers and

connectors that support the connection of internal

devices or hardware configuration changes:

FRONT_PANEL HDAudio_FP (8)

PIN ASSIGNMENTS

PIN

SIGNAL

I/O

1

FP_MICIN

IN

2

GND

-

3

FP_VREFOUT

OUT

4

FP_DETECT

IN

5

FP_HPOUT_R

OUT

6

BP_MUTE_MIC

IN

7

GND

-

8

NC

-

9

FP_HPOUT_L

OUT

10

FP_HP_DETECT

IN

LINE_IN /MIC_IN Jack (1)

♦ Supports Microphone-In and Line-In connections.

Connect one of the following to this jack:

♦ analog devices like cassette players and other

line-level sources

♦ a dynamic or low-powered electret

microphone

PIN ANALOG OUT

1 (Tip) Line-in(L) mux Mic-in

2 (Ring) Line-in(R) mux Mic bias

3 (Sleeve ) Ground

LINE_OUT 1 Stereo jack (2)

♦ Connects to Front Left and Front Right inputs on

powered analog speakers or an external amplifier

for audio output.

PIN ANALOG OUT

1 (Tip) Front Left

2 (Ring) Front Right

3 (Sleeve) Gnd

Confidential

Sound Blaster X-Fi

Model SB0770 / SB0772

Revision 1.2

This information is Confidential and Proprietary to Creative Technology Ltd. This information subject to change without prior notice.

Released by Product Marketing. Patent pending. July 2007

PDSB077007073100 Pg

6 of 7

LINE_OUT 2 Stereo jack (3)

♦ Connects to Side Left, Side Right inputs on

powered analog speakers or an external amplifier

for audio output.

PIN ANALOG OUT

1 (Tip) Side Left

2 (Ring) Side Right

3 (Sleeve ) Gnd

LINE_OUT 3 Stereo jack (4)

♦ Connects to Front Center, Subwoofer inputs on

powered analog speakers, or an external amplifier

for audio output.

PIN ANALOG OUT

1 (Tip) Center

2 (Ring) Subwoofer

3 (Sleeve 1) Gnd

LINE_OUT 4 Stereo jack (5)

♦ Connects to Rear Left, Rear Right inputs on

powered analog speakers or an external amplifier

for audio output.

PIN ANALOG OUT

1 (Tip) Rear Left

2 (Ring) Rear Right

3 (Sleeve ) Gnd

Optical Out Jack (6)

• Connect your recording devices with optical

connectors (for example, MiniDisc recorders,

digital audio tape recorders or external hard disk

recorders) to this jack

Optical In jack (7)

• Connect playback devices with optical connectors

(for example, MiniDisc players, Digital Audio

Tape players or DVD players) to this jack.

Analog Performance (Typical Values)

Reference signal is set at 1kHz

All the measurements are done at 24 bit 96KHz

sampling frequency.

Record & Playback Sampling Rates

Recording: 8.0 kHz

11.025 kHz

16.0 kHz

22.05 kHz

24.0 kHz

32.0 kHz

44.1 kHz

48.0 kHz

96.0 kHz

Playback: Any arbitrary

sampling rate <=

192kHz

Line_In Full Scale Input 2.0 Vrms

Line_Out Full Scale Output 2.0 Vrms

Microphone Full Scale Input

(without 20dB boost) 0.2 Vrms

Microphone Input Impedance > 4.0K ohms

Line_In Impedance 10K ohms

WAVE - LINE_OUT @ 2V

rms

, 1kHz

(Measured with bandlimited filter from 22Hz to 22kHz,

A-Wtg Filter; 20kHz lowpass filter)

Signal To Noise Ratio (SNR) 109 (typ) dB.

Total Harmonic Distortion +

Noise (THD+N) 0.004 (typ.) %

Power Consumption (typ.)

Vcc, nominal current 900 mA

+12V, nominal current 200 mA

-12V, nominal current 50 mA

Resolution

ADC & DAC 24 Bits

Temperature Range

Operating 10 °C to 50 °C

Non-Operating -40 °C to 65 °C

Confidential

Sound Blaster X-Fi

Model SB0770 / SB0772

Revision 1.2

This information is Confidential and Proprietary to Creative Technology Ltd. This information subject to change without prior notice.

Released by Product Marketing. Patent pending. July 2007

PDSB077007073100 Pg

7 of 7

DISCLAIMER

Products furnished by Creative are believed to be accurate and reliable. However, Creative

reserves the right to make changes in its sole discretion, at any time to the

productsDISCLAIMS ALL EXPRESS OR IMPLIED WARRANTIES FOR THE

PRODUCTS PROVIDED HEREUNDER, INCLUDING WITHOUT LIMITATION THE

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, NOR DOES IT MAKE ANY WARRANTY FOR ANY INFRINGEMENT OF

PATENTS OR OTHER RIGHTS OF THIRD PARTIES WHICH MAY RESULT FROM

THE PRODUCTS. Creative assumes no obligation to correct any errors contained in the

products provided hereunder or to advise users of the products of any correction if such be

made. Customers are advised to obtain the latest version of product specification, and

Creative makes no assurance that Creative’s products are appropriate for any application by

any particular customer. Creative products provided hereunder are subject to the restrictions

set forth in the accompanying NDA. Creative products are not intended for use in life

support applicances, devices, or systems. Use of Creative products for purposes other than

those set forth in the accompanying NDA without the written consent of an appropriate

Creative officer is prohibited.

International inquiries:

Creative Technology Ltd.

31, International Business Park

Creative Resource

Singapore 609921

Tel: +65 895 4000

Fax: +65 895 4050

Americas inquiries:

Creative Labs, Inc.

1901 McCarthy Boulevard

Milpitas, CA 95035

Tel: +1 (408) 428 6600

Fax: +1 (408) 428 2394

Creative Media K.K.

Kanda Eight Bldg. 3F

4-6-7 Soto-Kanda Chiyoda-Ku

Tokyo 101

Japan

Tel: +81 3 3256 5577

Fax: +81 3 3256 5547

European inquiries:

Creative Labs, UK

Unit 2, The Pavilions

Ruscombe Business Park

Ruscombe, Berkshire

RG10 9NN

ENGLAND

Tel: +44 118 934 4332

Fax:+44 118 982 8270
