SC-68

9.2 Channel THX

Ultra 2 Plus A/V Receiver featuring AIR Studio

Certiﬁed Class D

Ampliﬁcation, AirPlay

, DSD

music ﬁle playback, and

HDMI

Multi-Zone Conﬁguration

Class D3 AmplificAtion

››Channels:›9.2

››810›W›Multi›ch›Simultaneous›Drive›(1›kHz,›THD›1›%›@›8›ohms)

››250›W/ch›(1›kHz,›THD›1›%›@›4›ohms)

››190›W/ch›(1›kHz,›THD›1›%›@›6›ohms)

››140›W/ch›(1›kHz,›THD›0.08›%›@›8›ohms)

construction Design

››Advanced›Direct›Construction

››Rigid›Trans-Stabilizer

››Insulated›Dual›Chassis

››Aluminum›Chassis

››Gold›Plated›Inputs

››Ceramic›Speaker›Terminals

AuDio feAtures

››AIR›Studios›Monitor›Certiﬁcation

››THX®›Ultra›2›Plus

››Dolby®›TrueHD/Dolby›Pro›Logic®›IIz/Dolby›Digital®›Plus

››DTS-HD®›Master›Audio,›DTS-ES,›DTS®›Neo:X›-›9.1›Channel›Surround

››Digital›Core›Engine›with›Texas›Instruments›Aureus®›DSP

››Hi-bit32›(96kHz)›Audio›and›Jitter›reduction

››192›kHz/32-bit›DAC’s

››Digital›Filter›Slow›Mode›(192kHz)

››HDMI®›Audio›Return›Channel

››Pioneer›Advanced›MCACC®›Room›Calibration

› •›3D›Time›Axis›Measurement

› •›Polarity›Check

› •›Automatic›Crossover›Setting

› •›Reverb›Before›and›After›Calibration›Results›(OSD›or›AVNavigator)

› •›Standing›Wave›Control

››Pioneer›Sound›Enhancements

› •›Full›Band›Phase›Control›with›Front›Align

› •›PQLS›Bit-stream/Multi-Surround/2›ch›Audio

› •›Jitter›Reduction

› •›Advanced›Sound›Retriever/Auto›Sound›Retriever›for›ARC

› •›Sound›Retriever›AIR

› •›Sound›Retriever›Link

› •›Auto›Level›Control›(Multi-Channel)

› •›Advanced›Surround›(15+1›Modes)

› •›Virtual›Speakers›(Wide/Height/Surround›Back)

› •›Virtual›Depth

ViDeo feAtures

››4k2k›Passthrough

››3D›Ready›(Blu-ray›DiscTM,›Broadcast›and›Games)

››Deep›Color›(36-bit)›and›x.v.Color

››1080p/24fps›Scaler›with›Qdeo™

››Triple›HD›Noise›Reduction

››Advanced›Video›Adjustment

››Stream›Smoother/Stream›Smoother›Link

››Frame›Rate›Conversion›(60i/p›-›24p)

Home netWorK feAtures

››AirPlay›Wireless›Audio

››DLNA›Certiﬁed®›(1.5)

››Front›MHL®›Connect

››DSD›(SACD)›Playback›via›Front›USB›(A-Type)

››USB›DAC›via›Rear›USB›(B-Type)

››Compatible›with›Windows®›7

››Music›File›Playback›via›LAN/USB›(WAV,›MP3,›WMA,›AAC,›FLAC)

› › •›192›kHz/24-Bit›Audio›playback›(WAV,›FLAC)

››SiriusXM®›Internet›Radio*1

››Pandora®›Internet›Radio›(Service›available›in›the›U.S.›only)

›››vTuner®›Internet›Radio›

conVenience feAtures

››Digital›Audio›from›iPod®/iPhone®/iPad®›via›USB*2

››iControlAV2012›Remote›Control›App›Ready›(iOS/Android)*3

› •›AV›Receiver›and›Blu-ray›Disc›Player›Control›from›Smartphone

› › •›Sound›Explorer›(iOS/Android)

››Air›Jam›App›Ready›(iOS/Android)*3›(Optional›AS-BT200›adapter›required)

› › •›Share›music›and›create›playlists›via›Bluetooth›connection

››Wireless›LAN›Converter›Ready›(Optional›AS-WL300›required)

››Auto›Power›Down

››Power›Save›for›HDMI›Standby›Through

››AM/FM›Tuner›63›Presets

››Sleep›Timer

››Learning›Remote›Control›(Luminous)

››RF›Remote›Control›(CU-RF100-U)›Ready

custom

››Zone›2›AV›and›Zone›3›Analog›Audio›Out

››Zone›4›HDMI›Output

››Firmware›Update›via›Internet›or›USB

››Advanced›PC›Setup›for›CI›Integrator

››AVNavigator›for›easy›wiring›and›setup›(PC)

››Graphic›User›Interface›(GUI)›with›Album›Artwork›(HDMI›only)

››Detachable›Power›Cord

››RS232

›››IR›In›x›2,›IR›Out›x›1

››12v›Trigger›x›2

››11.2›Channel›Preouts›+›7.1›Ch›Main›Inputs

››Preout›Mode

››Zone›Volume,›Tone,›and›Balance

*1 Subscription required

*2 Dedicated cable included

*3 Available for download at no charge from iTunes® and Google PlayTM

connections

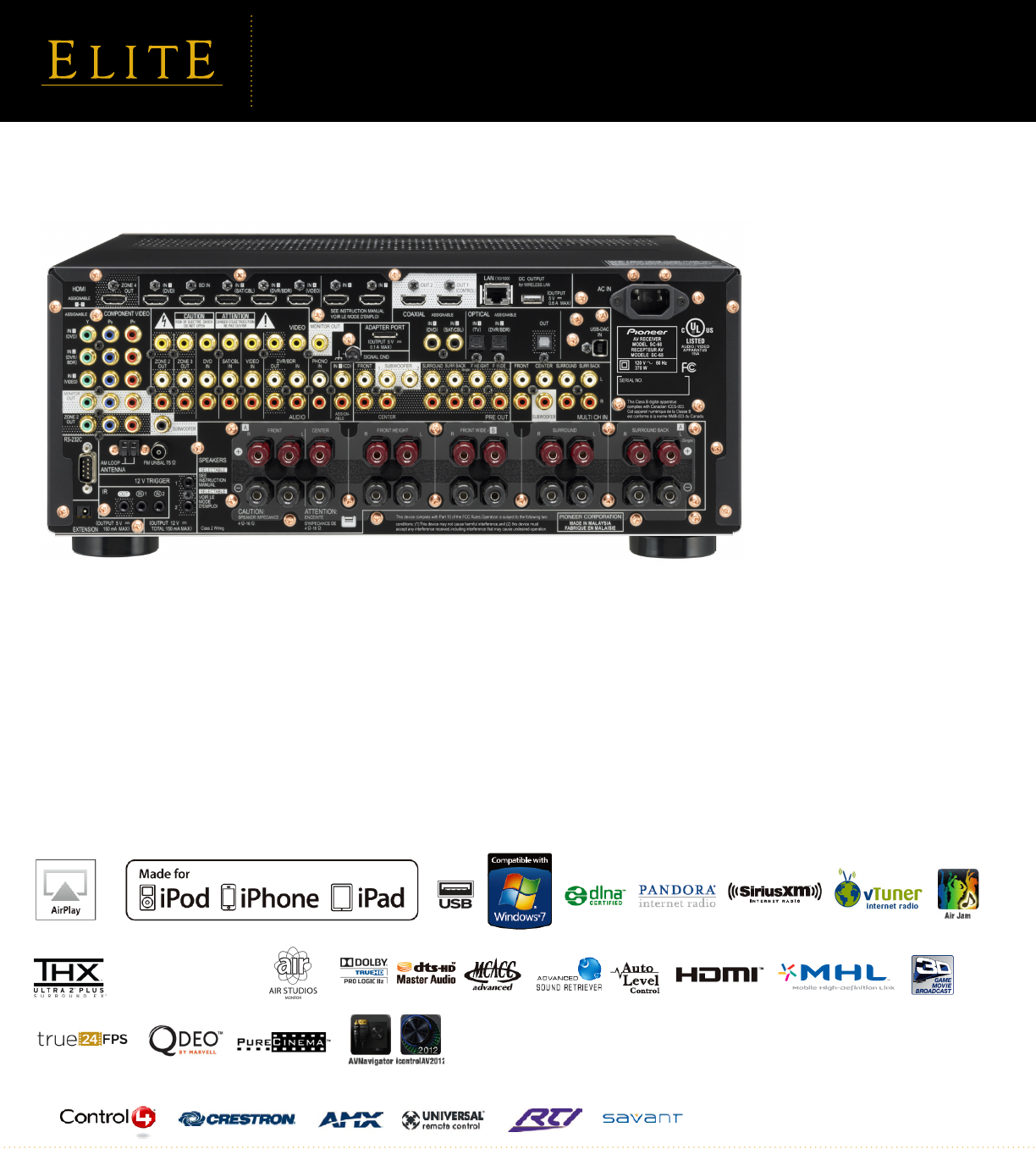

Rear Panel

proDuct specificAtions

›W x H x D: 17.13 x 7.28 x 17.36 (inches)

›Weight: 39.2 lbs

upc

›884938177689

integrAteD tecHnologies

cArton specificAtions

›W x H x D: 20.87 x 12.20 x 20.87 (inches)

›Weight: 45.86 lbs

poWer specificAtions

›Power Requirements: AC 120 V/60 Hz

›Estimated Power Consumption: 370 W

›Standby Power Consumption: 0.1 W Standby

Speciﬁcations and design subject to modiﬁcation without notice.

PIONEER and the Pioneer logo, MCACC and Advanced Sound Retriever are registered trademarks of Pioneer Corporation.

The impedances indicated are actual values that speakers can present to an ampliﬁer while playing back music. They do not refer to the nominal rated impedances of

speakers you use.

THX, the THX Logo and THX Select Ultra 2 Plus are trademarks of THX Ltd., which may be registered in some jurisdictions.

HDMI connection may not allow transmission of copyright protected material, depending on the capability of the signal source.

Microsoft, Windows Media, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation.

SIRIUS and related marks are trademarks of Sirius XM Radio Inc.

DTS and the DTS Symbol are registered trademarks of DTS, Inc.

Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect speciﬁcally to iPod, iPhone, or iPad,

respectively, and has been certiﬁed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or

its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod iPhone, or iPad may affect wireless performance.

Apple, AirPlay, the AirPlay logo, iPhone, iPad, iPod and iPod touch are registered trademarks of Apple Inc., registered in the U.S. and other countries. AirPlay works

with iPhone 4S, iPhone 4, iPhone 3GS, iPod touch (4th, 3rd and 2nd generations), iPad 2, iPad with iOS 4.2 or later, and iTunes 10.1 (Mac and PC) or later.

DLNA, the DLNA Logo and DLNA Certiﬁed are trademarks, service marks, or certiﬁcation marks of the Digital Living Network Alliance.

Pandora INTERNET Radio is a registered trademark of Pandora Media, Inc.

Blu-ray Disc is a registered trademark of the Blu-ray Disc Association.

“x.v.Color” is a trademark of Sony Corporation.

Qdeo is a trademark of Marvell World Trade, Ltd.

vTuner is a registered trademark of Noting Else Matters Software, Ltd.

Phase Control is a trademark placed on a product with Pioneer’s Phase Control Technology concept. The technology enables high-grade sound reproduction environ-

ment by improving the phase matching for each of the components.

MHL, the MHL logo, Mobile High-Deﬁnition Link, are trademarks or registered trademarks in the United States and/or other countries and are used under license from

MHL, LLC.

The AIR Studios logo is a trademark of AIR Studios, Inc.

Control4 and the Control4 logo are registered trademarks of Control4 Corporation.

Crestron and the Crestron logo are registered trademark of Crestron Electronics, Inc.

AMX and the AMX logo are trademarks of AMX, LLC registered in the U.S. and other countries.

Universal Remote Control logo is a registered trademark of Universal Remote Control, Inc.

RTI logo is a registered trademark of Remote Technologies Incorporated.

Savant Logo is a registered trademark of Savant Systems, LLC.

For details on iPod compatibility, visit http://pioneer.jp/homeav/support/ios/na/

reAr terminAls

››HDMI›7›In›(6›assignable)/3›Out›(1›for›zone›4)

››Ethernet›1›In

››AV›(Composite)›4›In/1›Out

››Audio›1›In›(assignable)

››Phono›(MM)›1›In

››Digital›Coaxial›2›In›(assignable)

››Digital›Optical›2›In›(assignable)/1›Out

››USB-DAC›In›(B-Type)

››Component›Video›3›In›(assignable)

››Monitor›Component›1›Out/Monitor›

Composite›1›Out

››Preout›9.1›ch›(11.2›ch›terminals)

››Multi-ch›In›(7.1›ch)

››Speaker›11›ch›Out›(SB/FH/FW/B,›FH›or›

FW/B›assignable)

››Bluetooth›Adapter›Port›for›AS-BT200

››USB›Charge›Port›for›AS-WL300›Wireless›

Converter

››IR›2›In/1›Out

››12›V›Trigger›x›2/RS-232C

››ZONE›4›HDMI›for›Audio›and›Video

››ZONE›3›AV›(Composite),›Volume›and›

Balance

››ZONE›2›AV›(Composite),›Component,›

Subwoofer,›Volume,›Balance›and›Tone

front terminAls

››HDMI›1›In›(assignable/MHL)

››USB/iPod›Video›In

››MCACC›Setup›MIC›In

››Headphone›Out
