RRV3932 SC9540

User Manual: SC9540

Open the PDF directly: View PDF PDF.
Page Count: 235 [warning: Documents this large are best viewed by clicking the View PDF Link!]

ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION
2009
2009 Printed in Japan
SC-27
RRV3932
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
SC-27
SC-25
SC-9540
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model Type Power Requirement Remarks
SC-27 CUXJCA AC 120 V
SC-25 CUXJCA AC 120 V
SC-9540 CUXJCA AC 120 V
For details, refer to "Important Check Points for good servicing".
T-ZZV JUNE
2SC-27
12 3 4
A
B
C
D
E
F
12 3 4
SAFETY INFORMATION
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.

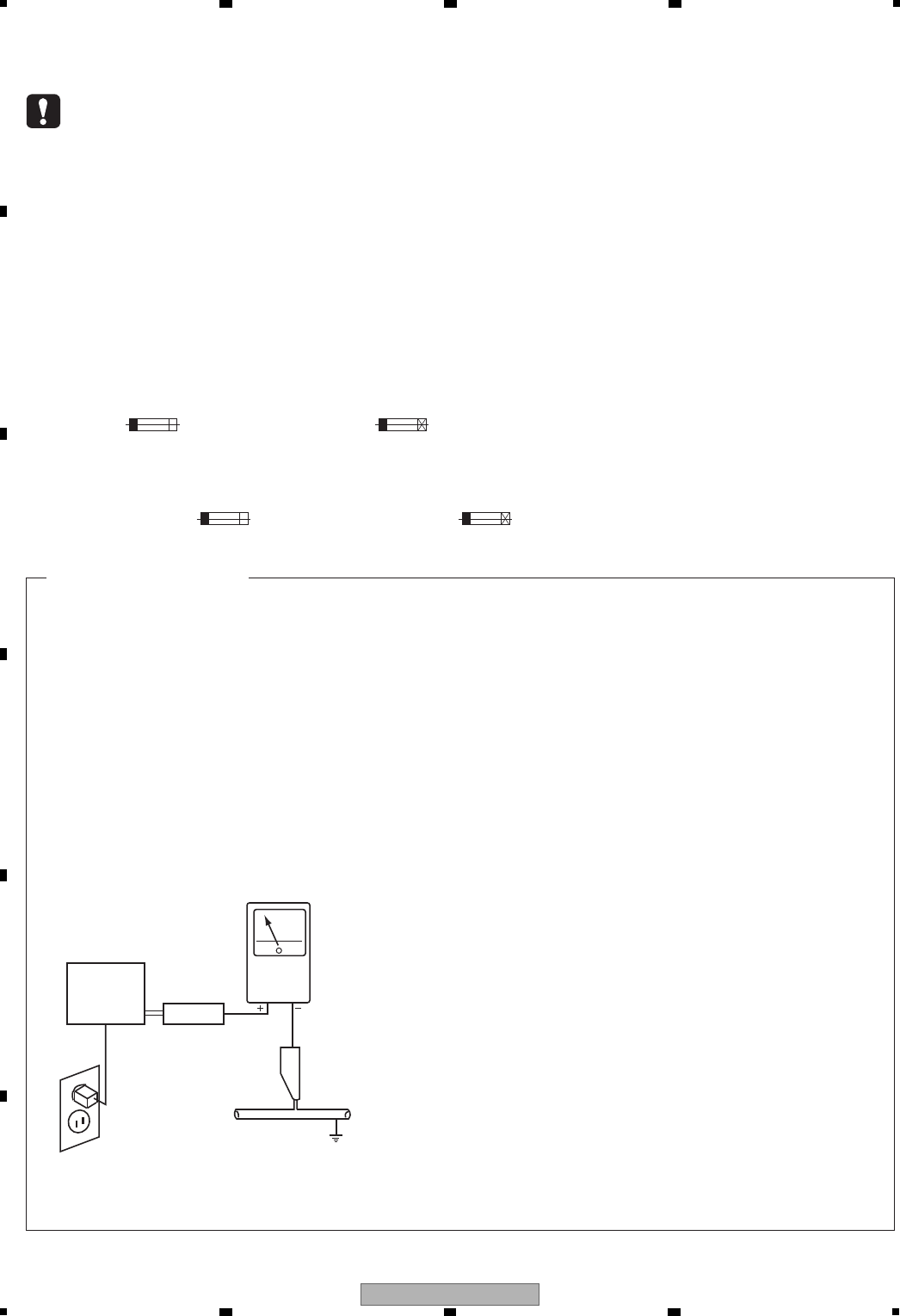

LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL
SHOCK HAZARD AND MUST BE CORRECTED BEFORE
RETURNING THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the protection
afforded by them necessarily can be obtained by using
replacement components rated for voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this Service Manual.
Electrical components having such features are
identified by marking with a > on the schematics and on
the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER Service
Manual. A subscription to, or additional copies of,
PIONEER Service Manual may be obtained at a nominal
charge from PIONEER.
Leakage
current
tester
Reading should
not be above
0.5 mA
Device
under
test
Test all
exposed metal
surfaces
Also test with
plug reversed
(Using AC adapter
plug as required)
Earth
ground
AC Leakage Test
(FOR USA MODEL ONLY)
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must
be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces
de remplacement doivent avoir la même désignation.
This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
3
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
[Important Check Points for Good Servicing]
In this manual, procedures that must be performed during repairs are marked with the below symbol.
Please be sure to confirm and follow these procedures.
1. Product safety
Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by
following the safety instructions described in this manual.
1 Use specified parts for repair.
Use genuine parts. Be sure to use important parts for safety.
2 Do not perform modifications without proper instructions.
Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as
radio/TV interference and foreign noise.
3 Make sure the soldering of repaired locations is properly performed.
When you solder while repairing, please be sure that there are no cold solder and other debris.
Soldering should be finished with the proper quantity. (Refer to the example)
4 Make sure the screws are tightly fastened.
Please be sure that all screws are fastened, and that there are no loose screws.
5 Make sure each connectors are correctly inserted.
Please be sure that all connectors are inserted, and that there are no imperfect insertion.
6 Make sure the wiring cables are set to their original state.
Please replace the wiring and cables to the original state after repairs.
In addition, be sure that there are no pinched wires, etc.
7 Make sure screws and soldering scraps do not remain inside the product.
Please check that neither solder debris nor screws remain inside the product.
8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord.
Damaged power cords may lead to fire accidents, so please be sure that there are no damages.
If you find a damaged power cord, please exchange it with a suitable one.
9 There should be no spark traces or similar marks on the power plug.
When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure
connections and suitable usage. Please exchange the power cord if necessary.
a Safe environment should be secured during servicing.
When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries.
Please pay attention to your surroundings and repair safely.
2. Adjustments
To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification.
Adjustments should be performed in accordance with the procedures/instructions described in this manual.
4. Cleaning
For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper
cleaning should be performed to restore their performances.
3. Lubricants, Glues, and Replacement parts
Use grease and adhesives that are equal to the specified substance.
Make sure the proper amount is applied.
5. Shipping mode and Shipping screws
To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be
installed before shipment. Please be sure to follow this method especially if it is specified in this manual.
4SC-27
12 3 4
A
B
C
D
E
F
12 3 4
CONTENTS
SAFETY INFORMATION ..........................................................................................................................................................2
1. SERVICE PRECAUTIONS ....................................................................................................................................................6
1.1 NOTES ON SOLDERING ...............................................................................................................................................6
1.2 NOTES ON REPLACING PARTS ...................................................................................................................................6
1.3 CAUTION ........................................................................................................................................................................6
1.4 NOTES ON ASSEMBLING .............................................................................................................................................7
1.5 NOTES ON BENDING SHIELD FFC ..............................................................................................................................8
2. SPECIFICATIONS .................................................................................................................................................................9
2.1 SPECIFICATIONS...........................................................................................................................................................9

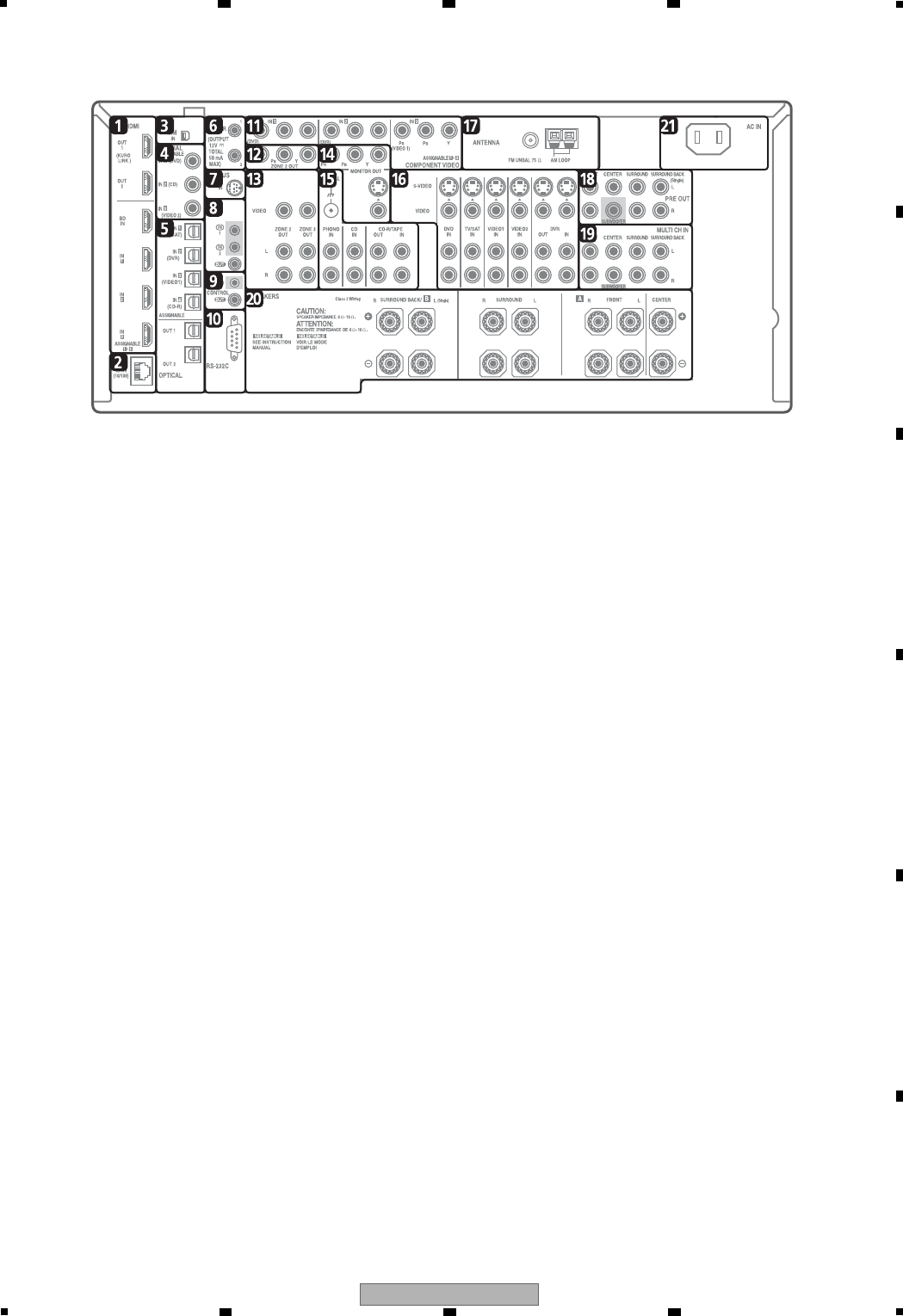

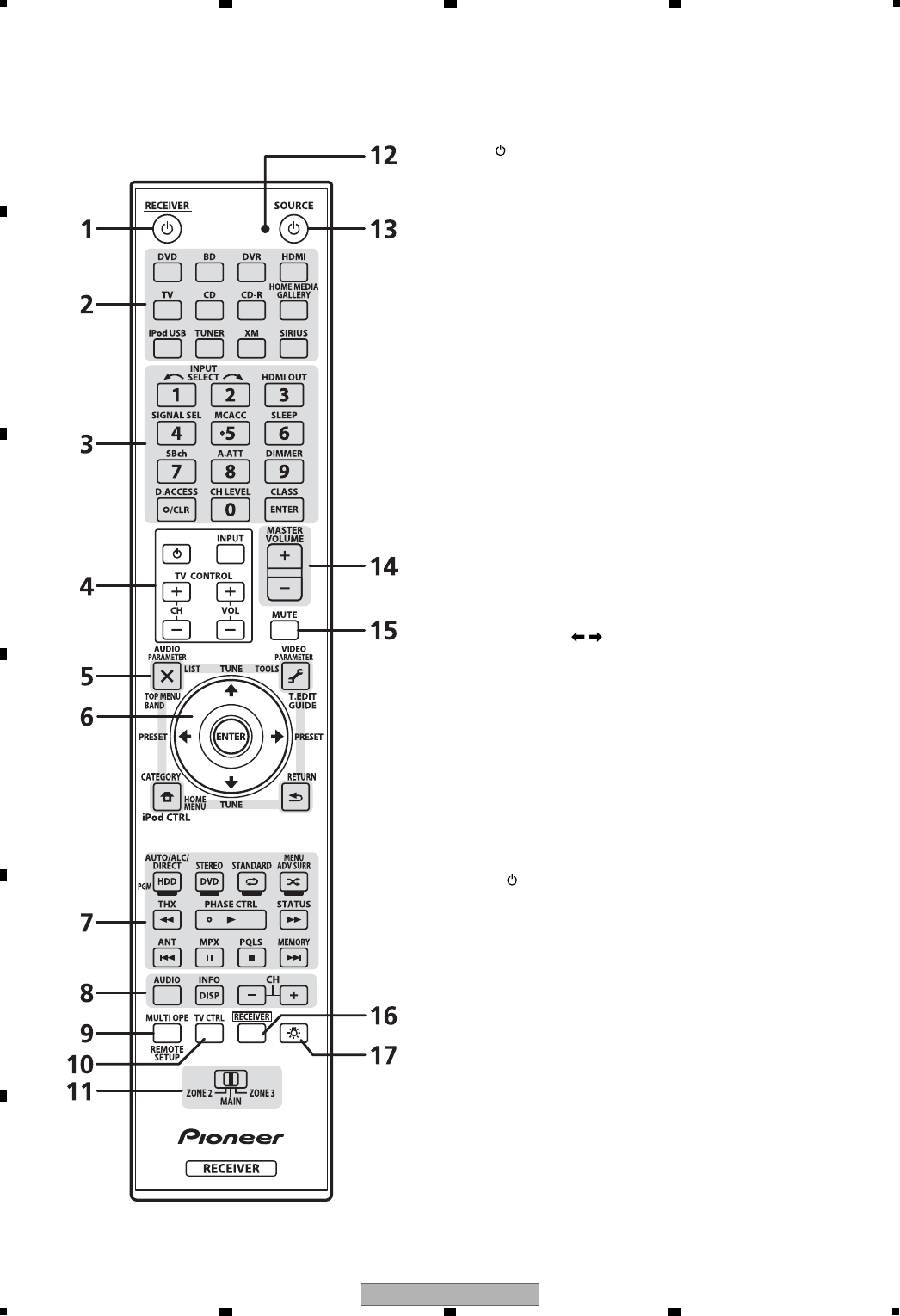

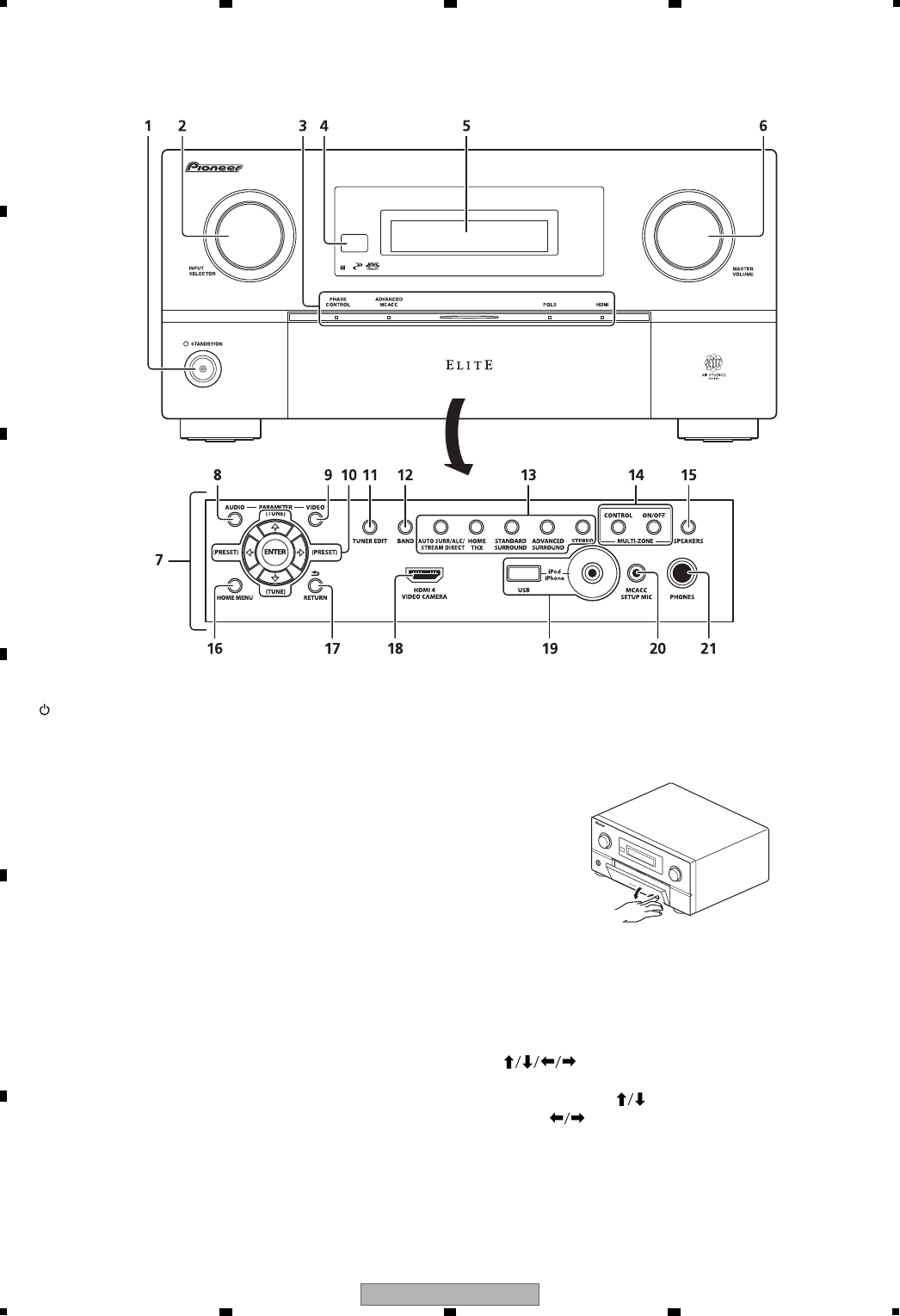

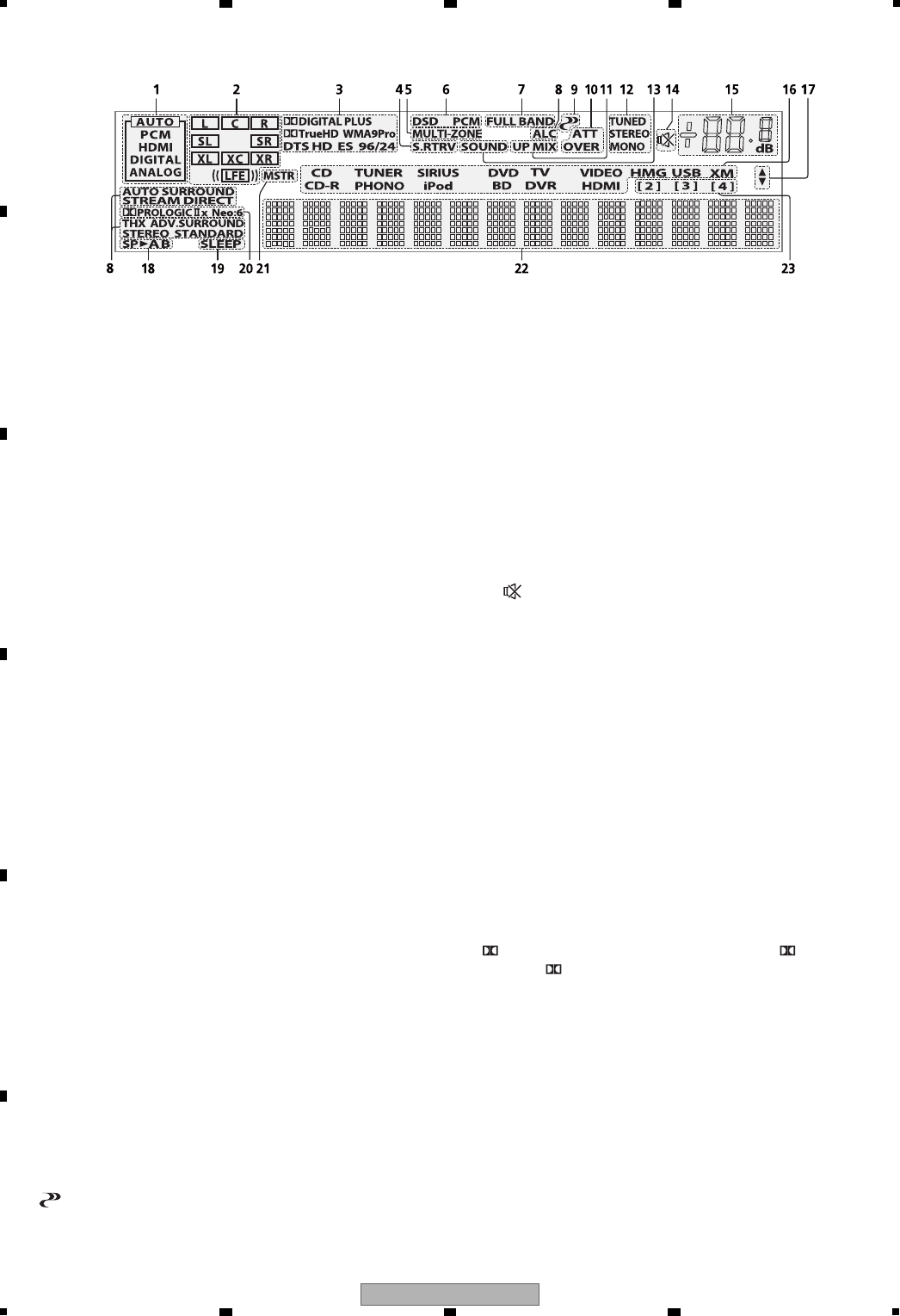

2.2 PANEL FACILITIES .......................................................................................................................................................10
3. BASIC ITEMS FOR SERVICE.............................................................................................................................................18
3.1 CHECK POINTS AFTER SERVICING..........................................................................................................................18

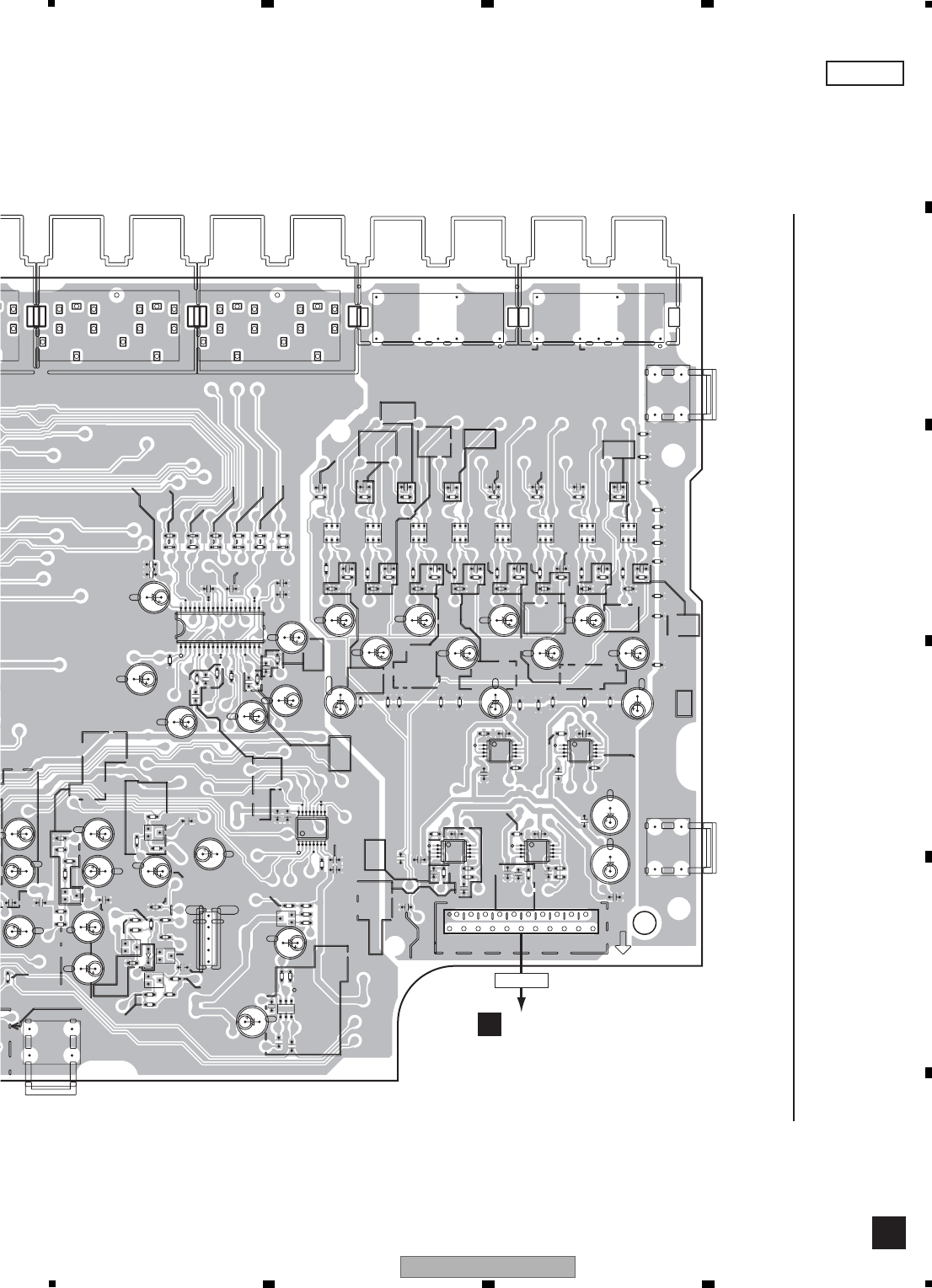

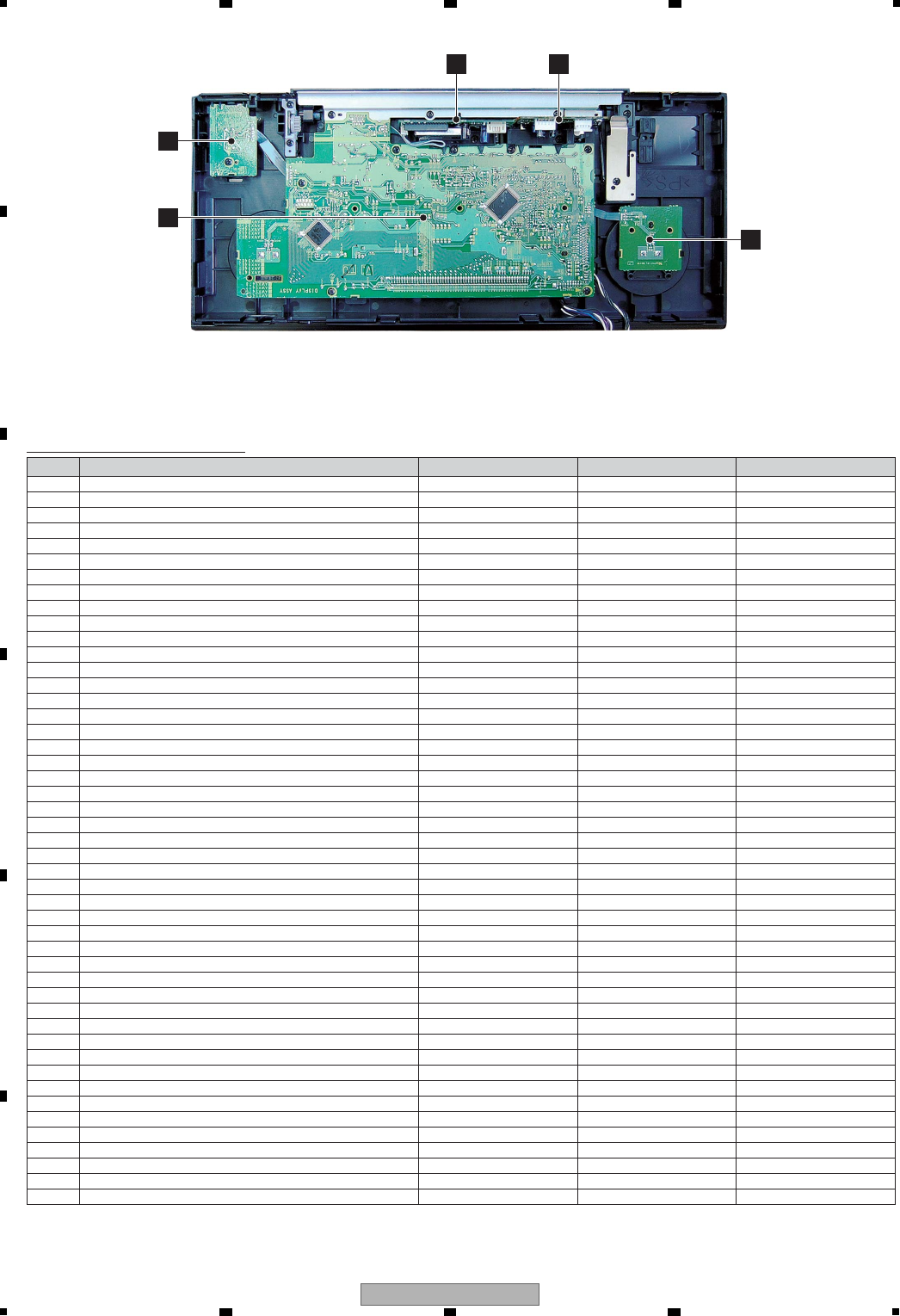

3.2 PCB LOCATIONS .........................................................................................................................................................19
3.3 JIGS LIST......................................................................................................................................................................21

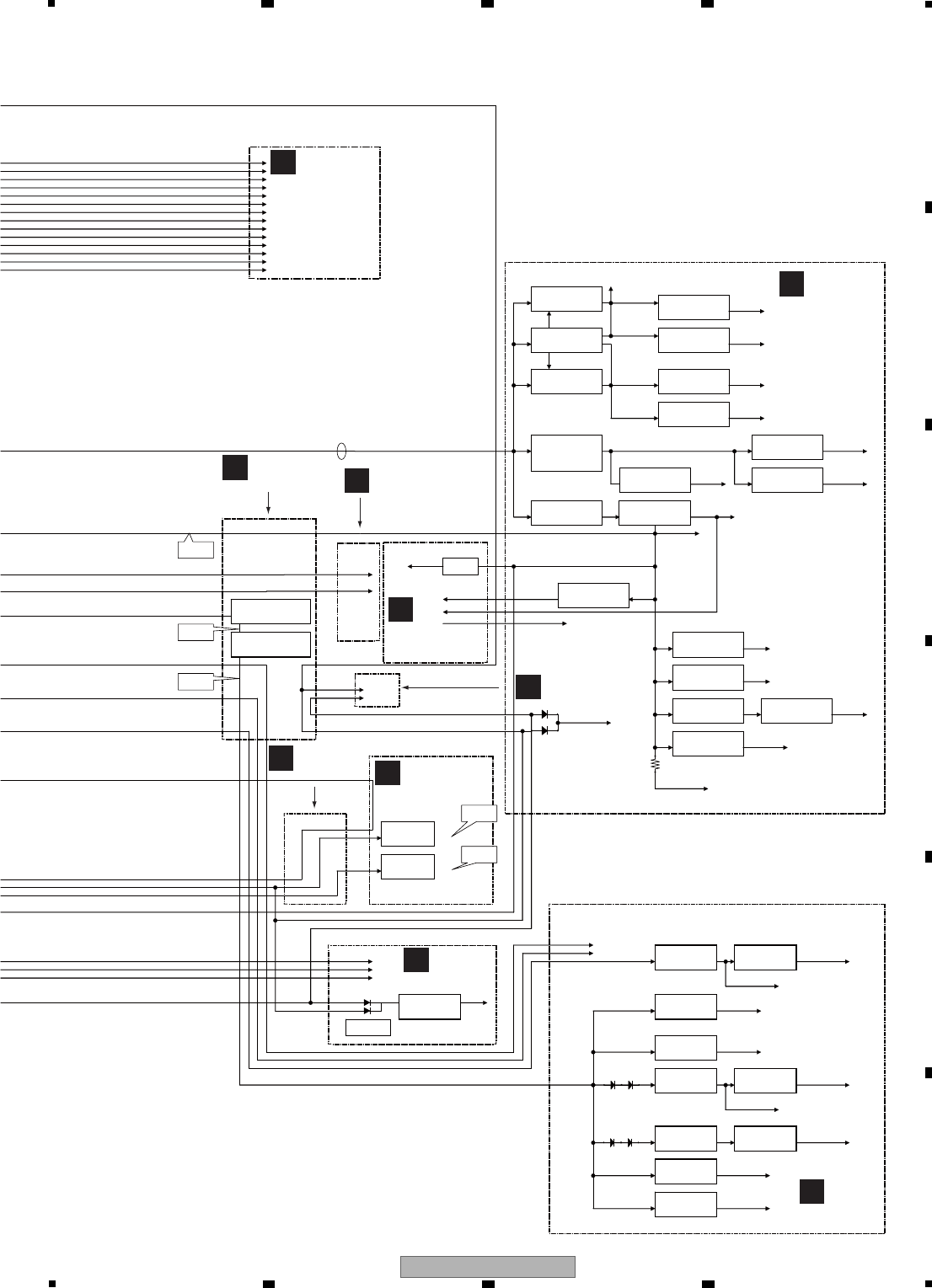

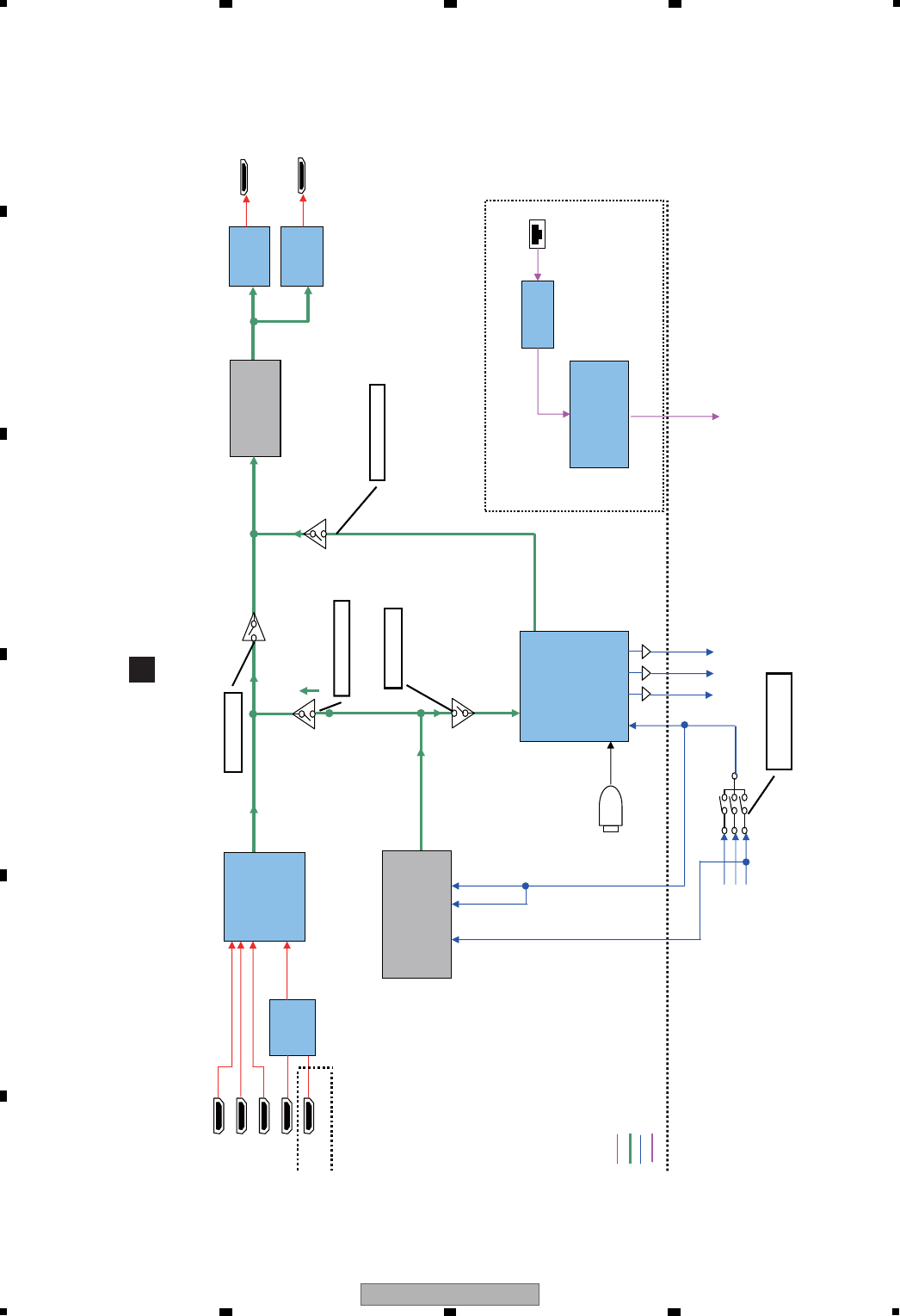

4. BLOCK DIAGRAM...............................................................................................................................................................22

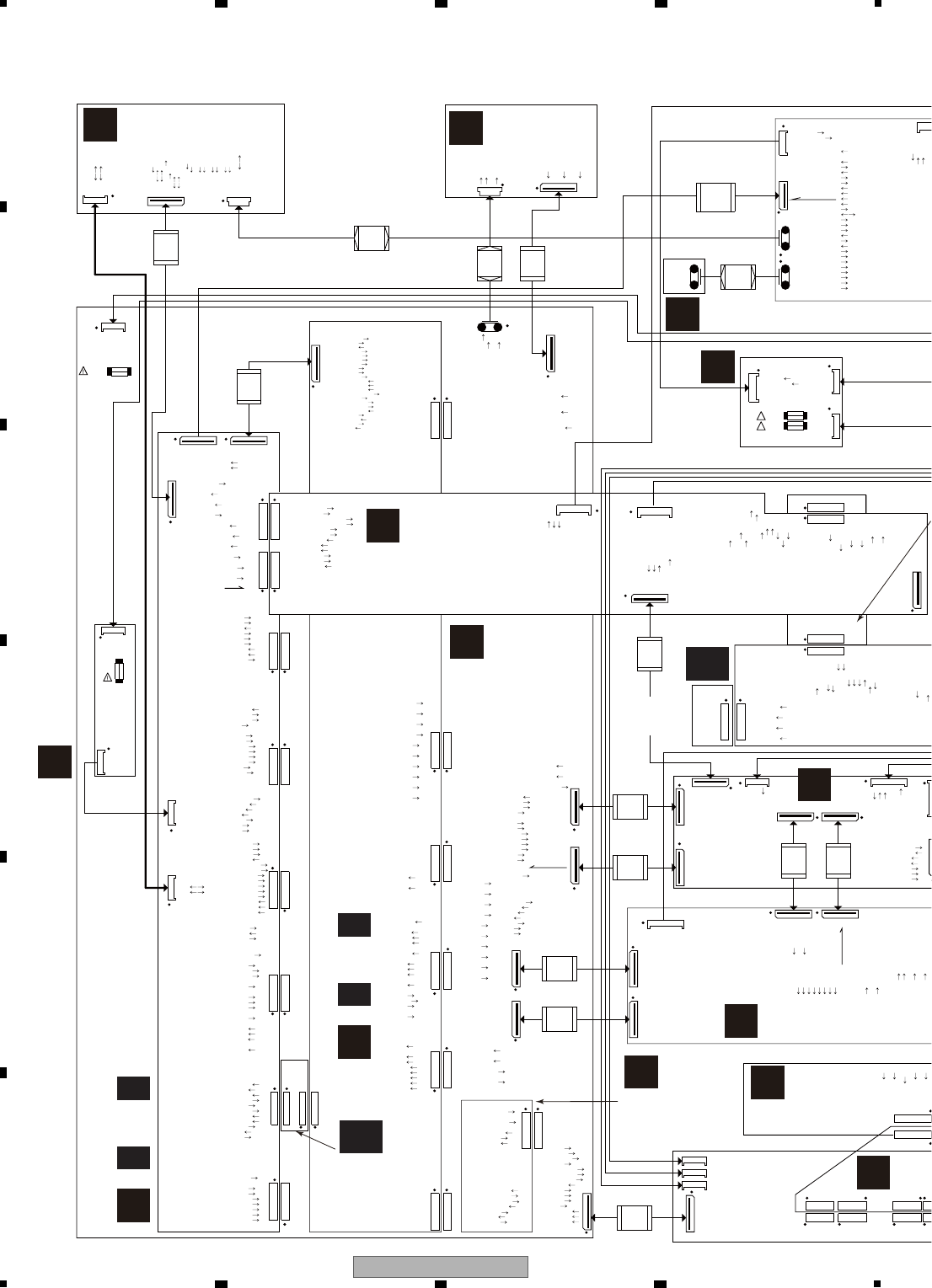

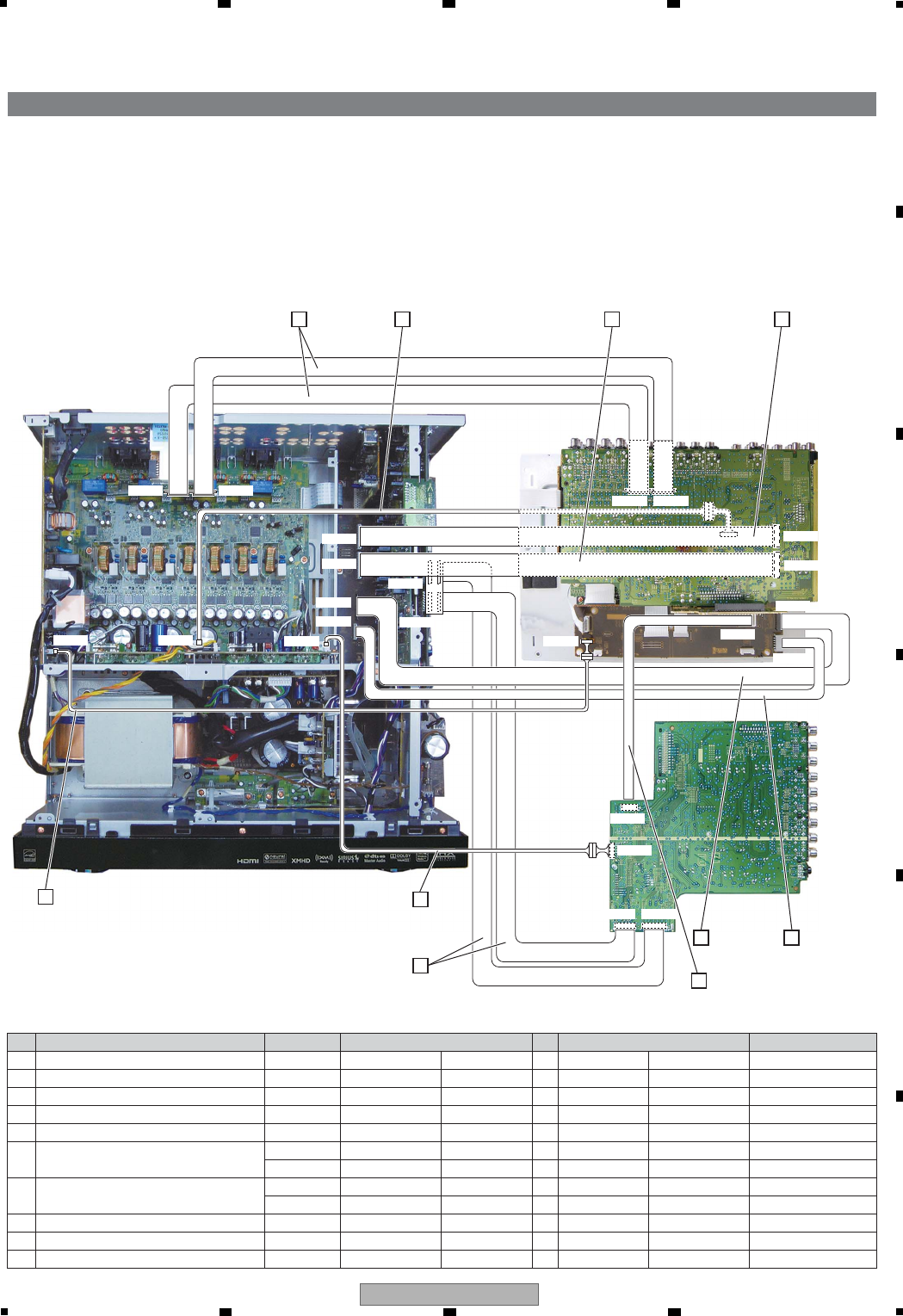

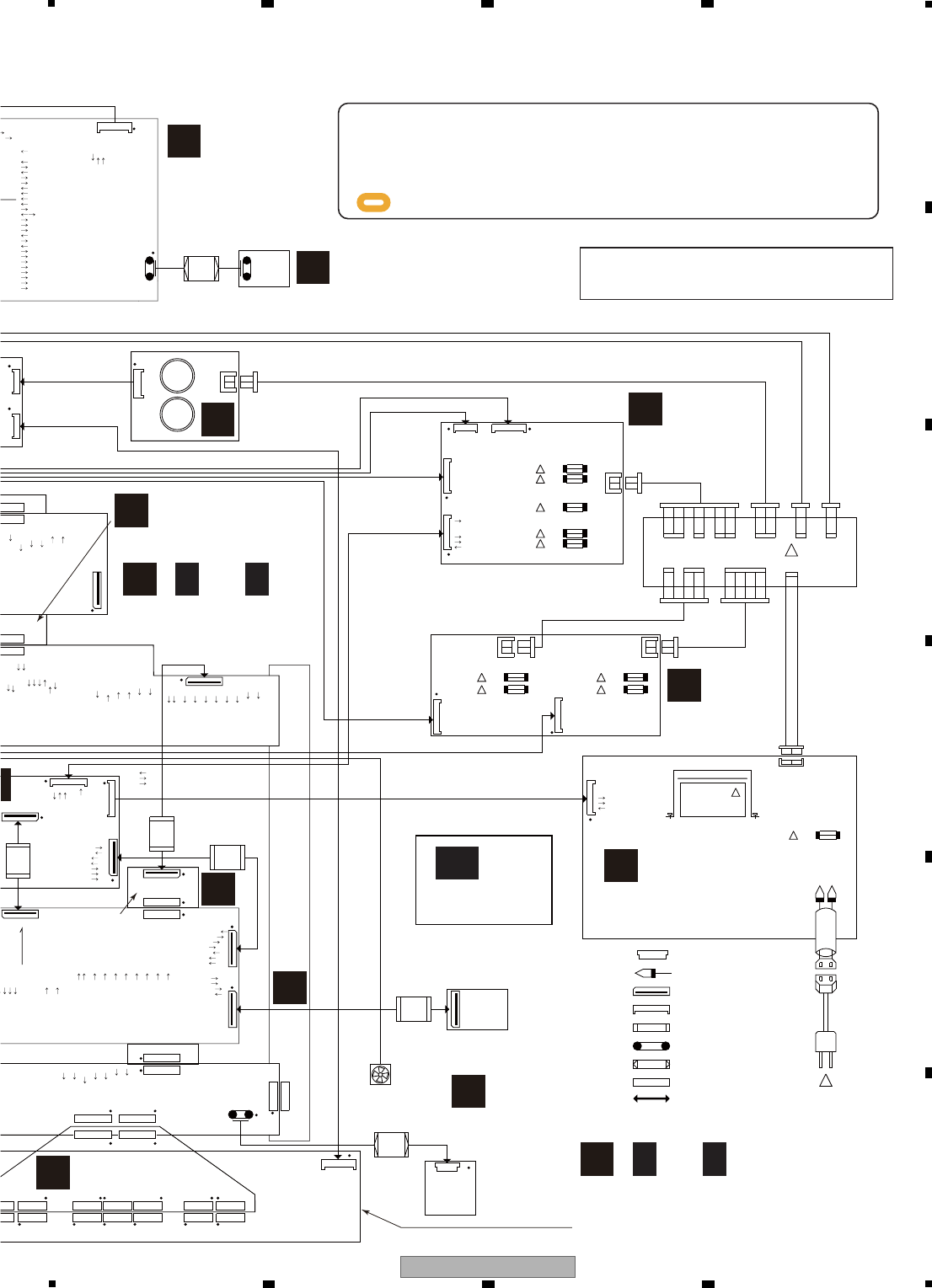

4.1 OVERALL WIRING DIAGRAM......................................................................................................................................22
4.2 BLOCK DIAGRAM FOR AUDIO BLOCK ......................................................................................................................24
4.3 BLOCK DIAGRAM FOR DIGITAL VIDEO AND NW AUDIO .........................................................................................26
4.4 BLOCK DIAGRAM FOR ANALOG VIDEO BLOCK (1/4)..............................................................................................27
4.5 BLOCK DIAGRAM FOR ANALOG VIDEO BLOCK (2/4)..............................................................................................28
4.6 BLOCK DIAGRAM FOR ANALOG VIDEO BLOCK (3/4)..............................................................................................29
4.7 BLOCK DIAGRAM FOR ANALOG VIDEO BLOCK (4/4)..............................................................................................30
4.8 BLOCK DIAGRAM FOR U-COM BLOCK .....................................................................................................................31
4.9 BLOCK DIAGRAM FOR POWER BLOCK ....................................................................................................................32
5. DIAGNOSIS.........................................................................................................................................................................34

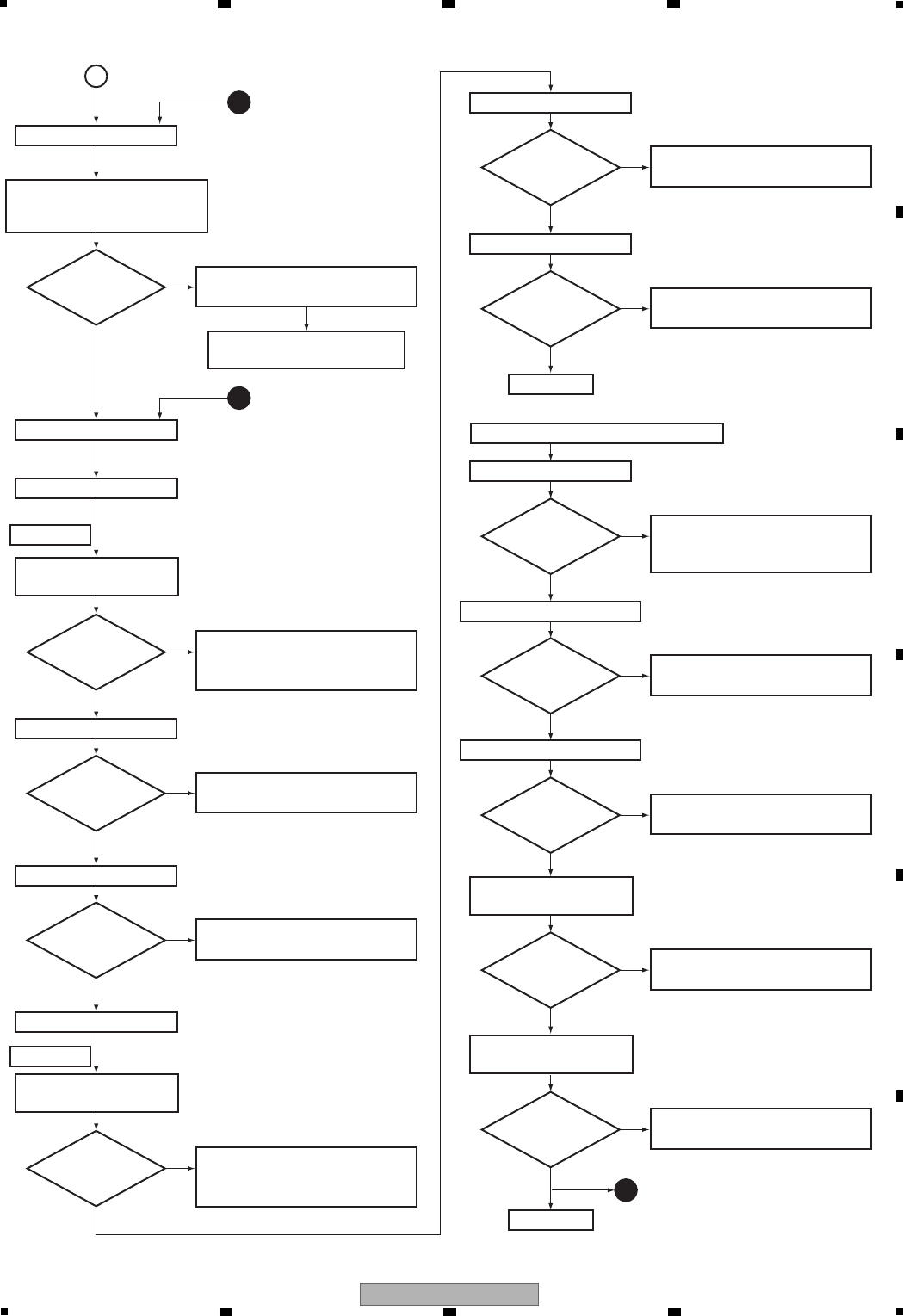

5.1 DIAGNOSIS FLOWCHART...........................................................................................................................................34
5.2 CIRCUIT DESCRIPTION ..............................................................................................................................................50
6. SERVICE MODE .................................................................................................................................................................58
6.1 TEST MODE .................................................................................................................................................................58

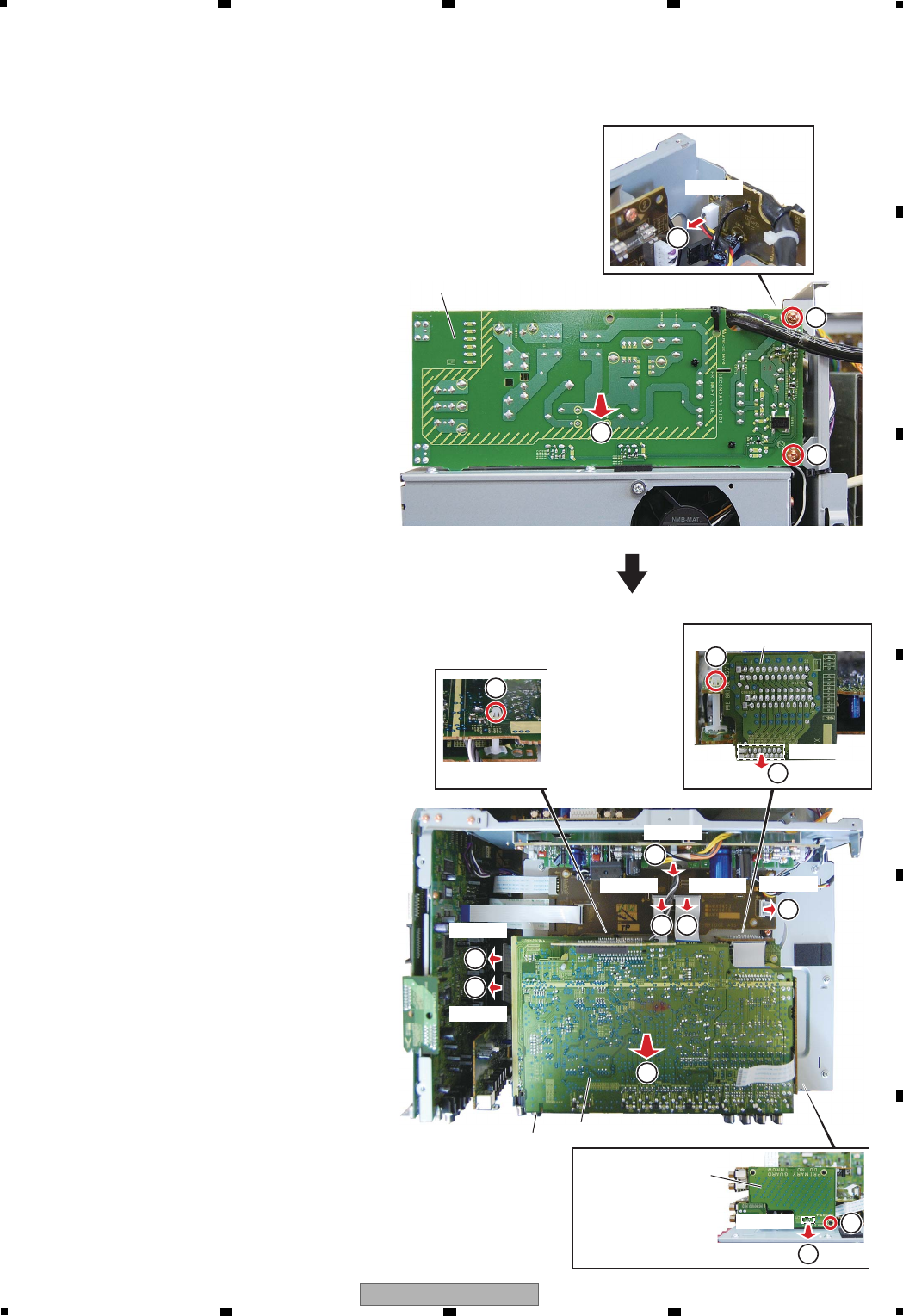

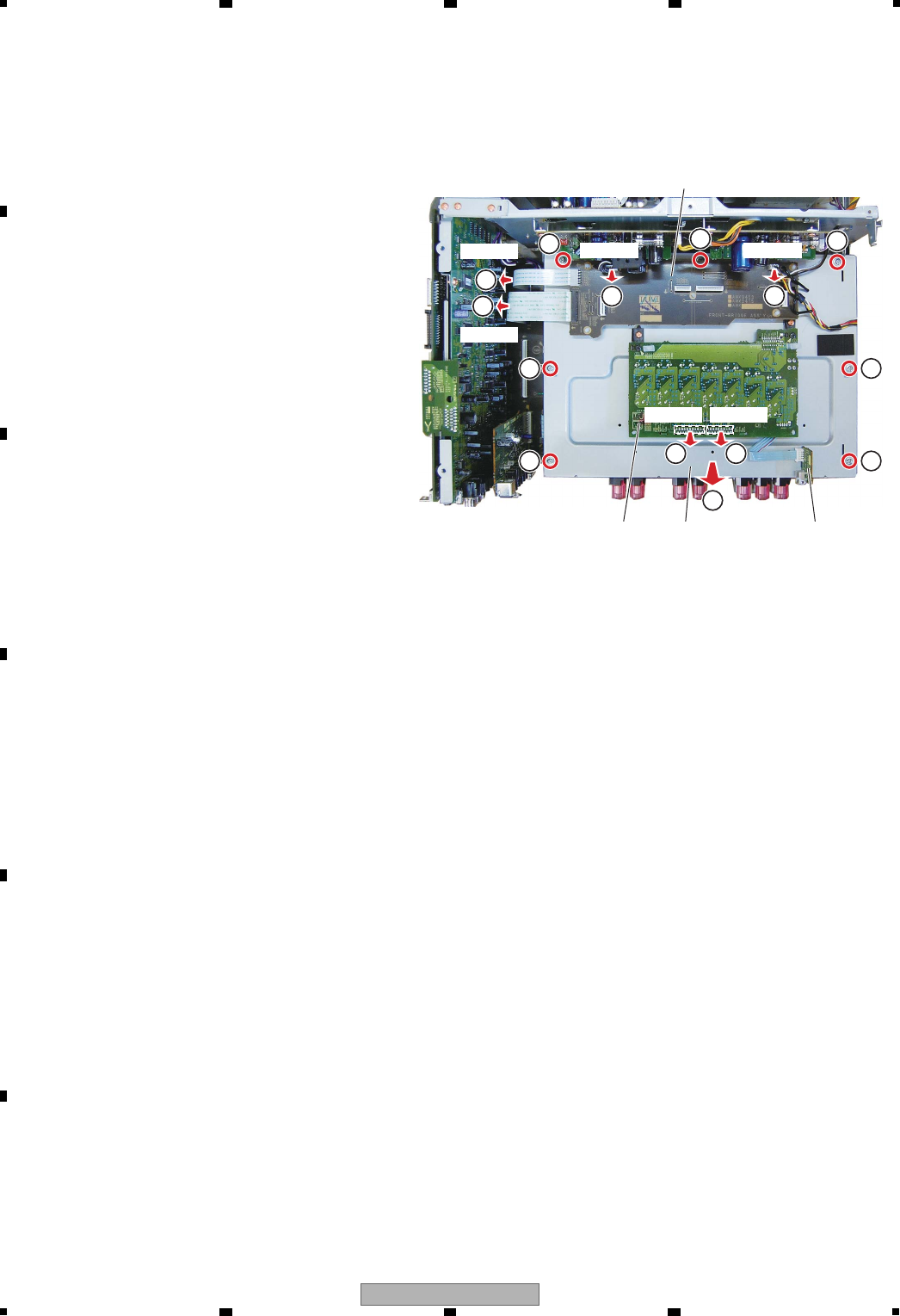

7. DISASSEMBLY....................................................................................................................................................................60
8. EACH SETTING AND ADJUSTMENT ................................................................................................................................66

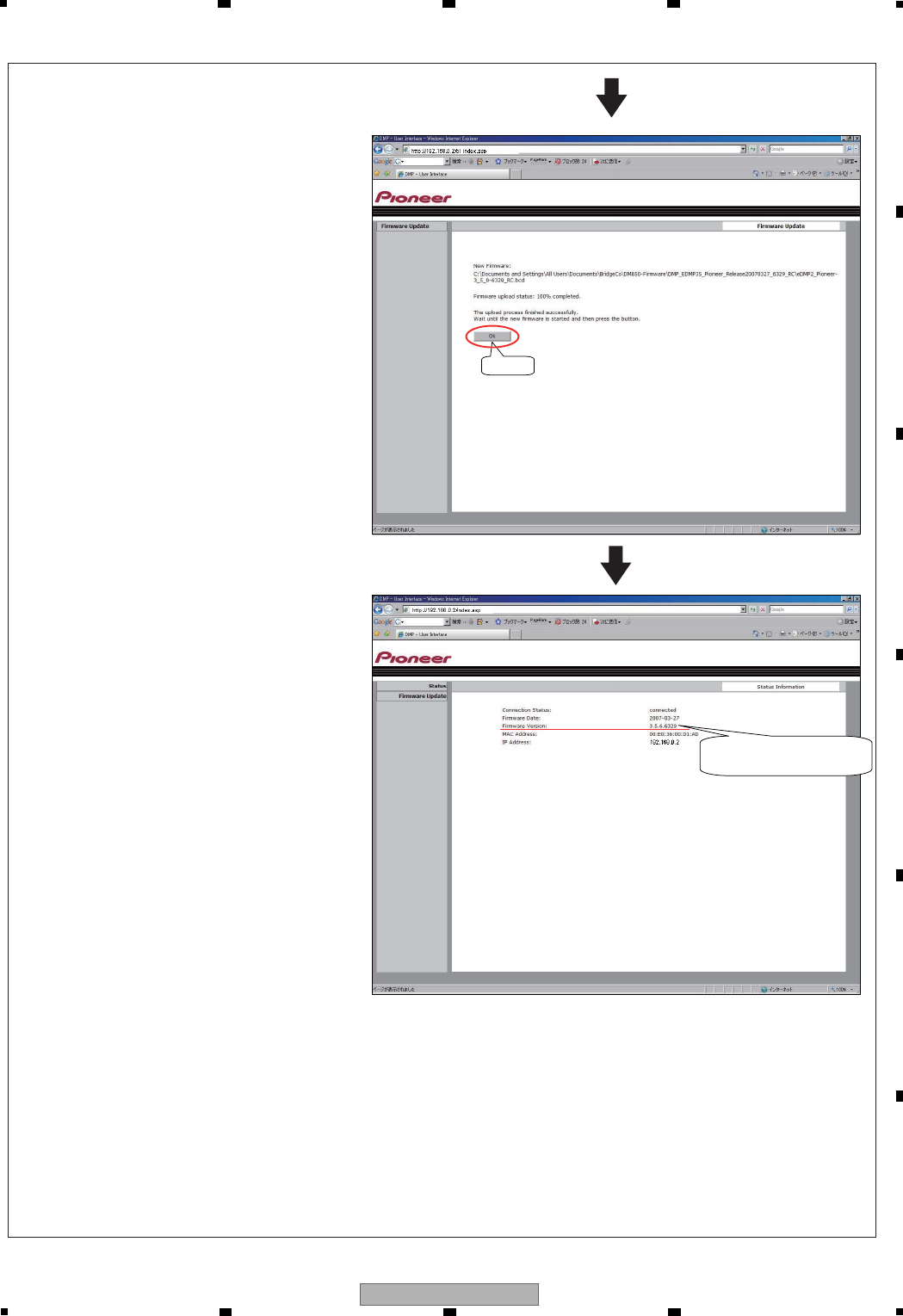

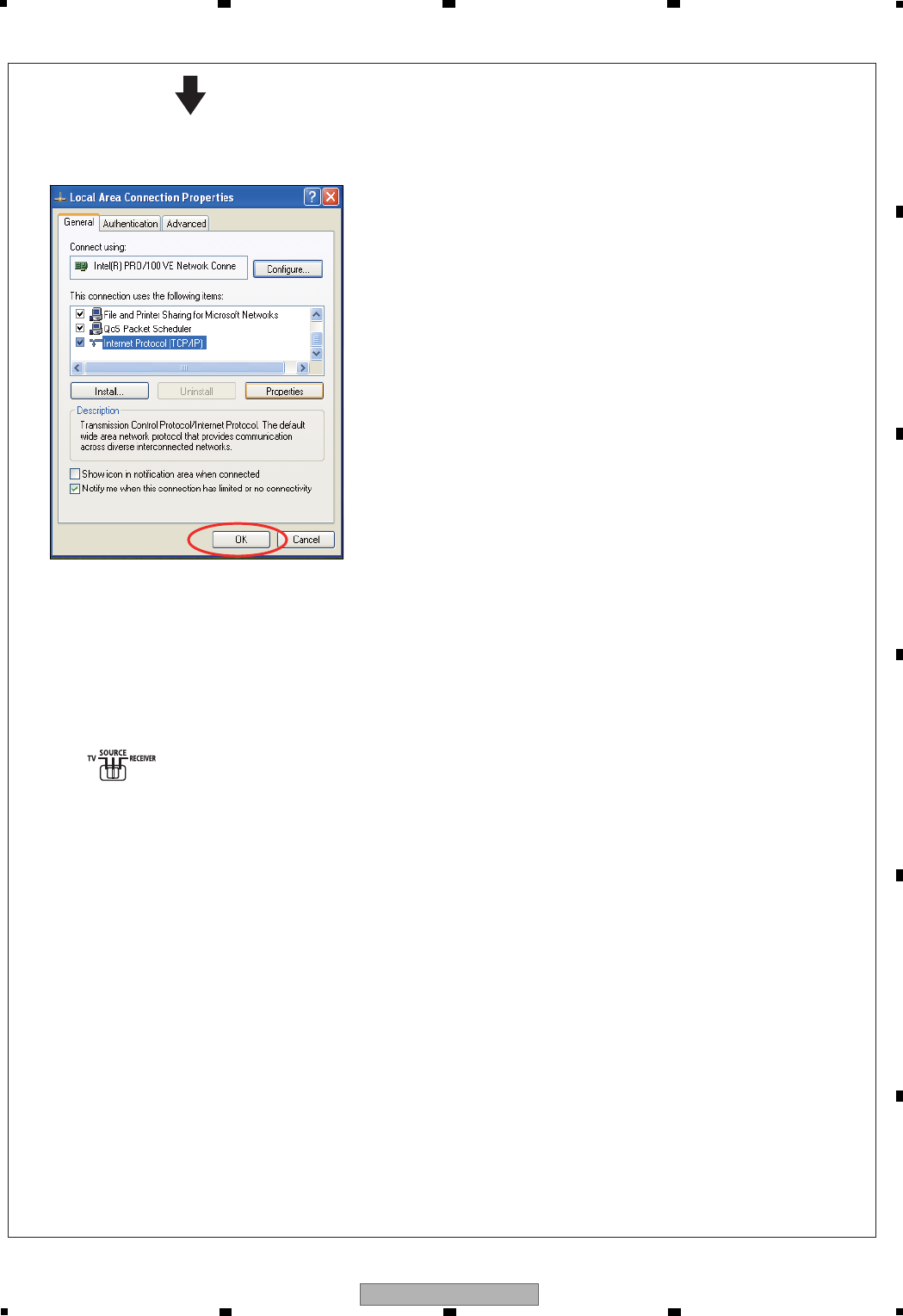

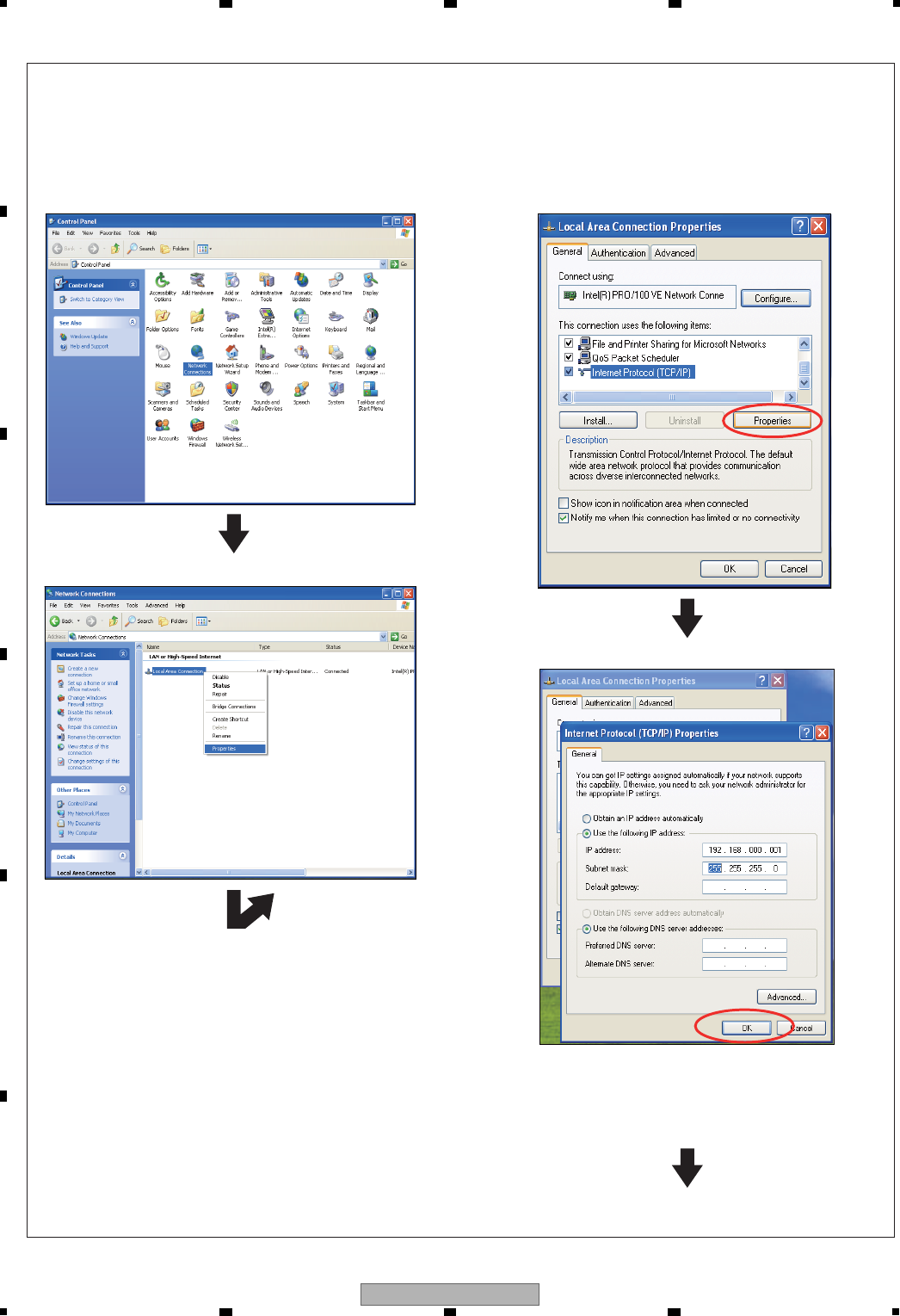

8.1 HOW TO UPDATE FIRMWARE ....................................................................................................................................66
9. EXPLODED VIEWS AND PARTS LIST...............................................................................................................................76

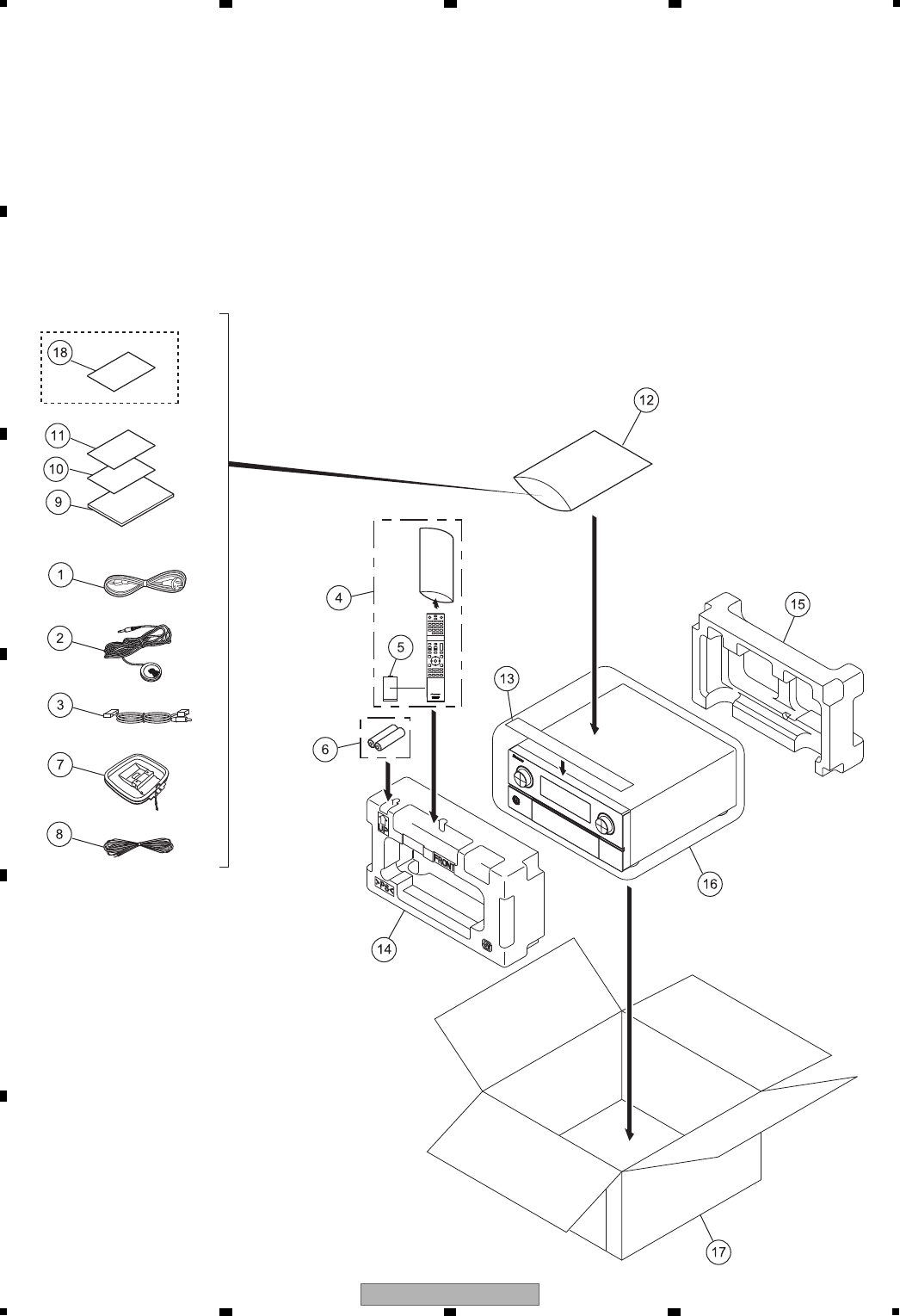

9.1 PACKING SECTION......................................................................................................................................................76

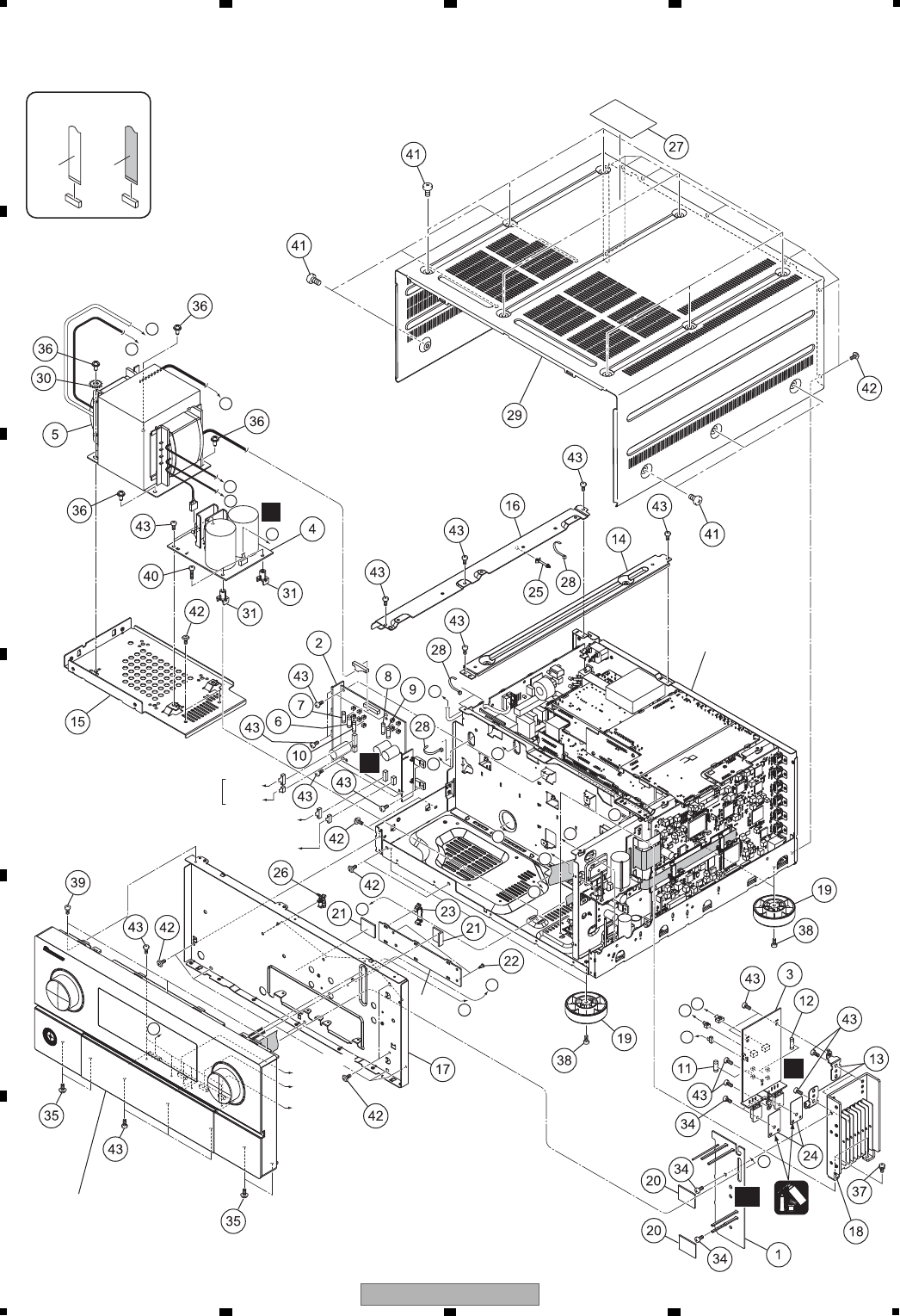

9.2 EXTERIOR SECTION...................................................................................................................................................78
9.3 REAR SECTION ...........................................................................................................................................................80

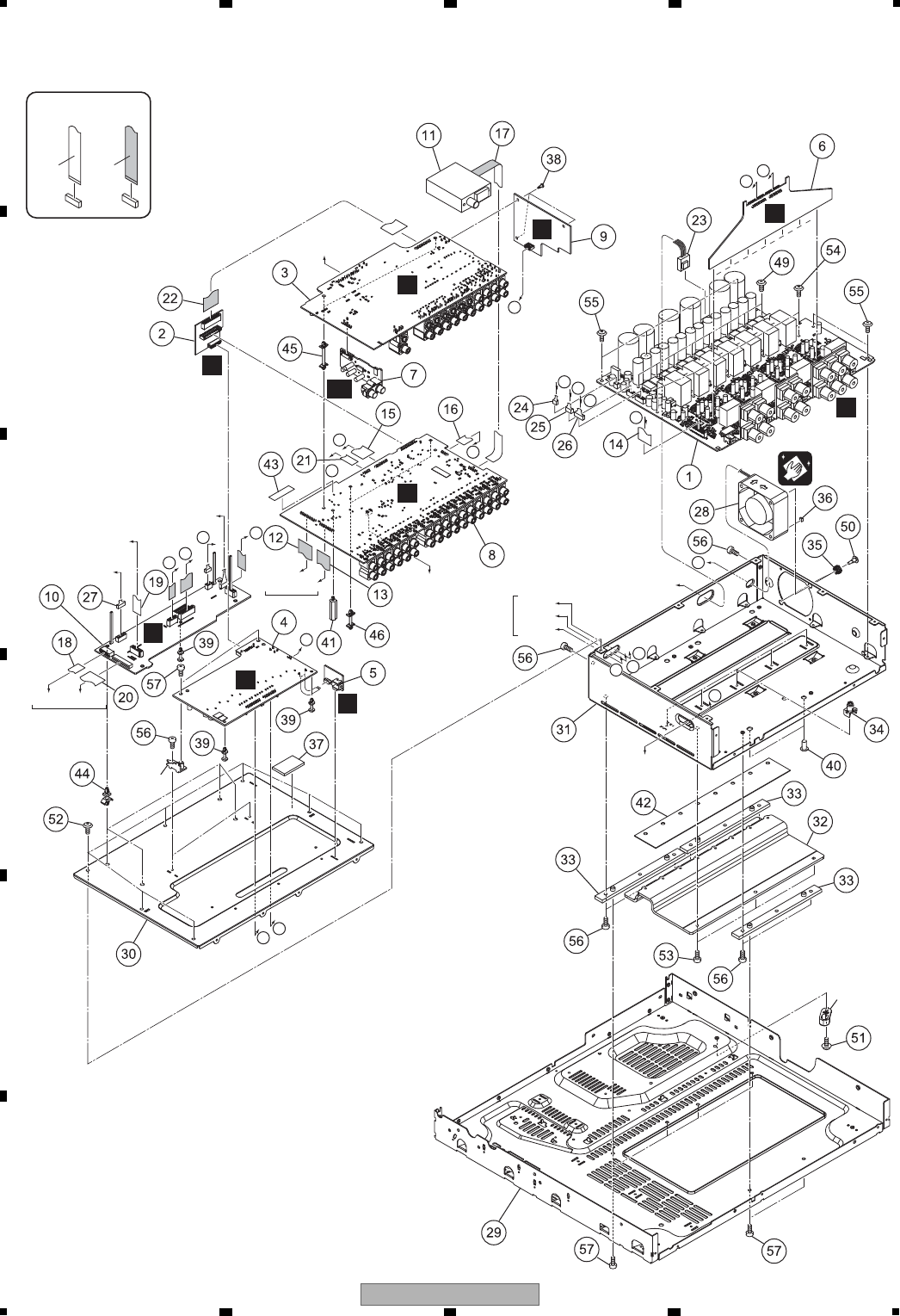

9.4 CHASSIS SECTION .....................................................................................................................................................82

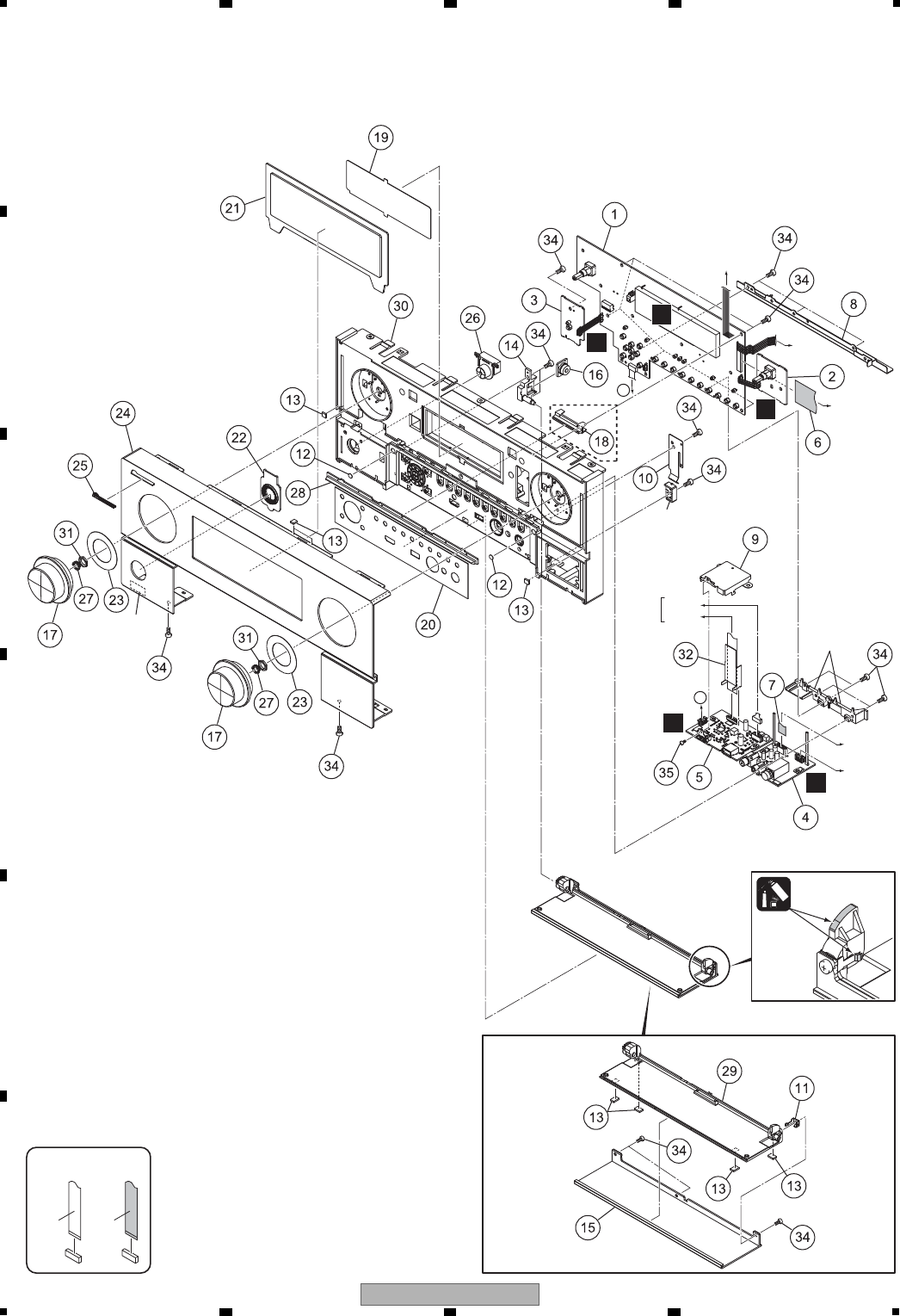

9.5 FRONT SECTION.........................................................................................................................................................84

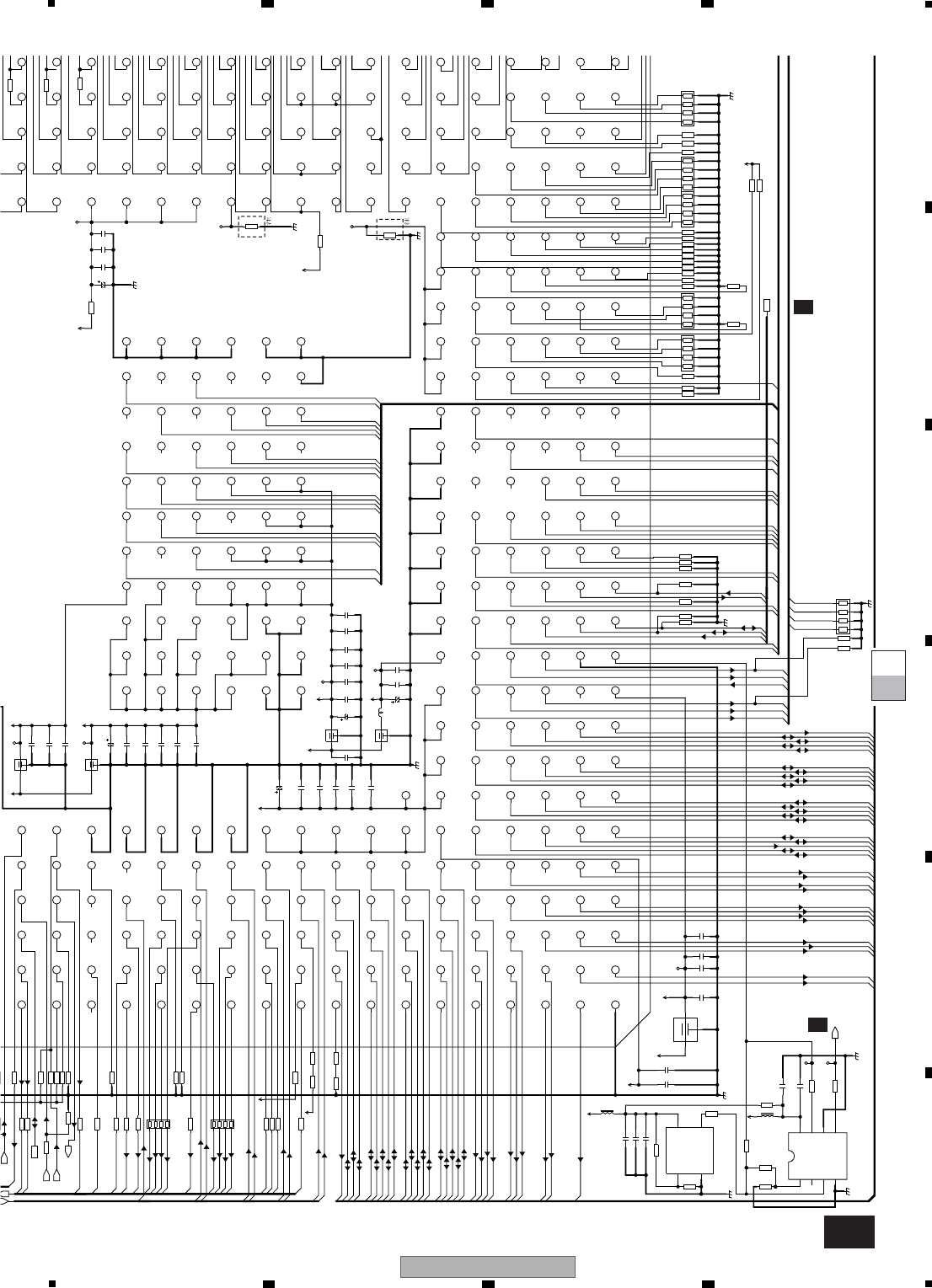

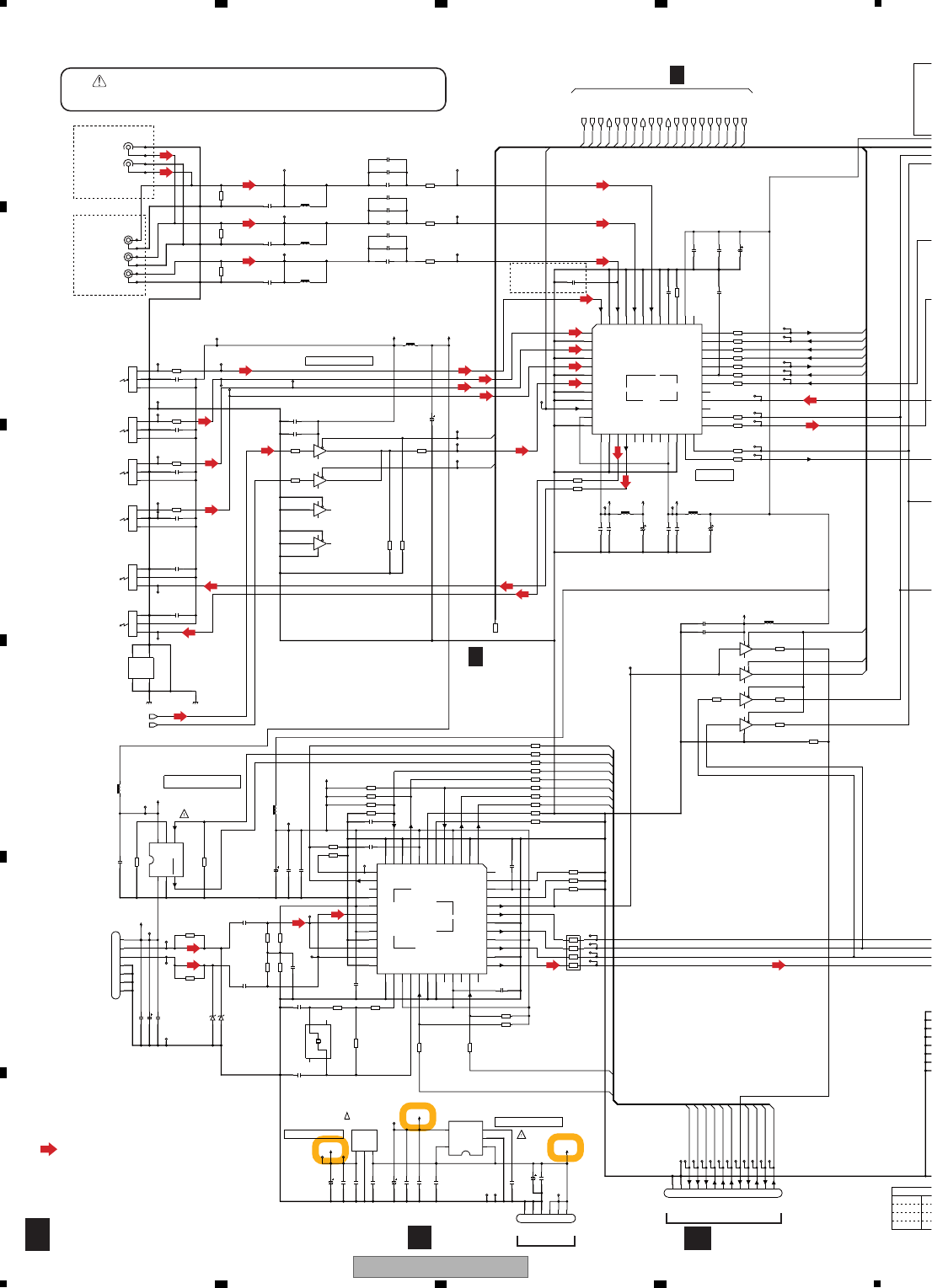

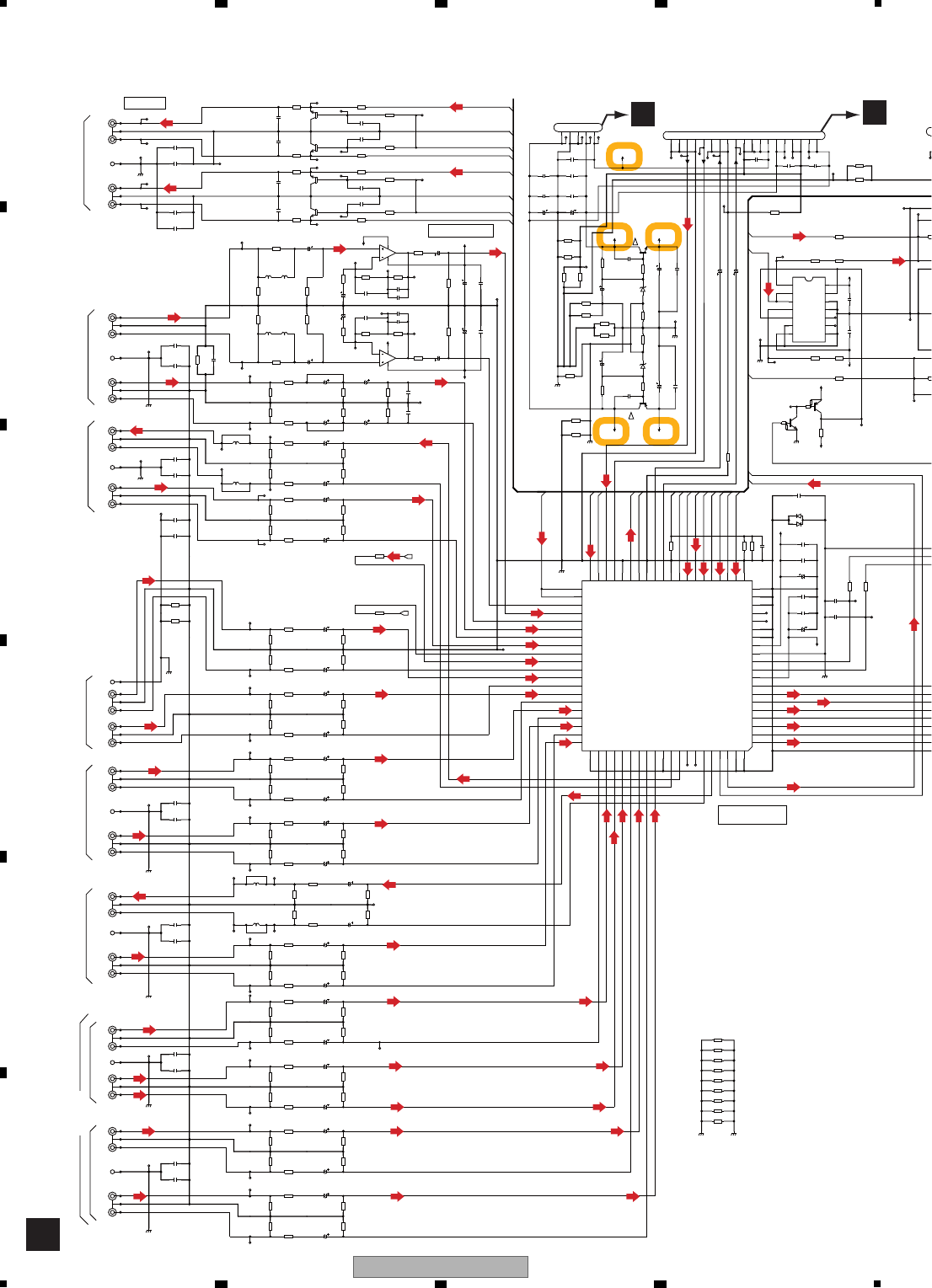

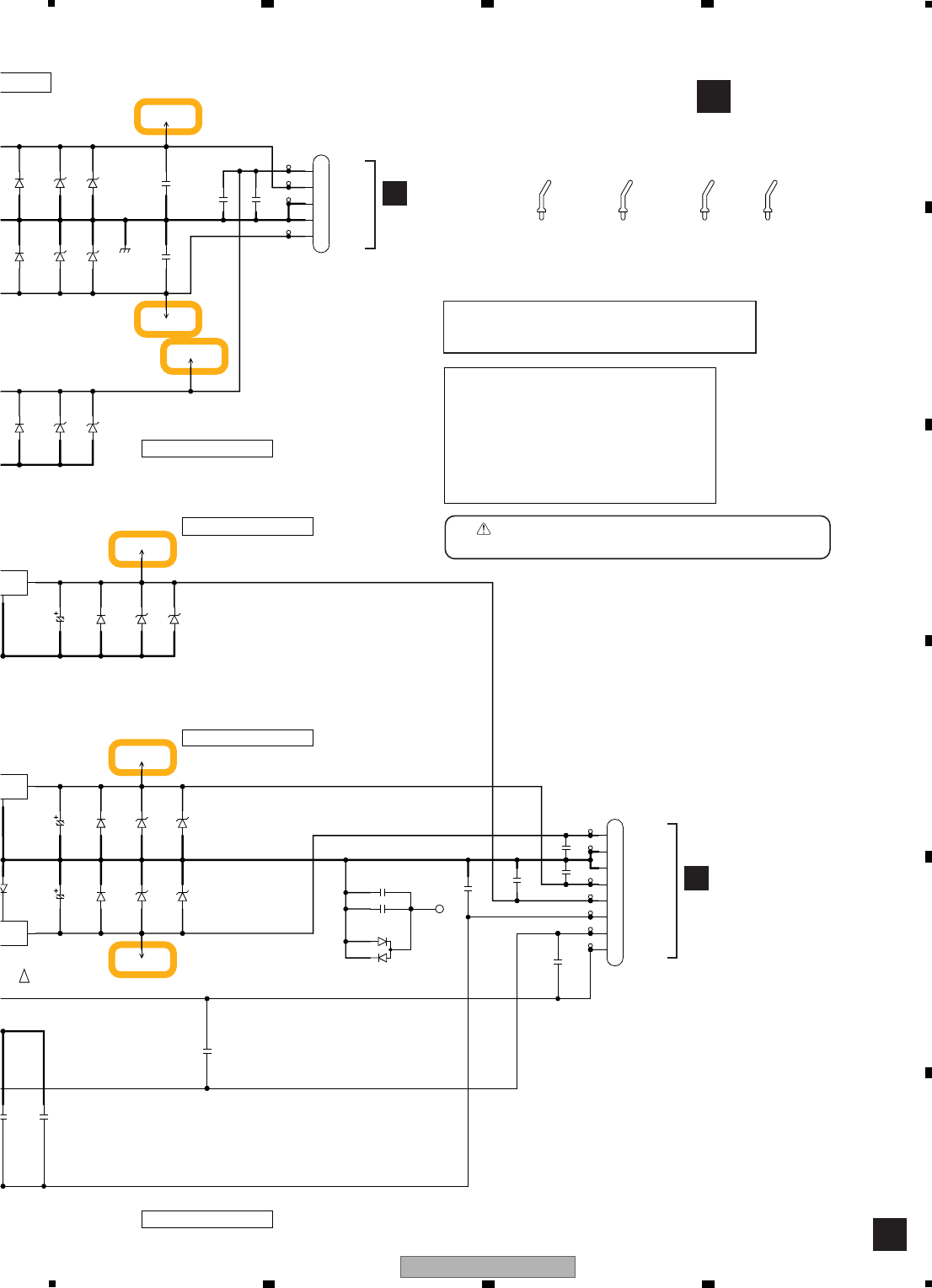

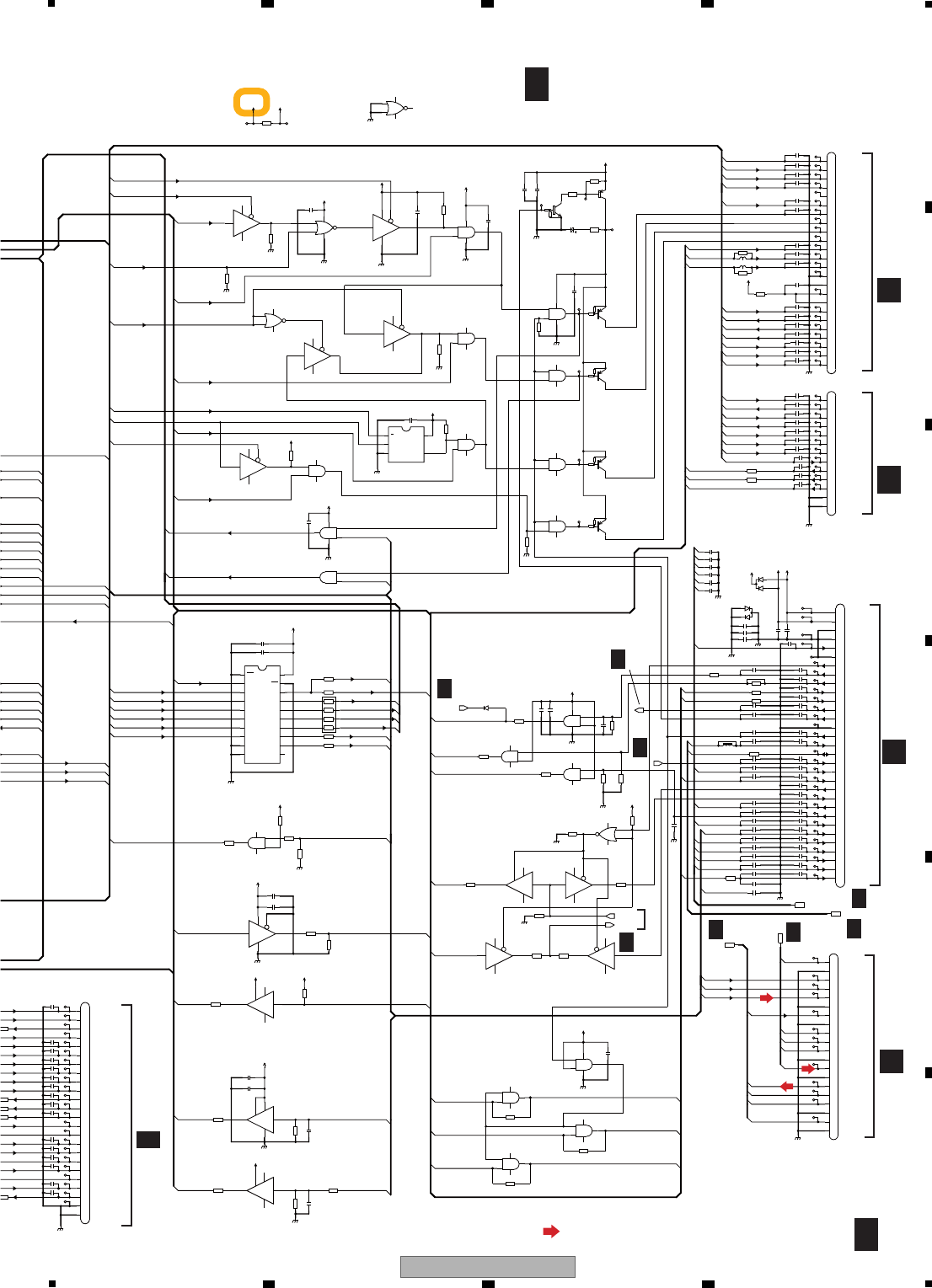

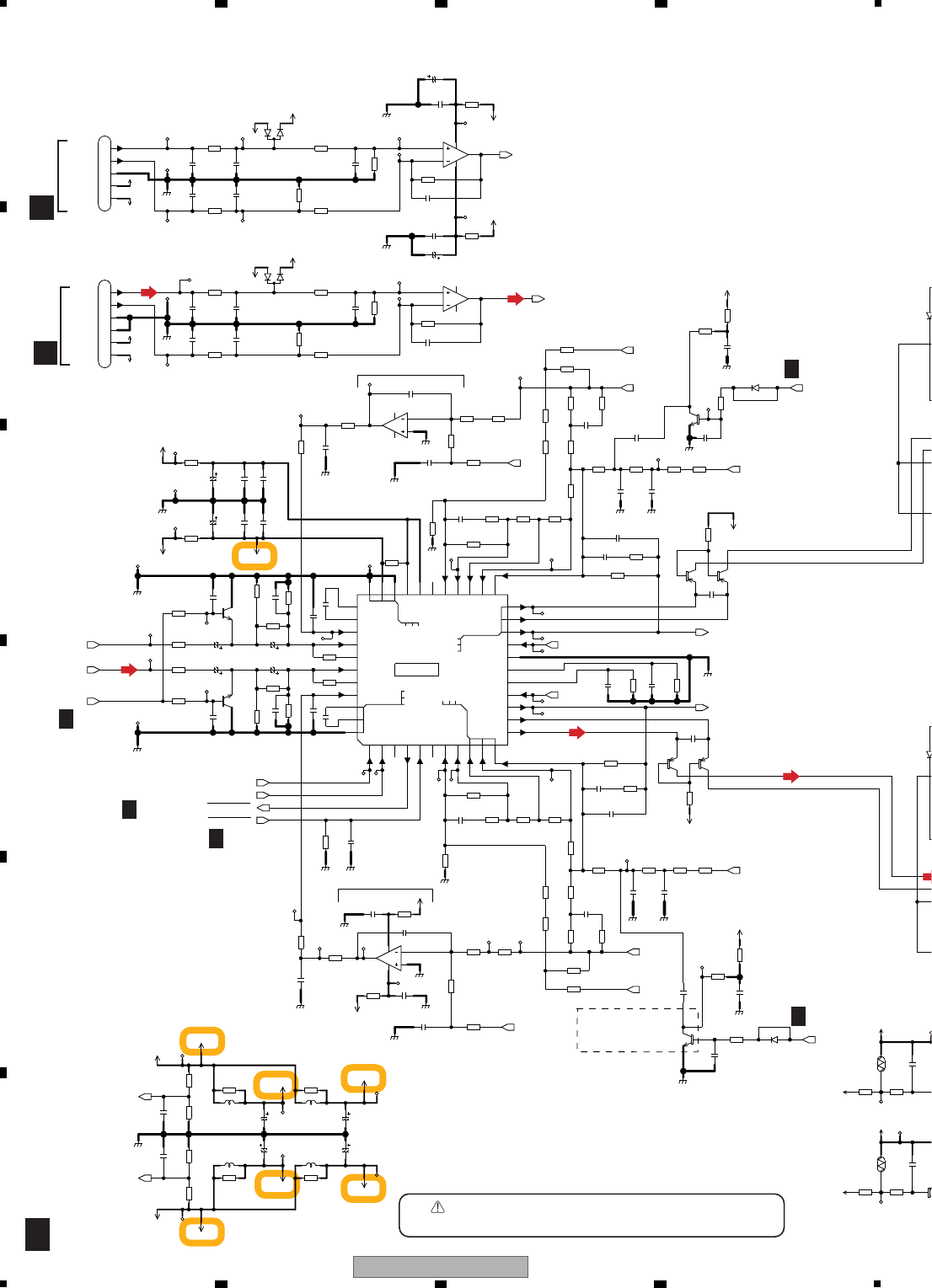

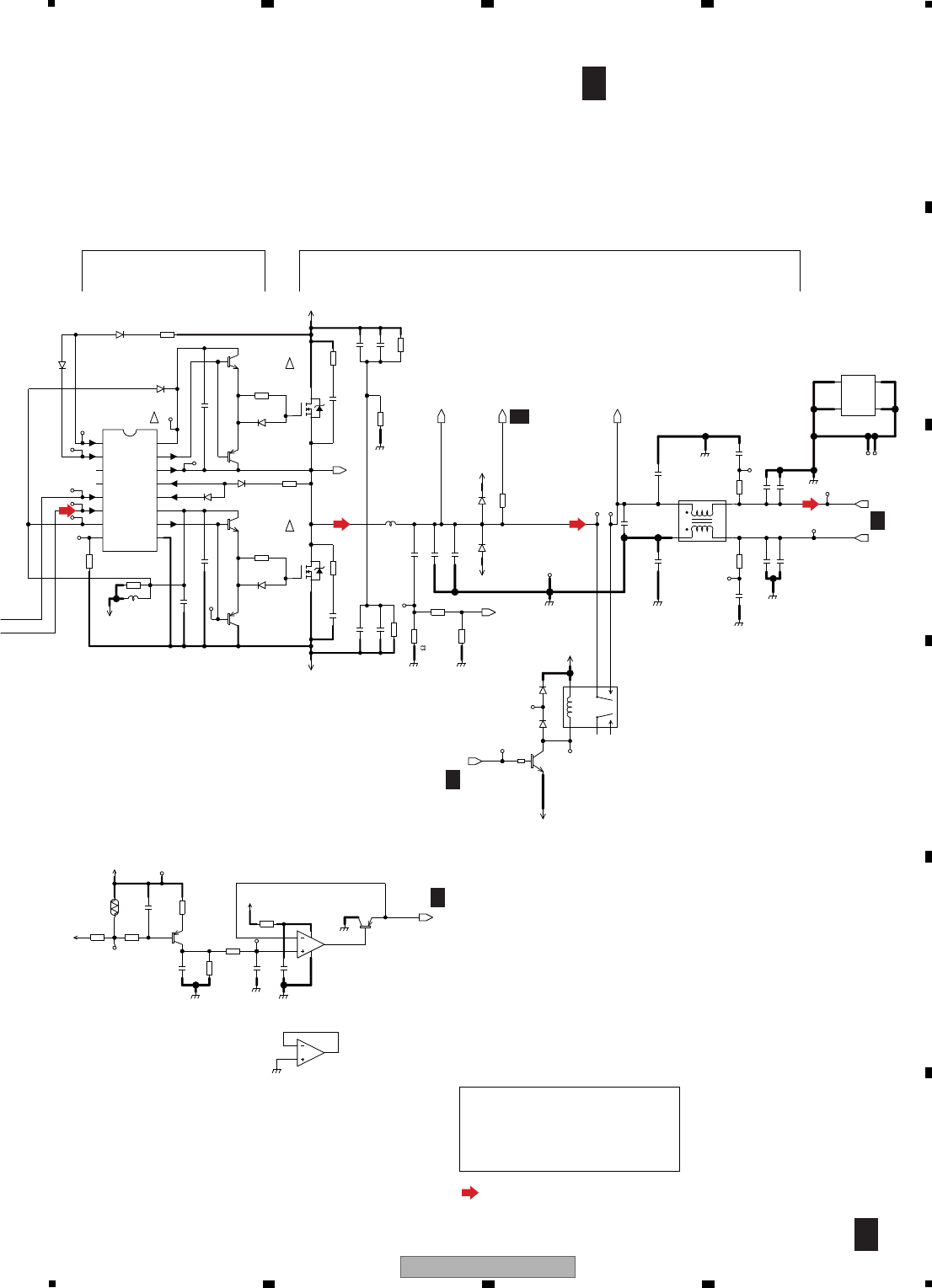

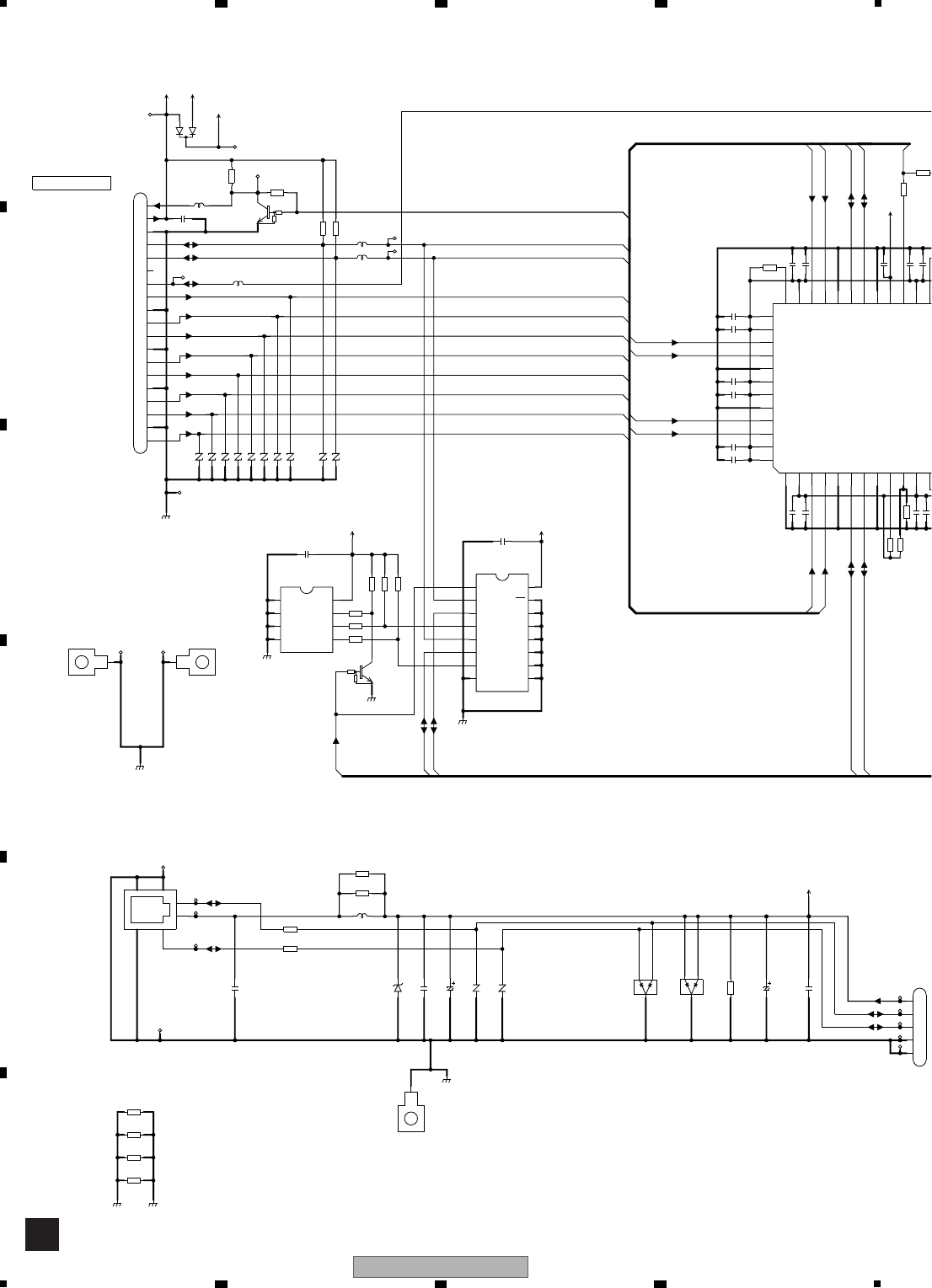

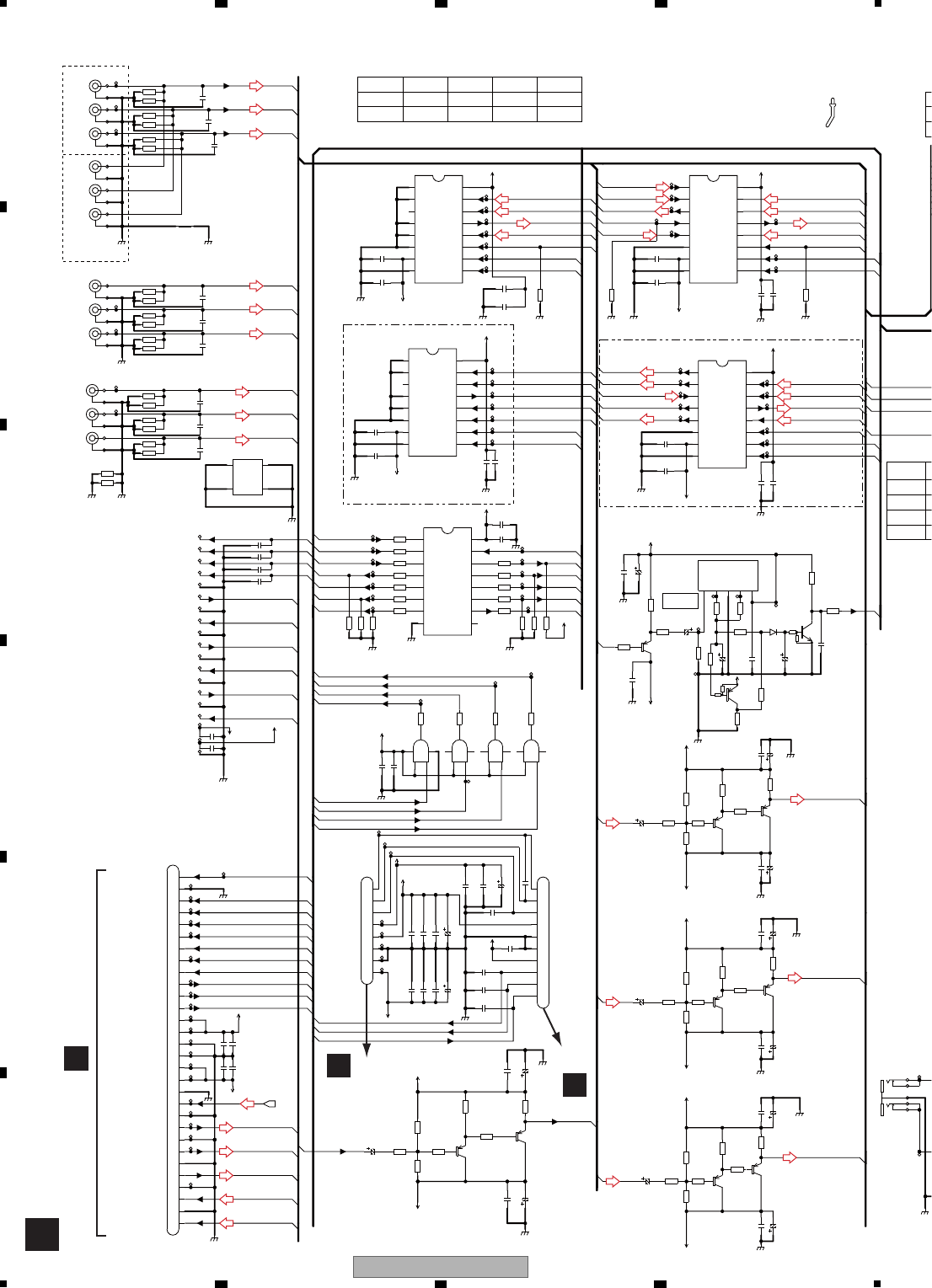

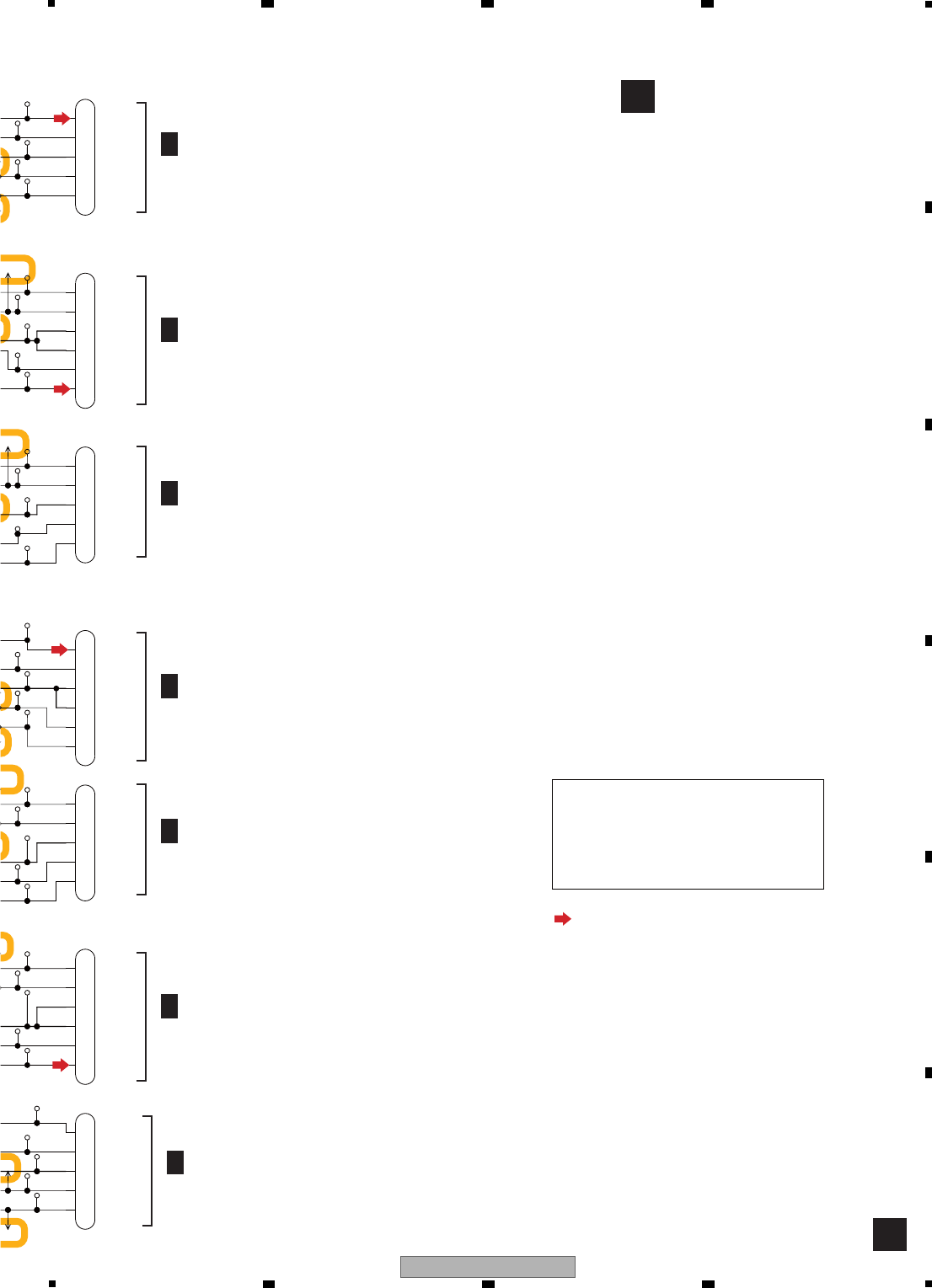

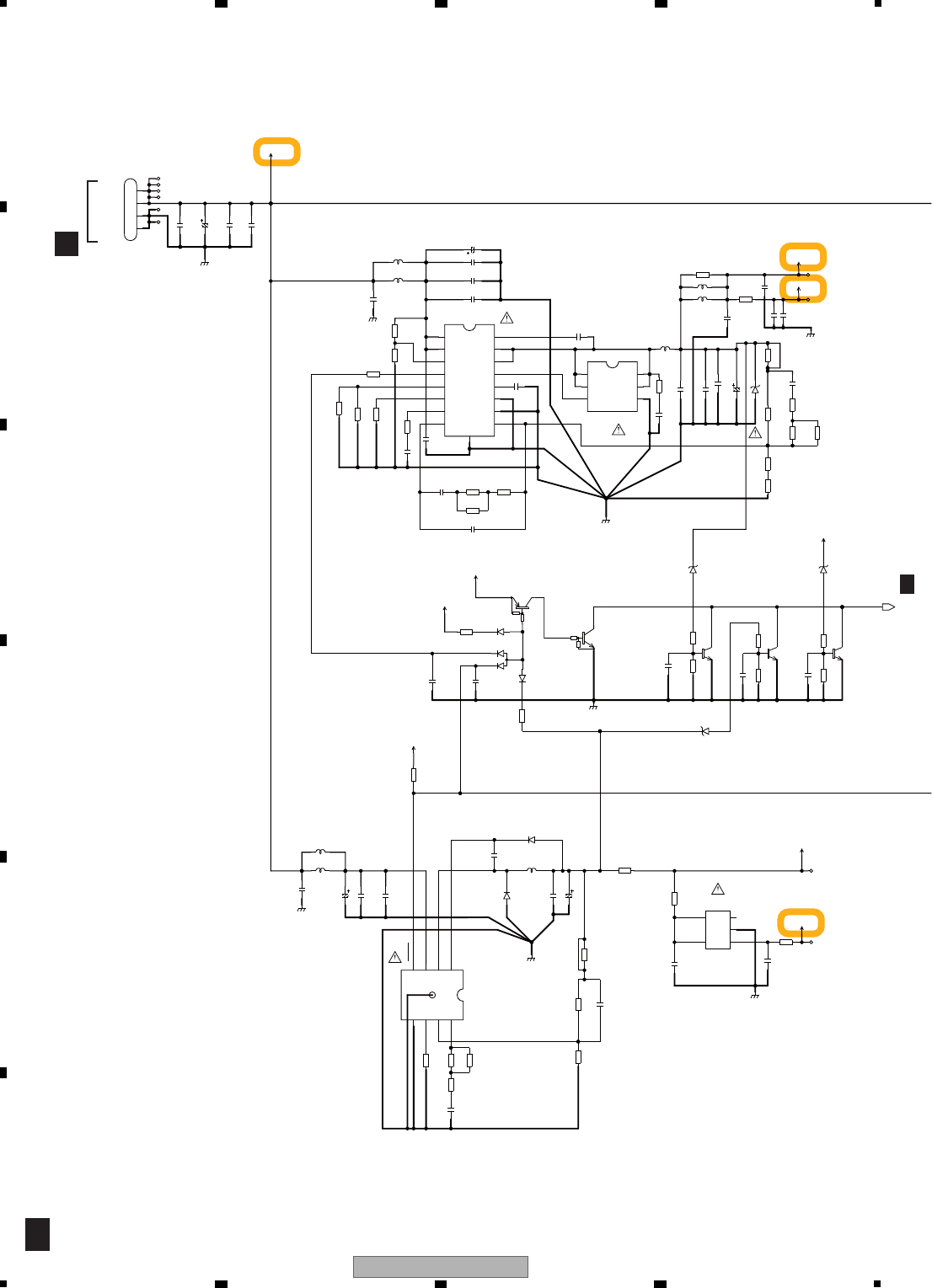

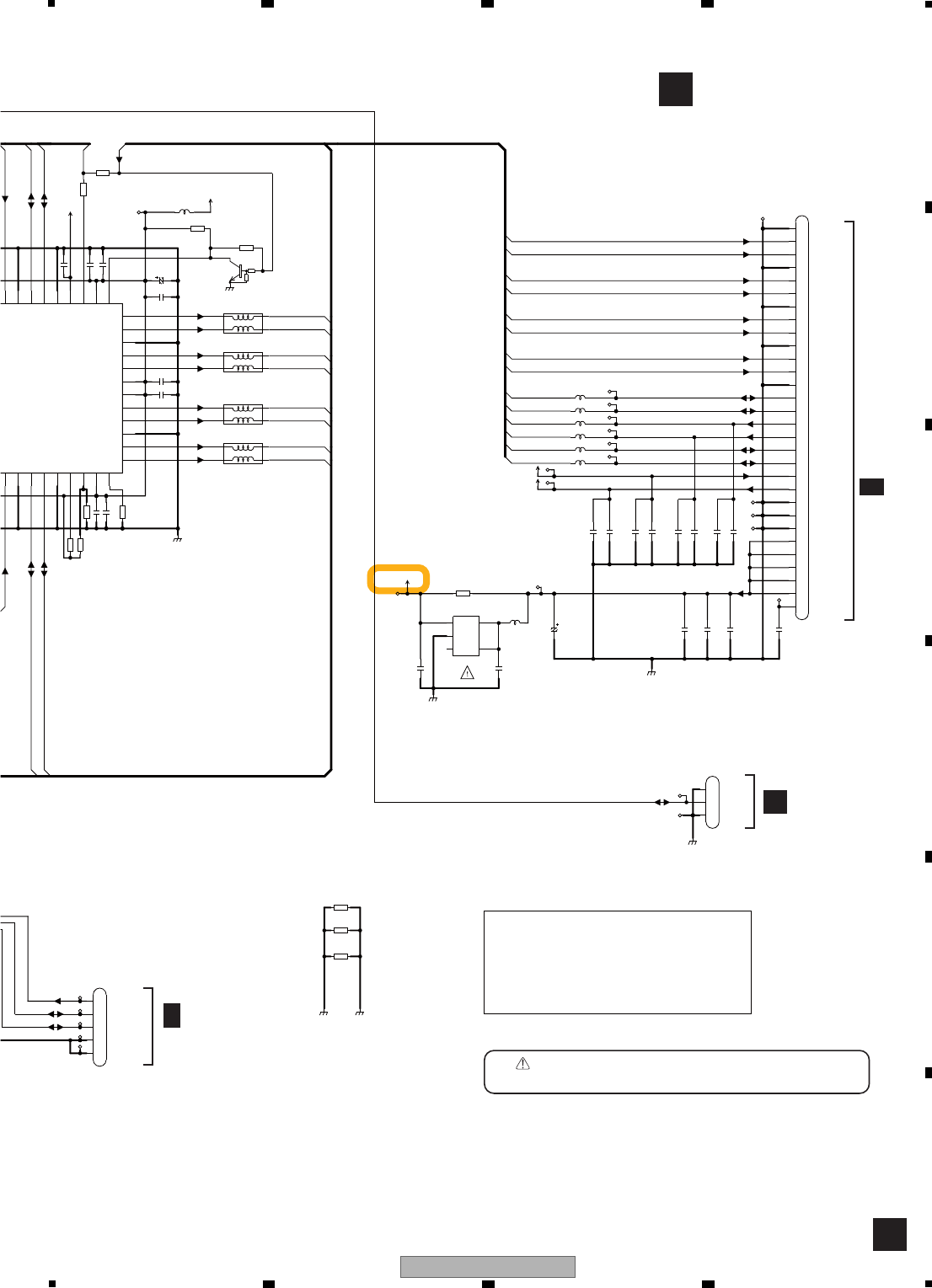

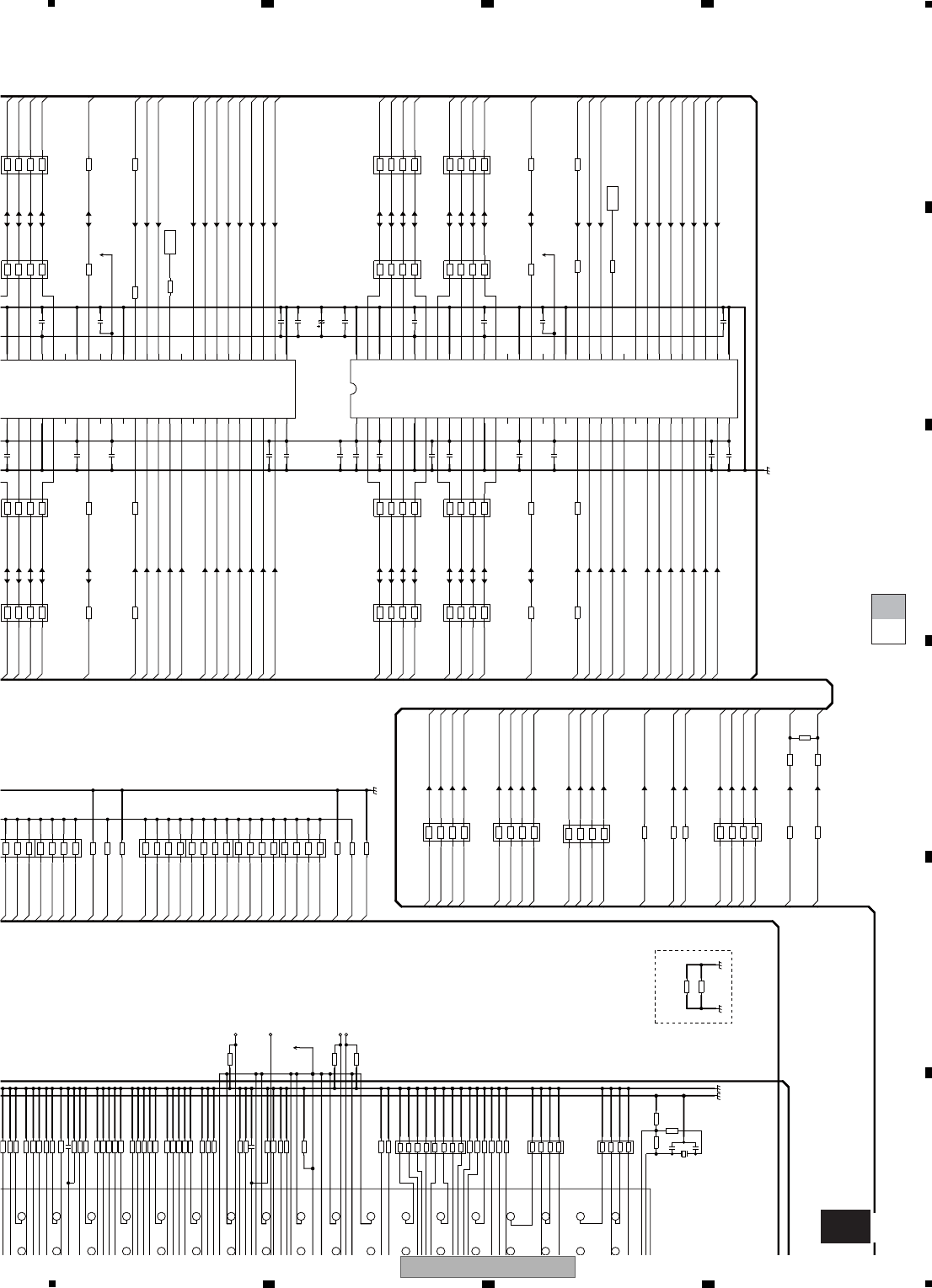

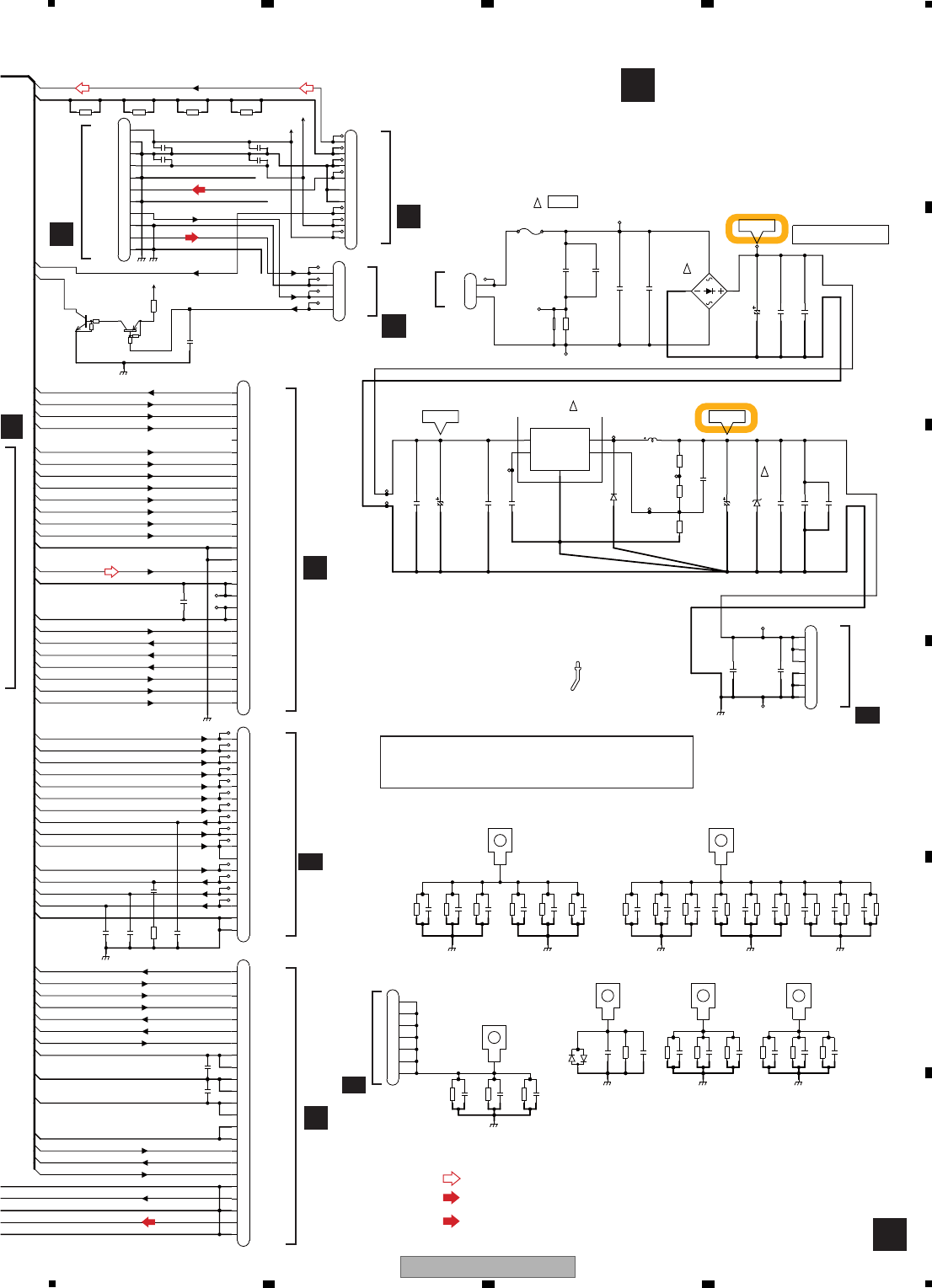

10. SCHEMATIC DIAGRAM ....................................................................................................................................................86
10.1 AUDIO ASSY ..............................................................................................................................................................86
10.2 DSP ASSY (1/4)..........................................................................................................................................................88
10.3 DSP ASSY (2/4)..........................................................................................................................................................90
10.4 DSP ASSY (3/4)..........................................................................................................................................................92
10.5 DSP ASSY (4/4)..........................................................................................................................................................94
10.6 FRONT-HDMI ASSY ...................................................................................................................................................96
10.7 232C_CONTROL ASSY .............................................................................................................................................98
10.8 DIGITAL MAIN ASSY (1/7)........................................................................................................................................100
10.9 DIGITAL MAIN ASSY (2/7)........................................................................................................................................106
10.10 DIGITAL MAIN ASSY (3/7)......................................................................................................................................108
10.11 DIGITAL MAIN ASSY (4/7)......................................................................................................................................110
10.12 DIGITAL MAIN ASSY (5/7)......................................................................................................................................112
10.13 DIGITAL MAIN ASSY (6/7)......................................................................................................................................114
10.14 DIGITAL MAIN ASSY (7/7)......................................................................................................................................116
10.15 INTERFACE ASSY..................................................................................................................................................118
10.16 COMPONENT ASSY ..............................................................................................................................................120
10.17 COMPOSITE_S ASSY (1/2) ...................................................................................................................................122
10.18 COMPOSITE_S ASSY (2/2) ...................................................................................................................................124
10.19 FRONT BRIDGE ASSY ..........................................................................................................................................126
10.20 MIC HP ASSY .........................................................................................................................................................128
10.21 DISPLAY, VOL AND POWER SW ASSYS ..............................................................................................................130
10.22 ICE_BUFFER AND ICE SHIELD ASSYS ...............................................................................................................132
10.23 ICE INTERFACE ASSY...........................................................................................................................................134

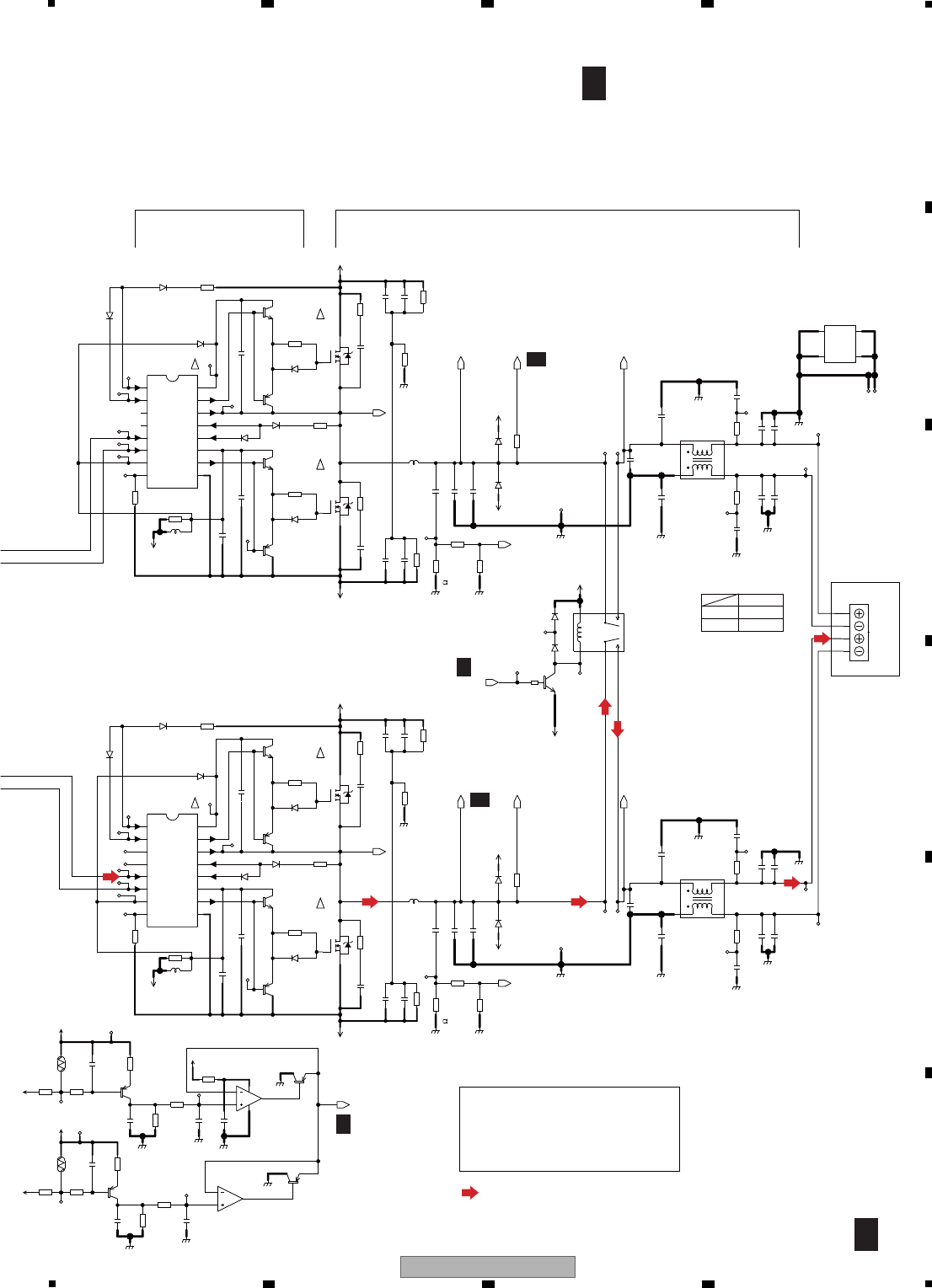

10.24 ICEPOWER AMP ASSY (1/5).................................................................................................................................136
10.25 ICEPOWER AMP ASSY (2/5).................................................................................................................................138
10.26 ICEPOWER AMP ASSY (3/5).................................................................................................................................140
5
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
10.27 ICEPOWER AMP ASSY (4/5)................................................................................................................................. 142
10.28 ICEPOWER AMP ASSY (5/5)................................................................................................................................. 144
10.29 V-BRIDGE AND PRE_BRIDGE ASSYS ................................................................................................................. 146
10.30 PRIMARY GUARD ASSY ....................................................................................................................................... 147
10.31 PRIMARY ASSY ..................................................................................................................................................... 148
10.32 REG ASSY ............................................................................................................................................................. 150
10.33 ICE_REG ASSY ..................................................................................................................................................... 152
10.34 B_REG ASSY ......................................................................................................................................................... 154
10.35 B_DIODE ASSY ..................................................................................................................................................... 156
10.36 HDMI_RECT AND H GUARD ASSYS.................................................................................................................... 157
10.37 DIGITAL BRIDGE AND ZOUT ASSYS ................................................................................................................... 158

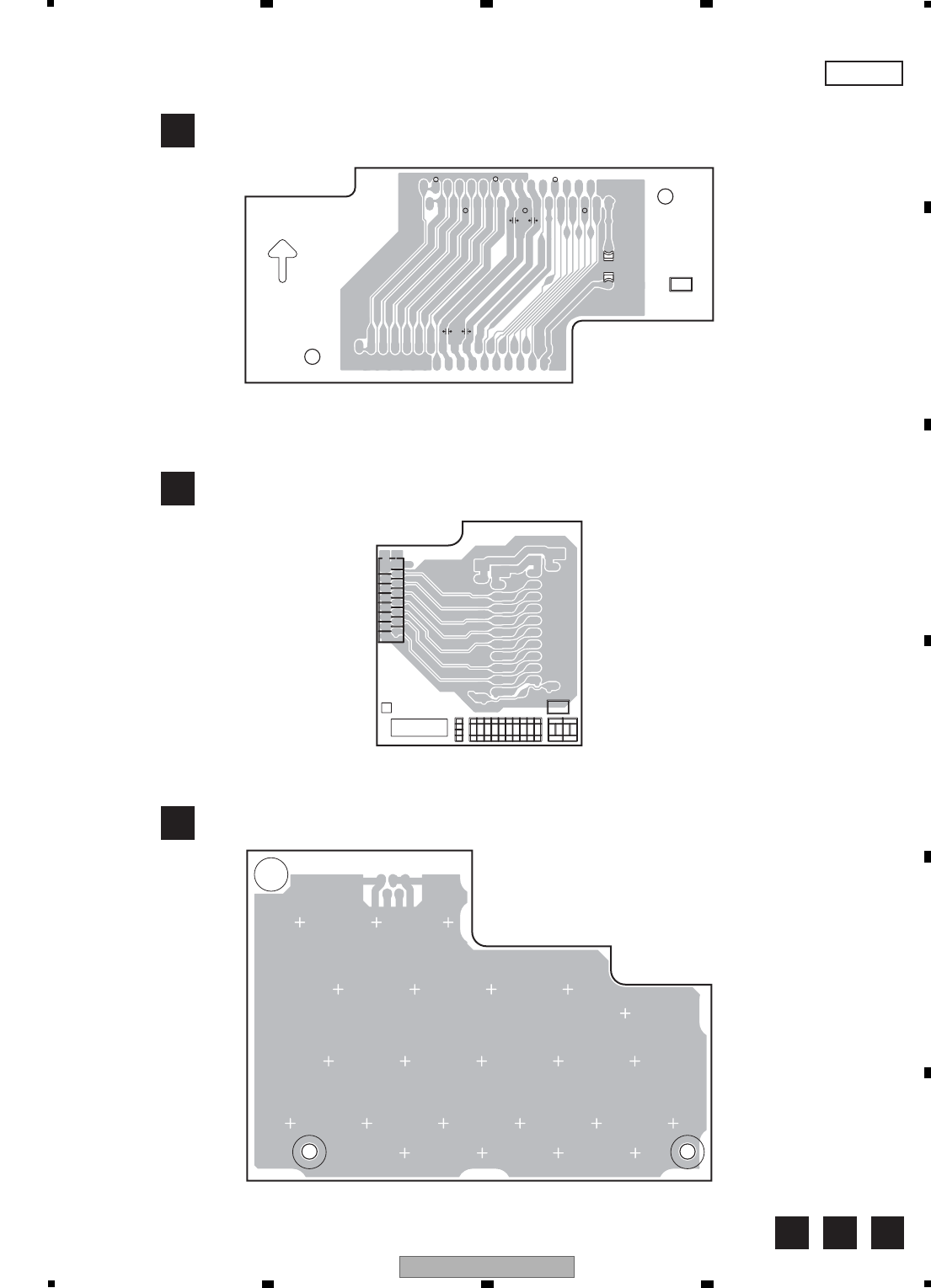

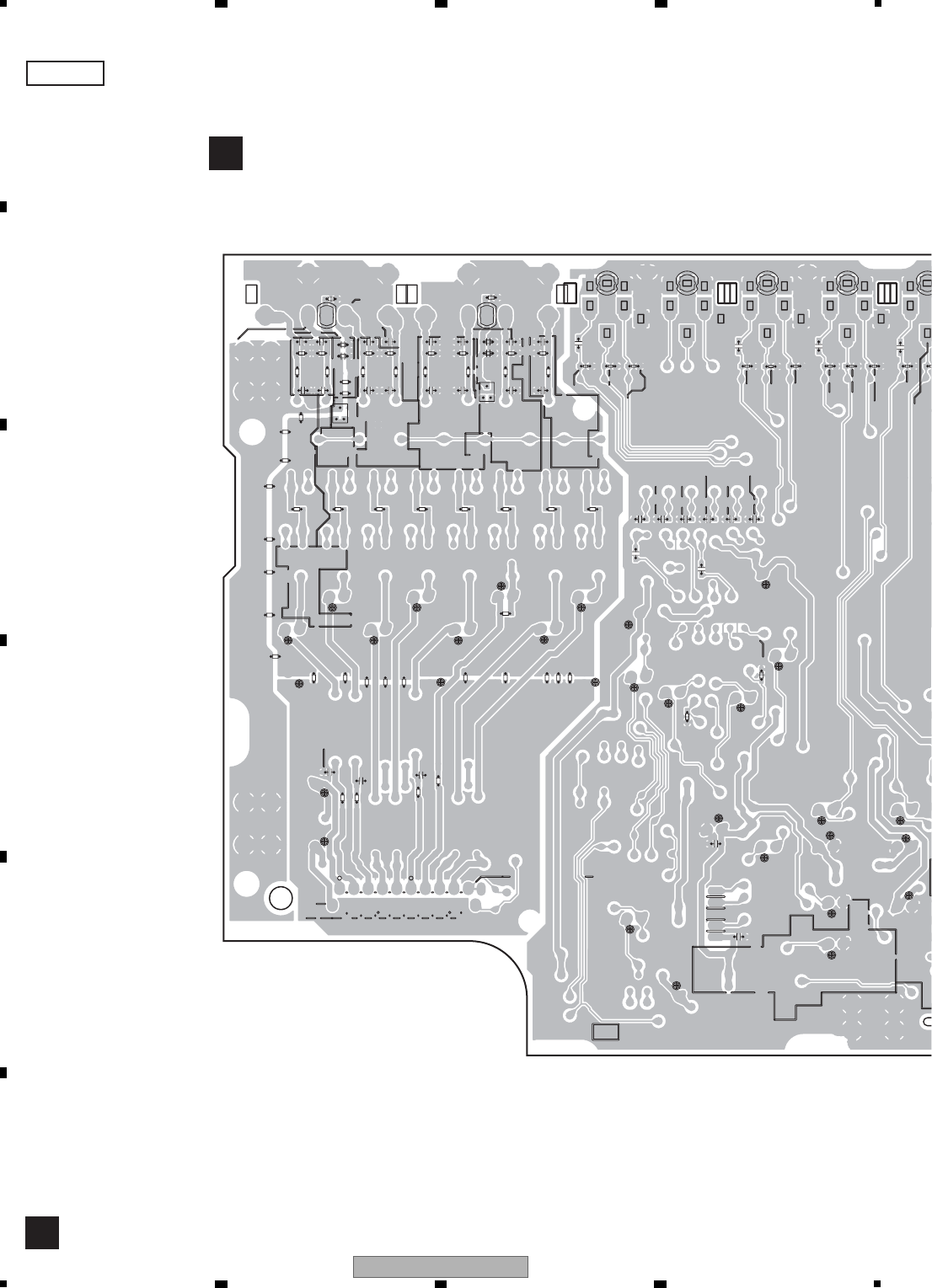

11. PCB CONNECTION DIAGRAM ...................................................................................................................................... 160
11.1 AUDIO ASSY ............................................................................................................................................................ 160
11.2 DSP ASSY................................................................................................................................................................ 164
11.3 FRONT-HDMI AND 232C_CONTROL ASSYS......................................................................................................... 168
11.4 DIGITAL MAIN ASSY................................................................................................................................................ 170
11.5 INTERFACE ASSY ................................................................................................................................................... 174
11.6 COMPONENT ASSY................................................................................................................................................ 178
11.7 COMPOSITE_S ASSY ............................................................................................................................................. 182
11.8 FRONT BRIDGE, MIC HP, VOL AND POWER SW ASSYS..................................................................................... 186
11.9 DISPLAY ASSY ........................................................................................................................................................ 190
11.10 ICE_BUFFER, ICE SHIELD AND ICE INTERFACE ASSYS.................................................................................. 194
11.11 ICEPOWER AMP ASSY......................................................................................................................................... 198
11.12 V-BRIDGE, PRE_BRIDGE, PRIMARY GUARD AND PRIMARY ASSYS............................................................... 202
11.13 REG ASSY ............................................................................................................................................................. 206
11.14 ICE_REG ASSY ..................................................................................................................................................... 210
11.15 B_REG AND B_DIODE ASSY................................................................................................................................ 212
11.16 HDMI RECT, H GUARD, DIGITAL_BRIDGE AND ZOUT ASSYS .......................................................................... 214
12. PCB PARTS LIST............................................................................................................................................................ 216
6SC-27
12 3 4
A
B
C
D
E
F
12 3 4
1. SERVICE PRECAUTIONS
1.1 NOTES ON SOLDERING
1.2 NOTES ON REPLACING PARTS
1.3 CAUTION
• For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit.
Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs
accompanied by reworking of soldering.
• Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40 ºC.
Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373 ºC in general, although
the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of
the soldering iron.
Do NOT use a soldering iron whose tip temperature cannot be controlled.
Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting
temperatures (hard to melt/easy to harden).
The following lead-free solders are available as service parts:
• Parts numbers of lead-free solder:
GYP1006 1.0 in dia.
GYP1007 0.6 in dia.
GYP1008 0.3 in dia.
The part listed below is difficult to replace as a discrete component part.
When the part listed in the table is defective, replace whole Assy.
IC800 EMMA2RL2 UPD61283F1-407LU2A BGA
IC1501 HDMI Receiver SII9233ACTU IC with heat-pad
DIGITAL MAIN
ASSY
ASSY NAME Ref No. Part No. RemarksFUNCTION
PCB ASSY Part No. Parts that is Difficult to Replace
AWX9463
• Discharging
Before starting the diagnosis, wait for three minutes until the electricity of the unit is discharged.

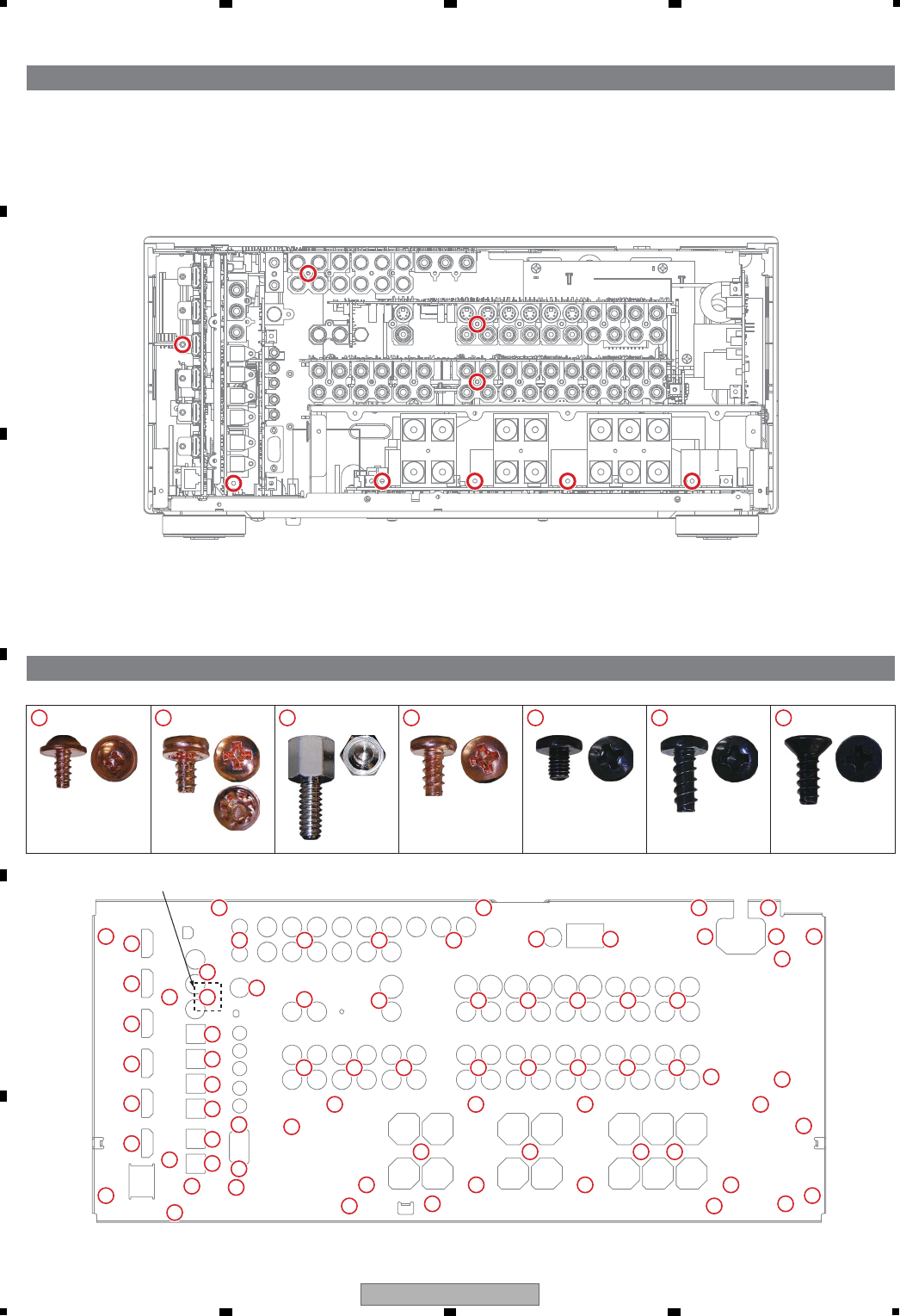

• Ground Points
Please refer to page 60, “Ground Points”.
7
SC-27
56 7 8
56 7 8
A
B
C
D
E
F

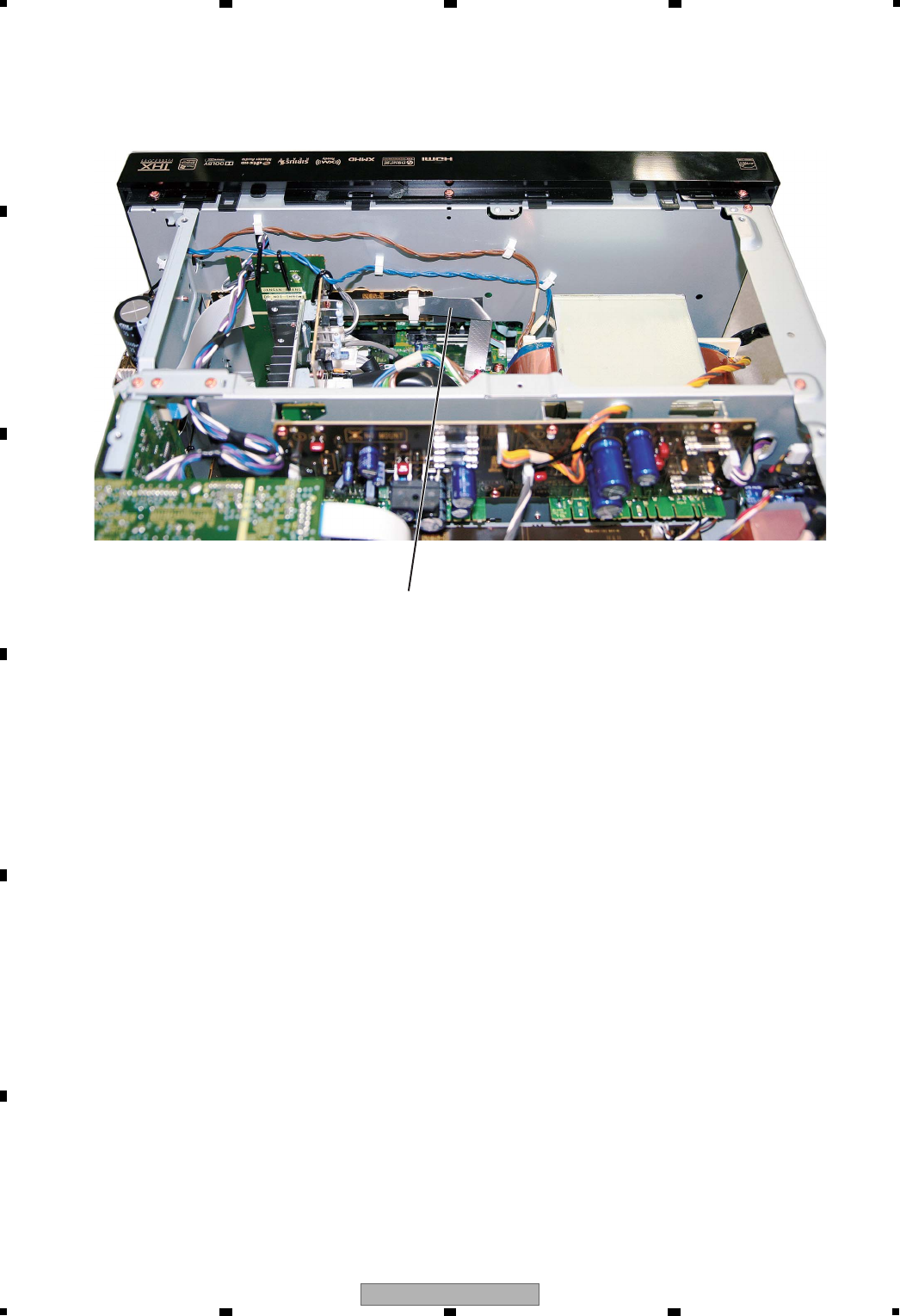

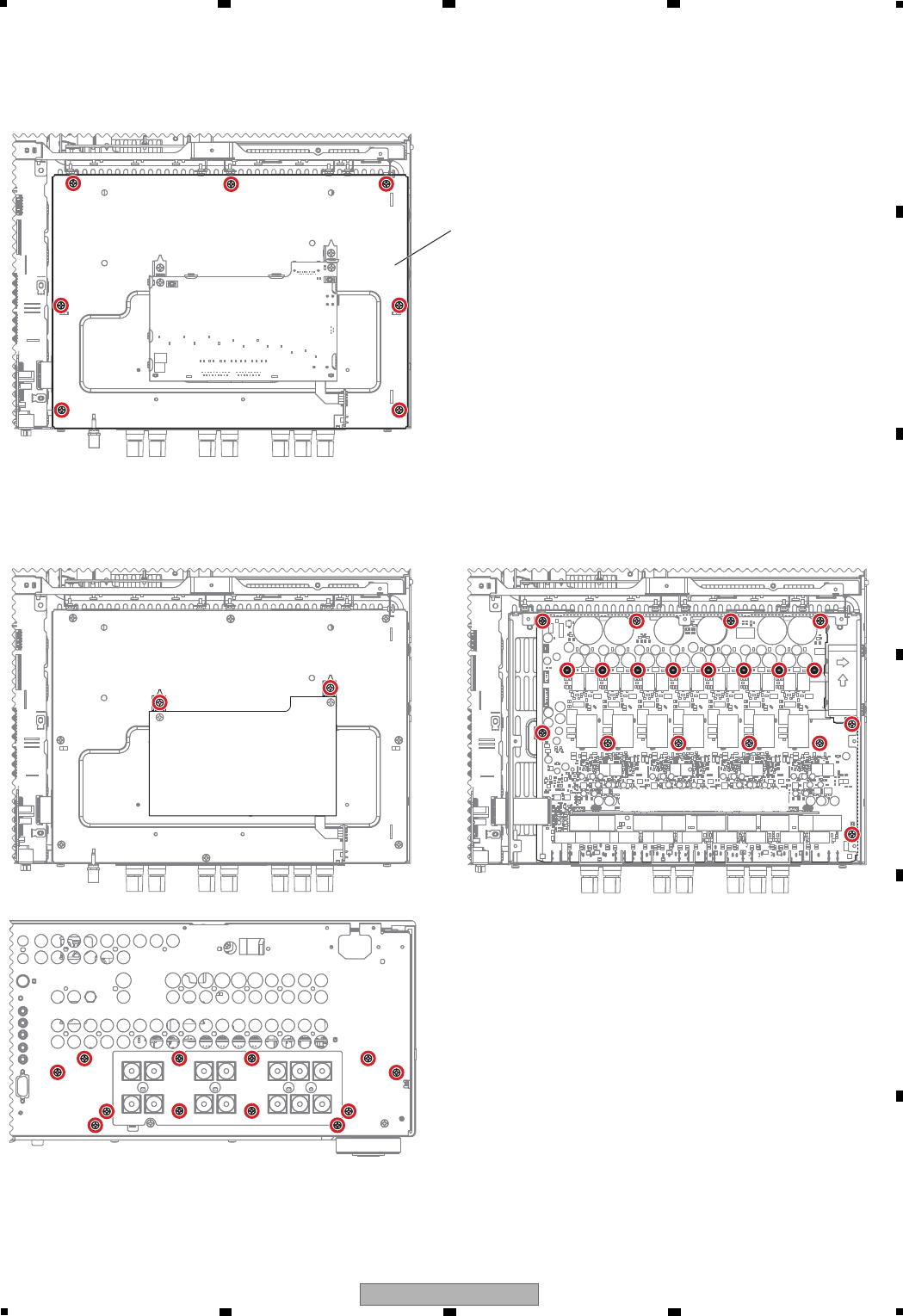

1.4 NOTES ON ASSEMBLING
When assembling the ICE amplifier block, please note the following points of screws to prevent from short-circuit.
If a screw at any of these points needs to be removed for service,
be sure to check that the swarf is not on the screw before refastening.
Points to be watched for swarf
The following 7 points of screws must always be used AMZ30P060FTC
ICE_BUFFER Assy
ICEPOWER AMP Assy
ICE cover
8SC-27
12 3 4
A
B
C
D
E
F
12 3 4
1.5 NOTES ON BENDING SHIELD FFC
When styling the Shield FFC (ADD7713: FRONT-HDMI CN3554 <-> DIGITAL MAIN CN1601,) be sure to bend it only once.
NEVER bend an FFC at a point where it has previously been bent in the opposite direction.
Shield FFC (ADD7713)
9
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
2. SPECIFICATIONS
2.1 SPECIFICATIONS
Amplifi er section
Continuous average power output of 140 watts* per
channel, min., at 8 ohms, from 20 Hz to 20 000 Hz
with no more than 0.09 %** total harmonic distortion.
Multi channel simultaneous power output(1 kHz, 1 %, 8 Ω)
7 ch total . . . . . 770 W (SC-27)/700 W (SC-25/SC-9540)
Continuous Power Output (20 Hz to 20 kHz, 8 Ω, 0.09 %)
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . .140 W + 140 W
Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 W
Surround . . . . . . . . . . . . . . . . . . . . . . . . .140 W + 140 W
Surround back. . . . . . . . . . . . . . . . . . . . .140 W + 140 W
Continuous Power Output (1 kHz, 6 Ω, 1.0 %)
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . .180 W + 180 W
Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 W
Surround . . . . . . . . . . . . . . . . . . . . . . . . .180 W + 180 W
Surround back. . . . . . . . . . . . . . . . . . . . .180 W + 180 W
Total harmonic distortion . . . . . . . . . . . . . . . . . . . . 0.05 %
(20 Hz to 20 kHz, 130 W, 8 Ω)
* Measured pursuant to the Federal Trade Commission’s
Trade Regulation rule on Power Output Claims for
Amplifi ers
** Measured by Audio Spectrum Analyzer
Audio Section
Input (Sensitivity/Impedance)
PHONO MM . . . . . . . . . . . . . . . . . . . . . . . 4.2 mV/47 kΩ
LINE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335 mV/47 kΩ
Output (Level/Impedance)
REC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335 mV/2.2 kΩ
Signal-to-Noise Ratio (IHF, short circuited, A network)
LINE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 dB
Signal-to-Noise Ratio [EIA, at 1 W (1 kHz)]
LINE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83 dB
Tuner Section
Frequency Range (FM) . . . . . . . . . . 87.5 MHz to 108 MHz
Antenna Input (FM) . . . . . . . . . . . . . . . . 75 Ω unbalanced
Frequency Range (AM) . . . . . . . . . . 530 kHz to 1700 kHz
Antenna (AM) . . . . . . . . . . . . . . .Loop antenna (balanced)
Video Section
Signal level
Composite/S-Video . . . . . . . . . . . . . . . . . . . 1 Vp-p (75 Ω)
Component Video . . . . . . . . . . . . . . . . Y: 1.0 Vp-p (75 Ω),
PB, PR: 0.7 Vp-p (75 Ω)
Corresponding maximum resolution
Component Video . . . . . . . . . . . . . . . . . . . 1080p (1125p)
(Video convert off)
Digital In/Out Section
HDMI terminal . . . . . . . . . . . . . . . . . . . . . 19-pin (Not DVI)
HDMI output type . . . . . . . . . . . . . . . . . . . . . . 5 V, 100 mA
USB terminal . . . . . . . . . . . . USB2.0 Full Speed (Type A)
iPod terminal . . . . . . . . . . . .USB, and Video (Composite)
SIRIUS antenna cable . . . . . . . . . . . .8-pin mini DIN cable
Network Section
LAN terminal . . . . . . . . . . . . . . .10 BASE-T/100 BASE-TX
Integrated control section
Control (SR) terminal . . . . . . . . . Ø 3.5 Mini-jack (MONO)
Control (IR) terminal. . . . . . . . . . Ø 3.5 Mini-jack (MONO)
IR signal . . . . . . . . . . . . . . High Active (High Level: 2.0 V)
12 V Trigger terminal . . . . . . . . . Ø 3.5 Mini-jack (MONO)
12 V Trigger output type. . . . . . . . . . . . . 12 V, Total 50 mA
RS-232C cable type. . . . 9-pin, cross type, female-female
Miscellaneous
Power requirements . . . . . . . . . . . . . . . . . AC 120 V, 60 Hz
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . .330 W
In standby . . . . . . . . . . . . . . . .0.4 W (KURO LINK OFF)
0.6 W (KURO LINK ON)
Dimensions . . . 420 (W) mm x 200 (H) mm x 460 (D) mm
(16 9/16 (W) in. x 7 7/8 (H) in. x 18 1/8 (D) in.)
Weight (without package). . . . . . . . . . . . . 18.5 kg (40.8 lb)
Furnished Parts Number
MCACC Setup microphone (APM7009) . . . . . . . . . . . . . 1
Remote control unit
(SC-27: AXD7539/SC-25/SC-9540: AXD7542)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
AA/IEC R6 dry cell batteries . . . . . . . . . . . . . . . . . . . . . . 2
iPod cable (ADE7129) . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
AM loop antenna.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
FM wire antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Power cord (ADG7111) . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Operating instructions
Note
• Specifi cations and the design are subject to possible
modifi cations without notice, due to improvements.
Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, Surround EX and the double-D symbol
are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent #’s:
5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616;
6,487,535 ; 7,212,872 ; 7,33 3 , 929 ; 7,3 92,195 ; 7,272,567 &
other U.S. and worldwide patents issued & pending. DTS
is a registered trademark and the DTS logos, Symbol,
DTS-HD and DTS-HD Master Audio are trademarks of
DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.
Windows Media and the Windows logo are trademarks or
registered trademarks of Microsoft Corporation in the
United States and/or other countries.
iPod is a trademark of Apple Inc., registered in the U.S.
and other countries. iPhone is a trademark of Apple Inc.
THX, the THX logo, Ultra2 Plus and Select2 Plus are
trademarks of THX Ltd. which may be registered in some
jurisdictions. All rights reserved.
All other trademarks are the property of their respective
owners.
“Neural Surround”, “Neural Audio”, “Neural” and “NRL” are
trademarks and logos owned by Neural Audio Corporation,
THX is a trademark of THX Ltd., which may be registered
in some jurisdictions. All rights reserved.
SIRIUS, XM and all related marks and logos are
trademarks of Sirius XM Radio Inc. and its subsidiaries.
All rights reserved. Service not available in Alaska and
Hawaii.
10 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
2.2 PANEL FACILITIES
[1] Front panel
1 STANDBY/ON
Switches the receiver between on and standby. Power
indicator lights when the receiver is on.
When the KURO LINK function is set to ON, the power
indicator lights when the power is in standby.
2 INPUT SELECTOR dial
Use to select an input function.
3 PHASE CONTROL indicator – Lights to indicate Phase
Control or Full Band Phase Control is selected.
ADVANCED MCACC indicator – Lights when EQ is
set to ON in the AUDIO PARAMETER menu.
PQLS indicator – Lights when the PQLS feature is
active.
HDMI indicator – Blinks when connecting an HDMI
equipped component; lights when the component is
connected.
4 Remote sensor
Receives the signals from the remote control.
5 Character display
6 MASTER VOLUME dial
7 Front panel controls
To access the front panel controls, push gently on the
lower third portion of the panel with your fi nger.
8 AUDIO PARAMETER
Use to access the Audio options.
9 VIDEO PARAMETER
Use to access the Video options.
10 (TUNE/PRESET) /ENTER
Use the arrow buttons when setting up your HOME
MENU. Use TUNE to fi nd radio frequencies and use
PRESET to fi nd preset stations.
11
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
11 TUNER EDIT
Use with ENTER to memorize and name
stations for recall.
12 BAND
Switches between AM and FM radio bands.
13 Listening mode buttons
AUTO SURR/ALC/STREAM DIRECT – Switches
between Auto Surround, Auto level control, Optimum
Surround mode and Stream Direct mode.
HOME THX – Press to select a Home THX listening
mode.
STANDARD SURROUND – Press for Standard
decoding and to switch between the various Pro
Logic IIx and Neo:6 options.
ADVANCED SURROUND – Use to switch between
the various surround modes.
STEREO – Switches between stereo playback and
Front Stage Surround Advance modes.
14 MULTI-ZONE controls
If you’ve made MULTI-ZONE connections use these
controls to control the sub zone from the main zone.
15 SPEAKERS
Use to change the speaker system.
16 HOME MENU
Press to access the Home Menu.
17 RETURN
Press to confi rm and exit the current menu screen.
18 HDMI input connector
Use for connection to compatible HDMI device (Video
camera, etc.).
19 iPod/iPhone/USB terminals
Use to connect your Apple iPod as an audio and video
source, or connect a USB device for audio and photo
playback.
20 MCACC SETUP MIC jack
Use to connect the supplied microphone.
21 PHONES jack
Use to connect headphones. When the headphones are
connected, there is no sound output from the speakers.
12 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
[2] Display
1 SIGNAL indicators
Light to indicate the currently selected input signal.
AUTO lights when the receiver is set to select the input
signal automatically.
2 Program format indicators
Light to indicate the channels being input when PCM
signals are being input. They do not indicate the audio
signals being output from the receiver.
L/R – Left front/Right front channel
C – Center channel
SL/SR – Left surround/Right surround channel
LFE – Low frequency effects channel (the (( ))
indicators light when an LFE signal is being input)
XL/XR – Two channels other than the ones above
XC – Either one channel other than the ones above, the
mono surround channel or matrix encode fl ag
3 Digital format indicators
Light when a signal encoded in the corresponding format
is detected.
4 S.RTRV
Lights when the Sound Retriever function is active.
5 MULTI-ZONE
Lights when the MULTI-ZONE feature is active.
6 DSD PCM – Light during DSD (Direct Stream Digital) to
PCM conversion with SACDs.
PCM – Lights during playback of PCM signals.
7 FULL BAND
Lights when the Full Band Phase Control is switched on.
8 Listening mode indicators
AUTO SURROUND – Lights when the Auto Surround
feature is switched on.
ALC – Lights when the ALC (Auto level control) mode
is selected.
STREAM DIRECT – Lights when Direct/Pure Direct is
selected.
ADV.SURROUND – Lights when one of the Advanced
Surround modes has been selected.
STEREO – Lights when stereo listening is switched on.
STANDARD – Lights when one of the Standard
Surround modes is switched on.
THX – Lights when one of the Home THX modes is
selected.
9 (PHASE CONTROL)
Lights when the Phase Control or Full Band Phase
Control is switched on.
10 Analog signal indicators
Light to indicate reducing the level of an analog signal.
11 UP MIX
Lights when the Up Mix is switched on.
12 Tuner indicators
TUNED – Lights when a broadcast is being received.
STEREO – Lights when a stereo FM broadcast is being
received in auto stereo mode.
MONO – Lights when the mono mode is set using MPX.
13 SOUND
Lights when any of the Midnight, Loudness or tone
controls feature is selected.
Lights when Dialog Enhancement is switched on.
14
Lights when the sound is muted.
15 Master volume level
Shows the overall volume level.
“---” indicates the minimum level, and “+12dB” indicates
the maximum level.
16 Input function indicators
Light to indicate the input function you have selected.
17 Scroll indicators
Light when there are more selectable items when making
the various settings.
18 Speaker indicators
Lights to indicate the current speaker system, A and/or B.
19 SLEEP
Lights when the receiver is in sleep mode.
20 Matrix decoding format indicators
PRO LOGIC IIx – This lights to indicate Pro
Logic II / Pro Logic IIx decoding.
Neo:6 – When one of the Neo:6 modes of the receiver
is on, this lights to indicate Neo:6 processing.
21 MSTR
Lights during playback of DTS-HD Master Audio signal.
22 Character display
Displays various system information.
23 Remote control mode indicator
Lights to indicate the receiver’s remote control mode
setting. (Not displayed when set to 1.)
13
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
[3] Rear panel
1 HDMI connectors (x6)
Multiple inputs and two outputs for high-quality audio/
video connection to compatible HDMI devices.

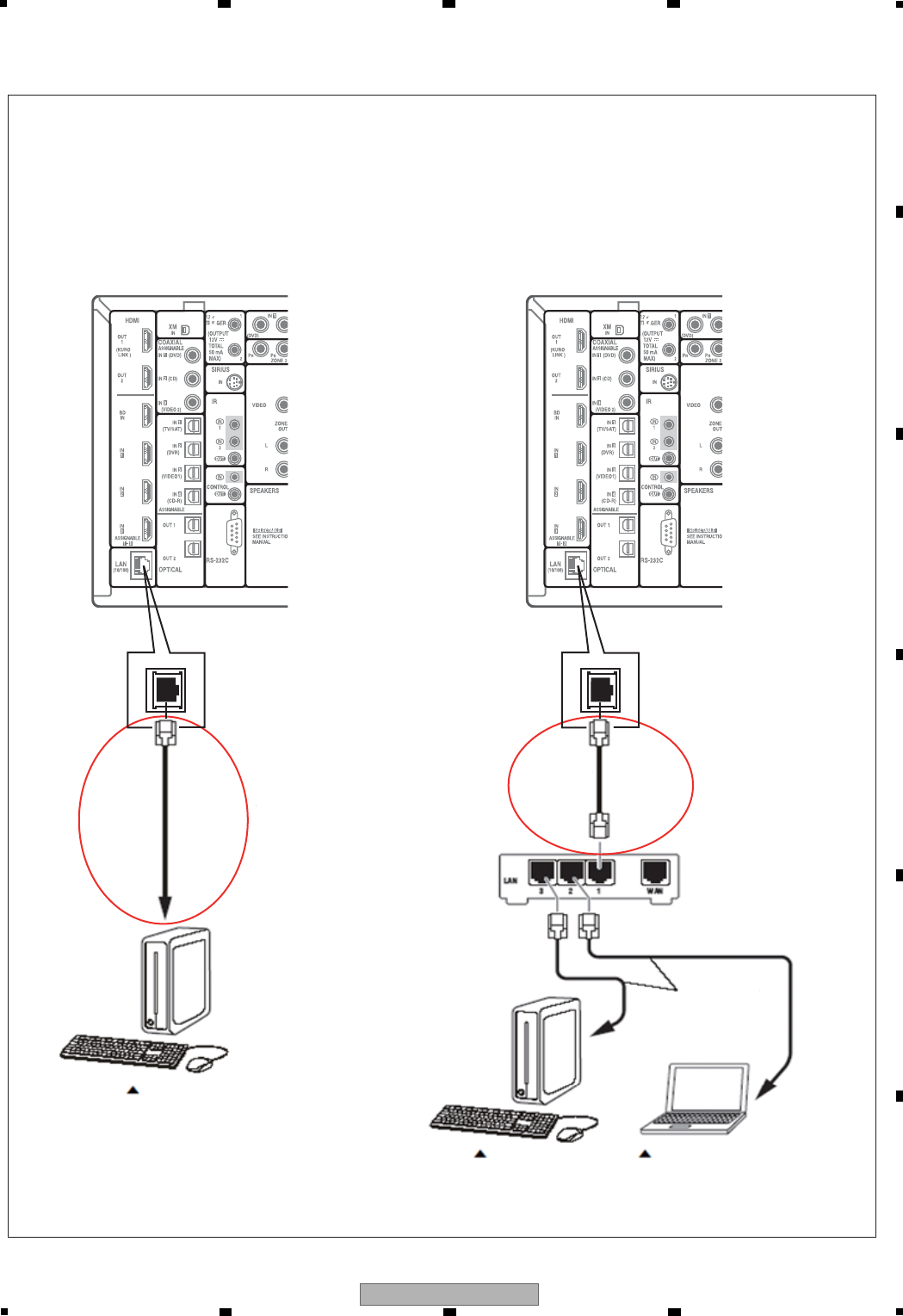

2 LAN (10/100) terminal
3 XM Radio input
4 Coaxial digital audio inputs (x3 (SC-27),
x2 (SC-25/SC-9540))
Use for digital audio sources, including DVD players/
recorders, digital satellite receivers, CD players, etc.
5 Optical digital audio inputs (x4)/outputs (x2)
Use the OUT jack for recording to a CD or MiniDisc
recorder.
Use the IN jacks for digital audio sources, including DVD
players/recorders, digital satellite receivers, CD players,
etc.
6 12 V trigger jacks (total 50 mA max.) (x2)
Use to switch components in your system on and off
according to the input function of the receiver.
7 SIRIUS Radio input
8 Remote inputs/output
Use for connection to an external remote control sensor
for use in a MULTI-ZONE setup, for example.
9 Control input/output
Use to connect other Pioneer components so that you
can control all your equipment from a single IR remote
sensor.
10 RS-232C connector
Use for connection to a PC for graphical output when
using Advanced MCACC or Full Band Phase Control.
11 Component video inputs (x3)
Use the inputs to connect any video source that has
component video output, such as a DVD player.
12 SC-27 only: ZONE 2 component video output
Use to connect monitors or TVs in a separate room.
13 MULTI-ZONE audio/video outputs
Use to connect a second or third amplifi er and monitors
or TVs in a separate room.
14 Composite, S-Video and Component video
monitor outputs
Use to connect monitors and TVs.
15 Stereo analog audio source inputs (x3)/output (x1)
Use for connection to audio sources such as CD players,
tape decks, turntables, etc.
16 Audio/video source inputs (x5)/output (x1)
Use for connection to audio/visual sources, such as DVD
players/recorders, VCRs, etc. Each set of inputs has jacks
for composite video, S-Video and stereo analog audio.
17 AM and FM antenna terminals
Use to connect indoor or outdoor antennas for radio
broadcasts.
18 Multichannel pre-amplifi er outputs
Use to connect separate amplifi ers for front, center,
surround, surround back and subwoofer channels.
19 Multichannel analog audio inputs
7.1 channel inputs for connection to a DVD player with
multichannel analog outputs.
20 Speaker terminals
Use for connection to the main front, center, surround
and surround back speakers.
21 AC power inlet
Connect the supplied power cord here.
14 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
[4] Remote control
(In case of SC-27)
The remote has been conveniently color-coded according
to component control using the following system:
• White – Receiver control, TV Control
• Blue – Other controls
1 MULTI-ZONE operation selector switch
Switch to perform operations in the main zone, ZONE 2
and ZONE 3.
2 RECEIVER
This switches between standby and on for this receiver.
3 MULTI OPERATION
Use this button to perform multi operations.
4 Input function buttons
Press to select control of other components.
5 INPUT SELECT
Use to select the input function.
6 Character display (LCD)
This display shows information when transmitting
control signals.
The following commands are shown when you’re setting
the remote to control other components:
SETUP – Indicates the setup mode, from which you
choose the options below.
PRESET
LEARNING
MULTI OP
SYS OFF
DIRECT F
RENAME
ERASE
RESET
READ ID
RC MODE
7 TV CONTROL buttons
These buttons are dedicated to control the TV assigned to
the TV operation selector switch. Thus if you only have
one TV to hook up to this system assign it to the TV
operation selector switch.
– Use to turn on/off the power of the TV.
VOL +/– – Use to adjust the volume on your TV.
INPUT – Use to select the TV input signal.
CH +/– – Use to select channels.
MUTE – Use to mute the sound or cancel the mute
mode.
8 Tuner/component control buttons/HOME MENU
These button controls can be accessed after you have
selected the corresponding input function button (DVD,
DVR, TV, etc.).
Set the remote control operation selector switch to
RECEIVER to access the following controls:
AUDIO PARAMETER – Use to access the Audio
options.
VIDEO PARAMETER – Use to access the Video
options.
HOME MENU – Use to access the Home Menu.
15
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
RETURN – Press to confi rm and exit the current
menu screen (also use to return to the previous menu
with DVDs or to select closed captioning with DTV).
9 / / / (TUNE/PRESET) /ENTER
Use the arrow buttons when setting up your surround
sound system and the Audio or Video options. Also used
to control DVD menus/options and for deck 1 of a double
cassette deck player.
Use TUNE / to fi nd radio frequencies and use
PRESET PRESET / to fi nd preset stations.
10 Component control buttons
The main buttons ( , , etc.) are used to control a
component after you have selected it using the input
function buttons.
The controls above these buttons can be accessed after
you have selected the corresponding input function
button (for example DVD, DVR or TV). These buttons also
function as described below.
Press TUNER fi rst to access:
MPX – Switches between stereo and mono reception
of FM broadcasts. If the signal is weak, then switching
to mono will improve the sound quality. NOISE CUT
MODE 1 to 2 can be selected when receiving AM
broadcasts.
Set the remote control operation selector switch to
RECEIVER fi rst to access:
STATUS – Press to check selected receiver settings.
PHASE CTRL – Press to switch on/off Phase Control
or Full Band Phase Control.
CH LEVEL – Press repeatedly to select a channel,
then use / to adjust the level.
PQLS – Press to select PQLS setting.
AUTO/ALC/DIRECT – Switches between Auto
Surround, Auto level control, Optimum Surround mode
and Stream Direct mode.
STEREO – Switches between stereo playback and
Front Stage Surround Advance modes.
STANDARD – Press for Standard decoding and to
switch between the various Pro Logic IIx and
Neo:6 options.
ADV SURR – Use to switch between the various
surround modes.
THX – Press to select a Home THX listening mode.
11 Number buttons and other receiver/component
controls
Use the number buttons to directly select a radio
frequency or the tracks on a CD, DVD, etc.
ENTER can be used to enter commands for TV or DTV.
After set the remote control operation switch to
RECEIVER:
SIGNAL SEL – Use to select an input signal.
SLEEP – Use to put the receiver in sleep mode and
select the amount of time before sleep.
DIMMER – Dims or brightens the display.
A.ATT – Attenuates (lowers) the level of an analog
input signal to prevent distortion.
SBch – Use to select the surround/virtual back
channel mode.
MCACC – Press to switch between MCACC presets.
HDMI OUT – Switch the HDMI output terminal.
Press TUNER fi rst to access:
D.ACCESS – After pressing, you can access a radio
station directly using the number buttons.
CLASS – Switches between the seven banks (classes)
of radio station presets.
12 SOURCE
Press to turn on/off other components connected to the
receiver.
13 Remote control illumination button
Press to turn on/off the illumination of some of the
buttons and the LCD light.1
14 Remote control operation selector switch
Set to RECEIVER to operate the receiver, TV or SOURCE
to operate the TV or the source device.
When this switch is set to RECEIVER, the receiver can be
controlled (used to select the white commands above the
number buttons (A.ATT, etc.)). Also use this switch to set
up surround sound.
15 VOL +/–
Use to set the listening volume.
16 MUTE
Mutes the sound or restores the sound if it has been
muted (adjusting the volume also restores the sound).
17 AUDIO – Changes the audio or channel on DVD or BD
discs.
DISP – Switches between named station presets and radio
frequencies.
CH +/– – Use to select channels for DVD/DVR units.
16 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
[4] Remote control
(In case of SC-25/SC-9540)
The remote has been conveniently color-coded according
to component control using the following system:
• White – Receiver control, TV Control
• Blue – Other controls
1 RECEIVER
This switches between standby and on for this receiver.
2 Input function buttons
Press to select control of other components.
3 Number buttons and other receiver/component
controls
Use the number buttons to directly select a radio
frequency or the tracks on a CD, DVD, etc.
ENTER can be used to enter commands for TV or DTV.
Press RECEIVER fi rst to access:
INPUT SELECT – Use to select the input function.
HDMI OUT – Switch the HDMI output terminal.
SIGNAL SEL – Use to select an input signal.
MCACC – Press to switch between MCACC presets.
SLEEP – Use to put the receiver in sleep mode and
select the amount of time before sleep.
SBch – Use to select the surround back/virtual
surround back channel mode.
A.ATT – Attenuates (lowers) the level of an analog
input signal to prevent distortion.
DIMMER – Dims or brightens the display.
CH LEVEL – Press repeatedly to select a channel,
then use / to adjust the level.
Press TUNER fi rst to access:
D.ACCESS – After pressing, you can access a radio
station directly using the number buttons.
CLASS – Switches between the seven banks (classes)
of radio station presets.
4 TV CONTROL buttons
These buttons are dedicated to control the TV assigned to
the TV operation selector switch. Thus if you only have
one TV to hook up to this system assign it to the TV
operation selector switch.
– Use to turn on/off the power of the TV.
INPUT – Use to select the TV input signal.
CH +/– – Use to select channels.
VOL +/– – Use to adjust the volume on your TV.
5 Tuner/component control buttons/HOME MENU
These button controls can be accessed after you have
selected the corresponding input function button (DVD,
DVR, TV, etc.).
Press RECEIVER fi rst to access:
AUDIO PARAMETER – Use to access the Audio
options.
VIDEO PARAMETER – Use to access the Video
options.
HOME MENU – Use to access the Home Menu.
RETURN – Press to confi rm and exit the current
menu screen (also use to return to the previous menu
with DVDs or to select closed captioning with DTV).
17
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
6 / / / (TUNE/PRESET) /ENTER
Use the arrow buttons when setting up your surround
sound system and the Audio or Video options. Also
used to control DVD menus/options and for deck 1 of a
double cassette deck player. Use TUNE / to fi nd radio
frequencies and use PRESET / to fi nd preset stations.
7 Component/Receiver control buttons
The main buttons ( , , etc.) are used to control a
component after you have selected it using the input
function buttons.
The controls above these buttons can be accessed after
you have selected the corresponding input function
button (for example DVD, DVR or TV). These buttons also
function as described below.
Press TUNER fi rst to access:
MPX – Switches between stereo and mono reception
of FM broadcasts. If the signal is weak, then switching
to mono will improve the sound quality.
NOISE CUT MODE 1 or 2 can be selected when this
unit is receiving AM broadcasts.
Press RECEIVER fi rst to access:
AUTO/ALC/DIRECT – Switches between Auto
Surround, Auto level control, Optimum Surround mode
and Stream Direct mode.
STEREO – Switches between stereo playback and
Front Stage Surround Advance modes.
STANDARD – Press for Standard decoding and to
switch between the various Pro Logic IIx and
Neo:6 options.
ADV SURR – Use to switch between the various
surround modes.
THX – Press to select a Home THX listening mode.
PHASE CTRL – Press to switch on/off Phase Control
or Full Band Phase Control.
STATUS – Press to check selected receiver settings.
PQLS – Press to select PQLS setting.
8 AUDIO – Changes the audio or channel on DVD or BD
discs.
DISP – Switches between named station presets and
radio frequencies.
CH +/– – Use to select channels for DVD/DVR units.
9 REMOTE SETUP
Use to input the preset code when making remote
control settings and to set the remote control mode.
10 TV CTRL
Use this button to set preset code of your TV’s
manufacturer when controlling TV.
11 MULTI-ZONE operation selector switch
Switch to perform operations in the main zone, ZONE 2
and ZONE 3.
12 Remote control LED
Lights when a command is sent from the remote control.
13 SOURCE
Press to turn on/off other components connected to the
receiver.
14 MASTER VOLUME +/–
Use to set the listening volume.
15 MUTE
Mutes the sound or restores the sound if it has been
muted (adjusting the volume also restores the sound).
16 RECEIVER
Switches the remote to control the receiver (used to
select the white commands above the number buttons
(A.ATT, etc.)). Also use this button to set up surround
sound.
17
Press to turn on/off the illumination of some of the
buttons.
18 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
3. BASIC ITEMS FOR SERVICE
3.1 CHECK POINTS AFTER SERVICING
Item to be checked regarding video Item to be checked regarding audio
Block noise Distortion
Horizontal noise Noise
Flicker Volume too low
Disturbed image (video jumpiness) Volume too high
Too dark Volume fluctuating
Too bright Sound interrupted
Mottled color
No. Procedures Check points
1
2
3
4
5
6
7
8
Confirm whether the customer complain has been solved.
If the customer complain occurs with the particular source,
such as Dolby Digital, DTS, AAC, DVD-A and HDMI, input it for
the operation check.
The customer complain must not be reappeared.
Video, Audio and operations must be normal.
Check the analog audio playback.
(Make the analog connections with a DVD player.)
Each channel audio and operations must be normal.
Check the digital audio playback.
(Make the digital connections with a DVD player.)
Each channel audio and operations must be normal.
Check surround playback.
(Select Surround mode and check the multichannel operations
via the DSP circuit.)
Each channel audio and operations must be normal.
Check the tuner (AM and FM) operations. Audio and operations must be normal.
Check the video outputs.
(Connect with a DVD player.)
Video and operations must be normal.
Check the sound from headphone output. Sound must be normal, without noise.
Check the appearance of the product. No scratches or dirt on its appearance after receiving it for
service.
Items to be checked after servicing
To keep the product quality after servicing, confirm recommended check points shown below.
See the table below for the items to be checked regarding video and audio.
Cleaning
Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools.
NamePosition to be cleaned Part No. Remarks
Refer to “9.4 CHASSIS SECTION”.Cleaning paperFans GED-008
19
SC-27
56 7 8
56 7 8
A
B
C
D
E
F

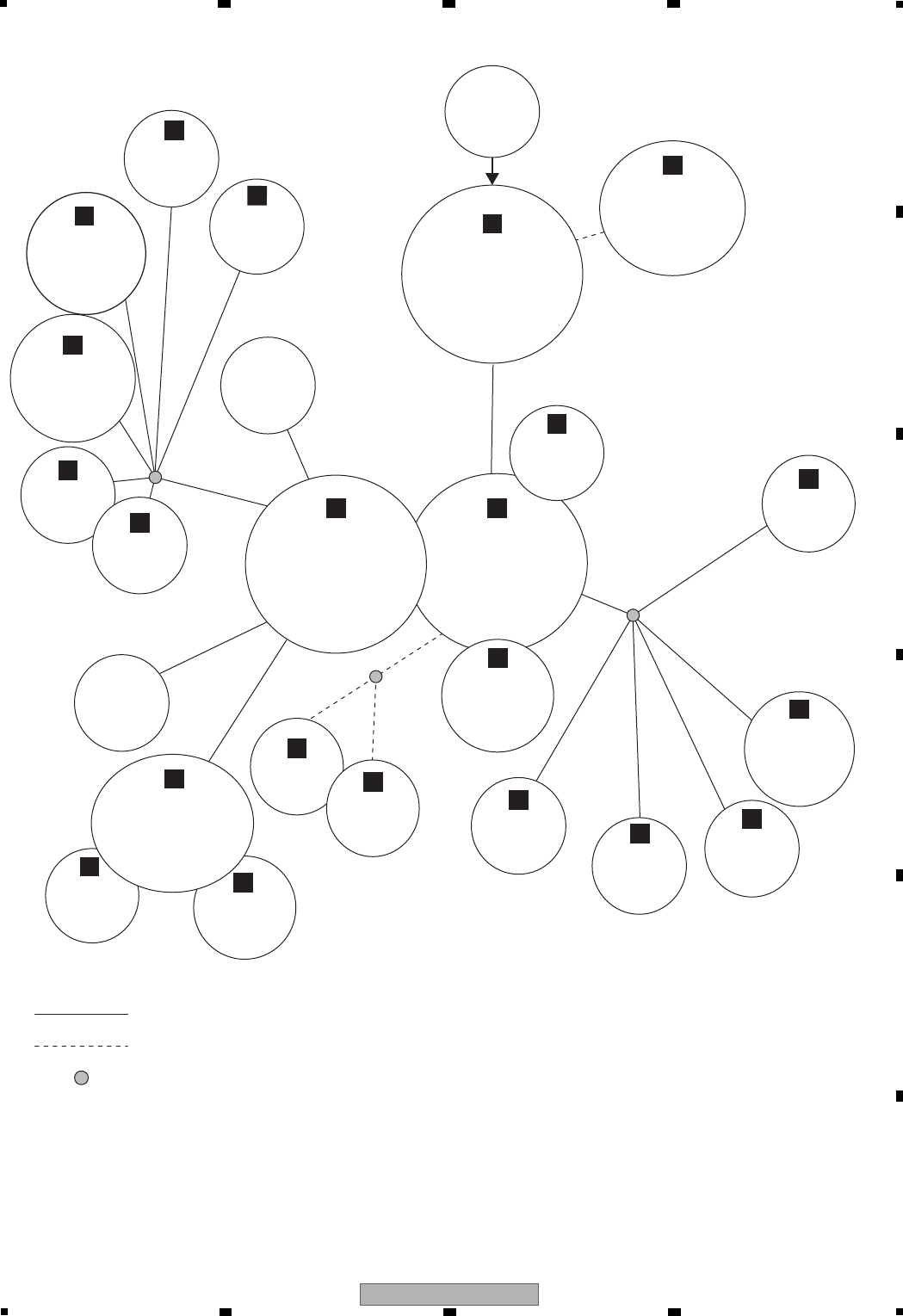

3.2 PCB LOCATIONS
HCOMPOSITE_S
ASSY
EDIGITAL MAIN
ASSY
Z
HDMI RECT
ASSY
ZOUT ASSY
QICEPOWER AMP ASSY
F
INTERFACE ASSY AAUDIO ASSY
B
DSP ASSY
D
232C_CONTROL
ASSY
UPRIMARY ASSY
PICE INTERFACE
ASSY
DIGITAL_BRIDGE
ASSY
IFRONT BRIDGE
ASSY
NICE_BUFFER
ASSY
OICE SHIELD
ASSY
GCOMPONENT
ASSY
XB_REG ASSY
H GUARD ASSY
RV-BRIDGE ASSY
WICE_REG ASSY
TPRIMARY GUARD
ASSY
Y
B_DIODE
ASSY
V
REG ASSY
S
PRE_BRIDGE
ASSY
FM/AM TUNER
UNIT
AA
AB
AC
20 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
LIST OF ASSEMBLIES
NOTES:
-
Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List.
-
The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
JMIC HP ASSY
C
FRONT-HDMI ASSY
LVOL ASSY
M
POWER SW ASSY
K
DISPLAY ASSY
Mark Symbol and Description SC-27/CUXJCA SC-25/CUXJCA SC-9540/CUXJCA
1..ICEPOWER AMP ASSY AWH7022 AWH7019 AWH7019
NSP 1..COMPOSITE_ICE ASSY AWM8143 AWM8143 AWM8143
2..PRE_BRIDGE ASSY AWX9440 AWX9440 AWX9440
2..COMPOSITE_S ASSY AWX9443 AWX9443 AWX9443
2..ICE_BUFFER ASSY AWX9444 AWX9444 AWX9444
2..ICE SHIELD ASSY AWX9445 AWX9445 AWX9445
NSP 1..PRIM_DISPLAY ASSY AWM8145 AWM8150 AWM8171
2..DISPLAY ASSY AWX9454 AWX9481 AWX9528
2..VOL ASSY AWX9455 AWX9455 AWX9455
2..POWER SW ASSY AWX9456 AWX9456 AWX9456
2..V-BRIDGE ASSY AWX9457 AWX9457 AWX9457
2..PRIMARY ASSY AWX9458 AWX9458 AWX9458
2..HDMI RECT ASSY AWX9459 AWX9459 AWX9459
NSP 1..DIGITAL AUDIO ASSY AWP7070 AWP7072 AWP7072
2..DSP ASSY AWX9429 AWX9467 AWX9467
2..ICE INTERFACE ASSY AWX9430 AWX9430 AWX9430
NSP 1..COMPONENT_MIC ASSY AWQ7069 AWQ7071 AWQ7071
2..COMPONENT ASSY AWX9437 AWX9490 AWX9490
2..MIC HP ASSY AWX9438 AWX9438 AWX9438
2..ZOUT ASSY AWX9439 AWX9439 AWX9439
2..H GUARD ASSY AWX9441 AWX9441 AWX9441
2..DIGITAL_BRIDGE ASSY AWX9461 AWX9461 AWX9461
NSP 1..AUDIO_232C ASSY AWR7074 AWR7074 AWR7074
2..AUDIO ASSY AWX9434 AWX9434 AWX9434
2..232C_CONTROL ASSY AWX9435 AWX9435 AWX9435
2..PRIMARY GUARD ASSY AWX9436 AWX9436 AWX9436
NSP 1..INTERFACE_REG ASSY AWR7078 AWR7078 AWR7078
2..INTERFACE ASSY AWX9447 AWX9447 AWX9447
2..ICE_REG ASSY AWX9448 AWX9448 AWX9448
2..B_REG ASSY AWX9450 AWX9450 AWX9450
2..B_DIODE ASSY AWX9451 AWX9451 AWX9451
NSP 1..FBRIDGE_REG ASSY AWR7079 AWR7079 AWR7079
2..REG ASSY AWX9452 AWX9452 AWX9452
2..FRONT BRIDGE ASSY AWX9453 AWX9453 AWX9453
1..DIGITAL MAIN ASSY AWX9463 AWX9463 AWX9463
1..FRONT-HDMI ASSY AWX9497 AWX9497 AWX9497
1..FM/AM TUNER UNIT AXX7267 AXX7267 AXX7267
21
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
3.3 JIGS LIST
[1] Jigs List
Name Jig No. Remarks
27P FFC GGD1588 Diagnosis
19P FFC GGD1589Diagnosis
21P FFC GGD1590 Diagnosis
11P FFC GGD1650 Diagnosis
17p+19p board to board extension jig cable GGD1593 Diagnosis
24p+15p board to board extension jig cable GGD1651 Diagnosis
8p PH Housing Assy
5p PH Housing Assy
GGD1652
GGD1594
Diagnosis
Diagnosis
[2] Lubricants and Glues List
Name Lubricants and Glues No. Remarks
Lubricating Oil GYA1001 Refer to “9.5 FRONT SECTION”
Silicone Grease GEM1057 Refer to “9.2 EXTERIOR SECTION”
22 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
4. BLOCK DIAGRAM

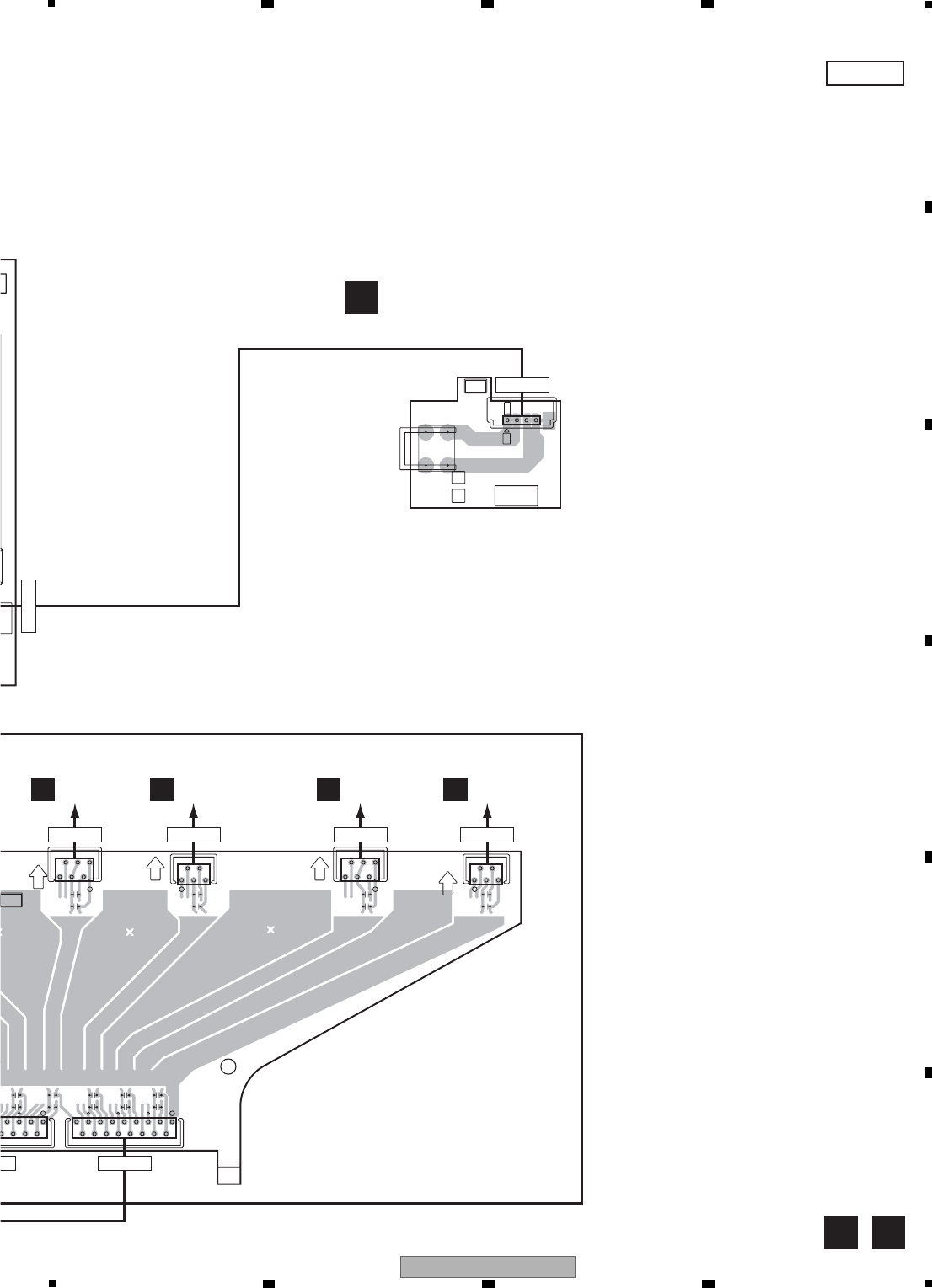

4.1 OVERALL WIRING DIAGRAM
23
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
24 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
4.2 BLOCK DIAGRAM FOR AUDIO BLOCK
IC2301
1st DSP
DSPA56720AG
A/D BUFFER
IC2901
NJM4565MD
NOTE
SPDIF:SONY/Philips Digital Interface
I2S:The Inter-IC Sound
IC1300
I/O EXPANDER
PE7008A
25
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
HDMI IN4
MIC
CD
CD-R
TV/SAT
DVR
TUNER Module
DVD
Sirius
MULTI IN L/R
MULTI IN SL/SR
MULTI IN SBL/SBR
MULTI IN C/SW
PREOUT L/R
PREOUT SW
PREOUT SL/SR
PREOUT SBL/SBR
CD-R REC
DVR REC
ZONE2 OUT
IC5201
Selector / Volume / PRE Amp
BD3473KS2
IC5221
ZONE2/ZONE3
E-VOL
BD3814FV
SP L/R
SP C
SP SL/SR
SP SBL/SBR
HP
SW DownMix
JA6201
JA3551
IC5301, IC5302
JA5003
JA5004
JA5006
JA5006
JA5007
SW PRE Amp
IC5282
<<POWER AMP>>
JA5001
JA5003
JA5007
JA6351
JA4101
JA4101
JA4301
JA4501
JA6502
JA6502
JA6501
JA6501
JA5008
JA5008
JA5009
JA5009
PREOUT C
JA6502
PHONO
TUNER
VIDEO1
VIDEO2
JA5002
JA5002
JA5005
JA5005
JA5807
ZONE3 OUT
JA5001
HEADPHON
AMP
<<POWER AMP
INPUT BUFFER>> IC6820,
IC6840
IC6800
IC6860,
IC6880
IC6900,
IC6920
MIC HP ASSY
ICE_BUFFER
ASSY ICEPOWER AMP ASSY
<<PREOUT>>
COMPOSITE_S ASSY
ZOUT ASSY
<<AUDIO ZONE OUT>>
232C & CONTROL ASSY
MIC Amp
IC6201
NJM4565MD
MIC_HP ASSY
AUDIO ASSY
USB JA3501
IC3551
HDMI EQ
CXB1443R
FRONT-HDMI ASSY
IC6551
IC6552
IC6553
IC6554
AUDIO ASSY
NJM4565MD
IC5401
NJM4565M
C
J
D
A
J
Q
H
N
26 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
4.3 BLOCK DIAGRAM FOR DIGITAL VIDEO AND NW AUDIO
TMDS
GEPJSUB oediV
Analog Video
NW Audio
HDMI
IN BD
IN1
IN2
IN3
IC1601
HDMI
Switch
IC1501
HDMI Rx
"SiI9233ACTU
"
CXB1444A
IC9100
HDMI
Tx
IC9000
HDMI
Tx
SiI9134CTU
SiI9134CTU
HDMI OUT1
HDMI OUT2
IC1800
Video Scaler
"ABT1015"
IC701
NW Audio
"DM850E"
IC1807 to 1811
BusBuffer x5
TC74VCX541FT
Ethernet
IN 4
(Front)
IC800
IP conv (SD),
VENC (SD)
GUI, USB (Audio,
iPod, JPEG)
"EMMA2RL2 "
CVBS
S
Component
IC1701
Video Dec (SD,ED,HD)
"ADV7181CBSTZ"
CVBS
S
Compo
S
Component
ITU-R
BT656
8bit
ITU-R BT656
10bit/20bit
4:2:2
IC1801 to 1803
BusBuffer x3
TC74LCX541FTS1
IC1805
BusBuffer
TC74LCX541FTS1
IC1806
TC7SZ125FU
IC1804
TC7SZ125FU
ITU-R BT656 8bit
/16bit 4:2:2
VBUSE2OUT
VBUSMAIN
VBUSE2IN
E2VINSW00,
E2VINSW01
IC8231
TC74HC4051AFT
20bit
4:2:2
XVBUSADOUT
USB
IC501
PHY
"RTL8201LF
MAIN:SPDIF
Z2&3:I2S
NETWORK block
CVBS
JA701
EDIGITAL MAIN Assy
27
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
4.4 BLOCK DIAGRAM FOR ANALOG VIDEO BLOCK (1/4)
IC6514
IC6502
VIDEO AMP
IC6501
INH
INH
INH
INH
MAIN
SEL1
MAIN
SEL2
ZONE2
SEL1
ZONE3
SEL1
IC6511-1
VMUTE
51A 51B/51C
51B MRSW
51C
*Common with S *Common with S
IC6502
TC74HC4051AFT TC74HC4053AFT LA7109
TC74HC4051AFT
TC74HC4051AFT
Z2VSW1
Z2VSW2
Z2VSW3
INPUT SELECTOR Composite/S Common
Composite/S Common
51A,51B,51C
Z2VSW1,2,3
IC6503
Z3VSW1,2,3
AONCB
L013(No used)LL H114DVR/VCR1LL L215VIDEO1LH
AONCB
L 0X,0Y,0Z
1X,1Y,1Z 12,2,5
13,1,3 DVCLL H THROUGHHH
H312DVDLH L41TV/SATHL H 5 5 iPod VIDEOHL L 6 2 OSD(ZONE only)HH L74VIDEO2HH
VIDEO MUTE
VMUTE
L ACTIVE
Z3VSW1
DVC/THROUGH SELECTOR
MRSW
Z3VSW2
Z3VSW3
COMPONENT Assy
DIGITAL MAIN
Assy
DVD
TV/SAT
DVR1/VCR1
VIDEO2
MONITOR OUT
DVR1/VCR1 OUT
VIDEO1
35
OSD IC
PDC162A
Y/C MIX
MM1511XN
iPod VIDEO
VVOUTMSEL1B
VCOUTDVC
EMMA
VYOUTDVC
12 6
3
10
11
B
A
C
B
A
C
B
A
C
9
6
3
10
11
9
1
14
15
5
2
4
13
12
1
14
15
5
2
4
13
B
A
C
6
3
10
11
9
12
1
14
15
5
2
4
13
2
6
1
3
4
30
7
11
13
14
20
17
35+6dB
+6dB
+6dB
+6dB
+6dB
+6dB
33
31
25
23
21
15
4
14
10
9
11
1
5
3
12
13
Z OUT Assy
ZONE2 OUT
ZONE3 OUT
Z2VSW1/Z2VSW2/Z2VSW3
Z3VSW1/Z3VSW2/Z3VSW3
IC6513
VIDEO AMP
+6dB12
11
3
4
2
13
10
5
+6dB
NJM2279
MUTE2
MUTE1
ENABLE
ENABLE
ENABLE
ENABLE
SW1
SW2
COMPOSITE_S ASSY
• COMPOSITE BLOCK
EH
G
AC
28 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
4.5 BLOCK DIAGRAM FOR ANALOG VIDEO BLOCK (2/4)
IC6508IC6511-2
IC6502-2
VIDEO AMP
ENABLE
ENABLE
ENABLE
ENABLE
51A
VMUTE
51B
51C MRSW
IC6509
51B/51C
DVC/THROUGH SELECTOR
C
L
HL
HL 0X,0Y,0Z 12,2,5 DVC
1X,1Y,1Z 13,1,3 THROUGH
H
BA ON
MRSW *Common with COMPOSITE
LA7109
*Common with COMPOSITE
TC74HC4053AF
TC74HC4051AFT
INH
DIGITAL MAIN Assy
DVD
TV/SAT
VIDEO1
DVR1/VCR1
MONITOR OUT
VCR OUT1
SDET
VIDEO2
Y MAIN
SEL1
C MAIN
SEL1
MAIN
SEL2
VYOUTMSEL1
VCOUTMSEL1
VYOUTDVC
VCOUTDVC
EMMA
COMPONENT Assy
1
6
2
1
5
3
12
13
15
4
14
A
B
C
11
10
9
INH6
1
12
14
15
3
5
2
4
13
A
B
C
11
10
9
TC74HC4051AFT
INH6
1
12
14
15
3
5
2
4
13
A
B
C
11
10
9
35
33
31
25
23
21
3
4
30
7
11
13
14
20
17
+6dB
+6dB
+6dB
+6dB
+6dB
+6dB
COMPOSITE_S ASSY
• S-VIDEOE BLOCK
E
H
G
29
SC-27
56 7 8
56 7 8
A
B
C
D
E
F

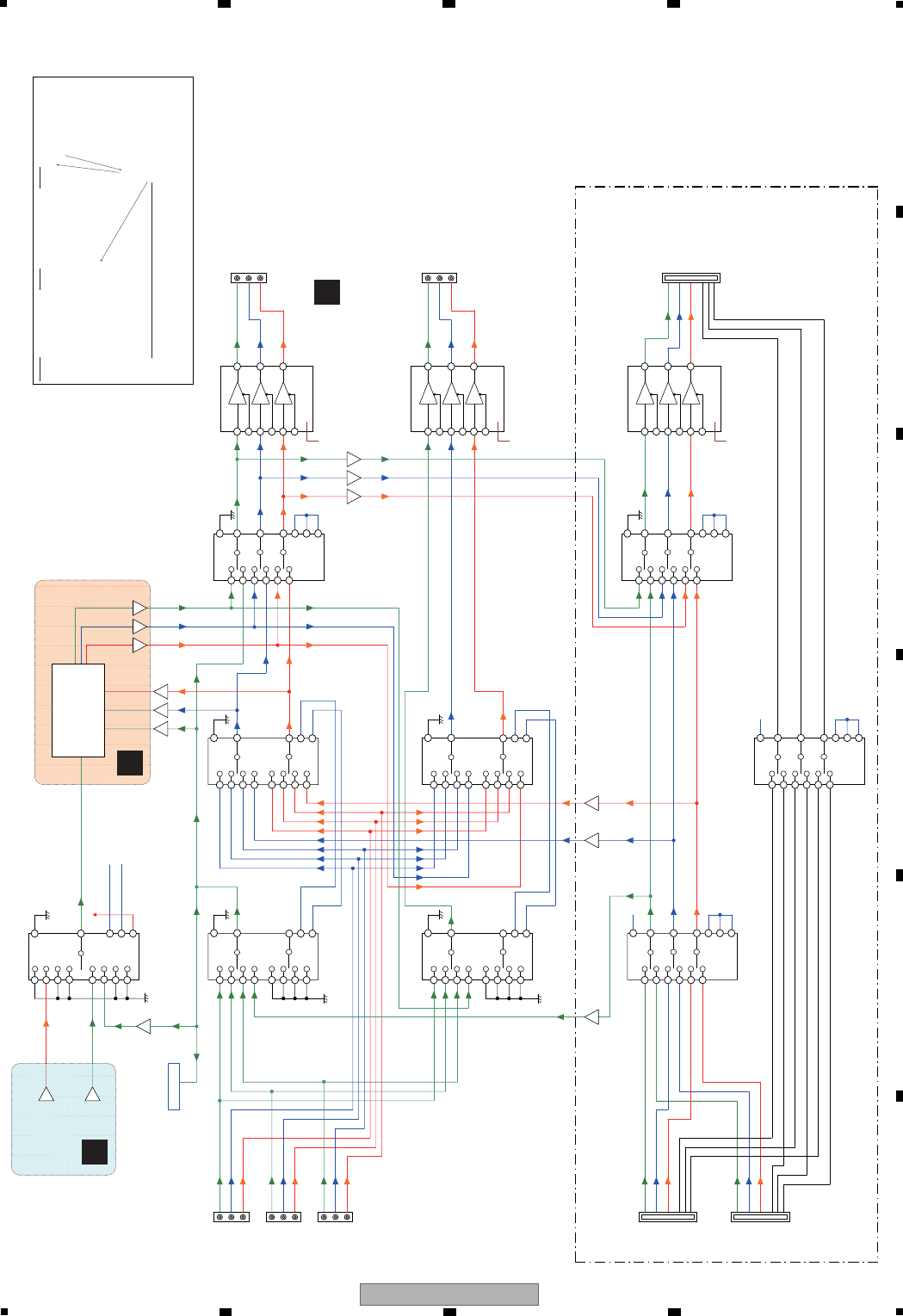

4.6 BLOCK DIAGRAM FOR ANALOG VIDEO BLOCK (3/4)
MAIN SEL
CSW1 CSW2 OUTPUT
LLINPUT1
LHINPUT3
HLINPUT2
HH
C_MUTE
C53ABC
COMPONENT MUTE Z2CMUTE MR COMPONENT MUTE
L ACTIVE
L HDMI(DVC)OUT PUT
H THROUGH OUTPUT
DSW1 OUTPUT to D TERM
Control by EMMA
EXP4-D2
EXP4-D0
B to B from COMPOSITE_S Assy
LINPUT2
HINPUT1
D53ABC
L D-TERM
H COMPONENT/DVC-ON
DINH D Line INH
L ACTIVE
HNO OUTPUT
L ACTIVE
D-TERM
LLINPUT1
LHINPUT3
HLINPUT2
HHINPUT DVC
LLCVBS
LHS
H L COMPONENT
HHNO DVC
Z2CSW2OUTPUTZ2CSW1E2VINSW01 OUTPUTE2VINSW00
VVOUTMSEL1B
VYOUTMSEL1
E2VINSW00
E2VINSW01
CSW1
CSW2
CMUTE
C53ABC
DVC
DVC
Z2CSW1
Z2CMUTE
DVC
Z2CSW2
DINH
D terminal
CMUTE
D53B
DSW1
IC9003
DINH
DSW1
DIGITAL MAIN Assy
IC6001 IC6003
Cb
Cb
Cr
SUB
SEL1
INH
B
A
TC74LVX4052FT
12
14
15
11
4
2
5
1
9
10
3
13
6
SUB
SEL1
INH
B
A
TC74LVX4052FT
12
14
15
11
4
2
5
1
9
10
3
13
6
EMMA
IN1
IN3
IN2
IN1
IN2
MONITOR
OUT
ZONE2
OUT
MONITOR
OUT
IC6002 IC6004
IC6005
MAIN
SEL2
D/COMP
SEL
INH
B
A
TC74LVX4053FT
C
10
9
11
4
15
14
13
3
12
5
1
2
6
MAIN
SEL 1
Y
INH
B
A
TC74LVX4052
12
14
15
11
4
2
5
1
9
10
3
13
6
Cr
Line
SEL
INH
B
A
TC4053BFN
C
10
9
11
4
14
15
5
2
3
1
12
13
6
DVC/JPEG
(SD/ED,GUI)
NJM2581M
NJM2581M
NJM2581M
TC74LVX4053FT
Powersave
IC6007
Powersave
IC6008
MAIN
SEL 1
INH
B
A
TC74LVX4052FT
12
14
15
11
4
2
5
1
9
10
3
13
6
Y
SEL
INH
C
B
12
A
TC74LVX4051FT
13
4
5
2
15
14
1
11
10
9
3
6
CDET
IC6014
ENABLE
113
4
ENABLE
+6dB
+6dB
311
2
ENABLE
ENABLE
ENABLE
ENABLE
ENABLE
ENABLE
ENABLE
95
6
113
4
311
2
95
6
Y
Powersave
IC9005
113
4
31
1
2
95
6
COMPOSITE_S Assy
Line
SEL
INH
B
A
TC4053BFN
C
10
9
11
4
14
15
5
2
3
1
12
13
6
IC9002
IC9001
+6dB
+6dB
+6dB
+6dB
+6dB
+6dB
+6dB
14
4
11
10
9
6
15
2
1
13
12
3
5
SUB SEL DVC SEL
COMPONENT ASSY
E
G
H
30 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
4.7 BLOCK DIAGRAM FOR ANALOG VIDEO BLOCK (4/4)
Y-SEL
E2VINSW00_5
E2VINSW01_5
GATE ARRAY
IC1300
IC6014
IC6010
IC6009
IC6504
IC6541
IC6542
IC1450
IC1305
3-5 Convert
5_10WSNIV2E
3_10WSNIV2E
10WSNIV2E
5_00WSNIV2E
3_00WSNIV2E
00WSNIV2E
5_TSRDSOX
3_SCDSO
TSRDSOX
OSD IC
TSRDSOX
5_SCDSO
3_TSRDSOX
SCDSO
3-5 Convert OSDCS
OSDSO/EXSO OSDSO
OSDSCK/EXSCK OSDSCK/EXSCK5 EXPSCK
EXSTANLG
EXP-2
5_2_5OSXE
5GLNAEOXEGLNAEOXE
EXP-3
3_5OSXE
5_KCSPXE
EXSTANLG_5
GLNATSXE
5_GLNAEOXE
EXOEANLG
EXP-5 EXSO5_1
EXP-4
SIN
SCLK
RST
CS
DATA
DATA
CLK Q's
STROBE
STROBE CLK
DATA
STROBE
CLK
Q's
OE
OE
OE
Q's
DATA
CLK Q's
STROBE
OE
DIGITAL MAIN Assy COMPONENT Assy COMPOSITE_S Assy
OSDSO/EXSO5_2
EXSTANLG5
E G H
31
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
4.8 BLOCK DIAGRAM FOR U-COM BLOCK
XM
Hard Serial
Soft Serial
Control Port Common
CEC
The User Memory data is stored in IC1050(AYW7298) of EMMA Flash ROM and IC8001(PDC188C8) of Event ucom.
The setting of the protection history and zone is stored in EVENT ucom and other setting data of user data is stored in
EMMA Flash ROM.
IC1501
HDMI
Rx
IC9000
HDMI
Tx
IC1800
Scaler
IC1701
V,DEC
IC8201
FL Driver
u-com
IC8001
EVENT·CEC
u-com
IC3052,IC3152
IC3252,IC3352
DAC
IC2951
ADC
IC2001
DIR
IC5201
E-Vol IC5221
zone
E-Vol
IC3451
zone
DAC
TUNER
IC800
MAIN LSI
EMMA
IC1300
Expand Gate
Array
IC2301
1st
DSP
IC1000
IC1001
DDR
SDRAM
IC1050
Flash ROM
IC9100
HDMI
Tx
IC551
DDR
SDRAM
IC571
Flash
ROM
IC701
Network
DLNA
IC2401
2nd
DSP
A
A
B
B
B
B
B
E
E
E
E
E
K
K
E
E
B
E
E
EE
E
32 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

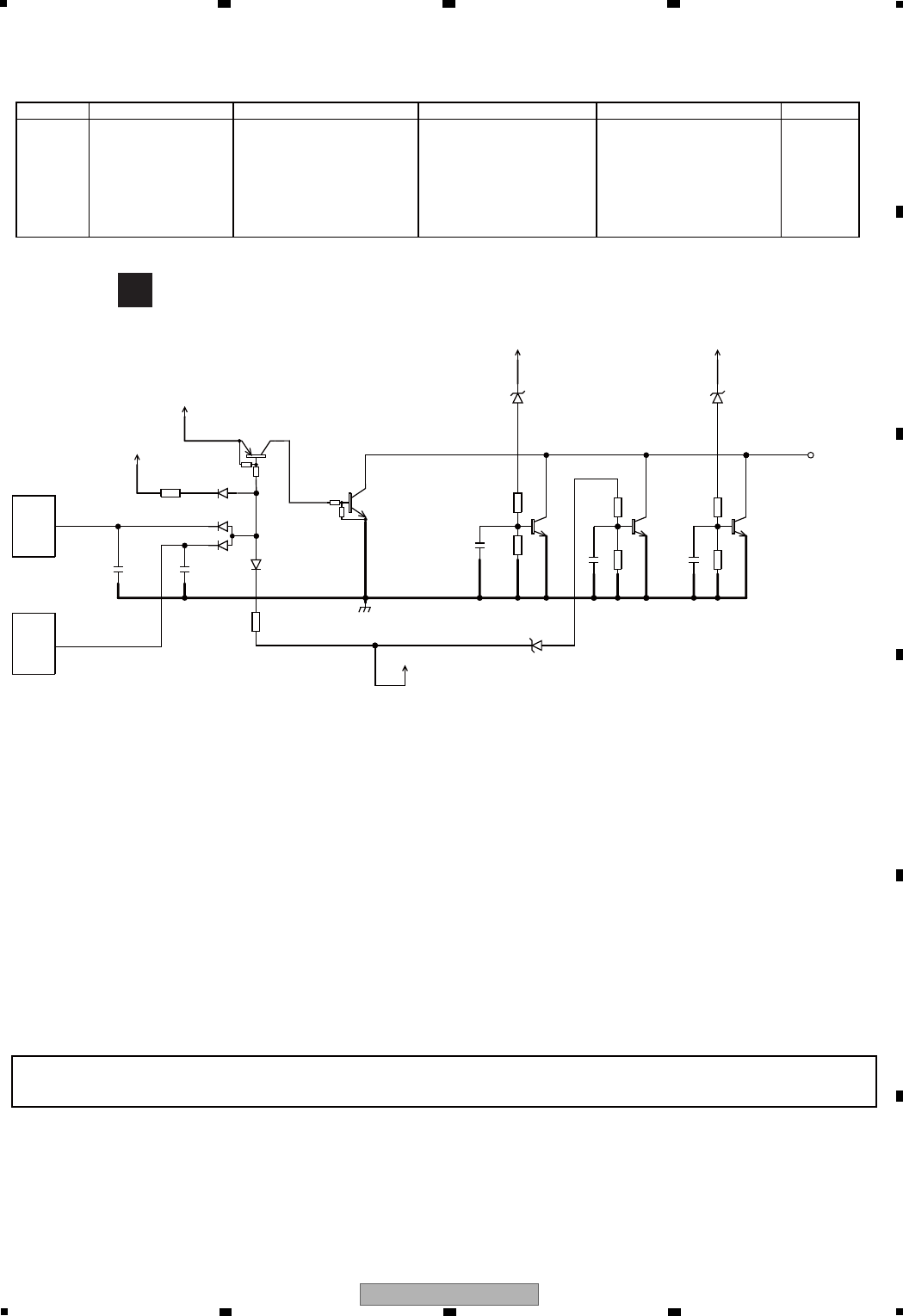

4.9 BLOCK DIAGRAM FOR POWER BLOCK
Q7201
Q7202
4.8V
AC+DC
DC
+11.95V
33
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
DC
+4.80V
34 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
5. DIAGNOSIS

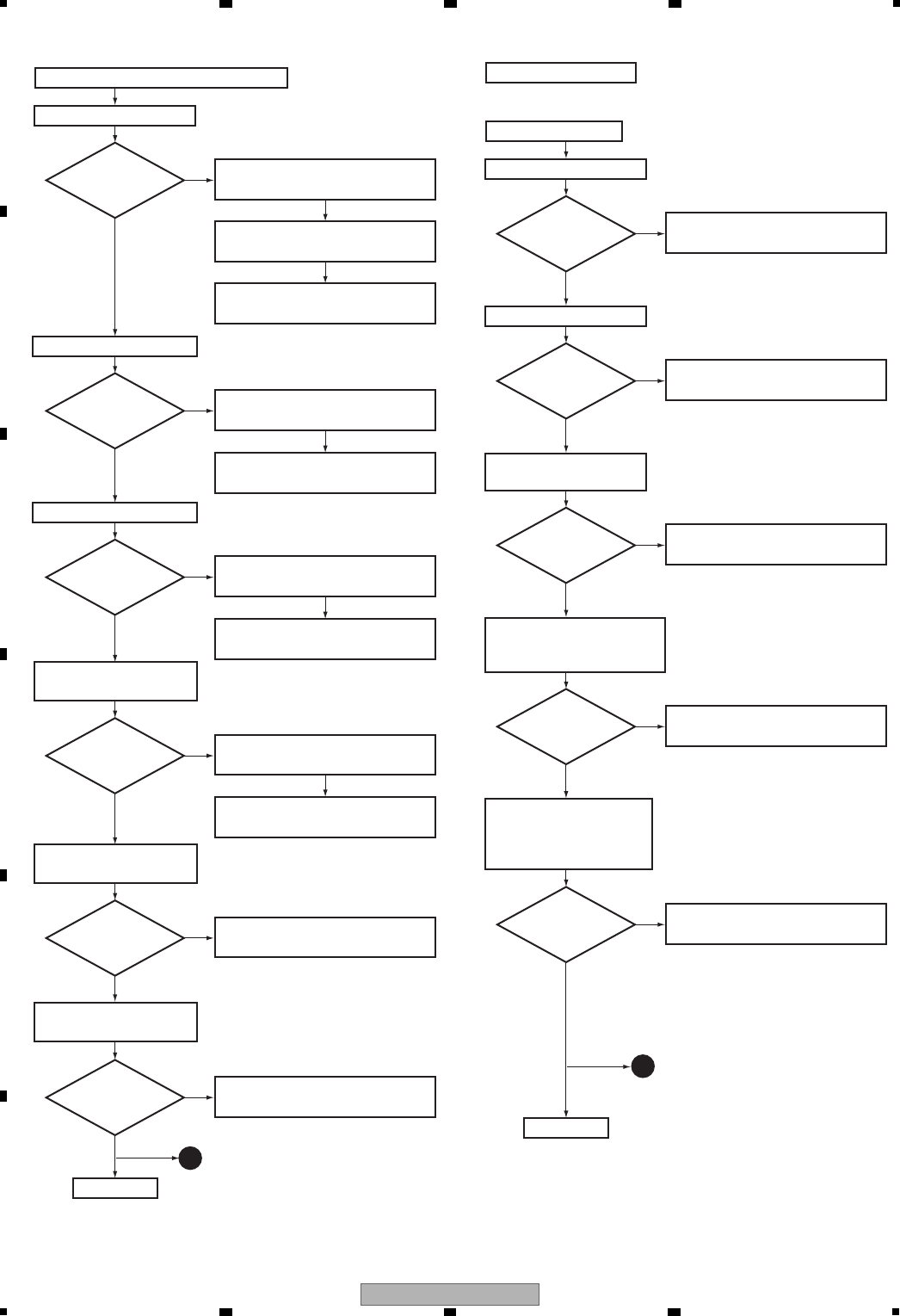

5.1 DIAGNOSIS FLOWCHART
[1] DSP Troubleshooting
(1) Simplified diagnosis
Errors in the DSP Block of the DSP Assy (those simply and roughly predictable by machine operation only)
• Has DSP block caused the malfunction?
Inputting a 2 ch PCM (such as CD) digital signal, check if the sound plays by switching AUTO SURR / STREAM DIRECT.
When the sound doesn’t play in AUTO SURROUND or DIRECT MODE though it does in PURE DIRECT (PCM DIRECT)
MODE, DSP block might be defective.
(2) Troubleshooting
• Assume that the LCRs are neither in poor connection nor damaged.
• This shows failure analysis for the DSP Block of the DSP Assy.
Step 2: Power supplyStep 1: Connections
CN2001,CN2002,CN2003,
CN2602,CN2901,CN2902
Are the
connectors securely
inserted?
Insert the connectors
securely.
No
CN2003 (Pins 1-3)
IC2307 (Pin 2)
Is the voltage
6 V?
No
6V input
Connection with
the INTERFACE Assy.
1st, 2nd Block 3.3V
CN2601 Connection with
the DIGITAL MAIN Assy.
No
Replace CN2003.
Check the output from the
REG Assy.
Ye s
Replace IC2307.
Ye s
Is there
any poor connection
at Pins 1-3 of
CN2003?
Is the voltage
4.2 V-4.5 V
?
No
No
The output and GND may be short-
circuited. Check the path between
them.
Ye s
Ye s
Is IC2307
abnormally hot?
A
Ye s
Is the
FFC securely
inserted?
Insert the FFC
securely.
No
CN2201 Connection with
the DIGITAL_BRIDGE Assy.
Ye s
Is the
connector securely
inserted?
Insert the connector
securely.
No
Ye s
To Step 2
A

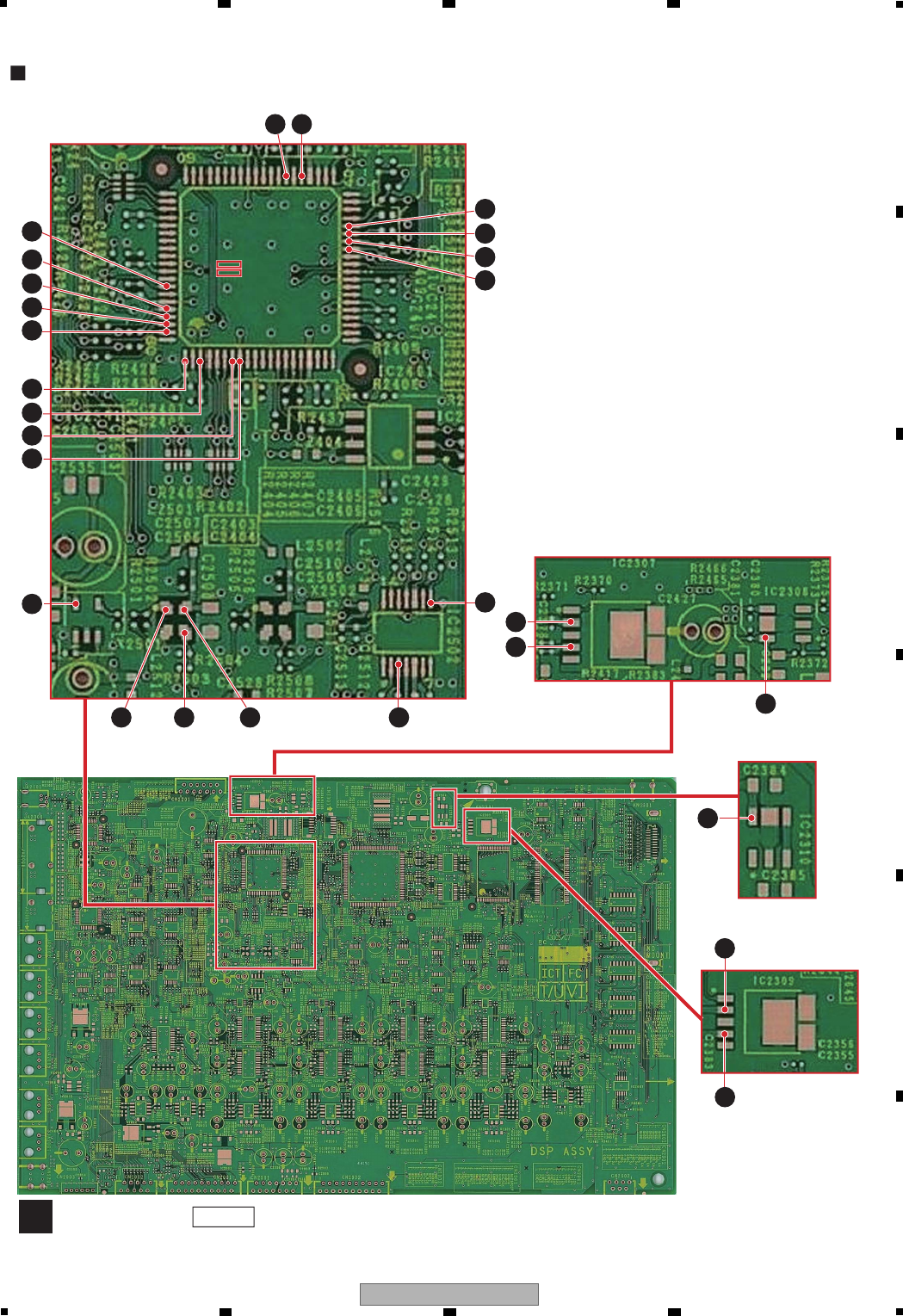

• The parts marked like in the following chart are located in "Check Points of the DSP Assy."
A
B
IC2301 (Pin 72, etc.) 1st DSP 3.3V
Is the voltage
3.3 V?
No
Ye s
C
Check the parts and patterns
in the path.
Check the parts and patterns
in the path.
Check the parts and patterns
in the path.
IC2307 (Pin 4)
Is the voltage
3.3 V?
No
Ye s
IC2304 (Pin 20) LATCH 1
Is the voltage
3.3 V?
No
Ye s
D
E
35
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
IC2309 (Pin 2) 1st Block 1V
Replace IC2309.
Is the voltage
4.2 V-4.5 V
?
No
No
The output and GND may be short-
circuited. Check the path between
them.
Ye s
Ye s
Is IC2309
abnormally hot?
A
I
J
Check the parts and patterns
in the path.
IC2301 (Pin 1, etc.) 1st DSP 1V
Is the voltage
1 V?
No
Ye s
L
Check the parts and patterns
in the path.
IC2309 (Pin 4)
Is the voltage
2.5 V?
No
Ye s
Replace IC2310.
No
The output and GND may be short-
circuited. Check the path between
them.
Ye s
Is IC2310
abnormally hot?
K
IC2310 (Pin 5)
Is the voltage
1 V?
No
Ye s
Check the parts and patterns
in the path.
IC2305 (Pin 20) LATCH 2
Is the voltage
3.3 V?
No
Ye s
F
Check the parts and patterns
in the path.
IC2302 (Pins 12, 37) FLASH ROM
Is the voltage
3.3 V?
No
Ye s
G
Check the parts and patterns
in the path.
IC2303 (Pin 1, etc.) SDRAM
Is the voltage
3.3 V?
No
Ye s
H
IC2308 (Pin 5) 2nd Block 1.25V
Is the voltage
1.25 V?
No No
Ye s Ye s
Is IC2308
abnormally hot?
O
IC2401 (Pin 8, etc.) 2nd DSP 1.25V
Is the voltage
1.25 V?
No
P
Check the parts and patterns
in the path.
Check the parts and patterns
in the path.
IC2401 (Pin 3, etc.) 2nd DSP 3.3V
Is the voltage
3.3 V?
No
Ye s
IC2501 (Pin 5) OSC Block 3.3V
Is the voltage
3.3 V?
No No
Ye s Ye s
Is IC2501
abnormally hot?
Q
X2501 (Pin 4) 24M OSC 3.3V
Is the voltage
3.3 V?
No
R
Check the parts and patterns
in the path.
Ye s
Ye s
M
To Step 3
Replace IC2308.
Replace IC2501.
The output and GND may be short-
circuited. Check the path between
them.
The output and GND may be short-
circuited. Check the path between
them.
36 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
Step 3: EXTAL Clock
Check the output of pin 4 of IC2601
(Port Expander) on the path.
X2501 (Pin 1) 24ON
X2501 (Pin 3)
Is the logic
gate "H"?
No
Ye s
S
T
Does the
crystal oscillate
at 24.576 MHz
?
No
Ye s
Check the path, or replace IC2502.
Replace X2501.
Check the path.
IC2502 (Pins 3,8) BUFFER
No
Ye s
U
IC2301 (Pin 80) 1stDSP EXTAL
No
Ye s
V
To Step 4
Is there
a clock output
(24.576 MHz)
?
Is there
a clock input
(24.576 MHz)
?
Check the path.
IC2401 (Pin 45) 2ndDSP EXTAL
No
Ye s
W
Is there
a clock input
(24.576 MHz)
?
Step 4: Audio Signal
Check the signal path.
Check the signal path.
Check the signal path.
Check the signal path.
Check the signal path.
IC2301 (Pins 89,134) MCLK
BCK
LRCK
No
Ye s
X
IC2401 (Pin 73)
No
Ye s
Y
IC2301 (Pin 94)
No
a
IC2301 (Pin 97)
b
IC2301 (Pin 93)
DATA
No
Ye s
Ye s
No
Ye s
Z
To Step 5
Are there
MCLK inputs to
1st DSP
?
Is there a
MCLK input to
2nd DSP
?
Is there a
BCK input to
1st DSP
?
Is there a
LRCK input to
1st DSP
?
Is there a
DATA input to
1st DSP
?
37
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
Step 5: Audio Signal
IC2301 (Pin 136) BCK
LRCK
No
Ye s
c
IC2401 (Pins 63,76)
No
Ye s
d
IC2401 (Pins 61,78)
No
f
IC2301 (Pin 125)
g
h
IC2301 (Pin 135)
DATA
No
Ye s
Ye s
No
Ye s
e
To Step 6
Is there a
BCK output from
1st DSP
?
Is there a
BCK input to
2nd DSP
?
Is there a
LRCK output from
1st DSP
?
Is there a
LRCK input to
2nd DSP
?
Is there a
DATA output from
1st DSP
?
The 1st DSP Block is in failure.
Proceed to Step 7.
The 1st DSP Block is in failure.
Proceed to Step 7.
The 1st DSP Block is in failure.
Proceed to Step 7.
Check the parts and patterns
in the path.
Check the parts and patterns
in the path.
IC2401 (Pin 1)
No
Ye s
Is there a
DATA input to
2nd DSP
?
Check the parts and patterns
in the path.
Step 6: Audio Signal
IC2401 (Pin 77) BCK
LRCK
No
Ye s
i
IC2403 (Pin 11)
No
Ye s
j
IC2403 (Pin 14)
No
l
IC2401 (Pin 7)
m
n
IC2401 (Pin 79)
DATA
No
Ye s
Ye s
No
Ye s
k
It is very difficult to diagnose
which part is in failure.
Is there a
BCK output from
2nd DSP
?
Is there a
BCK input to
SELECTOR
?
Is there a
LRCK output from
2nd DSP
?
Is there a
LRCK input to
SELECTOR
?
Is there a
DATA output from
2nd DSP
?
The 2nd DSP Block is in failure.
Proceed to Step 8.
The 2nd DSP Block is in failure.
Proceed to Step 8.
The 2nd DSP Block is in failure.
Proceed to Step 8.
Check the parts and patterns
in the path.
Check the parts and patterns
in the path.
IC2403 (Pin 5)
No
Ye s
Is there a
DATA input to
SELECTOR
?
Check the parts and patterns
in the path.
38 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
The 2nd DSP Block or the
communication path is in failure.
Step 7: 1st DSP Step 8: 2nd DSP
Check the output of pin 13 of
IC2605 (Port Expander) on the path.
Check the output of pin 24 of
CN2601 on the path.
Check the output of pin 20 of
CN2601 on the path.
It is likely a boot error.
(It is very difficult to diagnose
which peripheral part of the
DSP is in failure.)
IC2301 (Pin 111) RESET
DSP1SS0
DSP1SS1
D1D2SCK
Is the logic
of XDSP1RST
"H" ?
No
Ye s
o
IC2301 (Pin 117)
No
Check the output of pin 19 of
CN2601 on the path.
No
Check the output of pin 3 of
IC2609 on the path.
No
p
IC2301 (Pin 112)
q
No
Ye s Ye s
Ye s
Does the logic
become "L" for a moment
when the input stream
is changed?
Does the logic
become "L" for a moment
when the input stream
is changed?
sYe s
IC2301 (Pin 115)
rYe s
Ye s
No
Is the logic
of XDSP2RST
"H"?
IC2401 (Pin 47) RESET
u
It is very difficult to diagnose
which part is in failure.
Is the logic of
XDSP1RST maintained
at "H"? (Does it fall to become
"L" periodically?)
No
Is the clock
signal output while the
voltage at DSP1SS0 and
DSP1SS1 are "L"?
D1D2SO
Check the output of pin 8 of
IC2609 on the path.
No
Ye s
IC2301 (Pin 114)
t
D1D2SI
Replace IC2301.
No
Ye s
IC2301 (Pin 113)
Is the clock
signal output while the
voltage at DSP1SS0 and
DSP1SS1 are "L"?
Is the clock
signal output while the
voltage at DSP1SS0 and
DSP1SS1 are "L"?
Check the output of pin 18 of
CN2601 on the path.
DSP2SS
D1D2SCK
IC2401 (Pin 37)
No
Check the output of pin 3 of
IC2609 on the path.
No
v
IC2401 (Pin 36)
wYe s
Does the logic
of XDSP2RST periodically
become "H" or "L"?
y
xYe s
It is very difficult to diagnose
which part is in failure.
For the following diagnosis, a digital
oscilloscope must be used.
Is the clock
signal output while
the voltage at DSP2SS
is "L"?
D1D2SO
Check the output of pin 8 of
IC2609 on the path.
No
Ye s
IC2401 (Pin 34)
D1D2SI
Replace IC2401.
No
Ye s
IC2401 (Pin 35)
Is the clock
signal output while
the voltage at DSP2SS
is "L"?
Is the clock
signal output while
the voltage at DSP2SS
is "L"?
Is the logic of
XDSP2RST maintained
at "H"? (Does it fall to become
"L" periodically?)
39
SC-27
56 7 8
56 7 8
A
B
C
D
E
F

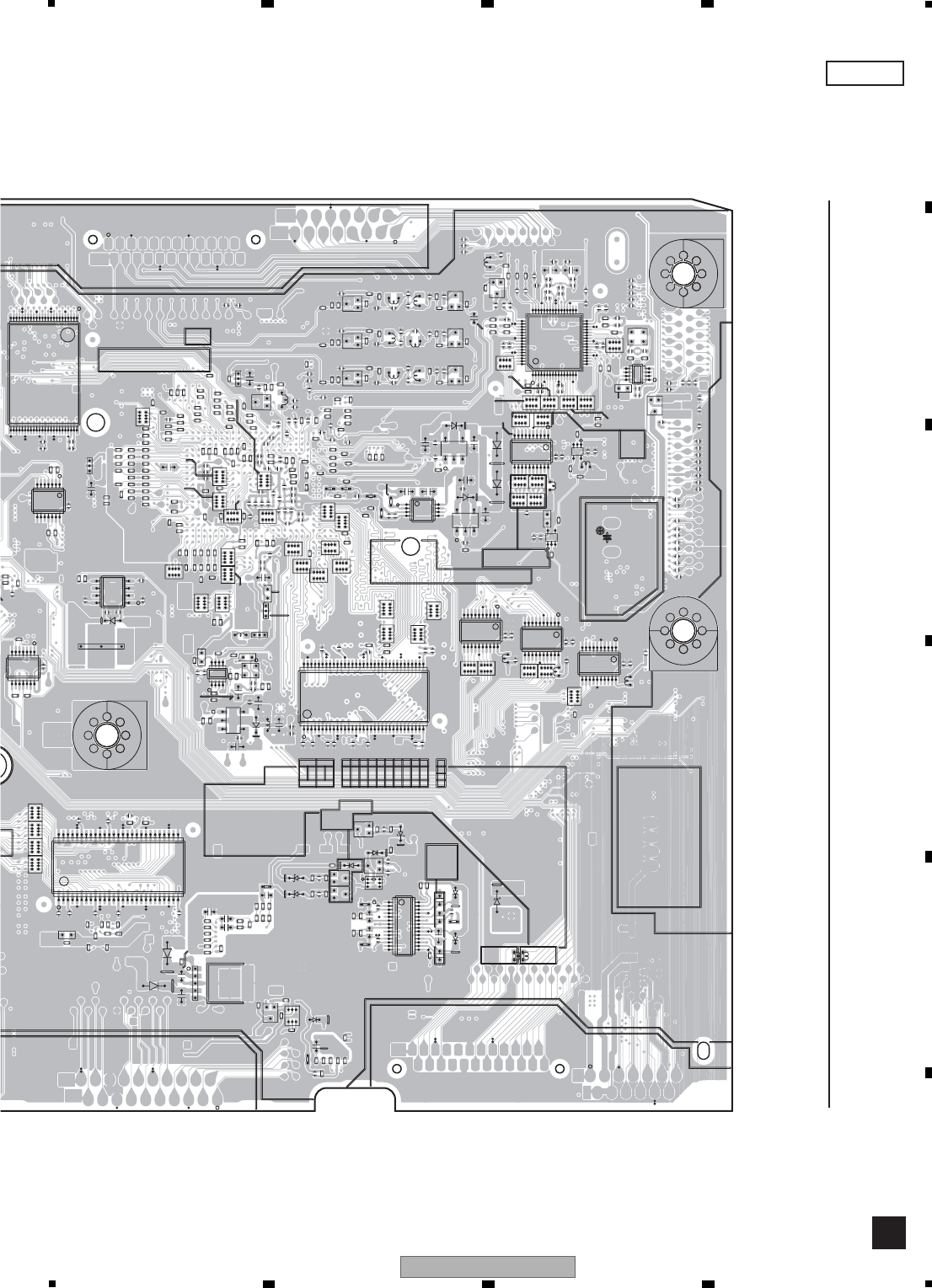

SIDE A
DSP ASSY
B

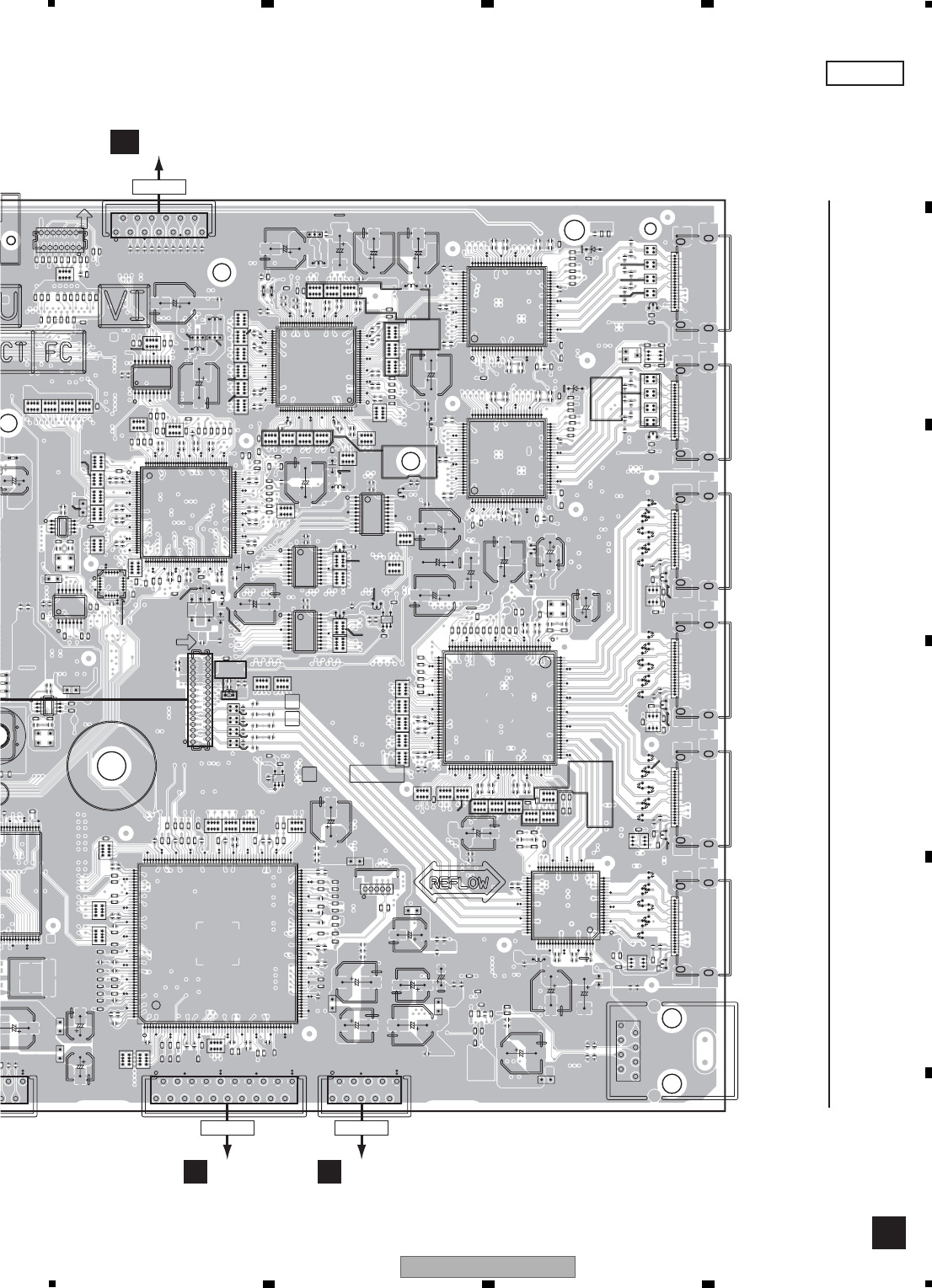

Check Points of the DSP Assy
(DSP Block)
d
Y
k
h
M
m
P
Q
B
C
K
S T U O
J
U
w
v
W
I
u
y
x
R
f
i
40 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

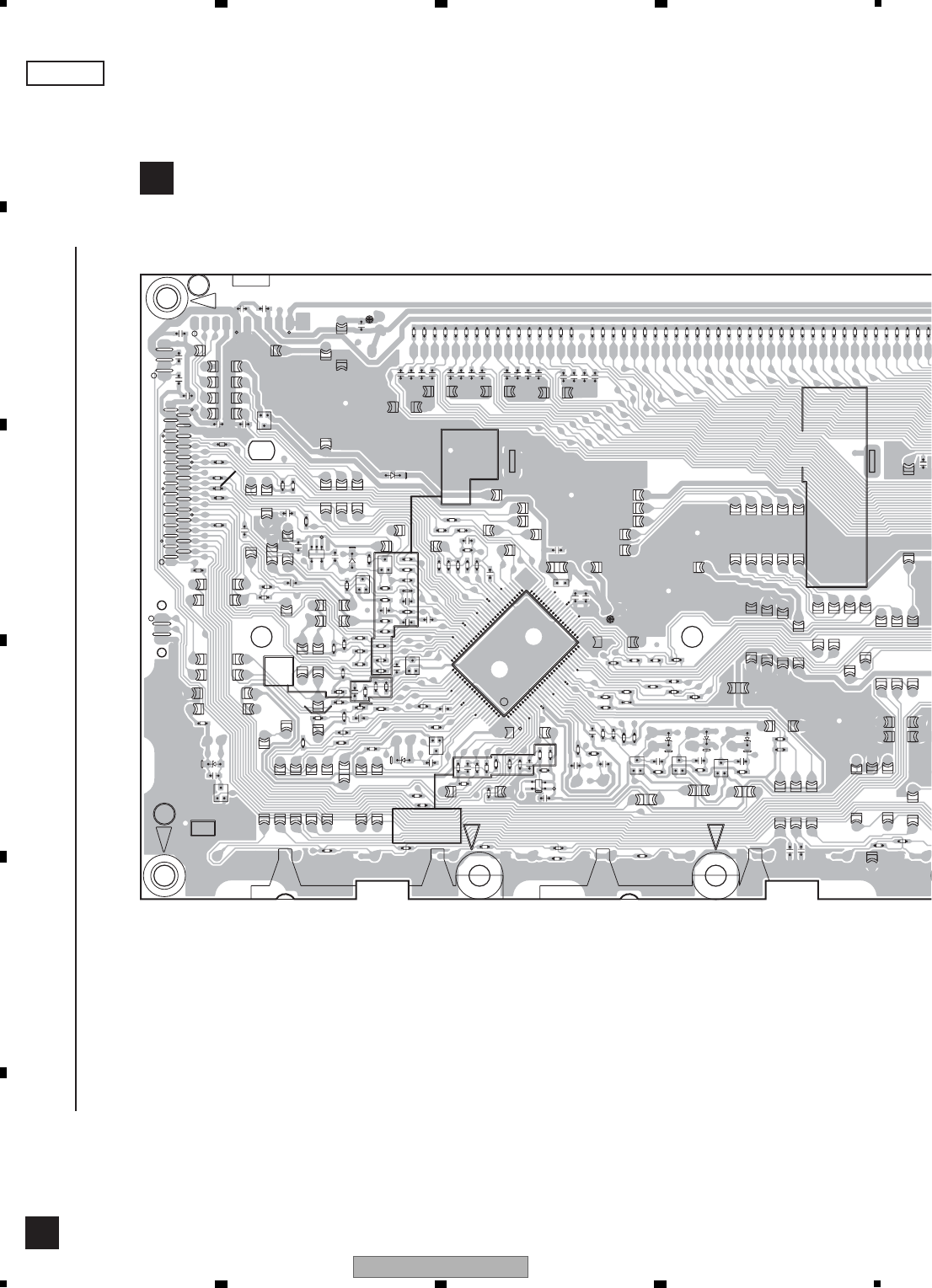

SIDE A
DSP ASSY
B
g
p
r
t
o
q s b a Z X V D E G H
e
l
c
lj
n
A
F
41
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
To Step 2
Step 1: Power supply
CN1900 (Pins 1, 2)
Is the
voltage of around
13 V input
?
No
Ye s
V+13_UN
Check IC1900 and its
peripheral circuits.
<When no image is displayed after the unit is turned on, the HDMI LED on the front panel lights, and the HDMI or analog signal is input.>
• If conversion between 480i and 480p is not possible, it is most likely that IC800 is in failure. Check its peripheral circuits.
• Assume that the LCRs are neither in poor connection nor damaged.
• Analog video Convert (Ex.: S → COMPONENT) is satisfied by diagnosing the input and output.
• Although diagnosis is assumed to be performed from Side A, the wiring numbers on Side B are also described in the flowchart.
• This shows failure analysis for the HDMI & DVC Block of the DIGITAL MAIN Assy.
• The confirmation of peripheral circuits means mainly a power supply of IC, a sync signal, a existence of the input/output signal,
a conduction check and the appearance check of the bridges.
[2] HDMI & DVC Block Troubleshooting
Check the HDMI RECT Assy.
L1902
Is the
voltage of 5 V
output?
No
NG
Ye s
V+5_DDD
Check Q1900 and its periphery.
(Pins 1,2,5,6: around 9 V
Pin 3: around 6 V Square wave)
Check IC1900 and its
peripheral circuits.
R1916
Is the
voltage of around
5 V output?
No
NG
Ye s
V+5_HD
Check Q1900 and its periphery.
(Pins 1,2,5,6: around 9 V
Pin 3: around 6 V Square wave)
IC1100 (Pin 5) (side B)
Is the
voltage of around
3.3 V output
?
No
Ye s
V+3R3_EM_V
Check IC1100 and its peripheral
circuits.
Check IC1101 and its peripheral
circuits.
Check IC1102 and its peripheral
circuits.
Check IC1104 and its peripheral
circuits.
IC1101 (side B)
Is the
voltage of around
3.3 V output
?
No
Ye s
V+3R3_EM_D
IC1102 (side B)
Is the
voltage of around
2.5 V output
?
No
Ye s
V+2R5_EM
IC1104 (side B)
Is the
voltage of around
1 V output
?
No
Ye s
V+1_EM
Check IC1930 and its
peripheral circuits.
L1931
Is the
voltage of around
3.3 V output
?
No
NG
Ye s
V+3R3_HHH
Check Q1930 and its periphery.
(Pin 1: around 7.5 V Square wave
Pins 5,6: around 16.5 V)
Check IC1930 and its
peripheral circuits.
L1932
Is the
voltage of around
1.8 V output
?
No
NG
Ye s
V+1R8_HHH
Check Q1931 and its periphery.
(Pin 1: around 5.5 V Square wave
Pins 7,8: around 16.5 V)
42 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
Step 2: X'tal
Step 4: HDMI IN, HDMI OUT
To Step 3
Ye s
IC803 (Pins 5, 7) (side B)
IC1300 (Pin 19)
No
Is there
a 27 MHz
output?
No
Is there
a 36.864 MHz
input?
Ye s
To Step 4
CLK27EMMA CLK27AB1
XHDTX1RST
JA1602-JA1604 (Pin 18)
Step 4-1: HDMI IN/INBD 1,2
Is the voltage
around 5 V ?
No
Ye s
+5V
Check the soldering of JA1602-
JA1604 and the source equipment
connected in JA1602-JA1604.
JA1602-JA1604 (Pin 19)
Is the voltage
around 5 V ?
No
Ye s
Hot plug detect
Check IC1501 and its peripheral
circuits.
Check IC803 and its peripheral
circuits.
Step 3: RESET
Ye s
R931 (side B)
No
Is the
voltage "H"
(around 3.3 V)
?
XEMRST
Check the soldering and parts of
the path.
Ye s
R1851
No
Is the
voltage "H"
(around 3.3 V)
?
XVSRST
Check the soldering and parts of
the path.
Ye s
IC1300 (Pin 91)
No
Is the
voltage "H"
(around 3.3 V)
?
XGARST
Check the soldering and parts of
the path.
Ye s
R1509
No
Is the
voltage "H"
(around 3.3 V)
?
Check the soldering and parts of
the path.
Ye s
R9018
No
Is the
voltage "H"
(around 3.3 V)
?
Check the soldering and parts of
the path.
XHDTX2RST
Ye s
R9118
No
Is the
voltage "H"
(around 3.3 V)
?
Check the soldering and parts of
the path.
Check IC1302 and its peripheral
circuits.
X1501 (Pins 1, 3)
No
Is there a
27 MHz input or
output?
Ye s
JA1602-JA1604 (Pins 15,16)
Does
a signal output in
constant period
?
No
Ye s
DDC (SDA/SCL)
Check the soldering of JA1602-
JA1604.
JA1602-JA1604
(Pins 1,3,4,6,7,9,10,12)
Is there
0.5Vp-p in CLK
and DATA?
No
Ye s
TMDS signal
Check the soldering of JA1602-
JA1604.
Check X1501 and IC1501
and its peripheral circuits.
IC1702 (Pin 7) (side B)
No
Is there
a 28.63636 MHz
output?
Ye s
Check IC1702 and its peripheral
circuits.
R1270
No
Is there
a 48 MHz
signal?
Ye s
Check IC1251 and its peripheral
circuits.
A
43
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
To Step 4-2
JA9000 (Pin 18)
Is the voltage
around 5 V ?
No
Ye s
+5V
Check IC9001 and its peripheral
circuits.
JA9000 (Pin 19)
Is the voltage
around 5 V ?
No
Ye s
Hot plug detect
Check the sync equipment.
IC1800
IC9000
JA9000 (OUT 1)
(Pins 1,3,4,6,7,9,10,12)
Is there
0.5Vp-p in CLK
and DATA?
No
Ye s
TMDS signal
Video Scaler IC
HDMI Tx IC
Check the soldering of JA9000
and IC9000, and its peripheral
circuits.
NG
Check IC1501 and its
peripheral circuits.
Check the power and soldering of
IC1501,IC1800 and IC9000,
and its peripheral circuits.
Step 4-2: IN 3
To Step 4-3
JA1601 (Pin 18)
Is the voltage
around 5 V ?
No
Ye s
+5V
Check the soldering of JA1601.
Check the source equipment
connected in JA1601.
IC1501
Is the voltage
around 5 V ?
No
HDMI Rx IC
Check IC1601 and its peripheral
circuits.
JA1601 (Pins 15,16)
Does
a signal output in
constant period
?
No
Ye s
Ye s
DDC (SDA/SCL)
JA1601 (Pin 19) Hot plug detect
Check the soldering of JA1601
and the path.
IC1601 (Pins 25,26,
28,29,31,32,34,35)
Is there
0.5Vp-p in CLK
and DATA?
No
Ye s
TMDS signal
JA1601
(Pins 1,3,4,6,7,9,10,12) TMDS signal
Check IC1601 and its peripheral
circuits.
Is there
0.5Vp-p in CLK
and DATA?
No
Ye s
Check the soldering of JA1601
and the path.
B
A
A
A
IC1807-IC1811(side B)
(Pins 11-18)
Are signals
output?
No
Ye s
P** HSYNC VSYNC
PDE, PDCLK
Check IC1807-IC1811 and its
peripheral circuits.
JA9001 (Pin 18)
Is the voltage
around 5 V ?
No
Ye s
+5V
Check IC9001 and its peripheral
circuits.
JA9001 (Pin 19)
Is the voltage
around 5 V ?
No
Ye s
Hot plug detect
Check the sync equipment.
IC9001
JA9001 (OUT 2)
(Pins 1,3,4,6,7,9,10,12)
Is there
0.5Vp-p in CLK
and DATA?
No
Ye s
TMDS signal
HDMI Tx IC
HDMI OUT 1
HDMI OUT 2
44 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
Step 5: COMPONENT IN (more than 480p)
Step 5-1: HDMI OUT
CN1251 (Pin 10)
Is the voltage
"H" ?
No
Ye s
COMPDET
Check CN1251 and diagnose
the COMPONENT Assy.
CN1253 (Pins 8,10,12)
Is there a
analog video
signal?
No
Ye s
Y_IN, CB_IN, CR_IN
Check CN1253 and diagnose
the COMPONENT Assy.
Q1151,Q1155,Q1157
(Emitter), (side B)
Are the
signals output at
emitter?
No
Ye s
SG_A, SG_B, SG_C
Check Q1151, Q1155, Q1157 and
its peripheral circuits.
IC402 (Pins 11-18) (side B)
IC403 (Pins 2-9) (side B)
IC404 (Pins 6-9) (side B)
Are the
signals input?
No
VDQ**
Check IC1701 and its peripheral
circuits.
Ye s
IC1807,IC1808(side B),
IC1809,IC1810(side B),
IC1811(side B)
(Pins 11-18)
Are the
signals output?
No
P** HSYNC, VSYNC, PDE, PDCLK
Ye s
To Step 5-2
B
Step 4-3: HDMI IN 4 (Front IN)
To Step 5
CN1601 (Pin 20)
Is the voltage
around 5 V ?
No
NG
NG
NG
Ye s
V+5_F
Check the soldering of CN1601.
Diagnose the FRONT-HDMI Assy.
Diagnose the FRONT-HDMI Assy.
Diagnose the FRONT-HDMI Assy.
NG
NG
Check IC1601 and its peripheral
circuits.
Check IC1701 and its peripheral
circuits.
Check the source equipment.
Is the voltage
around 5 V ?
NoCheck the soldering of CN1601.
CN1601 (Pins 14,15)
Does
a signal output in
constant period
?
No
Ye s
Ye s
DDC (SDA/SCL)
CN1601 (Pin 16) Hot plug detect
Check the soldering of CN1601.
IC1601 (Pins 25,26,
28,29,31,32,34,35)
Is there
0.5Vp-p in CLK
and DATA?
No
Ye s
TMDS signal
IC1601 (Pins 48,49,51,
52,54,55,57,58)TMDS signal
Check IC1601 and its peripheral
circuits.
Is there
0.5Vp-p in CLK
and DATA?
No
Ye s
Check the soldering between
IC1601 and CN1601.
CN1601
(Pins 2,3,5,6,8,9,11,12) TMDS signal
Is there
0.5Vp-p in CLK
and DATA?
No
Ye s
Check the soldering of CN1601.
A
Analog IN, HDMI OUT
45
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
Step 5-2: Component IN (at 480i), HDMI OUT Step 6: S IN, HDMI OUT
CN1251 (Pin 11)
Is the
voltage "H"?
No
Ye s
SDET
Check CN1251 and diagnose
the COMPONENT Assy.
CN1253 (Pin 20
Is there a
luminance
signal?
No
Ye s
A_VVYIN
Check CN1253 and diagnose
the COMPONENT Assy.
IC1701 (Pins 34,46) (side B)
Are there
color and luminance
signals?
No
Ye s
A_VVYIN, A_VSCIN
Check the soldering between
IC1701 and CN1251, CN1253
and its peripheral circuits.
Perform the same check items up to those
for Q1151, Q1155 and Q1157 of Step 5-1.
CN1253 (Pin 18)
Is there a
color signal
?
No
Ye s
A_VSCIN
Check CN1253 and diagnose
the COMPONENT Assy.
C
D
To Step 7
C
IC1801 (Pins 11-13),
IC1802, IC1803 (Pins 11-18),
IC1804 (Pin 4)
Are the
signals output?
No
Ye s
PHSYNK, PVSYNK, PDE
P**
PCLK
Check IC1801 to IC1804 and its
peripheral circuits.
IC800 (through hole)
(Pins E13,D13,E12,D12,E11,
D11,E10,D10,D15) (side B)
Are there
signals?
Are there
signals?
No
Ye s
Ye s
VID0-7, VICLK
Check IC1805 and IC1806 and its
peripheral circuits.
Check the soldering.
Check IC800 and its peripheral
circuits. Check the soldering.
R872-R875,R878 (side B),
R879,R884-R887
No
Ye s
VOD0-7,VOCLK
Check IC1701 and its peripheral
circuits. Check the soldering.
IC1805 (Pins 2-9) (side B)
IC1806 (Pin 2) (side B)
Are the
signals output?
No
VDQ
VDOCLK
Replace the DIGITAL MAIN Assy.
To Step 6
B
Step 7: COMPOSITE IN, HDMI OUT
CN1253 (Pin 20)
Is there a
signal?
No
Ye s
A_VVYIN
Check CN1253 and diagnose
the COMPONENT Assy.
IC1701 (Pin 36) (side B)
Is there a
signal?
No
Ye s
A_VVYIN
Check the soldering between
IC1701 and CN1253 and its
peripheral circuits.
To Step 8
C
46 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
Step 8: COMPONENT IN
COMPONENT OUT
Perform the same check items up to
those for Q1151, Q1155 and Q1157 of Step 5-1.
R1214
Are there
signals?
No
NG
Ye s
A_VCYOUT_EM
R1219 A_VCBOUT_EM
R1224 A_VCROUT_EM
Replace the DIGITAL MAIN Assy.
IC1805 (Pins 2-9),
IC1806 (Pin 2) (side B)
Are there
signals?
No
Ye s
VDQ**
VDOCLK
Note: When the connection is Composite S OUT, refer to the
diagnose of IC800 and later in steps 9 and 10.
Check IC1701 and its peripheral
circuits.
IC1805 (Pins 2-9),
IC1806 (Pin 2) (side B)
Are there
signals?
No
Ye s
VDQ**
VDOCLK
Check IC1701 and its peripheral
circuits.
CN1253 (Pin 2)
Are there
signals?
No
Ye s
A_VCYOUT
CN1253 (Pin 4) A_VCBOUT
CN1253 (Pin 6)
Diagnose the COMPONENT Assy.
A_VCROUT
Check the soldering and
connection of the CN1253.
Check Q1202 and its peripheral circuits.
Check Q1203 and its peripheral circuits.
Check Q1204 and its peripheral circuits.
Are there
signals?
No
Ye s
A_VCYOUT
A_VCBOUT
A_VCROUT
Replace Q1202, Q1203, Q1204
and its peripheral parts.
IC800 (through hole)
(Pins E13,D13,E12,D12,E11,
D11,E10,D10,D15) (side B)
Are there
signals?
No
Ye s
VID0-7, VICLK
Check IC1805, IC1806 and its
peripheral circuits.
Check IC800 and its peripheral
circuits. Check the soldering.
Step 9: S IN, S OUT
To Step 10
Perform the same check items up to
those for IC1701 of Step 6.
R1203
Are there
signals?
No
NG
Ye s
A_VSYOUT_EM
R1209 A_VSCOUT_EM
Replace the DIGITAL MAIN Assy.
Note: When the connection is Composite OUT and Component OUT,
refer to the diagnose of IC800 and later in steps 8 and 10.
CN1253 (Pin 16)
Are there
signals?
No
Ye s
A_VSYOUT
CN1253 (Pin 14) A_VSCOUT
Check the soldering and
connection of the CN1253.
Q1200 Emitter
Q1201 Emitter
Are there
signals?
No
Ye s
Check Q1200, Q1201 and
its peripheral parts.
IC800 (through hole)
(Pins E13,D13,E12,D12,E11,
D11,E10,D10,D15) (side B)
Are there
signals?
No
Ye s
VID0-7, VICLK
Check IC1805, IC1806 and its
peripheral circuits.
Check IC800 and its peripheral
circuits. Check the soldering.
DVC ON, Analog IN, OUT
47
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
Diagnose the IC800 (through hole) of Composite/S/
Component OUT and later.
Note: When the connection is S Component OUT,
refer to the diagnose of IC800 and later in steps 8 and 9.
Is there a
signal?
No
Ye s
CN1253 (Pin 6)
Diagnose the COMPONENT Assy.
To Step 11 or 12.
A_VCYOUT
Check the soldering and
connection of the CN1253.
Check Q1202 and its peripheral circuits.
Is there a
signal?
No
Ye s
Replace Q1202 and its peripheral
parts.
IC800 (through hole)
(Pins E13,D13,E12,D12,E11,
D11,E10,D10,D15) (side B)
Are there
signals?
No
Ye s
VID0-7, VICLK
Check IC1805, IC1806 and its
peripheral circuits.
Step 10: COMPOSITE IN, COMPOSITE OUT
(at DVC ON)
Step 11: GUI
Composite/S/Component OUT
Go to .
D
Step 12: GUI
HDMI OUT
Step 13: JPEG (USB)
Perform the same check items up to
those for IC1805 and IC1806 of Step 7.
Is there a
signal?
No
Ye s
R1214
Replace the DIGITAL MAIN Assy.
A_VCYOUT_EM
A_VCYOUT
Check IC800 and its peripheral
circuits. Check the soldering.
NG
Are there
signals?
No
Ye s
R1254,R1255
Check the USB device.
D+, D-
Check CN1259 and L1250 and
its peripheral circuits.
NG
IC1805 (Pins 2-9),
IC1806 (Pin 2) (side B)
Are there
signals?
No
Ye s
VDQ**
VDOCLK
Check IC1701 and its peripheral
circuits.
48 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
Step 1: Power supply
CN1900 (Pins 1, 2)
Is the
voltage of around
13 V input
?
No
Ye s
V+13_UN
Check IC1900 and its
peripheral circuits.
• Assume that the LCRs are neither in poor connection nor damaged.
• Although diagnosis is assumed to be performed from Side A, the wiring numbers on Side B are also described in the flowchart.
• This shows failure analysis for the NW (Network) Block of the DIGITAL MAIN Assy.
• The confirmation of peripheral circuits means mainly a power supply of IC, a sync signal, a existence of the input/output signal,
a conduction check and the appearance check of the bridges.
[3] NW (NetWork) Block Troubleshooting
Check the HDMI RECT Assy.
L1902
Is the
voltage of 5 V
output?
No
NG
Ye s
V+5_DDD
Check Q1900 and its periphery.
(Pins 1,2,5,6: around 9 V
Pin 3: around 6 V Square wave)
IC601 (Pin 4)
Is the
voltage of around
3.3 V output
?
No
Ye s
Check IC601 and its peripheral
circuits.
Check IC602 and its peripheral
circuits.
To Step 2
To Step 3
Ye s
To Step 4
Ye s
Check IC1930 and its
peripheral circuits.
L1931
Is the
voltage of around
3.3 V output
?
No
NG
Ye s
Check IC1300 and its
peripheral circuits.
NG
V+3R3_HHH
Check Q1930 and its periphery.
(Pin 1: around 7.5 V Square wave
Pins 5,6: around 16.5 V)
IC602
Is the
voltage of around
1.8 V output
?
No
V+1R8_NW
Ye s
Check IC603 and its peripheral
circuits.
IC603
Is the
voltage of around
3.3 V output
?
No
V+3R3_NW
Step 2: X'tal
Ye s
IC701 (Pin 203)
IC501 (Pin 46)
No
Is there
a 24.576 MHz
input?
No
Is there
a 25 MHz
input?
Ye s
CLK24.576NW
Check IC9351 and its peripheral
circuits.
Check the X501 and IC501 and
its peripheral circuits.
Step 3: RESET
Ye s
R931 (side B)
No
Is the
voltage "H"
(around 3.3 V)
?
XEMRST
Perform the Step 1 and 2 of the
“[2] HDMI & DVC Block
Troubleshooting.”
Perform the Step 1 and 2 of the
“[2] HDMI & DVC Block
Troubleshooting.”
Ye s
IC1300 (Pin 91)
No
Is the
voltage "H"
(around 3.3 V)
?
XGARST
XNETRST
IC701 (Pin 190)
No
Is the
voltage "H"
(around 3.3 V)
?
Is the voltage of IC1304-pin 6
"H"?
49
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
Step 4: NW (NetWork) Audio (MAIN)
JA701 (Pins 1, 2, 3, 6)
Are there
data signals
?
No
Ye s
TD±, RD±
Check IC501 and its periphery.
Check the connectd device.
IC501 (Pins 18-21)
Are there
data signals
?
No
Ye s
Check IC501 and its peripheral
circuits.
Check IC501 and its peripheral
circuits.
To Step 5
Ye s
IC501 (Pin 22)
Is the
voltage "H" ?
No
RXDV
RXD0-3
Ye s
IC701 (Pin 39)
Is there
a signal?
No
Ye s
Check the pins 69, 73-75 of IC701.
Check the patterns between
IC701 and CN1404.
CN1404 (Pin 1)
Is there
a signal?
No
NETSPDIF
NETSPDIF
Step 5: NW (NetWork) Audio (ZONE 2, 3)
JA701 (Pins 1, 2, 3, 6)
Are there
data signals
?
No
Ye s
TD±, RD±
Check IC501 and its periphery.
Check the connectd device.
IC501 (Pins 18-21)
Are there
data signals
?
No
Ye s
Check IC501 and its peripheral
circuits.
Check IC501 and its peripheral
circuits.
End
Ye s
IC501 (Pin 22)
Is the
voltage "H" ?
No
RXDV
RXD0-3
Ye s
IC701 (Pins 167,168,195,21)
Are there
clock and data
signals?
No
Ye s
Check the pins 69, 73-75 of IC701.
Check the patterns between
IC701 and CN1404.
CN1404 (Pins 9,10,11,13)
Are there
clock and data
signals?
No
NMCLK, NLRC, NBCK, NFDAT
NMCLK, NLRC, NBCK, NFDAT
50 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
5.2 CIRCUIT DESCRIPTION
B REG Power Supply
[1] Protection Circuit Process List
Item Purpose Detection Method Status of Equipment Warning Indication Remarks
B REG
power
supply
overheat
detection
Detects overheat of
transistor(s) in B REG power
supply circuit
Detects when posistor detection
temperature exceeds 120°C and
BTMP port becomes "H".
(IC8001 85pin)
Flashes "OVERHEAT".
Shuts down at
continuation for more
than 3 seconds.
LED indicator continues
blinking.
Blinks STANDBY/ON
LED indicator.
Recoverable by power-on
1minute after shut down.
B REG
power
supply
failure
detection
Detect abnormal voltage drop
when B REG transistor(s)
becomes failure
Detects output voltage of B REG
power circuit decreases below 38V
and BERR port becomes "L".
(IC8001 84pin)
Shuts down Blinks ADVANCED
MCACC LED
Recoveable by only DC
DETECT cancel.
Refer to “How to Enter
Release Mode” next page.
Amplifier Circuit
Item Purpose Detection Method Status of Equipment Warning Indication Remarks
Overheat
detection
Detects MOS FET
temperature of amplifier output
stage
Detects when TEMPERR PORT
becomes "L" in case of the
detecting temperature exceeds
95°C or rapid change by short
cuicuit of speaker terminals.
(IC8001 72pin)
Shuts down. Blinks STANDBY/ON
LED indicator.
Recoverable by power-on
1minute after shutdown
FAN control
3.1V>MAXTEMP>1.9V:
Low rotation
1.9V>MAXTEMP:
High rotation
Detects when MAXTEMP port
becomes below 3.1V at NTC
Thermistor detect circuit.
(IC8001 2pin)
Fan rotates below 3.1V.
DC
detection
Detects DC of amplifier output
(After LPF)
Detects when SP output exceeds
DC ± 7V and DCERR port
becomes "L". (IC8001 80pin)
MUTE on and Speaker
Relay off.
Flashes “AMP ERR”.
Shuts down when
abnormality continues for
more than 3 seconds.
MUTE on and Speaker
Relay off.
Flashes “AMP ERR”.
Shuts down when
abnormality continues for
more than 3 seconds.
Blinks ADVANCED
MCACC LED
Blinks STANDBY/ON
LED indicator.
In case of detecting DC
abnormality during normal
operation. Recoverable by
power-on after 1 minute.
In case of detecting DC
abnormality during
power-on sequence after
the DC was once detected.
Recoveable by only DC
DETECT cancel.
Refer to “How to Enter
Release Mode” next page.
Fan
abnormality
detection
Detects a Fan not rotating by
loose connector or Fan lock
when controling the Fan rotation
Detects when FANDET port
becomes "L". (IC8001 87pin)
Flashes "FAN STOP"
Shuts down when
abnormality continues for
more than 3 seconds.
Blinks PQLS LED Recoverable by power-on
Recoverable by power-on
Recoverable by power-on
Recoverable by power-on
Recoverable by power-on
Zobel
detection
Protects overcurrent by Zobel
Resistance when high power
output of higher frequency
continued
Detects OLERR port becomes "L".
(IC8001 71pin) Shuts down
Shuts down
Blinks PHASE
CONTROL LED
Blinks PHASE
CONTROL LED
Shuts down Blinks PHASE
CONTROL LED
Overcurrent
detection
Protects overcurrent of MOS
FET in output stage when
overcurrent flows at the output
stage
Detects OLERR port becomes "L".
(IC8001 71pin)
Low Voltage
detection
(Amplifier
power
supply)
Detects low voltage when
amplifier power supply voltage
(normally ± 64V) becomes
below ± 42V
Detects OLERR port becomes "L".
(IC8001 71pin)
Low
Voltagae
detection
(
Modulator
IC)
Detects low voltage of modulator
IC power supply (normally ± 5V)
becomes below ± 2 - 3V
No micro-computer detection
exists.
No micro-computer
control but modulator IC
stops by itself.
51
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
DIGITAL MAIN ASSY
E
DIGITAL MAIN Power Supply Failure Detection
Item Purpose Detection Method Status of Equipment Warning Indication Remarks
DIGITAL
MAIN
power
supply
failure
detection
(*1) Conditions when XVDDERR becomes "L"
1. Q1997 turns ON : When V+6DDD becomes higher than the setting value, Q1997 becomes ON.
2. Q1998 turns ON : When V+5_DDD becomes higher than the setting value, Q1998 becomes ON.
3. Q1999 turns ON : When V+13_UN becomes lower than 3.8V, Q1999 becomes ON.
When PWRGD of IC1900 becomes low (V+5HD becomes lower than the setting value), Q1999 becomes ON.
When PGOOD of IC1930 becomes low (V+1R8_HHH or V+3R3_HHH drift from the setting value), Q1999 becomes
ON.
When V+6_DDD becomes lower than 3.8V, Q1999 becomes ON.
Detect abnormal
voltage in the
Digital Power
Supply circuit
Detect when XVDDERR
port becomes "L" (*1).
(IC8001 70pin)
Shuts down Blinks Center Blue LED
During Standby mode, simultaneously press and hold the "↓" and "MULTI-ZONE ON/OFF" keys
for 5 seconds.
[How to Enter Release Mode]
V+5R6_U
D1997
1SS352
R1999
4.7k
V+13_UN
PWRGD
IC1900
PGOOD
IC1930
D1998
DAP202U
RN4903
Q1999
RN4903
Q1999
D1999
UDZS5R6(B)
R1997
1k
R1998
100
C1999
NM
C1998
0.1u/10
C1997
0.1u/10
Q1998
2SC4081(QR)
GNDD
R1996
4.7k
D1996
1SS352
Q1997
2SC4081(QR)
C1996
NMR1995
100
R1994
1k
D1995
UDZS6R8(B)
R1988
NM
R1989
NM
C1991
NM
Q1996
NM
D1994
NM
V+13_UNV+5_DDD
V+6_DDD
52 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

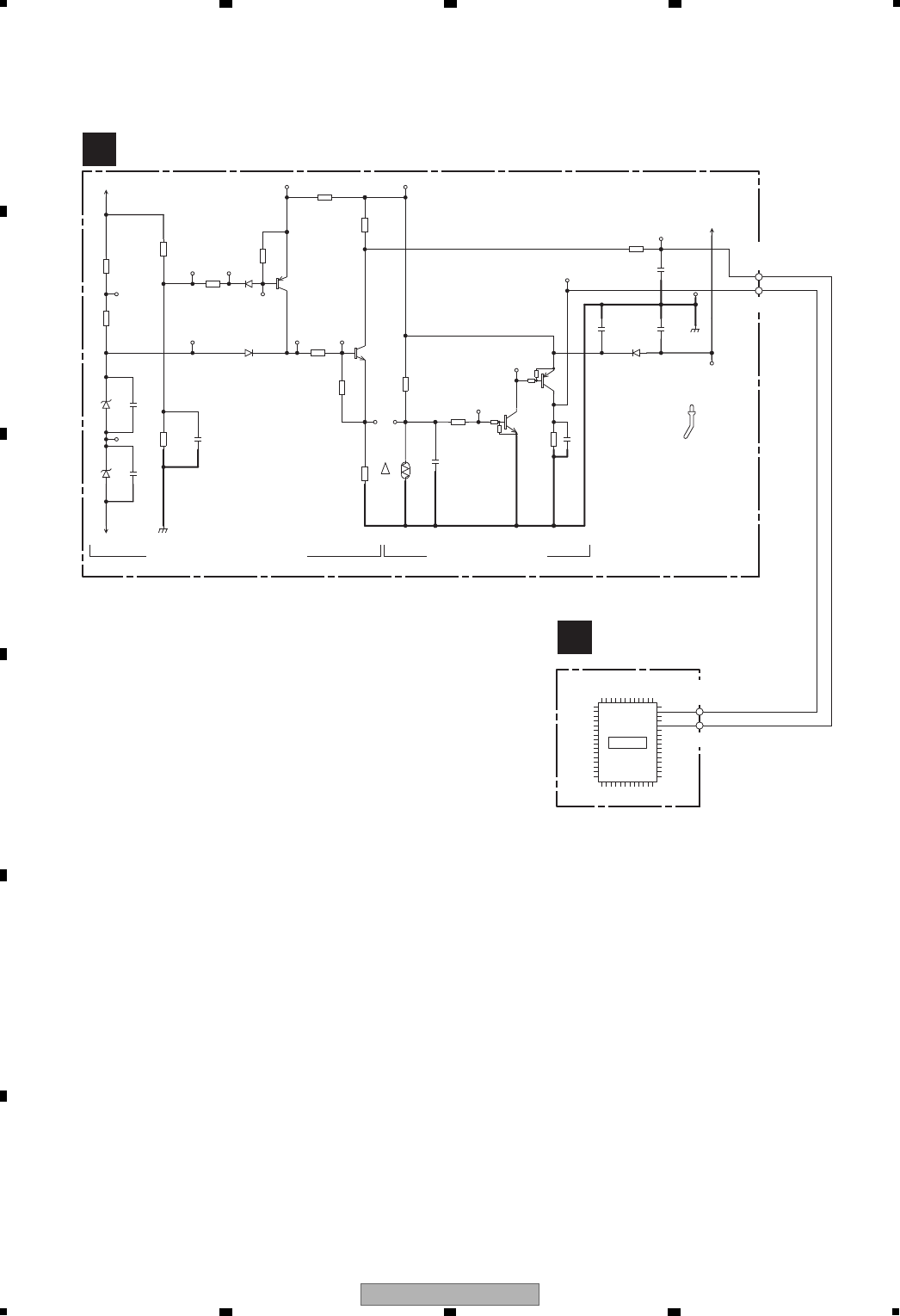

B REG Power Supply Overheat Detection
B REG Power Supply Failure Detection
CN7306
-1
-2
BTEMP
XBERR
XBERR
BTEMP
B REG ASSY
X
UCOM
IC8001
84
85
DISPLAY
ASSY
K
!
JP8005
-2
-1
C7351
NM
C7350
0.1u/50
C7381
0.1u/50
C7383
0.1u/50
C7380
0.1u/50
C7382
0.1u/50
C7386
1000p/50
C7384
0.1u/50
D7350
1SS352
D7352
1SS352
D7355
1SS352
D7353
UDZS20(B)
D7351
UDZS18(B)
GNDU
GND
VEF1040-A
JH7300
RT1N241M
Q7304
RT1P241M
Q7306
Q7309
2SC4154(EFG)
2SA1602A(EF)
Q7310
R7350
3.3k
R7388
22k R7386
150k
R7398
220
R7355
47k
R7396
47k
R7395
47k
R7394
0
R7393
0
R7353
0
R7387
39k
R7392
47k
R7391
4.7k
R7390
100
R7389
47k
+B
V+5.6U
-B
PTFM04BB222Q2B34B0
TH7300
12
(3216) (3216)
(3216)
(3216)
(+64V)
(-64V)
Abnormal Voltage Drop Detection Circuit Temperature Detection Circuit
53
SC-27
56 7 8
56 7 8
A
B
C
D
E
F

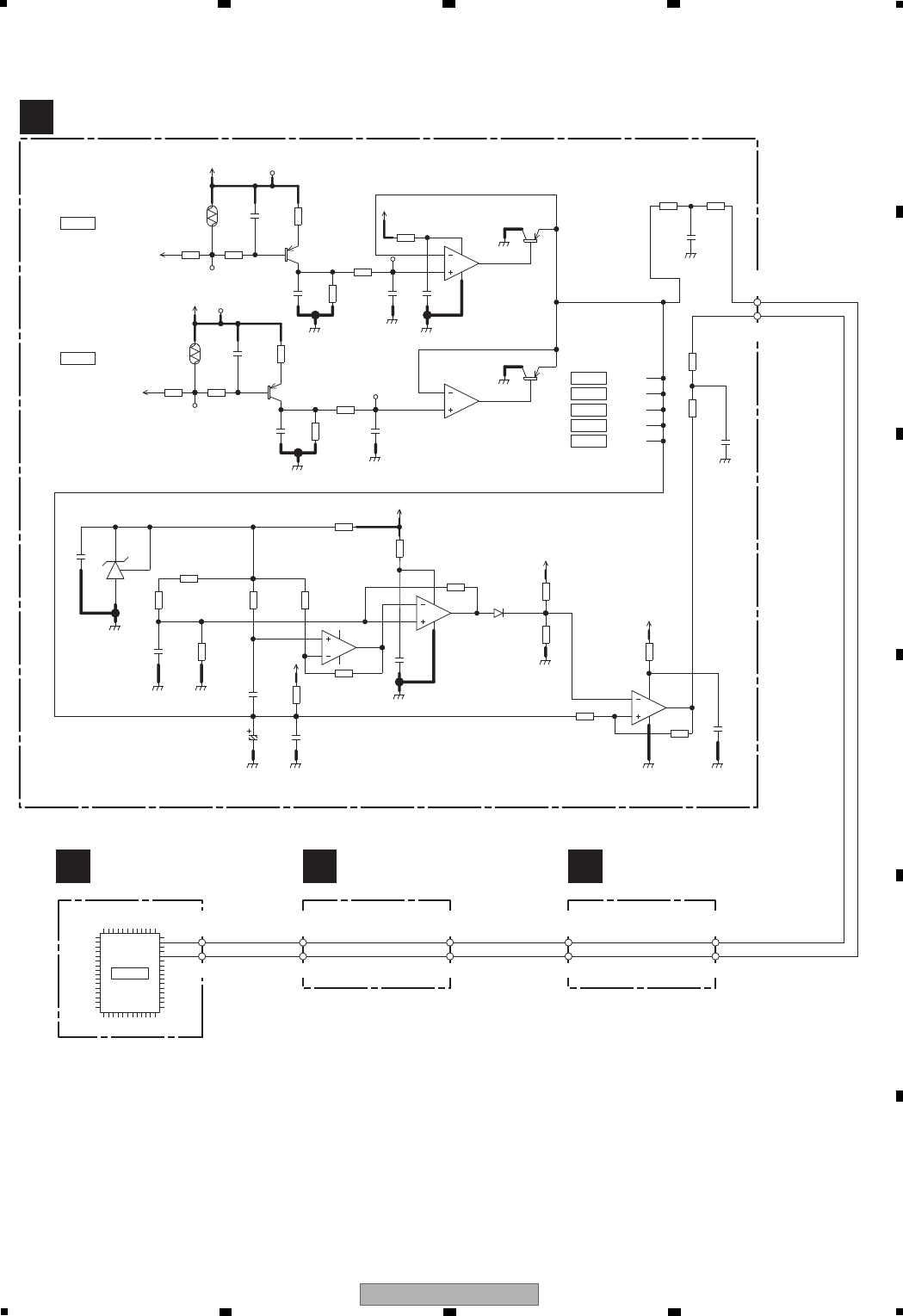

Overheat Detection
FR ch
FL ch
SR ch
SL ch
SBL ch
SBR ch
C ch
CN4000
-13
-14
INTERFACE
ASSY
F
ICEPOWER AMP ASSY
Q
UCOM
IC8001
2
72
CN7012
-4
-5
CN7003
-8
-9
CN8202
-12
-5
C4252
0.1u/16
C4253
0.1u/16
C4153
0.1u/16
Q4411
Q4311
Q4511
Q4611
Q4711
C4152
0.1u/16
C4258
0.1u/16
C4251
1u/16
C4151
1u/16
GND
GND
GND
GND
GND
GND
GND
IC4204
NJM12904V
34
2
1
8
IC4204
NJM12904V
5
6
7
2SA1514K(RS)
Q4210
2SA1514K(RS)
Q4110
R4166
10k 1%
R4266
10k 1%
R4168
22k 1% R4268
22k 1%
R4267
1k 1%
R4167
1k 1%
R4275
10
R4170
1k
R4270
1k
V+5V
+54V
VD1
+54V
VD2
R4269
12k 1%
R4169
12k 1%
CCX1058-A
R4265
CCX1058-A
R4165
2SA1602A(EF)
Q4211
2SA1602A(EF)
Q4111
C4023
10u/10
3216
C4027
0.1u/16
C4026
0.1u/16
C4025
1u/10
C4022
1u/10
GND
GNDGND
GNDGNDGND
GND
GND
R4064
47k
R4063
2.2
R405868k
R4055
22k
R4056
470k
R4057
470
2125
1/8W
V+5V
V+5V
V+5V
V+5V
100u/10
C4024
D4005
1SS352
IC4001
BU7262SFVM
(1/2)
34
2
1
8
R4059
2.2
R4094
2.2k
IC4005
HA17431GLTPA
R4095
NM
R4096
0
C4040
1u/10
GNDIC4000
BU7262SFVM
(1/2)
34
2
1
8
IC4000
BU7262SFVM
(2/2)
54
6
7
8
R4097
0
R4054
3.3k
R4060
56k 1%
R4061
33k 1%
R4062
3.3k
C4012
1000p
GND
XTEMPERR5
AMPTEMP
XTEMPERR5
AMPTEMP
DIGITAL MAIN
ASSY
E
DISPLAY
ASSY
K
CN1250
-13
-12
CN1401
-12
-5
Temperature Detection Circuit (1-Circuit for each Amp 1-Channel)
R4021
100
R4025
100
R4025 C4011
1000p
GND
R4022
100
R4024
100
54 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

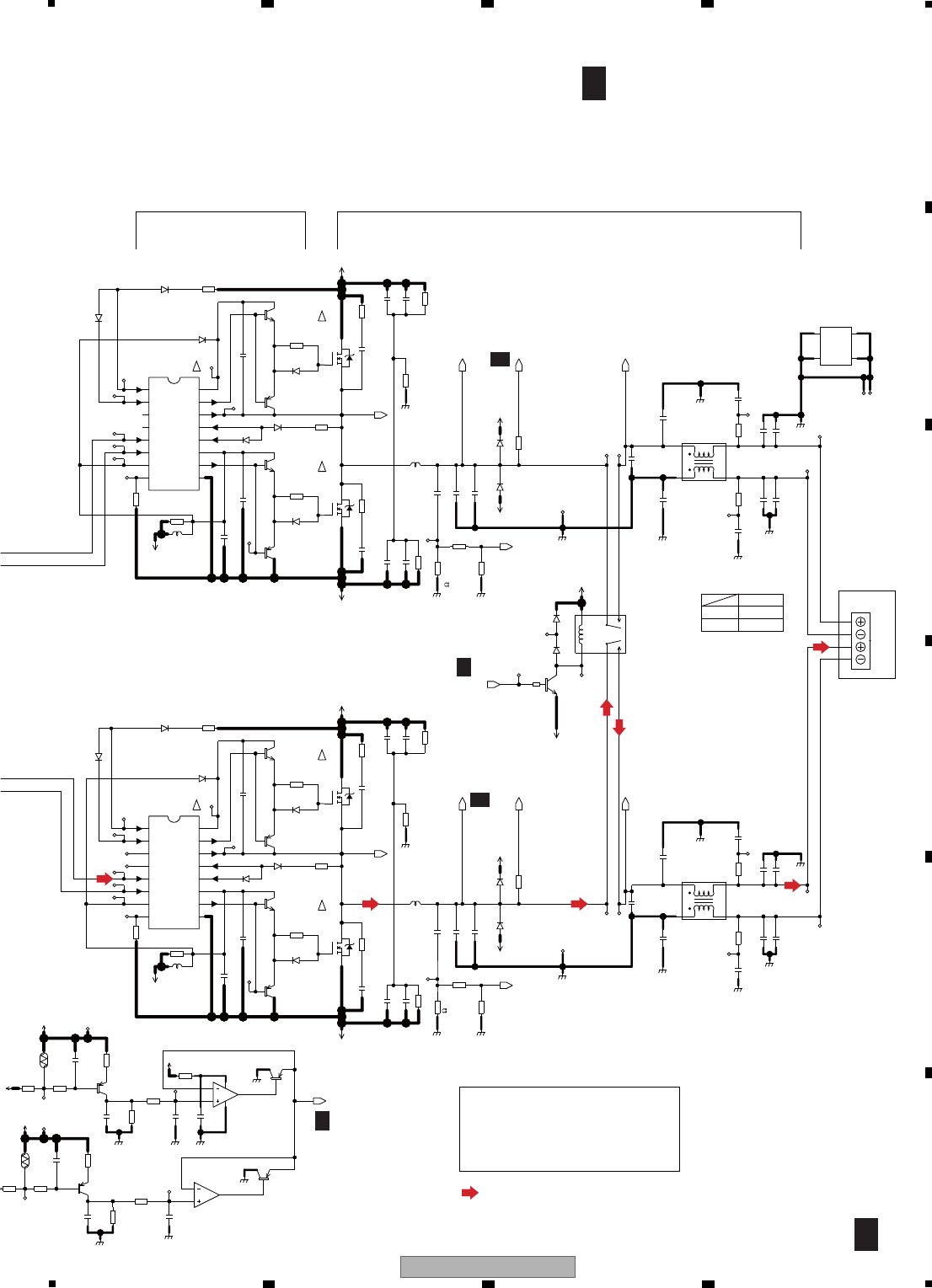

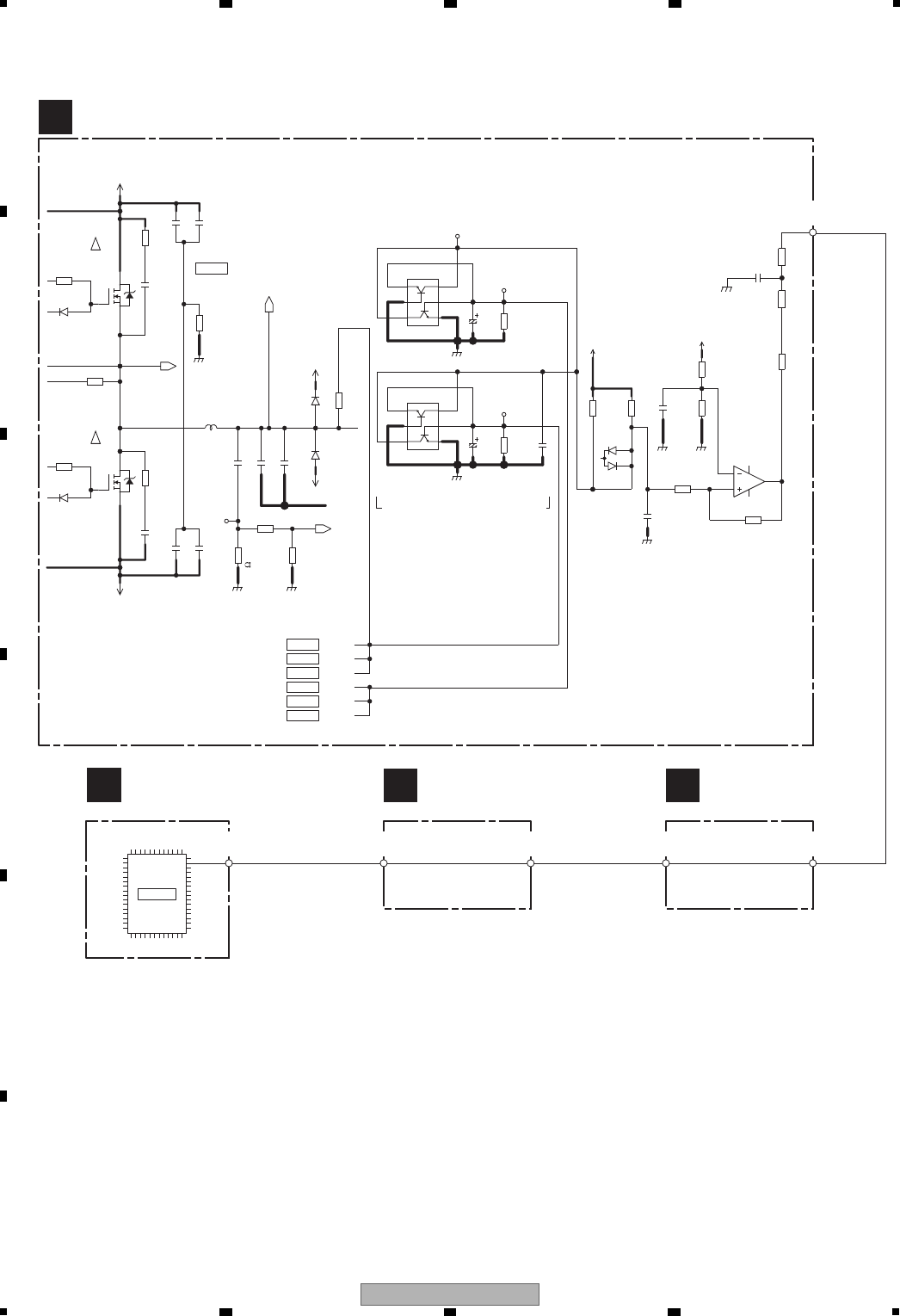

DC Detection
CN4000
-15
INTERFACE
ASSY
F
ICE POWER AMP ASSY
Q
UCOM
IC8001
80
DISPLAY
ASSY
K
CN7012
-3
CN7003
-7
CN8202
-7
C ch
SBL ch
FR ch
SR ch
SBR ch
R4757
R4257
R4557
R4357
SL ch
FL ch
R4457
R4657
XDCERR
XDCERR
DIGITAL MAIN
ASSY
E
CN1250
-14
CN1401
-7
C4029
1u/10
YB
C4028
0.01u/25
GNDGND
GND
GND
HN1C01FU(YGR)
Q4014
E1
1
B1
2
C2
3
E2
4
5
B2
6
C1
R4068
10k
R4067
10k
R4069
47k
R4065
NM
V+5V
V+5V
R4078
0
330u/10
C4010
D4006
NM
HN1C01FU(YGR)
Q4016
E1
1
B1
2
C2
3
E2
4
5
B2
6
C1
330u/10
C4036
GND
C4037
NM
IC4001
BU7262SFVM
(2/2)
54
6
7
8
R4027
1.8k
R4090
1.8k
R4066
470k
R4070
750k
!
!
C4133
ACG7064-A
3216
330p
C4134
ACG7063-A
3216
220p
C4135 ACG7065-A
3216
1u
C4136 ACG7065-A
3216
1u
C4137
ACG7065-A 3216
1u
C4138
ACG7065-A 3216
1u
C4100
0.1u/100 CFTNA104J2A-TD
C4101
0.27u/100 CFTNA274J2A-TD
C4102
NM
3216
D4109
RF101L2S
D4101
RB161VA-20
D4102
RB161VA-20
D4108
RF101L2S
GNDGND
GND
L4100
ATL7017-A
15u
R4152
ACN7162-A
6432 10
R4151
ACN7162-A
6432 10
R4154
10 /5W
ACN7161-A
R4156
1.8k
1%
R4153
330k
2125
VS
VD
VS2
VD2
OUT2
PWM2
ZOBEL2
R4150
10k
2125
1%
R4155
15k
2125
1%
R4157
15k
R4149
ACN7165-A
3216
R4148
ACN7165-A
3216
PHB45NQ15T
Q4101
G
D
S
PHB45NQ15T
Q4100
G
D
S
Note:
Detection Circuit by Transistor
The circuit is the same configuration as
ordinary model but number of circuit is
increased to two channels.
* Ordinary Model: One circuit for seven
channels
* 08 Mid Class: One circuit for 4 channels
and another one for 3 channels.
GND
R4023 R4026
100100
C4013
1000p
55
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
Zobel Detection
Over Current Detection of MOS FET in Output Stage
CN4000
-8
INTERFACE
ASSY
F
ICEPOWER AMP ASSY
Q
UCOM
IC8001
71
DISPLAY
ASSY
K
IC4400 4
CN7012
-10
CN7003
-13
CN8202
-13
SR ch
SL ch
FR ch
FL ch
XOLERR
XOLERR
DIGITAL MAIN
ASSY
E
CN1250
-8
CN1401
-13
C4214
ACG7068-A-T
C4114
680p
ACG7068-A-T
C4122
ACG7073-A
2125
2200p
C4156
0.1u/16
C4259
NM
C4159
NM
C4115
1u/10
GND
GND
GND
GND
Q4108
2SD2704K
Q4208
2SD2704K
R4123
1k 1%
R4173
100k
R4127
R4043R4044
1.5k 1%
R4112 22k
R4111
220k
R4211
220k
R4212 22k
R4125
1k 1%
R4126
1.5k 1%
R4124 27k
1%
R4213
NM1%
R4113
NM1%
AMPDISABLE1
VS_CHK1
VD_CHK1
R4278
NM
R4178
NM
C4116
1u/16
C4216
1u/16

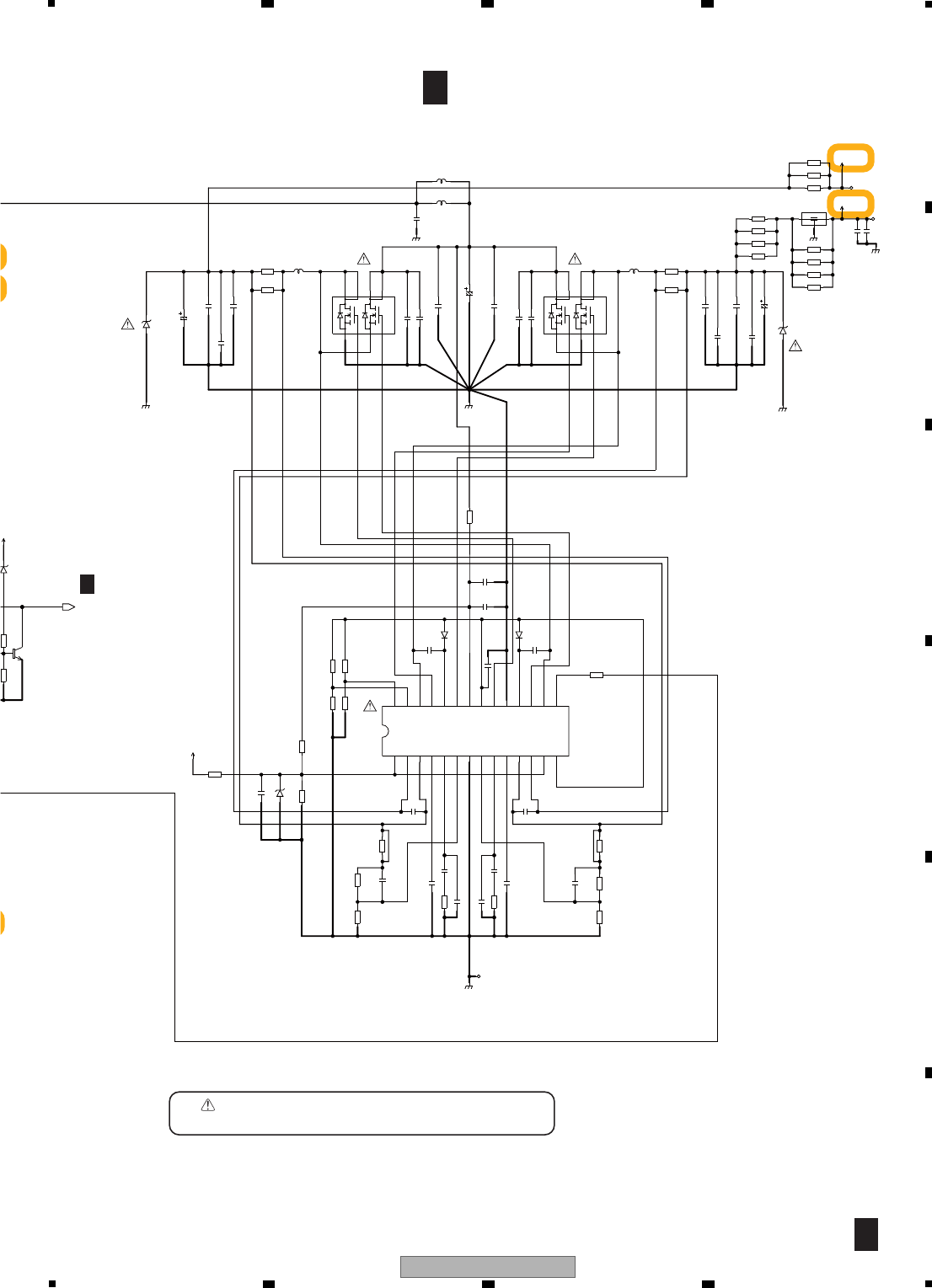

ICC1-AVR
IC4200
Vd_check
1
Vs_check
2
Discharge
3
OC_mon
4
Enable
5
Thermal
6
In_A_Ch2
7
Out_A_Ch2
8
In_B_Ch2
9
Out_B_Ch2
10
In_C_Ch2
11
Pwm-_ch2
12
Pwm+_ch2
13
Mod_Ch2
14
ZobelSense2
15
Average2
16
Average1
17
NTC_in
18
ZobelSense1
19Mod_ch1
20
Pwm-_ch1
21
Pwm+_ch1
22
In_C_Ch1 23
Out_B_Ch1
24
In_B_Ch1
25
Out_A_Ch1
26
In_A_Ch1
27
NC
28
Vdd
29
UVP_en
30
Main_Gnd
31
Vss
32
Ref_ch1
33
CS1_ch1
34
CS2_ch1
35
RECout_ch1
36
Vin__ch1
37
DC_FB_ch1
38
Vin_ch2
39
DC_FB_ch2
40
RECout_ch2
41
CS1_ch2
42
CS2_ch2
43
Ref_ch2
44
ACH1479-A
C4213 100u
ACH1479-A
C4112 100u
ACH1479-A
C4212 100u
ACH1479-A
C4113
100u
MODULATOR
IC4600 4
SBR ch
SBL ch
IC4700 4
C ch
R4045
10k
100 100
V+5V
AMPOVERLOAD port of ICC1 output the “L” when abnormal
C4021
1000p
56 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

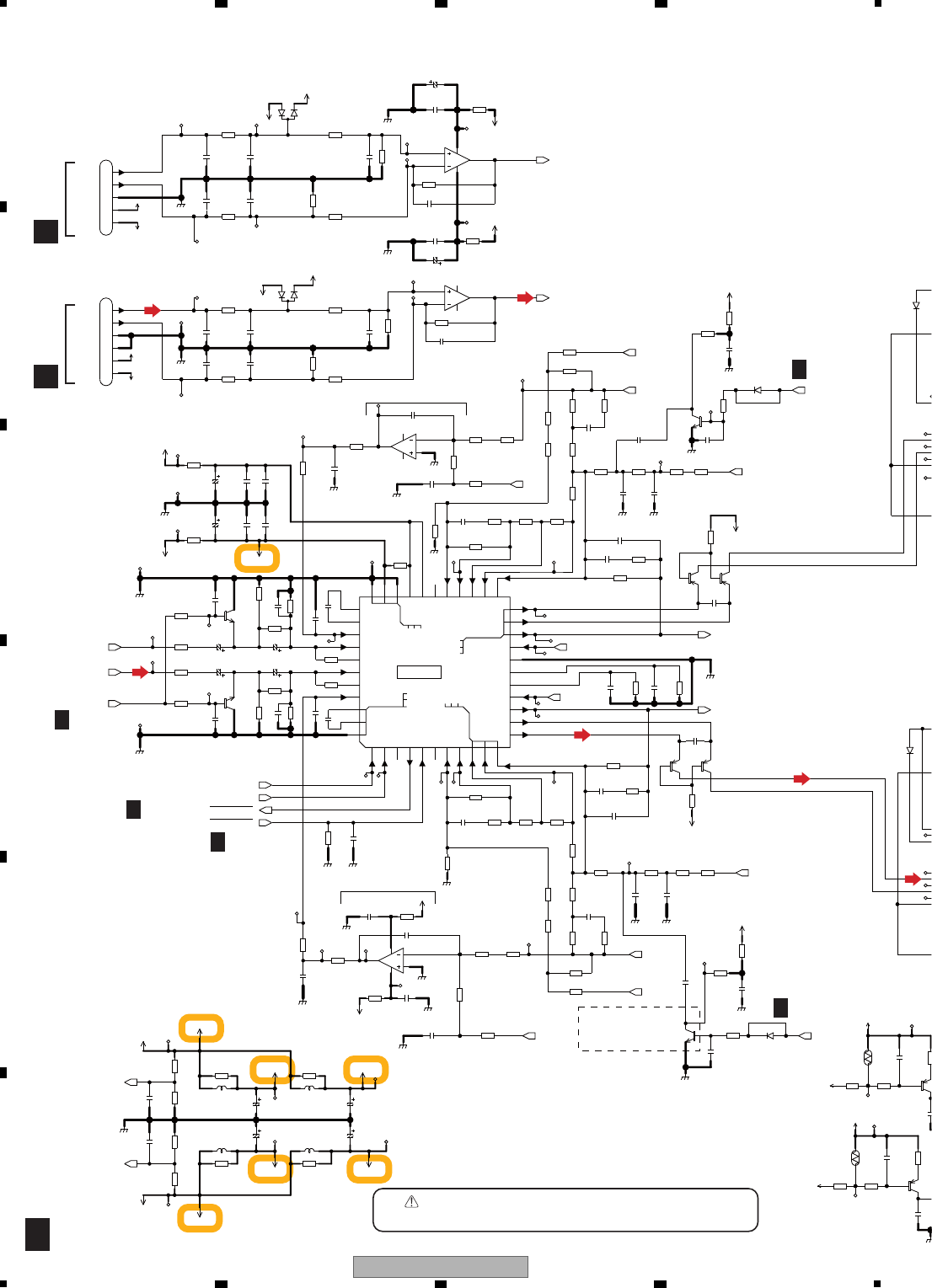

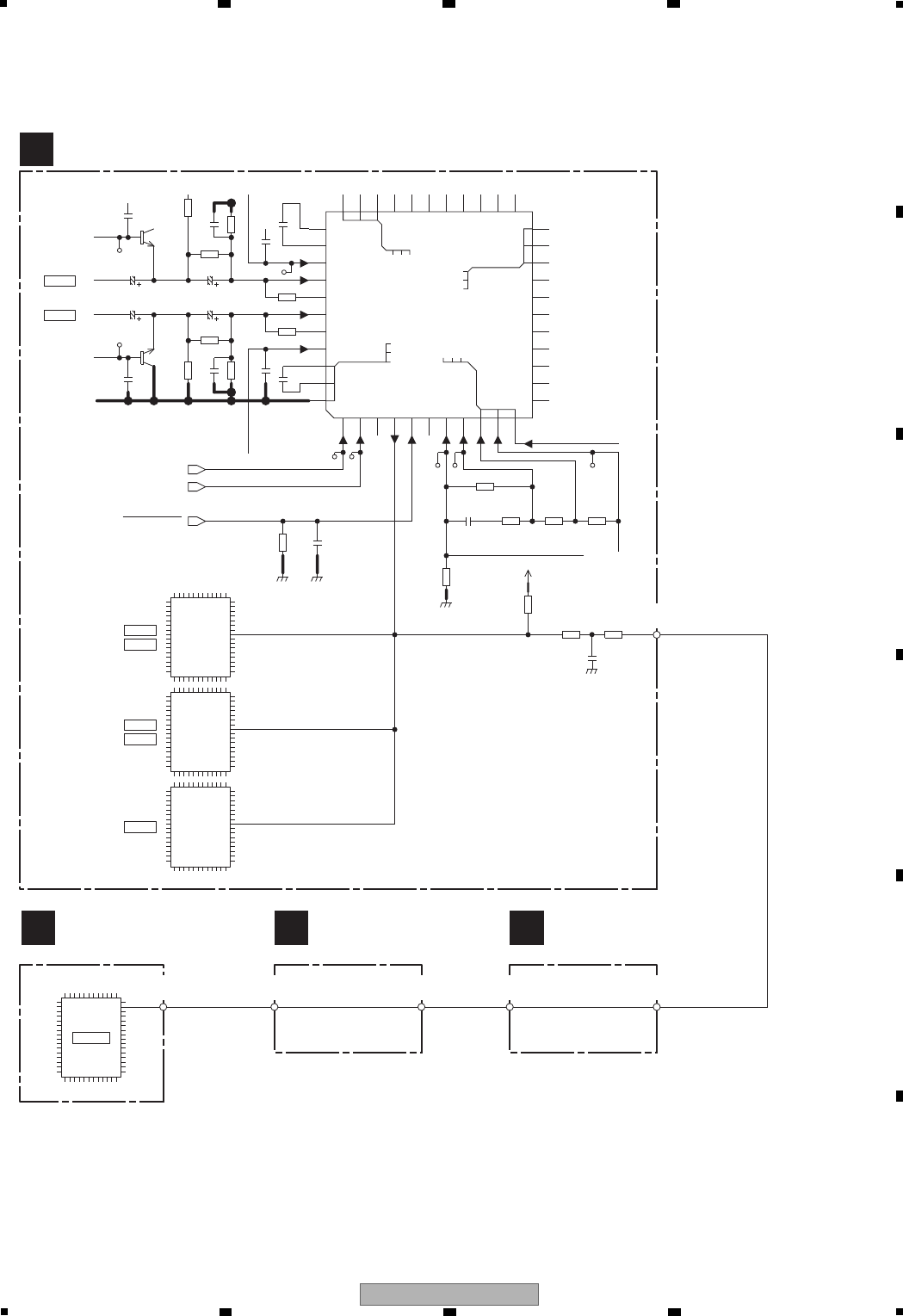

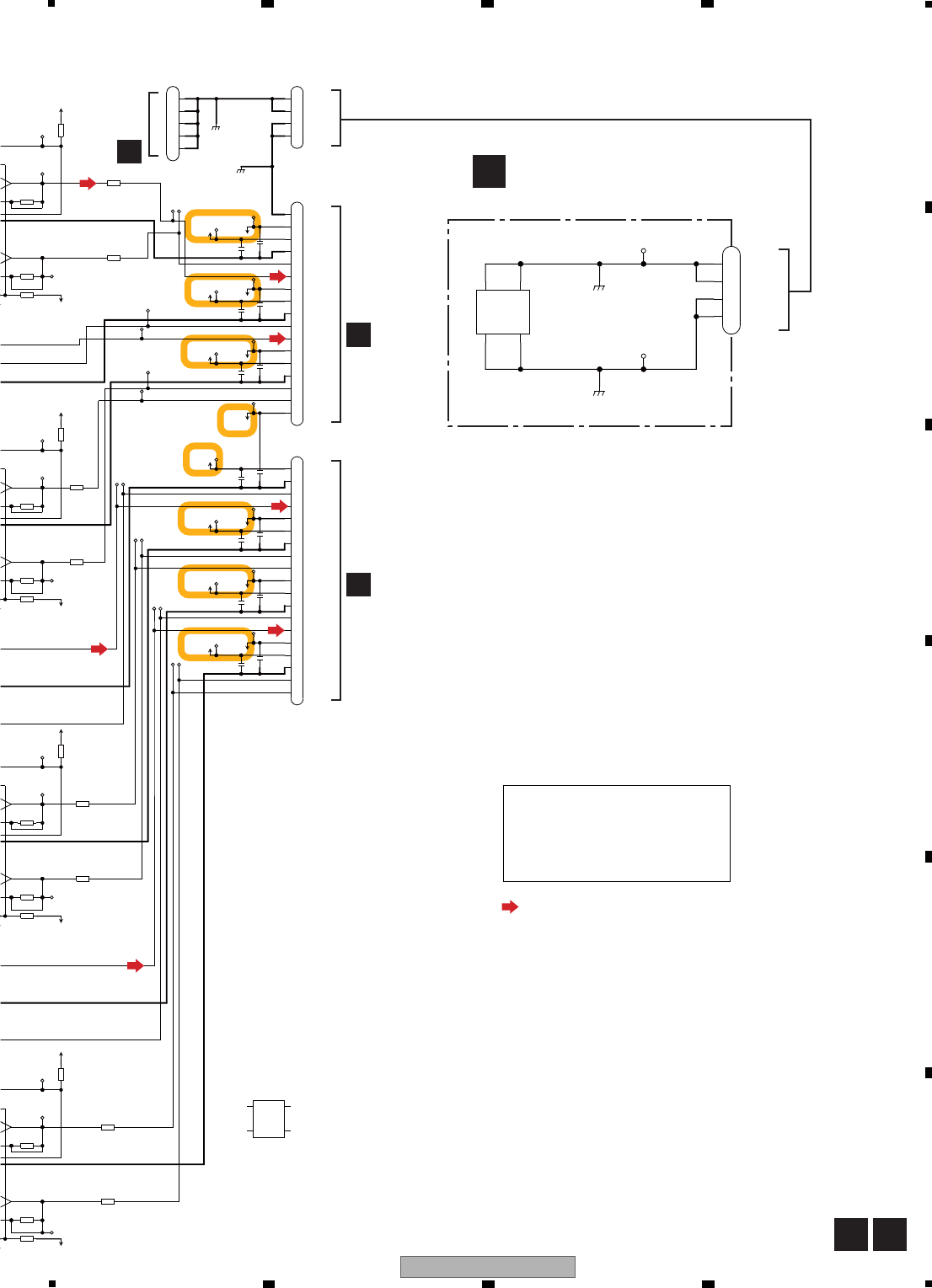

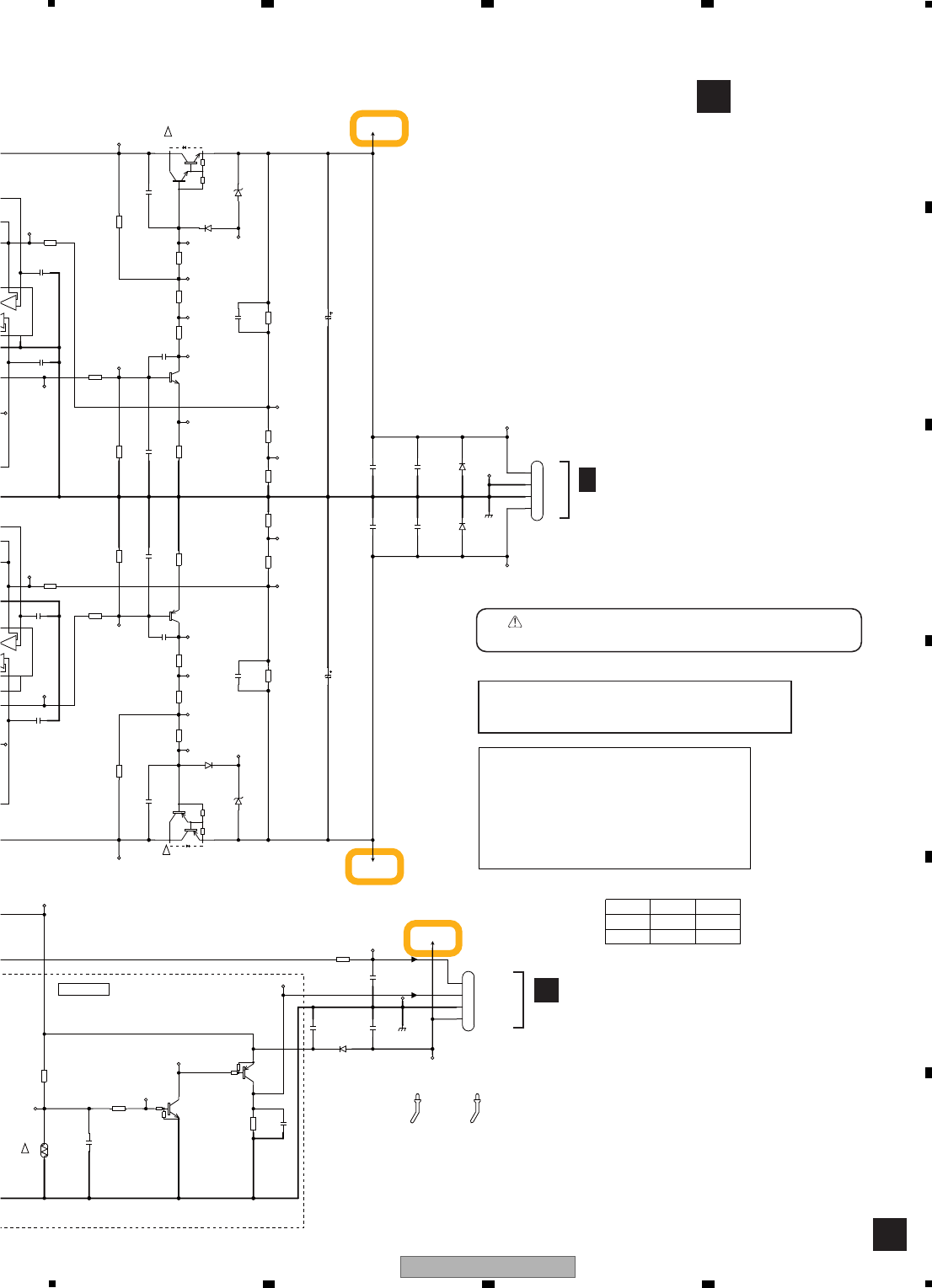

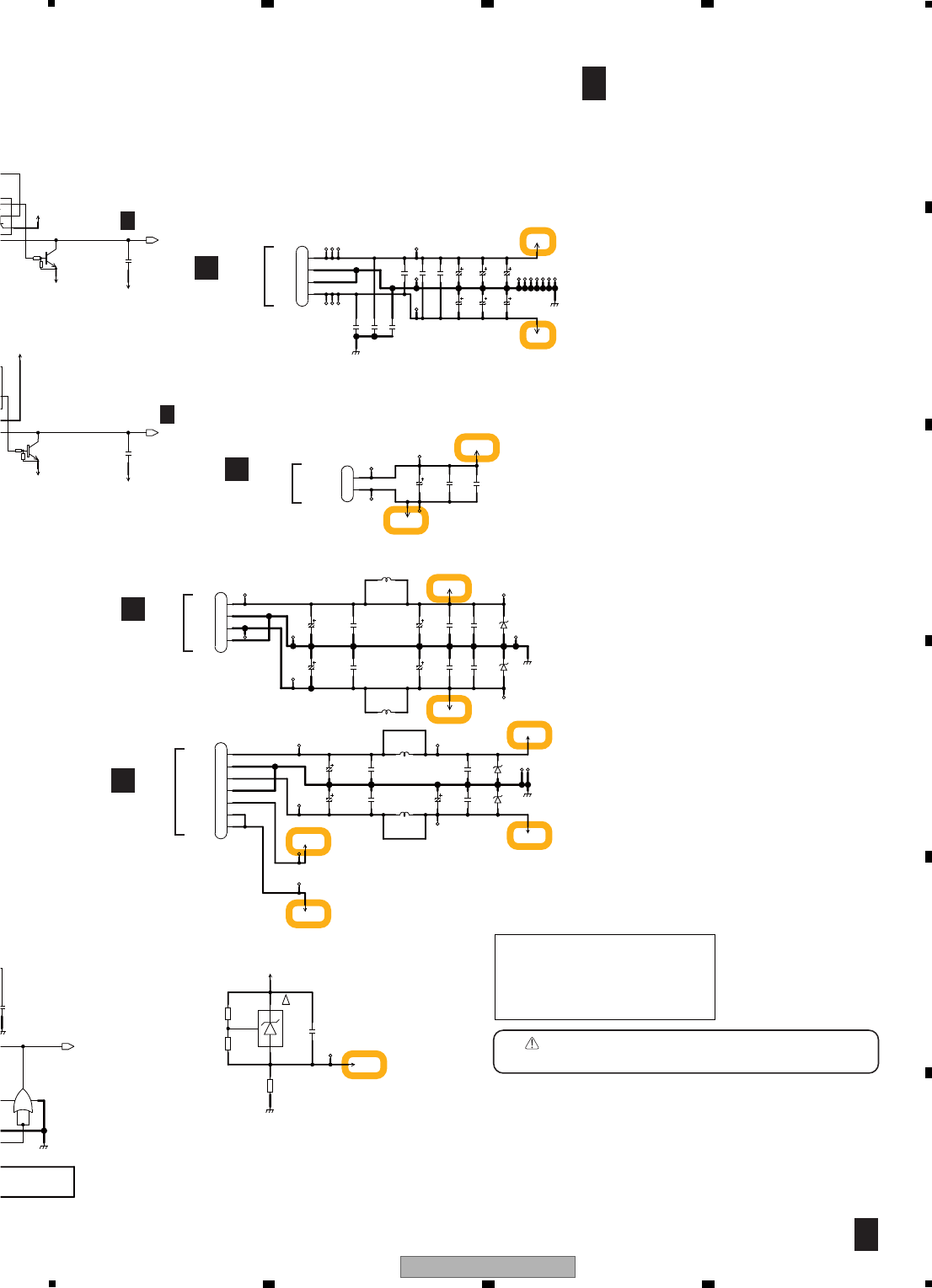

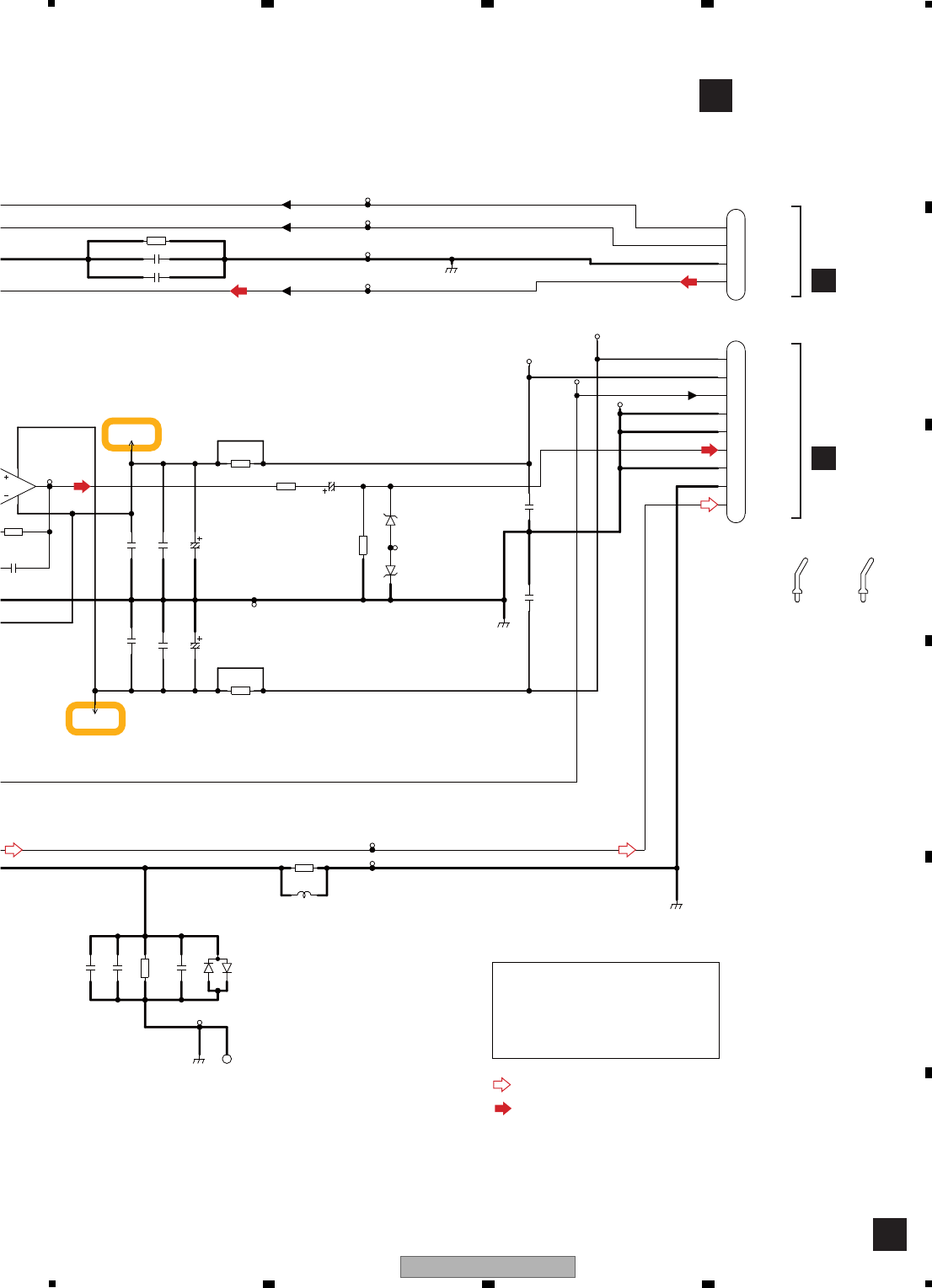

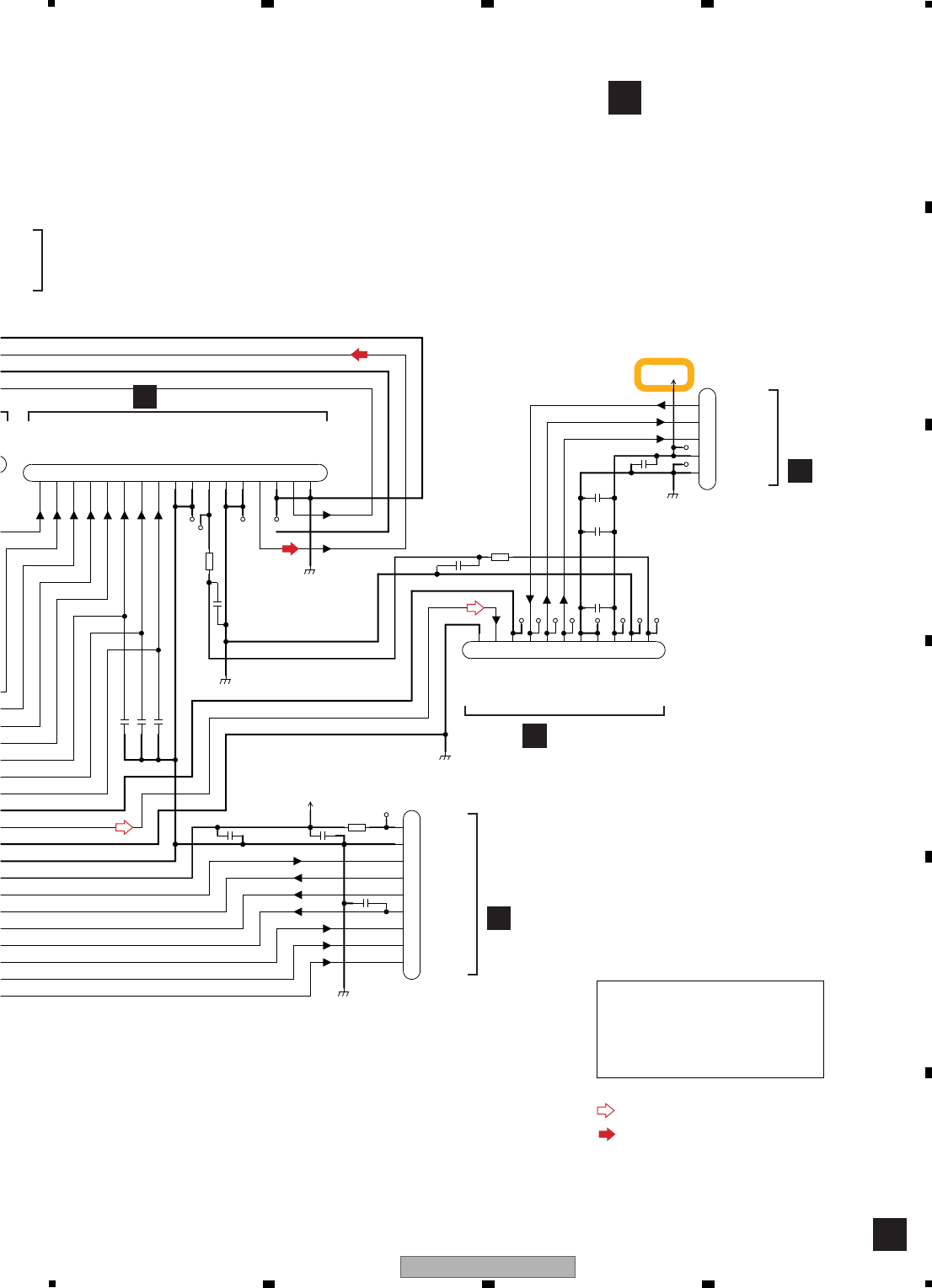

Low Voltage Detection for Amplifier Power Supply
CN4000
-8
INTERFACE
ASSY
F

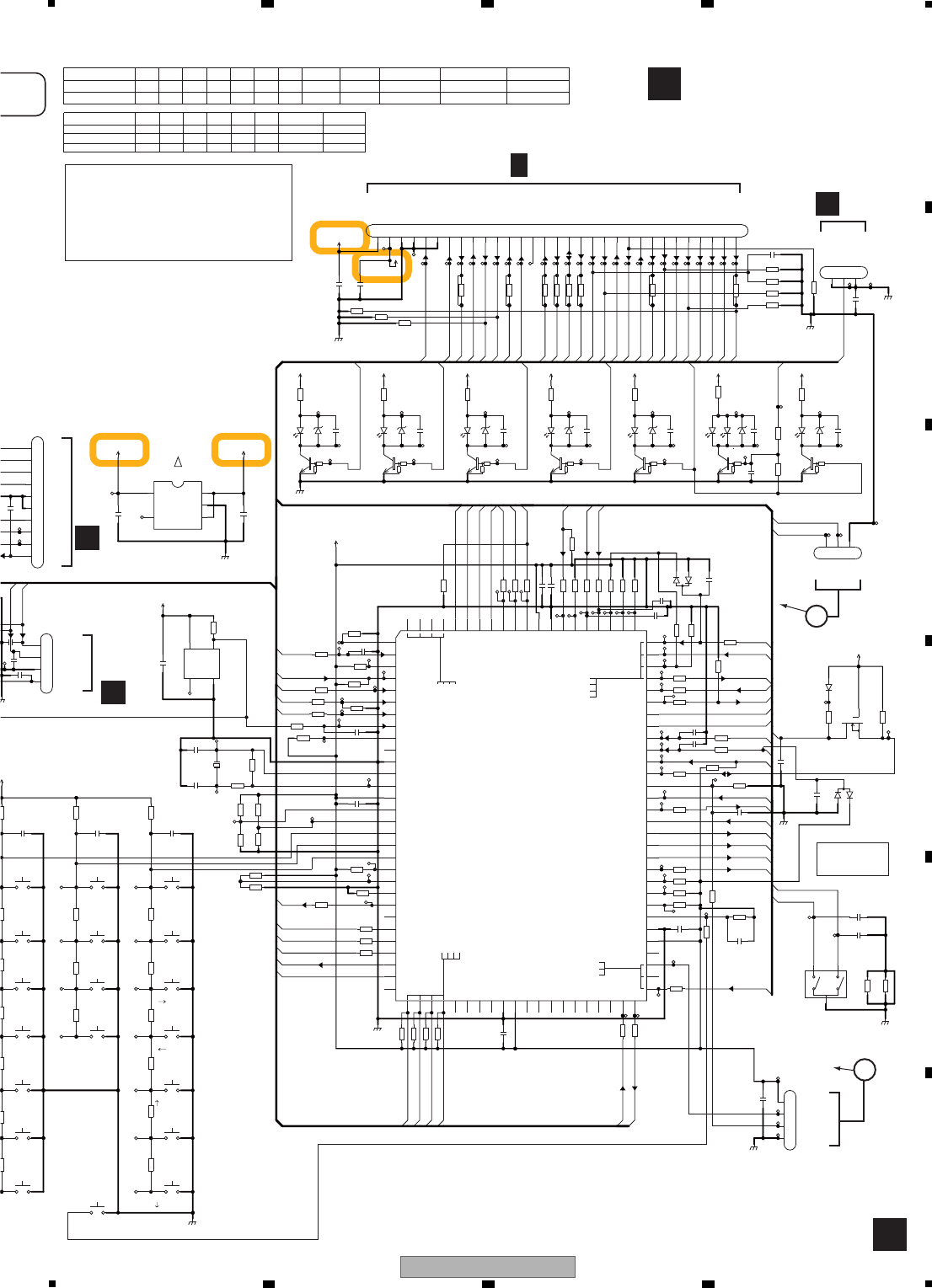

ICEPOWER AMP ASSY
Q
UCOM
IC8001
71
DISPLAY
ASSY
K
CN7012
-10
CN7003
-13
CN8202
-13
XOLERR
XOLERR
DIGITAL MAIN
ASSY
E
CN1250
-8
CN1403
-13
C4214
ACG7068-A-T
C4114
680p
ACG7068-A-T
C4122
ACG7073-A
2125
2200p
C4156
0.1u/16
C4259
NM
C4159
NM
C4115
1u/10
GNDGND
Q4108
2SD2704K
Q4208
2SD2704K
R4173
100k
R4127
1.5k 1%
R4112 22k
R4111
220k
R4211
220k
R4212 22k
R4125
1k 1%
R4126
1.5k 1%
R4124 27k
1%
R4213
NM1%
R4113
NM1%
AMPOVERLOAD
AMPOVERLOAD
VS_CHK1
VD_CHK1
R4278
NM
R4178
NM
C4116
1u/16
C4216
1u/16
ICC1-AVR
IC4200
Vd_check
1
Vs_check
2
Discharge
3
OC_mon
4
Enable
5
Thermal
6
In_A_Ch2
7
Out_A_Ch2
8
In_B_Ch2
9
Out_B_Ch2
10
In_C_Ch2
11
Pwm-_ch2
12
Pwm+_ch2
13
Mod_Ch2
14
ZobelSense2
15
Average2
16
Average1
17
NTC_in
18
ZobelSense1
19Mod_ch1
20
Pwm-_ch1
21
Pwm+_ch1
22
In_C_Ch1 23
Out_B_Ch1
24
In_B_Ch1
25
Out_A_Ch1
26
In_A_Ch1
27
NC
28
Vdd
29
UVP_en
30
Main_Gnd
31
Vss
32
Ref_ch1
33
CS1_ch1
34
CS2_ch1
35
RECout_ch1
36
Vin__ch1
37
DC_FB_ch1
38
Vin_ch2
39
DC_FB_ch2
40
RECout_ch2
41
CS1_ch2
42
CS2_ch2
43
Ref_ch2
44
ACH1479-A
C4213 100u
ACH1479-A
C4112 100u
ACH1479-A
C4212 100u
ACH1479-A
C4113
100u
MODULATOR

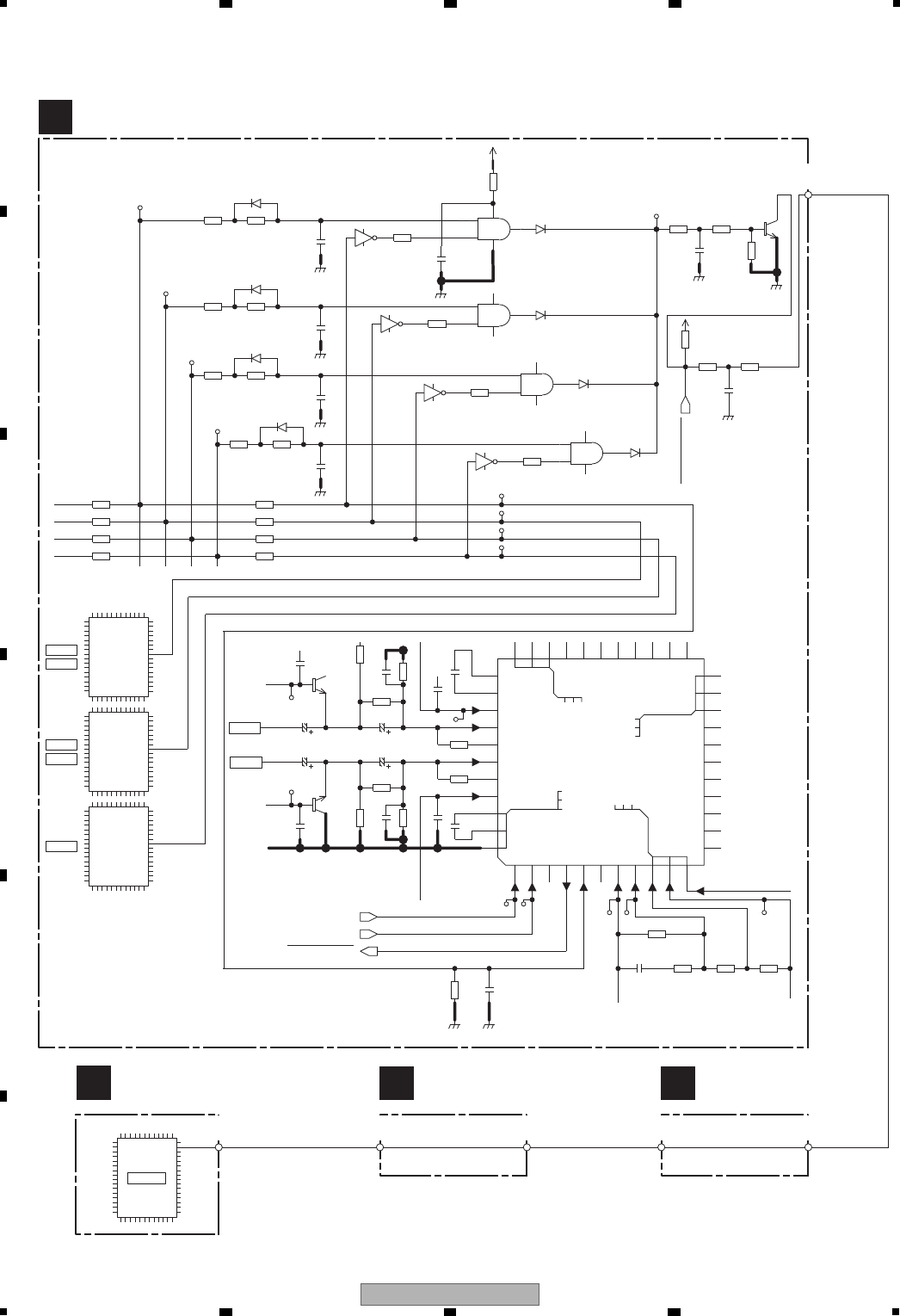

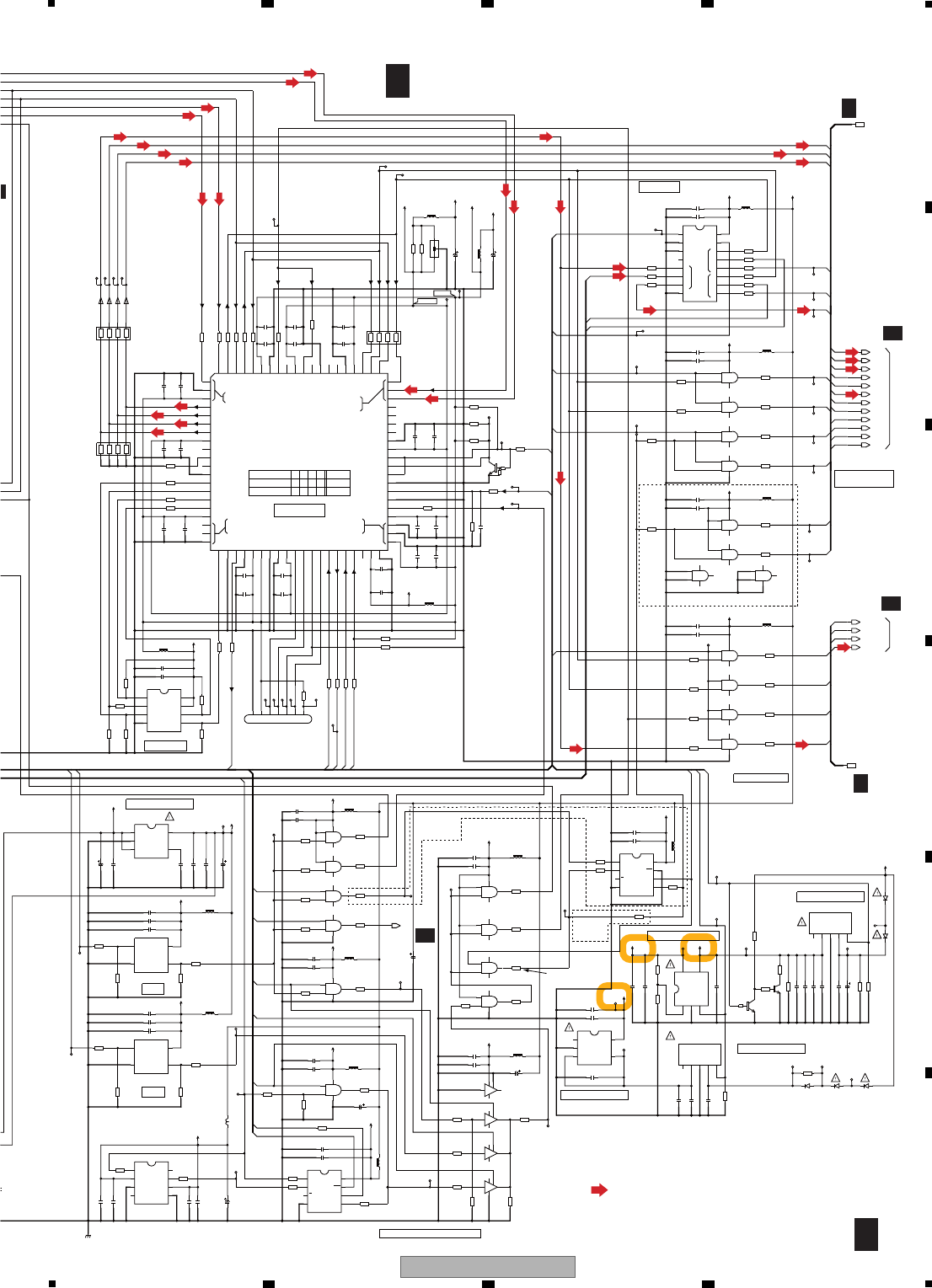

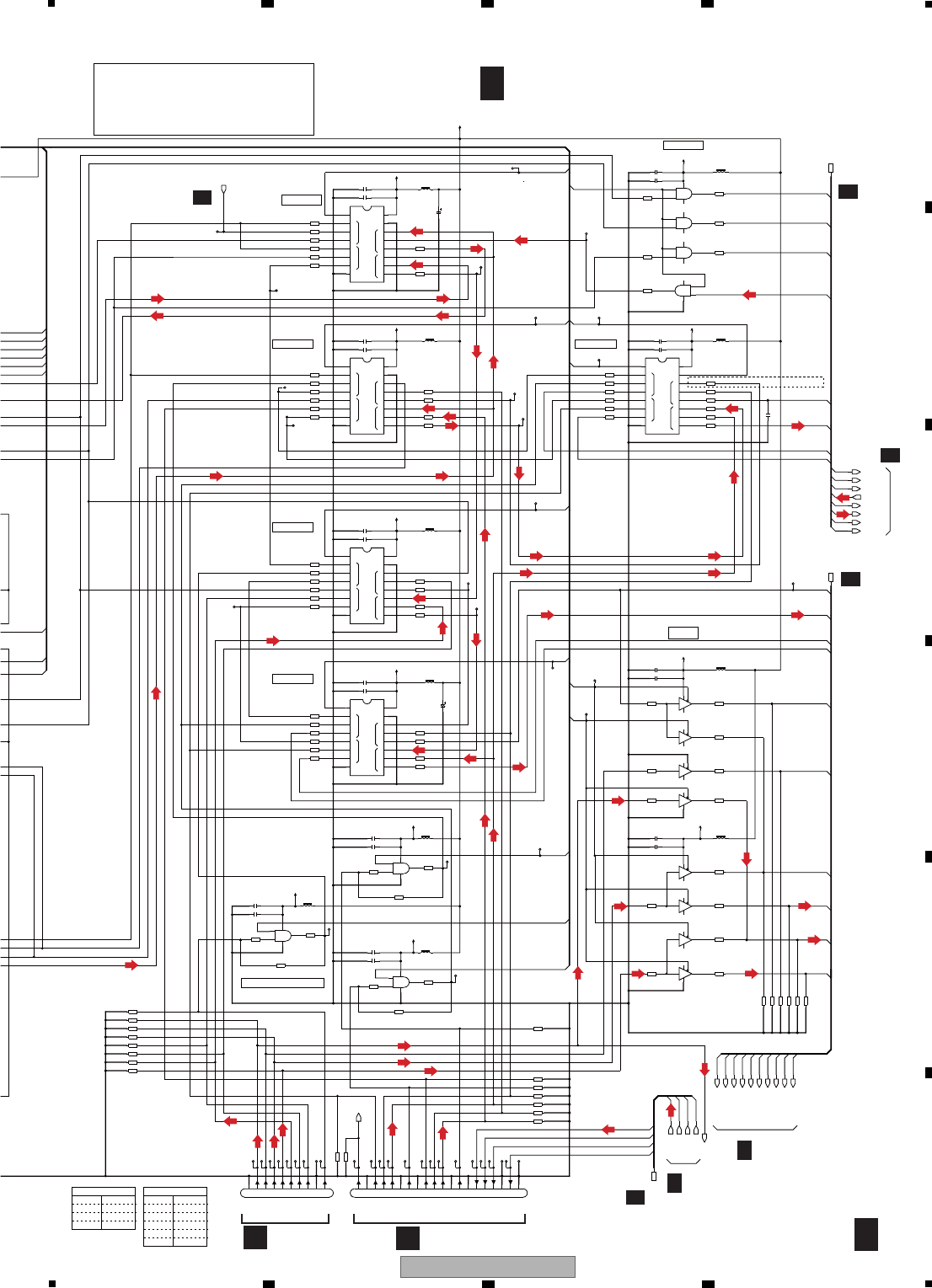

Output of Logic Circuit becomes “L”. AMPDISABLE of modulator IC
becomes “L” when abnormal.
Disable Signal from micro-computer.
Normally “H”.
R4002 100
R4003 100
R4001 100
R40088.2k
R4007 8.2k
R4006 8.2k
R4005 8.2k
R4004 100
IC4003
21
IC4003
43
IC4003
TC74VHC04FTS1
89
IC4003
1011
IC4004
3
1
2
14
7
IC4004
6
4
5
14
7
IC4004
8
9
10
14
7
IC4004
TC74VHC08FTS1
11
12
13
14
7
R4013
100
R4014
100
R4015
100
R4016
100
GND
C4006
0.1u/16
R4018
0
V+5V
GND
R4080
3.3k
R4081
3.3k
R4082
3.3k
R4083
3.3k
R4084
12k
R4085
12k
R4086
12k
R4087
12k
C4031
0.1u/16
C4032
0.1u/16
C4033
0.1u/16
C4034
0.1u/16
GND
GND
GND
GND
D4007 1SS352
D40081SS352
D4009 1SS352
D4010 1SS352
D4011
1SS352
D4012
1SS352
D4013
1SS352
D4014
1SS352
GND
C4035
0.1u/16
Q4015
2SC4154(EFG)
R4088
12k
R4089
12k
R4091
47k
IC4400 5
SR ch
SL ch
FR ch
FL ch
IC4600 5
SBR ch
SBL ch
IC4700 5
C ch
GND
R4043R4044
100 100
R4045
10k
C4021
1000p
CH
57
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
FL Display LED flashes Status Timing (sec.) Description Remarks
[2] Error Indications
(1) Over Current NA
When the overload USB
device (over 500 mA) is
connected.
Warning indication for
HDMI Simplay
Flashes 5 seconds
The connected USB device is overload.
The 12V trigger circuit is short-circuited, and a overcurrent is
generated.
(2) HDCP ERROR NAWhen an HDCP ERROR
is detected.
Flashes
(3) 12V TRG ERR NAWhen the 12V trigger
circuit is short-circuited.
The Icon “OVER”
lights
(4) NANAWhen the ANALOG INPUT
OVER is detected. Icon lights 1 second
While the Icon lights 1 second, when the ANALOG INPUT
OVER is detected again, the Icon continues to light 1 second
more from that time.
While the Icon lights 1 second, when there is no ANALOG
INPUT OVER detection, the Icon stops lighting and returns to
normal display.
58 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
6. SERVICE MODE
6.1 TEST MODE
Key operation FL display
Display number of times
DC is detected.
Display number of times
OVERLOAD is detected.
Display number of times
COMBINATION is detected.
(Detects DC and OVERLOAD
simultaneously)
Display number of times
FAN STOP is
detected.
Display number of times
AMP overheat is
detected.
[↓][↑]
[↓][↑]
[↓][↑]
[↓][↑]
[↓][↑]
Display number of times
Digital Power abnormality is
detected.
[↓][↑]
Display number of times
B REG power supply
overheat is detected.
[↓][↑]
OL :
DC :
:
:
COM
FAN
:
STMP
:
DERR
[1] Detected protection history
[Purpose]
The numbers of detections for various protection processes are displayed.
[How to enter/exit]
[Basic operations]
During Standby mode, simultaneously press and hold “MULTI-ZONE ON/OFF” and “ENTER” keys for 5 seconds to enter
this mode.
Turn off the power to this unit by setting the main volume level to “---dB” and Multi-zone to “OFF”.
:
BTMP
Display number of times
B REG power supply
failure is detected.
[↓][↑]
:
BERR
59
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
Key operation FL display
Display CEC(TEST) state.
Display FAN(TEST) state.
The Timer of Exception
"Set Stream Path".
[↓][↑]
[↓][↑]
EX SSP
CEC OFF
FAN
CEC ON
OFF
1500ms
600ms
Resetting the number of
times error is detected.
[↓][↑]
RESET
RESET RESET
RESET HOLD
CLEAR?
Resetting the number of times error is detected
Key operation FL display
↓
Continued
[ENTER]
[←][→]
Display CEC(TEST) state.
Key operation FL display
↓
Change cyclically
[←][→]
EX SSP
Setting of the Timer of Exception “Set Stream Path”.
Key operation FL display
↓
Change cyclically
[←][→]
FANON
Key operation FL display
↓
Change cyclically
[←][→]
Change cyclically
Display accumulated
time & RESET.
[↓][↑]
CL?
RST
12345h20m
12345h 20m
0h 0m
HLD
Resetting the accumulated time
Key operation FL display
↓
Continued
[ENTER]
[←][→]
[Description]
CEC TEST : The function for making the HDMI output terminal to output 1kHz square wave.
If the square wave is output, the CEC line is considered to be normal.
FAN TEST : The function for making the FAN to be forced to rotate.
60 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
7. DISASSEMBLY
Ground Points
Screws for Rear Panel
Note:
The points marked below must be grounded when the rear panel is removed.
Before turning the unit ON, be sure to ground the marked points with the chassis. Or, you may short-circuit the ground points
on the solder surface, using pieces of wire.
A A
A A
A
A
A
E
EE
F
F
FF
F F F F F F F F
FFFF
FF F F F F
F
F
F
F
F
F
F F F G G
E
E
E
E
A
AA
A
A A
A A
A A A A
A
AA
A
AAA
A
B
D
B
A A
C
C
AABA1011 BABA1207 CABA7078 DBBZ30P060FCC EBMZ30P040FTB FBPZ30P080FTB GCBZ30P080FTB
SC-27 only
61
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
Disassembly
[1] Exterior Section
Remove the bonnet by removing the 22 screws.
1
1
1
1
1
2
4 4
3
3
Center beam V1Left beam 81
PRIMARY
Assy
Note:
(1) Even if the unit shown in the photos and illustrations in this manual may differ from your product, the
procedures described here are common.
(2) For performing the diagnosis shown below, the following jigs for service is required.
• 27P FFC (GGD1588)
• 19P FFC (GGD1589)
• 21P FFC (GGD1590)
• 11P FFC (GGD1650) x 2
• 17P + 19P board to board extension jig cable (GGD1593)
• 24P + 15P board to board extension jig cable (GGD1651)
• 8P PH Housing Assy (GGD1652)
• 5P PH Housing Assy (GGD1594) x 2
(3) Before starting the diagnosis, wait for three minutes until the electricity of the unit is discharged.
(1) Remove the five screws. (BBZ30P060FCC)
(2) Release the PCB holder.
(3) Release the binders, as required.
(4) Remove the center beam V1 and left beam 81.
[1-1] Center beam V1, Left beam 81
62 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
(1) Remove the four cushion circles 14B.
(2) Remove the two hex head screws. (ABA7078)
(3) Remove the seven screws. (BMZ30P040FTB)
(4) Remove the 31 screws. (BPZ30P080FTB)
(for SC-27)
Remove the 30 screws. (BPZ30P080FTB)
(for SC-25, SC-9540)
(5) Remove the one screw. (BBZ30P060FCC)
(6) Remove the 21 screws. (ABA1011)
(7) Remove the rear panel.
[1-2] Rear panel
SC-27 only
2×2
6×56×16
4×31
3×6
3
5
1 1 1 1
7
7
[2] PCB Assys
(1) Remove the one push rivet.
(2) Disconnect the one flexible cable.
(3) Disconnect the two connectors.
(4) Disconnect the three B to B connectors.
(5) Remove the COMPONENT Assy.
[2-1] COMPONENT Assy
1
COMPONENT Assy
CN8601
CN7704
CN6010
CN6004
CN6009
CN7602
V-BRIDGE Assy
Rear panel
4
2
4
3
3
4
63
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
3
6
3
4
3
3
3
3
(1) Disconnect the one connector.
(2) Remove the two screws. (ABA1011)
(3) Remove the PRIMARY Assy.
[2-2] PRIMARY Assy
(1) Remove the one push rivet.
(2) Remove the two PCB holders.
(3) Disconnect the five flexible cables.
(4) Disconnect the one connector.
(5) Disconnect the two B to B connectors.
(6) Remove the COMPOSITE_S, ZOUT, AUDIO,
V-BRIDGE, PRE_BRIDGE and PRIMARY
GUARD Assemblies.
[2-3] COMPOSITE_S Assy etc.
2
1
2
2
2
PRIMARY Assy
ZOUT Assy
PRE_BRIDGE Assy
COMPOSITE_S Assy
PRIMARY GUARD
Assy
CN5752
CN7014
CN7013
CN7502
CN7707
CN7706CN7705
CN6953
5
5
CN8711
1
64 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
5
1
1
333
3
3
3
3
FRONT BRIDGE Assy
ICE SHIELD
Assy
ICE_BUFFER
Assy
ICE cover 81
CN7016
CN7015
22
CN7701
CN6811 CN6821
CN7702
4 4
[3] ICE Section
(1) Disconnect the two flexible cables.
(2) Disconnect the two connectors.
(3) Remove the seven screws. (AMZ30P060FTC)
(4) Disconnect the two B to B connectors.
(5) Remove the ICE cover 81 with PC board.
65
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
CN7016
CN7602
CN7502
CN8711
CN7015
CN7014
CN7013
CN3802
CN3801
CN6811
JP5001
CN6821
CN7708
CN7704
CN5003
CN5002
CN7709
JP6007
21P FFC
(GGD1590)
Diagnosis
(1) Reassembling the AUDIO Assy etc..
(2) Reassembling the PRIMARY Assy.
(3) Tighten the screws of the ground points, and
temporarily assemble the rear panel.
(4) Connect the 10 extension jig cables.
(5) Connect the ground points to the chassis
ground. (See “Ground points”.)
(6) Arrange the unit as shown in the photo below.
17P + 19P board to board extension jig cable
(GGD1593)
Note: When diagnosing, it is not necessary to connect FAN cable (FRONT BRIDGE: CN7701).
24P + 15P board to board extension jig cable
(GGD1651)
5P PH Housing Assy
(GGD1594)
9
7
1 4
6 3 2 19P FFC
(GGD1589)
5P PH Housing Assy
(GGD1594)
11P FFC
(GGD1650)
511P FFC
(GGD1650)
8
8P PH Housing Assy
(GGD1652)
27P FFC
(GGD1588)
No. Jig Cable Part No. Assy Assy Remarks
127P FFC GGD1588 INTERFACE CN7015 <-> CN7709 FRONT BRIDGE Audio
219P FFC GGD1589 INTERFACE CN7013 <-> CN5002 AUDIO Audio
321P FFC GGD1590 INTERFACE CN7014 <-> CN5003 AUDIO Audio
411P FFC GGD1650 INTERFACE CN7016 <-> CN7708 FRONT BRIDGE Front I/O check
511P FFC GGD1650 COMPONENT CN6006 <-> CN7704 FRONT BRIDGE Power supply
617P + 19P board to board extension jig cable GGD1593 ICE INTERFACE CN3801 <-> CN6821 ICE_BUFFER Audio (Speaker output)
GGD1593 ICE INTERFACE CN3802 <-> CN6811 ICE_BUFFER Audio (Speaker output)
724P + 15P board to board extension jig cable GGD1651 COMPONENT CN6009 <-> CN1253 DIGITAL MAIN Video
GGD1651 COMPONENT CN6004 <-> CN1251 DIGITAL MAIN Video
88P PH Housing Assy GGD1652 COMPONENT JP6007 <-> CN7602 REG FL power supply
95P PH Housing Assy GGD1594 AUDIO JP5001 <-> CN7502 REG Audio
a5P PH Housing Assy GGD1594 PRIMARY CN8711 <-> JP7701 FRONT BRIDGE Power supply
CN1251
CN6004 CN6009
CN6006
JP7701
CN1253
10
66 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
8. EACH SETTING AND ADJUSTMENT
8.1 HOW TO UPDATE FIRMWARE
[1] Version Indication
[Purpose]
The versions for Syscon EMMA, EVENT con and DSP firmware are displayed.
1. Power on only the Main zone.
1. Press “HOME MENU” key of the remote control unit and displays HOME MENU screen.
2. On that above conditions, simultaneously press and hold "ENTER" and " MULTI-zone CONTROL" keys
for more than 10 seconds.
Simultaneously press and hold "ENTER" and " MULTI-ZONE CONTROL" keys for short seconds. (The volume level is free.)
The FL display and procedure of the updating process is same for both mode.
For UPDATE PANEL 2 Mode, after completing the update, it is necessary to
disconnect then reconnect the AC cord of the unit.
The display design is subject to possible modifications.
Or turn off the power.
2. Set the main volume level to -79.5 dB.
[Preparations]
[How to enter]
[How to exit]
[Check GUI Display sample]
[2] Syscon (EMMA), EVENT con and DSP Flash ROM Update by USB Memory
[Preparations]
UPDATE PANEL Mode (Version update)
1. Copy the UPDATE FILE to the root directory of the USB Memory.
2. Turn off the power to this unit by setting Multi-Zone to "OFF".
3. Connect the USB Memory to the USB terminal (A type) of the front panel.
1. While holding down "↑" key on the front panel, press "STANDBY ON/OFF" key and
moves to the UPDATE PANEL mode.
2. The updating process is as follows.
[Procedure]
[Preparations]
UPDATE PANEL2 Mode (Version down and same version install)
1. Copy the UPDATE FILE to the root directory of the USB Memory.
2. Turn off the power to the unit by setting the main volume to "---db" and Multi-zone to OFF.
3. Connect the USB Memory to the USB terminal (A type) of the front panel.
1. Simultaneously press and hold "↑" and "MULTI-ZONE ON/OFF" keys for about 5 seconds and
moves to the UPDATE PANEL2 mode.
2. The updating process is as follows.
[Procedure]
67
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
Update Menu
UPDATE
Update Confirmation
UPDATE ? NO
Update Confirmation
UPDATE ? YES
File searching
PLEASE WAIT
Key operation FL display
[→] or [←]
[←][→]
[ENTER]
[ENTER]
DSP UPDATE completed
Updating process
UPDATE
UPDATE FILE searching
completed
Key operation FL display
[↑] +
[STANDBY ON/OFF]
Booting is completed.
Whole version is displayed.
Update Menu
[↓] or [↑]
[↓][↑]
VERSION 1.000
POWER ON
UPDATE
If no key is pressed within 10 seconds while booting UPDATE PANEL, the UPDATE PANEL is finished
and returns to the normal display. But the process does not become timeout and continues while "FILE searching"
or "Updating process".
68 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
Key operation FL display
DSP UPDATE completed
Updating process
EMMA UPDATE completed
EVENT UPDATE completed
5 Second
UPDATE
Updating process
UPDATE
Update completion display
Power turns off automatically.
(All ZONE OFF)
Disconnect the USB MEMORY.
COMPLETE
[Confirmation]
1. Check the updated version.
Following the procedures described in "Version Indication" in this section, check that the version
has been changed to a new one.
[Procedure for UPDATE PANEL 2 Mode]
After completing the UPDATE PANEL 2 Mode update and confirming the version,
it is necessary to disconnect then reconnect the AC cord of the unit.
The updating time is about 10 minutes.
69
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
Either directly connect the PC and AV amplifier (Connection A) or connect them via a DHCP router (Connection B).
Either a straight or cross LAN cable can be used.
LAN cable
LAN cable
LAN cable
(straight)
to LAN terminal
to LAN terminal
PC
PC1 PC2
[Connection A] [Connection B]
[3] Network Firmware Update Procedure
• PC (OS: Windows XP, Windows Vista)
• LAN cable (either straight or cross cable can be used)
• Firmware file (with the extension .bcd)
[Necessary Tools]
[Connections]
70 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
Open the Control Panel. --->
Open the Network Connections (double click).
Local Area Connection (right click) ---> Properties
Local Area Connections Properties --->
Internet Protocol (TCP/IP) ---> Properties
Internet Protocol (TCP/IP) Properties
Set the following settings.
Use the following IP address:
IP address: 192.168.000.001
Subnet mask: 255.255.255.0
Set the static IP address of the PC.
*When Connection B (connection via a DHCP router) is performed in [Procedure 1], this setting is not required.
[Preparations]
71
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
[Procedures]
1. Either directly connect the PC and AV amplifier (Connection A) or connect them via a DHCP router (Connection B).
(1) Set the remote control operation switch to SOURCE (SC-27 only).
(2) Press the HOME MEDIA GALLERY button to set the input function to Home Media Gallery.
The Top menu will be displayed on the OSD.
(3) Select “Setup” then press ENTER.
(4) Select “Network Setup” then press ENTER.
(5) When “Network Found” or “No Network” is displayed, press ENTER.
(6) Select “Static IP Address” then press ENTER.
(7) Select “Change” then press ENTER. Enter the following values:
(8) After setting “Proxy Server,” press ENTER. The screen will be returned to the Top menu.
IP Address: 192. 168. 000. 002
Subnet Mask: 255. 255. 255. 0
Gateway IP: 192. 168. 000. 001
Proxy Server: [No]
*
Note:
Be sure to note the network settings (IP address, subnet mask, gateway, proxy server)
of the customer’s unit when the static IP address has been set for the unit.
2.
[When the PC and AV amplifier are directly connected]
Set the static IP address of the AV amplifier.
How to Set the IP Address
In the Local Area Connections
Properties window, click on OK to
close the window.
Setting of the static IP address for the PC is completed.
72 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
The following screen will be displayed.
Click on “Firmware Update.”
Click.
3. The following steps are to be performed on the PC.
Open Internet Explorer on the PC.
When the AV amplifier is directly connected with the PC, enter “http:// 192. 168. 000. 002” in the address box then
press the Enter key.
When the AV amplifier is connected via a DHCP router, enter the IP address of the AV amplifier you noted in the
address box then press the Enter key.
(1) Enter “http:// ***. ***. ***. *** (IP address of the AV amplifier).”
(2) Click on the Update button or press the Enter key.
(1) Set the remote control operation switch to SOURCE (SC-27 only).
(2) Press the HOME MEDIA GALLERY button to set the input function to Home Media Gallery.
(3) Select “Setup,” using the or key, then press ENTER.
(4) Select “Information” then press ENTER. The version of the network firmware will be displayed.
(5) Change displays, using the or key, to check the “IP Address.”
(6) To return to the Top menu screen, press the Return button twice.
[When the PC and AV amplifier are connected via a DHCP router]
Be sure to confirm and note the IP address.
How to Confirm the IP Address
73
SC-27
56 7 8
56 7 8
A
B
C
D
E
F

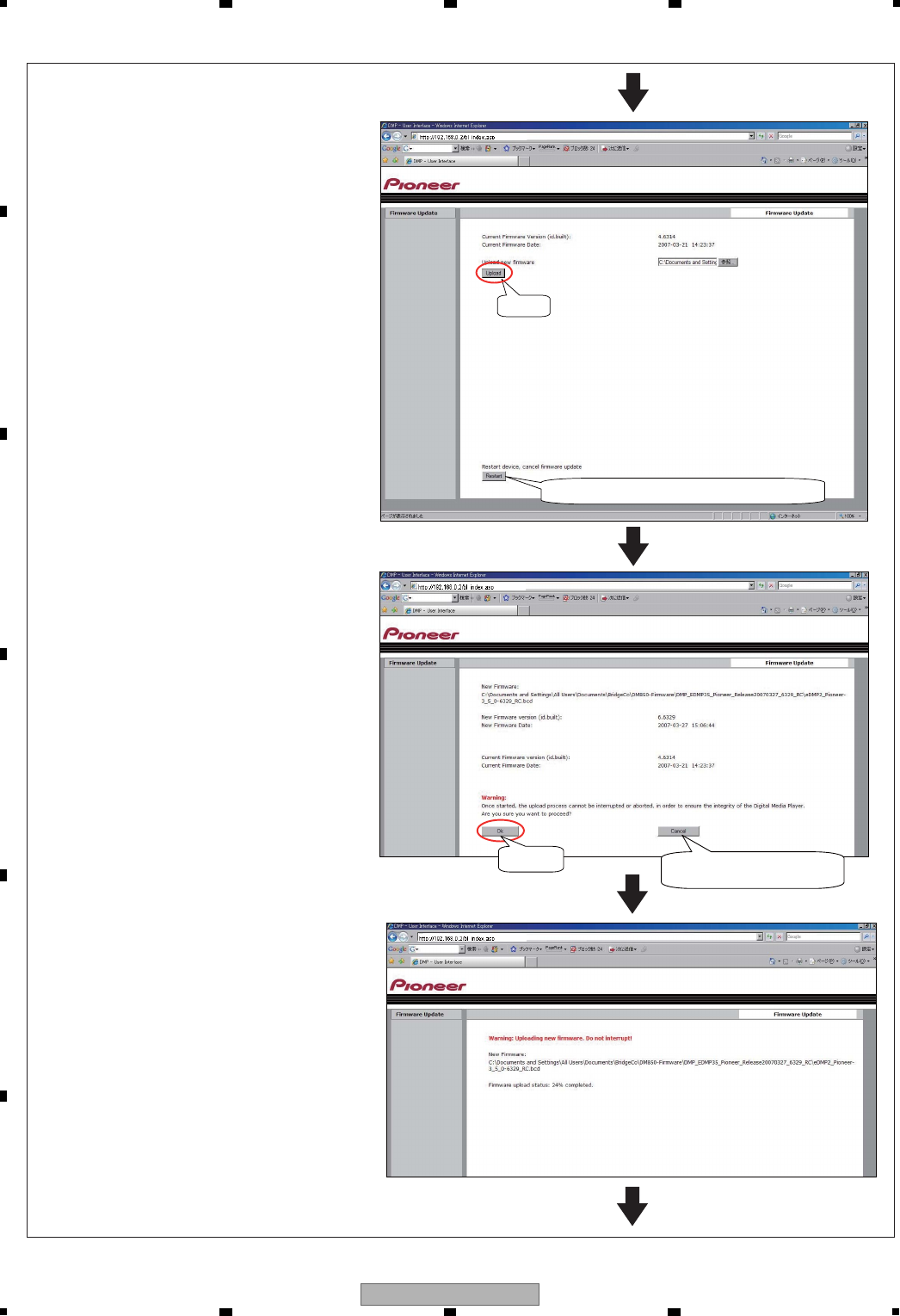

“Prepare for Firmware Update” and the
current version will be displayed.
Click on OK. The firmware update screen
will be displayed within several seconds.
Click the browse button and select
the firmware file in the PC.
Click.
Click and select the firmware
file on the PC.
74 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
Click the Upload button.
Click.
To cancel updating, click on this button.
The firmware update execution screen
will be displayed. Click on OK.
Updating of the firmware will start.
The progress of updating will be displayed
in percentage.
Click. To cancel updating,
click on this button.
75
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
After updating is completed, click on OK
to return to the Status screen.
Check that the firmware version has
been updated.
Press the POWER button on the AV amplifier
to turn it off and again to turn it back on again.
Note: Please restore the Network IP settings of the
customer's unit after the update is completed.
The firmware version
has been updated.
Click.
76 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
9. EXPLODED VIEWS AND PARTS LIST
9.1 PACKING SECTION
NOTES:
-
Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List.
-
The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
-
Screws adjacent to b mark on product are used for disassembly.
-
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
SC-25, SC-9540 Only
SC-27, SC-25
Only
77
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
(1) PACKING SECTION PARTS LIST
(2) CONTRAST TABLE
SC-27/CUXJCA, SC-25/CUXJCA and SC-9540/CUXJCA are constructed the same except for the following:
Mark No. Description Part No.
>1Power Cord ADG7111
2 MCACC Setup Microphone APM7009
3 iPod Cable (USB+V) ADE7129
4 Remote Control Unit See Contrast table (2)
5 Battery Cover See Contrast table (2)
NSP 6 Dry Cell Battery (AA, R6) XEX3006
7 AM Loop Antenna ATB7013
8 FM Wire Antenna ADH7030
9 Operating Instructions (En) See Contrast table (2)
10 Caution Sheet SP,E ARM7083
NSP 11 Warranty Card See Contrast table (2)
NSP 12 Polyethylene Bag AHG7117
13 Protection Sheet LX See Contrast table (2)
14 Front Pad 81 AHA7478
15 Rear Pad 81 AHA7479
16 Packing Sheet RHC1023
17 Packing Case See Contrast table (2)
18 Preset List (En, Frca, Ja) See Contrast table (2)
Mark No. Symbol and Description SC-27
/CUXJCA
SC-25
/CUXJCA
SC-9540
/CUXJCA
4 Remote Control Unit AXD7539 AXD7542 AXD7542
5 Battery Cover AZN8031 VZN1025 VZN1025
9 Operating Instructions (En) ARB7420 ARB7420 ARB7421
NSP 11 Warranty Card ARY7007 ARY7007 ARY7045
13 Protection Sheet LX AEH7030 AEH7030 Not used
17 Packing Case 27CU AHD8631 Not used Not used
17 Packing Case 25CU Not used AHD8637 Not used
17 Packing Case 9540CU Not used Not used AHD8638
18 Preset List (En, Frca, Ja) Not used ARH7092 ARH7092
78 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
9.2 EXTERIOR SECTION
CONTACT SIDE
NON-CONTACT
SIDE
I
J
J
D
E
CN4903
CN4901
FRONT BRIDGE
CN7701
COMPONENT
CN6010
INTERFACE
CN7018
REG
CN7501
ICEPOWER
AMP CN4902
REG
CN7601
I
D
E
F
F
A
C
B
A
C
B
G
G
H
H
K
K
INTERFACE
CN7017
INTERFACE
JP7001
DIGITAL MAIN
CN1259
ICEPOWER AMP
CN4900
ICEPOWER
AMP
W
Y
X
AA
PC board
Silicon grease
GEM1057
Refer to
“9.5 FRONT SECTION”.
Refer to
“9.3 REAR SECTION”.
79
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
(1) EXTERIOR SECTION PARTS LIST
(2) CONTRAST TABLE
SC-27/CUXJCA, SC-25/CUXJCA and SC-9540/CUXJCA are constructed the same except for the following:
Mark No. Description Part No.
1 H GUARD Assy AWX9441
2 ICE_REG Assy AWX9448
3 B_REG Assy AWX9450
4 B_DIODE Assy AWX9451
>5Power Transformer (T1501) ATS7422
>6Fuse (FU13: 1 A) REK1142
>7Fuse (FU14: 1 A) REK1142
>8Fuse (FU11: 1.25 A) REK1143
>9Fuse (FU12: 1.25 A) REK1143
>10 Fuse (FU15: 1.25 A) REK1143
>11 Fuse (FU61: 10 A) REK1154
>12 Fuse (FU62: 10 A) REK1154
13 PCB Angle 45 ANG7406
14 Center Beam V1 ANG7482
15 Trans Frame 81 ANG7623
16 Left Beam 81 ANG7624
NSP 17 Panel Stay 82 ANG7653
18 Reg Heatsink 81 ANH7204
19 Insulator See Contrast table (2)
20 FFC Cushion AEB7404
21 Cushion T3 20 x 35 AEB7406
22 Push Rivet AEC7071
23 Reuse Wire Clamp AEC7626
24 Mica Sheet AEE7034
25 PCB Holder PNW2562
NSP 26 Mini Clamp VEC1597
27 License Label V6S H ARW7388
NSP 28 Binder (BK-1) ZCA-BK1
29 Bonnet 81B (BOX) AZN8036
30 Toothed Lock Washer WH40FNI
31 PCB Mold AMR2533
32 • • • • •
33 • • • • •
34 Screw 3 x 12 ABA1052
35 Screw 3 x 10 ABA1193
36 Screw 4 x 12 ABA7109
37 Screw 3 x 10 ABA7134
38 CUP Screw 3 x 8 ABA7149
39 ScrewBBT30P080FCC
40 ScrewBBZ30P180FCC
41 ScrewBCZ40P060FTB
42 ScrewABA1011
43 ScrewBBZ30P060FCC
Mark No. Description Part No.
Mark No. Symbol and Description SC-27
/CUXJCA
SC-25
/CUXJCA
SC-9540
/CUXJCA
19 Insulator AMR7198 AMR7198 Not used
19 Insulator Assy Not used Not used DXA1904
80 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
9.3 REAR SECTION
Power
transformer
Power
transformer
A
B
C
D
E
P
Q
Q
P
V
V
L
LM
N
M
N
DISPLAY
JP8004
AUDIO
JP5001
Power
transformer
Power
transformer
FRONT BRIDGE
JP7701
A
B
C
D
GH
I
E
F
F
O
O
CONTACT SIDE
NON-CONTACT
SIDE
MIC HP
CN6351
MIC HP
CN6251
DISPLAY
CN8202
FRONT-HDMI
CN3554
G
R
T
R
S
H
I
J
K
JK
FRONT-HDMI
CN3501
S
T
U
Power
transformer
U
R
U
Z
B
DV
F
E
G
AB
PC board
PC board
PC board
Refer to
“9.4 CHASSIS SECTION”.
SC-27 Only
81
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
(1) REAR SECTION PARTS LIST
(2) CONTRAST TABLE
SC-27/CUXJCA, SC-25/CUXJCA and SC-9540/CUXJCA are constructed the same except for the following:
Mark No. Description Part No.
1 V-BRIDGE Assy AWX9457
2 PRIMARY Assy AWX9458
3 HDMI RECT Assy AWX9459
4 DSP Assy See Contrast table (2)
5 COMPONENT Assy See Contrast table (2)
6 DIGITAL_BRIDGE Assy AWX9461
7 232C_CONTROL Assy AWX9435
8 INTERFACE Assy AWX9447
9 REG Assy AWX9452
10 DIGITAL MAIN Assy AWX9463
>11 Fuse (FU21: 1.25 A) REK1143
>12 Fuse (FU22: 1.25 A) REK1143
>13 Fuse (FU31: 1.25 A) REK1143
>14 Fuse (FU32: 1.25 A) REK1143
>15 Fuse (FU51: 3 A) REK1147
>16 Fuse (FU41: 4 A) REK1149
>17 Fuse (FU1: 10 A) VEK1029
18 24P FFC/60V (J18) ADD7681
19 30P Shield FFC (J20) ADD7713
20 5P Housing Assy (Y26) ADX7698
21 Rear Panel See Contrast table (2)
NSP 22 Transistor Holder ANG7543
23 REG Assy Plate 81 ANG7627
24 DSP Shield 82 ANG7652
25 Support Plate 82 ANG7654
26 PCB Mold AMR2533
27 PCB Holder AEC7057
28 Push Rivet AEC7071
29 Nylon Rivet AEC7406
30 Primary Barrier AEC7569
31 Reuse Wire Clamp AEC7626
32 SP Sheet 82 AEC7633
33 Cushion Circle 14B AED7081
34 Acetate Tape 10 x 60 AEH7029
35 Shield Case AMR7526
NSP 36 PCB Holder PNW2100
37 Locking Card Spacer PNW2917
NSP 38 Mini Clamp VEC1597
NSP 39 PC Support VEC1749
40 Locking Card Spacer XEC3051
41 Terminal ScrewAKE-031
42 • • • • •
43 • • • • •
44 Screw 3 x 6 ABA1207
45 Hex Head Screw 2.85 x 7 ABA7078
46 ScrewBBZ30P080FCC
47 ScrewBBZ30P180FCC
48 ScrewBMZ30P040FTB
49 ScrewCBZ30P080FTB
50 ScrewIBP30P090FCC
51 ScrewABA1011
52 ScrewBBZ30P060FCC
53 ScrewBPZ30P080FTB
Mark No. Description Part No.
Mark No. Symbol and Description SC-27
/CUXJCA
SC-25
/CUXJCA
SC-9540
/CUXJCA
4 DSP Assy AWX9429 AWX9467 AWX9467
5 COMPONENT Assy AWX9437 AWX9490 AWX9490
21 Rear Panel 27CU ANC8544 Not used Not used
21 Rear Panel 25CU Not used ANC8557 Not used
21 Rear Panel 9540 Not used Not used ANC8558
82 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
9.4 CHASSIS SECTION
CONTACT SIDE
NON-CONTACT
SIDE
B_REG
CN7373
CN7015CN7016
INTERFACE
CN7014
CN7013
A
A
B
G
CD
F
E
D
HI
J
K
C
B
INTERFACE
REG
CN7502
PRIMARY
CN8711
ICE_REG
CN7251
INTERFACE
CN7012
Accessory of
P Base
CN7271
CN7241
ICE_REG
CN7302
COMPONENT
CN6006
Q
S
I
T
A
P
H
N
O
AC
V-BRIDGE
CN8602
F
E
G
H
K
I
J
Accessory of
P Base
Cleaning paper :
GED-008
83
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
(1) CHASSIS SECTION PARTS LIST
(2) CONTRAST TABLE
SC-27/CUXJCA, SC-25/CUXJCA and SC-9540/CUXJCA are constructed the same except for the following:
Mark No. Description Part No.
1 ICEPOWER AMP Assy See Contrast table (2)
2 PRE_BRIDGE Assy AWX9440
3 COMPOSITE_S Assy AWX9443
4 ICE_BUFFER Assy AWX9444
5 ICE SHIELD Assy AWX9445
6 ICE INTERFACE Assy AWX9430
7 ZOUT Assy AWX9439
8 AUDIO Assy AWX9434
9 PRIMARY GUARD Assy AWX9436
10 FRONT BRIDGE Assy AWX9453
11 FM/AM TUNER Unit AXX7267
12 21P FFC/60V (J2) ADD7645
13 19P FFC/60V (J3) ADD7646
14 17P FFC/60V (J4) ADD7647
15 17P FFC/60V (J6) ADD7649
16 9P FFC/60V (J7) ADD7650
17 11P FFC/60V (J8) ADD7651
18 11P FFC/60V ADD7651
19 11P FFC/60V ADD7651
20 27P FFC/60V (J15) ADD7662
21 9P FFC/60V (J16) ADD7679
22 21P FFC/60V (J22) ADD7705
23 4P Housing Assy (Y20) ADX7622
24 2P Housing Assy (Y24) ADX7657
25 4P Housing Assy (Y25) ADX7677
26 7P Housing Assy (Y22) ADX7701
27 6P Housing Assy (Y23) ADX7715
>28 DC FAN Motor AXM7040
NSP 29 Under Base 81 ANA7210
NSP 30 ICE Cover 81 ANF7047
NSP 31 ICE Box 81 ANF7052
NSP 32 Heatsink 82 ANH7215
33 Insulator ICE AMR7523
34 PCB Mold AMR7536
35 Damper Bushing AEB7396
36 Cushion 5 x 8 AEB7397
37 Cushion T3 20 x 35 AEB7406
38 Push Rivet AEC7071
39 PCB Spacer (3 x 12) AEC7080
40 Card Spacer AEC7133
41 Card Spacer 18K AEC7613
42 Radiation Sheet 82 AEE7071
43 Acetate Tape 10 x 35 AEH7032
NSP 44 PCB Holder PNW2100
NSP 45 Spacer 40 PNW2488
NSP 46 PCB Holder REC1220
47 • • • • •
48 • • • • •
49 Screw 3 x 10 ABA7134
50 Screw 3 x 11.6 ABA7146
51 CUP Screw 3 x 8 ABA7149
52 ScrewAMZ30P060FTC
53 ScrewBBZ30P080FCC
54 ScrewIBZ30P150FCC
55 ScrewABA1011
56 ScrewBBZ30P060FCC
57 ScrewBPZ30P080FTB
Mark No. Description Part No.
Mark No. Symbol and Description SC-27
/CUXJCA
SC-25
/CUXJCA
SC-9540
/CUXJCA
1 ICEPOWER AMP Assy AWH7022 AWH7019 AWH7019
84 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
9.5 FRONT SECTION
A
A
DIGITAL
MAIN
INTERFACE
JH7001
CN1601
CN1259
CONTACT SIDE
NON-CONTACT
SIDE
INTERFACE
CN7017
B_REG
CN7306
COMPONENT
CN6010
DIGITAL NAIN
CN1401
K
L
C
J
M
Accessory of
P Base
Accessory of
P Base
Double side
tape
Lubricating oil
GYA1001
SC-27,
SC-25
Only
85
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
(1) FRONT SECTION PARTS LIST
(2) CONTRAST TABLE
SC-27/CUXJCA, SC-25/CUXJCA and SC-9540/CUXJCA are constructed the same except for the following:
Mark No. Description Part No.
1 DISPLAY Assy See Contrast table (2)
2 VOL Assy AWX9455
3 POWER SW Assy AWX9456
4 MIC HP Assy AWX9438
5 FRONT-HDMI Assy AWX9497
6 31P FFC/60V (J19) ADD7682
7 9P FFC/60V (J21) ADD7697
8 Panel Beam 81 ANG7620
9 F. HDMI Shield 82 ANK7145
10 Door Spring ABK7061
11 Earth Spring 81 ABK7067
12 Cushion Circle 6B AED7083
13 Cushion 11 x 7 AED7092
14 Door Shaft 60 AMR7531
15 Door Panel See Contrast table (2)
16 Damper Assy (240) LX AXA7156
17 VOL. Knob B AAA7052
18 IB Lens V5SEL See Contrast table (2)
19 Filter See Contrast table (2)
20 Door Sheet See Contrast table (2)
21 Display Panel See Contrast table (2)
22 Power Ring B AAK8507
23 VOL Stabilizer 82 AEC7629
24 Front Panel See Contrast table (2)
25 Pioneer Badge See Contrast table (2)
26 STDBY BTN 915K Assy XAD3216
NSP 27 C Ring DIM 8.1 XBH3016
28 Center Lens See Contrast table (2)
29 Door Base 81 AMR7540
30 P Base 27CU Assy AZN8040
31 Nut NK90FCU
32 FFC Support AEC7638
33 • • • • •
34 ScrewBPZ30P080FTB
35 Screw M3 x 4 VBA1119
Mark No. Description Part No.
Mark No. Symbol and Description SC-27
/CUXJCA
SC-25
/CUXJCA
SC-9540
/CUXJCA
1 DISPLAY Assy AWX9454 AWX9481 AWX9528
15 Door Panel 07KU ANB7474 ANB7474 Not used
15 Door Panel 9450CU Not used Not used ANB7500
18 IB Lens V5SEL AAK8430 AAK8430 Not used
19 Filter 07KU AAK8443 AAK8443 Not used
19 Filter 81HY Not used Not used AAK8459
20 Door Sheet 27CU AAK8473 Not used Not used
20 Door Sheet 25CU Not used AAK8495 Not used
20 Door Sheet 72SV Not used Not used AAK8496
21 Display Panel 27CU AAK8488 AAK8488 Not used
21 Display Panel 82SV Not used Not used AAK8492
24 Front Panel 27CU ANB7498 Not used Not used
24 Front Panel 25CU Not used ANB7503 Not used
24 Front Panel 9540CU Not used Not used ANB7504
25 Pioneer Badge G VAM1159 VAM1159 Not used
25 Pioneer Badge Not used Not used VAM1158
28 Center Lens V5SH AAK8428 AAK8428 Not used
28 Center Lens V5SL Not used Not used AAK8429
86 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

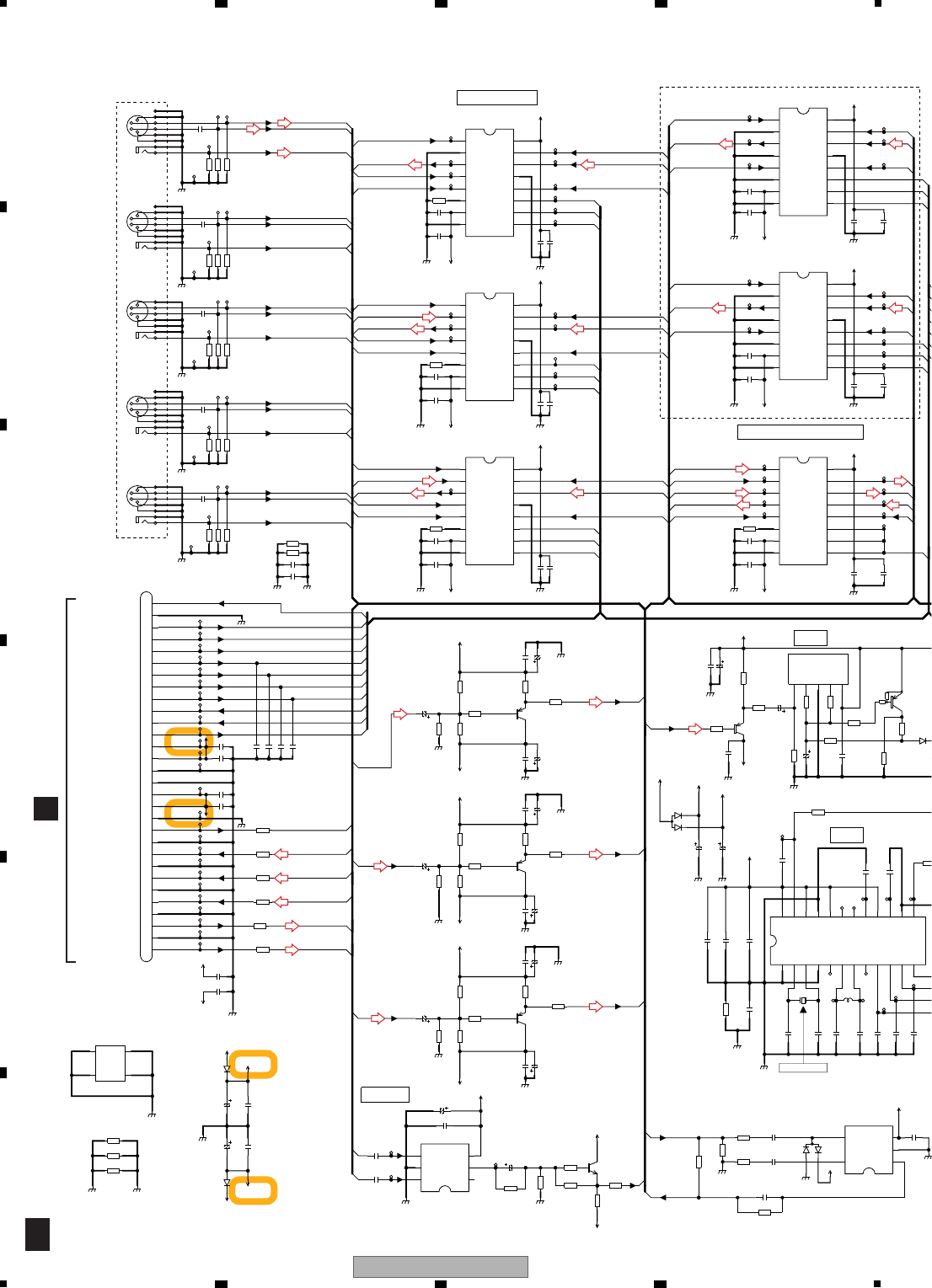

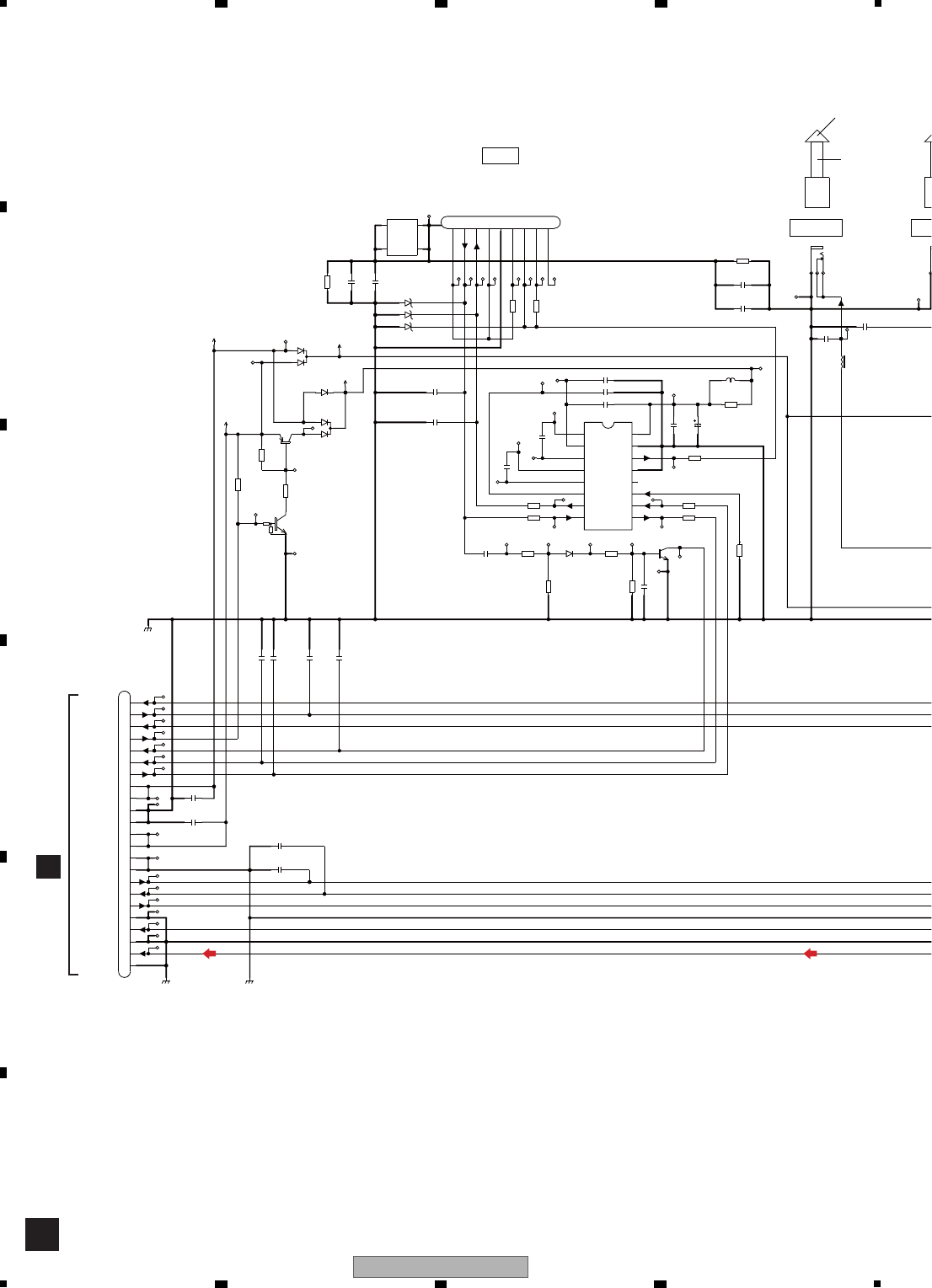

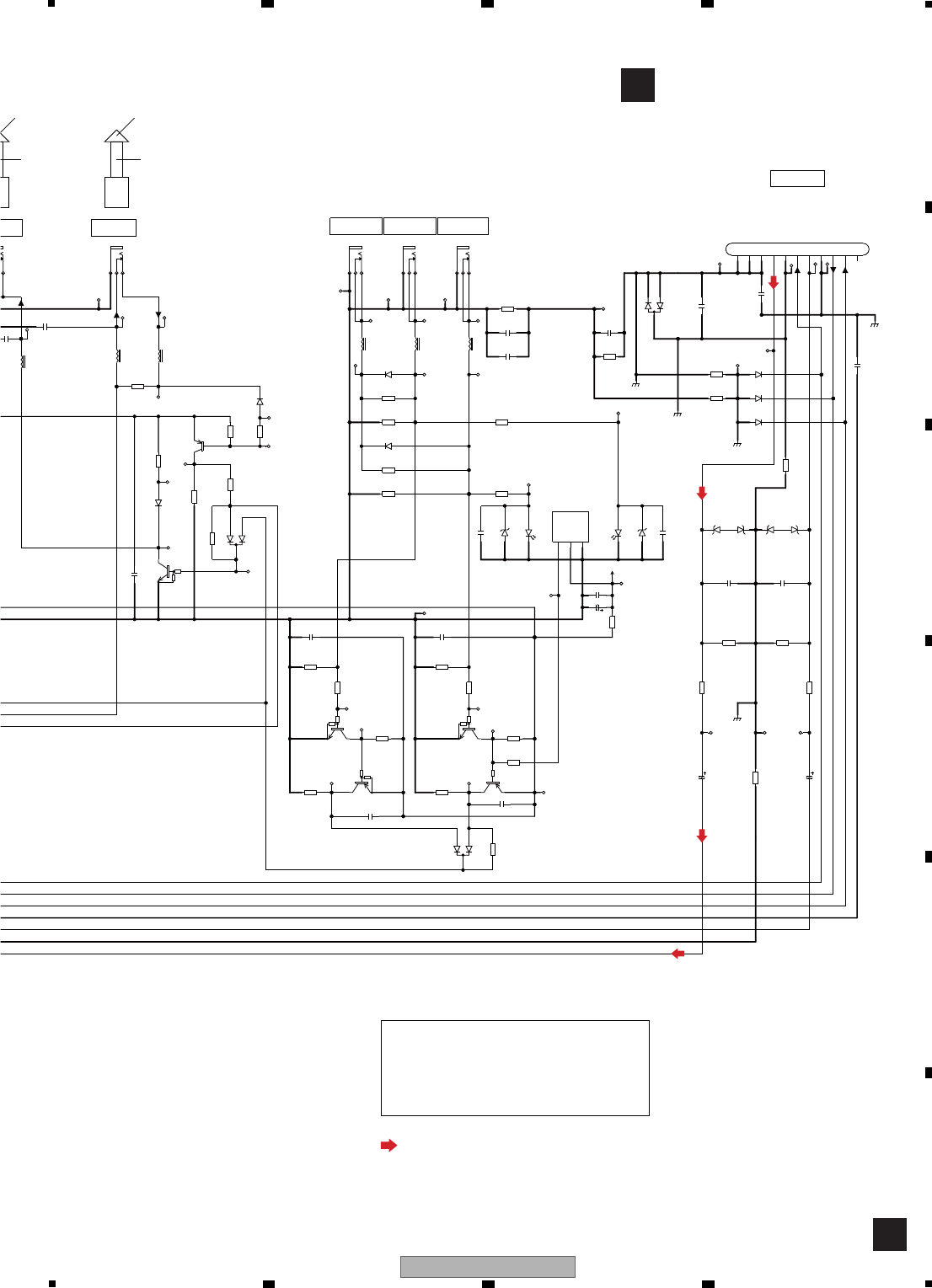

10. SCHEMATIC DIAGRAM

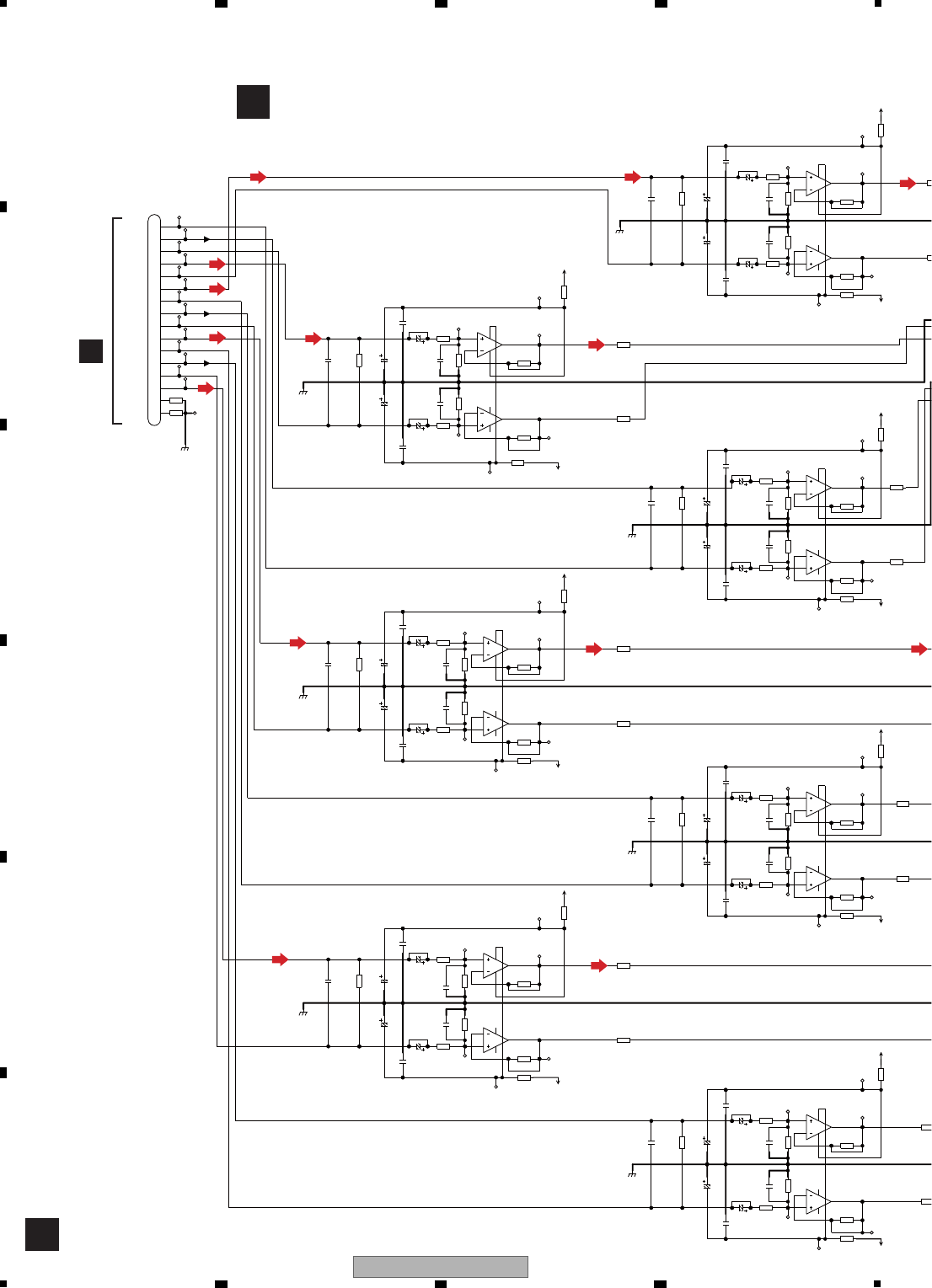

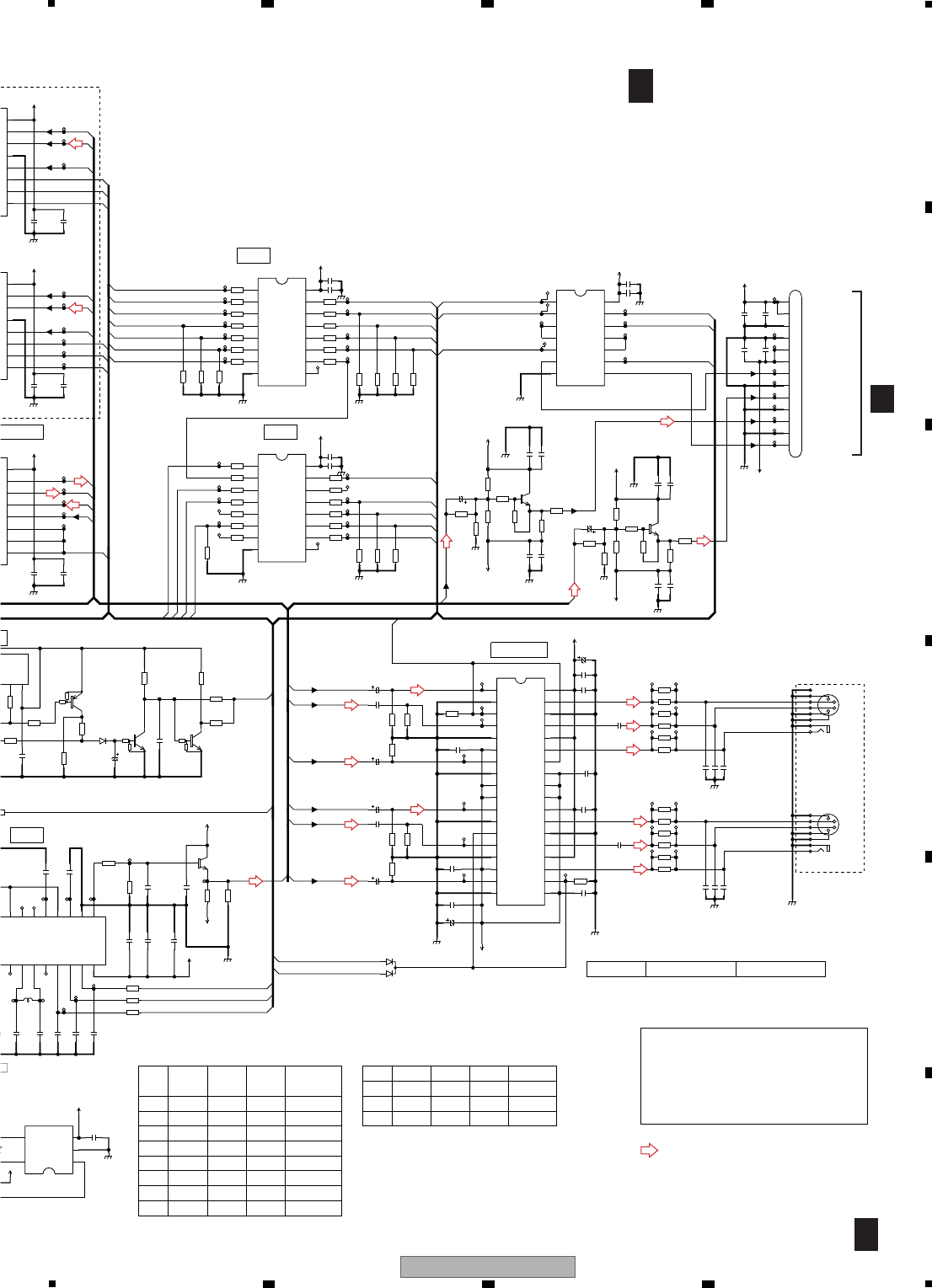

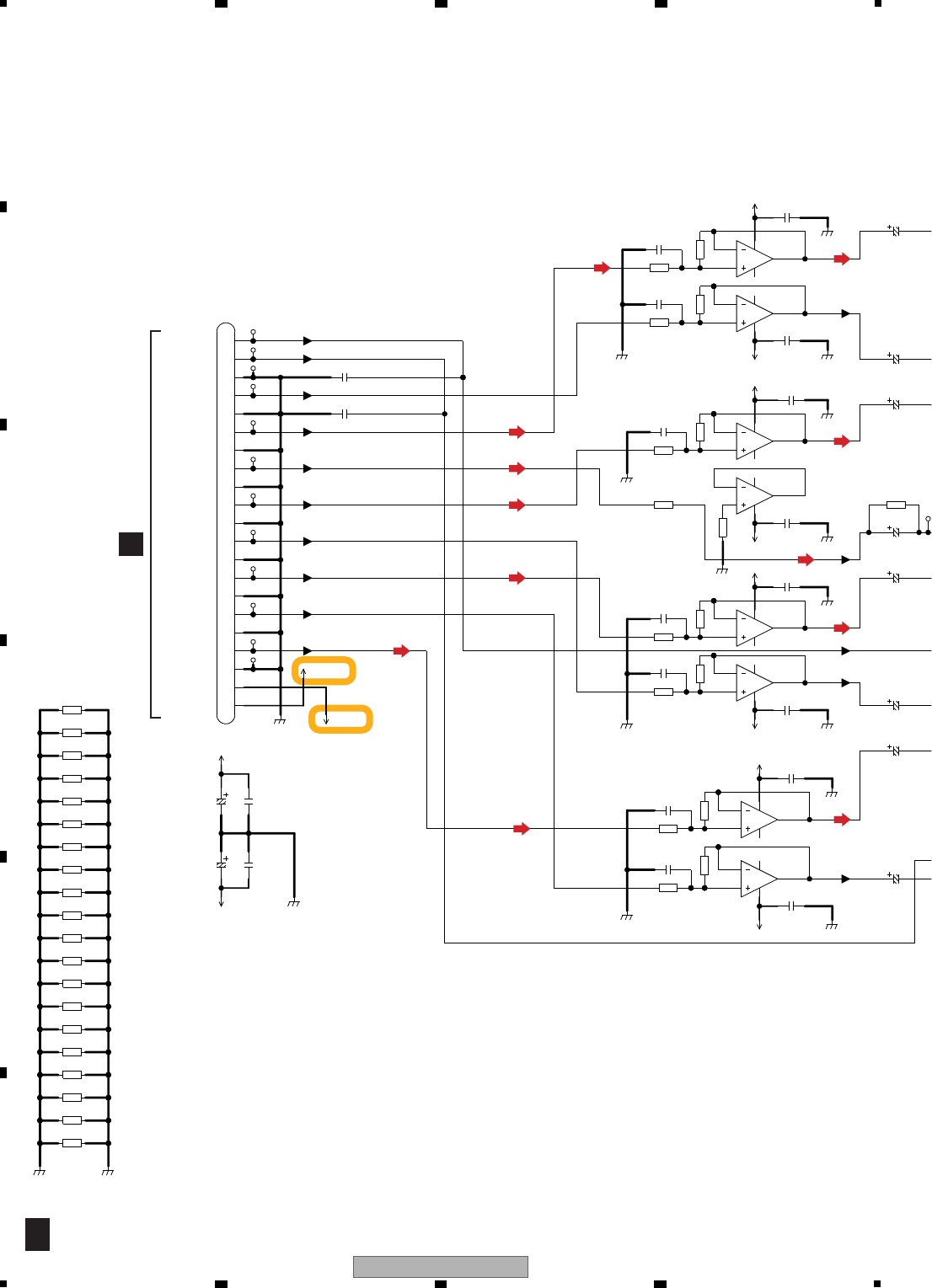

10.1 AUDIO ASSY
87
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
88 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

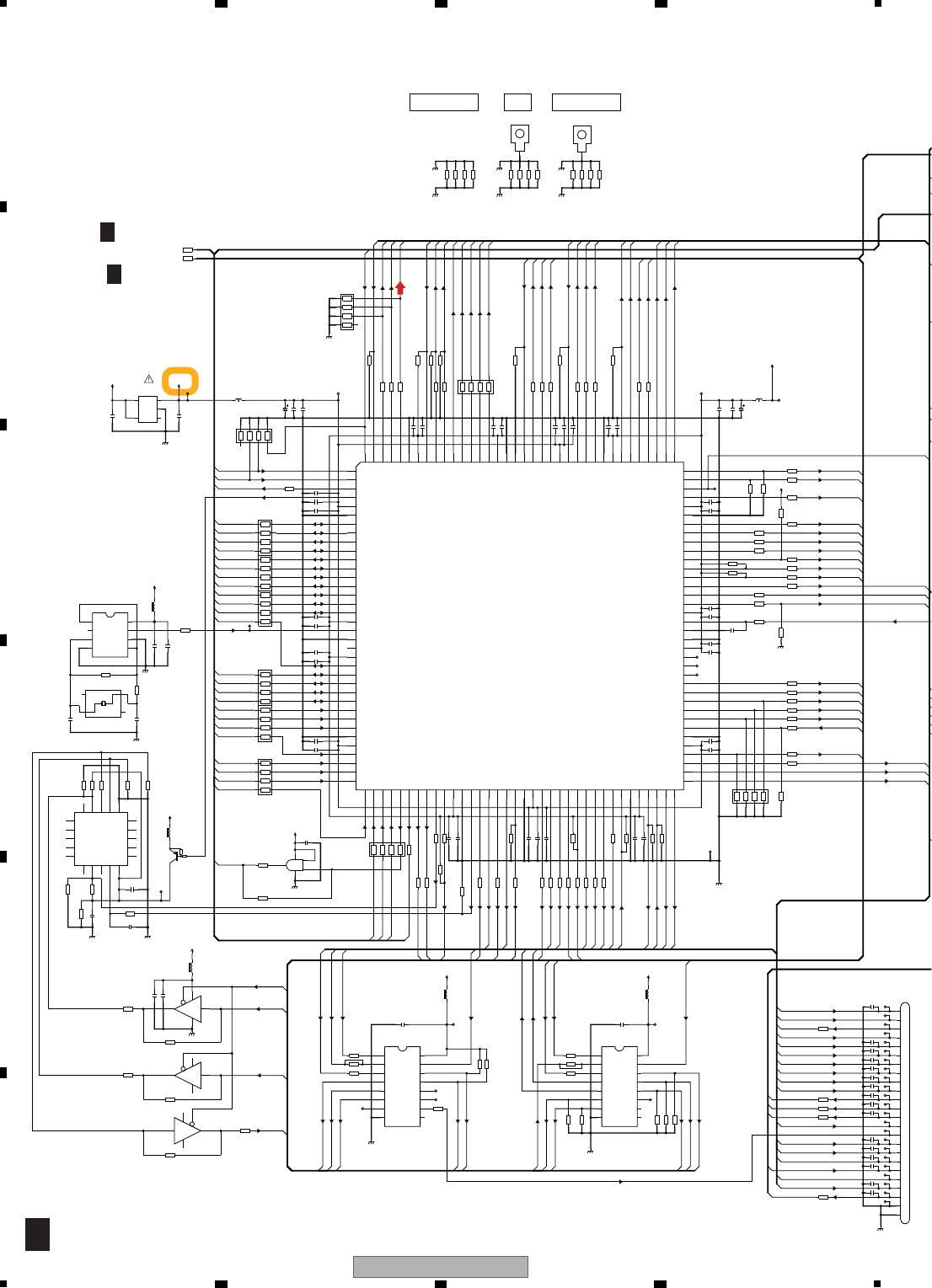

10.2 DSP ASSY (1/4)
89
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
90 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

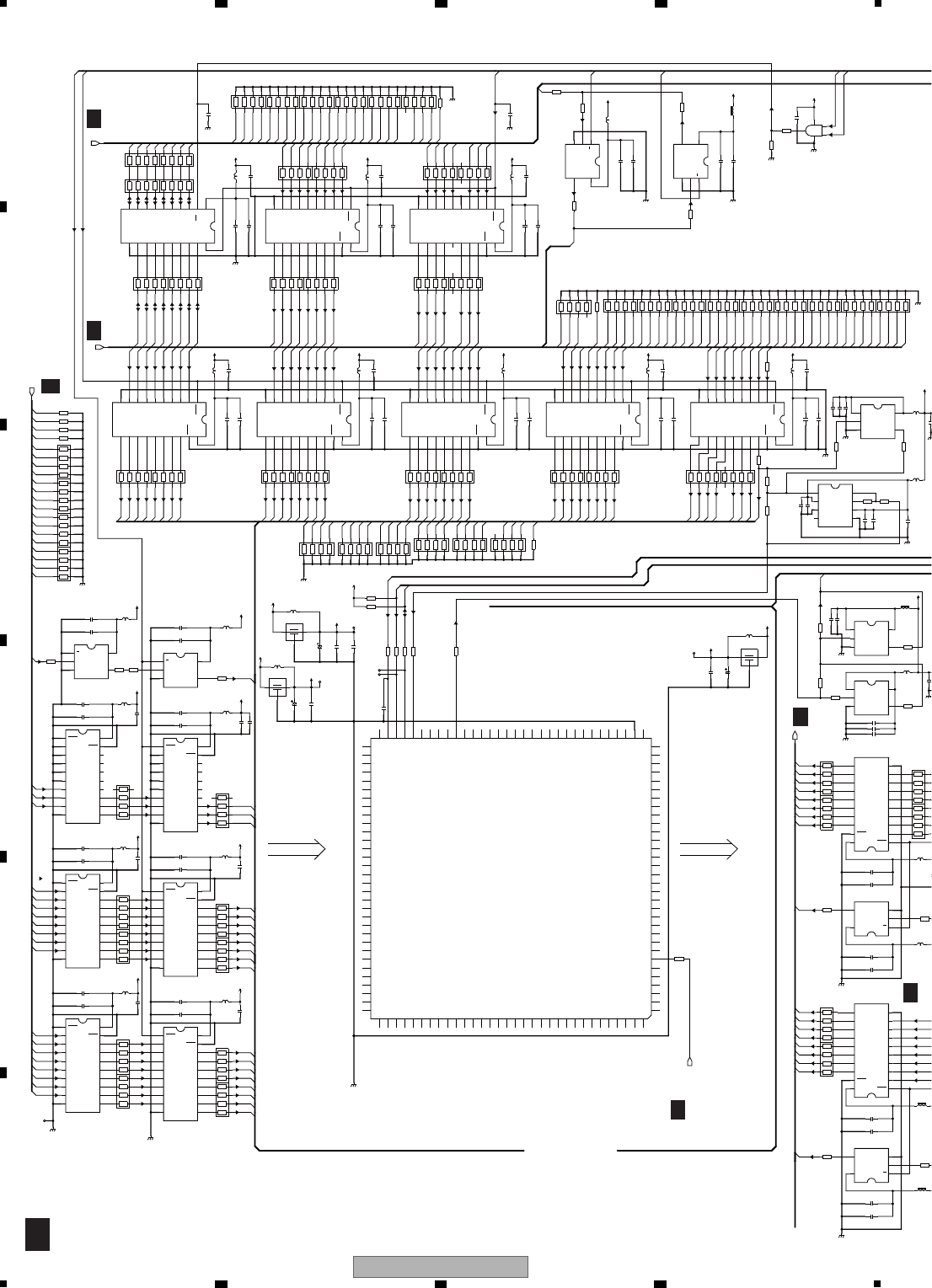

10.3 DSP ASSY (2/4)
91
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
92 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.4 DSP ASSY (3/4)
93
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
94 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

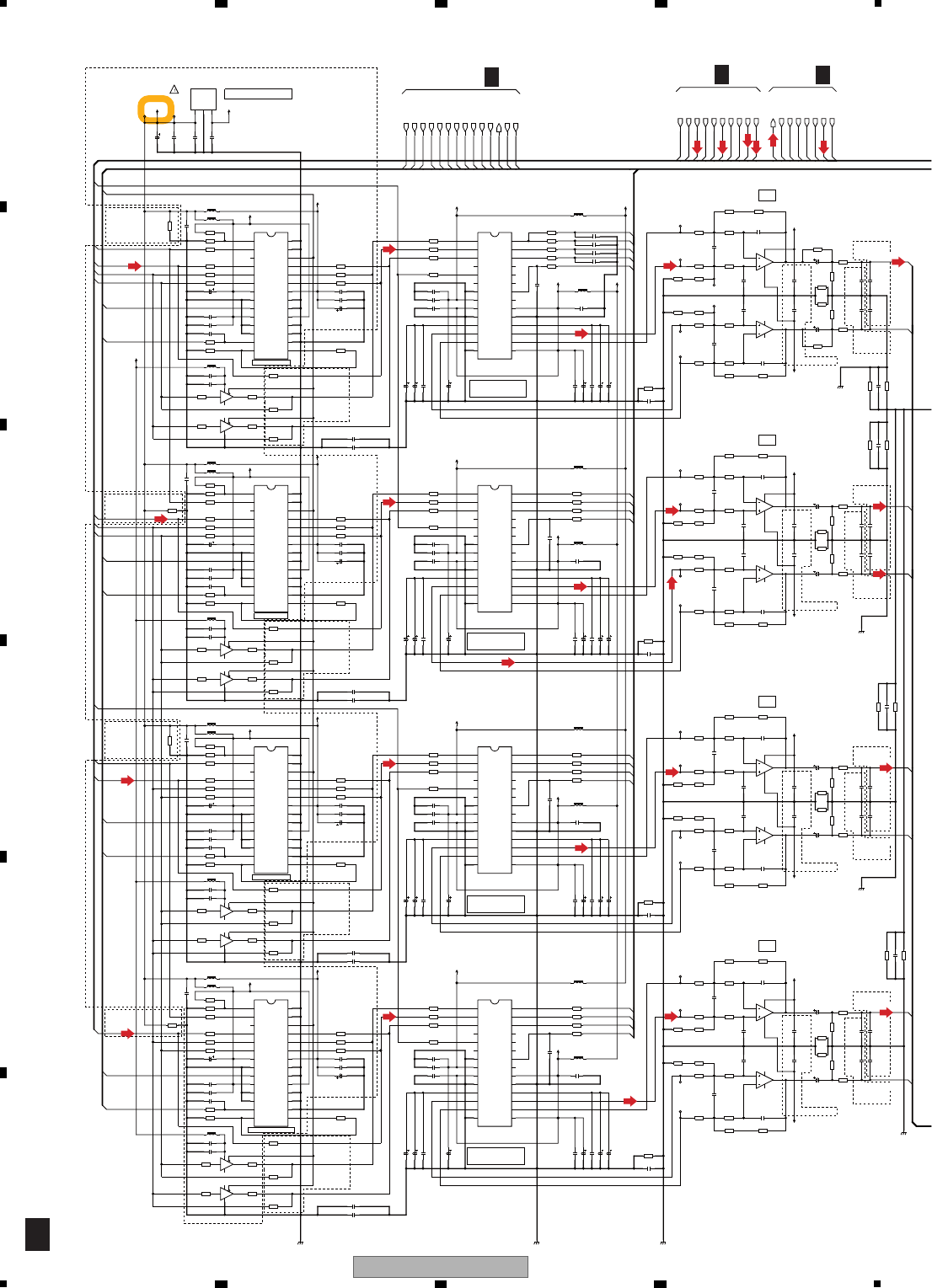

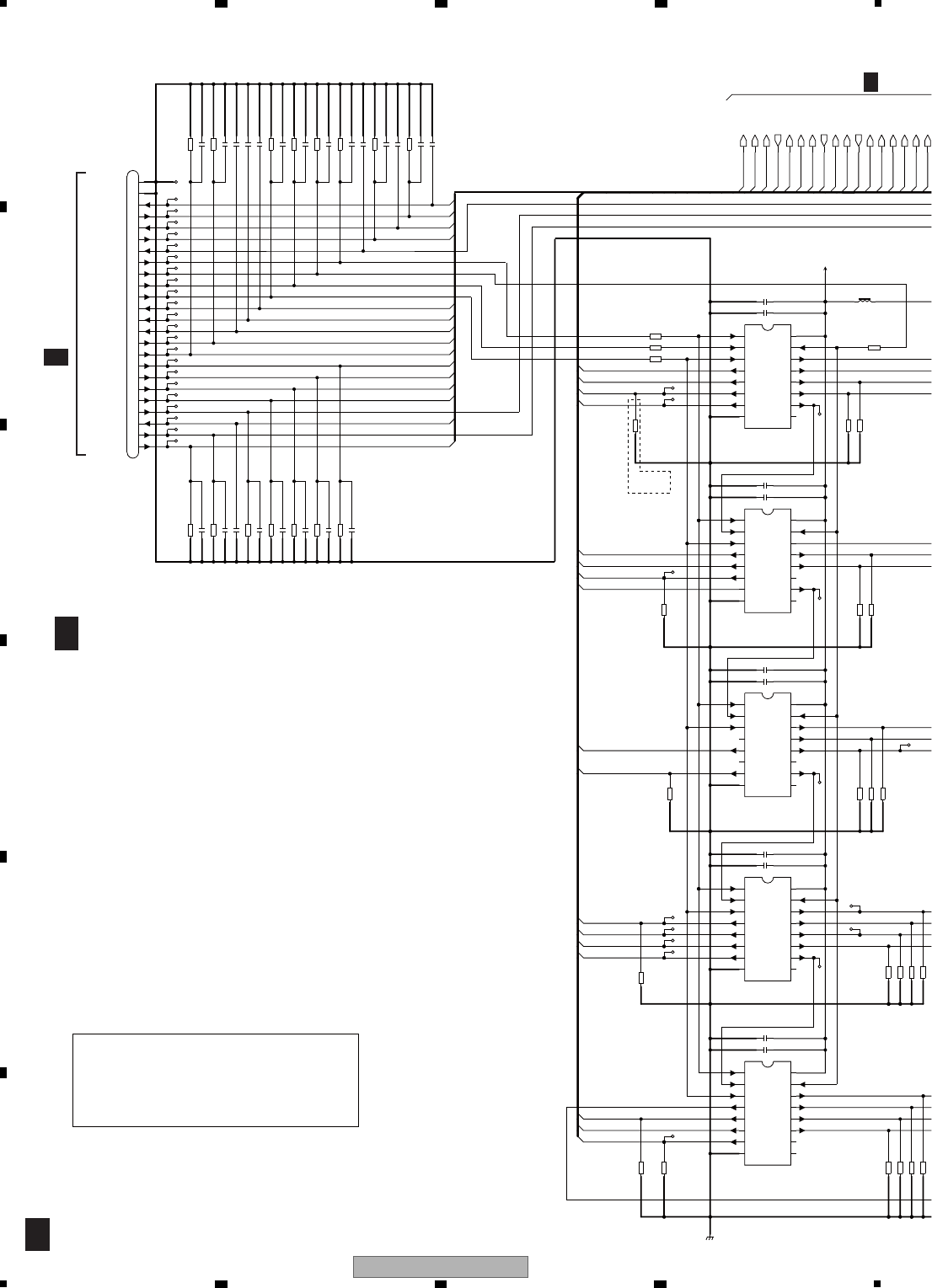

10.5 DSP ASSY (4/4)
95
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
96 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.6 FRONT-HDMI ASSY
97
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
98 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.7 232C_CONTROL ASSY
99
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
100 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

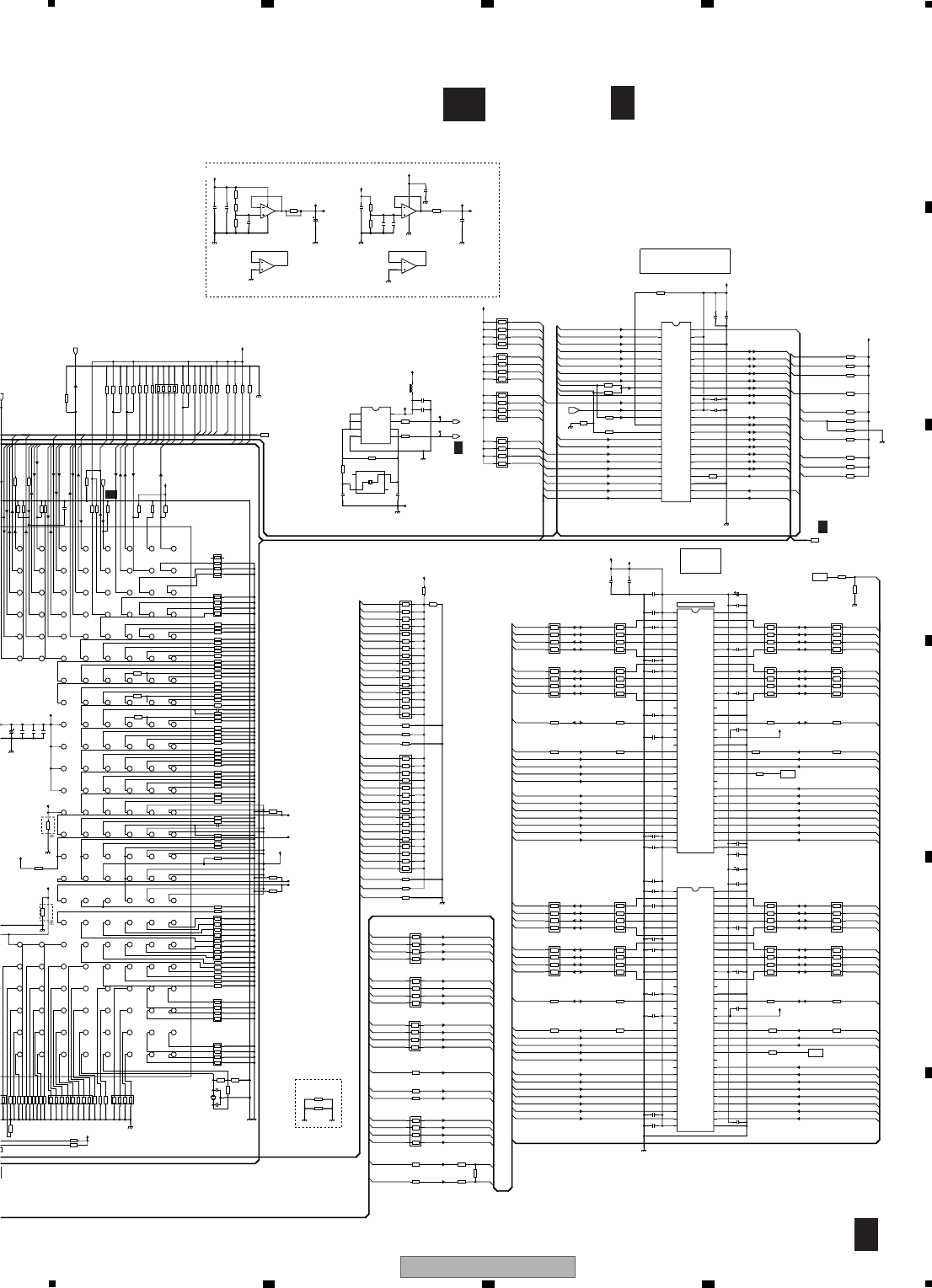

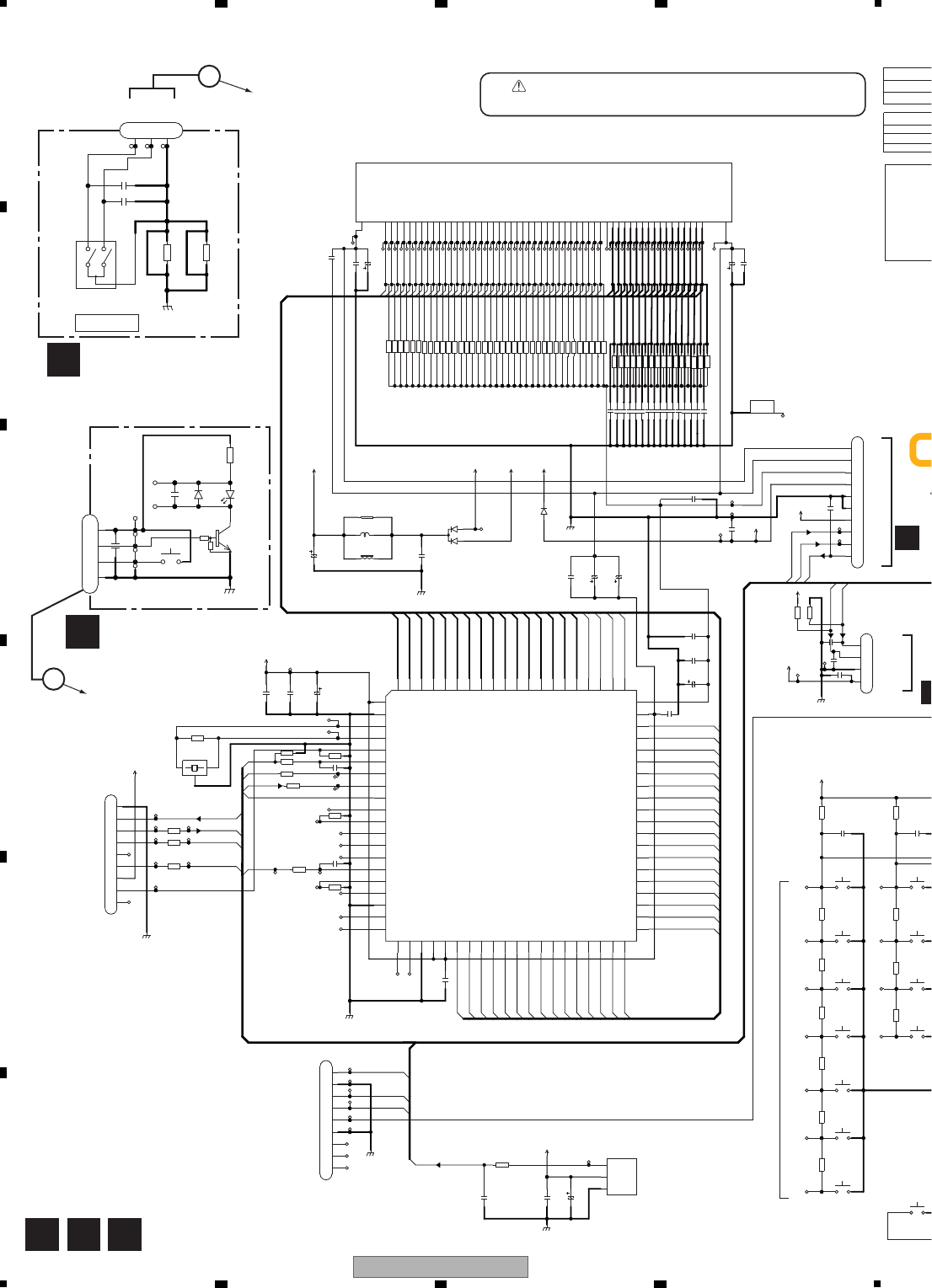

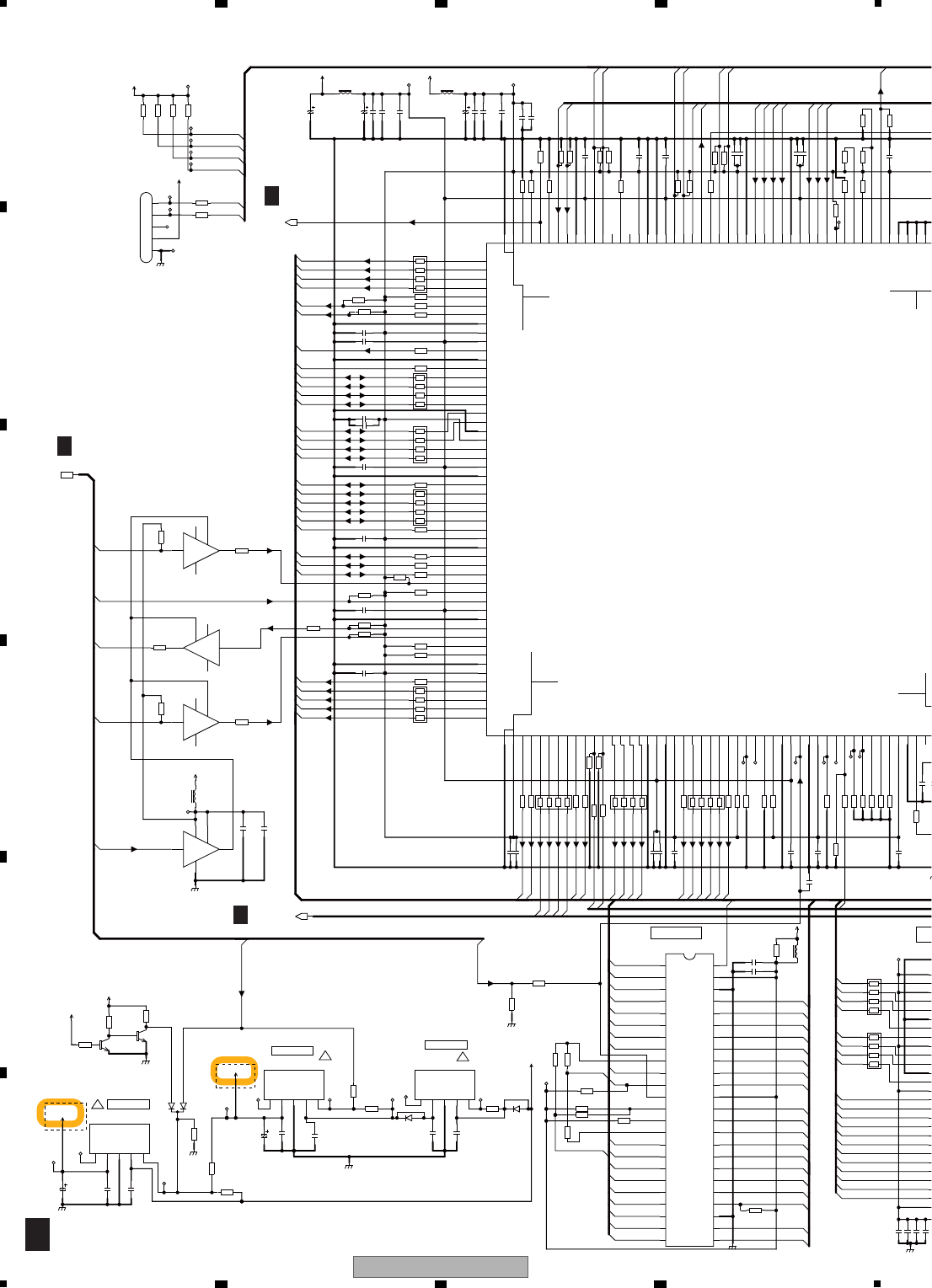

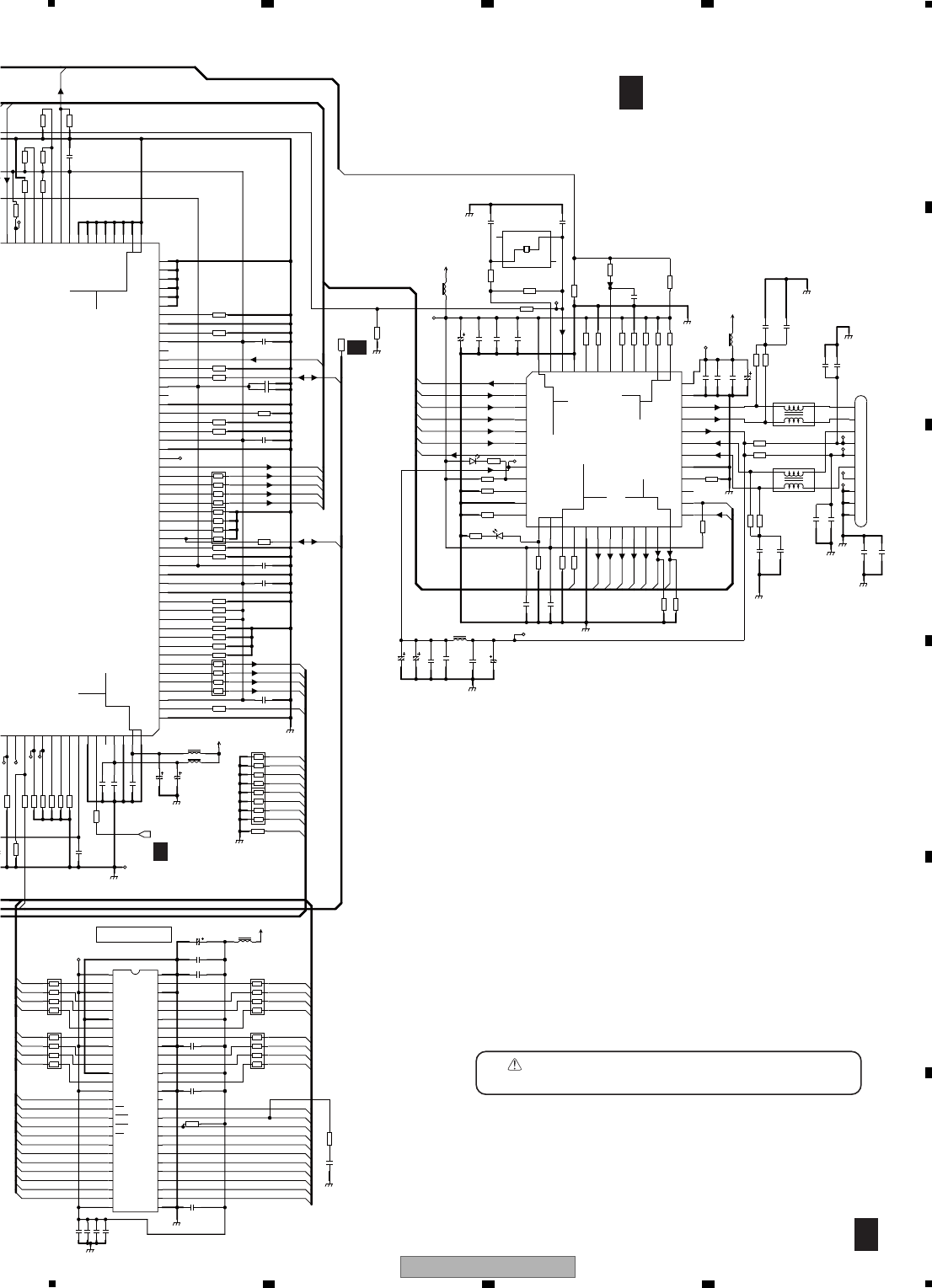

10.8 DIGITAL MAIN ASSY (1/7)
101
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
102 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
103
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
104 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
105
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
106 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.9 DIGITAL MAIN ASSY (2/7)
107
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
108 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.10 DIGITAL MAIN ASSY (3/7)
109
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
110 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.11 DIGITAL MAIN ASSY (4/7)
111
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
112 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.12 DIGITAL MAIN ASSY (5/7)
113
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
114 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.13 DIGITAL MAIN ASSY (6/7)
115
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
116 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.14 DIGITAL MAIN ASSY (7/7)
117
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
118 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.15 INTERFACE ASSY
119
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
120 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.16 COMPONENT ASSY
121
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
122 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

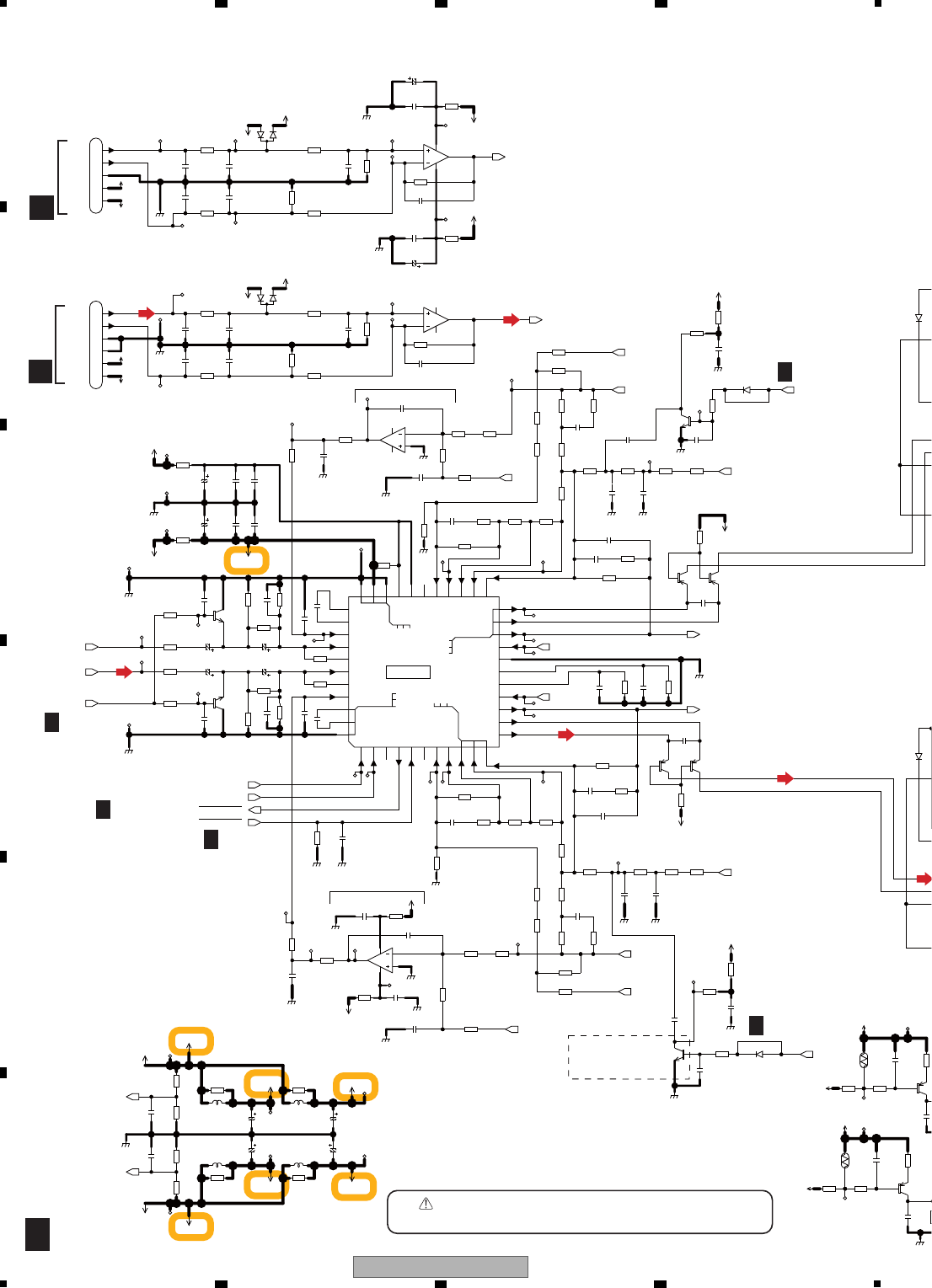

10.17 COMPOSITE_S ASSY (1/2)
123
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
124 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.18 COMPOSITE_S ASSY (2/2)
125
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
126 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

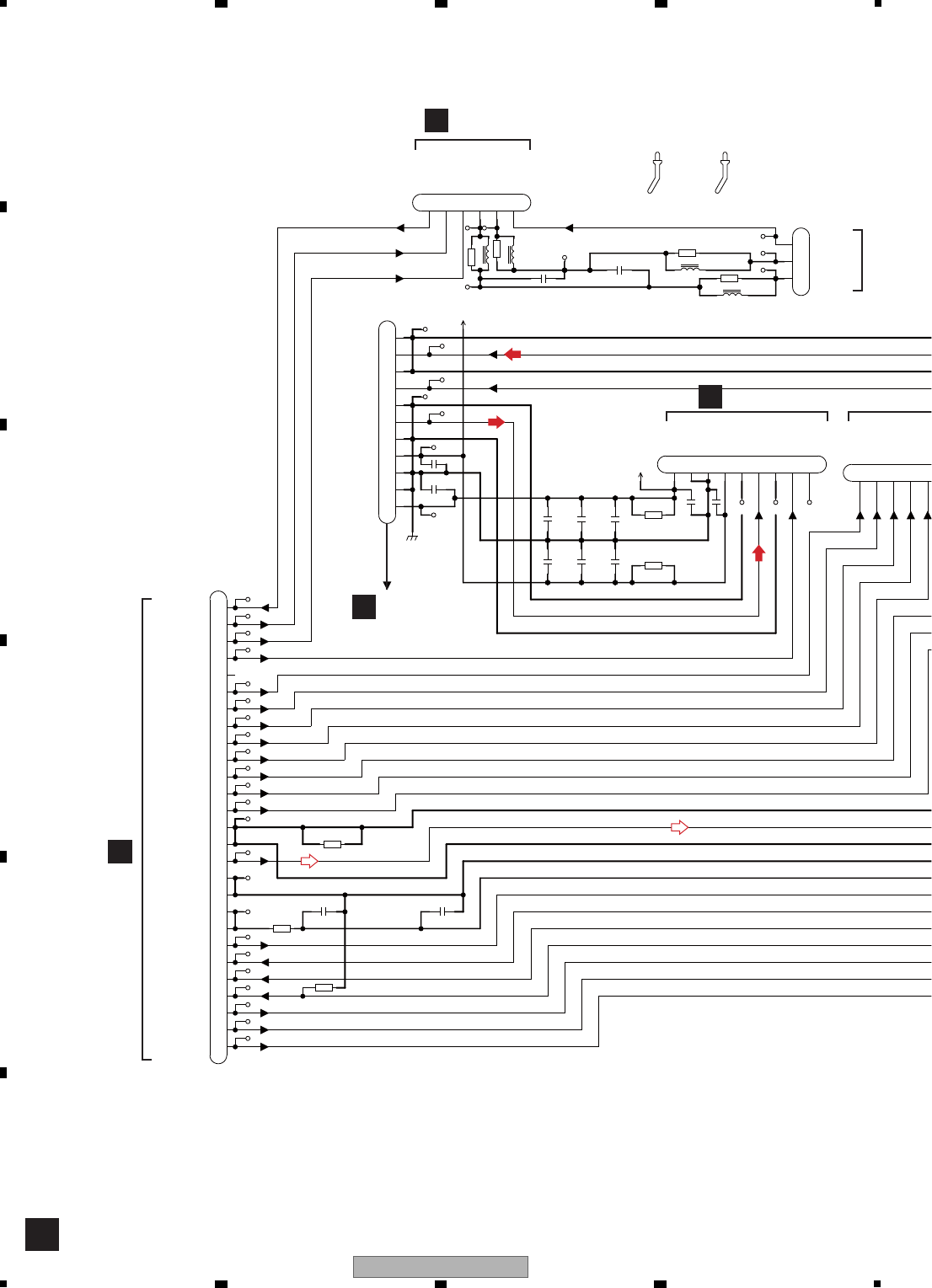

10.19 FRONT BRIDGE ASSY
127
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
128 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.20 MIC HP ASSY
129
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
130 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.21 DISPLAY, VOL AND POWER SW ASSYS
131
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
132 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.22 ICE_BUFFER AND ICE SHIELD ASSYS
133
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
134 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

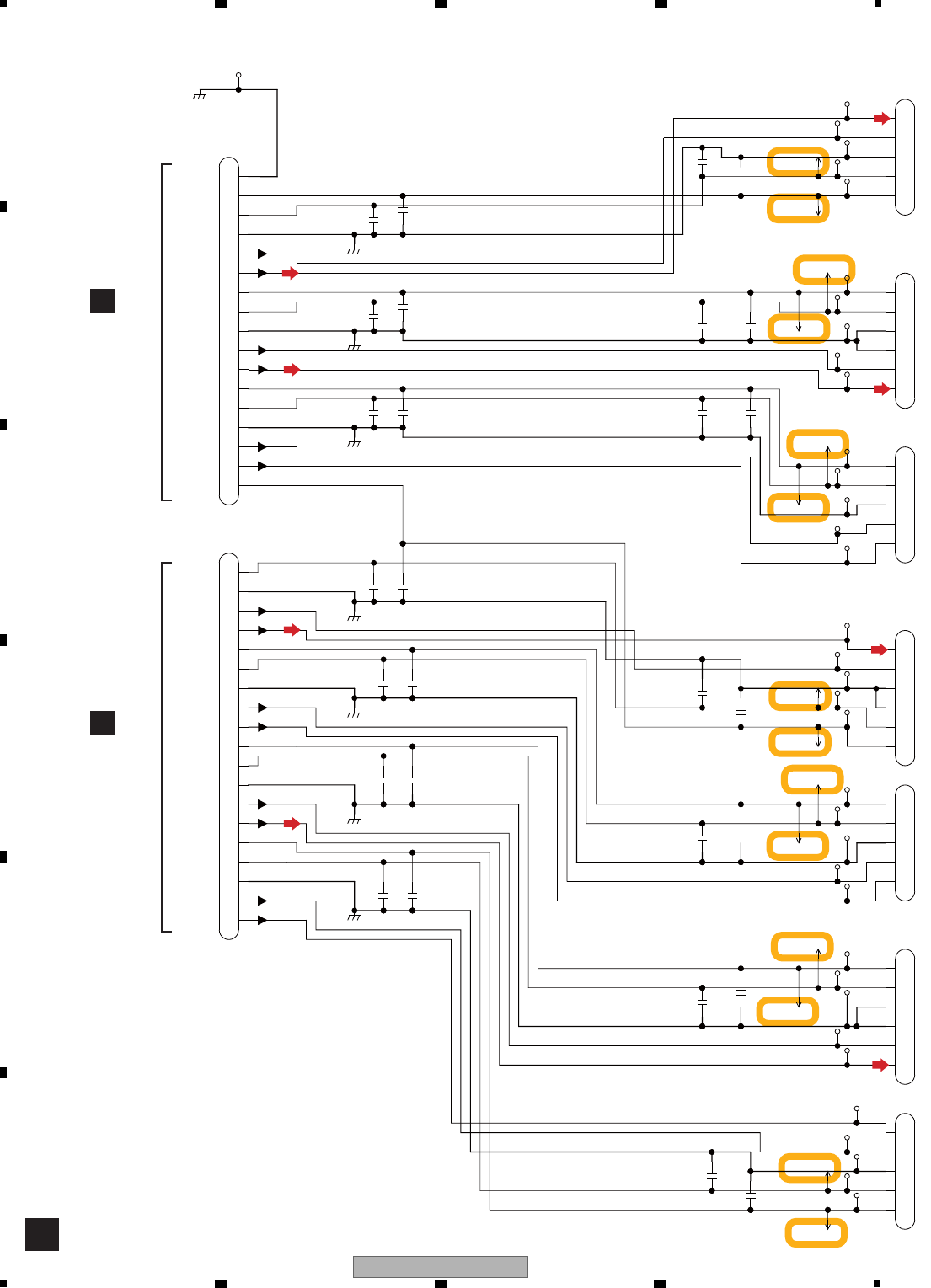

10.23 ICE INTERFACE ASSY
135
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
136 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.24 ICEPOWER AMP ASSY (1/5)
137
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
138 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.25 ICEPOWER AMP ASSY (2/5)
139
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
140 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.26 ICEPOWER AMP ASSY (3/5)
141
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
142 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.27 ICEPOWER AMP ASSY (4/5)
143
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
144 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.28 ICEPOWER AMP ASSY (5/5)
145
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
146 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.29 V-BRIDGE AND PRE_BRIDGE ASSYS
R S R S
CN8602
CKS3573-A
1
D_SEL
2
GNDHDMI
3
XOSDRST
4
OSDCS
5
EXSO5_2(OSDSO)
6
OSDSCK/EXPSCK
7
EXSO5_3
8
EXOEANLG
9
EXSTANLG
10
EXSO5_1
11
S-DET
12
Z2CMUTE
14
V+5R6_V
15
GNDV
16
GNDV
17
V-5R6_V
18
V-5R6_V
19
GNDF
20
FV IN
21
GNDV
22
V IN
23
GNDV
24
SY IN
25
GNDV
26
SC IN
27
GNDV
28
SY OUT
29
GNDV
30
SC OUT
13
V+5R6_V
CN8601
CKS3573-A
1D_SEL
2GNDHDMI
3XOSDRST
4OSDCS
5EXSO5_2(OSDSO)
6OSDSCK/EXPSCK
7EXSO5_3
8EXOEANLG
9EXSTANLG
10 EXSO5_1
11 S-DET
12 Z2CMUTE
14 V+5R6_V
15 GNDV
16 GNDV
17 V-5R6_V
18V-5R6_V
19 GNDF
20 FV IN
21 GNDV
22 V IN
23 GNDV
24 SY IN
25 GNDV
26 SC IN
27 GNDV
28SY OUT
29 GNDV
30 SC OUT
13 V+5R6_V
C8603
0.01u/50
C8602
0.01u/50
C8605
0.01u/50
C8604
0.01u/50
GNDV
CN6953
AKP7227-A
GNDA
1
FR OUT
2
GNDA
3
FL OUT
4
GNDA
5
C OUT
6
GNDA
7
RS OUT
8
GNDA
9
LS OUT
10
GNDA
11
SBR OUT
12
SBL OUT
14
GNDCH
15
GNDCH
16
GNDA
13
CN6952
XKP3070-A
V+12V
1
V-12V
2
GNDA
3
SBL OUT
4
GNDA
5
SBR OUT
6
GNDA
7
LS OUT
8
GNDA
9
RS OUT
10
GNDA
11
C OUT
12
SW OUT
14
GNDA
15
FL OUT
16
GNDA
17
FR OUT
18
GNDA
19
MUTESB
20
MUTEA
21
GNDA
13
9607S-21F
CN6951
V+12V
1
V-12V
2
GNDA
3
SBL OUT
4
GNDA
5
SBR OUT
6
GNDA
7
LS OUT
8
GNDA
9
RS OUT
10
GNDA
11
C OUT
12
GNDA
13
SW OUT
14
GNDA
15
FL OUT
16
GNDA
17
FR OUT
18
GNDA
19
MUTESB
20
MUTEA
21
GNDA
V+12V
V-12V
R
V-BRIDGE ASSY
(AWX9457)
S
PRE_BRIDGE ASSY
(AWX9440)
1. CAPACITORS
Unit: p-pF or u-uF unless otherwise noted.
Ratings: Capacity(F)/Voltage(V) unless otherwise noted.
2. NM: No Mount
NOTE
CN6002
G
CN5006
A
CN6801
N
CN6501
H
1/2
CN6502
H
2/2
: Audio Signal Route
: Video Signal Route
(FL)
(FL)
(FL)
(SW)
(C)
(C)
(SL)
(SL)
(SBL)
(SBL)
(SW)
(C)
(SL)
(SBL)
(FV)
(CV)
(FV): Front Video
(CV): Composite Video
(CY): Composite Y
(CC): Composite C
(CY)
(CC)
(VSY)
(VSC)
147
SC-27
56 7 8
56 7 8
A
B
C
D
E
F

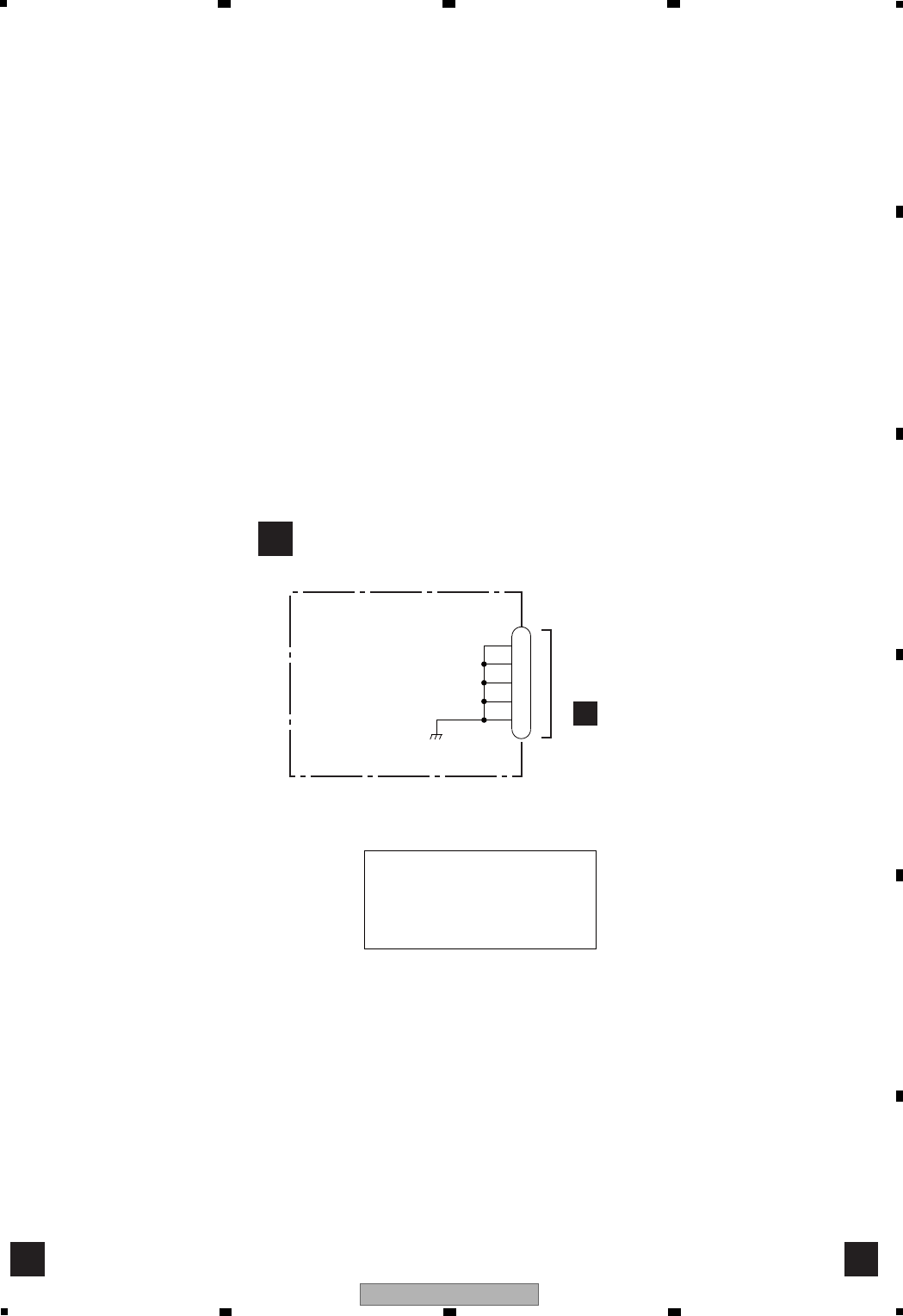

10.30 PRIMARY GUARD ASSY
T T
T
PRIMARY GUARD ASSY
(AWX9436)
CN5752
XKP3062-A
1
2
3
4
5
GNDCH
CN6830
N
1. RESISTORS
Unit: k-kΩ, M-MΩ or Ω unless otherwise noted.
Rated Power: 1/16W unless otherwise noted.
Toleranee: (J) ±5% unless otherwise noted.
2. CAPACITORS
Unit: p-pF or u-uF unless otherwise noted.
Ratings: Capacity(F)/Voltage(V) unless otherwise noted.
YB: CKSRYB, CH: CCSRCH
3. NM: No Mount
NOTE
148 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.31 PRIMARY ASSY
149
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
150 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

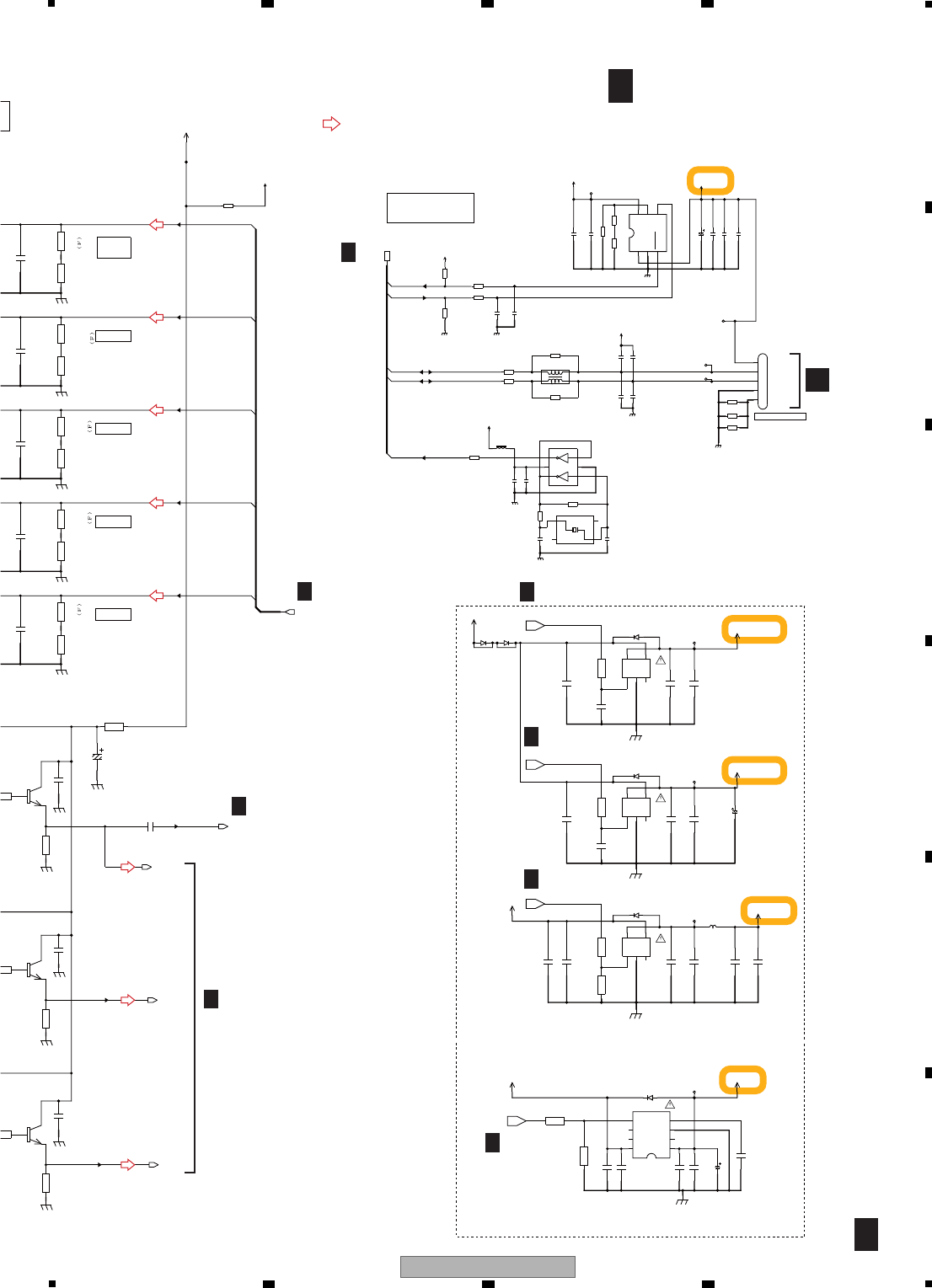

10.32 REG ASSY
151
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
152 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.33 ICE_REG ASSY
153
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
154 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
10.34 B_REG ASSY
155
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
156 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

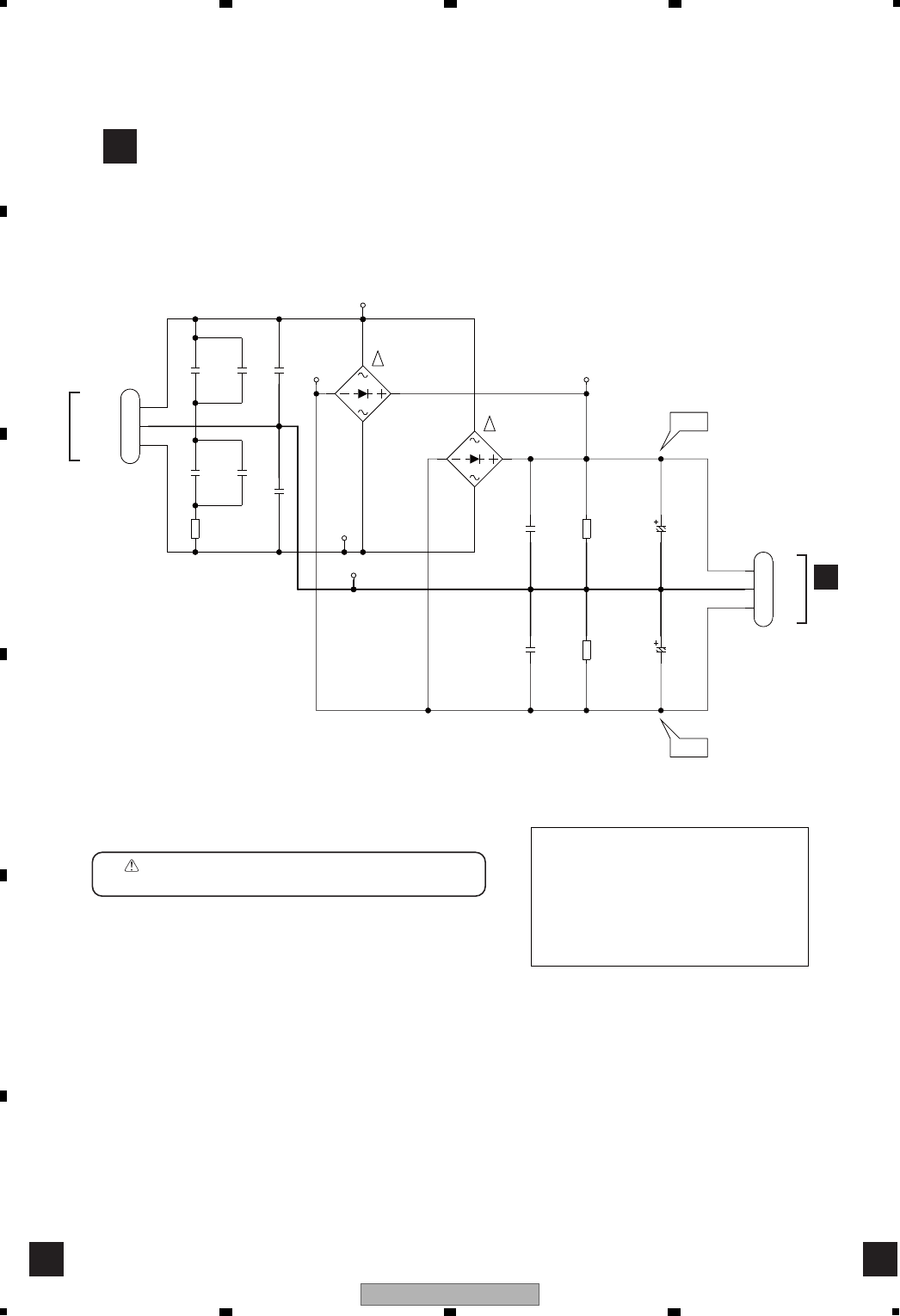

10.35 B_DIODE ASSY
YY
Y
B_DIODE ASSY
(AWX9451)
CN7308
X
3216 3216
!
!
CKS-556--
CN7400
1
2
3
ACH7270-A
*C7400
ACH7270-A
*C7401
C7405
NM
C7404
NM
C7402
0.1u/100
CFTLA
C7403
0.1u/100
CFTLA
C7407
NM
C7406
NM
D7400
LN6SB60-4003
1
2
4
3
D7401
LN6SB60-4003
1
2
4
3
ADX7649-B
JP7401
1+B
2GND
3-B
R7401
82k
(1/4W)
R7400
82k
(1/4W)
R7402
10
MUF
C7408
NM
C7409
NM
TO MAIN TRANS
BREG
BREG_G
BREG
10000u/80V
10000u/80V
+70V
-70V
1. RESISTORS
Unit: k-kΩ, M-MΩ or Ω unless otherwise noted.
Rated Power: 1/16W unless otherwise noted.
Toleranee: (J) ±5% unless otherwise noted.
MUF : RD1/4MUF
2. CAPACITORS
Unit: p-pF or u-uF unless otherwise noted.
Ratings: Capacity(F)/Voltage(V) unless otherwise noted.
CFTLA : CFTLA
3. NM: No Mount
NOTE
The mark found on some component parts should be replaced with
same parts (safety regulation authorized) of identical designation.
157
SC-27
56 7 8
56 7 8
A
B
C
D
E
F

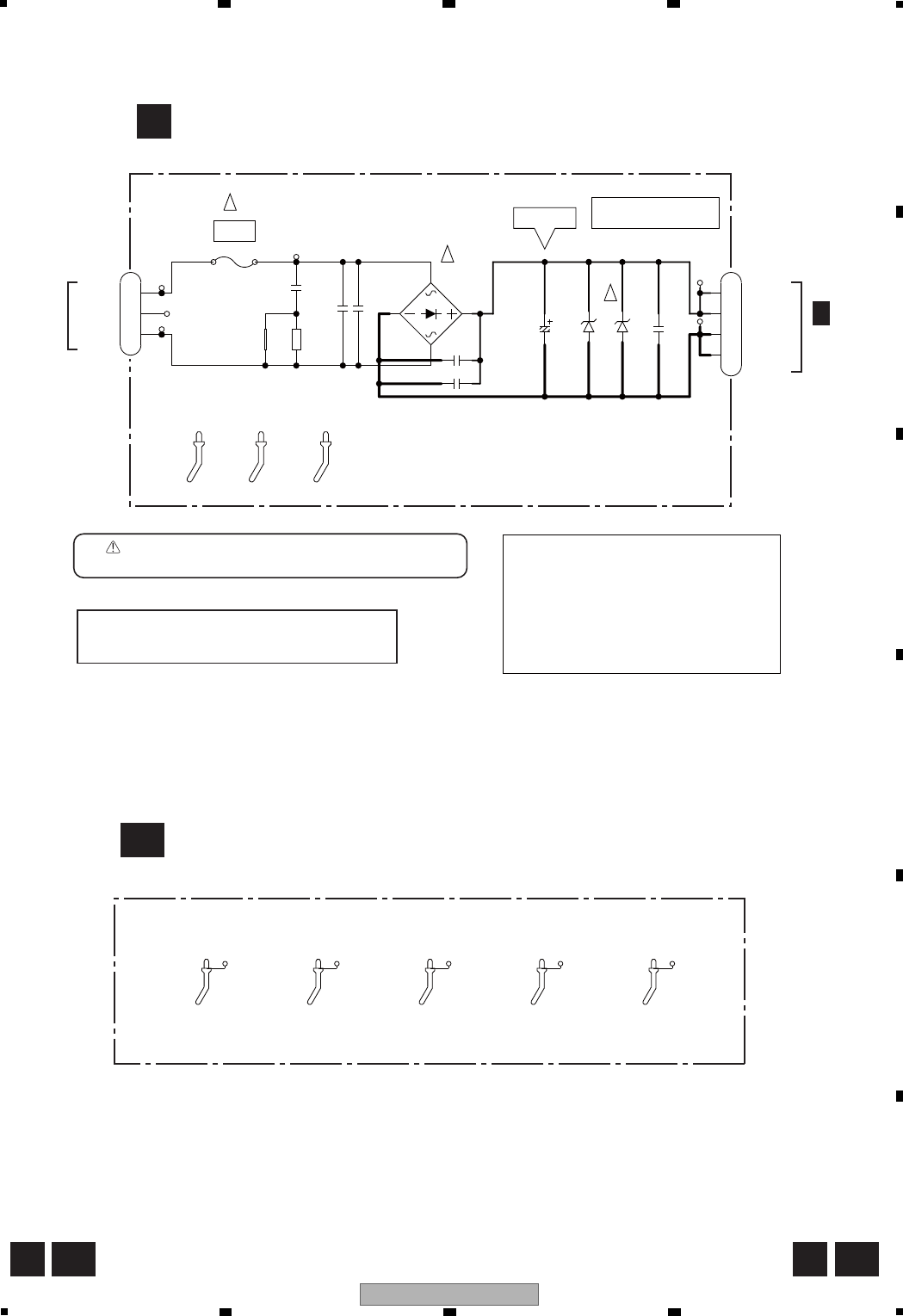

10.36 HDMI_RECT AND H GUARD ASSYS
Z
!
!
!
CN8801
B3B-EH
SEC7-1 1
NC2
SEC7-2 3
ACH7286-A
C8801
15000u/25
C8805
0.1u/50
C8803
1000p/50 CH
C8804 0.1u/50
CFTLA
C8802
100p/50 CH
C8806
100p/50
CH
C8807
1000p/50
CH
D8801
D5SBA20(B)
1
2
4
3
D8802
NM
H8802
AKR1004-A
1
H8801
AKR1004-A
1
VEF1040-A
JH8801
VEF1040-A
JH8802
NM
JH8803
ADX7691-A
JP8802
V+12HD
1
V+12HD
2
GNDHDMI
3
GNDHDMI
4
JV8801
R8801
NM
MUF
D8803
MTZJ24(B)
FU41
Rectifier for
HDMI POWER SUPPLY
+15.5V
To MAIN TRANS
1. RESISTORS
Unit: k-kΩ, M-MΩ or Ω unless otherwise noted.
Rated Power: 1/16W unless otherwise noted.
Toleranee: (J) ±5% unless otherwise noted.
MUF : RD1/4MUF
2. CAPACITORS
Unit: p-pF or u-uF unless otherwise noted.
Ratings: Capacity(F)/Voltage(V) unless otherwise noted.
CH : CCSRCH , CFTLA : CFTLA,
NO MARKED : CKSRYB or CEAT
3. NM: No Mount
NOTE
The mark found on some component parts should be replaced with
same parts (safety regulation authorized) of identical designation.
• NOTE FOR FUSE REPLACEMENT
CAUTION - FOR CONTINUED PROTECTION AGAINST
RISK OF FIRE, REPLACE WITH SAME TYPE AND
RATINGS OF FUSE.
Z
HDMI_RECT ASSY
(AWX9459)
CN1900
E
7/7
VEF1040-A
JH6452
NM
JH6451
VEF1040-A
JH6453
VEF1040-A
JH6454
VEF1040-A
JH6455
H GUARD ASSY
(AWX9441)
AA
AA
Z
AA
158 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

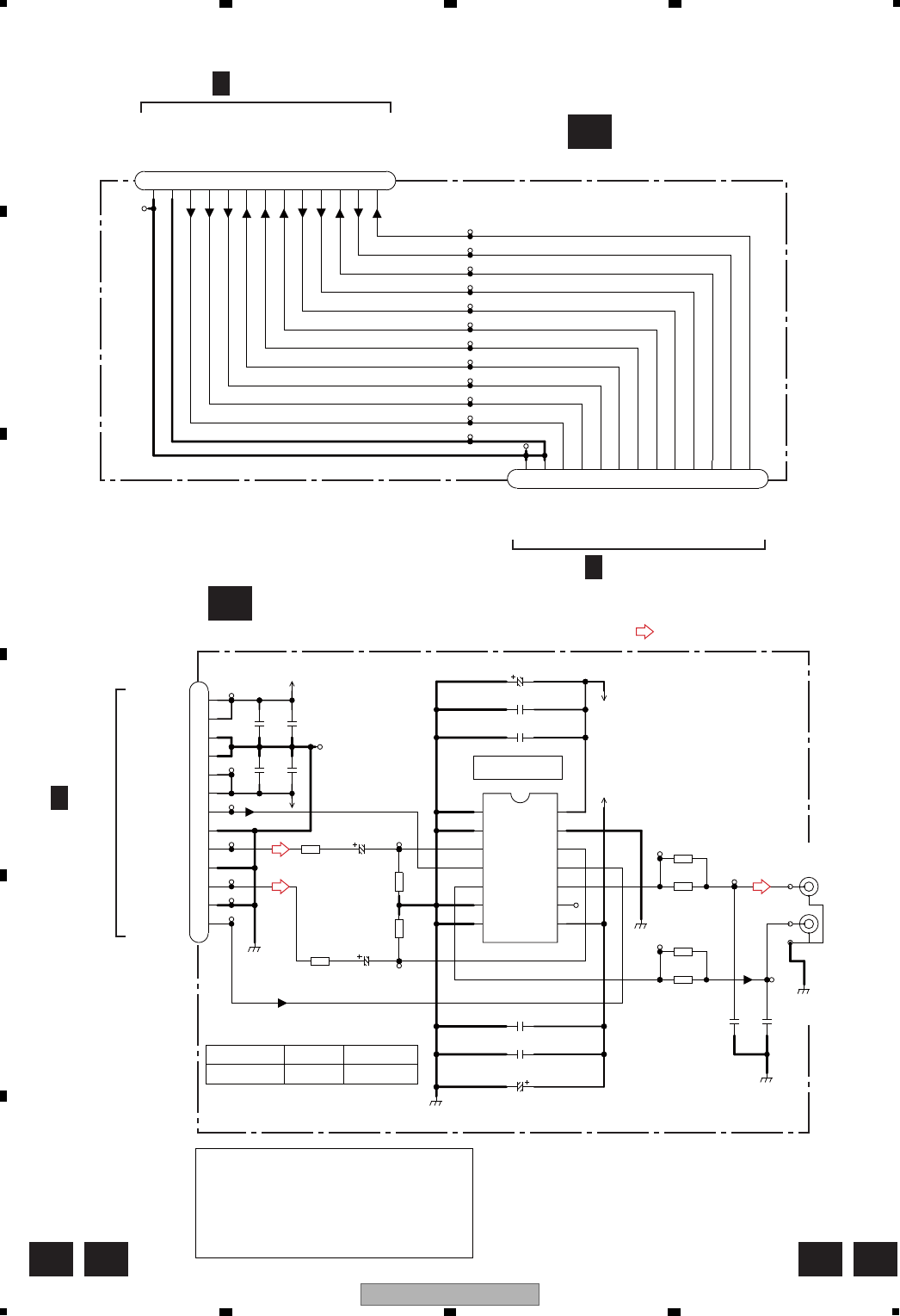

10.37 DIGITAL BRIDGE AND ZOUT ASSYS
XKP3066-A
CN6757
1
01 XMRX
2
02 XMTX
3
03 XNDT4
4
04 XMLSDT
5
05 XMMUTE
6
06 XXMRST
7
07 XMPOW
8
08 XMRATE
9
09 XXMERR
10
10 XMIRQ
11
11 XMLINK
12
12 GNDHD
13
13 GNDHD
XKP3066-A
CN6756
101 GNDHD
202 GNDHD
303 XMLINK
404 XMIRQ
505 XXMERR
606 XMRATE
707 XMPOW
808 XXMRST
909 XMMUTE
10 10 XMLSDT
11 11 XMDT4
12 12 XMTX
13 13 XMRX
RearFront
RearFront
XKP3077-A
CN6401
01 V+5V1
02 V+5V2
03 GNDV3
04 GNDV4
05 V-5V5
06 V-5V6
07 VZ3 MUTE 7
08 GNDV8
09 VZ3 OUT 9
10 GNDV10
11 VZ2 OUT 11
12 GNDV12
13 VZ2 MUTE 13
C6408
330p/50
CH
C6410
180p/50
C6405
330p/50
CH
C6407
0.1u/16
C6409
180p/50
C6411
0.01u/50
YB
C6412
0.01u/50
YB
C6414
NM
C6404
0.1u/16
C6413
NM
GNDV
GNDV
GNDV
GNDV
GNDV
IC6401
NJM2279M
VIN3
1
SW1
2
VIN2
3
MUTE2
4
5VOUT2
6GND2
7GND1 8
V+
9
NC
10
VOVT1
11
MUTE1
12
VIN1
13
SW2
14
V-
R6401
0
R6403
10k
R6408
75
R6405
NM
R6404
10k
R6407
NM
R6402
0R6406
75
V-5_V
V-5_V
V+5_V
V+5_V
*JA6401
AKB7222-A
3
2
1
100u/10
C6401
220u/16
AK
C6403
220u/16
AK
C6406
100u/10
C6402
ZONE3 VVZ3_MUTE
ZONE2 VMUTE2
L:ACTIVE(MUTE)
VIDEO AMP
MUTE1
VZ2_MUTE
(GNDCH)
ZONE3
ZONE2
OUT
OUT
ZOUT ASSY
(AWX9439)
AC
DIGITAL BRIDGE ASSY
(AWX9461)
AB
ACABACAB
CN6503
H
1/2
1. RESISTORS
Unit: k-kΩ, M-MΩ or Ω unless otherwise noted.
Rated Power: 1/16W unless otherwise noted.
Toleranee: (J) ±5% unless otherwise noted.
2. CAPACITORS
Unit: p-pF or u-uF unless otherwise noted.
Ratings: Capacity(F)/Voltage(V) unless otherwise noted.
AK: CEAK
3. NM: No Mount
NOTE
CN1403
H
3/7
CN2201
B
1/4
: Video Signal Route
(ZONE)
(ZONE)
(ZONE)
159
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
160 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

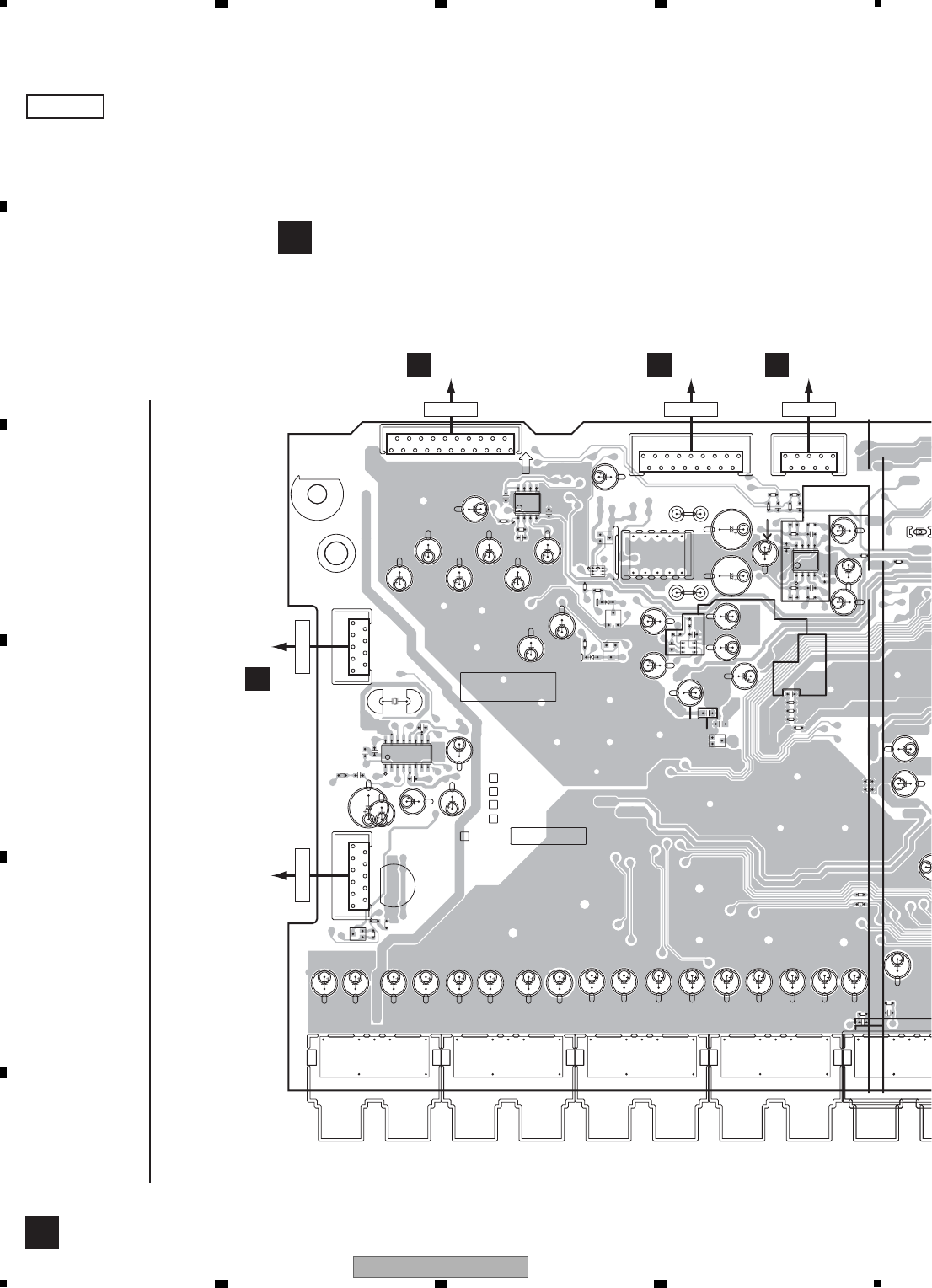

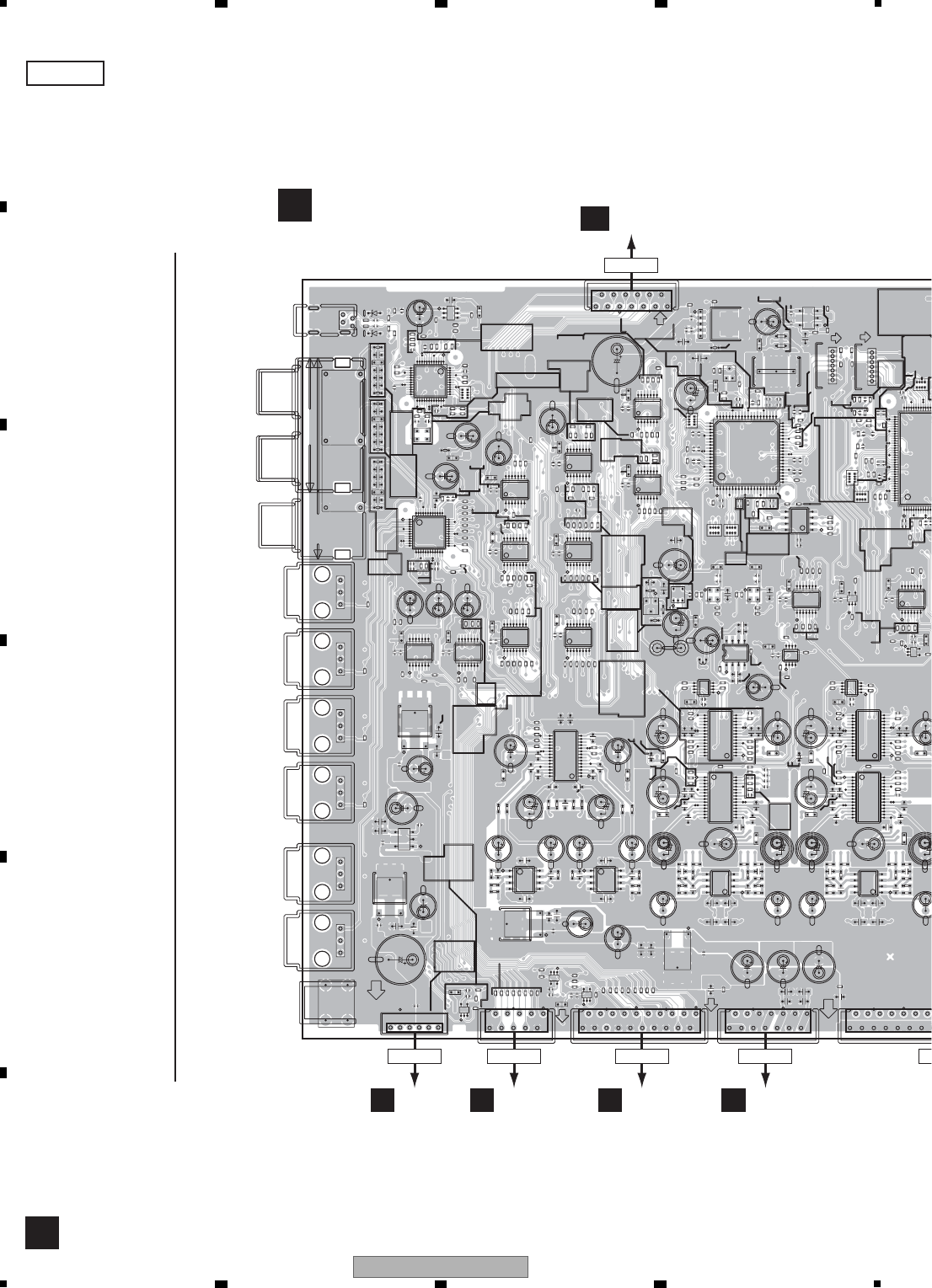

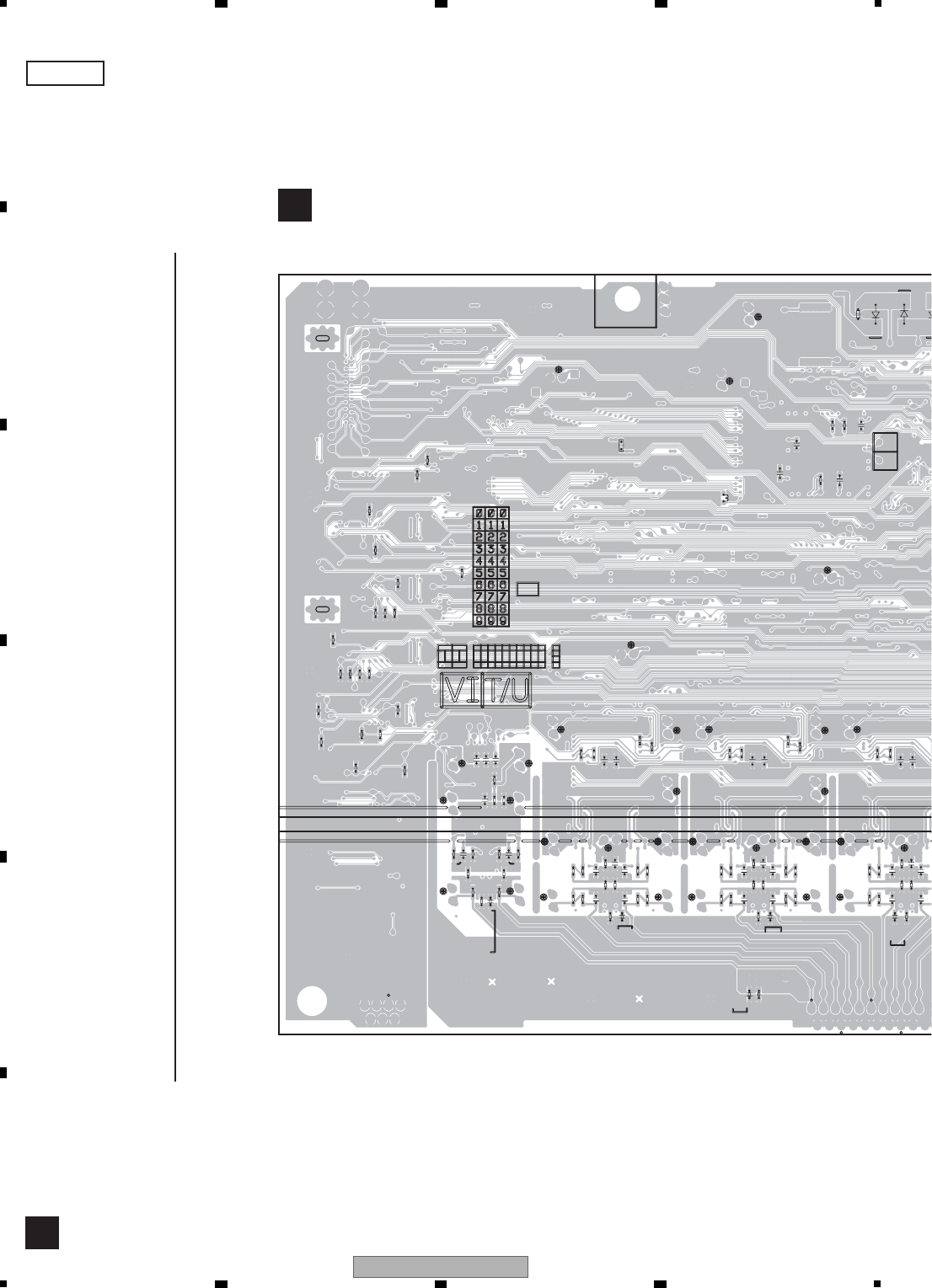

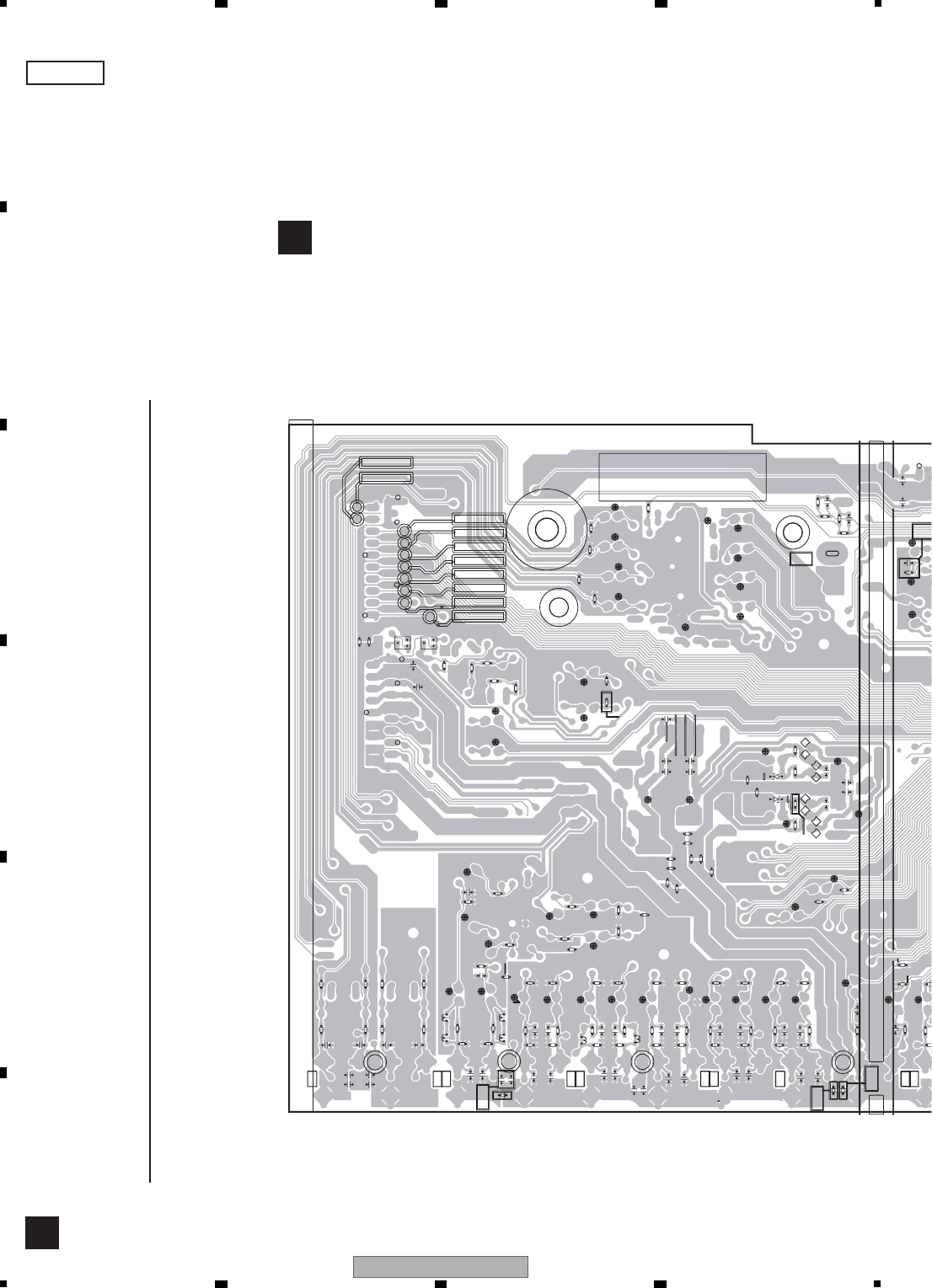

11. PCB CONNECTION DIAGRAM

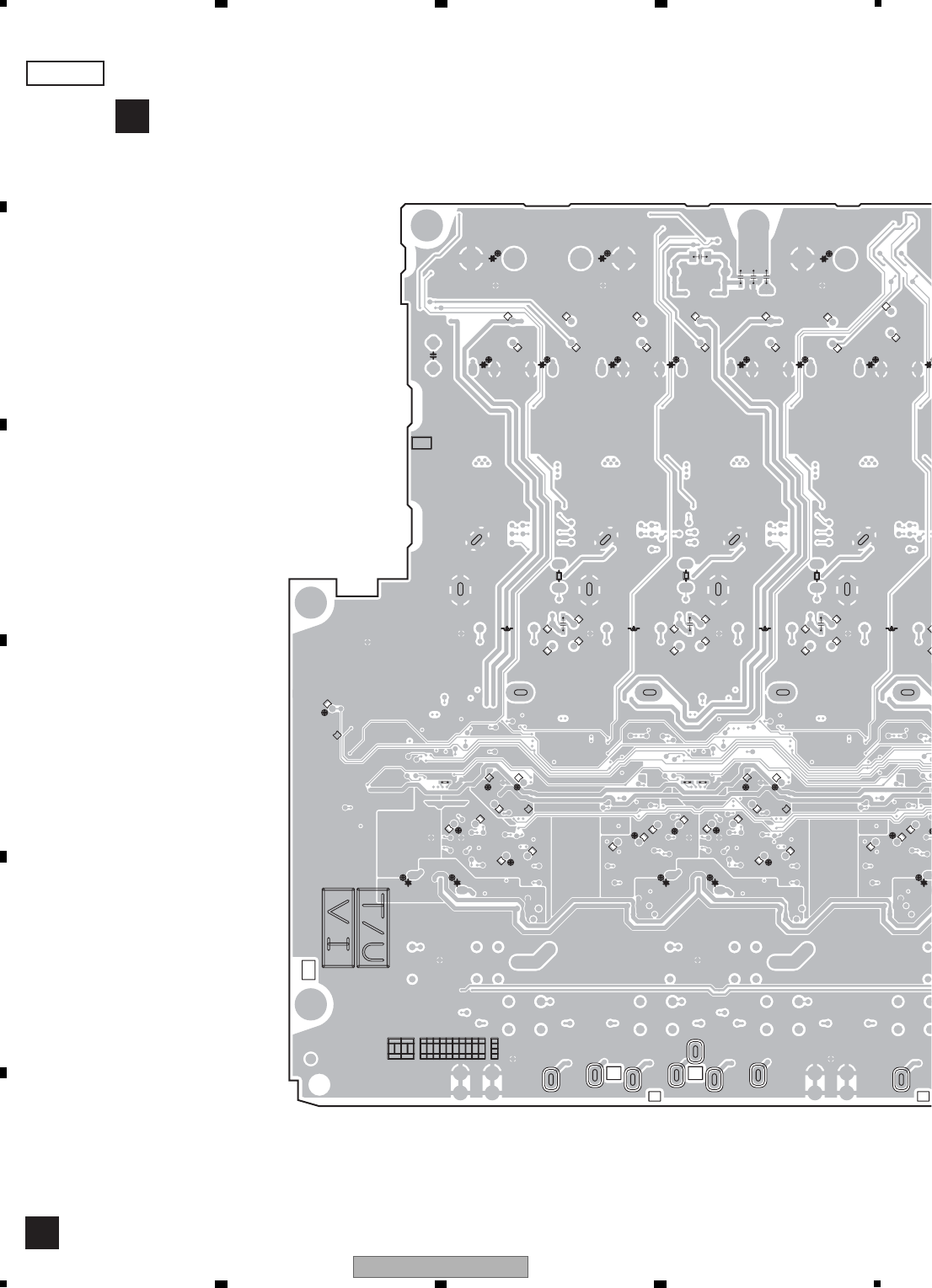

11.1 AUDIO ASSY

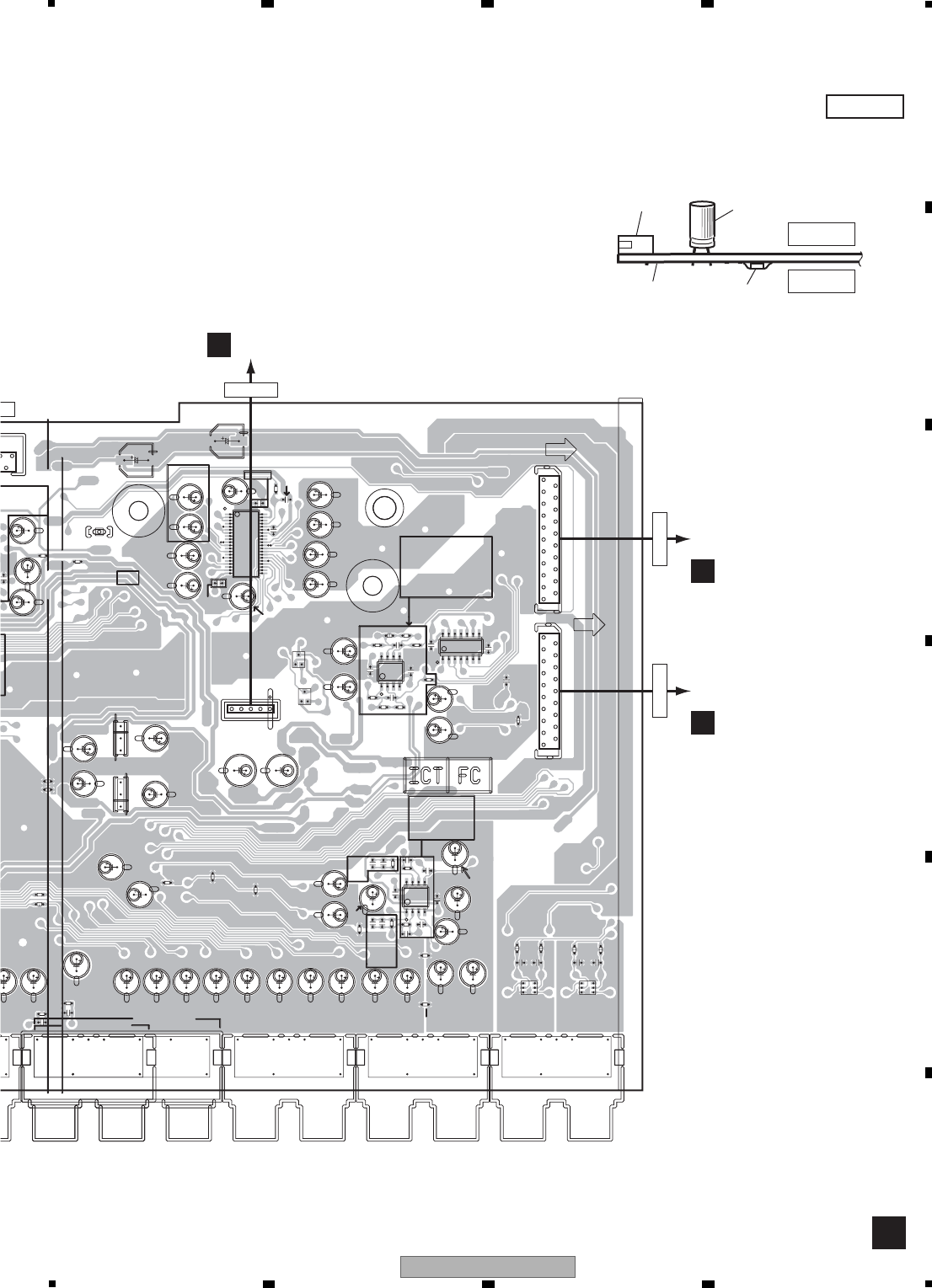

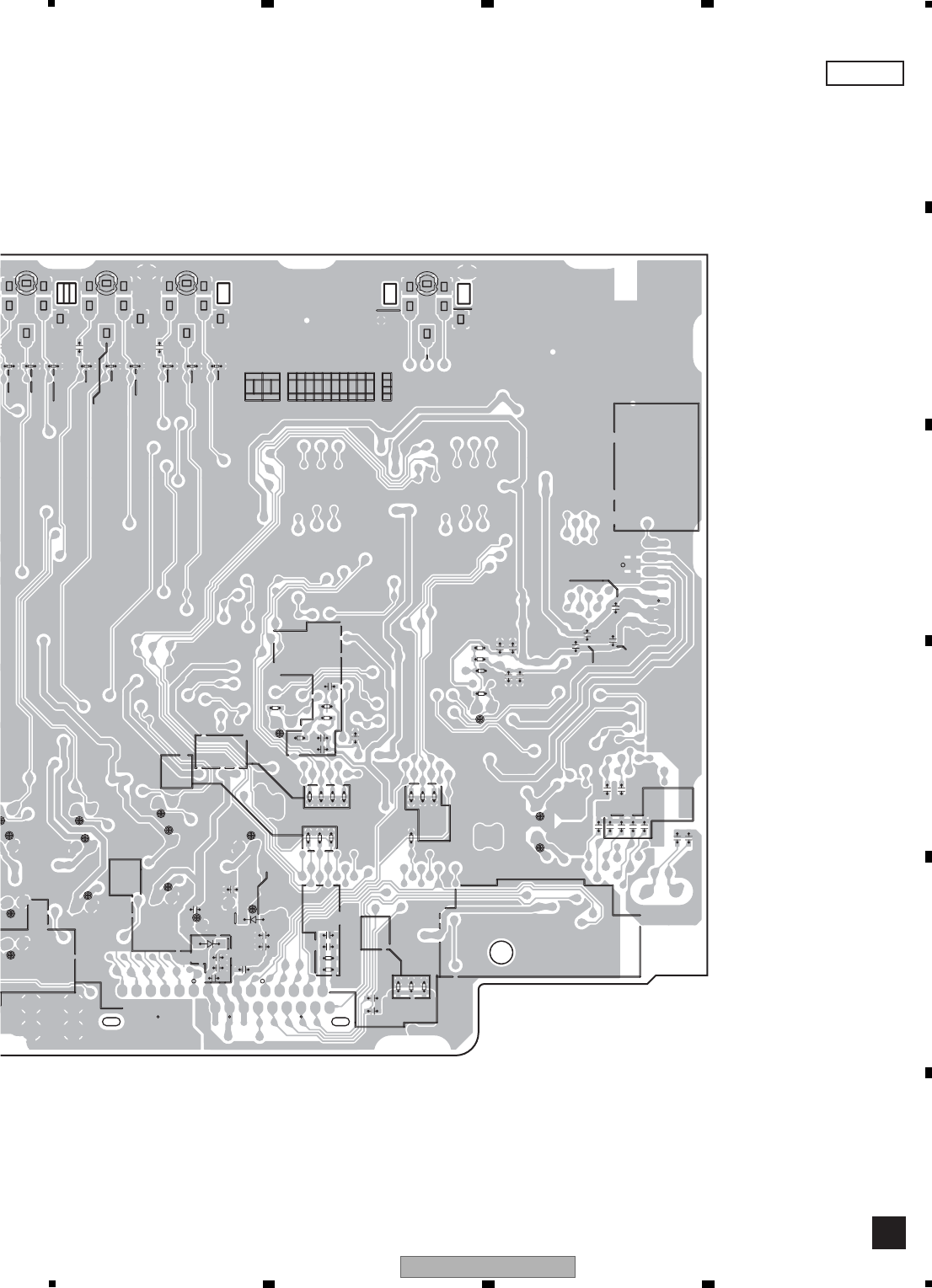

161
SC-27
56 7 8
56 7 8
A
B
C
D
E
F

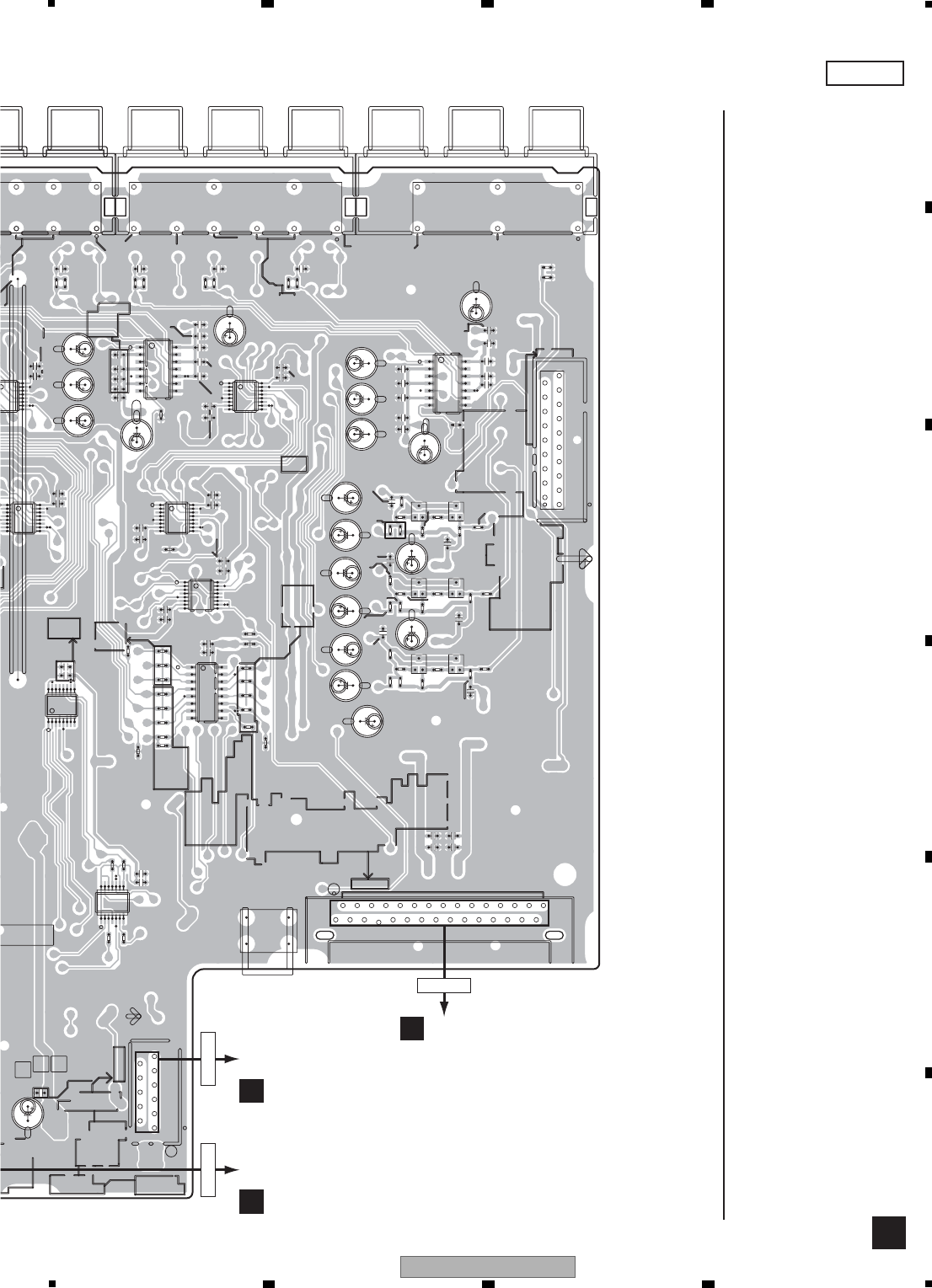

A
SIDE A
(ANP7701-B)
1.V-7A
2.GNDA
3.GNDA
4.V+7A
5.GNDA
6.MICOUT
GNDA
LSSN
9.NC
1.GNDA
2.ZFL DA
3.GNDA
4.ZFR DA
5.GNDA
6.SBL DA
7.GNDA
8.SBR DA
9.GNDA
10.SL DA
11.GNDA
12.SR DA
13.GNDA
14.C DA
15.GNDA
16.SW DA
17.GNDA
18.FL DA
19.GNDA
20.FR DA
21.GNDA
1.V-12A
2.V-12A
3.GNDA
4.GNDA
5.V+12A
6.V+12A
7.V+6AD
8.V+6AD
9.GNDA
10.GNDA
11.FL AD
12.GNDA
13.FR AD
14.GNDA
SIRIUS R
16.GNDA
SIRIUS L
18.GNDA
19.GNDA
1.V+6AD
2.V+12A
3.GNDA
4.GNDA
5.V-12A
:6PIN
:4PIN
7.
8.
E
2
R5744
7
8
C5009
C5010
C5011
C5012
C5013
C5014
C5015
C5016
C5405
C5406
07
08
C5021
C5022
IC5001
R5009
R5010
R5011
R5012
C5423
C5232
C5234
C5235
C5236
IC5401
R5409
C5243
R5410
C5244
11
Q5241
12
20
40
IC5221
C5253 C5254
R5421
Q5251
R5423
R5235
R5245
R5246
C5081 C5082
R5255
R5256
R5069
R5070
R5081
R5082
C5301
C5302
C5303
C5304
C5305
C5306
D5301
D5302
R5301
R5302
C5523
R5307
R5308
14
7
IC5301
R5309
IC5302
R5310
R5311
R5312
R5517
R5518
R5711
R5712
R5713
R5714
R5715
R5716
2
C5358
C5359
A30C5/C7
[[ G ]]
CN5002
CN5003
CN5004
C5003
C5004
C5007
C5008
C5207
C5208
C5017
C5018
C5019
C5020
C5411
C5412
C5221
C5222
C5223
C5224
C5225
C5226 C5227
C5228
C5035
JA5001
C5036
JA5002
JA5003
C5037
C5038
JA5004
JA5005
C5424
C5231
C5233
C5045
C5046
C5055
C5056
JP5001
C5065
C5066
C5075
C5076
C5085
C5086
C5307
C5308
C5501
C5502
C5503
C5504
Q5501
Q5502
C5507
C5509
JH5001
LF
1
5
5
1
1 5 10 15 20
25303540
5
1
1
115
10
1
5
115
10
5
115
10 20
5
1
1
51
51
51
5
10 1
55
15
E
E
1
NOTE FOR PCB DIAGRAMS :
1. The parts mounted on this PCB include all
necessary parts for several destinations.
For further information for respective
destinations, be sure to check with the
schematic diagram.
CapacitorConnector
P.C.Board Chip Part
SIDE A
SIDE B
2. View point of PCB diagrams.
F
CN7013
CN5002
F
CN7014
CN5003
V
CN7502
JP5001
7705
04
162 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

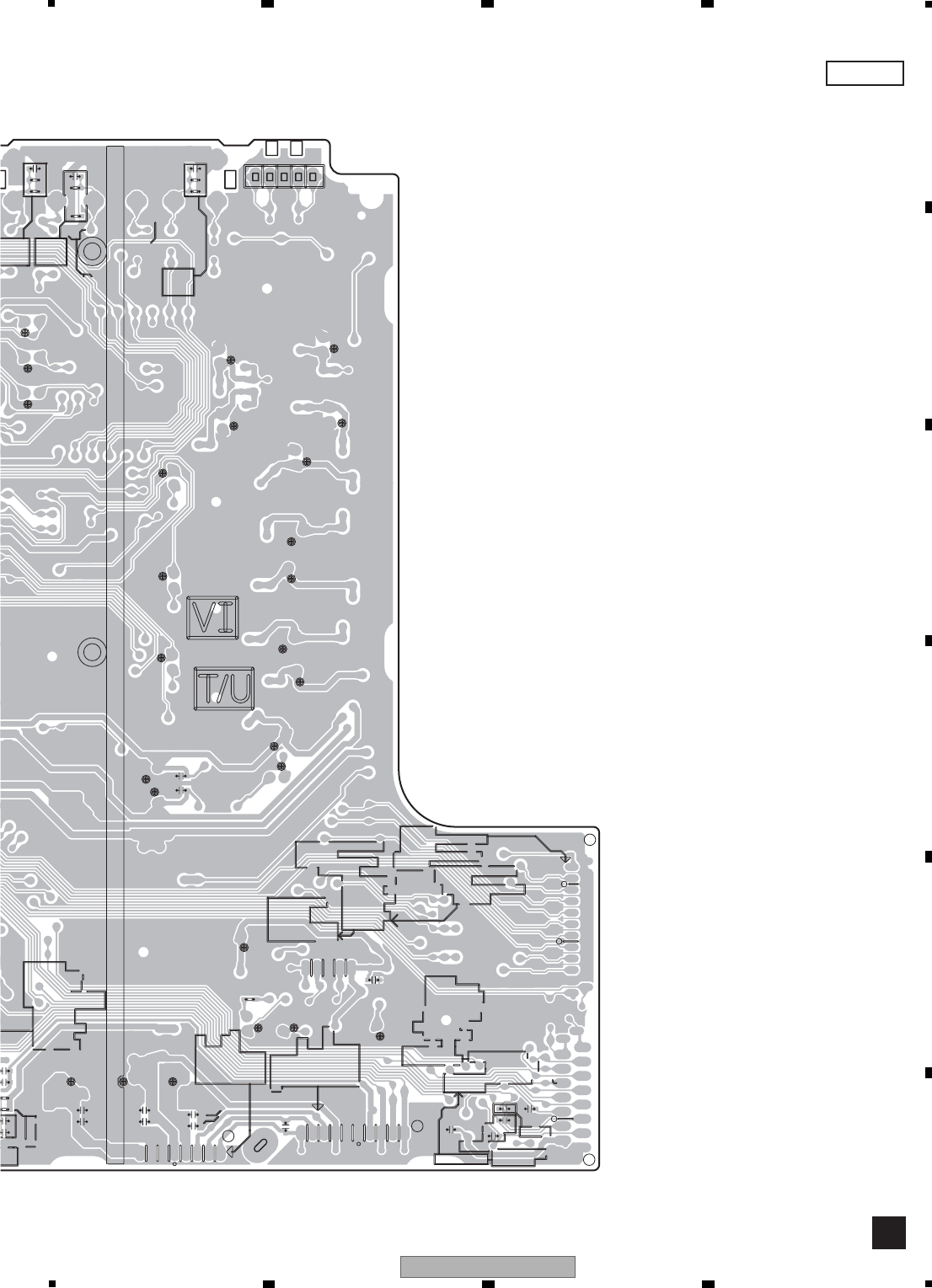

163
SC-27
56 7 8
56 7 8
A
B
C
D
E
F

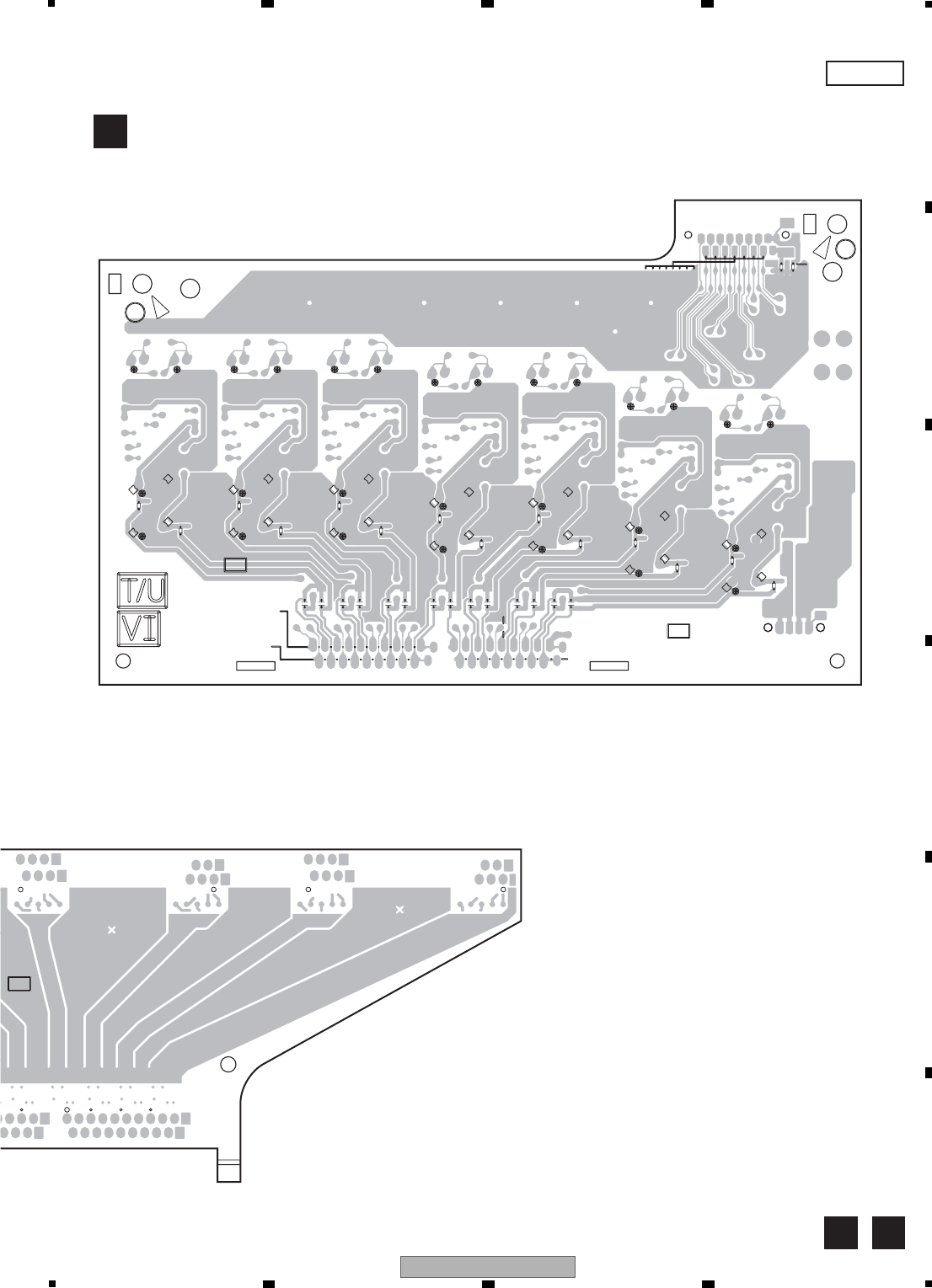

A
SIDE B
(ANP7701-B)
6.MICOUT
7.GNDA
8.LSSN
9.NC
1.HPRY
AMUTE
SBMUTE
12.GNDRY
GNDRY
17.GNDHP
21.AMUTE
20.SBMUTE
19.GNDA
18.FR OUT
17.GNDA
16.FL OUT
15.GNDA
14.SW OUT
13.GNDA
12.C OUT
11.GNDA
10.SR OUT
9.GNDA
8.SL OUT
7.GNDA
6.SBR OUT
5.GNDA
4.SBL OUT
3.GNDA
2.V-12A
1.V+12A
1.V+5DDD
2.GNDHD
3.XRDSRST
4.RDSCK 5.RDSSI
6.TUSI
7.TCLK
8.TUSO
9.TUCE
1.TUCE
2.TUSO
TUSCK
4.TUSI
5.GNDT
6.TL
7.V+9T
8.TR
9.VSM
10.FMDET
11.GNDT
Z2MUTE
5.Z3MUTE
VLSO
HPR
HPL
SBL
SL OUT
SR OUT
FL OUT
FR
OUT
SW OUT
TUNER L
TUNER R
TV
VIDEO
VIDEO
2
VCR1
OUT
IN
FL
FR
SW
C
SR
SL
SBL
SBR
VCR1
1
HPL
15.GNDHP
16.HPR
SBR
C OUT
ZVLSO
GNDHD
8.VLSCK
GNDHD
V+12RY
OUT
OUT
DOWN SIDE
DOWN SIDE
DOWN SIDEDOWN SIDE
1
R5164
R5165R5166
55
R5557
R5558
R5171
R5172
R5173
R5174
R5175R5176
R5181
R5182
R5183
R5184
R5185
R5186
L5651
CN5004 CN5005
CN5006
CN5007
C5201
C5203
C5205
C5206
C5403
C5404
C5215
C5601
C5602
Q5601
C5605
C5607
C5417
C5418
R5201
C5611
R5202
C5612
C5613
C5614
20
40
60
80
IC5201
R5403
R5404
R5405
C5621
R5406
C5622
R5407
R5408
D5601
D5602
C5435
R5601
C5436
R5602
R5606
R5415
R5416
R5417
R5418
R5419
R5611
R5612
37
R5038
R5420
L5111
L5112
R5435
R5436
C5653
C5655 C5657
C5083
C5084
D5451
D5452
R5067 R5068
C5091
R5452
C5092 C5093
C5094
R5073
R5652
R5653
C5295
C5296
R5657
R5271
R5272
R5273
R5274
R5275
R5276
R5277
R5083
R5278
R5084
R5085
R5086
R5284
R5091
R5092
R5286
R5093
R5094
R5288
R5095
R5096
R5292
C5101
C5102 C5103
C5104
C5111
C5112
C5113
C5114
C5505 C5506
C5121
C5122
C5123
C5124
R5101
R5102
R5103
C5707
R5104
C5708
5515
R5105
C5709
5516
R5106
C5710
C5711
C5714
R5111
C5715
R5112
R5113
R5114
C5718
R5115
C5719
R5116
R5121
R5122
R5123
R5124
R5125
R5702
R5126
R5703
C5151
C5152
C5153
C5154
C5161
C5162
C5356
C5163
C5357
C5164
C5557
C5171
C5172
C5173
C5174
R5151
R5152
R5153
R5154
R5155
R5156
C5181
C5182
C5183
C5184
R5161
R5162
R5163
E
151015 20
25 30 35 40
45 50 55 60
65 70 75 80
164 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

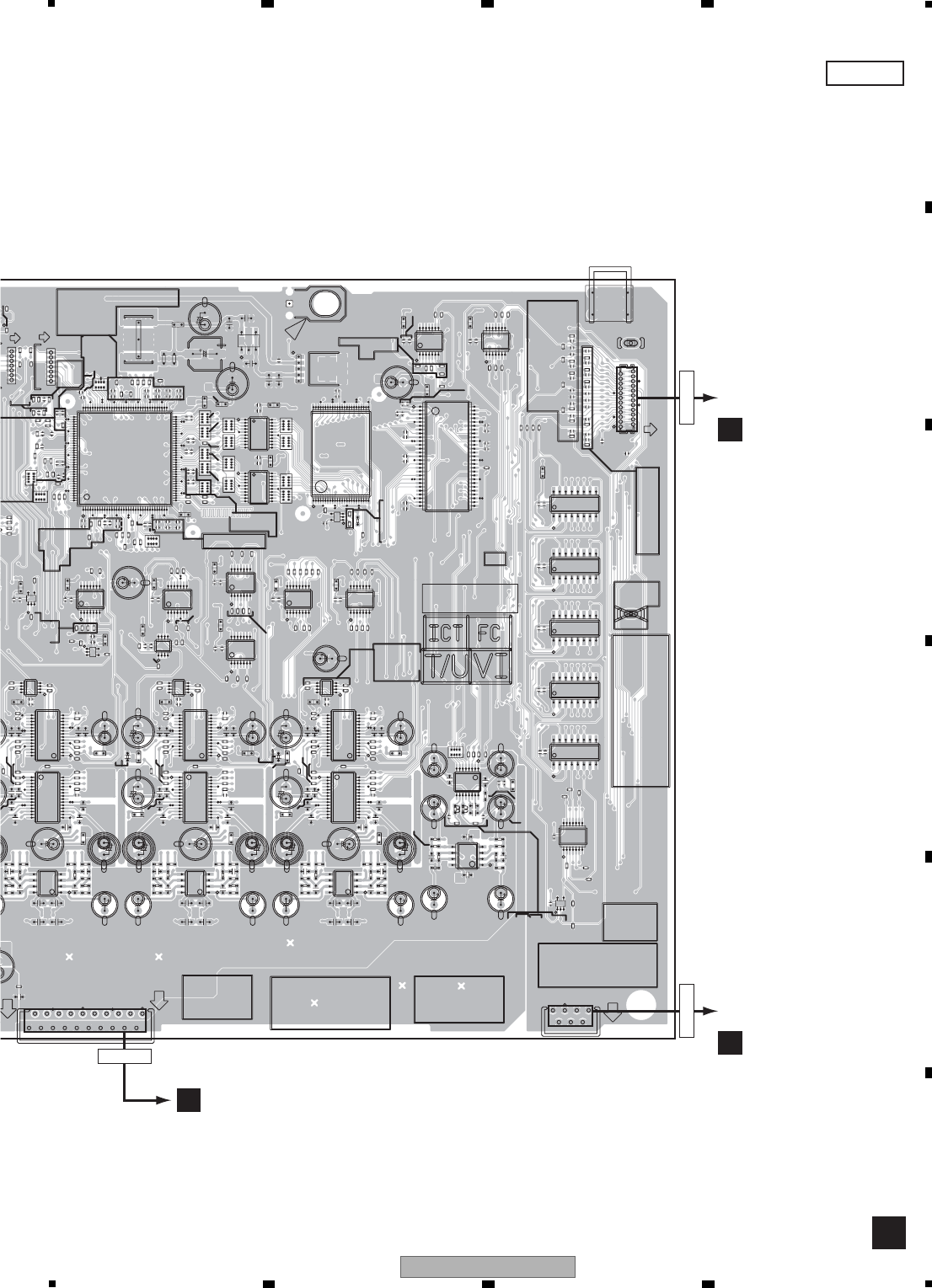

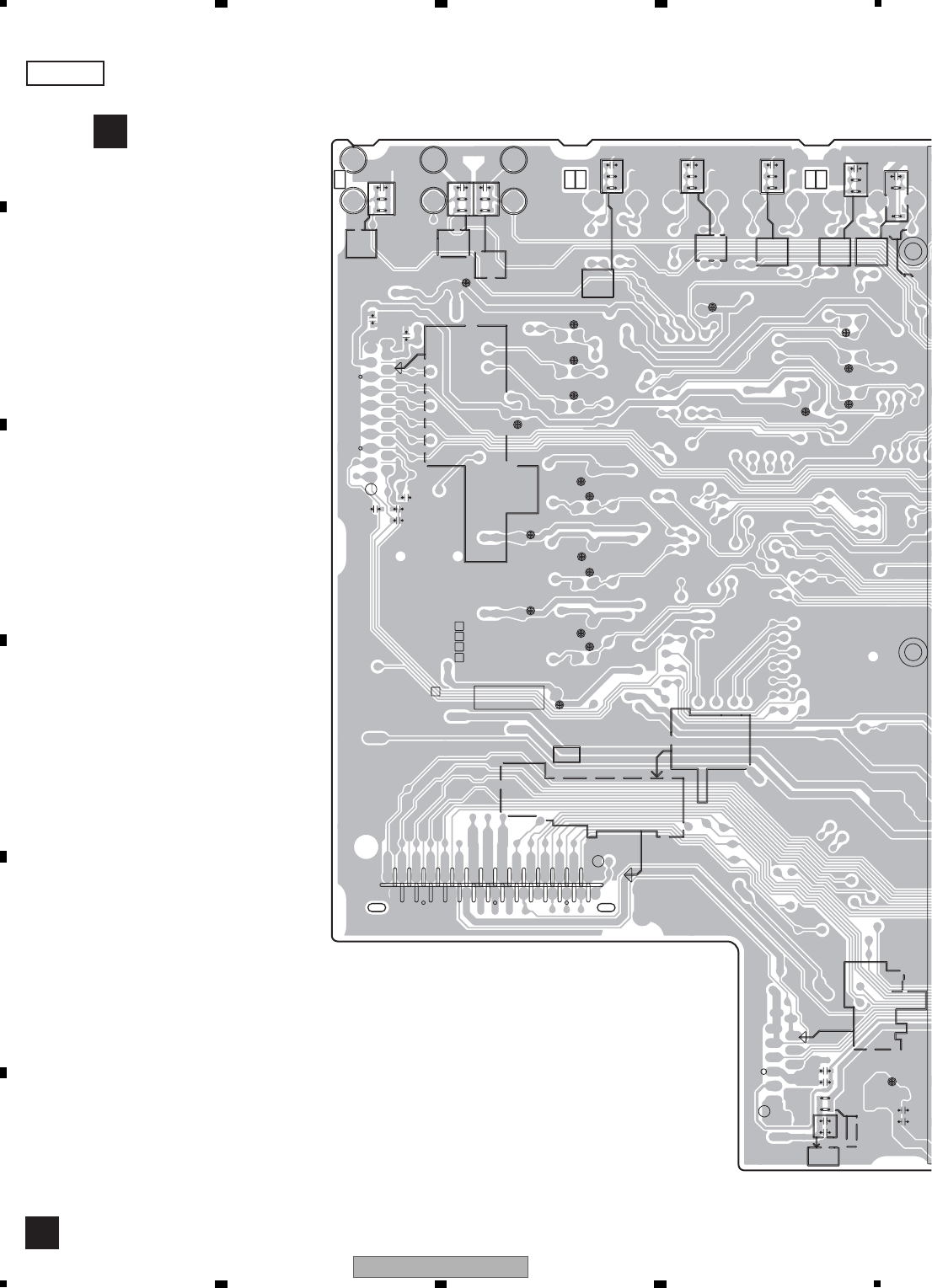

11.2 DSP ASSY

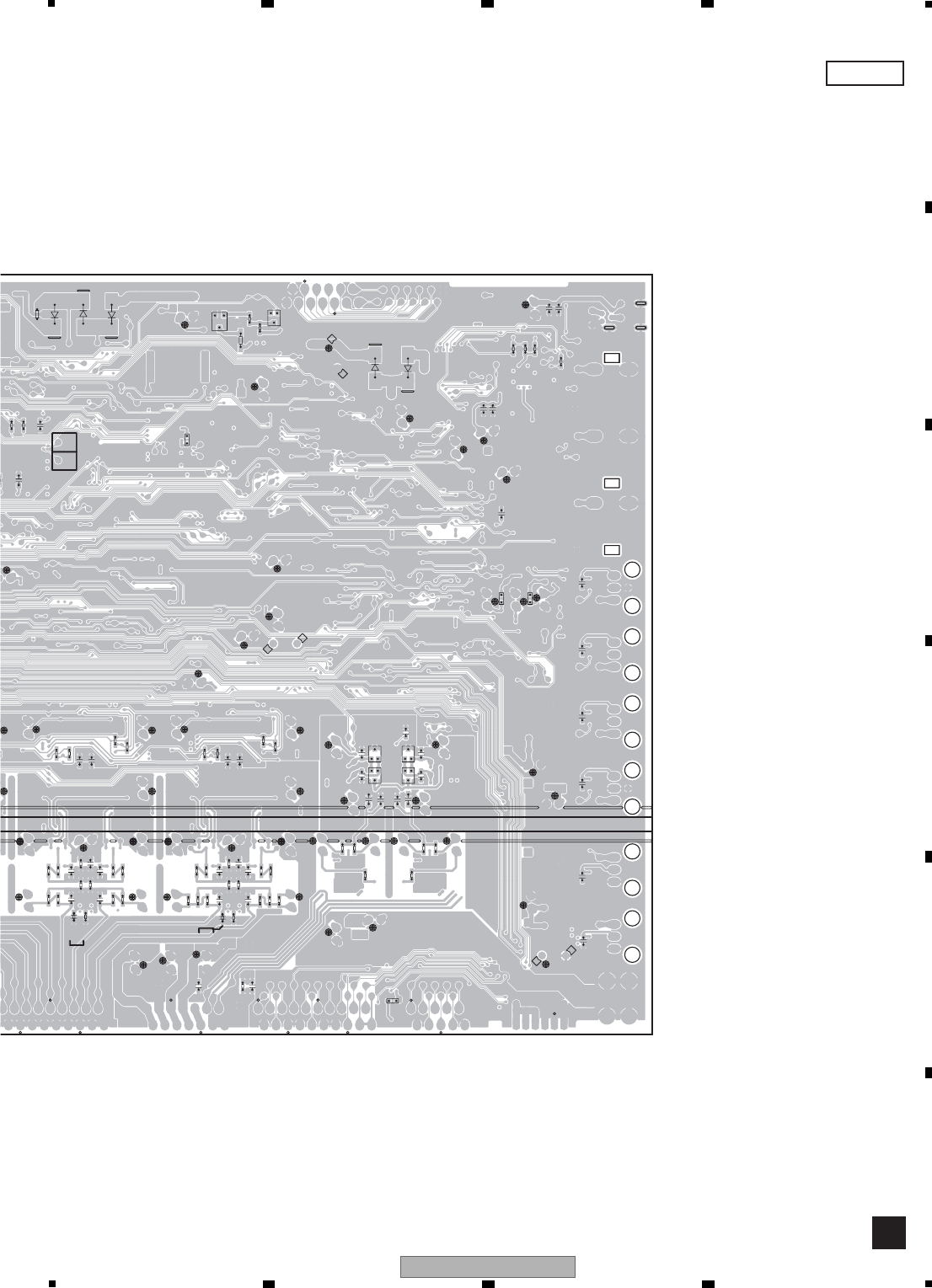

165
SC-27
56 7 8
56 7 8
A
B
C
D
E
F

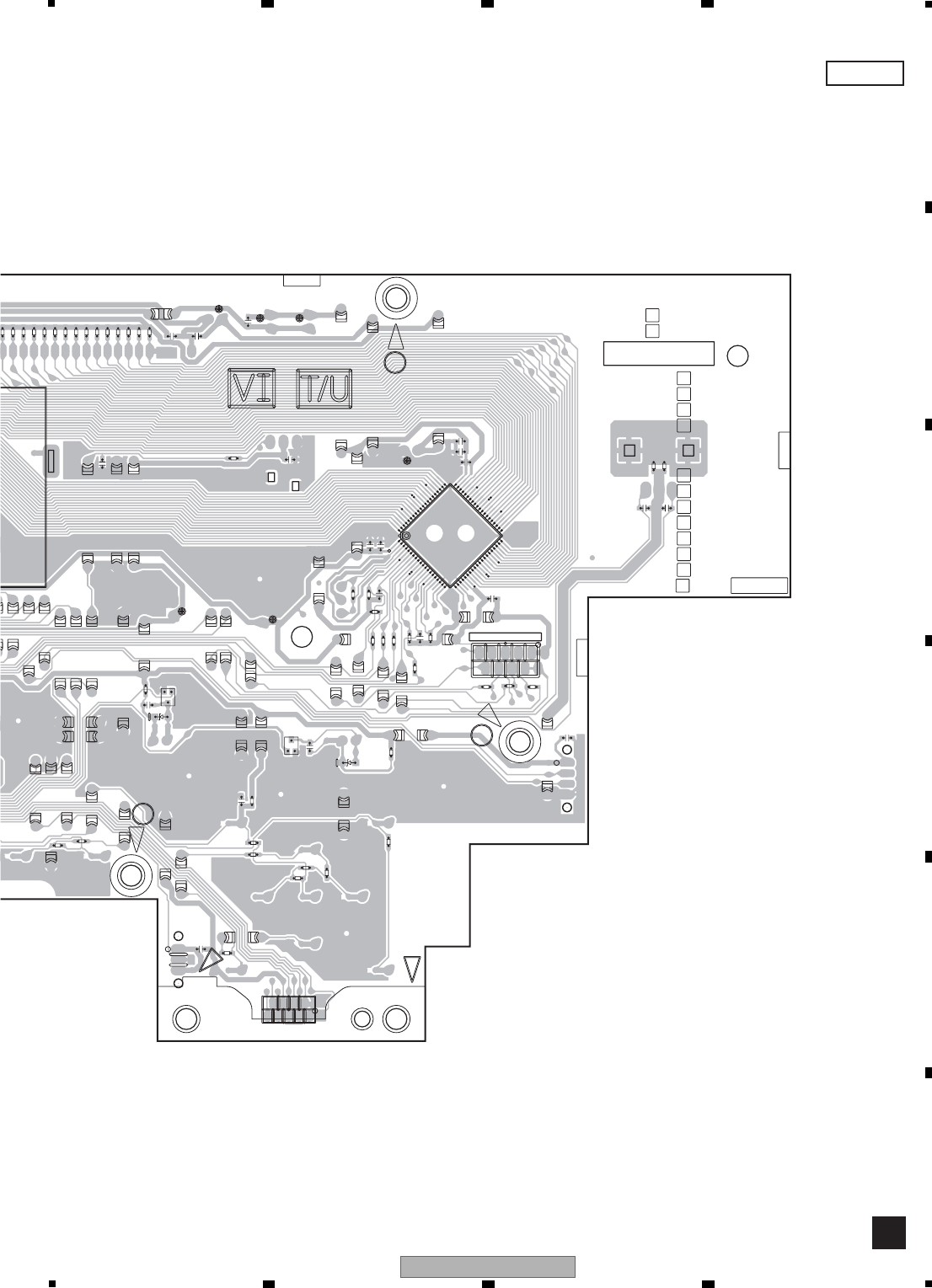

B
SIDE A
(ANP7700-B)
20. ZFL DA
19. GNDA
17. GNDA
15. GNDA
13. GNDA
11. GNDA
9. GNDA
7. GNDA
5. GNDA
3. GNDA
1. GNDA
18. ZFR DA
16. SBL DA
14. SBR DA
12. LS DA
10. RS DA
8. C DA
6. SW DA
4. FL DA
2. FR DA
14. V-12A
13. V-12A
11. GNDA
12. GNDA
10. V+12A
9. V+12A
8. V+6AD
7. V+6AD
6. GNDA
5. GNDA
3. GNDA
1. GNDA
4. FLAD
2. FRAD
20. NETSPDIF
19. GNDHD
15. GNDHD
13. GNDHD
9. GNDHD
7. GNDHD
3. GNDHD
1. GNDHD
18. GABCK
17. GALRCK
16. GAADAT
14. EMMCLK
12. NBCK
11. NLRCK
8. NMCLK
10. NFADT
6. BFADT
5. BBLRCK
4. BBCK
2. BMCLK
10. HMCLK
9. GNDHD
8. HBCK
7. HLRCK
6. HFADT
5. HCADT
4. HSADT
3. HBADT
2. HSPDIF
1. GNDHD
DSP ASSY
11
24. XDSP2RST
23. DSPSO
22. DSPSI
21. DSPSCK
20. DSP1SS0
19. DSP1SS1
18. DSP2SS
17. DACS1
16. DACS2
15. Z2DACS
14. DSP1BUSY
13. DSP1MUTE
12. DSP2BUSY
11. EXPSCK
10. EXSO_9
9. EXOEDIGITAL
8. EXSTDIGITAL
7. XZDAMUTE
6. DAZDB
5. USBREQ
4. DIRCS
3. UNLK
2. GNDHD
1. GNDHD
1. GNDD
2. GNDD
3. GNDD
4. GNDD
5. GNDD
6. GNDD
7. GNDD
NO
MOUNT
C3252
C3253
C3254
C3256
C3257 C3258
C3259
C3452
C3260
C3455
C3262
C3456
C3457
C3264
C3266
C3268
C3269
C3275
R3253
R3254
R3255
R3256
R3257
R3258
C3281
C3282
IC3253
R3451
R3452
R3453
R3260
R3454
R3261
R3455
R3262
R3263
R3264
8
16
IC3451
R3267
R3268
R3269 R3270
R3275
R3276
R3277
R3278
C2301
C2302
C2303
C2304
C2305
C2306
C2307
C2308
R3281
C2309
R3282 R3283
R3284
C2310 C2311
C2312 C2313
C2314
C2315 C2316
C2317 C2318
C2319
C2514
C2320
C2321
C2515
C2322
C2516
C2323
C2517
C2324
C2325
C2519
C2326
C2327
C2328
R2301
C2329
R2302
R2303
R2304
C2520
R2305
C2521
R2306
C2522
R2307
C2523
R2308
C2330
C2524
36
72
108
144
IC2301
R2309
C2331
C2332
C2333
10
20
IC2304
C2334
10
20
IC2305
C2335
C2336
R2310
IC2309
R2312
R2313
R2314
R2509
R2315
R2316
R2317
R2318
IC2310
IC2505
R2319
C2341
14
7
IC2506
IC2507
C2344
R2510
C2345
R2511
C2346
R2512
C2347
R2513
R2320
C2348
R2321
C2349
JH2601
R2322
JH2602
R2323
R2517
R2324
R2518
R2325
R2519
R2326
R2327 R2328
C2350 C2351
C2352
C2353
C2354
R2520
C3101
C2355
R2521
C3102
C2356
R2522
C2357
R2523
C2358
R2524
C3105
R2331
C2359
R2525
C3106
R2332
R2526
C3107
R2333
R2527
C3108
R2334
R2528
R2335
R2529
R2336
R2337
R2338
C2360
C3301
R2339
C2361
C3302
C2362
C2363
R2530
C2364
C3305
C2365
R2531
C3306
C2366
R2532
C3307
C3113
C2367
R2533
C3308
C3114
R2340
C2368
R2534
R2341
R2535
C2369
2342 R2343
R2344
R2345 R2346
R2347 R2348
C2370
R2349
C2371
C3313
C2373
C3314
C2374
C2375
C2376
R2542
R2350
R2351 R2352
R2353
R2354
R2355
R2356
R2357
R2358
R2359
C2383
C2384
IC3101
C2385
R2360
R2361
R2362 R2363
R2364
R2365
R2366
R2367
R2368
IC3301
R2369
72
R2373
R2375
R2378
R2379
C3152
C3153
C3154
C3157 C3158
C3159
C3352
C3353
C3160
C3354
C3162
C3356
C3357
C3164
C3358
C3359
C3166
97
C2998
C3168
C3169
C3360
C3362
C3364
C3366
C3368
C3369
R2983
R3153
R3154
R3155
R3156
R3157
58
C3375
C3181
C3182
IC3153
R3353
60
R3354
61 R3355
62
R3356
63
R3357
R3164
R3358
C3381
C3382
R3167
IC3353
3168
R3169
R3360
R3361
R3362
R3363
R3170
R3364
R3367
R3368
R3175
R3369
R3176
R3177
R3178 R3370
R3375
R3181
R3376
R3182
R3377
R3183
R3378
R3184
CN2601
CN2601
R3381
R3382 R3383
R3384
C2606
C2607
C2608
C2430
C2431
C2432
2402
8
16
IC2403
C2433
7
14
IC2404
C2434
R2601
7
14
IC2405
C2435
R2602
C2436
R2603
C2437
R2604
R2410 R2411
12
13
4
8
16
IC2601
8
16
IC2602
8
16
IC2603
8
16
IC2604
8
16
IC2605
7
14
IC2607
R2615
R2616
R2617
R2618
R2619
R2620
C3201
R2621
C3202
R2622
R2623
R2624
C3205
R2625
C3206
R2432
R2626
C3207
R2433
R2627
C3208
R2434
R2628
R2435
R2629
R2436
R2438
R2439
C3403
C3404
R2630
R2631
R2632
C3407
C3213
R2633
C3408
C3214
R2440
R2634
R2441
R2635
R2442
R2636
R2443
R2637
R2444
R2445
R2446
R2447
R2448
R2449
R2640
R2450
R2451
R2452
R2453 R2454
R2455
R2456
R2457
R2458
R2459
IC3201
R2460
R2461
R2462
R2463
R2464
IC3401
14
7
IC2609
C2612
C2613
C2614
R2644
R2645
R2646
R2647
R2648
R2649
C2601 C2602
IC2303
27
54
C2603 C2604 C2605
C2382
C2617 C2618 C2619 C2620 C2621
R2652
R2384
R3380
R3280
R3458
R3215
R3114
R3216 R3316 R3315R3115
R3112
R3110
R3412 R3411
R3203R3103 R3204 R3304 R3303
R3306
R3106 R3105 R3206 R3305
R3104 R3205
R3311
R3313
R3213
R3312
R3113
R3211
R3314
R3212R3111
R3214
R3403
R3404
R3410
R3409
R3116
R3407
R3408
R3109 R3209R3210 R3310 R3309
IC2503
IC2504
IC2608
IC2306
R2385
R2653
R2665
R2666
R2667
R2668
R2669
R3460 R3461
C3461
C3462 C3463
C3464
R3462
R3463
C2622
C2623
C2624
C2625
C2626
C2627
C2628
C2629
C2630
C2631
C2632
C2633
C2634
C2635
C2636
C2637
C2638
C2639
C2640
C2641
C2642
C2643
IC3251
IC3252
IC3151
IC3152
IC3351
IC3352
IC2302
24
48
L3452
L3453
CN2301
CN2401
L3152
L3154
L3351
L3352
L3353
L3354
L3181 L3381
L2405
L2406 L2407
L2408
L2601
L2602
L2603
L3251
L3252
L3253
L3254
L3451
L3281
L2301
L2302
L2303
L2304
L2306
L2307
L2308
L2504
L2505
L2506
L2507
L2508
C2387
IC2606
7
14
IC2502
IC2406
7
14
C2392
C2393
C3251
C3255
C3453
C3454
C3261
C3263
C3265
C3267
C3273
C3274
CN2901
CN2902
CN2902
C2518
C2339
C2534
C2340
C3109
C3309
C3310
C2372
C3151
C2987
C3351
C3355
C3165
C3167
C3361
C3363
C3365
C3367
C3174
C3373
C3374
CN2001
CN2002
CN2602
CN2602
C3209
C3401
C3402
C3210
C3409
KN2601
C3410
KN2301
A30C5/C7
[[ G ]]
LF
PC
1
5
1
15
10
15
1 5 10 15 20 25 30 35
40 45 50 55 60 65 70
75 80 85 90 95 100 105
110 115 120 125 130 135 140
1510
15
20
1510
15
20
1
15
1
1 1
1
15
10
1
15
10
1
5
1
1
1
1
1
1
1
1
5
1 1
11
1 1
1
1
5
1
1
5
1
5
15 15
10 20
15
1015
15
10
15
10
15
1015
15
1015
15
1015
15
1015
15
1015
15
10
1
5
1
5
15
10
1510 15 20 25
30354045
50
1
5
1
5
1
5
1
5
15 10
15
20
25
15 10
15
20
25
15 10
15
20
25
15 10
15
20
25
15 10
15
20
25
15 10
15
20
25
1
5
10
15
20
25
30
35
40
45
15
15
1
15
10
15
10
15 15
10 20
15
1
ECN1405
CN2601
FCN7010
CN2602
FCN7009
CN2902
166 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
167
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
B
SIDE B
(ANP7700-B)
121 118
1
1
111
1
C3070 C3071
C3072
C2901
C2902
C2903
C2904 D2701
D2702
D2703
D2704
D2705
C2343
C2928
C3103
C3104
C3111
C3112
C3115
C2951
C2967
C2968
C2969
C2970
D2951
D2952
D2953
D2954
R2374
C2988
C3170 C3171
C3172
C2202
C2204
C2010
C2011
C2206
C2012
C2207
C2013
C2014
C2015
C2025
C3003
C3004
C3011
C3012
C3015
C2342
R3017
R3024
R3051
R3085
R3121
R3165
R3066
R3151
R3023
R3122
R3166
R3025
R3123
R2981
R3018
R3052
R3185
R3065
R3152
R2220
R2329
R2212
R2330
R2213
R2215
R3107
R3002
R3102
R3001
R3007
R3008
R3120
R3022
R3119
R3021
R2916
R3108
R2915
R3020
R3117
R3019
R3118
R3101
R2908
R2907
R2912
R2911
Q2302
R2380
R2381
R2382
R3026
R3124
Q2301
L2005
L2006
L2013
L2403
11
1 1
E
E
168 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

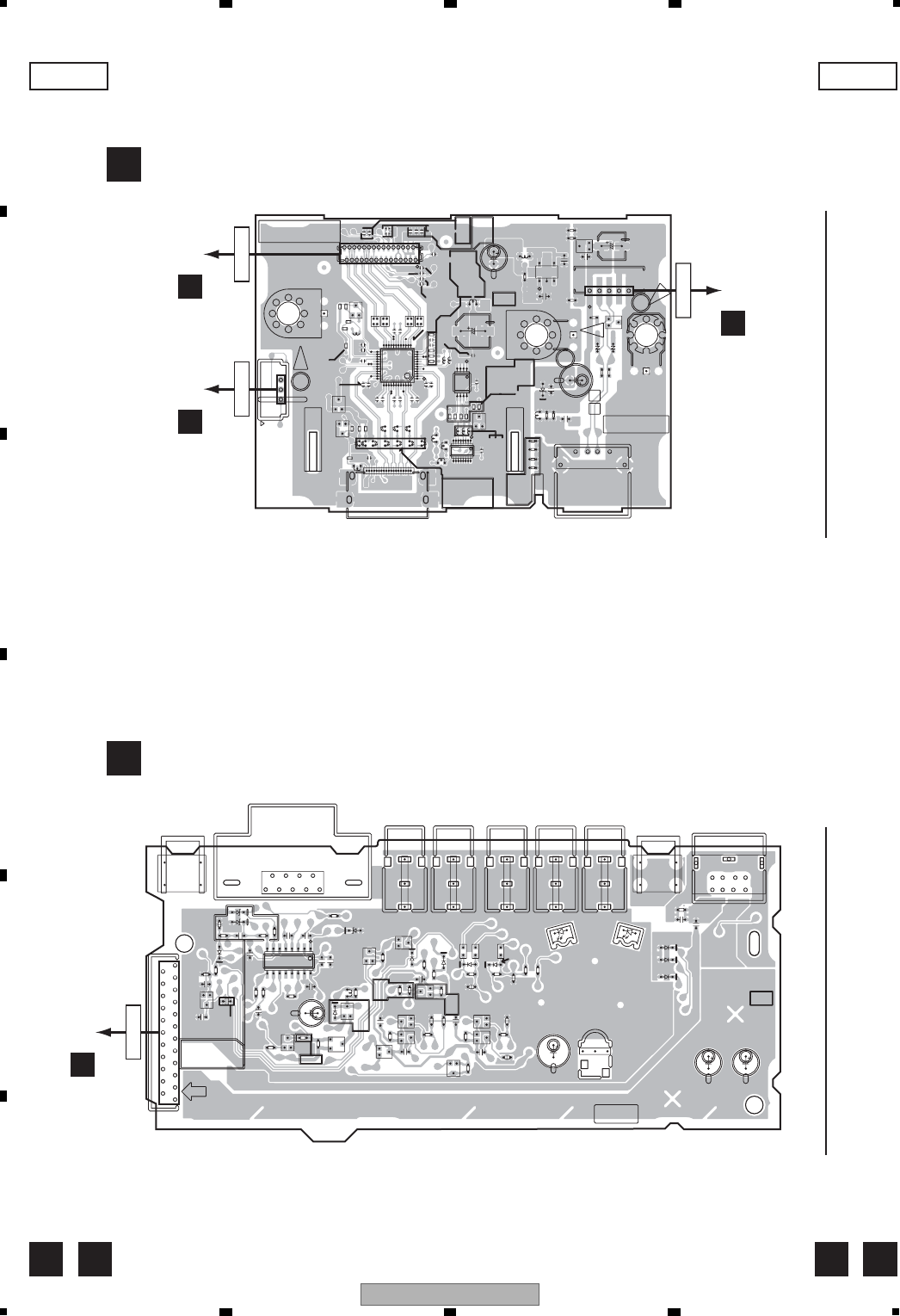

11.3 FRONT-HDMI AND 232C_CONTROL ASSYS
C D C D
SIDE A SIDE A
(ANP7720-B)
(ANP7701-B)
CFRONT-HDMI ASSY
D232C_CONTROL ASSY
1
AWX9497
AWX
F- HDMI
ASSY
3
2
PC
L3503
L3551
L3552
L3561
L3562
L3563
L3564
L3565
L3566
L3567
L3568
L3571
L3572
L3573
L3574
L3575
L3576
VA3501
VA3502
CN3501
C3501
C3502
C3503
C3505
D3502
D3503
D3504
R3501
R3502
R3503
VA3552
R3506
VA3553
R3507
VA3554
R3508
VA3555
VA3556
VA3557
VA3558
VA3559
R3511
R3513
VA3560
VA3561
CN3554
C3551
C3552 C3553
C3554
Q3551
C3555
Q3552
Q3553
C3562
C3563
C3564
C3565
C3566
C3567
C3568
C3569
C3570
C3571
C3572
C3573
C3574
D3551
C3575
C3576
C3577
C3578
R3551
C3579
R3552
R3553
R3554
R3555
R3556
R3557
R3558
C3580
12
24
36
48
IC3551
R3559
C3581
8
16
IC3552
IC3553
IC3554
R3560
R3561
R3562
R3563
R3564
R3565
C3590
C3591
C3592
C3593
C3594
C3595
C3596
C3597
R3570
C3598
C3599
R3581
R3582
R3583
R3584
R3585
R3586
R3587
R3588
JA3551
C3504
JA3501
CN3553
C3561
C3589
A30C5/C7
[[ G ]]
KN3501
LF
KN3551
KN3552
AWX9472
AWX
232C&CONTROL ASS'Y
AWX9435
L5821
L5822
L5823
C5802
C5803
Q5801
C5806
C5807
C5808
C5809C5810
C5811
C5824
D5801
C5825
D5802
C5826
D5803
C5827
D5804
R5801
R5805
R5806
R5807
R5808
8
16
IC5801
C5834
Q5832
C5837
Q5833
Q5834
Q5835
R5812
R5813
R5814
R5815
R5816
R5817
D5821
D5821
Q5841
C5845
D5822
Q5842
R5821
R5822
R5823
R5824
R5825
R5826
R5827
R5828
R5829
C5851
C5855
R5830
R5831
R5832
R5833
R5834
D5839
R5839
D5842
D5843
R5842
R5843
R5844
R5845
R5846
R5847
D5851
D5852
D5853
R5851
Q5881
Q5882
D5881
D5882
D5883
R5881
R5882
R5883
L5802
A30C5/C7
[[ G ]]
LF
CN5801
C5812
C5829
JA5801 JA5802 JA5803 JA5804 JA5805 JA5806
JA5807
D5832 D5833
KN5801 KN5802
C5871C5872
U5801
1
1
1
1
51
1
1
1 5 15 25
10 20 30
E
E
E
1
15 10
15 20
25 30 35
40 45
15
1015
1
5
1
511015
5
1
1
1
1
1
E
15
1015
E
E
E
E
E
E
1
1
E
E
1
1
2010
15 15
1
5
1 5
1
IC Q
IC Q
Q3551
Q3552
Q3553
IC3551
IC3552
IC3553
IC3554
Q5801
IC5801
Q5832
Q5833
Q5834
Q5835
Q5841
Q5842
Q5881
Q5882
ECN1259
CN3501
ECN1601
CN3554
KJH8006
CN3553
FCN7011
CN5801
169
SC-27
56 7 8
56 7 8
A
B
C
D
E
F

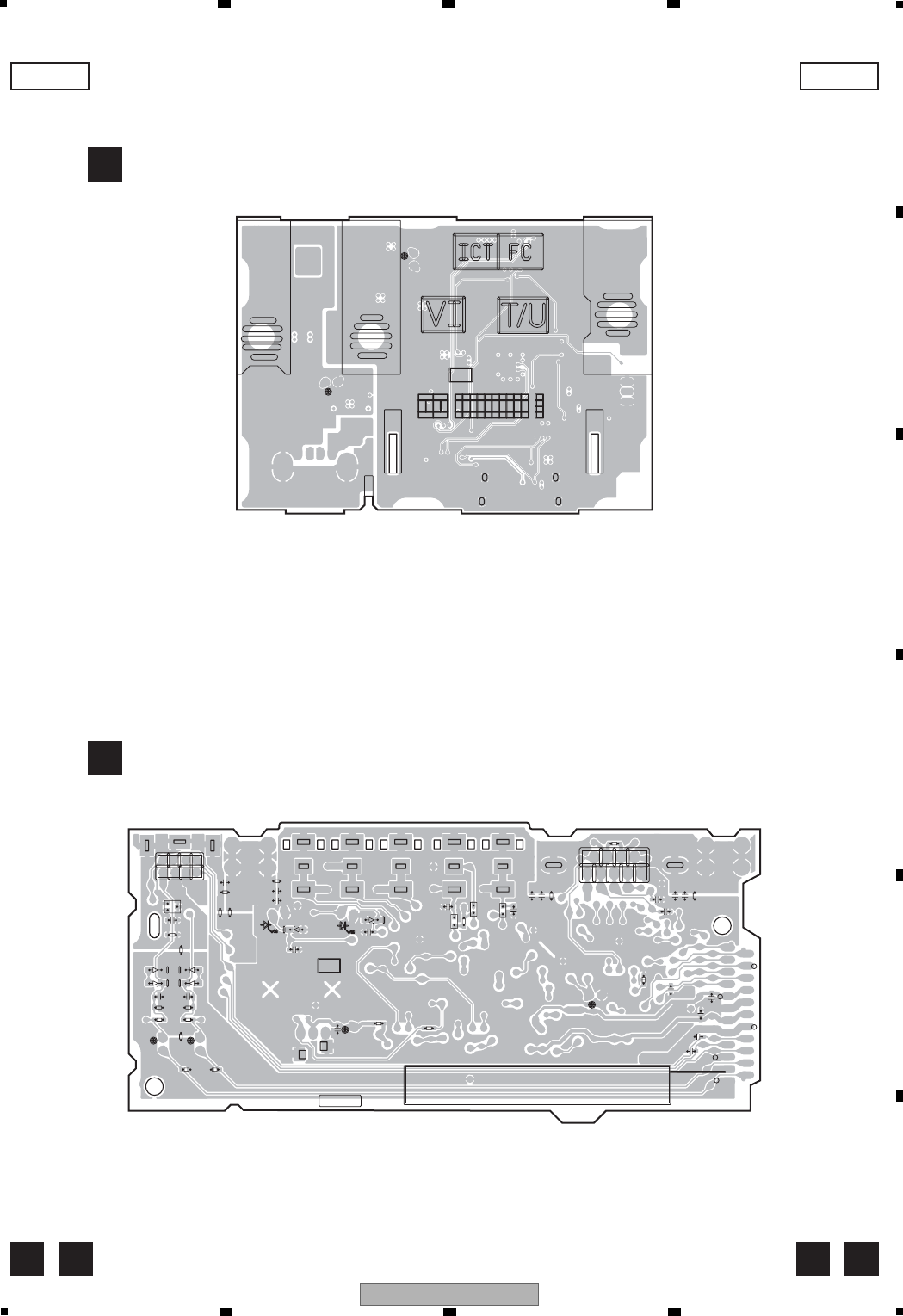

C D C D
SIDE B SIDE B
(ANP7720-B)
(ANP7701-B)
CFRONT-HDMI ASSY
D232C_CONTROL ASSY
LF
A
B
C
0123 0123456789
1
10
0
1
SR OUT
SR IN
IR OUT
IR IN2
IR IN1
SIRIUS_L
GNDA
SIRIUS_R
GNDA GNDHD
GNDHD
SIRX
SITX
6. XSIRST
V+5R6U
GNDU
GNDU
V+5R6_ST
11. V+5R6_ST
232POW
232C DET
EV232TX
EV232RX
16. V+5R6U
IR IN
RMC
21. SR IN
AWX 9472
AWX 9435
AWX
1.GNDA
L5841
L5842
L5843
C5804
C5805
C5828
R5802
C5830
C5831
C5833
C5835
C5836
C5839
C5840
R5819
C5842
C5843
C5852
C5853
D5831
D5834
R5835 R5838
R5841
C5873 C5874
R5852
R5853
D5858
R5858
R5859
R5860
R5861
C5891
C5892
C5893
C5894
D5871
C5895
D5872
C5896
D5873 D5874
R5871 R5872
R5873 R5874
R5875 R5876
R5891
R5893
R5895
LF
1
170 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
11.4 DIGITAL MAIN ASSY
171
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
E
SIDE A
(ANP7717-A)
AWX9463
AWX9498
AWX
ANP7717-A
DIGITAL
MAIN
ASSY
20
11
20
10
1
14
1
113
R411 R412
D9000
R804
R1306
36
72
108
144
IC1300
25
50
75
100
IC9000
IC1301
IC1302
IC1303
JA9000
CN601
7
14
IC1306
36
72
108
144
IC1501
CN800
C9045
24
IC571
R1320
L9104
L9105
L9106
L9107
L9108
R834
R1525
R1526
R1527
R1334
R1528
R1529
L9110
C1360
L1605
C1361
L1606
L1607
L1608
R1530
R1532
R1533
R1534
X9351
R1535
R1536
L1611
R1539
R1347
R1348
R1349
R1350
R1355
C1576
R1555
R1556
L9351
L501
L502
L505
IC407
L704
L705
L706 L707
IC602
VA1601
VA1602
VA1603
VA1604
VA1605
VA1606
L1693
VA1607
VA1608 VA1611
VA1612
VA1613
VA1614
VA1615
VA1616
VA1617
X1300
VA1618
CN1601
VA1621
VA1622
VA1623
VA1624
X1501
VA1625
VA1626
VA1627
VA1628
Q1601
Q1602
Q1603
Q1604
VA1631
VA1632
VA1633
VA1634
VA1635
VA1636
C1612
VA1637
VA1638
D9100
25
50
75
100
IC9100
R719
JA9100
20
40
60
80
IC1601
R1800
R1801
JA1601
JA1602
R1803
JA1603
L1300
R1804
JA1604
C9145
R1805
L1302
R1806
L1303
R1807
R1808
32
64
96
128
IC1800
L9004
R1809
L9005
10
20
IC1801
L9006
10
20
IC1802
L9007
10
20
IC1803
R733
IC1804
L9008
R1810
R738
C508
L1501
R1811
R739
R1812 L9010
R1817
R1818
R1819
C511
R741
R1050
R1051
R1052
R1823
R1053
R1824
R1825
R753
C525
C917
R1838
R1839
R761
R763
R1840
10
20
IC1450
F1800
F1801
R1845
F1802
R1846
R1460
R1849
IC9351
R9359
R780
R1861
C752
R794
L1561
R1879
R1880
R1693
L1390
52
104
156
208
IC701
C1301
Q9000
Q9001
C1306
L1800
L1801
L1802
L1803
C1605
L1612
L1619
L1618
L1615
C1546
C1823
L1815
L1816
L1817
C1501
C1503
C9033
C1343
C9049
C805
C1561
C1577
CN1403
CN1404
C1800
C1611
C9133
CN1250
JA701
C1825
C9149
C514
C519
C720
C723
C742 C743
CN1501
C1307
A30C5/C7
[[ G ]]
1 1
1
1510
15 20 25 30 35
40 45 50 55 60 65 70
75 80 85 90 95 100 105
110 115 120 125 130 135 140
15 10 15 20 25
30 35 40 45 50
55 60 65 70 75
80 85 90 95 100
15
10
15
20
1
5
1
511015
1
5
15
1 5 10 15 20 25 30 35
40 45 50 55 60 65 70
75 80 85 90 95 100 105
110 115 120 125 130 135 140
15
10
10
15
20
25
30
35
1
1
1
1
1
1
1
11
1
11
1
1
1
1
111
1
1
11
1
1111
1
11
1
5
1
15 15 25
10 20 30
1
1
1
1
1
15 10 15 20 25
30 35 40 45 50
55 60 65 70 75
80 85 90 95 100
1
511015
1 5 10 15 20
25 30 35 40
45 50 55 60
65 70 75 80
11
511015 511015
1
511015
1
511015
1 1
1 1
1 5 10 15 20 25 30
35 40 45 50 55 60
65 70 75 80 85 90 95
100 105 110 115 120 125
1
1
1
15 10
1520
1
15 10
1520
1
15 10
1520
1
1
5
1
1
1
1
1
111
1
1 1 1
1
1
11
1
1
1
1 1
1
1510
15
20
1
1
1
1
1
1
5
1
1
1
1
1 1
15
10 15 20 25 30 35 40 45 50
55 60 65 70 75 80 85 90 95 100
105 110 115 120 125 130 135 140 145 150 155
160 165 170 175 180 185 190 195 200 205
1
E
10
15
15 15
10 2020
15
15
10
IC Q
Q1900
IC1300
IC9000
IC1301
IC1302
IC1303
IC1306
IC1501
IC571
IC1900
Q1930
Q1931
IC1970
IC1971
IC400
IC407
IC408
IC602
IC603
IC800
IC801
Q1200
Q1201 Q1202
Q1203 Q1204
Q1400
Q1401
Q1402
Q1403
Q1404
Q1405
Q1601
Q1602
Q1603
Q1604
IC1001
IC9100
IC1401
IC1402
IC1406
IC1407
IC1408
IC1409
IC1601
Q1250
IC1800
Q1251
IC1801
IC1802
IC1803 IC1804
IC1250
IC1251
IC1450
IC9351
Q801
IC701
Q9000
Q9001
CN6756
CN1403
AB
3FCN7002
CN1404
FCN7001
CN1501
172 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
173
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
E
SIDE B
(ANP7717-A)
D1100
D1101
D1102
D1104
D1105
Q1701 D1106
IC1100
IC1101
27
54
IC551
IC1102
IC1104
C1905
C1712
C1906
C1907
C1914
R9205
R815
R9206
R816
R9207
C1723
R9208
R431
R432
R434
R435
R436
R1703
R437
R1704
R438
R1705
C1345
R1707
R824
Q1150
R825
16
32
48
64
IC1701
Q1151
IC1702
R826
Q1154
C1158
Q1155
Q1156 Q1157
C601
R1716
C602
R1717
R1914
C1945
C1946
C1947
C1948
C1951
D1930 D1931
D1933
C1959 R1934
14
28
IC1930
R861
C832
R1947
R1948
L1251
C1977
D601
C856
D602
D603
D1970
R1970
Q1996
Q1997
Q1998
Q1999
IC401
10
20
IC409
IC601
C878
10
20
IC410
C879
10
20
IC411
D1994
D1995
D1996
D1997
D1998
D1999
IC802
C883
IC803
L1496L1497
R1003
R1004
33
66
IC1000
X1701
C1031
D1402
R905
R906
R907
R908
L571
IC1403
7
14
IC1404
R1024
R1025
R1027
R1028
L1100
R1032
R1033
R1039
R926
R927
10
20
IC1805
IC1806
R1040
R1041
R551
R552
R553
L1704
C900
R554
L1705
24
48
IC1050
7
14
IC1451
F802
F803
L1150
L1151
L1154
L1155
L1156
L1157
R1852 R1853
Q601
L401
Q800
R1496R1497
R1881 R1882
L800
L801
L806
L808
L810
C1100
C1101
C1103
C1104
C1106
C1107
X801
L1804
L1805
L407
L408
L409
C1990
L811
C930
LF
A
B
C
0123 0123456789
1
10
0
E
1
1
1510 15 20 25
30354045
50
1
1
5
1
1
1
1
11
1
1 1
1
1
1
1
1
1
E
1 5 10 15
20 25 30
35 40 45
50 55 60
E
1
5
E
E
E
E
1
1
25 20 15
10
5
1
1
1
E
E E
1
1
5
15 10
1520
15
15 10
1520
15 10
1520
1
1
5
1
5
1
1
1 5 10 15 20 25 30
35
40
4550556065
1
1
1
11
1
1
15
1
1
1
1
1 1
1
1
1
15 10
1520
1
5
1
1
1 1
1 1
1
5
10
15
20
25
30
35
40
45
15
10
1
1
11
1
E
11
1
1
1
1
IC Q
Q1701
Q1150
Q1151
Q1154 Q1155
Q1156 Q1157
Q1561
Q1996
Q1997
Q1998
Q1999
Q9100
Q9101
Q1611
Q1612
IC1603
IC1410
IC1604
IC1605
IC1805
IC1806
IC1807IC1808
IC1809
IC1810
IC1811
IC1812
IC1813
IC1814
IC1815
IC1050
IC1451
Q601
Q800
IC501
Q1300
IC611
174 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

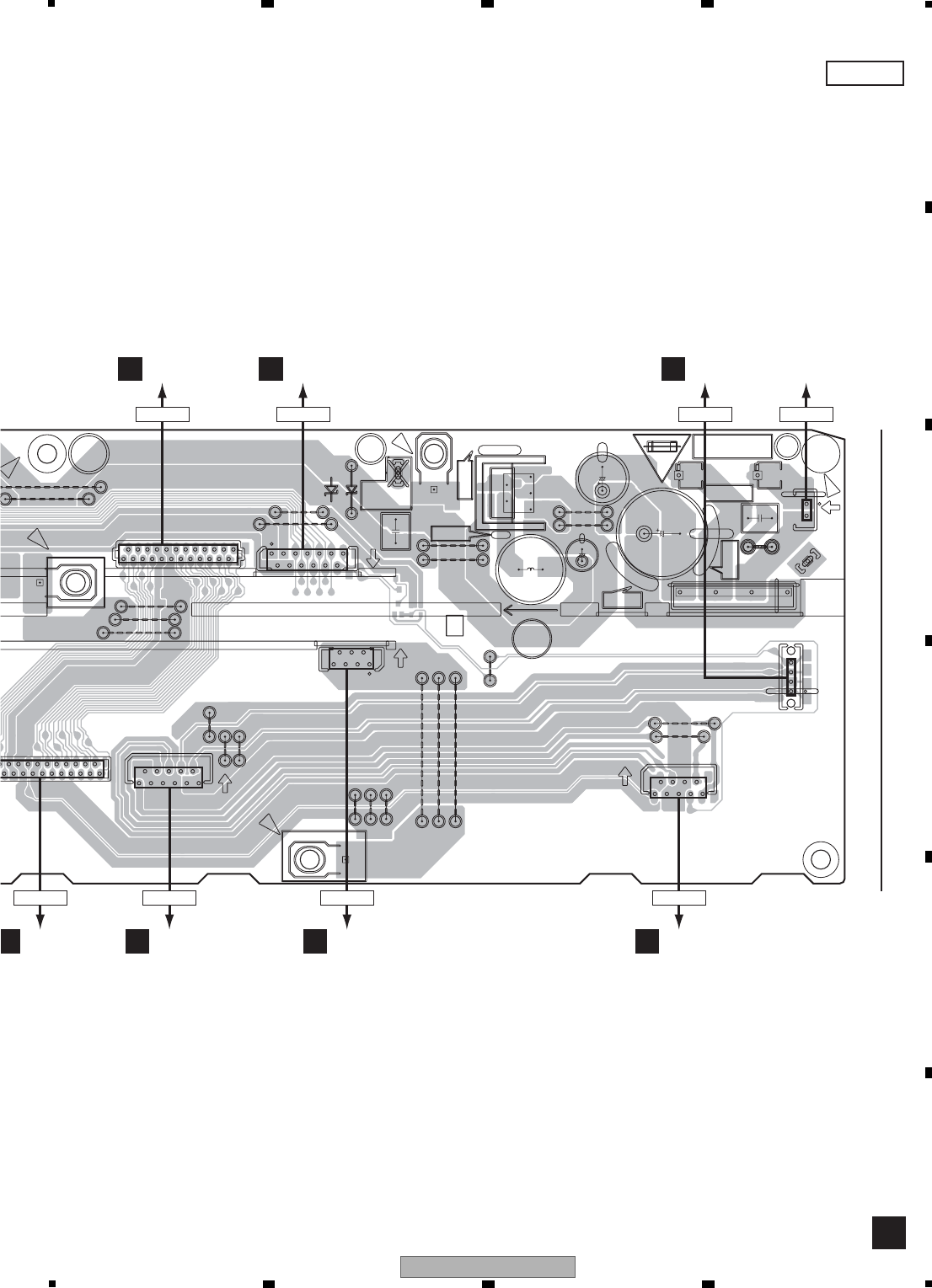

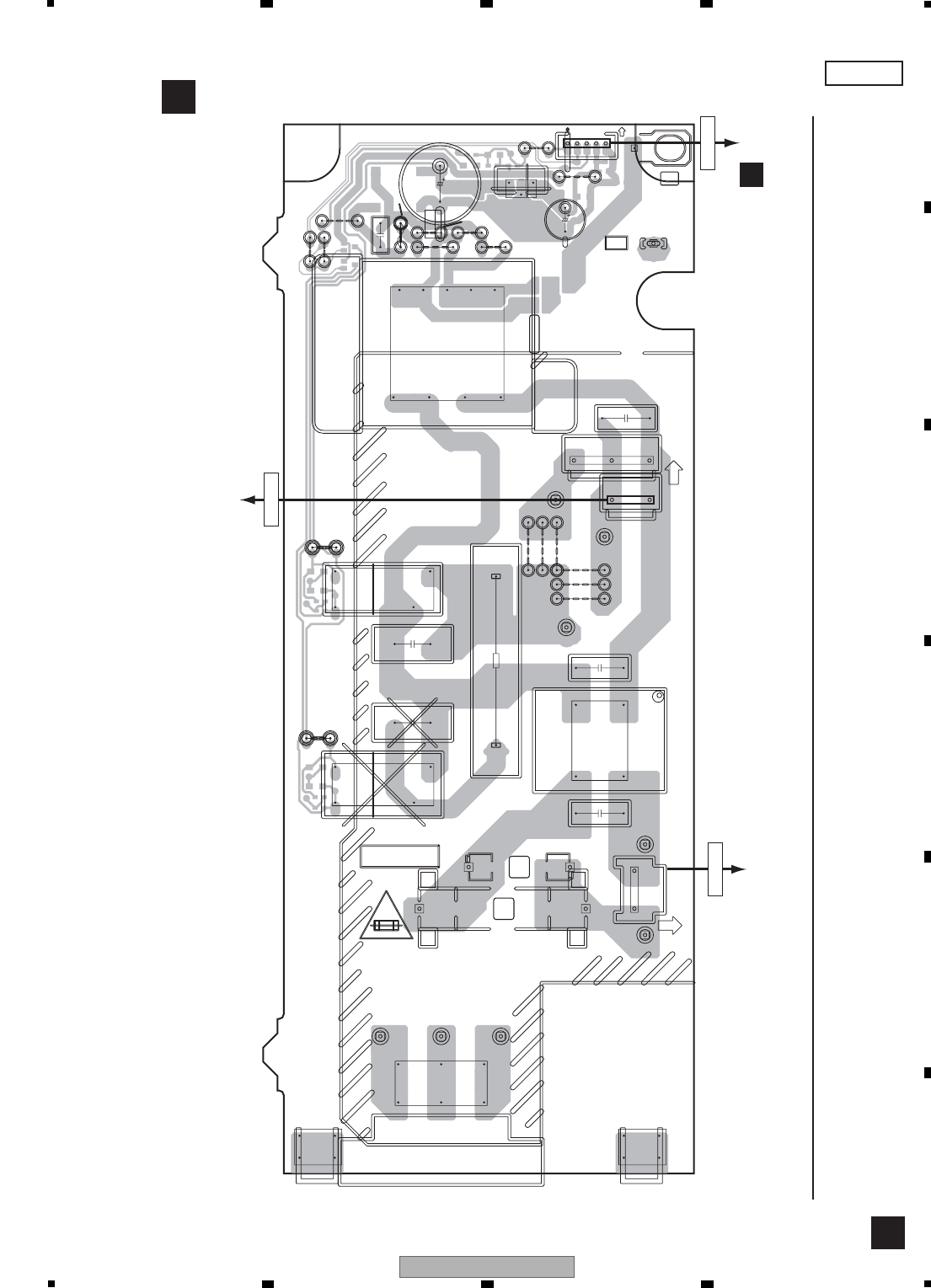

11.5 INTERFACE ASSY
175
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
F
SIDE A
(ANP7704-B)
AWX9447
INTERFACE ASSY
RISK OF FIRE -
GNDU
V+5R6_U
V+D
V+6_D
V+6_D
V+6_D
REPLACE FUSE AS MARKED.
BOND
V+7_A
V-7_A
4.XHPDET
3.HPR
2.GNDHP
1.HPL
GNDHD
MICDET
43
2
V+6_D
GNDD
V+6_D
BOND
BOND
GNDF
GNDF
GNDF
GNDHP
GNDHP
GNDHP
GNDHD
GNDHD
V+D
FU 51
GNDCH
GNDCH
GNDCH
151
M**
NO
MOUNT
BOND
J7008
J7009
J7010
J7011
J7012
J7013
J7014
J7015
J7016
J7017
J7018
J7019
J7020
J7021
J7022
J7023
J7024
C7124
D7102
C7127
D7104
R7108
IC7101
JH7001
C7132
JH7002
JH7003
C7136
C7139
H7101H7102
CN7004 CN7005
CN7010
J7101
CN7015
J7102
CN7016
J7103
CN7017
J7104
CN7018
J7105
J7106
L7101KN7001
KN7002
KN7005
1
15
1
1
1
11
15 15
10 20
15
10
15
10 20
15 25
1
10
5
1
5
1
1
1
1
1
ECN1402
CN7004
ECN1252
CN7005
JCN6351
JH7001
MAIN TRANS
CN7018
JCN6251
CN7017
BCN2602
CN7010
ICN7708
CN7016
ICN7709
CN7015
IC7101
IC Q
176 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
177
SC-27
56 7 8
56 7 8
A
B
C
D
E
F

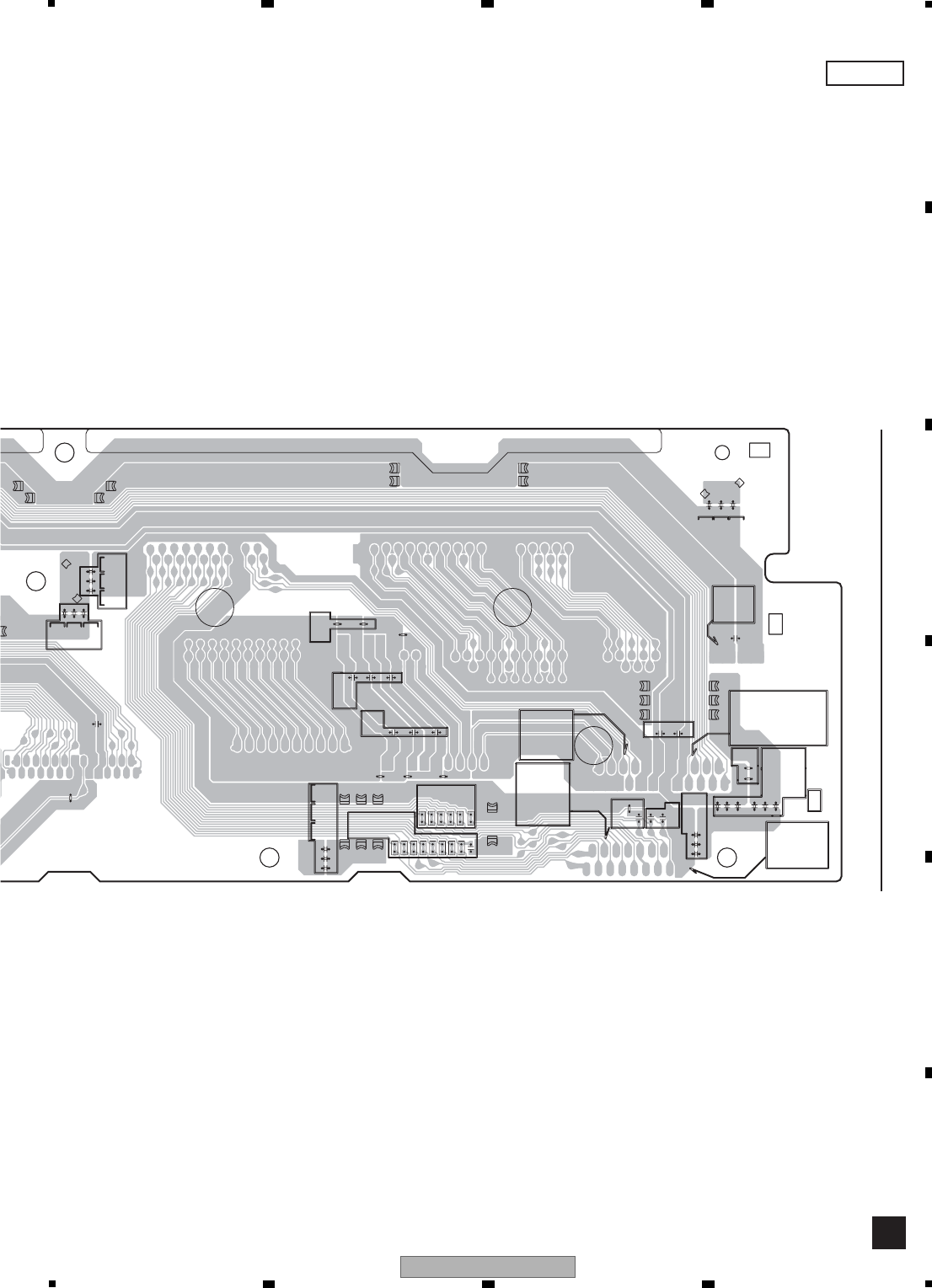

F
SIDE B
(ANP7704-B)
1
1
1
1
1
1
1
1
1
11
1
20.ICELR5F
19.ICESLR5
18.ICESBLR5
17.ICEC5
16.ICEMUTEA5
15.ICEMUTESB5
14.AMSW
13.XOLERR
12.RY AF
11.RY CR
10.RY B
9.AMPTEMP
8.TEMPSD5
7.XDCERR
6.GNDHD
5.GNDHD
4.XSIRST
3.SITX
2.SIRX
1.NC
22.TUSCK
23.TUSO
24.TUCE
27.XFANERR
26.FANCTLL
25.FANCTLH
24.LSSN
23.NC
22.RYHP
21.AMUTE
20.SBMUTE
19.Z2MUTE
18.Z3MUTE
17.Z2VLSO
16.VLSO
15.VLSCK
14.GNDF
13.GNDF
12.FV
11.GNDHD
10.GNDHD
9.V+5_DDD
8.V+5_DDD
7.XRDSRST
6.RDSSCK
5.RDSSI
4.TUSI
3.TUSCK
2.TUSO
1.TUCE
21.GNDA
20.ZFL DA
19.GNDA
18.ZFR DA
17.GNDA
16.SBL DA
15.GNDA
14.SBR DA
13.GNDA
12.LS DA
11.GNDA
10.RS DA
9.GNDA
8.C DA
7.GNDA
6.SW DA
5.GNDA
4.FL DA
3.GNDA
2.FR DA
1.GNDA
10.HMCLK
9.GNDHD
8.HBCK
7.HLRCK
6.HFADAT
5.HCADAT
4.HSADAT
3.HBADAT
2.HSPDIF
1.GNDHD
20.NETSPDIF
19.GNDHD
18.GABCK
17.GALRCK
16.GAAADT
15.GNDHD
14.EMMCLK
13.GNDHD
12.NBCK
11.NLRCK
10.NFADT
9.GNDHD
8.NMCLK
7.GNDHD
6.BFADT
5.BBLRCK
4.BBCK
3.GNDHD
2.BMCLK
1.GNDHD
1.V-12_A
2.V-12_A
3.GNDA
4.GNDA
5.V+12_A
6.V+12_A
7.V+6_AD
8.V+6_AD
9.GNDAD
10.GNDAD
11.FL AD
12.GNDA
13.FR AD
14.GNDA
9.FL AD
8.GNDA
7.FR AD
6.GNDA
5.SIRIUS R
4.GNDA
3.SIRIUS L
2.GNDA
1.GNDA
1.HMCLK
2.GNDHD
3.HBCK
4.HLRCK
5.HFADAT
6.HCADAT
7.HSADAT
8.HBADAT
9.HSPDIF
10.GNDHD
1.NETSPDIF
2.GNDHD
3.GABCK
4.GALRCK
5.GAAADT
6.GNDHD
7.EMMCLK
8.GNDHD
9.NBCK
1.GNDA
2.SIRIUS L
3.GNDA
4.SIRIUS R
5.GNDA
6.XSIRST
7.SITX
8.SIRX
17.EV232RX
18.EV232TX
19.232CDET
20.232POW
21.SR_IN
22.RMC
23.IR_IN
1
9.RY AF
8.RY CR
7.RY CR
6.RY B
5.AMPTEMP
4.TEMPSD5
3.XDCERR
2.GNDHD
1.GNDHD
17.ICELR
16.ICESLR
15.ICESBLR
14.ICEC
13.ICEMUTEA
12.ICEMUTESB
11.AMSW
10.XOLERR
1.V+6_D
2.V+6_D
3.V+6_D
4.GNDD
5.GNDD
6.GNDD
17
6
10
20
14
20
21
27
4
19
10.NLRCK
11.NFADT
12.GNDHD
13.NMCLK
14.GNDHD
15.BFADT
16.BBLRCK
17.BBCK
18.GNDHD
19.BMCLK
20.GNDHD
10
2020
9.GNDHD
10.GNDHD
11.V+5R6_ST
12.V+5R6_ST
13.GNDU
14.GNDU
15.V+5R6_U
16.V+5R6_U
19.V-12_A
18.V-12_A
17.GNDA
16.GNDA
15.V+12_A
14.V+12_A
13.V+6_AD
12.V+6_AD
11.GNDAD
10.GNDAD
15515
15 5
5
515
10
5
10
10
25 15 5
20 10 20
5
1015 5
1020
10
10
5
515
15
15 23
C7101
C7102
C7103
C7104
C7105
C7106
C7109
C7110
C7111
C7112
C7113
C7114
C7118
C7119
C7120
C7121
C7122
C7123
R7105
R7106
R7107
C7131
R7112
R7113
R7114
R7115
R7116
R7117
C7140
C7141
C7142
L7001
L7002
L7003
L7004
R7121
L7005
R7122
L7006
R7123
L7007
L7008
L7009
L7010
L7011
L7012
L7013
L7014
R7131
R7132
R7133
R7134
R7135
R7136
R7140
R7141
R7142
C7004
C7005
C7006
C7007 C7008
C7009
C7010
C7011
C7012
C7013
C7014
C7015
C7020
R7001
R7004
R7005
R7006
R7007
R7008
R7009
R7010
R7151
R7152
LF
IC Q
Q7001
Q7002
178 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

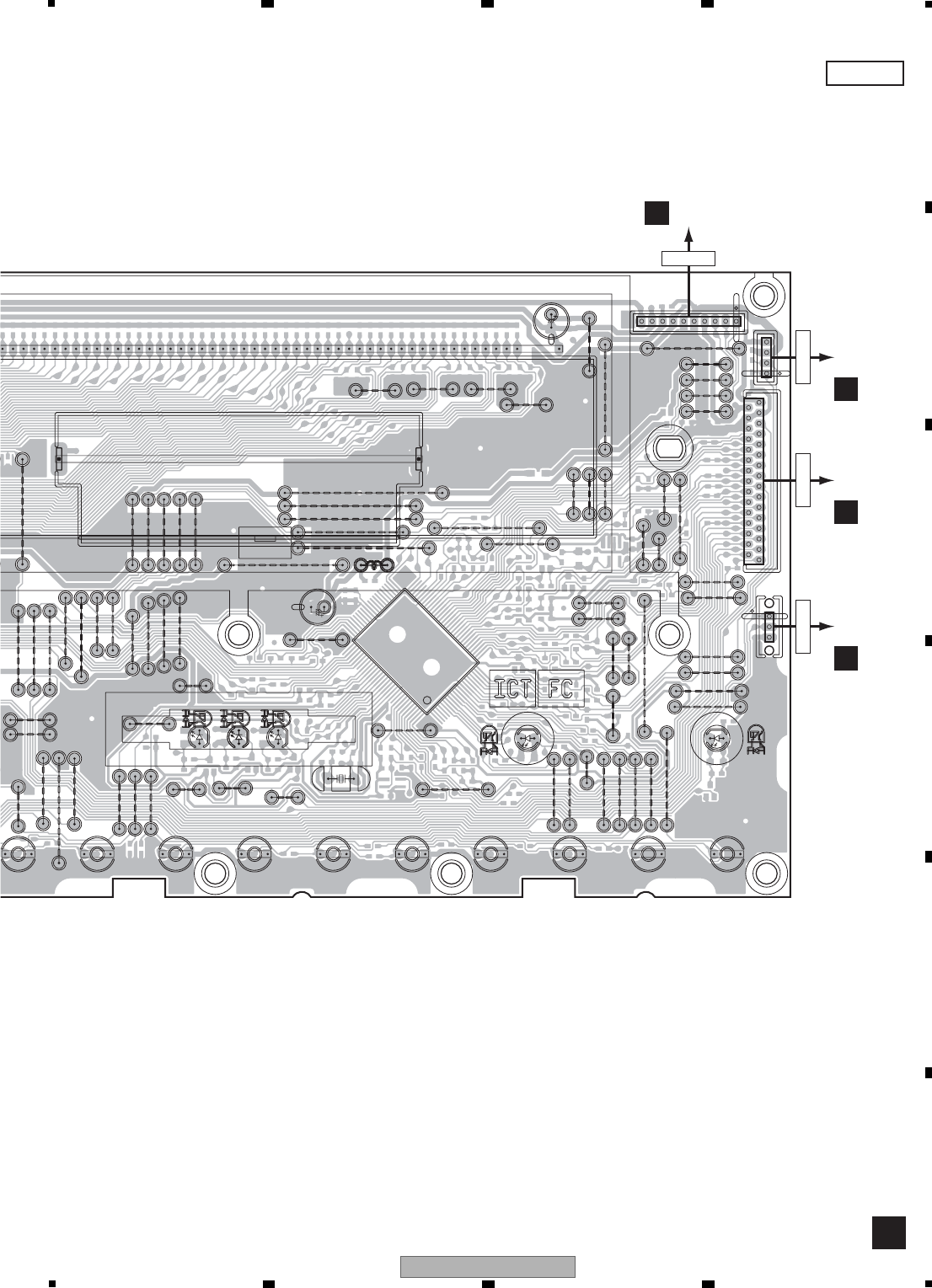

11.6 COMPONENT ASSY
179
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
G
SIDE A
AWX9491
( )
AWX9490
UPPER SIDE
CONTACT
CONTACT
1.V+12RY
2.GNDRY
3.V+5.6ST
4.GNDST
5.GNDST
6.ACRY1
7.ACRY2
9.GNDF
10.FRONT V
19.GNDV
1.DINH
2.D53A
3.DSW1
4.C_MUTE
5.GNDV
7.GNDV
9.GNDV
6.A_VCRIND
8.A_VCROUTM2
10.A_VCBIND
11.GNDV
12.A_VCBOUTM2
13.GNDV
14.A_ VYIND
15.GNDV
16.A_VYOUTM2
17.V-5V
18.V+5V
8.ACWP
5 V+5 6V
6.GNDV
7.GNDV
8.V-5.6V
11.GNDF
UPPER SIDE
AWX9473
R6104
R6105
R6107
R6108
C6130
C6131
C6132
C6133
C6134
C6135
C6136
R6110
R6111
R6112
R6113
R6114
R6115
R6116
R6117
C6146
C6147
C6148
R6120
C6149
R6121
R6122
R6123
R6124
R6125
R6126
R6127
C6150C6151
C6152
C6153
C6156
C6157
C6160
C6161
C6162
C6163
C6164
C6165
R6146 R6150
R6151
R6152
R6153
R6154
R6155
R6156
C6190
C6191
C6004
C6005
C6030
IC6001
C6031
8
16
IC6002
8
16
16
IC6005
IC6007
IC6008
IC6009
C6040
7
14
IC6010
C6041
C6042
8
16
IC6014
C6046
C6047
C6048
C6049
C6052
3
Q6050
Q6051
Q6052
Q6053
C6058
Q6054
C6059
Q6055
R6034
R6035
R6036
R6037
R6038
C6060
R6039
C6061
C6064
C6065
R6040
R6041
R6042
R6043
R6046
R6047
C6070
R6048
C6071
R6049
C6072
C6073
C6075
R6050
R6051
R6052
R6066
R6067
R6080
R6081
R6090
R6091
R6092
R6093
R6098
R6099
C6105
C6106
C6107
C6108
C6125
C6126
C6127
R6100
C6128
R6101
C6129
R6102
R6103
LF
C6192
C6193
C6194
CN6001
CN6002
1.V+5_DDD
2.GNDHDMI
18.V-5.6V
19.GNDF
11.S-DET
20.FRONT V
5.EXSO5_2
21.GNDV
6.OSDSCK/EXPSCK
22.V IN
7.EXSO5_3
23.GNDV
8.EXOEANLG
24.SY IN
9.EXSTANLG
25.GNDV
10.EXSO5_1
12.Z2CMUTE
26.SC IN
27.GNDV
13.V+5.6V
14.V+5.6V
28.SY OUT
29.GNDV
30.SC OUT
4.OSDSC
17.V-5.6V
16.GNDV
15.GNDV
3.XOSD RST
CN6006
C6006
C6007
C6008
C6032
C6033
C6034
A_VCRIN3
A_VYIN3
JA6001 A_VCBIN3
A_VYIN2
A_VYOUTMJ
A_VCBIN2
A_VCBOUTMJ
A_VCRIN2
A_VCROUTMM
JA6002
JA6003
A_VYIN1
A_VYOUTZJ
J
C6038
C6039
JA6005
C6043C6044 C6045
C6050
C6051
C6055
C6056
C6057
KN6001
C6093
15
10
15
15
10
15
15
10
15
10
15
15
10
15
15
10
15
10 15
1015
15
10
15
10
15 EE
EE
EE
15 15
10
15
10
15
10
1
5511
1
RCN8602
CN6002
ICN7704
CN6006
VCN7602
JP6007
Q6001
Q6002
Q6003
Q6004
Q6005
Q6006
Q6007
Q6008
Q6009
Q6010
Q6011
Q6015
Q6016
Q6017
Q6018
Q6019
Q6020
Q6021
Q6022
Q6024 Q6026
IC6001
IC6002
IC6003
IC6004
IC6005
IC6007
IC6008
IC6009
IC6010
IC6014
Q6050
Q6051
Q6052 Q6053
Q6054
Q6055
IC6006
IC Q
180 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
181
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
G
SIDE B
(ANP7702-B)
2.V+5_DDD
1.GNDHD
3.XOSDRST
4.OSDCS
5.OSDSCK/EXPSCK
7.EXOEANLG
8.EXSTANLG
9.EXSO5_1
15.NC
14.12VERR
13.12VTRG2
12.12VTRG1
10.C-DET
11.S-DET
6.EXSO5_2
10
20
10
11
5.GNDV
4.V+5.6VST
6.GNDV
7.V+5.6U
4.V+12TRG
5.V+5.6V
6.GNDV
7.GNDV
8.V-5.6V
C6168
C6170
C6197
3.-VF
2.AC2
1.AC1
3.ACRY1
2.ACRY2
1.ACWP
6.ACRY1
7.ACRY2
1.V+12RY
2.GNDRY
3.V+5.6ST
4.GNDST
5.GNDST
8.ACWP
9.GNDF
11.GNDF
10.AC1
9.AC2
8.-VF
10.FRONT V
1.GNDV
2.C'NENT Cr OUT
3.GNDV
4.C'NENT Cb OUT
5.GNDV 6.C'NENT Y OUT
7.GNDV
8.C'NENT Cr IN
9.GNDV
10.C'NENT Cb IN
11.GNDV
12.C'NENT Y IN
13.GNDV
20.CV/Y IN
21.GNDV
22.GNDV
23.E2VINSW00
24.E2VINSW01
14.SC OUT
15.GNDV
16.SY OUT
17.GNDV
18.SC IN
19.GNDV
C6009
C6026
A_VCROUTZJ
A_VCRIN1
A_VCBOUTZJ
A_VYOUTZJ
GNDV
GNDV
GNDV
GNDV
GNDV
GNDV
A_VCBIN1
C6037
GNDV
12VTRG2
12VTRG1
R6022
R6031 R6032
R6033
068
069
C6079
R6056 R6057
C6080
R6058
C6081
C6086
C6087
C6088
C6089
C6090
C6091 C6094
C6095
6086
R6087
C6121
C6122 C6123
182 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

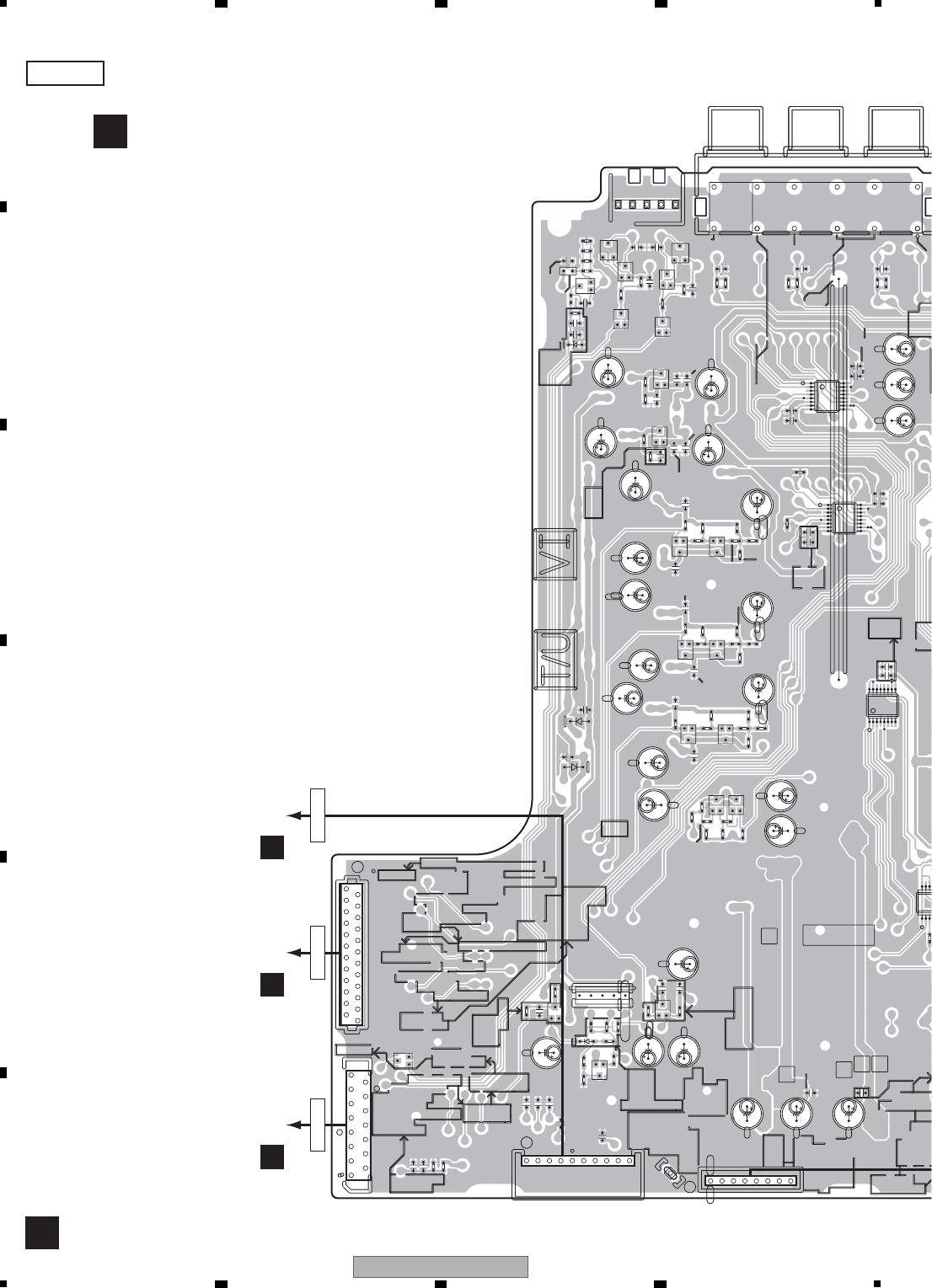

11.7 COMPOSITE_S ASSY
183
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
H
SIDE A
(ANP7703-B)
UPPER SIDE
30
1
3
2
2
1
34
1
21
1
2
3
4
29
4
Q6510
C6517
C6518
C6519
Q6516
C6520
C6527
Q6524
C6528
D6505
C6529
Q6526
Q6527
Q6528
R6507
C6723
R6508
C6724
C6530
R6509
C6725
R6700
C6537
R6704
R6510
C6538
C6539
R6513
R6514
R6515
R6516
C6540
IC6514
C6545
C6546
R6527
R6528
C6550
R6529
IC6521
C6551
C6552
C6553
C6554
C6555
R6721
C6557
R6530
R6531
C6559
R6532
R6533
R6534
R6535
R6536
R6537
R6538
R6539
IC6531
C6758
R6730
C6759
R6731
R6732
C6566
R6733
R6540
C6568
R6735
R6737
C6761
C6762
R6547
R6548
R6549
C6571
C6572
C6573
R6740
C6574
R6741
C6575
R6742
C6576
R6743
C6577
R6550
C6578
R6551
R6745
C6579
R6552
R6747
R6553
R6554
R6749
R6555
R6556
R6557
R6558
IC6551
C6581
IC6552
IC6553
R6750
IC6554
R6751
R6567
R6568
R6569
R6761
R6762
R6570
R6765
R6766
R6573
R6767
R6574
R6768
R6575
R6769
R6576
R6770
R6771
R6772
R6775
R6776
R6787
R6788
R6789
R6790
R6791
R6792
R6793
R6794
R6795
R6796
C6608
C6609
C6612 R6601
R6602
R6603
R6604
R6605
R6606
R6607
R6608
R6609
R6610
R6611
R6612
R6613
R6614
R6618
R6619
R6626
R6627
R6628
R6630
R6631
R6632
C6689
C6690
C6691
C6692
C6693
C6694
R6699
Q6501
Q6502
C6507
Q6503
C6508
Q6504
C6509
Q6505
Q6506
Q6507
Q6508
Q6509
C6510
R6734 R6736
R6738
R6744
R6746
R6748
C6515
C6516
C6525
C6526
C6726
C6727
C6535
JA6501
A_ARSOUTJ
GNDCH
A_ALSOUTJ
A_ASBLOUTJ
A_ASBROUTJ
JA6502
A_AROUTJ
A_ALOUTJ
GNDCHA
A_ACOUTJ
A_ALFEOUTJ
C6536
JA6503
A_VVINBD
A_VCINBD
GNDV
A_VYINTV
A_VVINTV
A_VCINTV
GNDV
A_VYINBD
JA6504
GNDV
A_VYINDVR1
A_VVINDVR1
A_VCINDVR1
GNDV
A_VYOUT_DVR2
A_VVOUT_DVR2
A_VCOUT_DVR2
A VVOUT
A_VCOUT
_DVR1
IC6513
LF
C6556 C6558
C6755
KN6501
C6756
KN6502
C6757
KN6503
C6567
C6580
C6582
C6586
C6587
C6598
C6601
C6610
C6613
C6649
C6664
C6665
C6667
C6688
C6695
CN6502
C6505
C6506
E
E
E
E
E
1
5
15
10
15
2530
1 5 10 15
2035
1
5
1
51
5
1
5
5
1
5
1
5
1
5
1
5
1
5
1
5
1
5
1
E
1
5
1
5
5
1
10
15
5
1
10
15
15
15
10
15
20
21
SCN6951
CN6502
Q6510
Q6516 Q6524
Q6525
Q6526
Q6527
Q6528
Q6529
IC6501
IC6502
IC6503
Q6530
IC6504
Q6531
IC6511
IC6512
IC6514
IC6521
IC6531
IC6533
IC6541
IC6542
IC6543
IC6551
IC6552
IC6553
IC6554
Q6501 Q6502 Q6503 Q6504
Q6505 Q6506 Q6507
Q6508
Q6509
IC6513
IC Q
184 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
185
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
H
SIDE B
(ANP7703-B)
1
30
1
CN6501
CN6503
13
D6503
D6504
C6721
C6722
_
A_VVIN
DVR1
A_VYIN
DVR1
GNDV
GNDV
A_VCOUT
_DVR1
A_VYOUT
_DVR1
A_VCINVIDEO1
A_VVIN
VIDEO1
A_VYIN
VIDEO1
GNDV
GNDV GNDV
GNDV
GNDV
A_VVOUT_DVR1
GNDV
GNDV
A_VVIN DVR2
A_VYIN DVR2
A_VCINDVR2
C6736
C6737
C6738
C6739
R6714
R6715
R6716
R6718
C6740 C6743
C6744
C6747
R6720
C6748
C6749
C6750
C6643
C6644
C6645
C6646
C6653
C6655
C6656
C6657
C6660
C6661
R6666
R6667
R6668
R6669
C6697
C6698
R6670
C6699
R6671
R6672
R6673
R6674
R6675
R6676
R6677
R6678
R6680
R6681
R6682
R6686
R6687
R6688
20.FV IN
16.GNDV
14.V+5.6V
12.Z2CMUTE
10.EXSO5_1
8.EXOEANLG
4.OSDCS
2.GND HDMI
18.V-5.6V
30.SC OUT
28.SY OUT
26.SC IN
24.SY IN
1.V+5HDDD
5.EXSO5_2(OSDSO)
3.XOSDRST
1.V+5V
2.V+5V
4.GNDV 3.GNDV
7.XVZ2 MUTE
8.GNDV
6.V-5V
5.V-5V
13.XVZ3 MUTE
11.VZ3 OUT
12.GNDV
10.GNDV
9.VZ2 OUT
22.V IN
6.OSDSCK/EXPSCK
C6700
C6702
C6703
C6704
C6705
R6587
588 R6589 R6590
R6591 R6592 R6593R6594 R6595
C6735
C6734
C6641
C6642
A
B
C
0123 0123456789
1
10
0
186 SC-27
12 3 4
A
B
C
D
E
F
12 3 4

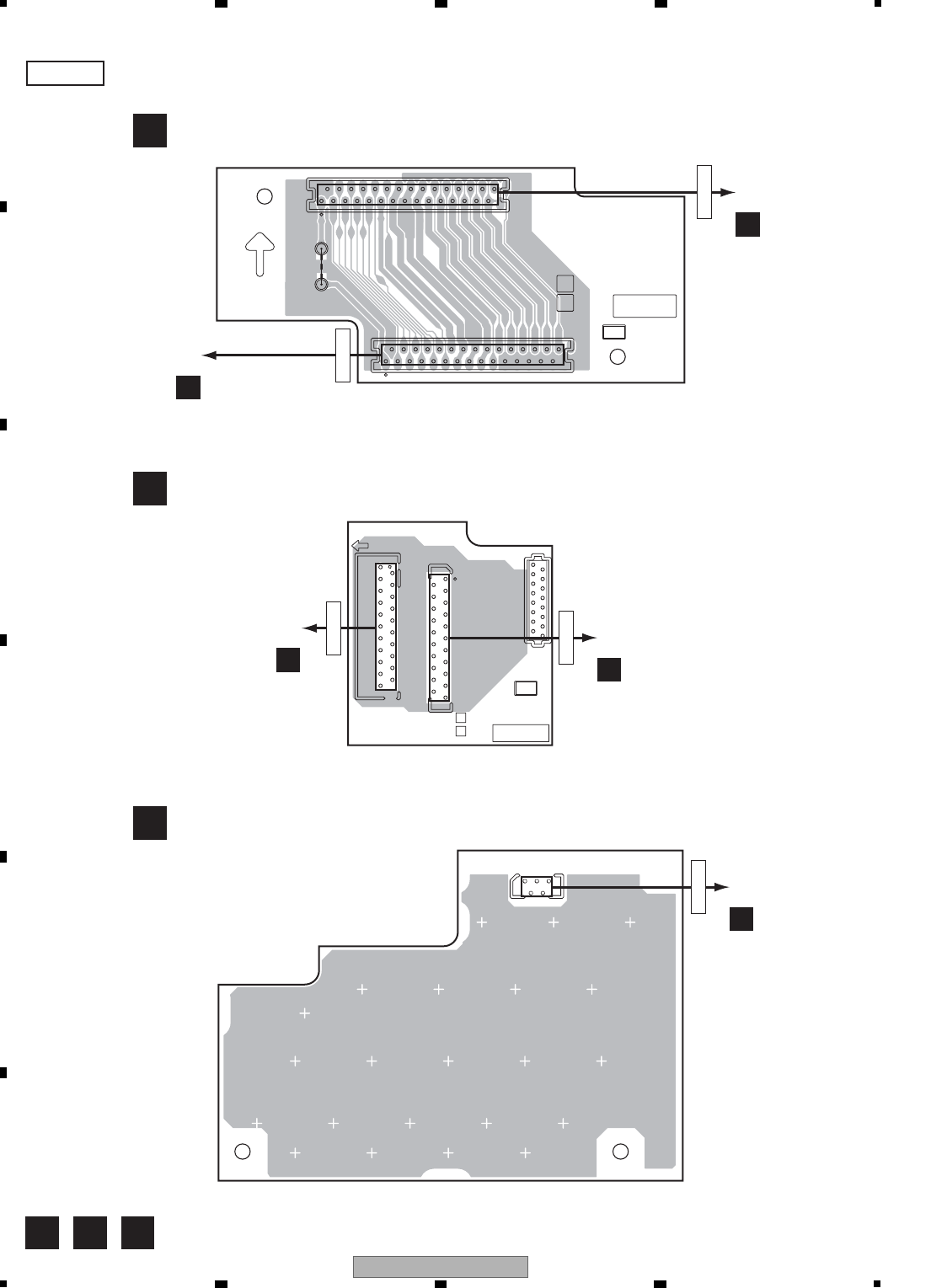

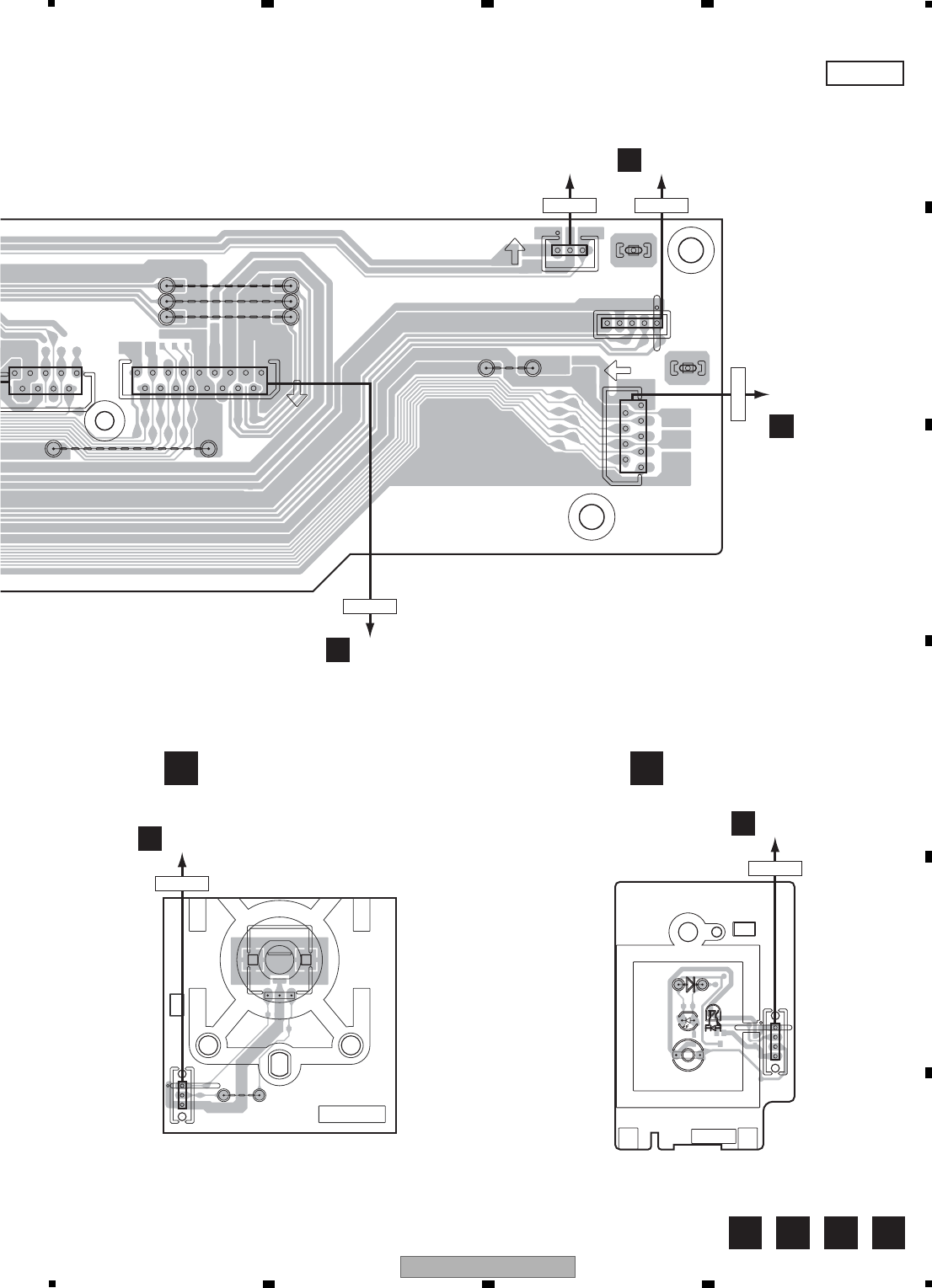

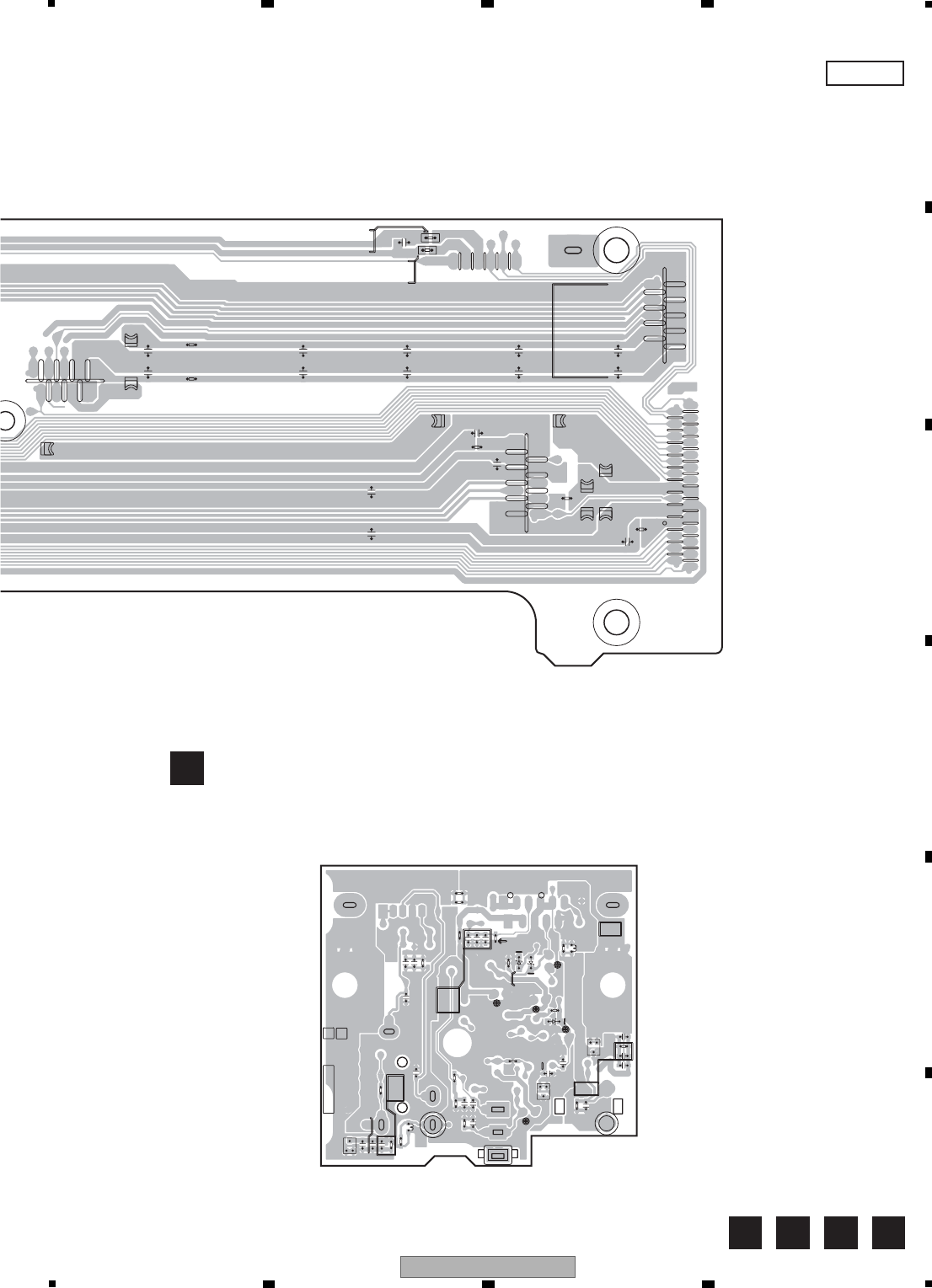

11.8 FRONT BRIDGE, MIC HP, VOL AND POWER SW ASSYS
187
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
I J L M
SIDE A
(ANP7705-B)
(ANP7706-B)
(ANP7706-B)
LVOL ASSY MPOWER SW ASSY
HPL
GNDHP
1
1
1
1
9.V-7_A
8.GNDA
7.GNDA
6.V+7_A
5.GNDA
4.MICOUT
3.GNDA
2.LSSN
1.NC
17.HPRY
16.AMUTE
15.SBMUTE
14.Z2MUTE
13.Z3MUTE
12.Z2VLSO
11.VLSO
10.VLSCK
9.GNDHD
8.GNDHD
7.V+12_RY
6.GNDRY
5.GNDRY
4.HPL
3.GNDHP
2.HPR
1.GNDHP
1.V+FAN
2.V-FAN
3.LOCK DET
17
9
3
FRONT-BRIDGE ASSY
AWX9453
HPR
5.GNDST
4.V+5R6_ST
3.ACRY1
2.AVRY2
1.ACWP
GNDHD
V+5_HD
9.V+5_HD
8.GNDHD
7.RDSRST
6.RDSSCK
5.RDSSI
4.TUSI
3.TUSCK
2.TUSO
1.TUCE
CN7702
CN7705
CN7706
CN7707
JP7701
C7
[[ G ]]
J7705
J7706
J7707
J7708
J7709
JH7701
JH7703
VOLB
1.VOLA
2.VOLB
3.GNDU
AWX9455
AWX
VOL ASSY
NO CLICK
JH8401
J8401
LF
C7
[[ G ]]
S8401
1.V+5UH
2.RYAC
3.POWER KEY
4.GNDU
AWX9456
AWX
POWER SW ASSY
JH8501
D8501
D8502
LF
C7
[[ G ]]
S8501
1
1
5
115
10
5
1
5
15
1
1
1
1
1
UCN8711
JP7701
To FA N
CN7702
ACN5005
CN7706
ACN5007
CN7707
KJH8001
JH8401
KJH8003
JH8501
188 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
189
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
I J L M
SIDE B
(ANP7705-B)
(ANP7702-B)
JMIC HP ASSY
1
1
1
27
11
6
1.XFANERR
2.FANCTLL
3.FANCTLH
4.V+FAN
5.V-FAN
6.LOCK DET
1.GNDHP
2.HPL
3.GNDHP
4.HPR
5.GNDA
6.MICOUT
7.GNDA
8.V+7_A
9.GNDA
10.GNDA
11.V-7_A
1
1.XFANERR
2.FANCTLL
3.FANCTLH
4.LSSN
5.NC
6.RYHP
7.AMUTE
8.SBMUTE
9.Z2MUTE
10.Z3MUTE
11.Z2VLSO
12.VLSO
13.VLSCK
14.GNDF
15.FV
16.GNDF
17.GNDHD
18.GNDHD
19.V+5_HD
20.V+5_HD
21.XRDSRST
22.RDSSCK
23.RDSSI
24.TUSI
25.TUSCK
26.TUSO
27.TUCE
11.V+12_RY
10.GNDRY
9.V+5R6_ST
8.GNDST
7.GNDST
6.ACRY1
5.ACRY2
4.ACWP
3.GNDF
2.FV
1.GNDF
19
9.V-7_A
8.GNDA
7.GNDA
6.V+7_A
5.GNDA
4.MICOUT
3.GNDA
2.LSSN
1.NC
5
515 25
5
10
5
10
C7701
C7703
C7705
C7706
C7707
C7708
C7709
C7716
C7717
C7718
C7719
C7720
C7721
C7722
C7723
C7725
R7701
R7702
R7705
R7708
R7710
R7711
R7712
L7701
L7702
FRONT IN ASS'Y
AWX9438
AWX
GNDA
1.HPL
GNDHP
HPR
XHPDET
V+7A
V-7A
MICDET
GNDA
FV
GNDF
GNDA
MICOUT
C6351
C6352
C6353
C6354
C6355
C6356
C6357
C6358
C6359
C6360
C6361
D6351
D6352
R6351
R6352
R6353 R6354
R6355
R6356
R6357
R6359
R6360
C6201
C6204
C6209
C6212
C6218
C6224
D6201
D6203
C6228
C6229
D6205
D6206
R6204
R6214
R6216
R6222
R6232
R6233
R6238
R6242
L6351
L6352
LF
1
1
1
190 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
11.9 DISPLAY ASSY
191
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
K
SIDE A
(ANP7706-B)
1.VOLA
2.VOLB
3.GNDU
1
1
131
13
GNDV
BAND AUTO
DIRECT
HOME THX STANDARD
SURROUND
ADVANCED
SURROUND STEREO/
F.S.SURR
CONTROL ON/OFF SPEAKERS
TUNER EDIT
UPPER SIDE
GNDV GNDV
GNDV
4
GNDV
RMC
RMC
VOLB
VOLA
GNDV
GNDV
GNDV
KEY3
KEY2
KEY1
GNDV
V+5_UH
GNDV
GNDV
SURR/
JH8001
JV8201
J8073
J8103 J8104 J8105
J8106
D8001D8003
D8009
D8011
D8013
J8107
L8203
C8203
X8002
C8221
CN8202
V8201
KN8201
JP8005
J8135
J8140
J8148
J8136
J8153
J8173
J8139
J8138
J8137
J8172 J8177
J8130
J8131
J8127
J8128
J8129
J8133
J8178
J8179
J8152
J8164
J8180
J8183 J8187
J8186
J8189
J8190
J8163
J8195
J8194
J8197
J8193
J8192
J8198
J8191
J8200
J8170
J8202
JP8004
J8155
J8156
J8157
J8158
J8166
J8154
J8146
J8174
J8206
J8165
J8142
J8144
J8150
J8151
J8145
J8125
J8141
J8207
J8208
J8216
J8215
J8214
J8213
J8212
J8168
J8217
J8159
J8201
J8218
J8210
J8209
J8211
J8219
J8221
S8001 S8002S8003 S8004 S8005 S8006S8007
S8009S8010
S8011
J8199
J8147
D8015
1
15
10
15
20
25
30
1 5 10 15 20 25 30 35 40 45 50
1
15 10
GCN6010
JP8004
XCN7306
JP8005
ECN1401
CN8202
LJH8401
JH8001
192 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
193
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
K
SIDE B
1
9
14
1
9
7-9.NC
5.RESET
4.DBGP0
3.DBGP1
2.GNDV
1.DBGP2
4.GND U
3.POWER KEY
2.RYAC
1.V+5UH
9.NC
8.VPP(IC)
7.VDD
6.RESET
5.NC
4.SCK1
3.SO1
2.SI1
1.VSS0
GNDU
V+5_UH
FLSI
FLSCK
VPP(IC)
FLRST GNDV
GNDV
V+5U
GNDU
V+5UH
JOGB
JOGA
FLSO
GNDV
GNDV
VOLA
VOLB
RMC
GNDV
V+5_UH
RMC
GNDV
V+5_UH
AC2
GNDV
V+5_UF
GNDV
VFDP-
RMC
NDV
NDV
32EV
EMRST5
VSI5
VSO
VSCK
MPOW
OWPOW
ACWP
SMUTE
OTPLUG
ECIO
VDDERR
OLERR
EMPERR5
V232RX
V232TX
232POWER
EVREQI5
XDCERR
XFANERR
AMPTEMP
232CDET
SR_IN2
R_IN
EVREQO
UPPER SIDE
V+5_UF
6.GNDV
GNDV
GNDV
V+5R6_ST
V+5R6_U
2
3
4
DISPLAY ASSY
AWX9454
AWX9476
AWX9477
AWX9478
AWX9479
AWX9484
AWX9483
AWX9482
AWX9481
AWX9480
AWX9485
AWX
AWX9528
AWX9559
JH8003
C8003
C8004
Q8003
Q8004
C8201
C8224 C8225
C8226
C8227
C8034
C8228
C8035
C8230
D8006
D8008
20
40
60
80
IC8201
R8201
R8001
R8202
C8202
R8203
R8204
R8205
R8206
R8207
R8208
R8209
R8210
R8211
R8212
R8213
R8214
R8215
R8020
R8021
C8023
R8054
R8258
R8259
R8260
R8262
R8263
R8063
R8264
R8064
R8065
R8069
R8070
R8071
R8072
R8073
R8074
R8077
R8092
R8093
JH8006
C8244
C8243
R8290
R8257
R8002
R8255
C8247
R8256
C8021
C8223
C8229
C8235
CN8002
E
E
1 5 10 15 20
25 30 35 40
45 50 55 60
65 70 75 80
194 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
11.10 ICE_BUFFER, ICE SHIELD AND ICE INTERFACE ASSYS
195
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
O P
SIDE A
-B)
(ANP7703-B)
OICE SHIELD ASSY
C6924
5
R6922
24
ICE INTERFACE ASSY
1.GNDCH
2.V-12C
3.V+12C
4.GNDC
5.C-
6.C+
7.V-12L
8.V+12L
9.GNDL
10.L-
11.L+
12.V-12R
13.V+12R
14.GNDR
15.R-
16.R+
17.V-12SL
1.V+12SL
2.GNDSL
3.SL-
4.SL+
5.V-12SR
6.V+12SR
7.GNDSR
8SR
1.C+
2.C-
3.GNDC
4.V+12C
5.V-12C
1.V-12SL
2.V+12SL
3.GNDL
4.GNDL
5.L-
6.L+
AWX9430
6.SL+
5.SL-
4.GNDSL
3.GNDSL
2.V+12SL
1.V-12SL
1.R+
2.R-
3.GNDR
4.V+12R
5.V-12R
C3800
C3801
C3802
C3803
C3804
C3805
C3806
C3807
C3808
C3809
C3814
C3815
C3816
C3817
C3818
C3819
C3820
C3821
CN3801
CN3810
CN3820
CN3840 CN3830
LF
14
3
2
1
AWX
ICE
1.2.GNDCH2
3.4.GNDCH1
AWX9445
4
SHIELD
C7
[[ G ]]
LF
KN6991
JH6991
15
10
15 15
15
15 15
15
1
QCN4300
CN3840
QCN4200
CN3830
QCN4100
CN3820
QCN4700
CN3810
JH6991
JH6801
CN380102
196 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
197
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
N P
SIDE B
(ANP7703-B)
NICE_BUFFER ASSY
1
2
CN6821CN6811
CN6801
JH6801
51
14
1
16
1
1
17
19
R6908
R6909
R6928
R6929
R6932
R6933
GNDCH
SBL+
SBR+
SL+
SR+
FL+
FR+
GNDCH
SBL-
SBR-
SL-
SR-
C-
FL-
FR-
C+
SBR+ SBR-
GNDSBR V+12SBR
V-12SBR SBL+
SBL- GNDSBL
V+12SBL V-12SBL
SR+ SR-
GNDSR V+12SR
V-12SR SL+
SL- GNDSL
V+12SL
C6807
C6808
V-12SL
GNDR
R+
R-
V+12R
V-12R
L+
L-
GNDL
V+12L
V-12L
C+
C-
GNDC
V+12V
V-12V
GNDCH
C6817
C6818
C6827
C6828
R6808
R6809
C6837
C6838
C6847
C6848
R6828
R6829
C6857
C6858
C6867
C6868
R6848
R6849
R6868
R6869
R6888
R6889
LF
LF
ICE INTERFACE ASSY
AWX9430
LF
198 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
11.11 ICEPOWER AMP ASSY
199
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
Q
SIDE A
(ANP7718-B)
A
BA
AWH7021
AWH7022
ICEPOWER
+B
(+65V)
(-65V)
-B
GND
GND
D
D
E G
G
H
H
I
I
J
K
K
L
M
N
N
AWH7020
Q
P Q
R
R
AWH7023
AMP ASS'Y
AWH7019
ANP7718-B
Q4200
C4204
Q4201
C4205
Q4202
C4206
Q4203
C4207
Q4204
Q4205
Q4208
C4210
C4211
C4406 C4407
Q4210
C4214
C4215
C4216
C4218
C4220
C4414
C4221
C4415
C4222 C4223
C4224
C4418
D4201
C4225 D4202
C4226
D4203
C4227
R4200
D4204
C4228
R4201
D4205
C4229
R4202
D4206
R4203
D4207
R4204
D4208
R4205
D4209
C4422 C4423
R4208
C4230
IC4201
C4231
C4232
IC4203
C4233
C4427
IC4204
C4234
C4428
C4235
C4236
R4402 C4237
R4403
C4238
R4404
C4239
R4405
C4622 C4623
C4818
C4627
C4240
IC4404
C4628
C4243
C4244 C4245
C4246
C4247
L4104
C4248
C4440
R4228
R4229
C4251 C4252
C4253
C4254
L4304
C4448
C4255
C4257
R4230
C4258
R4231
C4259
R4237
C4453
C4648
C4457
C4458
C4847
L4704
R4245
R4247
C4657
R4248
R4249
R4250
R4251
R4252
C4857
R4253
R4255
R4261
R4262
R4277
Q4100
C4104
Q4101
C4105
Q4102
C4106
Q4103
C4107
Q4104
Q4105
Q4108
C4110
4300
C4304
C4111
Q4301
C4305
C4306 C4307
Q4110
C4114
Q4304
C4115
Q4305
Q4112
C4116
C4118
Q4308
C4310
C4311
C4120
Q4310
C4314
C4121
C4315
Q4312
C4122
C4316
C4123
C4124
C4318
D4101
C4125
D4102
C4126
C4127
C4704
Q4700
R4100
D4104
C4128
C4705
Q4701
R4101
D4105
C4129
Q4702
C4706
R4102
D4106
C4707
Q4703
R4103
D4107
Q4704
R4104
D4108
Q4705
R4105
D4109
C4516
C4322
C4323
Q4708
R4108
C4130
C4324
IC4101
C4131
D4301
C4325
C4132
D4302
C4326
C4133
C4327
C4710
C4134
R4300
C4328
C4711
C4135
R4301
D4305
C4329
C4136
R4302
D4306
C4137
R4303
C4714
Q4710
C4138
R4304
D4308
C4715
C4139
R4305
D4309
C4716
Q4712
C4718
R4308
C4330
IC4301
C4332
C4527
C4333
C4140
C4528
C4334
C4143
C4720
C4144
C4721
C4145
C4339
C4722
C4146
C4723
C4147
C4724
C4148
D4701
C4725 D4702
C4726
D4703
C4727
R4700
D4704
C4728
C4340
R4701
D4705
C4729
R4702
D4706
D4707
R4703
C4343
R4704
D4708
R4128
C4344
R4705
D4709
R4129
C4151
C4345
C4152
C4346
C4153
R4708
C4730
L4204
C4154
C4348
IC4701
C4731
C4155
C4156
C4732
IC4703
C4733
C4157
C4734
IC4704
R4130
C4735
R4131
C4159
C4736
C4737
C4738
R4328
C4739
R4329
C4351
C4352
R4137
C4353
C4548
C4354
C4355
C4356
C4357
C4740
R4330 R4331
C4743
C4744
R4528
C4745
R4529
C4746
C4747
R4337
C4748
R4145
C4556
R4147
C4557
R4148
R4149
R4728
R4729
C4751
C4752
C4753
C4754
R4150
C4755
R4151
C4756
R4152
C4757
R4153
R4347
R4730
C4758
R4731
R4155
R4349
C4759
R4737
R4350
R4351
R4352
R4161
R4355
R4162
R4745
R4747
R4748
R4749
R4362
R4750
R4751
R4752
R4753
R4177
R4755
R4377
R4761
R4762
R4777
D4103
R4263
R4163 R4863 R4763
IC4200
IC4700
C4341 C4141
C4241
C4741
C4342
C4442
C4142
C4242
C4742
R4165
R4265
R4765
D4300 D4100D4200 D4700
Q4411
Q4311 Q4211
Q4111
Q4711
C4037
Q4016
C4109C4209 C4709 C4809
D4210
D4211
D4410
D4810
D4110
D4111
D4310
D4311
D4710
D4711
Q4209
Q4109Q4309
Q4709
Q4206
Q4207
Q4406
Q4407
Q4606
Q4607
Q4106
Q4107
Q4307
Q4706
Q4707
C4860 C4760
C4460C4360
C4260C4160
C4261
C4161
C4761
C4361
R4106R4206 R4706 R4806
R4514
R4314
R4414
R4114
R4214
R4714
R4115
R4215
R4715
R4815
R4317R4417 R4117R4217 R4717
R4118
R4218
R4718
R4219
R4119
R4719
R4621
R4421
R4321
R4221
R4121
R4721
R4322
R4122
R4222
R4722
R4524 R4624
R4324 R4424
R4124
R4224
R4724
R4526
R4626
R4326
R4426
R4126
R4226
R4726
R4527 R4627
R4327 R4427
R4127
R4227
R4727
R4332 R4132
R4232 R4732
R4633
R4333
R4433
R4133
R4233
R4733
R4534
R4634
R4334
R4434
R4134
R4234
R4734
R4635
R4335
R4435
R4135
R4235
R4735
R4336
R4136
R4236
R4736
R4538
R4638
R4338
R4438
R4138
R4238
R4738
R4539
R4639
R4339
R4439
R4139
R4239
R4739
R4340 R4140
R4240 R4740
R4341
R4141
R4241 R4741
R4343
R4143
R4243 R4743
R4544
R4644
R4344
R4444
R4144
R4244
R4744
R4346
R4146
R4246
R4746
R4656
R4356
R4456
R4156
R4256
R4756
R4357
R4157
R4257
R4757
R4358 R4158
R4258
R4758
R4359
R4459
R4159
R4259
R4759
R4260
R4160
R4860
R4760
R4366
R4266
R4166
R4766
R4368
R4268
R4168
R4768
R4369
R4269
R4169
R4769
R4370
R4470
R4170
R4270
R4770
R4772
R4172
R4773
R4573
R4373
R4173
R4374R4474
R4574R4674
R4174R4274
R4774
R4475
R4275
R4775
R4176
R4276
R4376
R4576
R4776
R4178
R4278
4378
R4778
R4090
R4998
R4999
R4310
R4410
R4110
R4210
R4710
R4311 R4111
R4211
R4711
R4312
R4412
R4112
R4212
R4712
R4120
R4220 R4720
R4623
R4323
R4423
R4123
R4223
R4723
R4525
R4625
R4325
R4425
R4125
R4225
R4725
R4664
R4464
R4564
R4364
R4264
R4164
R4864
R4764
R4367
R4267
R4167
R4767
IC4202 IC4702
C4319
C4419
C4119
C4219
C4719
JA4301
JA4101
R4779
R4279
R4179
R4780
R4280
R4180 L4102
L4103
L4303
KN4200
L4702
L4703
CN4100
RY4100
CN4700
CN4900
RY4300
RY4700
L4202
L4203
KN4100
C4212
C4213
C4217
C4817
C4112
C4113
C4117
C4312
C4313
C4712
C4713
C4717
C4905
L4101L4301 L4701L4201
C4036
R4254
R4154
R4754
L4100L4300 L4700L4200
C4200 C4100 C4700
C4201 C4101 C4701
CN4200
CN4300
C4933
C4904
C4902
C4308
C4208
C4108
C4808
C4708
C4150
C4149
C4750
C4749
C4249
C4250
C4350
PC
LF
BOND
BOND
A30C5/C7
[[ G ]]
1 1
E
E
E
E
E
E
15
1015
1
5
1
5
1
5
1 1
E
E
E
E
E
1
E
E
E
E
E
E
1 1
E
E
E
E
E
15
1015
E
E
5
10
15
1015
1
5
1
5
15 10
15 20
25 30
35 40
15 10
15 10
15 20
25 30
35 40
1
1
1
1
11 11
E EE EE
1
E
E E
E
E
E
E
E
E
E
1
5
1
5
1
511
15
1
5
15
1
11
5
1 11 1
15
15
XCN7303
CN4900
PCN3810
CN4700
PCN3820
CN4100
PCN3830
CN4200
PCN3840
CN4300
Q4000
Q4002
Q4003
Q4200 Q4201
Q4202 Q4203
Q4204
Q4205
Q4208
Q4014
Q4400 Q4401
Q4402
Q4403
Q4210
Q4404
Q4405
Q4408
Q4600 Q4601
Q4602
Q4603
Q4604
Q4410
Q4605
Q4608
Q4610
IC4201
IC4203
IC4204
IC4401
IC4403
IC4404
IC4601
IC4603
IC4604
Q4100 Q4101
Q4102 Q4103
Q4104
Q4105
Q4108
Q4300 Q4301
Q4302 Q4303
Q4110
Q4304
Q4305
Q4112
Q4308
Q4500 Q4501
Q4502 Q4503
Q4504
Q4310
Q4505
Q4312
Q4508
Q4700 Q4701
Q4702 Q4703
Q4704
Q4510
Q4705
Q4512
Q4708
IC4101
Q4710
Q4712
IC4301
IC4501 IC4701
IC4703
IC4704
IC4200 IC4400 IC4600
IC4700
IC4002
IC4003 IC4004
IC4900
Q4001
Q4411
Q4311
Q4611
Q4511
Q4211
Q4111
Q4711
Q4016
IC4001
Q4209 Q4409
Q4609
Q4109 Q4309 Q4509
Q4709
Q4206
Q4207
Q4406
Q4407
Q4606
Q4607
Q4106
Q4107
Q4306
Q4307
Q4506
Q4507
Q4706
Q4707
IC4005
IC4000
IC4006
IC4602IC4402IC4202
IC4702
Q4012
Q4013
IC Q
200 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
201
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
Q
SIDE B
(ANP7718-B)
C4602
C4502
C4402
C4302
C4202
C4015
C4016
C4017
C4014
Q4010
Q4004
Q4011 Q4005
Q4009 Q4007
Q4006Q4008
C4002
C4001
C4925
C4924
D4903 D4904
D4006
C4034
C4033
D4001
D4002
D4003
D4004
D4009
D4010
D4011
D4012
D4013
D4014
Q4015
R4001
R4002
R4046
R4047
R4048
R4049
R4050
R4051
R4052
R4053
R4066
R4082
R4083
R4086
R4087
R4091
R4095
R4097
R4005
R4006
R4009
R4010
R4011
R4012
R4513
R4613
R4313
R4413
R4065
E
E
E
E
E
E
E
E
1
E
IC Q
Q4010
Q4004
Q4011
Q4005
Q4009
Q4007
Q4006
Q4008
Q4015
202 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
11.12 V-BRIDGE, PRE_BRIDGE, PRIMARY GUARD AND PRIMARY ASSYS
203
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
U
SIDE A
(ANP7706-B)
UPRIMARY ASSY
L
N
N
L
N
L1
GNDST
V+5_6ST
ACRY2
WUP
BRN
RED
BLU
RED BLU
BRN
SIDE
SIDE
FU1
FU2
REPLACE FUSE AS MARKED.
ACRY1
WUP
GNDST
PRIMARY ASS'Y
RISK OF FIRE -
L2
PRIMARY
SECONDARY
240V<--->230V
OPEN_SIDE
OPEN_SIDE
OPEN_SIDE
WHITE
YELLOW
L8701
JV8711
JV8712
JV8713
JV8714
JV8715
JV8716
JV8721
JV8722
JV8723
JV8724
JV8725
JV8726
JV8727
JV8728
JV8729
C7
[[ G ]]
LF
JP8701_1
P8702
JP8703_1
CN8700
CN8701
CN8702
C8701
C8702
C8703
C8704
CN8711
C8710
C8711
C8716
C8718
RY8701
RY8702
R8701
R8702
R8703
JA8701
IC8711
JP8701
JP8702
JP8703
KN8701
KN8702KN8703
T8701
JA8701_1
S8751
H8701
JP8702_1
H8702
H8703
H8704
J8701
J8702
J8703
JH8701
1
1
1
1
15
1
1
1
1
1
10
1
1
1
1
1
1
MAIN TRANS
CN8701
IJP7701
CN8711
AC INLET
JA8701
IC8711
IC Q
204 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
205
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
R S T
SIDE B
(ANP7701-B)
(ANP7703-B)
(ANP7706-B)
TPRIMARY GUARD ASSY
RV-BRIDGE ASSY
SPRE_BRIDGE ASSY
1
1
1
21
21
16
GNDCH
GNDCH
SBLOUT
GNDA
SBROUT
GNDA
LS OUT
GNDA
RS OUT
GNDA
C OUT
GNDA
FL OUT
GNDA
FR OUT
GNDA
PRE BRIDGE ASS'Y
AWX
CN6951
CN6952
CN6953
LF
A
B
C
0123 0123456789
1
10
0
30
1
1
30
1
.
D_SEL
2
.
GNDHDMI
3
.
XOSDRST
4
.
OSDCS
5
.
EXSO5_2(OSDSO)
6
.
OSDSCK/EXPSCK
7
.
EXSO5_3
8
.
EXOEANLG
9
.
EXSTANLG
10
.
EXSO5_1
11
.
S-DET
12
.
Z2CMUTE
13
.
V+5R6_V
14
.
V+5R6_V
15
.
GNDV
16
.
GNDV
17
.
V-5R6_V
18
.
V-5R6_V
19
.
GNDF
20
.
FV IN
21
.
GNDV
22
.
V IN
23
.
GNDV
24
.
SY IN
25
.
GNDV
26
.
SC IN
27
.
GNDV
28
.
SY OUT
29
.
GNDV
30
.
SC OUT
TO COMPONENT ASS'Y
TO COMPOSITE & S ASS'Y
UPSIDE
C8602
C8603
C8604
CN8602
CN8601
C8605
LF
AWX9436-
206 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
11.13 REG ASSY
207
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
V
SIDE A
(ANP7705-B)
AS MARKED.
REPLACE FUSE
RISK OF FIRE -
RISK OF FIRE -
REPLACE FUSE
AS MARKED.
5.V-12A
4.GNDA
3.GNDA
2.V+12A
1.V+6AD
5.S4-1-2
4.S4-2-2
3.S4-G
2.S4-2-1
1.S4-1-1
79M12
78M12
78M06
GNDA
GNDA
GNDA
V-12A
V+12A
V+6AD
AWX9452
ASSY
REG
V-12A
GNDA
GNDA
S4-2-2
S4-2-1
S4-1-2
V-12A_IN
V+12A_IN
V+6AD_IN
V+6AD_IN
V+12A_IN
GNDA
V-12A_IN
GNDA
V-12A
V+12A_IN
GNDA
V+12A
V+6AD_IN
GNDA
V+6AD
DE CHEZ LITTELFUSE INC.
ET P7522 N`UTILISER QUE LA REFERENCE 49101.5
LITTELFUSE INC. FOR P7521
TYPE NO. 49101.5 MFD.BY
CAUTION
REPLACE WITH SAME
AND P7522
FU22
FU21
EN CAS DE REMPLACEMENT DES FUSIBLES P7521
NTION
2
6
1
CN7501
CN7502
P7521
C7501
C7502
P7522
C7503
C7504
C7507 C7508
C7511
C7521
C7523
C7525
C7526
R7504
IC7501
IC7502
IC7521
H7501H7502
H7503H7504
CN7601
J7501
J7502
J7503
J7504
J7505
J7506
J7507
J7508
J7509
J7510
J7511
J7512
J7513
J7514
J7515
J7516
J7517
J7518
J7519
J7520
JH7502
JH7504
JV7504
C7
[[ G ]]
1 5
15
1 11
1
1
1
1
1 5
1
1
1 5
1 5
S
MAIN TRANS
CN7501
1
208 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
209
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
V
SIDE B
(ANP7705-B)
A
D
5.S6-2
4.S6-1
3.S5-2
2.S5-G
1.S5-1
1.FLAC1
2.FLAC2
3.-VF
4.V+12_TRG
5.V+5R6_V
6.GNDV
7.GNDV
8.V-5R6_V
C7603
C7604
C7607 C7608
C7613
C7615
C7626
D7602
C7627
D7603
C7628
D7604
D7605 D7606
D7607
D7608
C7630
C7631
C7632
C7633
C7634 C7635
D7611 C7636
D7612 C7637
D7613
D7614
D7615
D7616
D7621
D7622
D7623
D7624
D7625
R7621
D7626
LF LF
LF
1
210 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
11.14 ICE_REG ASSY
W W
SIDE A SIDE A
(ANP7704-B)
WICE_REG ASSY
V-5_MD
GND_MD
GND_MD(S)
V+5_MD XFANERR
V-FAN
V+FAN
FANCTLH
FANCTLL
LOCKDET
-B
-B+10V
SEC3-1
SEC3-C
SEC3-2
SEC2-1
SEC2-2
SEC9-1
SEC9-C
SEC9-2
FU13
FU14
FU12
FU11
FU15
RISK OF FIRE -
REPLACE FUSE
AS MARKED.
AWX9448
ICE REG
-B -B
-B+10V-B+10V
+10V_IN
+10V_REF
V-12DF
V-12DF
GND_DF
GND_DF
V-12DF_IN
V+12DF
V+12DF
GND_DF
GND_DF
V+12DF_IN
V+5_MD
GND_MD
V+5_MD_IN
V-5_MD
V-5_MD_IN
GND_MD
V+5_MD
GND_MD
V+5_MD_IN
V-5_MD
V-5_MD_IN
GND_MD
V+12DF
GND_DF
V-12DF
GND_DF(S)
V+12RY
V-12RY
78M05
79M05
79M12
78M12
2SD1763
2SD1763
2200/25
2200/16
V+12DF
V-5_MD
V+5_MD
V+FAN
V-5_MD_IN
GND_MD
GND_MD
GND_MD
GND_DF
SEC9-2
SEC3-1
FAN_L
FAN_H
GND_MD
LOCKDET
2200/25
2SB1186
2200/25
1
23
4
V-12RY
C7
[[ G ]]
H7241
CN7302
H7242
J7201
J7202
J7203
J7204
J7205
J7206
J7207
J7208
J7209
H7251 H7252
H7253 H7254
J7210
J7211
J7212
J7213
J7214
J7215
J7216
J7217
J7218
J7219
J7220
J7221
J7222
J7223
J7224
J7225
J7226
J7227
J7228
J7229
J7230
J7231
J7232
J7233
J7234
J7235
J7236
J7237
JV7240
JV7241
JH7251
JH7252
JH7253
BOND
BOND
CN7201
C7200
C7201C7202
C7211
C7212
C7213
C7214
Q7211
C7215
Q7212
C7219
P7241
C7221
CN7241
R7211
R7213
C7240
C7241
CN7251
C7245
Q7241
C7246
C7250
C7251
C7252
C7255
C7256
CN7271
R7240
C7270
C7271 C7272
C7275
C7276
IC7251
IC7252
C7291
C7292
C7293
IC7271
IC7272
H7201
H7202
H7203
H7204
1
15
1
1
1
1
1
1
1
1
1 5
E
E
1 15
E
1
11
1 1
1
1
1
1
QCN4902
CN7271
ICN7701
CN7302
QCN4901
CN7241
MAIN TRANS
CN7201
QCN4903
CN7251
Q7211
Q7212
Q7241
IC7251
IC7252
IC7271
IC7272
IC Q
211
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
W W
SIDE B SIDE B
(ANP7704-B)
WICE_REG ASSY
AWX9448
ICE REG
Q7201
Q7202
Q7203
Q7204
Q7205
C7216
C7217
C7218
C7220
C7222
Q7221
D7201
Q7222
D7202
D7203
D7204
D7205
R7201
D7206
R7202
R7203
R7204
D7211
D7212
D7213
D7214
D7215
D7216
R7212
D7217
R7214
D7218
C7242
C7243
C7244
D7221
Q7242
C7247
R7221
R7222
C7253 C7254
C7259
C7260
C7261
D7241
D7242
D7243
D7244
D7245
R7241
R7242
D7247
R7243
D7248
R7244
D7249
C7273 C7274
D7251
D7252
C7277
D7253
C7278
D7254
C7279
D7255
R7251
D7256
R7253 D7257
R7254
D7258
R7255
D7259
R7256
C7280
C7281
C7282
C7283
C7284
D7260
C7285
C7286
C7287
C7288
C7289
C7290
D7271
D7272
D7273
D7274
D7275
R7271
D7276
D7277
D7278
D7279
D7280
LF
LF LF
LF
1
5
1
5
E
EE
E
E
E
1
1
1
IC Q
Q7201
Q7202
Q7203
Q7204
Q7205
Q7221
Q7222
Q7242
212 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
11.15 B_REG AND B_DIODE ASSY
XYXY
SIDE A SIDE A
(ANP7704-B)
(ANP7704-B)
XB_REG ASSY
YB_DIODE ASSY
4.-B
2.GND
1.+B
3.GND
11
43
13
AWX9450
+B
+B
+BB
+BB
+BB
+BB
+BB
-B
-B
-B
-B
-B
-B
-BB
-BB
-BB
GND
EB
(+B)
2SD2083
EB
2SB1383 (-B)
RISK OF FIRE-REPLACE
FUSE AS MARKED
FU61
FU62
+BB
FU61,FU62:
Littelfuse 233010.
2
1.+B
2.GND
3.-B
B REG ASSY
CAUTION
MFD.BY LITTELFUSE INC. FOR P7300 AND P7301.REPLACE WITH SAME TYPE No. 491.500
3.GND_U
4.V_5.6V
1.XBERR
ERR
2.BTEMP
1
3
P7300
P7301
C7
[[ G ]]
CN7303
CN7306
CN7308
Q7300
Q7301
Q7302
Q7303
Q7307Q7308
C7320 C7321
C7324
C7325
R7300
R7301
R7302
R7303
R7304
R7305
R7306
R7307
TH7300
R7322 R7323
R7326
R7327
R7328
R7329
H7300
H7301
H7302
H7303
J7301
J7302
J7303
J7304
J7305
J7306
J7307
J7308
J7309
J7310
J7311
J7312
J7313
J7314
J7315
J7316
J7317
J7318
J7319
J7322
J7325 J7328
J7330 J7332
JH7300
J7335
J7336
JV7300
JV7301
J7340 J7341
J7342
J7343
JH7301
AWX9451
1
13
+
+
-
-
B DIODE
1.+B
2.GND
3.-B
1.SEC1-1
2.SEC1-C
3.SEC1-2
GND GND
B-REG
-B(-70V)
B-REG
+B(+70V)
ASSY
B-REG
12
34
AWX9560
BONDBOND
C7
[[ G ]]
J7401
J7402
J7403
J7404
J7405
J7406
J7407
J7408
J7409
CN7400
C7400
C7401
C7402
C7403
C7408
C7409
D7400
D7401
R7402
BOND
BOND
BOND BOND
BOND
BOND
JP7401
1
1
1
E E
E
E
E
E
1
1
1
1
1
1
1
1
1
1
1
1
1
1
KJP8005
CN7306
QCN4900
CN7303
MAIN TRANS
CN7400
CN7308
JP7401
Q7300
Q7301
Q7302
Q7303
Q7307
Q7308
IC Q
213
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
XYXY
SIDE B SIDE B
(ANP7704-B)
(ANP7704-B)
XB_REG ASSY
YB_DIODE ASSY
3.-B
2.GND
1.+B
14
3
1
+BB -BB
B
B
2SD2083
2SB1383
1
3.GND_U
4
4.V_5.6V
3.GND
1.+B
2.GND
4.-B
FUSIBLES P7300 ET P7301 N'UTILISER QUE
LITTELFUSE INC.
REFERENCE
REMPLACEMENT DES
491.500 DE CHEZ
LA
ATTENTION
EN CAS DE
2.BTEMP
1.XBERR
C7302
C7303
C7304
C7305
C7306
C7307
Q7304
Q7306
Q7309
C7310
C7311
C7312
C7313
Q7310
C7316
C7317
C7318C7319
C7322
C7323
C7326
D7302
C7327
D7303
D7304D7306
D7307
D7308
D7309
R7308
IC7300
R7309
IC7301
IC7302
IC7303
D7310
R7310
R7311
R7312
R7313
R7314
R7315
R7318
R7319
R7324
R7325
C7350
C7351
R7330
R7331
R7332
R7333
R7334
R7335
R7336
R7337
C7370C7371
C7372C7373
D7350
C7374
C7375
D7351
C7376
D7352
C7377
D7353
R7350
C7378
C7379
D7355
R7353
R7355
C7380
C7381
C7382
C7383
C7384 C7386
R7372
R7373
R7378
R7379 R7380R7381
R7382
R7383
R7384
R7385
R7386
R7387
R7388
R7389
R7390R7391
R7392
R7393
R7394 R7395
R7396
R7398
R7320
R7321
R7370
R7371
LF
LF
LF
LF
++
B DIODE ASSY
C7404
C7405
C7406 C7407
R7400
R7401
LF
E
E
E
E
1
1
1
5
1
5
IC Q
Q7304
Q7306
Q7309
Q7310
IC7300
IC7301
IC7302
IC7303
214 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
11.16 HDMI RECT, H GUARD, DIGITAL_BRIDGE AND ZOUT ASSYS
AA AB AC AA AB AC
Z Z
SIDE A SIDE A
(ANP7702-B)
(ANP7706-B)
(ANP7702-B)
(ANP7702-B)
ZHDMI RECT ASSY
DIGITAL_BRIDGE ASSY
AB
H GUARD ASSY
AA
ZOUT ASSY
AC
FU41
RISK OF FIRE -
3,4:GNDHDMI
1,2:V+12HD
NC
SEC7-1
SEC7-2
AWX9459
HDMI RECT
V+12HD V+12HD
OPEN_SIDE
BOND
AS MARKED.REPLACE FUSE
D8801
H8801
H8802
C8804
J8801
J8802
LF
C7
[[ G ]]
CN8801
R8801
C8801
JH8801
JV8801
JH8803
JH8802
JP8802
D8803
H GUARD
ASS'Y
AWX9441
2
1
JH6451
JH6452
JH6453
JH6454
JH6455
C7
[[ G ]]
1.NC
2.GNDHD
3.XMLINK
4.XMIRQ
5.XXMERR
6.XMRATE
7.XMPOW
8.XXMRST
9.XMMUTE
10.XMLSDT
11.XMDT4
12.XMTX
13.XMRX
1.XMRX
2.XMTX
3.XMDT4
4.XMLSDT
5.XMMUTE
6.XXMRST
8.XMRATE
9.XXMERR
7.XMPOW
10.XMIRQ
11.XMLINK
12.GNDHD
13.NC
AWX9461
AWX
DIGITAL_BRIDGE
ASS'Y
C7
[[ G ]]
CN6756
CN6757
1135
10.GNDV
11.VZ2 OUT
AWX9552
9.VZ3 OUT
AWX
ZOUT ASS'Y
13.XVZ2 MUTE
12.GNDV
8.GNDV
7.XVZ3 MUTE
6.V-5V
5.V-5V
4.GNDV
3.GNDV
1.V+5V
2.V+5V
AWX9439
C6404
C6405
C6407
C6408
R6403
R6404
R6405
R6406 R6407
R6408
7
14
IC6401
LF
A30C5/C7
[[ G ]]
CN6401
C6401
C6402
C6403
C6406
JA6401
1
1
1
1
1
1
1
1
1
1
1
1
1
15
10
15
10
15
10
10
15
1
MAIN TRANS
CN8801
ECN1403
CN6756
ECN1900
JP8802
BCN2201
CN6757
HCN6503
CN6401
IC6401
IC Q
215
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
AA AB AC AA AB AC
Z Z
SIDE B SIDE B
(ANP7702-B)
(ANP7706-B)
(ANP7702-B)
(ANP7702-B)
ZHDMI RECT ASSY
DIGITAL_BRIDGE ASSY
AB
H GUARD ASSY
AA
ZOUT ASSY
AC
V+12HD
V+12HD
HDMI RECT
AWX9459
CN8801
D8802
C8803
C8805
JP8802
C8802
C8807
C8806
13.XMRX
12.XMTX
11.XMDT4
10.XMLSDT
9.XMMUTE
8.XXMRST
7.XMPOW
6.XMRATE
5.XXMERR
4.XMIRQ
3.XMLINK
2.GNDHD
1.NC
13.NC
12.GNDHD
11.XMLINK
10.XMIRQ
9.XXMERR
8.XMRATE
7.XMPOW
6.XXMRST
5.XMMUTE
4.XMLSDT
3.XMDT4
2.XMTX
1.XMRX
1
1
13
AWX
DIGITAL_BRIDGE
AWX9461
13
ASS'Y
LF
13 1
1.V+5V
2.V+5V
3.GNDV
4.GNDV
5.V-5V
6.V-5V
7.XVZ3 MUTE
8.GNDV
9.VZ3 OUT
10.GNDV
11.VZ2 OUT
12.GNDV
13. XVZ2 MUTE
ZOUT ASS'Y
AWX9552
AWX
10
AWX9439
C6409
C6410
C6411 C6412
C6413 C6414
R6401
R6402
LF
1
2
JH6451
JH6452
JH6453
JH6454
JH6455
LF
216 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
12. PCB PARTS LIST
CONTRAST OF PCB ASSEMBLIES
AWX9437 and AWX9490 are constructed the same except for the following:
-
Meaning of the figures and others in the parentheses in the parts list.
Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board.
IC 301 (A, 91, 111) IC NJM2068V
5 6 2 1
1 R 0
R 5 0
5 6 1
4 7 3
NOTES:
-
Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List.
-
The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
-
When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47 k ohm (tolerance is shown by J = 5%,
and K = 10%).
560 Ω → 56 × 10
1
→ 561 ...................................................................RD1/4PU J
47 kΩ → 47 × 10
3
→ 473 ...................................................................RD1/4PU J
0.5 Ω → R50 .................................................................................................RN2H K
1 Ω → 1R0 .................................................................................................RS1P K
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62 kΩ → 562 × 10
1
→ 5621 .................................................................RN1/4PC F
Mark No. Description Part No.
LIST OF ASSEMBLIES
1..ICEPOWER AMP ASSY (SC-27/CUXJCA) AWH7022
1..ICEPOWER AMP ASSY AWH7019
(SC-25/CUXJCA & SC-9540/CUXJCA)
NSP1..COMPOSITE_ICE ASSY AWM8143
2..PRE_BRIDGE ASSY AWX9440
2..COMPOSITE_S ASSY AWX9443
2..ICE_BUFFER ASSY AWX9444
2..ICE SHIELD ASSY AWX9445
NSP1..PRIM_DISPLAY ASSY (SC-27/CUXJCA) AWM8145
NSP1..PRIM_DISPLAY ASSY (SC-25/CUXJCA) AWM8150
NSP1..PRIM_DISPLAY ASSY (SC-9540/CUXJCA) AWM8171
2..DISPLAY ASSY (SC-27/CUXJCA) AWX9454
2..DISPLAY ASSY (SC-25/CUXJCA) AWX9481
2..DISPLAY ASSY (SC-9540/CUXJCA) AWX9528
2..VOL ASSY AWX9455
2..POWER SW ASSY AWX9456
2..V-BRIDGE ASSY AWX9457
2..PRIMARY ASSY AWX9458
2..HDMI RECT ASSYAWX9459
NSP 1..DIGITAL AUDIO ASSY (SC-27/CUXJCA) AWP7070
NSP 1..DIGITAL AUDIO ASSY AWP7072
(SC-25/CUXJCA & SC-9540/CUXJCA)
2..DSP ASSY (SC-27/CUXJCA) AWX9429
2..DSP ASSY AWX9467
(SC-25/CUXJCA & SC-9540/CUXJCA)
2..ICE INTERFACE ASSY AWX9430
NSP 1..COMPONENT_MIC ASSY (SC-27/CUXJCA) AWQ7069
NSP 1..COMPONENT_MIC ASSY AWQ7071
(SC-25/CUXJCA & SC-9540/CUXJCA)
2..COMPONENT ASSY (SC-27/CUXJCA) AWX9437
2..COMPONENT ASSY AWX9490
(SC-25/CUXJCA & SC-9540/CUXJCA)
2..MIC HP ASSY AWX9438
2..ZOUT ASSY AWX9439
2..H GUARD ASSY AWX9441
2..DIGITAL_BRIDGE ASSY AWX9461
NSP 1..AUDIO_232C ASSY AWR7074
2..AUDIO ASSY AWX9434
2..232C_CONTROL ASSY AWX9435
2..PRIMARY GUARD ASSY AWX9436
NSP 1..INTERFACE_REG ASSY AWR7078
2..INTERFACE ASSYAWX9447
2..ICE_REG ASSY AWX9448
2..B_REG ASSY AWX9450
2..B_DIODE ASSY AWX9451
NSP 1..FBRIDGE_REG ASSY AWR7079
2..REG ASSY AWX9452
2..FRONT BRIDGE ASSY AWX9453
1..DIGITAL MAIN ASSY AWX9463
1..FRONT-HDMI ASSY AWX9497
1..FM/AM TUNER UNIT AXX7267
Mark No. Description Part No.
GCOMPONENT ASSY
Mark Symbol and Description AWX9437 AWX9490
IC6002,IC6004 TC74LVX4052FT Not used
IC6008 NJM2581M Not used
JA6003 AKB7204 Not used
JA6005 Not used AKB7203
R6043-R6045 RS1/10SR75R0F Not used
R6108 RS1/10SR103J Not used
C6055-C6057 CEAT101M10 Not used
217
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
AWX9454, AWX9481 and AWX9528 are constructed the same except for the following:
AWH7022 and AWH7019 are constructed the same except for the following:
PCB PARTS LIST FOR SC-27/CUXJCA UNLESS OTHERWISE NOTED
C6131-C6136 CKSRYB103K50 Not used
Mark Symbol and Description AWX9437 AWX9490
KDISPLAY ASSY
Mark Symbol and Description AWX9454 AWX9481 AWX9528
Q8005,Q8007 LTC124EUB Not used LTC124EUB
D8009,D8013 SLR343BC4T(JKLM) Not used SLR343BC4T(JKLM)
D8015 Not used SLR343BC4T(JKLM) Not used
D8011 SLR343WBCT(MNPQ) Not used SLR343WBCT(MNPQ)
R8022,R8024 RS1/10SR151J Not used RS1/10SR151J
R8023 RS1/10SR561J RS1/10SR151J RS1/10SR561J
R8025 RS1/10SR101J Not used RS1/10SR101J
R8026 Not used RS1/10SR101J Not used
R8279 Not used RS1/10SR473J Not used
R8280 RS1/10SR473J Not used RS1/10SR473J
R8281 Not used RS1/10SR683J Not used
R8282 RS1/10SR473J RS1/10SR223J RS1/10SR473J
C8005,C8007 CCSRCH101J50 Not used CCSRCH101J50
QICEPOWER AMP ASSY
Mark Symbol and Description AWH7022 AWH7019
JA4101 AKE7150 AKE7142
JA4301,JA4501 AKE7149 AKE7141
Mark No. Description Part No.
AAUDIO ASSY
SEMICONDUCTORS
IC 5001,5282,5302,5401 NJM4565MD
IC 5201 BD3473KS2
IC 5221 BD3814FV
IC 5301 TC4066BFN
Q 5241,5251,5431 IMX25
Q 5301 LTC124EUB
Q 5302 LTA124EUB
Q 5401,5402 2SK208
Q 5451 UMD2N
Q 5453 LTC114TUB
>Q 5501 2SD1858X
>Q 5502 2SB1237X
>Q 5601 2SD1664
D 5201,5301,5302 1SS302
D 5401,5402,5451,5452 1SS352
D 5501,5502 HZU7R5(B2)
D 5602 UDZS10(B)
MISCELLANEOUS
L 5651 CHIP SOLID INDUCTOR QTL1013
JA 5001-5003 PIN JACK(4P) XKB3017
JA 5005-5009 PIN JACK(4P) XKB3017
RY 5451 RELAY VSR1017
CN5002 CONNECTOR 9604S-19C
CN5003 CONNECTOR 9604S-21C
CN 5004,5007 CONNECTOR 9607S-09F
CN 5005 CONNECTOR 9607S-17F
CN 5006 21P SOCKET XKP3081
CN 5008 CONNECTOR 9607S-11F
JH 5001 PCB BINDER VEF1040
JP 5001 5P HOUSING ASSY ADX7717
RESISTORS
R 5413,5414 RD1/4MUF330J
Other Resistors RS1/10SR###J
CAPACITORS
C 5003,5004,5017,5018 CEAK100M50
C 5007,5008,5411,5412 CEAK470M25
C 5011,5012 CKSRYB822K50
C 5013-5016 CKSRYB122K50
C 5019,5020,5231,5233 CEAK101M16
C 5021,5022,5232,5234 CKSRYB104K16
C 5037,5038,5055,5056 CEAK220M50
C 5039,5040,5435,5436 CCSRCH100D50
C 5045,5046,5115,5116 CEAK100M50
C 5075,5076,5085,5086 CEAK220M50
C 5095,5096,5105,5106 CEAK220M50
C 5125,5126,5155,5156 CEAK220M50
C 5165,5166,5175,5176 CEAK220M50
C 5185,5186,5207,5208 CEAK220M50
C 5201,5203,5613 CCSRCH331J50
C 5202,5204 ACH1479
C 5205,5206,5235,5236 CCSRCH101J50
C 5209,5210 CFHXSQ103J16
C 5221,5222,5225,5226 CEAK100M50
Mark No. Description Part No.
218 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
C 5223,5224,5227,5228 CEAT2R2M50
C 5241,5242,5251,5252 CCSRCH471J50
C 5271-5278,5290,5503 CEAK100M50
C 5282,5303,5304,5652 CCSRCH101J50
C 5285,5286,5301,5302 CKSRYB103K50
C 5295,5296,5356,5357 CCSRCH102J50
C 5305,5306,5421,5423 CKSRYB103K50
C 5307,5308 ACH7196
C 5401,5402,5419,5420 CEAT1R0M50
C 5403,5404 CCSRCH221J50
C 5409,5410 CEAT471M16
C 5422,5424 CEAK470M25
C 5431,5432,5555,5557 CKSRYB103K50
C 5451,5603,5606 CEAK101M16
C 5501,5502 CEAK2R2M50
C 5504 CEAK100M50
C 5508,5510,5511,5515 CCSRCH102J50
C 5516,5611 CCSRCH102J50
C 5601,5605,5705,5721 CKSRYB103K50
C 5602,5654,5708,5710 CKSRYB104K16
C 5607,5621,5622 CCSRCH100D50
C 5659,5660 CCSRCH101J50
C 5701,5703,5709,5711 CCSRCH471J50
C 5702,5704 CKSRYB104K50
C 5714,5718 CKSRYB104K16
C 5715,5719 CCSRCH471J50
C 5723 CKSRYB103K50
BDSP ASSY
(SC-27/CUXJCA)
SEMICONDUCTORS
IC 2001 AK4118EQ
IC 2002 TC74VHCT125AFTS1
IC 2003-2006,2011,2403 TC74LCX157FTS1
IC 2007,2009,2503 TC7SH08FUS1
IC 2010,2406,2502,2606 TC74VHC08FTS1
IC 2012,2013,2202 TC74VHC125FTS1
>IC 2014 NJM2880U1-33
>IC 2015,2983 NJM2845DL1-05
IC 2201 BU9450KV
>IC 2203 AAT4614AIGU-2
IC 2301 DSPA56720AG
IC 2302 AYW7275
IC 2303 K4S641632N-LC60
IC 2304,2305 TC74LCX573FTS1
IC 2306,2608 TC7SH32FUS1
>IC 2307 NJM2846DL3-33
>IC 2308 PQ1LAX95MSPQ
>IC 2309 NJM2846DL3-25
>IC 2310 RP131H101D
IC 2401 DSPC56371AF180
IC 2404,2405,2505 TC74LCX08FTS1
>IC 2501 NJM2872BF33
IC 2506,2609 TC74VHC126FTS1
IC 2507,2509 TC7WH157FU
IC 2508 IDT6V60008DCG
IC 2601-2605 TC4094BFN
Mark No. Description Part No.
IC 2607 TC74VHC04FTS1
IC 2901,2902,3401 NJM4565MD
IC 2951 PCM1804DB
>IC 2981 NJM2391DL1-33
>IC 2982 NJM2885DL1-33
IC 3001,3101,3201,3301 RNB4580F
IC 3051,3151,3251,3351 SRC4190IDB
IC 3052,3152,3252,3352 WM8740SEDS
IC 3053,3153,3253,3353 TC7WH125FU
IC 3451 AK4387ET
D 2201,2202 HZU5R6(B2)
>D 2701-2704 1SR154-400
D 2951,2952 1SS301
D 2953,2954 DAP202U
MISCELLANEOUS
L 2004-2011 CHIP SOLID INDUCTOR QTL1013
L 2013-2017 CHIP SOLID INDUCTOR QTL1013
L 2201 CHIP SOLID INDUCTOR ATL7002
L 2202,2203 CHIP SOLID INDUCTOR QTL1013
L 2301 CHIP SOLID INDUCTOR QTL1013
L 2303-2308 CHIP SOLID INDUCTOR QTL1013
L 2309 INDUCTOR CTF1473
L 2401-2403 CHIP SOLID INDUCTOR QTL1013
L 2405-2408 CHIP SOLID INDUCTOR QTL1013
L 2501-2504 CHIP SOLID INDUCTOR QTL1013
L 2506-2508 CHIP SOLID INDUCTOR QTL1013
L 2510,3452,3453 INDUCTOR CTF1379
L 2511 CHIP SOLID INDUCTOR QTL1013
L 2601-2603 CHIP SOLID INDUCTOR QTL1013
L 2951,2952 CHIP SOLID INDUCTOR QTL1013
L 3051-3054 CHIP SOLID INDUCTOR QTL1013
L 3081 CHIP SOLID INDUCTOR QTL1013
L 3151-3154 CHIP SOLID INDUCTOR QTL1013
L 3181 CHIP SOLID INDUCTOR QTL1013
L 3251-3254 CHIP SOLID INDUCTOR QTL1013
L 3281 CHIP SOLID INDUCTOR QTL1013
L 3351-3354 CHIP SOLID INDUCTOR QTL1013
L 3381,3451 CHIP SOLID INDUCTOR QTL1013
JA 2001 PIN JACK(3P) AKB7205
JA 2002-2005 OPT. LINK IN AKS7001
JA 2006,2007 OPT. LINK OUT AKS7002
JA 2201 4P SOCKET AKP7201
KN 2201,2601 SCREW PLATE VNE1948
KN 2301 WRAPPING TERMINAL VNF1084
X 2201 CRYSTAL (45.1584 MHz) ASS7095
X 2501 CRYSTAL OSCILLATOR ASS7102
X 2502 CRYSTAL OSCILLATOR ASS7101
CN 2001,2902 PLUG CKS1764
CN 2002 CONNECTOR CKS1754
CN 2003 CONNECTOR CKS3815
CN 2201 13P SOCKET XKP3077
CN 2601 CONNECTOR VKN2045
CN 2602 7P SOCKET XKP3074
CN 2901 PLUG CKS1758
JH 2601 PCB BINDER VEF1040
RESISTORS
R 2001,2003,2005 RS1/10SR750J
R 2002,2004,2006 RS1/10SR220J
R 2028 RS1/16SS1002F
R 2212,2220,2329,2330 RS1/10SR101J
Mark No. Description Part No.
219
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
R 2213 RS1/10SR104J
R 2233,2312,2348,2402 RAB4CQ470J
R 2311,2905,2906,2909 RS1/10SR103J
R 2317-2319,2321,2322 RAB4CQ220J
R 2333,2424,3455 RAB4CQ101J
R 2349,2403 RAB4CQ103J
R 2362,2363,2366,2367 RAB4CQ221J
R 2364,2365,2368,2369 RAB4CQ220J
R 2372 RS1/16SS1000F
R 2373 RS1/16SS1202F
R 2374,2465,2466 RS1/8SQ0R0J
R 2605,2607,2609,2610 RS1/10SR473J
R 2611,3401,3402 RS1/10SR223J
R 2612-2614 RS1/10SR473J
R 2901-2904 RS1/10SR220J
R 2907,2908,2911,2912 RS1/10SR682J
R 2910 RS1/10SR103J
R 2913-2918,3108,3116 RS1/10SR392J
R 2919,2920 RS1/10SR822J
R 2921,2922 RS1/10SR911J
R 2982,2985,3017,3018 RS1/10SR0R0J
R 3001,3002,3009,3010 RS1/10SR181J
R 3003-3006,3011-3014 RS1/10SR222J
R 3007,3008,3015,3016 RS1/10SR202J
R 3021,3022,3119,3120 RS1/10SR221J
R 3023-3026,3051 RS1/10SR0R0J
R 3101,3109,3201,3202 RS1/10SR681J
R 3102,3110 RS1/10SR181J
R 3103-3106,3203-3206 RS1/10SR222J
R 3107,3112,3114,3115 RS1/10SR122J
R 3111,3113,3211-3214 RS1/10SR272J
R 3117,3118,3217,3218 RS1/10SR474J
R 3121-3124,3151 RS1/10SR0R0J
R 3207,3208,3215,3216 RS1/10SR122J
R 3209,3210,3301,3302 RS1/10SR681J
R 3219,3220,3319,3320 RS1/10SR221J
R 3221-3223,3234,3251 RS1/10SR0R0J
R 3303-3306 RS1/10SR222J
R 3307,3308,3315,3316 RS1/10SR122J
R 3309,3310 RS1/10SR681J
R 3311-3314 RS1/10SR272J
R 3317,3318,3413,3414 RS1/10SR474J
R 3321-3324,3351 RS1/10SR0R0J
R 3403,3404 RS1/10SR302J
R 3405,3406,3409,3410 RS1/10SR332J
R 3407,3408 RS1/10SR392J
R 3411,3412 RS1/10SR221J
R 3415-3418,3456 RS1/10SR0R0J
R 3458 RS1/10SR4R7J
Other Resistors RS1/16SS###J
CAPACITORS
C 2002,2005,2008,2954 CKSRYB103K50
C 2003,2006,2009-2015 CKSRYB104K16
C 2016,2019,2022,2028 CCSSCH471J16
C 2017,2020,2023,2029 CKSSYB104K10
C 2018,2021,2024 CEHAZL101M10
C 2026,2065-2067 CKSRYB474K16
C 2030,2427 ACH7272
C 2031,2033,2035,2037 CCSSCH471J16
Mark No. Description Part No.
C 2032,2034,2036,2038 CKSSYB104K10
C 2039,2044,2046,2048 CCSSCH471J16
C 2040,2045,2047,2049 CKSSYB104K10
C 2050,2052,2218,2301 CCSSCH471J16
C 2051,2053,2056 CKSSYB104K10
C 2054,2313,2355,2358 CCSSCH101J50
C 2055,2377 ACH7273
C 2057,2060,2382,2992 CKSSYB104K16
C 2058,2061,2338,2384 CKSQYB225K10
C 2059,2339,2372,2505 CEHAZL221M10
C 2062-2064,2960,2981 CEHAZL101M10
C 2201,3060,3068,3160 CKSRYB105K10
C 2202,2207,2913,2914 CCSRCH101J50
C 2203,2205 CEAK101M16
C 2204,2206,2526,2528 CKSRYB104K16
C 2208-2215,2219,2302 CKSSYB104K10
C 2216,2217 CCSSCH8R0D50
C 2303,2305,2307,2309 CCSSCH471J16
C 2304,2306,2308,2310 CKSSYB104K10
C 2311,2315,2317,2319 CCSSCH471J16
C 2312,2314,2316,2318 CKSSYB104K10
C 2320,2322,2324,2326 CKSSYB104K10
C 2321,2323,2325,2327 CCSSCH471J16
C 2328,2330,2332,2334 CKSSYB104K10
C 2329,2331,2333,2335 CCSSCH471J16
C 2336,2345,2352,2354 CKSSYB104K10
C 2337,2342 CKSRYB474K10
C 2341 VCH1234
C 2343,2383,2508,2511 CKSQYB475K10
C 2344,2351,2353,2401 CCSSCH471J16
C 2346,2417 CKSSYB103K16
C 2356,2357,2359,2374 CKSSYB104K10
C 2360,2362,2364,2366 CCSSCH102J50
C 2361,2363,2365,2367 CKSSYB105K6R3
C 2368,2370 CCSSCH102J50
C 2369,2371 CKSSYB105K6R3
C 2373,2375,2388 CCSSCH101J50
C 2376,2378-2381,2402 CKSSYB104K10
C 2385,2504,2991,2993 CKSQYB225K10
C 2387 ACH7314
C 2389,2911,2912,2915 CFHXSQ103J16
C 2403,2405,2407,2409 CCSSCH471J16
C 2404,2406,2408,2410 CKSSYB104K10
C 2411,2413,2415,2418 CCSSCH471J16
C 2412,2414,2416,2419 CKSSYB104K10
C 2420,2422,2424,2430 CCSSCH471J16
C 2421,2423,2425,2431 CKSSYB104K10
C 2426,3055,3063,3155 ACH7268
C 2432,2434,2436,2506 CCSSCH471J16
C 2433,2435,2437,2501 CKSSYB104K10
C 2502,2956,2957,3061 ACH7211
C 2503,2507,2510,2513 CKSSYB104K10
C 2509,2512,2514,2520 CCSSCH471J16
C 2515,2519,2521,2524 CKSSYB104K10
C 2518,3065,3165,3265 CEHAZL221M10
C 2522,2523,2530,2612 CCSSCH471J16
C 2525,2527,2982,3001 CCSRCH102J50
C 2529 CEAK4R7M50
C 2531,2601-2608,2614 CKSSYB104K10
Mark No. Description Part No.
220 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
C 2533,2534,3453,3454 CEAK470M25
C 2613,3082,3182,3282 CCSSCH471J16
C 2622-2640,2642 CCSSCH101J50
C 2901,2902,2928,2953 CKSRYB104K16
C 2903,2904 DCH1201
C 2905-2908,3109,3110 ACH7196
C 2916,2996,2997,3007 CFHXSQ103J16
C 2929,2952,2984,2987 CEHAZL101M25
C 2955,2958,2961-2963 CKSRYB104K16
C 2959,2964,3059,3070 CKSRYB103K50
C 2965,3052,3071,3152 CCSRCH471J50
C 2966,3053,3056,3058 CKSRYB104K16
C 2983,3081,3181,3281 CKSSYB104K10
C 2990,2995,3051,3151 CEHAZL101M10
C 2994 CKSSYB104K16
C 3002,3057,3075,3101 CCSRCH102J50
C 3003-3006,3103,3105 CCSRCH331J50
C 3008,3107,3108,3207 CFHXSQ103J16
C 3013,3014,3113,3114 CFHXSQ472J16
C 3062,3064,3066,3072 CKSRYB104K16
C 3067,3161,3167,3261 ACH7211
C 3102,3157,3175,3201 CCSRCH102J50
C 3104,3106 CCSRCH271J50
C 3153,3156,3158,3162 CKSRYB104K16
C 3159,3170,3259,3270 CKSRYB103K50
C 3163,3255,3263,3355 ACH7268
C 3164,3166,3172,3253 CKSRYB104K16
C 3168,3260,3268,3360 CKSRYB105K10
C 3171,3252,3271,3352 CCSRCH471J50
C 3202,3257,3275,3301 CCSRCH102J50
C 3203-3206,3303-3306 CCSRCH331J50
C 3208,3307,3308 CFHXSQ103J16
C 3209,3210,3309,3310 ACH7196
C 3213,3214,3313,3314 CFHXSQ472J16
C 3251,3351 CEHAZL101M10
C 3256,3258,3262,3264 CKSRYB104K16
C 3266,3272,3353,3356 CKSRYB104K16
C 3267,3361,3367 ACH7211
C 3302,3357,3375 CCSRCH102J50
C 3358,3362,3364,3366 CKSRYB104K16
C 3359,3370,3456,3458 CKSRYB103K50
C3363 ACH7268
C 3365 CEHAZL221M10
C 3368 CKSRYB105K10
C 3371,3405,3406,3459 CCSRCH471J50
C 3372,3452,3455,3457 CKSRYB104K16
C 3381,3462 CKSSYB104K10
C 3382,3461,3463,3464 CCSSCH471J16
C 3401,3402 CEAT220M50
C 3403,3404 CCSRCH391J50
C 3407,3408 CKSRYB104K25
C 3409,3410 CEAT100M50
C 3460 CKSRYB104K16
BDSP ASSY
(SC-25/CUXJCA & SC-9540/CUXJCA)
SEMICONDUCTORS
IC 2001 AK4118EQ
Mark No. Description Part No.
IC 2002 TC74VHCT125AFTS1
IC 2003-2006,2011,2403 TC74LCX157FTS1
IC 2007,2009,2503 TC7SH08FUS1
IC 2010,2406,2502,2606 TC74VHC08FTS1
IC 2012,2013,2202 TC74VHC125FTS1
>IC 2014 NJM2880U1-33
>IC 2015,2983 NJM2845DL1-05
IC 2201 BU9450KV
>IC 2203 AAT4614AIGU-2
IC 2301 DSPA56720AG
IC 2302 AYW7275
IC 2303 K4S641632N-LC60
IC 2304,2305 TC74LCX573FTS1
IC 2306,2608 TC7SH32FUS1
>IC 2307 NJM2846DL3-33
>IC 2308 PQ1LAX95MSPQ
>IC 2309 NJM2846DL3-25
>IC 2310 RP131H101D
IC 2401 DSPC56371AF180
IC 2404,2505 TC74LCX08FTS1
>IC 2501 NJM2872BF33
IC 2506,2609 TC74VHC126FTS1
IC 2508 IDT6V60008DCG
IC 2509 TC7WH157FU
IC 2601-2605 TC4094BFN
IC 2607 TC74VHC04FTS1
IC 2901,2902,3401 NJM4565MD
IC 2951 PCM1804DB
>IC 2981 NJM2391DL1-33
IC 3001,3101,3201,3301 RNB4580F
IC 3052,3152,3252,3352 WM8740SEDS
IC 3451 AK4387ET
D 2201,2202 HZU5R6(B2)
>D 2701-2704 1SR154-400
D 2951,2952 1SS301
D 2953,2954 DAP202U
MISCELLANEOUS
L 2004-2011 CHIP SOLID INDUCTOR QTL1013
L 2013-2017 CHIP SOLID INDUCTOR QTL1013
L 2201 CHIP SOLID INDUCTOR ATL7002
L 2202,2203 CHIP SOLID INDUCTOR QTL1013
L 2301 CHIP SOLID INDUCTOR QTL1013
L 2303-2308 CHIP SOLID INDUCTOR QTL1013
L 2309 INDUCTOR CTF1473
L 2401-2403 CHIP SOLID INDUCTOR QTL1013
L 2405,2406 CHIP SOLID INDUCTOR QTL1013
L 2408 CHIP SOLID INDUCTOR QTL1013
L 2501-2504 CHIP SOLID INDUCTOR QTL1013
L 2506,2507 CHIP SOLID INDUCTOR QTL1013
L 2510,3452,3453 INDUCTOR CTF1379
L 2511 CHIP SOLID INDUCTOR QTL1013
L 2601-2603 CHIP SOLID INDUCTOR QTL1013
L 2951,2952 CHIP SOLID INDUCTOR QTL1013
L 3053,3054 CHIP SOLID INDUCTOR QTL1013
L 3153,3154 CHIP SOLID INDUCTOR QTL1013
L 3253,3254 CHIP SOLID INDUCTOR QTL1013
L 3353,3354 CHIP SOLID INDUCTOR QTL1013
L 3451 CHIP SOLID INDUCTOR QTL1013
JA 2002-2005 OPT. LINK IN AKS7001
Mark No. Description Part No.
221
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
JA 2006,2007 OPT. LINK OUT AKS7002
JA 2008 PIN JACK(2P) AKB7173
JA 2201 4P SOCKET AKP7201
KN 2201,2601 SCREW PLATE VNE1948
KN 2301 WRAPPING TERMINAL VNF1084
X 2201 CRYSTAL (45.1584 MHz) ASS7095
X 2501 CRYSTAL OSCILLATOR ASS7102
X 2502 CRYSTAL OSCILLATOR ASS7101
CN 2001,2902 PLUG CKS1764
CN2002 CONNECTOR CKS1754
CN2003 CONNECTOR CKS3815
CN 2201 13P SOCKET XKP3077
CN2601 CONNECTOR VKN2045
CN 2602 7P SOCKET XKP3074
CN 2901 PLUG CKS1758
JH 2601 PCB BINDER VEF1040
RESISTORS
R 2001,2003 RS1/10SR750J
R 2002,2004,2901-2904 RS1/10SR220J
R 2028 RS1/16SS1002F
R 2212,2220,2329,2330 RS1/10SR101J
R 2213 RS1/10SR104J
R 2233,2312,2348,2402 RAB4CQ470J
R 2311,2905,2906,2909 RS1/10SR103J
R 2317-2319,2321,2322 RAB4CQ220J
R 2333,2424,3455 RAB4CQ101J
R 2349,2403 RAB4CQ103J
R 2362,2363,2366,2367 RAB4CQ221J
R 2364,2365,2368,2369 RAB4CQ220J
R 2372 RS1/16SS1000F
R 2373 RS1/16SS1202F
R 2374,2465,2466 RS1/8SQ0R0J
R 2607,2609,2610 RS1/10SR473J
R 2611,3401,3402 RS1/10SR223J
R 2612-2614 RS1/10SR473J
R 2907,2908,2911,2912 RS1/10SR682J
R 2910 RS1/10SR103J
R 2913-2918,3108,3116 RS1/10SR392J
R 2919,2920 RS1/10SR822J
R 2921,2922 RS1/10SR911J
R 2982,2985,3017,3018 RS1/10SR0R0J
R 3001,3002,3009,3010 RS1/10SR181J
R 3003-3006,3011-3014 RS1/10SR222J
R 3007,3008,3015,3016 RS1/10SR202J
R 3021,3022,3119,3120 RS1/10SR221J
R 3023-3026,3065,3066 RS1/10SR0R0J
R 3080,3121-3124,3165 RS1/10SR0R0J
R 3101,3109,3201,3202 RS1/10SR681J
R 3102,3110 RS1/10SR181J
R 3103-3106,3203-3206 RS1/10SR222J
R 3107,3112,3114,3115 RS1/10SR122J
R 3111,3113,3211-3214 RS1/10SR272J
R 3117,3118,3217,3218 RS1/10SR474J
R 3166,3180,3221-3223 RS1/10SR0R0J
R 3207,3208,3215,3216 RS1/10SR122J
R 3209,3210,3301,3302 RS1/10SR681J
R 3219,3220,3319,3320 RS1/10SR221J
R 3234,3265,3266,3280 RS1/10SR0R0J
R 3303-3306 RS1/10SR222J
Mark No. Description Part No.
R 3307,3308,3315,3316 RS1/10SR122J
R 3309,3310 RS1/10SR681J
R 3311-3314 RS1/10SR272J
R 3317,3318,3413,3414 RS1/10SR474J
R 3321-3324,3365,3366 RS1/10SR0R0J
R 3380,3415-3418,3456 RS1/10SR0R0J
R 3403,3404 RS1/10SR302J
R 3405,3406,3409,3410 RS1/10SR332J
R 3407,3408 RS1/10SR392J
R 3411,3412 RS1/10SR221J
R 3458 RS1/10SR4R7J
Other Resistors RS1/16SS###J
CAPACITORS
C 2002,2005,2954,2959 CKSRYB103K50
C 2003,2006,2010-2015 CKSRYB104K16
C 2016,2019,2022,2028 CCSSCH471J16
C 2017,2020,2023,2027 CKSSYB104K10
C 2018,2021,2024 CEHAZL101M10
C 2026,2065,2066 CKSRYB474K16
C 2029,2032,2034,2036 CKSSYB104K10
C 2030,2427 ACH7272
C 2031,2033,2035,2037 CCSSCH471J16
C 2038,2040,2045,2047 CKSSYB104K10
C 2039,2044,2046,2048 CCSSCH471J16
C 2049,2051,2053,2056 CKSSYB104K10
C 2050,2052,2218,2301 CCSSCH471J16
C 2054,2313,2355,2358 CCSSCH101J50
C 2055,2377 ACH7273
C 2057,2060,2382,2994 CKSSYB104K16
C 2058,2061,2338,2384 CKSQYB225K10
C 2059,2339,2372,2505 CEHAZL221M10
C 2062-2064,2960,2981 CEHAZL101M10
C 2201,3060,3068,3160 CKSRYB105K10
C 2202,2207,2913,2914 CCSRCH101J50
C 2203,2205 CEAK101M16
C 2204,2206,2526,2528 CKSRYB104K16
C 2208-2215,2219,2302 CKSSYB104K10
C 2216,2217 CCSSCH8R0D50
C 2303,2305,2307,2309 CCSSCH471J16
C 2304,2306,2308,2310 CKSSYB104K10
C 2311,2315,2317,2319 CCSSCH471J16
C 2312,2314,2316,2318 CKSSYB104K10
C 2320,2322,2324,2326 CKSSYB104K10
C 2321,2323,2325,2327 CCSSCH471J16
C 2328,2330,2332,2334 CKSSYB104K10
C 2329,2331,2333,2335 CCSSCH471J16
C 2336,2345,2352,2354 CKSSYB104K10
C 2337,2342 CKSRYB474K10
C 2341 VCH1234
C 2343,2383,2508,2511 CKSQYB475K10
C 2344,2351,2353,2401 CCSSCH471J16
C 2346,2417 CKSSYB103K16
C 2356,2357,2359,2374 CKSSYB104K10
C 2360,2362,2364,2366 CCSSCH102J50
C 2361,2363,2365,2367 CKSSYB105K6R3
C 2368,2370 CCSSCH102J50
C 2369,2371 CKSSYB105K6R3
C 2373,2375,2388 CCSSCH101J50
C 2376,2378-2381,2402 CKSSYB104K10
Mark No. Description Part No.
222 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
C 2385,2504,2993 CKSQYB225K10
C 2387 ACH7314
C 2389 CFHXSQ103J16
C 2403,2405,2407,2409 CCSSCH471J16
C 2404,2406,2408,2410 CKSSYB104K10
C 2411,2413,2415,2418 CCSSCH471J16
C 2412,2414,2416,2419 CKSSYB104K10
C 2420,2422,2424,2430 CCSSCH471J16
C 2421,2423,2425,2431 CKSSYB104K10
C 2426,3063,3163,3263 ACH7268
C 2432,2436,2506,2509 CCSSCH471J16
C 2433,2437,2501,2503 CKSSYB104K10
C 2502,2956,2957,3061 ACH7211
C 2507,2510,2513,2515 CKSSYB104K10
C 2512,2514,2520,2522 CCSSCH471J16
C 2518,3065,3165,3265 CEHAZL221M10
C 2519,2521,2531 CKSSYB104K10
C 2525,2527,2982,3001 CCSRCH102J50
C 2529 CEAK4R7M50
C 2530,2612,2613,3461 CCSSCH471J16
C 2533,2534,3453,3454 CEAK470M25
C 2601-2608,2614,2983 CKSSYB104K10
C 2622-2640,2642 CCSSCH101J50
C 2901,2902,2928,2953 CKSRYB104K16
C 2903,2904 DCH1201
C 2905-2908,3109,3110 ACH7196
C 2911,2912,2915,2916 CKSQYB103K50
C 2929,2952,2984,2987 CEHAZL101M25
C 2955,2958,2961-2963 CKSRYB104K16
C 2964,3059,3070,3159 CKSRYB103K50
C 2965,3071,3171,3271 CCSRCH471J50
C 2966,3058,3062,3064 CKSRYB104K16
C 2985,2986,3407,3408 CKSRYB104K25
C 2995 CEHAZL101M10
C 3002,3101,3102,3201 CCSRCH102J50
C 3003-3006,3103,3105 CCSRCH331J50
C 3007,3008,3107,3108 CKSQYB103K50
C 3011,3012,3111,3112 CKSRYB472K50
C 3066,3072,3158,3162 CKSRYB104K16
C 3067,3161,3167,3261 ACH7211
C 3104,3106 CCSRCH271J50
C 3164,3166,3172,3258 CKSRYB104K16
C 3168,3260,3268,3360 CKSRYB105K10
C 3170,3259,3270,3359 CKSRYB103K50
C 3202,3301,3302 CCSRCH102J50
C 3203-3206,3303-3306 CCSRCH331J50
C 3207,3208,3307,3308 CKSQYB103K50
C 3209,3210,3309,3310 ACH7196
C 3211,3212,3311,3312 CKSRYB472K50
C 3262,3264,3266,3272 CKSRYB104K16
C 3267,3361,3367 ACH7211
C 3358,3362,3364,3366 CKSRYB104K16
C 3363 ACH7268
C 3365 CEHAZL221M10
C 3368 CKSRYB105K10
C 3370,3456,3458 CKSRYB103K50
C 3371,3405,3406,3459 CCSRCH471J50
C 3372,3452,3455,3457 CKSRYB104K16
C 3401,3402 CEAT220M50
Mark No. Description Part No.
C 3403,3404 CCSRCH391J50
C 3409,3410 CEAT100M50
C 3460 CKSRYB104K16
C 3462 CKSSYB104K10
C 3463,3464 CCSSCH471J16
CFRONT-HDMI ASSY
SEMICONDUCTORS
IC 3551 CXB1443R
IC 3552 TC7MB3257FK
IC 3553 S-24CS02AFT
>IC 3554 S-1132B33-U5
Q 3551-3553 LTC114YUB
D 3503,3504 UMZU6.2N
D 3551 1SS301
MISCELLANEOUS
L 3551,3565-3568 INDUCTOR CTF1473
L 3552 CHIP BEADS ATL7010
L 3561-3564 COIL ATH7064
L 3571-3576 FERRITE BEAD CTF1528
JA 3501 USB CONNECTOR XKP3086
JA 3551 HDMI CONNECTOR AKP7224
KN 3501,3551 WRAPPING TERMINAL VNF1084
KN 3552 WRAPPING TERMINAL VNF1084
CN 3501 CONNECTOR AKM1276
CN 3553 3P JUMPER CONNECTOR 52147-0310
CN 3554 CONNECTOR AKN7051
RESISTORS
R 3501-3503,3513 RS1/10SR0R0J
R 3511 RS1/10SR222J
R 3564 RS1/16SS4701F
R 3581-3584 RS1/10SR0R0J
Other Resistors RS1/16SS###J
CAPACITORS
C 3502,3503 CKSRYB104K16
C 3504 CEAK221M16
C 3505 CCSRCH102J50
C 3551,3565,3568,3569 CCSSCH102J50
C 3552,3553,3562,3563 CKSSYB104K10
C 3554,3555 CKSQYB104K25
C 3561 CEVW101M16
C 3566,3567,3570,3571 CKSSYB104K10
C 3573,3574,3576,3578 CKSSYB104K10
C 3577,3590,3592-3595 CCSSCH102J50
C 3579,3580 CCSSCH101J50
C 3589 CEAK101M16
C 3591 CKSSYB104K10
D232C_CONTROL ASSY
SEMICONDUCTORS
IC 5801 HIN202EIBNZ
Q 5801 LSC4081UB
Q 5832 LTA114TUB
Q 5841 LSA1576UB
Q 5842,5882 LTC124EUB
Q 5881 2SA1366
Mark No. Description Part No.
223
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
D 5804,5841,5842 1SS352
D 5821,5822 1SS357
D 5831,5834 HZU5R1(B2)
D 5832,5833 SIM-20STS1
D 5843,5881,5883 1SS301
D 5858 1SS302
MISCELLANEOUS
L 5821-5823 CHIP SOLID INDUCTOR QTL1013
L 5841-5843 CHIP SOLID INDUCTOR QTL1013
JA 5801 9P D-SUB SOCKET AKP1213
JA 5802-5806 JACK VKB1243
JA 5807 SOCKET BKP1127
KN 5801 SCREW PLATE VNE1948
CN 5801 23P SOCKET XKP3082
U 5801 REMOTE RECEIVER UNIT GP1UE284QKC1
RESISTORS
All Resistors RS1/10SR###J
CAPACITORS
C 5802,5811,5828,5845 CKSRYB103K50
C 5803 CCSRCH331J50
C 5804,5805 CCSRCH101J50
C 5807-5810 CKSRYB104K16
C 5812 CEAT101M16
C 5829 CEJQ101M16
C 5830,5831,5892,5894 CCSRCH471J50
C 5833,5834,5838-5840 CCSRCH100D50
C 5852,5855,5891,5893 CKSRYB103K50
C 5871,5872 CEAT220M50
C 5895 CKSRYB103K50
C 5896 CCSRCH471J50
EDIGITAL MAIN ASSY
SEMICONDUCTORS
IC 402 TC74LCX245FTS1
IC 403,404,409-411 TC74LCX541FTS1
IC 405,408,1409,1804 TC7SZ125FU
IC 407,1349,9003 TC7SH08FUS1
IC 501 RTL8201CP-LF
IC 551 K4S281632K-UC60
IC 571 AYW7314
>IC 601 NJM2846DL3-33
>IC 602 NJM2846DL3-18
>IC 603 NJM2886DL3-33
IC 611,1401 TC74VHC126FTS1
IC 800
UPD61283F1-407LU2A
IC 801,802 NJM12904V
IC 803,1302,1702,9351 TC7WHU04FU
IC 1000,1001 K4H561638J-LCB3
IC 1050 AYW7298
>IC 1100,1101 S-1170B33UC-OTS
>IC 1102 S-1170B25UC-OTK
>IC 1104 MM1701WH
>IC 1250,9001,9101 AAT4614AIGU-2
IC 1251 TC7PAU04FU
IC 1300 PE7008A
IC 1301 341S2164
>IC 1303 S-1132B25-U5
Mark No. Description Part No.
IC 1304,1305 BU4094BCFV
IC 1306,1403 TC74VHC125FTS1
IC 1402,1407 TC74VHC08FTS1
IC 1404 TC74VHC02FTS1
IC 1406 TC74VHCT125AFTS1
IC 1408,1451 TC74VHCT08AFTS1
IC 1410 TC7WH08FU
IC 1450 TC74VHCT541AFTS1
IC 1501 SII9233ACTU
IC 1563,1604 TC7WH157FU
IC 1566 TC74VHC541FTS1
>IC 1592 R1172H121B
IC 1601 CXB1444R
IC 1602 S-24CS02AFT
IC 1603 TC7MB3257FK
IC 1605 TC74VHC153FT
IC 1701 ADV7181CBSTZ
IC 1800 ABT1015
IC 1801-1803,1805 TC74LCX541FTS1
IC 1806 TC7SZ125FU
IC 1807-1811 TC74VCX541FT
IC 1813 TC7SA08FU
IC 1814 TC7SZ00FU
>IC 1900 TPS54350PWP
>IC 1930 LTC3850EGN
>IC 1970 LT3505EDD
>IC 1971 S-1132B50-U5
IC 9000,9100 SII9134CTU
IC 9002 TC74VHC157FTS1
Q 601 HN1C01FU
Q 800,801,1150,1154 2SA1576A
Q 1151,1155,1157,1997 2SC4081
Q 1156,1200-1204,1250 2SA1576A
Q 1251,1611,9001,9101 DTC114YUA
Q 1300,1401-1404 DTA124EUA
Q 1400 DTC114EUA
Q 1405 2SA1576A
Q 1612 HN1K02FU
>Q 1900 RTQ045N03
>Q 1930,1931 SP8K1
Q 1998 2SC4081
Q 1999 RN4903
Q 9000,9100 UMB1N
D 603,1402,1506,1509 1SS301
D 1400 RB501V-40
D 1512,1601 1SS301
D 1930,1931,1970 RB160VA-40
D 1971 RB160M-30
D 1995 UDZS6R8(B)
D 1996,1997 1SS352
D 1998 DAP202U
D 1999 UDZS5R6(B)
D 9000,9100 UDZS5R1(B)
MISCELLANEOUS
L 402-405,407-410 INDUCTOR CTF1473
L 501,502 CHIP SOLID INDUCTOR QTL1013
L 503,504 COIL VTH1056
L 505,551 CHIP SOLID INDUCTOR QTL1013
L 571,611 CHIP SOLID INDUCTOR QTL1013
Mark No. Description Part No.
224 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
L 704-707 CHIP FERRITE BEADS ATF1211
L 800 INDUCTOR LCTC150K2125
L 801-805,808,809 EMI FILTER DTL1106
L 806 CHIP COIL LCYA390J2520
L 807 INDUCTOR LCYA150J2520
L 810,811 CHIP SOLID INDUCTOR QTL1013
L 1100,1302,1303 CHIP BEADS ATL7010
L 1150,1154,1156 INDUCTOR ATL7035
L 1151,1155,1157 INDUCTOR ATL7033
L 1200,1201 INDUCTOR LCTC100K2125
L 1202-1204 INDUCTOR LCTC4R7K2125
L 1250 COIL ATH7079
L 1251,1300 CHIP SOLID INDUCTOR QTL1013
L 1301,1304 CHIP SOLID INDUCTOR QTL1013
L 1305,1390 CHIP SOLID INDUCTOR QTL1013
L 1501-1504,1611,1701 CHIP BEADS ATL7010
L 1505,1506 CHIP SOLID INDUCTOR QTL1013
L 1563,1566 CHIP SOLID INDUCTOR QTL1013
L 1669,1693,1694 INDUCTOR CTF1473
L 1702,1900,1902,1903 CHIP BEADS ATL7010
L 1703,1704 CHIP SOLID INDUCTOR QTL1013
L 1706 INDUCTOR CTF1295
L 1800-1810,1812,1813 INDUCTOR CTF1473
L 1901 INDUCTOR CTH1255
L 1930,1970,9000-9003 CHIP BEADS ATL7010
L 1931 INDUCTOR ATH7074
L 1932 INDUCTOR ATH7073
L 1971 INDUCTOR ATH7061
L 9004-9007,9104-9107 COIL ATH7064
L 9008,9100-9103,9108 CHIP BEADS ATL7010
L 9010,9014,9015,9109 INDUCTOR CTF1473
L 9011,9012 CHIP SOLID INDUCTOR QTL1013
L 9013 INDUCTOR CTF1386
L 9110,9114,9115 INDUCTOR CTF1473
L 9351 CHIP SOLID INDUCTOR QTL1013
F 800-803,1800-1802 EMI FILTER DTL1106
JA 701 RJ45 CONNECTOR VKN2086
JA 1601-1604,9000 HDMI CONNECTOR AKP7224
JA 9100 HDMI CONNECTOR AKP7224
KN 1302,1303 EARTH METAL FITTING VNF1109
X501 CRYSTAL (25 MHz) ASS7098
X801 CRYSTAL (27 MHz) ASS7103
X 1250 CRYSTAL (48 MHz) ASS7099
X 1300 CRYSTAL (26.864 MHz) ASS7094
X 1501 CRYSTAL (27 MHz) ASS7092
X 1701 CRYSTAL (28.63636 MHz) ASS7096
X 9351 CRYSTAL (24.576 MHz) ASS7097
CN 601 5P CONNECTOR VKN1374
CN 1250,1404 PLUG CKS1764
CN 1251 15P SOCKET XKP3078
CN 1252,1403 13P SOCKET XKP3077
CN1253,1402 CONNECTOR CKS4668
CN1259 CONNECTOR AKM1276
CN 1401 31P CONNECTOR VKN1435
CN1405 CONNECTOR VKN2045
CN1501 CONNECTOR CKS1754
CN1601 CONNECTOR AKN7051
CN1900 CONNECTOR B4B-EH
NSP 1 ID LABEL ASSY AXW7015
Mark No. Description Part No.
RESISTORS
R 404,405,408,410 RAB4CQ560J
R 406,407,409 RAB4CQ473J
R 411-413,441-444 RAB4CQ473J
R 415,416,1039-1041 RAB4CQ560J
R 422-427,429-432 RAB4CQ470J
R 434-438,551-554 RAB4CQ470J
R 510 RS1/16SS2001F
R 511-514 RS1/16SS49R9F
R 707,855,857,926 RAB4CQ473J
R 733,753,761,763 RAB4CQ470J
R 738,739,741,1527 RAB4CQ220J
R 780,1003,1004,1007 RAB4CQ330J
R 804,826,1150,1202 RS1/10SR0R0J
R 806 RS1/16SS6800D
R 807 RS1/16SS4700D
R 813,815 RS1/10SR43R0D
R 814,816 RS1/10SR1000D
R 820 RS1/10SR4700F
R 821,822,824,825 RS1/10SR1001F
R 834,905-908,927 RAB4CQ103J
R 861,863,864,977 RAB4CQ0R0J
R 875,879 RAB4CQ221J
R 978,993,994,1800 RAB4CQ0R0J
R 1008,1010,1011,1015 RAB4CQ330J
R 1016,1020,1021,1024 RAB4CQ330J
R 1025,1027,1028,1032 RAB4CQ330J
R 1033,1811,1812 RAB4CQ330J
R 1045 RAB4CQ560J
R 1050-1053,1306,1881 RAB4CQ103J
R 1152,1170,1179,1200 RS1/16SS2200F
R 1153,1173,1180 RS1/16SS5601F
R 1203,1209 RS1/16SS4700F
R 1206,1211,1216,1221 RS1/16SS2200F
R 1212,1217,1222 RS1/16SS56R0F
R 1214,1219,1224 RS1/16SS3300F
R 1320,1347-1350,1460 RAB4CQ101J
R 1334,1355,1555,1556 RAB4CQ473J
R 1406,1454,1916 RS1/10SR100J
R 1496,1497,1673,1674 RS1/10SR0R0J
R 1525,1526,1528-1530 RAB4CQ100J
R 1532-1536 RAB4CQ220J
R 1539,1703,1716,1717 RAB4CQ470J
R 1582,1704,1705,1707 RAB4CQ680J
R 1632 RS1/16SS4701F
R 1691,1692,1721,1722 RS1/10SR0R0J
R 1801,1803-1810 RAB4CQ0R0J
R 1817-1819,1823-1825 RAB4CQ330J
R 1838-1840,1852,1853 RAB4CQ470J
R 1845,1846,1934,1949 RS1/10SR0R0J
R 1849 RAB4CQ472J
R 1856,1858-1866 RAB4CQ473J
R 1867,1868,1870,1871 RAB4CQ470J
R 1869,1872-1875 RAB4CQ680J
R 1876,1879,1880 RAB4CQ470J
R 1882,9205-9208 RAB4CQ103J
R 1890-1899,9032-9040 RAB4CQ473J
R 1908 RS1/16SS1002D
R 1910 RS1/16SS2001D
Mark No. Description Part No.
225
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
R 1919 RS1/8SQ4R7J
R 1930,1933 ACN7169
R 1931 RS1/8SQR18J
R 1932 ACN7168
R 1941,1946 RS1/16SS1502F
R 1942 RS1/16SS1202F
R 1945 RS1/16SS4702F
R 1950,1952-1956 RS1/10SR0R0J
R 1971 RS1/16SS6802F
R 1972 RS1/16SS1002F
R 1977-1979,1990-1993 RS1/10SR0R0J
R 9004,9104 RS1/16SS6800F
R 9225,9226 RAB4CQ473J
R 9339 RS1/10SR1R0J
R 9358-9360 RAB4CQ0R0J
Other Resistors RS1/16SS###J
CAPACITORS
C 404,406,408,410 CKSSYB104K10
C 405,407,409,411 CCSSCH471J16
C 414,415,417,419 CKSSYB104K10
C 416,418,420,422 CCSSCH471J16
C 421,423,424 CKSSYB104K10
C 425-430,516,611 CCSSCH102J50
C 501,507,510,556 CCSSCH471J16
C 502-506,509,512 CKSSYB104K10
C 508,511,551 CEVW220M16
C 513,515,552-555 CKSSYB104K10
C 514 CEVW330M16
C 519,608,720,1150 CEVW101M16
C 520,521,753,754 CKSSYB103K16
C 522,523 CCSSCH9R0D50
C525 CSZS330M6R3
C 558,559,571,718 CCSSCH471J16
C 560,725,870,889 CCSSCH101J50
C 561,572,603,612 CKSSYB104K10
C 601,606,1301,1306 CKSRYB104K16
C 602,607,871,878 CKSQYB225K10
C 604,930,1100,1101 CKSQYB475K6R3
C 605,723,1944 CEVW221M4
C 701,702,704-706 CKSSYB104K10
C 711-717,719,722 CKSSYB104K10
C 721,744-750,927 CCSSCH471J16
C 724,726-734 CKSSYB104K10
C 735,751,804,816 CCSSCH102J50
C 736-739,755,812 CKSSYB104K10
C 742,743,805,831 CEVW100M16
C 752,814,834,846 CEVW101M4
C 806,815,817,819 CKSSYB105K6R3
C 807,862,865,869 CKSSYB104K16
C 813,826-830 CKSSYB104K10
C 818,1503,1800,1823 VCH1277
C 820,1705,1940 VCH1234
C 821,824,835,847 CKSSYB105K6R3
C 822,833,836,848 CCSSCH102J50
C 823 VCH1268
C 825,885,1027,1254 CCSSCH331J50
C 832,856,879,1030 CKSQYB106K6R3
C 837-845,852,926 CKSSYB104K10
C 849,855,1014,1032 CEVW101M4
Mark No. Description Part No.
C 850,853,857,861 CKSSYB105K6R3
C 851,854,858,859 CCSSCH102J50
C 860,880,939,1004 CKSSYB103K16
C 863,866,867,929 CCSSCH102J50
C 864,868,882,887 CKSSYB105K6R3
C 872,873,875,876 CKSSYB104K16
C 874,1115 CEVW470M6R3
C 883,888,1252,1978 CKSQYB225K10
C 884 CCSSCH221J50
C 886,891 CKSSYB473K10
C 890 CCSSCH151J50
C 928,1156,1157,1172 CKSSYB104K10
C 937,938,1001,1003 CKSSYB105K6R3
C 1002,1010,1011,1021 CKSSYB104K16
C 1005,1023,1024,1114 CKSSYB103K16
C 1006,1008,1009,1012 CCSSCH102J50
C 1007,1015-1020,1022 CKSSYB105K6R3
C 1013,1025,1028,1050 CCSSCH102J50
C 1026,1051,1053,1112 CKSSYB105K6R3
C 1029,1052,1250 CKSSYB104K16
C 1031,1505,1507,1709 CKSQYB106K6R3
C 1103,1104,1106,1107 CKSQYB475K6R3
C 1108-1111,1116-1120 CCSSCH102J50
C 1113,1166,1185-1187 CKSSYB105K6R3
C 1145,1546,9145 ACH7306
C 1146,1149,1201,1206 CCSSCH101J50
C 1147,1253,1263,1266 CCSSCH102J50
C 1151,1168,1176 CCSSCH5R0C50
C 1152,1167,1175 CCSSCH4R0C50
C 1153,1154,1169,1170 CCSSCH180J50
C 1155,1171,1179 CCSSCH7R0D50
C 1173,1180,1181,1204 CKSSYB104K10
C 1177,1178 CCSSCH180J50
C 1200,1205,1976 CCSSCH560J50
C 1202,1251,1307,1343 CEVW101M16
C 1203,1801,1824,1826 DCH1201
C 1207,1210,1213,1216 CKSSYB104K10
C 1208,1212,1215,1625 CCSSCH470J50
C 1209,1211,1214 CCSSCH390J50
C 1261,1268,1269,1417 CCSSCH101J50
C 1262,1267,1302,1305 CKSSYB104K10
C 1264,1271-1279,1290 CCSSCH100D50
C 1265,1304,1743 CCSSCH120J50
C 1282,1283,1344,1346 CCSSCH471J16
C 1291,1292,1313-1316 CCSSCH102J50
C 1300,1742,9351,9352 CCSSCH100D50
C 1303,1340,1370,1415 CKSSYB103K16
C 1308-1312,1317,1320 CKSSYB104K10
C 1318,1319,1322,1324 CCSSCH102J50
C 1321,1323,1325,1326 CKSSYB104K10
C 1327,1329,1331 CCSSCH102J50
C 1328,1330,1332-1335 CKSSYB104K10
C 1336-1339,1391,1407 CCSSCH102J50
C 1341,1342,1372,1390 CKSSYB104K10
C 1347,1403,1409,1413 CCSSCH471J16
C 1400-1402,1404-1406 CKSSYB104K10
C 1408,1410,1418 CKSSYB104K10
C 1411 CEAK102M16-P35
C 1412,1419,1455-1472 CCSSCH102J50
Mark No. Description Part No.
226 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
C 1414,1416,1420-1430 CCSSCH471J16
C 1431,1432,1434-1437 CCSSCH101J50
C 1438-1440,1478,1494 CCSSCH471J16
C 1443-1450,1474-1477 CCSSCH101J50
C 1451-1454,1502,1504 CKSSYB104K10
C 1496,1497,1499,1516 CCSSCH471J16
C 1498,1527,1547,1549 CCSSCH101J50
C 1501,1611,1716,1720 CEVW101M16
C 1506,1508,9003,9005 CKSSYB105K6R3
C 1509,1511,1515,1517 CKSSYB104K10
C 1510,1512,1530,1533 CCSSCH102J50
C 1513,1514 CCSSCH8R0D50
C 1518,1523,1535,9399 CCSSCH471J50
C 1519,1524,1708,1714 CKSSYB103K16
C 1520,1522,1526,1528 CKSSYB104K10
C 1521,1525,1529,1536 CCSSCH471J16
C 1531,1532,1534,1537 CKSSYB104K10
C 1538,1540,1543,1548 CCSSCH102J50
C 1539,1541,1542,1545 CKSSYB104K10
C 1544,1575,1635-1644 CCSSCH471J16
C 1551,1569,1598 CCSSCH102J50
C 1552,1609,1627,1651 CCSSCH101J50
C 1570,1574,1613-1618 CKSSYB104K10
C 1577 CEVW470M4
C 1593,1594 CKSQYB475K6R3
C 1601-1604,1606-1608 CCSSCH102J50
C 1612,9043,9044,9143 CKSRYB105K10
C 1619,1652,1695,1711 CCSSCH102J50
C 1620-1624,1631-1634 CKSSYB104K10
C 1626 CCSSCH470J50
C 1653,1698,1799,1866 CCSSCH101J50
C 1696,1697,1699,9099 CCSSCH331J50
C 1703,1704,1706,1710 CKSSYB104K10
C 1707 CKSSYB823K10
C 1712,1718,1721,1723 CKSQYB106K6R3
C 1713,1715,1717,1719 CKSSYB104K10
C 1722,1724,1726-1729 CKSSYB104K10
C 1725,1731,1816,1817 CKSSYB103K16
C 1730,1735-1739,1744 CCSSCH102J50
C 1732-1734,1741,1746 CKSSYB104K10
C 1745,1825,1913,9049 CEVW101M16
C 1802-1815,1818,1819 CKSSYB104K16
C 1820,1822,1855-1865 CCSSCH102J50
C 1821,9020,9120 CKSSYB104K16
C 1827,1829,1831,1833 CKSSYB104K10
C 1828,1830,1832,1834 CCSSCH471J16
C 1835,9048,9148 CKSSYB103K16
C 1836,1838,1840,1842 CKSSYB104K10
C 1837,1839,1841,1843 CCSSCH471J16
C 1844,1846,1848,1876 CKSSYB104K10
C 1845,1847,1849,9002 CCSSCH471J16
C 1867-1871,1874,1875 CCSSCH102J50
C 1872,1873,1885,1887 CCSSCH101J50
C 1877,1916,1997,1998 CKSSYB104K10
C 1878,1881-1884,1886 CCSSCH102J50
C 1888,1890,1891,1893 CCSSCH101J50
C 1889,1892,1919-1923 CCSSCH102J50
C 1900 CEVW101M25
C 1901 CKSQYB104K25
Mark No. Description Part No.
C 1903,1904,1931,1932 CCG1195
C 1905 CKSRYB104K16
C 1906 CKSRYB153K25
C 1907 CCSRCH681J50
C 1908,1933,1934 CKSRYB104K25
C 1909 CKSQYB105K16
C 1910,1973 BCG1059
C 1912,1917,1935-1937 CCSRCH102J50
C 1914 CKSRYB103K25
C 1938,1942,1948 CKSQYB475K10
C 1939,1943 CCG1233
C 1941 CCSRCH102J50
C 1945-1947,1975 CKSRYB104K25
C 1949,1950,1981,1982 CCSSCH102J50
C 1952,1958 CKSRYB223K16
C 1953,1957 CCSRCH561J50
C 1959 CCSRCH101J50
C 1970 CCG1195
C 1974 CEVW101M4
C 1977 CCSRCH331J50
C 1979 CKSQYB225K10
C 1983,1993,1995,9057 CCSSCH101J50
C 1992,9022,9047,9051 CCSSCH102J50
C 9001,9101 DCH1165
C 9004,9006,9008,9010 CCSSCH471J16
C 9007,9011,9017,9019 CKSSYB105K6R3
C 9009,9013,9015,9026 CKSSYB104K10
C 9012,9014,9016,9018 CCSSCH471J16
C 9021,9027,9030,9032 CCSSCH471J16
C 9023-9025,9123-9125 CKSQYB106K6R3
C 9028,9029,9103,9105 CKSSYB105K6R3
C 9031,9050,9052,9054 CKSSYB104K10
C 9035-9042,9135-9142 VCG1066
C 9053,9055,9056,9098 CCSSCH102J50
C 9102,9104,9106,9108 CCSSCH471J16
C 9107,9111,9117,9119 CKSSYB105K6R3
C 9109,9113,9115,9126 CKSSYB104K10
C 9110,9112,9114,9116 CCSSCH471J16
C 9118,9121,9127,9130 CCSSCH471J16
C9122,9147,9152,9153 CCSSCH102J50
C 9128,9129 CKSSYB105K6R3
C 9131,9154,9353 CKSSYB104K10
C 9132,9354 CCSSCH471J16
C 9144 CKSRYB105K10
C 9149 CEVW101M16
C 9151,9301-9312,9316 CCSSCH101J50
C 9155 CCSSCH102J50
C 9199,9398 CCSSCH331J50
C 9317 CCSSCH101J50
FINTERFACE ASSY
SEMICONDUCTORS
>IC 7101 PQ1CG3032FZ
Q 7001 LTA124EUB
Q 7002 LTC124EUB
>D 7102 D3SBA20(B)
D 7103 RB050L-40
>D 7104 MTZJ6R8(B)
Mark No. Description Part No.
227
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
MISCELLANEOUS
L 7101 INDUCTOR ATH7052
H 7101,7102 FUSE CLIP AKR1004
J 5 JUMPER WIRE D20PYY0415E
KN 7001-7006 WRAPPING TERMINAL VNF1084
CN 7001,7006 CONNECTOR CKS1720
CN 7002,7003,7007,7009 CONNECTOR CKS1730
CN 7004 24P SOCKET AKP7203
CN 7005 13P PLUG XKP3066
CN 7008 PLUG CKS1724
CN 7010 7P PLUG XKP3063
CN 7011 23P PLUG XKP3071
CN7012 CONNECTOR 9604S-17C
CN7013 CONNECTOR 9604S-19C
CN7014 CONNECTOR 9604S-21C
CN 7015 27P CONNECTOR VKN1258
CN7016 CONNECTOR CKS3376
CN7017 CONNECTOR CKS3374
CN 7018 2P TOP POST B2B-EH
CN7019 CONNECTOR CKS3813
7001 HEAT SINK ANH-309
7002 SCREW BBZ30P080FCC
JH 7001 4P CABLE HOLDER 51048-0400
JH 7002 PCB BINDER VEF1040
RESISTORS
R 7109 RS1/10SR1001D
R 7110 RS1/10SR3301D
Other Resistors RS1/10SR###J
CAPACITORS
C 7001-7008,7013-7020 CCSRCH102J50
C 7009-7012 CCSRCH100D50
C 7124 CFTLA274J50
C 7125,7128,7130,7131 CCSRCH102J50
C 7127 CEAK682M25
C 7129 CKSRYB104K50
C 7132 CEHAZL471M25
C 7133 CKSYB105K25
C 7134 CKSRYB104K25
C 7136 CEHAZL221M10
C 7137,7138 CCSRCH102J50
C 7139 CFTLA394J50
C 7143,7144 CCSRCH101J50
GCOMPONENT ASSY
SEMICONDUCTORS
IC 6001-6004 TC74LVX4052FT
IC 6005 TC74LVX4053FT
IC 6006 LA7213
IC 6007,6008 NJM2581M
IC 6009 TC4094BFN
IC 6010 TC74VHCT08AFTS1
IC 6014 TC74LVX4051FT
Q 6001-6007,6009,6010 LSA1576UB
Q 6008 LTC114EUB
Q 6011,6019,6021 LTC124EUB
Q 6015 LSC4081UB
Q 6016-6018,6020 LSA1576UB
Mark No. Description Part No.
D 6001 1SS352
D 6002,6003 RR264M-400
MISCELLANEOUS
L 6001 CHIP SOLID INDUCTOR ATL7002
JA 6001 PIN JACK(3P) AKB7203
JA 6002,6003 PIN JACK(6P) AKB7204
JA 6004 JACK AKN-209
KN 6001 SCREW PLATE VNE1948
CN 6002 PLUG CKS3545
CN 6004 15P PLUG XKP3067
CN 6006 CONNECTOR 9607S-11F
CN 6009 24P SOCKET AKP7203
CN 6010 L-PLUG(10P) KM200NA10L
JP 6007 8P HOUSING ASSY ADX7693
RESISTORS
R 6001-6003,6040-6045 RS1/10SR75R0F
R 6053-6058 RS1/10SR75R0F
Other Resistors RS1/10SR###J
CAPACITORS
C 6004,6005,6016,6017 CKSRYB103K50
C 6006,6007,6032,6033 CEAT101M16
C 6009-6014,6035-6037 CCSRCH101J50
C 6018,6021,6024,6166 CEAT100M50
C 6019,6020,6022,6023 CKSRYB103K50
C 6025 CEAT3R3M50
C 6026,6027,6030,6031 CKSRYB103K50
C 6028,6038,6039 CEAT101M10
C 6043-6045,6055-6057 CEAT101M10
C 6046,6047,6058,6059 CKSRYB105K10
C 6048,6049,6060,6061 CCSRCH102J50
C 6050,6051 CEAT221M16
C 6064,6070,6072,6086 CKSRYB105K10
C 6065,6069,6071,6073 CCSRCH102J50
C 6068 CKSRYB105K16
C 6074,6075,6110 CKSRYB104K16
C 6082-6085 CCSRCH101J50
C 6087-6089,6100,6102 CCSRCH102J50
C 6090,6091,6094,6099 CKSRYB105K10
C 6092,6093 ACH1479
C 6095 CCSRCH331J50
C 6096 CEAK221M16
C 6097,6098 CKSRYB224K10
C 6101,6105,6108,6147 CKSRYB105K10
C 6103,6104,6143,6144 CEAT101M16
C 6106,6107,6146,6149 CCSRCH102J50
C 6111,6112,6125-6136 CKSRYB103K50
C 6115-6117 CKSRYB104K16
C 6121-6124,6197 CCSRCH100D50
C 6148,6151,6152,6155 CKSRYB105K10
C 6150,6153,6154,6156 CCSRCH102J50
C 6157,6158,6161,6162 CKSRYB105K10
C 6159,6160,6163,6164 CCSRCH102J50
C 6165 CKSRYB105K10
C 6168,6170,6184,6190 CKSRYB103K50
C 6169,6171,6174,6176 CEAT101M16
C 6172,6173,6196 CCSRCH102J50
C 6177,6179,6180,6182 CEAT101M16
C 6183,6192,6193 CEAT101M16
C 6191 CKSRYB103K50
Mark No. Description Part No.
228 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
HCOMPOSITE_S ASSY
SEMICONDUCTORS
IC 6501-6503,6511,6512 TC74HC4051AFT
IC 6504 PDC162A
IC 6513 LA7213
IC 6514 MM1511XN
IC 6521 TC74HC4053AFT
IC 6531 LA7109
IC 6533 TC74VHC32FTS1
IC 6541,6542 TC4094BFN
IC 6543 NJM2505AF
IC 6551-6554 NJM4580V
Q 6501-6508 IMX25
Q 6509,6516,6524,6525 LSA1576UB
Q 6510 LTC114EUB
Q 6528-6531 LSC4081UB
D 6503,6504 RR264M-400
D 6505 1SS352
D 6506 1SS301
D 6507 DAP202U
D 6508 1SS302
MISCELLANEOUS
L 6501 CHIP COIL LCYA330J2520
JA 6501,6502 PIN JACK(4P) XKB3017
JA 6503-6505 COMB.JACK(2S+2P) AKB7200
JA 6506 COMB.JACK(S+1P) AKB7199
KN 6501-6503 SCREW PLATE VNE1948
X 6501 CRYSTAL (14.31818 MHz) ASS7080
CN 6501 PLUG CKS3545
CN6502 CONNECTOR 9607S-21F
CN 6503 13P PLUG XKP3066
RESISTORS
R 6581-6595,6734,6736 RS1/10SR75R0F
R 6738,6744,6746,6748 RS1/10SR75R0F
Other Resistors RS1/10SR###J
CAPACITORS
C 6505,6506,6515,6525 CEAK220M50
C 6526,6535,6536 CEAK220M50
C 6545,6546,6652-6655 CCSRCH100D50
C 6550-6555,6625,6644 CCSRCH102J50
C 6556,6558,6567,6586 CEAT101M10
C 6557,6559,6566,6568 CKSRYB104K16
C 6560-6563,6565,6584 CCSRCH181J50
C 6571-6579,6581 CFHXSQ103J16
C 6580,6582 ACH1480
C 6587,6601,6649,6730 CEAT101M10
C 6598 CEAT100M50
C 6599,6600,6605,6606 CKSRYB103K50
C 6602,6604,6643,6717 CKSRYB104K16
C 6607,6610,6613,6696 CEAT220M50
C 6608,6609,6611,6612 CKSRYB103K50
C 6620,6621,6662-6667 CEAT101M16
C 6624,6645,6647 CKSRYB105K10
C 6646,6648,6657,6660 CCSRCH102J50
C 6661,6668,6669,6674 CCSRCH102J50
C 6670-6673,6676-6678 CKSRYB105K10
Mark No. Description Part No.
C 6675,6679-6681 CCSRCH102J50
C 6682-6684,6690,6691 CKSRYB105K10
C 6685-6687,6692,6693 CCSRCH102J50
C 6688,6726 CEAT101M16
C 6689 CCSRCH100D50
C 6694,6697,6699,6702 CKSRYB103K50
C 6701 CEAT220M50
C 6704,6709,6724,6742 CKSRYB103K50
C 6706,6707 CKSQYB106K6R3
C 6719-6722,6746,6751 CKSRYB104K16
C 6723,6725,6728 CKSRYB105K10
C 6727 CEAT470M16
C 6729,6748,6750,6752 CCSRCH102J50
C 6731 CEAT101M10
C 6732,6733 CKSRYB473K25
C 6734 CCSRCH4R0C50
C 6735 CCSRCH5R0C50
C 6736,6737 CCSRCH240J50
C 6738-6740,6745 CCSRCH101J50
C 6743,6744 CKSRYB122K50
C 6753 CCSRCH102J50
C 6754 CKSRYB104K16
IFRONT BRIDGE ASSY
MISCELLANEOUS
CN 7701 PLUG(6P) KM200NA6
CN 7702 PLUG(3P) KM200NA3
CN 7704 CONNECTOR CKS3376
CN 7705,7707 CONNECTOR CKS3374
CN 7706 CONNECTOR 9604S-17C
CN 7708 11P CONNECTOR 52044-1145
CN 7709 27P CONNECTOR VKN1287
JH 7701,7702 PCB BINDER VEF1040
JP 7701 5P HOUSING ASSY ADX7692
RESISTORS
All Resistors RS1/10SR###J
CAPACITORS
C 7702,7704,7725 CCSRCH102J50
C 7703,7726 CKSRYB103K50
C 7711-7713 CCSRCH100D50
C 7715 CKSRYB105K16
C 7716,7723 CCSRCH101J50
JMIC HP ASSY
SEMICONDUCTORS
IC 6201 NJM4565MD
D 6201,6202,6352 1SS302
D 6203,6205,6206 UDZS5R1(B)
MISCELLANEOUS
JA 6201 JACK VKB1243
JA 6351 PHONE JACK AKN7029
JA 6352 JACK AKB7219
KN 6202,6203 WRAPPING TERMINAL VNF1084
CN 6251 CONNECTOR 9604S-09C
CN 6351 4P JUMPER CONNECTOR 52147-0410
JH 6303 PCB BINDER VEF1040
Mark No. Description Part No.
229
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
RESISTORS
All Resistors RS1/10SR###J
CAPACITORS
C 6204,6228,6231,6232 CKSRYB103K50
C 6209 CKSRYB105K6R3
C 6212 CKSRYB471K50
C 6213,6219 CEJQ100M16
C 6216,6362 CCSRCH101J50
C 6222,6227 CCSRCH330J50
C 6224,6361 CKSRYB104K16
C 6229,6241,6242 CCSRCH102J50
C 6234,6235 CEAK101M16
C 6237 CEAK100M50
C 6353,6354 CKSRYB822K50
C 6359 CKSRYB103K50
C 6360 CKSRYB472K50
KDISPLAY ASSY
SEMICONDUCTORS
IC 8001 PDC188C8
IC 8002 GP1UE274XKC1
IC 8004 S-1200B33-M5
IC 8201 PE5615A
IC 8202 BU4842F
Q 8001-8007 LTC124EUB
Q 8012 2SK2034
D 8001,8003,8005,8007 SLR-343VC(NPQ)
D 8009,8013 SLR343BC4T(JKLM)
D 8011 SLR343WBCT(MNPQ)
D 8019 RB751V-40
D 8201 1SS301
D 8202 RB501V-40
MISCELLANEOUS
J 1 JUMPER WIRE D20PYY0305E
J 2 JUMPER WIRE D20PYY0410E
J 3 JUMPER WIRE D20PYY0310E
KN8201 FL HOLDER(FE) VNF1096
V 8201 FL TUBE DISPLAY AAV7115
S8001-8012,8015-8020 SWITCH ASG7029
S8023 SWITCH ASG7029
S8024 ROTARY ENCODER ASX7051
X 8002 CRYSTAL (15 MHz) CSS1653
X 8201 CERAMIC RESONATOR (5 MHz) VSS1142
CN8002 9P CONNECTOR VKN1852
CN 8202 31P CONNECTOR VKN1291
JH 8001,8006 3P CABLE HOLDER 51048-0300
JH 8003 4P CABLE HOLDER 51048-0400
JP 8004 10P HOUSING ASSY ADX7696
JP 8005 4P HOUSING ASSY ADX7699
RESISTORS
All Resistors RS1/10SR###J
CAPACITORS
C 8001-8007,8235,8256 CCSRCH101J50
C 8009,8015,8016,8018 CKSRYB104K16
C 8012,8013 CCSRCH120J50
C 8014,8030,8031,8228 CKSRYB105K10
Mark No. Description Part No.
C 8019-8021,8023,8025 CCSRCH102J50
C 8024 ACH7272
C 8026,8202,8223,8229 CCSRCH102J50
C 8029,8224,8225,8227 CKSRYB104K16
C 8033,8204-8220,8226 CKSRYB471K50
C 8034,8035,8222,8232 CKSRYB103K50
C 8201,8230 CKSRYB104K50
C 8221 ACH7268
C 8231,8237,8238 CEAT470M50
C 8233,8240 CCSRCH102J50
C 8236 CKSRYB105K16
C 8239 CEAT221M16
C 8242,8258 CCSRCH100D50
C 8244,8245,8251 CKSRYB103K50
C 8247 CKSRYB104K16
C 8248 CEAT101M35
C 8255 CKSRYB473K50
C 8257 CCSRCH101J50
C 8259 CCSRCK2R0C50
LVOL ASSY
MISCELLANEOUS
S8401 ROTARY ENCODER ASX7049
JH 8401 3P CABLE HOLDER 51048-0300
CAPACITORS
C 8401,8402 CKSRYB103K50
MPOWER SW ASSY
SEMICONDUCTORS
Q 8501 LTC143EUB
D 8502 SLR343BC4T(JKLM)
MISCELLANEOUS
S8501 SWITCH ASG7029
JH 8501 4P CABLE HOLDER 51048-0400
RESISTORS
All Resistors RS1/10SR###J
CAPACITORS
C 8501 CCSRCH101J50
NICE_BUFFER ASSY
SEMICONDUCTORS
IC 6801,6821,6841,6861 NJM2068MD
IC 6881,6901,6921 NJM2068MD
MISCELLANEOUS
J 4 JUMPER WIRE D20PYY0410E
KN 6801 SCREW PLATE VNE1948
CN 6801 FLOATING CONNECTOR AKM7086
CN 6811 19P PLUG XKP3069
CN 6821 17P PLUG XKP3068
CN 6830 5P SOCKET XKP3073
JH 6801 4P CABLE HOLDER 51048-0400
Mark No. Description Part No.
230 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
RESISTORS
R 6810,6811,6830,6831 RN1/16SC10R0D
R 6850,6851,6870,6871 RN1/16SC10R0D
R 6890,6891,6910,6911 RN1/16SC10R0D
R 6930,6931 RN1/16SC10R0D
Other Resistors RS1/10SR###J
CAPACITORS
C 6803,6804,6823,6824 CFHXSQ103J16
C 6807,6808,6817,6818 CCSRCH102J50
C 6827,6828,6837,6838 CCSRCH102J50
C 6843,6844,6863,6864 CFHXSQ103J16
C 6847,6848,6857,6858 CCSRCH102J50
C 6867,6868 CCSRCH102J50
C 6883,6884,6903,6904 CFHXSQ103J16
C 6923,6924 CFHXSQ103J16
OICE SHIELD ASSY
MISCELLANEOUS
KN 6991 SCREW PLATE VNE1948
JH 6991 4P JUMPER CONNECTOR 52147-0410
PICE INTERFACE ASSY
MISCELLANEOUS
CN 3801 17P SOCKET XKP3079
CN 3802 19P SOCKET XKP3080
CN 3810,3830,3850,3870 5P SOCKET XKP3073
CN 3820,3840,3860 PLUG CKS1750
QICEPOWER AMP ASSY
SEMICONDUCTORS
IC 4000,4001 BU7262SFVM
IC 4003 TC74VHC04FTS1
IC 4004 TC74VHC08FTS1
IC 4005 HA17431GLTPA
>IC 4101,4201,4301,4401 ICC3-AVR
IC 4200,4400,4600,4700 ICC1-AVR
IC 4202,4402,4602,4702 NJM2068MD
IC 4203,4403,4603,4703 NJM4565MD
IC 4204,4404,4604,4704 NJM12904V
>IC 4501,4601,4701 ICC3-AVR
>IC 4900 NJM1431AU
Q 4000,4002,4003 LTC124EUB
Q 4001,4111,4211,4311 2SA1602A
Q 4004,4006,4008,4010 LTA124EUB
Q 4005,4007,4009,4011 RT1N140M
Q 4012,4013 HN1A01FU
Q 4014,4016 HN1C01FU
Q 4015,4109,4209,4309 2SC4154
>Q 4100,4101,4200,4201 PHB45NQ15T
Q 4102,4104,4202,4204 2SC5738
Q 4103,4105,4203,4205 2SA2061
Q 4106,4107,4206,4207 2SA1682
Q 4108,4208,4308,4408 2SD2704K
Q 4110,4210,4310,4410 2SA1514K
Q 4112,4312,4512,4712 RT1N140M
Mark No. Description Part No.
>Q 4300,4301,4400,4401 PHB45NQ15T
Q 4302,4304,4402,4404 2SC5738
Q 4303,4305,4403,4405 2SA2061
Q 4306,4307,4406,4407 2SA1682
Q 4409,4509,4609,4709 2SC4154
Q 4411,4511,4611,4711 2SA1602A
>Q 4500,4501,4600,4601 PHB45NQ15T
Q 4502,4504,4602,4604 2SC5738
Q 4503,4505,4603,4605 2SA2061
Q 4506,4507,4606,4607 2SA1682
Q 4508,4608,4708 2SD2704K
Q 4510,4610,4710 2SA1514K
>Q 4700,4701 PHB45NQ15T
Q 4702,4704 2SC5738
Q 4703,4705 2SA2061
Q 4706,4707 2SA1682
D 4001-4005,4007-4014 1SS352
D 4100,4200,4300,4400 1SS302
D 4101,4102,4201,4202 RB161VA-20
D 4103-4107,4203-4207 RF051VA2S
D 4108,4109,4208,4209 RF101L2S
D 4110,4210,4310,4410 1SS352
D 4301,4302,4401,4402 RB161VA-20
D 4303-4307,4403-4407 RF051VA2S
D 4308,4309,4408,4409 RF101L2S
D 4500,4600,4700 1SS302
D 4501,4502,4601,4602 RB161VA-20
D 4503-4507,4603-4607 RF051VA2S
D 4508,4509,4608,4609 RF101L2S
D 4510,4610,4710,4810 1SS352
D 4701,4702 RB161VA-20
D 4703-4707 RF051VA2S
D 4708,4709 RF101L2S
MISCELLANEOUS
L 4100,4200,4300,4400 COIL ATL7017
L 4101,4201,4301 COMMON MODE COIL ATL7022
L 4102,4103,4202,4203 INDUCTOR ATL7018
L 4104,4204,4304 CHIP INDUCTOR ATL7020
L 4302,4303,4402,4403 INDUCTOR ATL7018
L 4401,4501,4601 COMMON MODE COIL ATL7022
L 4404,4504,4604 CHIP INDUCTOR ATL7020
L 4500,4600,4700 COIL ATL7017
L 4502,4503,4602,4603 INDUCTOR ATL7018
L 4701 COMMON MODE COIL ATL7022
L 4702,4703 INDUCTOR ATL7018
L 4704 CHIP INDUCTOR ATL7020
JA 4101 SP TERMINAL 6-P(V0) AKE7150
JA 4301,4501 SP TERMINAL 4-P(V0) AKE7149
KN 4100,4200,4300,4400 SCREW PLATE VNE1948
RY 4100,4300,4500,4700 RELAY ASR7001
CN 4000 CONNECTOR 9604S-17C
CN 4100,4300,4500 CONNECTOR CKS1716
CN 4200,4400,4600,4700 5P PLUG XKP3062
CN 4901 PLUG(2P) KM200NA2
CN 4902 PLUG(4P) KM200NA4
CN 4903 PLUG(7P) KM200NA7
4100,4200,4300,4400
4500,4600,4700 COIL SHIELD 60(MTL) ANK7139
Mark No. Description Part No.
231
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
RESISTORS
R 4057 RS1/8SQ471J
R 4060,4139,4239,4339 RS1/10SR5602F
R 4061 RS1/10SR3302F
R 4100,4101,4200,4201 RN1/16SE1000D
R 4102,4103,4202,4203 RN1/16SE9100D
R 4104,4105,4204,4205 RN1/16SE1001D
R 4123,4125,4167,4223 RS1/10SR1001F
R 4124,4224,4324,4424 RS1/10SR2702F
R 4126,4127,4226,4227 RS1/10SR1501F
R 4128,4228,4328,4428 RS1/8SQ2702F
R 4129,4229,4329,4429 RS1/8SQ1R0J
R 4130,4230,4330,4430 RS1/8SQ4702F
R 4131,4231,4331,4431 RS1/8SQ6802F
R 4132,4232,4332,4432 RS1/10SR1802F
R 4133,4135,4156,4176 RS1/10SR1801F
R 4134,4234,4334,4434 RS1/10SR1201F
R 4136,4236,4336,4436 RS1/10SR1502F
R 4137,4237,4337,4437 RS1/4SA2702F
R 4138,4238,4338,4438 RS1/10SR2701F
R 4145,4150,4245,4250 RS1/8SQ1002F
R 4146,4246,4346,4446 RS1/10SR3902F
R 4147-4149,4161,4162 ACN7165
R 4151,4152,4251,4252 ACN7162
R 4154,4254,4354,4454 ACN7170
R4155,4255,4355,4455 RS1/8SQ1502F
R 4163,4263,4363,4463 RS1/4SA1053F
R 4164,4264,4364,4464 RS1/10SR3301F
R 4166,4266,4366,4466 RS1/10SR1002F
R 4168,4268,4368,4468 RS1/10SR2202F
R 4169,4269,4369,4469 RS1/10SR1202F
R 4177,4277,4377,4477 RS1/4SA2002F
R 4179,4180,4279,4280 RS1/8SQ334J
R 4225,4267,4323,4325 RS1/10SR1001F
R 4233,4235,4256,4276 RS1/10SR1801F
R 4247-4249,4261,4262 ACN7165
R 4300,4301,4400,4401 RN1/16SE1000D
R 4302,4303,4402,4403 RN1/16SE9100D
R 4304,4305,4404,4405 RN1/16SE1001D
R 4326,4327,4426,4427 RS1/10SR1501F
R 4333,4335,4356,4376 RS1/10SR1801F
R 4345,4350,4445,4450 RS1/8SQ1002F
R 4347-4349,4361,4362 ACN7165
R 4351,4352,4451,4452 ACN7162
R 4367,4423,4425,4467 RS1/10SR1001F
R 4379,4380,4479,4480 RS1/8SQ334J
R 4433,4435,4456,4476 RS1/10SR1801F
R 4439,4539,4639,4739 RS1/10SR5602F
R 4447-4449,4461,4462 ACN7165
R 4500,4501,4600,4601 RN1/16SE1000D
R 4502,4503,4602,4603 RN1/16SE9100D
R 4504,4505,4604,4605 RN1/16SE1001D
R 4523,4525,4567,4623 RS1/10SR1001F
R 4524,4624,4724 RS1/10SR2702F
R 4526,4527,4626,4627 RS1/10SR1501F
R 4528,4628,4728 RS1/8SQ2702F
R 4529,4629,4729 RS1/8SQ1R0J
R 4530,4630,4730 RS1/8SQ4702F
R 4531,4631,4731 RS1/8SQ6802F
R 4532,4632,4732 RS1/10SR1802F
Mark No. Description Part No.
R 4533,4535,4556,4576 RS1/10SR1801F
R 4534,4634,4734 RS1/10SR1201F
R 4536,4636,4736 RS1/10SR1502F
R 4537,4637,4737 RS1/4SA2702F
R 4538,4638,4738 RS1/10SR2701F
R 4545,4550,4645,4650 RS1/8SQ1002F
R 4546,4646,4746 RS1/10SR3902F
R 4547-4549,4561,4562 ACN7165
R 4551,4552,4651,4652 ACN7162
R 4554,4654,4754 ACN7170
R 4555,4655,4755 RS1/8SQ1502F
R 4563,4663,4763,4863 RS1/4SA1053F
R 4564,4664,4764,4864 RS1/10SR3301F
R 4566,4666,4766,4900 RS1/10SR1002F
R 4568,4668,4768 RS1/10SR2202F
R 4569,4669,4769 RS1/10SR1202F
R 4577,4677,4777 RS1/4SA2002F
R 4579,4580,4679,4680 RS1/8SQ334J
R 4625,4667,4723,4725 RS1/10SR1001F
R 4633,4635,4656,4676 RS1/10SR1801F
R 4647-4649,4661,4662 ACN7165
R 4700,4701 RN1/16SE1000D
R 4702,4703 RN1/16SE9100D
R 4704,4705 RN1/16SE1001D
R 4726,4727 RS1/10SR1501F
R4733,4735,4756,4776 RS1/10SR1801F
R 4745,4750 RS1/8SQ1002F
R 4747-4749,4761,4762 ACN7165
R 4751,4752 ACN7162
R 4767 RS1/10SR1001F
R 4779,4780 RS1/8SQ334J
R 4901 RS1/10SR3301F
R 4902 RS2LMF682J
Other Resistors RS1/10SR###J
CAPACITORS
C 4001-4004,4011-4021 CCSRCH102J25
C 4005,4006,4026,4027 CKSRYB104K16
C 4010,4036,4910,4911 ACH7321
C 4022,4025,4029,4040 CKSRYB105K10
C 4023 CKSQYB106K6R3
C 4024,4112,4113,4117 ACH1479
C 4028,4926 CKSRYB103K25
C 4031-4035,4121,4129 CKSRYB104K16
C 4100,4200,4300,4400 CFTNA104J2A
C 4101,4201,4301,4401 CFTNA274J2A
C 4104,4105,4204,4205 ACG7069
C 4106,4107,4206,4207 ACG7072
C 4108,4208,4308,4408 ACH7320
C 4109,4209,4309,4409 CFHXSQ103J16
C 4114,4214,4314,4414 ACG7068
C 4115,4118,4120,4130 CKSRYB105K10
C 4116,4151,4216,4251 CKSRYB105K16
C 4119,4219,4319,4419 CKSRYB474K16
C 4122,4128,4222,4228 ACG7073
C 4123,4223,4323,4423 ACG7066
C 4124,4224,4324,4424 ACG7078
C 4125,4225,4325,4425 ACG7071
C 4126,4226,4326,4426 ACG7079
C 4127,4227,4327,4427 ACG7070
Mark No. Description Part No.
232 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
C 4131,4132,4231,4232 CKSQYB224K25
C 4133,4233,4333,4433 ACG7064
C 4134,4234,4334,4434 ACG7063
C 4135-4138,4235-4238 ACG7065
C 4141,4142,4241,4242 CCG1245
C 4143-4146,4243-4246 CCG1248
C 4147,4148,4215,4218 CKSRYB105K10
C 4149,4150,4249,4250 ACH7318
C 4152,4153,4156,4221 CKSRYB104K16
C 4155,4255,4355,4455 CKSYB475K25
C 4157,4257,4357,4457 CKSRYB222K50
C 4160,4260,4360,4460 CCSRCH102J50
C 4161,4261,4361,4461 CCSSCH100D50
C 4212,4213,4217,4312 ACH1479
C 4220,4230,4247,4248 CKSRYB105K10
C 4229,4252,4253,4258 CKSRYB104K16
C 4304,4305,4404,4405 ACG7069
C 4306,4307,4406,4407 ACG7072
C 4313,4317,4412,4413 ACH1479
C 4315,4318,4320,4330 CKSRYB105K10
C 4316,4351,4416,4451 CKSRYB105K16
C 4321,4329,4352,4353 CKSRYB104K16
C 4322,4328,4422,4428 ACG7073
C 4331,4332,4431,4432 CKSQYB224K25
C 4335-4338,4435-4438 ACG7065
C 4341,4342,4441,4442 CCG1245
C 4343-4346,4443-4446 CCG1248
C 4347,4348,4415,4418 CKSRYB105K10
C 4349,4350,4449,4450 ACH7318
C 4356,4421,4429,4452 CKSRYB104K16
C 4417,4512,4513,4517 ACH1479
C 4420,4430,4447,4448 CKSRYB105K10
C 4453,4458,4521,4529 CKSRYB104K16
C 4500,4600,4700 CFTNA104J2A
C 4501,4601,4701 CFTNA274J2A
C 4504,4505,4604,4605 ACG7069
C 4506,4507,4606,4607 ACG7072
C 4508,4608,4708,4808 ACH7320
C 4509,4609,4709,4809 CFHXSQ103J16
C 4514,4614,4714 ACG7068
C 4515,4518,4520,4530 CKSRYB105K10
C 4516,4551,4616,4651 CKSRYB105K16
C 4519,4619,4719 CKSRYB474K16
C 4522,4528,4622,4628 ACG7073
C 4523,4623,4723 ACG7066
C 4524,4624,4724 ACG7078
C 4525,4625,4725 ACG7071
C 4526,4626,4726 ACG7079
C 4527,4627,4727 ACG7070
C 4531,4532,4631,4632 CKSQYB224K25
C 4533,4633,4733 ACG7064
C 4534,4634,4734 ACG7063
C 4535-4538,4635-4638 ACG7065
C 4541,4542,4641,4642 CCG1245
C 4543-4546,4643-4646 CCG1248
C 4547,4548,4615,4618 CKSRYB105K10
C 4549,4550,4649,4650 ACH7318
C 4552,4553,4556,4621 CKSRYB104K16
C 4555,4655,4755 CKSYB475K25
Mark No. Description Part No.
C 4557,4657,4757,4857 CKSRYB222K50
C 4560,4660,4760,4860 CCSRCH102J50
C 4561,4661,4761 CCSSCH100D50
C 4612,4613,4617,4712 ACH1479
C 4620,4630,4647,4648 CKSRYB105K10
C 4629,4652,4653,4658 CKSRYB104K16
C 4704,4705 ACG7069
C 4706,4707 ACG7072
C 4713,4717,4817 ACH1479
C 4715,4718,4720,4730 CKSRYB105K10
C 4716,4751,4912,4913 CKSRYB105K16
C 4721,4729,4752,4753 CKSRYB104K16
C 4722,4728 ACG7073
C 4731,4732 CKSQYB224K25
C 4735-4738 ACG7065
C 4741,4742,4927-4929 CCG1245
C 4743-4746 CCG1248
C 4747,4748,4818,4847 CKSRYB105K10
C 4749,4750 ACH7318
C 4756,4758,4914,4915 CKSRYB104K16
C 4900-4905 ACH7305
C 4908 ACH7311
C 4909,4924,4925 CKSRYB104K25
C 4920,4921 CKSRYB105K16
C 4930,4931 CCSRCH102J50
C 4932,4933 ACE7082
RV-BRIDGE ASSY
MISCELLANEOUS
CN 8601,8602 CONNECTOR CKS3573
CAPACITORS
C 8602,8603 CKSRYB103K50
C 8604,8605 CKSRYB104K16
SPRE_BRIDGE ASSY
MISCELLANEOUS
CN 6951 CONNECTOR 9607S-21F
CN 6952 21P PLUG XKP3070
CN 6953 FLOATING CONNECTOR AKP7227
TPRIMARY GUARD ASSY
MISCELLANEOUS
CN 5752 5P PLUG XKP3062
UPRIMARY ASSY
SEMICONDUCTORS
>IC 8711 NJM78M56FA
Q 8712 LTC143EUB
D 8703,8704,8719 1SS352
>D 8711 S1WB(A)60SD
D 8717 1SS357
D 8718 UDZS5R1(B)
Mark No. Description Part No.
233
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
MISCELLANEOUS
>L 8701 LINE FILTER XTF3004
H 8701,8702 FUSE CLIP AKR1004
JA 8701 AC INLET ASSY ADX7464
KN 8701 WRAPPING TERMINAL VNF1084
KN 8702,8703 SCREW PLATE VNE1948
>RY 8702 POWER RELAY ASR7022
>T 8701 STANDBY TRANSFORMER ATT7108
>CN8701 CONNECTOR B2P3-VH
CN 8711 PLUG(5P) KM200NA5
RESISTORS
R 8702 RD1/4MUF220J
Other Resistors RS1/10SR###J
CAPACITORS
>C 8701,8702,8710 ACE7013
>C 8704 ACG7039
C 8711 CFTLA103J50
C 8712-8715,8717,8720 CCSRCH102J50
C 8716 CEAK332M25
C 8718 CEAK221M25
C 8719 CCSRCH471J50
C 8721-8724 CCSRCH101J50
VREG ASSY
SEMICONDUCTORS
>IC 7501,7611 NJM78M12FA
>IC 7502 NJM79M12FA
>IC 7521 NJM78M06FA
>IC 7601 NJM78M56FA
>IC 7602 NJM79M05FA
>D 7501-7504,7521,7522 1SR154-400
D 7505,7506,7523,7603 1SS357
>D 7601 D3SBA20(B)
D 7602 1SS352
D 7604,7614 1SS357
>D 7611,7612,7621-7623 1SR154-400
D 7613 1SR154-400
D 7624 HZU8R2(B2)
D 7625 PTZ22(B)
MISCELLANEOUS
H 7501-7504,7601-7604 FUSE CLIP AKR1004
CN 7501,7601 5P TOP POST B5B-EH
CN 7502 PLUG(5P) KM200NA5
CN 7602 PLUG(8P) KM200NA8
JH 7502,7504,7602 PCB BINDER VEF1040
>P 7521,7522 PROTECTOR(1.5A) AEK7011
RESISTORS
R 7621 RS1/10SR473J
>Other Resistors RD1/4MUF###J
CAPACITORS
C 7501,7511 CEAK332M25
C 7504,7525,7526,7609 CFTLA394J50
C 7505,7506,7603,7604 CKSRYB103K50
C 7507,7508 CEAK221M25
C 7521 CEAK222M25
Mark No. Description Part No.
C 7522 CCSRCH101J50
C 7523 CEAK221M16
C 7601 CEAK472M16
C 7602 CEAK222M16
C 7605,7606 CEAK101M16
C 7611 CEAK102M35
C 7612 CEAK471M35
C 7613,7626 CKSRYB103K50
C 7614 CEAK100M50
C 7621 CEANP101M35
C 7622 CEAT101M35
C 7623 CEAT221M35
C 7624 CEAT101M16
C 7625 CEAT470M50
C 7628,7632 CCSRCH102J50
C 7629 CFTLA104J50
C 7634-7641 CKSRYB104K50
WICE_REG ASSY
SEMICONDUCTORS
>IC 7251 NJM78M12FA
>IC 7252 NJM79M12FA
>IC 7271 NJM78M05FA
>IC 7272 NJM79M05FA
>Q 7201 RSQ035P03
>Q 7202 RSQ035N03
Q 7203,7204 LTC143EUB
Q 7205,7222 LTA143EUB
>Q 7211 2SD1763A
>Q 7212 2SB1186A
Q 7221 LTC124EUB
Q 7241 2SD1763A
Q 7242 LSC4081UB
>D 7201-7204,7211,7212 1SR154-400
D 7205,7206,7245 1SS352
D 7213,7214 HZU7R5(B1)
D 7215,7216 1SR154-400
>D 7241-7244,7251-7254 1SR154-400
D 7247 UDZS12(B)
>D 7248 PTZ15(B)
>D 7249 HZU12(B2)
D 7255,7256,7275,7276 1SS357
>D 7271-7274 1SR154-400
MISCELLANEOUS
H 7201-7204,7241,7242 FUSE CLIP AKR1004
H 7251-7254 FUSE CLIP AKR1004
CN 7201 8P TOP POST B8B-EH
CN 7241 PLUG(2P) KM200NA2
CN 7251 PLUG(7P) KM200NA7
CN 7271 PLUG(4P) KM200NA4
CN 7302 PLUG(6P) KM200NA6
JH 7251-7253 PCB BINDER VEF1040
RESISTORS
R 7211,7213 RD1/4MUF102J
R 7241 RS1/4S152J
R 7255,7256 RS1/8SQ0R0J
Other Resistors RS1/10SR###J
Mark No. Description Part No.
234 SC-27
12 3 4
A
B
C
D
E
F
12 3 4
CAPACITORS
C 7200,7240,7250,7270 CFTLA394J50
C 7201,7202 CEAK102M16
C 7211-7215,7219,7245 CEAK100M50
C 7217,7218,7242,7253 CKSRYB103K50
C 7221,7246 CEAK470M25
C 7222,7277,7278 CCSRCH102J50
C 7241,7251,7252 CEAK222M25
C 7254,7273,7274 CKSRYB103K50
C 7255,7256 CEAK221M25
C 7271,7272 CEAK222M16
C 7275,7276 CEAK221M16
C 7281,7282 CCSRCH101J50
C 7289,7290 CCSRCH331J50
XB_REG ASSY
SEMICONDUCTORS
>IC 7300,7301 HA17431GLTPA
>IC 7302,7303 NJM2746V
>Q 7300 2SD2083
>Q 7301 2SB1383
Q 7302,7308 2SD1857
Q 7303,7307 2SB1236
Q 7304 RT1N241M
Q 7306 RT1P241M
Q 7309 2SC4154
Q 7310 2SA1602A
D 7302,7303 PTZ11(B)
D 7304,7307 UDZS2R4(B)
D 7306,7309,7350,7352 1SS352
D 7308,7310 1SR154-400
D 7351 UDZS18(B)
D 7353 UDZS20(B)
D 7355 1SS352
>
TH 7300 PTFM04BB222Q2N34B0
MISCELLANEOUS
H 7300-7303 FUSE CLIP AKR1004
CN 7306 PLUG(4P) KM200NA4
CN 7308 PLUG CKS-556
JH 7301 PCB BINDER VEF1040
>P 7300,7301 PROTECTOR(500MA) AEK7005
RESISTORS
R 7302,7303 RS2LMF222J
R 7306,7307 RS2LMF472J
R 7308-7311 RS1/4SA333J
R 7312-7315 RN1/16SE2702D
R 7318,7319 RS1/8SQ473J
R 7322,7323 RS2LMF152J
R 7324,7325 RS1/8SQ100J
R 7326-7329 RS1LMF332J
R 7332,7333 RN1/10SE8202D
R 7334,7335 RN1/10SE6801D
R 7336,7337 RN1/10SE1800D
R 7386 RS1/4SA154J
R 7387 RS1/4SA393J
R 7388 RS1/4SA223J
R 7389 RS1/4SA473J
Other Resistors RS1/10SR###J
Mark No. Description Part No.
CAPACITORS
C 7302,7303,7376-7379 CCSRCH102J50
C 7304-7307,7350 CKSRYB104K50
C 7310,7311 CKSRYB473K50
C 7318,7319 CCG1248
C 7320,7321 CEAK4R7M50
C 7324,7325 CEHAT470M2A
C 7326,7327 ACG7064
C 7380-7384 CKSRYB104K50
C 7386 CCSRCH102J50
YB_DIODE ASSY
SEMICONDUCTORS
>D 7400,7401 LN6SB60-4003
MISCELLANEOUS
CN 7400 PLUG CKS-556
7400,7401 HEAT SINK B ANH1021
7402,7403 SCREW IBZ30P080FCC
JP 7401 3P HOUSING ASSY ADX7649
RESISTORS
R 7402 RD1/4MUF100J
Other Resistors RS1/4SA###J
CAPACITORS
C 7400,7401 ACH7270
C 7402,7403 CFTLA104J2A
ZHDMI RECT ASSY
SEMICONDUCTORS
>D 8801 D5SBA20(B)
>D 8803 MTZJ24(B)
MISCELLANEOUS
H 8801,8802 FUSE CLIP AKR1004
CN 8801 3P TOP POST B3B-EH
JH 8801,8802 PCB BINDER VEF1040
JP 8802 HOUSING ASSY ADX7691
CAPACITORS
C 8801 ACH7286
C 8802,8806 CCSRCH101J50
C 8803,8807 CCSRCH102J50
C 8804 CFTLA104J50
C 8805 CKSRYB104K50
aH GUARD ASSY
MISCELLANEOUS
JH 6452-6455 PCB BINDER VEF1040
bDIGITAL_BRIDGE ASSY
MISCELLANEOUS
CN 6756,6757 13P PLUG XKP3066
Mark No. Description Part No.
235
SC-27
56 7 8
56 7 8
A
B
C
D
E
F
cZOUT ASSY
SEMICONDUCTORS
IC 6401 NJM2279M
MISCELLANEOUS
JA 6401 JACK AKB7222
CN 6401 13P SOCKET XKP3077
RESISTORS
R 6406,6408 RS1/10SR75R0F
Other Resistors RS1/10SR###J
CAPACITORS
C 6401,6402 CEAT101M10
C 6403,6406 CEAK221M16
C 6404,6407 CKSRYB104K16
C 6405,6408 CCSRCH331J50
C 6409,6410 CCSRCH181J50
C 6411,6412 CKSRYB103K50
Mark No. Description Part No.

Navigation menu
