Operating Instructions
Blu-ray DiscTM Home Theater Sound System
Model No. SC-BTT880
SC-BTT480
SC-BTT460
SC-BTT400
SC-BTT300
Unless otherwise indicated, illustrations in these operating instructions are of SC-BTT880.
Thank you for purchasing this product.
Please read these instructions carefully before using this product, and save this manual for future use.
Firmware updates
Panasonic is constantly improving the unit’s firmware to ensure that our
customers are enjoying the latest technology.
Panasonic recommends updating your firmware as soon as you are
notified.
For details, refer to “Firmware updates” (>21) or
http://panasonic.jp/support/global/cs/ (This site is in English only.)
GNGSGA-VQT4Q15~Cover_mst_.fm 1 ページ ２０１３年１月９日　水曜日　午後１時１９分
2VQT4Q15
Precautions
Unit
To reduce the risk of fire, electric shock or product damage,
≥Do not expose this unit to rain, moisture, dripping or splashing.
≥
Do not place objects filled with liquids, such as vases, on this unit.
≥Use only the recommended accessories.
≥Do not remove covers.
≥Do not repair this unit by yourself. Refer servicing to qualified
service personnel.
≥Do not let metal objects fall inside this unit.
≥Do not place heavy items on this unit.
AC mains lead
To reduce the risk of fire, electric shock or product damage,
≥Ensure that the power supply voltage corresponds to the
voltage printed on this unit.
≥Insert the mains plug fully into the socket outlet.
≥Do not pull, bend, or place heavy items on the lead.
≥Do not handle the plug with wet hands.
≥Hold onto the mains plug body when disconnecting the plug.
≥Do not use a damaged mains plug or socket outlet.
The mains plug is the disconnecting device.
Install this unit so that the mains plug can be unplugged from the
socket outlet immediately.
Small object
≥Keep the Memory Card out of reach of children to prevent
swallowing.
≥Keep the screws out of reach of children to prevent swallowing.
Unit
≥This unit utilizes a laser. Use of controls or adjustments or
performance of procedures other than those specified herein
may result in hazardous radiation exposure.
≥Do not place sources of naked flames, such as lighted candles,
on this unit.
≥This unit may receive radio interference caused by mobile
telephones during use. If such interference occurs, please
increase separation between this unit and the mobile
telephone.
≥
[For[Australia[and[New[Zealand]
This unit is intended for use in moderate climates.
≥
[Except[Australia[and[New[Zealand]
This unit is intended for use in tropical climates.
≥[BTT880] For wireless system
Product Identification Marking is located on the bottom of the
wireless system.
Placement
Place this unit on an even surface.
To reduce the risk of fire, electric shock or product damage,
≥Do not install or place this unit in a bookcase, built-in cabinet or
in another confined space. Ensure this unit is well ventilated.
≥Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
≥Do not expose this unit to direct sunlight, high temperatures,
high humidity, and excessive vibration.
Speaker
≥Use only supplied speakers
The main unit and supplied speakers are to be used only as
indicated in these operating instructions. Failure to do so may
lead to damage to the amplifier and/or the speakers, and may
result in the risk of fire. Consult a qualified service person if
damage has occurred or if you experience a sudden change in
performance.
≥Be careful not to cross (short-circuit) or reverse the polarity of
the speaker wires as doing so may damage the speakers.
≥Hold the speaker firmly to avoid injury by dropping the speaker
when carrying.
≥You can damage your speakers and shorten their useful life if
you play sound at high levels over extended periods.
≥Do not touch the front area of the speakers. Hold by the sides.
≥Place speakers on flat, secure surfaces.
≥To avoid injury by falling or dropping the speaker, place the
speaker cables with care not to stumble or hook.
≥
Do not stand on the speaker. Be cautious when children are near.
Batteries
Mishandling of batteries can cause electrolyte leakage and may
cause a fire.
≥Danger of explosion if battery is incorrectly replaced. Replace
only with the type recommended by the manufacturer.
≥When disposing the batteries, please contact your local
authorities or dealer and ask for the correct method of disposal.
≥Do not mix old and new batteries or different types at the same
time.
≥Do not heat or expose to flame.
≥Do not leave the battery(ies) in a car exposed to direct sunlight
for a long period of time with doors and windows closed.
≥Do not take apart or short circuit.
≥Do not recharge alkaline or manganese batteries.
≥Do not use batteries if the covering has been peeled off.
Remove batteries if you do not intend to use the remote control for
a long period of time. Store in a cool, dark place.
The following limits are in place regarding the usage of this unit or
Wireless LAN Adaptor. You must be aware of these limits before
using these devices.
Panasonic will in no way be responsible for any incidental damage
which may arise due to a failure to obey these limits, or to any
condition of use or disuse of these devices.
≥Data transmitted and received over radio waves may be
intercepted and monitored.
≥This unit and Wireless LAN Adaptor contain delicate
electronic components.
Please use these devices in the manner in which they were
intended and follow the following points:
– Do not expose these devices to high temperatures or direct
sunlight.
– Do not bend, or subject these devices to strong impacts.
– Keep these devices away from moisture.
– Do not disassemble or alter these devices in any way.
WARNING
CAUTION
Wireless LAN connection
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 2 ページ ２０１２年１２月４日　火曜日　午後３時５０分
3
VQT4Q15
The unit may keep the user settings information in the unit. If you
discard this unit either by disposal or transfer, then follow the
procedure to return all the settings to the factory presets to delete
the user settings. (>46, "To return all settings to the factory
preset.")
≥
The operation history may be recorded in the memory of this unit.
– If you see this symbol –
Information on Disposal in other Countries
outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact
your local authorities or dealer and ask for the
correct method of disposal.
This unit adopts the following technology for copyright protection.
Cinavia Notice
This product uses Cinavia technology to limit the use of unauthorized
copies of some commercially-produced film and videos and their
soundtracks. When a prohibited use of an unauthorized copy is
detected, a message will be displayed and playback or copying will be
interrupted.
More information about Cinavia technology is provided at the Cinavia
Online Consumer Information Center at http://www.cinavia.com. To
request additional information about Cinavia by mail, send a postcard
with your mailing address to:
Cinavia Consumer Information Center, P.O. Box 86851, San Diego,
CA, 92138, USA.
(For the AC mains plug of three pins)

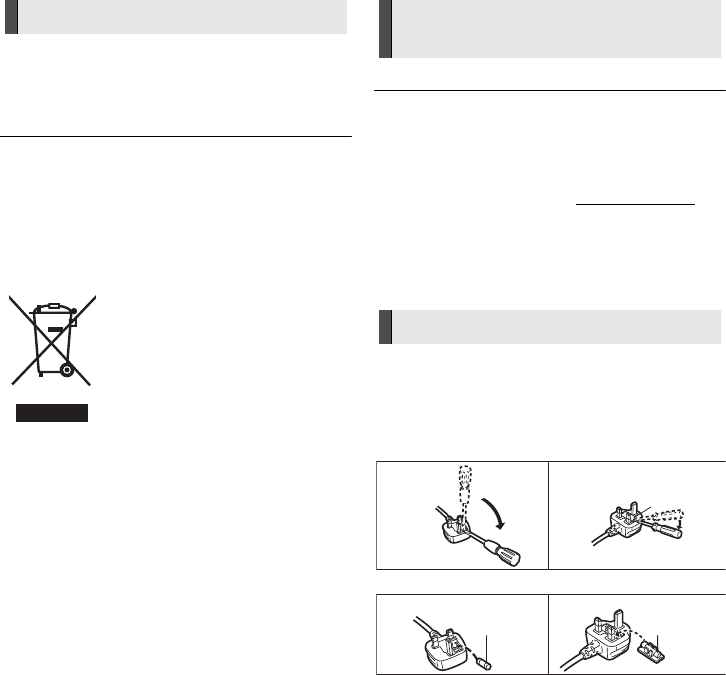

How to replace the fuse
The location of the fuse differ according to the type of AC mains
plug (figures A and B). Confirm the AC mains plug fitted and follow
the instructions below.
Illustrations may differ from actual AC mains plug.
1 Open the fuse cover with a screwdriver.
2 Replace the fuse and close or attach the fuse cover.
To dispose or transfer this unit
Restriction on use of
unauthorized copied content
AC Mains Lead
Fuse cover
Figure A Figure B
Figure A Figure B Fuse
(5 ampere)
Fuse
(5 ampere)
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 3 ページ ２０１２年１２月４日　火曜日　午後３時５０分
4VQT4Q15
Table of contents
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Getting started
Package contents and accessories . . . . . . . . 5
Unit and media care . . . . . . . . . . . . . . . . . . . . 6
Playable media . . . . . . . . . . . . . . . . . . . . . . . . 7
Control reference guide . . . . . . . . . . . . . . . . . 9
STEP 1: Positioning . . . . . . . . . . . . . . . . . . . 12
STEP 2: Preparing the speakers . . . . . . . . . 13
STEP 3: Connections . . . . . . . . . . . . . . . . . . 15
STEP 4: Connecting the AC mains lead . . . . 19
STEP 5: [BTT880] Preparing the wireless
system. . . . . . . . . . . . . . . . . . . . . . . 19
STEP 6: Settings. . . . . . . . . . . . . . . . . . . . . . 20
Inserting or removing media . . . . . . . . . . . . . 22
Enjoying TV with unit’s speakers . . . . . . . . . 22
HOME menu . . . . . . . . . . . . . . . . . . . . . . . . . 23
Multi User Mode . . . . . . . . . . . . . . . . . . . . . . 24
Playback
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
[BTT880] [BTT480] [BTT460] [BTT400]
Using the iPod/iPhone . . . . . . . . . . . . . . . . . 27
TV & Radio
VIERA Link “HDAVI Control™” . . . . . . . . . . . 29
•Enjoying TV and STB with unit’s speakers . . . . . 30
Listening to the Radio . . . . . . . . . . . . . . . . . . 31
Advanced operations
[BTT880] [BTT480] [BTT460] [BTT400]
VIERA Connect
(Enjoying Internet Service) . . . . . . . . . . . . . . 32
Home Network feature . . . . . . . . . . . . . . . . . 33
Option menu . . . . . . . . . . . . . . . . . . . . . . . . . 34
Setup menu. . . . . . . . . . . . . . . . . . . . . . . . . . 37
•Speaker settings . . . . . . . . . . . . . . . . . . . . . . . . . 43
Changing the sound settings . . . . . . . . . . . . 44
Speaker installation option . . . . . . . . . . . . . . 44
Reference
Troubleshooting guide . . . . . . . . . . . . . . . . . 46
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Specifications . . . . . . . . . . . . . . . . . . . . . . . . 51
Limited Warranty
(ONLY FOR AUSTRALIA) . . . . . . . Back cover
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mstTOC.fm 4 ページ ２０１３年１月９日　水曜日　午後４時２５分
5
Getting startedPlaybackTV & RadioAdvanced operationsReference
VQT4Q15
Getting start ed
Package contents and accessories

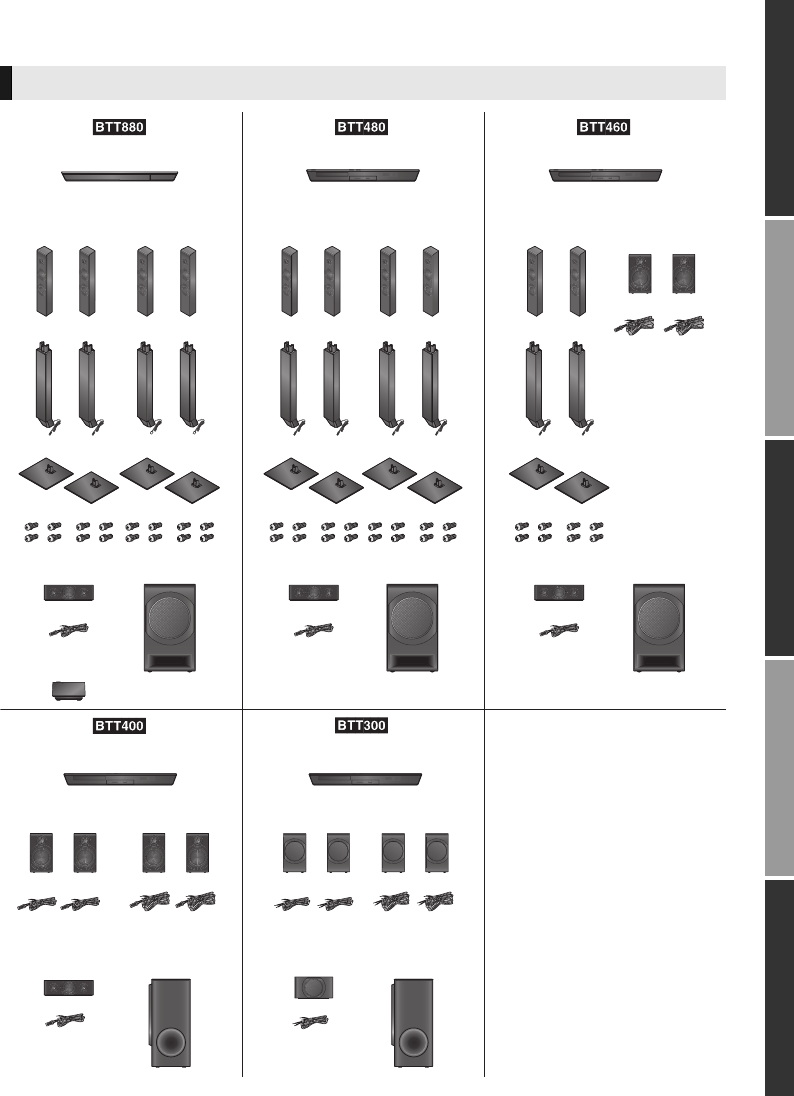

Check the package contents and supplied accessories before using this unit.
Package contents
SUBWOOFER
CENTER
SUBWOOFER
CENTER
SUBWOOFER
CENTER
SUBWOOFER
CENTER
SUBWOOFER
FRONT SURROUNDFRONT SURROUNDFRONT SURROUND
CENTER
(SA-BTT880)
(SB-HF4800)
(SB-HC4000)
(SH-FX71)
(SB-HW185)
(SB-HS8800)
FRONT SURROUND
(SB-HF4000) (SB-HS4000)
(SA-BTT480)
(SA-BTT400) (SA-BTT300)
(SB-HF4800)
(SB-HC4000) (SB-HW185)
(SB-HC4000) (SB-HW190) (SB-HC75) (SB-HW600)
(SB-HS4800)
FRONT SURROUND
(SB-HF1001) (SB-HS75)
(SA-BTT460)
(SB-HF4800)
(SB-HC4000) (SB-HW185)
(SB-HS4000)
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 5 ページ ２０１２年１２月４日　火曜日　午後３時５０分
6VQT4Q15

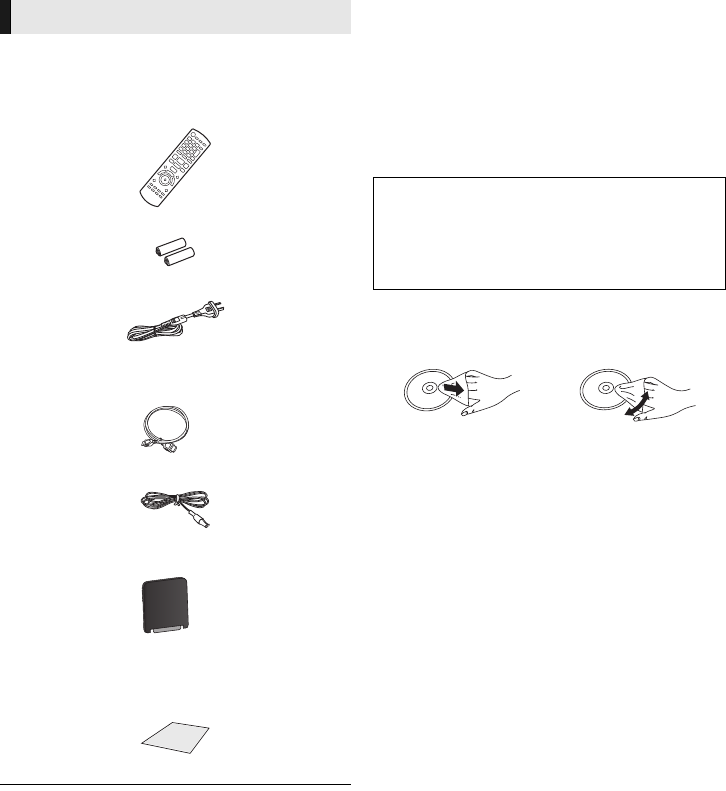

∏1 Remote control
[BTT880] [BTT480] [BTT460] [BTT400]
(N2QAYB000729)
[BTT300]
(N2QAYB000851)
∏2 Batteries for remote control
∏AC mains leads*
* See page 19 for more information.
∏1 HDMI cable
∏1 FM indoor antenna
∏[BTT880]
1 Digital transmitter
∏[BTT880] [BTT480] [BTT460] [BTT400]
1 Sheet of speaker cable sticker
[BTT300]
2 Sheets of speaker cable sticker
≥Product numbers provided in these operating instructions
correct as of December 2012. These may be subject to
change.
≥Do not use AC mains lead with other equipment.
≥Please note that the actual controls and components,
menu items, etc. may look somewhat different from those
shown in the illustrations in these Operating Instructions.
Unit and media care
∫Clean this unit with a soft, dry cloth
≥Never use alcohol, paint thinner or benzine to
clean this unit.
≥Before using chemically treated cloth, carefully
read the instructions that came with the cloth.
∫This unit’s lens
∫Clean discs
Wipe with a damp cloth and then wipe dry.
∫Disc and card handling precautions
≥Handle discs by the edges to avoid inadvertent
scratches or fingerprints on the disc.
≥Do not attach labels or stickers to discs.
≥Do not use disc cleaning sprays, benzine,
thinner, static electricity prevention liquids or
any other solvent.
≥Clean any dust, water, or foreign matter from
the terminals on the rear side of the card.
≥Do not use the following discs:
– Discs with exposed adhesive from removed
stickers or labels (rented discs etc.).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart
shapes.
Accessories
Lens cleaner: RP-CL720AE
≥This lens cleaner may not be for sale
depending on the region.
≥This lens cleaner is sold as specific for DIGA,
but can be used on this unit as well.
DO DO NOT
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 6 ページ ２０１２年１２月４日　火曜日　午後３時５０分
7
Getting started
VQT4Q15
Playable media
≥See pages 8 and 53 for more information on the types of content that can be played.
Device Disc markings Device types Contents format
BD-Video Video
BD-RE Video, JPEG, MPO
BD-R Video, MKV
DVD-Video Video
DVD-R
Video, AVCHD, MKV,
JPEG, MPO, FLAC,
MP3, WAV
DVD-R DL
DVD-RW
Video, AVCHD
—+R/+RW/+R DL
Music CD Music [CD-DA]
—CD-R
CD-RW
MKV, JPEG, MPO,
FLAC, MP3, Music
[CD-DA], WAV
SD Memory Card (from 8 MB to 2 GB)
SDHC Memory Card (from 4 GB to 32 GB)
SDXC Memory Card (48 GB, 64 GB)
(Compatible with both mini and micro types)
AVCHD, AVCHD 3D,
MP4, MPEG2, JPEG,
MPO
—USB devices
(up to 2 TB)
MKV, MP4, MPEG2,
JPEG, MPO, FLAC,
MP3, WAV
BD
DVD
CD
SD
USB
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 7 ページ ２０１２年１２月４日　火曜日　午後３時５０分
8VQT4Q15
∫Discs that cannot be played by this
unit

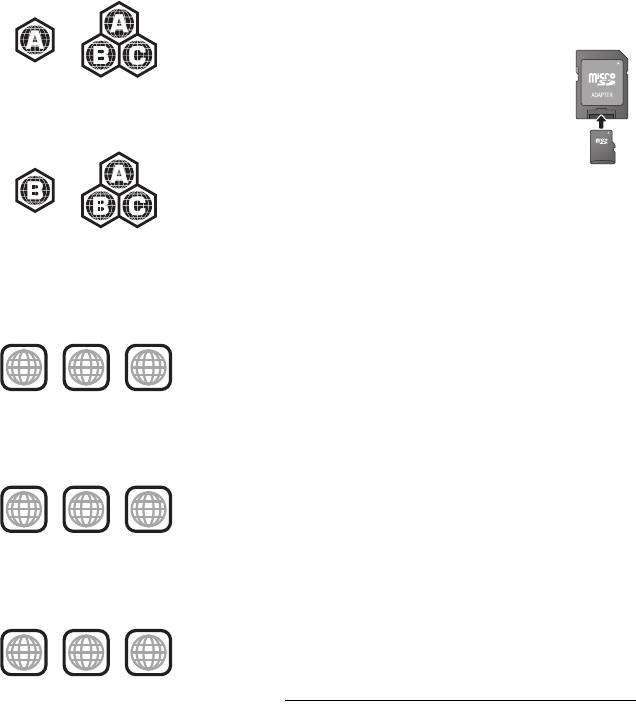

∫Region management information
BD-Video
[For]South]East]Asia]
This unit can play BD-Video discs supporting the region code “
A
”.
Example:
[For[Australia[and[New[Zealand] [For]the]Middle]East]
This unit can play BD-Video discs supporting the region code “
B
”.
Example:
DVD-Video
[For]the]Middle]East]
This unit can play DVD-Video discs supporting
the region number “2” or “ALL”.
Example:
[For]South]East]Asia]
This unit can play DVD-Video discs supporting
the region number “3” or “ALL”.
Example:
[For[Australia[and[New[Zealand]
This unit can play DVD-Video discs supporting
the region number “4” or “ALL”.
Example:
∫Finalize
DVD-R/RW/R DL, +R/+RW/+R DL and CD-R/RW
recorded by a recorder, etc. needs to be finalized
by the recorder to play on this unit. Please refer to
the recorder’s instructions.
∫BD-Video
This unit supports high bit rate audio (Dolby
®
Digital
Plus, Dolby
®
TrueHD, DTS-HD High Resolution Audio
and DTS-HD Master Audio) adopted in BD-Video.
∫3D
≥
3D videos and 3D still pictures can be played back
when this unit is connected to a 3D compatible TV
using a High Speed HDMI Cable.
≥2D video can be enjoyed as 3D virtually. (>37)
∫Music CD
Operation and sound quality of CDs that do not
conform to CD-DA specifications (copy control
CDs, etc.) cannot be guaranteed.
∫SD card
≥
miniSD Cards, microSD Cards, microSDHC
Cards and microSDXC Cards can be used,
but must be used with an adaptor card.
These are usually supplied with such cards,
or otherwise customer provided.
≥To protect the card’s contents, move
the record prevention tab (on the SD
card) to “LOCK”.
≥
This unit is compatible with SD Memory Cards that
meet SD Card Specifications FAT12 and FAT16
formats, as well as SDHC Memory Cards in FAT32
format and SDXC Memory Cards in exFAT.
≥If the SD card is used with incompatible
computers or devices, recorded contents may
be erased due to the card being formatted etc.
≥Usable memory may be slightly less than the
card capacity.
∫USB device
≥This unit does not guarantee connection with all
USB devices.
≥
This unit does not support USB device charging.
≥FAT12, FAT16, FAT32, and NTFS file systems
are supported.
≥This unit supports USB2.0 High Speed.
≥
This unit can support an HDD formatted to FAT32 and NTFS.
Some types of HDD may require the use of its external power
supply unit.
∫BD-RE, BD-R
Discs recorded in DR mode using Panasonic Blu-ray Disc
recorders may not play back the audio etc., correctly.
≥
It may not be possible to play the above media in some cases
due to the type of media, the condition of the recording, the
recording method, and how the files were created.
≥
The producers of the disc can control how discs are played, so
you may not always be able to control play as described in these
operating instructions. Read the disc’s instructions carefully.
≥DVD-RAM ≥WMA discs
≥Super Audio CD ≥DivX discs
≥Photo CD ≥HD DVD
≥DVD-Audio ≥Video CD and Super
Video CD
2ALL 34
2
3ALL 34
2
4ALL 34
2
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 8 ページ ２０１２年１２月４日　火曜日　午後３時５０分
9
Getting started
VQT4Q15

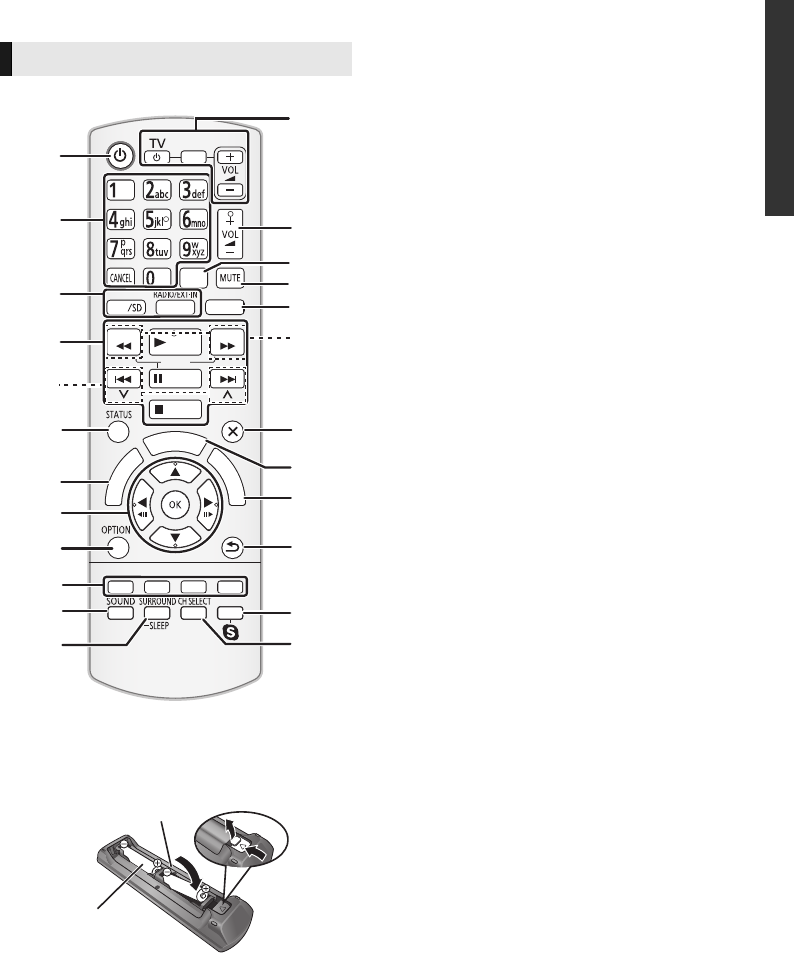

Control reference guide
e.g., [BTT880] [BTT480] [BTT460] [BTT400]
∫Using the remote control
Insert so the poles (i and j) match those in the
remote control.
Point it at the remote control signal sensor on this
unit. (>10)
1 Turn the unit on and off
2 Select title numbers, etc./
[BTT880] [BTT480] [BTT460] [BTT400]
Enter numbers or characters
[BTT300] Enter numbers
[CANCEL]: Cancel
3 Select the source
4 Basic playback control buttons (>25)
5 Select preset radio stations (>31)
6 Show status messages (>26)
7[BTT880] [BTT480] [BTT460] [BTT400] Show the
Home screen of the VIERA Connect (>32)
[BTT300] Show Top Menu (>26)
8[
3
,
4
,
2
,
1
] : Move the highlight for selection
[OK] : Confirm the selection
(
2;
)(
;1
) : Frame-by-frame (
>
25)
9 Show OPTION menu (>34)
10 Coloured buttons (red, green, yellow, blue)
Used for various purposes depending on the display
11 Set the sound mode (>44)
12 Select surround sound effects (>44)/Set the
sleep timer
1Press and hold [jSLEEP].
2
While “SLEEP
££
” is displayed, press [
j
SLEEP]
several times to select the time (in minutes).
≥Timer selection is up to 120 minutes.
≥Select “OFF” when cancelling the setting.
≥To confirm the remaining time
Press and hold the button again.
13 TV operation buttons
[ÍTV]: Turn the television on and off
[AV, INPUT]: Switch the input select
[ijVOL] : Adjust the volume
14 Adjust the volume of the main unit
15 Select audio (>25)
16 Mute the sound
≥“MUTE” flashes on the unit’s display, while
the function is on.
≥To cancel, press the button again or adjust
the volume.
≥Muting is cancelled if the unit is turned off.
17 Switch on/off Secondary Video
(Picture-in-picture)
18 Select radio stations manually (>31)
19 Exit the menu screen
20 Show HOME menu (>23)
21 [BTT880] [BTT480] [BTT460] [BTT400]
Show Pop-up Menu/Top Menu (>26)
[BTT300] Show Pop-up Menu (>26)
22 Return to previous screen
23 [BTT880] [BTT480] [BTT460] [BTT400]
Start up a video communication (>32)
24 Select speaker channel (>44)
Remote control
ラ
ヰ
ヮ
ユ
モヷ
ンユヵヶンワ
ヴレリヱ
ヱロモヺ
ヱモヶヴユ
ヴヵヰヱ
ヴユモンヤラ ヴユモンヤラ
ヴロヰヸ
ヴレリヱ
リワヱヶヵ
ユヹリヵ
ㄊヱㄐㄅ
ュリヴヤ
ヱ
ヰ
ヱ
ノ
ヶ
ヱ
チ
ヮ
ユ
ワ
ヶ
チ
ヵ
ヰ
ヱ
チ
ヮ
ユ
ワ
ヶ
モヶュリヰ
ユ
リ
ワ
ヵ
ユ
ン
ワ
ヵ
ヱリヱ
19
821
22
24
13
20
1
418
23
17
2
5
6
7
9
10
11
3
14
16
12
15
R6/LR6, AA
(Alkaline or manganese
batteries)
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 9 ページ ２０１２年１２月４日　火曜日　午後３時５０分
10 VQT4Q15

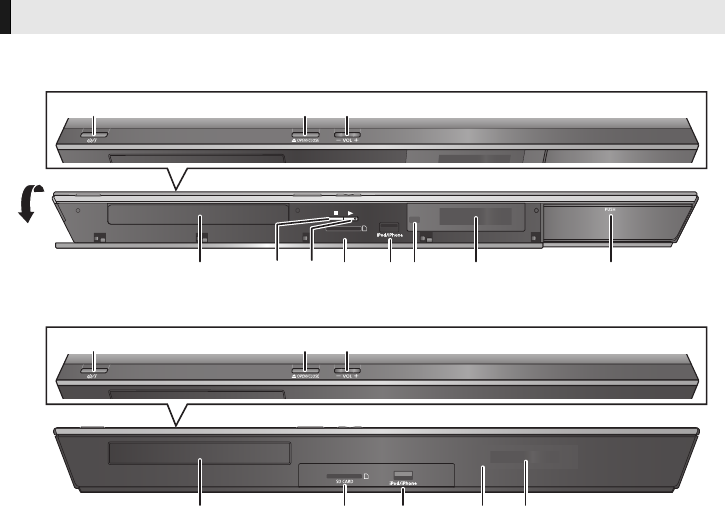

1Standby/on switch (Í/I) (>20)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.

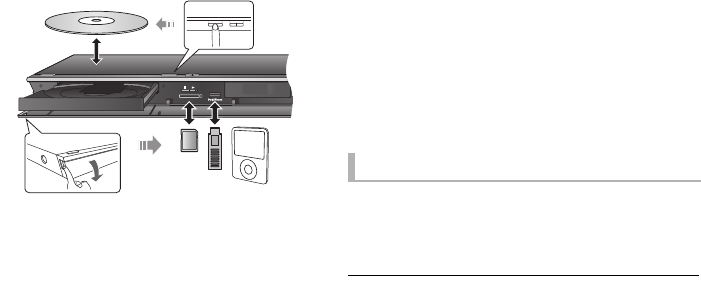

2 Open or close the disc tray (>22)
3 Adjust the volume of the main unit
4 Disc tray
5[BTT880]
Stop (>25)
6[BTT880]
Start play (>25)
7 SD card slot (>22)
8 USB port
[BTT880] [BTT480] [BTT460] [BTT400] (>22, 28)
[BTT300] (>18, 22)
9 Remote control signal sensor
Distance: within approx. 7 m.
Angle: Approx. 20
e
up and down, 30
e
left and right
10 Display
11 [BTT880]
Dock for iPod/iPhone (>28)
Main unit (Front)
SD CARD
4576119108
479108
123
123
[BTT880]
e.g., [BTT480] [BTT460] [BTT400]
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 10 ページ ２０１２年１２月４日　火曜日　午後３時５０分
11
Getting started
VQT4Q15

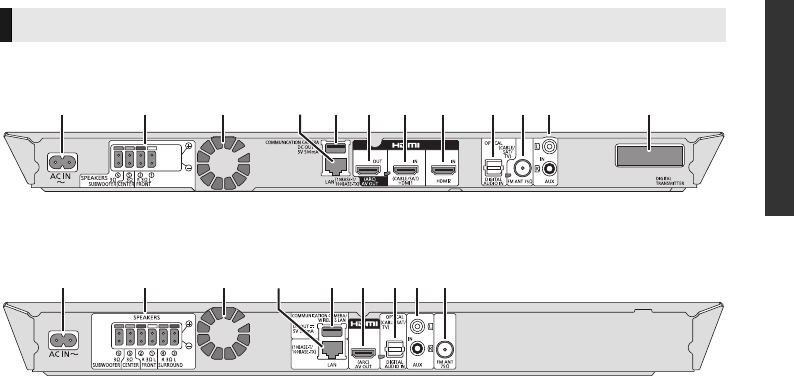

1 AC IN terminal (>19)
2 Speaker terminals (>15)
3 Cooling fan
4 LAN port (>18)
5[BTT880] [BTT480] [BTT460] [BTT400]
USB port (>18, 32)
6 HDMI AV OUT (ARC) terminal (>16, 17)
7[BTT880]
HDMI1 IN (CABLE/SAT) terminal (>17)
8[BTT880]
HDMI2 IN terminal (>17)
9 DIGITAL AUDIO IN terminal (>16, 17)
10 FM radio antenna terminal (>16)
11 AUX terminal (>16)
12 [BTT880]
Digital transmitter dock for wireless system
Main unit (Rear)
1 2 3 4 5 6 7 12118 9 10
1 2 3 4 5 6 11910
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 11 ページ ２０１２年１２月４日　火曜日　午後３時５０分
12 VQT4Q15

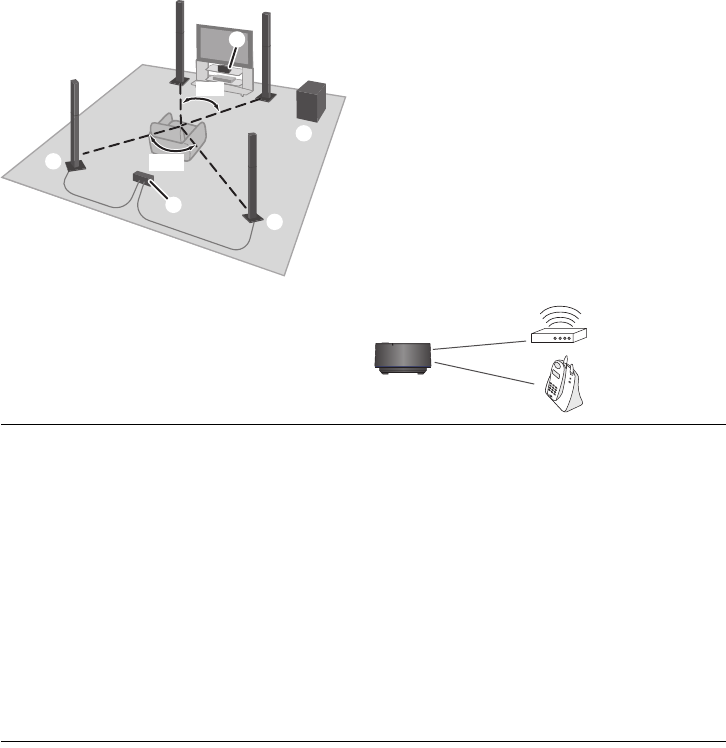

STEP 1: Positioning
For optimum position
Place the front, centre and surround speakers at approximately the same distance from the seating
position.
≥Adjust the volume using the Delay time function if the distance between each speaker and the
seating position is not equal. (>43)
ACentre speaker
≥
Put on a rack or shelf not to interfere with the
TV’s various sensors (ambient light, etc.).
Vibration caused by the speaker can disrupt
the picture if it is placed directly on the TV.
BFront speakers
CSubwoofer
DSurround speakers
≥Place the speakers at the same height or
higher than ear level.
E[BTT880] Wireless system
≥To avoid interference, separate the wireless
system from the other electronic devices
that use the same radio frequency (2.4 GHz
band).
≥Place the wireless system within approximately 10 m from the main unit.
≥To allow for proper ventilation and to maintain good airflow around the wireless system, position it with at least 5 cm of space
on all sides.
≥Do not use the wireless system or the digital transmitter in a metal cabinet or bookshelf.
≥Keep your speakers at least 10 mm away from the system to avoid noise generated by resonance.
≥Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick
curtains.
≥For optional wall mount, refer to page 44.
∫[BTT880] Upgrade to 7.1-channel system
The main unit is designed to enjoy the 7.1ch surround sound. A more theatre-like effect is possible with
a wireless connection.
Necessary equipment:
≥Wireless system (SH-FX71)
1 optional system
≥2 additional speakers [Impedance: 3 ≠ to 6 ≠, Speaker input power: 100 W (Min)]
≥For more details, refer to the operating instructions for SH-FX71.
≥The WIRELESS LINK indicator lights green when this unit and SH-FX71 are connected wirelessly. You can also check the
link status if you press and hold the [SOUND] of this unit. When WIRELESS LINK is turned on, the main unit's display shows
the message, “WIRELESS SPEAKERS LINKED”.
120°
60°
e.g., [BTT880]
Wireless LAN
Cordless phone
Wireless
system
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 12 ページ ２０１２年１２月４日　火曜日　午後３時５０分
13
Getting started
VQT4Q15
STEP 2: Preparing the speakers
[BTT880] [BTT480] Front speakers, Surround speakers [BTT460] Front speakers
1Attach the stand to the base.
2Tighten the 3 screws (supplied) securely.
3Slide the speaker cable into the groove.
4Attach the speaker.
5Tighten the screw (supplied) securely.
≥After connecting the speaker cable (>14),
press the cable into the groove.
≥To prevent damage or scratches, lay down a soft cloth and perform assembly on it.

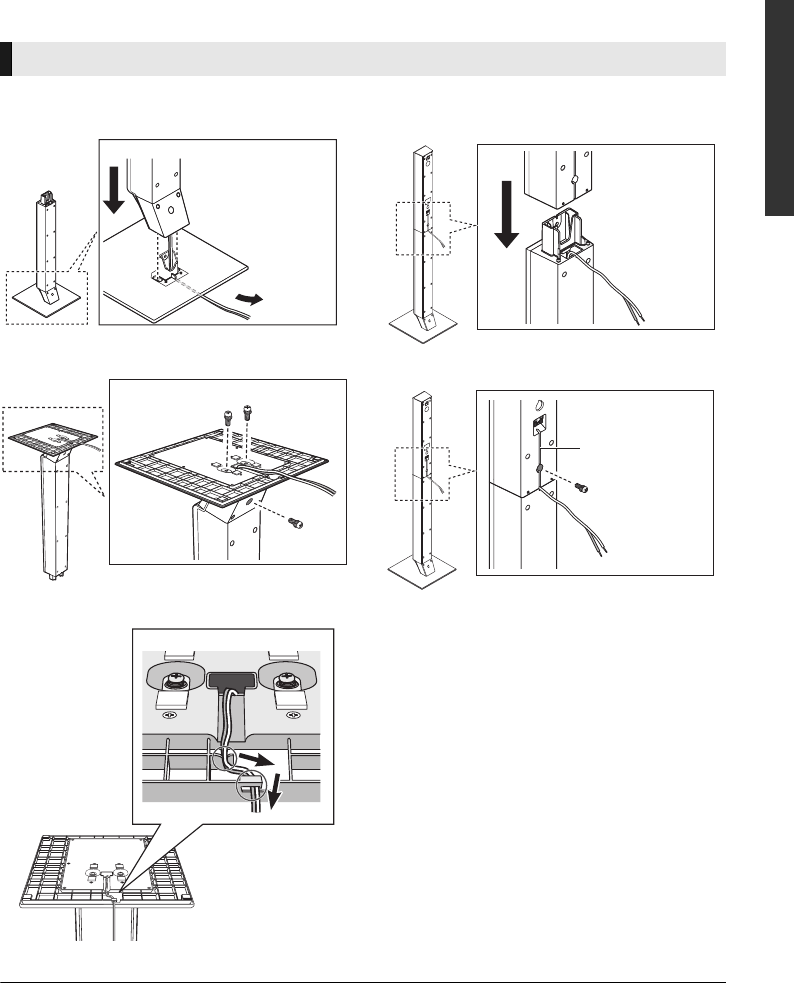

Assembling the speakers
Thread the speaker
cable through the
base.
Groove
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 13 ページ ２０１２年１２月４日　火曜日　午後３時５０分
14 VQT4Q15
Attach the speaker cable sticker (supplied) and connect the speaker cables to the speakers.
[BTT880] [BTT480] [BTT460] [BTT400]
e.g., [BTT460] [BTT400] Surround speaker
[BTT300]
e.g., Surround speaker

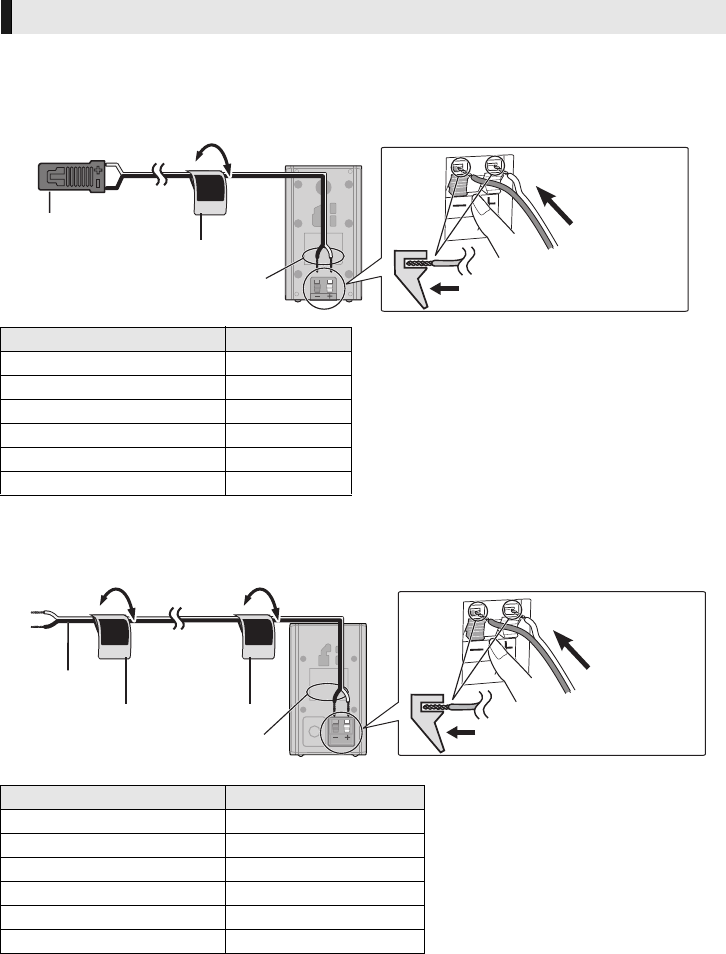

Connecting the speaker cables
SURROUND
Lch
Push
r: White
s: Blue line
Speaker cable sticker (supplied)
Connector
Speaker indication
Speaker cable sticker Connector
1FRONT Lch 1White
2FRONT Rch 2Red
3SURROUND Lch 3Blue
4SURROUND Rch 4Grey
5CENTER 5Green
6SUBWOOFER 6Purple
Speaker cable sticker Cable type
1FRONT Lch 1Short
2FRONT Rch 2Short
3SURROUND Lch 3Long
4SURROUND Rch 4Long
5CENTER 5Short
6SUBWOOFER 6(Attached to subwoofer)
SURROUND
Lch
SURROUND
Lch
Push
r: White
s: Blue line
Speaker cable sticker (supplied)
Long cable
Speaker indication
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 14 ページ ２０１２年１２月４日　火曜日　午後３時５０分
15
Getting started
VQT4Q15
STEP 3: Connections
Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead until all other connections are complete.
[BTT880]
Connect the speaker cables to the terminals of the same colour.
[BTT480] [BTT460] [BTT400]
Connect the speaker cables to the terminals of the same colour.
[BTT300]
Connect the speaker cables to the terminals by referring to the attached speaker cable sticker.

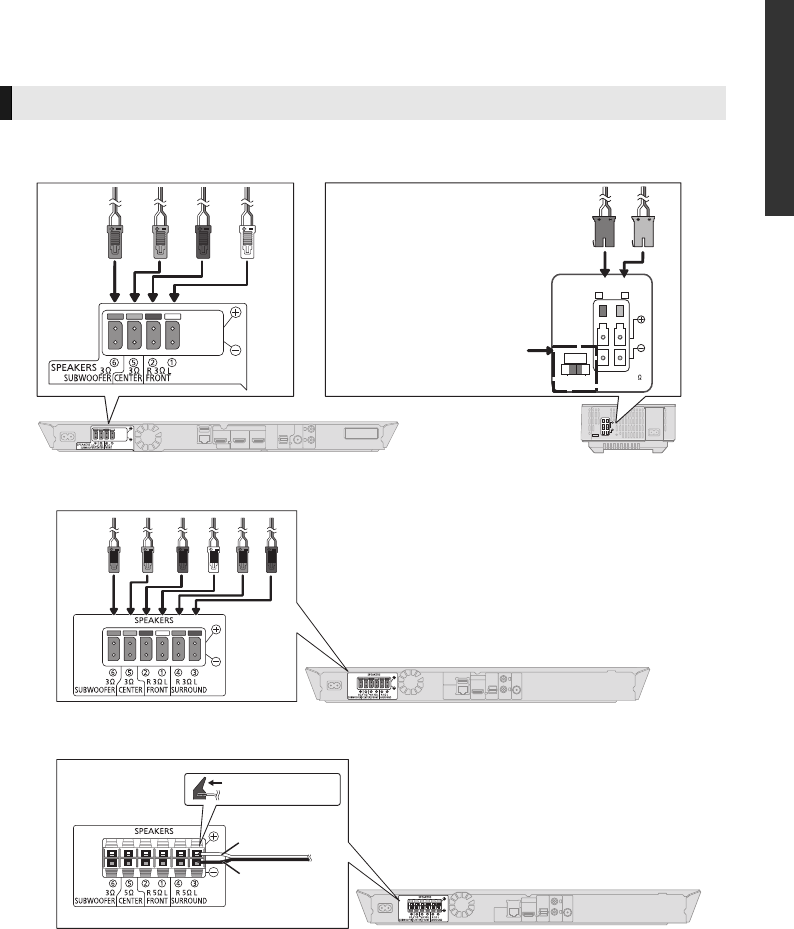

Speaker connection
LS / RB LB / RS
SPEAKERS
ENCEINTES
SURROUND (3 - 6
)
AMBIOPHONIQUES
SURR
L
SIDE R
SIDE
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 15 ページ ２０１２年１２月４日　火曜日　午後３時５０分
16 VQT4Q15
∫HDMI
≥
Use
the ARC compatible
High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized.
The HDMI-compliant cable is supplied with this unit.
It is recommended that you use Panasonic’s HDMI cable. When outputting 1080p signal, please use
HDMI cables 5.0 meters or less.
≥
Audio will be output through the system’s speakers when “Off” is selected in “HDMI Audio Output”. (
>
39)
∫TV Audio
≥To output TV audio from this unit's speakers, you need to switch the selector. (>22)
∫OPTICAL IN
≥After making the digital audio connection, make settings to suit the type of audio from your digital
equipment. (>39)
*1 If the HDMI terminal on the TV is labelled “HDMI (ARC)”, the connection of the optical digital audio cable is not required.
*2 It is also possible to use an audio cable instead of the optical digital audio cable. In this case, connect the AUX terminal on
the main unit with the audio output terminal on the TV.
≥Use an FM outdoor antenna if radio reception is poor.

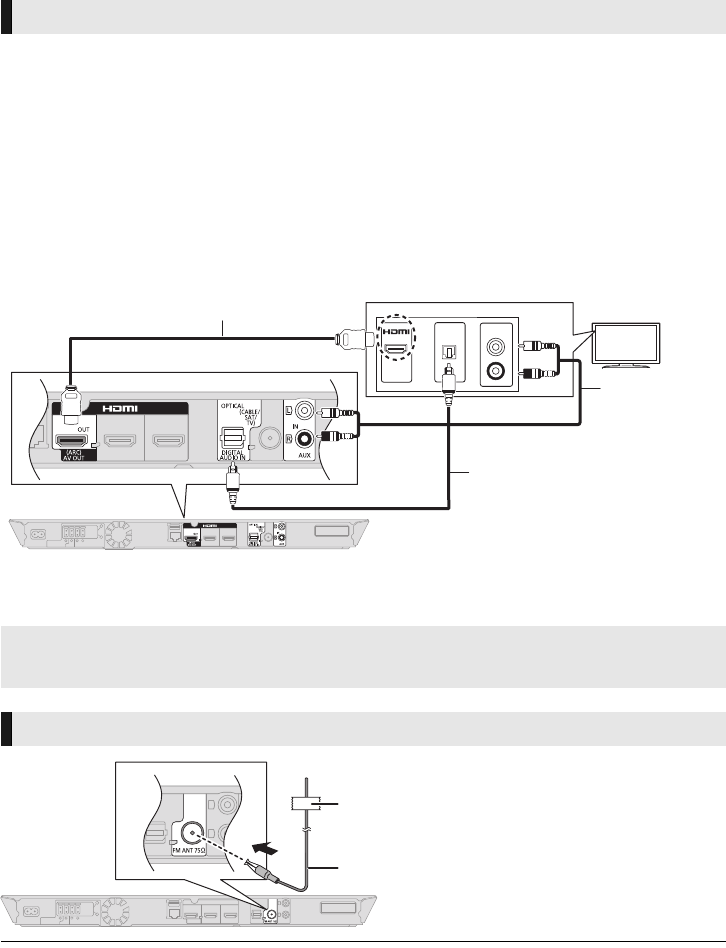

Connecting to a TV
What is ARC?
ARC is an abbreviation of Audio Return Channel, also known as HDMI ARC. This feature allows a home
theatre system to receive and play audio from the TV through a single HDMI cable without additional wiring.
OPTICAL
OUT
L
R
AUDIO OUT
AV I N
HDMI cable (supplied)
Optical digital audio cable*1
(not supplied)
Audio cable*2
(not supplied)
FM antenna connection
75
Affix this end of the antenna to a wall or pillar where
the reception is best.
FM indoor antenna (supplied)
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 16 ページ ２０１２年１２月４日　火曜日　午後３時５０分
17
Getting started
VQT4Q15

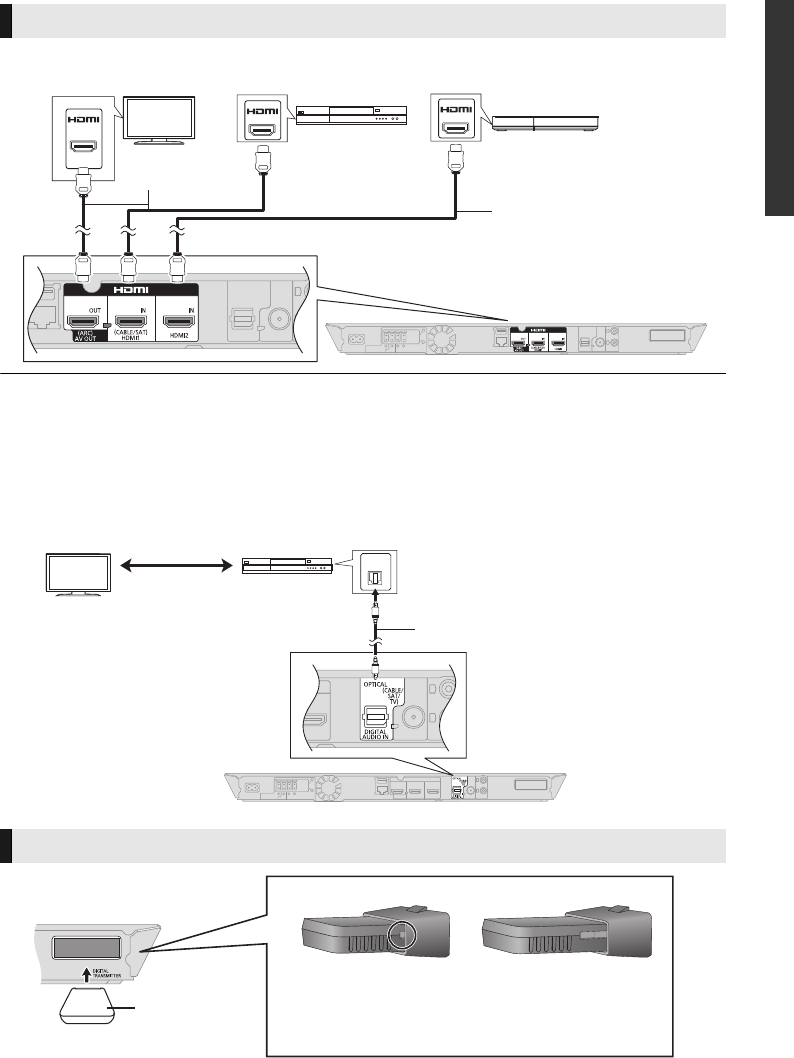

∫[BTT880] When the connecting devices have an HDMI terminal
HDMI standby pass-through
Even if this system is in standby mode, the audio and/or video signal from the device connected to the HDMI1 IN (CABLE/SAT)
or HDMI2 IN terminal will be sent to the TV connected to the HDMI AV OUT terminal (the sound will not be output from this
system). Even while the unit is in the standby mode, you can change the input signal HDMI1 IN (CABLE/SAT) or HDMI2 IN by
pressing [EXT-IN] on the remote control.
∫When the connecting devices do not have an HDMI terminal
Other device connection
AV IN
(ARC)
AV O U T
AV O U T
OPTICAL
OUT
[BTT880] Digital transmitter connection
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 17 ページ ２０１２年１２月４日　火曜日　午後３時５０分
18 VQT4Q15
The following services can be used when this unit is connected to broadband.
≥Firmware can be updated (>21)
≥You can enjoy BD-Live (>26)
≥You can enjoy VIERA Connect (>32)
≥You can access other devices (Home Network)
(>33)
≥[BTT880]
This unit supports Wi-Fi DirectTM and can make
a wireless connection to wireless devices
without router. You can use this function when
enjoying Home Network feature, etc. Internet
access is not available while connected via
Wi-Fi DirectTM. (>33, 40)
For details about connection method, refer to the instructions supplied with the connected equipment.
[BTT880]
This unit has built in Wi-Fi® and can be connected to a wireless router.
[BTT480] [BTT460] [BTT400] [BTT300]
For wireless capability, connect the Wireless LAN Adaptor DY-WL5 (optional). Only DY-WL5 can be used.
Read the operating instructions for DY-WL5 thoroughly when using it.
≥[BTT300] Connect
DY-WL5 to the front USB port.
≥A wireless LAN connection can be used only in those countries where the wireless function is
authorized for use. Use of a wireless LAN connection is prohibited in the regions where DY-WL5 is
not sold.
≥For up-to-date compatibility information on your wireless router, refer to
http://panasonic.jp/support/global/cs/
(This site is in English only.)
≥The unit is not compatible with public wireless LAN services provided in airports, stations, cafes, etc.
≥See page 2 for the precautions of wireless LAN connection.
≥Use category 5 or above straight LAN cables (STP) when connecting to peripheral devices.
≥Inserting any cable other than a LAN cable in the LAN terminal can damage the unit.

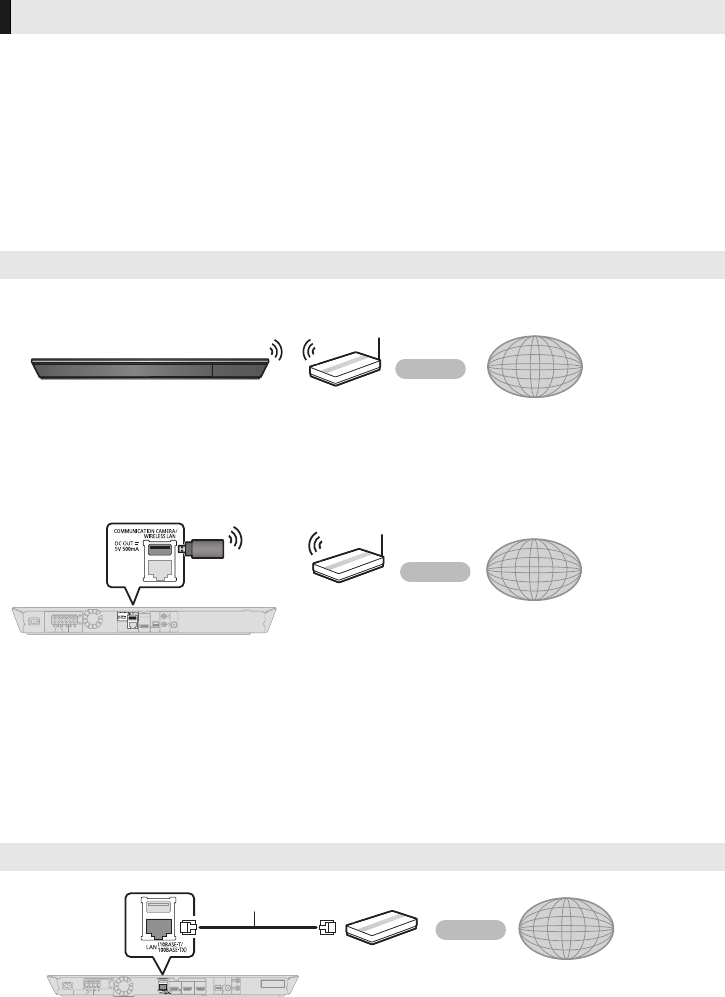

Connecting to the network
Wireless LAN connection
Wireless router, etc. Internet
Wireless router, etc. Internet
e.g., [BTT480] [BTT460] [BTT400]
LAN cable connection
LAN Cable (not supplied)
Internet
Broadband router, etc.
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 18 ページ ２０１２年１２月４日　火曜日　午後３時５０分
19
Getting started
VQT4Q15

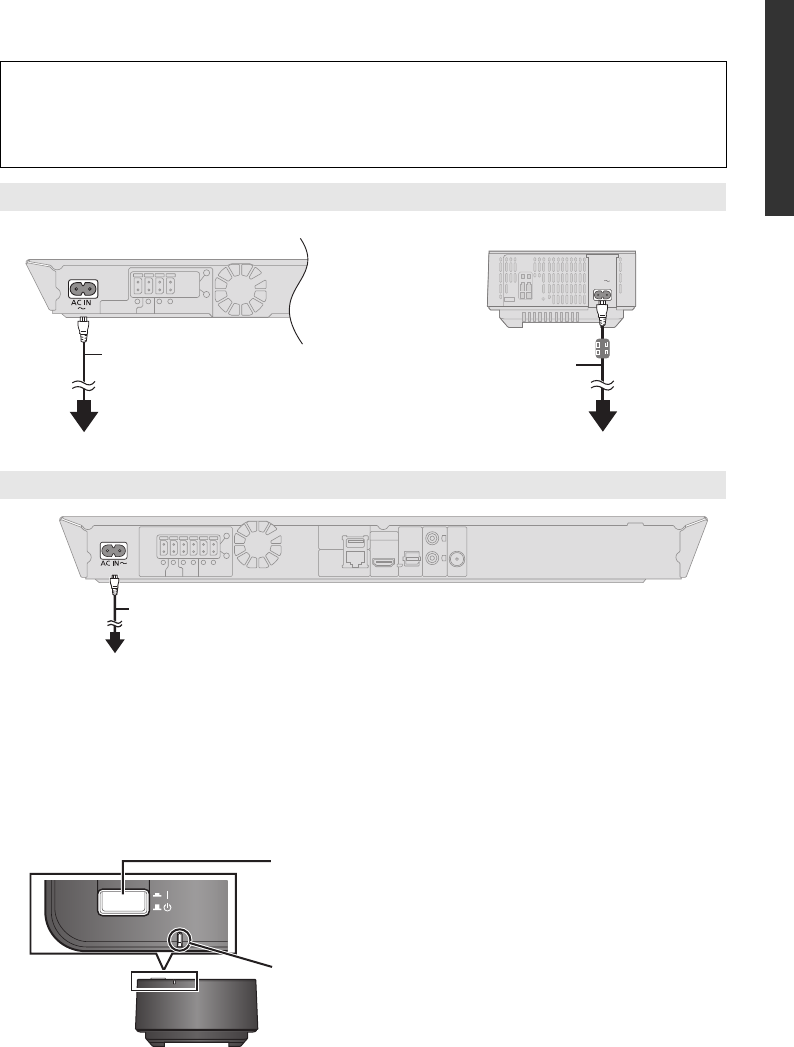

STEP 4: Connecting the AC mains lead
Connect only after all other connections are complete.
≥The wireless system ([BTT880]) and the main unit consume a small amount of AC power (>51, 53)
even when turned off. For the purpose of power conservation, the unit can be disconnected if you will
not be using it for extended period of time.
STEP 5: [BTT880] Preparing the wireless system
Turn on the wireless system after all connections are complete.
[For]the]Middle]East]and]South]East]Asia]
2 AC mains leads are supplied.
Use the AC mains lead that matches the socket for the area you live in.
≥In Saudi Arabia, always use the 3-pin AC mains lead.
≥
AC mains lead with a label is for Thailand. AC mains lead without a label is for areas other than Thailand.
[BTT880]
[BTT480] [BTT460] [BTT400] [BTT300]
AC IN
WIRELESS LINK
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 19 ページ ２０１２年１２月４日　火曜日　午後３時５０分
20 VQT4Q15
STEP 6: Settings
After connecting your new home theatre for the
first time and pressing [Í], a screen for the basic
settings will appear.
Preparation
Turn on the television and select the
appropriate video input on the television.
[BTT880]
≥
Confirm the digital transmitter connection. (
>
17)
1Press [Í].
Setup screen appears.
2Follow the on-screen instructions and
apply the settings.
≥You can perform this setup anytime by selecting “Easy
Setting” in the Setup menu. (>41)
≥
If this unit is connected to a Panasonic TV (VIERA) supporting
HDAVI Control 2 or later via an HDMI cable, then the setting
information on the TV is acquired by this unit.
After completing “Easy Setting”, you can perform
“Easy Network Setting”.
Select “Wired” or “Wireless” and press [OK].
e.g., [BTT880]
∫“Wired” connection
Follow the on-screen instructions to apply your
connection settings.
∫“Wireless” connection
Before beginning wireless connection setup
≥Obtain your network name (SSID*1).
≥
If your wireless connection is encrypted, please
be sure that you know your encryption key.
≥[BTT480] [BTT460] [BTT400] [BTT300]
If “Wireless LAN Adaptor is not connected.” is
displayed, check that the Wireless LAN Adaptor
is fully inserted. Alternatively, disconnect and
reconnect it. If there is still no change in the
display, consult your dealer for advice.
Select “Search for wireless network” or “WPS
(PUSH button)” and press [OK], then follow
the on-screen instructions and apply the
settings.
WPS (PUSH button):
If your wireless router supports
WPS (PUSH button), you can
easily perform the settings by
pressing WPS button on it.
WPS (Wi-Fi Protected SetupTM) is
a standard that facilitates settings relating to the
connection and security of wireless LAN devices.
1Press WPS button or corresponding button of
the wireless router until the lamp starts
flashing.
≥For details, refer to the operating instruction
of the wireless router.
2Press [OK].
Search for wireless network:
≥When you select “Search for wireless network”,
the available wireless networks will be
displayed. Select your network name and press
[OK].
– If your network name is not displayed, search
again by pressing the red button on the
remote control.
– Stealth SSID will not be displayed when you
select “Search for wireless network”. Enter
manually by using “Manual setting”.
Press [HOME]
> select “Others” and press [OK]
> select “Setup” and press [OK]
> select “Network” and press [OK]
> select “Network Settings” and press [OK]
> select “Wireless Settings” and press [OK]
> select “Connection Setting” and press [OK]
> select “Manual setting” and press [OK]
≥If your wireless network is encrypted,
Encryption Key input screen will be displayed.
Input the encryption key of your network.
Easy Setting
Easy Network Setting
OK
RETURN
Easy Network Setting
Wired
Wireless
Select a connection mode.
Current setting : Wired
Wireless Settings
Select a connection method to wireless access point.
Please refer to the operating instructions of your wireless
access point about connection methods.
Search for wireless network
WPS (PUSH button)
*2
e.g.,
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 20 ページ ２０１２年１２月４日　火曜日　午後３時５０分
21
Getting started
VQT4Q15
≥Refer to the operating instructions of the hub or router.
≥You can perform this setup anytime by selecting “Easy
Network Setting” in the Setup menu. (>40)
≥You can redo these settings individually using “Network
Settings”. (>40)
≥Do not use this unit to connect to any wireless network for
which you do not have usage rights.
During automatic searches in a wireless network
environment, wireless networks (SSID) for which you do
not have usage rights may be displayed; however, using
these networks may be regarded as illegal access.
≥After performing network settings on this unit, the settings
(encryption level, etc.) of the wireless router might change.
When you have trouble getting online on your PC, perform
the network settings on your PC in accordance with the
settings of the wireless router.
≥Please be aware that connecting to a network without
encryption may result in the content of the communication
being illegitimately viewed by a third party, or the leaking of
data such as personal or secret information.
*1 SSID:
An SSID (Service Set IDentification) is a name used by
wireless LAN to identify a particular network. Transmission
is possible if the SSID matches for both devices.
*2 The wireless router compatible with Wi-Fi Protected
SetupTM may have the mark.
If you have more than one Panasonic products
and the remote control operates both products at
once, you will need to change the remote control
code to prevent this occurrence. (>42, “Remote
Control”)
Occasionally, Panasonic may release updated
firmware for this unit that may add or improve the
way a feature operates. These updates are
available free of charge.
This unit is capable of checking the firmware
automatically when connected to the Internet via
a broadband connection.
When a new firmware version is available, the
following message is displayed.

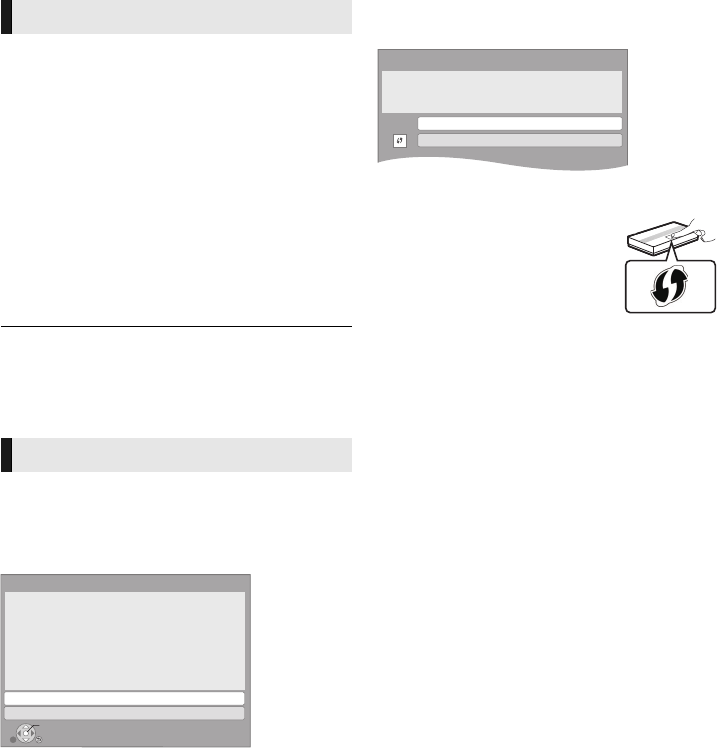

To update the firmware
Press [HOME]
> select “Others” and press [OK]
> select “Setup” and press [OK]
> select “System” and press [OK]
> select “Firmware Update” and press [OK]
> select “Update Now” and press [OK]
DO NOT DISCONNECT the unit from the AC
power or perform any operation while the update
takes place.
After the firmware is installed, “FINISH” will be
displayed on the unit’s display. Unit will restart
and the following screen will be displayed.
≥If downloading on this unit fails or this unit is not
connected to the Internet, then you can download the
latest firmware from the following website and burn it
to a CD-R to update the firmware.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
To show the firmware version on this unit. (>42,
“Firmware Version Information”)
≥Downloading will require several minutes. It may take
longer or may not work properly depending on the
connection environment.
≥If you do not want to check for the latest firmware version,
set “Automatic Update Check” to “Off”. (>42)
Reprogramming the remote
control
Firmware updates
New firmware is available.
Please update firmware in Setup.
The firmware has been updated.
Current Version: x.xx
RETURN
OK
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 21 ページ ２０１２年１２月４日　火曜日　午後３時５０分
22 VQT4Q15
Inserting or removing
media
≥When inserting a media item, ensure that it is
facing the right way up.
≥When removing the SD card, press the centre
of the card and pull it straight out.
≥If you connect a Panasonic product with a USB
connection cable, the setup screen may be
displayed on the connected equipment. For
details, refer to the instructions for the
connected equipment.
≥[BTT880] [BTT480] [BTT460] [BTT400]
Use the front USB port when you connect a
iPod/iPhone, USB memory or a USB HDD.
The USB port on the rear panel is only for the
following devices:
– Communication Camera
–[BTT480] [BTT460] [BTT400]
Wireless LAN Adaptor
Enjoying TV with unit’s
speakers

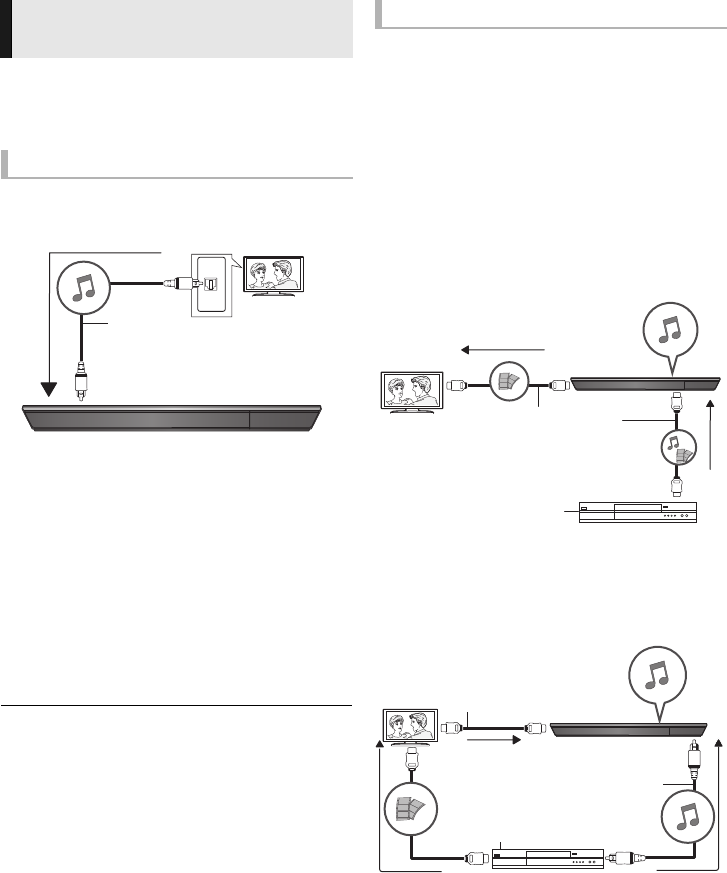

1Connect the TV and the main unit. (>16)
2Press [EXT-IN] several times to select the
appropriate external input mode. (>23)
≥Reduce the volume on the TV to its
minimum, and then adjust the volume of the
main unit.
Press [AUDIO] several times to select the
audio. (M1, M2)
≥Set “PCM-Fix” (>39) to “Off”.
≥Only works with Dolby Dual Mono.
≥You cannot change the audio type when the TV is
connected to this unit via the AUX terminal.
SD CARD
VOL
OPEN/CLOSE
*
e.g., [BTT880]
* (For details >28)
Selecting the type of audio
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 22 ページ ２０１２年１２月４日　火曜日　午後３時５０分
23
Getting started
VQT4Q15
HOME menu
Major functions of this unit can be operated from
the HOME menu.
Preparation
Turn on the television and select the appropriate
video input on the television.
1Press [Í] to turn on the unit.
2Press [3,4,2,1] to select the item and
press [OK].
≥If there are any other items, repeat this
step.
e.g., [BTT880] [BTT480] [BTT460] [BTT400]
EXT IN
When you want to output audio of an external
device from this unit, select the name of the
terminal to which you have connected the device.
If audio output from a TV or STB is selected, “(TV)”
or “(CABLE/SATELLITE)” is displayed. (
>
39)
[BTT880] [BTT480] [BTT460] [BTT400]
Network
[BTT300]
Media Renderer
FM Radio
Videos/Photos/Music
Sound
[BTT880] [BTT480] [BTT460] [BTT400]
iPod
[BTT300]
DLNA Client
Others
To show the HOME menu
Press [HOME].
≥Items to be displayed may vary with the media.
≥When the selector is switched, it may take time to play
back the selected video and/or audio.
≥To save on electricity, the unit is turned off automatically if
there is no button operation for about 30 minutes when not
playing back (such as when paused, displaying the menu,
displaying still pictures, etc.).
AUX AUX terminal
ARC HDMI AV OUT (ARC)
terminal
DIGITAL IN DIGITAL AUDIO IN terminal
[BTT880]
HDMI IN1
HDMI IN2
HDMI1 IN (CABLE/SAT)
and/or HDMI2 IN terminal
(>17)
Network
Service
Displays the Home screen
of VIERA Connect. (>32)
Home
Network
DLNA Client (>33)
Media Renderer (>33)
(>33)
HOME
Home Cinema
Videos MusicPhotos
Network
Register
1st user
EXT IN FM Radio
Sound Others
iPod
OK
(>31)
Disc Play back the contents.
(>25)
≥When multiple contents are
recorded, select the types
of contents or the title.
SD Card
USB
Select sound quality (equalizer). (>36)
(>28)
(>33)
Setup (>37)
SD Card
Management (>26)
Wallpaper Changes the background of
HOME menu.
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 23 ページ ２０１２年１２月４日　火曜日　午後３時５０分
24 VQT4Q15

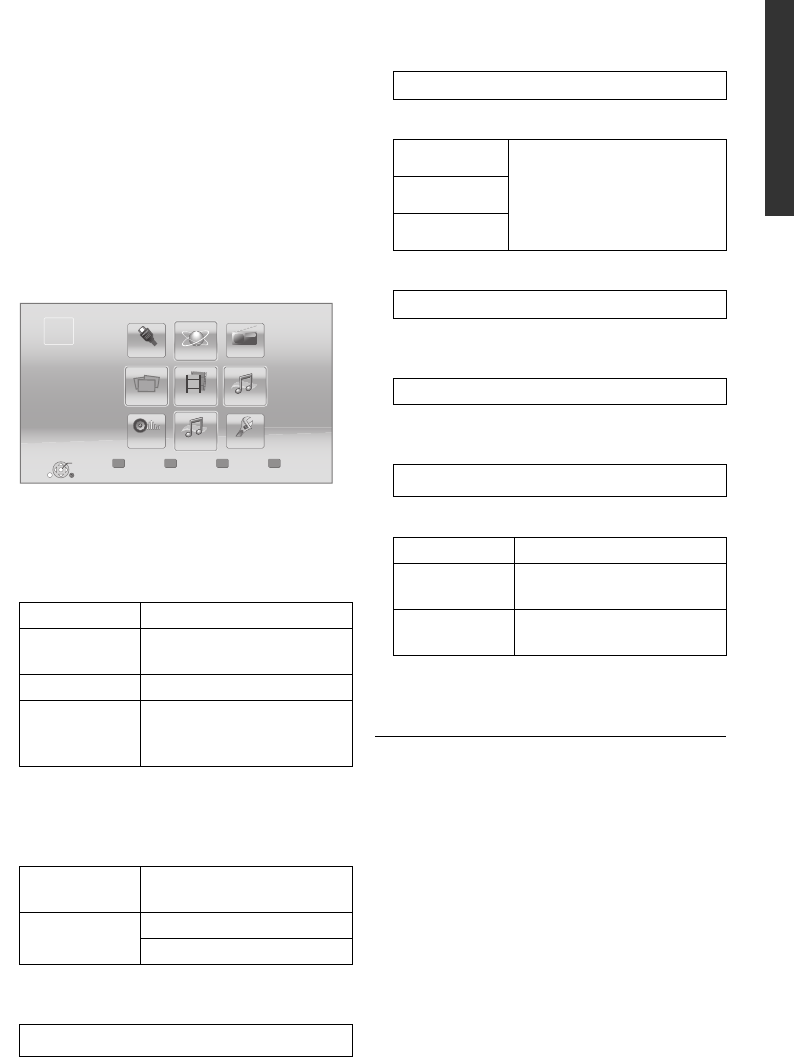

Multi User Mode
Multi User Mode is a function that enables
switching of multiple settings easily.
Up to 4 people can use the unit with their own settings.
The following settings can be personalized.
≥The user icon
≥The wallpaper of HOME menu
≥The audio and picture settings (>34, 37)

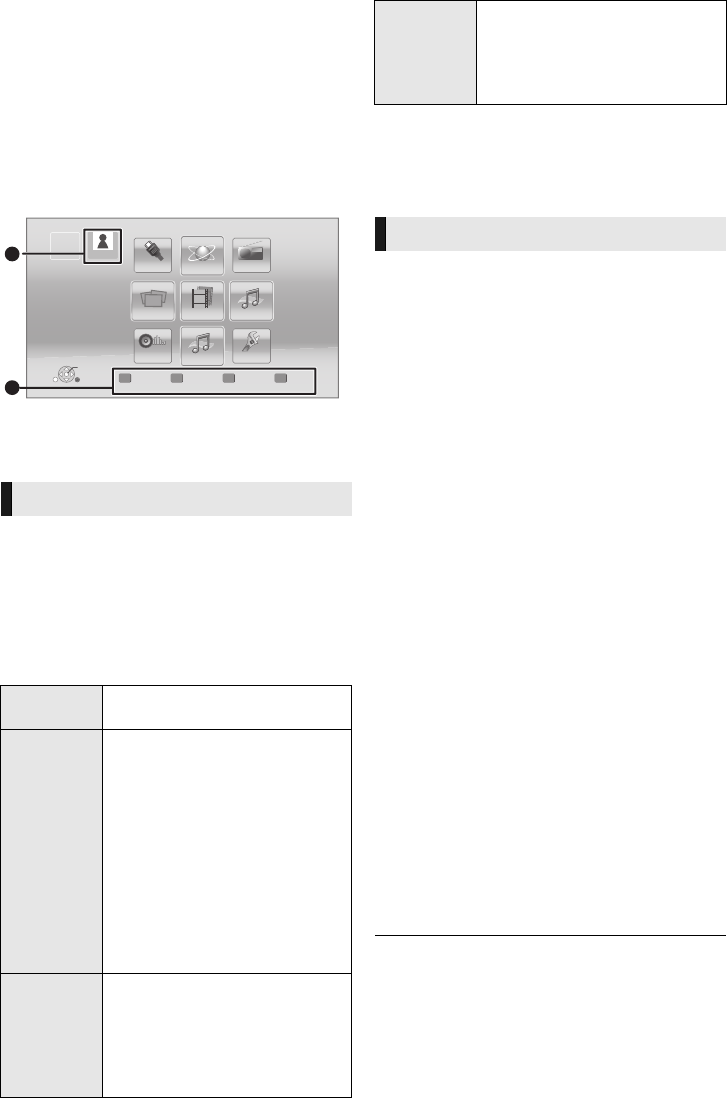

e.g., [BTT880] [BTT480] [BTT460] [BTT400]
AThe user name and icon currently selected
BPersonalize a new user and switch the users
with coloured buttons.
1Press [HOME].
2Press a coloured button that indicates
new user personalization.
3Select an item and change the settings
according to the indications.
The following items can be set.
4Select “Confirm” and press [OK].
To change the personalized user information
Select “Edit User Information” from Setup menu.
(>42)
There are three ways to switch the user as follows.
∫Using coloured buttons
Press the coloured buttons in the HOME menu to
switch to the user corresponding to the button.
∫Using facial recognition
(Only when connected to Communication
Camera >32)
This is a function for fun using the Communication
Camera and enables user switching by facial
recognition. Perform “Create from Photos” (>left)
to personalize your facial photo before using this
function.
1Press [OPTION] in the HOME menu, select
“Facial Recognition” and press [OK].
2Turn the face to Communication Camera.
The camera captures your face and
determines the closest face from the
personalized user photos, and then displays
the results.
≥Accuracy of the recognition may be
reduced depending on the captured image.
3Follow the indications on the screen.
≥To redo the facial recognition, press
[RETURN].
∫Using registered smartphones
When the unit is turned on using the
registered smartphone, the user who
registered the smartphone will automatically
be selected.
≥Perform the “Remote Device Settings”. (>41)
≥To use smartphones as a remote control, installation of
dedicated software is required. For more details, refer to
the following website.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
Personalizing a new user
Input
Nickname Personalize a user name.
Select Icon
Personalize a user icon.
Select from Illustrations
The image can be selected from
prepared illustrations.
Create from Photos
If the Communication Camera is
connected, you can shoot and
personalize your photo.
≥You can also select a photo in
recording media as an icon.
(>34, “Icon Registration”)
Select
Wallpaper
Personalize a background of the
HOME menu.
≥Other than prepared
wallpapers, you can also select
a photo in recording media as a
wallpaper. (>34, “Wallpaper”)
HOME
Home Cinema
Videos MusicPhotos
Network
EXT IN FM Radio
Sound Others
iPod
User 1
A
User 1
Register
2nd user
B
OK
Register
Smartphone
Smartphone used as a remote
control can be registered with
respect to each user.
≥Multiple users cannot be
registered for one smartphone.
Switching the user
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 24 ページ ２０１２年１２月４日　火曜日　午後３時５０分
25
Getting startedPlayback
VQT4Q15
Playback
Playback
1Insert the media.
Playback starts depending on the media.
2Select the item to play and press [OK].
Repeat this procedure if necessary.
≥DISCS CONTINUE TO ROTATE WHILE MENUS ARE
DISPLAYED. Press [∫STOP] when you have finished
playback to protect the unit’s motor, your television screen
and so on.
≥MKV: Successive play is not possible.
≥It is not possible to play back AVCHD and MPEG2 video
which have been dragged and dropped, copied and pasted
to the media.

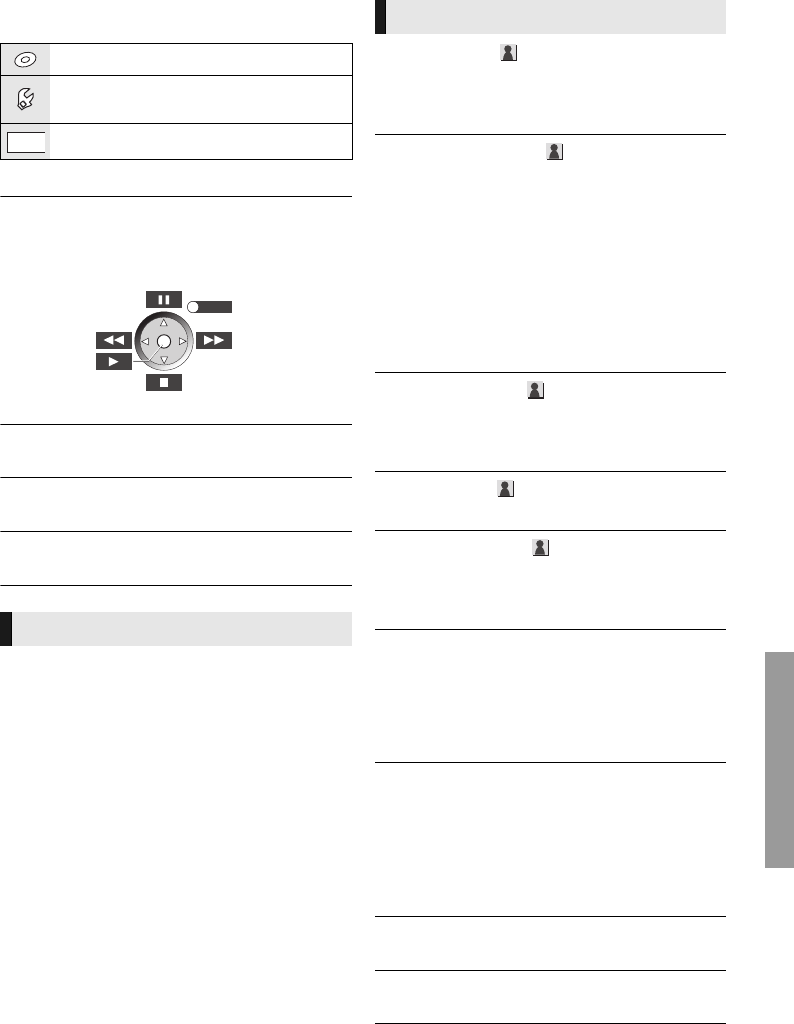

Following functions may not work depending on
the media and contents.
Press [∫STOP].
The stopped position is memorized.
Resume play function
Press [1PLAY] to restart from this position.
≥The position is cleared if the tray is opened.
≥On BD-Video discs including BD-J, the
resume play function does not work.
Press [;PAUSE].
≥Press [;PAUSE] again or [1PLAY] to restart
play.
Search
While playing, press [SEARCH6] or
[SEARCH5].
≥Music and MP3: The speed is fixed to a single
step.
Slow motion
While paused, press [SEARCH6] or
[SEARCH5].
≥BD-Video and AVCHD: [SEARCH5] only.
The speed increases up to 5 steps.
≥Press [1PLAY] to revert to normal playback
speed.
While playing or paused, press [:] or
[9].
Skip to the title, chapter or track.
While paused, press [2] (2;) or [1] (;1).
≥Press and hold to change in succession forward
or backward.
≥Press [1PLAY] to revert to normal playback
speed.
≥BD-Video and AVCHD: [1] (;1) only.
Press [AUDIO].
You can change the audio channel number or
soundtrack language, etc.
Operations during playback
Stop
Pause
Search/Slow motion
Skip
Frame-by-frame
Changing audio
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 25 ページ ２０１２年１２月４日　火曜日　午後３時５０分
26 VQT4Q15
[BTT880] [BTT480] [BTT460] [BTT400]
Press [POP-UP MENU/TOP MENU].
[BTT300]
Press [TOP MENU] or [POP-UP MENU].
Select the item and press [OK].
While playing, press [STATUS].
The status messages give you information about
what is currently being played. Each time you
press [STATUS], the display information may
change or will disappear from the screen.
≥Depending on media and contents, the display
may change or may not appear.
e.g., BD-Video
AT: Title, C: Chapter, PL: Playlist
BElapsed time in the title
CCurrent position
DTotal t im e
e.g., JPEG
Preparation
Connect 3D compatible TV to an HDMI AV OUT
terminal of this unit using a High Speed HDMI
Cable. (>16, 17)
≥Perform the necessary preparations for the TV.
≥Play back following the instructions displayed
on the screen.
≥3D Settings (>37, 39)
≥Please refrain from viewing 3D images if you do not feel
well or are experiencing visual fatigue.
In the event that you experience dizziness, nausea, or
other discomfort while viewing 3D images, discontinue use
and rest your eyes.
≥3D video might not output the way it is set in “HDMI Video
Format” or “24p Output” (>38).
≥When playing back 3D photos from “Photos” screen, select
from the “3D” list. (Still pictures in “2D” are played back in
2D.) If “2D” and “3D” indications are not displayed, press
the red button to switch the view of playback contents.
With “BD-Live” discs, you can enjoy bonus
contents that use Internet access.
For this BD-Live function, insertion of an SD card
is necessary along with Internet connection.
1Perform network connection and settings.
(>18, 20)
2Insert an SD card with 1 GB or more free
space.
≥The SD card is used as the local storage.
3Insert the disc.
∫Deleting data/Formatting SD cards
Select “SD Card Management” in the HOME
menu (>23), then select “BD-Video Data
Erase” or “Format SD Card” and press [OK].
≥The usable functions and the operating method may vary
with each disc, please refer to the instructions on the disc
and/or visit their website.
≥“BD-Live Internet Access” may need to be changed for
certain discs (>41).
Displaying menus and playback
information
Show top menu/pop-up menu
Show the status messages
Play
BD-Video
T1 C1 0:05.14
0:20.52
A
C D
B
Date 11.12.2007
Size 500 x 375
Manufacturer
Equipment
1 / 26
Enjoying 3D video and photos
Enjoying BD-Live
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 26 ページ ２０１２年１２月４日　火曜日　午後３時５０分
27
Playback
VQT4Q15
Play a slideshow of photos and make various
settings during the playback.
1Insert the media.
2Select “Photos”.
3Select an item and press the green button.
The following items can be set.
≥Still pictures displayed as “ ” cannot be played back
with this unit.
≥When a music CD, a USB device with recorded music, and
an iPod/iPhone are inserted/connected to this unit, iPod/
iPhone has priority to be played back as background
music.
[BTT880] [BTT480] [BTT460] [BTT400]
Using the iPod/iPhone
Compatible iPod/iPhone (as of December 2012)
≥Update your iPod/iPhone with the latest
software before using this unit.
≥Compatibility depends on the software version
of your iPod/iPhone.
≥iPod/iPhone compatibility assures music
playback and battery charge functions of this
unit as a home theatre system.
[BTT880] Underlined models can also be
connected to the Dock for iPod/iPhone.
≥In some locations, reception status of an iPhone may be
poor when it is loaded on this unit.
≥When the iPhone receives a call while connected to this
unit, playback, etc. of the iPhone may stop.
To prioritize the operation with the iPhone connected to this
unit, make the setting so that the iPhone does not receive
calls.
≥Avoid using Wi-Fi mode on your iPhone in the following
case.
– When the network functions on this unit are in use
wirelessly.
–[BTT880]
When the surround speakers on this unit are in use
wirelessly.
About recharging the battery
≥iPod/iPhone will not be recharged after the battery charge
completion.
≥When connecting with a dedicated USB cable
– iPod/iPhone will start recharging when this unit is on.
[BTT880]
≥“IPOD CHARGING” will be shown on the main unit’s
display during iPod/iPhone charging in main unit standby
mode.
≥When connecting to the Dock
– iPod/iPhone will start recharging regardless of whether
this unit is on or off.
Slideshow
Start
Slideshow
Start the slideshow.
You can display still pictures in
the selected folder one by one
at a constant interval.
Interval Change the display interval.
Transition
Effect
Select the effect when sliding
pictures.
Repeat Play Set whether to repeat the
slideshow.
Soundtrack
Set whether to play
background music.
≥You can select the
soundtrack from USB
device, Music CD and iPod/
iPhone.
≥Some media cannot be
selected as the source
depending on the case.
Soundtrack
Folder
Select the folder from which
the music files are played.
Random
Soundtrack
Background music is played in
random order.
iPod touch:
1st, 2nd, 3rd, 4th and 5th generation
iPod nano:
1st, 2nd, 3rd, 4th, 5th, 6th and 7th
generation
iPod classic
iPod: 5th generation
iPhone 5 / iPhone 4S / iPhone 4 / iPhone 3GS /
iPhone 3G / iPhone
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 27 ページ ２０１２年１２月４日　火曜日　午後３時５０分
28 VQT4Q15

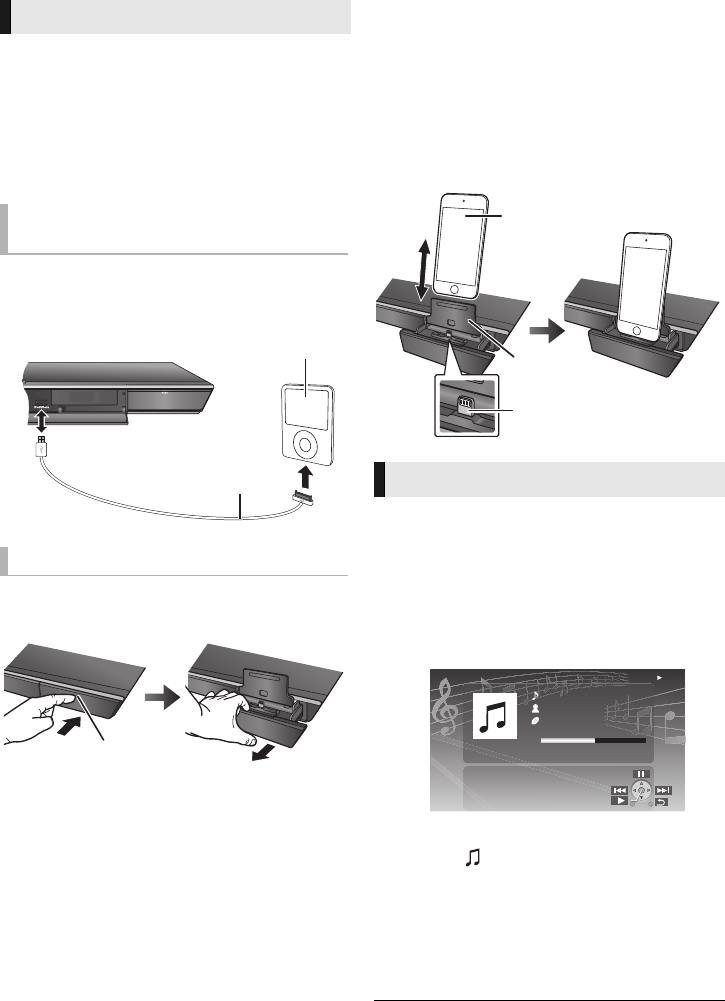

Connect the iPod/iPhone to either of the USB port
or the Dock ([BTT880] only).
≥[BTT880] Only underlined iPod/iPhone on page
27 can be connected to the Dock.
Preparation
≥Turn the main unit off or reduce the volume of
the main unit to its minimum.
1Connect the iPod/iPhone.
To purchase a dedicated USB cable, consult
your iPod/iPhone dealer.
1Push the centre of drawer (A), and pull
out fully until it clicks to open the dock.
2Connect the iPod/iPhone firmly.
≥Check that the connector (B) has no dust
or foreign materials before connecting.
≥To connect the iPod/iPhone firmly, remove it
from the case, etc. before inserting.
≥Insert the iPod/iPhone along the backrest
(C) with the iPod/iPhone display facing out.
≥
Carefully insert and remove the iPod/iPhone
to ensure long lasting product enjoyment.
1Press [HOME].
2Select “iPod” and press [OK].
3Select the item to play.
≥Repeat this procedure if necessary.
Album artwork
≥If album artwork is not contained in the
data, “ ” will appear on TV.
≥Depending on the software version of your
iPod/iPhone, the album artwork may not
appear properly.
≥Some operations may not work while
reading the album artwork.
≥The setting of the playback mode will be kept until changes
are made on the same iPod/iPhone.
≥Surround sound effect and sound mode are available.
iPod/iPhone Connection
Connecting with a dedicated USB
cable
[BTT880] Connecting to the Dock
Dedicated USB cable
(not supplied)
iPod/iPhone (not supplied)
e.g.,
iPod/iPhone Playback
iPod/iPhone
(not supplied)
iPod
Ronaldo
-2:30
Good morning
45 of 1230
Happy days
1:00
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 28 ページ ２０１２年１２月４日　火曜日　午後３時５０分
29
PlaybackTV & Radio
VQT4Q15
TV & Radio
VIERA Link “HDAVI
Control™”
Preparation
1Set “VIERA Link” to “On” (>42).
(The default setting is “On”.)
2Set the “HDAVI Control” operations on the
connected equipment (e.g., TV).
3Turn on all “HDAVI Control” compatible
equipment and select this unit’s input channel
on the connected TV so that the “HDAVI
Control” function works properly.
Also, when the connection or settings are
changed, repeat this procedure.
When the following operations are performed, the
input channel of the television will be
automatically switched and the screen of this unit
will be displayed.
When the television is off, the television will
automatically turn on.
– When play starts on the unit
– When an action that uses the display screen is
performed
(e.g., HOME menu)
≥This function does not work when the iPod/
iPhone selector is chosen. (>28)
All connected equipment compatible with “HDAVI
Control”, including this unit, automatically turns off
when you switch the television off.
Playing music continuously even after turning
off the television
When the unit is connected to a Panasonic TV
(VIERA) that supports HDAVI Control 2 or later.
Select “Video” in “Power Off Link” (>42)
Only when TV supports “HDAVI Control 2” or
later
By using the TV remote control, you can perform
various playback operations and settings.
See the operating instructions of the TV for more
details.
≥The buttons that you can use for this unit vary depending
on the TV. For details, refer to the operating instructions of
the TV.
≥The operation of this unit may be interrupted when you
press certain buttons on the TV remote control.
≥This unit supports “HDAVI Control 5” function.
“HDAVI Control 5” is the standard for Panasonic’s HDAVI
Control compatible equipment. This standard is compatible
with Panasonic’s conventional HDAVI equipment.
≥VIERA Link “HDAVI Control”, based on the control
functions provided by HDMI which is an industry standard
known as HDMI CEC (Consumer Electronics Control), is a
unique function that we have developed and added. As
such, its operation with other manufacturers’ equipment
that supports HDMI CEC cannot be guaranteed.
≥Please refer to individual manuals for other manufacturers’
equipment supporting VIERA Link function.
What is VIERA Link “HDAVI Control”?
VIERA Link “HDAVI Control” is a
convenient function which will link the
operations of this unit and a Panasonic
TV (VIERA) under “HDAVI Control”.
You can use this function by connecting
the equipment with an HDMI cable. See
the operating instructions for connected
equipment for operational details.
Automatic input switching
Power on link
Power Off Link
Easy control only with VIERA
remote control
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 29 ページ ２０１２年１２月４日　火曜日　午後３時５０分
30 VQT4Q15
You can select whether audio is output from the
unit’s speakers or the TV speakers by using the
TV menu settings. Switch the audio output setting
of the TV to this unit’s speakers.
When the TV is turned on, this unit will also
automatically turn on.
1Press [HOME].
2Press [3,4,2,1] to select “Others” and
press [OK].
3Press [2,1] to select “Setup” and press
[OK].
4Press [3,4] to select “Sound” and press
[OK].
5Press [3,4] to select “TV Audio Input”. and
press [OK].
6Press [3,4] to switch “AUX”, “ARC” or
“DIGITAL IN” and press [OK].
≥Select an audio input terminal connected to
the unit.
≥For details, refer to the operating instructions of the TV.
When the STB power is turned on, this unit and
the TV will automatically turn on. The video is
output from the TV, and the audio is output from
the speakers of this unit.
≥[BTT880]
When “HDMI Standby Pass-Through” is set to
“Yes” (>38) this unit will not turn on.
[BTT880]
Connecting the HDMI cable
≥The setting for audio output is not necessary
when the unit is connected to the STB with an
HDMI cable.
Connecting the optical digital audio cable
≥When this unit and the STB are connected by
an optical digital audio cable, the settings below
are required to enable output of audio from the
speakers of this unit.
1Press [EXT-IN] to select “D-IN”.
2Press [STATUS] to select “CABLE/
SATELLITE AUDIO ON”.
Set to “CABLE/SATELLITE AUDIO OFF” when
this unit and the STB are not connected by an
optical digital audio cable.
Enjoying TV and STB with
unit’s speakers
Select the TV audio
OPTICAL
OUT
Optical digital audio cable
(not supplied)
e.g.,
Select the STB audio
HDMI cable*
Set Top Box, etc.
e.g.,
* An extra HDMI cable in addition to the
supplied one is required.
HDMI cable (supplied)
Optical digital audio
cable (not supplied)
Set Top Box, etc.
e.g.,
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 30 ページ ２０１２年１２月４日　火曜日　午後３時５０分
31
TV & Radio
VQT4Q15
Listening to the Radio
You can preset up to 30 channels.
Preparation
Make sure that the FM antenna is connected. (
>
16)
1Press [RADIO] to select “FM”.
2Press and hold [STATUS] to select
“LOWEST” or “CURRENT”.
LOWEST
To begin auto preset with the lowest
frequency (FM87.50).
CURRENT
To begin auto preset with the current
frequency.*
* To change the frequency, refer to “Manual
tuning and presetting”.
3Press and hold [OK].
Release the button when “AUTO” is
displayed.
The tuner starts to preset all the stations it
can receive into the channels in ascending
order.
1Press [RADIO] to select “FM”.
2Press the number buttons to select the
channel.
To select a 1-digit number
e.g., 1: [1] B[OK].
To select a 2-digit number
e.g., 12: [1] B[2].
Alternatively, press [W,X] or [3,4].
∫Manual tuning and presetting
Select a radio broadcast.
1Press [RADIO] to select “FM”.
2Press [SEARCH6] or [SEARCH5] to
select the frequency.
≥To start automatic tuning, press and hold [SEARCH6],
[SEARCH5] until the frequency starts scrolling. Tuning
stops when a station is found.
To preset the channel
3While listening to the radio broadcast
Press [OK].
4While “P” is flashing on the display
Press the number buttons to select the
channel.
≥A station previously stored is overwritten when another
station is stored in the same channel preset.
≥The radio settings will be shown on the unit's display.
(Some settings are also indicated on the TV screen.)
Presetting stations
automatically
Listening to a preset channel
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 31 ページ ２０１２年１２月４日　火曜日　午後３時５０分
32 VQT4Q15
Advanced operations
[BTT880] [BTT480] [BTT460] [BTT400]

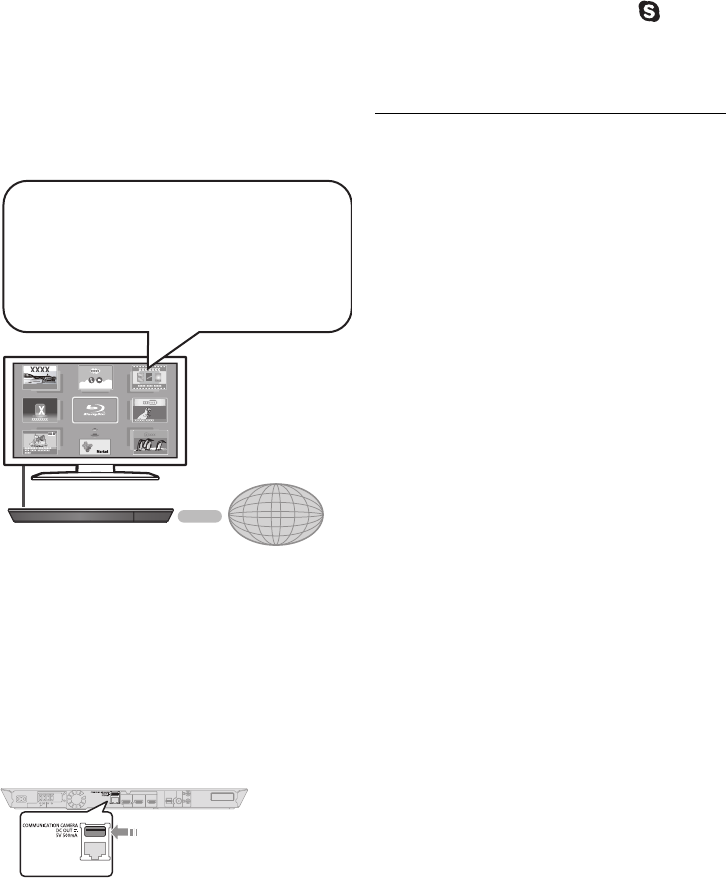

VIERA Connect (Enjoying
Internet Service)
VIERA Connect allows you to access some
specific websites supported by Panasonic, and
enjoy Internet contents such as photos, videos,
etc. from VIERA Connect Home screen. This unit
has no full browser function and all features of
websites may not be available.
* Images are for illustration purposes, contents may change
without notice.
Preparation
≥Network connection (>18)
≥Network setting (>20)
To enjoy video communication (e.g. SkypeTM):
≥Connect this unit with optional Communication
Camera (TY-CC20W or TY-CC10W).
Depending on your location, this optional
camera may not be available. Please consult
your local Panasonic dealer for advice.
≥[BTT480] [BTT460] [BTT400]
When this unit is connected by wireless LAN
connection, connect the Communication Camera
via the USB port on the front of this unit.
≥For operating method refer to the following
website.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
1Press [INTERNET].
≥The video communication service can be
accessed directly by pressing [ ] button.
2Select the item and press [OK].
To exit from VIERA Connect
Press [HOME].
≥When playing content in the media, VIERA Connect cannot
be accessed by pressing [INTERNET].
≥In the following cases, settings are possible using the
Setup menu items.
– When restricting the use of VIERA Connect
(>41, “Network Service Lock”)
– When the audio is distorted
(>40, “Audio Auto Gain Control”)
– When wrong time is displayed
(>40, “Time Zone”, “Summer Time”)
≥If using slow Internet connection, the video may not be
displayed correctly. A high speed Internet service with a
speed of at least 6 Mbps is recommended.
≥Be sure to update the firmware when a firmware update
notice is displayed on the screen. If the firmware is not
updated, you will not be able to use the VIERA Connect
function. (>21)
≥VIERA Connect Home screen is subject to change without
notice.
≥The services through VIERA Connect are operated by their
respective service providers, and service may be
discontinued either temporarily or permanently without
notice. Therefore, Panasonic will make no warranty for the
content or the continuity of the services.
≥All features of websites or content of the service may not
be available.
≥Some content may be inappropriate for some viewers.
≥Some content may only be available for specific countries
and may be presented in specific languages.
*
MORE
BACK
XXXXXXXXXXXXXXXX
XXX XXXX XXXXXXXX XXX
XXXX
VIERA Connect provides a variety of
selected Internet services such as the
following.
≥Online movie rental service
≥Video communication service
≥Video browsing service
Internet
Communication Camera
TY-CC20W or TY-CC10W.
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 32 ページ ２０１２年１２月４日　火曜日　午後３時５０分
33
Advanced operations
VQT4Q15

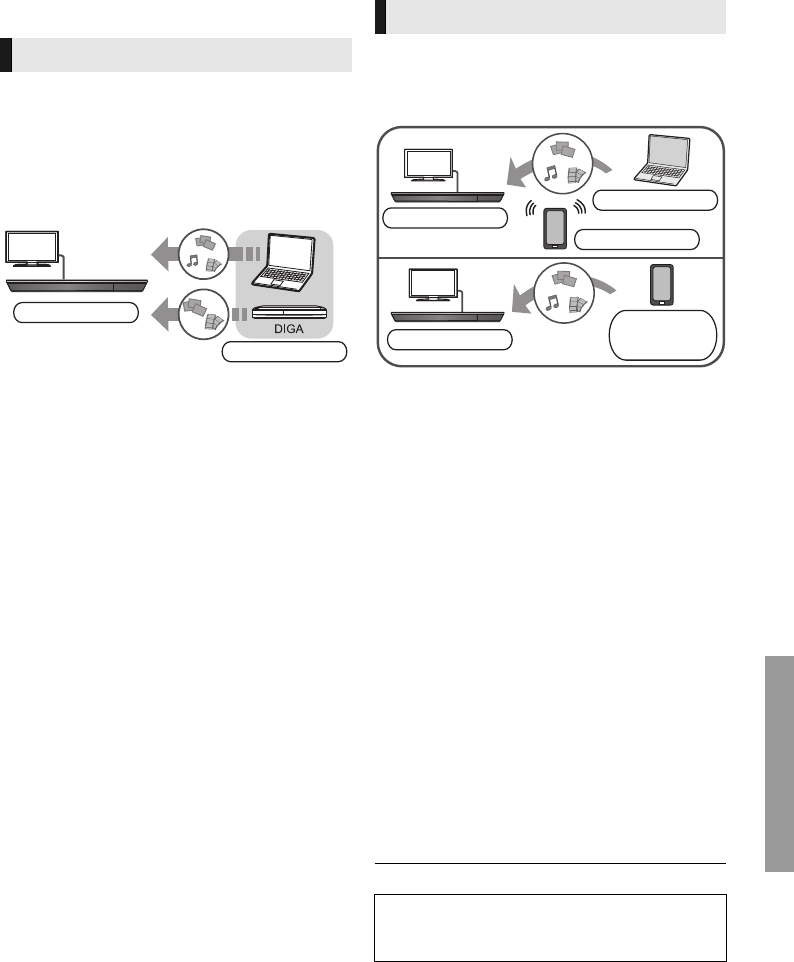

Home Network feature
You can share photos, videos and music stored in the
DLNA Certified media server (PC with Windows 7
installed, smartphone, etc.) connected to your home
network, and enjoy the contents with this home theatre.
You can also enjoy viewing the video and photos recorded
in Panasonic DLNA compatible recorders (DIGA).
Refer to our website about the sales area, etc. (
>
right)
Preparation
1Perform network connection (>18) and
network settings (>20) of this unit.
2Perform Home Network settings of the
connected equipment.
When connected to other than DIGA,
3
Add the contents and folder to the libraries of the
Windows Media
®
Player or the smartphone, etc.
≥
Playlist of Windows Media
®
Player can play back
only the contents that are stored in the libraries.
When connected to DIGA,
3Register this unit to your DIGA.
1Press [HOME].
2[BTT880] [BTT480] [BTT460] [BTT400]
Select “Network”.
3[BTT880] [BTT480] [BTT460] [BTT400]
Select “Home Network”.
4Select “DLNA Client”.
≥The list can be updated by pressing the red
button on the remote control.
≥[BTT880] The connection method can be
switched to Wi-Fi Direct by pressing the
green button on the remote control.
5Select the equipment and press [OK].
6Select the item to play and press [OK].
≥
You may be able to use convenient functions
depending on the content by pressing [OPTION].
≥
Control Panel (
>
35) is displayed once the playback
starts. Press [OK] if the Control Panel is not displayed,
and press [RETURN] to hide the Control Panel.
≥
About support format of DLNA client (
>
53).
To exit from Home Network
Press [HOME].
You can use the smartphone, etc. as the Digital
Media Controller (DMC) to play back contents
from DLNA server on the Renderer (this unit).
Possible applications:
* DMC compatible software should be installed.
Preparation
Perform steps 1 and 2. (>left)
3
Add the contents and folder to the libraries of the
Windows Media
®
Player or the smartphone, etc.
≥
Playlist of Windows Media
®
Player can play back
only the contents that are stored in the libraries.
4
Perform the “Remote Device Settings”. (
>
41)
≥You can register up to 16 devices.
1Press [HOME].
2[BTT880] [BTT480] [BTT460] [BTT400]
Select “Network”.
3[BTT880] [BTT480] [BTT460] [BTT400]
Select “Home Network”.
4Select “Media Renderer”.
5[BTT880]
Select “Home Network” or “Wi-Fi Direct” and press
[OK], then follow the indications on the screen.
6Operate the DMC compatible devices.
To exit from Media Renderer screen
Press [HOME].
≥
[BTT880]
Wi-Fi Direct connection while using Home Network
feature is only temporary, and the network connection method
returns to the original setting when exiting.
≥Depending on the contents and the connected equipment,
playback may not be possible.
≥
Items displayed in grey on the display cannot be played back by this unit.
≥This unit can be played back via connected equipment only
when controlled using DMC.
Playing back contents on the DLNA server
Home theatre
Server
Using the Digital Media Controller
For more details, refer to the following website and the
operating instructions for each of the equipment.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
*
*
*
Renderer
Server
Controller
Renderer
Server
i
Controller
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 33 ページ ２０１２年１２月４日　火曜日　午後３時５０分
34 VQT4Q15
Option menu
A variety of playback operations and settings can
be performed from this menu.
Available options differ depending on the playing
contents and the condition of the unit.
About Multi User Mode
: Settings of the items with this indication are
saved by the respective users registered in the
HOME menu.
Please refer to page 24 for details about user
registration and switching.
1Press [OPTION].
e.g., BD-Video
2Select an item and change the settings.
To exit the screen
Press [OPTION].
Regarding Language: (>54)
∫Soundtrack
Show or change the soundtrack.
∫Audio channel
Select the audio channel number.
∫Subtitle
Change the subtitle settings.
∫Angle
Select the number of the angle.
∫Repeat Play
(Only when the elapsed time is being displayed
on the unit’s display.)
Select the item that you want to repeat.
≥The items displayed differ depending on the
type of media.
≥Select “Off” to cancel.
∫Random
Select whether or not to play random.
∫Start Slideshow
Start the slideshow.
∫Status
Show the status messages.
∫Rotate RIGHT
∫Rotate LEFT
Rotate the still picture.
∫Wallpaper
Set the still picture to the wallpaper of HOME
menu. (>23)
∫Icon Registration
Set the still picture as your user icon. (>24)
∫Video
The recording method of original video appears.
∫Secondary Video
Operation Menu
Operation Menu
Pop-up Menu
Top Menu
Playback Information Window
Control Panel
Status
Repeat Play
Angle
Subtitle
Soundtrack
Off
Secondary Video
1
1 ENG DTS-HD MSTR Multi
Video
Select on/off of images. The
recording method of original
video appears.
≥During search/slow motion or
frame-by-frame, only the
primary video is displayed.
Soundtrack Select on/off of audio and the
language.
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 34 ページ ２０１２年１２月４日　火曜日　午後３時５０分
35
Advanced operations
VQT4Q15
∫Playback Information Window
Displays the following.
Press [RETURN] to exit.
∫Control Panel
Display the Control Panel.
Playing back while using VIERA Link, etc.
e.g.,
Press [RETURN] to hide the Control Panel.
∫Top Menu
Display Top Menu.
∫Pop-up Menu
Display Pop-up Menu.
∫Menu
Display Menu.
You can access settings to enjoy special features
of this unit from this category.
Refer to “Picture Settings” and “Sound Settings”
(>36) for more details on each setting item.
∫Picture Mode
Select the picture quality mode during play.
≥If you select “User”, you can change settings in
“Picture Adjustment”.
∫Picture Adjustment
Specific picture quality settings can be performed.
≥3D NR:
Reduces the rough noise in the background to
give a greater feeling of depth.
When “24p Output” is set to “On”, this function
may not operate. (>38)
≥Integrated NR:
Smoothes block noise and reduces the
smudging that appears around contrasting
sections of the picture.
∫Chroma Process
The high-resolution processing of HDMI chroma
signals produces a high resolution picture with
rich picture quality.
∫Detail Clarity
The picture is sharp and detailed.
∫Super Resolution
Pictures of normal image quality are corrected to
sharp and detailed images when output as 1080i/
1080p from HDMI AV OUT.
∫Progressive
Select the method of conversion for progressive
output to suit the type of material being played.
≥If the video is disrupted when “Auto” is selected,
select either “Video” or “Film” depending on the
material to be played back.
∫24p
Movies and other material recorded on
DVD-Video at 24p are output at 24p.
≥Only when you have selected “On” in “24p
Output” (>38) and play discs recorded at a
rate of 60 fields per second.
≥This may not work with the PAL contents.
∫Screen Aspect
Switch the screen mode.
∫Reset to Default Picture Settings
Return picture settings to the factory preset.
Audio/video attribute information of disc.
Settings status of “Digital Audio Output”
(>38).
HDMI output information.
Personal Taste
*&/+
EXIT
Picture Settings
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 35 ページ ２０１２年１２月４日　火曜日　午後３時５０分
36 VQT4Q15
“Surround Effects” and “Sound Effects” can also
be set by using the [SURROUND] and [SOUND]
on the remote control. (>44)
∫Surround Effects
¾BD/DVD (Multi-ch Source):
¾[BTT880] [BTT480] [BTT460] [BTT400]
TV/CD/iPod (2ch Source):
¾[BTT300]
TV/CD (2ch Source):
∫Sound Effects*1, 2, 3
¾[BTT880] [BTT480] [BTT460] [BTT400]
TV/CD/iPod (2ch Source):
¾[BTT300]
TV/CD (2ch Source):
Re-master:
This feature gives you brighter sound by
increasing the high frequency portion of the
audio. (Discs recorded at 48 kHz or less)
Recommended setting:
Digital Tube Sound:
This feature gives you warm sound, like that
produced by a vacuum tube amplifier.
Recommended setting:
¾All:
∫High Clarity Sound Plus
When playing back music contents, it improves
the sound quality by stopping the video output.
*1 Not every function can be set individually.
*2 When audio is output from the HDMI AV OUT terminal this
function is effective only when “Dolby D/Dolby D +/Dolby
TrueHD” or “DTS/DTS-HD” is set to “PCM”. (>38)
*3 This function has no effect when the type of audio is Dolby
Pro Logic II.
Sound Settings
3D Cinema
Surround
Expand the sound field
forward, backward, upward,
right and leftward providing
a sound with depth and
force that better matches 3D
images.
7.1ch Virtual
Surround
You can enjoy 6.1/
7.1-channel surround-like
effect using 5.1-channel
speakers.
2ch Stereo
You can play any source in
stereo. Sound will be output
to the front speakers and
the subwoofer only.
Multi
Channel Out
You can enjoy sound from the
front speakers, as well as the
surround speakers even when
playing stereo sources.
Super
Surround
You can enjoy sound from
all speakers with stereo
sources.
Dolby Pro
Logic II
Movie
Suitable for movie software,
or the one recorded in Dolby
Surround.
Dolby Pro
Logic II
Music
Adds 5.1-channel effects to
stereo sources.
Re-master 1 Pop and rock
Re-master 2 Jazz
Re-master 3 Classical
Digital Tube
Sound 1 A crisp, delicate sound
Digital Tube
Sound 2 A tight, hi-fi sound
Digital Tube
Sound 3 A soft, rich sound
Digital Tube
Sound 4 A clear, powerful sound
Digital Tube
Sound 5
A distinctive mid-range
sound
Digital Tube
Sound 6 A soft, enveloping sound
Equalizer
You can select sound quality
settings.
Flat/Heavy/Clear/Soft
Subwoofer
You can adjust the amount
of bass.
Level 1 (Weakest effect) to
Level 4 (Strongest effect)
≥
Levels can be set by source.
H.Bass
You can enhance low-frequency
sound so that heavy bass sound
can be heard clearly, even if the
acoustics of your room are not
optimal.
Whisper-Mode
Surround
You can enhance the
surround effect for low
volume sound. (Convenient
for late night viewing.)
Centre Focus
You can make the Centre
channel sound seem like it
is coming from within the
TV.
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 36 ページ ２０１２年１２月４日　火曜日　午後３時５０分
37
Advanced operations
VQT4Q15

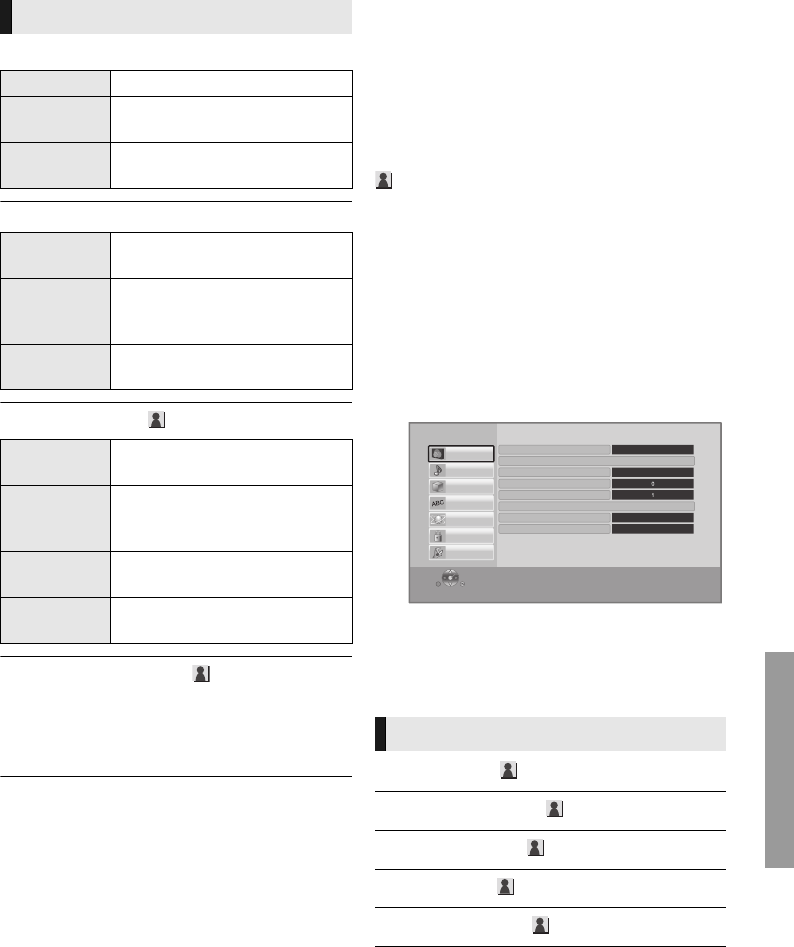

∫Signal Format
∫3D Picture Mode
∫Manual Settings
∫Graphic Display Level
(Only when “Full HD” is selected in “3D Type”
(>39).)
3D position for the Option menu or message
screen, etc. can be adjusted during 3D playback.
Setup menu
Change the unit’s settings if necessary. The
settings remain intact even if you switch the unit
to standby.
Some items in the Setup menu are common to
the Option menu. You can get the same effect
with both menus.
About Multi User Mode
: Settings of the items with this indication are
saved by the respective users registered in the
HOME menu.
Please refer to page 24 for details about user
registration and switching.
1Press [HOME].
2Press [3,4,2,1] to select “Others” and
press [OK].
3Press [2,1] to select “Setup” and press
[OK].
4Select an item and change the settings.
To exit the screen
Press [HOME].
∫Picture Mode (>35)
∫Picture Adjustment (>35)
∫Chroma Process (>35)
∫Detail Clarity (>35)
∫Super Resolution (>35)
3D Settings
Original Keep original picture format.
Side by side 3D picture format comprising of
left and right screens.
2D to 3D Converts 2D pictures to 3D
effect.
Normal Play back pictures with normal
3D effects.
Soft
You can enjoy 3D pictures with a
feeling of broadness, holding
back the depth perception.
Manual Play back 3D pictures with
settings of “Manual Settings”.
Distance Set the amount of depth
perception.
Screen Type
Selects how the screen appears
during 3D playback (flat or
round).
Frame Width Set the amount of feathering at
the edge of screen.
Frame
Colour
Set the colour of feathering at
the edge of screen.
OK
RETURN
HDMI Output
Super Resolution
Detail Clarity
Chroma Process
Picture Adjustment
Picture Mode
Seamless Play
Still Mode
On
Automatic
Advanced
Normal
Setup
System
Ratings
Network
Language
3D
Sound
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 37 ページ ２０１２年１２月４日　火曜日　午後３時５０分
38 VQT4Q15
∫HDMI Output
Press [OK] to show the following settings:
¾HDMI Video Format
The items supported by the connected devices are
indicated on the screen as “
¢
”. When any item
without “
¢
” is selected, the images may be distorted.
≥If “Automatic” is selected, the best suited
output resolution to the connected television
is automatically selected.
≥To enjoy high-definition video up-converted to
1080p, you need to connect the unit directly
to 1080p compatible HDTV (High Definition
Television). If this unit is connected to an
HDTV through other equipment, the other
equipment must also be 1080p compatible.
¾24p Output
When this unit is connected to a TV supporting 1080/
24p output using an HDMI cable, movies and other
material recorded at 24p are output at 24p.
≥
When playing DVD-Video, set to “On” and then
set “24p” in “Picture Settings” (
>
35) to “On”.
≥When BD-Video images other than 24p are
played, images are output at 60p.
≥24p: A progressive image recorded at a rate
of 24 frames per second (motion-picture film).
Many BD-Video movie contents are recorded
in 24 frames/second in accordance with the
film materials.
¾HDMI Colour Mode
This setting is for selecting colour-space
conversion of the image signal when the unit is
connected using an HDMI cable.
¾Deep Colour Output
This setting is for selecting whether to use Deep
Colour output when a television that supports
Deep Colour is connected.
¾Contents Type Flag
Depending on the playback content, the TV will
output adjusting to the optimal method when a
TV that supports this function is connected.
¾[BTT880] HDMI Standby Pass-Through
Even if this unit is in standby mode, a device
connected with this unit can output videos and
sound to the TV.
Moreover, you can switch the HDMI input terminal
by pressing [EXT-IN] on the remote control.
≥
Sound will not be output from this unit’s speakers.
∫Still Mode
Select the type of picture shown when you pause
playback.
∫Seamless Play
The chapter segments in playlists are played
seamlessly.
≥Select “On” when the picture freezes for a
moment at the chapters segment in playlists.
∫Surround Effects (>36)
∫Sound Effects (>36)
∫Dynamic Range Compression
You can listen at low volumes but still hear
dialogue clearly.
(Dolby Digital, Dolby Digital Plus and Dolby
TrueHD only)
≥“Automatic” is effective only when playing Dolby
TrueHD.
∫Digital Audio Output
Press [OK] to show the following settings:
¾Dolby D/Dolby D +/Dolby TrueHD
¾DTS/DTS-HD
¾MPEG Audio
Select the audio signal to output.
≥
Select “PCM”, when the connected equipment
cannot decode the respective audio format. This
unit decodes the audio format and transmits to
the connected equipment.
≥
Not making the proper settings may result in noise.
Automatic Automatically selects the type
of picture shown.
Field Select if jittering occurs when
“Automatic” is selected.
Frame
Select if small text or fine
patterns cannot be seen clearly
when “Automatic” is selected.
Sound
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 38 ページ ２０１２年１２月４日　火曜日　午後３時５０分
39
Advanced operations
VQT4Q15
¾BD-Video Secondary Audio
Select whether or not to mix the primary and
secondary audio (including the button click
sound).
If “Off” is selected, the unit outputs the primary
audio only.
¾HDMI Audio Output
This setting selects whether or not to output
audio from HDMI.
≥Audio will be output through the system’s
speakers when “Off” is selected.
∫Digital Audio Input
Press [OK] to show the following settings:
¾PCM-Fix
Selects the audio output from the devices
connected to this unit.
≥“On”: PCM is available.
≥“Off”: DTS, PCM and Dolby Digital are
available.
Select “On” if the sound is cut off intermittently.
∫TV Audio Input
Select the TV audio input to work with the VIERA
Link operations.
∫Downmix
Select the downmix system of multi-channel to
2-channel sound.
≥Select “Surround encoded” to enjoy the
surround sound.
≥There is no downmix effect on the bitstream
audio signal.
≥The audio will be output in “Stereo” in the
following cases:
– AVCHD playback
– Dolby TrueHD playback
– Playback of secondary audio (including the
button click sound).
∫Audio Delay
Synchronization between picture and sound is
corrected by adjusting the delay time of the audio
output.
∫Speaker
Refer to page 43.
∫3D BD-Video Playback
Select the playback method of 3D compatible
video software.
∫3D AVCHD Output
Select the output method of 3D AVCHD videos.
∫3D Type
Select the format of the connected TV.
≥Change the settings for 3D on the TV also when
“Side by side” is selected.
∫3D Playback Message
Set to display or hide the 3D viewing warning
screen when playing back the 3D compatible
video software.
∫Manual Settings (>37)
∫Graphic Display Level (>37)
3D
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 39 ページ ２０１２年１２月４日　火曜日　午後３時５０分
40 VQT4Q15
∫Soundtrack Preference
Choose the language for audio.
≥If “Original” is selected, the original language of
each disc will be selected.
≥Enter a code (>54) when you select “Other
¢¢¢¢”.
∫Subtitle Preference
Choose the language for the subtitle.
≥If “Automatic” is selected and the language
selected for “Soundtrack Preference” is not
available, subtitles of that language will
automatically appear if available on that disc.
≥Enter a code (>54) when you select “Other
¢¢¢¢”.
∫Menu Preference
Choose the language for the disc menus.
≥Enter a code (>54) when you select “Other
¢¢¢¢”.
[Except[South[East[Asia]
∫Subtitle Text
Select a suitable item according to the language
used for MKV subtitles text.
≥This item is displayed only after playing back a
file.
[For]South]East]Asia]
∫On-Screen Language
Choose the language for menus and on-screen
messages.
∫Easy Network Setting (>20)
∫Network Settings
Perform network-related settings individually.
Press [OK] to show the following settings:
¾LAN Connection Mode
Select the LAN connection method.
≥[BTT880]
Select “Wireless Master” when you make a
direct wireless connection between this unit
and a Home Network device. Internet
connection is not available when this item is
selected.
¾Wireless Settings
This allows the wireless router and connection
settings to be set. Current connection settings
and connection state can be checked.
Connection Setting
The wireless router connection wizard will be
displayed.
Double Speed Mode Setting (2.4GHz)
Set the connection speed.
≥If you connect using the “Double Speed
Mode (40MHz)”, 2 channels use the same
frequency band, and there is consequently
a greater risk of reception interference. This
can cause the connection speed to drop or
become unstable.
¾IP Address / DNS Settings
This is for checking the state of the network
connection and setting the IP address and
DNS-related.
Press [OK] to show the respective setting.
¾Proxy Server Settings
This is for checking the state of connection with
the Proxy server and performing settings.
Press [OK] to show the respective setting.
¾[BTT880] [BTT480] [BTT460] [BTT400]
Network Service Settings (>32)
(VIERA Connect)
Press [OK] to show the following settings:
Audio Auto Gain Control
Volume that is different depending on the contents
is adjusted automatically to the standard volume
while using the VIERA Connect.
≥Depending on contents, this function effect
will not work.
≥Select “Off” when the audio is distorted.
Time Zone
By selecting the time zone, it is possible to set
the unit’s time to match your location.
≥Some VIERA Connect contents require the
time zone to be set. Set the time zone if
necessary.
Summer Time
Select “On” when using Daylight Saving time.
Language
Network
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 40 ページ ２０１２年１２月４日　火曜日　午後３時５０分
41
Advanced operations
VQT4Q15
[Except[South[East[Asia]
¾Network Drive Connection
It is possible to access the shared folder of
equipment not compatible with DLNA, such as
the Windows XP operating system, and play
back video, still pictures, and music on this unit.
For the setting and operation method of
connected equipment, refer to the following
website.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
¾Remote Device Settings (>33)
Press [OK] to show the following settings:
Remote Device Operation
Enable to operate by DMC.
≥If “On” is selected, “Quick Start” is fixed to
“On”.
Device Name Entry
Set the name of this unit to be displayed on
the connected equipment.
Registration Type
Remote Device List
Registering/deregistering of the displayed
equipment can be performed when “Manual”
in “Registration Type” is selected.
¾BD-Live Internet Access (>26)
You can restrict Internet access when BD-Live
functions are used.
≥If “Limit” is selected, Internet access is
permitted only for BD-Live contents which
have content owner certificates.
The following items use the same password.
Don’t forget your password.
∫DVD-Video Ratings
Set a ratings level to limit DVD-Video play.
∫BD-Video Ratings
Set an age limit of BD-Video play.
Network Service Lock
∫[BTT880] [BTT480] [BTT460] [BTT400]
Network Service Lock
You can restrict the usage of VIERA Connect.
∫Easy Setting
You can execute basic settings.
∫TV Settings
Press [OK] to show the following settings:
¾TV Aspect
Set to match the type of television connected.
When connected to a 4:3 aspect television and
playing 16:9 ratio image:
When connected to a 16:9 widescreen
television and playing 4:3 ratio image:
¾TV System
Perform the setup so it matches the TV System
of the connected TV.
Automatic
Allow connection to all
the equipment that is
accessing this unit.
Manual
Set the permission of
the connection
individually for the
equipment that is
accessing this unit.
Ratings
System
4:3
The sides are cut
off so the picture
fills the screen.
When playing
BD-Video, video is output as “4:3
Letterbox”.
4:3
Letterbox
Black bands
appear at the top
and bottom of the
picture.
16:9 Video is displayed as a 4:3 ratio
image in the centre of the screen.
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 41 ページ ２０１２年１２月４日　火曜日　午後３時５０分
42 VQT4Q15
¾Screen Saver Function
This is to prevent burn-in on the screen.
≥When this is set to “On”:
If a list of playback content is displayed and
there is no operation for 10 minutes or more,
the screen switches to HOME menu
automatically.
≥While playing and pausing, etc., this function
is not available.
¾On-Screen Messages
Choose whether to show status messages
automatically.
¾VIERA Link
Set to use “HDAVI Control” function when
connected via HDMI cable to a device that
supports “HDAVI Control”.
≥Select “Off” when you do not want to use
“HDAVI Control”.
¾Power Off Link
Select the desired power off link setting of this
unit for VIERA Link operation (>29). (This
works depending on the settings of the
connected VIERA Link “HDAVI Control”
compatible equipment.)
Video/Audio
When the TV is turned off, this unit will turn off
automatically.
Video
When playing back audio only content, the
unit will not turn off automatically.
∫Unit Settings
Press [OK] to show the following settings:
¾Front Panel Display
Changes the brightness of the unit’s display.
≥If “Automatic” is selected, the display is set to
bright and only dimmed during playback.
¾Edit User Information
Change the user information registered in the
HOME menu.
∫Quick Start
Speed of startup from standby mode is increased.
≥When set to “On”, the internal control unit will be
powered and the idle power consumption will
increase so compared to when set to “Off”.
∫Remote Control
Change the remote control code if other
Panasonic products react to this remote control.
∫Firmware Update (>21)
Press [OK] to show the following settings:
¾Automatic Update Check
When this equipment remains connected to the
Internet, it will check for the latest firmware
version when it is turned on and you can update
it if necessary.
¾Update Now
You can update the firmware manually if a
firmware update is available.
∫System Information
Press [OK] to show the following settings:
¾Software Licence
Information about the software used by this unit
is displayed.
¾Firmware Version Information
Display firmware version of this unit and
wireless LAN module.
∫Default Settings
This returns all values in the Setup menu and the
Option menu to the default settings, except for
some settings of network, ratings, remote control
code, language, etc.
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 42 ページ ２０１２年１２月４日　火曜日　午後３時５０分
43
Advanced operations
VQT4Q15

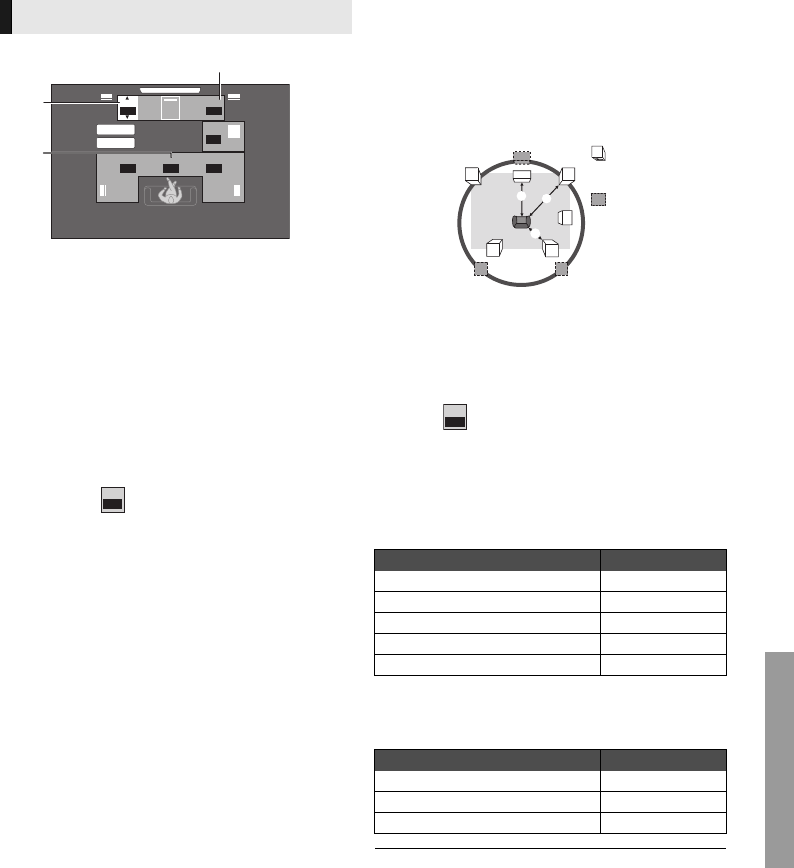

AVolume (Channel balance)
BDelay time for the Centre speaker
CDelay time for the Surround and Surround
back speakers*
* Surround back speakers: optional (>12)
∫Adjusting speaker level
(Effective when playing multi-channel audio)
1Select “Test” and press [OK].
A test signal is output.
2While listening to the test signal
Press [3,4] to adjust the volume of each
speaker ( ).
The volume can be adjusted between r6 dB
to s6 dB.
≥Set each speaker level according to the
volume of the Front (L) and Front (R)
speaker volume respectively.
3Press [OK].
The test signal stops.
∫Delay time
For optimum listening with 5.1-channel sound, all
the speakers, except for the subwoofer, should be
the same distance from the seating position.
If either distance 1 or 2 is less than 3, measure
the distance and adjust the time to make up for
the difference (see the table below).
1 2 3: Primary listening distance
AActual speaker position
BIdeal speaker position
1Press [3,4,2,1] to select the distance
box ( ) and press [OK].
2Press [3,4] to select the setting and
press [OK].
Delay time for the Centre speaker
Subtract the distance 1 from 3
Delay time for the Surround and Surround
back speakers
Subtract the distance 2 from 3
To finish the speaker setting
Press [3,4,2,1] to select “Complete” and
press [OK].
Speaker settings
0
00
0.0
0.0
ms
Complete
Tes t
LS
RL
RS
dB
dBdB
ms C
0
dB
SW
dB
0
Distance (Approx.) Setting
34 cm 1.0 ms
68 cm 2.0 ms
102 cm 3.0 ms
136 cm 4.0 ms
170 cm 5.0 ms
Distance (Approx.) Setting
170 cm 5.0 ms
340 cm 10.0 ms
510 cm 15.0 ms
:
:
L
LS
R
SW
C
RS
C
RS
LS
1
2
3
A
B
0.0
ms
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 43 ページ ２０１２年１２月４日　火曜日　午後３時５０分
44 VQT4Q15

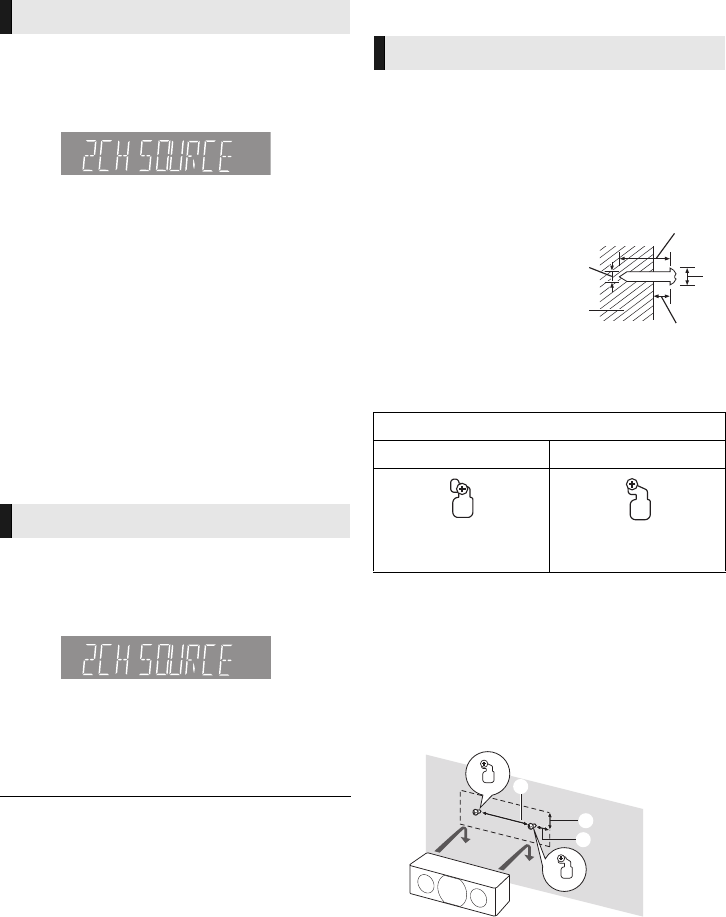

Changing the sound
settings
For more details on each setting, refer to “Sound
Settings” on the Option menu. (>36)
1Press [SURROUND].
2Press [3,4] to select “MULTI CH SOURCE”
or “2CH SOURCE”, and then press [OK].
e.g.,
3While the mode is displayed
Press [3,4] to select the desired setting.
(>36)
∫Adjusting speaker level during play
1Press [CH SELECT] to activate the speaker
setting mode.
2Press [CH SELECT] several times to select
the speaker.
≥Press [2,1] to adjust the balance of the
front speakers.
3Press [3] (increase) or [4] (decrease) to
adjust the speaker level for each speaker.
s6 dB to r6 dB
1Press [SOUND].
2Press [3,4] to select “2CH SOURCE” or
“ALL SOURCE”, and then press [OK].
e.g.,
3While the mode is displayed
Press [3,4] to select the desired setting and
press [OK].
Repeat this procedure if necessary. (>36)
≥The sound effects/modes may not be available or have no
effect with some sources.
≥You may experience a reduction in sound quality when
these sound effects/modes are used with some sources. If
this occurs, turn the sound effects/modes off.
Speaker installation
option
Consult a qualified building contractor when
attaching the speakers to a wall. Improper
attachment may result in damage to the wall and
speakers and personal injury.
You can attach all of the speakers (except
subwoofer) to a wall.
≥The wall or pillar on which the speakers are to
be attached should be capable of supporting
10 kg per screw.
1Drive a screw (not supplied) into the wall.
AAt least 30 mm
B‰ 4.0 mm
C‰ 7.0 mm to
‰ 9.4 mm
DWall or pillar
E5.5 mm to 7.5 mm
2Fit the speaker securely onto the screw(s)
with the hole(s).
Use the measurements indicated below to identify
the screwing positions on the wall.
≥Leave at least 20 mm of space above the
speaker and 10 mm on each side to allow
enough space for fitting the speaker.
[BTT880] [BTT480] [BTT460] [BTT400]
Centre speaker
Surround Effects
Sound Effects
Attaching to a wall
e.g., [BTT880] [BTT480] [BTT460] Front speaker
DO NOT DO
≥In this position, the
speaker will likely fall if
moved to the left or right.
≥Move the speaker so
that the screw is in this
position.
A17 mm B52 mm C175 mm
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 44 ページ ２０１２年１２月４日　火曜日　午後３時５０分
45
Advanced operations
VQT4Q15

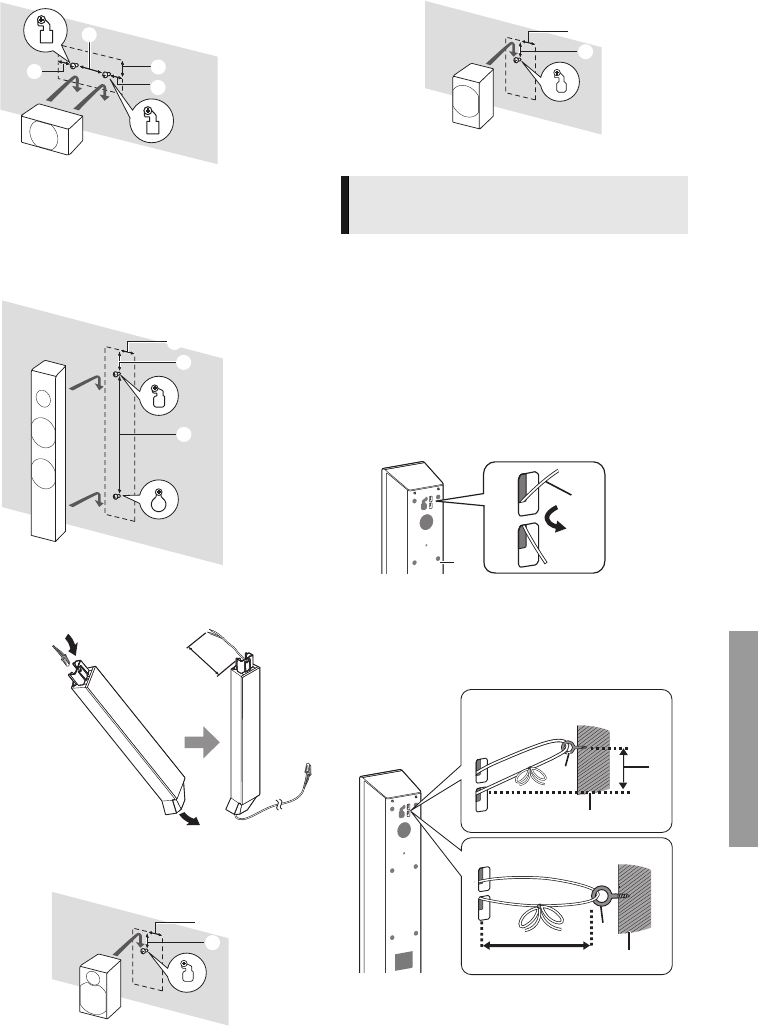

[BTT300] Centre speaker
[BTT880] [BTT480]
Front speaker, Surround speaker
[BTT460] Front speaker
Attach to a wall without the base and the stand.
≥Reattaching the speaker cable to the stand
[BTT460] Surround speaker
[BTT400] Front speaker, Surround speaker
[BTT300] Front speaker, Surround speaker
Preventing tipping
[BTT880] [BTT480] Front speaker, Surround speaker
[BTT460] Front speaker
Preventing falling
Front speaker, Surround speaker, Centre speaker
1Thread a string to the speaker.
≥Use a string of less than ‰ 2.0 mm, which is
capable of supporting over 10 kg.
e.g., [BTT880] [BTT480] [BTT460] Front speaker
AString (not supplied)
BRear of the speaker
2Thread a string from the wall to the
speaker and tie tightly.
CScrew eye (not supplied)
DWall or pillar
EApprox.150 mm
FApprox.120 mm
D18 mm E24 mm
F
95.5 mm
G27 mm
H45 mm I22 mm J330 mm
K40 mm L41 mm
Straighten the
cable and run
through the stand.
Pull out the cable
through the hole.
180 mm
M40 mm N24 mm
To prevent tipping/falling of the
speakers
When mounted on a wall
When placed on the floor
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 45 ページ ２０１２年１２月４日　火曜日　午後３時５０分
46 VQT4Q15
Reference
Troubleshooting guide
Before requesting service, please perform the
following checks.
If the problem remains unresolved, consult
your dealer for instructions.
The following do not indicate a problem with
this unit:
– Regular disc rotating sounds.
– Image disturbance during search.
– Image disturbance when replacing 3D discs.
∫Unit does not respond to remote
control or front panel buttons.
Press and hold [
Í
/I] on the main unit for 3 seconds.
– If still unable to turn the unit off, disconnect the
AC mains lead, wait 1 minute, then reconnect
the AC mains lead.
∫Cannot eject disc.
The unit may have a problem.
1Turn the unit off.
2Press and hold [OK], the yellow button and
the blue button on the remote control at the
same time for more than 5 seconds.
j“00 RET” is displayed on the unit’s display.
3Repeatedly press [1] (right) on the remote
control until “06 FTO” is displayed on the
unit’s display.
4Press [OK].
To return to the factory preset.
¾Select “Yes” in “Default Settings” in the Setup
menu. (>42)
To return all settings to the factory preset.
¾Reset the unit as follows:
1Turn the unit off.
2Press and hold [OK], the yellow button and
the blue button on the remote control at the
same time for more than 5 seconds.
j“00 RET” is displayed on the unit’s display.
3Repeatedly press [1] (right) on the remote
control until “08 FIN” is displayed on the unit’s
display.
4Press and hold [OK] for at least 3 seconds.
This unit is turned off when the input for the
TV is switched.
¾This is a normal phenomenon when using
VIERA Link (HDAVI Control 4 or later). For
details please read the operating instructions
for the TV.
The remote control does not work properly.
¾Change the batteries in the remote control.
(>9)
¾The remote control and main unit are using
different codes. If “SET ” is displayed on the
unit’s display when a button is pressed on the
remote control, change the code on the
remote control. (>42, 50)
The TV tuner mode is not displayed when the
TV is switched on.
¾
This phenomenon may occur, depending on the
TV setting, when “Quick Start” is set to “On”.
¾Depending on the TV, this phenomenon may
be prevented by reconnecting the HDMI cable
to a different HDMI input terminal or by
changing the HDMI auto connection setting.
You have forgotten your ratings password.
You want to cancel the ratings level.
¾The ratings level returns to the factory preset.
1Turn the unit on.
2Press and hold [OK], the yellow button and
the blue button on the remote control at the
same time for more than 5 seconds.
j“00 RET” is displayed on the unit’s display.
3Repeatedly press [1] (right) on the remote
control until “03 VL” is displayed on the unit’s
display.
4Press [OK].
This unit does not recognize the USB
connection correctly.
¾Disconnect and reconnect the USB cable. If it
still does not recognize the connection, turn
this unit off and on again.
¾USB devices may not be recognized by this
unit when connected using the following :
ja USB hub
ja USB extension cable other than the
supplied with the Wireless LAN Adaptor
DY-WL5 (optional)
¾If you connect USB HDD to this unit, use the
USB cable that is supplied with the HDD.
Do you have the latest firmware installed?
Firmware updates may be released to correct
operating irregularities that are discovered with
certain movies. (>21)
General operation
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 46 ページ ２０１２年１２月４日　火曜日　午後３時５０分
47
Reference
VQT4Q15
The unit switches to standby mode.
¾This unit will automatically turn to standby
mode after 30 minutes if it is inactive. (>23)
¾
When the time set for the sleep timer has
passed, the main unit will be turned off. (
>
9)
¾
One of the unit’s safety devices is activated.
Press [
Í
/I] on the main unit to turn the unit on.
The unit does not turn off.
1Press and hold [Í/I] on the main unit for 3
seconds. (If still unable to turn the unit off,
disconnect the AC mains lead, wait 1 minute,
then reconnect the AC mains lead.)
2Reset the unit as follows:
While the unit is off, press and hold [VOL +],
[<OPEN/CLOSE] and [Í/I] on the main unit
at the same time for more than 5 seconds.
The images from this unit do not appear on
the TV.
Picture is distorted.
Jittering occurs.
¾An incorrect resolution is selected in “HDMI
Video Format”. Reset the setting as follows:
1Turn the unit on.
2Press and hold [OK], the yellow button and
the blue button on the remote control at the
same time for more than 5 seconds.
j“00 RET” is displayed on the unit’s display.
3Repeatedly press [1] (right) on the remote
control until “04 PRG” is displayed on the
unit’s display.
4Press and hold [OK] for at least 3 seconds.
Set the item again. (>38)
jWhen Dolby Digital Plus, Dolby TrueHD,
and DTS-HD audio are not output properly,
select “Yes” in “Default Settings” and make
proper settings. (>42)
¾The unit and television are using different
video systems.
1Turn the unit on.
2Press and hold [OK], the yellow button and
the blue button on the remote control at the
same time for more than 5 seconds.
j“00 RET” is displayed on the unit’s display.
3Repeatedly press [1] (right) on the remote
control until “05 P/N” is displayed on the unit’s
display.
4Press and hold [OK] for at least 3 seconds.
The system switches from PAL to NTSC or
vice versa.
¾The system used on the disc doesn’t match
your television.
jPAL discs cannot be correctly viewed on an
NTSC television.
¾When “3D BD-Video Playback” in the Setup
menu is set to “Automatic”, images may not
be output depending on the connection
method. After removing the disc from this unit,
select “Set before play” in the Setup menu,
and select “2D Playback” in the setup screen
displayed when playing 3D discs. (>39)
¾If irregular colouring occurs on your TV, turn
the TV off for about 30 minutes.
If it persists, move the speakers further away
from the TV.
Video is not output in high-definition.
¾Confirm that “HDMI Video Format” in the
Setup menu is set properly. (>38)
3D video is not output.
¾Change the settings as required by the
connected TV format. (>39, “3D Type”)
¾Are the settings on this unit and the TV
correct? (>26)
¾Depending on the connected TV, the video
being played back might switch to 2D video
due to changes in resolution etc. Check the
3D setting on the TV.
¾Check that proper HDMI video input is
selected on the TV.
3D video is not output correctly as 2D.
¾Select “Set before play” in the Setup menu,
and select “2D Playback” in the setup screen
displayed when playing 3D discs. (>39, “3D
BD-Video Playback”)
¾Discs that have recorded titles with Side by
side (2 screen structure) and that can be
enjoyed in 3D are played back in accordance
with the settings of the TV.
A black band is displayed around the edge of
the screen.
The aspect ratio of the screen is abnormal.
¾
Confirm the “TV Aspect” is set properly. (
>
41)
¾Adjust the aspect setting on the television.
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 47 ページ ２０１２年１２月４日　火曜日　午後３時５０分
48 VQT4Q15
No sound.
Low volume.
Distorted sound.
Cannot hear the desired audio type.
¾Check connections to speakers and other
equipment. (>13s19)
¾Ensure the speaker settings for your
speakers are correct. (>43)
¾To output audio from a device connected with
an HDMI cable, set “HDMI Audio Output” to
“On” in the Setup menu. (>39)
¾When “BD-Video Secondary Audio” is set to
“On”, Dolby TrueHD, Dolby Digital Plus,
DTS-HD Master Audio and DTS-HD High
Resolution Audio are output as Dolby Digital
or DTS Digital Surround.
¾Re-master will not work when the bitstream
signal is output from the HDMI AV OUT
terminal. (>36)
¾Depending on the connected equipment, the
sound may be distorted if this unit is
connected with an HDMI cable.
¾The multi-channel audio from a device
connected to the TV is not output in it’s
original multi-channel form.
jIf the device has an optical audio output
terminal, connect the device to this unit’s
DIGITAL AUDIO IN terminal. (>17)
No surround sound.
¾Press [SURROUND] to select a surround
effect. (>44)
¾[BTT880]
Ensure that the surround selector switch of
the wireless system is set in the centre
position. Then, turn the wireless system off
and then back on.
¾[BTT880]
(When using the 7.1ch speaker system)
Audio is not available from the surround back
speakers (optional) even though Dolby Pro
Logic II turns on.
Cannot switch audio.
¾
When audio is output from the HDMI AV OUT
terminal, set “Dolby D/Dolby D +/Dolby TrueHD”,
“DTS/DTS-HD” or “MPEG Audio” to “PCM”. (
>
38)
No sound from the TV.
¾Press [EXT-IN] to select the corresponding
source. (>22)
¾When connecting the unit to a TV using an
HDMI cable, check whether the HDMI
terminal on the TV is labelled “HDMI (ARC)”.
If not labelled in this way, connect using the
HDMI cable in combination with an optical
digital audio cable. (>16)
¾If there is no sound from the equipment
connected to this unit’s DIGITAL AUDIO IN
terminal, please make sure that the optical
audio output of the equipment is set to PCM.
Disc cannot be played.
¾The disc is dirty. (>6)
¾The disc is not finalized. (>8)
Still pictures (JPEG) do not play back
normally.
¾The images that were edited on the PC, such
as Progressive JPEG, etc., may not be played
back.
I can’t play back BD-Live.
¾The SD card is write-protected. (>8)
¾Confirm that this unit is connected to the
broadband Internet. (>18)
¾Confirm the “BD-Live Internet Access”
settings. (>41)
¾Confirm an SD card is inserted into the SD
card slot. (>22)
Alternative soundtrack and subtitles cannot
be selected.
¾The languages are not recorded on the disc.
¾You may not be able to use the Option menu
to change the soundtrack and subtitles on
some discs. Use the disc’s menus to make
changes. (>26)
Sound
Playback
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 48 ページ ２０１２年１２月４日　火曜日　午後３時５０分
49
Reference
VQT4Q15
Cannot charge or operate.
¾Check that the iPod/iPhone is connected
firmly. (>28)
¾[BTT880] When iPod/iPhone devices are
connected to both the USB port and the Dock,
disconnect both of them, and then connect
only the one you want to play back.
¾The battery of the iPod/iPhone is depleted.
Charge the iPod/iPhone, and then operate
again.
¾When unexpected operation occurs while
using the iPod/iPhone, connect the iPod/
iPhone again or try to restart the iPod/iPhone.
Distorted sound or noise is heard.
¾Adjust the position of the antenna.
A beat sound is heard.
¾Try to keep a certain amount of distance
between the antenna and the TV.
Noise is excessive.
¾Change the audio to be output as monaural.
Press [AUDIO] to select “MONO”.
The sound becomes monaural.
≥To cancel, press the button again or change
the frequency.
In normal circumstances, select “AUTO STEREO”.
The wireless link indicator is flashing.
¾There is no link between the main unit and the
wireless system. Turn the wireless system off
and then back on. Alternatively, turn the
wireless system off, disconnect the AC mains
lead and then reconnect it.
The wireless link indicator does not light.
¾Check that the main unit is turned on, and the
wireless system is turned on.
¾Ensure that the digital transmitter is fully
inserted into the slot of the main unit. (>17)
The wireless link indicator keeps flashing
between red and green.
¾
There is a power supply problem. Consult the dealer.
I can’t connect to the network.
¾Confirm the network connection and settings.
(>18, 20, 40)
¾There may be obstacles that prevent the unit
from detecting your home network. Bring the
unit and the wireless router closer to each
other.
¾Check the operating instructions for each
device and connect accordingly.
When using wireless LAN connection, video
from the DLNA Certified media server is not
played back or video frames are dropped
during playback.
¾Higher transfer rate router such as 802.11n
(2.4 GHz) wireless router may solve the
problem. If you use 802.11n (2.4 GHz)
wireless router, it is necessary to set the
encryption type to “AES”.
Simultaneous use with a microwave, cordless
telephone etc. at 2.4 GHz may result in
connection interruptions or other problems.
¾
On the “Wireless Settings” screen (
>
40), the
continuous lighting of at least 4 “Reception”
indicators is the target for a stable connection. If
3 or fewer indicators are lit or the connection is
being interrupted, change the position or angle
of your wireless router and see if the connection
state improves. If there is no improvement,
connect to a wired network and perform the
“Easy Network Setting” (
>
20) again.
iPod/iPhone operation
Radio
[BTT880] Wireless system
(SH-FX71)
Network
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 49 ページ ２０１２年１２月４日　火曜日　午後３時５０分
50 VQT4Q15
Messages
The following messages or service numbers may
appear on the TV or unit’s display.
Cannot play.
¾You inserted an incompatible disc.
Cannot play on this unit.
¾You tried to play a non-compatible image.
¾Confirm “SD” on the unit’s display is not
displayed and re-insert the card.
No disc inserted.
¾The disc may be upside down.
$ This operation is not available.
¾Some operations are unsupported by the unit.
(For example, reverse slow-motion, etc.)
IP address is not set.
¾The “IP Address” in “IP Address / DNS
Settings” is “---. ---. ---. ---”. Set the “IP
Address”, “Subnet Mask”, and “Gateway
Address”. (Select the automatic address
acquisition if necessary.)
The wireless access point currently has a low
network security setting. It is recommended to
change to a higher setting.
¾Set a stronger network security level referring
to the wireless router operating instructions.
F99
¾The unit fails to operate properly. Press [Í/I]
on the main unit for 3 seconds to switch the
unit to standby, then switch back on.
NET
¾While connecting to a network.
No PLAY
¾There is a viewing restriction on a BD-Video
or DVD-Video. (>41)
No READ
¾The media is dirty or badly scratched. The
unit cannot play.
PLEASE WAIT
¾The unit is carrying out internal process. This
is not a malfunction. You cannot operate the
unit while “PLEASE WAIT” is displayed.
REMOVE
¾The USB device is drawing too much power.
Remove the USB device.
SET
(“ ” stands for a number.)
¾The remote control and main unit are using
different codes. Change the code on the
remote control.
Press and hold [OK]
and the indicated
number button at the
same time for more
than 5 seconds.
U59
¾The unit is hot.
The unit switches to standby for safety
reasons. Wait for about 30 minutes until the
message disappears.
Select a position with good ventilation when
installing the unit.
On the television
On the unit’s display
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 50 ページ ２０１２年１２月４日　火曜日　午後３時５０分
51
Reference
VQT4Q15
H or F
(“ ” stands for a number.)
¾Check and correct the speaker cable
connections.
¾There is something unusual.
¾Check the unit using the troubleshooting
guide. If the service number remains
displayed, do the following.
If the service number remains displayed despite
doing the above, request service from the dealer.
Inform the dealer of the service number when
requesting service.
IPOD OVER CURRENT ERROR
¾The iPod/iPhone is drawing too much power.
Remove the iPod/iPhone, and turn the unit off
and on again.
START
¾
The system is being restarted during the
firmware update. Please do not turn off the unit.
UPD/
(“ ” stands for a number.)
¾The firmware is being updated. Please do not
turn off the unit.
FINISH
¾The firmware update is complete.
NOT CONDITIONAL
¾The requested operation cannot be
conducted.
SET OK
¾The stations are set, and the radio tunes to
the last preset station.
ERROR
¾Automatic presetting is unsuccessful. Preset
the stations manually.
TUNED/STEREO
¾Stereo broadcasting or stereo sound is
selected.
TUNED
¾Monaural broadcasting or monaural sound is
selected.
Specifications
1Disconnect the plug from the household
mains socket, wait a few seconds, then
reconnect it.
2Press [Í/I] to turn the unit on.
GENERAL
Power consumption [BTT880]
Approx. 89 W
[BTT480]
[BTT460]
[BTT400]
Approx. 80 W
[BTT300]
Approx. 60 W
Power consumption in
standby mode
Approx. 0.1 W
(
[BTT880]
When the other
connected devices are turned off)
Power supply [For[Australia[and[New[Zealand]
AC 220 V to 240 V, 50 Hz
[For]the]Middle]East]
[For]South]East]Asia]
AC 220 V to 240 V, 50 Hz/60 Hz
[BTT880]
iPod/iPhone Connector
DC OUT 5 V 1.0 A MAX
1 system
Dimensions (WkHkD) [BTT880]
460 mm
k
38.7 mm
k
279.3 mm
[BTT480]
[BTT460]
[BTT400]
[BTT300]
460 mm
k
47.7 mm
k
265.4 mm
Mass [BTT880]
Approx. 2.7 kg
[BTT480]
[BTT460]
[BTT400]
[BTT300]
Approx. 2.4 kg
Operating temperature
range
0oC to 40 oC
Operating humidity
range
35 % to 80 % RH (no
condensation)
LASER Specification Class 1 LASER Product
Wave length: 790 nm (CDs)/
660 nm (DVDs)/405 nm (BDs)
Laser power: No hazardous
radiation is emitted with the
safety protection
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 51 ページ ２０１２年１２月４日　火曜日　午後３時５０分
52 VQT4Q15
*[BTT880] [BTT480] [BTT460] [BTT400]
The impedance of all the speakers is 3 ≠.
[BTT300]
The impedance of speakers:
– Front speakers, Centre speaker, Surround speakers: 5
≠
– Subwoofer: 3 ≠
SPEAKER SECTION
Woofer
CONE TYPE
(cm)
Full range
CONE TYPE
(cm)
Super
tweeter
Piezo type
[BTT880] [BTT480]
Front j6.5 ≤
Centre j6.5 ≤
Surround j6.5 ≤
Subwoofer 20 jj
[BTT460]
Front j6.5 ≤
Centre j6.5 ≤
Surround j6.5 ≤
Subwoofer 20 jj
[BTT400]
Front j6.5 ≤
Centre j6.5 ≤
Surround j6.5 ≤
Subwoofer 16 jj
[BTT300]
Front j6.5 j
Centre j6.5 j
Surround j6.5 j
Subwoofer 16 jj
Dimensions
(W (mm)
k
H (mm)
k
D (mm))
Mass
(Approx. kg)
[BTT880] [BTT480]
Front 270 k1185 k270 2.45
Centre 280 k86 k78 0.67
Surround 270 k1185 k270 2.45
Subwoofer 232 k406 k316 5.7
[BTT460]
Front 270 k1185 k270 2.45
Centre 280 k86 k78 0.67
Surround 80 k143 k75 0.48
Subwoofer 232 k406 k316 5.7
[BTT400]
Front 80 k143 k75 0.48
Centre 280 k86 k78 0.67
Surround 80 k143 k75 0.48
Subwoofer 145 k289.5 k258 3.0
[BTT300]
Front 80 k139 k70 0.37
Centre 146.5 k84 k78 0.5
Surround 80 k139 k70 0.37
Subwoofer 145 k289.5 k259 3.0
AMPLIFIER SECTION
RMS TTL POWER
OUTPUT
[BTT880]
[BTT480]
[BTT460]
[BTT400]
1000 W
[BTT300]
435 W
[BTT880] 1 kHz, 10 % total harmonic distortion
FRONT:
CENTRE:
185 W per ch (3 ≠)
180 W per ch (3 ≠)
100 Hz, 10 % total harmonic distortion
SUBWOOFER:
200 W per ch (3 ≠)
[BTT480]
[BTT460]
[BTT400]
1 kHz, 10 % total harmonic distortion
FRONT:
CENTRE:
SURROUND:
160 W per ch (3 ≠)
160 W per ch (3 ≠)
160 W per ch (3 ≠)
100 Hz, 10 % total harmonic distortion
SUBWOOFER:
200 W per ch (3 ≠)
[BTT300]
1 kHz, 10 % total harmonic distortion
FRONT:
CENTRE:
SURROUND:
67 W per ch (5 ≠)
67 W per ch (5 ≠)
67 W per ch (5 ≠)
100 Hz, 10 % total harmonic distortion
SUBWOOFER:
100 W per ch (3 ≠)
Audio Input AUX k1
Digital Audio Input Optical k1
Sampling frequency:
32 kHz, 44.1 kHz, 48 kHz
Audio Format:
PCM, Dolby Digital, DTS
FM TUNER SECTION
Frequency range 87.50 MHz to 108.00 MHz
(50 kHz step)
Antenna terminals 75 ≠ (unbalanced)
TERMINAL SECTION
USB slot USB2.0
[BTT880]
[BTT480]
[BTT460]
[BTT400]
2system
[BTT300]
1system
SD card slot Connector
1 system
Ethernet 10BASE-T/100BASE-TX
1 system
[BTT880] Wireless LAN Standard Compliance:
IEEE802.11 b/g/n
Frequency range: 2.4 GHz
band
Security: WPATM/WPA2TM
(Encryption Type: TKIP/AES,
Authentication Type: PSK),
WEP (64 bit/128 bit)
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 52 ページ ２０１２年１２月４日　火曜日　午後３時５０分
53
Reference
VQT4Q15
* This unit supports “HDAVI Control 5” function.
Specifications are subject to change without notice.
≥With certain recording states and folder structures, the play
order may differ or playback may not be possible.
≥File formats that are not supported by your DLNA server
cannot be played.
Video
Audio
VIDEO SECTION
Signal system PAL/NTSC
HDMI AV output* Output connector:
Type A (19 pin) 1 system
[BTT880] HDMI AV Input* Input connector:
Type A (19 pin) 2 system
[BTT880] WIRELESS SYSTEM AND
DIGITAL TRANSMITTER
<AMPLIFIER SECTION>
RMS TTL POWER
OUTPUT
250 W
1 kHz, 10 % total harmonic distortion
SURROUND: 125 W per ch (3 ≠)
<RF SECTION>
Wireless module
Frequency range: 2.4 GHz to 2.4835 GHz
No. of channels: 3
<GENERAL>
Power supply AC 220 V to 240 V, 50 Hz
Power
consumption
Digital transmitter: 1.2 W
Wireless system: 43 W
Power
consumption in off
mode
Approx. 0.3 W
Dimensions
(WkHkD)
Digital transmitter:
43.3 mmk37.3 mmk8.2 mm
Wireless system:
165 mmk91.5 mmk164 mm
Mass Digital transmitter:
Approx. 0.01 kg
Wireless system:
Approx. 0.66 kg
Operating
temperature range
0oC to 40 oC
Operating humidity
range
35 % to 80 % RH (no condensation)
File format
File format Extension Reference
MP3 “.MP3”, “.mp3”
This unit supports ID3
tags, but only titles,
artist names and album
names can be
displayed.
JPEG “.JPG”, “.jpg”
≥MOTION JPEG and
Progressive JPEG
are not supported.
≥You may not be able
to play back the file if
you have edited the
folder structure or
the file name on a
PC or other device.
MKV
“.MKV”, “.mkv” ≥[Except[South[East[Asia]
The video file and
subtitles text file are
inside the same
folder, and the file
names are the same
except for the file
extensions.
≥Some MKV file may
not play back,
depending on the
video resolution and
frame rate condition.
[Except[South[East[Asia]
Subtitles text file
“.SRT”, “.srt”,
“.SSA”, “.ssa”,
“.ASS”, “.ass”
FLAC “.FLAC”, “.flac” Maximum sampling
rate: 192 kHz/24 bit
WAV “.WAV”, “.wav” Maximum sampling
rate: 48 kHz/16 bit
MPO “.MPO”, “.mpo” 3D still picture
Supported format for DLNA
Container Video codec Audio codec Example of
file extension
AVCHD H.264 Dolby Digital .mts
MP4 H.264 AAC .mp4
PS MPEG2 Dolby Digital
Linear PCM
.mpg,
.mpeg
TS MPEG2
H.264
AAC
Dolby Digital
.m2ts
.ts
Format Example of file extension
JPEG .jpg
Audio codec Example of file extension
MP3 .mp3
AAC .m4a
FLAC .flac
Linear PCM j
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 53 ページ ２０１２年１２月４日　火曜日　午後３時５０分
54 VQT4Q15
“AVCHD”, “AVCHD 3D”, “AVCHD Progressive” and “AVCHD 3D/
Progressive” are trademarks of Panasonic Corporation and Sony
Corporation.
Java is a registered trademark of Oracle and/or its affiliates.
Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of
Dolby Laboratories.
Manufactured under license under U.S. Patent Nos: 5,956,674;
5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567;
7,333,929; 7,212,872 & other U.S. and worldwide patents issued &
pending. DTS-HD, the Symbol, & DTS-HD and the Symbol
together are registered trademarks & DTS-HD Master Audio |
Essential is a trademark of DTS, Inc. Product includes software. ©
DTS, Inc. All Rights Reserved.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing LLC in
the United States and other countries.
This product is licensed under the AVC patent portfolio license and
VC-1 patent portfolio license for the personal and non-commercial
use of a consumer to (i) encode video in compliance with the AVC
Standard and VC-1 Standard (“AVC/VC-1 Video”) and/or (ii)
decode AVC/VC-1 Video that was encoded by a consumer
engaged in a personal and non-commercial activity and/or was
obtained from a video provider licensed to provide AVC/VC-1
Video. No license is granted or shall be implied for any other use.
Additional information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.
HDAVI ControlTM is a trademark of Panasonic Corporation.
VIERA Connect is a trademark of Panasonic Corporation.
MPEG Layer-3 audio coding technology licensed from Fraunhofer
IIS and Thomson.
SDXC Logo is a trademark of SD-3C, LLC.
“DVD Logo” is a trademark of DVD Format/Logo Licensing
Corporation.
“Wi-Fi”, “Wi-Fi Protected Setup”, “Wi-Fi Direct”, “WPA” and “WPA2”
are marks or registered marks of the Wi-Fi Alliance.
The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi
Alliance.
The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance.
DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks,
service marks, or certification marks of the Digital Living Network
Alliance.
Windows is a trademark or a registered trademark of Microsoft
Corporation in the United States and other countries.
“Made for iPod”, and “Made for iPhone” mean that an electronic
accessory has been designed to connect specifically to iPod, or
iPhone, respectively, and has been certified by the developer to
meet Apple performance standards.
Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod, or iPhone
may affect wireless performance.
iPhone, iPod, iPod classic, iPod nano, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other
countries.
Display languages list
Language code list
ENG
FRA
DEU
ITA
ESP
NLD
SVE
NOR
DAN
POR
RUS
English
French
German
Italian
Spanish
Dutch
Swedish
Norwegian
Danish
Portuguese
Russian
JPN
CHI
KOR
MAL
VIE
THA
POL
CES
SLK
HUN
FIN
Japanese
Chinese
Korean
Malay
Vietnamese
Thai
Polish
Czech
Slovak
Hungarian
Finnish
ARA
HIN
PER
IND
MRI
BUL
RUM
GRE
TUR
Arabic
Hindi
Persian
Indonesian
Maori
Bulgarian
Romanian
Greek
Turkish
Others
Display Language Display Language Display Language
Abkhazian: 6566
Afar: 6565
Afrikaans: 6570
Albanian: 8381
Amharic: 6577
Arabic: 6582
Armenian: 7289
Assamese: 6583
Aymara: 6589
Azerbaijani: 6590
Bashkir: 6665
Basque: 6985
Bengali; Bangla:
6678
Bhutani: 6890
Bihari: 6672
Breton: 6682
Bulgarian: 6671
Burmese: 7789
Byelorussian: 6669
Cambodian: 7577
Catalan: 6765
Chinese: 9072
Corsican: 6779
Croatian: 7282
Czech: 6783
Danish: 6865
Dutch: 7876
English: 6978
Esperanto: 6979
Estonian: 6984
Faroese: 7079
Fiji: 7074
Finnish: 7073
French: 7082
Frisian: 7089
Galician: 7176
Georgian: 7565
German: 6869
Greek: 6976
Greenlandic: 7576
Guarani: 7178
Gujarati: 7185
Hausa: 7265
Hebrew: 7387
Hindi: 7273
Hungarian: 7285
Icelandic: 7383
Indonesian: 7378
Interlingua: 7365
Irish: 7165
Italian: 7384
Japanese: 7465
Javanese: 7487
Kannada: 7578
Kashmiri: 7583
Kazakh: 7575
Kirghiz: 7589
Korean: 7579
Kurdish: 7585
Laotian: 7679
Latin: 7665
Latvian, Lettish:
7686
Lingala: 7678
Lithuanian: 7684
Macedonian: 7775
Malagasy: 7771
Malay: 7783
Malayalam: 7776
Maltese: 7784
Maori: 7773
Marathi: 7782
Moldavian: 7779
Mongolian: 7778
Nauru: 7865
Nepali: 7869
Norwegian: 7879
Oriya: 7982
Pashto, Pushto:
8083
Persian: 7065
Polish: 8076
Portuguese: 8084
Punjabi: 8065
Quechua: 8185
Rhaeto-Romance:
8277
Romanian: 8279
Russian: 8285
Samoan: 8377
Sanskrit: 8365
Scots Gaelic: 7168
Serbian: 8382
Serbo-Croatian:
8372
Shona: 8378
Sindhi: 8368
Singhalese: 8373
Slovak: 8375
Slovenian: 8376
Somali: 8379
Spanish: 6983
Sundanese: 8385
Swahili: 8387
Swedish: 8386
Tagalog: 8476
Tajik: 8471
Tamil: 8465
Tatar: 8484
Telugu: 8469
Thai: 8472
Tibetan: 6679
Tigrinya: 8473
Tonga: 8479
Turkish: 8482
Turkmen: 8475
Twi: 8487
Ukrainian: 8575
Urdu: 8582
Uzbek: 8590
Vietnamese: 8673
Volapük: 8679
Welsh: 6789
Wolof: 8779
Xhosa: 8872
Yiddish: 7473
Yoruba: 8979
Zulu: 9085
Language Code Language Code Language Code
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 54 ページ ２０１２年１２月４日　火曜日　午後３時５０分
55
Reference
VQT4Q15
The Skype name, associated trade marks and logos and the “S”
logo are trade marks of Skype.
Copyright 2004-2010 Verance Corporation. CinaviaTM is a Verance
Corporation trademark. Protected by U.S. Patent 7,369,677 and
worldwide patents issued and pending under license from Verance
Corporation. All rights reserved.
This product incorporates the following software:
(1) the software developed independently by or for Panasonic
Corporation,
(2) the software owned by third party and licensed to Panasonic
Corporation,
(3) the software licensed under the GNU General Public License,
Version 2 (GPL v2),
(4) the software licensed under the GNU LESSER General Public
License, Version 2.1 (LGPL v2.1) and/or,
(5) open sourced software other than the software licensed under
the GPL v2 and/or LGPL v2.1
For the software categorized as (3) and (4), please refer to the
terms and conditions of GPL v2 and LGPL v2.1, as the case may
be at
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html.
In addition, the software categorized as (3) and (4) are copyrighted
by several individuals. Please refer to the copyright notice of those
individuals at
http://panasonic.net/avc/oss/bdplayer/AWBPP12.html
The GPL/LGPL software is distributed in the hope that it will be
useful, but WITHOUT ANY WARRANTY, without even the implied
warranty of MERCHANTABILITY or FITNESS FOR A
PARTICULAR PURPOSE.
At least three (3) years from delivery of products, Panasonic will
give to any third party who contacts us at the contact information
provided below, for a charge no more than our cost of physically
performing source code distribution, a complete machine-readable
copy of the corresponding source code covered under GPL v2/
LGPL v2.1.
Contact Information
cdrequest.bdplayer@gg.jp.panasonic.com
Source code is also freely available to you and any other member
of the public via our website below.
http://panasonic.net/avc/oss/bdplayer/AWBPP12.html
For the software categorized as (5) includes as follows.
1. This product includes software developed by the OpenSSL
Project for use in the OpenSSL Toolkit.
(http://www.openssl.org/)
2. This product includes software developed by the University of
California, Berkeley and its contributors.
3. FreeType code.
4. The Independent JPEG Group's JPEG software.
(1) MS/WMA
This product is protected by certain intellectual property rights of
Microsoft Corporation and third parties. Use or distribution of such
technology outside of this product is prohibited without a license
from Microsoft or an authorized Microsoft subsidiary and third
parties.
(2) Vorbis, FLAC, WPA Supplicant
The software licenses are displayed when “Software Licence” in
the Setup menu is selected. (>42)

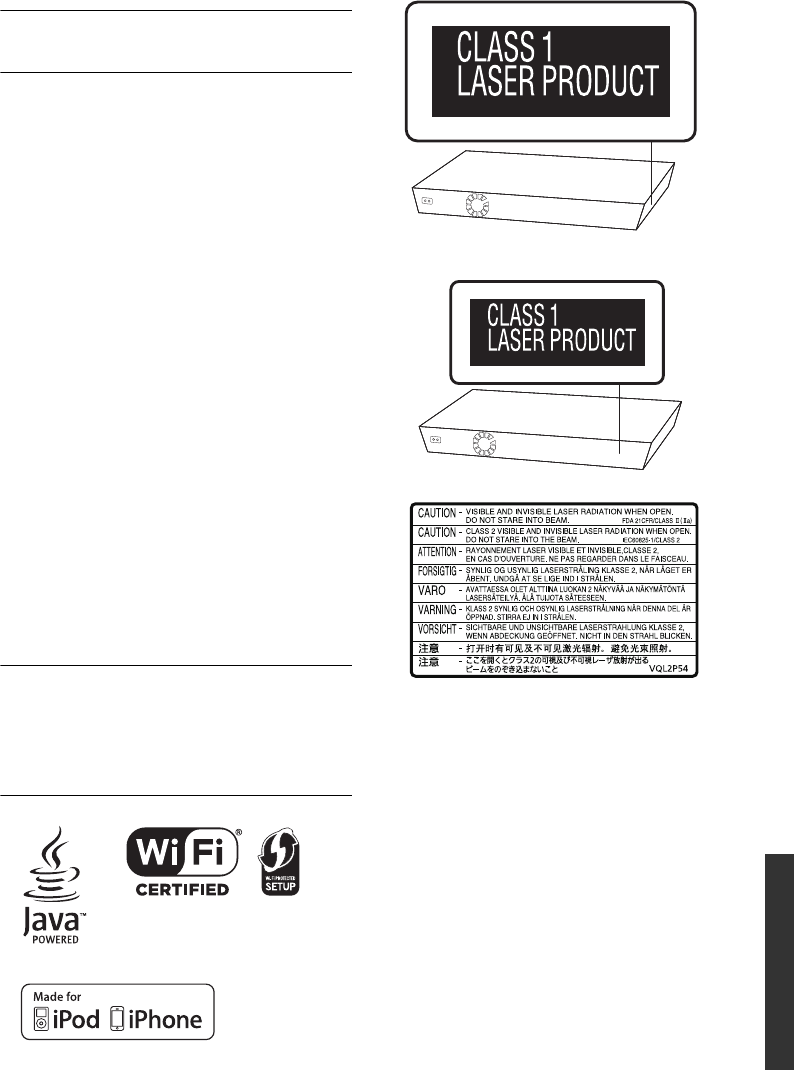

[BTT880]
[BTT480] [BTT460] [BTT400] [BTT300]
(Inside of product)
RQLXS0092
SC-BTT880&480&460&400&300GNGSGA-VQT4Q15_mst.book 55 ページ ２０１２年１２月４日　火曜日　午後３時５０分
Web Site: http://panasonic.net
Panasonic Corporation 2012
VQT4Q15-1
F1212SY1013
Limited Warranty (ONLY FOR AUSTRALIA)
Panasonic Warranty
1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty
Panasonic or its Authorised Service Centre will perform necessary service on the product without charge for
parts or labour, if in the opinion of Panasonic, the product is found to be faulty within the warranty period.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or
its Authorised Distributors or Dealers and only where the products are used and serviced within Australia or
it's territories. Warranty cover only applies to service carried out by a Panasonic Authorised Service Centre
and only if valid proof of purchase is presented when warranty service is requested.
3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s
recommendations (as noted in the operating instructions) under normal use and reasonable care (in the
opinion of Panasonic). The warranty covers normal domestic use only and does not cover damage,
malfunction or failure resulting from use of incorrect voltages, incorrect installation, accident, misuse, neglect,
build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm
activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised
alterations), introduction of sand, humidity or liquids, commercial use such as hotel, offi ce, restaurant, or other
business or rental use of the product, exposure to abnormally corrosive conditions or any foreign object or
matter having entered the product.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Cabinet Part(s) (e) DVD, Blu-ray or Recordable Discs
(b) Video or Audio Tapes (f) Video / Audio Heads from wear and tear in normal use
(c) SD cards or USB devices (g) Information stored on Hard Disk Drive, USB stick or SD card
(d) User replaceable Batteries (h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)
etc
5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products
and will not cover
(a) Internet and or DLNA connection / setup related problems
(b) Access fees and or charges incurred for internet connection
(c) The use of incompatible software or software not specifi cally stipulated in the product operations manual;
and
(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its
connection to the internet or any other device.
6. To claim warranty service, when required, you should:
• Telephone Panasonic’s Customer Care Centre on 132600 or visit our website referred to below and use
the Service Centre Locator for the name/address of the nearest Authorised Service Centre.
• Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase
receipt as a proof of purchase date. Please note that freight and insurance to and / or from your nearest
Authorised Service Centre must be arranged by you.
• Note that home or pick-up/delivery service is available for the following products in the major metropolitan
areas of Australia or the normal operating areas of the nearest Authorised Service Centres:
- Plasma/LCD televisions / displays (screen size greater than 103 cm)
7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-
installation or re-installation of a product, including costs related to the mounting, de-mounting or remounting
of any screen, (and any other ancillary activities), delivery, handling, freighting, transportation or insurance of
the product or any part thereof or replacement of and do not extend to, and exclude, any damage or loss
occurring by reason of, during, associated with, or related to such installation, de-installation, re-installation or
transit.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of
Australia, however, coverage will vary dependant on product. For advice on exact Authorised Service Centre
locations for your product, please telephone our Customer Care Centre on 132600 or visit our website and use
the Service Centre Locator.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be
excluded under the Australian Consumer Law. If there is a major failure with the product, you can reject the
product and elect to have a refund or to have the product replaced or if you wish you may elect to keep the goods
and be compensated for the drop in value of the goods. You are also entitled to have the product repaired or
replaced if the product fails to be of acceptable quality and the failure does not amount to a major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a
reasonable period by contacting the Panasonic Customer Care Centre. If the failure in the product is not a major
failure then Panasonic may choose to repair or replace the product and will do so in a reasonable period of time
from receiving notice from you.
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
If you require assistance regarding warranty conditions or any other enquiries, please visit the
Panasonic Australia website www.panasonic.com.au or contact by phone on 132 600
If phoning in, please ensure you have your operating instructions available.
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
1 Innovation Road, Macquarie Park NSW 2113
PRO-031-F11 Issue: 4.0 01-01-2011
GNGSGA-VQT4Q15~BCover_mst.fm 56 ページ ２０１３年１月９日　水曜日　午後１時１８分

Navigation menu
