silvan.com.au

2017-2018

Rural Lifestyle Guide

PRICES EFFECTIVE FROM 1st SEPTEMBER 2017

70 LITRE

RAKPAK QUAD

BIKE SPRAYER KIT

12VOLT 200 LITRE

RECHARGEABLE

TROLLEY SPRAYER

400L E – WIND 12 VOLT

REMOTE CONTROL

HOSEREEL

E-WIND 12 VOLT

REMOTE HOSEREEL

P: 31LT30-34-2 P: 39180G03010C

P: 27

L04H4-38K180

P: 21TK200-S3GGP: 15RP70N-S10B

P: 111SQF800D-3P: 51410-54

P: 42180K10012T

CONVERTIBLE BRASS

BOOMLESS NOZZLE

TOMMY GUN

ECO HOSE REEL

INCLUDES ATOMIZER+

SPRAY GUN

800 LITRE HONDA

DAVEY FIREFIGHTING

UNIT

P: 92M99-65

2CALL: 1300 745 826 or visit silvan.com.au for more information

300L LIGHTFOOT

SPRAYER ENGINE

DRIVE PUMP

3 PACK MAGNETIC

RECHARGEABLE

WARNING LIGHTS

P: 159SQDS400-7

P: 201TC8009-4

P: 187

SECURE100-3G

P: 181SOLAR-5

P: 219BBGC1010

P: 181SOLAR-2

P: 194S920

P: 183WL003

P: 116

KN20F-1

SILVAN 20 LITRE FIRE

FIGHTER KNAPSACK

LED SOLAR

OUTDOOR LIGHT

WIDE

ANGLE

MOTION

ACTIVATED

SECURITY

CAMERA

WITH 3G

CAPABILITY

200 LITRE STEEL

MESH CART

PUSH ALONG

SWEEPER MULTI-LAYOUT

ANIMAL

ENCLOSURE

SOLAR MOTION LIGHT

WITH REMOTE

12V 400 LITRE DIESEL

CUBE TRANSFER UNIT

SAFETY EQUIPMENT & CHEMICAL TRANSFER

Eye & Ear Protection

Dust Masks, Respirators & Spray Helmets

Gloves and Jugs

Chemical Transfer

NOZZLES & ACCESSORIES

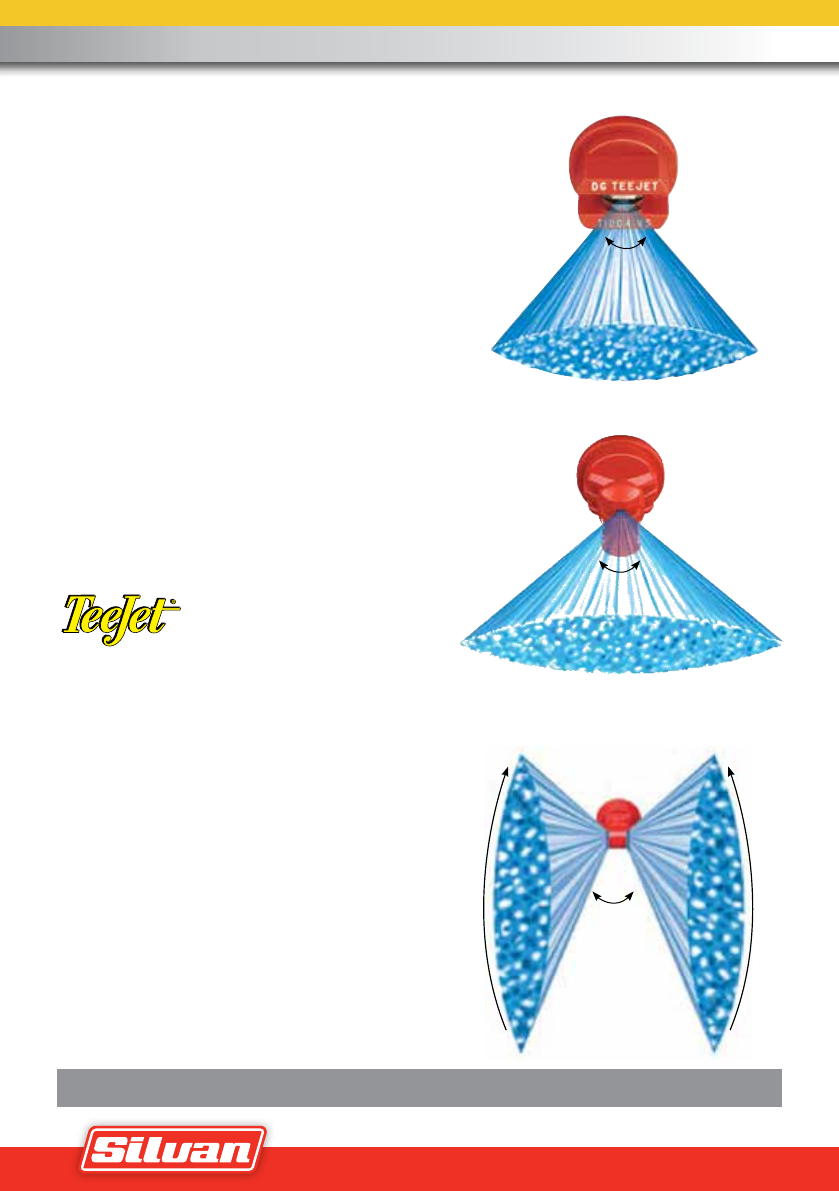

Nozzle Selection Guide

Nozzles & Caps

Nozzle Bodies & Adapters

FIRE FIGHTERS

Fire Fighting & Water Transfer Pumps

105

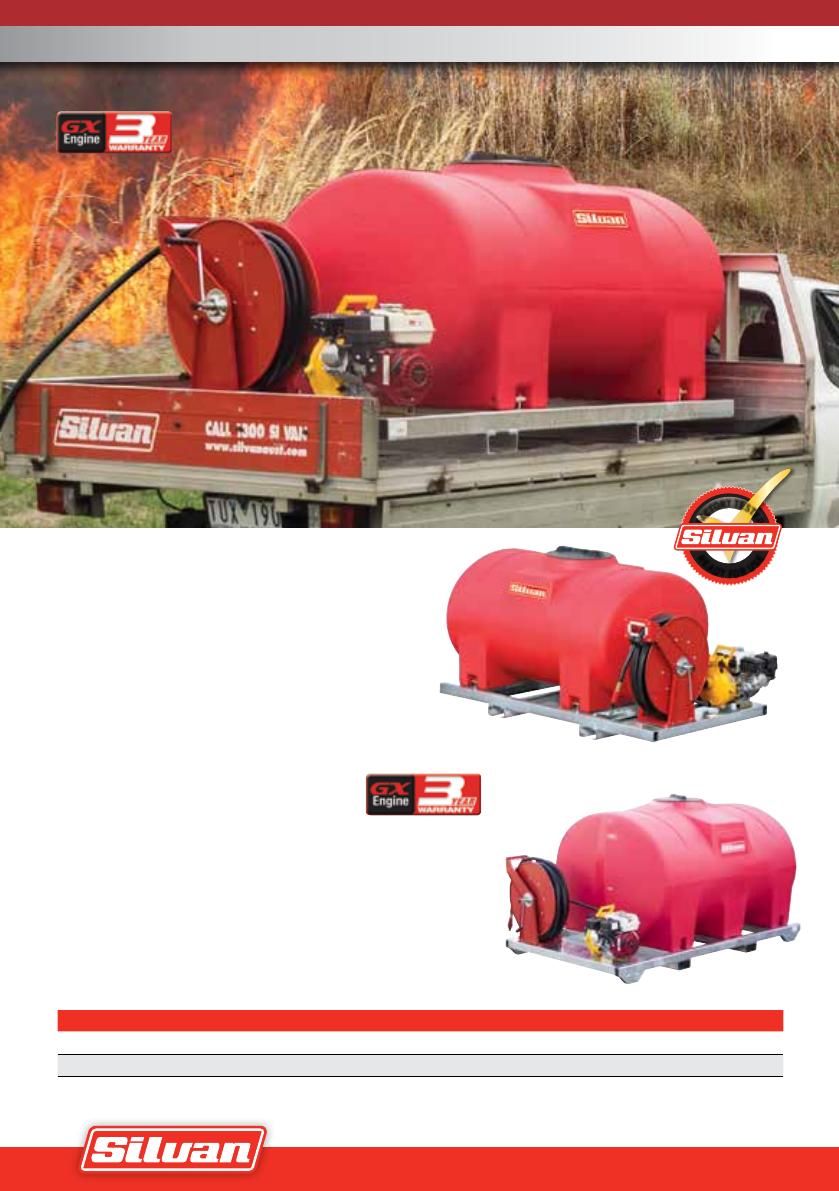

Fire Fighting Units

107

Trailed & Skid Fire Fighting Units

112

Fire Fighting Accessories

114

Fire Fighting Knapsack

116

4CALL: 1300 745 826 or visit silvan.com.au for more information

12V & MOTORISED SPRAYERS

Redline Spotpak Sprayers & Accessories

Spotpak Sprayers

Quad Bike & Rakpak Sprayers

Trukpak Sprayers

Squatpak Sprayers

Skid Sprayer With Reel Tuff Remote Reel

Skid Sprayer With E-Wind Remote Reel

Rechargeable,Trolley & Lightfoot Sprayers

Traylink

Contents

BOOMS & HOSEREELS

Boomless Nozzles Kits & Booms

Wick Wipers

Hose Reels

Accessories Fitment Chart

GUIDANCE, MONITORS & FOAM MARKERS

GPS Guidance, Monitors & Meters

Foam Markers & Accessories

SPRAY GUNS, NOZZLES & ACCESSORIES

Spray Guns

Nozzles & Accessories

Spray Shield & Couplings

HAND & KNAPSACK SPRAYERS

Chapin Hand Sprayers & Trolley Pressure Sprayer

Knapsack Sprayers

Selecta Blowamist

SPREADERS AND CARRYALLS

Spreaders 211

Carryalls 215

PLUMBING, FILTRATION & TANK ACCESSORIES

Filtration

142

Tank Fittings and Gauges

149

Hose Fittings

152

HARDWARE

Wheelbarrows & Spare Parts

216

Trolleys

219

Cyclone Products

221

WORKSHOP & MAINTENANCE

Floor Sweeper and Tyre Inﬂator

194

Torches

195

Jump Start

197

Boot Scraper, Sharpeners and Lubrication

198

Workshop Trolleys

199

Firewood Trolley And Rack

200

Animal Enclosures

201

Assortment Kits

202

Air Conditioners

204

Ramps

206

Water Roller

208

Safety Warning Signs

209

CALL: 1300 745 826 or visit silvan.com.au for more information 5

DIESEL TANKS & ACCESSORIES

Diesel Transfer Units

158

Diesel Pumps & Kits

164

Diesel Hose Reels, Filters, Meters & Guns

169

Diesel Fitment Chart

173

SELECTA BLUE (ADBLUE®) TANKS & ACCESSORIES

Selecta Blue Transfer Units & Kits

174

Selecta Blue Pumps, Kits & Accessories

177

LIGHTING

LED Worklights & Light Bars

179

Solar Area Light and 12V Beacons

181

Solar Chargers

184

ASSET PROTECTION & MAINTENANCE

Motion Activated Alert, Camera & Accessories

185

Sentinel CCTV

190

Farmeyes Remote Observation

192

Contents

PUMPS, TANKS, CONTROLLERS, VALVES & HOSES

Pumps, Controllers, Valves & Service Parts

117

Pumps 12V

124

Solenoids & Regulators

132

Tanks

136

Hoses

140

Motorised &

12V Sprayers

12 Volt Sprayers 12 Volt Sprayers

6CALL: 1300 745 826 or visit silvan.com.au for more information

TRAYLINK

200L & 300L

Suitable for mounting to compact

tractors and utility/trailer trays

Aquatec high capacity pump 20L/min

Robust multi-purpose frame with CAT 1 pins

Hypro boomless nozzle sprays up to 10 metre width

Control valve, pressure gauge, spotjet Spraygun & hose

UTEPAK/TRUKPAK

100L - 200L

Professional Series ideal

for spot and boom spraying

Non-spill lid, in-built carry

handles, chemical spill barrier

Tank lid basket strainer and brass inserts

in bottom of tank for permanent fixing

Variety of pump options

QUAD BIKE/RAKPAK

50 - 70L

All-purpose 12V sprayer ideal

for spot spraying on quad bikes

Non-spill lid, chemical spill barrier

Pump is recessed within tank for protection

Moulded hose storage rack (some models)

Variety of pump options

REDLINE

25L, 55L & 100L

Ideal for weed control,

spot and fence line spraying.

Fits neatly onto the back of most Quad Bike,

UTV’s and utility style vehicles. Includes spray shield

Polytuff tank with 650ml measuring jug, chemical spill

barrier and drain plug for easy cleaning

Wrap around hose with clips for easy Spraygun storage

Optional trailers and boomless nozzle kit available

SMOOTHFLO SPOTPAKS

50L, 100L & 200L

All-purpose 12V sprayer ideal

for spot spraying on-farm

Non-spill lid, inbuilt carry handles

Polytuff tank with and drain plug for easy cleaning

Pump is recessed within tank for protection

Clips for neat and easy Spraygun storage

RECHARGEABLE

25L

Self powered sprayers

for home, garden,

professional or farm use

Easy to push or tow

with Ezy Glide wheels

With rechargeable battery

and 240V recharger

SQUAT & SKID SPRAYERS

300 - 600L

Professional range for

contractor/large operator

Rugged tank with

internal baffle & non spill lid

12V Pump and Motorised

Comet Diaphragm pump models

LIGHTFOOT TRAILED

300L

Ideal for towing behind

compact tractors and quad bikes

Robust chassis with tow hitch

High Capacity 12V pump

Optional booms and hosereels

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load and towing limits and fitting positions.

Never fill the spray tank capacity to exceed the vehicle or tractor manufacturer’s specified safe load carrying capacities.

Note: 1L of water = 1 kg.

12 Volt Sprayers 12 Volt Sprayers

7CALL: 1300 745 826 or visit silvan.com.au for more information

Redline Spotpak Sprayers

Delivers all the features to suit your spot spraying

requirements at a great price!

1” DRAIN PLUG FOR

EASY EMPTYING

BUILT IN

CARRY HANDLES

TANK CLIPS FOR NEAT

SPRAY GUN STORAGE

BOTTOM TANK MOUNT

INSERTS (4X M6) FOR

STRAPLESS MOUNTING

TIE DOWN POINTS FOR

STRAPPED MOUNTING

3M BATTERY CABLE

WITH ALLIGATOR CLIPS

6M OF DELIVERY HOSE

SPRAY GUN WITH

550MM STAINLESS

STEEL LANCE AND

ADJUSTABLE NOZZLE

UV STABILISED

POLYTUFF TANK

RETAINING RING TO

PREVENT ACCIDENTAL

LOSS OF LID

CHEMICAL

MEASURING JUG STORED

BENEATH THE LID

INCLUDES CONVENIENT

SPRAY SHIELD IN

55 & 100LTR MODELS

12 Volt Sprayers 12 Volt Sprayers

8CALL: 1300 745 826 or visit silvan.com.au for more information

Redline Spotpak Sprayers

CODE DESCRIPTION LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

SP25-R1 25L Redline 12V Sprayer 580mm 330mm 280mm 4.4 kg $190.00 $209.00 A

SP25-B 25L Redline Rechargeable SLA 12V 3.2Ahr Battery 580mm 330mm 280mm 5.5 kg $205.45 $226.00 A

180L01008A Spring Retractable Hose Reel 360mm 140mm 290mm 4.1 kg $136.36 $150.00 A

25L REDLINE SPOTPAK SPRAYERS

Rechargeable and 12V Spotpak options available.

Fits neatly onto ride-on mower trailers, quad bike racks

and ideal for weed control, spot & fenceline spraying.

• UV stabilised polyethylene tank with 1” drain plug

for easy cleaning and emptying

• 6m of delivery hose

• Spray gun with 550mm stainless steel lance

and adjustable nozzle, clips easily to tank

• Lid retaining ring to prevent accidental loss

• Mounted pump On/Off switch and fuse

• Bottom tank mount inserts (4x M6) for

strapless mounting to trailer or skid

• 2.6L/min open flow, 3.3 Bar/50psi pump

(available in 12V and rechargeable versions)

• SP25-R1: 3m of battery cable with alligator clips

• SP25-B: Rechargeable model

Supplied with battery and 240 volt wall charger

Approx run time 4 tank fulls

SPRING RETRACTABLE HOSE REEL

Ideal for 12V spot spraying and linkage sprayers.

• Can also be mounted on workshop wall

• 1/4” BSPM outlet connection

• 10m of 8mm ID hose

• 16 Bar/240psi max pressure

S P 2 5 - R 1

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

Never fill the spray tank capacity to exceed the vehicle or tractor manufacturer’s specified safe load carrying capacities.

Note: 1L of water = 1 kg.

Conical

spray pattern

Pencil stream

sprays up to 8m

SP25-B

180L01008A

SUITABLE

FOR 25L &

55L REDLINE

SPRAYERS

SWIVELLING

STEEL MOUNTING

BRACKET

12 Volt Sprayers 12 Volt Sprayers

9CALL: 1300 745 826 or visit silvan.com.au for more information

CODE DESCRIPTION LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

SP55-R1 55L Redline 12V Sprayer 715mm 425mm 360mm 5.4 kg $213.64 $235.00 A

SP100-R2 100L Redline 12V Sprayer 885mm 470mm 435mm 9 kg $353.64 $389.00 A

180J1510A Spring Retractable Hose Reel 15m 400mm 160mm 450mm 7 kg $171.82 $189.00 A

The Redline range of 12V sprayers are the most feature

packed economical sprayers in Australia. Ideal for weed

control, spot and fenceline spraying, they ﬁt neatly onto the

back of most quad bikes, UTV’s and utility style vehicles.

55L & 100L REDLINE

SPOTPAK SPRAYERS

• UV stabilised polyethylene tank with 1”

drain plug for easy cleaning and emptying

• 55L Model: 2.6L/min open flow,

3.3 Bar/50psi max pressure

• 100L Model: 5.3L/min open flow,

4 Bar/60psi max pressure

• Spray gun with 550mm stainless steel lance

and adjustable nozzle, clips easily to tank

• 6m of delivery hose

• 3m of battery cable with alligator clips

• Lid retaining ring to prevent accidental loss

• Mounted pump On/Off switch and fuse

• Bottom tank mount inserts (4x M6) for

strapless mounting to trailer or skid

• Chemical measuring jug (650mm)

SPRING RETRACTABLE

HOSE REEL 15M

Suitable for air, water or agricultural chemicals

• See page xx for full details

SP100-R2

SP55-R1

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

Conical

spray pattern

Now includes

convenient spray shield

Convenient heavy duty

filter standard

Pencil stream

sprays up to 8m SP55-R1

180J1510A

SUITABLE

FOR 100L

REDLINE

SPRAYERS

12 Volt Sprayers 12 Volt Sprayers

10 CALL: 1300 745 826 or visit silvan.com.au for more information

CODE DESCRIPTION ASSEMBLY LIST EX LIST INC CAT

TR55 Trailer Kit for 55L Redline DIY $117.27 $129.00 B

TR55-10 Boomless Nozzle Kit for 55L Redline DIY $119.09 $131.00 B

TR100 Trailer Kit for 100L Redline DIY $162.73 $179.00 B

TR100-10 Boomless Nozzle Kit for 100L Redline DIY $124.55 $137.00 B

REDLINE TRAILER KITS

Converts a Redline into a trailed sprayer for

spraying larger areas with ride-on mowers.

• Powder coated Steel frame with adjustable

double tongue hitch

• Large pneumatic wheels for smoother ride

and better manoeuvrability

• 55L Model with 16” x 4.8” wheels

• 100L Model with 16” x 6.5” wheels

REDLINE BOOMLESS NOZZLE KITS

Adapts a trailed Redline into a boom sprayer with

the kit matched to the pump. An Included swivel

nozzle holder allows coverage to be adjusted.

• Easy assembly - just bolts onto trailer

• 55L Model with 2m spray width

• 100L Model with 3m spray width

SP100-R2 WITH

OPTIONAL TR100

(TRAILER)

SP55-R1

WITH

OPTIONAL

TR55

(TRAILER) &

TR55-10

(BOOMLESS

NOZZLE KIT)

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

Prices do not include sprayer.

Wide area

spray width

SP100-R2 WITH OPTIONAL TR100 & TR100-10

2 Metre

spray width (55L)

3 Metre

spray width (100L)

12 Volt Sprayers 12 Volt Sprayers

11CALL: 1300 745 826 or visit silvan.com.au for more information

Scan here to

see the Smoothflo

in action!

Smoothflo Spotpaks

Delivers constant flow without pulsation

for professional spraying results

1” DRAIN PLUG FOR

EASY EMPTYING

PUMP IS RECESSED

WITHIN TANK FOR

PROTECTION

TANK CLIPS FOR NEAT

SPRAY GUN STORAGE

6M OF 8MM

DELIVERY HOSE

ROTO MOULDED

UV STABILISED POLYTUFF

TANK

LID WITH ONE WAY

BREATHER VALVE

TIE DOWN POINTS FOR

STRAPPED MOUNTING

BUILT IN CARRY

HANDLES

SMOOTHFLO PUMP

7L/MIN OPEN FLOW

690KPA OR 120PSI MAX

PRESSURE

SPOTJET SPRAY GUN

WITH 600MM STAINLESS

STEEL LANCE &

ADJUSTABLE NOZZLE

3M BATTERY CABLE

WITH ALLIGATOR CLIPS

12 Volt Sprayers 12 Volt Sprayers

12 CALL: 1300 745 826 or visit silvan.com.au for more information

CODE DESCRIPTION OPEN

FLOW LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

SP50-S7 50L Smoothﬂo SpotPak 7L/min 700mm 400mm 300mm 6 kg $471.82 $519.00 A

SP100-S7 100L Smoothﬂo SpotPak 7L/min 800mm 475mm 395mm 10 kg $562.73 $619.00 A

SP200-S7 200L Smoothﬂo SpotPak 7L/min 1000mm 540mm 550mm 14 kg $662.73 $729.00 A

180J1510A Spring Retractable Hose Reel 15m 400mm 160mm 450mm 7 kg $171.82 $189.00 A

M99-65 Boomless Nozzle Kit with Single or Double Sided Swath $135.45 $149.00 B

SP100-S7

12V SMOOTHFLO SPOTPAK SPRAYERS 50, 100 & 200L

Ideal for weed control, spot & fence line spraying applications,

the Smoothﬂo series deliver constant ﬂow, no pulsation and

the highest pressure for distance spraying. Suitable for use

on quad bikes, side by sides utes, trays & trailers, with UV

stabilised Polytuff tanks to ensure long life.

• 7L/min (open flow) 8 Bar/120psi max pressure

• Pump is recessed within tank for protection

• Spotjet spray gun with 600mm stainless steel lance & adjustable

nozzle with tank clips for neat and easy spray gun storage

• 6 metres of 8mm delivery hose

• Drain plug 3/4” for easy clean and empty

• Non-spill lid, in-built carry handles

• 3 metre battery cable

with alligator clips

• Ideal for use with up to

30m 10mm hose

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

Never fill the spray tank capacity to exceed the vehicle or tractor manufacturer’s specified safe load carrying capacities.

Note: 1L of water = 1 kg.

SP100-S7

SPRING RETRACTABLE

HOSE REEL 15M

Suitable for air, water or

agricultural chemicals

• See page 40 for full details 180J1510A

DRAWING

10862

Scan here to

see the Smoothflo

in action!

M99-65 :

See page 28 for full details.

180° SPRAY

(7M)

90° SPRAY

(3.5M)

12 Volt Sprayers 12 Volt Sprayers

13CALL: 1300 745 826 or visit silvan.com.au for more information

CODE DESCRIPTION OPEN FLOW LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

RP50-P1 50L Quad Bike 5.3 L/min 775mm 850mm 250mm 10 kg $417.27 $459.00 A

RP70-P1 70L Quad Bike 5.3L/min 800mm 850mm 390mm 12 kg $499.09 $549.00 A

M99-65 Boomless Nozzle Kit with Single or Double Sided Swath $135.45 $149.00 B

RP1-24-3 Pressure Regulator Kit $230.91 $254.00 B

RP50-P1

RP70-P1

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

Silvan Quad Bike and Rakpak sprayers are designed to ﬁt neatly on quad bikes and meet the strict weight requirement of

these vehicles. The Wrap around design allows for a lower centre of gravity, essential for improved quad bike safety.

DRAWING

10721

RP50-P1

M99-65 :

See page 28 for full details.

180° SPRAY

(7M)

90° SPRAY

(3.5M)

12 VOLT 50 & 70 LITRE QUADBIKE SPRAYERS

• UV Stabilized Polytuff tanks

• Selecta 5.3L/Min open flow pump, 4 Bar/60psi max pressure

• Spotjet spraygun with 500mm stainless steel lance and adjustable nozzle

• Chemical resistant Viton valves & TPU diaphragms

• 6m of 8mm delivery hose

• 3m battery cable with alligator clips

• Ratchet straps to secure to QUAD (pair included)

• Anti spill barrier around Lid to protect rider

Additional features with the 70L model:

• BAFFLED poly tank to reduce surge when travelling

• Gun holder to secure spray gun when travelling

NEW

RELEASE

12 Volt Sprayers 12 Volt Sprayers

14 CALL: 1300 745 826 or visit silvan.com.au for more information

CODE DESCRIPTION OPEN FLOW LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

RP70N-S7 70L RakPak Smoothﬂo Plus 7 L/min 800mm 850mm 390mm 12 kg $708.18 $779.00 A

RP70N-S10 70L RakPak H/Capacity 14L/min 800mm 850mm 390mm 12 kg $799.09 $879.00 A

RP70N-S10B 70L RakPak H/Capacity/ With M99-75 Kit 14L/min 800mm 850mm 390mm 12 kg $862.73 $949.00 A

M99-75 Twin Boomless Nozzle (suit S3) $171.82 $189.00 B

M99-65 Boomless Nozzle Kit with Single or Double Sided Swath (suit S7) $135.45 $149.00 B

70 LITRE RAKPAK PLUS

• UV stablised polytuff tank 70L capacity with internal baffle

• Pumps with Viton valves & Santoprene diaphragm

• 6m of 8mm delivery hose

• Spotjet spray gun with 500mm stainless steel lance

and adjustable nozzle

• Gun holder to secure spray gun when travelling

• Anti-spill barrier around lid to protect rider

• 3 metre battery cable with alligator clips

• Ratchet straps to secure to Quad (pair included)

• Provision to fit drain tap

SPOT SPRAY PUMPS:

• RP70N-S7 features a Aquatec Smoothflo 7.0L/min (open flow)

pump with constant flow technology for no pulsation spraying

8 Bar/120psi max pressure

BOOM SPRAY PUMPS:

The higher flow is ideal for boom spraying. A pressure regulator

is recommended for low flow spot and boom spraying

• RP70N-S10 incorporates a Aquatec 14.0 L/min open flow pump 4 Bar/60 psi

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

The Silvan Rakpak Plus sprayers incorporate premium features for added convenience at the highest quality,

with a choice of pump to suit your spot or boom spraying needs. The wrap-around design of Rakpak Sprayers

allows for a lower centre of gravity essential for improved quad bike safety. RP70N-S7

DRAWING

0860

RP70N-S3

RP50-P1

RP70N-S10B

12 Volt Sprayers 12 Volt Sprayers

15CALL: 1300 745 826 or visit silvan.com.au for more information

Truckpak Sprayers

Simple rugged design with essential features

for professional use.

LARGE FILLER

LID WITH BASKET

STRAINER

RANGE OF PROFFESIONAL

SPRAY GUNS

(TK200-S9-2 SHOWN)

TALL ANTI-SPILL

LIP

DRAIN BUNG

TANK BOTTOM INSERTS

FOR SECURE MOUNTING

TO TRAY OR DECK

PUMP OPTIONS

FOR HIGH PRESSURE,

HIGH FLOW AND

GENERAL SPOT

SPRAYING

HEAVY DUTY

INSERTS FOR MOUNTING

HOSE REELS

12 Volt Sprayers 12 Volt Sprayers

16 CALL: 1300 745 826 or visit silvan.com.au for more information

100L UTEPAK TRUKPAK SPRAYER

Professional self contained sprayers favoured for their

ﬂexible range of options and industrial design. Fit to Utility,

carryall or UTV’s for a range of applications including pest

control, road side spraying or on-farm.

See charts for individual specifications.

TANK 100L:

• UV stabilised polytuff tank brass inserts

at base for easy mounting

• Large Drain outlet for easy empty and clean

• Fitted In-line suction filter with viewing bowl

• 100L Dimensions (mm): L 660, W 580, H490

12V PUMPS:

• Smoothflo, Aquatec pump 7L/min (open flow) or max

8 Bar /120psi for pulsation free spraying

HOSE REELS:

Supplied as kit with some models

30m ECO: (adds 395mm to height)

• 30m of 10mm Ag Hose on hub with locking pin

15m Spring Retractactable: (adds 445mm to height)

• Swiveling body with 15m of 3/8” Hose

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

CODE CAPACITY PUMP FLOW HOSE REEL SPRAY GUN LIST EX LIST INC CAT

UP100-S7-2 100L Smoothﬂo 7L/min 120 psi 15m Retractable SpotJet Gun $935.45 $1,029.00 A

UP100-S7-2

270°

SWIVEL

UP100-S7-2

Shown with 15m

Rectactable Reel

M99-65 :

See page 34 for full details.

180° SPRAY

(7M)

90° SPRAY

(3.5M)

12 Volt Sprayers 12 Volt Sprayers

17CALL: 1300 745 826 or visit silvan.com.au for more information

200L TRUKPAK SPRAYER

WITH ECONOMY REEL

Spray with the increased ﬂexibility of a 30m hose

reel for pest control, roadside or on-farm use.

• Aquatec 7L/min open flow, 8 Bar/120psi max

pressure

• 30m of 10mm I.D. Ag hose and professional

PA spray gun

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

CODE CAPACITY PUMP FLOW HOSE REEL SPRAY GUN LIST EX LIST INC CAT

TK200-S7-1 200L Smoothﬂo 7L/min 120 psi 30m Eco PA Gun $1,044.55 $1,149.00 A

TK200-S7-2 200L Smoothﬂo 7L/min 120 psi 15m Retractable PA Gun $1,044.55 $1,149.00 A

TK200-S7-1

TK200-S7-2

8MM BRASS

MOUNTING

INSERTS

120PSI

MAX

PUMP

270°

SWIVEL

200L TRUKPAK

SPRAYER WITH

RETRACTABLE REEL

Comes with a 15m hose retractable reel

for pest control, roadside or on-farm use.

• Aquatec 7L/min open flow,

8 Bar/120psi max pressure

120PSI

MAX

PRESSURE

SCREW DOWN

LID WITH

STRAINER

FILL BASKET

BENEATH

TK200-S7-2

270°

SWIVEL

12 Volt Sprayers 12 Volt Sprayers

18 CALL: 1300 745 826 or visit silvan.com.au for more information

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

CODE CAPACITY PUMP FLOW HOSE REEL SPRAY GUN LIST EX LIST INC CAT

TK200-S9-1 200L Smoothﬂo 5L/min 200 psi 30m Eco JetPro $1,226.36 $1,349.00 A

TK200-S9-2 200L Smoothﬂo 5L/min 200 psi 15m Retractable JetPro $1,226.36 $1,349.00 A

200L TRUKPAK SPRAYER

Professional self contained sprayers favoured for their ﬂexible range

of options and industrial design. Fit to Utility, carryall or UTV’s

for a range of applications including pest control, road side spraying

or on-farm.

See charts for individual specifications.

TANK 200L:

• UV stabilised polytuff tank brass

inserts at base for easy mounting

• Large Drain outlet for easy empty and clean

• Fitted In-line suction filter with viewing bowl

• 200L Dimensions (mm): L 1030, W 580, H535

12V PUMPS:

• Smoothflo, Aquatec pump 5L/min (open flow)

or max 13 Bar/200psi for pulsation free spraying with

greater pressure for spraying longer distances and finer atomising

HOSE REELS: Supplied as kit

with some models30m ECO:

(adds 395mm to height)

• 30m of 10mm Ag Hose

on hub with locking pin

15m Spring Retractactable:

(adds 445mm to height)

• Swiveling body with

15m of 3/8” Hose

TK200-S9-2

200psi pump for distance spraying up to 11m

8mm brass

mounting inserts

TK200-S7-2 TK200-S9-1

12 Volt Sprayers 12 Volt Sprayers

19CALL: 1300 745 826 or visit silvan.com.au for more information

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

CODE CAPACITY PUMP FLOW HOSE REEL SPRAY GUN LIST EX LIST INC CAT

TK200-S3 200L 2088 Model 11.3L/min 45 psi PA Gun $1,035.45 $1,139.00 A

TK200-S3B 200L 2088 Model 11.3L/min 45 psi With S3B kit PA Gun $1,263.64 $1,390.00 A

TK200-S10 200L Aquatec DDP-555 14.0L/min, 60 psi PA Gun $1,090.91 $1,199.00 A

TK200-S10B 200L Aquatec DDP-555 14.0L/min, 60 psi With S3B Kit PA Gun $1,090.91 $1,199.00 A

S3B Boomless Nozzle Kit $348.00 $383.00 B

RP1-24-4 Pressure Reg & Guage Kit For Paks $161.82 $178.00 B

200L TRUKPAK SPRAYERS

Professional self contained sprayers favoured for their ﬂexible range

of options and industrial design to ﬁt to Utility, carryall or UTV’s.

See charts for individual specifications.

TANK 200L:

• UV stabilised polytuff tank brass inserts at base for easy mounting

• Large Drain outlet for easy empty and clean

• Fitted In-line suction filter with viewing bowl

• 200L Dimensions (mm): L 1030, W 580, H535

BOOM SPRAY PUMPS:

• 2088 Model Shurflo pump with 11.3L/min (open flow)

or max 3 Bar /45psi suitable boom spraying

• DDP-555 Model Aquatec pump with 14.0L/min (open flow)

or max 413kpa /60psi suitable boom spraying

• Spray gun included for optional spot spraying

NOTE: Regulators recommended for spot spraying

OPTIONAL EXTRAS:

Pressure Regulator Kit - RP1-24-4

• Fits to pump to regulate pressure and

bypass flow back to tank for agitation

• Ideal for regulating 11.3L pumps for lower flow applications

TK200-S3 WITH S3B KIT

OPTIONAL BOOMLESS

NOZZLE KIT - S3B

Boomless nozzle kit

eliminates the need for a

spray boom.

• Up to 3.7m swath with

pumps 5-10L/min and

single nozzle

• Up to 7.4m swath with

pumps 10-20L/min and

two nozzles

Scan here to see

the 200L Trukpak

in action!

TK200-S3

TK200-S10

RP1-24-4:

Regulator to suit 11.3 model

12 Volt Sprayers 12 Volt Sprayers

20 CALL: 1300 745 826 or visit silvan.com.au for more information

CODE CAPACITY SPRAYER WIDTH LENGTH HEIGHT WT SPRAY GUN LIST EX LIST INC CAT

TK200-S10GG 200L Equine 600mm 1135mm 920mm 52 kg PA Gun $1,299.09 $1,429.00 A

TK200-S7NU 200L Weed 600mm 1135mm 920mm 52 kg PA Gun $1,299.09 $1,429.00 A

TK200-S3 WITH S3B KIT

12 VOLT 200 LITRE RECHARGABLE

EQUINE/WEED SPRAYERS

STANDARDS FEATURES INCLUDE:

• 240 Volt to 12 Volt AC charger and battery

• Easy access ON/OFF power switch and charging socket

• Heavy duty trolley with pneumatic tyres

• Easy to pull by handle or tow hitch

Equine sprayer is designed for cooling horses after

training/racing, cattle and for wash down applications.

• 14L/Min open flow pump, 4 Bar/60psi max pressure

• 6m of 8mm delivery hose and shower head rose spray gun

Weed sprayer designed for hot houses, nurseries,

gardens and weed spraying applications.

• Smoothflo 7L/Min open fl ow pump, 8 Bar/120psi max pressure

• 6m of 8mm delivery hose and PA spray gun

TK200-S7NU

12 Volt Sprayers 12 Volt Sprayers

21CALL: 1300 745 826 or visit silvan.com.au for more information

300L SquatPak spraying tanks are available with 12V pumps and

hose reels to provide a range of outputs to support general spot

spraying. Their lower height and internal bafﬂe make them

ideal for use with UTV’s.

300L SQUATPAK

• UV stabilised polytuff tank with Large baffle to reduce surge

• Screw down lid with strainer fill basket beneath

• Large Drain outlet for easy empty and clean

• Deep Tie-down locating channels for strap

mounting and tank strength

• Tanks feature durable accessory mounting points

with large M10 inserts

• One spare tank corner for additional accessories

SQ300-S7-1:

• Aquatec Smoothflo pump 12V DC

• 7L/min (open flow) for no pulsation spraying max 8 Bar/120psi

• Eco Hose Reel with 30m of 10mm hose

• Atomiser + Spray gun with lever adjustable spray pattern

from pencil stream to cone mist

SQ300-S7-2:

• Aquatec Smoothflo pump 12V DC

• 7L/min (open flow) for no pulsation spraying

max 8 Bar/120psi

• Spring Retractable Hose Reel with 15m of 3/8 hose

• Atomiser + Spray gun with lever adjustable spray pattern

from pencil stream to cone mist

CODE DESCRIPTION FLOW LENGTH WIDTH HEIGHT LIST EX LIST INC CAT

SQ300-S7-1 300L Smoothﬂo -30m 10mm Hose 7 L/min 1060mm 1010mm 890mm $1,308.18 $1,439.00 A

SQ300-S7-2 300L Smoothﬂo -15m 3/8 mm Hose 7 L/min 1050mm 1010mm 940mm $1,308.18 $1,439.00 A

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

BAFFLED TANK

TWIN BAFFLED TANK

SQ300-S7-1

SQ300-S7-2

BAFFLED TANK

TWIN BAFFLED TANK

12 Volt Sprayers 12 Volt Sprayers

22 CALL: 1300 745 826 or visit silvan.com.au for more information

SquatPak spraying tanks are available with 12V or motorised pumps and

hose reels to provide a range of outputs to support general spot spraying,

high volume spraying and high pressure spraying needs. They can be used

with a range of accessory equipment to support most spraying needs.

400L SQUATPAK

• UV stabilised polytuff tank with Large baffle to reduce surge

• Large Drain outlet for easy empty and clean

• Fitted with Hose Reel with 30m of 10mm Ag hose

• Deep Tie-down locating channels for strap mounting and tank strength

• Tanks feature durable accessory mounting points with large M10 inserts

• One spare tank corner for additional accessories

12V Pump options:

• Model SQ400-S7-1 with Aquatec Smoothflo pump

7L/min (open flow) for no pulsation spraying 8 Bar /120psi

• Model SQ400-S8-1 with Aquatec High Capacity

20L/min(open flow) or 4 Bar/60psi

• Pressure regulator fitted

• PA series spray gun with 500mm stainless steel

extension lance, flat fan nozzle and hollow cone supplied

Motorised option (LO4H4-42):

• World class manufacturer Comet APS41 pump,

38L/min (open flow) or 40 Bar (580psi)max

• Honda 5.5HP GX160 engine

• JetPro spraygun for close and distance spraying

CODE DESCRIPTION FLOW LENGTH WIDTH HEIGHT LIST EX LIST INC CAT

SQ400-S7-1 400L Smoothﬂo - 30m 10m Hose 7 L/min 1060mm 900mm 1010mm $1,362.73 $1,499.00 9

SQ400-S8-1 400L Hi Cpacity - 30m 10m Hose 20 L/min 1060mm 900mm 1010mm $1,571.82 $1,729.00 9

L04H4-42 400L Motorised - 20m 10m HP Hose 38 L/min 1060mm 900mm 1010mm $4,527.27 $4,980.00 9

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

L04H4-42

DRAWING

0595

L04H4-42

BAFFLED TANK

TWIN BAFFLED TANK

BAFFLED TANK

TWIN BAFFLED TANK

SQ400-S7-1

12 Volt Sprayers 12 Volt Sprayers

23CALL: 1300 745 826 or visit silvan.com.au for more information

300 LITRE SKID SPRAYER WITH

REEL TUFF REMOTE REEL

• Australian made REEL TUFF Remote hose reel Galvanised steel construction

for enhanced durability, direct drive gearbox, long range interference-free

remote control, Hub position lock with spring loaded mechanism

• 300 & 400L Polytuff tank with sump (400L baffled)

• Turbo 400 spray gun and liquid shutoff snap

coupling for easy removal, storage or change

• Steel skid frame, hot dipped galvanised

skid for extra durability and superior

corrosion resistance

• Engine driven Comet BP60/20 Diaphragm

pump (58L/min open flow or max 2000kpa)

with regulator and spare outlets

• Honda GX160 5.5HP engine

& direct drive reduction gearbox

• 100m of 1/2” O.D hose with

kink resistant nylon tubing

• Keeps hose tight in transport

CODE DESCRIPTION FLOW LENGTH WIDTH HEIGHT WEIGHT LIST EX LIST INC CAT

L03H4-38R147* 300L Single Reel 58L/min (20 Bar) 1020mm 1340mm 970mm 182 kg $7,999.00 $8,800.00 9

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

* Special Dealer Discount applies to these items

131 SERIES HEAVY DUTY SLASHER

Made in Australia with a quality ﬁve stage powder coating

process to increase longevity. Suited to large acreage

applications including ﬁeld clearance, ﬁrebreaks, private

roadsides or where major cutting and clearing is required.

• 5’, 6’ and 7’ cutting widths

• 75 HP (100HP optional)

• Front and rear rubber stoneguards

• Optional height control wheel

• Work cover #2797 compliant

LONG RANGE

REMOTE SYSTEM

L03H4-38R147

12 Volt Sprayers 12 Volt Sprayers

24 CALL: 1300 745 826 or visit silvan.com.au for more information

CODE DESCRIPTION FLOW LENGTH WIDTH HEIGHT WEIGHT LIST EX LIST INC CAT

L04H4-38R147* 400L Single Reel 58L/min (20 Bar) 1850mm 1200mm 750mm 215 kg $8,180.91 $8,999.00 9

L04H4-38R147T* 400L Twin Reel 58L/min (20 Bar) 1850mm 1200mm 750mm 265 kg $11,972.73 $13,170.00 9

L04H4-38R147

400 LITRE SKID SPRAYER

WITH REEL TUFF REMOTE REEL

• 400L baffled tank with sump, fitted to galvanised skid

• Honda engine and Comet 60/20 pump

(58L/min open flow, 20 Bar 290psi max pressure)

• 100m Smoothline hose and Turbo 400 spray gun

Additional model options:

• Twin Reels: Add a second hose reel allows two operators

to spray independently at the same (400L only)

• Substitute an alternate engine drive pump to suit your

spraying requirements (Price on application)

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

* Special Dealer Discount applies to these items

LONG RANGE

REMOTE SYSTEM

L06H4-38R147

L04H4-38R147T

131 SERIES HEAVY DUTY SLASHER

Made in Australia with a quality ﬁve stage powder coating

process to increase longevity. Suited to large acreage

applications including ﬁeld clearance, ﬁrebreaks, private

roadsides or where major cutting and clearing is required.

• 5’, 6’ and 7’ cutting widths

• 75 HP (100HP optional)

• Front and rear rubber stoneguards

• Optional height control wheel

• Work cover #2797 compliant

NEW

RELEASE

12 Volt Sprayers 12 Volt Sprayers

25CALL: 1300 745 826 or visit silvan.com.au for more information

600 LITRE SKID SPRAYER WITH

REEL TUFF REMOTE REEL

• Australian made REEL TUFF Remote hose reel Galvanised steel construction

for enhanced durability, direct drive gearbox, long range interference-free

remote control, Hub position lock with spring loaded mechanism

• 600L Polytuff barrel tank with internal sump

• Engine driven Comet BP60/20 Diaphragm pump (58L/min open flow or max 2000kpa)

with regulatorand spare outlets

• Honda GX160 5.5HP engine & direct drive reduction gearbox

• Steel skid frame, hot dipped galvanised skid for extra durability

and superior corrosion resistance

• Keeps hose tight in transport

• 100m of 1/2” O.D hose with kink resistant nylon tubing.

• Turbo 400 spray gun and liquid shutoff snap coupling

for easy removal, storage or change

• Weight on Bare reel 50kg

Additional model options:

• Twin Reels: Add a second Hose reel allows two operators

to spray independently at the same (Price on application)

• Substitute an alternate engine drive pump

to suit your spraying requirements (Price on application)

CODE DESCRIPTION FLOW LENGTH WIDTH HEIGHT LIST EX LIST INC CAT

L06H4-38R147* 600L Single Reel 58L/min (20 Bar) 1850mm 1200mm 900mm $8,363.64 $9,200.00 9

L06H4-38R147T* 600L Twin Reel 58L/min (20 Bar) 1850mm 1200mm 900mm $12,154.55 $13,370.00 9

147R10012T* Reel with 100m Hose and Gun 750mm 500mm 700mm $3,790.91 $4,170.00 9

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

* Special Dealer Discount applies to these items

LONG RANGE

REMOTE SYSTEM

131 SERIES HEAVY DUTY SLASHER

Made in Australia with a quality ﬁve stage powder coating

process to increase longevity. Suited to large acreage

applications including ﬁeld clearance, ﬁrebreaks, private

roadsides or where major cutting and clearing is required.

• 5’, 6’ and 7’ cutting widths

• 75 HP (100HP optional)

• Front and rear rubber stoneguards

• Optional height control wheel

• Work cover #2797 compliant

L06H4-38R147

12 Volt Sprayers 12 Volt Sprayers

26 CALL: 1300 745 826 or visit silvan.com.au for more information

NEW

RELEASE

CODE DESCRIPTION FLOW LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

L04H4-38K180* 400L Single Reel 58L/min 1850mm 1200mm 750mm 215 kg $7,635.45 $8,399.00 9

180K10012T Reel with 100m Hose and Gun 590mm 400mm 735mm 49 kg $3,271.82 $3,599.00 9

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

* Special Dealer Discount applies to these items

L04H4-38K180

180K10012T

SILVAN E-WIND 400 LITRE SKID SPRAYER

• 100 Metre Smoothline hose & Atomiser gun- snap coupling

• E-Wind 12 Volt high torque hosereel

• BP6020- Honda direct drive engine

• Fully galvanised chassis

• Heavy duty controller

SILVAN E-WIND 12 VOLT REMOTE HOSEREEL

• Heavy duty steel construction with powder coated finish

• 12 Volt High Torque Electric Motor direct coupled

to Gearbox. Max 25amp under load

• Reel hub freely unwinds and uses electric

clutch to engage rewind

• Arial is positioned inside the control box

• Heavy duty controller

• 100m Smoothline

Hose and Atomiser +

Spray Gun

BAFFLED TANK

TWIN BAFFLED TANK

L04H4-38K180

12 Volt Sprayers 12 Volt Sprayers

27CALL: 1300 745 826 or visit silvan.com.au for more information

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

CODE DESCRIPTION LENGTH WIDTH HEIGHT LIST EX LIST INC CAT

SP25-TR2 25L Rechargeable Redline Trolley Sprayer 900mm 440mm 800mm $271.82 $299.00 A

BAT5 Replacement Battery12V 3.2Ah suit SP25-TR2 & SP25-B $35.75 $39.33 B

382-068B Replacement Battery Charger $46.83 $51.51 B

Pencil stream

sprays up to 8m

SP25-TR2

25L RECHARGEABLE REDLINE TROLLEY SPRAYER

All the convenience of a powered sprayer built upon a trolley for easy portability

offers hours of use without being plugged into an external power source.

• 12V pump 2.5L/min open flow, 50psi

• Rechargeable battery and 240V wall charger

• Up to 1.5 hours operation from one

full charge (or approx 3 tank fulls)

• 6m delivery hose with storage hanging hook

• Spray gun with 550mm stainless

steel lance and adjustable nozzle

• Easy reach/trail trolley frame with

soft hand grip and spray gun holder

• Large 265mm Ezy Glide wheels

• Screw down lid with retaining lid

to prevent accidental loss

• Includes chemical measuring jug stored

safely beneath the lid

• 1” drain plug for easy cleaning and emptying

Adjustable conical

spray pattern

Includes a chemical

measuring jug stored

safely beneath the lid

Now includes

convenient spray shield

12 Volt Sprayers 12 Volt Sprayers

28 CALL: 1300 745 826 or visit silvan.com.au for more information

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

* Accessory hose reel supplied unfitted to unit, 4 x 10mm x 16mm bolts required to mount 300L unit.

CODE DESCRIPTION LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

TR25-S7 25L Smoothﬂo Trolleypak 440mm 470mm 1070mm 21 kg $1,362.73 $1,499.00 A

TR25-P 25L Trolleypak w/ Pressure Regulator 440mm 470mm 1070mm 21 kg $1,453.64 $1,599.00 A

LT30-S5 300L Lightfoot 13.6L/min Pump 1580mm 1160mm 870mm 72 kg $2,271.82 $2,499.00 9

LT30-S8 300L Lightfoot 20L/min Pump & Regulator 1580mm 1160mm 870mm 72 kg $2,318.18 $2,550.00 9

OPTIONS

BAT3 Replacement 12V Battery (Suit TR25-P & TR25-S7) $129.09 $142.00 B

180G03010B* Eco Hose Reel With 30m of 9.5mm I.D. Hose for LT30-S5 $235.45 $259.00 A

LT30-S5

TR25-S7

25L RECHARGEABLE

TROLLEYPAK SPRAYERS

These larger Trolleypaks offer larger pumps

to support a wider range of spraying needs.

• Large Ezy glide wheels & adjustable handle

• 17 Amp/hr seaLED lead acid battery and 8 hour charger

• Screw down lid with anti-spill breather

• 6m of 8mm delivery hose and stainless steel in-line filter

Model TR25-S7 Features

• Smoothflo 7L/min (open flow) pump with constant flow

technology for no pulsation spraying 690kpa/120psi max

• Spotjet spray gun with 500mm stainless steel lance and

adjustable nozzle supplied

Model TR25-P Features

• Shurflo 6.8L/min open flow pump, 414kpa/60psi max

• Pressure regulator and gauge

• NOTE: Spray gun not supplied. (See page 50-60 for Spray guns)

300L 12V LIGHTFOOT

Designed to be towed behind ATV bikes or

other vehicles with a 50mm tow ball hitch.

• Suits mounting of numerous spray equipment & accessories

• Single axle with 22 x 11 x 8 Mud Puppy tyres

• Wiring loom with remote mountable on/off switch

PUMP OPTIONS:

• Model LT30-S5 with 12V Shurflo 13.6 L/min (open flow)

fin cooled pump, 310 kPa/45 psi max pressure

• Model LT30-S8 with 12V high capacity Aquatec 20L/min

(open flow) pump, 414 kPa/60psi max pressure with regulator

• Optional hose, reels, spray guns, booms & pressure regulators

DRAWING

0934

DRAWING

0723

12 Volt Sprayers 12 Volt Sprayers

29CALL: 1300 745 826 or visit silvan.com.au for more information

300L MOTORISED LIGHTFOOT SPRAYERS

These complete trailed ATV sprayers come pre-equipped ready

for spot and boom spraying to suit a variety of applications.

LT30-S8-1:

300L standard boomless ideal for coarse

droplet herbicide and fertiliser application.

• Mud Puppy tyres for extra stability

• Aquatec 20L/min max 60psi pressure with

inline filter and regulator

• 7.4 max coverage with twin boomless nozzles

(or 3.7m with single nozzle), coarse droplet ideal for

herbicide or fertiliser, fenceline or firebreak application

• Spotjet spraygun with 6m of 8mm I.D hose

LT30-S8-2:

300L professional with boom for more precise application.

• Aquatec 20L/min, max 60psi pressure

with inline filter and regulator

• 4m max coverage with galvanised cross fold boom with

spring loaded break back and non drip nozzle bodies

• Air induction nozzles for low drift spraying applications

• Adjustable Atomiser spraygun with ECO hose reel

featuring 30m of 10mm hose with lockable hub

CODE DESCRIPTION LIST EX LIST INC CAT

LT30-S8-1 300L Trailed with Twin Boomless Nozzle $3,090.00 $3,399.00 9

LT30-S8-2 300L Trailed with Reel and 4M Folding Boom $3,544.55 $3,899.00 9

LT30-S8-2

LT30-S8-1

12 Volt Sprayers 12 Volt Sprayers

30 CALL: 1300 745 826 or visit silvan.com.au for more information

300L MOTORISED LIGHTFOOT SPRAYERS

These complete trailed ATV sprayers come utilise engine

driven Comet pumps for high performance spot and boom

spray applications.

300L LIGHTFOOT

• Large Mud Puppy tyres for extra stability

• 50mm tow ball hitch and fold stand

• Vertical boom channel for fitment of accessories

• In-Line filtration

• Engine driven Comet MC20/20 18L/Min 20Bar/290psi

• Honda GX120 engine

LT30-34:

• Ready for fitment of accessories

LT30-34-2:

• 4m Cross fold boom with air induction nozzles for drift reduction

• Easy boom On/Off with electric solenoid

(max operation to 150psi) for operation from vehicle

• Retractable 15m hosereel with Atomiser+ spray gun

CODE DESCRIPTION LIST EX LIST INC CAT

LT30-34 300L Lightfoot MC20/20 Pump, Accessory Ready $4,027.27 $4,430.00 9

LT30-34-2 300L Lightfoot MC20/20, 4m Boom, 15m Hosereel $5,135.45 $5,649.00 9

LT30-34

LT30-34-2

12 Volt Sprayers 12 Volt Sprayers

31CALL: 1300 745 826 or visit silvan.com.au for more information

CODE DESCRIPTION FLOW LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

K02A 200L Traylink Sprayer 20 L/min 1040mm 460mm 745mm 55 kg $1,536.36 $1,690.00 9

K03A 300L Traylink Sprayer 20 L/min 1070mm 830mm 1060mm 72 kg $2,172.73 $2,390.00 9

The Traylink sprayers eliminate the need for a PTO connection

for small to medium boom spraying. The frames can be ﬁtted

to CAT 1 linkages, utilities, RTV’s and trailers by only requiring

a 12V connection for the high capacity pump. A boomless

nozzle and spot spray gun are included.

12V TRAYLINK SPRAYER

• UV stabilised polytuff tank with sump

• Steel TPL frame (CAT 1)

• 200L unit: powder coated frame

• 300L unit: galvanised frame

• Aquatec High capacity 12V pump 20 L/min (open flow) or

4 Bar/60psi max w/ Viton valves & Santoprene diaphragms

• Graduated regulator w/pressure gauge for control and agitation

• Two manual section valves for spot and boom spraying

• Spotjet spray gun with adjustable nozzle

• 6m of 12mm I.D. hose

• Hypro boomless nozzle can be attached at rear when unit is

attached to a tractor. If used crossways on the back of a ute,

mule or carryall the unit can be easily moved to an end

• Boomless swath width of 7.4m (or 3.7 m when one-sided spraying)

ideal for applying herbicide,fence line spraying or generating fire breaks

• Pump reorder code: DDP-550

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

7.4 metres full spray reach

K02A

DRAWING

10749

DRAWING

10063

3.7 metres3.7 metres

K02A

K03A

12 Volt Sprayers 12 Volt Sprayers

32 CALL: 1300 745 826 or visit silvan.com.au for more information

12 Volt Sprayers

Booms and

Hose Reels

GENUINE

ACCESSORIES

GENUINE

ACCESSORIES

12 Volt Sprayers 12 Volt Sprayers

CALL: 1300 745 826 or visit silvan.com.au for more information

Booms & Hose Reels12 Volt Sprayers

BRASS BOOMLESS NOZZLES KIT WITH SINGLE OR DOUBLE SIDED SWATH

These compact kits offer broadcast spraying, ideal for applications around obstacles that could damage

a traditional boom such as fences, guardrails and power poles.

• Attaches to an ATV rack, UTV or side by side or side framework with supplied clamp

• Supplied with 600mm of 12mm I.D hose with Inline tap to turn isolate flow or turn on or off

• Supplied with both single and twin sided nozzles

• Compatible with a broad range of Silvan spray equipment

M99-65 (size 02) M99-66 (size 05)

• Pump flow suitable is 7L/Min (DDP-552A - Smootflo) • Pump flow suitable is 11 -14L/Min 381-125, 361-2088 or DDP-555

• Spray Swath single from 3.4m or Double 7.6m • Spray Swath single from 3.8m or Double 7.6m

CODE DESCRIPTION PRESSURE L/MIN

(UP TO)

SWATH

WIDTH LIST EX LIST INC CAT

M99-65 Boomless Nozzle Kit with Double Sided Swath 14 Bar/30 psi 18.2 10.4 $135.45 $149.00 B

M99-66 Boomless Nozzle (05) $144.54 $159.00 B

Nozzle Storage:

Both nozzles are kept

conveniently attached to the

kit with the unused nozzle

stacked on top.

M99-65

SINGLE NOZZLE (90 DEGREES)

PSI L/min Swath

(m)

Litres per hectare (L/Ha)

km/hr

30 1.61 3.4 96 48 32

40 1.89 3.5 108 54 36

50 2.08 3.7 114 57 38

60 2.27 3.8 119 60 40

SINGLE NOZZLE (90 DEGREES)

PSI L/min Swath

(m)

Litres per hectare (L/Ha)

km/hr

30 3.22 3.4 96 48 32

40 1.89 3.5 108 54 36

50 2.08 3.7 114 57 38

60 2.27 3.8 119 60 40

DOUBLE NOZZLE (180 DEGREES)

PSI L/min Swath

(m)

Litres per hectare (L/Ha)

km/hr

30 3.22 6.7 96 48 32

40 3.79 7.0 108 54 36

50 4.16 7.3 114 57 38

60 4.54 7.6 119 60 40

DOUBLE NOZZLE (180 DEGREES)

PSI L/min Swath

(m)

Litres per hectare (L/Ha)

km/hr

30 6.44 16.8 96 48 32

40 7.57 14.0 108 54 36

50 8.33 14.6 114 57 38

60 9.08 15.2 119 60 40

Booms & Hose Reels

CALL: 1300 745 826 or visit silvan.com.au for more information

Booms & Hose Reels

3.7 metres3.7 metres

7.4 metres full spray reach

ATV BOOMLESS NOZZLE KIT

Ideal for applications where a conventional boom cannot be used due to

obstacles, such as power poles, guardrails, fences, trees, etc.

• Attaches to ATV rack and runs off your 12V pump/RakPak

• Fitted with 30cm of hose with clamp to attach to Quad Bike carry frame

• Durable nozzle produce large droplet size for herbicide or fertiliser application

• M99-74: Single sided output suits pumps 5 - 10L/min (60psi)

• M99-75: Double sided output suits pump 10 - 20L/min (60psi)

• Nozzle reorder code: For green Hypro boomless nozzle

CODE DESCRIPTION PRESSURE L/MIN

(UP TO)

SWATH

WIDTH

NOZZLE

COLOUR LIST EX LIST INC CAT

M99-76 Boomless Nozzle Kit 2 Jet 14 Bar/30 psi 18.2 10.4 $271.82 $299.00 B

K99-10 Mounting Bracket (Suit Super Series TPL)

CODE DESCRIPTION PRESSURE L/MIN

(UP TO)

SWATH

WIDTH

NOZZLE

COLOUR LIST EX LIST INC CAT

M99-74 Boomless Nozzle Kit 1 Jet 2 Bar/30 psi 3.2 3.7 $162.73 $179.00 B

M99-75 Boomless Nozzle Kit 2 Jet 2 Bar/30 psi 7.6 7.4 $180.91 $199.00 B

For application rates per nozzle see page xx

4.8 metres 4.8 metres

TPL BOOMLESS NOZZLE

Speciﬁcally designed for a 3 point linkage unit running between 30 and 60 psi spraying

pressure. It can spray up to 9.6 metres wide and is available with an optional mounting

bracket that ﬁts between the upright bars on Silvan linkage equipment.

• Sprays 4.8 metres one side or 9.6 metres both sides together

• Can spray one or both sides with blanking cap included

• Fitted with 2.5 metres of Ag hose

• Nozzle reorder code: For blue FC-XT020 Hypro boomless nozzle

9.6 metres full spray reach

Image for illustrative purposes only.

Spray tank not included.

M99-74 (1 jet)

3.7m full spray reach

M99-75 (2 jet)

7.4m full spray reach

M99-76

DRAWING

10843

BRASS BOOMLESS NOZZLES KIT WITH SINGLE OR DOUBLE SIDED SWATH

These compact kits offer broadcast spraying, ideal for applications around obstacles that could damage

a traditional boom such as fences, guardrails and power poles.

• Attaches to an ATV rack, UTV or side by side or side framework with supplied clamp

• Supplied with 600mm of 12mm I.D hose with Inline tap to turn isolate flow or turn on or off

• Supplied with both single and twin sided nozzles

• Compatible with a broad range of Silvan spray equipment

M99-65 (size 02) M99-66 (size 05)

• Pump flow suitable is 7L/Min (DDP-552A - Smootflo) • Pump flow suitable is 11 -14L/Min 381-125, 361-2088 or DDP-555

• Spray Swath single from 3.4m or Double 7.6m • Spray Swath single from 3.8m or Double 7.6m

M99-65

CALL: 1300 745 826 or visit silvan.com.au for more information

Booms & Hose ReelsBooms & Hose Reels

1M, 2M & 3M PAK BOOM

Stainless steel construction. 1, 2 & 3 metre width, non-drip nozzle assemblies.

• Supplied with connecting hose, on/off tap and mounting clamps

• LC-15 Anvil deflector nozzles @ 2 bar .97L/min

• Includes breakaway clips (pictured) boom unclips if an obstruction is hit

RP1-10 (3M LENGTH, 4M SPRAY)

DRAWING

10012

10100

10013

L99-09 (1M LENGTH, 2M SPRAY)

L99-08 (3M SPRAY)

(2M LENGTH, 3M SPRAY) DRAWING

0863

FENCELINE KIT (TWIN PACK)

• Ideal for fenceline work. Mounts on the end of boom (minimum boom height 500mm)

• 1/2” BSP Male connection with nozzle swivel and on/off tap

• Off-centre jet

• Ideal to use with L99, RPI Boom to

increase spray width

M99-72

1.8M

60CM

@ 2 BAR

DRAWING

10780

CODE DESCRIPTION ADJUSTMENT LIST EX LIST INC CAT

M99-72 Fenceline Kit (Twin Pack) $139.09 $153.00 B

3M & 4M CROSS FOLD BOOM

• Break back device protects boom if an obstruction is hit

• Designed for rear carry-all on most ATVs

• Adjustable height and quick fold mechanism

• Non-drip nozzle assemblies

• Mounting brackets supplied

• Stainless steel spraylines

• Air induction nozzles

CODE NOZZLE

QTY

BOOM

WIDTH

SPRAY

WIDTH

NOZZLE

SPACING

BREAK

BACK

MIN BOOM

HEIGHT

FOLDING

POSITION WT LIST EX LIST INC CAT

L99-09 2 1.05m 2m 1m No 1000mm None 2 kg $207.27 $228.00 A

L99-08 3 2.05m 3m 1m No 1000mm None 2.5 kg $256.36 $282.00 A

RP1-10 4 3m 4m 1m No 1000mm None 3 kg $367.27 $404.00 A

RP1-25 6 2.6m 3m 0.5m Yes 500mm Cross 8.1 kg $787.27 $866.00 A

RP1-26 8 3.6m 4m 0.5m Yes 500mm Cross 9.6 kg $900.91 $991.00 A

DRAWING

0863

3M CROSS FOLD BOOM

RP1-25 (PICTURED)

36 CALL: 1300 745 826 or visit silvan.com.au for more information

Booms & Hose Reels

032-044-6

6M & 8M FIELD BOOMS

Medium-duty corrosion resistant hot dip galvanised frame in 6 or 8m spraying width.

Features break back device that protects boom if an obstruction is hit.

• Fully folding arms with stainless steel spraylines & non-drip nozzle assembly

• Ideal for linkage or trailer type sprayers.

• Nozzles fully shielded from damage and supplied with Air induction nozzles

DOUBLE SIDED UNDER VINE SHIELDED BOOM

An adjustable shielded boom for spraying along fences, under tree lines and vine rows.

• Boom with telescopic boom width adjustment from 3 to 3.8 metres total width

• Spring loaded breakaways to protect the boom if an obstacle is struck

• Durable boom shields to minimise spray drift and avoid snagging

G8292045

CODE DESCRIPTION ADJUSTMENT LIST EX LIST INC CAT

G8292045 Double Side Strip Boom 3.0 - 3.8 metres $699.09 $769.00 A

CODE NOZ

QTY

BOOM

WIDTH

SPRAY

WIDTH

NOZZLE

SPACING

BREAK

BACK

MIN BOOM

HEIGHT

FOLDING

POSITION WT LIST EX LIST INC CAT

032-044-6 12 5.8m 6m 0.5m Yes 500mm Horizontal 39 kg $1,300.00 $1,430.00 A

032-044-8 16 7.5m 8m 0.5m Yes 500mm Horizontal 47 kg $1,700.00 $1,870.00 A

400MM

CALL: 1300 745 826 or visit silvan.com.au for more information

Booms & Hose Reels

3M BOOM WICK APPLICATORS

The boom wick applicator Ideal for killing weeds over crops or pasture when installed at a certain height

features a tough chemical resistant PVC boom with a horizontally mounted double row of pistachio wicks

that are at right angles to the tractor. The boom itself acts as a herbicide reservoir and can be simply filled

by unscrewing its end cap. Supplied with bracing plate and brackets.

GARDEN WICK STICK

One wipe does it all! The successful wick wiping method has also been adapted to general garden

use in an easy to handle, rake-size applicator. Its simple design allows liquid to flow from a long

re-fillable PVC handle into a Pistachio wick head that in turn applies a lethal dose to weeds.

48930BP

Wick Applicators are great for precision or drift free direct contact application, eliminating mist spray around valued

plants or obstacles. Available as hand held Wick Stick for direct manual application or as a Boom Wick for vehicle

attachment ideal for larger areas.

CODE BOOM CAPACITY WICKS LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

489 0.6L 1 1260mm 280mm - 0.42 kg $180.91 $199.00 B

48930BP 16L 22 3000mm 80mm 80mm 14 kg $1,699.09 $1,869.00 A

RP1-24-3 Pressure Regulator Kit $230.91 $254.00 B

RP1-24-4 Pressure Regulator Kit $161.82 $178.00 B

DRAWING

0287

DRAWING

0632

DRAWING

10721

DRAWING

0694

489

RP1-24-4

Suitable for mounting

direct to base of

stand-alone Shurflo and

Selecta 12V pumps

RP1-24-3

Suitable for

mounting to the

tanks of 12V

spray units

PRESSURE REGULATOR KITS

38 CALL: 1300 745 826 or visit silvan.com.au for more information

Booms & Hose Reels

190

BARE HOSE REELS

• Powder coated steel

• Made in Italy

• 181 to suit up to: 30m of 10mm hose or

20m of 12.5mm hose

• 190 to suit up to 100m of 12.5mm hose

• Supplied unassembled

ECO HOSE REEL

• Powder coated steel

• 30m of 10mm Ag hose

• 2.5m of 10mm ID hose for inlet

• 1/4” BSP brass outlet on hose

• Lockable hub with locking pin

• Common foot print suits

300L Lightfoot and 400L/800L

SquatPak tanks

181

ECONOMY HOSE REELS

• Powder coated

• Steel plate construction with rewind handle

• Brass swivel and fittings are standard

• Common foot print suits 300L Lightfoot and

400L/800L SquatPak tanks

180E03010C:

• 30m of 10mm AG hose

• PA Spray gun

180E02012CT:

• 20m of 12.5mm AG hose

• JetPro 49 Spray gun

CODE LENGTH WIDTH HEIGHT WT SPRAY

GUN

HOSE

LENGTH /I.D. MAX PRESS LIST EX LIST INC CAT

181 450mm 350mm 370mm 4 kg - - 20Bar/290 psi $303.64 $334.00 A

190 500mm 500mm 500mm 9 kg - - 17Bar/250 psi $302.73 $333.00 A

180E02012CT 450mm 350mm 370mm 12 kg JetPro 20m/12.5mm 20Bar/290 psi $530.00 $583.00 A

180E03010C 450mm 350mm 370mm 12 kg Atomiser 30m/10mm 20Bar/290 psi $471.82 $519.00 A

180G03010B 330mm 375mm 390mm 10 kg - 30m/10mm 20Bar/290 psi $217.27 $239.00 A

180E02012CT

180E03010C

DRAWING

10555

DRAWING

10665

180G03010B 180G03010C

ECO HOSE

REEL

INCLUDES

ATOMIZER+

SPRAY GUN

• Powder coated steel

• 2.5m of 10mm ID

hose for inlet

• Lockable hub with

locking pin

• 1/4” BSP brass

outlet on hose

SPRAY LEVER

CHANGES

THE SPRAY

PATTERN

CALL: 1300 745 826 or visit silvan.com.au for more information

Booms & Hose Reels

CODE LENGTH WIDTH HEIGHT WT SPRAY

GUN

HOSE

LENGTH/I.D. MAX PRESS. LIST EX LIST GST) CAT

180L01008A 360mm 140mm 290mm 4.1 kg - 10m/8mm 16 Bar/240 psi $136.36 $150.00 A

180J1510A 400mm 160mm 450mm 7 kg - 15m/10mm 20 Bar/290 psi $171.82 $189.00 A

15M SPRING

RETRACTABLE HOSE REEL

Suitable for air, water or agricultural chemicals.

• Ideal for Linkage Sprayers

• Can also be mounted on workshop wall

• 1/4” BSP M outlet connection

• 15m of 10mm ID hose

• 1.5m inlet hose

• Max pressure 20 Bar

• Ideal to use with 100L Redline sprayer

and Smoothflo sprayers

180L01008A

CHEMICALWATERAIR

Scan here to see

the 15m Spring

Retractable Hose

Reel in action!

10M SPRING RETRACTABLE HOSE REEL

A versatile compact hose reel ideal for air,

water and spraying applications.

• 10m of 8mm delivery hose & hose stop

• 1m inlet hose

• Max pressure 16 Bar/240psi

• 1/4” BSP M inlet/outlet connectors

• Swivelling steel mounting bracket

• Spring rewind with multi position latching

• Suitable for air, water or agricultural chemicals

• Ideal to use with 25L & 55L Redline sprayers

270°

SWIVEL

180J1510A

SWIVELLING STEEL

MOUNTING BRACKET

40 CALL: 1300 745 826 or visit silvan.com.au for more information

Booms & Hose Reels

147R10012T

REEL TUFF 12V HEAVY DUTY REMOTE REEL

The professional tool for convenience, ideal for contract spraying or farm.

This reel can be used for road side spraying, through undulating scrub,

poulty sheds or glass houses.

• Heavy-Duty High torque Direct Drive Gear box

• Galvanised steel construction for corrosion & scratch resistance

• Long range remote system with automatic frequency hopping

technology for interference-free use, 915mhz

• 100m of 1/2” Nylon tubing

• Turbo 400 spray gun with Snap-Lock connectors for neat storage

Ratcheting pin lock for transport, keeps hose on the spool

• No belts, chains or sprockets to maintain

OPTIONAL BRACKET

FOR TPL MOUNTING

131 SERIES HEAVY DUTY SLASHER

Made in Australia with a quality ﬁve stage powder coating

process to increase longevity. Suited to large acreage

applications including ﬁeld clearance, ﬁrebreaks, private

roadsides or where major cutting and clearing is required.

• 5’, 6’ and 7’ cutting widths

• 75 HP (100HP optional)

• Front and rear rubber stoneguards

• Optional height control wheel

• Work cover #2797 compliant

CODE DESCRIPTION LENGTH WIDTH HEIGHT WT MAX PRESS LIST EX LIST INC CAT

147R10012T Reel Tuff 12V Remote Reel 750mm 500mm 850mm 50 kg 40 Bar/580 psi $3,790.91 $4,170.00 9

NEATLY CONTAINED

DIRECT DRIVE

GEARBOX IS

MAINTENANCE FREE

SELF RACHETING

PINLOCK KEEPS HOSE

TAUGHT AND SECURE

IN TRANSIT

FITTED WITH SNAP-

LOCK FOR NEAT GUN

STORAGE OR CHANGE

FREQUENCY

HOPPING IMPROVES

RELIABILITY TO

WORK AROUND

INTERFERENCE

RATCHETING PIN LOCK

ELIMINATES

ACCIDENTAL UNSPOOLING

LONG RANGE

REMOTE SYSTEM

HEAVY GAUGE HOT

DIPPED GALVANISED

STEEL FOR LONGER

WORKING LIFE

CALL: 1300 745 826 or visit silvan.com.au for more information

Booms & Hose Reels

SILVAN E-WIND

12 VOLT REMOTE HOSEREEL

• Heavy Duty steel construction

with powder coated finish

• 12 Volt High Torque Electric

Motor direct coupled to Gearbox.

Max 25amp under load

• Reel hub freely unwinds and uses

electric clutch to engage rewind

• Arial is positioned inside

the control box

• Heavy Duty controller

• 100m Smoothline hose

and Atomiser + Spray Gun

NEW

RELEASE

CODE DESCRIPTION LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

180K10012T Remote Reel with 100m Hose and Gun 590mm 400mm 735mm 49 kg $3,271.82 $3,599.00 9

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

* Special Dealer Discount applies to these items

180K10012T

Booms & Hose Reels

CALL: 1300 745 826 or visit silvan.com.au for more information

Booms & Hose Reels

KEY: 4 Available option

8 Not recommended

Fitted: Already fitted to unit

4* Unit requires extra 186-12C hose

(sold separately) in order to mount the

nozzle kit in a suitable location on the vehicle

PLEASE NOTE: If fitting on a unit with a pressure regulator (RPI-24-3),

an adapter (G8001151) will be required (sold separately).

WARNING: Refer to vehicle or tractor manufacturer’s instructions for appropriate load

and towing limits and fitting positions. Never fill the spray tank capacity to

exceed the vehicle or tractor manufacturer’s specified safe load carrying capacities.

NOTE: 1L of water = 1kg

PRODUCT PRESS

REG

SPRAY BOOMS & PAK BOOMS CROSS FOLD BOOMS BOOMLESS NOZZLES

2M 3M 4M 3M 4M SINGLE TWIN BRASS

(02)

BRASS

(05)

REDLINE

55L

REDLINE

100L

L99-09 L99-08 RP1-10 RP1-25 RP1-26 M99-74 M99-75 M99-65 M99-66 TR55-10 TR100-10

REDLINE SPOTPAK - 25L TO 100L

SP25-B/SP25-R1 (25L) 84888888884*8

SP55-R1 (55L) 84888888884*8

SP100-R2 (100L) 4*4 4 4 8 8 4*84*8 8 4*

SPOTPAK - 50L TO 200L

SP50-S7 (50L) 4444484*84*888

SP100-S7(100L) 4444484*84*888

SP200-S7 (200L) 4444484*84*888

QUADPAK - 50L & 70L

RP50-P1 (50L) 4*4 4 4 8 8 4*84*888

RP70-P1 (70L) 4*4 4 4 8 8 4*84*888

RAKPAK -70L

RP70N-S7 (70L) 4 4 4 4 4 8 4 8 4 8 8 8

RP70N-S3 (70L) 4444444*4*4 4 8 8

RP70N-S10 (70L) 4444444*4*4 4 8 8

UTEPAK - 100L

UP100-S7-2 (100L) 4444484*84*888

TRUKPAK-200L

TK200-S7-1 & -2 (200L) 4 4 4 4 4 8 4 8 4 8 8 8

TK200-S9 - 1 & -2 (200L) 888888888888

TK200-S3 (200L) 44444*4*4*4*4*4 8 8

TK200-S10 (200L) 44444*4*4*4*4*4 8 8

LIGHTFOOT - 300L TRAILED

LT30-S5 (300L) 84444444*4*4*4*8

LT30-S8 (300L) Fitted 4444444*4*4*4*8

LT30-S8-1 & 2 (300L) Fitted 4444444*4*4*8 8

LT30-34 & LT30-34-2 (300L) Fitted 4444444*4*888

SQUATPAK - 300L & 400L

SQ300-S7-1 & S2 4 4 4 4 4 8 4 8 4 8 8 8

SQ-400-S7-1 (400L) Fitted 444484*84*888

SQ400-S8-1 (400L) Fitted 444444*4*4*4*8 8

L04H4-42 (400L) Fitted 444444*4*4*4 8 8

TRAYLINK 200L & 300L

K02A (200L) Fitted 4 4 4 8 8 Fitted Fitted 4*888

K03A (300L) Fitted 44444Fitted Fitted 4*888

TROLLEY SPRAYERS - 25L

SP25-TR2 (25L) 848888888848

TR25-P (25L) Fitted 88888888888

TR25-S7 (25L) 888888888888

12V PUMPS

DDP-552A 4 4 4 4 4 8 4 8 4 8 8 8

DDP-550,DDP-551 44444444448 8

DDP-554 888888888888

DDP-555 44444444448 8

381-35 84888888884*8

381-38 84888888884*8

381-2000 4 4 4 4 8 8 4 8 4 8 8 4*

381-125 44444444448 8

361-SLV10-AA40 84888888884*8

361-8000 4 4 4 4 4 8 4 8 4 8 8 8

361-2088 44444444448 8

CALL: 1300 745 826 or visit silvan.com.au for more information

Accessory Fitment Chart

Guidance, Monitors

& Foam Markers

44 CALL: 1300 745 826 or visit silvan.com.au for more information

Booms & Hose Reels

Guidance & Monitors

44 CALL: 1300 745 826 or visit silvan.com.au for more information

Guidance & Monitors

CODE DESCRIPTION LIST EX LIST INC CAT

GD430-GLO-P-L Matrix 430 $2,271.82 $2,499.00 A

GPS GUIDANCE SYSTEMS

The Matrix use’s GPS technology to help guide tractors and machinery when boom spraying to minimise spray

overlap/underlap to ensure optimal application. This modern advancement is ideal for use with a Boom Spray,

Fertiliser Spreaders or even when raking hay to keep you on track and in a straight line replacing and enhancing

the function of a foam marker.

Return to Point

Curved A-B GuidanceStraight A-B Guidance

MATRIX GUIDANCE FUNCTIONS

Circle Pivot Guidance Last Pass Guidance

MATRIX 430

• Versatile GNSS guidance in a compact, portable package

• High-contrast, full colour, 4.3 in / 110mm graphic touchscreen

display provides superior visibility in bright light conditions

• Guidance modes include: Straight AB, Curved AB, Circle Pivot

and Last Pass

• Applied alert provides operator with audible alarm

when entering into previously applied areas

• Area counter measures and displays applied area

throughout application

• Elapsed time counter measures amount of

time spent on current job

GD430-GLO-P-L

CALL: 1300 745 826 or visit silvan.com.au for more information

Booms & Hose Reels

Guidance & Monitors Guidance & Monitors

CALL: 1300 745 826 or visit silvan.com.au for more information

GPS Guidance

CODE DESCRIPTION LIST EX LIST INC CAT

VISHA VISIO Hectare Meter $590.00 $649.00 A

VISHAF10200 VISIO Rate Monitor $1,160.00 $1,276.00 A

VISHAF10200

VISIO HECTARE METER

Simultaneous display of treated area and

ground speed using an inductive speed sensor.

1. Visio display unit

2. Cable kit for single sensor

3. Inductive speed sensor

Visio is the innovative multi-function display featuring compact dimensions and accuracy at an affordable price.

The desired function can be selected via software. It can be connected to several sensors, to view a wide range of

data from agricultural spraying applications.

Overall dimensions: 125mm (W) x 80mm (H) x 65mm (D) Screen size: 65mm backlit LCD display.

Note: Fitment and plumbing required when fitting to existing sprayers.

VISIO RATE MONITOR

Display of ground speed, area, flow rate,

application rate and volume using a

10-200 L/min (40 Bar) flow sensor.

1. Visio display unit

2. Cable kit for double sensor

3. Inductive speed detector

4. 10-200 L/min (40 Bar) ‘WOLF’ flowmeter

VISHA

46 CALL: 1300 745 826 or visit silvan.com.au for more information

Booms & Hose Reels

Monitors

CODE DESCRIPTION LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

042M 14L Foam Marker 570mm 195mm 340mm 12 kg $743.64 $818.00 A

042D-16S 16L Foam Marker 570mm 210mm 460mm 14.5 kg $950.00 $1,045.00 A

042D-57 57L Paddock Foam Marker 850mm 300mm 570mm 21 kg $1,450.00 $1,595.00 A

FOAM MARKERS

Designed for the spray operator that can have a visual

reference of the areas sprayed with a boom, eliminating

expensive under or over lapping of chemicals.

• UV stabilised poly tanks

• 12 volt fully sealed, dust free diaphragm

compressor with breather

• In cab remote mounted control box with wiring loom

• Valve for foam output adjustment

• 1L foam marker concentrate supplied with each unit

14L MODEL - 042M

• 10m reinforced delivery hose and single foam dropper

16L MODEL - 042D-16S

• 16m delivery hose and double foam droppers

• In cab remote with On/Off & Left/Right control

57L MODEL - 042D-57

• 36m delivery hose and Double foam droppers

• In cab remote with On/Off & Left/Right control

DRAWING

0725

042M

042D-16S

042D-57

SHOWN WITH 600L

LINKAGE SPRAYER

Booms & Hose ReelsGuidance & Monitors

CALL: 1300 745 826 or visit silvan.com.au for more information

Monitors Foam Markers

5L FOAM CONCENTRATE

Makes 500L of high density foam Provides

excellent visibility and long life on the ground.

071-4D

CODE DESCRIPTION LENGTH WIDTH HEIGHT LIST EX LIST INC CAT

071-1LAC 1L All Clear Tank Cleaner $60.00 $66.00 B

071-4D 5L Foam Concentrate $85.45 $94.00 B

042C-6 Compressor 37L/min 12V 200mm 110mm 140mm $252.73 $278.00 B

042D-45201 Compressor 38L/min 12V Heavy Duty 200mm 140mm 170mm $365.45 $402.00 A

042D-45201

12V HEAVY DUTY COMPRESSOR

As used on Silvan foam markers. Ideal for high

volume, low pressure foam making application.

• 1/4” BSP outlet

• 38L/min@32kPa/4.6psi

• 96W

042C-6

071-1LAC

DRAWING

5003

DRAWING

10138

ALL CLEAR TANK CLEANER

Remove pesticide deposits and other debris,

including oily substance from tanks, hoses,

booms, transfer and mixing systems, filters,

screens and nozzles

• 1L of All Clear makes up to

400L of cleaning solution

12V COMPRESSOR

As used on Selecta foam markers. Ideal for high volume,

low pressure foam making application.

• 1/8” BSP outlet

• 37L/min@32kPa/4.6psi

• 60W

CALL: 1300 745 826 or visit silvan.com.au for more information

Spray Guns

48 CALL: 1300 745 826 or visit silvan.com.au for more information

Foam Markers

Spray Guns

GENUINE

ACCESSORIES

GENUINE

ACCESSORIES

CALL: 1300 745 826 or visit silvan.com.au for more information

Spray Guns Spray Guns

CALL: 1300 745 826 or visit silvan.com.au for more information

Spray Guns

JETPRO SPRAY GUN

Ergonomic design for comfortable hold and to reduce fatigue

• Strong corrosion resistant lance with non-drip shut off at nozzle

• Max pressure 40bar (600psi) to support atomising spray

for greater coverage

• Supplied with hose swivel, 1/2” and 3/8” hosetails

• Professional spray gun, that has the ability to deliver a straight

stream to a cone spray pattern by easily adjusting the trigger.

The spray gun has a locking device that allows the operator to set

a desired spray pattern for easier constant spraying requirements

Fine cone pattern

is ideal for spraying

pesticide

Pencil stream is ideal

for herbicide and

distance spraying

CODE DESCRIPTION HOSE SIZES I.D. LENGTH WT MAX PRESSURE LIST EX LIST INC CAT

410-53 JetPro Spray Gun 3/8” 1/2” 380mm .755 kg 40 Bar/600 psi $122.73 $135.00 B

ERGONOMIC

HANDLE

REDUCES

FATIGUE

NEW and improved handle

design exclusive to SILVAN

OLD

HANDLE

DESIGN

Max. pressure rating of

4000kPa (600psi) Variable

spray pattern from straight

stream to conical mist

410-53

Polypropylene

handgun construction

and comfortable

ergonomic trigger

grip action

Supplied with 1/2" and 3/8"

hosetails & swivel

50 CALL: 1300 745 826 or visit silvan.com.au for more information

Spray Guns

410-54

CODE DESCRIPTION HOSE SIZES I.D. MAX PRESSURE LENGTH WT LIST EX LIST INC CAT

410-54 Tommy Gun 12.5mm 50 Bar/725 psi 570mm 1.7 kg $90.00 $99.00 B

CODE DESCRIPTION HOSE SIZES I.D. MAX PRESSURE LENGTH WT LIST EX LIST INC CAT

410-55 High Pressure Hand Gun 12.5mm 50 Bar/725 psi 1170mm 1.4 kg $144.53 $159.00 B

TOMMY GUN

Designed for applications where volume and ranged spraying are required up to 25 meters.

Uses include tree spraying, watering, ﬁre ﬁghting, wash down, cleaning chicken sheds.

• Front hand piece ergonomically adjusts spray

pattern from distance to wide spray

• On/Off Trigger lock for easy no strain spraying

• Tough tungsten nozzle

• 1/2” BSP thread

• Supplied with 2 nozzles, 1.5 and 2.5mm

HIGH PRESSURE HAND GUN

Utilise the power of your spray pump to operate

this high powered pressure washer.

• Circular pulse nozzle enhances pressure

for deep cleaning

• Requires 30 + Bar to operate

• Ideal for cleaning Tractor, Implements and

sprayers after use and general cleaning

• Portable use as this cleaning gun can be used

anywhere within the range of your high pressure

sprayer and doesn’t require a 240V Connection

NEW

RELEASE

NEW

RELEASE

CALL: 1300 745 826 or visit silvan.com.au for more information

Spray Guns Spray Guns

DRAWING

10806

CODE DESCRIPTION HOSE SIZES I.D. MAX PRESSURE LENGTH WT LIST EX LIST INC CAT

382-052 Redline Spray Gun 8/10mm 6.6 Bar/100 psi 770mm 0.420 kg $20.00 $22.00 B

401-213-05 10mm Hosetail and O’Ring $1.36 $1.50 B

401-213-05

10MM HOSETAIL & O’RING

(OPTIONAL)

TRIGGER SPRAY GUN

This Lightweight durable spraygun is a replacement gun on our Redline 25L & 55L Sprayer.

Suitable for many hand sprayers, knapsack sprayers and 12 volt sprayers.

• Adjustable nozzle that produce a straight stream or a conical spray pattern

• The poly hand piece has a lock on/off feature

• Fitted with chemical resistant O’Rings

• Stainless steel lance

• 6mm hosetail supplied

382-052

52 CALL: 1300 745 826 or visit silvan.com.au for more information

Spray Guns

ATOMISER+ SPRAY GUN

A Heavy Duty spray gun designed for professional and general

spraying with an ergonomic handle to maintain comfort of use.

An adjustable spray lever changes spray from straight stream

to conical mist.

• Heavy duty polypropylene construction with steel/brass barrel

• Airvac nozzle shroud atomiser ensures a very fine mist for

excellent leaf coverage and reduction of droplet leakage

• 1/2” Bsp Male with hose tails to suit 10 & 12.5mm ID hose

FINE MIST SETTING IS IDEAL FOR SPRAYING PESTICIDE

PENCIL STREAM IS IDEAL FOR HERBICIDE AND DISTANCE SPRAYING

SPRAY LEVER CHANGES THE SPRAY PATTERN

410-52

CODE DESCRIPTION HOSE SIZES I.D. LENGTH MAX

PRESSURE WT LIST EX LIST INC CAT

410-52 Atomiser+ Spray Gun 10/12.5mm 400mm 40 Bar/580 psi 0.70 kg $92.73 $102.00 B

CALL: 1300 745 826 or visit silvan.com.au for more information

Spray Guns Spray Guns

410-43

DRAWING

10533

410-11 WITH

115mm BARREL

TRIAM SPRAY GUN

Ideal for high pressure applications with a trigger adjustable

spray pattern for straight stream for distance or wide cone

for atomising with non-drip shut-off at nozzle. Has a sturdy

stainless steel/brass barrel and a polypropylene handgun

construction to help reduce fatigue. Supplied with hose

swivel, cone and fan nozzle.

• 1/2” BSP M inlet

supplied with 3/8”

and 1/2” hosetails

CODE DESCRIPTION HOSE SIZES I.D. LENGTH WT MAX PRESSURE LIST EX LIST INC CAT

410-43 Varijet Spray Gun With Adjustable

Spray Pattern 10/12.5mm 293mm 0.500 kg 40 Bar/600 psi $193.64 $213.00 B

410-11 Triam 44 Spray Gun 10/12.5mm 305mm 0.650 kg 40 Bar/600 psi $171.82 $189.00 B

410-12 Maxi Triam Spray Gun 10/12.5mm 620mm 1.020 kg 40 Bar/600 psi $251.82 $277.00 B

SERVICE KIT CODE 401-45BR Service Kit to Suit 44 Triam Spray Guns $28.18 $31.00 B

DRAWING

10729

DRAWING

10059

410-12 WITH

390mm BARREL

VARIJET SPRAY GUN MKII

Lightweight, corrosion resistant ergonomical design,

sprays from straight stream to conical mist.

• Spray pattern changes by rotating gun barrel

• On/off trigger grip action with lock off position

• Designed to reduce fatigue while spraying

• 1/2” BSP M inlet with hose tail to fit 10/12.5mm hose

• Hose swivel Included

54 CALL: 1300 745 826 or visit silvan.com.au for more information

Spray Guns

CODE DESCRIPTION HOSE SIZES I.D. LENGTH WT MAX. PRESSURE LIST EX LIST INC CAT

411-26 M30 Spray Gun - Long 10/12.5mm 710mm 0.330 kg 20 Bar/290 psi $75.45 $83.00 B

411-25 M30 Spray Gun - Short 10/12.5mm 370mm 0.300 kg 20 Bar/290 psi $73.64 $81.00 B

401-30-302-25 Service Kit to Suit M30 Spray Gun Only $19.09 $21.00 B

479-1928 Spare Nozzle $8.82 $9.70 B

M30 JET TRIGGER SPRAY GUNS

Features a very strong and sturdy handgun body with on/off trigger and locking device.

Extremely lightweight and comfortable. Supplied with extension lance and brass adjustable nozzle.

• 1/2” BSP M inlet supplied with 3/8” and 1/2” hosetails

DRAWING

10264

DRAWING

10278

411-26

411-25

Adjustable conical

spray pattern

Pencil stream

sprays up to 8m*

CALL: 1300 745 826 or visit silvan.com.au for more information

Spray Guns Spray Guns

CODE DESCRIPTION HOSE SIZE WT MAX. PRESSURE LIST EX LIST INC CAT

410-26 Kwazar Telescopic Spray Lance 8mm 0.2 kg 6.6 Bar/100 psi $53.64 $59.00 B

C1210-043 ‘O’ ring $1.18 $1.30 B

401-WN040 45 Degree Elbow And Nozzle Cap $10.91 $12.00 B

401-213-05 Hose Tail $1.36 $1.50 B

5500-PPB-X18 Replacement Nozzle $26.36 $29.00 B

CODE DESCRIPTION HOSE I.D. LENGTH WT MAX. PRESSURE LIST EX LIST INC CAT

410-34 500mm S/S Lance, Cone & Fan Nozzle 10mm/12.5 700mm 0.42 kg 20 Bar/290 psi $126.36 $139.00 B

410-30 200mm Poly Lance & Adj. Brass Nozzle 10mm/12.5 430mm 0.32 kg 20 Bar/290 psi $126.34 $136.00 B

410-38 Spray Gun With Adjustable Brass Nozzle 10mm/12.5 230mm 0.35 kg 20 Bar/290 psi $61.82 $160.00 B

PARTS

CODE

410-36 Replacement Stainless Steel Lance To Suit 410-34 PA Spray Gun $61.82 $68.00 B

5500-PPB-X12 Optional Adjustable Poly Nozzle To Suit 410-34 $26.36 $29.00 B

410-32 Replacement Poly Lance To Suit 410-30 PA Spray Gun $34.55 $38.00 B

SERVICE KIT 410-30000224 Service Kit To Suit PA Series Spray Guns (No Spring Included) $25.45 $28.00 B

DRAWING

10472

DRAWING

10473

DRAWING

10474

KWAZAR TELESCOPIC SPRAY LANCE

Supplied standard with fully adjustable nozzle.

Extends from 600mm to 1000mm.

410-26

PA SPRAY GUN

Selecta spray guns are designed to help reduce fa tigue

whilst hand spraying. Popular with farmers, orchardists and

contractors they are manufactured in a range of materials

from stainless steel, brass and polypropylene.

• On/off trigger grip action with lock off position

• Fibreglass reinforced body

• 1/4” BSP F inlet supplied with 3/8” and 1/2” hosetails

410-38

410-30

410-34

56 CALL: 1300 745 826 or visit silvan.com.au for more information

Spray Guns

CURVED LANCE

GUNJET 30 SPRAY GUN

The Gunjet 30 spray gun is ideal for all types of spraying.

Both spray guns are durable and designed for excellent corrosion

resistance. The AAB30L-1/4 body and trigger are moulded from

tough nylon and the AAB30L-PP from polypropylene.

TO ORDER: SPECIFY LANCE EXTENSION SIZE (INCHES) –

SEE EXAMPLES BELOW.

* Hosetails not supplied (see below)

AAB30L-1/4

AAB30L-PP

AA31

STRAIGHT LANCE

7715-**(sizes available: 8,12; 18; 24; 30; 36 and 48 inch)

* To order: 7715-8 (8 inch)

DRAWING

0599

DRAWING

0600

6671-** (sizes available: 8,18; 24; 30; 36 & 48 inch)

* To order: 6671-8 (8 inch)

CODE DESCRIPTION LIST EX LIST INC CAT

6671-** 8 - 48 Curved Extension With Fixed Body $36.36 *from $40.00 B

7715-** 8 - 48 Straight Extension *from $30.91 *from $34.00 B

CODE INLET CONNECTION LENGTH WT MAX. PRESSURE MAX. FLOW LIST EX LIST INC CAT

AAB30L-1/4 1/4” BSPT (F) 160mm 0.436 kg 16 Bar/250 psi 19 L/min $117.27 $129.00 B

AAB30L-PP 1/4” BSPT (F) 160mm 0.370 kg 10 Bar/150 psi 19 L/min $122.73 $135.00 B

AA31 500psi (35 bar) $173.64 $191.00 B

474-191T Brass Hosetail 1/4 “Male x 3/8 “ Barb $4.64 $5.10 B

474-200T Brass Hosetail 1/4 “Male x 1/2 “ Barb $4.73 $5.20 B

AB30L-KIT Service Kit To Suit Gunjet 30 (AAB30L - 1/4) $30.00 $33.00 B

PK-AB30L-PP-KIT Service Kit To Suit Gunjet 30 (AAB30L - PP) $41.82 $46.00 B

AAB30L-1/4 pictured with

7715-12 Straight lance

(each sold seperately)

AA31 pictured with 6671-24 curved lance (each sold seperately)

CALL: 1300 745 826 or visit silvan.com.au for more information

Spray Guns Spray Guns

CODE DESCRIPTION HOSE I.D. LENGTH WT MAX. PRESSURE LIST EX LIST INC CAT

411-22 Turbo 400 10/12.5mm 440mm 0.700 kg 50 Bar/725 psi $190.00 $209.00 B

401-26BRQS Turbo 400 10/12.5mm 440mm 0.700 kg 50 Bar/725 psi $167.27 $184.00 B

401-26BR-001 Service Kit To Suit Turbo 400 Spray Gun $74.55 $82.01 B

CODE INLET CONNECTION LENGTH WT MAX. PRESSURE MATERIAL LIST EX LIST INC CAT

AAB43HA-8 1/2” BSPT (F) 330mm 1.30 kg 53 Bar/797 psi Brass $317.27 $349.00 B

AAB43LA-AL8 1/2” BSPT (F) 330mm 1.00 kg 3.5 Bar/203 psi Aluminium $286.36 $315.00 B

474-209 Hosetail 1/2 “Male x 3/8 “ Barb Brass $11.82 $13.00 B

474-207 Hosetail 1/2 “Male x 1/2 “ Barb Brass $9.09 $10.00 B

PK-AB43-KIT Service Kit To Suit Gunjet 43 (Brass) $89.09 $98.00 B

PK-AB43-AL-KIT Service Kit To Suit Gunjet 43 (Aluminium) $89.09 $98.00 B

DRAWING

10706

DRAWING

107156

NOZZLE OPTIONS SIZE

MA7-10 1.0

MA7-12 1.2

MA7-15 1.5

MA7-18 1.8

MA7-20 2.0

TURBO 400 SPRAY GUN

Constructed from high impact chemical resistant plastic

with stain less steel and brass components. Features

include spring loaded adjustable spray lever with variable

spray control from misting to spot spraying and a trigger

locking device. The Airvac nozzle shroud atomiser ensures

a very ﬁne mist with excel lent leaf coverage and reduction

of droplet leak age when operating from 1500kPa upwards.

• Minimum operating pressure for misting is 150 psi

• 1/2” BSP M inlet and hose swivel.

• Supplied with 3/8” and 1/2” hosetails

NOZZLE OPTIONS SIZE

MA7-23 2.3

MA7-25 2.5

MA7-30 3.0

MA7-35 3.5

MA7-40 4.0

GUNJET 43 SPRAY GUN

A heavy duty robust spray gun ideal for professional

contractors and for spraying blackberries and

Patterson’s Curse. Stem extends through extension

to valve seat located directly behind oriﬁce disc for

drip-free shutoff and instant operating response.

Convenient trigger-lock for continuous spraying.

401-26BRQS

Aluminium hand piece with trigger guard

AAB43HA-8

411-22

With polypropylene hand piece

58 CALL: 1300 745 826 or visit silvan.com.au for more information

Spray Guns

ADJUSTABLE NOZZLES

5500-X**: Brass nozzle provides half turn for wide angle, ﬁnely atomised cone

spray to a straight stream distance spraying.

(SIZES AVAILABLE: -X1;-X2; -X3; -X4; -X5; -X6; -X8; -X10; -X12; -X14)

*To order: 5500-X1 for -X1 size

5500-PPB-X**: Poly version provides excellent chemical resistance and is

lightweight, making it well suited for hand held and backPack type sprayers.

(SIZES AVAILABLE: -X3; -X5; -X6; -X8; -X12; -X18)

*To order: 5500-PPB-X3 for -X3 size

ADJUSTABLE NOZZLES

Single adjustable brass nozzle suit Triam and low pressure guns.

5500-X**

5500-PPB-X**

417-80

SPRAY HOSE SWIVEL

Eliminates twisted hose. Brass with Viton ‘O’ ring.

• Thread size 1/2” BSPT male/female 418-94

CODE DESCRIPTION MAX. TEMP LENGTH WT MAX. PRESSURE LIST EX LIST INC CAT

418-94 Spray Hose Swivel 93˚C (200˚) 40mm 80gm 50 Bar/725 psi $34.55 $38.00 B

CODE MATERIAL LENGTH WT MAX. PRESSURE LIST EX LIST INC CAT

5500-X** Brass 42mm 46gm 10 Bar/145 psi $43.64 $48.00 B

5500-PPB-X** Poly 47mm 8gm 10 Bar/145 psi $26.36 $29.00 B

417-80 Brass 65mm 90gm 13 Bar/200 psi $38.18 $42.00 B

CALL: 1300 745 826 or visit silvan.com.au for more information

Spray Guns Spray Guns

CODE INLET CONNECTION LENGTH WEIGHT MAX PRESSURE LIST EX LIST INC CAT

406-02-PK 1/2” BSPT (M) 75mm 155gm 30 Bar/435 psi $102.73 $113.00 B

406-03-PK 1/2” BSPT (M) 75mm 40gm 14 Bar/210 psi $84.55 $93.00 B

CODE INLET CONNECTION LENGTH WEIGHT MAX PRESSURE LIST EX LIST INC CAT

382-076 Redline Spray Shield 220mm 64 g 4 Bar/60 psi $9.90 $10.89 B

417-86A Various 295mm 0.700kg 9.3 Bar /140 psi $57.27 $63.00 B

SPRAY SHIELDS

Helps reduce excess spray drift. Complete with swivel adjustment.

Supplied with adapters to adapt to the Spotjet and PA spray guns,

which are ﬁtted to popular sprayers.

Also; Jet Trigger, Gunjet 30 (with or without extension) and Gunjet 43.

Includes Non-drip check valve, 80 deg (-02) ﬂat fan nozzle and swivel

elbow connection to the spraygun.

See earlier pages for spray guns.

417-86A

SNAP COUPLING BRASS

Provides instant liquid cut off when pistol is detached from spray hose.

1/2” BSP male. Max pressure 3000 kPa/435 psi.

SNAP COUPLING POLY

Provides instant liquid cut off when pistol is detached from spray hose.

• 1/2” BSP male with locking device

• Maximum pressure 1450 kPa/210 psi.

406-02-PK

FITS TO

SMOOTHFLO

SPOTPAKS

DRAWING

10920

406-03-PK

382-076

CALL: 1300 745 826 or visit silvan.com.au for more information

Hand & Backpack Sprayers Hand & Backpack Sprayers

60 CALL: 1300 745 826 or visit silvan.com.au for more information

Spray Guns

Hand,

Backpack

& Trolley

Sprayers

CALL: 1300 745 826 or visit silvan.com.au for more information

Hand & Backpack Sprayers Hand & Backpack Sprayers

CALL: 1300 745 826 or visit silvan.com.au for more information

Spray Guns Hand & Backpack Sprayers

Silvan Sprayers

Feature packed professional & household ranges

for efficient & easy spraying

3 BAR MAX PRESSURE

WITH RELEASE VALVE

ROBUST

WHEELS FOR

EASY CARTING

HANDLE HEIGHT

ADJUSTMENT

PADDED LARGE

LOOP HANDLE

FOR COMFORT

CONVENIENT LANCE

HOLDER

SUPERIOR

NON-SPILL LID

3 DIFFERENT NOZZLES

SUPPLIED: ADJUSTABLE

BRASS, ADJUSTABLE PLASTIC

& FLAT FAN PLASTIC

VITON EQUIPPED TRIGGER LOCK FOR

CONTINUOUS SPRAYING

CORROSION RESISTANT

SPRAY LANCE WITH

SOFT HAND GRIP

EASY OPERATING SPRAY

HANDLE FOR LEFT OR

RIGHT HANDED USE

FERTILISERS

HERBICIDES PESTICIDES DEGREASER CONCRETE

SEALING

KNOW YOUR APPLICATIONS

Hand & Backpack Sprayers

62 CALL: 1300 745 826 or visit silvan.com.au for more information

Hand & Backpack Sprayers Hand & Backpack Sprayers

4L & 8L CHAPIN SURESPRAY

PORTABLE SPRAYERS

Suitable for applying herbicide, pesticide,

fertiliser and degreaser.

• Strong polyethylene tank with funnel top opening

• Spray gun includes a brass & plastic adjustable nozzle

• Includes clip-on spray shield and anti-clog filter

• Includes a 125mL (1/2 cup) measuring cup for

chemicals which latches to spray tank for storage CP-27010 (4L)

CP-27020 (8L)

DRAWING

10691

10728

LEADING

USA BRAND

Since 1884

Pencil stream

spray pattern

Conical

spray pattern

12L HEAVY DUTY TROLLEY

PRESSURE SPRAYER

Viton equipped professional quality pressure sprayer

for accurate application of herbicide, pesticide,

fertiliser, degreaser & cleaning products.

• Trolley wheels and adjustable large loop

handle with comfort grip

• Easy-to-use spray handle with 500mm

aluminium lance and adjustable nozzle

• Easy operating spray handle with

continuous spray feature

TR12-2

CODE DESCRIPTION LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

SERVICE KIT CODE 479-1000 Service Kit To Suit Volpi Hand Sprayer $45.45 $50.00 B

CP-27010 4L Chapin Surespray Portable 187mm 187mm 380mm 1.1 kg $57.27 $63.00 A

CP-27020 8L Chapin Surespray Portable 210mm 210mm 480mm 1.6 kg $66.36 $73.00 A

TR12-2 12L Heavy Duty Trolley Pressure Sprayer 180mm 180mm 600mm 2 kg $79.09 $87.00 A

Silvan Sprayers

Hand & Backpack Sprayers

CALL: 1300 745 826 or visit silvan.com.au for more information

Hand & Backpack Sprayers Hand & Backpack Sprayers

DRAWING

10714

10051

KN15D-1

CODE DESCRIPTION LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

KN15D-1-5 Pack of 5 x KN15D-1 Dealer Reorder Code 210mm 350mm 570mm 4 kg $359.10 $395.01 A

CP-61800 15L Chapin Bkpk Sprayer (Piston Pump) 230mm 388mm 580mm 4 kg $170.91 $188.00 A

15L BACKPACK SPRAYER

Silvan sprayers are professional quality pressure sprayers.

Designed for accurate application of chemicals using adjustable

nozzles for spraying from a ﬁne mist to a coarse pencil stream.

• Fitted with quality Viton diaphragm

• Flat fan and adjustable nozzle

• 500mm spray gun with stainless steel lance

• Lockable spray lance trigger

• Anti spill screw lid and

strainer with handle storage

• Adjustable padded straps

• Left or right side pump handle

Must be purchased in a 5 pack

Adjustable

Padded Straps &

Handle Storage

Adjustable Nozzle

Included (Fine

Mist to Coarse

Pencil Stream)

CP-61800

15L CHAPIN BACKPACK SPRAYER

Ideal for weed control, pest control and fertilisers.

• Viton equipped

• Easy operating spray handle for left or right handed use

• 740mm corrosion resistant spray lance with soft hand grip

and trigger lock for continuous spraying

• Supplied with 3 different nozzles: adjustable brass,

• adjustable plastic and flat fan plastic

• Three stage filtration maintains long working life

• Padded straps and waist belt reduces shoulder strain

• Ergonomically contoured tank for added comfort

• Large Viton piston pump builds pressure fast

LIQUID

CHEMICALS

Pencil stream

spray pattern

Conical

spray pattern

RRP

$79.00

EACH

64 CALL: 1300 745 826 or visit silvan.com.au for more information

Hand & Backpack Sprayers Hand & Backpack Sprayers

CP-63900

CODE DESCRIPTION LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

CP-63900 15L Chapin Bkpk Sprayer (Piston Pump) 230mm 388mm 580mm 4 kg $199.09 $219.00 A

HEAVY DUTY CHAPIN KNAPSACK

Best in class, ease and innovation combined, the Chapin

Self-Cleaning Backpack sprayer is loaded with features for

the DIY Homeowner yet rugged enough for the Professional.

• Commercial quality sprayer with Jet Clean self-cleaning

filter to reduce nozzle blockage

• Stainless steel wand with cushion grip and 3 nozzles - fan,

cone and adjustable brass

• Swing-away handle for right or left hand use, folds up

for storage. Padded shoulder straps and back pad

• Viton seals

• Fold-up handle

Pencil stream

spray pattern

Conical

spray pattern

JetClean self-

cleaning pump

Easy to use gun

Stainless

Steel wand

CALL: 1300 745 826 or visit silvan.com.au for more information

Hand & Backpack Sprayers Hand & Backpack Sprayers

Hand & Backpack Sprayers

66 CALL: 1300 745 826 or visit silvan.com.au for more information

Hand & Backpack Sprayers

CALL: 1300 745 826 or visit silvan.com.au for more information

NBB-3W650

16L RECHARGEABLE BACKPACK SPRAYER

Ideal for weed control, pest control & fertilisers

around the farm, park, garden & nursery.

• UV stabilised polytuff tank

• Rechargeable 7.4V Li-Ion battery with charger

• Heavily padded shoulder straps, adjustable

• 1.5L/min open flow (275kpa/40psi max.)

• Santo diaphragm

• Replacement pump code 382-072 6V pump

• Using adjustable nozzle: Up to 6m throw

14L SILVAN BLOWAMIST

A necessity for any nursery, greenhouse or small orchard.

Fan forced spray mist generates coverage deep into foliage.

• Compact 2 stroke 43cc engine

• 14L chemical tank with anti spill lid

• Chemical throw up to 15 metres

• Variable flow adjuster

• Padded shoulder support

CODE DESCRIPTION LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

WP16-6 16L 6V WeedPak Knapsack 260mm 345mm 550mm 6.5 kg $177.27 $195.00 A

382-072 Replacement Pump for WP16-6 $76.36 $84.00 B

NBB-3W650 14L Silvan Blowamist 380mm 510mm 640mm 10 kg $453.64 $499.00 A

DRAWING

10822

WP16-6

DRAWING

10821

POWERED

SPRAYER

NO PUMPING

REQUIRED!

Scan here to see the

16L Rechargeable

Backpack Sprayer

in action!

Scan here to see

the 14L Selecta

Blowamist

in action!

Safety Equipment & Chemical Transfer

Safety

Equipment

& Chemical

Transfer

Hand & Backpack Sprayers

CALL: 1300 745 826 or visit silvan.com.au for more information

Hand & Backpack Sprayers

CALL: 1300 745 826 or visit silvan.com.au for more information

Safety Equipment & Chemical Transfer

68 CALL: 1300 745 826 or visit silvan.com.au for more information

Safety Gear

SAFETY GOGGLES

• Wide Viewing area & can be worn

with most prescription glasses

• Soft frame for comfort

• Stops 99.99% of UV light

PROFESSIONAL

FACE SHIELD

• Ratchet adjustable

headband

• 200mm x 394mm visor

SCP6015SCP2065

DISPOSABLE

COVERALLS

• One size fits all

• Zipper front

• Long sleeves

• Attached hood

• Elastic cuff & ankle

EAR MUFFS

• 18db reduction rating

• Adjustable fit

SCP8010

SCP5015

CODE DESCRIPTION LIST EX LIST INC CAT

SCP2065 Safety Goggles (Meets AS/NZS 1337) $20.00 $22.00 B

SCP6015 Face Shield $30.91 $34.00 B

SCP5015 Ear Muffs $11.82 $13.00 B

SCP8010 Disposable Coveralls $5.09 $5.60 B

SCP1085 Half Mask Respirator Kit with P2 Filters (Meets AS/NZS 1715-16) $65.45 $72.00 B

SCP1065 P2 Filter Cartridge PK of 2 for Mask SCP1065 (not pictured) $18.18 $20.00 B

SCP1075 A1 Filter Cartridge PK of 2 for Mask SCP1085 (not pictured) $40.91 $45.00 B

JA-2101031 Sundstrom Respirator Kit $243.64 $268.00 B

JA-2101029 Replacement Gas Filter For Sundstrom Respirator Kit $72.73 $80.00 B

SUNDSTROM

RESPIRATOR KIT

Top quality breathing apparatus

comes complete with a gas ﬁlter

suitable to most farm spraying

operations and a pack of ﬁve

pre-ﬁlters, all in a convenient

carry and storage case.

JA-2101031 SCP1085

HALF MASK

RESPIRATOR KIT

• Soft Silicone face seal

• Downward outflow

prevent eyewear fogging

• Supplied with P2

Particulate filter.

• Optional A1 Filter for organic

vapors (meet AS/NZS 1715-16).

• A1 & P2 Filters can be

combined for A1P2 protection

K80S-T5 ASSEMBLY

from a vehicle power source.

The battery pack and motor/fan pack are carried

separately on a belt (supplied) to permit freedom

of movement for up to 6 hours.

The battery pack is recharged from 240 Volt mains

via a supplied recharging unit supplied.

K80S-T9R ASSEMBLY

mounted or independent use with a backup NiCd

rechargeable battery for up to 4 hours of use.

This permits the wearer to safely leave the tractor

or vehicle seat to make machine adjustments, check

spray performance, add chemicals to the tank, etc.

Uses vehicle dashboard plug to power and charge.

KASCO A1P3 FILTER

The A1P3 ﬁlter is particularly formulated to suit

insecticides, fungicides, weed killers, organic vapours

and dust, fumes and mist. The unique ﬁltering system

uses ﬁlter paper as a particulate ﬁlter medium and

activated carbon as the vapour ﬁlter medium. A plastic

cap seals the ﬁlter when not in use, adding durability.

SAFETY SPRAY HELMETS

These helmets supply fan forced and ﬁltered air (up to 120l/m) to the user

in place of a face ﬁtted respirator allowing easy breathing and communication.

K80S-T5

178-0601-19

CODE DESCRIPTION LIST EX LIST INC CAT

K80S-T5 Kasco 6V Independent Use Filter Helmet $1,754.55 $1,930.00 A

K80S-T9R Kasco 12V Vehicle And Independent Use Filter Helmet $1,627.27 $1,790.00 A

178-0601-19 Kasco A1P3 Single Filter $126.36 $139.00 B

K80S-T9R

DRAWING

0335

DRAWING

10791

CALL: 1300 745 826 or visit silvan.com.au for more information

Safety Gear

70 CALL: 1300 745 826 or visit silvan.com.au for more information

JA-2102033

3L JUG

JA-2102032

1L JUG

JA-2102034

5L JUG

15 & 25L CHEMICAL BUCKET

A heavy duty chemical bucket with graduated

handgrip, made from quality U.V. stabilised

polyethylene. Will stand the test of time.

MEASURING JUG

Measure chemicals accurately and pour them

safely with these quality measuring jugs.

• Available in 1, 3 and 5L

CJ25

25 LITRE

CJ15

15 LITRE

CODE DESCRIPTION LIST EX LIST INC CAT

SCP4030 Rodeo Gloves (Meets AS/NZS 2161) $12.73 $14.00 B

JA-2101010 Nitrile Gloves (box of 100) - Large Size $34.55 $38.00 B

JA-2101011 Nitrile Gloves (box of 100) - X Large Size $34.55 $38.01 B

SCP4000 Chemical Gloves (Meets AS/NZS 2161) $10.00 $11.00 B

JA-2101040 Nitrile Gauntlets, Pair - Size 10 $28.18 $31.00 B

JA-2101045 Nitrile Gauntlets, Pair - Size 11 $29.09 $32.00 B

JA-2102032 1L Measuring Jug $11.82 $13.00 B

JA-2102033 3L Measuring Jug $18.18 $20.00 B

JA-2102034 5L Measuring Jug $23.64 $26.00 B

CJ15 15L Chemical Measuring Bucket $46.36 $51.00 B

CJ25 25L Chemical Measuring Bucket $65.45 $72.00 B

RODEO GLOVES

• Hard wearing

• Soft leather

• Retains natural feel

CHEMICAL GLOVES

• Long 450mm length

• Resistant to oil,

greaseand chemicals

NITRILE GAUNTLETS

Chemically toughened for protection

against most agricultural chemicals.

Available in sizes 10 and 11.

NITRILE GENERAL

PURPOSE GLOVES

• Tough and durable with excellent

chemical and oil resistance

• Made from 100% Nitrile rubber

with textured non-slip grip

• Available in Large & X-Large

SCP4030

JA-2101010

JA-2101040

SCP4000

Gloves & Measuring Jugs

F00332100

SELECTA BLUE HAND PUMP

• Piston lever pump

• Viton equipped for broad chemical compatibility

• 15 L/min capacity

• Includes drum adaptors for Mauser

and Greif type drums

• 3 metre delivery kit

• Extendable Dip tube included

Piston hand pump with

delivery kit, dip tube

and drum adaptors.

CODE DESCRITION LIST EX LIST INC CAT

042J-06ST Free Standing Silmix $1,900.00 $2,090.00 A

361-SF

1105-PTS Ag Runner Chemical Transfer Pump Kit $1,936.36 $2,130.00 A

F00332100 Piston Pump Kit $175.45 $193.00 A

361-SF1105-PTS

AG RUNNER CHEMICAL TRANSFER PUMP

The Shurﬂo Ag Runner allows you to pump and measure chemical from

the chemical container directly into the sprayer tank without the need

for manually measuring or any other handling of the chemicals.

• Max Output: 40 L /min open flow,

variable depending on viscosity

• Viton equipped pump

• Max. Pressure: 15psi

• 12V operation with 6m lead & alligator clips

• 1” x 3.6m suction / 1” x 3.6m delivery hoses

• Electrical meter

FREE STANDING SILMIX

• Uses external water supply to activate venturi inductor at

the base of the unit to transfer chemicals from hopper to

sprayer tank. The same water supply operates the wash

bar and drum rinse nozzle in the hopper. Transfer system

requires minimum 2 Bar water pressure to operate

• 30L polyethylene tank with 455mm hinged lid

• 3 on/off taps to control

• Powder washer bar inside hopper

• Drum rinse nozzle

• Chemical transfer venturi. Also has valve at base of unit

to isolate the tank from the induction venturi

DRAWING

10726

042J-06ST

CALL: 1300 745 826 or visit silvan.com.au for more information

Chemical TransferGloves & Measuring Jugs

Nozzles &

Accessories

GENUINE

ACCESSORIES

GENUINE

ACCESSORIES

72 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

Nozzle selection and maintenance are two of the most

important aspects of accurate and efﬁcient spray

application. Selecta offers the largest range of nozzles

from leading brands to suit your needs.

KEY

DROPLET SIZE

COLOUR REFERENCE

VERY FINE VF

FINE F

MEDIUM M

COARSE C

VERY COARSE VC

EXTRA COARSE XC

ULTRA COARSE UC

Droplet size classifications are

based on BCPC specifications and

in accordance with ASAE Standard

S-572 at the date of printing.

Classifications subject to change.

110º Spray Angle

Nozzle Type Brand Name

Material

1.5 L/min (0.4 GPM)

nozzle capacity rated

at 2.8 bar (40psi)

HOW TO READ AND IDENTIFY A NOZZLE

Each nozzle has a code embossed on its surface allowing

the following information to be identiﬁed.

Droplet sizes are deﬁned by

ISO standards ranging from

Very Fine to Ultra course.

Droplet size follow two trends:

• As pressure increases

droplet sizes decreases

• Larger size nozzles

provide larger droplets

and increased flow

NOZZLE DROPLET SIZE

When selecting a suitable nozzle the droplet size is critical to ensure chemical is

applied to target instead of being miss-applied as drift. Finer droplet sizes ensure

improved coverage however they are also more prone to drift and conversely larger

droplets are less prone to drift.

NOZZLE MATERIAL

A variety of materials are available which differ

by resistance to wear summarised below.

Strongest: VK (Ceramic), VS, SS (Stainless Steel)

Moderate: VP (Polymer)

Soft: VB (Brass)

NOZZLE CODE EXPLANATION

Example of XR Nozzle 110° spray angle, 04 size made Stainless steel (VS).

XR 110 04 VS

Nozzle Type: XR

Angle: 110º

Nozzle Size: 04

Material: Stainless Steel

Small

Nozzle

Large

Nozzle

XR TeeJet and XRC TeeJet

BAR

1 1

522

533

5 4

XR8001

FFFFFF

XR80015

M M

FFFFF

XR8002

MMMM

FFF

XR8003

MMMMMMM

XR8004

MMMMMM

XR8005

CCC

MMMM

XR8006

CCCCCCC

XR8008

VC VC

CCCCC

XR TeeJet and XRC TeeJet

BAR

1 1

522

533

5 4

XR11001

FFFFF

VF VF

XR110015

FFFFFFF

XR11002

FFFFFF

XR110025

M M

FFFFF

XR11003

M M

FFFFF

XR11004

MMMMM

F F

XR11005

MMMMMM

XR11006

C C

MMMMM

XR11008

CCCC

MMM

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

MESH

SIZE CODE LIQ

PRES

BAR

CAP.

L/MIN

APPLICATION RATE: LITRES PER HECTARE AT KM/H

KM/H 5

KM/H 6

KM/H 7

KM/H 8

KM/H 10

KM/H 12

KM/H 16

KM/H 18

KM/H 20

KM/H 25

KM/H 30

KM/H 35

KM/H

1 0 0

Mesh* 01

1.0 0.23 69.0 55.2 46.0 39.4 34.5 27.6 23.0 17.3 15.3 13.8 11.0 9.2 7.9

1.5 0.28 84.0 67.2 56.0 48.0 42.0 33.6 28.0 21.0 18.7 16.8 13.4 11.2 9.6

2.0 0.32 96.0 76.8 64.0 54.9 48.0 38.4 32.0 24.0 21.3 19.2 15.4 12.8 11.0

2.5 0.36 108 86.4 72.0 61.7 54.0 43.2 36.0 27.0 24.0 21.6 17.3 14.4 12.3

3.0 0.39 117 93.6 78.0 66.9 58.5 46.8 39.0 29.3 26.0 23.4 18.7 15.6 13.4

3.5 0.42 126 101 84.0 72.0 63.0 50.4 42.0 31.5 28.0 25.2 20.2 16.8 14.4

4.0 0.45 135 108 90.0 77.1 67.5 54.0 45.0 33.8 30.0 27.0 21.6 18.0 15.4

5.0 0.50 150 120 100 85.7 75.0 60.0 50.0 37.5 33.3 30.0 24.0 20.0 17.1

6.0 0.55 165 132 110 94.3 82.5 66.0 55.0 41.3 36.7 33.0 26.4 22.0 18.9

100

M e s h * 015

1.0 0.34 102 81.6 68.0 58.3 51.0 40.8 34.0 25.5 22.7 20.4 16.3 13.6 11.7

1.5 0.42 126 101 84.0 72.0 63.0 50.4 42.0 31.5 28.0 25.2 20.2 16.8 14.4

2.0 0.48 144 115 96.0 82.3 72.0 57.6 48.0 36.0 32.0 28.8 23.0 19.2 16.5

2.5 0.54 162 130 108 92.6 81.0 64.8 54.0 40.5 36.0 32.4 25.9 21.6 18.5

3.0 0.59 177 142 118 101 88.5 70.8 59.0 44.3 39.3 35.4 28.3 23.6 20.2

3.5 0.64 192 154 128 110 96.0 76.8 64.0 48.0 42.7 38.4 30.7 25.6 21.9

4.0 0.68 204 163 136 117 102 81.6 68.0 51.0 45.3 40.8 32.6 27.2 23.3

4.5 0.72 216 173 144 123 108 86.4 72.0 54.0 48.0 43.2 34.6 28.8 24.7

5.0 0.76 228 182 152 130 114 91.2 76.0 57.0 50.7 45.6 36.5 30.4 26.1

5.5 0.80 240 192 160 137 120 96.0 80.0 60.0 53.3 48.0 38.4 32.0 27.4

6.0 0.83 249 199 166 142 125 100 83.0 62.3 55.3 49.8 39.8 33.2 28.5

6.5 0.87 261 209 174 149 131 104 87.0 65.3 58.0 52.2 41.8 34.8 29.8

7.0 0.90 270 216 180 154 135 108 90.0 67.5 60.0 54.0 43.2 36.0 60.9

8.0 0.96 288 230 192 165 144 115 96.0 72.0 64.0 57.6 46.1 38.4 32.9

Mesh* 02

1.0 0.46 138 110 92.0 78.9 69.0 55.2 46.0 34.5 30.7 27.6 22.1 18.4 15.8

1.5 0.56 168 134 112 96.0 84.0 67.2 56.0 42.0 37.3 33.6 26.9 22.4 19.2

2.0 0.65 195 156 130 111 97.5 78.0 65.0 48.8 43.3 39.0 31.2 26.0 22.3

2.5 0.72 216 173 144 123 108 86.4 72.0 54.0 48.0 43.2 34.6 28.8 24.7

3.0 0.79 237 190 158 135 119 94.8 79.0 59.3 52.7 47.4 37.9 31.6 27.1

3.5 0.85 255 204 170 146 128 102 85.0 63.8 56.7 51.0 40.8 34.0 29.1

4.0 0.91 273 218 182 156 137 109 91.0 68.3 60.7 54.6 43.7 36.4 31.2

4.5 0.97 291 233 194 166 146 116 97.0 72.8 64.7 58.2 46.6 38.8 33.3

5.0 1.02 306 245 204 175 153 122 102 76.5 68.0 61.2 49.0 40.8 35.0

5.5 1.07 321 257 214 183 161 128 107 80.3 71.3 64.2 51.4 42.8 36.7

6.0 1.12 336 269 224 192 168 134 112 84.0 74.7 67.2 53.8 44.8 38.4

6.5 1.16 348 278 232 199 174 139 116 87.0 77.3 69.6 55.7 46.4 39.8

7.0 1.21 363 290 242 207 182 145 121 90.8 80.7 72.6 58.1 48.4 41.5

8.0 1.29 387 310 258 221 194 155 129 96.8 86.0 77.4 61.9 51.6 44.2

Mesh* 025

3.0 0.99 297 238 198 170 149 119 99.0 74.3 66.0 59.4 47.5 39.6 33.9

3.5 1.07 321 257 214 183 161 128 107 80.3 71.3 64.2 51.4 42.8 36.7

4.0 1.14 342 274 228 195 171 137 114 85.5 76.0 68.4 54.7 45.6 39.1

4.5 1.21 363 290 242 207 182 145 121 90.8 80.7 72.6 58.1 48.4 41.5

5.0 1.28 384 307 256 219 192 154 128 96.0 85.3 76.8 61.4 51.2 43.9

5.5 1.34 402 322 268 230 201 161 134 101 89.3 80.4 64.3 53.6 45.9

6.0 1.40 420 336 280 240 210 168 140 105 93.3 84.0 67.2 56.0 48.0

6.5 1.46 438 350 292 250 219 175 146 110 97.3 87.6 70.1 58.4 50.1

7.0 1.51 453 362 302 259 227 181 151 113 101 90.6 72.5 60.4 51.8

8.0 1.62 486 389 324 278 243 194 162 122 108 97.2 77.8 64.8 55.5

Mesh* 03

1.0 0.68 204 163 136 117 102 81.6 68.0 51.0 45.3 40.8 32.6 27.2 23.3

1.5 0.83 249 199 166 142 125 100 83.0 62.3 55.3 49.8 39.8 33.2 28.5

2.0 0.96 288 230 192 165 144 115 96.0 72.0 64.0 57.6 46.1 38.4 32.9

2.5 1.08 324 259 216 185 162 130 108 81.0 72.0 64.8 51.8 43.2 37.0

3.0 1.18 354 283 236 202 177 142 118 88.5 78.7 70.8 56.6 47.2 40.5

3.5 1.27 381 305 254 218 191 152 127 95.3 84.7 76.2 61.0 50.8 43.5

4.0 1.36 408 326 272 233 204 163 136 102 90.7 81.6 65.3 54.4 46.6

4.5 1.45 435 348 290 249 218 174 145 109 96.7 87.0 69.6 58.0 49.7

5.0 1.52 456 365 304 261 228 182 152 114 101 91.2 73.0 60.8 52.1

5.5 1.60 480 384 320 274 240 192 160 120 107 96.0 76.8 64.0 54.9

6.0 1.67 501 401 334 286 251 200 167 125 111 100 80.2 66.8 57.3

6.5 1.74 522 418 348 298 261 209 174 131 116 104 83.5 69.6 59.7

7.0 1.80 540 432 360 309 270 216 180 135 120 108 86.4 72.0 61.7

8.0 1.93 579 463 386 331 290 232 193 145 129 116 92.6 77.2 66.2

* Recommended nozzle filter mesh size.

TYPICAL APPLICATION RATES FOR NOZZLES SPACED 50CM APART

74 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

* Recommended nozzle filter mesh size.

TYPICAL APPLICATION RATES FOR NOZZLES SPACED 50CM APART

MESH

SIZE CODE LIQ

PRES

BAR

CAP.

L/MIN

APPLICATION RATE: LITRES PER HECTARE AT KM/H

KM/H 5

KM/H 6

KM/H 7

KM/H 8

KM/H 10

KM/H 12

KM/H 16

KM/H 18

KM/H 20

KM/H 25

KM/H 30

KM/H 35

KM/H

Mesh*

1.0 0.91 273 218 182 156 137 109 91 68.3 60.7 54.6 43.7 36.4 31.2

1.5 1.12 336 269 224 192 168 134 112 84.0 74.7 67.2 53.8 44.8 38.4

2.0 1.29 387 310 258 221 194 155 129 96.8 86.0 77.4 61.9 51.6 44.2

2.5 1.44 432 346 288 247 216 173 144 108 96.0 86.4 69.1 57.6 49.4

3.0 1.58 474 379 316 271 237 190 158 119 105 94.8 75.8 63.2 54.2

3.5 1.71 513 410 342 293 257 205 171 128 114 103 82.1 68.4 58.6

4.0 1.82 546 437 364 312 273 218 182 137 121 109 87.4 72.8 62.4

4.5 1.94 582 466 388 333 291 233 194 146 129 115 93.1 77.6 66.5

5.0 2.04 612 490 408 350 306 245 204 153 136 122 97.9 81.6 69.9

5.5 2.14 642 514 428 367 321 257 214 161 143 128 103 85.6 73.4

6.0 2.23 669 535 446 382 335 268 223 167 149 134 107 89.2 76.5

6.5 2.33 699 559 466 399 350 280 233 175 155 140 112 93.2 79.9

7.0 2.41 725 578 482 413 362 289 241 181 161 145 116 96.4 82.6

8.0 2.58 774 619 516 442 387 310 258 194 172 155 124 103 88.5

Mesh*

1.00 1.14 342 274 228 195 171 137 114 85.5 76.0 68.4 54.7 45.6 39.1

1.5 1.39 417 334 278 238 209 167 139 104 92.7 83.4 66.7 55.6 47.7

2.0 1.61 483 386 322 276 242 193 161 121 107 96.6 77.3 64.4 55.2

2.5 1.80 540 432 360 309 270 216 180 135 120 108 86.4 72.0 61.7

3.0 1.97 591 473 394 338 296 236 197 148 131 118 94.6 78.38 67.5

3.5 2.13 639 511 426 365 320 256 213 160 142 128 102 85.2 73.0

4.0 2.27 681 545 454 389 341 272 227 170 151 136 109 90.8 77.8

4.5 2.41 723 578 482 413 362 289 241 181 161 145 116 96.4 82.6

5.0 2.54 762 610 508 435 381 305 254 191 169 152 122 102 87.1

5.5 2.67 801 641 534 458 401 320 267 200 178 160 128 107 91.5

6.0 2.79 837 670 558 478 416 335 279 209 186 167 134 112 95.7

6.6 2.90 870 696 580 497 435 348 290 218 193 174 139 116 99.4

7.0 3.01 903 722 602 516 452 361 301 226 201 181 144 120 103

8.0 3.22 966 773 644 552 483 386 322 242 215 193 155 129 110

Mesh*

1.0 1.37 411 329 274 235 206 164 137 103 91.3 82.2 65.8 54.8 47.0

1.5 1.68 504 403 336 288 252 202 168 126 112 101 80.6 67.2 57.6

2.0 1.94 582 466 388 333 291 233 194 146 129 116 93.1 77.6 66.5

2.5 2.16 648 518 432 370 324 259 216 162 144 130 104 86.4 74.1

3.0 2.37 711 569 474 406 356 284 237 178 158 142 114 94.8 81.3

3.5 2.56 768 614 512 439 384 307 256 192 171 154 123 102 87.8

4.0 2.74 822 658 548 470 411 329 274 206 183 164 132 110 93.9

Mesh*

1.0 1.82 546 437 364 312 273 218 182 137 121 109 87.4 72.8 62.4

1.5 2.23 669 535 446 382 335 268 223 167 149 134 107 89.2 76.5

2.0 2.58 774 619 516 442 387 310 258 194 172 155 124 103 88.5

2.5 2.88 864 691 576 494 432 346 288 216 192 173 138 115 98.7

3.0 3.16 948 758 632 542 474 379 316 237 211 190 152 126 108

3.5 3.41 1023 818 682 585 512 409 341 256 227 205 164 136 117

4.0 3.65 1095 876 730 626 548 438 365 274 243 219 175 146 125

Mesh*

1.0 2.28 684 547 456 391 342 274 228 171 152 137 109 91.2 78.2

1.5 2.79 837 670 558 478 419 335 279 209 186 167 134 112 95.7

2.0 3.23 969 775 646 554 485 388 323 242 215 194 155 129 111

3.0 3.95 1185 948 790 677 593 474 395 296 263 237 190 158 135

4.0 4.56 1368 1094 912 782 684 547 456 342 304 274 219 182 156

Mesh*

1.0 3.42 1026 821 684 586 513 410 342 257 228 205 164 137 117

1.5 4.19 1257 1006 838 718 629 503 419 314 279 251 201 168 144

2.0 4.83 1449 1159 966 828 725 580 483 362 322 290 232 193 166

3.0 5.92 1776 1421 118 4 1015 888 710 592 444 395 355 284 237 203

4.0 6.84 2052 1642 1368 1173 1026 821 684 513 456 410 328 274 235

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

NOZZLE APPLICATION RATES

The previous two pages display the ISO std application

rates which apply to most nozzles.

Nozzles are colour coded according to L/min output

size at 2.8 bar.

For example: All Yellow 02 nozzles at 2.8 bar (40psi)

have a flow rate of 0.2 US Gallons (0.75L/min).

Note: Each nozzle type has a different droplet size profile.

SELECTING THE RIGHT SIZE NOZZLE

Application rates can be adjusted by pressure,

vehicle speed and nozzle size.

Pressure can change droplet size and increase nozzles

wear. Vehicle speed is an inaccurate method of adjusting

output; higher speeds leads to increased bumps and

vibration which is hard on equipment that can lead to

critical failures. High speeds can also cause boom yaw,

effectively changing boom height, leading to uneven

spray application.

Nozzle size is the ideal and easiest way to select a suitable

nozzle as you can change the output rate

without significant changes to the machinery.

TO SELECT A NOZZLE

1. You need to know your preferred safe vehicle speed.

2. Define your required droplet size & application rate eg.

Medium droplet at 70L/h

Check the Droplet chart and you can see that a yellow 02

nozzle will provide a medium droplet at 2 and 2.5 bar.

3. Confirm against the Application Rates table the nozzle

can put out the required 70 L/ha at 2 or 2.5 bar.

In the example above, a yellow 02 nozzle will be

suited for use at 2.5.

WHAT DROPLET SIZE DO I REQUIRE?

The manufacturer of your chemical recommends suitable

droplet sizes on the Chemical label ranging from Very Fine

to Ultra Course. Alternatively refer to your agronomist.

Nozzles that produce fine droplets are recommended for

post-emergence applications, which require excellent

coverage on the intended target area. The most common

nozzles used in agriculture are those that produce medium

sized droplets. Nozzles producing medium and coarse-sized

droplets can be used for contact and systemic herbicides,

pre emergence surface-applied herbicides, insecticides

and fungicides.

Remember, as droplet size is reduced the drift potential is

increased. Where possible, choose nozzles with a slightly

coarser droplet size to reduce the risk potential. Review

the nozzle Droplet size charts for the appropriate nozzles

capable of the required droplet size.

UNIVERSAL APPLICATION RATE

CHART FOR 50 CM TIP SPACING

XR TeeJet and XRC TeeJet

BAR

1 1

522

533

5 4

XR8001

FFFFFF

XR80015

M M

FFFFF

XR8002

MMMM

F F F

XR8003

MMMMMMM

XR8004

MMMMMM

XR8005

CCC

MMMM

XR8006

CCCCCCC

XR8008

VC VC

CCCCC

TIP

CAPACITY

LIQUID

PRESSURE

IN BAR

CAPACITY

1 NOZZLE

IN L/MIN

L/HA – 50CM NOZZLE SPACING

4 KM/H 6 KM/H 8 KM/H 10 KM/H 12 KM/H

1.0 0.23 69.0 46.0 34.5 27.6 23.0

1.5 0.28 84.0 56.0 42.0 33.6 28.0

2.0 0.32 96.0 64.0 48.0 38.4 32.0

3.0 0.39 117 78.0 58.5 46.8 39.0

4.0 0.45 135 90.0 67.5 54.0 45.0

5.0 0.50 150 100 75.0 60.0 50.0

6.0 0.55 165 110 82.5 66.0 55.0

7.0 0.60 180 120 90.0 72.0 60.0

015

1.0 0.34 102 68.0 51.0 40.8 34.0

1.5 0.42 126 84.0 63.0 50.4 42.0

2.0 0.48 144 96.0 72.0 57.6 48.0

3.0 0.59 177 118 88.5 70.8 59.0

4.0 0.68 204 136 102 81.6 68.0

5.0 0.76 228 152 114 91.2 76.0

6.0 0.83 249 166 125 99.6 83.0

7.0 0.90 270 180 135 108 90.0

1.0 0.46 138 92.0 69.0 55.2 46.0

1.5 0.56 168 112 84.0 67.2 56.0

2.0 0.65 195 130 97.5 78.0 65.0

3.0 0.79 237 158 119 94.8 79.0

4.0 0.91 273 182 137 109 91.0

5.0 1.02 306 204 153 122 102

6.0 1.12 336 224 168 134 112

7.0 1.21 363 242 182 145 121

NOTE: Always double check your application rates.

Tabulations are based on spraying water at 70°F (21°C).

Speed

Rate

Droplet Size

76 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

WHEN IS IT RIGHT TO SPRAY?

The weather has major impact on spraying conditions.

The effects of Wind on spraying can be very clear and

easy to see but temperature and humidity also have

critical effects that can be measured by a Delta T.

Delta T is a relative measure of Humidity vs Temperature

summarised in the table (right) that indicates suitability

of spray conditions. Preferably spraying should occur

when Delta T is between 2 and 8; a higher Delta T has an

increased chance for drift caused by evaporation when

water based spraying. Preferred Delta T conditions for spraying

Delta T conditions marginal

Delta T conditions unsuitable for spraying

Dry temperature °C

0 5 10 15 20 25 30 35 40 45 50

Delta T value (°C)

Relative humidity (%)

100

WIND SPEED AND SPRAYING

Wind speeds are critical when spraying. If conditions are too windy, chemicals may not be applied correctly to the

target crop leading to poor results, increased drift and possible off target damage. The table below offers a simple

method of assessing wind speeds, otherwise can be more accurately measured using a Wind Meter.

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

CALCULATE CHEMICAL TO ADD TO TANK

Tank capacity (L) X chemical rate (L/ha)

Output (L/ha)

(L) x (L/ha)

Output (L/ha)

= Chemical required per tank

Amount of chemical

to add per tank

BOOM SPRAY CALIBRATION INFORMATION

CALCULATE SPEED IN

KILOMETRES PER HOUR

3.6 x metres = km/h 3.6 x metres = km/h

Seconds seconds

Equipment information

Date Tractor RPM

Gear Spray plant Pressure

Size, number & spacing of nozzles

600 x litres per minute

Boom width (m) x speed (km/h)

600 x L

m x km/h = Litres per hectare

= Litres per hectare

FACTORS AFFECTING

CALIBRATION

OF BOOM SPRAYS

1. Application rate in Litres per hectare.

2. Travel Speed of Tractor.

The tractor travel speed is the most important

variable in sprayer performance. A 10%

change in tractor speed gives a 10% change in

application rate. This can lead to over or under

application of chemicals. Determine the speed

by measuring 100 metres then time in seconds

how long it takes to cover the 100 metres.

If spraying in hilly terrain time distance both

up hill and down hill and average the results.

THE FORMULA FOR SPEED IS:

km/h = 360

Time in seconds for 100 metres

3. Nozzle Spacing on boom

(Std nozzle spacing is 50 cm).

4. Calculate required output per nozzle:

L/min/

nozzle =

L/ha x km/h x nozzle spacing (cm)

60,000

e.g. 100 x 10 x 50

= 0.83 L/min/

nozzle

60,000

Where application rate is: 100 L/Ha, speed is

10 km/h and nozzle spacing is 50 cm.

Use the nozzle output charts to select the

correct nozzle tip for your application.

5. Check the calibration procedure

Use a measuring jug and stopwatch to check

the output of several nozzles across the boom

at the recommended pressure. If the outputs

vary slightly from the chart then adjust the

pressure in the system to achieve the correct

volume. If nozzle ﬂow rates are greater than

5% above or below the manufacturer’s charts

then the whole sprayer system needs to be

checked for leaks, blockages etc,cleaned out

and the calibration process repeated until

accuracy is attained. The nozzle charts also

allow application rates to be determined if

the tractor speed, the nozzle and the spraying

pressure are known.

(L)

78 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

FLAT FAN POLY NOZZLE RS SERIES

BAR

1.5 2 2.5 3 3.5 4

RS110015

F F F F F F

RS11002

F F F F F F

RS11003

FFF F F

RS11004

M M M

F F F

Geoline, manufacturers of world class agricultural

spraying accessories and components have released a

range of ISO standard spray nozzles exclusive to Silvan.

Ideal for many applications where spray coverage

and drift management is important, the Geoline

nozzles offer excellent results.

RRP

$2.33

EACH

CODE ANGLE NOZZLE PACKETS SIZES AVAILABLE LIST EX LIST INC CAT

RS110*** 110º RS-FlatFan-Poly 24Pk 015,02,03,04 $55.45 $61.00 B

*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***

Note: Automatic spray alignment order cap G8253000 and gasket 402200-040

RS FLAT FAN POLY NOZZLE

• Air-induction flat-spray tip

• Spray angle: 110°

• Spray height = 50 cm

• Pressure recommended ranges from 1.5 to 4 bar

• Low Drift at low pressure. Increased coverage

and drift potential at higher pressure

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

TP FLAT FAN STANDARD

• Single piece nozzle with even coverage

• Pressure Range: 2-4 Bar

• Poly material available

XRC EXTENDED RANGE

• Same droplet size as XR Nozzle with added convenience

of a moulded Quick TeeJet cap for easy fitment and

automatic alignment

• Single piece nozzle with even coverage

• Pressure Range: 1-4 Bar

• Poly material

• Low drift at low pressure. Increased coverage

and drift potential at higher pressure

XR EXTENDED RANGE

• Single piece nozzle with even coverage

• Pressure Range: 1-4 Bar

• Poly and Ceramic material available

• Low drift at low pressure. Increased coverage

and drift potential at higher pressure

TP11002VP

Spray pattern

80º

110º

2 bar 4 bar

XR110015-VP

80º

110º

1 bar 4 bar

Spray pattern

XRC110015-VK

1 bar 4 bar

Spray pattern

110º

REFER TO PAGES 94-95 FOR AUTOMATIC ALIGNMENT CAP & GASKET

80 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

CODE ANGLE DESCRIPTION SIZES AVAILABLE LIST EX LIST INC CAT

TP110***-VP 110º TP - Flat Fan - Poly 015,02,03,04,05,06,08 $2.55 $2.80 B

TP80***-VP 80º TP - Flat Fan - Poly 015,02,03,04,05,06,08 $2.55 $2.80 B

XR110***-VP 110º XR - Flat Fan - Poly 015,02,03,04,05,06,08 $6.00 $6.60 B

XR110***-VK 110º XR - Flat Fan - Ceramic 02,025,03,04,05,06,08 $10.00 $11.00 B

XR80***-VK 80º XR - Flat Fan - Ceramic 03,04,05,06,08 $10.00 $11.00 B

XRC110***-VK 110º XRC - Flat Fan - Ceramic with

Moulded Cap 025,03,04,05,06,08 $10.91 $12.00 B

10 PACK NOZZLES:

PKT-TP110***-VP 110º VisiFlo - Flat Fan - Poly 10 Pk 015,02,03,04,05,06,08 $26.36 $29.00 B

PKT-XR110***-VP 110º XR - Flat Fan - Poly 10 Pk 015,02,03,04,05,06,08 $63.64 $70.00 B

*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***. EG TP11004VP

TP TeeJet

2 2

533

5 4

TP8001

FFFFF

TP80015

FFFFF

TP8002

M M

FFF

TP8003

MMMMM

TP8004

MMMMM

TP8005

MMMM

TP8006

CCCCC

TP8008

CCCCC

TP11001

FFF

VF VF

TP110015

FFFFF

TP11002

FFFFF

TP11003

FFFFF

TP11004

MMM

F F

TP11005

MMMMM

TP11006

MMMMM

TP11008

C C

MMM

XR TeeJet and XRC TeeJet

BAR

1 1

522

533

5 4

XR8001

FFFFFF

XR80015

M M

FFFFF

XR8002

MMMM

FFF

XR8003

MMMMMMM

XR8004

MMMMMM

XR8005

CCC

MMMM

XR8006

CCCCCCC

XR8008

VC VC

CCCCC

XR11001

FFFFF

VF VF

XR110015

FFFFFFF

XR11002

FFFFFF

XR110025

M M

FFFFF

XR11003

M M

FFFFF

XR11004

MMMMM

F F

XR11005

MMMMMM

XR11006

C C

MMMMM

XR11008

CCCC

MMM

For ISO application rates see pages 68-69. XRC produce same droplet as XR.

ISO DROPLET SIZE INFORMATION

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

DRIFT GUARD SPRAY TIPS

• Pre-orifice design produces larger droplets and reduces the small

drift prone droplets, minimising off-target spray contamination

• Tapered edge flat spray pattern provides uniform coverage when

adjacent nozzle patterns are overlapped in broadcast spraying

• The colour-coded pre-orifice is removable for any necessary

cleaning operations

• Poly & Stainless steel material available

110º

TURBO TEEJET FLAT SPRAY TIPS

• Tapered edge wide angle pattern for uniform coverage

in broadcast spraying

• Large, rounded internal passage to minimise clogging

• Larger droplets for less drift 15-90 psi (1-6 bar)

• Poly material

110º

TT11004-VP

TURBO TWINJET SPRAY TIPS

• All the features of the TT Turbo TeeJet, but with a

double outlet nozzle that helps reduce spray drift

• Excellent canopy coverage and penetration while

delivering excellent drift resistance

• Spraying pressure 20-90 psi (1.5-6 bar), ideal for use

with automatic sprayrate controllers

• Best suited to applications where superior leaf

coverage and canopy penetration is important

• Poly material

60º

110º

TTJ60-11003VP

REFER TO PAGES 94-95 FOR AUTOMATIC ALIGNMENT CAP & GASKET

DG11004-VS

82 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

CODE ANGLE DESCRIPTION SIZES AVAILABLE LIST EX LIST INC CAT

DG110***-VP 110º Polymer - Drift Guard Even Flat Fan 015,02,03,04,05 $11.82 $13.00 B

DG110***-VS 110º Stainless Steel - Drift Guard Even Flat Fan 015,02,03,04,05 $22.73 $25.00 B

TT110***-VP 110º Poly - Turbo Wide Angle Flat Fan

01,015,02,025,03,04,05,06,08

$10.91 $12.00 B

TTJ60-110***VP Poly - Turbo Twinjet Wide Angle Flat Fan 02,025,03,04,05,06 $15.45 $17.00 B

*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***

DG TeeJet

BAR

2 2

533

5 4

DG110015

FFFF

DG11002

MMMMM

DG11003

MMMM

DG11004

C C

MMM

DG11005

CCC

M M

Turbo TeeJet

BAR

1 1

522

533

544

555

5 6

TT11001

MMM

FFFFFFF

TT110015

C C

MMMMM

FFFF

TT11002

CCC

MMMMMMM

TT110025

C C

MMMMMMMM

TT11003 VC

CCCC

MMMMMM

TT11004 XC VC

CCCCCC

MMM

TT11005 XC VC VC VC

CCCCC

M M

TT11006 XC VC VC VC

CCCCCC

TT11008 XC XC VC VC

CCCCCC

Turbo Twinjet (TTJ60)

BAR

522

533

544

555

5 6

J60-11002

CCCC

MMMMMM

J60-110025

CCCCCC

MMM

J60-11003

CCCCCCC

M M

J60-11004

CCCCCCCC

J60-11005

CCCCCCCCC

J60-11006

XC VC

CCCCCCCC

ISO DROPLET SIZE INFORMATION

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

TURBO TEEJET INDUCTION

FLAT SPRAY TIPS

• Compact size to prevent tip damage and removable

pre-orifice for easy cleaning

• Large droplets are produced through a venturi

air aspirator resulting in less drift

• Wide operating pressure 15-105 psi (1-7bar)

producing extra coarse droplets

• Ideal for use with automatic rate controllers

• Poly material

TTI11004-VP

AIXR AIR INDUCTION SPRAY TIPS

• Pressure range 15-90 psi (1-6 bar)

• Made of a two-piece polymer construction.

Excellent chemical resistance, including acids,

as well as exceptional wear life

• A lower pressure air inducted nozzle offers better drift

management and suitable for the broadacre market

• Compact size to prevent tip damage and

removable pre-orifice

• Depending on the chemical, produces large

air-filled drops through a Venturi air aspirator

AIXR11002-VP

IDK AIR INJECTED NOZZLE

• Air-aspirating flat-spray tip

• Pressure Range:

– Spray angle 120º all Poly nozzle

– IDK-01 to 03, 20-90 psi (1.5 - 6 bar)

– IDK-04, 15-90 psi (1 - 6 bar)

• More suitable for lower pressures

• Hard-wearing and non-clogging thanks to

lateral air-aspirating channels of ample size

IDK12004P

110º

Injector

Nozzle Body

Air

Liquid

110º

120º

REFER TO PAGES 94-95 FOR AUTOMATIC ALIGNMENT CAP & GASKET

84 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

AIXR TeeJet

BAR

1 1

522

533

544

555

5 6

AIXR110015 XC VC VC

CCCC

MMMM

AIXR11002 XC XC VC VC

CCCCC

M M

AIXR110025 XC XC XC VC VC

CCCCCC

AIXR11003 XC XC XC VC VC

CCCCCC

AIXR11004 UC XC XC XC VC VC VC

CCCC

AIXR11005 UC XC XC XC XC VC VC VC

CCC

AIXR11006 UC XC XC XC XC VC VC VC

CCC

IDK Lechler

BAR

522

53456

IDK12001

CCC

M M M F

IDK120015

CCCC

M M F

IDK12002

CCCC

M M F

IDK120025 VC VC

CCC

M M

IDK12003 VC VC VC

C C

M M

IDK12004 VC VC VC VC

C C

Turbo TeeJet Induction (TTI)

1 1

522

533

544

555

5 6 7

TTI110015 UC UC UC UC UC UC XC XC XC XC XC XC

TTI11002 UC UC UC UC UC UC UC UC XC XC XC XC

TTI110025 UC UC UC UC UC UC UC UC XC XC XC XC

TTI11003 UC UC UC UC UC UC UC UC XC XC XC XC

TTI11004 UC UC UC UC UC UC UC UC XC XC XC XC

TTI11005 UC UC UC UC UC UC UC UC XC XC XC XC

TTI11006 UC UC UC UC UC UC UC UC XC XC XC XC

CODE ANG DESCRIPTION SIZES AVAILABLE LIST EX LIST INC CAT

AIXR110***-VP 110º Poly - Air Induction Spray Tip 015,02,025,03,04,05,06 $13.64 $15.00 B

IDK120***P 120º Poly - Air Injected Spray Tip 01,015,02,025,03,04 $12.73 $14.00 B

IDK120***C 120º Ceramic - Air Injected Spray Tip 015,02,025,03,04 $25.45 $28.00 B

TTI110***-VP 110º Poly - Turbo Induction Spray Tip 015,02,025,03,04,05,06 $22.00 $24.20 B

10 PACK NOZZLES:

PKT-AIXR110***-VP 110º 10 Pk Poly - Turbo Wide Angle Flat Spray Tip 015,02,03,04 $130.00 $143.00 B

*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***

ISO DROPLET SIZE INFORMATION

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

AI AIR INDUCTION SPRAY TIPS

• Stainless steel insert produces tapered edge flat spray 110º

pattern for uniform coverage in broadcast spraying

• Polymer insert holder and pre-orifice with VisiFlo colour-coding

• Larger droplets for less drift

• Depending on the chemical, produces large air-filled drops

through the use of a venturi air aspirator

• Pressure ranges from 2 – 8 bar

AI11004-VS

110º

AIC AIR INDUCTION SPRAY TIPS

• Same droplet size as AI nozzles with added convenience

of a moulded nozzle cap

• Available in stainless steel and ceramic inserts,

produces tapered edge flat spray pattern for

uniform coverage in broadcast spraying

• Polymer insert holder and pre-orifice with VisiFlo colour-coding

• Larger droplets for less drift

• Depending on the chemical, produces large air-filled drops

through the use of a Venturi air aspirator

• AI TeeJet nozzle molded into Quick TeeJet cap provides

automatic spray alignment

• Includes tightly fitting washer that assures a good seal

AITTJ60 AIR INDUCTION TURBO TWINJET

• Air induction with dual 110° flat fan patterns

• 60° between leading and trailing spray patterns

• Good coverage with increased canopy penetration

and best drift control

• Best suited for postemergence applications

• Excellent drift control with coarse to very coarse droplets

• Available in VisiFlo color coded capacities (02 through 06)

• Pressure ranges from 1.5 – 6 bar (20 – 90 PSI)

AITTJ60-11004VP

110º

AIC11004-VS

REFER TO PAGES 94-95 FOR AUTOMATIC ALIGNMENT CAP & GASKET

60º

86 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

CODE ANG DESCRIPTION SIZES AVAILABLE LIST EX LIST INC CAT

AI110***-VS 110º Air Induction Flat Spray Tip - Stainless Steel 015,02,03,04,05,06,08 $30.00 $33.00 B

AIC110***-VS 110º Air Induction Spray Tip With Cap & Gasket - S/Steel

015,02,025,04,06,08,10,15

$30.00 $33.00 B

AIC110***-VK 110º Air Induction Spray Tip With Cap & Gasket - Ceramic 025,03,04,05 $25.45 $28.00 B

AITTJ60-110**VP 110º Air Induction Turbo Twinjet - Poly 02,025,03,04,05,06 $18.18 $20.00 B

*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***

AI TeeJet and AIC TeeJet

BAR

2 2

533

544

555

566

5 7 8

AI110015

UC XC XC XC XC VC VC VC VC

CCC

AI11002

UC XC XC XC XC VC VC VC VC

CCC

AI110025

UC UC XC XC XC XC VC VC VC VC

C C

AI11003

UC UC XC XC XC XC VC VC VC VC

C C

AI11004

UC UC XC XC XC XC VC VC VC VC

C C

AI11005

UC UC XC XC XC XC VC VC VC VC

C C

AI11006

UC UC XC XC XC XC XC VC VC VC VC

AI11008

UC UC UC XC XC XC XC VC VC VC VC

AI11010*

UC UC UC XC XC XC XC XC VC VC VC

FERTILISER NOZZLES

STREAMJET SJ-3 FERTILISER (3 STREAM)

• Removable metering orifice for easy cleaning

• Equally spaced distribution at 20” (50 cm) h

• Use with Quick TeeJet cap 25598-*-NYR

• All acetal construction for excellent chemical resistance

• Recommended operating pressure: 1.5–4 bar (20–60 psi) SJ3

CODE DESCRIPTION SIZES AVAILABLE LIST EX LIST INC CAT

SJ3-***-VP Poly - 3 Stream Streamjet Fertilizer Nozzles 015,02,03,04,05,06,08,10,15,20 $22.73 $25.00 B

*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***

ISO DROPLET SIZE INFORMATION

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

CODE DESCRIPTION SIZES AVAILABLE LIST EX LIST INC CAT

G8259*** Brass - Geoline Off Centre Nozzle 02,03,04,06,08,16 $19.09 $21.00 B

OC-** Brass - TeeJet Off Centre Nozzle 01,02,03,04,06,08,12,16 $26.36 $29.00 B

*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***

BRASS OFF-CENTRE –

SMALL CAPACITY

These spray tips are commonly installed in

double and single swivel nozzle bodies.

A wide spray swath is easily obtained from the

bodies’ easily adjustable angular position.

G8259139

CODE ANGLE DESCRIPTION SIZES AVAILABLE LIST EX LIST INC CAT

LC-** 80º -145º Poly - Lurmark Deﬂectip Spray Nozzle 15,20 $7.36 $8.10 B

CODE BAR L/MIN

H = 45CM H = 60CM

L/HA L/HA

W (CM) 4 KM/H 6 KM 8 KM 10 KM W(CM) 4 KM/H 6 KM 8 KM 10 KM

G8259139

OC-02

2.0 0.65 172 56.7 37.8 28.3 22.7 190 51.3 34.2 25.7 20.5

3.0 0.79 177 66.9 44.6 33.5 26.8 195 60.8 40.5 30.4 24.3

4.0 0.91 182 75.0 50.0 37.5 30.0 198 68.9 46.0 34.5 27.6

G8259140

OC-03

2.0 0.96 195 73.8 49.2 36.9 29.5 203 70.9 47.3 35.5 28.4

3.0 1.18 203 87.2 58.1 43.6 34.9 210 84.3 56.2 42.1 33.7

4.0 1.36 208 98.1 65.4 49.0 39.2 215 94.9 63.3 47.4 38.0

G8259141

OC-04

2.0 1.29 231 83.8 55.8 41.9 33.5 236 82.0 54.7 41.0 32.8

3.0 1.58 236 100 66.9 50.2 40.2 238 99.6 66.4 49.8 39.8

4.0 1.82 238 115 76.5 57.4 45.9 241 113 75.5 56.6 45.3

G8259142

OC-06

2.0 1.94 251 116 77.3 58.0 46.4 274 106 70.8 53.1 42.5

3.0 2.37 256 139 92.6 69.4 55.5 279 127 84.9 63.7 51.0

4.0 2.74 259 159 106 79.3 63.5 281 146 97.5 73.1 58.5

PART NUMBER

(REC FILTER MESH)

SPRAY

ANGLE

SPRAY WIDTH*

(50CM HEIGHT) PRESS. BAR FLOW

L/MIN

SINGLE NOZZLE APPLICATION RATES L/HA AT KM/H

2KPH 3KPH 4KPH 5KPH

BLUE LC-15 (100#) 105° 1.30m

1.0

2.0

3.0

0.68

0.97

1.18

157

223

273

105

148

182

111

136

109

RED LC-20 (50#) 105° 1.30m

1.0

2.0

3.0

0.91

1.29

1.58

210

298

365

140

198

243

105

149

182

119

146

Note: Spray angle and widths given are at 3 Bar.

LC-15

LURMARK DEFLECTIP 80º–145º

The Lurmark Deﬂectip produces a wide angled even spray (from 80 to 145 degrees

depending on pump pressure) making it ideal for banding pre and post emergent herbicides.

• Large orifice produces coarser droplets which are less prone to drift and blocking

• Fits in most nozzle caps

• Precision moulded in tough and durable polyacetal, with a spray angle tolerance of +/- 5%

88 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

CODE PRESSURE L/MIN SWATH

WIDTH

L/HA

LIST

INC CAT

6 KM/H 8 KM/H 12 KM/H 16 KM/H

FC-XT010 2 Bar/30psi 3.2 3.7 83 62 41 31 $80.00 $88.00 B

FC-XT020 2 Bar/30psi 6.4 4.8 134 101 67 50 $80.00 $88.00 B

FC-XT024 2 Bar/30psi 7.7 4.9 158 118 79 59 $80.00 $88.00 B

HYPRO BOOMLESS NOZZLES

Eliminate the need for a spraying boom with the durable boomless

nozzle that provides efﬁcient spray.

• Ideal for applications where a conventional boom cannot be

used due to obstacles, such as power poles, fences, trees, etc.

• Common uses include orchard, vineyard, forestry, pasture, turf

and golf course spraying, as well as maintaining fence lines

• Designed for herbicide or fertiliser application

• Coarse droplet size, excellent low drift option while extending

spray reach

• Maintains a consistent and adjustable spray swath over

a pressure range of 30-60 PSI

• Includes quick connect cap and gasket for easy handling

• Excellent durability and low maintenance

• Also available as a spray kit (see page 35)

PICTURED

M99-75 WITH TWO

FC-XT010 NOZZLES

1.2m

3.7m

3.7 metres

7.4 metres full spray reach

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

HOLLOW CONE NOZZLES (HCC)

The ceramic hollow cone nozzles are designed for

creating small droplets ideal for foliar of insecticides

and fungicides and are constructed with a moulded

outer over a ceramic insert that is mated to a

turbulence chamber and counter-swirling device

easily separated for cleaning. The ceramic nozzle

allows for long lasting life and the vortexing action

in the nozzle provides a 80° spray angle between 3-5

bar, but works well at both high and low operation

pressures. The ceramic hollow cone nozzles are the

offered alternative to the Albuz ATR Hollow cone

nozzles.

HOLLOW CONE NOZZLES (TX)

VisiFlo colour-coded version consists of ceramic orifice in polypropylene

body. Maximum operating pressure 20 bar. Spray angle is 80º at 7 bar.

Finely atomised spray pattern provides thorough coverage.

Excellent: Post – Emergence Contact herbicides, fungicides and

insecticides ensures finely atomised spray droplets reach target areas.

Good: With defoliants & foliar fertilisers at 3 bar pressure and above.

IDEAL FOR

AIRBLAST!

HCC Spray-Jet

BAR

3456810 15

HCC005 VF VF VF VF VF VF VF

HCC0075 FVF VF VF VF VF VF

HCC01 FVF VF VF VF VF VF

HCC015 F F VF VF VF VF VF

HCC02 F F F VF VF VF VF

HCC025 FFFVF VF VF VF

HCC03 FFFVF VF VF VF

HCC035 FFFVF VF VF VF

HCC04 FFFFFVF VF

HCC05 FFFFFFVF

CODE ANG DESCRIPTION SIZES AVAILABLE LIST EX LIST INC CAT

HCC*** 80º Ceramic-Hollow Cone Nozzle 005,0075,01,015,02,025,03,035,04,05 $11.82 $13.00 B

TX-VK** 80º Ceramic-Conejet Hollow Cone Nozzle 3,4,6,8,10,12,18,26 $15.45 $17.00 B

*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***

HCC

90 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

HCC NOZZLES APPLICATION RATES TX NOZZLES APPLICATION RATES

BAR L/MIN

HCC025

3 1

41.15

61.41

81.63

10 1.83

12 2

15 2.24

20 2.58

HCC03

31.2

41.39

61.7

81.96

10 2.19

12 2.4

15 2.68

20 3.10

HCC035

31.4

41.62

61.98

82.29

10 2.56

12 2.8

15 3.13

20 3.61

HCC04

31.6

41.85

62.26

82.61

10 2.92

12 3.2

15 3.58

20 4.13

HCC05

3 2

42.31

62.83

83.27

10 3.64

12 4

15 4.47

20 5.16

BAR L/MIN

HCC005

30.19

40.22

60.27

80.31

10 0.35

12 0.38

15 0.42

20 0.49

HCC0075

30.3

40.35

60.42

80.49

10 0.55

12 0.6

15 0.67

20 0.77

HCC01

30.4

40.46

60.57

80.65

10 0.73

12 0.8

15 0.89

20 1.03

HCC015

30.6

40.69

60.85

80.98

10 1.1

12 1.2

15 1.34

20 1.55

HCC02

30.8

40.92

61.13

81.31

10 1.46

12 1.6

15 1.79

20 2.07

BAR L/MIN

“TX-VK3

(100 MESH)”

50.25

70.28

10 0.33

15 0.39

20 0.45

“TX-VK4

(50 MESH)”

50.33

70.39

10 0.45

15 0.55

20 0.62

“TX-VK6

(50 MESH)”

50.5

70.58

10 0.68

15 0.82

20 0.93

“TX-VK8

(50 MESH)”

50.67

70.79

10 0.93

15 1.1

20 1.3

“TX-VK10

(50 MESH)”

50.84

70.98

10 1.2

15 1.4

20 1.6

“TX-VK12

(50 MESH)”

5 1

71.2

10 1.4

15 1.7

20 2

“TX-VK18

(50 MESH)”

51.5

71.8

10 2.2

15 2.6

20 3

“TX-VK26

(50 MESH)”

52.2

72.6

10 3.1

15 3.8

20 4.4

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

6560-01

BRASS BOOMLESS NOZZLES KIT WITH SINGLE OR DOUBLE SIDED SWATH

These compact kits offer broadcast spraying, ideal for applications around obstacles that could damage

a traditional boom such as fences, guardrails and power poles.

• Attaches to an ATV rack, UTV or side by side or side framework with supplied clamp

• Supplied with 600mm of 12mm I.D hose with Inline tap to turn isolate flow or turn on or off

• Supplied with both single and twin sided nozzles

• Compatible with a broad range of Silvan spray equipment

M99-65 (size 02) M99-66 (size 05)

• Pump flow suitable is 7L/Min (DDP-552A - Smootflo) • Pump flow suitable is 11 -14L/Min 381-125, 361-2088 or DDP-555

• Spray Swath single from 3.4m or Double 7.6m • Spray Swath single from 3.8m or Double 7.6m

CODE DESCRIPTION PRESSURE L/MIN

(UP TO)

SWATH

WIDTH LIST EX LIST INC CAT

M99-65 Boomless Nozzle Kit with Double Sided Swath 14 Bar/30 psi 18.2 10.4 $135.45 $149.00 B

M99-66 Boomless Nozzle (05) $144.54 $159.00 B

M99-65

SINGLE NOZZLE (90 DEGREES)

PSI L/min Swath

(m)

Litres per hectare (L/Ha)

km/hr

30 1.61 3.4 96 48 32

40 1.89 3.5 108 54 36

50 2.08 3.7 114 57 38

60 2.27 3.8 119 60 40

SINGLE NOZZLE (90 DEGREES)

PSI L/min Swath

(m)

Litres per hectare (L/Ha)

km/hr

30 3.22 3.4 96 48 32

40 1.89 3.5 108 54 36

50 2.08 3.7 114 57 38

60 2.27 3.8 119 60 40

DOUBLE NOZZLE (180 DEGREES)

PSI L/min Swath

(m)

Litres per hectare (L/Ha)

km/hr

30 3.22 6.7 96 48 32

40 3.79 7.0 108 54 36

50 4.16 7.3 114 57 38

60 4.54 7.6 119 60 40

DOUBLE NOZZLE (180 DEGREES)

PSI L/min Swath

(m)

Litres per hectare (L/Ha)

km/hr

30 6.44 16.8 96 48 32

40 7.57 14.0 108 54 36

50 8.33 14.6 114 57 38

60 9.08 15.2 119 60 40

92 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

90° SPRAY

(3.5M)

180° SPRAY

(7M)

*M99-65: Kit pic shown for display only. See page 34 for full details.

CODE NOZZLE

NOZZLE

CBAR L/MIN

I/HA LIST

LIST

INC CAT

WIDTH 6

KM/H

5880-3/4-2TOC06

6733-OC06

H1/4VV- 1506

H1/4VVL-9502

with 50 mesh

strainer

1.5 7.26 10.2M 71.2 53.4 35.6 26.7 17.8

$508.18 $559.00 B

2.0 8.38 10.3M 81.4 61.0 40.7 30.5 20.3

2.5 9.37 10.5M 89.2 66.9 44.6 33.5 22.3

5880-3/4-2TOC10 OC-10

H1/4U-0508HE

H1/4VVL-11004

with 50 mesh

strainer

1.5 11.16 12.0M 93.0 69.8 46.5 34.9 23.3

$508.18 $559.00 B2.0 12.89 12.1M 107.0 79.9 53.3 39.9 26.3

2.5 14.41 12.3M 117.0 87.9 58.6 43.9 29.3

5880-3/4-2TOC20 OC-20

H1/4U-0520HE

H1/4VVL-9506

with 50 mesh

strainer

1.5 24.00 14.3M 168.0 126.0 83.9 62.9 42.0

$508.18 $559.00 B2.0 27.72 15.2M 182.0 137.0 91.2 68.4 45.6

2.5 30.99 15.8M 196.0 147.0 98.1 73.6 49.0

5880-3/4-2TOC40 OC-40

H1/4U-0540HE

H1/4U-9510

1.5 47.44 17.1M 277.0 208.0 139.0 104.0 69.4

$508.18 $559.00 B2.0 54.78 18.2M 300.01 226.0 150.0 113.0 75.2

2.5 61.25 19.2M 319.0 239.0 160.0 120.0 79.8

XP BOOMJET BOOMLESS

FLAT SPRAY

Type 5880 Boomjet Nozzle is used for spraying areas

not easily accessed with a boom sprayer. It combines

two off-centre tips and three VeeJet nozzles to produce

an overall wide swath ﬂat spray. The nozzle assembly

provides good distribution considering the wide pattern

coverage obtained: however the uniformity is not as good

as with a properly operated boom sprayer. Uniformity

can be optimised by double overlapping spray swaths on

successive sprayer passes. Remember this also doubles

the application volume.

Supplied with one additional 1/4” NPT pipe plug and

one blank tip for setting BoomJet to one side only.

Also has a 1/4” NPT pressure gauge port. 5880-3/4-2TOC06;

5880-3/4-2TOC10;

5880-3/4-2TOC20;

5880-3/4-2TOC40

W = Maximum effective coverage

with nozzle mounted at 1m height

BRASS BOOMLESS NOZZLES KIT WITH SINGLE OR DOUBLE SIDED SWATH

These compact kits offer broadcast spraying, ideal for applications around obstacles that could damage

a traditional boom such as fences, guardrails and power poles.

• Attaches to an ATV rack, UTV or side by side or side framework with supplied clamp

• Supplied with 600mm of 12mm I.D hose with Inline tap to turn isolate flow or turn on or off

• Supplied with both single and twin sided nozzles

• Compatible with a broad range of Silvan spray equipment

M99-65 (size 02) M99-66 (size 05)

• Pump flow suitable is 7L/Min (DDP-552A - Smootflo) • Pump flow suitable is 11 -14L/Min 381-125, 361-2088 or DDP-555

• Spray Swath single from 3.4m or Double 7.6m • Spray Swath single from 3.8m or Double 7.6m

M99-65

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

FOR USE WITH SPRAY TIPS) REFERENCE GUIDE ONLY) COLOUR CAPS TEEJET CAP CODE LIST

LIST

INC CAT TEEJET GASKET

& CAP KIT CODE

LIST

INC CAT

CP25611-3-NY

$1.64 $1.80 B

25612-3-NYR

$2.27 $2.50 B

CP25611-4-NY 25612-4-NYR

CP25611-5-NY 25612-5-NYR

CP25611-6-NY 25612-6-NYR

CP25611-7-NY 25612-7-NYR

CP25611-8-NY

CP25609

-4-NY

$1.82 $2.00 B 25610-1-NYR $2.91 $3.20 B

CP25609

-6-NY

CP25597

-3-NY

$1.82 $2.00 B

25598

-3

-NYR

$2.91 $3.20 B

CP25597

-4-NY

25598

-4

-NYR

CP25597

-5-NY

25598

-5

-NYR

CP25597-6-NY 25598-6

-NYR

CP25597-7-NY 25598-1-NYR

CP25599

-3-NY

$1.82 $2.00 B 25600-6-NYR $2.91 $3.20 B

CP25599-6-NY

CP25607

-3-NY

$1.82 $2.00 B

25608-1-NYR

$2.91 $3.20 B

CP25607

-4-NY

25608

-3-NYR

CP25607

-5-NY

25608

-4-NYR

CP25607

-6-NY

CP26277-1-NY $4.00 $4.40 B 26278-1-NYR $4.91 $5.40 B

Provides shut-off at nozzle for quick spacing change or change in spray swath N/A N/A N/A B 19843-NYR $5.09 $5.60 B

CP19438-EPR (EPDM standard) Gasket only $2.27 $2.50 B

CP19438-VI (Viton optional) Gasket only $7.55 $8.31 B

TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet® DG TwinJet® Turbo TeeJet Induction®

TTDG TeeJet®

TK Flood Jet® FL FullJet® TX ConeJet® TG Full Cone Hose Shank

AIXR TeeJet®Turbo TwinJet®

FOR USE WIT H FLAT SPRAY TIPS

300 PSI BA MAXIMUM P RESSURE

TeeJet Flat Spray Tips (Smaller Capacities)

TeeJet Flat Spray Tips (Larger Capacities)

TeeJet Flat Spray Tips (Smaller Capacities)

Tips can be positioned in choice of two spray plane directions—

parallel or perpendicular to wings of Quick TeeJet cap.

Ceramic Disc-Core

D-Disc Core

OC TeeJet®

–01 Thru –08

Standard

–0067 Thru –08

TP Standard

–10 Thru

–20

–10 Thru

–15

Turbo FloodJet®

VisiFlo® Spray Tip

TK-VS FloodJet®

VisiFlo Spray Tip

Locating

Nib

Used with DC-Core Inserts and

CP4916 Flow Regulators (Insert

Core into Seal)

D-Disc Core

Core

Seal

CP18999-E PR

(EPDM standard)

CP18999- VI

(Viton® optional)

TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet® DG TwinJet® Turbo TeeJet Induction®

TTDG TeeJet®

TK Flood Jet® FL FullJet® TX ConeJet® TG Full Cone Hose Shank

AIXR TeeJet®Turbo TwinJet®

FOR USE WIT H FLAT SPRAY TIPS

300 PSI BA MAXIMUM P RESSU RE

TeeJet Flat Spray Tips (Smaller Capacities)

TeeJet Flat Spray Tips (Larger Capacities)

TeeJet Flat Spray Tips (Smaller Capacities)

Tips can be positioned in choice of two spray plane directions—

parallel or perpendicular to wings of Quick TeeJet cap.

Ceramic Disc-Core

D-Disc Core

OC TeeJet®

–01 Thru –08

Standard

–0067 Thru –08

TP Standard

–10 Thru

–20

–10 Thru

–15

Turbo FloodJet®

VisiFlo® Spray Tip

TK-VS FloodJet®

VisiFlo Spray Tip

Locating

Nib

Used with DC-Core Inserts and

CP4916 Flow Regulators (Insert

Core into Seal)

D-Disc Core

Core

Seal

CP18999-E PR

(EPDM standard)

CP18999- VI

(Viton® optional)

TJ TwinJet® SJ-3 StreamJet®AI TeeJet® & AIUBTeeJet® DG TwinJet® Turbo TeeJet Induction®

TTDG TeeJet®

TK FloodJet®FLFullJet®TXConeJet®TGFull Cone Hose Shank

AIXR TeeJet®Turbo TwinJet®

FOR USE WITH FLAT SPRAYTIPS

300 PSIBA MAXIMUM PRESSURE

TeeJet Flat Spray Tips (Smaller Capacities)

TeeJet Flat Spray Tips (Larger Capacities)

TeeJet Flat Spray Tips (Smaller Capacities)

Tips can be positioned in choice of two spray plane directions —

parallel or perpendicular to wings of Quick TeeJet cap.

Ceramic Disc-Core

D-DiscCore

OC TeeJet®

–01 Thru –08

Standard

–0067 Thru –08

TP Standard

–10 Thru

–20

–10 Thru

–15

Turbo FloodJet®

VisiFlo® Spray Tip

TK-VSFloodJet®

VisiFlo Spray Tip

Locating

Nib

Used with DC-Core Inserts and

CP4916 Flow Regulators (Insert

Core into Seal)

D-Disc Core

Core

Seal

CP18999-EPR

(EPDMstandard)

CP18999-VI

(Viton® optional)

TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet®

DG TwinJet® Turbo TeeJet Induction®

TTDG TeeJet®

TK Flood Jet® FL FullJet® TX ConeJet® TG Full Cone Hose Shank

AIXR TeeJet®Turbo TwinJet®

FOR USE WIT H FLAT SPRAY TIPS

300 PSI BA MAXIMUM P RESSURE

TeeJet Flat Spray Tips (Smaller Capacities)

TeeJet Flat Spray Tips (Larger Capacities)

TeeJet Flat Spray Tips (Smaller Capacities)

Tips can be positioned in choice of two spray plane directions—

parallel or perpendicular to wings of Quick TeeJet cap.

Ceramic Disc-Core

D-Disc Core

OC TeeJet®

–01 Thru –08

Standard

–0067 Thru –08

TP Standard

–10 Thru

–20

–10 Thru

–15

Turbo FloodJet®

VisiFlo® Spray Tip

TK-VS FloodJet®

VisiFlo Spray Tip

Locating

Nib

Used with DC-Core Inserts and

CP4916 Flow Regulators (Insert

Core into Seal)

D-Disc Core

Core

Seal

CP18999-E PR

(EPDM standard)

CP18999- VI

(Viton® optional)

TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet®

DG TwinJet® Turbo TeeJet Induction®

TTDG TeeJet®

TK Flood Jet® FL FullJet® TX ConeJet® TG Full Cone Hose Shank

AIXR TeeJet®Turbo TwinJet®

FOR USE WIT H FLAT SPRAY TIPS

300 PSI BA MAXIMUM P RESSURE

TeeJet Flat Spray Tips (Smaller Capacities)

TeeJet Flat Spray Tips (Larger Capacities)

TeeJet Flat Spray Tips (Smaller Capacities)

Tips can be positioned in choice of two spray plane directions—

parallel or perpendicular to wings of Quick TeeJet cap.

Ceramic Disc-Core

D-Disc Core

OC TeeJet®

–01 Thru –08

Standard

–0067 Thru –08

TP Standard

–10 Thru

–20

–10 Thru

–15

Turbo FloodJet®

VisiFlo® Spray Tip

TK-VS FloodJet®

VisiFlo Spray Tip

Locating

Nib

Used with DC-Core Inserts and

CP4916 Flow Regulators (Insert

Core into Seal)

D-Disc Core

Core

Seal

CP18999-E PR

(EPDM standard)

CP18999- VI

(Viton® optional)

TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet® DG TwinJet® Turbo TeeJet Induction®

TTDG TeeJet®

TK Flood Jet® FL FullJet® TX ConeJet® TG Full Cone Hose Shank

AIXR TeeJet®Turbo TwinJet®

FOR USE WIT H FLAT SPRAY TIPS

300 PSI BA MAXIMUM P RESSURE

TeeJet Flat Spray Tips (Smaller Capacities)

TeeJet Flat Spray Tips (Larger Capacities)

TeeJet Flat Spray Tips (Smaller Capacities)

Tips can be positioned in choice of two spray plane directions—

parallel or perpendicular to wings of Quick TeeJet cap.

Ceramic Disc-Core

D-Disc Core

OC TeeJet®

–01 Thru –08

Standard

–0067 Thru –08

TP Standard

–10 Thru

–20

–10 Thru

–15

Turbo FloodJet®

VisiFlo® Spray Tip

TK-VS FloodJet®

VisiFlo Spray Tip

Locating

Nib

Used with DC-Core Inserts and

CP4916 Flow Regulators (Insert

Core into Seal)

D-Disc Core

Core

Seal

CP18999-E PR

(EPDM standard)

CP18999- VI

(Viton® optional)

TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet® DG TwinJet® Turbo TeeJet Induction®

TTDG TeeJet®

TK Flood Jet® FL FullJet® TX ConeJet®

TG Full Cone Hose Shank

AIXR TeeJet®Turbo TwinJet®

FOR USE WIT H FLAT SPRAY TIPS

300 PSI BA MAXIMUM P RESSURE

TeeJet Flat Spray Tips (Smaller Capacities)

TeeJet Flat Spray Tips (Larger Capacities)

TeeJet Flat Spray Tips (Smaller Capacities)

Tips can be positioned in choice of two spray plane directions—

parallel or perpendicular to wings of Quick TeeJet cap.

Ceramic Disc-Core

D-Disc Core

OC TeeJet®

–01 Thru –08

Standard

–0067 Thru –08

TP Standard

–10 Thru

–20

–10 Thru

–15

Turbo FloodJet®

VisiFlo® Spray Tip

TK-VS FloodJet®

VisiFlo Spray Tip

Locating

Nib

Used with DC-Core Inserts and

CP4916 Flow Regulators (Insert

Core into Seal)

D-Disc Core

Core

Seal

CP18999-E PR

(EPDM standard)

CP18999- VI

(Viton® optional)

TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet® DG TwinJet® Turbo TeeJet Induction®

TTDG TeeJet®

TK Flood Jet® FL FullJet® TX ConeJet®

TG Full Cone Hose Shank

AIXR TeeJet®Turbo TwinJet®

FOR USE WIT H FLAT SPRAY TIPS

300 PSI BA MAXIMUM P RESSURE

TeeJet Flat Spray Tips (Smaller Capacities)

TeeJet Flat Spray Tips (Larger Capacities)

TeeJet Flat Spray Tips (Smaller Capacities)

Tips can be positioned in choice of two spray plane directions—

parallel or perpendicular to wings of Quick TeeJet cap.

Ceramic Disc-Core

D-Disc Core

OC TeeJet®

–01 Thru –08

Standard

–0067 Thru –08

TP Standard

–10 Thru

–20

–10 Thru

–15

Turbo FloodJet®

VisiFlo® Spray Tip

TK-VS FloodJet®

VisiFlo Spray Tip

Locating

Nib

Used with DC-Core Inserts and

CP4916 Flow Regulators (Insert

Core into Seal)

D-Disc Core

Core

Seal

CP18999-E PR

(EPDM standard)

CP18999- VI

(Viton® optional)

TJ TwinJet® SJ-3 StreamJet®AI TeeJet® & AIUBTeeJet® DG TwinJet® Turbo TeeJet Induction®

TTDG TeeJet®

TK FloodJet®FLFullJet®TXConeJet®TGFull Cone Hose Shank

AIXR TeeJet®Turbo TwinJet®

FOR USE WITH FLAT SPRAYTIPS

300 PSIBA MAXIMUM PRESSURE

TeeJet Flat Spray Tips (Smaller Capacities)

TeeJet Flat Spray Tips (Larger Capacities)

TeeJet Flat Spray Tips (Smaller Capacities)

Tips can be positioned in choice of two spray plane directions—

parallel or perpendicular to wings of Quick TeeJet cap.

Ceramic Disc-Core

D-DiscCore

OC TeeJet®

–01 Thru –08

Standard

–0067 Thru –08

TP Standard

–10 Thru

–20

–10 Thru

–15

Turbo FloodJet®

VisiFlo® Spray Tip

TK-VSFloodJet®

VisiFlo Spray Tip

Locating

Nib

Used with DC-Core Inserts and

CP4916 Flow Regulators (Insert

Core into Seal)

D-Disc Core

Core

Seal

CP18999-EPR

(EPDMstandard)

CP18999-VI

(Viton® optional)

AITTJ60 Turbo TwinJet®

TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet® DG TwinJet® Turbo TeeJet Induction®

TTDG TeeJet®

TK Flood Jet® FL FullJet® TX ConeJet® TG Full Cone Hose Shank

AIXR TeeJet®Turbo TwinJet®

FOR USE WIT H FLAT SPRAY TIPS

300 PSI BA MAXIMUM P RESSURE

TeeJet Flat Spray Tips (Smaller Capacities)

TeeJet Flat Spray Tips (Larger Capacities)

TeeJet Flat Spray Tips (Smaller Capacities)

Tips can be positioned in choice of two spray plane directions—

parallel or perpendicular to wings of Quick TeeJet cap.

Ceramic Disc-Core

D-Disc Core

OC TeeJet®

–01 Thru –08

Standard

–0067 Thru –08

TP Standard

–10 Thru

–20

–10 Thru

–15

Turbo FloodJet®

VisiFlo® Spray Tip

TK-VS FloodJet®

VisiFlo Spray Tip

Locating

Nib

Used with DC-Core Inserts and

CP4916 Flow Regulators (Insert

Core into Seal)

D-Disc Core

Core

Seal

CP18999-E PR

(EPDM standard)

CP18999- VI

(Viton® optional)

TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet® DG TwinJet® Turbo TeeJet Induction®

TTDG TeeJet®

TK Flood Jet® FL FullJet® TX ConeJet® TG Full Cone Hose Shank

AIXR TeeJet®Turbo TwinJet®

FOR USE WIT H FLAT SPRAY TIPS

300 PSI BA MAXIMUM P RESSU RE

TeeJet Flat Spray Tips (Smaller Capacities)

TeeJet Flat Spray Tips (Larger Capacities)

TeeJet Flat Spray Tips (Smaller Capacities)

Tips can be positioned in choice of two spray plane directions—

parallel or perpendicular to wings of Quick TeeJet cap.

Ceramic Disc-Core

D-Disc Core

OC TeeJet®

–01 Thru –08

Standard

–0067 Thru –08

TP Standard

–10 Thru

–20

–10 Thru

–15

Turbo FloodJet®

VisiFlo® Spray Tip

TK-VS FloodJet®

VisiFlo Spray Tip

Locating

Nib

Used with DC-Core Inserts and

CP4916 Flow Regulators (Insert

Core into Seal)

D-Disc Core

Core

Seal

CP18999-E PR

(EPDM standard)

CP18999- VI

(Viton® optional)

94 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

FOR USE WITH SPRAY TIPS) REFERENCE GUIDE ONLY) COLOUR CAPS TEEJET CAP CODE LIST

LIST

INC CAT TEEJET GASKET

& CAP KIT CODE

LIST

INC CAT

CP25611-3-NY

$1.64 $1.80 B

25612-3-NYR

$2.27 $2.50 B

CP25611-4-NY 25612-4-NYR

CP25611-5-NY 25612-5-NYR

CP25611-6-NY 25612-6-NYR

CP25611-7-NY 25612-7-NYR

CP25611-8-NY

CP25609

-4-NY

$1.82 $2.00 B 25610-1-NYR $2.91 $3.20 B

CP25609

-6-NY

CP25597

-3-NY

$1.82 $2.00 B

25598

-3

-NYR

$2.91 $3.20 B

CP25597

-4-NY

25598

-4

-NYR

CP25597

-5-NY

25598

-5

-NYR

CP25597-6-NY 25598-6

-NYR

CP25597-7-NY 25598-1-NYR

CP25599

-3-NY

$1.82 $2.00 B 25600-6-NYR $2.91 $3.20 B

CP25599-6-NY

CP25607

-3-NY

$1.82 $2.00 B

25608-1-NYR

$2.91 $3.20 B

CP25607

-4-NY

25608

-3-NYR

CP25607

-5-NY

25608

-4-NYR

CP25607

-6-NY

CP26277-1-NY $4.00 $4.40 B 26278-1-NYR $4.91 $5.40 B

Provides shut-off at nozzle for quick spacing change or change in spray swath N/A N/A N/A B 19843-NYR $5.09 $5.60 B

CP19438-EPR (EPDM standard) Gasket only $2.27 $2.50 B

CP19438-VI (Viton optional) Gasket only $7.55 $8.31 B

Quick

TeeJet

Cap

Seat Gasket

CP19438-EPR (EPDM standard)

CP19438-VI (Viton optional)

Quick TeeJet Cap & Std Seat Gasket Kit

TEEJET NOZZLE CAPS

The Quick TeeJet® caps are designed

with grooves that fit locating lugs

on the nozzle body. Caps are made of

nylon and are available for use with all

TeeJet spray tips. Maximum operating

pressure of 20 bar/290 psi.

*Specify colour code (see chart), e.g:

CP25611-3-NY will supply red cap.

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

QUICK

TEEJET CAPS CAP ONLY LIST

LIST

INC CAT FOR USE WITH FLAT SPRAY TIPS

150PSI (10 BAR) MAXIMUM PRESSURE

CP21399-6-CE $3.73 $4.10 B

CP23307-4-CE $3.73 $4.10 B

CP23307-6-CE $3.73 $4.10 B

Gasket code CP23308-EPR $2.20 CAT B], use 4067 series cup strainers with TTI nozzles

CAPS FOR HARDI NOZZLE BODIES

TJ TwinJet

AI TeeJet

& AIUBTeeJet

SJ-3 StreamJet

DGTwinJet

Turbo TeeJet

Induction

TJ TwinJet® SJ-3 StreamJet®AI TeeJet® & AIUBTeeJet® DG TwinJet® Turbo TeeJet Induction®

TTDG TeeJet®

TK FloodJet®FLFullJet®TXConeJet®TGFull Cone Hose Shank

AIXR TeeJet®Turbo TwinJet®

FOR USE WITH FLAT SPRAYTIPS

300 PSIBA MAXIMUM PRESSURE

TeeJet Flat Spray Tips (Smaller Capacities)

TeeJet Flat Spray Tips (Larger Capacities)

TeeJet Flat Spray Tips (Smaller Capacities)

Tips can be positioned in choice of two spray plane directions—

parallel or perpendicular to wings of Quick TeeJet cap.

Ceramic Disc-Core

D-DiscCore

OC TeeJet®

–01 Thru –08

Standard

–0067 Thru –08

TP Standard

–10 Thru

–20

–10 Thru

–15

Turbo FloodJet®

VisiFlo® Spray Tip

TK-VSFloodJet®

VisiFlo Spray Tip

Locating

Nib

Used with DC-Core Inserts and

CP4916 Flow Regulators (Insert

Core into Seal)

D-Disc Core

Core

Seal

CP18999-EPR

(EPDMstandard)

CP18999-VI

(Viton® optional)

TJ TwinJet® SJ-3 StreamJet®AI TeeJet® & AIUBTeeJet® DG TwinJet® Turbo TeeJet Induction®

TTDG TeeJet®

TK FloodJet®FLFullJet®TXConeJet®TGFull Cone Hose Shank

AIXR TeeJet®Turbo TwinJet®

FOR USE WITH FLAT SPRAYTIPS

300 PSIBA MAXIMUM PRESSURE

TeeJet Flat Spray Tips (Smaller Capacities)

TeeJet Flat Spray Tips (Larger Capacities)

TeeJet Flat Spray Tips (Smaller Capacities)

Tips can be positioned in choice of two spray plane directions—

parallel or perpendicular to wings of Quick TeeJet cap.

Ceramic Disc-Core

D-DiscCore

OC TeeJet®

–01 Thru –08

Standard

–0067 Thru –08

TP Standard

–10 Thru

–20

–10 Thru

–15

Turbo FloodJet®

VisiFlo® Spray Tip

TK-VSFloodJet®

VisiFlo Spray Tip

Locating

Nib

Used with DC-Core Inserts and

CP4916 Flow Regulators (Insert

Core into Seal)

D-Disc Core

Core

Seal

CP18999-EPR

(EPDMstandard)

CP18999-VI

(Viton® optional)

UNI CAP

• Universal nozzle cap suitable for use with the

majority of nozzles used in agriculture today

• Lower stock costs and easier managing

• Supplied with gasket

Suitable for the following nozzles:

• ARAG® Kematal

• Lurmark® Flat Fan Tips

• Lechler Series 652, IDK, Air Mix,

• Lechler series ID, LU

• TeeJet® Flat Fan Tips Std.-

• TeeJet® FL Fulljet,

• TeeJet® TG Fullcone

FOR USE WITH SPRAY TIPS

(REFERENCE GUIDE ONLY)

COLOUR

CAPS

CAP

CODE

LIST

INC CAT GASKET

ONLY CODE

LIST

INC CAT

TeeJet® Flat Spray Tips

Lurmark Flat Fan Tips Albuz

Flat Fan Tips (Fits Sizes 01

To 08) Lechler Idk

G8253000 $2.18 $2.40 B 402200-040 $2.27 $2.50 B

Albuz Avi-Oc; Albuz Avi;

Albuz Ape-Exa; Albuz Esi G8253004 $4.27 $4.70 B 402200-040 $4.36 $4.80 B

Albuz Apm;Tk Floodjet

Tg Full Cone; Fl Full Jet G8253012 $4.27 $4.70 B 402200-040 $4.36 $4.80 B

Albuz Apt-Atr-Ampt,

Hcc hollow cones G8253020 $4.27 $4.70 B 402200-040 $4.36 $4.80 B

PROVIDES BLANKING

SHUT-OFF OF NOZZLE

G8253040

gasket not inc. $4.10 $3.13 B 402200-040 $2.18 $2.40 B

CODE DESCRIPTION COLOUR QUANTITY LIST EX LIST INC CAT

40299003 Uni Cap Red 1 PACK $4.09 $4.50 B

Silvan self-aligning nozzle caps are designed to ﬁt all popular brands of spray tips including fan, cone,

anvil and other specialised nozzles. Cap sealing gaskets are manufactured from chemical resistant EPDM material.

Maximum operating pressure 30 Bar (435 PSI).

96 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

CODE INLET SIZE TUBE SIZE MAX PRESSURE LIST EX LIST INC CAT

AR-100 (4 pack) 7mm 1/2” 9.6 Bar/145 psi $52.73 $58.00 B

CODE INLET SIZE TUBE SIZE MAX PRESSURE LIST EX LIST

INC

CAT

AR-200 (4 pack) 7mm 1/2” 30 Bar/435 psi $69.09 $76.00 B

AR-210 (4 pack) 10mm 3/4” 20 Bar/290 psi $70.00 $77.00 B

Silvan nozzle holders are the easiest and fastest means

of mounting spray nozzles to booms. Simply drill an

appropriate size hole and clamp nozzle holder in place.

The range available includes non-drip valves, swivel

nozzle holders, low pressure and high pressure holders

and wet and dry boom nozzle holders.

All are UV light resistant, house most standard size nozzle

tips and feature self aligning quick ﬁt caps for ease of

nozzle cleaning. Applications include boom spraying,

poultry shed lines, car washes, livestock races and

production line cooling. All nozzle holders are supplied

less tip. Merchandise packs of 4 where stated.

NON-DRIP NOZZLE HOLDERS

Single clamping screw on the 1/2” model.

Non-drip shut-off valve. Opens above 0.5 Bar.

Includes nozzle body & cap, gasket & screw.

• 1/2” model maximum pressure of 30 Bar

• 3/4” model maximum pressure of 20 Bar

WET BOOM NOZZLE HOLDERS

Designed for clamping around 1/2” spray tubes.

Feature a self-aligning nozzle cap and a mounting

recess in the top clamp for attachment to flat surfaces.

Polypropylene construction. Includes nozzle cap,

gasket and screw.

AR-200

AR-100

AR-210

DRAWING

0114

DRAWING

10314

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

CODE INLET SIZE TUBE SIZE MAX PRESSURE LIST EX LIST

INC

CAT

QJ17560A-1/2x7-NYB 7mm 1/2” 20 Bar/300 psi $8.00 $8.80 B

QJ17

560A-1/2-NYB 9.5mm 1/2” 20 Bar/300 psi $8.00 $8.80 B

QJ17560A-3/4-NYB 9.5mm 3/4” 20 Bar/300 psi $8.00 $8.80 B

QJ17560A-1-NYB 9.5mm 1” 20 Bar/300 psi $9.09 $10.00 B

CODE INLET SIZE TUBE SIZE MAX PRESSURE LIST EX LIST INC CAT

QJ363C-1/2-NYB 9.5mm 1/2” 20 Bar/300 psi $36.36 $40.00 B

QJ363C-3/4-NYB 9.5mm 3/4” 20 Bar/300 psi $36.36 $40.00 B

QJ363C-1-NYB 9.5mm 1” 20 Bar/300 psi $36.36 $40.00 B

TEEJET NOZZLE HOLDERS

Features ChemSaver drip-free shut-off.

Requires 10 PSI (0.7 bar) at the nozzle to open check valve.

Note: Excludes nozzle cap and gasket.

TEEJET MULTIPLE NOZZLE HOLDERS

This 3 position nozzle holder features a positive shut-off between

each position and includes ChemSaver® diaphragm check valve for

drip-free shut-off.

Note: Excludes nozzle cap and gasket.

98 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

QJ39685 SERIES

• TeeJet ChemSaver® drip-free shut-off

• Made of corrosion-resistant materials 2 31

CODE REF NOZZLE HOLDER TYPE INLET HOSE TAIL

SIZE I.D. MAX PRESSURE LIST EX LIST INC CAT

QJ39685-1L-500-NYB 1 SINGLE LEFT 1/2” 20 Bar/290 psi $12.73 $14.00 B

QJ39685-1R-500-NYB 2 SINGLE RIGHT 1/2” 20 Bar/290 psi $12.73 $14.00 B

QJ39685-2-500-NYB 3 DOUBLE 1/2” 20 Bar/290 psi $12.73 $14.00 B

193 SERIES

• Drip free shut-off with ChemSaver®

• Opening pressure - 10 psi (0.7 bar)

• Available in single or double hose shanks

• Hose barb sizes for 3/8”, 1/2” or 3/4” I.D. hose

• Use with Vari Spacing clamps (Refer Page 100) A

19349

19350

CODE REF NOZZLE HOLDER TYPE INLET HOSE TAIL

SIZE I.D. MAX PRESSURE LIST EX LIST INC CAT

19349-211-406-NYB A SINGLE 3/8” 8 Bar/125 psi $20.91 $23.00 B

19349-211-540-NYB A SINGLE 1/2” 8 Bar/125 psi $20.91 $23.00 B

19349-211-785-NYB A SINGLE 3/4” 8 Bar/125 psi $20.91 $23.00 B

19350-212-406-NYB B DOUBLE 3/8” 8 Bar/125 psi $20.91 $23.00 B

19350-212-540-NYB B DOUBLE 1/2” 8 Bar/125 psi $20.91 $23.00 B

19350-212-785-NYB B DOUBLE 3/4” 8 Bar/125 psi $20.91 $23.00 B

Dry boom nozzle holders are designed for mounting directly to boom

frame for variable nozzle spacings when used with hose and clamps.

Fits round or square tubing or pipe and is connected by hose and clamps.

Polypropylene construction with max pressure of 2000kPa (290psi).

G8235027

G8235021

8235 SERIES

Self aligning nozzle cap. Available in single or double hose-tails.

Non-drip shut-off valve standard (open 0.5 Bar).

CODE NOZZLE HOLDER TYPE INLET HOSE TAIL

SIZE I.D. MAX PRESSURE LIST EX LIST INC CAT

G8235021 SINGLE 1/2” 20 Bar/290 psi $23.64 $26.00 B

G8235027 DOUBLE 1/2” 20 Bar/290 psi $20.00 $22.00 B

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

CODE REF TO FIT LIST EX LIST INC CAT

QJ111-1/2 1 1/2” Pipe (13/16” & 7/8” O.D. Tubing) $6.00 $6.60 B

QJ111-3/4 1 3/4” Pipe (1” & 11/16” O.D. Tubing) $6.00 $6.60 B

QJ111-1 1 1” Pipe (11/8”, 11/4” & 13/8” O.D. Tubing) $6.00 $6.60 B

QJ111-1-1/4 1 1-1/4” Pipe (19/16” & 111/16” O.D. Tubing) $6.00 $6.60 B

QJ111SQ-3/4 2 3/4” Square Tubing $6.00 $6.60 B

QJ111SQ-1 2 1” Square Tubing $6.00 $6.60 B

QJ111SQ-1-1/4 2 1-1/4” Square Tubing $6.00 $6.60 B

QJ111SQ-1-1/2 2 1-1/2” Square Tubing $6.00 $6.60 B

CODE THREAD SIZE ANTI DRIP VALVE MAX PRESSURE LIST EX LIST INC CAT

QJ8360-NYB 1/4” NPT (M) YES 20 Bar/290 psi $15.45 $17.00 B

QJT8360-NYB 11/16” TeeJet THREAD (F) YES 20 Bar/290 psi $15.45 $17.00 B

QJ8360-NYB

NOZZLE ADAPTORS

• Features ChemSaver® non-drip shutoff

• Requires 10 PSI (0.7 bar) at the nozzle to open check valve

• QJ8360-NYB allows use of Quick TeeJet system from 1/4”

NPT female connections

• QJT8360-NYB permits use of Quick TeeJet system with

standard 11/16” TeeJet thread

QJ111-1/2

VARI SPACING CLAMPS

These clamps are for use on all dry boom nozzle bodies.

Simply order the round or square clamps for the required

O.D. tubing.

Example: QJ111-1/2 (Round 1/2” tubing).

QJT8360-NYB

QJ111SQ-3/4

G8235 SERIES

• Geoline compact non-drip elbow

• Made of corrosion-resistant materials 64 5

CODE REF NOZZLE HOLDER TYPE INLET HOSE TAIL

SIZE I.D. MAX PRESSURE LIST EX LIST INC CAT

G8235035 4 SINGLE LEFT 1/2” 20 Bar/290 psi $16.36 $18.00 B

G8235031 5 SINGLE RIGHT 1/2” 20 Bar/290 psi $16.36 $18.00 B

G8235033 6 DOUBLE 1/2” 20 Bar/290 psi $16.36 $18.00 B

CP21953-EPR Replacement Standard Diaphragm $2.00 $2.20 B

CP21953-VI Replacement Viton $5.55 $6.11 B

100 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

CODE MATERIAL LIST EX LIST INC CAT

CP1325 Brass $3.18 $3.50 B

CP8027-NYB Nylon $1.82 $2.00 B

TEEJET NOZZLE CAPS

Secure interchangeable TeeJet tips to the

various nozzle bodies.

CP8027-NYBCP1325

G8247004

CODE NOZZLE HOLDER TYPE INLET SIZE

(BSP) MAX PRESSURE L (MM) LIST EX LIST INC CAT

G8247014 Double Poly 1/4” F 9.6 Bar/145 psi 70 $22.73 $25.00 B

G8247004 Single Brass 1/4” F 20 Bar/300 psi 70 $31.82 $35.00 B

G8247008 Double Brass 1/4” F 20 Bar/300 psi 70 $41.82 $46.00 B

G8247014

G8247008

POLY - SWIVEL NOZZLE HOLDERS

Features an adjustable spray angle with lock nut to hold

body in place. Self-aligning nozzle cap. Ideal for use in row

crop application or fenceline spraying.

Uses bayonet caps, see page 96

BRASS – SWIVEL NOZZLE HOLDERS

Plated brass adjustable angle swivel bodies.

Threaded nozzle caps for high pressure application

and row crop spraying. Single or twin outlets.

DRAWING

10889

101

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

CODE INLET SIZE TUBE SIZE OUTLET SIZE (BSP) MAX PRESSURE LIST EX LIST INC CAT

004215 7mm 1/2” 1/4” Female 50 Bar/725 psi $10.91 $12.00 B

HIGH PRESSURE WET BOOM NOZZLE HOLDERS

High pressure nozzle holders are ideal for orchard, vineyard, market garden

and poultry shed applications. They can be retro-fitted to existing equipment

or for specialised manufacturing uses, eg. special spray booms.

Brass construction with BSP connections.

• Suits 1/2” tube with 7mm outlet hole

• Inlet 1/4” female

CODE INLET SIZE BSP) MATERIAL SWIVEL ARC

RANGE MAX PRESSURE LIST EX LIST INC CAT

QJ8600-1/4-NYB 1/4” NPT (F) Nylon 280° 8 Bar/125 psi $16.36 $18.00 B

QJ8600-2-1/4-NYB 1/4” NPT (F) Nylon 280° 8 Bar/125 psi $19.09 $21.00 B

5000-1/4T 1/4” NPT (F) Brass 280° 8 Bar/125 psi $48.18 $53.00 B

4202-2-1/4T 1/4” NPT (F) Brass 280° 8 Bar/125 psi $57.27 $63.00 B

6240-1/4TT 1/4” NPT (M) Brass 280° 8 Bar/125 psi $50.91 $56.00 B

8600-1/4T-NYB 1/4” NPT (F) Nylon 280° 8 Bar/125 psi $18.18 $20.00 B

8600-2-1/4T-NYB 1/4” NPT (F) Nylon 280° 8 Bar/125 psi $18.18 $20.00 B

4202-2-1/4T

8600-1/4T-NYB 8600-2-1/4T-NYB

6240-1/4TT

5000-1/4T

QJ8600-2-1/4-NYB

TEEJET SWIVEL

NOZZLE HOLDERS

TeeJet swivel nozzle bodies are primarily for

use with tips employed in row crop spraying.

A locknut holds swivel bodies firmly in

position at a selected spray projection

angle so they are not affected by jarring

and vibration. For use at pressures up to

125 PSI (8.6 bar). These are also available in

the QJ8600 swivel Quick TeeJet nozzle body

assemblies which provide the same spray tip

adjustability of a standard TeeJet threaded

swivel plus the quick change and self-aligning

features of the Quick TeeJet System.

QJ8600-1/4-NYB

004215

102 CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories

HIGH PRESSURE NOZZLE HOLDERS

68 SERIES

Double sided version

of Single Series.

SINGLE SERIES

Flip over nozzle fitted with 1/4”

BSP thread, all brass construction,

ceramic tip, stainless steel swirl

plate, 90º shut off.

MA3-66

VINE SERIES

Features adjustable spray pattern

simply by twisting rear adjusting nut.

Supplied with 1/4” BSP swivel which

allows the nozzle to be locked in

almost any spray angle/position. Brass

construction with ceramic nozzle tip.

MA7 SERIES

Ideal for use in high volume pressure

applications in heavy foliage. Features

adjustable spray pattern, tungsten

carbide nozzle supplied standard with

1.5mm jet and brass construction.

Supplied with 1/4” BSP swivel.

MA3 SERIES

Double brass nozzle holder designed

to increase number of nozzles thus

reducing the droplet size and increasing

the coverage. Fits directly to most brass

nozzle holders (1), (2) and (3) to replace

existing nozzle & cap i.e. 1 jet nozzle

holder becomes 2 jet.

CODE INLET

SIZE NOZZLE SIZE ANTI DRIP

VALVE MAX PRESSURE LENGTH WIDTH HEIGHT LIST EX LIST INC CAT

G8264000A 1/4” Male 1.2 NO 50 Bar/725 psi 50mm 30mm 60mm $42.73 $47.00 B

MA3-68 1/4” Male 1.2/1.5 NO 50 Bar/725 psi 70mm 30mm 60mm $48.18 $53.00 B

MA3-66 1/4” Male 1.2/1.5 YES 50 Bar/725 psi 80mm 30mm 40mm $70.91 $78.00 B

P50 1/4” Male 1.2 NO 50 Bar/725 psi 100mm 25mm 70mm $54.55 $60.00 B

G8275016 1/4” Male 1.5 NO 50 Bar/725 psi 130mm 30mm 30mm $88.18 $97.00 B

MA3-78 3/4” Female - - 50 Bar/725 psi 30mm 125mm 50mm $54.55 $60.00 B

NON DRIP

BRA SERIES

Brass flip over nozzle fitted with

anti-drip valve with viton diaphragm.

Anti-drip valve opens at 1 Bar

pressure. 1/4” BSP thread, all brass

construction, ceramic tips, stainless

steel swirl plates, 90º shut off.

P50 G8264000A

MA3-68

G8275016 MA3-78

DRAWING

10221

DRAWING

10226

DRAWING

0642

DRAWING

10849

103

CALL: 1300 745 826 or visit silvan.com.au for more information

Nozzles and Accessories Nozzles and Accessories

Fire Fighters

104 CALL: 1300 745 826 or visit silvan.com.au for more information

Fire Fighters

LBA-115

LBA-100

FOUR STROKE COMPACT WATER PUMP

Centrifugal water pump with handy carry handle for ﬁre control,

watering and washing.

• 115 L/min open flow, 40 psi max. pressure

• 3 metres suction Lift

• Outlet and inlet connections 1” BSP (25mm)

• 4 Stroke, 33 cc capacity with recoil start

• 0.6L fuel tank capacity

• Petrol powered – no mixing

SILVAN SELECTA POWER FIRE FIGHTING PUMP

For ﬁre ﬁghting and watering and features a carry/

mounting frame for mobility and added protection.

• 4 stroke over head cam engine with oil alert

• Max. 250 L/min open flow, Max. 100psi pressure

• Direct coupled centrifugal, twin impeller fire fighting pump

• Maximum suction lift 3.5 metres

• 1 x 11/2” inlet, 2 x 1” outlet, 1 x 11/2 ” outlet

• Weight 8kg

• Optional hose kit (Code: LBA-100A) consisting of 20m fire fighting hose,

nozzle, 6m suction hose and foot filter

OPTIONAL ACCESSORIES

Hose kit

(LBA-100A)

CODE POWER MAX PRESSURE MAX OUTPUT LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

LBA-115 1.21HP 3 Bar/40 psi 115 L/min 420mm 300mm 360mm 8 kg $362.73 $399.00 A

LBA-100 6.5HP 7 Bar/100 psi 250L/min 500mm 370mm 400mm 31 kg $626.36 $689.00 A

OPTION CODE DESCRIPTION SUCTION HOSE DELIVERY HOSE LIST EX LIST INC CAT

LBA-100A Water Transfer

Hose Kit

6m x 40mm ID

with foot ﬁlter

20 m x 19mm ID

with Adjustable Nozzle $256.36 $282.00 A

328-254-28 Seal Kit – Mechanical (To suit LBA-100) $37.27 $41.00 B

The Silvan Selecta Power Water Transfer pumps handle high volume water pumping

and are ideal when portability is needed or electrical power supply is scarce. DRAWING

10820

DRAWING

5070

TWIN

STAGE

PUMP

105

CALL: 1300 745 826 or visit silvan.com.au for more information

Fire Fighters Fire Fighters

Silvan Fire Fighting Units

400L, 600L & 800L

Ideal for fire fighting, water transfer and washdown.

5.5 HP HONDA GX160

ENGINE WITH DAVEY FIRE

FIGHTING PUMP

AVAILABLE WITH 20M HOSE

COIL OR 30M HOSE REEL

SINGLE IMPELLER MAX

PRESSURE 80PSI (425L/MIN

OPEN FLOW)

400 & 800L UV

STABILISED TANKS

ALL MODELS WITH

STRAINER BASKET TO

REMOVE COURSE DEBRIS

UNIQUE BAFFLE

DESIGN REDUCES SURGE

WHEN TRAVELING

¾” FIRE FIGHTING HOSE

ANDPOLY FIRE NOZZLE

BAFFLED TANK

TWIN BAFFLED TANK

400L, 600L & 800L UV

STABILISED TANKS

6.5 HP SELECTA

POWER FIRE FIGHTING

PUMP AVAILABLE

TWIN IMPELLER MAX

PRESSURE 100PSI (250L/MIN

OPEN FLOW)

106 CALL: 1300 745 826 or visit silvan.com.au for more information

Fire Fighters

SQF400D-1

CODE TANK OPEN FLOW MAX PRESSURE LENGTH WIDTH HEIGHT WT LIST EX LIST

INC

CAT

SQF400S 400L 250 L/Min 6 Bar/100 psi 935mm 1080mm 650mm 65 kg $1,944.55 $2,139.00 9

SQF400D 400L 425 L/Min 5 Bar/80 psi 935mm 1080mm 650mm 65 kg $2,671.82 $2,939.00 9

*SQF400D-1 400L 425 L/Min 5 Bar/80 psi 935mm 1080mm 980mm 77 kg $3,009.09 $3,310.00 9

SQF400D-1

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

DRAWING

10092

DRAWING

10092

BAFFLED TANK

TWIN BAFFLED TANK

BAFFLED TANK

TWIN BAFFLED TANK

SQF400S

Silvan Fire fighting units are made of high quality components sourced

from world class manufacturers. Ideal for water transfer and washdown

of machinery, they fit neatly across the back of a one tonne tray and

between the wheel arches of popular utilities.

All units are fully assembled and tested ready for use.

400L SILVAN SELECTA POWER UNIT - SQF400S

• 20mtr ¾” I.D. hose and poly adjustable fire fighter nozzle

• 4 Stroke 6.5HP Selecta Power Engine, twin Alloy Impellor

• Inlet 1 x 1.5”, Outlet 1 x 1.5” & 2 x 1”

• 100psi max pressure or 250L/Min open flow

• Maximum head 70 (metres)

• Fuel capacity 3.6 Litre (Unleaded),2 hours approx run time

400L SILVAN HONDA DAVEY UNIT - SQF400D

• 20mtr ¾” I.D. hose and poly adjustable fire fighter nozzle

• 4 Stroke 5.5HP GX160 Honda Engine, direct coupled Impellor

• Inlet 1 x 1.5”, Outlet 1 x 1.5” & 2 x 1”

• 80psi max pressure or 425L/Min open flow

• Maximum head 56 (metres)

• Fuel capacity 3.6 Litre (Unleaded),2 hours approx run time

400L SILVAN HONDA DAVEY UNIT - SQF400D-1

• Hosereel , fitted with 30mtr ¾” I.D. hose and poly adjustable

fire fighting nozzle

TWIN

STAGE

PUMP

107

CALL: 1300 745 826 or visit silvan.com.au for more information

Fire Fighters Fire Fighters

Silvan Fire fighting units are made of high quality components sourced from world class manufacturers. Ideal for water

transfer and wash down of machinery, they fit neatly across the back of a one tonne tray and between the wheel arches of

popular utilities.

All units are fully assembled and tested ready for use.

600L SILVAN SELECTA POWER FIRE FIGHTING UNITS - SQF600S

• UV stabilised Polytuff tank that meets the harsh Australian conditions

• Internal Baffle to reduce surge when travelling

• Tie down points moulded into the top of the tank

• Screw down lid with breather and strainer basket

• 4 Stroke 6.5HP Selecta Power Engine, twin Alloy Impellor

• 100psi max pressure or 250L/Min open flow

• Inlet 1 x 1.5”, Outlet 1 x 1.5” & 2 x 1”

• Maximum head 70 (metres)

• Fuel capacity 3.6 Litre (Unleaded)

• 2 hours approx run time

600L SILVAN SELECTA

POWER UNIT - SQF600S-1

• Hosereel, fitted with 30mtr ¾” I.D. hose and

poly adjustable fire fighter nozzle

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

CODE DESCRIPTION LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

SQF600S 600L Selecta Power Fire Fighting Unit 1830mm 940mm 840mm 67 kg $2,180.91 $2,399.00 9

SQF600S-1 600L Selecta Power c/w 30mtr Hosereel 1830mm 940mm 840mm 82 kg $2,599.09 $2,859.00 9

SQF600S

BAFFLED TANK

TWIN BAFFLED TANK

UNIQUE TWIN

TWIN

STAGE

PUMP

SQF600S-1

108 CALL: 1300 745 826 or visit silvan.com.au for more information

Fire Fighters

SQF600D

SQF600D-1

Silvan Fire fighting units are made of high quality components sourced from world class

manufacturers. Ideal for water transfer and wash down of machinery, they fit neatly

across the back of a one tonne tray and between the wheel arches of popular utilities.

All units are fully assembled and tested ready for use.

600L SILVAN HONDA DAVEY FIRE FIGHTING UNITS

• UV stabilised Polytuff tank that meets the harsh Australian conditions

• Internal Baffle to reduce surge when travelling

• Tie down points moulded into the top of the tank

• Screw down lid with breather and strainer basket

• 4 Stroke 5.5HP GX160 Honda Engine,

direct coupled Impellor

• Inlet 1 x 1.5”, Outlet 1 x 1.5” & 2 x 1”

• 80psi max pressure or 425L/Min open flow

• Maximum head 56 (metres)

• Fuel capacity 3.6 Litre (Unleaded)

• 2 hours approx run time

600L SILVAN

HONDA DAVEY UNIT - SQF600D

• 20mtr ¾” I.D. hose and poly adjustable fire fighter nozzle

600L SILVAN

HONDA DAVEY UNIT - SQF600D-1

• Hosereel , fitted with 30mtr ¾” I.D. hose and poly

adjustable fire fighter nozzle

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

CODE DESCRIPTION LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

SQF600D 600L Honda Davey Fire Fighting Unit 1830mm 940mm 840mm 67 kg $2,817.27 $3,099.00 9

SQF600D-1 600L Honda Davey Unit C/W 30mtr Hosereel 1830mm 940mm 840mm 82 kg $3,271.82 $3,599.00 9

BAFFLED TANK

TWIN BAFFLED TANK

UNIQUE TWIN

BAFFLED TANK

TWIN BAFFLED TANK

UNIQUE TWIN

109

CALL: 1300 745 826 or visit silvan.com.au for more information

Fire Fighters Fire Fighters

CODE TANK OPEN FLOW MAX PRESSURE LENGTH WIDTH HEIGHT WT LIST EX LIST

INC

CAT

SQF800S-1* 800L 250 L/Min 6 Bar/100 psi 1800mm 940mm 1090mm 95 kg $2,962.73 $3,259.00 9

SQF800D 800L 500 L/Min 5 Bar/80 psi 1800mm 940mm 760mm 77 kg $3,126.36 $3,439.00 9

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

800L HONDA DAVEY UNIT - SQF800D

• 20mtr ¾” I.D. hose and poly adjustable fire fighter nozzle

• 4 Stroke 5.5HP GX160 Honda Engine, direct coupled Impellor

• Inlet 1 x 1.5”, Outlet 1 x 1.5” & 2 x 1”

• 80psi max pressure

or 425L/Min open flow

• Maximum head 56 (metres)

800L SELECTA POWER UNIT - SQF800S-1

• Heavy duty hosereel , fitted with 30mtr ¾” I.D. hose

and poly adjustable fire fighting nozzle.

• 4 Stroke 6.5HP Selecta Power Engine, twin Alloy Impellor

• Inlet 1 x 1.5”, Outlet 1 x 1.5” & 2 x 1”

• 100psi max pressure or 250L/Min open flow

• Maximum head 70 (metres)

BAFFLED TANK

TWIN BAFFLED TANK

UNIQUE TWIN

BAFFLED TANK

TWIN BAFFLED TANK

UNIQUE TWIN

TWIN

STAGE

PUMP

SQF800S-1

SQF800D

110 CALL: 1300 745 826 or visit silvan.com.au for more information

Fire Fighters

CODE TANK OPEN FLOW MAX PRESSURE LENGTH WIDTH HEIGHT WT LIST EX LIST

INC

CAT

SQF800D-1 800L 500 L/Min 5 Bar/80 psi 1800mm 940mm 1090mm 95 kg $3,426.36 $3,769.00 9

SQF800D-3 800L 400 L/Min 10 Bar/150 psi 1800mm 940mm 1090mm 97 kg $3,608.18 $3,969.00 9

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

SQF800D-3

800L SILVAN FIRE FIGHTING UNITS

• UV stabilised Polytuff tank that meets the harsh Australian conditions

• TWIN Internal Baffle to reduce surge when travelling

• Tie down points moulded into the top of the tank

• Fuel capacity 3.6 Litre (Unleaded),2 hours approx run time

• Screw down lid with breather and strainer basket

• Engines are fitted with Oil Alert

BAFFLED TANK

TWIN BAFFLED TANK

UNIQUE TWIN

800L HONDA TWIN

STAGE UNIT - SQF800D-3

• Heavy duty hosereel, fitted with

30m ¾” I.D. hose and poly adjustable

fire fighting nozzle

SQF800D-1

111

CALL: 1300 745 826 or visit silvan.com.au for more information

Fire Fighters Fire Fighters

1100L SILVAN FIRE FIGHTING UNITS

• Tie down points moulded into the top of the tank

• Screw down lid with breather and 455mm strainer basket

• Galvanised fork lift – able skid base

• Heavy duty hosereel, fitted with 30m x ¾” I.D.

hose and poly adjustable nozzle

• Fuel capacity 3.6 Litre (Unleaded), 2 hours approx run time

• Engines fitted with low oil alert

1100L HONDA DAVEY UNIT - SLF1000D-1

• 4 Stroke 5.5HP GX160 Honda Engine,

direct coupled Impellor

• Inlet 1 x 1.5”, Outlet 1 x 1.5” & 2 x 1”

• 80psi max pressure or 425L/Min open flow

• Maximum head 56 (metres)

2200L HONDA DAVEY SLED UNIT - SLF2200D-1

• Honda 4 Stroke 5.5HP GX160 engine,

direct coupled to Davey Pump

• Max 425L/min open flow or max 80psi pressure

• Heavy duty hosereel, 30m x ¾” hose and adjustable nozzle

1100L SILVAN FIRE FIGHTING UNITS

• Tie down points moulded into the top of the tank

• Screw down lid with breather and 455mm strainer basket

• Galvanised fork lift – able skid base

• Heavy duty hosereel, fitted with 30m x ¾” I.D.

hose and poly adjustable nozzle

• Fuel capacity 3.6 Litre (Unleaded), 2 hours approx run time

• Engines fitted with low oil alert

1100L SELECTA POWER UNIT - SLF1000S-1

• 4 Stroke 6.5HP Selecta Power Engine, twin Alloy Impellor

• Inlet 1 x 1.5”, Outlet 1 x 1.5” & 2 x 1”

• 100psi max pressure or 250L/Min open flow

• Maximum head 70 (metres)

1100L HONDA DAVEY UNIT - SLF1000D-1

• 4 Stroke 5.5HP GX160 Honda Engine,

direct coupled Impellor

• Inlet 1 x 1.5”, Outlet 1 x 1.5” & 2 x 1”

• 80psi max pressure or 425L/Min open flow

• Maximum head 56 (metres)

2200L HONDA DAVEY SLED UNIT - SLF2200D-1

• Honda 4 Stroke 5.5HP GX160 engine,

direct coupled to Davey Pump

• Max 425L/min open flow or max 80psi pressure

• Heavy duty hosereel, 30m x ¾” hose and adjustable nozzle

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

CODE DESCRIPTION LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

SLF1000D-1 1100L Honda Davey Unit c/w 30m Hosereel 1970mm 1160mm 1050mm 200 kg $3,699.09 $4,069.00 9

SLF2200D-1 2200L Honda Davey Unit c/w 30m Hosereel 2300mm 1350mm 1400mm 322 kg $5,509.09 $6,060.00 9

UV stabilised Polytuff tank that meets the harsh Australian conditions

SLF2200D-1

SLF1000D-1

112 CALL: 1300 745 826 or visit silvan.com.au for more information

Fire Fighters

CODE DESCRIPTION LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

STF800S-1* On-Farm 800L Fire Fighter 3000mm 1400mm 1500mm 280 kg $5,199.09 $5,719.00 9

STF1000D-1-BLV* On-Road 1100L Fire Fighter 3500mm 2000mm 1500mm 440 kg $9,636.36 $10,600.00 9

* Important: Additional freight charges may apply. For further information contact customer service.

STF1000D-1-BLV*

STF800S-1*

800L ON-FARM FIRE FIGHTING UNIT

6.5 HP Selecta Power Engine with low oil protection.

• Max. 250 L/min open flow or max. 100psi pressure

• Galvanised trailer with mudguards

• 50mm tow hitch and Jockey wheel

• Polytuff tank with unique Double baffle design

reduces surge when travelling

• Screw down lid with breather and strainer basket

for leaves and other debris

• Hose Reel fitted with 30m ¾” fire fighting

hose & poly fire nozzle

1100L ON-ROAD TRAILED FIRE FIGHTING UNIT

5.5 HP Honda/Davey with low oil protection.

• Max. 425 L/min open flow or max. 80psi pressure

• Heavy Duty Hosereel, 30m x 3/4” hose and adjustable fire nozzle

• Quick fill kit uses pump & large 6m hose for rapid tank fill,

pump max. suction lift 6 meters

• Road-Registrable Galvanised trailer with mudguards

• 50mm tow hitch and Jockey wheel

• Screw down lid with breather and strainer basket

for leaves and other debris

• ADR approved LED Tail lights & brake system

Warning: Refer to vehicle or tractor manufacturer’s instructions for appropriate load & towing limits & fitting positions.

ROAD-REGISTRABLE

BAFFLED TANK

TWIN BAFFLED TANK

UNIQUE TWIN

113

CALL: 1300 745 826 or visit silvan.com.au for more information

Fire Fighters Fire Fighters

CODE HOSE I.D. HOSE LENGTH MAX PRESSURE LIST EX LIST INC CAT

180F03019E 19mm 30 metres 9 Bar/131 psi $685.45 $754.00 A

JA-1402020 19mm 30 metres 17 Bar/247 psi $617.27 $679.00 A

SQF-DAMKIT 38mm 6 metres $362.73 $399.00 A

FIRE FIGHTING HOSE REEL

• Powder coated metal construction

• Fitted with 30 metres of 3/4” delivery hose

• Adjustable poly nozzle

• Supplied with mounting brackets

to suit SquatPak tanks - 400,600 & 800 Litre

WATER & DIESEL

HEAVY DUTY HOSE REEL

This versatile hose reel is a great addition to fire fighters

or diesel units where extra hose is required.

• Inlet 3/4” BSP/outlet tapered hose tail

• 30m of 3/4” I.D. hose

• Manual rewind reel with hose guide rollers and stopper

QUICK FILL SUCTION KIT

When fitted to a fire fighting pump, this quick fill

option allows alternative water sourcessuch as

dams and tanks to be utilised.

• 3-way valve and 6 metres of quality 38mm I.D.

suction hose with foot filter

• Honda Davey pump max. lift 6m

• Selecta Power pump max. lift 3.5m

Note: Pump suction lift ability may vary.

180F03019E

JA-1402020

SQF-DAMKIT

DRAWING

10101

114 CALL: 1300 745 826 or visit silvan.com.au for more information

Fire Fighters

400L, 600L & 800 LITRE BARE

DIY FIRE FIGHTING TANKS

The Selecta Fire Fighting SquatPak tanks are fitted

with a base plate and are Baffled to reduce surge

when travelling. Suction fittings are provided to

mount vatious pump & hose combinations.

FIRE FIGHTING NOZZLE - 422-502

• High density plastic outer and inner body

• Adjustable spray from straight to conical pattern

• 3/4” BSP female thread

FIRE FIGHTING PISTOL - 410-40

• Brass body covered by a shockproof plastic

housings and fitted with 3 shockproof rings

• Ideal for firefighting or wash down

• Maximum pressure 24 BAR, maximum output 60 L/min

• Pull trigger to vary flow from cone to straight stream

• Threads 1/2” standard female BSP

RAKHO – FIRE FIGHTING

• An essential implement for country fire fighters and farmers

• Designed for raking combustible debris, chopping fire breaks

and scraping back bark from trees

SQF400B

CODE DESCRIPTION LIST EX LIST INC CAT

SQF400B 400L Tank, Base Plate & Suction Hose $963.64 $1,060.00 A

SQF600B 600L Tank, Base Plate & Suction Hose $1,081.82 $1,190.00 A

SQF800B 800L Tank, Base Plate & Suction Hose $1,536.36 $1,690.00 A

410-40

CODE DESCRIPTION MAX PRESSURE THREAD SIZE LIST EX LIST INC CAT

422-502 Fire Fighting Nozzle 92 Bar/200 psi 3/4” female (BSP) $60.00 $66.00 B

G8001203 3/4” Hosetail (Poly) O.D. 92 Bar/200 psi 3/4” male $6.45 $7.10 B

G8001205 1” Hosetail (Poly) O.D. 92 Bar/200 psi 3/4” male $6.55 $7.20 B

410-40 Fire Fighting Pistol 160 Bar/348 psi 1/2” female $193.64 $213.00 B

631849 Rakho 275 x 225mm Blade/ Long Timber Handle $100.91 $111.00 B

BAFFLED TANK

TWIN BAFFLED TANK

SQF800B

SQF600B

BAFFLED TANK

TWIN BAFFLED TANK

UNIQUE TWIN

BAFFLED TANK

TWIN BAFFLED TANK

UNIQUE TWIN

631849

422-502

115

CALL: 1300 745 826 or visit silvan.com.au for more information

Fire Fighters Fire Fighters

CODE DESCRIPTION LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

KN20F-1 20L Knapsack Fire Fighter 160mm 350mm 520mm 3.5 kg $144.55 $159.00 A

FIRE FIGHTER KNAPSACK 20 LITRE

Ideal for ember suppression, spot ﬁres and burn-off management.

• Robust double-action hand pump, meets the requirements of AS1687

• Adjustable nozzle supports targeted distance

spraying and closer broader ember suppression

• Left or right handed operation

• Gun holder for storage

• Suction filter KN20F-1

Note: For use

with water only.

Not suitable

for chemical

application.

CALL: 1300 745 826 or visit silvan.com.au for more information

116 CALL: 1300 745 826 or visit silvan.com.au for more information

Fire Fighters

GENUINE

ACCESSORIES

GENUINE

ACCESSORIES

Pumps, Valves

Controllers,

Tanks & Hoses

117

CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

CALL: 1300 745 826 or visit silvan.com.au for more information

Fire Fighters Pumps, Controllers, Valves, Tanks and Hoses

METAL 1³⁄8” SHAFT

SUIT PTO, ENGINES AND

HYDRAULIC MOTORS

VISUAL OIL LEVEL

SITE GLASS

Silvan Diaphragm Pumps

Tough, reliable and no risk of damage if run dry!

MANIFOLD PARTS IN

CONTACT WITH LIQUID

ARE MADE IN PLASTIC

MATERIAL STRONG ALUMINIUM

CRANKCASE

AIR PRESSURE

CHAMBER

CHEMICAL RESISTANT OIL

BACKED DIAPHRAGMS

METAL MOUNTING FEET

118 CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

BP SERIES

All Silvan diaphragm pumps are built for 540 RPM operation, are Self-priming and designed so no special tools are required

for service. Tough and reliable they will run dry without risk of damage. All pumps are supplied with appropriate hose

connections, mounting base plates and 1 3/8” six splined shaft. Some models are available with keyed shaft.

†*All pumps are supplied, ready to use with 40/20 motor oil in the Crankcase.

BP20/15

Diaphragms: 2

Output @ 540 RPM: 19 L/min

HP required at max. pressure: 0.83

L x W x H (mm): 224 x 260 x 174

Weight (kg): 7.3

CONTROL VALVE TO SUIT

Attached (2 outlet)

Code: C1204-528

CBP02015

CODE PUMP MAX PRESSURE LIST EX LIST INC CAT

CBP02015 BP20/15 15 Bar/218 psi $908.18 $999.00 A

CBP06020 BP60/20 20 Bar/290 psi $918.18 $1,010.00 A

CBP07015 BP75/20 20 Bar/290 psi $1,362.73 $1,499.00 A

BP60/20

Diaphragms: 2

Output @ 540 RPM: 58 L/min

HP required at max. pressure: 3.3

L x W x H (mm): 258 x 276 x 280

Weight (kg): 10.0

CONTROL VALVE TO SUIT

Attached (2 outlet)

Code: C1204-528

Remote mount (3 outlet)

Code: C1204-034R

Remote mount (4 outlet)

Code: C1204-332

CBP06020

BP75/15

Diaphragms: 3

Output @ 540 RPM: 67 L/min

Max pressures 20 Bar/290psi

HP required at max. pressure: 3.5HP

L x W x H (mm): 271 x 276 x 278

Weight (kg): 12.3

CBP07015

CONTROL VALVE TO SUIT

Attached (2 outlet)

Code: C1204-528

Remote mount (3 outlet)

Code: C1204-034R

Remote mount (4 outlet)

Code: C1204-332

DRAWING

10573

DRAWING

10576

DRAWING

10580

119

CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

BP125/20

Diaphragms: 3

Output @ 540 RPM: 121 L/min

HP required at max. pressure: 6.8HP

L x W x H (mm): 293 x 317 x 265

Weight (kg): 12.3

BP110/20

Diaphragms: 3

Output @ 540 RPM: 110 L/min

Max pressures 20 Bar/290psi

HP required at max. pressure: 65HP

L x W x H (mm): 275 x 283 x 242

Weight (kg): 12.3

CBP12520

CBP11020

CONTROL VALVE TO SUIT

Attached (3 outlet)

Code: C1204-191

Remote mount (4 outlet)

Code: C1204-332

CONTROL VALVE TO SUIT

Attached (3 outlet)

Code: C1204-034R

Remote mount (4 outlet)

Code: C1204-332

DRAWING

10580

DRAWING

10580

CODE PUMP MAX PRESSURE LIST EX LIST INC CAT

CBP11020 BP110/20 20 Bar/290 psi $1,018.18 $1,120.00 A

CBP12520 BP125/20 20 Bar/290 psi $1,399.09 $1,539.00 A

CODE OPEN FLOW INLET OUTLET LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

ML125 180 L/min 30mm 19mm 220mm 190mm 250mm 11 kg $574.55 $632.00 A

357-0501 Service Kit To Suit Nylon Roller Pumps $98.18 $108.00 B

ML125

FERRONI NYLON ROLLER PUMP

These compact self-priming pumps can be quickly fitted direct to the

PTO of any 540 RPM tractor to meet your spraying or transfer needs.

• Max pressure 25 bar or 180L/min

• Absorbed power 5.5HP @ 600 RPM

• Brass pressure Regulator

• Cast iron* housing

• Rotor with nylon† rollers

• PTO Drive rotates in a clockwise direction only

• Includes hose connectors and chain for rigid fastening to the tractor

† Nylon not suitable for abrasive products i.e. wettable powders.

*Cast iron not suitable with corrosive chemicals.

WARNING: Do not operate pumps without appropriate safety guards fitted.

DRAWING

0112

120 CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

CODE

(ATTACHED)

CONTROL

VALVE PUMP APP HOSE

INLET

SIZE

OUTLET

BYPASS

HOSE MAX. PRESS. MAX. FLOW LIST EX LIST INC CAT

C1204-528 2 Outlet BP20/15 19mm 13mm 13mm 14 Bar/218 psi 40L/min $184.55 $203.00 B

C1204-457 2 Outlet APS41 19mm 10mm 13mm 40 Bar/580 psi 40L/min $196.36 $216.00 B

C1204-191 3 Outlet BP60/20,

BP125/20 19mm 10mm 23mm 20 Bar/290 psi 100L/min $362.73 $399.00 B

CODE

(REMOTE)

CONTROL

VALVE PUMP APP HOSE

INLET

SIZE

OUTLET

BYPASS

HOSE MAX. PRESS. MAX. FLOW LIST EX LIST INC CAT

C1204-034R 3 Outlet BP60/20 19mm 13mm 23mm 20 Bar/290 psi 60L/min $434.55 $478.00 B

C1204-332 4 Outlet BP60/20,

BP125/20 19mm 13mm 23mm 20 Bar/290 psi 150L/min $700.00 $770.00 B

SERVICE KITS

C5004-05 Remote Control Mounting Kit $51.82 $57.00 B

CSN5 Service Kit to Suit 2 Outlet Control Valve ( C1204-528 ) $65.45 $72.00 B

CSN2 Service Kit to Suit 3 Outlet Control Valve ( C1204-191, C1204-195 ) $90.91 $100.00 B

CSN3 Service Kit to Suit 3 Outlet Control Valve ( C1204-034R ) $60.91 $67.00 B

CSN1 Service Kit to Suit 4 Outlet Control Valve ( C1204-332 ) $119.09 $131.00 B

Silvan control valves regulate spray pressure, direct the

ﬂow of spray liquid from the pump to the spray nozzles

and bypass excess liquid back to the tank, in most cases

through an agitator.

C1204-528

3 OUTLET ON/OFF

CONTROL VALVE

3 outlet control, pressure

regulator, bypass valve, gauge.

Features quick action on/off

ball valves

2 OUTLET ON/OFF

CONTROL VALVE

2 outlet control, pressure

regulator, bypass valve, gauge

C1204-332

4 OUTLET

One lever 4 outlet control

shuts all boom sections

off by simply flicking main

lever to one side, standard

with dual stage gauge.

Supplied with remote

bracket kit (C5004-05)

C1204-034R

3 OUTLET

3 outlet control, pressure

regulator, bypass valve,

gauge. Manufactured from

Rilsan Plastic. Controls

include remote mount kit

(C5004-05)

C1204-191

All feature adjustable pressure regulator, glycerine ﬁlled

gauge, hose connections, mounting kits where applicable,

on/off directional valves and bypass lock position.

DRAWING

10624

DRAWING

10117

DRAWING

10112

DRAWING

10171

121

CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

Silvan motorised pumping units provide a go-anywhere pressure pumping unit in a wide range of sizes and capacities.

Each unit consists of a matched engine and pump, control valve, base plate, hose connections and in most cases pressure

gauge as standard equipment.

CODE MAX PRESSURE MAXIMUM

OUTPUT OUTLETS LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

LBA-34C 20 Bar/290 psi 18.5 L/min 1 540mm 340mm 360mm 12 kg $2,172.73 $2,390.00 A

LBA-38C 20 Bar/290 psi 58 L/min 3 720mm 425mm 470mm 24 kg $2,926.36 $3,219.00 A

LBA-42C 40 Bar/580 psi 38 L/min 2 550mm 430mm 410mm 29 kg $2,872.73 $3,160.00 A

MC20/20 MOTORISED UNIT

• Pressure accumulator with pressure gauge

• Honda engine GX120

• Oil backed diaphram pump

• Direct coupled to motor

• Adjustable pressure regulator

• Inlet size: 19mm; Outlet size: 10mm

• 1 metre maximum suction lift

BP60/20 MOTORISED UNIT

• Pressure accumulator with pressure gauge

• Honda engine GX160

• Oil backed diaphram pump

• Direct coupled to motor

• Adjustable pressure regulator

• 1 metre maximum suction lift

• Inlet size: 25mm; Outlet size: 12mm

APS41 MOTORISED UNIT

• Pressure accumulator with pressure gauge

• Honda engine GX160

• Oil backed diaphram pump

• Direct coupled to motor

• Adjustable pressure regulator

• 1 metre maximum suction lift

• Inlet size: 25mm; Outlet size: 12mm

• Replacement pump code: CAPS41

LBA-34C

LBA-38C

LBA-42C

DRAWING

10112

DRAWING

10672

DRAWING

10677

122 CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

PUMP SERVICE KITS

Our service kits have everything you

need to service your pump or control

valve in one convenient package,

making regular maintenance or

running repairs much more simple.

Silvan all-in-one service kits are the

most economical way to purchase

the individual parts required.

They will also prove invaluable for

those emergency on the spot repairs.

*Service kits include valve assemblies, accumulator diaphragm, piston diaphragms only.

**Service kits include valve assembies, piston disphragm, viewer gasket, manifold O’rings and outlet tail only.

CODE TO SUIT PUMP MATERIAL SHAFT LIST EX LIST INC CAT

CSK2015 BP20/15 NBR SPLINED $120.91 $133.00 B

C5026-245 APS41 NBR SPLINED $162.73 $179.00 B

C5026-215 P38 / P48 NBR SPLINED $175.45 $193.00 B

CSK6020S BP60/20 NBR SPLINED $147.27 $162.00 B

CSK6020K BP60/20 NBR KEYED $152.73 $168.00 B

C5026-197 BP60/20 (D) DESMOPAN SPLINED $175.45 $193.00 B

C5026-198 BP60/20 (V) VITON SPLINED $380.00 $418.00 B

C5026-314 BP75/20 NBR SPLINED $130.00 $143.00 B

C5026-374** BP110/20 NBR SPLINED $230.30 $253.33 B

CSK10520S BP105/20,BP125/20S NBR SPLINED $172.73 $190.00 B

C5026-199 BP105/20,BP125/20K NBR KEYED $172.73 $190.00 B

C5026-375** BP135/20 NBR SPLINED $275.90 $303.49 B

C5026-205 BP151/20 NBR SPLINED/30mm KEYED $138.18 $152.00 B

CSKAPS71 APS71 NBR SPLINED $200.00 $220.00 B

C5026-228 APS96 NBR SPLINED $258.18 $284.00 B

CSKAPS121 APS121 NBR SPLINED $258.18 $284.00 B

C5026-222 APS145 NBR SPLINED $274.55 $302.01 B

C5026-224 APS166 APS141 NBR SPLINED $311.82 $343.00 B

C5026-346* IDS960 NBR SPLINED $94.55 $104.10 B

C5026-278* IDS140 NBR SPLINED $108.30 $119.13 B

C5026-279* IDS1701, IDS2001 NBR SPLINED $280.00 $308.00 B

C5026-208 IDS2200/2600 NBR SPLINED $424.55 $467.01 B

C5026-207 MC19/20** 20/20 NBR KEYED $57.27 $63.00 B

CSKMP40 CMP40 NBR SPLINED $280.00 $308.00 B

D = Desmopan diaphragms (long lasting); S = Splined model pump; K = Keyed model pump;

V = Viton diaphragms (longest lasting); NBR = Nitrile / Buna rubber

123

CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

Silvan 12V

Diaphragm Pumps

Tough and reliable they will run dry without

risk of damage.

EXTRA THICK HOUSING

FOR HIGHER PRESSURES

ON DEMAND SWITCH

STOPS PUMP WHEN

FLOW STOPS

TWIN BEARING

DRIVELINE FOR SUPERIOR

LONGEVITY

CORROSION

RESISTANT COATING

EASY 12V POWERED

COMMON BASEPLATE

VITON VALVES FOR BROAD

CHEMICAL RESISTANCE

Smoothflo is an anti-pulsation system

that maintains stronger flow at higher

pressures with no pulsation

Selected Smoothﬂo products with:

124 CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

AQUATEC SMOOTHFLO 12V PUMP

• Smooth flow and even pressure

• 7 L/min or 120 psi max.

• Pump adapts to changes in output volume

to maintain higher flows under increasing pressure

• Fitted with on/off demand pressure sensing switch

DDP-552A

(9 AMPS)

AQUATEC HIGH CAPACITY 12V PUMP

Used where higher volume is required such as boomless nozzle

spraying and larger boom spraying.

• 20 L/min open flow

• Supplied with 5D connections: 2 x ½” and 2 x ¾”

• Rated for continuous duty for pressures up to 40 psi,

above 40 psi it has a intermittent duty rating

• Fitted with ON/OFF demand pressure sensing switch

DDP-550

(18 AMPS MAX.)

CODE OPEN

FLOW

MAX

PRESSURE

VALVES

MAT.

DIAPHRAGM

MATERIAL

DUTY

RATING

PORT

SIZE/TYPE

LIST

INC CAT

DDP-552A 7 L/min 8 Bar/120 psi Viton Santo - 3/8” BSP

Female $199.09 $219.00 A

DDP-550 20 L/min 4 Bar/60 psi Viton Santo Continuous

to 40 psi

5D Quick

Connection $375.45 $413.00 A

Aquatec pumps are made of the highest quality and are exclusive to Silvan. Aquatec are a leading American

manufacturer of pumps which are of proven durability with minimal maintenance. Constant Flow Technology provides

consistent spraying without pulsation.

Scan here to see the

Smoothflo in action!

RETROFITS TO MOST

BRANDS OF SPRAYERS

DRAWING

10723

DRAWING

10783

DDP-554

125

CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

DDP-555

(11 AMPS)

AQUATEC MEDIUM CAPACITY 12V PUMP

• Mid Capacity pump is suitable for small and medium booms,

high volume spot spraying and transfer applications.

• 14.0L/min or 4 Bar/60psi max

• Supplied with 5D connections: 2x12mm tails and 2 x1/2” BSP

• Fitted with ON/OFF demand pressure sensing switch

CODE OPEN

FLOW

MAX

PRESSURE

VALVES

MAT.

DIAPHRAGM

MATERIAL

DUTY

RATING

PORT

SIZE/TYPE LIST EX LIST INC CAT

DDP-551 26.5 L/min 4 Bar/60 psi EPDM Santo Continuous

to 10 psi

5D Quick

Connection $614.55 $676.00 A

DDP-554 5 L/min 13 Bar/200 psi EPDM Santo - 3/8” BSP

Female $326.36 $359.00 A

DDP-555 14.0L/min 4 Bar/60 psi Vitron Santo Continuous to 40 psi $244.55 $269.00 A

AQUATEC HIGH CAPACITY 12V PUMP

• 26.5 L/Min capacity (open flow)

• Viton valves and a Santoprene diaphragm

• Supplied with 5D connections: 2 x ½” and 2 x ¾”

DDP-551

(22.4 AMPS MAX.)

DDP-554

(16 AMPS)

AQUATEC HIGH PRESSURE 12V PUMP

• Smooth flow and even pressure

• 5 L/Min capacity (open flow)

• Viton valves and a Santoprene diaphragm

DRAWING

10093

NEW

RELEASE

DDP-555

126 CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

CODE MAX

PRESSURE

VALVES

MAT.

DIAPHRAGM

MATERIAL

PRESS.

SWITCH

DUTY

RATING

PORT

SIZE/TYPE LIST EX LIST INC CAT

381-35 3.5 Bar/50 psi Viton TPU Yes Intermittent Threaded Male $71.81 $79.00 A

381-38 4 Bar/60 psi Viton TPU Yes Intermittent 8mm tail $102.73 $113.00 A

381-2000 4 Bar/60 psi Viton Santo Yes Continuous 3/8” BSP F $162.73 $179.00 A

381-125* 3 Bar/50 psi Viton TPU Yes Intermittent 12.5mm tail $165.45 $182.00 A

381-125-05 Replacement quick connect ﬁlter to suit 381-125 Pak Pump (shown attached) $11.82 $13.00 B

* Supplied standard with ﬁlter (as pictured)

381-38

(1.7 AMPS)

381-35

(1.6 AMPS)

381-2000

(7.3 AMPS)

381-125*

(7.0 AMPS)

Selecta 12V Pak Pumps are high quality positive displacement diaphragm pumps that can run dry without damage.

All pumps feature an on/off demand pressure switch with standard BSP thread connections or hose barbs.

12V SILVAN PAK PUMPS

Ideal for spot spraying applications where

a single nozzle is used.

• 2.6 L/min open flow

• 381-35 with male threaded connectors

to suit Redline 25L and 55L spray tanks

• 381-38 with 8mm barb inlet/outlet

12V SILVAN PAK PUMP (381-2000)

The 381-2000 is the ideal mid-range pump for spot spraying

applications or small boom spraying.

• 5.3 L/min open flow

• 7.3 Amps

12V SILVAN PAK PUMP (381-125)

This larger flow rate pump is ideal for boom spraying

or fluid transfer applications.

• 12.5 L/min open flow

• Supplied with filter as pictured

• 7.0 Amps

DRAWING

10711

DRAWING

10292

127

CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

CODE OPEN

FLOW

MAX

PRESSURE

VALVES

MAT

DIAPH

MAT

DUTY

RATING PORT SIZES LIST EX LIST INC CAT

361-SLV10-AA40 3.8 L/min 2.6 Bar/40 psi Viton Santo Intermittent 3/8” Hose Barbs $157.27 $173.00 A

361-8000 6.8 L/min 4 Bar/60 psi Viton Santo Continuous 1/2” BSP Male $208.18 $229.00 A

361-8000-342-136 4.5 L/min 4 Bar/60 psi Viton Viton Continuous 1/2” BSP Male $513.64 $565.00 A

361-2088 11.3 L/min 3 Bar/45 psi Viton Santo Intermittent 1/2” BSP Male $290.00 $319.00 A

61-2088-313-145 13.6 L/min 3 Bar/45 psi Viton Santo Continuous 1/2” BSP Male $551.82 $607.00 A

61-2088-474-144 11.3 L/min 3 Bar/45 psi Santo Santo Intermittent 1/2”BSP Male $470.00 $517.00 A

SLV SERIES 12V DC PUMP

• 3.8 L/min open flow

8000 SERIES 12V DC PUMP

There are two 8000 series Shurflo pumps available, ranging from

4.5L/min to 6.8L/min open flow and to max. pressure 4 Bar/60psi.

A versatile pump ideal for agricultural and industrial applications.

Full Viton equipped pump available (361-8000-342-136).

2088 SERIES 12V DC PUMP

The 2088 series diaphragm pump is an ideal choice for higher

flow applications such as boom spraying and fluid transfer.

FIN COOLED 12V DC PUMP

Ideal for larger duty cycle application, aluminium heat sink

crankcase design dissipates heat build up from electric motor.

Capacity 13.6L/min open flow, max. pressure 3 Bar/45psi.

On/off demand pressure switch, 1/2” Male ports, Viton valves,

Santoprene diaphragm.

24V DC PUMP

Available in 11.3L/min, 3 Bar/45psi open flow with on/off

demand pressure switch. Compact size 1/2” BSP male ports.

Suited to machines fitted with 24V DC system eg. bulldozers,

trucks and road sweepers.

361-2088-474-144;

(2.5 AMPS @ 24V DC)

361-2088-313-145;

(10.1 AMPS)

361-2088;

(8.0 AMPS)

361-8000;

(7.3 AMPS)

361-SLV10-AA40;

(1.9 AMPS)

128 CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

Check valve kit

Pressure switch

Upper housing

Valve kits

Drive assembly kits

Electric motor

Complete pump assembly kit

UPPER HOUSINGS

CODE SUITS LIST EX LIST INC CAT

361-94-378-00 8000 Series Pumps With 1/2" Male Ports $75.45 $83.00 B

361-94-231-30 2088 Series Pumps With 1/2" Male Ports $58.18 $64.00 B

361-94-231-05 2088 Series Pumps With 1/2” Male Ports And Viton Pressure Switch $210.00 $231.00 B

5503-UHA DDP-550 With 5D Quick Connectors (Inc Pressure Switch) $120.00 $132.00 B

5504-UHA DDP-551 With 5D Quick Connectors (Inc Pressure Switch) $120.00 $132.00 B

5880-UHA DDP-552A Series Pump With 3/8" Female BSP Ports $65.45 $72.00 B

PRESSURE SWITCHES

CODE SUITS PUMPS MAX PRESSURE LIST EX LIST INC CAT

361-94-375-05 8000 Series With Viton Dphm 60 psi $114.55 $126.00 B

361-94-375-06 8000 Series With Santo Dphm* 60 psi $93.64 $103.00 B

361-94-375-18 8002 Series With Santo Dphm 100 psi $106.36 $117.00 B

361-94-229-03 8090 Series With Viton Dphm 60 psi $121.82 $134.00 B

361-94-229-05 8090 Series With Viton Dphm 100 psi $145.45 $160.00 B

361-94-230-35 2088 Series With Santo Dphm* 45 psi $95.45 $105.00 B

361-94-230-36 2088 Series With Viton Dphm 45 psi $125.45 $138.00 B

361-94-230-55 2088 Series Fin Cooled 45 psi $169.09 $186.00 B

381-2000-03 381-2000 (Excludes Check Valve Kit) 60 psi $11.82 $13.00 B

381-125-04 381-125 35 psi $24.55 $27.00 B

5503-PSW DDP-550 60 psi $50.00 $55.00 B

5504-PSW DDP-551 60 psi $50.00 $55.00 B

5880-PSW DDP-552A 120 psi $46.36 $51.00 B

12V DIAPHRAGM PUMP SPARE PARTS

129

CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

CHECK VALVE KIT

CODE SUITS LIST EX LIST INC CAT

361-94-374-16 8000 Series Pumps with EPMD Valve Kits $59.09 $65.00 B

361-94-374-05 8000 Series Pumps with Viton Valve Kits $63.64 $70.00 B

361-94-237-00 2088 Series Pumps with Santo Valve Kits $70.00 $77.00 B

361-94-237-05 2088 Series Pumps with Viton Valve Kits $76.36 $84.00 B

DRIVE ASSEMBLY KITS

CODE SUITS LIST EX LIST INC CAT

361-94-385-32 8000 Series Pumps With Santo Diaphragm

361-8000 (Pumps Made After March 1999) $196.36 $216.00 B

361-94-238-04 2088 Series Pumps With Santo Diaphragm $133.64 $147.00 B

361-94-238-03 2088 DHP with Santo Diaphragm $159.09 $175.00 B

5503-LHA DDP-550 with Santo Diaphragm $137.27 $151.00 B

5504-LHA DDP-551 with Santo Diaphragm $137.27 $151.00 B

5880-LHA DDP-552 with Santo Diaphragm $77.27 $85.00 B

DIAPHRAGM KITS (BARE DIAPHRAGM TO SUIT CERTAIN MODELS)

CODE SUITS LIST EX LIST INC CAT

361-94-395-05 361-800-342-136 Viton-Viton Pump $209.09 $230.00 B

361-94-395-06 361-8000 $71.82 $79.00 B

361-94-238-04 2088 Series Pumps with Santo Diaphragm $137.27 $151.00 B

361-94-238-03 Obsolete DHP Model With Santo Diaphragm $163.64 $180.00 B

VALVE KITS

CODE SUITS LIST EX LIST INC CAT

361-94-390-05 8000 Series Pumps Viton Valve Kit (Blk) $173.64 $191.00 B

361-94-232-05 2088 Series Pumps Viton Valve Kit $210.91 $232.00 B

361-94-232-00 2088 Series Pumps Santo Valve Kit For 24V Model $73.64 $81.00 B

5503-VHA DDP-550 Viton Valve Kit $98.18 $108.00 B

5504-VHA DDP-551 EPDM Valve Kit $98.18 $108.00 B

5880-VHA DDP-552 Viton Valve Kit $57.27 $63.00 B

130 CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

CODE REF DESCRIPTION LIST EX LIST INC CAT

361-8-071-00-PK A Hosetail 1/2” Female x 3/8” Barb (2 Pack) $14.09 $15.50 B

361-8-070-01-PK A Hosetail 1/2” Female x 1/2” Barb (2 Pack) $14.09 $15.50 B

361-8-034-PK B Elbow 1/2” Female Swivel x 1/2” Barb (2 Pack) $14.09 $15.50 B

361-8-060-PK B Elbow 1/2” Female Swivel x 3/8” Barb (2 Pack) $14.09 $15.50 B

361-8-145-01 † C Nipple 3/8” Male NPT x 1/2” NPT $4.27 $4.70 B

320-60806 D Elbow 3/8” Male BSP x 8mm Barb $3.73 $4.10 B

361-255-613-PK E Inlet Filter 1/2” BSP, 50 Mesh, Viton o-ring $14.09 $15.50 B

CODE REF DESCRIPTION LIST EX LIST INC CAT

QBE-554 A 5D Elbow ½” Tail $13.64 $15.00 A

QBE-555 A 5D Elbow 5/8” Tail $13.64 $15.00 A

QBE-556 A 5D Elbow 3/4” Tail $13.64 $15.00 A

QBS-554 B 5D Straight ½” Tail $13.64 $15.00 A

QBS-555 B 5D Straight 5/8” Tail $4.27 $4.70 A

QBS-556 B 5D Straight 3/4” Tail $3.73 $4.10 A

9620522 C 5D Pressure Regulator $40.00 $44.00 A

PUMP FITTINGS

AQUATEC PUMP 5D FITTINGS

COMPLETE PUMP HEAD ASSEMBLY KITS

CODE SUITS LIST EX LIST INC CAT

381-2000-02 Suit 381-2000 Pak Pump $36.36 $40.00 B

B C

DC E

131

CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

CODE DESCRIPTION LIST EX LIST INC CAT

M99-14 3 Section Electric Solenoid Kit $630.00 $693.00 A

3 SECTION ELECTRIC SOLENOID KIT – MEDIUM PRESSURE

Suitable for most brands of 12 volt sprayers, motorised skid sprayers and linkage units with booms.

Silvan medium pressure control kits are an effective way of controlling individual sections of

your spray boom from the cab of a vehicle.

• Supplied with a multi section control box,

mounting bracket and 5 metre electric

wiring loom

• Master on/off switch to shut the entire

boom off or switch individual sections off

• 3 x Goyen Solenoids, maximum operating

pressure 10 bar/ 150psi

• Maximum open flow 65L/min per solenoid

• Extra components may be needed.

Pressure regulator and hoses not included

CODE DESCRIPTION LIST EX LIST INC CAT

G8406006 Control Box With Tractor Loom $289.09 $318.00 B

GC00900008 3m Sprayer Loom $120.91 $133.00 B

GC00900009 5m Sprayer Loom $146.36 $161.00 B

SPRAYER CONTROL BOXES AND VALVES

2 SECTION AND PRESSURE

• Control box

• 2 on/off section and master on/off

• Pressure adjustment

• No gauge

• Suitable for motor valves not solenoids

• Supplied with Power Loom and Tractor Loom

G8406006

DRAWING

10186

M99-14

132 CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

CODE DESCRIPTION LIST EX LIST INC CAT

G8406076 4 Section Control Box And Mounting Bracket $207.27 $228.00 B

CODE DESCRIPTION LIST EX LIST INC CAT

GC00902021 4 Section Wiring Harness $188.18 $207.00 B

G8388012 High Pressure Brass 40 Bar Solenoid $232.73 $256.00 B

HIGH PRESSURE ELECTRIC

SOLENOID SYSTEM – CONTROLS

UP TO FOUR SOLENOIDS

Simply order the control box, wiring harness and

up to 4 high pressure solenoids to develop your own

cab controlled independent spray boom system.

CONTROL BOX:

• With a 4 section switches, mounting bracket

and 5 metre electric wiring loom

• Master on/off switch to shut the entire boom

or switch individual sections on/off

Note: Can connect up to 4 solenoids sold separately.

HIGH PRESSURE

12V SOLENOIDS:

• Geoline high pressure

Brass Solenoid ½” F BSP ports

• Maximum open flow

80L/Min. per Solenoid

• Maximum pressure 40Bar/580psi

Extra components may be needed.

Pressure regulator and hoses not included.

G8406076

GC00902021

G8388012

133

CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

042-1-ST2-6R

GOYEN SOLENOID

REPAIR KIT

042-1-047K

GOYEN ELECTRIC SOLENOID VALVE

Comprises a nylon body with either 1/2” x 1/2” barb, or 1/2”

barb x 3/4” BSP thread, and is a servo-assisted solenoid.

• Ideal for fitting to single spray bars and features Viton diaphragms

• Requires 12V power and has pressure loss of 5psi accross valve

• Max pressure 1000/145 kPa/psi

CODE FLOW SIZE BSP LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

042-1-ST2-HR 65 L/min 1/2” X 1/2” Barbs 90mm 70mm 50mm 200 g $107.27 $118.00 B

042-1-ST2-6R 65 L/min 1/2” Barb X 3/4” BSP 90mm 70mm 50mm 200 g $107.27 $118.00 B

042-1-ST-HV 65 L/min 1/2” X 1/2” Barbs 90mm 70mm 50mm 200 g $107.27 $118.00 B

042-1-ST2-6 65 L/min 1/2” Barb X 3/4” BSP 90mm 70mm 50mm 200 g $107.27 $118.00 B

042-1-047K Goyen Solenoid Repair Kit $96.36 $106.00 B

042-1-ST2-HR 042-1-ST-HV

042-1-ST2-6

134 CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

8460 SERIES HIGH FLOW

REGULATOR

• Made from nylon and aluminium,

• Gauge port 1/4”

• Excellent chemical resistance

• Chatter free, responsive pressure control

• Available with 3/4” connections

• Sturdy high flow regulator

23120 SERIES REGULATOR

• Nylon body

• Stainless steel spring

• Gauge port 1/4”

• Excellent chemical resistance

• Positive lock nut to hold adjuster

at your desired setting

• Available with 1/2” or 3/4” connections

CODE DESCRIPTION MAX FLOW MAX PRESSURE LIST EX LIST INC CAT

8460-3/4 Pressure Regulator, 3/4” 265L/min 20 Bar/290 psi $153.64 $169.00 B

23120-1/2-PP Pressure Regulator, 1/2” 35L/min 7 Bar/102 psi $79.09 $87.00 B

23120-3/4-PP Pressure Regulator, 3/4” 55L/min 7 Bar/102 psi $79.09 $87.00 B

CODE DESCRIPTION MAX PRESSURE FLOW LIST EX LIST INC CAT

JA-1502003 Solenoid Ideal For Foam Markers 8 Bar/116 psi 37L/min $38.18 $42.00 B

JA-1502030 Replacement Viton Diaphragm $62.73 $69.00 B

JA-1502031 Solenoid Viton 116 psi 37L/min $129.09 $142.00 B

JA-1502003

FOAM MARKER/SPRAYER SOLENOID VALVE

Offers the advantages of low energy requirements, instant response

and the ability to remain in an energised (open) state indefinitely

without overheating or failing.

• Suits 12-volt and 24-volt. 3/4” threaded inlet and outlet

DIRECTOVALVE CONTROL VALVES

• Direct acting, large internal flow chamber

without pilot hole reduces chance of clogging

• corrosive resistant Stainless steel wetted parts

• Operation on 12V DC system

• Encapsulated solenoid coil can be changed

without removing valve from system

• EPDM diaphragms and seat washer, Viton optional

• Continuous flow through bypass connection, with flow

to spray line controlled by valve “on-off” action

AA144A-1

CODE INLET SIZE OUTLET

SIZE FLOW RATE MAX PRESSURE CURR. DRAW LIST EX LIST INC CAT

AA144A-1 3/4” 1/2” 37.9 L/min 7 Bar/102 psi 2.5 Amp $360.91 $397.00 B

AA144A-1-VI* 3/4” 1/2” 37.9 L/min 7 Bar/102 psi 2.5 Amp $415.45 $457.00 B

PK-AB144A-1-KIT Standard Service Kit to Suit Directovalve Control Valve $62.73 $69.00 B

PK-AB144A-1-VI-KIT Viton Service Kit to Suit Directovalve Control Valve $74.55 $82.01 B

* Viton option

DIRECTOVALVE

CONTROL VALVE

• 37.9 L/min flow with 0.35 bar

pressure drop

• Can join with other 144A

Directovalve control valves

• 2.5 Amp current draw

• Polypropylene body for

chemical resistance

• Fabric reinforced diaphragms

135

CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses

CODE MOUNTING LID DIAM LENGTH WIDTH HEIGHT WT LIST EX LIST INC CAT

430-20S 20L SpotPak 110mm 550mm 280mm 250mm 3 kg $126.36 $139.00 A

430-50S 50L SpotPak 175mm 700mm 420mm 300mm 5 kg $196.36 $216.00 A

430-100S 100L SpotPak 175mm 800mm 475mm 395mm 9 kg $321.82 $354.00 A

430-200S 200L SpotPak 175mm 1015mm 550mm 520mm 14 kg $428.18 $471.00 A

430-70N**†70L Bare RakPak Plus 175mm 800mm 850mm 290mm 7.5 kg $349.09 $384.00 A

430-0100A* 100L UtePak 255mm 660mm 580mm 490mm 8 kg $410.00 $451.00 A

430-0100AW* 100L UtePak White 255mm 660mm 580mm 490mm 8 kg $410.00 $451.00 A

430-0200A* 200L TrukPak 255mm 1030mm 580mm 535mm 13 kg $463.64 $510.00 A

430-0200AW* 200L TrukPak White 255mm 1030mm 580mm 535mm 13 kg $463.64 $510.00 A

430-300R 300L Barrel Tank 255mm 945mm 600mm 820mm 16 kg $535.45 $589.00 A

430-0600R 600L Barrel Tank 255mm 1300mm 800mm 850mm 32 kg $691.82 $761.00 A

* Supplied with 8mm brass insert mountings in base. ** Supplied with tank straps. † Bafﬂed tank

430-70N

430-0100AW

1 1/4” THREADED

OUTLET

Ideal for pest control

Translucent tank

Ideal for

pest control

Translucent tank

430-0200AW

1 1/4”

THREADED

OUTLET

300L

BARREL

TANK

430-0200A

1 1/4”

THREADED

OUTLET

430-0600R

1 1/4”

THREADED

OUTLET

430-0100A

1 1/4” THREADED

OUTLET

50, 100 & 200 LITRE SPOTPAK 70 LITRE RAKPAK PLUS

100 LITRE UTEPAK

200 LITRE TRUKPAK

600 LITRE BARREL TANK

200 LITRE TRUKPAK

100 LITRE UTEPAK

BAFFLED TANK

TWIN BAFFLED TANK

430-50S

430-100S

430-200S

430-300R

136 CALL: 1300 745 826 or visit silvan.com.au for more information

Pumps, Controllers, Valves, Tanks and Hoses
