SHENZHEN IO Manual

User Manual:

Open the PDF directly: View PDF .
Page Count: 47

Printing Instructions
Story Introduction
Application Notes
MCxxxx Family Language Reference
Parts Datasheets
Supplemental Data

For the best SHENZHEN I/O experience, we highly recommend printing this manual and assembling a binder

that you can refer to as you play. To assemble the binder, simply follow these instructions:

• Get a 0.5-inch 3-ring binder (such as this one) and a set of 5-part tabbed dividers (such as this one).

• Print this PDF, ensuring that the “Fit to page” option is unchecked.

• Place the Cover Sheet in the front of the binder.

• Fold or cut the Reference Card into quarters.

• Place the three Story Documents (two emails and one visa application form) in the inside front pocket.

• Three-hole punch the remaining sheets and place in the binder in the following order:

• If you obtained Avery® 11110 dividers, re-print the tab insert page on the tab paper. Otherwise, cut,

fold, and place the tab inserts into the section tabs you are using.

• For the Engineering Notes section, use whatever engineering paper you prefer.

Application Notes Application Notes

Story Documents

(place in inside front pocket)

Reference Card

(fold into quarters)

Cover Page

(insert in front)

Language Reference Language Reference

Parts Datasheets

Supplemental Data Supplemental Data

Engineering Notes

Application Notes

Language Reference

Parts Datasheets

Supplemental Data

Engineering Notes

Application Notes

Language Reference

Parts Datasheets

Supplemental Data

Engineering Notes

These tab inserts are formatted for Avery® Big Tab™ Insertable Dividers (5 Tabs), 11110.

Basic Instructions

nop

mov R/I R

jmp L

slp R/I

slx P

Test Instructions

teq R/I R/I

tgt R/I R/I

tlt R/I R/I

tcp R/I R/I

Arithmetic Instructions

add R/I

sub R/I

mul R/I

not

dgt R/I

dst R/I R/I

Registers

acc

dat [1]

p0, p1 [1]

x0, x1, x2, x3 [1]

[1] Not all registers are available on all microcontrollers. Refer to the parts datasheets

for pin diagrams and register information.

[2] Integer values must be in the range -999 to 999.

[3] Labels used as operands must be dened elsewhere in the program.

Notation Meaning

RRegister

IInteger [2]

R/I Register or integer [2]

PPin register (p0, p1, etc.)

LLabel [3]

诚尚MicroTM

MCxxxx Family

Language Reference Card

Some progress... and a suggestion (1) - TanoMail 3.2.2

tanomail/mail/u/0/?ui=2&ik=bd58376b9d&view=pt&search=inbox&th=254a9b3a4b5e03e7&siml=574a7b1a3b0e83e4

Some progress… and a suggestion

From: Margie Fish <msh@sh.partners>

Good morning!

Just a quick update for you today. First o, I’ve placed your resume with two

new agencies. They specialize in industries a little dierent from yours, but you

never know where a match might be made! I’ve also reached out to a few more

of my colleagues across the country, letting them know to get in touch if they

hear of anything. Finally, I followed up with Electromotiv again, but they keep

stalling. At this point I think it’s safe to say an oer won’t be coming.

You’ve been with us for a while now and I appreciate your trust, so I want to be

honest: The likelihood of us nding you something that genuinely makes use of

your skills in the foreseeable future is rather low. This isn’t because of any lack

of qualications on your part... It is simply a reection of the realities of the time.

We’ll keep trying, of course! I just wanted to ensure you kept some realistic

expectations in mind going forward.

I know you’ve said you were hoping to stay in the country, but it may be time to

reconsider that stance. Many of the people we represent have done stints over-

seas and report that it is an eye-opening, and in some cases, career-enhancing

move. I don’t have a lot of contacts in that particular arena, but I can point you

in the direction of someone I know who has some experience working with

Chinese electronics rms. Let me know if that sounds interesting to you and I’ll

get you two introduced.

-----

Margie Fish, President

Fish Partners Recruiting

“The journey of a thousand miles begins with a single step…”

Great chatting with you (1) - TanoMail 3.2.2

tanomail/mail/u/0/?ui=2&ik=bd58376b9d&view=pt&search=inbox&th=156addfa19318500&siml=156ca11c28f8469e

Great chatting with you

From: Jessie Huang <hhuang@huang.associates>

Hey, just wanted to follow up on our call. As I mentioned, the company is called

Longteng Electronics. They’re not exactly one of the biggest players, but they’ve

been running a stable business for a while now, and that’s always a good sign.

Up until now they’ve mostly done manufacturing subcontracts, so traditionally

their design engineering team has been relatively small. But they’re looking to

grow the department because they want to create new products in-house, for

both domestic and international markets.

The position is located in Shenzhen, China, which is just across the border

from Hong Kong. The pay is competitive for the area, which I think you’ll nd

more than adequate for living there. I forgot to ask if you had family... but what-

ever your situation is, you’ll nd Shenzhen is a modern, fairly international city.

There’s even a McDonald’s right downtown! If there’s anything I might be able

to do help you feel more comfortable about the idea of relocating, let me know.

I have helped many engineers like yourself nd opportunities in China and I am

pretty familiar with the ins and outs.

Looking forward to hearing from you once you’ve had a chance to chew it over!

Jess

Jessie H. Huang

Huang & Associates

“Connecting talent across the Pacic since 2021!”

Visa Application Form of the People’s Republic of China

Applicant should fill out this form truly and completely. Please write your answer in capital Eng-

lish letters in the space provided or cross the appropriate box to select.

1.1 Full English name as in passport

1.2 Legal sex ☐ M ☐ F

1.3 Name in Chinese characters (if given)

1.4 Other names you are known by

1.5 Current nationality

1.6 Date of birth (yyyy-mm-dd)

1.7 Place of birth (city, province, country)

1.8 Marital status

1.9 Current occupation Embedded systems engineer

2.1 Major purpose of visit to China Employment

2.2 Date of your rst entry (yyyy-mm-dd) 2026/09/28

2.3 Residence during your stay in China 1210 Baoan Nan Road Apt. 2109

2.4 Name and address of your inviter / point of

contact / employer in China

Shenzhen Longteng Electronics Co.Ltd.

No.44A Donghuan Road

Luohu District, Shenzhen, Guangdong,

CHINA

3.1 Detailed home mailing address

3.2 Contact person in case of emergency

3.3 Contact person’s phone number

4.1 Have you ever been refused entry to China?

4.2 Do you have a criminal record?

I have read and understood all the questions in this application. I shall be fully responsible for

the answers, which are true and correct. I understand that whether to issue a visa, type of visa,

number of entries, validity and duration of each stay will be decided by consular officers, and any

false, misleading or incomplete statement may result in a refusal of a visa for or denial of entry

into China.

Applicant’s signature: __________________________ Date (yyyy-mm-dd): __________________

Replace this page with the “Application Notes” section divider.

诚尚MicroTM

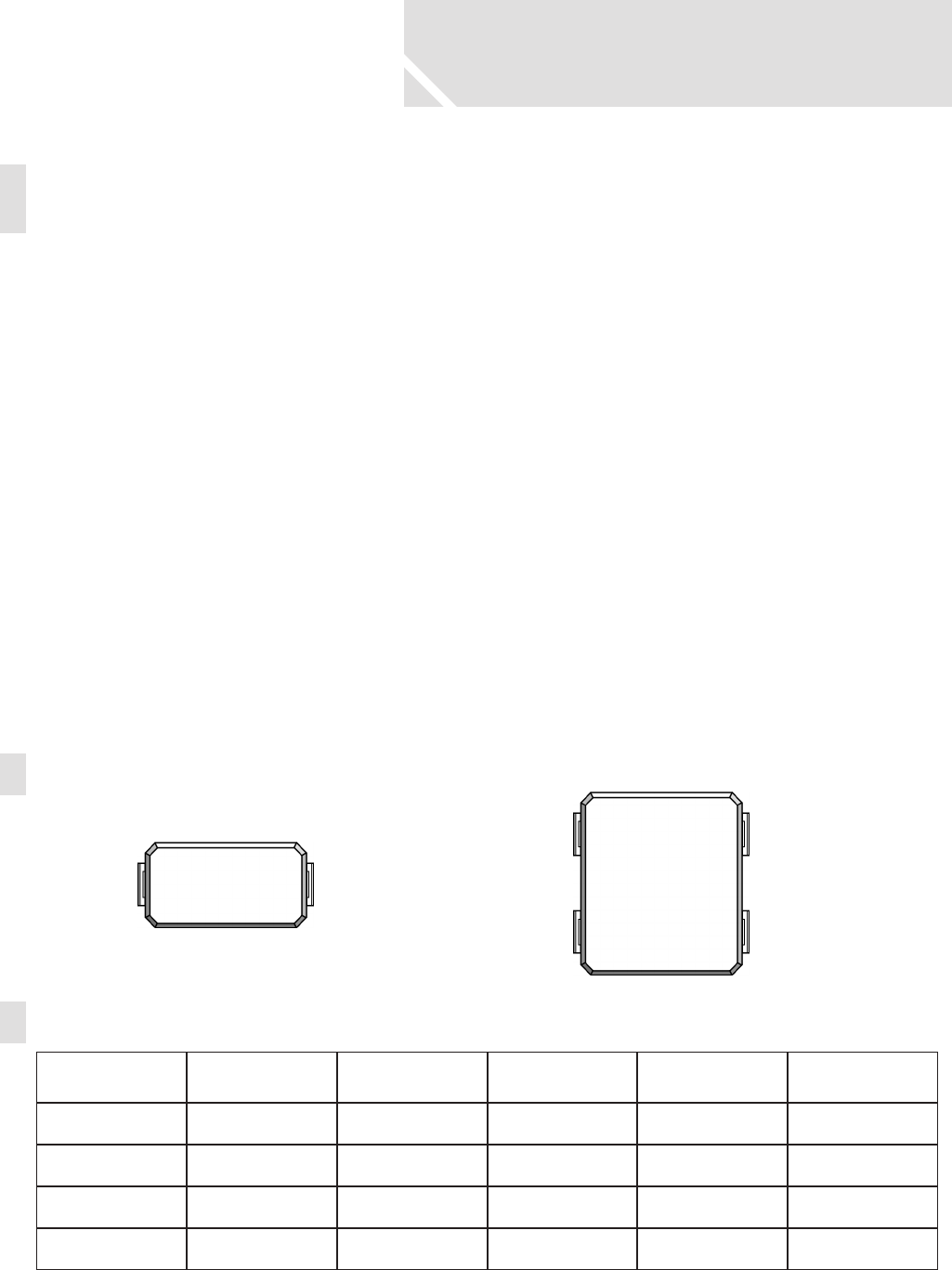

There are two types of pins on MCxxxx microcontrollers: simple I/O and XBus. Note that they are not

interoperable, and can only be connected to another pin of the same type.

Simple I/O

Simple I/O values are continuous signal levels from 0 to 100,

inclusive. Simple I/O pins are unmarked.

Simple I/O is used for applications such as connecting a micro-

controller to a simple input, such as a button, switch, or microphone,

or a simple output, such as an LED, a speaker, or a motor.

XBus

XBus values are discrete data packets from -999 to 999, inclu-

sive. XBus pins are marked with a yellow dot.

XBus is commonly used to transmit data between two microcon-

trollers or a microcontroller and complex input or output, such as a

keypad or numeric display.

Simple I/O vs. XBus Behavior

Simple I/O pins can be read or written at any time with no regard to the state of connected devices.

XBus, however, is a synchronized protocol. Data over XBus pins is only transferred when there is

both a reader attempting to read and a writer attempting to write. If a read or write is attempted

without a corresponding operation on a connected device, the operation will block.

Application Note 268

Two Interfaces, Limitless Possibilities

CSM_TD_100268 1 of 1

诚尚MicroTM

Application Note 393

Make Sure To Get Enough Sleep!

• CPUsaretypicallymuchfasterthanthesignalstheyarereadingandwriting.

• ACPUcanexecuteaverylargenumberofinstructionswithinonetime unit.

• Toadvancetothebeginningofthenexttimeunit,aCPUcangotosleep.

• ToputaCPUtosleep,usetheslpinstructionandspecifythenumberoftimeunitstosleep.

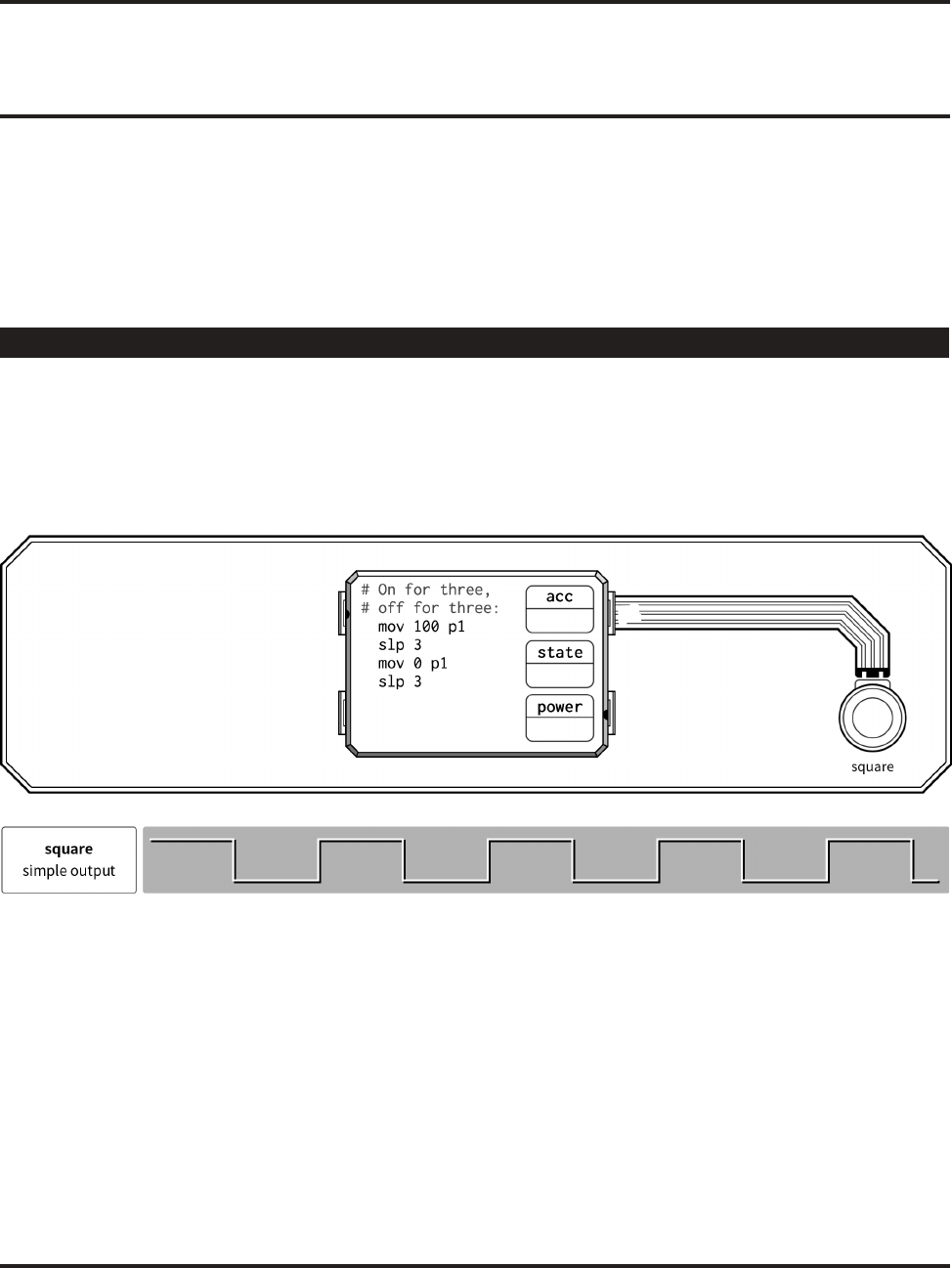

SQUARE WAVE GENERATOR

ThefollowingprogramgeneratesasquarewaveonsimpleI/Opinp1thatison(100)for3timeunits

ando(0)for3timeunits.

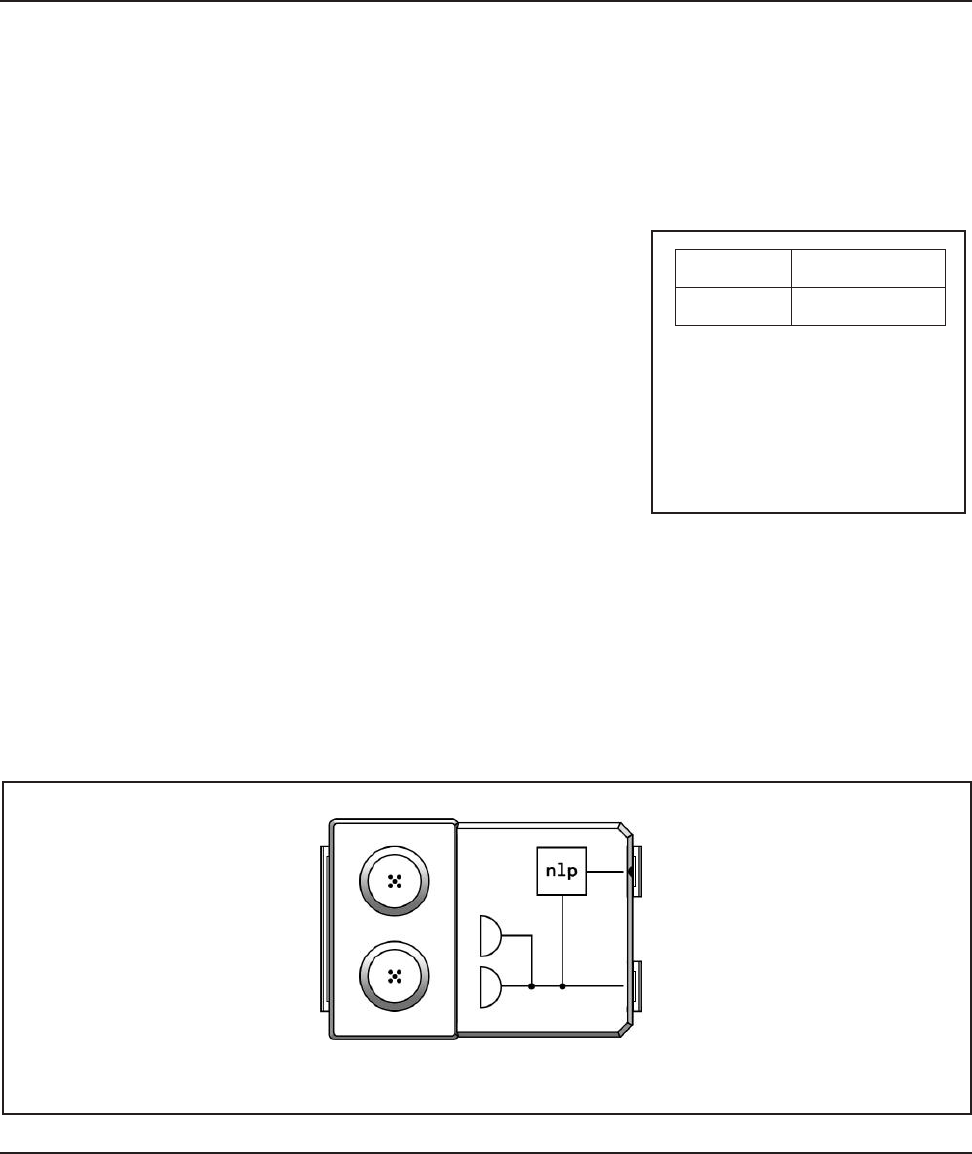

EXAMPLE CIRCUIT

CSM_TD_100393 1 of 1

诚尚MicroTM

Application Note 650

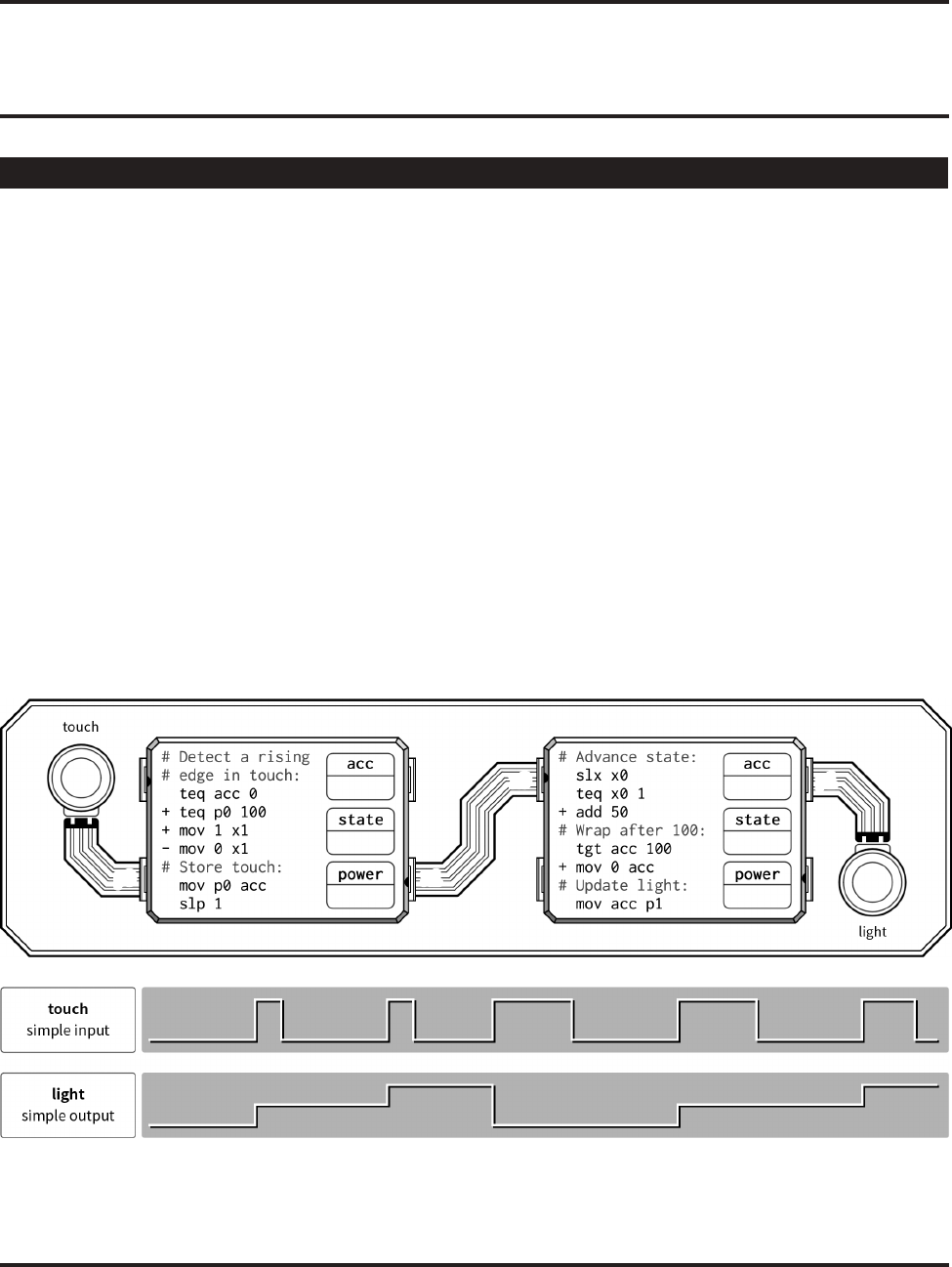

Reference Design: Touch-Activated Light Controller

The following circuit is a reference design for a touch-activated light controller. When a user touches

a capacitive switch, the controller will detect the rising edge and advance the light to the next intensity

level, from o, to 50%, to 100%, and back to o.

The circuit consists of two MC4000 microcontrollers that communicate over XBus:

• The rst microcontroller reads from the capacitive switch on simple I/O pin p0 and sends either a

0 or 1 over XBus to the second microcontroller every time unit, where a value of 0 means that the

switch wasn’t touched and a value of 1 means that the switch was touched. By storing the previous

reading from the capacitive switch in acc, the rst microcontroller can detect a transition from low

(0) to high (100).

• The second microcontroller stores the current state of the light in its acc register. It waits for an XBus

value from the rst microcontroller using the slx instruction, and then increments acc by 50 if the

value is 1. When acc is incremented past 100, it resets acc back to 0. The resulting value is then

used to drive the light using simple I/O pin p1.

EXAMPLE CIRCUIT

CSM_TD_100650 1 of 1

Replace this page with the “Language Reference” section divider.

诚尚MicroTM

MCxxxx Family

Language Reference

CSM_TD_100202 1 of 4

Introduction

The MCxxxx family of microcontrollers employs a common programming system to simplify system design and

reduce new product development time. A program written for one member of the MCxxxx family can be re-used in any

other MCxxxx microcontroller with few or no changes (see note [1]).

Programs for the MCxxxx are assembled from a small but versatile set of operations. Each line of an MCxxxx

program can contain an instruction, which consists of the instruction’s name followed by zero or more instruction op-

erands. Detailed descriptions of the available instructions and their usage are provided below.

MCxxxx microcontrollers are designed to be used in power-constrained environments and applications, and the

MCxxxx programming system has been designed accordingly. While a MCxxxx microcontroller is in a sleep state, it

consumes no power. Otherwise, power consumption is proportional to the number of instructions executed.

[1] MCxxxx microcontrollers have varying features, pinouts, and program space limitations, described in the model-

specic datasheets. Some adaptation may be required to account for these model-specic dierences.

Program Structure

Each line of an MCxxxx program must have the following structure:

LABEL CONDITION INSTRUCTION COMMENT

All components are optional, but must appear in the specied order if present. Examples of syntactically valid lines:

# This line is a comment.

loop: # until ACC is ten

teq acc 10

+ jmp end

mov 50 x2

add 1

jmp loop

end:

mov 0 acc # reset counter

Comments

Any text following a “#” symbol is ignored until the end of the line. Comments improve developer productivity by

allowing the behavior of code to be described in-line with the program itself.

Labels

Labels must appear rst on a line, and are followed by a colon (“:”). Labels are used as jump targets by the jmp

instruction. Labels must begin with a letter and may contain alphabetic, numeric, and underscore characters.

诚尚MicroTM

CSM_TD_100202 2 of 4

Conditional Execution

All instructions in the MCxxxx programming language are capable of conditional execution. Prexing an in-

struction with a “+” or “-” symbol will cause that instruction to be enabled or disabled by test instructions. When an

instruction is disabled by a test instruction, it will be skipped and will not consume power. Instructions with no prex

are never disabled and always execute normally. All conditional instructions start in a disabled state. A test instruction

must be executed to enable conditional instructions.

For an example of conditional instructions in use, see Application Note 650: Touch-Activated Light Controller.

Registers

Registers are used as sources and destinations for data manipulated by MCxxxx instructions. The set of registers

varies between MCxxxx models. It is an error to use a register in a microcontroller program if that register is not pres-

ent on that microcontroller.

acc is the primary general-purpose register used for internal computation on MCxxxx family microcontrollers. All

arithmetic operations implicitly use and modify the value of acc.

dat is a second register available on some MCxxxx family members. It can be used in most contexts where acc

is permitted.

The internal registers of MCxxxx microprocessors (acc and dat, if available) are initialized to the value 0.

The pin registers (p0, p1, x0, x1, x2, x3) are used when reading from or writing to the pins of MCxxxx microcon-

trollers. Reading and writing through the pins allows a single MCxxxx microcontroller to communicate and coordinate

with other connected, compatible devices. Each pin on an MCxxxx family microcontroller functions as either a simple

I/O or XBus interface. Refer to the appropriate datasheet for details on pin functionality.

null is a pseudo-register. Reading from the null register produces the value 0. Writing to the null register has

no eect.

Instruction Operands

Each type of instruction requires a xed number of operands. If an instruction has any associated operands, they

must appear following the instruction name, separated by spaces. For the benet of development productivity, the

MCxxxx programming system does not require the use of redundant punctuation to separate instruction operands.

Instruction operands are described with the following notation:

[1] Integer values must be in the range

-999 to 999.

[2] Labels used as operands must be

dened elsewhere in the program.

Notation Meaning

RRegister

IInteger [1]

R/I Register or integer [1]

PPin register (p0, p1, etc.)

LLabel [2]

诚尚MicroTM

CSM_TD_100202 3 of 4

Basic Instructions

nop

This instruction has no eect.

mov R/I R

Copy the value of the rst operand into the second operand.

jmp L

Jump to the instruction following the specied label.

slp R/I

Sleep for the number of time units specied by the operand.

slx P

Sleep until data is available to be read on the XBus pin specied by the operand.

Arithmetic Instructions

Registers can store integer values between -999 and 999, inclusive. If an arithmetic operation would produce a

result outside this range, the closest allowed value is stored instead. For example, if acc contains the value 800 and

the instruction add 400 is executed, then the value 999 will be stored in acc.

add R/I

Add the value of the rst operand to the value of the acc register and store the result in the acc register.

sub R/I

Subtract the value of the rst operand from the value of the acc register and store the result in the acc register.

mul R/I

Multiply the value of the rst operand by the value of the acc register and store the result in the acc register.

not

If the value in acc is 0, store a value of 100 in acc. Otherwise, store a value of 0 in acc.

dgt R/I

Isolate the specied digit of the value in the acc register and store the result in the acc register.

dst R/I R/I

Set the digit of acc specied by the rst operand to the value of the second operand.

Examples of the dgt and dst instructions:

acc Instruction acc’

596 dgt 0 6

596 dgt 1 9

596 dgt 2 5

acc Instruction acc’

596 dst 0 7 597

596 dst 1 7 576

596 dst 2 7 796

诚尚MicroTM

CSM_TD_100202 4 of 4

Test Instructions

For more information on conditional execution and the “+” or “-” symbols, see Conditional Execution, page 2.

teq R/I R/I

Test if the value of the rst operand (A) is equal to the value of the second operand (B).

Condition Eect on ‘+’ Instructions Eect on ‘-’ Instructions

A is equal to B Enabled Disabled

A is not equal to B Disabled Enabled

tgt R/I R/I

Test if the value of the rst operand (A) is greater than the value of the second operand (B).

Condition Eect on ‘+’ Instructions Eect on ‘-’ Instructions

A is greater than B Enabled Disabled

A is not greater than B Disabled Enabled

tlt R/I R/I

Test if the value of the rst operand (A) is less than the value of the second operand (B).

Condition Eect on ‘+’ Instructions Eect on ‘-’ Instructions

A is less than B Enabled Disabled

A is not less than B Disabled Enabled

tcp R/I R/I

Compare the value of the rst operand (A) to the value of the second operand (B).

Condition Eect on ‘+’ Instructions Eect on ‘-’ Instructions

A is greater than B Enabled Disabled

A is equal to B Disabled Disabled

A is less than B Disabled Enabled

Replace this page with the “Parts Datasheets” section divider.

诚尚MicroTM

DESCRIPTION

A reduced-functionality microcontroller to

help lower BOM costs, the MC4000 is a exible

and versatile alternative to its larger cousin, the

MC6000. Don’t let its diminutive size fool you,

however: The MC4000 can easily hold its own

with its generous nine lines of program memory,

one general-purpose register, and four I/O pins.

We are condent the MC4000 will nd its

way into your designs and into your heart! Con-

tact us to request samples.

FEATURES

• (9) lines of program memory

• (1) general-purpose register

• (2) XBus pins

• (2) simple I/O pins

Refer to the MCxxxx Language Reference for in-

formation about programming the MC4000.

NOTE: As a result of customer feedback, an

XBus-only variant will be made available later

this year with the MC4000X part number.

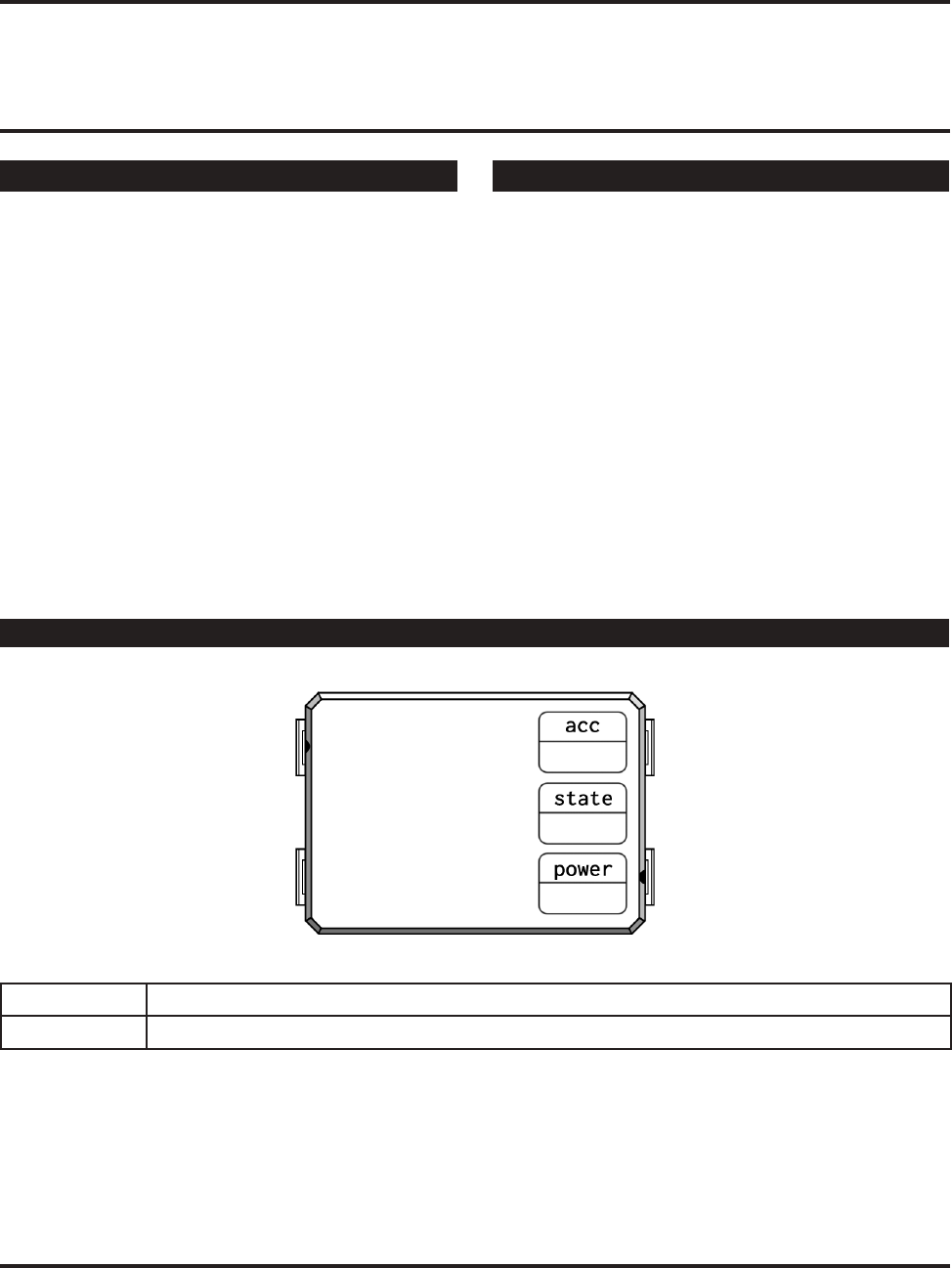

MC4000

HIGH PERFORMANCE MICROCONTROLLER

PIN CONFIGURATION

CSM_TD_1000198

NOTE: At any given time, a simple I/O pin is either in input mode or output mode. Writing a value

to a pin register will put the corresponding pin into output mode with the specied output value.

Reading a value from a pin register will put the corresponding pin into input mode, clearing any

previously set output value.

acc General purpose accumulator; is the target of all arithmetic instructions

XBus

simple I/O

1 of 1

诚尚MicroTM

XBus

simple I/O

acc General purpose accumulator; is the target of all arithmetic instructions

dat General purpose data register; used for additional on-chip storage

DESCRIPTION

Oering maximum power so you can achieve

a minimum chip count, the MC6000 is the cen-

terpiece of 诚尚Micro’s MCxxxx microcontroller

family. With plenty of room for complex instruc-

tions in its expansive fourteen-line program

memory, two general-purpose registers, and six

pins for I/O, the MC6000 can be at the center of

even your most demanding embedded applica-

tions! Contact us to request samples.

FEATURES

• (14) lines of program memory

• (2) general-purpose registers

• (4) XBus pins

• (2) simple I/O pins

Refer to the MCxxxx Language Reference for

information about programming the MC6000.

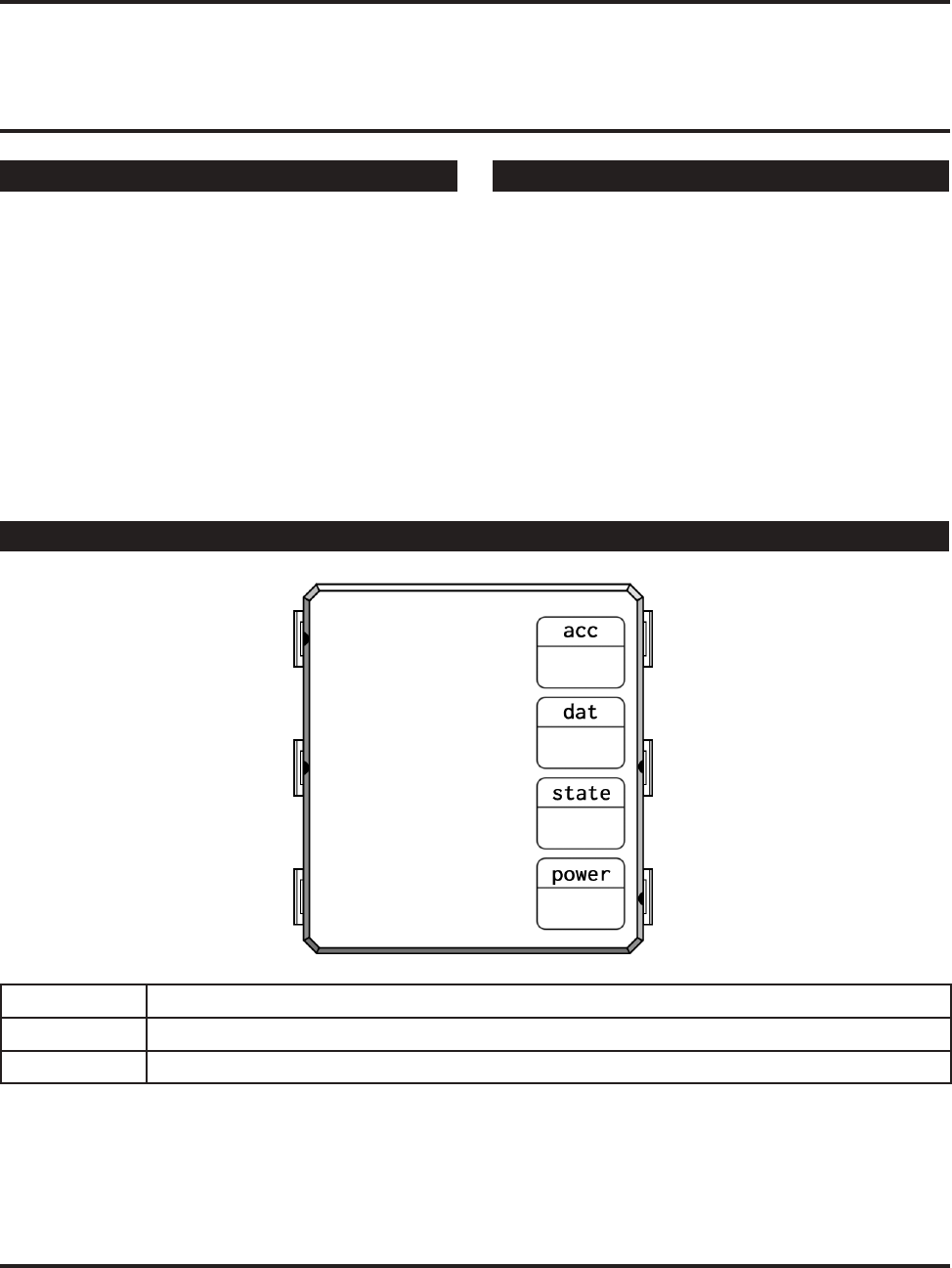

MC6000

HIGH PERFORMANCE MICROCONTROLLER

PIN CONFIGURATION

CSM_TD_1000199 1 of 1

NOTE: At any given time, a simple I/O pin is either in input mode or output mode. Writing a value

to a pin register will put the corresponding pin into output mode with the specied output value.

Reading a value from a pin register will put the corresponding pin into input mode, clearing any

previously set output value.

诚尚MicroTM

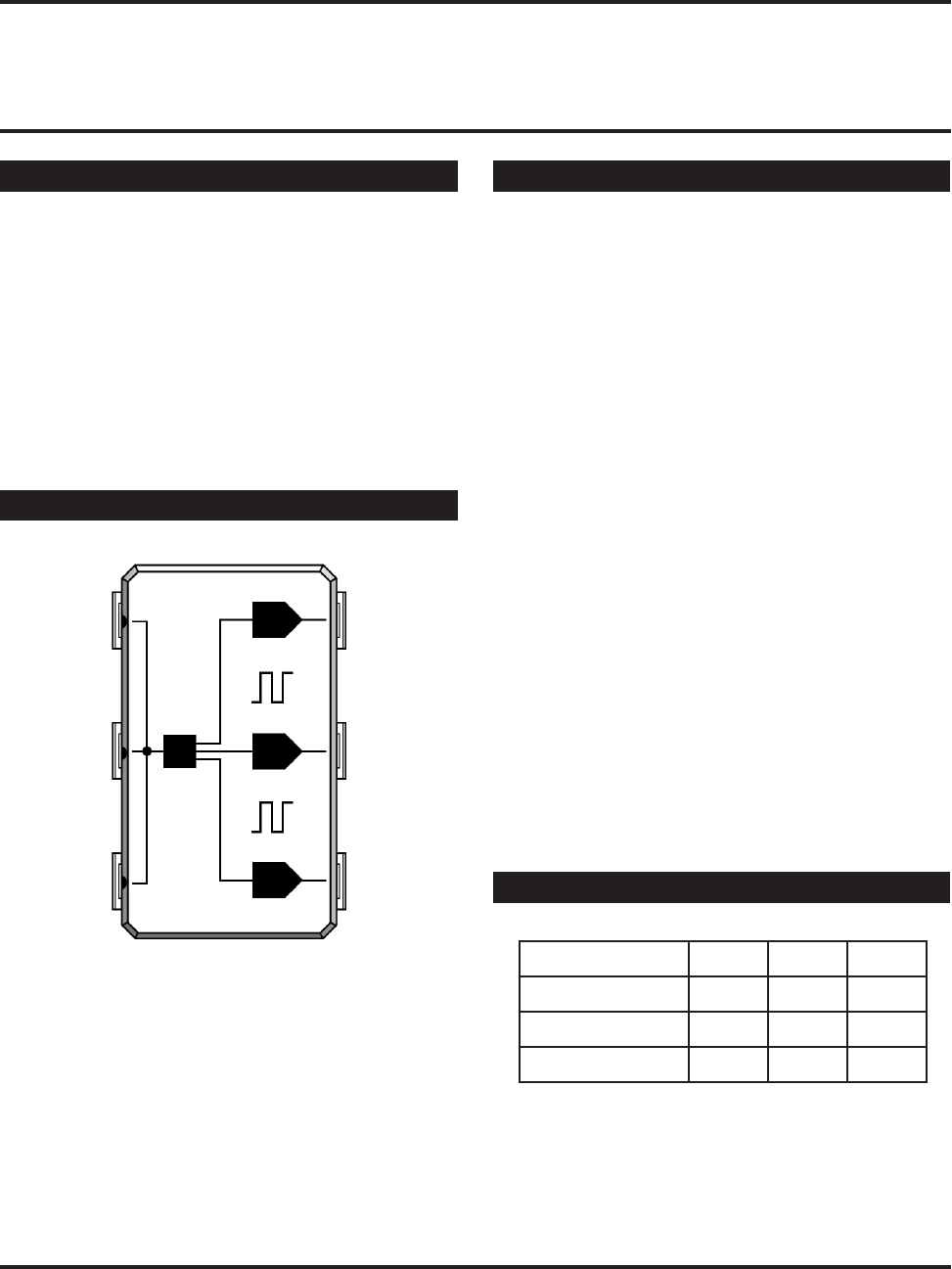

Control the world with the DX300 digital I/O

expander! This unique and useful part can read

or write up to three on/o signals at once over

simple I/O or XBus.

It is sure to nd its ideal application in an-

swering many of your control and signal pro-

cessing needs. Contact us to request samples.

NOTE: At any given time, the DX300 is either

in input mode or output mode. Writing an XBus

value to the DX300 will put its simple I/O pins into

output mode with the specied output values.

Reading an XBus value from the DX300 will put

its pins into input mode, clearing any previously

set output values.

• Write a 3-digit number to any XBus

pin to change the state of the simple

I/O pins. The three digits of the value

written will be used to turn the simple

I/O pins on (100) or o (0) depending

on if the digit is a 1 or a 0.

• Read from any XBus pin to get a

3-digit number that captures the state

of the simple I/O pins. The digits of

the resulting XBus value will be set to

either a 1 or a 0 depending on if the

simple I/O pin is on (100) or o (0).

• When representing the state of the

simple I/O pins, the value in the ones

column corresponds to p0, while the

tens column corresponds to p1, and

the hundreds column corresponds to

p2.

XBusValue p0 p1 p2

100 0 0 100

011 100 100 0

000 0 0 0

read/write

XBus

read/write

XBus

read/write

XBus

simple I/O

DX300

DIGITALI/OEXPANDER

CSM_TD_1000501

PINCONFIGURATION

DESCRIPTION USAGE

EXAMPLETABLE

1 of 2

诚尚MicroTM

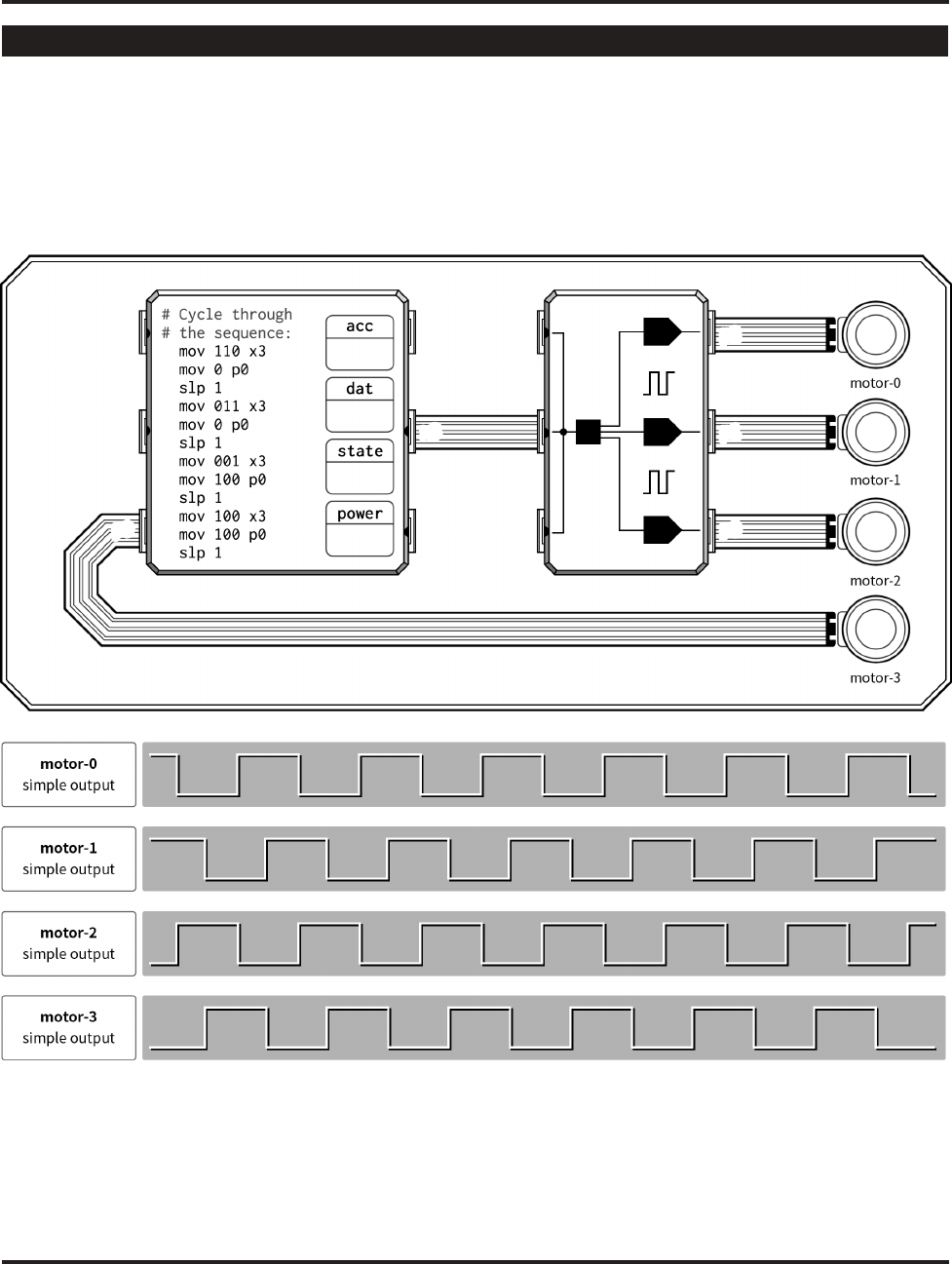

DX300 EXAMPLE CIRCUIT

CSM_TD_1000501

STEPPER MOTOR CONTROLLER

The following circuit controls a stepper motor using 诚尚Micro’s DX300 digital I/O expander to control

the motor-0, motor-1, and motor-2 signals and built-in simple I/O pin p0 to control the remaining

motor-3 signal.

2 of 2

平达

General Descripon

100P-14 random-access memory by Pingda Co. Ltd.

oers embedded system engineers addional stor-

age for today’s increasingly data-driven world with

a whopping fourteen memory cells. With its con-

venient auto-increment feature, you won’t have to

waste precious registers keeping track of memory

addresses.

Features

• (14) random-access memory cells

• (2) independent, auto-incremenng memory

pointers

Usage

• All memory cells inialize to a value of 0.

• All memory pointers inialize to point at the

rst memory cell (address 0).

• Memory pointers can be read and wrien over

XBus with the a0 and a1 address pins.

• Memory values referenced by pointers can be

read and wrien over XBus with the d0 and d1

data pins.

• Aer reading from or wring to a data pin, the

corresponding memory pointer will automa-

cally increment to the next memory locaon.

Example Circuit: Data Packet Reverser

The following example circuit reads in 3-value packets from input and writes them back out to output in

reverse order, using a 100P-14 to temporarily store the values.

100P-14

RANDOM-ACCESS MEMORY

PD_VM_100 Datasheet

Rev 3, Mar 2020

平达 200P-14

READ-ONLY MEMORY

PD_VM_200 Datasheet

Rev 3, Mar 2020

General Descripon

200P-14 read-only memory by Pingda Co. Ltd. oers

embedded system engineers the ability to easily

access up to fourteen factory-programmed memory

cells for a wide range of diverse applicaons. With

its convenient auto-increment feature, you won’t

have to waste precious registers keeping track of

memory addresses.

Features

• (14) read-access memory cells

• (2) independent, auto-incremenng memory

pointers

Usage

• All memory cell values are set in advance by the

design engineer.

• All memory pointers inialize to point at the

rst memory cell (address 0).

• Memory pointers can be read over XBus with

the a0 and a1 address pins.

• Memory values referenced by pointers can be

read over XBus with the d0 and d1 data pins.

• Aer reading from a data pin, the correspond-

ing memory pointer will automacally incre-

ment to the next memory locaon.

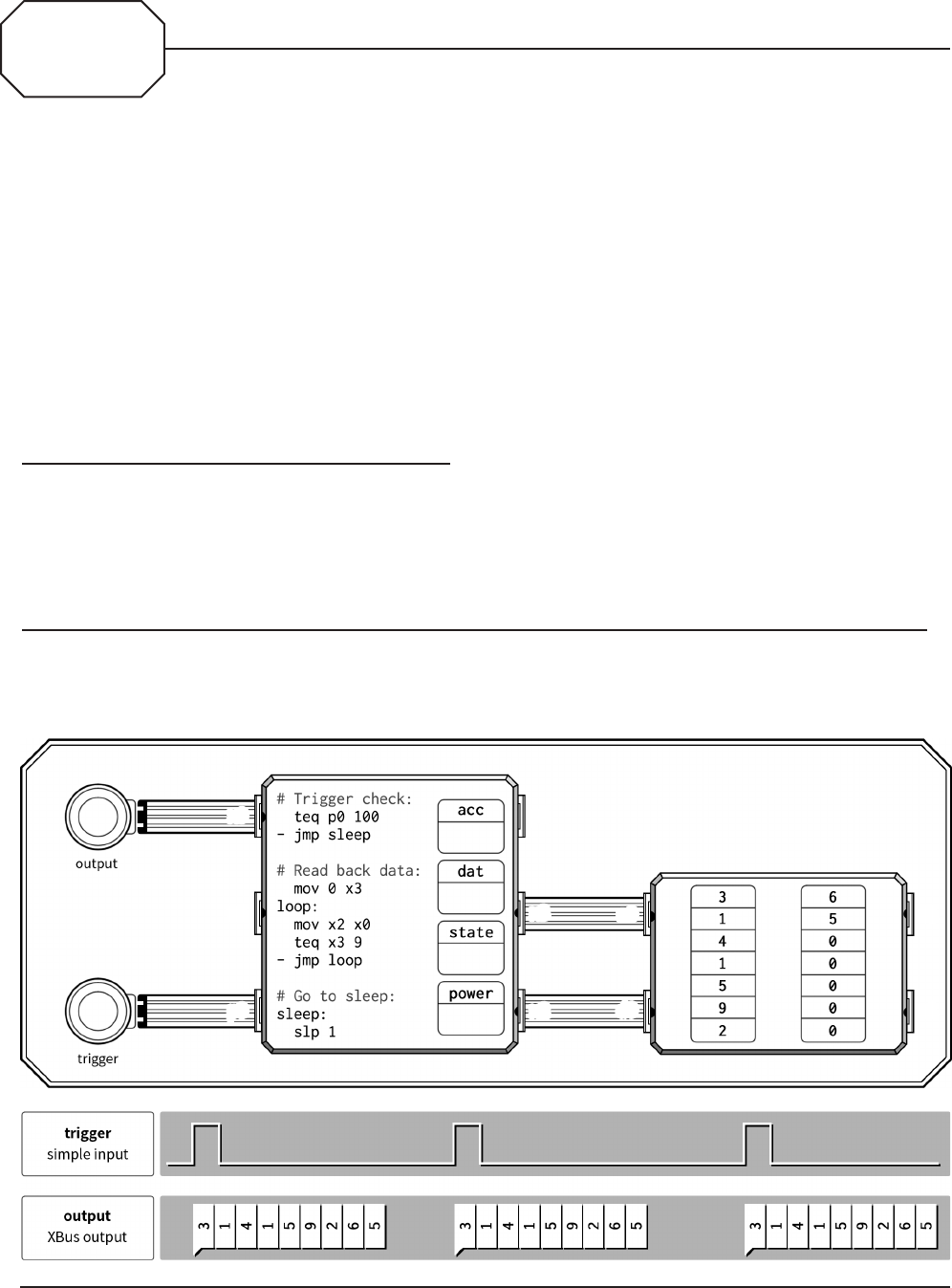

Example Circuit: Data Packet Generator

The following circuit sends a data packet with a predetermined set of values to output every me unit

that trigger is high.

THE LOGIC COMPANY™

YOUR SOURCE FOR LOGIC SINCE 1994

LC70Gxx SIMPLE I/O LOGIC GATE FAMILY

LC70G04 / LC70G08 / LC70G32 / LC70G86

OUTPUT TABLE

PIN LOCATIONS

We could all use a little more logic in our lives...

The LC70Gxx logic gate family from The Logic Company™ oers that bit of extra logic you’ve

been wanting— and for not a lot of money. With the LC70Gxx family you can rest assured your

logical operations will be performed quickly, accurately, and with a minimum of extra “fuss.”

Embedded systems engineers the world over trust The Logic Company™ with logical operations

every day... day in and day out!

• LC70G04 is a one-input, one-output inverter.

• LC70G08 is a two-input, one-output AND gate.

• LC70G32 is a two-input, one-output OR gate.

• LC70G86 is a two-input, one-output XOR gate.

When measuring inputs, signals less than 50 are interpreted as “o”, while signals greater than or

equal to 50 are interpreted as “on”.

A B Inverter

LC70G04

AND

LC70G08

LC70G32

XOR

LC70G86

0 0 1 0 0 0

0 1 1 0 1 1

1 0 0 0 1 1

1 1 0 1 1 0

LC70G04

LC70G08

LC70G32

LC70G86

input A

simple I/O

input A

simple I/O

input B

simple I/O

output

simple I/O

output (normal)

simple I/O

output (inverted)

simple I/O

When Denver Timekeeping founders Chad and Becca set up their small-batch chip

fab in the mountain town of Denver, Colorado, there were many who were dubious,

to say the least. “You can’t manufacture in America anymore,” they said. “It’s too

expensive, and hasn’t all that expertise left the country anyhow?”

But Chad and Becca persistently stuck to their vision of inexpensive, reliable, and

American-made timekeeping chips manufactured the old way. And, after many trials

and tribulations, they are proud to announce the Denver Timekeeping DT2415. Made

in the cool air and with the pure water of the Rocky Mountains, this real-time clock

includes a backup battery that ensures the time is kept even when power is not— a

must-have for ruggedized devices.

We hope you enjoy this chip. And if you’re ever in Denver, drop us a line. Chad and

Becca love to show customers around the fab.

Denver Timekeeping

Key Features

Example Output

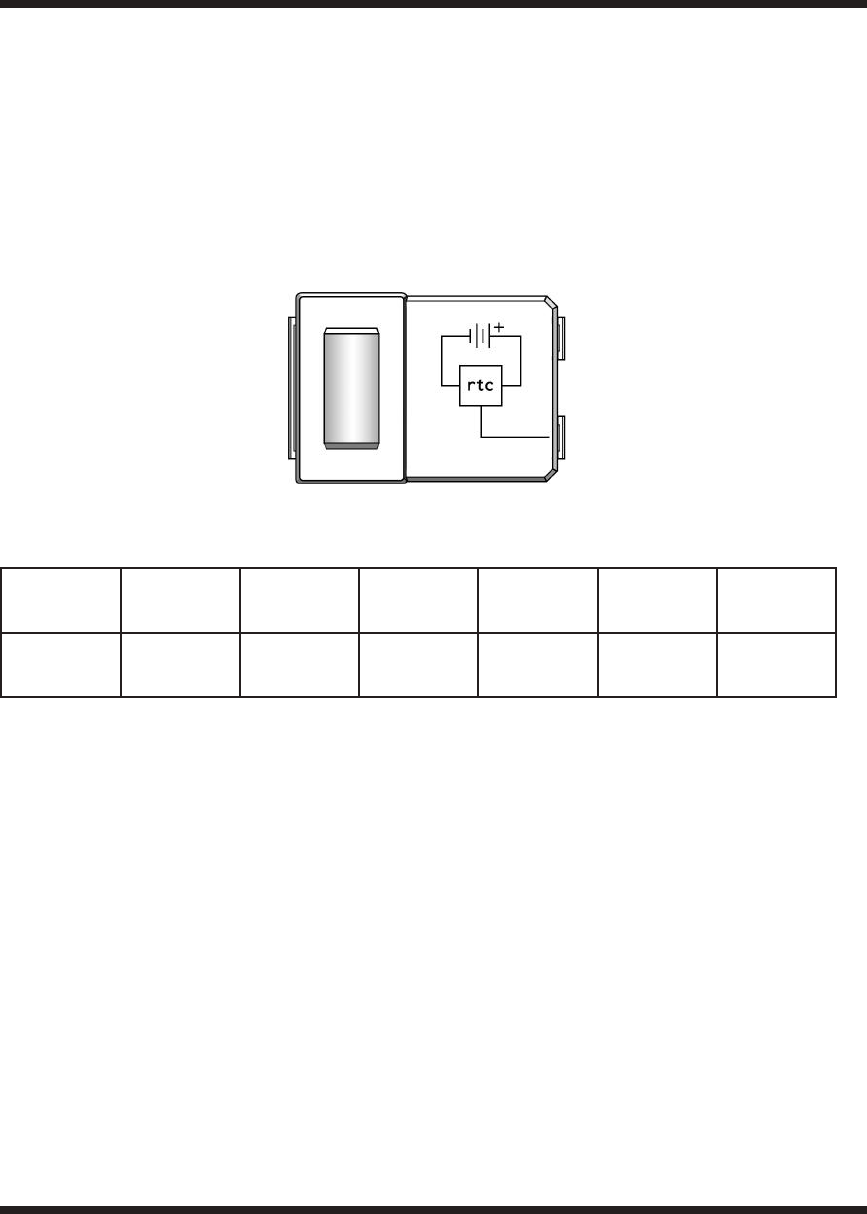

DT2415 Incremental Clock

The Denver Timekeeping Story

• Emits a simple I/O signal that corresponds to the number of 15-minute incre-

ments since midnight

• Includes a built-in backup battery so that the time is kept, even when power is

not available

Time 00:00 -

00:14

00:15 -

00:29

00:30 -

00:44

00:45 -

00:59 ... 23:45 -

23:59

Index 0 1 2 3 ... 95

N/C

time index

simple I/O

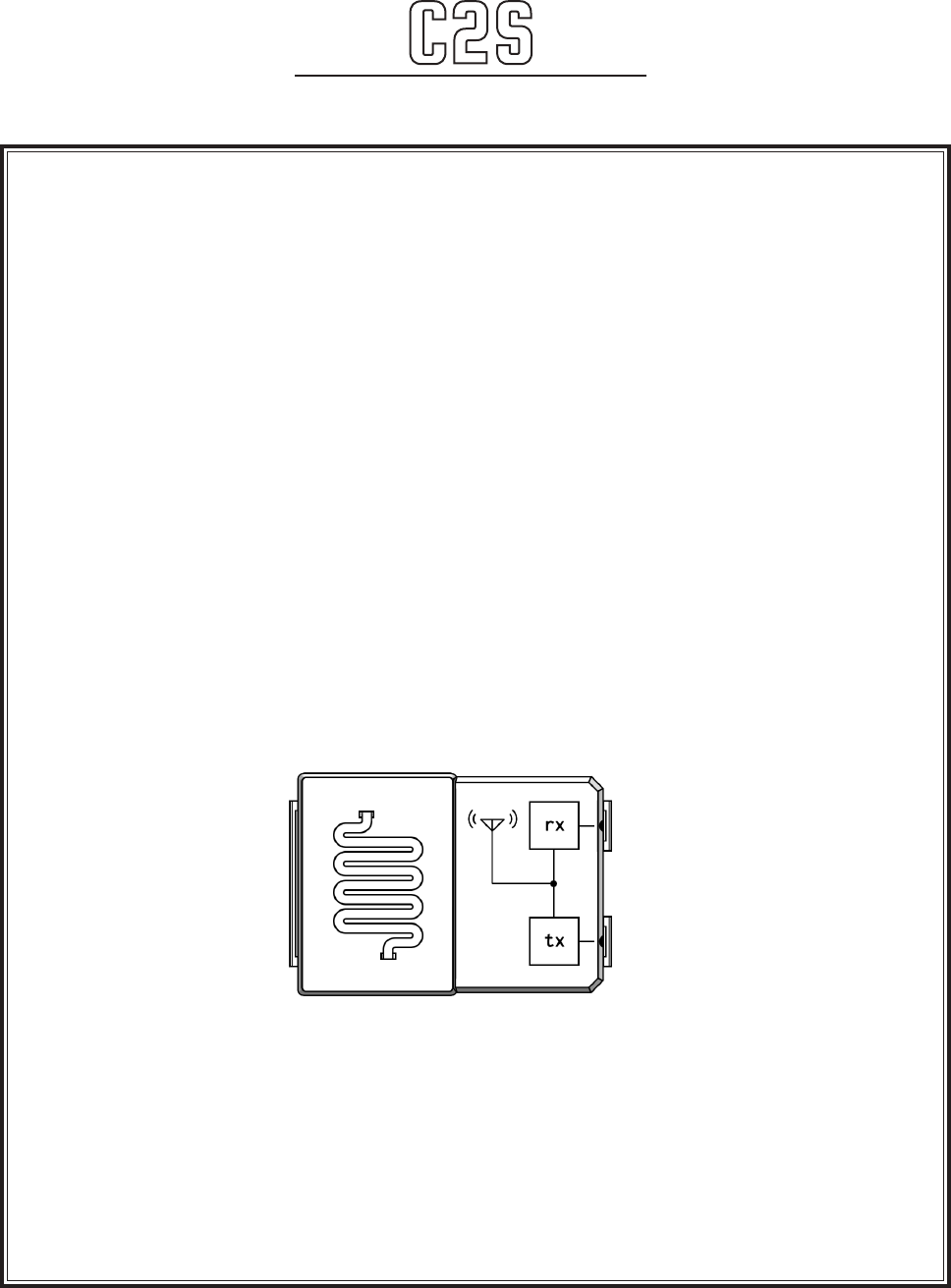

CHENNAI COMMS SOLUTIONS

PRESENTING THE C2S-RF901

If you need an easy and effective wireless solution for your embedded system

design, Chennai Comms Solutions has the answer in the form of the C2S-RF901.

A low-power RF transceiver with a built-in antenna and auto-sensing RF switch,

the C2S-RF901 sends and receives data over a reliable wireless link using a dual

XBus connection.

NON-BLOCKING BUFFER!

All data received is passed through an internal non-blocking buffer. Reading from

the C2S-RF901 when no data is available will yield a value of -999 instead of

blocking until data arrives (which is typical XBus behavior). With the C2S-RF901,

you can keep working while you wait for data to arrive!

CONVENIENT PIN LOCATIONS!

With transmit and receive pins located on the same side of the part, you will never

nd yourself moving components in an awkward way to accomodate the C2S-

RF901 in your designs. Just place it down and don’t worry.

YOUR BEST SOLUTION FOR WIRELESS

Indeed, the C2S-RF901 is a true turnkey solution for wireless communications that

you will nd yourself using every day.

“When it comes to wireless, don’t be a protozoan.

Just get yourself a C2S-RF901!”

receive

XBus

transmit

XBus

MOUNTLEAF

SOUND CONCEPTS

FM/iX Sound Module

FMBLASTER

DESCRIPTION

The FM/iX FM Blaster is a versatile FM-

based tone generator applicable to a diverse

set of devices from PC-compatible sound

cards to video game consoles to consumer

keyboards. The FM/iX comes with 10 profes-

sionally designed, stunningly realistic preset

patches that cover a wide range of musical

directions including classical, rock, plastic,

gasp, and techno.

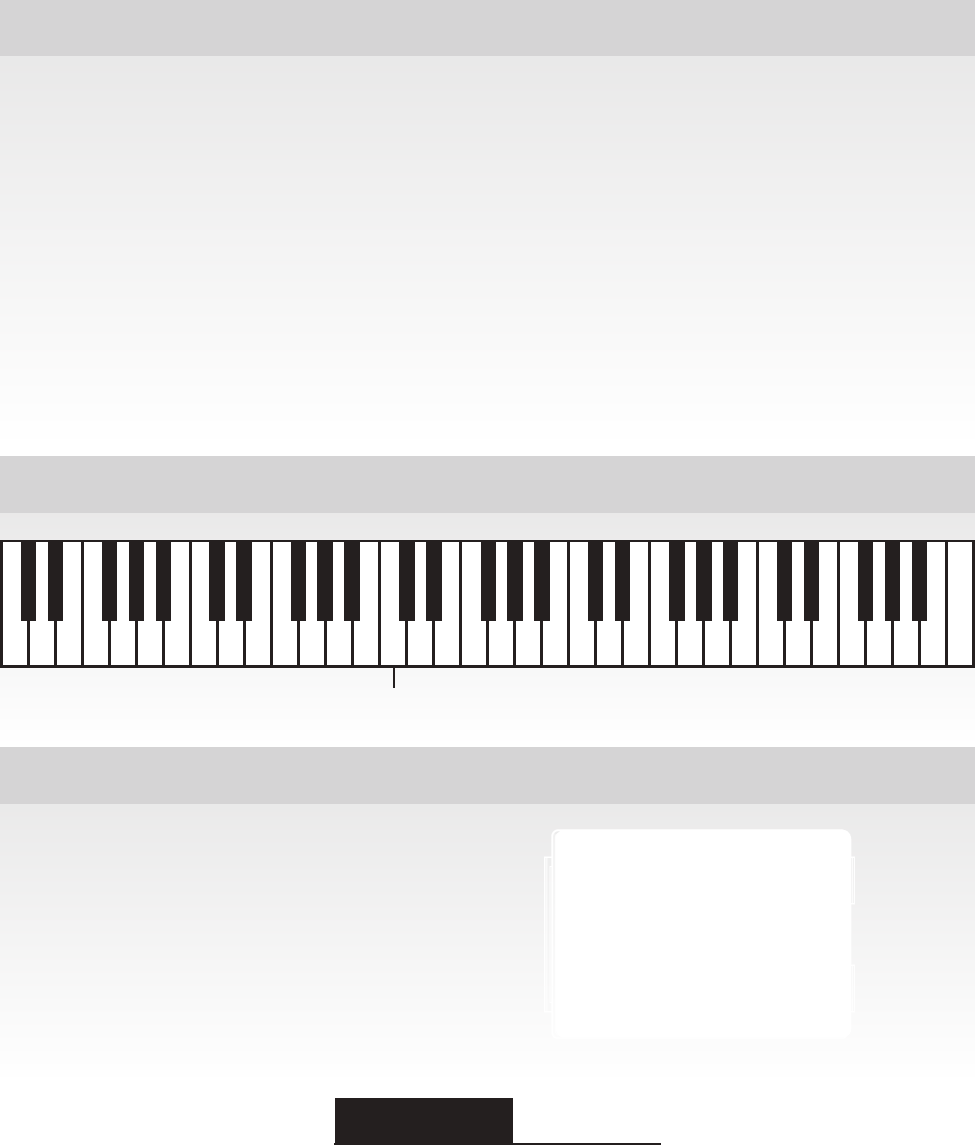

NOTE VALUES

INSTRUMENT LIST

FEATURES

• 1 voice of polyphony (new note or

instrument change will stop current

note)

• 10 preset instruments with built-in

envelopes

• Industry standard tuning (equal

temperament)

• Includes bass drum and snare/hihat

combination!

PINOUT DIAGRAM

Note

Instrument

Middle C

00. Harpsiclav 05. Bellrimba

01. Plucktar 06. Reso Strings

02. Tines 07. Glass Pad

03. Hollow Bass 08. Hi-Snare

04. Rubber Bass 09. Bass Drum

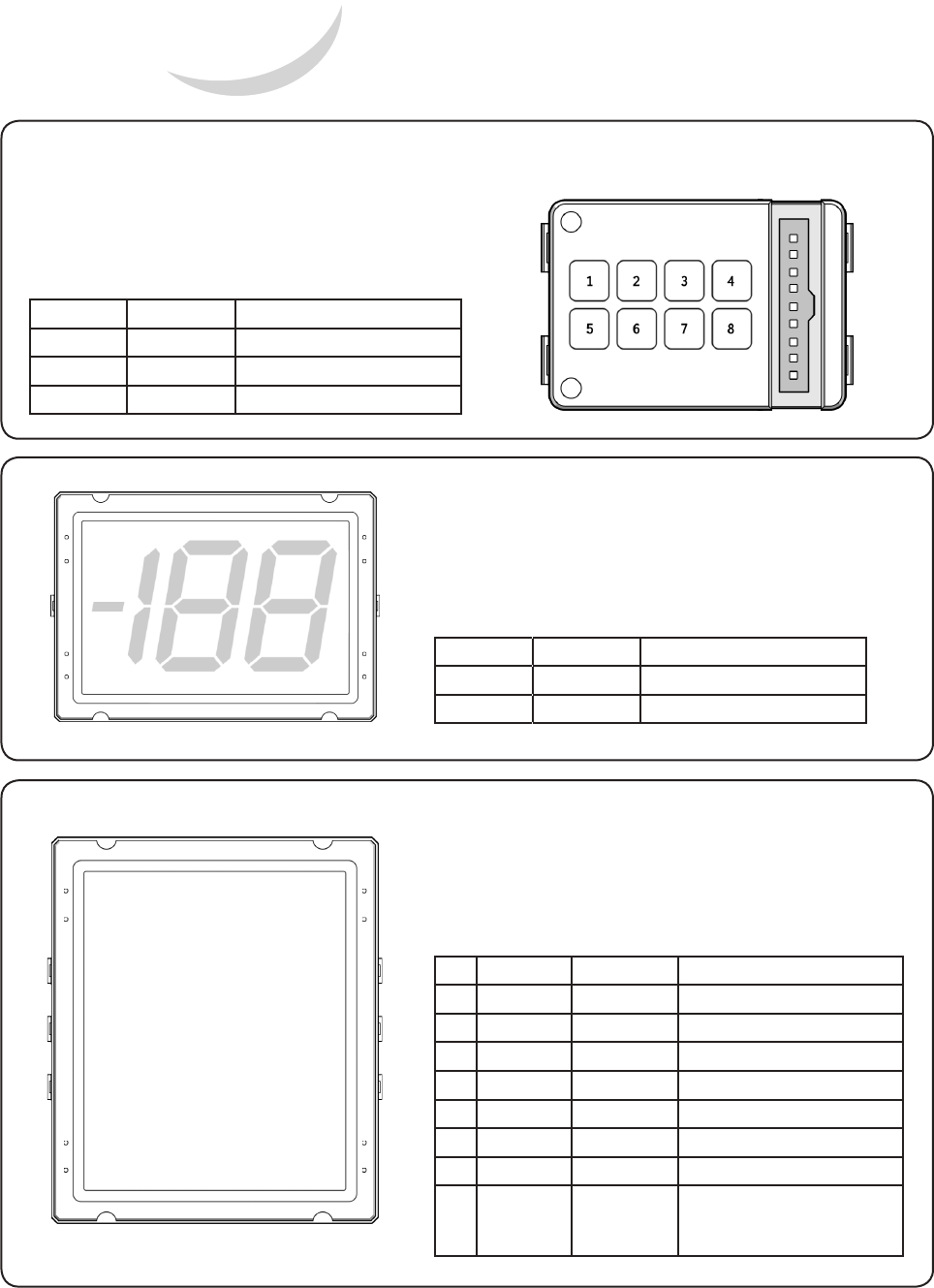

• Push-buttonarraycontrollerwith

supportforupto8buttons

• 4non-blockingXBuspins

• Greatqualityandprice

• 7-segmentnumericaldisplaywith2.5

digitsandbonusminussign

• DisplaysthefullrangeofXBusvaluesfrom

-199to199

N4PB-8000 Push-Button Controller

¥8/ea.

¥4/ea.

¥3/ea.

LuX Industry LX700

LuX Industry LX910C

• Custom-manufacturedforyourunique

application’sdisplayneeds

• Nowwithintegratedsegment-based

touchscreencontroller!

Pin Direction Value Result

cN Write [segment] Turnon[segment]

cN Write -[segment] Turnoff[segment]

cN Write 999 Turnonallsegments

cN Write -999 Turnoffallsegments

tN Read [segment] [segment]touchevent

tN Read -[segment] [segment]releaseevent

tN Read -999 Nonewtouchevents

qN Write/

Read

[segment] Query[segment]state;

Subsequentreadyields1or

0if[segment]isonoroff

Direction Value Result

Read [button] [button]downevent

Read -[button] [button]upevent

Read -999 Nonewbuttonevents

Direction Value Result

Write -199to199 display[value]

Write -999 Turnoffallsegments

PartsPlus+

“Your source for parts...

plus!

”FREE SHIPPING*

ASK ABOUT OUR PRICE GUARANTEE! WE WILL NOT BE UNDERSOLD! 44

YOUR

DESIGN

HERE

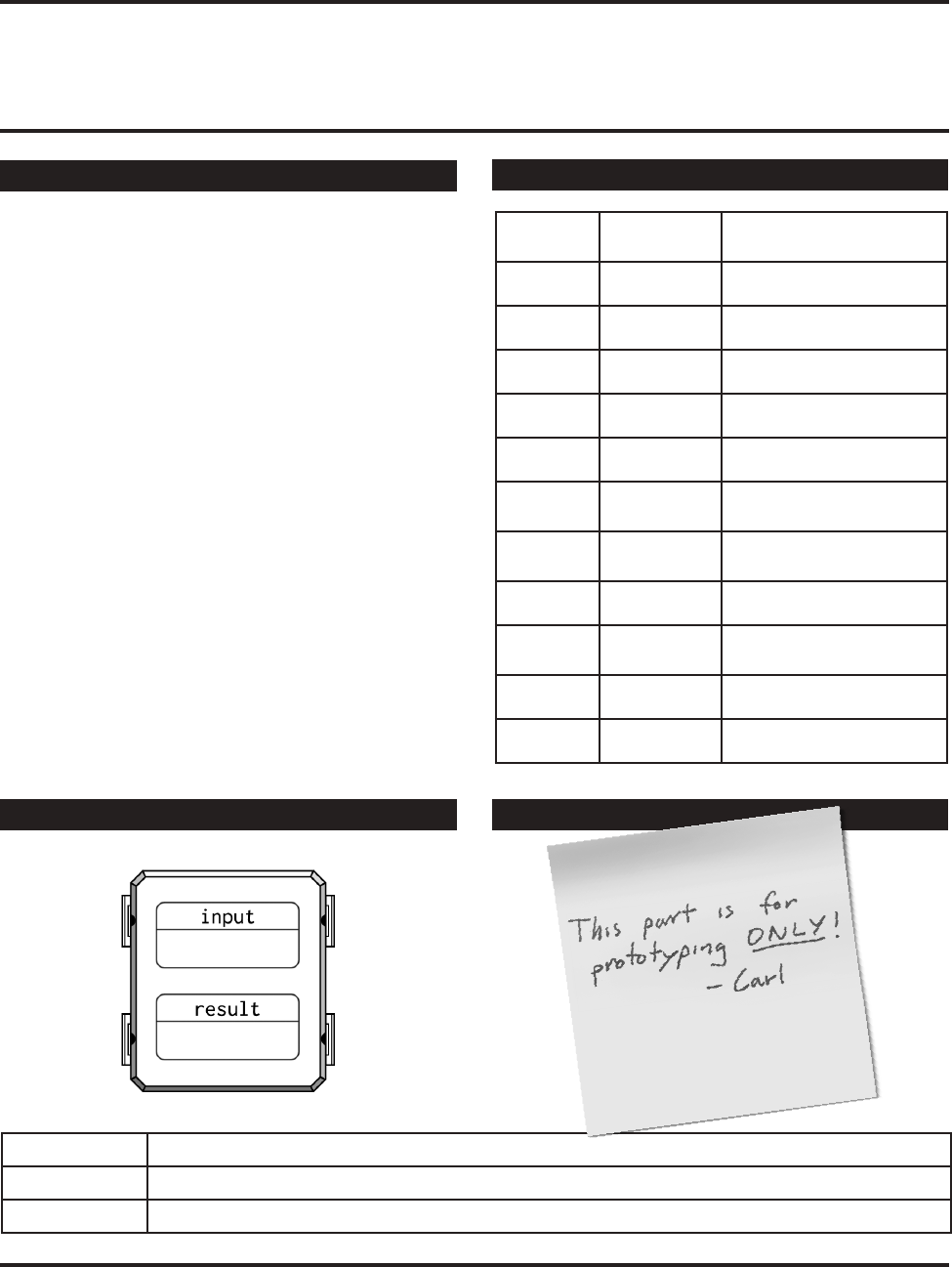

诚尚MicroTM

USAGE

Write a command sequence to any pin to

instruct the MC4010 to perform a calculation. A

command sequence (see table, right) consists of

an operation code followed by one or two values.

Once a complete command sequence is written

to the MC4010, the result register is updated

with the result of the specied calculation.

Reading from any pin retrieves the value

stored in the result register. result can be read

any number of times.

In the following example, the command se-

quence 50 20 4 is sent to the MC4010 to perform

the calculation 20 / 4 = __. The result, 5, is

stored in the result register and read back into

the accumulator.

The MC4010 math co-processor can be ob-

tained at a substantial discount when purchased

with sucient quantities of the MC4000 or MC6000

microprocessors. Contact our sales agents today

to discuss your particular needs. We will be happy

to assist you!

# x0 is connected to an MC4010 input pin

mov 50 x0 # op code for division

mov 20 x0 # write rst value

mov 4 x0 # write second value

mov x0 acc # read back result (5)

MC4010

MATH CO-PROCESSOR

PRICING

COMMAND LIST

PIN CONFIGURATION

input Holds operations and values until a complete command sequence has been sent.

result Holds the result of the last executed command. The value is limited to the range -999 to 999.

Operation Command

sequence result is set to:

Set 10 A A

Add 20 A B A + B

Subtract 30 A B A - B

Multiply 40 A B A x B

Divide 50 A B A / B

Remainder 51 A B Remainder of (A / B);

negative if A was negative

Modulus 60 A B A mod B;

negative if B was negative

Exponent 70 A B AB

Square

root 80 A Square root of A,

rounded down

Min 90 A B Smaller of A and B

Max 91 A B Larger of A and B

input/result

XBus

input/result

XBus

input/result

XBus

input/result

XBus

CSM_TD_1000302 1 of 1

/// CEO’S NOTE

SECURITY FOR TODAY’S WORLD

Dear Fellow Engineer,

In today’s world, the only guarantee is that there are no guarantees. Uncertainty is the norm

and the potenal for conict, or even chaos, lurks around every corner. In this world of mulple

and dicult to predict threat vectors, how can assets and secret informaon be protected?

Decisive Pty’s comprehensive D80 family of security soluons provides the answer.

The D80 family is designed for the needs of today’s security industry, where secret and sensive

informaon must oen interoperate with outside data— without compromising the security

boundary. At Decisive, we engineer security from the ground up, starng with tamper-resistant

enclosures for all of our components. Our mul-layered proprietary authencaon protocol,

built with formally-veried methods, ensures an inviolable separaon between trusted and

untrusted environments. And, with acve intrusion detecon built into the lowest level of our

architecture, your cybersecurity team can be noed immediately as soon as a potenal threat

is encountered. When implemented correctly across all of your devices, the D80 family keeps

the good guys in and the bad guys out.

With top engineered soluons and rigorous quality control, you can count on Decisive to add

the security you need for the projects that need it most— we guarantee it!

Ronan R. Dornan

Chief Execuve Ocer

/// KEY FEATURES

• Stores a unique idencaon value that can be read over industry-standard XBus

• Hardened against reverse engineering, radiaon, and electromagnec pulse (EMP) weapons

• Temperature range of -40°C to +95°C, supporng usage in a wide range of environments

/// PIN DIAGRAM

DECISIVE

Pty Ltd

D80C010-F

read

XBus

read

XBus

KU-JI was founded in 1992 by Shushin Yukawa. We create a variety of electronic devices.

In addition to world-leading accelerometers and gyroscopes, our company has pioneered

the miniaturization of divination and other spiritual techniques using easily inte-

grated microelectromechanical systems. This new kind of “spiritual computation,” or

“spiritation,”combines ancient learning with modern manufacturing and engineering,

and promotes understanding of the true nature of reality.

EK1 “ORACLE ENGINE”

Since time immemorial, the divination method known as I Ching has provided guidance,

wisdom, and insight to practitioners and laypeople alike. However, the traditional

method using yarrow stalks is not commonly performed today and people who wish to re-

ceive the insights of the I Ching use later-developed methods such as tossing coins or

even use programs based on the common random number generator (RNG) of modern computer

systems.

Pained by this situation, our founder Shushin Yukawa has developed the EK1 which pains-

takingly recreates the traditional yarrow stalk I Ching divination method in miniature

with advanced MEMS technology.

• Includes built-in piezoelectric generator that converts a user’s mechanical energy

into electrical energy to conduct the divination process.

• Generates an I Ching hexagram represented as a stream of 6 digital values over 6

time units, starting with the lowermost line. A value of 100 corresponds to a solid

line and a value of 0 corresponds to a broken line.

• Contains 50 microscopic precision-milled Achillea millefolium stalks to recreate

the oldest and truest method of hexagram generation.

K U -J I GK LTD

ABOUT KU-JI

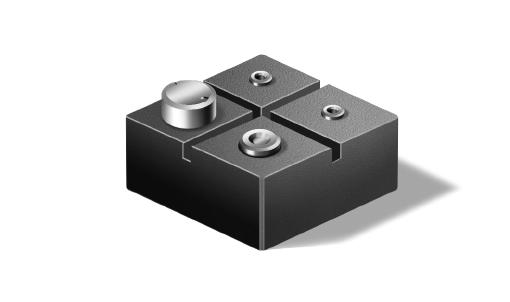

KUJI-EK1 “ORACLE ENGINE”

Other “Spiritation” Products by KU-JI GK LTD:

KUJI-TU1 Palmistry

KUJI-SS1 “Four Pillars of Destiny”

KUJI-AS1 Western Astrology

KUJI-SH1 Onomancy

KUJI-FS1 Feng Shui

Product demonstrations are available at KU-JI headquarters in Yamagata City, Yamagata

Prefecture, Japan. Please contact us via e-mail to schedule an appointment.

N/C

•button(simpleI/O)

•oracle(simpleI/O)

KUJI-EK1

崇信电子有限公司

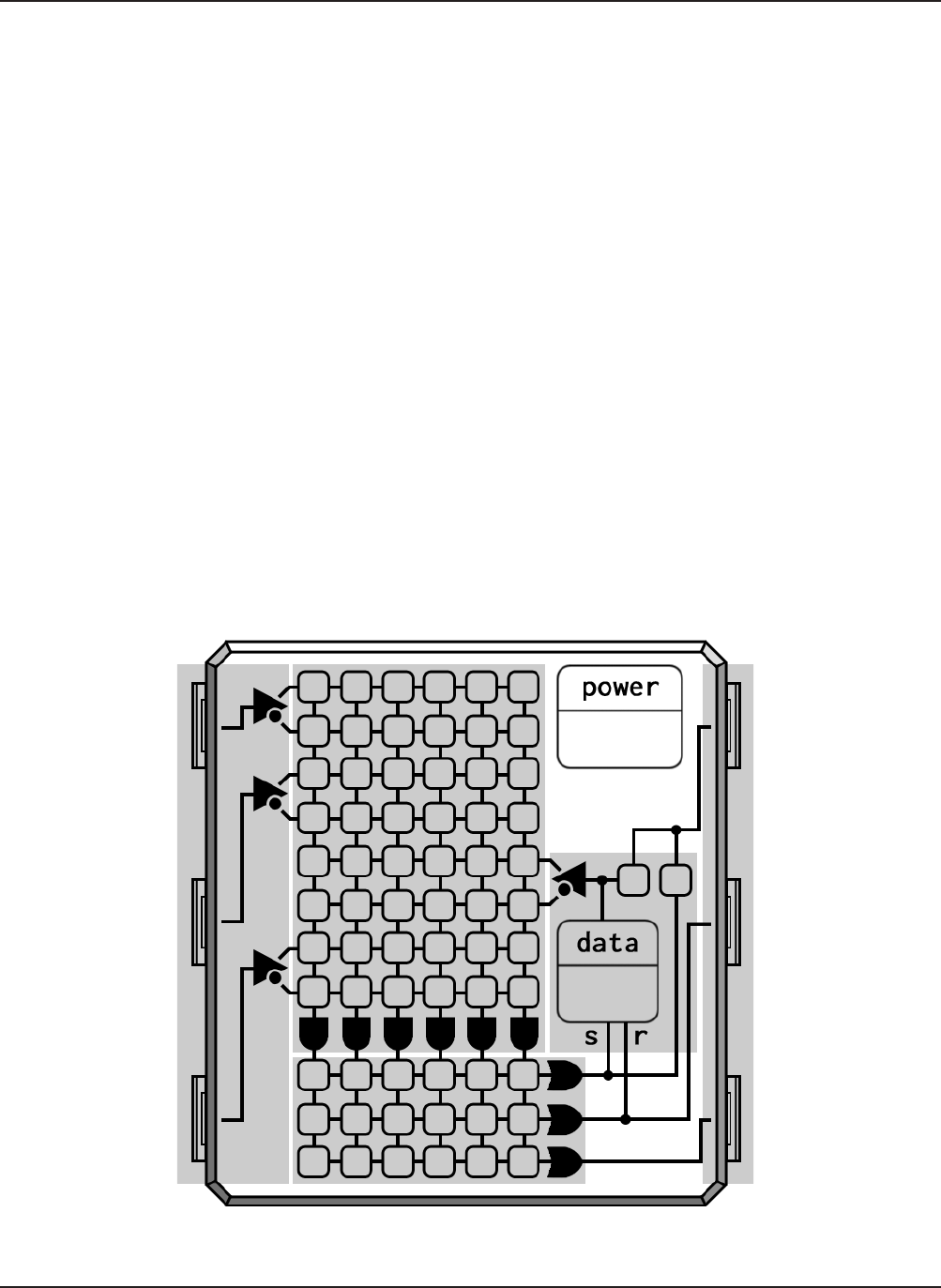

PGA33X6

有时我们会遇到不能用常规部件或者正常手段解决的情况，出于这种缘由，

我们开发了PGA33X6，它拥有一个灵活而强大的逻辑结构，能够提升任何装

置的运行能力。

亮点:

• (3)简易的带缓冲输入引脚

• (3)简易的带缓冲输出引脚

• (6)过渡区乘法纵列

• (1)具备反馈以及直接输出能力的设置/重置触发器

• 已用一个“积之和”的通断配置组织，以便任意地将输入映射至输出

• 能够替换上百个分立的逻辑门

• 不适宜用于低功耗应用

2021年12月7日PGA33X6DS_R4

输入

乘列

加法行

触发器

输出

Recognize Words Quickly And Easily With Raven Dynamics!

Natural language control is a critical part of any modern interface, yet cost and complexity of implementa-

tion has slowed its adoption in low-power embedded environments. Raven Dynamics is about to change

this state of aairs with solutions based on its newly developed NEME Slice™ technology. By pre-en-

coding words and phrases as sets of small “slices” which are then associated with a hashed key, NEME

Slice™ can positively identify a dictionary’s worth of spoken content with an over 92% accuracy rate.

RAVENDYNAMICS

The Raven Dynamics NLP2 is the rst widely available implemen-

tation of NEME Slice™ technology. NLP2 references an extensive

built-in English language index that was created in partnership with

top linguists, computer scientists, and product design experts. With

its built-in microphone and audio pass-through feature, NLP2 will

easily t into your existing designs to add voice control to even the

simplest device.

natural language solutions

for a natural-language world

™

keywords

XBus

audio

simple I/O

N/C

5Raven_allproducts-nal-FINAL.docx

NLP2 Key Features:

• Built-in support for the English language with mapping to a predened keyword set.

• Captures audio using built-in binaural microphones and processes spoken keywords as they are

detected in the audio stream.

• Keywords are reported over XBus as pairs of 3-digit values and are buered through an internal

non-blocking buer that yields a value of -999 when attempting to read when no data is available.

• Raw audio pass-through is available in addition to the keyword stream.

Figure 2. NLP2 uses the industry-standard XBus format to communicate with your microcontroller.

271 390 RAVEN

109 874 DYNAMICS

Figure 1. Words and phrases

are hashed into a six-digit

number. In this example, the

words “Raven” and “Dynamics”

are displayed, along with their

hashed equivalents.

Replace this page with the “Supplemental Data” section divider.

Incredible Sound at a Breakthrough Price.

Sounds Impossible?

Nah... Sounds Like

Harmonic Maximization.

The Sunnyvale Institute for Audio Engineering

Changing the Way You Hear, from Ear to Ear™

At the Sunnyvale Institute for Audio En-

gineering, we have done decades of ad-

vanced audio research. But even we know

that a truly breakthrough audio device only

comes around once in a generation. So it

was with no small amount of trepidation

when our scientists in the lab introduced

us to something they’d been working on for

the last few years. Would this be just anoth-

er piece of “audio gear” destined to gather

dust on the shelves of your local electronics

store?

Our minds changed once we took a listen.

Everything sounded more alive, more pres-

ent, more real to us than anything we’d

heard before. Whereas before the harmo-

nies would oat through the air listlessly

towards our ears, with this technology the

sound was heightened, improved... maxi-

mized.

The propellerheads in back won’t like that

we’re showing it to you, but go on— have

a peek at the proprietary Harmonic Maximi-

zation formula:

AUDIO_OUT = (AUDIO_IN - 50) x 4 + 50

“Yes, but what does all that mumbo-jumbo

mean?” you might ask. It may be Greek

to you and me, but don’t worry— what it

means for us is crisp highs and booming

lows, all in perfect balance. As for all that

math, well, we’ll just have to trust that our

world-class acoustics engineers know what

to do with it! And it’s a good thing we do,

because they’ve taken that little algorithm

and miniaturized it into an ingenious little

device you can plug into any audio source.

POSEIDON-779 // THORIUM MINING UNIT

ACTUATOR CONTROL SUBSYSTEM

2A27 GEOMETRIC SPECIFICATIONS

DANGER

FLUX POINT

UNDERSTAND: This is a geometric visualization of a state space. The

2A27 actuator control must take a value as shown in specications de-

pendent on inputs as described.

UNDERSTAND: The 0 value area in the middle is required so that the

actuator avoids the ux point.

ACT: Create a device that maps given coordinates to the corresponding

power value as specied in this geometric visualization.

X < 20 40 ≤ X < 80

40 ≤ Y < 80

X ≥ 60

Welcome to DarkLord555’s Creepy Sound Eects Page

This page was designed for Internet Explorer 3.0 or better

You are the 1792th visitor to this page

==================

You have found yourself in a dark wood…

In a huge forest with no beginning or end…

What is that noise??

Before you know it, the darkness has taken you…!!!

==================

These sound eects were recorded and modied by me, DarkLord555. They are free to use. You can use these

sound eects to scare your little sister or whatever else, I don’t care:

http://www.web-homes.co.ee/users/~DarkLord555/RandomStu/SoundEects.htm

Sinister Giggle (giggle.wav):

100 80 41 14 14 41 69 74 54 27 19 40 75

Unsettling Laugh (laugh.wav):

20 76 11 30 17 27 48 81 29 74 24 19

Blood-Curdling Cry (cry.wav):

16 36 42 14 10 58 100 76 26 28 70 80 42

Startling Crash (crash.wav):

39 44 95 67 17 38 39 24 30

Creepy Singing, Ring Around the Rosie (ring.wav):

90 33 86 64 97 98 87 32 13 45 36 50 80

Don’t let your operators get caught ddling with rangender settings at the wrong moment.

Today’s aiming devices for individual carbine weapons oen feature complex illuminators with

multiple switches and dials, which can be diicult to operate in the dark, or worse— during an

engagement. The PP-221 eliminates these issues by automatically snapping to three predened

settings optimized for common engagement distances.

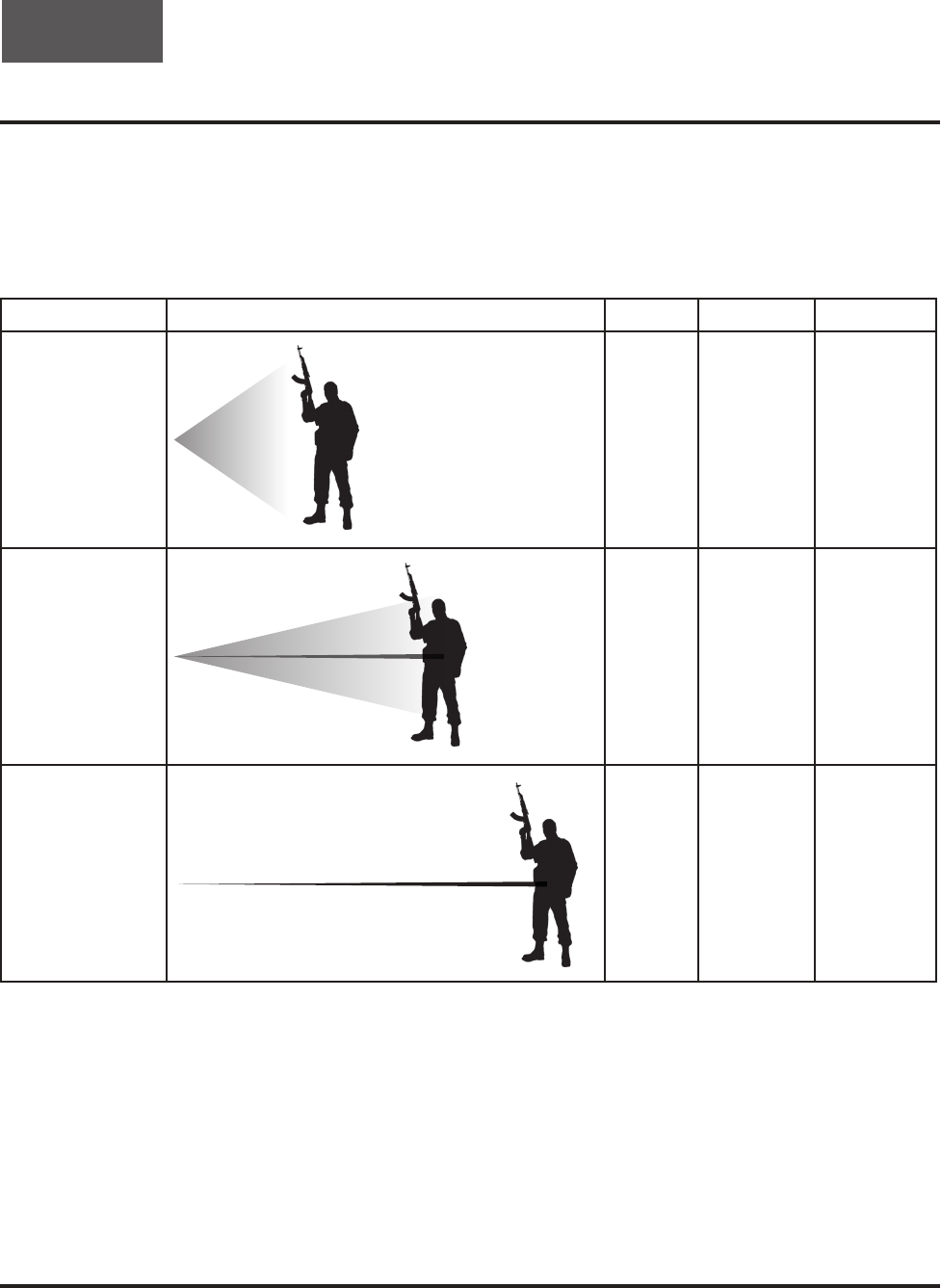

PP-221

CARBINE TARGET ILLUMINATOR

Short range mode. For close-quarters situations and room-to-room engagements, short range

mode sets the ood light to a wide diusion to illuminate the largest possible area without wast-

ing power on an aiming laser.

Mid range mode. For use in a wide variety of urban environments, the ood light is adjusted to

a narrower cone in order to project illumination towards the target area, while the laser point

enables precise aiming.

Long range mode. The highest-power laser point with the lowest divergence used for outdoor

situations or in situations with excessive non-natural ambient illumination.

Radar Range Diagram Laser 20° Flood 60° Flood

1-2 time units 0% --- On

3-4 time units 50% On ---

5-6 time units 100% --- ---

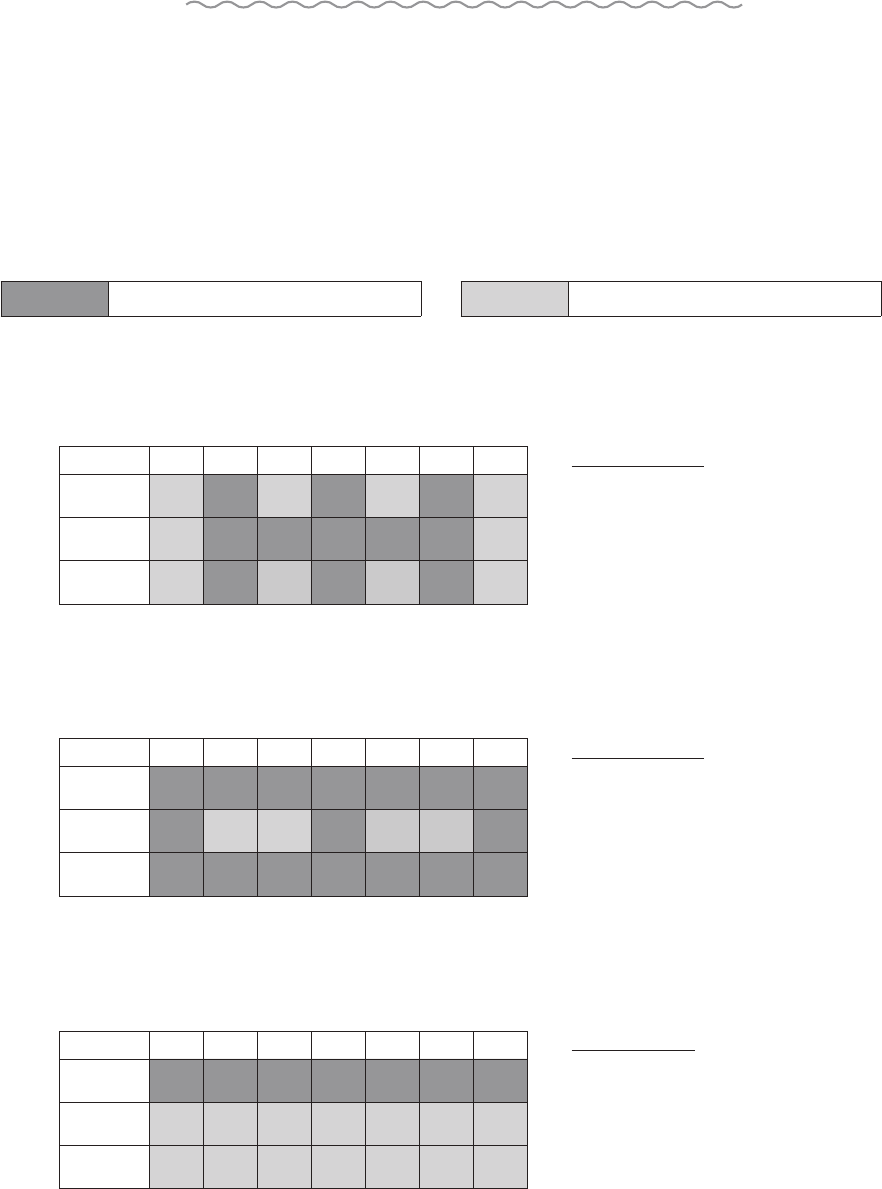

Now that you have your meat assembler up and running, it’s time to put the device through its

paces! You’ll nd, as many have, that assembled meat isn’t just a convenient, cost-effective solu-

tion for a commercial dining facility— it can also be a versatile culinary tool in the hands of an

experienced operator. Use the meat patterns below to get started with some familiar servings.

Don’t be afraid to experiment, however!

Lean mix (95% lean, 5% fat) Fat mix (20% lean, 80% fat)

The Assembled Meat Primer

Sample Specications

http://assembled.meat/primer/samplespecifcations/signin?_encoding=UTF8

CUTLET-STYLE MEAT

A traditional cutlet of meat with fat around the edges that will crisp nicely when broiled.

Nutrition Facts

Serving size: 100 grams

Calories 217

Fat (g) 16

Carbs (g) 0

Protein (g) 19

Nutrition Facts

Serving size: 100 grams

Calories 176

Fat (g) 4

Carbs (g) 0

Protein (g) 34

Nutrition Facts

Serving size: 100 grams

Calories 227

Fat (g) 18

Carbs (g) 0

Protein (g) 16

STEAK-STYLE MEAT

This lean “steak” was inspired by the ne marbling that can be found in high-grade beef.

BACON-STYLE MEAT

Rashers of good streaky bacon are never far when you have this pattern queued up!

Valve First Last

valve-0

valve-1

valve-2

Valve First Last

valve-0

valve-1

valve-2

Valve First Last

valve-0

valve-1

valve-2

David & Xiaomei’s

List of Spoiler-Related Keywords

TRUTH INVESTIGATORS | 盘根究底

102 113 MURDER

325 475 BASEMENT

526 367 TENNIS RACKET

520 817 BIRTHDAY

352 559 MOTHER-IN-LAW

815 628 MUSHROOM BURGER

GET THE THRONE | 权力的战争

711 573 EMPEROR

495 160 CENTURIONS

575 645 POISON MASTER

712 917 MIDWIFE

356 361 DWARF REBELLION

138 420 SHADOW ZONE

MEMORIES OF TOMORROW | 明日记忆

238 458 PODCAST

902 197 BOYFRIEND

814 228 TROLLEY BUS

944 156 SHRUB

873 873 AQUARIUM

821 345 COLLECTOR’S EDITION

MY ROOMMATE IS A LAMIA | 我的室友是蛇精

870 707 LAMIA

901 711 SUCCUBUS

832 502 BASS GUITAR

599 884 SEAT BELT

410 266 TISSUE PAPER

877 876 DENTAL INSURANCE

Hey there! I’ve picked out some keywords for the biggest shows currently on television. Xiaomei had

some ideas too, so between the two of us I’m sure we’ve come up with a prey comprehensive list. Of

course, you can just start with “Get the Throne” for the rst product. Thanks for all your hard work!

— David 戴维

Wavelength-Based Colour Classication

iNK SmartDye™ Colour Space

n-axis

k-axis

Cool Dad®

(15, 80)

Ballistic Viridian

(5, 60)

HyPURPLE

(75, 85)

Neutral

(50, 50)

Chartreuse Abuse

(5, 5)

Deep Nacho

(50, 5)

.blood

(95, 5)

100

iN K

intelligent ink

CONFIDENTIAL INFORMATION.

DO NOT REDISTRIBUTE WITHOUT AUTHORIZATION.

CONFIDENTIAL INFORMATION.

DO NOT REDISTRIBUTE WITHOUT AUTHORIZATION.

Light Colour Light Wavelength Min Value Max Value SmartDye Colour

Red 620nm - 750nm 20 39 .blood

Orange 590nm - 620nm 40 49 Deep Nacho

Yellow 570nm - 590nm 50 59 Chartreuse Abuse

Green 495nm - 570nm 60 69 Ballistic Viridian

Blue 450nm - 495nm 70 79 Cool Dad®

Violet 380nm - 450nm 80 89 HyPURPLE

Making the Most of a Few Simple Ingredients

It is a given that the elegant bachelor will have a wet bar for entertaining friends or

that very special guest. But stocking all of the various liquors needed to fully equip a bar

can be quite expensive, a cost that would easily run into the thousands of dollars. Fortu-

nately, the science of mixology has shown us that a respectable variety of drinks can be

made with a few key ingredients: vodka, gin, and dry vermouth in the alcohol depart-

ment, and sweetened lemon, lime, and cranberry for the mixes.

With just these six components, a number of classic cocktails are eminently possible

for the elegant bachelor to serve to his evening company. Here we present them, along

with sample talking points.

VODKA SHOT

“is is sure to get the party started.”

☐ 1.5 oz. vodka

LEMON DROP

“‘When life hands you lemons, make

Lemon Drops,’ is what I always say.”

☐ 3 oz vodka

☐ 1 oz. lemon mix

COSMOPOLITAN

“Now here’s a sophisticated drink for a

discerning [gentleman or lady].”

☐ 2 oz. vodka

☐ 1 oz. lime mix

☐ 1 oz. cranberry mix

CAPE COD

“Did you know that cranberries used to

be called craneberries? It’s true.”

☐ 2 oz. vodka

☐ 2 oz. cranberry mix

VODKA MARTINI

“Here’s an ingenious variation on the

classic martini.”

☐ 3 oz. vodka

☐ 1 oz. dry vermouth

GIMLET

“e perfect cocktail for a ne evening

with good company.”

☐ 3 oz. gin

☐ 1 oz. lime mix

GIN MARTINI

“e martini is one of those drinks that

has simply never gone out of style.”

☐ 3 oz. gin

☐ 1 oz. dry vermouth

e Elegant Bachelor

Figure 7G: Sector Map

200

201

202

600

SYNC = 0

SYNC = 60

SYNC = 40SYNC = 80

SYNC = 20SYNC = 100

100

PING ≥ 80

700

PING ≤ 50

204

203

工业区

港口

商住区

政府大楼

AWH W DEPTH CONFIGURATION

AVG ANCR MOTION AMPLITUDE

DESIGN BY:

SEKOVA

ENGINEERING BY:

INFRASTRUCTURE UNIT 2

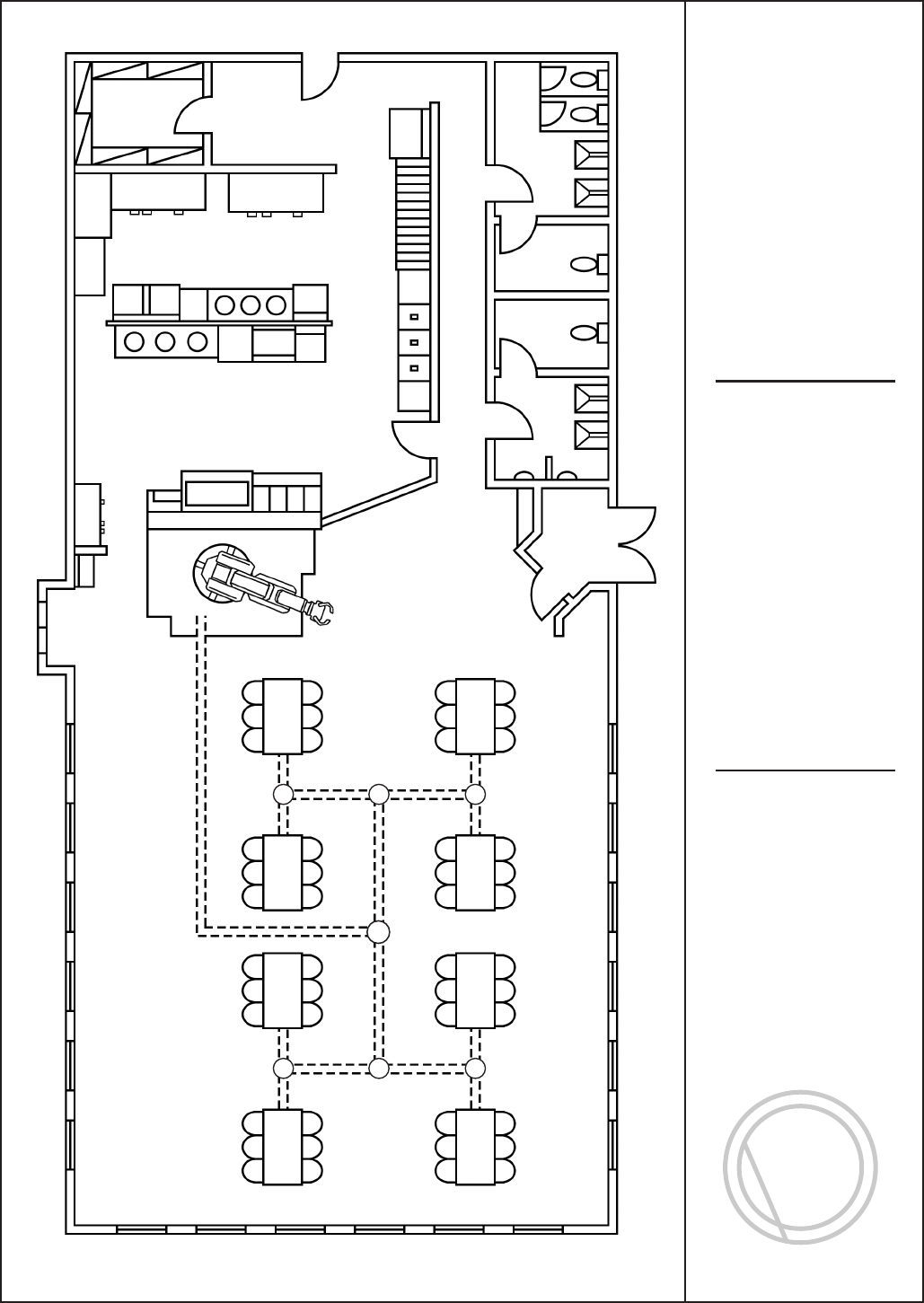

KITCHEN

OMAKASE 9000

CONVEYOR BELT

←

100

←

100

←

100

←

100

←

100

↑

100

↑

100

0→

0↓

DINING AREA

1 5

3 7

2 6

4 8 RESTROOMS

MAIN ENTRANCE

PROJECT:

SUSHIROBO

RESTAURANT / KITCHEN

PRELIMINARY DESIGN

STUDIO COMPLEX, BUILDING 8

C C

B B

C C

SushiRobo

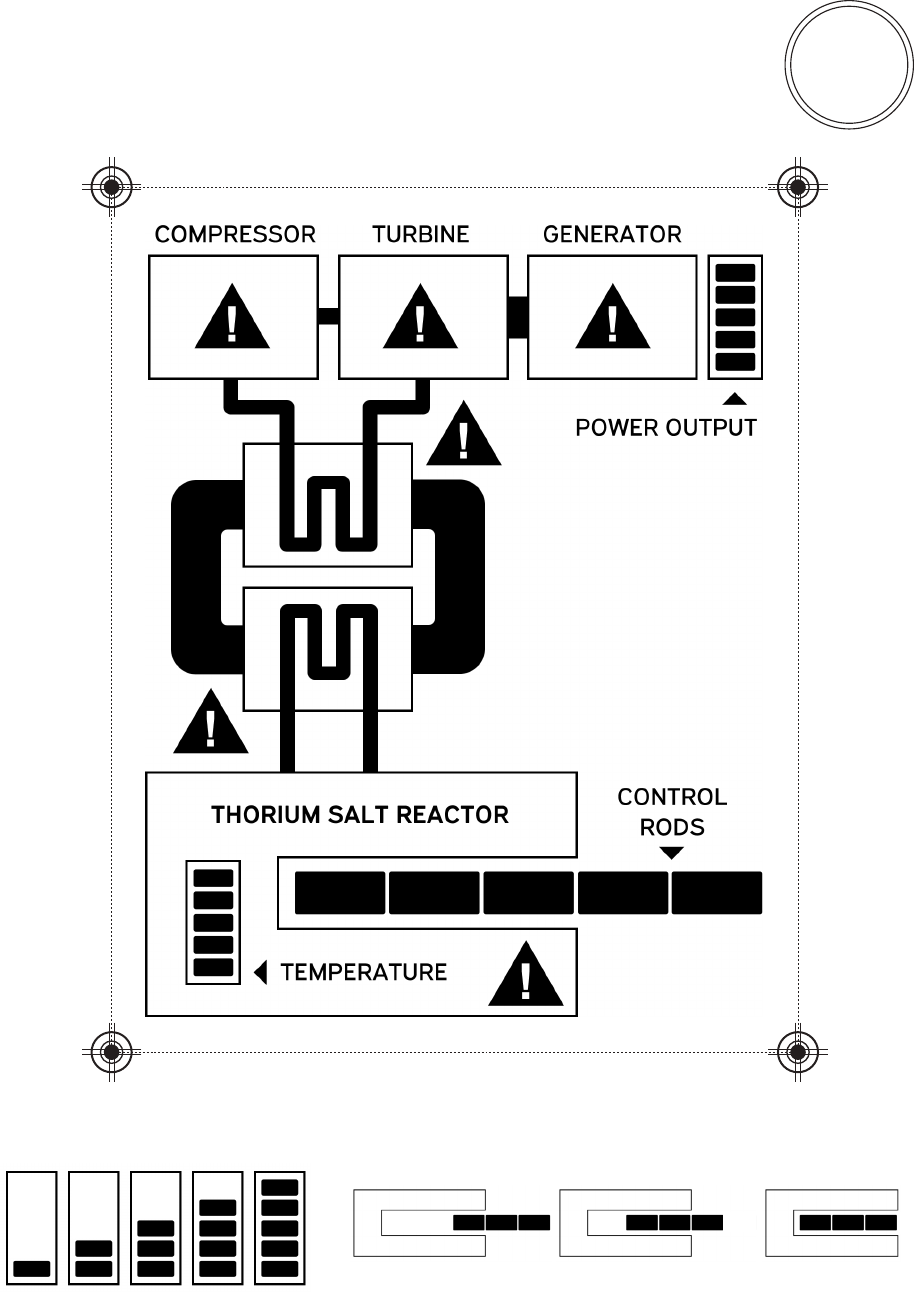

LuX Industry Custom LCD Spec (Revision 3)

1. Place the design you want in the marked area below.

2. Mark regions CLEARLY with whole numbers 1-998.

3. Questions? Call Chuck.

Notes:

1 2 3

30 31 32 33 34

0-19 20-39 40-59

Temperature/Power Output Control Rods

60-79 80-100

0 50 100

L X

U™

aaaaaa

------ -a----

-aa-a-

a a a a a a b b b b b b

bbbbbb

y - - y - y y a a y a y

y - - y - y

ababab

y - - y - y b b b b b b

- a - - - -

y a a y a y

y a a y a y a a a a a a

----b-

------

------ -a----

Mass Production of a Neural Processing Lattice

Template-Based Layering

Fig. 1: The master scaold layer templates.

Fig. 2: Example patterns and resulting substrates from the lattice “printer.”

The cell-based “printer” assembles

scaolds in 6 x 6 chunks, from bottom

to top [Fig 2]. By using the printer to

create patterns up to 6 layers deep,

scaolds can be assembled and then

delivered to the culture lab for neuron

growth.

Our approach centers around the

use of three main substrates: a-MSH,

b-P2, and y(HG). These substrates are

are indexed for easy translation into

“sheets” of patterns of 6 cells each [Fig

1]. Because of the modularity of the

substrate, a surprisingly small number

of predened patterns can be used

to create a wide range of possible

substrate designs, making them well-

suited to both research and commer-

cial applications. Quality tests indicate

that the resulting substrates are com-

parable to those created by previously

described methods.[4][5]

There has been considerable interest in creating lattice-like structures to facilitate the growth of cells of vari-

ous types in highly ordered congurations.[1] In particular, one exciting potential use of such a structure would

be to harness the computational power of neurons. In this paper, we present a method for quickly and inex-

pensively creating lattices suitable for neuron growth by depositing layers of substrate in predened patterns.

Mass-produced lattices could have considerable utility in computational neuroscience and beyond.[2][3]

Suemura, L.1, Zhao, F.1, Grinnell, G.1, Farzan, K.2, Webb, C.2

1Biological Research Group 2Neuroscience Research Group

SuemuraLab Biological Sciences Building (Building 34), 5th Floor

LatticeWhitepaper-StillNeedsReferences&Appendices!!_DRAFT.acwf

Pattern: 1, 4, 6, 6, 0, 0 Pattern: 2, 1, 2, 4, 7, 7

Replace this page with the “Engineering Notes” section divider.

SHENZHEN IO Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
