The World Leader in Impact PrintingTM
Impact Dot Matrix Printers
Quick Reference
As part of our full line of dependable impact printers, Epson
offers many choices designed to meet your individual
needs. Our 9-pin printers deliver exceptional speed and
productivity, while our 24-pin printers provide sharp, detailed
text. Our DFX models include 4 sets of 9 pins to provide a
distinctive high-speed solution. All of these heavy duty units
offer powerful performance and incredible paper handling
capabilities, accommodating thick forms and large workloads
with ease.
Epson 9-pin dot matrix printers
Featuring durable, heavy and medium
duty printers for continuous data
processing and high speed drafting
tasks – while offering competitively
priced low cost printers – the Epson
9-pin dot matrix range offers
exceptional value.
Epson 24-pin dot matrix printers
Offering all the features available
across the Epson 9-pin range, but with
the addition of scalable fonts and letter
quality, for superior print quality, Epson
24-pin printers are ideal for front desk
applications in the retail and service
industries, and for tasks such as
invoice and order printing.
- 1 -
Connectivity
We offer a host of options and
accessories designed to make our
impact printers work even harder for
you. Epson dot matrix printers have a
variety of interface options, all models
offer Parallel and selected models offer
USB connectivity, while some include
a Type B interface slot that allows an
Ethernet or Serial card for additional
networking solutions.
And when it comes to integrating your
printer hardware into a complex network
or non standard installation, Epson’s
local Australian or New Zealand offices
have Epson technical staff within easy
reach to assist you with hardware or
software solutions.
Make the Right
Choice
Epson is committed to providing
advanced technology solutions that
fulfil your printing requirements. While
other companies have scaled back their
resources and support for this critical
market, Epson continues to design,
sell and service quality impact printers.
Perhaps that is why we are the world
leader in impact printer sales. For
dependability, reliability and exceptional
support, Epson is the right choice to
make.
Quality & Reliability
Epson provides a full range of dot
matrix solutions that fulfil a variety
of professional applications. With a
choice of printers offering maximum
productivity, reliability, and support,
Epson impact printers offer the ideal
multipart forms printing solution. With
remarkably low failure rate and incredible
high-yield ribbons, these workhorses
provide exceptional performance, at an
affordable cost per page.
Having invented the serial impact
printing technology over 40 years ago
for the Tokyo Olympics, Epson has been
working hard at perfecting and refining
the impact dot matrix technology.
Epson has gained world wide
recognition as the number one SIDM
company, and is truly leading the way.
Backed by a comprehensive warranty,
plus an extensive nationwide network
of authorized service centres, you can
be confident you’ll have the support you
need, if and when required.
With Epson you can enjoy dependability,
reliability and exceptional local
support – users can look forward to
extensive, hassle-free, products that
go the distance. The number of return
customer purchases is testimony to
this dedication. A commitment that has
earned us our number one position in
the market.
- 2 -
- 9-pin printers print faster and can also print
multi-part copies of forms.
- Epson’s DFX printer uses four sets of 9 pins
for the fastest printing possible.
- 24-pin printers print sharper, more detailed
text.
- Heavy-Duty printers are faster and handle
thicker forms and larger workloads with
ease.
- Print speed is measured in cps (characters
per second) at 10 cpi (characters per inch).
The higher the cps, the faster the printing.
- The more paper paths, the more flexibility.
Tractor feeds handle continuous paper and
multipart forms, friction feeds handle single
sheets, envelopes and postcards; straight
paper paths accommodate heavier stock
without bending or jamming.
- Epson’s DFX and LQ-690 printers use
advanced APG (Automatic Platen Gap)
technology to automatically adjust print
head position to prevent damage to the pins
from unnecessary force.
- Epson impact printers support a wide range
of windows operating systems. Software
drivers come standard or are available at
www.epson.com.au
About
Impact Dot Matrix Printing
- 3 -
Genuine Epson Ribbons

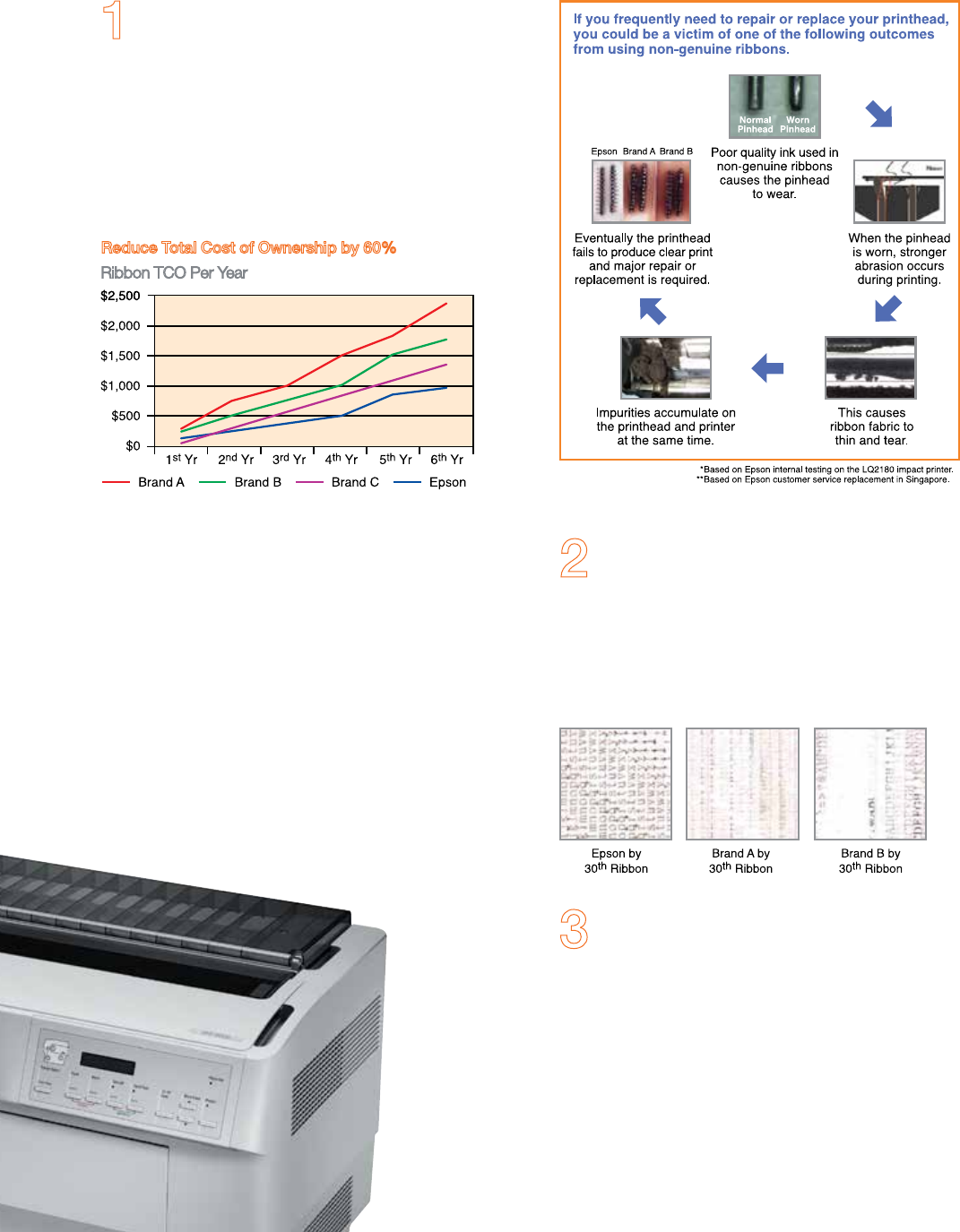

1Save Money by Reducing Total Cost
of Ownership
2
3
Good and Consistent
Print Quality
Environmentally Friendly and Not
Hazardous to Your Health
Consumers often respond to the immediate saving
non-genuine ribbons offer at point of purchase without
realising that the total cost of ownership is in fact
higher. Based on Epson’s internal testing we have
shown that using Epson genuine ribbons actually
reduces your total cost of ownership by 60%
In testing, the use of non-genuine ribbons resulted
in more frequent printhead repair and replacement.
After using 14 pieces of non-genuine ribbon, the
printhead was damaged and required replacement. In
comparison the Epson genuine ribbon did not cause
damage to the printhead even after 55 pieces of
ribbon were used.*
The cost consumers pay for each printhead
replacement can buy approximately 1½ year’s worth
of Epson genuine ribbons. The actual cost of Epson
genuine ribbons is in fact 2.4 times cheaper than
non-genuine ribbons, taking into account all repair and
replacement costs.**
Compared to non-genuine ribbons, Epson genuine
ribbons maintain print consistency over time and
ensure that your prints are of high quality. So while
non-genuine ribbons fade and wobble, Epson genuine
ribbon print quality remains true.
Epson genuine ribbons comply with Restriction of
Hazardous Substances (RoHS) guidelines which
ensures that hazardous substances are not used.
Some non-genuine ribbons do not comply to these
guidelines and may contain substances which are
harmful to you and the environment.
Reduce Total Cost of Ownership by 60%
Ribbon TCO Per Year
- 4 -
- 5 -

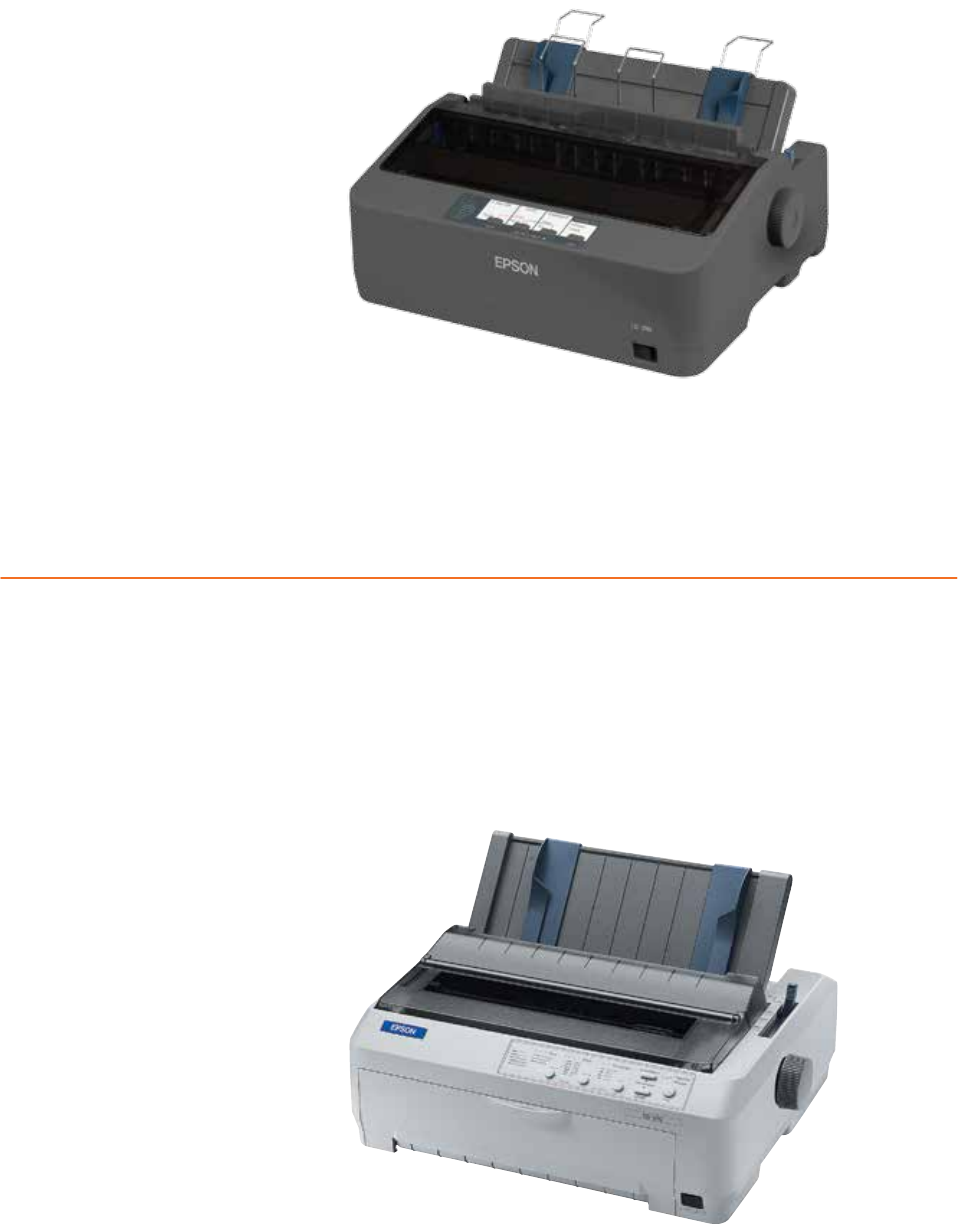

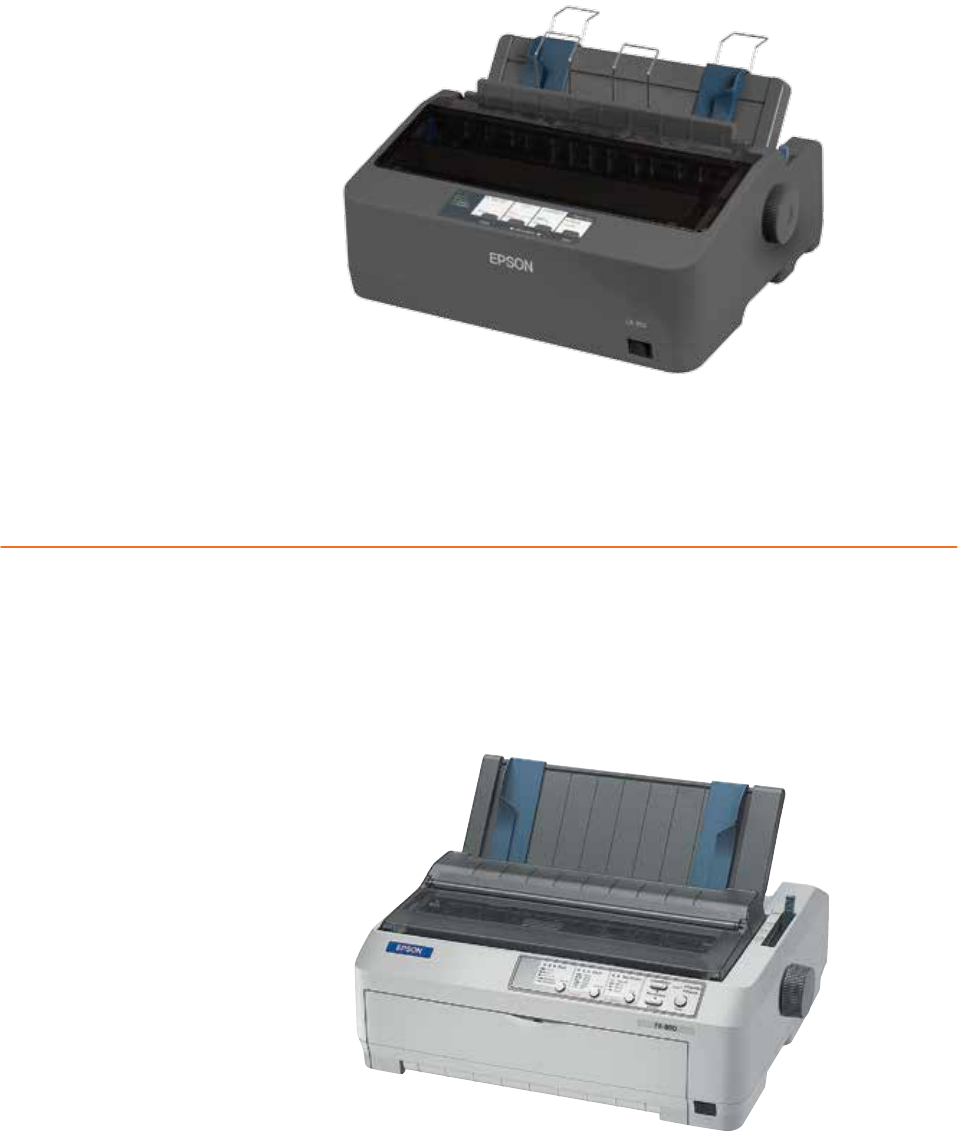

9-Pin Narrow
Print Speed
High Speed Draft
Draft
Near Letter Quality
357 cps (12 cpi)
260 cps (10 cpi)
312 cps (12 cpi)
65 cps (10 cpi)
A reliable, compact solution for
stand-alone environments
Paper Paths
Rear Manual Insertion,
Push Tractor
Multipart Forms
Original + 4 copies
Interface
Parallel, USB and Serial
Dimensions
154 x 362 x 275mm (H x W x D)
Weight approx 4.1kg
Sound Level
53 dB (A)
MTBF
10,000 power on hours @ 25% duty cycle,
35% coverage
Workload Capacity
Medium duty
Warranty
Standard 12 month Warranty * *
Product Code
C11CC24041
Ideal Replacement for:
Epson LX-800, LX-810, LX-300, LX-300+II,
Okidata® ML-184 Turbo, ML-186,
Panasonic® KX-P1150, Citizen® GSX-190
LX-350
Epson
FX-890
Epson
Print Speed
Ultra Speed Draft
High Speed Draft
Draft
Near Letter Quality
680 cps (12 cpi)
566 cps (10 cpi)
559 cps (10 cpi)
419 cps (10 cpi)
104 cps (10 cpi)
Easy integration and maximum productivity in
demanding print environments
Paper Paths
Manual
CSF
Tractor
Front or rear in, top out
Rear in, top out
Front, rear, bottom in top out
Multipart Forms
Original + 6 copies
Interface
Parallel, USB, optional Type B
Dimensions
167.5 x 414 x 350mm (H x W x D)
Weight Approx 7.2kg
Sound Level
55 dB (A)
MTBF
20,000 POH @ 25% duty, 35% coverage
Warranty
Standard 12 months Warranty * *
Product Code
C11C524041
Ideal Replacement for:
Epson LX-800, LX-810, LX-300,
Okidata® ML-184 Turbo, ML-186,
Panasonic® KX-P1150, Citizen® GSX-190
9-Pin Narrow
- 6 -

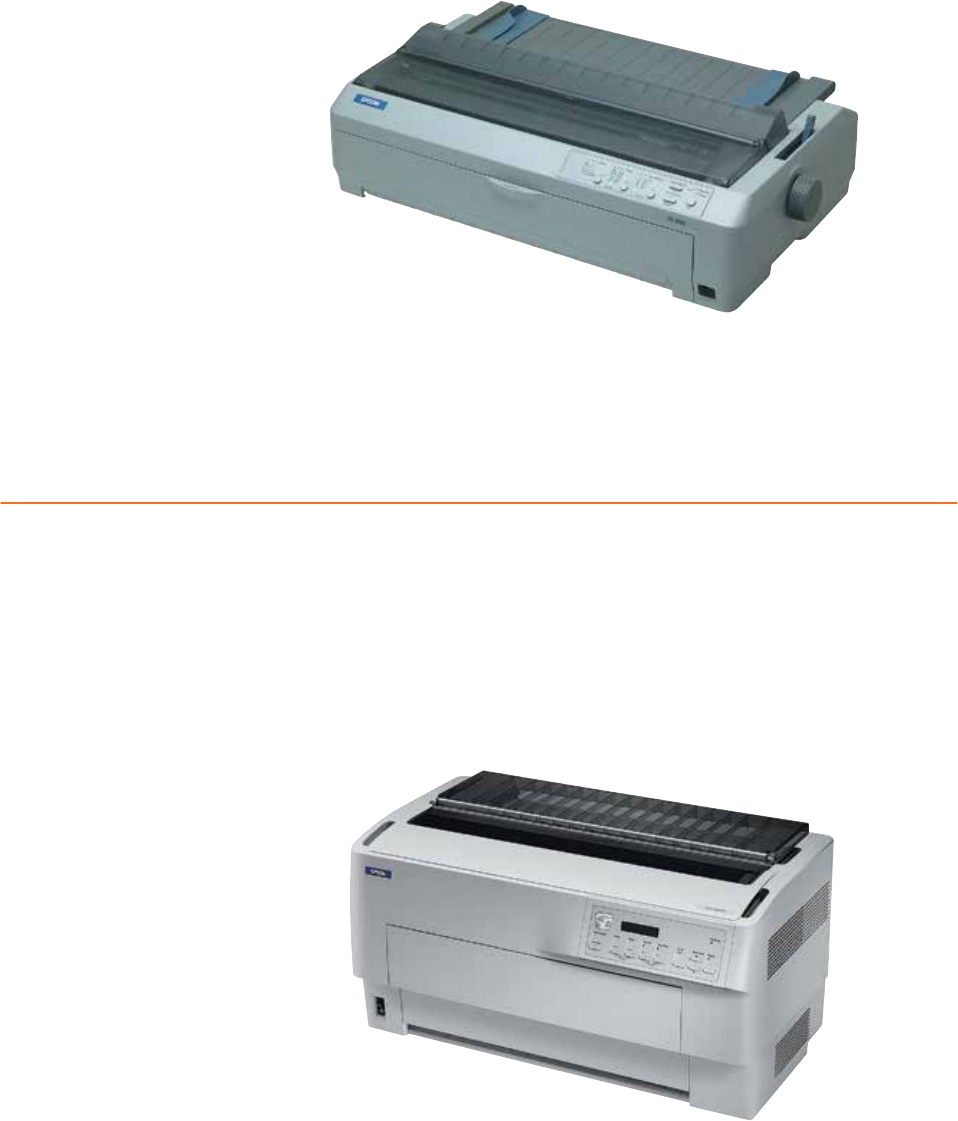

9-Pin Wide
Print Speed
Ultra Speed Draft
High Speed Draft
Draft
Near Letter Quality
680 cps (12 cpi)
566 cps (10 cpi)
559 cps (10 cpi)
419 cps (10 cpi)
104 cps (10 cpi)
The wide-format solution for easy integration
and maximum productivity
Paper Paths
Manual
CSF
Tractor
Front or rear in, top out
Rear in, top out
Front, rear, bottom in, top out
Multipart Forms
Original + 6 copies
Interface
Parallel, USB, optional Type B
Dimensions
167.5 x 589 x 350mm (H x W x D)
Weight approx 9.4kg
Sound Level
55 dB (A)
MTBF
20,000 POH @ 25% duty, 35% coverage
Warranty
Standard 12 month Warranty * *
Product Code
C11C526051
Ideal Replacement for:
Epson FX-1180+, FX-2180, Okidata ML-321,
ML-321 Turbo, ML-421, Lexmark 2381, 2481
FX-2190
Epson
DFX-9000
Epson
Print Speed
High Speed Draft
Draft
Near Letter Quality
1550 cps (10 cpi)
1320 cps (10 cpi)
330 cps (10 cpi)
A high-speed workhorse with dual tractor design for
easy transactions from one form to another
Paper Paths
Dual push tractors/paper paths; automatic
back out and loading and forms switching*;
automatic paper thickness adjustment;
optional pull tractor
Multipart Forms
Front
Rear
Interface
Parallel, serial, USB, optional Type B
Dimensions
363 x 700 x 378mm (H x W x D)
Weight Approx 34kg
Sound Level
55 dB (A)
MTBF
20,000 POH @ 25% duty, 35% coverage
Warranty
Standard 12 months Warranty * *
Product Code
C11C605021
Ideal Replacement for:
Epson DFX-8000, 8500, Genicom 3800/3900
Series, OTC 4130, IBM® 4247-A00
9-Pin Wide
Original + 9 copies
Original + 6
* Requires optional paper cutter
*
- 7 -

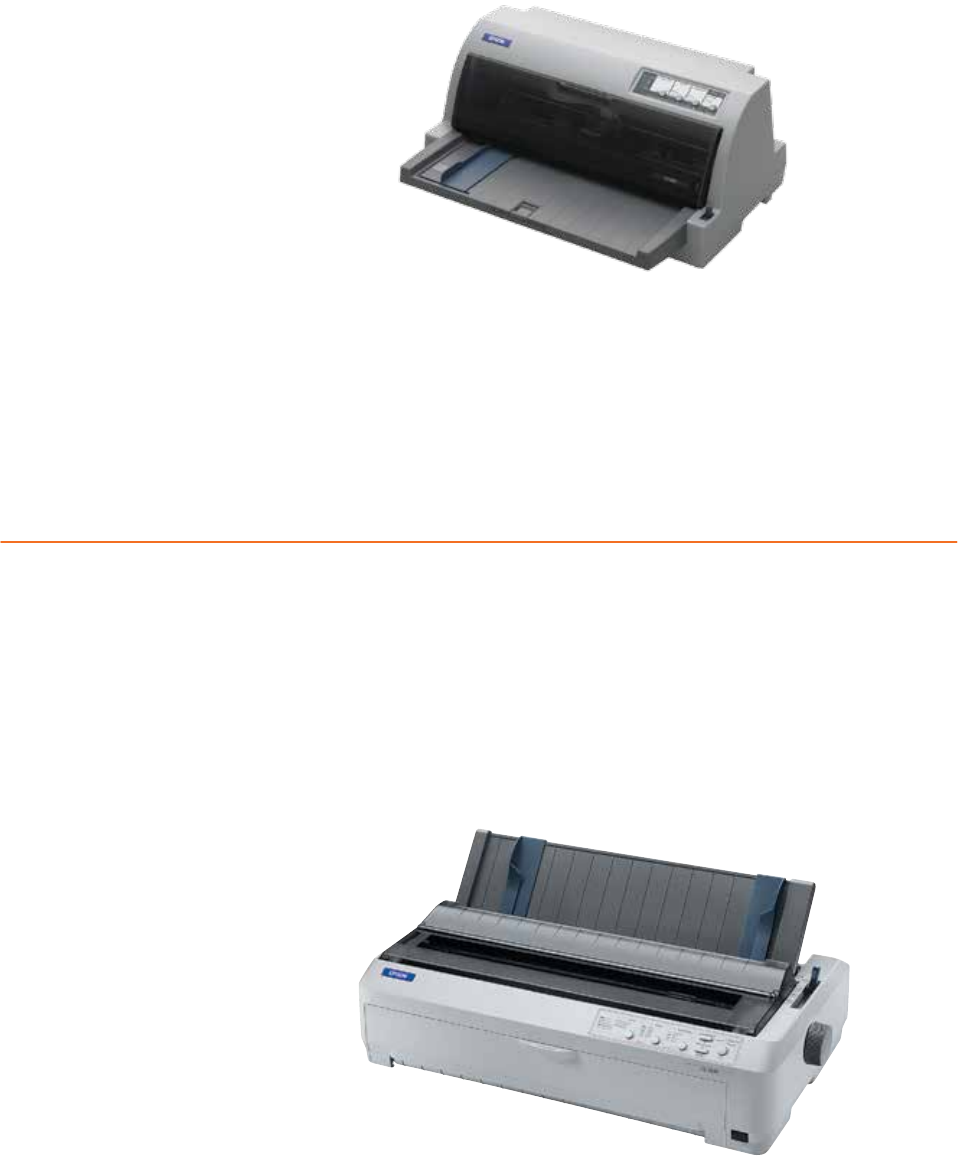

24-Pin Narrow
Print Speed
High Speed Draft
Draft
Letter Quality
347 cps (10 cpi)
260 cps (10 cpi)
86 cps (10 cpi)
The latest high speed, high quality dot matrix
printer of choice for the business environment
Paper Paths
Manual insertion
Tractor
Rear in, top out
Rear in, top out
Multipart Forms
Original + 3 copies
Interface
Parallel, Serial & USB
Dimensions
154 x 362 x 275mm (H x W x D)
Weight approx 4.1kg
MTBF
10,000 power on hours (25% duty cycle)
Warranty
Standard 12 month Warranty * *
Product Code
C11CC25011
Ideal Replacement for:
Epson LQ-300, LQ-300+, LQ-300+II
Okidata® ML-390 Turbo
LQ-350
Epson
24-Pin Narrow
Print Speed
High Speed Draft
Draft
Letter Quality
440 cps (10 cpi)
330 cps (10 cpi)
110 cps (10 cpi)
Powering business productivity with superior
performance and reliability
Paper Paths
Manual insertion
Cut Sheet Feeder
Tractor
Front or rear in, top out
Rear in, top out
Front, rear or bottom in, top out
Multipart Forms
Original + 4 copies
Interface
Parallel, USB, optional Type B
Dimensions
167.5 x 414 x 350mm (H x W x D)
Weight approx 7.1kg
Sound Level
52 dB (A)
MTBF
20,000 POH @ 25% duty,
25% coverage
Warranty
Standard 12 month Warranty * *
Product Code
C11C558071
Ideal Replacement for:
Epson LQ-500, LQ-510, LQ- 570+, LQ-570e,
Okidata ML-390 Turbo, ML-490, Lexmark 2390, 2490,
Panasonic KX-P2023, KX-P2123, KX-P3123
LQ-590
Epson
- 8 -
LQ-690
Epson
Print Speed
High Speed Draft
Draft
Letter Quality
440 cps (10 cpi)
330 cps (10 cpi)
110 cps (10 cpi)
A high-quality printer with atbed design to handle
most any multipart forms printing task
Multipart Forms
Original + 6 copies
Interface
Bi-directional parallel (IEEE-1284 nibble mode
supported), USB 2.0
Dimensions
210 x 480 x 370mm (H x W x D)
Weight Approx 6.8kg
Sound Level
57 dB (A)
MTBF
20,000 POH
Warranty
Standard 12 months Warranty * *
Product Code
C11CA13091
Ideal Replacement for:
Epson-LQ-670, LQ-680, Star Micronics LC-8211,
C.Itoh C-630, Citizen GSX-540
24-Pin Narrow
Paper Paths
Manual insertion
Push Tractor
Front in, Front out
Rear in, Front out
24-Pin Wide
Print Speed
High Speed Draft
Draft
Letter Quality
400 cps (10 cpi)
330 cps (10 cpi)
110 cps (10 cpi)
The wide-format solution for industrial
performance and superior reliability
Paper Paths
Manual insertion
Cut sheet feeder
tractor
Front or rear in, top out
Rear in, top out
Front, rear or bottom in, top out
Multipart Forms
Original + 4 copies
Interface
Parallel, USB, optional Type B
Dimensions
167.5 x 589 x 350mm (H x W x D)
Weight approx 9.5kg
Sound Level
52 dB (A)
MTBF
20,000 POH @ 25% duty cycle,
25% coverage
Warranty
Standard 12 month Warranty * *
Product Code
C11C559081
Ideal Replacement for:
Epson LQ-1010, LQ-1050, LQ-1070+,
LQ-2070, LQ-2080, Okidata ML-391 Turbo,
ML-491, Lexmark 2391, 2491
LQ-2090
Epson
- 9 -

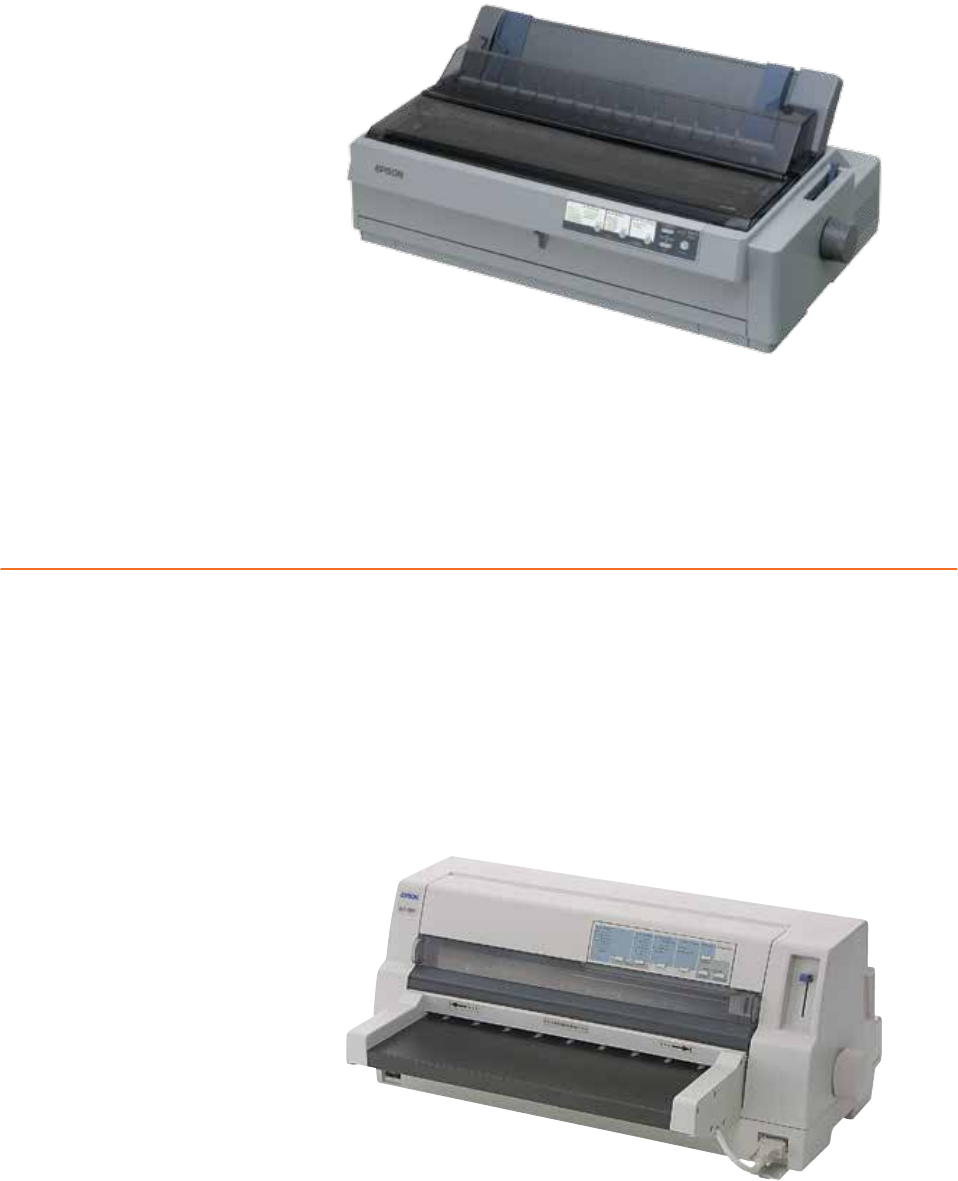

LQ-2190
Epson
Print Speed
High Speed Draft
Draft
Letter Quality
480 cps (10 cpi)
360 cps (10 cpi)
120 cps (10 cpi)
The dependable, high-speed printer designed for
the most demanding business environments
Paper Paths
Front/rear cut sheet entry, front/rear/bottom
continuous entry
Multipart Forms
Original + 5 copies
Interface
Parallel, USB, optional Type B 1/F level 2
Dimensions
256 x 639 x 402mm (H x W x D)
Weight Approx 13kg
Sound Level
54 dB (A)
MTBF
20,000 POH @ 25% duty,
35% coverage
Warranty
Standard 12 months Warranty * *
Product Code
C11CA92011
Ideal Replacement for:
Epson LQ-1170, LQ-2170, LQ-2180, Okidata ML-591,
Lexmark 2391, 2491, Panasonic KX-P3626
24-Pin Wide
24-Pin Wide
Print Speed
High Speed Draft
Draft
Letter Quality
550 cps (10 cpi)
742 cps (15 cpi), 594 cps (12cpi), 495 cps (10cpi)
165 cps (10 cpi)
Fast, precise, reliable printing with the paper
handling versatility to meet all your business needs
Paper Paths
Manual insertion
Cut sheet feeder
tractor
Front in, front out
Rear in, front out
Rear in, front out
Multipart Forms
Original + 7 copies
Interface
Parallel, USB and Type B I/F level 2
Dimensions
276 x 660 x 432mm (H x W x D)
Weight approx 18.1kg
MTBF
10,000 POH (25% duty cycle)
Warranty
Standard 12 month Warranty * *
Product Code
C11C396021
DLQ-3500
Epson
* * Please go to www.epson.com.au for further details on products & promotions.
Accessories
Paper feed tractors
A choice of push, pull, and push/
pull combined tractors not only
enable more than one stationery
type to be permanently loaded for
delivery on demand, but handle
continuous and multipart stationery
more efficiently.
Roll paper holder
This provides an inexpensive
alternative to using continuous roll
paper for applications requiring
variable paper lengths.
*Using Epson paper handling options

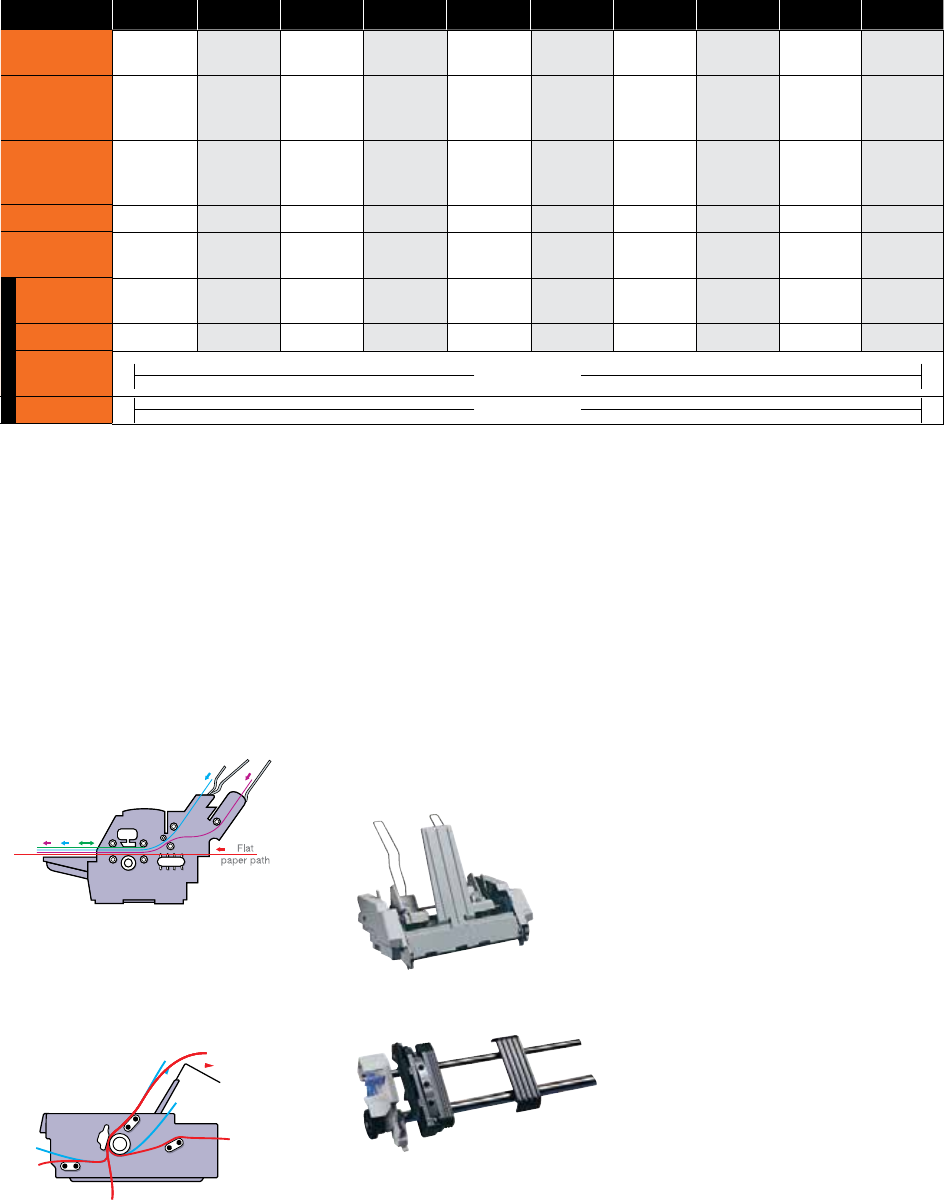

Typical Paper Paths Optional Equipment
A comprehensive range of Epson
paper handling options includes:
Cut Sheet feeders
High Capacity and Single Bin
cut sheet feeders available for
automatic selection of forms and
plain stationery.
Cut sheet feeders
Tractor Unit
• Cutsheetmanualfeedfrontin–
front out
• Optional150sheetcutsheet
feeder
• Optional50sheetcutsheetfeeder
•Tractorfedcontinuous
•Threecontinuouspaperpaths–
front,rear, and bottom
•Twocutsheetpaperpaths–front
and top
LX-350 FX-890 FX-2190 DFX-9000 LQ-350 LQ-590 LQ-690 LQ-2090 LQ-2190 DLQ-3500
Ribbon Cartridge
(black, fabric) C11CC24041 C13S015329 C13S015327 C13S015384 C11CC25011 C13S015337 C13S015610 C13S015336 C13S015086 C13S015139
Single Bin
Cut-Sheet
Feeder
N/A C12C806372 N/A N/A N/A C12C806372 N/A N/A N/A N/A
High Capacity
Cut-Sheet
Feeder
N/A C12C806382 N/A N/A N/A C12C806382 N/A N/A N/A N/A
Roll Paper Holder C12C811141 C12C811141 C12C811141 N/A C12C811141 C12C811141 C12C811141 C12C811141 C12C811141 N/A
Additional
Tractor Unit N/A C12C800202 C12C800212 C12C800382 N/A C12C800202 N/A C12C800212 N/A N/A
10/100 Base
TX Ethernet N/A C12C824352 C12C824352 C12C824352 N/A N/A N/A C12C824352 C12C824352 C12C824352
Serial ON-BOARD C12C824432 C12C824432 ON-BOARD ON-BOARD C12C824432 N/A C12C824432 C12C824432 C12C824432
Bidirectional
Parallel ON-BOARD
USB ON-BOARD
Interface Boards
- 10 -
Printer Ribbon Code
9 Pin Narrow Black Fabric Ribbon Cartridge Apex-80, FX-80, FX-80+, FX-85, FX-86e, FX-800, FX-850, FX-870, FX-880, LX-
300, LX-300+, LX-400, LX-800, LX-810, LX-850, LX-860, T-1000, ACPT-2000, MX-80, RX-80 C13S015019
9 Pin Black Fabric Ribbon Cartridge for LX-350 C13S015637
9 Pin Narrow Fabric Ribbon Cartridge FX-100, FX-100+, FX-105, FX-185, FX-286, FX-286e, FX-1000, FX-1050, FX-1170,
FX-1180, FX-1180+, LX-1050, LX-1170, MX-100, RX-100, T-750, ACTP-2500 C13S015020
24 Pin Narrow Black Fabric Ribbon Cartridge LQ-200, LQ-300, LQ300+, LQ-305K, LQ-400, LQ-450, LQ-500, LQ-510, LQ-
550, LQ-570, LQ-570+, LQ-570e, LQ-580, LQ-800, 850, LQ-850+, LQ-870, L-1000, ACPT-3000, ACPT-4000, ACPT-5000,
ACPT-5000+
C13S015021
24 Pin Black Fabric Ribbon Cartridge for LQ-350 C13S015633
24 Pin Wide Fabric Ribbon Cartridge LQ-1000, LQ-1010, LQ-1010C, LQ-1050, LQ-1050+, LQ-1050C, LQ-1070, LQ-1170,
LQ-1600K, ACPT-4500 C13S015022
Black Fabric Ribbon Cartridge LQ-100, LQ-100+, ACPT-3250 C13S015032
Fabric Ribbon Cartridge LX-80, LX-86, LX-90, GX-80 C13S015053
Fabric Ribbon Cartridge EX-800, EB-1000 C13S015054
Fabric Ribbon Cartridge DFX-5000, DFX-5000+, DFX-8000, DFX-8500 C13S015055
Colour Fabric Ribbon Cartridge LQ-860, LQ-1060, LQ-2550, DLQ-2000 C13S015056
Black Fabric Ribbon Cartridge DLQ-3000, 3000+ C13S015066
Colour Fabric Ribbon Cartridge DLQ-3000, DLQ-3000+, DLQ-3500 C13S015067
Colour Fabric Ribbon Cartridge LX-300, LX-300+ C13S015073
Colour Fabric Ribbon Cartridge LQ-300, LQ-300+, ACPT-3300 C13S015077
Black Fabric Ribbon Cartridge FX-2170, FX-2180, LQ-2070, LQ-2070C, LQ-2170, LQ-2170C, LQ-2080, LQ-2080C, LQ-
2180, LQ-2190, LQ-1600K3, LQ-1600K3+, LQ-1600K4, LQ-1600K4+, LQ-1900K2, LQ-1900K2+, LQ-2600K C13S015086
Ribbon Cartridge FX-980 C13S015091
Black Ribbon Cartridge DLQ-3000, DLQ-3000+, DLQ-3500 C13S015139
Black Fabric Ribbon Cartridge LQ-670, LQ-670C, LQ-680, LQ-680C, LQ-680Pro, LQ-860, LQ-1060, LQ-2500, LQ-2550,
LQ-670K, LQ-670K+, LQ-670K+T,LQ-680K, LQ-680KPro C13S015262
Black Ribbon Cartridge FX-2190 C13S015327
Black Ribbon Cartridge FX-890 C13S015329
Black Ribbon Cartridge for LQ-2090 C13S015336
Black Ribbon Cartridge for LQ-590 C13S015337
Black Ribbon Cartridge for PLQ-20, PLQ-20D (3 per box) C13S015339
Black Ribbon Cartridge for DFX-9000 C13S015384
Black Ribbon Cartridge for LQ-690 C13S015610
Ribbons Compatibility List
- 11 -
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 is a trademarks of Seiko Epson
Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other
company names used herein are for identification purposes only and may be the trademarks or registered
trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are
subject to change without notice.
Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson
consumables and accessories specifically configured for it.
Other Epson Business Products
Contact Us
Epson Australia 1300 361 054
Epson New Zealand 0800 237 766
www.epson.com.au / www.epson.co.nz
