Restcomm SIP Servlets User Guide
Table of Contents
Chapter 1. Introduction
- 1.1. Overview of Restcomm SIP Servlets within the Telecommunications Industry
- 1.2. Overview of SIP Servlets Server
Chapter 2. SIP Servlets Server-Installing, Configuring and Running
Chapter 3. Application Router
- 3.1. Default Application Router
- 3.2. DFC Application Router
Chapter 4. SIP Servlet Example Applications
- 4.1. Operating the Example Applications
Chapter 5. Understanding Restcomm High Availabilty
- 5.1. Load Balancer
- 5.2. Restcomm Graceful Shutdown
Chapter 6. Enterprise Monitoring and Management
- 6.1. JMX Monitoring
Chapter 7. Security
- 7.1. SIP Servlets Application Security
- 7.2. TLS
Chapter 8. Advanced Features of the SIP Servlets Server
Chapter 9. Best Practices
- 9.1. Restcomm SIP Servlets Performance Tips
- 9.2. NAT Traversal
Chapter 10. Apendix
- 10.1. Java Development Kit (): Installing, Configuring and Running
Chapter 11. JSR 289 Errata
- 11.1. Restcomm SIP Servlets Deviations from JSR 289

Restcomm SIP Servlets User Guide

Table of Contents

1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê2

1.1. Overview of Restcomm SIP Servlets within the Telecommunications Industry . . . . . . . . . . . . . . Ê2

1.2. Overview of SIP Servlets Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê2

2. SIP Servlets Server-Installing, Configuring and Running . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê4

2.1. Getting Started with Restcomm for JBoss AS7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê4

2.2. Getting Started with Restcomm SIP Servlets for Tomcat 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê14

2.3. Sip Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê22

3. Application Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê34

3.1. Default Application Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê34

3.2. DFC Application Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê39

4. SIP Servlet Example Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê42

4.1. Operating the Example Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê44

5. Understanding Restcomm High Availabilty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê60

5.1. Load Balancer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê61

5.2. Restcomm Graceful Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê78

6. Enterprise Monitoring and Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê81

6.1. JMX Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê81

7. Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê83

7.1. SIP Servlets Application Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê83

7.2. TLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê86

8. Advanced Features of the SIP Servlets Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê94

8.1. Media Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê94

8.2. Concurrency and Congestion Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê94

8.3. STUN Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê99

8.4. Restcomm vendor-specific Extensions to JSR 289 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê100

8.5. CDI Telco Framework . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê100

8.6. Diameter Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê101

8.7. SIP and IMS Extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê101

8.8. SIP Servlets - JAIN SLEE Interoperability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê104

8.9. Eclipse IDE Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê106

9. Best Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê108

9.1. Restcomm SIP Servlets Performance Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê108

9.2. NAT Traversal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê112

10. Apendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê114

10.1. Java Development Kit (): Installing, Configuring and Running . . . . . . . . . . . . . . . . . . . . . . . . . Ê114

11. JSR 289 Errata. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê120

11.1. Restcomm SIP Servlets Deviations from JSR 289 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê120

This user guide will help you get a better understanding of Restcomm SIP

servlets and how the container can be used in an enterprise context. The guide

will cover how to how to quickly get started with Restcomm SIP servlets either

on top of JBoss or Apache Tomcat containers. There are sample applications

included for those who want to grasp how to build SIP applications. You will also

learn how to use advanced features like High Availability through Clustering

and Failover. Finally, monitoring and security will be explained.

Chapter 1. Introduction

1.1. Overview of Restcomm SIP Servlets within the

Telecommunications Industry

The Restcomm Communication Platform is the best architecture to create, deploy and manage

services and applications integrating voice, video and data across a range of IP and legacy

communications networks. It drives convergence with the following key enablers:

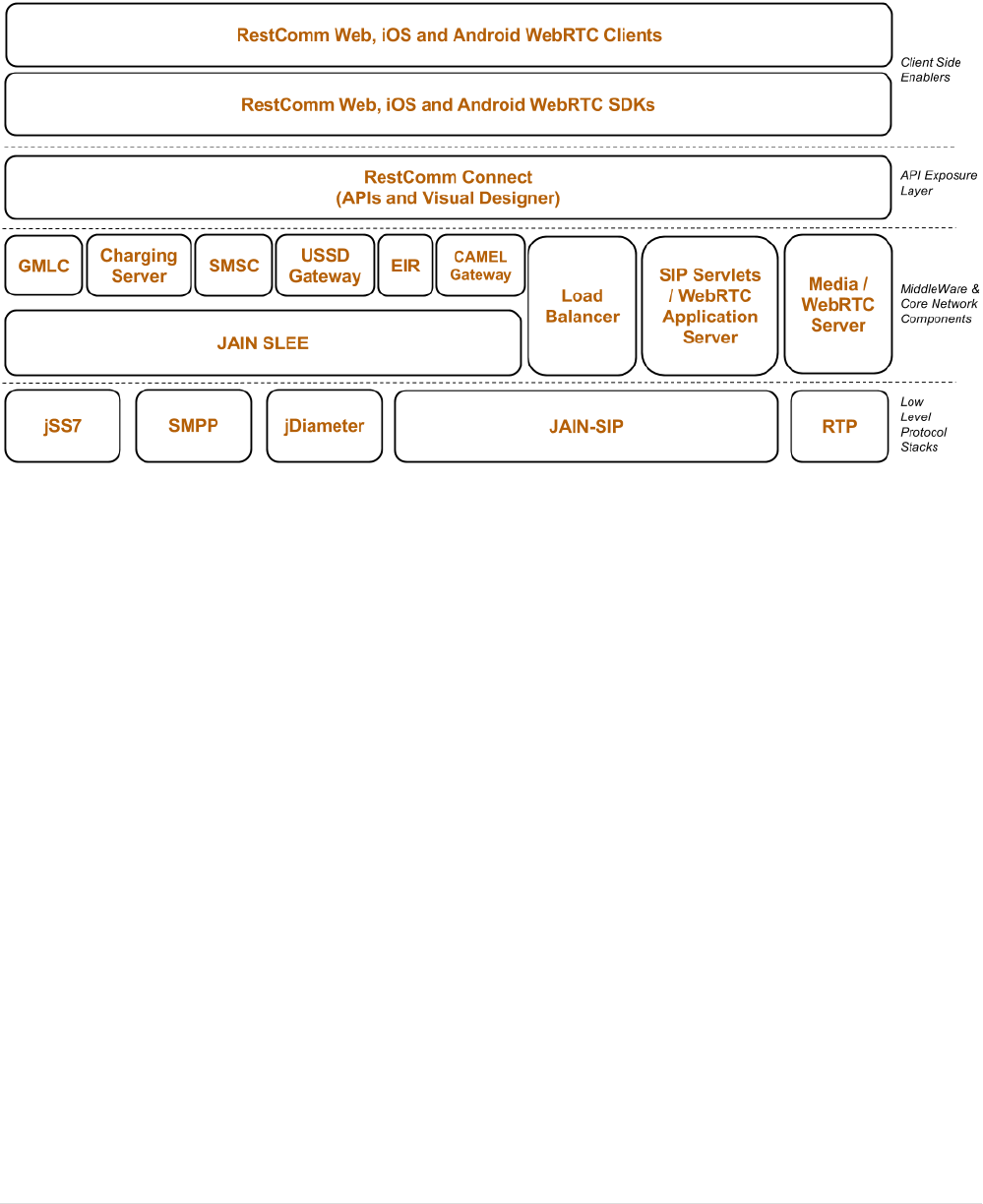

Figure 1. Restcomm Architecture Overview

1.2. Overview of SIP Servlets Server

Restcomm SIP Servlets is a modern communications middleware platform. RestcommSIP Servlets

facilitates the shift towards Cloud Communications by enabling deployment and autoscaling of real

time SIP Servlets apps across all major IaaS (Infrastructure as a Service) providers and also brings

realtime communications (voice and video) to your Browser using HTML5 WebRTC and SIP Over

WebSockets !

The link: HTML5 WebRTC Client allows you to make video calls from and to any Web Browser

supporting WebRTC , (only Google Chrome supports it so far but all major browsers should support

it in the next 6 months) as well as SIP Endpoints.

Restcomm SIP Servlets enables turnkey SaaS offerings such as RestComm .

Restcomm SIP Servlets implements the latest SIP Servlet v1.1 (JSR 289) standard. It can be plugged

into any Application Server container (currently 7.X and JBoss 7.X) and also offers High Availability

and Failover.

Restcomm SIP Servlets is lead by TeleStax, Inc . and developed collaboratively by a community of

individual and enterprise contributors.

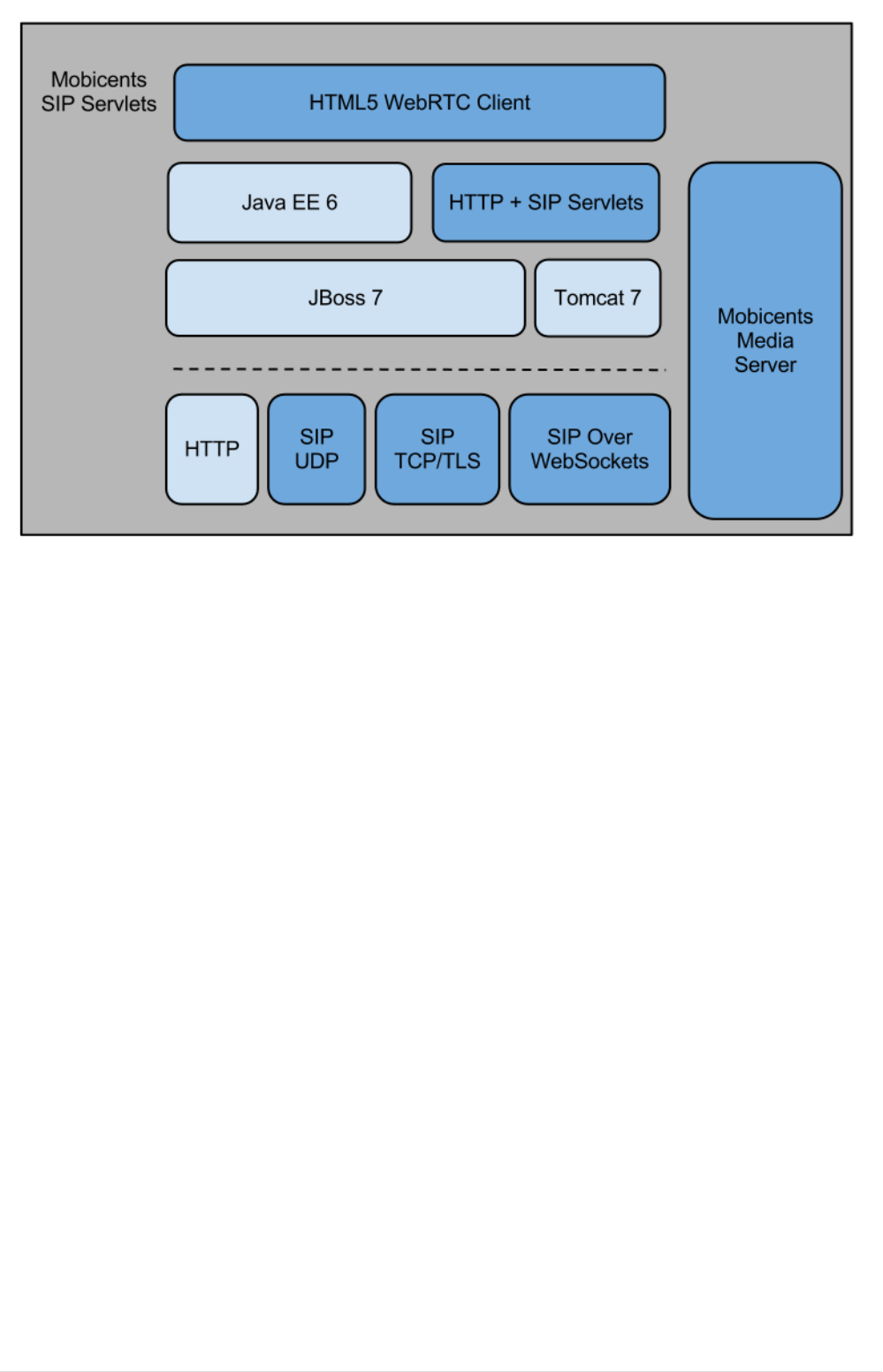

Figure 2. Restcomm WebRTC SIP Stack

Chapter 2. SIP Servlets Server-Installing,

Configuring and Running

2.1. Getting Started with Restcomm for JBoss AS7



Features not yet available on Restcomm for JBoss AS7

•SIP Failover

•SNMP

•Jopr Monitoring

Some of the features mentioned above will likely be added in the future. As of the time of this

writing, they are not available. Even though Jopr monitoring is not available, there is a Command

Line Interface (CLI), which will be discussed further down. As the features become available, this

guide will be updated to reflect the changes.

2.1.1. Downloading and Starting Restcomm SIP Servlets for JBoss AS7

If you have been working with JBoss for some time, you will quickly notice that the JBoss AS7

iteration has gone through a lot of changes. This guide will help you understand how you can

quickly get started with JBoss AS7 within the Restcomm framework.

You can go to the link below to download the latest Restcomm SIP Servlets for JBoss AS7: link:

Download Latest Version of Restcomm SIP Servlets for JBoss AS7

You will need to extract the content of the file into a directory on your local system. The root

directory of the Restcomm SIP Servlets for JBoss AS7 that you downloaded will be referred to in this

guide as $JBOSS_HOME.

If this is your first time working with Restcomm SIP Servlets for JBoss, you will need to make sure

you have Java Run Time or JDK installed on your computer. You will also need to have the

environment variables set. See the links below to learn how to get JRE or JDK setup on your system.

Installing and Configuring JDK

Setting Environment Variables

1. Starting Restcomm SIP Servlets for JBoss AS7 To start the server do the following:

$JBOSS_HOME/bin/standalone.sh

During the startup process, you will notice that the final part of the log output will be similar to the

truncated output below. Notice that the Admin Console interface can be accessed at

http://172.0.0.1:9990. This will be explained later.

14:28:43,972 INFO [org.jboss.as] (Controller Boot Thread) JBAS015951: Admin console

listening on http://127.0.0.1:9990

14:28:43,974 INFO [org.jboss.as] (Controller Boot Thread) JBAS015874: JBoss AS

7.1.2.Final "Steropes"

started in 22148ms - Started 222 of 306 services (83 services are passive or on-

demand)

You will notice that the startup is very fast. The reason for this is that JBoss was rewritten from the

ground up for speed with services being started concurrently and non critical services remain

passive until first use. This provides better system resource management. With the simple startup

above, you will be able to enter the default web interface of the application server by going to this

url http://127.0.0.1:8080. The result will show a screenshot similar to the one below.

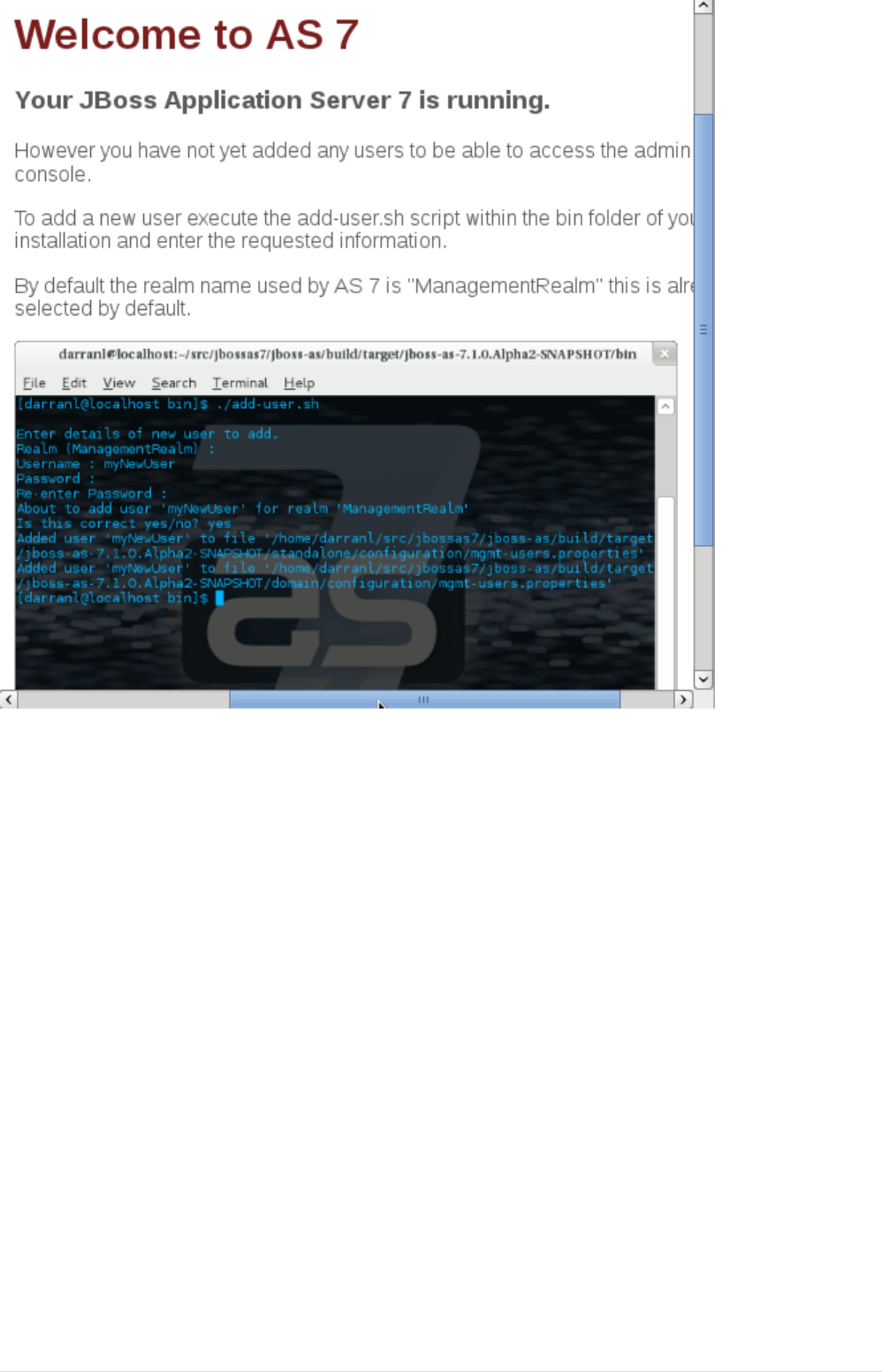

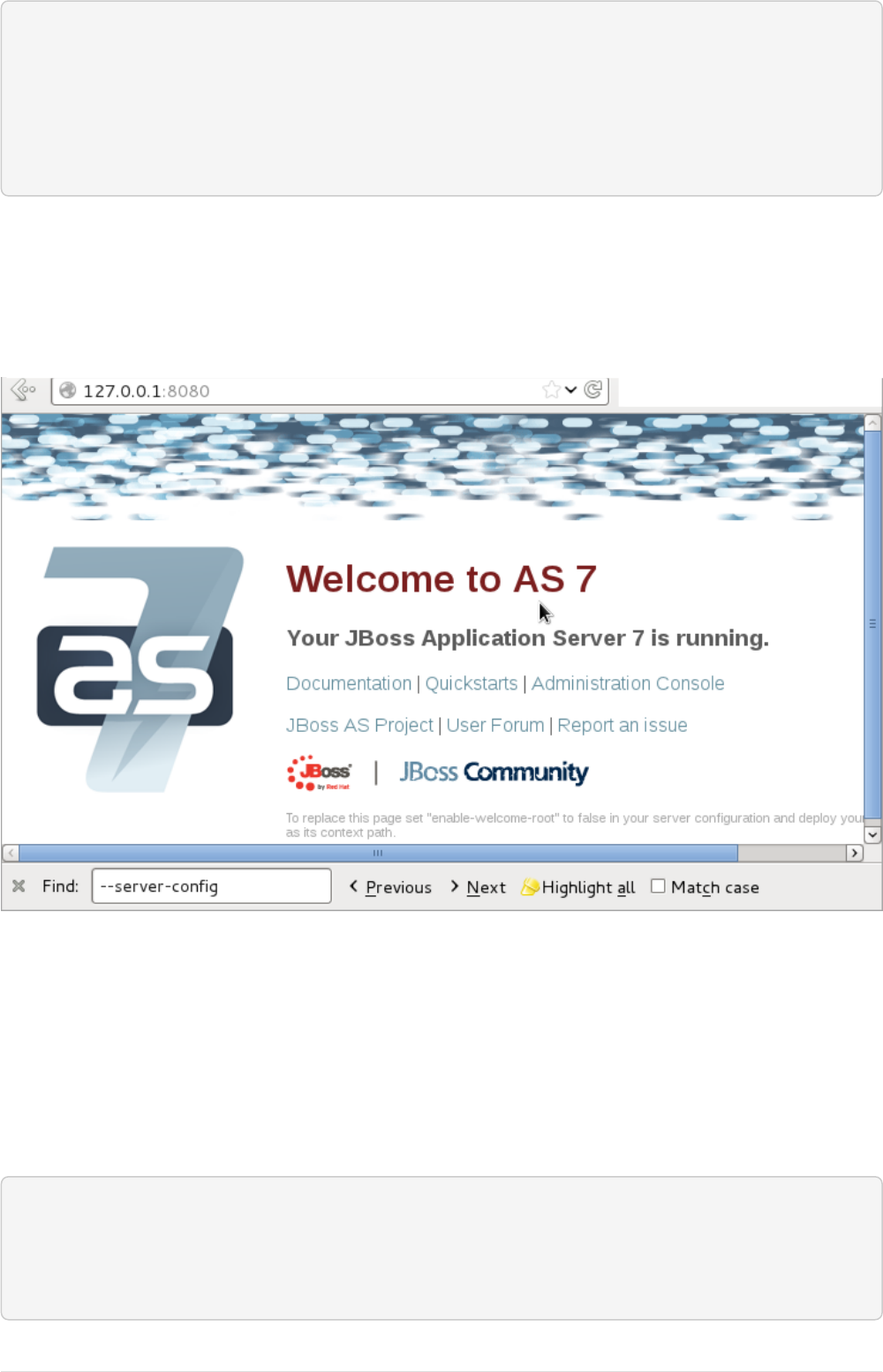

Figure 3. JBoss Application Server 7 Welcome Page

With the standard startup script, you will not have access to any SIP functionalities. This is because

of the modular approach implemented in JBoss AS7. There is a configuration file that needs to be

used to activate additional functionalities like SIP and High Availability.

In order to start the Restcomm SIP Servlets for JBoss AS7 with SIP functionalities, you need to

append the startup script with the SIP configuration file. The configuration files are located in the

$JBOSS_HOME/standalone/configuration directory. You can see the content of the directory below

application-roles.properties mgmt-users.properties standalone-ha.xml

application-users.properties mss-sip-stack.properties standalone-sip.xml

dars standalone-full-ha.xml standalone.xml

logging.properties standalone-full.xml standalone_xml_history

Starting Restcomm SIP Servlets for JBoss AS7 with SIP

If you want to start Restcomm SIP Servlets with SIP services activated, you need to go to the

$JBOSS_HOME/bin directory. Type the following command:

./standalone.sh -c standalone-sip.xml

1. You will see a message similar to the one below once the server is successfully started

20:43:21,487 INFO [org.jboss.as.server] (ServerService Thread Pool -- 37) JBAS018559:

Deployed "click2call.war"

20:43:21,489 INFO [org.jboss.as.server] (ServerService Thread Pool -- 37) JBAS018559:

Deployed "sip-servlets-management.war"

20:43:21,647 INFO [org.jboss.as] (Controller Boot Thread) JBAS015951: Admin console

listening on http://127.0.0.1:9990

20:43:21,648 INFO [org.jboss.as] (Controller Boot Thread) JBAS015874: JBoss AS

7.1.2.Final "Steropes" started in 26560ms - Started 232 of 321 services (88 services

are passive or on-demand)

The click2call SIP sample application bundled with Restcomm SIP Servlets will become available at

this url http://127.0.0.1:8080/click2call. You can configure multiple SIP softphones to use the sample

application. See the section below for how to configure and test the SIP sample application.

2.1.2. Testing Click2Call with Restcomm SIP Servlets for JBOSS AS7

Once the server is started as stated in the previous section, you can configure multiple instances of

any SIP softphone you prefer. In this example, Linphone will be used.

(configuring two instances of Linphone)

start Linphone

go to the Options menu

On the Network Settings tab,

Ê SIP (UDP) port to 5061. (leave the rest as default)

On the Manage SIP Accounts tab,

Ê click the add button

Ê Your SIP identity: = sip:linphone@127.0.0.1:5080

Ê SIP Proxy address: = sip 127.0.0.1:5080

Leave the rest of the settings as default.

Configuring Linphone (on the second shell)

go to the Options menu

On the Network Settings tab,

Ê SIP (UDP) port to 5062. (leave the rest as default)

On the Manage SIP Accounts tab,

Ê click the add button

Ê Your SIP identity: = sip:linphone2@127.0.0.1:5080

Ê SIP Proxy address: = sip 127.0.0.1:5080

Leave the rest of the settings as default.

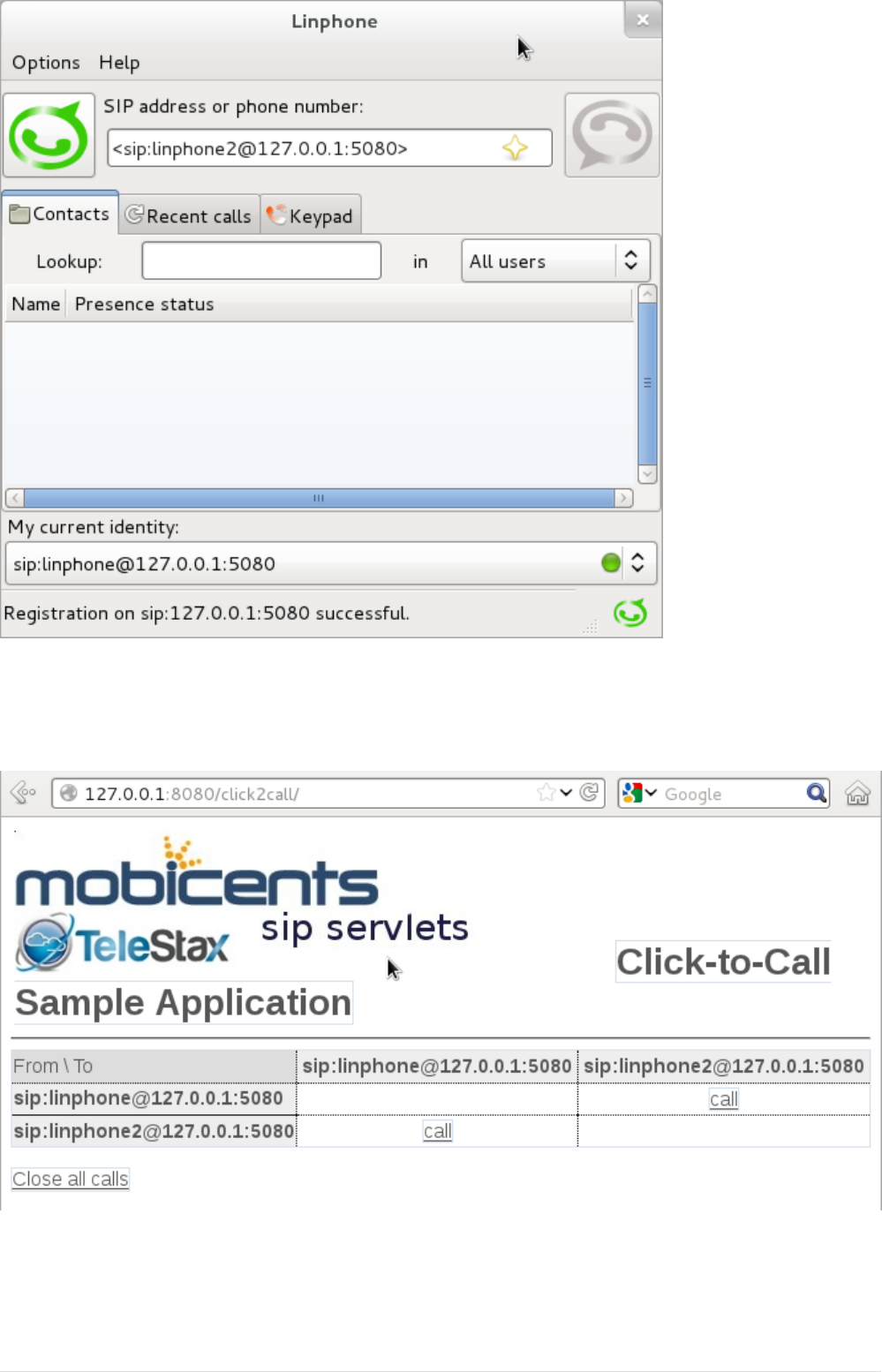

A correctly configured Linphone will look like the screenshot below.

Figure 4. Successfully Configured Linphone

Once the phones are successfully registered with the Restcomm SIP Servlets for JBoss AS7 server,

you can check the result in the sample SIP application at this url, http://127.0.0.1:8080/click2call

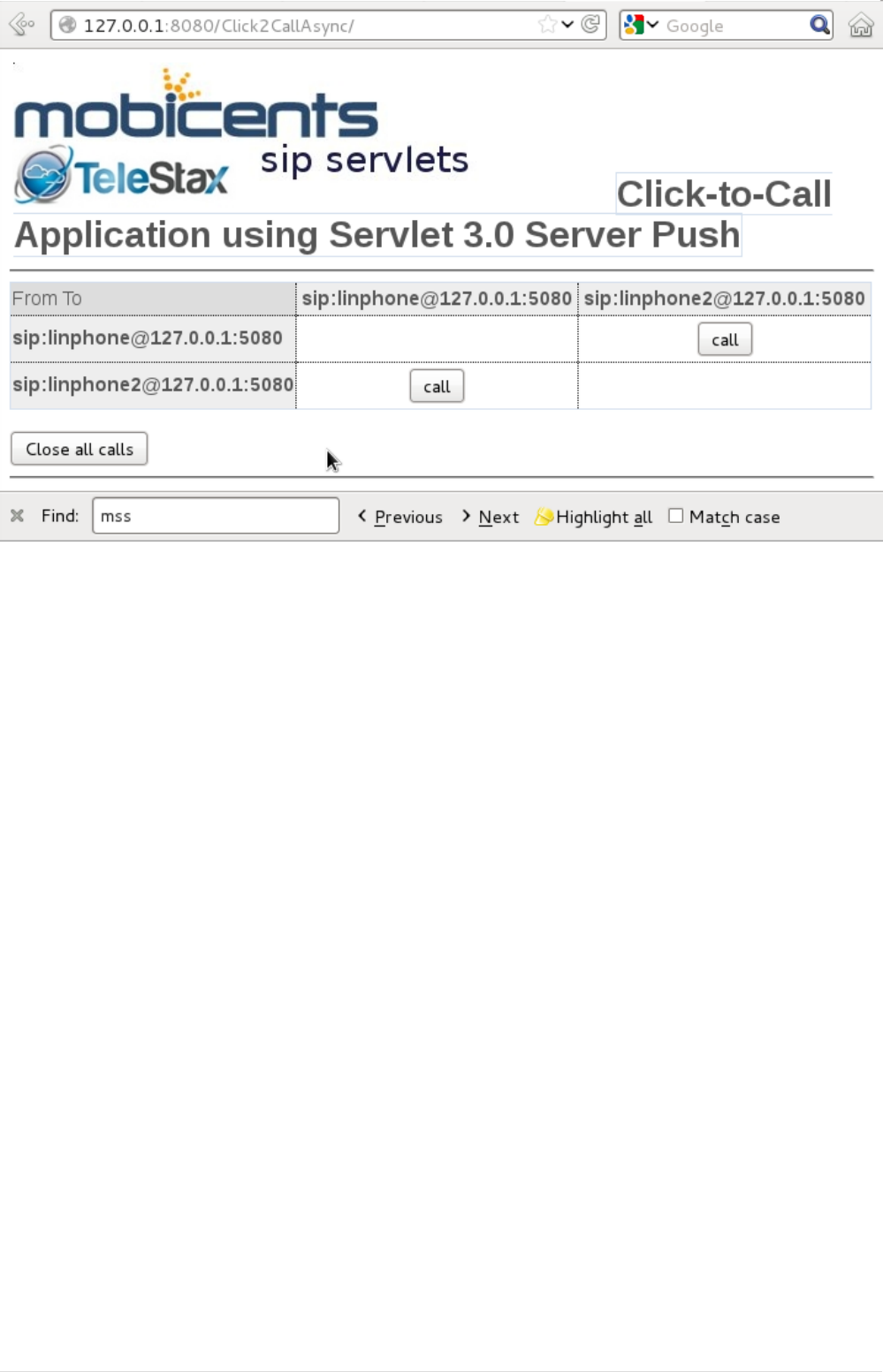

Figure 5. Click2call SIP Registered Softphones

You can make calls from the sample click2call application and see the logs in the shell terminal you

used to start the Restcomm SIP Servlets for JBoss AS7 server.

2.1.3. Command Line Interface for Restcomm SIP Servlets JBoss AS7

Part of the task of any administrator who has to manage a JBoss server will be to monitor services

offered to clients. There is a command line interface bundled with JBoss AS7 which can be accessed

by going to the $JBOSS_HOME/bin directory.

You need to make sure that the JBoss server is running on your system and listening on port 9999.

The section below will work you through steps to familiarize yourself with the CLI.

There are so many features available with the Restcomm SIP Servlets for JBoss AS7 CLI. The

example below will concentrate on getting data from the SIP you started using the [path]_

./standalone.sh -c standalone-sip.xml _ script.

In the $JBOSS_HOME/bin directory, type

./jboss-cli.sh

(This will show the message below)

You are disconnected at the moment.

Type 'connect' to connect to the server or

'help' for the list of supported commands.

At the [disconnected /] command prompt, type

connect

When you see the [standalone@localhost:9999 /] at the prompt, you are successfully connected to

the server.



Navigating the CLI

Moving around the Restcomm SIP Servlets for JBoss AS7 CLI is similar to normal

file system with a few exceptions. You can use commands like, (ls, cd, cd..) to

navigate around the CLI

Follow the steps below to access SIP information from the CLI

At the prompt type (ls)

[standalone@localhost:9999 /] ls

core-service deployment extension

interface path socket-binding-group

subsystem system-property launch-type=STANDALONE

management-major-version=1 management-minor-version=2 name=linux-fedora

namespaces=[] process-type=Server product-name=undefined

product-version=undefined profile-name=undefined release-codename=Steropes

release-version=7.1.2.Final running-mode=NORMAL schema-locations=[]

server-state=running

[standalone@localhost:9999 /] cd deployment

[standalone@localhost:9999 deployment] ls

click2call.war sip-servlets-management.war

[standalone@localhost:9999 deployment] cd click2call.war

[standalone@localhost:9999 deployment=click2call.war] ls

subdeployment

subsystem

content=[{"path" => "deployments/click2call.war","relative-to" =>

"jboss.server.base.dir","archive" => true}]

enabled=true

name=click2call.war

persistent=false

runtime-name=click2call.war

status=OK

[standalone@localhost:9999 deployment=click2call.war] cd subsystem

[standalone@localhost:9999 subsystem] ls

sip web

[standalone@localhost:9999 subsystem] cd sip

[standalone@localhost:9999 subsystem=sip] ls

servlet

active-sip-application-sessions=7

active-sip-sessions=8

app-name=org.mobicents.servlet.sip.example.SimpleApplication

expired-sip-application-sessions=25

expired-sip-sessions=26

max-active-sip-sessions=-1

rejected-sip-application-sessions=0

rejected-sip-sessions=0

sip-application-session-avg-alive-time=180

sip-application-session-max-alive-time=230

sip-application-sessions-created=32

sip-application-sessions-per-sec=0.0

sip-session-avg-alive-time=162

sip-session-max-alive-time=180

sip-sessions-created=34

sip-sessions-per-sec=0.0

No SIP data on the CLI

The data from the SIP subsystem are only available if you have the click2call

sample application running and your softphones are connected to the server.

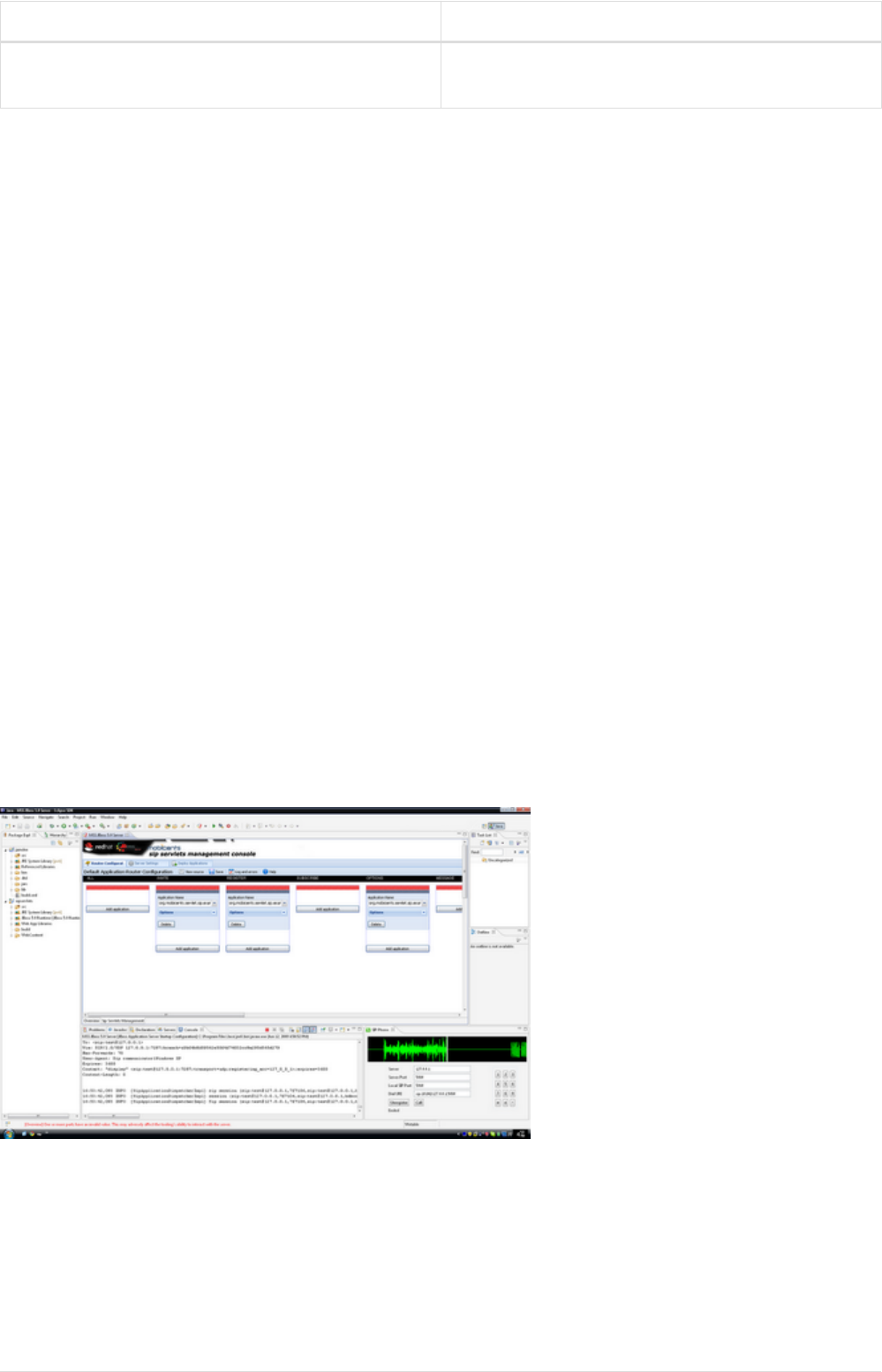

1. SIP Servlets Management Console There is also a SIP servlets management console that is

available at this url http://127.0.0.1:8080/sip-servlets-management. The resulting page will be

similar to the screenshot below. More information will be provided about the SIP servlets

management console in later chapters of this guide.

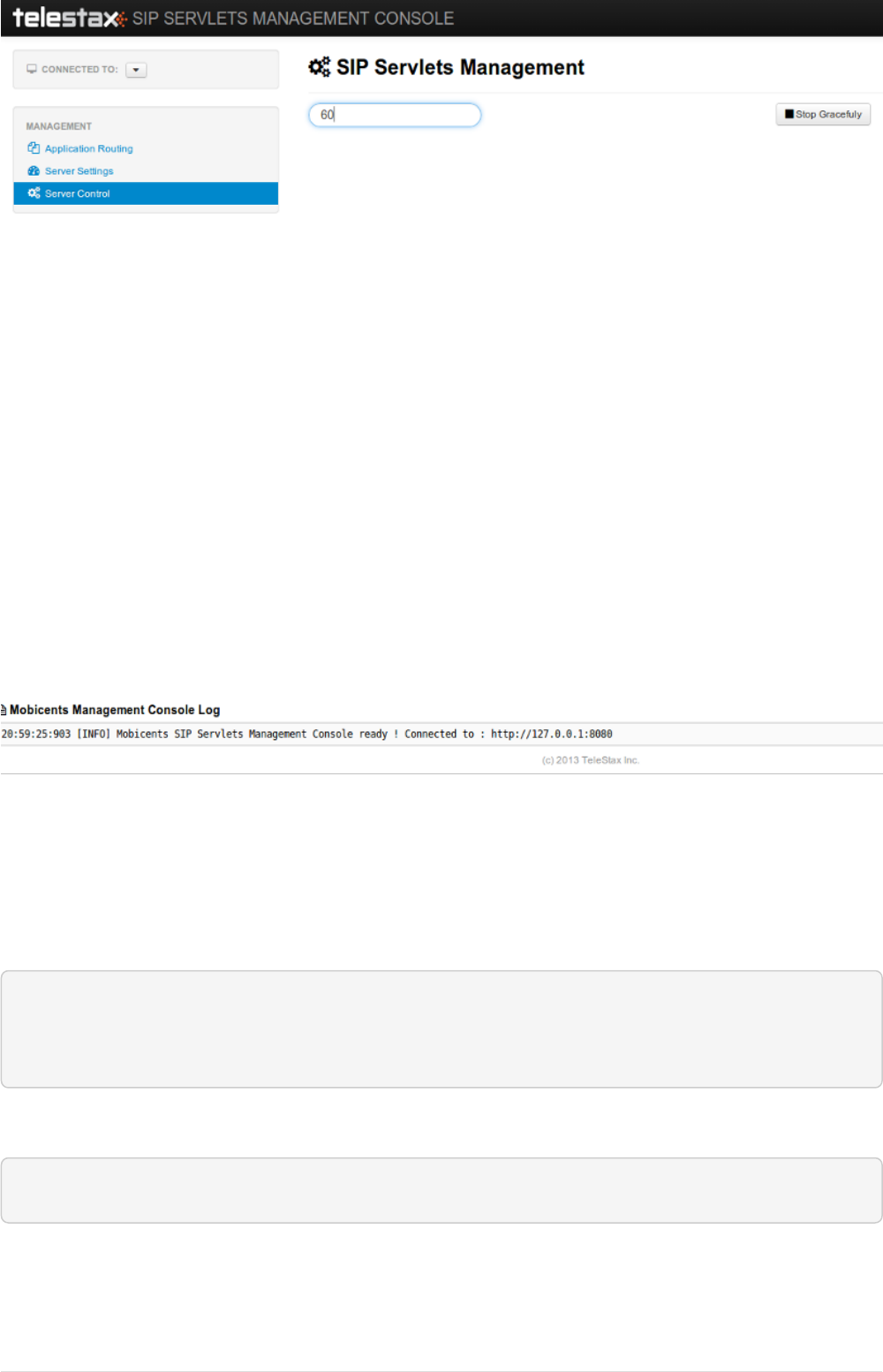

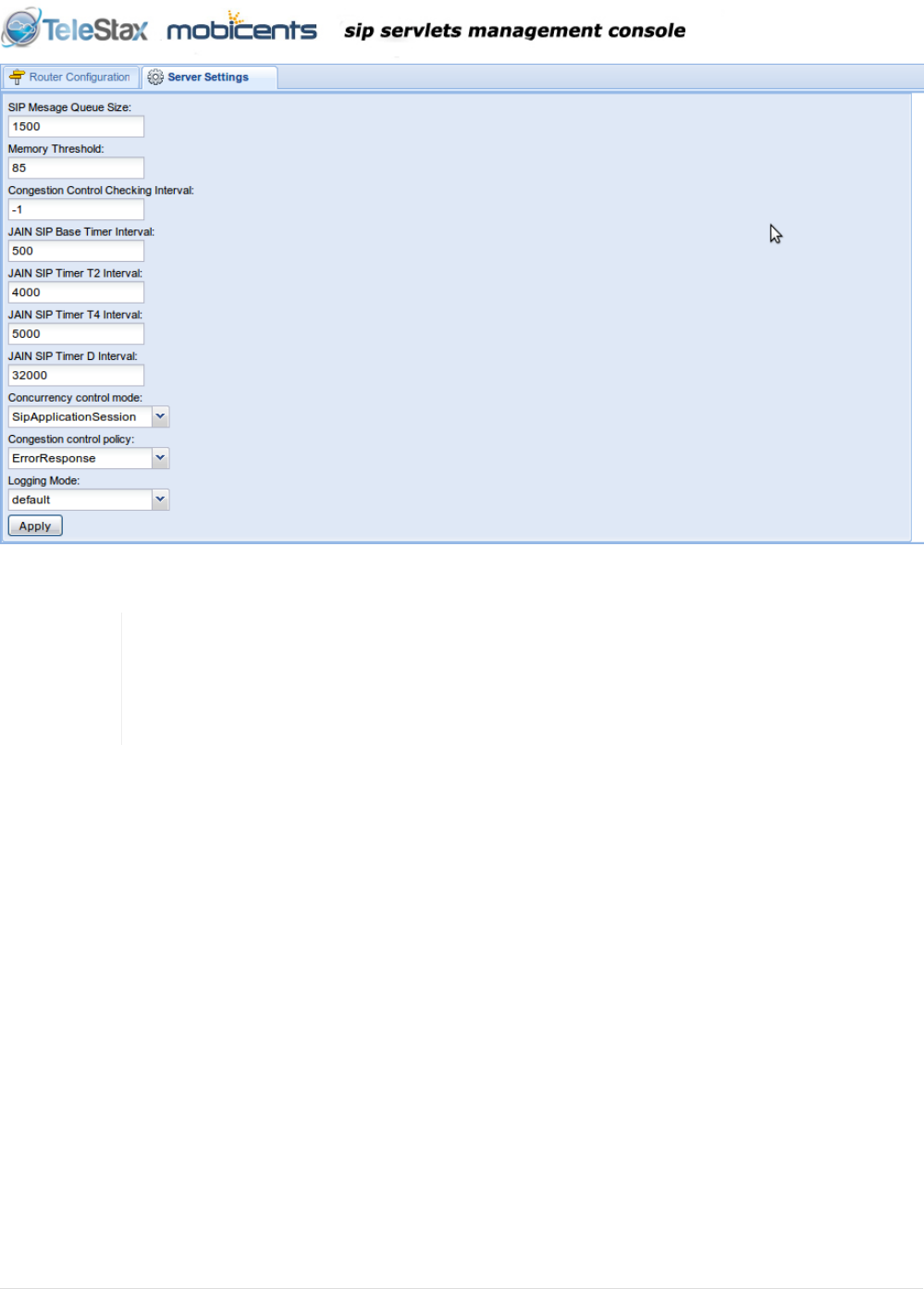

Figure 6. JBoss Application Server 7 Management Console

2.1.4. Accessing Management Console

Restcomm SIP Servlets for JBoss AS7 provides a management console that can be useful for

accessing vital information about your server. In the welcome page that appears when you access

http://127.0.0.1:8080, there is a link that points to the Administration Console.

If you don’t have a user account for the management console, you will see a screenshot like the one

below. It contains instructions about how to create a user account.

Figure 7. Administration Console Error Page

1. Creating a User Account Go to the $JBoss_HOME/bin directory and run the ./add-user.sh script.

You can follow the interactive user mode to create an account for the Administration Console.

Once the user account has been created, you can access the Administration Console at this address

http://127.0.0.1:9990/console/

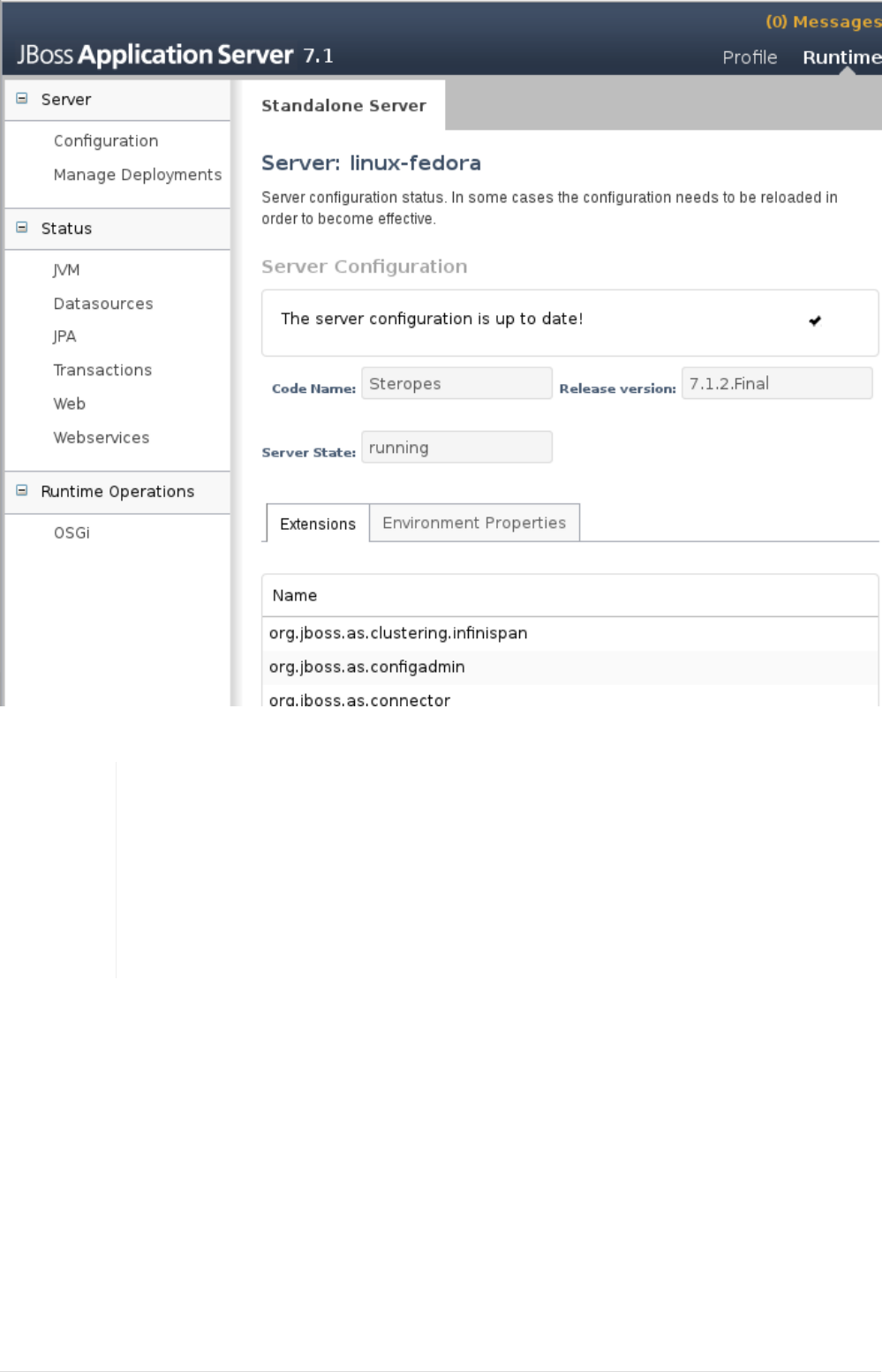

The screenshot below shows you what the Administration Console looks like.

Figure 8. Administration Console



Deleting Administration Console User Account

Deleting the user account isn’t very intuitive. In the event that you will need to

remove an account and create another one, you can remove the account from the

mgmt-users.properties file. It is located in the

$Restcomm_JBoss_HOME/standalone/configuration directory. If you are running

in the domain mode, you will need to check the corresponding configuration

directory.

Installing the Restcomm for JBoss Binary Distribution on

For this procedure, it is assumed that the downloaded archive is saved in the My Downloads folder.

. Create a directory in My Downloads to extract the zip file’s contents into. For ease of

identification, it is recommended that the version number of the binary is included in the folder

name. For example, -jboss-<version>. . Extract the contents of the archive, specifying the

destination folder as the one created in the previous step. You can either use Winzip or the

opensource tool called 7-Zip to extract the content of the donwloaded Restcomm SIP Servlets for

JBoss AS7 file . It is recommended that the folder holding the Restcomm SIP Servlets for JBoss files

(in this example, the folder named -jboss-<version>) is moved to a user-defined location for storing

executable programs. For example, the Program Files folder.

Procedure: Running Restcomm SIP Servlets for JBoss on

There are several ways to start Restcomm SIP Servlets for JBoss on Windows. All of the following

methods accomplish the same task.

1. Using Windows Explorer, navigate to the bin subdirectory in the installation directory.

2. The preferred way to start Restcomm SIP Servlets for JBoss from the Command Prompt. The

command line interface displays details of the startup process, including any problems

encountered during the startup process.

Open the Command Prompt via the Start menu and navigate to the correct folder:

C:\Users\<user>My Downloads> cd "-jboss-<version>"

3. Start the JBoss Application Server by executing one of the following files:

•run.bat batch file:

C:\Users\<user>My Downloads\-jboss-<version>>bin\run.bat

•run.jar executable Java archive:

C:\Users\<user>My Downloads\-jboss-<version>>java -jar bin\run.jar

2.2. Getting Started with Restcomm SIP Servlets for

Tomcat 7

You can download the latest Restcomm SIP Servlets for Tomcat 7 link: Download Latest Version of

for Tomcat 7

The content of the downloaded file can be extracted to any location you prefer on your computer.

The root directory to which the content of the download is extracted will be referred to as

$CATALINA_HOME.

The content of the $CATALINA_HOME/bin is similar to the output below.

bootstrap.jar cpappend.bat startup.bat

catalina.bat daemon.sh startup.sh

catalina.sh digest.bat tomcat-juli.jar

catalina-tasks.xml digest.sh tomcat-native.tar.gz

commons-daemon.jar setclasspath.bat tool-wrapper.bat

commons-daemon-native.tar.gz setclasspath.sh tool-wrapper.sh

configtest.bat shutdown.bat version.bat

configtest.sh shutdown.sh version.sh

You can start Restcomm SIP Servlets for Tomcat 7 by going to $CATALINA_HOME/bin directory and

typing the following:

sudo ./catalina.sh run

The startup process is slightly different from Restcomm SIP Servlets for JBoss AS7. If you see an

output like the one below, you know that Tomcat is correctly started. This is a truncated log from

the startup process.

2012-08-21 22:23:41,025 INFO [SipApplicationDispatcherImpl] (main)

SipApplicationDispatcher Started

2012-08-21 22:23:41,025 INFO [SipStandardService] (main) SIP Standard Service

Started.

Aug 21, 2012 10:23:41 PM org.apache.catalina.startup.Catalina start

INFO: Server startup in 3608 ms

If you get an error message about environment variables or Java, make sure you have the

CATALINA environment variables set.

Setting Environment Variables - JAVA and CATALINA

2.2.1. Testing Click2CallAsync with Restcomm for Tomcat 7

If Restcomm SIP Servlets for Tomcat 7 is started and running, you should be able to use your web

browser to access the welcome page at this url http://127.0.0.1:8080/ This will show you a screenshot

similar to the one below.

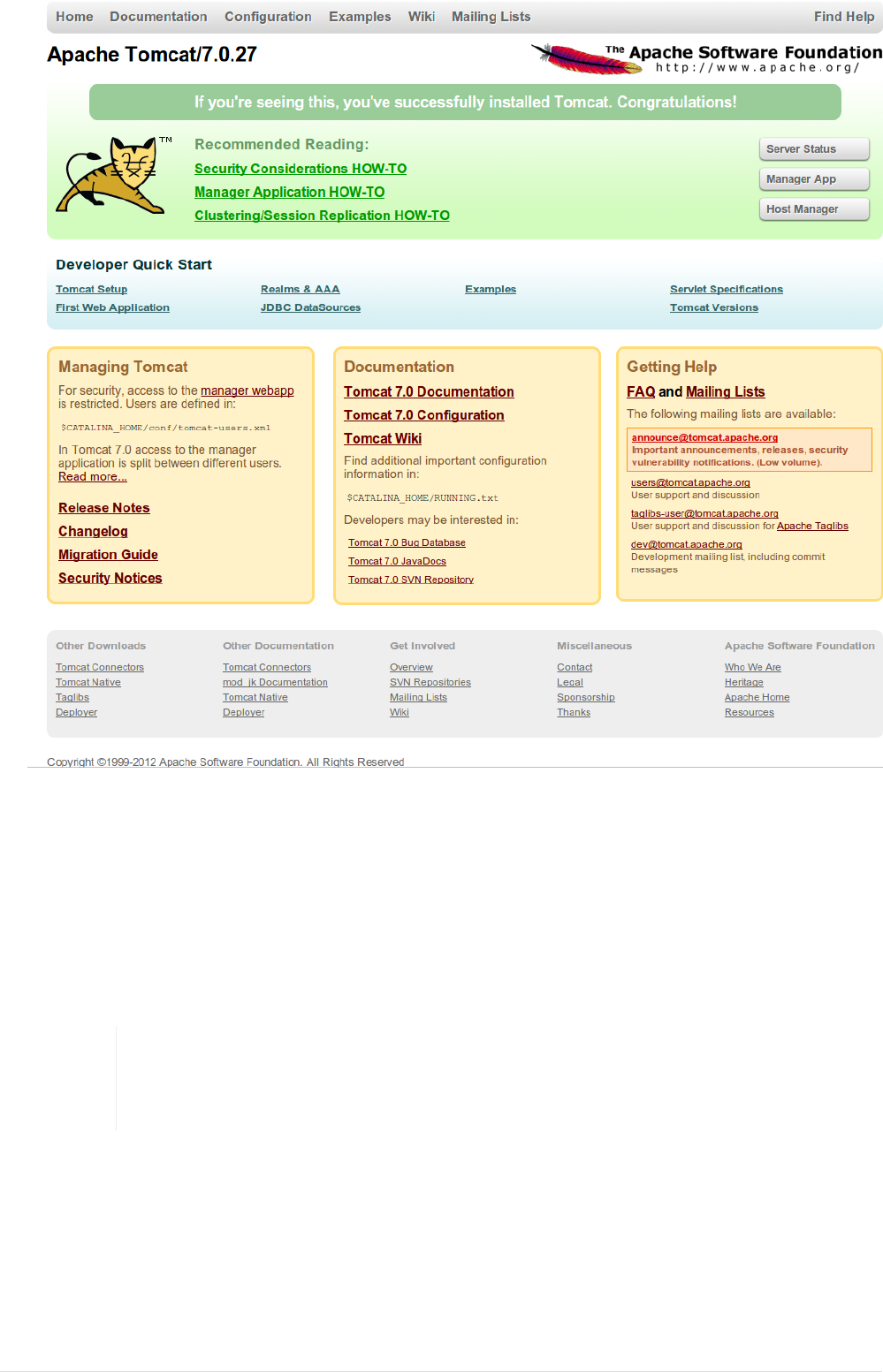

Figure 9. JBoss Application Server 7 Welcome Page

Deploying your application once the server is running is simple. You need to copy your .War files to

the $CATALINA_HOME/webapps directory.

There is a pre-installed sample SIP application that you can use to test your Restcomm SIP Servlets

Tomcat 7 configuration. The application is also located in the $CATALINA_HOME/webapps directory

Start your web browser and go to the link, http://127.0.0.1:8080/Click2CallAsync/

Sample Application Name

Note that the application name is case-sensitive and will not work if you try to

access it as http://127.0.0.1:8080/click2callasync/

The sample SIP application page will be similar to the screenshot below.

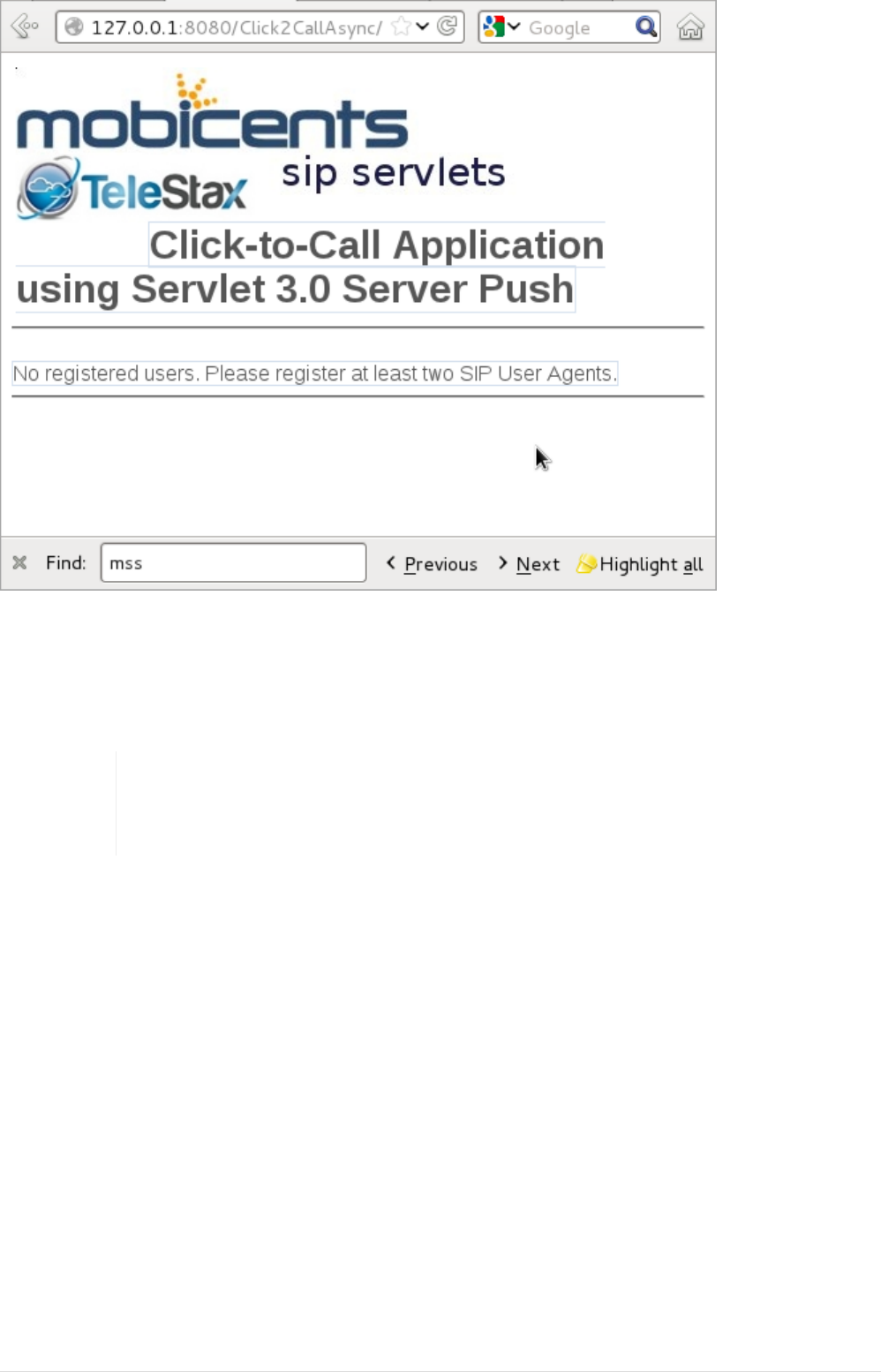

Figure 10. SIP Sample Click2CallAsync Application

In order to use the application, you can download a softphone and start multiple instances of the

phone on a single server. In this guide, the softphone that will be used is Linphone. The

configuration is as follows:

Multiple Instances of Linphone

On some Linux systems, you might need to use a different user profile in order to

start a second instance of Linphone. Ex. sudo linphone

(configuring two instances of Linphone)

start Linphone

go to the Options menu

On the Network Settings tab,

Ê SIP (UDP) port to 5061. (leave the rest as default)

On the Manage SIP Accounts tab,

Ê click the add button

Ê Your SIP identity: = sip:linphone@127.0.0.1:5080

Ê SIP Proxy address: = sip 127.0.0.1:5080

Leave the rest of the settings as default.

Configuring Linphone (on the second shell)

go to the Options menu

On the Network Settings tab,

Ê SIP (UDP) port to 5062. (leave the rest as default)

On the Manage SIP Accounts tab,

Ê click the add button

Ê Your SIP identity: = sip:linphone2@127.0.0.1:5080

Ê SIP Proxy address: = sip 127.0.0.1:5080

Leave the rest of the settings as default.

Once the softphones are configured and are successfully registered with the Restcomm SIP Servlets

for Tomcat 7 server, you will see a screenshot like the one below in the web browser at this url

http://127.0.0.1:8080/Click2CallAsync/

Figure 11. SIP Click2CallAsync with Registers Clients

You can make calls using the application and the softphones you configured will start ringing. It is

important to start Restcomm SIP Servlets for Tomcat 7 in a terminal using the (./catalina.sh run)

script. It will help with troubleshooting SIP calls. The logs you see on the terminal will let you know

when a softphone registers with the Tomcat server and you will also be able to see the status of call

setup and shutdown.

Stopping Restcomm SIP Servlets for Tomcat 7

The best way to stop a server is using the CTRL-D on the terminal in which the server was started. If

you started the Restcomm SIP Servlets for Tomcat 7 server using the

$CATALINA_HOME/bin/startup.sh, you can stop the server using

$CATALINA_HOME/bin/shutdown.sh

2.2.2. Tomcat for Windows

Installing the Restcomm SIP Servlets for Tomcat 7 Binary Distribution on Windows

1. For this example, we’ll assume that you downloaded the binary distribution zip file to the My

Downloads folder. First, using Windows Explorer, create a subdirectory in My Downloads to

extract the zip file’s contents into. When you name this folder, it is good practice to include the

version number; if you do so, remember to correctly match it with the version of the Restcomm

SIP Servlets for Tomcat binary distribution you downloaded. In these instructions, we will refer

to this folder as -tomcat-<version>.

2. Double-click the downloaded zip file, selecting as the destination folder the one you just created

to hold the zip file’s contents.

a. Alternatively, it is also possible to use Java’s jar -xvf command to extract the binary

distribution files from the zip archive. To use this method instead, first move the

downloaded zip file from My Downloads to the folder that you just created to hold the SIP

Servlets Server files.

b. Then, open the Windows Command Prompt and navigate to the folder holding the archive

using the cd command.



Opening the Command Prompt from Windows Explorer

If you are using Windows Vista®, you can open the Command Prompt

directly from Explorer. Hold down the Shift key and right-click on either a

folder, the desktop, or inside a folder. This will cause an context menu

item to appear, which can be used to open the Command Prompt with the

current working directory set to either the folder you opened, or opened it

from.

c. Finally, use the jar -xvf command to extract the archive contents into the current folder.

C:\Users\Me\My Downloads\-tomcat-<version>>jar -xvf ""

3. At this point, you may want to move the folder holding the Restcomm SIP Servlets for Tomcat

binary files (in this example, the folder named -tomcat-<version>) to another location. This step

is not strictly necessary, but it is probably a good idea to move the installation folder from My

Downloads to a user-defined location for storing runnable programs. Any location will suffice,

however.

4. You may want to delete the zip file after extracting its contents in order to free disk space:

C:\Users\Me\My Downloads\-tomcat-<version>>delete ""

Configuring

Configuring Restcomm SIP Servlets for Tomcat consists in setting the CATALINA_HOME environment

variable and then, optionally, customizing your Restcomm SIP Servlets for Tomcat container by

adding SIP Connectors, configuring the application router, and configuring logging. See Sip

Connectors to learn what and how to configure Restcomm SIP Servlets for Tomcat.

Alternatively, you can simply run your Restcomm SIP Servlets for Tomcat container now and return

to this section to configure it later.

Running

Once installed, you can run the Tomcat Servlet Container by executing the one of the startup scripts

in the bin directory (on Linux or Windows), or by double-clicking the run.bat executable batch file

in that same directory (on Windows only). However, we suggest always starting Tomcat using the

terminal or Command Prompt because you are then able to read—and act upon—any startup

messages, and possibly debug any problems that may arise. In the Linux terminal or Command

Prompt, you will be able to tell that the container started successfully if the last line of output is

similar to the following:

Using CATALINA_BASE: /home/user/temp/apps/sip_servlets_server/

Using CATALINA_HOME: /home/user/temp/apps/sip_servlets_server/

Using CATALINA_TMPDIR: /home/user/temp/apps/sip_servlets_server/temp

Using JRE_HOME: /etc/java-config-2/current-system-vm

Detailed instructions are given below, arranged by platform.

Procedure: Running Restcomm SIP Servlets for Tomcat on Windows

1. There are several different ways to start the Tomcat Servlet Container on Windows. All of the

following methods accomplish the same task.

Using Windows Explorer, change your folder to the one in which you unzipped the downloaded

zip file, and then to the bin subdirectory.

2. Although not the preferred way (see below), it is possible to start the Tomcat Servlet Container

by double-clicking on the startup.bat executable batch file.

a. As mentioned above, the best way to start the Tomcat Servlet Container is by using the

Command Prompt. Doing it this way will allow you to view all of the server startup details,

which will enable you to easily determine whether any problems were encountered during

the startup process. You can open the Command Prompt directly from the

<topmost_directory>\bin folder in Windows Explorer, or you can open the Command Prompt

via the Start menu and navigate to the correct folder:

C:\Users\Me\My Downloads> cd "-tomcat-<version>"

b. Start the Tomcat Servlet Container by running the executable startup.bat batch file:

C:\Users\Me\My Downloads\-tomcat-<version>>bin\startup.bat

Stopping

Detailed instructions for stopping the Tomcat Servlet Container are given below, arranged by

platform. Note that if you properly stop the server, you will see the following three lines as the last

output in the Linux terminal or Command Prompt (both running and stopping the Tomcat Servlet

Container produces the same output):

Using CATALINA_BASE: /home/user/temp/apps/sip_servlets_server

Using CATALINA_HOME: /home/user/temp/apps/sip_servlets_server

Using CATALINA_TMPDIR: /home/user/temp/apps/sip_servlets_server/temp

Using JRE_HOME: /etc/java-config-2/current-system-vm

Procedure: Stopping Restcomm SIP Servlets for Tomcat on Windows

1. Stopping the Tomcat Servlet Container on Windows consists in executing the shutdown.bat

executable batch script in the bin subdirectory of the SIP Servlets-customized Tomcat binary

distribution:

C:\Users\Me\My Downloads\-tomcat-<version>>bin\shutdown.bat

2.3. Sip Connectors

Restcomm SIP Servlets comes with default settings that are designed to get your system up and

running without the need to know about all the detailed configurations. That said, there are

situations in which you might like to fine-tune your setttings to adapt it to your needs. That is what

the following section will help you achieve. You will get a better understand of SIP connectors and

how to make them work for you.

2.3.1. Configuring SIP Connectors and Bindings

There are two important configuration files that you might need to modifying depending on your

system needs. The standalone-sip.xml file in Restcomm SIP Servlets for JBoss AS7 and the

server.xml file in Restcomm SIP Servlets for Tomcat. The extracts below will give you a snapshot of

default configurations.

For JBoss

Changing the ports and other configuration for the SIP connector can be done in the standalone-

sip.xml file. Below is an extract :

Example 1. Adding a SIP Connector to $JBOSS_HOME/standalone/configuration/standalone-sip.xml

Ê<socket-binding-group name="standard-sockets" default-interface="public" port-

offset="${jboss.socket.binding.port-offset:0}">

Ê <socket-binding name="management-native" interface="management"

port="${jboss.management.native.port:9999}"/>

Ê <socket-binding name="management-http" interface="management"

port="${jboss.management.http.port:9990}"/>

Ê <socket-binding name="management-https" interface="management"

port="${jboss.management.https.port:9443}"/>

Ê <socket-binding name="ajp" port="8009"/>

Ê <socket-binding name="http" port="8080"/>

Ê <socket-binding name="https" port="8443"/>

Ê <socket-binding name="sip-udp" port="5080"/>

Ê <socket-binding name="sip-tcp" port="5080"/>

Ê <socket-binding name="sip-tls" port="5081"/>

Ê <socket-binding name="sip-ws" port="5082"/>

Ê <socket-binding name="osgi-http" interface="management" port="8090"/>

Ê <socket-binding name="remoting" port="4447"/>

Ê <socket-binding name="txn-recovery-environment" port="4712"/>

Ê <socket-binding name="txn-status-manager" port="4713"/>

Ê <outbound-socket-binding name="mail-smtp">

Ê <remote-destination host="localhost" port="25"/>

Ê </outbound-socket-binding>

Ê </socket-binding-group>

If you need to add a connector for the same protocol, a new socket-binding should be created. A

naming convention should be followed for the name attribute of the new socket-binding. The

convention is <name>-sip-<protocol>. By example,

Ê <socket-binding name="second-sip-udp" port="5080"/>

SIP <connector> Attributes

port (defined at the socket-binding element)

The port number on which the container will be able to receive SIP messages.

protocol

Specifies the connector is a SIP Connector and not an HTTP Connector. There is no need to

change this property.

signalingTransport (use socket-binding element)

Specifies the transport on which the container will be able to receive SIP messages. Supported

Values are "udp", "tcp", "tls" and "ws".

use-load-balancer

Enable to specify if that particular connector will be using the Load Balancer for outbound

traffic. The Load Balancer to be used is defined by the next load-balancer attributes below

load-balancer-address

Specifies the Load Balancer address used to route outbound traffic for this SIP Connector.

load-balancer-rmi-port

Specifies the RMI Port used to connect to the Load Balancer for this SIP Connector. This enables

the connector to advertise to the Load Balancer the IP and Port it is listening on so that the Load

Balancer can route traffic to that connector as well.

load-balancer-sip-port

Specifies the SIP Port of the Load Balancer to use for outbound traffic for this SIP Connector. This

enables the connector to choose to which Load Balancer it sends outbound traffic. This is

particularly useful for supporting different Load Balancers over different network interfaces

use-stun

Enables Session Traversal Utilities for NAT (STUN) support for this Connector. The attribute

defaults to "false". If set to "true", ensure that the ipAddress attribute is not set to 127.0.0.1. Refer

to Restcomm SIP Servlets [_mssstun__stun] for more information about STUN.

stun-server-address

Specifies the STUN server address used to discover the public IP address of the SIP Connector.

This attribute is only required if the useStun attribute is set to "true". Refer to Restcomm SIP

Servlets [_mssstun__stun] for more information about STUN and public STUN servers.

stun-server-port

Specifies the STUN server port of the STUN server used in the stunServerAddress attribute. You

should rarely need to change this attribute; also, it is only needed if the useStun attribute is set to

"true". Refer to Restcomm SIP Servlets [_mssstun__stun] for more information about STUN.

use-static-address

Specifies whether the settings in staticServerAddress and staticServerPort are activated. The

default value is "false" (deactivated).

static-server-address

Specifies what load-balancer server address is inserted in Contact/Via headers for server-created

requests. This parameter is useful for cluster configurations where requests should be bound

to a load-balancer address, rather than a specific node address.

static-server-port

Specifies the port of the load-balancer specified in staticServerAddress. This parameter is useful

in cluster configurations where requests should be bound to a load-balancer address rather than

a specific node address.

http-follow-sip

Makes the application server aware of how the SIP Load Balancers assign request affinity, and

stores this information in the application session.

For Tomcat

Changing the ports and other configuration for the SIP connector can be done in the server.xml file.

Below is an extract.

Example 2. Adding a SIP Connector to $CATALINA_HOME/conf/server.xml

Ê <Connector port="5080"

ipAddress="127.0.0.1"

Êprotocol="org.mobicents.servlet.sip.startup.SipProtocolHandler"

ÊsignalingTransport="udp"

ÊuseStun="false"

ÊstunServerAddress="stun01.sipphone.com"

ÊstunServerPort="3478"

ÊstaticServerAddress="122.122.122.122"

ÊstaticServerPort="44"

ÊuseStaticAddress="true"

ÊhttpFollowsSip="false"/>

SIP <connector> Attributes

port

The port number on which the container will be able to receive SIP messages.

ipAddress

The IP address at which the container will be able to receive SIP messages. The container can be

configured to listen to all available IP addresses by setting ipAddress to 0.0.0.0 <sipPathName>.

protocol

Specifies the connector is a SIP Connector and not an HTTP Connector. There is no need to

change this property.

signalingTransport

Specifies the transport on which the container will be able to receive SIP messages. For example,

"udp".

useLoadBalancer

Enable to specify if that particular connector will be using the Load Balancer for outbound

traffic. The Load Balancer to be used is defined by the next loadBalancer attributes below

loadBalancerAddress

Specifies the Load Balancer address used to route outbound traffic for this SIP Connector.

loadBalancerRmiPort

Specifies the RMI Port used to connect to the Load Balancer for this SIP Connector. This enables

the connector to advertise to the Load Balancer the IP and Port it is listening on so that the Load

Balancer can route traffic to that connector as well.

loadBalancerSipPort

Specifies the SIP Port of the Load Balancer to use for outbound traffic for this SIP Connector. This

enables the connector to choose to which Load Balancer it sends outbound traffic. This is

particularly useful for supporting different Load Balancers over different network interfaces

useStun

Enables Session Traversal Utilities for NAT (STUN) support for this Connector. The attribute

defaults to "false". If set to "true", ensure that the ipAddress attribute is not set to 127.0.0.1. Refer

to Restcomm SIP Servlets [_mssstun__stun] for more information about STUN.

stunServerAddress

Specifies the STUN server address used to discover the public IP address of the SIP Connector.

This attribute is only required if the useStun attribute is set to "true". Refer to Restcomm SIP

Servlets [_mssstun__stun] for more information about STUN and public STUN servers.

stunServerPort

Specifies the STUN server port of the STUN server used in the stunServerAddress attribute. You

should rarely need to change this attribute; also, it is only needed if the useStun attribute is set to

"true". Refer to Restcomm SIP Servlets [_mssstun__stun] for more information about STUN.

useStaticAddress

Specifies whether the settings in staticServerAddress and staticServerPort are activated. The

default value is "false" (deactivated).

staticServerAddress

Specifies what load-balancer server address is inserted in Contact/Via headers for server-created

requests. This parameter is useful for cluster configurations where requests should be bound

to a load-balancer address, rather than a specific node address.

staticServerPort

Specifies the port of the load-balancer specified in staticServerAddress. This parameter is useful

in cluster configurations where requests should be bound to a load-balancer address rather than

a specific node address.

httpFollowsSip

Makes the application server aware of how the SIP Load Balancers assign request affinity, and

stores this information in the application session.

A comprehensive list of implementing classes for the SIP Stack is available from

the Class SipStackImpl page on nist.gov.

2.3.2. Application Routing and Service Configuration

The application router is called by the container to select a SIP Servlet application to service an

initial request. It embodies the logic used to choose which applications to invoke. An application

router is required for a container to function, but it is a separate logical entity from the container.

The application router is responsible for application selection and must not implement application

logic. For example, the application router cannot modify a request or send a response.

For more information about the application router, refer to the following sections of the JSR 289

specification: Application Router Packaging and Deployment, Application Selection Process, and

Appendix C.



See the example chapters for more information about the Application Router

Configuration for SIP Restcomm SIP Servlets for JBoss AS7

Operating the Example Applications

In order to configure the application router for Tomcat, you should edit the Service element in the

container’s server.xml configuration file

Example 3. Configuring the Service Element in the Container’s server.xml

Ê <Service name="Sip-Servlets"

ÊclassName="org.mobicents.servlet.sip.startup.SipStandardService"

ÊsipApplicationDispatcherClassName="org.mobicents.servlet.sip.core.SipApplicationD

ispatcherImpl"

ÊusePrettyEncoding="false"

ÊadditionalParameterableHeaders="Header1,Header2"

ÊbypassResponseExecutor="false"

ÊbypassRequestExecutor="false"

ÊbaseTimerInterval="500"

Êt2Interval="4000"

Êt4Interval="5000"

ÊtimerDInterval="32000"

ÊdispatcherThreadPoolSize="4"

ÊdarConfigurationFileLocation="file:///home/user/workspaces/sip-servlets/

Êsip-servlets-examples/reinvite-demo/reinvite-dar.properties"

ÊsipStackPropertiesFile="conf/mss-sip-stack.properties"

ÊdialogPendingRequestChecking="false"

ÊcallIdMaxLength="32"

ÊtagHashMaxLength="10"

ÊcanceledTimerTasksPurgePeriod="1">

For Restcomm SIP Servlets for JBoss AS7 this is located in standalone-sip.xml file :

Example 4. Configuring the Mobicents SubSystem Element in the Container’s standalone.xml

Ê <subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0" application-

router="dars/mobicents-dar.properties" stack-properties="mss-sip-stack.properties"

path-name="gov.nist" app-dispatcher-

class="org.mobicents.servlet.sip.core.SipApplicationDispatcherImpl" concurrency-

control-mode="SipApplicationSession" congestion-control-interval="-1">

Ê <connector name="sip-udp" protocol="SIP/2.0" scheme="sip" socket-

binding="sip-udp"/>

Ê <connector name="sip-tcp" protocol="SIP/2.0" scheme="sip" socket-

binding="sip-tcp"/>

Ê <connector name="sip-tls" protocol="SIP/2.0" scheme="sip" socket-

binding="sip-tls"/>

Ê </subsystem>

SIP Service element attributes

className

This attribute specifies that the servlet container is a converged (i.e. SIP + HTTP) servlet

container.

sipApplicationDispatcherClassName (Tomcat) - app-dispatcher-class (JBoss/EAP)

This attribute specifies the class name of the

org.mobicents.servlet.sip.core.SipApplicationDispatcher implementation to use. The routing

algorithm and application selection process is performed in that class.

darConfigurationFileLocation (Tomcat) - application-router (JBoss/EAP)

The default application router file location. This is used by the default application router to

determine the application selection logic. Refer to Appendix C of the JSR 289 specification for

more details.

sipStackPropertiesFile (Tomcat) - stack-properties (JBoss/EAP)

Specifies the location of the file containing key value pairs corresponding to the SIP Stack

configuration properties. This attribute is used to further tune the JAIN SIP Stack. If this property

is omitted, the following default values are assumed:

usePrettyEncoding (Tomcat) - use-pretty-encoding (JBoss/EAP)

Allows Via, Route, and RecordRoute header field information to be split into multiple lines,

rather than each header field being separating with a comma. The attribute defaults to "true".

Leaving this attribute at the default setting may assist in debugging non-RFC3261 compliant SIP

servers.

additionalParameterableHeaders (Tomcat) - additional-parameterable-headers (JBoss/EAP)

Comma separated list of header names that are treated as parameterable by the container. The

specified headers are classed as valid, in addition to the standard parameterable headers

defined in the Sip Servlets 1.1 Specification.

baseTimerInterval (Tomcat) - base-timer-interval (JBoss/EAP)

Specifies the T1 Base Timer Interval, which allows the SIP Servlets container to adjust its timers

depending on network conditions. The default interval is 500 (milliseconds).

t2Interval (Tomcat) - t2-interval (JBoss/EAP)

Specifies the T2 Interval, which allows the SIP Servlets container to adjust its timers depending

on network conditions. The default interval is 4000 (milliseconds).

t4Interval (Tomcat) - t4-interval (JBoss/EAP)

Specifies the T4 Interval, which allows the SIP Servlets container to adjust its timers depending

on network conditions. The default interval is 5000 (milliseconds).

timerDInterval (Tomcat) - timerD-interval (JBoss/EAP)

Specifies the Timer D Interval, which allows the SIP Servlets container to adjust its timers

depending on network conditions. The default interval is 32000 (milliseconds).

dialogPendingRequestChecking (Tomcat) - dialog-pending-request-checking (JBoss/EAP)

This property enables and disables error checking when SIP transactions overlap. If within a

single dialog an INVITE request arrives while there is antoher transaction proceeding, the

container will send a 491 error response. The default value is false.

callIdMaxLength (Tomcat) - call-id-max-length (JBoss/EAP)

This property allows to shorten the size of Call-ID Header. This is useful when integrating with

Lync (which has a limit of 32 in size) or older SIP Servers

tagHashMaxLength (Tomcat) - tag-hash-max-length (JBoss/EAP)

This property allows to shorten the size of tags in From and To Header. This is useful when

integrating with Lync (which has a limit of 10 in size) or older SIP Servers

dnsServerLocatorClass (Tomcat) - dns-server-locator-class (JBoss/EAP)

Specifies the org.mobicents.ext.javax.sip.dns.DNSServerLocator implementation class that will

be used by the container to perform DNS lookups compliant with RFC 3263 : Locating SIP Servers

and E.164 NUmber Mapping. The default class used by the container is

org.mobicents.ext.javax.sip.dns.DefaultDNSServerLocator, but any class implementing the

org.mobicents.ext.javax.sip.dns.DNSServerLocator interface. To disable DNS lookups, this

attribute should be left empty.

dnsResolverClass (Tomcat) - dns-resolver-class (JBoss/EAP)

Specifies the org.mobicents.javax.servlet.sip.dns.DNSResolver implementation class that will be

used by the container to perform DNS lookups compliant with RFC 3263 : Locating SIP Servers

and E.164 NUmber Mapping. The default class used by the container is

org.mobicents.servlet.sip.dns.MobicentsDNSResolver, but any class implementing the

org.mobicents.servlet.sip.dns.DNSResolver interface. To disable DNS lookups, this attribute

should be left empty.

addressResolverClass (Tomcat) - address-resolver-class (JBoss/EAP)

Specifies the gov.nist.core.net.AddressResolver implementation class that will be used by the

container to perform DNS lookups. The default class used by the container is

org.mobicents.servlet.sip.core.DNSAddressResolver, but any class implementing the

gov.nist.core.net.AddressResolver NIST SIP Stack interface and having a constructor with a

org.mobicents.servlet.sip.core.SipApplicationDispatcher parameter can be used. To disable

DNS lookups, this attribute should be left empty.

canceledTimerTasksPurgePeriod (Tomcat) - canceled-timer-tasks-purge-period (JBoss/EAP)

Defines a period to due a purge in the container timer schedulers. The purge may prevent

excessive memory usage for apps that cancel most of the timers it sets.

== SIP Servlets Server Logging

Logging is an important part of working with Restcomm SIP Servlets.

There are a few files that you need to be familiar with in order to successfully

troubleshoot and adapt Restcomm SIP Servlets server monitoring and logging to your

environment.

.Logging Files for Restcomm SIP Servlets for JBoss AS7

$JBOSS/standalone/configuration/logging.properties

$JBOSS/standalone/configuration/mss-sip-stack.properties

$JBOSS/standalone/configuration/standalone-sip.xml

.Setting the log file name in $JBOSS/standalone/configuration/standalone-sip.xml

====

[source,xml]

----

Ê</formatter>

----

====

The configuration above produces SIP logs that can be found in the

$JBOSS_HOME/standalone/log directory.

Below is an extract of the log files.

----

Ê server.log.2012-08-14 server.log.2012-08-24

server.log server.log.2012-08-16 server.log.2012-08-25

server.log.2012-08-07 server.log.2012-08-21 server.log.2012-08-26

server.log.2012-08-13 server.log.2012-08-22

----

.Logging Files for Restcomm SIP Servlets for Tomcat

If you are working with Tomcat, the log configuration files are located in the

$CATALINA_HOME/conf/ directory.

The log4j configuration file is located in $CATALINA_HOME/lib/ directory

$CATALINA_HOME/conf/logging.properties

$CATALINA_HOME/conf/mss-sip-stack.properties

$CATALINA_HOME/conf/server.xml

$CATALINA_HOME/lib/log4j.xml

.Truncated Sample Configuration from Server.xml

.Setting the log file name $CATALINA_HOME/conf/server.xml

====

[source,xml]

----

<Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"

Ê prefix="localhost_access_log." suffix=".txt"

Ê pattern="%h %l %u %t "%r" %s %b" resolveHosts="false"/>

----

====

.Truncated Sample Configuration from log4j.xml

.Configuring the log file name $CATALINA_HOME/lib/log4j.xml

====

[source,xml]

----

<log4j:configuration xmlns:log4j="http://jakarta.apache.org/log4j/">

Ê <appender name="rolling-file" class="org.apache.log4j.RollingFileAppender">

Ê <param name="file" value="${catalina.home}/logs/sip-server.log"/>

Ê <param name="MaxFileSize" value="1000KB"/>

----

====

The result of the extracted configuration above that is taken from the log4j.xml file

and can be found in the $CATALINA_HOME/logs directory.

JAIN-SIP Stack Logging

There are two separate levels of logging:

•Logging at the container level, which can be configured using the log4j.xml or standalone-

sip.xml configuration file seen above

•Logging of the JAIN SIP stack, which is configured through the container logging and the SIP

stack properties themselves

You can setup the logging so that the JAIN SIP Stack will log into the container

logs.

To use LOG4J in JAIN SIP Stack in Tomcat, you need to define a category in

[path]_CATALINE_HOME/lib/jboss-log4j.xml_ and set it to `DEBUG`.

.Configuring the JAIN SIP Stack to log into the Tomcat Container's logs

====

[source,xml]

----

Ê <category name="gov.nist">

Ê <priority value="DEBUG"/>

Ê </category>

----

====

To use LOG4J in JAIN SIP Stack in JBoss, you need to define a logger in

[path]_JBOSS_HOME/standalone/configuration/standalone-sip.xml_ and set it to

`DEBUG`.

.Configuring the JAIN SIP Stack to log into the JBoss Container's logs

====

[source,xml]

----

Ê <logger category="gov.nist">

Ê <level name="DEBUG"/>

Ê </logger>

----

====

For this category to be used in Restcomm SIP Servlets, you need to specify it in

[path]_JBOSS_HOME/standalone/configuration/mss-sip-stack.properties_ or

[path]_CATALINE_HOME/conf/mss-sip-stack.properties_, add the

`gov.nist.javax.sip.LOG4J_LOGGER_NAME=gov.nist` property, and set the

`gov.nist.javax.sip.TRACE_LEVEL=LOG4J` property.

====

**NOTE**

When using ``loadbalanceraddress`` algorithm for LB it is necessary to add the

following at ``mss-sip-stack.properties`` file for the keepalive mechanism:

----

org.mobicents.ha.javax.sip.LoadBalancerHeartBeatingServiceClassName=org.mobicents.h

a.javax.sip.MultiNetworkLoadBalancerHeartBeatingServiceImpl

----

Chapter 3. Application Router

Application Routing is performed within the Restcomm Sip Servlets container by the Default

Application Router. The following sections describe the Default Application Router, and how other

JSR 289 compliant Application Router implementations can be installed.

3.1. Default Application Router

The Application Router is called by the container to select a SIP Servlet application to service an

initial request. It embodies the logic used to choose which applications to invoke.

3.1.1. Role of the Application Router

An Application Router is required for a container to function, but it is a separate logical entity from

the container. The Application Router is responsible for application selection and does not

implement application logic. For example, the Application Router cannot modify a request or send

a response.

There is no direct interaction between the Application Router and applications, only between the

SIP Servlets Container and the Application Router.

The SIP Servlets container is responsible for passing the required information to the Application

Router within the initial request so the Application Router can make informed routing decisions.

The Application Router is free to make use of any information or data stores, except for the

information passed by the container. It is up to the individual implementation how the Application

Router makes use of the information or data stores.

The deployer in a SIP Servlet environment controls application composition by defining and

deploying the Application Router implementation. Giving the deployer control over application

composition is desirable because the deployer is solely responsible for the services available to

subscribers.

Furthermore, the SIP Servlets specification intentionally allows the Application Router

implementation to consult arbitrary information or data stores. This is because the deployer

maintains subscriber information and this information is often private and valuable.

3.1.2. Restcomm Default Application Router

Restcomm SIP Servlets provides an implementation of the Default Application Router (DAR) as

defined in the SIP Servlets 1.1 specification, Appendix C.

The DAR Configuration File

The Default Application Router (DAR) obtains its operational parameters from a configuration text

file that is modeled as a Java properties file. The configuration file contains the information needed

by the Application Router to select which SIP Servlet application will handle an incoming initial

request.

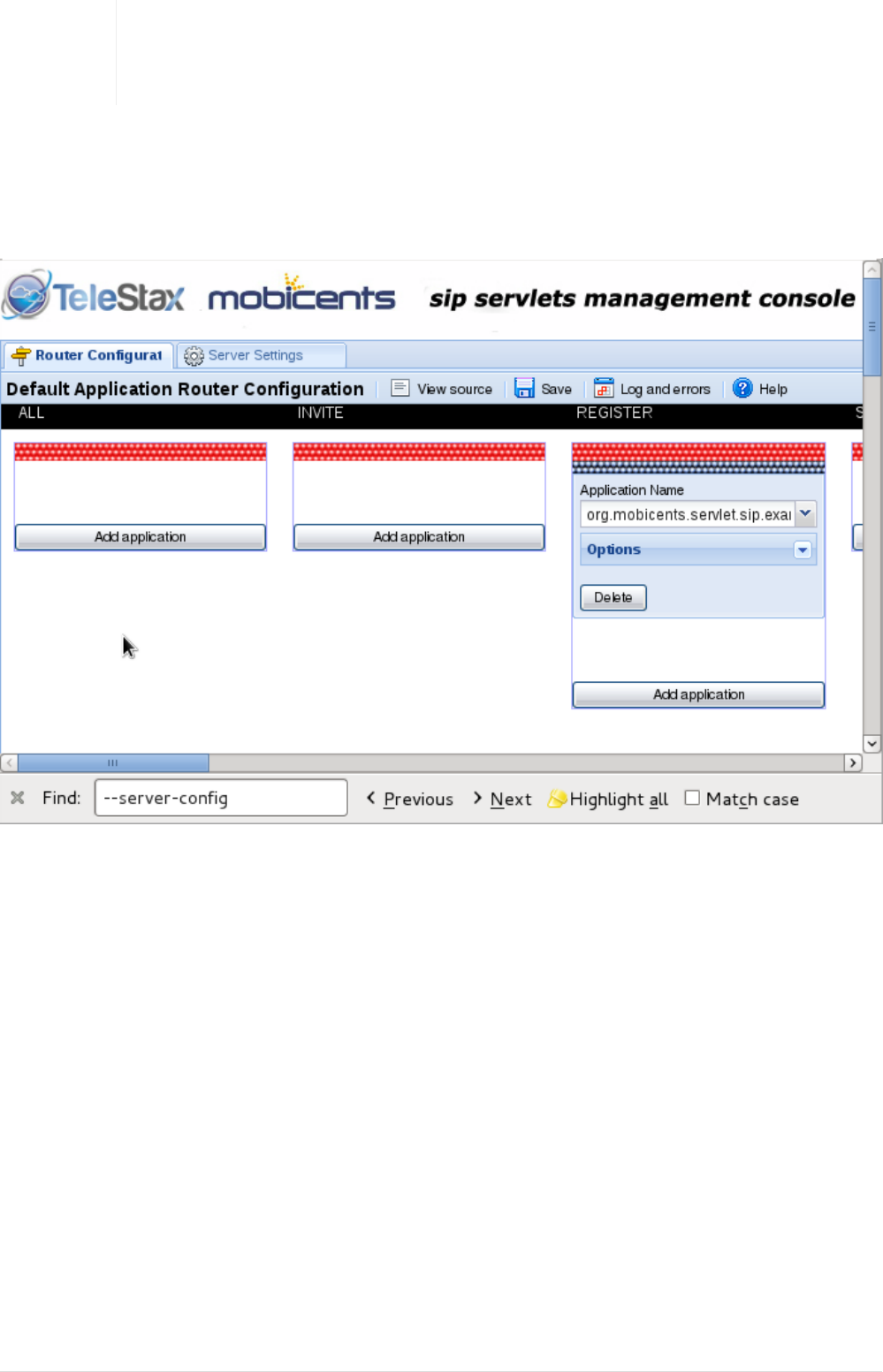

In the case of Restcomm SIP Servlets, it is also possible to configure the DAR through the server.xml

configuration file (see [_bsssc_configuring_the_service_element_in_the_containers_server.xml] and

[_wwtssmc_working_with_the_sip_servlets_management_console]).

The properties file has the following characteristics and requirements:

•It must be made available to the DAR.

•It must allow the contents and file structure to be accessible from a hierarchical URI supplied as

a system property javax.servlet.sip.ar.dar.configuration.

•It is first read by the container when it loads up and is refreshed each time an application is

deployed and undeployed.

•It has a simple format in which the name of the property is the SIP method and the value is a

comma-separated string value for the SipApplicationRouterInfo object.

INVITE: (sip-router-info-1), (sip-router-info-2)..

SUBSCRIBE: (sip-router-info-3), (sip-router-info-4)..

ALL: (sip-router-info-5), (sip-router-info-6)..

Restcomm SIP Servlets defines a new keyword called ALL. The keyword allows mapping

between the sip-router-info data, and all methods supported by the container (for example,

INVITE, REGISTER, SUBSCRIBE). This mapping can save time when configuring an application

that listens to all incoming methods.

If ALL, and a specific method are defined in the DAR file, the specific method takes

precedence over ALL. When the specific method no longer has applications to

serve, ALL is enabled again.

The sip-router-info data specified in the properties file is a string value version of the

SipApplicationRouterInfo object. It consists of the following information:

•The name of the application as known to the container. The application name can be obtained

from the element of the sip.xml deployment descriptor of the application, or the

@SipApplication annotation.

•The identity of the subscriber that the DAR returns. The DAR can return any header in the SIP

request using the DAR directive DAR:SIP_HEADER. For example, DAR:From would return the SIP URI

in the From header. The DAR can alternatively return any string from the SIP request.

•The routing region, which consists of one of the following strings: ORIGINATING, TERMINATING or

NEUTRAL. This information is not currently used by the DAR to make routing decisions.

•A SIP URI indicating the route as returned by the Application Router, which can be used to route

the request externally. The value may be an empty string.

•A route modifier, which consists of one of the following strings: ROUTE, ROUTE_BACK or NO_ROUTE.

The route modifier is used in conjunction with the route information to route a request

externally.

•A string representing the order in which applications must be invoked (starts at 0). The string

is removed later on in the routing process, and substituted with the order positions of sip-

router-info data.

•An optional string that contains Restcomm -specific parameters. Currently, only the DIRECTION

and REGEX parameters are supported.

The field can contain unsupported key=value properties that may be supported

in future releases. The unsupported properties will be ignored during parsing,

until support for the attributes is provided.

The syntax is demonstrated in [_example_dar_direction_example].

•The DIRECTION parameter specifies whether an application serves external(INBOUND) requests

or initiates (OUTBOUND) requests.

If an application is marked DIRECTION=INBOUND, it will not be called for requests initiated by

applications behaving as UAC. To mark an application as UAC, specify DIRECTION=INBOUND in the

optional parameters in the DAR.

Applications that do not exist in the DAR list for the container are assumed to be OUTBOUND.

Because undefined applications are incapable of serving external requests, they must have self-

initiated the request. The Sip Servlets Management Console can be used to specify the DIRECTION

parameter.

If an application is marked DIRECTION=UAC_ROUTE_BACK, the Application that acted as UAC will be

called back if it present in the list of applications to be called for that particular message SIP

method.

•The REGEX parameter specifies a regular expression to be matched against the initial request

passed to the Application Router.

If the regular expression matches a part of the initial request, the application is called. If it does

not, it is skipped.

For example, in the following sip-router-info data:

INVITE - ("org.mobicents.servlet.sip.testsuite.SimpleApplication", "DAR:From",

"ORIGINATING", "", "NO_ROUTE", "0", "REGEX=From:.*sip:.*@sip-servlets\.com")

only incoming initial requests with a From Header with a SIP URI that belongs to the sip-

servlets.com domain will be passed to the SimpleApplication.

Example 5. DIRECTION Example

In this example, two applications are declared for the INVITE request. The

LocationServiceApplication is called for requests coming from outside the container, but it will

not be called for the requests initiated by the UAC application Click2DialApplication.

INVITE: ("org.mobicents.servlet.sip.testsuite.Click2DialApplication", "DAR:From",

"ORIGINATING", "", "NO_ROUTE", "0", "DIRECTION=OUTBOUND"), \

("org.mobicents.servlet.sip.testsuite.LocationServiceApplication", "DAR\:From",

"ORIGINATING", "", "NO_ROUTE", "0", "DIRECTION=INBOUND")

This type of configuration is useful in cases where different application must be responsible

for both requests initiated by the container, and external requests received by the container.

Example 6. ORIGINATING/TERMINATING DAR Example

In this example, the DAR is configured to invoke two applications on receipt of an INVITE

request; one each in the originating and the terminating halves. The applications are identified

by their application deployment descriptor names.

INVITE: ("OriginatingCallWaiting", "DAR:From", "ORIGINATING", "", "NO_ROUTE",

"0"), ("CallForwarding", "DAR:To", "TERMINATING", "","NO_ROUTE", "1")

For this example, the returned subscriber identity is the URI from each application’s From and

To headers respectively. The DAR does not return any route to the container, and maintains the

invocation state in the stateInfo as the index of the last application in the list.

Routing of SIP Messages to Applications

Initial Requests and Application Selection Process

Initial Requests are those that can essentially be dialog creating (such as, INVITE, SUBSCRIBE and

NOTIFY), and not part of an already existing dialog.

Initial requests are routed to applications deployed in the container according to the SIP Servlets

1.1 specification, Section 15.4.1 Procedure for Routing an Initial Request.

There are some other corner cases that apply to initial requests. Refer to

Appendix B, Definition of an Initial Request in the SIP Servlets 1.1 specification.

Example 7. INVITE Routing

The following example describes how the DAR routes an INVITE to two applications deployed

in a container. The applications in this example are a Location Service and a Call Blocking

application.

In the example, the assumption of a request coming to the server is described. However,

applications can act as a UAC, and generate initial requests on their own. For routing

purposes, it is not necessary for the specified application initiating the request to have an

entry in the DAR file.

The DAR file contains the required information for the two applications to be invoked in the

correct order.

INVITE: ("LocationService", "DAR:From", "ORIGINATING", "", "NO_ROUTE", "0"),

("CallBlocking", "DAR:To", "TERMINATING", "","NO_ROUTE", "1")

Processing occurs in the following order:

1. A new INVITE (not a re-INVITE) arrives at the container.

The INVITE is a dialog creating request, and is not part of any dialog.

2. The Application Router is called.

From the INVITE information, the first application to invoke is the Location Service.

3. The Application Router returns the application invocation order information to the

container (along with the rest of the sip-router-info data) so the container knows which

application to invoke.

4. The container invokes the LocationService that proxies the INVITE.

The proxied INVITE is considered as a new INVITE to the known IP Address of the registered

user for the Request URI

For further information regarding INVITE handling, refer to "Section 15.2.2 Sending an

Initial Request" in the SIP Servlets 1.1 Specification.

5. Because the INVITE has been proxied, the container invokes the Application Router for the

proxied INVITE to see if any more applications are interested in the event.

6. From the proxied invite, the Application Router determines that the second application to

invoke is the Call Blocking application.

7. The Application Router returns information regarding the Call Blocking application to the

container (along with the rest of the sip-router-info data) so the container knows which

application to invoke.

8. The container routes the INVITE for the Call Blocking application to the next application in

the chain.

9. The Call Blocking application determines that the user that initiated the call is black listed.

The application rejects the call with a "Forbidden" response.

10. Because the Call Blocking application acts as a UAS, the Application Selection Process is

stopped for the original INVITE.

The path the INVITE has taken (that is, LocationService to CallBlocking) is called the

application path. The routing of the responses will now occur as explained in the next section.

Response Routing

Responses always follow the reverse of the path taken by the corresponding request. In our case,

the Forbidden response will first go back to the LocationService, and then back to the caller. This is

true for responses to both initial and subsequent requests. The application path is a logical concept

and as such may or may not be explicitly represented within containers.

Another possible outcome could have been that the Call Blocking application, instead of sending a

Forbidden response, allowed the call and proxied the INVITE to the same Request URI chosen by the

Location Service. Then when the callee sends back the 200 OK Response, this response goes back

the same way through the application path (so in the present case Call Blocking, then Location

Service, then back to the caller).



The Call Blocking application cannot just do nothing with the request and expect

the container to route the request in its place (either to a next application in

chain if another one is present or to the outside world if none is present). The

Application has to do something with request (either proxy it or act as a UAS).

Subsequent Requests

Subsequent requests are all requests that are not Initial.

The second scenario, where the Call Blocking application allowed the call, will be used in this

section to showcase subsequent requests. The caller has received the 200 OK response back. Now,

according to the SIP specification (RFC 3261), it sends an ACK. The ACK arrives at the container, and

is not a dialog creating request and is already part of an ongoing dialog (early dialog) so the request

is detected as a Subsequent request and will follow the application path created by the initial

request. The ACK will go through Location Service, Call Blocking, and finally to the callee.

3.1.3. Limitations of the Default Application Router

The DAR is a minimalist Application Router implementation that is part of the reference

implementation. While it could be used instead of a production Application Router, it offers no

processing logic except for the declaration of the application order.

In real world deployments, the Application Router plays an extremely important role in application

orchestration and composition. It is likely that the Application Router would make use of complex

rules and diverse data repositories in future implementations.

3.2. DFC Application Router

3.2.1. Description of DFC Application Router

Instead of using the Restcomm Default Application Router, any SIP Servlets 1.1 compliant

Application Router can be used, including the eCharts DFC Application Router.

3.2.2. Installing the DFC Application Router

Detailed instructions are available from the eCharts website. The following procedure describe how

to install the eCharts DFC Application Router (DFCAR) on a variety of SIP Servlet Server platforms.

Procedure: Installing DFCAR on Tomcat

1. Deploy the DFCAR

Drop the dfcar.jar from the ECharts distribution package in the TOMCAT_HOME/lib directory.

2. Remove the DAR

Remove the Restcomm Default Application Router located in TOMCAT_HOME/lib/sip-servlets-

application-router-*.jar.

Please see the following link to learn how to deploy jar files in Restcomm for JBoss AS7.

Procedure: Installing DFCAR on JBoss AS7

1. Deploy the DFCAR

Create a directory under JBOSS_HOME/modules/system/layers/base/org/echarts/

Drop the dfcar.jar from the ECharts distribution package in the

JBOSS_HOME/modules/system/layers/base/org/echarts/ directory.

Create a module.xml file under the same directory with the following contents

<resource-root path="dfcar.jar"/>

</resources>

</dependencies>

</module>

2. Remove the DAR

Remove the Restcomm Default Application Router located in

JBOSS_HOME/modules/system/layers/base/org/mobicents/dar.

3. Use the DFC DAR

In JBOSS_HOME/modules/system/layers/base/org/jboss/as/web/main/module.xml, replace the

following line

by this one

Chapter 4. SIP Servlet Example Applications

The SIP Servlet Server has a selection of examples that demonstrate particular capabilities of the

server. Available Examples lists the available examples, their location, and a brief description about

the functionality each example demonstrates. The examples can also provide a useful starting point

for developing SIP Applications, therefore it is encouraged to experiment and adapt the base

examples. Each example is available in both binary and source formats.

Table 1. Available Examples

Example Description

Call Blocking Demonstrates how to block calls by specifying

that the INVITE SIP Extension checks the From

address to see if it is specified in the block list. If

the blocked SIP address matches, the Call

Blocking application send a FORBIDDEN

response.

Call Forwarding Demonstrates how to forward calls by specifying

that the INVITE SIP Extension checks the To

address to see if it is specified in the forward list.

If the SIP address matches, the application acts

as a back-to-back user agent (B2BUA).

Call Controller Call Blocking and Call Forwarding are merged to

create a new service.

Speed Dial Demonstrates how to implement speed dialing

for SIP addresses. The demonstration uses a

static list of speed dial numbers. The numbers

are translated into a complete address based on

prior configuration. The SIP addresses are

proxied without record-routing, or supervised

mode.

Location Service Demonstrates a location service that performs a

lookup based on the request URI, into a hard-

coded list of addresses. The request is proxied to

the set of destination addresses associated with

that URI.

Composed Speed Dial and Location Speed Dial and Location are merged to create a

new service. Speed Dial proxies the speed dial

number to a SIP address, then Location Service

proxies the call to the actual location of the call

recipient.

Click to Call Demonstrates how SIP Servlets can be used

along with HTTP servlets as a converged

application to place calls from a web portal. The

example is a modified version of the click to dial

example from the Sailfin project, but has been

reworked to comply with JSR 289.

Example Description

Chat Server Demonstrates MESSAGE SIP Extension support.

This example is based on the chatroom server

demonstration from the BEA dev2dev project,

and has been modified to meet JSR 289

requirements.

Media JSR 309 Example Demonstrates how the Sip Servlets Application

Developers can leverage the JSR-309 API, which

provides to application developers multimedia

capabilities with a generic media server (MS)

abstraction interface. This example is only

compatible with JBoss AS5. The solution is know

to work with Twinkle and linphone SIP soft-

phones.

Shopping Demonstrates integration with Seam and Java

Enterprise Edition (JEE), and JSR 309 Media

integration with text to speech (TTS) and dual-

tone multi-frequency (DTMF) tones. The

demonstration builds on the Converged Demo

example, and adds support for the SIP Servlets

v1.1 specification.

Diameter Event Charging Service Demonstrates how the Diameter Event Charging,

and the Location service, can be used to perform

fixed-rated charging of calls (event charging).

When a call is initiated, a debit of ten euros is

applied to the A Party account. If the call is

rejected by the B Party, or A Party hangs up

before B Party can answer the call, the ten euro

charge is credited to the A Party account.

Diameter Sh OpenIMS Integration Demonstrates the integration between

RestComm and OpenIMS, using the Diameter Sh

interface to receive profile updates and SIP.

Diameter Ro/Rf IIntegration A Diameter Ro/Rf service that performs online

call charging.

Conference Demonstrates the capabilities of the Media

Server, such as endpoint composition and

conferencing, as well as proving that SIP

Servlets are capable of working seamlessly with

any third-party web framework, without

repackaging or modifying the deployment

descriptors. The demonstration uses Google’s

GWT Ajax framework with server-push updates

to provide a desktop-like user interface

experience and JSR 309 for Media Control.

Example Description

Alerting Application This application was developed so that the JBoss

RHQ/Jopr Enterprise Management Solution

would be able to notify system administrators

when a monitoring alert is fired by Jopr/RHQ.

SIP Presence Client Application A Call Blocking application interoperating with

the PLATFORM_NAME; SIP Presence Service

(Technology Preview) to fetch the blocked

contacts through XCAP.

4.1. Operating the Example Applications



Important Information

Before trying out the examples in this section, you must have installed,

configured and have Restcomm for JBoss or Restcomm for Tomcat AS7 running

on your system.

See the chapters below for detailed instructions.

Getting Started with Restcomm for JBoss AS7

Getting Started with Restcomm SIP Servlets for Tomcat 7

4.1.1. The Location Service

The Restcomm Location Service contains a list of mappings of request URIs to destination

addresses. When the Location Service receives a request, it performs a lookup on that mapping and

proxies the request simultaneously to the destination address (or addresses) associated with that

URI.

The Location Service Mappings Cannot Currently Be Configured

The Location Service currently performs a lookup on a hard-coded list of

addresses. This model is evolving toward the eventual use of a database.

Regardless of whether you are using the JBoss Application Server or the Tomcat Servlet Container

as the Servlets Server, the application, container and Location Service perform the following steps:

•A user—let us call her Alice—makes a call to sip:receiver@sip-servlets.com. The INVITE is

received by the servlet container, which then starts the Location Service.

•The Location Service, using non-SIP means, determines that the callee (i.e. the receiver) is

registered at two locations, identified by the two SIP URIs, sip:receiver@127.0.0.1:5090 and

sip:receiver@127.0.0.1:6090.

•The Location Service proxies to those two destinations in parallel, without record-routing, and

without making use of supervised mode.

•One of the destinations returns a 200 OK status code; the second proxy is then canceled.

•The 200 OK is forwarded to Alice, and call setup is completed as usual.

Here is the current list of hard-coded contacts and their location URIs:

•.sip:receiver@sip-servlets.com`sip:receiver@127.0.0.1:5090`

•sip:receiver@127.0.0.1:6090

Downloading

The Location Service is comprised of two archive files, a Web Archive (WAR) and a Default

Application Router (DAR) configuration file, which you need to add to your installed SIP Servlets

Server. For more information about WAR files, refer to the JBoss Application Server Administration

and Development Guide. For more information about DAR files, refer to the JSR 289 spec, Appendix

Download the Location Service’s WAR file from here: &VERSION;&VERSION;<a

href="https://oss.sonatype.org/content/groups/public/org/mobicents/servlet/sip/examples/location-

service//location-service-.war"

class="bare">https://oss.sonatype.org/content/groups/public/org/mobicents/servlet/sip/examples/loc

ation-service//location-service-.war</a>.

Download the Location Service’s DAR file from here: https://sipservlets.googlecode.com/git/sip-

servlets-examples/location-service/locationservice-dar.properties.

Installing

Both the location-service-.war WAR file and the locationservice-dar.properties DAR file that you

downloaded should be placed into different directories in your SIP Servlet Server installation

hierarchy. Which directory depends on whether you are using the Location Service with Restcomm

for JBoss or with Restcomm for Tomcat:

Restcomm for JBoss AS7

Place location-service-.war into the $JBOSS_HOME/standalone/deployments/ directory, and

locationservice-dar.properties into the [path]_$JBOSS_HOME/standalone/configuration/dars/ _

directory.

Restcomm for Tomcat AS7

Place location-service-.war into the $CATALINA_HOME/webapps/ directory, and locationservice-

dar.properties into the $CATALINA_HOME/conf/dars/ directory.

Configuration

Restcomm for JBoss

Open the $JBOSS_HOME/standalone/configuration/standalone-sip.xml configuration file and find

the mobicents subsystem element.

Example 8. Editing MSS for JBoss’s standalone-sip.xml for the Location Service

In the $JBOSS_HOME/standalone/configuration/standalone-sip.xml file search for the line

Ê<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/mobicents-dar.properties"

and replace it with the line below

<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/locationservice-dar.properties"

Restcomm for Tomcat

Open the $CATALINA_HOME/conf/server.xml configuration file and find the Service element. Add

an attribute to it called darConfigurationFileLocation, and set it to conf/dars/locationservice-

dar.properties:

Example 9. Editing MSS for Tomcat’s server.xml for the Location Service

In the $JBOSS_HOME/standalone/configuration/standalone-sip.xml file search for the line

Ê<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/mobicents-dar.properties"

and replace it with the line below

<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/locationservice-dar.properties"

Running

Once the WAR and DAR files have been placed in the right directories, and the JBoss Application

Server or Tomcat Servlet Container knows where to find them (which you specified in the

standalone-sip.xml and server.xml file), then you should go ahead and run the SIP Servlets Server.

Testing

The following procedure shows how to test the Location Service.

Procedure:

1. Start two SIP soft-phones. The first phone should be set up as sip:receiver@sip-servlets.com at

the IP address 127.0.0.1 on port 5090. The second phone can be set up in any way you like. Note

that the SIP phones do not have to be registered.

2. Using the second phone, make a call to sip:receiver@sip-servlets.com. If the Location Service

has been set up correctly and is running, the first phone—as the receiver or callee—should now

be ringing.

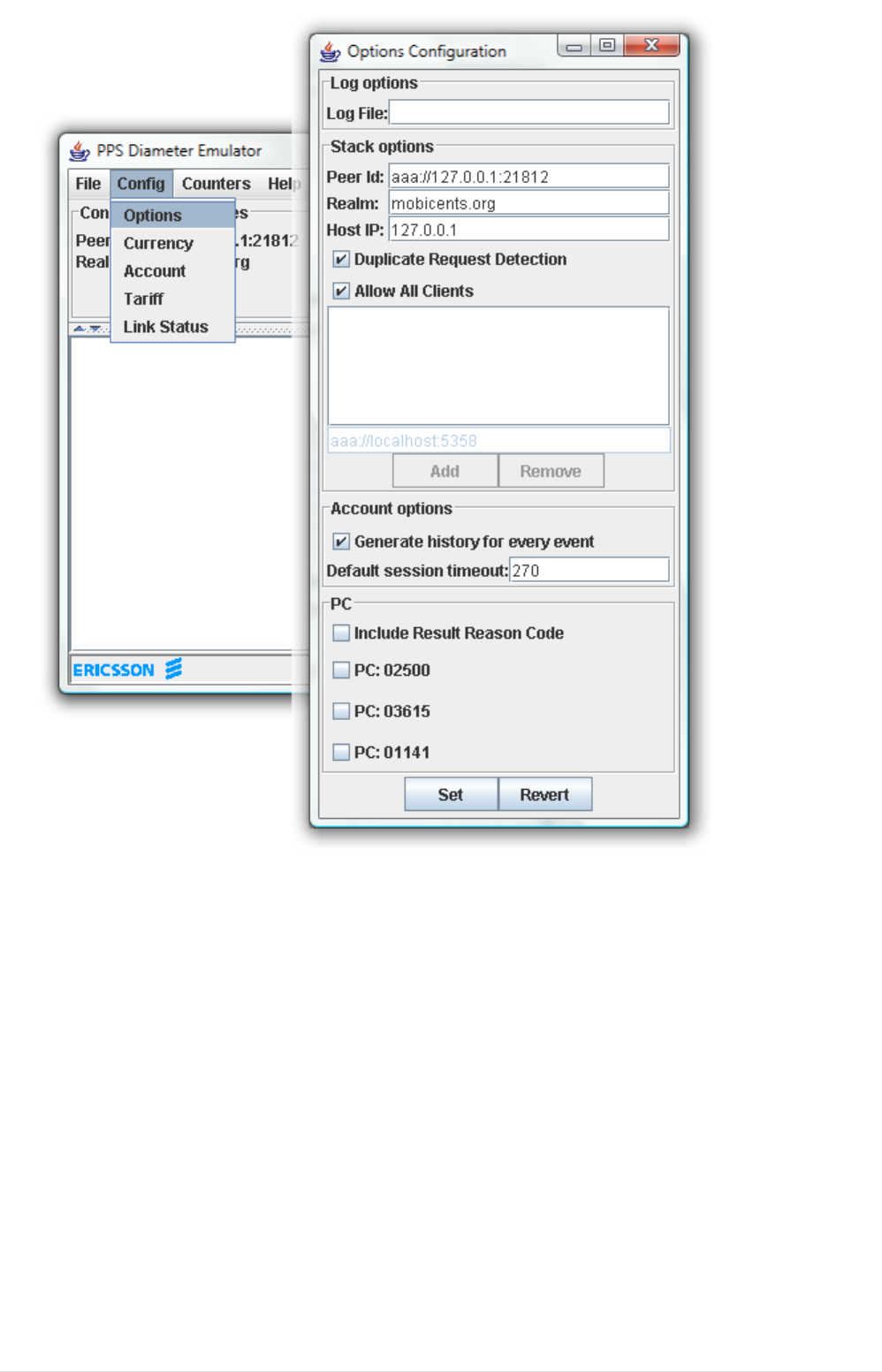

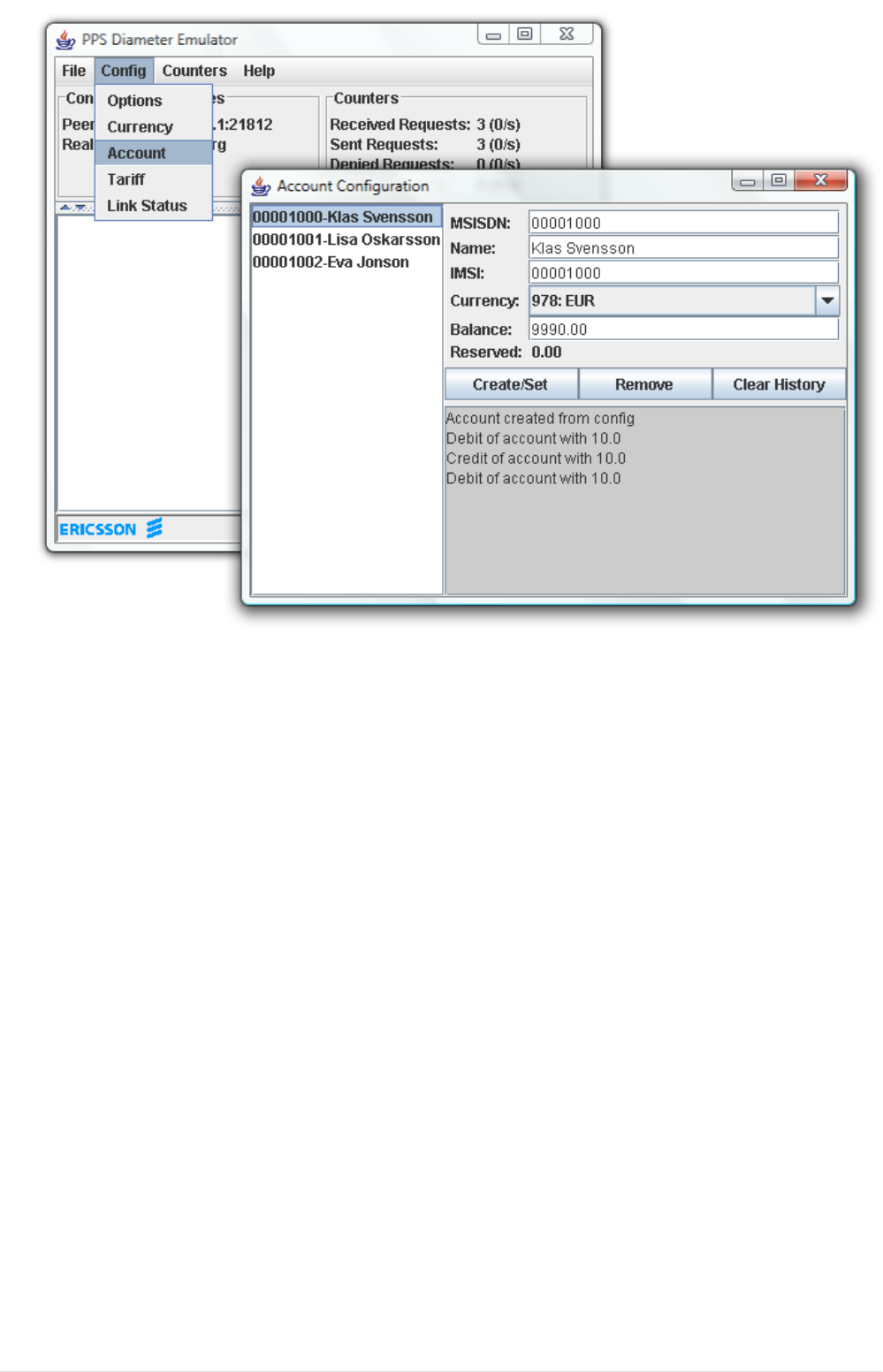

4.1.2. The Diameter Event-Changing Service

The Diameter Event-Changing Service is based on the Location Service, which performs call-

charging at a fixed rate. Upon the initiation of a call, a debit of €10.00 occurs. In the cases of a call

being rejected or the caller disconnecting (hanging up) before an answer is received, the caller’s

account is refunded.

Note that an Restcomm for JBoss installation is required to run this example; it will not work with

Restcomm for Tomcat.

Provided here is a step-by-step description of the procedure as performed by the application and

container:

Procedure: Diameter Event-Changing Service Step-By-Step

1. A user, Alice, makes a call to sip:receiver@sip-servlets.com. The INVITE is received by the

servlet container, which sends a request to debit Alice’s account to the Charging Server. The

servlet container then invokes the location service.

2. The Location Service determines, without using the SIP protocol itself, where the callee—or

receiver—is registered. The callee may be registered at two locations identified by two SIP URIs:

sip:receiver@127.0.0.1:5090 and sip:receiver@127.0.0.1:6090.

3. The Location Service proxies to those two destinations simultaneously, without record-routing

and without using the supervised mode.

4. One of the destinations returns 200 (OK), and so the container cancels the other.

5. The 200 (OK) is forwarded upstream to Alice, and the call setup is carried out as usual.

6. If none of the registered destinations accepts the call, a Diameter Accounting-Request for refund

is sent to the Diameter Charging Server in order to debit the already-credited €10.00

Diameter Event-Changing Service: Installing, Configuring and Running

Preparing your Restcomm for JBoss server to run the Diameter Event-Changing example requires

downloading a WAR archive, a DAR archive, the Ericsson Charging Emulator, setting an attribute in

JBoss’s standalone-sip.xml configuration file, and then running JBoss AS. Detailed instructions in the

section below.

Pre-Install Requirements and Prerequisites

The following requirements must be met before installation can begin.

Software Prerequisites

One Restcomm for JBoss Installation

Before proceeding, you should follow the instructions for installing, configuring, running and

testing Restcomm for JBoss from the binary distribution.

Downloading

The following procedure describes how to download the required files.

1. First, download the latest Web Application Archive () file corresponding to this example, the

current version of which is named <em class="path">diameter-event-charging-*.war</em>, from

&VERSION;&VERSION;<a

href="https://oss.sonatype.org/content/groups/public/org/mobicents/servlet/sip/examples/diamet

er-event-charging//diameter-event-charging-.war"

class="bare">https://oss.sonatype.org/content/groups/public/org/mobicents/servlet/sip/examples/

diameter-event-charging//diameter-event-charging-.war</a>.

2. Secondly, download the corresponding Disk Archive () configuration file here:

https://sipservlets.googlecode.com/git/sip-servlets-examples/diameter-event-

charging/diametereventcharging-dar.properties.

3. Finally, you will need to download the Ericsson Charging Emulator, version 1.0, from

http://mobicents.googlecode.com/files/ChargingSDK-1_0_D31E.zip.

Installing

The following procedure describes how to install the downloaded files.

1. Place the diameter-event-charging-.war WAR archive into the

$JBOSS_HOME/standalone/deployments/ directory.

2. Place the diametereventcharging-dar.properties DAR file in your

$JBOSS_HOME/standalone/configuration/dars/ directory.

3. Finally, open the terminal, move into the directory to which you downloaded the Ericsson

Charging SDK (for the sake of this example, we will call this directory charging_sdk), and then

unzip the downloaded zip file (you can use Java’s jar -xvf command for this:

~]$ cd charging_sdk

charging_sdk]$ jar -xvf ChargingSDK-1_0_D31E.zip

Alternatively, you can use Linux’s unzip command to do the dirty work:

charging_sdk]$ unzip ChargingSDK-1_0_D31E.zip

Configuration

Restcomm for JBoss

Open the $JBOSS_HOME/standalone/configuration/standalone-sip.xml configuration file and find

the mobicents subsystem element.

Example 10. Editing the standalone-sip.xml for the Diameter Event-Changer Service

In the $JBOSS_HOME/standalone/configuration/standalone-sip.xml file search for the line

Ê<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/mobicents-dar.properties"

and replace it with the line below

<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/diametereventcharging-dar.properties"

Running

The following procedure describes how to run the Diameter Event-Changing Service.

Procedure: Diameter Event-Changing Service

1. Then, run the Ericsson Charging Emulator. Open a terminal, change the working directory to

the location of the unzipped Charging Emulator files (in ChargingSDK-1_0_D31E or a similarly-

named directory), and run it with the java -jar PPSDiamEmul.jar command:

~]$ java -jar PPSDiamEmul.jar

Using

Using the Event-Changing service means, firstly, inserting some parameters into the Charging

Emulator, and then, by using two SIP (soft)phones, calling one with the other. The following

sequential instructions show you how.

SIP (Soft)Phone? Which?

The Restcomm team recommends one of the following SIP phones, and has found

that they work well: the 3CX Phone, the SJ Phone or the WengoPhone.

Procedure: Using the Diameter Event-Changing Service

1. Configure the Ericsson SDK Charging Emulator

Once you have started the Charging Emulator, you should configure it exactly as portrayed in

[_figure_mss_chargingemulatorconfig].

Figure 12. Configuring the Charging Emulator

2. Set the Peer ID to: aaa://127.0.0.1:21812

3. Set the Realm to: mobicents.org

4. Set the Host IP to: 127.0.0.1

5. Start two SIP (soft)phones. You should set the first phone up with the following parameters:

sip:receiver@sip-servlets on IP address 127.0.0.1 on port 5090. The other phone can be set up

any way you like.

6. Before making a call, open the Config | Options dialog window, as shown in the image.

Figure 13. Configuring Accounts in the Charging Emulator

In the Account Configuration window of the Charging Emulator, you can see the user’s balances.

Select a user to watch the balance. You can also stretch the window lengthwise to view the

user’s transaction history.

7. Time to call! From the second, “any-configuration” phone, make a call to sip:receiver@sip-

servlets.com. Upon doing so, the other phone should ring or signal that it is being contacted .

8. You should be able to see a request—immediately following the invite and before the other

party (i.e. you) accepts or rejects the call—sent to the Charging Emulator. That is when the debit

of the user’s account is made. In the case that the call is rejected, or the caller gives up, a second,

new Diameter request is sent to refund the initial amount charged by the call. On the other

hand, if the call is accepted, nothing else related to Diameter happens, and no second request

takes place.

Please note that this is not the correct way to do charging, as Diameter provides other means,

such as unit reservation. However, for the purpose of a demonstration it is sufficient to show

the debit and follow-up credit working. Also, this is a fixed-price call, regardless of the duration.

Charging can, of course, be configured so that it is time-based.

4.1.3. The Call-Blocking Service

The Restcomm Call-Blocking Service, upon receiving an INVITE request, checks to see whether the

sender’s address is a blocked contact. If so, it returns a FORBIDDEN reply; otherwise, call setup

proceeds as normal.

Blocked Contacts Cannot Currently Be Configured

Blocked contacts are currently hard-coded addresses. This model is evolving

towards the eventual use of a database.

Here is the current hard-coded list of blocked contacts:

•sip:blocked-sender@sip-servlets.com

•sip:blocked-sender@127.0.0.1

The Call-Blocking Service: Installing, Configuring and Running

Software Prerequisites

Either an Restcomm for JBoss or an Restcomm for Tomcat Installation

The Call-Blocking Service requires either an Restcomm for JBoss or an Restcomm for Tomcat

binary installation.

Downloading

The Call-Blocking Service is comprised of two archive files, a Web Archive (WAR) and a Default

Application Router (DAR) configuration file, which you need to add to your installed SIP Servlets

Server. For more information about WAR files, refer to the JBoss Application Server Administration

and Development Guide. For more information about DAR files, refer to the JSR 289 spec, Appendix

Download the Call-Blocking Service’s WAR file from here: &VERSION;&VERSION;<a

href="https://oss.sonatype.org/content/groups/public/org/mobicents/servlet/sip/examples/call-

blocking//call-blocking-.war"

class="bare">https://oss.sonatype.org/content/groups/public/org/mobicents/servlet/sip/examples/call

-blocking//call-blocking-.war</a>.

Download the Call-Blocking Service’s DAR file from here: https://sipservlets.googlecode.com/git/sip-

servlets-examples/call-blocking/call-blocking-servlet-dar.properties.

Installing

Both the call-blocking-.war WAR file and the call-blocking-servlet-dar.properties DAR file that you

downloaded should be placed into different directories in your SIP Servlet Server installation

hierarchy. Which directory depends on whether you are using the Call-Blocking Service with

Restcomm for JBoss or with Restcomm for Tomcat:

Restcomm for JBoss

Place call-blocking-.war into the $JBOSS_HOME/standalone/deployments/ directory, and call-

blocking-servlet-dar.properties into the $JBOSS_HOME/standalone/configuration/dars/ directory.

Restcomm for Tomcat

Place call-blocking-servlet-dar.properties into the $CATALINA_HOME/webapps/ directory, and

call-blocking-servlet-dar.properties into the $CATALINA_HOME/conf/dars/ directory.

Configuring

Restcomm for JBoss

Open the $JBOSS_HOME/standalone/configuration/standalone-sip.xml configuration file and find

the mobicents subsystem element.

Example 11. Editing MSS for JBoss’s standalone-sip.xml for the Location Service

In the $JBOSS_HOME/standalone/configuration/standalone-sip.xml file search for the line

Ê<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/mobicents-dar.properties"

and replace it with the line below

<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/call-blocking-servlet-dar.properties"

Restcomm for Tomcat

Open the $CATALINA_HOME/conf/server.xml configuration file and find the Service element. Add

an attribute to it called darConfigurationFileLocation, and set it to conf/dars/call-blocking-

servlet-dar.properties:

Example 12. Editing MSS for Tomcat’s server.xml for the Location Service

In the $JBOSS_HOME/standalone/configuration/standalone-sip.xml file search for the line

Ê<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/mobicents-dar.properties"

and replace it with the line below

<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/call-blocking-servlet-dar.properties"

Running

Once the WAR and DAR files have been placed in the right directories, and the JBoss Application

Server or Tomcat Servlet Container knows where to find them (which you specified in a server.xml

and the standalone-sip.xml files), then you should go ahead and run the SIP Servlets Server.

Testing

The following procedure shows how to test the Call-Blocking Service.

Procedure: Testing the Call Blocking Service

1. Start a SIP softphone of your choice. The account name should be blocked-sender. The From

Header should list one of the following addresses: sip:blocked-sender@sip-servlets.com or

sip:blocked-sender@127.0.0.1. The SIP softphone does not need to be registered.

2. Make a call to any address, and you should receive a FORBIDDEN response.

4.1.4. The Call-Forwarding Service

The Restcomm Call-Forwarding Service, upon receiving an INVITE request, checks to see whether

the sender’s address is among those in a list of addresses which need to be forwarded. If so, then

the Call-Forwarding Service acts as a Back-to-Back User Agent (B2BUA), and creates a new call leg to

the destination. When the response is received from the new call leg, it sends it an acknowledgment

(ACK) and then responds to the original caller. If, on the other hand, the server does not receive an

ACK, then it tears down the new call leg with a BYE. Once the BYE is received, then it answers OK

directly and sends the BYE to the new call leg.

Contacts to Forward Cannot Currently Be Configured

Contacts to forward are currently hard-coded addresses. This model is evolving

toward the eventual use of a database.

Here is the current hard-coded list of contacts to forward:

•sip:receiver@sip-servlets.com

•sip:receiver@127.0.0.1

The Call-Forwarding Service: Installing, Configuring and Running

Pre-Install Requirements and Prerequisites

The following requirements must be met before installation can begin.

Downloading

The Call-Forwarding Service is comprised of two archive files, a Web Archive (WAR) and a Data

Archive (DAR), which you need to add to your installed SIP Servlets Server. For more information

about WAR and DAR files, refer to the JBoss Application Server Administration and Development

Guide.

Download the Call-Forwarding Service’s WAR file from here: &VERSION;&VERSION;<a

href="https://oss.sonatype.org/content/groups/public/org/mobicents/servlet/sip/examples/call-

forwarding//call-forwarding-.war"

class="bare">https://oss.sonatype.org/content/groups/public/org/mobicents/servlet/sip/examples/call

-forwarding//call-forwarding-.war</a>.

Download the Call-Forwarding Service’s DAR file from here:

https://sipservlets.googlecode.com/git/sip-servlets-examples/call-forwarding/call-forwarding-b2bua-

servlet-dar.properties.

Installing

Both the call-forwarding-.war WAR file and the call-forwarding-servlet-dar.properties DAR file that

you downloaded should be placed into different directories in your SIP Servlet Server installation

hierarchy. Which directory depends on whether you are using the Call-Forwarding Service with

Restcomm for JBoss or with Restcomm for Tomcat:

Restcomm for JBoss

Place call-forwarding-.war into the $JBOSS_HOME/standalone/deployments/ directory, and call-

forwarding-servlet-dar.properties into the $JBOSS_HOME/standalone/configuration/dars/

directory.

Restcomm for Tomcat

Place call-forwarding-.war into the $CATALINA_HOME/webapps/ directory, and call-forwarding-

servlet-dar.properties into the $CATALINA_HOME/conf/dars/ directory.

Configuring

Restcomm for JBoss

Open the $JBOSS_HOME/standalone/configuration/standalone-sip.xml configuration file and find

the mobicents subsystem element.

Example 13. Editing MSS for JBoss’s standalone-sip.xml for the Location Service

In the $JBOSS_HOME/standalone/configuration/standalone-sip.xml file search for the line

Ê<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/mobicents-dar.properties"

and replace it with the line below

<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/call-forwarding-b2bua-servlet.properties"

Restcomm for Tomcat

Open the $CATALINA_HOME/conf/server.xml configuration file and find the Service element. Add

an attribute to it called darConfigurationFileLocation, and set it to conf/dars/call-forwarding-

b2bua-servlet-dar.properties:

Example 14. Editing MSS for Tomcat’s server.xml for the Location Service

In the $JBOSS_HOME/standalone/configuration/standalone-sip.xml file search for the line

Ê<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/mobicents-dar.properties"

and replace it with the line below

<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/call-forwarding-b2bua-servlet-dar.properties"

Running

Once the WAR and DAR files have been placed in the right directories, and the JBoss Application

Server or Tomcat Servlet Container knows where to find them (which you specified in a standalone-

sip.xml and server.xml files), then you should go ahead and run the SIP Servlets Server.

Testing

The following procedure shows how to test the Call-Forwarding Service.

Procedure:

1. Start two SIP soft-phones of your choice. Set the account settings of the first SIP softphone to:

•Account name: forward-receiver

•IP address: 127.0.0.1

•Port: 5090

Neither of the SIP soft-phones needs to be registered.

2. From the second phone, make a call to sip:receiver@sip-servlets.com. The first phone,

"forward-receiver", should now be ringing.

4.1.5. The Call-Controller Service

The Call-Controller service is a composition of two other services: Call-Blocking and Call-

Forwarding. Essentially, it performs the services of both call-forwarding and call-blocking.

•To learn about how the Call-Blocking service works, refer to The Call-Blocking Service.

•To learn about how the Call-Forwarding service works, refer to The Call-Forwarding Service.



Blocked Contacts and Contacts to Forward Cannot Currently Be Configured

Both the list of blocked contacts and the list of contacts to forward are currently

both hard-coded. However, both of those models are evolving toward the

eventual use of databases.

The Call-Controller Service: Installing, Configuring and Running

The Call-Controller service requires the two WAR files for the Call-Blocking and Call-Forwarding

services to be placed in the correct directory inside your Restcomm SIP Servlets Server binary

installation. However, the Call-Controller service does not require their corresponding DAR files:

you need only to download and install a DAR file customized for the Call-Controller service. The

instructions below show you how to do precisely this; there is no need, therefore, to first install

either the Call-Blocking or the Call-Forwarding services, though it is helpful to at least be familiar

with them.

Pre-Install Requirements and Prerequisites

The following requirements must be met before installation can begin.

Downloading

The Call-Controller Service is comprised of two WAR files, one for the Call-Forwarding service and

one for Call-Blocking, and a customized Call-Controller DAR file. You do not need to install the DAR

files for the Call-Forwarding or the Call-Blocking services. For more information about WAR files,

refer to the JBoss Application Server Administration and Development Guide. For more information

about DAR files, refer to the JSR 289 spec, Appendix C

Download the Call-Blocking Service’s WAR file from here: &VERSION;&VERSION;<a

href="https://oss.sonatype.org/content/groups/public/org/mobicents/servlet/sip/examples/call-

blocking//call-blocking-.war"

class="bare">https://oss.sonatype.org/content/groups/public/org/mobicents/servlet/sip/examples/call

-blocking//call-blocking-.war</a>.

Download the Call-Forwarding Service’s WAR file from here: &VERSION;&VERSION;<a

href="https://oss.sonatype.org/content/groups/public/org/mobicents/servlet/sip/examples/call-

forwarding//call-forwarding-.war"

class="bare">https://oss.sonatype.org/content/groups/public/org/mobicents/servlet/sip/examples/call

-forwarding//call-forwarding-.war</a>.

Download the Call-Controller Service’s DAR file from here:

https://sipservlets.googlecode.com/git/sip-servlets-examples/call-blocking/call-controller-servlet-

dar.properties.

Installing

The call-blocking-.war, call-forwarding-.war and call-controller-servlet-dar.properties archive files

that you downloaded should be placed into different directories in your SIP Servlet Server

installation hierarchy. Which directory depends on whether you are using the Call-Controller

Service with Restcomm for JBoss or with Restcomm for Tomcat:

Restcomm for JBoss

Place call-blocking-.war and call-forwarding-.war into the

$JBOSS_HOME/standalone/deployments/ directory, and call-controller-servlet-dar.properties into

the $JBOSS_HOME/standalone/configuration/dars/ directory.

Restcomm for Tomcat

Place call-blocking-.war and call-forwarding-.war into the $CATALINA_HOME/webapps/ directory,

and call-controller-servlet-dar.properties into the $CATALINA_HOME/conf/dars/ directory.

Configuring

RRestcomm for JBoss

Open the $JBOSS_HOME/standalone/configuration/standalone-sip.xml configuration file and find

the mobicents subsystem element.

Example 15. Editing MSS for JBoss’s standalone-sip.xml for the Location Service

In the $JBOSS_HOME/standalone/configuration/standalone-sip.xml file search for the line

Ê<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/mobicents-dar.properties"

and replace it with the line below

<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/call-forwarding-b2bua-servlet.properties"

Restcomm for Tomcat

Open the $CATALINA_HOME/conf/server.xml configuration file and find the Service element. Add

an attribute to it called darConfigurationFileLocation, and set it to conf/dars/call-controller-

servlet-dar.properties:

Example 16. Editing MSS for Tomcat’s server.xml for the Location Service

In the $JBOSS_HOME/standalone/configuration/standalone-sip.xml file search for the line

Ê<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/mobicents-dar.properties"

and replace it with the line below

<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0"

application-router="dars/call-controller-servlet-dar.properties"

Running

Once the WAR and DAR files have been placed in the right directories, and the JBoss Application

Server or Tomcat Servlet Container knows where to find them (which you specified in a server.xml

file), then you should go ahead and run the SIP Servlets Server.

Testing

Two use-cases can be distinguished for the Call-Controller service: one in which a call is blocked,

and another in which a call is forwarded. Therefore, we have two cases for which we can test the

Call-Controller.

Procedure: Blocking a Call with Call-Controller

1. Start two SIP soft-phones of your choice. Set the account settings of the SIP soft-phones to:

•.Relevant First Softphone SettingsAccount name: forward-receiver

•IP address: 127.0.0.1

•Port: 5090

•.Relevant Second Softphone SettingsAccount name: blocked-sender

Neither of the SIP soft-phones needs to be registered.

2. From the second phone, blocked-sender, make a call to sip:receiver@sip-servlets.com. You

should receive a FORBIDDEN response.

Procedure: Forwarding a Call with Call-Controller

1. Start two SIP soft-phones of your choice. Set the account settings of the SIP soft-phones to:

•.Relevant First Softphone SettingsAccount name: forward-receiver

•IP address: 127.0.0.1

•Port: 5090

•.Relevant Second Softphone SettingsAccount name: forward-sender

Neither of the SIP soft-phones needs to be registered.

2. From the second softphone, forward-sender, make a call to sip:receiver@sip-servlets.com. The

first phone, forward-receiver, should now be ringing.

SIP Servlet Example Applications provides more information about other service

examples available.

Click To Call

Chapter 5. Understanding Restcomm High

Availabilty



High Availability in Restcomm for JBoss AS7

Clustering and Failover features as described below are not yet implemented in

Restcomm for JBoss AS7. This guide will be updated when the feature becomes

available.

High Availability

Is a term used to describe software and hardware based strategies that are implemented to ensure

optimal performance and continuous system operation in case of failure. High availability

encompasses, clustering, failover and load balancing

Clustering

Is a technique used to ensure continuous service availability by having two or more servers

communicate with each other and share configuration and application data (replication) on fixed,

predetermined intervals. This produces two or more application servers with identical setup. There

is often a primary server within a clustered cloud from which data is replicated to the secondary.

The application servers within a clustered environment will use what is called a heartbeat to

ensure that all servers within are alive and functioning. In the case of failure, another server

(secondary) will take over the task of responding to client’s requests without impacting user

experience. In some clustered ecosystem, load balancing is used as explained below.

Load Balancing

This is ultimately about performance. All request from clients are evenly distributed by the (load

balancer) to multiple application servers that are running similar configurations.This type of setup

often includes fault tolerance or failover. When one of the nodes, application server instance is not

available, all traffic will be directed to the remaining servers. This ensures continuity albeit

performance can degrade. Load balancing allows a single point of entry for multiple clients.

Failover

Failover is a way to provide continuous service to clients connecting to an application server in

case of system, software or hardware failure. Connections to an unresponsive server is directed

(failed over) to a backup server. This is often done within the scope of a clustered configuration

aided by a load balancer.

It is important to note that clustering is also a way to provide failover and enhance server

performance. The same can be said of load balancing. The idea behind all the above mentioned

techniques is to provide high availability to connecting clients connecting to applications running

on Restcomm . In a nutshell, high availability englobes all the above mentioned techniques.

5.1. Load Balancer

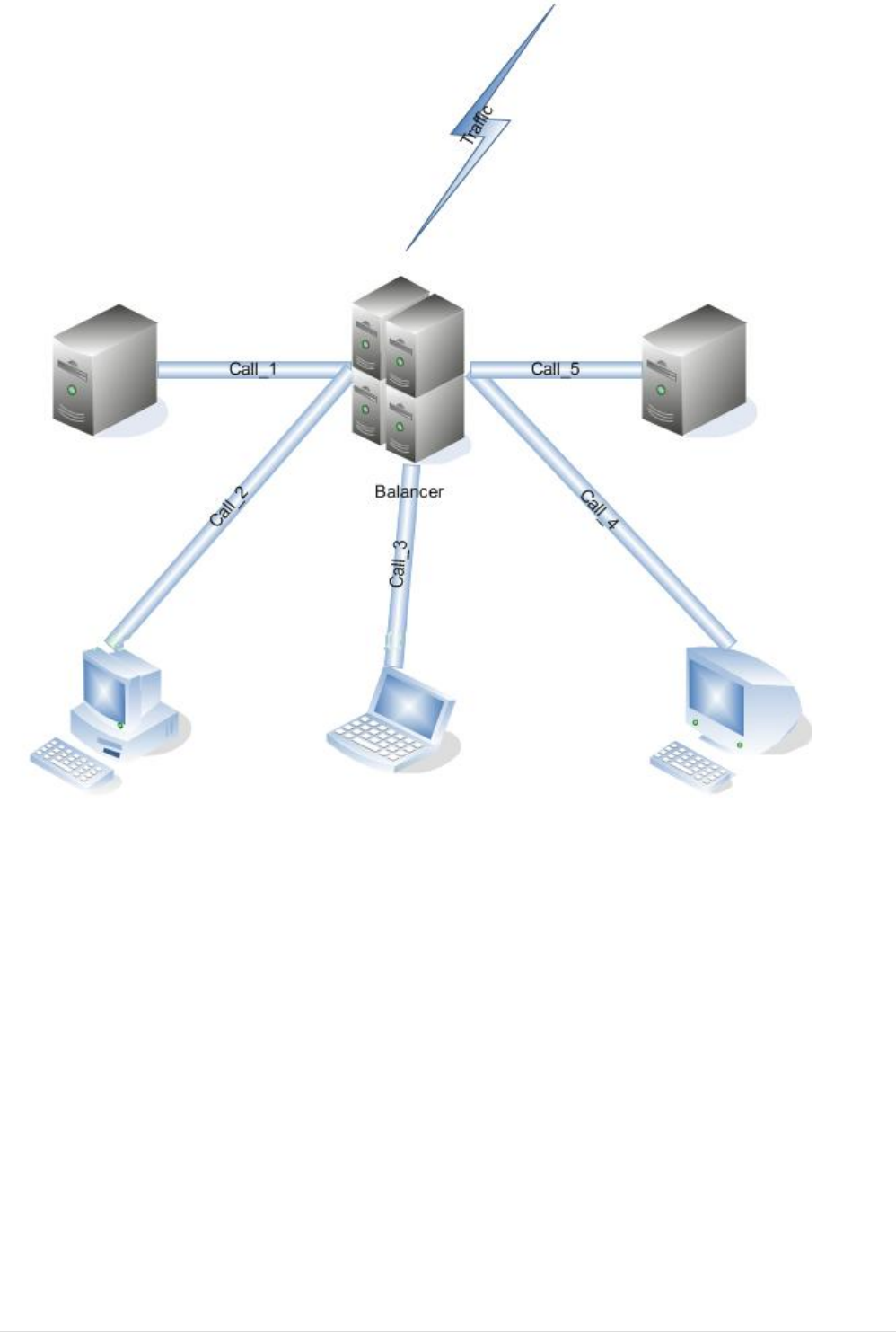

Figure 14. Star Cluster Topology.

The SIP Load Balancer is used to balance the load of SIP service requests and responses between

nodes in a SIP Servlets Server cluster. Both Restcomm for JBoss and Restcomm for Tomcat servers

can be used in conjunction with the SIP Load Balancer to increase the performance and availability

of SIP services and applications.

In terms of functionality, the SIP Load Balancer is a simple stateless proxy server that intelligently

forwards SIP session requests and responses between User Agents (UAs) on a Wide Area Network

(WAN), and SIP Servlets Server nodes, which are almost always located on a Local Area Network

(LAN). All SIP requests and responses pass through the SIP Load Balancer.

5.1.1. SIP Load Balancer: Installing, Configuring and Running

Pre-Install Requirements and Prerequisites

Software Prerequisites

A JAIN SIP HA-enabled application server such as Restcomm JAIN SLEE or Restcomm SIP Servlets is

required.

Running the SIP Load Balancer requires at least two instances of the application server as

cluster nodes nodes. Therefore, before configuring the SIP Load Balancer, we should make sure

we’ve installed a the SIP application server first. The Restcomm SIP load balancer will work with

a SIP Servlets-enabled JBoss Application Server or a JAIN SLEE application server with SIP RA.

Downloading

The load balancer is located in the sip-balancer top-level directory of the Restcomm distribution.

You will find the following files in the directory:

SIP load balancer executable JAR file

This is the binary file with all dependencies

SIP load balancer Configuration Properties file

This is the properties files with various settings

Installing

The SIP load balancer executable JAR file can be extracted anywhere in the file system. It is

recommended that the file is placed in the directory containing other JAR executables, so it can be

easily located in the future.

Configuring

Configuring the SIP load balancer and the two SIP Servlets-enabled Server nodes is described in

Procedure: Configuring the Restcomm SIP Load Balancer and SIP Server Nodes.

Procedure: Configuring the Restcomm SIP Load Balancer and SIP Server Nodes

1. Configure lb.properties Configuration Properties File

Configure the SIP Load Balancer’s Configuration Properties file by substituting valid values for

your personal setup. Complete Sample lb.properties File shows a sample lb.properties file, with

key element descriptions provided after the example. The lines beginning with the pound sign

are comments.

Example 17. Complete Sample lb.properties File

# Load Balancer Settings

# For an overview of the Load Balancer visit

# http://docs.google.com/present/view?id=dc5jp5vx_89cxdvtxcm

# The Load balancer will listen for both TCP and UDP connections

# The binding address of the load balancer. This also specifies the

# default value for both internalHost and externalHost if not specified

separately.

host=127.0.0.1

# The binding address of the load balancer where clients should connect (if the

host property is not specified)

#externalHost=127.0.0.1

# The SIP port from where servers will receive messages

# delete if you want to use only one port for both inbound and outbound)

internalPort=5065

# The SIP port used where clients should connect

externalPort=5060

# The binding address of the load balancer where SIP application servers should

connect (if the host property is not specified)

#internalHost=127.0.0.1

# The RMI port used for heartbeat signals

rmiRegistryPort=2000

# The HTTP port for HTTP forwarding

# if you like to activate the integrated HTTP load balancer, this is the entry

point

httpPort=2080

#If no nodes are active the LB can redirect the traffic to the unavailableHost

specified in this property,

#otherwise, it will return 503 Service Unavailable

#unavailableHost=google.com

# If you are using IP load balancer, put the IP address and port here

#externalIpLoadBalancerAddress=127.0.0.1

#externalIpLoadBalancerPort=111

# Requests initited from the App Servers can route to this address (if you are

using 2 IP load balancers for bidirectional SIP LB)

#internalIpLoadBalancerAddress=127.0.0.1

#internalIpLoadBalancerPort=111

# The addresses in the SIP LB Via headers can be either the real addresses or

those specified in the external and internal IP LB addresses

useIpLoadBalancerAddressInViaHeaders=false

# Designate extra IP addresses as serer nodes

#extraServerNodes=222.221.21.12:21,45.6.6.7:9003,33.5.6.7,33.9.9.2

# Call-ID affinity algortihm settings. This algorithm is the default. No need

to uncomment it.

#algorithmClass=org.mobicents.tools.sip.balancer.CallIDAffinityBalancerAlgorith

# This property specifies how much time to keep an association before being

evitcted.

# It is needed to avoid memory leaks on dead calls. The time is in seconds.

#callIdAffinityMaxTimeInCache=500

#The following attribute specified the policy after failover. If set to true

all calls from the failed node

#will go to a new healthy node (all calls to the same node). If set to false

the calls will go to random new nodes.

#callIdAffinityGroupFailover=false

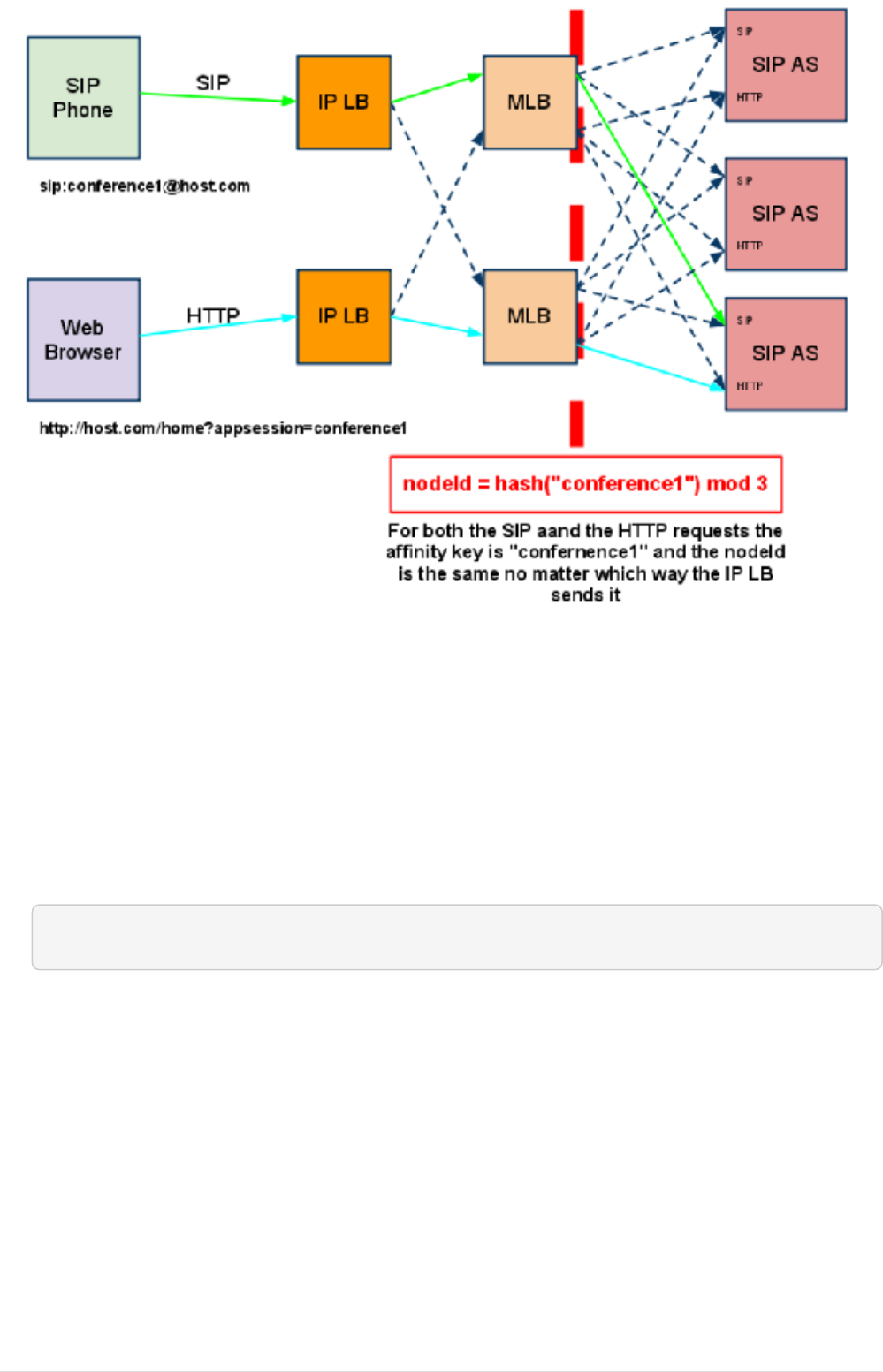

# Uncomment to enable the consistent hash based on Call-ID algorithm.

#algorithmClass=org.mobicents.tools.sip.balancer.HeaderConsistentHashBalancerAl

gorithm

# This property is not required, it defaults to Call-ID if not set, cna be

"from.user" or "to.user" when you want the SIP URI username

#sipHeaderAffinityKey=Call-ID

#specify the GET HTTP parameter to be used as hash key

#httpAffinityKey=appsession

# Uncomment to enable the persistent consistent hash based on Call-ID

algorithm.

#algorithmClass=org.mobicents.tools.sip.balancer.PersistentConsistentHashBalanc

erAlgorithm

# This property is not required, it defaults to Call-ID if not set

#sipHeaderAffinityKey=Call-ID

#specify the GET HTTP parameter to be used as hash key

#httpAffinityKey=appsession

#This is the JBoss Cache 3.1 configuration file (with jgroups), if not

specified it will use default

#persistentConsistentHashCacheConfiguration=/home/config.xml

# Call-ID affinity algortihm settings. This algorithm is the default. No need

to uncomment it.

#algorithmClass=org.mobicents.tools.sip.balancer.CallIDAffinityBalancerAlgorith

# This property specifies how much time to keep an association before being

evitcted.

# It is needed to avoid memory leaks on dead calls. The time is in seconds.

#callIdAffinityMaxTimeInCache=500

# Uncomment to enable the consistent hash based on Call-ID algorithm.

#algorithmClass=org.mobicents.tools.sip.balancer.HeaderConsistentHashBalancerAl

gorithm

# This property is not required, it defaults to Call-ID if not set, cna be

"from.user" or "to.user" when you want the SIP URI username

#sipHeaderAffinityKey=Call-ID

#specify the GET HTTP parameter to be used as hash key

#httpAffinityKey=appsession

# Uncomment to enable the persistent consistent hash based on Call-ID

algorithm.

#algorithmClass=org.mobicents.tools.sip.balancer.PersistentConsistentHashBalanc

erAlgorithm

# This property is not required, it defaults to Call-ID if not set

#sipHeaderAffinityKey=Call-ID

#specify the GET HTTP parameter to be used as hash key

#httpAffinityKey=appsession

#This is the JBoss Cache 3.1 configuration file (with jgroups), if not

specified it will use default

#persistentConsistentHashCacheConfiguration=/home/config.xml

#If a node doesnt check in within that time (in ms), it is considered dead

nodeTimeout=5100

#The consistency of the above condition is checked every heartbeatInterval

milliseconds

heartbeatInterval=150

#JSIP stack configuration.....

javax.sip.STACK_NAME = SipBalancerForwarder

javax.sip.AUTOMATIC_DIALOG_SUPPORT = off

# You need 16 for logging traces. 32 for debug + traces.

# Your code will limp at 32 but it is best for debugging.

gov.nist.javax.sip.TRACE_LEVEL = 0

// Specify if message contents should be logged.

gov.nist.javax.sip.LOG_MESSAGE_CONTENT=false

gov.nist.javax.sip.DEBUG_LOG = logs/sipbalancerforwarderdebug.txt

gov.nist.javax.sip.SERVER_LOG = logs/sipbalancerforwarder.xml

gov.nist.javax.sip.THREAD_POOL_SIZE = 64

gov.nist.javax.sip.REENTRANT_LISTENER = true

host

Local IP address, or interface, on which the SIP load balancer will listen for incoming

requests.

externalPort

Port on which the SIP load balancer listens for incoming requests from SIP User Agents.

internalPort

Port on which the SIP load balancer forwards incoming requests to available, and healthy,

SIP Server cluster nodes.

rmiRegistryPort

Port on which the SIP load balancer will establish the RMI heartbeat connection to the

application servers. When this connection fails or a disconnection instruction is received, an

application server node is removed and handling of requests continues without it by

redirecting the load to the lie nodes.

httpPort

Port on which the SIP load balancer will accept HTTP requests to be distributed across the

nodes.

internalTransport

Transport protocol for the internal SIP connections associated with the internal SIP port of

the load balancer. Possible choices are UDP, TCP and TLS.

externalTransport

Transport protocol for the external SIP connections associated with the external SIP port of

the load balancer. Possible choices are UDP, TCP and TLS. It must match the transport of the

internal port.

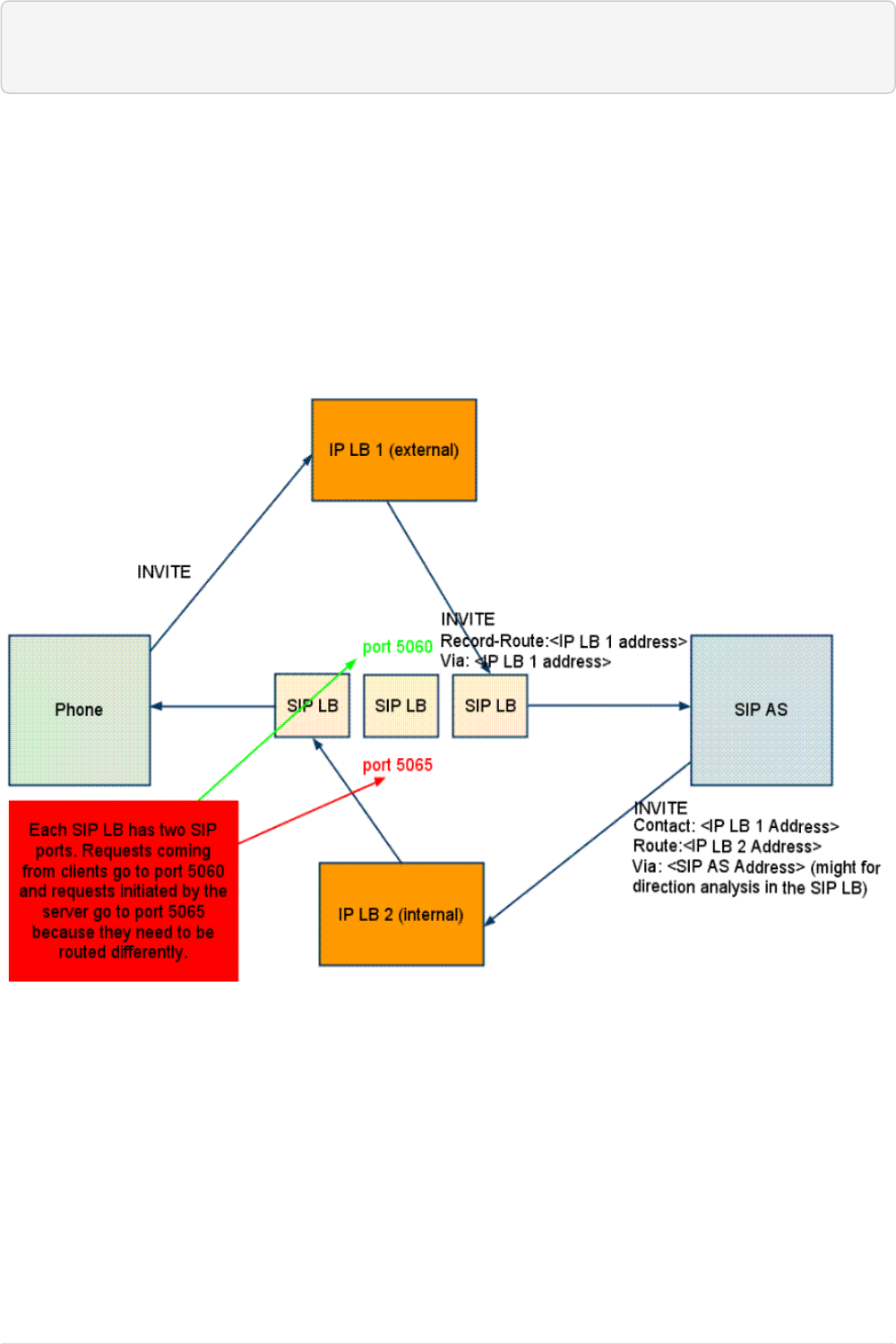

externalIpLoadBalancerAddress

Address of the IP load balancer (if any) used for incoming requests to be distributed in the

direction of the application server nodes. This address may be used by the SIP load balancer

to be put in SIP headers where the external address of the SIP load balancer is needed.

externalIpLoadBalancerPort

The port of the external IP load balancer. Any messages arriving at this port should be

distributed across the external SIP ports of a set of SIP load balancers.

internalIpLoadBalancerAddresst

Address of the IP load balancer (if any) used for outgoing requests (requests initiated from

the servers) to be distributed in the direction of the clients. This address may be used by the

SIP load balancer to be put in SIP headers where the internal address of the SIP load

balancer is needed.

internalIpLoadBalancerPort

The port of the internal IP load balancer. Any messages arriving at this port should be

distributed across the internal SIP ports of a set of SIP load balancers.

extraServerNodes

Comma-separated list of hosts that are server nodes. You can put here alternative names of

the application servers here and they will be recognized. Names are important, because they

might be used for direction-analysis. Requests coming from these server will go in the

direction of the clients and will not be routed back to the cluster.

algorithmClass

The fully-qualified Java class name of the balancing algorithm to be used. There are three

algorithms to choose from and you can write your own to implement more complex routing

behaviour. Refer to the sample configuration file for details about the available options for

each algorithm. Each algorithm can have algorithm-specific properties for fine-grained

configuration.

nodeTimeout

In milliseonds. Default value is 5100. If a server node doesnt check in within this time (in

ms), it is considered dead.

heartbeatInterval

In milliseconds. Default value is 150 milliseonds. The hearbeat interval must be much

smaller than the interval specified in the JAIN SIP property on the server machines -

org.mobicents.ha.javax.sip.HEARTBEAT_INTERVAL



The remaining keys and properties in the configuration properties file can

be used to tune the JAIN SIP stack, but are not specifically required for load

balancing. To assist with tuning, a comprehensive list of implementing

classes for the SIP Stack is available from the Interface SIP Stack. For a

comprehensive list of properties associated with the SIP Stack

implementation, refer to Class SipStackImpl.

2. Configure logging

The SIP load balancer uses Log4J as a logging mechanism. You can configure it through the

typical log4j xml configuration file and specify the path as follows -DlogConfigFile=./log4j.xml.

Please refer to Log4J documentation for more information on how to configure the logging. A

shortcut exists if you want to switch between INFO/DEBUG/WARN logging levels. The JVM

option -DlogLevel=DEBUG will allow you to switch all loggig categories to the specified log level.

3. Configure the container configuration file

Ensure the following attributes are configured for the <service> element in server.xml for

Tomcat or in the mobicents subsystem element for JBoss AS7.

•The sipPathName attribute must contain the following value org.mobicents.ha.balancing.only

to indicate that the server will be using the Restcomm JAIN SIP HA SIP Stack which is an

extension of the JAIN SIP Stack offering integration with the Mobicents Load Balancer and

transparent replication.

4. Configure the mss-sip-stack.properties configuration file

•The org.mobicents.ha.javax.sip.cache.MobicentsSipCache.cacheName property must contain

the name of the cache that will be responsible for holding the replicated data of the SIP

Stack layer (namely the established SIP dialog data). The value has to be one of the cache

name present in the jboss-cache-manager-jboss-beans.xml file of the jboss-cache-manager

JBoss Service of the container. The default value is standard-session-cache

•The org.mobicents.ha.javax.sip.BALANCERS property must be configured with the list of load

balancer IP address and internal ports. As an example, suppose a single &THIS.PLATFORM;

SIP Load Balancer is running with IP 192.168.0.1 and internal port 5065, the property would

be set with value 192.168.0.1:5065. To specify multiple balancers use ; as separator. If this

property is used the balancers attribute located in server.xml should not be used as it is a

replacement for it.

•The org.mobicents.ha.javax.sip.LoadBalancerHeartBeatingServiceClassName property is

optional, it defines the class name of the HeartBeating service implementation, currently the

only one available is org.mobicents.ha.javax.sip.LoadBalancerHeartBeatingServiceImpl

•The org.mobicents.ha.javax.sip.LoadBalancerElector property is optional, it defines the class

of the load balancer elector from JAIN SIP HA Stack. The elector is used to define which load

balancer will receive outgoing requests, which are out of dialog or in dialog with null state.

Currently only one elector implementation is available,

org.mobicents.ha.javax.sip.RoundRobinLoadBalancerElector, which, as the class name says,

uses round robin algorythm to select the balancer.



Configuration File Locations

On Restcomm for Tomcat server installations, server.xml is located in

<install_directory>/conf.

On Restcomm for JBoss server installations, the default standalone-sip.xml

configuration file is located in standalone/configuration or the default domain-

sip.xml configuration file located in domain/configuration for cluster

configurations

Easy Node Configuration with JMX

Both SIP Servlet-enabled JBoss and Tomcat have (Java Management Extensions) interfaces that

allow for easy server configuration. The JMX Console is available once the server has been started

by navigating to http://localhost:8080/jmx-console/.

Both the balancers and heartBeatInterval attribute values are available under name=-SIP-

Servlets,type=load-balancer-heartbeat-service in the JMX Console.

balancers

Host names of the SIP load balancer(s) with corresponding addBalancerAddress and

removeBalancerAddress methods.

heartBeatInterval

Interval at which each heartbeat is sent to the SIP load balancer(s).

Converged Load Balancing

Apache HTTP Load Balancer

The Restcomm SIP Load Balancer can work in concert with HTTP load balancers such as mod_jk.

Whenever an HTTP session is bound to a particular node, an instruction is sent to the SIP Load

Balancer to direct the SIP calls from the same application session to the same node.

It is sufficient to configure mod_jk to work for HTTP in JBoss in order to enable cooperative load

balancing. Restcomm will read the configuration and will use it without any extra configuration.

You can read more about configuring mod_jk with JBoss in your JBoss Application Server

documentation.

Alternatively you may disable this behaviour and make the HTTP load balancer follow the

decisions made by the SIP load balancer with the httpFollowsSip flag. This is achieved by changing

the jvmRoute part of the session ID cookie used internally by mod_jk.

The httpFollowsSip flag

The httpFollowsSip flag in the service configuration makes the application server aware of how

different mod_jk and SIP load balancers have assigned request affinity for each application

session. The application servers assign exactly one node to each Sip Servlets application session and

this node is the node where the last SIP request associated with the application session has landed

(decised by the SIP load balancer). Then the application server will actively update the session ID

cookie (the jvmRoute part) of any HTTP request that arrives at the wrong node. The application

server will do so with a specially composed HTTP redirect response or with a HTML refresh hint. As

a backup strategy, if the request is bound to seek non-existing node forever and it will let the

request be served by a new node. This avoids having a client stuck reloading the same page over

and over.

One problem with this flag is that if you have two or more SIP sessions associated with the same

application session and the load balancer has decided to send SIP requests to different nodes,

which might happend if you use Call-ID based affinity, then the application server will have to

change the jvmRoute very often for every SIP request resulting in significant overhead. It is

generally not adviced to enable this flag if you have more than 1 SIP session per application session

and the means to guarantee all SIP sessions from the application session will land on the same

node.

This is an example how to enable the option. It is disabled by default.

<Connector port="5080"

Ê ipAddress = "${jboss.bind.address}"

Ê ...

Ê httpFollowsSip="true" />

Integrated HTTP Load Balancer

To use the integrated HTTP Load Balancer, no extra configuration is needed. If a unique jvmRoute is

specified and enabled in each application server, it will behave exactly as the apache balancer. If

jvmRoute is not present, it will use the session ID as a hash value and attempt to create a sticky

session. The integrated balancer can be used together with the apache balancer at the same time.

In addition to the apache behavior, there is a consistent hash balancer algorithm that can be

enabled for both HTTP and SIP messages. For both HTTP and SIP messages, there is a configurable

affinity key, which is evaluated and hashed against each unassigned request. All requests with the

same hash value will always be routed to the same application server node. For example, the SIP

affinity key could be the callee user name and the HTTP affinity key could the “appsession” HTTP

GET parameter of the request. If the desired behaviour group these requests, we can just make sure

the affinity values (user name and GET parameter) are the same.

Figure 15. Ensuring SIP and HTTP requests are being grouped by common affinity value.

Running

Procedure: Running the SIP Load Balancer and SIP Server Nodes

1. Start the SIP Load Balancer

Start the SIP load balancer, ensuring the Configuration Properties file (lb.properties in this

example) is specified. In the Linux terminal, or using the Windows Command Prompt, the SIP

Load Balancer is started by issuing a command similar to this one:

java -jar sip-balancer-jar-with-dependencies.jar lb-configuration.properties

Executing the SIP load balancer produces output similar to the following example:

home]$ java -jar sip-balancer-jar-with-dependencies.jar lb-configuration.properties

Oct 21, 2008 1:10:58 AM org.mobicents.tools.sip.balancer.SIPBalancerForwarder start

INFO: Sip Balancer started on address 127.0.0.1, external port : 5060, port : 5065

Oct 21, 2008 1:10:59 AM org.mobicents.tools.sip.balancer.NodeRegisterImpl

startServer

INFO: Node registry starting...

Oct 21, 2008 1:10:59 AM org.mobicents.tools.sip.balancer.NodeRegisterImpl

startServer

INFO: Node expiration task created

Oct 21, 2008 1:10:59 AM org.mobicents.tools.sip.balancer.NodeRegisterImpl

startServer

INFO: Node registry started

The output shows the IP address on which the SIP Load Balancer is listening, as well as the

external and internal listener ports.

2. Configure SIP Server Nodes

SIP Servlets Server nodes can run on the JBoss Application Server, or the Tomcat Servlet

Container. The SIP Servlets Server binary distributions define the type of SIP Servlets Server

nodes used, and should already be installed from

[_sslb_binary_sip_load_balancer_software_prerequisites].

The Tomcat’s server.xml or JBoss’s standalone-sip.xml file specifies the nodes used. Because

there is more then one client node specified, unique listener ports must be specified for each

node to monitor HTTP and/or SIP connections. Configuring SIP Connectors and Bindings

describes the affected element in the configuration file.

3. Start Load Balancer Client Nodes

Start all SIP load balancer client nodes.

Testing

To test load balancing, the same application must be deployed manually on each node, and two SIP

Softphones must be installed.

Procedure: Testing Load Balancing

1. Deploy an Application

Ensure that for each node, the DAR file is the same.

Deploy the Location service manually on both nodes.

2. Start the "Sender" SIP softphone

Start a SIP softphone client with the SIP address of sip:sender@sip-servlets-com, listening on

port 5055. The outbound proxy must be specified as the sip-balancer (http://127.0.0.1:5060)

3. Start the "Receiver" SIP softphone

Start a SIP softphone client with the SIP address of sip:receiver-failover@sip-servlets-com,

listening on port 5090.

4. Initiate two calls from "Sender" SIP softphone

Initiate one call from sip:sender@sip-servlets-com to sip:receiver-failover@sip-servlets-com.

Tear down the call once completed.

Initiate a second call using the same SIP address, and tear down the call once completed. Notice

that the call is handled by the second node.

Stopping

Assuming that you started the JBoss Application Server as a foreground process in the Linux

terminal, the easiest way to stop it is by pressing the key combination in the same terminal in

which you started it.

This should produce similar output to the following:

^COct 21, 2008 1:11:57 AM org.mobicents.tools.sip.balancer.SipBalancerShutdownHook run

INFO: Stopping the sip forwarder

Uninstalling

To uninstall the SIP load balancer, delete the JAR file you installed.

5.1.2. IP Load Balancing

IP Load Balancers

An IP load-balancer is a network appliance that distributes traffic to an application server (or

actual servers) using a load-balancing algorithm. IP load-balancing is often used when the other

load-balancers' capacity is exceeded and can not scale further without hardware upgrades.

Routing decisions are made based on OSI Layer 2, 3 or 4 data. This type of load balancer only

examines low-level TCP, UDP or ethernet packet structures including MAC addresses, IP addresses,

ports, and protocol types (TCP or UDP or other).

An IP load balancer never reads the payload of the TCP/IP packets and therefore never parses SIP

or HTTP (or any protocol above OSI Layer 4). Because an IP load balancing device is not SIP or

HTTP aware in any way, it is much more performant than mod_jk or the Restcomm SIP load-

balancer.

Technical overview

In its simplest form, the IP load-balancer usually "owns" the public-facing IP address (known as a

VIP). The traffic is routed to actual servers in it’s private network similar to NAT. It is also possible

to not change the IP address and just work on the MAC address by assuming that all actual servers

are configured to accept packets for the VIP address. The features offered by the IP load balancer

depend largely on the vendor.

Some examples of Linux-based software load balancers include Red Hat Cluster Suite (RHCS) and

Linux Virtual Server (LVS). There are many hardware vendors as well.

One main drawback relating to IP load balancers is that they can not make routing decisions based

on SIP messages and (with some exceptions) they can not work cooperatively with HTTP or other

load balancers.

Configuring Restcomm Cluster for pure IP Load Balancing



Pure IP load balancing is not a recommented option. It is advised to use a

distributed load balancer instead. Proper operation with pure IP load balancing

depends on the ability of the IP load balancer to establish request affinity based

on IP addresses and ports.

First you need to remove the SIP load balancers from any configuration in Restcomm . In particular

the org.mobicents.ha.javax.sip.BALANCERS attribute in mss-sip-stack.properties. You should remove

the balancers attribute from the Service tag of jboss.web service. This simply removes the default

load balancer from the system and the traffic bypasses the SIP load-balancer. Next you must

configure Restcomm to put the IP load balancer IP address in the Via, Contact and other system

headers where the IP address of the server machine is required. This will ensure that any

responses or subsequent SIP requests follow the same path, but always hit the load balancer

instead of particular cluster node that may fail. To specify the IP load balancer address in

Restcomm your should edit this file on Tomcat CATALINA_HOME/conf/server.xml and specify

staticServerAddress such as:

<Connector port="5080"

Ê ipAddress = "${jboss.bind.address}"

Ê ...

staticServerAddress="122.122.122.122" staticServerPort="44"

useStaticAddress="true"/>

and edit this file on JBoss JBOSS_HOME/standalone/configuration/standalone-sip.xml and specify

staticServerAddress such as:

<socket-binding name="sip-udp" port="5080"

Ê ...

staticServerAddress="122.122.122.122" staticServerPort="44"

useStaticAddress="true"/>

Depending on your reliability requirements you can omit the configuration

described in this section and let the servers use their own IP address in the SIP

messages.

5.1.3. SIP Load Balancing Basics

All User Agents send SIP messages, such as INVITE and MESSAGE, to the same SIP URI (the IP address

and port number of the SIP Load Balancer on the WAN). The Load Balancer then parses, alters, and

forwards those messages to an available node in the cluster. If the message was sent as a part of an

existing SIP session, it will be forwarded to the cluster node which processed that User Agent’s

original transaction request.

The SIP Server that receives the message acts upon it and sends a response back to the SIP Load

Balancer. The SIP Load Balancer reparses, alters and forwards the message back to the original

User Agent. This entire proxying and provisioning process is carried out independent of the User

Agent, which is only concerned with the SIP service or application it is using.

By using the Load Balancer, SIP traffic is balanced across a pool of available SIP Servers, increasing

the overall throughput of the SIP service or application running on either individual nodes of the

cluster. In the case of a Restcomm server with </distributed> capabilities, load balancing

advantages are applied across the entire cluster.

The SIP Load Balancer is also able to failover requests mid-call from unavailable nodes to available

ones, thus increasing the reliability of the SIP service or application. The Load Balancer increases

throughput and reliability by dynamically provisioning SIP service requests and responses across

responsive nodes in a cluster. This enables SIP applications to meet the real-time demand for SIP

services.

5.1.4. HTTP Load Balancing Basics

In addition to the SIP load balancing, there are several options for coordinated or cooperative load

balancing with other protocols such as HTTP.

Typically, a JBoss Application Server will use apache HTTP server with mod_jk, mod_proxy,

mod_cluster or similar extension installed as an HTTP load balancer. This apache-based load

balancer will parse incoming HTTP requests and will look for the session ID of those requests in

order to ensure all requests from the same session arrive at the same application server.

By default, this is done by examining the jsessionid HTTP cookie or GET parameter and looking for

the jvmRoute assigned to the session. The typical jsessionid value is of the form

<sessionId>.<jvmRoute>. The very first request for each new HTTP session does not have a session ID

assigned; the apache routes the request to a random application server node.

When the node responds it assigns a session ID and jvmRoute to the response of the request in a

HTTP cookie. This response goes back to the client through apache, which keeps track of which

node owns each jvmRoute. Once the very first request is served this way, the subsequent requests

from this session will carry the assigned cookie, and the apache load balancer will always route the

requests to the node, which advertised itself as the jvmRoute owner.

Instead of using apache, an integrated HTTP Load Balancer is also available. The SIP Load Balancer

has a HTTP port where you can direct all incoming HTTP requests. The integrated HTTP load

balancer behaves exactly like apache by default, but this behavior is extensible and can be

overridden completely with the pluggable balancer algorithms. The integrated HTTP load balancer

is much easier to configure and generally requires no effort, because it reuses most SIP settings and

assumes reasonable default values.

Unlike the native apache, the integrated HTTP Load Balancer is written completely in Java, thus a

performance penalty should be expected when using it. However, the integrated HTTP Balancer has

an advantage when related SIP and HTTP requests must stick to the same node.

5.1.5. Pluggable balancer algorithms

The SIP/HTTP Load Balancer exposes an interface to allow users to customize the routing decision

making for special purposes. By default there are three built-in algorithms. Only one algorithm is

active at any time and it is specified with the algorithmClass property in the configuration file.

It is up to the algorithm how and whether to support distributed architecture or how to store the

information needed for session affinity. The algorithms will be called for every SIP and HTTP

request and other significant events to make more informed decisions.



Users must be aware that by default requests explicitly addressed to a live server

node passing through the load balancer will be forwarded directly to the server

node. This allows for pre-specified routing use-cases, where the target node is

known by the SIP client through other means. If the target node is dead, then the

node selection algorithm is used to route the request to an available node.

The following is a list of the built-in algorithms:

org.mobicents.tools.sip.balancer.CallIDAffinityBalancerAlgorithm

This algorithm is not distributable. It selects nodes randomly to serve a give Call-ID extracted

from the requests and responses. It keeps a map with Call-ID → nodeId associations and this

map is not shared with other load balancers which will cause them to make different decisions.

For HTTP it behaves like apache.

org.mobicents.tools.sip.balancer.HeaderConsistentHashBalancerAlgorithm

This algorithm is distributable and can be used in distributed load balancer configurations. It

extracts the hash value of specific headers from SIP and HTTP messages to decide which

application server node will handle the request. Information about the options in this

algorithms is available in the balancer configuration file comments.

org.mobicents.tools.sip.balancer.PersistentConsistentHashBalancerAlgorithm

This algorithm is distributable and is similar to the previous algorithm, but it attempts to keep

session affinity even when the cluster nodes are removed or added, which would normally

cause hash values to point to different nodes.

org.mobicents.tools.sip.balancer.ClusterSubdomainAffinityAlgorithm

This algorithm is not distributable, but supports grouping server nodes to act as a subcluster.

Any call of a node that belongs to a cluster group will be preferentially failed over to a node

from the same group. To configure a group you can just add the subclusterMap property in the

load balancer properties and listing the IP addresses of the nodes. The nodes specified in a

group do not have to alive and nodes that are not specified are still allowed to join the cluster.

Otherwise the algorthim behaves exactly as the default Call-ID affinity algorthim. The groups are

enclosed in parentheses and the IP addresses are separate by commas as follows:

Ê subclusterMap=( 192.168.1.1, 192.168.1.2 ) ( 10.10.10.10, 20.20.20.20,

30.30.30.30)

5.1.6. Distributed load balancing

When the capacity of a single load balancer is exceeded, multiple load balancers can be used. With

the help of an IP load balancer the traffic can be distributed between all SIP/HTTP load balancers

based on some IP rules or round-robin. With consistent hash and jvmRoute-based balancer

algorithms it doesn’t matter which SIP/HTTP load balancer will process the request, because they

would all make the same decisions based on information in the requests (headers, parameters or

cookies) and the list of available nodes. With consistent hash algorithms there is no state to be

preserved in the SIP/HTTP balancers.

Figure 16. Example deployment: IP load balancers serving both directions for incoming/outgoing

requests in a cluster

5.1.7. Implementation of the Restcomm Load Balancer

Each individual Restcomm SIP Server in the cluster is responsible for contacting the SIP load

balancer and relaying its health status and regular "heartbeats".

From these health status reports and heartbeats, the SIP Load Balancer creates and maintains a list

of all available and healthy nodes in the cluster. The Load Balancer forwards SIP requests between

these cluster nodes, providing that the provisioning algorithm reports that each node is healthy and

is still sending heartbeats.

If an abnormality is detected, the SIP Load Balancer removes the unhealthy or unresponsive node

from the list of available nodes. In addition, mid-session and mid-call messages are failed over to a

healthy node.

The SIP Load Balancer first receives SIP requests from endpoints on a port that is specified in its

Configuration Properties configuration file. The SIP Load Balancer, using a round-robin algorithm,

then selects a node to which it forwards the SIP requests. The Load Balancer forwards all same-

session requests to the first node selected to initiate the session, providing that the node is healthy

and available.

5.1.8. SIP Message Flow

The SIP Load Balancer appends itself to the Via header of each request, so that returned responses

are sent to the SIP Balancer before they are sent to the originating endpoint.

The Load Balancer also adds itself to the path of subsequent requests by adding Record-Route

headers. It can subsequently handle mid-call failover by forwarding requests to a different node in

the cluster if the node that originally handled the request fails or becomes unavailable. The SIP load

balancer immediately fails over if it receives an unhealthy status, or irregular heartbeats from a

node.

In advanced configurations, it is possible to run more than one SIP Load Balancer. Simply edit the

balancers connection string in your SIP Server - the list is separated with semi-colon.

Basic IP and Port Cluster Configuration describes a basic IP and Port Cluster Configuration. In the

diagram, the SIP Load balancer is the server with the IP address of 192.168.1.1.

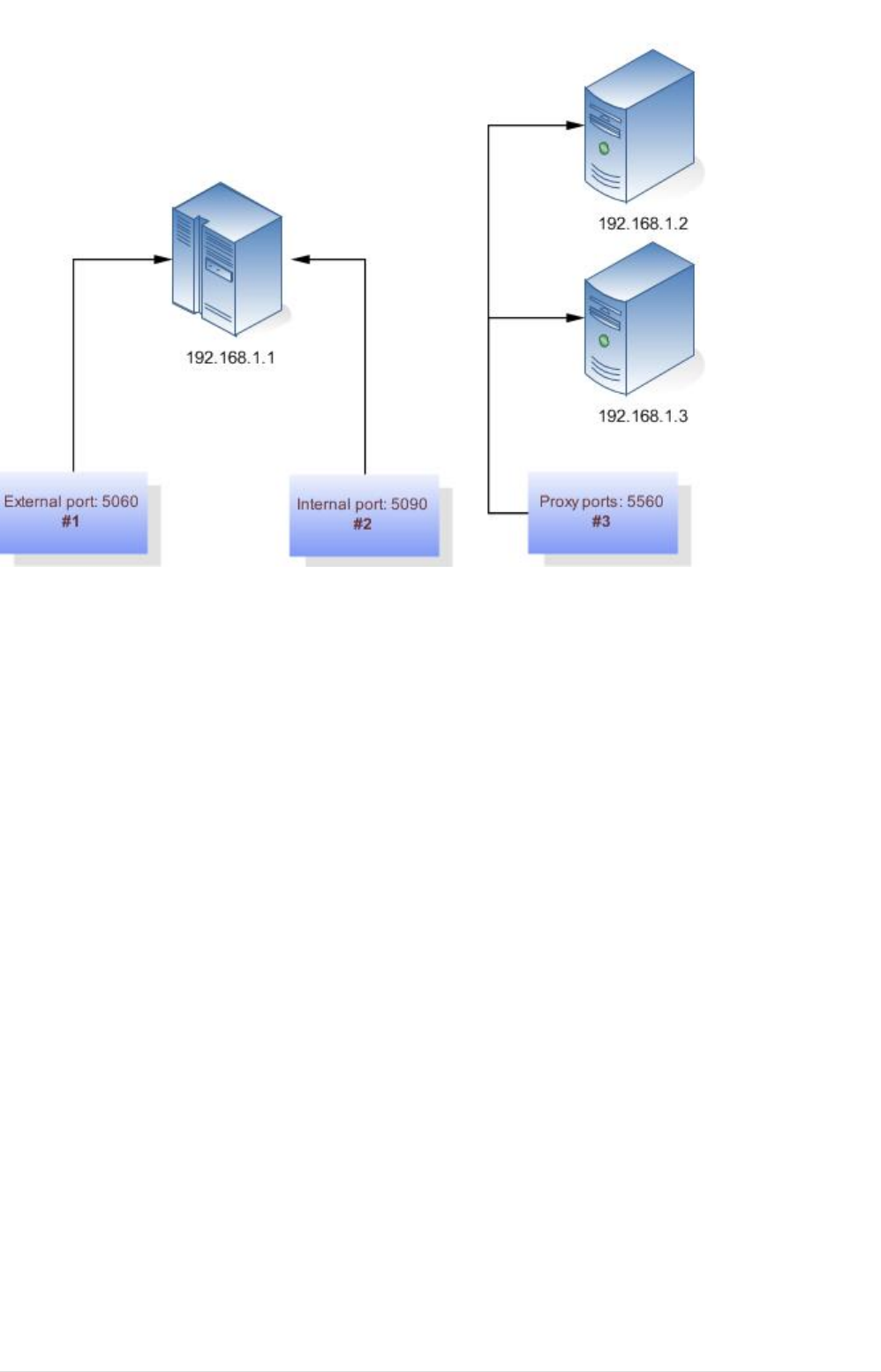

Figure 17. Basic IP and Port Cluster Configuration

5.2. Restcomm Graceful Shutdown

Graceful shutdown of a server or SIP/Web Applications is when existing

request/connections/sessions are allowed to gracefully complete while no new requests and/or

connections and/or sessions are accepted. SIP Servlets Container or Applications can be gracefully

shutdown through the Management Console, JMX or CLI as described below

As soon as the shutdown command is given, the container will stop the applications so that they do

not accept any more inbound connections. It will inform also load balancers that the server is no

longer part of the cluster if the command is given on the container and not an individual

application. The Applications are closed so that they do not accept any more requests, but the

requests currently inside the container will drain out and the Server instance will shutdown after

the grace period expires.

5.2.1. Graceful Shutdown through Restcomm SIP Servlets Management

Console

Figure 18. Graceful Shutdown of Container through Restcomm SIP Servlets Management Console

5.2.2. Graceful Shutdown of Container or Applications through Restcomm

JBoss AS/EAP Command Line Interface

`To Gracefully shutdown an Application through the CLI `, use the following command

sh bin/jboss-cli.sh --connect

/subsystem=sip:contextGracefulShutdown\(timeToWait=30000,sipApp=appNameFromDeploymentD

escriptor)

`To Gracefully shutdown an Application through the CLI `, use the following command

sh bin/jboss-cli.sh --connect /subsystem=sip:gracefulShutdown$timeToWait=30000$

5.2.3. Graceful Shutdown of Container or Applications through Restcomm

SIP Servlets JMX Console

`To Gracefully shutdown an Application through the JMX Console, Find the 'SipManager' MBean

corresponding to your application and go to the 'stopGracefully' operation, Fill out the 'Time To

Wait' Field and click 'Invoke' Button `

`To Gracefully shutdown the Container through the JMX Console, Find the

'jboss.web:type=SipApplicationDispatcher' MBean and go to the 'stopGracefully' operation, Fill out

the 'Time To Wait' Field and click 'Invoke' Button `

Chapter 6. Enterprise Monitoring and

Management

There is two ways of monitoring Restcomm Sip Servlets :

•Through JMX

•Through the industry standard Simple Network Management Protocol - SNMP

•Through the Restcomm Sip Servlets Management Console.

6.1. JMX Monitoring

The default mechanism for monitoring Restcomm Sip Servlets is using the Java Management

Extensions (JMX) technology. The Oracle website includes the list of options and how to configure

JMX Remote on Java 7

http://docs.oracle.com/javase/7/docs/technotes/guides/management/agent.html

Please find below, the list of SIP Specific metrics that can be monitored through JMX

6.1.1. SIP Stack Monitoring Metrics

JMX Name Domain=org.mobicents.jain.sip,name=Mobicents-SIP-Servlets,type=sip-stack provides the

following metrics :

•NumberOfClientTransactions : Active number of SIP Client Transactions.

•NumberOfServerTransactions : Active number of SIP Server Transactions.

•NumberOfDialogTransactions : Active number of SIP Dialogs.

•LocalMode : whether the stack is using replication or not.

6.1.2. Container SIP Core Router (SipApplicationDispatcher) Monitoring

Metrics

JMX Name Domain=<server_name>,type=SipApplicationDispatcher provides the following metrics :

•RequestsProcessedByMethod : Number of incoming SIP requests that have been processed by SIP

Method name (INVITE, BYE, INFO, …).

•ResponsesProcessedByStatusCode : Number of incoming SIP responses that have been processed

by status code (1xx, 2xx, 3xx, …).

•RequestsSentByMethod : Number of outgoing SIP requests that have been sent by SIP Method

name (INVITE, BYE, INFO, …).

•ResponsesSentByStatusCode : Number of outgoing SIP responses that have been sent by status

code (1xx, 2xx, 3xx, …).

6.1.3. Application Level Monitoring Metrics

JMX Name

Domain=<server_name>,path=<application_context_name>,type=SipManager,host=<host_name> provides

the following metrics :

•expiredSipSessions : Number of SIP sessions that have expired

•expiredSipApplicationSessions : Number of SIP Application sessions that have expired

•sipSessionAverageAliveTime : the average time (in seconds) that expired SIP sessions had been

alive.

•sipApplicationSessionAverageAliveTime : the average time (in seconds) that expired SIP

Application sessions had been alive.

•sipSessionCounter : Number of SIP Sessions created.

•sipApplicationSessionCounter : Number of SIP Application Sessions created.

•activeSipSessions : Number of currently active SIP Sessions.

•activeSipApplicationSessions : Number of currently active SIP Application Sessions.

•rejectedSipSessions : Number of SIP session creations that failed due to maxActiveSipSessions.

•rejectedSipApplicationSessions : Number of SIP Application session creations that failed due to

maxActiveSipApplicationSessions.

•numberOfSipSessionCreationPerSecond : Number of SIP sessions per second that have been

created.

•numberOfSipApplicationSessionCreationPerSecond : Number of SIP Application sessions per

second that have been created.

6.1.4. JMX Monitoring for Restcomm for JBoss AS7/EAP6

Follow the link To Connect JConsole to JMX on AS7/EAP6.



SNMP Monitoring for Restcomm for JBoss AS7

The SNMP feature is not yet implemented in Restcomm for JBoss AS7. This guide

will be updated when SNMP monitoring feature become available. In the

meantime, see the chapter below for information about the CLI.

Getting Started with Restcomm SIP Servlets for AS7 CLI

6.1.5. JMX Monitoring for Restcomm for Tomcat 7

Follow the link To Connect JConsole to JMX on Tomcat 7.

SNMP Monitoring for Restcomm for Tomcat 7

The SNMP feature is not yet implemented in Restcomm for Tomcat 7. This guide

will be updated when SNMP monitoring feature become available.

Chapter 7. Security

The information present in SIP requests often contains sensitive user information. To protect user

information, SIP Security can be enabled on the server, and within the SIP application to mitigate

the risk of unauthorised access to the information.

There are essentially two levels of security that can be enabled on the server, the communication

between the server and other SIP entities and securing the application and its content.

7.1. SIP Servlets Application Security

Application security varies depending on the server type used. The following procedures describe

how to configure the JBoss AS7 and Tomcat servers to enable Security.

Procedure: Enable SIP Application Security in JBoss AS7

1. Add Security Policy to Server Configuraton

a. Open the configuration file located in $JBOSS_HOME/standalone/configuration/standalone-

sip.xml

b. Append a security domain to the under the <security-domains>:

<security-domain name="sip-servlets">

Ê <authentication>

Ê <login-module code="UsersRoles" flag="required">

Ê <module-option name="usersProperties"

value="${jboss.server.config.dir}/sip-servlets-users.properties"/>

Ê <module-option name="rolesProperties"

value="${jboss.server.config.dir}/sip-servlets-roles.properties"/>

Ê <module-option name="hashAlgorithm" value="MD5"/>

Ê <module-option name="hashEncoding" value="RFC2617"/>

Ê <module-option name="hashUserPassword" value="false"/>

Ê <module-option name="hashStorePassword" value="true"/>

Ê <module-option name="passwordIsA1Hash" value="true"/>

Ê <module-option name="storeDigestCallback"

value="org.jboss.security.auth.callback.RFC2617Digest"/>

Ê </login-module>

Ê </authentication>

</security-domain>

2. Create SIP Server User Properties File

a. Open a terminal and navigate to the $JBOSS_HOME/standalone/configuration directory:

home]$ cd standalone/configuration

b. Create and open a sip-servlets-users.properties file and append the user lines to the file:

Ê # A sample users.properties file, this line creates user "admin" with

Ê # password "admin" for "sip-servlets-realm"

Ê admin=<A1_cryptographic_string>

c. To create <A1_cryptographic_string>, execute the following command in a terminal:

home]$ java -cp ../../modules/system/layers/base/org/picketbox/main/picketbox-

4.0.15.Final.jar org.jboss.security.auth.callback.RFC2617Digest admin sip-

servlets <password>

d. Copy the A1 hash, and paste it into the admin parameter in the previous step.

e. Save and close sip-servlets-users.properties.

3. Create the SIP Server Roles File

a. Create and open sip-servlets-roles.properties (using your preferred editor) and append

the following information to the file:

# A sample roles.properties file for use with some roles

# Each line in this file assigns roles to the users defined in

# sip-servlets-users.properties

admin=caller,role1,role2,..

4. Add the Security Domain to the SIP Application

a. Open the jboss-web.xml file for the SIP application to which security is required.

b. Add the element as a child of the element:

<jboss-web>

Ê <security-domain>sip-servlets</security-domain>

</jboss-web>

5. Add Security Constraints to the SIP Application

a. Open the sip.xml file for the SIP application.

b. Add the element as a child of the element:

<security-constraint>

Ê <display-name>REGISTER Method Security Constraint</display-name>

Ê <resource-collection>

Ê <resource-name>SimpleSipServlet</resource-name>

Ê <description>Require authenticated REGSITER requests</description>

Ê <servlet-name>SimpleSipServlet</servlet-name>

Ê <sip-method>REGISTER</sip-method>

Ê </resource-collection>

Ê <auth-constraint>

Ê <role-name>caller</role-name>

Ê </auth-constraint>

</security-constraint>

<login-config>

Ê <auth-method>DIGEST</auth-method>

Ê <realm-name>sip-servlets</realm-name>

Ê</login-config>

Procedure: Enable SIP Application Security in Tomcat Server

1. Activate the Memory Realm in Catalina:

a. Open a terminal and navigate to the /conf directory:

home]$ cd server/default/<tomcat_home>/conf/

b. Open server.xml and uncomment the following line:

2. Update SIP Server User Properties File

a. In the /conf directory, open tomcat-users.xml (using your preferred editor) and append the

following child element:

3. Add Security Constraints to the SIP Application

a. Open the sip.xml file for the SIP application to which security is required.

b. Add the child element to the element:

<security-constraint>

Ê <display-name>REGISTER Method Security Constraint</display-name>

Ê <resource-collection>

Ê <resource-name>SimpleSipServlet</resource-name>

Ê <description>Require authenticated REGISTER requests</description>

Ê <servlet-name>SimpleSipServlet</servlet-name>

Ê <sip-method>REGISTER</sip-method>

Ê </resource-collection>

Ê <auth-constraint>

Ê <role-name>caller</role-name>

Ê </auth-constraint>

</security-constraint>

<login-config>

Ê <auth-method>DIGEST</auth-method>

Ê <realm-name>sip-servlets-realm</realm-name>

</login-config>

7.2. TLS

In order to configure TLS you will have to obtain a public/private key, a X.509 certificate, add those

to the Java keystore and optionally add certificates from a known CA (certicate authority). The

entire process can be confusing but in order to get a basic setup for testing purposes up and

running with minimal effort, this section starts off with a simple quick start. However, for

production environment you need to obtain an officially signed certificate from a known CA and

that process is outlined in section Production Setup.

7.2.1. Quick Start

This section shows how to create a self signed certificate, how to add that to the Java keystore and

how to configure the SIP Servlet Container to make use of this configuration. Note, this section

should only be used in a development environment and the main reason for this quickstart section

is to get you going right away as well as get you comfortable with generating keys and certificates

and adding them to the Java keystore.

Procedure: Server Side Authentication

At a high-level, we will execute the following three steps:

1. Generate a public/private key pair and a self signed certificate and add those to the Java

keystore.

2. Configure the SIP Servlet Container to load our certificate from the keystore.

3. Test!

Let’s follow each step in order:

1. Generate certificate

Generating a new key-pair and a certificate can be done in a few different ways with a few

different tools but here we will just use the java keytool that comes with the JDK. Simple issue

the following command, which will generate a new public and private key, generate a self-

signed certificate and add it all to the Java keystore:

keytool -genkeypair -alias myserver -keyalg RSA -keysize 1024 -keypass secret

-validity 365 -storetype jks -keystore myserver.jks -storepass secret -v -dname

"CN=James Smith, OU=Engineering, O=My Company, L=My City, S=My State, C=US"

-keystore specifies which keystore we should use/update. If the keystore doesn’t exist, a new one

will be created for one. In the above example, we named the keystore myserver.jks and it will be

saved in the current directory

-keypass and -storepass should be chosen wisely since with bad passwords you won’t have

much protection anyway. Also, normally you should never passwords on the command prompt,

it is too easy for other people to steal. If you leave these two options out, the keytool command

will ask you for it.

-keyalg specifies which algorithm to use when generating the keys and the keysize how long

those keys should be.

Note: the command -genkeypair is new in JDK 6 and was previously named -genkey. The keytool

in JDK 6 has some improvements over the previous versions so it is recommended to use it

instead.

See more about the Java keytool here:

http://docs.oracle.com/javase/6/docs/technotes/tools/solaris/keytool.html

2. Configure the SIP Servlet Container

The SIP Servlet Container relies on the JAIN SIP stack to support it with TLS capabilities. As

such, it is the JAIN SIP stack that we need to configure to have it read our certificate we added to

the key store. The various configuration options are described in the javadoc of the

SipStackImpl class but for this quickstart, we will be using the following ones:

•javax.net.ssl.keyStore – the filename and location of the keystore to use.

•javax.net.ssl.keyStorePassword – the password to the keystore.

•javax.net.ssl.trustStore – the filename and location of the truststore to use.

•javax.net.ssl.trustStorePassword – the password to the truststore.

•gov.nist.javax.sip.TLS_CLIENT_AUTH_TYPE – which type of authentication we will require of

the client (for now, the client authentication type will be set to Disabled).

•gov.nist.javax.sip.gov.nist.javax.sip.ENABLED_CIPHER_SUITES – Comma-separated list of

suites to use when creating outgoing TLS connections. This parameter is optional with

default value

"TLS_RSA_WITH_AES_128_CBC_SHA,SSL_RSA_WITH_3DES_EDE_CBC_SHA,TLS_DH_anon_WI

TH_AES_128_CBC_SHA,SSL_DH_anon_WITH_3DES_EDE_CBC_SHA"

The configuration options are JVM parameters and you will have to add these to the command

line when you start the server:

./bin/run.sh -Djavax.net.ssl.keyStorePassword=mysecret

-Dgov.nist.javax.sip.TLS_CLIENT_AUTH_TYPE=Disabled

-Djavax.net.ssl.keyStore=/path/to/your/keystore/myserver.jks

-Djavax.net.ssl.trustStorePassword=mysecret

-Djavax.net.ssl.trustStore=/path/to/your/keystore/myserver.jks

Once the server is up, we are ready to verify that we can get a TLS connection using the

certificate we previously added in the first step.

for this first part of the quickstart we will not require a certificate from the

client since this involves more configuration. This is controlled by the

gov.nist.javax.sip.TLS_CLIENT_AUTH_TYPE parameter.

3. Test!

To verify your setup there are a few different tools that you can use.

•openssl is an open source SSL toolkit and contains a generic SSL/TLS test client

•SIPp – an open source SIP load testing tool that is capable of using TLS. However, it requires

some additional steps that we have not addressed in the first parf of this quickstart so

therefore we willl not be using SIPp.

•Using your favorite SIP client. Most SIP clients out there are capable of establishing a TLS

connection but you will have to consult its documentation of how to configure TLS.

Using openssl:

Assuming that your server is running on localhost and is listening for TLS on port 5081 the

command would be:

openssl s_client -host 127.0.0.1 -port 5081

If you are successful you should see an output from openssl displaying information about

the server certificate (which should be the one we generated in Step 1). If there are any

issues with the setup, openssl is pretty good about giving out information about what it

thinks is wrong.

Tip: if you add the following JVM parameter as well you will get a lot of useful debug

information: -Djavax.net.debug=ssl

Procedure: Server Side Authentication

In the first part of this quickstart we generated a public and private key along with a self-signed

certificate and added them all into the Java keystore. The server was then configured to use this

information and when a client connected, our certificate was served up to the client. However,

normally, the client and the server would like to verify each others certificate to make sure they

both trust each other and if not, either of them will terminate the connection. In the first part of the

quickstart, the server did not require the client to present a certificate when connecting (remember

that we set the gov.nist.javax.sip.TLS_CLIENT_AUTH_TYPE to disabled) so let’s do that now.

At a high-level, these are the tasks we need to execute:

1. Generate a public/private key pair for the client along with a certificate.

2. The server need to add the client certificate to its keystore as a trusted certificate.

3. Start the server with client authenticating enabled.

Let’s follow each step in order:

1. Generate Client Certificate

We will use the Java keytool for this step in the same we did for for the server side in the

previous quikstart. The command is exactly the same and the only difference is that we store

the information in a new keystore called myclient.jks.

keytool -genkeypair -alias myclient -keyalg RSA -keysize 1024 -keypass secret

-validity 365 -storetype jks -keystore myclient.jks -storepass secret -v -dname

"CN=John Doe, OU=Engineering, O=Some Work, L=Some City, S=Some State, C=US"

We have now generated a new keystore containing the clients authentication information.

However, the server needs to import the client certificate into its trusted keystore so we need to

extract the certificate out of the client key store. This can also be done using the Java keytool.

keytool -exportcert -alias myclient -file client.cert -keystore myclient.jks

-storepass secret -rfc

The certificate is saved in file 'client.cert' and we will use this file in the next step.

2. Re-configure the server

Simply change the gov.nist.javax.sip.TLS_CLIENT_AUTH_TYPE from 'Disabled' to 'Enabled' and

start the server again.

3. Test

We will once again use openssl to verify our setup but now that the client will be forced to

present a certificate as well, we do need the certificate’s private key as well. The private key is

embedded into the keystore and was generated when we issued the 'kenkeypair' keytool-

command. Unfortunately, the keytool does not have an option for exporting the private key so

we will have to write a small java program to extract it for us. Luckily, it is not a lot of code:

import java.io.FileInputStream;

Ê import java.security.Key;

Ê import java.security.KeyStore;

Ê import sun.misc.BASE64Encoder;

Ê /**

Ê * Code originally posted on Sun's developer forums but

Ê * can now only be found at stackoverflow:

Ê * http://stackoverflow.com/questions/150167/how-do-i-list-export-private-keys-

from-a-keystore

Ê */

Ê public class DumpPrivateKey {

Ê static public void main(String[] args)

Ê throws Exception {

Ê if(args.length < 3) {

Ê throw new IllegalArgumentException("expected args: Keystore filename,

Keystore password, alias, <key password: default same than keystore");

Ê }

Ê final String keystoreName = args[0];

Ê final String keystorePassword = args[1];

Ê final String alias = args[2];

Ê final String keyPassword = getKeyPassword(args,keystorePassword);

Ê KeyStore ks = KeyStore.getInstance("jks");

Ê ks.load(new FileInputStream(keystoreName),

keystorePassword.toCharArray());

Ê Key key = ks.getKey(alias, keyPassword.toCharArray());

Ê String b64 = new BASE64Encoder().encode(key.getEncoded());

Ê System.out.println("-----BEGIN PRIVATE KEY-----");

Ê System.out.println(b64);

Ê System.out.println("-----END PRIVATE KEY-----");

Ê }

Ê private static String getKeyPassword(final String[] args, final String

keystorePassword)

Ê {

Ê String keyPassword = keystorePassword; // default case

Ê if(args.length == 4) {

Ê keyPassword = args[3];

Ê }

Ê return keyPassword;

Ê }

Copy and paste the above code into a file call DumpPrivateKey.java and then compile it:

javac DumpPrivateKey.java

and then use it to extract the private key:

java DumpPrivateKey myclient.jks secret myclient > clientprivate.key

Now that we have the private key of the client we can use openssl to verify the setup again:

openssl s_client -host 127.0.0.1 -port 5081 -cert client.cert -certform PEM -key

clientprivate.key

If all goes well you should successfully establish a connection and openssl will dump

information about the certificate exchange.

7.2.2. Production Setup

In a production environment it is important that you run with an officially signed certificate from a

known CA. It is this certificate that you will load into your keystore and the process is very similar

to the one outlined in the quick start.

1. Generate a PKCS#12 Storage

Assuming that you already have a private key and a signed certificate from a known CA you

first have to wrap these two into a pkcs#12 storage (pkcs#12 is a file format for storing X.509

public certificates along with the private key), and then load that into the Java keystore. To

create a pkcs#12 storage you can use the openssl pkcs12 command:

openssl pkcs12 -inkey myprivate.key -in mycertificate.pem -export -out

mystorage.pkcs12 -passout mysecret

where myprivate.key is the private key, mycertificate.pem is the X.509 certificate. The password

for the storage is 'mysecret' and the name of the storage file is mystorage.pkcs12.

2. Generate the Java Keystore

Once the pkcs#12 has been created, use the Java keytool to load the pkcs12 storage and convert

it into a java keystore.

keytool -importkeystore -srckeystore mystorage.pkcs12 -srcstoretype PKCS12

-destkeystore myserver.jks -deststorepass mysecret -srcstorepass mysecret

A few things to point out:

-srcstoretype is important and tells the Java keytool which format the key store that we are

importing is in. In the previous step, we generated a pkcs#12 store so in this example, the store

type must be PKCS12.

-srcstorepass is the password for the pkcs#12 storage and in the above example it is the same as

the destination key store (-deststorepass) but most likely they will be different.

3. Re-configure and Test

Now that we have a java keystore the server configuration is exactly the same as described in

the quick start, i.e., simply set the java properties javax.net.ssl.keyStore and

javax.net.ssl.trustStore to point to this key keystore file and then set the password through

the property javax.net.ssl.keyStorePassword and javax.net.ssl.trustStorePassword. Once the

server has been re-started you can use openssl to verify the setup.

7.2.3. Production Setup

InÊaddition to securing your SIP TLS, you may want to secure your HTTPS and SIP Over WebSockets

Connectors too.

1. SecureÊHTTPS on JBoss 7/EAP 6

Assuming that you already followed the previous steps, you now have a private key and a self

signed certificate. You will need to configure

yourÊ$JBOSS_HOME/standalone/configuration/standalone-sip.xml to enable HTTPS connector:

Ê <subsystem xmlns="urn:jboss:domain:web:1.4" default-virtual-

server="default-host" native="false">

Ê <connector name="http" protocol="HTTP/1.1" scheme="http" socket-

binding="http"/>

Ê <connector name="https" protocol="HTTP/1.1" scheme="https" socket-

binding="https" secure="true">

Ê <ssl protocol="TLSv1,TLSv1.1,TLSv1.2" certificate-key-

file="/path/to/myserver.jks" certificate-file="/path/to/myserver.jks"

password="secret"/>

Ê </connector>

2. Add SIP Over WebSockets Secure Connector

Make sure the following connector is present

inÊ$JBOSS_HOME/standalone/configuration/standalone-sip.xml

<connector name="sip-wss" protocol="SIP/2.0" scheme="sip" socket-binding="sip-

wss"/>

Make sure the following socket-binding is present

inÊ$JBOSS_HOME/standalone/configuration/standalone-sip.xml

<socket-binding name="sip-wss" port="5083"/>.

3. For self-signed certificates, importÊthe pkcs file toÊyour Browser

To make that the WebSockets connection is not refused with a self-signed certificate, you need

to importÊthe pkcs file generated in 7.2.2 to Google Chrome (Settings ⇒ Show Advanced Settings

⇒ Manage Certificates Button, then import your mystorage.pkcs12 file) or Firefox.

4. Test!

Go to your WebRTC favorite example through https://localhost:8443/webrtc/, and use

wss://localhost:5083 to connect over Secure SIP Over WebSockets.

Chapter 8. Advanced Features of the SIP

Servlets Server

The advanced features of SIP Servlets include Concurrency and Congestion Control, load balancing

and clustering support with the Restcomm Load Balancer.

8.1. Media Support

Restcomm SIP Servlets provides support for applications to set up calls through SIP by

implementing the SIP Servlets 1.1 Specification.

As most Telco services have the need for managing and controlling media (for example, to play

announcements, mix calls and recognize DTMF), Restcomm SIP Servlets allows applications to

control media through JSR 309.

8.1.1. JSR 309: Media Server Control API

This specification is a protocol agnostic API for Media Server Control. It provides a portable

interface to create media rich applications with IVR, Conferencing, Speech Recognition, and similar

features.

Restcomm Media Server provides an implementation of the JSR 309 specification using the MGCP

protocol, to allow any Media Server (located in the same Virtual Machine or on a remote server)

supporting MGCP to be controlled.

The following examples demonstrate its usage:

•Media Example : a SIP Servlet application showing how to use media capabilities (Media

playback, Recording, Text to Speech with FreeTTS and DTMF detection).

•Conference Demo : a Conference Media Server demo application built on GWT with server-push

updates.

•Shopping Example : a Converged JEE Application showing SEAM integration, JEE, Media

integration with TTS and DTMF support.

8.2. Concurrency and Congestion Control

Concurrency and Congestion control refer to settings that define the way in which messages are

processed under heavy load. The way Restcomm SIP Servlets Server processes messages in a

production environment is crucial to ensure quality of service for customers.

Concurrency control mode tuning affects the way in which the SIP Servlets Server processes

messages, whereas Congestion Control tuning affects the point at which the server begins rejecting

new requests. Both of these parameters can be set using the following methods:

•Through the SIP Servlets Management Console.

•Editing the server’s server.xml or standalone-sip.xml configuration file.

•From the dispatcher MBean.

•From the Embedded Jopr integrated management platform.

Concurrency Control

The JSR 289 expert group does not specify how concurrency control should be implemented.

Restcomm SIP Servlets for JBoss and Restcomm SIP Servlets for Tomcat have concurrency control

implemented as a configurable mode, which defines the way in which the SIP Servlets Server

processes messages.

It has to be noted that this concurrency control mechanism is not cluster aware and will work per

node only, it is not a cluster wide lock.

The following modes are provided, and cater for the particular setup required in an

implementation:

None

All SIP messages are processed as soon as possible in a thread from the global thread pool.

Transaction

Bypass the SIP Servlets request/response executors, and utilize the JAIN SIP built-in Transaction

serialization to manage race conditions on the same transaction.

SipSession

SIP messages are processed as soon as possible except for messages originating from the same

SipSession. These messages are excluded from any simultaneous processing.

SipApplicationSession

SIP messages are processed as soon as possible, with the guarantee that no two messages from

the same SipSession or from the same SipApplicationSession will ever be processed

simultaneously. Of all the available methods, this mode is the best choice for guaranteed thread-

safety.

Congestion Control

Restcomm Sip Servlets currently provides the following congestion control mechanisms:



Changing Congestion Control Settings

All the settings and congifurations starting with gov.nist.javax.sip are located in

the $JBOSS-HOME/standalone/configuration/mss-sip-stack.properties file. The

section below will provide further details.

•Congestion control is largely application-specific and it is implemented in a pipeline. First

messages arrive in the JAIN SIP message queue where they will wait on the locks needed before

they can be processed. To avoid keeping too many messages in the queue and potentially

running out of memory, older messages are discarded without any error indication. This

prevents spam and flood DoS attacks to accumulate large backlog and render the server

unresponsive. It also guranatees flood recovery time of 20 seconds or less, in the mean time

retransmissions are already queuing so that normal SIP calls can continue without dropping

them. After the request has passed the first queue it enters the SIP transaction layer where

there is a customizable optional congestion control logic. There is one packaged congestion

control algorithm which can be enabled by setting the following property

gov.nist.javax.sip.SIP_MESSAGE_VALVE=gov.nist.javax.sip.stack.CongestionControlMessageValve.

For this algorithm you can set the limit value by the following property

gov.nist.javax.sip.MAX_SERVER_TRANSACTIONS=2000. You can also implement your own algorithm

and change the class name in gov.nist.javax.sip.SIP_MESSAGE_VALVE to activate it.

There is also another optional legacy congestion control stage with another queue where

messages can be discarded based on dynamic parameters such as available JVM heap memory

or number of messages in the queue. This method will be deprecated and is not recommended.

All SIP messages which cannot be processed immediately are put into a queue, and wait for

either a free thread or for the lock on their session to be released. The size of the SIP message

queue is a tunable parameter, which defaults to 1500.

•If the SIP Message queue becomes full, the container immediately begins rejecting new SIP

requests until the queue clears. This is achieved by using one of the following methods:

•Sending a 503 SIP error code to the originating application.

•Dropping incoming messages (according to the specified congestion control policy).

•If the container exceeds the configurable memory threshold (90% by default), new SIP

requests are rejected until the memory usage falls below the specified memory threshold. This

is achieved by using one of the following methods:

•Sending a 503 SIP error code to the originating application.

•Dropping incoming messages (according to the specified congestion control policy).

A background task gathers information about the current server congestion. The data collection

interval can be adjusted, and congestion control deactivated, by setting the interval to 0 or a

negative value.

The congestion control policy defines how an incoming message is handled when the server is

overloaded. The following parameters are configurable:

•DropMessage - drop any incoming message

•ErrorResponse - send a 503 - Service Unavailable response to any incoming request (Default).

Configuring the Concurrency and Congestion Control Settings

The concurrency and congestion control settings can be configured through the SIP Servlets

Management Console, using the following methods:

•Through the SIP Servlets Management Console.

•Editing the server’s server.xml or the standalone-sip.xml configuration file.

•From the dispatcher MBean.

•From the Embedded Jopr integrated management platform.

Tuning Parameters with the SIP Servlets Management Console

The easiest way to configure the SIP Message Queue Size and Concurrency Control Mode

tunable parameters is to open the SIP Servlets Management Console in your browser (by

going to http://localhost:8080/sip-servlets-management), making your changes, and then

clicking button Apply.

Figure 19. SIP Servlets Management Console Concurrency and Congestion Control Tuning Parameters



Concurrency and congestion control settings altered through the SIP Servlets

Management Console are not saved to the server.xml on Tomcat, only on JBoss

AS7 through the standalone-sip.xmlconfiguration file. To make settings persistent,

append the settings to the server.xml file directly.

Making your changes permanent in standalone-sip.xml or server.xml by manual editing

Alternatively, you can edit your server’s standalone-sip.xml or server.xml configuration file,

which has the benefit of making your chosen settings changes permanent for Tomcat.

Instructions follow, grouped by the SIP Servlets Server you are running:

Procedure: Tuning RestComm SIP Servlets for JBoss Server Settings for Concurrency and Congestion

Control

1. Open standalone-sip.xml File

Open the $JBOSS_HOME/standalone/configuration/standalone-sip.xml configuration file in a

text editor.

2. Extract from stanalone-sip.xml file with conccurency configuration

<subsystem xmlns="urn:org.mobicents:sip-servlets-as7:1.0" application-

router="dars/mobicents-dar.properties" stack-properties="mss-sip-stack.properties"

path-name="gov.nist" app-dispatcher-

class="org.mobicents.servlet.sip.core.SipApplicationDispatcherImpl" concurrency-

control-mode="SipApplicationSession" congestion-control-interval="-1">

Ê <connector name="sip-udp" protocol="SIP/2.0" scheme="sip" socket-binding="sip-

udp"/>

Ê <connector name="sip-tcp" protocol="SIP/2.0" scheme="sip" socket-binding="sip-

tcp"/>

Ê <connector name="sip-tls" protocol="SIP/2.0" scheme="sip" socket-binding="sip-

tls"/>

Ê <connector name="sip-tls" protocol="SIP/2.0" scheme="sip" socket-binding="sip-

ws"/>

Ê <connector name="sip-tls" protocol="SIP/2.0" scheme="sip" socket-binding="sip-

wss"/>

</subsystem>

Procedure: Tuning RestComm SIP Servlets for Tomcat Server Settings for Concurrency and Congestion

Control

1. Open server.xml File

Open the $CATALINA_HOME/conf/server.xml configuration file in your text editor.

2. Add Parameters to <service> Element

Locate the <service> element, and add the concurrencyControlMode and/or

sipMessageQueueSize attributes.

Possible values for the concurrencyControlMode attribute include: None, SipSession or

SipApplicationSession. SipSession is the value of this attribute when it is not present—and

overridden—in server.xml.

3. Define the Correct Attribute Values

The following default values for the concurrency and congestion control parameters are used

regardless of whether the attributes are defined in the server.xml file:

•sipMessageQueueSize="1500"

•backToNormalSipMessageQueueSize="1300"

•congestionControlCheckingInterval="30000" (30 seconds, in milliseconds)

•memoryThreshold="95" (in percentage)

•backToNormalMemoryThreshold="90" (in percentage)

•congestionControlPolicy="ErrorResponse"

Experimentation is required for these tuning parameters depending on the operating

system and server.

Tuning Parameters from the dispatcher MBean

Navigate to the dispatcher MBean from Restcomm SIP Servlets for JBoss’s JMX console.

All changes performed at run time are effective immediately, but do not persist across

reboots for Tomcat, only on JBoss AS7. the server.xml must be appended with the settings

in order to make the configuration persistent.

When editing the dispatcher MBean from RestComm SIP Servlets for JBoss’s JMX console,

values allowed for the concurrency control mode are None, SipSession or

SipApplicationSession.

8.3. STUN Support

The Session Traversal Utilities for NAT (STUN) prococol is used in Network Address Translation

(NAT) traversal for real-time voice, video, messaging, and related interactive IP application

communications. This light-weight, client-server protocol allows applications passing through a

NAT to obtain the public IP address for the UDP connections the application uses to connect to

remote hosts.

STUN support is provided at the SIP connector level, using the STUN for Java project. The STUN for

Java project provides a Java implementation of the STUN Protocol (RFC 3489), which allows each

SIP connector to select whether it should use STUN to discover a public IP address, and then use this

address in the SIP messages sent through the connector.

To make a SIP connector STUN-enabled, three attributes must be appended to the child element in

the server.xml or child element in standalone-sip.xml file. The properties are:

•useStun="true"

Enables STUN support for this connector. Ensure that the ipAddress attribute is not set to

127.0.0.1.

•stunServerAddress="<Public_STUN_Server>"

STUN server address used to discover the public IP address of this SIP Connector. See Public

STUN Servers for a suggested list of public STUN servers.

•stunServerPort="3478"

STUN server port of the STUN server used in the stunServerAddress attribute. Both TCP and UDP

protocols communicate with STUN servers using this port only.

A complete list of available SIP connector attributes and their descriptions is

located in the Configuring SIP Connectors and Bindings section of this guide.

A number of public STUN servers are available, and can be specified in the stunServerAddress.

Depending on the router firmware used, the STUN reply packets' MAPPED_ADDRESS may be

changed to the router’s WAN port. To alleviate this problem, certain public STUN servers provide

XOR_MAPPED_ADDRESS support. Public STUN Servers provides a selection of public STUN servers.

Table 2. Public STUN Servers

Server Address XOR Support DNS SRV Record

stun.ekiga.net Yes Yes

stun.fwdnet.net No Yes

stun.ideasip.com No Yes

stun01.sipphone.com Yes No

stun.softjoys.com No No

stun.voipbuster.com No No

stun.voxgratia.org No No

stun.xten.com Yes Yes

stunserver.org Yes Yes

For more information about NAT traversal best practices, refer to NAT Traversal..

8.4. Restcomm vendor-specific Extensions to JSR 289

Restcomm provide Extensions for applications or external systems to interact with the Restcomm

SIP Servlets container as well as Extensions not defined in the specification in the JSR 289

specification that can prove useful and might be proposed for inclusion in a next release of the SIP

Servlets specification

Javadoc for JSR 289 Extensions

8.5. CDI Telco Framework

CDI is the Java standard for dependency injection and contextual lifecycle management, led by

Gavin King for Red Hat, Inc. and is a Java Community Process(JCP) specification that integrates

cleanly with the Java EE platform. Any Java EE 6-compliant application server provides support for

JSR-299 (even the web profile). It seemed a natural fit create a new framework based on CDI for the

Telco world.

CDI-Telco-Framework (CTF) from Restcomm brings the power and productivity benefits of CDI into

the Restcomm Sip Servlets platform providing dependency injection and contextual lifecycle

management for converged HTTP/SIP applications. This new framework is intended to become a

replacement for our previous Seam Telco Framework.

CTF mission statement is to simplify SipServlets development by introducing a component based

programming model, ease of development by making available SIP utilities out of the box, and

finally providing dependency injection and contextual lifecycle management to the SipServlets.

100

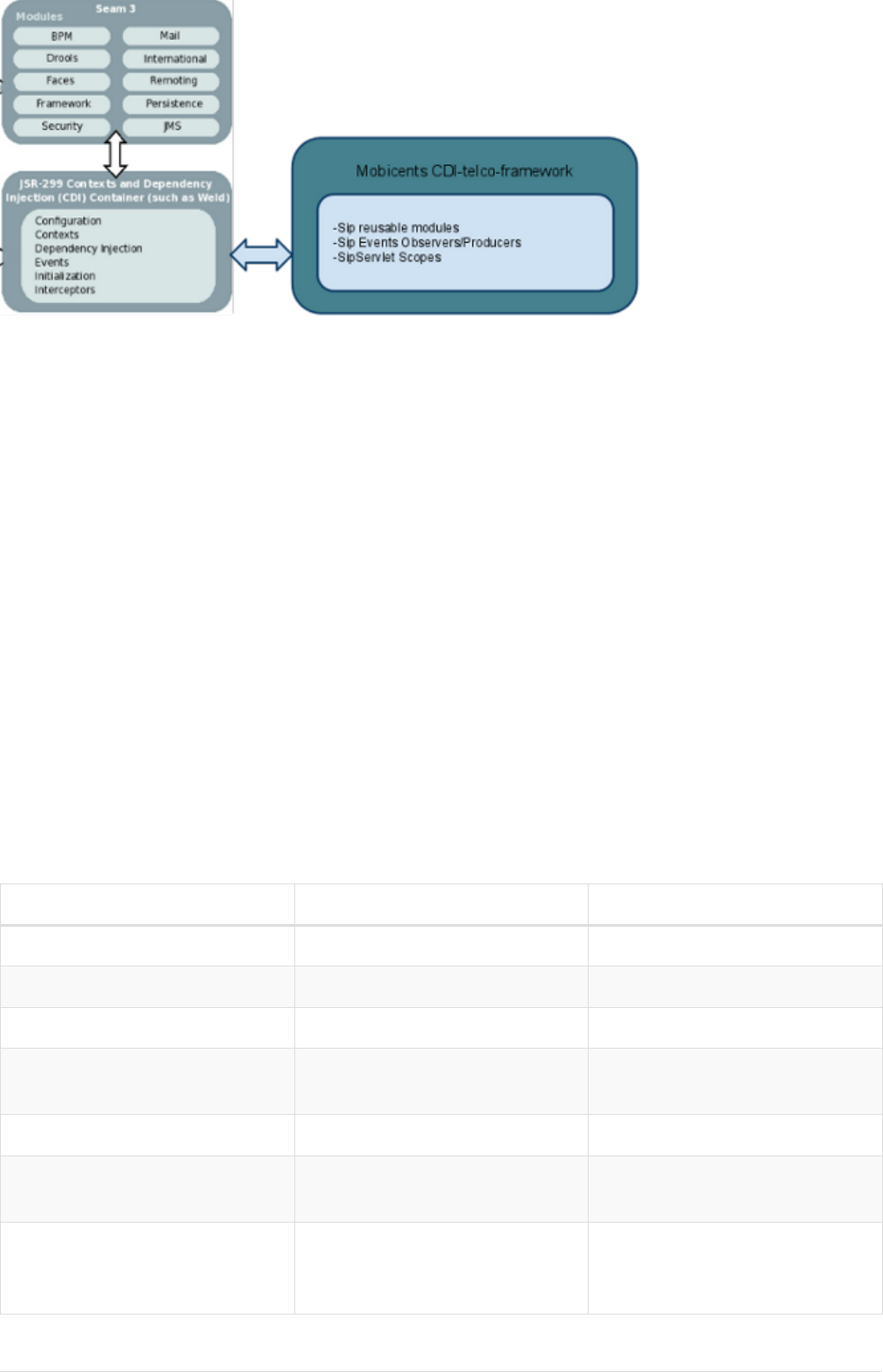

Figure 20. CDI Telco Framework Extension

More information about the CTF can be found on the CDI Telco Framework Documentation.

8.6. Diameter Support

The Diameter Protocol (RFC 3588) is a computer networking protocol for Authentication,

Authorization, and Accounting (AAA). The Diameter version included in Restcomm SIP Servlets

currently support Base, Sh, Ro and Rf.

For more information regarding Diameter support, refer to the Diameter Home Page. For a list of

Diameter examples, refer to SIP Servlet Example Applications.

8.7. SIP and IMS Extensions

SIP Extensions in the SIP Servlets Server are based on the Internet Engineering Task Force’s (IETF)

Request for Comments (RFC) protocol recommendations. Supported SIP Extensions lists the

supported RFCs for the SIP Servlets Server.

Table 3. Supported SIP Extensions

Extension RFC Number Description

DNS RFC 3263 SIP: Locating SIP Servers

ENUM RFC 2916 E.164 number and DNS

INFO RFC 2976 The SIP INFO Method

IPv6 RFC 2460 Internet Protocol, Version 6

(IPv6) Specification

JOIN RFC 3911 The SIP "Join" Header

MESSAGE RFC 3428 SIP Extension for Instant

Messaging

PATH RFC 3327 SIP Extension Header Field for

Registering Non-Adjacent

Contacts

101

Extension RFC Number Description

PRACK RFC 3262 Reliability of Provisional

Responses in the SIP

PUBLISH RFC 3903 SIP Extension for Event State

Publication

REASON RFC 3326 The Reason Header Field for the

Session Initiation Protocol (SIP)

REFER RFC 3515 The SIP Refer Method

REPLACES RFC 3891 The SIP "Replaces" Header

STUN RFC 3489 STUN - Simple Traversal of User

Datagram Protocol (UDP)

through Network Address

Translators (NATs)

SUBSCRIBE/NOTIFY RFC 3265 SIP-specific Event Notification

Symmetric Response Routing RFC 3581 An Extension to the Session

Initiation Protocol (SIP) for

Symmetric Response Routing

Multipart type RFC 4662 A Session Initiation Protocol

(SIP) Event Notification

To/From Header Modification RFC 4916 Connected Identity in the

Session Initiation Protocol (SIP)

IMS Private Header (P-Header) Extensions are provided according to the recommendations of the

3rd Generation Partnering Project (3GPP) and the IETF. P-Header extensions are primarily used to

store information about the networks a call traverses, including security or call charging details.

IMS P-Header Extensions describes the list of supported P-Headers, including links to the relevant

ITEF memorandum where available.

Table 4. IMS P-Header Extensions

AuthorizationHeaderIMS Defines a new auth-param for the

Authorization header used in REGISTER

requests.

PAccessNetworkInfoHeader Contains information regarding the access

network the User Agent (UA) uses to connect to

the SIP Proxy. The information contained in this

header may be sensitive, such as the cell ID, so it

is important to secure all SIP application that

interface with this header.

PAssertedIdentityHeader Contains an identity resulting from an

authentication process, derived from a SIP

network intermediary. The identity may be

based on SIP Digest authentication.

102

AuthorizationHeaderIMS Defines a new auth-param for the

Authorization header used in REGISTER

requests.

PAssertedServiceHeader Contains information used by "trust domains",

according to Spec(T) specifications detailed in

RFC 3324.

PAssociatedURIHeader Contains a list of URIs that are allocated to the

user. The header is defined in the 200 OK

response to a REGISTER request. It allows the

User Agent Client (UAC) to determine the URIs

the service provider has associated to the user’s

address-of-record URI.

PathHeader SIP Extension header, with syntax similar to the

RecordRoute header. Used in conjunction with

SIP REGISTER requests and 200 class messages

in response to REGISTER responses.

PCalledPartyIDHeader Typically inserted en-route into an INVITE

request by the proxy, the header is populated

with the Request_URI received by the proxy in

the request. The header allows the User Agent

Server (UAS) to identify which address-of-record

the invitation was sent to, and can be used to

render distinctive audio-visual alert notes based

on the URI.

PChargingFunctionAddressesHeader Contains a list of one or more of the Charging

Collection Function (CCF) and the Event

Charging Function (ECF) addresses. The CCF and

ECF addresses may be passed during the

establishment of a dialog, or in a standalone

transaction.

PChargingVectorHeader Contains a unique charging identifier and

correlation information, which is used by

network operators to correctly charge for

routing events through their networks.

PMediaAuthorizationHeader Contains one or more session-specific media

authorization tokens, which are used for QoS of

the media streams.

PPreferredIdentityHeader Contains a SIP URI and an optional display-

name. For example, "James May"

<sip:james@domain.com>. This header is used

by trusted proxy servers to identify the user to

other trusted proxies, and can be used to select

the correct SIP URI in the case of multiple user

identities.

103

AuthorizationHeaderIMS Defines a new auth-param for the

Authorization header used in REGISTER

requests.

PPreferredServiceHeader Used by the PAssertedService Header to

determine the preferred user service. Multiple

PPreferreedService headers may be present in a

single request.

PProfileKeyHeader Contains a key used by a proxy to query the user

database for a given profile. The key may

contain wildcards that are used as part of the

query into the database.

PrivacyHeader Contains values that determine whether

particular header information is deemed as

private by the UA for requests and responses.

PServedUserHeader Contains an identity of the user that represents

the served user. The header is added to the

initial requests for a dialog or standalone

request, which are then routed between nodes

in a trusted domain.

PUserDatabaseHeader Contains the address of the HSS handling the

user that generated the request. The header field

is added to request routed from an Interrogating

Call Session Control Function (I-CSCF) to a

Serving Call Session Control Function (S-CSCF).

PVisitedNetworkIDHeader Contains the identifier of a visited network. The

identifier is a text string or token than it known

by both the registrar or the home proxy at the

home network, and the proxies in the visited

network.

SecurityClientHeader, SecurityServerHeader,

SecurityVerifyHeader

Contains information used to negotiate the

security mechanisms between a UAC, and other

SIP entities including UAS, proxy and registrar.

ServiceRouteHeader Contains a route vector that will direct requests

through a specified sequence of proxies. The

header may be included by a registrar in

response to a REGISTER request.

WWWAuthenticateHeaderIms Extends the WWWAuthenticateResponse header

functionality by defining an additional

authorization parameter (auth-param).

8.8. SIP Servlets - JAIN SLEE Interoperability

JAIN SLEE is a more complex specification than SIP Servlets, and it has been know as heavyweight

and with a steep learning curve. However JAIN SLEE has standardized a high performing event

driven application server, an execution environment with a good concurrency model and powerful

104

protocol agnostic capabilities thus covering a variety of Telco protocols.

SIP Servlets on the other hand is much simpler and easier to get started with. Its focus is on

extending the HTTP Servlets and Java EE hosting environments with SIP capabilities. SIP Servlets is

more of a SIP programming framework, while JSLEE is a complete, self sufficient application

platform. The fact that SIP Servlets is focused on SIP and Java EE makes it a natural fit to build JEE

converged applications.

Table 5. SIP Servlets / JAIN SLEE Comparison Table

SIP Servlets JAIN SLEE

Application Architecture

Based on HTTP Servlets. Unit of logic is the SIP

Servlets

Component based, Object Orientated

architecture. Unit of logic is the Service Building

Block

Composition through Application Router Composition through parent-child relationship

Application State

Servlets are stateless SBBs may be stateful

ÊShared state stored in a session and visible to all

Servlets with access to the session

SBB state is transacted and a property of the SBB

itself. Shared state may be stored in a separate

ActivityContext via a type safe interface

Concurrency Control

Application managed: use of Java monitors System Managed: isolation of concurrent

transactions

Facilities (Utilities for Applications)

Timer, Listeners Timer, Trace, Alarm, Statistics, Profiles.

Protocol Support

SIP, HTTP and Media (JSR 309)Protocol

agnostic.

Consistent event model, regardless of

protocol/resource

Availability Mechanisms

Container managed state (session object) that

can be replicated

Container managed state (SBB CMP, Facility,

ActivityContext) that can be replicated

No transaction context for SIP message

processing

Transaction context for event delivery

Non transacted state operations Container managed state operations are

transacted

Facilities are non transacted Facilities, timers, are transacted

No defined failure model Well defined and understood failure model via

transactions

Management

105

SIP Servlets JAIN SLEE

No standard management mechanisms defined JMX Interface for managing applications, life

cycle, upgrades, …

JSLEE and SIP Servlets target different audiences with different needs, but they can be

complementary in a number of real world cases.

SIP Servlets focuses on SIP and its integration with Java EE. It is also more of a SIP framework

within Java EE. JSLEE is an event driven application server with protocol agnostic architecture,

spanning any legacy or potential future protocols. SIP Servlets applications are generally simpler to

implement and accelerate time to market for Web and SIP deployment scenarios. JSLEE has a

steeper learning curve and covers a wider set of target deployment environments.

As JBoss is the only vendor to implement both specifications through Restcomm , this makes it a

natural fit to build converged and interoperable JSLEE/SIP Servlets applications that are able to

comply with standards in a portable manner. We built an application that could leverage standards

all the way without resorting to vendor proprietary extensions by making SIP Servlets and JSLEE

work together. Our "JSLEE and SIP-Servlets Interoperability with Mobicents Communication

Platform" paper describes our approach and the possible different approaches we have identified

to achieve the goal of interoperability between SIP Servlets and JSLEE.

You can also use our JSLEE/SIP Servlets interoperability example, showcasing our approach.

8.9. Eclipse IDE Tools

The SIP Servlets Eclipse tools assist developers in creating JSR-289 applications with Restcomm. You

can use the Dynamic Web Project wizard for converged applications to get started with an empty

project, and then test your application with a real SIP Phone right from the IDE.

Figure 21. SIP Servlets Eclipse IDE Tools

8.9.1. Pre-Install requirements

Eclipse 3.4 is required.

106

8.9.2. Installation

The standard Eclipse update site installation mechanism is leveraged. The Restcomm Update Site is

at the following location: http://mobicents.googlecode.com/svn/downloads/sip-servlets-eclipse-

update-site. After adding this update site to Eclipse you can proceed with the regular Eclipse Plug-in

Installation. If you need help, the process is demonstrated in this video.

8.9.3. SIP Servlets Core Plug-in

This plug-in allows you to create Dynamic Web Projects with the SIP Facet. There are a number of

new Dynamic Web Project configurations for Converged applications. It is best to use the ones

marked as "recommended". After you complete the wizard, a complete converged project skeleton

will be generated. Working with this type of project is similar to working with normal Web projects.

You can see a demo here.

8.9.4. SIP Phone Plug-in

The SIP Phone plug-in integrates a SIP phone inside your Eclipse IDE. You can use the phone to test

your SIP or Media applications. The phone uses the microphone and speakers on your computer

and allows you to simulate real-world scenarios.

107

Chapter 9. Best Practices

This chapter discusses Best Practices related to Restcomm SIP Servlets usage in real world

deployments.

9.1. Restcomm SIP Servlets Performance Tips

Because the default profile of Restcomm SIP Servlets is targeted at a development environment,

some tuning is required to make the server performance suitable for a production environment.

A useful presentation from OKI Japan

9.1.1. Tuning JBoss

To ensure the server is finely tuned for a production envirionment, certain configuration must be

changed. Visit the JBoss Application Server Tuning wiki page to learn about optimization

techniques.

While it is preferable to have a fast Application Server, most of the information doesn’t apply to

Restcomm . In summary, the most important optimization technique is to remove logs, leaving only

what is required.

Check the log configuration file in the following location and review the information.

SIP Servlets Server Logging

9.1.2. Tuning Restcomm SIP Servlets

•Congestion Control: It is recommended that this feature is enabled to avoid overload of the

server and that the sipMessageQueueSize and memoryThreshold parameters are tuned

according to Concurrency and Congestion Control.

•Concurrency : Default Value: None. For better performance, it is recommended to leave this

value set to None.

9.1.3. Tuning The JAIN SIP Stack

The stack can be fine-tuned by altering the SIP stack properties, defined in the external properties

file specified by the sipStackPropertiesFile attribute as described in Configuring SIP Connectors and

Bindings.

•gov.nist.javax.sip.THREAD_POOL_SIZE

Default value: 64

This thread pool is responsible for parsing SIP messages received from socket messages into

objects.

A smaller value will make the stack less responsive, since new messages have to wait in a queue

for free threads. In UDP, this can lead to more retransmissions.

108

Large thread pool sizes result in allocating resources that are otherwise not required.

•gov.nist.javax.sip.REENTRANT_LISTENER

Default value: true

This flag indicates whether the SIP stack listener is executed by a single thread, or concurrently

by the threads that parse the messages.

Restcomm SIP Servlets expects this flag to be set to true, therefore do not change the value.

•gov.nist.javax.sip.LOG_MESSAGE_CONTENT

Default value: true

Set the parameter to false to disable message logging.

•gov.nist.javax.sip.TRACE_LEVEL=0

Default value: 32.

Set the parameter to 0 to disable JAIN SIP stack logging.

•gov.nist.javax.sip.RECEIVE_UDP_BUFFER_SIZE=65536 and

gov.nist.javax.sip.SEND_UDP_BUFFER_SIZE=65536

Default value: 65536.

Those properties control the size of the UDP buffer used for SIP messages. Under load, if the

buffer capacity is overflown the messages are dropped causing retransmissions, further

increasing the load and causing even more retransmissions.

•gov.nist.javax.sip.MAX_MESSAGE_SIZE=10000

Default value: 10000.

This property controls the maximum size of content that can be read for a SIP Message on UDP.

The default is 65536. The average UDP message size is quite lower than this so reducing this

property will benefit memory usage since a byte buffer of this size is created for every message

received.

It also defines the maximum size of content that a TCP connection can read. Must be at least 4K.

Default is "infinity" — ie. no limit. This is to prevent DOS attacks launched by writing to a TCP

connection until the server chokes.

•gov.nist.javax.sip.TCP_POST_PARSING_THREAD_POOL_SIZE=30

Default value: 30.

Use 0 or do not set this option to disable it. When using TCP, your phones/clients usually connect

independently, creating their own TCP sockets. Sometimes however SIP devices are allowed to

tunnel multiple calls over a single socket. This can also be simulated with SIPP by running "sipp

109

-t t1".

In the stack, each TCP socket has it’s own thread. When all calls are using the same socket they

all use a single thread, which leads to severe performance penalty, especially on multi-core

machines. This option instructs the SIP stack to use a thread pool and split the CPU load between

many threads. The number of the threads is specified in this parameter.

The processing is split immediately after the parsing of the message. It cannot be split before the

parsing because in TCP the SIP message size is in the Content-Length header of the message and

the access to the TCP network stream has to be synchronized.

Additionally, in TCP the message size can be larger. This causes most of the parsing for all calls

to occur in a single thread, which may have impact on the performance in trivial applications

using a single socket for all calls. In most applications it doesn’t have performance impact. If the

phones/clients use separate TCP sockets for each call, this option doesn’t have much impact,

except the slightly increased memory footprint caused by the thread pool. It is recommended to

disable this option in this case by setting it 0 or not setting it at all. You can simulate multi-socket

mode with "sipp -t t0". With this option also we avoid closing the TCP socket when something

fails, because we must keep processing other messages for other calls. Note: This option relies

on accurate Content-Length headers in the SIP messages. It cannot recover once a malformed

message is processed, because the stream iterator will not be aligned any more. Eventually the

connection will be closed.

The full list of JAIN SIP stack properties is available from the SIP Stack Properties Home Page and

the full list of implementation specific properties are available from the SIP Stack Implementation

Home Page.

9.1.4. Tuning The JVM

The following tuning information applies to Sun JDK 1.6, however the information should also

apply to Sun JDK 1.5.



For more information on tuning Restcomm SIP Servlets performance, refer to the

OKI Japan Presentation.

For more information on performance, refer to the Performance White Paper.

To pass arguments to the JVM, change $JBOSS_HOME/bin/standalone.conf (Linux) or

$JBOSS_HOME/bin/standalone.bat (Windows).

•Garbage Collection

JVM ergonomics automatically attempt to select the best garbage collector. The default

behaviour is to select the throughput collector, however a disadvantage of the throughput

collector is that it can have long pauses times, which ultimately blocks JVM processing.

For low-load implementations, consider using the incremental, low-pause, garbage collector

(activated by specifying `-XX:+UseConcMarkSweepGC -XX:+CMSIncrementalMode`). Many SIP

applications can benefit from this garbage collector type because it reduces the retransmission

110

amount.

For more information please read: Garbage Collector Tuning

•Heap Size

Heap size is an important consideration for garbage collection. Having an unnecessarily large

heap can stop the JVM for seconds, to perform garbage collection.

Small heap sizes are not recommended either, because they put unnecessary pressure on the

garbage collection system.

9.1.5. Tuning The Operating System

The following tuning information is provided for Red Hat Enterprise Linux (RHEL) servers that are

running high-load configurations. The tuning information should also apply to other Linux

distributions.

After you have configured RHEL with the tuning information, you must restart the operating

system. You should see improvements in I/O response times. With SIP, the performance

improvement can be as high as 20%.

•Large Memory Pages

Setting large memory pages can reduce CPU utilization by up to 5%.

Ensure that the option `-XX:+UseLargePages` is passed and ensure that the following Java

HotSpot™ Server VM warning does not occur:

Failed to reserve shared memory (errno = 22)" when starting JBoss. It means that the number

of pages at OS level is still not enough.

To learn more about large memory pages, and how to configure them, refer to Java Support for

Large Memory Pages and Andrig’s Miller blog post.

•Network buffers

You can increase the network buffers size by adding the following lines to your /etc/sysctl.conf

file:

•net.core.rmem_max = 16777216

•net.core.wmem_max = 16777216

•net.ipv4.tcp_rmem = 4096 87380 16777216

•net.ipv4.tcp_wmem = 4096 65536 16777216

•net.core.netdev_max_backlog = 300000

•Execute the following command to set the network interface address:

sudo ifconfig [eth0] txqueuelen 1000 #

111

Replace [eth0] with the correct name of the actual network interface you are setting up.

9.2. NAT Traversal

In a production environment, it is common to see SIP and Media data passing through different

kinds of Network Address Translation (NAT) to reach the required endpoints. Because NAT

Traversal is a complex topic, refer to the following information to help determine the most effective

method to handle NAT issues.

9.2.1. STUN

STUN (Session Traversal Utilities for NAT) is not generally considered a viable solution for

enterprises because STUN cannot be used with symmetric NATs.

Most enterprise-grade firewalls are symmetric, therefore STUN support must be provided in the SIP

Clients themselves.

Most of the proxy and media gateways installed by VoIP providers recognize the public IP address

the packets have originated from. When both SIP end points are behind a NAT, they can act as

gateways to clients behind NAT.

9.2.2. TURN

TURN (Traversal Using Relay NAT) is an IETF standard, which implements media relays for SIP end-

points. The standard overcomes the problems of clients behind symmetric NATs which cannot rely

on STUN to solve NAT traversal.

TURN connects clients behind a NAT to a single peer, providing the same protection offered by

symmetric NATs and firewalls. The TURN server acts as a relay; any data received is forwarded.

This type of implementation is not ideal. It assumes the clients have a trust relationship with a

TURN server, and a request session allocation based on shared credentials.

This can result in scalability issues, and requires changes in the SIP clients. It is also impossible to

determine when a direct, or TURN, connection is appropriate.

9.2.3. ICE

ICE (Interactive Connection Establishment) leverages both STUN and TURN to solve the NAT

traversal issues.

It allows devices to probe for multiple paths of communication, by attempting to use different port

numbers and STUN techniques. If ICE support is present in both devices, it is quite possible that the

devices can initiate and maintain communication end-to-end, without any intermediary media

relay.

Additionally, ICE can detect cases where direct communication is impossible and automatically

initiate fall-back to a media relay.

112

ICE is not currently in widespread use in SIP devices, because ICE capability must be embedded

within the SIP devices.

Depending on the negotiated connection, a reINVITE may be required during a session, which adds

more load to the SIP network and more latency to the call.

If the initiating ICE client attempts to call a non-ICE client, then the call setup-process will revert to

a conventional SIP call requiring NAT traversal to be solved by other means.

9.2.4. Other Approaches

While the above is a good solution to circumvent NAT issues. There might be cases where it is not

possible to use those solutions at all.

Other approaches include using proxy and media that can act as gateways, Session Border

Controllers, enhanced Firewall with Application Layer Gateway (ALG) and Tunnelling.

Here is more information on Session Border Controllers and how they can resolve NAT issues when

above solutions are not possible

113

Chapter 10. Apendix

10.1. Java Development Kit (): Installing, Configuring

and Running

The [app]` Platform` is written in Java; therefore, before running any server, you must have a

working Java Runtime Environment () or Java Development Kit () installed on your system. In

addition, the JRE or JDK you are using to run [app] must be version 5 or higher [1: At this point

in time, it is possible to run most servers, such as the JAIN SLEE Server, using a Java 6 JRE or JDK.

Be aware, however, that presently the XML Document Management Server does not run on Java 6.

We suggest checking the web site, forums or discussion pages if you need to inquire about the

status of running the XML Document Management Server with Java 6.].

10.1.1. JRE versus JDK - 32-Bit versus 64-Bit

Should I Install the JRE or JDK?

Although you can run servers using the Java Runtime Environment, we assume that most users

are developers interested in developing Java-based, [app]-driven solutions. Therefore, in this

guide we take the tact of showing how to install the full Java Development Kit.

Should I Install the 32-Bit or the 64-Bit JDK, and Does It Matter?

Briefly stated: if you are running on a 64-Bit Linux or Windows platform, you should consider

installing and running the 64-bit JDK over the 32-bit one. Here are some heuristics for determining

whether you would rather run the 64-bit Java Virtual Machine (JVM) over its 32-bit cousin for your

application:

•Wider datapath: the pipe between RAM and CPU is doubled, which improves the performance

of memory-bound applications when using a 64-bit JVM.

•64-bit memory addressing gives virtually unlimited (1 exabyte) heap allocation. However large

heaps affect garbage collection.

•Applications that run with more than 1.5 GB of RAM (including free space for garbage collection

optimization) should utilize the 64-bit JVM.

•Applications that run on a 32-bit JVM and do not require more than minimal heap sizes will

gain nothing from a 64-bit JVM. Barring memory issues, 64-bit hardware with the same relative

clock speed and architecture is not likely to run Java applications faster than their 32-bit cousin.

Note that the following instructions detail how to download and install the 32-bit JDK, although the

steps are nearly identical for installing the 64-bit version.

10.1.2. Downloading JDK

You can download the Sun JDK 5.0 (Java 2 Development Kit) from Sun’s website:

http://java.sun.com/javase/downloads/index_jdk5.jsp. Click on the Download link next to "JDK 5.0

Update <x>`" (where [replaceable]<x>` is the latest minor version release number). On the next

page, select your language and platform (both architecture—whether 32- or 64-bit—and operating

114

system), read and agree to the Java Development Kit 5.0 License Agreement, and proceed to the

download page.

The Sun website will present two download alternatives to you: one is an RPM inside a self-

extracting file (for example, jdk-1_5_0_16-linux-i586-rpm.bin), and the other is merely a self-

extracting file (e.g. jdk-1_5_0_16-linux-i586.bin). If you are installing the JDK on Red Hat Enterprise

Linux, Fedora, or another RPM-based Linux system, we suggest that you download the self-

extracting file containing the RPM package, which will set up and use the SysV service scripts in

addition to installing the JDK. We also suggest installing the self-extracting RPM file if you will be

running [app]`` in a production environment.

Installing

The following procedures detail how to install the Java Development Kit on both Linux and

Windows.

Procedure: Installing the JDK on Linux

1. Regardless of which file you downloaded, you can install it on Linux by simply making sure the

file is executable and then running it:

~]$ chmod +x "jdk-1_5_0_<minor_version>-linux-<architecture>-rpm.bin"

~]$ ./"jdk-1_5_0_<minor_version>-linux-<architecture>-rpm.bin"



Moving from Non-RPM Installer to SysV Service Scripts

If you download the non-RPM self-extracting file (and installed it), and you are

running on an RPM-based system, you can still set up the SysV service scripts by

downloading and installing one of the -compat packages from the JPackage

project. Remember to download the -compat package which corresponds correctly

to the minor release number of the JDK you installed. The compat packages are

available from

link:ftp://jpackage.hmdc.harvard.edu/JPackage/1.7/generic/RPMS.non-free/.

You do not need to install a -compat package in addition to the JDK if you installed

the self-extracting RPM file! The -compat package merely performs the same SysV

service script set up that the RPM version of the JDK installer does.

10.1.3. Installing JDK on Windows

1. Using Explorer, simply double-click the downloaded self-extracting installer and follow the

instructions to install the JDK.

Configuring

Configuring your system for the JDK consists in two tasks: setting the JAVA_HOME environment

variable, and ensuring that the system is using the proper JDK (or JRE) using the alternatives

command. Setting JAVA_HOME usually overrides the values for java, javac and java_sdk_1.5.0 in

alternatives, but we will set them all just to be safe and consistent.

115

10.1.4. Setting Linux JAVA_HOME Environment Variables

Setting the JAVA_HOME Environment Variable on Generic Linux

After installing the JDK, you must ensure that the JAVA_HOME environment variable exists and

points to the location of your JDK installation.

10.1.5. Setting the Correct Java Version

Setting java, javac and java_sdk_1.5.0 Using the alternatives command

As the root user, call /usr/sbin/alternatives with the --config java option to select between

JDKs and JREs installed on your system:

10.1.6. Setting JAVA_HOME Environment Variables on Windows

Setting the JAVA_HOME Environment Variable on Windows

For information on how to set environment variables in Windows, refer to

http://support.microsoft.com/kb/931715.

10.1.7. Uninstalling JDK on Linux and Windows

Uninstalling

There is usually no reason (other than space concerns) to remove a particular JDK from your

system, given that you can switch between JDKs and JREs easily using alternatives, and/or by

setting JAVA_HOME.

Uninstalling the JDK on Linux

On RPM-based systems, you can uninstall the JDK using the `yum remove <jdk_rpm_name> `

command.

Uninstalling the JDK on Windows

On Windows systems, check the JDK entry in the Start menu for an uninstall command, or use

Add/Remove Programs.

10.1.8. Setting the JBOSS_HOME Environment Variable

The [app]` Platform` (`) is built on top of the [app]`JBoss Application Server (JBoss AS). You do

not need to set the JBOSS_HOME environment variable to run any of the [app]` Platform` servers

unless JBOSS_HOME is already set.

The best way to know for sure whether JBOSS_HOME was set previously or not is to perform a simple

check which may save you time and frustration.

Checking to See If JBOSS_HOME is Set on Unix

At the command line, echo $JBOSS_HOME to see if it is currently defined in your environment:

~]$ echo $JBOSS_HOME

116

The [app]` Platform` and most &PLATFORM_NAME; servers are built on top of the JBoss

Application Server (JBoss AS). When the [app]` Platform` or &PLATFORM_NAME; servers are built

from source, then JBOSS_HOME must be set, because the &PLATFORM_NAME; files are installed into

(or “over top of” if you prefer) a clean JBoss AS installation, and the build process assumes that the

location pointed to by the JBOSS_HOME environment variable at the time of building is the JBoss AS

installation into which you want it to install the &PLATFORM_NAME; files.

This guide does not detail building the [app]` Platform` or any &PLATFORM_NAME; servers from

source. It is nevertheless useful to understand the role played by JBoss AS and JBOSS_HOME in the

&PLATFORM_NAME; ecosystem.

The immediately-following section considers whether you need to set JBOSS_HOME at all and, if so,

when. The subsequent sections detail how to set JBOSS_HOME on Unix and Windows



Even if you fall into the category below of not needing to set JBOSS_HOME, you may

want to for various reasons anyway. Also, even if you are instructed that you do

not need to set JBOSS_HOME, it is good practice nonetheless to check and make sure

that JBOSS_HOME actually isn’t set or defined on your system for some reason. This

can save you both time and frustration.

You DO NOT NEED to set JBOSS_HOME if…

•…you have installed the [app]` Platform` binary distribution.

•…you have installed a &PLATFORM_NAME;server binary distribution which bundles JBoss AS.

You MUST set JBOSS_HOME if…

•…you are installing the [app]` Platform` or any of the &PLATFORM_NAME; servers from source.

•…you are installing the [app]` Platform` binary distribution, or one of the &PLATFORM_NAME;

server binary distributions, which do not bundle JBoss AS.

Naturally, if you installed the [app]` Platform` or one of the &PLATFORM_NAME; server binary

releases which do not bundle JBoss AS, yet requires it to run, then you should install JBoss AS

before setting JBOSS_HOME or proceeding with anything else.

Setting the JBOSS_HOME Environment Variable on Unix

The JBOSS_HOME environment variable must point to the directory which contains all of the files for

the [app]` Platform` or individual &PLATFORM_NAME; server that you installed. As another hint,

this topmost directory contains a bin subdirectory.

Setting JBOSS_HOME in your personal ~/.bashrc startup script carries the advantage of retaining effect

over reboots. Each time you log in, the environment variable is sure to be set for you, as a user. On

Unix, it is possible to set JBOSS_HOME as a system-wide environment variable, by defining it in

/etc/bashrc, but this method is neither recommended nor detailed in these instructions.

Procedure: To Set JBOSS_HOME on Unix…

1. Open the ~/.bashrc startup script, which is a hidden file in your home directory, in a text editor,

and insert the following line on its own line while substituting for the actual install location on

117

your system:

export JBOSS_HOME="/home/<username>/<path>/<to>/<install_directory>"

2. Save and close the .bashrc startup script.

3. You should source the .bashrc script to force your change to take effect, so that JBOSS_HOME

becomes set for the current session [2: Note that any other terminals which were opened prior

to your having altered .bashrc will need to source ~/.bashrc as well should they require access

to JBOSS_HOME.].

~]$ source ~/.bashrc

4. Finally, ensure that JBOSS_HOME is set in the current session, and actually points to the correct

location:



The command line usage below is based upon a binary installation of the

[app]` Platform`. In this sample output, JBOSS_HOME has been set correctly to

the topmost_directory of the installation. Note that if you are installing

one of the standalone [app] servers (with JBoss AS bundled!), then JBOSS_HOME

would point to the topmost_directory of your server installation.

~]$ echo $JBOSS_HOME

/home/silas/

Setting the JBOSS_HOME Environment Variable on Windows

The JBOSS_HOME environment variable must point to the directory which contains all of the files for

the &PLATFORM_NAME;Platform or individual &PLATFORM_NAME;server that you installed. As

another hint, this topmost directory contains a bin subdirectory.

For information on how to set environment variables in recent versions of Windows, refer to

http://support.microsoft.com/kb/931715.

10.1.9. Setting CATALINA_HOME on Linux and Windows

Procedure: Setting the CATALINA_HOME Environment Variable on Linux

1. The CATALINA_HOME environment variable must point to the location of your Tomcat installation.

Any &PLATFORM_NAME; server which runs on top of the Tomcat servlet container has a

topmost directory, i.e. the directory in which you unzipped the zip file to install the server, and

underneath that directory, a bin directory. CATALINA_HOME must be set to the topmost directory of

your &PLATFORM_NAME; server installation.

Setting this variable in your personal ~/.bashrc file has the advantage that it will always be set

(for you, as a user) each time you log in or reboot the system. To do so, open ~/.bashrc in a text

editor (or create the file if it doesn’t already exist) and insert the following line anywhere in the

118

file, taking care to substitute <sip_server> for the topmost directory of the &PLATFORM_NAME;

server you installed:

export CATALINA_HOME="/home/<username>/<path>/<to>/<sip_server>"

Save and close .bashrc.

2. You can—and should--source your .bashrc file to make your change take effect (so that

CATALINA_HOME is set) for the current session:

~]$ source ~/.bashrc

3. Finally, make sure that CATALINA_HOME has been set correctly (that it leads to the right directory),

and has taken effect in the current session.

The following command will show the path to the directory pointed to by CATALINA_HOME:

~]$ echo $CATALINA_HOME

To be absolutely sure, change your directory to the one pointed to by CATALINA_HOME:

~]$ cd $CATALINA_HOME && pwd

Procedure: Setting the CATALINA_HOME Environment Variable on Windows

1. The CATALINA_HOME environment variable must point to the location of your Tomcat installation.

Any &PLATFORM_NAME; server which runs on top of the Tomcat servlet container has a

topmost directory, i.e. the directory in which you unzipped the zip file to install the server, and

underneath that directory, a bin directory. CATALINA_HOME must be set to the topmost directory of

your &PLATFORM_NAME; server installation.

If you are planning on running the Tomcat container as the Administrator, then you should, of

course, set the CATALINA_HOME environment variable as the administrator, and if you planning to

run Tomcat as a normal user, then set CATALINA_HOME as a user environment variable.

For information on how to set environment variables in Windows, refer to

http://support.microsoft.com/kb/931715.

119

Chapter 11. JSR 289 Errata

This chapter discusses deviations from the JSR 289 specification by Restcomm SIP Servlets after

feedback on usage in real world deployments and from the community.

11.1. Restcomm SIP Servlets Deviations from JSR 289

•_Correlation of Responses to Proxy Branches _: It seems the javadoc for Speed Dial contains an

error, SipServlet.doBranchResponse() shouldn’t be included as it contradicts the last sentence

from the spec 10.2.4.2 Correlating responses to proxy branches : "Note that if the

doBranchResponse() is not overridden then doResponse() method will be invoked only for the

best final response as before", If SipServlet.doBranchResponse() handling is done in

SipServlet.doResponse() and the servlet overrides SipServlet.doResponse() then it will receive

intermediate final responses as well as the best final response which is not the desired

behavior, so the doBranchResponse() handling is done in SipServlet.doService() method

allowing applications not overriding doResponse or doService to receive both intermediate

final responses on the doBranchResponse as well as the best final response on doResponse but

this fixes the issue of intermediate final responses being delivered to doResponse in case the

servlet overrides it.

•SipServletResponse typo : _ SipServletResponse.SC_TEMPORARLY_UNAVAILABLE_ should be

replaced by SC_TEMPORARILY_UNAVAILABLE.

120

Restcomm SIP Servlets User Guide Server

Navigation menu

Versions of this User Manual:

Views

Navigation
