SML 1130 NID

User Manual: SML-1130-NID

Open the PDF directly: View PDF .
Page Count: 1

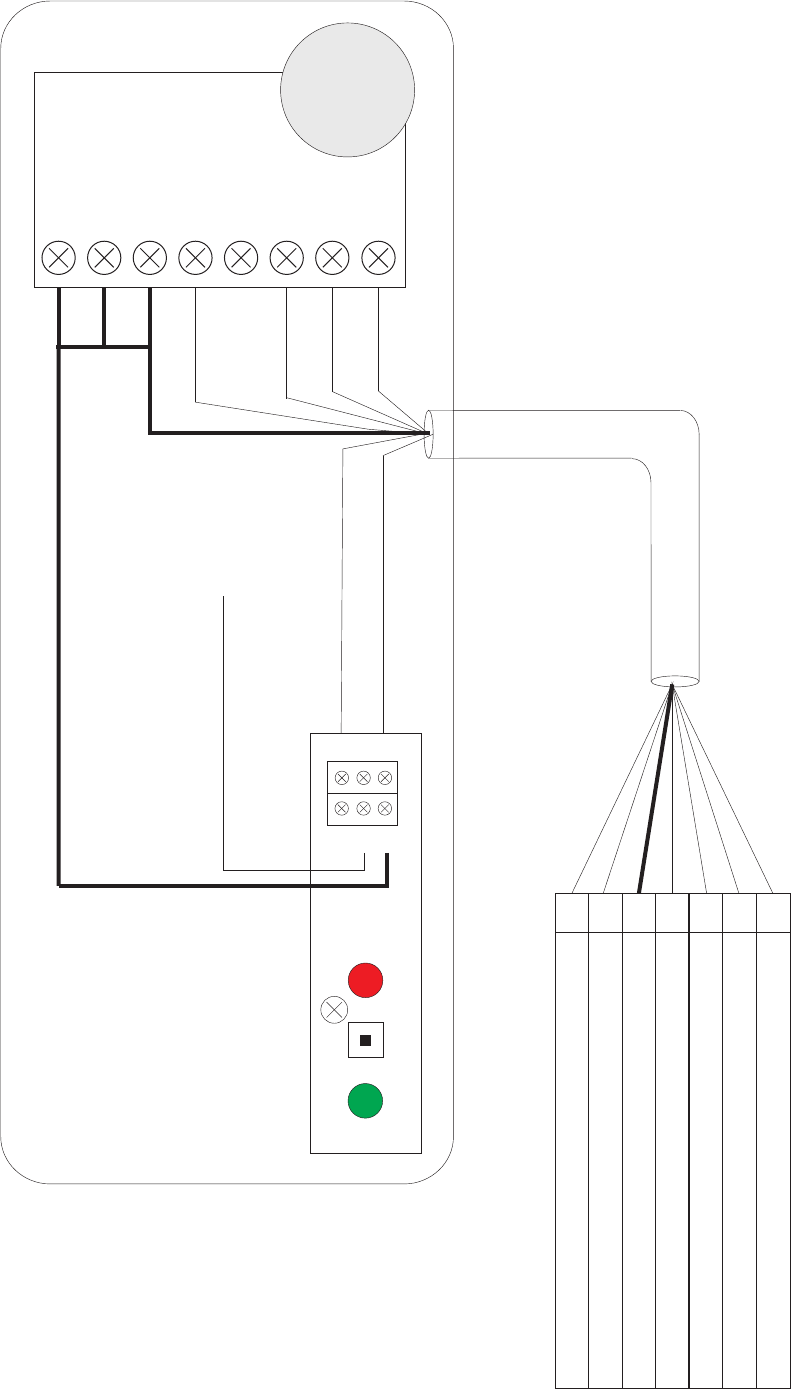

6 11 10 2 8 9 7 1

F P G

6O

L

SML2005

Pcb. 5471

Factory Fitted

GREEN AND WHITE PAIR

ORANGE OF WHITE

BROWN AND WHITE PAIR

SLATE OF WHITE

BLUE AND RED PAIR

WHITE OF BLUE AND WHITE OF ORANGE

BLUE OF WHITE

9

2

F

G

7

6

1

Cable is a 8 wire (4 pair) 0.5dia

Multi-pair cable to BT CW1308

specification.

With respect to the colour code,

the first colour is the base colour.

The second colour is the band colour.

The cables should be marked at the

Power Supply end with the flat number

they serve.

Select Manufacturing Limited

Telephone 01376 556020

Facsimile 01376 556021

SML1130/NID

F- Door Lamp

P - Not Used

G - 0V

L - Not Used

0 - Pre-Wired on Pcb

6 - 0V Pre-Wired

1 - Speaker

7 - Call 12VAC

2 - Microphone

6 - Common

9 - Lock Release

Buzzer
