The SmartNode™ 4400 VoIP Gateway-
Router provides 12 to 32 analog FXS
or FXO interfaces to connect phones,
fax or PSTN trunk lines to your IP-based
communications (IP PBX, UC systems and
SIP Trunks).
Like every SmartNode™, the SN4400 sup-
ports every industry-standard CODEC to deliv-
er toll-quality voice on every call. The Unified
Communications Agent™ (UCA) provides any-
to-any multi-path switching (simultaneous
SIP, H.323, ISDN, and POTS calls with routing
and conversion between TDM/PSTN and
IP/Ethernet networks—plus T.38 and SuperG3
FAX). VoIP-over-VPN with voice encryption
provides secure voice and data via IPsec with
AES/DES strong encryption and automated
keying via Internet Key Exchange (IKE). In
addition, advanced call-router functionality
includes least-cost call routing with flexible
dialed-number plan support.
The SmartNode survivability suite combines
PSTN fallback, SIP Registrar and IP-link
redundancy to ensure business continuity
in case the IP network fails. Patton’s
DownStreamQoS™ delivers the advantage of
clear, uninterrupted voice-and-data communi-
cation. In addition, SmartNode delivers a
smooth transition to VoIP with strong number
portability support accepting incoming calls
from the PSTN throughout the VoIP service
provider's number porting process.
Preserve investments in legacy phone equip-
ment while taking the next steps toward uni-
fied communications with the SN4400 VoIP
Gateway-Router. Providing 12 to 32 FXS or
FXO interfaces and two 10/100/1000 Ethernet,
the SN4400 with built-in IP Router delivers
secure, prioritized unified communications.
Need a carrier upgrade? The SmartNode
4900 adds a redundant power supply, WAN
interfaces, cooling fans and 0–50° C operat-
ing temperature.
Visit www.patton.com/smartnode for more
information.
The cost-effective Gateway-Router solution to tie in 12 to 32 analog phones, fax or PSTN trunk lines to your
IP environment.
SmartNode™4400 Series
VoIP
Complete Access Routing
Two 10/100 Ethernet ports with auto MDI-X.
Access router with NAT, Firewall, PPPoE, DHCP,
DynDNS, multiple VLANs & VPN with IPsec*
Outstanding Interoperability
Interoperable for voice and T.38 fax with leading
SIP service providers, soft-switch vendors and
Asterisk™ IP-PBX
Secure Toll-Quality VoIP
DownStreamQoS and Voice-over-VPN with adap-
tive traffic management and shaping for maximum
voice quality and secure voice communication.
Full SIP and T.38 support
Supports the complete range of industry stan-
dard VoIP: SIP, H.323, T.38 fax, fax and modem
bypass, DTMF relay. Codecs G.729, G.723 etc.
12, 16, 24 or 32 FXS
•Simultaneous voice or fax calls on all ports.
Advanced local call switching.

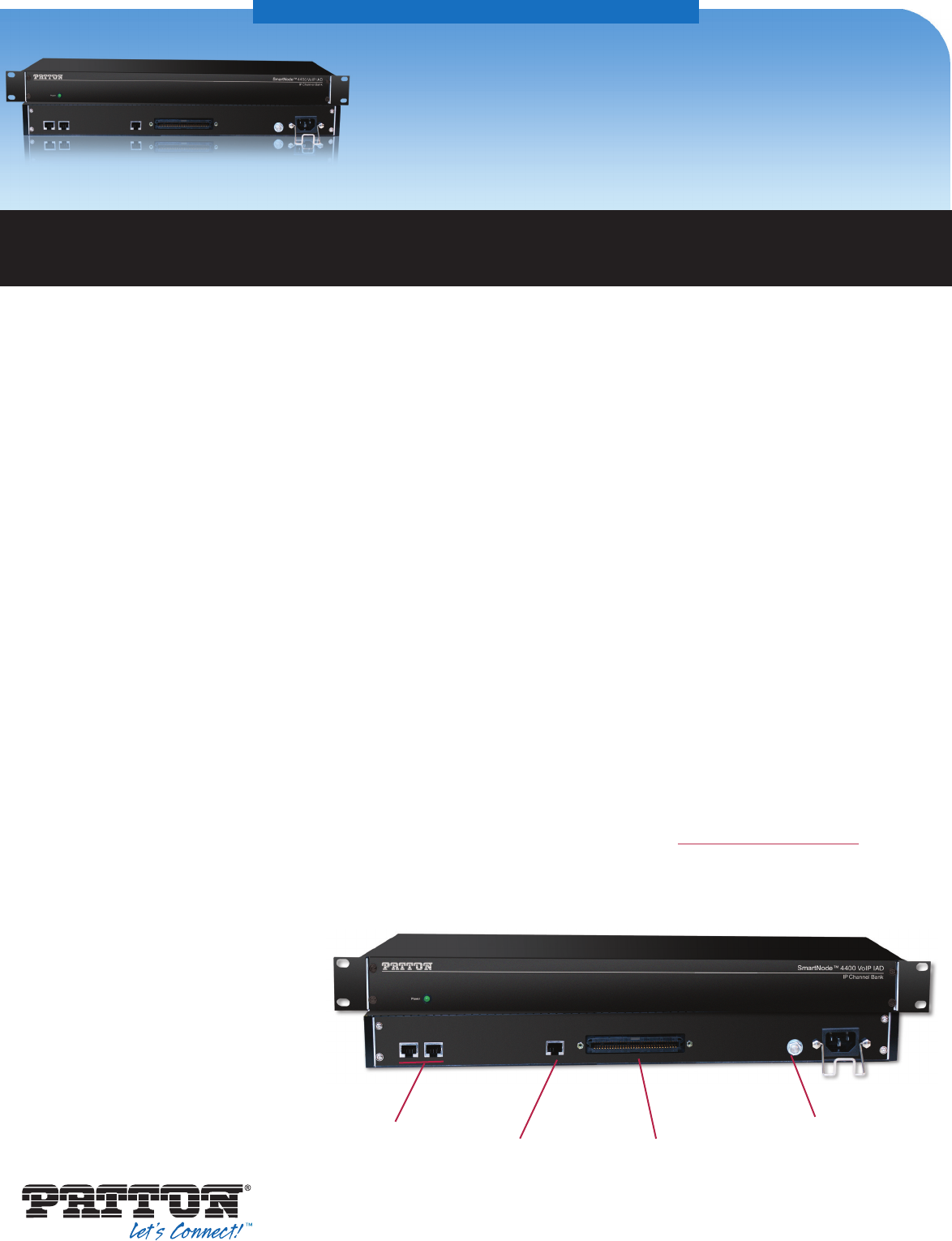

EIA-232
console port
50-pin (12 to 24 channels)
or 64-pin (32 channels)
Telco connector
Proven
Patton design,
Patton supported
Dual 10/100
Ethernet ports
IpChannel Bank
Multi-Port FXS or
FXO Gateway-Router
* Specifications subject to change without notice.

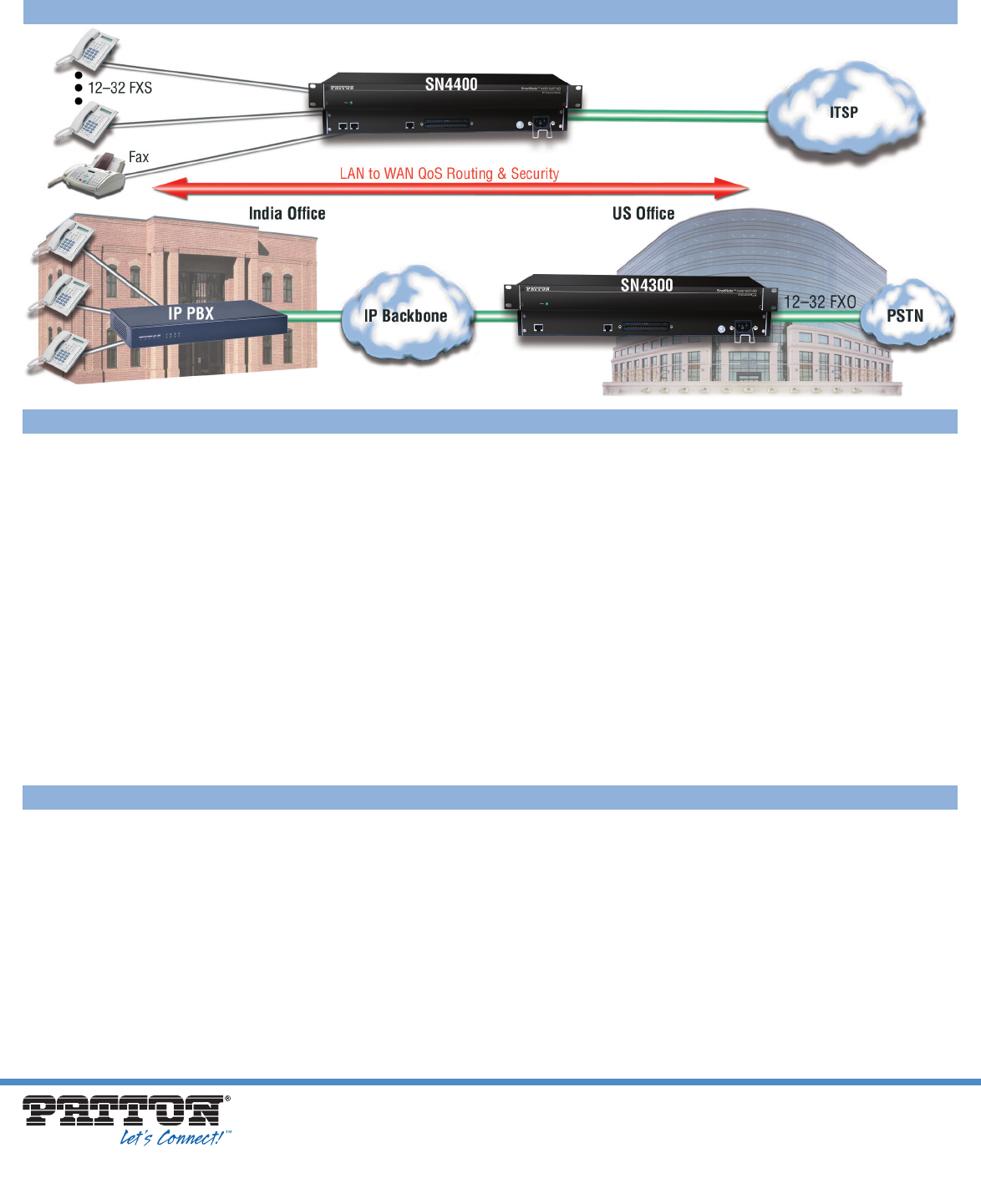

Typical applications
Preserve your investment in legacy phone
equipment by integrating legacy phones for
SIP trunking with 12 to 32 FXS ports.
Patton Hungary Zrt
Gábor Dénes utca 4.
Infopark Building C
Budapest H-1117
Hungary
Phone +36 1 439 4840
Fax +36 1 439 4844
E-mail ce@patton.com
Web www.patton.com
Patton Electronics Co.
7622 Rickenbacker Drive
Gaithersburg, Maryland 20879
USA
Phone +1 301 975 1000
Fax +1 301 869 9293
E-mail sales@patton.com
Web www.patton.com
Patton-Inalp Networks AG
Meriedweg 7
CH-3172 Niederwangen
Switzerland
Phone +41 (31) 985 25 25
Fax +41 (31) 985 25 26
E-mail sales@inalp.com
Web www.inalp.com
07MSN4400- DS7
Specifications*
Capacity
12, 16, 24, 32 simultane-
ous VoIP calls
Data Services
Two 10/100 Ethernet ports
• Complete IP access
router • DHCP Client &
server • Packet fragmenta-
tion • Static firewall, NAT,
NAPT RFC 1631 access
control lists • DMZ port
Quality of Service
Voice priority •
DownStreamQoS™ •
Traffic management, shap-
ing and policing • IEEE
802.1p, TOS, DiffServ
labeling • IEEE 802.1Q,
VLAN tag insertion/dele-
tion (4096 VLAN IDs, mul-
tiple VLAN support
Management
Web/HTTP, CLI with local
console and remote Telnet
access • TFTP configura-
tion & firmware loading •
SNMP MIB II and product
MIB • Secure autoprovi-
sioning for both firmware
and unit/subscriber con-
figuration • Built-in diag-
nostic tools (trace, debug,
call generator)
FXS Connectivity
2-wire Loopstart on 50pin
(12 to 24 channels) or
64pin (32 channels) Telco
connector • Short haul
loop 1.1km @3REN •
EuroPOTS (ETSI
EG201188) •
Programmable AC imped-
ance, feeding, ring and
on-hook voltage • Caller-
ID FSK and ITU V.23/Bell
202 generation
FXO Connectivity
2-wire Loopstart on 50pin
(12 to 24 channels) or 64-
pin (32 channels) Telco
connector • Program-
mable impedance, ring
detection, tone detection,
disconnect supervision •
Caller ID detection
Voice Signaling
SIPv2 H.323v4 (simulta-
neously with B2BUA capa-
bility) • SIP call transfer,
redirect • DTMF in-band &
out-of-band • All tones
programmable (dial, ring-
ing, busy)
Call Switching and
Services
Regular expression based
call routing and number
manipulation • Number
blocking • Short-dialing •
Digit collection, distribu-
tion and hunt groups •
transparent line extension
Voice Processing
CODEC G.711 a-law/mu-
law, G.723, G.729ab •
G.726, G.727. T.38 fax
relay • G.711 transparent
fax and bypass
System
CPU Motorola MPC875 @
133 MHz • Memory 32MB
SDRAM/8MB Flash
Dimensions
19-in. rack-mount chassis
48.3W x 4.44H x 30.5D cm
Weight
4.1 kg
Power
100–240 VAC (50/60 Hz)
• Power dissipation: >
22W (60W max, model
SN4432/JS/RUI)
Temperature
32–104°F (0–40°C)
Humidity
Up to 90% (non-
condensing)
Compliance
EMC compliance: EN
55022 and EN 55024 •
Safety compliance: EN
50950 • CE compliance •
FCC Part 15
Class A • RoHS
Patton is a registered trademark and the
termsSmartNode, DownStreamQoS,and
SessionRouter are trademarks of Patton
Electronics Company in the United States and
other countries.
Ordering Info
SmartNode IpChannelBank VoIP
Gateway (GW)-Router
SN4412/JO/UI: 12 FXO GW-Router, 2 x
10/100Base-TX, UI Power. Under
Accessories, look for this symbol: 4
SN4412/JS/48: 12 FXS GW-Router, 2 x
10/100Base-TX, 48V DC power. Under
Accessories, look for this symbol: 4
SN4412/JS/UI: 12 FXS VoIP GW-Router,
2 x 10/100Base-TX, UI Power. Under
Accessories, look for this symbol: 4
SN4416/JO/UI: 16 FXO VoIP GW-Router,
2 x 10/100Base-TX, UI Power. Under
Accessories, look for this symbol: 4
SN4416/JS/48: 16 FXS VoIP GW-Router,
2 x 10/100Base-TX, 48VDC Power. Under
Accessories, look for this symbol: 4
SN4416/JS/UI: 16 FXS VoIP GW-Router,
2 x 10/100Base-TX, UI power. Under
Accessories, look for this symbol: 4
SN4424/JO/UI: 24 FXO VoIP GW-Router,
2 x 10/100Base-TX, UI Power. Under
Accessories, look for this symbol: 4
SN4424/JS/48: 24 FXS VoIP GW-Router,
2 x 10/100Base-TX, 48V DC Power. Under
Accessories, look for this symbol: 4
SN4424/JS/UI: 24 FXS VoIP GW-Router,
2 x 10/100Base-TX, UI Power. Under
Accessories, look for this symbol: 4
SN4432/JO/UI: 32 FXO VoIP GW-Router,
2 x 10/100Base-TX, UI Power. Under
Accessories, look for this symbol: 4
SN4432/JS/48: 32 FXS VoIP GW-Router,
2 x 10/100Base-TX, 48V DC Power. Under
Accessories, look for this symbol: 4
SN4432/JS/UI: 32 FXS VoIP GW-Router,
2 x 10/100Base-TX, UI Power. Under
Accessories, look for this symbol: 4
Accessories
Choose the color-coded symbol (
4
) for
your model
10-3096TM50/16RJ11-12: 12 FT Cable
(50 PIN TELCO-to-16 RJ11) 4
10-3096TM50/16RJ45-12: 12 FT Cable
(50 PIN TELCO-to-16 RJ45) 4
10-3096TM50/50-12: 12 FT Cable (50
PIN TELCO-to-50 PIN TELCO) 44
10-3096TM50-20: 20 FT Cable (50-pin
TELCO-to-25 unterminated) 44
10-50TELCO/24RJ11-6: 6 FT Cable (50
PIN TELCO-to-24 RJ11) 44
10-50TELCO/24RJ45-6: 6 FT Cable (50
PIN TELCO-to-24 RJ45) 44
10-493264-10: 10 FT Cable (64 PIN
TELCO-to-32 unterminated) 4
Gain access to another location’s
phone lines from anywhere in the
world with 12 to 32 FXO ports.
