Parts Manual fo

r

INTERMEDIATE REAR TINE TILLER

6 & 7 HP 16" TWO SPEED

Revision C, TP 400-5131-C-RT-N5/29/2008

Briggs & Stratton Yard Power Products Group

Manual No. 7006257

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

MODEL

6016RT (7800052)

7016RT (7800053)

Table Of Content

s

TP 400-5131-C-RT-N

INTERMEDIATE REAR TINE TILLER

3

Manual No. 7006257

PAGE GROUP

4Handle Bar Group

6Engine, Belts & Wheels Group - 6 HP

10 Engine, Belts & Wheels Group - 7 HP

14 Transmission Group

16 Wheel & Tiller Shaft Group

18 Hood, Drag Stake & Tine Group - 6 HP

20 Hood, Drag Stake & Tine Group - 7 HP

22 Decals Group

24 Hiller/Furrower Attachment

TP 400-5131-C-RT-N

Manual No. 7006257 INTERMEDIATE REAR TINE TILLER

4

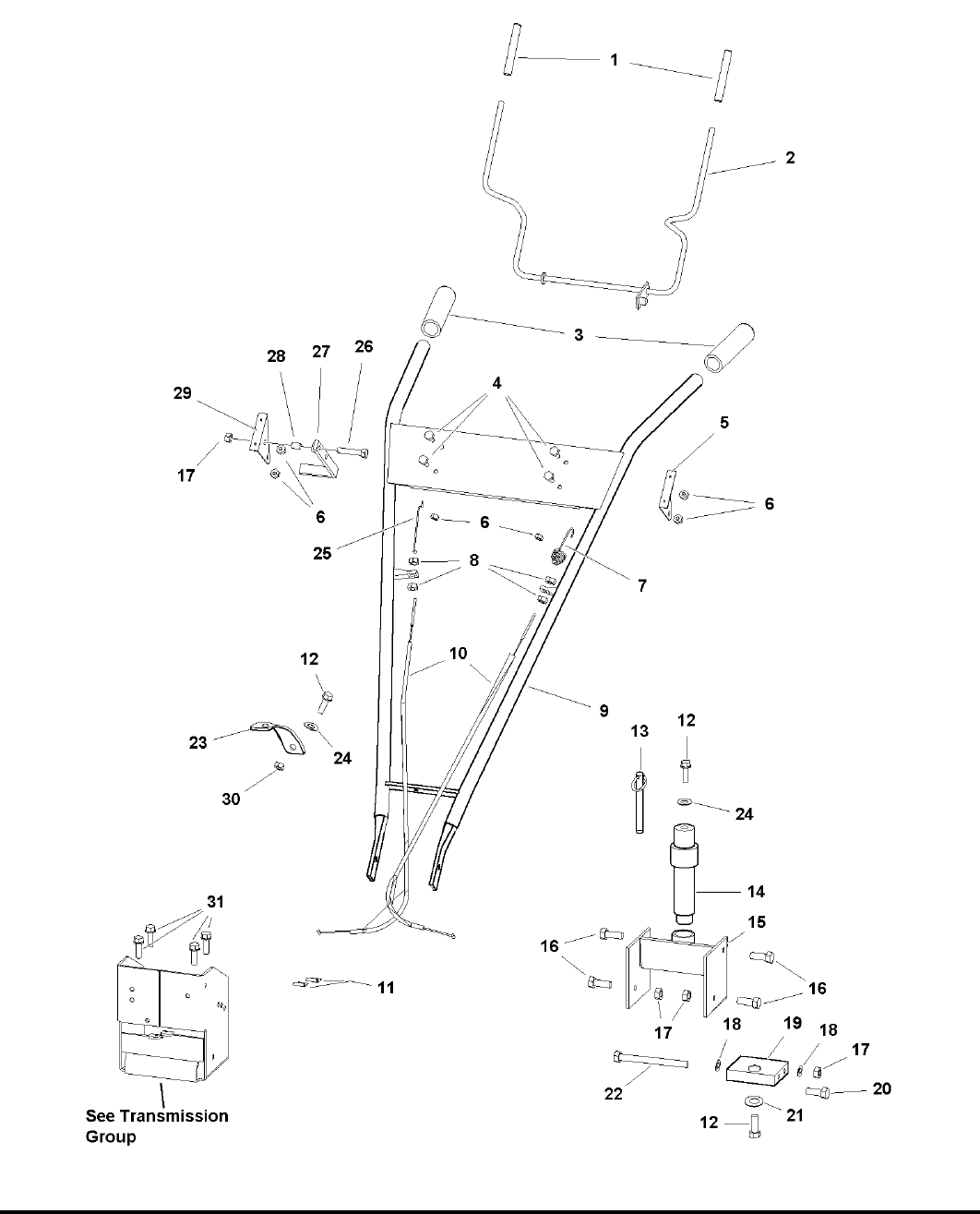

Handle Bar Group

Footnotes:

TP 400-5131-C-RT-N

Manual No. 7006257INTERMEDIATE REAR TINE TILLER

5

Part No Descri

p

tionItem Qt

y

Note

1 1716699 2 HANDLE GRIP, Drive Control Lever

2 1722325 1 LEVER, Drive Control

3 1719038 2 HANDLE GRIP

4 1960392 4 SCREW, Pan Head Phillips #10-24 x 1/2

5 1716723 1 BRACKET, Drive Control Lever LH

6 1933896 6 NUT, Hex Nylock, 10-24

7 1716720 1 SPRING, Forward Cable Adjustment

8 2820438 4 NUT, Hex Jam, 5/16-24

9 1723692 1 HANDLE BAR ASSEMBLY

10 1719037 2 CABLE ASSEMBLY

11 1719063 2 C-CLAMP

12 1921332 3 CAPSCREW, Hex Head, 5/16-18 x 3/4

13 1723703 1 PIN, Detent

14 1723695 1 PIVOT ROD ASSEMBLY

15 1723696 1 PIVOT MOUNT ASSEMBLY

16 1921210 4 CAPSCREW, Hex Head, 3/8-16 x 1

17 1916950 5 NUT, Hex, 3/8-16

18 1924940 2 WASHER

19 1723694 1 PIVOT, Handle Bar Mount

20 1920415 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4

21 1716770 1 WASHER

22 1922648 1 CAPSCREW, Hex Head 3/8-16 x 4

23 1723697 1 PIVOT, Hnadle Bar Height Adjustment

24 1960044 2 WASHER

25 1716729 1 LINK, Reverse

26 1921977 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/4

27 1716725 1 HANDLE, Reverse

28 1716704 1 BUSHING, Pivot, 5/16

29 1716722 1 BRACKET, Drive Control Lever RH

30 1935048 2 NUT, Hex Flange Tow Way Lock, 5/16-18

31 1921332 4 BOLT, Hex Flange Head, 5/16-18 x 3/4

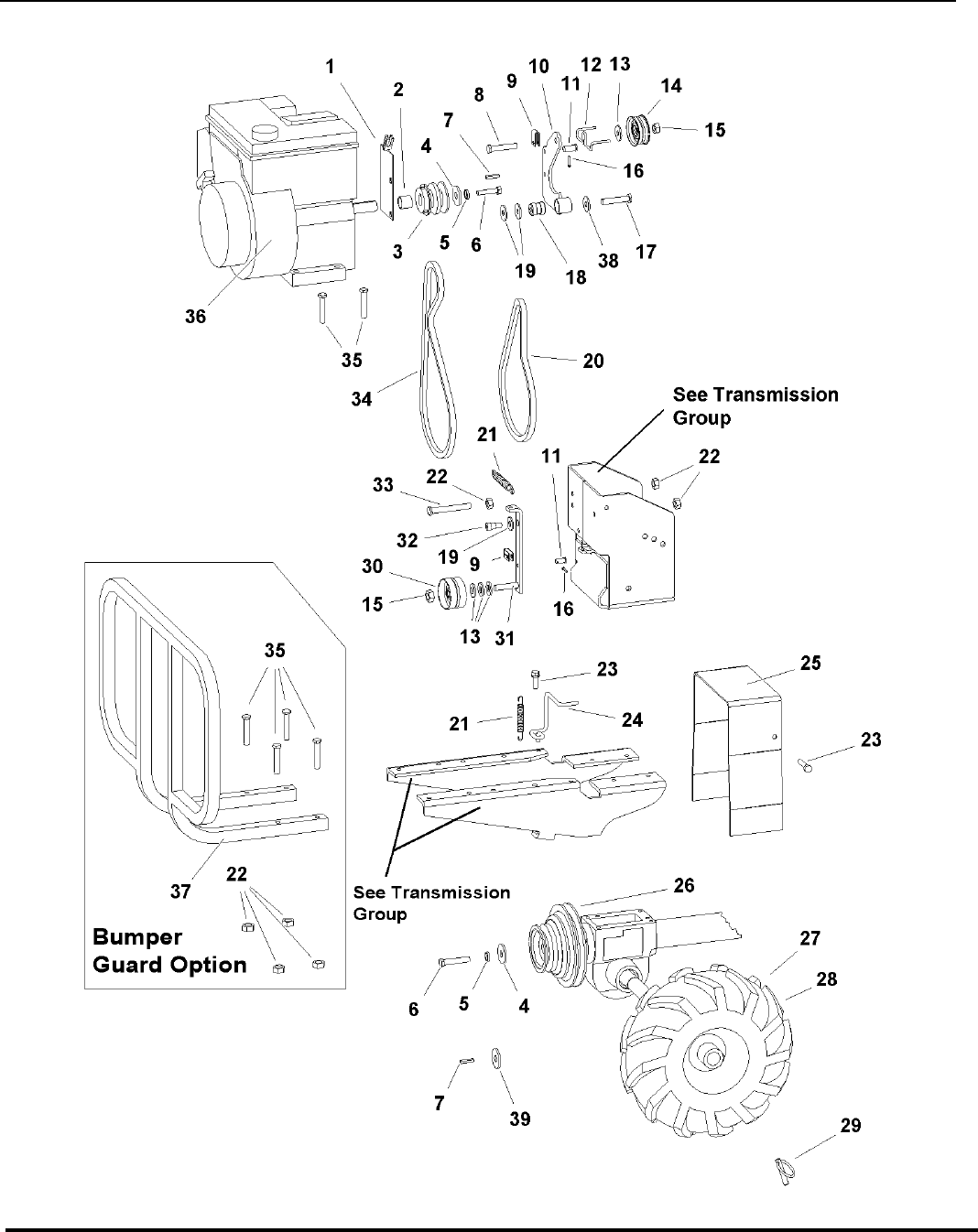

Engine, Belts & Wheels Group - 6 HP

TP 400-5131-C-RT-N

Manual No. 7006257 INTERMEDIATE REAR TINE TILLER

6

Engine, Belts & Wheels Group - 6 HP

Footnotes:

TP 400-5131-C-RT-N

Manual No. 7006257INTERMEDIATE REAR TINE TILLER

7

Part No Descri

p

tionItem Qt

y

Note

1 1722157 1 BRACKET, Engine

2 1723711 1 SPACER, Engine

3 1722158 1 PULLEY, Engine 2 Groove

4 1716770 1 WASHER

5 1917356 2 LOCKWASHER, Spring, 5/16

6 1921515 2 CAPSCREW, Hex Head, 5/16-24 x 3/4

7 2805850 2 KEY, PARALLEL PLN, 3/16 x 3/16 x 1-3/32

8 1960345 1 CAPSCREW, Hex Head, 3/8-24 x 2

9 1716728 2 YOKE, Cable

10 1722159 1 ARM, Pivot

11 1716702 2 PIN, Link Forward/Reverse

12 1722162 1 GUIDE, Belt Reverse

13 1924940 4 WASHER, 3/8

14 1716805 1 PULLEY, Idler Reverse

15 1916950 2 NUT, Hex Center Lock, 3/8-16

16 1716703 2 PIN, Cotter

17 1723710 1 BOLT, Flat Head, 5/16-24 x 1-1/2

18 1722160 1 PIVOT

19 1960044 3 WASHER, 5/16

20 1716766 1 V-BELT, Forward

21 1716802 2 SPRING, Idler Arm

22 1935048 3 NUT, Hex Flange Lock, 5/16-18

23 1921332 3 BOLT, Hex Flange Head, 5/16-18 x 3/4

24 1722161 1 GUIDE, Belt Forward

25 1722165 1 COVER, Belt

26 1722163 1 PULLEY, Transmission 2 Groove

27 1721525 1 WHEEL & TIRE ASSEMBLY TILLER, Left

28 1721524 1 WHEEL & TIRE ASSEMBLY TILLER, Right

29 1716776 2 PIN, Lock

30 1716803 1 PULLEY, Forward Idler

31 1722166 1 ARM, Idler Forward

32 1722168 1 SCREW, Hex Socket Shoulder, 5/16-18 x 3/8

33 1925690 1 CAPSCREW, Hex Head, 5/16-18 x 3-1/2

34 1722144 1 V-BELT, Reverse

35 1922127 4 CAPSCREW, Hex Head, 5/16-18 x 1-3/4

36 ---- 1 ^ ENGINE, 6HP B&S INTEK, Model #126412-0023-E2

37 1721528 1 ^^ BUMPER, Guard (Optional)

^^Bumper is not standard with the 6HP tiller, but it is an available option, order the bumper guard (Ref# 37), 4 nuts (Ref#

22) and 4 capscrews (Ref# 35).

^See your local Briggs & Stratton dealer for Parts & Service.

Engine, Belts & Wheels Group - 6 HP

TP 400-5131-C-RT-N

Manual No. 7006257 INTERMEDIATE REAR TINE TILLER

8

Engine, Belts & Wheels Group - 6 HP

Footnotes:

TP 400-5131-C-RT-N

Manual No. 7006257INTERMEDIATE REAR TINE TILLER

9

Part No Descri

p

tionItem Qt

y

Note

38 1919384 1 WASHER

39 2860164 1 WASHER

^^Bumper is not standard with the 6HP tiller, but it is an available option, order the bumper guard (Ref# 37), 4 nuts (Ref#

22) and 4 capscrews (Ref# 35).

^See your local Briggs & Stratton dealer for Parts & Service.

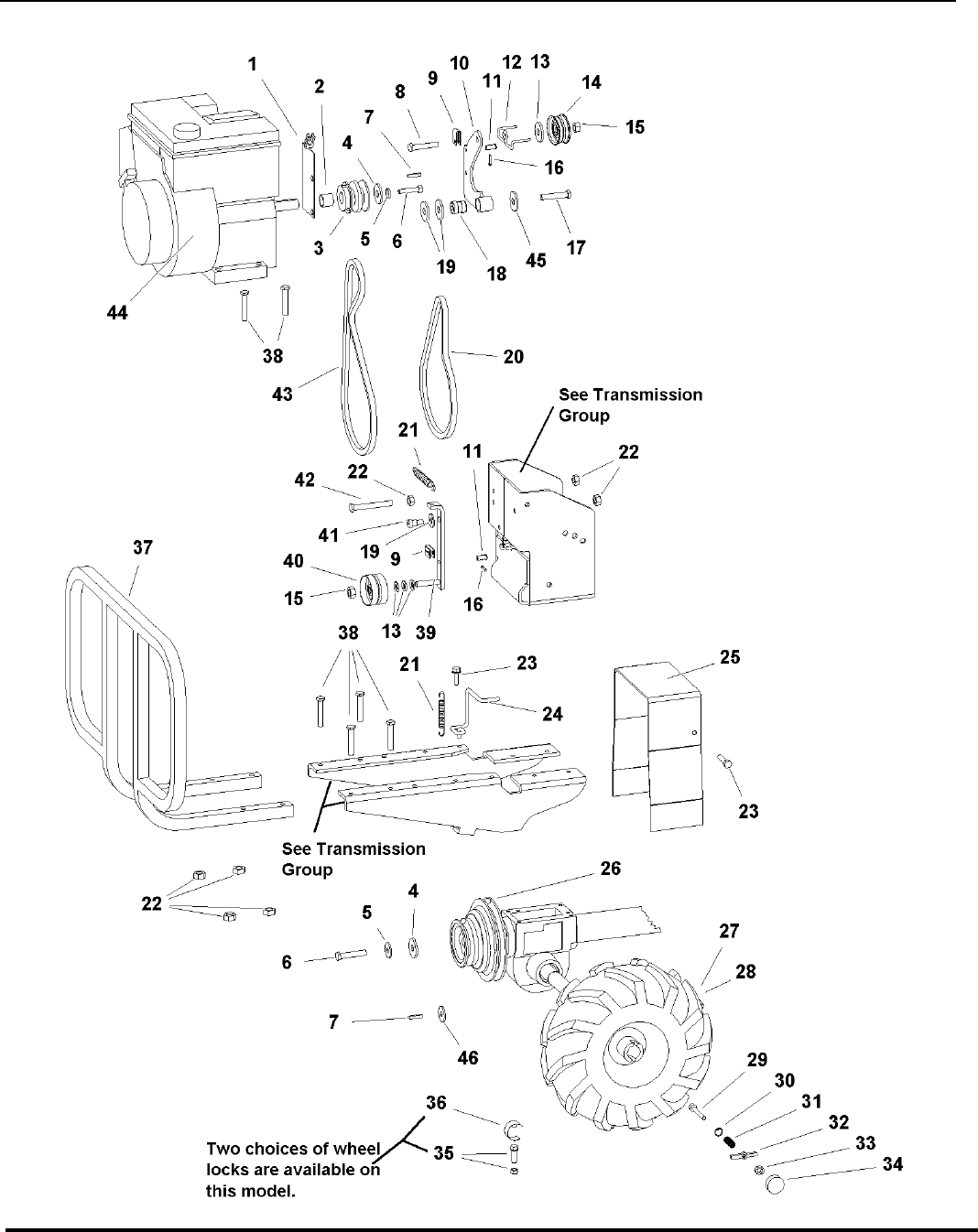

Engine, Belts & Wheels Group - 7 HP

TP 400-5131-C-RT-N

Manual No. 7006257 INTERMEDIATE REAR TINE TILLER

10

Engine, Belts & Wheels Group - 7 HP

Footnotes:

TP 400-5131-C-RT-N

Manual No. 7006257INTERMEDIATE REAR TINE TILLER

11

Part No Descri

p

tionItem Qt

y

Note

1 1722157 1 BRACKET, Engine

2 1723711 1 SPACER, Engine

3 1722158 1 PULLEY, Engine 2 Groove

4 1716770 2 WASHER

5 1917356 2 LOCKWASHER, Spring 5/16

6 1921515 2 CAPSCREW, Hex Head, 5/16-24 x 3/4

7 2805850 2 KEY, Parallel

8 1960345 1 CAPSCREW, Hex Head, 3/8-24 x 2

9 1716728 2 YOKE, Cable

10 1722159 1 ARM, Pivot

11 1716702 2 PIN, LINK Forward/Reverse

12 1722162 1 GUIDE, Belt Reverse

13 1924940 4 WASHER, 3/8

14 1716805 1 PULLEY, Idler Reverse

15 1930651 2 NUT, Hex Center Lock, 3/8-16

16 1716703 2 PIN, Cotter

17 1723710 1 BOLT, Flat Head, 5/16-24 x 1-1/2

18 1722160 1 PIVOT

19 1960044 3 WASHER, 5/16

20 1716766 1 V-BELT, Forward

21 1716802 2 SPRING, Idler Arm

22 1935048 7 NUT, Hex Flange 5/16-18

23 1921332 3 BOLT, Hex Flange Head, 5/16-18 x 3/4

24 1722161 1 GUIDE, Belt Forward

25 1722165 1 COVER, Belt

26 1722163 1 PULLEY, Transmission 2 Groove

27 1716773 1 WHEEL & TIRE ASSEMBLY, Tiller LH

28 1716775 1 WHEEL & TIRE ASSEMBLY, Tiller RH

29 1716782 2 CAPSCREW, Hex Socket Head, 1/4-20 x 2-3/32

30 1960151 2 WASHER, 1/4

31 1716781 2 SPRING

32 1716778 2 PIN, Lock

33 2828372 2 NUT, Hex KEPS 1/4-20

34 1716777 1 KNOB, Lock Out Set of Two

35 1722185 2 SETSCREW, Wheel Lockout

36 1722171 2 CLAMP, C Wheel Lockout

37 1721528 1 BUMPER, Guard

^See your local Briggs & Stratton dealer for Parts & Service.

Engine, Belts & Wheels Group - 7 HP

TP 400-5131-C-RT-N

Manual No. 7006257 INTERMEDIATE REAR TINE TILLER

12

Engine, Belts & Wheels Group - 7 HP

Footnotes:

TP 400-5131-C-RT-N

Manual No. 7006257INTERMEDIATE REAR TINE TILLER

13

Part No Descri

p

tionItem Qt

y

Note

38 1922127 8 CAPSCREW, Hex Head, 5/16-18 x 1-3/4

39 1722166 1 ARM, Idler Forward

40 1716803 1 PULLEY, Forward Idler

41 1722168 1 SCREW, Hex Socket Shoulder, 5/16-18 x 3/8

42 1925690 1 CAPSCREW, Hex Head, 5/16-18 x 3-1/2

43 1722144 1 V-BELT, Reverse

44 1 ^ ENGINE, 7HP B&S INTEK, Model #120412-0141-E1

45 1919384 1 WASHER, 3/8

46 2860164 1 WASHER

^See your local Briggs & Stratton dealer for Parts & Service.

Transmission Group

TP 400-5131-C-RT-N

Manual No. 7006257 INTERMEDIATE REAR TINE TILLER

14

Transmission Group

Footnotes:

TP 400-5131-C-RT-N

Manual No. 7006257INTERMEDIATE REAR TINE TILLER

15

Part No Descri

p

tionItem Qt

y

Note

1 1723700 1 DIPSTICK (Threaded)

1 1723700 1 DIPSTICK (Push-In)

2 1921332 12 CAPSCREW, Hex Head, 5/16-18 x 3/4

3 1722327 1 COVER PLATE & MOUNT

4 1716753 1 BRACKET, Engine Mount LH

5 1716752 1 BRACKET, Engine Mount RH

6 1935048 4 NUT, Hex Flange Lock, 5/16-18

7 1716789 2 GASKET, Housing & Transmission Cover

8 1716791 4 SEAL, Housing

9 1716792 2 GASKET, Bearing Cap Front/Rear

10 1716796 1 CAP, Rear Bearing

11 1716797 1 SEAL, Oil, Drive Shaft

12 1716798 3 BOLT, Hex Flange Head, 1/4-20 x 3/4

13 1716790 2 PLUG, Pipe, Socket Head, Oil Check, 1/4-18

14 1722330 1 TRANSMISSION, Housing, Tiller Casting

15 1716793 1 CAP, Rear Bearing

16 1716795 3 BOLT, Hex Flange Head, 1/4-20 x 7/8

17 1721511 1 BRACKET, Depth Regulator RT

18 1716799 1 GASKET KIT, Oil Seal ( Includes Ref. 7, 8, 9, and 11)

19 1723699 1 TRANSMISSION ASSEMBLY, Complete, w/Lockouts - 6 HP

19 1723701 TRANSMISSION ASSEMBLY, Complete - 7 HP

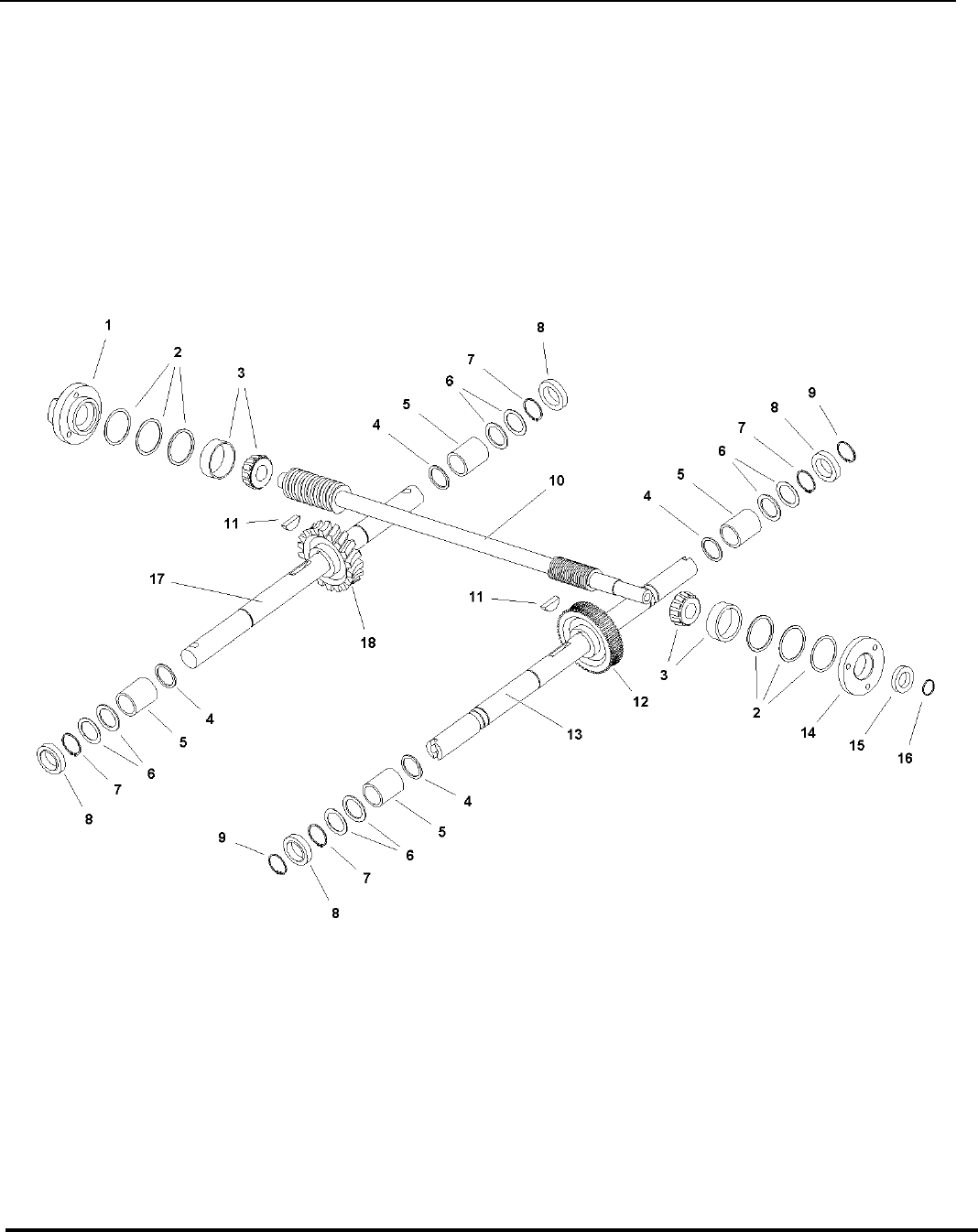

Wheel & Tiller Shaft Group

TP 400-5131-C-RT-N

Manual No. 7006257 INTERMEDIATE REAR TINE TILLER

16

Wheel & Tiller Shaft Group

Footnotes:

TP 400-5131-C-RT-N

Manual No. 7006257INTERMEDIATE REAR TINE TILLER

17

Part No Descri

p

tionItem Qt

y

Note

1 1716793 1 CAP, Rear Bearing

2 1716825 1 SHIM SET, Rear Bearing Cap

2 1716826 1 SHIM, 0.062 THK1-3/4” x OD1806 (As Required)

2 1716827 1 SHIM, 0.030 THK1-3/4” x OD1807 (As Required)

2 1716828 1 SHIM, 0.015 THK1-3/4” x OD1808 (As Required)

2 1716829 1 SHIM, 0.010 THK1-3/4” x OD1809 (As Required)

3 1716810 2 BEARING, Tapered (Cone & Race)

4 1716824 4 SPACER, 1” x 1-1/4”

5 1716816 4 BUSHING

6 1716815 4 SHIM SET, Axle Spacer

6 1716817 1 SHIM, 0.062 THK1-3/8” x OD1705 (As Required)

6 1716818 1 SHIM, 0.030 THK1-3/8” x OD1706 (As Required)

6 1716819 1 SHIM, 0.015 THK1-3/8” x OD1707 (As Required)

6 1716820 1 SHIM, 0.010 THK1-3/8” x OD1708 (As Required)

7 1716830 4 RING, Snap, Internal Retainer

8 1716791 4 SEAL, Housing

9 1716821 2 RING, Snap, External Retainer

10 1722333 1 DRIVE SHAFT, Main

11 1716813 2 KEY, Parallel Plane 1/4” x 1/4” x 1”

12 1716814 1 GEAR, Worm, Wheels Shaft

13 1716811 1 SHAFT ASSEMBLY, Wheel w/Lock Pin (6016RT)

13 1716812 1 SHAFT ASSEMBLY, Wheel w/Lock Pin (7016RT)

14 1716796 1 CAP, Rear Bearing

15 1716797 1 SEAL, Oil, Drive Shaft

16 2860164 1 WASHER, 5/8

17 1716811 1 SHAFT, Tiller

18 1716823 1 GEAR, Worm Shaft

Ref: 1694908 & 9 and Group 985826

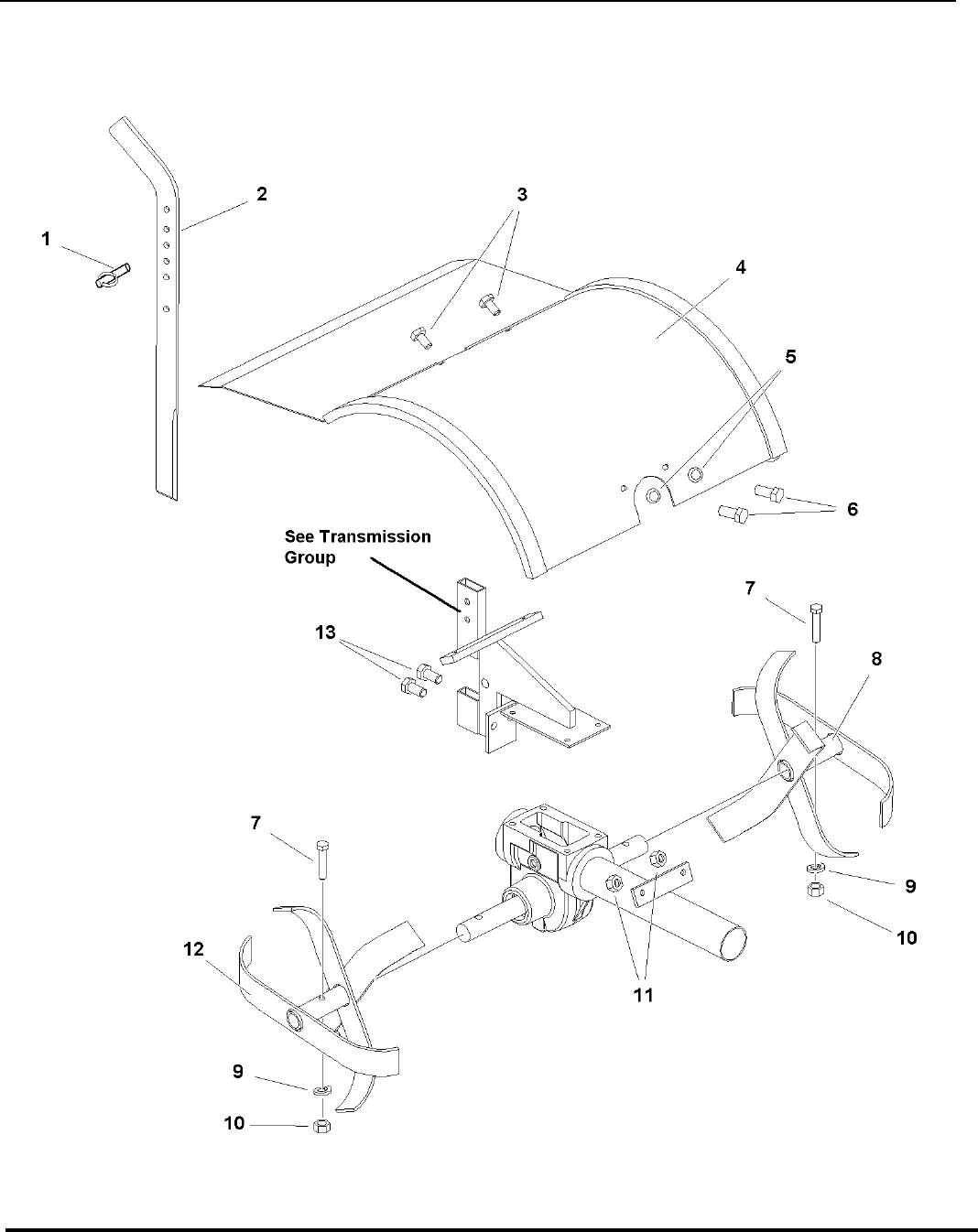

Hood, Drag Stake & Tine Group - 6 HP

TP 400-5131-C-RT-N

Manual No. 7006257 INTERMEDIATE REAR TINE TILLER

18

Hood, Drag Stake & Tine Group - 6 HP

Footnotes:

TP 400-5131-C-RT-N

Manual No. 7006257INTERMEDIATE REAR TINE TILLER

19

Part No Descri

p

tionItem Qt

y

Note

1 1723703 1 PIN, Detent, 5/16

2 1723702 1 LEVER, Depth Regulator

3 1921958 2 CAPSCREW, Hex Head, 1/4 - 20 x 1/2

4 1722329 1 HOOD, Tiller, No Decal

5 1917356 2 LOCKWASHER, Spring, 5/16

6 1920787 2 CAPSCREW, Hex Head, 5/16-18 x 1/2

7 1921971 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/4

8 1721513 1 TINE ASSEMBLY, LH

9 1916965 2 LOCKWASHER, Spring, 3/8

10 1930651 2 NUT, Hex Center Lock, 3/8-16

11 1935048 2 NUT, Hex Flange, 5/16-18

12 1721514 1 TINE ASSEMBLY, RH

13 1716701 2 BOLT, Hex Flange Head, 5/16-18 x 1/2

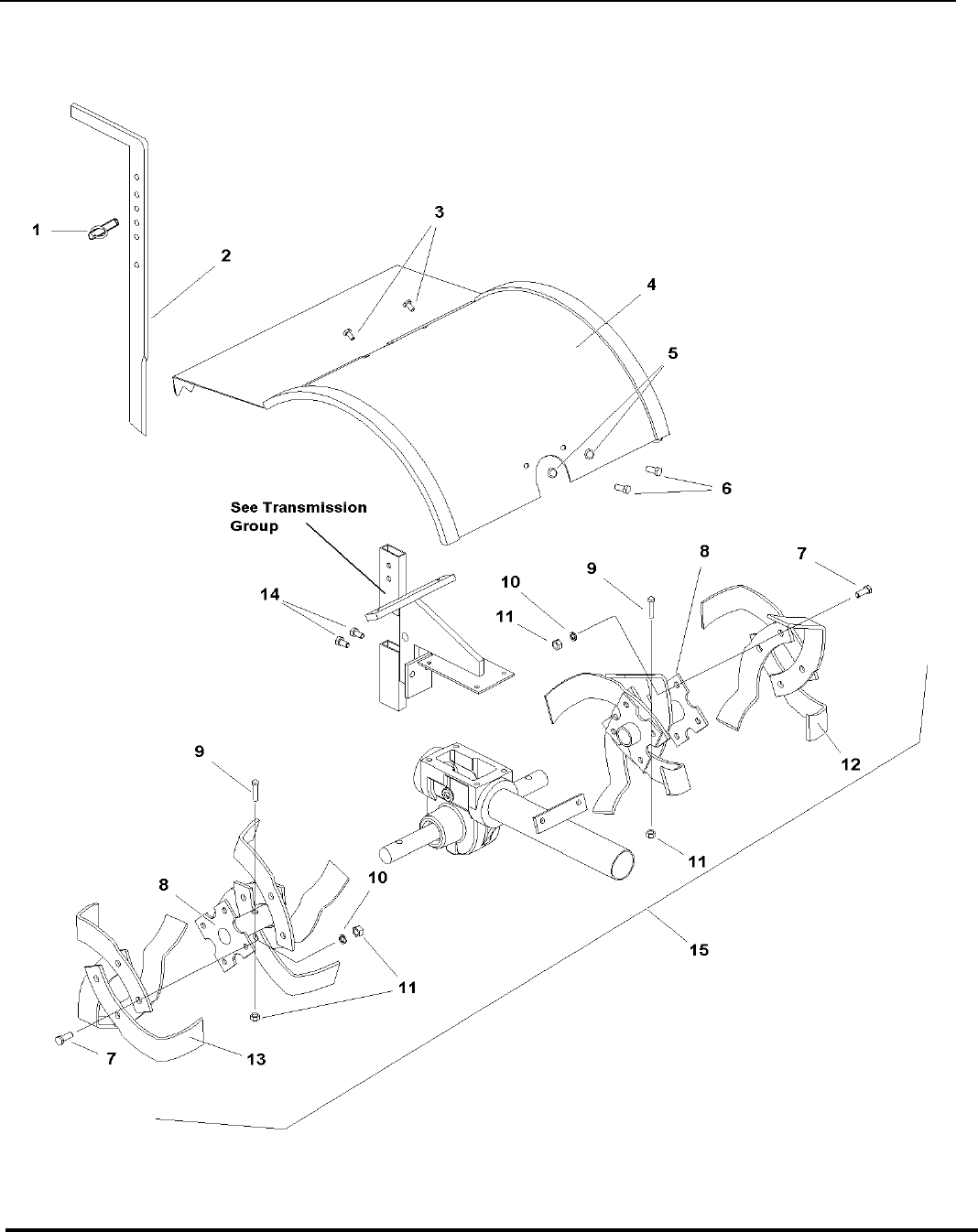

Hood, Drag Stake & Tine Group - 7 HP

TP 400-5131-C-RT-N

Manual No. 7006257 INTERMEDIATE REAR TINE TILLER

20

Hood, Drag Stake & Tine Group - 7 HP

Footnotes:

TP 400-5131-C-RT-N

Manual No. 7006257INTERMEDIATE REAR TINE TILLER

21

Part No Descri

p

tionItem Qt

y

Note

1 1723703 1 PIN, DETENT 5/16

2 1723705 1 LEVER, Depth Regulator

3 1921958 2 CAPSCREW, Hex Head, 1/4-20 x 1/2

4 1722329 1 HOOD, Tiller, No Decal

5 1917356 2 LOCKWASHER, 5/16

6 1920787 2 CAPSCREW, Hex Head, 5/16-18 x 1/2

7 1921210 16 CAPSCREW, Hex Head, 3/8-16 x 1

8 1716741 2 HOLDER, Tine Blade Left and Right

9 1921971 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/4

10 1916965 18 LOCKWASHER, 3/8

11 1930651 18 NUT, Hex Centerlock, 3/8-16

12 1716739 8 TINE BLADE, Left Side

13 1716737 8 TINE BLADE, Right Side

14 1716701 2 BOLT, Hex Flange Head, 5/16-18 x 1/2

15 1716749 1 REPL KIT, Tine Blade Holder (Includes Reference Nos. 7, 8, 9,

10, 11, 12, and 13)

Decals Group

TP 400-5131-C-RT-N

Manual No. 7006257 INTERMEDIATE REAR TINE TILLER

22

Decals Group

Footnotes:

TP 400-5131-C-RT-N

Manual No. 7006257INTERMEDIATE REAR TINE TILLER

23

Part No Descri

p

tionItem Qt

y

Note

1 1726721 1 DECAL, Snapper

2 1716734 1 DECAL, Console Forward/Reverse Instructions

3 1716747 1 DECAL, Hood, Operator Instructions Label

4 1716840 1 DECAL, Danger, Tine Hood Label

5 1723523 2 DECAL, 6016 RT (not shown)

5 1723522 2 DECAL, 7016 RT

6 1716800 1 DECAL, Warning, Belt Cover

7 1716839 1 DECAL, Brush Bar (on 7 HP model only)

Hiller/Furrower Attachment

TP 400-5131-C-RT-N

Manual No. 7006257 INTERMEDIATE REAR TINE TILLER

24

Hiller/Furrower Attachment

Footnotes:

TP 400-5131-C-RT-N

Manual No. 7006257INTERMEDIATE REAR TINE TILLER

25

Part No Descri

p

tionItem Qt

y

Note

1 1931352 2 BOLT, Carriage, 3/8-16 x 1-1/2

2 1931333 4 BOLT, Carriage, 5/16-18 x 3/4

3 1723726 1 HILLER WING, Left

3 1723727 1 HILLER WING, Right (Not Shown)

4 1960044 4 WASHER, Flat, 5/16

5 2820426 4 LOCKWASHER, External Tooth, 5/16

6 1933126 4 WING NUT, 5/16-18

7 1960268 1 BOLT, Socket Head, 3/8-16 x 1-1/4

8 1723725 1 BRACKET

9 1919439 2 NUT, Nylock, 3/8-16

10 1916950 1 NUT, Hex, 3/8-16

11 1723724 1 BLADE, Furrower

12 1686802 1 HILLER / FURROWER ATTACHMENT, Complete

Parts Manual fo

r

INTERMEDIATE REAR TINE TILLER

IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS

PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO.

WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD

IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY

OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS

6 & 7 HP 16" TWO SPEED

Revision C,

TP 400-5131-C-RT-N

5/29/2008

Manual No. 7006257

Copyright © 2008

Milwaukee, WI USA. All Rights Reserved

Briggs & Stratton Corporation

www.sna

pp

er.com

Briggs & Stratton Yard Power Products Group

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967
