SERVICE MANUAL
Sony Corporation
Home Audio Division
Published by Sony Techno Create Corporation
AEP Model
UK Model
SUPER AUDIO CD PLAYER
9-879-005-04
2006B16-1
© 2006.02
Ver. 1.3 2006.02
SPECIFICATIONS
SCD-XE597
General
Laser Semiconductor laser
(Super Audio CD: λ= 650
nm) (CD: λ= 780 nm)
Emission duration:
continuous
Power requirements 230 V AC, 50/60 Hz
Power consumption 15 W
Dimensions (w/h/d) 430 95 283 mm incl.
projecting parts
Mass (approx.) 3.1 kg
Supplied accessories
Audio connecting cord Red and White 2 (1)
Remote commander RM-SX800 (1)
Battery R6 (size-AA) (2)
Design and specifications are subject to change
without notice.
When a Super Audio CD is played
Playing frequency range 2 Hz to 100 kHz
Frequency response 2 Hz to 40 kHz (–3 dB)
Dynamic range 100 dB or more
Total harmonic distortion rate
0.0035 % or less
Wow and flutter Value of measurable limit
(±0.001 % W. PEAK) or
less
When a CD is played
Frequency response 2 Hz to 20 kHz
Dynamic range 96 dB or more
Total harmonic distortion rate
0.0039 % or less
Wow and flutter Value of measurable limit
(±0.001 % W. PEAK) or
less
Output connector
*Output only the audio signals of the CD
Jack type Output
level Load
impedance
ANALOG
5.1CH OUT
Phono
jacks
2 Vrms (at
50 kilohms)
Over 10
kilohms
DIGITAL
(CD) OUT
OPTICAL*
Square
optical
output
connector
–18 dBm (Light
emitting
wave length:
660 nm)
××
×
Model Name Using Similar Mechanism NEW
CD Mechanism Type CDM66D-DVBU50
Optical Pick-up Name DBU-3
2
SCD-XE597
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270 °C
during repairing.
•Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering
or unsoldering.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.

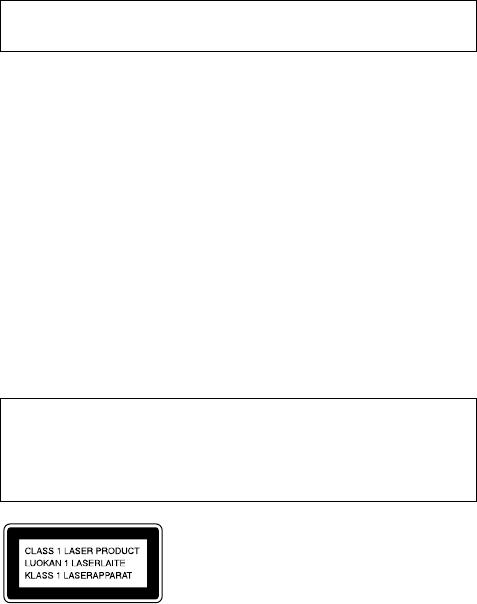

This appliance is
classified as a CLASS 1
LASER product. This
label is located on the
rear exterior.
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
LASER DIODE AND FOCUS SEARCH OPERATION
CHECK
Carry out the “S curve check” in “CD section adjustment” and check
that the S curve waveform is output three times.
TABLE OF CONTENTS
1. SERVICING NOTES ................................................ 3
2. GENERAL ................................................................... 4
3. DISASSEMBLY
3-1. Disassembly Flow ........................................................... 6
3-2. Cover ............................................................................... 6
3-3. MAIN Board.................................................................... 7
3-4. Loading Panel .................................................................. 7
3-5. Front Panel Section ......................................................... 8
3-6. KEY Board, DISPLAY Board ......................................... 8
3-7. CD Mechanism Deck (CDM66D-DVBU50) .................. 9
3-8. Base Unit (DVBU50) ...................................................... 9
3-9. RF Board, Pick-up Unit (DBU-3) ................................... 10
3-10. Belt (LD), LOADING Board, Motor (L) Assy................ 10
4. DIAGRAMS

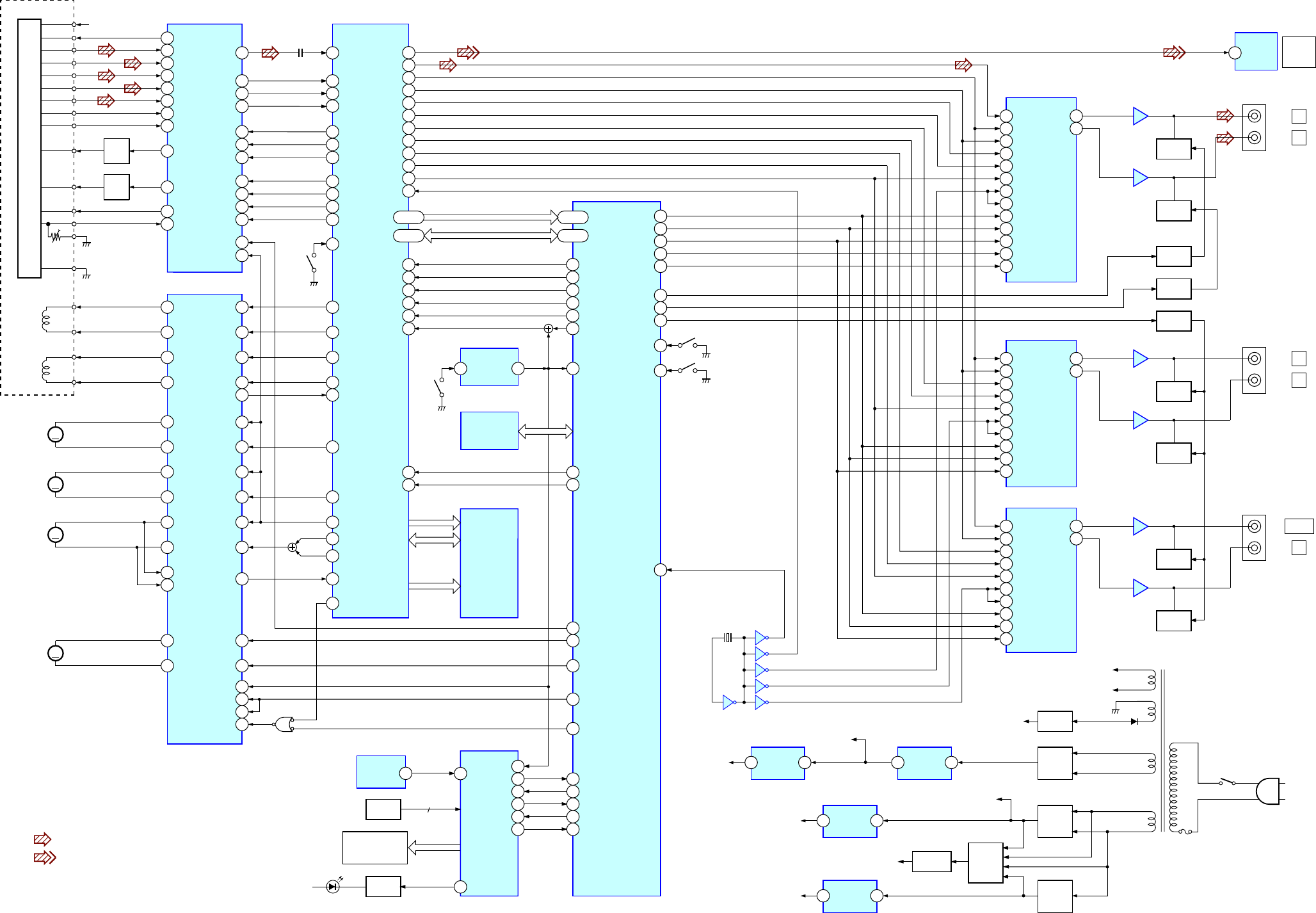

4-1. Block Diagram ................................................................ 12

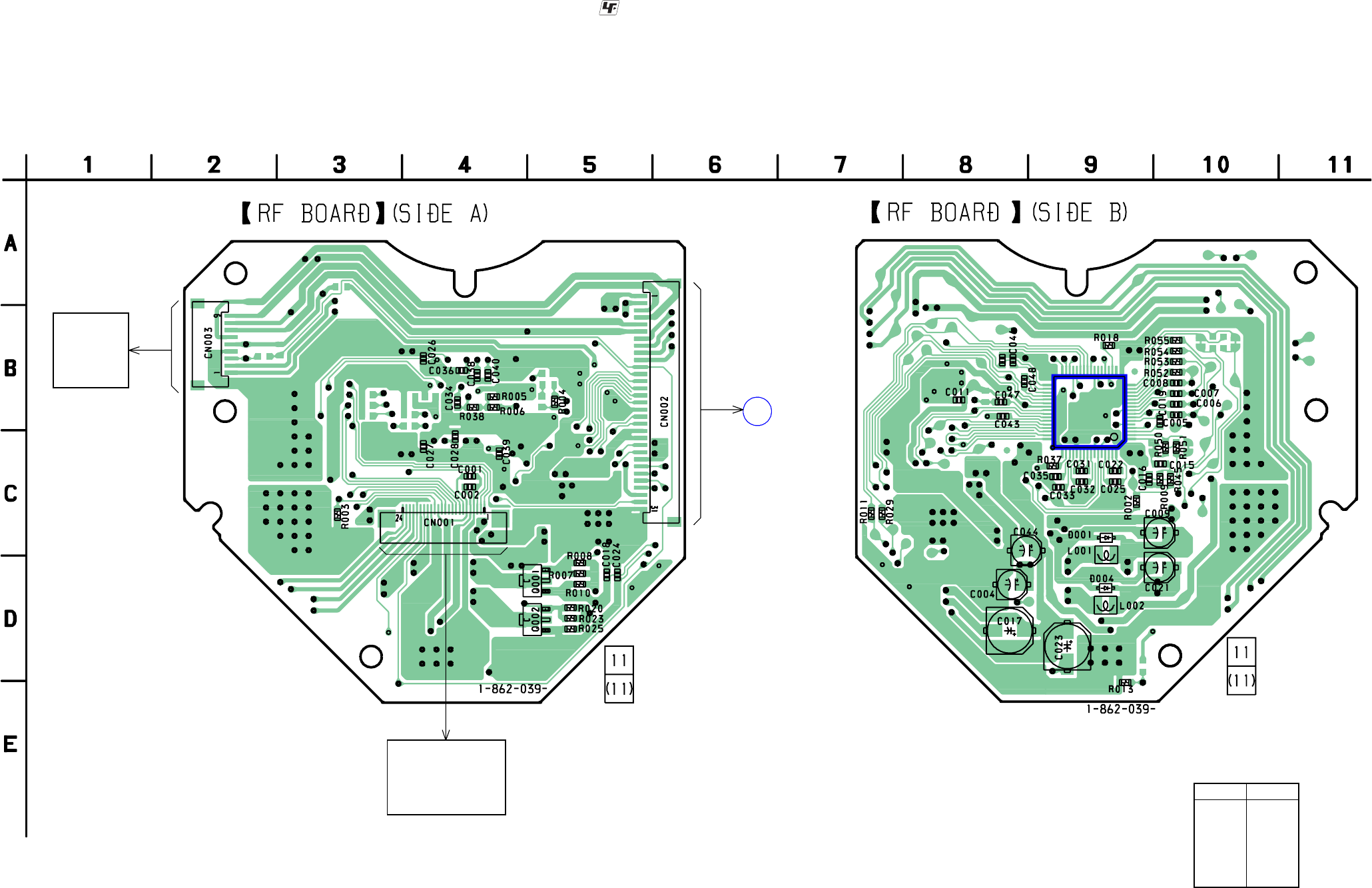

4-2. Printed Wiring Board — RF Section — ......................... 13

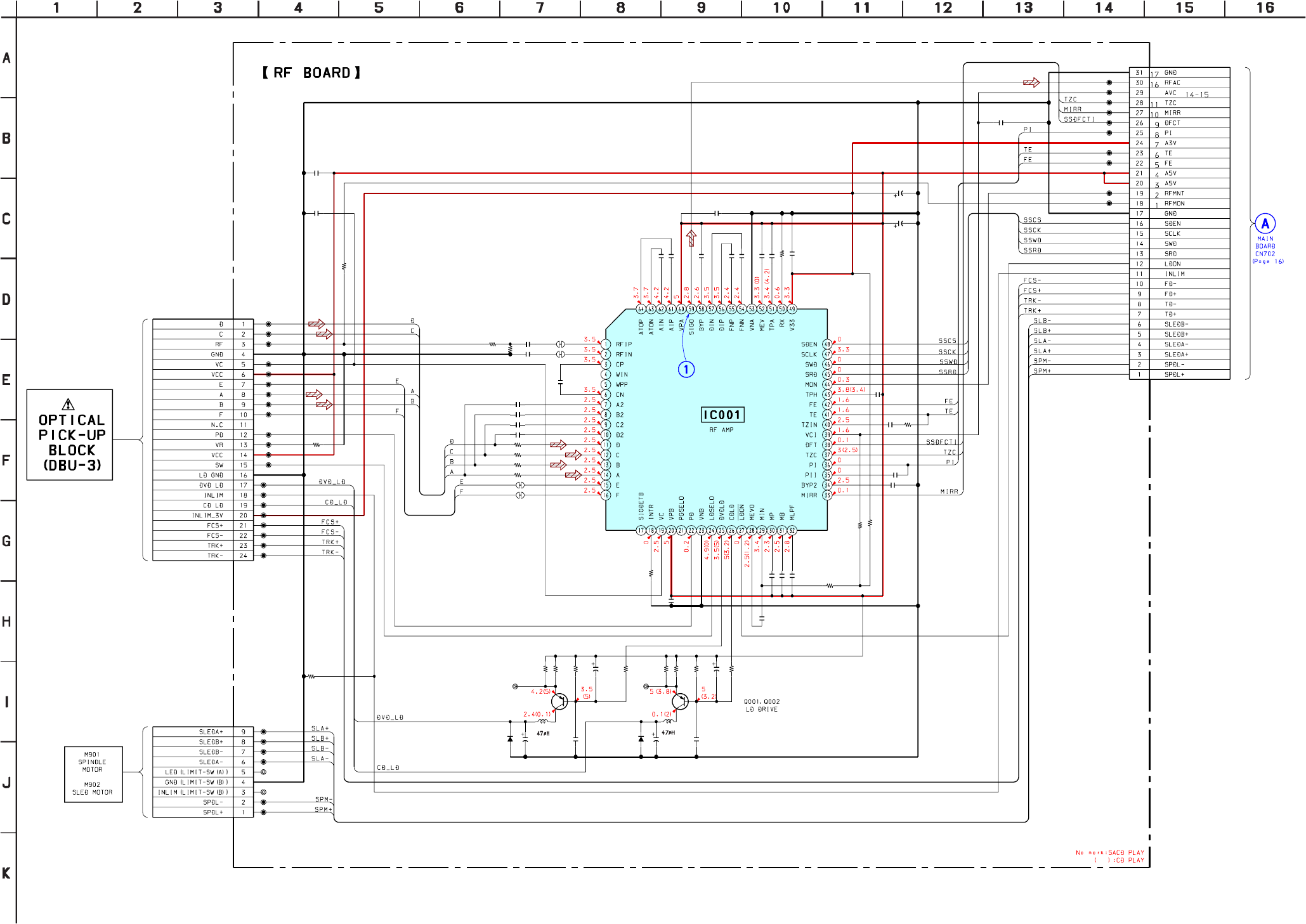

4-3. Schematic Diagram — RF Section — ........................... 14

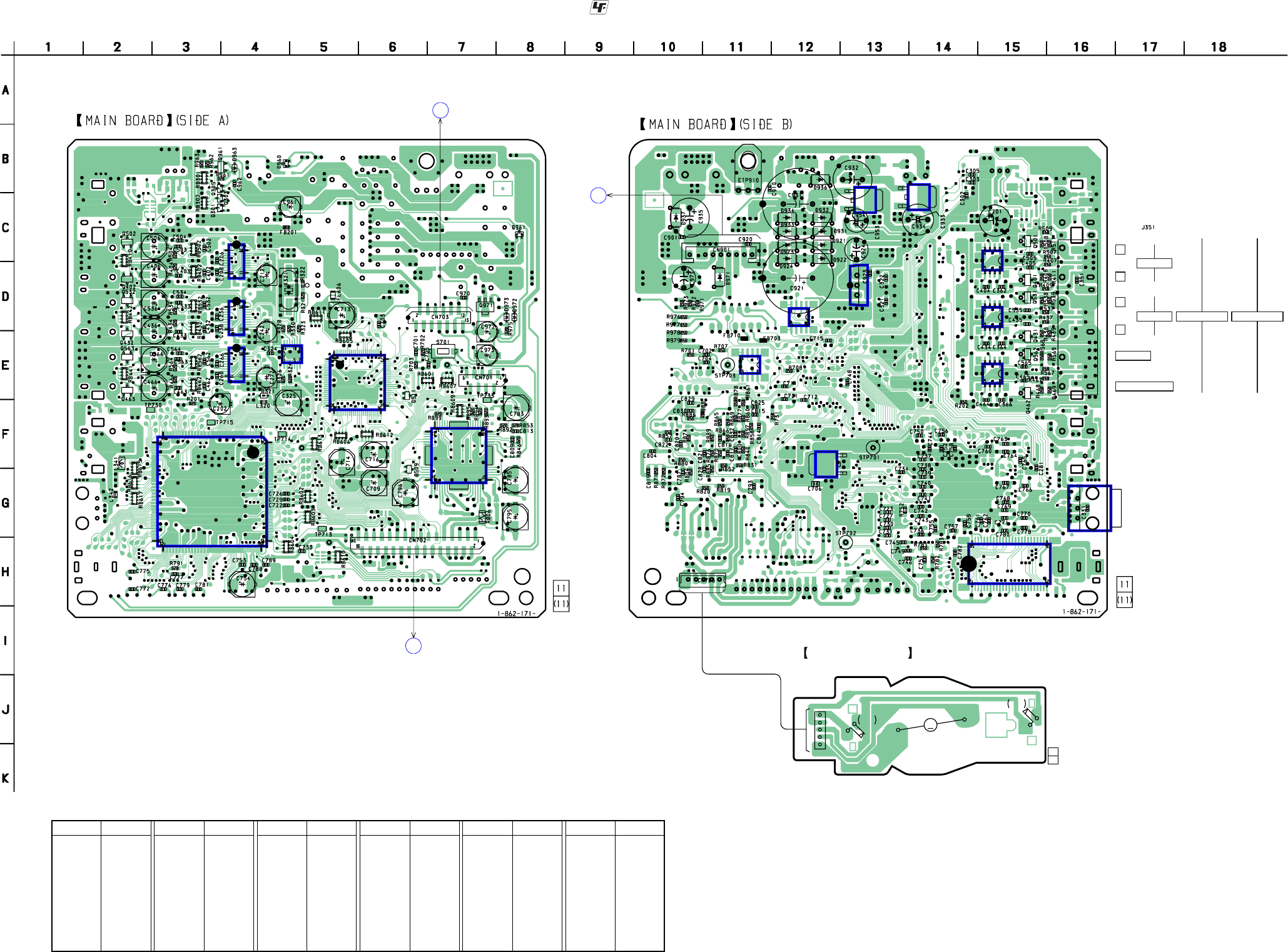

4-4. Printed Wiring Board — MAIN Section — ................... 15

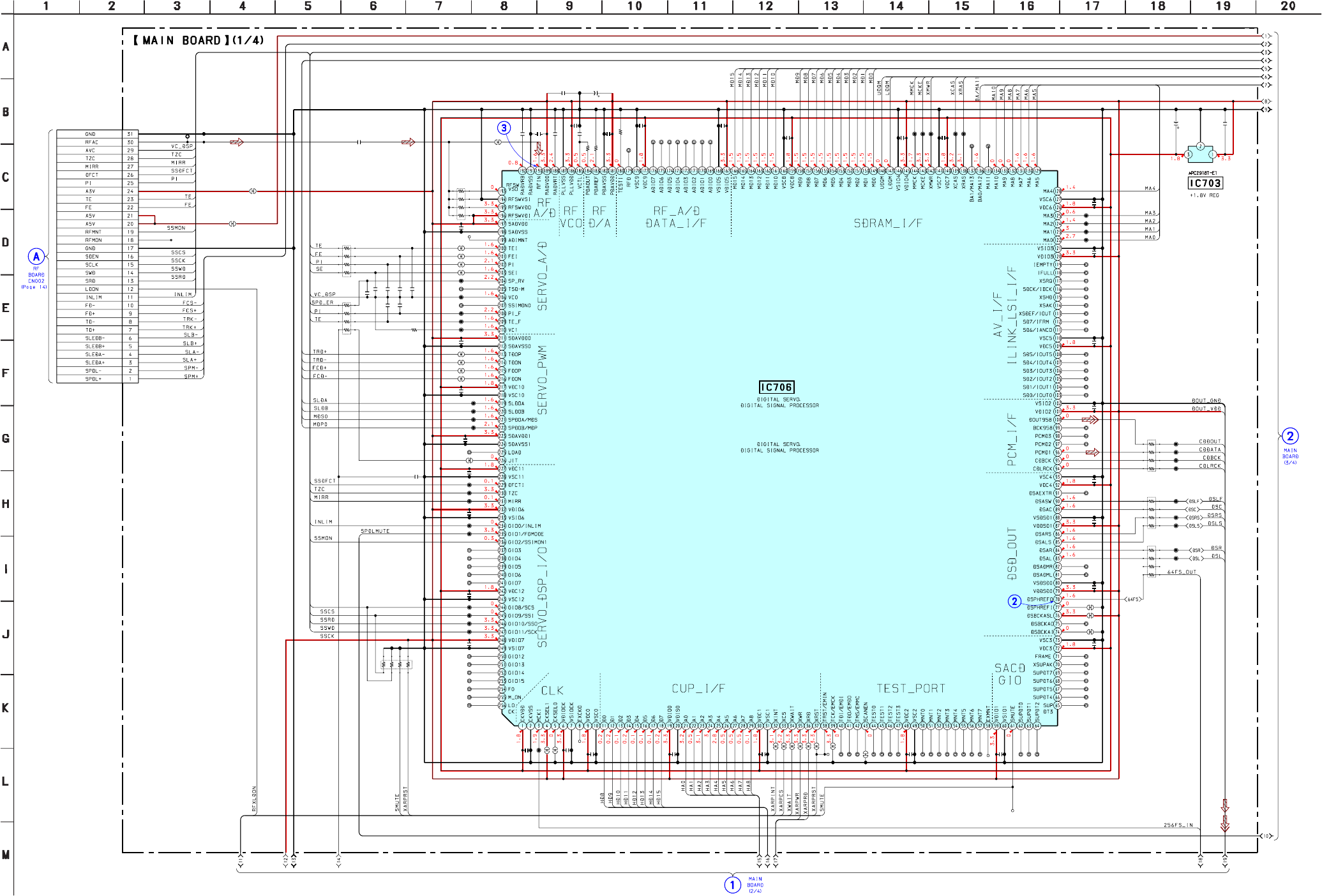

4-5. Schematic Diagram — MAIN Section (1/4) — ............ 16

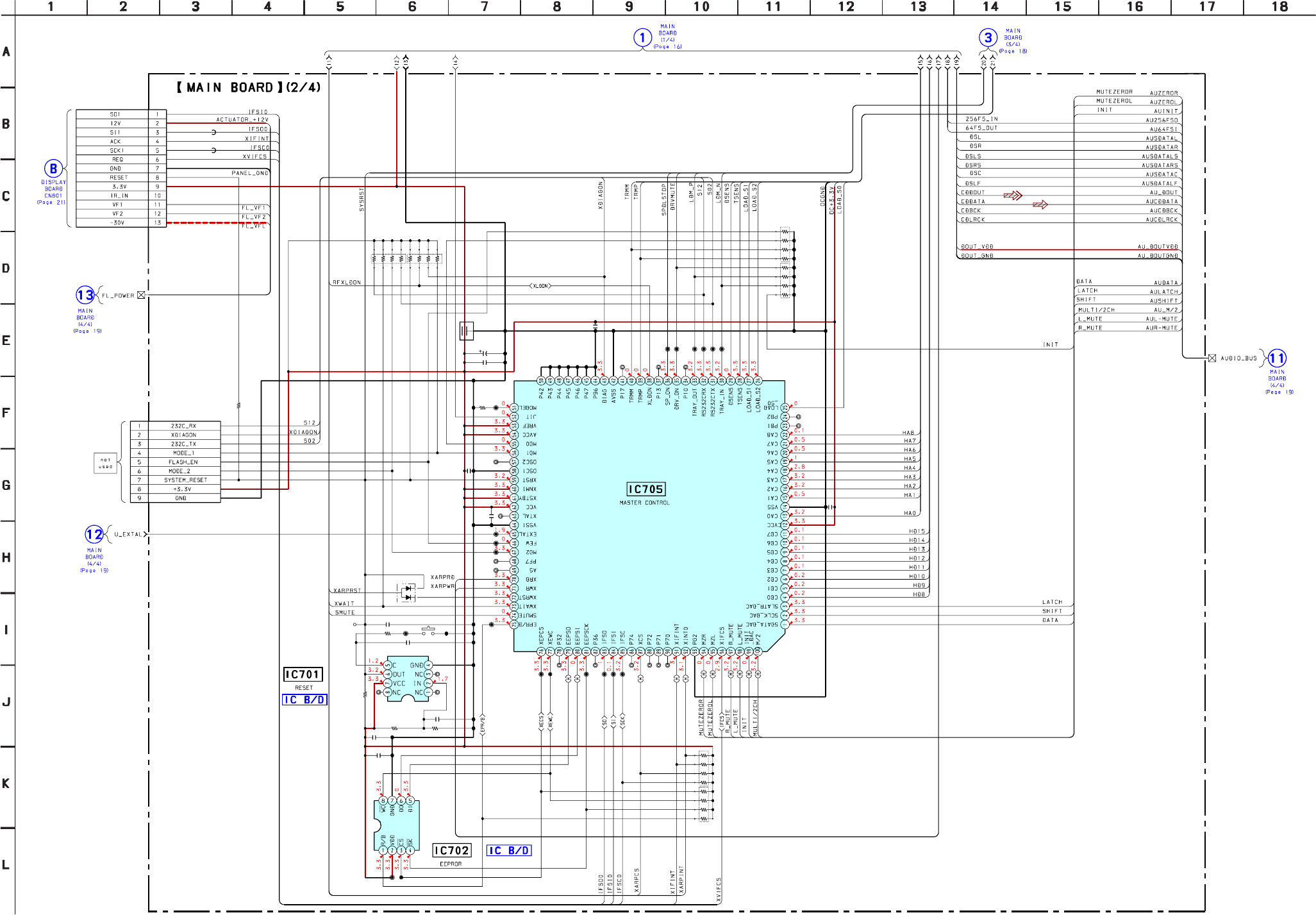

4-6. Schematic Diagram — MAIN Section (2/4) — ............ 17

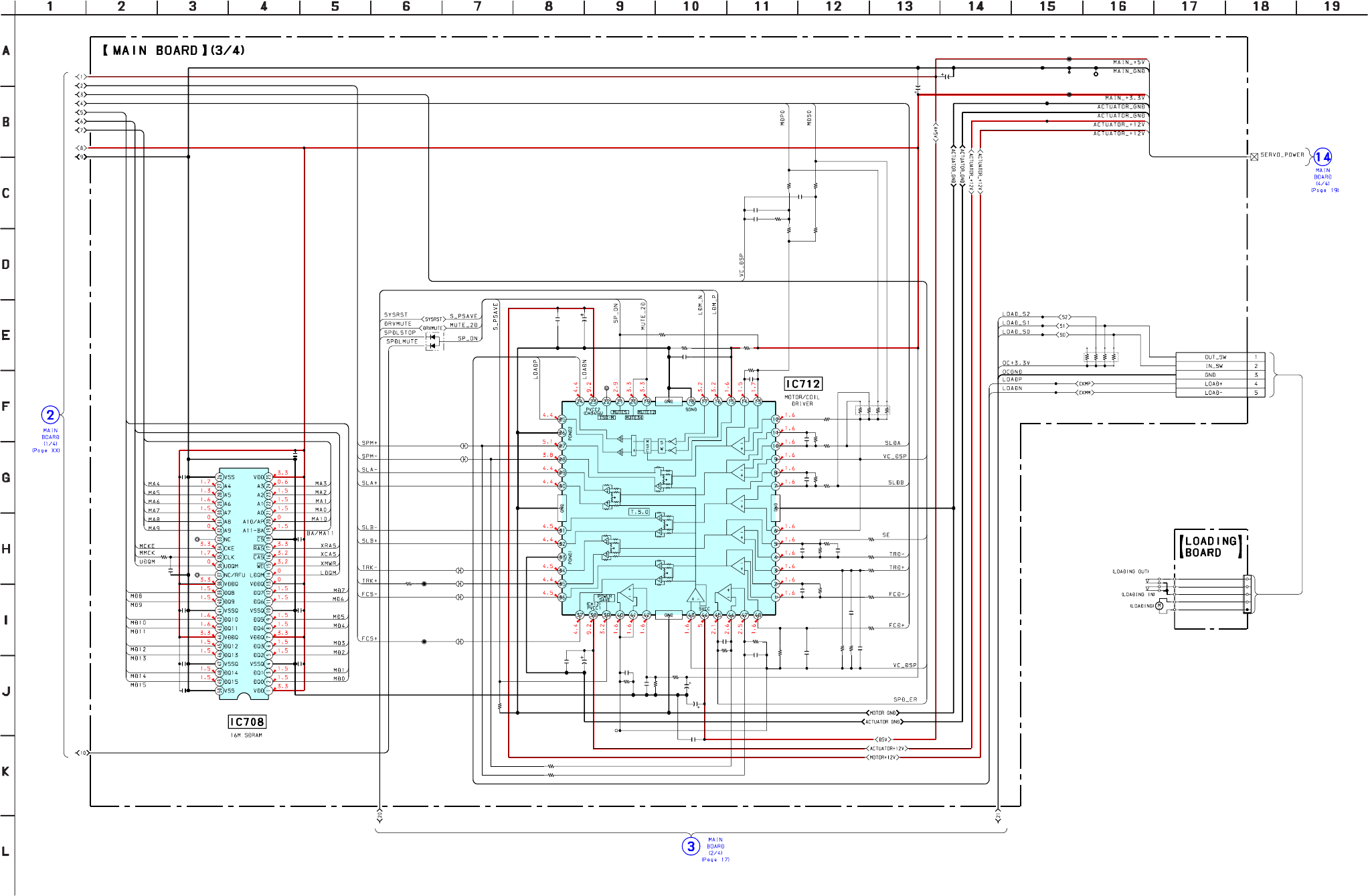

4-7. Schematic Diagram — MAIN Section (3/4) — ............ 18

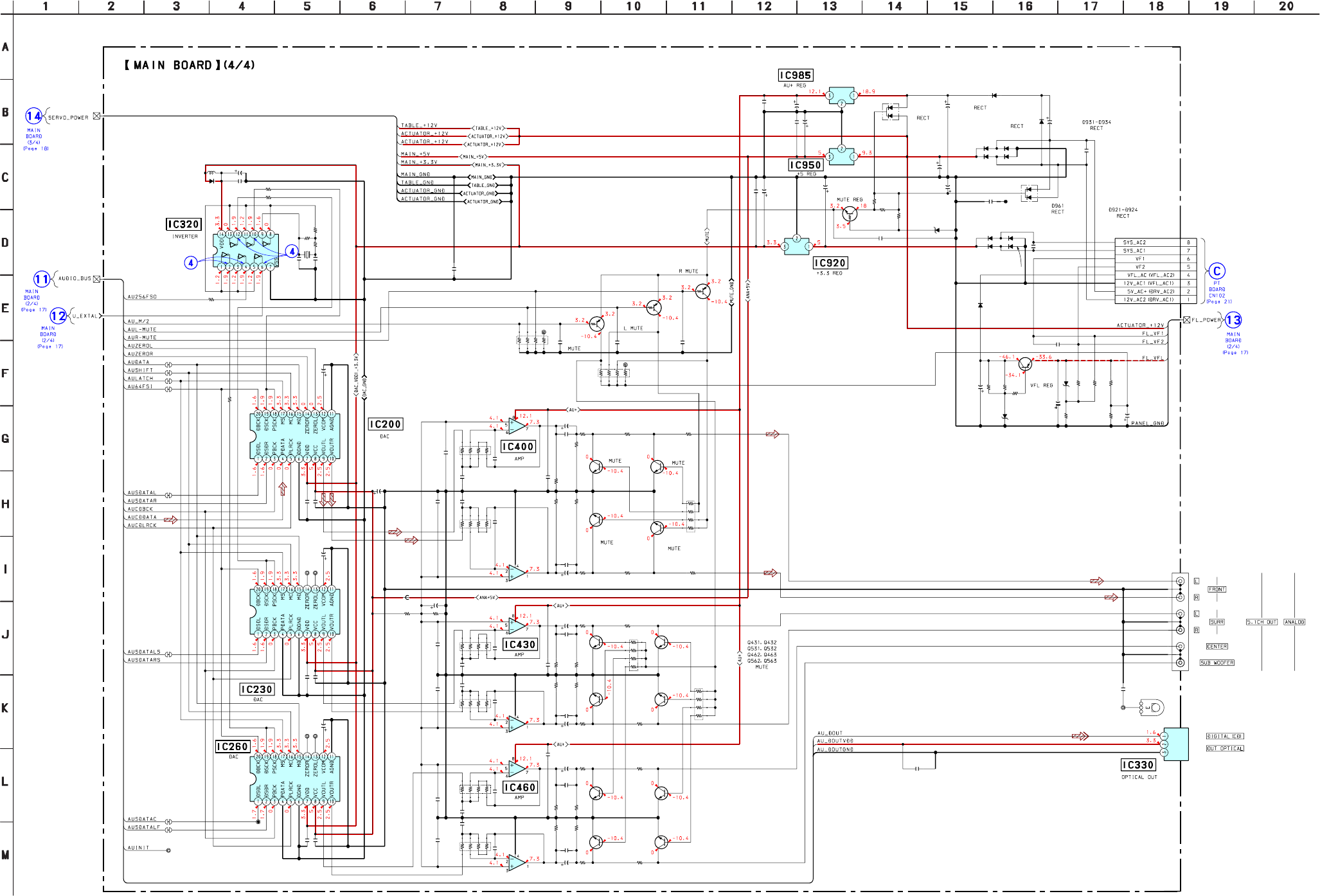

4-8. Schematic Diagram — MAIN Section (4/4) — ............ 19

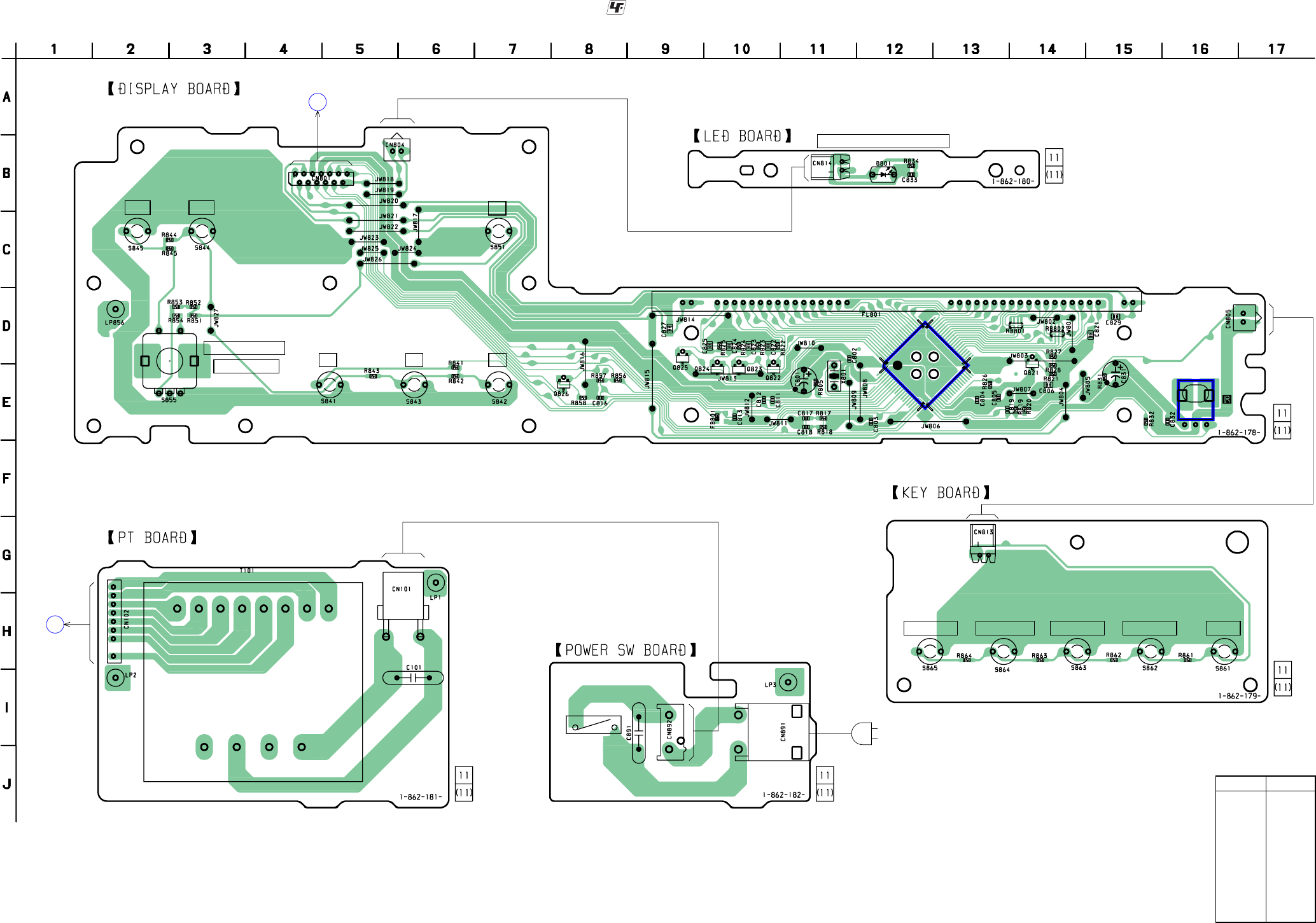

4-9. Printed Wiring Board — DISPLAY Section — ............ 20

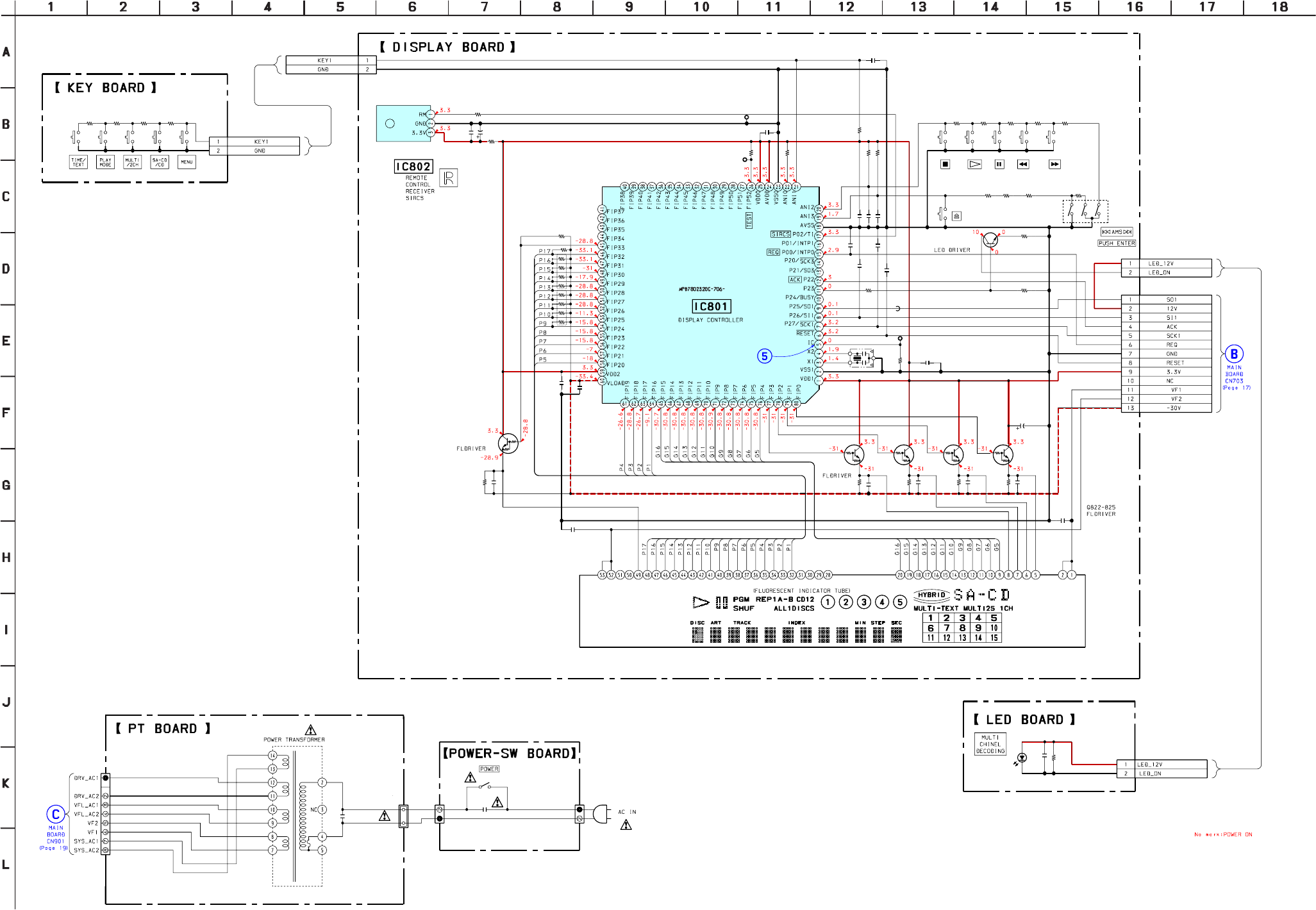

4-10. Schematic Diagram — DISPLAY Section — ................ 21
5. TEST MODE ............................................................... 22
6. EXPLODED VIEWS

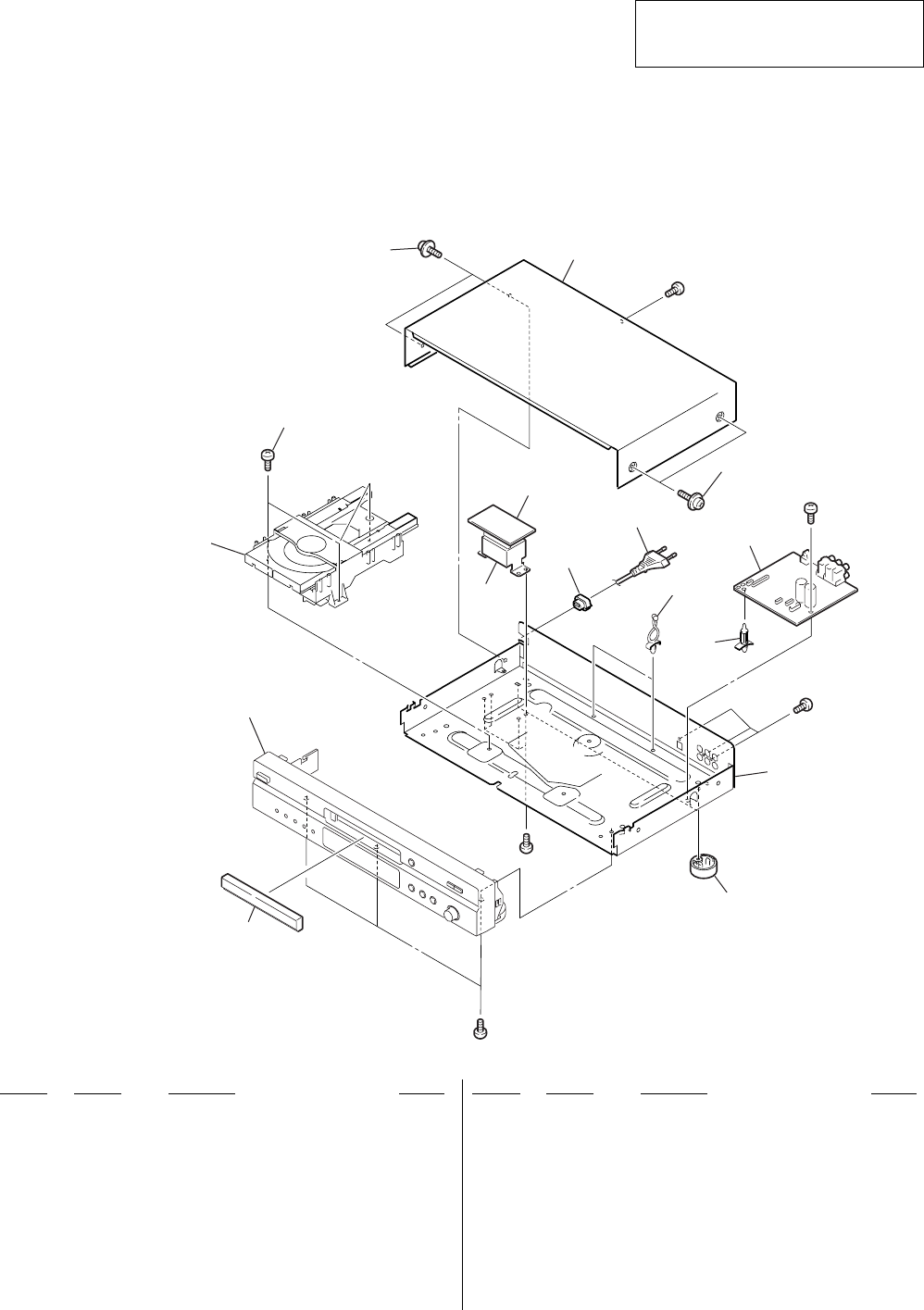

6-1. Main Section.................................................................... 23

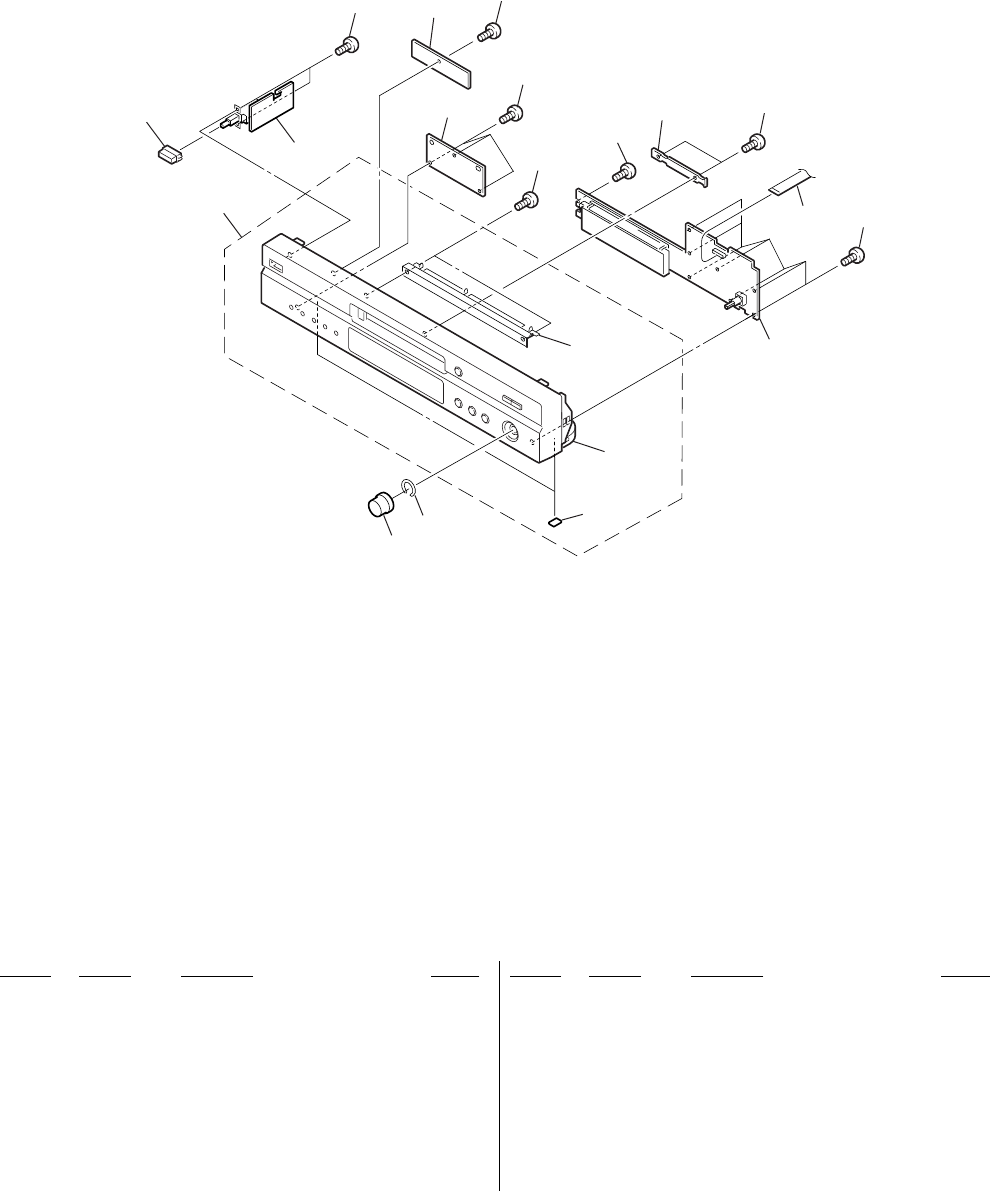

6-2. Front Panel Section ......................................................... 24

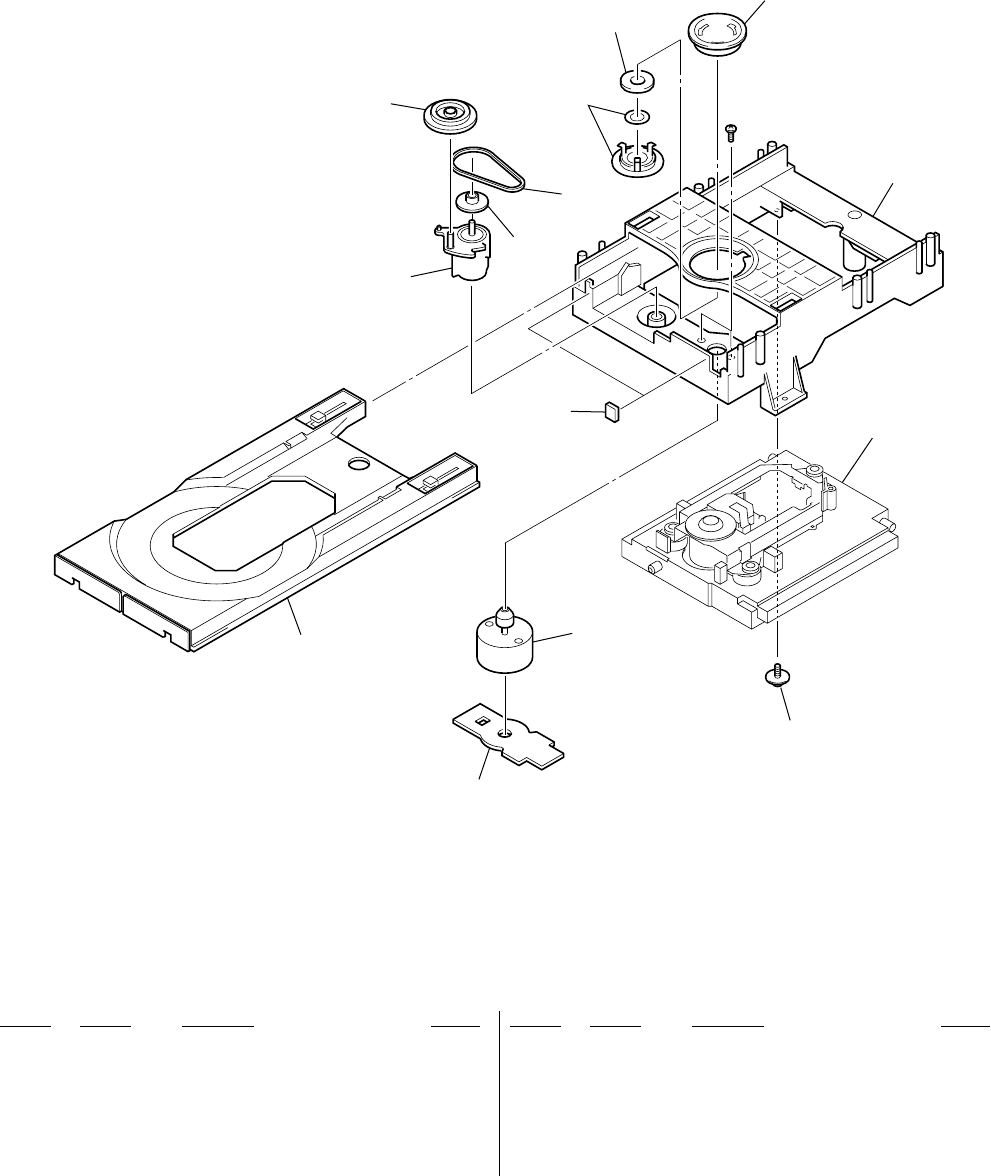

6-3. CD Mechanism Deck ...................................................... 25

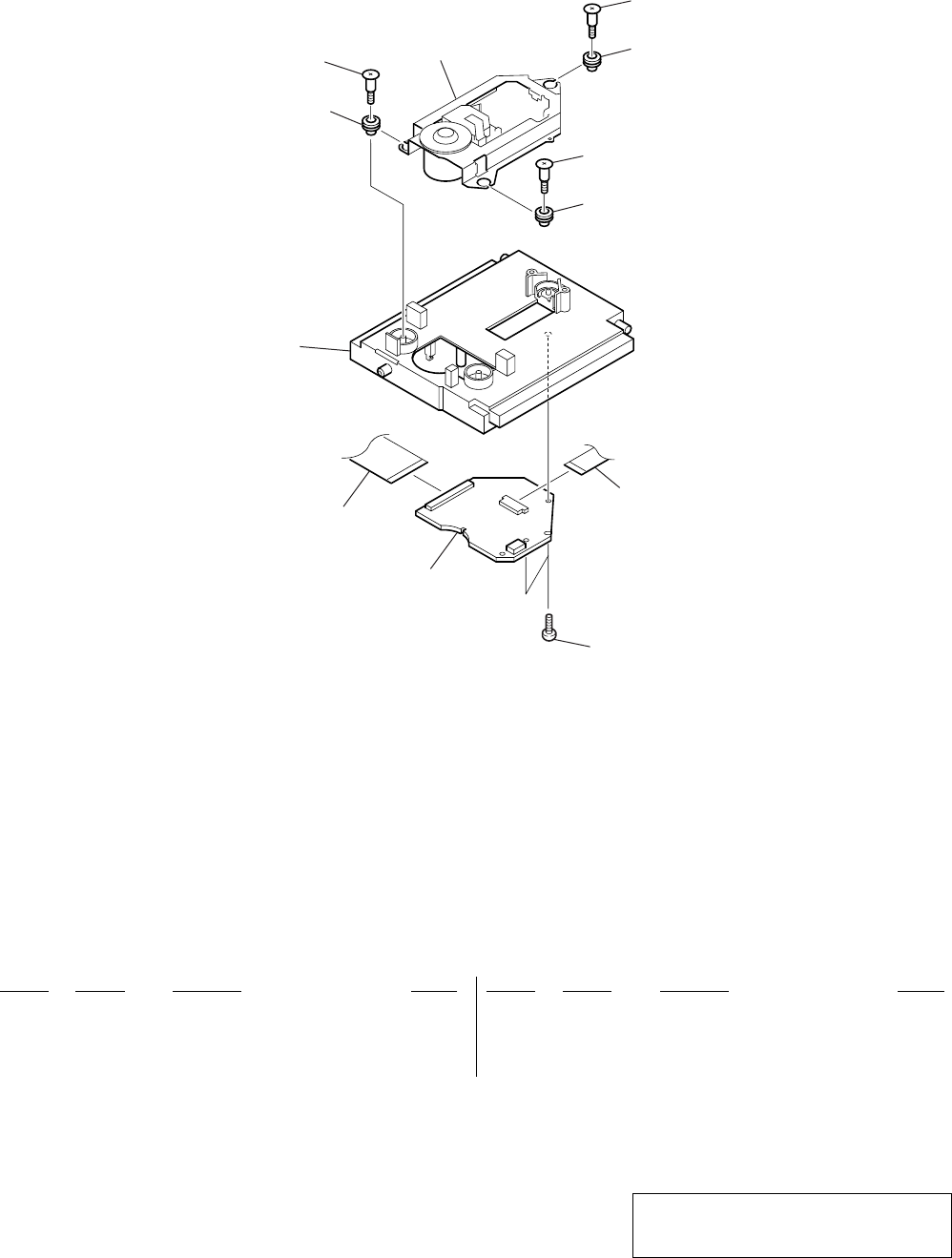

6-4. Base Unit (DVBU50) ...................................................... 26
7. ELECTRICAL PARTS LIST................................ 27
3
SCD-XE597
SECTION 1
SERVICING NOTES

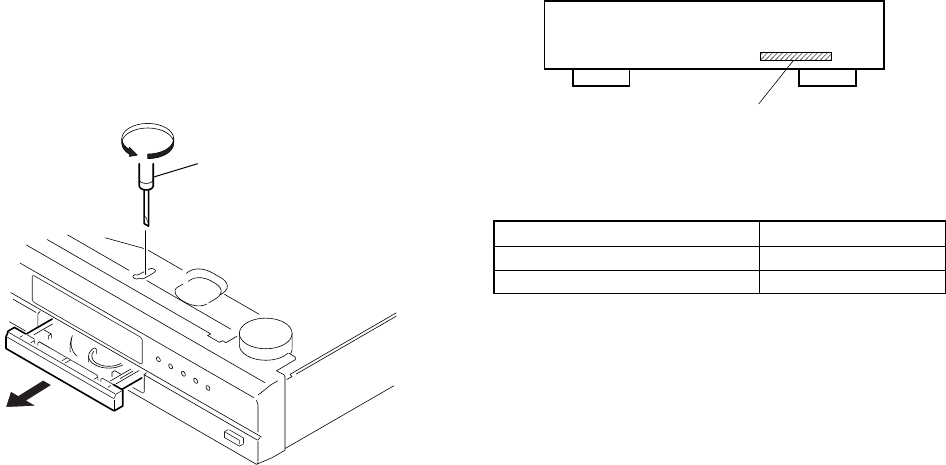

HOW TO OPEN THE DISC TRAY WHEN POWER SWITCH
TURNS OFF
Insert a tapering driver into the aperture of the unit bottom, and turn
in the direction of arrow.
Use a flat (-) head screwdriver to open the disc tray by manual
operation. (Flat head screwdriver with nominal blade length of
3mm.)
* To close the disc table, turn the driver in the reverse direction.
tapering driver
Parts No.
MODEL Part No.
AEP Model 4-255-245-0[ ]
UK Model 4-255-245-1[ ]
MODEL IDENTIFICATION
– Back Panel –
4
SCD-XE597 SECTION 2
GENERAL This section is extracted
from instruction manual.

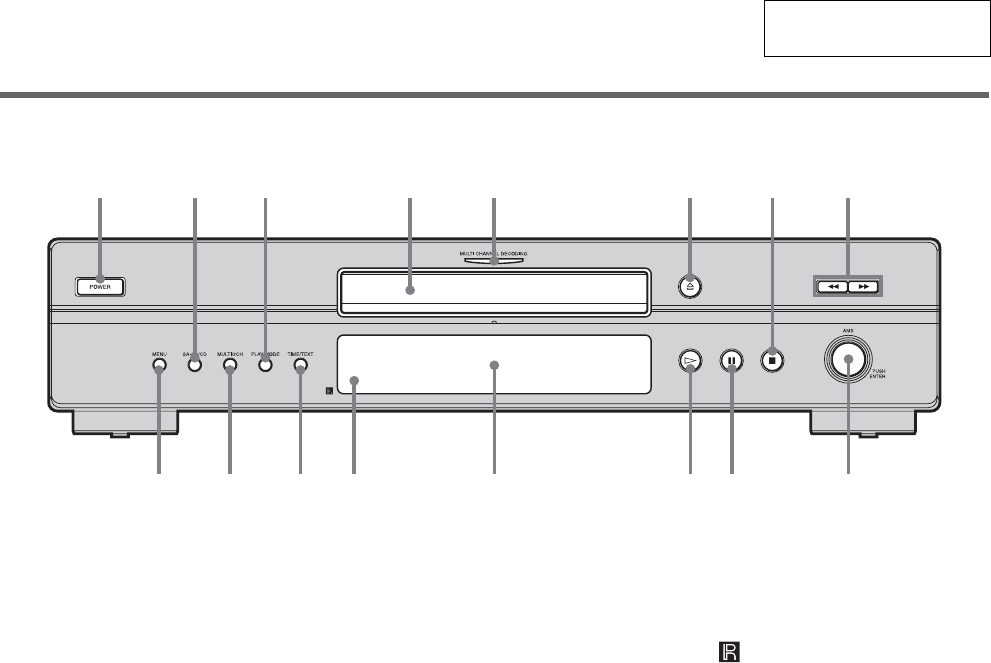

Front Panel
APOWER switch (9)
BSA-CD/CD button (5, 9)
Each time you press the button while playing back
a hybrid disc, the layer to be played back switches
between the SA-CD layer and the CD layer.
CPLAY MODE button (13, 14)
Press to select the play mode.
DDisc tray (9)
EMULTI CHANNEL DECODING indicator
Turns on when you turn on the player, or when the
Multi-channel Super Audio CD is loaded and
select the multi-channel playback area by pressing
MULTI/2CH.
FA button (9)
Gx button (9, 14)
Hm/M buttons (12)
Il AMS L dial
(AMS: Automatic Music Sensor) (8, 9, 10,
12, 14, 15, 16, 18)
JX button (9)
KH button (9, 12, 13, 14)
LDisplay window (10)
MRemote sensor (6)
NTIME/TEXT button (11)
Each time you press the button, the playing time of
the track, the remaining time of the disc, or TEXT
information appears in the display.
OMULTI/2CH button (5, 9)
Press to select the playback area when a disc with
the 2 channel area and the multi-channel area
(page 5) is loaded.
PMENU button (8, 9, 10, 12, 15, 16, 18)
Press to enter the menu.
Press to exit from the menu and return to the
normal display.
lL
123 45 678
9q
;
q
a
q
s
q
d
q
f
q
h
q
g
5
SCD-XE597

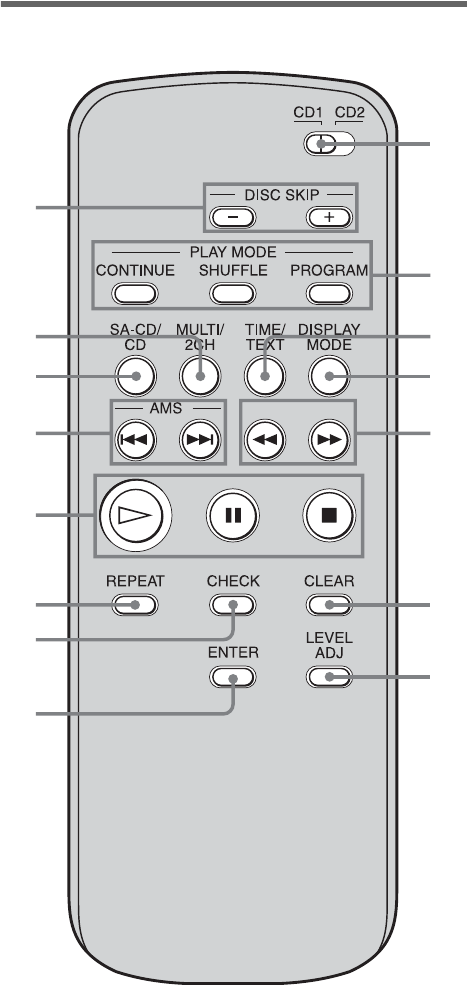

Remote ACD1/2 (command mode) switch (8)
Select the command mode.
BCONTINUE button (13, 14)
Press to resume Continuous Play from Shuffle Play
or Program Play.
SHUFFLE button (13)
PROGRAM button (14)
CTIME/TEXT button (11)
Each time you press the button, the playing time of
the track, the remaining time of the disc, or TEXT
information appears in the display.
DDISPLAY MODE button (12)
Press to turn the display information off or on.
Em/M buttons (12)
FCLEAR button (14)
Press to delete a programed track number.
GLEVEL ADJ button (17)
Press to adjust the output level balance for the
Multi-channel management function (page 15).
HENTER button (8, 9, 10, 12, 14, 15, 17, 18)
ICHECK button (14)
Press to check the programed order.
JREPEAT button (13)
KH button (9, 12, 13, 14)
X button (9)
x button (9, 14)
LAMS ./> buttons
(AMS: Automatic Music Sensor) (8, 9, 10,
12, 14, 15, 17, 18)
MSA-CD/CD button (5, 9)
Each time you press the button while playing back
a hybrid disc, the layer to be played back switches
between the SA-CD layer and the CD layer.
NMULTI/2CH button (5, 9)
Press to select the playback area when a disc with
the 2 channel area and the multi-channel area
(page 5) is loaded.
ODISC SKIP +/– buttons*
Press to select the disc.
*This button cannot be used in this player.
qg
qf
qd
qs
qa
q;
9
8
1
2
3
4
5
6
7
6
SCD-XE597 SECTION 3
DISASSEMBLY

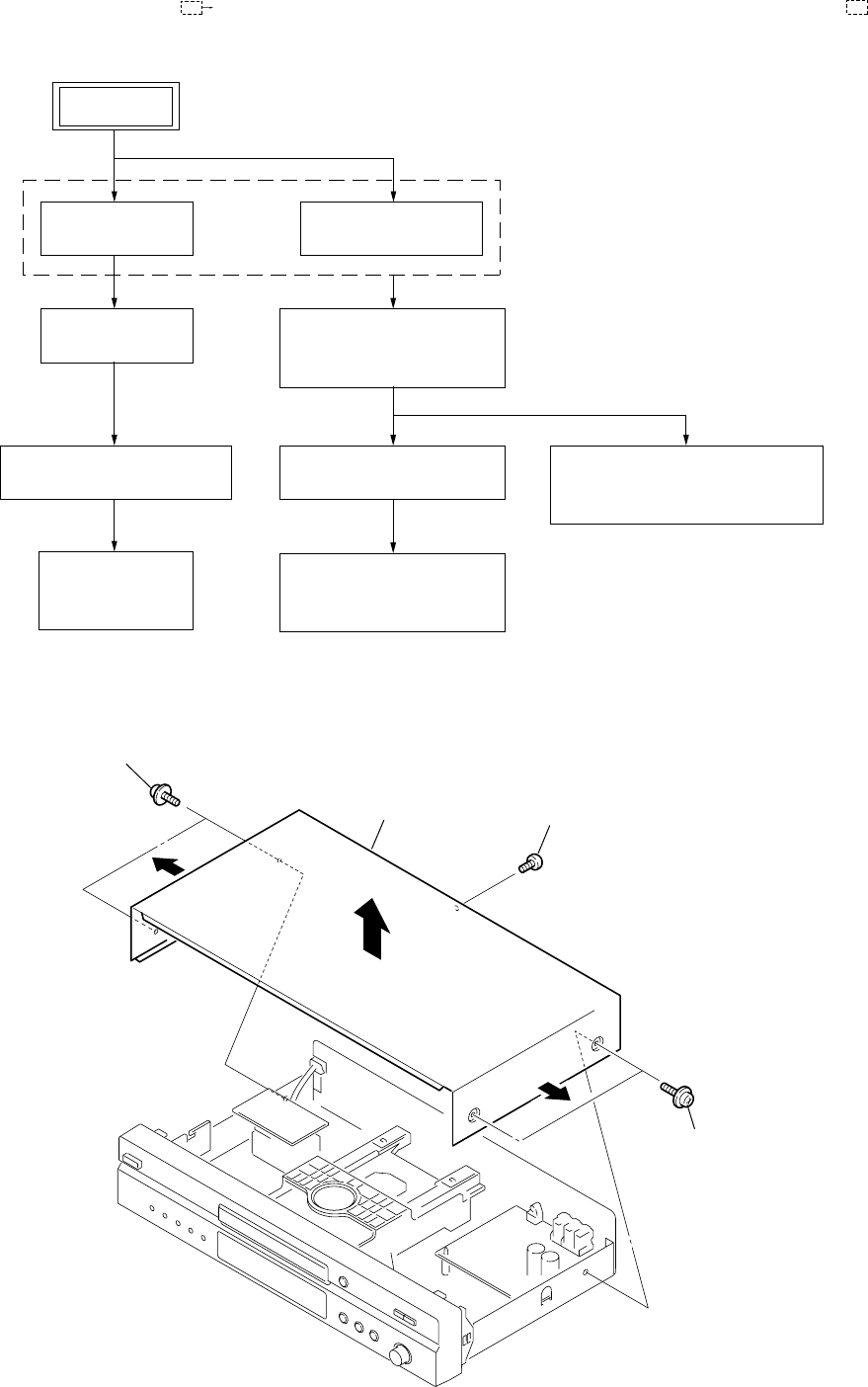

3-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
3-2. COVER
3-10. BELT (LD), LOADING BOARD,
MOTOR (L) ASSY
(Page 10)
3-9. RF BOARD,
PICK-UP UNIT (DBU-3)
(Page 10)
SET
3-8.BASE UNIT (DVBU50)
(Page 9)
3-7.CD MECHANISM DECK
(CDM66D-DVBU50)
(Page 9)
3-4.LOADING PANEL
(Page 7)
3-3.MAIN BOARD
(Page 7)
3-5. FRONT PANEL SECTION
(Page 8)
3-6.KEY BOARD,
DISPLAY BOARD
(Page 8)
3-2.COVER
(Page 6)
5
4
4
cover
3
screw
(+BVTP 3
×
8)
1
two screws
(case 3)
2
two screw
s
(case 3)
•This set can be disassembled in the order shown below.
•The dotted square with arrow ( ) prompts you to move to the next job when all of the works within the dotted square ( ) are
completed.
7
SCD-XE597

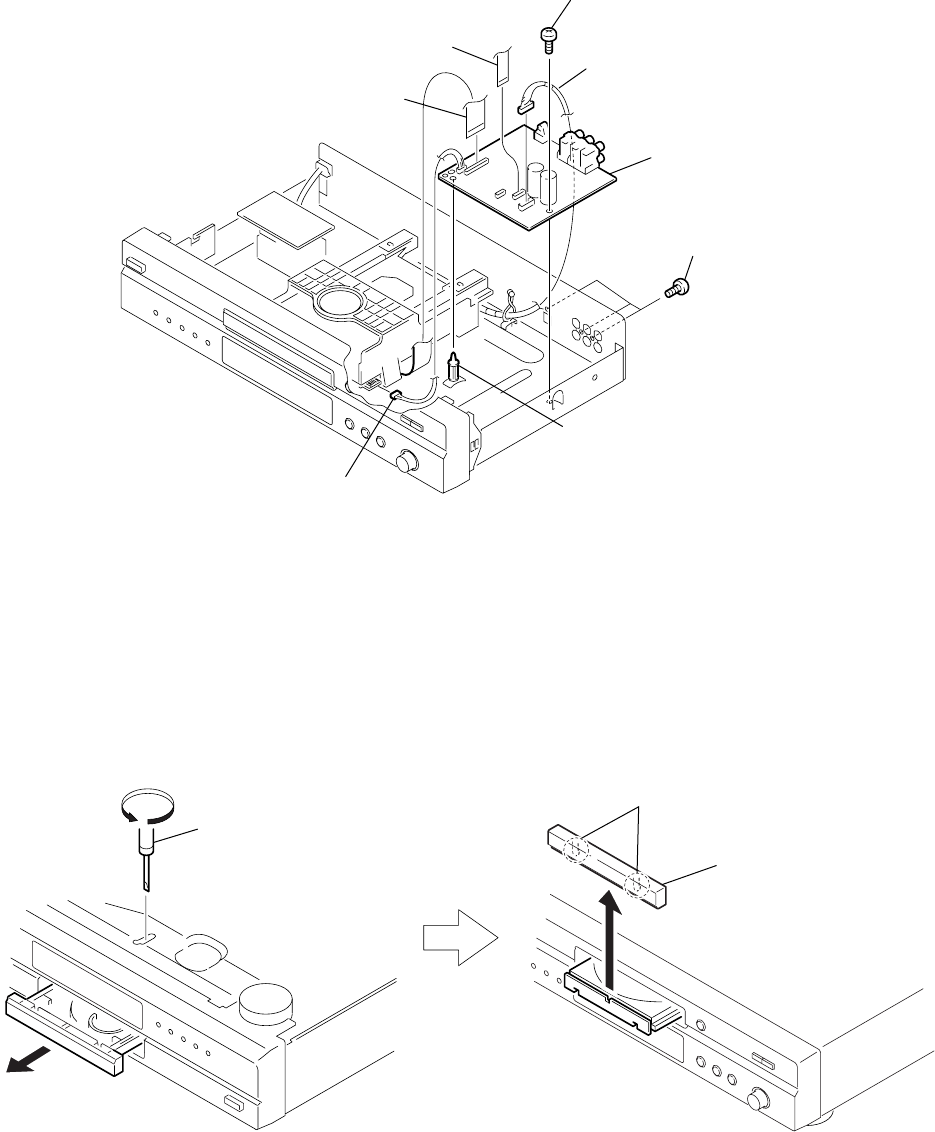

3-3. MAIN BOARD
4
wire (flat type)
(31 core) (CN702)
1
connector
(5p) (CN151)
2
connector
(8p) (CN901)
3
wire (flat type)
(13 core) (CN703)
6
screw
(+BVTP 3
×
8)
5
three screws
(+BVTP 3
×
8
7
PWB holder
8
MAIN board
3-4. LOADING PANEL
tapering driver
3
two claws
4
loading panel
1
2
8
SCD-XE597

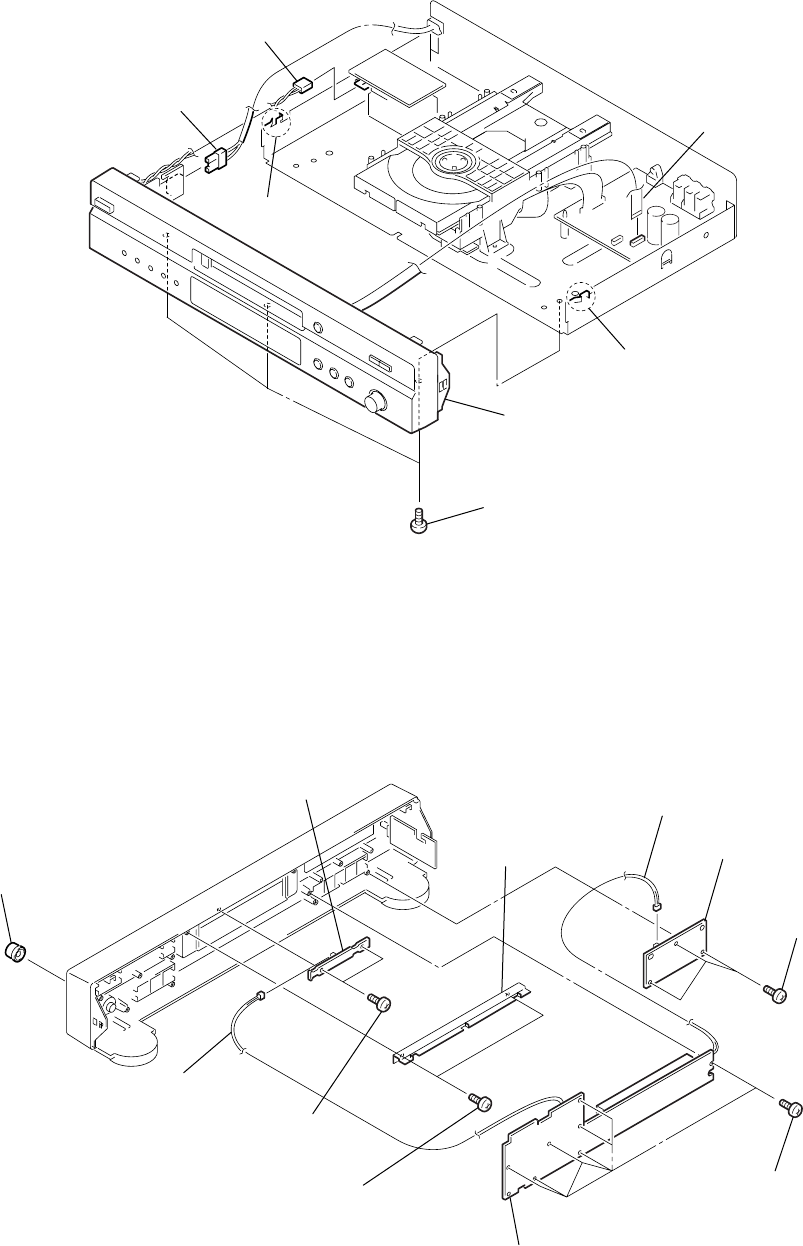

3-5. FRONT PANEL SECTION
3-6. KEY BOARD, DISPLAY BOARD
5
claw
4
claw
6
three screws
(+BVTP 3
×
8)
7
front panel section
1
wire (flat type)
(13 core) (CN703
)
2
connector (CN891)
3
connector (CN101)
q;
seven screws
(+BVTP 2.6
×
8)
4
two screws
(+BVTP 2.6
×
8)
2
two screws
(+BVTP 2.6
×
8)
7
three screws
(+BVTP 2.6
×
8
)
3
bracket
6
LED board
9
KEY board
qa
DISPLAY board
5
connector (CN814)
8
connector (CN813)
1
knob (AMS)
9
SCD-XE597

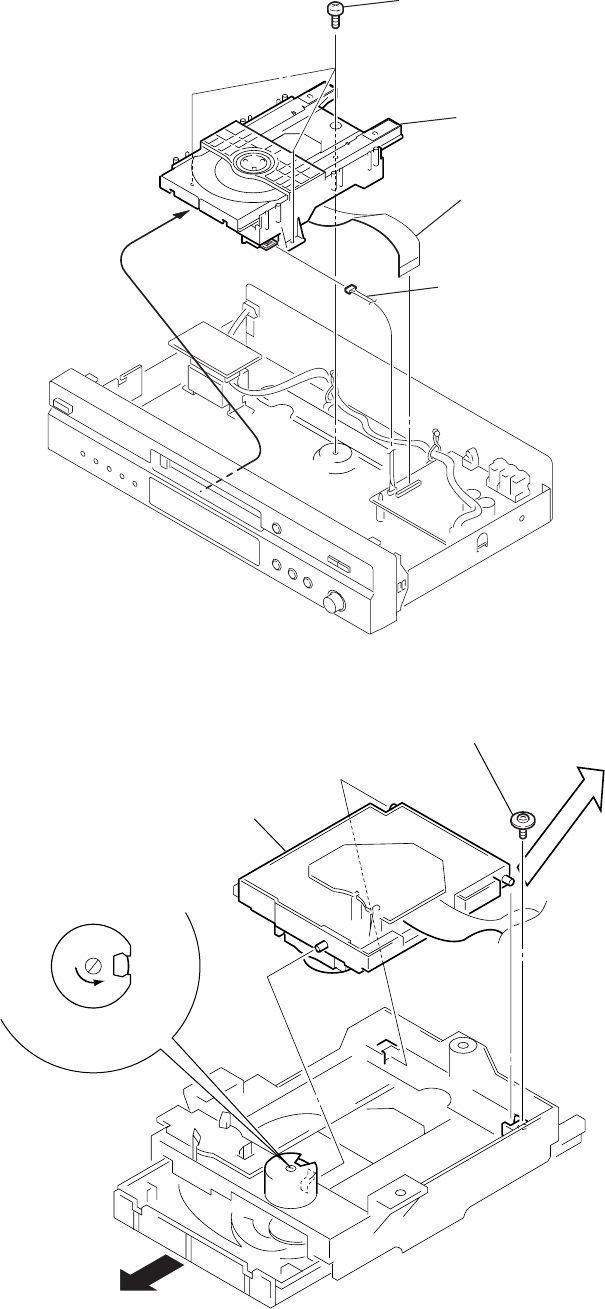

3-7. CD MECHANISM DECK (CDM66D-DVBU50)
3-8. BASE UNIT (DVBU50)
3
three screws
(+BVTP 3
×
8)
1
wire (flat type)
(31 core) (CN702)
2
connector
(5p) (CN151)
4
CD mechanism dec
k
(CDM66D-DVBU50)
4
Remove the Base unit
(DVBU50) to the direction
of arrow.
1
Turn the cam to the direction of
arrow (counter clock wise) by
tapering driver.
2
Take off the tray.
3
screw (DIA. 12), floating
DVBU50
10
SCD-XE597
3-9. RF BOARD, PICK-UP UNIT (DBU-3)
1
two screws
(BTTP M2.6)
6
RF board
4
CN001
7
three screws
(step screw (M))
8
pick-up unit (DBU-3)
holder (66D)
2
hook
5
wire (flat type) (CN002)
3
flexible board (
CN003
)
3-10. BELT (LD), LOADING BOARD, MOTOR (L) ASSY
7
two screws
(B 2.6
×
4)
5
gear (LD)
6
belt (LD)
1
claw
2
claw
0
motor (L) assy
9
LOADING board
8
Removal the solders.
4
tray (66)
3
1111
SCD-XE597
SCD-XE597
SECTION 4
DIAGRAMS

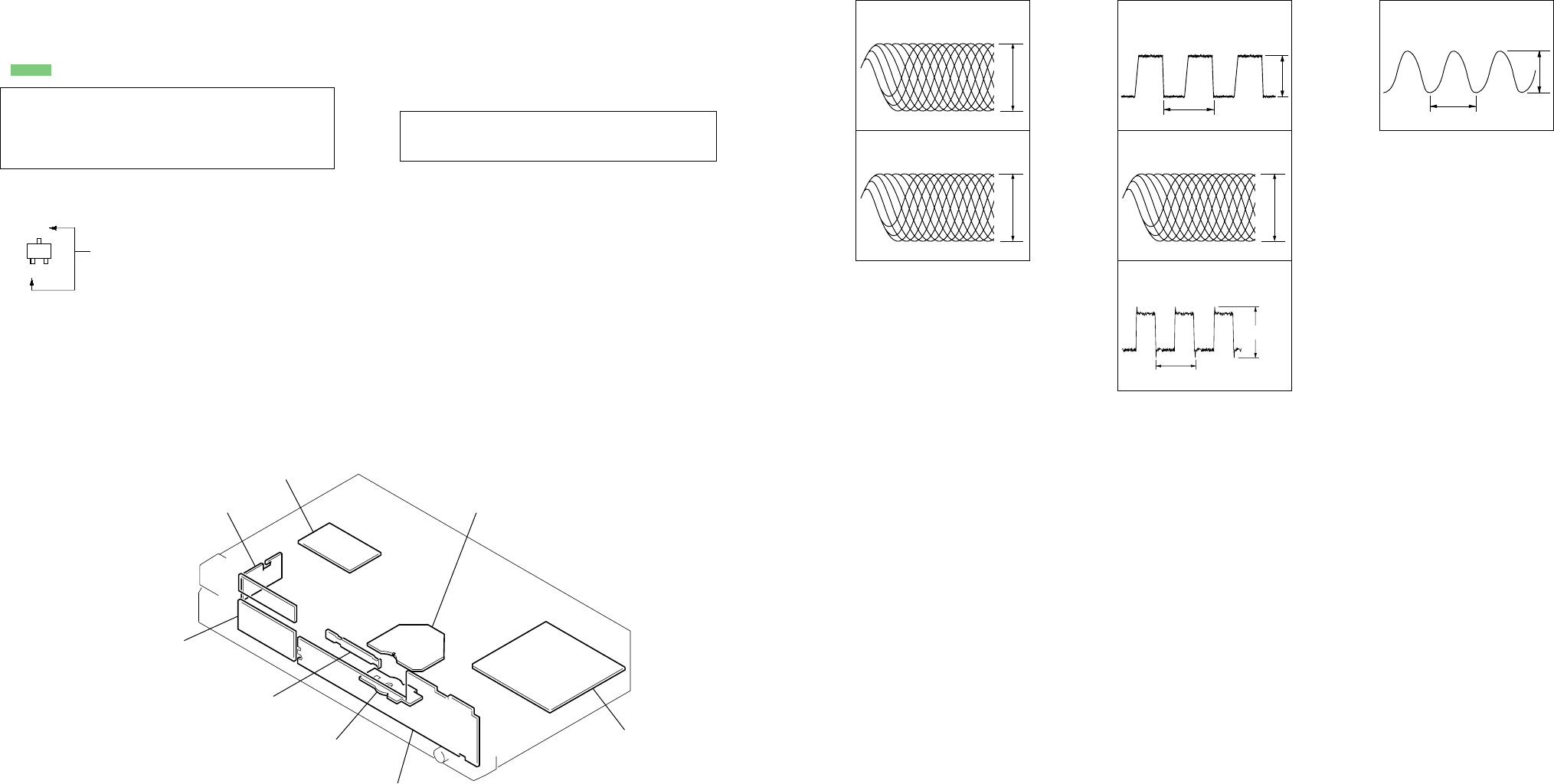

•Circuit Boards Location
NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
Note on Printed Wiring Board:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
• W : indicates side identified with part number.
• f: internal component.
•: Pattern from the side which enables seeing.
C
B
These are omitted.
E
Q
Note Schematic Diagrams.
•All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics and
tantalums.
•All resistors are in Ω and 1/4 W or less unless otherwise
specified.
• f: internal component.
•C: panel designation.
•A: B+ Line.
•B: B– Line.
•Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark: SACD PLAY
( ): CD PLAY
•Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production
tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
•Circled numbers refer to waveforms.
•Signal path.
J: CD
c: CD DIGITAL OUT (OPTICAL)
Caution:
Pattern face side: Parts on the pattern face side seen from
(Side B) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Side A) the parts face are indicated.
Note: The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
MAIN boar
d
RF board
DISPLAY board
LOADING board
PT board
KEY board
LED board
POWER SW board
1.4 Vp-p
1 IC001 tl SIGO (CD)
1.4 Vp-p
1 IC001 tl
SIGO (SACD)
4 IC320 2,4,6,q;,qs
1.4 Vp-p
3 IC706 <z./
RF IN (SACD)
2 IC706 uk DSPHREFO
354 ns
3.5 Vp-p
5 IC801 5 IC
200 ns
3.5 Vp-p
200 ns/DIV
40 ns/DIV 40 ns/DIV
3.3 Vp-p
88.6 ns
•Waveforms
•Indication of transistor.
– RF Board – – MAIN Board – – DISPLAY Board –
1212
SCD-XE597
SCD-XE597
4-1. BLOCK DIAGRAMS
• Signal Path
: CD
: CD DIGITAL OUT (OPTICAL)
OPTICAL PICK-UP BLOCK
A
5
B
E
F
DVDLD
VC
VCC A5V
GND
PD
VR
LD
DRIVE
Q001
RF AMP
IC001
VC
19
RFIP
1
A
14
B
13
C
12
D
11
E
15
F
16
DVDLD
25
PD
2
C
IC712
MOTOR/COIL DRIVER
IC708
16M SDRAM
DO1+
37
DO1-
36
35
34
32
31
M
SLED B
MOTOR
FCS+
FOCUS
COIL
TRACKING
COIL
FCS-
TR+
TR-
48
IN1+
1
IN1-
3
4
6
7 SLDB
220
VCO
TDON
214
TDOP
213
FDON
216
FDOP
215
DIGITAL SIGNAL PROCESSOR
IC706
DIGITAL SERVO,
DOUT958
RFAC
19059SIGO
41TE
42FE
27
LDON
VCI
37
TZC
TEI
200
FEI
201
PI
MIRR
TZC
DFCTI
202
38
DFT
33MIRR
36
230
231
SSI45SRD 245
SSO
46SWD 246
SCK
47SCLK 247
SCS
48SDEN 244
229
PI
234 INLIM
37
XRST
MA0-10,BA A0-10,BA
MASTER CONTROL
IC705
9812
13 12
11 10
34
56
XLDON
38
TRAY IN
30
DRV ON
EXTAL
35
65
XWRST
72
34
XWAIT
21-29 13,15-22A0-8 CA0-8
11-18 4-11D0-7 CD0-7
XWAIT
73
33
XCS XCS
87
32
XINT XINT0
92
61
SMUTE SMUTE
EPR/B,
XEPCS,
XEWC,
EEPSO,
EEPSI,
EEPSCK
74
226
JIT JIT
52
35
XWR XWR
71
36
XRD XRD
70
XRST
59
DO2+
DO2-
DO3+
DO3-
IN2+
IN2-
5SEI
203
OUT2
45 SP RV
204
OPOUT1
IN3+
IN3-
12
13 MDS0
221
MDP0
222
FGMODE
235
IN5+
IN5-
IC320
INVERTER
X321
11.2896MHz
LIMIT
IN
SWITCH
VF1
T101
POWER TRANSFORMER
S891
POWER
VF2
VFL
6,14
8
9
RF
3
2D
1
7
10
17
CDLD LD
DRIVE
Q002
CDLD
26
LDSELO
24
19
SW
15
4
12
SLB+
SLB-
25LOAD S0 IN
27LOAD S1 OUT
S701
RESET
30
29
M
SLED A
MOTOR
9
10 SLDA
219
DO4+
DO4-
IN4+
IN4-
SLA+
SLA-
28
27
M
SPINDLE
MOTOR
DO5+
DO5-
46
47
OPIN1-
OPIN1+
SPM-
SPM+
17
16
REV
FWD
39
PS
19
MUTE12
20
MUTE34
21
D509
D511
MUTE5
25
24
M
LOADING
MOTOR
DO6+
DO6-
LOADP
LOADN
100 D OUT
PCMD1 96
CDBCK 95
CDLRCK 94
DSAL 83
DSAR 84
DSALS 85
DSARS 86
DSAC 89
DSASW 90
DSPHREFO 78
206
XRAS,
XCAS,
XMWR,
MCKE,
MMCK,
LDQM,
UDQM
RAS,
CAS,
WE,
CKE,
CLK,
LDQM,
UDQM
MD0-15 DQ0-15
12
16
7
9
8
5
IC701
RESET
IC702
EEPROM
C OUT 6
TRAY OUT33
SP ON36
39
1
IC330
OPTICAL OUT
4
IC260
DAC IC400(1/2)
AMP
IC400(2/2)
AMP
MUTE
Q401,402
PDATA
3 PBCK
5 PLRCK
1 DSDL
2 DSDR
MCKI 3
20 DBCK
19 DSCK
18 PSCK
17 MS
16 MC
15 MD
14 ZEROR
13 ZEROL
94MZR
1SDATA DAC
2SCLK DAC
3SLATR DAC
95MZL
97R MUTE
L MUTE
100M/2
VOUTL 967
VOUTR 10
L
J351(1/3)
DIGITAL
OUT
OPTICAL
R
IC230
DAC IC430(1/2)
AMP
IC430(2/2)
AMP
MUTE
Q431,432
3 PBCK
5 PLRCK
1 DSDL
2 DSDR
20 DBCK
19 DSCK
18 PSCK
17 MS
16 MC
15 MD
VOUTL 9 67
VOUTR 10
SL
J351(2/3)
SR
SL
SR
IC200
DAC IC460(1/2)
AMP
MUTE
Q462,463
3 PBCK
5 PLRCK
1 DSDL
2 DSDR
20 DBCK
19 DSCK
18 PSCK
17 MS
16 MC
15 MD
VOUTL 967
VOUTR SW
CENTER
10
IC460(2/2)
AMP
MUTE
Q562,563
21
CENTER
J351(3/3)
SW
MUTE
Q531,532
21
MUTE
Q501,502
21
L MUTE
Q303
R MUTE
Q305
MUTE
Q301
98
849 IFSISO1
838 IFSOSI1
9112 XIFINTACK
857 IFSCSCK1
9615 XIFCSREQ
17 SIRCS
ANI1-3
11 P23
6RESET
IC801
INDICATION TUBE
FL801
D801
DISPLAY CONTROLLER
1
3
RM
IC802
SIRCS
KEY
LED
Q826
S841-845,
S851,855,
S861-865
D971
VFL REG
Q971
RECT
D931-934
MUTE MUTE REG
Q961 RECT
D960,961
+12V
3 1
IC950
+5V REG
+5V
RECT
D936,937
3 1
IC985
AU+ REG
AU+
RECT
D921-924
3 1
IC920
+3.3V REG
+3.3V
3 1
IC703
+1.8V REG
+1.8V
1313
SCD-XE597
SCD-XE597
4-2. PRINTED WIRING BOARD — RF SECTION — • See page 11 for Circuit Boards Location. :Uses unleaded solder.
IC001
MAIN BOARD
CN702
(Page 15)
M901
SPINDLE MOTOR
M902
SLED MOTOR
OPTICAL
PICK-UP
BLOCK
(DBU-3)
A
• Semiconductor
Location
Ref. No.
Location
D001 C-9
D004 D-9
IC001 C-9
Q001 D-5
Q002 D-5
1414
SCD-XE597
SCD-XE597
4-3. SCHEMATIC DIAGRAM — RF SECTION —
L002
L001
C023
C021
C009
C017
JL001 JL002
JL003
JL004
JL005
JL006
JL007
JL008
JL009
JL010
JL011
JL012
JL013
JL014
JL015
JL016
JL017
JL018
JL019
JL020
JL021
JL022
JL023
JL024
JL025
JL026
JL027
JL028
JL029
JL030
JL031
JW001
JW002
C044
IC001
Q001 Q002
D001 D004
JW003
JW004
R003
R013
CN003
R029
R025
C024
R020 R023
R011
C018
R008 R010
R007
C034
R038
C040
R006
R005
C026
R018
C036
C038
R004
C047
C043
C031
C032
C022
C025
C039
R037
C035
C033
C028
C048
C046
C004
C027
C011
CN002
R052
R053
R054
R055
C005
C006
C007
C008
C019
C015
R009
R045
C016
C002
C001
CN001
R002
100 6.3V
10
16V
10
16V
100
6.3V
10
16V
SP3726A
2SB1132-T100-QR 2SB1132-T100-QR
1SS355TE-17 1SS355TE-17
100
10k
9P
100
47k
0.001
33 33
100
0.001
33 47k
33
0.022
2.2M
150p
27k
100k
0.01
10k
0.047
0.047
0
0.1
0.1
0.1
0.1
0.1
0.1
0.01
12k
0.1
0.001
0.1
0.01
0.01
22
6.3V
0.01
0.01
31PIN
0
0
0
0
0.0022
0.0022
0.0022
0.0022
560p
0.0047
820
220
0.0047
0.01
0.01
24P
100
•See page 11 for Waveforms.
1515
SCD-XE597
SCD-XE597
4-4. PRINTED WIRING BOARD — MAIN SECTION — • See page 11 for Circuit Boards Location. :Uses unleaded solder.
IC950 IC985
IC400
IC430
IC460
IC330
IC708
IC703
IC701
IC702
IC920
IC200
IC230
IC260
IC320
IC705
IC706
IC712
DISPLAY BOARD
CN801
(Page 20)
B
RF BOARD
CN002
(Page 13)
A
PT BOARD
CN102
(Page 20)
C
L
R
L
R
CENTER
SUB WOOFER
FRONT
SURR 5.1CH OUT ANALOG
1
5
CN151
M151
(LOADING)
M
S272
LOADING
IN
S271
LOADING
OUT
1-645-721-
21
(21)
LOADING BOARD
•Semiconductor Location
Ref. No.
Location
D321 E-4
D509 G-6
D511 E-6
D921 C-12
D922 C-12
D923 C-12
D924 C-12
D931 C-12
D932 C-12
D933 C-12
D934 C-12
D936 B-12
D937 C-10
D960 B-4
D961 C-8
D963 B-4
D971 D-11
D972 D-8
D973 D-8
IC200 C-4
IC230 D-4
IC260 E-4
IC320 S-5
IC330 G-16
IC400 D-15
IC430 D-15
IC460 E-15
IC701 E-11
IC702 D-12
IC703 F-12
IC705 E-5
IC706 G-3
IC708 H-15
IC712 F-7
IC920 D-13
IC950 B-13
IC985 B-14
Q301 C-3
Q303 C-3
Q305 C-3
Q401 C-15
Q402 D-2
Q431 D-15
Q432 E-2
Q462 E-15
Q463 E-2
Q501 C-15
Q502 C-2
Q531 D-15
Q532 D-2
Q562 E-15
Q563 E-2
Q961 B-3
Q971 D-7
Ref. No.
Location
Ref. No.
Location
Ref. No.
Location
Ref. No.
Location
Ref. No.
Location
1616
SCD-XE597
SCD-XE597
4-5. SCHEMATIC DIAGRAM — MAIN SECTION (1/4) —
C754
SL770
SL771
SL772
SL773
SL774
SL775
SL776
SL777
SL778
SL798
SL799
SL800
SL837
SL839
SL840
SL841
SL843
SL845
SL856
SL875
SL896
SL897
SL848
CL721
CL723
CL724
CL751
CL752
CL753
CL754
CL755
CL756
CL757
CL758
CL759
CL760
CL761
CL762
CL763
CL764
CL765
CL766
CL767
CL771
CL772
CL773
CL774
CL775
CL776
CL777
CL778
CL779
CL780
CL781
CL782
CL784
CL785
CL786
CL787
CL788
CL789
CL790
CL791
CL792
CL793
CL794
CL795
CL796
CL797
CL798
CL799
CL800
CL801
CL802
CL803
CL804
CL819
CL820
CL821
CL822
CL823
CL824
CL825
CL826
CL827
CL828
CL829
CL830
CL831
CL832
CL833
CL834
CL835
CL836
CL837
CL838
CL839
CL840
CL841
CL842
CL843
CL844
CL845
CL846
CL847
CL848
CL849
CL850
CL851
CL864
CL865
CL866
CL867
CL869
CL870
CL871
CL872
CL873
CL874
CL875
CL876
CL877
CL852
CL853
CL854
CL855
CL856
CL857
CL858
CL859
CL860
CL861
CL862
CL863
CL737
SL871
SL872
TP730
STP702 C746
C745
C749
R781
R782
C751
C788
C753
R783
C755
C789
C759
C761
C762
TP715
C764
C765
C766
C767
C768
RB617
RB616
RB615
C769
C770
C771
RB604
C733
C743
C742
C736
C734 C740
C741
C739
C738
C737
C731
C722
C723
C726 C727
C730
C729
R752
RB613
RB602
RB603
CN702
C744
C750
C752
C756
C758
C760
C763
C706
C714
IC706
IC703
CL770
C757
TP713
TP714
TP729
220
4V
XX
XX 0.1
0.1
0.1
1k
47k
100p
0.1
0.1
10k
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
470
470
470
0.1
0.1
0.1
4.7k
0.047
0.1
0.1
0.1
0.1 0.1
0.1
0.1
0.1
0.1
0.0047
0.1
1
0.001 0.0047
0.0047
0.001
0
10k
1k
470
31P
1
1
0.1
0.1
0.1
0.1
0.1
0.1
220
4V
CXD2754Q
256-QFP(0.4)
0.1
•See page 11 for Waveforms.
1717
SCD-XE597
SCD-XE597
4-6. SCHEMATIC DIAGRAM — MAIN SECTION (2/4) —
C713
SL730
SL732
SL742
SL746
SL749
SL751
SL753
SL757
SL759
SL790
SL792
CL722
CL725
CL726
CL731
CL732
CL733
CL734
CL735
CL739
CL740
CL741
CL742
CL745 CL746
CL747
CL748
CL768
CL769
CL878
CL879
CL880
CL881
CL882
CL883
CL888
CL889
CL890
CL891
CL892
CL893
CL894
FL606
CL708
CL709
CL710
CL730
R701
CL736
CL743
CL738
STP703
D511
FB703
FB710
C721
RB612
RB606
C748
C712
C711
C704
IC701
C702
C705 R703 R702
C701
R707
C703
RB605
RB611
C715
R708
RB601 RB607
CN701
CN703
IC705
IC702
R731
S701
100 16V
0UH
1k
XX
DAP202UT106
0UH
0UH
0.1
10k
10k
0.1
0.1
0.1
0.1
M51957BFP-600C
1
0.1
10k 10k
0.1
1k
0.1
10k
10k
0.1
100
10k 10k
9P
13P
HD6432238RN51TEV
RESET
BR9040F-WE2
10k

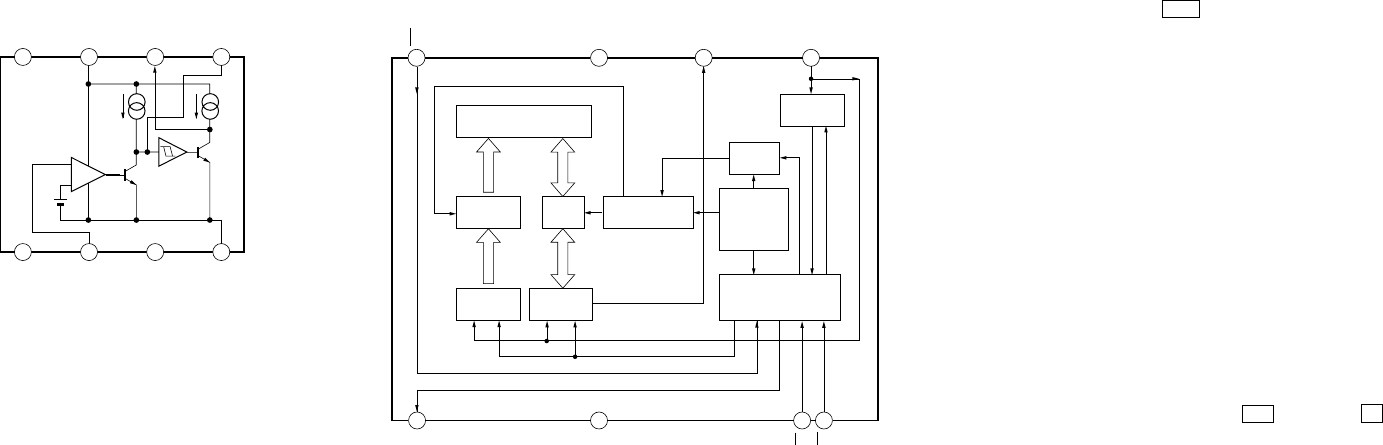

•See page 22 for IC Block Diagrams.
1818
SCD-XE597
SCD-XE597
4-7. SCHEMATIC DIAGRAM — MAIN SECTION (3/4) —
M151
S271
S272
CN151
5P
IC712
C796
C785
C783
SL892
SL893
SL894
SL895
CL711
CL712
CL713
CL727
CL728
CL729
CL805
CL806
CL807
CL808
CL809
CL812
CL813
CL814
CL815
CL818
D509
R895
R894
R885
R888
R876
R886
C795
TP733
STP701
SL891
SL898
C828
C829
R889
C709 C716
C781
C779
C776
C775
R791
C777
C778
C780
C782
C772
R806
C794
R804
C787
R880
C819
R871
C809
R846
R853
C813
C830
C822
R857
R892
R872
R820
R819
R874
C820 R893
C821
RB609
R869
R870
C817
R899
R865
C816
R866
C832
R897
R831
R840
C800
R852
C793
R878
R877
R860
C825
C815
R861
R858C814
C804
RB610
IC708
CN705
FAN8035L
100
16V
220
4V
100
16V
DAP202UT106
56k
56k
15k
15k
82k
82k
100
16V
XX
XX
0.068
0.068
0
220
4V
100
16V
0.1
0.1
0.1
0.1
47
10p
0.1
0.1
0.1
0.1
10
0.1
330
0.1
100k
1
10k
0.033
56k
56k
0.033
100p
220p
33k
120k
10k
150k
150k
33k
220p 120k
100p
10k
56k
33k
0.001
220k
56k
0.001
33k
0.0047
470k
10k
100k
0.1
0.1
470k
470k680k
0.0015
0.015
270k
120k0.22
0.1
47k
MSM56V16160F- 8TK7R1
100k 5P
1919
SCD-XE597
SCD-XE597
4-8. SCHEMATIC DIAGRAM — MAIN SECTION (4/4) —
Q301
Q303
CL302
CL301
SL220
SL201
SL231
CL244
CL245
SL261
SL262
CL274
CL275
SL215
SL216
SL217
C934
CL201
CL202
IC400(1/2)
IC400(2/2)
IC430(1/2)
IC430(2/2)
IC460(1/2)
IC460(2/2)
IC950
Q402
Q463
Q502
Q563
IC985
D973
C954
R322
C971
IC920
C201
CL868
RB410
RB441
RB442
L320
RB532
C533
R439
C436
C435
R438
R437
R534
C535
R434
R539
R538
C536
R537
C364
RB432
C532
C432
R469
R569
R467
R468
C466
C465
R464
R567
R568
C565
C566
R564
C366
C563
C462 RB462
RB562
C562
C236
C238
C272
C268
C266
C242
C503
C505
R508 R511
R509
R507R504
R411
R409
R407
R408
C506
C405
C502
R404
C362
C403
RB502
RB402
C402
C434
C534
C564
C464 C504
R202
C202
C404
FB201
R201
C406
C305
Q305
C303
RB302
C302
RB301
C212
R323
C322
R321
C321
X321
R324
R328
R330
C325
C324
R326
C935
C901
C931
C961
C932
R963
R962
C924
C933
C953
R961
C962
C920
D932
D934
D931 D933
D963
ETP910
D971
R971
R972
R973 C972
R975
R976 R977
R979
R978
C973
C970
CN901
C921
C351
C208
C206
C463 C433
C281
D321
IC320
Q501
Q401
Q432
Q532
Q431
Q531
Q462
Q562
C331
Q961
D937
D936
C910
D922
D924
D923
D921
D960
D961
Q971
D972
C923
J351
IC330
IC230
IC260
IC200
UN5116-TX
UN5116-TX
470
16V
NJM4565M(T
E2)
NJM4565M(T
E2)
NJM4565M(T
E2)
NJM4565M(T
E2)
NJM4565M(T
E2)
NJM4565M(T
E2)
BA50BC0FP-
E2
2SC3624A-T
1L15L16
2SC3624A-T
1L15L16
2SC3624A-T
1L15L16
2SC3624A-T
1L15L16
BA12FP-E2
UDZSTE-179.1B
470
10V
0
47
63V
BA33BC0T
1000
6.3V
2.2k
2.2k
2.2k
XX
6.8k
150p
220
47
25V
0.1
330
100k
3.3k
0.1
3.3k
220330
47
25V
100k
0.1
6.8k
0.001
0.001
220
220
100k
330
47
25V
0.1
3.3k
100k
330
0.1
47
25V
3.3k
0.1
150p
0.001 6.8k
6.8k
0.001
1
1
10
50V
1
1
10
50V
150p
0.1
330 100
220
100k3.3k
100
220
100k
330
47 25V
0.1
0.001
3.3k
0.1
150p
6.8k
6.8k
0.001
1
1
1
11
33k
47
6.3V
1
0UH
10k
47 25V
0.1
UN5116-TX
0.1
220k
0.1
4.7k
10
50V
1k
15p
1M
15p
11.2896M
100
22
22
100
6.3V
1
22
0.01
10000
16V
10
50V
470
35V
1k
1k
470
10V
0.1
0.1
1k
0.1
0.01
1SR154-400TE25
1SR154-400TE25
1SR154-400TE25 1SR154-400TE25
UDZSTE -173.0B
EARTH PLATE
1SR154-400TE25
10k
10k
3.3k 10
50V
33k
100 100
10k
22k
22
16V
0.01
8P
10000
10V
0.1
1
1
150p 150p
2200p
1SS357-TPH3
SN74LVU04APWR
2SC3624A-
T1L15L16
2SC3624A-
T1L15L16
2SC3624A-
T1L15L16
2SC3624A-
T1L15L16
2SC3624A-
T1L15L16
2SC3624A-
T1L15L16
2SC3624A-
T1L15L16
2SC3624A-
T1L15L16
0.1
DTC143TKA-
T146
1SR154-400TE25
1SR154-400TE25
1SR154-400TE25
1SR154-400TE25
1SR154-400TE25
DAN202UT106
2SB1260
UDZSTE-17-33B
0.1
IC TOTX141L
DSD1751DBQR
DSD1751DBQR
DSD1751DBQR
1000
16V
1SR154-400TE25
0.001
DAN202UT106
6P
•See page 11 for Waveforms.
2020
SCD-XE597
SCD-XE597
4-9. PRINTED WIRING BOARD — DISPLAY SECTION — • See page 11 for Circuit Boards Location. :Uses unleaded solder.
IC801
IC802
S891
XxH
A
Mm
.>
AWS
PUSH ENTER
MAIN BOARD
CN703
(Page 15)
B
MAIN BOARD
CN901
(Page 15)
C
AC IN
MULTI CHANNEL DECODING
TIME/TEXT PLAY MODE MULTI/2CH SA-SD/CD MENU
• Semiconductor
Location
Ref. No.
Location
D801 B-12
IC801 E-12
IC802 E-16
Q821 E-14
Q822 E-10
Q823 E-10
Q824 E-10
Q825 D-9
Q826 E-8
2121
SCD-XE597
SCD-XE597
4-10. SCHEMATIC DIAGRAM — DISPLAY SECTION —
R819
R820
RB801 RB802
R828
R841
R851
R842 R843
R852 R853
R844
R854
R845
R821 R822 R823 R824 R825
R861R862R863R864
C891
R826
C831
C801
S865
S864
S863
S862
S861
S841 S842 S843 S844 S845
S851
TP5
TP26
TP126
T101
R856 R857
R858
C804
C819
R817
C803
C818
C817
S855
X801
R805
C816
C811
C812
C813
FB801
C802
C822 C823 C824 C825
C829
C827
C821
C805
C806
R827
R831
R832
C832
CN102
CN101
C101
CN892
S891
CN891
CN801
CN804
CN814
D801
CN805
IC802
FL801
R818
Q822
Q821
C833 R834
CN813
IC801
Q826
Q824
Q825
Q823
10k
10k
100k100k
100k
1k
1k
2.2k 2.2k
2.2k 2.2k
4.7k
4.7k
10k
100k 100k 100k 100k 100k
1k2.2k2.2k4.7k
0.0022
250V
10k
47
6.3V
100
6.3V
10k 10k
82
0.1
0.01
10k
0.1
0.01
0.01
ENCORDER
5MHz
10k
0.001
0.001
0.001
0.001
FB
0.1
0.001 0.001 0.001 0.001
0.1
0.1
0.001
0.1
0.1
100k
47
100
0.01
8P
2P
0.0022 250V
2P 2P
13P
2P
2P
SEL5E20C-STP15
BLUE
2P
NJL73H400A
10k
DTC114EKA-T146
DTC114EKA-T146
0.1 10k
2P
8BT-A
2SC3624A- T1L15L16
DTC114EKA
-T146
DTC114EKA
-T146
DTC114EKA
-T146
•See page 11 for Waveforms.
2222
SCD-XE597
SCD-XE597
• IC Block Diagrams
IC701 M51957BFP-600C
+
–
34
NC
IN
NC
GND
NC
VCC
OUT
C
1.25V
1
765
8
2
IC702 BR9040F-WF2
8 7 6 5
1 2 3 4
DI
DO
GND
WC
SK
CS
VCC
R/B
COMMAND DECODE
CONTROL CLOCK
GENERATION
POWER
SUPPLY
VOLTAGE
DETECTOR
HIGH VOLTAGE
GENERATOR
WRITE
DISABLE
COMMAND
REGISTER
ADDRESS
BUFFER DATA
REGISTER
ADDRESS
DECODER R/W
AMP
4096bit
EEPROM ARRAY
8bit
16bit
16bit
8bit
– MAIN Board –
SECTION 5
TEST MODE
1. Setting Methed of Test Mode
Press three buttons m , [PUSH ENTER] and [POWER] simulta-
neously, The test mode becomes active. Then all segments of the
fluorecent indicator tube are turned on.
2. FL Tube Grid, Segments Check
Procedure:
1. Grid of all segments lights up sequentially starting from 1G to
16G.
2. The vertical line (total 5 lines) of all grids lights up sequentially
in the range of 5G to 16 G starting from the left.
3. The horizontal line of (total 7 lines) of all grids lights up
sequentially in the range of 5G to 16G starting from the top.
3. Sircs Receive Check
Procedure:
1. The message “SIRCS CHECK” is displayed on the fluorecent
indicator tube.
2. With the machine in the status that is set in step 2, press any
on the remote commander. The machine enters the key check
standby state. (When the H key or the x key is pressed,
the reception check is canceled.)
4. Key Check
Procedure:
1. In the key check mode, the fluorecent indicator displays “KEY
CHECK**”. Each time a button is pressed, “**” value.
However, once a button is pressed, it is no longer taken into
account.
2. To exit from this mode, the message “JOG CHECK” is
displayed.
5. Jog Check
Procedure:
1. After the key check is completed, turn JOG clockwise to turn
on the calendar segments sequentially. When the segment “15”
is confirmed, turn JOG counter-clockwise that turns off the
calendar segment. When the segment “1” is confirmed, this is
the end of check.
6. Releasing Meted of Test Mode
1. After all the checks are completed, confirm to see that the
display “TEST-END” appears. The message indicates that
the check is ended normally.
2. Press the [POWER] button to turn off the main power and
disconnect the power plug from the wall outlet.
23
SCD-XE597
SECTION 6
EXPLODED VIEWS
NOTE:
•-XX and -X mean standardized parts, so they
may have some difference from the original
one.
•Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•The mechanical parts with no reference
number in the exploded views are not supplied.
•Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
Ref. No. Part No. Description Remark
14-255-243-01 PANEL LOADING (BLACK)
14-255-243-11 PANEL LOADING (SILVER)
14-255-243-31 PANEL LOADING (SILVER: Hair-line Finish)
23-363-099-02 SCREW (CASE 3 TP2) (AEP: BLACK)
23-363-099-11 SCREW (CASE 3 TP2)
(AEP: SILVER, SILVER: for Hair-line Finish)
24-227-843-21 SCREW (TP), FLAT HEAD (UK)
32-660-400-31 CASE (SILVER, SILVER: for Hair-line Finish)
34-232-149-31 CASE (408226) (BLACK)
34-232-580-31 CASE (408226)
6-1. MAIN SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
8
7
6
not supplied
not supplied
front panel section
CD mechanism deck
(CDM66D-DVBU50)
1
3
2
2
4
5
10
9
#1
#1
#1
#1
#1
11
Ref. No. Part No. Description Remark
41-862-181-11 PT BOARD
*53-703-244-00 BUSHING (2104), CORD
061-777-071-43 CORD, POWER
*74-954-051-51 HOLDER, PC BOARD
8A-4752-595-A MAIN BOARD, COMPLETE
9X-2022-049-1 FOOT ASSY
010 1-443-287-11 TRANSFORMER, POWER
11 3-077-331-01 +BV3 (3-CR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ver. 1.3
24
SCD-XE597
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-232-622-01 KNOB (AMS) (BLACK)
51 4-232-622-31 KNOB (AMS) (SILVER)
51 4-232-622-41 KNOB (AMS)
(SILVER: SILVER: for Hair-line Finish)
52 3-354-981-11 SPRING (SUS), RING
53 X-2103-118-1 PANEL, FRONT ASSY (SILVER: Hair-line Finish)
53 X-4956-440-1 PANEL, FRONT ASSY (BLACK)
53 X-4956-441-1 PANEL, FRONT ASSY (SILVER)
54 4-255-244-01 BUTTON, POWER (BLACK)
54 4-255-244-11 BUTTON, POWER (SILVER)
54 4-255-244-31 BUTTON, POWER (SILVER: for Hair-line Finish)
55 1-862-182-11 POWER SW BOARD
56 3-087-053-01 +BVTP2.6 (3CR)
57 1-862-179-11 KEY BOARD
58 1-828-333-11 WIRE (FLAT TYPE) (13 CORE)
59 A-4752-665-A DISPLAY BOARD, COMPLETE
60 4-977-358-01 CUSHION
6-2. FRONT PANEL SECTION
not
supplied
not
supplied
53
54
55
56 56
56
56
57 56
56
60
56
58
59
51 52
not
supplied
not
supplied
Ver. 1.3
25
SCD-XE597
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-3. CD MECHANISM DECK
201 4-227-899-01 SCREW (DIA.12), FLOATING
202 1-645-721-11 LOADING BOARD
203 4-231-530-12 TRAY (66)
204 4-232-712-05 CAM (66)
205 4-232-710-01 PULLEY (LD)
206 4-232-713-01 BELT (LD)
207 4-232-711-01 GEAR (LD)
208 3-053-844-01 YOKE
209 4-231-529-01 CHASSIS (66)
210 4-232-682-01 CUSHION (66)
M901 A-4604-363-A MOTOR (L) ASSY (LOADING)
#3 7-621-775-10 SCREW +B 2.6X4
M901
#3
not supplied
not supplied
DVBU50
202
203
204
207
201
208
206 209
210
205
26
SCD-XE597
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 4-218-253-52 SCREW (M2.6), +BTTP
252 A-4750-527-A RF BOARD, COMPLETE
253 1-829-172-11 WIRE (FLAT TYPE) (31 CORE)
254 4-240-953-05 HOLDER (66D)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
6-4. BASE UNIT (DVBU50)
258
252
251
254
256
257 255
256
257
253
256
257
0255 A-4713-410-A PICK-UP UNIT (DBU-3)
256 3-053-847-31 INSULATOR
257 4-981-923-01 SCREW (M), STEP
258 1-824-106-12 CABLE, FLEXIBLE FLAT (24 CORE)
27
SCD-XE597
SECTION 7
ELECTRICAL PARTS LIST
NOTE:
•Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
•-XX and -X mean standardized parts, so they
may have some difference from the original
one.
•Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•CAPACITORS
uF: µF
•RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
•COILS
uH: µH
•SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
When indicating parts by reference number,
please include the board name.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
A-4752-665-A DISPLAY BOARD, COMPLETE
************************
4-949-935-41 CUSHION (FL)
< CAPACITOR >
C801 1-124-584-00 ELECT 100uF 20% 6.3V
C802 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C803 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C804 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C805 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C806 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C811 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C812 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C813 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C816 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C817 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C818 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C819 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C821 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C822 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C823 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C824 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C825 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C827 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C829 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C831 1-124-589-11 ELECT 47uF 20% 6.3V
C832 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
< CONNECTOR >
CN801 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P
< FERRITE BEAD >
FB801 1-414-595-11 INDUCTOR, FERRITE BEAD
< FILTER >
FL801 1-518-992-11 INDICATOR TUBE, FLUORESCENT
< IC >
IC801 6-804-318-01 IC uPD780232GC-706-8BT-A
IC802 8-759-826-33 IC NJL73H400A ( )
< TRANSISTOR >
Q821 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q822 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q823 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q824 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q825 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q826 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
< RESISTOR >
R805 1-216-833-11 METAL CHIP 10K 5% 1/10W
R817 1-216-833-11 METAL CHIP 10K 5% 1/10W
R818 1-216-833-11 METAL CHIP 10K 5% 1/10W
R819 1-216-833-11 METAL CHIP 10K 5% 1/10W
R820 1-216-833-11 METAL CHIP 10K 5% 1/10W
R821 1-216-845-11 METAL CHIP 100K 5% 1/10W
R822 1-216-845-11 METAL CHIP 100K 5% 1/10W
R823 1-216-845-11 METAL CHIP 100K 5% 1/10W
R824 1-216-845-11 METAL CHIP 100K 5% 1/10W
R825 1-216-845-11 METAL CHIP 100K 5% 1/10W
R826 1-216-833-11 METAL CHIP 10K 5% 1/10W
R827 1-216-845-11 METAL CHIP 100K 5% 1/10W
R828 1-216-845-11 METAL CHIP 100K 5% 1/10W
R831 1-216-805-11 METAL CHIP 47 5% 1/10W
R832 1-216-809-11 METAL CHIP 100 5% 1/10W
R841 1-216-821-11 METAL CHIP 1K 5% 1/10W
R842 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R843 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R844 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R845 1-216-833-11 METAL CHIP 10K 5% 1/10W
R851 1-216-821-11 METAL CHIP 1K 5% 1/10W
R852 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R853 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R854 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R856 1-216-833-11 METAL CHIP 10K 5% 1/10W
R857 1-216-833-11 METAL CHIP 10K 5% 1/10W
R858 1-216-808-11 METAL CHIP 82 5% 1/10W
< COMPOSITION CIRCUIT BLOCK >
RB801 1-233-810-21 RES, NETWORK 100K (3216)
RB802 1-233-810-21 RES, NETWORK 100K (3216)
< SWITCH >
S841 1-771-349-21 SWITCH, KEYBOARD (x)
S842 1-771-349-21 SWITCH, KEYBOARD (H)
S843 1-771-349-21 SWITCH, KEYBOARD (X)
S844 1-771-349-21 SWITCH, KEYBOARD (m)
S845 1-771-349-21 SWITCH, KEYBOARD (M)
DISPLAY
•Accessories are given in the last of this parts
list.
28
SCD-XE597
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
LOADINGKEY
S851 1-771-349-21 SWITCH, KEYBOARD (A)
S855 1-478-268-11 ENCODER, ROTARY (. AMS >)
(PUSH ENTER)
< VIBRATOR >
X801 1-795-058-21 VIBRATOR, CERAMIC 5MHz
************************************************************
1-862-179-11 KEY BOARD
*********
< CONNECTOR >
CN813 1-506-481-11 PIN, CONNECTOR 2P
< RESISTOR >
R861 1-216-821-11 METAL CHIP 1K 5% 1/10W
R862 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R863 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R864 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
< SWITCH >
S861 1-771-349-21 SWITCH, KEYBOARD (MENU)
S862 1-771-349-21 SWITCH, KEYBOARD (SA-CD/CD)
S863 1-771-349-21 SWITCH, KEYBOARD (MULITI/2CH)
S864 1-771-349-21 SWITCH, KEYBOARD (PLAY MODE)
S865 1-771-349-21 SWITCH, KEYBOARD (TIME/TEXT)
************************************************************
LED BOARD
**********
< CAPACITOR >
C833 1-164-156-11 CERAMIC CHIP 0.1uF 25V
< CONNECTOR >
CN814 1-506-481-11 PIN, CONNECTOR 2P
< DIODE >
D801 6-500-647-01 DIODE SEL5E20C-STP15
< RESISTOR >
R834 1-216-833-11 METAL CHIP 10K 5% 1/10W
************************************************************
1-645-721-11 LOADING BOARD
**************
< CONNECTOR >
*CN151 1-568-943-11 PIN, CONNECTOR 5P
< SWITCH >
S271 1-572-086-11 SWITCH, LEAF
S272 1-572-086-11 SWITCH, LEAF
************************************************************
A-4752-595-A MAIN BOARD, COMPLETE
*********************
< CAPACITOR >
C201 1-126-916-11 ELECT 1000uF 20% 6.3V
C202 1-126-205-11 ELECT CHIP 47uF 20% 6.3V
C206 1-115-156-11 CERAMIC CHIP 1uF 10V
C208 1-115-156-11 CERAMIC CHIP 1uF 10V
C212 1-128-991-21 ELECT CHIP 10uF 20% 50V
C236 1-115-156-11 CERAMIC CHIP 1uF 10V
C238 1-115-156-11 CERAMIC CHIP 1uF 10V
C242 1-128-991-21 ELECT CHIP 10uF 20% 50V
C266 1-115-156-11 CERAMIC CHIP 1uF 10V
C268 1-115-156-11 CERAMIC CHIP 1uF 10V
C272 1-128-991-21 ELECT CHIP 10uF 20% 50V
C281 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C302 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C303 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C305 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C321 1-162-917-11 CERAMIC CHIP 15PF 5% 50V
C322 1-162-917-11 CERAMIC CHIP 15PF 5% 50V
C324 1-115-156-11 CERAMIC CHIP 1uF 10V
C325 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C331 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C351 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C362 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C364 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C366 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C402 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C403 1-164-217-11 CERAMIC CHIP 150PF 5% 50V
C404 1-115-156-11 CERAMIC CHIP 1uF 10V
C405 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C406 1-128-992-21 ELECT CHIP 47uF 20% 25V
C432 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C433 1-164-217-11 CERAMIC CHIP 150PF 5% 50V
C434 1-115-156-11 CERAMIC CHIP 1uF 10V
C435 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C436 1-128-992-21 ELECT CHIP 47uF 20% 25V
C462 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C463 1-164-217-11 CERAMIC CHIP 150PF 5% 50V
C464 1-115-156-11 CERAMIC CHIP 1uF 10V
C465 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C466 1-128-992-21 ELECT CHIP 47uF 20% 25V
C502 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C503 1-164-217-11 CERAMIC CHIP 150PF 5% 50V
C504 1-115-156-11 CERAMIC CHIP 1uF 10V
C505 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C506 1-128-992-21 ELECT CHIP 47uF 20% 25V
C532 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C533 1-164-217-11 CERAMIC CHIP 150PF 5% 50V
C534 1-115-156-11 CERAMIC CHIP 1uF 10V
C535 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C536 1-128-992-21 ELECT CHIP 47uF 20% 25V
C562 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C563 1-164-217-11 CERAMIC CHIP 150PF 5% 50V
C564 1-115-156-11 CERAMIC CHIP 1uF 10V
C565 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
DISPLAY LED MAIN
29
SCD-XE597
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C566 1-128-992-21 ELECT CHIP 47uF 20% 25V
C701 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C702 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C703 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C704 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C705 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C706 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C709 1-126-246-11 ELECT CHIP 220uF 20% 4V
C711 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C712 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C713 1-117-681-11 ELECT CHIP 100uF 20% 16V
C714 1-126-246-11 ELECT CHIP 220uF 20% 4V
C715 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C716 1-117-681-11 ELECT CHIP 100uF 20% 16V
C721 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C722 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C723 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C726 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C727 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C729 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C730 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C731 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C733 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C734 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C736 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C737 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C738 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C739 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C740 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C741 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C742 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C743 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C744 1-115-156-11 CERAMIC CHIP 1uF 10V
C745 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C746 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C748 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C749 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C750 1-115-156-11 CERAMIC CHIP 1uF 10V
C751 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C752 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C753 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C754 1-126-246-11 ELECT CHIP 220uF 20% 4V
C755 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C756 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C757 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C758 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C759 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C760 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C761 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C762 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C763 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C764 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C765 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C766 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C767 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C768 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C769 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C770 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C771 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C772 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C775 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C776 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C777 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C778 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C779 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C780 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C781 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C782 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C783 1-117-681-11 ELECT CHIP 100uF 20% 16V
C785 1-126-246-11 ELECT CHIP 220uF 20% 4V
C787 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C788 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C789 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C793 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C794 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C795 1-117-681-11 ELECT CHIP 100uF 20% 16V
C796 1-117-681-11 ELECT CHIP 100uF 20% 16V
C800 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C804 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C809 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C813 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C814 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C815 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V
C816 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C817 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C819 1-115-156-11 CERAMIC CHIP 1uF 10V
C820 1-164-816-11 CERAMIC CHIP 220PF 2% 50V
C821 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C822 1-164-816-11 CERAMIC CHIP 220PF 2% 50V
C825 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V
C828 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V
C829 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V
C830 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C832 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C901 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C910 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C920 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C921 1-128-546-11 ELECT 10000uF 20% 10V
C923 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C924 1-126-925-91 ELECT 470uF 20% 10V
C931 1-126-939-11 ELECT 10000uF 20% 16V
C932 1-126-951-11 ELECT 470uF 20% 35V
C933 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C934 1-126-935-11 ELECT 470uF 20% 16V
C935 1-126-767-11 ELECT 1000uF 20% 16V
C953 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C954 1-126-925-91 ELECT 470uF 20% 10V
C961 1-128-991-21 ELECT CHIP 10uF 20% 50V
C962 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C970 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C971 1-128-552-51 ELECT 47uF 20% 63V
C972 1-128-991-21 ELECT CHIP 10uF 20% 50V
C973 1-126-395-11 ELECT CHIP 22uF 20% 16V
MAIN
30
SCD-XE597
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< CONNECTOR >
CN701 1-784-368-11 CONNECTOR, FFC/FPC 9P
CN702 1-784-387-11 CONNECTOR, FFC/FPC 31P
CN703 1-793-989-21 CONNECTOR, FFC/FPC 13P
*CN705 1-568-954-11 PIN, CONNECTOR 5P
CN901 1-784-924-11 PIN, CONNECTOR 8P
< DIODE >
D321 8-719-027-76 DIODE 1SS357-TPH3
D509 8-719-941-09 DIODE DAP202UT106
D511 8-719-941-09 DIODE DAP202UT106
D921 8-719-053-18 DIODE 1SR154-400TE-25
D922 8-719-053-18 DIODE 1SR154-400TE-25
D923 8-719-053-18 DIODE 1SR154-400TE-25
D924 8-719-053-18 DIODE 1SR154-400TE-25
D931 8-719-053-18 DIODE 1SR154-400TE-25
D932 8-719-053-18 DIODE 1SR154-400TE-25
D933 8-719-053-18 DIODE 1SR154-400TE-25
D934 8-719-053-18 DIODE 1SR154-400TE-25
D936 8-719-053-18 DIODE 1SR154-400TE-25
D937 8-719-053-18 DIODE 1SR154-400TE-25
D960 8-719-941-86 DIODE DAN202UT106
D961 8-719-941-86 DIODE DAN202UT106
D963 6-500-696-01 DIODE UDZSTE-173.0B
D971 8-719-053-18 DIODE 1SR154-400TE-25
D972 8-719-083-87 DIODE UDZS-TE17-33B
D973 8-719-069-60 DIODE UDZSTE-179.1B
< GROUND TERMINAL BOARD >
ETP910 1-537-771-21 TERMINAL BOARD, GROUND
< FERRITE BEAD >
FB201 1-500-283-11 INDUCTOR, FERRITE BEAD
FB703 1-414-595-11 INDUCTOR, FERRITE BEAD
FB710 1-414-595-11 INDUCTOR, FERRITE BEAD
< FILTER >
FL606 1-234-177-21 FILTER, CHIP EMI
< IC >
IC200 6-703-420-01 IC DSD1751DBQR
IC230 6-703-420-01 IC DSD1751DBQR
IC260 6-703-420-01 IC DSD1751DBQR
IC320 8-759-549-25 IC SN74LVU04APWR
IC330 6-600-012-01 IC TOTX141L
IC400 8-759-710-97 IC NJM4565M (TE2)
IC430 8-759-710-97 IC NJM4565M (TE2)
IC460 8-759-710-97 IC NJM4565M (TE2)
IC701 8-759-636-64 IC M51957BFP-600C
*IC702 6-703-671-01 IC BR9040F-WE2
IC703 6-700-398-01 IC uPC2918T-E1
IC705 6-804-317-01 IC HD6432238RN51TEV
IC706 8-752-420-59 IC CXD2754Q
IC708 6-702-336-01 IC MSM56V16160F-8TK7R1
IC712 6-702-157-01 IC FAN8035L
IC920 6-705-463-01 IC BA33BC0T
IC950 6-705-469-01 IC BA50BC0FP-E2
IC985 8-759-460-81 IC BA12FP-E2
< JACK >
J351 1-785-536-11 JACK, PIN 6P
< TRANSISTOR >
Q301 8-729-924-04 TRANSISTOR UN5116-TX
Q303 8-729-924-04 TRANSISTOR UN5116-TX
Q305 8-729-924-04 TRANSISTOR UN5116-TX
Q401 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
Q402 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
Q431 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
Q432 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
Q462 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
Q463 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
Q501 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
Q502 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
Q531 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
Q532 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
Q562 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
Q563 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
Q961 8-729-027-56 TRANSISTOR DTC143TKA-T146
Q971 8-729-019-72 TRANSISTOR 2SB1260T100
< RESISTOR >
R201 1-216-833-11 METAL CHIP 10K 5% 1/10W
R202 1-216-839-11 METAL CHIP 33K 5% 1/10W
R321 1-216-857-11 METAL CHIP 1M 5% 1/10W
R322 1-216-864-11 SHORT CHIP 0
R323 1-216-821-11 METAL CHIP 1K 5% 1/10W
R324 1-216-809-11 METAL CHIP 100 5% 1/10W
R326 1-216-801-11 METAL CHIP 22 5% 1/10W
R328 1-216-801-11 METAL CHIP 22 5% 1/10W
R330 1-216-801-11 METAL CHIP 22 5% 1/10W
R404 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R407 1-216-845-11 METAL CHIP 100K 5% 1/10W
R408 1-216-815-11 METAL CHIP 330 5% 1/10W
R409 1-216-813-11 METAL CHIP 220 5% 1/10W
R411 1-216-809-11 METAL CHIP 100 5% 1/10W
R434 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R437 1-216-845-11 METAL CHIP 100K 5% 1/10W
R438 1-216-815-11 METAL CHIP 330 5% 1/10W
R439 1-216-813-11 METAL CHIP 220 5% 1/10W
R464 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R467 1-216-845-11 METAL CHIP 100K 5% 1/10W
R468 1-216-815-11 METAL CHIP 330 5% 1/10W
R469 1-216-813-11 METAL CHIP 220 5% 1/10W
R504 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R507 1-216-845-11 METAL CHIP 100K 5% 1/10W
R508 1-216-815-11 METAL CHIP 330 5% 1/10W
R509 1-216-813-11 METAL CHIP 220 5% 1/10W
R511 1-216-809-11 METAL CHIP 100 5% 1/10W
R534 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R537 1-216-845-11 METAL CHIP 100K 5% 1/10W
R538 1-216-815-11 METAL CHIP 330 5% 1/10W
R539 1-216-813-11 METAL CHIP 220 5% 1/10W
R564 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
MAIN
31
SCD-XE597
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R567 1-216-845-11 METAL CHIP 100K 5% 1/10W
R568 1-216-815-11 METAL CHIP 330 5% 1/10W
R569 1-216-813-11 METAL CHIP 220 5% 1/10W
R701 1-216-821-11 METAL CHIP 1K 5% 1/10W
R702 1-216-833-11 METAL CHIP 10K 5% 1/10W
R703 1-216-833-11 METAL CHIP 10K 5% 1/10W
R707 1-216-821-11 METAL CHIP 1K 5% 1/10W
R708 1-216-809-11 METAL CHIP 100 5% 1/10W
R731 1-216-833-11 METAL CHIP 10K 5% 1/10W
R752 1-216-864-11 SHORT CHIP 0
R781 1-216-821-11 METAL CHIP 1K 5% 1/10W
R782 1-216-841-11 METAL CHIP 47K 5% 1/10W
R783 1-216-833-11 METAL CHIP 10K 5% 1/10W
R791 1-216-805-11 METAL CHIP 47 5% 1/10W
R804 1-216-815-11 METAL CHIP 330 5% 1/10W
R806 1-216-150-91 RES-CHIP 10 5% 1/8W
R819 1-216-847-11 METAL CHIP 150K 5% 1/10W
R820 1-216-847-11 METAL CHIP 150K 5% 1/10W
R831 1-216-833-11 METAL CHIP 10K 5% 1/10W
R840 1-216-845-11 METAL CHIP 100K 5% 1/10W
R846 1-216-842-11 METAL CHIP 56K 5% 1/10W
R852 1-216-845-11 METAL CHIP 100K 5% 1/10W
R853 1-216-842-11 METAL CHIP 56K 5% 1/10W
R857 1-216-839-11 METAL CHIP 33K 5% 1/10W
R858 1-216-846-11 METAL CHIP 120K 5% 1/10W
R860 1-216-855-11 METAL CHIP 680K 5% 1/10W
R861 1-216-850-11 METAL CHIP 270K 5% 1/10W
R865 1-216-842-11 METAL CHIP 56K 5% 1/10W
R866 1-216-839-11 METAL CHIP 33K 5% 1/10W
R869 1-216-842-11 METAL CHIP 56K 5% 1/10W
R870 1-216-839-11 METAL CHIP 33K 5% 1/10W
R871 1-216-833-11 METAL CHIP 10K 5% 1/10W
R872 1-216-833-11 METAL CHIP 10K 5% 1/10W
R874 1-216-839-11 METAL CHIP 33K 5% 1/10W
R876 1-216-844-11 METAL CHIP 82K 5% 1/10W
R877 1-216-853-11 METAL CHIP 470K 5% 1/10W
R878 1-216-853-11 METAL CHIP 470K 5% 1/10W
R880 1-216-845-11 METAL CHIP 100K 5% 1/10W
R885 1-216-835-11 METAL CHIP 15K 5% 1/10W
R886 1-216-844-11 METAL CHIP 82K 5% 1/10W
R888 1-216-835-11 METAL CHIP 15K 5% 1/10W
R889 1-216-864-11 SHORT CHIP 0
R892 1-216-846-11 METAL CHIP 120K 5% 1/10W
R893 1-216-846-11 METAL CHIP 120K 5% 1/10W
R894 1-216-842-11 METAL CHIP 56K 5% 1/10W
R895 1-216-842-11 METAL CHIP 56K 5% 1/10W
R897 1-216-853-11 METAL CHIP 470K 5% 1/10W
R899 1-216-849-11 METAL CHIP 220K 5% 1/10W
R961 1-216-821-11 METAL CHIP 1K 5% 1/10W
R962 1-216-821-11 METAL CHIP 1K 5% 1/10W
R963 1-216-821-11 METAL CHIP 1K 5% 1/10W
R971 1-216-833-11 METAL CHIP 10K 5% 1/10W
R972 1-216-833-11 METAL CHIP 10K 5% 1/10W
R973 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R975 1-216-839-11 METAL CHIP 33K 5% 1/10W
R976 1-216-809-11 METAL CHIP 100 5% 1/10W
R977 1-216-809-11 METAL CHIP 100 5% 1/10W
R978 1-216-837-11 METAL CHIP 22K 5% 1/10W
R979 1-216-833-11 METAL CHIP 10K 5% 1/10W
< COMPOSITION CIRCUIT BLOCK >
RB301 1-233-414-11 RES, CHIP NETWORK 4.7K (3216)
RB302 1-233-873-21 RES, CHIP NETWORK 220K (3216)
RB402 1-233-419-21 RES, CHIP NETWORK 6.8K (3216)
RB410 1-233-413-11 RES, CHIP NETWORK 2.2K (3216)
RB432 1-233-419-21 RES, CHIP NETWORK 6.8K (3216)
RB441 1-233-413-11 RES, CHIP NETWORK 2.2K (3216)
RB442 1-233-413-11 RES, CHIP NETWORK 2.2K (3216)
RB462 1-233-419-21 RES, CHIP NETWORK 6.8K (3216)
RB502 1-233-419-21 RES, CHIP NETWORK 6.8K (3216)
RB532 1-233-419-21 RES, CHIP NETWORK 6.8K (3216)
RB562 1-233-419-21 RES, CHIP NETWORK 6.8K (3216)
RB601 1-236-908-11 RES, CHIP NETWORK 10K (3216)
RB602 1-233-412-11 RES, CHIP NETWORK 1.0K (3216)
RB603 1-233-577-11 RES, CHIP NETWORK 470 (3216)
RB604 1-233-414-11 RES, CHIP NETWORK 4.7K (3216)
RB605 1-236-908-11 RES, CHIP NETWORK 10K (3216)
RB606 1-236-908-11 RES, CHIP NETWORK 10K (3216)
RB607 1-236-908-11 RES, CHIP NETWORK 10K (3216)
RB609 1-236-908-11 RES, CHIP NETWORK 10K (3216)
RB610 1-233-578-11 RES, CHIP NETWORK 47K (3216)
RB611 1-236-908-11 RES, CHIP NETWORK 10K (3216)
RB612 1-236-908-11 RES, CHIP NETWORK 10K (3216)
RB613 1-236-908-11 RES, CHIP NETWORK 10K (3216)
RB615 1-233-577-11 RES, CHIP NETWORK 470 (3216)
RB616 1-233-577-11 RES, CHIP NETWORK 470 (3216)
RB617 1-233-577-11 RES, CHIP NETWORK 470 (3216)
< VIBRATOR >
X321 1-795-535-21 VIBRATOR, CRYSTAL
************************************************************
1-862-182-11 POWER SW BOARD
****************
< CAPACITOR >
0C891 1-113-920-11 CERAMIC 0.0022uF 20% 250V
< CONNECTOR >
*CN891 1-580-230-31 PIN, CONNECTOR (PC BOARD) 2P
< SWITCH >
0S891 1-762-581-11 SWITCH, AC POWER PUSH (1 KEY)
************************************************************
1-862-181-11 PT BOARD
********
< CAPACITOR >
0C101 1-113-920-11 CERAMIC 0.0022uF 20% 250V
< CONNECTOR >
*CN101 1-568-226-11 PIN, CONNECTOR (3.96mm PITCH) 2P
************************************************************
MAIN POWER SW PT
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
32
SCD-XE597
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A-4750-527-A RF BOARD, COMPLETE
*******************
< CAPACITOR >
C001 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C002 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C004 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C005 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C006 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C007 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C008 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C009 1-124-779-00 ELECT CHIP 10uF 20% 16V
C011 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C015 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C016 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C017 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C018 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C019 1-164-739-11 CERAMIC CHIP 560PF 5% 50V
C021 1-124-779-00 ELECT CHIP 10uF 20% 16V
C022 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C023 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C024 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C025 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C026 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C027 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C028 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C031 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C032 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C033 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C034 1-164-227-11 CERAMIC CHIP 0.022uF 10% 16V
C035 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C036 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C038 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C039 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C040 1-164-217-11 CERAMIC CHIP 150PF 5% 50V
C043 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C044 1-124-779-00 ELECT CHIP 10uF 20% 16V
C046 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C047 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C048 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
< CONNECTOR >
CN001 1-815-031-11 CONNECTOR, FFC/FPC (ZIF) 24P
CN002 1-784-879-21 CONNECTOR, FFC (LIF (NON-ZIF)) 31P
CN003 1-784-861-21 CONNECTOR, FFC (LIF (NON-ZIF)) 9P
< DIODE >
D001 8-719-988-61 DIODE 1SS355TE-17
D004 8-719-988-61 DIODE 1SS355TE-17
< IC >
IC001 6-703-445-01 IC SP3726A
< COIL >
L001 1-412-031-11 INDUCTOR 47uH
L002 1-412-031-11 INDUCTOR 47uH
< TRANSISTOR >
Q001 8-729-903-46 TRANSISTOR 2SB1132-T100-QR
Q002 8-729-903-46 TRANSISTOR 2SB1132-T100-QR
< RESISTOR >
R002 1-216-809-11 METAL CHIP 100 5% 1/10W
R003 1-216-809-11 METAL CHIP 100 5% 1/10W
R004 1-216-864-11 SHORT CHIP 0
R005 1-216-845-11 METAL CHIP 100K 5% 1/10W
R006 1-216-838-11 METAL CHIP 27K 5% 1/10W
R007 1-216-803-11 METAL CHIP 33 5% 1/10W
R008 1-216-803-11 METAL CHIP 33 5% 1/10W
R009 1-216-820-11 METAL CHIP 820 5% 1/10W
R010 1-216-841-11 METAL CHIP 47K 5% 1/10W
R011 1-216-809-11 METAL CHIP 100 5% 1/10W
R013 1-216-833-11 METAL CHIP 10K 5% 1/10W
R018 1-216-833-11 METAL CHIP 10K 5% 1/10W
R020 1-216-803-11 METAL CHIP 33 5% 1/10W
R023 1-216-803-11 METAL CHIP 33 5% 1/10W
R025 1-216-841-11 METAL CHIP 47K 5% 1/10W
R029 1-216-809-11 METAL CHIP 100 5% 1/10W
R037 1-216-834-11 METAL CHIP 12K 5% 1/10W
R038 1-216-861-11 METAL CHIP 2.2M 5% 1/10W
R045 1-216-813-11 METAL CHIP 220 5% 1/10W
R052 1-216-864-11 SHORT CHIP 0
R053 1-216-864-11 SHORT CHIP 0
R054 1-216-864-11 SHORT CHIP 0
R055 1-216-864-11 SHORT CHIP 0
************************************************************
MISCELLANEOUS
**************
061-777-071-43 CORD, POWER
010 1-443-287-11 TRANSFORMER, POWER
58 1-828-333-11 WIRE (FLAT TYPE) (13 CORE)
253 1-829-172-11 WIRE (FLAT TYPE) (31 CORE)
0255 A-4713-410-A PICK-UP UNIT (DBU-3)
258 1-824-106-12 CABLE, FLEXIBLE FLAT (24 CORE)
M901 A-4604-363-A MOTOR (L) ASSY (LOADING)
ACCESSORIES
************
1-478-636-11 COMMANDER, STANDARD (RM-SX800)
1-790-735-12 CORD, CONNECTION
2-021-059-11 MANUAL, INSTRUCTION
(ENGLISH, FRENCH, GERMAN, SPANISH)
2-021-059-21 MANUAL, INSTRUCTION
(DUTCH, SWEDISH, ITALIAN, PORTUGUESE) (AEP)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
RF
SERVICE MANUAL
SUPPLEMENT-1
AEP Model
UK Model
Ver. 1.2 2005.05
9-879-005-81
Subject: TEST MODE and ELECTRICAL ADJUSTMENT
SCD-XE597
2
SCD-XE597
1. DIAG MODE of The Test Mode
While press [MENU] and [PUSH ENTER] buttons, press the [POWER] button to turn the power on and enter the Test Mode and display “DIAG
MODE”.
2. Operating The Test Mode
Procedure:
1. Turn the l AMS L knob to select the command number (hexadecimal number) (refer to the following table for command
number).
2. Press the [PUSH ENTER] button to execute the selected command item.
3. The Commands in Test Mode
SECTION 1
TEST MODE
Command No. Command name Item
12 LD ON/OFF Turn on/off the laser diode
13 SPIN ON/OFF Turn on/off the spindle motor
14 FSRV ON/OFF Turn on/off the focus servo
15 TSRV ON/OFF Turn on/off the tracking servo
16 CLV ON/OFF
Turn on/off the spindle CLV servo, when both focus servo and tracking servo are on
17 SSRV ON/OFF Turn on/off the spindle CLV servo, when all servo of focus servo, tracking servo
and spindle servo are on
18 ALL SRV ON Turn on all servo
19 ALL SRV OFF Turn off all servo
1A DISC STOP Stop the disc rotation (useful as overdrived)
24 ADJ FCSBIAS Automatically adjust the focus bias (*1)
27 FOCUS AGC Automatically adjust the focus servo gain (*1)
31 PI/FE OFSET Automatically adjust the offset signal of PI, PE and TE (*1)
45 TRACKING AGC Automatically adjust the focus servo gain (*1)
61 DISC DETECT Judge the disc type (when SA-CD, “SL” or “DL” is displayed)
7C FJUMP TEST Focus jump test mode
81 SYSTEM VERSION Display the version of system microcomputer for 2 seconds
82 I/F VERSION Display the version of IF microcomputer for 2 seconds
8D CEL Initialization
8F U&OTHERS Initialization
92 ERR CHECK Error rate display (to stop, press the x button)
for CD display “92 C1 C2 0xff”
for SA-CD display “92 PI1 PO PI2”
93 WATER MARK WaterMark display
display “93 xxxx” (“xxxx” is value of pspamp)
9D PLAY&RFD ON Measuring the jitter (to stop, press the x button)
display: “9D xx 0xff 0xff” (“xx” is measuring value of jitter)
*1) Not used in servicing
4. The Commands in Automatic Electrical Adjustments
(Use the commands When The system version number is ver1.24 and higher)
Command No. Item
B0 RAM clear
B1 Writing
B2 Check writing data
3
SCD-XE597
SECTION 2
ELECTRICAL ADJUSTMENTS
GENERAL DESCRIPTION
After parts to the circuit (OPTICAL PICK-UP (DBU-3), RF
BOARD, MAIN BOARD, EEPROM (IC702), MASTERCOM
(IC705), DSP (IC706), so on) are replaced, readjusting is necessary.
1. ROM Version Check
Procedure:
1. While pressing [PUSH ENTER] button and [MENU] buttons,
press the [POWER] button to turn the set on.
“DIAG MODE” is displayed on the screen.
2. Select “81 SYS-F VER” by tuning l AMS L knob.
3. Press [PUSH ENTER] button.
4. Check the version of ROM.
“SYS. VER X.XX” is displayed.
5. Select “82 I/F-F VER”
“I/F VER X.XX” is displayed.
Automatically return “81 SYS-F VER”
2. U-CON Check (The system version number is Ver
1.24 and higher)
This checking must be performed before any other checking.
CHECK DISC LIST
Use the following disc on this check.
SATD-S4: PART No. J-2501-184-A
SATD-S5: PART No. J-2501-215-A
Procedure:
1. While pressing [PUSH ENTER] button and [MENU] buttons,
press the [POWER] button to turn the set on.
“DIAG MODE” is displayed on the screen.
2. Push the Z button to open the tray.
3. Load CD to tray.
4. Push the Z button to close the tray.
5. Turn “JOG DIAL” clockwise until “B0” and press the [PUSH
ENTER] (Used time : 7 sec) “FFFF” is displayed.
6. Turn “JOG DIAL” clockwise until “B1” and press the [PUSH
ENTER].
Display shows “-9” and the numbering is counting down until
“-0” lastly, “****” (4 DIGITS VALUE) appears. (Used time :
33 sec)
7. Turn “JOG DIAL” clockwise until “B2” and press the [PUSH
ENTER].
Display shows the last number that appear at. STEP NO.7.
Confirm that the value is “08D0”>THE VALUE>“04D0”
8. Push the Z button to open the tray.
9. Unload CD from tray.
10. Push the Z button to close the tray.
11. Press the [POWER] button to turn the set off. (Do not continue
with another test mode without power off.)
3. Optical Sensitivity Check
CHECK DISC LIST
Use the following hybrid disc on this check.
HLXA-509 : PART No. J-6090-090-A
SACD HYBRID DISC (MARKET DISC)
Connection:
Procedure:
1. Press the Z button.
2. Insert SACD hybrid disc (market disc).
3. Connect the oscilloscope to pin 27 and pin31 of CN702.
4. Observe the MIRR waveform immediately after the disc
chucking is completed when disc identification is made.
MIRR signal waveform
5. Read the measurement of ∆ T.
IF 7.5ms <∆ T<9.7ms> OK
OTHERS>NG
6. When the system version number is before ver.1.24, and if the
MIRR waveform is NG (No Good), change the values of R892
and R893, and then repeat step4 and after.
9.7 ms< ∆ t
R892/R893 120 kΩ → 110 kΩ (1-218-741-11)
∆ t< 6.9 ms
R892/R893 120 kΩ → 130 kΩ (1-218-743-11)
4. Mode Setting For Shipping (MAIN board on EEPROM
(IC702) is replaced.)
Be sure to set the unit to the specified modes as stated in the steps
below after sampling inspections by the QA dept.
Or before shipping.
Procedure:
1. While pressing [PUSH ENTER] and [MENU] buttons, press the
[POWER] button to turn the set on.
“DIAG MODE” is displayed in the screen.
2. Turn jog until the specified mode (According to version) is
displayed:
a) “8D SETUP” : CEL
b) “8F SETUP” : U & OTHERS
3. Press jog one single time.
“INIT START” is displayed and Mode setting for shipping
starts.
4. Wait until “INITIAL OK” appears on the display.
5. By this operation, the unit is initialized as follows:
6. After 2 to 3 sec., Press the [POWER] button to turn the set off.
Note : When EEPROM (IC702) is replaced, the initialization
is necessary.
+
–
MAIN board
CN702 (PIN27)
CN702 (PIN31)
oscilloscope
1V/DIV, 5ms/DIV
T
PLAY MODE ALL DISCS
COMMAND MODE CD 1
REPEAT OFF
SACD/CD SACD
M/2ch MULTI
SCD-XE597
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.0 2004.06 New
1.1 2004.11 Addition of silver model for UK
1.2 2005.05 Addition of TEST MODE and ELECTRICAL ADJUSTMENT with
SUPPLEMENT-1 (9-879-005-81)
1.3 2006.02 Addition of silver (Hair-line Finish) model (SPM-06013)

Navigation menu
