SP OXY3 091 3 BLADE ULTRA SWASH PLATE

User Manual: SP-OXY3-091-3 BLADE ULTRA SWASH PLATE

Open the PDF directly: View PDF .
Page Count: 1

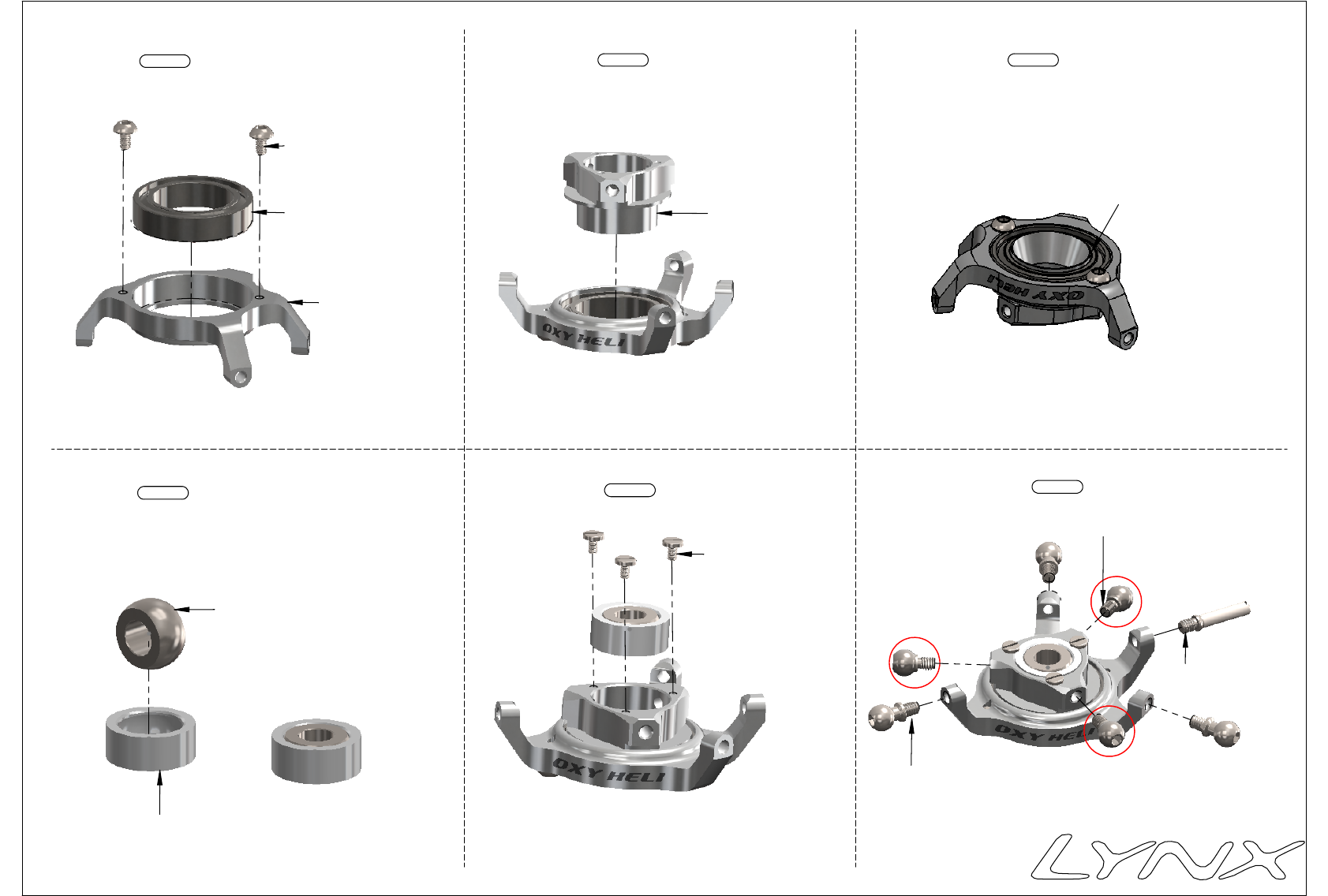

2 x OXY0111

M1.6X3 Buttom Screw

Loctite 242

MR6701_ZZ

12X18X4 Radial Bearing

Loctite 648

OXY0014

Lower Swash Plate

Step 1

OXY0178

3 Blade Head-Upper

Swash Plate

Loctite 648

OXY0017

Center Ball

Add silicone grease

OXY0016

Ball Holder

3 x OXY0020

M1.2x2 Special Screw

Loctite 242

Step 5

OXY0018

2x11.5 Antirotation

Pin. Loctite 242

3 x OXY0019

M2 Swash Plate Ball

Loctite 242

Step 6

3 x OXY0043

4x2 Linkage Ball

Loctite 242

Press punching

Step 2 Step 3

Step 4

LYNX MANUAL DOC .REV .A 26-06-2015

SP-OXY3-091

OXY3 - QUBE 3 HEAD SYSTEM SET

HELI INNOVATIONS
