PROJECTION TV RECEIVER

Chassis : P51A (REV. 1)

Model : ST54T63S/XAX

ST62T63S/XAX

PROJECTION TV RECEIVER CONTENTS

Precautions

Reference Information

Specifications

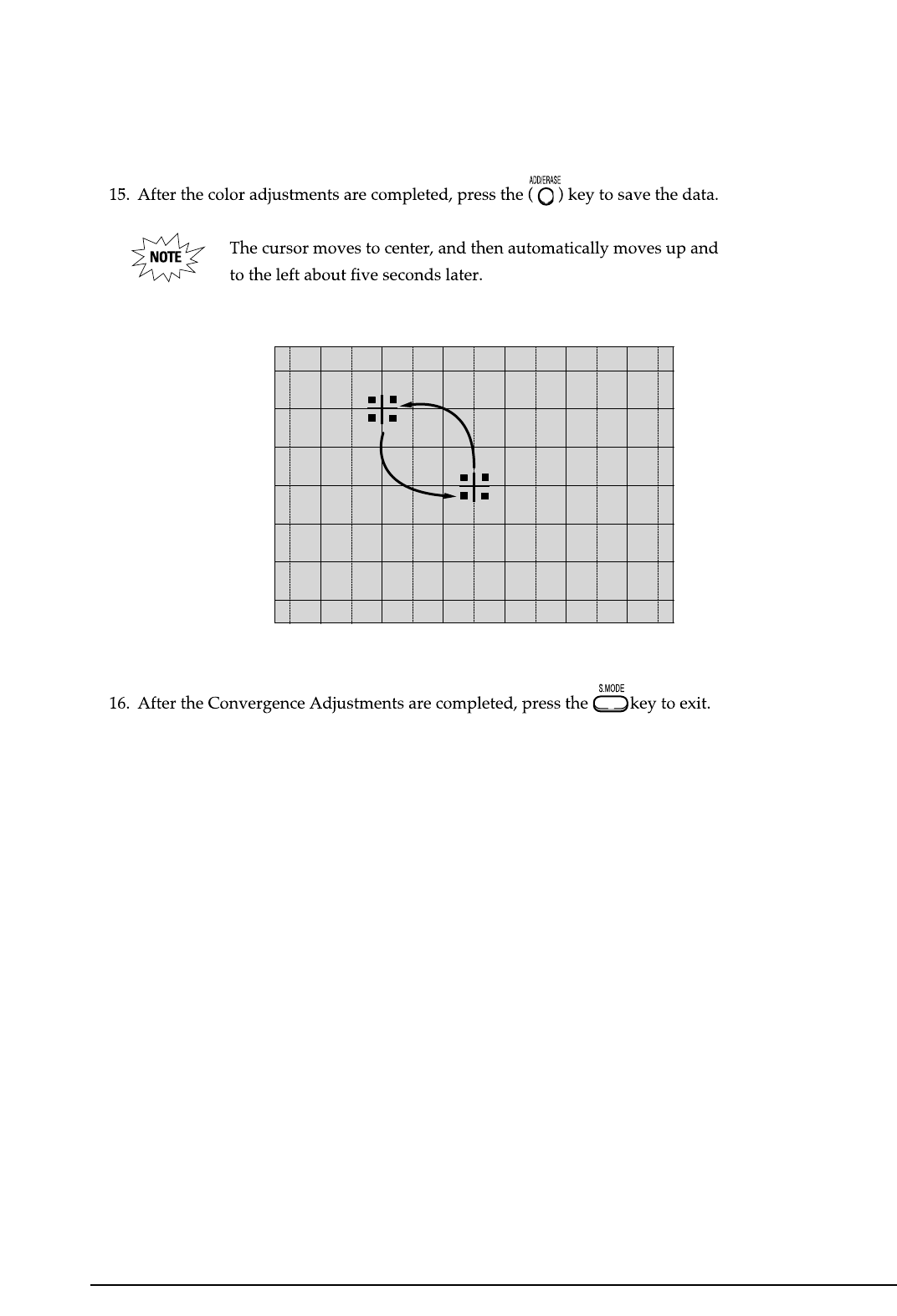

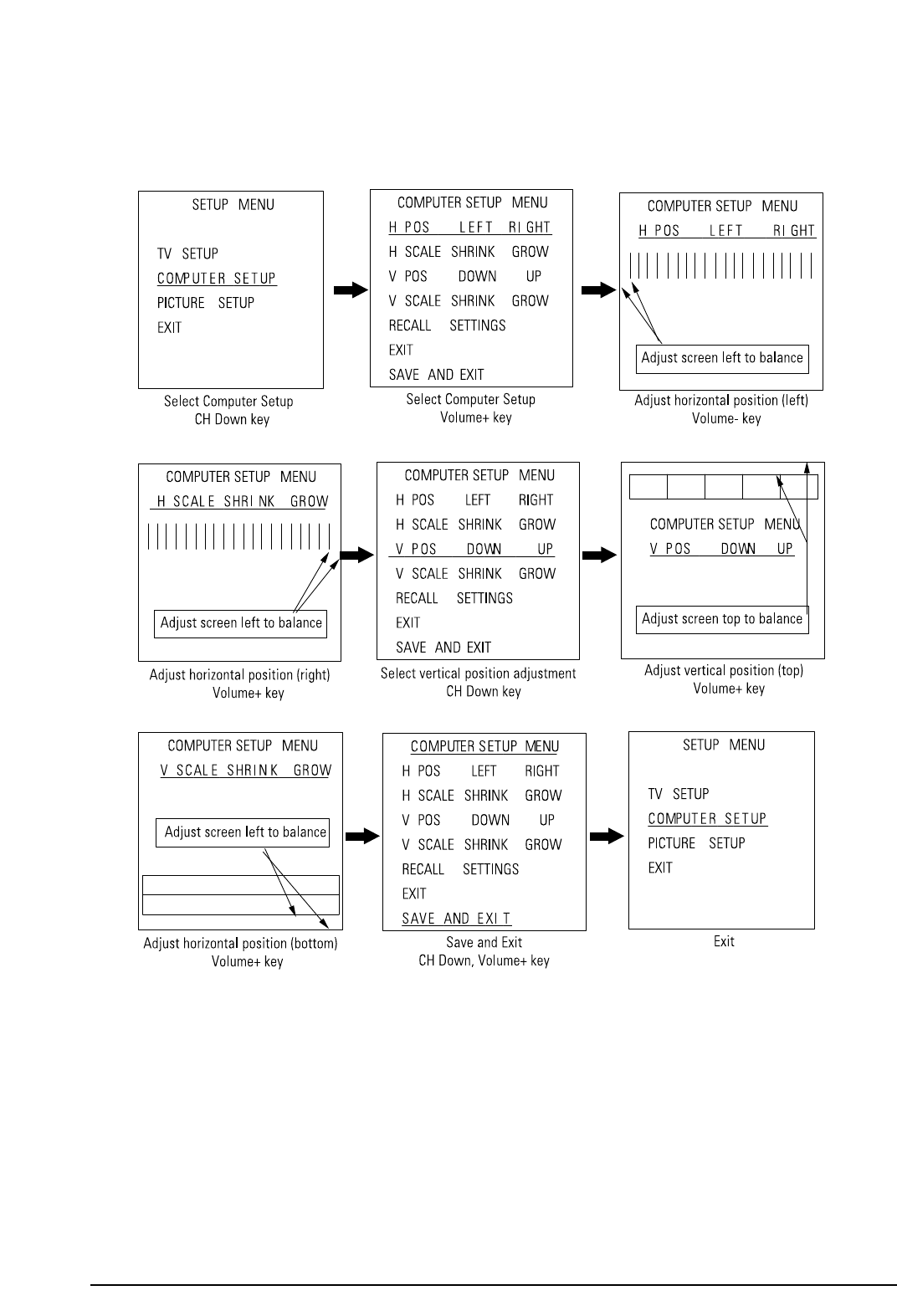

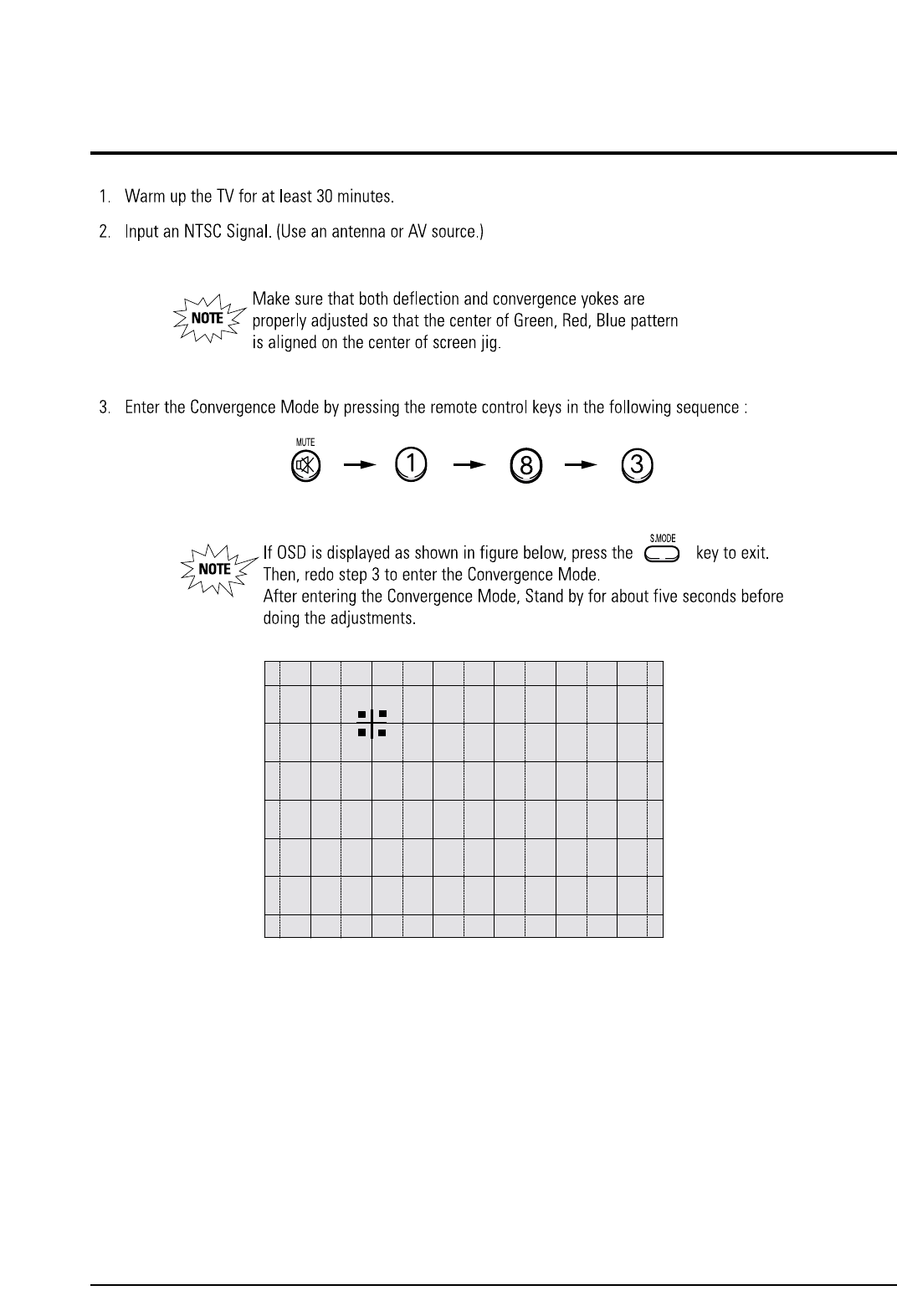

Alignment and Adjustments

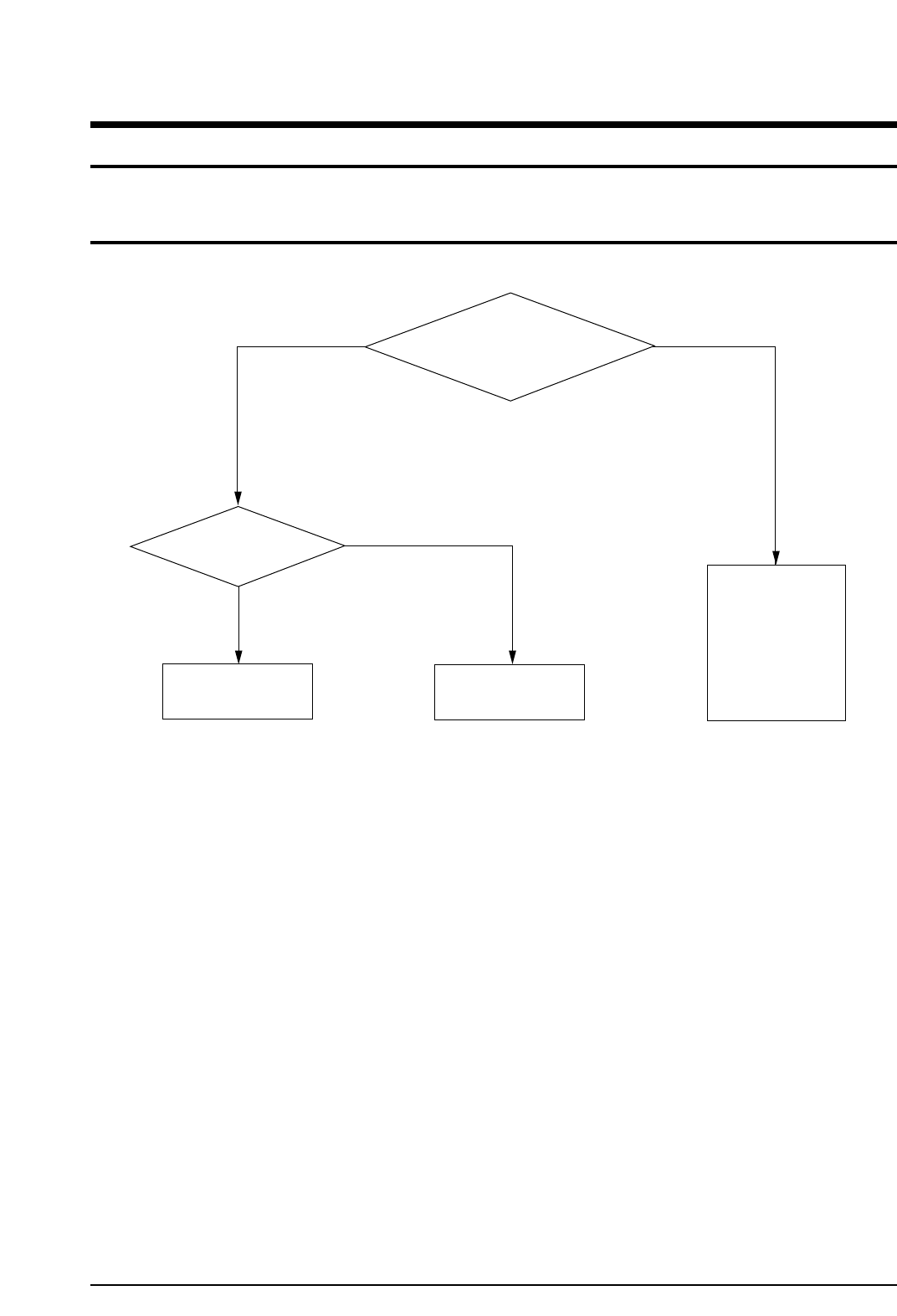

Troubleshooting

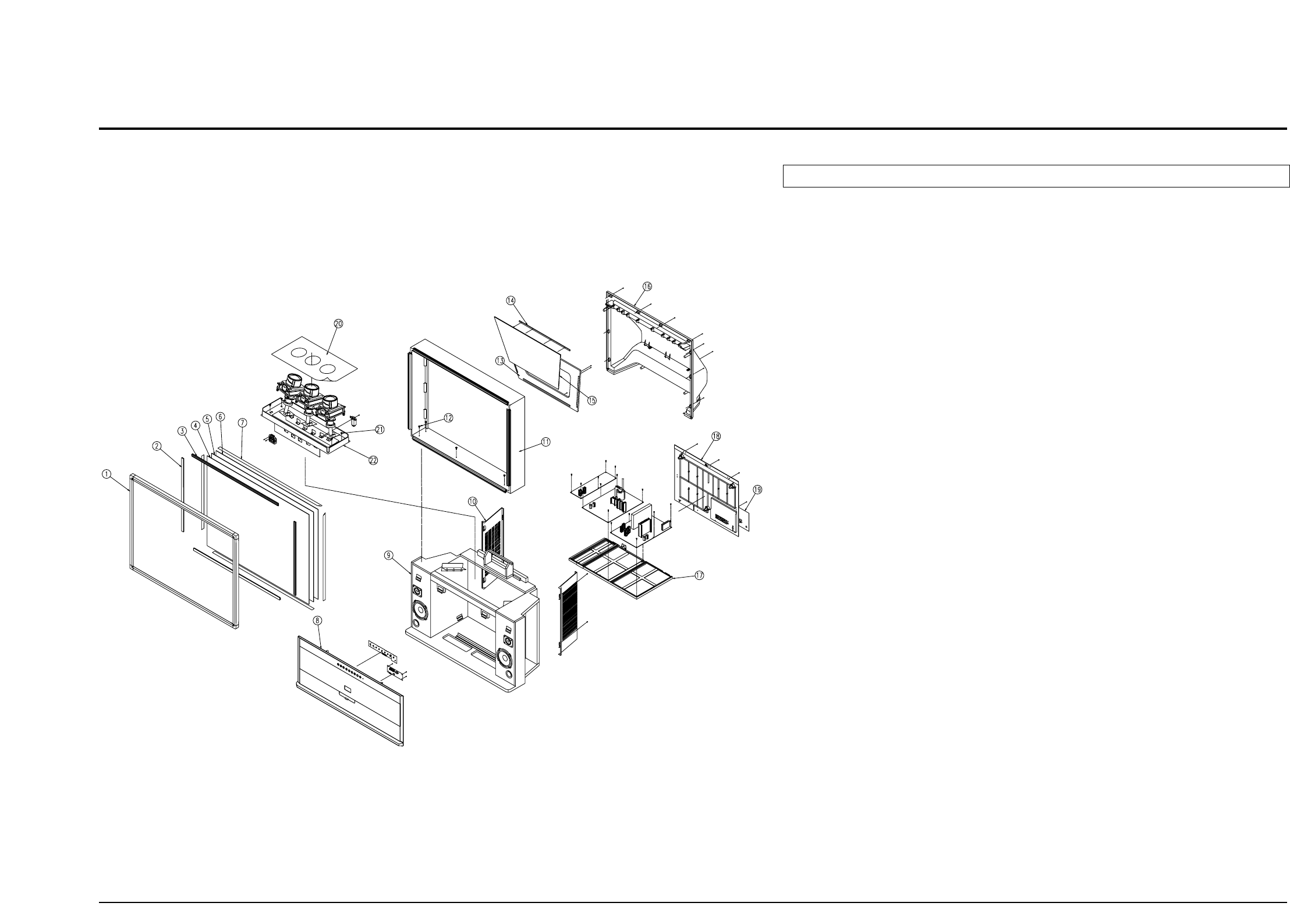

Exploded View and Parts List

Electrical Parts List

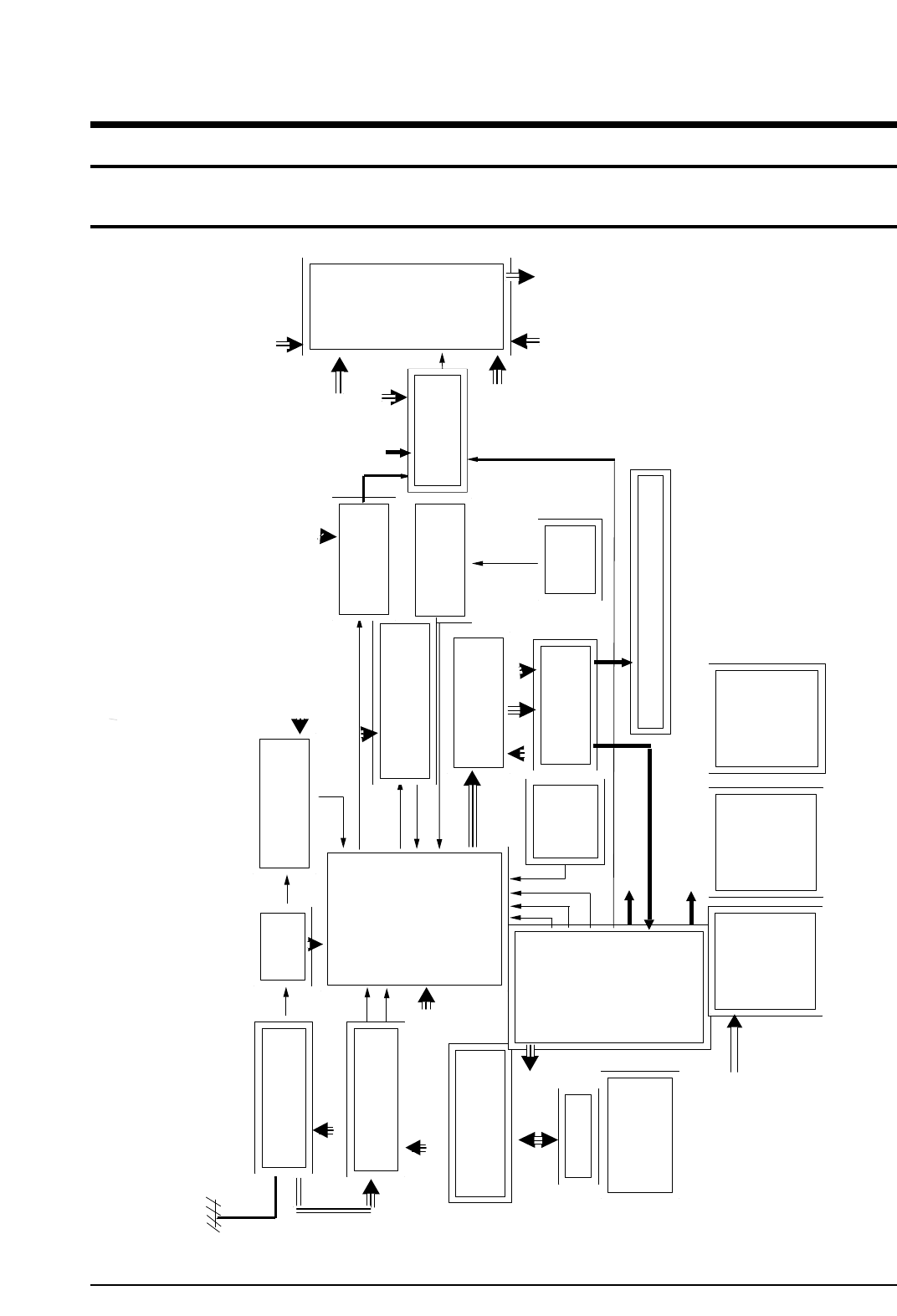

Block Diagrams

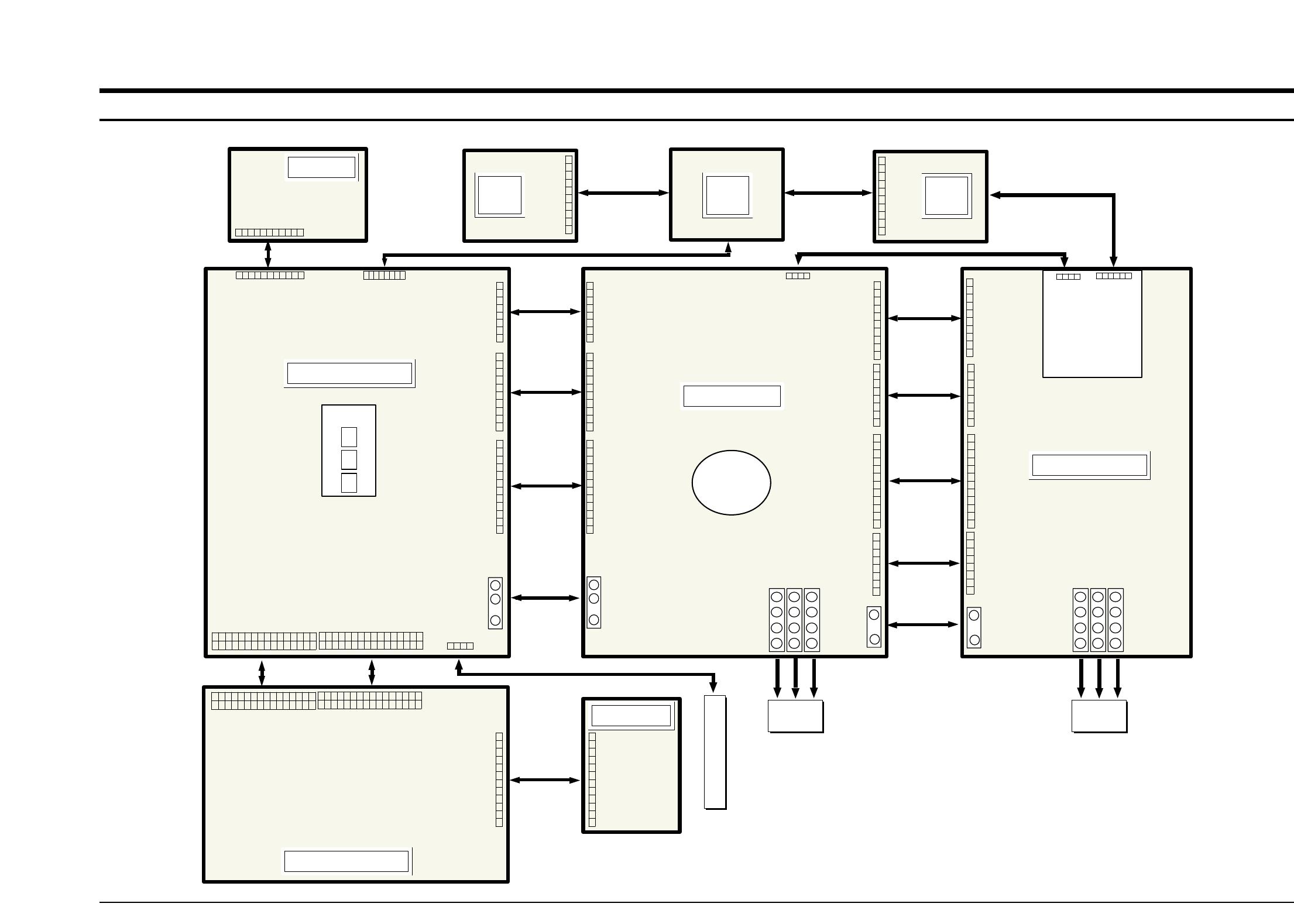

Wiring Diagram

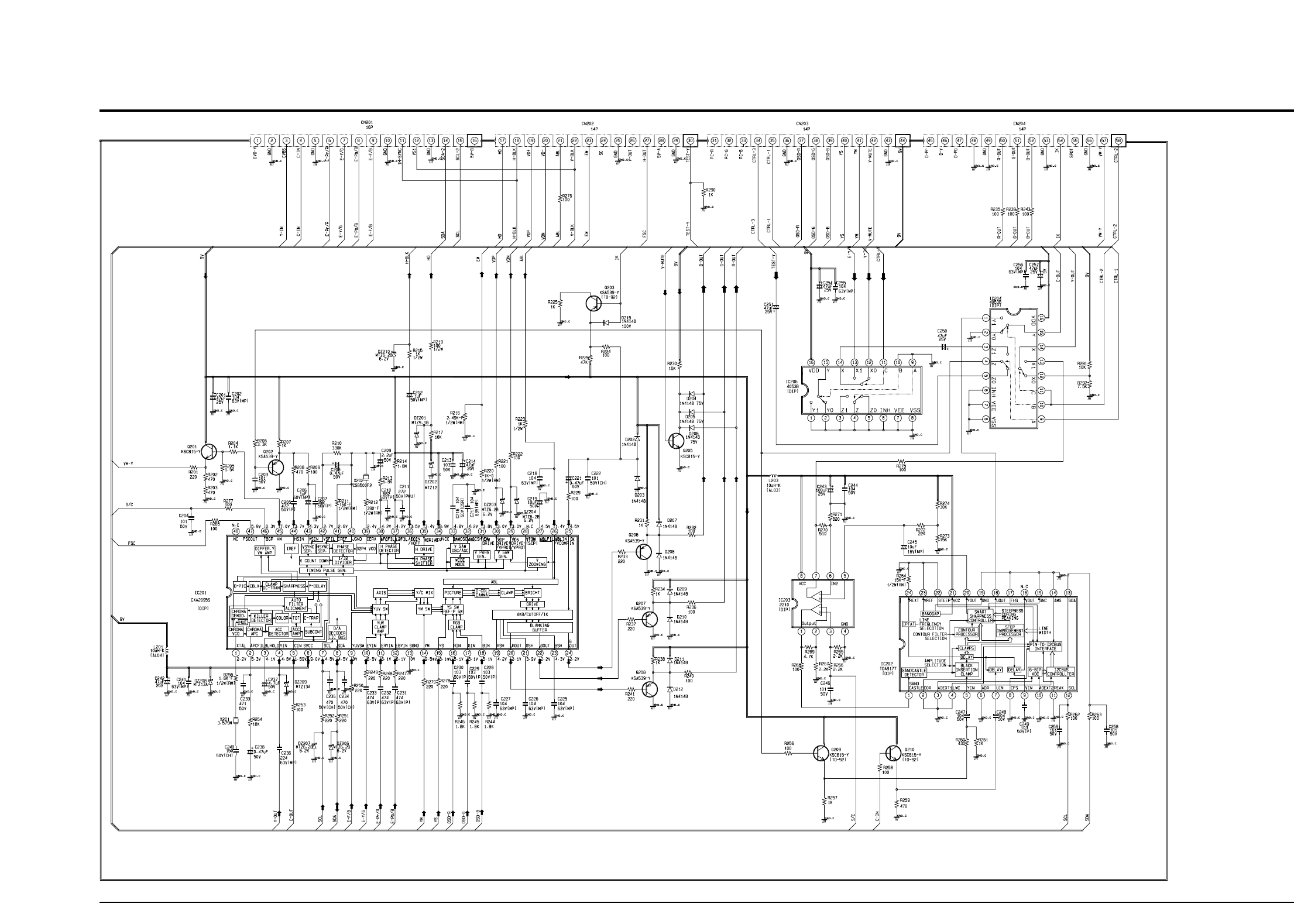

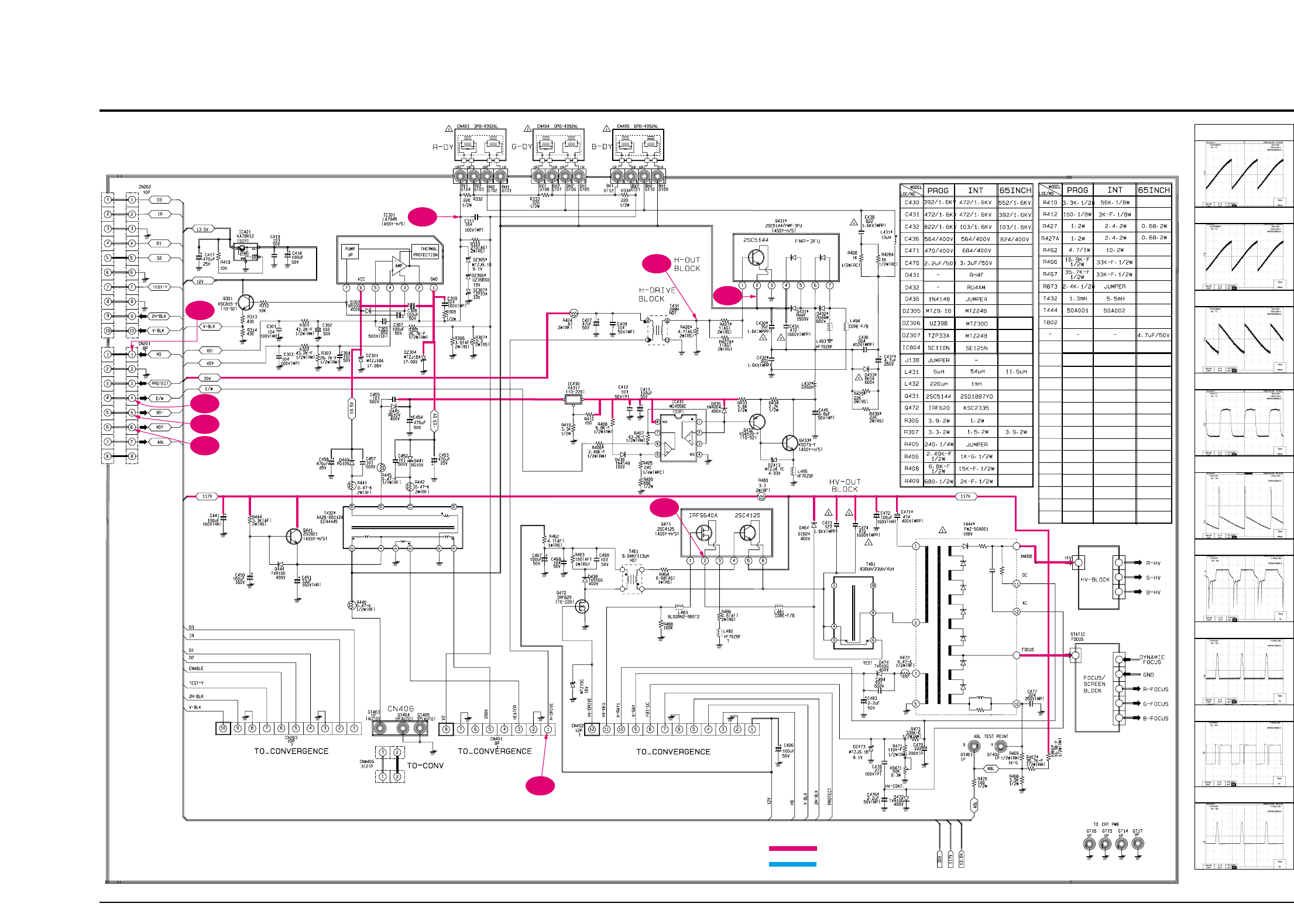

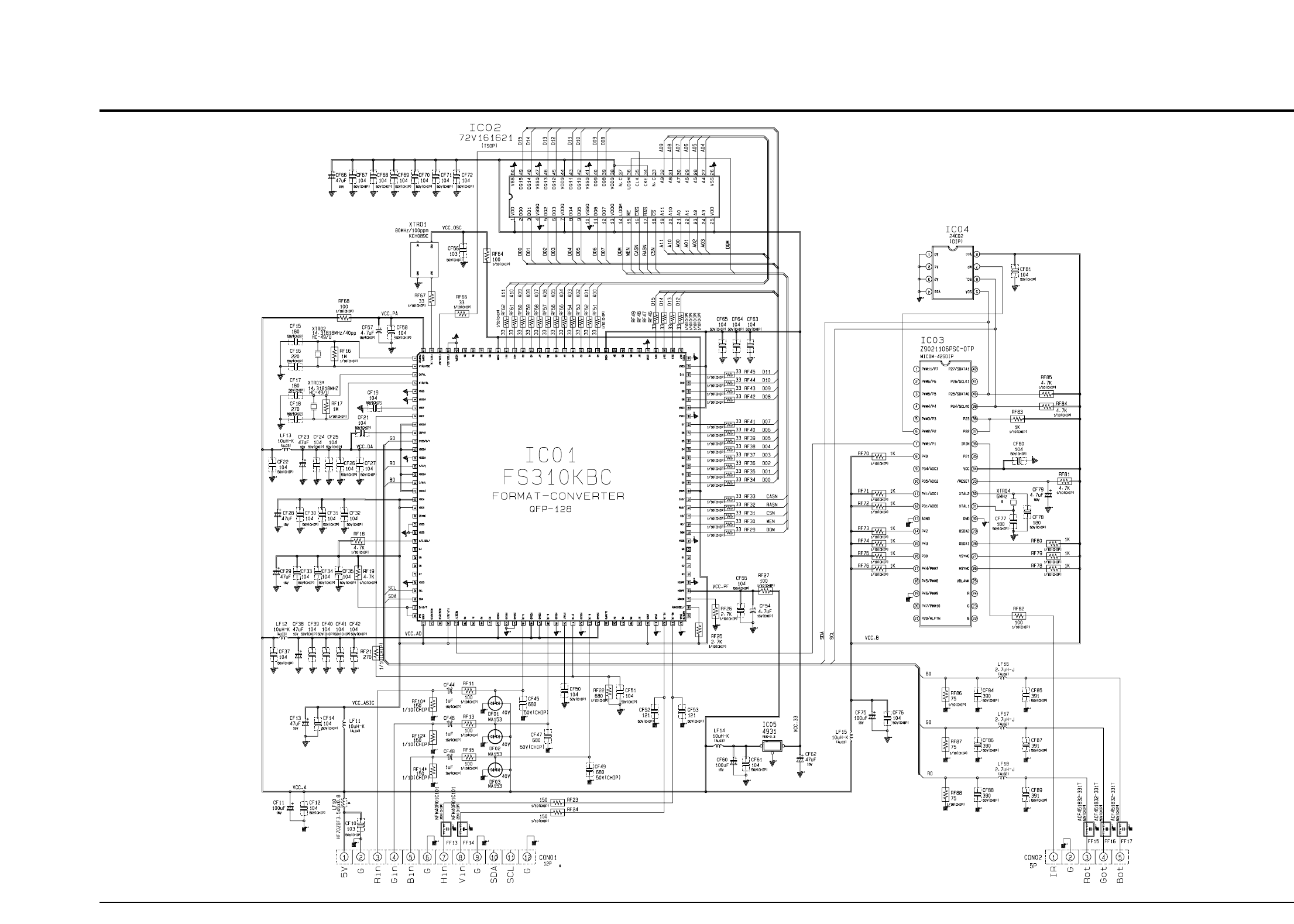

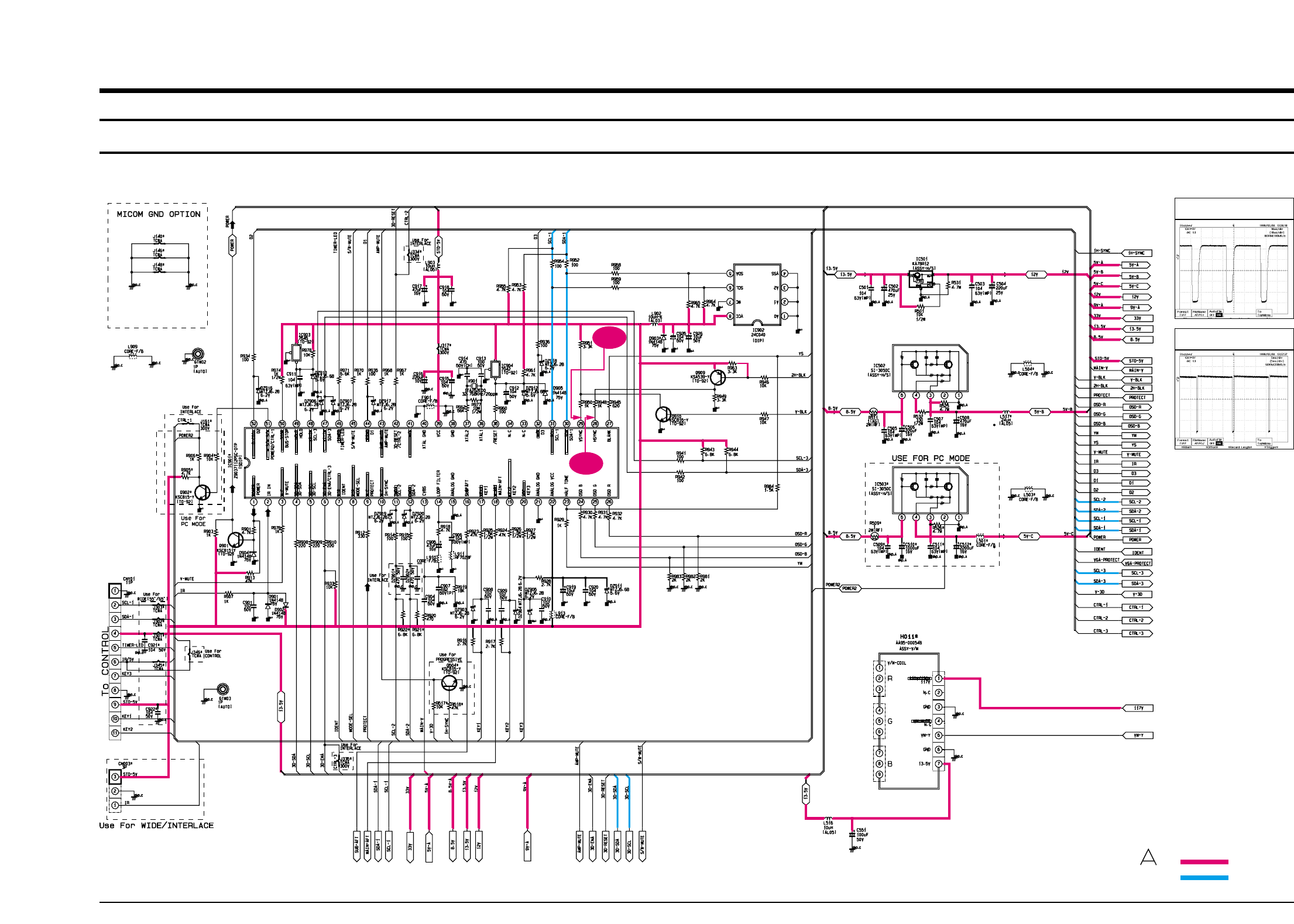

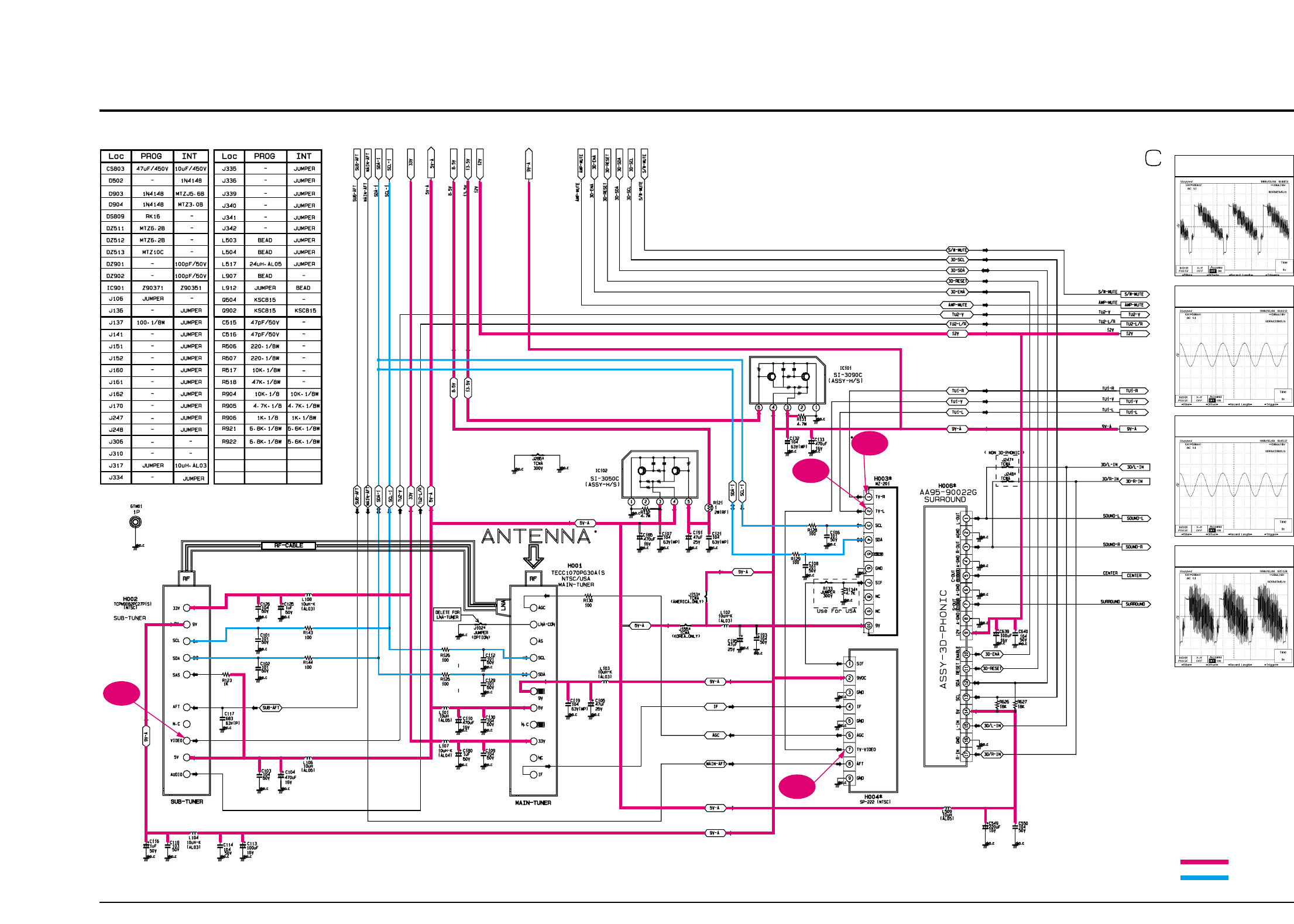

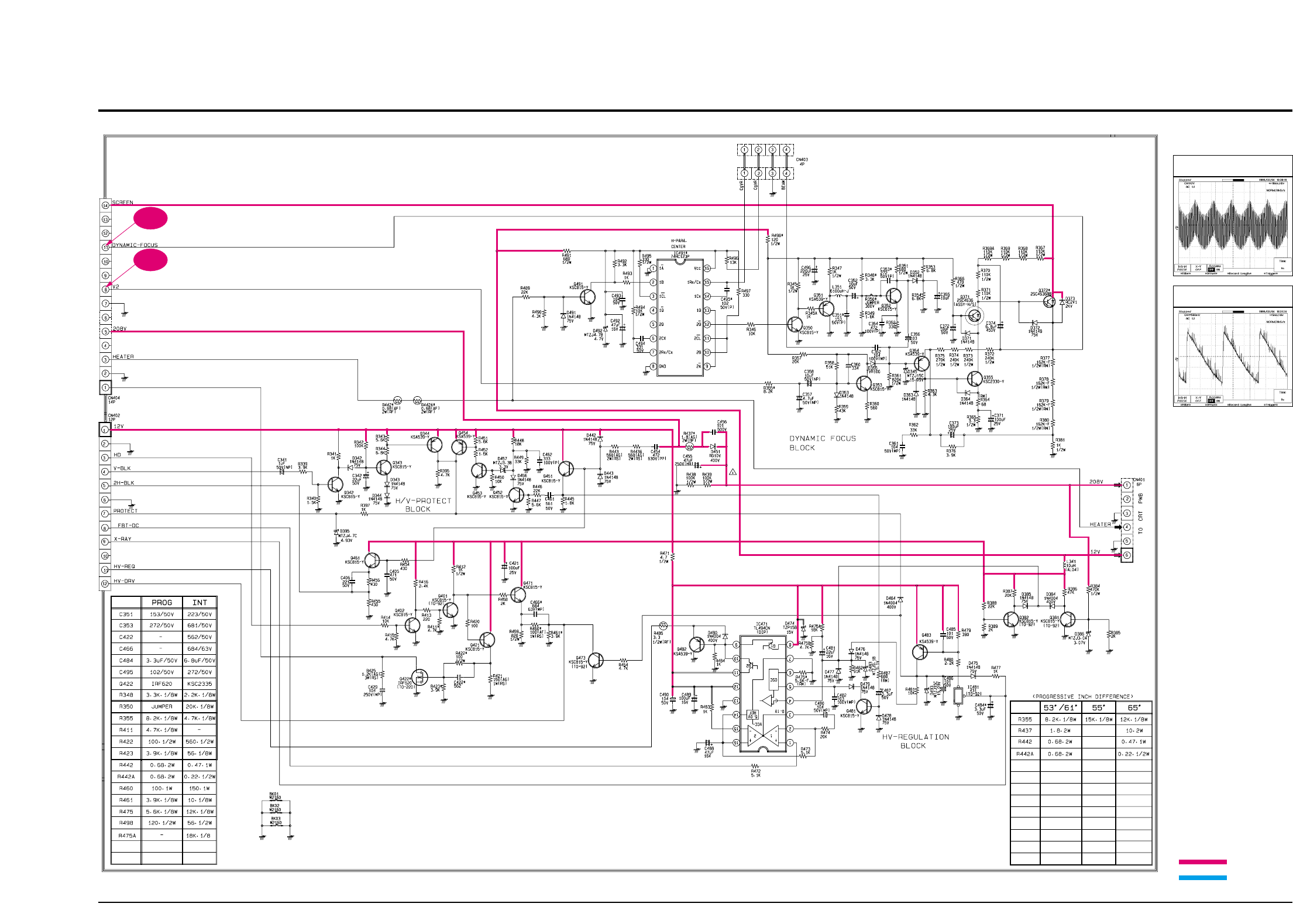

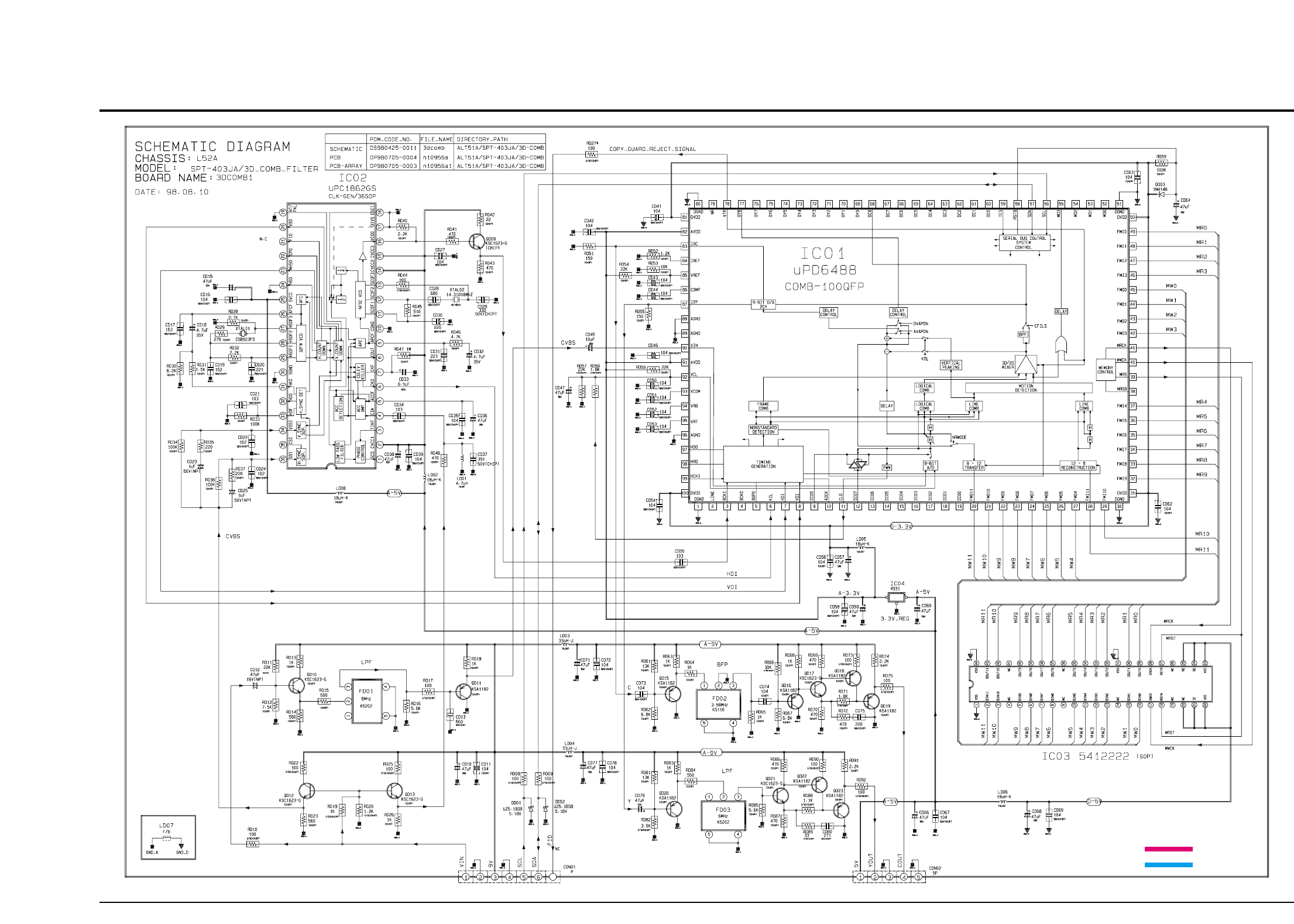

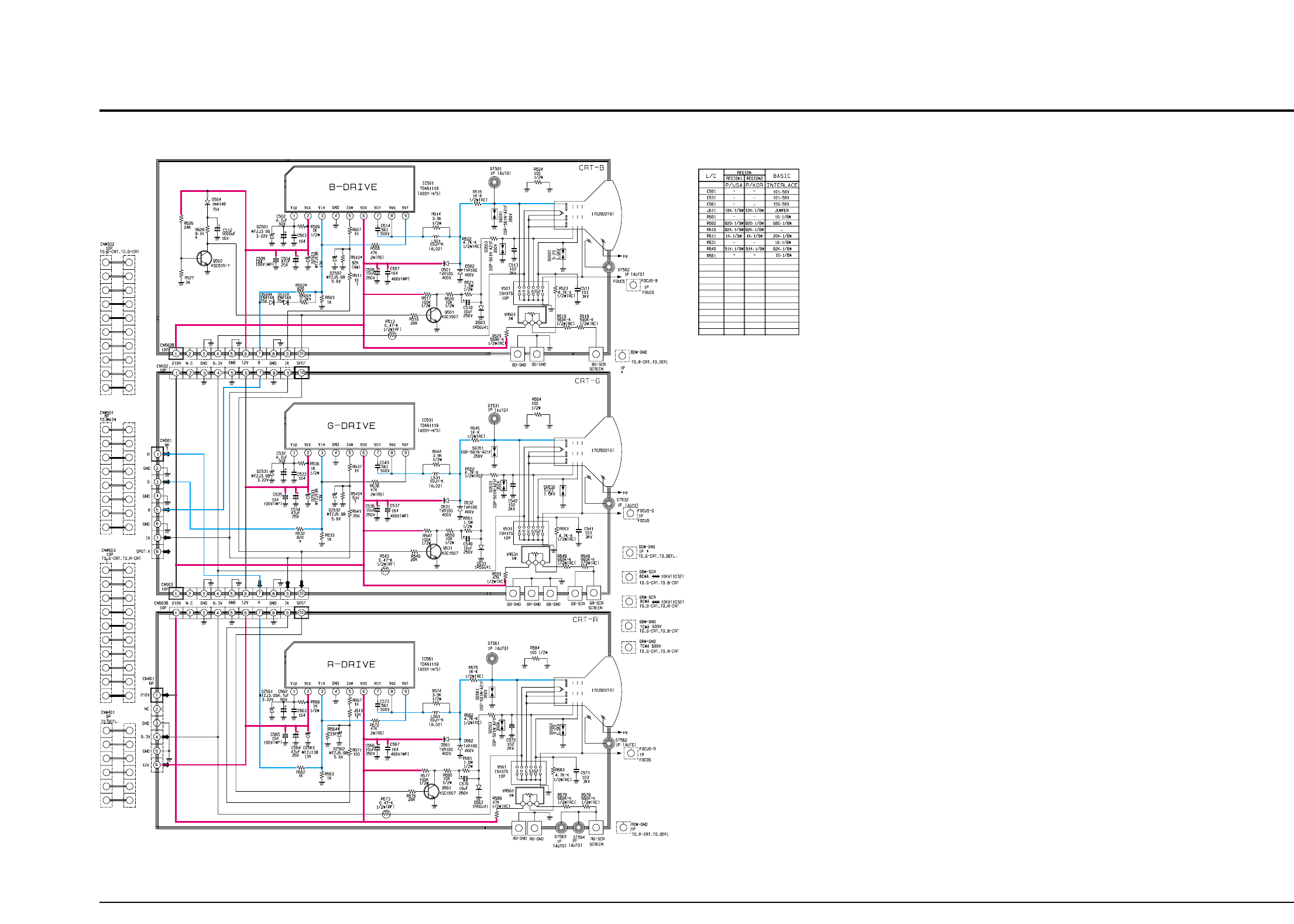

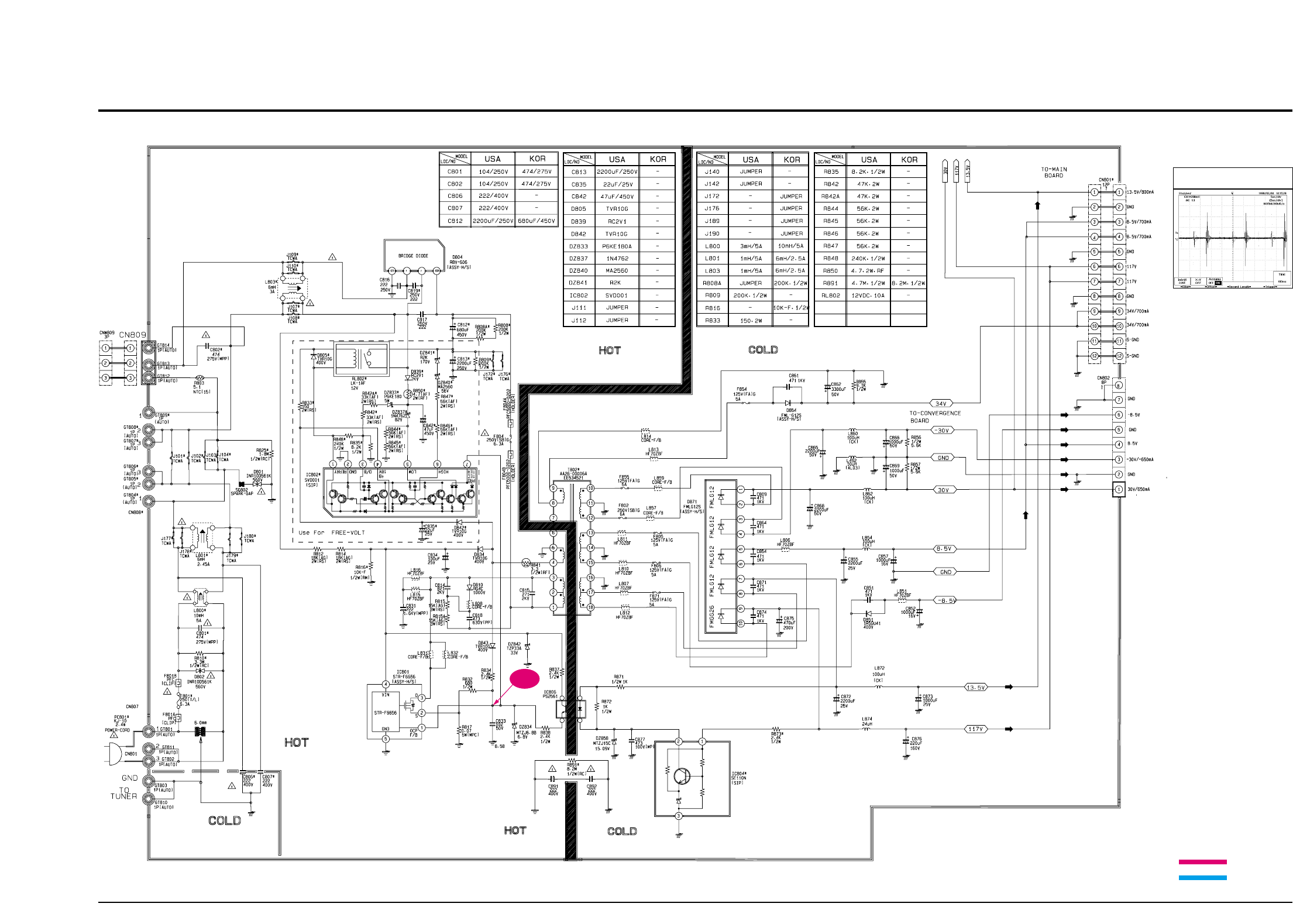

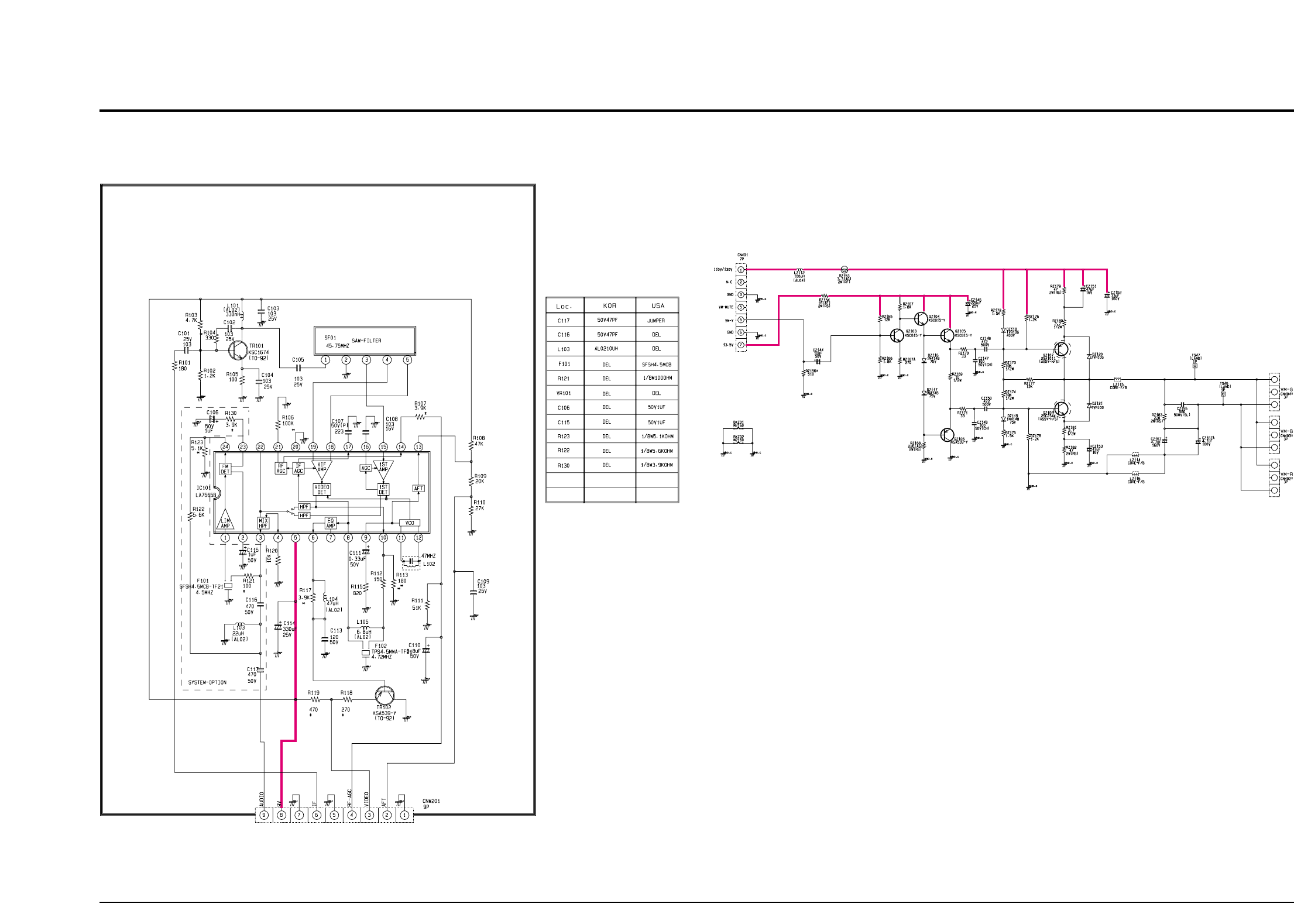

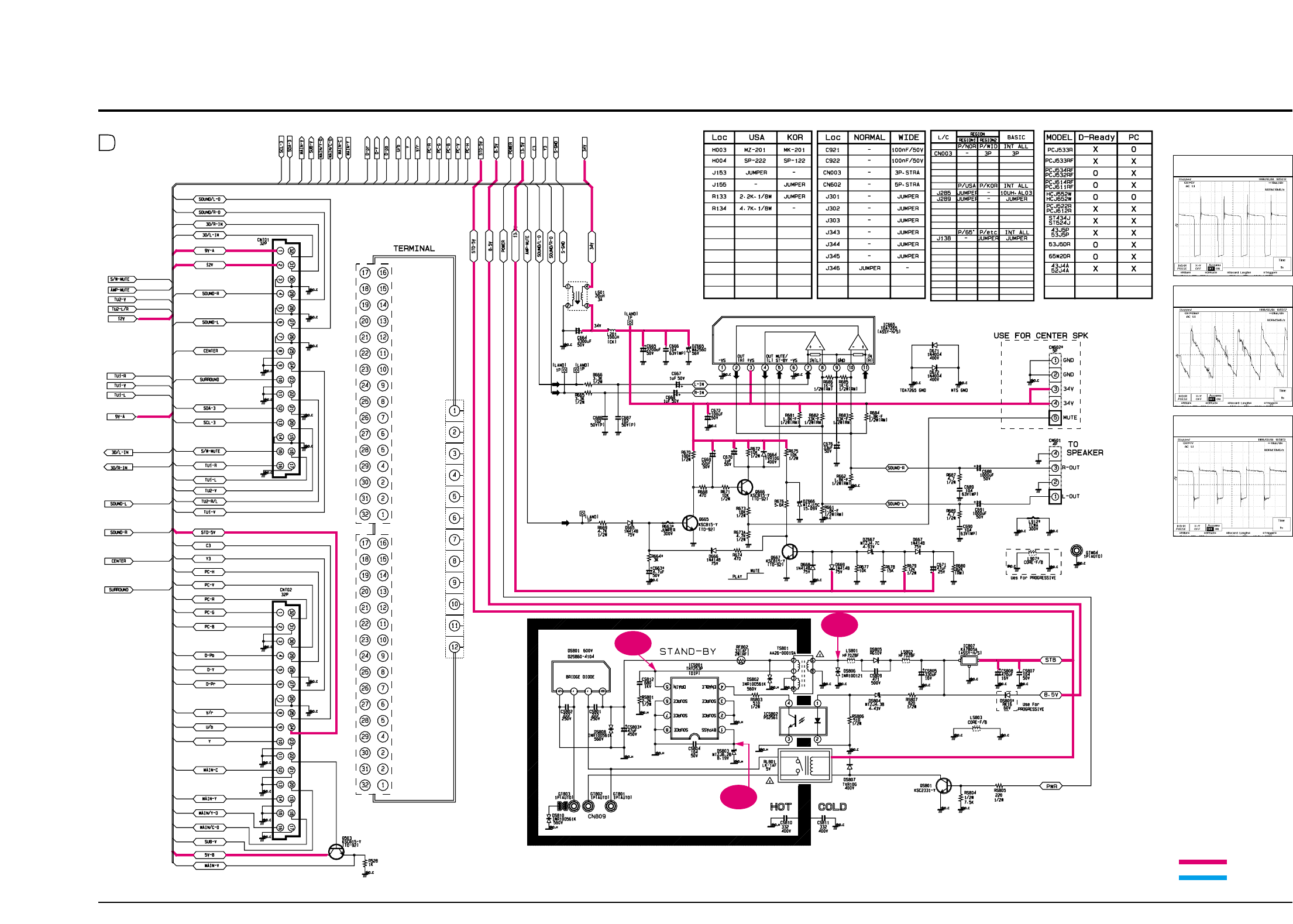

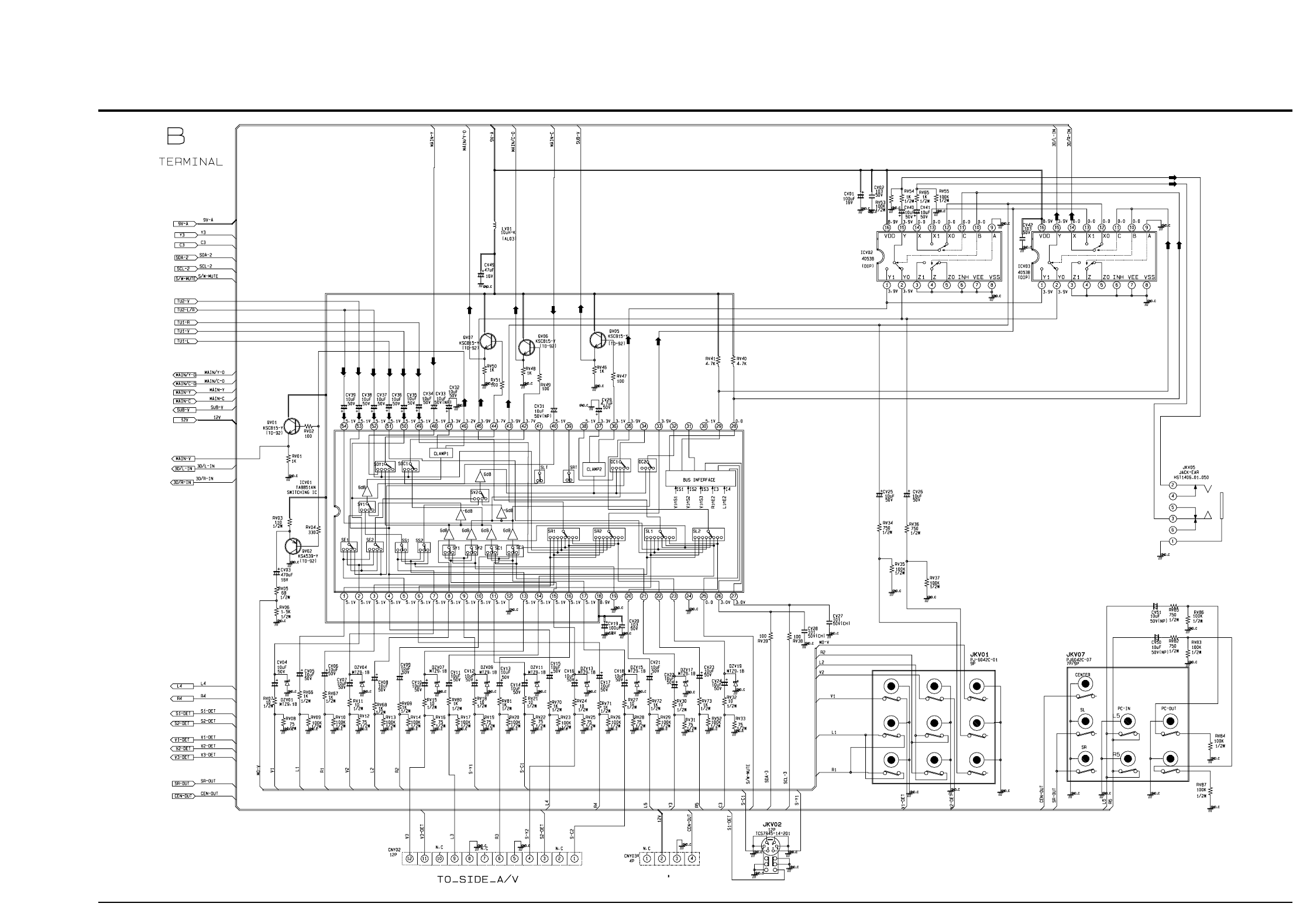

Schematic Diagrams

10.

ELECTRONICS

©Samsung Electronics Co., Ltd. JAN. 2002

Printed in Korea

AA81-00065A

1. Precautions

1-1 Safety Precautions

1. Be sure that all of the built-in protective

devices are replaced. Restore any missing

protective shields.

2. When reinstalling the chassis and its

assemblies, be sure to restore all protective

devices, including: nonmetallic control knobs

and compartment covers.

3. Make sure that there are no cabinet openings

through which people—particularly

children—might insert fingers and contact

dangerous voltages. Such openings include

the spacing between the picture tube and the

cabinet mask, excessively wide cabinet

ventilation slots, and improperly fitted back

covers.

If the measured resistance is less than 1.0

megohm or greater than 5.2 megohms, an

abnormality exists that must be corrected

before the unit is returned to the customer.

4. Leakage Current Hot Check (Figure 1-1):

Warning: Do not use an isolation

transformer during this test. Use a leakage-

current tester or a metering system that

complies with American National Standards

Institute (ANIS C101.1, Leakage Current for

Appliances), and Underwriters Laboratories

(UL Publication UL1410, 59.7).

5. With the unit completely reassembled, plug

the AC line cord directly into the power

outlet. With the unit’s AC switch first in the

ON position and then OFF, measure the

current between a known earth ground (metal

water pipe, conduit, etc.) and all exposed

metal parts, including: antennas, handle

brackets, metal cabinets, screwheads and

control shafts. The current measured should

not exceed 0.5 milliamp. Reverse the power-

plug prongs in the AC outlet and repeat the

test.

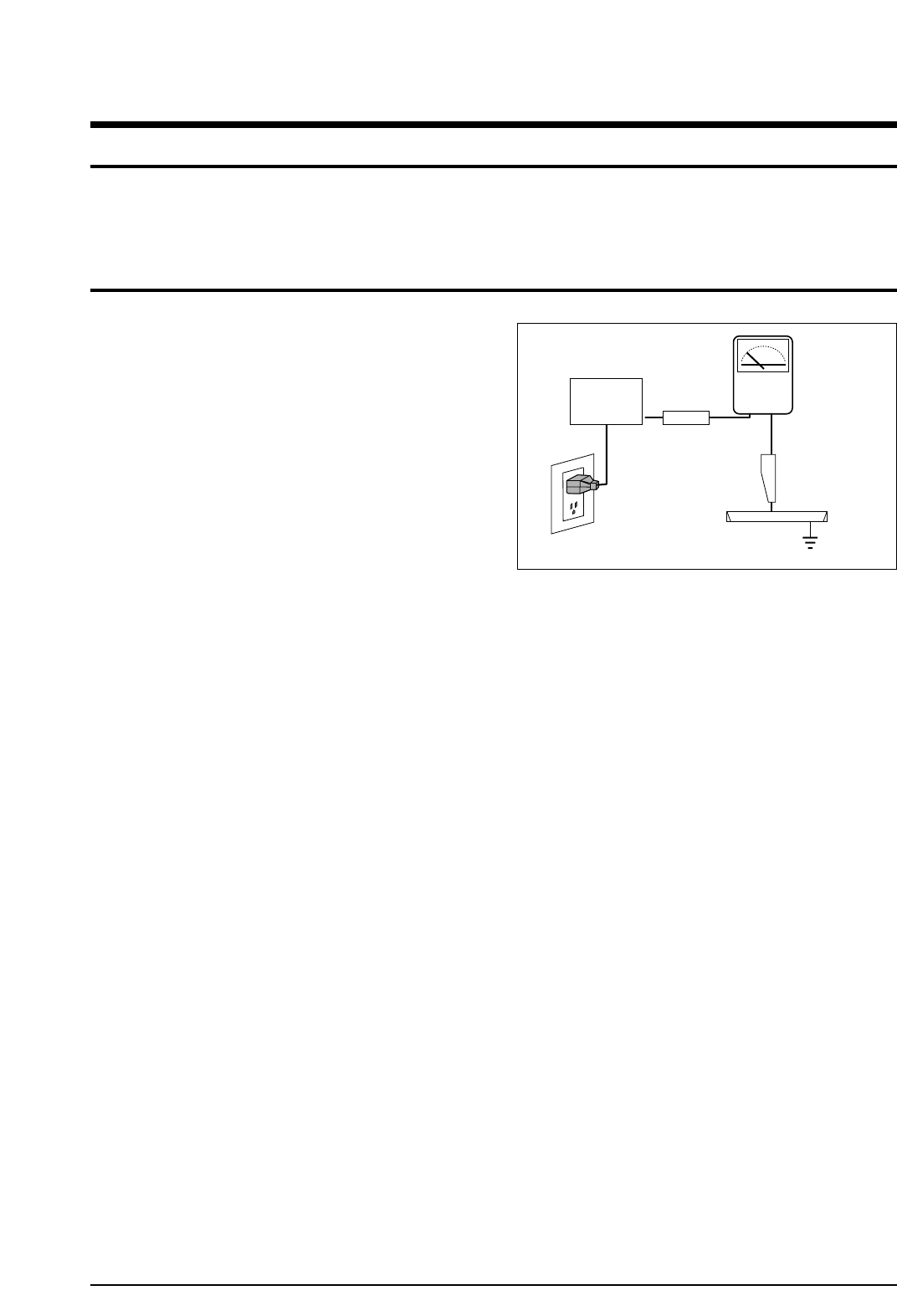

Fig. 1-1 AC Leakage Test

6. Antenna Cold Check:

With the unit’s AC plug disconnected from the

AC source, connect an electrical jumper across

the two AC prongs. Connect one lead of the

ohmmeter to an AC prong. Connect the other

lead to the coaxial connector.

7. X-ray Limits:

The picture tube is especially designed to pro-

hibit X-ray emissions. To ensure continued

X-ray protection, replace the picture tube only

with one that is the same type as the original.

Carefully reinstall the picture tube shields and

mounting hardware; these also provide X-ray

protection.

8. High Voltage Limits:

High voltage must be measured each time ser-

vicing is done on the B+, horizontal deflection

or high voltage circuits. Correct operation of

the X-ray protection circuits must be

reconfirmed whenever they are serviced.

(X-ray protection circuits also may be called

“horizontal disable” or “hold-down”.)

Heed the high voltage limits. These include

the X–ray Protection Specifications Label, and

the Product Safety and X-ray Warning Note on

the service data schematic.

Precautions

Samsung Electronics 1-1

LEAKAGE

CURRENT

TESTER

DEVICE

UNDER

TEST TEST ALL

EXPOSED METAL

SURFACES

3-WIRE CORD

ALSO TEST WITH

PLUG REVERSED

(USING AC ADAPTER

PLUG AS REQUIRED) EARTH

GROUND

(READING SHOULD

NOT BE ABOVE

0.5mA)

Follow these safety, servicing and ESD precautions to prevent damage and protect against potential

hazards such as electrical shock and X-rays.

1-1 Safety Precautions (Continued)

9. High voltage is maintained within specified

limits by close-tolerance, safety-related

components and adjustments. If the high

voltage exceeds the specified limits, check

each of the special components.

10. Design Alteration Warning:

Never alter or add to the mechanical or

electrical design of this unit. Example: Do not

add auxiliary audio or video connectors. Such

alterations might create a safety hazard. Also,

any design changes or additions will void the

manufacturer’s warranty.

11. Hot Chassis Warning:

Some TV receiver chassis are electrically

connected directly to one conductor of the AC

power cord. If an isolation transformer is not

used, these units may be safely serviced only

if the AC power plug is inserted so that the

chassis is connected to the ground side of the

AC source.

To confirm that the AC power plug is inserted

correctly, do the following: Using an AC

voltmeter, measure the voltage between the

chassis and a known earth ground. If the

reading is greater than 1.0V, remove the AC

power plug, reverse its polarity and reinsert.

Re-measure the voltage between the chassis

and ground.

12. Some TV chassis are designed to operate with

85 volts AC between chassis and ground,

regardless of the AC plug polarity. These units

can be safely serviced only if an isolation

transformer inserted between the receiver and

the power source.

13. Some TV chassis have a secondary ground

system in addition to the main chassis ground.

This secondary ground system is not

isolated from the AC power line. The two

ground systems are electrically separated by

insulating material that must not be defeated

or altered.

14. Components, parts and wiring that appear to

have overheated or that are otherwise

damaged should be replaced with parts that

meet the original specifications. Always

determine the cause of damage or overheat-

ing, and correct any potential hazards.

15. Observe the original lead dress, especially

near the following areas: Antenna wiring,

sharp edges, and especially the AC and high

voltage power supplies. Always inspect for

pinched, out-of-place, or frayed wiring. Do

not change the spacing between components

and the printed circuit board. Check the AC

power cord for damage. Make sure that leads

and components do not touch thermally hot

parts.

16. Picture Tube Implosion Warning:

The picture tube in this receiver employs

“integral implosion” protection. To ensure

continued implosion protection, make sure

that the replacement picture tube is the same

as the original.

17. Do not remove, install or handle the picture

tube without first putting on shatterproof

goggles equipped with side shields. Never

handle the picture tube by its neck. Some

“in-line” picture tubes are equipped with a

permanently attached deflection yoke; do not

try to remove such “permanently attached”

yokes from the picture tube.

18. Product Safety Notice:

Some electrical and mechanical parts have

special safety-related characteristics which

might not be obvious from visual inspection.

These safety features and the protection they

give might be lost if the replacement compo-

nent differs from the original—even if the

replacement is rated for higher voltage,

wattage, etc.

Components that are critical for safety are

indicated in the circuit diagram by shading,

( ) or ( ).

Use replacement components that have the

same ratings, especially for flame resistance

and dielectric strength specifications.

A replacement part that does not have the

same safety characteristics as the original

might create shock, fire or other hazards.

Precautions

1-2 Samsung Electronics

1-2 Servicing Precautions

1. Servicing precautions are printed on the

cabinet. Follow them.

2. Always unplug the unit’s AC power cord from

the AC power source before attempting to: (a)

Remove or reinstall any component or

assembly, (b) Disconnect an electrical plug or

connector, (c) Connect a test component in

parallel with an electrolytic capacitor.

3. Some components are raised above the printed

circuit board for safety. An insulation tube or

tape is sometimes used. The internal wiring is

sometimes clamped to prevent contact with

thermally hot components. Reinstall all such

elements to their original position.

4. After servicing, always check that the screws,

components and wiring have been correctly

reinstalled. Make sure that the portion around

the serviced part has not been damaged.

5. Check the insulation between the blades of the

AC plug and accessible conductive parts

(examples: metal panels, input terminals and

earphone jacks).

6. Insulation Checking Procedure: Disconnect the

power cord from the AC source and turn the

power switch ON. Connect an insulation

resistance meter (500V) to the blades of the AC

plug.

The insulation resistance between each blade

of the AC plug and accessible conductive parts

(see above) should be greater than 1 megohm.

7. Never defeat any of the B+ voltage interlocks.

Do not apply AC power to the unit (or any of

its assemblies) unless all solid-state heat sinks

are correctly installed.

8. Always connect a test instrument’s ground

lead to the instrument chassis ground before

connecting the positive lead; always remove

the instrument’s ground lead last.

9. When some parts inside the optical engine

(except lamp) are damaged, replace the whole

optical engine.

Precautions

Samsung Electronics 1-3

Warning 1 : First read the “Safety Precautions” section of this manual. If some unforeseen circumstance creates a

conflict between the servicing and safety precautions, always follow the safety precautions.

Warning 2 : An electrolytic capacitor installed with the wrong polarity might explode.

1-3 Precautions for Electrostatically Sensitive Devices (ESDs)

1. Some semiconductor (“solid state”) devices

are easily damaged by static electricity. Such

components are called Electrostatically

Sensitive Devices (ESDs); examples include

integrated circuits and some field-effect

transistors. The following techniques will

reduce the occurrence of component damage

caused by static electricity.

2. Immediately before handling any semicon

ductor components or assemblies, drain the

electrostatic charge from your body by

touching a known earth ground. Alternatively,

wear a discharging wrist-strap device. (Be

sure to remove it prior to applying power—

this is an electric shock precaution.)

3. After removing an ESD-equipped assembly,

place it on a conductive surface such as

aluminum foil to prevent accumulation of

electrostatic charge.

4. Do not use freon-propelled chemicals. These

can generate electrical charges that damage

ESDs.

5. Use only a grounded-tip soldering iron when

soldering or unsoldering ESDs.

6. Use only an anti-static solder removal device.

Many solder removal devices are not rated as

“anti-static”; these can accumulate sufficient

electrical charge to damage ESDs.

7. Do not remove a replacement ESD from its

protective package until you are ready to

install it. Most replacement ESDs are

packaged with leads that are electrically

shorted together by conductive foam,

aluminum foil or other conductive materials.

8. Immediately before removing the protective

material from the leads of a replacement ESD,

touch the protective material to the chassis or

circuit assembly into which the device will be

installed.

9. Minimize body motions when handling

unpackaged replacement ESDs. Motions such

as brushing clothes together, or lifting a foot

from a carpeted floor can generate enough

static electricity to damage an ESD.

Precautions

1-4 Samsung Electronics

Reference Information

Samsung Electronics 2-1

2. Reference Information

2-1 Tables of Abbreviations and Acronyms

dBm

°C

°F

°K

GHz

ips

kWh

kHz

kΩ

km/h

kVA

MHz

Ampere

Ampere-hour

Angstrom

Decibel

Decibel Referenced to One

Milliwatt

Degree Celsius

Degree Fahrenheit

degree Kelvin

Farad

Gauss

Gigahertz

Gram

Henry

Hertz

Hour

Inches Per Second

Kilowatt-hour

Kilogram

Kilohertz

Kilohm

Kilometer

Kilometer Per Hour

Kilovolt

Kilovolt-ampere

Kilowatt

Liter

Megahertz

MΩ

µA

µF

µH

µm

µs

µW

Ω

rpm

rps

Megavolt

Megawatt

Megohm

Meter

Microampere

Microfarad

Microhenry

Micrometer

Microsecond

Microwatt

Milliampere

Milligram

Millihenry

Milliliter

Millimeter

Millisecond

Millivolt

Nanofarad

Ohm

Picofarad

Pound

Revolutions Per Minute

Revolutions Per Second

Second (Time)

Volt

Volt-ampere

Watt

Watt-hour

Table 2-1 Abbreviations

Reference Information

2-2 Samsung Electronics

Table 2-2 Table of Acronyms

ABL

ACC

AFC

AFT

AGC

ANSI

APC

A/V

AVC

BAL

BPF

B-Y

CATV

CCD

CCTV

CRT

DVM

EIA

ESD

FBP

FBT

GND

G-Y

HI-FI

Automatic Brightness Limiter

Alternating Current

Automatic Chroma Control

Audio Frequency

Automatic Frequency Control

Automatic Fine Tuning

Automatic Gain Control

Amplitude Modulation

American National Standards Institute

Automatic Phase Control

Automatic Picture Control

Audio-Video

Automatic Volume Control

Balance

Bandpass Filter

Blue-Y

Community Antenna Television (Cable TV)

Citizens Band

Charge Coupled Device

Closed Circuit Television

Channel

Cathode Ray Tube

Continuous Wave

Direct Current

Digital Volt Meter

Electronics Industries Association

Electrostatic Discharge

Electrostatically Sensitive Device

Feedback Pulse

Flyback Transformer

Flip-Flop

Frequency Modulation

Fail Safe

Ground

Green-Y

High

High-Frequency

High Fidelity

Inductance-Capacitance

Integrated Circuit

Intermediate Frequency

I/O

LED

MOSFET

MTS

NAB

NEC

NTSC

OSD

PCB

PLL

PWM

QIF

R-Y

SAP

SAW

SIF

SMPS

S/N

TTL

UHF

VCD

VCO

VCXO

VHF

VIF

VTR

VTVM

Input/output

Left

Low

Light Emitting Diode

Low Frequency

Metal-Oxide-Semiconductor-Field-Effect-Tr

Multi-channel Television Sound

National Association of Broadcasters

National Electric Code

National Television Systems Committee

On Screen Display

Printed Circuit Board

Phase-Locked Loop

Pulse Width Modulation

Quadrature Intermediate Frequency

Right

Resistor & Capacitor

Radio Frequency

Red-Y

Second Audio Program

Surface Acoustic Wave(Filter)

Sound Intermediate Frequency

Switching Mode Power Supply

Signal/Noise

Switch

Test Point

Transistor Transistor Logic

Television

Ultra High Frequency

Underwriters Laboratories

Ultraviolet

Variable-Capacitance Diode

Voltage Controlled Oscillator

Voltage Controlled Crystal Oscillator

Very High Frequency

Video Intermediate Frequency

Variable Resistor

Video Tape Recorder

Vacuum Tube Voltmeter

Transistor

IC507 EL4583CN (OPTION)

IC665 TDA7265

IC904 KS24C04

ICP02 MC14528BCP (OPTION)

ICS801 TNY253P

ICS802 PC123

IC601 TDA7429S

IC602 KA4558

IC905 PCF8574P

ICV01 TA8851BN

ICV02,ICV03 HCF4053BE

ICP01 SDA 9488X

ICP02 4931

IC101 TDA9850

IC101 LA7565B

IC471 TL494CN

IC491 74HC123P

ICZ104,ICZ103 STK392-040

IC301 LA7845

IC801 STR-F6656

IC802 SVD001

IC804 SE110N

IC806 PS2561

IC501,IC531,IC561 TDA6111Q

IC01 UPD 64082GF

IC02 UPC1862GS

IC03 5412222

Block NameNo. IC Location IC Name

Table 2 - 3 IC Line - Up

Reference Information

Samsung Electronics 2-3

2-2 IC Line Up

2-2-1 Progressive

MAIN

TERMINAL BOARD

PIP

MTS MODULE

IF MODULE

HV MODULE

CONVERGENCE

SUB

CRT

3D-COMB

Reference Information

2-4 Samsung Electronics

Block NameNo. IC Location IC Name

Table 2 - 3 IC Line - Up (Continued)

FORMAT-CONVERTER

PROSCAN

3D-PHONIC

IC01 FS310KBC

IC02 72V161621

IC03 Z9021106PSC

IC04 24C02

IC201 CIP3250A

IC202 VPC3215C

IC203 7705

IC204 SDS9280

ICP301 SDA9400

IC209 SDA9361

IC212 74F125

ICV02 CXA2011Q

ICY03 CXA1839Q

ICY17 74HCT221

ICD101 TL062CDT

ICD102 SAA7367

ICD103 TMS57052

ICD104 LC32464M

ICD105 Z9021106PSC

ICD106, ICD107 PCM1717E

ICD108,ICD109,ICD110,ICD111 TL062CDT

Reference Information

Samsung Electronics 2-5

IC665 TDA7265

IC904 KS24C04

ICS801 TNY253P

ICS802 PC123

IC601 TDA7429S

IC602 KA4558

IC905 PCF8574P

ICV01 TA8851BN

ICV02,ICV03 HCF4053BE

ICP01 SDA9488X

ICP02 4931

IC101 TDA9850

IC101 LA7565B

IC471 TL494CN

IC491 74HC123P

ICZ104,ICZ103 STK392-010

IC301 LA7845

IC801 STR-F6656

IC802 SVD001

IC804 SE110N

IC806 PS2561

IC501,IC531,IC561 TDA6111Q

IC01 UPD64082 GF

ICI02 CXA1686M

ICC03 CXD2043Q

Block NameNo. IC Location IC Name

Table 2 - 3 IC Line - Up

2-2-2 Interlace

MAIN

TERMINAL BOARD

PIP

MTS MODULE

IF MODULE

HV MODULE

CONVERGENCE

SUB

CRT

2D-COMB

Reference Information

2-6 Samsung Electronics

Block NameNo. IC Location IC Name

Table 2 - 3 IC Line - Up (Continued)

CHROMA

IC201 CXA2095S

IC203 2210

IC204, IC206 BCF4053B

IC205 CXA1839Q

Reference Information

Samsung Electronics 2-7

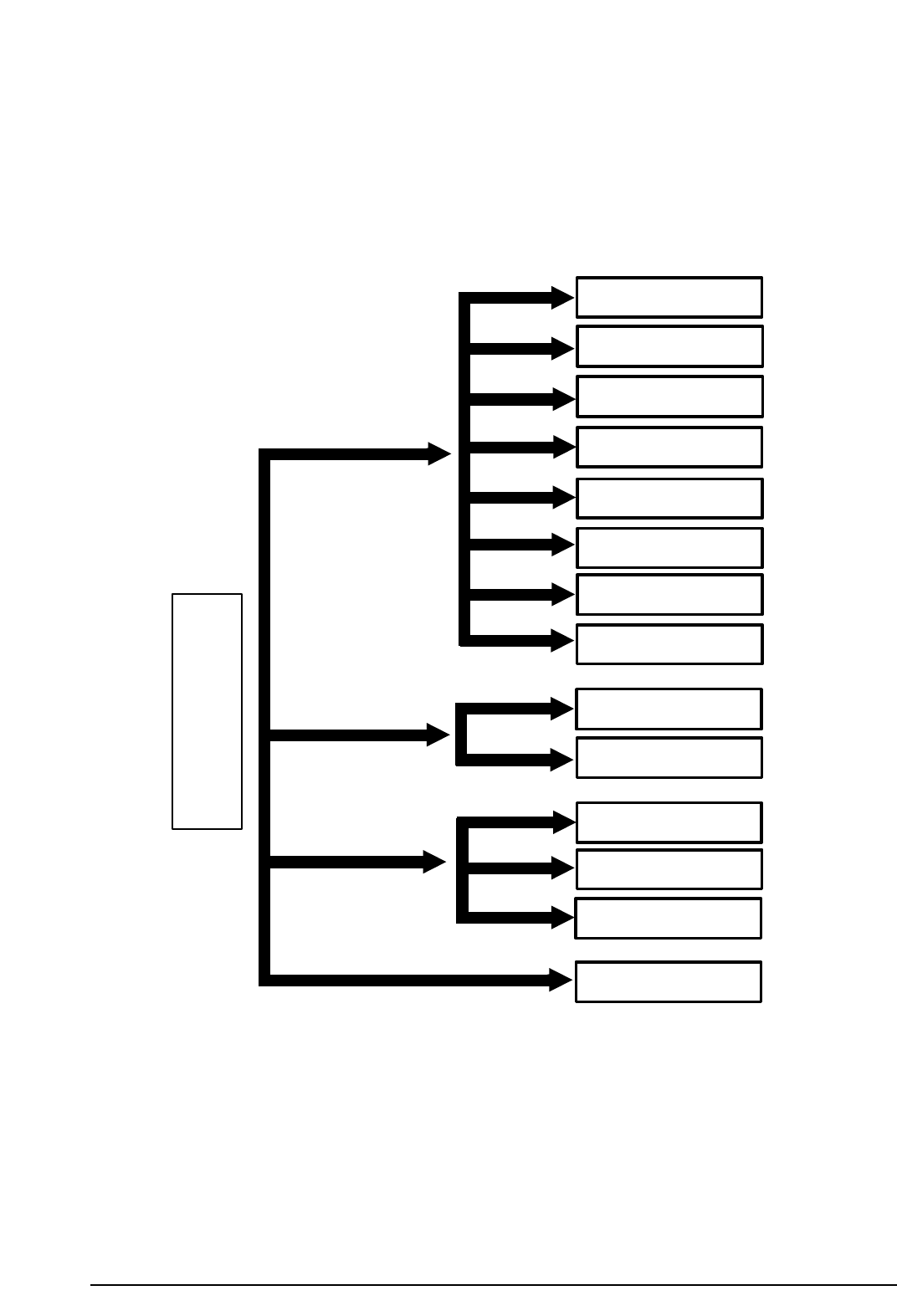

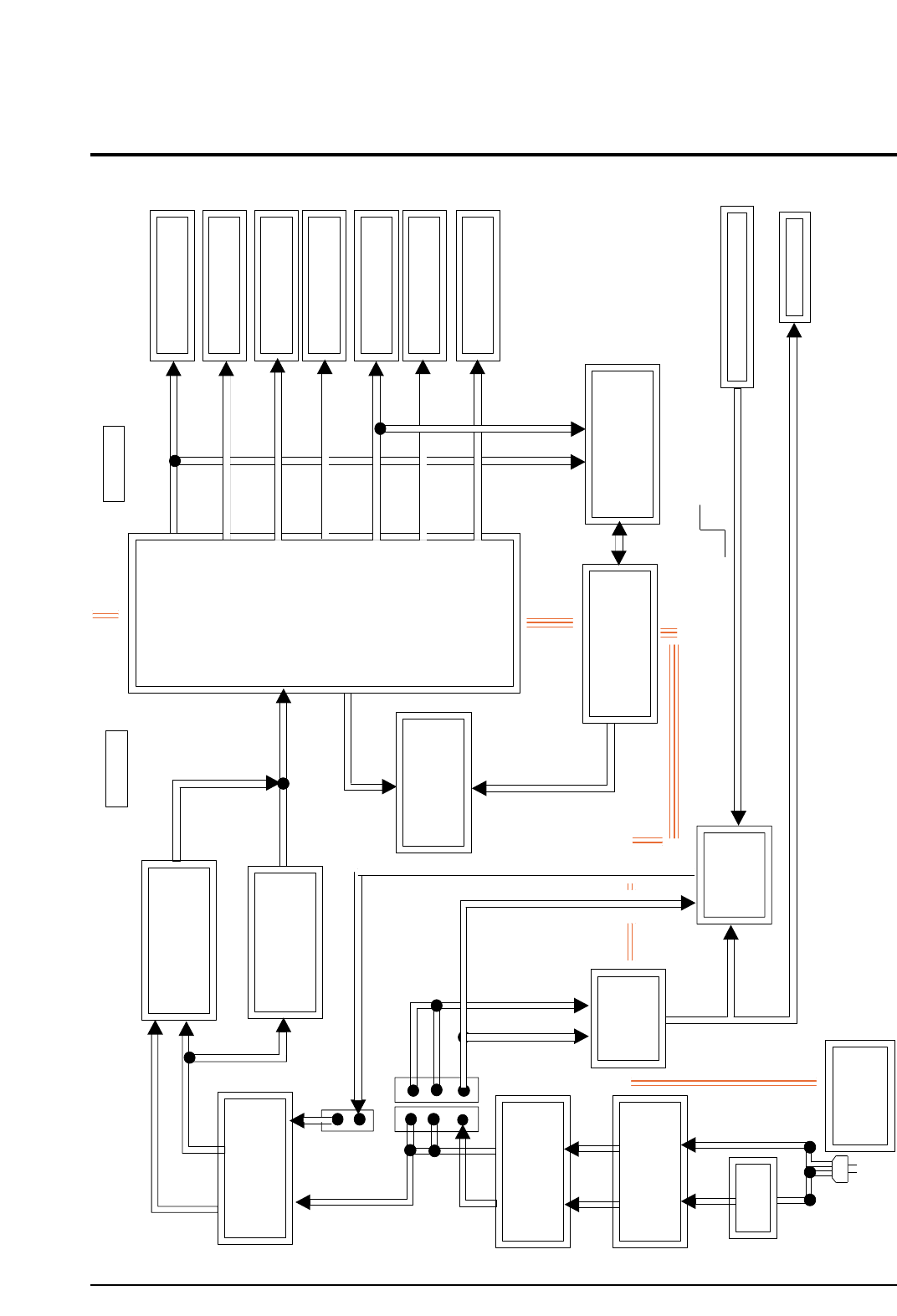

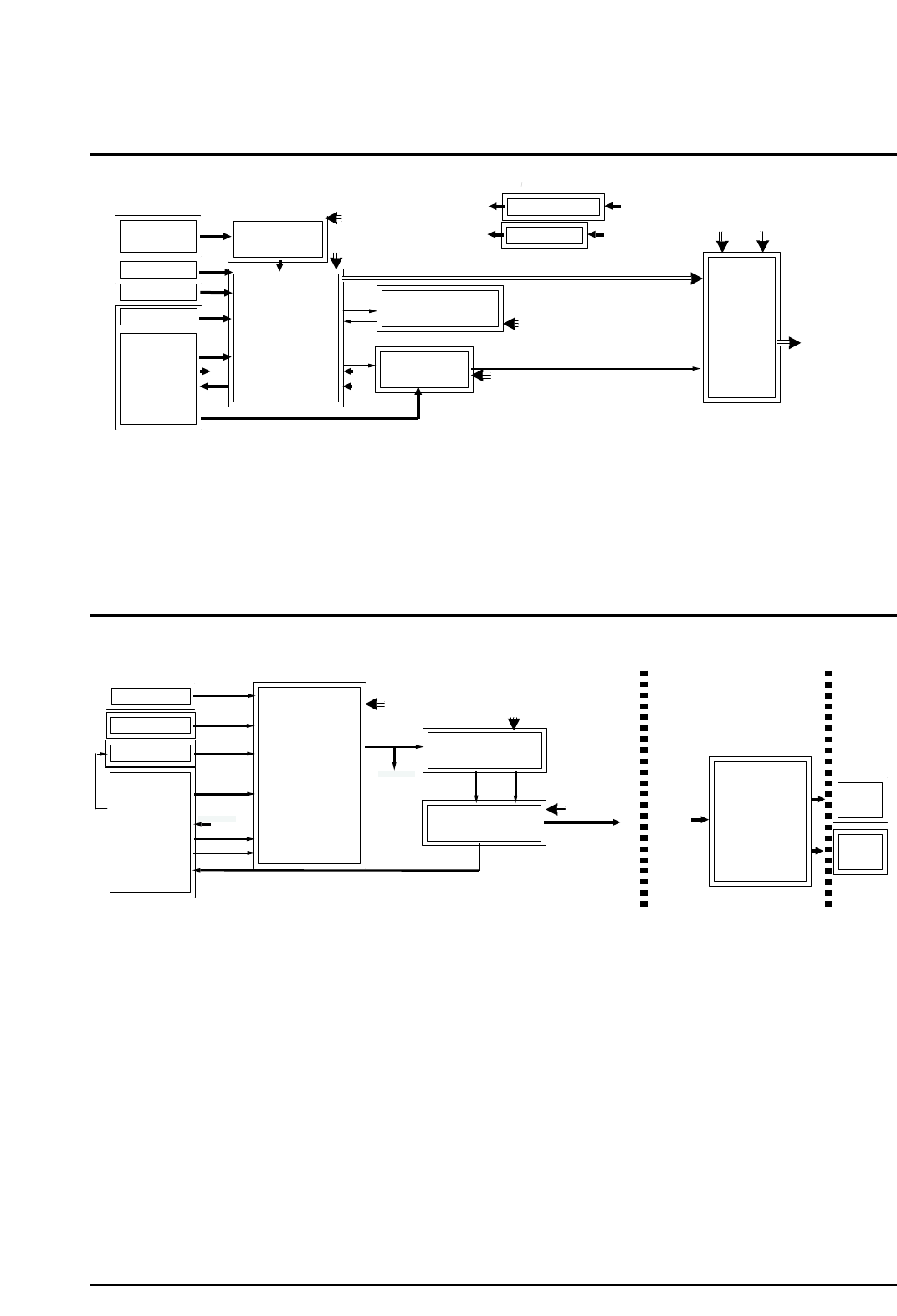

2-3 MICOM IIC BUS LINE -UP

2-3-1 Progressive

SERIAL BUS 3D-PHONIC

MODULE

IIC 2 BUS

CXA2011Q

SLAVE ADDR.: 84h

CXA1839Q

SLAVE ADDR.: 8Ah

SDA9280

SLAVE ADDR.: 2ch

CIP3250A

SLAVE ADDR.: Dch

SDA9361

SLAVE ADDR.: 8ch

IIC 1 BUS

UPD6488

SLAVE ADDR.: B8h

TDA9850

SLAVE ADDR.: B4h

XLS24C02

SLAVE ADDR.: A0h

SDA9488

PCF8574P

SLAVE ADDR.: 40h

PCF8574P

SLAVE ADDR.: 42h

TECC1070PG30A

SLAVE ADDR.: C0h

TCPN9082PC27A

SLAVE ADDR.: C6h

#30 : SDA 1

#12 : SDA 2

#11 : SCL 2

TA8851AN

SLAVE ADDR.: 90h

TDA7429S

SLAVE ADDR.: 80h

PCF8574P

SLAVE ADDR.: 40h

IIC 3 BUS

# 47 : SDA 3

# 48 : SCL 3

#31 : SCL 1

(

SDA9400

Reference Information

2-8 Samsung Electronics

2-3-2 Interlace

SERIAL BUS 3D-PHONIC

MODULE

CXA2095

CXA1839Q

IIC 2 BUS

IIC 1 BUS

UPD6488

SLAVE ADDR.: B8h

TDA9850

SLAVE ADDR.: B4h

XLS24C02

SLAVE ADDR.: A0h

SDA9488

PCF8574P

SLAVE ADDR.: 40h

PCF8574P

SLAVE ADDR.: 42h

TECC1070PG30A

SLAVE ADDR.: C0h

TCPN9082PC27A

SLAVE ADDR.: C6h

#30 : SDA 1

#12 : SDA 2

#11 : SCL 2

TA8851AN

SLAVE ADDR.: 90h

TDA7429S

SLAVE ADDR.: 80h

PCF8574P

SLAVE ADDR.: 40h

IIC 3 BUS

# 47 : SDA 3

# 48 : SCL 3

#31 : SCL 1

(

Specifications

Samsung Electronics 3-1

3. Specifications

Broadcasting System

Scanning System

Tuning Range

Antenna Impedance

Intermediate Frequency

Sound Output

Rated Voltage

W/B Coordinates

High Voltage

FUSE

Power Consumption

NTSC

Progressive Scanning

VHF : CH2 ~ CH13

UHF : CH14 ~ CH69

Cable : CH1, CH14 ~ 125

75 ohm Unbalanced

Video : 45.75 MHz

Sound : 42.25 MHz

Chrominance Subcarrier : 42.17 MHz

STD : 15W

FULL MAX : 20W

120V / 60 Hz

Hx : 292 Hy : 260 Y : 14.5

Lx : 293 Ly : 263 Y : 0.23

31KV

250V/6.3A

CODE NO : 3601-000300

285W

Alignment and Adjustments

Samsung Electronics 4-1

4. Alignment and Adjustments

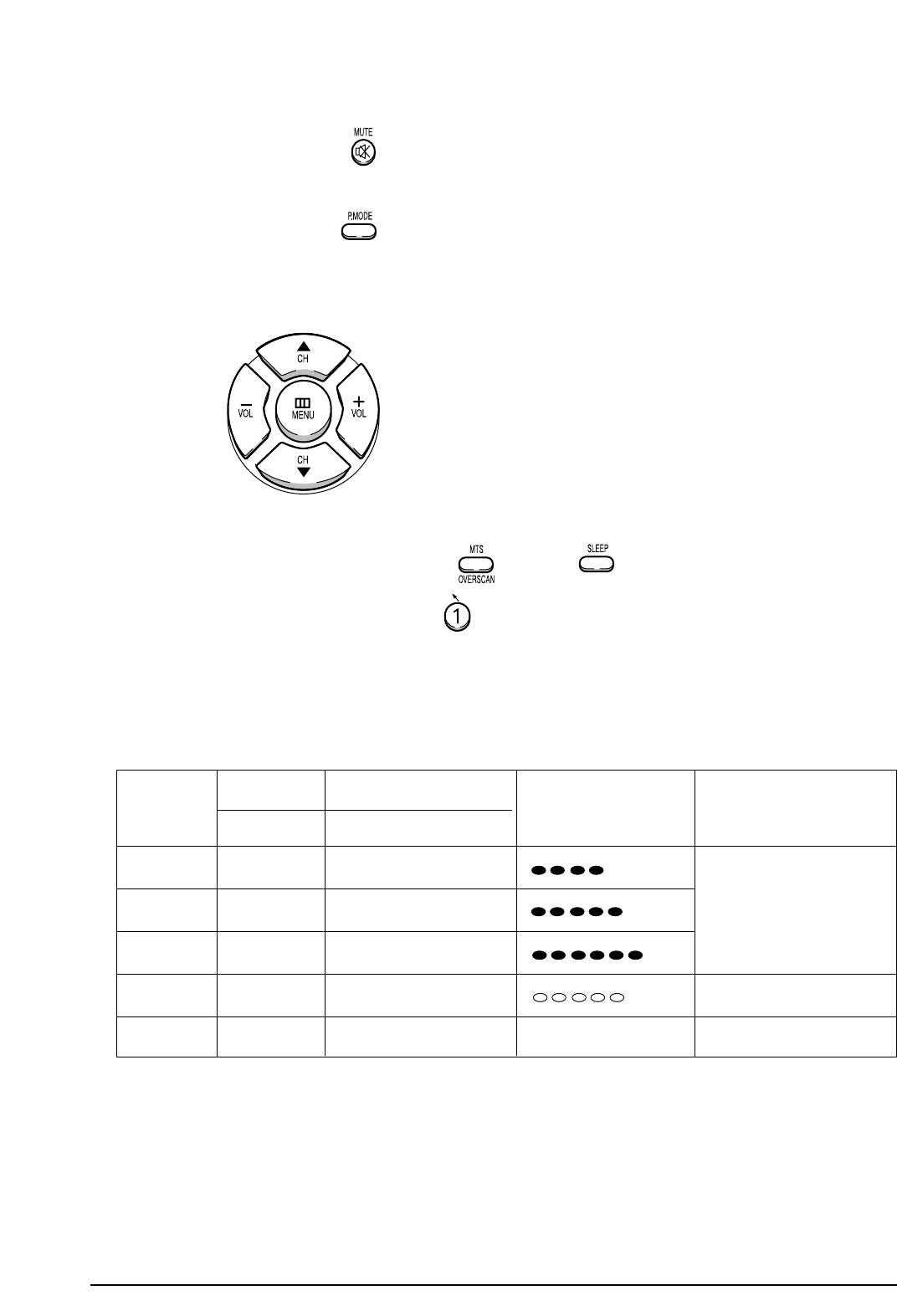

4-1 When entering the service mode:

1. Turn on the TV, and then select “STANDARD”on the picture adjustment mode.

2. Turn off the TV (STAND-BY).

3. Enter the service mode by pressing the remote control keys in the following sequence :

MUTE 1→8→2→Power On

Note : If necessary, re-do steps 1~3.

Initial display when the service mode is switched.

SERVICE NORMAL 480P

GEOMETRICS



SOUND

PIP

OPTION

READ

RESET

1. When a RF signal is received

SERVICE NORMAL 1080i

GEOMETRICS



SOUND

PIP

OPTION

READ

RESET

2. When a DTV signal is received

Alignment and Adjustments

4-2 Samsung Electronics

MAIN MENU

ZOOM

COMPRESS

FREEZE

SET UP

RESET

EXIT

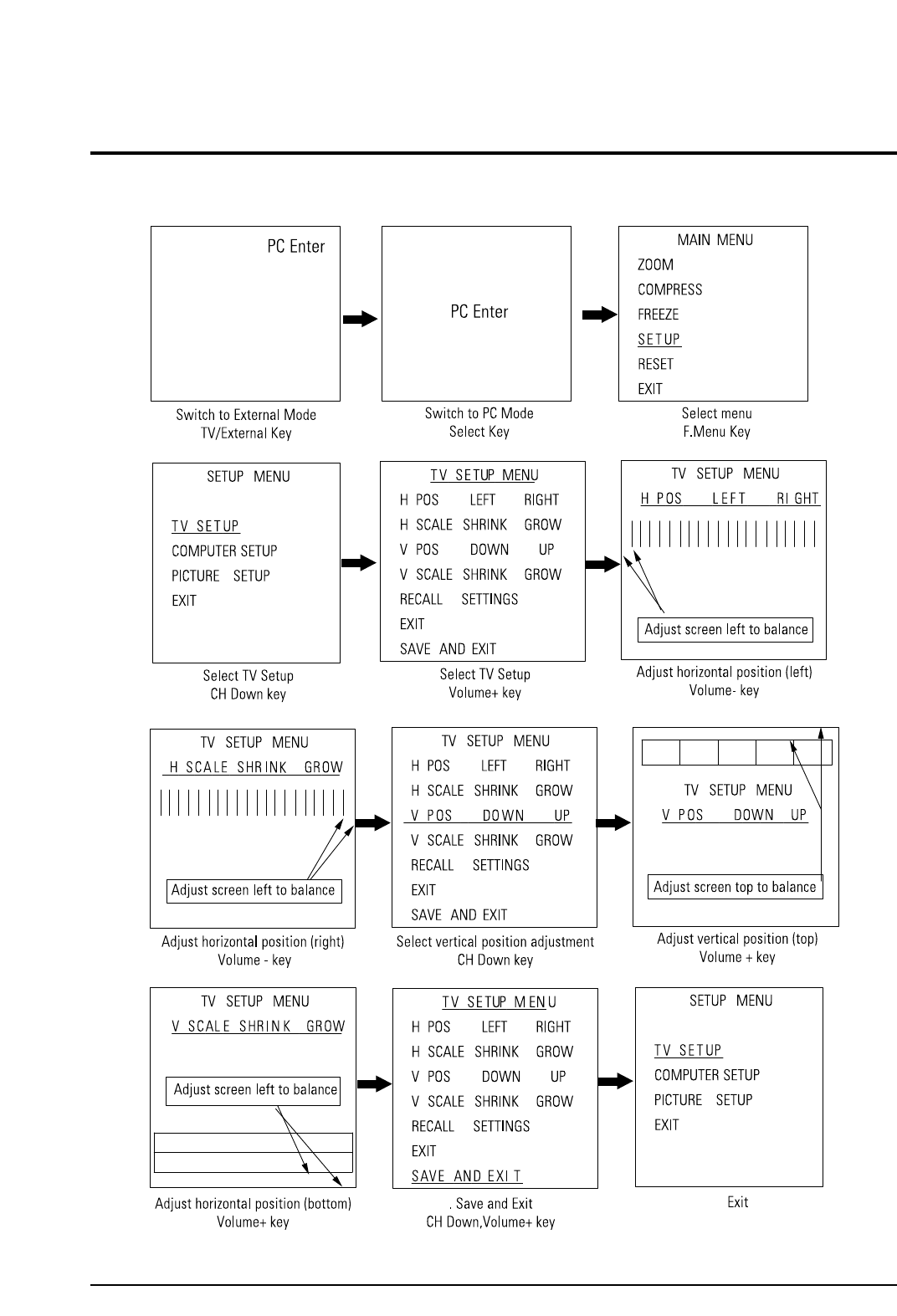

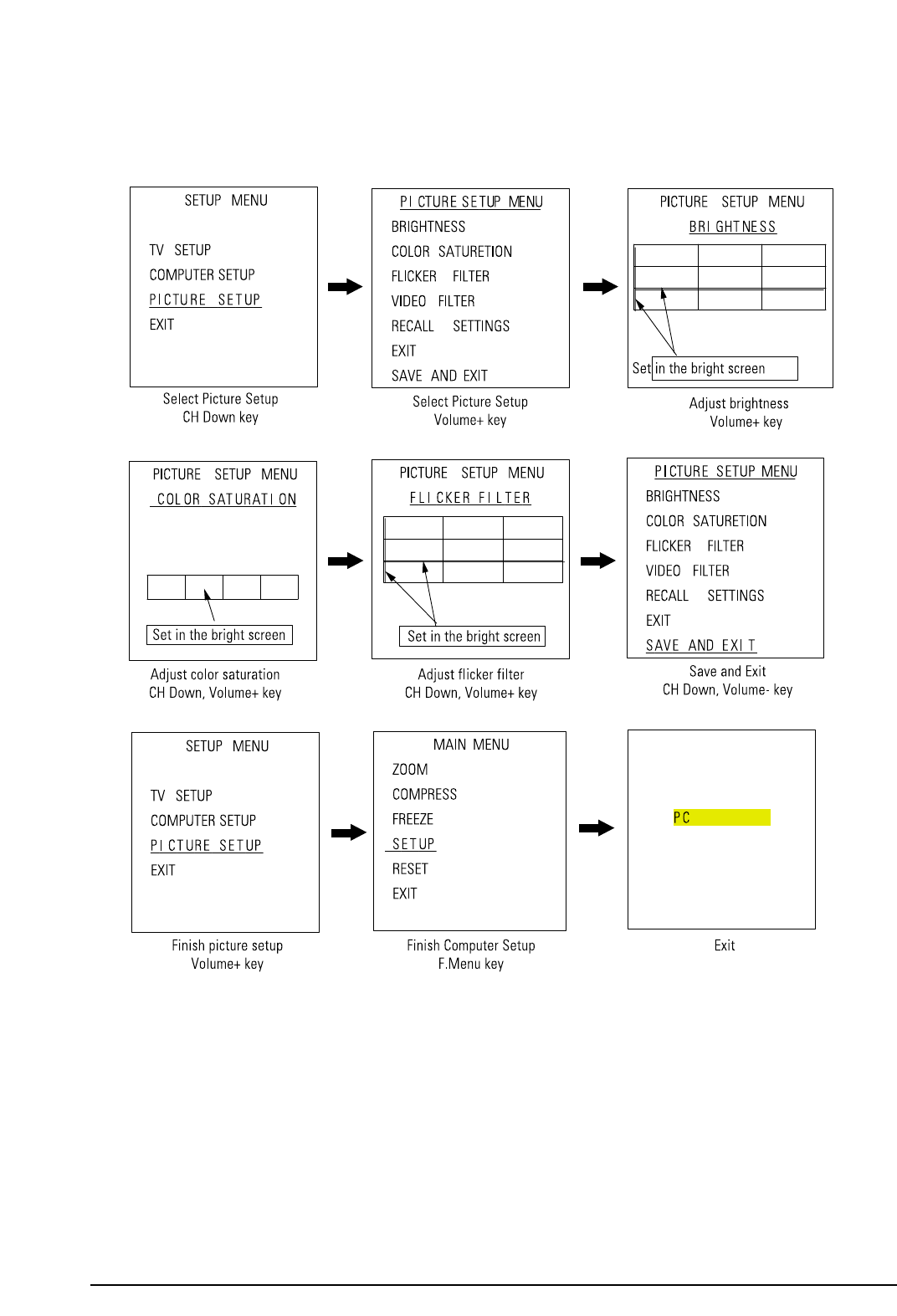

3. When the PC mode is switched

MAIN MENU MENU DISPLAY

CH UP/DOWN Select item by moving cursor

VOL UP/DOWN Decrease or increase the adjustment values

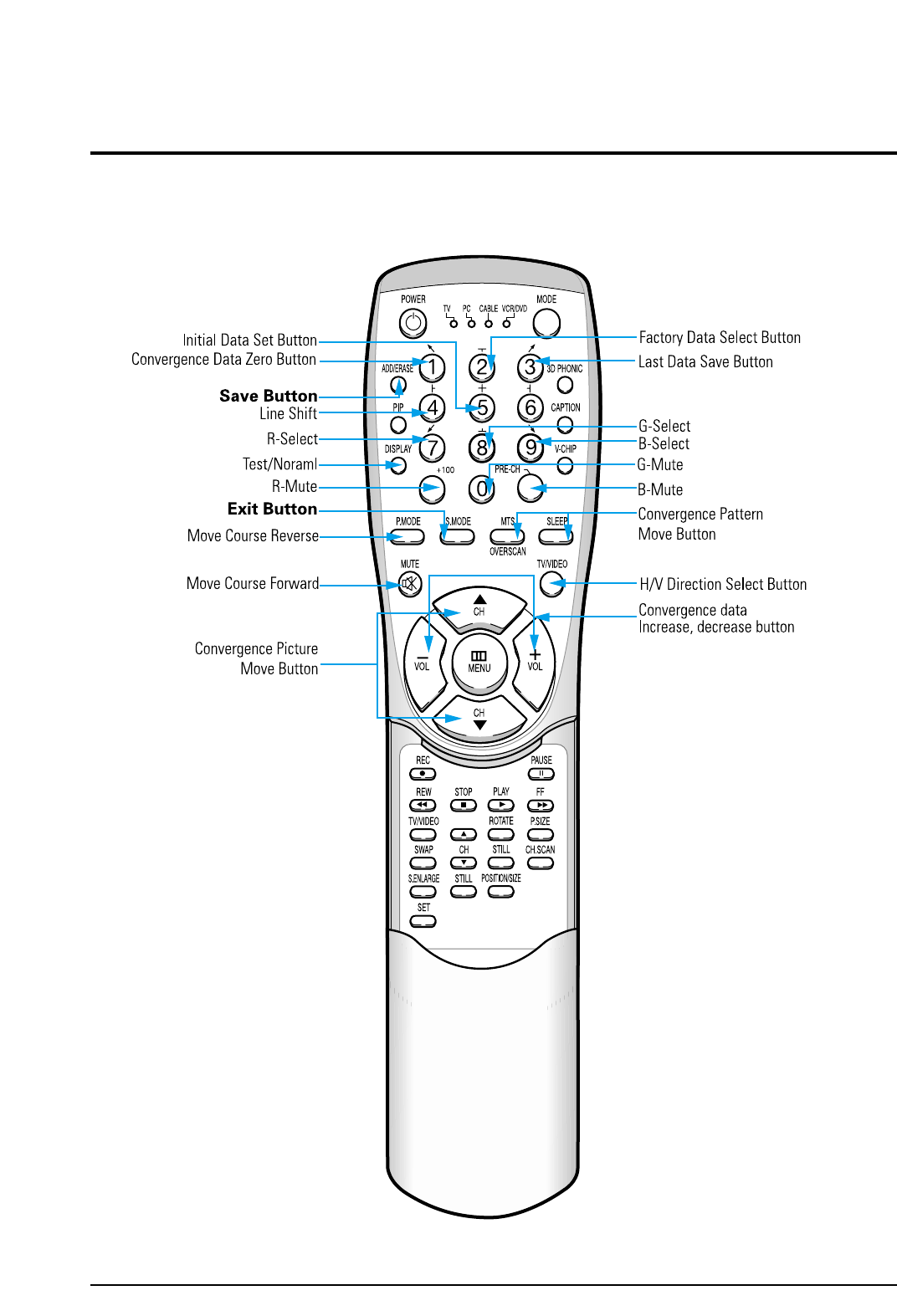

4. Service Mode Control Keys

Note : The PC mode can be switched to the service mode by pressing the

F.Mode Key (only on the factory remote control).

Alignment and Adjustments

Samsung Electronics 4-3

Item TV/480P Item 1080i

43” 53” 61”

VSC

PPH

UPC

LOC

132

122

114

104

100

128

132

122

114

104

100

128

114

104

100

128

HEH

VAN

VBO

HSP

VS4

VA4

HS4

HA4

HP4

131

128

141

150

106

131

128

141

150

106

131

128

141

125

VSC

PPH

UPC

LOC

HEH

VAN

VBO

HSP

VS4

VA4

HS4

HA4

HP4

53” 61” Remark

128

114

104

114

100

128

131

128

139

150

106

131

125

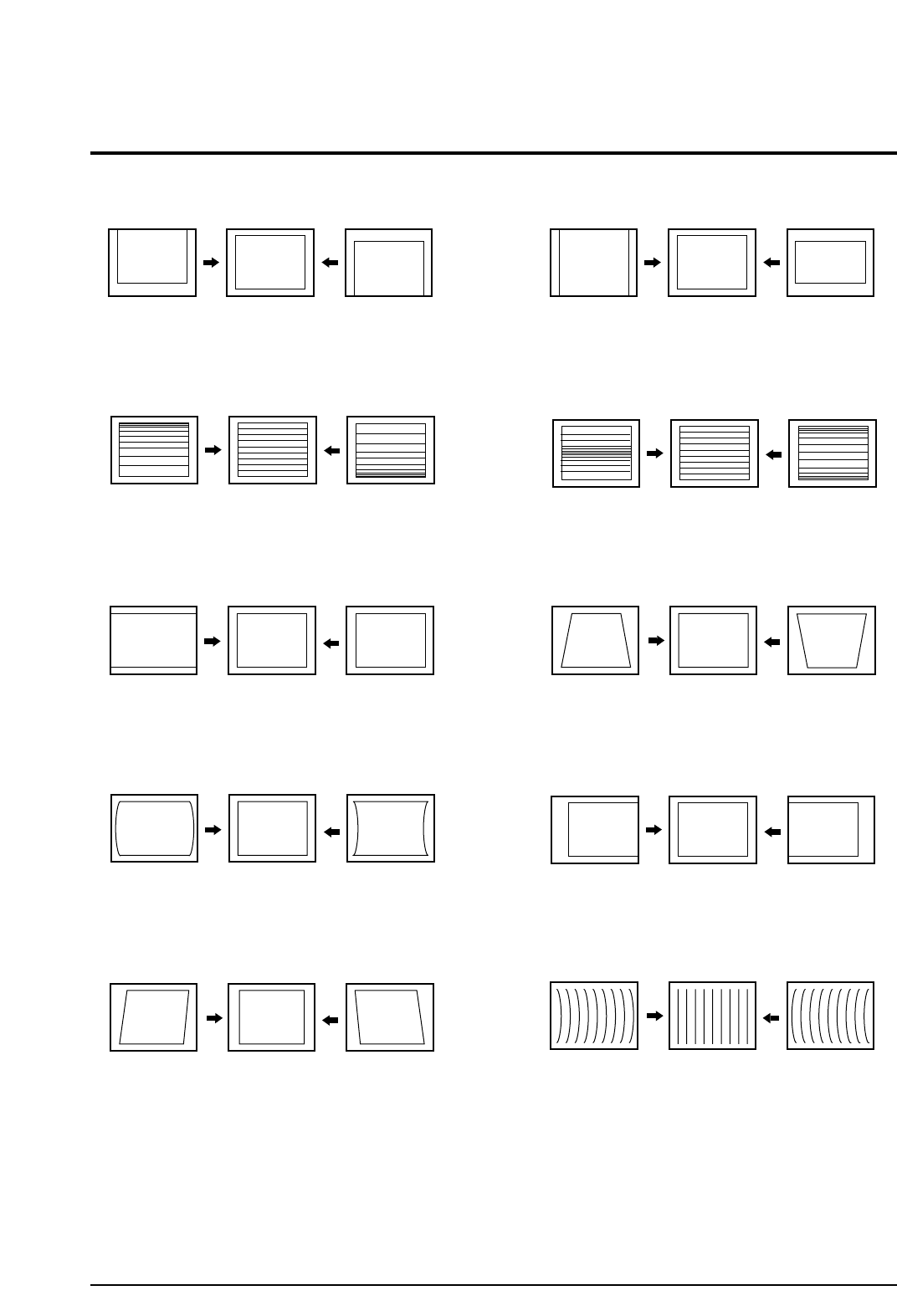

GEOMETRIC

4-2 Facotry Data

4-2-1 Progressive

Alignment and Adjustments

4-4 Samsung Electronics

Model Remark

OPTION

PCJ533RF

PCJ533R

PCJ534RF

PCK520R

PCJ614RF

PCK5315R

PCK6115R

Byte Model Byte

PCJ534R

HCJ552W

HCJ652W

BYTE 0 : 71

BYTE 1 : 54

BYTE 0 : 71

BYTE 1 : 50

BYTE 0 : 71

BYTE 1 : 44

BYTE 0 : 71

BYTE 1 : 40

BYTE 0 : 79

BYTE 1 : 41

BYTE 0 : 39

BYTE 1 : 41

Item Remark


RDR

GDR

BDR

RCT

GCT

BCT

ABM

ATH

Picture Item Picture

RYR

RYB

GYR

GYB

GAM

HWD

HTM

HSE

Item Remark

PICTURE 2

SBR

SCT

SCL

SHU

CTI

SSP

SFO

Picture Item Picture

POV

LTI

VML

VMD

DCT

DPC

Alignment and Adjustments

Samsung Electronics 4-5

Item Initial Value Item Initial Value

43”

VCP

VLN

VSC

HPC

HPP

HAA

HAB

HUC

HLC

VAS

VSR

VUV

VLV

VJS

VZS

VRP

VBS

HBS

HLB

HRB

43” Remark

GEOMETRIC

4-2-2 Interlace

Remark

Variable

Item Initial Value Item Initial Value

43”

DCT

DPI

DCL

ABL

POV

SFO

SCT

SBT

SCR

STT

GAM

AFC

SSP

AMS

FHS

CFS

LWC

COR


Remark

Variable

52” 43”

Remark

Variable

52”

Alignment and Adjustments

4-6 Samsung Electronics

Item Initial Value Item Initial Value

43”

PIC

HUE

BRT

RYR

RYB

SHP

PICTURE 2

REMARK

52”

43”

REMARK

52”

Item Initial Value

43”

SEPERATE 15

SOUND

Remark

52”

Item Initial Value Item Initial Value

43”

Contrast

HUE

POS-HOR-L

POS-HOR-R

POS-VER-U

POS-VER-D

PIP

REMARK

Variable

52”

43”

REMARK

52”

Item Initial Value

Byte0

Byte1

OPTION

Remark

Dissimilar initial values by model and function

Aging Off

Alignment and Adjustments

Samsung Electronics 4-7

Byte : 00 Name

SharpCenter50En

CXA1839(DVD)

V-Chip

AFN

Auto Power On

Note 1

Remark

Current Set Setting

Option adjustment is done in the service mode

Sharpness, Color, Tint

adjustment available

in the DVD Menu

Operate

Sharpness, Color, Tint

not adjustable

in the DVD Menu

Operate

Function

SZM-386U OPTION TABLE

Byte : 01 Name

3D Comb-filter

All Mighty Conv.

Remark

UPD6488

UPD64082

Operate

Function

Alignment and Adjustments

4-8 Samsung Electronics

4-2 Screen Change (When adjusting I2C Bus Geometric items)

8 PIN PHASE

10 V BOW

5 V ANGLE

4PIN AMP

2 V LINEARITY

6 V SIZE

3 H SIZE

9 H SHIFT

7 V - S - CORRECTION

1 V SHIFT

Alignment and Adjustments

Samsung Electronics 4-9

4-3 Beam Alignment

PRECAUTION

1. Input a crosshatch and dot pattern.

2. Select the “STANDARD” video mode.

3. Warm up the TV for at least 10 minutes.

4. Connect an audio oscillator to the pin jig between GT401~GT402 (located on the deflection

PCB) and GND.

5. Determine the ZERO-magnet area (using the beam-alignment CY)

6. Check the squarewave at the point where the focus is misaligned (Use an audio oscillator).

ADJUSTMENT

1. Cover the Red and Blue lenses.

2. Adjust the Green lens as shown in the figures below

3. Adjust the G-Focus until any light around the core disappears.

4. Cover the Green and Blue lenses.

5. Adjust the Red lens using the same method as with the Green lens.

6. Note: The Blue lens is not adjusted because its focus varies little (VM-coil is installed).

7. After the adjustments are completed, disconnect the jig pin connector.

(Creation of CPM Zero Magnet)

G-FOCUS CORE

CORE

G-FOCUS

(Creation of the 2-pole/4-pole zero magnets)

G-FOCUS CORE

(Varying G-Focus Pack)

Varying the 2-pole of VM

(Positioning the Core in the Center)

Varying the 4-pole of VM

CORE

G-FOCUS

(When VM 2-Pole Adjustment is completed) (Adjust until the light around

the core becomes a circle)

Alignment and Adjustments

4-10 Samsung Electronics

4-4 Other Adjustments

4-4-1 Screen Adjustment

1. Warm up the TV for at least 30 minutes.

2. Turn to the Video Mode (No Signal) using a

remote-control.

3. Connect an oscilloscope to RK,GK,BK.

4. Adjust the VR (VR501, VR531, VR561) screen

so that RK, GK, BK pulse is 20Vp-p each.

(Turn the R,G,B VR screen fully

counterclockwise in the area of each flyback

line.)

4-4-2 White Balance Adjustment

1. Select the “STANDARD” video mode.

2. Input 100% white pattern.

3. In the stand-by mode, press the remote-control

keys in the following sequence:

Mute → 1 → 8 → 2 → Power ON

4. Warm up the TV for at least 30 minutes.

5. Input a 10-step signal.

6. R-cut off, B-cut off, and G-cut off by pressing

the Volume +/- keys.

7. Adjust the low light with viewing the dark

side of the screen.

8. Select R-drive, G-drive, and B-drive by

pressing the Volume +/- keys.

9. Adjust the high light with viewing the light

side of the screen.

10. If necessary, redo adjustments 6~9.

11. Press the Menu key to exit.

4-4-3 Sub-Brightness Adjustment

1. Input a sub-brightness adjustment signal.

(TOSHIBA PATTERN)

2. In the stand-by mode, press the remote-control

keys in the following sequence :

Mute - 1 - 8 - 2 - Power ON

3. Select SBT by pressing the Volume +/- keys.

4. Adjust so that the 7th step on the right side of

the screen is not seen (Use the Volume +/-

keys).

5. Press the Menu key to exit.

4-4-4 High Voltage (31KV) Check

PRECAUTION

1. Input a lion head pattern.

2. Select “STANDARD” video mode.

3. Warm up the TV for at least 10 minutes.

4. Use a 1000:1 probe.

ADJUSTMENT

1. Connect the (+) terminal of the 1000:1 probe to

the high voltage distributor and the (-)

terminal to GND (located on the deflection

board).

2. Adjust VR471 (located on the deflection board)

so that the digital meter indicates

DC 31V ±0.1V.

Alignment and Adjustments

Samsung Electronics 4-11

4-4-5 F.S. (Fail Safe) Circuit Check

Note : The F.S. Circuit check must be performed

after servicing.

1. Turn on the TV.

2. Select the “STANDARD” video mode.

3. Short GT18, GT17 (located on the

Convergence PCB). Then, both sound and

picture disappear. (Note: Even if the shorted

terminals are removed, both sound and

picture do not appear. This proves the F.S.

circuit is working. )

4. To restore both sound and picture, turn off the

TV and reset it after about 30 seconds.

4-4-6 Static Focus Adjustment

PRECAUTION

1. Select the “STANDARD” video mode.

2. Input a crosshatch pattern.

3. Cover the lenses that are not being adjusted.

4. Connect a convergence jig and read data.

5. Adjust the lens for best focus.

(See Fig, 4-1, next page)

STATIC FOCUS (CONTINUED)

Vary the focus pack VR (Red, Blue) on the

front cabinet. Adjust the TV for best possible

focus around the center of the crosshatch

pattern, without losing overall screen balance.

Figure Crosshatch Pattern

Examine these points together.

4-4-7 Lens Focus Adjustment

PRECAUTIONS

1. Do this adjustment after the static focus

adjustment and the tilt adjustment.

2. Select the “STANDARD” video mode.

(Contrast:64, Brightness:32)

3. Input a crosshatch pattern.

ADJUSTMENT

1. Loosen the lens screws.

2. Cover the two lenses that are not being

adjusted.

3. Adjust the lens, observing the color aberration

vertically and horizontally within 3 blocks of

the center of the crosshatch pattern.

4. When the lens is turned clockwise, the color

aberration will change as follows:

Lens Color Aberration Change

R Orange - Crimson

G Blue - Red

B Purple - Green

5. Green lens adjustment:

Set the lens at the point where Blue just

changes to Red. If the color aberration is

irregular throughout the picture screen, adjust

the lens to show Red color aberration

(approximately 1~3 mm area) within a 3-block

grid around the horizontal center-line. If the

color aberration is irregular, adjust the lens as

shown in the diagram below. (Accurate

alignment of Green is important for overall

color quality.)

6. Red lens adjustment

Set the Red lens at the point where Orange

becomes Crimson.

7. Blue lens adjustment

Set the Blue lens at the point where Purple

becomes Green.

L1 L2

RED ABERRATION BLUE ABERRATION

L1, L2 < P

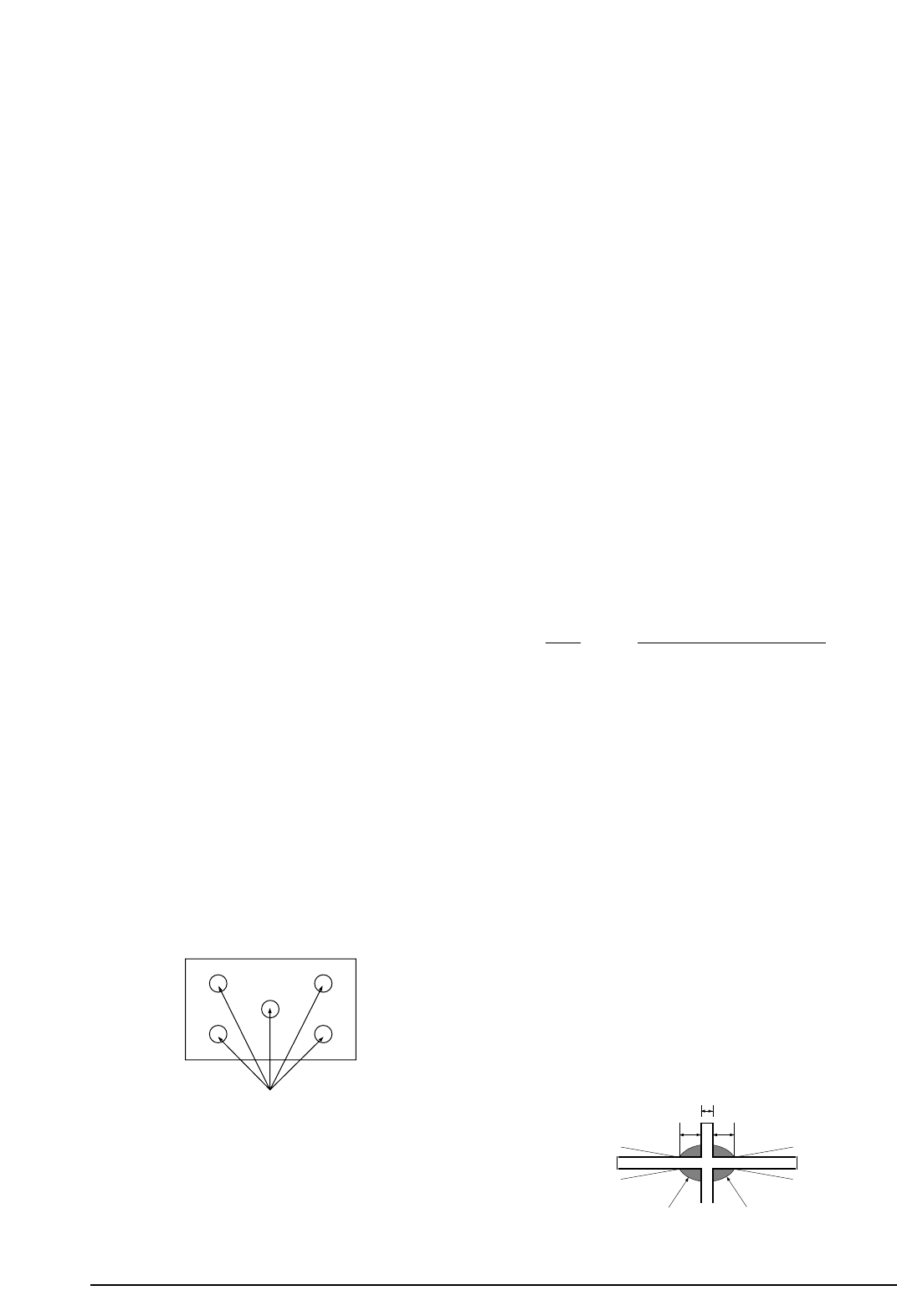

Fig. 4-1 Crosshatch Pattern.

Fig. 4-2 Color Aberration

Examine these points together

Alignment and Adjustments

4-12 Samsung Electronics

4-4-8 Horizontal Dynamic Focus Adjustment

PRECAUTION

1. Input a crosshatch pattern.

2. Select the “STANDARD” video mode.

3. Warm up the set for at least 10 minutes.

ADJUSTMENT

1. Cover the Red and Blue lenses.

2. Adjust VR491 (located on the convergence

PCB, H-Parabola).

3. Balance the left and right sides of the dynamic

focus lines.

Alignment and Adjustments

Samsung Electronics 4-13

4-5 Screen-Jig

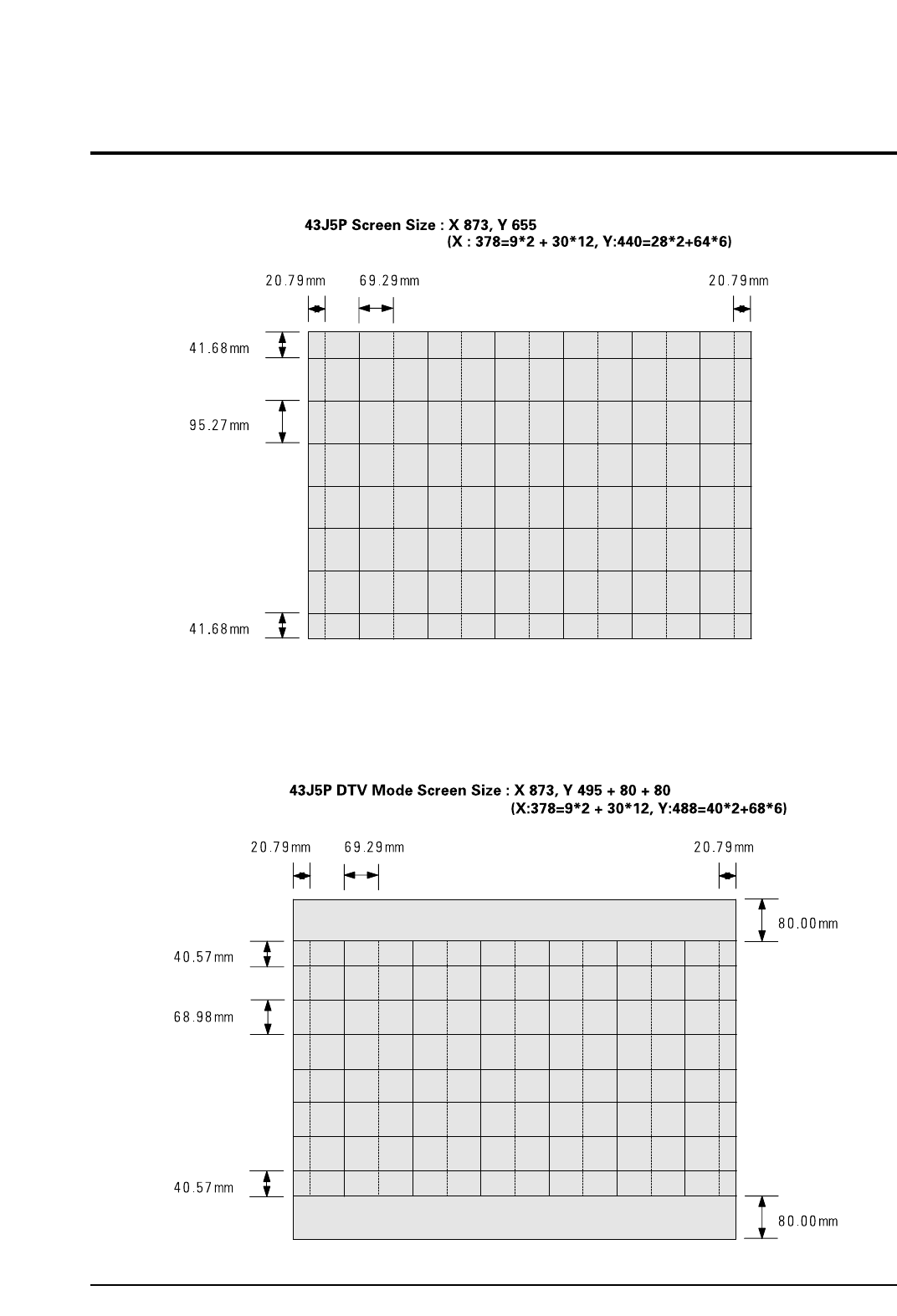

4-5-1 43J5P

4-5-2 43J5P DTV Mode

Alignment and Adjustments

4-14 Samsung Electronics

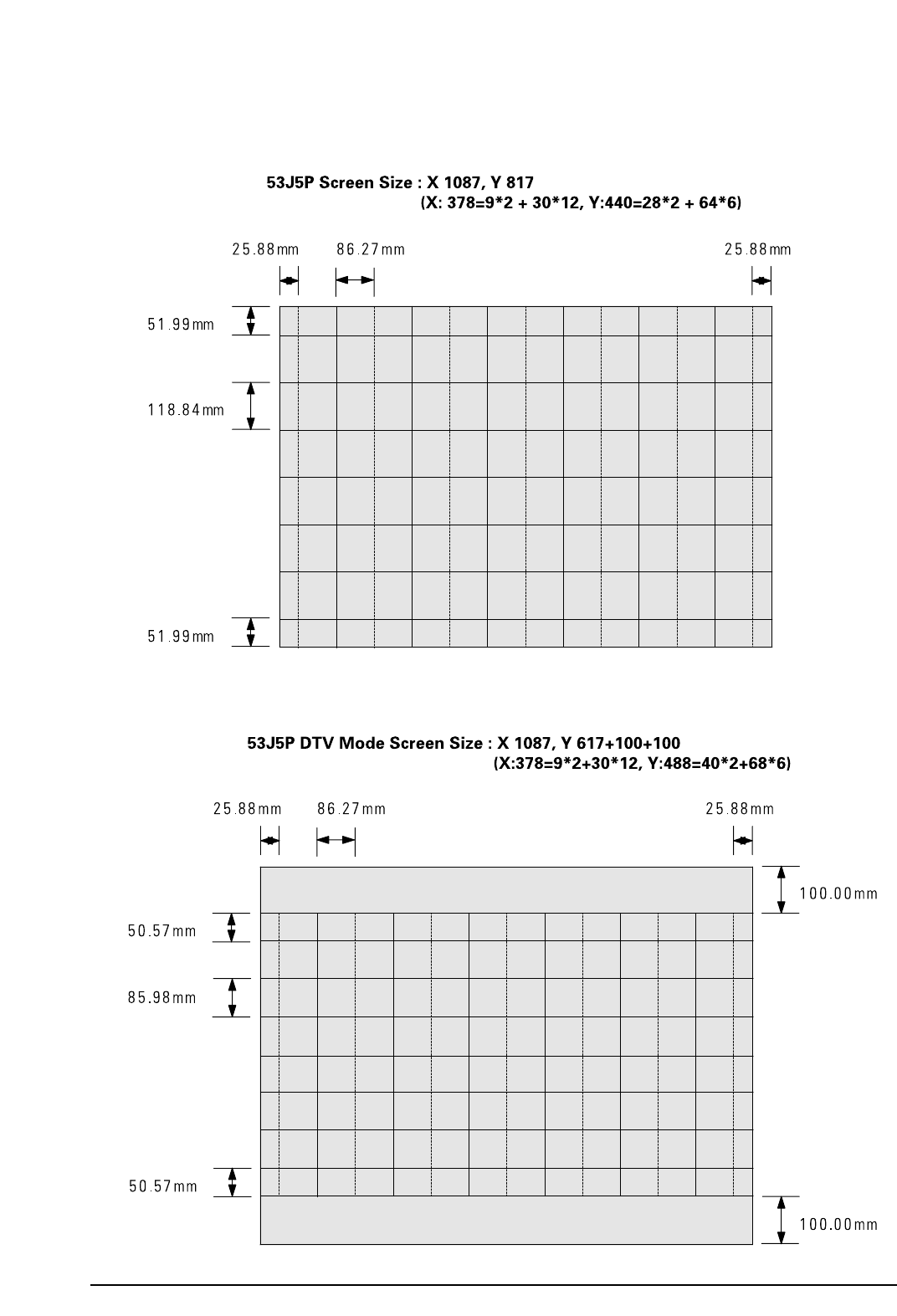

4-5-3 53J5P

4-5-4 53J5P DTV Mode

Alignment and Adjustments

Samsung Electronics 4-15

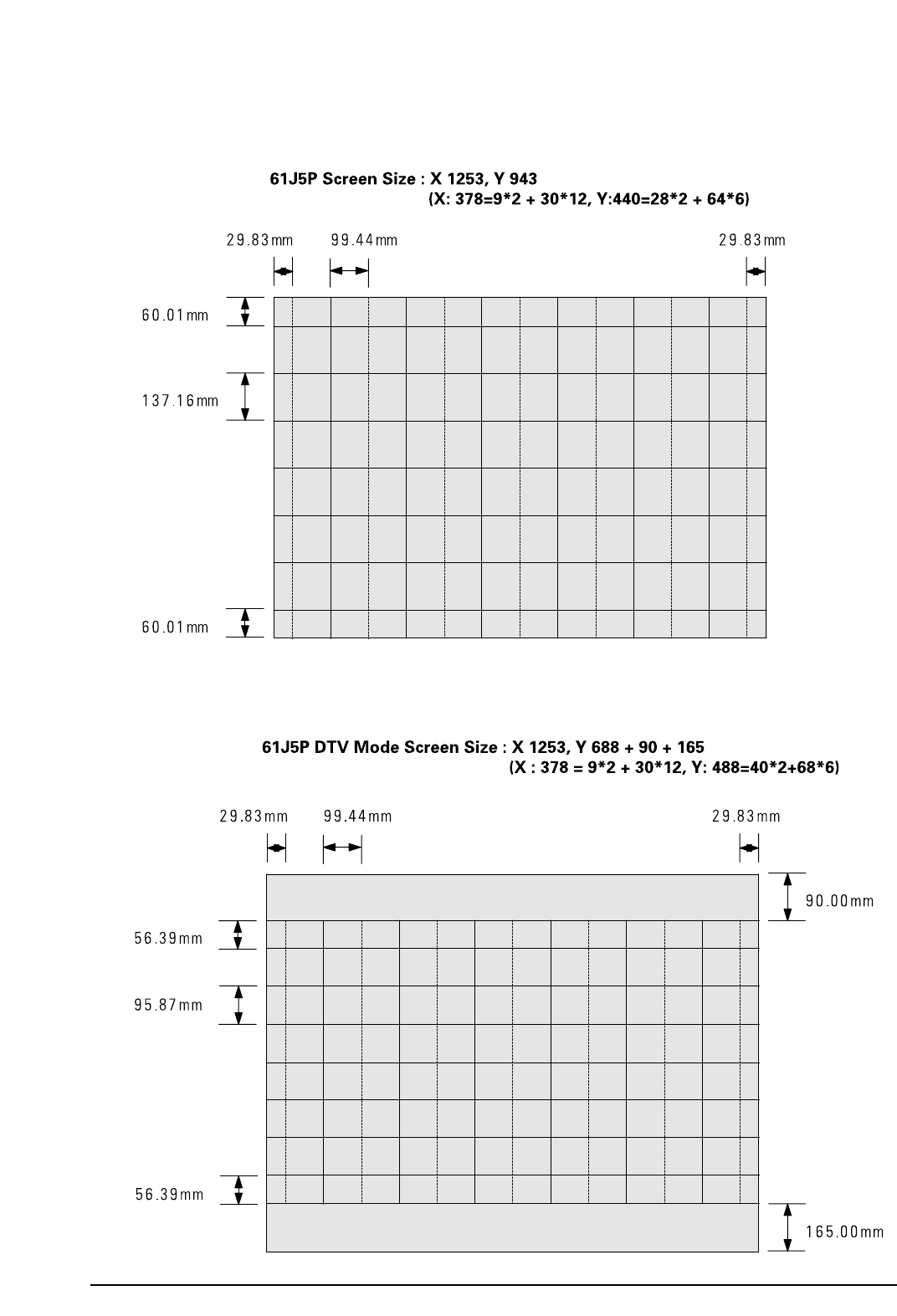

4-5-5 61J5P

4-5-6 61J5P DTV

Alignment and Adjustments

4-16 Samsung Electronics

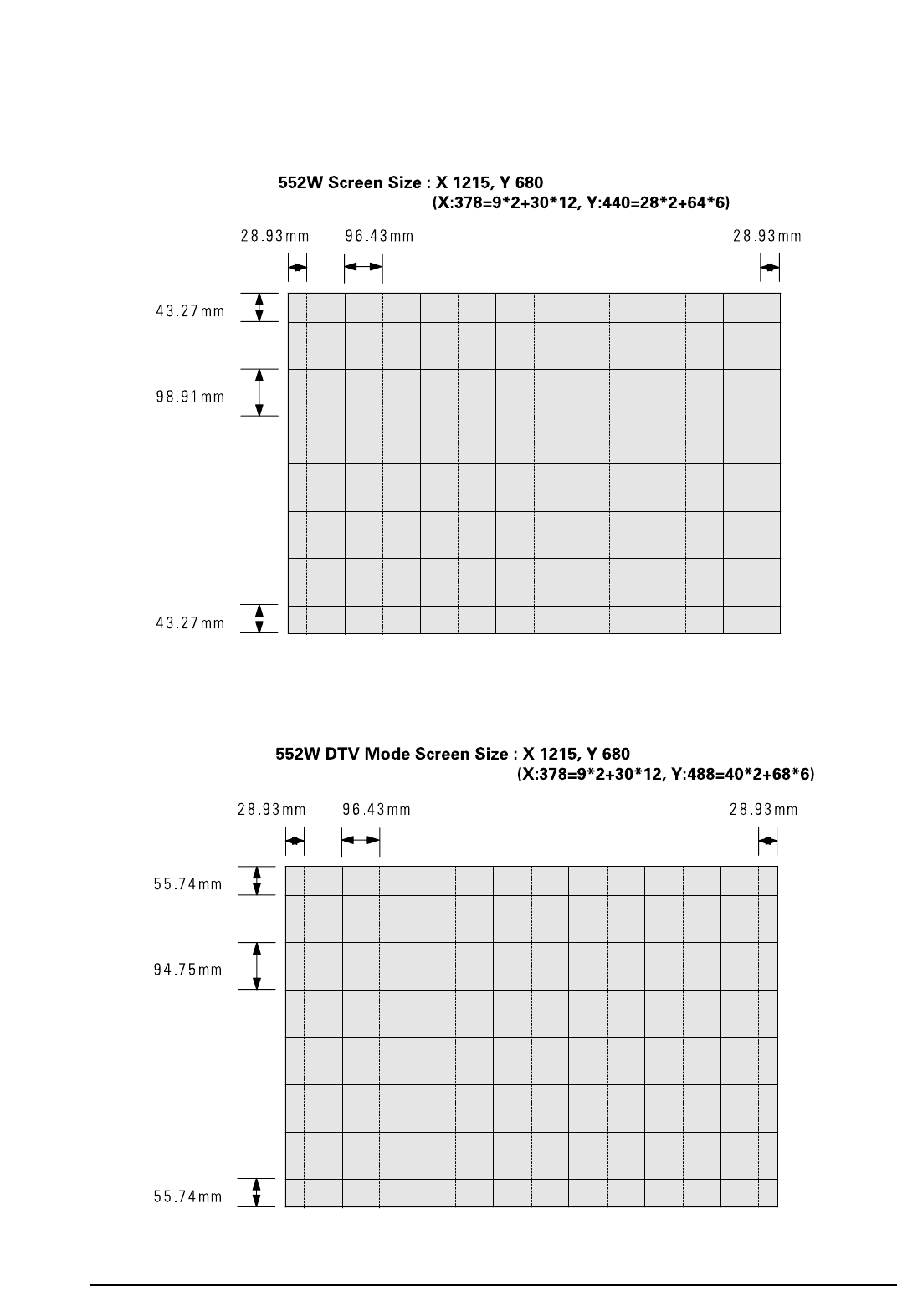

4-5-7 552W

4-5-8 552W DTV Mode

Alignment and Adjustments

Samsung Electronics 4-17

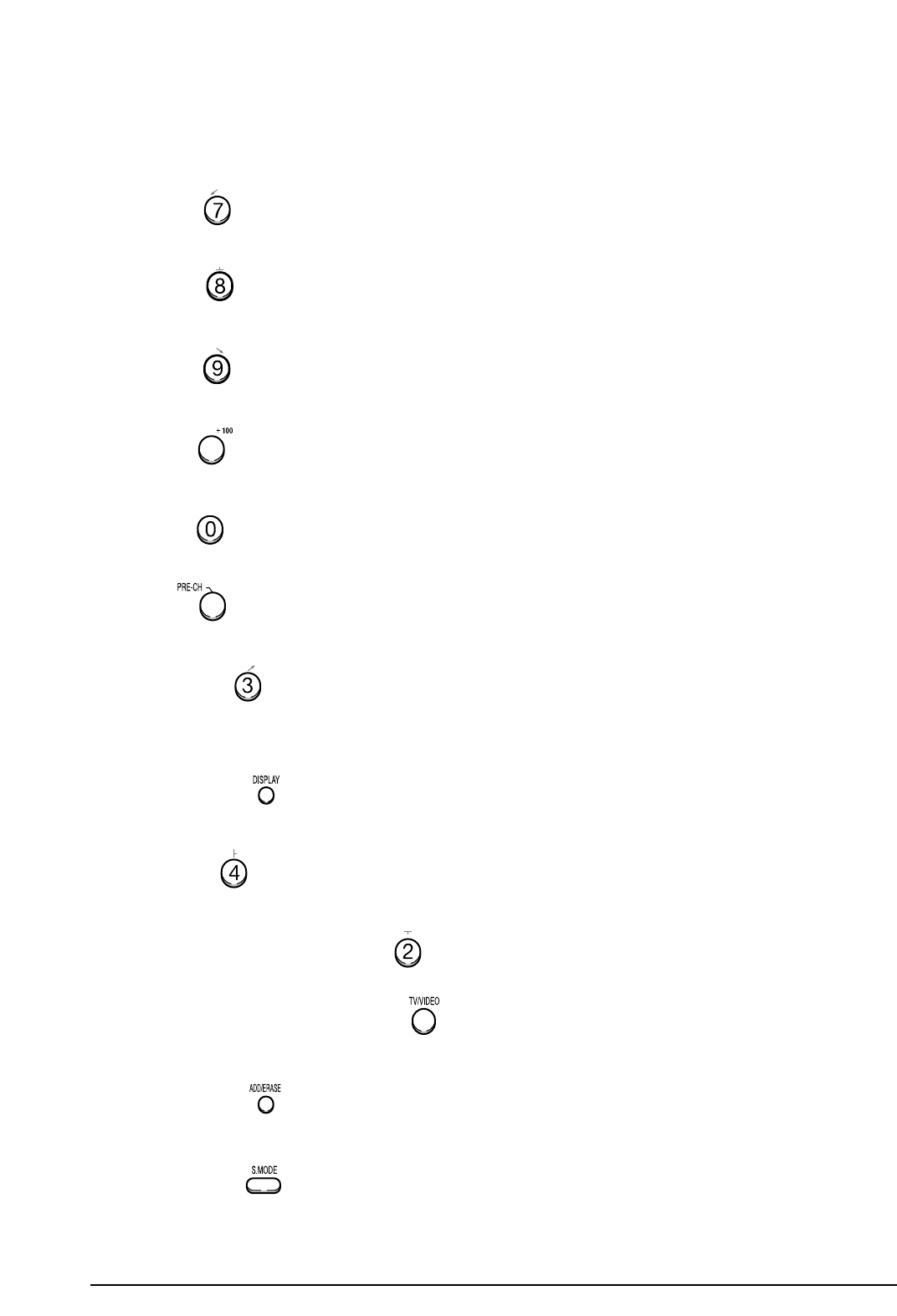

4-6 Remote Control for Servicing (Convergence Mode)

Alignment and Adjustments

4-18 Samsung Electronics

4-6-1 KEY Function

1. R-SELECT

Press to select RED color.

2. G-SELECT

Press to select GREEN color.

3. B-SELECT

Press to select BLUE color.

4. R-MUTE

Press to mute RED color.

5. G-MUTE

Press to mute GREEN color.

6. B-MUTE

Press to mute BLUE color.

7. CANCEL KEY

Press to revert to the previous data during the Convergence

Adjustment.

8. TEST/NORMAL

Press to check TV mode in the Convergence Mode.

9. LINE SHIFT

Press to move a line up/down or left/right.

10. FACTORY DATA SELECT BUTTON

Press to call the factory default values.

11. H/V DIRECTION SELECT BUTTON

Press to switch the cursor direction horizontally or vertically.

12. SAVE BUTTON

After the Convergence Adjustments are completed, press to save data.

13 EXIT BUTTON

After the Convergence adjustments are completed, press to exit to TV mode.

Alignment and Adjustments

Samsung Electronics 4-19

14. MOVE CURSOR FORWARD

Press to move the cursor right or down.

15. MOVE CURSOR REVERSE

Press to move the cursor left or up.

16. CONVERGENCE PICTURE MOVE BUTTON

17. CONVERGENCE PATTERN MOVE BUTTON

Press to move the convergence pattern left ( ) or right ( ) .

18. CONVERGENCE DATA ZERO BUTTON

Press to zero the convergence correction data.

19. INITIAL DATA SET BUTTON

Inch (Type)

43” (43J5)

53” (53J5)

61” (614)

55” (552W)

65” (652W)

Model Name

Representative

Model

SVP-43J5P

SVP-53J5P

PCJ614RF

HCJ552W

HCJ652W

Basic Data

Number after entring

the Cg-Mode

5-435 (Press in regular order)

5-535 (Press in regular order)

5-615 (Press in regular order)

5-552 (Press in regular order)

Screen Display Discription

White Oval on the background

(white circle)

White Oval on the background

(white border)

Used the existing module

(SSVC-1000)

Changes when applying Almighty-Cg, Module (How to extract the basic Cg Data)

Alignment and Adjustments

4-20 Samsung Electronics

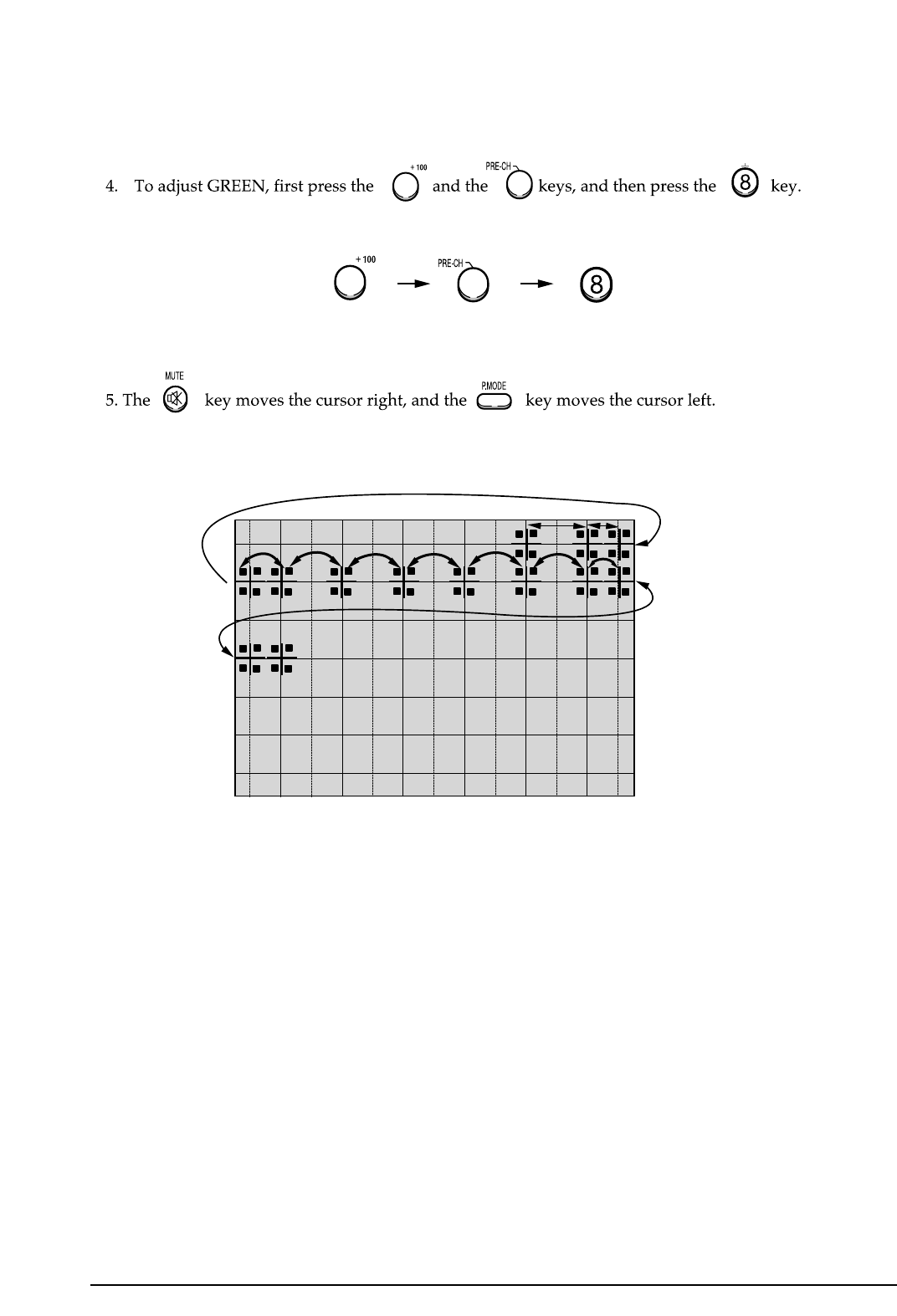

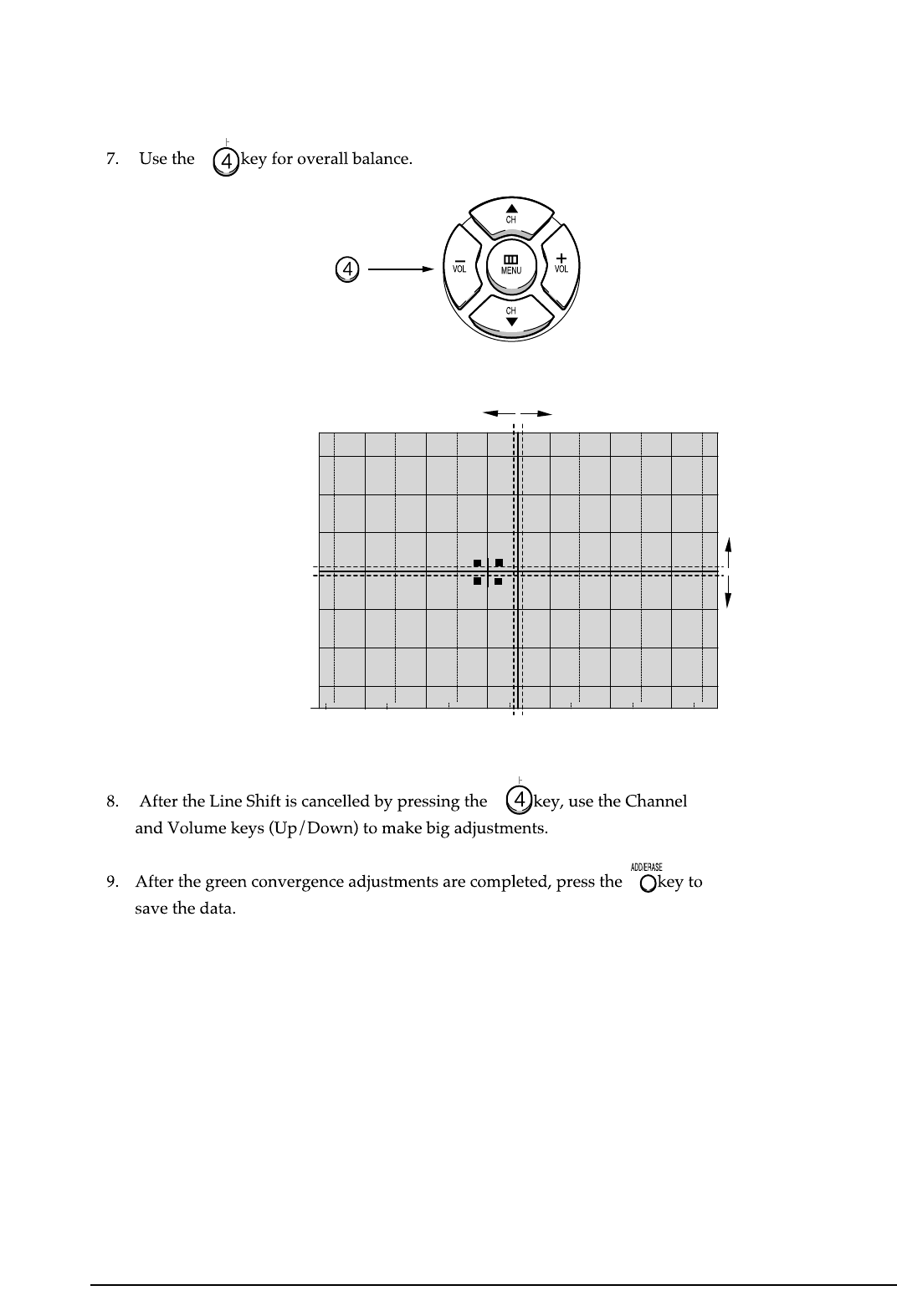

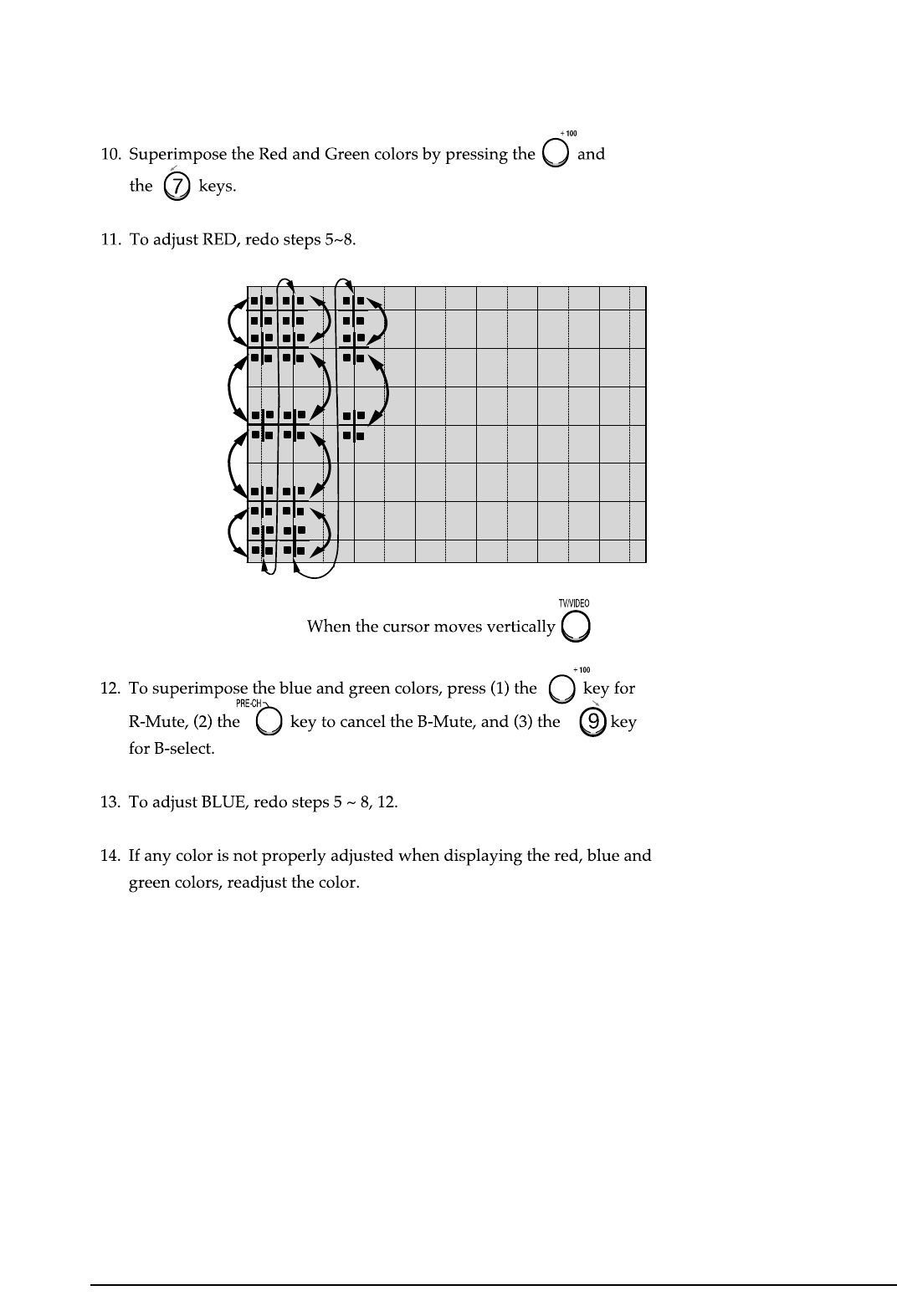

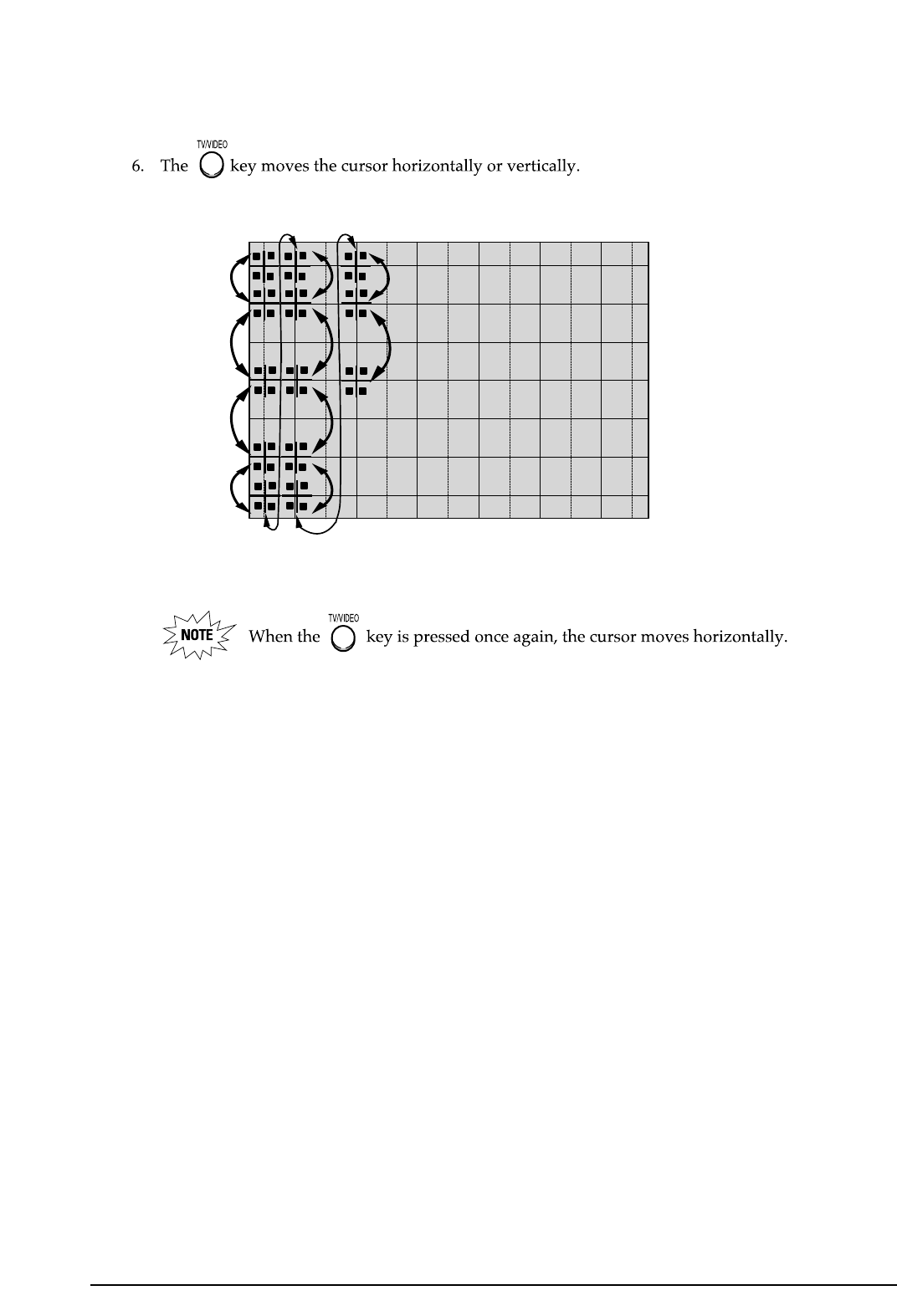

4-7 Convergence Adjustment

Alignment and Adjustments

Samsung Electronics 4-21

Alignment and Adjustments

4-22 Samsung Electronics

Alignment and Adjustments

Samsung Electronics 4-23

Alignment and Adjustments

4-24 Samsung Electronics

Alignment and Adjustments

Samsung Electronics 4-25

Alignment and Adjustments

4-26 Samsung Electronics

4-8 PC Mode

4-8-1 TV Setup Mode

Alignment and Adjustments

Samsung Electronics 4-27

4-8-2 Picture Setup Mode

1. Adjust four different modes:VGA3 (VGA), VGA(DOS), VESA (SVGA),

VEAS (XGA).

2). Perform the setup for each PC mode and picture setup.

Alignment and Adjustments

4-28 Samsung Electronics

4-8-3 Picture Setup Mode (computer setup mode only)

1. Adjust four different modes:VGA3 (VGA), VGA (DOS), VESA(SVGA),

VEAS (XGA).

2. Perform the setup for each PC mode and picture setup.

Alignment and Adjustments

Samsung Electronics 4-29

4-9 MICOM and Pins Voltage

4-9-1 Pin Layout

4-9-1(A) PROGRESSIVE

POWER

IR-IN

V-MUTE

3D-SDA

3D-SCL

3D-ENA

IDENT

MODE-SEL

PROTECT

1H-SYNC

SCL 2

SDA 2

CVBS

LOOP FILTER

ANALOG GND

SUB-AFT

KEY1

MAIN-AF T

KEY2

KEY3

ANALOG GND

HALF TONE

OSD B

ANALOG VCC

OSD G

OSD R

POWER2

BUS-STOP

HOLD

SCL-3

SDA-3

TIMER-LED

S/W-MUTE

AMP-MUTE

3D-RESET

N.C

XTAL GND

VCC

GND

XTAL2

XTAL1

/RESET

N.C

SCL-1

SDA-1

VSYNC

HSYNC

BLANK

Alignment and Adjustments

4-30 Samsung Electronics

4-9-1(B) INTERLACE

POWER

IR-IN

V-MUTE

3D-SDA

N.C

CRTL 3

PROTECT

SCL 2

SDA 2

CVBS

LOOP FILTER

ANALOG GND

SUB-AFT

KEY1

MAIN-AF T

KEY2

KEY3

ANALOG GND

HALF TONE

OSD B

ANALOG VCC

OSD G

OSD R

CTRL 1

BUS-STOP

HOLD

SCL-3

SDA-3

TIMER-LED

S/W-MUTE

AMP-MUTE

N.C

XTAL GND

VCC

GND

XTAL2

XTAL1

/RESET

N.C

SCL-1

SDA-1

VSYNC

HSYNC

BLANK

N.C

N.C CTRL 2

Alignment and Adjustments

Samsung Electronics 4-31

4-9-2 MICOM Pins

4-9-2(A) PROGRESSIVE

1 POWER POWER ON/OFF RELAY CONTROL H--> L

2 IR IN REMOCON INPUT 5V

3 V-MUTE VIDEO SIGNAL MUTE 3V

4 3D-SDA 3D PHONIC DATA LINE 5V

5 3D-SCL 3D PHONIC CLOCK LINE 5V

6 3D-ENA 3D PHONIC ENABLE LINE 5V

7 IDENT VALID DTV SIGNAL (LOW) 5V

8 MODE-SEL MODE SELECTOR CONTROL -

9 PROTECT PROTECT PORT -

10 1H-SYNC NORMAL H,V-SYNC 3.5V

11 SCL 2 CLOCK BUS LINE 4.5V

12 SDA 2 DATA BUS LINE 4.5V

13 CVBS CVBS 1.7V

14 LOOP FILTER LOOP FILTER 1.9V

15 ANALOG GND GND GND

16 SUB-AFT SUB AUTO FINE TURNING CONTROL 2.64V

17 KEY 1 KEY SCAN 1 4.84V

18 MAIN-AFT MAIN TUNER AFT 1.9V

19 KEY 2 KEY SCAN 2 -

20 KEY 3 KEY SCAN 3 -

21 ANALOG GND GND -

22 ANALOG VCC VCC 5V

23 HALF TONE SIGNAL FOR OSC-FREQUENCY OSD CONTROL -

24 OSD B ON SCREEN DISPLAY BLUE OUTPUT -

25 OSD G ON SCREEN DISPLAY GREEN OUTPUT -

26 OSD R ON SCREEN DISPLAY RED OUTPUT -

PIN NO. ITEM FUNCTION OUT VOLT

Alignment and Adjustments

4-32 Samsung Electronics

27 BLANK BLAKING SIGNAL OUTPUT -

28 HSYNC HORIZONTAL SYNC INPUT -

29 VSYNC VERTICAL SYNC INPUT -

30 SDA-1 DATA BUS LINE 4.5V

31 SCL-1 CLOCK BUS LINE 4.12V

32 D3 CONVERGENCE D3 -

33 N.C N.C -

34 N.C N.C -

35 /RESET RESET 4.74V

36 XTAL1 XTAL 1 1.72V

37 XTAL2 XTAL 2 2.2V

38 GND GND -

39 VCC VCC 5V

40 XTAL GND GND -

41 N.C N.C -

42 3D-RESET 3D PHONIC RESET 5V

43 AMP-MUTE MAIN AMP MUTE -

44 D1 CONVERGENCE D1 -

45 S/W-MUTE SWITCH MUTE (NOT USED) -

46 TIMER-LED TIMER LED 4.7V

47 SDA-3 DATA BUS LINE 4.6V

48 SCL-3 CLOCK BUS LINE 4.6V

49 HOLD HOLD 4.65V

50 BUS-STOP I2C BUS STOP 5V

51 POWER2 PC POWER CONTROL 4.65V

52 D2 CONVERGENCE D2 -

PIN NO. ITEM FUNCTION OUT VOLT

Alignment and Adjustments

Samsung Electronics 4-33

4-9-2(B) INTERLACE

1 POWER POWER ON/OFF RELAY CONTROL H--> L

2 IR IN REMOCON INPUT 5V

3 V-MUTE VIDEO SIGNAL MUTE 3V

4 N.C N.C -

5 N.C N.C -

6 CRTL 3 CONTROL-3PORT 5V

7 N.C N.C -

8 N.C N.C -

9 PROTECT PROTECT PORT -

10 N.C N.C -

11 SCL 2 CLOCK BUS LINE 4.5V

12 SDA 2 DATA BUS LINE 4.5V

13 CVBS CVBS 1.7V

14 LOOP FILTER LOOP FILTER 1.9V

15 ANALOG GND GND GND

16 SUB-AFT SUB AUTO FINE TURNING CONTROL 2.64V

17 KEY 1 KEY SCAN 1 4.84V

18 MAIN-AFT MAIN TUNER AFT 1.9V

19 KEY 2 KEY SCAN 2 -

20 KEY 3 KEY SCAN 3 -

21 ANALOG GND GND -

22 ANALOG VCC VCC 5V

23 HALF TONE SIGNAL FOR OSC-FREQUENCY OSD CONTROL -

24 OSD B ON SCREEN DISPLAY BLUE OUTPUT -

25 OSD G ON SCREEN DISPLAY GREEN OUTPUT -

26 OSD R ON SCREEN DISPLAY RED OUTPUT -

PIN NO. ITEM FUNCTION OUT VOLT

Alignment and Adjustments

4-34 Samsung Electronics

27 BLANK BLAKING SIGNAL OUTPUT -

28 HSYNC HORIZONTAL SYNC INPUT -

29 VSYNC VERTICAL SYNC INPUT -

30 SDA-1 DATA BUS LINE 4.5V

31 SCL-1 CLOCK BUS LINE 4.12V

32 D3 CONVERGENCE D3 -

33 N.C N.C -

34 N.C N.C -

35 /RESET RESET 4.74V

36 XTAL1 XTAL 1 1.72V

37 XTAL2 XTAL 2 2.2V

38 GND GND -

39 VCC VCC 5V

40 XTAL GND GND -

41 N.C N.C -

42 CRTL 2 CONTROL - 2 PORT 5V

43 AMP-MUTE MAIN AMP MUTE -

44 D1 CONVERGENCE D1 -

45 S/W-MUTE SWITCH MUTE (NOT USED) -

46 TIMER-LED TIMER LED 4.7V

47 SDA-3 DATA BUS LINE 4.6V

48 SCL-3 CLOCK BUS LINE 4.6V

49 HOLD HOLD 4.65V

50 BUS-STOP I2C BUS STOP 5V

51 CRTL 1 CONTROL - 1 PORT 4.65V

52 D2 CONVERGENCE D2 -

PIN NO. ITEM FUNCTION OUT VOLT

Alignment and Adjustments

Samsung Electronics 4-35

4-9-3 Proscan Module (Progressive)

1 DVD-Y DVD-Y INPUT 2.04V

2 GND GND GND

3 CVBS/Y CVBS/Y INPUT 1.76V

4 CIN C-INPUT 2.92V

5 GND GND GND

6 E-Pr/R E-Pr/R INPUT 2.0V

7 E-Y/G E-Y/G INPUT 2.0V

8 E-Pb/B E-Pb/B INPUT 2.0V

9 E-FB FAST BLANKING INPUT 0.25V

10 GND GND GND

11 HS1 1H-SYNC OUT -

12 VS1 VS1 OUT -

13 GND GND GND

14 SDA-2 SERIAL DATA LINE 2 4.7V

15 SCL-2 SERIAL CLOCK LINE 2 4.8V

16 5V 5V 5V

17 HD H-DRIVE OUT 1.6V

18 H-BLK H-BLANK INPUT -

19 VD+ VERTICAL DRIVE (+VOLTAGE) 2.90V

20 VD- VERTICAL DRIVE (-VOLTAGE) 2.95V

21 ABL ABL INPUT 2.15V

22 V-BLK V-BLANKING -

23 EW EAST WEST OUT 2.2V

24 N.C N.C -

25 GND GND GND

26 V-OUT V-OUT N.C

27 H-OUT H-OUT N.C

28 HC 5V INPUT -

29 GND GND GND

30 TEST-Y WHEN CG ADJ PATTERN INPUT -

PIN NO. ITEM FUNCTION OUT VOLT

Alignment and Adjustments

4-36 Samsung Electronics

31 PC-R N.C -

32 PC-G N.C -

33 PC-B N.C -

34 PC-H N.C -

35 PC-V N.C -

36 GND GND GND

37 OSD-R OSD-R INPUT -

38 OSD-G OSD-G INPUT -

39 OSD-B OSD-B INPUT -

40 YS BLANK(MICOM OUT) -

41 YM HALF TONE INPUT -

42 V-MUTE VIDEO MUTE (V-CHIP ON) 4.72V

43 GND GND GND

44 9V 9V 9V

45 D-Pr D-Pr INPUT -

46 D-Y D-Y INPUT -

47 D-Pb D-Pb INPUT -

48 PIP-F/B N.C -

49 GND GND GND

50 R-OUT R-OUT -

51 G-OUT G-OUT -

52 B-OUT B-OUT -

53 GND GND GND

54 IK IK OUT 3.65V

55 SPOT SPOT OUT -

56 GND GND GND

57 VM-Y VM-Y OUT 5.42V

58 VM-MUTE N.C -

PIN NO. ITEM FUNCTION OUT VOLT

Alignment and Adjustments

Samsung Electronics 4-37

4-9-4 Chroma Module (Interlace)

1 N.C N.C -

2 GND GND GND

3 CVBS/Y CVBS/Y INPUT 1.76V

4 CIN C-INPUT 2.92V

5 GND GND GND

6 E-Pr/R E-Pr/R INPUT 2.0V

7 E-Y/G E-Y/G INPUT 2.0V

8 E-Pb/B E-Pb/B INPUT 2.0V

9 E-FB FAST BLANKING INPUT 0.25V

10 GND GND GND

11 HS1 1H-SYNC OUT -

12 VS1 VS1 OUT -

13 GND GND GND

14 SDA-2 SERIAL DATA LINE 2 4.7V

15 SCL-2 SERIAL CLOCK LINE 2 4.8V

16 N.C N.C -

17 HD H-DRIVE OUT 1.6V

18 H-BLK H-BLANK INPUT -

19 VD+ VERTICAL DRIVE (+VOLTAGE) 2.90V

20 VD- VERTICAL DRIVE (-VOLTAGE) 2.95V

21 ABL ABL INPUT 2.15V

22 V-BLK V-BLANKING -

23 EW EAST WEST OUT 2.2V

24 N.C N.C -

25 GND GND GND

26 N.C N.C -

27 FSC FSC -

28 HC 5V INPUT -

29 GND GND GND

30 TEST-Y WHEN CG ADJ PATTERN INPUT -

PIN NO. ITEM FUNCTION OUT VOLT

Alignment and Adjustments

4-38 Samsung Electronics

31 N.C N.C -

32 N.C N.C -

33 N.C N.C -

34 CRTL - 3 CRTL - 3 5V

35 CRTL - 1 CRTL - 1 5V

36 GND GND GND

37 OSD-R OSD-R INPUT -

38 OSD-G OSD-G INPUT -

39 OSD-B OSD-B INPUT -

40 YS BLANK(MICOM OUT) -

41 YM HALF TONE INPUT -

42 V-MUTE VIDEO MUTE (V-CHIP ON) 4.72V

43 GND GND GND

44 9V 9V 9V

45 N.C N.C -

46 N.C N.C -

47 N.C N.C -

48 PIP-F/B N.C -

49 GND GND

50 R-OUT R-OUT -

51 G-OUT G-OUT -

52 B-OUT B-OUT -

53 GND GND GND

54 IK IK OUT 3.65V

55 SPOT SPOT OUT -

56 GND GND GND

57 VM-Y VM-Y OUT 5.42V

58 CTRL - 2 CTRL - 2 5V

PIN NO. ITEM FUNCTION OUT VOLT

Alignment and Adjustments

Samsung Electronics 4-39

4-9-5 PIP Module

1 GND GND GND

2 TV SUB-V INPUT 2.93V

3 GND GND GND

4 N.C N.C -

5 8V 8V INPUT 8V

6 N.C N.C -

7 PIP-Pr/R PIP-Pr/R (DVD SIG) OUT 2.02V

8 PIP-Y/G PIP-Y/G (DVD SIG) OUT 2.04V

9 PIP-Pb/B PIP-Pb/B (DVD SIG) OUT 2.02V

10 PIP-FB PIP FAST BLANKING 2.02V

11 12V 12V INPUT 12V

12 PIP-F/B N.C N.C

13 PIP-B DVD-B IN -

14 PIP-G DVD-G IN -

15 PIP-R DVD-R IN -

16 N.C N.C -

17 V-SYNC V-SYNC INPUT -

18 H-SYNC H-SYNC INPUT -

19 SCL SERIAL CLOCK LINE 4.11V

20 SDA SERIAL DATA LINE 4.5V

21 5V 5V INPUT 5V

22 GND GND GND

PIN NO. ITEM FUNCTION OUT VOLT

Alignment and Adjustments

4-40 Samsung Electronics

4-9-6 3D/COMB Module

1 VIDEO MAIN VIDEO INPUT 2.74V

2 GND GND GND

3 9V 9V INPUT 9V

4 GND GND GND

5 SCL SERIAL CLOCK LINE 4.1V

6 SDA SERIAL DATA LINE 4.1V

7 V-3D COPY GUARD REJECT SIGNAL 3.8V

8 5V 5V INPUT 5V

9 Y-OUT MAIN Y OUT -

10 GND GND GND

11 C-OUT MAIN C OUT -

12 GND GND GND

1 SIF SIF OUT 3.25V

2 9V 9V INPUT 9V

3 GND GND GND

4 IF IF INPUT 4.5V

5 GND GND GND

6 AGC RF AGC IN 5.37V

7 TV-VIDEO TV-VIDEO OUT -

8 AFT MAIN AFT INPUT 2V

9 GND GND GND

PIN NO. ITEM FUNCTION OUT VOLT

4-9-7 IF MODULE

Alignment and Adjustments

Samsung Electronics 4-41

4-9-8 F/CONVERTER Module

1 5V 5V INPUT 5V

2 GND GND GND

3 R-IN PC R INPUT -

4 G-IN PC G INPUT -

5 B-IN PC B INPUT -

6 GND GND GND

7 HS PC H-SYNC INPUT -

8 VS PC V-SYNC INPUT -

9 GND GND GND

10 SDA SERIAL DATA LINE -

11 SCL SERIAL CLOCK LINE -

12 GND GND GND

13 IR INPUT REMOCON 2.5V

14 GND GND GND

15 R-OUT/Y3 PC Y3 OUT -

16 N.C N.C -

17 B-OUT/C3 PC C3 OUT -

PIN NO. ITEM FUNCTION OUT VOLT

Alignment and Adjustments

4-42 Samsung Electronics

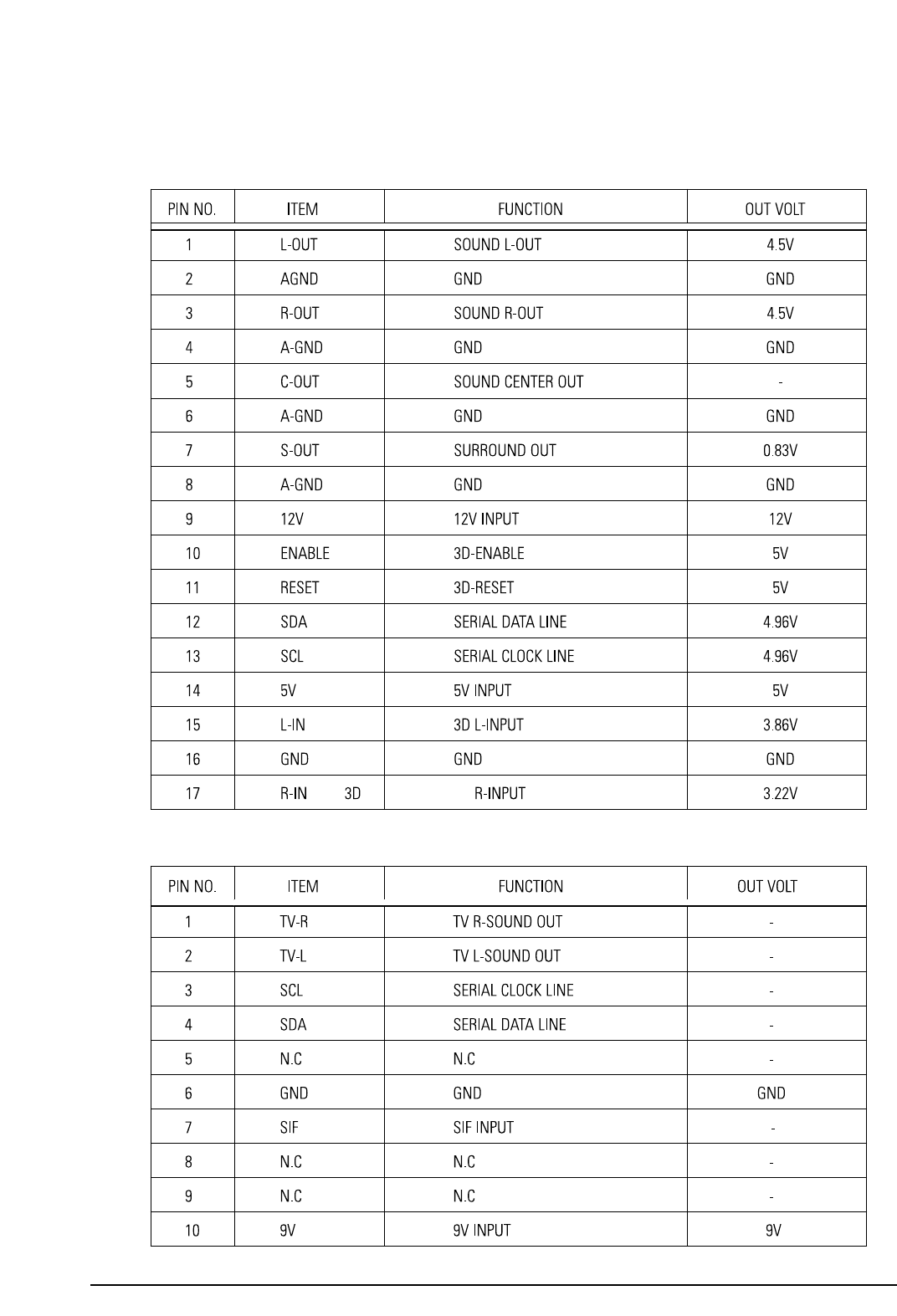

4-9-9 3D-PHONIC Module

4-9-10 MTS Module

Alignment and Adjustments

Samsung Electronics 4-43

4-9-11 H/V Module

1 12V 12V INPUT 12V

2 GND GND GND

3 HD H-DRIVE INPUT 1.6V

4 V-BLK V-BLANK INPUT 0.72V

5 2H-BLK 2H-BLANK OUT 0.54V

6 GND GND GND

7 PROTECT PROTECT ACTIV H

8 FBT-DC FBT DC FEED BACK 4.87V

9 X-RAY X-RAY PROTECT F/B 2.10V

10 N.C N.C -

11 HV-REG HV-REG 3.54V

12 HV-DRIVE HIGH VOLTAGE DRIVE 0.32V

13 H-DRIVE H-DRIVE OUT 25V

14 GND GND GND

15 HEATER HEATER INPUT AC[0.7V]

16 N.C N.C -

17 208V 208V INPUT 208V

18 N.C N.C -

19 GND GND GND

20 V2 V2 INPUT

21 N.C N.C -

22 N.C N.C -

23 D-FOCUS DYNAMIC FOCUS OUT -

24 N.C N.C -

25 N.C N.C -

26 SCREEN SCREEN INPUT 1356V

PIN NO. ITEM FUNCTION OUT VOLT

Alignment and Adjustments

4-44 Samsung Electronics

4-9-12 CONV- Module

1 SDA D2 -

2 SCL D1 -

3 GND GND GND

4 BV BLUE VERTICAL OUT -

5 BH BLUE HORIZONTAL OUT -

6 GV GREEN VERTICAL OUT -

7 GH GREEN HORIZONTAL OUT -

8 RV RED VERTICAL OUT -

9 RH RED HORIZONTAL OUT -

10 -5.4V -5.4V INPUT -5.4V

11 5.4V 5.4V INPUT +5.4V

12 V-BLK V-BLK INPUT -

13 GND GND GND

14 H-BLK H-BLK INPUT 0.52V

15 COMP COMP VIDEO OUTPUT (N.C) N.C

16 IR INPUT REMOCON 3V

17 CTRL CTRL (N.C) N.C

18 D3/SEL D3 0.2V

19 B WHEN TEST PATTERN B OUT -

20 G(TEST) WHEN TEST PATTERN G OUT -

21 R WHEN TEST PATTERN R OUT -

22 SYNC SYNC OUTPUT 4.41V

PIN NO. ITEM FUNCTION OUT VOLT

Troubleshooting

Samsung Electronics 5-1

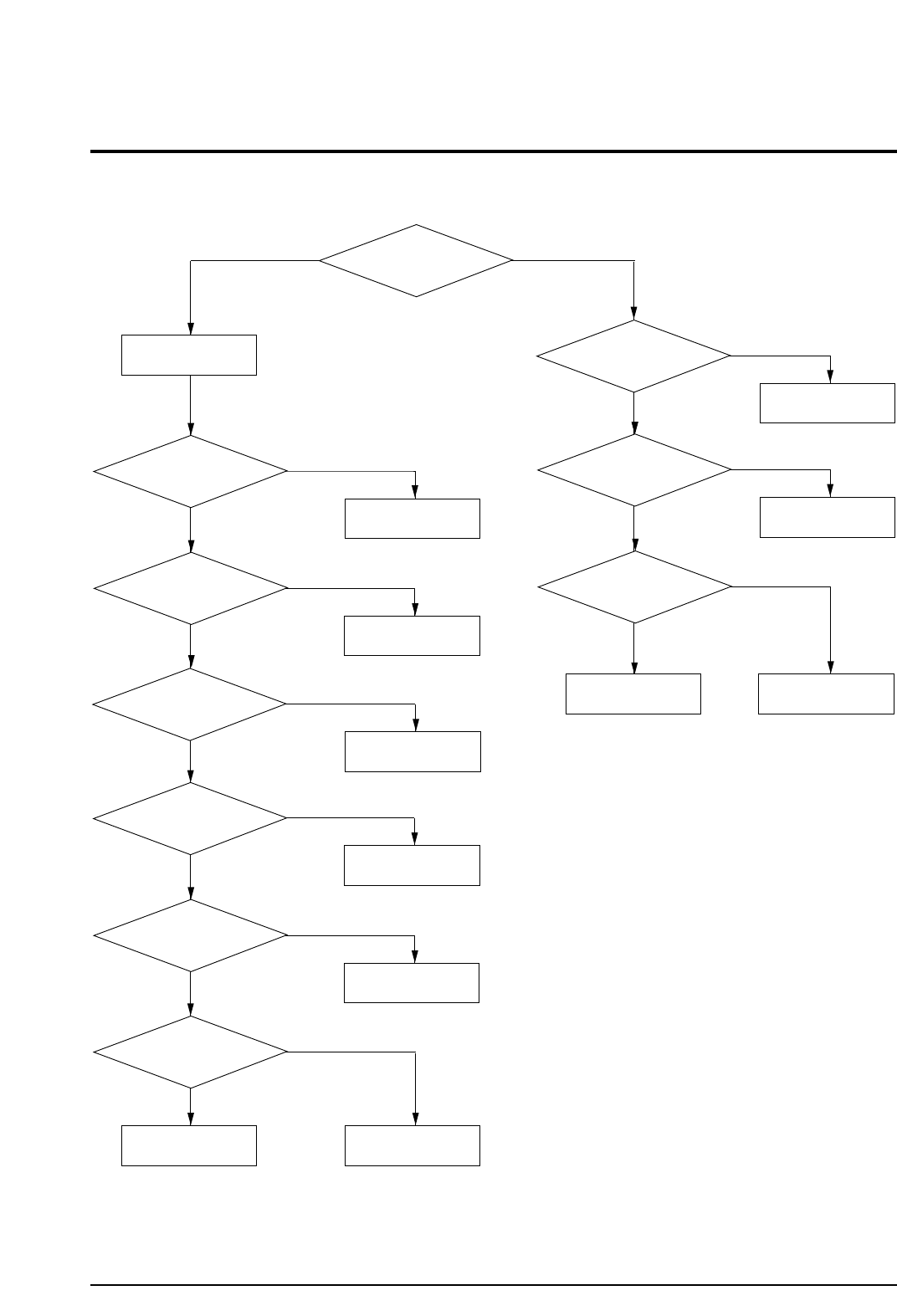

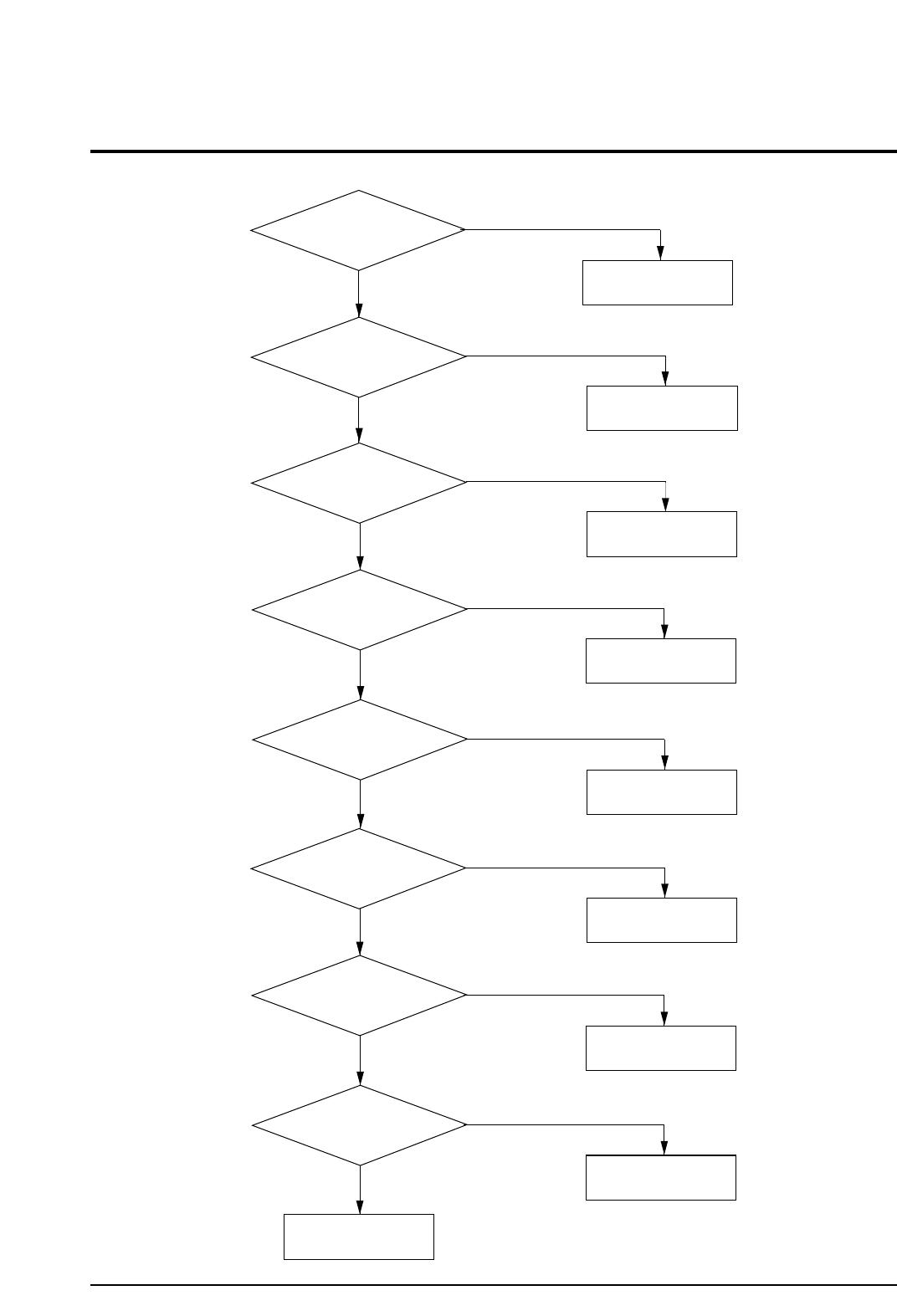

5. Troubleshooting

5-1 Convergence Misaligned

Normal

Abnormal

Check the

output voltage and waveform

of CN802, CN203 on

the Convergence Board

Check HZ01 out pin

(BV, BH, RV, RH, GV, GH)

Check the associated

circuitry Check Convergence

Module

1. Check F802, F855,

F805, F806 on

the SUB Board

2. Check the output

from H-BLK, V-BLK,

D1, D2, D3 on

the Main Board

Normal

5-2 No Sound

Troubleshooting

5-2 Samsung Electronics

Abnormal

Normal

Check IC665 input pin 3

Check Speaker

Normal

Check IC665

output pins 2,4

Check if CN601 is inserted

Check IC665

mute pin 5

Abnormal

Check F854 on

the SUB Board

Normal

Check IC665

output pins 7,11

Abnormal

Check the mute circuit

Normal

Check IC601

input pins 35, 38

Check IC665

Abnormal

Check H006

input pins 15,17 Normal

Check the 3D Phonic

circuit

Abnormal

Check ICV01

Input pins 49,51 Normal

Check ICV01

Abnormal

Insert CN601

(Connector)

Abnormal

Check H003

out Pins 1,2

Normal

Check Tone Control

Troubleshooting

Samsung Electronics 5-3

5-3 No Raster (Sound OK)

Normal

Check High Voltage

Check IC501, 531,561

Normal

Check Heater

Check CN501

pins 1,3,5

Abnormal

Check CN501

(Connector)

Normal

Check CN501

(Connector)

Normal

Check H007

Normal

Check H007

input pins 3,4

Check ICV01

Abnormal

Check ICV01 input

pin 48

Normal

Check H009

Abnormal

Check H009

input pin 1

Normal

Check ICV01

Abnormal

Check H004

Check CRT PCB pin 1

Normal

Check ICV01

input pin 50

Abnormal

Normal

Check CN402 input

pin 12 (HV-DRIVER)

Check H401 CN402

HV-REG

Normal

Check H401

(OUT BLOCK)

Abnormal

Check H401,

IC471

Abnormal

Check H401 R437A

Check H401

MEMO

5-4 Samsung Electronics

6. Exploded View & Parts List

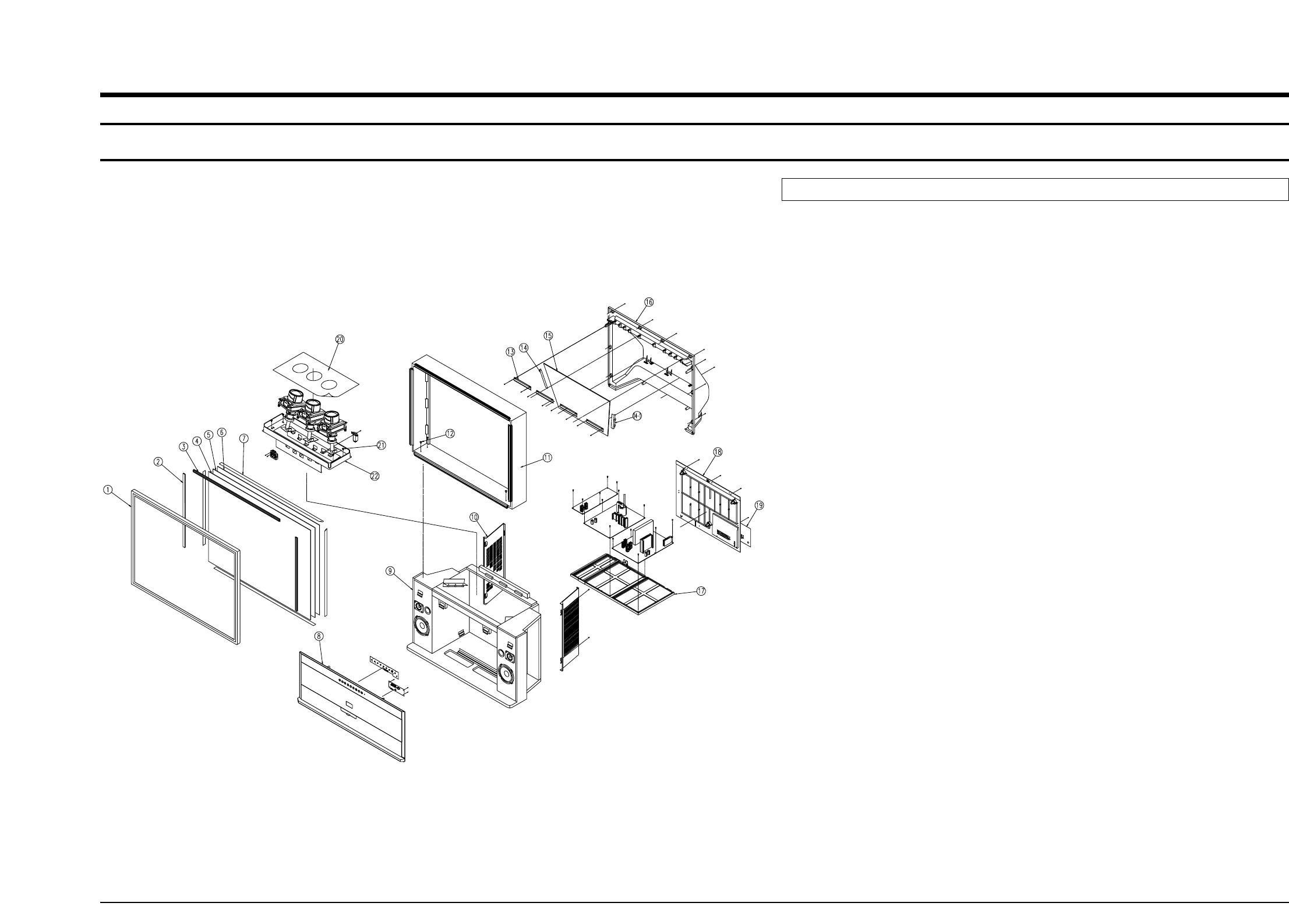

6-1 ST54T63S/XAX

Exploded View & Parts List

Samsung Electronics 6-1

No Code No Description;Specification Q’ty Remark

1 AA64-02170D CABINET-MASK,ETC;DP,ST54T6,ABS,HB,GRAY,S 1

2 AA60-00069C SPACER-SCREEN;43,54.62J8,ABS,-,-,-,BLK,- 2

3 AA60-00069B SPACER-SCREEN;43,54,62J8,ABS,-,-,-,BLK,- 2

4 SUN SCREEN-AG 1

5 AA67-00116A SCREEN-LENTI;53,-,T1,1123*852,-,-,-,TINT 1

6 AA67-00116B SCREEN-FRESNEL;53,-,T2,1125*854,-,-,-,- 1

7 TAPE-OPP MASKING 4

8 AA91-00734M ASSY CABINET BOT;DP,HIPS HB,SVM1126 SEA, 1

9 AA64-01402C CABINET-WOOD,BOT;54T6SR,WOOD,SDE8336R 1

10 AA64-01850B CABINET-BACK,SIDE;DP,54J9,-,-,-,-,V0,-,A 2

11 AA64-01399A CABINET-WOOD,TOP;54J8,WOOD,-,-,-,-,-,- 1

12 6006-001094 SCREW-ASS’Y WOOD;WW,HH,+,M7,L32,ZPC(YEL) 8 AWTAWB

13 AA91-00661A ASSY-BRKT,MIRROR;DP,91-00489B 22KG,54J9 4

14 ASSY-HOLDER,MIRROR(L) 1

15 ASSY-HOLDER,MIRROR(R) 1

16 MIRROR-FRONT 1

17 HOLDER-CHASSIS 1

18 AA64-01849C CABINET-BACK,BOT;DP,62J8,VO,AA64-01384B 1

19 INLAY-BACK 1

20 AA60-00072B SPACER-COVER,DUST;43,54,62J9,SPONGE 94HF 1

21 6006-001094 SCREW-ASS’Y WOOD;WW,HH,+,M7,L32,ZPC(YEL) 4 CWBBCM

22 AA61-00475B BRACKET-CRT,MAIN;54,SECC,T1.6,-,-,-,- 1

Exploded View & Parts List

6-2 Samsung Electronics

6-2 ST62T63S/XAX

No Code No Description;Specification Q’ty Remark

1 AA64-01851H CABINET-MASK,ETC;DP,ST62T6,ABS,HB,GRAY,S 1

2 AA60-00069G SPACER-SCREEN;43,53,61J8,ABS,-,-,-,BLK,- 2

3 AA60-00069F SPACER-SCREEN;43,53,61J8,ABS,-,-,-,BLK,- 2

4 SUN SCREEN-AG 1

5 AA67-70056A SCREEN-TINT;61’,896-985,2.7,1283*973, 1

6 SCREEN-FRESNEL 1

7 TAPE-OPP MASKING 4

8 AA91-00858D ASSY CABINET BOT;DP,HIPS HB,SVM1126 SEA, 1

9 AA64-01921D CABINET-WOOD,BOT;62T6,WOOD SDE8319R 1

10 AA64-01850B CABINET-BACK,SIDE;DP,54J9,-,-,-,-,V0,-,A 2

11 AA64-01400A CABINET-WOOD,TOP;61J8,WOOD,-,-,-,-,-,- 1

12 6005-001004 SCREW-WOOD;HH,+,M4,L27,BLK,SWRCH18A 8 CMWCWT

13 AA63-00386A COVER-MIRROR,WOOD;62J8,WOOD,-,-,-,-,-,AS 1

14 AA61-00357B HOLDER-MIRROR;PCJ612R,ABS,-,-,-,BLK,HB,L 1

15 MIRROR-FRONT 1

16 AA64-01870B CABINET-BACK,TOP;62J9,HIPS HB,-,-,-,-,BL 1

17 AA61-00504B HOLDER-CHASSIS;43,54,62J8,ABS,-,-,-,GRAY 1

18 AA64-01384B CABINET-BACK,BOT;43,54,62J8,HIPS,-,-,-,V 1

19 INLAY-BACK 1

20 AA60-00072B SPACER-COVER,DUST;43,54,62J9,SPONGE 94HF 1

21 6006-001094 SCREW-ASS’Y WOOD;WW,HH,+,M7,L32,ZPC(YEL) 4 CWBBCM

22 AA61-00617B BRACKET-CRT,MAIN;DP,54J7,AA61-00475B 1

7. Electrical Parts List

Electrical Parts List

Samsung Electronics 7-1

ASSY PCB CHASSISPACK

1 * AA93-00201A ASSY PCB CHASSISPACK;,P54A,ST54T6S/GSU,C S.N.A

..2 AA95-00706H ASSY-PCB,CONV MDL;,SDC11,P51A,INTERLACE

...3 CN02 3711-002709 CONNECTOR-HEADER;NOWALL,12P,1R,2.5mm,ANG

...3 CN03 3711-002709 CONNECTOR-HEADER;NOWALL,12P,1R,2.5mm,ANG

...3 AA97-05182A ASSY AUTO-SUB;SDC11,P51A,INTERLACE50HZ S.N.A

....4 L01 2701-001030 INDUCTOR-AXIAL;43uH,10%,5x14mm

....4 PCB AA41-00529A PCB-CONVERGENCE MODULE;SVP-54T6SR,FR-4,4 S.N.A

....4 AA97-06145A ASSY SMD-SUB;SDC11,P51A,INTERLACE50HZ S.N.A

.....5 C01 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C02 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C03 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C04 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C05 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C07 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C08 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C10 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C11 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C12 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C13 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C14 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C15 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-

.....5 C17 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C18 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C19 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

.....5 C20 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C21 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C22 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C23 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C24 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C25 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C26 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C27 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C28 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C29 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C30 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C31 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C32 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C33 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C34 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C35 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C36 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C40 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C41 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C42 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C43 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C44 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C45 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C46 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608

.....5 C47 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160

.....5 C48 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP,

.....5 C49 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C50 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608

.....5 C51 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160

.....5 C52 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP,

.....5 C53 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C54 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608

.....5 C55 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160

.....5 C56 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP,

.....5 C57 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C58 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C59 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608

.....5 C60 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160

.....5 C61 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP,

.....5 C62 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C63 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608

.....5 C64 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160

.....5 C65 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP,

.....5 C66 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C67 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608

.....5 C68 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160

.....5 C69 2203-000041 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP,

.....5 C78 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C79 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C80 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C81 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C82 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C83 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C84 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C86 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C87 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C88 2203-001245 C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,201

.....5 C89 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

.....5 C90 2203-000575 C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012

.....5 C91 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,

.....5 C92 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 C93 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 D01 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D02 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D03 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D04 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D05 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 DZ01 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m

.....5 DZ02 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m

.....5 DZ04 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m

.....5 EF01 2901-000229 FILTER-EMI SMD;50V,0.3A,-,22000pF,4.5x3.

.....5 EF02 2901-000229 FILTER-EMI SMD;50V,0.3A,-,22000pF,4.5x3.

.....5 EF03 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,

.....5 EF04 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,

.....5 EF05 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,

.....5 EF14 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,

.....5 IC01 AA13-00104A IC ASIC;SDC11,SVP-54T6SR,208P,-0.3VTO3.8

.....5 IC02 1203-002302 IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL

.....5 IC04 1203-001824 IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI

.....5 IC05 1103-000180 IC-EEPROM;24C16,2Kx8Bit,SOP,8P,150MIL,10

.....5 IC06 AA09-00032A IC-MCU;,TSC87251G2D-OTP,4.5 TO 5.5V,-,32

.....5 IC08 1201-001520 IC-VIDEO AMP;EL2250CS,SOIC,8P,150MIL,DUA

.....5 IC09 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16

.....5 IC10 1201-001504 IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST

.....5 IC11 1201-001504 IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST

.....5 IC12 1201-001504 IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST

.....5 IC14 0801-002345 IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4

.....5 IC15 0801-002345 IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4

.....5 IC16 0801-002345 IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4

.....5 IC17 1209-001163 IC-PLL;TLC2932IPWLE,SOP,14P,-,PLASTIC

.....5 OSC01 2804-001479 OSCILLATOR-CLOCK;24MHZ,100PPM,50PF,TP,5V

.....5 Q01 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

.....5 Q02 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

.....5 R01 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

.....5 R02 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R03 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

.....5 R04 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R10 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R100 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608

.....5 R101 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608

.....5 R102 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608

.....5 R103 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608

.....5 R109 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608

.....5 R11 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R111 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608

.....5 R116 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608

.....5 R118 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608

.....5 R119 2007-000518 R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012

.....5 R12 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

7-1 ST54T63S/XAX

.....5 R120 2007-000856 R-CHIP;4.3KOHM,1%,1/10W,DA,TP,2012

.....5 R121 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608

.....5 R122 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R123 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R124 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R125 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R126 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R127 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R13 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R134 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608

.....5 R14 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

.....5 R15 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

.....5 R16 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

.....5 R17 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608

.....5 R18 2007-000381 R-CHIP;13Kohm,5%,1/16W,DA,TP,1608

.....5 R20 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608

.....5 R21 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R22 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

.....5 R23 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R28 2007-001163 R-CHIP;75OHM,1%,1/10W,DA,TP,2012

.....5 R29 2007-001163 R-CHIP;75OHM,1%,1/10W,DA,TP,2012

.....5 R30 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608

.....5 R32 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608

.....5 R33 2007-000028 R-CHIP;39OHM,5%,1/10W,DA,TP,2012

.....5 R34 2007-000028 R-CHIP;39OHM,5%,1/10W,DA,TP,2012

.....5 R37 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R38 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R39 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R40 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R41 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R42 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R43 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R44 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R45 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

.....5 R46 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R47 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R48 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R49 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608

.....5 R50 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

.....5 R51 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R52 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R53 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R54 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608

.....5 R55 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

.....5 R56 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R57 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R58 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R59 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608

.....5 R60 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

.....5 R61 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R62 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R63 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R64 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608

.....5 R65 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

.....5 R66 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R67 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R68 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R69 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608

.....5 R70 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608

.....5 R71 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R72 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R73 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

.....5 R74 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608

.....5 R91 2007-000090 R-CHIP;10KOHM,5%,1/16W,DA,TP,1608

.....5 R93 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R94 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608

.....5 R95 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608

.....5 RN01 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP

.....5 RN02 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP

.....5 RN03 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP

.....5 RN04 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP

.....5 RN05 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP

.....5 RN08 2011-000585 R-NETWORK;47ohm,5%,63mW,L,CHIP,8P,TP

...3 AA63-00397B SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-, S.N.A

...3 AA63-00396B SHIELD CASE-TOP;PRJT,P54A,SPTE,T0.5,-,-, S.N.A

..2 AA95-00056G ASSY-PCB,H/V MDL;-,SVP-43J4A,P51A,-,-,KO

...3 BK01 AA61-10068A BRACKET-PCB;M2160,SPTE,T0.3,-,-,-,- S.N.A

...3 BK02 AA61-10068A BRACKET-PCB;M2160,SPTE,T0.3,-,-,-,- S.N.A

...3 BK03 AA61-10068A BRACKET-PCB;M2160,SPTE,T0.3,-,-,-,- S.N.A

...3 CN401 3711-001049 CONNECTOR-HEADER;BOX,6P,1R,2.5mm,ANGLE,-

...3 CN402 3711-002709 CONNECTOR-HEADER;NOWALL,12P,1R,2.5mm,ANG

...3 CN403 AA39-20052A LEAD CONNECTOR-ASSY;,4P,YBNH025-04,YSH02

...3 CN404 3711-001283 CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG

...3 IC471 1203-000610 IC-PWM CONTROLLER;494,DIP,16P,300MIL,PLA

...3 L351 AA27-10003M COIL-CHOKE;-,6100uH,J,40,34mA,TP,EL0607R

...3 PCB AA41-00199D PCB-H/V;SVP-43J5M,CEM-1,1L,D,1.6T,330X24 S.N.A

...3 Q371 AA96-50291A ASSY-H/S;-,-,AA62-30154B,2SC4636,- S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 0502-000442 TR-POWER;2SC4636RB,NPN,2W,TO-220,ST,10-

....4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA62-30154B HEAT-SINK,ES;-,A6063,EXTR,-,-,SILVER ANO S.N.A

...3 Q422 0502-001118 TR-POWER;KSC2335,NPN,40W,TO-220,ST,30-6

...3 R425 2003-002163 R-METAL OXIDE(S);1.2KOHM,5%,3W,AG,TP,6X1

...3 R481 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R485 2008-001096 R-FUSIBLE(S);3.3OHM,5%,1/2W,AC,BK,2.5X6.

...3 2001-000435 R-CARBON;1MOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 AA97-04944A ASSY AUTO-SUB;SVP-43J4A,P51A,KOREA S.N.A

....4 C341 2401-001914 C-AL;1uF,20%,50V,BP,TP,5x11,5

....4 C342 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5

....4 C351 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5

....4 C352 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C353 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3

....4 C354 2301-000261 C-FILM,PEF;4.7nF,5%,100V,TP,10.5x12.5x6.

....4 C355 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C356 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,7x3,5

....4 C357 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5

....4 C358 2401-000471 C-AL;10uF,20%,50V,BP,TP,5x11,5mm

....4 C360 2305-000355 C-FILM,MPEF;330nF,5%,63V,TP,-,5mm

....4 C361 2306-000122 C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m

....4 C362 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5

....4 C371 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5

....4 C372 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C373 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5

....4 C374 2401-001621 C-AL;6.8uF,20%,450V,GP,TP,13x20,5

....4 C405 2201-000558 C-CERAMIC,DISC;0.47nF,10%,50V,Y5P,TP,5x3

....4 C406 2201-000370 C-CERAMIC,DISC;0.22nF,10%,50V,Y5P,TP,4x3

....4 C421 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5

....4 C422 2301-000289 C-FILM,PEF;5.6nF,5%,50V,TP,7x6x3,5

....4 C429 2305-000704 C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5

....4 C454 2303-000331 C-FILM,PPF;4.7nF,5%,630V,TP,19.5x12x7,7.

....4 C455 2401-001527 C-AL;47uF,20%,250V,HR,TP,13x25mm,5m

....4 C456 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

....4 C461 2201-000600 C-CERAMIC,DISC;0.56nF,10%,50V,Y5P,TP,5x3

....4 C462 2301-000246 C-FILM,PEF;33nF,5%,100V,TP,7x5.0x9.5mm,5

....4 C466 2305-001023 C-FILM,MPEF;680nF,10%,63V,TP,7.5x5.5x14.

....4 C480 2306-000122 C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m

....4 C481 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

....4 C482 2305-000178 C-FILM,MPEF;10nF,5%,100V,TP,-,5mm

....4 C484 2401-001625 C-AL;6.8uF,20%,50V,GP,TP,5x11,5

....4 C485 2201-000146 C-CERAMIC,DISC;0.1nF,5%,50V,SL,TP,5x3.5,

....4 C486 2201-000146 C-CERAMIC,DISC;0.1nF,5%,50V,SL,TP,5x3.5,

....4 C487 2401-001026 C-AL;3.3UF,20%,50V,GP,TP,5X11,5

....4 C488 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C489 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

....4 C490 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

....4 C492 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C493 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

....4 C494 2201-000471 C-CERAMIC,DISC;0.33nF,10%,50V,Y5P,TP,4x3

....4 C495 2301-000204 C-FILM,PEF;2.7nF,5%,50V,TP,7.4x3.9x13mm,

....4 C496 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5

....4 D342 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D343 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D344 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D345 0403-001325 DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D

....4 D352 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D353 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D355 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 D363 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D364 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D371 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D372 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D373 0402-000243 DIODE-RECTIFIER;RC2-V1,2000V,0.2A,DO-201

....4 D384 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 D385 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

Electrical Parts List

7-2 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 D386 0403-001316 DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO

....4 D395 0403-001319 DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO

....4 D442 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D443 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D451 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T

....4 D456 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D457 0403-000714 DIODE-ZENER;MTZJ3.3B,3.3V,3.32-3.53V,500

....4 D474 0403-000734 DIODE-ZENER;TZP15B,15V,14.7-16.5V,1W,DO-

....4 D475 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D476 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D477 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D478 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D479 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D480 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 D483 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

....4 D484 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 D491 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D492 0403-000716 DIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m

....4 D493 0403-001325 DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D

....4 EL01 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EL02 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EL03 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EL04 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 GT401 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 IC481 1203-001217 IC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL

....4 L341 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm

....4 Q342 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q343 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q344 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 Q350 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q351 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 Q352 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q353 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q354 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 Q355 0501-000366 TR-SMALL SIGNAL;KSC2330-Y,NPN,1W,TO-92L,

....4 Q381 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q382 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q401 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q402 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q421 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q451 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q452 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q453 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q454 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 Q461 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q471 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q473 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q481 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q482 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 Q483 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 Q491 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 R339 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R340 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R341 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R342 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R343 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R344 2001-000890 R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R345 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R345A 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R346 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R347 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R348 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R349 2001-000252 R-CARBON;1.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R350 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R351 2001-001178 R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R352 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm

....4 R353 2001-000890 R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R354 2001-000890 R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R355 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R357 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R358 2001-000837 R-CARBON;51KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R359 2001-000766 R-CARBON;43KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R360 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R361 2001-001191 R-CARBON(S);820KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R362 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R363 2001-000723 R-CARBON;4.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R364 2001-000938 R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R365 2001-001120 R-CARBON(S);3.3OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R366 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R367 2001-001065 R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R368 2001-001065 R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R369 2001-001065 R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R369A 2001-001065 R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R370 2001-001065 R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R371 2001-001065 R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R372 2001-001110 R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R373 2001-001110 R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R374 2001-001110 R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R375 2001-001113 R-CARBON(S);270KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R376 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R377 2004-001892 R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R378 2004-001892 R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R379 2004-001892 R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R380 2004-001892 R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R381 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R384 2001-001150 R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R385 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R386 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R387 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R388 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R389 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R395 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R397 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R412 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R413 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R414 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R415 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R416 2001-000006 R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R420 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R421 2003-002159 R-METAL OXIDE;150OHM,5%,1W,AG,TP,4.3X12M

....4 R422 2001-001163 R-CARBON(S);560OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R423 2001-000869 R-CARBON;56OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R437 2008-001087 R-FUSIBLE(S);1.8ohm,5%,2W,AG,TP,3.9x12mm

....4 R438 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R439 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R442 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m

....4 R442A 2008-000204 R-FUSIBLE(S);0.22ohm,10%,1/2W,AF,TP,2.5x

....4 R443 2003-002156 R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM

....4 R443A 2003-002156 R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM

....4 R445 2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R446 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R447 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R448 2001-000411 R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R449 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R450 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R451 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R452 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R454 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R455 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R456 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R458 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R459 2001-001192 R-CARBON(S);820OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R460 2003-002159 R-METAL OXIDE;150OHM,5%,1W,AG,TP,4.3X12M

....4 R461 2001-000302 R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R464 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R471 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R472 2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R473 2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R474 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R474A 2001-000508 R-CARBON;220KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R475 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R475B 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R477 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R479 2001-000005 R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm

....4 R480 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R482 2001-001031 R-CARBON;91KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R483 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R484 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R487 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R489 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R490 2001-000723 R-CARBON;4.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R491 2001-001178 R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R492 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R493 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

Electrical Parts List

Samsung Electronics 7-3

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 R494 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R495 2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R496 2001-000347 R-CARBON;13KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R497 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm

....4 R498 2001-001165 R-CARBON(S);56OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

...3 AA65-30105C CLAMP-WIRE;ALL MODEL,NYLON 66,V2,-,NTR,5 S.N.A

..2 AA95-00055K ASSY-PCB,CONV AMP;-,SVP-43J4,P51A,-,-,KO

...3 C491 2306-000322 C-FILM,MPPF;12nF,5%,1.6KV,TP,29x20.5x13,

...3 CN203 AA39-00115A LEAD CONNECTOR-ASSY;,10P,YBNH250-10,3515

...3 CN401 AA39-00128A LEAD CONNECTOR-ASSY;,8P,YBNH250-08,35155

...3 CN402 AA39-00116A LEAD CONNECTOR-ASSY;,12P,YBNH250-12,3515

...3 CN802 AA39-00128A LEAD CONNECTOR-ASSY;,8P,YBNH250-08,35155

...3 ICZ101 AA96-50152C ASSY-H/S;-,TR,AA62-30012A,KA7806A,30MM S.N.A

....4 1203-000284 IC-POSI.FIXED REG.;7806,TO-220,3P,-,PLAS

....4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA62-30012A HEAT-SINK,ES;-,A6063 EXTR,-,-,T0220,-,-, S.N.A

...3 ICZ102 1203-000121 IC-NEGA.FIXED REG.;7906,TO-220,3P,-,PLAS

...3 ICZ103 AA96-00038B ASSY H/S;-,CONVERGENCE,AA62-30173E,STK39 S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 1201-001512 IC-VIDEO AMP;392,SIP,22P,-,TRIPLE,-,PLAS

....4 6003-001021 SCREW-TAPTITE;RH,+,B,M3,L15,ZPC(YEL),SWR S.N.A

....4 AA62-30173E HEAT-SINK,ES;-,-,T1.0,WHITE,SCREW-HOLE(1 S.N.A

...3 ICZ104 AA96-00038B ASSY H/S;-,CONVERGENCE,AA62-30173E,STK39 S.N.A

...3 PCB AA41-00135F PCB-CONVERGENCE AMP;SVP-54J8M,CEM-1,1L,F S.N.A

...3 SG303 4715-001050 SURGE ABSORBER;2.4kV,20%,1500A,-,DISC-RA

...3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

...3 AA97-04940A ASSY AUTO-SUB;SVP-43J4,P51A,KOREA S.N.A

....4 CN403 3711-002643 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH

....4 CZ101 2401-001429 C-AL;470uF,20%,50V,GP,TP,13x20,5

....4 CZ102 2401-001429 C-AL;470uF,20%,50V,GP,TP,13x20,5

....4 CZ103 2401-000689 C-AL;2200uF,20%,16V,GP,TP,13x25,5

....4 CZ105 2401-000689 C-AL;2200uF,20%,16V,GP,TP,13x25,5

....4 CZ106 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,7x3,5

....4 CZ107 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,7x3,5

....4 CZ108 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3

....4 CZ109 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3

....4 CZ110 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3

....4 CZ111 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3

....4 CZ112 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3

....4 CZ113 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3

....4 CZ114 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3

....4 CZ115 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3

....4 CZ116 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3

....4 CZ117 2201-000327 C-CERAMIC,DISC;2.2nF,10%,50V,Y5V,TP,6.5x

....4 CZ118 2201-000327 C-CERAMIC,DISC;2.2nF,10%,50V,Y5V,TP,6.5x

....4 CZ119 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

....4 CZ120 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

....4 CZ121 2201-000764 C-CERAMIC,DISC;0.082nF,5%,50V,NP0,TP,8x3

....4 CZ126 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3

....4 CZ127 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3

....4 CZ128 2201-000499 C-CERAMIC,DISC;0.39nF,5%,50V,SL,TP,8.5x3

....4 CZ132 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3

....4 CZ133 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3

....4 CZ134 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3

....4 CZ135 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3

....4 CZ136 2201-000976 C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3

....4 CZ137 2201-000863 C-CERAMIC,DISC;0.68nF,10%,50V,Y5P,TP,5x3

....4 CZ138 2201-000327 C-CERAMIC,DISC;2.2nF,10%,50V,Y5V,TP,6.5x

....4 CZ139 2201-000327 C-CERAMIC,DISC;2.2nF,10%,50V,Y5V,TP,6.5x

....4 CZ144 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

....4 CZ145 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

....4 CZ146 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

....4 CZ147 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

....4 CZ151 2202-000183 C-CERAMIC,MLC-AXIAL;2.2NF,20%,16V,Y5R,TP

....4 CZ152 2202-000183 C-CERAMIC,MLC-AXIAL;2.2NF,20%,16V,Y5R,TP

....4 CZ153 2202-000183 C-CERAMIC,MLC-AXIAL;2.2NF,20%,16V,Y5R,TP

....4 CZ154 2202-000183 C-CERAMIC,MLC-AXIAL;2.2NF,20%,16V,Y5R,TP

....4 CZ155 2202-000183 C-CERAMIC,MLC-AXIAL;2.2NF,20%,16V,Y5R,TP

....4 CZ156 2202-000183 C-CERAMIC,MLC-AXIAL;2.2NF,20%,16V,Y5R,TP

....4 D453 0402-001286 DIODE-RECTIFIER;RP1H,2000V,.1A,-,TP

....4 D501 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 DZ120 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

....4 DZ121 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

....4 DZ123 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

....4 DZ126 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 DZ127 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 DZ128 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

....4 DZ129 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

....4 DZ130 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

....4 DZ131 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

....4 EL01 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL02 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL03 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL04 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL05 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EY01 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY02 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY03 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY04 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY05 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY06 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY07 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY08 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY09 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY10 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 GT17 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT18 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT21 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT22 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT23 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT24 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT25 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT26 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT27 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT28 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT29 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT30 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT31 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT32 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT401 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT402 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT403 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT404 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT405 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT406 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT407 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT408 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 LZ101 2701-001030 INDUCTOR-AXIAL;43uH,10%,5x14mm

....4 LZ102 2701-001030 INDUCTOR-AXIAL;43uH,10%,5x14mm

....4 LZ103 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm

....4 LZ104 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm

....4 LZ107 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm

....4 LZ108 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm

....4 LZ109 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm

....4 LZ110 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm

....4 LZ111 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm

....4 LZ112 2701-000142 INDUCTOR-AXIAL;1uH,10%,2.5x3.4mm

....4 R382 2002-001006 R-COMPOSITION;4.7Kohm,5%,1/2W,AA,TP,3.7x

....4 R476 2004-004046 R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R476A 2004-004001 R-METAL(S);180Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R476B 2004-001892 R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R476C 2004-004046 R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R478 2004-001892 R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R501 2004-002016 R-METAL(S);15Kohm,1%,1/2W,AA,TP,2.5x6.5m

....4 R502 2004-001369 R-METAL(S);1.2Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 RFZ19 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm

....4 RFZ20 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm

....4 RFZ21 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm

....4 RFZ22 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm

....4 RFZ50 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm

....4 RFZ51 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm

....4 RFZ52 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm

....4 RFZ53 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm

....4 RZ102 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ103 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ104 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ105 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ106 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ107 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ108 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ109 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ110 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ111 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

Electrical Parts List

7-4 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 RZ112 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ113 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ114 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ115 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ116 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ117 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ118 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ119 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm

....4 RZ120 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ121 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ124 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M

....4 RZ126 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M

....4 RZ128 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M

....4 RZ129 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 RZ130 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 RZ131 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 RZ132 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 RZ133 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ134 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ135 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ136 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ137 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ138 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ139 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ140 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ141 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ142 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M

....4 RZ145 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M

....4 RZ147 2003-002148 R-METAL OXIDE;3.9OHM,2%,2W,AF,TP,3.9X10M

....4 RZ148 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 RZ149 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 VR472 2103-001086 VR-SEMI;100KOHM,25%,0.3W,TOP

..2 AA95-00053Z ASSY-PCB,SUB;-,ST524J,P51A,-,-,-

...3 C430 2306-000326 C-FILM,MPPF;4.7nF,5%,1.6KV,TP,28.5x16x9m

...3 C431 2306-000326 C-FILM,MPPF;4.7nF,5%,1.6KV,TP,28.5x16x9m

...3 C432 2303-000118 C-FILM,PPF;10nF,5%,1.6KV,BK,31x19.5x13,2

...3 C436 2306-000235 C-FILM,MPPF;560nF,5%,400V,TP,26*22.5*14,

...3 C438 2306-000267 C-FILM,MPPF;8.2nF,5%,1.6KV,TP,28.5x18.5x

...3 C471 2306-001017 C-FILM,MPPF;680nF,5%,400V,TP,26x14.5x24m

...3 C473 2306-000322 C-FILM,MPPF;12nF,5%,1.6KV,TP,29x20.5x13,

...3 C474 2306-000326 C-FILM,MPPF;4.7nF,5%,1.6KV,TP,28.5x16x9m

...3 C477 2301-000213 C-FILM,PEF;220nF,5%,250V,TP,21.5x11,7.5

...3 C801 2306-000112 C-FILM,MPPF;100nF,20%,250V,BK,-,15mm

...3 C802 2306-000112 C-FILM,MPPF;100nF,20%,250V,BK,-,15mm

...3 C812 2401-000701 C-AL;2200uF,20%,250V,GP,-,35x70mm,1

...3 C813 2401-000701 C-AL;2200uF,20%,250V,GP,-,35x70mm,1

...3 C831 2306-000323 C-FILM,MPPF;2.2nF,5%,1.6KV,TP,28.5x15.5x

...3 C842 2401-003370 C-AL;47uF,20%,450V,GP,BK,16X35.5,7.

...3 C862 2401-002225 C-AL;3300uF,20%,50V,WT,BK,22x41,7.5

...3 C865 2401-000737 C-AL;2200uF,20%,50V,GP,TP,18x35.5,7

...3 C868 2401-000737 C-AL;2200uF,20%,50V,GP,TP,18x35.5,7

...3 C875 2401-002251 C-AL;470uF,20%,200V,GP,BK,25x40mm,1

...3 C876 2401-000787 C-AL;220uF,20%,160V,GP,TP,16x31.5mm

...3 C891 2201-000987 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,TP,12.

...3 C892 2201-000987 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,TP,12.

...3 CN201 AA39-00128A LEAD CONNECTOR-ASSY;,8P,YBNH250-08,35155

...3 CN202 AA39-00115A LEAD CONNECTOR-ASSY;,10P,YBNH250-10,3515

...3 CN203 3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG

...3 CN401 3711-003051 CONNECTOR-HEADER;BOX,8P,1R,2.5MM,STRAIGH

...3 CN402 3711-003974 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG

...3 CN801 AA39-00116B LEAD CONNECTOR-ASSY;,12P,YBNH250-12,3515

...3 CN802 3711-003051 CONNECTOR-HEADER;BOX,8P,1R,2.5MM,STRAIGH

...3 CNW406 AA39-00009A LEAD CONNECTOR-ASSY;,3(2)P,YFH800-03,S,2

...3 CNW809 AA39-20061G LEAD CONNECTOR-ASSY;,3P,YFH800-03,S,100M

...3 D431 0402-000266 DIODE-RECTIFIER;RH4F,1.5KV,1.5A,-,-

...3 D432 0402-000542 DIODE-RECTIFIER;RU4AM,600V,2A,-

...3 D464 0402-000236 DIODE-RECTIFIER;GI824,400V,5A,-,TP

...3 D804 AA96-50310A ASSY-H/S;-,POWER,AA62-30150C,RBV606,- S.N.A

....4 AA62-30150C HEAT-SINK,ES;-,A6063 EXTR,-,WHT,40(24.5) S.N.A

....4 AA60-30003A WASHER;-,-,-,T1.5,-,SBHG-1,- S.N.A

....4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 0402-000549 DIODE-BRIDGE;RBV606,600V,6A,-,BK

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

...3 D810 0402-000250 DIODE-RECTIFIER;RG4C,1000V,1A,-

...3 D854 AA96-00111C ASSY-H/S;-,-,AA62-30013L,FML-G12S,- S.N.A

....4 0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,-

....4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA62-30013L HEAT-SINK,ES;-,-,-,-,44/22,-,WHT,-,-,-,- S.N.A

...3 D871 AA96-00032A ASSY-H/S;-,-,AA62-30173B,FMLG12, FMGG26,

....4 0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,-

....4 0402-000231 DIODE-RECTIFIER;FMG-G26S,600V,4A,TO-220F

....4 AA62-30173B HEAT-SINK,ES;-,-,T1.0,WHT,-,ALL,-,-,88X2 S.N.A

....4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

...3 DZ481 0403-001327 DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D

...3 DZ833 0406-001007 DIODE-TVS;P6KE180A,171/180/189V,600W,CAS

...3 F801 3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS

...3 F802 3601-001137 FUSE-AXIAL LEAD;250V,6A,SLOW-BLOW,GLASS,

...3 F804 3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS

...3 IC301 AA96-50381A ASSY-H/S;-,-,AA62-30180B,LA7845,- S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 1204-000517 IC-VERTICAL DEF.;LA7845,SIP,7P,-,PLASTIC

....4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA62-30180B HEAT-SINK,ES;-,A6063 EXTR.,2,WHT,70MM,-, S.N.A

...3 IC421 1203-000165 IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL

...3 IC430 1203-000162 IC-POSI.ADJUST REG.;317,TO-220,3P,-,PLAS

...3 IC431 1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV

...3 IC801 AA96-00035A ASSY-H/S;-,POWER,AA62-30181P,STR-F6656,-

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA13-00018A IC-HYBRID;-,STR-F6656,LF1351,5PIN,-,-

....4 AA62-30181P HEAT-SINK,ES;-,-,T1.0,WHITE,SCREW-HOLE(2 S.N.A

...3 IC802 AA13-00033A IC-HYBRID;-,SVD001,-,7PIN,-,-

...3 IC804 AA13-20002L IC-HYBRID;-,SE125N,SIP,3P,ERROR AMP

...3 IC806 0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST

...3 L431 AA27-30003S COIL-LINEARLITY;-,54uH,YL81DR14x15,0.12m

...3 L432 AA27-40001F COIL-HORIZ.WIDTH;-,1mH,DR1520,PI0.4,-

...3 L482 3301-000374 CORE-FERRITE BEAD;AA,3.5x1.0x9.0mm,-,-

...3 L800 AA29-30002P FILTER-LINE NOISE;-,3MH,5A,AC100~260V,35

...3 L801 AA29-30002M FILTER-LINE NOISE;-,1mHMIN,5A,AC90~260V,

...3 L803 AA29-30002M FILTER-LINE NOISE;-,1mHMIN,5A,AC90~260V,

...3 L854 AA27-10001C COIL-CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R

...3 L860 AA27-10001C COIL-CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R

...3 L862 AA27-10001C COIL-CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R

...3 L872 AA27-10001C COIL-CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R

...3 L874 AA27-10002L COIL-CHOKE;-,24uH,K,-,2A,-,24UH-K,10x10m

...3 PCB AA41-00197C PCB;PCJ533R,CEM-1,1L,C,1.6T,330X245,P51A S.N.A

...3 Q431 AA96-00289A ASSY H/S;-,POWER,AA62-30173G,2SD1887YD,5 S.N.A

....4 AA62-30173G HEAT SINK-ES;-,-,T2.2,SILVER,50mm,E-2,SI S.N.A

....4 AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,-,SBHG S.N.A

....4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 0502-000450 TR-POWER;2SD1887YD,NPN,1500V,800V,10A,7

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

...3 Q433 AA96-50407A ASSY-H/S;-,-,AA62-30154G,KSD73Y,- S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 0502-000298 TR-POWER;KSD73,NPN,30000mW,TO-220,TP,120

....4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA62-30154G HEAT-SINK,ES;-,A6063 EXTR,-,WHT,50/16,-, S.N.A

...3 Q441 AA96-50383F ASSY-H/S;-,-,AA62-30180D,2SD921,- S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 0502-001104 TR-POWER;2SD921,NPN,80W,TO-3P,BK,700-

....4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA62-30180D HEAT-SINK,ES;-,A6063 EXTR.,2,WHT,50mm,-, S.N.A

...3 Q472 0502-001118 TR-POWER;KSC2335,NPN,40W,TO-220,ST,30-6

...3 Q473 AA96-00037A ASSY-H/S;-,-,AA62-30181N,2SC4125, IRFS64

....4 0502-001100 TR-POWER;2SC4125,NPN,70W,TO-3PML,BK,8-

....4 AA62-30181N HEAT-SINK,ES;-,-,T1.0,WHITE,SCREW-HOLE(2 S.N.A

....4 AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,-,SBHG S.N.A

....4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 0505-001202 FET-SILICON;IRFS640A,N,200V,9.8A,0.18ohm

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

...3 R440 2008-001091 R-FUSIBLE(S);0.47OHM,10%,1/2W,AC,BK,2.5X

...3 R442 2008-000189 R-FUSIBLE;0.47ohm,10%,2W,AA,TP,6x15.5mm

...3 R445 2008-001091 R-FUSIBLE(S);0.47OHM,10%,1/2W,AC,BK,2.5X

...3 R465 2008-000282 R-FUSIBLE;0.47ohm,5%,1W,AA,TP,3.9x12mm

...3 R803 1404-001195 THERMISTOR-NTC;5.1ohm,15%,2900,27mW/C,BK

...3 R815 2003-002162 R-METAL OXIDE(S);15KOHM,5%,3W,AG,TP,6X16

...3 R815A 2003-002162 R-METAL OXIDE(S);15KOHM,5%,3W,AG,TP,6X16

...3 R817 2009-001096 R-METAL PLATE;0.07ohm,5%,5W,CL,BK,5x14x1

...3 R841 2008-001096 R-FUSIBLE(S);3.3OHM,5%,1/2W,AC,BK,2.5X6.

...3 RL802 3501-001040 RELAY-POWER;12VDC,500mW,10A,1FormA,15mS,

...3 T431 AA26-50001U TRANS-HORIZ.DRIVE;-,-,-,28mH,-,-,105uH,-

...3 T432 AA26-00033A TRANS-DUMMY;-,-,12PIN,-,125,-,-,-,-,0.5o

...3 T444 AA26-00032A TRANS-FLYBACK;-,FWZ-50A002,50,125V

Electrical Parts List

Samsung Electronics 7-5

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

...3 T461 AA26-50001V TRANS-HORIZ.DRIVE;-,-,-,6.0mH,-,-,113uH,

...3 T481 AA26-50001W TRANS-HORIZ.DRIVE;-,-,-,830uH,-,-,23uH,-

...3 T802 AA26-00034A TRANS-SWITCHING;-,-,-,AC90~260V,-,UL/CSA

...3 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A

...3 AA97-04937A ASSY AUTO-SUB;ST524J,P51A S.N.A

....4 C301 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5

....4 C302 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5,

....4 C303 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5

....4 C304 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5,

....4 C305 2201-002022 C-CERAMIC,DISC;0.005nF,0.25pF,500V,NP0,T

....4 C307 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm,

....4 C308 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm,

....4 C309 2305-000285 C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15

....4 C311 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5

....4 C412 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

....4 C413 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

....4 C417 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5

....4 C418 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

....4 C419 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,7x3,5

....4 C426 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

....4 C427 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5

....4 C428 2306-000122 C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m

....4 C437 2401-003114 C-AL;4.7uF,20%,250V,WT,TP,10x16,5

....4 C441 2401-000262 C-AL;100uF,20%,160V,HR,TP,16x25,7.5

....4 C445 2401-001622 C-AL;6.8uF,20%,50V,BP,TP,16x25mm,7.

....4 C450 2401-000262 C-AL;100uF,20%,160V,HR,TP,16x25,7.5

....4 C451 2401-001160 C-AL;33uF,20%,160V,GP,-,16x35mm,7.5

....4 C452 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

....4 C453 2401-002288 C-AL;470uF,20%,25V,WT,TP,10x20,5

....4 C454 2401-001429 C-AL;470uF,20%,50V,GP,TP,13x20,5

....4 C455 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

....4 C457 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

....4 C458 2401-002288 C-AL;470uF,20%,25V,WT,TP,10x20,5

....4 C467 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

....4 C468 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

....4 C469 2201-000291 C-CERAMIC,DISC;1nF,10%,500V,Y5P,TP,7.5x3

....4 C472 2401-000262 C-AL;100uF,20%,160V,HR,TP,16x25,7.5

....4 C476 2401-001017 C-AL;3.3UF,20%,50V,BP,TP,5X11,5

....4 C478 2301-000020 C-FILM,PEF;27nF,5%,100V,TP,7.3x4x12.5mm,

....4 C479 2301-000200 C-FILM,PEF;2.2nF,5%,200V,TP,11.0x6.0x9.0

....4 C483 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5

....4 C484 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

....4 C809 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3

....4 C814 2201-002041 C-CERAMIC,DISC;0.82nF,10%,2kV,Y5P,TP,9x5

....4 C815 2201-000406 C-CERAMIC,DISC;0.27nF,10%,2kV,Y5P,TP,6.3

....4 C816 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4

....4 C817 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4

....4 C818 2301-001216 C-FILM,PPF;47nF,5%,630V,TP,20x14.5x22,7.

....4 C819 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4

....4 C833 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5,

....4 C834 2401-003028 C-AL;100uF,20%,25V,WT,TP,6.3x11,5

....4 C835 2401-000030 C-AL;22uF,20%,25V,GP,TP,5x11,5

....4 C851 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3

....4 C852 2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20,5

....4 C854 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3

....4 C855 2401-003141 C-AL;2200uF,20%,25V,WT,TP,13x25,5mm

....4 C857 2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20,5

....4 C861 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3

....4 C864 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3

....4 C866 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5

....4 C869 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5

....4 C871 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3

....4 C872 2401-000703 C-AL;2200uF,20%,25V,GP,-,12.5x25mm,

....4 C873 2401-001998 C-AL;1000uF,20%,25V,GP,TP,10x20,5mm

....4 C874 2201-000551 C-CERAMIC,DISC;0.47nF,10%,1kV,Y5P,TP,6.3

....4 C877 2305-000427 C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5

....4 D302 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 D433 0402-000537 DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC

....4 D435 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 D438 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 D440 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T

....4 D441 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T

....4 D444 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 D445 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T

....4 D469 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 D472 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 D474 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 D801 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP

....4 D802 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP

....4 D805 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 D834 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 D839 0402-000243 DIODE-RECTIFIER;RC2-V1,2000V,0.2A,DO-201

....4 D842 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 D843 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 D851 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L

....4 DZ301 0403-001327 DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D

....4 DZ304 0403-001327 DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D

....4 DZ305 0403-001329 DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D

....4 DZ306 0403-001167 DIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500

....4 DZ307 0403-001329 DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D

....4 DZ413 0403-001319 DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO

....4 DZ473 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

....4 DZ837 0403-000170 DIODE-ZENER;1N4762,82V,10%,1W,DO-41,TP

....4 DZ840 0403-001039 DIODE-ZENER;MA2560,56V,52-60V,1W,DO-41,T

....4 DZ841 0403-000691 DIODE-ZENER;R2K,170V,170-200V,-,-,TP

....4 DZ842 0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T

....4 DZ858 0403-001325 DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D

....4 EL09 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL10 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL11 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL12 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL13 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL14 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL15 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL18 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL19 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL20 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL21 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL22 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EL25 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

....4 EY01 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY05 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY06 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY09 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY10 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY100 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY101 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY102 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY103 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY104 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY105 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY106 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY107 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY108 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY109 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY11 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY110 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY111 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY112 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY113 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY114 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY115 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY116 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY117 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY118 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY119 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY12 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY120 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY121 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY122 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY123 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY124 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY125 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY126 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY127 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY128 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY129 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY13 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY130 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY131 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY132 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY133 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY134 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY135 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

Electrical Parts List

7-6 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 EY136 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY137 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY138 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY139 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY14 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY140 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY141 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY142 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY143 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY144 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY145 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY146 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY147 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY148 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY149 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY15 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY150 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY151 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY152 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY153 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY154 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY155 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY156 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY157 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY158 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY159 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY16 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY160 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY161 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY162 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY163 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY164 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY165 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY166 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY167 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY168 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY169 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY17 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY170 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY171 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY172 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY173 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY174 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY175 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY176 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY177 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY178 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY179 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY18 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY180 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY181 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY182 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY183 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY184 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY185 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY186 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY187 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY188 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY189 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY19 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY190 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY191 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY192 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY193 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY196 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY20 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY21 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY22 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY23 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY24 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY25 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY26 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY27 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY28 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY29 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY30 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY31 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY32 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY33 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY34 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY35 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY36 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY37 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY38 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY39 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY40 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY41 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY44 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY45 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY46 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY47 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY48 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY49 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY50 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY51 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY52 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY53 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY54 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY55 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY56 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY57 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY58 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY59 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY60 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY61 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY62 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY63 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY64 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY67 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY68 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY69 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY70 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY71 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY72 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY73 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY74 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY75 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY76 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY79 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY80 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY81 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY82 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY83 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY84 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY85 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY86 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY87 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY88 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY89 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY90 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY91 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY92 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY93 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY94 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY95 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY96 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY97 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY98 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 EY99 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

....4 F801A 3602-000114 FUSE-HOLDER;-,-,30mohm

....4 F801B 3602-000114 FUSE-HOLDER;-,-,30mohm

....4 F804A 3602-000114 FUSE-HOLDER;-,-,30mohm

....4 F804B 3602-000114 FUSE-HOLDER;-,-,30mohm

....4 F805 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

....4 F806 3601-001065 FUSE-AXIAL LEAD;125V,3.5A,FAST-ACTING,CE

....4 F854 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

....4 F855 3601-001163 FUSE-AXIAL LEAD;125V,7A,-,EPOXY,2.4X7.1M S.N.A

....4 F871 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

....4 GT01 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT02 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT03 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT04 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT05 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT06 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

Electrical Parts List

Samsung Electronics 7-7

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 GT07 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT08 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT09 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT10 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT11 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT12 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT14 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT15 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT16 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT17 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT403 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT404 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT405 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT801 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT802 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT803 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT810 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT811 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT812 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT813 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT814 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 L481 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

....4 L483 2901-000299 FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,

....4 L492 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm

....4 L493 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 L494 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

....4 L495 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 L806 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 L807 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 L808 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

....4 L810 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 L811 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 L812 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 L813 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 L814 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

....4 L815 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 L816 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 L831 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

....4 L832 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

....4 L851 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 L857 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

....4 L859 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

....4 Q301 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q432 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 R301 2004-001897 R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.

....4 R302 2004-001897 R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.

....4 R303 2004-001984 R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.

....4 R305 2004-001984 R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.

....4 R306 2003-002070 R-METAL OXIDE;1ohm,5%,2W,AF,TP,3.9x10mm

....4 R307 2003-000436 R-METAL OXIDE(S);1.5ohm,5%,1W,AF,TP,3.3x

....4 R308 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM

....4 R310 2003-002150 R-METAL OXIDE;270OHM,5%,2W,AG,TP,6X16MM

....4 R312 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R313 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R314 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R332 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4

....4 R333 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4

....4 R334 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4

....4 R406 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm

....4 R407 2004-001897 R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.

....4 R408 2004-002016 R-METAL(S);15Kohm,1%,1/2W,AA,TP,2.5x6.5m

....4 R409 2004-001394 R-METAL(S);2Kohm,1%,1/2W,AA,TP,2.4x6.4mm

....4 R410 2001-000864 R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R412 2004-000869 R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3.2mm

....4 R419 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R424 2008-000299 R-FUSIBLE(S);47ohm,5%,2W,AF,TP,3.9x10mm

....4 R426 2003-002153 R-METAL OXIDE;4.7OHM,5%,2W,AG,TP,6X16MM

....4 R427 2003-001031 R-METAL OXIDE(S);2.4ohm,5%,2W,AF,TP,3.9x

....4 R427A 2003-001031 R-METAL OXIDE(S);2.4ohm,5%,2W,AF,TP,3.9x

....4 R428 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

....4 R428A 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

....4 R429 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12

....4 R430 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12

....4 R433 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R434 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R441 2008-000189 R-FUSIBLE;0.47ohm,10%,2W,AA,TP,6x15.5mm

....4 R444 2003-000995 R-METAL OXIDE(S);3.3Kohm,5%,2W,AF,TP,3.9

....4 R462 2008-001033 R-FUSIBLE(S);10ohm,5%,2W,AF,TP,3.9x10mm

....4 R463 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 R464 2003-002158 R-METAL OXIDE;0.68OHM,5%,1W,AG,TP,4.3X12

....4 R466 2004-002019 R-METAL(S);33Kohm,1%,1/2W,AA,TP,2.5x6.5m

....4 R467 2004-002019 R-METAL(S);33Kohm,1%,1/2W,AA,TP,2.5x6.5m

....4 R468 2001-001122 R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R469 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm

....4 R470 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R471 2004-002011 R-METAL(S);110Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R472 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x

....4 R473 2004-001395 R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4

....4 R486 2003-002014 R-METAL OXIDE(S);0.6ohm,5%,2W,AF,TP,3.9x

....4 R488 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R808 2001-000002 R-CARBON(S);200KOHM,5%,1/2W,AA,TP,6.4X2.

....4 R809 2001-000002 R-CARBON(S);200KOHM,5%,1/2W,AA,TP,6.4X2.

....4 R812 2003-002151 R-METAL OXIDE;18KOHM,5%,2W,AG,TP,6X16MM

....4 R814 2003-002151 R-METAL OXIDE;18KOHM,5%,2W,AG,TP,6X16MM

....4 R825 2002-001010 R-COMPOSITION;1.8Mohm,5%,1/2W,AA,TP,3.7x

....4 R832 2001-001178 R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R833 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 R834 2001-001097 R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R835 2001-001188 R-CARBON(S);8.2KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R837 2001-001097 R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R838 2001-001097 R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R842 2003-001040 R-METAL OXIDE(S);47Kohm,5%,2W,AF,TP,3.9x

....4 R842A 2003-001040 R-METAL OXIDE(S);47Kohm,5%,2W,AF,TP,3.9x

....4 R844 2003-002020 R-METAL OXIDE(S);56Kohm,5%,2W,AF,TP,3.9x

....4 R845 2003-002020 R-METAL OXIDE(S);56Kohm,5%,2W,AF,TP,3.9x

....4 R846 2003-002020 R-METAL OXIDE(S);56Kohm,5%,2W,AF,TP,3.9x

....4 R847 2003-002020 R-METAL OXIDE(S);56Kohm,5%,2W,AF,TP,3.9x

....4 R848 2001-001110 R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R850 2008-001079 R-FUSIBLE;4.7OHM,5%,2W,AF,TP,3.9X10MM

....4 R855 2001-001196 R-CARBON(S);9.1KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R856 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R857 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R871 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R872 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R891 2002-001013 R-COMPOSITION;4.7Mohm,5%,1/2W,AA,TP,3.7x

....4 VR471 2103-001024 VR-SEMI;50Kohm,25%,0.3W,TOP

...3 AA62-00010A HEAT-SINK;-,-,T1.0,SILVER,H/SINK & SHIEL S.N.A

...3 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G

...3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

...3 AA65-30110A CLAMP-WIRE;ALL MODEL,NYLON 66,V2,-,BLK,P S.N.A

...3 AA65-30109A CLAMP-FBT;-,NYLON-66,V2,-,BLK,- S.N.A

...3 AA65-30105B CLAMP-WIRE;ALL MODEL,NYLON 66,V2,-,NTR,2 S.N.A

..2 AA94-01636F ASSY PCB MAIN(OPT);PCJ522R3C/XAA,P51A,U.

...3 C664 2401-001068 C-AL;3300uF,20%,50V,GP,BK,22x40,10

...3 C665 2401-000737 C-AL;2200uF,20%,50V,GP,TP,18x35.5,7

...3 CNT01 3710-001208 CONNECTOR-SOCKET;32P,2R,2.54mm,STRAIGHT,

...3 CNT02 3710-001208 CONNECTOR-SOCKET;32P,2R,2.54mm,STRAIGHT,

...3 CORE2 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G

...3 H001 AA40-10005R TUNER-F/S,LNA;TECC1070PG30A(S),NTSC/USA,

...3 H002 AA40-00056A TUNER-F/S;TCPN9082PC27P(S),NTSC,TR,181CH

...3 H003 AA59-40003Q MODULE-MTS;-,MZ-201,ZENITH,US,43X54,-

....4 IC101 1204-001204 IC-DECODER;TDA9850,DIP,32P,4000MIL,PLAST

....4 X101 2802-001054 RESONATOR-CERAMIC;514.5KHz,1.5KHz,BK,7.0

....4 AA41-11040A PCB-MTS MODULE;PLT51A,1L,FR-1,245x245x1. S.N.A

...3 H004 AA95-01279A ASSY-PCB,IF MODULE;,AA95-00527A

....4 CNW201 3711-002707 CONNECTOR-HEADER;NOWALL,9P,1R,2.5mm,ANGL

....4 IC101 1204-001435 IC-IF SYSTEM;LA7565B,DIP,24P,300MIL,PLAS

....4 L102 AA26-00047A TRANS RF;-,7MG,VIF,-,7.7x12.4,39pF,47.85

....4 SF01 2904-000288 FILTER-SAW AV;45.75MHz,SIP5K,ST,15.2dB,M

....4 AA41-00234B PCB-IF MODULE;K56B,1L,FR-1,245x245x1.6T, S.N.A

....4 AA97-05503A ASSY AUTO-SUB;PROJ,P51A,AA95-00527A S.N.A

.....5 C101 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,

.....5 C102 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,

.....5 C103 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,

.....5 C104 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,

.....5 C105 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,

.....5 C106 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5

.....5 C107 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5

.....5 C108 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,

.....5 C109 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,

.....5 C110 2401-001625 C-AL;6.8uF,20%,50V,GP,TP,5x11,5

.....5 C111 2401-001077 C-AL;330nF,20%,50V,GP,TP,4x7mm,5mm

.....5 C113 2201-000986 C-CERAMIC,DISC;0.012nF,5%,50V,NP0,TP,5x3

.....5 C114 2401-002183 C-AL;220uF,20%,16V,GP,TP,8x9,5mm

Electrical Parts List

7-8 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 C115 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5

.....5 F101 2903-000135 FILTER-CERAMIC;BP,4.5MHz,120KHz,6dB,-,TP

.....5 F102 2903-000129 FILTER-CERAMIC;BR,4.5MHz,-,-,-,TP,-

.....5 L101 2701-000171 INDUCTOR-AXIAL;330nH,10%,2.5x3.4mm

.....5 L104 2701-000191 INDUCTOR-AXIAL;47uH,10%,2.5x3.4mm

.....5 L105 2701-000215 INDUCTOR-AXIAL;8.2uH,10%,2.5x3.4mm

.....5 R101 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R102 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R103 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R104 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm

.....5 R105 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R106 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R107 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R108 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R109 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R110 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R111 2001-000837 R-CARBON;51KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R112 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R113 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R114 2001-000995 R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R117 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R118 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R119 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R120 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R121 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R123 2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R130 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 TR101 0501-000348 TR-SMALL SIGNAL;KSC1674,NPN,250mW,TO-92,

.....5 TR102 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

....4 AA63-00244B SHIELD CASE;ALL MODEL,SPTE ,T0.5,-,-,-,I S.N.A

...3 IC101 AA96-00110C ASSY-H/S;-,-,AA62-30013K,SI-3090C,-

....4 1203-000577 IC-VOLTAGE REGULATOR;3090,ZIP,5P,-,PLAST

....4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA62-30013K HEAT-SINK,ES;-,-,-,-,44/18,-,WHT,A6063 E S.N.A

...3 IC102 AA96-00110A ASSY-H/S;-,-,AA62-30013K,SI-3050C,-

....4 1203-000203 IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA

....4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA62-30013K HEAT-SINK,ES;-,-,-,-,44/18,-,WHT,A6063 E S.N.A

...3 IC504 AA96-00110A ASSY-H/S;-,-,AA62-30013K,SI-3050C,-

...3 IC665 AA96-00038A ASSY-H/S;-,SOUND AMP,AA62-30173E,TDA7265

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 1201-001026 IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1

....4 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA62-30173E HEAT-SINK,ES;-,-,T1.0,WHITE,SCREW-HOLE(1 S.N.A

...3 L201 AA27-10001C COIL-CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R

...3 L601 AA29-00004A FILTER-LINE NOISE;-,20UH,3A,AC80-260V,TQ

...3 RL801 3501-001053 RELAY-POWER;5Vdc,530mW,10A,1FormA,15mS,5

...3 TS801 AA26-00019A TRANS-SWITCHING;-,AC80~260V,-,US,-,4MH,B

...3 X901 2801-003224 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAY,12.5

...3 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

...3 AA95-00054B ASSY-PCB,V/M;-,SVP-43J4A,P51A,-,-,KOREA

....4 BKZ01 AA61-10068A BRACKET-PCB;M2160,SPTE,T0.3,-,-,-,- S.N.A

....4 BKZ02 AA61-10068A BRACKET-PCB;M2160,SPTE,T0.3,-,-,-,- S.N.A

....4 CN401 3711-002705 CONNECTOR-HEADER;NOWALL,7P,1R,2.5mm,ANGL

....4 CN402 3711-000447 CONNECTOR-HEADER;3WALL,3P,1R,2.5mm,ANGLE

....4 CN403 3711-000447 CONNECTOR-HEADER;3WALL,3P,1R,2.5mm,ANGLE

....4 CN404 3711-000447 CONNECTOR-HEADER;3WALL,3P,1R,2.5mm,ANGLE

....4 PCB AA41-00018B PCB-V/M MODULE;P51A,1L,FR-1,245x245x1.6T S.N.A

....4 QZ107 AA96-50162F ASSY-H/S;-,POWER,AA62-30013E,2SA1011,30M

.....5 0502-000131 TR-POWER;2SA1011-D,PNP,1.2W,TO-220,-,60

.....5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

.....5 AA62-30013E HEAT-SINK,ES;-,A6063 EXTR,-,-,30(21) T02 S.N.A

....4 QZ108 AA96-50162G ASSY-H/S;-,AMP,AA62-30013E,2SC2344,30MM

.....5 0502-000153 TR-POWER;2SC2344-D,NPN,1.2W,TO-220,-,60

.....5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

.....5 AA62-30013E HEAT-SINK,ES;-,A6063 EXTR,-,-,30(21) T02 S.N.A

....4 AA97-04938A ASSY AUTO-SUB;SVP-43J4A,P51A,KOREA S.N.A

.....5 CZ144 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

.....5 CZ146 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5

.....5 CZ147 2201-000193 C-CERAMIC,DISC;0.01nF,0.25pF,50V,NP0,TP,

.....5 CZ148 2201-000193 C-CERAMIC,DISC;0.01nF,0.25pF,50V,NP0,TP,

.....5 CZ149 2201-000516 C-CERAMIC,DISC;4.7nF,+100-0%,500V,Y5U,TP

.....5 CZ150 2201-000516 C-CERAMIC,DISC;4.7nF,+100-0%,500V,Y5U,TP

.....5 CZ151 2401-001513 C-AL;47uF,20%,16V,WT,TP,5x11,5

.....5 CZ152 2401-001157 C-AL;33uF,20%,160V,GP,TP,12.5x20,5

.....5 CZ153 2401-001513 C-AL;47uF,20%,16V,WT,TP,5x11,5

.....5 CZ155 2201-000604 C-CERAMIC,DISC;0.056nF,+100-0%,500V,SL,T

.....5 CZ167 2401-001220 C-AL;4.7uF,20%,160V,GP,TP,8x11.5,5

.....5 CZ167A 2401-001220 C-AL;4.7uF,20%,160V,GP,TP,8x11.5,5

.....5 DZ116 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 DZ117 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 DZ118 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

.....5 DZ119 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 DZ120 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

.....5 DZ121 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

.....5 EL01 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL02 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 GTZ01 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 LZ112 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm

.....5 QZ103 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 QZ104 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 QZ105 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 QZ106 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

.....5 RZ153 2008-001086 R-FUSIBLE(S);3.3ohm,5%,2W,AG,TP,3.9x12mm

.....5 RZ154 2003-000532 R-METAL OXIDE(S);18ohm,5%,2W,AF,TP,4x12m

.....5 RZ156 2001-001159 R-CARBON(S);510OHM,5%,1/2W,AA,TP,2.4X6.4

.....5 RZ165 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 RZ166 2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 RZ167 2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 RZ167A 2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 RZ168 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM

.....5 RZ169 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M

.....5 RZ170 2001-000666 R-CARBON;33OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 RZ171 2001-000666 R-CARBON;33OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 RZ172 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 RZ173 2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 RZ174 2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 RZ175 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 RZ176 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 RZ177 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 RZ178 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 RZ179 2003-000713 R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m

.....5 RZ180 2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4

.....5 RZ181 2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4

.....5 RZ182 2003-000713 R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m

.....5 RZ183 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM

.....5 RZ183A 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM

....4 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

...3 AA95-00439G ASSY-PCB,CHROMA;,SVP-43J7P,P51A

....4 CN201 3711-003543 CONNECTOR-HEADER;NOWALL,16P,1R,2.54mm,AN

....4 CN202 3711-001283 CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG

....4 CN203 3711-001283 CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG

....4 CN204 3711-001283 CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG

....4 IC201 1204-001207 IC-CHROMA;CXA2095S,DIP,48P,-,PLASTIC,12V

....4 IC203 1201-001830 IC-VIDEO AMP;EL2250,PDIP,8P,-,DUAL,-,PLA

....4 IC204 0801-000961 IC-CMOS LOGIC;4053,MUTIPLEXER,DIP,16P,30

....4 IC206 0801-000961 IC-CMOS LOGIC;4053,MUTIPLEXER,DIP,16P,30

....4 PCB AA41-00134C PCB-CHROMA;SVP-54J7P,CEM-3,2L,C,1.6T,245 S.N.A

....4 X201 2801-000226 CRYSTAL-UNIT;3.579545MHz,20ppm,28-AAM,15

....4 X202 2802-000169 RESONATOR-CERAMIC;500KHz,2KHz,BK,7.0x3.5

....4 AA97-05032A ASSY AUTO-SUB;SVP-43J7P,P51A S.N.A

.....5 C201 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm

.....5 C202 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C203 2201-000144 C-CERAMIC,DISC;0.1nF,5%,50V,NP0,TP,8.5x3

.....5 C204 2201-000144 C-CERAMIC,DISC;0.1nF,5%,50V,NP0,TP,8.5x3

.....5 C205 2301-000445 C-FILM,PEF;4.7nF,5%,50V,TP,5.5x7x3mm,5mm

.....5 C206 2401-001914 C-AL;1uF,20%,50V,BP,TP,5x11,5

.....5 C207 2301-000235 C-FILM,PEF;3.9nF,5%,50V,TP,6.5x3.0x5.5mm

.....5 C208 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5

.....5 C209 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5

.....5 C210 2301-000301 C-FILM,PEF;6.8nF,5%,50V,TP,6.5X5.5X3.0X5

.....5 C211 2301-000204 C-FILM,PEF;2.7nF,5%,50V,TP,7.4x3.9x13mm,

.....5 C212 2401-001914 C-AL;1uF,20%,50V,BP,TP,5x11,5

.....5 C213 2201-000982 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,4

.....5 C214 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm

.....5 C216 2309-000138 C-FILM,PE-PPF;100nF,5%,50V,TP,20x16x8.5,

.....5 C217 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C218 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C219 2401-000486 C-AL;10uF,20%,50V,GP,TP,6.3x7mm,5

.....5 C221 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5

.....5 C222 2201-000144 C-CERAMIC,DISC;0.1nF,5%,50V,NP0,TP,8.5x3

.....5 C223 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm

.....5 C224 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm

Electrical Parts List

Samsung Electronics 7-9

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 C225 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C226 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C227 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C228 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 C229 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 C230 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 C231 2305-000411 C-FILM,MPEF;470nF,5%,50V,TP,7.3x4.8x5.5m

.....5 C232 2305-000411 C-FILM,MPEF;470nF,5%,50V,TP,7.3x4.8x5.5m

.....5 C233 2305-000411 C-FILM,MPEF;470nF,5%,50V,TP,7.3x4.8x5.5m

.....5 C234 2201-000573 C-CERAMIC,DISC;0.047nF,5%,50V,NP0,TP,5x3

.....5 C235 2201-000573 C-CERAMIC,DISC;0.047nF,5%,50V,NP0,TP,5x3

.....5 C236 2305-000289 C-FILM,MPEF;220nF,5%,63V,TP,-,5mm

.....5 C237 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5

.....5 C238 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5

.....5 C239 2201-000558 C-CERAMIC,DISC;0.47nF,10%,50V,Y5P,TP,5x3

.....5 C240 2201-000247 C-CERAMIC,DISC;0.015nF,5%,50V,NP0,TP,5x3

.....5 C241 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C242 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm

.....5 C243 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5

.....5 C244 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 C245 2401-000404 C-AL;10uF,20%,16V,BP,TP,5x11,5

.....5 C254 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm

.....5 C255 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C256 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C257 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm

.....5 C260 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 C261 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 C262 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 C263 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm

.....5 C264 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C265 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 C266 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 C267 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 C268 2201-000573 C-CERAMIC,DISC;0.047nF,5%,50V,NP0,TP,5x3

.....5 C269 2201-000573 C-CERAMIC,DISC;0.047nF,5%,50V,NP0,TP,5x3

.....5 C270 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

.....5 C271 2305-000411 C-FILM,MPEF;470nF,5%,50V,TP,7.3x4.8x5.5m

.....5 C272 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C273 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm

.....5 C274 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 C275 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 C276 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 C277 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 C278 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 C279 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 L201 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm

.....5 L203 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm

.....5 Q201 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 Q202 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

.....5 Q203 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

.....5 Q204 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 Q205 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 Q206 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

.....5 Q207 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

.....5 Q208 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

.....5 AA97-06098A ASSY SMD-SUB;SVP-43J7P,P51A S.N.A

......6 D202 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D203 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D204 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D205 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D206 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D207 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D208 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D209 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D210 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D211 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D212 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D215 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 DZ201 0403-000314 DIODE-ZENER;RLZJ9.1B,9.1V,8.80-9.30V,400

......6 DZ202 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP

......6 DZ203 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m

......6 DZ204 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m

......6 DZ206 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m

......6 DZ207 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m

......6 DZ208 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP

......6 DZ209 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP

......6 DZ210 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m

......6 IC205 1204-001214 IC-CHROMA;CXA1839Q,QFP,48P,-,PLASTIC,11V

......6 R201 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012

......6 R202 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012

......6 R203 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012

......6 R204 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012

......6 R205 2007-000710 R-CHIP;3.9KOHM,5%,1/10W,DA,TP,2012

......6 R206 2007-000686 R-CHIP;3.3KOHM,5%,1/10W,DA,TP,2012

......6 R207 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

......6 R208 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012

......6 R209 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R210 2007-000757 R-CHIP;330KOHM,5%,1/10W,DA,TP,2012

......6 R211 2007-000406 R-CHIP;15KOHM,1%,1/10W,DA,TP,2012

......6 R212 2007-001664 R-CHIP;390OHM,1%,1/10W,DA,TP,2012

......6 R213 2007-001071 R-CHIP;6.8KOHM,5%,1/10W,DA,TP,2012

......6 R214 2007-000270 R-CHIP;1.8MOHM,5%,1/10W,DA,TP,2012

......6 R215 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

......6 R216 2007-000507 R-CHIP;2.49KOHM,1%,1/10W,DA,TP,2012

......6 R217 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012

......6 R219 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R220 2007-000465 R-CHIP;1KOHM,1%,1/10W,DA,TP,2012

......6 R221 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R222 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R223 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

......6 R224 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R225 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

......6 R226 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012

......6 R229 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R230 2007-000409 R-CHIP;15KOHM,5%,1/10W,DA,TP,2012

......6 R231 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

......6 R233 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012

......6 R234 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

......6 R235 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R237 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012

......6 R238 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

......6 R239 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R241 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012

......6 R243 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R244 2007-000267 R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012

......6 R245 2007-000267 R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012

......6 R246 2007-000267 R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012

......6 R247 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012

......6 R248 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012

......6 R249 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012

......6 R250 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012

......6 R251 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012

......6 R252 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012

......6 R253 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R254 2007-000457 R-CHIP;18KOHM,5%,1/10W,DA,TP,2012

......6 R255 2007-001653 R-CHIP;1.8KOHM,1%,1/10W,DA,TP,2012

......6 R256 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012

......6 R257 2007-000804 R-CHIP;36KOHM,5%,1/10W,DA,TP,2012

......6 R258 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

......6 R260 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R261 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R262 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R263 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R264 2007-000653 R-CHIP;27KOHM,5%,1/10W,DA,TP,2012

......6 R267 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R268 2007-000653 R-CHIP;27KOHM,5%,1/10W,DA,TP,2012

......6 R270 2007-001001 R-CHIP;510OHM,5%,1/10W,DA,TP,2012

......6 R271 2007-000904 R-CHIP;430OHM,5%,1/10W,DA,TP,2012

......6 R272 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012

......6 R273 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012

......6 R274 2007-000738 R-CHIP;30KOHM,5%,1/10W,DA,TP,2012

......6 R275 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R276 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R277 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R278 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012

......6 R279 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012

......6 R280 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R281 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R282 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R283 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R284 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R285 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 R291 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012

......6 R292 2007-001141 R-CHIP;7.5KOHM,5%,1/10W,DA,TP,2012

Electrical Parts List

7-10 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

......6 R293 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012

......6 R295 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012

....4 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

....4 AA63-00100A SHIELD-CASE;FCC,SPTE,0.5,-,-,-,SCAN-MODU S.N.A

....4 2004-002016 R-METAL(S);15Kohm,1%,1/2W,AA,TP,2.5x6.5m

....4 2004-004045 R-METAL(S);390ohm,1%,1/2W,AA,TP,2.5x6.5m

...3 AA95-00531B ASSY-PCB,D-COMB;-,PCJ522R,P51A,-,-,AA95-

....4 CC01 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5

....4 CC02 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC03 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

....4 CC04 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC05 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5

....4 CC06 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC07 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

....4 CC08 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC10 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5

....4 CC11 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5

....4 CC12 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC15 2203-000361 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,2012

....4 CC31 2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-

....4 CC32 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012

....4 CC33 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012

....4 CC35 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC37 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5

....4 CC38 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC41 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC42 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5

....4 CC43 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC44 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC45 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC46 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5

....4 CC47 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC48 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC49 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC50 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5

....4 CC51 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC52 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CC53 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5

....4 CC54 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

....4 CE07 2203-000239 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012

....4 CE10 2203-000239 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012

....4 CN01 3711-002703 CONNECTOR-HEADER;NOWALL,5P,1R,2.5mm,ANGL

....4 CN02 3711-002703 CONNECTOR-HEADER;NOWALL,5P,1R,2.5mm,ANGL

....4 IC01 1204-001230 IC-SEPARATOR;CXD2043Q,QFP,80P,-,PLASTIC,

....4 LC01 2702-001095 INDUCTOR-RADIAL;18uH,10%,6x4mm

....4 LC02 2702-001095 INDUCTOR-RADIAL;18uH,10%,6x4mm

....4 LC03 2702-001095 INDUCTOR-RADIAL;18uH,10%,6x4mm

....4 LC05 2702-001095 INDUCTOR-RADIAL;18uH,10%,6x4mm

....4 LC06 2702-001095 INDUCTOR-RADIAL;18uH,10%,6x4mm

....4 LC07 2702-001095 INDUCTOR-RADIAL;18uH,10%,6x4mm

....4 LC08 2702-001095 INDUCTOR-RADIAL;18uH,10%,6x4mm

....4 LC09 2702-001095 INDUCTOR-RADIAL;18uH,10%,6x4mm

....4 LC10 2702-001095 INDUCTOR-RADIAL;18uH,10%,6x4mm

....4 LPFC1 2909-001051 FILTER-LC;6MHz,6MHz,0.8dB,TP,5dB/6MHz,30

....4 LPFC2 2909-001051 FILTER-LC;6MHz,6MHz,0.8dB,TP,5dB/6MHz,30

....4 LPFC3 2909-001051 FILTER-LC;6MHz,6MHz,0.8dB,TP,5dB/6MHz,30

....4 PCB AA41-00129A PCB-2D COMB;P51A,2L,FR-4,180X245X1.6T,6A S.N.A

....4 QC01 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

....4 QC02 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

....4 QC03 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

....4 QC11 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

....4 QC12 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

....4 QC13 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

....4 QC14 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

....4 QE02 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

....4 QE03 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

....4 RC01 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

....4 RC03 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

....4 RC04 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

....4 RC05 2007-000030 R-CHIP;560OHM,5%,1/10W,DA,TP,2012

....4 RC06 2007-000981 R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012

....4 RC07 2007-001118 R-CHIP;680OHM,5%,1/10W,DA,TP,2012

....4 RC08 2007-000457 R-CHIP;18KOHM,5%,1/10W,DA,TP,2012

....4 RC09 2007-000686 R-CHIP;3.3KOHM,5%,1/10W,DA,TP,2012

....4 RC10 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

....4 RC11 2007-000653 R-CHIP;27KOHM,5%,1/10W,DA,TP,2012

....4 RC44 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012

....4 RC45 2007-001028 R-CHIP;560OHM,1%,1/10W,DA,TP,2012

....4 RC48 2007-001166 R-CHIP;75OHM,5%,1/10W,DA,TP,2012

....4 RC49 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

....4 RC51 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

....4 RC52 2007-000686 R-CHIP;3.3KOHM,5%,1/10W,DA,TP,2012

....4 RC53 2007-000686 R-CHIP;3.3KOHM,5%,1/10W,DA,TP,2012

....4 RC54 2007-001201 R-CHIP;820OHM,5%,1/10W,DA,TP,2012

....4 RC55 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

....4 RC61 2007-000642 R-CHIP;270OHM,5%,1/10W,DA,TP,2012

....4 RC62 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

....4 RC63 2007-000493 R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012

....4 RC64 2007-000030 R-CHIP;560OHM,5%,1/10W,DA,TP,2012

....4 RC65 2007-000981 R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012

....4 RC66 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

....4 RC67 2007-001166 R-CHIP;75OHM,5%,1/10W,DA,TP,2012

....4 RC71 2007-000607 R-CHIP;240OHM,5%,1/10W,DA,TP,2012

....4 RC72 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

....4 RC73 2007-000493 R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012

....4 RC74 2007-000030 R-CHIP;560OHM,5%,1/10W,DA,TP,2012

....4 RC75 2007-000981 R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012

....4 RC76 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

....4 RC77 2007-001166 R-CHIP;75OHM,5%,1/10W,DA,TP,2012

....4 RE11 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012

....4 RE12 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012

....4 RE13 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012

....4 RE14 2007-000642 R-CHIP;270OHM,5%,1/10W,DA,TP,2012

....4 RE15 2007-000904 R-CHIP;430OHM,5%,1/10W,DA,TP,2012

....4 RE16 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

....4 RE41 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012

....4 RE43 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012

....4 AA63-40014A SHIELD-CASE,T;-,SPTE,T0.5,-,-,-,SCT51A S.N.A

....4 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

...3 AA97-02313A ASSY ROBORT-MAIN;PCJ522R3C/XAA,P51A,U.S. S.N.A

....4 CN201 3711-003051 CONNECTOR-HEADER;BOX,8P,1R,2.5MM,STRAIGH

....4 CN202 3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG

....4 CN501 3711-003051 CONNECTOR-HEADER;BOX,8P,1R,2.5MM,STRAIGH

....4 CN801 3711-003974 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG

....4 CNY01 3711-003973 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG

....4 CS810 2201-000446 C-CERAMIC,DISC;3.3nF,20%,400V,Y5U,TP,15x

....4 CS811 2201-000446 C-CERAMIC,DISC;3.3nF,20%,400V,Y5U,TP,15x

....4 DS801 0402-000102 DIODE-BRIDGE;D2SB60,600V,1.5A,-

....4 IC501 AA96-00111L ASSY-H/S;-,-,AA62-30013L,KA78R12,-

.....5 1203-000165 IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL

.....5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

.....5 AA62-30013L HEAT-SINK,ES;-,-,-,-,44/22,-,WHT,-,-,-,- S.N.A

....4 IC807 AA96-50147A ASSY-H/S;-,TR,AA62-30012B,KA7805A,- S.N.A

.....5 1203-000274 IC-POSI.FIXED REG.;7805,TO-220,3P,-,PLAS

.....5 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

.....5 AA62-30012B HEAT-SINK,ES;-,A6063 EXTR,-,-,45(16) T02 S.N.A

....4 IC901 AA09-00095A IC MICOM;Z9035612PSC-R50LM,SZM-386U,52P,

....4 IC902 1103-001105 IC-EEPROM;C41DC,4Kx1Bit,DIP,8P,300MIL,10

....4 ICS801 AA13-00024A IC-HYBRID;-,TNY253P,-,8PIN,-,-

....4 ICS802 0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST

....4 AA97-03656A ASSY AUTO-MAIN;PCJ522R3C/XAA,P51A,U.S.A, S.N.A

.....5 C101 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

.....5 C102 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

.....5 C103 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 C104 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5

.....5 C105 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

.....5 C106 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

.....5 C107 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C108 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

.....5 C109 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 C110 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5

.....5 C112 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

.....5 C113 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

.....5 C114 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 C116 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5

.....5 C117 2301-000310 C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X5,

.....5 C118 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,7x3,5

.....5 C119 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C121 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C125 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5

.....5 C126 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 C129 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

.....5 C130 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 C132 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

Electrical Parts List

Samsung Electronics 7-11

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 C133 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5

.....5 C180 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5

.....5 C185 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5

.....5 C191 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

.....5 C193 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 C195 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

.....5 C501 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C502 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5

.....5 C503 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C504 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5

.....5 C513 2401-002594 C-AL;220uF,20%,16V,GP,TP,8x11.5,5

.....5 C514 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C517 2401-002594 C-AL;220uF,20%,16V,GP,TP,8x11.5,5

.....5 C518 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C519 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C520 2401-002594 C-AL;220uF,20%,16V,GP,TP,8x11.5,5

.....5 C521 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C522 2401-002286 C-AL;470uF,20%,16V,WT,TP,10x12.5,5

.....5 C537 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C538 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

.....5 C539 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

.....5 C540 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C543 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

.....5 C544 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

.....5 C545 2201-000573 C-CERAMIC,DISC;0.047nF,5%,50V,NP0,TP,5x3

.....5 C547 2201-000573 C-CERAMIC,DISC;0.047nF,5%,50V,NP0,TP,5x3

.....5 C549 2401-002594 C-AL;220uF,20%,16V,GP,TP,8x11.5,5

.....5 C550 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 C551 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

.....5 C552 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 C639 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

.....5 C640 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 C666 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C667 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5

.....5 C668 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5

.....5 C669 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5

.....5 C670 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5

.....5 C671 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm

.....5 C672 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

.....5 C676 2401-001192 C-AL;33uF,20%,50V,GP,TP,6.3x11,5

.....5 C686 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm

.....5 C687 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm

.....5 C688 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5

.....5 C689 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C690 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C691 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5

.....5 C701 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

.....5 C801 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5

.....5 C901 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5,

.....5 C904 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

.....5 C905 2401-001496 C-AL;47uF,20%,16V,GP,TP,5x7,5

.....5 C906 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5

.....5 C907 2301-000111 C-FILM,PEF;1.8nF,5%,50V,TP,6.5x3.0x5.5mm

.....5 C908 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5,

.....5 C909 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5,

.....5 C910 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x3.5,

.....5 C911 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C912 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

.....5 C913 2201-000193 C-CERAMIC,DISC;0.01nF,0.25pF,50V,NP0,TP,

.....5 C914 2201-000573 C-CERAMIC,DISC;0.047nF,5%,50V,NP0,TP,5x3

.....5 C915 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 C916 2401-002042 C-AL;220uF,20%,10V,GP,TP,6.3x11,5

.....5 C917 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

.....5 C918 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 C919 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

.....5 C920 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 C925 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 C926 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

.....5 CN003 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH S.N.A

.....5 CN601 3711-002643 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH

.....5 CS801 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4

.....5 CS802 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4

.....5 CS803 2401-003066 C-AL;10uF,20%,450V,GP,TP,13x20mm,5m

.....5 CS804 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 CS805 2401-001101 C-AL;330uF,20%,16V,GP,TP,8x11.5,5

.....5 CS807 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

.....5 CS808 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5

.....5 CS809 2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.

.....5 CS812 2201-002076 C-CERAMIC,DISC;0.068nF,5%,1kV,SL,TP,8x4m

.....5 D501 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 D502 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 D664 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

.....5 D665 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 D666 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 D667 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 D668 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 D669 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 D671 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

.....5 D672 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

.....5 D701 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 D702 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 D703 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 D901 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 D902 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 D903 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

.....5 D904 0403-001317 DIODE-ZENER;MTZJ3.0B,3.01-3.22V,500mW,DO

.....5 D905 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

.....5 DS802 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP

.....5 DS803 0403-001322 DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO

.....5 DS804 0403-001318 DIODE-ZENER;MTZJ4.3B,4.17-4.43V,500mW,DO

.....5 DS805 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T

.....5 DS806 1405-001030 VARISTOR;120V,2500A,14x8.5mm,TP

.....5 DS807 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

.....5 DS808 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP

.....5 DS810 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP

.....5 DZ503 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

.....5 DZ504 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

.....5 DZ505 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

.....5 DZ506 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

.....5 DZ507 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

.....5 DZ508 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

.....5 DZ510 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

.....5 DZ665 0403-001039 DIODE-ZENER;MA2560,56V,52-60V,1W,DO-41,T

.....5 DZ666 0403-001325 DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D

.....5 DZ667 0403-001319 DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO

.....5 DZ701 0403-001140 DIODE-ZENER;RD10ESAB-T4,10V,9.19-10.30V,

.....5 DZ801 0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T

.....5 DZ901 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

.....5 DZ902 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

.....5 DZ903 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

.....5 DZ904 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

.....5 DZ905 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

.....5 DZ906 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

.....5 DZ907 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

.....5 DZ911 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

.....5 DZ912 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

.....5 DZ913 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

.....5 DZ916 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

.....5 DZ917 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

.....5 DZ918 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

.....5 DZ919 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

.....5 DZ920 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

.....5 EL01 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL02 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL03 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL04 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL05 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL06 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL07 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL08 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL09 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL10 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL11 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL12 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL13 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL14 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL15 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL16 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL17 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL23 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL24 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL26 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL27 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL28 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

Electrical Parts List

7-12 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 EL29 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL30 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL31 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL32 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EL33 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

.....5 EY01 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY02 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY03 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY04 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY05 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY06 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY07 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY08 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY09 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY10 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY11 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY12 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY13 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY14 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY15 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY16 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY17 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY18 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY19 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY20 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 EY21 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,- S.N.A

.....5 F901 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

.....5 GT801 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT802 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT803 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GTM01 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GTM02 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GTM03 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GTM04 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 IC506 1203-000293 IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS

.....5 IC903 1203-001274 IC-VOL. DETECTOR;7545,TO-92,3P,-,PLASTIC

.....5 IC904 1203-000515 IC-VOL. DETECTOR;7042,TO-92,3P,177MIL,PL

.....5 J244 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm

.....5 J285 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm

.....5 J317 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm

.....5 L101 2701-001040 INDUCTOR-AXIAL;10uH,10%,4.5x14mm

.....5 L102 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm

.....5 L103 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm

.....5 L104 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm

.....5 L106 2701-001040 INDUCTOR-AXIAL;10uH,10%,4.5x14mm

.....5 L107 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm

.....5 L108 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm

.....5 L502 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm

.....5 L505 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

.....5 L506 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

.....5 L507 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

.....5 L509 2701-001040 INDUCTOR-AXIAL;10uH,10%,4.5x14mm

.....5 L510 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

.....5 L511 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

.....5 L512 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

.....5 L514 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

.....5 L516 2701-001040 INDUCTOR-AXIAL;10uH,10%,4.5x14mm

.....5 L902 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm

.....5 L903 2701-001040 INDUCTOR-AXIAL;10uH,10%,4.5x14mm

.....5 L909 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

.....5 L910 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

.....5 L911 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

.....5 L912 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

.....5 L913 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

.....5 LS801 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

.....5 LS802 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

.....5 LS803 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

.....5 PCB AA41-11053F PCB-MAIN;P51A,1L,FR-1,330x245x1.6T,1A,-, S.N.A

.....5 Q501 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 Q502 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 Q503 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 Q665 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 Q666 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 Q667 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 Q701 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 Q702 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 Q901 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 Q902 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 Q909 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

.....5 Q910 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

.....5 QS801 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TO-

.....5 R121 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm

.....5 R123 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R125 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R126 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R128 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R129 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R130 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R131 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R132 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R133 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R134 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R143 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R144 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R501 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R502 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R503 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R504 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R505 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R508 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R510 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm

.....5 R512 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm

.....5 R513 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R515 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R516 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R524 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R528 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R531 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R626 2001-000411 R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R627 2001-000411 R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R661 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5

.....5 R662 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5

.....5 R665 2001-000052 R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.

.....5 R666 2001-000052 R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.

.....5 R668 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R669 2001-001144 R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6.

.....5 R670 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

.....5 R671 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R672 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R673 2001-001086 R-CARBON(S);18KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R673A 2001-001144 R-CARBON(S);4.7KOHM,5%,1/2W,AA,TP,2.4X6.

.....5 R674 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R675 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R676 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R677 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R678 2001-000008 R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R679 2001-001071 R-CARBON(S);12KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R680 2001-001000 R-CARBON;82KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R681 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5

.....5 R682 2004-002019 R-METAL(S);33Kohm,1%,1/2W,AA,TP,2.5x6.5m

.....5 R683 2004-002019 R-METAL(S);33Kohm,1%,1/2W,AA,TP,2.5x6.5m

.....5 R684 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5

.....5 R685 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm

.....5 R686 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm

.....5 R687 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R689 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R701 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R702 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R703 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R704 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R801 2003-002161 R-METAL OXIDE(S);22KOHM,5%,3W,AG,TP,6X16

.....5 R901 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R903 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R904 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R905 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R906 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R907 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R908 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R909 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R910 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R912 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm

.....5 R913 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R914 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R915 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

Electrical Parts List

Samsung Electronics 7-13

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 R916 2001-000472 R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R917 2001-000472 R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R918 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R919 2001-000411 R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R920 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R921 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R922 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R923 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R924 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R925 2001-001050 R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.

.....5 R926 2001-001050 R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.

.....5 R927 2001-001050 R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.

.....5 R928 2001-000472 R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R929 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R930 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R931 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R932 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R933 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R934 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R935 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R936 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R941 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R942 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R943 2001-000890 R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R944 2001-000890 R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R945 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R946 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R947 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R948 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R949 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R950 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R951 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R952 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R953 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R954 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R955 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R958 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R959 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R960 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R961 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R962 2001-000864 R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R963 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R964 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R965 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R967 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R968 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R970 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R971 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R974 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

.....5 R976 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R977 2001-001062 R-CARBON(S);10MOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R978 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R981 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R982 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R983 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 RF802 2008-000294 R-FUSIBLE(S);33ohm,5%,2W,AF,TP,3.9x10mm

.....5 RS801 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.

.....5 RS803 2001-001159 R-CARBON(S);510OHM,5%,1/2W,AA,TP,2.4X6.4

.....5 RS804 2001-001182 R-CARBON(S);7.5KOHM,5%,1/2W,AA,TP,2.4X6.

.....5 RS805 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4

.....5 RS806 2001-001159 R-CARBON(S);510OHM,5%,1/2W,AA,TP,2.4X6.4

.....5 RS807 2001-001192 R-CARBON(S);820OHM,5%,1/2W,AA,TP,2.4X6.4

...3 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

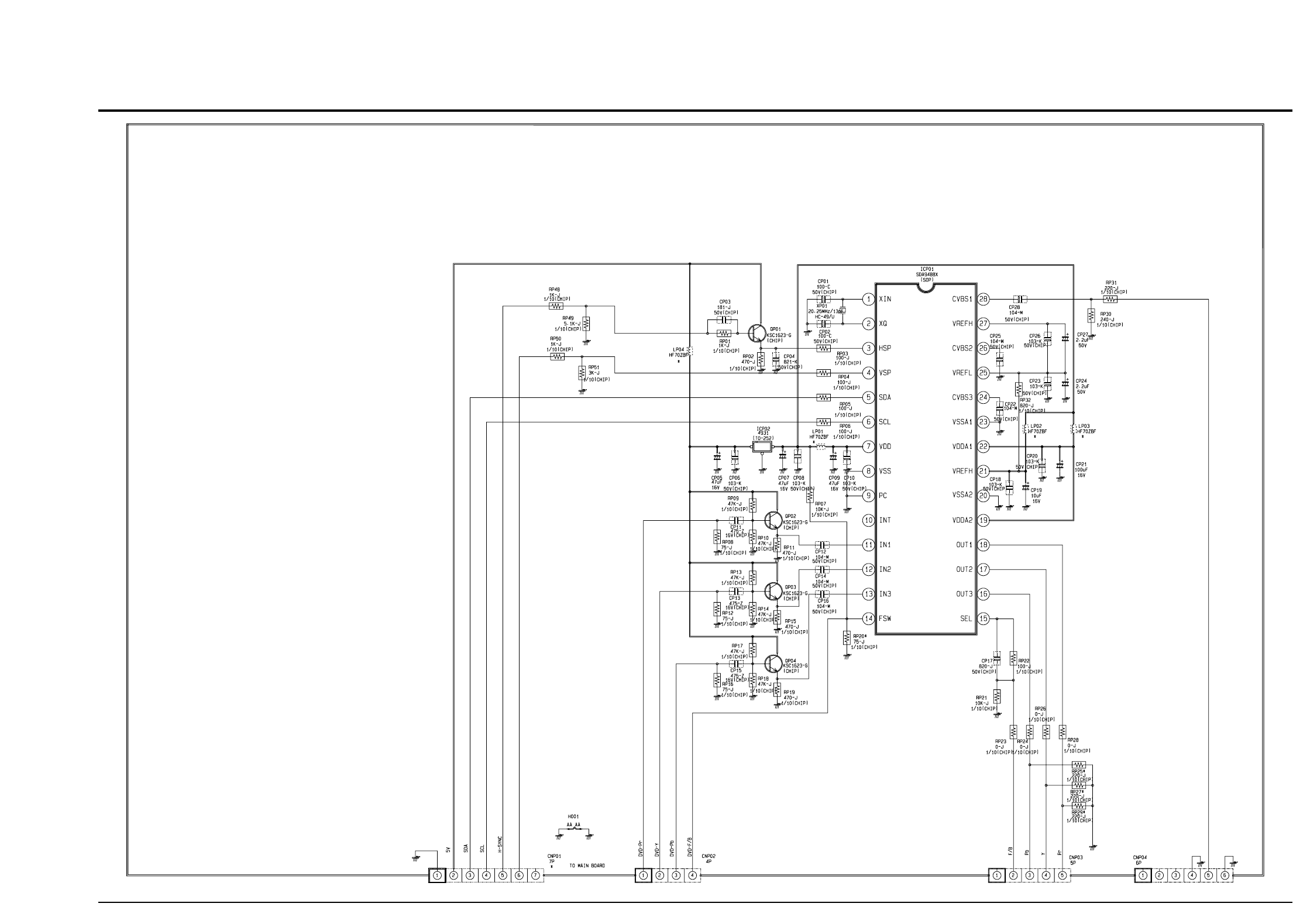

...3 AA95-00649A ASSY-PCB,PIP;-,-,P51A ALL,-,-,-

....4 CNP01 3711-002705 CONNECTOR-HEADER;NOWALL,7P,1R,2.5mm,ANGL

....4 CNP02 3711-002702 CONNECTOR-HEADER;NOWALL,4P,1R,2.5mm,ANGL

....4 CNP03 3711-002703 CONNECTOR-HEADER;NOWALL,5P,1R,2.5mm,ANGL

....4 CNP04 3711-002704 CONNECTOR-HEADER;NOWALL,6P,1R,2.5mm,ANGL

....4 H001 AA61-10068A BRACKET-PCB;M2160,SPTE,T0.3,-,-,-,- S.N.A

....4 XP01 2801-004019 CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,

....4 AA97-05135A ASSY AUTO-SUB;P51A S.N.A

.....5 CP05 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

.....5 CP07 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

.....5 CP09 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

.....5 CP19 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

.....5 CP21 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

.....5 CP24 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5

.....5 CP27 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5

.....5 LP01 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

.....5 LP02 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

.....5 LP03 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

.....5 LP04 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

.....5 PCB AA41-00278B PCB-PIP MODULE;ALL MODEL,CEM-3,2L,B,1.6T S.N.A

.....5 AA97-06137A ASSY SMD-SUB;P51A S.N.A

......6 CP01 2203-000274 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP,

......6 CP02 2203-000274 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP,

......6 CP03 2203-000408 C-CERAMIC,CHIP;0.18nF,5%,50V,NP0,TP,2012

......6 CP06 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012

......6 CP08 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012

......6 CP10 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012

......6 CP11 2203-005384 C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP

......6 CP12 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

......6 CP13 2203-005384 C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP

......6 CP14 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

......6 CP15 2203-005384 C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP

......6 CP16 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

......6 CP17 2203-001245 C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,201

......6 CP18 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012

......6 CP20 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012

......6 CP22 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

......6 CP23 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012

......6 CP25 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

......6 CP26 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012

......6 CP28 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

......6 ICP01 1204-001668 IC-PICTURE PROCESS;SDA9488X,SOP,28P,300M

......6 ICP02 1203-001419 IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x

......6 QP01 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

......6 QP02 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

......6 QP03 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

......6 QP04 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

......6 RP01 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

......6 RP02 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012

......6 RP03 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 RP04 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 RP05 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 RP06 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 RP07 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012

......6 RP08 2007-001166 R-CHIP;75OHM,5%,1/10W,DA,TP,2012

......6 RP09 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012

......6 RP10 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012

......6 RP11 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012

......6 RP12 2007-001166 R-CHIP;75OHM,5%,1/10W,DA,TP,2012

......6 RP13 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012

......6 RP14 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012

......6 RP15 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012

......6 RP16 2007-001166 R-CHIP;75OHM,5%,1/10W,DA,TP,2012

......6 RP17 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012

......6 RP18 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012

......6 RP19 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012

......6 RP21 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012

......6 RP22 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012

......6 RP23 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012

......6 RP24 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012

......6 RP26 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012

......6 RP28 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012

......6 RP30 2007-000607 R-CHIP;240OHM,5%,1/10W,DA,TP,2012

......6 RP31 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012

......6 RP32 2007-001201 R-CHIP;820OHM,5%,1/10W,DA,TP,2012

......6 RP48 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

......6 RP49 2007-000964 R-CHIP;5.1KOHM,5%,1/10W,DA,TP,2012

......6 RP50 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012

......6 RP51 2007-000844 R-CHIP;3KOHM,5%,1/10W,DA,TP,2012

...3 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G

...3 AA65-30105B CLAMP-WIRE;ALL MODEL,NYLON 66,V2,-,NTR,2 S.N.A

...3 AA63-40027A SHIELD-CASE,T;-,SPTE,T0.25,-,-,-,ACT51A, S.N.A

...3 AA39-30007A IF-CABLE;-,T,100mm,1365#26

...3 AA39-20010B LEAD CONNECTOR-ASSY;,1P,YFH800-01,S,500,

...3 AA39-00025A LEAD CONNECTOR-ASSY;,2(1)P,YFH800-02,YFH

..2 AA90-00850A ASSY CHASSIS PART;P53A DO,54T6 S.N.A

...3 CON+HC 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A

...3 DF+FBT 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A

...3 DF+HC 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A

...3 PM+HC 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A

...3 AA61-00504B HOLDER-CHASSIS;43,54,62J8,ABS,-,-,-,GRAY S.N.A

Electrical Parts List

7-14 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

..2 AA90-00136N ASSY-PACKING,PCB;J51A,J52A NO-T/BOARD,PJ S.N.A

...3 CHASIS AA69-01403A WRAP VINYL-PACKING;SKD CHASSIS,LDPE,T0.0 S.N.A

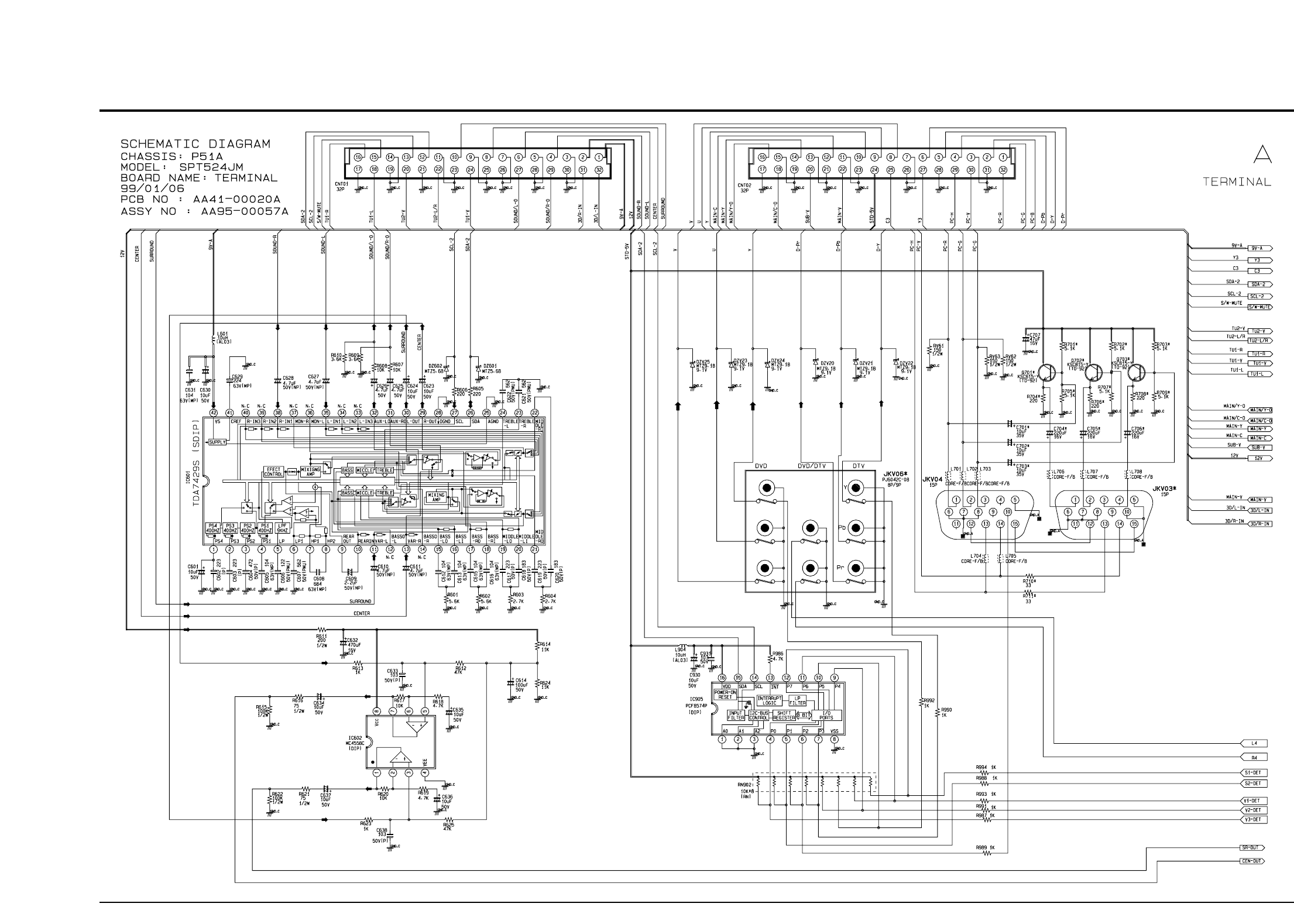

ASSY-PCB,TERMINAL

1 * AA95-00057E ASSY-PCB,TERMINAL;DP,PCL541/542R5S,P51A S.N.A

..2 CNT01 3711-003630 CONNECTOR-HEADER;BOX,32P,2R,2.54mm,ANGLE

..2 CNT02 3711-003630 CONNECTOR-HEADER;BOX,32P,2R,2.54mm,ANGLE

..2 CNY02 3711-003601 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,

..2 IC601 1204-001222 IC-AUDIO PROCESSOR;TDA7429S,DIP,42P,-,PL

..2 IC602 1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV

..2 IC905 0904-001121 IC-I/O SUPPORT CHIP;8574,8BIT,DIP,16P,30

..2 ICV01 1001-000212 IC-VIDEO SWITCH;TA8851AN,-,DIP,54P,-,-,-

..2 ICV02 0801-000961 IC-CMOS LOGIC;4053,MUTIPLEXER,DIP,16P,30

..2 ICV03 0801-000961 IC-CMOS LOGIC;4053,MUTIPLEXER,DIP,16P,30

..2 JKV01 3722-001039 JACK-PIN;9P,3.4mm,SN,BLK,#16-22

..2 JKV02 3722-000544 JACK-VHS;4P,11.5mm,AG,BLK,N

..2 JKV05 3722-000144 JACK-PHONE;1P,3.6PI,MBAG,BLACK,-

..2 JKV06 3722-001382 JACK-PIN;5P(9P),3.4MM,NI,R/W/G/BLUE,-

..2 PCB AA41-00020D PCB-TERMINAL;P51A,2L,FR-4,180X245X1.6T,1 S.N.A

..2 RN902 2011-000160 R-NETWORK;10Kohm,5%,1/8W,A,SIP,9P,TP

..2 AA97-04946A ASSY AUTO-SUB;DP,PCL541/542R5S,P51A S.N.A

...3 C601 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 C602 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5

...3 C603 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5

...3 C604 2301-000445 C-FILM,PEF;4.7nF,5%,50V,TP,5.5x7x3mm,5mm

...3 C605 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

...3 C606 2301-000104 C-FILM,PEF;1.2NF,5%,50V,TP,6.5X3.0X5.5MM

...3 C607 2301-000289 C-FILM,PEF;5.6nF,5%,50V,TP,7x6x3,5

...3 C608 2305-001023 C-FILM,MPEF;680nF,10%,63V,TP,7.5x5.5x14.

...3 C609 2401-000647 C-AL;2.2uF,20%,50V,BP,TP,5x11,5

...3 C610 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5

...3 C611 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5

...3 C612 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

...3 C613 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

...3 C614 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

...3 C615 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

...3 C616 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

...3 C617 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5

...3 C618 2301-000395 C-FILM,PEF;18NF,5%,50V,TP,6.5X12.5X3.5MM

...3 C619 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5

...3 C620 2301-000395 C-FILM,PEF;18NF,5%,50V,TP,6.5X12.5X3.5MM

...3 C621 2301-000289 C-FILM,PEF;5.6nF,5%,50V,TP,7x6x3,5

...3 C622 2301-000289 C-FILM,PEF;5.6nF,5%,50V,TP,7x6x3,5

...3 C623 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 C624 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 C625 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

...3 C626 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

...3 C627 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5

...3 C628 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5

...3 C629 2305-000289 C-FILM,MPEF;220nF,5%,63V,TP,-,5mm

...3 C630 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 C631 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

...3 C632 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5

...3 C633 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

...3 C634 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 C635 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 C636 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 C637 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 C638 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

...3 C707 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

...3 C930 2401-000455 C-AL;10uF,20%,35V,GP,TP,4x7mm,5mm

...3 C931 2201-000982 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,4

...3 CV01 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

...3 CV02 2201-000982 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,4

...3 CV03 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5

...3 CV04 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV05 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV06 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV07 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV08 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV09 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV10 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV11 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV12 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV13 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV14 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV15 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV16 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV17 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV18 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV19 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

...3 CV20 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,7x3,5

...3 CV22 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV24 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV25 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV26 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV27 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

...3 CV28 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

...3 CV29 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

...3 CV31 2401-000471 C-AL;10uF,20%,50V,BP,TP,5x11,5mm

...3 CV32 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV33 2401-000471 C-AL;10uF,20%,50V,BP,TP,5x11,5mm

...3 CV34 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV35 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV36 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV37 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV38 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV39 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

...3 CV40 2401-000455 C-AL;10uF,20%,35V,GP,TP,4x7mm,5mm

...3 CV41 2401-000455 C-AL;10uF,20%,35V,GP,TP,4x7mm,5mm

...3 CV42 2201-000982 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,4

...3 CV49 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

...3 DZ603 0403-000701 DIODE-ZENER;TZP5.1A,5.1V,4.8-5.4V,1W,DO-

...3 DZV01 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

...3 DZV04 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

...3 DZV07 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

...3 DZV09 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

...3 DZV11 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

...3 DZV13 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

...3 DZV15 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

...3 DZV17 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

...3 DZV19 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

...3 DZV23 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

...3 DZV24 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

...3 DZV25 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

...3 L601 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm

...3 LV01 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm

...3 QV01 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

...3 QV02 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

...3 QV05 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

...3 QV06 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

...3 QV07 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

...3 R601 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R602 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R603 2001-000472 R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R604 2001-000472 R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R605 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R606 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R609 2001-000878 R-CARBON;6.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R610 2001-000878 R-CARBON;6.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R611 2001-001102 R-CARBON(S);200OHM,5%,1/2W,AA,TP,2.4X6.4

...3 R612 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R613 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R614 2001-000313 R-CARBON;11KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R615 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 R616 2001-001187 R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 R617 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R618 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R619 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R620 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R621 2001-001187 R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 R622 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 R623 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R624 2001-000313 R-CARBON;11KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R625 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R985 2001-001102 R-CARBON(S);200OHM,5%,1/2W,AA,TP,2.4X6.4

...3 R986 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R987 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R988 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R990 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R991 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

Electrical Parts List

Samsung Electronics 7-15

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

...3 R992 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R993 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R994 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RV01 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RV02 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RV03 2001-001066 R-CARBON(S);110OHM,5%,1/2W,AA,TP,2.4X6.4

...3 RV04 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm

...3 RV05 2001-000117 R-CARBON(S);68OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV06 2001-001050 R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.

...3 RV07 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV08 2001-001187 R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV09 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 RV10 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 RV11 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV12 2001-001187 R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV13 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 RV14 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 RV15 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV16 2001-001187 R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV17 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 RV18 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV19 2001-001187 R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV20 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 RV21 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV22 2001-001187 R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV23 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 RV24 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV25 2001-001187 R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV26 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 RV27 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV28 2001-001187 R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV30 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV32 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV34 2001-001185 R-CARBON(S);750OHM,5%,1/2W,AA,TP,2.4X6.4

...3 RV35 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 RV36 2001-001185 R-CARBON(S);750OHM,5%,1/2W,AA,TP,2.4X6.4

...3 RV37 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 RV38 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RV39 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RV40 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RV41 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RV46 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RV47 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RV48 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RV49 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RV50 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RV51 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RV53 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 RV54 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV55 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 RV65 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV66 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV67 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV68 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV69 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV70 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV71 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV80 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RV81 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

..2 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

ASSY-PCB,CRT

1 * AA95-00129E ASSY-PCB,CRT;DP,P51A,PCJ522R,USA,-

..2 BDW-GN AA39-20009G LEAD CONNECTOR-ASSY;,1P,YFH800-01,700,16

..2 C511 2201-002117 C-CERAMIC,DISC;4.7nF,20%,3kV,Y5U,TP,16x6

..2 C541 2201-002117 C-CERAMIC,DISC;4.7nF,20%,3kV,Y5U,TP,16x6

..2 C571 2201-002117 C-CERAMIC,DISC;4.7nF,20%,3kV,Y5U,TP,16x6

..2 CN501 3711-003051 CONNECTOR-HEADER;BOX,8P,1R,2.5MM,STRAIGH

..2 CN502 3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG

..2 CN502B 3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG

..2 CN503 3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG

..2 CN503B 3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG

..2 CNW401 AA39-20027B LEAD CONNECTOR-ASSY;,6P,67096-006,S,400,

..2 CNW501 AA39-00127A LEAD CONNECTOR-ASSY;,8P,35155-0800,S,400

..2 CNW502 AA39-00112A LEAD CONNECTOR-ASSY;,10P,35155-1000,S,30

..2 CNW503 AA39-00112A LEAD CONNECTOR-ASSY;,10P,35155-1000,S,30

..2 FOCUS- AA39-20115A LEAD CONNECTOR-ASSY;,1P,BUSHING,500,3239

..2 FOCUS- AA39-20115B LEAD CONNECTOR-ASSY;,1P,BUSHING,-,700MM,

..2 GBW-GN AA39-00047E LEAD CONNECTOR-ASSY;,1P,JUMPER,BLK,300MM

..2 GBW-SC AA39-00049A LEAD CONNECTOR-ASSY;,1P,JUMPER,RED,300MM

..2 GDW-GN AA39-20009D LEAD CONNECTOR-ASSY;,1P,YFH800-01,500,16

..2 GRW-GN AA39-00047E LEAD CONNECTOR-ASSY;,1P,JUMPER,BLK,300MM

..2 GRW-SC AA39-00049A LEAD CONNECTOR-ASSY;,1P,JUMPER,RED,300MM

..2 IC501 AA96-50151B ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,- S.N.A

...3 1201-001131 IC-VIDEO AMP;6111,SIP,9P,-,SINGLE,-,PLAS

...3 6001-000057 SCREW-MACHINE;RH,+,M3,L6,ZPC(BLK),SWRCH1

...3 6021-000222 NUT-HEXAGON;2C,M3,ZPC(YEL),SM20C 1

...3 AA61-10060A BRACKET-TR;W3220,CUS-1 1/2H,T0.5,-,-,-,- S.N.A

..2 IC531 AA96-50151B ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,- S.N.A

..2 IC561 AA96-50151B ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,- S.N.A

..2 PCB AA41-10998C PCB-CRT;P51A,1L,FR-1,330x245x1.6T,3A,MC- S.N.A

..2 R506 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

..2 RDW-GN AA39-20009F LEAD CONNECTOR-ASSY;,1P,YFH800-01,200,16

..2 SG502 AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,

..2 SG532 AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,

..2 SG562 AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,

..2 V501 3704-001019 SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,-

..2 V531 3704-001019 SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,-

..2 V561 3704-001019 SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,-

..2 VR501 2101-000321 VR-ROTARY;1Mohm,-,0.6W,SIDE

..2 VR531 2101-000321 VR-ROTARY;1Mohm,-,0.6W,SIDE

..2 VR561 2101-000321 VR-ROTARY;1Mohm,-,0.6W,SIDE

..2 AA97-04956A ASSY AUTO-SUB;DP,PCJ522R,P51A,USA S.N.A

...3 C501 2201-000961 C-CERAMIC,DISC;0.01nF,0.5pF,50V,RH,TP,4x

...3 C502 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

...3 C503 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

...3 C504 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm

...3 C505 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5

...3 C506 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m

...3 C507 2305-000154 C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11

...3 C510 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m

...3 C512 2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20,5

...3 C513 2201-000983 C-CERAMIC,DISC;1nF,10%,2kV,Y5P,TP,9x5,7.

...3 C514 2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.

...3 C531 2201-000961 C-CERAMIC,DISC;0.01nF,0.5pF,50V,RH,TP,4x

...3 C532 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

...3 C533 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

...3 C534 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm

...3 C535 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5

...3 C536 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m

...3 C537 2305-000154 C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11

...3 C540 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m

...3 C542 2201-000983 C-CERAMIC,DISC;1nF,10%,2kV,Y5P,TP,9x5,7.

...3 C543 2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.

...3 C561 2201-000247 C-CERAMIC,DISC;0.015nF,5%,50V,NP0,TP,5x3

...3 C562 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

...3 C563 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,

...3 C564 2401-001537 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,5mm

...3 C565 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5

...3 C566 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m

...3 C567 2305-000154 C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11

...3 C570 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m

...3 C572 2201-000983 C-CERAMIC,DISC;1nF,10%,2kV,Y5P,TP,9x5,7.

...3 C573 2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.

...3 CN401 3711-002645 CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH

...3 D501 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

...3 D502 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

...3 D503 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L

...3 D504 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

...3 D509 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

...3 D510 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

...3 D531 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

...3 D532 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

...3 D533 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L

...3 D561 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

...3 D562 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

...3 D563 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L

...3 DZ501 0403-001317 DIODE-ZENER;MTZJ3.0B,3.01-3.22V,500mW,DO

...3 DZ502 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

...3 DZ503 0403-000708 DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500

Electrical Parts List

7-16 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

...3 DZ531 0403-001317 DIODE-ZENER;MTZJ3.0B,3.01-3.22V,500mW,DO

...3 DZ532 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

...3 DZ533 0403-000708 DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500

...3 DZ561 0403-001317 DIODE-ZENER;MTZJ3.0B,3.01-3.22V,500mW,DO

...3 DZ562 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

...3 DZ563 0403-000708 DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500

...3 EL503 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

...3 EL504 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

...3 EL505 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

...3 EL533 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

...3 EL534 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

...3 EL535 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

...3 EL563 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

...3 EL564 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

...3 EL565 AA60-40011B EYELET;ID2.2,OD3.2,-,-,BSP,- S.N.A

...3 GT501 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

...3 GT502 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

...3 GT531 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

...3 GT532 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

...3 GT561 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

...3 GT562 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

...3 GT563 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

...3 GT564 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

...3 L501 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm

...3 L531 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm

...3 L561 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm

...3 Q501 0502-000006 TR-POWER;KSC1507,NPN,15W,TO-220,TP,120-

...3 Q502 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

...3 Q531 0502-000006 TR-POWER;KSC1507,NPN,15W,TO-220,TP,120-

...3 Q561 0502-000006 TR-POWER;KSC1507,NPN,15W,TO-220,TP,120-

...3 R500 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R501 2001-000302 R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R502 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R503 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R507 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R508 2003-000706 R-METAL OXIDE(S);47Kohm,5%,2W,AA,TP,4.3x

...3 R511 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R513 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x

...3 R514 2001-001122 R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.

...3 R515 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

...3 R516 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R517 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 R518 2002-001021 R-COMPOSITION;560KOHM,10%,1/2W,AA,TP,3.7

...3 R519 2002-001021 R-COMPOSITION;560KOHM,10%,1/2W,AA,TP,3.7

...3 R520 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

...3 R521 2001-001052 R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.

...3 R522 2002-001006 R-COMPOSITION;4.7Kohm,5%,1/2W,AA,TP,3.7x

...3 R523 2002-001006 R-COMPOSITION;4.7Kohm,5%,1/2W,AA,TP,3.7x

...3 R524 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4

...3 R526 2001-000539 R-CARBON;24KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R527 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R528 2001-001015 R-CARBON;9.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R529 2002-001021 R-COMPOSITION;560KOHM,10%,1/2W,AA,TP,3.7

...3 R531 2001-000302 R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R532 2001-000995 R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R533 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R536 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

...3 R537 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R538 2003-000706 R-METAL OXIDE(S);47Kohm,5%,2W,AA,TP,4.3x

...3 R540 2001-001000 R-CARBON;82KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R541 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R543 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x

...3 R544 2001-001122 R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.

...3 R545 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

...3 R546 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R547 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 R548 2002-001021 R-COMPOSITION;560KOHM,10%,1/2W,AA,TP,3.7

...3 R549 2002-001021 R-COMPOSITION;560KOHM,10%,1/2W,AA,TP,3.7

...3 R550 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

...3 R551 2001-001052 R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.

...3 R552 2002-001006 R-COMPOSITION;4.7Kohm,5%,1/2W,AA,TP,3.7x

...3 R553 2002-001006 R-COMPOSITION;4.7Kohm,5%,1/2W,AA,TP,3.7x

...3 R554 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4

...3 R559 2002-001015 R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9

...3 R561 2001-000302 R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R562 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R563 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R564 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R566 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

...3 R567 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R571 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R572 2003-000706 R-METAL OXIDE(S);47Kohm,5%,2W,AA,TP,4.3x

...3 R573 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x

...3 R574 2001-001122 R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.

...3 R575 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

...3 R576 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 R577 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

...3 R578 2002-001021 R-COMPOSITION;560KOHM,10%,1/2W,AA,TP,3.7

...3 R579 2002-001021 R-COMPOSITION;560KOHM,10%,1/2W,AA,TP,3.7

...3 R580 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

...3 R581 2001-001052 R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.

...3 R582 2002-001006 R-COMPOSITION;4.7Kohm,5%,1/2W,AA,TP,3.7x

...3 R583 2002-001006 R-COMPOSITION;4.7Kohm,5%,1/2W,AA,TP,3.7x

...3 R584 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4

...3 R589 2002-001015 R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9

...3 SG351 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP

...3 SG501 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP

...3 SG503 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP

...3 SG533 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP

...3 SG561 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP

...3 SG563 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP

..2 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G

..2 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

ASSY PCB CONTROL

1 * AA95-01162B ASSY PCB CONTROL;DP,P53A,AA95-01162A,PCL

..2 CNW01 AA39-00223A LEAD CONNECTOR ASSY;,11P,67096-011,35155

..2 CNY01 3711-003353 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,ANGLE,

..2 LEDY01 0601-001381 LED;ROUND,RED/GRN,5.0MM,650/563NM

..2 PCB AA41-00465C PCB-CONTROL;SVP-54T6M,FR-1,1L,B,1.6T,330 S.N.A

..2 RMY01 AA59-60002B MODULE-REMOCON;-,ORC-50HF,38KHz,940mm,ME

..2 SWY01 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

..2 SWY02 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

..2 SWY03 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

..2 SWY04 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

..2 SWY05 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

..2 SWY06 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

..2 SWY07 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

..2 SWY08 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

..2 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G

..2 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

..2 AA97-05441A ASSY AUTO-SUB;DP,PCL541.542R,P53A,AA95-0 S.N.A

...3 CY01 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

...3 DZY01 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

...3 DZY03 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

...3 QY01 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T

...3 RY01 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4

...3 RY02 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RY03 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RY04 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RY05 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RY06 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 RY07 2001-000020 R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 RY08 2001-001108 R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4

ASSY CRT-(R)

1 * AA97-01878A ASSY CRT-(R);,51, ,P51A-I,J51B,D78

..2 BC+AL AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A

..2 AA61-00810B HOLDER-CAP;PROJ,PC,CLR S.N.A

..2 AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK S.N.A

..2 AA61-00056B BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-, S.N.A

..2 AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY S.N.A

..2 AA91-00735B ASSY-BRKT,CRT;DP,AA91-00722A,PROJ

...3 AA91-00722A ASSY-BRKT,CRT;,SECC T1.6,PROJ

....4 AA61-00473B BRACKET-CRT;53,SECC,T1.6,-,-,-,- S.N.A

....4 AA61-00615B BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,- S.N.A

Electrical Parts List

Samsung Electronics 7-17

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 AA61-00812A SPRING-WIRE;PROJ,STS,3.6 S.N.A

..2 AA67-10008A LENS;-,DELTA,RED,PJT,-,77,79,-

..2 AA67-00147A LENS-ASSY;,DELTA 78,CLEAR A/B

..2 AA63-00076A SPACER-LENS;PROJECTION,FELT ,-,-,-,BROWN S.N.A

..2 AA61-00845A CASE-COUPLER,R;DP,PROJ,AA61-00806B

...3 AA61-00806B CASE-COUPLER,R;PROJ,ALDC,T8,BLK S.N.A

..2 AA27-00003B MAGNET-CONVERGENCE;-,JH92LT-029,29.1MM

..2 AA03-10026U CRT-MONO;P16LNM07RJA,7,FLAT,90%,FREE,90, S.N.A

..2 AA60-00126B SPACER-CAP;PROJ,EPDM,BLK S.N.A

..2 AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY S.N.A

..2 AA60-00074A SPACER-DY;PJT,SILICON RUBBER,-,-,-,GRAY, S.N.A

..2 AA39-00018A LEAD CONNECTOR-ASSY;,1P,YFH800-01,YRH187

..2 AA27-50005L DEFLECTION-YOKE;-,DPD-5292AL(S),ST-3,PJT

ASSY CRT-(G)

1 * AA97-01879A ASSY CRT-(G);,51, ,P51A-I,J51B,D78

..2 BC+AL AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A

..2 AA61-00810B HOLDER-CAP;PROJ,PC,CLR S.N.A

..2 AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK S.N.A

..2 AA61-00056B BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-, S.N.A

..2 AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY S.N.A

..2 AA91-00735B ASSY-BRKT,CRT;DP,AA91-00722A,PROJ

...3 AA91-00722A ASSY-BRKT,CRT;,SECC T1.6,PROJ

....4 AA61-00473B BRACKET-CRT;53,SECC,T1.6,-,-,-,- S.N.A

....4 AA61-00615B BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,- S.N.A

....4 AA61-00812A SPRING-WIRE;PROJ,STS,3.6 S.N.A

..2 AA67-10071A LENS;DELTA 77 79,-,GREEN,C ELEMENT,

..2 AA67-00147A LENS-ASSY;,DELTA 78,CLEAR A/B

..2 AA63-00076A SPACER-LENS;PROJECTION,FELT ,-,-,-,BROWN S.N.A

..2 AA61-00846A CASE-COUPLER,G;DP,PROJ,AA61-00807B

...3 AA61-00807B CASE-COUPLER,G;PROJ,ALDC,T8,BLK S.N.A

..2 AA27-00003B MAGNET-CONVERGENCE;-,JH92LT-029,29.1MM

..2 AA03-10026V CRT-MONO;P16LNM07HKA,7,FLAT,90%,FREE,90, S.N.A

..2 AA60-00126B SPACER-CAP;PROJ,EPDM,BLK S.N.A

..2 AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY S.N.A

..2 AA60-00074A SPACER-DY;PJT,SILICON RUBBER,-,-,-,GRAY, S.N.A

..2 AA39-00018A LEAD CONNECTOR-ASSY;,1P,YFH800-01,YRH187

..2 AA27-50005L DEFLECTION-YOKE;-,DPD-5292AL(S),ST-3,PJT

ASSY CRT-(B)

1 * AA97-01880A ASSY CRT-(B);,51, ,P51A-I,J51B,D78

..2 BC+AL AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A

..2 AA61-00810B HOLDER-CAP;PROJ,PC,CLR S.N.A

..2 AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK S.N.A

..2 AA61-00056B BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-, S.N.A

..2 AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY S.N.A

..2 AA91-00735B ASSY-BRKT,CRT;DP,AA91-00722A,PROJ

...3 AA91-00722A ASSY-BRKT,CRT;,SECC T1.6,PROJ

....4 AA61-00473B BRACKET-CRT;53,SECC,T1.6,-,-,-,- S.N.A

....4 AA61-00615B BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,- S.N.A

....4 AA61-00812A SPRING-WIRE;PROJ,STS,3.6 S.N.A

..2 AA67-10007A LENS;-,DELTA,CLEAR,PJT,-,77,79,-

..2 AA67-00147A LENS-ASSY;,DELTA 78,CLEAR A/B

..2 AA63-00076A SPACER-LENS;PROJECTION,FELT ,-,-,-,BROWN S.N.A

..2 AA61-00847A CASE-COUPLER,B;DP,PROJ,AA61-00808B

...3 AA61-00808B CASE-COUPLER,B;PROJ,ALDC,T8,BLK S.N.A

..2 AA27-50005L DEFLECTION-YOKE;-,DPD-5292AL(S),ST-3,PJT

..2 AA03-10026W CRT-MONO;P16LNM07BMB,7,FLAT,90%,FREE,90, S.N.A

..2 AA60-00126B SPACER-CAP;PROJ,EPDM,BLK S.N.A

..2 AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY S.N.A

..2 AA60-00074A SPACER-DY;PJT,SILICON RUBBER,-,-,-,GRAY, S.N.A

..2 AA39-00018A LEAD CONNECTOR-ASSY;,1P,YFH800-01,YRH187

..2 AA27-60003C MAGNET-CONVERGENCE;-,JH92LTU-SC-20,29.1m

ASSY-PCB,A/V FRONT

1 * AA95-00863C ASSY-PCB,A/V FRONT;DP,PCL541,P51A,AA95-0

..2 CNW01A AA39-00194A LEAD CONNECTOR ASSY;,12P,35155-1200,6709

..2 CNY01A 3711-003974 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG

..2 JK101 3722-000544 JACK-VHS;4P,11.5mm,AG,BLK,N

..2 JK102 3722-001164 JACK-PIN;3P,3.4mm,SN,WH:YE:RE,#16-22

..2 PCB AA41-00359B PCB-A/V FRONT;SVP-54J8SR,FR-1,1L,A,1.6T, S.N.A

..2 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

..2 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G

ASSY CABINET(COM)

1 * AA92-01040K ASSY CABINET(COM);ST54T6X/XAX S.N.A

..2 AC+BCM AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A

..2 AV+CFB 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A

..2 BCM AA63-60131M SPACER-FELT;PJT,FELT,BLK,T1.0,120*55 S.N.A

..2 BM+CBT 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR

..2 CBB AA64-01395N INLAY-TERMINAL;43,54,62T6,PS SHEET,T0.5, S.N.A

..2 CBB AA64-02074B INLAY-SPEAKER;J7,J8,J9,PS SHEET,T0.5,-,- S.N.A

..2 CBBAPT 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR S.N.A

..2 CBT AA64-60449B INLAY-COVER;SP-434JMF,PS,T0.5,149.3X69.5 S.N.A

..2 CBT+CW AA63-60002V SPACER-FELT;-,FELT,-,-,-,BLK,T0.3,-,60X4 S.N.A

..2 CF AA73-00005B RUBBER-CAP;FLAT,PRJ,SILICONE RUBBER,WHIT

..2 CP*KC 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A

..2 CW+CBT 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A

..2 CWBBCM6006-001094 SCREW-ASS’Y WOOD;WW,HH,+,M7,L32,ZPC(YEL) S.N.A

..2 CWBCBB 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A

..2 CWBCBS 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A

..2 CWBCFB 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A

..2 CWBHC 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A

..2 CWTOP AA60-00070C SPACER-SCREEN,OPTION;54J8 SIDE,ABS,-,-,- S.N.A

..2 CWTOP AA60-00070B SPACER-SCREEN,OPTION;54J8 TOP/BOT,ABS,-, S.N.A

..2 FP+BCM AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A

..2 HV+BCM AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A

..2 MB+CBT AA63-60131K SPACER-FELT;54J9,62J9,FELT,T0.5,40X45 S.N.A

..2 MR+CBT AA60-00135C SPACER-MIRROR,FIBER;47W3,ANT-300G,L240,T

..2 SCDCRT AA63-60131A SPACER-FELT;SVP403J,FELT,-,-,-,BLK,T0.5, S.N.A

..2 AA73-00008A RUBBER-SHEET;47W3,MBR,18*50,T2.0

..2 AA64-02170D CABINET-MASK,ETC;DP,ST54T6,ABS,HB,GRAY,S

...3 C/FRON AA63-00380A COVER-CORNER;PJT,POLYESTER,-,-,-,-,CLR,#

...3 AA64-02283R CABINET-FRONT,MASK;ST54T6,ABS,HB,GRAY,SV

....4 AA64-01393A CABINET-FRONT,MASK;54J8,ABS,-,-,-,HB,GRA S.N.A

...3 AA64-02283Q CABINET-FRONT,MASK;ST54T6,ABS,HB,GRAY,SV

....4 AA64-01393A CABINET-FRONT,MASK;54J8,ABS,-,-,-,HB,GRA S.N.A

...3 AA64-01495L CABINET-MASK,SIDE;ST54T6,ABS,HB,GRAY,SVM

....4 AA64-01495A CABINET-MASK,SIDE;54J8,ABS,-,-,-,HB,GRAY S.N.A

...3 AA61-00505B HOLDER-CORNER;43,54,62J8,ABS,-,-,-,GRAY, S.N.A

..2 AA91-00661A ASSY-BRKT,MIRROR;DP,91-00489B 22KG,54J9 S.N.A

...3 AA91-00489B ASSY-BRKT,MIRROR;-,-,SECC-1 T1.0,54J8

....4 AA60-00073A SPACER-FELT;54J8,FELT,-,-,-,-,T1.0,-,210 S.N.A

....4 AA61-00512B BRACKET-MIRROR;43,53,61J8,SECC-1,T1.0,-, S.N.A

..2 AA67-00116B SCREEN-FRESNEL;53,-,T2,1125*854,-,-,-,-

..2 AA61-00617B BRACKET-CRT,MAIN;DP,54J7,AA61-00475B

...3 AA61-00475B BRACKET-CRT,MAIN;54,SECC,T1.6,-,-,-,- S.N.A

..2 AA64-01849C CABINET-BACK,BOT;DP,62J8,VO,AA64-01384B

...3 AA64-01384B CABINET-BACK,BOT;43,54,62J8,HIPS,-,-,-,V

....4 0103-000161 RESIN-HIPS;BASFK456M,BLK,-,V0 S.N.A

..2 AA67-00116A SCREEN-LENTI;53,-,T1,1123*852,-,-,-,TINT

..2 AA61-00049B HOLDER-BOX;-,PP,-,-,-,NTR,V0,AA61-20285A S.N.A

...3 AA61-20285A HOLDER-BOX;3456,PP,-,-,-,WHT,VO S.N.A

..2 AA60-40006A PIN-STAPLE;-,-,H18,33X17.8X2.4,-,AUTO S.N.A

..2 AA60-00072B SPACER-COVER,DUST;43,54,62J9,SPONGE 94HF S.N.A

..2 AA60-00069C SPACER-SCREEN;43,54.62J8,ABS,-,-,-,BLK,- S.N.A

..2 AA60-00069B SPACER-SCREEN;43,54,62J8,ABS,-,-,-,BLK,- S.N.A

..2 AA67-00080A MIRROR-BACK;54J8,GLASS,940.5*684.5*674.5

..2 AA65-30008A CLAMP-CORD;-,PE,HB,-,BLK,- S.N.A

..2 AA64-01853B CABINET-BACK,TOP;DP,54J8,AA64-01379B

...3 AA64-01379B CABINET-BACK,TOP;54J8,HIPS,-,-,-,HB,BLK,

....4 0103-001229 RESIN-HIPS;HR-1360,GRY,C7425,HB S.N.A

..2 AA64-01850B CABINET-BACK,SIDE;DP,54J9,-,-,-,-,V0,-,A

...3 AA64-01385C CABINET-BACK,SIDE;545R,625R(SEA),HIPS,-,

..2 AA61-00618B GUIDE-FLOW;54J8,J7,ABS,-,-,-,BLK,HB S.N.A

Electrical Parts List

7-18 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

ASSY CABINET(COM)

1 * AA92-01060B ASSY CABINET(COM);P54A,ST54T6 S.N.A

..2 AWTAWB6006-001094 SCREW-ASS’Y WOOD;WW,HH,+,M7,L32,ZPC(YEL) S.N.A

..2 CASCWB AA60-10051A SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP S.N.A

..2 CWB AA60-00078A SPACER-DUAL,LOCK;54J8,#250,-,-,-,-,-,-,4 S.N.A

..2 CWTHCWAA60-10051A SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP S.N.A

..2 HCMCWBAA60-10051A SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP S.N.A

..2 HW+CWBAA60-10051B SCREW-WOOD;-,SWRCH18A,M3.5,L11,RH,+,-,-, S.N.A

..2 SPKCWB AA60-10051A SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP S.N.A

..2 AA61-00674B HOLDER-SCREEN;54 TOP/BOTTOM,ABS,-,-,-,BL S.N.A

..2 AA61-00674C HOLDER-SCREEN;54 SIDE-L/R,ABS,-,-,-,BLK, S.N.A

..2 AA61-00722A HOLDER-PIN,DABO;PRJT,NYLON,OD6.5XL25,-,- S.N.A

..2 AA61-00723A HOLDER-PIN,DABO;PRJT,WOODEN NAIL,OD6XL20 S.N.A

..2 AA63-00384A COVER-DUCT;DP 54J8,-,-,-,-,HB,-,AA63-003

...3 AA63-00348B COVER-DUCT;54,62J8,HIPS,-,-,-,HB,BLK,-

..2 AA64-01399A CABINET-WOOD,TOP;54J8,WOOD,-,-,-,-,-,-

..2 AA64-01402C CABINET-WOOD,BOT;54T6SR,WOOD,SDE8336R

..2 AA61-00616B HOLDER-CRT,MAIN;54J7,DP,-,-,-,-,AA61-005 S.N.A

...3 AA61-00506B HOLDER-CRT,MAIN;43,54,62J8,HIPS,-,-,-,BL S.N.A

..2 AA61-00094C HOLDER-RAIL;PCJ533R,ABS,-,-,-,BLK,HB,480 S.N.A

..2 AA61-00097A HOLDER-WIRE;-,NYLON 6/6,-,-,-,NTR,- S.N.A

..2 AA61-00458A CASTER;-,TP4015-05 NYL,-,OH47,-,-,SR40 T

..2 AA61-00507B HOLDER-CABINET,WOOD;43,54,62J8,ABS,-,-,- S.N.A

..2 AA61-00508D HOLDER-JERSEY;W3,ABS V0,GRAY,G4309

..2 AA61-00533B BRACKET-GRILLE;43,54,62J8,SECC-1 ,T0.5,- S.N.A

ASSY CABINET BOT

1 * AA91-00734M ASSY CABINET BOT;DP,HIPS HB,SVM1126 SEA,

..2 KC+CFB 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR S.N.A

..2 KNOPOW AA61-00343A SPRING-CS;29A7,SUS304,-,-,-,-,-,-,-,-,0. S.N.A

..2 AA64-01861F KNOB POWER;ST54T6,ABS,HB,GRAY,SVM1126

..2 AA64-01860H DOOR-A/V;ST54T6,HIPS,GRAY,SVM1126 HB

..2 AA64-01862F KNOB CONTROL;ST54T6,ABS,HB,GRAY,SVM1126

..2 AA64-01863B WINDOW REMOCON;T6,PC,CLEAR

..2 AA64-01956C BADGE-BRAND;T6,AL,-,-,-,-,-,NI,SAMSUNG S.N.A

..2 AA64-01858N CABINET-FRONT,BOT;ST54T6,HIPS,HB,GRAY,SV S.N.A

..2 AA61-00687B HOLDER-FRONT,BOT;T6,HIPS HB,-,-,-,BLK,HB S.N.A

..2 AA61-00685B GUIDE-KNOB,CONTROL;T6,ABS HB,GRAY,AL VAC

..2 AA60-00078A SPACER-DUAL,LOCK;54J8,#250,-,-,-,-,-,-,4 S.N.A

..2 AA64-01752B INDICATOR LED;54J9,62J9,ACRYL,-,-,-,-,CL

..2 AA64-01396G INLAY-AV;43,54,62T6,PS SHEET,T0.3,BLK,P5 S.N.A

..2 AA61-20129A HOLDER-WIRE;-,NYLON-66,-,-,-,NTR,DAFC-25 S.N.A

..2 AA61-00805B GUIDE-FRONT;54T6,HIPS,BLK,HB

ASSY-SKD

1 * AA97-01723A ASSY-SKD;,ST54T63S/GSU,P51A,SAMEX S.N.A

..2 CORE2 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G

..2 D/B AA26-30006E TRANS-FLYBACK;-,FWZ-50A001B(S),50KV,-

..2 AA65-30018A CLAMP-WIRE;DONG-A,NYLON-66,-,-,-,DATL-60

..2 AA65-30104B CLAMP-WIRE;ALL MODEL,NYLON 66,V2,-,BLK,W S.N.A

..2 AA65-30105B CLAMP-WIRE;ALL MODEL,NYLON 66,V2,-,NTR,2 S.N.A

..2 AA65-30013A CLAMP-WIRE;-,NYLON-66,V0,-,NTR,DAWH-45N S.N.A

..2 AA26-30006F TRANS-FLYBACK;-,FWZ-50A001C,55’,30KV

..2 AA39-20577A LEAD CONNECTOR-ASSY;,6(3)P,YFH806-06,800

..2 AA59-00171A MODULE-FOCUS,PACK;SVP-5200,S300-P3,-,-,-

ASSY SPEAKER

1 * AA96-00463A ASSY SPEAKER;-,-,-,20W(3001-001107),8 OH S.N.A

..2 3001-001107 SPEAKER;20W,8ohm,95dB,1300Hz

..2 3001-001134 SPEAKER;30W,8ohm,93dB,60Hz

..2 AA39-00042A LEAD CONNECTOR-ASSY;,2.2UF,REC,REC,200MM

..2 AA98-00049A ASSY-LEAD,CON;-,LEAD-CON,CORE,AA39-20505 S.N.A

...3 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G

ASSY-PACKING

1 * AA92-00140A ASSY-PACKING;F3 PJT S.N.A

..2 AA60-40006A PIN-STAPLE;-,-,H18,33X17.8X2.4,-,AUTO S.N.A

..2 AA69-90001A SILICAGEL;-,-,-,-,-,M2,5GR,-,- S.N.A

ASSY POWER CORD

1 * AA96-20112E ASSY POWER CORD;-,EP2/NO,H/C 50mm,KJ10,M S.N.A

..2 3811-000401 WIRE-PVC CU;BCWA,300V,ROLL,17/0.16mm,#22

..2 AA39-10006K POWER-CORD;-,KJ-10,SPT-2 2/18AWG,2400,3P

..2 AA61-20284A HOLDER;P-CORD,PP,-,-,-,BLK,VO,KE-002 S.N.A

ASSY ACCESSORY

1 * AA97-01722A ASSY ACCESSORY;,ST54T63S/XAX,P51A,MEXICO S.N.A

..2 AA68-01792A MANUAL USERS;ST54T6,SEM,SPA,2(1),B5,P51A

..2 AA68-01791A MANUAL USERS;ST54T6,SEM,ENG,2(1),B5,P51A S.N.A

..2 AA61-20126A HOLDER-LEG;-,ABS,-,-,-,BLK,HB S.N.A

..2 AA39-00006A CABLE-RCA;,3000MM

REMOCON

1 * AA59-00096B REMOCON;-,TM57,KS88P0416S,45,L/GRAY,EX,-

..2 2802-000194 RESONATOR-CERAMIC;8MHz,1.0%,TP,8.5x4.5x5

..2 AA09-00051A IC-MCU;Z86L8808SSC-R501M,SZTM-822,28PIN,

Electrical Parts List

Samsung Electronics 7-19

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

Electrical Parts List

7-20 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

7-2 ST62T63S/XAX

ASSY PCB CHASSISPACK

1 * AA93-00188A ASSY PCB CHASSISPACK;,P54A,ST62T63S/GSU, S.N.A
