STM8SVLDISCOVERY STM8S Value Line Discovery STM8VLD USER MANUAL
User Manual: STM8VLD-USER-MANUAL
Open the PDF directly: View PDF
.
Page Count: 20
- Figure 1. STM8SVLDISCOVERY evaluation board
- 1 Quick start
- 2 Hardware and layout
- 3 Daughterboard connection
- 4 Mechanical drawing
- 5 Electrical schematics
- 6 Revision history
November 2011 Doc ID 022392 Rev 1 1/20
UM1482
User Manual
STM8SVLDISCOVERY
STM8S value line discovery
Introduction
The STM8SVLDISCOVERY is a quick start evaluation kit which helps you to discover the
STM8S value line features, and to develop your own application. It is based on an
STM8S003 and includes an embedded debugger, ST-LINK, and a user button. Numerous
applications are available from www.st.com/stm8svldiscovery.
Features
●STM8S003K3T6 microcontroller, 8 KB Flash, 1 KB RAM, 128 bytes EEPROM
●Powered by USB cable between PC and STM8SVLDISCOVERY
●Selectable power of 5 V or 3.3 V
●Push button, B1
●User LED, LD1
●Extension header for all I/Os
●Wrapping area for users own application
●Embedded ST-LINK for STM8S
●USB interface for programming and debugging
●SWIM debug support

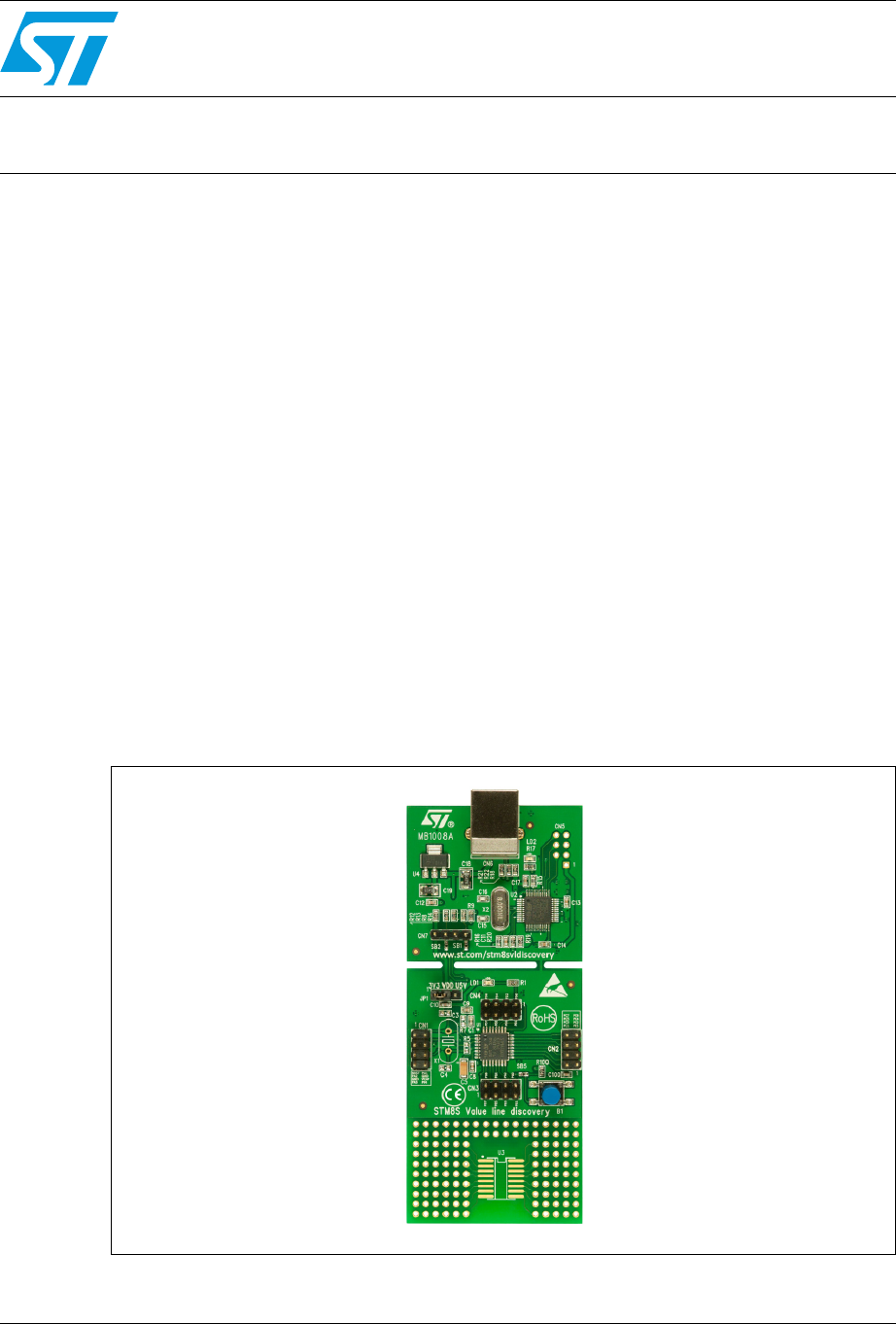

Figure 1. STM8SVLDISCOVERY evaluation board
www.st.com
Contents UM1482
2/20 Doc ID 022392 Rev 1
Contents
1 Quick start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Hardware and layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1 STM8S003K3T6 microcontroller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 ST-LINK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2.1 Using the ST-LINK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2.2 Using the ST-LINK on other STM8S applications . . . . . . . . . . . . . . . . . 10
2.3 Power supply and power selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.4 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.5 Push button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3 Daughterboard connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Mechanical drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5 Electrical schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
UM1482 List of tables
Doc ID 022392 Rev 1 3/20
List of tables
Table 1. SWIM connector CN7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Table 2. CN1 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table 3. CN2 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table 4. CN3 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Table 5. CN4 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Table 6. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
List of figures UM1482
4/20 Doc ID 022392 Rev 1
List of figures
Figure 1. STM8SVLDISCOVERY evaluation board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Figure 2. Hardware block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Figure 3. Top layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 4. STM8S003K3T6 package. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 5. STM8S003 block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Figure 6. Typical configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figure 7. ST-LINK without breaking the PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figure 8. Separated ST-LINK module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 9. Power selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 10. STM8SVLDISCOVERY mechanical drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 11. STM8SVLDISCOVERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Figure 12. STM8SVLDISCOVERY MCU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 13. STM8SVLDISCOVERY ST-LINK (SWIM only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
UM1482 Quick start
Doc ID 022392 Rev 1 5/20
1 Quick start
It is very simple to get started using the STM8SVLDISCOVERY, just follow these four steps:
1. Connect the STM8SVLDISCOVERY to a PC with a USB cable.
2. Press the B1 button, and observe LED LD1 blinking.
3. Press the B1 button to change blinking speed.
4. Visit www.st.com/stm8svldiscovery and follow the tutorial, then discover other
applications.
You can discover more of the STM8S features by downloading and executing the proposed
programs in the project list.
Note: The software code corresponding to this application is available under the name Discover
(AN3996) in the project list of the STM8SVLDISCOVERY web page.
Hardware and layout UM1482
6/20 Doc ID 022392 Rev 1
2 Hardware and layout
The STM8SVLDISCOVERY is designed around the STM8S003K3T6 microcontroller in an
LQFP32 package. It has two distinct sections that may be separated, the STM8S003K3T6
module and the ST-LINK module.
Figure 2 illustrates the connections between the STM8S003K3T6 and its peripherals (ST-
LINK, user button, LED and connectors).
Figure 3 helps you to locate these features on the STM8SVLDISCOVERY board, as well as
the potential point of separation (for more details refer to Section 2.2.2: Using the ST-LINK
on other STM8S applications).

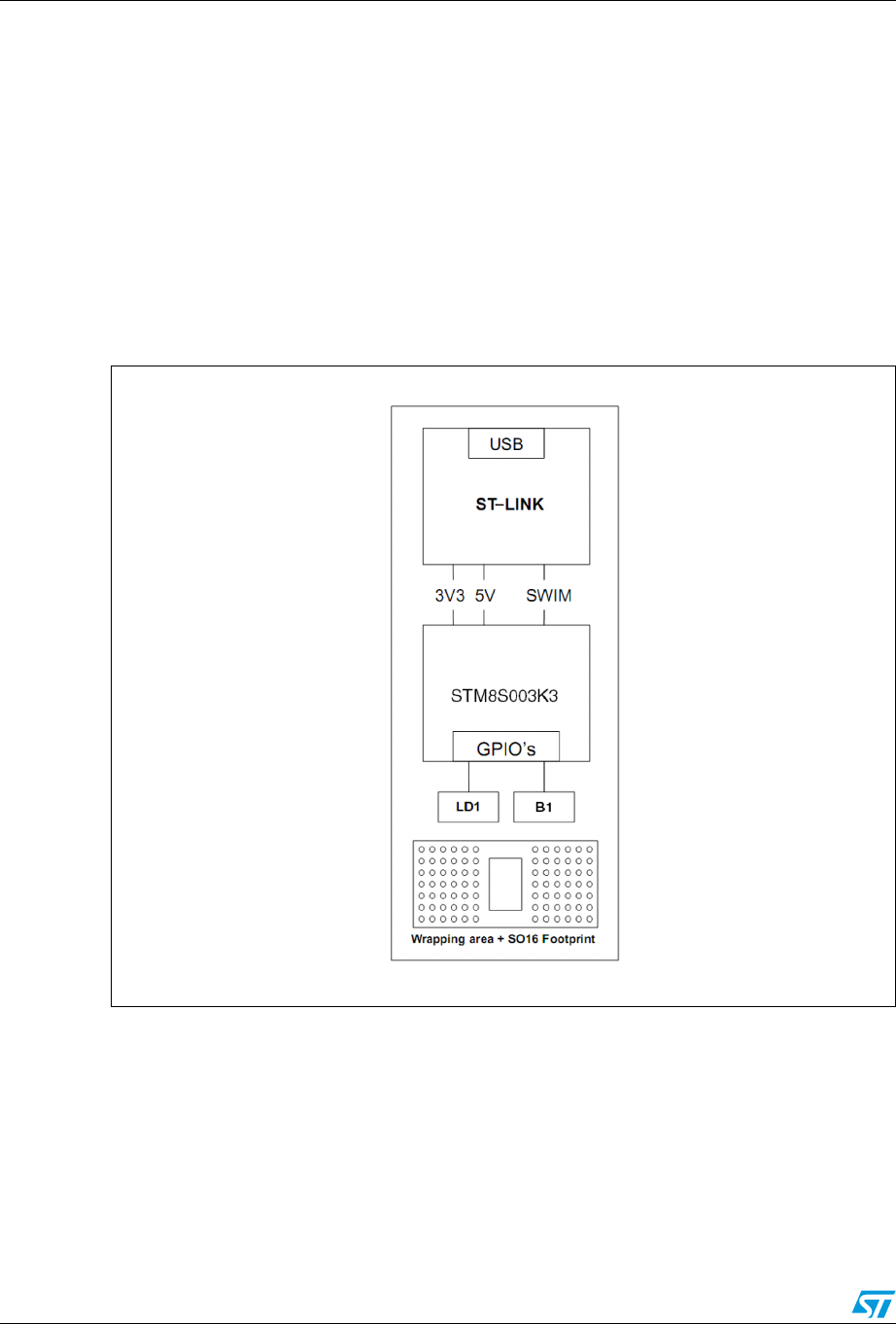

Figure 2. Hardware block diagram
UM1482 Hardware and layout
Doc ID 022392 Rev 1 7/20
Figure 3. Top layout
1
C12
SB2
C4
R5
C9
CN3
CN4
LD1
C11
C16
R21
R20
R22
U3
U2
C17
R1
R19
R17
LD2
CN2
1
R13
1
R8
X1
C10
R14
X2
PD5 PD4
PD3 PD2
PD1 PD0
1
PB5 PB4
PB3 PB2
PB0
PB1
PA3 PF4
PA2
PA1NRST
GND
CN1
JP1
CN7
U4
C5
R7
C3
VDDU5V
SB1
C19
C1
U1
R16
R9
R18
CN6
SB5
B1
C100
R100
RoHS
C14
R15
CN5
PE5PC1
PC5 PC4
C13
1
VCAPGND
R12
1
C8
PD7 PD6
C15
PC7 PC6
PC3 PC2
PB7 PB6
3V3
C18
MB1008A
STM8S Value line discovery
www.st.com/stm8svldiscovery
USB connector
LED (LD2 )
ST-LINK core
SWIM connector
LED (LD1)
Power supply jumper
External oscillator (16 MHz) footprint
STM8S003K3T6
User button (B1)
Wrapping area
SO16 footprint
STM8S003K3T6 module ST-LINK module
Possible separation point
Hardware and layout UM1482
8/20 Doc ID 022392 Rev 1
2.1 STM8S003K3T6 microcontroller

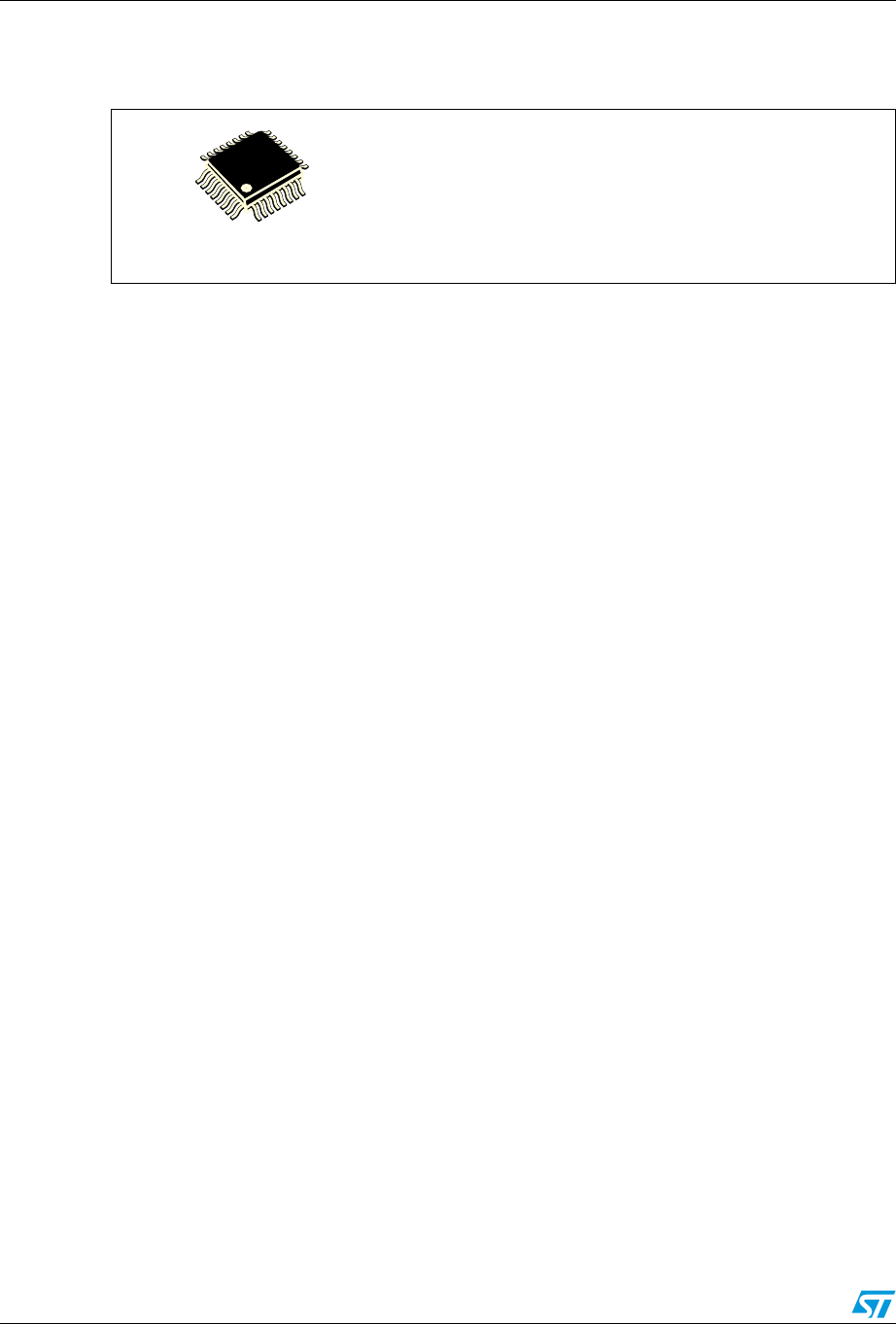

Figure 4. STM8S003K3T6 package
This device provides the following key features:
●High-performance proprietary 8-bit core with excellent code density
●Innovative design architecture, 16-bit index registers, 32-bit memory interface and 3-
stage pipeline
●Leading-edge embedded Flash memory technology
●Advanced clock controller to optimize power consumption and noise control
●Large set of embedded peripherals: UART, I²C, SPI, timers, analog, and debugging
function
These features provide the following benefits:
●Cost efficiency based on optimized product manufacturing flow
●Lower system cost with embedded peripherals
●Full compatibility with existing STM8S product portfolio
●Efficient power management
●Easy-to-use, non-intrusive, and low-cost development environment
It is particularly suitable for applications such as:
●Consumer electronics
●Large-volume industrial equipment
●PC peripherals
●All mass market electronics
,1&0X
4HE34-3+4BITMICROCONTROLLEROFFERS
+BYTESOF&LASHPROGRAMMEMORY
BYTESDATA%%02/-
+BYTE2!-
-36
UM1482 Hardware and layout
Doc ID 022392 Rev 1 9/20

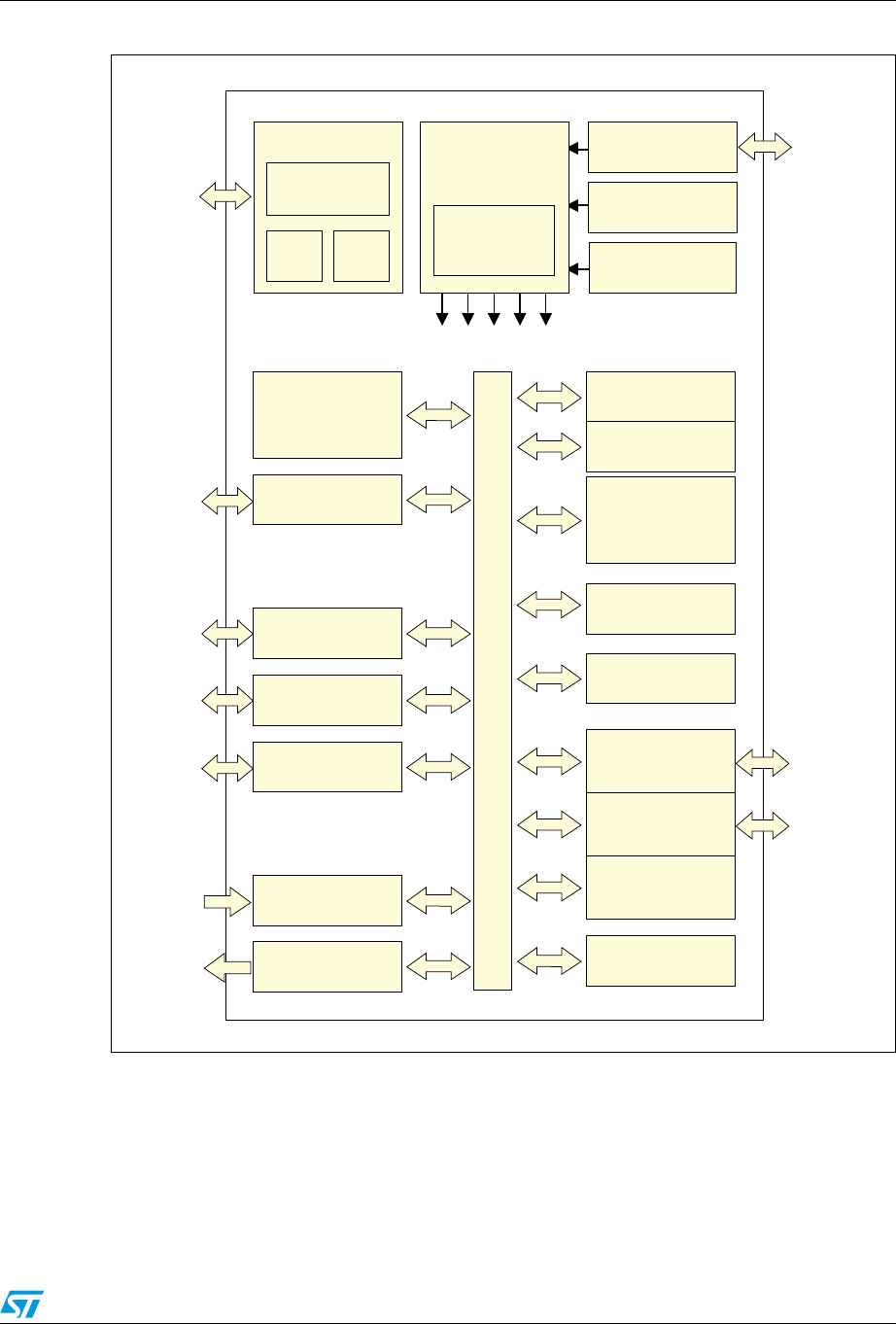

Figure 5. STM8S003 block diagram
For more information see the STM8S003xx datasheet (Doc ID 018576) on the ST website.
Hardware and layout UM1482
10/20 Doc ID 022392 Rev 1
2.2 ST-LINK
The ST-LINK provides a USB interface for programming and debugging using a single wire
interface module (SWIM). The ST-LINK module of the STM8SVLDISCOVERY also supplies
5 V and 3.3 V to the STM8S003K3T6 module.
2.2.1 Using the ST-LINK
Figure 6. Typical configuration
Note: The driver for ST-LINK is installed automatically when the USB is connected.
For information about debugging and programming features refer to ST-LINK, STVD, STVP
and SWIM on www.st.com.
2.2.2 Using the ST-LINK on other STM8S applications
You can connect your ST-LINK to other STM8S applications in 2 ways:
●By removing the solder bridges: This way uses the ST-LINK without breaking the PCB.
Unsolder the two solder bridges SB1 and SB2 under the SWIM connector.
See Figure 7. You can re-solder the two bridges at a later date thus keeping the
STM8SVLDISCOVERY usable.
●By breaking the board and removing the ST-LINK: This way constitutes a good
alternative to programming the STM8S devices in other applications. See Figure 8.
Note: This ST-LINK only supports the STM8S family. Do not use it with other STM8 families.

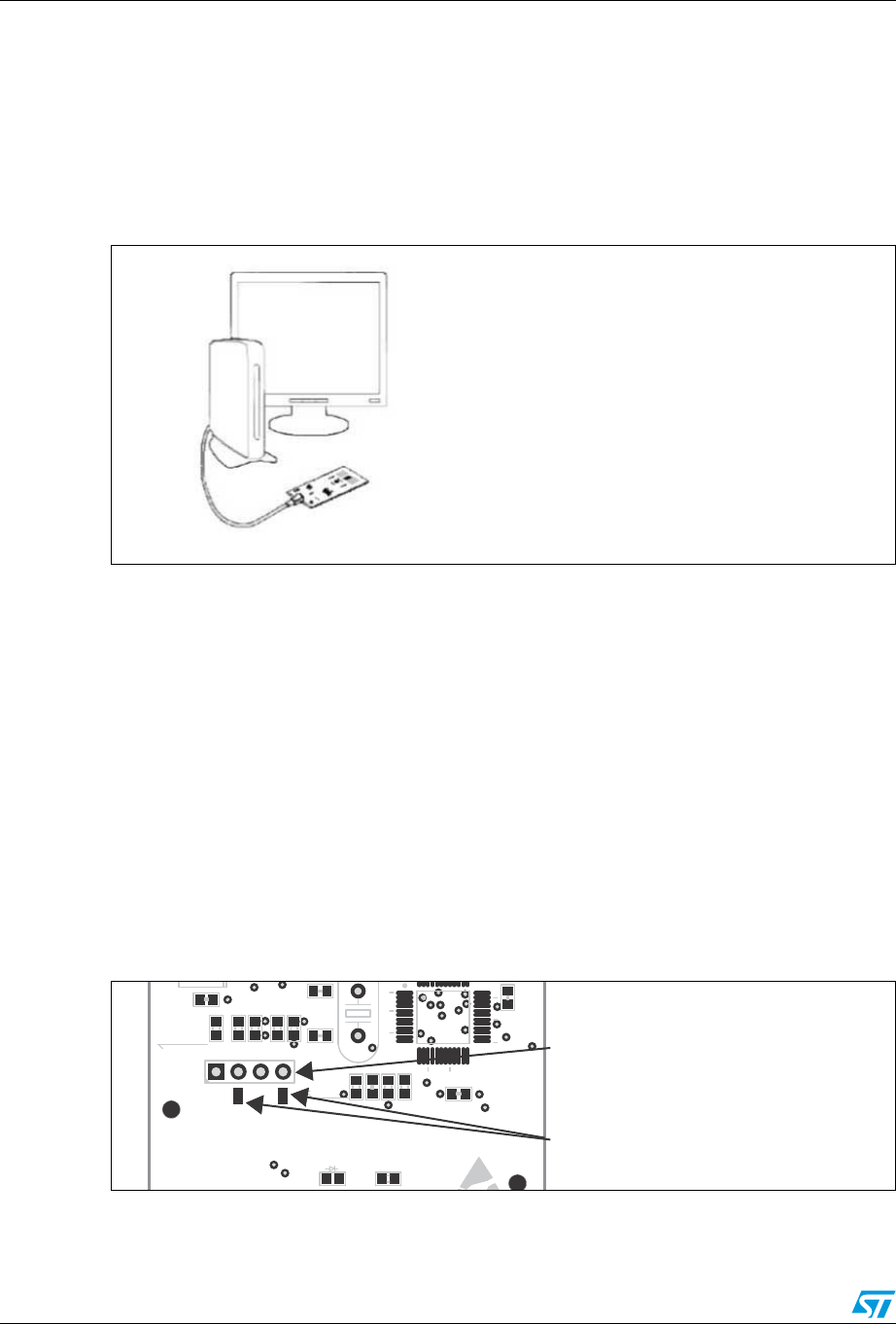

Figure 7. ST-LINK without breaking the PCB
-36
(ARDWAREREQUIREMENTS
53"CABLETYPE!TO"
#OMPUTERWITH7INDOWS806ISTAOR
/PTIONALSOFTWAREENVIRONMENT
WHICHSUPPOR T34,).+37)-
344OOLSET346ISUAL$EVELOPAND346ISUAL0ROGRAM
)!2%MBEDDED7ORKBENCHFOR34-
.OTE346$REQUIRES#OSMICOR2AISONANCE #OMPILER
C12
SB2
LD1
C11
R20
U2
R1
R19
R13
1
R8
R14
X2
CN7
VDDU5V
SB1
R16
R9
C14
C13
R12
C15
3V3
www.st.com/stm8svldiscovery
Remove SB1 and SB2 solder bridges
SWIM connector CN7
UM1482 Hardware and layout
Doc ID 022392 Rev 1 11/20

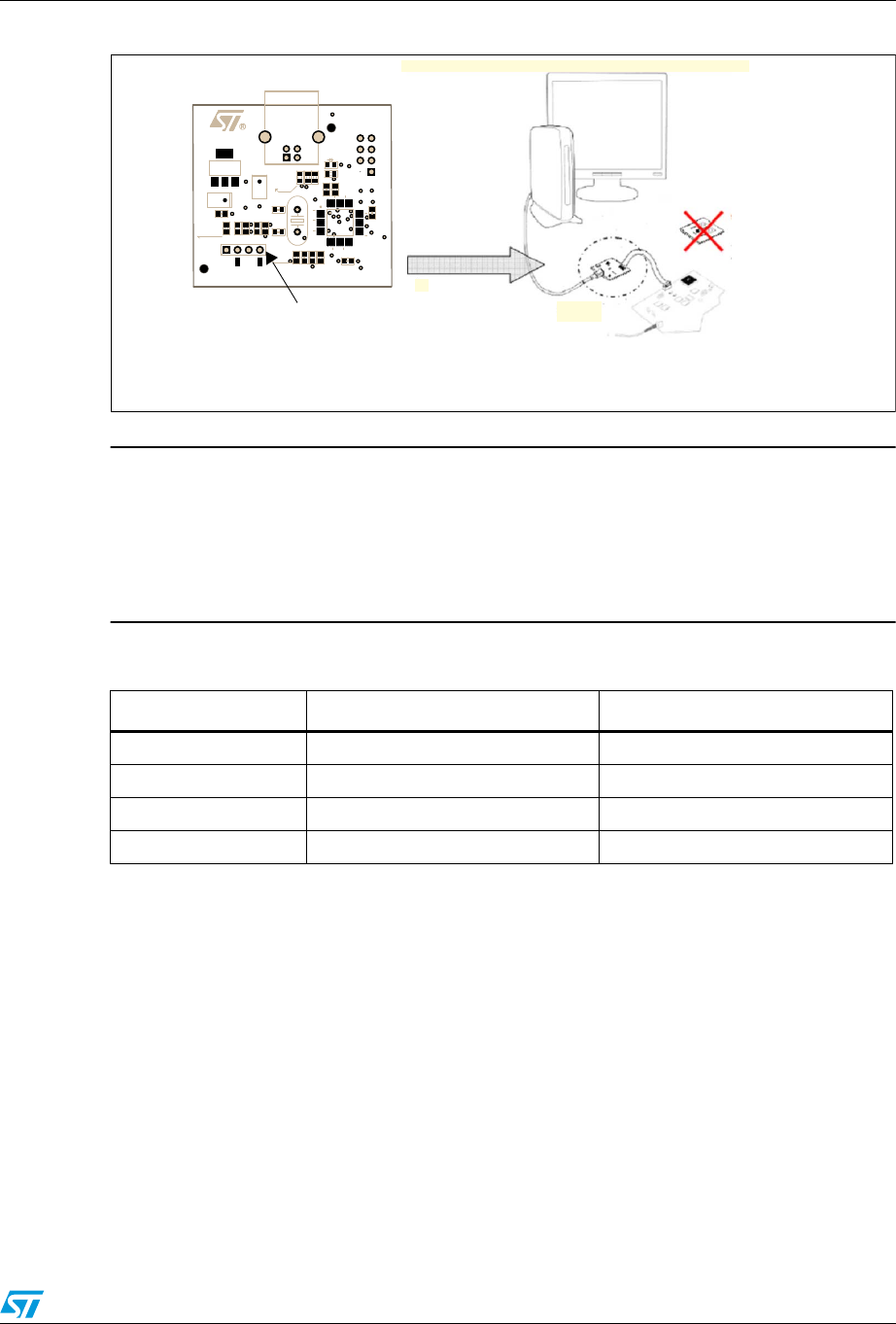

Figure 8. Separated ST-LINK module
Warning: By removing this module you will lose power supply on the
STM8S003K3T6 evaluation board. Consequently, you will
need a SWIM cable and an external power supply to program
and use the STM8S003K3T6 board.
To reconnect your STM8S003K3T6 use connector CN7 see
Table 1.
Table 1. SWIM connector CN7
Pin CN2 Designation
1 VDD_TARGET VDD from application
2 SWIM SWIM data input/output
3 GND Ground
4 SWIM_RST SWIM reset
-36
EVALBOARD
34-3+4
37)-CONNECTOR 34,).+
Hardware and layout UM1482
12/20 Doc ID 022392 Rev 1
2.3 Power supply and power selection
The power supply is provided by a USB connector. Jumper JP1 selects the VDD value (5 V
or regulated 3.3 V) see Figure 9.
Figure 9. Power selection
2.4 LEDs
The ST-LINK provides two LEDs:
●LD1: Green LED LD1 is connected to the I/O PD0 of STM8S003K3.
●LD2: Red LED LD2 indicates communication between PC and ST-LINK.
2.5 Push button
Push button B1 is connected to the I/O PB7 of STM8S003K3.
UM1482 Daughterboard connection
Doc ID 022392 Rev 1 13/20
3 Daughterboard connection
Four 12-pin male headers CN1, CN2, CN3 and CN4 are connected to the STM8S003K3T6
microcontroller.
See the following tables for pin assignments.
Table 2. CN1 pinout
CN1
pin
Pin
(chip) Pin name
Type
Main function Alternate function
1 1 NRST I/O Reset
2 2 OSCIN/PA1 I/O Port A1
3 3 OSCOUT/PA2 I/O Port A2
4 4 GND S Digital ground
5 4 GND S Digital ground
6 5 VCAP S 1.8 V regulator
capacitor
NC 6 VDD S Digital power supply
7 7 PA3 I/O Port A3 Timer 2 - channel 3 / SPI master slave
8 8 PF4 I/O Port F4
Table 3. CN2 pinout
CN2
pin
Pin
(chip) Pin name
Type
Main function Alternate function
1 17 PE5 I/O Port E5 SPI master slave
2 18 PC1 I/O Port C1 Timer 1 - channel 1 /
UART2 synchronous clock
3 19 PC2 I/O Port C2 Timer 1 - channel 2
4 20 PC3 I/O Port C3 Timer 1 - channel 3
5 21 PC4 I/O Port C4 Timer 1 - channel 4
6 22 PC5 I/O Port C5 SPI clock
7 23 PC6 I/O Port C6 SPI master out / slave in
8 24 PC7 I/O Port C7 SPI master in / slave out
Daughterboard connection UM1482
14/20 Doc ID 022392 Rev 1
Table 4. CN3 pinout
CN3
in
Pin
(chip) Pin name
Type
Main function Alternate function
1 9 PB7/B1 IO Port B7
2 10 PB6 IO Port B6
3 11 PB5 I/O Port B5 I2C data
4 12 PB4 I/O Port B4 I2C clock
5 13 PB3 I/O Port B3 Analog input 3 /
Timer 1 external trigger
6 14 PB2 I/O Port B2 Analog input 2 /
Timer 1 inverted channel 3
7 15 PB1 I/O Port B1 Analog input 1 /
Timer 1 inverted channel 2
8 16 PB0 I/O Port B0 Analog input 0 /
Timer 1 inverted channel 1
Table 5. CN4 pinout
CN4
pin
Pin
(chip) Pin name
Type
Main function Alternate function
1 25 PD0/LD1 I/O Port D0 Timer 1 - break input /
configurable clock output
2 26 PD1/SWIM I/O Port D1 SWIM data interface
3 27 PD2 I/O Port D2 Timer 2 - channel 3
4 28 PD3 I/O Port D3 Timer 2 - channel 2 /
ADC external trigger
5 29 PD4 I/O Port D4 Timer 2 - channel 1 /
BEEP output
6 30 PD5 I/O Port D5 UART1 data transmit
7 31 PD6 I/O Port D6 UART1 data receive
8 32 PD7 I/O Port D7 Top level interrupt /
Timer 1 - channel 4
UM1482 Mechanical drawing
Doc ID 022392 Rev 1 15/20
4 Mechanical drawing
Figure 10. STM8SVLDISCOVERY mechanical drawing
1
C12
SB2
C4
R5
C9
CN3
CN4
LD1
C11
C16
R21
R20
R22
U3
U2
C17
R1
R19
R17
LD2
CN2
1
R13
1
R8
X1
C10
R14
X2
PD5 PD4
PD3 PD2
PD1 PD0
1
PB5 PB4
PB3 PB2
PB0
PB1
PA3 PF4
PA2
PA1NRST
GND
CN1
JP1
CN7
U4
C5
R7
C3
VDDU5V
SB1
C19
C1
U1
R16
R9
R18
CN6
SB5
B1
C100
R100
RoHS
C14
R15
CN5
PE5PC1
PC5 PC4
C13
1
VCAPGND
R12
1
C8
PD7 PD6
C15
PC7 PC6
PC3 PC2
2.54mm 7.62mm
15.24mm
PB7 PB6
2.54mm 7.6mm
106.64mm
10.16mm
106.64mm
3V3
C18
2.54mm
5.08mm
MB1008A
45mm
7.62mm 15.24mm
45mm
40.64mm
15.24mm 32.98mm
15.24mm 43.18mm
22.86mm
22.86mm 15.24mm
12.7mm 1.82mm
4.36mm
STM8S Value line discovery
www.st.com/stm8svldiscovery
Electrical schematics UM1482
16/20 Doc ID 022392 Rev 1
5 Electrical schematics
Figure 11. STM8SVLDISCOVERY
STMicroelectronics
Title:
Number: Rev: Sheet of
A.1(PCB.SCH) Date: 7/13/2011
MB1008 1 3
STM8SVALUE-Discovery
RESET#
ST_LINK_SWIM
U_MCU
MCU.SchDoc
RESET#
ST_LINK_SWIM
U_ST_LINK
ST_LINK.SCHDOC
SB1
SB2
UM1482 Electrical schematics
Doc ID 022392 Rev 1 17/20

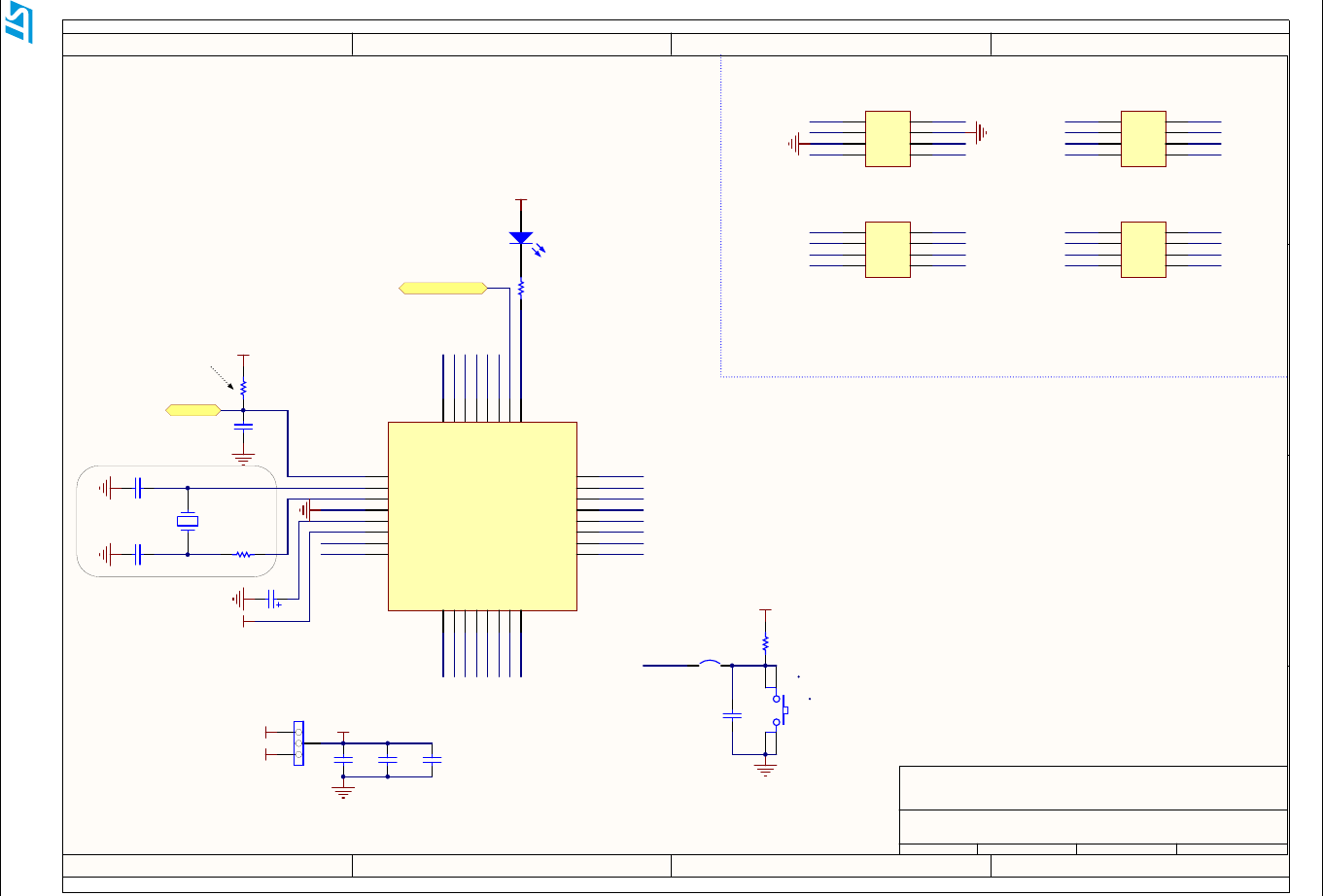

Figure 12. STM8SVLDISCOVERY MCU
1
1
2
2
3
3
4
4
STMicroelectronics
Title:
Number: Rev: Sheet of
A.1(PCB.SCH) Date: 7/13/2011
MB1008 2 3
STM8SVALUE-Discovery MCU
C4
20pF
C3
20pF
X1
16MHz
R5 60
12
LD1
Green
VDD
R1
510
1
2
3
JP1
U5V
+3V3 VDD
R7
10K
VDD
C1
10nF
NRST
PA1
PA2
PA3
VCAP
C5
680nF
VDD
PB0
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PC1
PC2
PC3
PC4
PC5
PC6
PC7
PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7
C8
100nF
C9
100nF
C10
100nF
RESET#
ST_LINK_SWIM
NRST PA1
PA2
PA3 PF4
VCAP
PB0PB1
PB2PB3
PB4PB5
PB6PB7
PE5 PC1
PC2 PC3
PC4 PC5
PC6 PC7
PD0 PD1
PD2 PD3
PD4 PD5
PD6 PD7
Top
RightLeft
Down
Extension connector
C100
100nF
R100
4.7K
VDD
12
3 4
B1
SW-PUSH-CMS
SB5
USER & WAKE-UP Button
PB7
NRST
1
OSCIN/PA1
2
OSCOUT/PA2
3
Vss
4
VCAP
5
Vdd
6
PA3
7
PF4
8
PB7
9
PB6
10
PB5
11
PB4
12
PB3
13
PB2
14
PB1
15
PB0
16
PE5 17
PC1 18
PC2 19
PC3 20
PC4 21
PC5 22
PC6 23
PC7 24
PD0 25
PD1 26
PD2 27
PD3 28
PD4 29
PD5 30
PD6 31
PD7 32
U1
STM8S003K3T6C
PF4 PE5
1 2
3 4
5 6
7 8
CN1
Header 4X2H
1 2
3 4
5 6
7 8
CN2
Header 4X2H
1 2
3 4
5 6
7 8
CN3
Header 4X2H
1 2
3 4
5 6
7 8
CN4
Header 4X2H
Not Fitted
Not Fitted
Electrical schematics UM1482
18/20 Doc ID 022392 Rev 1

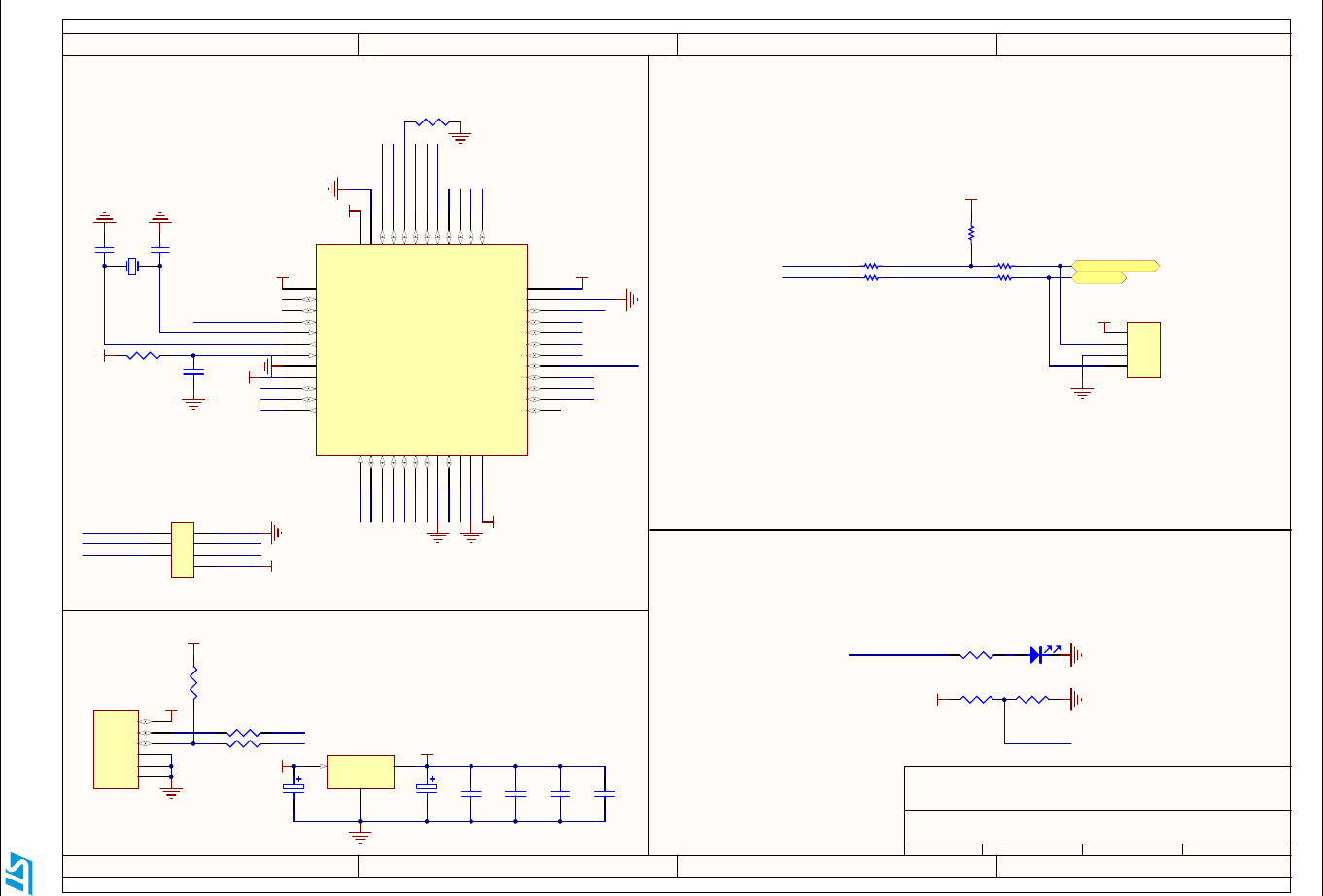

Figure 13. STM8SVLDISCOVERY ST-LINK (SWIM only)
1
1
2
2
3
3
4
4
STMicroelectronics
Title:
Number: Rev: Sheet of
A.1(PCB.SCH) Date: 7/13/2011
VBAT
1
PC13
2
PC14
3
PC15
4
OSC_IN
5
OSC_OUT
6
/RST
7
VSSA
8
VDDA
9
PA0
10
PA1
11
U2_TX
12
U2_RX
13
U2_CK
14
S1_CK
15
S1_MISO
16
S1_MOSI
17
PB0
18
PB1
19
PB2/BOOT1
20
PB10
21
VSS_1
23
VDD_1
24
PB12 25
PB11
22
S2_CK 26
S2_MISO 27
S2_MOSI 28
PA8 29
PA9 30
PA10 31
PA11 32
PA12 33
JTMS 34
VSS_2 35
VDD_2 36
JTCK 37
JTDI 38
JTDO 39
JNRST 40
PB5 41
PB6 42
PB7 43
BOOT0 44
PB8 45
PB9 46
VSS_3 47
VDD_3 48
U2
STM32F103C8T6
20pF
C16
20pF
C15
1 2
X2
8MHz +3V3
U2_TX
U2_RX
U2_CK
M25_CS
VCC 1
D- 2
D+ 3
GND 4
SHELL 0
SHELL 0
CN6
USB-typeB connector
U5V
USB_DM
USB_DP
USB_DM
USB_DP
STM_RST
T_JTCK
T_JTCK
T_JTDO
T_JTDI
T_JTMS
+3V3
STM_JTMS
STM_JTCK
STM_JTDI
STM_JTDO
STM_JRST
+3V3
OSC_IN
OSC_OUT
U1_TX
U1_RX
1
34
56
78
CN5
JTAG
STM_JRST
STM_JTDO
STM_JTDI STM_JTMS
STM_JTCK
T_NRST
T_JRST
LD2
RED
ST_LINK_LED
R19
4K7
R20
4K7
AIN_1
C11
100nF
R16
100K
R18
1K5
R21 22
R22 22
R17
510
R15
100K
+3V3
+3V3
VDD
+3V3
+3V3
+3V3
SWIM
SWIM_RST
SWIM_IN
SWIM_RST_IN
SWIM_IN
SWIM_IN
SWIM_IN
SWIM
SWIM
SWIM_RST_IN
SWIM_RST
AIN_1
MCU
SWIM
USB
VDD
RESET#
ST_LINK_SWIM
MB1008 3 3
STM8SVALUE-Discovery ST_LINK (SWIM only)
R9 220
R8 220
SWIM_PULLUP_CTL
LED
ST_LINK_LED
+3V3
R14 47
R13 47
R12
680
C13
104P
C17
104P
C18
4.7uF
C19
4.7uF
Vin
3Vout 2
1
U4
LD1117-3V3
C14
104P
C12
104P
U5V
1
2
3
4
CN7
Header 4
VDD
Not Fitted
UM1482 Revision history
Doc ID 022392 Rev 1 19/20
6 Revision history
Table 6. Document revision history
Date Revision Changes
18-Nov-2011 1 Initial release.
UM1482
20/20 Doc ID 022392 Rev 1
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2011 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
