STR DB925

User Manual: STR-DB925

Open the PDF directly: View PDF .
Page Count: 62

COVER
SERVICING NOTE
GENERAL
DIAGRAMS
EXPLODED VIEWS
ELECTRICAL PARTS LIST

– 1 –

MICROFILM

AEP Model

UK Model

Australian Model

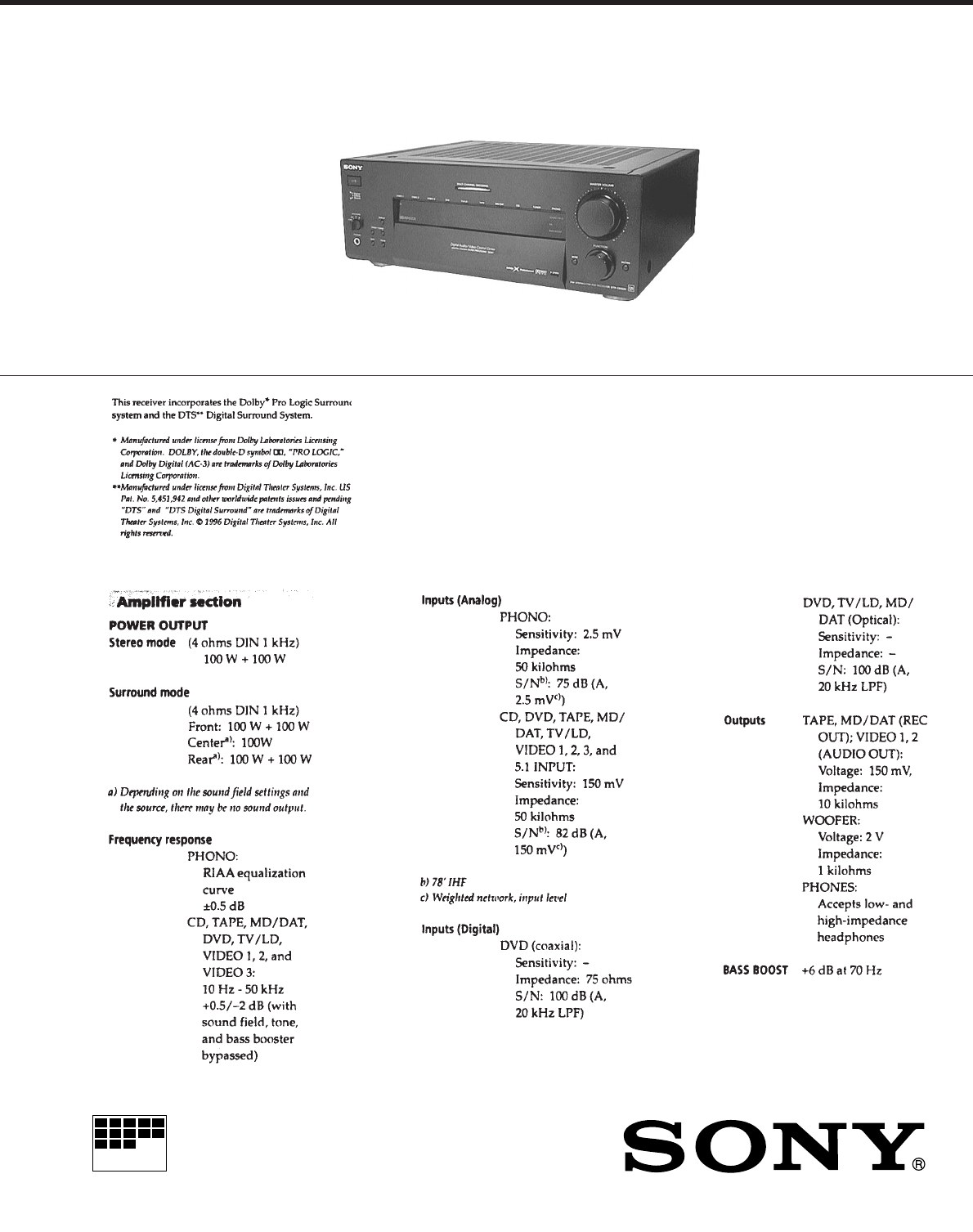

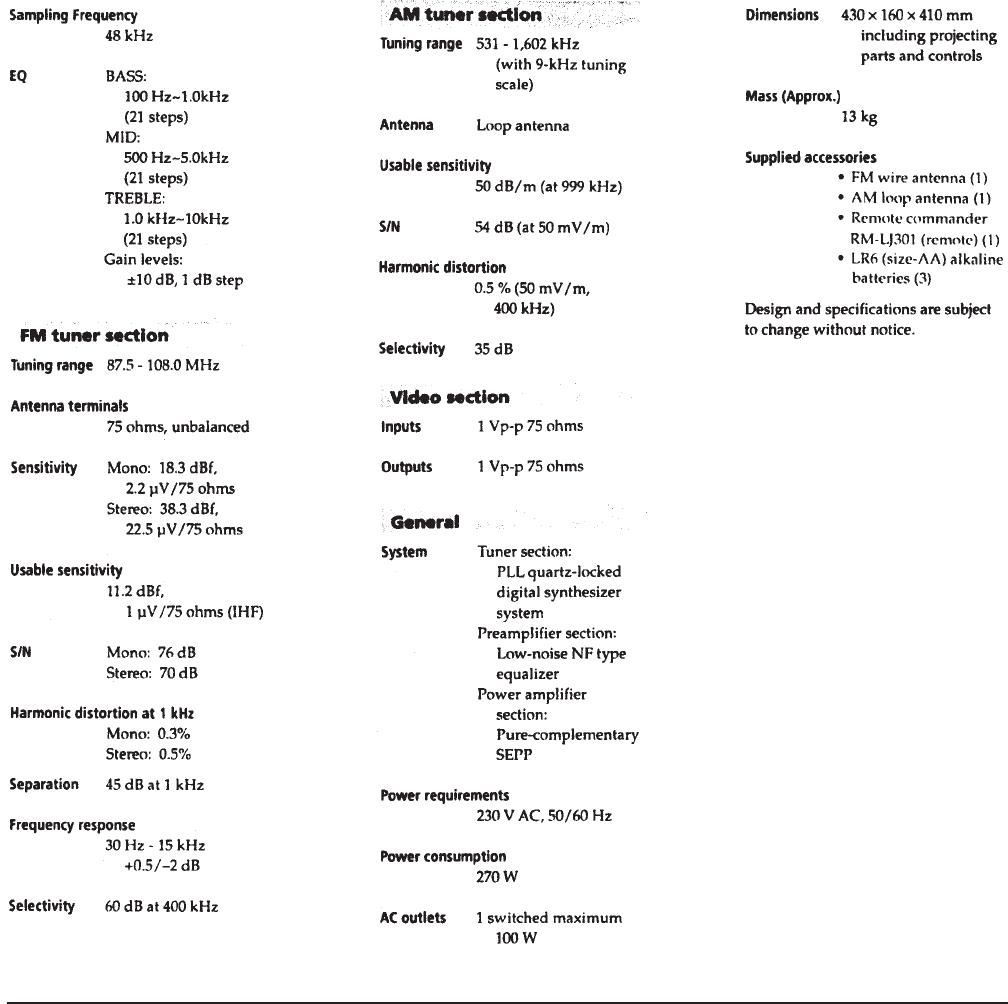

SPECIFICATIONS

SERVICE MANUAL

FM STEREO/FM-AM RECEIVER

STR-DB925

— Continued on next page —

Photo: BLACK

– 2 –

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE

WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN

THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.

REPLACE THESE COMPONENTS WITH SONY PARTS

WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS

MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be

damaged by heat.

– 3 –

SECTION 1

SERVICING NOTE

FACTORY SET

Mode which sets the preset settings of the unit to that at shipment.

Procedure:

With the power off, press the 1/u button while pressing the SET UP and SOUND FIELD ON/OFF buttons to turn ON the power.

“FACTORY SET” will be displayed and FACTORY PRESET will be executed.

As the “DEMO MODE” will automatically be set about 1 minute later, press the 1/u button to turn OFF the power.

INITIALIZATION

This mode erases all the preset settings of the unit.

Use this mode when returning the unit to custimer.

Procedure:

With the power off, press the 1/u button while pressing the DISPLAY and SOUND FIELD ON/OFF buttons to turn ON the power.

As the “DEMO MODE” will automatically be set about 1 minute later, press the 1/u button to turn OFF the power.

FLUORESCENT INDICATOR TUBE AND LED LIGHTING CHECK

Mode which lights up the whole fluorescent indicator tube or partially.

Procedure:

With the power off, press the 1/u button while pressing the SET UP and SOUND FIELD MODE buttons to turn ON the power. The whole

fluorescent display tube will light up.

As the “DEMO MODE” will automatically be set about 1 minute later, press the 1/u button to turn OFF the power.

DEMO MODE (NOT USED IN SERVICE)

Mode for demonstration

Procedure:

With the power off, press the 1/u button while pressing the CURSOR button to turn ON the power.

To end, press the 1/u button to turn OFF the power.

PRECAUTIONS ON REMOVING THE FRONT PANEL

When the front panel is removed, the front panel board and VOLUME board cannot be connected, thus causing the following problems.

• The MASTER VOLUME LED does not light up

• The MASTER VOLUME cannot be turned UP/DOWN using the remote controller.

1. SERVICING NOTE .......................................................... 3

2. GENERAL .......................................................................... 5

3. DIAGRAMS

3-1. Circuit Boards Location ........................................................6

3-2. Block Diagrams

• DSP Section ........................................................................ 7

• Input Section....................................................................... 9

• Power Section ................................................................... 11

• Dolby Section ................................................................... 13

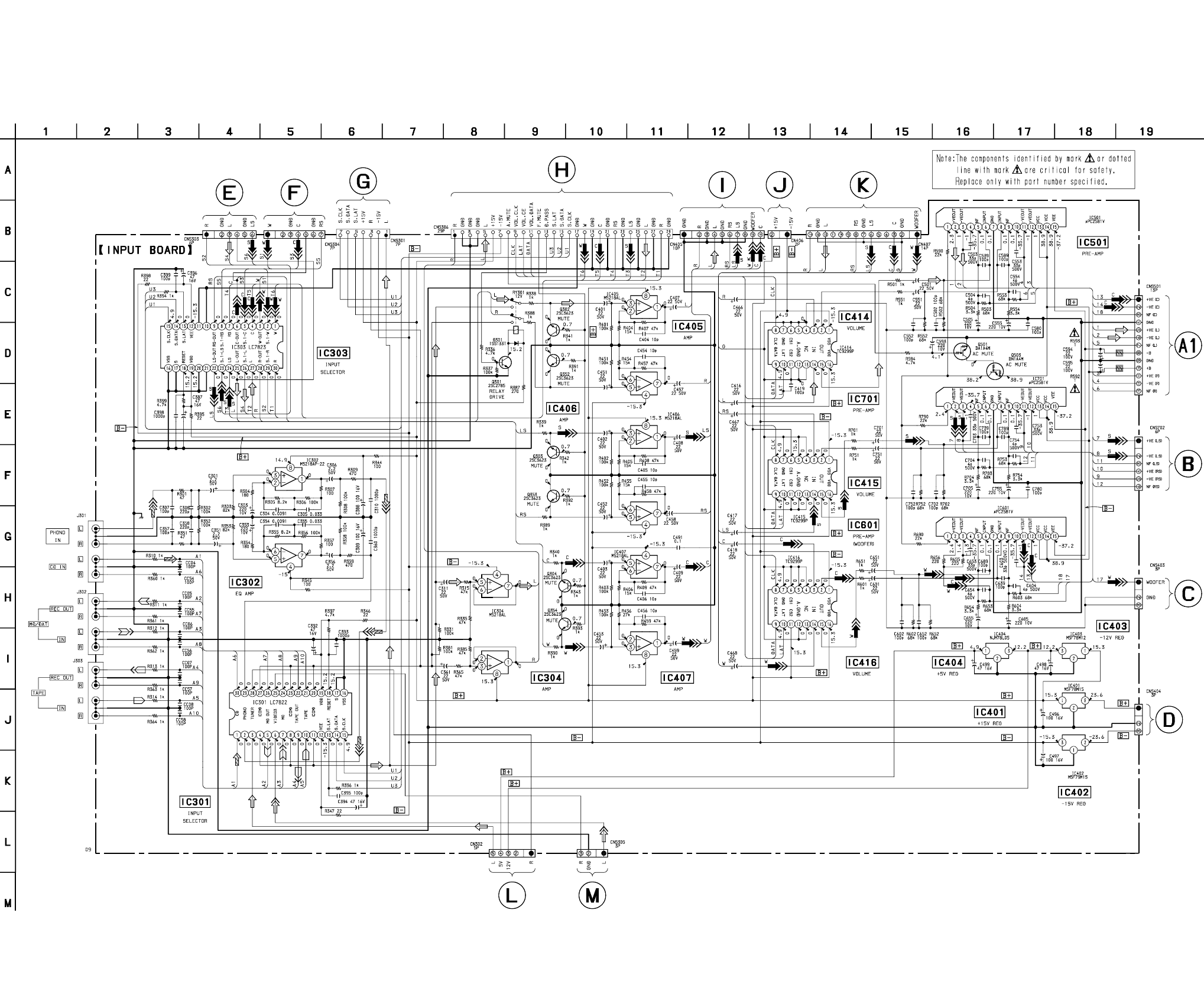

3-3. Schematic Diagram – Input Section – ................................ 17

3-4. Printed Wiring Board – Input Section – ..............................19

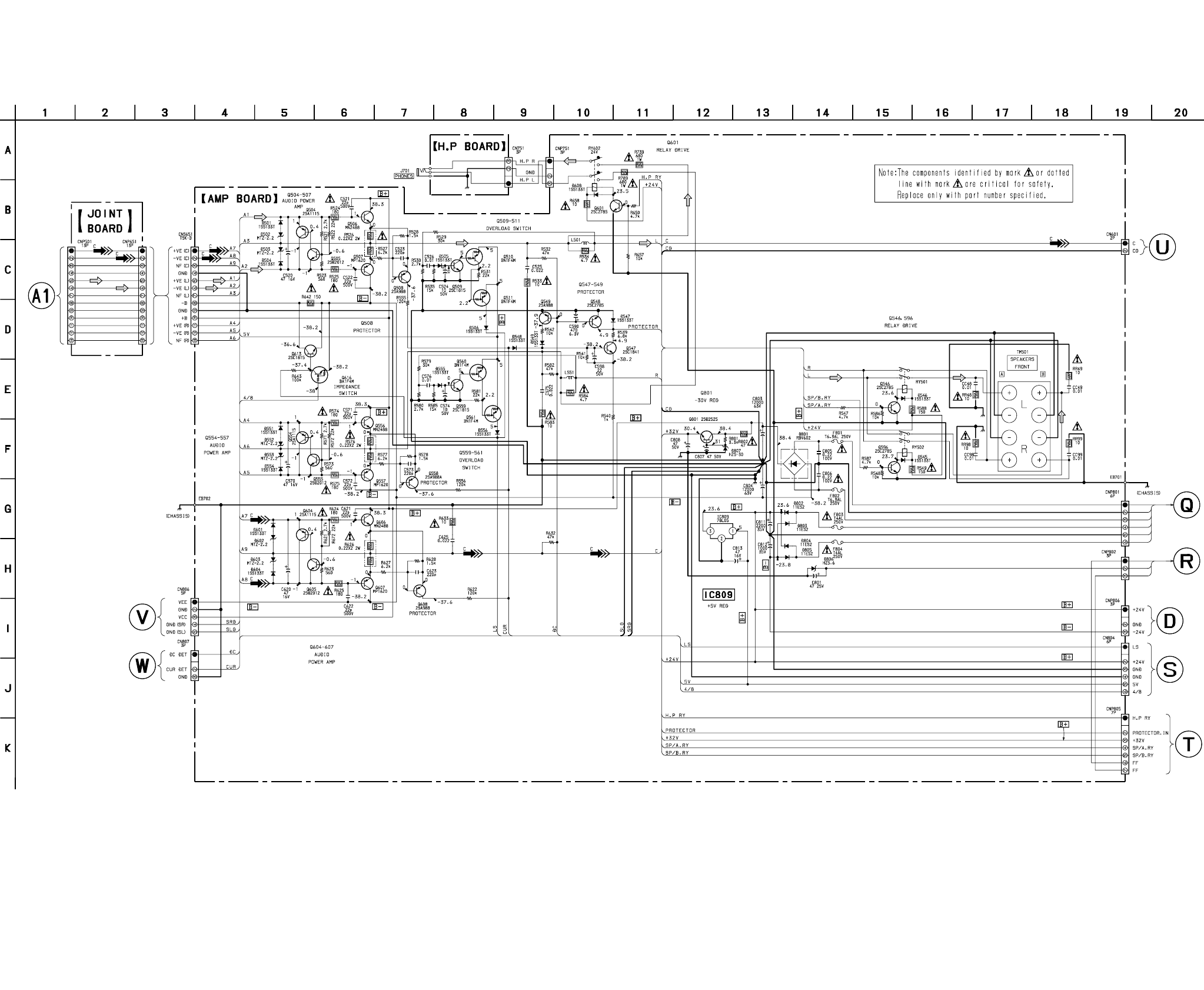

3-5. Schematic Diagram – Power AMP Section – ..................... 21

3-6. Printed Wiring Board – Power AMP Section –................... 23

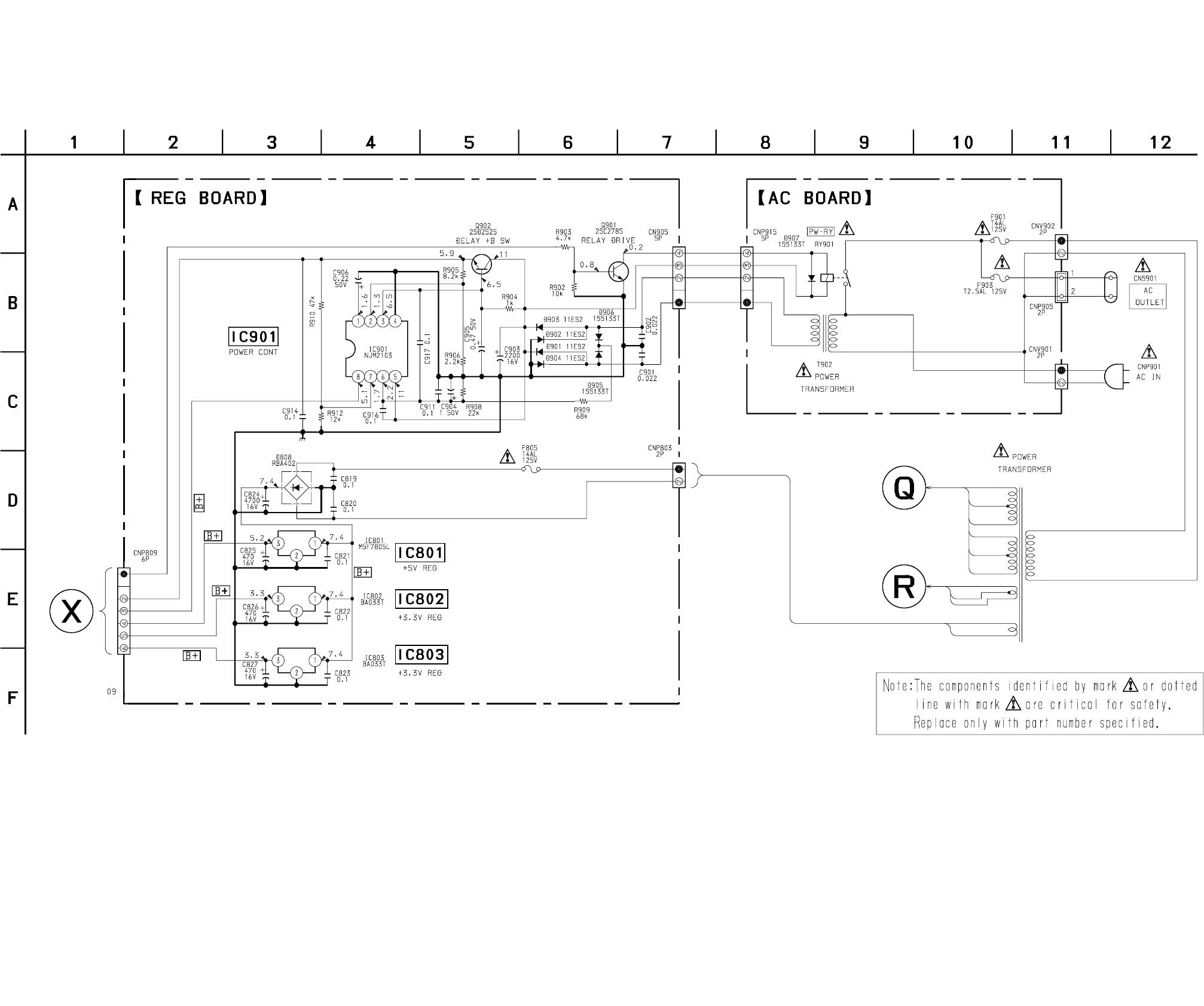

3-7. Schematic Diagram – Trans Section – ............................... 25

3-8. Printed Wiring Board – Trans Section – ............................. 27

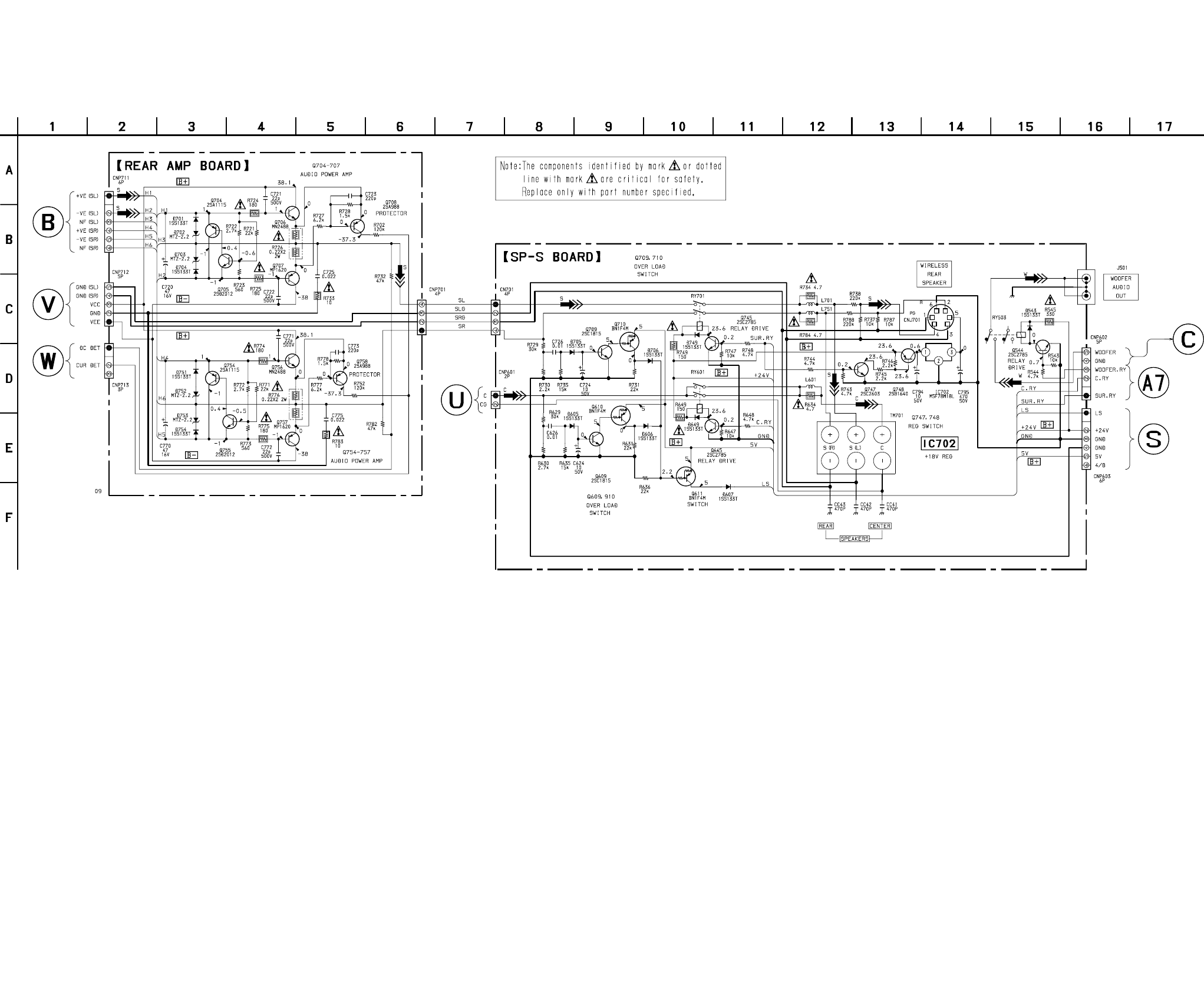

3-9. Schematic Diagram – Rear AMP Section – ........................29

3-10. Printed Wiring Board – Rear AMP Section – .................. 31

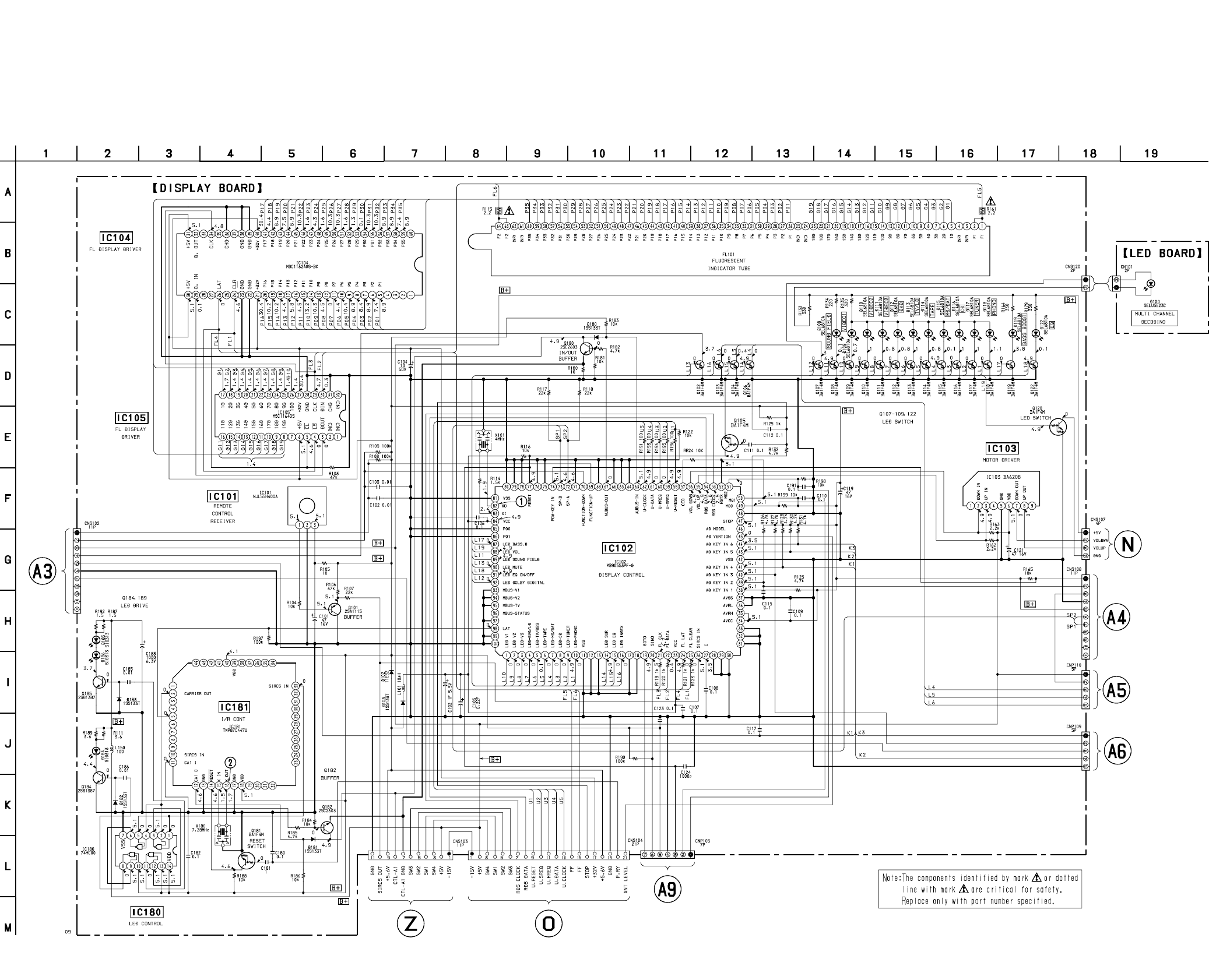

3-11. Schematic Diagram – Display Section – ......................... 33

3-12. Printed Wiring Board – Display Section – ....................... 35

3-13. Schematic Diagram – Panel Section – ............................. 37

3-14. Printed Wiring Board – Panel Section – ........................... 39

3-15. Schematic Diagram – Back Panel Section – .................... 41

3-16. Printed Wiring Board – Back Panel Section –.................. 43

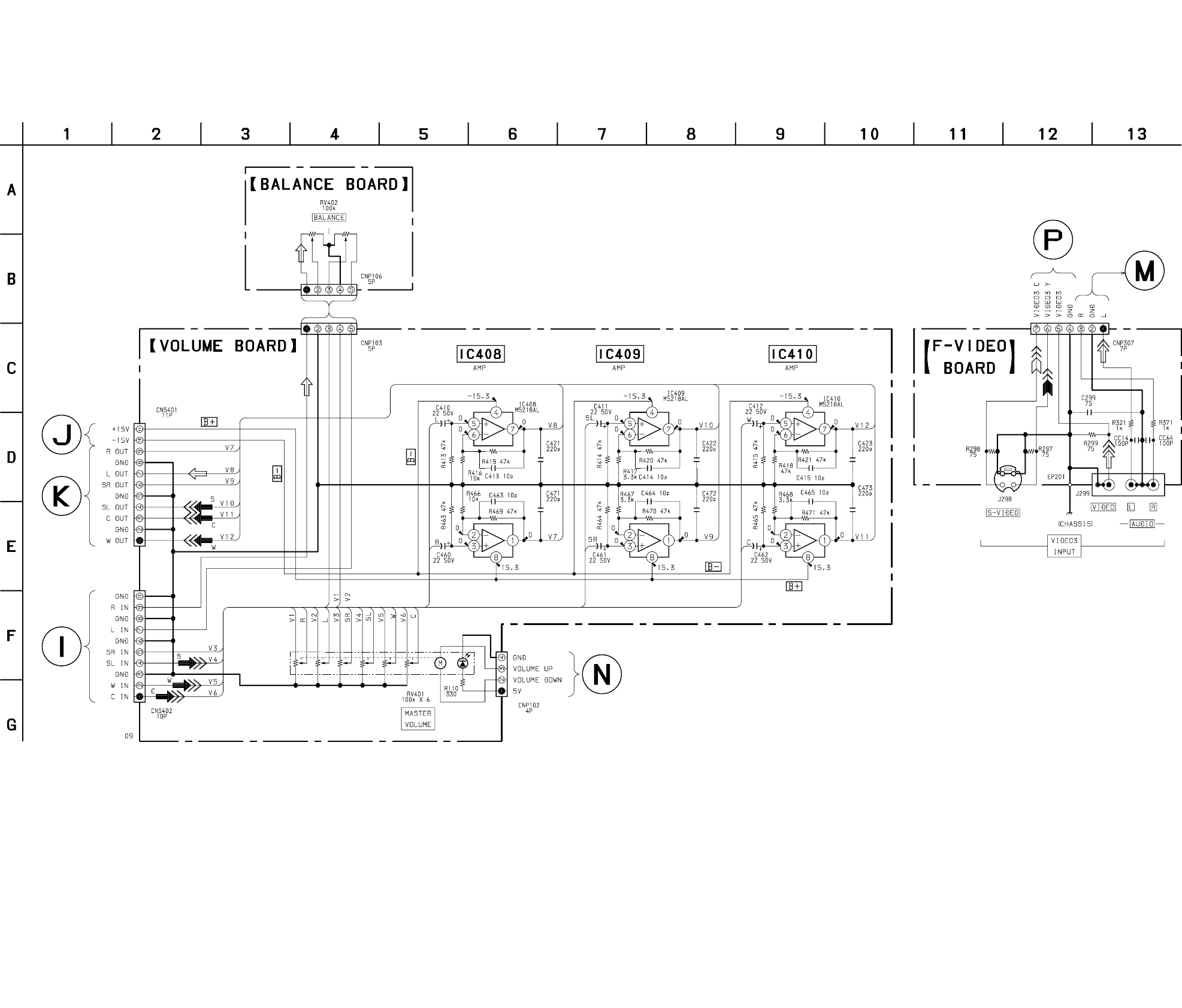

3-17. Schematic Diagram – Volume Section – .......................... 45

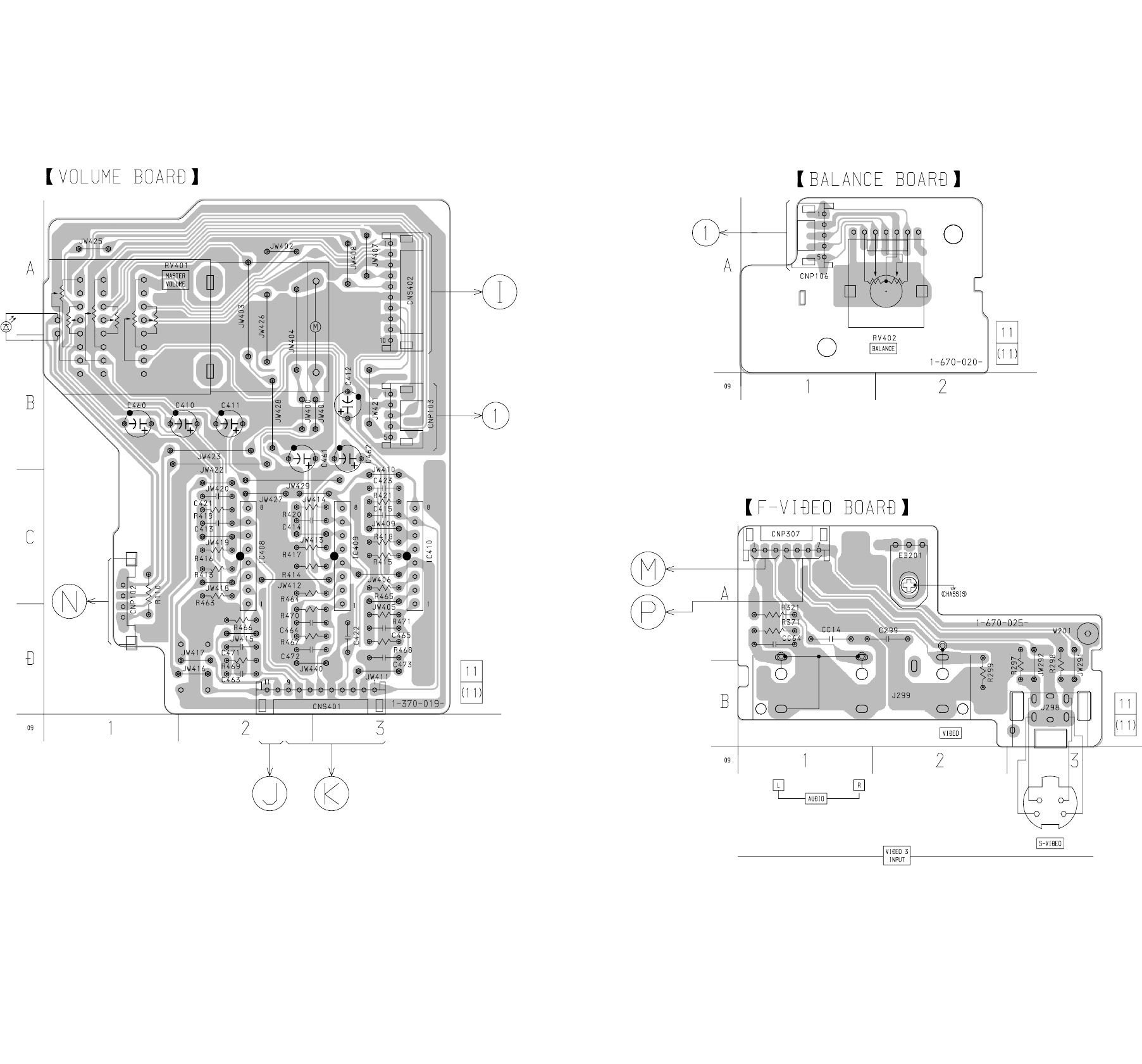

3-18. Printed Wiring Board – Volume Section – ....................... 47

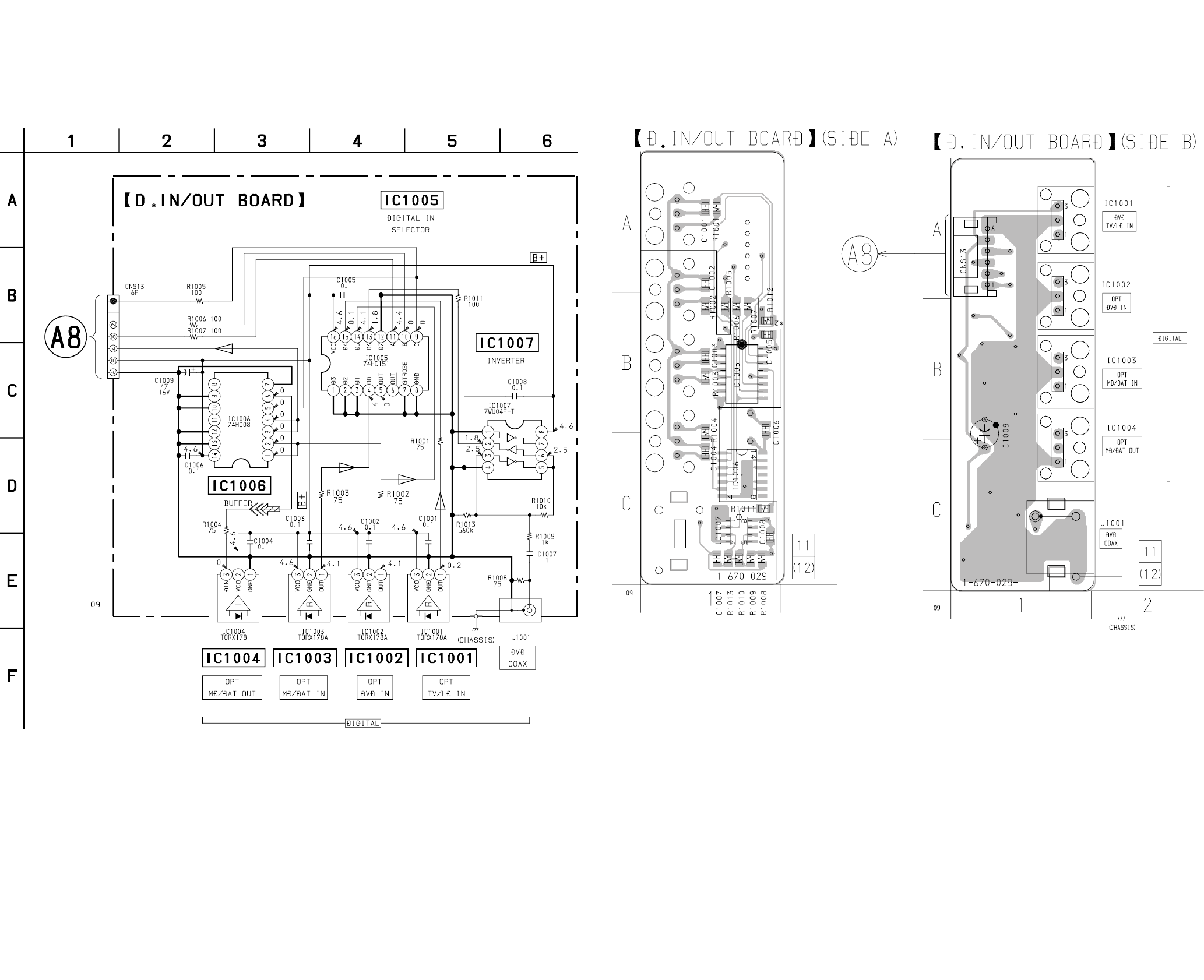

3-19. Schematic Diagram – D In/Out Section – ........................ 49

3-20. Printed Wiring Board – D In/Out Section – ..................... 50

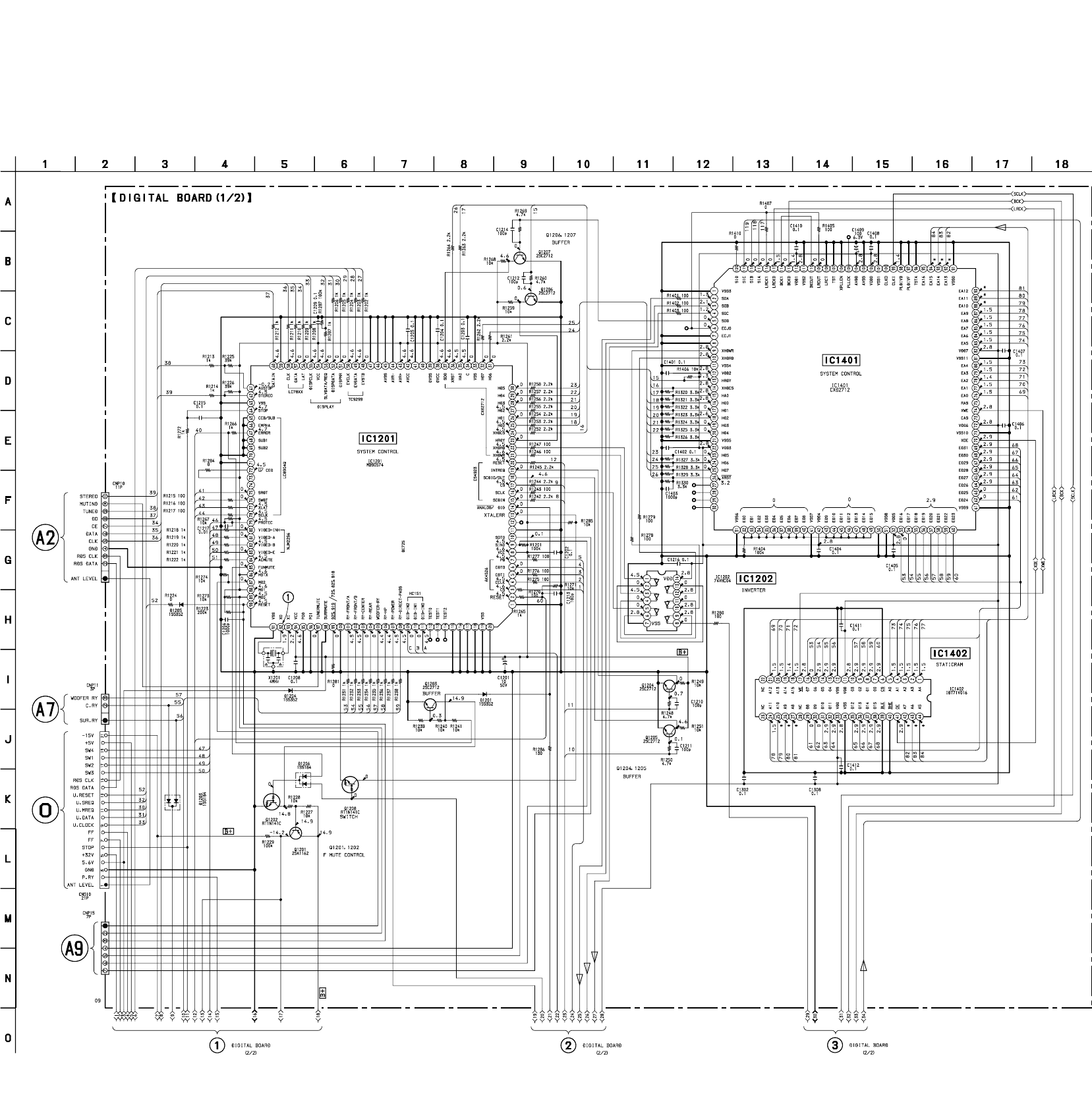

3-21. Schematic Diagram – Digital (1/2) Section – .................. 51

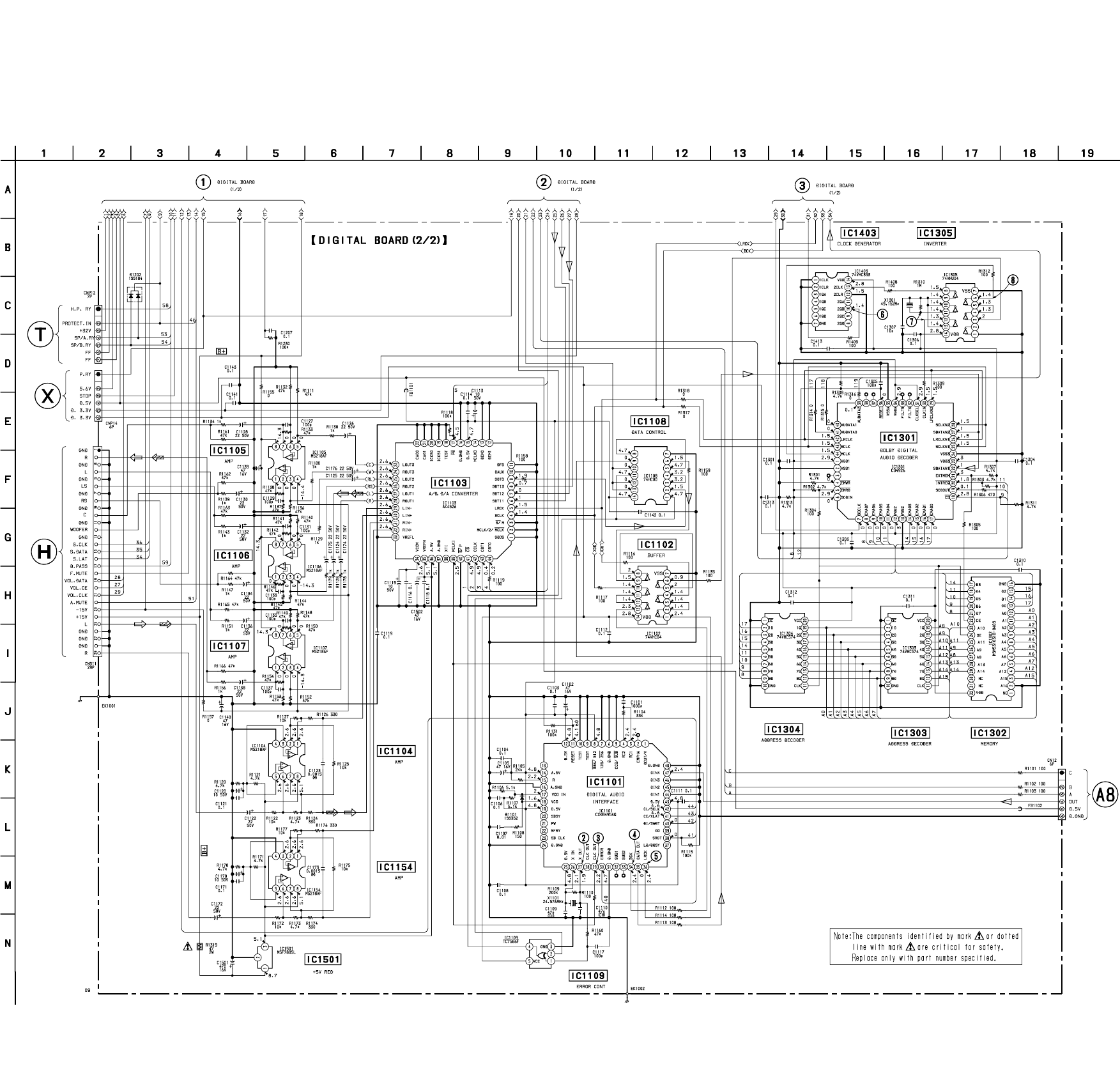

3-22. Schematic Diagram – Digital (2/2) Section – .................. 53

3-23. Printed Wiring Board – Digital Section – ........................ 55

3-24. IC Block Diagrams ........................................................... 57

3-25. IC Pin Functions ............................................................... 60

4. EXPLODED VIEWS

4-1. Case and Back Panel Section .............................................. 68

4-2. Front Panel Section ............................................................. 69

4-3. Chassis Section ................................................................... 70

5. ELECTRICAL PARTS LIST ........................................ 71

TABLE OF CONTENTS

– 4 –

DSP SELF DIAGNOSIS FUNCTION

This unit is equipped with a DSP self-diagnosis function.

After completing self-diagnosis, the “DSP TEST MODE” can be set, where signals input from the external equipment will be

assigned to the designated channels as shown in the table below.

Table-1 Assignment of Signals in DSP TEST MODE

Procedure:

1. Connect external equipment such as CD and DVD players using the DIGITAL cable (optical or coaxial).

2. Rotate the FUNCTION knob, and switch to the FUNCTION connecting the external equipment.

3. Press the INPUT MODE button, and select the type of DIGITAL signal connected at 1.

(“AUTO INPUT” is recommended for convenience.)

4. Press the 1/u button to turn OFF the power.

5. Press the 1/u button while pressing the SET UP and SOUND FIELD GENRE buttons to turn ON the power.

6. Perform DSP check in the following sequence to display the results. If no problems, “DSP NO ERROR” will be displayed on the

fluorescent indicator tube, and the reference signals of the 1 KHz internal oscillation will be output to FRONT, REAR, CENTER, and

WOOFER.

Sequence :

1 DSP1 BOOT ERROR CHECK (DSP1:IC1301)

2 DSP1 REPLAY ERROR CHECK

3 DSP2 RAM ERROR CHECK (DSP2:IC1402 RAM:IC1402)

4 DSP2 REPLAY ERROR CHECK

Refer to Table 2 if errors occur and perform the repairs.

Table-2 Display of Errors and Main Causes

7. Each time the < , ∧ , ∨ , or > button is pressed, the display changes between “DSP TEST MODE” and “DSP NO ERROR”.

When “DSP TEST MODE” is displayed, the signals input from the external equipment connected at 1. will be assigned to the outputs as

shown in Table 1.

When “DSP NO ERROR” is displayed, the reference signal of the internal oscillation will be output to the FRONT, REAR, CENTER, and

WOOFER channels.

(Each time the < , ∧ , ∨ , or > button is pressed, self-diagnosis will be executed from 3 of step 6.

8. To end, press the 1/u button and turn OFF the power.

Note:

Do not touch other buttons except < , ∧ , ∨ , or > during this mode with a specific purpose.

Messages are displayed in the same way as in normal operations.

Operations itself will not be normal here, therefore if other buttons or knobs are touched by accident and the message is changed, press

the 1/u button to turn OFF the power and exit the mode.

Output To

FRONT L-ch + CENTER + REAR L-ch

FRONT R-ch + WOOFER + REAR R-ch

Possible Cause and Countermeasure

Faulty connection of IC1301, fault around the power supply of IC1301

Fault of peripheral circuit of Pin @º of IC1301

Faulty connection with RAM (IC1402)

Faulty communication with microprocessor, fault of peripheral circuit of Pin !£ of IC1401,

fault around power supply and clock of IC1401

Error Message

DSP1 BOOT ERROR

DSP1 REPLY ERROR

DSP2 RAM ERROR

DSP2 REPLY ERROR

Input Signal

FRONT L-ch

FRONT R-ch

– 5 –

Front Panel Descriptions

SECTION 2

GENERAL

LOCATION OF PARTS AND CONTROLS

11/u (power) switch

2VIDEO 1 indicator

3VIDEO 2 indicator

4VIDEO 3 indicator

5DVD indicator

6TV/LD indicator

7MULTI CHANNEL DECODING indicator

8TAPE indicator

9MD/DAT indicator

10 CD indicator

11 TUNER indicator

12 PHONO indicator

13 MASTER VOLUME knob and indicator

14 MUTING indicator

15 MUTING button

16 FUNCTION knob

17 MODE switch

18 SOUND FIELD indicator

19 EQ indicator

20 BASS BOOST button

21 BALANCE knob

22 SOUND FIELD ON/OFF button

23 SOUND FIELD MODE button

24 SOUND FIELD GENRE button

25 INPUT MODE button

26 5.1 INPUT button

27 EQ ON/OFF button

28 SET UP button

29 SURROUND indicator

30 EQUALIZER indicator

31 INDEX indicator

32 <, ∧, ∨, > buttons

33 SET UP button

34 RDS EON button

35 RDS PTY button

36 TUNING + button

37 TUNING – button

38 VIDEO 3INPUT jacks

39 FM MODE button

40 MEMORY button

41 DISPLAY button

42 PRESET TUNING + button

43 PRESET TUNING – button

44 FM/AM button

45 SHIFT button

46 PHONES jack

47 SPEAKERS knob

234 65

110 11 13

129

2629

21 19

33343536 2324

2531

3237383940

42 164344

– 6 –

SECTION 3

DIAGRAMS

3-1. CIRCUIT BOARDS LOCATION

S-VIDEO board

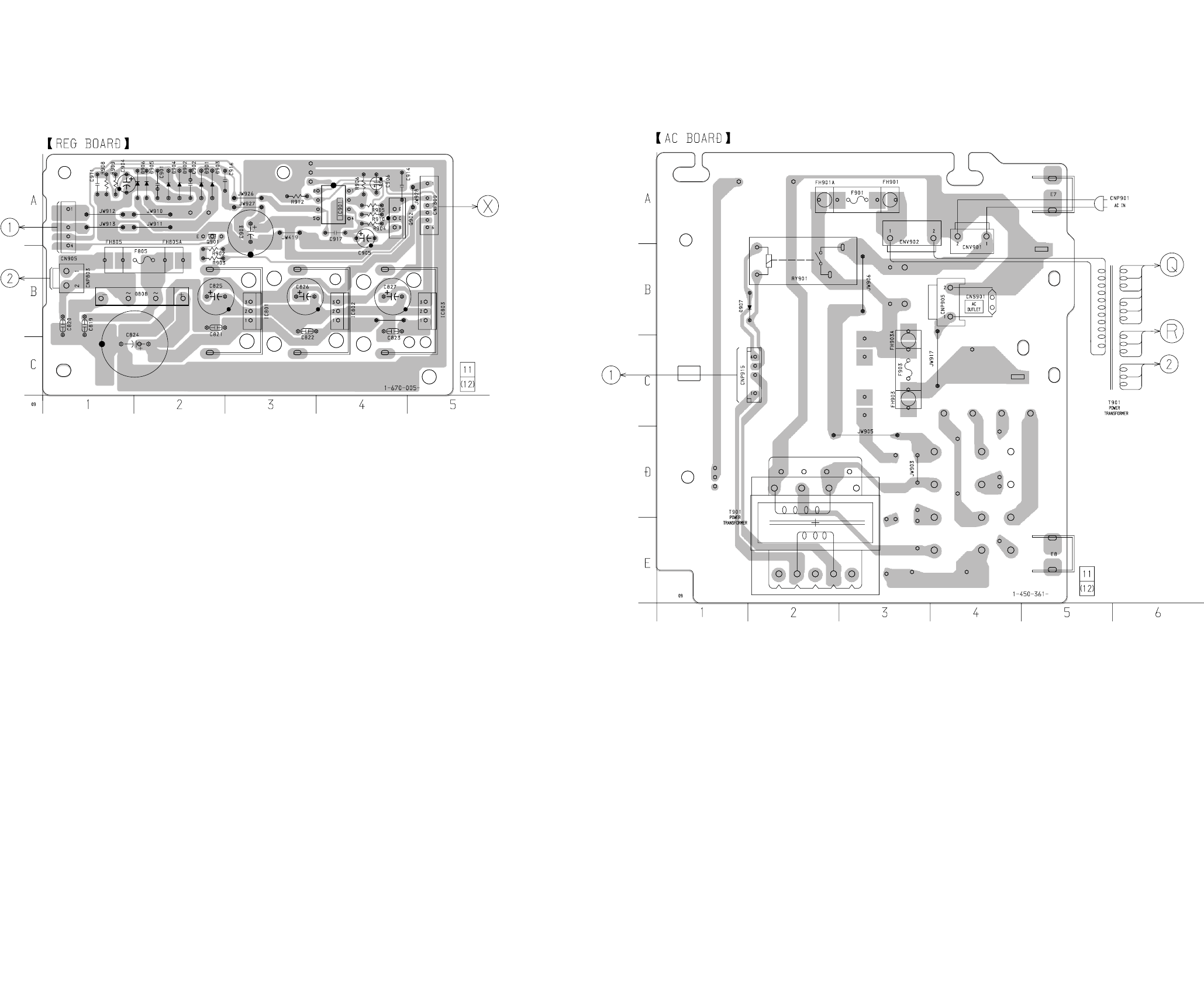

REG board

DISPLAY board

AMP board

LED board

INPUT board

DIGITAL board

SP-S board

JOINT board

H.P board

AC board

BALANCE board

VIDEO board

AUDIO board

TUNER board

5.1 IN board

D. IN/OUT board

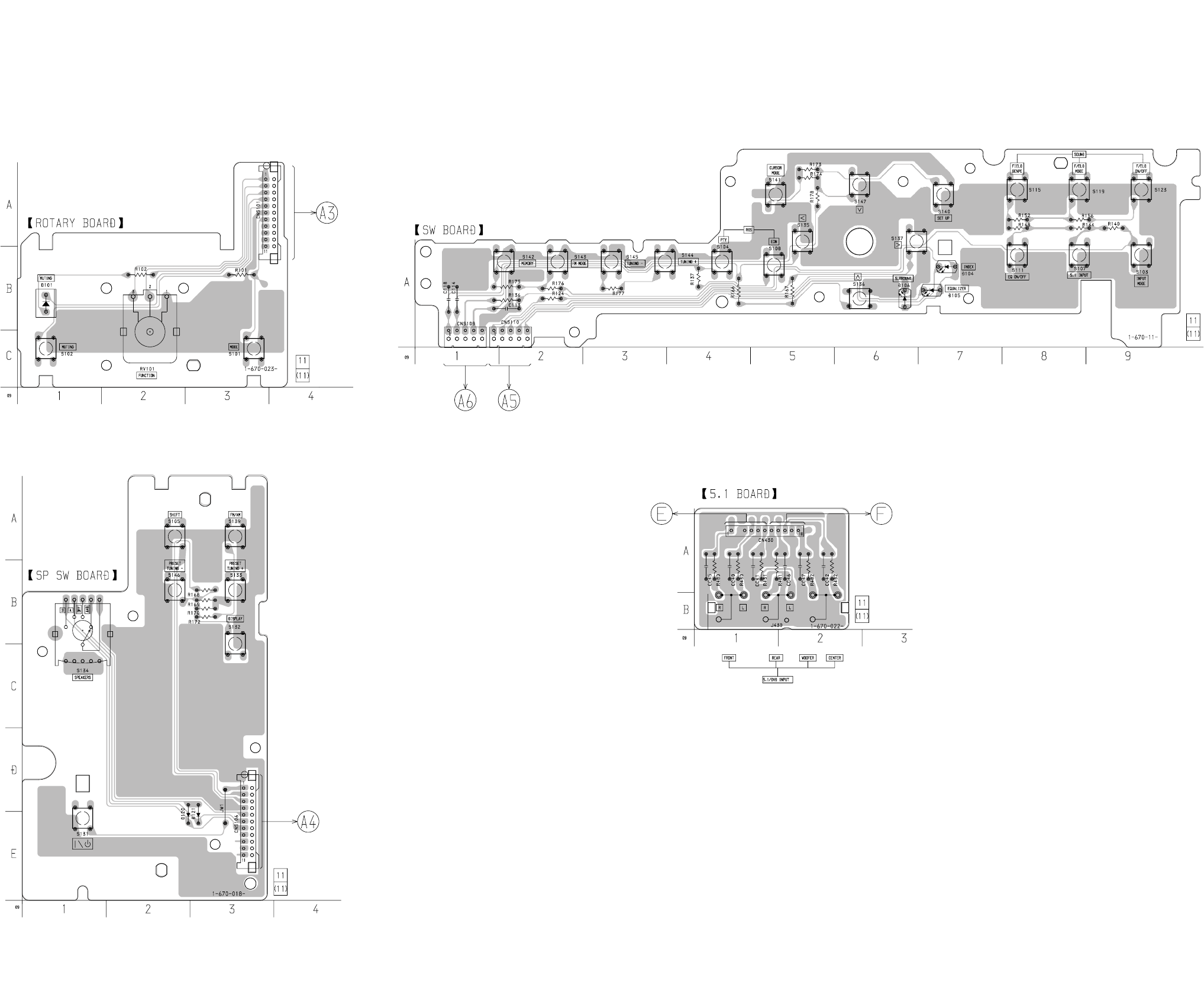

ROTARY board

SW board

F-VIDEO board

SP SW board

VOLUME board

REAR AMP board

– 8 –

STR-DB925

3-2. BLOCK DIAGRAMS

– DSP SECTION –

– 7 –

DOLBY

SECTION

(Page 14)

POWER

SECTION

(Page 11)

DOLBY

SECTION

(Page 13)

INPUT

SECTION

(Page 10)

X1201

4MHz

37 78

SOD

HD0

HD7

35 HAO

36 XRST

24 XHDCS

23 HRDY

21 XHDWR

22 XHDRD

16 SCLK

SYSTEM CONTROL

IC1201(2/2)

75 SRDT

40 ERROR

13 XTALERR

85 FUNMUTE

14 ANALOG/DIGI

15 SCDIN

17 CS

20 RESET

18 SCDIO/OUT

19 INTREQ

93 XI

92 XO

SCLK

XLAT

SWDT

RESET

109

DIG-IN2

110

DIG-IN1

111

DIG-IN0

CDTO

CDTI

CCLK

EVSTB

EVDATA

EVCLK

ACMUTE

DISPDATA

DISPCLK

DISPMR

SLVDATA/REQ

RESET

101

RY-FRONT/A

102

RY-FRONT/B

103

RY-CENTER

104

RY-REAR

105

WOOFER-RY

106

RY-HP

107

RY-POWER

PROTEC

STOP

SINO

SOTO

MDO

MD2

119 SIC

SDTI1

SDTI2

SDTI3

SCLK

XLAT

SWDT

RESET

CDTO

CDTI

CCLK

VOL CE

VOL DATA

VOL CLK

AMUTE

UDATA

UCLOCK

UMREQ

USREQ

URESET

SP/A RY

SP/B RY

C RY

SUR RY

W RY

HP RY

P RY

PROTECT

STOP

SINO

SOTO

MDO

MD2

FMUTE

118 SIB

117 SIA

113 BCKO

115 LRCKO

99 CLK1

SOA

SOB

SOC

SOD

HD0

HD7

AUDATA2

AUDATA1

AUDATA0

BCK

LRCK

SCLK

SRDT

ERROR

SCCLK

XTALERR

ANA/DIGI

SCDIN

RESET

SCDOUT

INTREQ

XHDCS

XRST

HAO

74 70

STATIC RAM

IC1402

CEWE

XWE XCE

XHDRD

ED16 ED31 EA0 EA15

XHDWR

HRDY

DIGITAL SIGNAL

PROCESSOR

IC1401

7-10 13-16 29-32 35-38 5-1 44-42 27-24 21-18

53-60 62-69 76-80 83-90 92-94

• Signal path

: FM

: CD

: DIGITAL IN

BUFFER

Q1203

BUFFER

Q1206

INVERTER

IC1202

BUFFER

Q1207

BUFFER

Q1204,1205

SWITCH

Q1208

F MUTE

CONTROL

Q1201,1202

D0 D15 A0 A15

...

– 9 – – 10 –

STR-DB925

– INPUT SECTION –

DATA IN

75Ω

MUTING

TUNED

STEREO

DATA

CLK

L OUT

R OUT

TM301

TUNER UNIT

TUNER UNIT IS SUPPLIED AS THE ASSEMBLED BLOCK

MUTING

TUNED

STEREO

S DATA

S CLK

S LAT

R CHR CH

RDS

PHONO IN

CD IN

J301

J303

REC OUT

J302

FRONT

REAR

J430

WOOFER

5.1/DVD INPUT

MD/DAT

M OUT

J201

MONITOR

J202

J203

DVD IN

TV/LD IN

VIDEO 2

OUT

VIDEO 1

OUTOUT

OUT

V1 IN

V1 OUT

V2 IN

V2 OUT

VEE

VCC

SW1

SW2

SW5

SW3

SW4

VIDEO SELECT

IC201

-5V

REG

IC202

-15V

+5V

1514

AUDIO SELECT

IC301

L-CH L

CENTER

WOOFER

SLAT

SCLK

SDATA

EQ AMP

IC303

RV401

MASTER

VOLUME

RV402

BALANCE

F MUTE

DOWN

VIDEO -A

SYSTEM

CONTROL

IC1201

VIDEO-B

VIDEO-E

VIDEO-INH

TUNER MUTE

STEREO

AUSTOP

S DATA

S CLK

S LAT

MUTING

STEREO

TUNED

S DATA

S CLOCK

LAT

DIRECT-PASS

VOL

MOTOR

IC103 DOWN

LIN

REC OUT

TAPE

CENTER

J299

VIDEO

AUDIO

VIDEO 3

INPUT

V3 IN

CONTROL

AUDIO SELECT

IC303

SLAT

SCLK

SDATA

TV/LD

DVD L

J305

VIDEO2

AUDIO IN

AUDIO OUT

VIDEO1

AUDIO IN

LED

DRIVE

Q120

V1 O

VIDEO 1

SW1

SW2

SW3

SW4

SW5

V3 O

M O

Y SWITCH

IC252

YJ252

VIDEO 1

C SWITCH

IC251

J251

MONITOR

J298

VIDEO 3

INPUT

S-VIDEO

TV/LD

J253

J252

J304

V1 O

V1 I

SW1

SW2

SW3

SW4 V3 O

M O

V1 I

DVD

V INH

RDS CLK

RDS DATA

ANT LEV

VOL DOWN

LED VOL

VOL UP

FNIF

RDS DECODER

RDS DATA

RDS CLK

4.43MHz

IC1

S-VIDEO

OUT

AUDIO OUT

VIDEO

CONTROL

SELECTOR

IC303

SLAT

SCLK

SDATA

LPF

IC405

LPF

IC406

-AMP-

IC408

IC409

IC410(1/2)

IC410(2/2)

LPF

IC407(1/2)

LPF

IC407(2/2)

RY301

CONTROL

CDOLBY

SECTION

(Page 14)

(Page 8)

(Page 11)

POWER

SECTION

DSP

SECTION

POWER

SECTION

RELAY

DRIVE

Q301

MUTE

Q302

MUTE

Q303

MUTE

Q304

MUTE

Q354

S-VIDEO

SW5

LINE AMP

IC304

• R CH is omitted

• Signal path

: FM

: PHONO

: CD

: VIDEO

108

57 58 56

60 97 62 61

– 11 –

– POWER SECTION –

STR-DB925

DATA

RELAY

DRIVE

Q601

LIMITER

Q504

VEE

VCC

MUT

+VE

-VE

VCC

POWER AMP(L)

IC501

-B

LIMITER

Q505

BOOSTER

Q506

BOOSTER

Q507 CUR DET

Q508

PROTECTOR

Q509,510

Q511

LIMITER

Q604

VEE

+VE

-VE

VCC

POWER AMP(C/W)

IC001

-B

LIMITER

Q605

BOOSTER

Q606

BOOSTER

Q607 CUR DET

Q608

LIMITER

Q704

MUTE

Q501,503

VEE

VCC

MUT

+VE

-VE

VCC

POWER AMP(SL)

IC701

P RY

ND 2

MD0

SINO

SOTO

UDATA

UCLOCK

UHREQ

USREQ

URESET

LED VOL

VOL DOWN

VOL UP

RDS DATA

RDS CLK

ANT LEV

AMUTE

VOL CE

VOL CLK

VOL DATA

HP RY

SP/A RY

SP/B RY

PROTECT

C RY

W RY

SUR RY

STOP

-B

LIMITER

Q705

BOOSTER

Q706

BOOSTER

Q707 CUR DET

Q708

RY602

RELAY

DRIVE

Q546

RY501

RELAY

DRIVE

Q596

RY502

RELAY

DRIVE

Q645

RY601

RELAY

DRIVE

Q745

RY701

RELAY

OVER LOAD SW

Q609, 610, 709, 710

DRIVE

Q544

Q611

RY503

RELAY

DRIVE

Q901

RY901

J501

S(L)

S(R)

R CH

R CH WIRELESS

REAR

SPEAKER

CNJ701

CENTER

WOOFER

J701

PHONES

TM701

FRONT

SPEAKER

TM501

R CH

POWER

CONT

IC901

DELAY

+B SW

Q902

SWITCH

Q747,748

D801

SWITCH

Q613,616

PROTECTOR

Q547-549

D806 F2

+5.6V

F801

F802

D802-805

+32V

-B

IMPEDANCE

SELECTOR

S501

D901-904

CNS901

AC IN

OUTLET

VCC

+VE

-VE

+18V

REG

IC702

D+5V

D+3.3V

T901

POWER

TRANSFORMAER

D808

F803

F804

-15V

REG

+5V

REG

IC809

+24V

-24V

+15V

REG

+5V

REG

IC801IC8

+3.3V

REG

IC802IC8

+3.3V

REG

IC803

IC401

+12V

REG

IC403

+5V

REG

IC404

+15V

+12V

+5V

IC402

-15V

+5V

T902

POWER

TRANSFORMER

SYSTEM CONTROL/

MODE CONTROL

IC102

REMOTO

CONTROL

RECEIVER

IC101

SIRCS

Q101

FUNCTION

KEY

AUBUS-OUT

U-DATA

U-CLOCK

U-HREQ

U-SREQ

U-RESET

LED VOL

VOL DOWN

VOL UP

RDS DATA

RDS CLOCK

AD VERTION

AUBUS-IN

AD KEY IN2

AD KEY IN3

AD KEY IN4

AD KEY IN5

AD KEY IN6

LED MUTE

FUNCTION-DOWN

FUNCTION-UP

SP-A

SP-B

POW-KEY IN

LED

FL DATA

FL CLK

FL LAT

FL CLEAR

SOT0

SIN0

MD0

MD2

MUTING

D101

LED DRIVE

Q102

S-LINK

CTRL A1

J204

Q180

IN/OUT

BUFFER

FUNCTION

RV101

POWER

S131

D100,104-106,

D108-119,122

LED DRIVE

Q103,104

106-119,122

I/R

CONT

IC181

I/O

BUFFER

Q182

RESET

Q181

LAT

X180

7.28MHz

I/R

DET

IC180

LED

DRIVE

Q184,185 D184-186

REAR

SPEAKER

INPUT

SECTION

(Page 10)

DSP

SECTION

(Page 8)

INPUT

SECTION

(Page 10)

• R CH is omitted

• Signal path

: FM

: CD

1313

+5V

REG

IC1501

22 21 24 25

30 29 45

FL GRID

DRIVER

IC105

SEGMENT

DRIVER

IC104

1G 19G

DIN

D OUT D IN

CLK

CLR

LAT

CLK

19 20 49 51

67 63 39 40 41 43 44 90 70 69

SPEAKERS

S134

72 73 74 1-10 14-16 87 89 91 92

...

RESET

SWITCH

Q105

17-26 16-8

24 26 34

FL TUBE

FL101 F1

5-20 41-59

P1 P35

X101

4MHz

STOP

RESET

15 16

14 15

CONTROL

109

LAT

DATA

CLK

LAT

CLK

14 15

CONTROL

SWITCH

IC415

SWITCH

IC416

SWITCH

IC414

LAT

DATA

CLK

14 15

+32V REG

Q801

– 12 –

– 13 – – 14 –

STR-DB925

– DOLBY SECTION –

DSP

SECTION

(Page 8) DSP

SECTION

(Page 7)

INPUT

SECTION

L-CH

WOOFER

CENTER

SCLK

RESETRESET

SCCLK

SCDIN

INTREQ

SCDOUT

SRDT

ERROR

BCK

LRCK

BUFFER

IC1305(1/2)

ANA/DIGI

XTALERR

AUDATA2

AUDATA1

AUDATA0

(Page 9,

10)

AMP

IC1104(1/2)

AMP

IC1104(2/2)

OUT

OPI

TV/LD

OPI

DVD

OPI

MD/DAT

OPT

MD/DAT

OUT

DVD

COAX

CCLK

CDTI

CDTO

SDTI1

SDTI2

SDTI3

SCLK

RESET

XLAT

SWDT

HPF

CCLK

CDT1

CDTO

AUDIO

INTERFACE

DAC

LPF

CLOCK

GENERATOR

ABC

10 9

1D4

OUT 1

IC1001

IC1002

IC1003

J1001

INVERTER

IC1007(1/2)

INVERTER

IC1007(2/2)

ERROR CONT

IC1109

BUFFER

IC1006)

DIGITAL IN

SELECTOR

IC1005

DIGITAL AIDIO INTERFACE

IC1101

A/D,D/A CONVERTER

IC1103

INVERTER

IC1108(4/4)

AMP

IC1107

AMP

IC1106

AMP

IC1105(1/2)

AMP

IC1105(2/2)

DATA

CONTROL

IC1108(1/4)

D IN 3

BUFFER

IC1102(2/2)

DATA

CONTROL

IC1108(3/4)

X1301

49.152MHz

11 10

335

SWDT

XLAT

SCLK INTERFACE

X1101

24.576MHz

MULTIPLEX

LOCK

ERROR

DET

DATA

DEMODULATION

TIMING

GENERATOR

MUTE

OUTPUT

STC

DIGITAL

AUDIO

INPUT

INTERFACE

PLL CLOCK

MANAGER

INVERTER

IC1305(2/2)

INVERTER

IC1102(1/2)

DATA

SELECTOR

IC1108(2/4)

CLOCK GENERATOR

IC1403

DOLBY DIGITAL

AUDIO DECODER

IC1301

FRAMER

SHIFTER,

INPUT

BUFFER

CONTROLLER

24 BIT

DSP

PROCESSING

PARALLEL

SERIAL

HOST

INTERFACE

OUTPUT

FORMATTER

COMPRESSED

DATA

INPUT

INTERFACE

CLK

PLL

HVCO X'TAL

OSC

8-11 14-17

ADDRESS

DECODER

IC1303

ADDRESS

DECODER

IC1304

MEMORY

IC1302

A15

1013

DIGITAL

ADC

2CLK

2QB

CLK

• R-CH is omitted

• Signal path

: FM

: CD

: DIGITAL IN

: DIGITAL OUT

IC1004

– 15 – – 16 –

THIS NOTE IS COMMON FOR PRINTED WIRING

BOARDS AND SCHEMATIC DIAGRAMS.

(In addition to this, the necessary note is printed

in each block.)

For schematic diagrams.

Note:

• All capacitors are in µF unless otherwise noted. pF: µµF

50 WV or less are not indicated except for electrolytics

and tantalums.

• All resistors are in Ω and 1/4 W or less unless otherwise

specified.

•¢: internal component.

•2: nonflammable resistor.

•C: panel designation.

•U: B+ Line.

•V: B– Line.

• Voltages and waveforms are dc with respect to ground

under no-signal (detuned) conditions.

no mark : FM

• Voltages are taken with a VOM (Input impedance 10 MΩ).

Voltage variations may be noted due to normal produc-

tion tolerances.

• Waveforms are taken with a oscilloscope.

Voltage variations may be noted due to normal produc-

tion tolerances.

• Circled numbers refer to waveforms.

• Signal path.

F: FM

L: AUDIO

g: VIDEO

i: SURROUND

d: PB (TAPE)

G: REC (TAPE)

p: Y

l: CHROMA

J: CD

I: PHONO

E: PB (MD/DAT)

a: REC (MD/DAT)

c: DIGITAL OUT

N: DIGITAL IN

For printed wiring boards.

Note:

•X: parts extracted from the component side.

•Y: parts extracted from the conductor side.

•p: parts mounted on the conductor side.

•¢: internal component.

•b: Pattern from the side which enables seeing.

• Indication of transistor

These are omitted

Note: The components identified by mark ! or dotted line

with mark ! are critical for safety.

Replace only with part number specified.

IC103 !¡ X2

IC102 *™ XO

WAVEFORMS

– DISPLAY SECTION –

IC1 !£

– TUNER SECTION –

IC1101 @¶ X OUT

IC1201 (™ XO

– DIGITAL SECTION –

IC1101 #¢ BCK

IC1101 @ª CLK OUT

IC1403 0 2QB

IC1101 #§ LRCK

IC1305 6

IC1305 !¡, !™

3.2Vp-p

4MHz

4Vp-p

7.28MHz

3.2Vp-p

4.33MHz

4Vp-p

4MHz

3.6Vp-p

24.576MHz

4.8Vp-p

12.28Vp-p

4.8Vp-p

3MHz

4.8Vp-p

48MHz

3Vp-p

12.27Vp-p

0.56Vp-p

49.152MHz

3Vp-p

12.28MHz

– 17 – – 18 –

STR-DB925

3-3. SCHEMATIC DIAGRAM – INPUT SECTION –

• See page 58 for IC Block Diagrams.

(Page 38) (Page 38)

(Page 53)

(Page 41) (Page 45) (Page 45) (Page 45)

(Page 21)

(Page 29)

(Page 30)

(Page 22)

(Page 42) (Page 46)

– 19 – – 20 –

STR-DB925

3-4. PRINTED WIRING BOARD – INPUT SECTION –

• See page 6 for Circuit Boards Location.

Ref. No. Location

• Semiconductor

Location

D301 D-8

IC301 B-2

IC302 C-2

IC303 C-8

IC304 D-5

IC401 B-11

IC402 B-11

IC403 C-11

IC404 D-3

IC405 D-10

IC406 D-10

IC407 C-11

IC414 A-9

IC415 B-9

IC416 C-9

IC501 B-7

IC601 C-5

IC701 B-5

Q301 E-9

Q302 D-9

Q303 D-9

Q304 C-9

Q352 D-9

Q353 C-9

Q354 C-9

Q501 A-8

Q503 A-8

(Page 48) (Page 24) (Page 31) (Page 47)

(Page 47)

(Page 23)

(Page 47)(Page 40)(Page 40)(Page 56)(Page 32)(Page 43)(Page 44)

– 21 – – 22 –

STR-DB925

3-5. SCHEMATIC DIAGRAM – POWER AMP SECTION –

(Page 18)

(Page 29)

(Page 26)

(Page 53)

(Page 18)

(Page 30)

– 23 – – 24 –

STR-DB925

3-6. PRINTED WIRING BOARD – POWER AMP SECTION –

• See page 6 for Circuit Boards Location.

Ref. No. Location

• Semiconductor Location

D501 D-4

D502 D-4

D503 D-5

D504 D-5

D505 A-3

D506 A-3

D545 A-2

D546 D-2

D547 C-11

D548 C-11

D549 C-10

D551 D-10

D552 D-10

D553 D-10

D554 D-10

D555 B-3

D556 A-3

D601 D-7

D602 D-7

D603 D-7

D604 D-7

(Page 31)

(Page 56)(Page 28)(Page 28)(Page 20)(Page 32)

(Page 32)

(Page 19)

D608 A-10

D801 B-7

D802 C-8

D803 C-8

D804 C-9

D805 C-9

D806 A-9

D807 C-6

IC809 B-10

Q504 D-5

Q505 D-5

Q506 D-4

Q507 D-5

Q508 D-6

Q509 A-3

Q510 A-2

Q511 A-3

Q546 A-10

Q547 C-11

Q548 C-11

Q549 C-10

Q554 D-10

Q555 D-10

Q556 D-9

Q557 D-10

Q558 D-11

Q559 B-3

Q560 A-3

Q561 A-3

Q596 A-10

Q601 A-10

Q604 D-7

Q605 D-7

Q606 D-7

Q607 D-8

Q608 D-8

Q613 D-3

Q616 D-2

Q801 C-7

Ref. No. Location Ref. No. Location

– 25 – – 26 –

3-7. SCHEMATIC DIAGRAM – TRANS SECTION –

• See page 58 for IC Block Diagrams.

STR-DB925

(Page 53)

(Page 22)

– 27 – – 28 –

STR-DB925

3-8. PRINTED WIRING BOARD – TRANS SECTION –

• See page 6 for Circuit Boards Location.

(Page 56)

(Page 24)

– 29 – – 30 –

3-9. SCHEMATIC DIAGRAM – REAR AMP SECTION –

STR-DB925

(Page 18)

(Page 21)

(Page 22)

(Page 18)

(Page 51)

(Page 22)

– 31 – – 32 –

3-10. PRINTED WIRING BOARD – REAR AMP SECTION –

• See page 6 for Circuit Boards Location.

STR-DB925

Ref. No. Location

• Semiconductor

Location

D701 A-7

D702 A-7

D703 A-6

D704 A-6

D751 A-2

D752 A-3

D753 A-2

D754 A-2

Q704 A-6

Q705 A-6

Q706 A-7

Q707 A-5

Q708 A-7

Q754 A-2

Q755 A-2

Q756 A-3

Q757 A-2

Q758 A-1

(Page 24) (Page 24)

(Page 19)

(Page 23) (Page 56) (Page 19) (Page 24)

Ref. No. Location

• Semiconductor

Location

D543 A-4

D605 B-2

D606 B-2

D607 A-2

D649 B-4

D705 A-5

D706 A-5

D749 B-6

IC702 B-1

Q544 A-4

Q609 B-2

Q610 B-2

Q611 A-2

Q645 B-2

Q709 A-5

Q710 A-5

Q745 A-3

Q747 B-2

Q748 B-1

– 33 – – 34 –

STR-DB925

3-11. SCHEMATIC DIAGRAM – DISPLAY SECTION –

• See page 16 for Waveforms.

• See page 57 for IC Block Diagrams.

• See page 60 for IC Pin Functions.

(Page 38)

(Page 37)

(Page 45)

(Page 51)

(Page 51)(Page 42)

(Page 37)

– 35 – – 36 –

3-12. PRINTED WIRING BOARD – DISPLAY SECTION –

• See page 6 for Circuit Boards Location.

STR-DB925

(Page 56) (Page 56) (Page 43)

(Page 47)

(Page 39)

D102 E-1

D103 E-1

D108 C-10

D109 D-2

D110 D-3

D111 D-4

D112 D-5

D113 D-6

D114 D-7

D115 D-8

D116 D-9

D117 D-10

D118 D-11

D119 C-10

D122 C-10

D180 D-10

D181 B-2

D182 B-4

D183 C-3

Ref. No. Location

• Semiconductor Location

Ref. No. Location Ref. No. Location

D184 C-2

D185 C-2

D186 C-3

IC101 C-9

IC102 B-8

IC103 E-11

IC104 C-6

IC105 C-7

IC180 B-4

IC181 B-3

Q101 D-9

Q102 C-11

Q103 C-2

Q104 D-2

Q105 C-9

Q106 D-2

Q107 D-1

Q108 C-10

Q109 D-2

Q110 D-3

Q111 D-4

Q112 D-5

Q113 D-6

Q114 D-7

Q115 E-8

Q116 E-8

Q117 E-8

Q118 D-11

Q119 C-10

Q120 C-11

Q122 D-11

Q180 D-11

Q181 C-2

Q182 C-1

Q184 C-3

Q185 C-3

– 37 – – 38 –

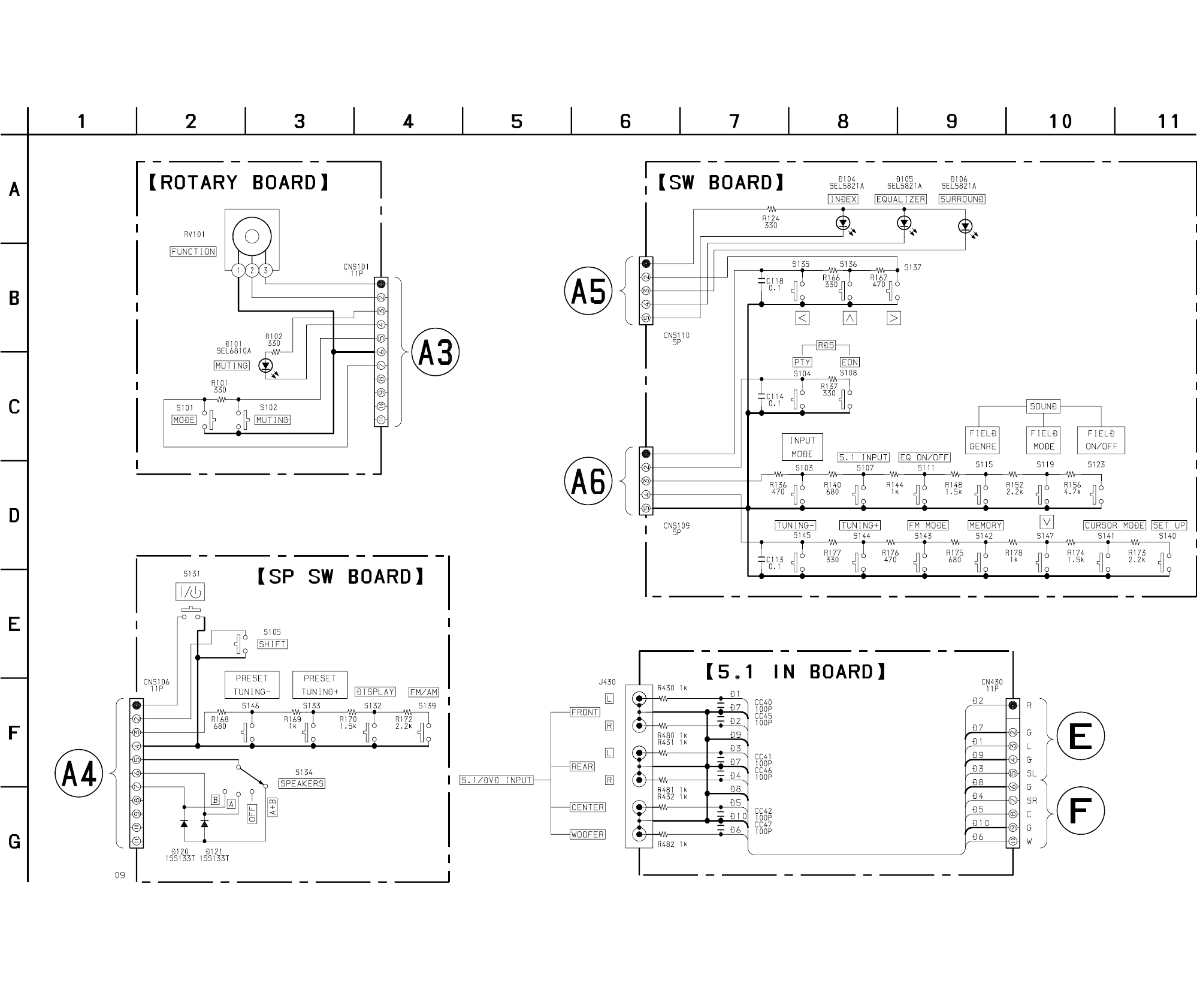

3-13. SCHEMATIC DIAGRAM – PANEL SECTION –

STR-DB925

(Page 34)

(Page 33)

(Page 34)

(Page 17)

– 39 – – 40 –

3-14. PRINTED WIRING BOARD – PANEL SECTION –

• See page 6 for Circuit Boards Location.

STR-DB925

(Page 20) (Page 20)

(Page 35)

(Page 36)

(Page 35) (Page 35)

– 41 – – 42 –

STR-DB925

3-15. SCHEMATIC DIAGRAM – BACK PANEL SECTION –

• See page 16 for Waveforms.

• See page 58 for IC Block Diagrams.

(Page 42)

(Page 33)

(Page 46)

(Page 17)

(Page 41)

(Page 51)

(Page 17)

– 43 – – 44 –

3-16. PRINTED WIRING BOARD – BACK PANEL SECTION –

• See page 6 for Circuit Boards Location.

STR-DB925

(Page 48) (Page 36) (Page 44)

(Page 19)

(Page 43)

(Page 19)

(Page 56)

– 45 – – 46 –

STR-DB925

3-17. SCHEMATIC DIAGRAM – VOLUME SECTION –

(Page 18)

(Page 34)

(Page 41)

(Page 18)

– 47 – – 48 –

3-18. PRINTED WIRING BOARD – VOLUME SECTION –

• See page 6 for Circuit Boards Location.

STR-DB925

(Page 36)

(Page 20) (Page 20)

(Page 20)

(Page 19)

(Page 43)

3-20. PRINTED WIRING BOARD – D IN/OUT SECTION –

• See page 6 for Circuit Boards Location.

– 49 – – 50 –

STR-DB925

3-19. SCHEMATIC DIAGRAM – D IN/OUT SECTION –

• See page 58 for IC Block Diagrams.

(Page 54)

(Page 56)

– 51 – – 52 –

STR-DB925

3-21. SCHEMATIC DIAGRAM – DIGITAL (1/2) SECTION –

• See page 16 for Waveforms.

• See page 64, 67 for IC Pin Functions.

• See page 55 for Printed Wiring Board.

(Page 42)

(Page 30)

(Page 34)

– 53 – – 54 –

STR-DB925

3-22. SCHEMATIC DIAGRAM – DIGITAL (2/2) SECTION –

• See page 16 for Waveforms.

• See page 59 for IC Block Diagrams

(Page 22)

(Page 25)

(Page 17)

(Page 49)

– 55 – – 56 –

STR-DB925

3-23. PRINTED WIRING BOARD – DIGITAL SECTION –

• See page 6 for Circuit Boards Location.

Ref. No. Location

• Semiconductor Location

D1101 C-6

D1201 D-2

D1205 D-5

D1206 E-2

IC1101 C-6

IC1102 B-6

IC1103 B-1

IC1104 C-3

IC1105 C-1

IC1106 C-1

IC1107 C-2

IC1108 B-6

IC1109 C-6

IC1154 C-3

IC1201 C-4

IC1202 A-4

IC1301 A-5

Ref. No. Location

IC1302 A-6

IC1303 B-6

IC1304 B-6

IC1305 B-5

IC1401 A-3

IC1402 A-2

IC1403 B-5

IC1501

Q1201 E-2

Q1202 E-2

Q1203 D-2

Q1204 C-5

Q1205 C-5

Q1206 C-5

Q1207 C-5

Q1208 D-2

Ref. No. Location

• Semiconductor

Location

D1202 D-2

D1203 D-2

D1204 E-1

(Page 27)

(Page 50)

(Page 35)

(Page 32)(Page 24) (Page 44) (Page 20) (Page 36)

– 57 – – 58 –

STR-DB925

3-24. IC BLOCK DIAGRAMS

IC103 BA6208

1 2 3 4 5 6 7 89

OUTPUT 2

Vcc

GND

INPUT 2

INPUT 1

MOTOR

DRIVE

MOTOR

DRIVE

REG

SWITCH

OUTPUT1

IC201 NJM2296D

S6 S7

S1 S2

Vout1

Vout2 Vout3

V-

GND

SW3

SW2SW1

SW5 SW4

Vin1 Vin2

Vin3Vin4Vin5

V+

10111213141516

1 52 3 4 6 7 8

IC104 MSC1162AGS-BK

IC105 MSC1164GS-KR1

IC301 LC7822

CONTROL

LATCH

SHIFT RESISTOR

LEVEL SHIFT

VEE

OUT

VSS

RESET

VDD

OUT

IC303 LC7823

CONTROL

LATCH

SHIFT RESISTOR

LEVEL SHIFT

VEE

L COM1

L COM2

L COM3

R COM1

R COM2

R COM3

L COM4

VSS

RES

VDD

R COM4

IC414 TC9299P

GND

CS1

DATA

STB

CS2

A-GND

OUT

VSS

A-GND

OUT

VDD

L-CH

DATA

LATCH

CIRCUIT

LEVEL

SHIFT

CIRCUIT

SHIFT

(13bit)

STROBE

GENERATOR

CIRCUIT

LEVEL

SHIFT

CIRCUIT

R-CH

DATA

LATCH

CIRCUIT

R-ch

L-ch

IC501 uPC2581V

IC901 NJM2103D

IC1005 TC74HC151AF (EL)

D3D2

GND

IC1006 TC74HC08AF (EL)

GND

VCC

OUTPUT

CIRCUIT

GATE

CIRCUIT

40 BIT

LATCH

40 BIT

SHIFT

HVO1

HVO2

HVO3

HVO4

HVO5

HVO6

HVO7

HVO8

HVO9

HVO10

HVO11

HVO12

HVO13

HVO14

HVO15

HVO16

HVO17

HVO18

HVO19

HVO20

VHV

GND1

GND2

R/L

DIN

VCC

HVO40

HVO39

HVO38

HVO37

HVO36

HVO35

HVO34

HVO21

HVO33

HVO32

HVO31

HVO30

HVO29

HVO28

HVO27

HVO26

HVO22

HVO25

HVO24

HVO23

VHV

GND1

GND2

CHG

CLK

DOUT

VCC

DOUT

DIN

20 BIT

SHIFT

20 BIT

LATCH

GATE

CIRCUIT

OUTPUT

CIRCUIT

DOUT

VCC

HVO20

HVO19

HVO18

HVO17

HVO16

HVO15

HVO14

HVO13

HVO12

HVO11

HVO1

Vhv

GND

CLK

DIN

CHG

HVO2

HVO3

HVO4

HVO5

HVO6

HVO7

HVO8

HVO9

HVO10

PROTECTOR

DRIVE

123 4 56 7 8 9 10 11 12 13 14 15

PRE

DRIVE

PRE

DRIVE

BIAS CIRCUIT

REG

MUTE

+VOUT1

–VOUT1

COMP1

NF1

IN1

GND

IN2

NF2

COMP2

–VOUT2

+VOUT2

VCC1

VCC2

VEE

DRIVE

V+

VSB/SESIN

VSA

RESET

GND

OUTC

VSC

VREF

+–

–+

–

R S

– 59 –

DATA0,EMAD0,GPIO0

DATA1,EMAD1,GPIO1

DATA2,EMAD2,GPIO2

DATA3,EMAD3,GPIO3

DATA4,EMAD4,GPIO4

DATA5,EMAD5,GPIO5

DATA6,EMAD6,GPIO6

DATA7,EMAD7,GPIO7

VSS2

VDD2

A0,SCCLK

WR,

DS,

EMWR,

GPIO10

MCLK

CLK IN

XMT958

EXTMEM,

GPIO8

PARALLEL

SERIAL

HOST

INTERFACE

COMPRESSED

DATA INPUT

INTERFACE

SP DIF

RECEIVER

DIGITAL

AUDIO

INPUT

INTERFACE

PLL

CLOCK

MANAGER

RAM

INPUT BUFFER

RAM

OUTPUT BUFFER

OUTPUT

FORMATTER

CMPREQ,LRCKN2 29

CLKSEL 31

FILTD 32

FILTS 33

VDDA 34

VSSA 35

RESET 36

DD 37

DC 38

ABOOT,

INTREQ

SCDIO,

SCDOUT,

PSEL,

GPIO9

CMPCLK,

SCLKN2

CMPDAT,

RCV958,

SDATAN2

LRCKN1

SCLKN1,

STCCLK2

VSS3

VDD3

SDATAN1

SCLK

LRCLK

AUDATA0

AUDATA1

AUDATA2

39 4

RD,

R/W,

EMOE,

GPIO11

A1,

SCDIN

FRAMER SHIFTER

INPUT BUFFER CONTROLLER

VSS1

VDD1

RAM

PROGRAM MEMORY

RAM

DATA MEMORY

ROM

PROGRAM MEMORY

ROM

DATA MEMORY

24-Bit

DSP

PROCESSING

STC

14 13 12 11 10 9 8

1234567

GND

VCC

DAC LPF VR

ROUT1

LOUT1

ROUT2

LOUT2

ROUT3

LOUT3

HPF ADC

RIN+

RIN-

LIN+

29 LIN-

33 VREFL

Audio

I/F

SDTI1

SDTI2

SDTI3

SDTO

DAUX

DFS

OCKS

M/S

BICK

LRCK

SDOS

17 18 19

XTS

ICKS1

20 21 22

ICKS0

CAD1

CAD0

13 14 15

DEM0

MCKO

DVDD

DVSS

DEM1

39 38 37

XTS

ICKS1

36 35 34

ICKS0

CAD1

CAD0

43 42 41

DEM0

MCKO

DVDD

DVSS

DEM1

SDTI1

SDTI2

SDTI3

BICK

LRCK

SDOUT

XTO XTI

Clock Gen

MCLK

1/2

DEM OCKS

14 13 12 11 10 9 8

1234567

QAQBQCQD

CLEAR

VCC

QAQBQCQD

CLEAR

GND

IC1103 AK4526

IC1301 CS4926

IC1403 TC74VHC393FT (EL)

IC1108 MC74HC00AF

– 60 –

–

VIDEO 1 VISUAL display data output to LED

VIDEO 2 AUDIO display data output to LED

VIDEO 3 VISUAL display data output to LED

DVD/LD AUDIO display data output to LED

DVD/LD VISUAL display data output to LED

TV/DBS AUDIO display data output to LED

TV/DBS VISUAL display data output to LED

TAPE display data output to LED

MD/DAT display data output to LED

CD display data output to LED

Ground (Connected to Ground)

Not used. (Connected to Ground)

CURSOR MODE SURROUND display data output to LED

CURSOR MODE EQUIPMENT display data output to LED

CURSOR MODE INDEX display data output to LED

Not used. (Connected to Ground)

UART data output to rewrite flash memory

UART data intput to rewrite flash memory

Clock output to flourescent display tube

Data output to flourescent display tube

Power supply +5 V

Fluorescent latch

Fluorescent clear

SIRCS input

External power regulator capacitor 0.1µ is connected to this terminal.

Not used (Connected to Ground)

Analog power supply +5 V

AVRH (Connected to power supply +5 V)

SVRL (Connected to Ground)

GND (Connected to Ground)

Key input 1

Key input 2

Key input 3

LED V1

LED V2

LED V3

LED-DVD/LD

LED-TV/DBS

LED-TAPE

LED-MD/DAT

LED-CD

LED-TUNER

LED-PHONO

VSS

—

LED SUR

LED EQ

LED INDEX

—

SOT0

SIN0

FL CLK

FL DATA

VCC

FL LAT

FL CLEAR

SIRCS IN

—

AVCC

AVRH

AVRL

AVSS

AD KEY IN 1

AD KEY IN 2

AD KEY IN 3

Pin No. Pin Name I/O Function

3-25. IC PIN FUNCTIONS

• IC102 MB90553PF-G-121-BND (DISPLAY BOARD)

– 61 –

–

Key input 4

Ground (Connected to Ground)

Key input 5

Key input 6

Version input

Model input

Stop input

Not used (Connected to Ground)

MD 0 (To MD0 of MB90574)

MD 1 (Connected to power supply +5 V)

MD 2 (To MD2 of MB90574)

Hardware STANDBY input

RDS clock input

RDS data input

Volume up data output

Volume down data output

Not used (Connected to Ground)

Reset output (Connected to MB90574 RESET)

Slave request and data input (Connected to MB90574 SLV DATA/REQ)

Master request output (Connected to MB90574 DISPMR)

Master data output (Connected to MB90574 DISP DATA)

Master clock output (Connected to MB90574 DISPCLK)

Audio bus input

Not used (Connected to Ground)

Audio bus output

Not used (Connected to Ground)

Function encoder up input

Function encoder down input

Not used (Connected to Ground)

Speaker A selector switch input

Speaker B selector switch input

Power key input

Not used (Connected to Ground)

Reset (Display MCU)

Not used (Connected to Ground)

AD KEY IN 4

VSS

AD KEY IN 5

AD KEY IN 6

AD VERSION

AD MODEL

STOP

—

MD 0

MD 1

MD 2

HSTX

RDS CLOCK

RDS DATA

VOL UP

VOL DOWN

—

U-RESET

U-SREQ

U-MREQ

U-DATA

U-CLOCK

AUBUS-IN

—

AUBUS-OUT

—

FUNCTION-UP

FUNCTION-DW

—

SP-A

SP-B

POW-KEY IN

—

RESET

—

Pin No. Pin Name I/O Function

– 62 –

100

–

Ground (Connected to Ground)

External ceramic filter 4 MHz is connected to this terminal

Power supply +5 V

Not used. (Connected to Ground)

BASS. B display data output to LED

VOLUME display data output to LED

SOUND FIELD display data output to LED

MUTE display data output to LED

EQ ON/OFF display data output to LED

DOLBY/DIGITAL display data output to LED

V1 input from MBUS

V2 input from MBUS

TV input from MBUS

STATUS input from MBUS

Not used. (Connected to Ground)

Learning microprocessor latch output

Not used. (Connected to Ground)

VSS

VCC

—

LED BASS. B

LED VOL

LED SOUND FIELD

LED MUTE

LED EQ ON/OFF

LED DOLBY DIGITAL

MBUS-V1

MBUS-V 2

MBUS-TV

MBUS-STATUS

—

LAT

—

Pin No. Pin Name I/O Function

– 63 –

IC1101 CXD8495AQ (DIGITAL BOARD)

–

EIAJ data and parity flag output terminal (Not used)

Emphasis monitor output terminal (“H” = ON)

Input terminal for RC generator/oscillator

Output terminal for RC generator/oscillator

Microprocessor I/F select input terminal (CCB: H, SUB: L) (Connecting to Ground)

Digital Ground

Clock output select terminal ( “L” = 256fs, “H” = 128fs) (Connecting to Ground)

Clock input select terminal ( “H” = 512fs, “L” = 384fs)

Test terminal (normally ground)

Reset input terminal

Digital power supply

No connect

Analog power supply

Input terminal for VCO generator band adjustment

Analog Ground

Input terminal for VCO self running frequency set

External LPF for PLL is connected to this terminal

Digital power supply

CD subcode I/F and block sync output terminal (Not used)

CD subcode I/F and data output terminal (Not used)

CD subcode I/F and frame sync output terminal (Not used)

CD subcode I/F and shift clock input terminal for data reading (Not used)

Digital Ground

Digital power supply

Crystal oscillator input terminal

Crystal oscillator output terminal

VCO and crystal oscillator clock output terminal (Not used)

256fs or 128fs clock output terminal (Select CLKMD terminal)

Error mute output terminal

Digital Ground

Sampling frequency monitor output terminal

Bit clock output terminal

Audio data output terminal

L, R clock output terminal (L-ch: “H”, R-ch: “L”)

Microprocessor I/F and subcode Q data sync output terminal (Not used)

Microprocessor I/F. When CCB/SUB is “L”, data output terminal (3-state output)

Microprocessor I/F. When CCB/SUB is “H”, data output terminal (high level open drain output) (Not used)

Microprocessor I/F. Data input terminal

Microprocessor I/F. Chip enable/latch input terminal

Microprocessor I/F. Clock input terminal

Digital power supply

Amplifier integrate data input terminal (Connecting to Ground)

Amplifier integrate data input terminal

Digital Ground

DOUT/V

EMPHA

RC1

RC2

CCB/SUB

D. GND

128/256

384/512

TEST

RESET

D. 5V

A. 5V

A. GND

VCO IN

VCO

D. 5V

SBSY

SFSY

SB CLK

D. GND

D. 5V

XIN

XOUT

CLK OUT

ERROR

D. GND

SUB1

SUB2

BCK

DATA OUT

LRCK

LD/DQSY

SRDT

DI/SWDT

CE/XLAT

CL/SCLK

D. 5V

DIN1

DIN2

DIN3

DIN4

D. GND

Pin No. Pin Name I/O Function

– 64 –

IC1201 MB90574PFV-G-146-BND (DIGITAL BOARD)

–

Not used (Connected to Ground)

RF demodulator/DIR reset

To AK4526 chip select

To AK4526 clock

From AK4526 data input

To AK4526 data output

To AK4526 reset

Power supply +5 V

UART input. Used for rewriting flash memory

UART output. Used for rewriting flash memory

Not used (Connected to Ground)

Not used (Not connected, open)

Analog/digital selection (74HC157)

To CS4926 data output

To CS4926 clock

To CS4926 chip select

To CS4926 SPI data output

From CS4926 interrupt request

To CS4926 reset

To CXD2712 data write

To CXD2712 data read

From CXD2712 ready

To CXD2712 chip select

To CXD2712 data output

To CXD2712 HD7

Ground (Connected to Ground)

External power regulator capacitor 0.1µ is connected to this terminal.

To CXD2712 address

To CXD2712 reset

From CXD2712 LFE detection

Digital power supply +5 V

Digital Ground (Connected to Ground)

Not used (Connected to Ground)

—

RESET

CCLK

CDT1

CDTO

VCC

SIN0

SOT0

—

ANALOG/DIG

SCDIN

SCLK

SCDIO/OUT

INTREQ

RESET

XHDWR

XHDRD

HRDY

XHDCS

HD 0

HD 1

HD 2

HD 3

HD 4

HD 5

HD 6

HD 7

VSS

HA0

XRST

SOD

DVCC

DVSS

—

Pin No. Pin Name I/O Function

– 65 –

–

Not used (Connected to Ground)

Analog power supply +5 V

Power supply +5 V

Ground (Connected to Ground)

Not used (Connected to Ground)

To TC9299 strobe

To TC9299 data

To TC9299 clock

Display master request (Connected to MB90553 U.MREQ)

Display data (Connected to MB90553 U.DATA)

Slave data/request (Connected to MB90553 U.SREQ)

Power supply +5 V

Display clock (Connected to MB90553 U.CLOCK)

To tuner TM301 latch

To tuner TM301 data

To tuner TM301 clock

Not used (Connected to Ground)

PLL data input

Auto stop input

Stereo input

Ground (Connected to Ground)

AC power check

Not used (Connected to Ground)

Error output to CXD8495AQ

Not used (Connected to Ground)

U or CED (STR only)

Not used (Not connected, open)

To CXD8495AQ C-bit

To CXD8495AQ data

To CXD8495AQ latch

To CXD8495AQ clock

Protector input

Video output inhibit

—

AVCC

AVR+

AVR–

AVSS

—

EVSTB

EVDATA

EVCLK

DISPMR

DISPDATA

SLV DTA/REQ

VCC

DISP CLK

LAT

DATA

CLK

—

DATA IN

AUSTOP

STEREO

VSS

STOP

CCB/SUB

EMPHA

ERROR

SUB 1

SUB 2

—

U/CED

—

SRDT

SWDT

XLAT

SCLK

PROTEC

VIDEO-INH

Pin No. Pin Name I/O Function

– 66 –

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

–

To NJM2296 video select A

To NJM2296 video select B

To NJM2296 video select E

IC muting

Function muting

Hardware standby (Connected to power supply +5 V)

MD2 (To MB90553 MD2)

MD1 (Connect to power supply)

MD0 (To MB90553 MD0)

Reset (Connected to MB90553 U.RESET)

Ground (Connected to Ground)

External ceramic filter 4 MHz is connected to this terminal

Power supply +5 V

Flash memory rewrite (Connected to Ground)

Tuner muting

Surround muting (Connected to Ground)

Input terminal for switching AUDIO DECODER which is using (Connected to Ground)

Not used (Connected to Ground)

Front speaker A relay

Front speaker B relay

Center speaker relay

Rear speaker relay

Sub Woofer relay

Head phone relay

Power relay

Direct pass relay

Digital input select 2 (74HC151)

Digital input select 1 (74HC151)

Digital input select 0 (74HC151)

Test port 0 (Not connected, open)

Test port 1 (Not connected, open)

Test port 2 (Not connected, open)

Not used (Connected to Ground)

Ground (Connected to Ground)

Not used (Connected to Ground)

VIDEO-A

VIDEO-B

VIDEO-E

ACMUTE

FUNMUTE

HSTX

MD 2

MD 1

MD 0

RESET

VSS

X 0

X 1

VCC

P 00

P 01

TUNER MUTE

SURR MUTE

925,919/725,825,818

—

RY-FRONT/A

RY-FRONT/B

RY-CENTER

RY-REAR

WOOFER-RY

RY-HP

RY-POWER

RY-DIR-PASS

DIG-IN 2

DIG-IN 1

DIG-IN 0

TEST 0

TEST 1

TEST 2

—

VSS

—

Pin No. Pin Name I/O Function

– 67 –

Pin No. Pin Name I/O Function

IC1401 CXD2712R (DIGITAL BOARD)

2 to 5

6, 7

16 to 20

23 to 25

27 to 30

32 to 40

43 to 49

53 to 60

62 to 69

76 to 80

83 to 89

–

I/O

–

I/O

–

I/O

–

I/O

–

I/O

–

I/O

–

I/O

–

I/O

Ground

Serial data output

Conditional jump input terminal (7pin Connected to Ground)

No connection

HCIF data write

HCIF data read

Ground

+3.3V

HCIF ready signal Open drain

HCIF chip select

HCIF address input

HCIF data input/output

Ground

+3.3V

HCIF data input/output

Reset input “L”: active

Test data output

Ground

External RAM data input/output

Ground

+3.3V

External RAM data input/output

Test data input “L” = normal “H” = test (Connected to Ground)

Ground

+3.3V

External RAM data input/output

Ground

External RAM data input/output

External RAM output enable

Ground

+3.3V

External RAM column address strobe (Not used)

External RAM write enable (Not used)

External RAM raw address strobe

External RAM address output/test data input

Ground

+3.3V

External RAM address output/test data input

External RAM address output

VSS3

SOA to SOD

ECJ0, ECJ1

—

XHDWR

XHDRD

VSS4

VDD2

HRDY

XHDCS

HA0

HD0 to HD4

VSS5

VDD3

HD5 to HD7

XRST

FGP0 to FGP3

VSS6

ED0 to ED8

VSS7

VDD4

ED9 to ED15

TSTD

VSS8

VDD5

ED16 to ED23

VSS9

ED24 to ED31

XOE

VSS10

VDD6

CAS

XWE

RAS

EA0 to EA4

VSS11

VDD7

EA5 to EA11

EA12

– 68 –

Pin No. Pin Name I/O Function

92 to 94

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117 to 120

–

I/O

–

Ground

External RAM address output

Not used

Test data input “L” = normal “H” = test (Connecting to Ground)

PLL input frequency select “L” = 256Fs “H” = 128Fs (Connecting to Ground)

PLL output frequency select “L” = 768Fs “H” = 1024Fs (Connecting to Ground)

Master clock input

Master clock output (Not used)

Ground

+3.3V

Ground for PLL cell

VDD for PLL cell

PLL output/test clock input

PLL cell oscillation enable “L” oscillation enable “H” oscillation stop (Connecting to Ground)

Test data input “L” = normal “H” = test (Connecting to Ground)

Frequency counter input (Connecting to Ground)

LRCK0 divider output

BCK0 divider output

Ground

+3.3V

BCK input

LRCK input

Serial data input

VSS0

EA13 to EA15

EA16

TSTA

PLDIVF

PLDIVB

CLKI

CLKO

VSS1

VDD0

AVSS

AVDD

PLLCK

XPLLEN

TST

LRCT

LROUT

BKOUT

VSS2

VDD1

BCK0

BCK1

LRCK0

LRCK1

SIA to SID

– 69 –

SECTION 4

EXPLODED VIEWS

4-1. CASE AND BACK PANEL SECTION

NOTE:

• Items marked “*” are not stocked since they are

seldom required for routine service. Some delay

should be anticipated when ordering these items.

• Color Indication of Appearance Parts Example:

KNOB, BALANCE (WHITE)

Cabinet’s color

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

The components identified by

mark ! or dotted line with mark

! are critical for safety.

Replace only with part number

specified.

*13 3-703-244-00 BUSHING (2104), CORD

!14 1-769-744-11 CORD, POWER

15 X-4949-523-1 FOOT ASSY (F50180S)

16 4-970-124-01 CUSHION (F50180S)

*17 1-670-022-11 5.1 IN BOARD

18 1-769-876-11 WIRE (FLAT TYPE)(7 CORE)

19 4-947-010-01 SCREW, FEEDER FIXED

20 X-3375-592-1 KNOB (VOL) ASSY (BLACK)

20 X-4950-340-1 KNOB (VOL) ASSY (SILVER)

21 4-998-207-11 INDICATOR (VOL)

22 3-350-426-01 SPRING, RING

!CNJ909 1-526-794-11 OUTLET, AC

1 4-210-291-01 SCREW (CASE 3 TP2)(BLACK)

1 4-210-291-11 SCREW (CASE 3 TP2)(SILVER)

*2 X-4950-431-1 CASE ASSY (BLACK)

*2 X-4950-432-1 CASE ASSY (SILVER)

*3 1-670-001-11 AUDIO BOARD

*4 A-4414-113-A SP-S BOARD, COMPLETE

*5 1-670-004-11 S-VIDEO BOARD

6 1-769-904-11 WIRE (FLAT TYPE)(9 CORE)

*7 1-670-003-11 VIDEO BOARD

8 1-693-409-11 TUNER

*9 4-900-493-21 PANEL, BACK

*10 1-670-029-11 D.IN/OUT BOARD

*11 1-670-000-11 TUNER BOARD

*12 A-4414-117-A DIGITAL BOARD, COMPLETE

• The mechanical parts with no reference number in

the exploded views are not supplied.

• Hardware (# mark) list and accessories and packing

materials are given in the last of this parts list.

#2 #2

Front panel

#2 #1

CNJ909

not supplied

16 12

– 70 –

4-2. FRONT PANEL SECTION

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

*65 1-670-017-11 SW BOARD

66 4-900-565-01 INDICATOR (2)

67 4-900-491-01 BUTTON (MUTE)

*68 1-670-023-11 ROTARY BOARD

69 4-951-620-01 SCREW (2.6X8), +BVTP

*70 A-4414-097-A DISPLAY BOARD, COMPLETE

71 1-773-163-11 WIRE (FLAT TYPE)(21 CORE)

72 1-769-961-11 WIRE (FLAT TYPE)(11 CORE)

73 X-3375-588-1 ESCUTCHEON (WIN) ASSY

74 3-703-466-00 SPRING (6600)

75 4-942-568-41 EMBLEM (NO.5), SONY

76 4-900-577-01 SPRING (1)(R)

77 4-900-576-01 SPRING (1)(L)

*78 1-670-024-11 LED BOARD

79 4-999-431-01 LENS, LED

*80 4-921-941-01 CUSHION (FL)

*81 4-990-797-01 HOLDER (FL)

FL101 1-517-781-11 INDICATOR TUBE, FLUORESCENT

51 4-900-570-01 ESCUTCHEON (A-LID)(BLACK)

51 4-900-570-11 ESCUTCHEON (A-LID)(SILVER)

52 4-900-492-01 KNOB (LID)

*53 4-900-569-01 ESCUTCHEON (M-LID)

*54 4-900-579-01 COVER (STI)

55 X-4948-601-1 KNOB (FUNC) ASSY (BLACK)

55 X-4950-280-1 KNOB (FUNC) ASSY (SILVER)

56 4-900-500-01 KNOB (BAL)(BLACK)

56 4-900-500-11 KNOB (BAL)(SILVER)

57 4-900-568-01 PANEL, FRONT (BLACK)

57 4-900-568-31 PANEL, FRONT (SILVER)

58 4-900-566-01 WINDOW

59 4-900-572-11 FULCRUM (L)

60 4-900-571-11 FULCRUM (R)

61 X-3375-590-1 BASE ASSY, PANEL (BLACK)

61 X-4950-278-1 BASE ASSY, PANEL (SILVER)

62 4-900-563-01 BUTTON (5)(BLACK)

62 4-900-563-11 BUTTON (5)(SILVER)

63 4-957-383-01 KNOB (F14)

*64 1-670-018-11 SP SW BOARD

52 53

67 69

73 78

FL101

70 71

80 81

69 72

55 74

– 71 –

4-3. CHASSIS SECTION

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

Q506 8-749-010-25 IC MN2488-OPY-M

Q507 8-749-010-26 IC MP1620-OPY-M

Q555 8-729-209-15 TRANSISTOR 2SD2012

Q556 8-749-010-25 IC MN2488-OPY-M

Q557 8-749-010-26 IC MP1620-OPY-M

Q605 8-729-209-15 TRANSISTOR 2SD2012

Q606 8-749-010-25 IC MN2488-OPY-M

Q607 8-749-010-26 IC MP1620-OPY-M

Q705 8-729-209-15 TRANSISTOR 2SD2012

Q706 8-749-010-25 IC MN2488-OPY-M

Q707 8-749-010-26 IC MP1620-OPY-M

Q755 8-729-209-15 TRANSISTOR 2SD2012

Q756 8-749-010-25 IC MN2488-OPY-M

Q757 8-749-010-26 IC MP1620-OPY-M

!T901 1-431-889-11 TRANSFORMER, POWER

*101 1-670-006-11 H.P BOARD

*102 1-670-021-11 F-VIDEO BOARD

103 4-900-386-01 SCREW

*104 1-670-020-11 BALANCE BOARD

*105 1-670-019-11 VOLUME BOARD

106 3-703-397-01 STOPPER, WIRING

*107 A-4414-095-A INPUT BOARD, COMPLETE

*108 4-924-098-31 HOLDER, PC BOARD

109 1-773-285-11 WIRE (FLAT TYPE)(29 CORE)

110 3-905-609-11 SCREW (TRANSISTOR)

*111 A-4414-112-A REAR AMP BOARD, COMPLETE

*112 1-669-998-11 AC BOARD

*113 A-4414-109-A REG BOARD, COMPLETE

*114 A-4414-094-A AMP BOARD, COMPLETE

*115 1-670-032-11 JOINT BOARD

Q505 8-729-209-15 TRANSISTOR 2SD2012

The components identified by mark ! or dotted

line with mark ! are critical for safety.

Replace only with part number specified.

Q706

not supplied

T901

Q705

Q707

Q756

Q755

Q757

Supplied with

J701

Supplied with

RV401

not supplied

not

supplied

101

102

104

105

107

109

110

111

112

113

108

110

103

114

115

Q557

Q555

Q556

Q607

Q605

Q606

Q507 Q506

Q505

106

– 72 –

• SEMICONDUCTORS

In each case, u: µ , for example:

uA...: µ A..., uPA...: µ PA..., uPB...: µ PB...,

uPC...: µ PC..., uPD...: µ PD...

• CAPACITORS

uF : µ F

• COILS

uH : µ H

• Due to standardization, replacements in the parts list

may be different from the parts specified in the

diagrams or the components used on the set.

• -XX, -X mean standardized parts, so they may have

some difference from the original one.

• Items marked “*” are not stocked since they are

seldom required for routine service. Some delay

should be anticipated when ordering these items.

• RESISTORS

All resistors are in ohms

METAL: Metal-film resistor

METAL OXIDE: Metal Oxide-film resistor

F : nonflammable

SECTION 5

ELECTRICAL PARTS LIST

Note:

When indicating parts by reference

number, please include the board

name.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

The components identified by

mark ! or dotted line with mark

! are critical for safety.

Replace only with part number

specified.

AMP5.1 IN

*1-670-022-11 5.1 IN BOARD

************

< CAPACITOR >

CC40 1-162-282-31 CERAMIC 100PF 10% 50V

CC41 1-162-282-31 CERAMIC 100PF 10% 50V

CC42 1-162-282-31 CERAMIC 100PF 10% 50V

CC45 1-162-282-31 CERAMIC 100PF 10% 50V

CC46 1-162-282-31 CERAMIC 100PF 10% 50V

CC47 1-162-282-31 CERAMIC 100PF 10% 50V

< JACK >

J430 1-784-983-11 JACK, PIN 6P (5.1/DVD INPUT)

< RESISTOR >

R430 1-249-417-11 CARBON 1K 5% 1/4W F

R431 1-249-417-11 CARBON 1K 5% 1/4W F

R432 1-249-417-11 CARBON 1K 5% 1/4W F

R480 1-249-417-11 CARBON 1K 5% 1/4W F

R481 1-249-417-11 CARBON 1K 5% 1/4W F

R482 1-249-417-11 CARBON 1K 5% 1/4W F

**************************************************************

*1-669-998-11 AC BOARD

********

< CONNECTOR >

*CNP905 1-580-230-21 PIN, CONNECTOR (PC BOARD) 2P

CNP915 1-691-766-11 PLUG (MICRO CONNECTOR) 4P

CNV901 1-564-321-00 PIN, CONNECTOR 2P

*CNV902 1-565-792-11 PIN, CONNECTOR 2P

< DIODE >

D907 8-719-911-19 DIODE 1SS119

< BRACKET >

E7 4-924-906-31 BRACKET

E8 4-924-906-31 BRACKET

< FUSE >

!F901 1-532-504-51 FUSE, TIME-LAG (4A/250V)

!F903 1-532-464-51 FUSE, TIME-LAG (2.5A/250V)

< FUSE HOLDER >

FH901 1-533-399-31 HOLDER, FUSE

FH903 1-533-399-31 HOLDER, FUSE

FH951 1-533-399-31 HOLDER, FUSE

FH953 1-533-399-31 HOLDER, FUSE

< RELAY >

RY901 1-515-999-11 RELAY, POWER

< TRANSFORMER >

!T902 1-431-387-11 TRANSFORMER, POWER

**************************************************************

*A-4414-094-A AMP BOARD, COMPLETE

*******************

< CAPACITOR >

C505 1-126-101-11 ELECT 100uF 20% 16V

C520 1-126-022-11 ELECT 47uF 20% 16V

C521 1-107-597-11 CERAMIC 22PF 10% 500V

C522 1-107-597-11 CERAMIC 22PF 10% 500V

C523 1-162-286-31 CERAMIC 220PF 10% 50V

C524 1-126-059-11 ELECT 10uF 20% 50V

C525 1-136-157-00 FILM 0.022uF 5% 50V

C526 1-136-153-00 FILM 0.01uF 5% 50V

C570 1-126-022-11 ELECT 47uF 20% 16V

C571 1-107-597-11 CERAMIC 22PF 10% 500V

C572 1-107-597-11 CERAMIC 22PF 10% 500V

C573 1-162-286-31 CERAMIC 220PF 10% 50V

C574 1-126-059-11 ELECT 10uF 20% 50V

C575 1-136-157-00 FILM 0.022uF 5% 50V

C576 1-136-153-00 FILM 0.01uF 5% 50V

C590 1-124-472-11 ELECT 470uF 20% 10V

C598 1-126-233-11 ELECT 22uF 20% 50V

C620 1-126-022-11 ELECT 47uF 20% 16V

C621 1-107-597-11 CERAMIC 22PF 10% 500V

C622 1-107-597-11 CERAMIC 22PF 10% 500V

C623 1-162-286-31 CERAMIC 220PF 10% 50V

C625 1-136-157-00 FILM 0.022uF 5% 50V

C801 1-104-664-11 ELECT 47uF 20% 25V

C803 1-125-997-11 ELECT 12000uF 20% 63V

C804 1-125-997-11 ELECT 12000uF 20% 63V

C805 1-130-781-00 FILM 0.22uF 10% 100V

C806 1-130-781-00 FILM 0.22uF 10% 100V

C807 1-126-967-11 ELECT 47uF 20% 50V

C808 1-126-967-11 ELECT 47uF 20% 50V

C811 1-126-041-11 ELECT 2200uF 20% 35V

C812 1-126-105-11 ELECT 1000uF 20% 35V

– 73 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C813 1-126-022-11 ELECT 47uF 20% 16V

CC48 1-136-153-00 FILM 0.01uF 5% 50V

CC49 1-136-153-00 FILM 0.01uF 5% 50V

CC98 1-136-153-00 FILM 0.01uF 5% 50V

CC99 1-136-153-00 FILM 0.01uF 5% 50V

< CONNECTOR >

CNP751 1-779-978-11 PIN, CONNECTOR 3P

*CNP801 1-564-243-11 PIN, CONNECTOR 6P

*CNP802 1-564-104-00 PIN, CONNECTOR (B3P-VH) 3P

CNP805 1-784-923-11 PIN, CONNECTOR 7P

CNP806 1-691-765-11 PLUG (MICRO CONNECTOR) 3P

CNS651 1-784-806-11 HOUSING,CONNECTOR(PC BOARD)13P

< DIODE >

D501 8-719-911-19 DIODE 1SS119

D502 8-719-109-51 DIODE RD2.0ES-B2

D503 8-719-109-51 DIODE RD2.0ES-B2

D504 8-719-911-19 DIODE 1SS119

D505 8-719-911-19 DIODE 1SS119

D506 8-719-911-19 DIODE 1SS119

D545 8-719-911-19 DIODE 1SS119

D546 8-719-911-19 DIODE 1SS119

D547 8-719-911-19 DIODE 1SS119

D548 8-719-911-19 DIODE 1SS119

D549 8-719-911-19 DIODE 1SS119

D551 8-719-911-19 DIODE 1SS119

D552 8-719-109-51 DIODE RD2.0ES-B2

D553 8-719-109-51 DIODE RD2.0ES-B2

D554 8-719-911-19 DIODE 1SS119

D555 8-719-911-19 DIODE 1SS119

D556 8-719-911-19 DIODE 1SS119

D601 8-719-911-19 DIODE 1SS119

D602 8-719-109-51 DIODE RD2.0ES-B2

D603 8-719-109-51 DIODE RD2.0ES-B2

D604 8-719-911-19 DIODE 1SS119

D608 8-719-911-19 DIODE 1SS119

D801 8-719-302-37 DIODE RBV-602

D802 8-719-024-99 DIODE 11ES2-NTA2B

D803 8-719-024-99 DIODE 11ES2-NTA2B

D804 8-719-024-99 DIODE 11ES2-NTA2B

D805 8-719-024-99 DIODE 11ES2-NTA2B

D806 8-719-160-26 DIODE RD5.6F-B2

D807 8-719-934-22 DIODE HZS30-2L

< GROUND TERMINAL >

*EB701 1-537-738-21 TERMINAL, EARTH

*EB702 1-537-738-21 TERMINAL, EARTH

< FUSE >

!F801 1-532-506-51 FUSE, TIME-LAG (6.3A/250V)

!F802 1-532-506-51 FUSE, TIME-LAG (6.3A/250V)

!F803 1-532-504-51 FUSE, TIME-LAG (4A/250V)

!F804 1-532-504-51 FUSE, TIME-LAG (4A/250V)

< FUSE HOLDER >

FH801 1-533-293-11 FUSE HOLDER

FH802 1-533-293-11 FUSE HOLDER

FH803 1-533-293-11 FUSE HOLDER

FH804 1-533-293-11 FUSE HOLDER

FH851 1-533-293-11 FUSE HOLDER

FH852 1-533-293-11 FUSE HOLDER

FH853 1-533-293-11 FUSE HOLDER

FH854 1-533-293-11 FUSE HOLDER

< IC >

IC809 8-759-708-05 IC NJM78L05A

< COIL >

L501 1-411-906-11 COIL, AIR-CORE

L551 1-411-906-11 COIL, AIR-CORE

< TRANSISTOR >

Q504 8-729-119-76 TRANSISTOR 2SA1175-HFE

Q508 8-729-140-82 TRANSISTOR 2SA988-PAFAEA

Q509 8-729-281-53 TRANSISTOR 2SC1815-GR

Q510 8-729-900-63 TRANSISTOR DTA124ES

Q511 8-729-900-63 TRANSISTOR DTA124ES

Q546 8-729-119-79 TRANSISTOR 2SC2785-FEK

Q547 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA

Q548 8-729-119-79 TRANSISTOR 2SC2785-FEK

Q549 8-729-140-82 TRANSISTOR 2SA988-PAFAEA

Q554 8-729-119-76 TRANSISTOR 2SA1175-HFE

Q558 8-729-140-82 TRANSISTOR 2SA988-PAFAEA

Q559 8-729-281-53 TRANSISTOR 2SC1815-GR

Q560 8-729-900-63 TRANSISTOR DTA124ES

Q561 8-729-900-63 TRANSISTOR DTA124ES

Q596 8-729-119-79 TRANSISTOR 2SC2785-FEK

Q601 8-729-119-79 TRANSISTOR 2SC2785-FEK

Q604 8-729-119-76 TRANSISTOR 2SA1175-HFE

Q608 8-729-140-82 TRANSISTOR 2SA988-PAFAEA

Q613 8-729-281-53 TRANSISTOR 2SC1815-GR

Q616 8-729-900-36 TRANSISTOR DTC124ES

Q801 8-729-026-68 TRANSISTOR 2SD2525(TP)

< RESISTOR >

R521 1-249-422-11 CARBON 2.7K 5% 1/4W F

R522 1-249-433-11 CARBON 22K 5% 1/4W

R523 1-249-414-11 CARBON 560 5% 1/4W F

!R524 1-249-408-11 CARBON 180 5% 1/4W F

!R525 1-249-408-11 CARBON 180 5% 1/4W F

!R526 1-233-352-41 ENCAPSULATED COMPONENT

R527 1-247-850-11 CARBON 6.2K 5% 1/4W

R528 1-249-419-11 CARBON 1.5K 5% 1/4W F

R529 1-247-866-11 CARBON 30K 5% 1/4W

R530 1-249-422-11 CARBON 2.7K 5% 1/4W F

R531 1-249-433-11 CARBON 22K 5% 1/4W

R532 1-249-437-11 CARBON 47K 5% 1/4W

!R533 1-249-393-11 CARBON 10 5% 1/4W F

!R534 1-249-389-11 CARBON 4.7 5% 1/4W F

R535 1-249-431-11 CARBON 15K 5% 1/4W

AMP

The components identified by mark ! or dotted

line with mark ! are critical for safety.

Replace only with part number specified.

– 74 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R539 1-249-427-11 CARBON 6.8K 5% 1/4W F

R540 1-249-417-11 CARBON 1K 5% 1/4W F

R541 1-249-429-11 CARBON 10K 5% 1/4W

R542 1-249-429-11 CARBON 10K 5% 1/4W

R547 1-249-425-11 CARBON 4.7K 5% 1/4W F

R548 1-249-429-11 CARBON 10K 5% 1/4W

!R549 1-249-407-11 CARBON 150 5% 1/4W F

R555 1-247-881-00 CARBON 120K 5% 1/4W

R556 1-247-881-00 CARBON 120K 5% 1/4W

R571 1-249-422-11 CARBON 2.7K 5% 1/4W F

R572 1-249-433-11 CARBON 22K 5% 1/4W

R573 1-249-414-11 CARBON 560 5% 1/4W F

!R574 1-249-408-11 CARBON 180 5% 1/4W F

!R575 1-249-408-11 CARBON 180 5% 1/4W F

!R576 1-233-352-41 ENCAPSULATED COMPONENT

R577 1-247-850-11 CARBON 6.2K 5% 1/4W

R578 1-249-419-11 CARBON 1.5K 5% 1/4W F

R579 1-247-866-11 CARBON 30K 5% 1/4W

R580 1-249-422-11 CARBON 2.7K 5% 1/4W F

R581 1-249-433-11 CARBON 22K 5% 1/4W

R582 1-249-437-11 CARBON 47K 5% 1/4W

!R583 1-249-393-11 CARBON 10 5% 1/4W F

!R584 1-249-389-11 CARBON 4.7 5% 1/4W F

R585 1-249-431-11 CARBON 15K 5% 1/4W

R586 1-249-429-11 CARBON 10K 5% 1/4W

R587 1-249-425-11 CARBON 4.7K 5% 1/4W F

!R588 1-249-393-11 CARBON 10 5% 1/4W F

R621 1-249-422-11 CARBON 2.7K 5% 1/4W F

R622 1-247-880-00 CARBON 120K 5% 1/4W

!R623 1-249-414-11 CARBON 560 5% 1/4W F

!R624 1-249-408-11 CARBON 180 5% 1/4W F

!R625 1-249-408-11 CARBON 180 5% 1/4W F

!R626 1-233-352-41 ENCAPSULATED COMPONENT

R627 1-247-850-11 CARBON 6.2K 5% 1/4W

R628 1-249-419-11 CARBON 1.5K 5% 1/4W F

R632 1-249-437-11 CARBON 47K 5% 1/4W

R633 1-249-393-11 CARBON 10 5% 1/4W F

!R642 1-215-887-00 METAL OXIDE 470 5% 2W F

R643 1-249-441-11 CARBON 100K 5% 1/4W

R650 1-249-425-11 CARBON 4.7K 5% 1/4W F

R657 1-249-429-11 CARBON 10K 5% 1/4W

!R658 1-249-393-11 CARBON 10 5% 1/4W F

R672 1-249-433-11 CARBON 22K 5% 1/4W

!R739 1-215-868-00 METAL OXIDE 680 5% 1W F

!R789 1-215-868-00 METAL OXIDE 680 5% 1W F

R801 1-247-843-11 CARBON 3.3K 5% 1/4W

!R802 1-249-401-11 CARBON 47 5% 1/4W F

!RR48 1-249-393-11 CARBON 10 5% 1/4W F

!RR49 1-249-393-11 CARBON 10 5% 1/4W F

!RR98 1-249-393-11 CARBON 10 5% 1/4W F

!RR99 1-249-393-11 CARBON 10 5% 1/4W F

< RELAY >

RY501 1-515-920-11 RELAY (24V)

RY502 1-515-920-11 RELAY (24V)

RY602 1-515-793-11 RELAY

< TERMINAL >

TM501 1-694-429-21 TERMINAL BOARD (SP)(SPEAKERS FRONT)

**************************************************************

*1-670-001-11 AUDIO BOARD

***********

< CAPACITOR >

C396 1-126-022-11 ELECT 47uF 20% 16V

C397 1-126-022-11 ELECT 47uF 20% 16V

C398 1-162-282-31 CERAMIC 100PF 10% 50V

C399 1-162-294-31 CERAMIC 0.001uF 10% 50V

CC08 1-162-282-31 CERAMIC 100PF 10% 50V

CC09 1-162-282-31 CERAMIC 100PF 10% 50V

CC10 1-162-282-31 CERAMIC 100PF 10% 50V

CC11 1-162-282-31 CERAMIC 100PF 10% 50V

CC12 1-162-282-31 CERAMIC 100PF 10% 50V

CC13 1-162-282-31 CERAMIC 100PF 10% 50V

CC58 1-162-282-31 CERAMIC 100PF 10% 50V

CC59 1-162-282-31 CERAMIC 100PF 10% 50V

CC60 1-162-282-31 CERAMIC 100PF 10% 50V

CC61 1-162-282-31 CERAMIC 100PF 10% 50V

CC62 1-162-282-31 CERAMIC 100PF 10% 50V

CC63 1-162-282-31 CERAMIC 100PF 10% 50V

< CONNECTOR >

CNJ701 1-774-136-11 CONNECTOR, ROUND TYPE 6P

CNS351 1-784-729-11 CONNECTOR, FFC 7P

< IC >

IC303 8-759-805-14 IC LC7822

< JACK >

J304 1-784-920-11 JACK, PIN 6P (VIDEO2 AUDIO IN/

VIDEO1 AUDIO OUT/VIDEO1 AUDIO IN)

J305 1-784-920-11 JACK, PIN 6P (TV/LD AUDIO IN/

DVD AUDIO IN/VIDEO2 AUDIO OUT)

< RESISTOR >

R315 1-249-417-11 CARBON 1K 5% 1/4W F

R316 1-249-417-11 CARBON 1K 5% 1/4W F

R317 1-249-417-11 CARBON 1K 5% 1/4W F

R318 1-249-417-11 CARBON 1K 5% 1/4W F

R319 1-249-417-11 CARBON 1K 5% 1/4W F

R320 1-249-417-11 CARBON 1K 5% 1/4W F

R365 1-249-417-11 CARBON 1K 5% 1/4W F

R366 1-249-417-11 CARBON 1K 5% 1/4W F

R367 1-249-417-11 CARBON 1K 5% 1/4W F

R368 1-249-417-11 CARBON 1K 5% 1/4W F

R369 1-249-417-11 CARBON 1K 5% 1/4W F

R370 1-249-417-11 CARBON 1K 5% 1/4W F

R394 1-249-397-11 CARBON 22 5% 1/4W F

R395 1-249-397-11 CARBON 22 5% 1/4W F

R398 1-249-417-11 CARBON 1K 5% 1/4W F

R399 1-249-425-11 CARBON 4.7K 5% 1/4W F

**************************************************************

AUDIO

AMP

The components identified by mark ! or dotted

line with mark ! are critical for safety.

Replace only with part number specified.

– 75 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

BALANCE

*1-670-020-11 BALANCE BOARD

*************

< CONNECTOR >

CNP106 1-564-721-11 PIN, CONNECTOR (SMALL TYPE) 5P

< VARIABLE RESISTOR >

RV402 1-225-650-11 RES, VAR, CARBON 100K/100K (BALANCE)

**************************************************************

*1-670-029-11 D.IN/OUT BOARD

**************

< CAPACITOR >

C1001 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1002 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1003 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1004 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1005 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1006 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1007 1-164-346-11 CERAMIC CHIP 1uF 16V

C1008 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1009 1-104-664-11 ELECT 47uF 20% 16V

< CONNECTOR >

CNS13 1-564-723-11 PIN, CONNECTOR (SMALL TYPE) 7P

< IC >

IC1001 8-749-923-05 IC TORX178 (DIGITAL OPT TV/LD IN)

IC1002 8-749-923-05 IC TORX178 (DIGITAL OPT DVD IN)

IC1003 8-749-923-05 IC TORX178 (DIGITAL OPT MD/DAT IN)

IC1004 8-749-923-04 IC TOTX178 (DIGITAL OPT MD/DAT OUT)

IC1005 8-759-236-19 IC TC74HC151AF(EL)

IC1006 8-759-235-19 IC TC74HC08AF(EL)

IC1007 8-759-242-70 IC TC7WU04F

< JACK >

J1001 1-779-382-11 JACK, PIN 1P (DIGITAL DVD COAX)

< RESISTOR >

R1001 1-216-022-00 METAL CHIP 75 5% 1/10W

R1002 1-216-022-00 METAL CHIP 75 5% 1/10W

R1003 1-216-022-00 METAL CHIP 75 5% 1/10W

R1004 1-216-022-00 METAL CHIP 75 5% 1/10W

R1005 1-216-025-91 RES,CHIP 100 5% 1/10W

R1006 1-216-025-91 RES,CHIP 100 5% 1/10W

R1007 1-216-025-91 RES,CHIP 100 5% 1/10W

R1008 1-216-022-00 METAL CHIP 75 5% 1/10W

R1009 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1010 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1011 1-216-025-91 RES,CHIP 100 5% 1/10W

R1013 1-216-115-00 METAL CHIP 560K 5% 1/10W

**************************************************************

*A-4414-117-A DIGITAL BOARD, COMPLETE

***********************

< CAPACITOR >

C1101 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V

C1102 1-126-022-11 ELECT 47uF 20% 16V

C1103 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1104 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1105 1-126-022-11 ELECT 47uF 20% 16V

C1106 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1107 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

C1108 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1109 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C1110 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C1111 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1112 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1113 1-126-059-11 ELECT 10uF 20% 50V

C1114 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1115 1-126-059-11 ELECT 10uF 20% 50V

C1116 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1117 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1118 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1119 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1120 1-126-059-11 ELECT 10uF 20% 50V

C1121 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1122 1-126-233-11 ELECT 22uF 20% 50V

C1123 1-106-347-00 MYLAR 1500PF 5% 200V

C1124 1-126-233-11 ELECT 22uF 20% 50V

C1125 1-126-233-11 ELECT 22uF 20% 50V

C1126 1-126-233-11 ELECT 22uF 20% 50V

C1127 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1128 1-126-233-11 ELECT 22uF 20% 50V

C1129 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1130 1-126-233-11 ELECT 22uF 20% 50V

C1131 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1132 1-126-233-11 ELECT 22uF 20% 50V

C1133 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1134 1-126-233-11 ELECT 22uF 20% 50V

C1135 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1136 1-126-233-11 ELECT 22uF 20% 50V

C1137 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1138 1-126-233-11 ELECT 22uF 20% 50V

C1139 1-126-022-11 ELECT 47uF 20% 16V

C1140 1-126-022-11 ELECT 47uF 20% 16V

C1141 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1142 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1143 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1170 1-126-059-11 ELECT 10uF 20% 50V

C1171 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1172 1-126-233-11 ELECT 22uF 20% 50V

C1173 1-106-347-00 MYLAR 1500PF 5% 200V

C1174 1-126-233-11 ELECT 22uF 20% 50V

C1175 1-126-233-11 ELECT 22uF 20% 50V

C1176 1-126-233-11 ELECT 22uF 20% 50V

C1201 1-126-059-11 ELECT 10uF 20% 50V

C1202 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1203 1-165-319-11 CERAMIC CHIP 0.1uF 50V

DIGITALD. IN/OUT

– 76 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C1204 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1205 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1206 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V

C1207 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1208 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1209 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1210 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1211 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1212 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1213 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1214 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1215 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1216 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1217 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1301 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1302 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1303 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1304 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1305 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1306 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1307 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V

C1308 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1310 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1311 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1312 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1313 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1401 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1402 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1403 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V

C1404 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1405 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1406 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1407 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1408 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1409 1-124-443-00 ELECT 100uF 20% 10V

C1410 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1411 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1412 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1413 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C1501 1-126-012-11 ELECT 470uF 20% 16V

C1502 1-126-022-11 ELECT 47uF 20% 16V

< CONNECTOR >

CNP10 1-784-926-11 PIN, CONNECTOR 11P

CNP11 1-779-978-11 PIN, CONNECTOR 3P

CNP12 1-784-923-11 PIN, CONNECTOR 7P

CNP14 1-779-977-11 PIN, CONNECTOR 6P

CNP15 1-564-510-11 PLUG, CONNECTOR 7P

CNS10 1-784-782-11 CONNECTOR, FFC 21P

CNS11 1-784-790-11 CONNECTOR, FFC 29P

< DIODE >

D1101 8-719-016-74 DIODE 1SS352

D1201 8-719-016-74 DIODE 1SS352

D1202 8-719-801-78 DIODE 1SS184

D1203 8-719-801-78 DIODE 1SS184

D1204 8-719-016-74 DIODE 1SS352

D1205 8-719-016-74 DIODE 1SS352

D1206 8-719-801-78 DIODE 1SS184

< GROUND TERMINAL >

*EB1001 1-537-738-21 TERMINAL, EARTH

< FERRITE BEAD >

FB1101 1-410-397-21 FERRITE BEAD INDUCTOR

FB1102 1-410-397-21 FERRITE BEAD INDUCTOR

< IC >

IC303 8-759-524-52 IC TC74VHC574FT(EL)

IC304 8-759-524-52 IC TC74VHC574FT(EL)

IC1101 8-759-294-79 IC CXD8495AQ

IC1102 8-759-523-80 IC TC74VHC04FT(EL)

IC1103 8-759-534-62 IC AK4526

IC1104 8-759-636-55 IC M5218AFP

IC1105 8-759-636-55 IC M5218AFP

IC1106 8-759-636-55 IC M5218AFP

IC1107 8-759-636-55 IC M5218AFP

IC1108 8-759-032-01 IC MC74HC00AF

IC1109 8-759-195-02 IC TC7S86F-TE85L

IC1154 8-759-636-55 IC M5218AFP

IC1201 8-759-545-83 IC MB90574PFV-G-146-BND

IC1202 8-759-523-80 IC TC74VHC04FT(EL)

IC1301 8-759-538-17 IC CS4926

IC1302 8-759-553-27 IC MSM531031B-84GS-KR1

IC1305 8-759-530-30 IC TC74VHCU04FT(EL)

IC1401 8-752-391-87 IC CXD2712R

IC1402 8-759-538-16 IC IDT71V016S15PHAU-TL

IC1403 8-759-524-48 IC TC74VHC393FT(EL)

IC1501 8-759-231-53 IC TA7805S

< TRANSISTOR >

Q1201 8-729-216-22 TRANSISTOR 2SA1162-G

Q1202 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q1203 8-729-230-49 TRANSISTOR 2SC2712-YG

Q1204 8-729-230-49 TRANSISTOR 2SC2712-YG

Q1205 8-729-230-49 TRANSISTOR 2SC2712-YG

Q1206 8-729-230-49 TRANSISTOR 2SC2712-YG

Q1207 8-729-230-49 TRANSISTOR 2SC2712-YG

Q1208 8-729-027-43 TRANSISTOR DTC114EKA-T146

< RESISTOR >

R1101 1-216-025-91 RES,CHIP 100 5% 1/10W

R1102 1-216-025-91 RES,CHIP 100 5% 1/10W

R1103 1-216-025-91 RES,CHIP 100 5% 1/10W

R1104 1-216-085-00 METAL CHIP 33K 5% 1/10W

R1105 1-216-082-00 RES,CHIP 24K 5% 1/10W

R1106 1-216-066-00 METAL CHIP 5.1K 5% 1/10W

R1107 1-216-066-00 METAL CHIP 5.1K 5% 1/10W

R1108 1-216-029-00 METAL CHIP 150 5% 1/10W

R1109 1-216-104-00 METAL CHIP 200K 5% 1/10W

R1110 1-216-025-91 RES,CHIP 100 5% 1/10W

R1111 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1112 1-216-025-91 RES,CHIP 100 5% 1/10W

DIGITAL

– 77 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R1113 1-216-025-91 RES,CHIP 100 5% 1/10W

R1114 1-216-025-91 RES,CHIP 100 5% 1/10W

R1115 1-216-097-91 RES,CHIP 100K 5% 1/10W

R1116 1-216-025-91 RES,CHIP 100 5% 1/10W

R1117 1-216-025-91 RES,CHIP 100 5% 1/10W

R1118 1-216-097-91 RES,CHIP 100K 5% 1/10W

R1119 1-216-025-91 RES,CHIP 100 5% 1/10W

R1120 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1121 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1122 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1123 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1124 1-216-037-00 METAL CHIP 330 5% 1/10W

R1125 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1126 1-216-037-00 METAL CHIP 330 5% 1/10W

R1127 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1128 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1129 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1130 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1131 1-216-097-91 RES,CHIP 100K 5% 1/10W

R1132 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1133 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1134 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1135 1-216-025-91 RES,CHIP 100 5% 1/10W

R1136 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1137 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1138 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1139 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1140 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1141 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1142 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1143 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1144 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1145 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1146 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1147 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1148 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1149 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1150 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1151 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1152 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1153 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1154 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1155 1-216-295-91 SHORT 0

R1156 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1157 1-216-295-91 SHORT 0

R1158 1-216-025-91 RES,CHIP 100 5% 1/10W

R1159 1-216-025-91 RES,CHIP 100 5% 1/10W

R1160 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1161 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1162 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1163 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1164 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1165 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1166 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1170 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1171 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1172 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1173 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1174 1-216-037-00 METAL CHIP 330 5% 1/10W

R1175 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1176 1-216-037-00 METAL CHIP 330 5% 1/10W

R1177 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1178 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1179 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1180 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1201 1-216-097-91 RES,CHIP 100K 5% 1/10W

R1202 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1203 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1204 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1205 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1206 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1207 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1208 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1209 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1210 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1211 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1212 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1213 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1214 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1215 1-216-025-91 RES,CHIP 100 5% 1/10W

R1216 1-216-025-91 RES,CHIP 100 5% 1/10W

R1217 1-216-025-91 RES,CHIP 100 5% 1/10W

R1218 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1219 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1220 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1221 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1222 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1223 1-216-104-00 METAL CHIP 200K 5% 1/10W

R1224 1-216-295-91 SHORT 0

R1225 1-216-689-11 METAL CHIP 39K 0.5% 1/10W

R1226 1-216-689-11 METAL CHIP 39K 0.5% 1/10W

R1227 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1228 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1229 1-216-097-91 RES,CHIP 100K 5% 1/10W

R1230 1-216-097-91 RES,CHIP 100K 5% 1/10W

R1231 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1232 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1233 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1234 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1235 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1236 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1237 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1238 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1239 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1240 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1241 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1242 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R1243 1-216-025-91 RES,CHIP 100 5% 1/10W

R1244 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R1245 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R1246 1-216-025-91 RES,CHIP 100 5% 1/10W

R1247 1-216-025-91 RES,CHIP 100 5% 1/10W

R1248 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

DIGITAL

– 78 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R1249 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1250 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1251 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1252 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R1253 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R1254 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R1255 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R1256 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R1257 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R1258 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R1259 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1260 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1261 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R1262 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R1263 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R1264 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R1265 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1266 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1267 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1268 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1269 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1270 1-216-025-91 RES,CHIP 100 5% 1/10W

R1271 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1272 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1273 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1274 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1275 1-216-025-91 RES,CHIP 100 5% 1/10W

R1276 1-216-025-91 RES,CHIP 100 5% 1/10W

R1277 1-216-025-91 RES,CHIP 100 5% 1/10W

R1278 1-216-025-91 RES,CHIP 100 5% 1/10W

R1279 1-216-025-91 RES,CHIP 100 5% 1/10W

R1280 1-216-025-91 RES,CHIP 100 5% 1/10W

R1281 1-216-295-91 SHORT 0

R1284 1-216-295-91 SHORT 0

R1285 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1286 1-216-028-00 METAL CHIP 130 5% 1/10W

R1287 1-216-097-91 RES,CHIP 100K 5% 1/10W

R1301 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1302 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1303 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1304 1-216-025-91 RES,CHIP 100 5% 1/10W

R1305 1-216-025-91 RES,CHIP 100 5% 1/10W

R1306 1-216-041-00 METAL CHIP 470 5% 1/10W

R1307 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1308 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R1309 1-216-025-91 RES,CHIP 100 5% 1/10W

R1310 1-216-121-91 RES,CHIP 1M 5% 1/10W

R1311 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R1312 1-216-025-91 RES,CHIP 100 5% 1/10W

R1313 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R1314 1-216-295-91 SHORT 0

R1315 1-216-295-91 SHORT 0

R1316 1-216-295-91 SHORT 0

R1317 1-216-295-91 SHORT 0

R1318 1-216-295-91 SHORT 0

!R1319 1-215-884-11 METAL OXIDE 47 5% 2W F

R1320 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R1321 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R1322 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R1323 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R1324 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R1325 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R1326 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R1327 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R1328 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R1329 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R1330 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R1401 1-216-025-91 RES,CHIP 100 5% 1/10W

R1402 1-216-025-91 RES,CHIP 100 5% 1/10W

R1403 1-216-025-91 RES,CHIP 100 5% 1/10W

R1404 1-216-097-91 RES,CHIP 100K 5% 1/10W

R1405 1-216-025-91 RES,CHIP 100 5% 1/10W

R1406 1-216-073-00 METAL CHIP 10K 5% 1/10W

R1407 1-216-295-91 SHORT 0

R1408 1-216-025-91 RES,CHIP 100 5% 1/10W

R1409 1-216-025-91 RES,CHIP 100 5% 1/10W

R1410 1-216-295-91 SHORT 0

< VIBRATOR >

X1101 1-567-970-11 VIBRATOR, CRYSTAL (24.576MHz)

X1201 1-577-082-11 VIBRATOR, CERAMIC (4MHz)

X1301 1-767-949-21 VIBRATOR, CERAMIC (49.152MHz)

**************************************************************

*A-4414-097-A DISPLAY BOARD, COMPLETE

***********************

*4-921-941-01 CUSHION (FL)

*4-990-797-01 HOLDER (FL)

< CAPACITOR >

C101 1-126-786-11 ELECT 47uF 20% 16V

C102 1-162-306-11 CERAMIC 0.01uF 20% 16V

C103 1-162-306-11 CERAMIC 0.01uF 20% 16V

C104 1-126-795-11 ELECT 10uF 20% 50V

C105 1-104-905-11 CAPACITOR 0.22F 5.5V

C106 1-164-159-11 CERAMIC 0.1uF 50V

C107 1-164-159-11 CERAMIC 0.1uF 50V

C108 1-164-159-11 CERAMIC 0.1uF 50V

C109 1-164-159-11 CERAMIC 0.1uF 50V

C110 1-164-159-11 CERAMIC 0.1uF 50V

C111 1-164-159-11 CERAMIC 0.1uF 50V

C112 1-164-159-11 CERAMIC 0.1uF 50V

C115 1-164-159-11 CERAMIC 0.1uF 50V

C117 1-164-159-11 CERAMIC 0.1uF 50V

C119 1-126-786-11 ELECT 47uF 20% 16V

C121 1-126-786-11 ELECT 47uF 20% 16V

C123 1-164-159-11 CERAMIC 0.1uF 50V

C124 1-162-294-11 CERAMIC 1000PF 10% 50V

C180 1-164-159-11 CERAMIC 0.1uF 50V

C181 1-136-177-00 CERAMIC 0.1uF 5% 50V

C182 1-164-159-11 CERAMIC 0.1uF 50V

C183 1-126-916-11 ELECT 1000uF 20% 6.3V

C184 1-126-795-11 ELECT 10uF 20% 50V

DISPLAY

DIGITAL

The components identified by mark ! or dotted

line with mark ! are critical for safety.

Replace only with part number specified.

– 79 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C185 1-162-306-11 CERAMIC 0.01uF 20% 16V

C186 1-162-306-11 CERAMIC 0.01uF 20% 16V

C191 1-164-159-11 CERAMIC 0.1uF 50V

C192 1-107-818-11 ELECT 1uF 5.5V

< CONNECTOR >

CNP105 1-564-510-11 PLUG, CONNECTOR 7P

CNP109 1-784-919-11 CONNECTOR, PC BOARD (PLUG) 5P

CNP110 1-784-919-11 CONNECTOR, PC BOARD (PLUG) 5P

CNS102 1-770-553-11 CONNECTOR, BOARD TO BOARD 11P

CNS103 1-784-772-11 CONNECTOR, FFC 11P

CNS104 1-784-743-11 CONNECTOR, FFC 21P

CNS107 1-770-397-11 HOUSING, CONNECTOR(PC BOARD)4P

CNS108 1-770-553-11 CONNECTOR, BOARD TO BOARD 11P

< DIODE >

D102 8-719-024-99 DIODE 11ES2-NTA2B

D103 8-719-911-19 DIODE 1SS119

D108 8-719-046-39 DIODE SEL5821A-TH15 (SOUND FIELD)

D109 8-719-313-45 DIODE SEL6810A-TH10 (VIDEO1)

D110 8-719-313-45 DIODE SEL6810A-TH10 (VIDEO2)

D111 8-719-313-45 DIODE SEL6810A-TH10 (VIDEO3)

D112 8-719-313-45 DIODE SEL6810A-TH10 (DVD)

D113 8-719-313-45 DIODE SEL6810A-TH10 (TV/LD)

D114 8-719-313-45 DIODE SEL6810A-TH10 (TAPE)

D115 8-719-313-45 DIODE SEL6810A-TH10 (MD/DAT)

D116 8-719-313-45 DIODE SEL6810A-TH10 (CD)

D117 8-719-313-45 DIODE SEL6810A-TH10 (TUNER)

D118 8-719-313-45 DIODE SEL6810A-TH10 (PHONO)

D119 8-719-046-39 DIODE SEL5821A-TH15 (BASS BOOST)

D122 8-719-046-39 DIODE SEL5821A-TH15 (EQ)

D180 8-719-911-19 DIODE 1SS119

D181 8-719-911-19 DIODE 1SS119

D182 8-719-911-19 DIODE 1SS119

D183 8-719-911-19 DIODE 1SS119

D184 8-719-059-14 DIODE SID313BP-TP19

D185 8-719-059-14 DIODE SID313BP-TP19

D186 8-719-059-14 DIODE SID313BP-TP19

< FLUORESCENT INDICATOR >

FL101 1-517-781-11 INDICATOR TUBE, FLUORESCENT

< IC >

IC101 8-759-459-83 IC NJL55H400A

IC102 8-759-535-50 IC MB90553PF-G-121-BND

IC103 8-759-962-08 IC BA6208

IC104 8-759-463-11 IC MSC1162AGS-BK

IC105 8-759-389-51 IC MSC1164GS-KR1

IC180 8-759-927-72 IC TL1591CP

IC181 8-759-545-07 IC TMP87C447U-4A06

< COIL >

L101 1-410-509-11 INDUCTOR 10uH

L150 1-408-080-00 INDUCTOR 100uH

< TRANSISTOR >

Q101 8-729-119-76 TRANSISTOR 2SA1175-HFE

Q102 8-729-900-36 TRANSISTOR DTC124ES

Q103 8-729-900-36 TRANSISTOR DTC124ES

Q104 8-729-900-36 TRANSISTOR DTC124ES

Q105 8-729-900-36 TRANSISTOR DTC124ES

Q106 8-729-900-36 TRANSISTOR DTC124ES

Q107 8-729-900-36 TRANSISTOR DTC124ES

Q108 8-729-900-36 TRANSISTOR DTC124ES

Q109 8-729-900-36 TRANSISTOR DTC124ES

Q110 8-729-900-36 TRANSISTOR DTC124ES

Q111 8-729-900-36 TRANSISTOR DTC124ES

Q112 8-729-900-36 TRANSISTOR DTC124ES

Q113 8-729-900-36 TRANSISTOR DTC124ES

Q114 8-729-900-36 TRANSISTOR DTC124ES

Q115 8-729-900-36 TRANSISTOR DTC124ES

Q116 8-729-900-36 TRANSISTOR DTC124ES

Q117 8-729-900-36 TRANSISTOR DTC124ES

Q118 8-729-900-36 TRANSISTOR DTC124ES

Q119 8-729-900-36 TRANSISTOR DTC124ES

Q120 8-729-900-36 TRANSISTOR DTC124ES

Q122 8-729-900-36 TRANSISTOR DTC124ES

Q180 8-729-620-05 TRANSISTOR 2SC2603-EF

Q181 8-729-900-36 TRANSISTOR DTC124ES

Q182 8-729-620-05 TRANSISTOR 2SC2603-EF

Q184 8-729-801-93 TRANSISTOR 2SD1387

Q185 8-729-801-93 TRANSISTOR 2SD1387

< RESISTOR >

R103 1-249-437-11 CARBON 47K 5% 1/4W

R104 1-249-429-11 CARBON 10K 5% 1/4W

R105 1-249-393-11 CARBON 10 5% 1/4W F

R106 1-249-437-11 CARBON 47K 5% 1/4W

R107 1-249-433-11 CARBON 22K 5% 1/4W

R108 1-249-441-11 CARBON 100K 5% 1/4W

R109 1-249-441-11 CARBON 100K 5% 1/4W

R111 1-247-772-00 CARBON 3.6 5% 1/4W

R114 1-249-419-11 CARBON 1.5K 5% 1/4W F

R115 1-249-385-11 CARBON 2.2 5% 1/6W F

R116 1-249-429-11 CARBON 10K 5% 1/4W

R117 1-249-433-11 CARBON 22K 5% 1/4W

R118 1-249-433-11 CARBON 22K 5% 1/4W

R119 1-249-417-11 CARBON 1K 5% 1/4W F

R120 1-249-417-11 CARBON 1K 5% 1/4W F

R121 1-249-417-11 CARBON 1K 5% 1/4W F

R122 1-249-429-11 CARBON 10K 5% 1/4W

R123 1-249-417-11 CARBON 1K 5% 1/4W F

R125 1-249-425-11 CARBON 4.7K 5% 1/4W F

R126 1-249-425-11 CARBON 4.7K 5% 1/4W F

R127 1-249-425-11 CARBON 4.7K 5% 1/4W F

R128 1-249-425-11 CARBON 4.7K 5% 1/4W F

R129 1-249-417-11 CARBON 1K 5% 1/4W F

R130 1-249-425-11 CARBON 4.7K 5% 1/4W F

R131 1-249-425-11 CARBON 4.7K 5% 1/4W F

R132 1-249-425-11 CARBON 4.7K 5% 1/4W F

R133 1-249-411-11 CARBON 330 5% 1/4W

DISPLAY

– 80 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

F-VIDEO

R134 1-249-411-11 CARBON 330 5% 1/4W

R135 1-249-411-11 CARBON 330 5% 1/4W

R161 1-249-385-11 CARBON 2.2 5% 1/6W F

R162 1-249-421-11 CARBON 2.2K 5% 1/4W F

R163 1-249-421-11 CARBON 2.2K 5% 1/4W F

R164 1-249-411-11 CARBON 330 5% 1/4W

R165 1-249-429-11 CARBON 10K 5% 1/4W

R179 1-249-411-11 CARBON 330 5% 1/4W

R180 1-249-393-11 CARBON 10 5% 1/4W F

R181 1-249-429-11 CARBON 10K 5% 1/4W

R182 1-249-425-11 CARBON 4.7K 5% 1/4W F

R183 1-249-429-11 CARBON 10K 5% 1/4W

R184 1-249-429-11 CARBON 10K 5% 1/4W

R185 1-249-425-11 CARBON 4.7K 5% 1/4W F

R186 1-249-429-11 CARBON 10K 5% 1/4W

R187 1-249-417-11 CARBON 1K 5% 1/4W F

R188 1-249-429-11 CARBON 10K 5% 1/4W

R189 1-247-772-00 CARBON 3.6 5% 1/4W

R190 1-249-441-11 CARBON 100K 5% 1/4W

R191 1-247-807-31 CARBON 100 5% 1/4W

R192 1-249-383-11 CARBON 1.5 5% 1/6W F

R193 1-247-807-31 CARBON 100 5% 1/4W

R194 1-247-807-31 CARBON 100 5% 1/4W

R195 1-247-807-31 CARBON 100 5% 1/4W

R196 1-247-807-31 CARBON 100 5% 1/4W

R197 1-249-441-11 CARBON 100K 5% 1/4W

R198 1-249-429-11 CARBON 10K 5% 1/4W

R199 1-249-429-11 CARBON 10K 5% 1/4W

RR24 1-249-429-11 CARBON 10K 5% 1/4W

< VIBRATOR >

X101 1-577-082-11 VIBRATOR, CERAMIC (4MHz)

X180 1-767-938-21 VIBRATOR, CERAMIC (7.28MHz)

**************************************************************

*1-670-021-11 F-VIDEO BOARD

*************

< CAPACITOR >

C299 1-164-159-11 CERAMIC 0.1uF 50V

CC14 1-162-282-31 CERAMIC 100PF 10% 50V

CC64 1-162-282-31 CERAMIC 100PF 10% 50V

< CONNECTOR >

CNP307 1-564-723-11 PIN, CONNECTOR (SMALL TYPE) 7P

< GROUND TERMINAL >

*EB201 1-537-738-21 TERMINAL, EARTH

< JACK >

J298 1-784-808-11 TERMINAL, S (VIDEO 3 INPUT S-VIDEO)

J299 1-779-798-11 JACK, PIN (BLOCK) (L TYPE) 3P

(VIDEO 3 INPUT AUDIO/VIDEO)

< RESISTOR >

R297 1-247-804-11 CARBON 75 5% 1/4W

R298 1-247-804-11 CARBON 75 5% 1/4W

R299 1-247-804-11 CARBON 75 5% 1/4W

R321 1-249-417-11 CARBON 1K 5% 1/4W F

R371 1-249-417-11 CARBON 1K 5% 1/4W F

**************************************************************

*1-670-006-11 H.P BOARD

*********

< JACK >

J701 1-568-519-41 JACK, LARGE TYPE (PHONES)

**************************************************************

*A-4414-095-A INPUT BOARD, COMPLETE

*********************

< CAPACITOR >

C301 1-126-045-11 ELECT 2.2uF 20% 50V

C303 1-126-101-11 ELECT 100uF 20% 16V

C304 1-125-896-91 MYLAR 0.0091uF 5% 50V

C305 1-136-159-00 FILM 0.033uF 5% 50V

C306 1-126-045-11 ELECT 2.2uF 20% 50V

C307 1-162-282-31 CERAMIC 100PF 10% 50V

C308 1-162-286-31 CERAMIC 220PF 10% 50V

C310 1-162-294-31 CERAMIC 0.001uF 10% 50V

C311 1-126-233-11 ELECT 22uF 20% 50V

C351 1-126-045-11 ELECT 2.2uF 20% 50V

C353 1-126-101-11 ELECT 100uF 20% 16V

C354 1-125-896-91 MYLAR 0.0091uF 5% 50V

C355 1-136-159-00 FILM 0.033uF 5% 50V

C356 1-126-045-11 ELECT 2.2uF 20% 50V

C357 1-162-282-31 CERAMIC 100PF 10% 50V

C358 1-162-286-31 CERAMIC 220PF 10% 50V

C360 1-162-294-31 CERAMIC 0.001uF 10% 50V

C361 1-126-233-11 ELECT 22uF 20% 50V

C387 1-126-022-11 ELECT 47uF 20% 16V

C388 1-126-052-11 ELECT 100uF 20% 16V

C389 1-126-052-11 ELECT 100uF 20% 16V

C392 1-126-022-11 ELECT 47uF 20% 16V

C393 1-162-294-31 CERAMIC 0.001uF 10% 50V

C394 1-126-022-11 ELECT 47uF 20% 16V

C395 1-162-282-31 CERAMIC 100PF 10% 50V

C396 1-126-022-11 ELECT 47uF 20% 16V

C398 1-162-294-31 CERAMIC 0.001uF 10% 50V

C399 1-162-282-31 CERAMIC 100PF 10% 50V

C401 1-126-233-11 ELECT 22uF 20% 50V

C402 1-126-233-11 ELECT 22uF 20% 50V

C403 1-126-233-11 ELECT 22uF 20% 50V

C404 1-162-199-31 CERAMIC 10PF 5% 50V

C405 1-162-199-31 CERAMIC 10PF 5% 50V

C406 1-162-199-31 CERAMIC 10PF 5% 50V

C407 1-126-233-11 ELECT 22uF 20% 50V

C408 1-126-233-11 ELECT 22uF 20% 50V

C409 1-126-233-11 ELECT 22uF 20% 50V

H.PDISPLAY INPUT

– 81 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C416 1-126-233-11 ELECT 22uF 20% 50V

C417 1-126-233-11 ELECT 22uF 20% 50V

C418 1-126-233-11 ELECT 22uF 20% 50V

C419 1-162-282-31 CERAMIC 100PF 10% 50V

C451 1-126-233-11 ELECT 22uF 20% 50V

C452 1-126-233-11 ELECT 22uF 20% 50V

C453 1-126-233-11 ELECT 22uF 20% 50V

C454 1-162-199-31 CERAMIC 10PF 5% 50V

C455 1-162-199-31 CERAMIC 10PF 5% 50V

C456 1-162-199-31 CERAMIC 10PF 5% 50V

C457 1-126-233-11 ELECT 22uF 20% 50V

C458 1-126-233-11 ELECT 22uF 20% 50V

C459 1-126-233-11 ELECT 22uF 20% 50V

C466 1-126-233-11 ELECT 22uF 20% 50V

C467 1-126-233-11 ELECT 22uF 20% 50V

C468 1-126-233-11 ELECT 22uF 20% 50V

C491 1-164-159-11 CERAMIC 0.1uF 50V

C496 1-126-052-11 ELECT 100uF 20% 16V

C497 1-126-052-11 ELECT 100uF 20% 16V

C498 1-126-022-11 ELECT 47uF 20% 16V

C499 1-126-022-11 ELECT 47uF 20% 16V

C501 1-126-233-11 ELECT 22uF 20% 50V

C502 1-162-282-31 CERAMIC 100PF 10% 50V

C503 1-102-233-00 CERAMIC 33PF 10% 500V

C504 1-102-230-00 CERAMIC 4PF 0.25PF 500V

C539 1-162-282-31 CERAMIC 100PF 10% 50V

C551 1-126-233-11 ELECT 22uF 20% 50V

C552 1-162-282-31 CERAMIC 100PF 10% 50V

C553 1-102-233-00 CERAMIC 33PF 10% 500V

C554 1-102-230-00 CERAMIC 4PF 0.25PF 500V

C555 1-126-101-11 ELECT 100uF 20% 16V

C580 1-162-282-31 CERAMIC 100PF 10% 50V

C589 1-162-282-31 CERAMIC 100PF 10% 50V

C593 1-126-101-11 ELECT 100uF 20% 16V

C594 1-126-074-91 ELECT 22uF 20% 100V

C595 1-126-074-91 ELECT 22uF 20% 100V

C601 1-126-233-11 ELECT 22uF 20% 50V

C602 1-162-282-31 CERAMIC 100PF 10% 50V

C603 1-102-233-00 CERAMIC 33PF 10% 500V

C604 1-102-230-00 CERAMIC 4PF 0.25PF 500V

C605 1-126-101-11 ELECT 100uF 20% 16V

C639 1-162-282-31 CERAMIC 100PF 10% 50V

C651 1-126-233-11 ELECT 22uF 20% 50V

C652 1-162-282-31 CERAMIC 100PF 10% 50V

C653 1-102-233-00 CERAMIC 33PF 10% 500V

C654 1-102-230-00 CERAMIC 4PF 0.25PF 500V

C655 1-126-101-11 ELECT 100uF 20% 16V

C689 1-162-282-31 CERAMIC 100PF 10% 50V

C701 1-126-233-11 ELECT 22uF 20% 50V

C702 1-162-282-31 CERAMIC 100PF 10% 50V

C703 1-102-233-00 CERAMIC 33PF 10% 500V

C704 1-102-230-00 CERAMIC 4PF 0.25PF 500V

C705 1-126-101-11 ELECT 100uF 20% 16V

C739 1-162-282-31 CERAMIC 100PF 10% 50V

C751 1-126-233-11 ELECT 22uF 20% 50V

C752 1-162-282-31 CERAMIC 100PF 10% 50V

C753 1-102-233-00 CERAMIC 33PF 10% 500V

C754 1-102-230-00 CERAMIC 4PF 0.25PF 500V

C755 1-126-101-11 ELECT 100uF 20% 16V

C780 1-162-282-31 CERAMIC 100PF 10% 50V

C789 1-162-282-31 CERAMIC 100PF 10% 50V

CC04 1-162-282-31 CERAMIC 100PF 10% 50V

CC05 1-162-282-31 CERAMIC 100PF 10% 50V

CC06 1-162-282-31 CERAMIC 100PF 10% 50V

CC07 1-162-282-31 CERAMIC 100PF 10% 50V

CC08 1-162-282-31 CERAMIC 100PF 10% 50V

CC54 1-162-282-31 CERAMIC 100PF 10% 50V

CC55 1-162-282-31 CERAMIC 100PF 10% 50V

CC56 1-162-282-31 CERAMIC 100PF 10% 50V

CC57 1-162-282-31 CERAMIC 100PF 10% 50V

CC58 1-162-282-31 CERAMIC 100PF 10% 50V

< CONNECTOR >

CNS301 1-784-768-11 CONNECTOR, FFC 7P

CNS303 1-779-977-11 PIN, CONNECTOR 6P

CNS304 1-784-923-11 PIN, CONNECTOR 7P

CNS305 1-779-978-11 PIN, CONNECTOR 3P

CNS306 1-784-790-11 CONNECTOR, FFC 29P

CNS403 1-691-765-11 PLUG (MICRO CONNECTOR) 3P

CNS404 1-691-765-11 PLUG (MICRO CONNECTOR) 3P

CNS501 1-784-806-11 HOUSING,CONNECTOR(PC BOARD)13P

CNS702 1-779-977-11 PIN, CONNECTOR 6P

< DIODE >

D301 8-719-911-19 DIODE 1SS119

< IC >

IC301 8-759-805-14 IC LC7822

IC302 8-759-636-74 IC M5218AP-22

IC303 8-759-805-15 IC LC7823

IC304 8-759-634-50 IC M5218AL

IC401 8-759-604-40 IC M5F78M15

IC402 8-759-604-46 IC M5F79M15

IC403 8-759-604-39 IC M5F78M12

IC404 8-759-708-05 IC NJM78L05A

IC405 8-759-634-50 IC M5218AL

IC406 8-759-634-50 IC M5218AL

IC407 8-759-634-50 IC M5218AL

IC414 8-759-534-63 IC TC9299P

IC415 8-759-534-63 IC TC9299P

IC416 8-759-534-63 IC TC9299P

IC501 8-759-326-52 IC uPC2581V

IC601 8-759-326-52 IC uPC2581V

IC701 8-759-326-52 IC uPC2581V

< JACK >

J301 1-784-429-11 JACK, PIN 4P (PHONO IN/CD IN)

J302 1-784-429-11 JACK, PIN 4P (MD/DAT REC OUT/IN)

J303 1-784-429-11 JACK, PIN 4P (TAPE REC OUT/IN)

< TRANSISTOR >

Q301 8-729-119-79 TRANSISTOR 2SC2785-FEK

INPUT

– 82 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

Q302 8-729-141-30 TRANSISTOR 2SC3623A-LK

Q303 8-729-141-30 TRANSISTOR 2SC3623A-LK

Q304 8-729-141-30 TRANSISTOR 2SC3623A-LK

Q352 8-729-141-30 TRANSISTOR 2SC3623A-LK

Q353 8-729-141-30 TRANSISTOR 2SC3623A-LK

Q354 8-729-141-30 TRANSISTOR 2SC3623A-LK

Q501 8-729-900-36 TRANSISTOR DTC124ES

Q503 8-729-900-63 TRANSISTOR DTA124ES

< RESISTOR >

R301 1-249-401-11 CARBON 47 5% 1/4W F

R302 1-249-441-11 CARBON 100K 5% 1/4W

R303 1-249-440-11 CARBON 82K 5% 1/4W

R304 1-249-408-11 CARBON 180 5% 1/4W F

R305 1-249-428-11 CARBON 8.2K 5% 1/4W F

R306 1-249-441-11 CARBON 100K 5% 1/4W

R307 1-247-807-31 CARBON 100 5% 1/4W

R308 1-249-441-11 CARBON 100K 5% 1/4W

R309 1-249-413-11 CARBON 470 5% 1/4W F

R310 1-249-417-11 CARBON 1K 5% 1/4W F

R311 1-249-417-11 CARBON 1K 5% 1/4W F

R312 1-249-417-11 CARBON 1K 5% 1/4W F

R313 1-249-417-11 CARBON 1K 5% 1/4W F

R314 1-249-417-11 CARBON 1K 5% 1/4W F

R315 1-249-437-11 CARBON 47K 5% 1/4W

R331 1-249-441-11 CARBON 100K 5% 1/4W

R335 1-249-437-11 CARBON 47K 5% 1/4W

R336 1-249-425-11 CARBON 4.7K 5% 1/4W F

R337 1-249-441-11 CARBON 100K 5% 1/4W

R338 1-249-417-11 CARBON 1K 5% 1/4W F

R339 1-249-417-11 CARBON 1K 5% 1/4W F

R340 1-249-417-11 CARBON 1K 5% 1/4W F

R341 1-249-417-11 CARBON 1K 5% 1/4W F

R342 1-249-417-11 CARBON 1K 5% 1/4W F

R343 1-249-417-11 CARBON 1K 5% 1/4W F

R344 1-247-807-31 CARBON 100 5% 1/4W

R345 1-247-807-31 CARBON 100 5% 1/4W

R346 1-249-397-11 CARBON 22 5% 1/4W F

R347 1-249-397-11 CARBON 22 5% 1/4W F

R351 1-249-401-11 CARBON 47 5% 1/4W F

R352 1-249-441-11 CARBON 100K 5% 1/4W

R353 1-249-440-11 CARBON 82K 5% 1/4W

R354 1-249-408-11 CARBON 180 5% 1/4W F

R355 1-249-428-11 CARBON 8.2K 5% 1/4W F

R356 1-249-441-11 CARBON 100K 5% 1/4W

R357 1-247-807-31 CARBON 100 5% 1/4W

R358 1-249-441-11 CARBON 100K 5% 1/4W

R359 1-249-413-11 CARBON 470 5% 1/4W F

R360 1-249-417-11 CARBON 1K 5% 1/4W F

R361 1-249-417-11 CARBON 1K 5% 1/4W F

R362 1-249-417-11 CARBON 1K 5% 1/4W F

R363 1-249-417-11 CARBON 1K 5% 1/4W F

R364 1-249-417-11 CARBON 1K 5% 1/4W F

R365 1-249-437-11 CARBON 47K 5% 1/4W

R381 1-249-441-11 CARBON 100K 5% 1/4W

R385 1-249-437-11 CARBON 47K 5% 1/4W

R387 1-249-410-11 CARBON 270 5% 1/4W F

R388 1-249-417-11 CARBON 1K 5% 1/4W F

R389 1-249-417-11 CARBON 1K 5% 1/4W F

R390 1-249-417-11 CARBON 1K 5% 1/4W F

R391 1-249-417-11 CARBON 1K 5% 1/4W F

R392 1-249-417-11 CARBON 1K 5% 1/4W F

R393 1-249-417-11 CARBON 1K 5% 1/4W F

R394 1-249-417-11 CARBON 1K 5% 1/4W F

R395 1-249-397-11 CARBON 22 5% 1/4W F

R396 1-249-417-11 CARBON 1K 5% 1/4W F

R397 1-249-425-11 CARBON 4.7K 5% 1/4W F

R398 1-249-397-11 CARBON 22 5% 1/4W F

R399 1-249-425-11 CARBON 4.7K 5% 1/4W F

R401 1-249-441-11 CARBON 100K 5% 1/4W

R402 1-249-441-11 CARBON 100K 5% 1/4W

R403 1-249-441-11 CARBON 100K 5% 1/4W

R404 1-249-431-11 CARBON 15K 5% 1/4W

R405 1-249-431-11 CARBON 15K 5% 1/4W

R406 1-249-431-11 CARBON 15K 5% 1/4W

R407 1-249-437-11 CARBON 47K 5% 1/4W

R408 1-249-437-11 CARBON 47K 5% 1/4W

R409 1-249-437-11 CARBON 47K 5% 1/4W

R451 1-249-441-11 CARBON 100K 5% 1/4W

R452 1-249-441-11 CARBON 100K 5% 1/4W

R453 1-249-441-11 CARBON 100K 5% 1/4W

R454 1-249-431-11 CARBON 15K 5% 1/4W

R455 1-249-431-11 CARBON 15K 5% 1/4W

R456 1-249-434-11 CARBON 27K 5% 1/4W

R457 1-249-437-11 CARBON 47K 5% 1/4W

R458 1-249-437-11 CARBON 47K 5% 1/4W

R459 1-249-437-11 CARBON 47K 5% 1/4W

R501 1-249-417-11 CARBON 1K 5% 1/4W F

R502 1-249-439-11 CARBON 68K 5% 1/4W

R503 1-249-439-11 CARBON 68K 5% 1/4W

R504 1-247-843-11 CARBON 3.3K 5% 1/4W

R551 1-249-417-11 CARBON 1K 5% 1/4W F

R552 1-249-439-11 CARBON 68K 5% 1/4W

R553 1-249-439-11 CARBON 68K 5% 1/4W

R554 1-247-843-11 CARBON 3.3K 5% 1/4W

R590 1-249-433-11 CARBON 22K 5% 1/4W

!R592 1-249-381-11 CARBON 1 5% 1/4W F

!R593 1-249-381-11 CARBON 1 5% 1/4W F

R594 1-249-425-11 CARBON 4.7K 5% 1/4W F

R601 1-249-417-11 CARBON 1K 5% 1/4W F

R602 1-249-439-11 CARBON 68K 5% 1/4W

R603 1-249-439-11 CARBON 68K 5% 1/4W

R604 1-247-843-11 CARBON 3.3K 5% 1/4W

R651 1-249-417-11 CARBON 1K 5% 1/4W F

R652 1-249-439-11 CARBON 68K 5% 1/4W

R653 1-249-439-11 CARBON 68K 5% 1/4W

R654 1-247-843-11 CARBON 3.3K 5% 1/4W

R655 1-249-409-11 CARBON 220 5% 1/4W F

R656 1-249-409-11 CARBON 220 5% 1/4W F

R690 1-249-433-11 CARBON 22K 5% 1/4W

R701 1-249-417-11 CARBON 1K 5% 1/4W F

R702 1-249-439-11 CARBON 68K 5% 1/4W

R703 1-249-439-11 CARBON 68K 5% 1/4W

R704 1-247-843-11 CARBON 3.3K 5% 1/4W

INPUT

The components identified by mark ! or dotted

line with mark ! are critical for safety.

Replace only with part number specified.

– 83 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

REAR AMP

R751 1-249-417-11 CARBON 1K 5% 1/4W F

R752 1-249-439-11 CARBON 68K 5% 1/4W

R753 1-249-439-11 CARBON 68K 5% 1/4W

R754 1-247-843-11 CARBON 3.3K 5% 1/4W

R790 1-249-433-11 CARBON 22K 5% 1/4W

< RELAY >

RY301 1-515-614-11 RELAY

**************************************************************

*1-670-032-11 JOINT BOARD

***********

< CONNECTOR >

CNP501 1-784-807-11 CONNECTOR, BOARD TO BOARD 13P

CNP651 1-784-807-11 CONNECTOR, BOARD TO BOARD 13P

**************************************************************

*1-670-024-11 LED BOARD

*********

< DIODE >

D100 8-719-070-83 DIODE SELU5E20C-TP15

(MULTI CHANNEL DECODING)

**************************************************************

*A-4414-112-A REAR AMP BOARD, COMPLETE

************************

< CAPACITOR >

C720 1-126-022-11 ELECT 47uF 20% 16V

C721 1-107-597-11 CERAMIC 22PF 10% 500V

C722 1-107-597-11 CERAMIC 22PF 10% 500V

C723 1-162-286-31 CERAMIC 220PF 10% 50V

C725 1-136-157-00 FILM 0.022uF 5% 50V

C770 1-126-022-11 ELECT 47uF 20% 16V

C771 1-107-597-11 CERAMIC 22PF 10% 500V

C772 1-107-597-11 CERAMIC 22PF 10% 500V

C773 1-162-286-31 CERAMIC 220PF 10% 50V

C775 1-136-157-00 FILM 0.022uF 5% 50V

< CONNECTOR >

*CNP701 1-564-241-11 PIN, CONNECTOR (B4P-VH) 4P

CNP711 1-779-977-11 PIN, CONNECTOR 6P

*CNP712 1-564-242-00 PIN, CONNECTOR 5P

CNP713 1-691-765-11 PLUG (MICRO CONNECTOR) 3P

< DIODE >

D701 8-719-911-19 DIODE 1SS119

D702 8-719-109-51 DIODE RD2.0ES-B2

D703 8-719-109-51 DIODE RD2.0ES-B2

D704 8-719-911-19 DIODE 1SS119

D751 8-719-911-19 DIODE 1SS119

D752 8-719-109-51 DIODE RD2.0ES-B2

D753 8-719-109-51 DIODE RD2.0ES-B2

D754 8-719-911-19 DIODE 1SS119

< TRANSISTOR >

Q704 8-729-119-76 TRANSISTOR 2SA1175-HFE

Q708 8-729-140-82 TRANSISTOR 2SA988-PAFAEA

Q754 8-729-119-76 TRANSISTOR 2SA1175-HFE

Q758 8-729-140-82 TRANSISTOR 2SA988-PAFAEA

< RESISTOR >

R702 1-247-881-00 CARBON 120K 5% 1/4W

R721 1-249-433-11 CARBON 22K 5% 1/4W

R722 1-249-422-11 CARBON 2.7K 5% 1/4W F

R723 1-249-414-11 CARBON 560 5% 1/4W F

!R724 1-249-408-11 CARBON 180 5% 1/4W F

!R725 1-249-408-11 CARBON 180 5% 1/4W F

!R726 1-233-352-41 ENCAPSULATED COMPONENT

R727 1-247-850-11 CARBON 6.2K 5% 1/4W

R728 1-249-419-11 CARBON 1.5K 5% 1/4W F

R732 1-249-437-11 CARBON 47K 5% 1/4W

!R733 1-249-393-11 CARBON 10 5% 1/4W F

R752 1-247-881-00 CARBON 120K 5% 1/4W

R771 1-249-433-11 CARBON 22K 5% 1/4W

R772 1-249-422-11 CARBON 2.7K 5% 1/4W F

R773 1-249-414-11 CARBON 560 5% 1/4W F

!R774 1-249-408-11 CARBON 180 5% 1/4W F

!R775 1-249-408-11 CARBON 180 5% 1/4W F

!R776 1-233-352-41 ENCAPSULATED COMPONENT

R777 1-247-850-11 CARBON 6.2K 5% 1/4W

R778 1-249-419-11 CARBON 1.5K 5% 1/4W F

R782 1-249-437-11 CARBON 47K 5% 1/4W

!R783 1-249-393-11 CARBON 10 5% 1/4W F

**************************************************************

*A-4414-109-A REG BOARD, COMPLETE

*******************

7-685-872-09 SCREW +BVTT 3X8 (S)

< CAPACITOR >

C819 1-136-165-00 FILM 0.1uF 5% 50V

C820 1-136-165-00 FILM 0.1uF 5% 50V

C821 1-136-165-00 FILM 0.1uF 5% 50V

C822 1-136-165-00 FILM 0.1uF 5% 50V

C823 1-136-165-00 FILM 0.1uF 5% 50V

C824 1-126-937-11 ELECT 4700uF 20% 16V

C825 1-126-935-11 ELECT 470uF 20% 16V

C826 1-126-935-11 ELECT 470uF 20% 16V

C827 1-126-935-11 ELECT 470uF 20% 16V

C901 1-164-097-11 CERAMIC 0.022uF 50V

C902 1-164-097-11 CERAMIC 0.022uF 50V

C903 1-126-768-11 ELECT 2200uF 20% 16V

C904 1-126-960-11 ELECT 1uF 20% 50V

C905 1-126-959-11 ELECT 0.47uF 20% 50V

C906 1-124-464-11 ELECT 0.22uF 20% 50V

C911 1-164-159-11 CERAMIC 0.1uF 50V

C914 1-164-159-11 CERAMIC 0.1uF 50V

C916 1-164-159-11 CERAMIC 0.1uF 50V

C917 1-164-159-11 CERAMIC 0.1uF 50V

JOINT LED REG

The components identified by mark ! or dotted

line with mark ! are critical for safety.

Replace only with part number specified.

INPUT

– 84 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

ROTARY

< CONNECTOR >

CNP803 1-564-320-00 PIN, CONNECTOR (B2P-VH) 2P

CNP809 1-779-977-11 PIN, CONNECTOR 6P

< DIODE >

D808 8-719-025-03 DIODE RBA-402-SL

D901 8-719-024-99 DIODE 11ES2-NTA2B

D902 8-719-024-99 DIODE 11ES2-NTA2B

D903 8-719-024-99 DIODE 11ES2-NTA2B

D904 8-719-024-99 DIODE 11ES2-NTA2B

D905 8-719-911-19 DIODE 1SS119

D906 8-719-911-19 DIODE 1SS119

< GROUND TERMINAL >

*EB900 1-537-738-21 TERMINAL, EARTH

< FUSE >

!F805 1-532-504-51 FUSE, TIME-LAG (4A/250V)

< FUSE HOLDER >

FH805 1-533-399-31 HOLDER, FUSE

FH855 1-533-399-31 HOLDER, FUSE

< IC >

IC801 8-759-231-53 IC TA7805S

IC802 8-759-445-59 IC BA033T

IC803 8-759-445-59 IC BA033T

IC901 8-759-333-83 IC NJM2103D

< TRANSISTOR >

Q901 8-729-119-79 TRANSISTOR 2SC2785-FEK

Q902 8-729-026-68 TRANSISTOR 2SD2525(TP)

< RESISTOR >

R902 1-249-429-11 CARBON 10K 5% 1/4W

R903 1-249-425-11 CARBON 4.7K 5% 1/4W F

R904 1-249-417-11 CARBON 1K 5% 1/4W F

R905 1-249-428-11 CARBON 8.2K 5% 1/4W F

R906 1-249-421-11 CARBON 2.2K 5% 1/4W F

R908 1-249-433-11 CARBON 22K 5% 1/4W

R909 1-249-439-11 CARBON 68K 5% 1/4W

R910 1-249-437-11 CARBON 47K 5% 1/4W

R912 1-249-430-11 CARBON 12K 5% 1/4W

**************************************************************

*1-670-023-11 ROTARY BOARD

************

< CONNECTOR >

CNS101 1-770-404-11 HOUSING,CONNECTOR(PC BOARD)11P

< DIODE >

D101 8-719-313-45 DIODE SEL6810A-TH10

< RESISTOR >

R101 1-249-411-11 CARBON 330 5% 1/4W

R102 1-249-411-11 CARBON 330 5% 1/4W

< VARIABLE RESISTOR >

RV101 1-467-808-11 ENCODER, ROTARY (FUNCTION)

< SWITCH >

S101 1-762-751-11 SWITCH, TACTILE (MODE)

S102 1-762-751-11 SWITCH, TACTILE (MUTING)

**************************************************************

*1-670-004-11 S-VIDEO BOARD

*************

< CAPACITOR >

C251 1-136-165-00 FILM 0.1uF 5% 50V

C252 1-136-165-00 FILM 0.1uF 5% 50V

C253 1-126-964-11 ELECT 10uF 20% 50V

C254 1-136-165-00 FILM 0.1uF 5% 50V

C255 1-136-165-00 FILM 0.1uF 5% 50V

C256 1-126-964-11 ELECT 10uF 20% 50V

C257 1-136-165-00 FILM 0.1uF 5% 50V

C258 1-126-964-11 ELECT 10uF 20% 50V

C259 1-126-964-11 ELECT 10uF 20% 50V

C260 1-136-165-00 FILM 0.1uF 5% 50V

C261 1-104-664-11 ELECT 47uF 20% 16V

C262 1-164-159-11 CERAMIC 0.1uF 50V

C263 1-164-159-11 CERAMIC 0.1uF 50V

C264 1-104-664-11 ELECT 47uF 20% 16V

C265 1-164-159-11 CERAMIC 0.1uF 50V

C266 1-164-159-11 CERAMIC 0.1uF 50V

C267 1-162-290-31 CERAMIC 470PF 10% 50V

C268 1-162-290-31 CERAMIC 470PF 10% 50V

C269 1-162-290-31 CERAMIC 470PF 10% 50V

C270 1-162-290-31 CERAMIC 470PF 10% 50V

< CONNECTOR >

CNS251 1-784-770-11 CONNECTOR, FFC 9P

< DIODE >

D251 8-719-911-19 DIODE 1SS119

D252 8-719-911-19 DIODE 1SS119

< IC >

IC251 8-759-529-20 IC NJM2296D

IC252 8-759-529-20 IC NJM2296D

< JACK >

J251 1-537-943-11 TERMINAL, S (MONITOR S-VIDEO OUT)

J252 1-764-676-11 CONNECTOR (ROUND TYPE)

(VIDEO1 S-VIDEO OUT/VIDEO1 S-VIDEO IN)

J253 1-764-676-11 CONNECTOR (ROUND TYPE)

(TV/LD S-VIDEO IN/DVD S-VIDEO IN)

REG

The components identified by mark ! or dotted

line with mark ! are critical for safety.

Replace only with part number specified.

S-VIDEO

– 85 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< RESISTOR >

R251 1-247-804-11 CARBON 75 5% 1/4W

R252 1-249-429-11 CARBON 10K 5% 1/4W

R253 1-247-804-11 CARBON 75 5% 1/4W

R254 1-247-804-11 CARBON 75 5% 1/4W

R255 1-247-804-11 CARBON 75 5% 1/4W

R256 1-249-429-11 CARBON 10K 5% 1/4W

R257 1-247-804-11 CARBON 75 5% 1/4W

R258 1-247-804-11 CARBON 75 5% 1/4W

R259 1-247-804-11 CARBON 75 5% 1/4W

R260 1-247-804-11 CARBON 75 5% 1/4W

R261 1-247-804-11 CARBON 75 5% 1/4W

R262 1-247-804-11 CARBON 75 5% 1/4W

**************************************************************

*A-4414-113-A SP-S BOARD, COMPLETE

******************

7-685-872-09 SCREW +BVTT 3X8 (S)

< CAPACITOR >

C624 1-126-059-11 ELECT 10uF 20% 50V

C626 1-136-153-00 FILM 0.01uF 5% 50V

C724 1-126-059-11 ELECT 10uF 20% 50V

C726 1-136-153-00 FILM 0.01uF 5% 50V

C794 1-126-059-11 ELECT 10uF 20% 50V

C795 1-126-941-11 ELECT 470uF 20% 25V

CC41 1-162-290-31 CERAMIC 470PF 10% 50V

CC42 1-162-290-31 CERAMIC 470PF 10% 50V

CC43 1-162-290-31 CERAMIC 470PF 10% 50V

< CONNECTOR >

CNP601 1-564-320-00 PIN, CONNECTOR (B2P-VH) 2P

CNP602 1-784-922-11 PIN, CONNECTOR 5P

CNP603 1-779-977-11 PIN, CONNECTOR 6P

< DIODE >

D543 8-719-911-19 DIODE 1SS119

D605 8-719-911-19 DIODE 1SS119

D606 8-719-911-19 DIODE 1SS119

D607 8-719-911-19 DIODE 1SS119

D649 8-719-911-19 DIODE 1SS119

D705 8-719-911-19 DIODE 1SS119

D706 8-719-911-19 DIODE 1SS119

D749 8-719-911-19 DIODE 1SS119

< IC >

IC702 8-759-605-01 IC M5F78M18L

< JACK >

J501 1-770-157-21 JACK, PIN 2P (WOOFER AUDIO OUT)

< COIL >

L601 1-411-906-11 COIL, AIR-CORE

L701 1-411-906-11 COIL, AIR-CORE

L751 1-411-906-11 COIL, AIR-CORE

< TRANSISTOR >

Q544 8-729-119-79 TRANSISTOR 2SC2785-FEK

Q609 8-729-281-53 TRANSISTOR 2SC1815-GR

Q610 8-729-900-63 TRANSISTOR DTA124ES

Q611 8-729-900-63 TRANSISTOR DTA124ES

Q645 8-729-119-79 TRANSISTOR 2SC2785-FEK

Q709 8-729-281-53 TRANSISTOR 2SC1815-GR

Q710 8-729-900-63 TRANSISTOR DTA124ES

Q745 8-729-119-79 TRANSISTOR 2SC2785-FEK

Q747 8-729-620-05 TRANSISTOR 2SC2603-EF

Q748 8-729-030-19 TRANSISTOR 2SB1640

< RESISTOR >

R543 1-249-429-11 CARBON 10K 5% 1/4W

R544 1-249-425-11 CARBON 4.7K 5% 1/4W F

R545 1-249-411-11 CARBON 330 5% 1/4W F

R629 1-247-866-11 CARBON 30K 5% 1/4W

R630 1-249-422-11 CARBON 2.7K 5% 1/4W F

R631 1-249-433-11 CARBON 22K 5% 1/4W

R634 1-249-389-11 CARBON 4.7 5% 1/4W F

R635 1-249-431-11 CARBON 15K 5% 1/4W

R636 1-249-433-11 CARBON 22K 5% 1/4W

R647 1-249-429-11 CARBON 10K 5% 1/4W

R648 1-249-425-11 CARBON 4.7K 5% 1/4W F

R649 1-249-407-91 CARBON 150 5% 1/4W F

R729 1-247-866-11 CARBON 30K 5% 1/4W

R730 1-249-422-11 CARBON 2.7K 5% 1/4W F

R731 1-249-433-11 CARBON 22K 5% 1/4W

R734 1-249-389-11 CARBON 4.7 5% 1/4W F

R735 1-249-431-11 CARBON 15K 5% 1/4W

R737 1-249-429-11 CARBON 10K 5% 1/4W

R738 1-247-887-00 CARBON 220K 5% 1/4W

R743 1-249-425-11 CARBON 4.7K 5% 1/4W F

R744 1-249-425-11 CARBON 4.7K 5% 1/4W F

R745 1-249-421-11 CARBON 2.2K 5% 1/4W F

R746 1-249-421-11 CARBON 2.2K 5% 1/4W F

R747 1-249-429-11 CARBON 10K 5% 1/4W

R748 1-249-425-11 CARBON 4.7K 5% 1/4W F

R749 1-249-407-91 CARBON 150 5% 1/4W F

R784 1-249-389-11 CARBON 4.7 5% 1/4W F

R787 1-249-429-11 CARBON 10K 5% 1/4W

R788 1-247-887-00 CARBON 220K 5% 1/4W

< RELAY >

RY503 1-515-793-11 RELAY

RY601 1-515-920-11 RELAY (24V)

RY701 1-515-920-11 RELAY (24V)

< SWITCH >

S501 1-692-196-11 SWITCH, SLIDE (IMPEDANCE SELECTOR)

< TERMINAL >

TM701 1-694-431-21 TERMINAL BOARD (SP)(SPEAKERS)

**************************************************************

SP-SS-VIDEO

– 86 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

TUNER

*1-670-018-11 SP SW BOARD

***********

< CONNECTOR >

CNS106 1-770-404-11 HOUSING,CONNECTOR(PC BOARD)11P

< DIODE >

D120 8-719-911-19 DIODE 1SS119

D121 8-719-911-19 DIODE 1SS119

< RESISTOR >

R168 1-249-415-11 CARBON 680 5% 1/4W F

R169 1-249-417-11 CARBON 1K 5% 1/4W F

R170 1-249-419-11 CARBON 1.5K 5% 1/4W F

R172 1-249-421-11 CARBON 2.2K 5% 1/4W F

< SWITCH >

S105 1-762-751-11 SWITCH, TACTILE (SHIFT)

S131 1-762-751-11 SWITCH, TACTILE (1/u)

S132 1-762-751-11 SWITCH, TACTILE (DISPLAY)

S133 1-762-751-11 SWITCH, TACTILE (PRESET TUNING +)

S134 1-762-268-11 SWITCH, ROTARY (SPEAKERS)

S139 1-762-751-11 SWITCH, TACTILE (FM/AM)

S146 1-762-751-11 SWITCH, TACTILE (PRESET TUNING -)

**************************************************************

*1-670-017-11 SW BOARD

********

< CAPACITOR >

C113 1-164-159-11 CERAMIC 0.1uF 50V

C114 1-164-159-11 CERAMIC 0.1uF 50V

C118 1-164-159-11 CERAMIC 0.1uF 50V

< DIODE >

D104 8-719-046-39 DIODE SEL5821A-TH15

D105 8-719-046-39 DIODE SEL5821A-TH15

D106 8-719-046-39 DIODE SEL5821A-TH15

< RESISTOR >

R124 1-249-411-11 CARBON 330 5% 1/4W

R136 1-249-413-11 CARBON 470 5% 1/4W F

R137 1-249-411-11 CARBON 330 5% 1/4W

R140 1-249-415-11 CARBON 680 5% 1/4W F

R144 1-249-417-11 CARBON 1K 5% 1/4W F

R148 1-249-419-11 CARBON 1.5K 5% 1/4W F

R152 1-249-421-11 CARBON 2.2K 5% 1/4W F

R156 1-249-425-11 CARBON 4.7K 5% 1/4W F

R166 1-249-411-11 CARBON 330 5% 1/4W

R167 1-249-413-11 CARBON 470 5% 1/4W F

R173 1-249-421-11 CARBON 2.2K 5% 1/4W F

R174 1-249-419-11 CARBON 1.5K 5% 1/4W F

R175 1-249-415-11 CARBON 680 5% 1/4W F

R176 1-249-413-11 CARBON 470 5% 1/4W F

R177 1-249-411-11 CARBON 330 5% 1/4W

R178 1-249-417-11 CARBON 1K 5% 1/4W F

< SWITCH >

S103 1-762-751-11 SWITCH, TACTILE (INPUT MODE)

S104 1-762-751-11 SWITCH, TACTILE (RDS-PTY)

S107 1-762-751-11 SWITCH, TACTILE (5.1 INPUT)

S108 1-762-751-11 SWITCH, TACTILE (RDS-EON)

S111 1-762-751-11 SWITCH, TACTILE (EQ ON/OFF)

S115 1-762-751-11 SWITCH, TACTILE (SOUND FIELD-GENRE)

S119 1-762-751-11 SWITCH, TACTILE (SOUND FIELD-MODE)

S123 1-762-751-11 SWITCH, TACTILE (SOUND FIELD-ON/OFF)

S135 1-762-751-11 SWITCH, TACTILE (<)

S136 1-762-751-11 SWITCH, TACTILE (∧)

S137 1-762-751-11 SWITCH, TACTILE (>)

S140 1-762-751-11 SWITCH, TACTILE (SET UP)

S141 1-762-751-11 SWITCH, TACTILE (CURSOR MODE)

S142 1-762-751-11 SWITCH, TACTILE (MEMORY)

S143 1-762-751-11 SWITCH, TACTILE (FM MODE)

S144 1-762-751-11 SWITCH, TACTILE (TUNING +)

S145 1-762-751-11 SWITCH, TACTILE (TUNING -)

S147 1-762-751-11 SWITCH, TACTILE (∨)

**************************************************************

*1-670-000-11 TUNER BOARD

***********

< CAPACITOR >

C1 1-162-207-31 CERAMIC 22PF 5% 50V

C2 1-126-961-11 ELECT 2.2uF 20% 50V

C3 1-126-960-11 ELECT 1uF 20% 50V

C4 1-162-306-11 CERAMIC 0.01uF 20% 16V

C5 1-162-291-31 CERAMIC 560PF 10% 50V

C6 1-164-068-11 CERAMIC 82PF 5% 50V

C7 1-164-062-11 CERAMIC 47PF 5% 50V

C381 1-164-159-11 CERAMIC 0.1uF 50V

C382 1-161-494-00 CERAMIC 0.022uF 30% 25V

< CONNECTOR >

CNS304 1-564-721-11 PIN, CONNECTOR (SMALL TYPE) 5P

CNS305 1-774-289-11 PIN, CONNECTOR (PC BOARD) 15P

< IC >

IC1 8-759-450-86 IC BU1922

< COIL >

L1 1-410-521-11 INDUCTOR 100uH

< RESISTOR >

R1 1-247-807-31 CARBON 100 5% 1/4W

R2 1-247-807-31 CARBON 100 5% 1/4W

R3 1-249-385-11 CARBON 2.2 5% 1/6W F

< VIBRATOR >

X1 1-579-900-21 VIBRATOR, CRYSTAL (4.33MHz)

**************************************************************

SWSP SW

– 87 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

*1-670-003-11 VIDEO BOARD

***********

< CAPACITOR >

C201 1-126-964-11 ELECT 10uF 20% 50V

C202 1-126-964-11 ELECT 10uF 20% 50V

C203 1-126-964-11 ELECT 10uF 20% 50V

C204 1-126-964-11 ELECT 10uF 20% 50V

C205 1-162-215-31 CERAMIC 47PF 5% 50V

C206 1-162-215-31 CERAMIC 47PF 5% 50V

C207 1-162-215-31 CERAMIC 47PF 5% 50V

C208 1-126-964-11 ELECT 10uF 20% 50V

C209 1-164-159-11 CERAMIC 0.1uF 50V

C210 1-164-159-11 CERAMIC 0.1uF 50V

C211 1-164-159-11 CERAMIC 0.1uF 50V

C212 1-164-159-11 CERAMIC 0.1uF 50V

C213 1-126-933-11 ELECT 100uF 20% 16V

C214 1-126-933-11 ELECT 100uF 20% 16V

< CONNECTOR >

*CNS210 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P

CNS211 1-784-733-11 CONNECTOR, FFC 11P

CNS212 1-784-731-11 CONNECTOR, FFC 9P

< DIODE >

D201 8-719-911-19 DIODE 1SS119

D202 8-719-911-19 DIODE 1SS119

< IC >

IC201 8-759-529-20 IC NJM2296D

IC202 8-759-701-65 IC NJM79M05FA

< JACK >

J201 1-766-399-11 JACK, PIN 3P (VIDEO1 VIDEO OUT, VIDEO IN/

MONITOR VIDEO OUT)

J202 1-766-400-11 JACK, PIN 2P (VIDEO2 VIDEO OUT, VIDEO IN)

J203 1-766-400-11 JACK, PIN 2P (TV/LD VIDEO IN, DVD VIDEO IN)

J204 1-563-330-11 JACK (S-LINK CTRL A1)

< RESISTOR >

R201 1-247-804-11 CARBON 75 5% 1/4W

R202 1-247-804-11 CARBON 75 5% 1/4W

R203 1-247-804-11 CARBON 75 5% 1/4W

R204 1-247-804-11 CARBON 75 5% 1/4W

R205 1-247-804-11 CARBON 75 5% 1/4W

R206 1-247-804-11 CARBON 75 5% 1/4W

R207 1-247-804-11 CARBON 75 5% 1/4W

**************************************************************

*1-670-019-11 VOLUME BOARD

************

< CAPACITOR >

C410 1-126-233-11 ELECT 22uF 20% 50V

C411 1-126-233-11 ELECT 22uF 20% 50V

C412 1-126-233-11 ELECT 22uF 20% 50V

C413 1-162-199-31 CERAMIC 10PF 5% 50V

C414 1-162-199-31 CERAMIC 10PF 5% 50V

C415 1-162-199-31 CERAMIC 10PF 5% 50V

C421 1-162-286-31 CERAMIC 220PF 10% 50V

C422 1-162-286-31 CERAMIC 220PF 10% 50V

C423 1-162-286-31 CERAMIC 220PF 10% 50V

C460 1-126-233-11 ELECT 22uF 20% 50V

C461 1-126-233-11 ELECT 22uF 20% 50V

C462 1-126-233-11 ELECT 22uF 20% 50V

C463 1-162-199-31 CERAMIC 10PF 5% 50V

C464 1-162-199-31 CERAMIC 10PF 5% 50V

C465 1-162-199-31 CERAMIC 10PF 5% 50V

C471 1-162-286-31 CERAMIC 220PF 10% 50V

C472 1-162-286-31 CERAMIC 220PF 10% 50V

C473 1-162-286-31 CERAMIC 220PF 10% 50V

< CONNECTOR >

CNP102 1-770-388-11 PIN, CONNECTOR (PC BOARD) 4P

CNP103 1-564-721-11 PIN, CONNECTOR (SMALL TYPE) 5P

*CNS402 1-564-726-11 PIN, CONNECTOR (SMALL TYPE)10P

< IC >

IC408 8-759-634-50 IC M5218AL

IC409 8-759-634-50 IC M5218AL

IC410 8-759-634-50 IC M5218AL

< RESISTOR >

R110 1-249-411-11 CARBON 330 5% 1/4W

R413 1-249-437-11 CARBON 47K 5% 1/4W

R414 1-249-437-11 CARBON 47K 5% 1/4W

R415 1-249-437-11 CARBON 47K 5% 1/4W

R416 1-249-429-11 CARBON 10K 5% 1/4W

R417 1-247-843-11 CARBON 3.3K 5% 1/4W

R418 1-249-437-11 CARBON 47K 5% 1/4W

R419 1-249-437-11 CARBON 47K 5% 1/4W

R420 1-249-437-11 CARBON 47K 5% 1/4W

R421 1-249-437-11 CARBON 47K 5% 1/4W

R463 1-249-437-11 CARBON 47K 5% 1/4W

R464 1-249-437-11 CARBON 47K 5% 1/4W

R465 1-249-437-11 CARBON 47K 5% 1/4W

R466 1-249-429-11 CARBON 10K 5% 1/4W

R467 1-247-843-11 CARBON 3.3K 5% 1/4W

R468 1-247-843-11 CARBON 3.3K 5% 1/4W

R469 1-249-437-11 CARBON 47K 5% 1/4W

R470 1-249-437-11 CARBON 47K 5% 1/4W

R471 1-249-437-11 CARBON 47K 5% 1/4W

< VARIABLE RESISTOR >

RV401 1-225-445-11 RES, VAR, CARBON 100KX6 (MASTER VOLUME)

**************************************************************

MISCELLANEOUS

*************

6 1-769-904-11 WIRE (FLAT TYPE)(9 CORE)

8 1-693-409-11 TUNER

!14 1-769-744-11 CORD, POWER

18 1-769-876-11 WIRE (FLAT TYPE)(7 CORE)

VOLUMEVIDEO

The components identified by mark ! or dotted

line with mark ! are critical for safety.

Replace only with part number specified.

– 88 –

STR-DB925

Ref. No. Part No. Description Remark

The components identified by mark ! or dotted

line with mark ! are critical for safety.

Replace only with part number specified.

71 1-773-163-11 WIRE (FLAT TYPE)(21 CORE)

72 1-769-961-11 WIRE (FLAT TYPE)(11 CORE)

109 1-773-285-11 WIRE (FLAT TYPE)(29 CORE)

!CNJ909 1-526-794-11 OUTLET, AC

FL101 1-517-781-11 INDICATOR TUBE, FLUORESCENT

Q505 8-729-209-15 TRANSISTOR 2SD2012

Q506 8-749-010-25 IC MN2488-OPY-M

Q507 8-749-010-26 IC MP1620-OPY-M

Q555 8-729-209-15 TRANSISTOR 2SD2012

Q556 8-749-010-25 IC MN2488-OPY-M

Q557 8-749-010-26 IC MP1620-OPY-M

Q605 8-729-209-15 TRANSISTOR 2SD2012

Q606 8-749-010-25 IC MN2488-OPY-M

Q607 8-749-010-26 IC MP1620-OPY-M

Q705 8-729-209-15 TRANSISTOR 2SD2012

Q706 8-749-010-25 IC MN2488-OPY-M

Q707 8-749-010-26 IC MP1620-OPY-M

Q755 8-729-209-15 TRANSISTOR 2SD2012

Q756 8-749-010-25 IC MN2488-OPY-M

Q757 8-749-010-26 IC MP1620-OPY-M

!T901 1-431-889-11 TRANSFORMER, POWER

**************************************************************

ACCESSORIES & PACKING MATERIALS

*******************************

1-475-726-12 REMOTE COMMANDER (RM-LJ301)

1-501-374-11 ANTENNA, LOOP

3-864-441-11 MANUAL, INSTRUCTION (RM-LJ301)(ENGLISH)

3-864-441-21 MANUAL, INSTRUCTION (RM-LJ301)

(FRENCH,SPANISH)

3-864-441-41 MANUAL, INSTRUCTION (RM-LJ301)(DUTCH,

SWEDISH,GERMAN,ITALIAN,PORTUGUESE)

3-864-483-71 MANUAL, INSTRUCTION

(ENGLISH,FRENCH,DUTCH,SWEDISH)

3-864-483-81 MANUAL, INSTRUCTION

(GERMAN,SPANISH,ITALIAN,PORTUGUESE)

4-210-990-01 LID (RM-LJ301), BATTERY CASE (For RM-LJ301)

4-212-261-01 COVER (FRONT)(For RM-LJ301)

**************************************************************

*************

HARDWARE LIST

*************

#1 7-685-885-09 SCREW +BVTT 4X16 (S)

#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

#3 7-685-132-19 SCREW +BTP 2.6X5 TYPE2 N-S

Sony Corporation

Home A&V Products Company9-922-932-11

98G0953-1

Published by Quality Assurance Dept.

(Shibaura)

STR DB925

Navigation menu

Versions of this User Manual:

Views

Navigation
