IP Camera

CMOS Full HD Network 10x AF Zoom

Camera

VCC-HD4000P

P. 7

1/3” Color CCD E-Day/night Box-type

H.264/JPEG Camera

VCC-N6695P

Electronic Day/Night function

E-

P. 1 0

Weatherproof AF Zoom Network Camera

VCC-XZN600P

P.11

AF Zoom Network Camera

VCC-ZMN600P

P.11

Vandal-resistant PTZ Network

Dome Camera

VDC-DPN9585P

P.13

Indoor mini PTZ Network Dome Camera

VCC-PN9575P

P.13

Specialty

Camera

High-resolution 36x AF

Speed Dome Camera

VCC-9800P E

P.21

High-resolution 36x AF

Speed Dome Camera

VCC-9700P E

P.21

High-resolution 30x AF

Speed Dome Camera

VCC-9600P E

P.22

High-resolution 30x AF

Speed Dome Camera

VCC-9500P E

P.22

High-resolution Weatherproof AF Zoom

Camera

VCC-XZ600P

P.25

High-resolution AF Zoom Camera

VCC-ZM600P

P.25

10x

Optical Zoom

30x

Optical Zoom

30x

Optical Zoom

2.6 x

Pan-Focus Lens

2.6 x

Pan-Focus Lens

36x

Optical Zoom

30x

Optical Zoom

30x

Optical Zoom

36x

Optical Zoom

30x

Optical Zoom

30x

Optical Zoom

High-resolution AF Zoom Camera

VCC-ZM500P

P.26

Vandal-resistant

Camera

High-resolution

Vandal-resistant IR Dome

Camera with IR LED

VDC-D1785IRVP

P.27

High-resolution WDR Vandal-resistant

Dome Camera

VDC-W1595VP

P.28

High-resolution Vandal-resistant

Dome Camera

VDC-D1585VP

P.28

High-resolution Vandal-resistant

Dome Camera

VDC-C1575VP

P.28

Pan-focus

Camera

High-resolution Weatherproof Camera

VCC-XZ200P

P.30

High-resolution Vandal-resistant

PTZ Dome Camera

VDC-DP9585P

P.31

High-resolution Indoor mini

PTZ Dome Camera

VCC-P9575P

P.31

High-resolution Vandal-resistant

Dome Camera

VDC-DP7585P

P.33

High-resolution Indoor mini Dome Camera

VCC-P7575PA

P.33

Camera

1/3” COMS High-resolution WDR

Day/night Camera

VCC-WD8875P

P.37

1/3” COMS High-resolution WDR

Day/night Camera

VCC-WD8870P

P.37

1/3” COMS High-resolution

WDR Camera

VCC-W8775P

P.38

1/3” COMS High-resolution WDR Camera

VCC-W8770P

P.38

Indoor mini Dome Camera

VCC-9685VP

P.39

1/3” Color CCD High-resolution

Day/night Camera

VCC-4795P E

P.40

1/3” Color CCD High-resolution

Day/night Camera

VCC-4790P E

P.40

1/3” Color CCD E-Day/night

High-resolution Camera

VCC-6695P

Electronic Day/Night function

E-

P.41

1/3” Color CCD E-Day/night

High-resolution Camera

VCC-6690P

Electronic Day/Night function

E-

P.41

1/3” Color CCD High-resolution Camera

VCC-5995P

P.41

Dummy Camera

VC-0410

P.42

Dummy Camera

VC-0450

P.42

Lens

Standard Vari-focal IR Lens for 1/3” CCD

Camera (f=2.8 to 11 mm)

VA-13VG2811ASIR

P.43

Standard Vari-focal Lens for 1/3” CCD

Camera (f=3 to 8 mm)

VA-13VG308AS

P.43

Standard Vari-focal IR Lens for 1/3” CCD

Camera (f=3 to 8 mm)

VA-13VG308ASIR

P.43

Tele Vari-focal Lens for 1/3” CCD Camera

(f=5 to 50 mm)

VA-13VG550T-LY

P.43

Camera

accessories

Hard Disk Case for VCC-HD4000P

VA-HDC4000

P. 9

Wide Conversion Lens for VCC-HD4000P

VCP-L07W

P. 9

120 GB 2.5” HDD for VCC-HD4000P

VA-HD2120

P. 9

4 GB SD Memory Card for VCC-HD4000P

VA-SD004

P. 9

H.264 / JPEG Network Board for

VCC-9800P E

VCC-9700P E

VCC-9600P E

VCC-9500P E

VA-82LAN

P. 1 5

JPEG Network Board for

VCC-9800P E

VCC-9700P E

VCC-9600P E

VCC-9500P E

VA-80LAN

P. 1 5

JPEG Network Board (PoE) for

VDC-DP7585P /

VCC-P7575PA

VA-51LAN

P. 1 5

JPEG Network Board for

VDC-DP7585P /

VCC-P7575PA

VA-50LAN

P. 1 5

JPEG Network Board for VCC-XZ200P

VA-20LAN

P. 1 5

SSP + Twisted Pair Board for

VDC-DP7585P / VCC-P7575PA

VA-50ST P.33

SSP + Twisted Pair Board

for VCC-XZ200P

VA-20ST P.30

Twisted Pair Board

for VCC-9685VP

VA-10T

P.39

Heater Board for VCC-XZ200P /

VDC-DPN9585P / DP9585P / DP7585P

VA-50H P.34

Products Line Up 2009

2.6 x

Pan-Focus Lens

2.3 x

Vari-focal Lens 2.9 x

Vari-focal Lens

3.2x

Vari-focal Lens

2.3 x

Vari-focal Lens

2.3 x

Vari-focal Lens

2.6 x

Pan-Focus Lens

2.6 x

Pan-Focus Lens

2.6 x

Pan-Focus Lens

2.6 x

Pan-Focus Lens

30x

Optical Zoom

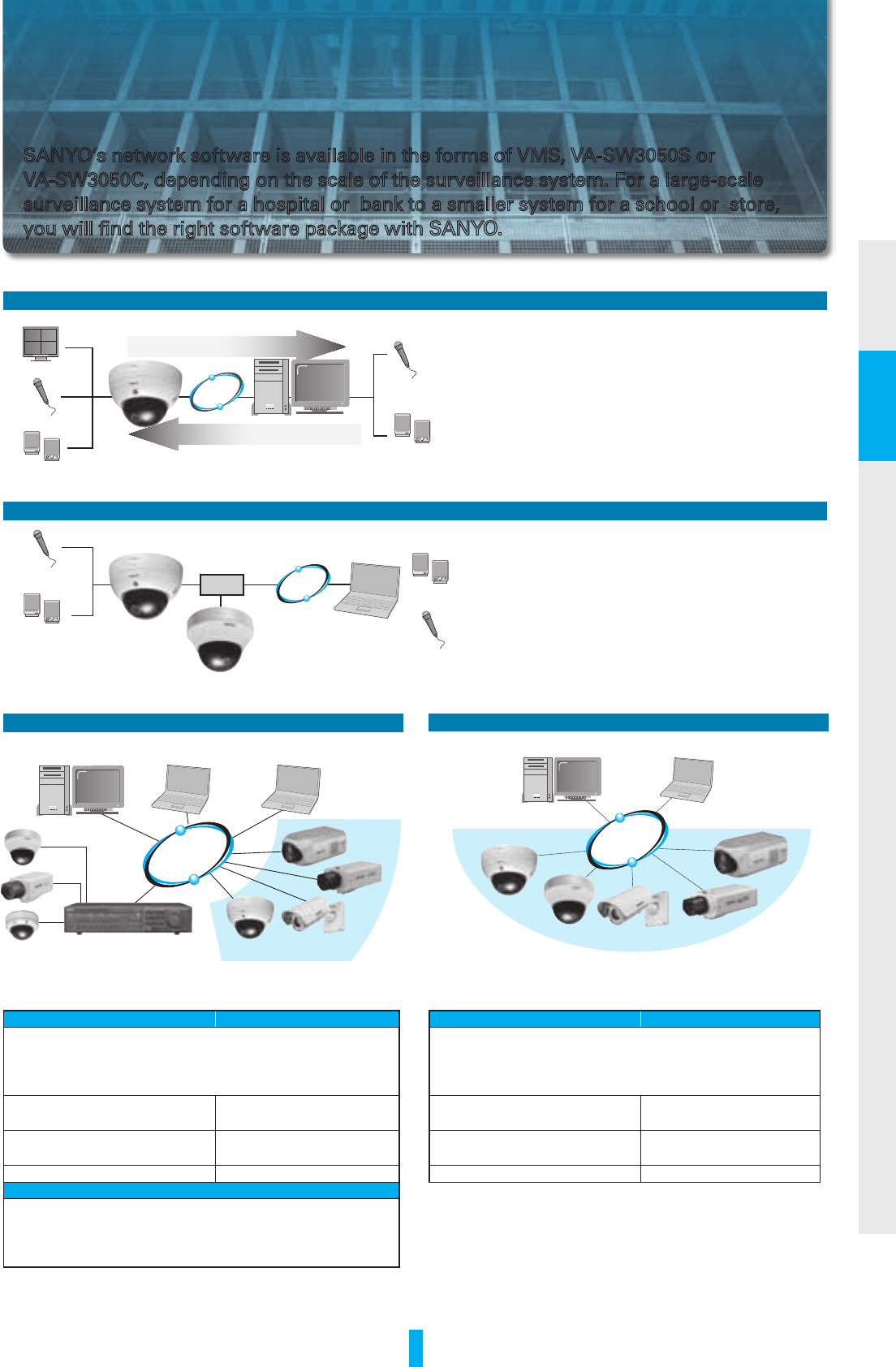

SANYO Video Management Software (VMS)

VA-SW50 (Advanced)

VA-SW60 (Enterprise)

P.17

Network Recorder

Software

VA-SW3050S/C

Network

Software

VA-SW3050LITE

P.18

Attachment (Indoor use) Adaptor Bracket

for VCC-9800P E / 9700P E

9600P E / 9500P E

VA-80A

P.24

Adaptor Bracket

for VCC-9800P E / 9700P E

9600P E / 9500P E

VA-80AB

P.24

Corner Mounting Adaptor

for VCC-9800P E / 9700P E

9600P E / 9500P E

VA-80AC

P.24

Pole Mounting Bracket

for VCC-9800P E / 9700P E

9600P E / 9500P E

VA-80AP

P.24

Pendant Mounting Bracket

for VCC-9800P E / 9700P E

9600P E / 9500P E

VA-80BP

P.24

Wall Mounting Bracket for

VCC-9800P E / 9700P E

9600P E / 9500P E

VA-80BW

P.24

Outdoor Housing for

VCC-9800P E / 9700P E

9600P E / 9500P E

VA-80EX

P.24

Surface Cover for

VCC-9800P E / 9700P E

9600P E / 9500P E

VA-80F

P.24

Clear Dome Cover (outdoor housing) for

VCC-9800P E / 9700P E

9600P E / 9500P E

VA-CM8C

P.24

Smoked Dome Cover (outdoor housing)

for VCC-9800P E / 9700P E

9600P E / 9500P E

VA-CM8S

P.24

Smoked Dome Cover (indoor housing)

for VCC-9800P E / 9700P E

9600P E / 9500P E

VA-CZ80

P.24

In-Ceiling Bracket (closed type) for

VCC-9800P E / 9700P E

9600P E / 9500P E

VA-80ME

P.24

Attachment for VDC-DPN9585P /

DP9585P / DP7585P

VA-50AL

P.34

Attachment for VDC-W1595VP /

VDC-D1585VP / VDC-C1575VP

VA-50AM

P.34

Attachment for VCC-PN9575P / P9575P /

P7575PA / 9685VP

VA-50AS

P.34

Pendant Mounting Bracket

(long) for VA-50AL / VA-50AM

VA-50AS

VA-50BPL

P.34

Pendant Mounting Bracket

(short) for VA-50AL / VA-50AM

VA-50AS

VA-50BPS

P.34

Wall Mounting Bracket

for VA-50AL / VA-50AM

VA-50AS

VA-50BW

P.34

In-Ceiling Bracket

VA-DK02

P.34

Smoked Cover for VCC-PN9575P /

P9575P / P7575PA / 9685VP

VCZ-50

P.34

Half-Mirror Cover for VCC-PN9575P /

P9575P / P7575PA / 9685VP

VCZ-51

P.34

Camera Control Unit

VAC-70

P.42

Camera Mount

VA-VCT31

P.42

Dome Camera housing

VA-CDH60

(Smoked cover)

VA-CDH60C

(Clear cover)

P.42

DVR

16-channel Hybrid DVR

DSR-HB8000

P.49

16-channel DVR

DSR-5716P

P.51

9-channel DVR

DSR-5709P

P.51

16-channel DVR

DSR-3716PA

P.53

9-channel DVR

DSR-3709PA

P.53

16-channel DVR

DSR-2016

P.55

4-channel DVR

DSR-2004

P.55

DVR

accessories

External HDD Unit for DSR-5709P /

DSR-5716P with VZU-SATB1

VA-EXH

P. 4 8

Disc Writer Unit

for DSR-5709P / DSR-5716P

VA-EXD1 B

P. 4 8

Disc Writer Unit

for DSR-3709PA DSR-3716PA

VA-EXD1 W

P. 4 8

SCSI Board

for DSR-5709P / DSR-5716P

VZU-SCB1

P. 4 8

S- ATA Board

for DSR-5709P / DSR-5716P

VZU-SATB1

P. 4 8

DVR Utility Software

for DSR-2016 / DSR-2004

DVR Utility 2000S

P. 5 6

Rack Mount

Bracket

Rack Mount Bracket (1U)

VA-RACMK1

P. 4 8

Rack Mount Bracket (2U)

VA-RACMK2

P. 4 8

Rack Mount Bracket

for DSR-2016

VA-RACMK3

P. 4 8

SSP Control Unit

SSP System Controller

VSP-9000

P.5 7

SSP System Controller

VSP-8500

P. 5 8

SSP System Controller

VSP-3000

P. 5 9

Monitor

19" High Performance

Professional LCD Monitor

VMC-L2019P

P. 6 0

17" High Performance

Professional LCD Monitor

VMC-L2017P

P. 6 0

LCD Monitor

Bracket

Wall Mounting Bracket

VA-BWM2

P. 6 0

Arm Bracket

VA-AWM3

P. 6 0

MPEG-4

JPEG2000

MPEG-4

M-JPEG

Lens is optional for the models with an asterisk (*).

VCC-9700P E

P.21

DSR-5709P

P.51

16 or 9 ch

16 ch

VA-EXH

P.48

Optional item for DSR-5716P / DSR-5709P

Optional item for VCC-HD4000P

DSR-3716PA

P.53

DSR-3709PA

P.53

DSR-2016

P.55

DSR-2004

P.55

DSR-5716P

P.51

DSR-HB8000

P.49

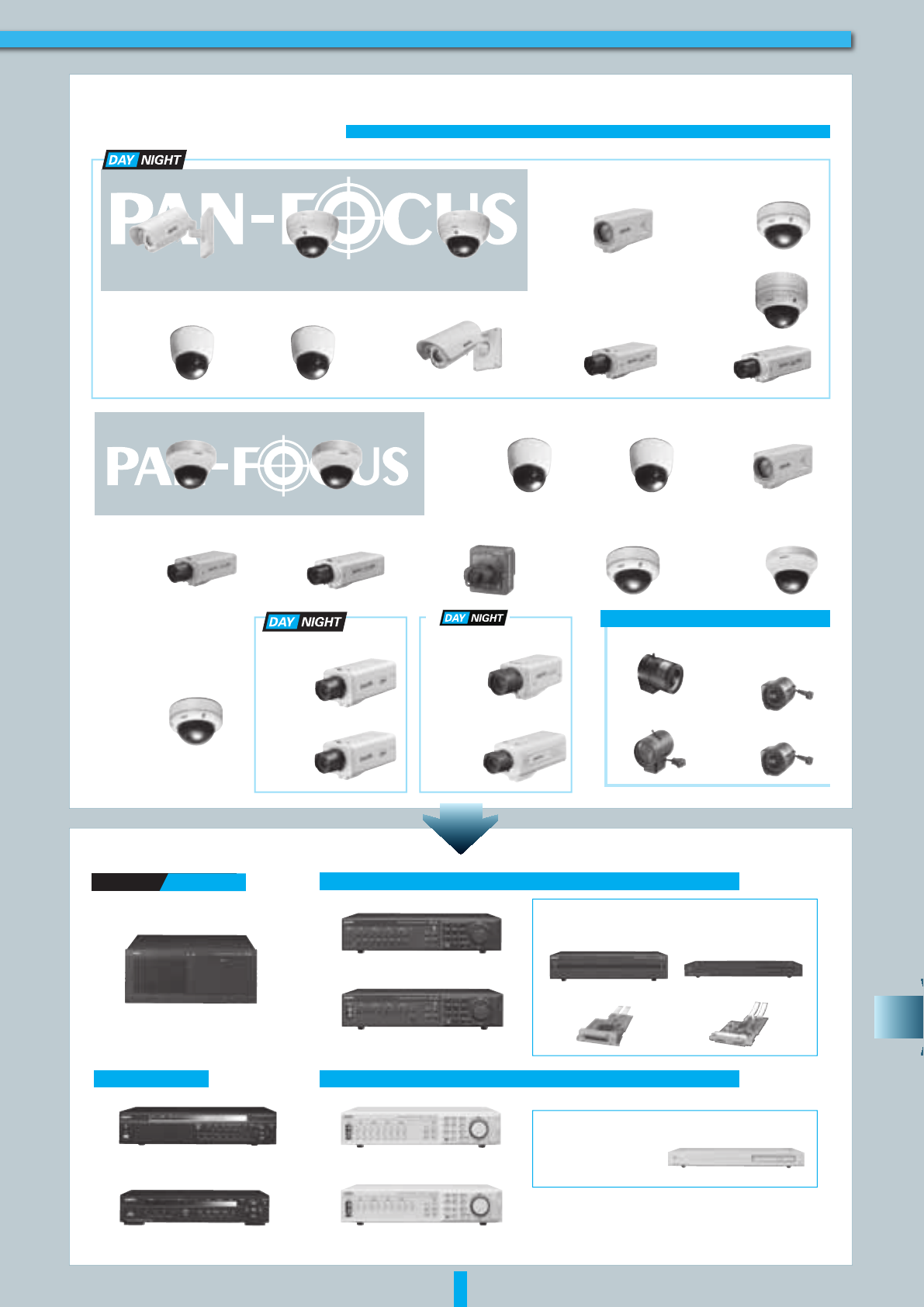

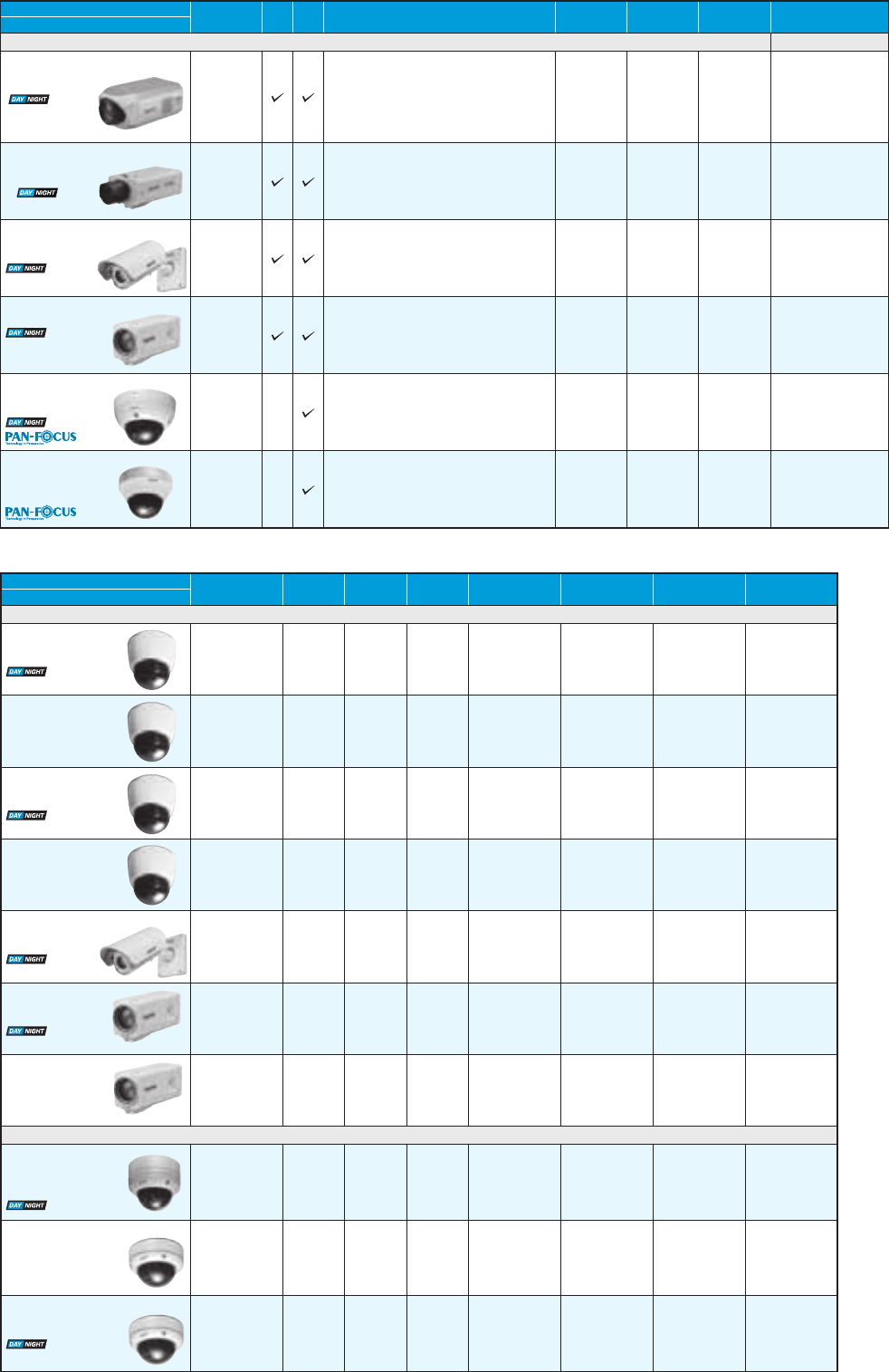

Camera Selection

DVR Selection by Compression

DVR Selection by

Compression

IP Camera

Network Software

SSP Control Unit

*Lens

(sold separately)

M-JPEG

16 or 4 ch

MPEG-4

Surveillance from a remote location is

possible by installing DVR Utility Software.

Remote surveillance

Each DVR comes

with a LAN

terminal. By

connecting to a PC,

remote surveillance

and remote control

over a network is possible.

* As for the DSR-300P, optional board VZU-COM300

is necessary.

Exclusive software

for DSR-5716P

DSR-5709P / DSR-3716PA

DSR-3709PA / DSR-3706PA*

(*supplied separately)

JPEG2000

Hybrid MPEG-4

Exclusive software

for DSR-HB8000

Central Management Software

CMS

VCC-9685VP

P.39

Color

Wide Dynamic Range

Camera

VDC-W1595VP

P.28

VCC-9500P E

P.22

VDC-DPN9585P

P.13

VCC-9800P E

P.21

VCC-9600P E

P.22

VCC-ZMN600P

P.11

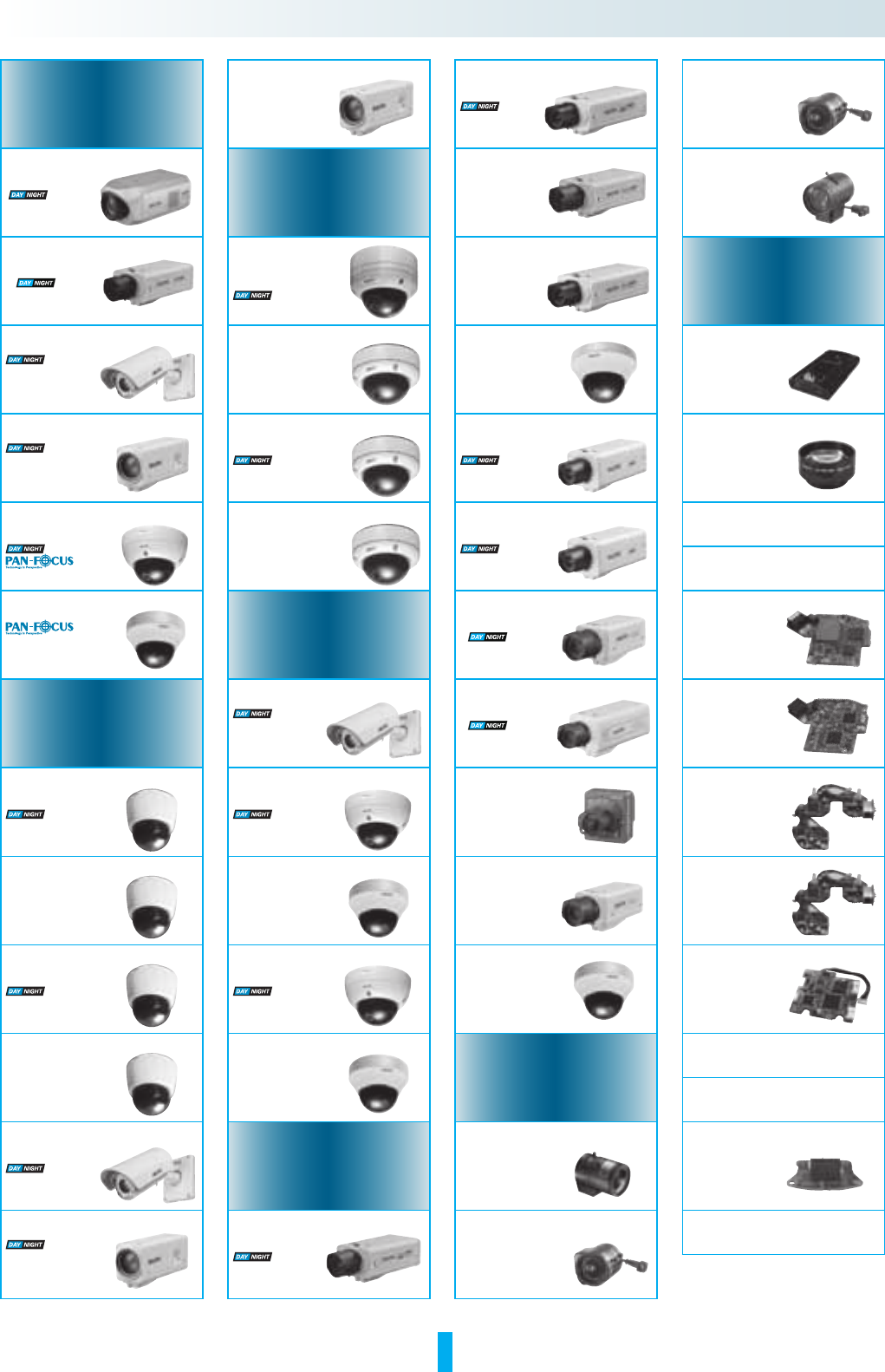

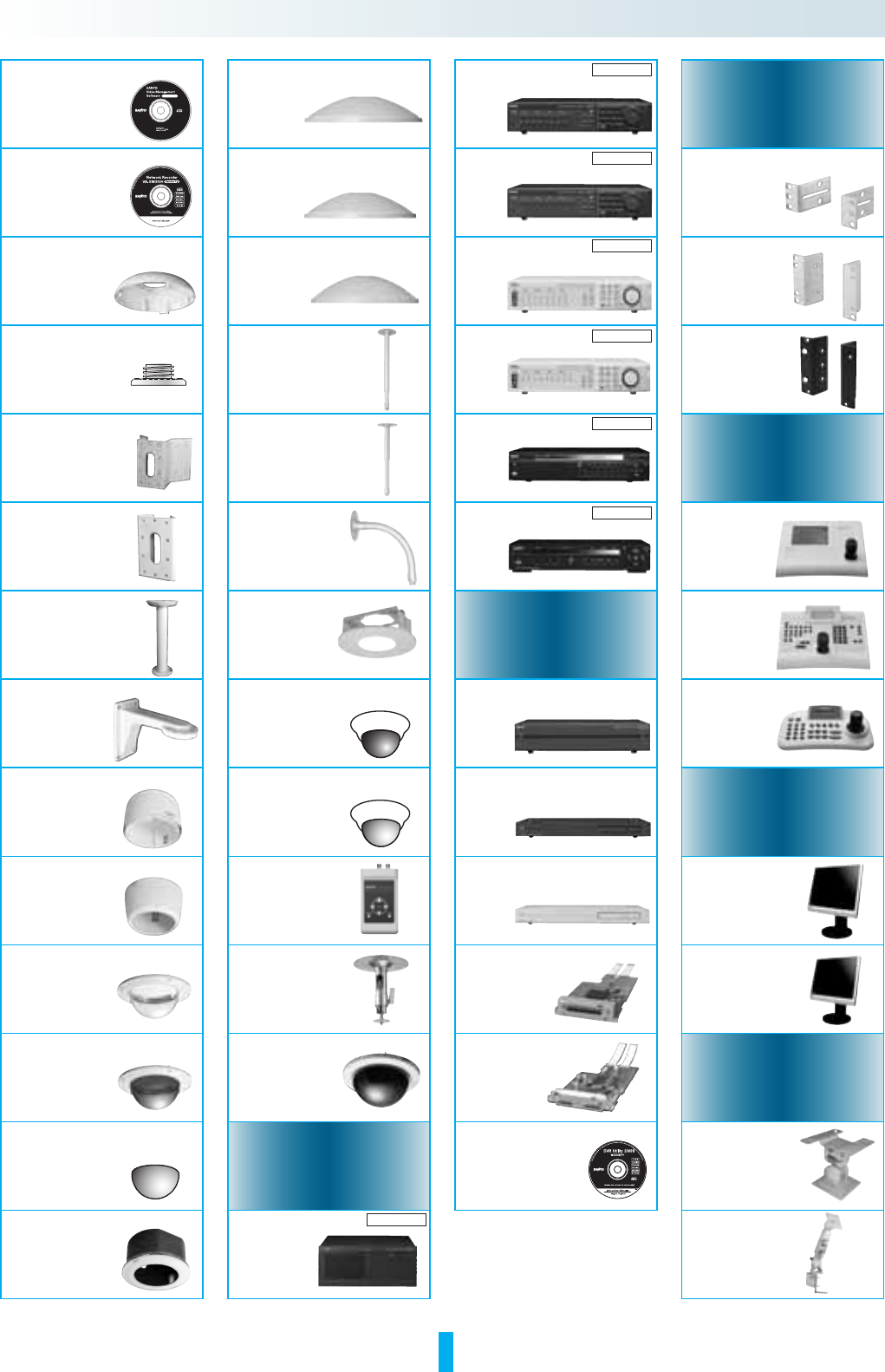

Item line Up

Super High Resolution Camera

Optional item

Network Recorder

VA-SW3050S

(Server)

VA-SW3050C

(Client)

P.18

Optional item

Video Management

Software (VMS)

VA-SW50 (Advanced)

VA-SW60 (Enterprise)

P. 17 Bundled item

VA-SW3050LITE

(Viewer Software) P.18

LAN Board

Optional item

VA-82LAN (for VCC-9800P E / 9700P E / 9600P E / 9500P E)

VA-80LAN (for VCC-9800P E / 9700P E / 9600P E / 9500P E)

VA-51LAN (for VDC-DP7585P / VCC-7575PA)

VA-50LAN (for VDC-DP7585P / VCC-7575PA)

VA-20LAN (for VCC-XZ200P)

P. 15

VCC-HD4000P

P.7

Wide Conversion Lens

VCP-L07W

P.9

VCC-XZ600P

P.25

VCC-ZM500P

P.26

VA-EXD1 B

P.48

VMC-L2019P

P.60

VMC-L2017P

P.60

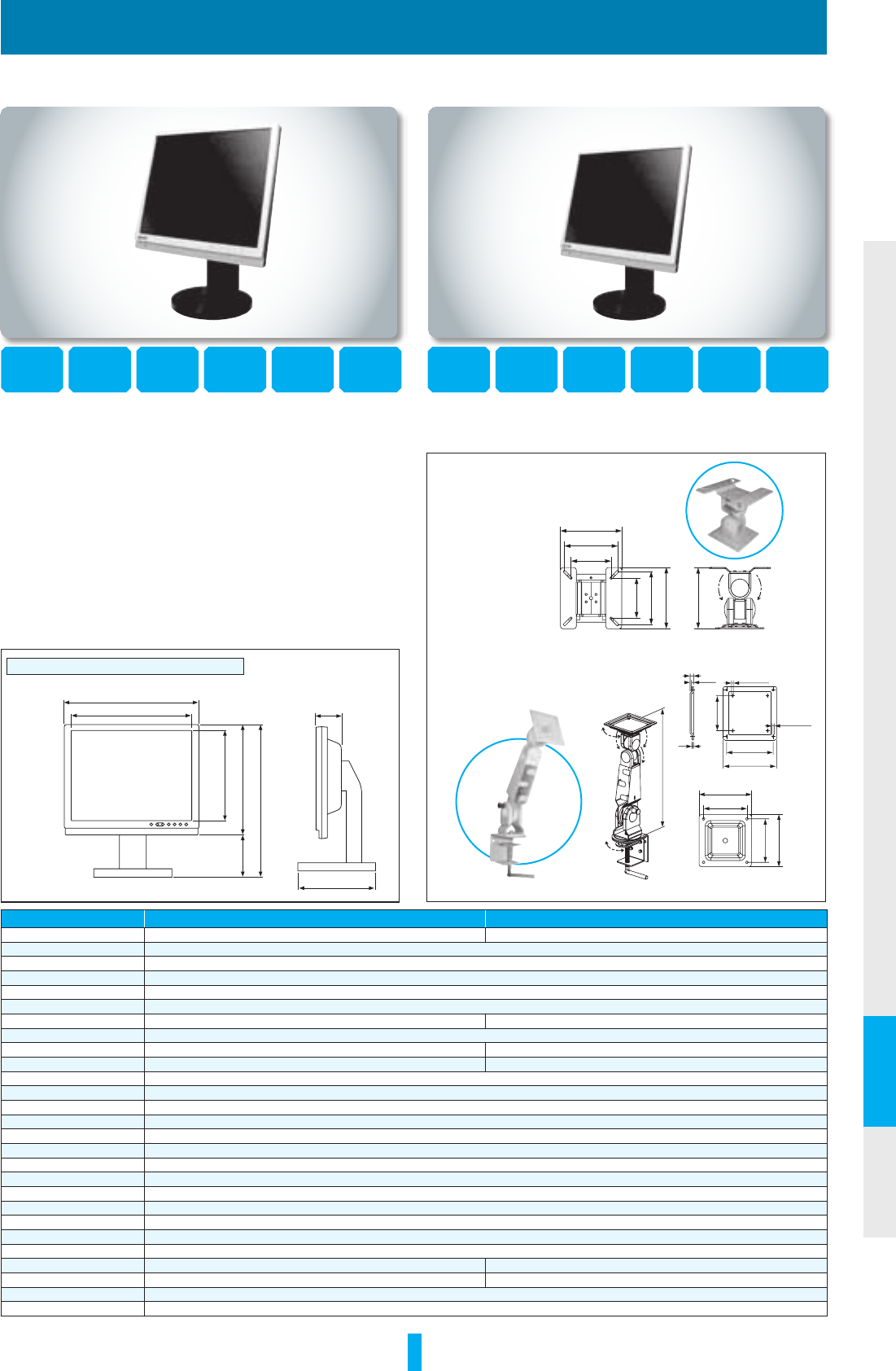

LCD Monitor

VCC-XZN600P

P.11

VCC-N6695P*

P.10

30x

Optical zoom

10x

Optical zoom

30x

Optical zoom

540TVL

36x

Optical zoom

540TVL

36x

Optical zoom

VCC-PN9575P*

P.13

540TVL

30x

Optical zoom

540TVL

30x

Optical zoom

540TVL

30x

Optical zoom

540TVL

30x

Optical zoom

2.3x

Vari-focal Lens

2.3x

Vari-focal Lens

2.3x

Vari-focal Lens

2.9x

Vari-focal Lens

3.2x

Vari-focal Lens

520TVL

540TVL

30x

Optical zoom

VCC-6690P*

P.41

VCC-6695P*

P.41

VDC-C1575VP

P.28

VDC-D1585VP

P.28

540TVL

480TVL

540TVL

520TVL

VCC-W8775P*

P.38

550TVL

VCC-W8770P*

P.38

550TVL

VCC-WD8875P*

P.37

550TVL VCC-WD8870P*

P.37

550TVL

VCC-5995P*

P.41

540TVL

VCC-4795P E*

P.40

VCC-ZM600P

P.25

VDC-D1785IRVP

P.27

540TVL

VZU-SCB1

P.48

VZU-SATB1

P.48

DVR Utility Software

for DSR-2016 / DSR-2004

DVR Utility 2000S

P.56

VA-13VG2811ASIR

P.43

VA-13VG308ASIR

P.43

VA-13VG550T-LY

P.43 VA-13VG308AS

P.43

VSP-9000

P.57

VSP-8500

P.58

VSP-3000

P.59

VCC-4790P E*

P.40

Hard Disk Case

VA-HDC4000

P.9

120 GB 2.5” HDD

VA-HD2120

P.9

4 GB SD Memory Card

VA-SD004

P.9

VCC-XZ200P

P.30

VCC-P7575PA

P.33

VDC-DP9585P

P.31

520TVL

2.6x

Pan-Focus Lens 520TVL

2.6x

Pan-Focus Lens 520TVL

2.6x

Pan-Focus Lens

2.6x

Pan-Focus Lens

VDC-DP7585P

P.33

VCC-P9575P

P.31

16 or 9 ch

Electronic Day/Night function

E-

Electronic Day/Night function

E-

VA-82LAN

VA-EXD1 W

P.48

Optional item for DSR-3716PA / DSR-3709PA

520TVL

2.6x

Pan-Focus Lens 520TVL

2.6x

Pan-Focus Lens

2.6x

Pan-Focus Lens

Lens is optional for the models with an asterisk (*).

VCC-9700P E

P.21

DSR-5709P

P.51

16 or 9 ch

16 ch

VA-EXH

P.48

Optional item for DSR-5716P / DSR-5709P

Optional item for VCC-HD4000P

DSR-3716PA

P.53

DSR-3709PA

P.53

DSR-2016

P.55

DSR-2004

P.55

DSR-5716P

P.51

DSR-HB8000

P.49

Camera Selection

DVR Selection by Compression

DVR Selection by

Compression

IP Camera

Network Software

SSP Control Unit

*Lens

(sold separately)

M-JPEG

16 or 4 ch

MPEG-4

Surveillance from a remote location is

possible by installing DVR Utility Software.

Remote surveillance

Each DVR comes

with a LAN

terminal. By

connecting to a PC,

remote surveillance

and remote control

over a network is possible.

* As for the DSR-300P, optional board VZU-COM300

is necessary.

Exclusive software

for DSR-5716P

DSR-5709P / DSR-3716PA

DSR-3709PA / DSR-3706PA*

(*supplied separately)

JPEG2000

Hybrid MPEG-4

Exclusive software

for DSR-HB8000

Central Management Software

CMS

VCC-9685VP

P.39

Color

Wide Dynamic Range

Camera

VDC-W1595VP

P.28

VCC-9500P E

P.22

VDC-DPN9585P

P.13

VCC-9800P E

P.21

VCC-9600P E

P.22

VCC-ZMN600P

P.11

Item line Up

Super High Resolution Camera

Optional item

Network Recorder

VA-SW3050S

(Server)

VA-SW3050C

(Client)

P.18

Optional item

Video Management

Software (VMS)

VA-SW50 (Advanced)

VA-SW60 (Enterprise)

P. 17 Bundled item

VA-SW3050LITE

(Viewer Software) P.18

LAN Board

Optional item

VA-82LAN (for VCC-9800P E / 9700P E / 9600P E / 9500P E)

VA-80LAN (for VCC-9800P E / 9700P E / 9600P E / 9500P E)

VA-51LAN (for VDC-DP7585P / VCC-7575PA)

VA-50LAN (for VDC-DP7585P / VCC-7575PA)

VA-20LAN (for VCC-XZ200P)

P. 15

VCC-HD4000P

P.7

Wide Conversion Lens

VCP-L07W

P.9

VCC-XZ600P

P.25

VCC-ZM500P

P.26

VA-EXD1 B

P.48

VMC-L2019P

P.60

VMC-L2017P

P.60

LCD Monitor

VCC-XZN600P

P.11

VCC-N6695P*

P.10

30x

Optical zoom

10x

Optical zoom

30x

Optical zoom

540TVL

36x

Optical zoom

540TVL

36x

Optical zoom

VCC-PN9575P*

P.13

540TVL

30x

Optical zoom

540TVL

30x

Optical zoom

540TVL

30x

Optical zoom

540TVL

30x

Optical zoom

2.3x

Vari-focal Lens

2.3x

Vari-focal Lens

2.3x

Vari-focal Lens

2.9x

Vari-focal Lens

3.2x

Vari-focal Lens

520TVL

540TVL

30x

Optical zoom

VCC-6690P*

P.41

VCC-6695P*

P.41

VDC-C1575VP

P.28

VDC-D1585VP

P.28

540TVL

480TVL

540TVL

520TVL

VCC-W8775P*

P.38

550TVL

VCC-W8770P*

P.38

550TVL

VCC-WD8875P*

P.37

550TVL VCC-WD8870P*

P.37

550TVL

VCC-5995P*

P.41

540TVL

VCC-4795P E*

P.40

VCC-ZM600P

P.25

VDC-D1785IRVP

P.27

540TVL

VZU-SCB1

P.48

VZU-SATB1

P.48

DVR Utility Software

for DSR-2016 / DSR-2004

DVR Utility 2000S

P.56

VA-13VG2811ASIR

P.43

VA-13VG308ASIR

P.43

VA-13VG550T-LY

P.43 VA-13VG308AS

P.43

VSP-9000

P.57

VSP-8500

P.58

VSP-3000

P.59

VCC-4790P E*

P.40

Hard Disk Case

VA-HDC4000

P.9

120 GB 2.5” HDD

VA-HD2120

P.9

4 GB SD Memory Card

VA-SD004

P.9

VCC-XZ200P

P.30

VCC-P7575PA

P.33

VDC-DP9585P

P.31

520TVL

2.6x

Pan-Focus Lens 520TVL

2.6x

Pan-Focus Lens 520TVL

2.6x

Pan-Focus Lens

2.6x

Pan-Focus Lens

VDC-DP7585P

P.33

VCC-P9575P

P.31

16 or 9 ch

Electronic Day/Night function

E-

Electronic Day/Night function

E-

VA-82LAN

VA-EXD1 W

P.48

Optional item for DSR-3716PA / DSR-3709PA

520TVL

2.6x

Pan-Focus Lens 520TVL

2.6x

Pan-Focus Lens

2.6x

Pan-Focus Lens

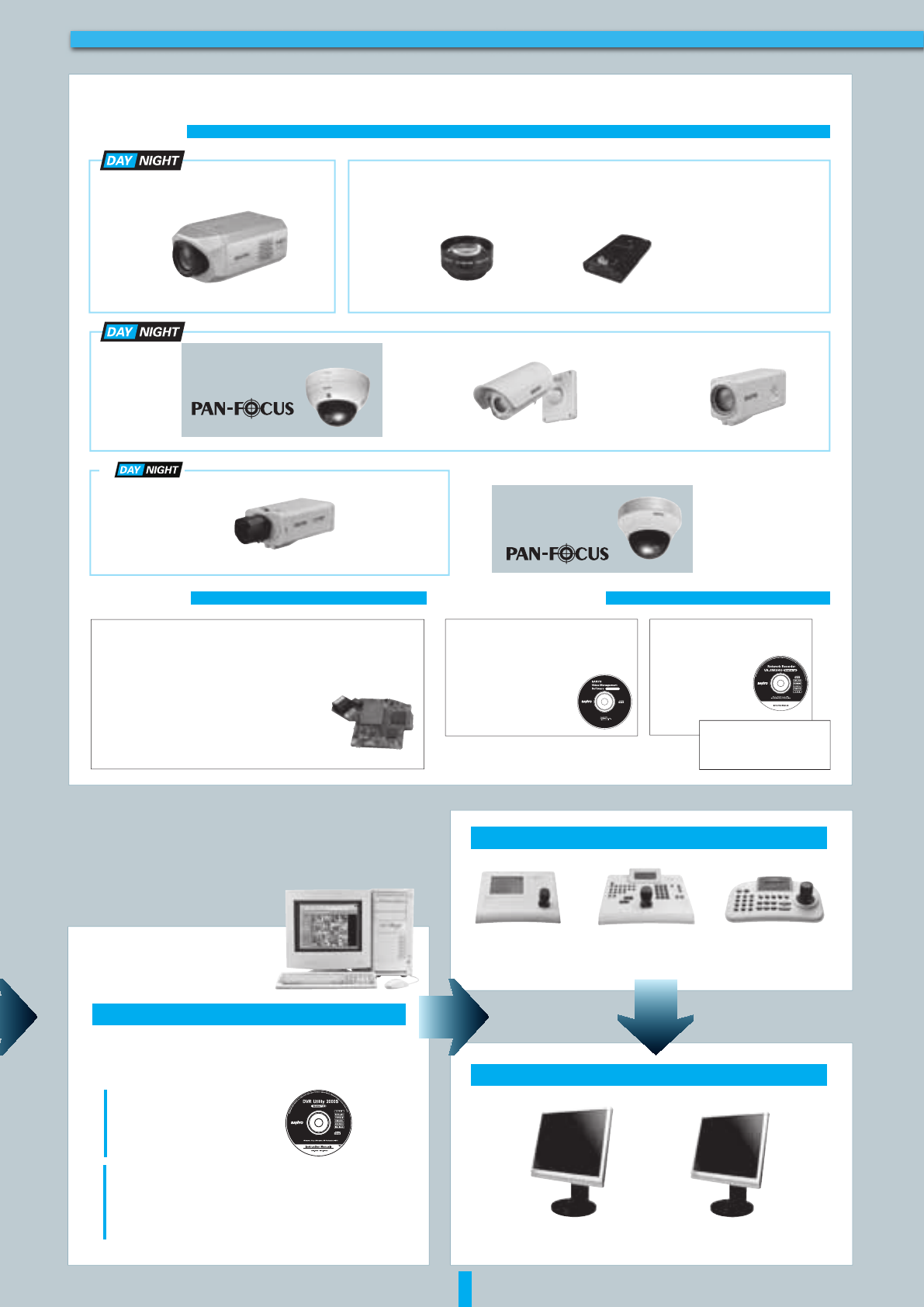

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

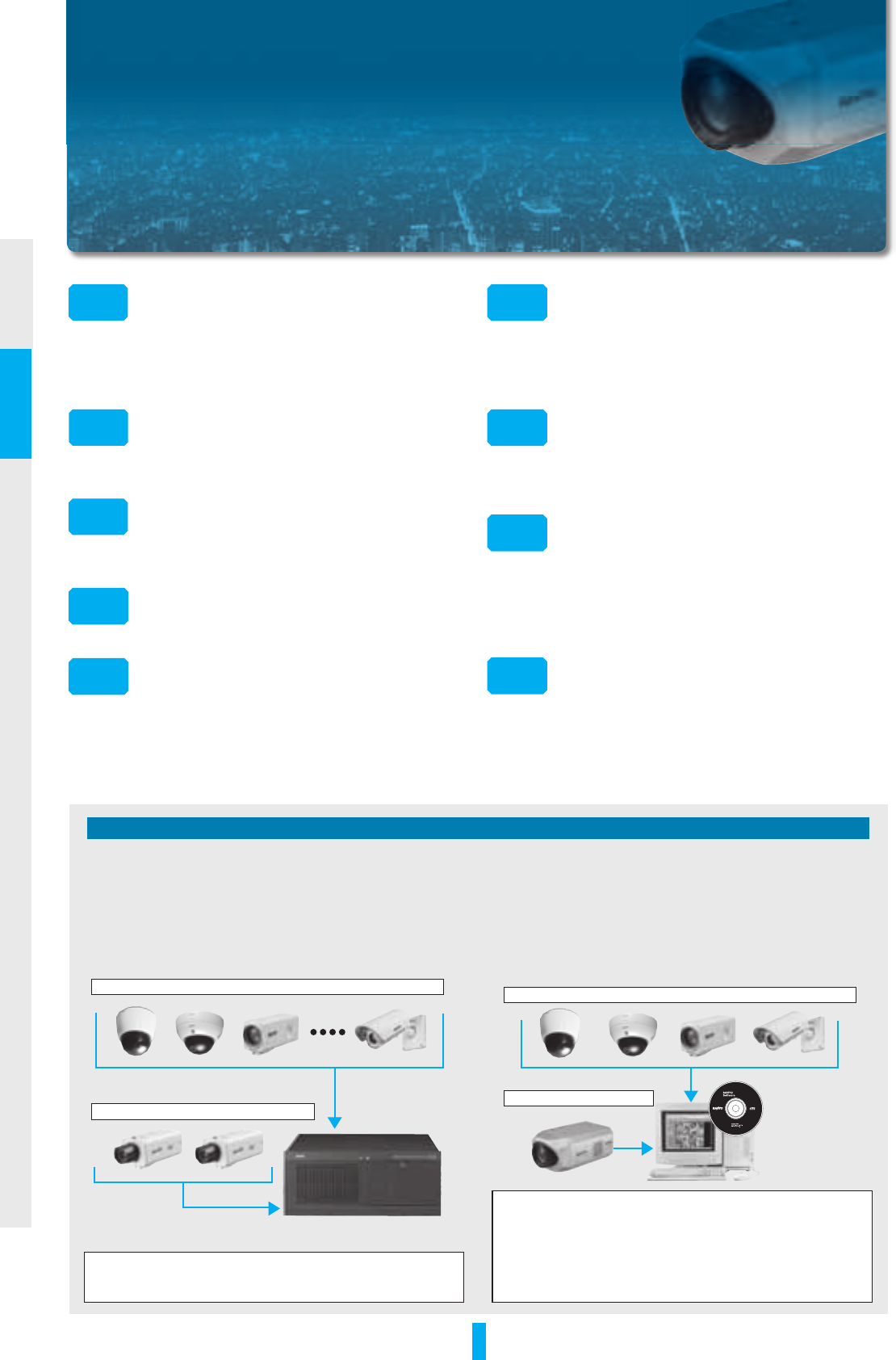

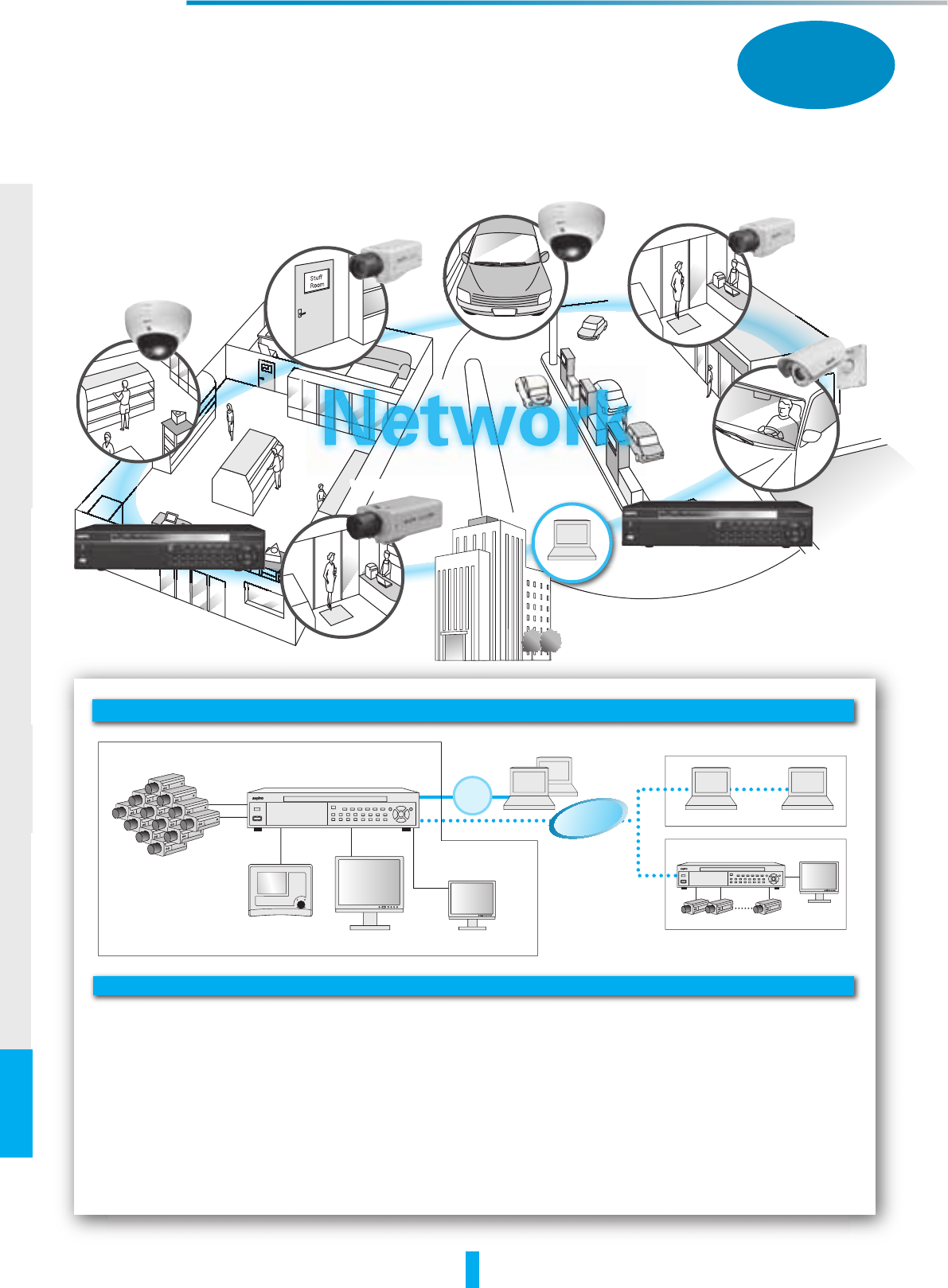

SANYO’S network surveillance recording solution

Up to 16 analog cameras

Full HD (Full High Deﬁ nition)

Allows the user to view the surveillance picture in

the same picture quality as that of a high deﬁ nition

digital TV of 1080 line scanning. The picture quality

is good enough to be displayed on a large screen

monitor.

Megapixel

The ultra-ﬁ ne picture made up of 4 million pixels

makes it possible to capture the ﬁ nest details of a

subject under surveillance.

H.264 Video Compression

The H.264, which optimizes the network video

streams at a low transfer rate, is ideal for monitoring

real-time video images.

JPEG Video Compression

The commonly used JPEG format is suitable for

monitoring and recording without losing quality.

Power-over-Ethernet (PoE)

SANYO Network cameras support the IEEE

802.3af standard for Power-over-Ethernet (PoE)

applications to allow power supplied over LAN

cabling. In addition to making installation easier, this

allows camera installation in places where it would

otherwise be difﬁ cult to secure a power source.

Network Protocols

The cameras support major communication

protocols such as RTP*, RTSP*, TCP/IP, UDP, HTTP,

HTTPS, SMTP, NTP, DHCP, FTP, and UPnP and, are

therefore easy to connect to a network.

* VCC-HD4000P only

DDNS (Dynamic DNS)

SANYO Network cameras can be accessed with

a ﬁ xed host name (e.g. sanyovcczmn600p), which

makes the network easy to remember, always

available, and secure.

Surveillance-Point Monitoring with

Video and Audio Data

Bi-directional audio communication and remote

camera control make it possible to monitor any

place regardless of local conditions. Monitoring

the ambient sound adds a new dimension to the

surveillance.

Alarm Terminals

These terminals offer the added functions of

e-mail and/or image sending when some motion is

detected in a preset range or an external alarm is

received.

H.264

Full HD

JPEG

Alarm IN x 2

Alarm OUT x 1

PoE

Protocols

DDNS

Bi-directional

audio

communication

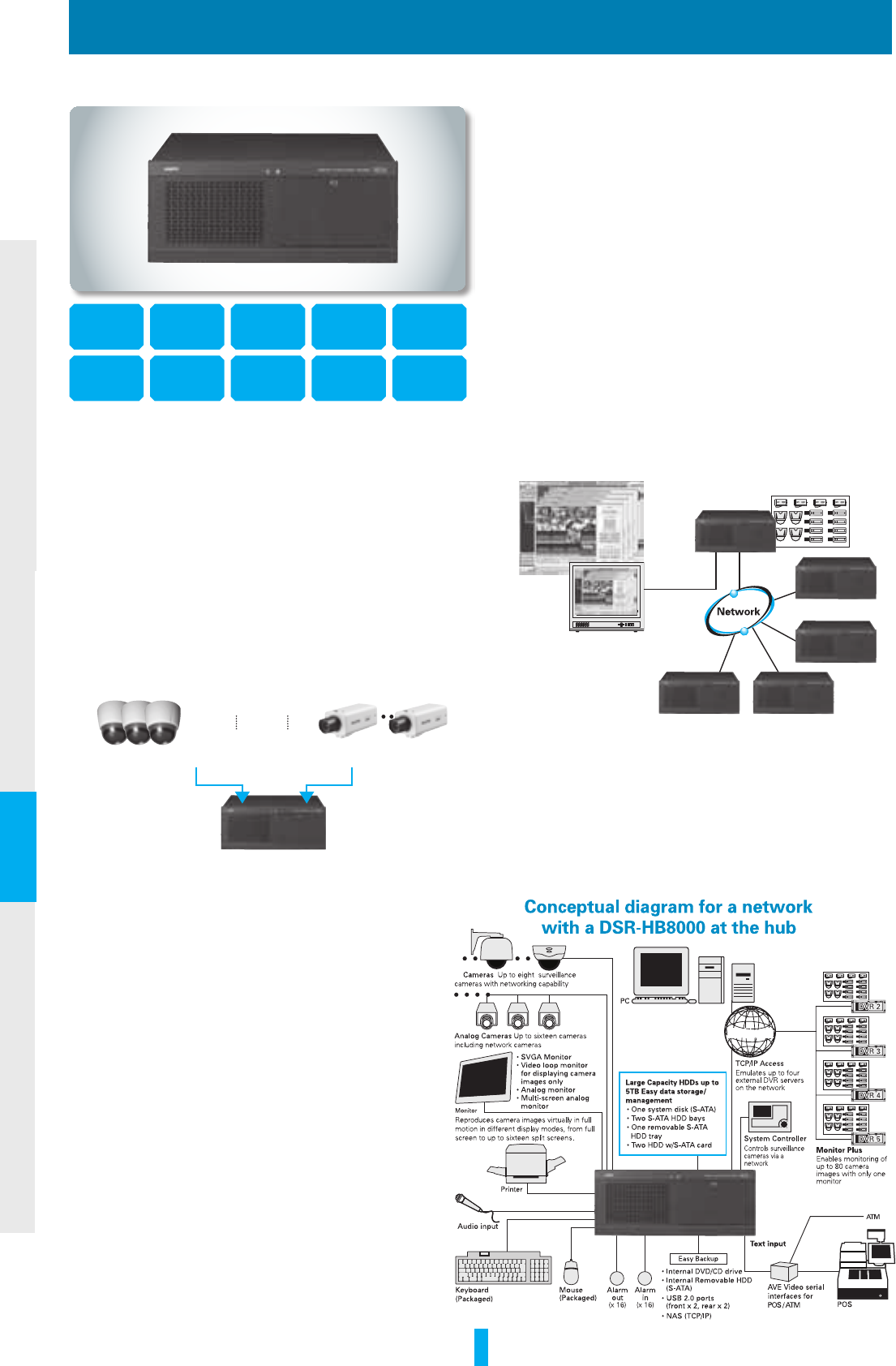

Hybrid Digital Video Recorder

The DSR-HB8000 is a hybrid model that is capable

of connecting and controlling network cameras

simultaneously.

IP cameras

Up to 8 network cameras Network cameras

HD Network cameras

Via Ethernet

Via Video cable Video Management Software (VMS)

VA-SW50 (Advanced) / VA-SW60 (Enterprise)

See page 17 for details.

---------------------------------------------------------------------------------------------------------------

VA-SW3050S (for server) / VA-SW3050C (for client)

See page 18 for details.

16ch Hybrid DVR DSR-HB8000

See page 49 for details.

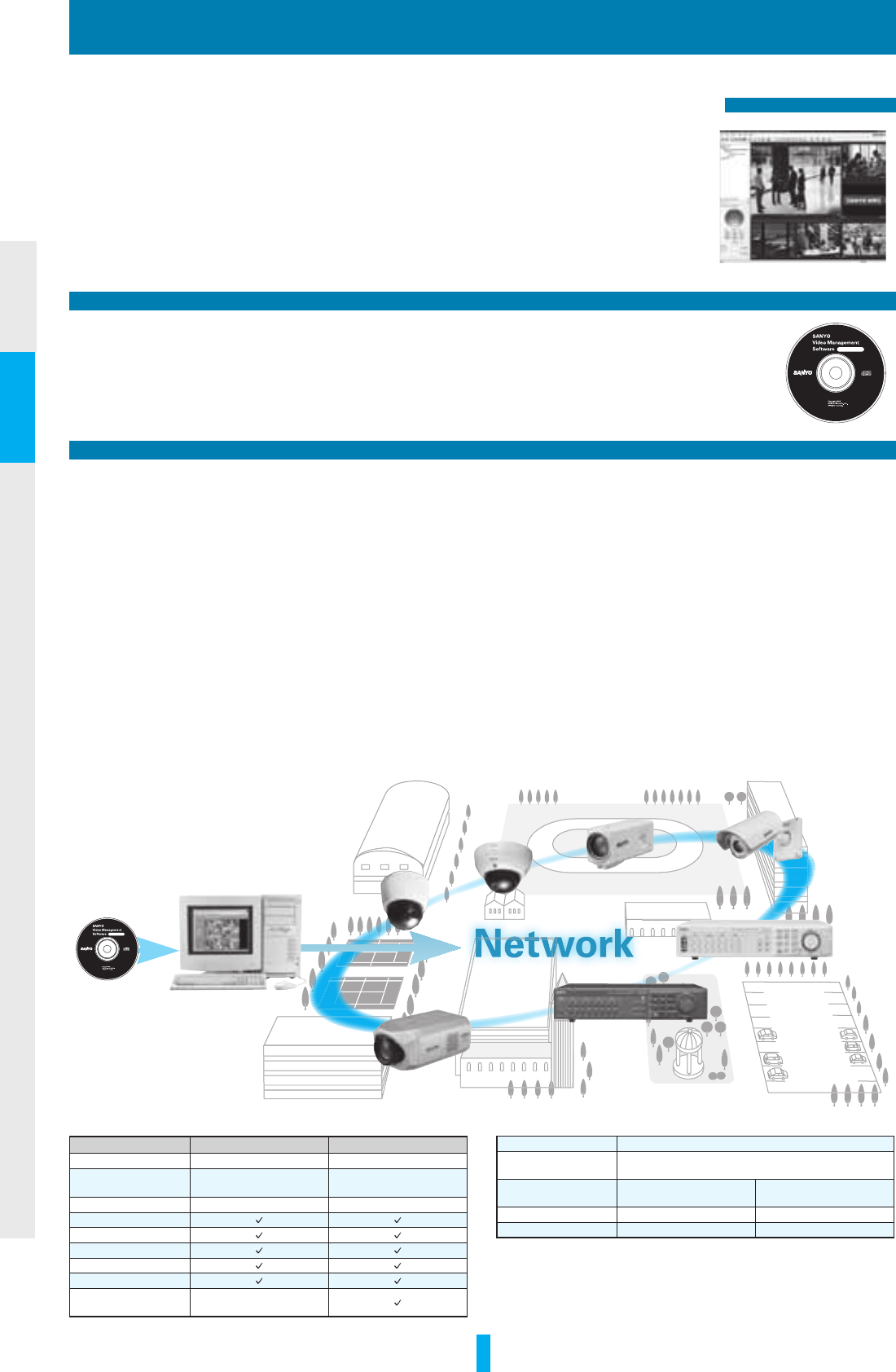

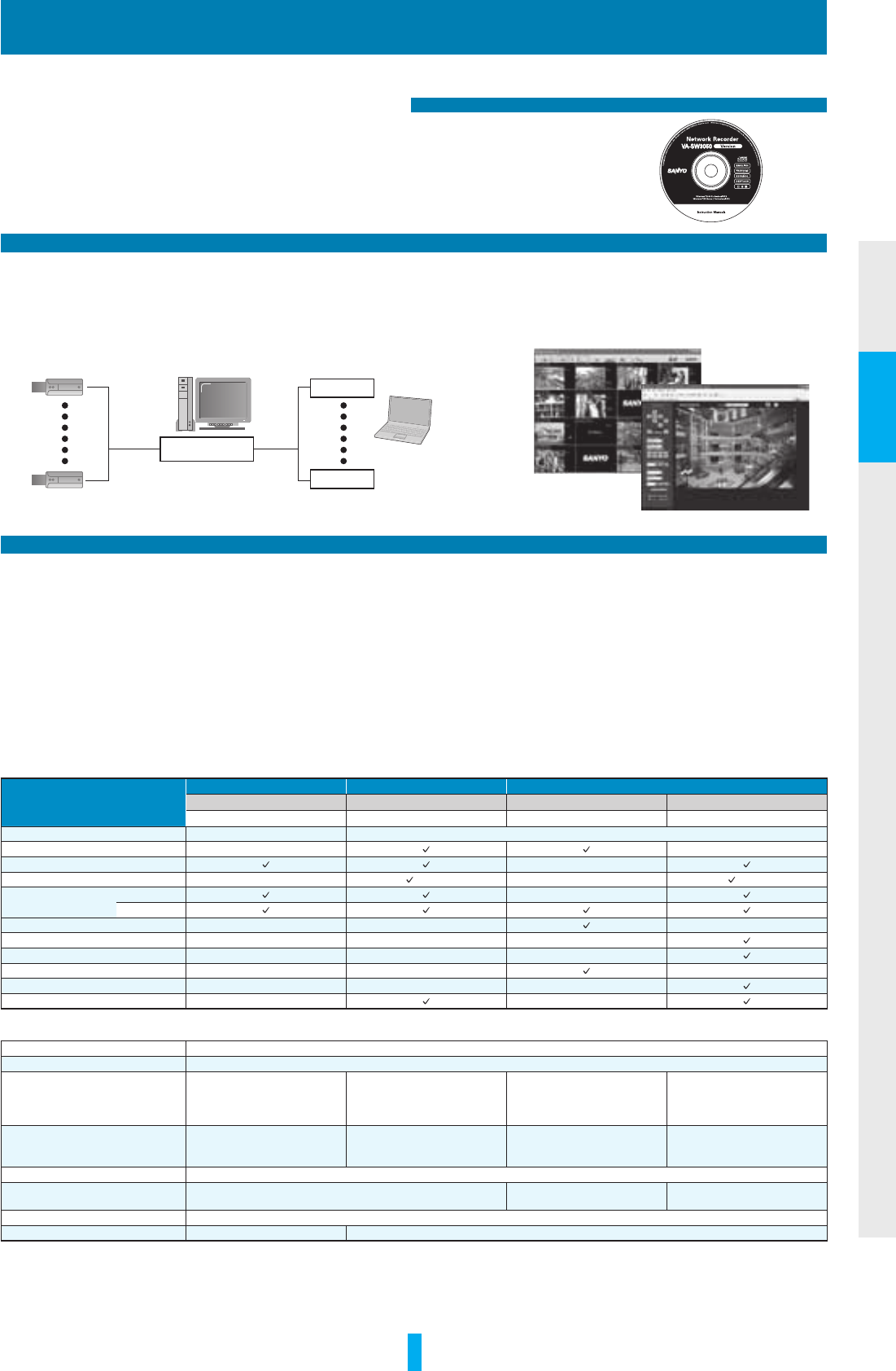

Network Software

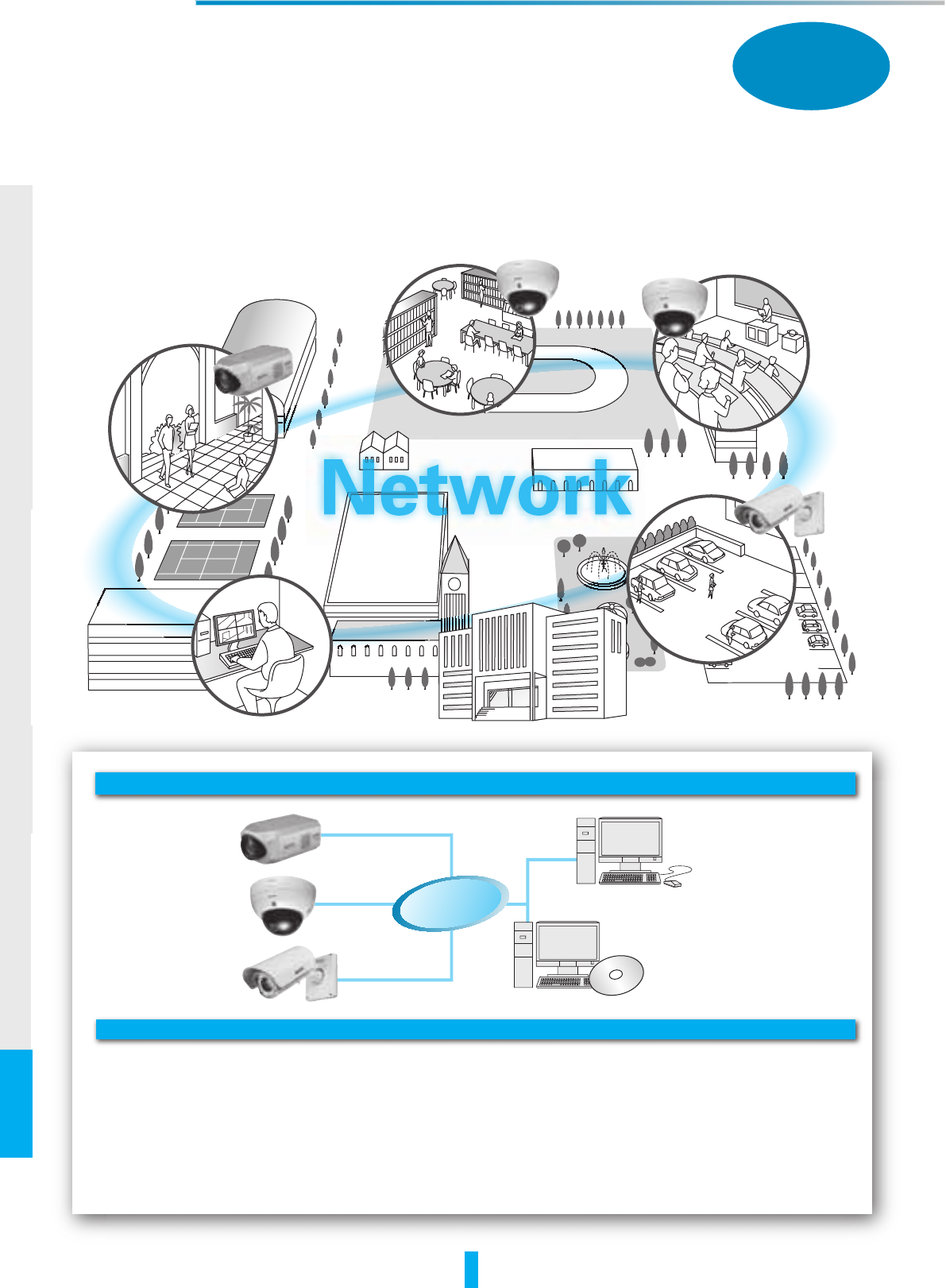

SANYO presents network surveillance system solutions

with VMS and VA-SW3050S/C.

The software enables the user to record the video feed

from a camera on a PC, or access a camera or DVR* from

a PC, to monitor a live image or control the device.

* Only VA-SW60 is supported.

IP Camera

SANYO presents remote network surveillance solutions.

The SANYO Network Camera series offers superior picture quality

and a high level of sensitivity for any situation.

4 M

Pixels

Software

VA-SW50 (Advanced)

VA-SW60 (Enterprise)

VA-SW3050S (for server)

VA-SW3050C (for client)

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Technical Note SDK, CGI: SANYO provides technical materials to help the user not only connect SANYO Network

Cameras to a network, but also to incorporate them into the user's unique environment.　　

For more information, contact the nearest SANYO Sales Company.

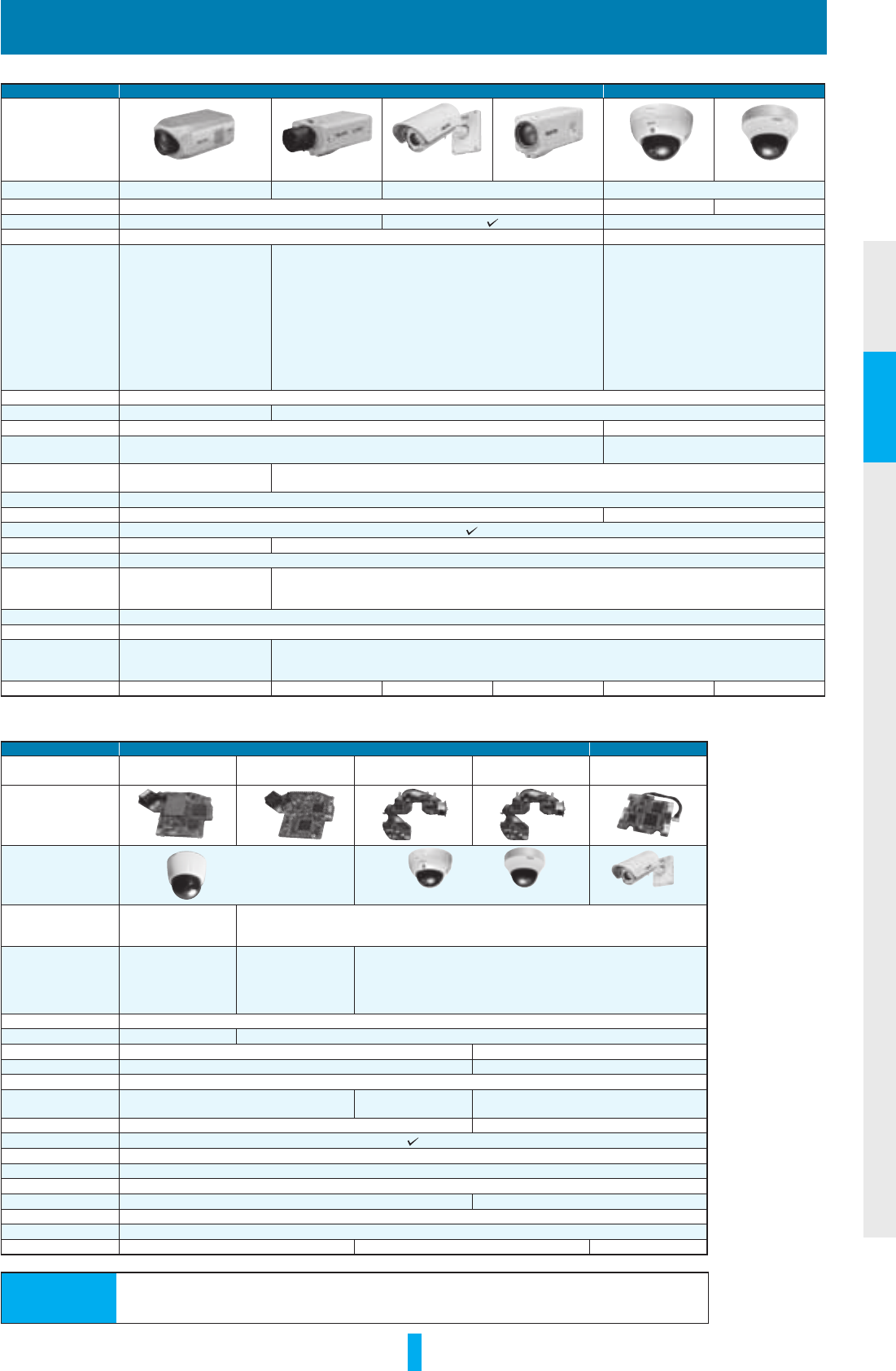

Category H.264/JPEG JPEG

VCC-HD4000P VCC-N6695P VCC-XZN600P VCC-ZMN600P VDC-DPN9585P VCC-PN9575P

Lens 10x AF Zoom lens CS Mount 30x AF Zoom lens 2.6x AF Zoom lens

Color or Day/Night Day/Night Day/Night Color

Image stabilizer ------------------------------- -------------------------------

Image compression H.264/JPEG (simultaneous transmission available) JPEG

Resolution

<H.264>16:9 HD 1920 x 1080p

HD 1280 x 720p, 960 x 540P,

640 x 360p, 320 x 180p

4:3 1080 x 864p, 720 x 576p,

360 x 288p

<JPEG>16:9 HD 1920 x 1080,

HD 1280 x 720, 1024 x 576,

640 x 360 4:3 4M 2288 x 1712,

2M 1600 x 1200, 1280 x 960,

1024 x 768, 800 x 600,

640 x 480, 320 x 240

<H.264> 720 x 576, 352 x 288, 176 x 144

<JPEG> 720 x 576, 720 x 288, 640 x 480, 360 x 288, 176 x 144

<JPEG> 720 x 286, 640 x 480,

360 x 286, 180 x 143

Picture quality Super Fine, Fine, Enhanced, Normal, Basic

Frame rate

Max.25IPS (1920 x 1080)

Max.25IPS (720 x 576)

Microphone input

-------------------------------

–62 to –32 dB (monaural microphone) 3.5 ø mini jack

Audio output ------------------------------- LINE OUT monaural voice output

Maximum -8 dBs 3.5 ø mini jack

Bandwidth 128, 256, 512 Kbps, 1, 2, 3, 4, 5,

6 Mbps, no limitation 128, 256, 512 Kbps, 1, 2, 3, 4 Mbps, no limitation

PoE (Power over Ethernet)

Compliant with IEEE802.3af

Audio -------------------------------

Bi-directional audio G.711 (192 Kbps) 16 bit 12 KHz

DDNS

Alarm buffer 32 MB 8 MB

Interface 10BASE-T / 100BASE-TX (RJ-45 connector)

Protocols

RTP*, RTSP*, TCP/IP, UDP,

HTTP, HTTPS, SMTP, NTP,

DH C P, F T P, U P n P, D D N S

TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, UPnP, DDNS

Simultaneous access capacity

Image: Max. 16, Audio: Max. 16 (admin: 1)

Security BASIC authentication (ID/password), SSL supported (image only)

Bundled software

VA-SW3050LITE

HDC Downloder

DL Viewer

VA-SW3050LITE

Page 710 11 11 13 13

Category H.264/JPEG JPEG

Model No. Network board

VA-82LAN

Network board

VA-80LAN

Network board

VA-51LAN

Network board

VA-50LAN

Network board

VA-20LAN

Applicable models

VCC-9800P E series

VCC-9700P E series

VCC-9600P E series

VCC-9500P E series

VDC-DP7585P / VCC-P7575PA VCC-XZ200P

Image compression

H.264/JPEG

(simultaneous

transmission available)

JPEG

Resolution

<H.264> 720 x 576,

352 x 288, 176 x 144

<JPEG> 720 x 576,

720 x 288, 640 x 480,

360 x 288, 176 x 144

<JPEG> 720 x 572,

720 x 286, 640 x 480,

360 x 286, 176 x 143

<JPEG> 720 x 286, 640 x 480,

360 x 286, 180 x 143

Picture quality Super Fine, Fine, Enhanced, Normal, Basic

Frame rate

Max.25IPS (720 x 576)

Max.25IPS (720 x 286)

Microphone input

–62 to –32 dB (monaural microphone) 3.5 ø mini jack -------------------------------

Audio output LINE OUT monaural voice output Maximum -8 dBs 3.5 ø mini jack -------------------------------

Bandwidth 128, 256, 512 Kbps, 1, 2, 3, 4 Mbps, no limitation

PoE (Power over

Ethernet) ------------------------------- Compliant with

IEEE802.3af -------------------------------

Audio Bi-directional audio G.711 (192 Kbps) 16 bit 12 KHz -------------------------------

DDNS

Alarm buffer 8 MB

Interface 10BASE-T / 100BASE-TX (RJ-45 connector)

Protocols TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, UPnP, DDNS

Simultaneous access capacity

Image: Max. 16, Audio: Max. 16 (admin: 1) Image: Max. 16

Security BASIC authentication (ID/password), SSL supported (image only)

Bundled software

VA-SW3050LITE

Page 21,　22 33 30

Network Board (sold separately)

*Available for CGI commend only

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

IP camera

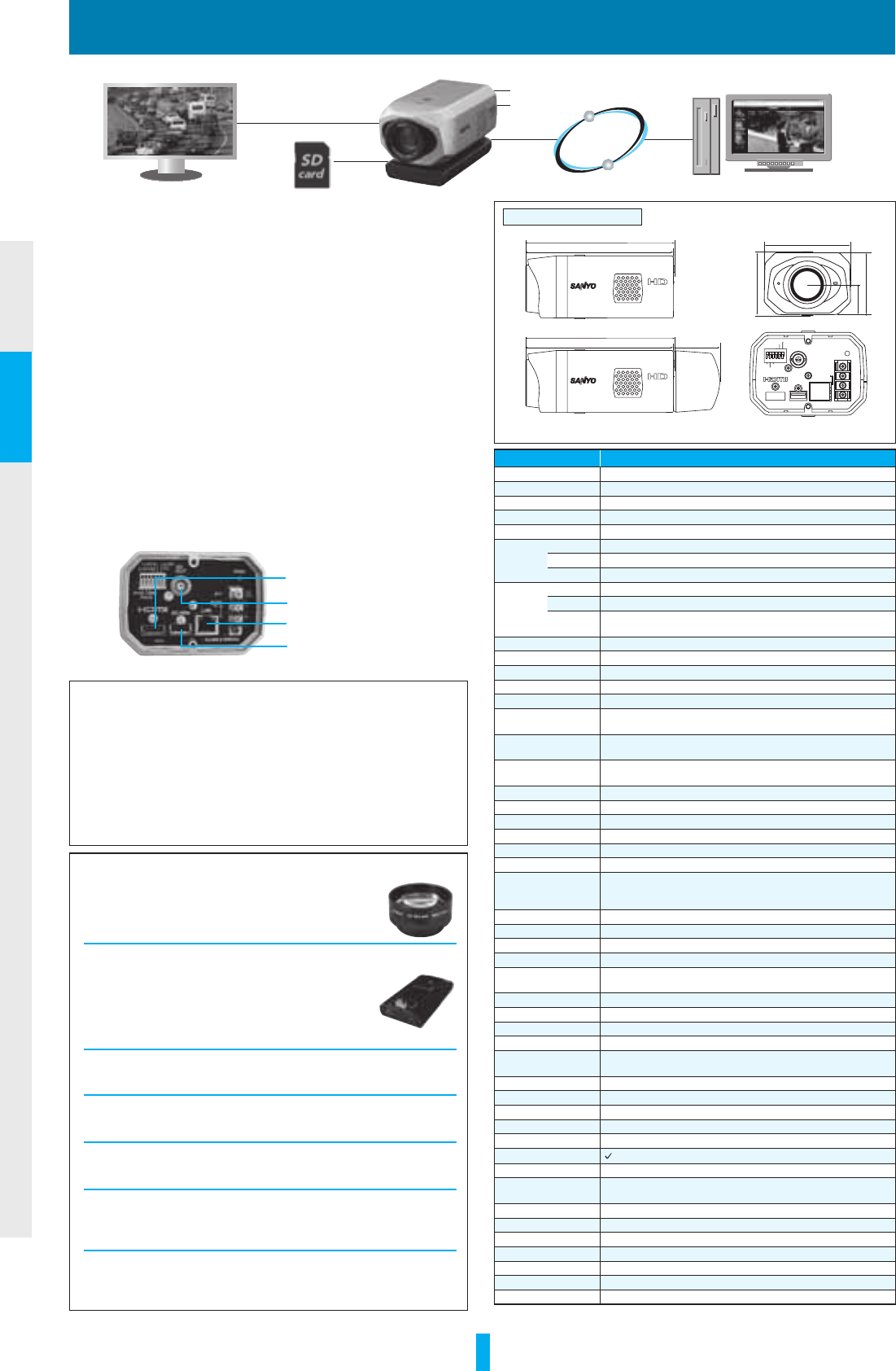

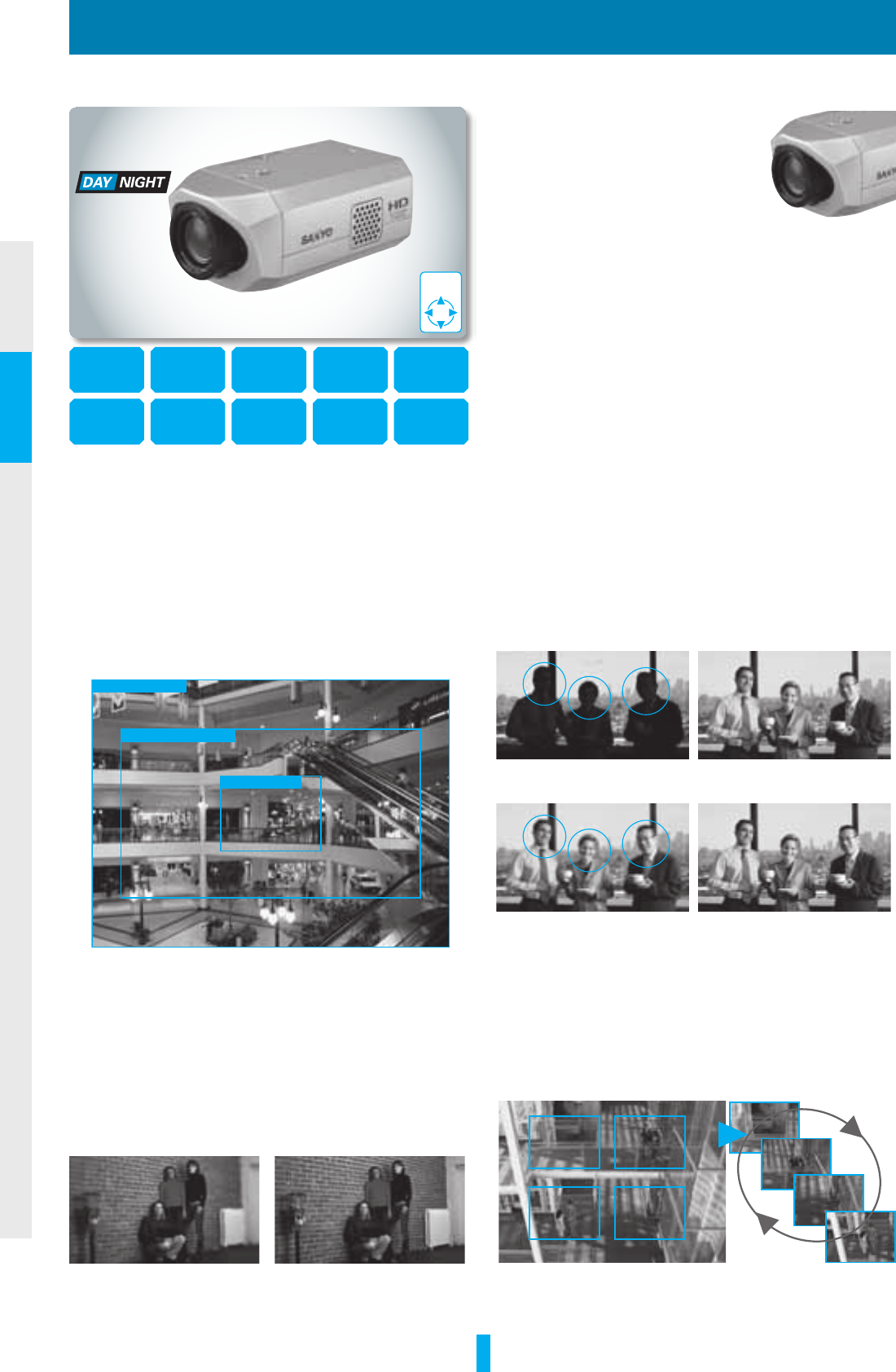

CMOS Full HD Network 10x AF Zoom Camera

VCC-HD4000P

10x

Optical Zoom

VA C-70

Control

Dual Codec for H.264 and JPEG

Monitoring can be conducted simultaneously in H.264 and

JPEG formats by minimizing network trafﬁ c.

• H.264 ActiveX Plug-in required (bundled).

A new level of security with smooth, 25 IPS video in

1920x1080p (full HD) resolution

SANYO’s expertise in video cameras has brought 25 IPS

full HD video to the security world. This whole new level of

ﬁ nesse makes it possible to capture small objects that could

have been overlooked in the past.

4 Megapixels resolution

With conventional cameras, picture quality must be sacriﬁ ced

for a wide angle picture, as maximum resolution is limited to

720x480p (D1). With the higher resolution (2288x1712 pixels

(4M)) of VCC-HD4000P, however, it is possible to capture a

wide area without distortion or loss of quality -- down to the

very edge of the picture. The camera comes with a mega-

pixel-compatible AF zoom lens that eliminates cumbersome

focus adjustment and reduces time and cost of installation.

Full HD

4 M

Pixels H.264 Multi-spot /

Center-zone

BLC

ATW

AWC

Manual 25 IPS

(1920 x 1080)

24 V AC

12 V to

15 V DC PoE HDMI

Megapixel

Comes with a 10x optical zoom lens

supporting 4 megapixels resolution

The camera has a built-in optical zoom

lens that matches the resolution of

a 4 megapixels CMOS. This offers

the capability to zoom in on a subject

without losing detail. In addition, the high resolution makes

it possible to further enlarge the picture through the digital

zoom function and still maintain excellent picture quality. The

combination of optical and digital zooming offers maximum

zooming of 160x.

Advanced codec H.264 has high compression technology

compared with JPEG.

Our H.264 codec can save about 1/10 size compared with

JPEG*.

*Under the same setting.

Low bandwidth makes it possible to increase the size of the

recording area or length of recording.

Face Detection

All new face detection function

This detection function offers two different beneﬁ ts.

The camera can recognize the faces of up to 32 people and

applies two types of compensation function. If a size of a

human’s face is 120x120 pixels or more, the compensation

function is optimized so that the face is displayed clearly.

Detects faces and applies optimum backlight compensation

Detects faces and applies optimum focus compensation

Clipping Function

This feature makes it possible for the user to clip up to four

different areas of a screen. Clipping is made in the VGA size

and transmitted sequentially to an SD (Composite output)

monitor. The user can monitor the entire screen and enlarged

displays of four different locations at the same time. This

feature makes the camera extremely versatile.

4M (2288 x 1712)

VGA (640 x 480)

FULL HD (1920 x 1080)

Current Megapixel camera SANYO VCC-HD4000P

*Images used may differ slightly from actually recorded scenes.

Before detection After detection

Sequence

JPEG

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Four Alarm Functions

The camera features alarm recording, external alarm

recording, motion sensor recording, and emergency recording

(pushbutton). Emergency recording is a new feature that

enables manual recording by pushing a button.

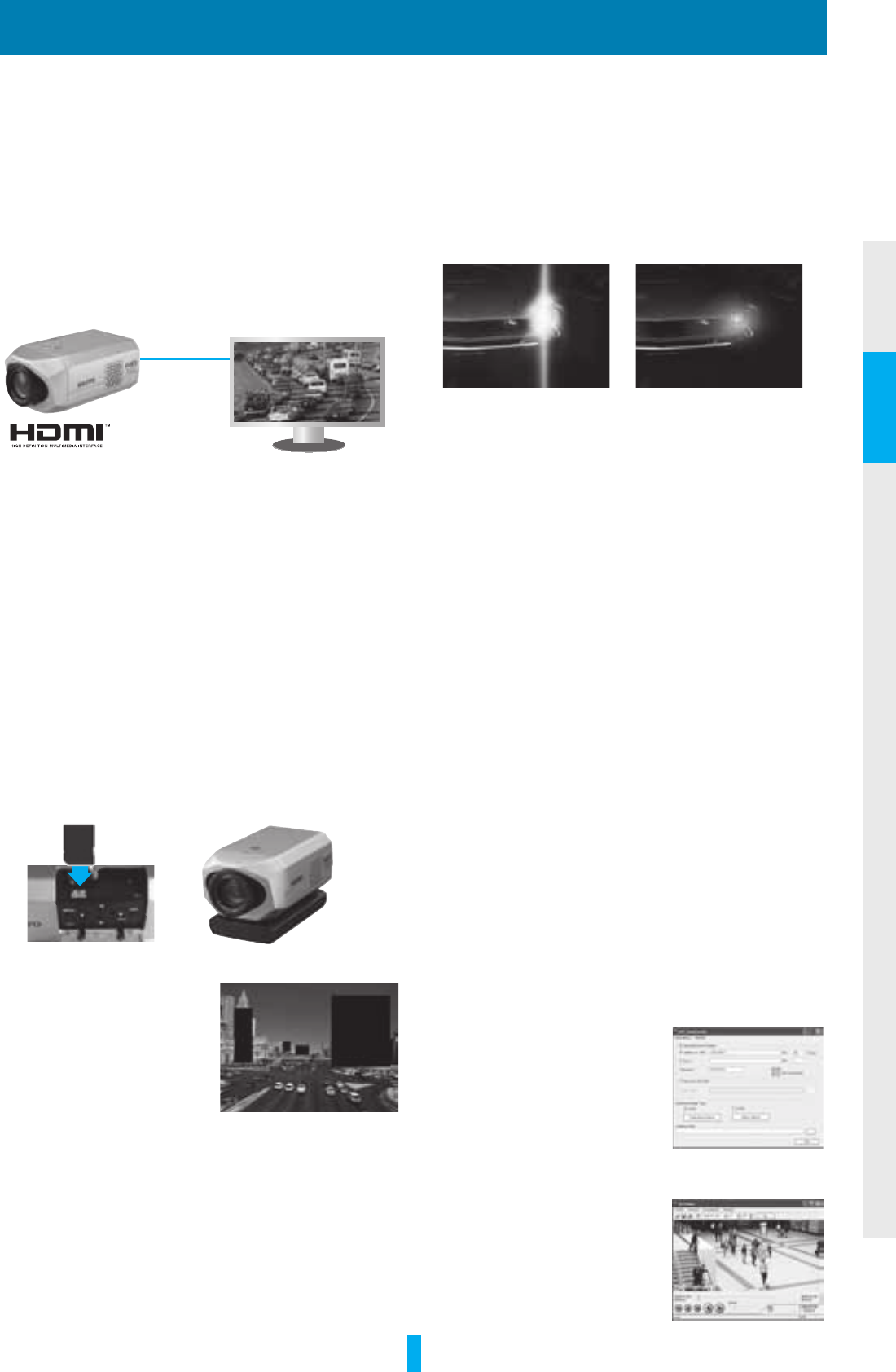

HDMI Connection

The HDMI signal transfers the high deﬁnition video directly

to an HD monitor. Using the VCC-HD4000P and an HDMI

cable enables non-compressed data transfer that is free of

degradation.

HD image recording on SD Memory Card or External 2.5” HDD

The camera comes with an SD memory card slot allows the

user to record easily by using an optional SD memory card*1.

With the use of an HDD and an HDD case, which are sold

separately, it is possible to make a prolonged local recording

comparable to a DVR. Combining the local recording capability

with network failure detection*2, the surveillance video can be

stored locally in case of an emergency.

*1 Requires use of optional SD memory card, HDD, or HDD

case recommended by SANYO.

*2 Backup for Interruption of Network recording

Conﬁgure these settings to record video with the camera

for backup purposes, if communication with the camera is

interrupted due to a network failure or other cause when

you record video with the optional software.

“VA-SW3050Server / Client” (or other recording software).

Privacy Masking

When there is a house, or even an object as small as a

window, within the camera

frame, to protect other people’s

privacy it is possible to mask that

area so that it will not appear

on the monitor screen. Up to 5

rectangular masks of any desired

size can be set per screen.

Masking patterns are easily set

with drag and drop.

True Day/Night

24-hour surveillance is now possible with just a single

camera that works as a color camera during the day and a

high-sensitivity B/W camera during the night. The mode of

operation is automatically switched by replacing the optical

ﬁlter. The use of an optical ﬁlter in the color mode also allows

video recording in true colors.

Alteration Detection

VCC-HD4000P veriﬁes by itself whether or not an electronic

alteration was made to original image.

Smearless

Conventional CCD units are known to generate vertical noises

(smears) associated with bright spots. The new sensor

diminishes these smears and offers a clear and bright picture.

3 types of Power Source

The VCC-HD4000P can operate on three different types of

power supply --- 12 V DC, 24 V AC and PoE.

PC for Monitoring

By simply using Internet Explorer (ver. 6.0 or higher) on a

personal computer, the user has access to full color video

images from the camera. Saving JPEG images on a PC is also

possible by using VA-SW3050S server software.

Setup through a Web Browser

A standard web browser, such as Internet Explorer (ver. 6.0 or

higher), can be used to view the video image from

VCC-HD4000P and change settings. Security is provided by

the use of SSL.

Transmission using 2 types of codecs (H.264 and JPEG) is possible.

For video compression, H.264, optimized for transmission of

moving images over a network with low bit transfer rates, is

used to enable real-time high image quality monitoring. For still

images JPEG is used to offer high image quality in a common

format. Monitoring can be performed according to the user’s

application, so that no important scene is missed.

Alarm Buffering Function

This function saves the video images recorded during an alarm

recording internally, or to an SD memory card, before

streaming them. This prevents the loss of data even if an

image transmission delay occurs due to bandwidth limitations

or network trafﬁc conditions.

HDC Downloader (bundled)

Video data recorded on an SD

memory card or HDD can be

downloaded to a PC.

• Select JPEG or H.264

• Search by date and time for video

data to be downloaded.

• Connect SD memory card or HDD

to PC directly to copy video data.

DL Viewer (bundled)

This is used to play back downloaded

video or recorded data on an SD

memory card or HDD.

•

JPEG or H.264 can be played back.

• Images can be saved and printed.

HD Monitor

HDMI cable

* The monitor / HDMI cable are sold separately.

SD memory card

External HDD

VCC-HD4000PConventional cameras

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Model VCC-HD4000P

Image sensor 1/2.5" CMOS sensor

Effective picture elements

2320(H) x 1728(V) approx. 4.Megapixels

Recording picture elements

2288(H) x 1712(V) approx. 3.92 Megapixels

Lens

Focal length f=6.3 to 63.0mm Optical 10x, F number F1.8 to 2.5, Digital zoom 16x

Image compression H.264 / JPEG

H.264

16:9 HD 1920 x 1080p 25ips

1280 x 720p 25ips, 960 x 540P 25ips, 640 x 360p 25ips, 320 x 180p 25ips

4:3 1080 x 864p, 720 x 576p 25ips, 360 x 288p 25ips

JPEG

16:9 HD 1920 x 1080

HD 1280 x 720, 1024 x 576, 640 x 360

4:3 4M 2288 x 1712, 2M 1600 x 1200, 1280 x 960, 1024 x 768,

800 x 600, 640 x 480, 320 x 240

Synchronizing system

Internal sync.

Minimum illumination

2.0 lx (at.F1.8, GAIN: HI, at color mode) / 0.1 lx (at F1.8, GAIN: HI, at B/ W mode)

Video S/N ratio 50dB AGC OFF

Day/Night Auto / Color / B/ W

Focus AUTO / MANUAL / ONE-PUSH: Selectable focus area

White balance ATW / AWC / MWB / Outdoor / Indoor / Fluorescent Adjustable

R and B signals in MWB mode

Backlight

compensation

Multi-spot potometry / Center-zone potometry / OFF mask

settings possible / Face

Electronic shutter

1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

x1, x2, x4, x8, x16, x32

Iris control

AUTO / MANUAL, Selectable electronic shutter in manual mode

Gain control

Normal / Middle / High / Off, Adjustable gain control in Off mode

Gamma 0.45 / 1, other settings available

Aperture compensation

ON / OFF

Electronic sensitive boost

AUTO / OFF, Max. 32x

Privacy masking ON / OFF, Max. 5 masks

Motion detector

ON / OFF, Selectable area detection, Selectable sensitivity level, Motion

alarm zoom function: Selectable magniﬁed ratio and duration time,

Human face detection *Available in preset positions

Menu language English / Spanish / German / French / Japanese

Camera Title 16 characters

Image quality Selectable (5 levels)

Recording rate Selectable (Max. 25 IPS)

Recording mode Alarm recording Pre / Post setting (Selectable recording rate) /

Suspicion recording (Selectable recording rate)

SD card slot 1 (SDHC supported)

USB port Supported HDD *Require optional HDD case

Video output

HD output HDMI port, SD output composite (BNC terminal, NTSC or PAL)

Network RJ-45 port (10BASE-T / 100BASE-TX )

Alarm input 2 NO / NC setting, This output is also used for day/night control

of color, B/W and auto mode.

Alarm output 1 Selectable NO/NC; open collector

External lens control Zoom / Focus / Common (Voltage control: ±6 to ±12 V)

Operation button

SET button and Cursor buttons (These are used for MENU and Zoom / Focus.)

Picture quality Selectable

Bandwidth No limitation and selectable bandwidth limitation

DDNS

Interface 10BASE-T / 100BASE-TX (PoE compatible)

Protocols RTP*, RTSP*, TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP,

F T P, U P n P, D D N S

Simultaneous access

Security BASIC authentication ID/password, SSL supported

Environmental conditions

Temperature: –10°C to +50°C (+14°F to +122°F), Humidity: within 90% RH

Power requirement

24 V AC ±10%, 50 Hz / 12 V to 15 V DC / PoE (compliant with IEEE 802.3af)

Power consumption 12.3 W

Dimensions 95(W) x 67(H) x 159(D) mm [3.7(W) x 2.6(H) x 6.3(D) in.]

Weight 710 g [25.0 oz.]

*Available for CGI commend only NOTE: Speciﬁcations subject to change without notice

160.8

159

160.8

159 50.5

(with cover)

EX-HDD

FOCUS

ZOOM COM

OUT

ALARM

IN 2

ALARM IN 1

ALARM OUT

GND

AC24V

LAN

12V

CLASS 2 WIRING

0040--

(Unit: mm)

VCC-HD4000P

POWER

NETWORK

CAMERA

NETWORK

CAMERA

Bundled software

• H.264 Active-X Plug-in (attached): Allows user to view

surveillance video in H.264 video format.

• HDC Downloader (attached): Downloads video recording

data from the camera to a PC.

•DLViewer (attached): Replays downloaded video data.

• VA-SW3050Lite (attached): Allows user to view images

from multiple cameras on a split screen.

Option (sold separately)

Wide Conversion Lens VCP-L07W

Together with VCP-L07W, which is sold separately,

this lens offers a wider angle view.

Hard Disk Case VA-HDC4000

This case for a 2.5” Hard Disk Drive has a

protection circuit for important data.

Recommended SD memory card and HDD is

available. Please visit ”sanyosecurity.com” for

than date.

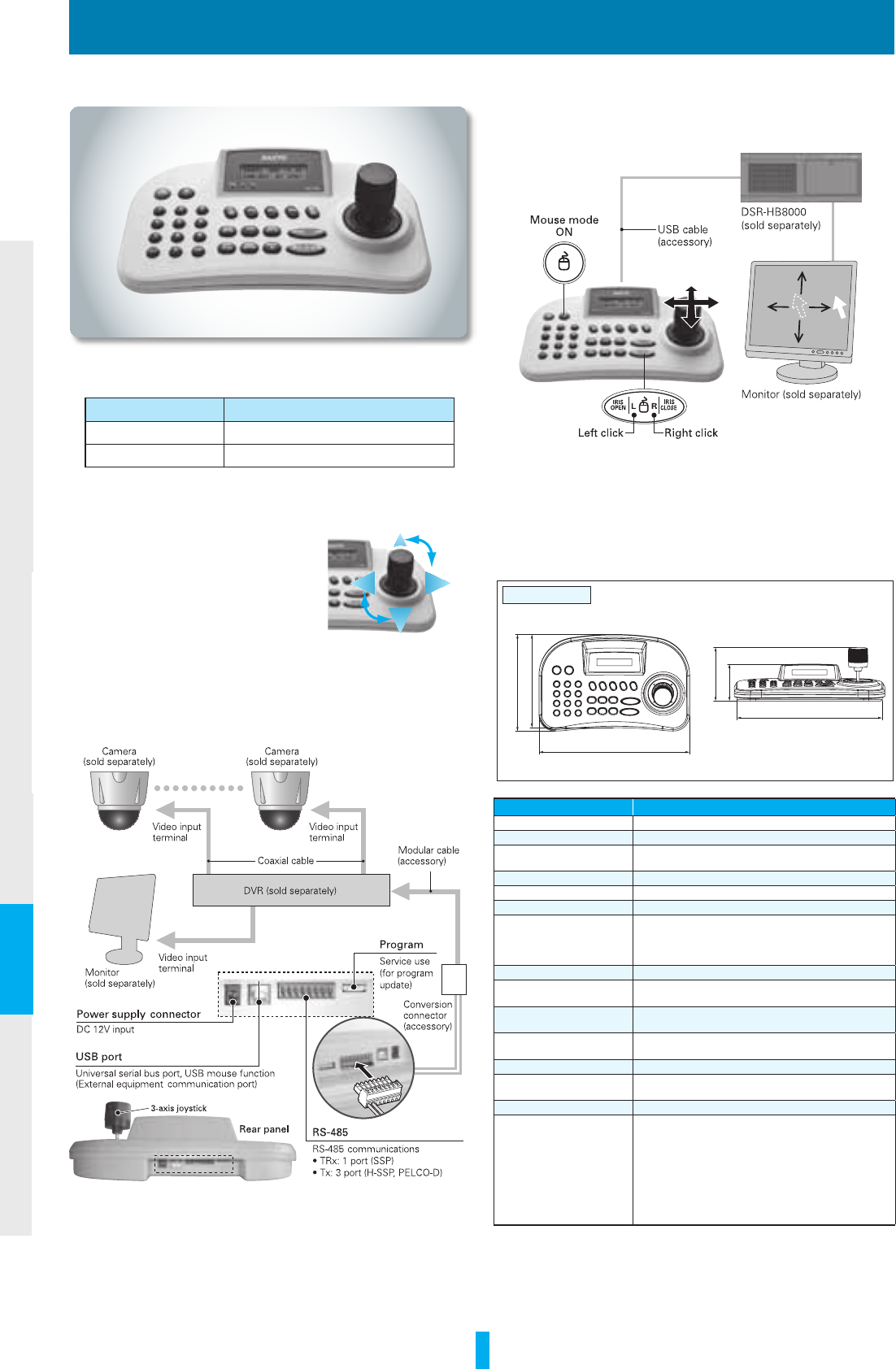

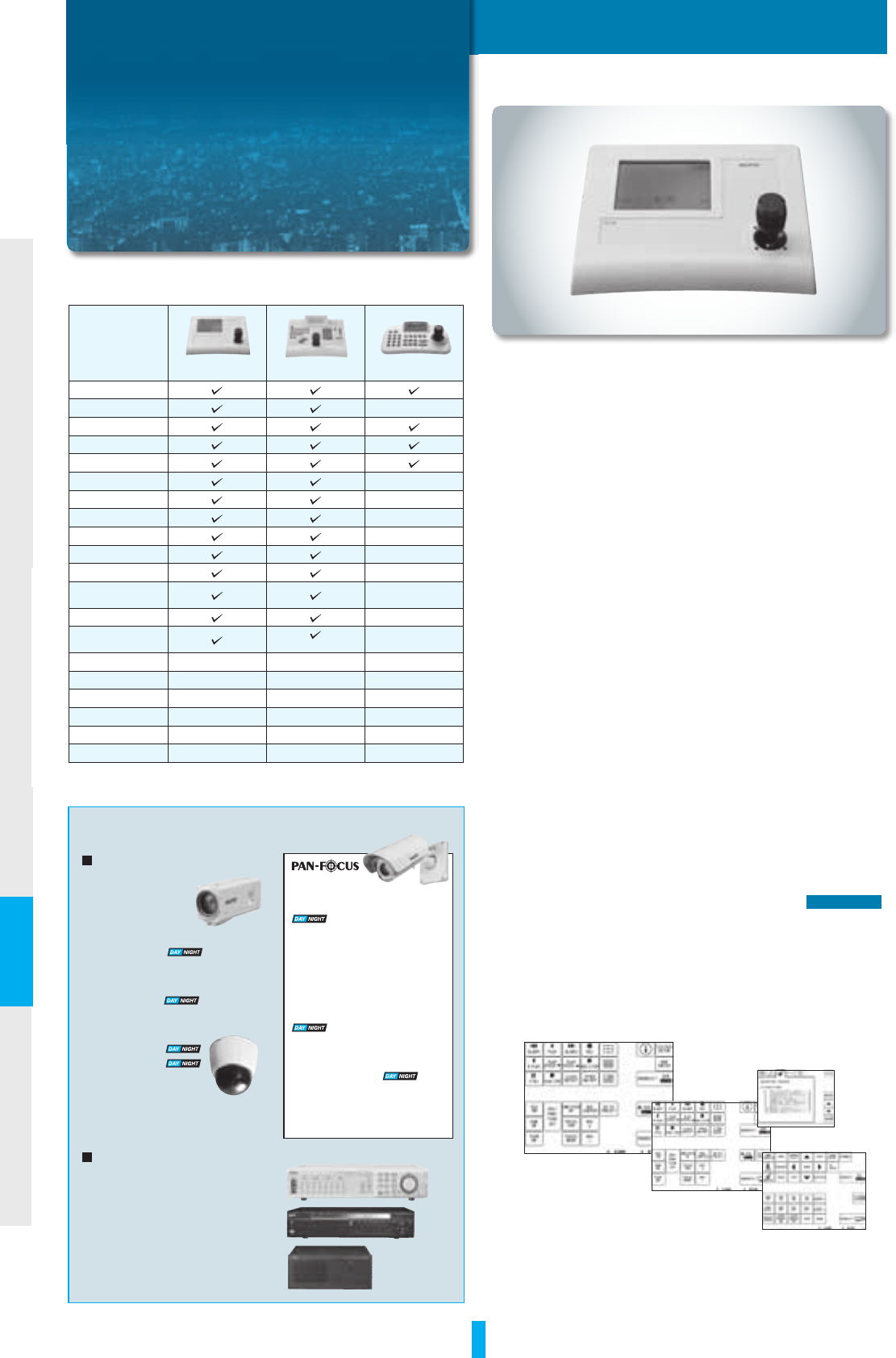

Camera Control Unit VAC-70

(sold separately) See page 42 for details.

VA-HD2120

120 GB 2.5” HDD

VA-SD004

4 GB SD Memory Card

Video Management Software (VMS)

VA-SW50 (Advanced) / VA-SW60 (Enterprise)

See page 17 for details.

Network Recorder VA-SW3050S / VA-SW3050C

See page 18 for details.

SANYO Software Development Kits (SDK)

SANYO now offers two types of SDKs to help the user

develop applications suitable for particular needs, or for

more compatibility with network devices and software from

different vendors.

* For further information on the SDK, please contact the nearest

SANYO representative.

Other Features

• Power-over-Ethernet (PoE)

• Multi-cast

• Backup for interruption of network recording

• Internal log les: up to 100 access logs & up to 200 system

information

• E-mail function

• SSL-compatible (JPEG only)

1) HD Output (HDMI)

2) SD output (Composite)

3) LAN I/F (RJ-45)

4) USB I/F (External HDD)

Connection

External HDD

Alarm in

Alarm out

Full HD monitor

HDMI cable

SD card

Network

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

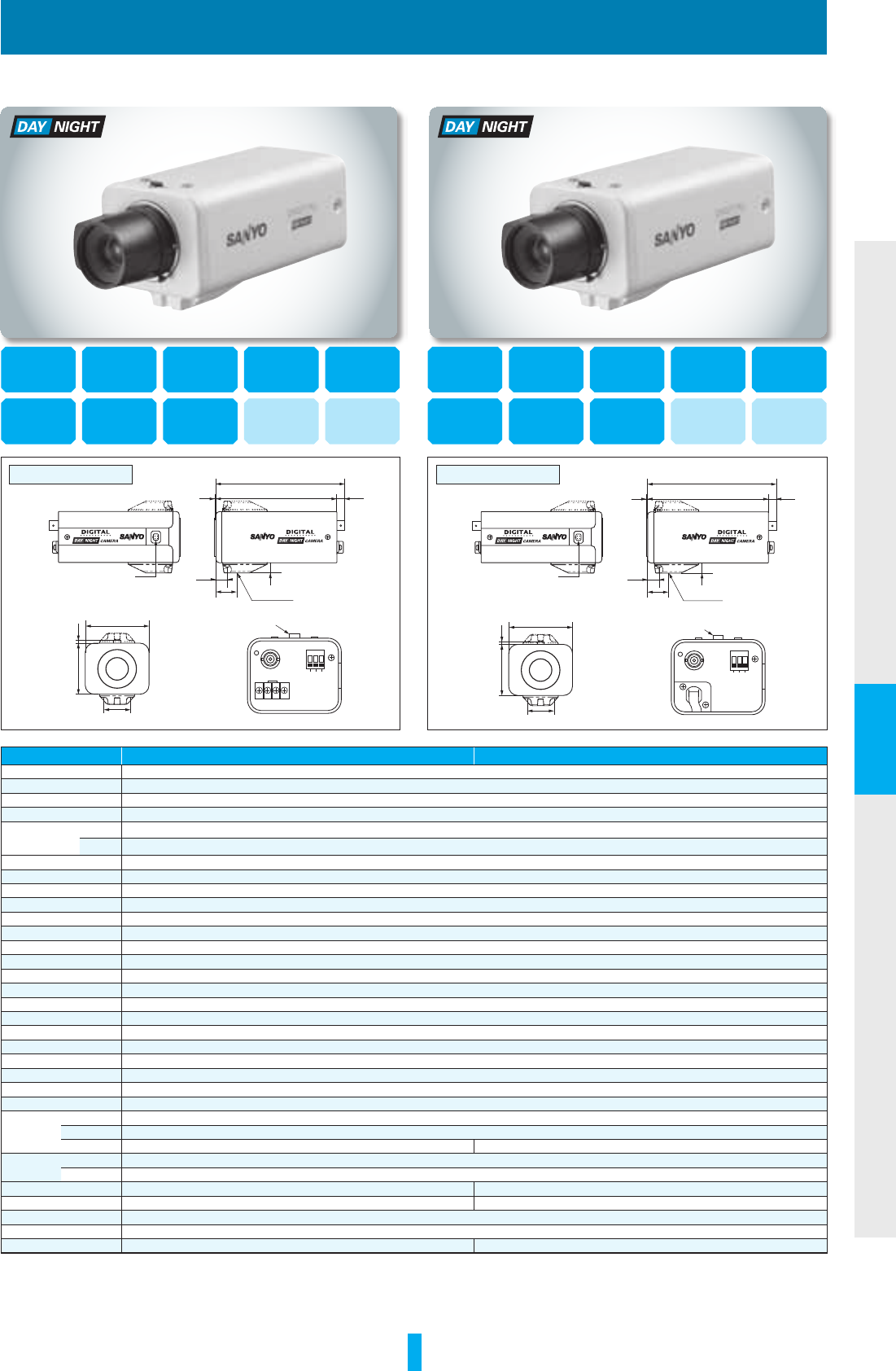

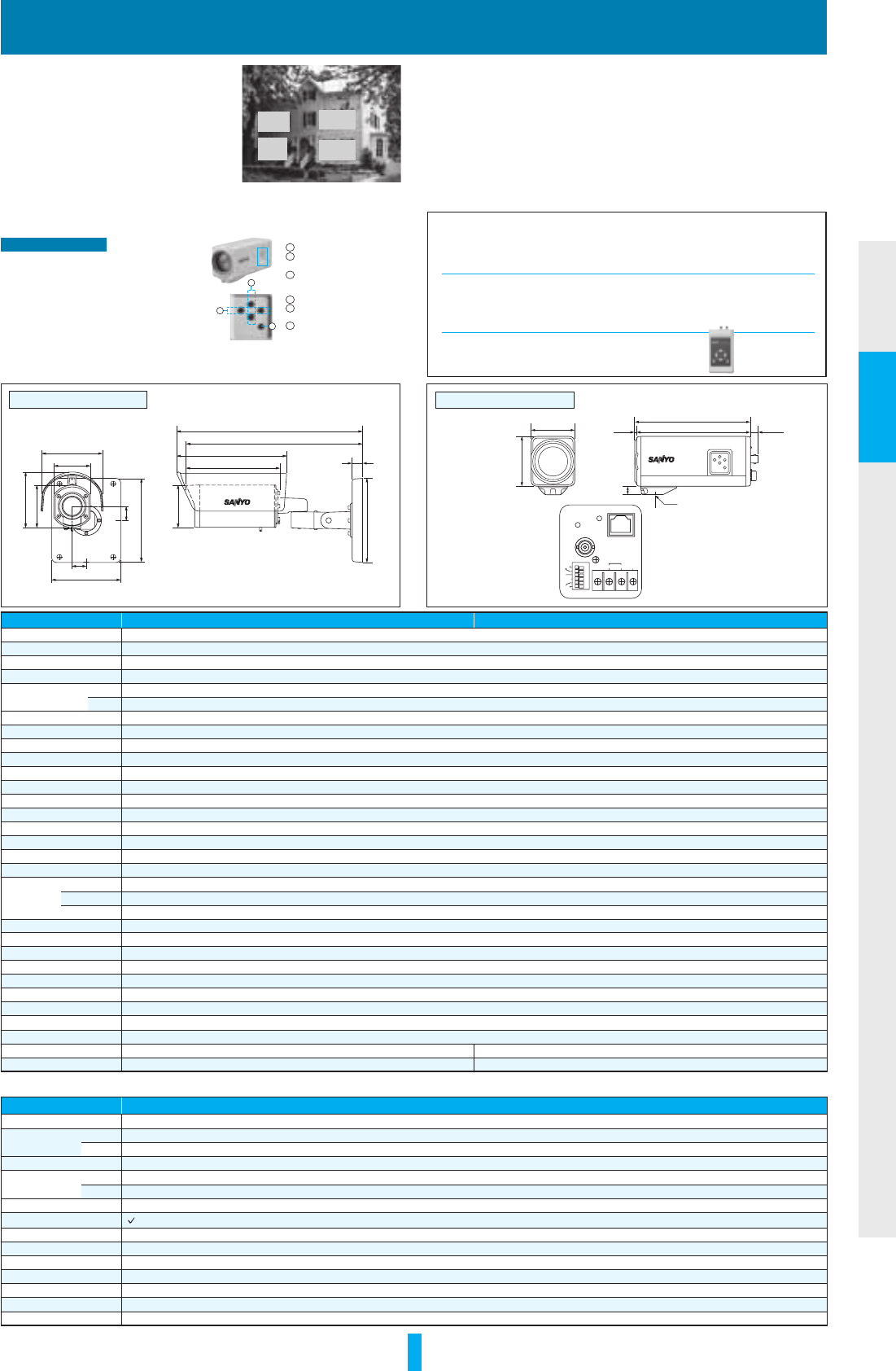

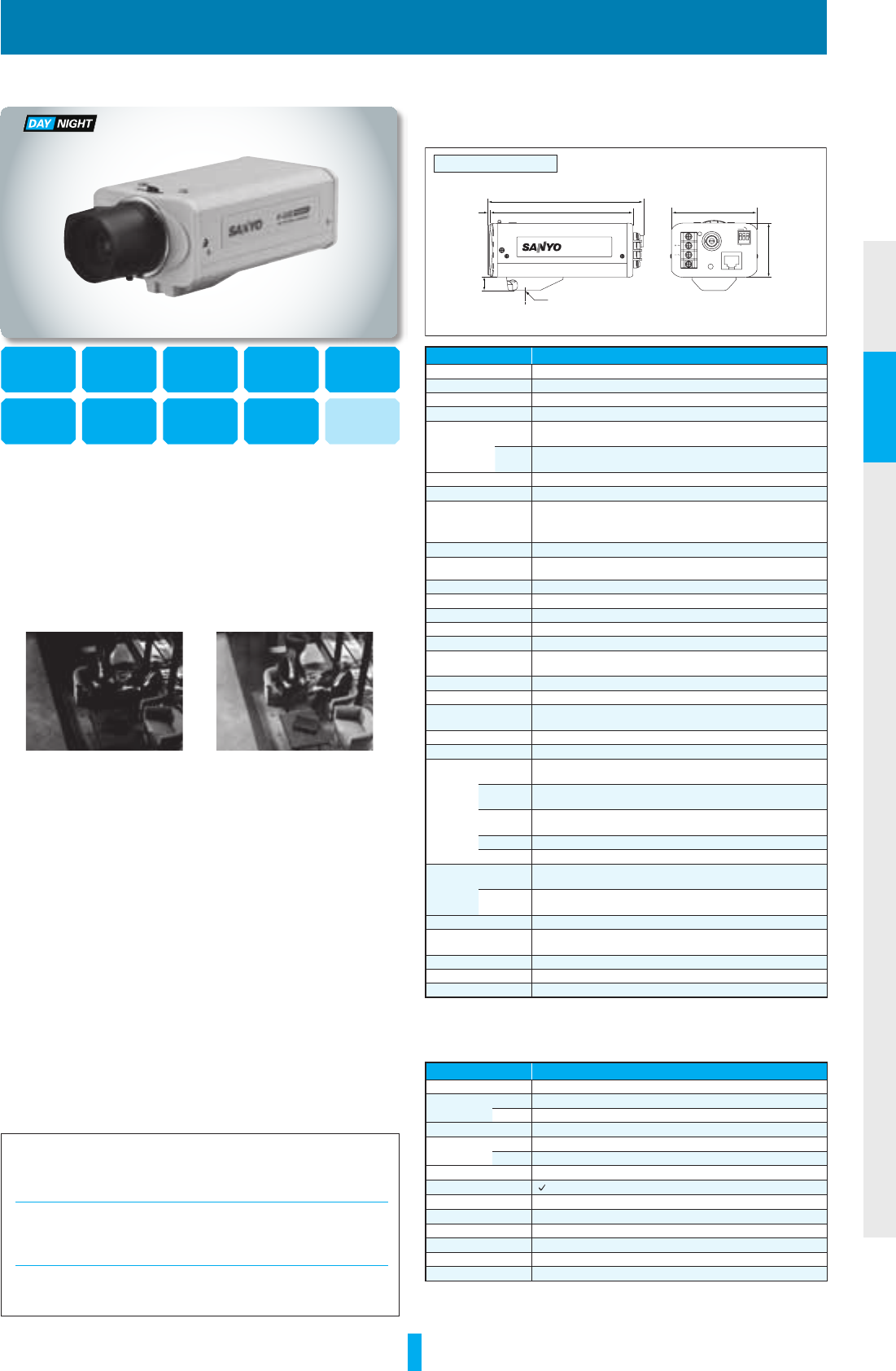

Box type IP camera

High-resolution E-Day/night Network Camera

VCC-N6695P

Dual Codec for H.264 and JPEG

Monitoring can be conducted simultaneously in H.264 and

JPEG formats by minimizing network trafﬁ c.

• H.264 ActiveX Plug-in required (bundled).

Electronic Day/Night Function

The new E-Day/Night function allows an automatic changeover

from color mode to B/W mode. This makes it possible to

achieve 24-hour high quality in light and dark conditions.

High Sensitivity

Sensitivity has signiﬁ cantly increased by about 3dB compared

to conventional models. A newly-developed CCD sensor

partners with SANYO’s advanced technologies to enable the

camera to clearly capture objects even in dark conditions.

E-mail Function

A setting for automatic sending of mail (up to 5 addresses can

be set) is provided. By using this setting, an alarm notiﬁ cation

e-mail can be set when an alarm is detected. Or, e-mails can

be sent at regular intervals. In either case, an image can be

attached to the e-mail.

Power-over-Ethernet (PoE)

VCC-N6695P supports the IEEE 802.3af standard for Power-

over-Ethernet (PoE) applications to allow power supplied over

LAN cabling. In addition to making installation easier, this

allows camera installation in places where it would otherwise

be difﬁ cult to secure a power source.

Electronic Day/Night function

E-

Video Management Software (VMS)

VA-SW50 (Advanced) / VA-SW60 (Enterprise)

See page 17 for details.

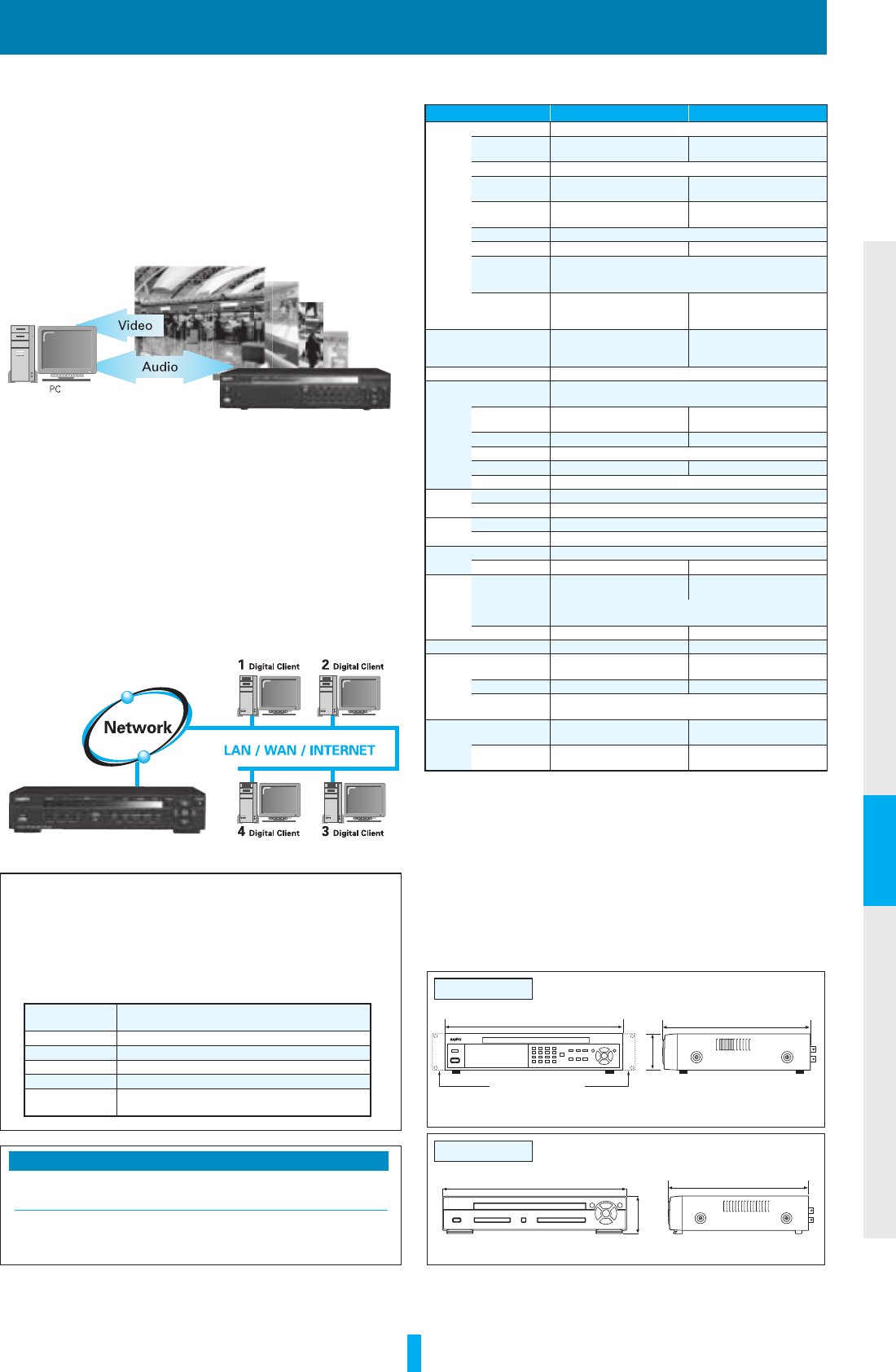

Network Recorder (sold separately)

VA-SW3050S (for server) / VA-SW3050C (for client)

See page 18 for details.

Camera Mount VA-VCT31 (sold separately)

See page 42 for details.

H.264 JPEG Minimum

illumination

0.25 lx

Multi-spot /

Center-zone

BLC

ATW

Manual

25 IPS

(720 x 576)

Alarm IN x 1

Alarm OUT x 1

24 V AC

12 V to

15 V DC PoE

129.3

119.51

11.2

(Unit: mm)

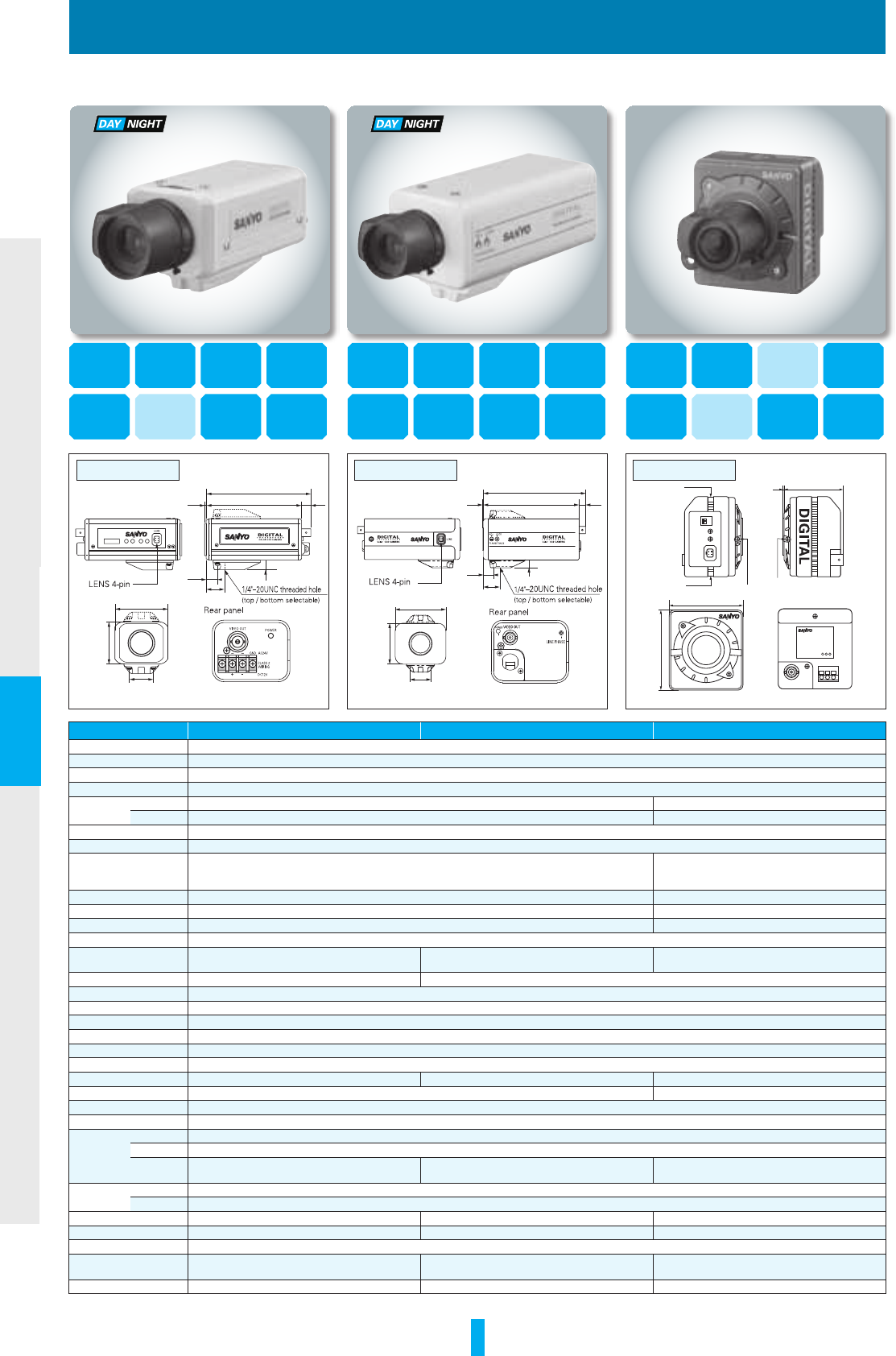

VCC-N6695P

1/4"-20UNC

Rear panel

CLASS 2 WIRING

GND

AC24V --

DC12V --

POWERVIDEO OUTALARM IN

ALARM OUT

COM

LINK

LAN

MODEL VCC-N6695P

Scanning system PAL standard 625 lines, 50 ﬁ elds/sec.

Image sensor 1/3” (approx. 4.8 mm x 3.6 mm) interline transfer method CCD

Picture elements Total: 795(H) x 596(V), Effective: 752(H) x 582(V)

Horizontal resolution

540 TV lines (typical)

Minimum

illumination

(approx.)

50IRE 0.35 lx (at F1.2, at color mode),

0.25 lx (at F1.2, GAIN on, at B/W mode)

20IRE 0.14 lx (at F1.2, at color mode),

0.1 lx (at F1.2, GAIN on, at B/ W mode)

Video output level 1.0 V (p-p) (75 Ω, composite)

Video S/N ratio More than 50 dB (AGC OFF)

Backlight

compensation

ON / OFF — Slide SW (side) / IE menu

ON = Multi-spot photometry [2-mode (Normal/High)] /

Center-zone photometry system

— Slide SW (side) (activated when auto iris lens is used)

Day/Night

ON/OFF – SW (ON: Electronic-Day/Night / OFF: Color)

White-balance ATW (Auto) / MWB (Manual) — Slide SW (side)

IE menu MWB: Adjustable R & B-Gain

Motion detector Detect / Mask / OFF, - IE menu

Light control Optical auto iris lens / Electronic iris (indoor use)

Lens mount CS mount (C mount: using C-mount adaptor supplied)

Flange back 12.5 mm ±0.5 mm adjustment

Auto iris lens DC type (Variable DC level)

Auto iris output DC: Drive coil (+, -), Brake (Damp) coil (+, -)

— Slide SW (side) / IE menu

Lens iris level LEVEL: L to H ––– VR (side)

Aperture correction

High/Normal — Slide SW (side) / IE menu

Electronic iris range 0.35 to 50,000 lx (with F1.2 lens) at Color

0.25 to 50,000 lx (with F1.2 lens) at B/ W

Alarm Input (1) / Output (1), NO / NC switch - IE menu

Synchronizing system

Internal sync

Sockets

Video

signal

VIDEO OUT ––– BNC (rear)

Auto iris

lens

LENS ––– 4-pin (side)

Power

supply

24 V AC, GND ––– 3-pin terminal (rear)

12 V DC, GND ––– 2-pin terminal (rear)

LAN

RJ45

Alarm

3-pin terminal (rear)

Operating

conditions

Operating

Temperature: –10°C to 50°C (14°F to 122°F),

Humidity: within 90% RH

Storage

Temperature: -20°C to 70°C [-4°F to 158°F],

Humidity: within 70% RH

Power requirement 24V AC, 50 Hz / 12 to 15V DC / PoE (compliant with IEEE 802.3af)

Power consumption

(approx.) 7.1 W

Camera mount 1/4”–20 UNC (top / bottom selectable)

Dimensions (approx.)

71(W) x 45(H) x 120.5(D) mm [2.8(W) x 1.8(H) x 4.7(D) in.]

Weight (approx.) 350g (12.3 oz.) (without lens)

NOTE: Speciﬁ cations subject to change without notice

Network Speciﬁ cations

MODEL VCC-N6695P

Image compression H.264 / JPEG

Resolution H.264 720 x 576, 352 x 288, 176 x 144

JPEG 720 x 576, 720 x 288, 640 x 480, 360 x 288, 176 x 144

Picture quality 5 levels

Frame rate H.264 Max. 25 IPS (720 x 576)

JPEG Max. 25 IPS (720 x 576)

Bandwidth 128, 256, 512 Kbps, 1,2,3,4 Mbps, no limitation

DDNS

Alarm buffer Up to 8 MB; conﬁ gurable

Interface 10BASE-T/100BASE-TX, PoE (IEEE802.3af) compatible

Protocols TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, UPnP, DDNS

Simultaneous access capacity

Image: Maximum 16 (admin: 1)

Security BASIC authentication (ID/password), SSL supported (image only)

Accessories CD-ROM (VA-SW3050LITE, Active X, Manual)

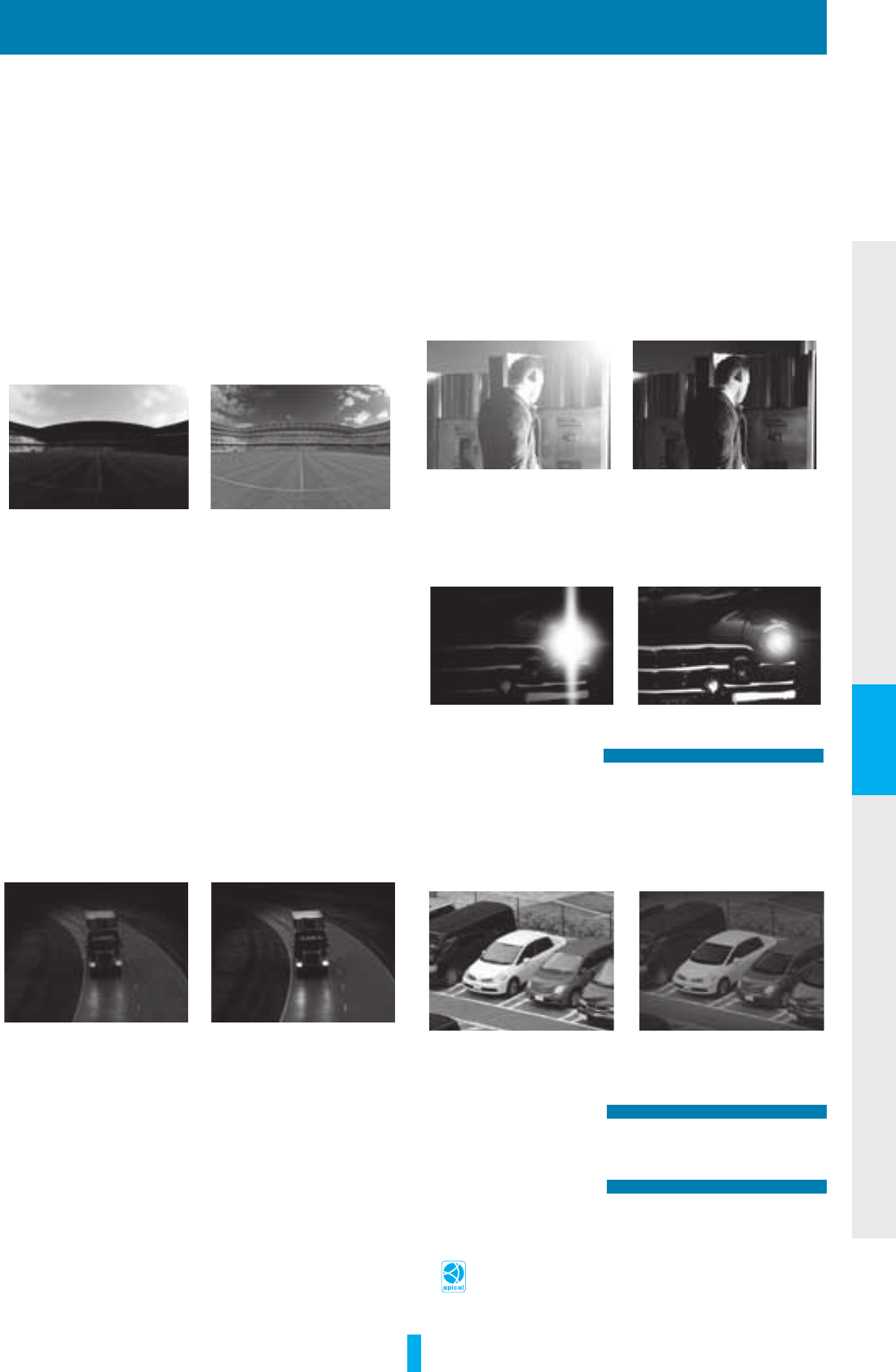

Image from conventional camera Image from E-Day/Night camera

Shown with optional lens

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Adjustable Arm 　 VCC-XZN600P

The angle of the arm is adjustable in all directions. Since

the ﬂ exible joint is secured by screws, the arm maintains

its position without sagging over time. In

addition, a safety wire is included to prevent

accidents. Installation on a ceiling or wall is

easy without any additional parts. The wires

are securely protected inside the arm.

32X Sensitivity Boost for Minimum

Illumination of 0.00125 Lx

While achieving 0.04 lx minimum subject illumination at

maximum gain, sensitivity can be further heightened 32X for

0.00125 lx minimum illumination when the sensitivity boost

function is activated at 50 IRE (F1.4). [B/W mode], 0.0005 lx

minimum illumination when the sensitivity boost function is

activated at 20 IRE (F1.4). [B/W mode]

Built-in Intelligent Digital Motion Detector and Zoom Detector

The Intelligent Digital Motion Detector enables reliable and

accurate motion detection by analyzing the magnitude of

movement and the size of object from changes in picture

brightness. When a moving object is detected,

VCC-XZN600P / VCC-ZMN600P can send an alarm signal

to external units and/or automatically switch to the optical

zoom mode, according to the user's preference. Furthermore,

an external alarm input terminal makes it possible, when an

alarm signal is received, to automatically zoom in to the site of

activity, according to a preset zooming operation.

Registering a view setting ﬁ le (CAMERA VIEW)

To support shooting in various surveillance conditions

like when the surveillance location is bright (or dark), the

CAMERA VIEW screen allows you to register up to 2 patterns

of shooting settings as camera view setting ﬁ les.

Image Stabilizer

A gyro-sensor picks up camera vibration in the 5 to 15 Hz

range, which is then suppressed electronically. This feature

offers a clear image even in a strong wind or when the

camera is installed near a highway with heavy trafﬁ c.

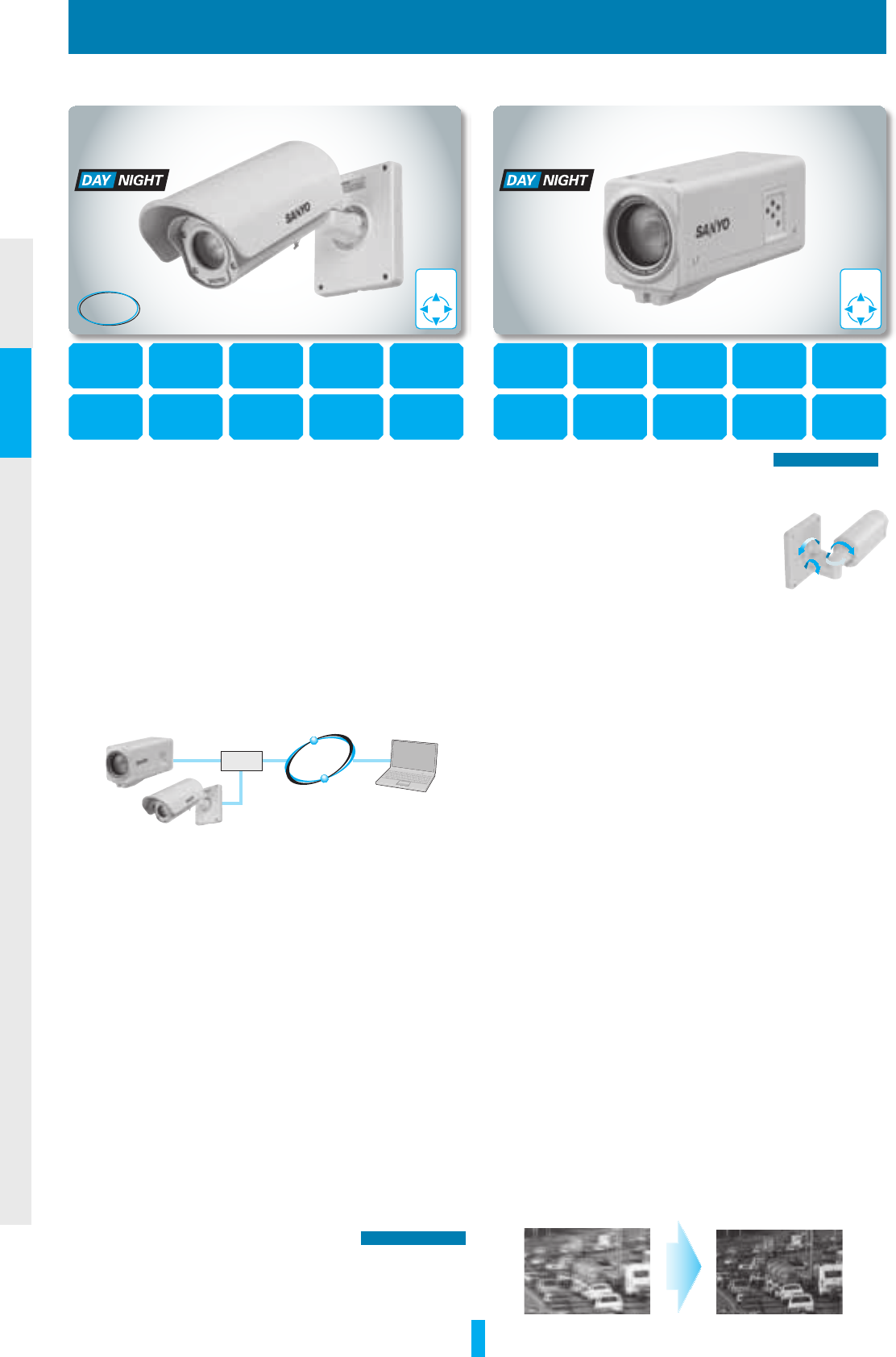

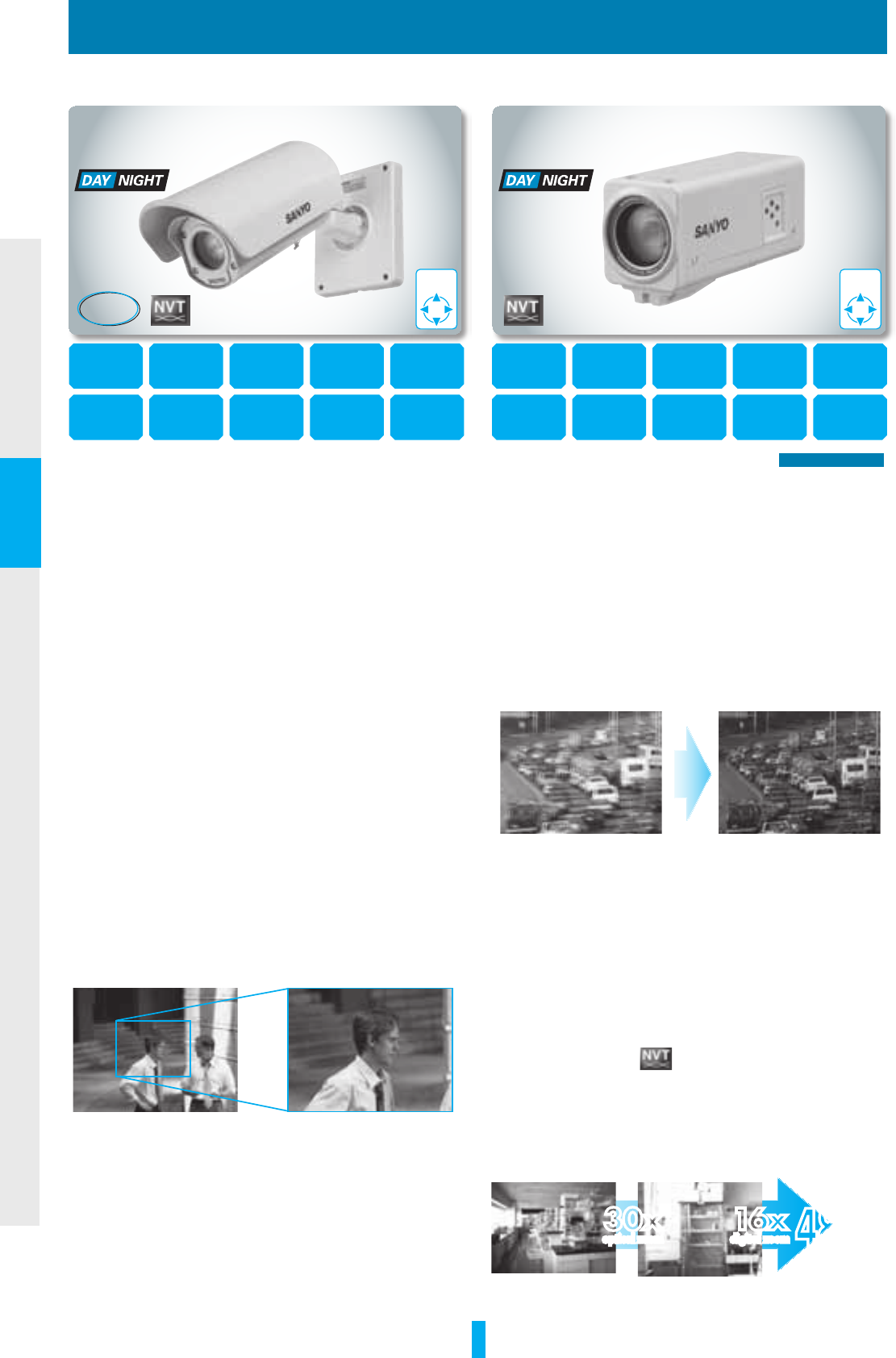

IP camera

High-resolution Weatherproof AF Zoom Network Camera

VCC-XZN600P

High-resolution AF Zoom Network Camera

VCC-ZMN600P

30x

Optical Zoom

IP66

VA C-70

Control

VA C-70

Control

30x

Optical Zoom

The two Independent CODECS of H.264 and JPEG

The H.264, which optimizes the network video streams at

a low transfer rate, is ideal for monitoring real-time video

images. On the other hand, the commonly used JPEG format

is suitable for monitoring and recording without losing quality.

The presence of the two codecs gives the user the option to

choose whichever is suitable for obtaining critical information.

Power-over-Ethernet (PoE)

Both VCC-XZN600P / VCC-ZMN600P support the IEEE

802.3af standard for Power-over-Ethernet (PoE) applications

to enable power supplied over LAN cabling. In addition to

making installation easier, this allows camera installation

in places where it would otherwise be difﬁ cult to secure a

power source.

DDNS (Dynamic DNS)

The VCC-XZN600P / VCC-ZMN600P can be accessed with a

ﬁ xed host name (e.g. sanyovcczmn600p), which makes the

network easy to remember, always available, and secure.

E-mail Function

A setting for automatic sending of mail (up to 5 addresses can

be set) is provided. By using this setting, an alarm notiﬁ cation

e-mail can be set when an alarm is detected. Or, e-mails can

be sent at regular intervals. In either case, an image can be

attached to the e-mail.

Schedule setting

Timer sending or alarm notiﬁ cation can be performed during a

speciﬁ ed time period. The following 5 functions are provided:

TIMER (SMTP) for timer sending of e-mail, TIMER (FTP) for

timer sending of images via FTP mode, ALARM (SMTP) for

e-mail notiﬁ cation of an alarm, ALARM (FTP) for sending of

alarm images via FTP mode, and REMOTE ALARM "ACTIVE"

for enabling camera alarm output 2 by remote operation.

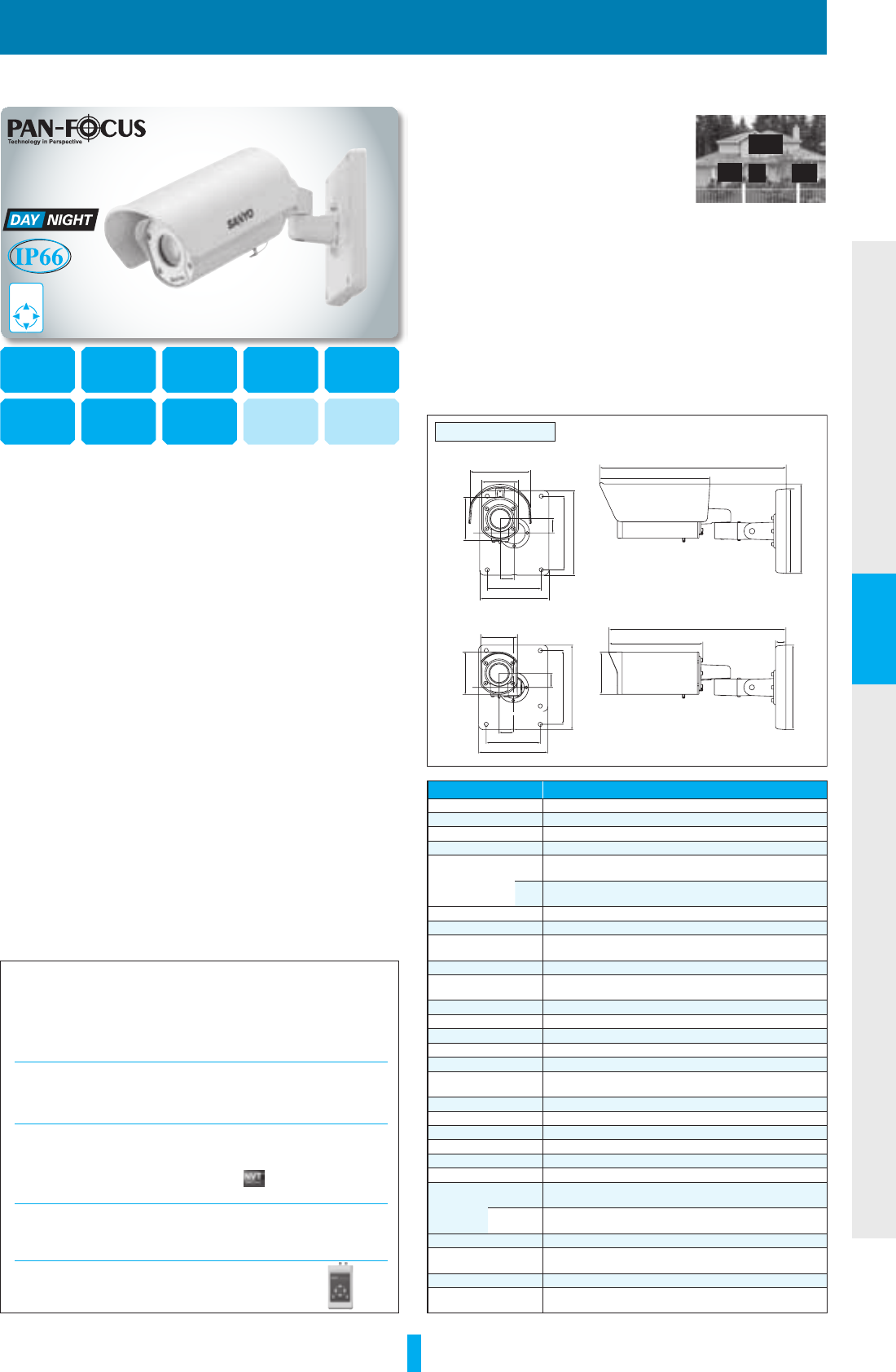

IP66 Rated Enclosure　 VCC-XZN600P

VCC-XZN600P is designed to ﬁ ght off dust and water. The

IP66 compliant package is suitable for outdoor installation at

locations exposed to wind and rain.

PoE SW

Network

Integrated ﬂ exible arm

Without image stabilization With image stabilization

H.264 JPEG Minimum

illumination

0.04 lx

Multi-spot /

Center-zone

BLC

ATW

AWC

Manual

25 IPS

(720 x 576)

Alarm IN x 2

Alarm OUT x 1

24 V AC

12 V to

15 V DC PoE Image

Stabilizer

H.264 JPEG Minimum

illumination

0.04 lx

Multi-spot /

Center-zone

BLC

ATW

AWC

Manual

25 IPS

(720 x 576)

Alarm IN x 2

Alarm OUT x 1

24 V AC

12 V to

15 V DC PoE Image

Stabilizer

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Privacy Masking

When there is a house, or even an

object as small as a window, within

the camera frame, to protect other

people’s privacy it is possible to

mask the area so that it will not

appear on the monitor screen. Up to

4 rectangular masks of any desired size can be set per screen.

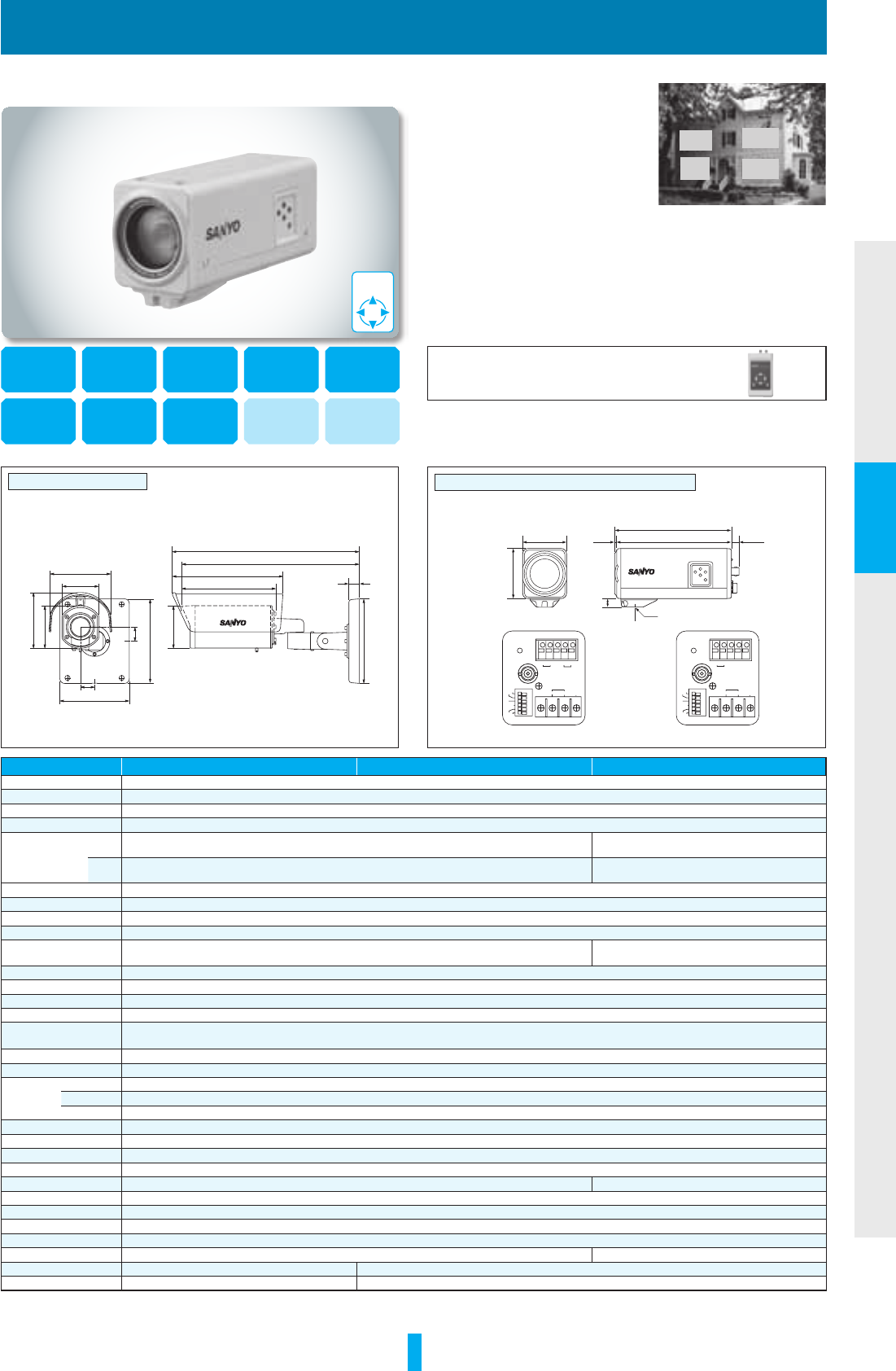

Operation Buttons

VCC-ZMN600P

The camera comes with

function buttons on its

side, which can be used to

manually adjust the focus and

magniﬁcation of a live image.

The buttons can also be used

to change settings.

13 Mode Electronic Shutter Speeds

2x, 4x, 8x, 16x, 32x, 1/50, 1/120, 1/250, 1/500, 1/1000,

1/2000, 1/4000, and 1/10000 sec.

Other features

• High Resolution of 540 TV Lines • Adjustable gamma

correction and aperture settings •

Display of assignable camera

ID and titles (16 characters max.)

• Mirror function

Set the focus

Zoom out/into

(Magniﬁcation: x1 to x30)

Auto focus operation

Operations during live monitoring

Operations on the menu screen

Menu select

Adjust or choose the value

for the selected item

Set the value you adjusted

or chose for the selected item,

or switch to the sub-menu

Video Management Software (VMS)

VA-SW50 (Advanced) / VA-SW60 (Enterprise)

See page 17 for details.

Network Recorder (sold separately)

VA-SW3050S (for server) / VA-SW3050C (for client)

See page 18 for details.

Camera Control Unit VAC-70

(sold separately) See page 42 for details.

(Unit: mm)

VCC-XZN600P

400

381

172

141

172

123 224

211 21

113

VCC-ZMN600P

(Unit: mm)

1/4"-20UNC

147

150

103

Rear panel

AC 24V

DC12V

ALARM IN 2

ALARM IN 1ALARM OUTFOCUS

ZOOM

COM

GND

+---

POWER

LINK LAN

VIDEO OUT

MODEL VCC-XZN600P VCC-ZMN600P

Scanning system PAL standard 625 lines, 50 ﬁelds/sec.

Image sensor 1/4" (approx. 3.6 mm x 2.7 mm) interline transfer method CCD

Picture elements Total: 795(H) x 596(V), Effective: 752(H) x 582(V)

Horizontal resolution 540 TV lines (typical)

Minimum illumination

(approx.)

50IRE

0.8 lx (at F1.4, GAIN: HIGH, color mode), 0.04 lx (at F1.4, GAIN: HIGH, B/W mode)

20IRE

0.32 lx (at F1.4, GAIN: HIGH, color mode), 0.016 lx (at F1.4, GAIN: HIGH, B/ W mode)

Electronic sensitivity boost

AUTO (interlocked with auto iris), up to 32x / OFF

Video output level 1.0 V (p-p) (75 Ω, composite)

Video S/N ratio More than 50 dB (AGC OFF)

Backlight compensation ON / OFF, ON = Multi-spot photometry / Center-zone photometry / Multi-spot masking

Day/Night Color / BW switching function (color mode) Color / BW settings (3-level adjustment) and burst off/on setting function (B/W mode) can be used via alarm input

White-balance ATW / AWC / Manual / Outdoor / Indoor / Fluorescent / R/B adjustment possible when using MWB

Gain control ON (Low / Normal / Middle / High) / OFF (Gain adjustment possible)

Motion detector ON (individual setting possible) / OFF, Motion zoom function (individual setting possible)

Privacy masking ON / OFF, max. of 4 masked locations (Wide view screen)

Electronic shutter High-speed mode:1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec. Low-speed mode: 1/25, 1/12, 1/6, 1/5, 1/1.5

Lens f = 3.5 to 105mm F1.4 to 3.7 auto focus

Synchronizing system Internal sync. / Line lock

Aperture

Horzontal 56 to 2.0°

Vertical 43 to 1.5°

Diagonal 68 to 2.5°

V phase adjustment LINE PHASE

Optical zoom 30x

Electronic zoom 16x

Alarm input External inputs: 2, NO / NC switch, Day/night switch

Alarm output External outputs: 1, NO / NC switch, open corrector

Mirroring function OFF / HV / H / V

Environmental conditions

Temperature: -10°C to 50°C [+14°F to 122°F], Humidity: within 35 to 90% RH

Power requirement 24 V AC ± 10%, 50 Hz / 12 V to 15 V DC / PoE (compliant with IEEE 802.3af)

Power consumption (approx.)

7.3 W

Dimensions (approx.) 141(W) x 172(H) x 400(D) mm [5.6(W) x 6.8(H) x 15.7(D) in.] 56(W) x 64(H) x 150(D) mm [2.2(W) x 2.5(H) x 5.9(D) in.]

Weight (approx.) 1.82 kg [64.2 oz.] 600 g [21.2 oz.]

NOTE: Speciﬁcations subject to change without notice

MODEL VCC-XZN600P / VCC-ZMN600P

Image compression H.264 / JPEG

Resolution H.264 720 x 576, 352 x 288, 176 x 144

JPEG 720 x 576, 720 x 288, 640 x 480, 360 x 288, 176 x 144

Picture quality 5 levels

Frame rate H.264 Max. 25 IPS (720 x 576)

JPEG Max. 25 IPS (720 x 576)

Bandwidth 128, 256, 512 Kbps, 1,2,3,4 Mbps, no limitation

DDNS

Alarm buffer Up to 8 MB; conﬁgurable

Interface 10BASE-T/100BASE-TX (RJ45 connector)

Protocols TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, UPnP, DDNS

Simultaneous access capacity

Image: Maximum 16 (admin: 1)

Security BASIC authentication (ID/password), SSL supported (image only)

System requirements

PC IE: CPU: Pentium

4, 2.0 GHz or higher, Memory: 512 MB, SW3050: CPU 3.0 GHz, Memory: 1 GB or more, Recommended graphics chip: GEFORCE6000 series or higher, OS: Windows

Accessories CD-ROM (VA-SW3050LITE, Active X, Manual)

Network Speciﬁcations

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Flexible Motion Detector

The Flexible Motion Detector enables reliable and accurate

motion detection by analyzing the magnitude of movement

and the size of object from changes in picture brightness.

When a moving object is detected, VDC-DPN9585P /

VCC-PN9575P can send an alarm signal to external units and/

or switch to the optical zoom mode that can be preset either

to 1.0x, 1.4x, 2.0x, or 2.6x zoom.

SANYO Security Systems for the Creation of a Full-ﬂ edged

LAN or Internet

Video captured by camera can be viewed using the bundled

VA-SW3050LITE viewer software.

Use of the VA-SW3050S/C archiving software (sold separately)

allows simultaneous monitoring of streams from up to 128

cameras as well as recording of live audio and video data.

Power-over-Ethernet (PoE)

Both VDC-DPN9585P / VCC-PN9575P support the IEEE

802.3af standard for Power-over-Ethernet (PoE) applications to

enable power supplied over LAN cabling. In addition to making

installation easier, this allows camera installation in places

where it would otherwise be difﬁ cult to secure a power source.

Surveillance-Point Monitoring with Video and Audio Data

The VDC-DPN9585P / VCC-PN9575P are equipped to

enable two-way voice communications via audio signals sent

between cameras and PCs. Transmission of crystal clear

images together with audio offers those overseeing

surveillance as a sense of being right there at the scene.

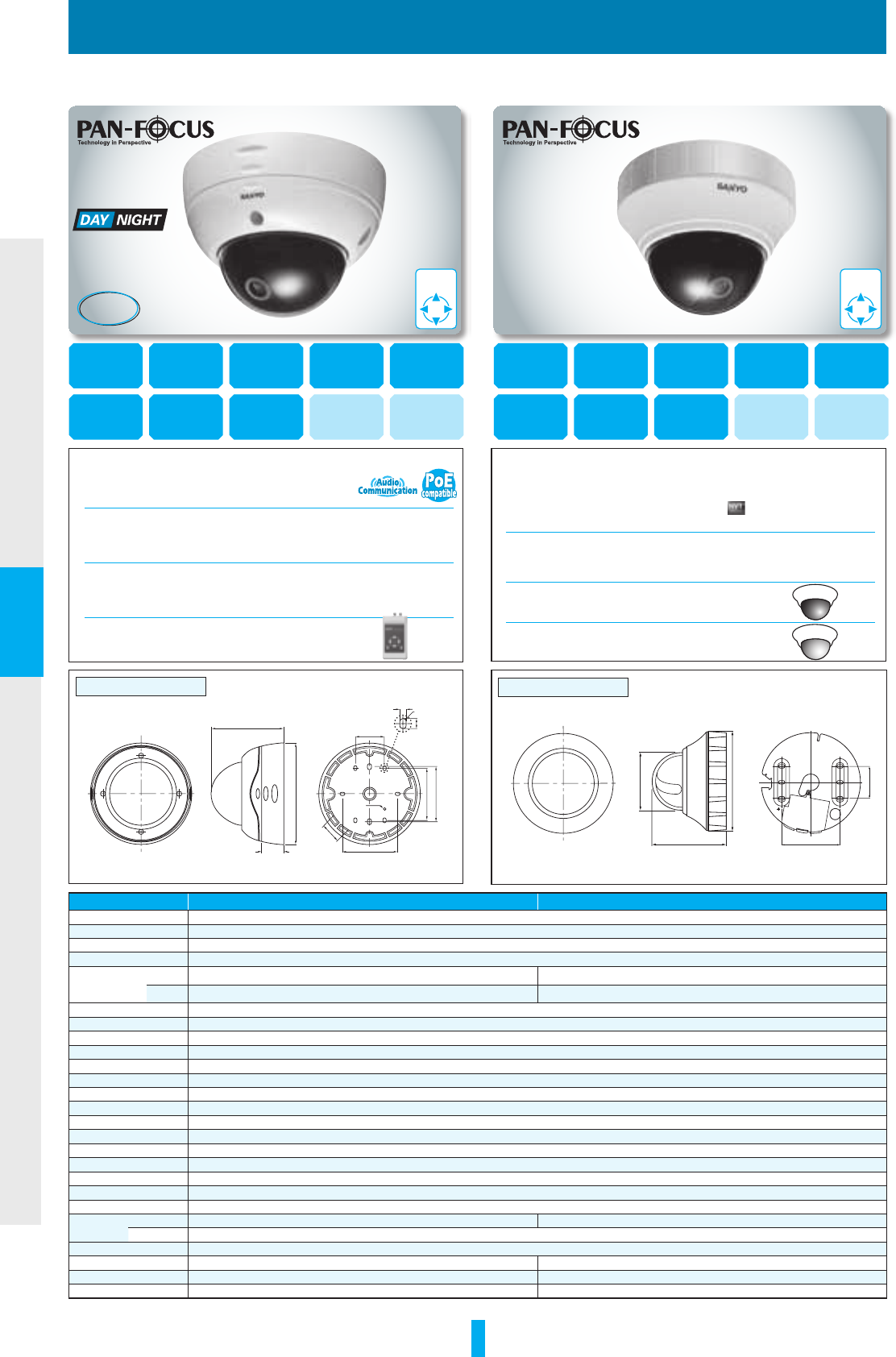

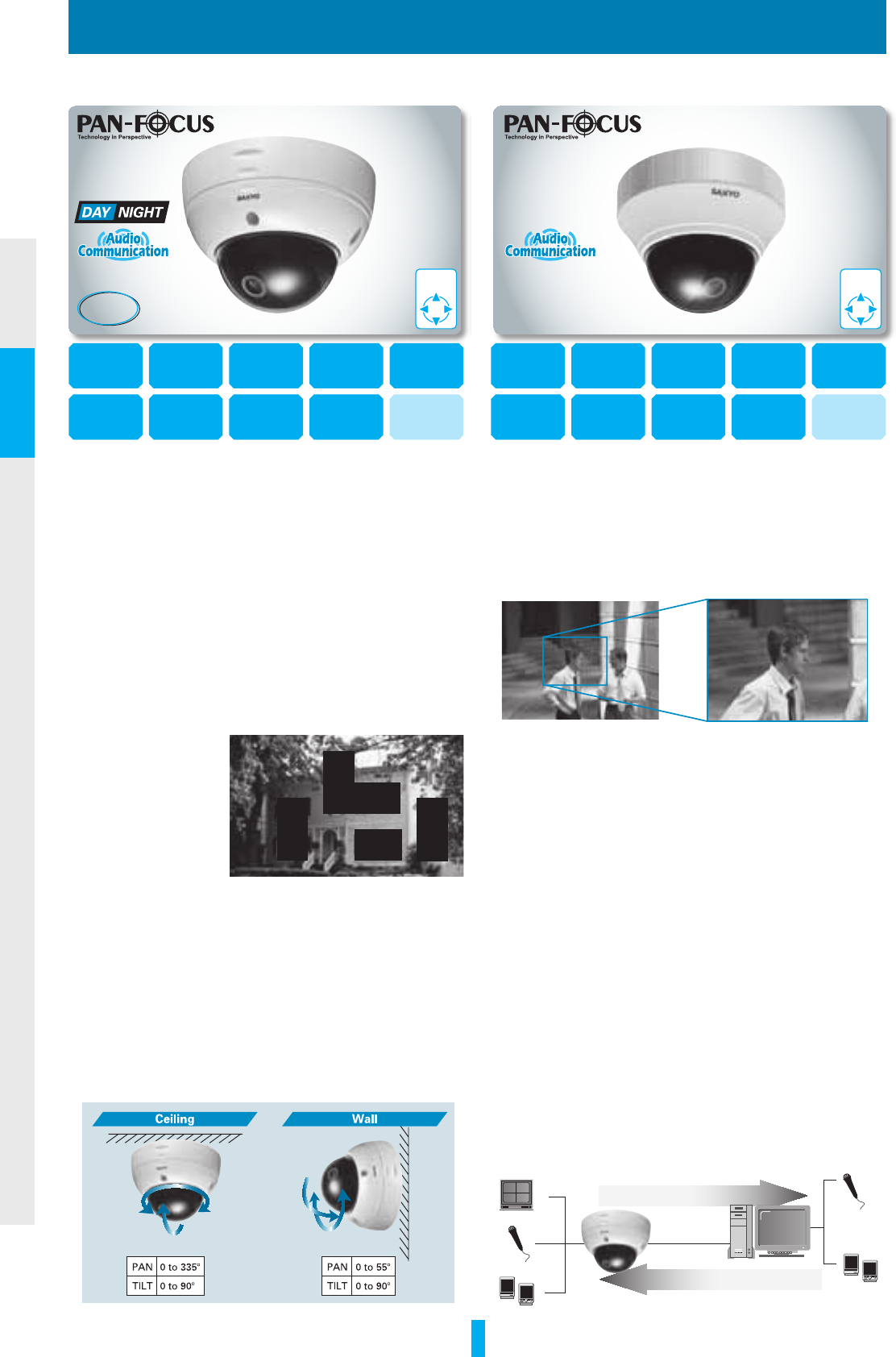

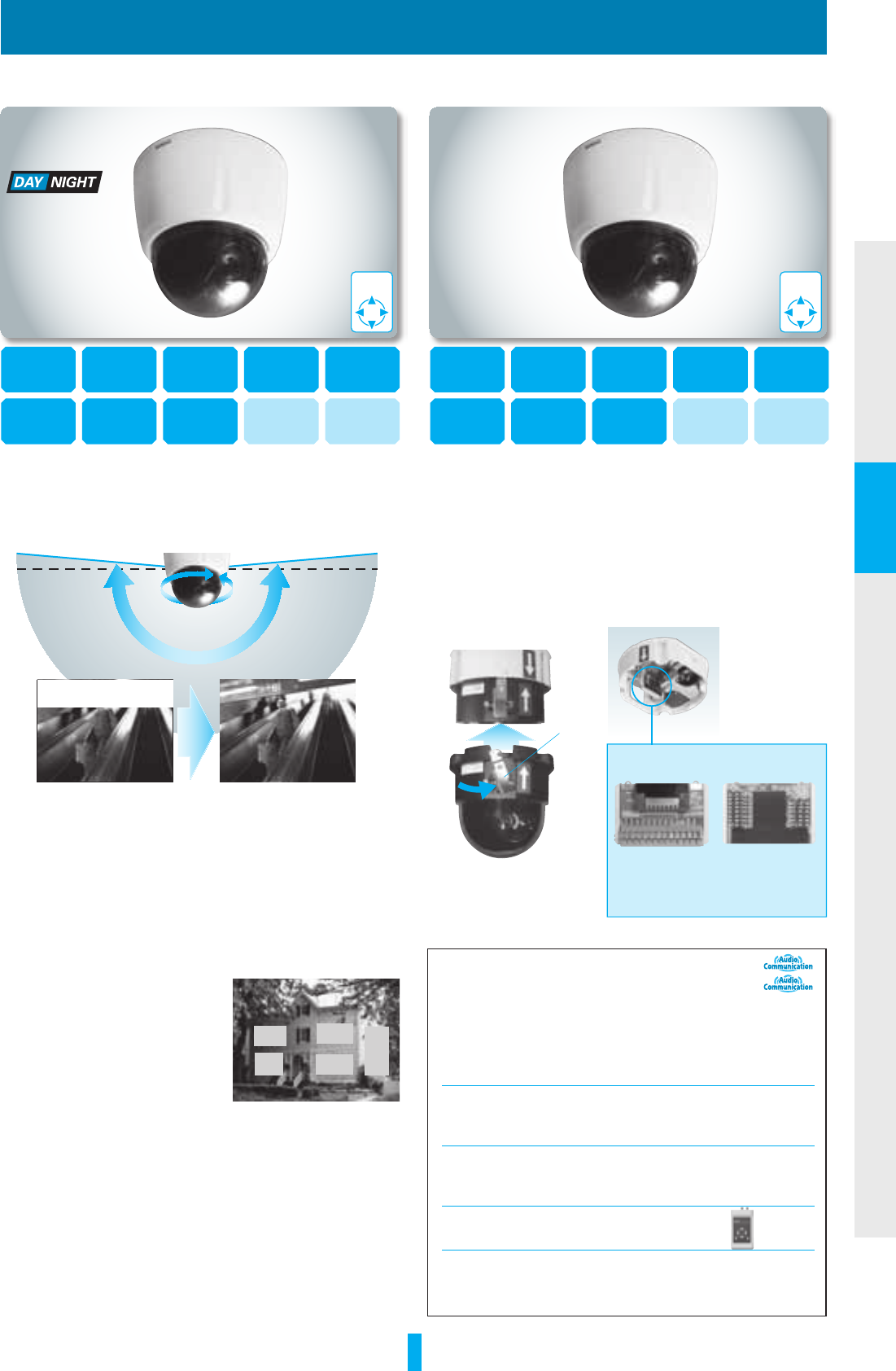

IP camera

High-resolution Vandal-resistant PTZ Network Dome Camera

VDC-DPN9585P

High-resolution Indoor mini PTZ Network Dome Camera

VCC-PN9575P

2.6x

Pan-Focus Lens 2.6x

Pan-Focus Lens

IP66

VA C-70

Control

VA C-70

Control

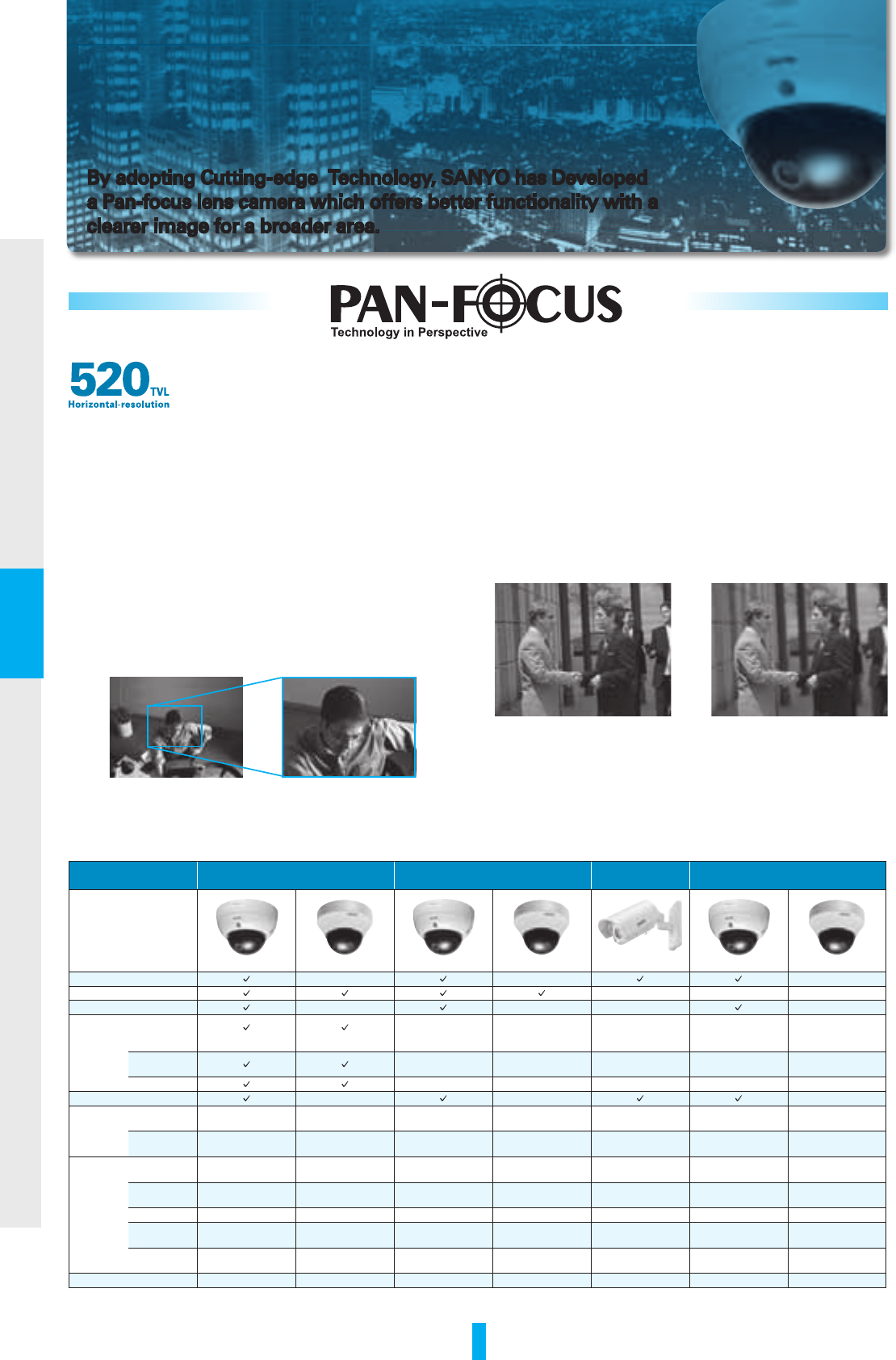

SANYO proposes the 2.6x pan-focus lens for a focused

view of a broader area

With a vari-focal lens, objects that are in front of or behind

the focus point are blurred. To eliminate this problem, a new

technology was developed to increase the depth of ﬁ eld so

that everything in the ﬁ eld of view is in focus at the same

time. SANYO has been one of the leaders in the development

of this technology and has successfully commercialized the

2.6x pan-focus lens that offers an image with greater depth of

ﬁ eld. The new lens makes it possible to capture a clear image

of objects in the background.

Privacy Masking

When there is a house or even an object as small as a

window within the camera frame, to protect other’s privacy

it is possible to mask

the area so that it will

not appear on the

monitor screen. Up to

8 rectangular masks

of any desired size can

be set. These masking

areas may be protected

with a (max.) 4-digit password.

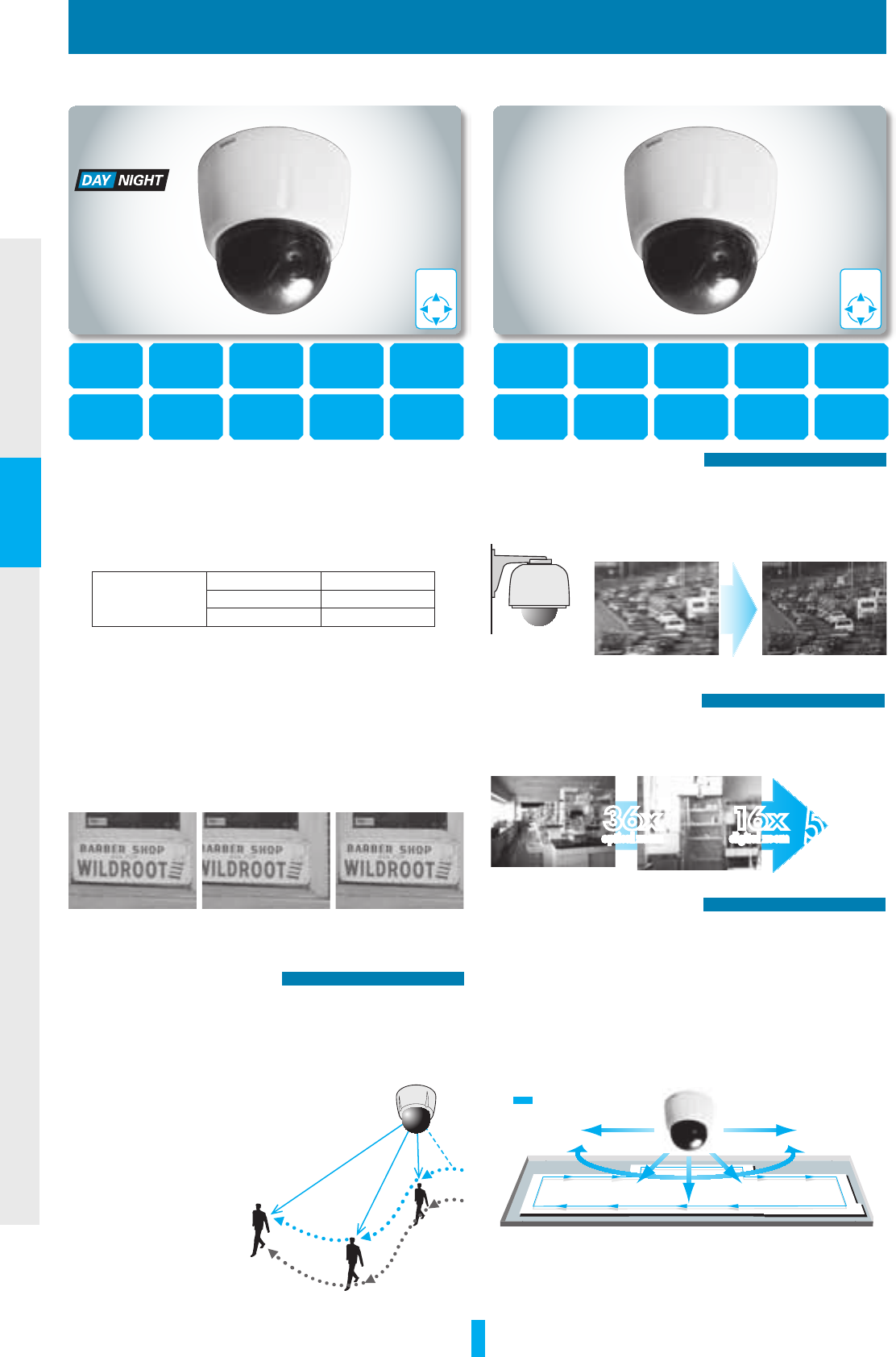

PTZ Operations

VDC-DPN9585P / VCC-PN9575P comes with a PT

mechanism and allow panning of 335 degrees (55 degrees*)

and tilting of 90 degrees (90 degrees*) to reduce blind spots

in the surveillance area. When particular angles are preset on

the camera (up to sixteen points), it moves to each position

quickly at the speed of 120 deg/sec max. For both panning and

tilting. Combining these features with the motion detector, it is

possible to catch all actions taking place in the area.

* For wall-mounted cameras

JPEG JPEG

Minimum

illumination

0.06 lx

Minimum

illuminat1.

1.9 lx

Multi-spot /

Center-zone

BLC

Multi-spot /

Center-zone

BLC

mechanism

720x286,640x480

360x286,176x143

720x286,640x480

360x286,176x143

25 IPS

(720 x 286) 25 IPS

(720 x 286)

Alarm IN x 2

Alarm OUT x 1

Alarm IN x 2

Alarm OUT x 1

24 V AC

12 V to

15 V DC

24 V AC

12 V to

15 V DC

PoE PoE

Video and Audio Data

Audio Data / Power* / Mechanical Control

*Power adapter required.

Monitor

Microphone

Speaker

Microphone

Speaker

*Use of the VDC-DPN9585P’s or the VCC-PN9575P’s built-in

networking features allows viewing of video from a single camera

with a generic web browser (Internet Explorer).

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Easy Setup with an On-screen Menu

The VDC-DPN9585P / VCC-PN9575P offers an on-screen

menu for setting up the camera any desired way.

Operation on PoE, AC or DC Power Sources

The VDC-DPN9585P / VCC-PN9575P can operate on PoE,

12 V DC (12 V to 15 V DC) or 24 V AC (60 Hz, and even at a

tolerance of ±10%). Switching to the correct mode occurs

automatically when power is supplied.

Dual Power Source of 24 V AC and 12 to 15 V DC

These models support dual power supply to allow a ﬂexible

operation in diverse circumstances.

Other Features

• 16 Preset Positioning and Sequential Monitoring Functions

•

Display of assignable camera ID and titles (16 characters max.)

Video Management Software (VMS)

VA-SW50 (Advanced) / VA-SW60 (Enterprise)

See page 17 for details.

Network Recorder (sold separately)

VA-SW3050S (for server) / VA-SW3050C (for client)

See page 18 for details.

Heater Board VA-50H (sold separately)

See page 34 for details for VCC-DPN9585P (24 V AC only)

Camera Control Unit VAC-70

(sold separately) See page 42 for details.

Smoked Cover VCZ-50 (sold separately)

See page 34 for details for VCC-PN9575P

Half-Mirror Cover VCZ-51

See page 34 for details for VCC-PN9575P

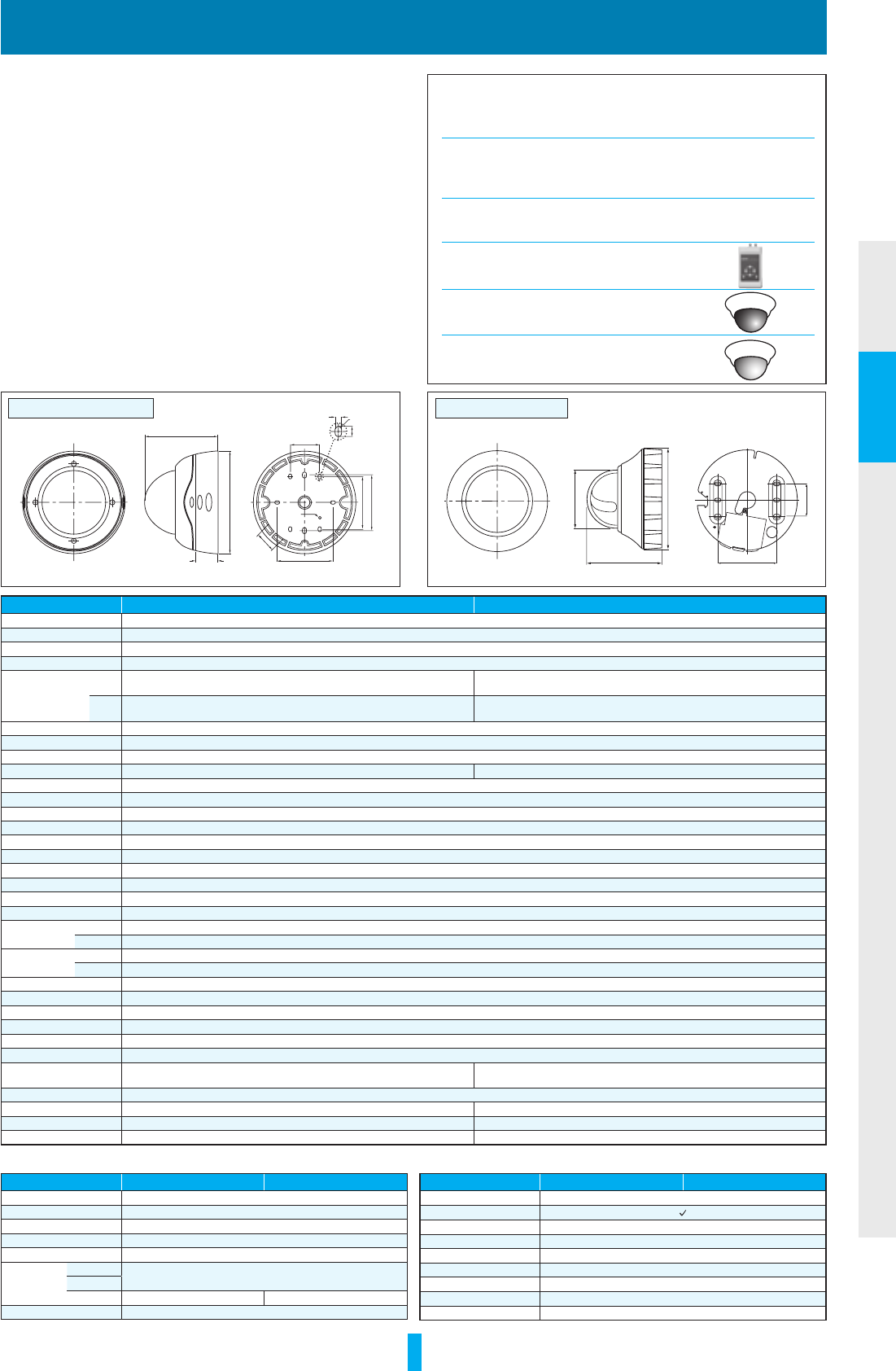

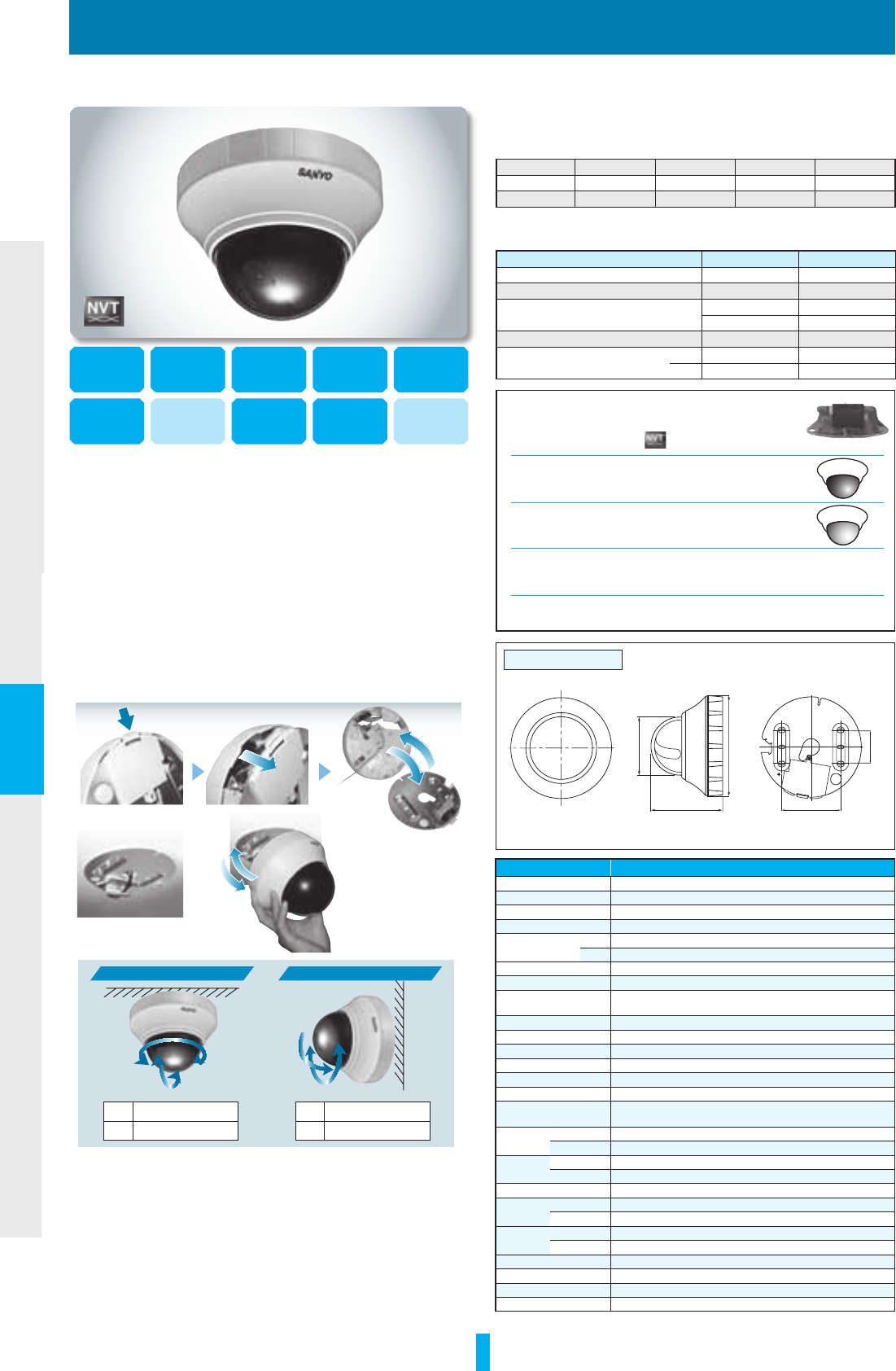

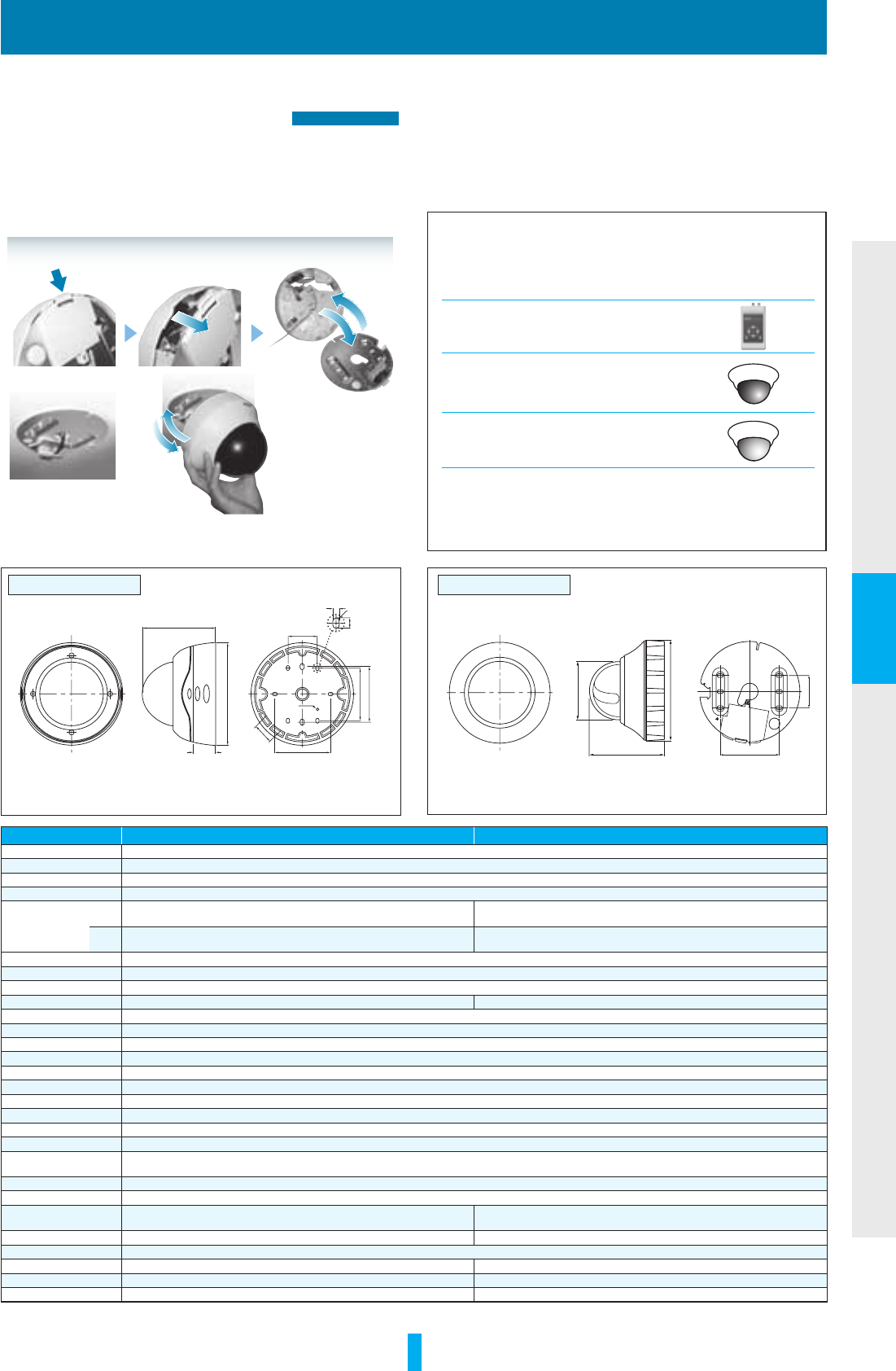

MODEL VCC-DPN9585P VCC-PN9575P

Scanning system PAL standard 625 lines, 50 ﬁelds/sec.

Image sensor 1/4" (approx. 3.6 mm x 2.7 mm) interline transfer method CCD

Picture elements Total: 795(H) x 596(V), Effective: 752(H) x 582(V)

Horizontal resolution 520 TV lines (Analog video signal)

Minimum

illumination

(approx.)

50IRE

0.06 lx at max. AGC, with F1.9 lens, B/W mode

1.2 lx at max. AGC, with F1.9 lens, Color mode 1.9 lx at max. AGC, with F1.9 lens, Color mode

20IRE

0.024 lx at max. AGC, with F1.9 lens, B/W mode

0.48 lx at max. AGC, with F1.9 lens, Color mode 0.76 lx at max. AGC, with F1.9 lens, Color mode

Video output level 1.0 V (p-p) (75 Ω, composite)

Video S/N ratio More than 50 dB (AGC OFF)

Backlight compensation

ON / OFF, ON = Multi-spot photometry (64-section) / Center-zone photometry

Day/Night Auto (High/Low) / Color / B/ W -------------------------

White-balance ATW / AWC / Manual (MWB) / Outdoor (3200) / Indoor (5600) / Fluorescent (FLUO)

Gain control High / Normal / OFF

Motion detector ON / OFF, Motion zoom function

Privacy masking ON / OFF 8 masking

Electronic shutter 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec.

Lens Built-in 2.6x motorized zoom pan-focus auto iris lens, f = 2.8 to 7.3mm (2.6x), F1.9 to 3.0

Depth of ﬁeld Focus range: 1 m to ∞

Synchronizing system Internal sync. / Line lock

Aperture HIGH PLUS / HIGH / NORMAL / OFF

Auto mode Sequential pan / Auto pan

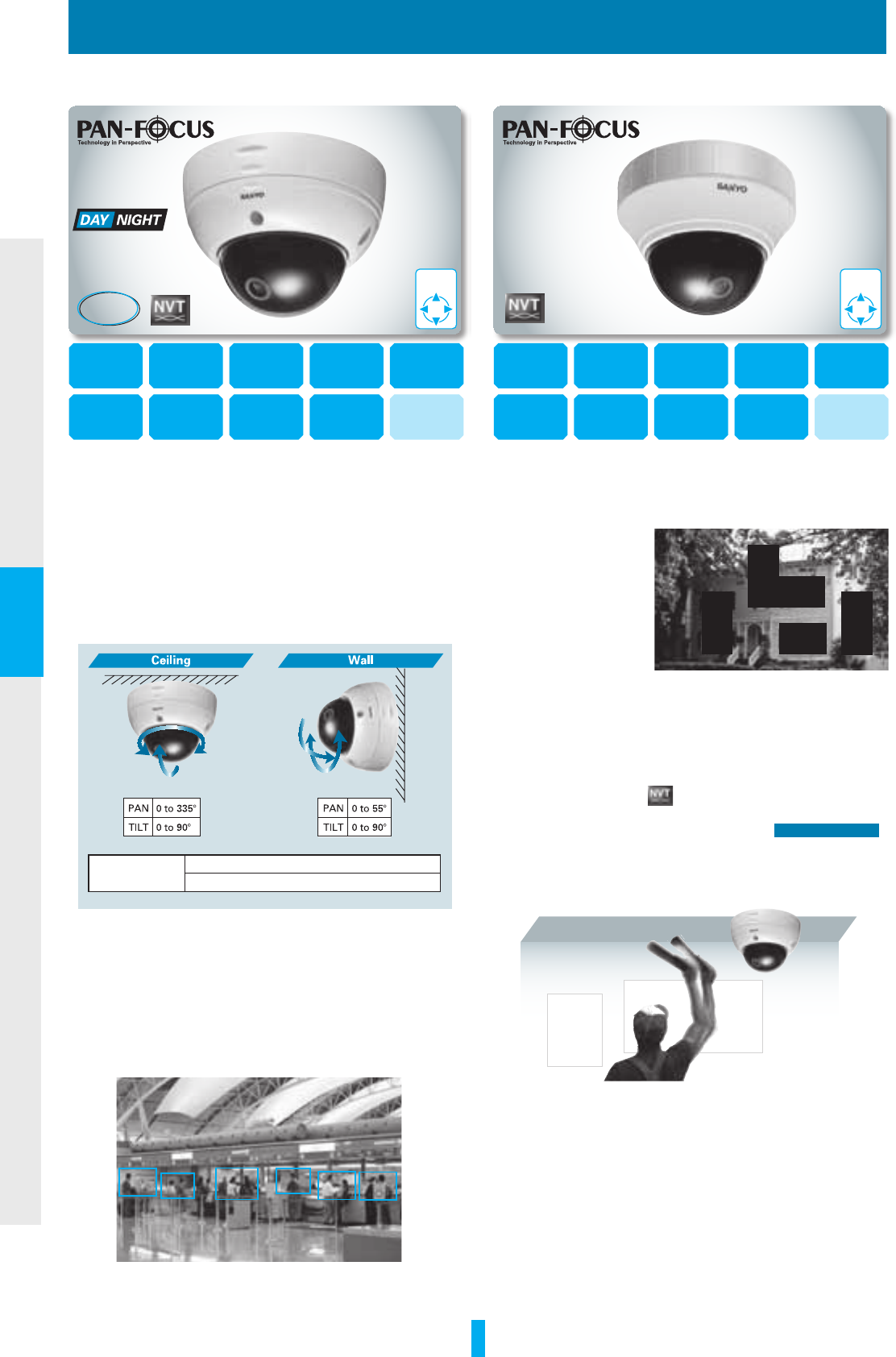

Rotation

range

Ceiling Panning: max. 0 to 335 deg, Tilting: 0 to 90 deg.

Wall

Panning: ±55 deg, Tilting: 0 to 90 deg

Rotation

speed

Preset Panning: max. 120 deg / second (preset)

Manual 50 to 100 deg / second (preset)

Preset position setting 16

Communications Simpliﬁed controller (VAC-70: separately ordered) supported

Audio compression method

G. 711(192 Kbps), full duplex

Microphone input -62 to -32 dB (monaural microphone) 3.5mm mini jack

Alarm input External x 2, NO / NC selectable, Alarm preset function, Alarm zoom function

Alarm output External x 1, NO / NC selectable

Environmental

conditions

Temperature: -10°C to 50°C [+14°F to 122°F], -30°C to 50°C [-22°F to 122°F] When heater

(VA-50H: option board) is used with power source connected Humidity: within 90% RH

Temperature: -10°C to 40°C [+14°F to 104°F]

Humidity: within 90% RH

Power requirement 24 V AC ±10%, 50 Hz / 12 V to 15 V DC / PoE (compliant with IEEE 802.3af)

Power consumption (approx.)

10 W Max. 15.5 W When heater (VA-50H: option board) turned on 10 W

Dimensions (approx.) ø162 x 114.8 mm [ø6.4 x 4.5 in.] ø150.9 x 115.5 mm [ø6.0 x 4.6 in.]

Weight (approx.) 1.5 kg [52.9 oz.] 650g [22.9 oz.]

NOTE: Speciﬁcations subject to change without notice

MODEL VDC-DPN9585P VCC-PN9575P

Image compression JPEG

Resolution

720 x 286, 640 x 480 (disabled during voice communications), 360 x 286, 180 x 143

Picture quality 5 levels

Frame rate Max. 25 IPS (720 x 286)

Audio compression method

G.711 (192 Kbps), full duplex

Microphone

Input -62 to -32 dB (monaural microphone) 3.5mm mini jack

External

Internal ------------ Internal or external selected

Audio output

LINE OUT monaural audio output, maximum -8 dB, 3.5mm mini jack

MODEL VDC-DPN9585P VCC-PN9575P

Bandwidth 128, 256, 512 Kbps, 1, 2, 3, 4 Mbps, no limitation

DDNS

Alarm buffer Up to 8 MB; conﬁgurable

Interface 10BASE-T/100BASE-TX (RJ45 connector)

PoE support Compliant with IEEE 802.3af

Protocols

TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, UPnP, DDNS

Simultaneous access capacity

Image: Maximum 16, Voice: Maximum 16 (admin: 1)

Security

BASIC authentication (ID/password), SSL supported (image only)

Bundled software VA-SW3050LITE

Network Speciﬁcations

(Unit: mm)

VDC-DPN9585P

114.8

ø162.0

35.0

2–ø4.3

88.0

82.5

46.0

5.0

8.0

R2.5

32.0

(Unit: mm)

VCC-PN9575P

83.4

45.5

99.8

115.5

150.9

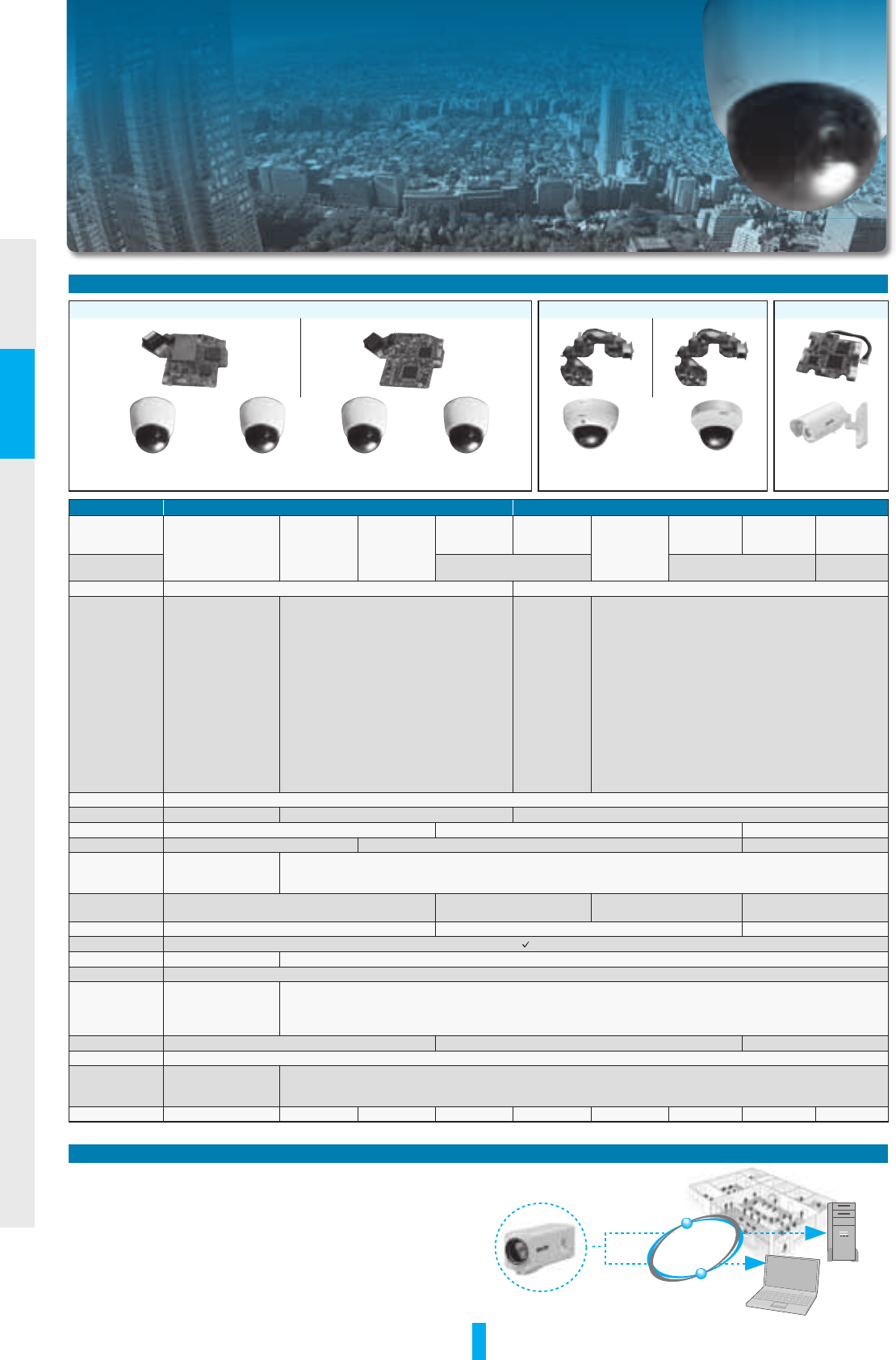

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

H.264

JPEG

Internet

Network Board

Cameras that support the expansion boards

The two Independent CODECS of H.264 and JPEG

The built-in network interface and the expansion board for network connection enables

SANYO color CCD cameras to connect to a network.

The user can operate a network connected camera using a web browser (Internet

Explorer) and network surveillance software.

VA-82LAN / VA-80LAN VA-51LAN / VA-50LAN VA-20LAN

VCC-9800P E VCC-9700P E VCC-9600P E VCC-9500P E VDC-DP7585P VCC-P7575PA VCC-XZ200P

See page 21, 22 for details See page 33 for details

See page 30 for details

Category H.264 / JPEG JPEG

Model No.

Built-in Network

Interface

VCC-HD4000P

Built-in Network

Interface

VCC-XZN600P

VCC-ZMN600P

Built-in Network

Interface

VCC-N6695P

Network Board

VA-82LAN

(sold separately)

Network Board

VA-80LAN

(sold separately)

Built-in Network

Interface

VDC-DPN9585P

VCC-PN9575P

Network Board

VA-51LAN

(sold separately)

Network Board

VA-50LAN

(sold separately)

Network Board

VA-20LAN

(sold separately)

Applicable models VCC-9800P E / VCC-9700P E

VCC-9600P E / VCC-9500P E VDC-DP7585P / VCC-P7575PA VCC-XZ200P

Image compression

H.264/JPEG (simultaneous transmission available) JPEG

Resolution

<H.264>

16:9 HD 1920 x 1080p

HD 1280 x 720p,

960 x 540P, 640 x 360p,

320 x 180p

4:3 1080 x 864p, 720 x

576p, 360 x 288p

<JPEG>

16:9 HD 1920 x 1080,

HD 1280 x 720,

1024 x 576, 640 x 360

4:3 4M 2288 x 1712, 2M

1600 x 1200, 1280 x 960,

1024 x 768, 800 x 600,

640 x 480, 320 x 240

<H.264> 720 x 576, 352 x 288, 176 x 144

<JPEG> 720 x 576, 720 x 288,

640 x 480, 360 x 288, 176 x 144

<JPEG>

720 x 572,

720 x 286,

640 x 480,

360 x 286,

176 x 143

<JPEG> 720 x 286, 640 x 480, 360 x 286, 180 x 143

Picture quality Super Fine, Fine, Enhanced, Normal, Basic

Frame Rate

Max.25IPS (1920 x 1080)

Max.25IPS (720 x 576) Max.25IPS (720 x 286)

Microphone input ----------------------- –62 to –32 dB (monaural microphone) 3.5 ø mini jack -----------------------

Audio output ----------------------- LINE OUT monaural voice output Maximum -8 dBs 3.5 ø mini jack -----------------------

Bandwidth 128, 256, 512 Kbps,

1, 2, 3, 4, 5, 6 Mbps,

no limitation

128, 256, 512 Kbps, 1, 2, 3, 4 Mbps, no limitation

PoE (Power over

Ethernet)

Compliant with

IEEE802.3af ----------------------- Compliant with

IEEE802.3af -----------------------

Audio ----------------------- Bi-directional audio G.711 (192 Kbps) 16 bit 12 KHz -----------------------

DDNS

Alarm buffer 32 MB 8 MB

Interface 10BASE-T / 100BASE-TX (RJ-45 connector)

Protocols

RTP*, RTSP*, TCP/IP,

UDP, HTTP, HTTPS, SMTP,

NTP, DHCP, FTP, UPnP,

DDNS

TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, UPnP, DDNS

Simultaneous access capacity

Image: Max. 16 Image: Max. 16, Voice: Max. 16 (admin: 1) Image: Max. 16

Security BASIC authentication (ID/password), SSL supported (image only)

Bundled software VA-SW3050LITE

HDC Downloader

DL Viewer

VA-SW3050LITE

Page 711 10 22 22 13 33 33 30

The H.264, which optimizes the network video streams at a low

transfer rate, is ideal for monitoring real-time video images. On

the other hand, the commonly used JPEG format is suitable for

monitoring and recording without losing quality. The presence

of two codecs gives the user the option to choose whichever

is suitable to obtain optimum picture quality in any given

environment. This ensures that critical information will not be

overlooked.

*Available for CGI commend only

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Network Software

SANYO’s network software is available in the forms of VMS, VA-SW3050S or

VA-SW3050C, depending on the scale of the surveillance system. For a large-scale

surveillance system for a hospital or bank to a smaller system for a school or store,

you will ﬁ nd the right software package with SANYO.

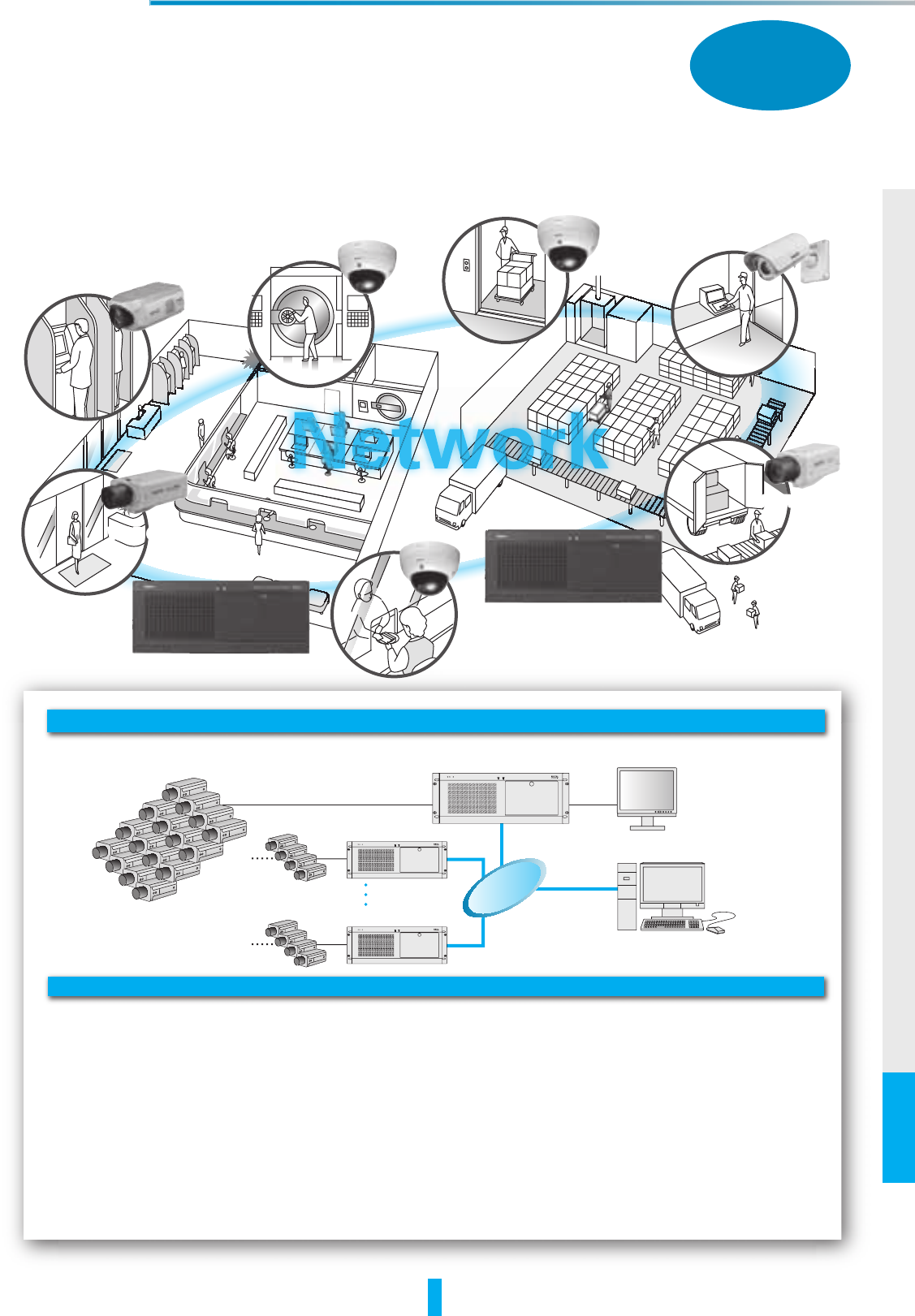

Surveillance-Point Monitoring with Video and Audio Data

PoE (Power over Ethernet)

Video Management Software (VMS) Network Recorder VA-SW3050S / VA-SW3050C

Bi-directional audio communication and remote camera

control make it possible to monitor any place regardless

of local conditions. Monitoring the ambient sound adds

a new dimension to the surveillance.

* Except for VA-50LAN / VA-20LAN / VCC-XZN600P /

　VC C - Z M N 6 0 0 P.

Video and Audio Data

Audio Data / Power* / Mechanical Control

*Power adapter required.

Monitor

Speaker

Microphone

Speaker

Network

Microphone

Speaker

PoE SW

Network

Bi-directional audio

VMS Sever

IP camera

DVR

VMS Client VMS Client

Management view control

Network

Sever PC

IP camera

Client PC

Network

Video Management Software Supports the Following

SANYO Devices

Network Recorder Software Supports the Following

SANYO Devices

Camera expansion becomes easy with the use of PoE.

* Supported by VCC-XZN600P / VCC-ZMN600P /

VCC-PN9575P / VDC-DPN9585P / VCC-HD4000P /

VCC-N6695P / VA-82LAN / VA-51LAN.

Camera Expansion Board

VCC-HD4000P

VCC-N6695P

VCC-XZN600P

VCC-ZMN600P

VCC-9800P E / VCC-9700P E

VCC-9600P E / VCC-9500P E + VA-82LAN or VA-80LAN

VDC-DPN9585P / VCC-PN9575P /

VDC-DP7585P / VCC-P7575PA + VA-50LAN or VA-51LAN

VCC-XZ200P + VA-20LAN

DVR

DSR-3709PA

DSR-3716PA

DSR-5709P

DSR-5716P

Camera Expansion Board

VCC-HD4000P

VCC-N6695P

VCC-XZN600P

VCC-ZMN600P

VCC-9800P E / VCC-9700P E

VCC-9600P E / VCC-9500P E + VA-82LAN or VA-80LAN

VDC-DPN9585P / VCC-PN9575P /

VDC-DP7585P / VCC-P7575PA + VA-50LAN or VA-51LAN

VCC-XZ200P + VA-20LAN

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

SANYO Video Management Software is a software management platform

for SANYO’s IP and megapixel cameras, most of the industry’s standard

IP and megapixel cameras and encorders, and SANYO’s embedded DVRs.

Video Management Software is an NVR, PC DVR and embedded DVR

control platform with total integration all under one software application.

Video Management Software (VMS) VA-SW50 (Advanced Edition) / VA-SW60 (Enterprise Edition)

Minimum System Requirements (for VMS server)

PC IBM PC/AT and compatibles

OS Windows® XP Professional SP2/SP3, Windows® Vista,

Windows® Server 2003, Windows® Server 2008

CPU Intel Pentium IV, 3.0 GHz Core2Duo 3.16 GHz or

higher

Memory 512 MB or more 1.5 GB or more

Network Interface 100 Base-TX 1000 Base-Tx

“Microsoft and Windows are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries. Intel and Pentium are trademarks

or registered trademarks of Intel Corporation or its subsidiaries in the U.S. and other

countries. All other trademarks are the property of their respective owners.

Note: •Speci cations and product design are subject to change without notice.

•Screen images are simulated

Feature Comparison

Versions Advanced Edition Enterprise Edition

Model No. VA-SW50 VA-SW60

Number of cameras

supported 16 unlimited

Number of Clients 5unlimited

Camera Control

Video Recording

Playback

Video Search

Download from PC

SANYO DVR

Connection -------

SANYO Video Management Software (VMS) VA-SW50 (Advanced) / VA-SW60 (Enterprise)

VA-SW50 (Advanced Edition) / VA-SW60 (Enterprise Edition) Features

• Easy-to-navigate GUI with:

-File tree architecture

-Multi-screen conﬁ gurations

-Drag and Drop camera placement

-Easy tool bar for major functions

-Motion Detection

-Digital Pan, Tilt, Zoom

•Multifunctional  le tree:

-Deﬁ ne IP cameras / IP video encoders

-Deﬁ ne cameras connected to DVRs*

- Deﬁ ne whether cameras are live view as well as archived

-Deﬁ ne remote servers

- Drag and drop any camera on the tree to the viewing screen

-Archives can also be accessed directly

•Allows PTZ Control of Network PTZ Camera

VA-SW50 (Advanced Edition)

Up to 16 camera connection, control, recording,

and management of SANYO IP cameras, and other

brands standard IP cameras. [Maximum: 5 clients]

VA-SW60 (Enterprise Edition)

Unlimited camera connection, control, recording,

and management of SANYO's DVRs*, SANYO IP

cameras, other brands standard IP cameras, and

other brands megapixel cameras. [Unlimited clients]

Install VA-SW60 /

VA-SW50 on a PC

Centralized monitoring/control of

cameras and DVRs over a network

Network

• Supports SANYO’s PTZs through connected DVRs*

• Permissions can be assigned at the individual, group, and

server levels

• Time Date Search is easily accomplished through a scalable

scroll bar

• Provides user-friendly wizards and comprehensive user

management

• Supports from one to an unlimited number of cameras per

server (version dependent)

• Multiple clients can be connected to a single server

•Client can be connected to multiple servers

*Please contact your dealer for supported DVRs.

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Surveillance via network is possible from a PC

by installing VA-SW3050S (for server) or VA-SW3050C (for client).

Recordings are made in JPEG format and managed exclusively

by VA-SW3050S (for the server).

Network Recorder VA-SW3050S / VA-SW3050C (sold separately)

The network recorder VA-SW3050S / VA-SW3050C is an

application program that extends the network operation

of the camera. By installing this software, it is possible to

monitor images from multiple cameras on a split screen and

access and operate up to 128 cameras over a network.

VA-SW3050S further offers the convenience of recording live

images and alarm/timer functions. The VA-SW3050C allows

the user to play videos recorded with the VA-SW3050S. It is

an exclusive software package for cameras .

Max.10

Server

Client

(NOTE) One software package is necessary for each PC.

VA-SW3050S x 1

VA-SW3050C x10

VA-SW3050S / VA-SW3050C / VA-SW3050LITE (Bundled) Feature Comparison

Bundled Sold separately

Internet Explorer VA-SW3050 LITE VA-SW3050S VA-SW3050C

LITE Server Client

Number of cameras supported Only 1 Max. 128

Search camera ------- -------

Live monitor -------

Multi-screen display -------

(4, 16) ------- (4, 16)

Camera Control PTZ, etc. -------

Video recording ------- ------- -------

Playback ------- ------- -------

Video search ------- ------- -------

Backup ------- ------- -------

Download ------- ------- -------

Print ------- -------

System Requirements (for VA-SW3050S / VA-SW3050C / VA-SW3050LITE)

PC IBM PC/AT and compatibles

OS Windows® XP Professional SP2, Windows® Vista,Windows® 2003 Server SP2 (VA-SW3050S only)

CPU Core2Duo E6700,

2.66GHz or higher

Core2Duo E6700,

2.66GHz or higher*1

Core2Duo E8500,

3.16GHz or higher*2

Pentium IV, 3.0GHz

or higher

Core2Duo E6700,

2.66GHz or higher*1

Core2Duo E8500,

3.16GHz or higher*2

Memory 1GB ( Windows® XP)

2GB (Windows® Vista)

1GB ( Windows® XP)

2GB (Windows® Vista)*1

2GB or more

1GB or more

1GB ( Windows® XP)

2GB (Windows® Vista)*1

2GB or more

Network interface 100BASE-T X

Display card 1920 x 1200 pixels or higher 1024 x 768 pixels or higher,

16milion colors or higher 1920 x 1200 pixels or higher

Graphics chip ATI: Radeon X1000 series or higher nVidia: GeForce 6000 series or higher Quadro4 series or higher

Audio ------- Sound card with 100% Direct-X compatibility and speakers*3

*1 When the number of cameras connected is 4 or fewer

*2 When the number of cameras connected is between 5 and 16

*3 The camera main unit is not equipped with audio functions.

•Ver. 6.0 or higher

•For Full-HD display

Network Recorder VA-SW3050S / VA-SW3050C

VA-SW3050S (for server) / VA-SW3050C (for client) Features & VA-SW3050LITE (Bundled) for Viewing

• Accessible to up to 128 cameras.

• Up to ten users can be registered for each computer, and

the operational authorization level can be set differently for

each camera.

• There are a variety of other optional functions to facilitate

monitoring operation.

(VA-SW3050LITE / VA-SW3050C)

• Can split the display into one, four or sixteen screens.

(VA-SW3050LITE / VA-SW3050C)

• Image searching function can search through recorded

images for a playback. (VA-SW3050C)

• Images on the monitoring display can be printed and saved.

(VA-SW3050C)

• Changes camera settings, and controls cameras remotely.

(VA-SW3050LITE / VA-SW3050C)

• Recording can be set to start automatically by timer or by

alarm. (VA-SW3050S)

Note: Depending on your computer’s performance or network environment, the

system may enter the busy state if the PC is connected to many H.264 video

channels. If a warning message appears in the dialog box, decrease the number of

the connected H.264 video channels.

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

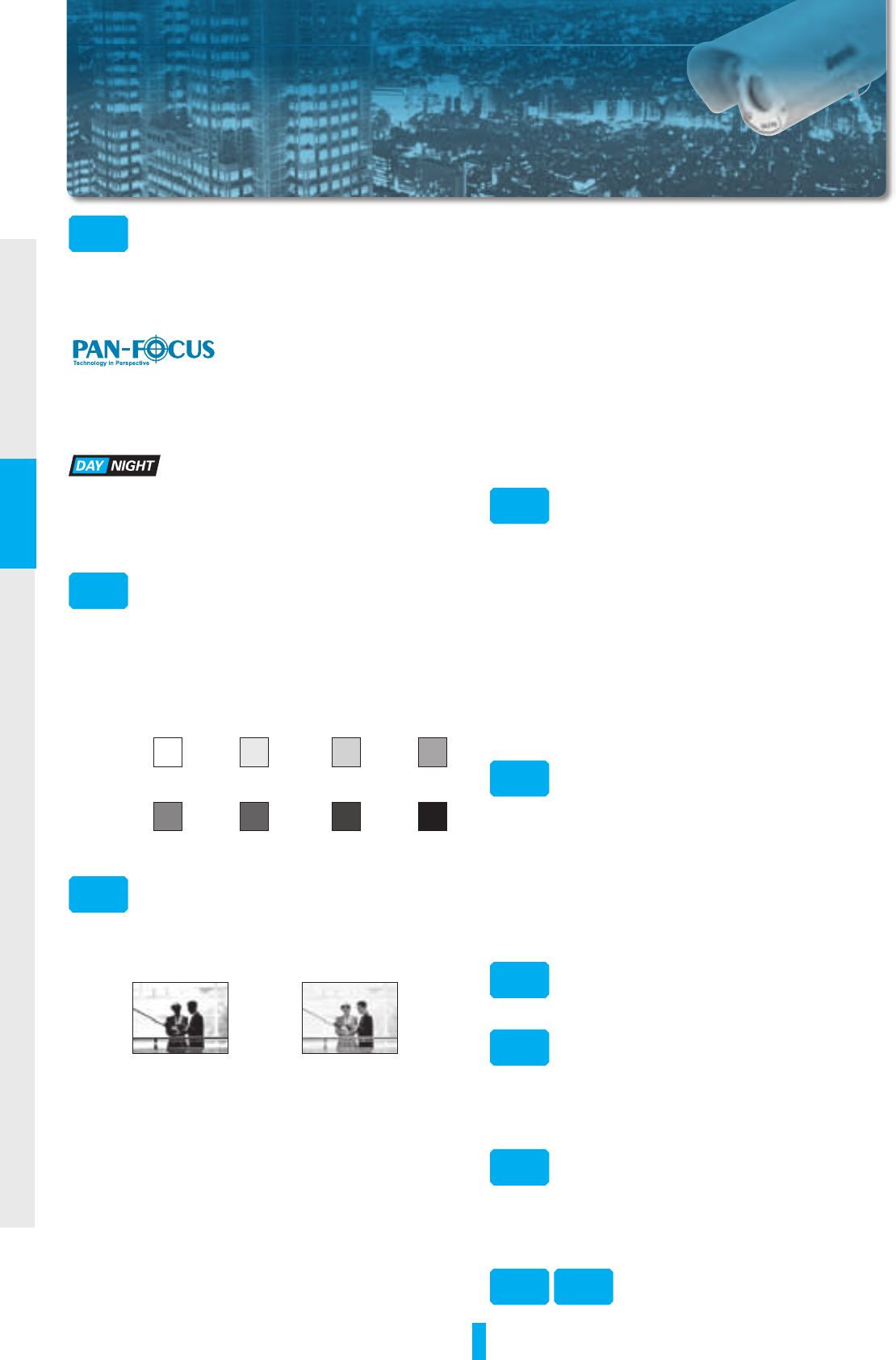

Horizontal Resolution

All cameras from SANYO oﬀ er exceptional picture

resolution. By improving the optical ﬁ lter and maximizing

the performance of the CCD with a proprietary

algorithm, it produces sharp outlines and natural color

with no blurring.

Pan-focus lens can bring a broad area

into focus, enabling the camera system

to visualize everything in the ﬁ eld of view clearly at the

same time. The lens also has a 2.6x zooming function.

As a result, it allows a surveillance camera to capture a

clear video image offering details of background objects.

24-hour surveillance is now possible with just a

single camera that works as a color camera during

the day and a high-sensitivity B/W camera during the

night. The mode of operation is automatically switched

by replacing the optical ﬁ lter. The use of an optical ﬁ lter in

the color mode also allows video recording in true colors.

Minimum subject illumination

The minimum illumination required for recognizing a

subject is generally 2 to 6 lx for color cameras, and

0.03 lx for B/W cameras. Minimum subject illumination

changes according to the F value of combined lenses.

When F1.2 lenses and F1.4 lenses are combined with

an F1.2 lens, minimum subject illumination is reduced,

making monitoring possible in dark locations.

Backlight compensation

When ﬁ lming in directions with backlighting such as

entrance ways or windows where the backlighting

causes the subject to appear as a silhouette, this

function automatically adjusts to the most appropriate

aperture.

SANYO CCD cameras use four systems: center-zone

photometry system, 5-section photometry mode

setting, multi-spot photometry (48 / 64-section) systems

and multi-spot masking.

With the center-zone photometry system, the

brightness of the light measuring area is measured, and

by automatic adjustment of the lens aperture, a clear

and sharp image is possible even when the subject is

backlit.

With this system, the light measuring area is in the

center of the screen for an optimal image of the subject.

With the 5-section photometry system, the screen

is divided into 5 sections to which the user will assign

15-scale weights. The brightness of the picture will be

kept at optimum by giving priority to the area with the

higher weight. (A DC type auto-iris lens is required to

enable this mode.)

With the multi-spot photometry (48/64-section)

system, the screen is divided into 48 / 64 areas on which

luminous intensity is measured separately to determine

the lighting/backlight conditions of all objects.

This makes it possible to apply optimum backlight

compensation even for peripheral and moving objects.

With the multi-spot masking (48-section) system,

certain areas can be eliminated from the photometric

measurement using a 48-section grid. The light intensity

for the remaining area is measured and the image

brightness is adjusted accordingly.

White-balance

Sometimes the color of clothes seen under lighting

inside a shop appears different when viewed in sunlight

outside. This is due to variation in the color temperature

of the light source. The human eye is highly adaptable

to variation in the color temperature of light sources so

that even when the light source changes, white appears

as white. But CCD adaptability is poor, and to reproduce

unbalanced white when the light source changes,

correction of the image signal is necessary.

All SANYO color CCD cameras have TTL (Through The

Lens) auto tracing white-balance, so even in a location

with signiﬁ cant variation in color temperature of the light

sources, such as next to a window, the image is

automatically adjusted to achieve the best color.

Synchronizing System

This is the timing used by the security camera when

ﬁ lming (synchronizing). There are sync systems that

synchronize with the internal sync signal circuit (internal

sync.), or that synchronize with a sync signal input to

the security camera from outside (external sync.), or

those that use the cycle of the camera’s AC power to

synchronize (line lock). When switching between several

security cameras for surveillance using one monitor,

synchronizing the cameras is necessary. For this, the

line lock and external sync systems are used.

Electronic Shutter

The camera can be used in a variety of situations by

adjusting the shutter speed.

Image Stabilizer

A gyro-sensor picks up camera vibration in the 5 to 15

Hz range, which is then suppressed electronically. This

feature offers a clear image even in a strong wind or

when the camera is installed near a highway with heavy

t r a f ﬁ c .

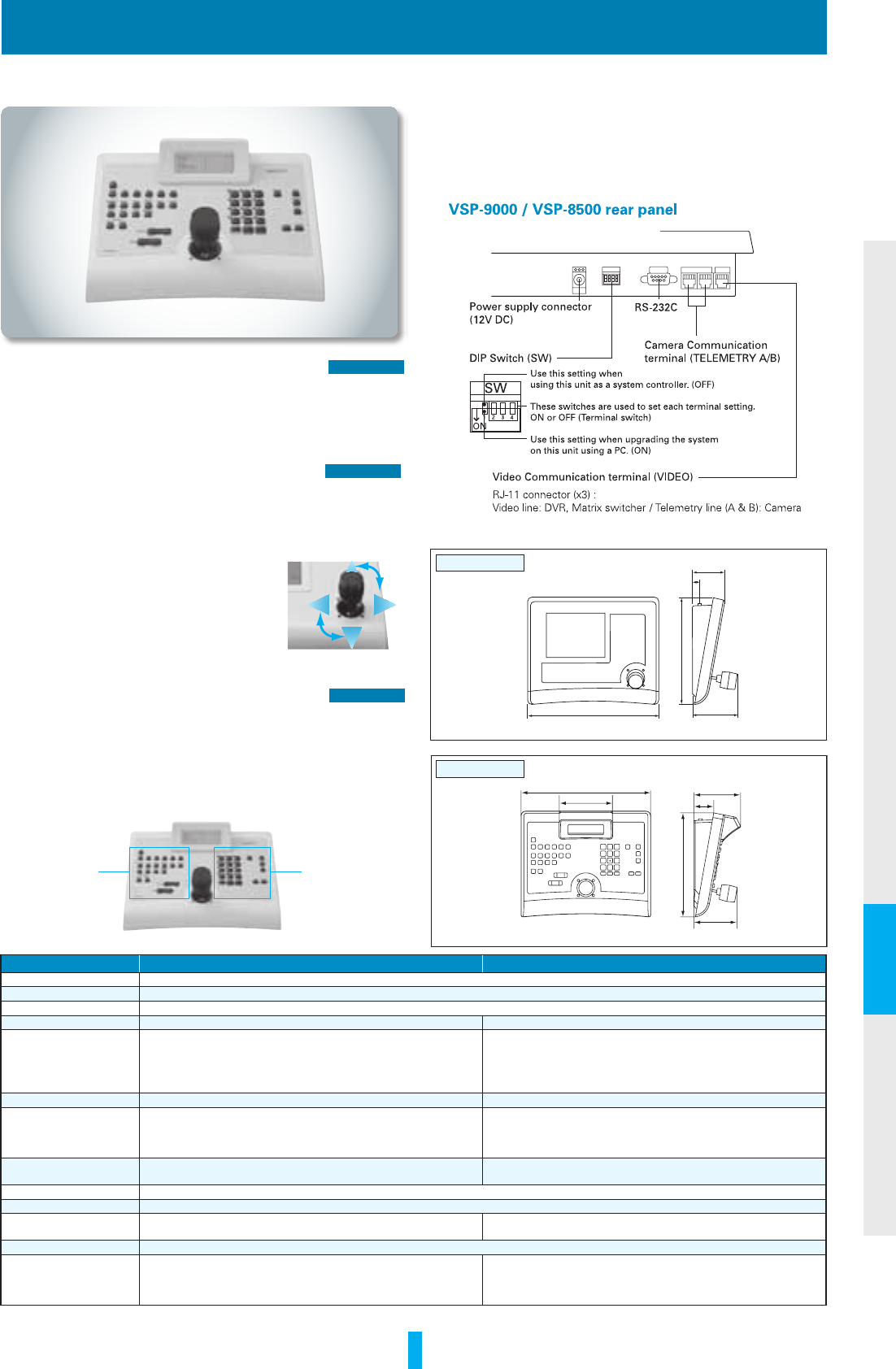

SSP (RS-485) compatible

By using SSP (SANYO Security Serial Protocol), cameras

and DVRs can be controlled with just one controller

over a daisy chain connection up to a maximum of 254

devices. The maximum cable length (total length of the

daisy chain path) is 1200 m (4000 feet).

Power Sources

The power sources for driving the camera.

Camera

A Comprehensive Line-up of Multi-functional High Resolution

Cameras Solves a Variety of Surveillance Needs

550

TV Lines

Minimum

illumination

0.03 lx

ATW

AWC

Manual

Internal sync.

External sync.

Line lock

Electronic

shutter

SSP

Pelco-C/D Support


Stabilizer

Multi-spot /

Center-zone

BLC

24 V AC

12 V to

15 V DC

220 V to

230 V AC

*Approximate values

Outdoors with fine weather

100,000 to

5,000 lx 5,000 lx 1,500 to 750 lx

5 to 3 lx75 to 30 lx 0.3 to 0.1 lx2 to 1 lx

Fine weather in the shade,

library reading rooms

outdoors with cloud weather

Shops, food counters,

200 to 100 lx

Hotel reception

areas

Theater seatingCar parks,

warehouses

Hospitals at night Full moon

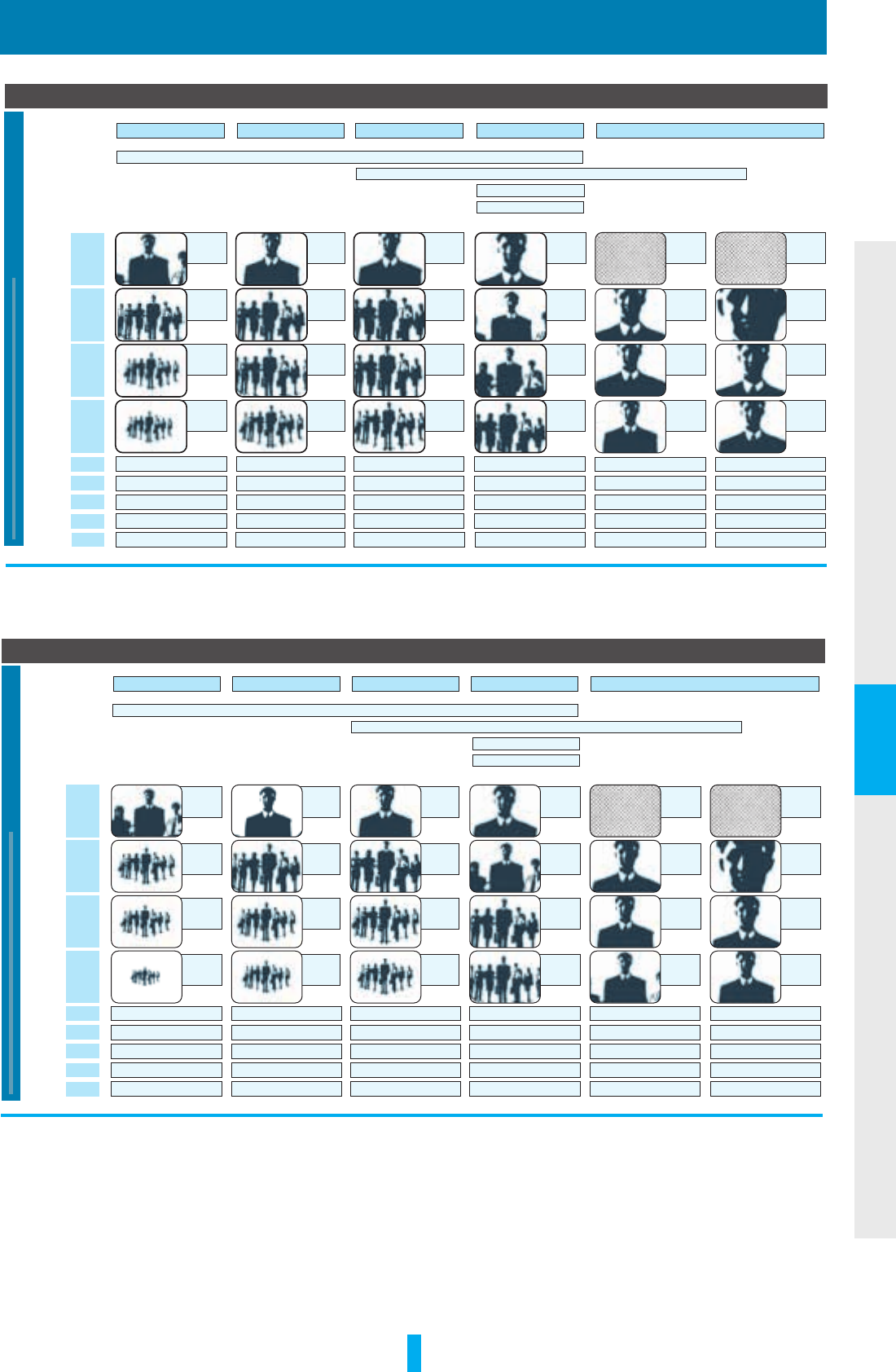

Illumination guidelines

Without

backlight

compensation

Subject appears

as a silhouette

against bright

background.

With backlight

compensation

Subject appears

clear and sharp.

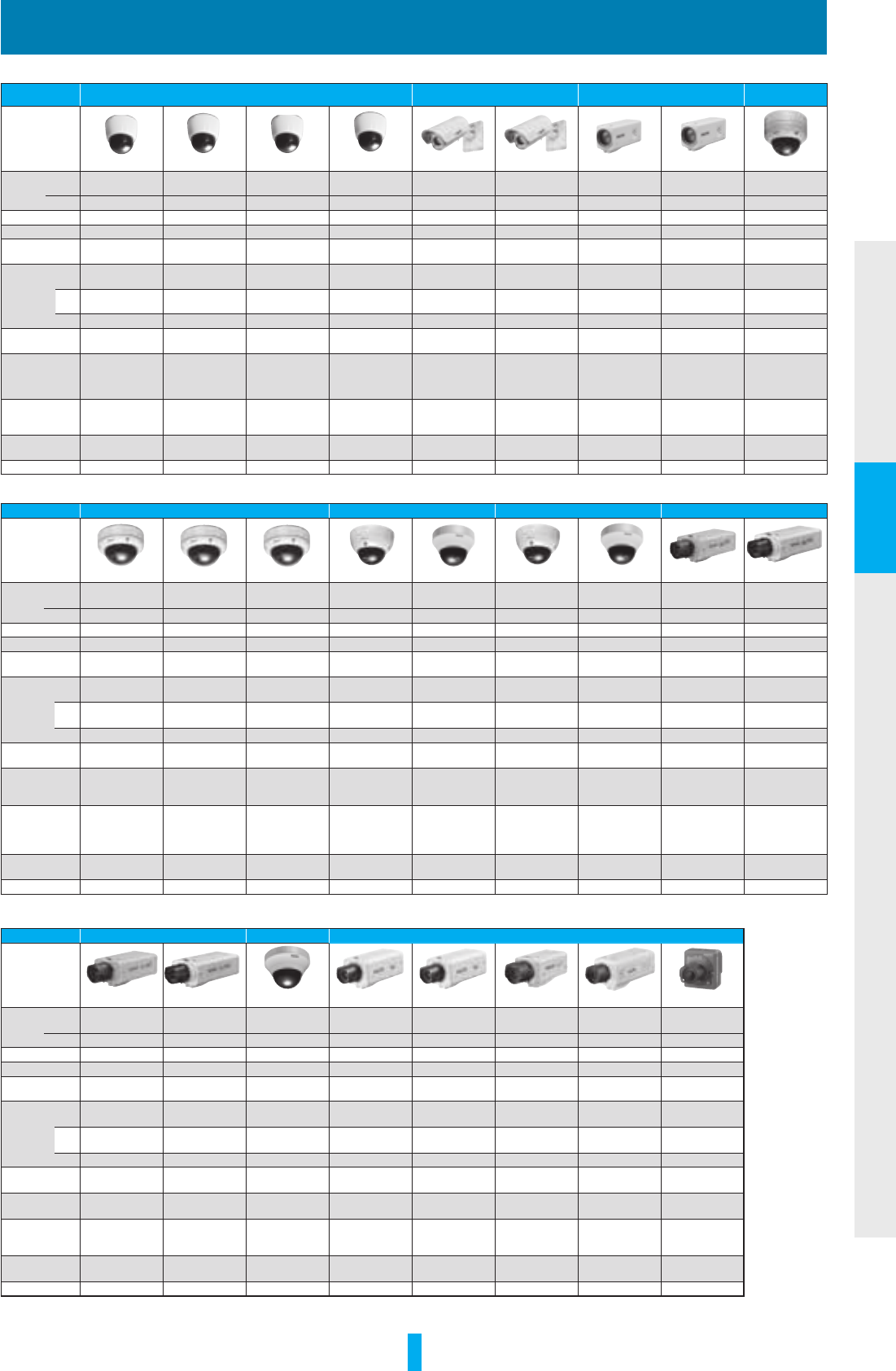

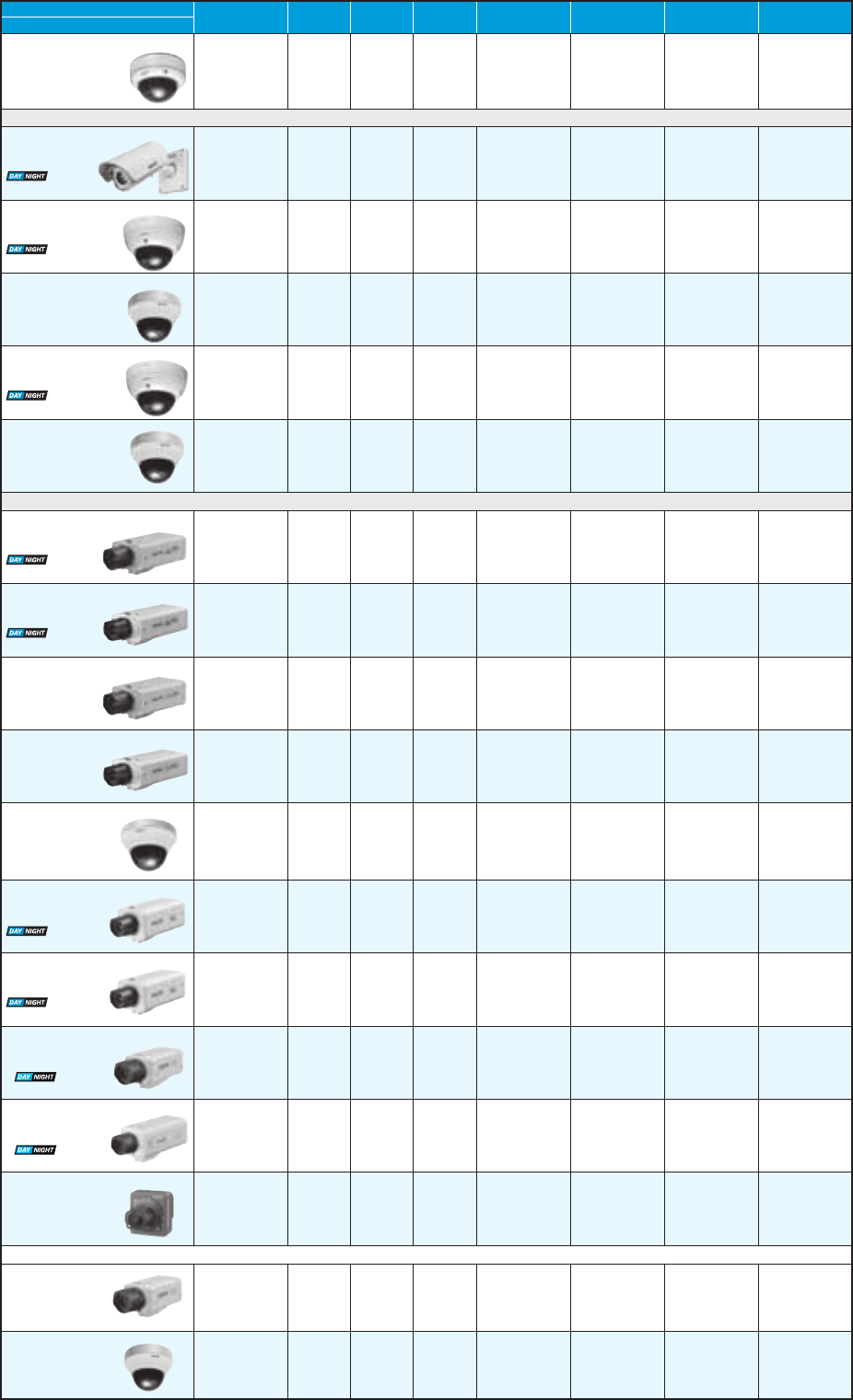

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Category Speed Dome Weatherproof Zoom Zoom IR Dome Camera

Vandal-resistant

Serial No.

VCC-9800P E VCC-9700P E VCC-9600P E VCC-9500P E VCC-XZ600P VCC-XZ200P VCC-ZM600P VCC-ZM500P VDC-D1785IRVP

Lens

36x

AF Zoom lens

36x

AF Zoom lens

30x

AF Zoom lens

30x

AF Zoom lens

30x

AF Zoom lens

2.6x

Pan-Focus lens

30x

AF Zoom lens

30x

AF Zoom lens

3.2x

Vari-focal lens

f (mm)

3.4 to 122.4 3.4 to 122.4 3.5 to 105.0 3.5 to 105.0 3.6 to 79.2 2.8 to 7.3 4.0 to 88 4.0 to 88 3.7 to 12

Color or D/N Day/Night Color Day/Night Color Day/Night Day/Night Day/Night Color Day/Night

Sensor 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/3"

Horizontal

resolution 540 TVL 540 TVL 540 TVL 540 TVL 540 TVL 520 TVL 540 TVL 540 TVL 540 TVL

Minimum

illumination

50IRE

Color 1.0 lx

B/W 0.05 lx 1.0 lx Color 0.8 lx

B/W 0.04 lx 0.8 lx Color 0.8 lx

B/W 0.04 lx

Color 1.2 lx

B/W 0.06 lx

Color 0.8 lx

B/W 0.04 lx

Color 0.8 lx Color 0.7 lx

B/W 0.0 lx

20IRE

Color 0.4 lx

B/W 0.02 lx 0.4 lx Color 0.32 lx

B/W 0.016 lx 0.32 lx Color 0.32 lx

B/W 0.016 lx

Color 0.48 lx

B/W 0.024 lx

Color 0.32 lx

B/W 0.016 lx

Color 0.32 lx Color 0.3 lx

B/W 0.0 lx

F1.6 F1.6 F1.4 F1.4 F1.4 F1.9 F1.4 F1.4 F1.4

Backlight

compensation

Multi-spot

5-section

Multi-spot

5-section

Multi-spot

5-section

Multi-spot

5-section

Multi-spot

Center-zone

Multi-spot

Center-zone

Multi-spot

Center-zone

Multi-spot

Center-zone ON/OFF

White-balance

ATW / AWC

Indoor / Outdoor

Fluorescent /

Manual

ATW / AWC

Indoor / Outdoor

Fluorescent /

Manual

ATW / AWC

Indoor / Outdoor

Fluorescent /

Manual

ATW / AWC

Indoor / Outdoor

Fluorescent /

Manual

ATW / AWC

Indoor / Outdoor

Fluorescent /

Manual

ATW / AWC

Manual

ATW / AWC

Indoor / Outdoor

Fluorescent /

Manual

ATW / AWC

Manual ATW

Sync

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Power supply 24 V AC ±10%

230 V AC ±10%

24 V AC ±10%

230 V AC ±10%

24 V AC ±10%

230 V AC ±10%

24 V AC ±10%

230 V AC ±10%

24 V AC ±10%

12 V to 15 V DC

24 V AC ±10%

12 V to 15 V DC

24 V AC ±10%

12 V to 15 V DC

24 V AC ±10%

12 V to 15 V DC

24 V AC ±10%

12 V DC ±10%

Page 21 21 22 22 25 30 25 26 27

Category Dome Camera Vandal-resistant

PTZ Dome Camera

Dome Camera

Advanced WDR

Serial No.

VDC-W1595VP VDC-D1585VP VDC-C1575VP VDC-DP9585P VCC-P9575P VDC-DP7585P VCC-P7575PA VCC-WD8875P VCC-WD8870P

Lens

2.3x

Vari-focal lens

2.3X

Vari-focal lens

2.3X

Vari-focal lens

2.6x

Pan-Focus lens

2.6x

Pan-Focus lens

2.6x

Pan-Focus lens

2.6x

Pan-Focus lens CS mount CS mount

f (mm)

2.6 to 6.0 2.6 to 6.0 2.6 to 6.0 2.8 to 7.3 2.8 to 7.3 2.8 to 7.3 2.8 to 7.3 --- ---

Color or D/N Color Day/Night Color Day/Night Color Day/Night Color Day/Night Day/Night

Sensor 1/3" 1/3" 1/3" 1/4" 1/4" 1/4" 1/4" 1/3" 1/3"

Horizontal

resolution 480 TVL 520 TVL 520 TVL 520 TVL 520 TVL 520 TVL 520 TVL 550 TVL 550 TVL

Minimum

illumination

50IRE

1.0 lx Color 1.0 lx

B/W 0.05 lx 1.0 lx Color 1.2 lx

B/W 0.06 lx 1.9 lx Color 1.2 lx

B/W 0.06 lx 1.9 lx Color 0.8 lx

B/W 0.08 lx

Color 0.8 lx

B/W 0.08 lx

20IRE

0.4 lx Color 0.4 lx

B/W 0.02 lx 0.4 lx Color 0.48 lx

B/W 0.024 lx 0.76 lx Color 0.48 lx

B/W 0.024 lx 0.76 lx Color 0.32 lx

B/W 0.032 lx

Color 0.32 lx

B/W 0.032 lx

F1.4 F1.4 F1.4 F1.9 F1.9 F1.9 F1.9 F1.2 F1.2

Backlight

compensation

Wide Dynamic

Range ON / OFF ON / OFF Multi-spot

Center-zone

Multi-spot

Center-zone

Multi-spot

Center-zone

Multi-spot

Center-zone

Wide Dynamic

Range

Wide Dynamic

Range

White-balance ATW

ATW-A

ATW

ATW-A

ATW

ATW-A

ATW

AWC

Manual

ATW

AWC

Manual

ATW

AWC

Manual

ATW

AWC

Manual

ATW

Manual

ATW

Manual

Sync

Internal sync.

Line lock

(AC 24 V user)

Internal sync.

Line lock

(AC 24 V user)

Internal sync.

Line lock

(AC 24 V user)

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Power supply 24 V AC ±10%

12 V to 15 V DC

24 V AC ±10%

12 V to 15 V DC

24 V AC ±10%

12 V to 15 V DC

24 V AC ±10%

12 V to 15 V DC

24 V AC ±10%

12 V to 15 V DC

24 V AC ±10%

12 V to 15 V DC

24 V AC ±10%

12 V to 15 V DC

24 V AC ±10%

12 V to 15 V DC 220 V to 230 V AC

Page 28 28 28 31 31 33 33 37 37

Category Advanced WDR

Mini Dome Camera

Box

Serial No.

VCC-W8775P VCC-W8770P VCC-9685VP VCC-4795P E VCC-4790P E VCC-6695P VCC-6690P VCC-5995P

Lens CS mount CS mount 2.9x

Vari-focal lens CS mount CS mount CS mount CS mount CS mount

f (mm)

--- --- 2.8 to 8.0 --- --- --- --- ---

Color or D/N Color Color Color Day/Night Day/Night E-Day/Night E-Day/Night Color

Sensor 1/3" 1/3" 1/4" 1/3" 1/3" 1/3" 1/3" 1/3"

Horizontal

resolution 550 TVL 550 TVL 540 TVL 540 TVL 540 TVL 540 TVL 540 TVL 540 TVL

Minimum

illumination

50IRE

0.8 lx 0.8 lx 0.5 lx Color 0.45 lx

B/W 0.01 lx

Color 0.45 lx

B/W 0.01 lx

Color 0.35 lx

B/W 0.25 lx

Color 0.35 lx

B/W 0.25 lx 0.5 lx

20IRE

0.32 lx 0.32 lx 0.2 lx Color 0.18 lx

B/W 0.004 lx

Color 0.18 lx

B/W 0.004 lx

Color 0.14 lx

B/W 0.1 lx

Color 0.14 lx

B/W 0.1 lx 0.2 lx

F1.2 F1.2 F0.95 F1.2 F1.2 F1.2 F1.2 F1.2

Backlight

compensation

Wide Dynamic

Range

Wide Dynamic

Range

Multi-spot

Center-zone

Multi-spot

Center-zone

Multi-spot

Center-zone

Multi-spot

Center-zone

Multi-spot

Center-zone Center-zone

White-balance ATW

Manual

ATW

Manual

ATW

Manual

ATW

Manual

ATW

Manual

ATW

Manual

ATW

Manual ATW

Sync

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Internal sync.

Line lock

Power supply 24 V AC ±10%

12 V to 15 V DC 220 V to 230 V AC 24 V AC ±10%

12 V to 15 V DC

24 V AC ±10%

12 V to 15 V DC 220 V to 230 V AC 24 V AC ±10%

12 V to 15 V DC

Page 38 38 39 40 40 41 41 41

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Image Stabilizer 　 VCC-9800P E / VCC-9700P E

A gyro-sensor picks up camera vibration in the 5 to 15 Hz

range, which is then suppressed electronically. This feature

offers a clear image even in a strong wind or when the camera

is installed near a highway with heavy trafﬁ c.

Maximum 576x Zoom Function 36x Optical Zoom

and 16x Digital Zoom VCC-9800P E / VCC-9700P E

The 36x optical zoom and 16x digital zoom can be combined

for a close-up of 576x. This allows even distant subjects to be

checked in detail, allowing one camera to monitor a wide area.

Up to 256 Preset Positions VCC-9800P E / VCC-9700P E

The user can set up to 256 preset positions with

VCC-9800P E / VCC-9700P E and up to 128 preset positions

with VCC-9600P E / VCC-9500P E. Preset positions can be

set to any angle from pointing directly below the camera to

looking horizontal. The adjustable range of the lens focus any

direction to offer the capability to fully capture any surveillance

area. When manually operated, the lens can be moved at the

speed of 0.1 °/sec to 120°/sec for accurate tracking of moving

objects.

Four Types of Auto Mode Setting

Sequence, Tour, Auto Pan and Auto Return modes are

available.

Specialty camera

High-resolution AF Speed Dome Camera

VCC-9800P E series

High-resolution AF Speed Dome Camera

VCC-9700P E series

36x

Optical Zoom

VA C-70

Control

VA C-70

Control

36x

Optical Zoom

High-speed Panning of 435°/sec

The camera makes it possible to capture the image of exact

points of surveillance with high-speed panning of 435°/sec

between preset positions. This accurate mechanism is capable

of capturing quickly moving objects and objects approaching

the camera when it is zoomed in.

Preset Accuracy to ±0.014 (typical) of a Degree

In the case of a speed dome camera, the motorized drive’s

performance is vital in order to capture numerous points of

surveillance during lens movement and zoom-ratio changes.

SANYO’s new series of speed dome cameras keeps the

accuracy of the camera’s return to preset points to within 0.014

(typical) of a degree for precision capture of images from

surveillance.

Auto Tracking 　　　　 VCC-9800P E / VCC-9700P E

The camera comes with an image processing algorithm that is

capable of detecting moving objects on the screen and tracing

an object automatically. When there are multiple movements,

an object with the biggest move will be traced. Further

settings are available according to the pattern of movement.

The auto return mode

provides an added feature

that forces the camera to

its Preset Position when no

movement is detected for a

preset duration.

540

TV Lines 540

TV Lines

Minimum

illumination

0.05 lx

Minimum

illumination

1.0 lx

Multi-spot/

5-section

BLC

Multi-spot/

5-section

BLC

ATW

AWC

Manual

ATW

AWC

Manual

Internal sync.

Line lock

Internal sync.

Line lock

Electronic

shutter

Electronic

shutter

SSP

Pelco-C/D Support

SSP

Pelco-C/D Support

24 V AC

or 230 V

24 V AC

or 230 V


Stabilizer


Stabilizer

Auto

Tracking

Auto

Tracking

Pan / Tilt speed

Pan Max. 435°/sec.

Tilt Max. 400°/sec.

Manual pan /tilt 0.1 to 120°/sec.

Designated point set using

preset position function

Image from conventional

camera with error margin as

large as 0.2°

Error margin of designated

point is a mere 0.014° (typical)

Shaking due to

strong wind or

trafﬁ c vibration

Without image stabilization With image stabilization

36x

optical zoom

16x

digital zoom

576x

Entrance

Display floor

example

Display floor Display floor

Reception

Camera

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Easy-to-Manage Installation, Setup and Adjustment

Enclosed within the housing are an integrated lens, a motor

and a pan/tilt mechanism. Attachment to the power supply

base by simply sliding the release levers simpliﬁ es installation

at the point of surveillance. The settings circuit board is

detachable for access to protocol, address and other switch

settings.

High-resolution AF Speed Dome Camera

VCC-9600P E series

High-resolution AF Speed Dome Camera

VCC-9500P E series

30x

Optical Zoom

VA C-70

Control

VA C-70

Control

30x

Optical Zoom

Upward Surveillance Enabled PTZ Operation

In addition to endless 360°/sec panning, the camera’s lens

section enables 185°/sec tilting in the vertical plane for an

area of surveillance expanded by 5° (indoor applications only)

compared to previous models.

Available in Three Forms, Outdoor Type, Surface Type or In

ceiling Type

The camera is available in three different styles. Assemble

them with different ﬁ ttings and covers to make a camera most

suitable for your surveillance needs.

All around Privacy Masking

When there is a house, or even a window, within the camera

frame, to protect other people’s

privacy it is possible to mask the

area so that it will not appear on

the monitor screen . Up to 24

rectangular masks of any desired

size can be set.

SSP (RS-485) Compatible

By using SSP (SANYO Security Serial Protocol), cameras

and DVRs can be controlled with just one controller over a

daisy chain connection up to a maximum of 254 devices. The

maximum cable length (total length of the daisy chain path) is

1200 m (4000 feet).

Coaxial Control or RS-485

Coaxial control: SSP / H-SSP / PELCO-C

RS-485: SSP / H-SSP / PELCO-D / PELCO-P / Kalatel / AD /

BBV / Ultrack / Bosch

540

TV Lines 540

TV Lines

Minimum

illumination

0.04 lx

Minimum

illumination

0.8 lx

Multi-spot/

5-section

BLC

Multi-spot/

5-section

BLC

ATW

AWC

Manual

ATW

AWC

Manual

Internal sync.

Line lock

Internal sync.

Line lock

Electronic

shutter

Electronic

shutter

SSP

Pelco-C/D Support

SSP

Pelco-C/D Support

24 V AC

or 230 V

24 V AC

or 230 V

JPEG Network board VA-80LAN (sold separately)

H.264 / JPEG Network board VA-82LAN (sold separately)

See page 15 for details.

This expansion board for network connection enables SANYO

VCC-9800P E / VCC-9700P E / VCC-9600P E / VCC-9500P E

to connect to a network. The user can operate a network connected

camera using a web browser (Internet Explorer).

It comes with the VA-SW3050LITE viewer software.

Video Management Software (VMS)

VA-SW50 (Advanced) / VA-SW60 (Enterprise)

See page 17 for details.

Network Recorder (sold separately)

VA-SW3050S (for server) / VA-SW3050C (for client)

See page 18 for details.

Camera Control Unit VAC-70

(sold separately) See page 42 for details.

SSP Control Unit

VSP-9000 / VSP-8500 / VSP-3000 (sold separately)

See page 57, 58, 59 for details.

Panning range

360° endless

Horizontal level

Tilting range

–5° to 185°

(With digital auto flip ON)

No dead areas with new speed dome cameras

Dead area when at 0° tilt

Image from conventional camera

at 0° tilt

Upward tilt to 5° past zero for an

expanded area of surveillance

with VCC-9800P E / 9700P E

9600P E / 9500P E cameras

Detachable without

disconnecting power cable

Detachable Settings Circuit Board

Release

lever

Alarm inputs (8)

Alarm outputs (2)

RS-485A/RS-485B

Address setting

Baud rate setting

RS-485/Coax setting

SSP/Pelco setting

Termination setting

Slide the camera unit’s two release

levers and lock the power supply base

into position. No special tools required

for camera unit installation or removal.

Basic camera settings can

be made while holding

the settings circuit board

in hand, as the board

is detachable from the

power supply base. The

I/O side of the board

features 8 input and 2

output terminals for alarm

signals.

Terminal side

(Side-A)

DIP switch side

(Side-B)

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

(Open type)

UL2043

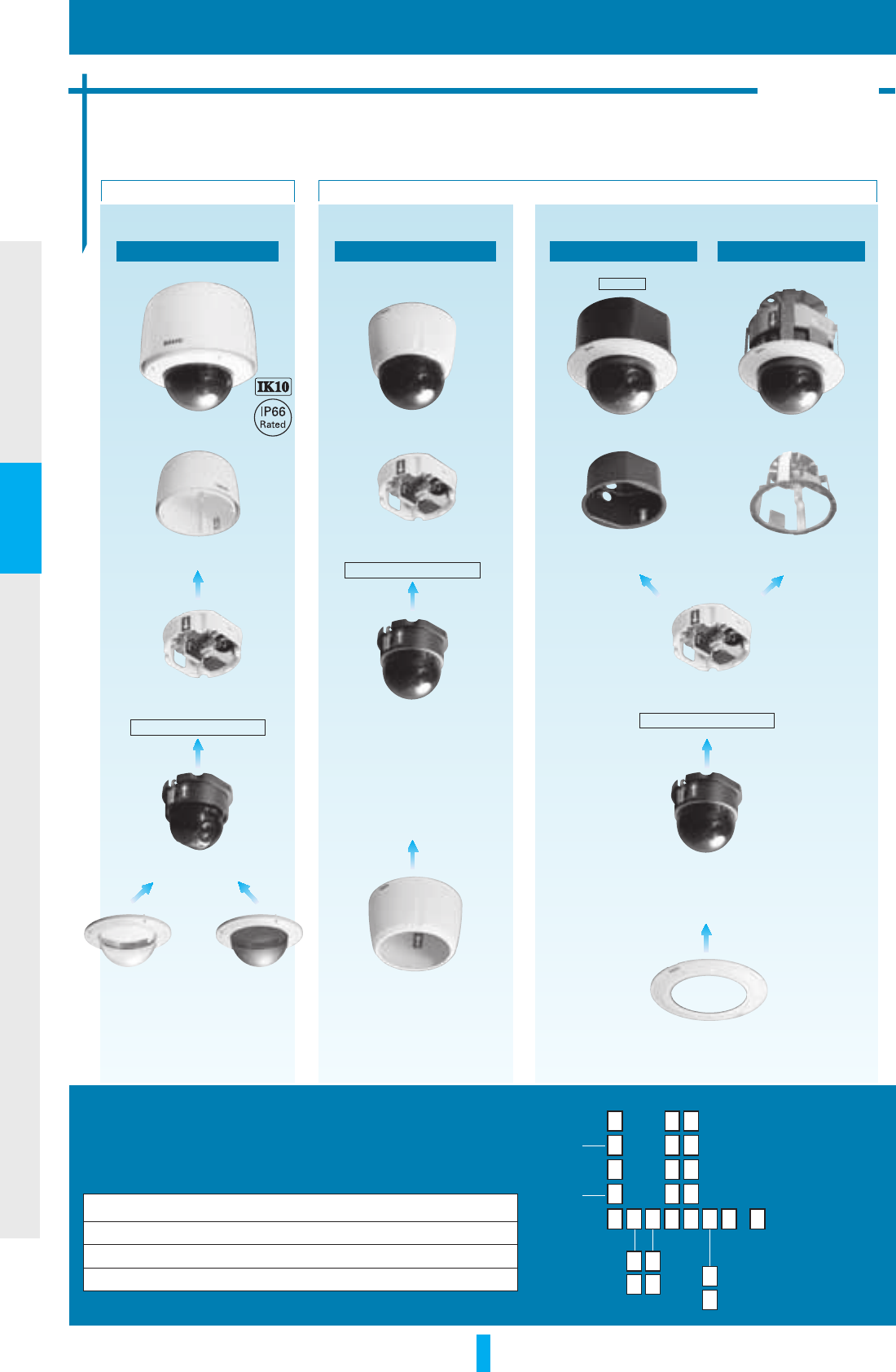

Available in Three Different Packages

Outdoor, Surface, or In-ceiling ------ Select a combination that matches your needs!

The combination of camera units and options allows the user to create tailor-made solutions. It also simpliﬁes the installation.

Applications

Outdoor type Indoor type

VA-80EX VA-80F VA-80ME VA-80MF

Model number codes

Model conﬁgurations example

Model name Camera unit +Power

basement +Housing +Dome

cover

VCC-9800EXCP E VCC-MC800P E +VA-84SA +VA-80EX +VA-CM8C

VCC-9530EFCP E VCC-MC500P E +VA-80SA +VA- 80MF

VCC-9700INSP E VCC-MC700P E +VA- 84SA +VA-80F +VA-CZ80

VCC-9 P

8 I N

7 E

6 E F

5 E X

Camera type

36x, Day/night

36x, Color

30x, Day/night

30x, Color

Surface cover

In-ceiling (closed)

In-ceiling (open)

Outdoor housing

Clear cover

Smoked cover

AC230V

AC24V

PAL

Enhanced resolution

to 540TVL

Housing type

Dome cover

Power

3 0 C

0 0 S

Surface type In-ceiling type

(Closed type)

Outdoor housing In-ceiling bracket In-ceiling bracket

Camera unit Camera unit

Surface cover

Camera unit

with clear dome cover (standard)

(Smoked dome cover [VA-CZ80]

option)

with clear dome cover (standard)

(Smoked dome cover [VA-CZ80] option)

VA-84SA

Power supply bases

VA-84SA / VA-80SA

Power supply bases

VA-84SA / VA-80SA

Power supply bases

VA-CM8C

Clear dome cover

for outdoor housing

(Sold separately)

VA-CM8S

Smoked dome cover

for outdoor housing

(Sold separately)

24 V AC

24 V AC / 230 V AC

VCC-MC800P E

VCC-MC700P E

VCC-MC600P E

VCC-MC500P E

VCC-MC800P E

VCC-MC700P E

VCC-MC600P E

VCC-MC500P E

VCC-MC800P E

VCC-MC700P E

VCC-MC600P E

VCC-MC500P E

*Protection class of an impact for IK10: It supports "a protection class for the mechanical shock" of EN50102 of the European standard.

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

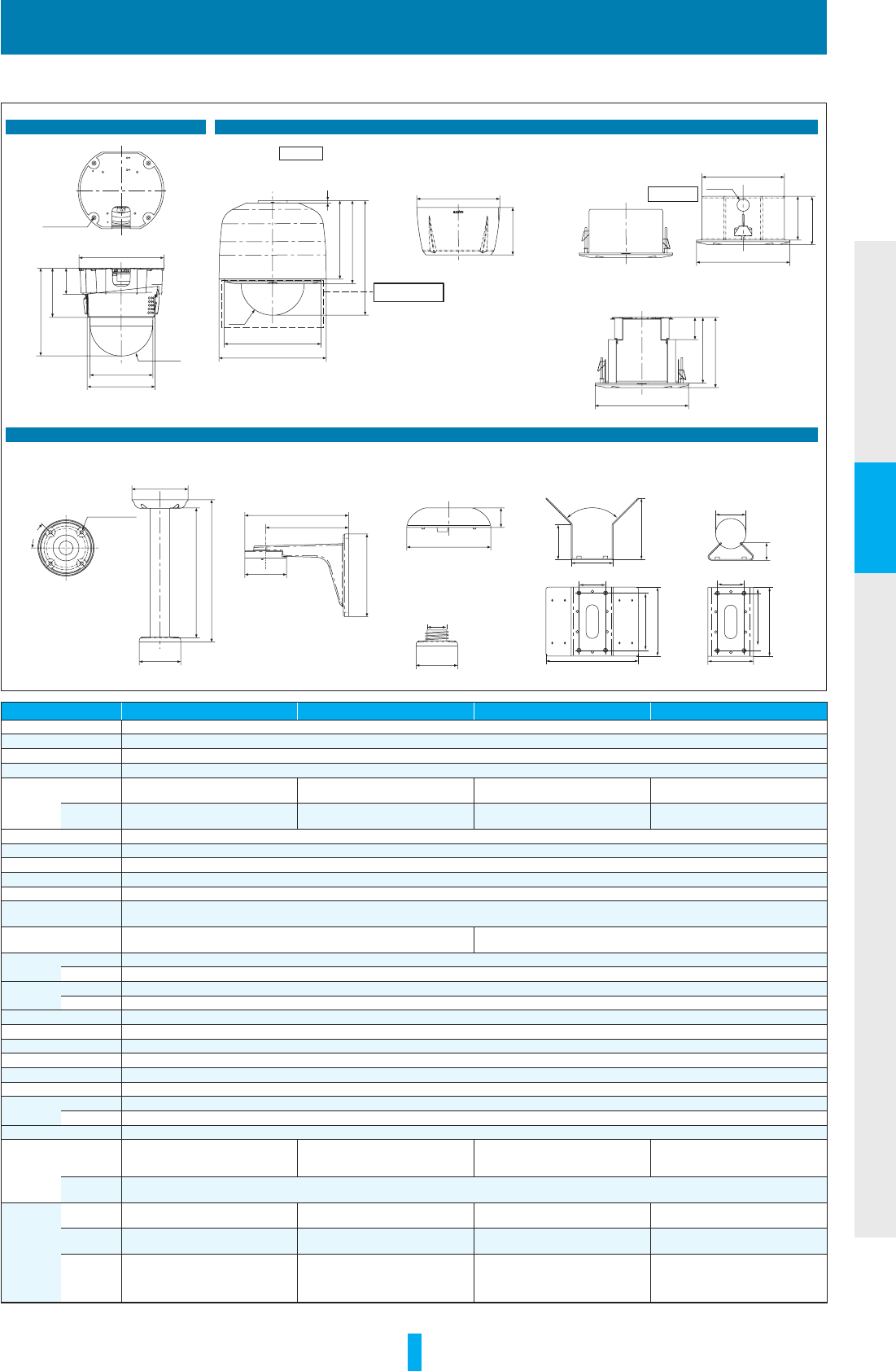

MODEL VCC-9800P E series VCC-9700P E series VCC-9600P E series VCC-9500P E series

Scanning system PAL standard 625 lines, 50 ﬁelds/sec.

Image sensor 1/4" (approx. 3.6 mm x 2.7 mm) interline transfer method CCD

Picture elements Total: 795(H) x 596(V), Effective: 752(H) x 582(V)

Horizontal resolution 540 TV lines (typical)

Minimum

illumination

(approx.)

50 IRE

1.0 lx (at F1.6 GAIN: HIGH color mode)

0.05 lx, (at F1.6 B/W mode) 1.0 lx (at F1.6 GAIN: HIGH color mode) 0.8 lx (at F1.4 GAIN: HIGH color mode)

0.04 lx, (at F1.4 B/W mode) 0.8 lx (at F1.4 GAIN: HIGH color mode)

20 IRE

0.4 lx (at F1.6 GAIN: HIGH color mode)

0.02 lx, (at F1.6 B/W mode) 0.4 lx (at F1.6 GAIN: HIGH color mode) 0.32 lx (at F1.4 GAIN: HIGH color mode)

0.016 lx, (at F1.4 B/W mode) 0.32 lx (at F1.4 GAIN: HIGH color mode)

Electronic sensitivity boost

Auto (interlocked with auto iris), up to 32x / OFF

Video S/N ratio More than 50 dB (AGC OFF)

Backlight compensation

ON / OFF ––– ON = Multi-spot photometry (48-section) / 5 -section photometry / Multi-spot masking (48-section)

White-balance ATW / AWC / Manual / Outdoor / Indoor / Fluorescent

Gain control Low / Normal / Middle / High / Off

Electronic shutter High-speed mode: 8 steps: 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

Low-speed mode: 5 steps: 2x, 4x, 8x, 16x, 32x (1/25, 1/12, 1/6, 1/3, 1/1.5)

Zoom lens 36x optical zoom, f = 3.4 to 122.4 mm, (F1.6 to 4.5)

ON / OFF, up to 16x electronic zoom (Max. 560x combined with optical zoom)

30x optical zoom, f = 3.5 to 105 mm, (F1.4 to 3.7)

ON / OFF, up to 16x electronic zoom (Max. 480x combined with optical zoom)

Movement

range

Panning 360° endless

Tilting -5 to 185° (Digital auto ﬂip ON)

Movement

speed

Panning Preset: 435°/sec, Manual: 0.1 to 120°/sec

Tilting Preset: 400°/sec, Manual: 0.1 to 120°/sec

Motion detector On (PRESET, ZONE) / Off: Motion zoom function

Privacy masking On / Off: Max. 24 masked locations (Wide view screen; 1 screen max. 4 masks) All-around privacy masking

Synchronizing system Internal sync. / Line lock (LINE PHASE)

V phase adjustment LINE PHASE

Communication RS-485 / Coaxial control

Protocols SANYO (SSP / H-SSP), Pelco-C / D / P, Kalatel, AD, BBV, Ultrack, Bosch

Environmental

conditions

Temperature

-10°C to 50°C [+14°F to 122°F], -30°C to 50°C [-22°F to 122°F] when the outdoor housing, VA-80EX is used

Humidity

30% to 90% RH

Power requirement 24 V AC ±10% 50Hz or 230 V AC, 50Hz

Power

consumption

(approx.)

Camera unit +

Power supply

base

21 W: VCC-MC800P E + VA-84SA

22 W: VCC-MC800P E + VA-80SA

21 W: VCC-MC700P E + VA-84SA

22 W: VCC-MC700P E + VA-80SA

21 W: VCC-MC600P E + VA-84SA

22 W: VCC-MC600P E + VA-80SA

21 W: VCC-MC500P E + VA-84SA

22 W: VCC-MC500P E + VA-80SA

Outdoor

housing

35 W: VA-80EX

Weight

(approx.)

Outdoor type

5.1kg= VCC-9800EXCP E/9800EXSP E

VCC-9830EXCP E/9830EXSP E

5.1kg= VCC-9700EXCP E/9700EXSP E

VCC-9730EXCP E/9730EXSP E

5.1kg= VCC-9600EXCP E/9600EXSP E

VCC-9630EXCP E/9630EXSP E

5.1kg= VCC-9500EXCP E/9600EXSP E

VCC-9530EXCP E/9630EXSP E

Surface type

2.4kg=VCC-9800INP E

VCC-9830INP E

2.4kg=VCC-9700INP E

VCC-9730INP E

2.4kg=VCC-9600INP E

VCC-9630INP E

2.4kg=VCC-9500INP E

VCC-9530INP E

In-ceiling type

3.4kg=VCC-9800EMP E

VCC-9830EMP E

2.7kg=VCC-9800EFP E

VCC-9830EFP E

3.4kg=VCC-9700EMP E

VCC-9730EMP E

2.7kg=VCC-9700EFP E

VCC-9730EFP E

3.4kg=VCC-9600EMP E

VCC-9630EMP E

2.7kg=VCC-9600EFP E

VCC-9630EFP E

3.4kg=VCC-9500EMP E

VCC-9530EMP E

2.7kg=VCC-9500EFP E

VCC-9530EFP E

NOTE: Speciﬁcations subject to change without notice

Camera Unit/Power Supply Base

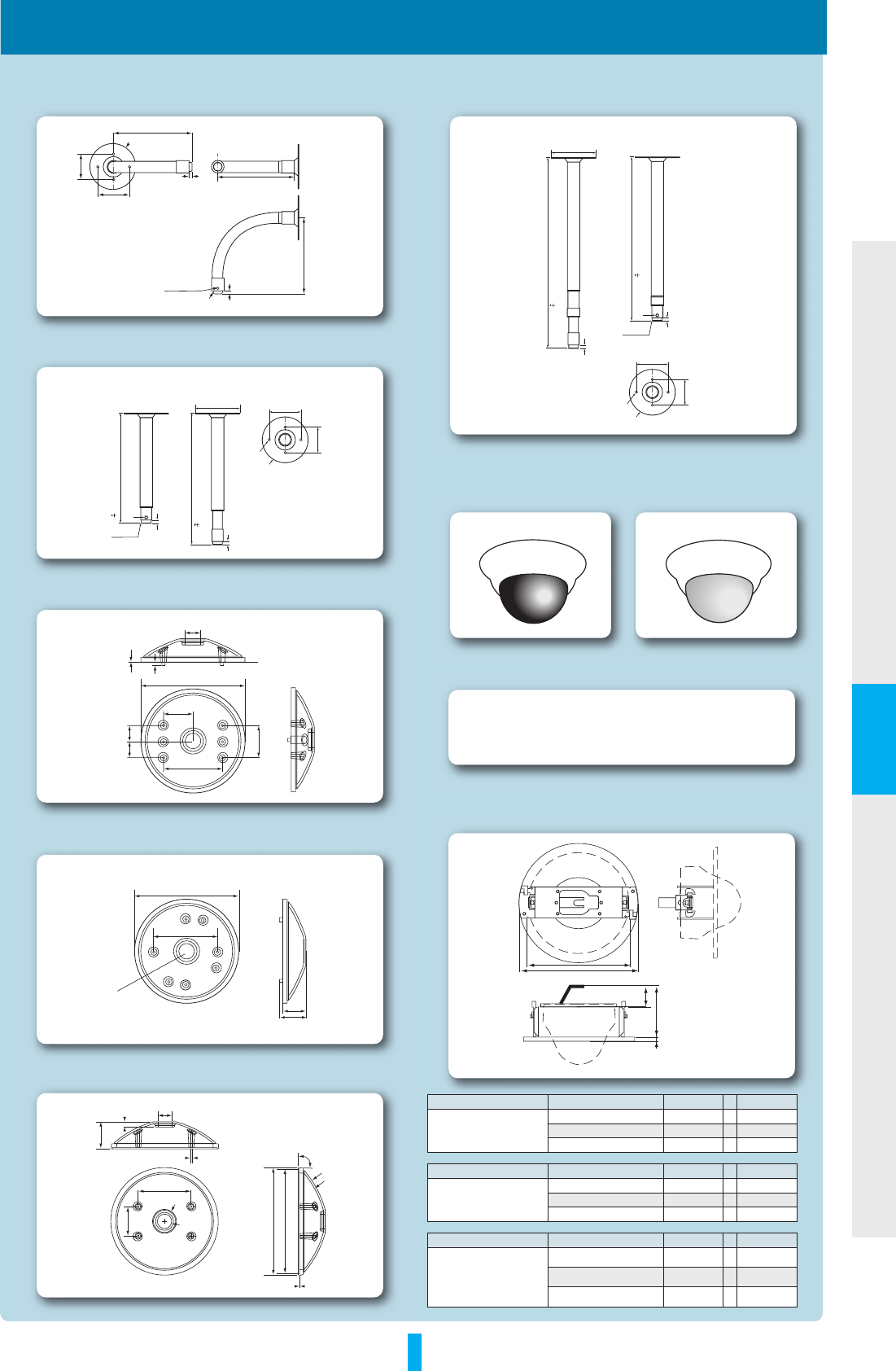

Mounting Brackets (Sold separately)

VA-80BP

Pendant Mounting

Bracket

0.6kg (21.2oz.)

Housings (Sold separately)

VA-80EX

Outdoor Housing

2.5kg (88.2oz.)

VA-CM8C

Clear dome cover for outdoor housing

0.45kg (15.9oz.)

VA-CM8S

Smoked dome cover for outdoor housing

0.45kg (15.9oz.)

VA-80F

Surface Cover

0.2kg (7.1oz.)

Dimensions [Unit: mm (inch)]

VA-80BW

Wall Mounting Bracket

0.75kg (26.5oz.)

VA-80A

Attachment

0.35kg (12.3oz.)

VA-80AP

Pole Mounting Adaptor

1.0kg (35.3oz.)

VA-80AC

Corner Mounting Adaptor

2.4kg (84.7oz.)

VA-80ME

In-Ceiling Bracket

(closed type)

1.1kg (38.8oz.)

VA-80AB

Adaptor Bracket

0.11kg (3.9oz.)

ø194(7.6)

290

331.5

ø96

ø130

ø192

ø110

ø97

234

192

191

ø190.2

ø28.5

ø216

101.1

111.5

24 V AC

ø248

ø146

ø224

Dome Cover

265.1

192

182

90°

119(4.7)

260.4

172.8

100

193

170

127

193 50

ø80–ø160

4-ø4.5

P.D ø168

ø137.4

ø147.5

ø186

ø136

57.3

107.2

191.5

VA-80MF

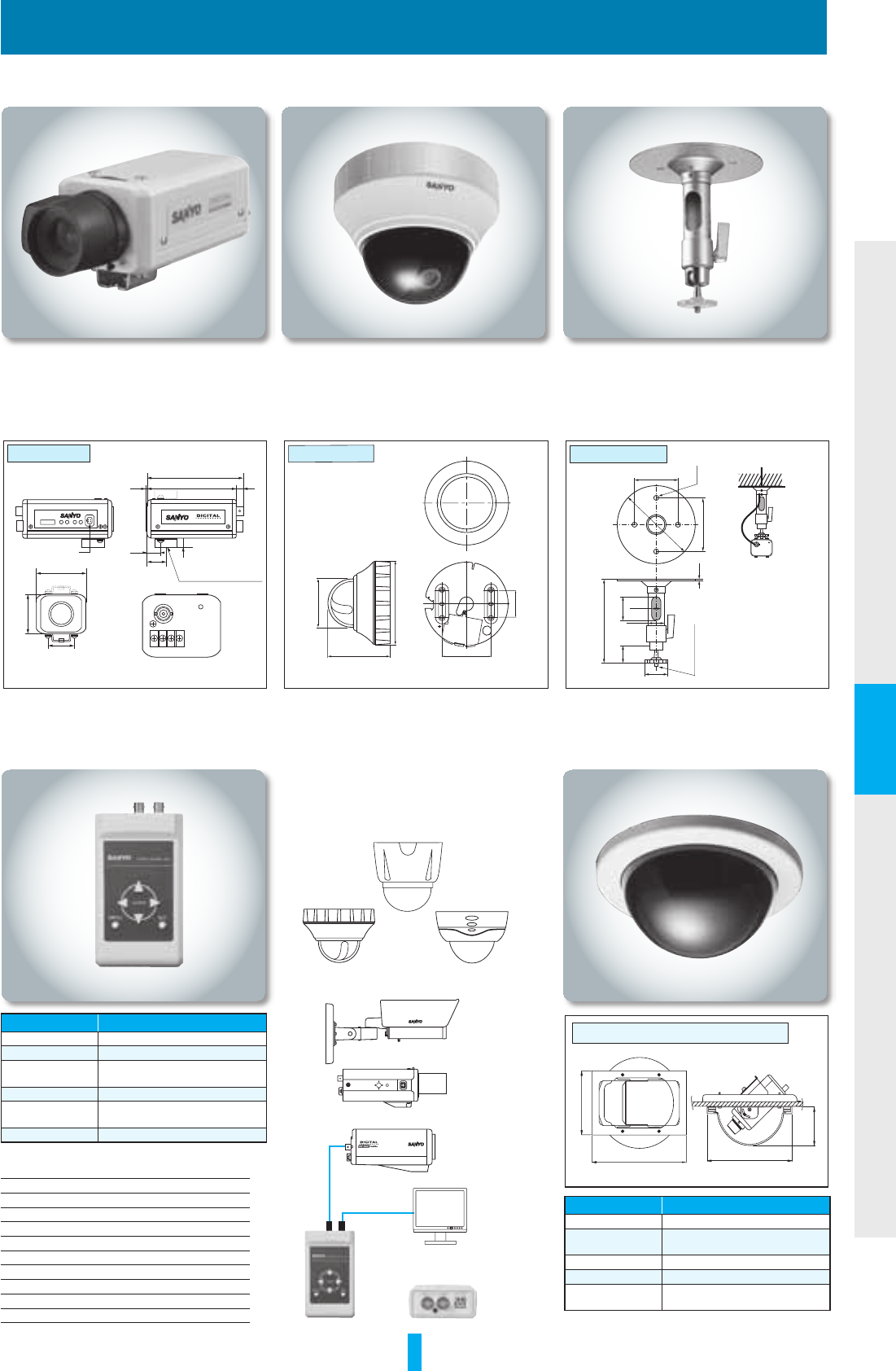

In-Ceiling Bracket (open type) 0.6kg (21.2oz.)

ø216

51.3

152

162.5

ø96

170

UL2043

VA-84SA

VA-80SA

0.48kg

(17.0oz.)

VA-CZ80

Smoked dome cover for indoor housing

4-ø8.5

P.D ø101.6

45°

G1 1/2"

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

IP66 Compliant Enclosure & Adjustable Arm

VCC-XZ600P

The angle of the arm is adjustable in all directions. Since

the ﬂ exible joint is secured by screws, the arm maintains its

position without sagging over time. In addition, a safety wire

is included to prevent accidents. Installation on a ceiling or wall

is easy without any additional parts. The wires are securely

protected inside the arm.

Image Stabilizer

A gyro-sensor picks up camera vibration in the 5 to 15 Hz

range, which is then suppressed electronically. This feature

offers a clear image even in a strong wind or when the camera

is installed near the heavy trafﬁ c highway.

13 Mode Electronic Shutter Speeds

2x, 4x, 8x, 16x, 32x, 1/50, 1/120, 1/250, 1/500, 1/1000,

1/2000, 1/4000, and 1/10000 sec.

Built-in Communication Board

SSP + Twisted pair board

Communication protocol:

Coaxial control: SSP / H-SSP / PELCO-C

RS485: SSP / H-SSP / PELCO-D

Twisted pair terminal (CAT 5) for video signal:

NVT built-in UTP video

Maximum 480x zoom

The 30x optical zoom and 16x digital zoom can be combined

for close-ups at a magniﬁ cation power of 480x. This allows

even distant subjects to be observed in detail, enabling one

camera to monitor a wider area.

Specialty camera

High-resolution Weatherproof AF Zoom Camera

VCC-XZ600P

High-resolution AF Zoom Camera

VCC-ZM600P

30x

Optical Zoom

IP66

VA C-70

Control

VA C-70

Control

30x

Optical Zoom

High Resolution of 540 TV Lines

SANYO has improved the horizontal resolution to 540 TV lines

by developing the full capability of CCD and using an IR cut

ﬁ lter with enhanced performance. The result is a better picture

quality, which even a conventional high resolution camera

cannot match.

32X Sensitivity Boost for Minimum

Illumination of 0.00125 Lx

While achieving 0.04 lx minimum subject illumination at

maximum gain, sensitivity can be further heightened 32X for

0.00125 lx minimum illumination when the sensitivity boost

function is activated at 50 IRE (F1.4). [B/W mode], 0.0005 lx

minimum illumination when the sensitivity boost function is

activated at 20 IRE (F1.4). [B/W mode]

Built-in Intelligent Digital Motion Detector and Zoom

Detector

The Intelligent Digital Motion Detector enables reliable and

accurate motion detection by analyzing the magnitude of

movement and the size of object from changes in picture

brightness. When a moving object is detected, VCC-XZ600P

/ VCC-ZM600P / VCC-ZM500P can send an alarm signal to

external units and/or automatically switch to the optical zoom

mode, according to the user’s preference. Furthermore, an

external alarm input terminal makes it possible, when an

alarm signal is received, to automatically zoom in to the site of

activity, according to a preset zooming operation.

Registering a view setting ﬁ le (CAMERA VIEW)

To support shooting in various surveillance conditions like

when the surveillance location is bright (or dark), the CAMERA

VIEW screen allows you to register up to 2 patterns of

shooting settings as camera view setting ﬁ les.

540

TV Lines 540

TV Lines

Minimum

illumination

0.04 lx

Minimum

illumination

0.04 lx

Multi-spot /

Center-zone

BLC

Multi-spot /

Center-zone

BLC

ATW

AWC

Manual

ATW

AWC

Manual

Internal sync.

Line lock

Internal sync.

Line lock

Electronic

shutter

Electronic

shutter

SSP

Pelco-C/D Support

SSP

Pelco-C/D Support

24 V AC

12 V to

15 V DC

24 V AC

12 V to

15 V DC


Stabilizer


Stabilizer

NVT

UTP video

NVT

UTP video

Without image stabilization With image stabilization

30x

optical zoom

16x

digital zoom

480x

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

High-resolution AF Zoom Camera

VCC-ZM500P

VA C-70

Control

30x

Optical Zoom

540

TV Lines

Minimum

illumination

0.8 lx

Multi-spot /

Center-zone

BLC

ATW

AWC

Manual

Internal sync.

Line lock

Electronic

shutter SSP

Pelco-C/D Support

24 V AC

12 V to

15 V DC

Privacy Masking

When there is a house, or even an

object as small as a window within

the camera frame, it is possible

to mask the area so that it will not

appear on the monitor screen to

protect other people’s privacy. Up

to 4 rectangular masks of arbitrary size can be set per screen.

Other features

• Adjustable gamma correction and aperture settings

•

Display of assignable camera ID and titles (16 characters max.)

• Mirror function

Camera Control Unit VAC-70

(sold separately) See page 42 for details.

MODEL VCC-XZ600P VCC-ZM600P VCC-ZM500P

Scanning system PAL standard 625 lines, 50 ﬁ elds/sec.

Image sensor 1/4" (approx. 3.6 mm x 2.7 mm) interline transfer method CCD

Picture elements Total: 795(H) x 596(V), Effective: 752(H) x 582(V)

Horizontal resolution 540 TV lines (typical)

Minimum

illumination

(approx.)

50IRE

0.8 lx (at F1.4, GAIN: HIGH, color mode), 0.04 lx (at F1.4, GAIN: HIGH, B/ W mode) 0.8 lx (F1.4) at max. AGC gain, 0.025 lx (F1.4)

at 32x electronic sensitivity boost

20IRE

0.32 lx (at F1.4, GAIN: HIGH, color mode), 0.016 lx (at F1.4, GAIN: HIGH, B/W mode) 0.32 lx (F1.4) at max. AGC gain, 0.01 lx (F1.4)

at 32x electronic sensitivity boost

Electronic sensitivity boost

AUTO (interlocked with auto iris), up to 32x / OFF

Video output level 1.0 V (p-p) (75 Ω, composite)

Video S/N ratio More than 50 dB (AGC OFF)

Backlight compensation

ON / OFF, ON = Multi-spot photometry / Center-zone photometry / Multi-spot masking

Day/Night Color / BW switching function (color mode) Color / BW settings (3-level adjustment)and burst off/on

setting function (B/W mode) can be used via alarm input ------------------------------

White-balance ATW / AWC / Manual / Outdoor / Indoor / Fluorescent / R/B adjustment possible when using MWB

Gain control ON (Low / Normal / Middle / High) / OFF (Gain adjustment possible)

Motion detector ON (individual setting possible) / OFF, Motion zoom function (individual setting possible)

Privacy masking ON / OFF, max. of 4 masked locations (Wide view screen)

Electronic shutter High-speed mode:1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec.

Low-speed mode: 1/25, 1/12, 1/6, 1/5, 1/1.5

Lens f = 3.5 to 105mm F1.4 to 3.7 auto focus

Synchronizing system Internal sync. / Line lock

Aperture

Horzontal 56 to 2.0°

Vertical 43 to 1.5°

Diagonal 68 to 2.5°

V phase adjustment LINE PHASE

Optical zoom 30x

Electronic zoom 16x

Communication method

System connection terminals (RS485/Coaxial), support of camera control unit (VAC-70))

Alarm input External inputs: 2, NO / NC switch, Day/night switch External inputs: 2, NO / NC switch

Alarm output External outputs: 1, NO / NC switch, open corrector

Mirroring function OFF / HV / H / V

Environmental conditions

Temperature: -10°C to 50°C [+14°F to 122°F], Humidity: within 35 to 90% RH

Power requirement 24 V AC ± 10%, 50 Hz or 12 V to 15 V DC

Power consumption (approx.)

4.9 W 4.5 W

Dimensions (approx.)

141(W) x 172(H) x 400(D) mm [5.6(W) x 6.8(H) x 15.7(D) in.]

56(W) x 64(H) x 150(D) mm [2.2(W) x 2.5(H) x 5.9(D) in.]

Weight (approx.) 1.77 kg [62.4 oz.]

540 g [19.0 oz.]

NOTE: Speciﬁ cations subject to change without notice

Specialty camera

(Unit: mm)

VCC-ZM600P / VCC-ZM500P

(Unit: mm)

VCC-XZ600P

1/4"-20UNC

147

150

400

381

172

141

172

123 224

211 21

113

VCC-ZM600P

Rear panel

AC 24V

DC12V

ABCOM

RS485

ALARM IN 2

ALARM IN 1ALARM OUTFOCUS

ZOOM

COM

UTP

GND

+---

POWER

VIDEO OUT

VCC-ZM500P

Rear panel

AC 24V

DC12V

ABCOM

RS485

ALARM IN 2

ALARM IN 1ALARM OUTFOCUS

ZOOM

COM

GND

+---

POWER

VIDEO OUT

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Suitable for a variety of applications

In addition to the basic ﬂ ush-mount casing for the ceiling, a

surface-mount adaptor is included for increased versatility.

Three-axis adjustment

The three-axis mechanism makes it easy to adjust the ﬁ eld of

view. It increases freedom in installation.

TRIPLE Video Output (BNC/UTP/ADJ)

A UTP output has been added to the conventional composite

video output. It makes wiring easier and less expensive. The

camera also has an added terminal for adjustment for the

convenience of modifying the ﬁ eld of view and focus at the

time of installation.

AC / DC Power Source Compatibility

VDC-D1785IRVP comes with power supply terminals of 24 V

AC and 12 V DC. Select an appropriate source, depending on

the location.

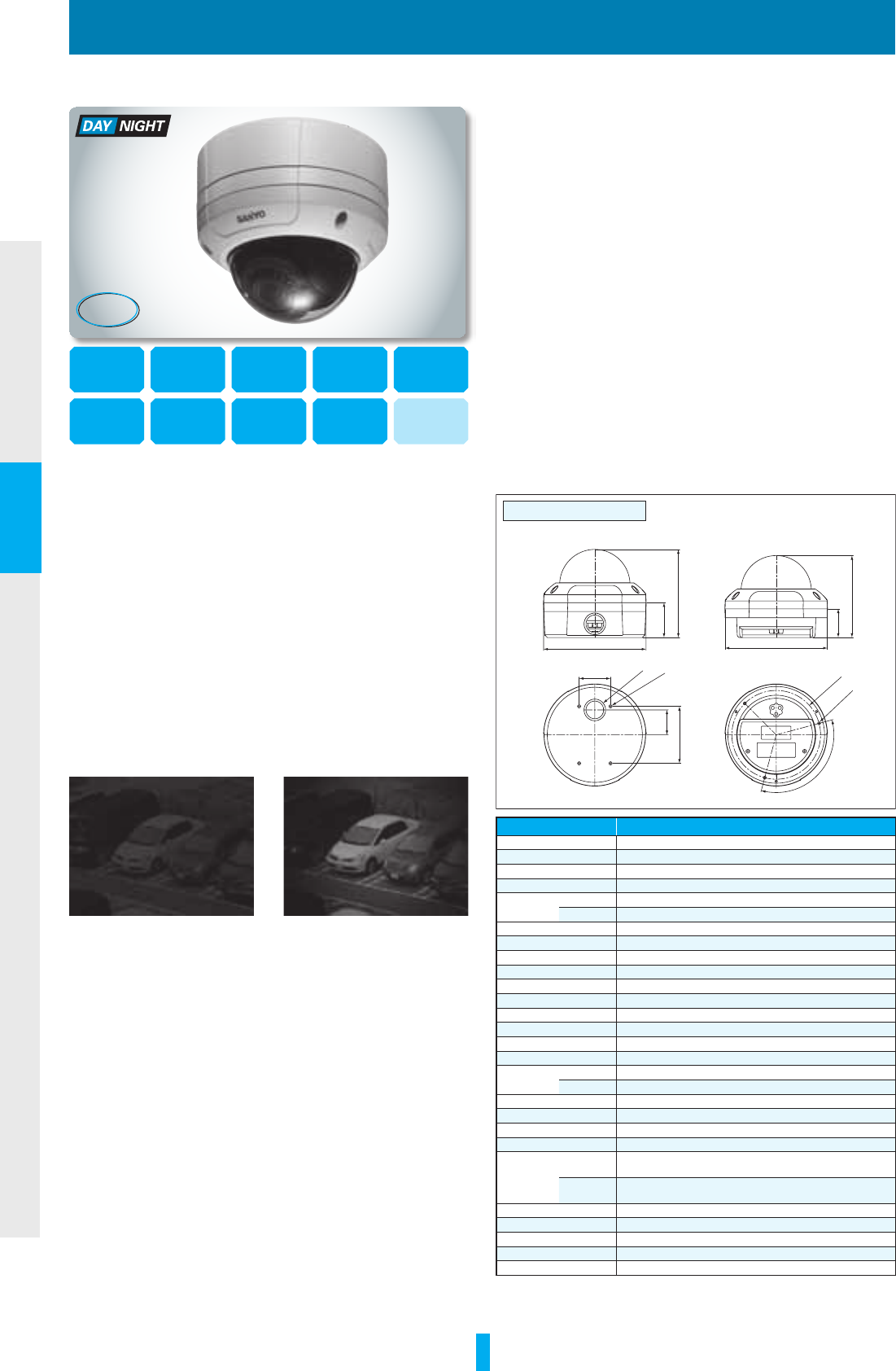

Specialty camera with Vari-focal lens

High-resolution Vandal-resistant IR Dome Camera

VDC-D1785IRVP

High Resolution of 540 TV Lines

SANYO has improved the horizontal resolution to 540 TV lines

by developing the full capability of CCD and using an IR cut

ﬁ lter with enhanced performance. The result is a better picture

quality, which even a conventional high resolution camera

cannot match.

3.2x Vari-focal IR Lens

The 3.2x vari-focal IR lens (3.7 mm to 12 mm) is capable of

providing wide angle pictures in addition to standard pictures.

IR LED

There is no need to prepare a separate light source. The

camera comes with an infrared LED and, therefore, all you

need to do is install the camera. The built-in LED makes it

possible to capture images of an intruder even in complete

darkness without alerting the person.

Day/Night

24-hour surveillance is now possible with just a single

camera that works as a color camera during the day and a

high-sensitivity B/W camera during the night. The mode of

operation is automatically switched by replacing the optical

ﬁ lter. In addition to the IR sensing and high-sensitivity

(BW) modes, the IR LED further expands the feasibility of

surveillance, even in complete darkness.

IP67

VDC-D1785IRVP is designed to ﬁ ght off dust and water.

The IP67 compliant package makes it suitable for outdoor

installation at locations exposed to wind and rain. Of course,

this does not preclude its use for indoor applications.

Vandal-resistant Dome Camera

Vandal-resistant camera casing does not break even when hit

with a hammer. Eliminates concern about the camera being

damaged.

540

TV Lines

Minimum

illumination

0.0 lx BLC In-ceiling

Surface

Vandal-

resistant

24 V AC

12 V DC

Vari-focal

IR lens

IR LED

UTP video

MODEL VDC-D1785IRVP

Scanning system PAL standard 625 lines, 50 ﬁ elds/sec.

Image sensor 1/3" (approx. 4.8 mm x 3.6 mm) interline transfer method CCD

Picture elements Total: 795(H) x 596(V), Effective: 752(H) x 582(V)

Horizontal resolution

540 TV lines

Minimum

illumination

50IRE

0.7 lx (color at F 1.4, IR LED: OFF), 0.0 lx (B/ W, F 1.4, IR LED: ON)

20IRE

0.3 lx (color at F 1.4, IR LED: OFF), 0.0 lx (B/ W, F 1.4 IR LED: ON)

Video output level 1.0 V (p-p) (75 Ω, composite)

Video S/N ratio More than 48 dB

Backlight compensation

ON / OFF

White-balance Auto

Flicker Less ON / OFF

Gain control ON / OFF

Gamma 0.45

Day/Night True-Day/Night (Auto)

Iris control Optical auto iris lens

Lens Built in vari-focal IR lens f=3.7 to 12 mm

Angle of

view

Horizontal

76.92 to 22.73°

Vertical

56.89 to 17.07°

Camera of IR LED 18pcs

IR distance 20m

IR wavelength 850nm

Synchronizing system Internal sync.

Operating

conditions

Operating

Temperature: -10°C to 50°C [+14F° to 122°F],

Humidity: within 90% RH

Storage

Temperature: -20°C to 60°C [– 4F° to 140°F],

Humidity: within 70% RH

Power requirement 24 V AC ± 10%, 50 Hz or 12 V DC ± 10%

Power consumption (approx.)

7.0 W

Waterproof standard

IP67

Dimensions (approx.)

150(ø) x 129(H) mm [5.9(ø) x 5.1(H) in.]

Weight (approx.) 0.95 kg [33.5 oz.] Inceiling / 1,2 kg [43.7 oz.] Suface

NOTE: Speciﬁ cations subject to change without notice

(Unit: mm)

VDC-D1785IRVP

150.1

4ø4.5

3ø4.3

120°

ø130

150.1

36.5

83.5

120

129

3/4" NPT

Surface-mount In-ceiling-mount

IP67

Conventional Camera SANYO IR LED Camera

3.2x

Vari-focal lens

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

High-resolution Vandal-resistant Dome Camera

VDC-D1585VP

High-resolution Vandal-resistant Dome Camera

VDC-C1575VP

High-resolution WDR Vandal-resistant Dome Camera

VDC-W1595VP

480

TV Lines 520

TV Lines

Minimum

illumination

1.0 lx

Minimum

illumination

0.05 lx

Minimum

illumination

1.0 lx

WDR

Wide Dynamic

range

BLC BLC

ATW-A

ATW ATW-A

ATW

Internal sync.

Line lock

(24 V AC user)

Internal sync.

Line lock

(24 V AC user)

Internal sync.

Line lock

(24 V AC user)

24 V AC

12 V to

15 V DC

24 V AC

12 V to

15 V DC

24 V AC

12 V to

15 V DC

Vari-focal

lens

Vari-focal

lens

Vari-focal

lens

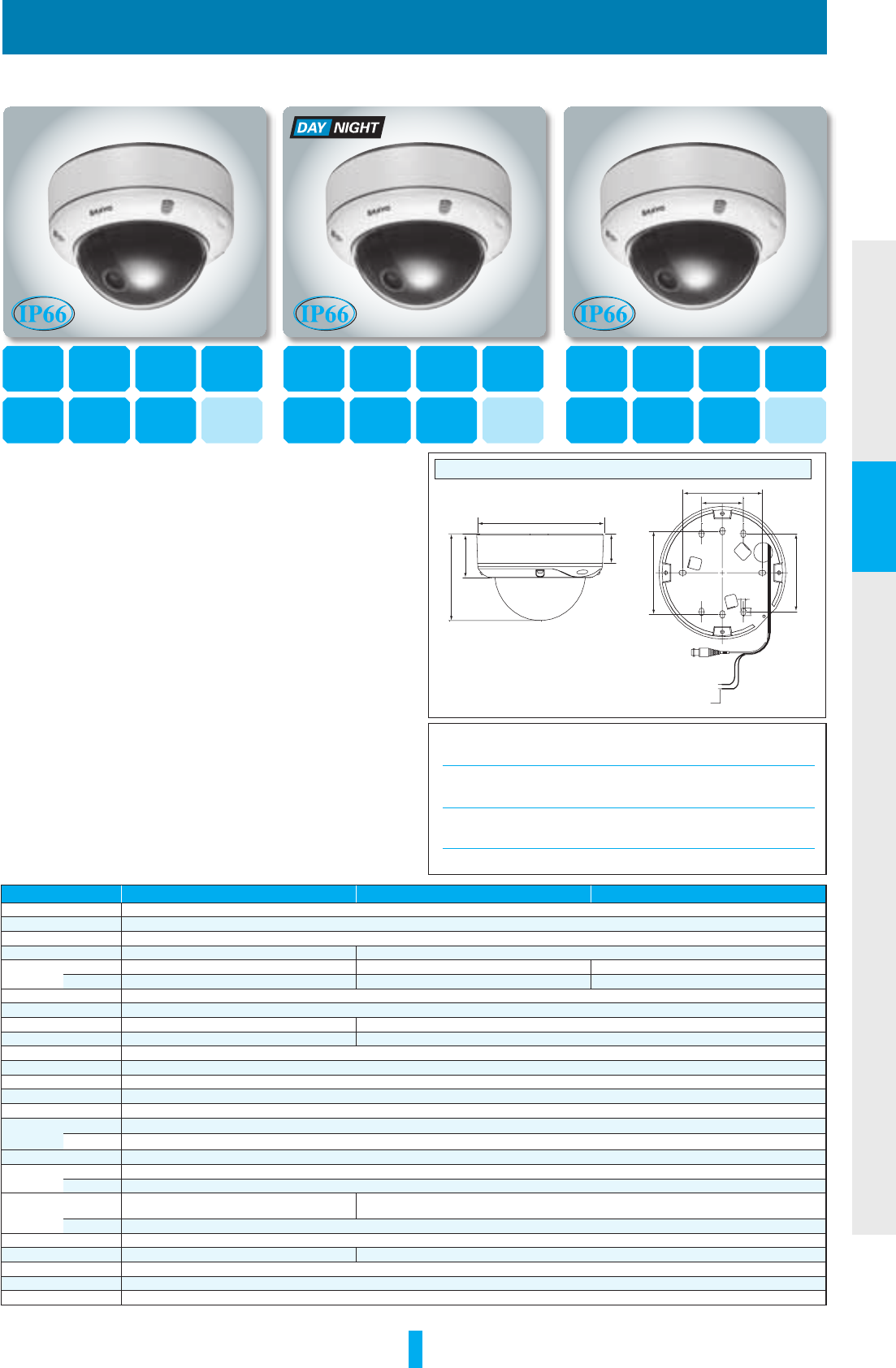

Specialty camera with Vari-focal lens

3 variations

Wide Dynamic Range, Day/Night camera, or color High-

resolution camera available. 2.3x vari-focal lens is ideal for

interior. Weatherproof construction also makes it suitable for

outdoor use. (IP66 rated)

IP66

VDC-W1595VP, VDC-D1585VP, and VDC-C1575VP are all

designed to ﬁ ght off dust and water. The IP66 compliant

package makes them suitable for outdoor installation at

locations exposed to wind and rain. Of course, this does not

preclude its use for indoor applications.

2.3x Vari-focal Lens

The 2.3x vari-focal lens (2.6 mm to 6 mm) is capable of

providing wide angle pictures in addition to standard pictures.

The camera allows its user to manually adjust the pan and tilt

angles in the range of 360° and 120° respectively.

Vandal-resistant Dome Camera

Vandal-resistant camera casing does not break even when hit

with a hammer. Eliminates concern about the camera being

damaged.

MODEL VDC-W1595VP VDC-D1585VP VDC-C1575VP

Scanning system PAL standard 625 lines, 50 ﬁ elds/sec.

Image sensor 1/3" (approx. 4.8 mm x 3.6 mm) interline transfer method CCD

Picture elements Total: 795(H) x 596(V), Effective: 752(H) x 582(V)

Horizontal resolution

480 TV lines 520 TV lines

Minimum

illumination

50IRE 1.0 lx (at F 1.4)

1.0 lx (at F 1.4, color mode) 0.05 lx (at F 1.4 lens, B/ W mode)

1.0 lx (at F 1.4)

20IRE 0.4 lx (at F 1.4)

0.4 lx (at F 1.4, color mode) 0.02 lx (at F 1.4 lens, B/ W mode)

0.4 lx (at F 1.4)

Video output level 1.0 V (p-p) (75 Ω, composite)

Video S/N ratio More than 50 dB (AGC OFF)

Backlight compensation

------------------------------ ON / OFF ––– Slide SW

Wide dynamic range ON / OFF (54 dB typical) ------------------------------

White-balance AT W-A / ATW

Gain control ON / OFF

Gamma 0.45

Iris control Optical auto iris lens

Lens Built in vari-focal lens f=2.6 to 6.0 mm

Manual

pan and tilt

angles

Horizontal

0 to 360°

Vertical

0 to 120°

Synchronizing system Internal sync. / Line lock (24 V AC user)

Sockets

Video signal

VIDEO OUT ––– BNC

Power supply

24 V AC, GND, 12 V DC

Operating

conditions

Operating

Temperature: -10°C to 40°C [+14F° to 104°F],

Humidity: within 90% RH Temperature: -10°C to 50°C [+14F° to 122°F], Humidity: within 90% RH

Storage

Temperature: -20°C to 70°C [– 4F° to 158°F], Humidity: within 70% RH

Power requirement 24 V AC ± 10%, 50 Hz or 12 V to 15 V DC

Power consumption (approx.)

4.0 W 2.6 W

Waterproof standard

IP66

Dimensions (approx.)

140.2(ø) x 91.5(H) mm [5.6(ø) x 3.6(H) in.]

Weight (approx.) 850 g [13.9 oz.]

NOTE: Speciﬁ cations subject to change without notice

Wall Mounting Bracket VA-50BW (sold separately)

See page 34 for details

Pendant Mounting Bracket VA-50BPL (long) /

VA-50BPS (short) (sold separately) See page 34 for details

In-Ceiling Bracket VA-DK02 (sold separately)

See page 34 for details

Attachment VA-50AM (sold separately) See page 34 for details

(Unit: mm)

VDC-W1595VP / VDC-D1585VP / VDC-C1575VP

30.0

46.2

88.0

82.5

ø140.2

5.0

8.0

88.0

46.0

91.5

VIDEO (yellow)

BNC JACK

RED

BLACK

5mm TWIST SOLDERING

DC 12 V or AC 24 V

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

The SANYO pan-focus camera delivers 520 TV lines. The DSP

(Digital Signal Processor) with a proprietary algorithm produces

sharp outlines and natural color with no color smudges.

Built-in Intelligent Motion Detector

and Intelligent Zoom Detector

The Intelligent Motion Detector enables reliable and accurate

motion detection by analyzing the magnitude of movement

and the size of object from changes in picture brightness.

When a moving object is detected, SANYO’s camera can send

an alarm signal via SSP or network and/or switch to the optical

zoom mode that can be preset either to 1.0x, 1.4x, 2.0x, or 2.6x

zoom.

SANYO offers the 2.6x pan-focus lens for a focused view of

a broader area

With a vari-focal lens, objects that are in front of or

behind the focus point are blurred. To eliminate this problem,

a cutting-edge technology was developed to increase the

depth of ﬁ eld so that everything in the ﬁ eld of view is in

focus at the same time. SANYO has been one of the leaders

in the development of this technology and has successfully

commercialized the 2.6x pan-focus lens that offers an image

with greater depth of ﬁ eld. The new lens makes it possible to

capture a clear image of objects in the background.

Pan-focus Camera

By adopting Cutting-edge Technology, SANYO has Developed

a Pan-focus lens camera which offers better functionality with a

clearer image for a broader area.

Category Network Dome Camera

with PT mechanism Dome Camera with PT mechanism Weatherproof

Camera Dome Camera

Model No.

VDC-DPN9585P VCC-PN9575P VDC-DP9585P VCC-P9575P VCC-XZ200P VDC-DP7585P VCC-P7575PA

Weatherproof, IP66 ---------- ---------- ----------

PT mechanism ---------- ---------- ----------

Vandal Resistant Camera ---------- ---------- ---------- ----------

Network

(VA-51LAN Built-in) (VA-51LAN Built-in) ---------- ---------- Option (VA-20LAN)

Option

(VA-50LAN or

VA-51LAN)

Option

(VA-50LAN or

VA-51LAN)

PoE (Power

over Ethernet)

---------- ---------- ---------- Option (VA-51LAN) Option (VA-51LAN)

Audio ---------- ---------- ---------- Option (VA-51LAN) Option (VA-51LAN)

Day/Night ---------- ---------- ----------

Minimum

illumination

(F1.9)

50IRE Color 1.2 lx

B/ W 0.06 lx 1.9 lx Color 1.2 lx

B/ W 0.06 lx

Color 1.2 lx

B/ W 0.06 lx 1.9 lx

20IRE Color 0.48 lx

B/ W 0.024 lx 0.76 lx Color 0.48 lx

B/ W 0.024 lx

Color 0.48 lx

B/ W 0.024 lx 0.76 lx

Option

Network

board VA-51LAN Built-in VA-51LAN Built-in ---------- ---------- VA-20LAN VA-50LAN

VA-51LAN

VA-50LAN

VA-51LAN

SSP+Twisted

pair board ---------- ---------- VA-50ST Built-in VA-50ST Built-in VA-20ST VA-50ST VA-50ST

Heater board VA-50H ---------- VA-50H ---------- VA-50H VA-50H ----------

Smoked

Cover ---------- VCZ- 50 ---------- VCZ- 50 ---------- ---------- VCZ-50

Half-Mirror

Cover ---------- VCZ- 51 ---------- VCZ-51 ---------- ---------- VCZ-51

Page 13 13 31 31 30 33 33

Image with a pan-focus lens

• Clear focusing on all shooting area

with great depth of ﬁ eld (D.O.F.)

• No focus adjustments

• Remote zoom adjustment by

camera control unit, VAC-70

Image with a vari-focal lens

• Clear focusing to a speci c area

• Manual focus adjustments

• Manual view angle adjustments

2.6x zoom

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

High-resolution Weatherproof C amera

VCC-XZ200P

VA C-70

Control

2.6x

Pan-Focus Lens

520

TV Lines

Minimum

illumination

0.06 lx

Multi-spot /

Center-zone

BLC

ATW

AWC

Manual

Internal sync.

Line lock

Electronic

shutter SSP

Pelco-C/D Support

(option VA-20ST)

24 V AC

12 V to

15 V DC

Privacy Masking

When there is a house or even an object

as small as a window within the camera

frame, to protect other people’s privacy it

is possible to mask the area so that it will

not appear on the monitor screen. Up to

4 rectangular masks of any desired size can be set per screen.

These masking areas may be protected with a 4-digit (max.)

password.

Easy Setup with an On-screen Menu

The VCC-XZ200P offers an on-screen menu for setting up the

camera any desired way.

Other Features

•

Display of assignable camera ID and title (16 characters max.)

IP66 Rated Enclosure

VCC-XZ200P is designed to ﬁ ght off dust and water. The IP66

compliant package makes it suitable for outdoor installation at

locations exposed to wind and rain.

Adjustable Arm

The angle of the arm is adjustable in all directions. Since

the ﬂ exible joint is secured by screws, the arm maintains its

position without sagging over time. In addition, a safety wire

is included to prevent accidents. Installation on a ceiling or wall

is easy without any additional parts. The wires are securely

protected inside the arm.

Intelligent switching from Color to B/W

Selecting Color or B/W mode can be done automatically by

the camera, or else manually. In addition, the user is allowed

to change the switchover point from 1 to 10 lx (nominal)

using the on-screen menu. The integration of Color and high

sensitivity B/W modes in one camera makes it a versatile tool

for any surveillance need. It is truly an all-in-one camera.

Flexible Motion Detector

The Flexible Motion Detector enables reliable and accurate

motion detection by analyzing the magnitude of movement and

the size of object from changes in picture brightness. When

a moving object is detected, VCC-XZ200P can send an alarm

signal* to external units and/or switch to the optical zoom mode

that can be preset either to 1.0x, 1.4x, 2.0x, or 2.6x zoom.

*Only when using VA-20LAN or VA-20ST board option

MODEL VCC-XZ200P

Scanning system PAL standard 625 lines, 50 ﬁ elds/sec.

Image sensor 1/4" (approx. 3.6 mm x 2.7 mm) interline transfer method CCD

Picture elements Total: 795(H) x 596(V), Effective: 752(H) x 582(V)

Horizontal resolution More than 520 TV lines

Minimum illumination

(approx.)

50IRE

1.2 lx (F1.9, Gain High, Color mode) /

0.06 lx (F1.9, Gain High, B/W mode)

20IRE

0.48 lx (F1.9, Gain High, Color mode) /

0.024 lx (F1.9, Gain High, B/W mode)

Video output level 1.0 V (p-p) (75 Ω, composite)

Video S/N ratio More than 50 dB (AGC OFF)

Backlight compensation

ON (Multi-spot photometry [High/Normal],

Center-zone photometry) / OFF

Day/Night Auto (High/Low) / Color / B/ W: External control

White-balance ATW / AWC / Manual (MWB) / Outdoor (3200) /

Indoor (5600) / Fluorescent (FLUO)

Gain control High / Normal / Off

Gamma 0.45 / 1

Motion detector On / Off: Motion zoom function

Privacy masking ON / OFF, max. 4 masked locations

Electronic shutter

1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec.

Lens Built-in motorized zoom pan-focus auto iris lens,

f=2.8 to 7.3 mm (2.6x), F1.9 to 3.0

Synchronizing system Internal sync. / Line lock

V phase adjustment LINE PHASE

Optical zoom 2.6x

Alarm input 1 (NO / NC), with alarm zoom function

Character display On / Off, Camera ID max. 16 characters, adjusting position

Aperture compensation

High plus / High / Normal / Off

Environmental

conditions

Operating

Temperature: –10°C to +50°C (+14°F to +122°F),

Humidity: within 90% RH

Storage

Temperature: –20°C to +70°C (– 4°F to +158°F),

Humidity: within 70% RH

Power requirement 24 V AC ± 10%, 50 Hz or 12 V to 15 V DC

Power consumption

(approx.)

3.5 W (without options), 6.0 W (with options),

13.0 W (with heater)

Dimensions (approx.)

141(W) x 172(H) x 400(D) mm [5.6(W) x 6.8(H) x 15.7(D) in.]

Weight (approx.) 1.56 kg [55.0 oz.] (without sunshade)

1.76 kg [62.1 oz.] (with sunshade)

NOTE: Speciﬁ cations subject to change without notice

Pan-focus camera

(Unit: mm)

Without Sunshade

VCC-XZ200P

21.2

86.6

191.4

360.6

172

150

110

28.9

28.8

172

141

86.6

74.6

182

172

400

224.3

With Sunshade

110

28.8

141

150

28.9

123

86.6

74.6

172

Network Board VA-20LAN (sold separately)

See page 15 for details

This expansion board for network connection enables SANYO color

CCD cameras to connect to a network. The user can operate a network

connected camera using a web browser (Internet Explorer).

It comes with the VA-SW3050LITE viewer software.

Network Recorder (sold separately)

VA-SW3050S (for server) / VA-SW3050C (for client)

See page 18 for details.

SSP+Twisted Pair Board VA-20ST (sold separately)

Coaxial control : SSP / H-SSP / PELCO-C

RS-485: SSP / PELCO-D

Twisted pair terminal (CAT5) for video signal: NVT built-in UTP video

NOTE: The VA-20LAN and the VA-20ST cannot be used concurrently.

Heater Board VA-50H (sold separately)

The heater board protects the camera from cold weather. It allows the

camera to operate at temperatures as low as -30°C. (24 V AC only)

Camera Control Unit VAC-70

(sold separately) See page 42 for details.

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

High sensitivity minimum required illumination

Minimum required illumination is an impressive 0.06 lx at F1.9

in B/W mode and 1.2 lx at F1.9 in color mode.

Privacy Masking

When there is a house

or even an object as

small as a window within

the camera frame, to

protect other’s privacy

it is possible to mask

the area so that it will

not appear on the monitor screen. Up to 8 rectangular masks

of any desired size can be set. These masking areas may be

protected with a 4-digit (max.) password.

Twisted pair terminal (CAT5)

Twisted pair terminal (CAT5) for video signal:

NVT built-in UTP video

Tough, Impact-resistant Body VDC-DP9585P

The IP66 compliant weatherproof enclosure can resist

tampering by intruders. The drip-proof ﬁ nishing makes it

suitable for outdoor installations.

Built-in Electronic Shutter

A high-speed electronic shutter that is internally switchable for

eight modes using a DIP switch allows adjustment increments

from 1/50 to 1/10000 sec.

AC / DC Power Source Compatibility

VDC-DP9585P / VCC-P9575P come with power supply

terminals of 24 V AC and 12 V to 15 V DC. Select an

appropriate source, depending on the location.

Pan-focus camera

High-resolution Vandal-resistant PTZ Dome Camera

VDC-DP9585P

High-resolution Indoor mini PTZ Dome Camera

VCC-P9575P

IP66

VA C-70

Control

VA C-70

Control

PTZ Operations

VDC-DP9585P / VCC-P9575P comes with a PT mechanism

and allows panning of 335 degrees (55 degrees*) and tilting

of 90 degrees (90 degrees*) to reduce blind spots in the

surveillance area. When particular angles are preset on the

camera (up to sixteen points), it moves to each position quickly

at the speed of 120 deg/sec max. For both panning and tilting.

Combining these features with the motion detector, it is

possible to catch all actions taking place in the area.

* For wall-mounted cameras

16 Preset Positioning and Sequential Monitoring Functions

Up to 16 preset positions (with different settings for pan, tilt,

and zoom) can be registered for a single VDC-DP9585P /

VCC-P9575P. A simple key entry to a controller allows you

to easily switch to the scene you want to monitor. Auto-pan

monitoring can be also be programmed by designating two

end points on a horizontal plane.

2.6x

Pan-Focus Lens 2.6x

Pan-Focus Lens

520

TV Lines 520

TV Lines

Minimum

illumination

0.06 lx

Minimum

illumination

1.9 lx

Multi-spot /

Center-zone

BLC

Multi-spot /

Center-zone

BLC

mechanism

Internal sync.

Line lock

Internal sync.

Line lock

Electronic

shutter

Electronic

shutter

SSP

Pelco-C/D Support

SSP

Pelco-C/D Support

24 V AC

12 V to

15 V DC

24 V AC

12 V to

15 V DC

NVT

UTP video

NVT

UTP video

Operation

protocol

Coaxial Control: SSP / H-SSP / PELCO-C

RS-485: SSP / PELCO-D

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Easy interior access and setup VCC-P9575P

The camera unit and bottom cover can be detached very

simply. Moreover, easy attachment and detachment of the

bottom cover to and from the base plate for installation to a

ceiling or wall simpliﬁes setup and camera angle adjustment at

the point of surveillance.

MODEL VDC-DP9585P VCC-P9575P

Scanning system PAL standard 625 lines, 50 ﬁelds/sec.

Image sensor 1/4" (approx. 3.6 mm x 2.7 mm) interline transfer method CCD

Picture elements Total: 795(H) x 596(V), Effective: 752(H) x 582(V)

Horizontal resolution 520 TV lines

Minimum

illumination

(approx.)

50IRE

0.06 lx at max. AGC, with F1.9 lens, B/W mode

1.2 lx at max. AGC, with F1.9 lens, Color mode 1.9 lx at max. AGC, with F1.9 lens, Color mode

20IRE

0.024 lx at max. AGC, with F1.9 lens, B/W mode

0.48 lx at max. AGC, with F1.9 lens, Color mode 0.76 lx at max. AGC, with F1.9 lens, Color mode

Video output level 1.0 V (p-p) (75 Ω, composite)

Video S/N ratio More than 50 dB (AGC OFF)

Backlight compensation

ON / OFF, ON = Multi-spot photometry (64-section) / Center-zone photometry

Day/Night Auto (High/Low) / Color / B/ W: External control -------------------------

White-balance ATW / AWC / Manual (MWB) / Outdoor (3200) / Indoor (5600) / Fluorescent (FLUO)

Gain control High / Normal / OFF

Motion detector ON / OFF, Motion zoom function

Privacy masking ON / OFF 8 masking

Electronic shutter 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec.

Lens Built-in 2.6x motorized zoom pan-focus auto iris lens, f = 2.8 to 7.3mm (2.6x), F1.9 to 3.0

Synchronizing system Internal sync. / Line lock

Aperture HIGH PLUS / HIGH / NORMAL / OFF

Auto mode Sequential pan / Auto pan

Rotation range Panning: max. 0 to 335 deg, Tilting: 0 to 90 deg.

Rotation speed Panning: max. 120 deg / second (preset)

Tilting: max. 120 deg / second (preset)

Preset position setting 16

Communications Coaxial Control: (SSP / H-SSP / PELCO-C) RS-485: (SSP, H-SSP / PELCO-D)

Environmental

conditions Temperature: -10°C to 50°C [+14°F to 122°F] Humidity: within 90% RH Temperature: -10°C to 40°C [+14°F to 104°F] Humidity: within 90% RH

Enclosure rating IP66 -------------------------

Power requirement 24 V AC ±10%, 50 Hz or 12 V to 15 V DC

Power consumption (approx.)

7.0 W (without heater), 14.0 W (with heater) 7.0 W

Dimensions (approx.) ø162 x 114.8 mm [ø6.4 x 4.5 in.] ø150.9 x 115.5 mm [ø6.0 x 4.6 in.]

Weight (approx.) 1.5 kg [52.9 oz.] [without options] 640g [22.6 oz.] [without options]

NOTE: Speciﬁcations subject to change without notice

Push

Backside

Bottom

cover

Base plate

Easy

access

& setup

Ceiling

Easy

access

& setup

Heater Board VA-50H (sold separately)

See page 34 for details for VCC-DP9585P

The heater board protects the camera from cold weather. It allows the

camera to operate at temperatures as low as -30°C. (24 V AC only)

Camera Control Unit VAC-70

(sold separately) See page 42 for details.

Smoked Cover VCZ-50 (sold separately)

See page 34 for details for VCC-P9575P

Half-Mirror Cover VCZ-51

See page 34 for details for VCC-P9575P

SSP Control Unit

VSP-9000 / VSP-8500 / VSP-3000 (sold separately)

See page 57, 58, 59 for details for details

(Unit: mm)

VDC-DP9585P

114.8

ø162.0

35.0

2–ø4.3

88.0

82.5

46.0

5.0

8.0

R2.5

32.0

(Unit: mm)

VCC-P9575P

83.4

45.5

99.8

115.5

150.9

Other Features

• Includes intelligent motion detector

•

Display of assignable camera ID and titles (16 characters max.)

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Wall Mounting Bracket

VA-50BW

Half-Mirror Cover

VCZ-51

Smoked Cover

VCZ-50

(Unit: mm)

82.5

46.0

R18.7

R151.9

R154.9

93°

0.3

167.3

162.8

22.4

8.0

42.0

3.4

M4 8 4

Attachment

VA-50AS

0.5 4.5

22.4

41.7

83.4

45.5

ø150

22.8

(Unit: mm)

350g

(12.3 oz.)

350g

(12.3 oz.)

220g

(7.8 oz.)

38.5g

(1.4 oz.)

38.5g

(1.4 oz.)

275g

(9.7 oz.)

209

M6 *6-2

M24 *P-1.5

205

66.7

83.5

ø120

209

Pendant Mounting Bracket (short)

VA-50BPS

(Unit: mm)

66.7

83.5

ø7-4

ø120

M24 *P-1.5

M6 *6-2

MINIMUM LENGTH 300 3

ø120

MAXIMUM LENGTH 464 6

(Unit: mm)

for VCC-PN9575P / VCC-P9575P

VCC-P7575PA / VCC-9685VP

for VCC-PN9575P / VCC-P9575P

VCC-P7575PA / VCC-9685VP

for VDC-DPN9585P / VDC-DP9585P

VDC-DP7585P

for VCC-PN9595P / VCC-P9575P

VCC-P7575PA

/ VCC-9685VP

Attachment

VA-50AM

200g

(7.1 oz.)

(Unit: mm)

for VDC-W1595VP / VDC-D1585VP

VDC-C1575VP

(Unit: mm)

M24 *P-1.5

M6 *6-2

MINIMUM LENGTH 440 3

ø120

MAXIMUM LENGTH 1020 6

83.5

ø7-4

ø120

66.7

The heater board protects the camera from cold

weather. It allows the camera to operate at

temperatures as low as -30°C. (24 V AC only)

for VCC-XZ200P / VDC-DPN9585P

VDC-DP9585P / VDC-DP7585P

for VA-50AL / VA-50AM / VA-50AS

ø230

ø200

103

8.4

(Unit: mm)

for VDC-DPN9585P / VCC-PN9575P

VDC-DP9585P / VCC-P9575P

VDC-DP7585P / VCC-P7575PA

Pendant Mounting Bracket (long)

VA-50BPL

Attachment

VA-50AL

In-Ceiling Bracket

VA-DK02

Heater Board

VA-50H

550g

(19.4 oz.)

VDC-W1595VP / VDC-D1585VP / VDC-C1575VP / VCC-9685VP

M24x P1.5

ø142

36.8

32.3

Pan-focus camera

High-resolution Vandal-resistant Dome Camera

VDC-DP7585P

High-resolution Indoor mini Dome Camera

VCC-P7575PA

IP66

VA C-70

Control

VA C-70

Control

MODEL VDC-DP7585P VCC-P7575PA

Scanning system PAL standard 625 lines, 50 ﬁ elds/sec.

Image sensor 1/4" (approx. 3.6 mm x 2.7 mm) interline transfer method CCD

Picture elements Total: 795(H) x 596(V), Effective: 752(H) x 582(V)

Horizontal resolution 520 TV lines

Minimum

illumination

(approx.)

50IRE 1.2 lx (F1.9, Gain High, color mode) / 0.06 lx (F1.9, Gain High, B/W mode) 1.9 lx at max. AGC, with F1.9 lens

20IRE 0.48 lx (F1.9, Gain High, color mode) / 0.024 lx (F1.9, Gain High, B/ W mode) 0.76 lx at max. AGC, with F1.9 lens

Video output level 1.0 V (p-p) (75 Ω, composite)

Video S/N ratio More than 50 dB (AGC OFF)

Backlight compensation

ON (Multi-spot photometry [High/Normal], Center-zone photometry) / OFF

Day/Night

Auto (High/Low) / Color / B/W: External control

White-balance ATW / AWC / Manual (MWB) / Outdoor (3200) / Indoor (5600) / Fluorescent (FLUO)

Gain control High / Normal / OFF

Gamma 0.45 / 1

Motion detector ON / OFF, Motion zoom function

Privacy masking ON / OFF: Max. 4 masked locations

Electronic shutter 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec.

Lens Built-in 2.6x motorized zoom pan-focus auto iris lens, f = 2.8 to 7.3mm (2.6x), F1.9 to 3.0

Synchronizing system Internal sync. / Line lock

Alarm input 1 (NO / NC), with alarm zoom function

Character display On / Off, Camera ID max. 16 characters, adjusting position

Aperture HIGH PLUS / High / NORMAL / OFF

Environmental

conditions

Operating Temperature: -10°C to 50°C [+14°F to 122°F] Humidity: within 90% RH Temperature: -10°C to 40°C [+14°F to 104°F] Humidity: within 90% RH

Storage Temperature: –20°C to +70°C (– 4°F to +158°F), Humidity: within 70% RH

Power requirement 24 V AC ±10%, 50 Hz or 12 V to 15 V DC

Power consumption (approx.)

3.5 W [without options], 9.5 W [with options], 23.0 W (with heater) 3.5 W [without options], 9.5 W [with options]

Dimensions (approx.) ø162 x 114.8 mm [ø6.4 x 4.5 in.] ø150.9 x 115.5 mm [ø6.0 x 4.6 in.]

Weight (approx.) 1.5 kg (52.9 oz.) [without options] 600 g (21.2 oz.) [without options]

NOTE: Speciﬁ cations subject to change without notice

2.6x

Pan-Focus Lens 2.6x

Pan-Focus Lens

520

TV Lines 520

TV Lines

Minimum

illumination

0.06 lx

Minimum

illumination

1.9 lx

Multi-spot /

Center-zone

BLC

Multi-spot /

Center-zone

BLC

ATW

AWC

Manual

ATW

AWC

Manual

Internal sync.

Line lock

Internal sync.

Line lock

Electronic

shutter

Electronic

shutter

SSP

Network

(Option)

SSP

Network

(Option)

24 V AC

12 V to

15 V DC

24 V AC

12 V to

15 V DC

SSP+Twisted Pair Board VA-50ST (sold separately)

for VDC-DP7585P / VCC-P7575PA

Coaxial control : SSP / H-SSP / PELCO-C, RS-485: SSP / PELCO-D

Twisted pair terminal (CAT5) for video signal:

NVT built-in UTP video

NOTE: The VA-50LAN, VA-51LAN and the VA-50ST cannot be used concurrently.

Heater Board VA-50H (sold separately) for VCC-DP9585P

The heater board protects the camera from cold weather. It allows the

camera to operate at temperatures as low as -30°C. (24 V AC only)

Smoked Cover VCZ-50 (sold separately)

See page 34 for details for VCC-P7575PA

Half-Mirror Cover VCZ-51

See page 34 for details for VCC-P7575PA

Network Board VA-50LAN* / VA-51LAN*

(sold separately) See page 15 for details.

*It comes with the VA-SW3050LITE viewer software.

Video Management Software (VMS)

VA-SW50 (Advanced) / VA-SW60 (Enterprise)

See page 17 for details.

Network Recorder (sold separately)

VA-SW3050S (for server) / VA-SW3050C (for client)

See page 18 for details.

Camera Control Unit VAC-70

(sold separately) See page 42 for details.

VDC-DP7585P

(Unit: mm)

114.8

ø162.0

35.0

2–ø4.3

88.0

82.5

46.0

5.0

8.0

R2.5

32.0

(Unit: mm)

VCC-P7575PA

83.4

45.5

99.8

115.5

150.9

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Wall Mounting Bracket

VA-50BW

Half-Mirror Cover

VCZ-51

Smoked Cover

VCZ-50

(Unit: mm)

82.5

46.0

R18.7

R151.9

R154.9

93°

0.3

167.3

162.8

22.4

8.0

42.0

3.4

M4 8 4

Attachment

VA-50AS

0.5 4.5

22.4

41.7

83.4

45.5

ø150

22.8

(Unit: mm)

350g

(12.3 oz.)

350g

(12.3 oz.)

220g

(7.8 oz.)

38.5g

(1.4 oz.)

38.5g

(1.4 oz.)

275g

(9.7 oz.)

209

M6 *6-2

M24 *P-1.5

205

66.7

83.5

ø120

209

Pendant Mounting Bracket (short)

VA-50BPS

(Unit: mm)

66.7

83.5

ø7-4

ø120

M24 *P-1.5

M6 *6-2

MINIMUM LENGTH 300 3

ø120

MAXIMUM LENGTH 464 6

(Unit: mm)

for VCC-PN9575P / VCC-P9575P

VCC-P7575PA / VCC-9685VP

for VCC-PN9575P / VCC-P9575P

VCC-P7575PA / VCC-9685VP

for VDC-DPN9585P / VDC-DP9585P

VDC-DP7585P

for VCC-PN9595P / VCC-P9575P

VCC-P7575PA

/ VCC-9685VP

Attachment

VA-50AM

200g

(7.1 oz.)

(Unit: mm)

for VDC-W1595VP / VDC-D1585VP

VDC-C1575VP

(Unit: mm)

M24 *P-1.5

M6 *6-2

MINIMUM LENGTH 440 3

ø120

MAXIMUM LENGTH 1020 6

83.5

ø7-4

ø120

66.7

The heater board protects the camera from cold

weather. It allows the camera to operate at

temperatures as low as -30°C. (24 V AC only)

for VCC-XZ200P / VDC-DPN9585P

VDC-DP9585P / VDC-DP7585P

for VA-50AL / VA-50AM / VA-50AS

ø230

ø200

103

8.4

(Unit: mm)

for VDC-DPN9585P / VCC-PN9575P

VDC-DP9585P / VCC-P9575P

VDC-DP7585P / VCC-P7575PA

Pendant Mounting Bracket (long)

VA-50BPL

Attachment

VA-50AL

In-Ceiling Bracket

VA-DK02

Heater Board

VA-50H

550g

(19.4 oz.)

VDC-W1595VP / VDC-D1585VP / VDC-C1575VP / VCC-9685VP

M24x P1.5

ø142

36.8

32.3

Model name Installation

Attachment

+ Brackets

VDC-DPN9585P

VDC-DP9585P

VDC-DP7585P

P.13

P. 3 1

P. 3 3

Wall mounting VA-50AL +VA-50BW

Short Pendant mounting VA-50AL +VA-50BPS

Long Pendant mounting VA-50AL +VA-50BPL

Option

Model name Installation

Attachment

+ Brackets

VDC-W1595VP

VDC-D1585VP

VDC-C1575VP

P. 2 8

Wall mounting VA-50AM +VA-50BW

Short Pendant mounting VA-50AM +VA-50BPS

Long Pendant mounting VA-50AM +VA-50BPL

Model name Installation

Attachment

+ Brackets

VCC-PN9575P

VCC-P9575P

VCC-P7575PA

VCC-9685VP

P.13

P. 3 1

P. 3 3

P. 3 9

Wall mounting VA-50AS +VA-50BW

Short Pendant mounting VA-50AS +VA-50BPS

Long Pendant mounting VA-50AS +VA-50BPL

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

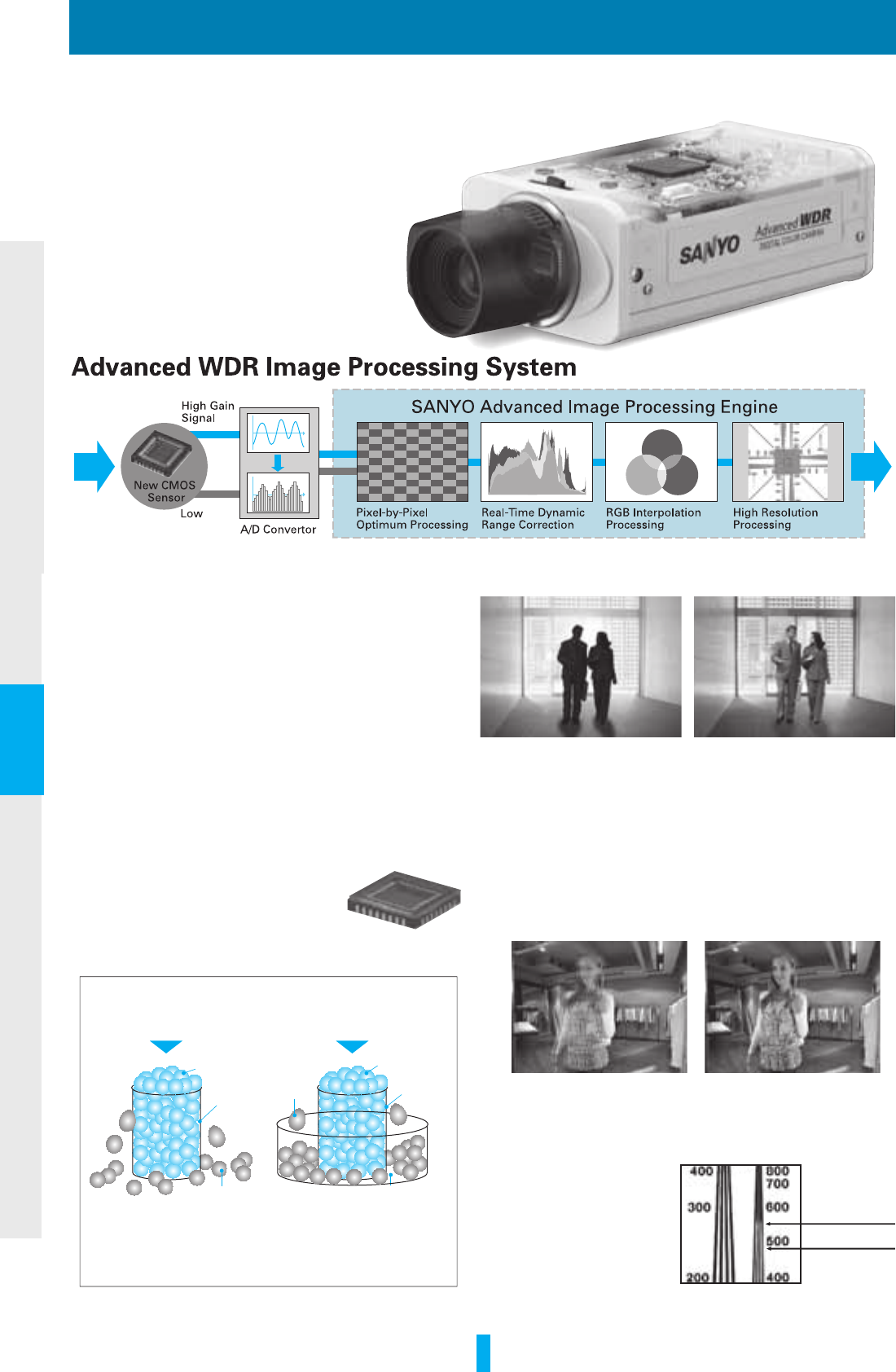

Sanyo's New CMOS Sensor

An enhanced CMOS sensor has made it

possible to pick up additional information

electrons that have been left out in the

past. This increase in information density

results in an accurate reproduction of

images closer to reality.

A new WDR method and a newly developed CMOS sensor produce new technology

A new CMOS sensor and SANYO’s advanced technology have

made it possible to capture the surveillance subject with an

image processing technique that is closer to human vision, to

produce a true-color, high-resolution video picture regardless

of light source. The new engine generates a linear output of

low and high illumination areas without a time-lag, leading

to a natural image with a dynamic range a great deal wider

than that of conventional products. The sensor generates a

smear-less output distinctive of a CMOS element, but with a

sensitivity equivalent to CCD, to offer an image much brighter

than ordinary CCD cameras. This is, indeed, a camera with a

human eye.

Box camera

Incident light

Electrons

Photodiode

Leaked

electrons

Capacitor

Leaked electrons

Incident light

Conventional CCD Structure of

WDR CMOS Sensor

Leaked electrons that leak out

from the photodiode are left

as is, reducing the dynamic

range.

The built-in capacitor collects

the electrons that leak out,

boosting the signal per unit

area to generate an image

with a wider dynamic range.

Electrons

Progressive Scan Format

SANYO's new WDR camera uses the simultaneous read

method for the image received by the sensor. Compared to

the conventional multi-sampling method, the camera has no

delay in signal, making it possible to depict edges more clearly

when tracking a moving object. It also eliminates ﬂ ickering of

blinking light sources and offers video images more friendly to

the human eye.

The horizontal resolution of 550 TVL (typical) leads the

industry.

The combination of

superior picture with a

horizontal resolution of

550 TVL and WDR makes

it possible to capture the

surveillance subject’s

image more vividly.

Conventional Camera SANYO WDR Camera

SANYO WDR CameraConventional Camera

480 TV lines

550

TV lines

Conventional

high-resolution camera

New Advanced Wide Dynamic Range Camera

VCC-WD8875P

VCC-WD8870P

VCC-W8775P

VCC-W8770P

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Day (color image) Night (black & white image)

White Balance

White balancing is an important and fundamental feature in

surveillance systems. Backed by its 40 years of experience,

SANYO has developed a pure white balance function to

achieve faithful color reproduction.

Smearless

Conventional CCD units are known to generate vertical noises

(smears) associated with bright spots. The new sensor

diminishes these smears and offers a clear and bright picture.

Day/Night VCC-WD8875P / VCC-WD8870P

24-hour surveillance is now possible with just a single

camera that works as a color camera during the day and a

high-sensitivity B/W camera during the night. The mode of

operation is automatically switched by replacing the optical

ﬁlter. The use of an optical ﬁlter in the color mode also allows

video recording in true colors.

Dual Power Source of 24 V AC and 12 to 15 V DC

VCC-W8775P / VCC-WD8875P

These models supports dual power supply to allow ﬂexible

operation in diverse circumstances.

Power Source of 230 V AC VCC-W8770P / VCC-WD8870P

The AC power source is for 120 to 240 V.

Retina-Morphic processing

The retina replication algorithm, a new technology made

possible by iridix

®*

and SANYO, has made it possible to make

real-time dynamic range correction. SANYO's WDR cameras

utilize this technology to reproduce contrast that exceeds the

capability of human eyes, and to deliver true colors even in an

environment where the brightness changes rapidly.

Pure and natural color reproduction with the Bayer RGB ﬁlter

An RGB ﬁlter is a ﬁlter used to extract the three primary colors

of light. The use of an enhanced ﬁlter results in the generation

of faithful and natural colors.

Super Dynamic Range of 65dB

SANYO’s Advanced WDR camera has achieved super dynamic

range of 65dB in the industry top class by combining with

the new WDR CMOS sensor and SANYO’s Advanced Image

Processing Engine. (Advanced WDR Image Processing System)

An enhancement of the DNR (Digital Noise Reduction)

function enables unprecedented low -noise levels

A high-performance DNR function suppresses S/N ratio

deterioration associated with the enhancement of darker

areas. As a result, almost noise-free image processing is now

possible to produce images that are free of jumps in contrast.

The Minimum Illumination of 0.8 lux

Although CMOS sensors were considered poor at handling

scenes with low illumination, SANYO's advance technology has

solved the problem. The sensitivity is now as good as CCD.

Incorporates Premium Bayer Mosaic RGB Filter

The Advanced WDR camera also makes use of the

acclaimed Bayer Mosaic RGB ﬁlter which extracts light’s

three primary colors (red, green and blue) from the CMOS

sensor to deliver highly realistic and vivid colors that allow

extremely accurate color reproduction.

SANYO WDR CameraConventional Camera

DNR OFF DNR ON

Conventional Camera SANYO WDR Camera

SANYO WDR CameraConventional cameras

* Iridix technology is provided by Apical Limited, UK.

Images used may differ slightly from actually recorded scenes.

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

137

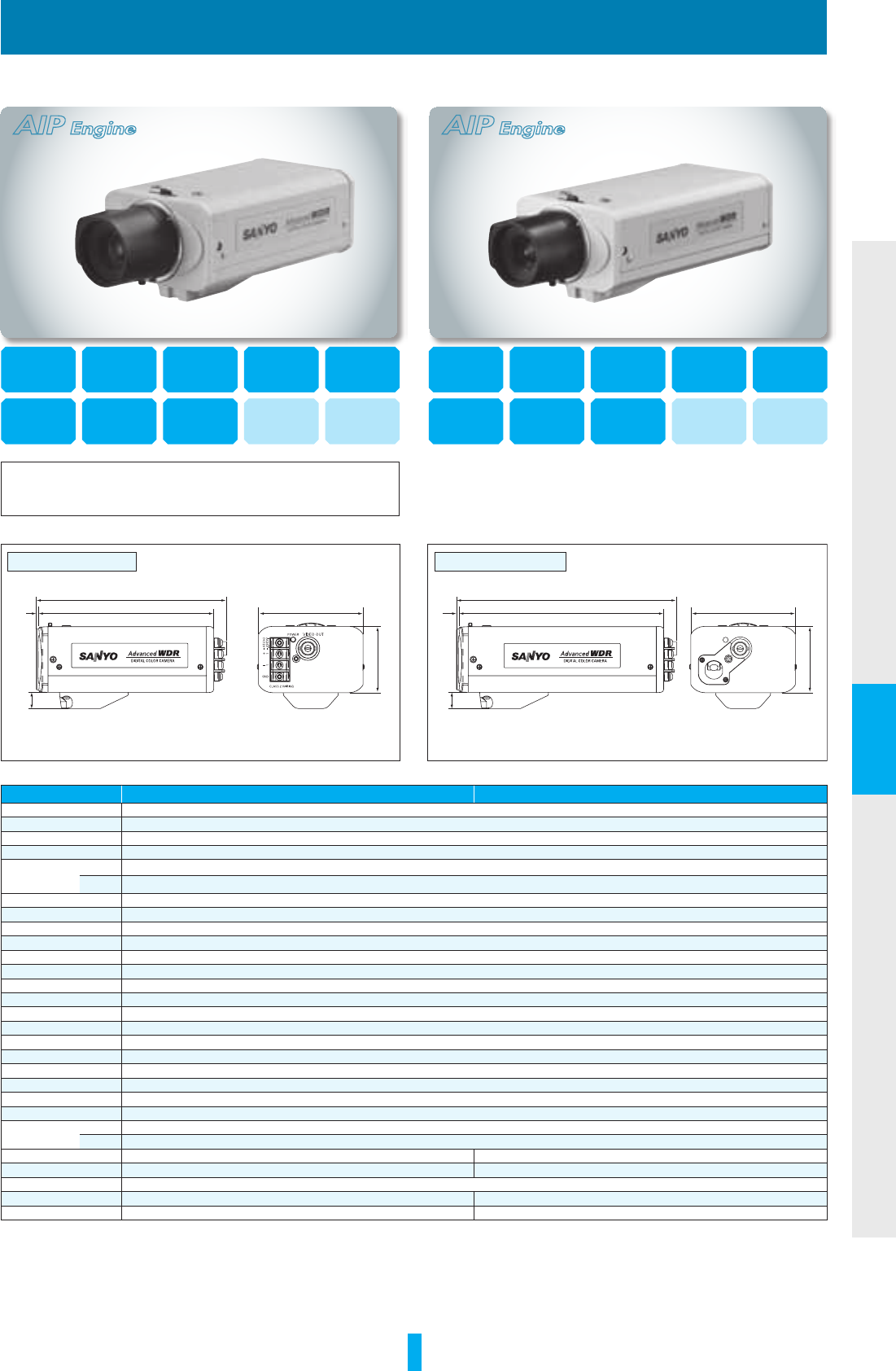

Box camera

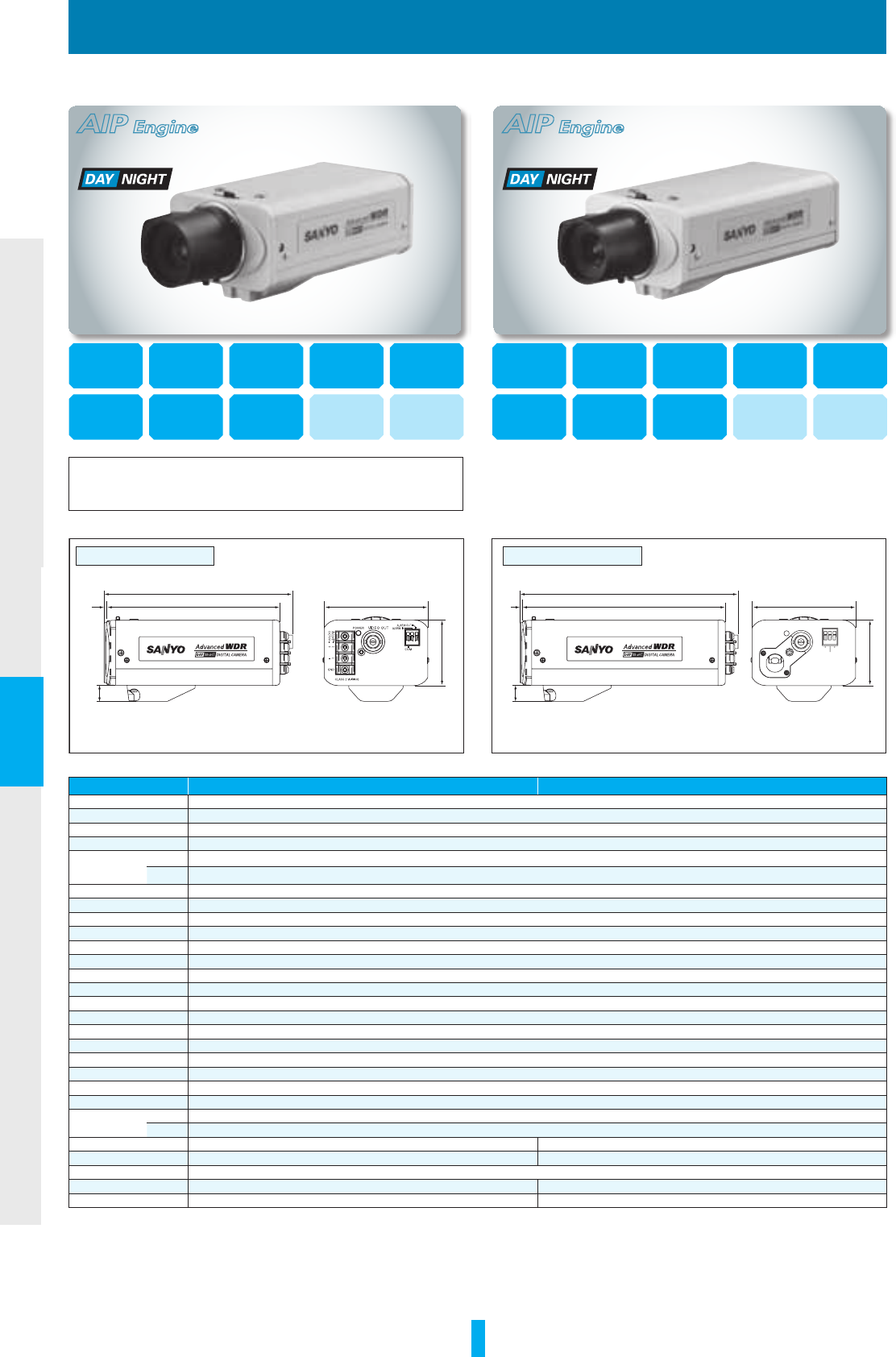

High-resolution WDR Day/night Camera

VCC-WD8875P

High-resolution WDR Day/night Camera

VCC-WD8870P

550

TV Lines 550

TV Lines

Minimum

illumination

0.08 lx

Minimum

illumination

0.08 lx

WDR

Wide Dynamic

range

WDR

Wide Dynamic

range

65dB

AIP Engine 65dB

AIP Engine

Internal sync.

Line lock

Internal sync.

Line lock

Electronic

shutter

Electronic

shutter

DNR DNR

24 V AC

12 V to

15 V DC

24 V or

230 V AC

AIP Engine

(

SANYO Advanced Image

Processing Engine)

AIP Engine

(

SANYO Advanced Image

Processing Engine)

Iridix®Iridix®Shown with optional lensShown with optional lens

MODEL VCC-WD8875P VCC-WD8870P

Scanning system PAL standard 625 lines, 50 ﬁ elds/sec.

Image sensor 1/3" (approx. 4.5 mm x 3.38 mm) Progressive scan method CCD

Picture elements 800(H) x 600(V) effective picture elements

Horizontal resolution 550 TV lines (Typical)

Minimum

illumination

(approx.)

50IRE

0.8 lx (at F1.2 color mode) / 0.08 lx (at F1.2 B/ W mode)

20IRE

0.32 lx (at F1.2 color mode) / 0.032 lx (at F1.2 B/W mode)

Video output level 1.0 V (p-p) (75 Ω, composite)

Video S/N ratio More than 50 dB (AGC OFF)

Backlight compensation

ON / OFF

Wide Dynamic ON/OFF, adjusting level etc. D-range: 65dB

Day/Night Auto / Color / B/ W: supported external control

White-balance ATW / Manual

Light control Optical auto iris lens / Electronic iris

Electronic iris ON / OFF, 1 / 50 to 1 / 36,000sec

Electronic shutter 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec.

Lens iris level level: L to H

Lens mount CS mount

Auto iris output DC type

AGC gain HIGH / NORMAL / OFF

Synchronizing system Internal sync. / Line lock

Aperture HIGH / NORMAL / LOW / OFF

Menu OSD, title setting: 16charactors

Environmental

conditions

Operating

Temperature: -10°C to 50°C [+14°F to 122°F] Humidity: within 90% RH

Storage

Temperature: -20°C to 70°C [-4°F to 158°F] Humidity: within 70% RH

Power requirement 24 V AC ±10%, 50 Hz or 12 V to 15 V DC 220 V to 230 V AC, 50 Hz

Power consumption (approx.)

6.9 W 6.5 W

Camera mount 1/4” - 20 UND (top / buttom selectable)

Dimensions (approx.) 71.0 (W) x 45.0 (H) x 120.5 (D) mm [2.8 (W) x 1.8 (H) x 4.7 (D) inch] 71.0 (W) x 45.0 (H) x 140.5 (D) mm [2.8 (W) x 1.8 (H) x 5.5 (D) inch]

Weight (approx.) 330 g [11.6 oz.] 550 g [19.4 oz.]

NOTE: Speciﬁ cations subject to change without notice

(Unit: mm)

VCC-WD8875P

129

119.51

11.2

Rear panel

(Unit: mm)

VCC-WD8870P

149.3

139.51

11.2

Rear panel

POWERVIDEO OUT

COLORCOM

B/W

Camera Mount VA-VAT31 (sold separately)

See page 42 for details.

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

238

MODEL VCC-W8775P VCC-W8770P

Scanning system PAL standard 625 lines, 50 ﬁ elds/sec.

Image sensor 1/3" (approx. 4.5 mm x 3.38 mm) Progressive scan method CCD

Picture elements 800(H) x 600(V) effective picture elements

Horizontal resolution 550 TV lines (Typical)

Minimum

illumination

(approx.)

50IRE

0.8 lx (at F1.2)

20IRE

0.32 lx (at F1.2)

Video output level 1.0 V (p-p) (75 Ω, composite)

Video S/N ratio More than 50 dB (AGC OFF)

Backlight compensation

ON / OFF

Wide Dynamic ON/OFF, adjusting level etc. D-range: 65dB

Day/Night -------------------------

White-balance ATW / Manual

Light control Optical auto iris lens / Electronic iris

Electronic iris ON / OFF, 1 / 50 to 1 / 36,000sec

Electronic shutter 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec.

Lens iris level level: L to H

Lens mount CS mount

Auto iris output DC type

AGC gain HIGH / NORMAL / OFF

Synchronizing system Internal sync. / Line lock

Aperture HIGH / NORMAL / LOW / OFF

Menu OSD, title setting: 16charactors

Environmental

conditions

Operating

Temperature: -10°C to 50°C [+14°F to 122°F] Humidity: within 90% RH

Storage

Temperature: -20°C to 70°C [-4°F to 158°F] Humidity: within 70% RH

Power requirement 24 V AC ±10%, 50 Hz or 12 V to 15 V DC 220 V to 230 V AC, 50 Hz

Power consumption (approx.)

6.9 W 6.5 W

Camera mount 1/4” - 20 UND (top / buttom selectable)

Dimensions (approx.) 71.0 (W) x 45.0 (H) x 120.5 (D) mm [2.8 (W) x 1.8 (H) x 4.7 (D) inch] 71.0 (W) x 45.0 (H) x 140.5 (D) mm [2.8 (W) x 1.8 (H) x 5.5 (D) inch]

Weight (approx.) 320 g [11.3 oz.] 540 g [19.0 oz.]

NOTE: Speciﬁ cations subject to change without notice

(Unit: mm)

VCC-W8775P

129

119.51

11.2

Rear panel

(Unit: mm)

VCC-W8770P

149.3

139.51

11.2

Rear panel

POWERVIDEO OUT

High-resolution WDR Color Camera

VCC-W8775P

High-resolution WDR Color Camera

VCC-W8770P

550

TV Lines 550

TV Lines

Minimum

illumination

0.8 lx

Minimum

illumination

0.8 lx

WDR

Wide Dynamic

range

WDR

Wide Dynamic

range

65dB

AIP Engine 65dB

AIP Engine

Internal sync.

Line lock

Internal sync.

Line lock

Electronic

shutter

Electronic

shutter

DNR DNR

24 V AC

12 V to

15 V DC

24 V to

230 V AC

Iridix®Iridix®Shown with optional lensShown with optional lens

AIP Engine

(

SANYO Advanced Image

Processing Engine)

AIP Engine

(

SANYO Advanced Image

Processing Engine)

Camera Mount VA-VAT31 (sold separately)

See page 42 for details.

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

High-resolution Indoor mini Dome Camera with Vari-focal Lens

VCC-9685VP

540

TV Lines

Minimum

illumination

0.5 lx

Multi-spot /

Center-zone

BLC

ATW

Manual

Internal sync.

Line lock

Electronic

shutter

24 V AC

12 V to

15 V DC

Vari-focal

Lens

Built-in Electronic Shutter

A high-speed electronic shutter that is internally switchable for

eight modes using a DIP switch allows adjustment increments

from 1/50 to 1/2000 sec.

LSB ON OFF ON OFF

MSB ON ON OFF OFF

Speed 1/2000 1/1000 1/120 1/50

Simpliﬁ ed Settings

Hardware switch ON OFF

White balance switch MWB ATW

Aperture compensation setting SHARP NORMAL

Backlight compensation mode setting MULTI OFF

CENT OFF

Synchronizing system setting Line Lock Internal

Electronic shutter LSB ON OFF

MSB ON OFF

Entry model in mini-dome cameras

The indoor mini dome camera VCC-9685VP is a highly

sensitive model with a vari-focal lens that offers a superior

picture quality of 540TVL and enables the user to capture

natural images by combination with a backlight compensation

feature.

Easy interior access and setup

The camera unit and bottom cover can be detached very

simply. Moreover, easy attachment and detachment of the

bottom cover to and from the base plate for installation to a

ceiling or wall simpliﬁ es setup and camera angle adjustment at

the point of surveillance.

2.9x Vari-focal Lens

The 2.9x vari-focal lens (2.8 mm to 8 mm) is capable of

providing wide angle pictures in addition to standard pictures.

AC / DC Power Source Compatibility

VCC-9685VP comes with power input terminals of 24 V AC

and 12 V to 15 V DC. Select an appropriate source, depending

on the location.

MODEL VCC-9685VP

Scanning system PAL standard 625 lines, 50 ﬁ elds/sec.

Image sensor 1/4" (approx. 3.6 mm x 2.7 mm) interline transfer method CCD

Picture elements Total: 795(H) x 596(V), Effective: 752(H) x 582(V)

Horizontal resolution 540 T V lines (typical)

Minimum

illumination (approx.)

50IRE

0.5 lx (at F 0.95, color mode)

20IRE

0.2 lx (at F 0.95, color mode)

Video output level 1.0 V (p-p) (75 Ω, composite)

Video S/N ratio More than 50 dB (AGC OFF)

Backlight

compensation

ON (Multi-spot photometry [High/Normal],

Center-zone photometry) / OFF

White-balance ATW / MWB Adjustable R/B control at MWB

Gain control ON

Gamma 0.45

Electronic shutter

1/50, 1/120, 1/1000, 1/2000 sec.

Aperture compensation

NORMAL / SHARP

Iris control Optical auto iris lens

Lens Built in vari-focal lens f=2.8 to 8.0 mm F0.95 to 1.7

- Adjustable iris level, L to H - VR

Panning

range

Ceiling 200 deg (+/- 100 deg).

Wall 180 deg (+/- 90 deg)

Tilting

range

Ceiling 0 to 90 deg

Wall 0 to 90 deg

Synchronizing system Internal sync. / Line lock Adjustable V-phase control

Sockets

Video signal

VIDEO OUT ––– BNC

Power supply

24 V AC, GND, 12 V DC

Operating

conditions

Operating

Temperature: –10°C to +50°C (+14°F to +122°F), Humidity: within 90% RH

Storage

Temperature: –20°C to +70°C (–4°F to +158°F), Humidity: within 70% RH

Power requirement 24 V AC ± 10%, 50 Hz or 12 V to 15 V DC

Power consumption (approx.)

2.4 W

Dimensions (approx.) ø150.6 x 103.5(H) mm [ø5.9 x 4.1(H) in.]

Weight (approx.) 500 g [17.6 oz]

NOTE: Speciﬁ cations subject to change without notice

Dome Camera with Vari-focal Lens

Optional

Push

Backside

Bottom

cover

Base plate

Easy

access

& setup

Ceiling

Easy

access

& setup

CeilingWall

PAN

TILT

200 deg (+/- 100 deg)

0 to 90 deg

PAN

TILT

180 deg (+/- 90 deg)

0 to 90 deg

Twisted pair board VA-10T (sold separately)

Twisted pair terminal (CAT5) for video signal:

NVT built-in UTP video

Smoked Cover VCZ-50 (sold separately)

See page 34 for details for VCC-PN9575P

Half-Mirror Cover VCZ-51

See page 34 for details for VCC-PN9575P

In-Ceiling Bracket VA-DK02 (sold separately)

See page 34 for details

• Other brackets See page 34

(Unit: mm)

VCC-9685VP

83.4

45.5

99.8

103.5

150.9

2.9x

Vari-focal Lens

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Box camera

High-resolution Camera

VCC-4795P E

High-resolution Camera

VCC-4790P E

MODEL VCC-4795P E VCC-4790P E

Scanning system PAL standard 625 lines, 50 ﬁ elds/sec.

Image sensor 1/3” (approx. 4.8 mm x 3.6 mm) interline transfer method CCD

Picture elements Total: 795(H) x 596(V), Effective: 752(H) x 582(V)

Horizontal resolution 540 TV lines (typical)

Minimum

illumination

(approx.)

50IRE 0.01 lx (F1.2, Gain High, B/W mode) 0.45 lx (F1.2, Gain High color mode)

20IRE 0.004 lx (F1.2, Gain High, B/W mode) 0.18 lx (F1.2, Gain High, color mode)

Video output level 1.0 V (p-p) (75 Ω, composite)

Video S/N ratio More than 50 dB (AGC OFF)

Backlight compensation

ON / OFF ––– Slide SW, ON = Multi-spot photometry (64-section) / Center-zone photometry ––– (activated when auto iris lens used)

Day/Night

Auto (High/Low) / Color / B/W: External control

White-balance ATW / Manual ––– Slide SW

Gain control High / Normal ––– Slide SW

Gamma 0.45

Light control Optical auto iris lens / Electronic iris (indoor use)

Lens mount CS mount

Flange back 12.5 mm ±0.5 mm adjustment

Auto iris lens DC

Auto iris output DC: Drive coil (+, -), Brake (Damp) coil (+, -)

Lens iris level LEVEL: L to H ––– VR (side)

Electronic shutter 1/50, 1/120, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec.

Electronic iris ON / OFF ––– Slide SW

Aperture compensation

Sharp / Normal

Electronic iris range 0.6 lx to 30,000 lx (F 1.2 lens: color mode), 0.9 lx to 45,000 lx (F 1.4 lens: color mode)

Synchronizing system Internal sync. / Line lock

Sockets

Video signal

VIDEO OUT ––– BNC

Auto iris lens

LENS ––– 4-pin (side)

Power supply

24 V AC, GND ––– 3-pin terminal (rear) 12 V DC, NC ––– 3-pin terminal (rear) 220 V to 230 V AC, 50Hz

Operating

conditions

Operating

Temperature: -10°C to 50°C [14°F to 122°F], Humidity: within 90% RH

Storage

Temperature: -20°C to 70°C [-4°F to 158°F], Humidity: within 70% RH

Power requirement 24 V AC ±10%, 50 Hz or 12 V to 15 V DC 220 V to 230 V AC, 50Hz

Power consumption (approx.)

3.7 W 3.6 W

Camera mount 1/4”–20 UNC (top / bottom selectable)

Dimensions (approx.) 67(W) x 54(H) x 128(D) mm [2.6(W) x 2.1(H) x 6.0(D) in.]

Weight (approx.) 400 g [14.1 oz.] (without lens) 600 g [21.2 oz] (without lens)

NOTE: Speciﬁ cations subject to change without notice

540

TV Lines 540

TV Lines

Minimum

illumination

0.01 lx

Minimum

illumination

0.01 lx

Multi-spot /

Center-zone

BLC

Multi-spot /

Center-zone

BLC

ATW

Manual

ATW

Manual

Internal sync.

Line lock

Internal sync.

Line lock

Electronic

shutter

Electronic

shutter

auto iris lens DC

auto iris lens

24 V AC

12 V to

15 V DC

220 V to

230 V AC

Shown with optional lens Shown with optional lens

54 3

15.4

24.4

1/4"–20UNC

19.5

136

127

LENS

LENS 4PIN

VIDEO

OUT

Rear panel

Flange-back adjustment lever

GND AC24V

DC12V

POWER

CONTROL

CBG

LINE

PHASE

(Unit: mm)

VCC-4795P E

(Unit: mm)

VCC-4790P E

LENS

LENS 4PIN

15.4

24.4

1/4"–20UNC

19.5

136

127

54 3

VIDEO

OUT

Rear panel

Flange-back adjustment lever

POWER

CONTROL

CBG

LINE

PHASE

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

E-Day/night High-resolution Camera

VCC-6690P

High-resolution sensitivity Camera

VCC-5995P

E-Day/night High-resolution Camera

VCC-6695P

540

TV Lines

Minimum

illumination

0.25 lx

E-Day/Night

ATW

Manual

Internal sync.

Line lock

auto iris lens

24 V AC

12 V to

15 V DC

540

TV Lines

Minimum

illumination

0.25 lx

E-Day/Night

ATW

Manual

Internal sync.

Line lock

Electronic

shutter

auto iris lens

220 V to

230 V AC

540

TV Lines

Minimum

illumination

0.5 lx

ATW

Internal sync.

Line lock

auto iris lens

24 V AC

12 V to

15 V DC

Box Camera

MODEL VCC-6695P VCC-6690P VCC-5995P

Scanning system PAL standard 625 lines, 50 ﬁ elds/sec.

Image sensor 1/3" (approx. 4.8 mm x 3.6 mm) interline transfer method CCD

Picture elements Total: 795(H) x 596(V), Effective: 752(H) x 582(V)

Horizontal resolution

540 TV lines (typical)

Minimum

illumination

50IRE 0.35 lx (at F 1.2, GAIN HI color mode), 0.25 lx (at F 1.2 lens, GAIN HI B/W mode) 0.5 lx (at F 1.2, AGC on)

20IRE 0.14 lx (at F 1.2, GAIN HI color mode), 0.1 lx (at F 1.2 lens, GAIN HI B/W mode) 0.2 lx (at F 1.2, AGC on)

Video output level 1.0 V (p-p) (75 Ω, composite)

Video S/N ratio More than 50 dB (AGC OFF)

Backlight compensation

ON / OFF ––– Slide SW (Side)

ON = Multi-spot photometry (2-mode) / Center-zone photometry (activated when auto iris lens used)

ON / OFF ––– Slide SW

ON = Center-zone photometry

(activated when auto iris lens used)

E-Day/Night ON / OFF ––– Slide SW ------------------------------

White-balance ATW / Manual ––– Slide SW (side) AT W

Gain control ------------------------------ AGC ON/OFF

Gamma 0.45

Electronic shutter ------------------------------ 8-mode: 1/50, 1/120,1/250, 1/500, 1/1000, 1/2000,

1/4000, 1/10000 sec. ––– Dip SW (side) ------------------------------

Light control Auto iris / Electronic iris ------------------------------

Lens mount CS mount

Flange back 12.5 mm ±0.5 mm adjustment

Auto iris lens DC type

Auto iris output DC: Drive coil (+, -), Brake (Damp) coil (+, -)

Lens iris level LEVEL: L to H ––– VR (side)

Electronic iris ON / OFF ––– Slide SW

Aperture Sharp Sharp / Normal Sharp

Electronic iris range 0.35 to 50,000 lx (at F1.2, GAIN HI Color mode), 0.35 to 50,000 lx (at F1.2, GAIN HI B/W mode) 1/50 to 1/100000 sec. ––– Slide SW (side)

Synchronizing system Internal sync. / Line lock ––– Slide SW (side)

V phase adjustment LINE PHASE ––– VR (rear)

Sockets

Video signal

VIDEO OUT ––– BNC (rear)

Auto iris lens

LENS ––– 4-pin (side)

Power supply

24V AC, GND — 3-pin terminal (rear),

12 V to 15 V DC — 2-pin terminal (rear) ------------------------------ 24V AC, GND — Pushlock terminal x3 (rear),

12 V to 15 V DC — Pushlock terminal x2 (rear)

Operating

conditions

Operating

Temperature: -10°C to 50°C [+14F° to 122°F], Humidity: within 90% RH

Storage

Temperature: -20°C to 70°C [– 4F° to 158°F], Humidity: within 70% RH

Power requirement 24 V AC ± 10%, 50 Hz or 12 V to 15 V DC 220 to 230 V AC ± 10%, 50 Hz 24 V AC ± 10%, 50 Hz or 12 V to 15 V DC

Power consumption (approx.)

3.6 W 3.7 W 3.6 W

Camera mount 1/4”–20 UNC (top / bottom selectable)

Dimensions (approx.) 56(W) x 45(H) x 100.4(D) mm

[2.2(W) x 1.8(H) x 4.0(D) in.]

67(W) x 54(H) x 128.1(D) mm

[2.6(W) x 2.1(H) x 5.0(D) in.]

63(W) x 68(H) x 52(D) mm

[2.5(W) x 2.7(H) x 2.0(D) in.]

Weight (approx.) 260 g [9.17 oz.] (without lens) 600 g [21.16 oz.] (without lens) 160 g [5.64 oz.] (without lens)

NOTE: Speciﬁ cations subject to change without notice

Electronic Day/Night function

E-

Electronic Day/Night function

E-

Shown with optional lens Shown with optional lens Shown with optional lens

(Unit: mm)

VCC-6695P

108

1.4 99 9

(Unit: mm)

VCC-6690P

1.1

9127

136

(Unit: mm)

1/4"–20 UNC

threaded hole

1/4"–20 UNC

threaded holeFlange-back adjustment screw

Flange-back lock screw

51(1)

LENS

LEVEL

LINE

EI OFF

INT

EI ON

L - L

PHASE

VIDEO OUT

AC 24V

DC 12V

GND

Rear panel

VCC-5995P

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Dummy Camera

VC-0450

Dome Camera Housing

VA-CDH60 (Smoked cover)

VA-CDH60C (Clear cover)

Camera Mount

VA-VCT31

Dummy Camera

VC-0410

Camera Control Unit

VAC-70

Dummy Camera • Accessories

• Ideal for a location requiring many

cameras.

• Simply installing dummy cameras helps

prevent crime.

MODEL VAC-70

Video output terminal

BNC x 1

Camera input terminal

BNC x 1

Environmental

conditions

Temperature: -10°C to 50°C [14°F to

122°F], Humidity: 10 to 80%

Power requirement

3 V DC, 2 AA / LR6 / 1.5 V batteries

Dimensions 80(W) x 40(H) x 140(D) mm [3.2(W)

x 1.6(H) x 5.5(D) in.]

Weight (approx.) 230 g [8.1 oz.] (without batteries)

*Speciﬁ cations subject to change without notice

Optional Accessory

The control unit allows the user to

control* and change camera settings.

*Limited models

MODEL VA-CDH60 / VA-CDH60C

Materials Zinc plated metal and ABS plastic

Environmental

condition

Temperature: -10°C to 50°C [14°F to

122°F], Humidity: within 90% RH

Dimensions approx ø208 x 86 (H) mm

Weight (approx.) 900 g [31.7 oz.]

Accessories M3 x 30 mm bolt (4) 1/4” -20 UNC x

12 mm(1)

*Speciﬁ cations subject to change without notice

• A dome-shaped dummy camera that

can be installed without spoiling the

appearance of the building.

• Simply installing dummy cameras helps

prevent crime.

• Possible to guide cable through pipe

• Maximum turning angle

360° horizontally and 105° vertically

• Maximum bearing weight 4 kg

VC-0410

(Unit: mm)

VC-0450

(Unit: mm)

VA-VCT31

(Unit: mm)

83.4

45.5

99.8

115.5

150.9

1/4"–20UNC threaded hole

(top / bottom selectable)

25.8

1.3 99 9

108

COLOR CCD CAMERA

LENS

LENS 4-pin

POWERVIDEO OUT

GND AC24V

DC12V

CLASS 2

WIRING

Rear panel

130

83.5

4-ø7

66.7

ø120

ø36

ø25

1/4"–20UNC

t1.6

approx.

VA-CDH60 / VA-CDH60C

(Unit: mm)

222

141

ø208

Monito

VAC-70

VAC-70 rear panel

Applicable models

VCC-9500P E series P. 2 2 VCC-WD8875P P. 3 7

VCC-9600P E series P. 2 2 VCC-XZ200P P. 3 0

VCC-9700P E series P. 2 1 VCC-XZ600P P. 2 5

VCC-9800P E series P. 21 VCC-XZN600P P.11

VCC-P7575PA P. 3 3 VCC-ZM500P P. 2 6

VCC-P9575P P. 3 1 VCC-ZM600P P. 2 5

VCC-PN9575P P.13 VCC-ZMN600P P.11

VCC-W8770P P. 3 8 VDC-DP7585P P. 3 3

VCC-W8775P P. 3 8 VDC-DP9585P P. 3 1

VCC-WD8870P P. 3 7 VDC-DPN9585P P.13

VCC-W8770P

VCC-W8775P

VCC-WD8870P

VCC-WD8875P

VCC-ZM500P

VCC-ZM600P

VCC-ZMN600P

VCC-9500P E

VCC-9600P E

VCC-9700P E

VCC-9800P E

VCC-P7575PA / VCC-P9575P

VCC-PN9575P

VDC-DP7585P / VDC-DP9585P

VDC-DPN9585P

VCC-XZ200P

VCC-XZ600P

VCC-XZN600P

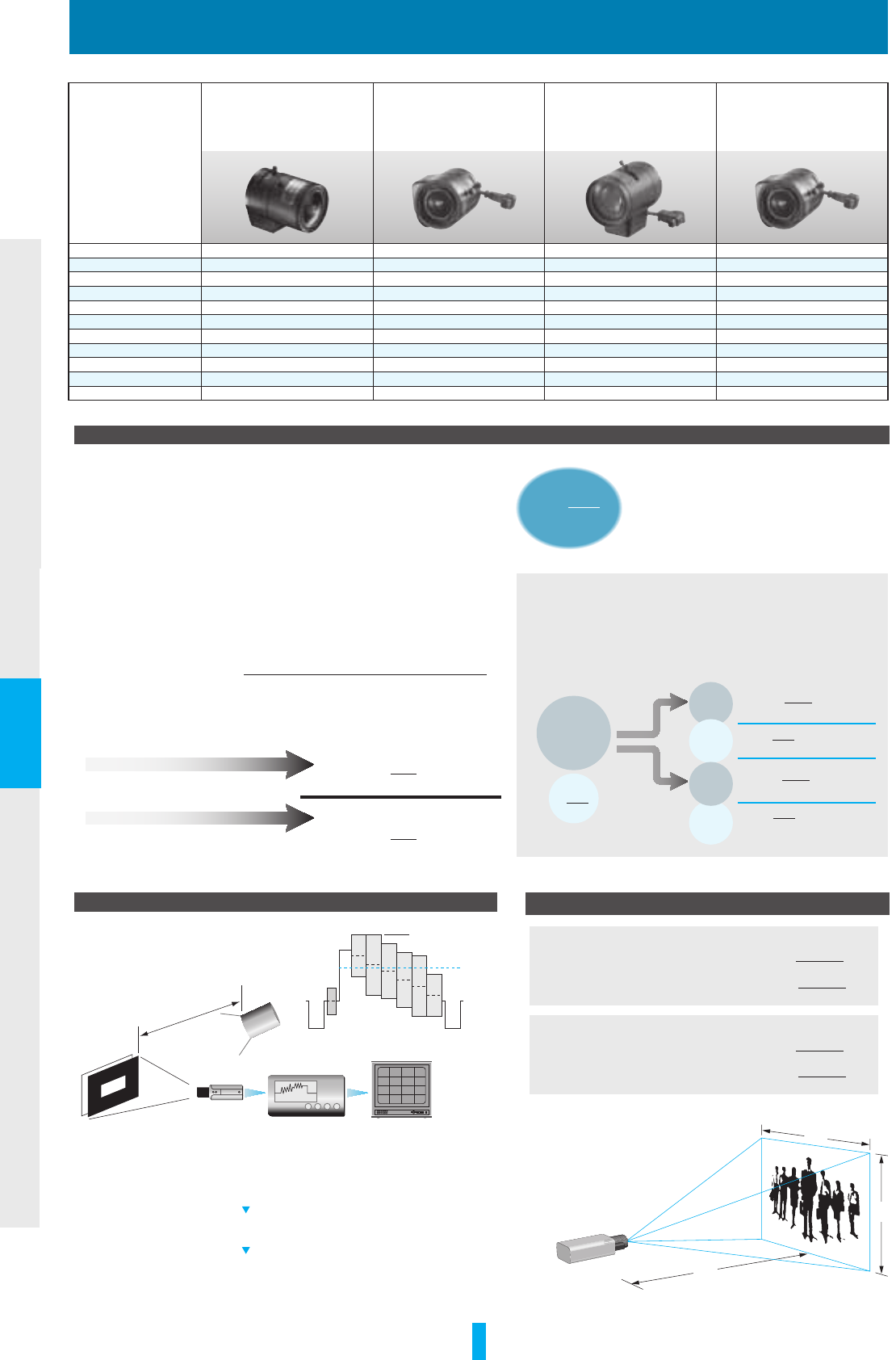

1.7m

1.3m

5.1m

3.9m

8.6m

6.4m

14m

10m

1.2m

0.90m

3.6m

2.7m

6.0m

4.5m

9.6m

7.2m

0.8m

0.6m

2,4m

1.8m

4.0m

3.0m

6.4m

4.8m

0.6m

0.45m

1.8m

1.4m

3.0m

2.3m

4.8m

3.6m

0.13m

0.09m

0.38m

0.28m

0.63m

0.47m

1.01m

0.76m

0.08m

0.06m

0.25m

0.19m

0.41m

0.31m

0.66m

0.50m

VA-13VG308ASIR

1.8m

1.35m

1.3m

1.0m

3.9m

2.9m

6.4m

4.8m

10m

0.9m

0.7m

2.7m

2.0m

4.5m

3.4m

7.2m

5.4m

0.6m

0.45m

1.8m

1.35m

2.25m

4.8m

3.6m

0.45m

0.34m

1.4m

1.0m

2.25m

3.6m

2.7m

0.09m

0.07m

0.28m

0.21m

0.47m

0.35m

0.76m

0.56m

0.06m

0.04m

0.19m

0.13m

0.31m

0.23m

0.50m

0.37m

13m

10m

4.5m

26m

19m

18m

14m

39m

29m

27m

20m

14m

10m

64m

48m

45m

34m

23m

17m

Distance between lens and subject

17m

W13m

H12m

W9m

H6m

W4.5m

1.26m

0.95m

0.83m

0.62m

34m

W26m

H24m

W18m

H12m

W9m

H2.5m

W1.9m

H1.7m

W1.2m

51m

W39m

H36m

W27m

H18m

W14m

H3.8m

W2.8m

H2.5m

W1.9m

86m

W64m

H60m

W45m

H30m

W23m

H6.3m

W4.7m

H4.1m

W3.1m

100

171m

W129m

H120m

W90m

W6m

16m

W12m

24m

W18m

40m

W30m

80m

W60m

H60m

W45m

100

171m

W129m

H120m

W90m

4.5m

12m

18m

13.5m

30m

22.5m

60m

W45m

H60m

W45m

12.6m

W9.5m

H8.3m

W6.2m

0.95m

0.71m

0.62m

0.46m

1.9m

W1.4m

H1.2m

0.93

2.8m

W2.1m

H1.9m

W1.4m

4.7m

W3.5m

H3.1m

W2.3m

9.5m

W7.1m

H6.2m

W4.7m

Distance between lens and subject

*Images produced by the camera may differ slightly from above images

Wide angle f = 4 mm Wide angle f = 6 mm Standard f = 8 mm Telephotographic f = 38 mmSuper wide angle f = 2.8 mm f = 58 mm

VA-13VG308AS

VA-13VG550T-LY *Nearest distance: 1.0 m Wide 0.3 m

Wide angle f = 4 mm Wide angle f = 6 mm Standard f = 8 mm Telephotographic f = 38 mmSuper wide angle f = 2.8 mm f = 58 mm

L : Distance between lens and subject (m)

f : Lens focal length (mm)

W : Width of subject (m)

H : Height of subject (m)

• Width (m) of subject that can be shot =f

4.8 x L

• Height (m) of subject that can be shot =f

3.6 x L

Combination of 1/3" CCD camera and lens

• Width (m) of subject that can be shot =f

3.6 x L

• Height (m) of subject that can be shot =f

2.7 x L

Combination of 1/4" CCD camera and lens

Image Range Formula

lens for 1/4" CCD camera

Image Range at a Glance

*Actual shooting range may be smaller due to TV over scanning.

VA-13VG2811ASIR

VA-13VG308ASIR

VA-13VG308AS

VA-13VG550T-LY *Nearest distance: 1.0 m Wide 0.3 m

VA-13VG2811ASIR

VA-13VG308ASIR

halogen light

camera monitor

(75Ω termination)

test chart

(reﬂection coefﬁcient 83%)

320 x 290 mm

oscilloscope or

wave monitor

Reduce the light until the signal of the white portion drops to

50 IRE and measure the luminous intensity.

Adjust the level so that the white portion in the middle

of the test chart is set to 100 IRE.

A full-screen shot of the test chart

Example:

For a lens of F1.2,

use the value of 1.0 lx

which is obtained by

actual measurement.

When using a lens of F1.4:

1.0 x= 1.4 lx

( )

1.2

1.4 2

When using a lens of F1.6:

1.0 x= 1.8 lx

( )

1.2

1.6 2

F1.2, 50IRE

1.0 lx

F1.2, 20IRE

For a comparison of minimum subject illumination:

F=f

Standard minimum

subject illumination

Target F value

Lens F value used for measurement

()

1.0 x =0.4 lx

1.4 x =0.56 lx

( )

1.2

1.4 2

1.0 x =1.4 lx

1.8 x =0.56 lx

( )

1.2

1.6 2

1.0 x =1.8 lx

The amount of light passed through a lens is expressed by a value

called “aperture value” (F value or F number). When the aperture is

fully open (maximum aperture), the maximum amount of light is

passed through the lens. This is the lens’ brightness and is

expressed by the “maximum aperture F value”. The maximum

aperture F value is obtained by dividing the focal length with the lens

diameter (D). The capital letter “F” is used to distinguish it from “f”,

which means the focal length.

SANYO deﬁnes the minimum

subject illumination to be the

level that produces the signal

level of 50 IRE in measuring

camera performance.

Always conﬁrm the F value and the IRE level used in the

measurement. If the F value and the IRE level do not

match, then convert the values in camera speciﬁcations

using the following method.

Formula for determining the minimum subject

illumination for different F value

F1.4,

20IRE

F1.4,

50IRE

F1.6,

20IRE

F1.6,

50IRE

Te chnical Notes

Measurement Circuit:

100IRE

50IRE

H sync

lens for 1/3" CCD camera

Image Range at a Glance

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Standard Vari-focal IR Lens for

1/3” CCD Camera

VA-13VG2811ASIR

Standard Vari-focal IR Lens for

1/3” CCD Camera

VA-13VG308ASIR

Tele Vari-focal Lens for

1/3” CCD Camera

VA-13VG550T-LY

Standard Vari-focal Lens for

1/3” CCD Camera

VA-13VG308AS

Application 1/3" CCD camera 1/3" CCD camera 1/3" CCD camera 1/3" CCD camera

Mounting system CS mount CS mount CS mount CS mount

EE AMP not equipped not equipped not equipped not equipped

Focal length f = 2.8 to 11 mm f = 3.0 to 8 mm f = 5 to 50 mm f = 3.0 to 8 mm

Max. caliber rate F1.4 to 2.6 F1.2 F1.4 to 2.0 F1.2

Horizontal shooting angle

1/3" = 97.4° to 26.2°, 1/4"= 72.4° to 19.7°

34.8° 66.8° 34.8°

Vertical shooting angle

1/3" = 72.4° to 19.7°, 1/4"= 54.0° to 14.7°

26.0° 40.3° 26.0°

Nearest distance 0.3 m 0.3 m Tele 1.0 m Wide 0.3 m 0.3 m

Iris connecting plug 4-pin 4-pin 4-pin 4-pin

External dimensions 52.5(W) x 64.6(H) x 40(D) mm 55.6(W) x 44.2(H) x 49.3(D) mm 41.0(W) x 53.7(H) x 59.2(D) mm 55.6(W) x 44.2(H) x 49.3(D) mm

Weight (approx.) 79 g [2.8 oz.] 67 g [2.4 oz.] 95 g [3.4 oz.] 67 g [2.4 oz.]

Lens

1.7m

1.3m

5.1m

3.9m

8.6m

6.4m

14m

10m

1.2m

0.90m

3.6m

2.7m

6.0m

4.5m

9.6m

7.2m

0.8m

0.6m

2,4m

1.8m

4.0m

3.0m

6.4m

4.8m

0.6m

0.45m

1.8m

1.4m

3.0m

2.3m

4.8m

3.6m

0.13m

0.09m

0.38m

0.28m

0.63m

0.47m

1.01m

0.76m

0.08m

0.06m

0.25m

0.19m

0.41m

0.31m

0.66m

0.50m

VA-13VG308ASIR

1.8m

1.35m

1.3m

1.0m

3.9m

2.9m

6.4m

4.8m

10m

0.9m

0.7m

2.7m

2.0m

4.5m

3.4m

7.2m

5.4m

0.6m

0.45m

1.8m

1.35m

2.25m

4.8m

3.6m

0.45m

0.34m

1.4m

1.0m

2.25m

3.6m

2.7m

0.09m

0.07m

0.28m

0.21m

0.47m

0.35m

0.76m

0.56m

0.06m

0.04m

0.19m

0.13m

0.31m

0.23m

0.50m

0.37m

13m

10m

4.5m

26m

19m

18m

14m

39m

29m

27m

20m

14m

10m

64m

48m

45m

34m

23m

17m

Distance between lens and subject

17m

W13m

H12m

W9m

H6m

W4.5m

1.26m

0.95m

0.83m

0.62m

34m

W26m

H24m

W18m

H12m

W9m

H2.5m

W1.9m

H1.7m

W1.2m

51m

W39m

H36m

W27m

H18m

W14m

H3.8m

W2.8m

H2.5m

W1.9m

86m

W64m

H60m

W45m

H30m

W23m

H6.3m

W4.7m

H4.1m

W3.1m

100

171m

W129m

H120m

W90m

W6m

16m

W12m

24m

W18m

40m

W30m

80m

W60m

H60m

W45m

100

171m

W129m

H120m

W90m

4.5m

12m

18m

13.5m

30m

22.5m

60m

W45m

H60m

W45m

12.6m

W9.5m

H8.3m

W6.2m

0.95m

0.71m

0.62m

0.46m

1.9m

W1.4m

H1.2m

0.93

2.8m

W2.1m

H1.9m

W1.4m

4.7m

W3.5m

H3.1m

W2.3m

9.5m

W7.1m

H6.2m

W4.7m

Distance between lens and subject

*Images produced by the camera may differ slightly from above images

Wide angle f = 4 mm Wide angle f = 6 mm Standard f = 8 mm Telephotographic f = 38 mmSuper wide angle f = 2.8 mm f = 58 mm

VA-13VG308AS

VA-13VG550T-LY *Nearest distance: 1.0 m Wide 0.3 m

Wide angle f = 4 mm Wide angle f = 6 mm Standard f = 8 mm Telephotographic f = 38 mmSuper wide angle f = 2.8 mm f = 58 mm

L : Distance between lens and subject (m)

f : Lens focal length (mm)

W : Width of subject (m)

H : Height of subject (m)

• Width (m) of subject that can be shot =f

4.8 x L

• Height (m) of subject that can be shot =f

3.6 x L

Combination of 1/3" CCD camera and lens

• Width (m) of subject that can be shot =f

3.6 x L

• Height (m) of subject that can be shot =f

2.7 x L

Combination of 1/4" CCD camera and lens

Image Range Formula

lens for 1/4" CCD camera

Image Range at a Glance

*Actual shooting range may be smaller due to TV over scanning.

VA-13VG2811ASIR

VA-13VG308ASIR

VA-13VG308AS

VA-13VG550T-LY *Nearest distance: 1.0 m Wide 0.3 m

VA-13VG2811ASIR

VA-13VG308ASIR

halogen light

camera monitor

(75Ω termination)

test chart

(reﬂection coefﬁcient 83%)

320 x 290 mm

oscilloscope or

wave monitor

Reduce the light until the signal of the white portion drops to

50 IRE and measure the luminous intensity.

Adjust the level so that the white portion in the middle

of the test chart is set to 100 IRE.

A full-screen shot of the test chart

Example:

For a lens of F1.2,

use the value of 1.0 lx

which is obtained by

actual measurement.

When using a lens of F1.4:

1.0 x= 1.4 lx

( )

1.2

1.4 2

When using a lens of F1.6:

1.0 x= 1.8 lx

( )

1.2

1.6 2

F1.2, 50IRE

1.0 lx

F1.2, 20IRE

For a comparison of minimum subject illumination:

F=f

Standard minimum

subject illumination

Target F value

Lens F value used for measurement

()

1.0 x =0.4 lx

1.4 x =0.56 lx

( )

1.2

1.4 2

1.0 x =1.4 lx

1.8 x =0.56 lx

( )

1.2

1.6 2

1.0 x =1.8 lx

The amount of light passed through a lens is expressed by a value

called “aperture value” (F value or F number). When the aperture is

fully open (maximum aperture), the maximum amount of light is

passed through the lens. This is the lens’ brightness and is

expressed by the “maximum aperture F value”. The maximum

aperture F value is obtained by dividing the focal length with the lens

diameter (D). The capital letter “F” is used to distinguish it from “f”,

which means the focal length.

SANYO deﬁnes the minimum

subject illumination to be the

level that produces the signal

level of 50 IRE in measuring

camera performance.

Always conﬁrm the F value and the IRE level used in the

measurement. If the F value and the IRE level do not

match, then convert the values in camera speciﬁcations

using the following method.

Formula for determining the minimum subject

illumination for different F value

F1.4,

20IRE

F1.4,

50IRE

F1.6,

20IRE

F1.6,

50IRE

Te chnical Notes

Measurement Circuit:

100IRE

50IRE

H sync

lens for 1/3" CCD camera

Image Range at a Glance

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Quality Digital Recording

The DSR series utilizes JPEG2000, M-JPEG, and

MPEG-4 video compression methods to offer clear and

sharp crispy video recording. Simultaneous recording

and playback is now possible with elegantly smooth

motion.

Network

Each unit in the DSR series features a Network terminal.

Monitoring live video, playing back and reviewing

recordings, starting a new recording, searching for

recorded images, camera control, camera setup ---

all operations are possible from a PC with a network

connection (using Internet Explorer version 5.0 or newer

or Utility Software). It also enables the user to download

recorded video and audio onto the PC.

The DSR series models use either JPEG2000, Motion JPEG or

MPEG-4 format, each of which has its own characteristics and

advantages, so please select the DSR series model most suitable

for your requirements.

Characteristics of Video Compression

Model

Compression

Characteristics

DSR-5709P

DSR-5716P

JPEG2000

A high compression rate is achieved while

eliminating block noise and pixelation

associated with the JPEG format.

DSR-3709PA

DSR-3716PA

Motion JPEG

Motion pictures are produced by

successive decompression-reproduction

of frames recorded in JPEG format.

Compared to MPEG, the compression rate

is lower and the picture quality is higher.

DSR-2004

DSR-2016

DSR-HB8000

MPEG-4

The MPEG-4 standard was designed to

reproduce a wide range of moving pictures

from those on a low speed communication

line to those with high-deﬁ nition TV picture

quality.

Recorder Function Explanation

Legends

Multi-screen Display

For both live picture monitoring (during multiplex

recording) and playback of recorded pictures, the

user can select from 16-screen display, 9-screen

display, 4-screen display, and full-screen display.

• 4-screen display • Full-screen display

• Screen position assignment* • Monitor masking

* Does not apply to the DSR-20xx series.

Jog Shuttle

(* Also used to select menu options.)

Jog Dial

Simply by turning the Jog Dial with your ﬁ nger

to the left or right, the monitored images can

be made to run forward or backwards for easy

checking.

Shuttle Ring

Simply by turning the Shuttle Ring to the left or

right, you can switch from playback to forward or

reverse playback, or forward or reverse search.

From pause, you can switch to forward or reverse

slow-motion playback, normal speed playback,

or search. Operation of these functions is easy,

allowing very efﬁ cient searching.

1 Built-in Motion Sensor

DSR series comes with a built-in motion sensor.

Different settings can be made for each camera image

independently. The sensor can detect moving objects

within the screen by picking up changes in brightness.

The user can use this feature to trigger an alarm

recording.

2 Mirror Recording

With two HDD's of the same capacity installed, it is

possible to record the same video on both of them,

thus allowing for a backup.

* Does not apply to DSR-20xx series

3 Timer Recording

Uniform daily programming or independent

programming for each day of the week are both

available. Further, holidays* can be entered by

specifying the date and the month for which Sunday

programming should be applied.

* The DSR-20xx series does not support the holiday setting.

4 Alarm Recording

When an alarm signal is received from an external

sensor, the recorder will automatically start recording in

a mode predetermined by the user.

16CH

JOG

SHUTTLE

16CH M-JPEG HDD

2bay 520

TVL

JOG

SHUTTLE

120 to

240 V AC

operation

USB

port

Network

SSP

Camera

Telemetry

Control

Number of

channels

Power supply

Number of

HDD bays

Terminals

Resolution Jog Shuttle

Camera

telemetry

control

Compression

Digital Video Recorder

Digital Technology Offers Multi-functional Recording with

Superior Picture Quality Networking for Remote and

Round-the-Clock Surveillance

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

5 Alarm Counter

This feature allows the user to keep and display records of

the date and time of alarms.

6 Video Loss Alarm

When the video signal feed is lost due to one of the

following reasons, a buzzer sounds and the word "VIDEO

LOSS" is displayed on the screen.

1. Wire breakdown

2. Disconnection of video terminal

3. Loss of power on a camera or other intermediary

equipment

7 Disc Full Alarm

During a recording, an alarm can be set to give off a buzzer

sound, along with a message on the display.

8 Fan Error / Disc Error

A beep will sound when an error occurs on the fan or the disc.

9 Time / Date Search

Searching recorded pictures is available by specifying the

time and date.

10 Alarm Search

A list of up to 8 stored recordings (alarm number, recording

date and time) along with a preview window offers the

user an easy way of searching and playing back a particular

event. You can easily switch to a full screen display and

display a still picture, or perform a fast-forward search

simply by turning the shuttle or jog dial or key button.

11 Alarm Thumbnail Search

It is possible to display up to 9 thumbnails for video

recordings in the alarm area along with their respective

alarm numbers. This feature allows the user to search for a

particular event without playing back each recording.

12 Alarm Log Search

A search is narrowed using a log ﬁle by selecting the time,

minute, month, and the day of the week on a GUI, and then

the desired scene can be selected.

*Does not apply to DSR-37xx series

13 Motion Detection Search

By setting a motion sensor on the screen, any scene with

motion in the speciﬁed area will be brought up for further

review.

*Does not apply to DSR-20xx series

14 Archive Area Search

A list of up to 8 stored recordings (copied to archive area,

recording date and time), along with a preview window,

offers the user an easy way of searching and playing back

a particular event. You can easily switch to a full screen

display and show a still picture, or perform a fast-forward

search simply by turning the shuttle or jog dial.

*Does not apply to DSR-2004, DSR-2016 and DSR-HB8000

Camera Telemetry

The DVR can be used to control connected cameras.

15 Security Lock

To prevent unauthorized manipulation or accidental

operation while recording, the user can lock the

functionality of the operation buttons, the jog dial, and the

shuttle ring. There are two types of security lock: a quick

method security lock and a 4 digit security lock.

16 Auto Delete Function

The allows the user to specify the storage period for each

video clip, from one day up to 99 days.

When the speciﬁed period expires, the data will be

automatically deleted.

17 30-day Memory Back-up

A built-in lithium battery is used to protect various DVR

settings for 30 days.

18 Lifetime Counter

The monitor screen displays "used-time" counter (total

power-on time.)

19 Buzzer

An alarm is indicated by a beep.

20 SMTP

An alarm can trigger an e-mail message sent to a preset

address.

*Does not apply to DSR-37xx series

VGA Output

Provides an analog RGB component video signal

output for a monitor.

*Does not apply to DSR-37xx series

USB Terminal

Useful in connecting an external disk writer and/or

USB Memory device.

21 Local Back-up / Copy

Increases data portability Video downloading and MENU

uploading / downloading by allowing the use of a compact

ﬂash memory.

Network Terminal

There is a built-in 100BASE-TX / 10-BASE-T LAN

terminal, allowing remote surveillance / control from

PC via network.

SSP (RS-485/422) Compatible

By using SSP (SANYO Security Serial Protocol),

cameras, multiplexers, DVRs and VCRs in a daisy

chain over a distance of up to 1200m (4000 feet)

can be controlled centrally with just one controller.

22 RS-232C Compatible

With RS-232C compatible recorders various operations are

possible from an external computer.

*Only DSR-HB8000

VGA

output

4 USB

port

SSP

Camera

Telemetry

Control

Network

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Type Hibrid DVR High-end DVR M-JPEG MPEG-4

DVR Model

DSR-HB8000 DSR-5716P DSR-5709P DSR-3716PA DSR-3709PA DSR-2016 DSR-2004

Max HDD Capacity (Technically) per one bay Max HDD Capacity

Hard Disk Capacity 2TB 2TB 2TB 1TB 1TB 2TB 2TB

Horizontal Resolution

520 TVL 520 TVL 520 TVL 520 TVL 520 TVL 500 TVL 250 TVL

Recording Speed (IPS) 400 100 100 50 50 200 100

Compression MPEG-4

MPEG-4+ JPEG2000 JPEG2000 M-JPEG M-JPEG MPEG-4 MPEG-4

Pixel

720 x 576

720 x 288

360 x 288

720 x 288 720 x 288 720 x 288 720 x 288

704 x 576

704 x 288

352 x 288

704 x 576

352 x 288

Multi-screen Display

4 / 9 / 16

-screen,

Plus display

4 / 9 / 16

-screen,

Plus display

4 / 9-screen,

Plus display

4 / 9 / 16

-screen,

Plus display

4 / 9-screen,

Plus display

4 / 9 / 16

-screen, 4-screen

Jog Shuttle ----------

(Mause opertion)

---------- ----------

Built-in Motion Sensor

Mirror Recording

---------- ----------

Timer Recording

Alarm Recording

Alarm Counter

---------- ---------- ----------

Video Loss Alarm

Disk Full Alarm

---------- ----------

Fan Error / Disc Error

---------- / ---------- /

Time / Date Search

Alarm Search

Alarm Thumbnail Search

---------- ----------

Alarm Log Search

---------- ----------

Motion Detection Search

---------- ----------

Archive Area Search

---------- ---------- ----------

Camera Telemetry

Security Lock

Auto Delete Function

----------

30-day Memory Back-up

Lifetime Counter

---------- ----------

Buzzer

SMTP

---------- ----------

VGA Output

---------- ---------- ---------- ----------

USB Terminal

Local Back-up / Copy

USB / CD / DVD

USB USB CF / USB CF / USB USB / CD USB

Network Terminal

SSP (RS-485) Compatible

----------

RS-232C Compatible

--------- ---------- ---------- ---------- ---------- ----------

Software

CMS /

DVR Utility

VA-SW5000

(packaged)

VA-SW5000

(packaged)

VA-SW5000

(packaged)

VA-SW5000

(packaged)

DVR Utility

2000S

(packaged)

DVR Utility

2000S

(packaged)

Power Source

100 V to 240 V

AC, 50/60 Hz

120 V to 240 V

AC, 50/60 Hz

120 V to 240 V

AC, 50/60 Hz

120 V to 240 V

AC, 50/60 Hz

120 V to 240 V

AC, 50/60 Hz

Input

100 V to 127 V

AC, 4A

200 V to 240 V

AC, 2A

50/60 Hz

Input

100 V to 240 V

AC, 50/60 Hz

Output 12 V DC

Power Consumption

8A (AC100 V)

4A (AC240 V) 720 mA 720 mA 800 mA 800 mA

100 to 127 V 4A

200 to 240 V 2A

25 w /12 V

Dimensions (W x H x D) mm

431 x 177

x 458

420 x 96

x 365

420 x 96

x 365

420 x 96

x 365

420 x 96

x 365

432 x 89

x 349

350 x 65

x 260

Page

49 51 51 53 53 55 55

Refer to "Recorder Function Explanation"

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

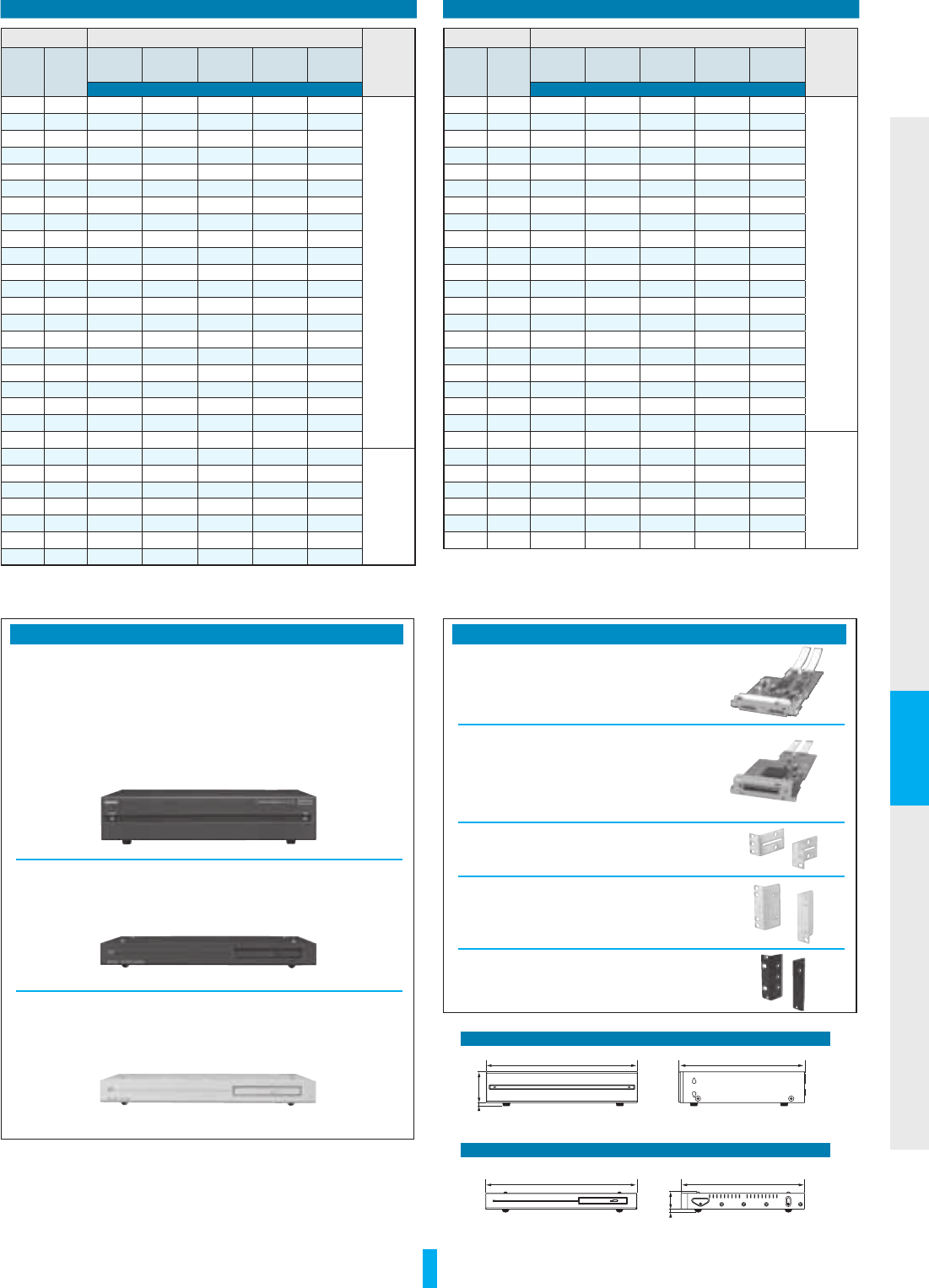

DSR-5716P / DSR-5709P 750 GB

Recording Speed

Picture Quality

Audio

Recording

IPS

Recording

Interval

(sec.)

Basic

12 kB

Normal

16 kB

VHS (EP)

Enhanced

24 kB

VHS (SP)

Fine

32 kB

S-VHS

Super Fine

40 kB

S-VHS+

Recording Time (unit: hour)

100.00 0.01 130 102 71 53 42

Available

50.00 0.02 260 206 140 108 86

25.00 0.04 518 413 281 213 10

16.67 0.06 778 618 420 318 258

12.50 0.08 1,038 825 560 425 342

8.33 0.12 1,558 1,238 840 638 513

6.25 0.16 2,077 1,6 47 1,121 851 683

5.00 0.20 2,595 2,060 1,403 1,062 855

4.17 0.24 3,112 2,471 1,680 1,272 1,025

3.57 0.28 3,635 2,885 1,9 62 1,48 8 1,197

3.13 0.32 4,145 3,293 2,238 1,695 1,365

2.78 0.36 4,667 3,596 2,520 1,910 1,538

2.50 0.40 5 ,19 0 4,12 2 2,802 2,123 1,710

2.27 0.44 5,715 4,541 3,087 2,337 1,883

1.92 0.52 6,758 5,367 3,650 2,765 2,225

1.67 0.60 7,7 70 6,170 4,19 6 3,17 7 2,558

1.47 0.68 8,827 7,010 4,767 3 ,611 2,907

1.32 0.76 9,830 7,80 5 5,307 4,020 3,,237

1.19 0.84 10,903 8,658 5,888 4,460 3,590

1.09 0.92 11, 9 0 3 9,453 6,428 4,871 3,920

1.00 112,975 10,302 7,0 0 8 5,307 4,272

0.50 225,950 20,607 14,013 10,616 8,546

Not

available

0.33 339,317 31,223 21,233 16,085 12,945

0.25 451,898 41,216 28,025 21,233 17,0 8 8

0.20 564,873 51,518 35,033 26,540 21,360

0.10 10 129,747 103,035 70,062 53,078 42,723

0.05 20 259,493 206,067 140,127 10 6 ,15 8 85,443

0.03 30 432,490 343,448 233,546 176,928 142,406

Reference: 24H = 1 day, 168H = 1 week, 720H = 1 month, 8760H = 1 year

DSR-3716PA / DSR-3709PA 750 GB

Recording Speed

Picture Quality

Audio

Recording

IPS

Recording

Interval

(sec.)

Basic

15 kB

Normal

22 kB

VHS (EP)

Enhanced

30 kB

VHS (SP)

Fine

42 kB

S-VHS

Super Fine

5 0 kB

S-VHS+

Recording Time (unit: hour)

50.00 0.02 233 165 123 90 75

Available

25.00 0.03 468 333 248 180 153

16.67 0.05 702 498 372 270 230

12.50 0.07 938 665 498 363 305

8.33 0.10 937 664 497 361 306

6.25 0.13 1,878 1,331 998 725 612

5.00 0 .17 2,348 1,662 1,245 905 768

4.17 0.20 2,816 1,995 1,496 1088 920

3.57 0.23 3,285 2,328 1,745 1268 1,073

3.13 0.27 3,755 2,636 1,9 95 1,451 1,227

2.78 0.30 4,226 2,993 2,246 1632 1,380

2.50 0.33 4,695 3,326 2,493 1812 1,535

2.27 0.37 5,165 3,657 2,742 1995 1,6 88

1.92 0.43 6,102 4,323 3,243 2358 1,995

1.67 0.50 7, 0 4 3 4,988 3,740 2720 2,303

1.47 0.60 7,9 8 3 5,652 4,241 3083 2,607

1.32 0.70 8,921 6,318 4,737 3446 2,915

1.19 0.80 9,860 6,983 5,238 3807 3,222

1.09 0.90 10,800 7, 6 5 0 5,738 4173 3,530

1.00 111,73 8 8,315 6,236 4535 3,837

0.50 223,478 16,631 12,473 9071 7,6 76

Not

available

0.33 335,217 24,945 18,708 13605 11,513

0.25 446,955 33,260 24,945 18140 15,350

0.20 558,695 41,576 31,18 4 22677 19,188

0.10 10 117, 3 9 0 83 ,15 3 62,363 45356 38,378

0.05 20 234,783 166,305 124,728 90710 76,755

0.03 30 3 52,175 249,458 187,0 9 2 136068 115,133

* The recording time may vary slightly depending on the complexity of the images and the pres-

ence of an audio signal.

* The recording time will change depending on the settings for the storage area, and the availability

of an optional HDD. Contact the place of purchase for details on increasing the capacity by adding

a HDD.

Table of recording rate and times

Optional units for the expansion of the DSR series,

depending on the main unit used.

External HDD unit VA-EXH

The VA-EXH is an expansion unit that employs four HDD bays

and enables further extension of recording time.

for DSR-5716P / DSR-5709P * Requires VZU-SATB1.

Disc writer VA-EXD1 B

This external DVD / CD-Writer is a perfect match

for DSR-5716P / DSR-5709P.

Disc writer VA-EXD1 W

This external CD-Writer is a perfect match

for DSR-3716PA / DSR-3709PA.

S-ATA Board VZU-SATB1

for VA-EXH

The VZU-SATB1 enables the connection to

an external HDD unit.

SCSI Board VZU-SCB1

The VZU-SCB1 enables the connection

to an external RAID system. For further

details on compatible devices, please

contact the place of purchase.

Rack Mount Bracket

VA-RACMK1 for VA-EXD B / VA-EXD W

Rack Mount Bracket

VA-RACMK2 for DSR-5716P / DSR-5709P /

DSR-3716PA / DSR-3709PA

Rack Mount Bracket

VA-RACMK3 for DSR2016

Optional External Unit (sold separately) Optional Accessories (sold separately)

(Unit: mm)

329.5

344

420

VA-EXH

VA-EXD1 B, VA-EXD1 W

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Up to 8 network cameras Up to 16 analog cameras

Network cameras Analog cameras

Via Ethernet Via video cable

8 units

3 units

2 units

1 unit

8 units

13 units

14 units

15 units

16 units

16ch Digital Video Recorder

DSR-HB8000

16CH MPEG-4

HDD 3bay+

2bay W/S-ATA

card

520

TVL

120 to

240 V AC

operation

VGA

output

4 USB

port

Network

SSP

Camera

Telemetry

Control

Extensive Search Functions

One Channel Search: Searches for recorded video on a

speciﬁ c channel and plays it back.

Time/Date Search: Playback recorded video by specifying

date and time.

Thumbnail Search: Displays a list of up to 24 images from

the checked video in panorama mode.

Motion Search: Using motion detection, searches for video

containing moving objects.

Time Bar Search: Displays a data mapping of recorded video

on all channels and playback multiple

video in multi-screen.

Text Search: Searches for texts and video using keywords in

a POS (Point of Sales System) recording data.

Alarm Log Search: Searches for video from an event list.

Monitor Plus

By connecting four DSR-HB8000 units via a network, this

feature offers a capability to view all 80 camera images on the

main DSR-HB8000 unit.

Easy and Secure Backup

With the DSR-HB8000, the user can simply click on the Data

Back-up icon on the Surveillance screen to store and manage a

large amount of information on the network. In addition to the

built-in HDD, a CD-R, CD-RW, or DVD on the integrated CD /

DVD drive or a memory stick on the USB port can be selected

as a backup destination.

MPEG-4

The MPEG (Moving Picture Experts Group) -4 standard was

designed to reproduce a wide range of moving pictures from

those on a low speed communication line to those with

high-deﬁ nition TV picture quality. Also available is SANYO’s

proprietary format, the MPEG-4+ mode, which requires fewer

resources. It is more advantageous in networks, enabling

smooth video reproduction with a special playback operation.

Digital security system is composed of

analog and network cameras in a system

The DSR-HB8000 is a hybrid model that is capable of

connecting and controlling network cameras* and conventional

analog cameras simultaneously. *Supported by JPEG only

Simultaneous Recording and Playback

(Max. 720 x 576 pixels per channel)

Camera Telemetry Control

DSR-HB8000 is capable of controlling PTZ dome cameras

and zoom cameras through coaxial cables or RS-485. It

also allows this control from a network PC or a controller.

The unit also supports protocols of other major brands.

Full-motion, Multiple Screen Display of Live Video

Images

The monitor can display different video images from 4ch

up to 16ch simultaneously, in addition to displaying a

single channel in full-screen mode.

Add Text Information on the Surveillance Video

Recorded images can be looked up using the text data in

the electronic journal. The AVE Interface provides access

to the journal data containing information on a POS

system or ATM terminals. For example, a transaction

record on such systems can identify the operator, the

time and date, the terminal, or the customer for any

deposit, withdrawal, or exchange. This will serve as a

valuable tool in enhancing the security system.

MPEG-4 Hybrid

Client software

Web Browser (Internet Explorer)

CMS (Central Management Software)

Network

DVR1

DVR2

DVR3

DVR4DVR5

Monitor

This monitor can view

all 80 cameras

16 cameras on DVR 1

16 cameras on DVR 2

16 cameras on DVR 3

16 cameras on DVR 4

16 cameras on DVR 5

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

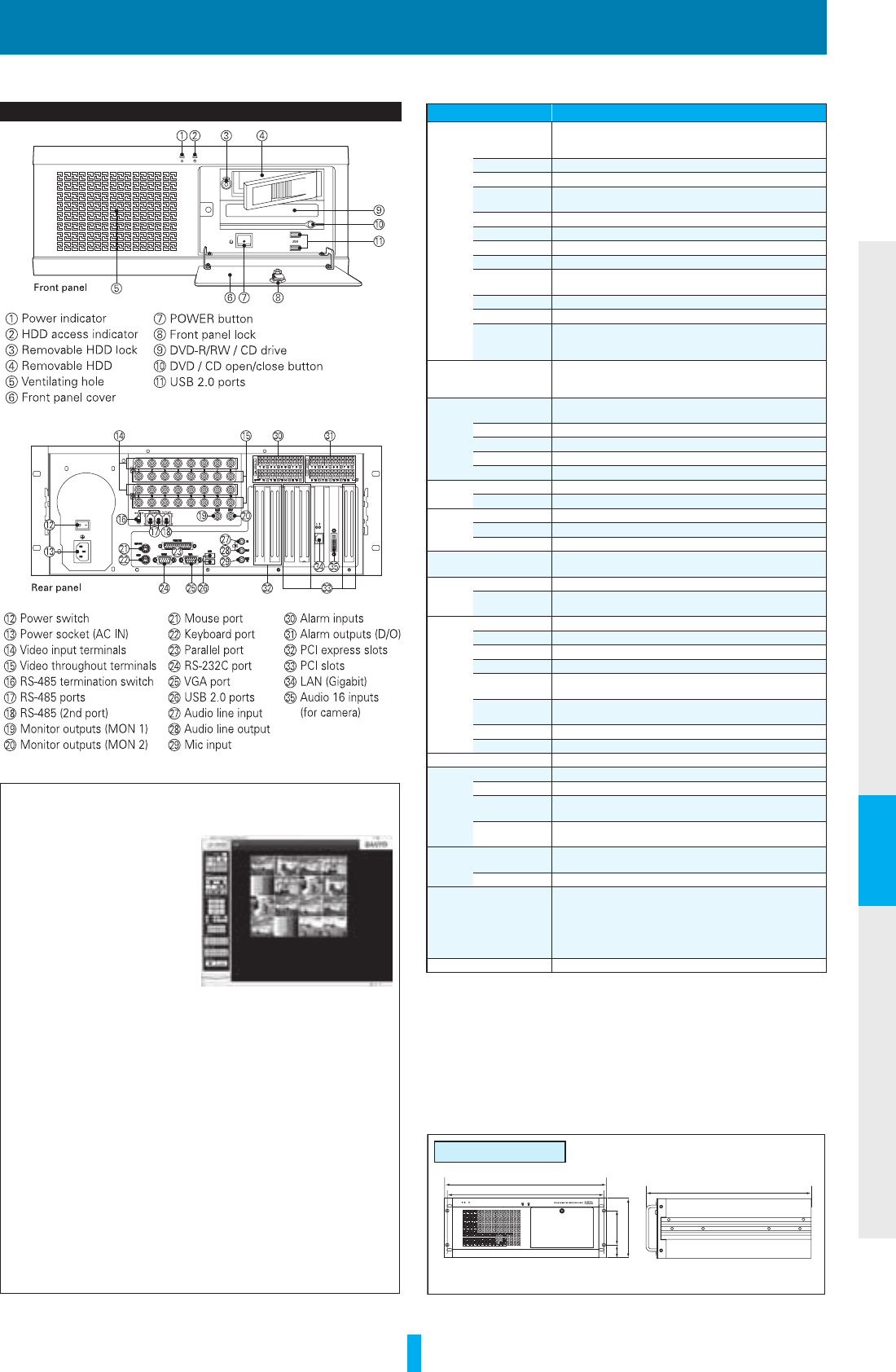

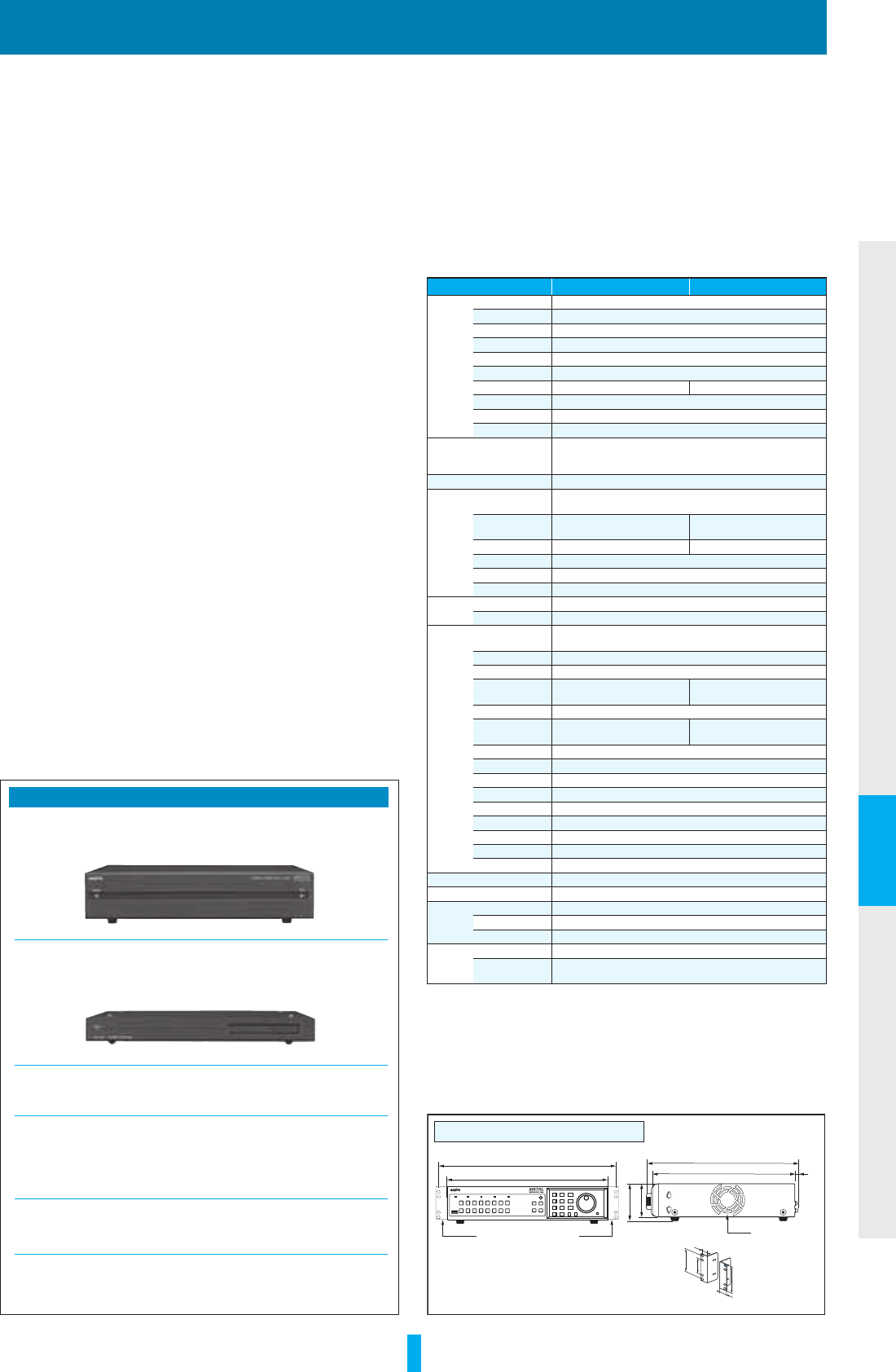

MODEL DSR-HB8000

General

Hard disk capacity

One System Disk (S-ATA) + Two S-ATA HDD Bays + One

Removable S-ATA HDD Tray + Two HDD w/S-ATA card

(option) x 2 Max. HDD Capacity 5TB

CPU

Intel Pentium® 4 3.00GHz

Operating system

Microsoft Windows® XP Embedded

Picture resolution

(pixels)

720 x 576, 720 x 288, 360 x 288

Video codec

MPEG-4, MPEG-4+

Audio codec

G.721, 8kHz sampling rate

Picture quality

5 levels (Basic, Normal, Enhanced, Fine, Super Fine)

Recording speed

400IPS/16ch (CIF), 200IPS/8ch (Half D1), 100IPS/4ch (D1)

Still image capture

(BMP/JPEG)

720 x 576, 720 x 288, 360 x 288

Number of cameras

16 (IP camera: 8 units max.)

Menu language

English / French / Spanish / German / Italian

Telemetry Control

Protocol

COAX: SANYO (H-SSP) / PELCO-C, BBV

RS-485: SANYO (SSP) / PELCO-D / VICON / ULTRAK

KALATEL / VCL / BBV / AMERICAN DYNAMICS

Search mode

One Channel Search, Time/Date Search, Thumbnail Search,

Motion Search, Time Bar Search, Alarm Log Search Text

Video

Signal format

PAL standard (Color) / CCIR standard (B/W) auto select,

625 lines, 400IPS

Video input

VBS / VS 1.0 V (p-p) 75 Ω, BNC x 16

Video output

BNC x 16 (Loop through), VGA x 1*1

Main monitor output

VS 1.0 V (p-p) 75 Ω BNC x 1*1

Monitor 2 output

VBS / VS 1.0 V (p-p) 75 Ω BNC x 1

Audio

Audio input

16ch: MicroCross connector x1 (rear)

Audio output

-8 dBs 600 Ω unbalanced mini jack x 1 (rear)

Display

Speed (Live)

Max. 400IPS (16 screen split)

Emulation

Monitor Plus (Up to total 5 DVRs display)

Screen split

1, 4, 7, 8, 9, 10, 13, 16

Backup storage support Internal DVD / CD drive, Internal Removable HDD (S-ATA),

USB 2.0 x 4 (front x 2, rear x 2), NAS (TCP/IP)

Network

Interface

ADSL, LAN / DDNS

LAN

RJ-45 x 1, LAN: 10/100/1000BASE-TX) Compatible protocol:

UDP, TCP/IP, HTTP, DHCP, SMTP, NTP, PPP server

Control

Signal

RS-485

RJ-11 x 2, (With a termination switch)

RS-485 (2ND)

PTZ port x 1

RS-232C

D-sub 9-pin x 1

USB

USB 2.0 x 4 (Front x 2, Rear x 2)

Sensor alarm input

(Push lock)

No-volt contacts, (100ms or more) x 16

Alarm output

(Push lock)

Open collector, Low level active (Max. 25 mA) x 16, Relay

output

Mouse control input

PS / 2 x 1

Keyboard input

PS / 2 x 1

Expansion slot PCI x 5 (PCI-express x 2, PCI x 3)

Electrical

Power source

100 V to 240 V AC, 50 / 60Hz

Power current

8A (100 V AC), 4A (240 V AC)

Operating

conditions

Temperature: 5°C to 40°C (41°F to 104°F)

Humidity: 30 to 80%RH (non-condensing)

Storage

temperature

-5°C to 60°C (23°F to 140°F)

Physical Dimensions 431(W) x 177(H) x 458(D) mm [17.0(W) x 7.0(H) x 18.0(D) in]

----- m o u n t a b l e a s 4 U r a c k u n i t

Net weight (approx.)

21.8 kg (44.1 lbs.) (HDD x 4, DVD-R/W x 1)

Standard accessories

Keyboard x 1, Mouse x 1, AC power cord (European x 1,

North American x 1), S-ATA cable x 2, Audio conversion

cable, Rack mounting kit (1 set), Removable HDD key x 2,

Front panel key x 2 DVD-ROM x1 (Recover disc:Windows

XP), CD-ROM x1 (Application disc: Operation / programming

manual)

Option S -ATA*2 card (Support add S-ATA HDD x 4), POS/ATM

NOTE: Speciﬁcations subject to change without notice

*1 Either the video output or VGA output can be enabled at any one time.

*2 For the detail contact the place of purchase.

Warnings regarding HDDs

• Do not attempt to install or replace a HDD on your own. You cannot use these HDDs on PCs.

• The unit may be damaged if it is exposed to an impact or vibration, or the power plug is

disconnected during operation.

• Sanyo will not be held liable for any data loss due to an HDD error or a failure during recording.

• “Microsoft” is registered trademarks or trademarks of Microsoft Corporation in the United States

and/or other countries.

• All other company and product names are registered trademarks and/or trademarks of their

respective owners.

Supports NAS Firmware version. No.:1.1.1 or later

A NAS* (Network Attached

Storage) is a single-purpose

server (server appliance)

that consists of a hard disk

drive, network interface, OS,

and management utilities.

Since a NAS serves as an

independent ﬁle server that

allows network ﬁle sharing, DSR-HB8000 allows the user

to store backup ﬁles on three different NAS systems. The

built-in ﬁle system and network communication capability

makes it easy to conﬁgure a system or make an addition

to existing systems.

* DSR-HB8000 DVR Utility software allows access to

backup data enabling the user to replay stored video or

extract data.

*NAS:

NAS is a general term referring to storage that is

accessible by the use of LAN (Ethernet, FDDI, etc.)

connected ﬁle systems, such as a NFS (Network File

System) or a CIFS (Common Internet File System).

(Unit: mm)

DSR-HB8000

465.1

480.6 491.4

37.7 101.6

177

Locations of Controls

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Camera Telemetry Control

The DSR-5716P / DSR-5709P are capable of controlling PTZ

dome cameras and zoom cameras through coaxial cables

or RS-485. It also allows this control from a network PC or

a controller. The unit also supports protocols of other major

brands.

Camera with no Alarm Input Controlled by an External Alarm

Through this unit, an external alarm can prompt PTZ cameras

such as VCC-9500P E / VCC-9600P E / VCC-9700P E /

VCC-9800P E to return to

preset positions and perform

other operations. There are

four operations available —

PRESET, TOUR, AUTO PAN

and SEQUENCE.

*This control is activated only

when the setting of alarm

recording is ON and the setting

of alarm trigger is the external

alarm.

Built-in VGA (1024 x 768 pixels) Terminal

The VGA terminal allows direct connection to a PC monitor,

which can then be used to monitor surveillance video. It also

enables remote terminals to replay video with VGA quality,

thus improving the thoroughness of monitoring.

Supports up to 2TB HDD par one bay

The unit has two HDD bays, each supporting up to 2TB HDD

to make the unit the right choice in today’s trend for bigger

drives. Selecting a drive of the same capacity will allow the

use of the mirroring* function for data backup.

For the latest available range of optional drives, contact the

place of purchase.

* Mirror Recording

DSR-5716P / DSR-5709P each comes with two HDD bays. With two

HDDs of the same capacity installed, it is possible to record the same

video on two HDDs, thus allowing for a backup.

A High-end Recorder Offering 100 IPS in JPEG2000

Enables extended recording in superior picture

quality. It’s an advanced model with new network

features.

An all-in-one Unit with Superior Expandability that Also

Serves as a System Hub

The DSR-5716P / DSR-5709P processes a variety of signals —

digital, SSP, network — and can play the role of a system hub.

It offers clear picture recording and split-screen surveillance

and comes with USB ports. Its video terminals enable multi-

screen real-time monitoring at 800 IPS for DSR-5716P and

450 IPS for DSR-5709P. And it comes with a telemetry

function that offers control over PTZ / zoom cameras, including

those supplied by other manufacturers. It is an all-new unit

that is capable of accommodating even the most sophisticated

surveillance need.

Extended Recording Time

JPEG2000 improves picture quality without increasing the size

of the data ﬁ le, or maintains current quality with a reduced ﬁ le

size. This means you get more recording time from the same

HDD capacity.

Simultaneous Recording and Playback at 100 IPS

(720 x 288 pixels)

SANYO’s expertise in the ﬁ eld has made it possible to record

and playback simultaneously at a maximum speed of 100 IPS.

Exclusive Extension Units

The VA-EXH, an external HDD unit for further extending

recording time, and the VA-EXD1 B, a disc writer for backing-

up or copying data to portable media, are both available for the

DSR-5716P / DSR-5709P.

(Note) The S-ATA board VZU-SATB1 is needed when connected to

the external HDD unit, VA-EXH.

ROI (Region of Interest)

ROI is one of the advanced features included in the JPEG2000

compression method. By setting ROI, it is possible to apply

better picture quality for particular areas preset on the screen.

The ROI area setting is up to the user.

JPEG2000

16ch Digital Video Recorder

DSR-5716P

9ch Digital Video Recorder

DSR-5709P

16CH 9CH

JPEG

2000

JPEG

2000

HDD

2bay

HDD

2bay

520

TVL

520

TVL

JOG

SHUTTLE

JOG

SHUTTLE

VGA

output

VGA

output

USB

port

USB

port

Network Network

H-SSP

only

H-SSP

only

Camera

Telemetry

Control

Camera

Telemetry

Control

ROI: OFF BASIC mode (12KB)

Use the same amount of data …

ROI: MAX Static ROI recording (12KB)

for enhancing the picture quality

of regions of interest

Camera control (PTZ cameras & zoom

cameras only) available from the front

panel, PC or a controller

Alarm

sensor

PTZ

Camera

Alarm

sensor

PTZ

Camera

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Alarm Log Search

Recordings made during a particular period are shown in a

user-friendly GUI. By designating the hour, minute, month, or

day of the week of alarm events, a search is performed on a

log ﬁle to narrow the search and bring up the desired scene.

Multi Alarm Events Copy

Now it is possible to copy recorded video and audio directly to

external media without the use of the archive area. This allows

the user to retrieve desired video quickly.

CD-R/RW, DVD+R/+RW

The unit comes with two USB ports located on both the front

and rear panels. Using one of these terminals, it is possible to

backup data to CD-R/RW discs (Max. 640MB), DVD+R/+RW

(Max. 4.6GB). The use of discs ensures secure storage of

necessary video and audio data.

*Recommended products only

USB Ports

The DSR-5716P and DSR-5709P come with two USB

ports, one each on the front and rear panel. The front USB

port is handy for using USB memories, for features such

as Downloading and Uploading in the setup menu, newly

added ﬁrmware update, and downloading images. The rear

port can be used to connect VA-EXD1B, which enables the

downloading of images to a CD or DVD.

*When the front and rear USB ports are used simultaneously, the

front port is always given priority.

Independent Alarm Recording Rate for Each Channel

The unit lets the user set different rates of recording for

each camera for recordings activated by the motion sensor

or an alarm input. Within the preset time frame, the user

has freedom to change the recording rate for each camera

according to needs.

MODEL DSR-5716P DSR-5709P

General

Hard disk capacity

Max HDD Capacity (Technically) per one bay 2TB

Picture resolution

720 x 288 (pixels)

Compression

JPEG2000

Picture quality

5 levels (Basic, Normal, Enhanced, Fine, Super Fine)

Recording speed

28 levels. (100 to 0.033 FPS)

Recording area

Recording area / Archive area

Number of cameras

16 9

Menu language

English / French / German / Spanish

Date / Clock setup

Day / Month / Year (last two digits) / Hour / Minute / Second

Magniﬁcation

2x digital zoom using the [ZOOM] button

Search mode

Alarm Log Search, Alarm Search, Alarm Thumbnail Search,

Time/Date Search, Archive Area Search, Motion detection

Search, Bookmark Search

Memory backup Approximately 30 days (for 48 hours of electriﬁcation)

Video

Signal format

PAL standard (Color) / CCIR standard (B/W) auto select,

625 lines, 50 IPS

Video input

VBS / VS 1.0 V (p-p) 75 Ω,

BNC x 16

VBS / VS 1.0 V (p-p) 75 Ω,

BNC x 9

Video output

BNC x 16 BNC x 9

Main monitor output

VS 1.0 V (p-p) 75 Ω BNC x 1, VGA x 1

Monitor 2 output

VBS / VS 1.0 V (p-p) 75 Ω BNC x 1

VGA output

Dsub-15 pin

Audio

Audio input

-8 dBs 27 kΩ unbalanced RCA x 1

Audio output

-8 dBs 600 Ω unbalanced RCA x 1

Control

Signal

LAN

10BASE-T / 100BASE-TX, RJ-45 x 1 Compatible protocol:

UDP, TCP/IP, HTTP server, NTP, SMTP, DHCP

RS-485 / 422

RJ-11 x 2, (With a termination switch)

USB

USB2.0 Series terminal x 2 (Front x 1, Rear x 1)

Alarm input

No-volt contacts

(100ms or more) x 16

No-volt contacts

(100ms or more) x 9

Alarm output

Relay (DC24 V Max. 1A / AC125 V Max. 0.3 A)

Sensor alarm output

Open collector, Low level

active (Max. 25 mA) x 16

Open collector, Low level

active (Max. 25 mA) x 9

Remote control input

Two-wire voltage control x 2

Non rec out

Normal 5 V DC, Low level active x1

Clock set input

No-volt contacts (100ms or more) x 1

Clock set output

Active low, Open collector Max. 25mA x 1

Alarm reset

No-volt contacts (100ms or more) x 1

Warning output

Normal DC 5 V Low level active x 1

Disk full output

Normal DC 5 V Low level active x 1

Output 1 / Output 2

Normal DC 5 V Low level active x 1

External timer input

No-volt contacts (100 ms or more) x1

Protocols SANYO, Pelco, GE, AD, BBV

Expansion slot Option SCSI board (Ultra 160 SCSI), Option S-ATA board

Electrical

Power source 120 V to 240 V AC, 50 / 60 Hz

Power consumption

720mA

Operating conditions

Temperature: 5°C to 40°C [41°F to 104°F], Humidity: 80% or less

Physical

Dimensions 420(W) x 96(H) x 365(D) mm [16.5(W) x 3.8(D) x 14.4(D) in]

Weight

(Approx.)

6.1 kg [13.5 lbs.] (without HDD), 6.6 kg [14.6 lbs.] (with one HDD)

7.2 kg [15.9 lbs.] (with two HDDs)

NOTE: Speciﬁcations subject to change without notice

Warnings regarding HDDs

• Do not attempt to install or replace a HDD on your own. You cannot use these HDDs on PCs.

• The unit may be damaged if it is exposed to an impact or vibration, or the power plug is

disconnected during operation.

• Sanyo will not be held liable for any data loss due to an HDD error or a failure during recording.

• “Microsoft” is registered trademarks or trademarks of Microsoft Corporation in the United States

and/or other countries.

• All other company and product names are registered trademarks and/or trademarks of their

respective owners.

(Unit: mm)

DSR-5716P, DSR-5709P

Rack Mount Bracket

Option

VA-RACMK2

76.2

22.6

30.1

VA-RACMK2 (option)

465.2

420 10

349

375

Cooling fan

External HDD unit VA-EXH

VA-EXH up to four HDDs enables a drastic increase in recording

capacity.

Disc writer VA-EXD1 B

Backup important data on DVD+R/RW discs or CD-R/RW discs

with the USB connection.

S-ATA Board VZU-SATB1 for VA-EXH

The VZU-SATB1 enables the connection to an external HDD unit.

SCSI Board VZU-SCB1

The VZU-SCB1 enables the connection to an external RAID

system. For further details on compatible devices, please

contact the place of purchase.

Rack Mount Bracket VA-RACMK2

for DSR-5716P / DSR-5709P / VA-EXH

Rack Mount Bracket VA-RACMK1

for VA-EXD1 B

Optional accessories (sold separately)

Choosing Live Picture Resolution at Remote Terminals

When the main unit is set to record video at basic quality, you

can still choose enhanced quality for monitoring live video on

a remote PC. It is also possible to record super-ﬁne quality

pictures on the main unit and monitor the basic quality video

on a terminal to reduce network load. In short, the unit allows

the user to choose the quality of live video independently,

regardless of its recording mode. *This does not apply when

the recording is done at the maximum rate of 100IPS.

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

153

Pre-alarm Recording / Alarm Recording / Timer Recording

The timer recording mode allows the user to set eight

different settings. Different settings for each day of the week

and multiple settings for the same day are possible. It is also

possible to specify the start / stop time or use a different

recording speed.

Programmed Recording

For each of four available programs (P1 to P4), the user can

specify particular cameras for recording. In addition, different

recording speeds can be set for each program. These

programs can also be used when making a timer recording or

a pre-alarm recording.

Extensive Display Options

For both live picture monitoring (during multiplex recording)

and replay of pictures, the user can select from 16-screen,

13-screen, 9-screen, 6-screen,

4-screen display, and

full-screen (1-screen) display.

• Plus display

• Screen position assignment

• Monitor masking

AV Output Terminal on the Front Panel

This terminal can be used for supplying signals to a

consumer VCR or DVD recorder, thus enabling the use of

analog video tapes and DVD discs as recording media. When

a TV monitor is connected, the same video signal as on the

main monitor can be supplied to it, including the menu screen.

DSR-3716PA / DSR-3709PA function as a system hub

that connects different devices such as cameras and

monitors. They offer added beneﬁ ts of 520 TVL high

picture quality, real time (50IPS/screen) multiple

screen monitoring, and USB ports to output data to

a CD-R/RW disc.

Simultaneous Recording and Playback at 50 IPS

The simultaneous recording and playback function

makes it possible for the user to review recorded

images without interrupting the recording in progress.

Full-motion, Multiple Screen Display of Live Video

Images

Multiple live video images can be viewed

simultaneously in 16, 9, or 4 split-screen display at the

speed of 50 IPS/channel. Full-screen display is also

available. Select the desired display mode without

worrying about the update speed.

Audio Recording Available

Audio recording is available for recording speeds from

50 IPS to 1 IPS. (Audio input must be a single channel.)

Supports up to 1TB HDD per one bay

The unit has two HDD bays.

*Mirror Recording

DSR-3716PA / DSR-3709PA each comes with two HDD bays. With

two HDD's of the same capacity installed, it is possible to record

the same video on two HDDs, thus allowing for a backup.

Five Different Picture Qualities and 27 Recording

Speeds Enable Flexible Settings

The picture quality is selectable from BASIC, NORMAL,

ENHANCED, FINE and SUPER FINE.

Three Recording Modes for Flawless Recording

DSR-3716PA / DSR-3709PA has three recording modes;

Alarm, Timer, and Program. The three modes can operate

individually or in any combination.

M-JPEG

16ch Digital Video Recorder

DSR-3716PA

9ch Digital Video Recorder

DSR-3709PA

16CH 9CH

M-JPEG M-JPEG

HDD

2bay

HDD

2bay

520

TVL

520

TVL

JOG

SHUTTLE

JOG

SHUTTLE

120 to

240 V AC

operation

120 to

240 V AC

operation

USB

port

USB

port

Network Network

SSP SSP

Camera

Telemetry

Control

Camera

Telemetry

Control

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

254

Camera Telemetry Control

The buttons on the DSR-3716PA / DSR-3709PA front

panel allow the user to control PTZ / zoom cameras. The

unit transmits SSP* signals by overlaying them on to the

video signal through a coaxial cable. This makes it possible

to control cameras that support coaxial SSP transmission,

without any additional device other than a video cable, not

only from the front panel, but also from a SANYO controller or

via a network. In addition, BBV and PELCO cameras can also

be controlled if they support coaxial signal transmission.

* SSP (SANYO Security Serial Protocol) is a communication protocol

for security devices developed by SANYO.

A Camera with No Alarm Input Controlled

by an External Alarm

Through this unit, an external alarm can prompt PTZ cameras

such as VCC-9500P E / VCC-9600P E / VCC-9700P E /

VCC-9800P E series to return to preset positions and

perform other operations. There are ﬁve operations available

— PRESET, TOUR, AUTO PAN, SEQUENCE, and AUTO

FOCUS.

Multiple Backup Methods Depending on Data Size CD-R/RW

Through USB ports located both on the front and rear panels,

it is possible to backup data in the HDD archiving area to

CD-R/RW discs. The use of discs assures secure storage of

necessary video and audio data. (The two USB ports cannot

be used simultaneously; the front USB terminal has the

higher priority.)

One Touch Multi-Channel Copy

Multiple channels can be copied to

various media with a single operation.

Use the Camera Select buttons on the

front panel to select desired cameras

and start recording. Pressing the

MULTI button will select all cameras

simultaneously.

Multi-screen Display for Network PCs

DVR Viewer2 software allows the user to select from full-

screen, Quad, Multi-9, and Multi-16 displays on any PC on the

network. DVR Viewer2 software is automatically downloaded

MODEL DSR-3716PA DSR-3709PA

General

Hard disk capacity

Max HDD Capacity (Technically) per one bay 1TB

Picture resolution

720 x 288 (pixels)

Compression

M-JPEG

Picture quality

5 levels (Basic, Normal, Enhanced, Fine, Super Fine)

Recording speed

27 levels.

Recording area

Normal Recording Area / Alarm Recording Area / Archive Area

Number of cameras

16 9

Menu language

English / French / German / Spanish

Date / Clock setup

Day / Month / Year / Hour / Minute / Second

Magniﬁcation

2x digital zoom using the [ZOOM] button

Search mode Alarm Search, Alarm Thumbnail Search, Time/Date Search,

Archive Area Search, Motion detection Search

Memory backup Approximately 30 days (for 48 hours of electriﬁcation)

Video

Signal format

PAL standard (Color) / CCIR standard (B/W) auto select,

625 lines, 50 IPS

Video input

VBS / VS 1.0 V (p-p) 75 Ω,

BNC x 16

VBS / VS 1.0 V (p-p) 75 Ω,

BNC x 9

Video output

BNC x 16 BNC x 9

Main monitor output

VS 1.0 V (p-p) 75 Ω BNC x 1

Monitor 2 output

VBS / VS 1.0 V (p-p) 75 Ω BNC x 1

Audio

Audio input

-8 dBs 27 kΩ unbalanced RCA x 1

Audio output

-8 dBs 600 Ω unbalanced RCA x 1

Microphone input

-60 dBs 10 kΩ unbalanced 3.5 mm mini jack x 1

Front

Video output

1.0 V (p-p) 75 Ω unbalanced RCA x 1

Audio output

-8 dBs 600 Ω unbalanced RCA x 1

Interface

CompactFlash slot

CF type II

Control

Signal

LAN

10BASE-T / 100BASE-TX, RJ-45 x 1 Compatible protocol:

UDP, TCP/IP, HTTP server

RS-485

RJ-11 x 2, (With a termination switch)

USB

USB1.1 Series terminal x 2 (Front x 1, Rear x 1)

Alarm input

No-volt contacts

(100ms or more) x 16

No-volt contacts

(100ms or more) x 9

Alarm output

Active low, Open collector Max. 500 mA x 1

Sensor alarm output

Open collector, Low level active

(Max. 25 mA) x 16

Open collector, Low level active

(Max. 25 mA) x 9

Remote control input

Two-wire voltage control x 2

Non rec out

Normal 5 V DC, Low level active x1

Clock set input

No-volt contacts (100ms or more) x 1

Clock set output

Normal OPEN Low level active x 1

Alarm reset

No-volt contacts (100ms or more) x 1

Warning output

Normal DC 5 V Low level active x 1

Disk full output

Normal DC 5 V Low level active x 1

Alarm full output

Normal DC 5 V Low level active x 1

Series input

Normal DC 5 V Low level active x 1

Series output

Normal OPEN Low level active x 1

External timer input

No-volt contacts (1 second or more) x 1

Electrical

Power source 120 V to 240 V AC, 50 / 60 Hz

Power consumption

800mA

Operating conditions

Temperature: 5°C to 40°C [41°F to 104°F], Humidity: 80% or less

Physical Dimensions 420(W) x 96(H) x 365(D) mm [16.5(W) x 3.8(D) x 14.4(D) in]

Weight (Approx.) 6.3 kg [13.9 lbs.] (with one HDD unit)

NOTE: Speciﬁcations subject to change without notice

Warnings regarding HDDs

• Do not attempt to install or replace a HDD on your own. You cannot use these HDDs on PCs.

• The unit may be damaged if it is exposed to an impact or vibration, or the power plug is

disconnected during operation.

• Sanyo will not be held liable for any data loss due to an HDD error or a failure during recording.

(Unit: mm)

DSR-3716PA, DSR-3709PA

Rack Mount Bracket

Option

VA-RACMK2

76.2

22.6

30.1

349

375

Cooling fan

465.2

420

VA-RACMK2 (option)

Disc writer VA-EXD1 W

Backup important data on DVD+R/RW discs or CD-R/RW discs

with the USB connection.

Rack Mount Bracket VA-RACMK2

for DSR-3716PA / DSR-3709PA

Rack Mount Bracket VA-RACMK1

for VA-EXD1 W

Optional accessories (sold separately)

by copying an image. It is also available for download on our

website.

*The maximum number of cameras for DSR-3709PA is nine.

Print Directly from a CF Card

For recommended products, visit our website

www.sanyosecurity.com or contact the place of purchase.

Network Features

The DVR is operable from a PC via network by using Internet

Explorer.

Camera control

(PTZ & zoom only)

available from the

front panel

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Easy Backup

Supports the use of USB memory sticks. This makes it easy

to backup not only still images, but also videos in AVI format.

Triplex Function

The Triplex function of DSR-2016 / DSR-2004 makes it

possible to perform three functions simultaneously, i.e.

recording, playback, and network monitoring.

Standard Conﬁ guration Includes a

CD-R/RW Drive DSR-2016

The DSR-2016 comes with a CD-R/RW drive and does not

require additional devices for backing up images and settings.

Compact Size of 350 mm Width DSR-2004

Digital recording is now available in a compact package of 350

mm in width. It is an ideal solution for the limited spaces of

convenience stores and retails chains, where a large number

of DVRs are needed.

Search Functions

The three search functions — ”Event Search”, ”Time / Date

Search” and ”Time Line Search” — call up desired images

instantly. ”Book Mark Search”

Audio Recording Available

DSR-2004 comes with 4ch input and 1ch output terminals to

enable audio recording on each channel. Note that the 1 - 4

channels are not selectable with the DSR-2016.

Security Lock

Security lock — offers users the best option for security

needs.

16-4ch Monitoring with Quality Picture of MPEG-4

and Full Motion Picture of 200 IPS* *Only DSR-2016

Low Rate but High Quality

Since MPEG-4 offers quality pictures at a low bit-rate, it is

possible to record pictures for a considerably longer time

compared to JPEG.

MPEG-4

The MPEG (Moving Picture Experts Group) 4 standard was

designed to reproduce a wide range of moving pictures, from those

on a low speed communication line to those with high-deﬁ nition

TV picture quality. It is especially effective for application on low

speed networks. While conventional MPEG1/2 encodes only

portions of the picture that have changed from the key frames,

MPEG-4 employs a new technique to disassemble a frame into

objects. Simply put, it disassembles a picture into elements such

as backgrounds, persons, buildings, etc. and records differentials

or each object. The method is similar to that of M-JPEG recording

format; MPEG-4 objects are not limited to physical ones, but include

audio as well.

Network

DSR-2016 / DSR-2004 offers network connectivity with

LAN and WAN. MPEG is an international standard for highly

efﬁ cient digital encoding (compression) of video and audio

signal and is indispensable for video signal compression and

transmission over a network. Compared to conventional

systems, DSR-2016 / DSR-2004 offers improved surveillance

video transmission — clear pictures at low bit-rate — by the

adoption of MPEG-4.

Simultaneous Recording/Playback at 200 IPS DSR-2016

The DSR-2016 offers the capability to smoothly record and

playback movement at a maximum rate of 200IPS. It also

features two HDD bays, enabling expansion of storage

capacity up to 1TB.

Auto-recording with Optimum File Size

DSR-2016 / DSR-2004 automatically selects an optimum ﬁ le

size depending on the input signal to make recordings with the

same picture quality. The recording time changes depending

on the input signal.

Built-in Motion Sensor

DSR-2016 / DSR-2004 comes with a built-in motion sensor.

Different settings can be made for each channel image

independently. The sensor can detect moving objects within

the screen by picking up changes in brightness. The user can

use this feature to trigger an alarm recording.

MPEG-4

16ch Digital Video Recorder

DSR-2016

4ch Digital Video Recorder

DSR-2004

16CH 4CH

MPEG-4 MPEG-4

HDD

2bay

HDD

1bay

500

TVL

250

TVL

VGA

output

VGA

output

USB

port

USB

port

Network Network

SSP Built-in

CD-R/RW

Camera

Telemetry

Control

Camera

Telemetry

Control

350mm

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

DVR Utility 2000S

Rack Mount Bracket VA-RACMK3

for DSR-2016

Optional accessories (sold separately)

IR Remote Control

The IR remote controller allows the user to control up to 99

DVRs (when DSR-2016 is used. When DSR-2004 is used, up

to nine).

Two-way Audio over a Network

During a remote surveillance, it is possible not only to receive

audio, but also to send a warning message to the point of

surveillance.

Rear Connectors for Essential Needs

Though it’s compact, the rear panel provides terminals for

essential devices, including a microphone and speakers.

DDNS (Dynamic DNS)

The DSR-2016 / DSR-2004 can be accessed with a ﬁxed host

name (e.g. sanyodsr2016p), which makes the network easy to

remember, always available, and secure.

SANYO DVR Utility software

The combination of DSR-2016 / DSR-2004 and SANYO

DVR Utility 2000S enables monitoring and DVR operation

via a network for enhanced usability.

System environment

OS Windows® XP Professional (SP2), Windows® XP Home

DirectX® 8.1 or above

CPU Intel Pentium® 4 - 1.2GHz or higher

MEMORY Minimum 256 MB (512 MB or higher Recommended)

VGA 16 MB (64MB Recommended)

Resolution 1024 x 768

Disk capacity 10 MB (More than 2.1 GB when using Sanyo recording

software)

DSR-2016 / DSR-2004 supports up to

four concurrent Digital Client users

DSR-2016

(Unit: mm)

DSR-2004

350

260

349

432

Rack Mount Bracket

VA-RACMK3 (option)

MODEL DSR-2016 DSR-2004

General

Hard disk capacity

Max HDD Capacity per one bay 2TB

Picture resolution

704 x 576, 704 x 288, 352 x

288 (pixels) 704 x 576, 352 x 288 (pixels)

Compression

MPEG-4

Picture quality

5 levels (Network, Economy,

Basic, Normal, Fine) 3 levels (Basic, Normal, Fine)

Recording speed

200IPS / 16ch (352 x 288/ch),

50 IPS / 16ch (704 x 576/ch)

100IPS / 4ch (352 x 288/ch),

25 IPS / 4ch (704 x 576/ch)

Still image capture

704 x 576

Number of cameras

16 4

Menu language

English / French / German / Spanish / Italian / Russian /

Chinese / Polish / Czech / Swedish / Rumanian /

Bulgarian / Serbian / Thai / Japanese

Telemetry control

protocol

SANYO (SSP) / PELCO-D /

KALATEL / VICON /

SENSORMATIC / ELMO

SANYO (H-SSP) / PELCO-D /

KALATEL / VICON /

SENSORMATIC / ELMO

Search mode

Event Search,

Time / Date Search,

Time line Search, Book Mark

Event Search,

Time / Date Search,

Time line Search

Memory backup Approximately 30 days

Video

Signal format

PAL standard (Color) / CCIR standard (B/W) auto select,

625 lines, 50 IPS

Video input

VBS / VS 1.0 V (p-p) 75 Ω,

BNC x 16

VBS / VS 1.0 V (p-p) 75 Ω,

BNC x 4

S-video output

x 1 -----------

Main monitor output

VS 1.0 V (p-p) 75 Ω BNC x 1*1

Monitor 2 output

BNC x 1 -----------

VGA output

VGA x1*1

Audio

Audio input

-8 dBs 27 kΩ unbalanced RCA x 4

Audio output

-8 dBs 600 Ω unbalanced RCA x 1

Net

work

Interface

ADSL, LAN / DDNS supported

LAN port

10BASE-T / 100BASE-TX

Backup

USB

Still image & Video data

CD-R/RW

Built-in CD-R/RW -------------

Control

signa

Alarm output

x 4 (0.5 A 12.5 V AC,

1 A 30 V DC)

x 1 (0.5 A 12.5 V AC,

1 A 30 V DC)

[Values in parentheses are the relay ratings inside

the DSR-2016/DSR-2004.]

Sensor alarm input

x 16 x 4

Remote control 99 units 9 units

Electrical

Power source Input: 100 V to 127 V AC, 4A

200 V to 240 V AC, 2A

Input: 100 V to 240 V AC,

50/60 Hz Output: 12 V DC

Power consumption

HDD x 1+CD-RW Max. 80W 25 W / 12 V

Operating conditions

Temperature: 5°C to 40°C [41°F to 104°F],

Humidity: 80% or less

Physical

Dimensions 432(W) x 89(H) x 349(D) mm

[17 (W) x 3.5(H) x 13.7 (D) in]

350(W) x 65(H) x 260(D) mm

[13.8 (W) x 2.6(H) x 10.2 (D) in]

Weight

(Approx.)

6.7kg [223.3.oz]

(with one HDD unit)

3.2kg [112.9.oz]

(with one HDD unit)

NOTE: Speciﬁcations subject to change without notice

*1 Either the video output or VGA output can be enabled at any one time.

Warnings regarding HDDs

• Do not attempt to install or replace a HDD on your own. You cannot use these HDDs on PCs.

• The unit may be damaged if it is exposed to an impact or vibration, or the power plug is

disconnected during operation.

• Sanyo will not be held liable for any data loss due to an HDD error or a failure during recording.

* “Microsoft” is registered trademarks or trademarks of Microsoft Corporation in the United States

and/or other countries.

* All other company and product names are registered trademarks and/or trademarks of their

respective owners.

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

SSP Control

Control all surveillance devices from

one location using SANYO’s proprietary

protocol (SSP)

VSP-9000

Model No.

VSP-9000 VSP-8500 VSP-3000

RS-485

RS-422 ----------

D-SUB 9pin

SANYO (SSP, H-SSP)

Pelco-D

Sensormatic ----------

A.D. ----------

VCL ----------

Ernitec ----------

Videotec (macro) ----------

M.mercer ----------

DVRs / Multiplexers:

SANYO (SSP)

----------

Videotec ----------

Video matrix

switchers : Videotec

(Only SM328S) ----------

Total units in one system

256 256 256

Controllers Max 5 Max 5 Max 5

DVRs

98 98 ----------

Cameras

127 A port, 127 B port 127 A port, 127 B port

255

Password 3 password levels 3 password levels 1 password levels

Page 57 58 59

SSP devices

Cameras

High-resolution

AF Zoom Camera

VCC-ZM500P

High-resolution

AF Zoom Camera

VCC-ZM600P

High-resolution Weatherproof

AF Zoom Camera

VCC-XZ600P

High-resolution

AF Speed Dome Camera

VCC-9800P E

VCC-9600P E

VCC-9700P E

VCC-9500P E

High-resolution

Weatherproof Camera

VCC-XZ200P+VA-20ST

High-resolution Indoor mini

Dome Camera

VCC-P7575PA+VA-50ST

High-resolution Vandal-resistant

Dome Camera

VDC-DP7585P+VA-50ST

High-resolution Vandal-resistant

PTZ Dome Camera

VDC-DP9585P

High-resolution Indoor mini

PTZ Dome Camera

VCC-P9575P

Recorders

M-JPEG 9ch DVR

M-JPEG 16ch DVR

JPEG2000 9ch DVR

JPEG2000 16ch DVR

MPEG-4 16ch DVR

DSR-3709PA

DSR-3716PA

DSR-5709P

DSR-5716P

DSR-2016

DSR-HB8000

Realize enhanced effectiveness in your security

environment

The SSP Control System forms a state-of-the-art security

environment that utilizes existing surveillance cameras and

recording devices by effectively combining into a function

device VSP-9000 / VSP-8500 Controller SANYO Security

Serial Protocol (SSP) for RS-485 communications. The system

enables the user-friendly linking of cameras, DVR and other

elements, and you can control with your ﬁ ngertips up to 254

cameras, 98 digital video recorders and 1 matrix.

Control system supporting SSP telemetry devices and

multiple protocols

It supports not only SSP (SANYO Security Serial Protocol), but

also other major protocols such as Pelco-D, etc.

VSP-9000

Camera: SANYO (SSP, H-SSP), Pelco-D, Sensormatic, A.D.,

VCL, Ernitec, Videotec, (macro), M.mercer (Max.2 protocols

within 1 system)

DVRs / Multiplexers : SANYO (SSP), Videotec

Video matrix switchers : Videotec

VSP-8500

Cameras: SANYO (SSP, H-SSP), Pelco-D, Sensormatic, A.D.,

VCL, Ernitec, Videotec, (macro), M.mercer (Max.2 protocols

within 1 system)

DVR : SANYO (SSP)

Matrix SW : Videotec (SM328S; 32 inputs & 8 outputs)

Backlit LCD with a touch screen VSP-9000

The 320 x 240 LCD screen installed on the front panel also

serves as a touch panel. Settings, operation, and control of

even a large-scale system can be done by touching the screen

and displaying the menu. The touch panel offers easy access

to otherwise complicated settings and operations.

Simple keystrokes on the VSP-8500 control DVRs and PTZ cameras.

The VSP-3000 is capable of controlling PTZ cameras.

SSP System Controller

Touch the buttons displayed on the screen

The display changes at

each touch

• The menus and sub-menus can be set by pressing

the keys represented by the icons

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

VSP-8500

Customization of up to 26 user maps 　　　　 VSP-9000

User maps can easily be designed by PC GUI and uploaded on

the VSP-9000 through RS-232C

• The VSP-9000 LCD touch panel simpli es the operation of today’s

increasingly complex medium- to large-scale security systems.

40 free conﬁ gurable macro-function keys for each map

VSP-9000

Allows the operator to control individual devices by assigning

an address to each device.

Telemetry control using 3-axis joystick (Pan/Tilt/Zoom)

To control digital video recorders, cameras,

and other devices, the VSP-9000 / VSP-

8500 (Camera control only) controller

is equipped with a 3-axis joystick. The

joystick guarantees easy operation from a

remote location.

Best solution for small-to-medium-size system VSP-8500

The VSP-8500 allows the user to control various devices with

simple key operations and is suitable for small to medium-size

surveillance systems with some cameras, a DVR, and a matrix

control.

Direct keys for Camera and DVR control

MODEL VSP-9000 VSP-8500

Communication method RS-485, RS-422

Communication Speeds 2400, 4800, 9600, 19200 bps

Control terminals RJ-11 : VIDEO x 1, TELEMETRY x 2 D-SUB 9pin x 1 (RS-232C: for PC)

Graphic display 320 x 240 pixels, backlit by white LED 4 lines backlit display

No. of connectable devices

Total: 256 units in one system

Controllers : Max 5,

DVRs / Multiplexers : Max 98 via VIDEO terminal

Cameras : 127 via TELEMETRY A port, 127 via TELEMETRY B port

Total: 256 units in one system

Controllers : Max 5,

DVRs : Max 98 via VIDEO terminal

Cameras : 127 via TELEMETRY A port, 127 via TELEMETRY B port

Matrix switchers : (Videotec SM328S): Max. 1 unit via VIDEO terminal

No. of user maps 26 maps, 40 keys for each map ---------------------

Protocol

Cameras : SANYO (SSP, H-SSP), Pelco-D, Sensormatic, A.D., VCL, Ernitec,

Videotec, (macro), M.mercer (Max.2 protocols within 1 system) DVRs /

Multiplexers : SANYO, Videotec Video matrix switchers : Videotec

Cameras : SANYO (SSP, H-SSP), Pelco-D, Sensormatic, A.D., VCL, Ernitec,

Videotec, (macro), M.mercer (Max.2 protocols within 1 system)

DVRs DVR : SANYO

Matrix switcher : Videotec (SM328S: 32 inputs & 8 outputs)

Menu language English / French / German / Italian (expandable to

12 languages using bundled software) English / Spanish / French / German / Italian / Japanese

Operating conditions Temperature: 5°C to 40°C [41°F to 104°F], Humidity 80% or less

Power requirement (approx.)

12 V DC, 1A

Dimensions 280(W) x 94(H) x 225(D) mm [11.0(W) x 3.7(H) x 8.9(D) in.]

(w/ 3-axis proportional joystick) (Graphic display: 115 x 86 mm) [4.5 x 3.4 in.]

280(W) x 101(H) x 225(D) mm [11.0(W) x 4.0(H) x 8.9(D) in.]

(w/ 3-axis proportional joystick)

Weight (approx.) 900 g [31.7 oz.]

Accessories

AC adapter x 1, Power cable x 3 (for North America, UK, EU),

RS-232C cable x 1, Modular cable x 6 (Cross Type : 150cm),

Communication conversion connector (screw x 2, double faced tape x 1) x 6,

Setup software (CD-ROM)

AC adapter x1, Power cable x 3 (for North America, UK, EU)

Modular cable x 6 (Cross type: 150 cm)

Communication conversion connector (screw x 2, double-faced tape x 1) x 6

NOTE: Speciﬁ cations subject to change without notice

Keys for

Camera

control

Keys for

CH select

and DVR

control

VSP-9000

(Unit: mm)

VSP-8500

(Unit: mm)

280 94

225

101

280

115 43

225

SSP System Controller

3 password levels

The VSP-9000 / VSP-8500 facilitates a multi-level security

setting according to the access level of the user.

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

VSP-3000

Centralized camera controls from a single controller

Protocols Controllable number of cameras

SSP/H-SSP 1 to 127

Pelco-D 1 to 255

Telemetry control using 3-axis joystick (Pan/Tilt/Zoom)

To control cameras the VSP-3000

(Camera control only) controller is

equipped with a 3-axis joystick. The

joystick guarantees easy operation

from a remote location.

2-line backlit menu display

The display on the front LCD is easy to understand.

Connection Example

SSP System Controller

Mouse function for PC-based DVR, DSR-HB8000

• Simple camera control and DVR display switch change

available • Control system supporting SSP / H-SSP and

Pelco-D protocols • Telemetry control (pan/tilt/zoom) via 3-axis

joystick and direct keys • Max. 255 cameras connectable (Max.

127 for SSP)

VSP-3000

(Unit: mm)

179.6

173.3

99.7

68.7

279.7

269.8

MODEL VSP-3000

Communication method RS-485

Communication speeds 2400, 4800, 9600, 19200, 38400, 57600 bps

Control communication

terminal TX1, TX2, TX3, TRx

Keyboard 29 keys

Joystick 3-axis joystick (pan/tilt/zoom)

USB mouse port Compatible with DVRs with mouse function

No. of connectable devices

Total: 256

• Cameras: SSP/HSSP: 127, Pelco-D: 255

• Controllers: 5

• Digital video recorders: 99 (Channel switching only)

Protocol SS P, H - S S P, P e l co - D

Operating environment Temperature: 5°C to 40°C [41°F to 104°F],

Humidity 80% or less

Power supply (AC adapter) Input voltage: 100 to 240 V AC 50/60Hz

Output voltage: 12 V DC

Storage environment Temperature: -20°C to 60°C [-4°F to 140°F],

Humidity 80% or lower

Current consumption

0.2A

Dimensions (W x H x D) 279.7(W) x 99.7(H) x 179.6(D) mm

[11.2(W) x 4.0(H) x 7.2(D) in.]

Weight (approx.) 750 g [26.5 oz.]

Accessories

• AC adapter x1, power cord x 3

(for North America, UK, EU)

• USB cable, Connector

• Modular cable x 1 (Straight type: 300cm)

Communication conversion connector x 1

Double-faced tape x 1

NOTE: Speciﬁ cations subject to change without notice

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

• Multi-language OSD (11 languages) • Adjustable height

• Comes with a remote controller

High Performance Professional LCD Monitor

VMC-L2019P

VMC-L2017P

Flat panel displays

These SXGA grade monitors display clear and crisp pictures.

The thin package makes them the ideal choice for applications

with limited space.

Easy to access front panel switches

Ease of operation is the focus of this design. The user can

switch the display, set the volume, and set the scan from

switches on the front panel, or by using the remote controller.

• 1280 x 1024 Resolution • 1000:1 High contrast ratio

• 2 composite and 1 S-VIDEO input (Loopthrough out, BNC

type) • 1 VGA input • 2 audio input (RCA type)

19” 17”

Horizontal

500

TV Lines

Horizontal

500

TV Lines

composite 2

composite

S-VIDEO

IN-OUT

terminals

S-VIDEO

IN-OUT

terminals

VGA

input VGA

input

MULTI

PAL<->NTSC

SYSTEM

MULTI

PAL<->NTSC

SYSTEM

(Unit: mm) [VMC-L2017P]

VMC-L2019P / VMC-L2017P

69 [67]

440 [371]

378 [339]

303 [272]

361 [331]

398 [368 ]

37 [37]

220 [220]

MODEL VMC-L2019P VMC-L2017P

LCD size 19" active matrix TFT LCD panel 17" active matrix TFT LCD panel

TV system PAL / NTSC, Automatic detection

Horizontal resolution 500 TV lines or more (Y/C input mode)

Resolution (H x V) 1,280 x 1,024

Brightness (cd/m2) 300 cd/m2

Contrast ratio 1000:1

Response 1.7 msec 1.3 msec

View Angle degree Left / Right: 80°/ 80° Up / Down: 80° / 80°

Active display area (H x V) 376 x 301 mm 338 x 270 mm

Pixel pitch 0.294 x 0.294 mm 0.264 x 0.264 mm

Scan system Progressive only

Color system PAL / NTSC 3.58

Screen mode 4 : 3

Filter 2 D Comb

Other functions Noise reduction, PIP, Freeze, Underscan

Composite 2 composite input (1.0 V (p-p) 75W terminated, Loopthrough out, BNC type)

S-Video 1 Y/C input (Min-DIN connector)

VGA 1 VGA input

Audio 2 Audio inputs 2 W (1 W + 1 W stereo, RCA type)

OSD Language 11 (English / Spanish / French / German / Italian / Russian / Swedish / Portuguese / Chinese / Korean / Japanese)

Height adjustment 0 to 100 mm

Tilt adjustment -5° to +25 deg

Angle adjustment -165 to +165 deg.

Dimensions (W x H x D) 440 x 220 x 398 mm [17.3 x 8.7 x 15.7 in] 371 x 220 x 368.6 mm [14.6 x 8.7 x 14.5 in]

Net weight 6.9 kg [243.4 lbs.] 6.0 kg [211.6 lbs.]

Power requirement 100 V to 240 V AC 50 /60 Hz

Power consumption (approx.)

42 W

NOTE: Speciﬁ cations subject to change without notice

(Unit: mm)

100

115

100

115

Wall Mounting Bracket

VA-BWM2

(sold separately)

Arm Bracket

VA-AWM3

(sold separately)

90° 90°

115

Applicable for

VMC-L2019P

VMC-L2017P

Alpplicable for

VMC-L2019P

VMC-L2017P

90°

360°

352

ø4.2 (4x)

M4 (4x)4.5

7.5

3100

115

Example System

System configuration

Choose from the Sanyo line up

Software

Video Management Software

Network Recorder Software

Network

VA-SW60 (Enterprise)

VA-SW50 (Advanced)

Pan-focus Camera

VCC-XZ200P (D/N)

+VA-20LAN

VDC-DP7585P (D/N)

+VA-50LAN or VA-51LAN

VCC-P7575PA

+VA-50LAN or VA-51LAN

Network Software

VA-SW60 (Enterprise)

VA-SW50 (Advanced)

VA-SW3050S (for server)

VA-SW3050C (for client)

Network Camera

VCC-HD4000P (D/N)

VCC-N6695P (D/N)

VCC-XZN600P (D/N)

VCC-ZMN600P (D/N)

VDC-DPN9585P (D/N)

VCC-PN9575P

Speed Dome Camera

VCC-9800P E (D/N)

+ VA-80LAN or VA-82LAN

VCC-9700P E

+ VA-80LAN or VA-82LAN

VCC-9600P E (D/N)

+ VA-80LAN or VA-82LAN

VCC-9500P E

+ VA-80LAN or VA-82LAN

DVR*

DSR-5716P

DSR-5709P

DSR-3716PA

DSR-3709PA

Server PC

Client PC

Network Camera

VA-SW3050S (for server)

VA-SW3050C (for client)

(*Supported by VMS only) (D/N: Day/Night Camera)

IP Camera and Networking

The use of SANYO network software, for example, makes it possible to monitor different locations from a central point over a

network. Without the constraints in wiring, optimized camera placement ensures the security of each area.

Use a vandal-resistant PTZ camera for a crowded area like an entrance, or an HD Megapixel camera with recording function for a

key surveillance point. Use a PTZ camera for a wide area to trace movements of a subject. For a parking lot or other outdoor

facility, weatherproof zoom cameras and PTZ cameras are available. The WDR camera is a perfect solution for locations where

intense backlight is expected. SANYO’s product range includes a variety of IP cameras that offer the optimal choice for every

situation. From large-scale application to small-scale surveillance needs, SANYO handles them all.

Full IP System Suitable for Large Scale Surveillance

SANYO’s IP camera and network software offers freedom in integrating systems ----

from large scale systems for airports and shopping malls to centralized surveillance

systems that connect dispersed schools and stores.

A Network Built Around a Hybrid DVR Provides

The Best Solution for Remote Surveillance

In addition to normal surveillance and recording operations, including extensive video recording with MPEG-4 technology, the

Hybrid DVR offers added features, such as building databases inter-connected with tenants' POS systems or ATM systems.

The use of MPEG-4 improves the quality of remote surveillance over a network and expands the scope of applications.

Optimal Systems for Large to Medium Scale Applications

Connect shops and branch offices with a network for better management.

The DSR-HB8000 can manage up to 80 cameras with Monitor Plus function over the network.

Also multiple DSR-HB8000 can be connected with CMS via network.

Example System

Camera (Network / Analog) DSR-HB8000 Monitor

DVR

DSR-HB8000

Monitor

VMC-L2019P

VMC-L2017P

Controller

VSP-9000

VSP-8500

Network Camera

VCC-N6695P (D/N)

VCC-XZN600P (D/N)

VCC-ZMN600P (D/N)

VDC-DPN9585P (D/N)

VCC-PN9575P

VA-80LAN or VA-82LAN

+VCC-9800P E (D/N) / VCC-9700P E /

VCC-9600P E (D/N) / VCC-9500P E

VA-20LAN

+ VCC-XZ200P (D/N)

VA-50LAN or VA-51LAN

+ VDC-DP7585P (D/N)

VA-50LAN or VA-51LAN

+ VCC-P7575PA

DVR1

DVR2

DVR5

Network

Weatherproof AF

Zoom Camera

VCC-XZ600P (D/N)

AF Zoom Camera

VCC-ZM600P (D/N)

VCC-ZM500P

Pan-focus Camera

VCC-XZ200P (D/N)

VDC-DP9585P (D/N)

VCC-P9575P

VDC-DP7585P (D/N)

VCC-P7575PA

System configuration

Choose from the Sanyo line up

Vandal Resistant

Dome Camera

VDC-D1785IRVP (D/N)

VDC-W1595VP

VDC-D1585VP (D/N)

VDC-C1575VP

Mini Dome Camera

VCC-9685VP

Replaceable Lens

Camera

VCC-WD8875P (D/N)

VCC-WD8870P (D/N)

VCC-W8775P

VCC-W8770P

VCC-4795P E (D/N)

VCC-4790P E (D/N)

VCC-6695P (E-D/N)

VCC-6690P (E-D/N)

VCC-5995P

WDR Camera

Shopping malls

Educational facilities

Transportation monitoring

Airports

Banks

Large supermarkets

Plants

Amusement parks

Speed Dome Camera

VCC-9800P E (D/N)

VCC-9700P E

VCC-9600P E (D/N)

VCC-9500P E

(D/N: Day/Night Camera)

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Example System

System configuration

Choose from the Sanyo line up

Software

Video Management Software

Network Recorder Software

Network

VA-SW60 (Enterprise)

VA-SW50 (Advanced)

Pan-focus Camera

VCC-XZ200P (D/N)

+VA-20LAN

VDC-DP7585P (D/N)

+VA-50LAN or VA-51LAN

VCC-P7575PA

+VA-50LAN or VA-51LAN

Network Software

VA-SW60 (Enterprise)

VA-SW50 (Advanced)

VA-SW3050S (for server)

VA-SW3050C (for client)

Network Camera

VCC-HD4000P (D/N)

VCC-N6695P (D/N)

VCC-XZN600P (D/N)

VCC-ZMN600P (D/N)

VDC-DPN9585P (D/N)

VCC-PN9575P

Speed Dome Camera

VCC-9800P E (D/N)

+ VA-80LAN or VA-82LAN

VCC-9700P E

+ VA-80LAN or VA-82LAN

VCC-9600P E (D/N)

+ VA-80LAN or VA-82LAN

VCC-9500P E

+ VA-80LAN or VA-82LAN

DVR*

DSR-5716P

DSR-5709P

DSR-3716PA

DSR-3709PA

Server PC

Client PC

Network Camera

VA-SW3050S (for server)

VA-SW3050C (for client)

(*Supported by VMS only) (D/N: Day/Night Camera)

IP Camera and Networking

The use of SANYO network software, for example, makes it possible to monitor different locations from a central point over a

network. Without the constraints in wiring, optimized camera placement ensures the security of each area.

Use a vandal-resistant PTZ camera for a crowded area like an entrance, or an HD Megapixel camera with recording function for a

key surveillance point. Use a PTZ camera for a wide area to trace movements of a subject. For a parking lot or other outdoor

facility, weatherproof zoom cameras and PTZ cameras are available. The WDR camera is a perfect solution for locations where

intense backlight is expected. SANYO’s product range includes a variety of IP cameras that offer the optimal choice for every

situation. From large-scale application to small-scale surveillance needs, SANYO handles them all.

Full IP System Suitable for Large Scale Surveillance

SANYO’s IP camera and network software offers freedom in integrating systems ----

from large scale systems for airports and shopping malls to centralized surveillance

systems that connect dispersed schools and stores.

A Network Built Around a Hybrid DVR Provides

The Best Solution for Remote Surveillance

In addition to normal surveillance and recording operations, including extensive video recording with MPEG-4 technology, the

Hybrid DVR offers added features, such as building databases inter-connected with tenants' POS systems or ATM systems.

The use of MPEG-4 improves the quality of remote surveillance over a network and expands the scope of applications.

Optimal Systems for Large to Medium Scale Applications

Connect shops and branch offices with a network for better management.

The DSR-HB8000 can manage up to 80 cameras with Monitor Plus function over the network.

Also multiple DSR-HB8000 can be connected with CMS via network.

Example System

Camera (Network / Analog) DSR-HB8000 Monitor

DVR

DSR-HB8000

Monitor

VMC-L2019P

VMC-L2017P

Controller

VSP-9000

VSP-8500

Network Camera

VCC-N6695P (D/N)

VCC-XZN600P (D/N)

VCC-ZMN600P (D/N)

VDC-DPN9585P (D/N)

VCC-PN9575P

VA-80LAN or VA-82LAN

+VCC-9800P E (D/N) / VCC-9700P E /

VCC-9600P E (D/N) / VCC-9500P E

VA-20LAN

+ VCC-XZ200P (D/N)

VA-50LAN or VA-51LAN

+ VDC-DP7585P (D/N)

VA-50LAN or VA-51LAN

+ VCC-P7575PA

DVR1

DVR2

DVR5

Network

Weatherproof AF

Zoom Camera

VCC-XZ600P (D/N)

AF Zoom Camera

VCC-ZM600P (D/N)

VCC-ZM500P

Pan-focus Camera

VCC-XZ200P (D/N)

VDC-DP9585P (D/N)

VCC-P9575P

VDC-DP7585P (D/N)

VCC-P7575PA

System configuration

Choose from the Sanyo line up

Vandal Resistant

Dome Camera

VDC-D1785IRVP (D/N)

VDC-W1595VP

VDC-D1585VP (D/N)

VDC-C1575VP

Mini Dome Camera

VCC-9685VP

Replaceable Lens

Camera

VCC-WD8875P (D/N)

VCC-WD8870P (D/N)

VCC-W8775P

VCC-W8770P

VCC-4795P E (D/N)

VCC-4790P E (D/N)

VCC-6695P (E-D/N)

VCC-6690P (E-D/N)

VCC-5995P

WDR Camera

Shopping malls

Educational facilities

Transportation monitoring

Airports

Banks

Large supermarkets

Plants

Amusement parks

Speed Dome Camera

VCC-9800P E (D/N)

VCC-9700P E

VCC-9600P E (D/N)

VCC-9500P E

(D/N: Day/Night Camera)

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Example System

System configuration

MPEG-4 Adopted for Quality Video Transmission

The MPEG-4 format allows efficient video transmission and the construction of a system suitable for remote

surveillance. For example, a small or medium-scale factory or store can be monitored at the head office via a network.

A stress-free surveillance is possible, thanks to the superior picture quality of MPEG4.

The Adaptation of DDNS Allows Stable Network

Surveillance without a Fixed IP Address

Small to medium-scale surveillance systems suitable for remote operations

Example of

basic system

Camera Recorder

Monitor

Main Monitor Spot Monitor

Controller

LAN

(for DSR-2016 only)

DVR

DSR-HB8000

DSR-2016

DSR-2004

Monitor

VMC-L2019P

VMC-L2017P

Controller

VSP-9000*

VSP-8500*

* The DSR-2004 does not support connection.

Choose from the Sanyo line up

Speed Dome Camera

VCC-9800P E (D/N)

VCC-9700P E

VCC-9600P E (D/N)

VCC-9500P E

Weatherproof AF

Zoom Camera

VCC-XZ600P (D/N)

AF Zoom Camera

VCC-ZM600P (D/N)

VCC-ZM500P

Pan-focus Camera

VCC-XZ200P (D/N)

VDC-DP9585P (D/N)

VCC-P9575P

VDC-DP7585P (D/N)

VCC-P7575PA

Vandal Resistant

Dome Camera

VDC-D1785IRVP (D/N)

VDC-W1595VP

VDC-D1585VP (D/N)

VDC-C1575VP

Mini Dome Camera

VCC-9685VP

Replaceable Lens

Camera

VCC-WD8875P (D/N)

VCC-WD8870P (D/N)

VCC-W8775P

VCC-W8770P

VCC-4795P E (D/N)

VCC-4790P E (D/N)

VCC-6695P (E-D/N)

VCC-6690P (E-D/N)

VCC-5995P

WDR Camera

(D/N: Day/Night Camera)

Internet

Offices

Stores

Retail shops

Petrol Stations

System ChartIP CameraSpecialty CameraPan-focus Camera Camera • LensDVRSSP SystemMonitorExample System

Category Lens

H.264

JPEG

Resolution Frame rate

Bi-directional

audio

Minimum

illumination Power supply

Model No.

IP Camera

CMOS Full HD Network 10x AF Zoom

Camera

VCC-HD4000P

Built-in

10x

AF Zoom

lens

<H.264> 16:9 HD 1920 x 1080p HD 1280 x 720p,

960 x 540P, 640 x 360p, 320 x 180p

4:3 1080 x 864p, 720 x 576p, 360 x 288p

<JPEG> 16:9 HD 1920 x 1080p, HD 1280 x 720,

1024 x 576, 640 x 360 4:3 4M 2288 x 1712,

2M 1600 x 1200, 1280 x 960, 1024 x 768,

800 x 600, 640 x 480, 320 x 240

Max.25IPS

(1920 x 1080)

------------------------

Color 2.0 lx

B/ W 0.1 lx

(F1.8)

24 V AC ±10% /

12 V to 15 V DC /

PoE (compliant with

IEEE 802.3af)

1/3” Color CCD E-Day/night Box type

H.264/JPEG Camera

VCC-N6695P

Electronic Day/Night function

E-

CS mount

replaceable

<H.264> 720 x 576,

352 x 288, 176 x 144

<JPEG> 720 x 576,

720 x 288, 640 x 480,

360 x 288, 176 x 144

Max. 25 IPS

(720 x 576) ------------------------

Color 0.35 lx

B/ W 0.25 lx

(F1.2)

24 V AC ±10% /

12 V to 15 V DC /

PoE (compliant with

IEEE 802.3af)

Weatherproof AF Zoom Network

Camera

VCC-XZN600P

Built-in

30x

AF Zoom

lens

<H.264> 720 x 576,

352 x 288, 176 x 144

<JPEG> 720 x 576,

720 x 288, 640 x 480,

360 x 288, 176 x 144

Max. 25 IPS

(720 x 576) ------------------------

Color 0.8 lx

B/ W 0.04 lx

(F1.4)

24 V AC ±10% /

12 V to 15 V DC /

PoE (compliant with

IEEE 802.3af)

AF Zoom Network Camera

VCC-ZMN600P Built-in

30x

AF Zoom

lens

<H.264> 720 x 576,

352 x 288, 176 x 144

<JPEG> 720 x 576,

720 x 288, 640 x 480,

360 x 288, 176 x 144

Max. 25 IPS

(720 x 576) ------------------------

Color 0.8 lx

B/ W 0.04 lx

(F1.4)

24 V AC ±10% /

12 V to 15 V DC /

PoE (compliant with

IEEE 802.3af)

Vandal-resistant PTZ Network

Dome Camera

VDC-DPN9585P

Built-in

2.6x

Pan-focus

Zoom lens

------------------

<JPEG> 720 x 286,

640 x 480, 360 x 286,

180 x 143

Max. 25 IPS

(720 x 576)

Bi-directional

audio G.711

(192 Kbps),

16 BIT 12KHz

Color 1.2 lx

B/ W 0.06 lx

(F 1.9)

24 V AC ±10% /

12 V to 15 V DC /

PoE (compliant with

IEEE 802.3af)

Indoor mini PTZ Network

Dome Camera

VCC-PN9575P

Built-in

2.6x

Pan-focus

Zoom lens

------------------

<JPEG> 720 x 286,

640 x 480, 360 x 286,

180 x 143

Max. 25 IPS

(720 x 576)

Bi-directional

audio G.711

(192 Kbps),

16 BIT 12KHz

Color 1.9 lx

(F 1.9)

24 V AC ±10% /

12 V to 15 V DC /

PoE (compliant with

IEEE 802.3af)

Category Lens Color or

D/N

Sensor

size

Horizontal

resolution

Minimum

illumination

Backlight

compensation

White-

balance Power supply

Model No.

Specialty Camera

High-resolution 36x AF

Speed Dome Camera

VCC-9800P E

Built-in

36x

AF Zoom lens

Day/Night 1/4" 540 TVL

Color 1.0 lx

B/W 0.05 lx

(F1.6)

Multi-spot

5-section

ATW

AWC

Indoor

Outdoor

Fluorescent

Manual

24 V AC ±10%

230 V AC ±10%

High-resolution 36x AF

Speed Dome Camera

VCC-9700P E

Built-in

36x

AF Zoom lens

Color 1/4” 540 TVL 1.0 lx

(F1.6)

Multi-spot

5-section

ATW

AWC

Indoor

Outdoor

Fluorescent

Manual

24 V AC ±10%

230 V AC ±10%

High-resolution 30x AF

Speed Dome Camera

VCC-9600P E

Built-in

30x

AF Zoom lens

Day/Night 1/4” 540 TVL

Color 0.8 lx

B/W 0.04 lx

(F1.4)

Multi-spot

5-section

ATW

AWC

Indoor

Outdoor

Fluorescent

Manual

24 V AC ±10%

230 V AC ±10%

High-resolution 30x AF

Speed Dome Camera

VCC-9500P E

Built-in

30x

AF Zoom lens

Color 1/4” 540 TVL 0.8 lx

(F1.4)

Multi-spot

5-section

ATW

AWC

Indoor

Outdoor

Fluorescent

Manual

24 V AC ±10%

230 V AC ±10%

High-resolution Weatherproof

AF Zoom Camera

VCC-XZ600P

Built-in

30x

AF Zoom lens

Day/Night 1/4” 540 TVL

Color 0.8 lx

B/W 0.04 lx

(F1.4)

Multi-spot

Center-zone

ATW

AWC

Indoor

Outdoor

Fluorescent

Manual

24 V AC ±10%

12 V to 15 V DC

High-resolution AF

Zoom Camera

VCC-ZM600P

Built-in

30x

AF Zoom lens

Day/Night 1/4” 540 TVL

Color 0.8 lx

B/W 0.04 lx

(F1.4)

Multi-spot

Center-zone

ATW

AWC

Indoor

Outdoor

Fluorescent

Manual

24 V AC ±10%

12 V to 15 V DC

High-resolution AF

Zoom Camera

VCC-ZM500P

Built-in

30x

AF Zoom lens

Color 1/4” 540 TVL 0.8 lx

(F1.4)

Multi-spot

Center-zone

ATW

AWC

Indoor

Outdoor

Fluorescent

Manual

24 V AC ±10%

12 V to 15 V DC

Vandal-resistant Camera

High-resolution

Vandal-resistant IR Dome

Camera with IR LED

VDC-D1785IRVP

Built-in

3.2x

(3.7 to 12.0mm)

Vari-focal

Zoom lens

Day/Night 1/3" 540 TVL

Color 0.7 lx

B/W 0.0 lx (LED: ON)

(F 1.4)

ON / OFF ATW 24 V AC ± 10%

12 V DC ± 10%

High-resolution WDR Vandal-resistant

Dome Camera

VDC-W1595VP

Built-in

2.3x

(2.6 to 6.0mm)

Vari-focal

Zoom lens

Color 1/3” 480 TVL 1.0 lx

(F1.4)

Wide Dynamic

Range

ATW-A

ATW

24 V AC ±10%

12 V to 15 V DC

High-resolution Vandal-resistant

Dome Camera

VDC-D1585VP

Built-in

2.3x

(2.6 to 6.0mm)

Vari-focal

Zoom lens

Day/Night 1/3” 520 TVL

Color 1.0 lx

B/W 0.05 lx

(F1.4)

ON/OFF ATW-A

ATW

24 V AC ±10%

12 V to 15 V DC

SANYO Products Line Up 2009 ------------------------------------------ Camera

Category Lens Color or

D/N

Sensor

size

Horizontal

resolution

Minimum

illumination

Backlight

compensation

White-

balance Power supply

Model No.

High-resolution Vandal-resistant

Dome Camera

VDC-C1575VP

Built-in

2.3x

(2.6 to 6.0mm)

Vari-focal

Zoom lens

Color 1/3” 520 TVL 1.0 lx

(F1.4) ON / OFF ATW-A

ATW

24 V AC ±10%

12 V to 15 V DC

Pan-focus Camera

High-resolution Weatherproof

Camera

VCC-XZ200P

Built-in

2.6x

Pan-focus

Zoom lens

Day/Night 1/4" 520 TVL

Color 1.2 lx

B/W 0.06 lx

(F1.9)

Multi-spot

Center-zone

ATW

AWC

Manual

24 V AC ±10%

12 V to 15 V DC

High-resolution Vandal-resistant

PTZ Dome Camera

VDC-DP9585P

Built-in

2.6x

Pan-focus

Zoom lens

Day/Night 1/4” 520 TVL

Color 1.2 lx

B/W 0.06 lx

(F1.9)

Multi-spot

Center-zone

ATW

AWC

Manual

24 V AC ±10%

12 V to 15 V DC

High-resolution Indoor mini PTZ

Dome Camera

VCC-P9575P

Built-in

2.6x

Pan-focus

Zoom lens

Color 1/4” 520 TVL 1.9 lx

(F1.9)

Multi-spot

Center-zone

ATW

AWC

Manual

24 V AC ±10%

12 V to 15 V DC

High-resolution Vandal-resistant

Dome Camera

VDC-DP7585P

Built-in

2.6x

Pan-focus

Zoom lens

Day/Night 1/4” 520 TVL

Color 1.2 lx

B/W 0.06 lx

(F1.9)

Multi-spot

Center-zone

ATW

AWC

Manual

24 V AC ±10%

12 V to 15 V DC

High-resolution

Indoor mini

Dome Camera

VCC-P7575PA

Built-in

2.6x

Pan-focus

Zoom lens

Color 1/4” 520 TVL 1.9 lx

(F1.9)

Multi-spot

Center-zone

ATW

AWC

Manual

24 V AC ±10%

12 V to 15 V DC

Color Camera

1/3” CMOS High-resolution

WDR Day/night Camera

VCC-WD8875P CS mount

replaceable Day/Night 1/3” 550 TVL

Color 0.8 lx

B/W 0.08 lx

(F1.2)

Wide Dynamic

Range

ATW

Manual

24 V AC ±10%

12 V to 15 V DC

1/3” CMOS High-resolution

WDR Day/night Camera

VCC-WD8870P CS mount

replaceable Day/Night 1/3” 550 TVL

Color 0.8 lx

B/W 0.08 lx

(F1.2)

Wide Dynamic

Range

ATW

Manual

220 V to 230 V AC

1/3” CMOS High-resolution

WDR Camera

VCC-W8775P CS mount

replaceable Color 1/3” 550 TVL 0.8 lx (F1.2) Wide Dynamic

Range

ATW

Manual

24 V AC ±10%

12 V to 15 V DC

1/3” CMOS High-resolution

WDR Camera

VCC-W8770P CS mount

replaceable Color 1/3” 550 TVL 0.8 lx (F1.2) Wide Dynamic

Range

ATW

Manual

220 V to 230 V AC

Indoor mini Dome Camera

VCC-9685VP

Built-in

2.9x

(2.8 to 8.0mm)

Vari-focal

Zoom lens

Color 1/4” 540 TVL 0.5 lx

(F0.95)

Multi-spot

Center-zone

ATW

Manual

24 V AC ±10%

12 V to 15 V DC

1/3” Color CCD High-resolution

Day/night Camera

VCC-4795P E CS mount

replaceable Day/Night 1/3” 540 TVL

Color 0.45 lx

B/W 0.01 lx

(F1.2)

Multi-spot

Center-zone

ATW

Manual

24 V AC ±10%

12 V to 15 V DC

1/3” Color CCD High-resolution

Day/night Camera

VCC-4790P E CS mount

replaceable Day/Night 1/3” 540 TVL

Color 0.45 lx

B/W 0.01 lx

(F1.2)

Multi-spot

Center-zone

ATW

Manual

220 V to 230 V AC

1/3” Color CCD E-Day/night

High-resolution Camera

VCC-6695P

Electronic Day/Night function

E-

CS mount

replaceable

E-Day/Night

1/3” 540 TVL

Color 0.35 lx

B/W 0.25 lx

(F1.2)

Multi-spot

Center-zone

ATW

Manual

24 V AC ±10%

12 V to 15 V DC

1/3” Color CCD E-Day/night

High-resolution Camera

VCC-6690P

Electronic Day/Night function

E-

CS mount

replaceable

E-Day/Night

1/3” 540 TVL

Color 0.35 lx

B/W 0.25 lx

(F1.2)

Multi-spot

Center-zone

ATW

Manual

220 V to 230 V AC

1/3” Color CCD

High-resolution Camera

VCC-5995P CS mount

replaceable Color 1/3” 540 TVL 0.5 lx

(F1.2) Center-zone ATW 24 V AC ±10%

12 V to 15 V DC

Dummy Camera

VC-0410 with

dummy lens ------------------ ------------------ ------------------ ------------------ ------------------ ------------------ ------------------

Dummy Camera

VC-0450 with

dummy lens ------------------ ------------------ ------------------ ------------------ ------------------ ------------------ ------------------
