PLANAR Clarity Matrix LCD Video Wall System
PLANAR Clarity Matrix
LCD Video Wall System
4K Superior visual multi-display performance and mission-critical reliability
High Brightness and Contrast - Interactive Multi-Touch and Multi-User - 3D-Stereo
The Clarity™ Matrix LCD Video Wall System with G2 Architecture is the ultimate video wall solution for applications seeking the very best visual
performance and exibility to accommodate the most mission-critical needs.
Planar’s unique design approach optimizes the thinnest bezel LCD in the industry for 24x7 operation, minimizes installation depth and simplies
design, installation and service of the video wall. With a tiled bezel width as small as 3.7mm, the LCD video wall system includes Planar's
integrated EasyAxis™ Mounting System and G2 o-board electronics and power supply architecture, reducing total cost of ownership while
delivering the most reliable LCD video wall.
Clarity Matrix LCD Video Wall System
WITH G2 ARCHITECTURE
Superior visual performance and mission-critical reliability
Most Comprehensive Line-up
The Clarity Matrix family is a complete line up of LCD video wall
sizes and options to suit the needs in a wide variety of video wall
applications.
Clarity Matrix
• 46” and 55”
• Two brightness levels available
• New 55” model with a tiled bezel width of 3.7 mm
Clarity Matrix with Extended Ruggedness & Optics (ERO™) Technology
• Optically-bonded, vandal-resistant protective glass for increased
ruggedness and durability

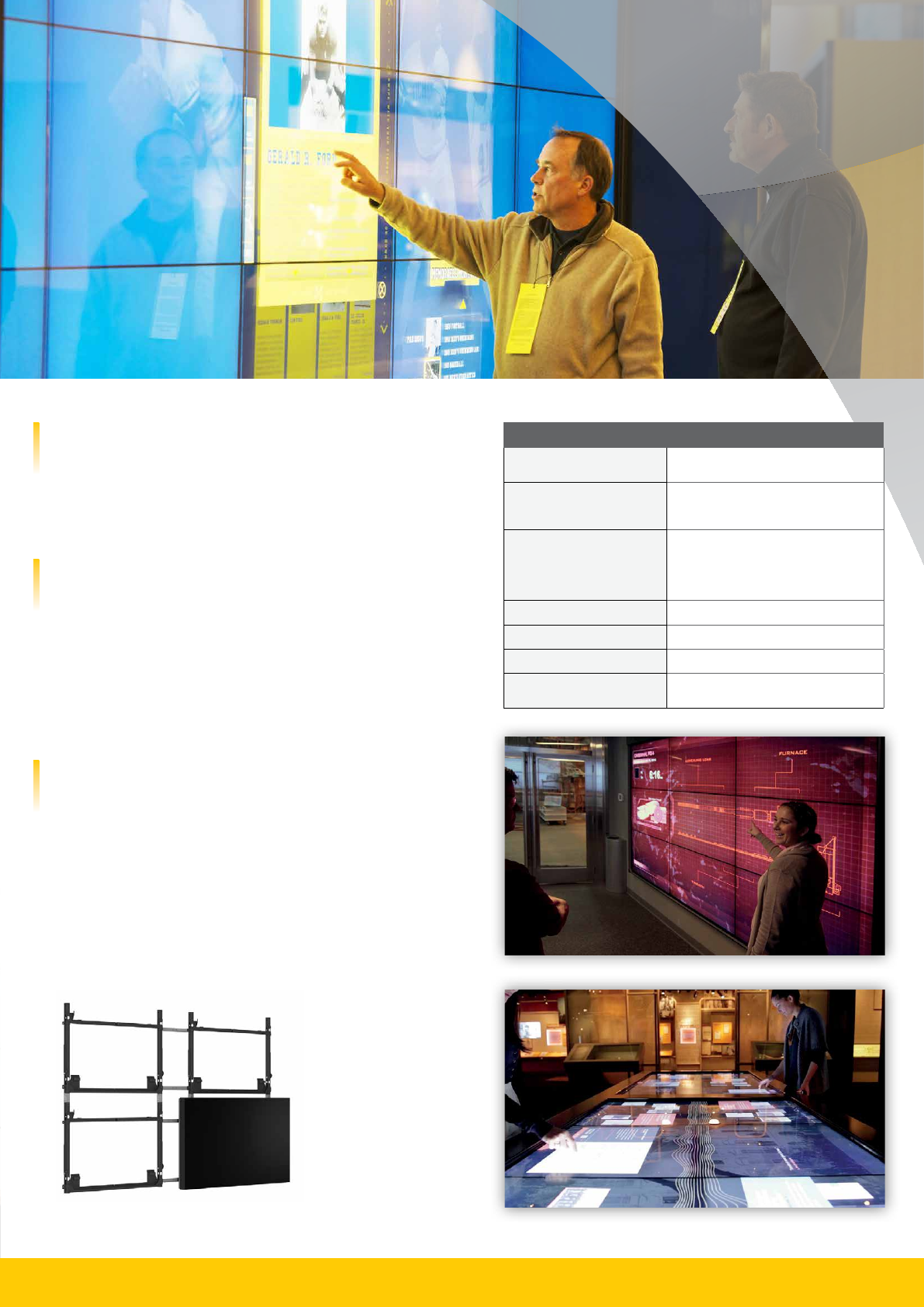

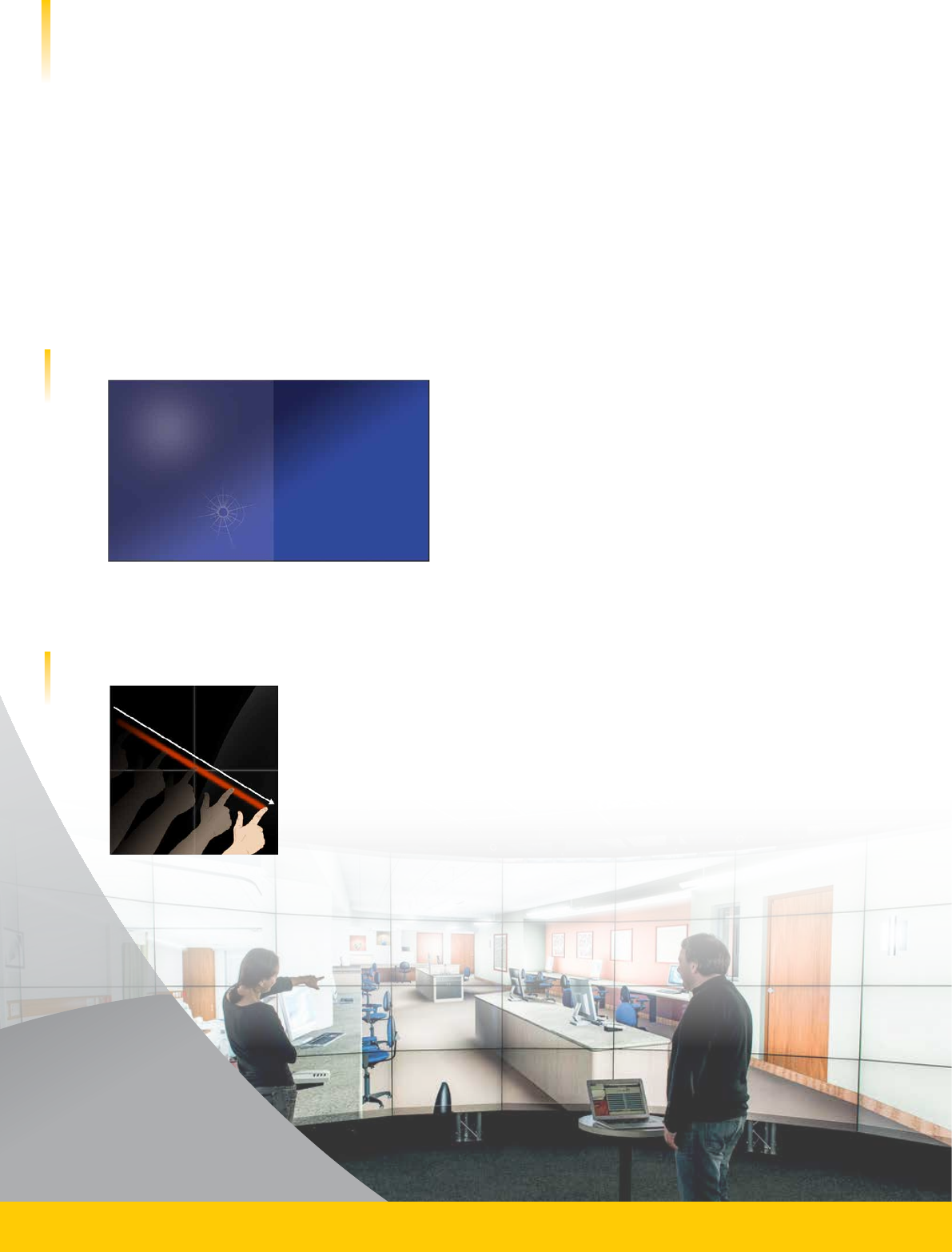

Clarity Matrix MultiTouch
• Turn-key modular touch kit adds interactivity and collaboration
• Choice of 6 or 32 simultaneous touch points
• Incorporates PLANAR’s ERO technology

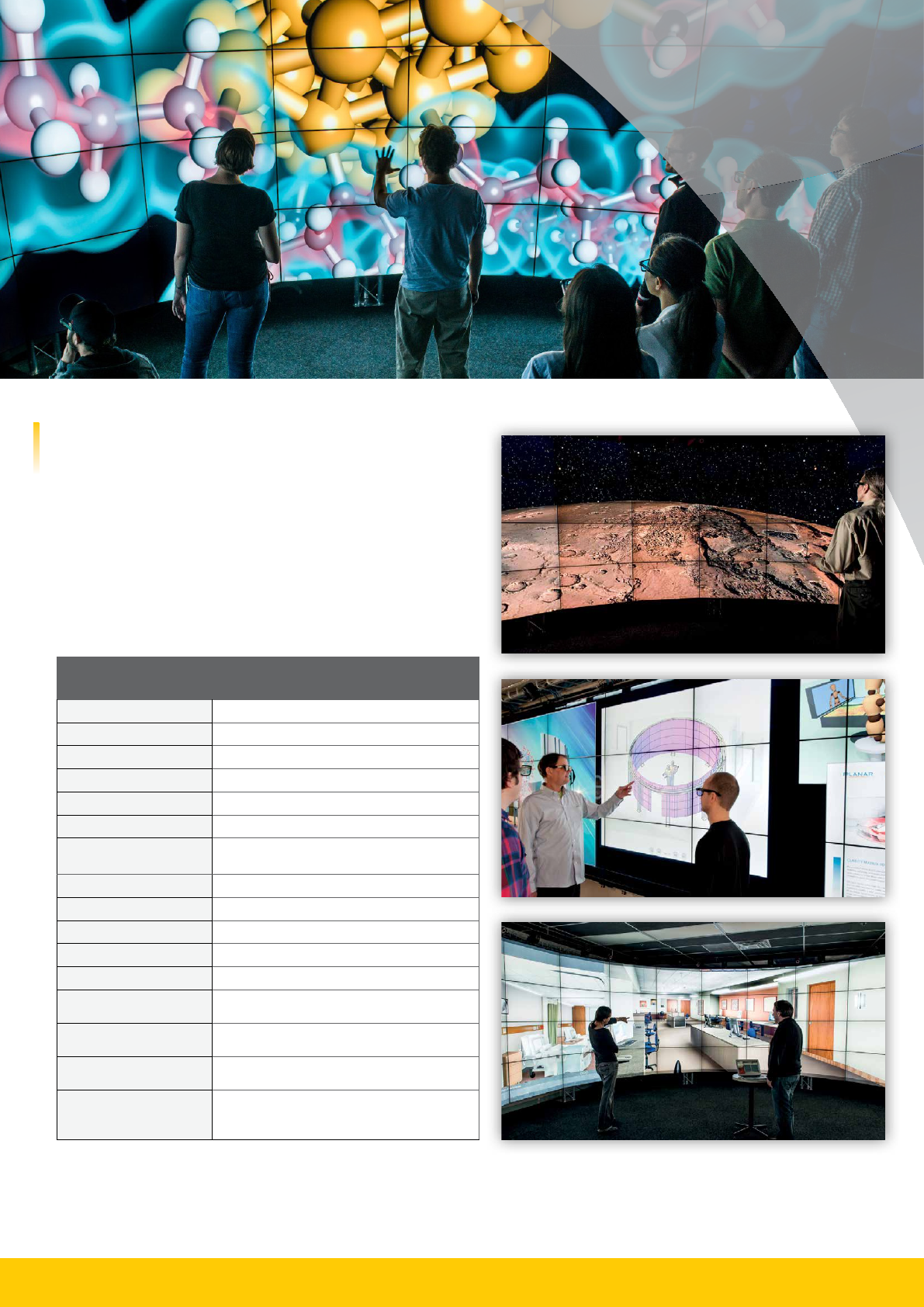

Clarity Matrix 3D
• Spectacular 2D and 3D viewing experience for professional
3D visualization applications
• Flicker-free stereoscopic visualization with passive glasses
At the heart of Clarity Matrix with
G2 Architecture is a distributed
design that takes heat, complexity
and potential points of failure off
the LCD panel and places it with a centrally located, easily
accessible and highly reliable rack-mounted system.
Clarity Matrix LCD Video Wall System
The Clarity Matrix LCD Video Wall System was designed and developed by display industry experts to address the challenges
faced by all video wall installations: mounting and alignment, reliability and extended operation, service and maintenance
access and simple, effective image processing and management.
PLANAR Clarity Matrix LCD Video Wall System
UNIQUE ARCHITECTURE AND BENEFITS BY DESIGN
Big Picture Plus Processing
Clarity Matrix supports a wide range of processing options to display
sources on the video wall. Planar’s Big Picture Plus processing is
built into Clarity Matrix and allows sources to be scaled across the entire video wall or
any section of the video wall. To simplify set-up of Big Picture Plus, Clarity Matrix has
position sensors built into the LCD that determine where it is located within the array
and scale the sources across the video wall automatically, saving hours of set-up. Big
Picture Plus processing also allows for ultra-high resolution content, up to 4k, to be
spread over multiple displays at native resolution. For more complex congurations,
Clarity Matrix supports all leading image processing and digital signage software
solutions including Planar’s Indisys™ and Clarity™ VCS image processing solutions.
The Clarity Matrix LCD Video Wall System was designed and developed by display industry
experts to address the challenges faced by all video wall installations: mounting and
alignment, reliability and extended operation, service and maintenance access and simple,
eective image processing and management.
At the heart of Clarity Matrix with G2 Architecture is a distributed
design that takes heat, complexity and potential points of failure o
the LCD panel and places it with a centrally located, easily accessible
and highly reliable rack-mounted system.
Unique Architecture and
Benets by Design
Clarity Matrix
• 46" and 55"
• Two brightness levels available
• New 55" model with a tiled bezel width of 3.7 mm
Clarity Matrix with Extended Ruggedness and Optics
(ERO™) Technology
• Optically-bonded, vandal-resistant protective
glass for increased ruggedness and durability
Clarity Matrix MultiTouch
• Turn-key modular touch kit adds interactivity and
collaboration
• Choice of 6 or 32 simultaneous touch points
• Incorporates Planar's ERO technology
Clarity Matrix 3D
• Spectacular 2D and 3D viewing experience for
professional 3D visualization applications
• Flicker-free stereoscopic visualization with passive
glasses
The Clarity Matrix family is a complete line up of LCD
video wall sizes and options to suit the needs in a wide
variety of video wall applications.
Most Comprehensive Line-up

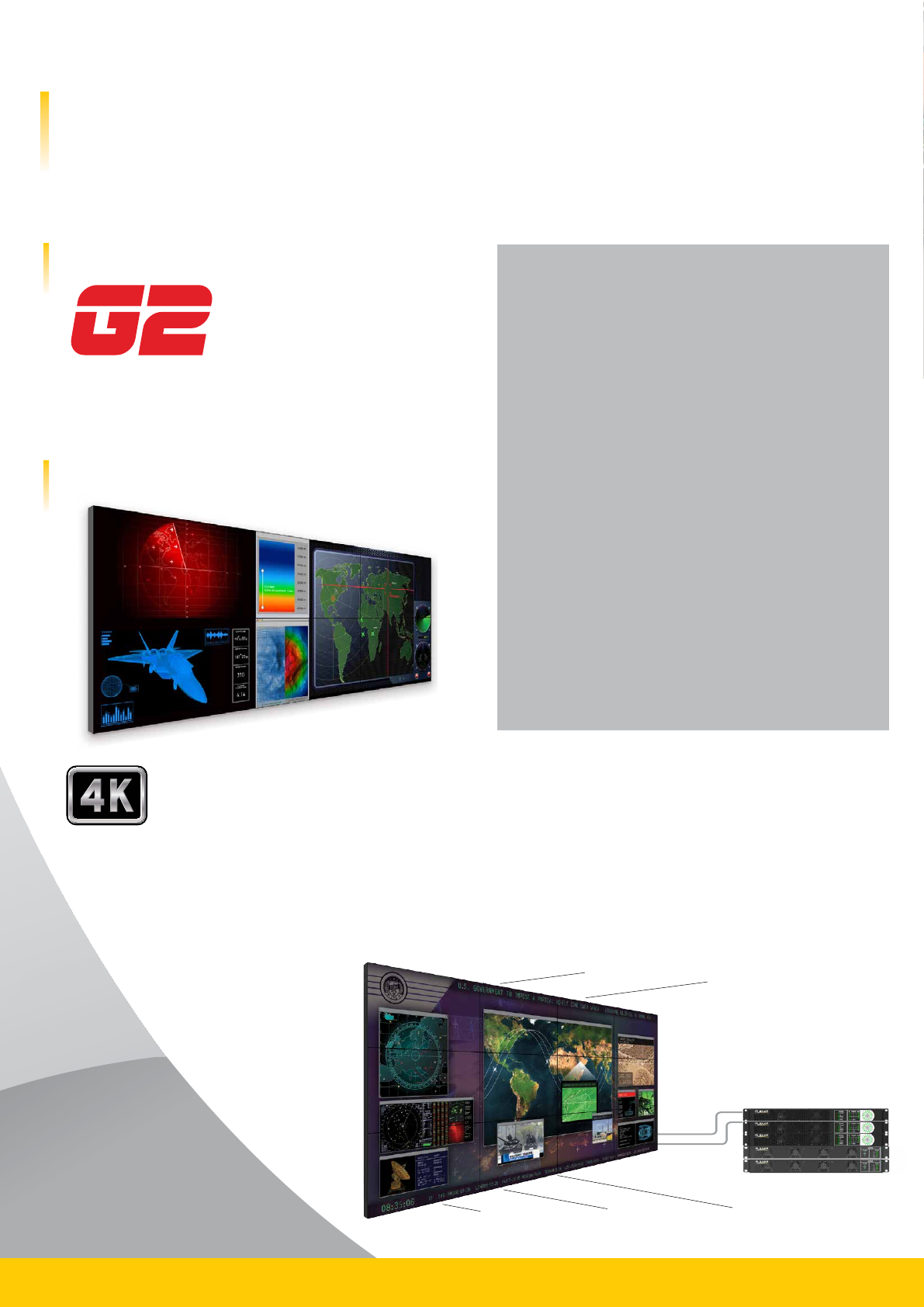

Fanless LCD module for
whisper-quiet operation
Tiled bezel width as
small as 3.7 mm
Optional ERO ™ Technology protects
surface in high trac or touch applications
Now supports cable lengths of 330ft
with no additional hardware
Power supply module can drive as many as 8 displays
Flexible built-in windowing capability
O-board electronics eliminates
need for outlets behind displays
Perfect alignment with
EasyAxis Mounting System
Clarity Matrix supports a wide range of
processing options to display sources on
the video wall. PLANAR’s Big Picture Plus
processing is built into Clarity Matrix and
allows sources to be scaled across the entire video wall
or any section of the video wall. To simplify set-up of
Big Picture Plus, Clarity Matrix has position sensors
built into the LCD that determine where it is located
within the array and scale the sources across the video
wall automatically, saving hours of set-up. Big Picture Plus
processing also allows for ultra-high resolution content,
up to 4k, to be spread over multiple displays at native
resolution. For more complex configurations, Clarity Matrix
supports all leading image processing and digital signage
software solutions including PLANAR’s Indisys™ and
Clarity™ VCS image processing solutions.
4K | BIG PICTURE PLUS PROCESSING
Big Picture Plus Processing
Clarity Matrix supports a wide range of processing options to display
sources on the video wall. Planar’s Big Picture Plus processing is
built into Clarity Matrix and allows sources to be scaled across the entire video wall or
any section of the video wall. To simplify set-up of Big Picture Plus, Clarity Matrix has
position sensors built into the LCD that determine where it is located within the array
and scale the sources across the video wall automatically, saving hours of set-up. Big
Picture Plus processing also allows for ultra-high resolution content, up to 4k, to be
spread over multiple displays at native resolution. For more complex congurations,
Clarity Matrix supports all leading image processing and digital signage software
solutions including Planar’s Indisys™ and Clarity™ VCS image processing solutions.
The Clarity Matrix LCD Video Wall System was designed and developed by display industry
experts to address the challenges faced by all video wall installations: mounting and
alignment, reliability and extended operation, service and maintenance access and simple,
eective image processing and management.
At the heart of Clarity Matrix with G2 Architecture is a distributed
design that takes heat, complexity and potential points of failure o
the LCD panel and places it with a centrally located, easily accessible
and highly reliable rack-mounted system.
Unique Architecture and
Benets by Design
Clarity Matrix
• 46" and 55"
• Two brightness levels available
• New 55" model with a tiled bezel width of 3.7 mm
Clarity Matrix with Extended Ruggedness and Optics
(ERO™) Technology
• Optically-bonded, vandal-resistant protective
glass for increased ruggedness and durability
Clarity Matrix MultiTouch
• Turn-key modular touch kit adds interactivity and
collaboration
• Choice of 6 or 32 simultaneous touch points
• Incorporates Planar's ERO technology
Clarity Matrix 3D
• Spectacular 2D and 3D viewing experience for
professional 3D visualization applications
• Flicker-free stereoscopic visualization with passive
glasses
The Clarity Matrix family is a complete line up of LCD
video wall sizes and options to suit the needs in a wide
variety of video wall applications.
Most Comprehensive Line-up
Fanless LCD module for
whisper-quiet operation
Tiled bezel width as
small as 3.7 mm
Optional ERO ™ Technology protects
surface in high trac or touch applications
Now supports cable lengths of 330ft
with no additional hardware
Power supply module can drive as many as 8 displays
Flexible built-in windowing capability
O-board electronics eliminates
need for outlets behind displays
Perfect alignment with
EasyAxis Mounting System
Big Picture Plus Processing
Clarity Matrix supports a wide range of processing options to display
sources on the video wall. Planar’s Big Picture Plus processing is
built into Clarity Matrix and allows sources to be scaled across the entire video wall or
any section of the video wall. To simplify set-up of Big Picture Plus, Clarity Matrix has
position sensors built into the LCD that determine where it is located within the array
and scale the sources across the video wall automatically, saving hours of set-up. Big
Picture Plus processing also allows for ultra-high resolution content, up to 4k, to be
spread over multiple displays at native resolution. For more complex congurations,
Clarity Matrix supports all leading image processing and digital signage software
solutions including Planar’s Indisys™ and Clarity™ VCS image processing solutions.
The Clarity Matrix LCD Video Wall System was designed and developed by display industry
experts to address the challenges faced by all video wall installations: mounting and
alignment, reliability and extended operation, service and maintenance access and simple,
eective image processing and management.
At the heart of Clarity Matrix with G2 Architecture is a distributed
design that takes heat, complexity and potential points of failure o
the LCD panel and places it with a centrally located, easily accessible
and highly reliable rack-mounted system.
Unique Architecture and
Benets by Design
Clarity Matrix
• 46" and 55"
• Two brightness levels available
• New 55" model with a tiled bezel width of 3.7 mm
Clarity Matrix with Extended Ruggedness and Optics
(ERO™) Technology
• Optically-bonded, vandal-resistant protective
glass for increased ruggedness and durability
Clarity Matrix MultiTouch
• Turn-key modular touch kit adds interactivity and
collaboration
• Choice of 6 or 32 simultaneous touch points
• Incorporates Planar's ERO technology
Clarity Matrix 3D
• Spectacular 2D and 3D viewing experience for
professional 3D visualization applications
• Flicker-free stereoscopic visualization with passive
glasses
The Clarity Matrix family is a complete line up of LCD
video wall sizes and options to suit the needs in a wide
variety of video wall applications.
Most Comprehensive Line-up
Fanless LCD module for
whisper-quiet operation
Tiled bezel width as
small as 3.7 mm
Optional ERO ™ Technology protects
surface in high trac or touch applications
Now supports cable lengths of 330ft
with no additional hardware
Power supply module can drive as many as 8 displays
Flexible built-in windowing capability
O-board electronics eliminates
need for outlets behind displays
Perfect alignment with
EasyAxis Mounting System
Big Picture Plus Processing
Clarity Matrix supports a wide range of processing options to display
sources on the video wall. Planar’s Big Picture Plus processing is
built into Clarity Matrix and allows sources to be scaled across the entire video wall or
any section of the video wall. To simplify set-up of Big Picture Plus, Clarity Matrix has
position sensors built into the LCD that determine where it is located within the array
and scale the sources across the video wall automatically, saving hours of set-up. Big
Picture Plus processing also allows for ultra-high resolution content, up to 4k, to be
spread over multiple displays at native resolution. For more complex congurations,
Clarity Matrix supports all leading image processing and digital signage software
solutions including Planar’s Indisys™ and Clarity™ VCS image processing solutions.
The Clarity Matrix LCD Video Wall System was designed and developed by display industry
experts to address the challenges faced by all video wall installations: mounting and
alignment, reliability and extended operation, service and maintenance access and simple,
eective image processing and management.
At the heart of Clarity Matrix with G2 Architecture is a distributed
design that takes heat, complexity and potential points of failure o
the LCD panel and places it with a centrally located, easily accessible
and highly reliable rack-mounted system.
Unique Architecture and
Benets by Design
Clarity Matrix
• 46" and 55"
• Two brightness levels available
• New 55" model with a tiled bezel width of 3.7 mm
Clarity Matrix with Extended Ruggedness and Optics
(ERO™) Technology
• Optically-bonded, vandal-resistant protective
glass for increased ruggedness and durability
Clarity Matrix MultiTouch
• Turn-key modular touch kit adds interactivity and
collaboration
• Choice of 6 or 32 simultaneous touch points
• Incorporates Planar's ERO technology
Clarity Matrix 3D
• Spectacular 2D and 3D viewing experience for
professional 3D visualization applications
• Flicker-free stereoscopic visualization with passive
glasses
The Clarity Matrix family is a complete line up of LCD
video wall sizes and options to suit the needs in a wide
variety of video wall applications.
Most Comprehensive Line-up
Fanless LCD module for
whisper-quiet operation
Tiled bezel width as
small as 3.7 mm
Optional ERO ™ Technology protects
surface in high trac or touch applications
Now supports cable lengths of 330ft
with no additional hardware
Power supply module can drive as many as 8 displays
Flexible built-in windowing capability
O-board electronics eliminates
need for outlets behind displays
Perfect alignment with
EasyAxis Mounting System
Perfect alignment with
EasyAxis Mounting System Off-board electronics eliminates need for
outlets behind displays
Fanless LCD module for
whisper-quiet operation
Tiled bezel width as
small as 3.7 mm
Optional ERO Technology protects
surface in high traffic or touch applications
Power supply module can drive
as many as 8 displays
Now supports cable lengths of 330ft
with no additional hardware
The Clarity™ Matrix LCD Video Wall System with G2 Architecture is the ultimate video wall solution for applications seeking the very best visual
performance and exibility to accommodate the most mission-critical needs.
Planar’s unique design approach optimizes the thinnest bezel LCD in the industry for 24x7 operation, minimizes installation depth and simplies
design, installation and service of the video wall. With a tiled bezel width as small as 3.7mm, the LCD video wall system includes Planar's
integrated EasyAxis™ Mounting System and G2 o-board electronics and power supply architecture, reducing total cost of ownership while
delivering the most reliable LCD video wall.
Clarity Matrix LCD Video Wall System
WITH G2 ARCHITECTURE
Superior visual performance and mission-critical reliability
You know when you see a Clarity Matrix video wall because
it looks stunning, is perfectly aligned and has the thinnest
mounted depth. Clarity Matrix with G2 Architecture
provides the very best visual performance of any LCD video
wall available, with smaller bezels, higher brightness, better
uniformity and better alignment. Updated connectivity and
10-bit processing combined with PLANAR‘s Big Picture Plus
processing enables ultra HD 4K sources to be tiled across
the video wall.
SUPERIOR VISUAL PERFORMANCE
SIMPLIFIED DESIGN,
INSTALLATION AND SERVICE
Clarity Matrix Architecture Advantages
• Rack-mount components placed in easy-to-service
location with no disruption at the video wall
• Co-location of the rack-mount components with
sources or additional processing equipment for
easy access
• No 3rd party long distance extenders or cables needed
• Entire video wall is controlled with a single remote
control, RS232 or LAN device, including 3rd party control
systems
• Fewer long distance cables run to the wall with on-wall,
loop-out capabilities
• No AC outlets required behind the displays
• Automated brightness, color and gamma balancing
tools
Clarity Matrix service
mode for in-wall service
PLANAR’s unique architecture provides a mission-critical
design with redundant power supplies, reduced thermal
stress and health and status monitoring capabilities.
Clarity Matrix with G2 Architecture adds SNMP LAN control,
extra TIR prevention and ambient light sensing to extend
the life of the video wall. For further reliability, Clarity
Matrix power supply units include an n+1 redundant
design so if any one power supply in the unit fails, the
LCDs maintain uninterrupted operation.
MISSION CRITICAL DESIGN
Now supports cable lengths of 330ft
with no additional hardware

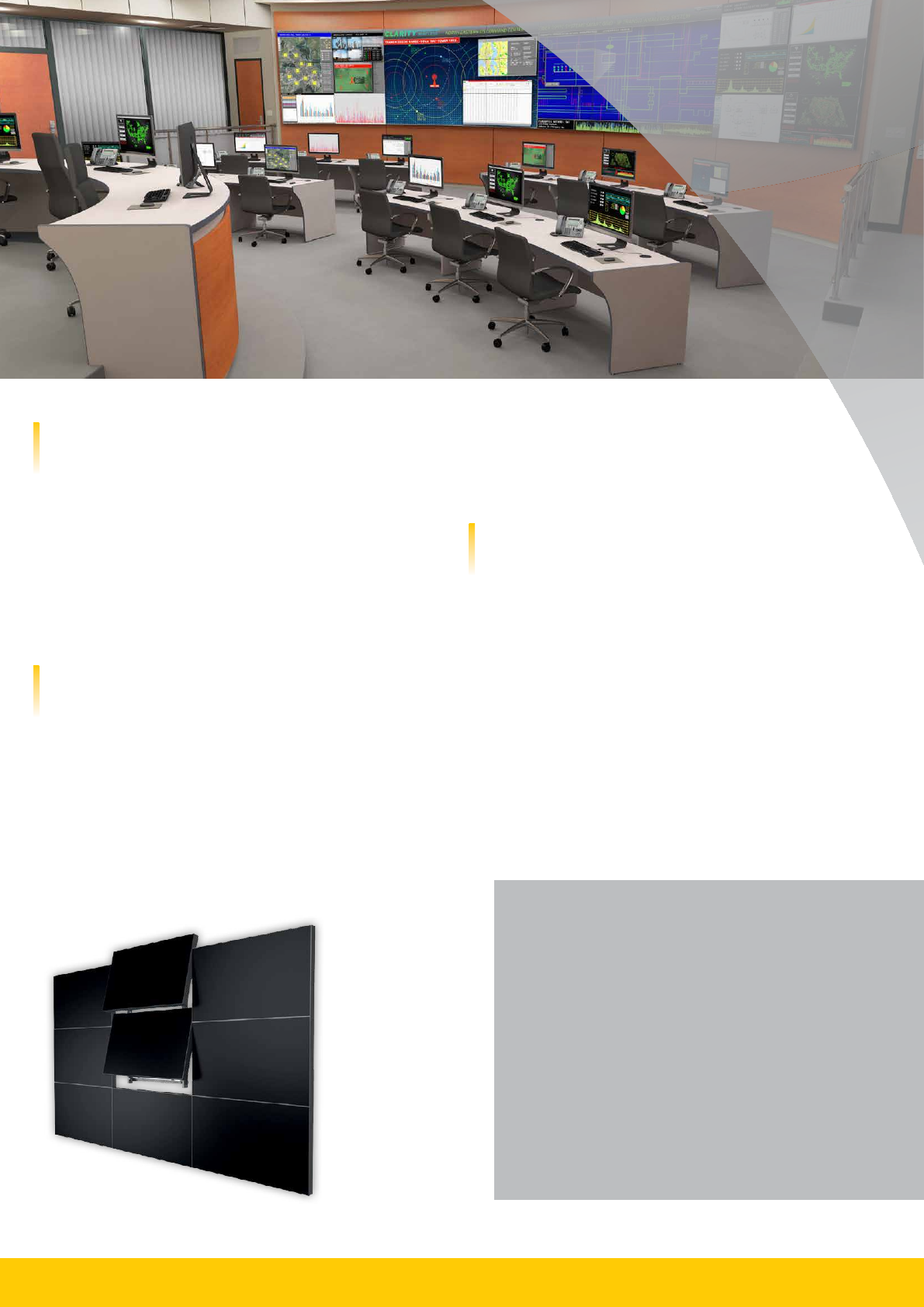

Designing, installing and servicing a video wall with Clarity
Matrix has never been easier. Clarity Matrix incorporates
PLANAR’s EasyAxis Mounting System delivering the
industry’s thinnest profile LCD video wall, built-in align-
ment and service capabilities. The new G2 architecture
supports integrated video and power extension up to 330 ft
(100m) eliminating compatibility and integrity worries and
costs associated with long distance cable extenders and
AC power outlets behind the video wall. Fewer cables are
necessary to run to the video wall, simplifying and reducing
the cost of the system.

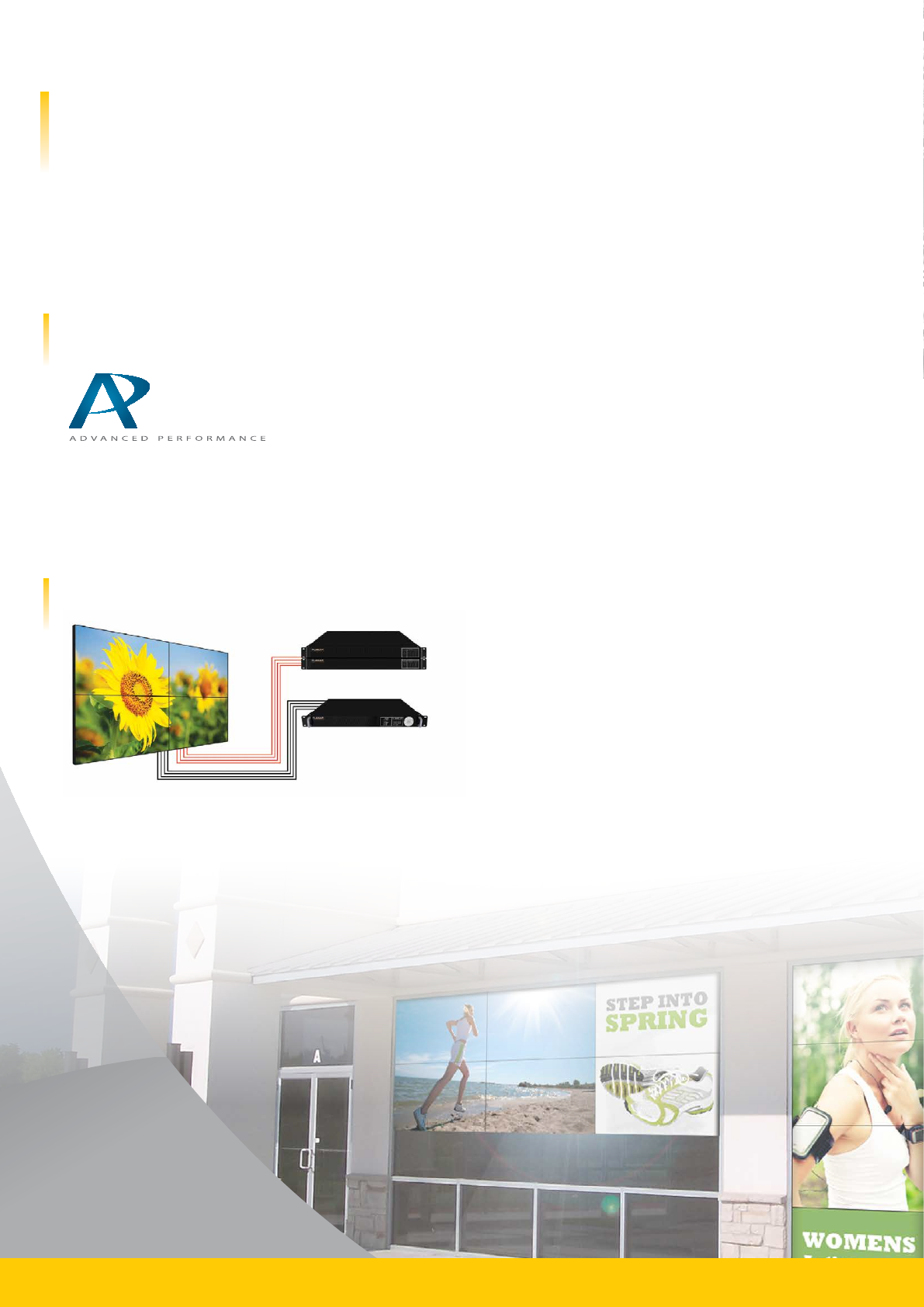

Clarity Matrix HX60 High Bright LCD Video Wall
For customers seeking a high impact LCD video wall in challenging, bright ambient light environments, the Clarity™ Matrix
HX60 LCD Video Wall is an optimized solution that delivers outstanding brightness performance up to 1900 nits, unique
off-board architecture with remote electronics and power supplies, and an integrated mounting system. The proven Clarity
Matrix architecture optimizes the LCD when tiled into a video wall, reducing weight, depth, heat, and points of failures at
the video wall and places them in a convenient location. The Clarity Matrix HX60 features a 60” WXGA resolution (1366x768)
display with a 1/4” (6.5mm) combined bezel gap, creating virtually seamless arrays of any configuration imaginable.
PLANAR Clarity Matrix LCD Video Wall System
Indoor environments su-
ch as airports, corporate
lobbies, and retail envi-
ronments can have out-
door-like ambient light
conditions. The Clarity
Matrix HX60 delivers outstanding brightness up to 1900
nits as well as contrast ratios that exceed 1,000,000 to
1. With PLANAR’s unique architecture, the LCD and LED
backlight run cooler than any other LCD monitor, making
it up to 10% brighter than its competition. With PLANAR’s
Advanced Performance LED (AP/LED™) backlight Clarity
Matrix HX60 delivers deep blacks and outstanding con-
trast utilizing algorithms that turn off the backlights when
darker or black content is displayed. In addition to superb
contrast ratios that PLANAR’s AP/LED backlight provides,
this technology provides reduced power consumption
while still achieving maximum brightness.
SUPERIOR BRIGHTNESS AND CONTRAST
Clarity Matrix HX60 High Bright LCD Video Wall
For customers seeking a high impact LCD video wall in challenging, bright ambient
light environments, the Clarity™ Matrix HX60 LCD Video Wall is an optimized
solution that delivers outstanding brightness performance up to 1900 nits,
unique o-board architecture with remote electronics and power supplies, and
an integrated mounting system. The proven Clarity Matrix architecture optimizes
the LCD when tiled into a video wall, reducing weight, depth, heat, and points of
failures at the video wall and places them in a convenient location. The Clarity
Matrix HX60 features a 60” WXGA resolution (1366x768) display with a ¼” ( 6.5
mm) combined bezel gap, creating virtually seamless arrays of any conguration
imaginable.
Superior Brightness and Contrast
Indoor environments such as airports, corporate lobbies, and retail environments can
have outdoor-like ambient light conditions. The Clarity Matrix HX60 delivers outstanding
brightness up to 1900 nits as well as contrast ratios that exceed 1,000,000 to 1. With
Planar’s unique architecture, the LCD and LED backlight run cooler than any other LCD
monitor, making it up to 10% brighter than its competition.
With Planar’s Advanced Performance LED (AP/LED™) backlight Clarity Matrix HX60 delivers deep blacks and outstanding contrast
utilizing algorithms that turn o the backlights when darker or black content is displayed. In addition to superb contrast ratios
that Planar’s AP/LED backlight provides, this technology provides reduced power consumption while still achieving maximum
brightness.
A
LED
Clarity Matrix HX60 High Bright
LCD VIDEO WALL
At the heart of the Clarity Matrix architecture is a distributed
design that takes heat, complexity and unreliability out
from behind the LCD panel and replaces it with a centrally
located, easily accessible and highly reliable rackmounted
system. The Quad Controller module drives long distance
video through Cat 6 cables. The Power Supply modules
enable long distance power, which eliminates the need
for power outlets behind the displays and also offer a
redundant power supply option.
UNIQUE ARCHITECTURE & BENEFITS BY DESIGN
O-board electronics design
Quad Controller Module
D
MODULE W/O
MOUNT
CLARITY MATRIX HX60 SPECIFICATIONS
Screen diagonal 60”
Resolution 1366x768
Brightness Max 1900 Nits
Contrast Ratio
(full field typical) 5000:1 (1,000,000:1 w/AP/LED on)
Heat load at LCD (typical) 1570 BTW/hr
Backlight type PLANAR’s Advanced Performance LED (AP/LED)
Full viewing angle 176 degrees
Operating Temperature 5 - 35°C
Operating Humidity 20-90% RH Non-condensing
Display module position
sensing Auto-sensing integrated
Width by height (WxH) 52.59”x 29.68” (1336 x 754 mm)
Installed depth with mount 6”/152.4mm
Total weight
(Includes LCD & mount) 96 lbs (43.6kg)
Tiled Bezel width 6.5 mm
Tiled image-to-image gap 7.1 mm
POWER SUPPLY MODULE
Type 1U rack mount controller drives up to 2 panels
Redundancy n+1 redundant power supplies (optional)
Line voltage 100-240 Volts AC, 50/60Hz auto switching
Power status Diagnostic LED’s, health monitoring and alerts
Maximum distance
from LCD 100 ft/30m max backlight
QUAD CONTROLLER MODULE
Type 1U rack mount controller drives up to 4 panels
Inputs 4 single link DVI with HDCPDual link DVI in and out
Image scaling Clarity Big Picture Plus 32x32 maximum
Mullion compensation Integrated Clarity WallNet (LAN) (optional)
RS-232 IR remote control
Frame lock 59-60.5 Hz
Controller status Diagnostic LED’s, health monitoring and alerts
Maximum distance
from LCD 125 ft/38m max backlight
Planar is a trademark of Planar Systems, Inc. All other trade and service marks
are the property of their holders.
Copyright© 2013 Planar Systems, Inc. All rights reserved. This document may
not be copied in any form without written permission from Planar Systems,
Inc. Information in this document is subject to change without notice.
www.planar.com
sales@planar.com
1-866-475-2627

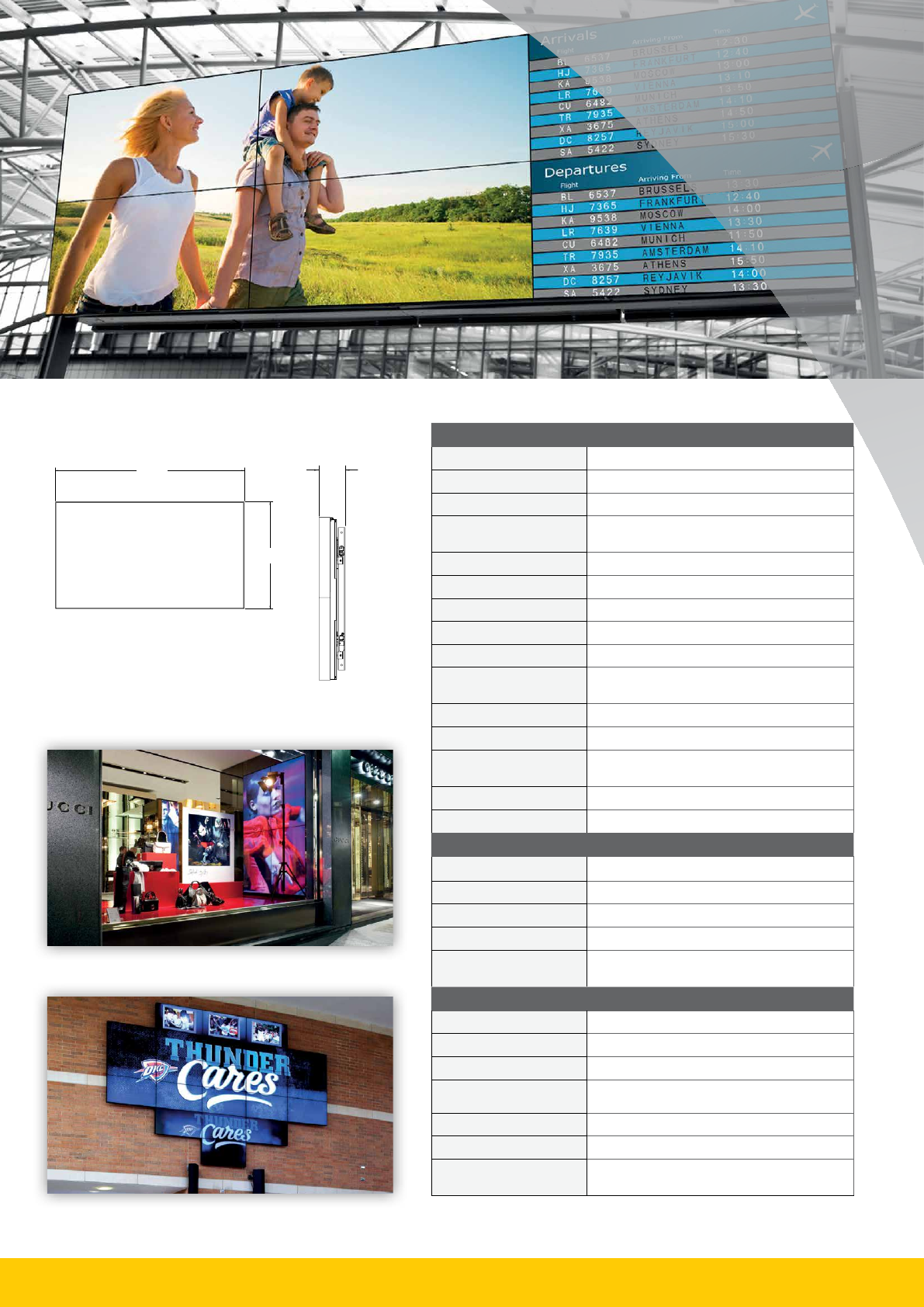

CLARITY MATRIX HX60 SPECIFICATIONS
Screen Diagonal 60”
Resolution 1366x768
Brightness Max 1900 Nits
Contrast Ratio (full eld typical) 5000:1 (1,000,000:1 w/AP/LED on)
Power consumption 460 watts (Max)
Heat load at LCD (typical) 1570 BTW/hr
Backlight type Planar’s Advanced Performance LED (AP/LED)
Full viewing angle 176 degrees
Operating Temperature 5 - 35o C
Operating Humidity 20-90% RH Non-condensing
Display module position sensing Auto-sensing integrated
Width by height (WxH) 52.59”x 29.68” (1336 x 754 mm)
Installed depth with mount 6”/152.4 mm
Total weight (includes LCD & mount) 96 lbs (43.6 kg)
Tiled Bezel width 6.5 mm
Tiled image-to-image gap 7.1mm
POWER SUPPLY MODULE
Type 1U rack mount controller drives up to 2 panels
Redundancy n+1 redundant power supplies (optional)
Line voltage 100-240 Volts AC, 50/60Hz auto switching
Power status Diagnostic LED's, health monitoring and alerts
Maximum distance from LCD 100 ft/30m max backlight
QUAD CONTROLLER MODULE
Type 1U rack mount controller drives up to 4 panels
Inputs 4 single link DVI with HDCPDual link DVI in and out
Image scaling Clarity Big Picture Plus 32x32 maximum
Mullion compensation Integrated Clarity WallNet (LAN) (optional)
RS-232 IR remote control
Frame lock 59-60.5 Hz
Controller status Diagnostic LED's, health monitoring and alerts
Maximum distance from LCD 125 ft/38 m max backlight
Unique Architecture & Benets By Design
At the heart of the Clarity Matrix architecture is a distributed design that
takes heat, complexity and unreliability out from behind the LCD panel and
replaces it with a centrally located, easily accessible and highly reliable rack-
mounted system. The Quad Controller module drives long distance video
through Cat 6 cables. The Power Supply modules enable long distance
power, which eliminates the need for power outlets behind the displays and
also oer a redundant power supply option.
Integrated EasyAxis Mounting System
The Clarity Matrix LCD Video Wall Family includes an EasyAxis™ mounting system which provides perfect
panel-to-panel alignment, ultra-shallow depth, and a service position which aids in servicing a LCD in the
video wall. The mounting system features alignment spacers, adjustment cams, and a light weight design
reducing the weight of the entire video wall and requirements for the support structure.
O-board electronics design
Quad Controller Module
Power Supply Modules
7.1 mm image-to-image gap
H
MODULE W/
MOUNT
D
MODULE W/O
MOUNT
6”
152.4 mm
29.68”
754 mm
52.59”
1336 mm
Front
Side
2/13
Planar is a trademark of Planar Systems, Inc. All other trade and service marks
are the property of their holders.
Copyright© 2013 Planar Systems, Inc. All rights reserved. This document may
not be copied in any form without written permission from Planar Systems,
Inc. Information in this document is subject to change without notice.
www.planar.com
sales@planar.com
1-866-475-2627
CLARITY MATRIX HX60 SPECIFICATIONS
Screen Diagonal 60”
Resolution 1366x768
Brightness Max 1900 Nits
Contrast Ratio (full eld typical) 5000:1 (1,000,000:1 w/AP/LED on)
Power consumption 460 watts (Max)
Heat load at LCD (typical) 1570 BTW/hr
Backlight type Planar’s Advanced Performance LED (AP/LED)
Full viewing angle 176 degrees
Operating Temperature 5 - 35o C
Operating Humidity 20-90% RH Non-condensing
Display module position sensing Auto-sensing integrated
Width by height (WxH) 52.59”x 29.68” (1336 x 754 mm)
Installed depth with mount 6”/152.4 mm
Total weight (includes LCD & mount) 96 lbs (43.6 kg)
Tiled Bezel width 6.5 mm
Tiled image-to-image gap 7.1mm
POWER SUPPLY MODULE
Type 1U rack mount controller drives up to 2 panels
Redundancy n+1 redundant power supplies (optional)
Line voltage 100-240 Volts AC, 50/60Hz auto switching
Power status Diagnostic LED's, health monitoring and alerts
Maximum distance from LCD 100 ft/30m max backlight
QUAD CONTROLLER MODULE
Type 1U rack mount controller drives up to 4 panels
Inputs 4 single link DVI with HDCPDual link DVI in and out
Image scaling Clarity Big Picture Plus 32x32 maximum
Mullion compensation Integrated Clarity WallNet (LAN) (optional)
RS-232 IR remote control
Frame lock 59-60.5 Hz
Controller status Diagnostic LED's, health monitoring and alerts
Maximum distance from LCD 125 ft/38 m max backlight
Unique Architecture & Benets By Design
At the heart of the Clarity Matrix architecture is a distributed design that
takes heat, complexity and unreliability out from behind the LCD panel and
replaces it with a centrally located, easily accessible and highly reliable rack-
mounted system. The Quad Controller module drives long distance video
through Cat 6 cables. The Power Supply modules enable long distance
power, which eliminates the need for power outlets behind the displays and
also oer a redundant power supply option.
Integrated EasyAxis Mounting System
The Clarity Matrix LCD Video Wall Family includes an EasyAxis™ mounting system which provides perfect
panel-to-panel alignment, ultra-shallow depth, and a service position which aids in servicing a LCD in the
video wall. The mounting system features alignment spacers, adjustment cams, and a light weight design
reducing the weight of the entire video wall and requirements for the support structure.
O-board electronics design
Quad Controller Module
Power Supply Modules
7.1 mm image-to-image gap
H
MODULE W/
MOUNT
D
MODULE W/O
MOUNT
6”
152.4 mm
29.6 8”
754 mm
52.59”
1336 mm
Front
Side
2/13
FRONT SIDE
Multi-user, multi-touch interactive LCD video wall
For customers looking for a large, interactive display in public spaces or collaboration environments, PLANAR’s Clarity™
Matrix MultiTouch Video Wall System provides an ultra-slim profile, high-impact interactive video wall. The MultiTouch
utilizes a touch sensor frame around the edge of the video wall allowing multiple users to touch and use gestures to interact
with content on the video wall. Clarity Matrix MultiTouch utilizes PLANAR’s ERO™ (Extended Ruggedness and Optics™)
technology to provide a modular, near seamless touch surface that protects the LCD screens. The system incorporates
the latest touch technology to enable up to 32 touch points simultaneously across the video wall. This allows multiple
touches or common gesture recognition by a single user but allows for multiple people to interact with the video wall and
not affect other users, making it the premier solution for customers looking to expand their collaboration capabilities in
visualization or conference room applications. Not only does the Clarity Matrix MultiTouch provide simultaneous touches
but it provides a better touch experience with pinpoint accuracy, prevents false touch points, and is capable of creating
large video wall sizes up to a 350” diagonal.
PLANAR Clarity Matrix LCD Video Wall System
Clarity Matrix with ERO features a glass front to provide
increased ruggedness and optical performance for
applications in public spaces or interactive touch. The
glass surface is optically bonded to the front of the LCD
with a proprietary construction and assembly technique
to maintain the narrow bezel spacing and creating a
continuous surface when tiled together in a video wall.
Clarity Matrix with ERO also provides improved optical
performance by providing additional ambient light
rejection and increased contrast.
THE ERO ADVANTAGE
Other implementations of touch systems for LCD video
walls have required a large piece of glass in front of the LCD
to protect and provide a touchable surface. This glass can
be cumbersome for installation, transport, and servicing of
large video walls. The modular design of the Clarity Matrix
with ERO provides a near seamless touch surface while
ensuring ease of installation and serviceability, less parallax
error, and superior optical properties.
MODULAR PROTECTIVE TOUCH SURFACE
Without ERO With ERO
PLANAR’s ERO technology features an optically-bonded glass
front for increased ruggedness and optical performance
Planar is a trademark of Planar Systems, Inc. All other trade and service marks
are the property of their holders.
Copyright© 2014 Planar Systems, Inc. All rights reserved. This document may
not be copied in any form without written permission from Planar Systems,
Inc. Information in this document is subject to change without notice.
www.planar.com
sales@planar.com
1-866-475-2627
CLARITY MATRIX MULTITOUCH SPECIFICATIONS
Touch Options MT6- 6 Simultaneous Touch Points
MT32- 32 Simultaneous Touch Points
Standard Congurations 2x2 and 3x3 LX46HDS-L, LX55HDS-L, MX46HDS-L, , MX55HDS-L, LX55HDU-L, MX46HDU-L, MX55HDU-L
Custom Congurations Height <10 ft. (3 m)
Width + Height ≤ 40 ft. (12 m)
Portrait and Landscape
LX46HDS, LX55HDS, MX46HDS, MX55HDS, LX55HDU, MX46HDU, MX55HDU
Touch Frame Dimensions 2.6" x 2.6" x 4.5"
Connectivity to Source USB 2.0
Power for Touch System 100-240V AC, 50-60 Hz
OS Compatibility Windows 8, Windows XP, Max OS X, Android (limited to iStick) and Linux
THE ERO ADVANTAGE
Clarity Matrix with ERO features a glass front to provide increased
ruggedness and optical performance for applications in public spaces
or interactive touch. The glass surface is optically bonded to the front
of the LCD with a proprietary construction and assembly technique to
maintain the narrow bezel spacing and creating a continuous surface
when tiled together in a video wall. Clarity Matrix with ERO also provides
improved optical performance by providing additional ambient light
rejection and increased contrast.
Without ERO With ERO
Planar's ERO technology features an optically-bonded glass
front for increased ruggedness and optical performance
MODULAR PROTECTIVE TOUCH SURFACE
Other implementations of touch systems for LCD video walls have required a large piece
of glass in front of the LCD to protect and provide a touchable surface. This glass can be
cumbersome for installation, transport, and servicing of large video walls. The modular
design of the Clarity Matrix with ERO provides a near seamless touch surface while
ensuring ease of installation and serviceability, less parallax error, and superior optical
properties.
ULTRA-SLIM PROFILE
Clarity Matrix MultiTouch features an ultra-slim prole with Planar’s EasyAxis™ Mounting
System. The EasyAxis Mounting System also enables ne adjustments to achieve perfect
panel-to-panel alignment, creating a continuous touch surface.
EASY TO INSTALL AND FULLY CONFIGURABLE
Clarity Matrix MultiTouch is available in 2x2 and 3x3 standard video wall congurations. Custom congurations up to 350" diagonal
are available as a special order item. Both standard and custom congurations are available in 6 or 32 touch point options. This
modular system is easy to install and includes everything needed to add multi-touch capabilities to the video wall and is installed
and calibrated during the installation.
Modular design creates continuous touch surface
10/14
Modular design creates
continuous touch surface
Clarity Matrix MultiTouch
VIDEO WALL SYSTEM
Multi-user, multi-touch interactive LCD video wall
For customers looking for a large, interactive display in public spaces or collaboration environments, Planar's Clarity™
Matrix MultiTouch Video Wall System provides an ultra-slim prole, high-impact interactive video wall. Planar’s Clarity
Matrix MultiTouch utilizes a touch sensor frame around the edge of the video wall allowing multiple users to touch
and use gestures to interact with content on the video wall. Clarity Matrix MultiTouch utilizes Planar's ERO™ (Extended
Ruggedness and Optics™) technology to provide a modular, near seamless touch surface that protects the LCD screens.
Clarity Matrix MultiTouch incorporates the latest touch technology to enable up to 32 touch points simultaneously across
the video wall. This allows multiple touches or common gesture recognition by a single user but allows for multiple people
to interact with the video wall and not aect other users, making it the premier solution for customers looking to expand
their collaboration capabilities in visualization or conference room applications.
Not only does the Clarity Matrix MultiTouch provide simultaneous touches but it provides a better touch experience with
pinpoint accuracy, prevents false touch points, and is capable of creating large video wall sizes up to a 350" diagonal.
Clarity Matrix MultiTouch features an ultra-slim profile with
PLANAR’s EasyAxis™ Mounting System. The EasyAxis Mounting
System also enables fine adjustments to achieve perfect panel-
to-panel alignment, creating a continuous touch surface.
ULTRA-SLIM PROFILE
Clarity Matrix MultiTouch is available in 2x2 and 3x3 standard
video wall configurations. Custom configurations up to 350“
diagonal are available as a special order item. Both standard
and custom configurations are available in 6 or 32 touch point
options. This modular system is easy to install and includes
everything needed to add multi-touch capabilities to the video
wall and is installed and calibrated during the installation.
EASY TO INSTALL AND FULLY CONFIGURABLE
The Clarity Matrix Video Wall System includes PLANAR‘s
integrated EasyAxis Mounting System that features built-in
precise alignment capabilities, in-wall service position and
a super slim depth as thin as 3.6“ (93mm). As a result, Clarity
Matrix has the thinnest footprint of any LCD video wall, making
it compliant with the Americans with Disabilities Act (ADA)
requirement for protruding objects of less than four inches.
EasyAxis adjustment cams facilitate precise 6-axis alignment
ensuring uniform, minimized image-to-image gap.
PERFECT ALIGNMENT
You know when you see a Clarity Matrix video wall because it looks stunning, is perfectly
aligned and has the thinnest mounted depth. Clarity Matrix with G2 Architecture provides
the very best visual performance of any LCD video wall available, with smaller bezels,
higher brightness, better uniformityand better alignment. Updated connectivity and 10-bit
processing combined with Planar's Big Picture Plus processing enables ultra HD 4K sources
to be tiled across the video wall.
The Clarity Matrix Video Wall System includes Planar's integrated EasyAxis Mounting System
that features built-in precise alignment capabilities, in-wall service position and a super slim
depth as thin as 3.6" (93mm). As a result, Clarity Matrix has the thinnest footprint of any LCD
video wall, making it compliant with the Americans with Disabilities Act (ADA) requirement for
protruding objects of less than four inches. EasyAxis adjustment cams facilitate precise 6-axis
alignment ensuring uniform, minimized image-to-image gap.
Planar’s unique architecture provides a mission-critical design
with redundant power supplies, reduced thermal stress and
health and status monitoring capabilities. Clarity Matrix with
G2 Architecture adds SNMP LAN control, extra TIR prevention
and ambient light sensing to extend the life of the video wall.
For further reliability, Clarity Matrix power supply units include
an n+1 redundant design so if any one power supply in the unit
fails, the LCDs maintain uninterrupted operation.
Superior Visual Performance
Perfect Alignment
Designing, installing and servicing a video wall with
Clarity Matrix has never been easier. Clarity Matrix
incorporates Planar's EasyAxis Mounting System delivering
the industry's thinnest prole LCD video wall, built-in
alignment and service capabilities. The new G2 architecture
supports integrated video and power extension up to
330 ft (100m) eliminating compatibility and integrity
worries and costs associated with long distance cable
extenders and AC power outlets behind the video wall.
Fewer cables are necessary to run to the video wall,
simplifying and reducing the cost of the system.
Clarity Matrix Architecture
Advantages:
• Rack-mount components placed in easy-to-service
location with no disruption at the video wall
• Co-location of the rack-mount components with
sources or additional processing equipment for easy
access
• No 3rd party long distance extenders or cables
needed
• Entire video wall is controlled with a single remote
control, RS232 or LAN device, including 3rd party
control systems
• Fewer long distance cables run to the wall with on-
wall, loop-out capabilities
• No AC outlets required behind the displays
• Automated brightness, color and gamma balancing
tools
Simplied Design,
Installation and
Service
Clarity Matrix service mode for in-wall service
EasyAxis Mounting System simplies
and minimizes the time required to
install and maintain a perfectly aligned
video wall
Mission Critical Design
Redundant power supply means
greater up time
EasyAxis Mounting System
simplifies and minimizes
the time required to install
and maintain a perfectly
aligned video wall
CLARITY MATRIX MULTITOUCH SPECIFICATIONS
Touch Options MT6- 6 Simultaneous Touch Points
MT32- 32 Simultaneous Touch Points
Standard Configurations 2x2 and 3x3 LX46HDS-L, LX55HDS-L,
MX46HDS-L, , MX55HDS-L, LX55HDU-L,
MX46HDU-L, MX55HDU-L
Custom Configurations Height <10 ft. (3 m)
Width + Height ≤ 40 ft. (12 m)
Portrait and Landscape
LX46HDS, LX55HDS, MX46HDS, MX55HDS,
LX55HDU, MX46HDU, MX55HDU
Touch Frame Dimensions 2.6” x 2.6” x 4.5”
Connectivity to Source USB 2.0
Power for Touch System 100-240V AC, 50-60 Hz
OS Compatibility Windows 8, Windows XP, Max OS X, Android
(limited to iStick) and Linux
Clarity Matrix 3D with G2 Architecture
PLANAR’s Clarity™ Matrix 3D LCD Video Wall System with G2 Architecture is designed for professional 3D visualization
environments seeking a large format, flicker-free, thin profile, stereoscopic display. Clarity Matrix 3D adds a new dimension
to the Clarity Matrix LCD Video Wall family utilizing its unique design with an ultra-shallow install depth of only 3.6”/93mm,
integrated mounting system, and off-board electronics and power supplies to create exceptional 3D visualization. Clarity
Matrix cutting edge ultra-narrow bezel LCD technology is combined with a 3D optical system and passive glass that, when
tiled together, enable viewing and analysis of 3D images across the entire video wall. This approach to 3D visualization
provides a more comfortable viewing experience versus active glasses solutions. Other benefits to passive glasses include
lighter weight, no batteries are required, and they are less expensive than active solutions. This unique design also
incorporates off-board power supply and electronic components which reduces the weight, heat load, noise, depth, and
points of failure at the LCD video wall extending the lifetime and reducing the cost of ownership. The LCD Video Wall
System with G2 Architecture makes the most of LCD technology, including slim profile and vibrant visual performance
while achieving perfect alignment, simplified service and extended operation.
Clarity Matrix 3D utilizes micro-polarizing optics on the surface of the LCD to provide constant 3D visualization to each eye.
This is done by polarizing the light from each horizontal row of pixels matching the polarization of the left and right eye in
passive 3D glasses. The left eye only sees every other horizontal row of pixels, the right eye sees the remaining rows of pixels
and the brain combines each eyes view to create a single high resolution image.
PLANAR Clarity Matrix LCD Video Wall System
Clarity Matrix 3D with G2 Architecture
Planar’s Clarity™ Matrix 3D LCD Video Wall System with G2 Architecture is designed for professional 3D visualization
environments seeking a large format, icker-free, thin prole, stereoscopic display. Clarity Matrix 3D adds a new dimension
to the Clarity Matrix LCD Video Wall family utilizing its unique design with an ultra-shallow install depth of only 3.6"/93mm,
integrated mounting system, and o-board electronics and power supplies to create exceptional 3D visualization.
Clarity Matrix cutting edge ultra-narrow bezel LCD technology is combined with a 3D optical system and passive glass
that, when tiled together, enable viewing and analysis of 3D images across the entire video wall. This approach to 3D
visualization provides a more comfortable viewing experience versus active glasses solutions. Other benets to passive
glasses include lighter weight, no batteries are required, and they are less expensive than active solutions. This unique design
also incorporates o-board power supply and electronic components which reduces the weight, heat load, noise, depth, and
points of failure at the LCD video wall extending the lifetime and reducing the cost of ownership.
Clarity Matrix LCD Video Wall System with G2 Architecture makes the most of LCD technology, including slim prole and
vibrant visual performance while achieving perfect alignment, simplied service and extended operation.
Clarity Matrix 3D
LCD VIDEO WALL SYSTEM
Passive glasses 3D is superior to active shutter glasses
3D because passive glasses create less fatigue and eye
strain when viewing 3D images. The Clarity Matrix 3D also
delivers great brightness and contrast levels unachiveable
with other 3D display technologies. The circular polarized
passive glasses used with the Clarity Matrix 3D are less
expensive, lighter weight, and don’t require batteries.
PASSIVE GLASSES
Clarity Matrix 3D offers wide viewing angles enabling
multi-user use with acceptable stereo contrast over varying
viewing angles. Having a wide viewing angle, both vertically
and horizontally, ensures a more comfortable and superior
viewing experience.
WIDE VIEWING ANGLES
Clarity Matrix 3D with G2 Architecture
Planar’s Clarity™ Matrix 3D LCD Video Wall System with G2 Architecture is designed for professional 3D visualization
environments seeking a large format, icker-free, thin prole, stereoscopic display. Clarity Matrix 3D adds a new dimension
to the Clarity Matrix LCD Video Wall family utilizing its unique design with an ultra-shallow install depth of only 3.6"/93mm,
integrated mounting system, and o-board electronics and power supplies to create exceptional 3D visualization.
Clarity Matrix cutting edge ultra-narrow bezel LCD technology is combined with a 3D optical system and passive glass
that, when tiled together, enable viewing and analysis of 3D images across the entire video wall. This approach to 3D
visualization provides a more comfortable viewing experience versus active glasses solutions. Other benets to passive
glasses include lighter weight, no batteries are required, and they are less expensive than active solutions. This unique design
also incorporates o-board power supply and electronic components which reduces the weight, heat load, noise, depth, and
points of failure at the LCD video wall extending the lifetime and reducing the cost of ownership.
Clarity Matrix LCD Video Wall System with G2 Architecture makes the most of LCD technology, including slim prole and
vibrant visual performance while achieving perfect alignment, simplied service and extended operation.
Clarity Matrix 3D
LCD VIDEO WALL SYSTEM
The Clarity Matrix 3D can also display conventional 2D images
maintaining the capability of a multi-purpose, high resolution
video wall display. The Clarity Matrix 3D is compatible with
numerous graphics cards and 3D visualization software tools in
various applications such as:
3D AND 2D
CLARITY MATRIX 3D SPECIFICATIONS
CLARITY MATRIX LX46S-L 3D
Weight 52 lbs / 24 kg
Brightness Max 2D: 300 Nits 3D: 120 Nits
Power consumption 290 Watts per panel (Max)
Screen Diagonal 46”
Tiled bezel width 7.1mm
Resolution 1366 x 768
Operating Temperature
Range 5 - 35°C
Stereo Viewing Angle Horizontal: +/- 40° Vertical: +/- 17°
Stereo Technology 3D Micro-polarizer Optical System
Stereo Glasses Passive Glass Circular Polarized
Operating Humidity 20-90% RH Non-condensing
Mounting System EasyAxis™ Mounting System Included
Off-Board Architecture Clarity Matrix G2 Quad Controller Electronics and
Power Supply Module
Input 4 single link HDMI with HDCP
DisplayPort 1.1 in and out
Safety regulations FCC Class A, EN55022/CISPR22, ICES-003, CNS 13438,
EN55024, EN60950, RoHS
Dimensions
Width x Height
Depth w/ Mount
40.4” x 22.8” / 1025.7 x 579.8 mm
3.6” / 93 mm
• Data Visualization
• Molecular Modeling
• Engineering Design
• 3D Production Review
• Oil and Gas Exploration
• Simulation and Training

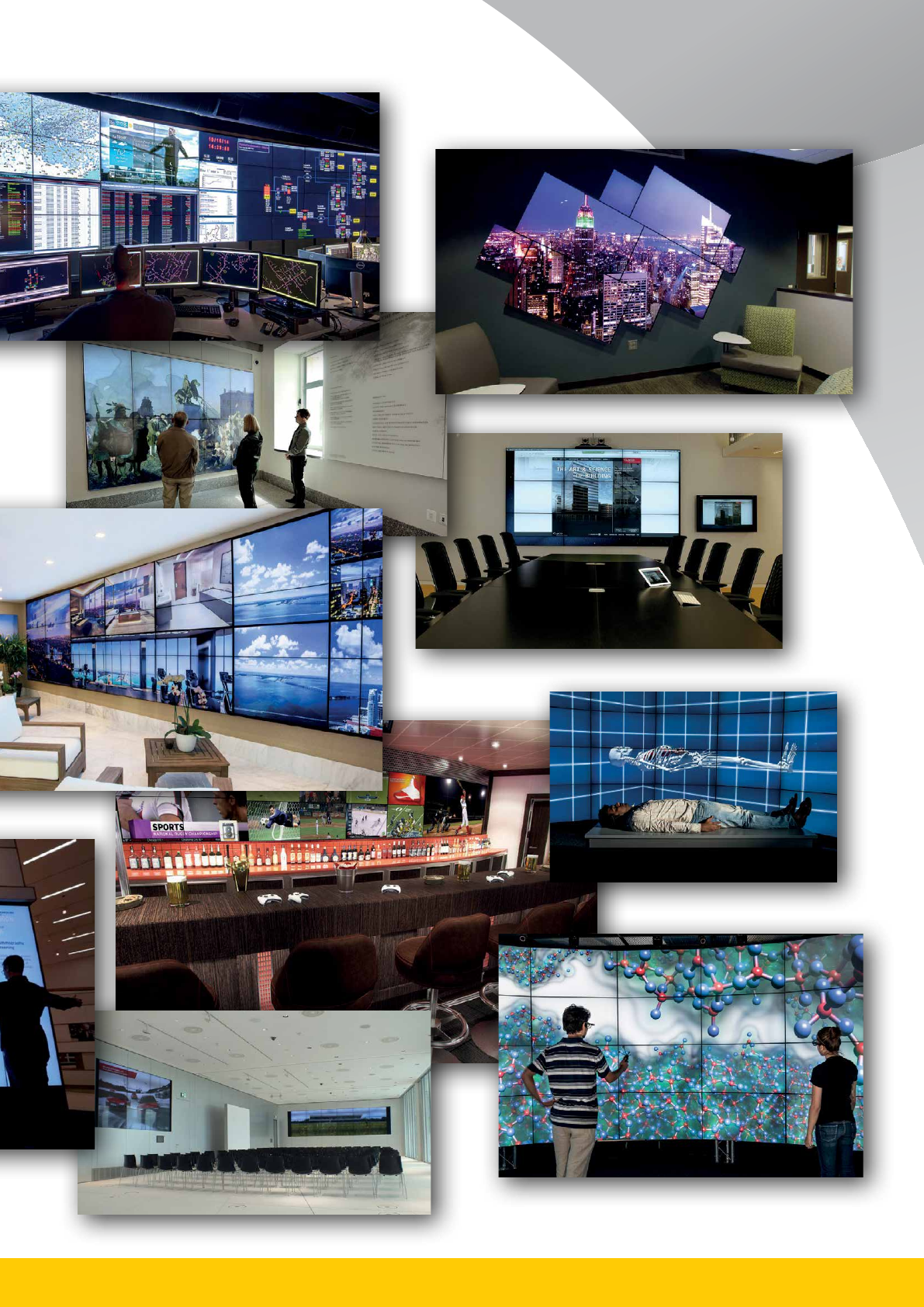

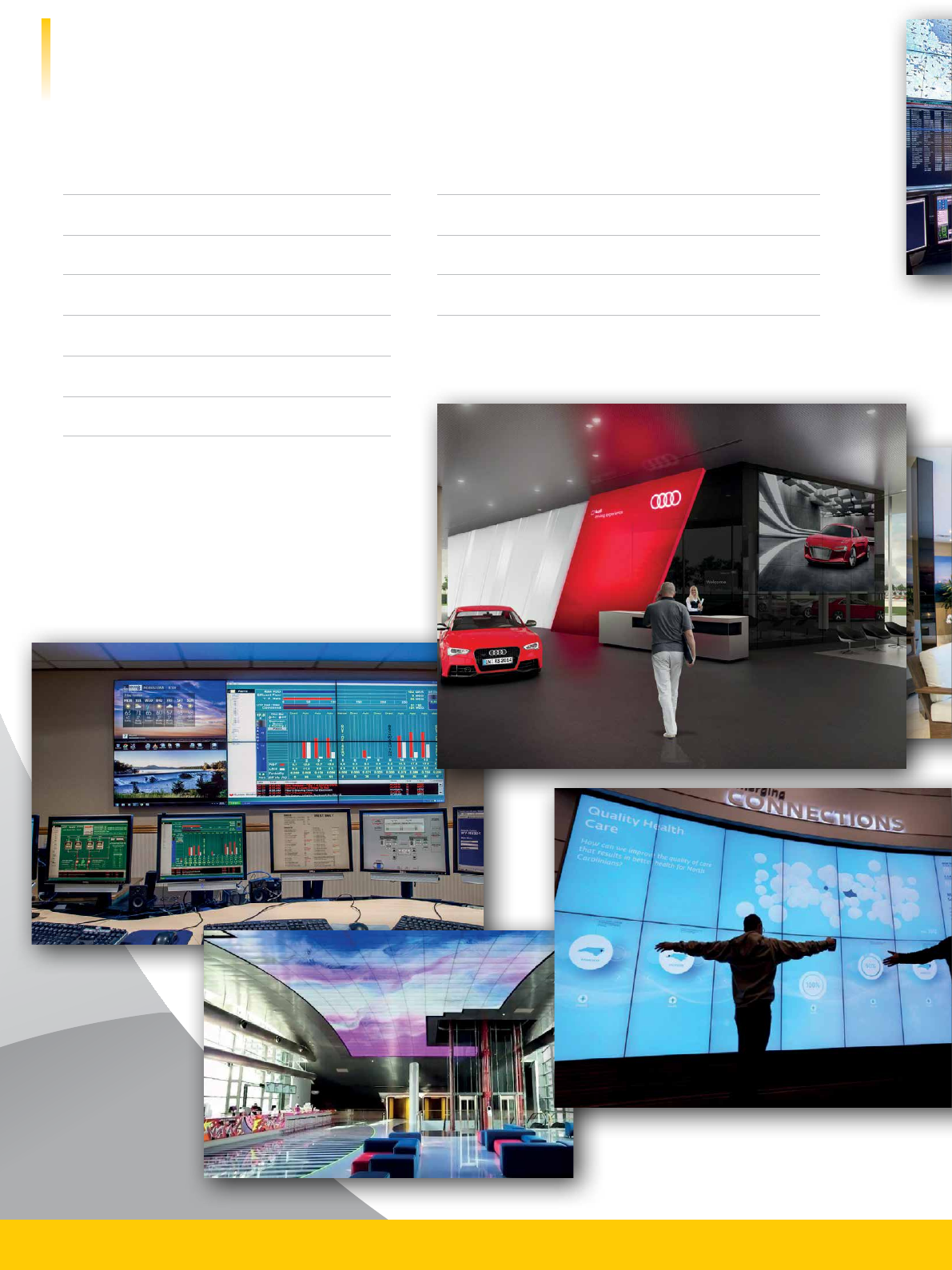

Case Studies, references and areas of application
The display has been tuned and tested with a range of the most popular professional graphics cards, controllers and
content sources in order to make solution deployment easier and more successful for applications, including:
PLANAR Clarity Matrix LCD Video Wall System
Geospatial
Oil and Gas Exploration and Production
Process Control
Computer Aided Design (CAD)
Architecture
Visualization, Simulation & Presentation
Medical Imaging
Digital Post-Production
Science – Academic Research and Commercial
Financial Decision Room
Control Room
Collaborative Conference Room or Team Room
Digital Signage
Some images show the old Clarity System with 7.1 and 5.1 mm tiled bezel width.
SCHNEIDER DIGITAL
Josef J. Schneider e.K.
Maxlrainer Straße 10
D-83714 Miesbach
Tel.: +49 (8025) 9930-0
Fax: +49 (8025) 9930-29
www.schneider-digital.com
info@schneider-digital.com
Partner of:

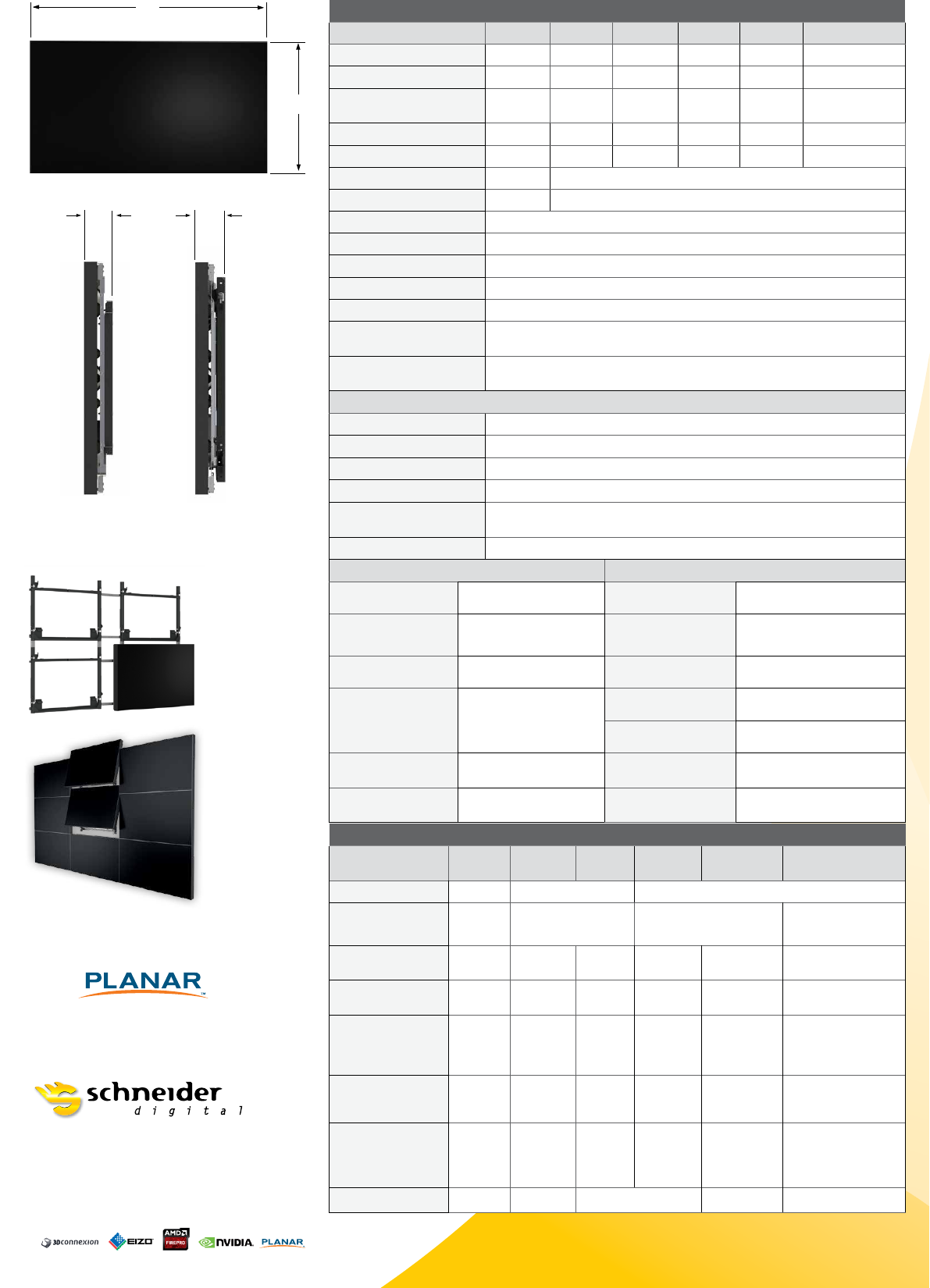

CLARITY MATRIX LCD VIDEO WALL SYSTEM SPECIFICATIONS
Model LX46S-3D LX46HDS MX46HDU LX55HDU MX55HDS MX55HDU
Diagonal 46” 46” 46” 55” 55” 55”
Brightness (optimal) 450 nits 500 nits 800 nits 500 nits 800 nits 800 nits
Contrast ratio
(full field typical) 4500:1 3500:1 3500:1 3500:1 3500:1 3500:1
Power consumption (typical)* 230 watts 147 watts 177 watts 183 watts 231 watts 231 watts
Heat load at LCD (typical) 623 BTU/hr 440 BTU/hr 544 BTU/hr 557 BTU/hr 628 BTU/hr 628 BTU/hr
Resolution 1366 x 768 1920 x 1080
Backlight type CCFL LED
Full viewing angle 178 degrees
Technology Commercial-grade SPVA LCD
Acoustic noise Fanless operation
Operating temperature 5 - 40°C
Operating humidity range 20-90% RH non-condensing
Backlight sensing
and reporting At display level
Display module
position sensing Auto-sensing integrated
Mounting
EasyAxis Mounting System 1 per display included. Optional VESA hole pattern available.
Orientation Landscape and Portrait Options
Floor standing mount bases Optional
In-wall service Front and rear
Display module position
adjustment 6-axis integrated
Regulations Complies with EN60950, FCC Class A, CISPR22/85, EC, EU, RoHS, TAA Compliant
Power Supply Module Quad Controller Module
Type 1 U rack mount controller drives
up to 3-6 panels Type 1U rack mount controller drives up to
4 panels
Redundancy n+1 redundant power supplies
(optional) Inputs
4 single link HDMI
with HDCP
DisplayPort 1.1 in and out
Line voltage 100-240 Volts AC, 50/60Hz auto
switching Image scaling Clarity Big Picture Plus
32x32 maximum
Power status
Diagnostic LED’s, health
monitoring and alerts
Mullion compensation Integrated
Control RS-232, IR remote control, Clarity
WallNet (LAN) (optional)
Maximum distance
from LCD 500 ft/150m max backlight Frame lock 49-61 Hz
Controller status Diagnostic LED’s health
monitoring and alerts
Maximum distance
from LCD
200ft/60m standard
330ft/100m with long distance option
CLARITY MATRIX LCD VIDEO WALL SYSTEM DIMENSIONS
Model LX46
S-3D
LX46
HDS-L
MX46
HDU
LX55
HDU
MX55
HDS-L
MX55
HDU
Diagonal 46” 46” 55”
Cabinet dimensions
(WxH)
40.3” x 22.8”
1225.7 mm x
579.8 mm
40.3” x 22.8”
1023.9 mm x 578.6 mm
47.8” x 27.0”
1215.3 mm x 686.1 mm
47.8” x 27.0”
1215.3 mm x 686.1 mm
**Installed depth with
mount (DM)
3.6”/
90mm
4.2”/
107 mm
3.6”/
90 mm
4.2”/
107 mm
3.6”/
93 mm
3.6”/
93 mm
Installed depth ERO
with mount (DM) N/A 4.4”/
111 mm
3.7”/
93 mm
4.3”/
110 mm
3.8”/
96 mm
3.8”/
96 mm
LCD module depth
with VESA Option
(Display Only) Option
(D)
N/A 4”/
101.7 mm
3.3”/
84 mm
4”/
101.7 mm
3.3”/
84 mm
3.3”/
84 mm
ERO LCD module
depth with VESA
option
N/A 4.1”/
105 mm
3.4”/
86 mm
4.1” /
105 mm
3.4” /
86 mm
3.4” /
86 mm
Total weight (includes
LCD & mount)
48 lbs
(21.8 kg)
58 lbs
(26.3 kg)
with ERO
48 lbs
(21.8 kg)
58 lbs
(26.3 kg)
with ERO
48 lbs
(21.8 kg)
58 lbs
(26.3 kg)
with ERO
59 lbs
(26.8 kg)
74 lbs
(33
.6
kg)
with
ERO
59 lbs
(26.8 kg)
74 lbs
(33
.6
kg)
with
ERO
59 lbs
(26.8 kg)
74 lbs
(33
.6
kg)
with ERO
Tiled bezel width 7.1 mm 5.5 mm 3.7 mm
5.5 mm
3.7 mm
*Power consumption can vary with configuration and backlight setting **Complies with US ADA regulations for installed depth <4”
Module
with
EasyAxis
Mount
H
W
Planar is a trademark of Planar Systems, Inc. All other trade and service
marks are the property of their holders.
Copyright© 2014 Planar Systems, Inc. All rights reserved. This document
may not be copied in any form without written permission from Planar
Systems, Inc. Information in this document is subject to change without
notice. 3/14
www.planar.com
sales@planar.com
1-866-475-2627
Module
with
VESA option
DM
D
*Power consumption can vary with conguration and backlight setting
**Complies with US ADA regulations for installed depth <4"
CLARITY MATRIX LCD VIDEO WALL SYSTEM DIMENSIONS
Model LX46S-3D LX46HDS-L MX46HDS-L LX55HDS-L MX55HDS-L MX55HDU
Diagonal 46" 46" 55"
Cabinet dimensions (WxH) 40.3" x 22.8"
1225.7 mm x
579.8 mm
40.3” x 22.8”
1023.9 mm x 578.6 mm
47.8" x 27.0"
1215.3 mm x 686.1 mm
47.8" x 27.0"
1215.3 mm x
686.1 mm
**Installed depth with mount
(DM)
3.6”/90mm 4.2"/107mm 3.6"/90mm 4.2"/107mm 3.6"/93 mm 3.6"/93 mm
Installed depth ERO with mount
(DM)
N/A 4.4"/ 111mm 3.7"/93mm 4.3"/ 110mm 3.8"/96mm 3.8"/96mm
LCD module depth with VESA
Option (Display Only) Option (D)
N/A 4"/101.7mm 3.3”/ 84mm 4"/101.7mm 3.3”/ 84mm 3.3”/ 84mm
ERO LCD module depth with
VESA Option
N/A 4.1"/
105mm
3.4"/ 86mm 4.1"/
105mm
3.4"/ 86mm 3.4"/ 86mm
Total weight
(includes LCD & mount)
48 lbs
(21.8 kg)
58 lbs
(26.3 kg) with
ERO
48 lbs
(21.8 kg)
58 lbs
(26.3 kg) with
ERO
48 lbs
(21.8 kg)
58 lbs
(26.3 kg)
with ERO
59 lbs
(26.8 kg)
74 lbs
(33.6 kg) with
ERO
59 lbs
(26.8 kg)
74 lbs
(33.6 kg) with
ERO
59 lbs
(26.8 kg)
74 lbs (33.6
kg) with ERO
Tiled bezel width 7.1 mm 5.5 mm 3.7 mm
CLARITY MATRIX LCD VIDEO WALL SYSTEM SPECIFICATIONS
Model LX46S-3D LX46HDS MX46HDS LX55HDS MX55HDS MX55HDU
Diagonal 46" 46" 46” 55" 55" 55”
Brightness (optimal) 450 nits 500 nits 800 nits 500 nits 800 nits 800 Nits
Contrast ratio (full eld typical) 4500:1 3500:1 3500:1 3500:1 3500:1 3500:1
Power consumption (typical)* 230 watts 147 watts 177 watts 183 watts 231 watts 231 watts
Heat load at LCD (typical) 623 BTU/hr 440 BTU/hr 544 BTU/hr 557 BTU/hr 628 BTU/hr 628 BTU/hr
Resolution 1366 x 768 1920 x 1080
Backlight type CCFL LED
Full viewing angle 178 degrees
Technology Commercial-grade SPVA LCD
Acoustic noise Fanless operation
Operating temperature 5 - 40o C
Operating humidity range 20-90% RH non-condensing
Backlight sensing and reporting At display level
Display module position sensing Auto-sensing integrated
MOUNTING
EasyAxis Mounting System 1 per display included. Optional VESA hole pattern available.
Orientation Landscape and Portrait Options
Floor standing mount bases Optional
In-wall service Front and rear
Display module position
adjustment
6-axis integrated
Regulations Complies with EN60950, FCC Class A, CISPR22/85, EC, EU RoHS, TAA Compliant
POWER SUPPLY MODULE QUAD CONTROLLER MODULE
Type 1U rack mount controller drives
up to 3-6 panels
Type 1U rack mount controller
drives up to 4 panels
Redundancy n+1 redundant power
supplies (optional)
Inputs 4 single link HDMI with HDCP
DisplayPort 1.1 in and out
Line voltage 100-240 Volts AC, 50/60Hz auto
switching
Image scaling Clarity Big Picture Plus
32x32 maximum
Power status Diagnostic LED's, health
monitoring and alerts
Mullion
compensation
Integrated
Control RS-232, IR remote control, Clarity WallNet (LAN)
(optional)
Maximum distance
from LCD
500 ft/150m max backlight Frame lock 49-61 Hz
Controller status Diagnostic LED's,
health monitoring and alerts
Maximum
distance from LCD
200ft/60m standard
330ft/100m with long distance option
Module
with
EasyAxis
Mount
H
W
Planar is a trademark of Planar Systems, Inc. All other trade and service
marks are the property of their holders.
Copyright© 2014 Planar Systems, Inc. All rights reserved. This document
may not be copied in any form without written permission from Planar
Systems, Inc. Information in this document is subject to change without
notice. 3/14
www.planar.com
sales@planar.com
1-866-475-2627
Module
with
VESA option
DM
D
*Power consumption can vary with conguration and backlight setting
**Complies with US ADA regulations for installed depth <4"
CLARITY MATRIX LCD VIDEO WALL SYSTEM DIMENSIONS
Model LX46S-3D LX46HDS-L MX46HDS-L LX55HDS-L MX55HDS-L MX55HDU
Diagonal 46" 46" 55"
Cabinet dimensions (WxH) 40.3" x 22.8"
1225.7 mm x
579.8 mm
40.3” x 22.8”
1023.9 mm x 578.6 mm
47.8" x 27.0"
1215.3 mm x 686.1 mm
47.8" x 27.0"
1215.3 mm x
686.1 mm
**Installed depth with mount
(DM)
3.6”/90mm 4.2"/107mm 3.6"/90mm 4.2"/107mm 3.6"/93 mm 3.6"/93 mm
Installed depth ERO with mount
(DM)
N/A 4.4"/ 111mm 3.7"/93mm 4.3"/ 110mm 3.8"/96mm 3.8"/96mm
LCD module depth with VESA
Option (Display Only) Option (D)
N/A 4"/101.7mm 3.3”/ 84mm 4"/101.7mm 3.3”/ 84mm 3.3”/ 84mm
ERO LCD module depth with
VESA Option
N/A 4.1"/
105mm
3.4"/ 86mm 4.1"/
105mm
3.4"/ 86mm 3.4"/ 86mm
Total weight
(includes LCD & mount)
48 lbs
(21.8 kg)
58 lbs
(26.3 kg) with
ERO
48 lbs
(21.8 kg)
58 lbs
(26.3 kg) with
ERO
48 lbs
(21.8 kg)
58 lbs
(26.3 kg)
with ERO
59 lbs
(26.8 kg)
74 lbs
(33.6 kg) with
ERO
59 lbs
(26.8 kg)
74 lbs
(33.6 kg) with
ERO
59 lbs
(26.8 kg)
74 lbs (33.6
kg) with ERO
Tiled bezel width 7.1 mm 5.5 mm 3.7 mm
CLARITY MATRIX LCD VIDEO WALL SYSTEM SPECIFICATIONS
Model LX46S-3D LX46HDS MX46HDS LX55HDS MX55HDS MX55HDU
Diagonal 46" 46" 46” 55" 55" 55”
Brightness (optimal) 450 nits 500 nits 800 nits 500 nits 800 nits 800 Nits
Contrast ratio (full eld typical) 4500:1 3500:1 3500:1 3500:1 3500:1 3500:1
Power consumption (typical)* 230 watts 147 watts 177 watts 183 watts 231 watts 231 watts
Heat load at LCD (typical) 623 BTU/hr 440 BTU/hr 544 BTU/hr 557 BTU/hr 628 BTU/hr 628 BTU/hr
Resolution 1366 x 768 1920 x 1080
Backlight type CCFL LED
Full viewing angle 178 degrees
Technology Commercial-grade SPVA LCD
Acoustic noise Fanless operation
Operating temperature 5 - 40o C
Operating humidity range 20-90% RH non-condensing
Backlight sensing and reporting At display level
Display module position sensing Auto-sensing integrated
MOUNTING
EasyAxis Mounting System 1 per display included. Optional VESA hole pattern available.
Orientation Landscape and Portrait Options
Floor standing mount bases Optional
In-wall service Front and rear
Display module position
adjustment
6-axis integrated
Regulations Complies with EN60950, FCC Class A, CISPR22/85, EC, EU RoHS, TAA Compliant
POWER SUPPLY MODULE QUAD CONTROLLER MODULE
Type 1U rack mount controller drives
up to 3-6 panels
Type 1U rack mount controller
drives up to 4 panels
Redundancy n+1 redundant power
supplies (optional)
Inputs 4 single link HDMI with HDCP
DisplayPort 1.1 in and out
Line voltage 100-240 Volts AC, 50/60Hz auto
switching
Image scaling Clarity Big Picture Plus
32x32 maximum
Power status Diagnostic LED's, health
monitoring and alerts
Mullion
compensation
Integrated
Control RS-232, IR remote control, Clarity WallNet (LAN)
(optional)
Maximum distance
from LCD
500 ft/150m max backlight Frame lock 49-61 Hz
Controller status Diagnostic LED's,
health monitoring and alerts
Maximum
distance from LCD
200ft/60m standard
330ft/100m with long distance option
Module
with
EasyAxis
Mount
H
W
Planar is a trademark of Planar Systems, Inc. All other trade and service
marks are the property of their holders.
Copyright© 2014 Planar Systems, Inc. All rights reserved. This document
may not be copied in any form without written permission from Planar
Systems, Inc. Information in this document is subject to change without
notice. 3/14
www.planar.com
sales@planar.com
1-866-475-2627
Module
with
VESA option
DM
D
*Power consumption can vary with conguration and backlight setting
**Complies with US ADA regulations for installed depth <4"
CLARITY MATRIX LCD VIDEO WALL SYSTEM DIMENSIONS
Model LX46S-3D LX46HDS-L MX46HDS-L LX55HDS-L MX55HDS-L MX55HDU
Diagonal 46" 46" 55"
Cabinet dimensions (WxH) 40.3" x 22.8"
1225.7 mm x
579.8 mm
40.3” x 22.8”
1023.9 mm x 578.6 mm
47.8" x 27.0"
1215.3 mm x 686.1 mm
47.8" x 27.0"
1215.3 mm x
686.1 mm
**Installed depth with mount
(DM)
3.6”/90mm 4.2"/107mm 3.6"/90mm 4.2"/107mm 3.6"/93 mm 3.6"/93 mm
Installed depth ERO with mount
(DM)
N/A 4.4"/ 111mm 3.7"/93mm 4.3"/ 110mm 3.8"/96mm 3.8"/96mm
LCD module depth with VESA
Option (Display Only) Option (D)
N/A 4"/101.7mm 3.3”/ 84mm 4"/101.7mm 3.3”/ 84mm 3.3”/ 84mm
ERO LCD module depth with
VESA Option
N/A 4.1"/
105mm
3.4"/ 86mm 4.1"/
105mm
3.4"/ 86mm 3.4"/ 86mm
Total weight
(includes LCD & mount)
48 lbs
(21.8 kg)
58 lbs
(26.3 kg) with
ERO
48 lbs
(21.8 kg)
58 lbs
(26.3 kg) with
ERO
48 lbs
(21.8 kg)
58 lbs
(26.3 kg)
with ERO
59 lbs
(26.8 kg)
74 lbs
(33.6 kg) with
ERO
59 lbs
(26.8 kg)
74 lbs
(33.6 kg) with
ERO
59 lbs
(26.8 kg)
74 lbs (33.6
kg) with ERO
Tiled bezel width 7.1 mm 5.5 mm 3.7 mm
CLARITY MATRIX LCD VIDEO WALL SYSTEM SPECIFICATIONS
Model LX46S-3D LX46HDS MX46HDS LX55HDS MX55HDS MX55HDU
Diagonal 46" 46" 46” 55" 55" 55”
Brightness (optimal) 450 nits 500 nits 800 nits 500 nits 800 nits 800 Nits
Contrast ratio (full eld typical) 4500:1 3500:1 3500:1 3500:1 3500:1 3500:1
Power consumption (typical)* 230 watts 147 watts 177 watts 183 watts 231 watts 231 watts
Heat load at LCD (typical) 623 BTU/hr 440 BTU/hr 544 BTU/hr 557 BTU/hr 628 BTU/hr 628 BTU/hr
Resolution 1366 x 768 1920 x 1080
Backlight type CCFL LED
Full viewing angle 178 degrees
Technology Commercial-grade SPVA LCD
Acoustic noise Fanless operation
Operating temperature 5 - 40o C
Operating humidity range 20-90% RH non-condensing
Backlight sensing and reporting At display level
Display module position sensing Auto-sensing integrated
MOUNTING
EasyAxis Mounting System 1 per display included. Optional VESA hole pattern available.
Orientation Landscape and Portrait Options
Floor standing mount bases Optional
In-wall service Front and rear
Display module position
adjustment
6-axis integrated
Regulations Complies with EN60950, FCC Class A, CISPR22/85, EC, EU RoHS, TAA Compliant
POWER SUPPLY MODULE QUAD CONTROLLER MODULE
Type 1U rack mount controller drives
up to 3-6 panels
Type 1U rack mount controller
drives up to 4 panels
Redundancy n+1 redundant power
supplies (optional)
Inputs 4 single link HDMI with HDCP
DisplayPort 1.1 in and out
Line voltage 100-240 Volts AC, 50/60Hz auto
switching
Image scaling Clarity Big Picture Plus
32x32 maximum
Power status Diagnostic LED's, health
monitoring and alerts
Mullion
compensation
Integrated
Control RS-232, IR remote control, Clarity WallNet (LAN)
(optional)
Maximum distance
from LCD
500 ft/150m max backlight Frame lock 49-61 Hz
Controller status Diagnostic LED's,
health monitoring and alerts
Maximum
distance from LCD
200ft/60m standard
330ft/100m with long distance option
You know when you see a Clarity Matrix video wall because it looks stunning, is perfectly
aligned and has the thinnest mounted depth. Clarity Matrix with G2 Architecture provides
the very best visual performance of any LCD video wall available, with smaller bezels,
higher brightness, better uniformityand better alignment. Updated connectivity and 10-bit
processing combined with Planar's Big Picture Plus processing enables ultra HD 4K sources
to be tiled across the video wall.
The Clarity Matrix Video Wall System includes Planar's integrated EasyAxis Mounting System
that features built-in precise alignment capabilities, in-wall service position and a super slim
depth as thin as 3.6" (93mm). As a result, Clarity Matrix has the thinnest footprint of any LCD
video wall, making it compliant with the Americans with Disabilities Act (ADA) requirement for
protruding objects of less than four inches. EasyAxis adjustment cams facilitate precise 6-axis
alignment ensuring uniform, minimized image-to-image gap.
Planar’s unique architecture provides a mission-critical design
with redundant power supplies, reduced thermal stress and
health and status monitoring capabilities. Clarity Matrix with
G2 Architecture adds SNMP LAN control, extra TIR prevention
and ambient light sensing to extend the life of the video wall.
For further reliability, Clarity Matrix power supply units include
an n+1 redundant design so if any one power supply in the unit
fails, the LCDs maintain uninterrupted operation.
Superior Visual Performance
Perfect Alignment
Designing, installing and servicing a video wall with
Clarity Matrix has never been easier. Clarity Matrix
incorporates Planar's EasyAxis Mounting System delivering
the industry's thinnest prole LCD video wall, built-in
alignment and service capabilities. The new G2 architecture
supports integrated video and power extension up to
330 ft (100m) eliminating compatibility and integrity
worries and costs associated with long distance cable
extenders and AC power outlets behind the video wall.
Fewer cables are necessary to run to the video wall,
simplifying and reducing the cost of the system.
Clarity Matrix Architecture
Advantages:
• Rack-mount components placed in easy-to-service
location with no disruption at the video wall
• Co-location of the rack-mount components with
sources or additional processing equipment for easy
access
• No 3rd party long distance extenders or cables
needed
• Entire video wall is controlled with a single remote
control, RS232 or LAN device, including 3rd party
control systems
• Fewer long distance cables run to the wall with on-
wall, loop-out capabilities
• No AC outlets required behind the displays
• Automated brightness, color and gamma balancing
tools
Simplied Design,
Installation and
Service
Clarity Matrix service mode for in-wall service
EasyAxis Mounting System simplies
and minimizes the time required to
install and maintain a perfectly aligned
video wall
Mission Critical Design
Redundant power supply means
greater up time
EasyAxis Mounting System
simplifies and minimizes
the time required to install
and maintain a perfectly
aligned video wall.
Clarity Matrix service
mode for in-wall service
