Secure Java API Integration Guide

Page 2 of 49

Table of Contents

1Introduction..................................................................... 4

1.1About this Guide .................................................... 4

1.2Intended Audience ................................................ 4

2System Overview ............................................................. 5

3Secure Java Payments ................................................... 7

3.1Payment ................................................................. 7

3.2Authentication, Communication & Encryption ..... 7

4Java Installation .............................................................. 8

4.1Prerequisites ......................................................... 8

4.2Java Inventory ........................................................ 8

4.3Installation ............................................................. 8

5Java Integration .............................................................. 9

5.1Classpath Setup .................................................... 9

5.2Interface ................................................................. 9

5.2.1Payments 9

5.2.2Echo 36

Appendix A: Transaction Types .......................................... 41

Appendix B: Transaction Sources ...................................... 42

Appendix C: Card Types ..................................................... 43

Appendix D: Location of CVV .............................................. 44

Appendix E: Timestamp String Format .............................. 45

Appendix F: SecurePay Status Codes ................................ 46

Appendix G: Thinlink Codes ............................................... 47

G.1 Payment Result Codes ............................................. 47

G.2 Event Status Codes .................................................. 47

Appendix H: Currency Codes List ....................................... 48

Appendix I: Direct Entry Character set ............................... 49

Page 3 of 49

Document Control

This is a control document

DESCRIPTION Secure Java API Integration Guide

CREATION DATE 02/05/2007 CREATED BY SecurePay

VERSION 1.4 DATE UPDATED 22/09/2010



Page 4 of 49

1 Introduction

1.1 About this Guide

This guide provides technical information about

installing and configuring Secure Java within your

environment.

Secure Java is written in the Sun Java programming

language, and can run on any computer with the

Java Runtime Environment installed. Messages are

transported via a HTTP protocol using SSL.

Secure Java integrates into a web site via the Java

programming language. The merchant’s web site

captures the credit card information and then posts

the details in a Java message format over a secure

connection to the SecurePay Payment Gateway for

authorisation. The authorisation response is then

returned as a Java message over the same secure

connection.

1.2 Intended Audience

This document is intended for developers,

integrating SecurePay’s Secure Java interface into

their own Java applications, Java-based websites

(such as servlets or JSP), or applications that are

able to instantiate a Java object and invoke its

methods.

Knowledge of the Java programming language and

the Java Virtual Machine is required for some

sections of this document.

Page 5 of 49

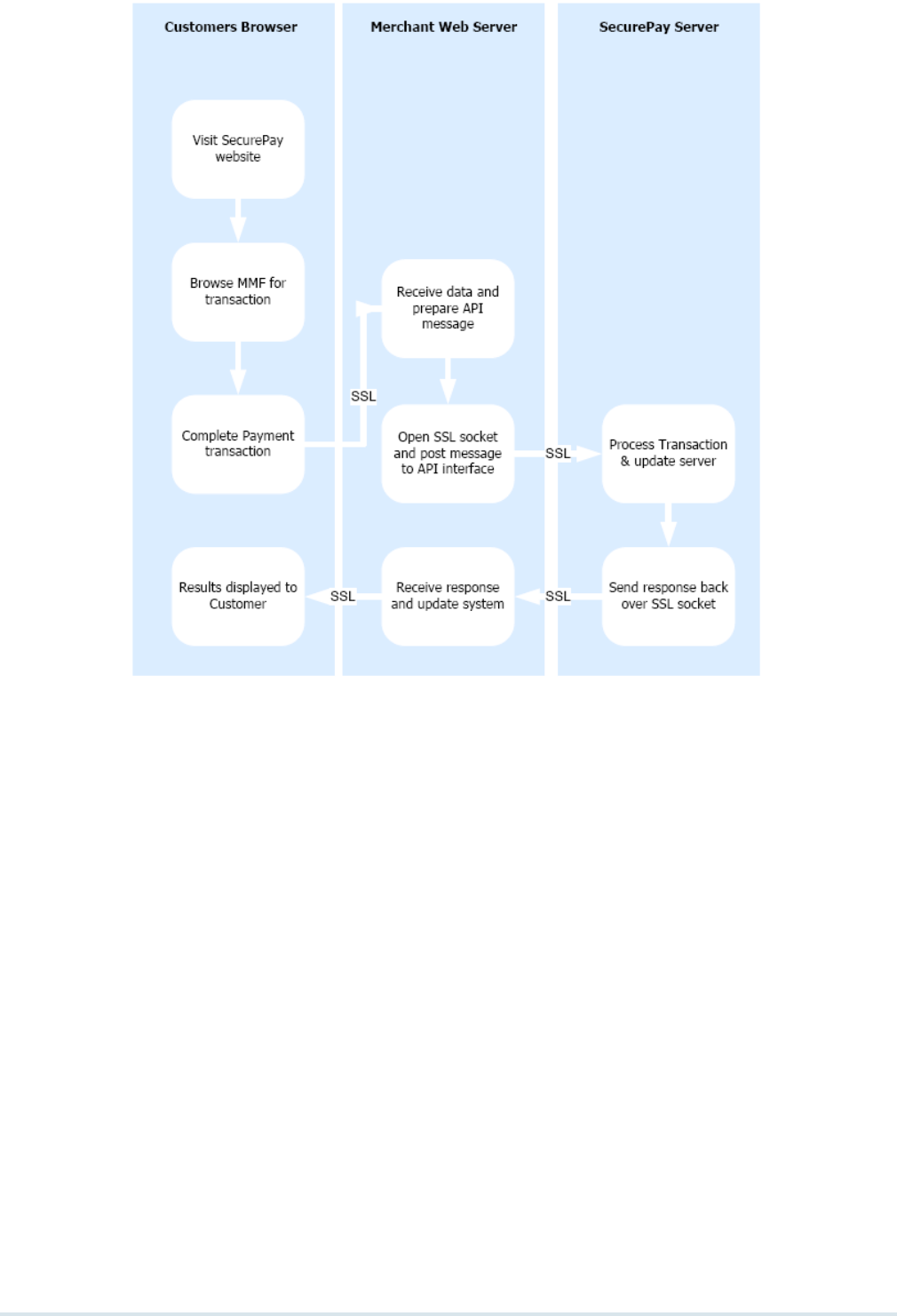

2 System Overview

SecurePay’s Payment Gateway provides merchants

with the ability to process credit card and direct entry

payments in a secure environment.

SecurePay partners with the following major banks

and financial institutions in the provision of the

SecurePay Payment Gateway:

• ANZ

• American Express

• BankWest

• Commonwealth Bank

• Diners Club

• National Australia Bank

• St George (including Bank of SA)

• Westpac (including Challenge Bank and Bank of

Melbourne)

Direct entry payments are not processed in real time;

they are stored in SecurePay’s database and

processed daily at 4.30pm EST.

Secure Java supports four payment transaction types:

• Payments

• Refunds

• Preauthorise

• Preauthorise Complete

Secure Java is written in the Sun Java programming

language, and can run on any computer with the Java

Runtime Environment installed. Messages are

transported via a HTTP protocol using SSL.

Page 6 of 49

Page 7 of 49

3 Secure Java Payments

3.1 Payment

The Payment command is used to pass financial

credit card transaction messages to SecurePay’s

payment server, which will authorise the transaction

with the merchant’s bank and customer’s card issuer,

and produce a response based on the banks’

authorisation of the transaction.

The Payment command can be used to send following

credit card transaction types:

• Credit Card Payment

• Credit Card Refund

• Credit Card Reversal (Void)

• Credit Card Preauthorise

• Credit Card Preauthorise Complete

(Advice)

SecurePay’s payment server is also capable of

processing direct entry transactions. Direct entry

transactions are not processed real time. The

SecurePay payment server stores direct entry

transaction in a database and processes them daily

at 4.30pm Melbourne time.

The Payment command can be used to send following

direct entry transaction types:

• Direct Debit

• Direct Credit

3.2 Authentication, Communication &

Encryption

To ensure security, each merchant is issued with

transaction password. This password is authenticated

with each request before it is processed. This makes

sure that unauthorised users will be unable to use the

interface.

The password can be changed by the merchant via

SecurePay’s Merchant Management facility.

The Secure Java interface uses HTTP protocol and

SSL for communication with SecurePay’s servers.

Merchants using Secure Java will automatically use

SecurePay’s security certificate to encrypt requests

and decrypt responses from SecurePay.

Page 8 of 49

4 Java Installation

Secure Java has been built using Sun’s Java programming language. Java boasts full software portability,

allowing the same compiled software package to be run independently of the platform on which it is

installed. The Secure Java software package provided can therefore be run on Microsoft Windows, Unix,

or Macintosh platforms without recompiling.

4.1 Prerequisites

1. The installation machine must have the Java Runtime Environment (JRE) installed. Secure Java

currently runs on JRE versions 1.4 and later. The JRE can be downloaded free of charge from the

Sun website: http://java.sun.com

2. The installation machine, and any firewall, etc, in front of it, must be able to create an outbound

socket connection on the communications port, to the SecurePay Payment Server host. Standard

web communication ports will be used initially, however are subject to change in future releases.

Port 80 will be used on SecurePay’s Test Server, and port 443 on SecurePay’s Live Server.

4.2 Java Inventory

The Secure Java Software package contains the following files:

• securepayxmlapi_obf.jar

• xmlParserAPIs-2.4.0.jar

• xercesImpl-2.4.0.jar

• Base64.jar

4.3 Installation

Secure Java

1. Create a directory on the installation machine called “SecurePayAPI” in a location of your choice.

2. Copy all files listed in the Software Inventory (see 4.2) into this new directory.

Secure Java Software - Periodic and Triggered add in

1. Create a directory on the installation machine called “SecurePayPeriodicAPI” in a location of your

choice.

2. Copy all files listed in the Software Inventory (see 3.2) into this new directory

Page 9 of 49

5 Java Integration

5.1 Classpath Setup

Before running Secure Java, your Java classpath must be set to each of the JAR archives included in this

package. This can be done when executing the Java from the command line, e.g.:

¾ %JAVA_HOME%\bin\java –cp abc.jar;def.jar YourMainClass arg1

arg2

or, by setting the system environment variable “CLASSPATH” before running, e.g.:

Windows:

> set CLASSPATH=abc.jar;def.jar

Unix:

> setenv CLASSPATH abc.jar:def.jar

These commands may also be written in a batch file or shell script for your application.

5.2 Interface

5.2.1 Payments

5.2.1.1 securepay.jxa.api.Payment

The Payment object should be created first, and a Txn object added to it, containing details of the

financial transaction to be processed. The Payment object is then “submitted” to SecurePay to

process the transactions it contains.

5.2.1.1.1 Constructor

public Payment()

Create an empty Payment object to which Txns may be added.

Parameters:

No parameters required by this constructor.

5.2.1.1.2 Public Methods

5.2.1.1.3 getMessageId

public String getMessageId()

Returns the unique message identifier created by the API.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String Unique identifier of this Payment object.

Page 10 of 49

5.2.1.1.3.1 getMessageTimestamp

public Date getMessageTimestamp()

Returns the timestamp created by the API for the Payment in a Date object.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

Date Timestamp of this Payment object.

5.2.1.1.3.2 getMessageTimestampAsString

public String getMessageTimestampAsString()

Returns the timestamp created by the API for the Payment as a string. Refer to Appendix E for the

format returned.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String Timestamp of this Payment object.

5.2.1.1.3.3 getApiVersion

public String getApiVersion()

Returns the version of the API being used to create this object.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String API version used to create this Payment object.

5.2.1.1.3.4 setMerchantId

public void setMerchantId(String id)

Sets the merchant id to be used when processing the payments. The merchant id must be set in

order for SecurePay to determine the bank account to which the funds should be settled.

Input Parameters:

Name Type Description

Allowed Values

id String Merchant ID allocated to the

merchant by SecurePay.

7-character string in format XXXDDDD,

where X is a letter (A-Z) and D is a digit (0-9).

SecurePay will supply this value to you upon

application. For Direct Entry:

5-7 character string in format XXXDDDD,

where X is a letter (A-Z) and D is a digit (0-9).

Last two digits can be ignored.

Page 11 of 49

Return Parameter:

No object returned by this method.

5.2.1.1.3.5 setServerURL

public void setServerURL(String url)

Sets the URL of the SecurePay Payment Server to which this object will be sent when process()

is called.

Input Parameters:

Name Type Description

Allowed Values

url String URL of SecurePay’s Payment

Server or Direct Entry Server in

case of Direct Entry payments.

Test:

https://test.securepay.com.au/xmlapi/payment

http://test.securepay/com.au/xmlapi/payment

Live:

https://api.securepay.com.au/xmlapi/payment

For Direct Entry:

Test:

https://test.securepay.com.au/xmlapi/directentry

http://test.securepay.com.au/xmlapi/directentry

Live:

https://api.securepay.com.au/xmlapi/directentry

For Antifraud:

Test:

https://test.securepay.com.au/antifraud/payment

http://test.securepay.com.au/antifraud/payment

Live:

https://www.securepay.com.au/antifraud/payment

(Values are subject to change in future releases.)

Return Parameter:

No object returned by this method.

5.2.1.1.3.6 setProcessTimeout

public void setProcessTimeout(int timeout)

Sets the timeout in seconds to wait for a response message from SecurePay’s server. If no

response is received in this time, a timeout response is returned, and transaction results may be

queried at a later time.

If value is not set, or is set to an integer < 0, default timeout of 80 seconds is used.

Input Parameters:

Name Type Description

Allowed Values

imeout int Seconds to wait for SecurePay

response.

Int < 0: default value is used

Int >= 0: supplied value is used.

Return Parameter:

No object returned by this method.

Page 12 of 49

5.2.1.1.3.7 addTxn

public Txn addTxn(int txnType, String ponum)

Adds a Txn object to the Payment and returns the object for configuration. If a Txn already exists

with the same txnType and ponum combination, NULL is returned.

The current version of SecurePay’s Payment Server allows only Payments containing a single Txn

object. Payments submitted with more than one Txn will be rejected with Status Code “577”.

Multiple transaction batching will be included in a future release, and will be advertised by

SecurePay when available. It is expected that no change will be required to the API to support

multi-Txn batches.

As of Secure Java V4.0.3a, it is possible to create a Payment object, add a Txn to it, call

process(), then add another Txn and process() again, as many times as required on a single

Payment object.

Since Direct Entry payments are sent to a different URL than credit card payments a separate

instance of Payment Class should be used for processing those payments.

For refunds and reversals, the ponum field must be the same as the ponum used for the original

payment.

For completes the ponum field must be the same as the ponum used for the original

preauthorisation.

Input Parameters:

Name Type Description

Allowed Values

TxnType int

Integer representing the

ransaction

type to be processed.

Refer to Appendix A

Ponum String

Unique merchant transaction

identifier, typically an invoice

number.

Any alphanumeric string, up to 60

characters in length.

For Direct Entry:

Any string using characters from,

Appendix I up to 18 characters in

length.

Return Parameter:

Type Description

Txn Instance of the Txn object added to the Payment.

If a Txn with the same identification already exists, then this object is returned, otherwise

a new instance is returned.

5.2.1.1.3.8 getTxn

public Txn getTxn(int txnType, String ponum)

Returns the Txn object from the Payment’s request queue (before calling process()) with a matching

txnType and ponum value. If no such Txn exists, NULL is returned. This method will always return

NULL after a call to process(), as the request queue will be empty.

Input Parameters:

Name Type Description

Allowed Values

xnType int

Integer representing the transaction

type to be processed.

ponum String

Unique merchant transaction

identifier, typically an invoice

number.

Any alphanumeric string, up to 60

characters in length.

Return Parameter:

Page 13 of 49

Type Description

Txn Txn request object matching the txnType and ponum supplied, or NULL if no such Txn

exists.

5.2.1.1.3.9 Process

public boolean process(String password)

Sends this Payment object and all contained Txns to SecurePay’s Payment Server for processing by

the bank. Method blocks until all transactions contained are processed and a response message is

received, or the process timeout expires (refer to 5.2.1.1.3.6).

As of Secure Java V4.0.3a, the password parameter must be passed to this method. Previous

releases of Secure Java V4.0.x which did not pass a password will no longer be compatible with the

SecurePay Payment Server, as it is now required that a password is used for all financial

transactions and echoes. The password can be changed via SecurePay’s Merchant Login website

by logging in as the “admin” user.

If the merchant Id and password sent do not match those stored in SecurePay’s database, the

response message will have a status code of “550”.

Input Parameters:

Name Type

Description

Allowed Values

password String The password is configured in

SecurePay’s database per Merchant ID,

and must match the value passed by

this method for the message to be

accepted and processed.

The password is allocated to you by

SecurePay when you receive this

software, and can be changed via

the Merchant Login website.

Return Parameter:

Type Description

boolean

rue

if message was sent to server correctly and processed (regardless of the transactions’

outcome), and false if client-side errors occurred preventing the object from being sent.

5.2.1.1.3.10 getStatusCode

public long getStatusCode()

Returns the status code of the Payment. Refer Appendix F for more information.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

long Code representing the status of the Payment object after processing.

Page 14 of 49

5.2.1.1.3.11 getStatusDesc

public String getStatusDesc()

Returns the status description of the Payment. Refer to Appendix F for more information.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String Textual description of the status of the Payment object after processing.

5.2.1.1.3.12 toString

public String toString()

Returns the object with its parameters formatted in a readable string.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String Textual representation of the Payment object.

5.2.1.1.3.13 getCount

public int getCount()

Returns the number of Txn objects contained in this Payment object. Before process() is

called, the number of Txn requests is returned. The number of Txn responses is given after a call

to process().

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

Int Number of Txn objects

5.2.1.1.3.14 getTxn

public Txn getTxn(int index)

Returns the Txn object from the Payment at the indexth position. This method returns a Txn

request before calling process() or a Txn response after calling process().

Input Parameters:

Name Type

Description

Allowed Values

index int

Index to the Txn object required.

int between 0 and getCount() –

Return Parameter:

Type Description

Txn Txn object from requested position.

Page 15 of 49

5.2.1.1.3.15 getAdditionalInfo(Availableinsoftwarev4.1.2,butnotcurrentlyinuse.)

public String getAdditionalInfo(int index, String fieldName)

This field is not currently in use, and will return a null value if called. SecurePay will release a list

of available fields when they become available.

Returns the value of the specified field from the Txn object at the indexth position. If index is –

1, the field returned is from the Payment object itself.

Input Parameters:

Name Type

Description

Allowed Values

index int

Index to the Txn object required,

or –1 to reference the Payment

object itself.

int between –1 and getCount() –

fieldName String Name of field to return from the

object specified by index.

Valid field name.

Return Parameter:

Type Description

String Value of field requested, or null

if the

field does not exist in the message.

5.2.1.2 securepay.jxa.api.Txn

The Txn object is returned when addTxn(…) is called from a Payment object. The required fields

of this object must be set using “set” functions provided, as described below. When the Payment

is submitted and processed, the result parameters of the Txn can be retrieved using the “get”

methods described.

Page 16 of 49

5.2.1.2.1 Transaction Type Required Field Map

The following table specifies which transaction parameters must be set for each available Txn type.

Parameters are mandatory, optional, or not required.

TXN

TYPE

METHOD

Standard

Payment

Refund

Reversal

Preauthorise

Complete

(Advice)

Recurring

Payment

Card-Present

Payment

Direct Entry

Debit Payment

Direct Entry

Credit Payment

Antifraud

Payment

Antifraud Only

Request

0 4 6

15 17 21 22

setTxnSource O O O

O O O

setAmount M M M

M M M

setCurrencyCode O X X

X O O

setCardNumber M X X

X M M

SetCVV O O O

X O O

setExpiryDa

e M O O

X M M

setTrack2Data X X X

X X X

SetXID O O O

X X X

SetCAV

O O O

X X X

SetSLI O O O

X X X

SetTxnId X M M

X X X

setPreauthCode X X X

X X X

setBsbNumber X X X

M X X

setAccountNumber X X X

M X X

setAccountName X X X

M X X

setFirstName X X X

X O O

setLastName X X X

X O O

setZipCode X X X

X O O

setTown X X X

X O O

setBillingCountry X X X

X O O

setDeliveryCountry X X X

X O O

setEmailAddress X X X

X O O

setIp X X X

X M M

M = mandatory O = optional

X = not required

(ignored if set)

For refunds and reversals the ponum field must be the same as the ponum used for the original

payment.

For completes the ponum field must be the same as the ponum used for the original

preauthorisation.

The ponum field is set using addTxn method on the Payment object.

5.2.1.2.2 Constructor

The Txn object cannot be constructed directly. It must be created by calling addTxn(…) in the

Payment object.

Page 17 of 49

5.2.1.2.3 Public Methods

5.2.1.2.3.1 setTxnSource

public void setTxnSource(int value)

Sets the transaction source for this transaction. Source is used for transaction origin tracking. This

field is optional, and is set to 0, “Unknown”, by default.

Input Parameters:

Name Type Description

Allowed Values

value int Transaction source

Refer to Appendix B

Return Parameter:

No object returned by this method.

5.2.1.2.3.2 setAmount

public void setAmount(String value)

Sets the amount associated with this financial transaction. Amount is supplied with no currency

formatting, in the currency’s smallest denomination. If using the default currency of Australian

Dollars (AUD), the amount is set in Australian cents. E.g. an amount of AU$125.40 would be set

calling:

txn.setAmount(“12540”);

Note for Multi-Currency Users: For examples of how other currency codes affect the value set in this

field, and how many minor units to pass for each currency type, see Appendix HError! Reference

source not found.. (You must fulfil certain requirements with your bank and SecurePay before using

the multi-currency features. Contact SecurePay Support for further details.)

Input Parameters:

Name Type Description

Allowed Values

Value String Transaction amount in Australian

cents.

String representing a

number > 0, with no

whitespace or currency

formatting.

Return Parameter:

No object returned by this method.

5.2.1.2.3.3 setCurrencyCode(ApprovedMulti‐Currencymerchantsonly)

public void setCurrencyCode(String value)

Before setting this value, check with SecurePay to find out if we support multi-currency transactions

through your bank, and what currency codes they allow. You may need to open a special multi-

currency account with your bank to allow payments in other currencies. (Contact SecurePay

Support for further details.)

Page 18 of 49

When doing Refunds, Reversals, and Advice (Preauth Complete), the currency code is not required.

The currency will be determined from the original currency used for the Payment or

Preauthorisation transaction.

Sets the 3-character currency code associated with this financial transaction. If this field is not set,

the default currency will be “AUD” (Australian Dollars). To modify the transaction to use Euro, for

example, use the following code:

txn.setCurrencyCode(“EUR”);

Currency codes are in all uppercase. The complete list of supported currencies, and the

appropriate amount field formatting for each currency, is supplied in the Appendix H.

Input Parameters:

Name Type Description

Allowed Values

Value String Transaction currency code.

One of the valid 3-letter codes

provided in the Appendix H to

this document.

Return Parameter:

No object returned by this method.

5.2.1.2.3.4 setCardNumber

public void setCardNumber(String value)

Only for Credit Card transactions.

Sets the credit card number for this financial transaction. The card number is not required for

refunds, reversals and complete transactions. As these transaction types can only be performed on

an existing transaction (payment or preauthorisation) SecurePay already has a record of the card

number used.

Input Parameters:

Name Type Description

Allowed Values

value String

Customer’s credit card number. String of digits, no whitespace.

13-16 characters.

String must pass Luhn algorithm.

Return Parameter:

No object returned by this method.

5.2.1.2.3.5 setCVV

public void setCVV(String value)

Only for Credit Card transactions.

Sets the Card Verification Value for this financial transaction. This field is optional. The CVV value

assists the bank with detecting fraudulent transactions based on automatically generated card

numbers, as the CVV number is printed on the physical card and cannot be generated in

conjunction with a card number. If passed, the bank may check the supplied value against the

value recorded against the card.

Input Parameters:

Name Type Description

Allowed Values

value String

Customer’s credit card CVV

number.

3 or 4 digit string, no whitespace.

NULL or empty string is also

valid.

Page 19 of 49

Return Parameter:

No object returned by this method.

5.2.1.2.3.6 setExpiryDate

public void setExpiryDate(String value)

Only for Credit Card transactions.

Sets the credit card expiry date for this financial transaction. The expiry date is optional for refunds,

reversals, recurring payments and complete transactions. As refunds, reversals and completes are

transaction types that can only be performed on an existing transaction (payment or

preauthorisation) SecurePay already has a record of the expiry date used. Expiry date can be set if

the credit card has been re-issued with a new expiry date.

Input Parameters:

Name Type Description

Allowed Values

value String

Customer’s credit card expiry

date.

5-character string in format

MM/YY, where MM is a 2 digit

month value (January = 01), YY is

a 2 digit year value (2003 = 03).

NULL or empty string is also valid

for Recurring transactions.

Return Parameter:

No object returned by this method.

5.2.1.2.3.7 setTrack2Data(Card‐Presenttransactionsonly)

public void setTrack2Data(String value)

Only for Credit Card transactions.

Set the data read from Track 2 of the magnetic strip on the customer’s physical credit card by a

card-reading device. Track 2 data is required only for merchants using a card-reading device to

perform card-present transactions. For card-present transactions, the Transaction Type must also

be set to Card Present.

Input Parameters:

Name Type Description

Allowed Values

value String

Data retrieved from “track 2” on

the credit card’s magnetic strip.

Return Parameter:

No object returned by this method.

5.2.1.2.3.8 setXID(3D‐Securemerchantsonly)

public void setXID(String value)

Only for Credit Card transactions.

Set the 3D-Secure XID (transacion ID) for this financial transaction. The XID is required only for

merchants enrolled in the 3D-Secure program. The XID field must be a 20-byte String, matching the

unique XID passed to the card issuer before sending this transaction, using any 3D-Secure-enabled

software.

Input Parameters:

Name Type Description

Allowed Values

Value String

Transaction’s XID, as supplied Any 20-byte String

Page 20 of 49

to card issuer prior to sending

the financial transaction.

Return Parameter:

No object returned by this method.

5.2.1.2.3.9 setCAVV(3D‐Securemerchantsonly)

public void setCAVV(String value)

Only for Credit Card transactions.

Set the 3D-Secure Cardholder Authorisation Verification Value for this financial transaction. The

CAVV is required only for merchants enrolled in the 3D-Secure program. The CAVV field must be a

28-character Base-64-encoded string, matching the CAVV generated by 3D-Secure-enabled

software before sending this financial transaction.

Input Parameters:

Name Type Description

Allowed Values

Value String

Transaction’s CAVV, as

supplied by card issuer prior to

sending the financial

transaction.

28-character Base-64-encoded

string.

Return Parameter:

No object returned by this method.

5.2.1.2.3.10 setSLI(3D‐Securemerchantsonly)

public void setSLI(String value)

Only for Credit Card transactions.

Set the 3D-Secure Service Level Indicator for this financial transaction. The SLI is required only for

merchants enrolled in the 3D-Secure program. The SLI field must be a 2-digit string, matching the

SLI (or ECI) returned by the 3D-Secure-enabled software, prior to sending this financial transaction.

Input Parameters:

Name Type Description

Allowed Values

Value String

Transaction’s SLI, as supplied

by card issuer prior to sending

the financial transaction.

2-digit String.

Return Parameter:

No object returned by this method.

5.2.1.2.3.11 setTxnId

public void setTxnId()

Only for Credit Card transactions.

For Refunds and Reversals only.

Set the original bank transaction ID of a payment in order to refund or reverse the payment. Field

must be set for refunds or reversals to work, and must match the original payment transaction ID.

Input Parameters:

Name Type Description

Allowed Values

value String

Bank transaction ID of the 6-30 character string

Page 21 of 49

original payment transaction.

Return Parameter:

No object returned by this method.

5.2.1.2.3.12 setPreauthCode

public void setPreauthCode()

Only for Credit Card transactions.

For Preauth Completes (Advice) only.

Set the original authorisation code of a preauth in order to complete the payment. Field must be

set for preauth complete to work, and must match the original preauth authorisation ID.

Input Parameters:

Name Type Description

Allowed Values

Value String

Preauth ID of the original

preauth transaction.

6 character string

Return Parameter:

No object returned by this method.

5.2.1.2.3.13 setBsbNumber

public void setBsbNumber()

Only for Direct Entry transactions.

Sets BSB number for financial institution.

Input Parameters:

Name Type Description

Allowed Values

value String

BSB number Numerical.

6 character string

Return Parameter:

No object returned by this method.

5.2.1.2.3.14 setAccountNumber

public void setAccountNumber()

Only for Direct Entry transactions.

Sets account number for financial institution.

Input Parameters:

Name Type Description

Allowed Values

value String

Account number Numerical.

4-9 character string

Return Parameter:

No object returned by this method.

Page 22 of 49

5.2.1.2.3.15 setAccountName

public void setAccountName()

Only for Direct Entry transactions.

Sets account name for financial institution.

Input Parameters:

Name Type Description

Allowed Values

Value String

Account name String using characters from

Appendix I up to 32 characters

in length.

Return Parameter:

No object returned by this method.

5.2.1.2.3.16 setFirstName

public void setFirstName()

Only for antifraud transactions.

Sets customer’s first name.

Input Parameters:

Name Type Description

Allowed Values

Value String

Customer’s first name String, max length 40.

Return Parameter:

No object returned by this method.

5.2.1.2.3.17 setLastName

public void setFirstName()

Only for antifraud transactions.

Sets customer’s last name.

Input Parameters:

Name Type Description

Allowed Values

Value String

Customer’s last name String, max length 40.

Return Parameter:

No object returned by this method.

5.2.1.2.3.18 setZipCode

public void setZipCode()

Only for antifraud transactions.

Sets customer’s address zip code or postal code.

Page 23 of 49

Input Parameters:

Name Type Description

Allowed Values

Value String

Customer’s address zip code or

postal code

String, max length 30.

Return Parameter:

No object returned by this method.

5.2.1.2.3.19 setTown

public void setTown()

Only for antifraud transactions.

Sets billing or delivery town of the buyer.

Input Parameters:

Name Type Description

Allowed Values

Value String

Billing or delivery town of the

buyer

String, max length 60.

Return Parameter:

No object returned by this method.

5.2.1.2.3.20 setBillingCountry

public void setBillingCountry()

Only for antifraud transactions.

Sets ISO country code of the billing address.

Input Parameters:

Name Type Description

Allowed Values

Value String

ISO country code of the billing

address.

3 digit numeric ISO code or 2 or

3 alpha character ISO code.

Return Parameter:

No object returned by this method.

5.2.1.2.3.21 setDeliveryCountry

public void setDeliveryCountry()

Only for antifraud transactions.

Sets ISO country code of the delivery address.

Input Parameters:

Name Type Description

Allowed Values

Value String

ISO country code of the delivery

address.

3 digit numeric ISO code or 2 or

3 alpha character ISO code.

Return Parameter:

No object returned by this method.

5.2.1.2.3.22 setEmailAddress

public void setEmailAddress()

Only for antifraud transactions.

Page 24 of 49

Sets email address of the customer.

Input Parameters:

Name Type Description

Allowed Values

Value String

Customer’s email address. String, max length 100.

Return Parameter:

No object returned by this method.

5.2.1.2.3.23 setIp

public void setTown()

Only for antifraud transactions.

IP address from which the transaction originated.

Input Parameters:

Name Type Description

Allowed Values

Value String

IP address from which the

transaction originated.

String, max length 15, must

contain 3 p

Return Parameter:

No object returned by this method.

5.2.1.2.3.24 getTxnType

public int getTxnType()

Returns the transaction type for the transaction. Refer to Appendix A for values of this field.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

int Integer representing the transaction type of this Txn.

5.2.1.2.3.25 getTxnSource

public int getTxnSource()

Returns the transaction source for this transaction. Refer to Appendix B for values of this field.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

int Integer representing the source of the transaction.

5.2.1.2.3.26 getAmount

public String getAmount()

Returns the amount associated with this financial transaction. Amount is returned with no currency

formatting, in the smallest denomination of the transaction’s specified currency. The currency of

the transaction is determined using getCurrencyCode(), described below. If no currency was

Page 25 of 49

specified when making the payment, the default is Australian Dollars (AUD). E.g. an amount of

AUD$125.40 would be returned in Australian cents, as “12540”.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String The amount of the financial transaction with no

currency formatting, in the

smallest denomination of its specified currency.

NULL if the amount has not been set.

5.2.1.2.3.27 getCurrencyCode

public String getCurrencyCode()

Returns the 3-character currency identifier associated with this financial transaction.

If process() has not yet been called on this Payment, this method will only return a value if

setCurrencyCode() has been called; otherwise it will return NULL, implying the default value of

“AUD” (Australian Dollars).

If process() has been called, this method will return the currency code that was used for the

payment. If the currency code was not set, the default of “AUD” (Australian Dollars) will be returned.

See valid currency code table in Appendix H.

If process() has been called and the payment was approved AND this method still returns NULL,

then the payment was sent to a SecurePay URL which does not yet support multi-currency, and the

payment has been processed in Australian Dollars. You will need to refund the payment in

Australian Dollars if this was done in error.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String The 3-letter currency code of the financial transaction.

NULL if the currency has not been set and process() has not yet been called,

indicating Australian Dollars will be used by default; or if the payment HAS

been processed but the SecurePay URL does not support multi-currency yet.

5.2.1.2.3.28 getPonum

public String getPonum()

Returns the purchase order number for this transaction.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String The purchase order number referring to the transaction.

Page 26 of 49

NULL if the purchase order number has not been set.

5.2.1.2.3.29 getCardNumber

public String getCardNumber()

For Credit Card transactions:

Returns the truncated credit card number, as stored in SecurePay’s database. This is the first 6

and last 3 digits of the original card number, separated by “…”. E.g. Setting a card number as:

txn.setCardNumber(“4444333322221111”);

then a call to:

txn.getCardNumber();

returns “444433...111”.

For Direct Entry transactions in Payment requests:

Returns NULL.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String The truncated credit card number or BSB and account numbers of this

financial transaction.

NULL if the card number has not been set.

5.2.1.2.3.30 getCardType

public int getCardType()

Only for Credit Card transactions.

Returns an integer representing the type of card used. Refer to Appendix C.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

int The credit card type code of the card number used.

5.2.1.2.3.31 getCardDescription

public int getCardDescription()

Only for Credit Card transactions.

Returns a textual description of card used, or NULL if transaction has not been processed yet.

Page 27 of 49

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String Description of the type of credit card used.

5.2.1.2.3.32 getCVV

public String getCVV()

Only for Credit Card transactions.

Returns the Card Verification Value of the financial transaction. After the transaction has been

processed, this method will return NULL, as this value should not be logged, and is not stored by

SecurePay.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String The Card Verification Value of this financial transaction.

NULL if the value has not been set, or if the transaction has been processed.

5.2.1.2.3.33 getExpiryDate

public String getExpiryDate()

Only for Credit Card transactions.

Returns the credit card expiry date of the financial transaction.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String The credit card expiry date of this financial transaction.

NULL if the value has not been set, or if the expiry date was not sent with a

recurring payment.

5.2.1.2.3.34 getTrack2Data(Card‐Presenttransactionsonly)

public void getTrack2Data()

Only for Credit Card transactions.

Track 2 of the magnetic strip on the customer’s physical credit card, as passed in by

setTrack2Data(). After the transaction has been processed, this method will return NULL, as

SecurePay does not store this data.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

Page 28 of 49

String The Track 2 data from the magnetic strip on the customer’s credit card.

NULL if the value has not been set, or if the transaction has already been

processed.

5.2.1.2.3.35 getXID(3D‐Securemerchantsonly)

public String getXID()

Only for Credit Card transactions.

Returns the 3D-Secure XID (transaction id) of the financial transaction. After the transaction has

been processed, this method will return NULL, as this value should not be logged, and is not stored

by SecurePay.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String The 3D-Secure XID of this financial transaction.

NULL if the value has not been set, or if the transaction has already been

processed.

5.2.1.2.3.36 getCAVV(3D‐Securemerchantsonly)

public String getCAVV()

Only for Credit Card transactions.

Returns the 3D-Secure Cardholder Authorisation Verification Value of the financial transaction.

After the transaction has been processed, this method will return NULL, as this value should not be

logged, and is not stored by SecurePay.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String The 3D-Secure CAVV of this financial transaction.

NULL if the value has not been set, or if the transaction has already been

processed.

5.2.1.2.3.37 getSLI(3D‐Securemerchantsonly)

public String getSLI()

Only for Credit Card transactions.

Returns the 3D-Secure Service Level Indicator (or ECI, E-Commerce Indicator) of the financial

transaction. After the transaction has been processed, this method will return NULL, as this value

should not be logged, and is not stored by SecurePay.

Input Parameters:

Page 29 of 49

No input parameters are required by this method.

Return Parameter:

Type Description

String The 3D-Secure SLI (or ECI) of this financial transaction.

NULL if the value has not been set, or if the transaction has already been

processed.

5.2.1.2.3.38 getBsbNumber

public String getBsbNumber()

Only for Direct Entry transactions in Payment request.

Returns the BSB number for this transaction.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String The BSB number referring to the transaction.

NULL if the BSB number has not been set.

5.2.1.2.3.39 getAccountNumber

public String getAccountNumber()

Only for Direct Entry transactions in Payment request.

Returns the account number for this transaction.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String The account number referring to the transaction.

NULL if the account number has not been set.

5.2.1.2.3.40 getAccountName

public String getAccountName()

Only for Direct Entry transactions in Payment request.

Returns the account name for this transaction.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String The account name referring to the transaction.

NULL if the account name has not been set.

Page 30 of 49

5.2.1.2.3.41 getAntiFraudResponseCode

public String getAntiFraudResponseCode()

Only for antifraud transactions in Payment request.

Returns the response code of the antifraud verification. This will be a 3-digit response from

SecurePay’s server or API. The method getAntiFraudResponseText() provides more details

in a textual format.

Refer to the SecurePay Payment Response Codes document for details of codes returned. This

document may be downloaded from SecurePay’s Merchant Login website, or provided via email by

SecurePay Merchant Support.

If the antifraud verification failed, the transaction will not be sent to the bank and therefore there

will be no values returned by methods such as getResponseCode(), getResponseText(),

getSettlementDate(), isApproved(), getTxnId().

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String 3-digit SecurePay / gateway response.

5.2.1.2.3.42 getAntiFraudResponseText

public String getAntiFraudResponseText()

Returns a textual description of the antifraud response code received.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String Description of antifraud

response received.

5.2.1.2.3.43 getApproved

public boolean getApproved()

Returns a boolean representing the financial result of the transaction.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

boolean

rue if

he payment was authorised by the merchant bank and customer card

issuer, or false in any other case.

5.2.1.2.3.44 getResponseCode

public String getResponseCode()

Returns the response code of the transaction. This is either a 2-digit response (00-99) from the

bank, a 3-digit response (100-299) from SecurePay’s server or API, or a 3-digit response (900-999)

Page 31 of 49

mapped from SecurePay’s bank link responses. The method getResponseText() provides

more details in a textual format.

Refer to the SecurePay Payment Response Codes document for details of codes returned. This

document may be downloaded from SecurePay’s Merchant Login website, or provided via email by

SecurePay Merchant Support.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String 2-digit bank response or 3-digit SecurePay / gateway response.

5.2.1.2.3.45 getResponseText

public String getResponseText()

Returns a textual description of the response code received for the transaction.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String Description of response received from API, SecurePay, or bank.

NULL if the transaction has not yet been processed.

5.2.1.2.3.46 getThinlinkResponseCode

public String getThinlinkResponseCode()

Only for Credit Card transactions.

Maps SecurePay’s response code field to a Westpac Thinlink Payment Result Code for ex-Thinlink

users. Refer to Appendix G.1 Payment Result Codes for details of codes returned.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String 3-digit Thinlink Payment Result Code

5.2.1.2.3.47 getThinlinkResponseText

public String getThinlinkResponseText()

Only for Credit Card transactions.

In accordance with Thinlink, this method always returns “000”, meaning “No further information

available”. Additional codes may be added in future.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String 3-digit Thinlink Payment Result Description (“000”).

Page 32 of 49

5.2.1.2.3.48 getThinlinkEventStatusCode

public String getThinlinkEventStatusCode()

Only for Credit Card transactions.

Maps SecurePay’s response code field to a Westpac Thinlink Event Status Code for ex-Thinlink

users. Refer to Appendix

G.2 Event Status Codes for details of codes returned.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String 3-digit Thinlink Event Status Code

5.2.1.2.3.49 getThinlinkEventStatusText

public String getThinlinkEventStatusText()

Only for Credit Card transactions.

Textual description of the Thinlink Event Status Code for ex-Thinlink users.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String Textual description of the Event Status Code.

5.2.1.2.3.50 getSettlementDate

public String getSettlementDate()

Returns the bank settlement date when the funds will be settled into the merchant’s account. This

will be the current date mostly, however after the bank’s daily cut-off time, or on non-banking days,

the settlement date will be the next business day. The format of the settlement date is

“YYYYMMDD”.

In case of Direct Entry transactions this will be the current date.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String Bank settlement date in “YYYYMMDD” format.

NULL if the bank did not receive the transaction. (A settlement date may be

returned for declined transactions.)

NULL for direct entry transactions if the transaction could not be stored in

SecurePay system.

Page 33 of 49

5.2.1.2.3.51 getTxnId

public String getTxnId()

Returns the Bank Transaction ID of the transaction. The format of this string depends on the

merchant’s bank, and ranges between 6 and 30 characters.

Note: The transaction ID of a payment transaction must be sent back with a request for a refund or

reversal of that transaction.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String Bank transaction ID of the transaction.

NULL if the transaction has not been processed, or in some cases if it was not

received by the bank.

5.2.1.2.3.52 getPreauthId

public String getPreauthId()

Only for Credit Card transactions.

Only for Preauth transactions.

Returns the preauthorisation ID of the transaction (for Preauth transaction types only). NULL is

returned for any other transaction type, or if the preauthorisation was not received by the bank.

Note: The preauth ID of a preauth transaction must be sent back with a request for a preauth

complete (advice) of that transaction.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String Preauth ID of the transaction.

NULL if the transaction is not a Preauth type, or has not been processed, or in

some cases if the preauth was not received by the bank.

5.2.1.3 Payment Sample Code

// Import required classes

import securepay.jxa.api.Payment;

import securepay.jxa.api.Txn;

class SecurePayPaymentTest

{

public SecurePayPaymentTest()

{

// Create Payment container object

Payment payment = new Payment();

// Print generated values

System.out.println(“Message ID: “ + payment.getMessageId());

System.out.println(“Timestamp: “ +

payment.getMessageTimestampAsString());

System.out.println(“API Version: “ + payment.getApiVersion());

Page 34 of 49

// Set Payment values

payment.setServerURL(

“http://fakeurl.com/payment”); // Dummy payment URL,

please use the URL supplied by SecurePay Support

payment.setProcessTimeout(80); // 80 seconds

payment.setMerchantId(“XYZ9999”); // ID allocated by

SecurePay

// Add a Txn to the container

// type = 0 (payment)

// ponum = “SecurePayTest”

Txn txn = payment.addTxn(0, “SecurePayTest”);

// Set the Txn values

txn.setTxnSource(8); // API source

txn.setAmount(“1000”); // A$10.00

txn.setCurrencyCode(“AUD”); // Australian Dollars

txn.setCardNumber(“4444333322221111”); // dummy card number

txn.setCVV(“456”); // dummy CVV (optional)

txn.setExpiryDate(“03/06”); // March, 2006

// Send payment to SecurePay for processing

boolean processed = payment.process(“password”);

// If payment was not sent to SecurePay, print status and exit

if (!processed)

{

System.out.println(“Payment was not sent to server.”);

System.out.println(“Status: “ + payment.getStatusCode());

System.out.println(“Desc: “ + payment.getStatusDesc());

}

else // Payment was processed correctly

{

System.out.println(“Response Received.”);

if (payment.getCount() == 1)

{

// Get the Txn response object

Txn resp = payment.getTxn(0); // First Txn in response

queue

// Print response variables

System.out.println(“Transaction response parameters:”);

System.out.println(“Status: “ + payment.getStatusCode());

System.out.println(“Desc: “ + payment.getStatusDesc());

System.out.println(“Approved: ” + resp.getApproved());

System.out.println(“RespCode: ” + resp.getResponseCode());

System.out.println(“RespText: ” + resp.getResponseText());

System.out.println(“SettDate: ” + resp.getSettlementDate());

System.out.println(“TxnID: ” + resp.getTxnId());

}

else

{

System.out.println(“No Txn object returned.”);

System.out.println(“Check status code for error details.”);

}

public static void main(String[] args)

{

SecurePayPaymentTest test = new SecurePayPaymentTest();

}

Page 35 of 49

5.2.1.4 Refund Sample Code

// Import required classes

import securepay.jxa.api.Payment;

import securepay.jxa.api.Txn;

class SecurePayRefundTest

{

public SecurePayRefundTest()

{

// Create Payment container object

Payment payment = new Payment();

// Print generated values

System.out.println(“Message ID: “ + payment.getMessageId());

System.out.println(“Timestamp: “ +

payment.getMessageTimestampAsString());

System.out.println(“API Version: “ + payment.getApiVersion());

// Set Payment values

payment.setServerURL(

“http://fakeurl.com/payment”); // Dummy payment URL,

please use the URL supplied by SecurePay Support

payment.setProcessTimeout(80); // 80 seconds

payment.setMerchantId(“XYZ9999”); // ID allocated by

SecurePay

// Add a Txn to the container

// type = 4 (refund)

// ponum of the original payment = “SecurePayTest”

Txn txn = payment.addTxn(4, “SecurePayTest”);

// Set the Txn values

txn.setTxnSource(8); // API source

txn.setAmount(“1000”); // A$10.00

txn.setCurrencyCode(“AUD”); // Australian Dollars

txn.setTxnId(“123123”); // Transaction Id returned for

the // original payment

// Send refund to SecurePay for processing

boolean processed = payment.process(“password”);

// If refund was not sent to SecurePay, print status and exit

if (!processed)

{

System.out.println(“Refund was not sent to server.”);

System.out.println(“Status: “ + payment.getStatusCode());

System.out.println(“Desc: “ + payment.getStatusDesc());

}

else // Refund was processed correctly

{

System.out.println(“Response Received.”);

if (payment.getCount() == 1)

{

// Get the Txn response object

Txn resp = payment.getTxn(0); // First Txn in response

queue

// Print response variables

System.out.println(“Transaction response parameters:”);

System.out.println(“Status: “ + payment.getStatusCode());

System.out.println(“Desc: “ + payment.getStatusDesc());

System.out.println(“Approved: ” + resp.getApproved());

System.out.println(“RespCode: ” + resp.getResponseCode());

System.out.println(“RespText: ” + resp.getResponseText());

System.out.println(“SettDate: ” + resp.getSettlementDate());

Page 36 of 49

System.out.println(“TxnID: ” + resp.getTxnId());

}

else

{

System.out.println(“No Txn object returned.”);

System.out.println(“Check status code for error details.”);

}

public static void main(String[] args)

{

SecurePayRefundTest test = new SecurePayRefundTest();

}

5.2.2 Echo

5.2.2.1 securepay.jxa.api.Echo

The Echo object can be created and sent to any of the SecurePay service URLs (Payment or

DirectEntry) to ensure the SecurePay service is available, and to confirm the status of the service.

Echo messages must be used appropriately. If you use this method to poll SecurePay services,

polls should be no less than 5 minutes apart. An Echo should not be sent if a transaction with a

bank response code (00-99) has been processed by your system within the last 5 minutes.

5.2.2.2 Constructor

public Echo()

Create an empty Echo object.

Parameters:

No parameters required by this constructor.

5.2.2.2.1 Public Methods

5.2.2.2.1.1 getMessageId

public String getMessageId()

Returns the unique message identifier created by the API.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String Unique identifier of this Echo object.

5.2.2.2.1.2 getMessageTimestamp

public Date getMessageTimestamp()

Returns the timestamp created by the API for the Echo in a Date object.

Input Parameters:

Page 37 of 49

No input parameters are required by this method.

Return Parameter:

Type Description

Date Timestamp of this Echo object.

5.2.2.2.1.3 getMessageTimestampAsString

public String getMessageTimestampAsString()

Returns the timestamp created by the API for the Echo as a string. Refer to Appendix E for the

format of the string returned.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String Timestamp of this Echo object.

5.2.2.2.1.4 getApiVersion

public String getApiVersion()

Returns the version of the API being used to create this object.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String API version used to create this Echo object.

5.2.2.2.1.5 setMerchantId

public void setMerchantId(String id)

Sets the merchant id to be used when processing the echo request.

Input Parameters:

Name Type Description

Allowed Values

id String Merchant ID allocated to the

merchant by SecurePay.

7-character string in

format XXXDDDD,

where X is a letter (A-Z)

and D is a digit (0-9).

SecurePay will supply

this value to you upon

application. For Direct

Entry Echo Request:

5-7 character string in

format XXXDDDD,

where X is a letter (A-Z)

and D is a digit (0-9).

Page 38 of 49

Last two digits can be

ignored.

Return Parameter:

No object returned by this method.

5.2.2.2.1.6 setServerURL

public void setServerURL(String url)

Sets the URL of the SecurePay service to which this Echo will be sent when process() is called.

Input Parameters:

Name Type Description

Allowed Values

url String URL of SecurePay’s server.

Test:

https://www.securepay.com.au/test

/payment

Live:

https://www.securepay.com.au/xml

api/payment

For Direct Entry:

Test:

https://www.securepay.com.au/test

/directentry

Live:

https://www.securepay.com.au/xml

api/directentry

Return Parameter:

No object returned by this method.

5.2.2.2.1.7 setProcessTimeout

public void setProcessTimeout(int timeout)

Sets the timeout in seconds to wait for a response message from SecurePay’s server. If no

response is received in this time, a timeout response is returned, and transaction results may be

queried at a later time.

If value is not set, or is set to an integer < 0, default timeout of 80 seconds is used.

Input Parameters:

Name Type Description

Allowed Values

imeout int Seconds to wait for SecurePay

response.

Int < 0: default value is

used

Int >= 0: supplied

value is used.

Return Parameter:

No object returned by this method.

5.2.2.2.1.8 Process

public boolean process(String password)

Page 39 of 49

Sends this Echo object to SecurePay’s Server. This method may be called multiple times on the

same instance of the Echo object.

As of Secure Java V4.0.3a, the password parameter must be passed to this method. Previous

releases of Secure Java V4.0.x which did not pass a password will no longer be compatible with the

SecurePay Payment Servers, as it is now required that a password is used for all financial

transactions and echoes. The password can be changed via SecurePay’s Merchant Login website

by logging in as the “admin” user.

If the merchant Id and password sent do not match those stored in SecurePay’s database, the

response message will have a status code of “550”.

Input Parameters:

Name Type Description

Allowed Values

password

String The password is configured in

SecurePay’s database per

Merchant ID, and must match

the value passed by this method

for the message to be accepted

and processed.

The password is allocated

to you by SecurePay when

you receive this software,

and can be changed via the

Merchant Login website.

Return Parameter:

Type Description

Boolean

rue if message was sent to server correctly and a response received, and

false if client-side errors occurred preventing the object from being be sent.

5.2.2.2.1.9 getStatusCode

public long getStatusCode()

Returns the status code of the Echo. Refer to Appendix F for more details.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

long Code representing the status of the Echo object after processing.

5.2.2.2.1.10 getStatusDesc

public String getStatusDesc()

Returns the status description of the Echo response.

Input Parameters:

No input parameters are required by this method.

Return Parameter:

Type Description

String Textual description of the status of the Echo object after processing.

Page 40 of 49

5.2.2.3 Echo Sample Code

// Import required classes

import securepay.jxa.api.Echo;

class SecurePayEchoTest

{ public SecurePayEchoTest()

{

// Create Payment container object

Echo echo = new Echo();

// Print generated values

System.out.println(“Message ID: “ + echo.getMessageId());

System.out.println(“Timestamp: “ +

echo.getMessageTimestampAsString());

System.out.println(“API Version: “ + echo.getApiVersion());

// Set Payment values

echo.setServerURL(

“http://fakeurl.com/payment”); // Dummy payment

URL, please use URL supplied by SecurePay Support

echo.setProcessTimeout(80); // 80 seconds

echo.setMerchantId(“XYZ9999”); // ID allocated by

SecurePay

// Send echo to SecurePay

boolean processed = echo.process(“password”);

if (!processed)

{

System.out.println(“Payment was not sent to server.”);

}

else // Payment was processed correctly

{

System.out.println(“Response Received.”);

}

// Print status of Echo

System.out.println(“Status: “ + echo.getStatusCode());

System.out.println(“Desc: “ + echo.getStatusDesc());

}

public static void main(String[] args)

{

SecurePayEchoTest test = new SecurePayEchoTest();

}

Page 41 of 49

Appendix A: Transaction Types

Transaction type codes define the type of financial transaction processed by SecurePay.

Codes with shaded background are permitted in Payment transactions from this API. All other codes are

provided for completeness.

Code Description

0 Standard Payment

1 Mobile Payment

2 Batch Payment

3 Periodic Payment

4 Refund

5 Error Reversal (Void)

6 Client Reversal (Void)

10 Preauthorise

11 Preauth Complete (Advice)

14 Recurring Payment

15 Direct Entry Debit

17 Direct Entry Credit

19 Card-Present Payment

20 IVR Payment

21 Antifraud payment

22 Antifraud (only) request

Page 42 of 49

Appendix B: Transaction Sources

Transaction source codes track the origin of financial transaction processed by SecurePay.

Codes with shaded background are permitted in Payment transactions from this API. All other codes are

provided for completeness.

Other source codes may be used, with the permission of SecurePay. Contact SecurePay Support for more

information.

Code Description

0 Unknown (default)

1 SecureLink

2 Merchant Login

3 SATM

4 SecureBill Portal

5 SecureBill Link

7 SecurePOS

8 API (Secure Java)

9 Call Centre Payment Switch

10 Batch Server

11 IVR1

12 IVR2

13 SecureMobile

14 Reconciliation Engine

16 Helpdesk Login

18 eSec Interface

19 Periodic Server

23 SecureXML

24 DirectOne Interface

25 Antifraud Server

90 Reserved

Page 43 of 49

Appendix C: Card Types

SecurePay uses numeric codes to refer to credit card types in our system.

Code Description

0 Unknown

1 JCB

2 American Express (Amex)

3 Diners Club

4 Bankcard

5 MasterCard

6 Visa

Page 44 of 49

Appendix D: Location of CVV

The Card Verification Value is an anti-fraud measure used by some banks to prevent payments from

generated card numbers. The CVV number is printed on the physical card, and is randomly assigned,

therefore cannot be auto-generated.

The CVV number can be found in the following places:

Card Type

Location

Visa Signature strip on back of card. Last digits of card number are re-

printed in reverse italics, followed by 3-digit CVV.

MasterCard Signature strip on back of card. Last digits of card number are re-

printed in reverse italics, followed by 3-digit CVV.

Bankcard Signature strip on back of card. Last digits of card number are re-

printed in reverse italics, followed by 3-digit CVV.

Amex 4 digit CVV above card number on front of card.

Diners Club Signature strip on back of card. Last digits of card number are re-

printed in reverse italics, followed by 3-digit CVV.

JCB Not used

Page 45 of 49

Appendix E: Timestamp String Format

The format of the Timestamp or Log Time strings returned by Secure Java is:

YYYYDDMMHHNNSSKKK000sOOO

where:

• YYYY is a 4-digit year

• DD is a 2-digit zero-padded day of month

• MM is a 2-digit zero-padded month of year (January = 01)

• HH is a 2-digit zero-padded hour of day in 24-hour clock format (midnight =0)

• NN is a 2-digit zero-padded minute of hour

• SS is a 2-digit zero-padded second of minute

• KKK is a 3-digit zero-padded millisecond of second

• 000 is a Static 0 characters, as SecurePay does not store nanoseconds

• sOOO is a Time zone offset, where s is “+” or “-“, and OOO = minutes, from GMT.

E.g. June 24, 2002 5:12:16.789 PM, Australian EST is:

20022406171216789000+600

Page 46 of 49

Appendix F: SecurePay Status Codes

atus

Code Response Text Description

0 Normal Message processed correctly (check transaction response for details).

504 Invalid Merchant ID If Merchant ID does not follow the format XXXDDDD, where X is a letter and D

is a digit, or Merchant ID is not found in SecurePay’s database.

505 Invalid URL The URL passed to either Echo, or Payment object is invalid.

510 Unable To Connect To Server Produced by SecurePay Client API when unable to establish connection to

SecurePay Payment Gateway

511 Server Connec

ion Aborted

During Transaction

Produced by SecurePay Client API when connection to SecurePay Payment

Gateway is lost after the payment transaction has been sent

512 Transaction timed out By

Client

Produced by SecurePay Client API when no response to payment transaction

has been received from SecurePay Payment Gateway within predefined time

period (default 80 seconds)

513 General Database Error Unable to read information from the database.

514 Error loading properties file Payment Gateway encountered an error while loading configuration

information for this transaction

515 Fatal Unknown Error Transaction could not be processed by the Payment Gateway due to unknown

reasons

516 Request type unavailable SecurePay system doesn’t support the requested transaction type

517 Message Format Error SecurePay Payment Gateway couldn’t correctly interpret the transaction

message sent

524 Response not received The client could not receive a response from the server.

545 System maintenance in

progress

The system maintenance is in progress and the system is currently unable to

process transactions

550 Invalid password

The merchant has attempted to process a request with an invalid password.

575 Not implemented

This functionality has not yet been implemented

577 Too Many Records for

Processing

The maximum number of allowed events in a single message has been

exceeded.

580 Process method has not been

called

The process() method on either Echo, or Payment object has not been called

595 Merchant Disabled SecurePay has disabled the merchant and the requests from this merchant

will not be processed.

Page 47 of 49

Appendix G: Thinlink Codes

G.1 Payment Result Codes

Code

Description

100 Payment approved

200 Payment declined

300 Payment incomplete –

Unable to process, try again la

400 Scheduled –

Execution pending

999 Unknown status

G.2 Event Status Codes

Code Description

Code

Description

000 Normal Completion

986 Error –

Invalid Email Address

002 No event to process

988 Error –

Unknown Currency

980 Error – Bad Card Number

990 Error –

Invalid Amount

981 Error – Expired Card

991 Error –

Invalid MTID

982 Error – Invalid Transaction Type

992 Error –

Duplicate Invoice Number

984 Error – Formatting Error

999 Error –

Unspecified

Page 48 of 49

Appendix H: Currency Codes List

IMPORTNANT NOTICE:

You must meet certain requirements with your bank and SecurePay before using SecurePay’s multi-

currency features. Please ask SecurePay if we support multi-currency payments through your bank, and if

so, what currency types are available. You may also need to open multi-currency accounts with your bank

for each currency you propose to transact in. Contact SecurePay Support or your SecurePay Account

Manager for full details.

Code Description Minor Units Example*

Amount Pass As

AUD Australian Dollar

$20

2000

CAD Canadian Dollar

$20

2000

CHF Swiss Franc 2

2000

DEM German Deutschmark

2000

EUR Euro 2

€20

2000

FRF French Franc

2000

GBP English Pound

2000

GRD Greek Drachma

HKD Hong Kong Dollar

$20

2000

ITL Italian Lira 0

L20

JPY Japanese Yen

¥20

NZD New Zealand Dollar

$20

2000

SGD Singapore Dollar

$20

2000

USD US Dollar 2

$20

2000

* To pass a multicurrency payment to SecurePay, call setCurrencyCode(…) with the value from the Code

column, and call setAmount(…) with the amount to be charged, ensuring you set the correct number of

Minor Units for the selected currency, as shown in the examples.

E.g. For US Dollars, $4,125.90 is set using:

txn.setAmount(“412590”);

txn.setCurrencyCode(“USD”);

or for Japanese Yen, ¥67,925 is set using:

txn.setAmount(“67925”);

txn.setCurrencyCode(“JPY”);

Page 49 of 49

Appendix I: Direct Entry Character set

Description

Characters allowed

Numeric 0 -

Alphabetic a –

z, A -

Oblique slash

Hyphen -

Ampersand &

Period .

Asterisk *

Apostrophe ‘

Blank space

Secure Java API Integration Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
