SNS41 NFG03L 3 22 06 WEB READY Senco SNS 41 Stapler Parts Manual
User Manual: Senco-SNS-41-Stapler-Parts-Manual Igor's of metalworking and electrical manuals
Open the PDF directly: View PDF
.
Page Count: 4
Repair Kit
MEMBER
SNS41
SNS41
Senco Products, Inc.
8485 Broadwell Road
Cincinnati, Ohio 45244
Visit our Website www.senco.com
Questions? Comments? call SENCO's toll-free Action-line:
1-800-543-4596 (North & South America only)
or e-mail: toolprof@senco.com
YK0423
NFG03L Revised March 22, 2006 (Replaces 11/18/05) © 2004, 2006 by SENCO Products, Inc. Cincinnati, Ohio 45244 - U.S.A.

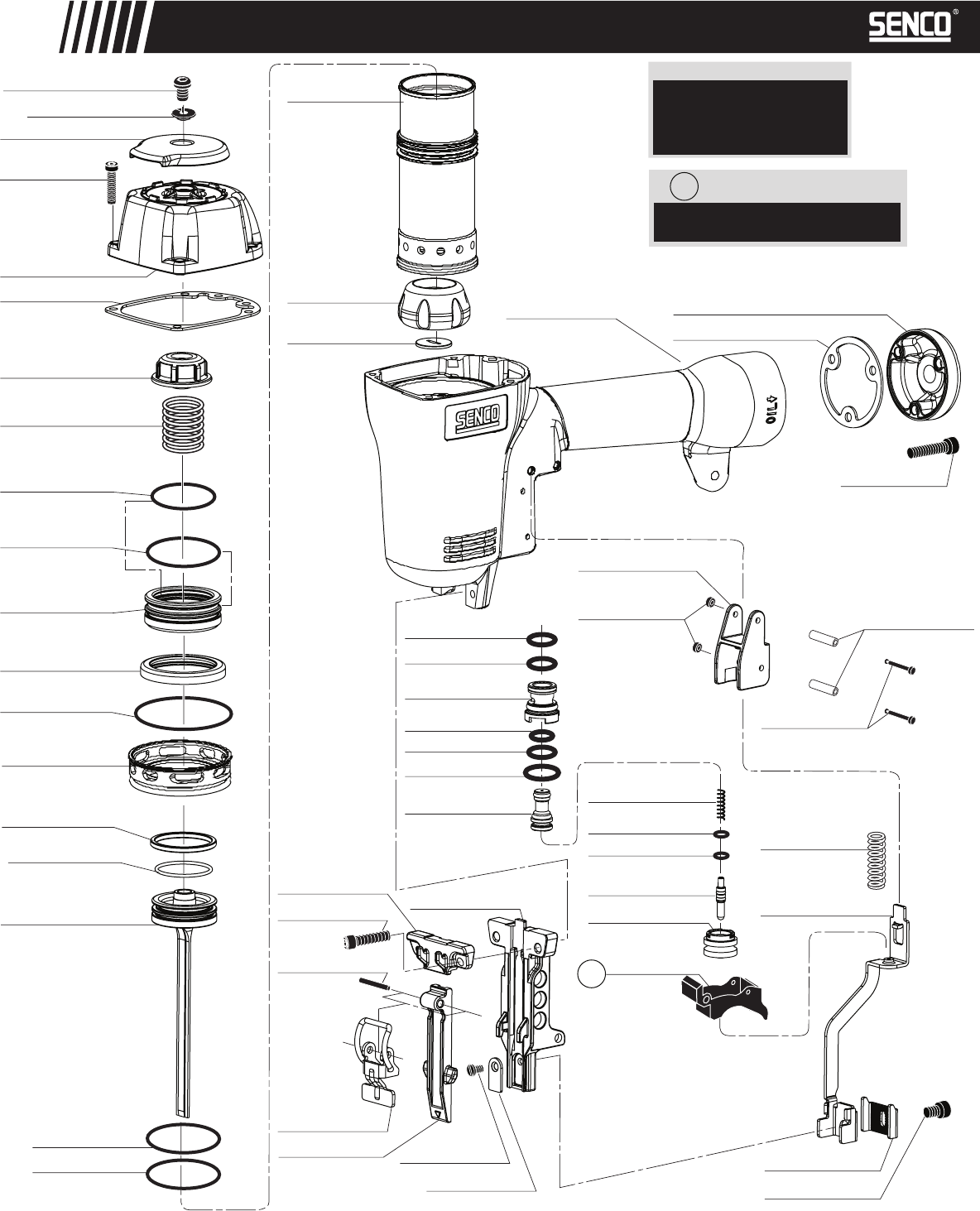

* Schematic drawings inside
SM
3/8"
Body
1/4"
Body
Ind. Interchange 3/8" NPT
Ind. Interchange 3/8" NPT
PC0485
PC0475
1/4"
Body
3/8"
Body
Plugs shown smaller than actual size
3L0003N Contact Actuation
3L0004N Single Sequential
3L2003N Contact Actuation
3L2004N Single Sequential
Model
20910010015
31605220766
80910112080
32104198012
32104198012
20792290001
20791440000
30503060166
30804180001
30105300866
20912050015
20792130001
30605080066
20792090100
30105200166
20792620001
30105250866
20792360015
30803240001
SNS41 SNS41
30506160766 20910350000
20910370016
21180142117
20910470015
20910461001
30700079000
30700081000
20750900074
30700002000
30700080000
30700080000
20770920000
20770930016
30700078000
30105200866
30700024000
30700071000
20750910074 20770960001
30700169000
30700042000
20790480001
20910250117
20910020127
20910130000
30700153000
30700108000
20910510015
20910150100
30105060166
20770890001
30105200166
30105160266
30900006001
30605080066
20912170001
20910000001
21190952015 Contact Actuation
21191052059 Single Sequential
Trigger
A
A
NFG03L Revised March 22, 2006 (Replaces 11/18/05) © 2004, 2006 by SENCO Products, Inc. Cincinnati, Ohio 45244 - U.S.A.
Tool #
21180780027
21180730000
21182840015
21180160000
30700110000
30700111000
21181330066
21181350066
21181361001
21181340066 21181520001
21181490001
21181511001
20792110016
21182180115
PC0480 4
PC0469 4
(Not Included with Tool)
Available Plugs
Tru-Flate 3/8” NPT
Tru-Flate 3/8” NPT
3/8"
Body
1/4"
Body
Ind. Interchange 3/8" NPT
Ind. Interchange 3/8" NPT
PC0485
PC0475
1/4"
Body
3/8"
Body
Plugs shown smaller than actual size
3L0003N Contact Actuation
3L0004N Single Sequential
3L2003N Contact Actuation
3L2004N Single Sequential
Model
20910010015
31605220766
80910112080
32104198012
32104198012
20792290001
20791440000
30503060166
30804180001
30105300866
20912050015
20792130001
30605080066
20792090100
30105200166
20792620001
30105250866
20792360015
30803240001
SNS41 SNS41
30506160766 20910350000
20910370016
21180142117
20910470015
20910461001
30700079000
30700081000
20750900074
30700002000
30700080000
30700080000
20770920000
20770930016
30700078000
30105200866
30700024000
30700071000
20750910074 20770960001
30700169000
30700042000
20790480001
20910250117
20910020127
20910130000
30700153000
30700108000
20910510015
20910150100
30105060166
20770890001
30105200166
30105160266
30900006001
30605080066
20912170001
20910000001
21190952015 Contact Actuation
21191052059 Single Sequential
Trigger
A
A
NFG03L Revised March 22, 2006 (Replaces 11/18/05) © 2004, 2006 by SENCO Products, Inc. Cincinnati, Ohio 45244 - U.S.A.
Tool #
21180780027
21180730000
21182840015
21180160000
30700110000
30700111000
21181330066
21181350066
21181361001
21181340066 21181520001
21181490001
21181511001
20792110016
21182180115
PC0480 4
PC0469 4
(Not Included with Tool)
Available Plugs
Tru-Flate 3/8” NPT
Tru-Flate 3/8” NPT
SNS41
REPLACEMENT PARTS LIST•LISTA DE PARTES DE REPUESTO•ERSATSTEILE-LISTE•LISTE DE PIÈCES DE RECHANGE
Questions? Comments? call SENCO’s toll-free Action-line: 1-800-543-4596 (North & South America only)or e-mail: toolprof@senco.com
PART NO. DESCRIPTION DESCRIPCIÓN BESCHREIBUNG DÉSIGNATION
20750900074 ..........VALVE ................................................VÁLVULA ........................................................VENTIL.................................................................VALVE
20750910074 ..........VALVE ................................................VÁLVULA ........................................................VENTIL.................................................................VALVE
20770890001 ..........PIN ....................................................PASADOR .......................................................STIFT....................................................................GOUPILLE
20770920000 ..........VALVE ................................................VÁLVULA ........................................................VENTIL.................................................................VALVE
20770930016 ..........CAP ...................................................TAPA ...............................................................KAPPE .................................................................BOUCHON
20770960001 ..........SPRING .............................................RESORTE ........................................................FEDER..................................................................RESSORT
20790480001 ..........GUIDE ...............................................GUÍA ................................................................FÜHRUNG ...........................................................GUIDE
20791440000 ..........INSERT .............................................ACOPLAMIENTO ..............................................EINSATZ ..............................................................INSERT
20792090100 ..........SPRING ............................................RESORTE .........................................................FEDER..................................................................RESSORT
20792130001 ..........FEEDER SHOE ...................................ALIMENTADOR ...............................................NAGELSCHIEBER ................................................POUSSOIR
20792110016 ..........ROLLER ............................................RODILLO .........................................................ROLLE .................................................................GALET
20792290001 ..........SPRING .............................................RESORTE ........................................................FEDER..................................................................RESSORT
20792360015 ..........LATCH ...............................................UÑETA .............................................................VERSCHLUSS .....................................................DOIGT DE RETENUE
20792620001 ..........SPRING .............................................RESORTE ........................................................FEDER..................................................................RESSORT
20910000001 ..........INSERT .............................................ACOPLAMIENTO ..............................................EINSATZ ..............................................................INSERT
20910010015 ..........DEFLECTOR ......................................DESVIADOR ....................................................ABWEISER ...........................................................DÉFLECTEUR
20910020127 ..........CAP ...................................................TAPA ...............................................................KAPPE .................................................................BOUCHON
20910130000 ..........SEAL .................................................SELLO .............................................................DICHTUNG ..........................................................JOINT
20910150100 ..........VALVE ...............................................VÁLVULA .........................................................VENTIL................................................................VALVE
20910250117 ..........SEAL .................................................SELLO .............................................................DICHTUNG ..........................................................JOINT
20910350000 ..........CYLINDER .........................................CILINDRO .......................................................ZYLINDER ...........................................................CYLINDRE
20910370016 ..........BUSHING ..........................................CASQUILLO .....................................................HÜLSE ................................................................DOUILLE
20910461001 ..........DRIVER ASSY ...................................PERCUSOR .....................................................TREIBER .............................................................COUTEAU
20910470015 ..........BUMPER ...........................................AMORTIGUADOR ............................................PUFFER ..............................................................AMORTISSEUR
20910510015 ..........SEAL .................................................SELLO .............................................................DICHTUNG .........................................................JOINT
20912050015 ..........MAGAZINE ........................................CARGADOR .....................................................MAGAZIN ...........................................................MAGASIN
20912170001 ..........BRACKET ..........................................SOPORTE ........................................................HALTERUNG .......................................................SUPPORT DE FIXATION
21180142117 ..........STOP ................................................TOPE ...............................................................PUFFER ...............................................................ARRÊT
21180160000 ..........SPRING ............................................RESORTE ........................................................FEDER..................................................................RESSORT
21180730000 ..........SEAL .................................................SELLO .............................................................DICHTUNG ..........................................................JOINT
21180780027 ..........CAP ...................................................TAPA ...............................................................KAPPE .................................................................BOUCHON
21181330066 ..........UPPER DOOR ....................................PUERTA ..........................................................ABDECKSCHIEBER .............................................PORTE
21181340066 ..........DOOR ................................................PUERTA ..........................................................ABDECKSCHIEBER .............................................PORTE
21181350066 ..........GUIDEBODY ......................................PLACA DE NARIZ ...........................................KLAMMERFÜHRUNG ..........................................FRONT
21181361001 ..........LATCH ASSEMBLY ............................ASAMBLE DE UÑETA ......................................VERSCHLUSS-ZUSAMMENBAU .........................DOIGT DE RETENUE D ’ASSEMBLÉE
21181490001 ..........SPRING .............................................RESORTE .......................................................FEDER..................................................................RESSORT
21181511001 ..........SAFETY ELEMENT .............................SEGURO .........................................................SICHERHEITSVORRICHTUNG ............................PALPEUR DE SÉCURITÉ
21181520001 ..........COVER ..............................................CUBIERTA .......................................................ABDECKUNG .......................................................COUVERCLE
21182180115 ..........MAGAZINE CAP ................................TAPA ...............................................................KAPPE .................................................................BOUCHON
21182840015 ..........GUIDE ...............................................GUÍA ...............................................................FÜHRUNG ...........................................................GUIDE
21190952015 ..........TRIGGER ASSEMBLY ........................ASAMBLE DE GATILLO ..................................AUSLÖSER-ZUSAMMENBAU ..............................GÂCHETTE D ’ASSEMBLÉE
21191052059 ..........TRIGGER ASSEMBLY ........................ASAMBLE DE GATILLO ..................................AUSLÖSER-ZUSAMMENBAU ..............................GÂCHETTE D ’ASSEMBLÉE
30105060166 ..........SCREW .............................................TORNILLO .......................................................SCHRAUBE .........................................................VIS
30105160266 ..........SCREW .............................................TORNILLO .......................................................SCHRAUBE .........................................................VIS
30105200166 ..........SCREW .............................................TORNILLO .......................................................SCHRAUBE .........................................................VIS
30105200866 ..........SCREW .............................................TORNILLO .......................................................SCHRAUBE .........................................................VIS
30105250866 ..........SCREW .............................................TORNILLO .......................................................SCHRAUBE .........................................................VIS
30105300866 ..........SCREW .............................................TORNILLO .......................................................SCHRAUBE .........................................................VIS
30503060166 ..........SCREW .............................................TORNILLO .......................................................SCHRAUBE .........................................................VIS
30506160766 ..........SCREW .............................................TORNILLO .......................................................SCHRAUBE .........................................................VIS
30605080066 ..........NUT ..................................................TUERCA........................................................... MUTTE ...............................................................ÉCROU
30700002000 ..........SEAL .................................................SELLO .............................................................DICHTUNG .........................................................JOINT
30700024000 ..........SEAL .................................................SELLO .............................................................DICHTUNG .........................................................JOINT
30700108000 ..........SEAL .................................................SELLO .............................................................DICHTUNG .........................................................JOINT
30700042000 ..........SEAL .................................................SELLO .............................................................DICHTUNG .........................................................JOINT
30700071000 ..........SEAL .................................................SELLO .............................................................DICHTUNG .........................................................JOINT
30700078000 ..........RETAINER .........................................RETÉN .............................................................SICHERUNGSRING .............................................RETENUE
30700079000 ..........SEAL .................................................SELLO .............................................................DICHTUNG .........................................................JOINT
30700080000 ..........SEAL .................................................SELLO .............................................................DICHTUNG .........................................................JOINT
30700081000 ..........SEAL .................................................SELLO .............................................................DICHTUNG .........................................................JOINT
30700110000 ..........SEAL .................................................SELLO .............................................................DICHTUNG .........................................................JOINT
30700111000 ..........SEAL .................................................SELLO .............................................................DICHTUNG .........................................................JOINT
30700153000 ..........SEAL .................................................SELLO .............................................................DICHTUNG .........................................................JOINT
30700169000 ..........SEAL .................................................SELLO .............................................................DICHTUNG .........................................................JOINT
30803240001 ..........PIN ....................................................PASADOR .......................................................STIFT...................................................................GOUPILLE
30804180001 ..........PIN ....................................................PASADOR .......................................................STIFT...................................................................GOUPILLE
30900006001 ..........WASHER ...........................................ARANDELA .................................................... SCHEIBE .............................................................RONDELLE
31605220766 ..........SCREW .............................................TORNILLO ......................................................SCHRAUBE ..........................................................VIS
32104198012 ..........ROLLER PIN .....................................PASADOR ...................................................... STIFT ...................................................................GOUPILLE
80910112080 ..........MAIN BODY ......................................CARCASA ........................................................GEHÄUSE ...........................................................CORPS
