CVT2030 Service Manual CVT3030 K 0

User Manual: CVT2030

Open the PDF directly: View PDF PDF.
Page Count: 17

Page 1 of 17
CVT2030
CVT2030 is Power Amplifier Section of CVT3030
Page 2 of 17
CVT2030 is Power Amplifier Section of CVT3030
Page 3 of 17

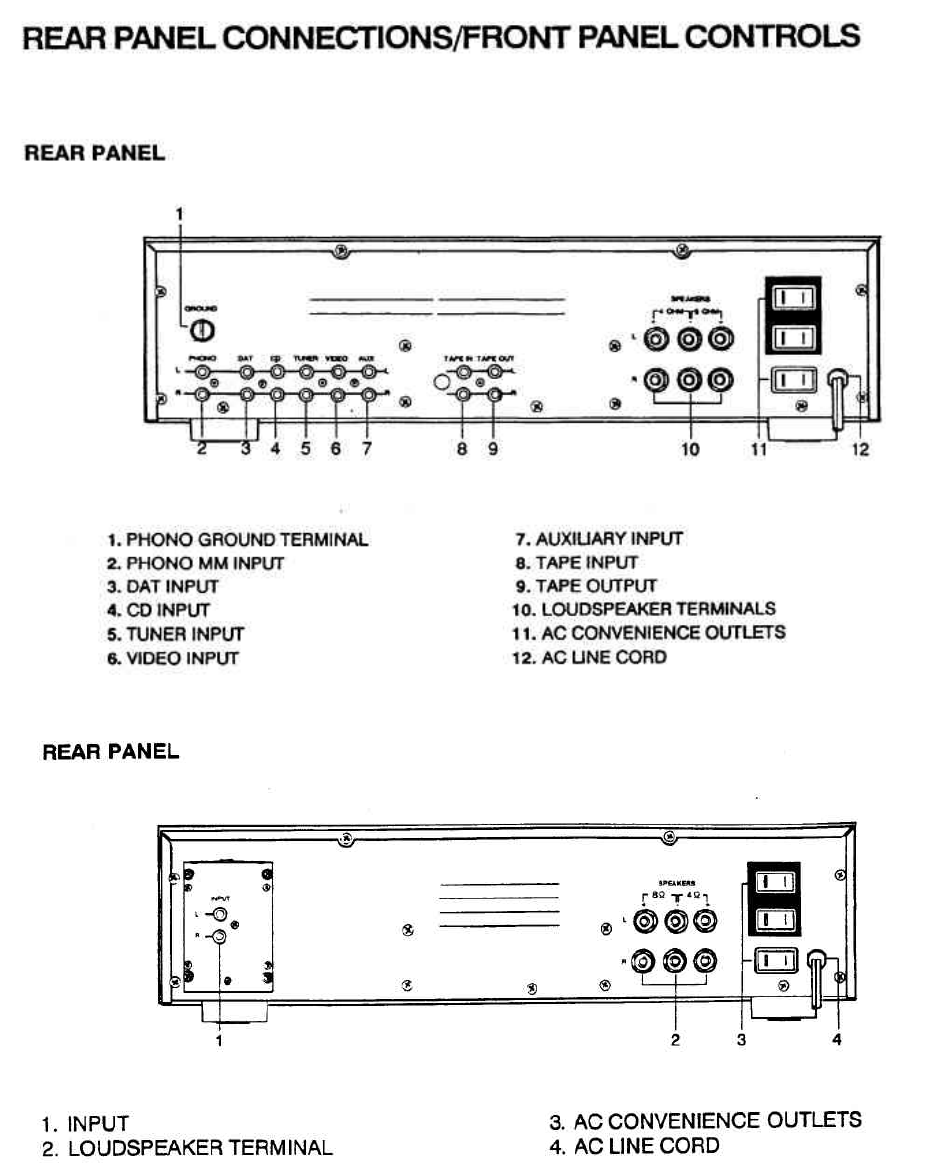

CVT3030
CVT2030
Page 4 of 17

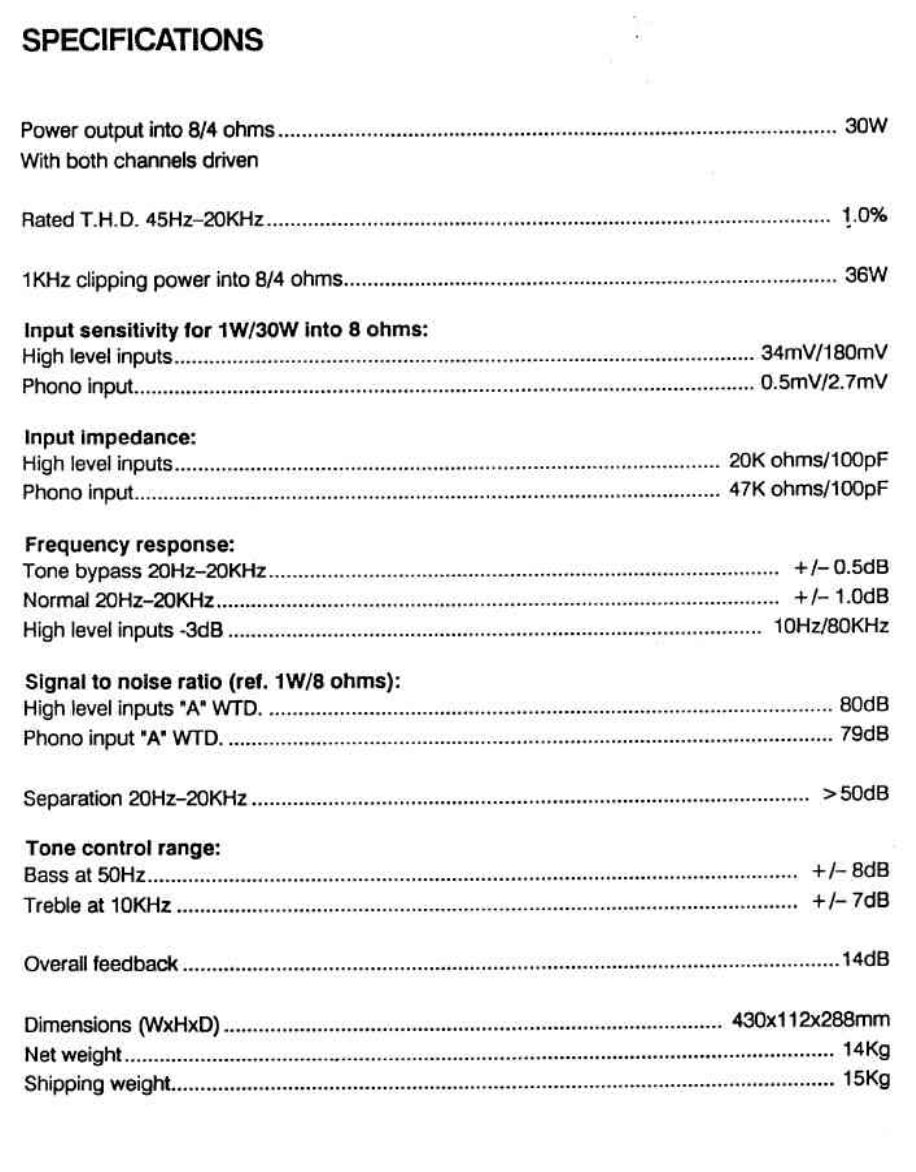

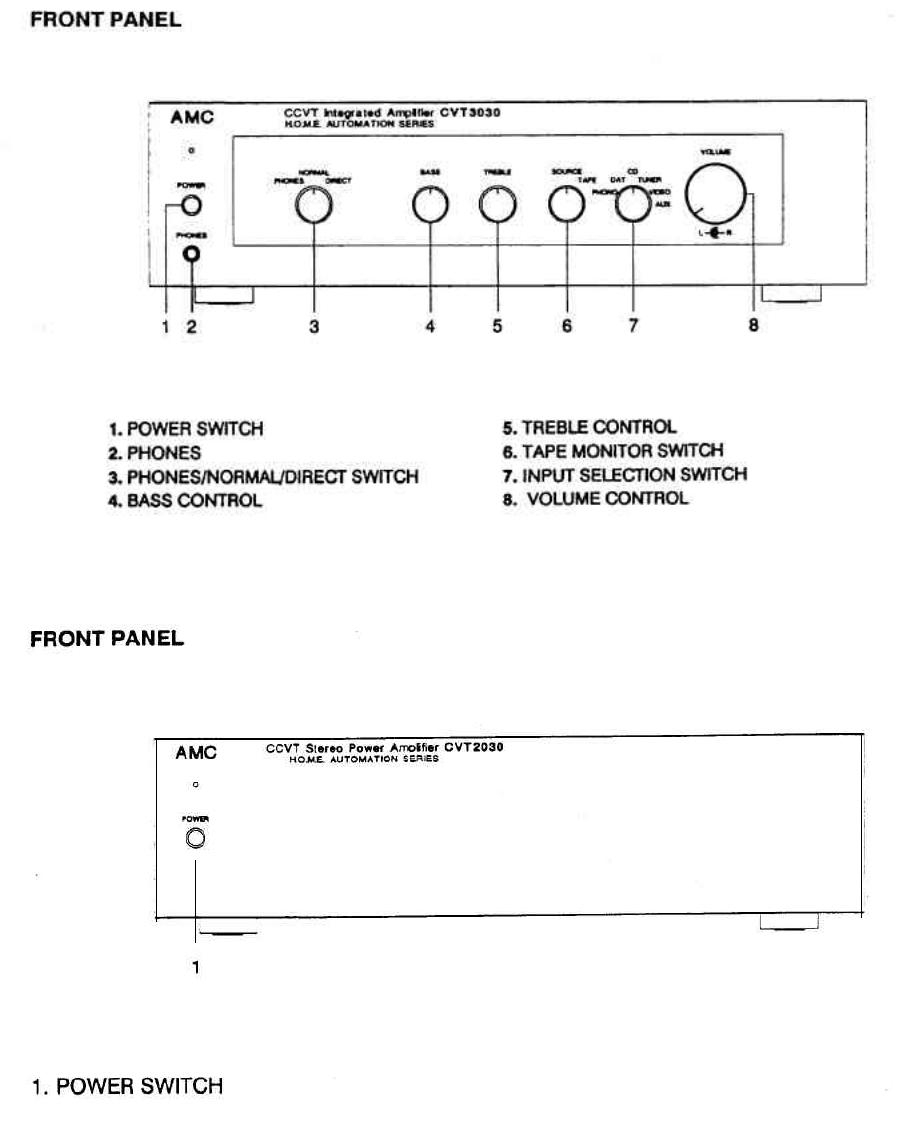

CVT3030

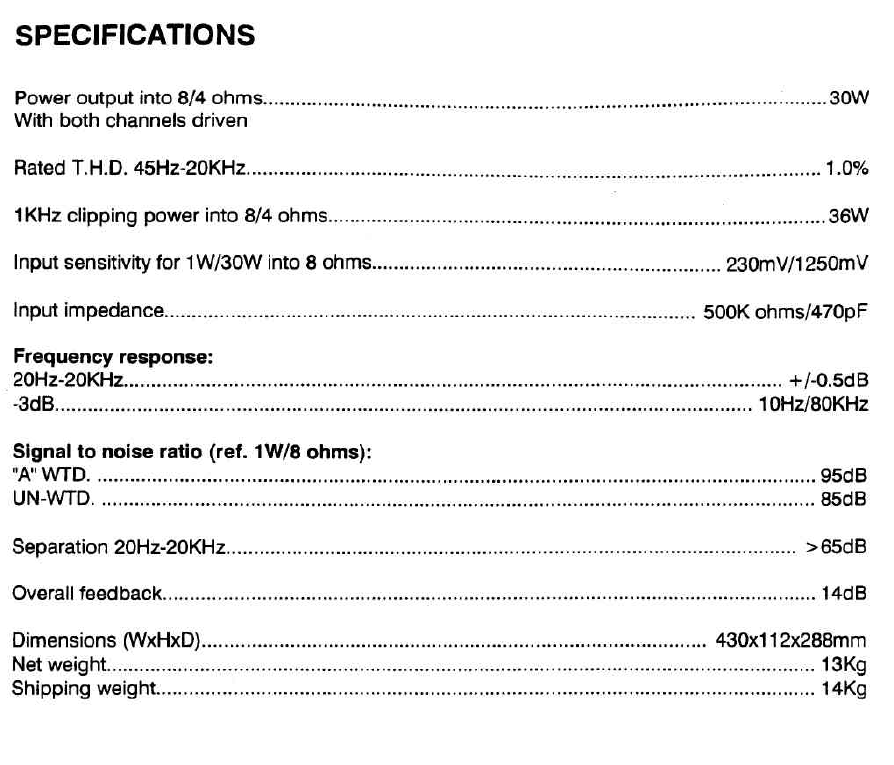

CVT2030
Page 5 of 17

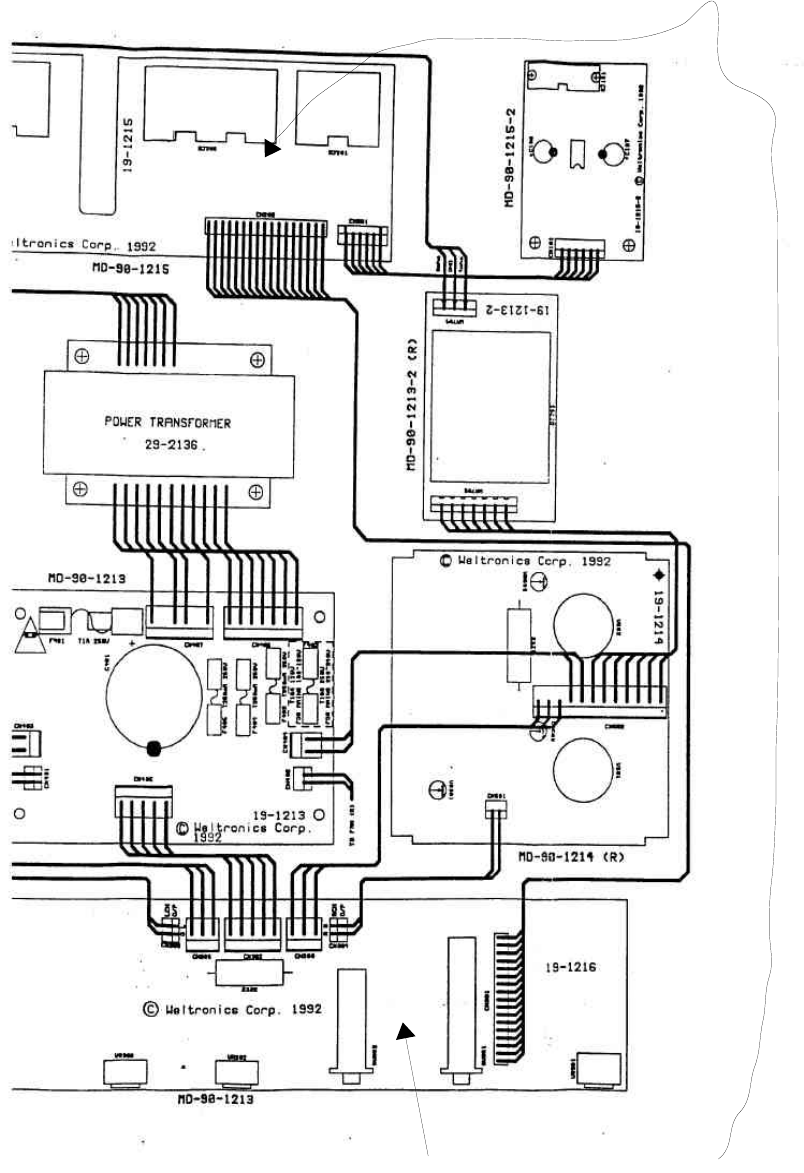

CVT3030
Page 6 of 17
CVT2030

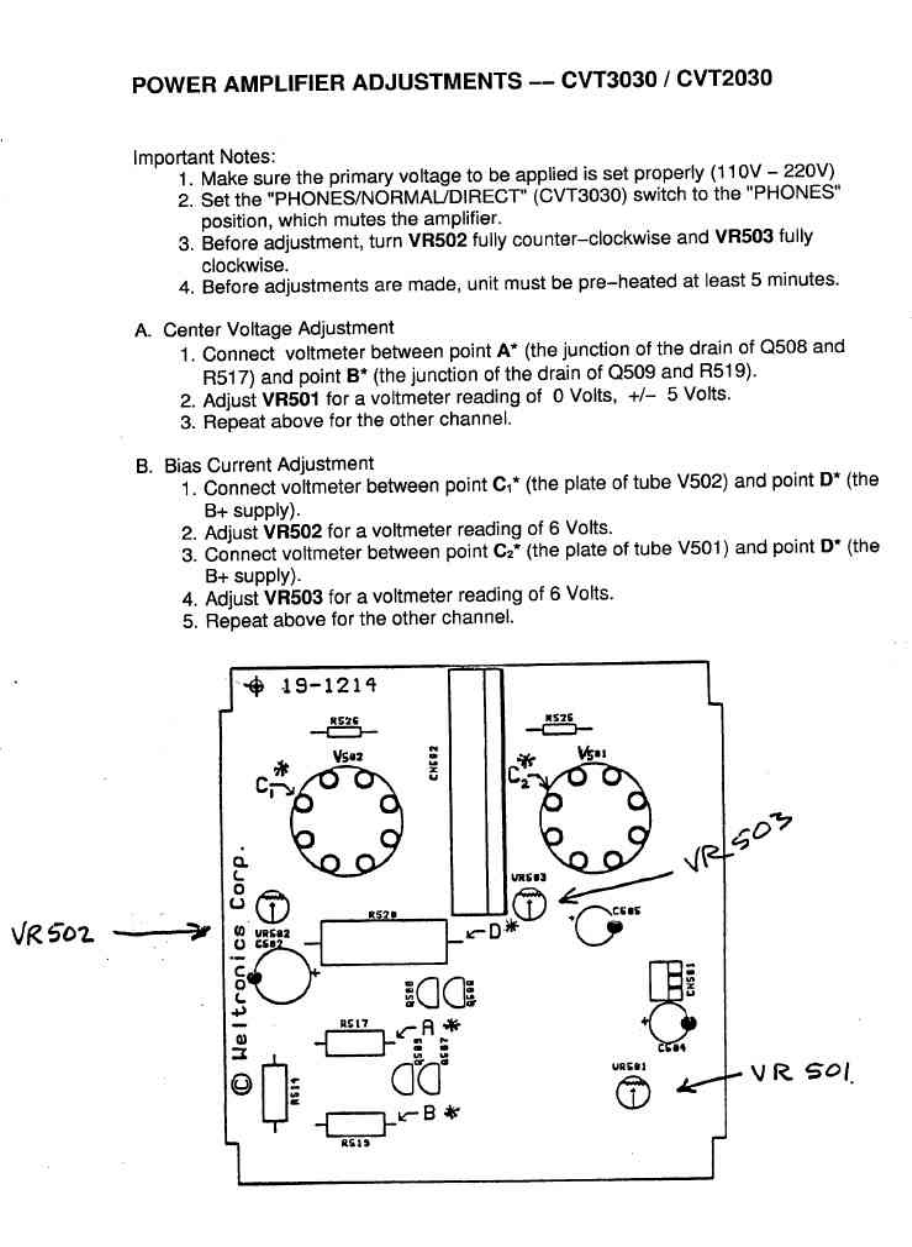

Page 7 of 17
There is no pre-amp section for CVT2030

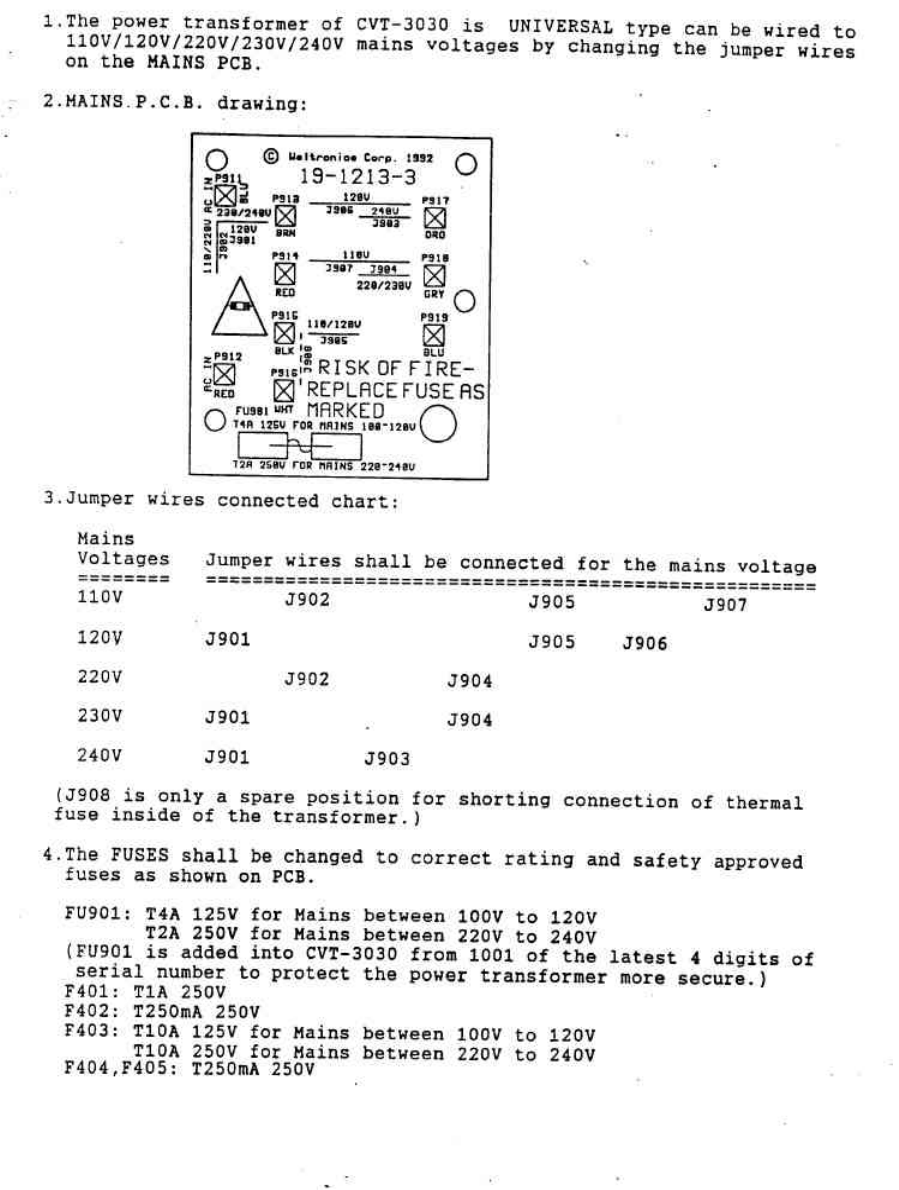

Page 8 of 17
There is no pre-amp section for CVT2030
Page 9 of 17
Page 10 of 17
Page 11 of 17

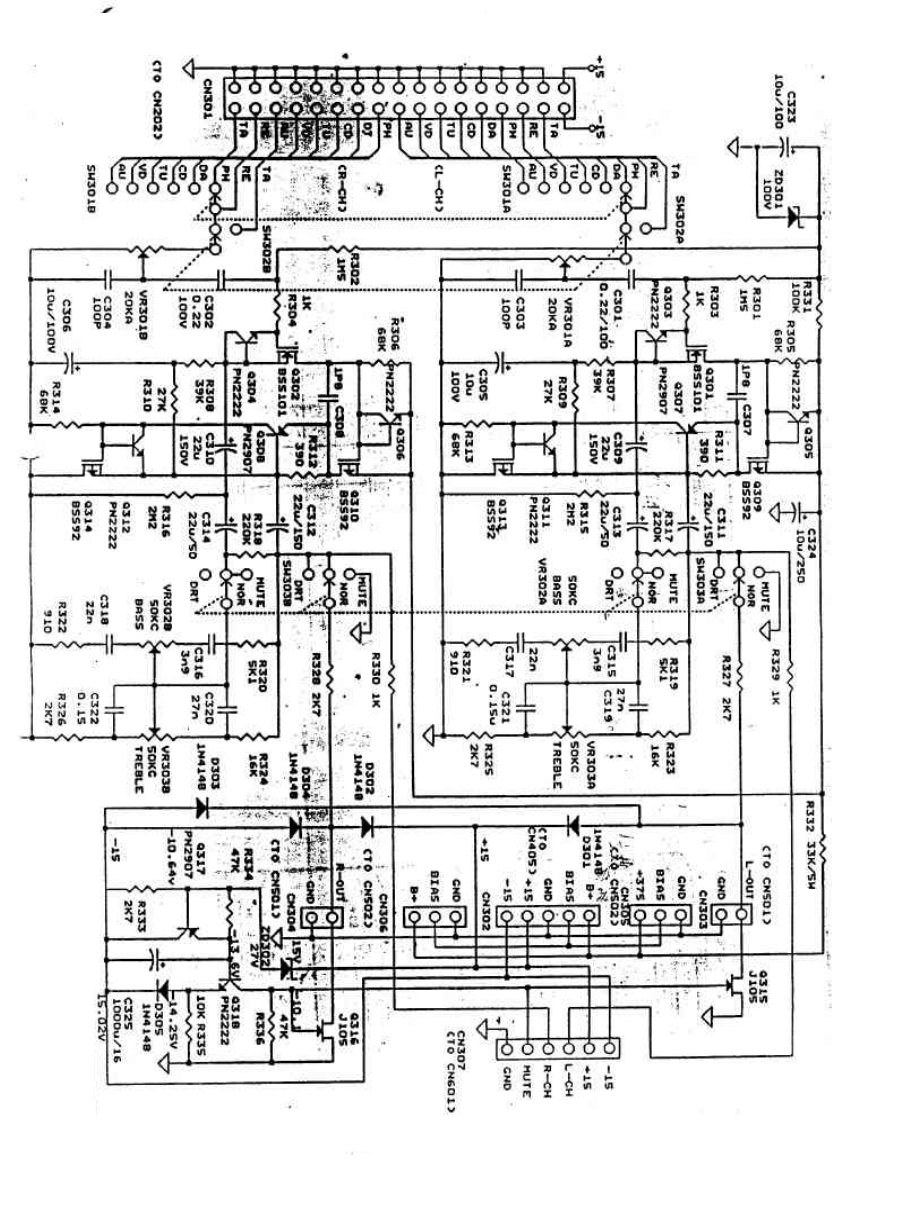

Schematic Diagram (Preamp Module) – CVT3030

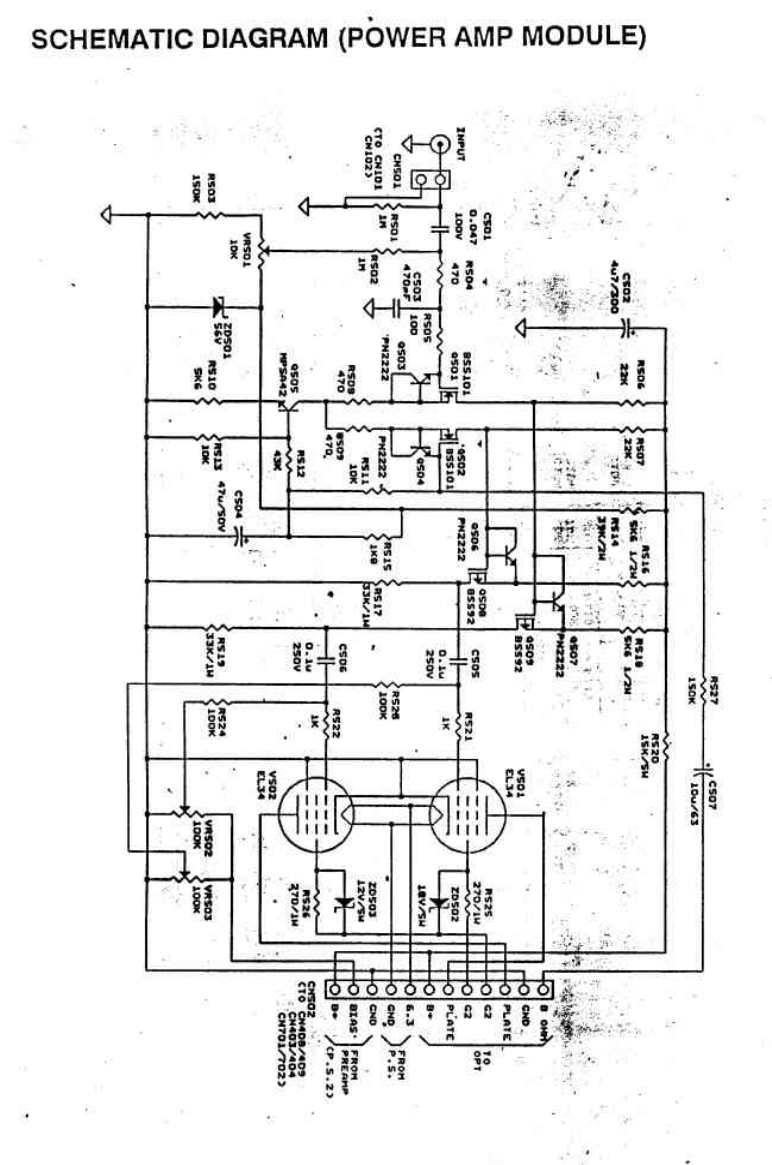

Page 12 of 17

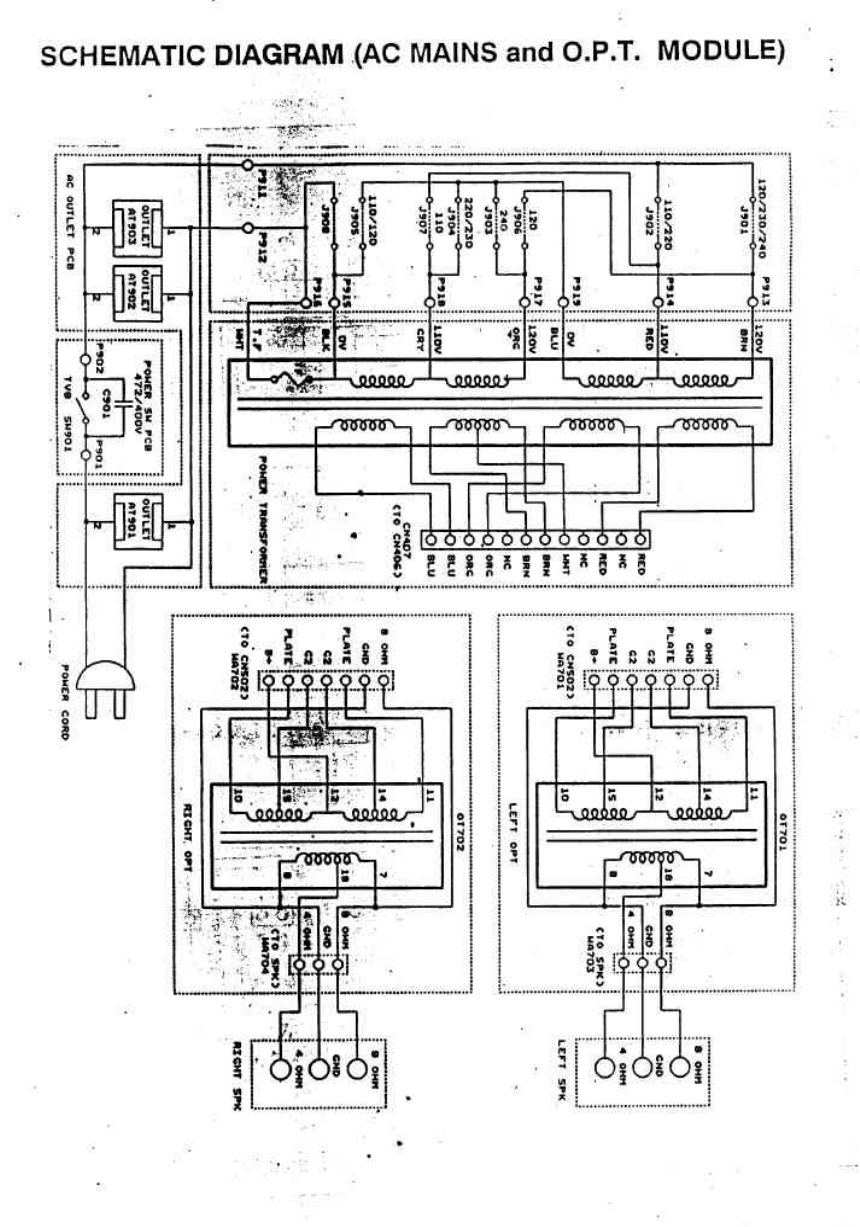

- CVT3030, CVT2030
Page 13 of 17

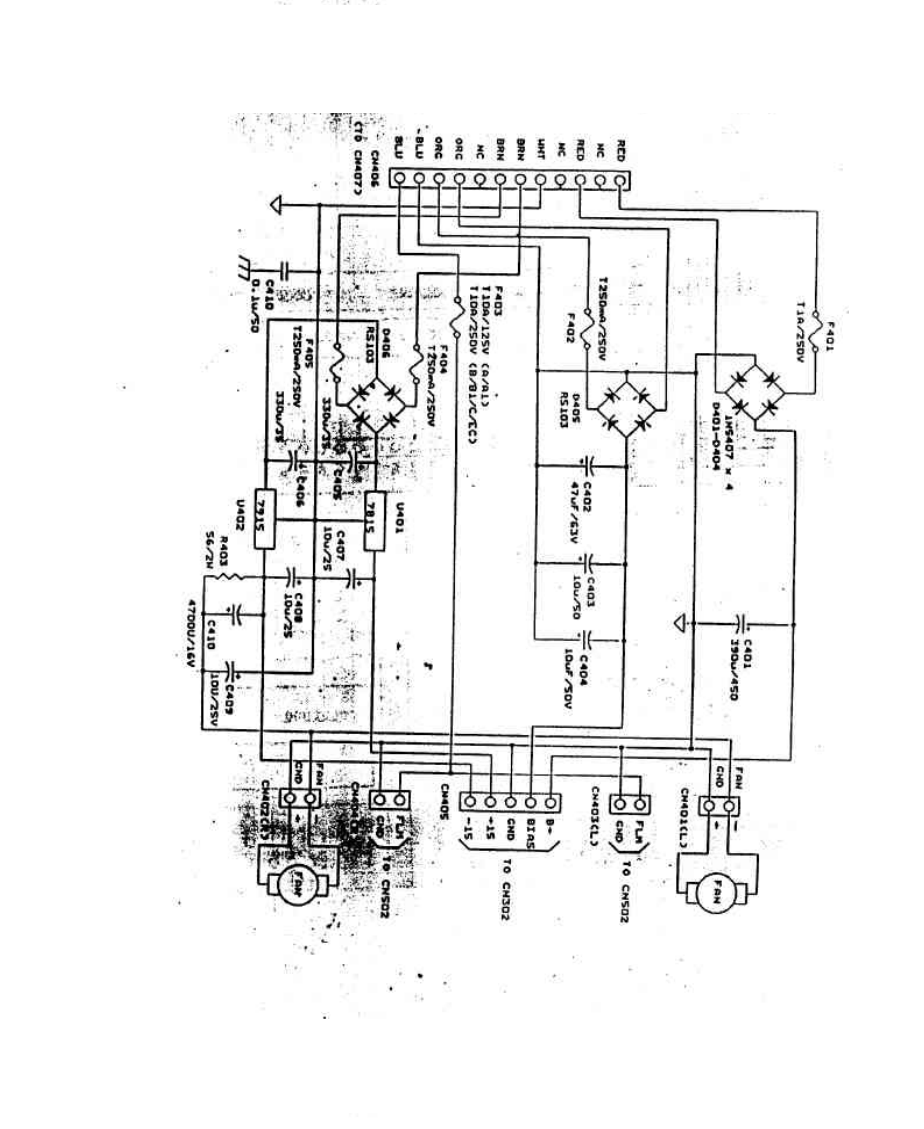

Schematic Diagram (Power Supply Module) – CVT3030, CVT2030
Page 14 of 17
– CVT3030, CVT2030
Page 15 of 17

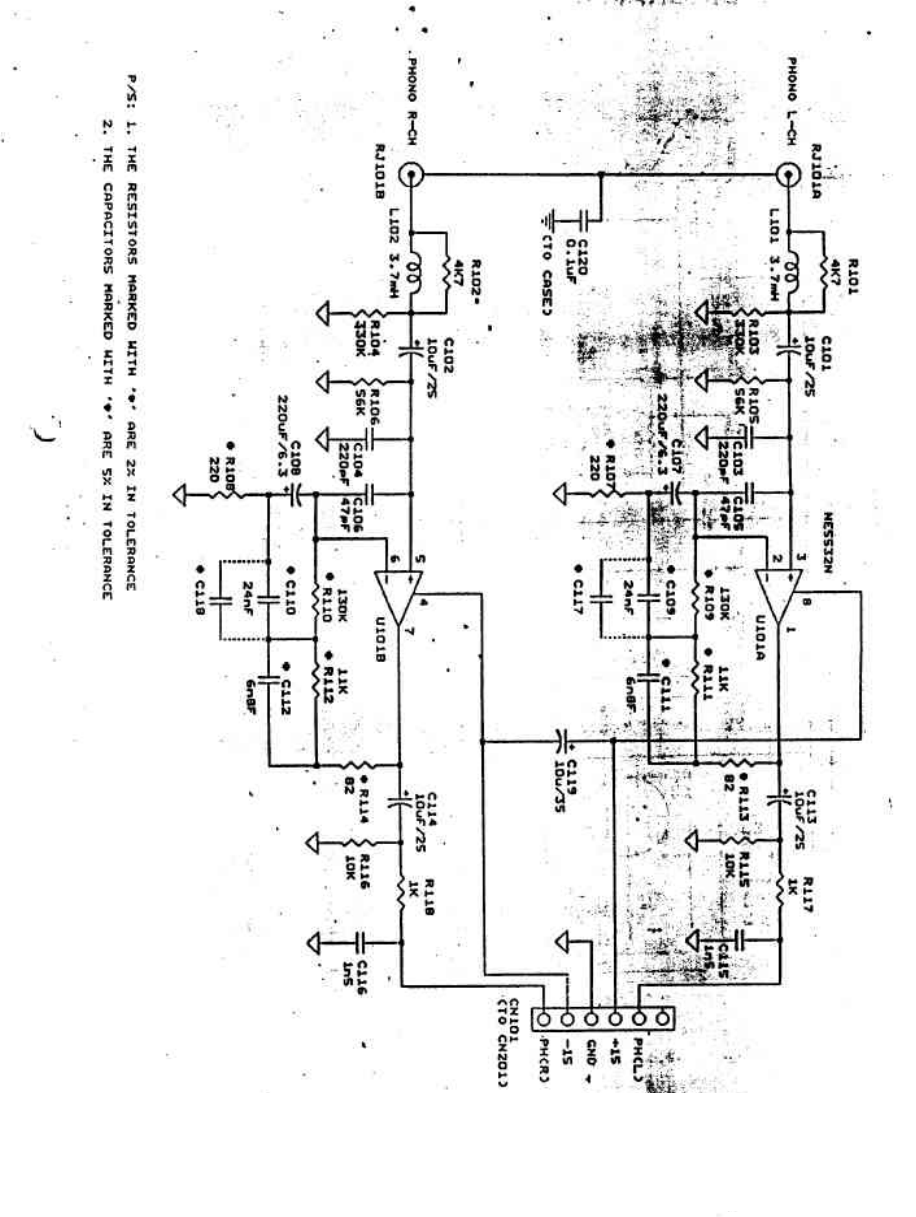

Schematic Diagram (PHONO Module) – CVT3030
Page 16 of 17

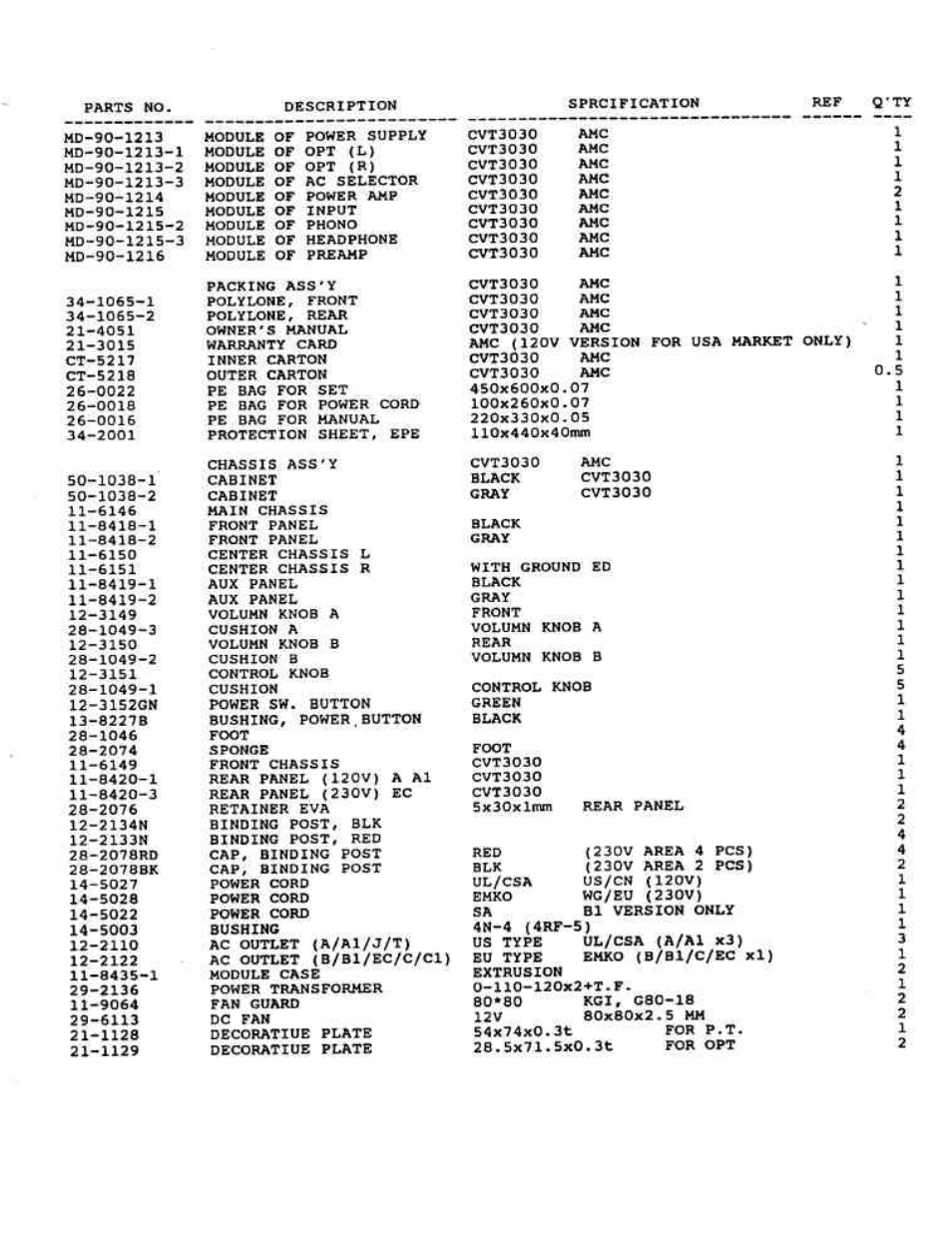

Spare Parts/ Module List – CVT3030, CVT2030
Page 17 of 17
