LE32D2320 LE39D2380 LE42D2380 LE46D2380 Service Manual

User Manual: Service ManualLE32D2320-LE39D2380-LE42D2380-LE46D2380

Open the PDF directly: View PDF PDF.
Page Count: 64

31.5&38.5&42&46 LCD TV Haier LE32D2320/LE39/42/46D2380
1
Service
Service
Service
TABLE OF CONTENTS
Description Page Description Page
SAFETY NOTICE
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

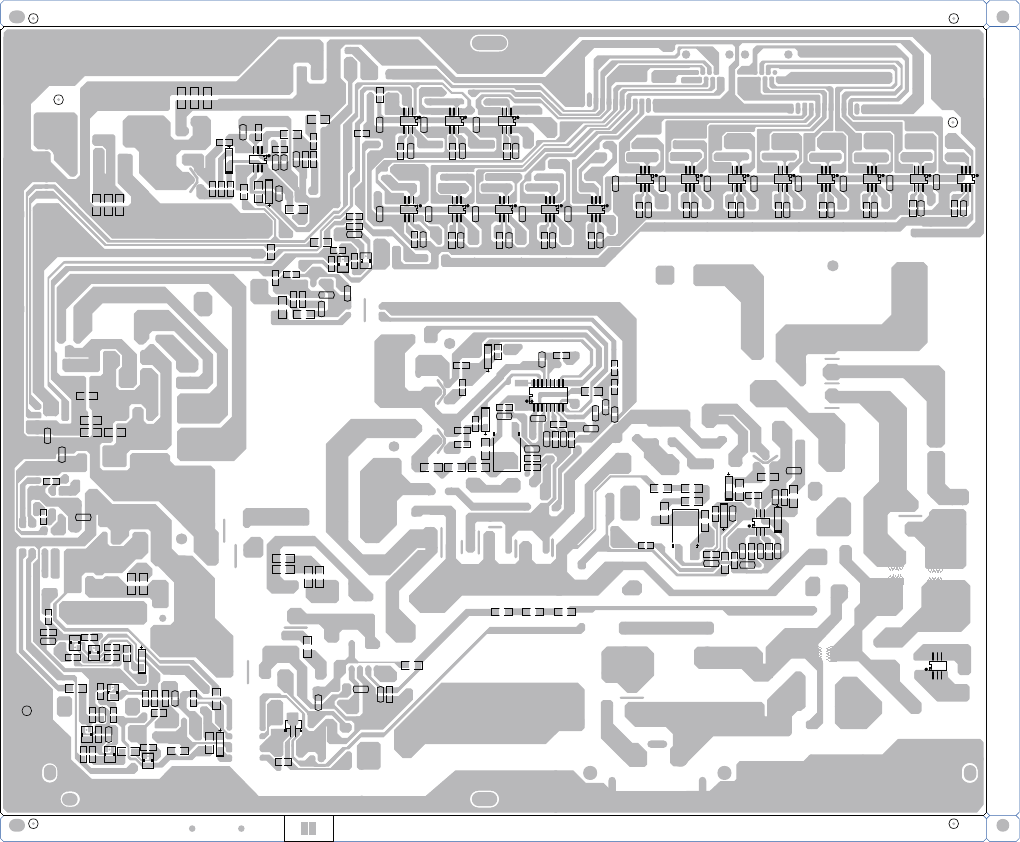

5. PCB Layout …………...………………………………43
5.1 Power Board……..…………..………….…..……....43
5.2 Key Board………………………..……..……….......50
5.3 IR Board…………………………..……….…….......50
6. Adjustment……………….……….…………...………51
6.1 WB Adjustment……………………..……...………51

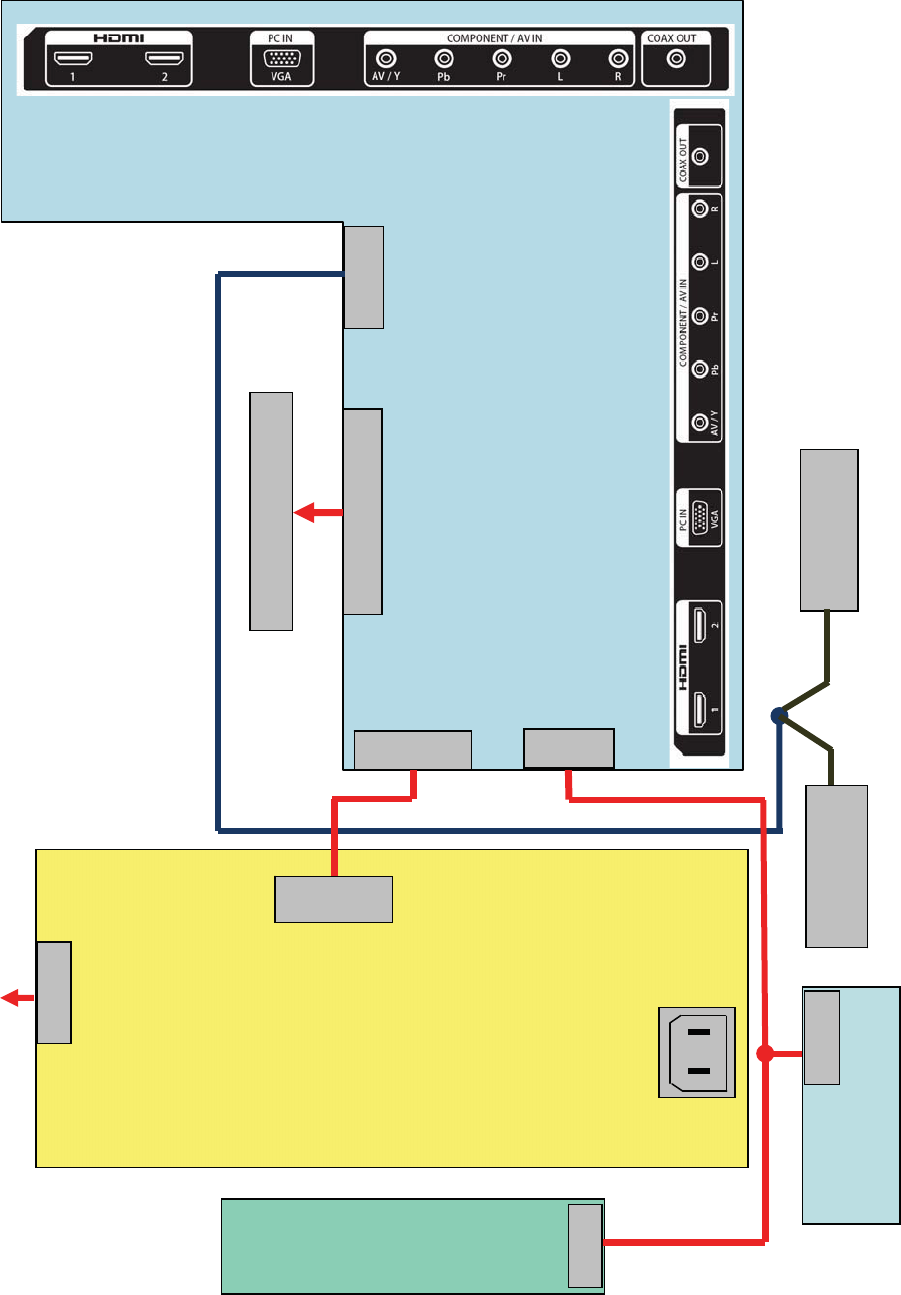

7. Wiring Diagram.……...............................................52

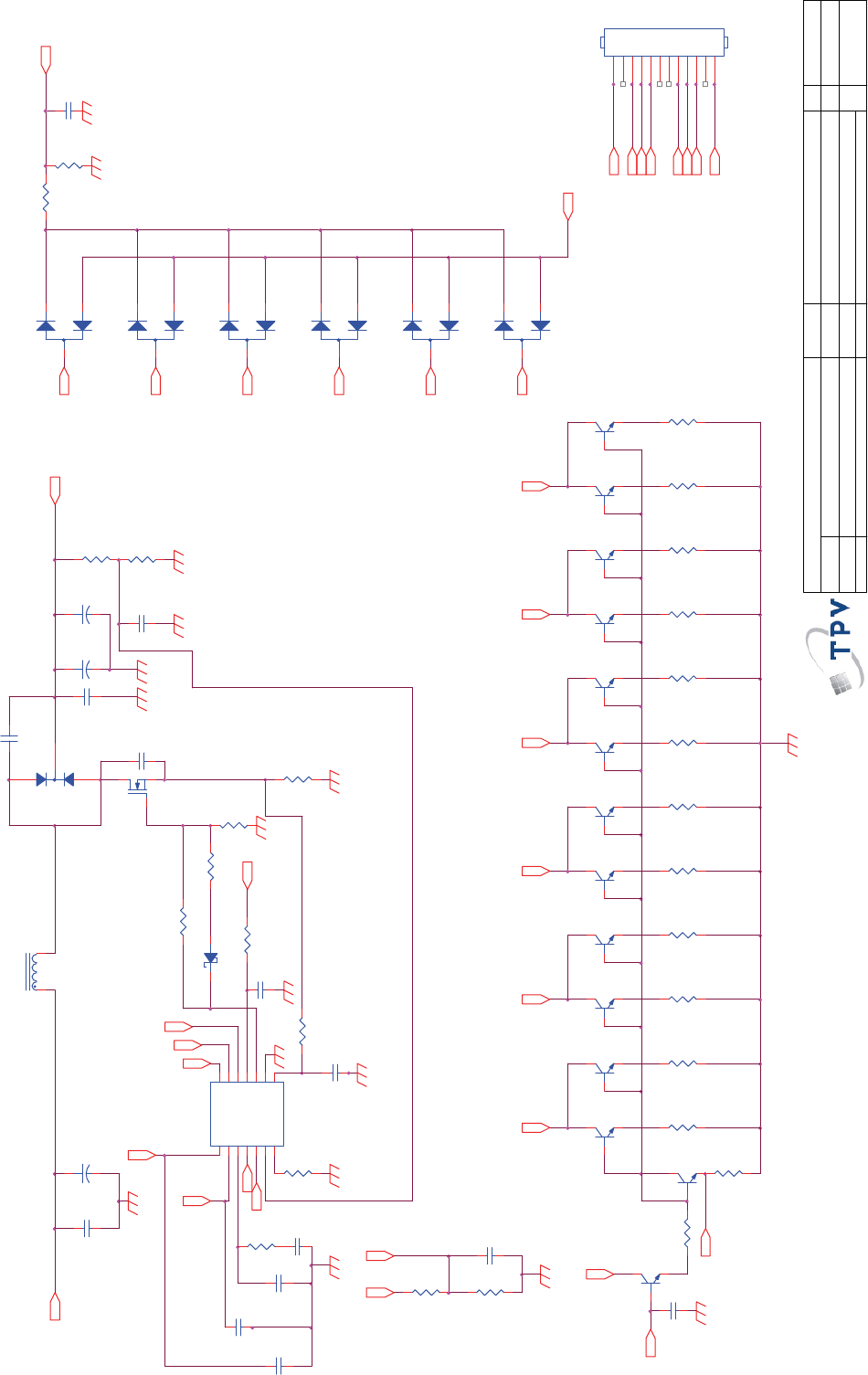

8. Schematic Diagram………..……..………………...56
8.1 Power Board………..…....…………...……….......56
8.2 Key Board……………….………….………......63
8.3 IR Board……………………………….……….....64
Table of Contents.......……....................................…........1
Important Safety Notice.......................................……......2
Revision List…………………………………………………3
1. General Specification.................................………........4
2. Operating Instructions…………………….……...….......6
2.1 The Use of Remote Control…….…………...…….......6
2.2 To Use the Menus…...………………….….………......8
2.3 Front Panel Control Knobs……………….………......23
2.4 How to Connect…….…………………….…..…….....24
3. Mechanical Instructions…………………….................25
4. Repair Flow Chart ………………………………………37
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
2
Important Safety Notice
Proper service and repair is important to the safe, reliable operation of all Haier Company Equipment. The service
procedures recommended by Haier and described in this service manual are effective methods of performing
service operations. Some of these service operations require the use of tools specially designed for the purpose.
The special tools should be used when and as recommended.
It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. Haier could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, Haier has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by Haier must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, Haier Company will be referred to as Haier.
WARNING
Use of substitute replacement parts, which do not have the same, specified safety characteristics might create
shock, fire, or other hazards.
Under no circumstances should the original design be modified or altered without written permission from Haier.
Haier assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.
FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.
TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit
-Must mount the module using mounting holes arranged in four corners.
-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.
-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.
-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).
-Make certain that treatment person’s body is grounded through wristband.
-Do not leave the module in high temperature and in areas of high humidity for a long time.
-Avoid contact with water as it may a short circuit within the module.
-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)
3
Revision List
Version Release Date Revision Instructions Customer Model Model
A01 May.24,2012
Initial release
LE32D2320 E32C22NKCMH9NNX
LE39D2380 E39C22NKCMH9NNX
LE42D2380 E42C22NKCMH9NNX
LE46D2380 E46CS2NKCMH9NNX
4
1. General Specification
Note
• This model complies with the specifications listed below.
• Designs and specifications are subject to change without notice.
• This model may not be compatible with features and/or specifications that may be added in the future.
5
6
2. Operating Instructions
2.1 The Use of Remote Control
7
8
2.2 To Use the Menus
Initial SetupWelcome to use the wizard for initial Setup!!Please press [ENTER] to start the wizard.
LanguagePlease select your language, press [CH-]/[CH+] to select, press [ENTER] to confirm:
Time ZonePlease select your time zone, press [CH-]/[CH+] to select, press [ENTER] to confirm:
9
Tuner TypePlease select your tuner type, press [CH-]/[CH+]to select, press [ENTER] to confirm:
Antenna: Set the signal type to antenna. When set to Air, the TV can receive analog and digital (ATSC) broadcasting
signals.2. Cable: Set the signal type to cable. When set to Cable, the TV can receive analog and QAM broadcasting
signals.ScanPlease select scan or skip scan, press [CH-]/[CH+] to select, press [ENTER] to confirm:
10
1. Scan: Automatically search for channels.
2. Skip Scan: Skip the scan and enter to the complete interface.
Complete
INPUT SOURCE
Press INPUT to display the input source list, and press [CH-]/[CH+] to select and ENTER to confirm.
Using the Remote Control to Display and Navigate the On-Screen Main Menus
1. Press [MENU] to display the on-screen menu or to go back one level in the menu. At the top level menu,
11
pressing the MENU button will exit the menu.
2. Use the [VOL-] or [VOL+] buttons to highlight the desired menu icon.Press [ENTER] to select it.
3. Use the [CH+] or [CH-] buttons to scroll up and down through the features.
4. Follow the instructions on thescreen.
5. Press [EXIT] to immediately exit the menu. Press once to display the on-screen menu, and press again to return
to normal view. If no buttons are pressed, the menu closes automatically after about 60 seconds.
To exit the menus:Press [EXIT] (or [MENU])
VIDEO
1. Picture Mode: Use the [CH-] or [CH+] buttons to highlight one of the following options, then press [ENTER] to
enter the sub-menu and press [VOL-] or [VOL+] to adjust.
[Energy Saving] – Picture settings that conserve the most energy.
[Mild] – Adjusts the brightness and contrast level, and lowers the sharpness for a soft picture viewing mode.
[Standard] – Select for standard picture settings. Recommended for home entertainment.
[Bright Room] – Select for enhanced picture brightness.
[User] – Allows you to store your preferred settings.
Note: Changing the settings below will automatically change the Picture Mode to User.
2. Brightness: Adjust to brighten or darken the picture. Press [VOL-] to darken the picture. Press [VOL+] to
brighten the picture.
3. Contrast: Adjust the white level of the picture. Press [VOL-] to decrease the contrast.Press [VOL+] to increase
the contrast.
4. Saturation: Adjust the color saturation of the picture. Press [VOL-] to increase the color saturation. Press [VOL+]
to increase the color saturation.
5. Tint: Adjust the tint of the picture. Press [VOL-] to increase the red tones.Press [VOL+] to increase the green
tones.
6. Sharpness: Adjust to sharpen or soften the picture. Press [VOL-] to soften the picture.Press [VOL+] to sharpen
the picture.
7. Color Temperature: Use the [CH-] or [CH+] buttons to highlight one of the following options, then press
[ENTER] to enter the sub-menu and press [VOL-] or [VOL+] to adjust.
12
[Cool] – Select to give the white color a bluish tint.
[Standard] – Select to give the white color a neutral tint.
[Warm] – Select to give the white color a reddish tint.
1. Advanced Video: Use the [CH-] or [CH+] buttons to highlight one of the following options, then press [ENTER] to
enter the sub-menu and press[VOL-] or [VOL+] to adjust.
[DNR] – Digital Noise Reduction. You can clear up analog TV signal by reducing the dot noise. (This feature is not
available at PC or Media source.)
[MPEG NR] – Similar with DNR, you can set to reduce the block noise.
[Adaptive Luma Control] – Dynamically change the brightness and contrast according to the amount of light and
dark in the signal.
[Adaptive Back Light] – Dynamically change the back light of the screen according to the amount of light and dark
in the signal.
[Film Mode] – A frame rate conversion to film format to avoid signal flashing.
[VGA Mode] – Graphic/Video (This feature is only available in VGA mode).
z Graphic: In this mode, images look smoother and text appears clearer. This is the default setting.
z Video: In this mode, images look sharper. Select this mode for watching videos from a computer.[HDMI Mode] –
Auto/Graphic/Video (This feature is only available in HDMI mode).
z Auto: Choose Video/Graphic automatically.
z Graphic: In this mode, images look smoother and text appears clear. Select this mode when connecting a
computer.
z Video: In this mode, images look sharper. Select this mode when watching videos from a computer or connecting
video players, such as a DVD player, Blu-ray player, etc.
2. VGA:
[Auto Adjust] –Auto adjust H.Position/V.Position/Phase/Clock,select this option when the image does not fill the
entire screen.
[H.Position] –Adjust picture's H Postion.
[V.Position] –Adjust picture's V Postion.
[Phase] –Adjust Phase.
[Clock] –Adjust Clock.
[Reset Computer settings] –Reset H.Position/V.Position/Phase/Clock.
13
AUDIO
1. Sound Mode : Use the [CH-] or [CH+] buttons to highlight one of the following options, then press[ENTER] to
enter the sub-menu and press[VOL-] or [VOL+] to adjust.
[User] – Allow you to store your preferred settings.
[Standard] – Select for standard sound settings. Recommended for home entertainment.
[Soft] – Select for soft sound settings.
[Dynamic] – Select for dynamic sound settings.
Note: Changing the settings below will automatically change the Sound Mode to User.
2. Balance: Adjust the level of sound coming from the left and right speakers. Press [VOL-] to shift the balance
and emphasize the left speaker. Press [VOL+] to shift the balance and emphasize the right speaker.
3. Bass:Adjust the low frequency sounds.Press [VOL-] to decrease bass. Press [VOL+] to increase the bass.
4. Treble: Adjust the high frequency sounds.Press [VOL-] to decrease treble. Press [VOL+] to increase the treble.
5. Sound Surround:
[Off ] – Set surround sound off.
[On] – Set surround sound on.
6. Digital Audio Output:
[Off ] – Set the audio output type of coax or optical terminal off.
[RAW] – Output the original format of the audio stream.
[PCM] – PCM can be matched with most AV amplifiers.
1. Auto Volume Control : Use the [CH-] or [CH+] buttons to highlight one of the following options, then press
[ENTER] to enter the sub-menu and press[VOL-] or [VOL+] to adjust.
[Off ] – Set the auto volume control off.
[On] – Set the auto volume control on.
14
TV
1. Signal Type : Use the [CH-] or [CH+] buttons to highlight one of the following options, then press [ENTER] to
enter the sub-menu and press[VOL-] or [VOL+] to adjust.
[Antenna] – Set the signal type to antenna. When set to Air, the TV can receive analog and digital (ATSC)
broadcasting signal.
[Cable] – Set the signal type to cable. When set to Cable, the TV can receive analog and QAM broadcasting signal.
2. Auto Channel Search: Highlight and press ENTER to start the channel scan.
3. Channel Skip: Manually add and skip channels in your program list.
4. Favorite List: Manually add and skip channels in your favorite list.
SETUP
1. Menu Language : Use the [CH-] or [CH+] buttons to highlight one of the following options, then press [ENTER]
to enter the sub-menu and press[VOL-] or [VOL+] to adjust.
Set the On-Screen-Display language.English/Espanol/Francais.
2. Aspect Ratio: Press to switch the display mode: Normal, Wide, Cinema, Zoom when having signal.
3. MTS: Set the preferred sound track of analog channels. Mono/Stereo/SAP.
4. No Signal Power Off: When this option is set to On, the TV will automatically turn off when there is no input
signal.
5. Blue Screen: When this option is set to On, the screen will be blue instead of black when there is no input
signal.
6. Audio Only: Press [ENTER] to turn down backlight ,and press any key to resume.
7. Time Setup: Set Time Zone/Time/Sleep Timer/Auto Sleep.
8. Caption: Set Caption Display/Analog Closed Caption/Digital Closed Caption /Digital Caption Style. For details,
please refer to page 22.
9. All Reset: Reset all the Settings to default.
15
Time Setup
1. Time Zone : Use the [CH-] or [CH+] buttons to highlight one of the following options, then press [ENTER] to
enter the sub-menu and press[VOL-] or [VOL+] to adjust.
Set the current time zone. Press [VOL-] or [VOL+] / [ENTER] to adjust.
2. Time : Set the current date /time.Press [VOL-] or [VOL+] / [ENTER] to adjust.
Auto Synchronization/Date/TimeDaylight Saving TimePower On Timer/Timer/Power On ChannelPower Off
Timer/Timer.
3. Sleep Timer: Set the sleep time.Press [VOL-] or [VOL+] to select the sleep time.
4. Auto Sleep:Set the Auto Sleep time .Press [VOL-] or [VOL+] to select OFF/1Hour/2Hours/5Hours.
Time
Caption
1. Caption Display: Use the [CH-] or [CH+] buttons to highlight one of the following options, then press [ENTER]
to enter the sub-menu and press[VOL-] or [VOL+] to adjust.
[Off ] – Set the caption display off to hide the closed captions (CC).
16
[On] – Set the caption display on to display the CC.
[OnMute ] – When muted, the CC will be displayed. If audio line out is used, the line out will not be controlled.
2. Analog Closed Caption: Select the closed-captions mode for analog
programs.CC1/CC2/CC3/CC4/TEXT1/TEXT2/TEXT3/TEXT4.
3. Digital Closed Caption: Select the closed-captions mode for digital programs.
Off/Service1/Service2/Service3/Service4/Service5/Service6.
4. Digital Caption Style: Applies only to digital channels with closed captions. Set Caption Style/Font Size/Font
Style/Font Color/Font Opacity /Background color/Background Opacity.
Digital Caption Style
1. Caption Style: Use the [CH-] or [CH+] buttons to highlight one of the following options, then press [ENTER] to
enter the sub-menu and press[VOL-] or [VOL+] to adjust.
Set the style of caption.
As Broadcast/Custom.
Note: Changing the settings below will automatically change the Caption Style to Custom.
2. Font Size: Set the font size. Small/Medium/Large.
3. Font Style: Set the font style.Style1~style7.
4. Font Color: Set the font color.Black/White/Green/Blue/Red/Cyan/Yellow/Magenta.
5. Font Opacity: Set the font opacity. Solid/Translucent/Transparent/Flashing.
6. Background Color: Set the background color. Black/White/Green/Blue/Red/Cyan/Yellow/Magenta.
7. Background Opacity: Set the background opacity. Solid/Translucent/Transparent/Flashing.
PARENTAL
1. Password: Use the [CH-] or [CH+] buttons to highlight one of the following options, then press [ENTER] to
select it and then you will enter the password interface.
17
After entering the correct password, you will see the submenu shown below. The default password is “0000”.
1. System Block: Use the [CH-] or [CH+] buttons to highlight one of the following options, then press [ENTER] to
enter the sub-menu and press[VOL-] or [VOL+] to adjust.
Set the channel / program block on or off.
2. Channel Block: Set the channels to be blocked.
3. Program Block: Use the [CH-] or [CH+] buttons to highlight one of the following options, then press [ENTER] to
enter the sub-menu and press[VOL-] or [VOL+] to adjust.
Set the program to be locked. For details please refer to pages 24~25.
[Rating Enable] – Set the ratings on or off.
[U.S. TV Ratings] – See page 24.
18
[U.S. Movie Rating]–See page 24.
[Canadian English Ratings] – See page 24.
[Canadian French Ratings] – See page 25.
[Open V-chip] – Set the V-chip on.
[Clear Open V-chip Data] – Set the V-chip data to default values.
[Block Unrated] – Block the programs that do not have any valid rating flag.
4. Change Password: Enter the 4-digital new password and confirm it. New Password/Confirm password.
5. Clean All: Set the items in the lock menu to default values.
U.S. TV Ratings
The TV rating compose of two aspects: age-based and content-based.
[A] – All
[D] – Suggestive dialogue
[L] – Strong language
[S] – Sexual situations
[V] – Violence
[FV] – Fantasy violence
[TV-Y] – All Children
[TV-Y7] – Directed to Older Children
[TV-G] – General Audience
[TV-PG] – Parental Guidance Suggested
[TV-14] – Parents Strongly Cautioned
[TV-MA] – Mature Audience Only
Note: The content ratings will increase depending on the level of the age-based rating. For example, a
program with a TV-PG V(violence) rating may contain moderate violence, while a TV-14 V(violence) rating
19
may contain intense violence. So locking a higher level option will automatically cause locking the options
that has more sensitive level.
U.S. Movie Ratings
This system defines the rating control which come from MPAA rules.
[G] – General audience. All ages admitted.
[PG] – Parental guidance suggested.Some material may not be suitable for children.
[PG-13] – Parents strongly cautioned. Some material may be inappropriate for children under 13.
[R] – Restricted. Children under 17 require accompanying parent or adult guardian.
[NC-17] – No one 17 and under admitted.
[X] – Adult audience only.
Canadian English Rating
These ratings are for programs which are using English rating system.
[C] – Children
[C8+] – Children 8 years and older
[G] – General programming
[PG] – Parental guidance
[14+] – Viewers 14 and older
[18+] – Adult programming
20
Canadian French Rating
The ratings are for programs which are using French rating system.
[G] – General
[8 ans+] – Not recommended for younger children
[13 ans+] – Not recommended for children under age 13
[16 ans+] – Not recommended for ages under 16
[18 ans+] – This program is restricted to adults
MEDI
AInsert a USB storage device, press INPUT, and select USB. The screen below will be shown. You can also press
the USB button on the remote control.
21
Press MENU to display the menu.Use the [CH+] and [CH-] buttons to select an option.
[Play] – Press ENTER to pause or play the music.
[Repeat] – None/Repeat One/Repeat All. Press ENTER to select the repeat mode.
[Shuffle ] – Press ENTER to enable shuffle mode.
[Rotate] – Press ENTER to rotate the picture.
[Show Info] – Press ENTER to display the information about the current picture.
22
Music
Press MENU to display the menu. Use the [CH+] and [CH-] buttons to select an option.
[Pause] – Press ENTER to pause or play the music.
[Repeat ] – None/Repeat One/Repeat All. Press ENTER to select the repeat mode.
[Shuffle ] – Press ENTER to enable shuffle mode.
[Show info] – Press ENTER to display the information about the current music.
[Hide Spectrum] – Press ENTER to hide or show the spectrum.
[Lyric Display Line] – Pree Enter to adjst Lyric Display line (OFF, Single line ,Multiple lines).
[Audio Only] – Press [ENTER] to turn down backlight ,and press any key to resume.
Note: Please refer to page 15 for details on how to use the remote control in the USB Multimedia mode.
23
2.3 Rear Panel Control Knobs
.
24
2.4 How to Connect
1. HDMI – Connect the primary source for digital video such as a DVD multimedia player or set top box through
this all digital connector.
2. PC IN/PC AUDIO – Connect the video and audio cables from a computer here.
3. AV IN (AV) – Connect the input source for composite video devices, such as a VCR or video game. Use the
white and red connectors to connect the external audio from the same source.
4. COMPONENT (Y/Pb/Pr with Audio L/R) – Connect the primary source for component video devices such as a
DVD Player or set top box here. Use red for Pr, blue for Pb, green for Y, red for right audio (R) and white for left
audio (L) inputs.
5. ANTENNA(CABLE DIGITAL/ANALOG) – Connect to an antenna or digital cable (out-of-the-wall, not from Cable
Box) for Digital TV.
6. COAX OUT – When a digital audio signal is associated with the input selected for viewing, the digital audio will
be available on this COAX OUT connection to your home theater system.
7. USB PORT – Insert a USB storage device to the USB port to view JPEG/BMP photos, listen to MP3 music.
(Please refer to pages 25-26 for more information.)
8. Earphone Output – Connect to headphones. When headphones are inserted to the plug, the TV speakers will be
muted.
Once your equipment is connected, use the following procedure to view the input signal:Press the Source button on
the remote control to select the relevant source to view. (ex: Press the INPUT button to select “Component” if you
have connected a DVD palyer to Component input.)
25
3. Mechanical Instructions
LE32D2320
Step1. Remove the STAND BASE.
Step2. Remove the REAR COVER.
26
Step3. Remove the MAIN BOARD, POWER BOARD and SPEAKERS.
Step4. Remove the KEY BOARD.
27
Step5. Separate the BEZEL and PANEL and remove the IR BOARD.
Step6. Remove the BKT.
28
LE39D2380
Step1. Remove the STAND BASE.
Step2. Remove the REAR COVER.
29
Step3. Remove the MAIN BOARD and POWER BOARD.
Step4. Remove the SPEAKERS and KEY BOARD and the IO side iron.
30
Step5. Remove the BKT and separate the BEZEL and PANEL.
Step6. Remove the KEY BOARD.
31
LE42D2380
Step1. Remove the STAND BASE.
Step2. Remove the REAR COVER.
32
Step3. Remove the HINGE COVER.
Step4. Remove MAIN BOARD and POWER BOARD and SPEAKERS.
33
Step5. Remove the SPEAKERS and KEY BOARD and the IO side iron.
Step6. Remove the BKT and separate the BEZEL and PANEL.
Step7.Remove the IR BOARD
34
LE46D2380
Step1. Remove the STAND BASE.
Step2. Remove the REAR COVER.
35
Step3. Remove MAIN BOARD and POWER BOARD and KEY BOARD.
Step4. Remove the SPEAKERS and the IO side iron.
36
Step5. Remove the BKT and separate the BEZEL and PANEL.
Step6.Remove the IR BOARD
37
4. Repair Flow Chart
1. No power
No power (LED “Off”)
Check the AC input and
the
p
ower is “ON”? Power “On”
Check the IR board and LED
Replace the IR board
Replace the main board
Power board
out
p
ut=5/5.2V?
Replace the power board
No
Yes
No
Yes
No
38
2. Can’t start
Can’t start˄LED red˅
Replace the main board
Replace the Power board
No
Yes
No
Yes
No
No
Power board output᧹24V?
Check the power key is under control?
Check the IR receiver is normal?
Replace the power board
Replace the key board
Yes
Replace the IR board
39
3. Abnormal Display
Abnormal Display
Reset the source
Check the source
Check the panel
Replace the main board
Replace the LVDS cable
Replace the panel
No
No
No
Yes
Yes
Yes
No
No
Check the main board
Enter factory mode to do
“EEPROM initial”&“Reset”
Check the LVDS cable
40
4. Sound problem
No
Check the cable between the
speakers and main board is OK?
No sound or sound abnormal
Check the TV is muted, adjust the
volume or enter the menu to reset?
Reinsert the audio cable or
change the TV system
Replace the cable
Replace the speaker
Replace the main board
No
Yes
Check the speaker resistance value is in spec
(Remark: The value is marked on the speaker)?
Check the audio source connection
and the TV system are correct?
Yes
No
Yes
No
Enter factory mode to do “Reset”
No
41
5. Remote control malfunction
Remote Control malfunction
Replace the battery
Replace the remote control
Whether the IR board is
abnormal?
Yes
No
Replace the IR board
Replace the main board
No
Yes
No
Yes
Use the other remote controls
Check the remote control battery is
not properly placed or no power?
42
6. OSD is unstable or can’t work normally
Key board connected properly? Reconnect the key board
Buttons are OK? Replace the button function
Yes
No
Key board is OK? Replace the key board
Replace the main board
No
Yes
No
No
OSD is unstable or can’t work normally
Enter factory mode to do “Reset”
Yes
43
5. PCB Layout
5.1 Power Board
LE32D2320 715G5508P01000002S
44
45
46
LE39D2380 715G5193P01000002H
47
48
LE42D2380/LE46D2380 715G5246P01W21002S
C9147
C9156
C9302
C9803
D9109
D9110
D9305
D9306
D9307
D9802
IC9302
IC9106
IC9107
IC9303
IC9304
J9901
J9306
J9905
J9907
J9302
J8501 J8504 J8507 J8510 J8514 J8517
J8525
J8524
J8529
J8528
J8513
J8503
J8506
J8509
J8512
J8516
J8519
J8523
J8526
J8530
J8549
J8550
J8533
J8538J8537
J8532
J8546
J8547
J8535
J8564
J8548
J9906
J9902
J9903
J9904
J8544
J8545J8543J8541
J8542
J8521
J8522J8518J8515J8511J8508J8505J8502
C8121
C9336
C9830
R9301
J9307
H12
J8536
J9114
J9115
J9113
J9110
J9111
J9103
J9105
J9112
J9109
J8561
J8531
J8540
J9106
J8520
J9108
J8539
J8558
J8552
J8527
J9309
J9305
J9308
J9908
J9909
J9910
J9117
J9116
J9107
J9104
J8554
J8553
J9102
J9101
J9304
J8534
J9301
C8158
J8565
J9118
H13
C9905
C9912
J9912
J9911
J9303
H6
T9101
J8551
T9301
MH3
MH4
MH12
MH13
PIN5
PIN6
DR4
DR5
DR6
DRL1
DR1
PIN4
DR2
BD1
Q1
Q2
PIN8
C9901
D9801
F9901
FB902
FB903
FB9801
IC9301
Q9801
R9904
R9905
SG9902
SG9903
SG9904
SG9905
R9801
HS9801
C2
C9164
CN8501 CN8502
D9115 D9116
L8101
R8175
CN903
D8120
CN8504 CN8503
FB9802
H4
H1
H5
GND1
H10
H11
H9
MH1
H8
H3
HS9802
C9340
C9341
C9344
C9163
C9168
C9169
C9337
H7
H2
CN902
L9103
HS9103
HS9301
D9114
FB9904
Q8101
D9308
H14
C9160
C9161
HS9102
HS9101
R9141
R9329
Q9101
Q9102
C9820
ZD9302
NR9901NR9902
R9901
R9302
CN905
C9331
C9338
L9105
L9106
L9304
C9903
C9904
C9906
C9907
C9152
ZD9101
ZD9102
ZD9105
ZD9301
ZD9303
ZD9304
ZD9104
C8108
C8118
C9908 C9909
D9304
C9833
FB9804
C9171
FB9803
FB9302
CN901
CN904
C9913
C9157
C9801 C9804C9805C9802
C9910
C9911
RV9901
RV9902
L9901
L9903
BD9901
L9801
FB9805
49
C8105
C8106
C8111 C8119
C9144
C9145 C9146
C9149
C9150
C9151
C9153
C9154
C9155
C9158
C9159
C9165
C9170
C9333
C9334
C9335
C9342
C9343
C9301
C9824
C9825
C9826
C9827
C9828
C9829
IC9801
IC9901
Q9103
Q9301
R8141
R8144
R8148
R8153
R8154
R8155
R8156
R8157
R8161
R8162
R8163
R9101
R9139
R9140
R9150 R9144
R9145
R9146
R9148
R9149
R9151
R9152
R9153
R9154
R9156
R9158
R9159
R9161
R9163
R9171
R9172
R9173
R9174
R9175
R9176
R9177
R9180
R9317 R9318 R9319
R9320
R9323
R9332
R9325
R9326
R9327
R9328
R9330
R9331
R9334
R9335
R9336
R9337
R9338
R9339
R9340
R9341
R9306
R9304
R9804
R9805
R9806
R9807
R9810
R9813
R9815
R9816
R9342
R9343
R9345
C8501
C8502
C8503
C8504
C8505
C8506
C8507
C8508
C8509
C8510
C8511
C8512
C8513
C8514
C8515
C8516
IC8103
IC8501
R8501
R8502
R8503
R8504
R8505
R8506
R8507
R8508
R8509
R8510
R8511
R8512
R8513
R8514
R8515
R8516
C8157
C8518
C8519
C8520
C8521
C8522
C8523
C8524
C8525
C8526
C8527
C8528
C8529
C8530
C8531
C8532
IC8503
IC8505
IC8504
IC8507
IC8506
IC8508
IC8502
IC8512
IC8510
IC8509
IC8511
IC8513
IC8516
IC8514
IC8515
C9345
R9309
R9310
Q9304
MH5
MH6
MH7
MH8
MH9 MH10
MH11
R9817
R8158
R9142
JR9101
R8176
R8147
R8145
C9346
R9809
R9147
R9160
R9808
R9308
R9311
R9312
R9313
R9316
R9321
R9322
R9178
Q9305
Q9306
Q9308
C9148
R9102
R9103
C9831
R9307
JR9102
JR8101
C8113
R9346
Q9302
C9832
R9111
R9138
R9143
R9315
R9324
R9333
R9344
R9818
R9819
Q9106
R9303
R9814
R9165
C9162
R9164
R9155
R9811
JR9103
R8177
C9166
JR9104
PIN3
PIN7
PIN10
D8118
D9112
D9113
D9803
MH2
IC9101
ZD8103
D9301
D9302
Q9104
Q9802
Q9303
ZD9106
ZD9107
50
5.2 IR Board
715G5471R01000004B
C201
R201
R202
R203
R1
R2
R3
R4
CN201
LED201
U201
5.3 Key Board
715G5298K01000004S
51
6. Adjustment
6.1 WB Adiustment
WB adjust
˖
Choose the component source as the Current SourceˈPress“menu+8+8+9+3”enter the factory
modeˈˈthen choose the Color temperature and press “OK” to go the mode of color temperature ˄Coolǃ
standardǃWarm˅ˈpress “OK”and then choose the option of Gain to adjust R/G/B GainˈThe color temperature
specifications should be adjusted to the required range.
Such as LE26H100C˖
Notice
˖
R G B GAIN were less than 255 255 255 respectively
ˈ
On this premise G GAIN goes to big
tune as far as possible to enhance its brightness.
White balance value check
˖
Current Source choose the “AV”/T304ǃ“Component”/T314ǃ“VGA”/T137 of
the three modeˈColor temperature specification also required within specification, the white balance
adjustment OK.
pictures one
pictures two
Adjustment specifications are written in white balance adjustment program, testing is based on the specifications of
the product .
Color temperature
(x,y)
Cool
(0.265,0.268)
Normal
(0.280,0.288)
Warm
(0.313,0.329)
Item Level x y x y x y
Adjust
specifications 80IRE 0.003 0.003 0.003 0.003 0.003 0.003
Product
specifications 80IRE 0.030 0.030 0.030 0.030 0.030 0.030
The TV’s mainboard were offered by CVT, The ADC should not be adjusted.
52
7. Wiring Diagram
LE32D2320
Speaker
Speaker
395G801840DY09
LVDS cable
Panel
Pin
395G801304DY32
Harness
Power Board
IR B
oard
CN201
Key
Board
Pin Pin
CN801
AC IN
CN901
CN01
13 Pin
CN903
Panel
12 Pin
4Pin
5 Pin
Pin
395G801313XY29
Harness
53
LE39D2380
395G801304RY31
Harness
Speaker
Speaker
395G801851DY83
LVDS cable
Panel
Pin
Power Board
IR B
oard
CN201
Key
Board
Pin Pin
CN903
AC IN
CN9901
CN01
Panel
14 Pin
4Pin
5 Pin
Pin
095G801313DY14
Harness
CN902
13 Pin
54
LE42D2380
Speaker
Speaker
395G801851DY85
LVDS cable
Panel
Pin
395G801304RY35
Harness
Power Board
IR B
oard
CN201
Key
Board
Pin Pin
CN8501
AC IN
CN901
CN01
Panel
12 Pin
4Pin
5 Pin
095G801313D909
Harness
CN8502
12 Pin
13Pin
Panel
CN902
55
LE46D2380
Speaker
Speaker
395G801851XY84
LVDS cable
Panel
Pin
395G801304RY33
Harness
Power Board
IR B
oard
CN201
Key
Board
Pin Pin
CN8502
AC IN
CN901
CN01
Panel
4Pin
5 Pin
Pin
095G801313D909
Harness
13Pin
CN902
12 Pin
56
8. Schematic Diagram
8.1 Power Board
LE32D2320 715G5508P01000002S
+24V
C9133
100N 50V
1 2
FB9101
BEAD
R9107
10K OHM +-5% 1/8W
ON/ OFF
DIM
+12V
Q9107
P1604ETF
5.2V
5.2V1
5.2V
R9105
10 OHM 1/ 8W
R9202
100 OHM 1%
C9147
1uF
R9154
1K 1/8W
2
1
3
4
-
+
BD901
TS6B06G-05-X0
1
2
3
4
HS9101
HEAT SINK
C9126
2.2nF 630V
24V_A
+12V
C91 32
100N 50V
R912 2
220 OHM 1/4W
R912 0
220 OHM 1/4W
C9127
100N 50V
R912 1
220 OHM 1/4W
R9159
10R
C91 25
1000pF 63 0V
Q9114
2SB1124S-TD-E
+
C9135
NC
1
2
3
4
HS9102
HEAT SINK
5.2V1
5.2V1
C9907
470NF 305V
OVP
R9150
200K +-1% 1/ 4W
C9316
220PF 250V
OVP
R9110
10 OHM 1/4W
R9167
NC
C9901
470NF 305V
RV9901
TVR14561KF AOZF
1
2
3
HS9103
SHI ELD
R9901
390K
R9111
0.24 oH M 2W
1
2
3
D9104
FMW-2156
C9119
47pF
C9315
1NF 250V
1 2
FB9103
BEAD
R9139
3.9K 1/8W
R9903
390K
IC9105
AS431AN-E1
12
ZD 9106
P6KE27A
R9125
11K 1/8W 1%
A
C9114
1uF
B
B A
Q9111
PMBS3904
2
1
5
8 9
10
11
12
13
14
15
16
T9101
POWER X'FMR
SG901
DSPL-501N-A21F
PS_ON
R9169
330R 1/ 8W 5%
C9906
47pF
NC
1
D1
2
D1
3
NC
4NC 5
D2 6
D2 7
NC 8
IC9901
CAP004DG
C9903
100PF 250V
C9902
1NF 250V
BOOT
1
VIN
2
EN
3
SS
4
PH 8
GND 7
COMP 6
VSNS 5
IC 8104
TPS54231DR
OTP
1
COMP
2
CS
3
GND
4OUT 5
VCC 6
HV 8
IC9101
LD7750R GR
SG902
DSPL-501N-A21F
change type_1124
change type_1124
1
2
4
3
L9902
30MH
1 2
D9106
SM340A
C9110
1000pF 630V
soft start >20ms
C9905
100PF 25 0V
C9904
1NF 250V
R9113
5.1 OH M 1/4W
1
2
4
3
L9901
30MH
OEM MODEL
Size
Rev
Date Sheet of
TPV MOD EL
PCB N AME ⿄⠍
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
㍀
䱨
⪰
㌾
㝍
Custom
12Tuesday , April 17, 2012
01.POW ER Basic on G5259-P0C
C9128
100N 50V
C9148
1000pF 630 V
24V_A
R9148
3K OHM 1%
C9115
100N 50V
+
C9113
470uF 16V
1
2
3
D9107
FMXA-2202S
R9116
47 OHM 1/4W
C9130
NC
R9104
82KOHM +-5% 2WS
R9151
2K43 1/8W 1%
R9115
47 OHM 1/4W
R9129
10K OHM +-5% 1/ 8W
C9104
2.2NF
+
C9139
4.7U F 50V
R9102
6.8K 1/ 4W
R9106
47OHM +-5% 1/ 8W
D9101
PR1007
IC9103
KIA431A-AT/P
C9105
100N 50V
12
43
IC9102
PS2561DL1-1
R9101
6.8K 1/ 4W
R91 12
3.3 OH M 1/4W
+
C9116
270UF 25V
12
D9102
SS 0520
R9137
100K 1/8W 1%
R9103
6.8K 1/ 4W
12
t
NR 9901
NTCR
R9152
NC
+
C9136
NC
+
C9103
NC
R9135
100K 1/8W 1%
+
C9131
470UF 35V
+
C9120
330UF 35V
+12V
C9146
1000pF 63 0V
12
D9110
SS 0520
24V_B
R9158
47 OHM 1/4 W
24V_B
C9149
1NF
1
2
CN904
NC/CONN
C9134
100N 50V
R9147
2K OHM
C9117
100N 50V
L9101
3.5uH
24V_A
R9153
470 OHM
+24V1
D9103
PR1007
+24V1
C9112
100N 50V
+
C9111
330UF 16V
1 2
FB9104
BEAD
1 2
3 4
F901
FUSE
1 2
FB9105
BEAD
1
2
3
4
5
6
7
8
9
10
11
12
13
CN903
CONN
12
D9109
RB160M
12
D9108
RB160M
R9166
NC
12
D9105
RB160M
L9102
47uH
1 2
ZD 9103
BZT52-B6V2
Q9108
2N7002
Q9105
2N7002
1 2
ZD9104
BZT52-B9V1
Q9112
NC
1 2
ZD 9105
BZT52-B16
R9118
39K 1/8W 1%
1 2
ZD9107
BZT52-B39
+
C9107
47UF 50V
C9908
470PF 250V
+
C9144
56uf 450V
+
C9145
56uf 450V
5.2V
C9138
100PF 50V
C9122
100N 50V
PS_ON
R9134
100K 1/8W 1%
R9133
10K OHM +-5% 1/ 8W
Q9101
STF10N65 K3
+24V1
1 2
CN901
SOCKET
1 2
ZD 9101
MTZJ 27 B
C9123
15N 50V
C9106
0.1uF 50V
+24V1
Q9113
NC
C9150
1NF
L
1
N
2
CN 9902
CONN
PS_ON
R9155
10K OHM +-5% 1/ 8W
C9118
0.1uF 50V
R9138
100K 1/8W 1%
C9124
1nF 50V
R9126
33K OHM
C9129
10nF 50V
Q9110
PMBS3906
R9168
NC
5.2V1
C9137
NC
R9140
5.6K 1/ 8W
R9136
390K OHM
R91 43
27K 1/8W 1%
R91 44
3K 1/8W +/-1%
+
C9140
330UF 50V
R9145
910 OHM 1/ 8W
+
C9141
330UF 50V
+
C9142
330UF 50V
+
C9143
330UF 50V
1 2
FB9102
BEAD
R9165
NC
R9156
47KOHM +-1% 1/ 8W
R9109
470OHM + -5% 1/8W
12
FB9106
BEAD
PS_ON
L9103
3.5uH
5.2V
R9157
33K 1/8W 5%
R9170
330R 1/ 8W 5%
C9109
22N 50V
+
C9101
NC
+
C9102
NC
R9119
330K 1/8W 5%
R91 46
1.5KOH M +-1% 1/8W
C9108
470P 50V
R9201
100 OHM 1%
R9117
750 OHM 1/ 8W
R9108
100KOHM +-5% 1/ 8W
R9114
47 OHM 1/4W
57
1
2
3
4
5
6
7
8
9
10
11
12
CN801
CONN
C8110
1NF
R8121
15R 1%
R8137
15R 1%
SLP
R8138
15R 1%
VADJ
VBJT
VLED+
OEM MODEL
Size
Rev
Date Sheet of
TPV MODEL
PCB NAME ⿄⠍
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
㍀
䱨
⪰
㌾
㝍
B
22Tuesday , April 17, 2012
02.LED DRIVER NEW-P0A
Q8108
2N3904
Q8109
2N3904
Q8110
2N3904
R8139
15R 1%
Q8111
2N3904 VLED+
+
C8102
100UF 63V
R8136
15R 1%
+
C8113
100UF 63V
C8117
1NF
LED3
LED1
LED4
LED2
LED2
LED3
LED1
LED4
5.2V
LED1 LED2 LED3
VSET
R8117
4K3 +-1% 1/8W
C8118
1NF
+12V
+24V
+12V
VLED+
1
2
3
D8101
MBRD10150D
C8115
47pF
C8116
47pF
Q8112
2N3904
Q8113
2N3904
Q8114
2N3904
Q8115
2N3904
R8104
10 OHM 1/8W
R8108
330R 1/8W 5%
C8103
1uF
Q8102
2N3904
R8105
2R2 +-5% 1/8W
Q8103
2N3904
R8113
18R 1%
R8106
10K 1/4W
R8103
0 OHM 1/4W
SLP
R8116
100K 1% 1/4W
12
D8102
RB160M
R8110
100K 1% 1/4W
R8119
150K 1/8W 5%
C8105
100N 50V
C8111
NC
C8109
100N 50V
R8111
18K 1/8W 5%
C8112
NC
VADJ
Q8104
2N3904
VBJT
Q8105
2N3904
Q8106
2N3904
Q8107
2N3904
3
1
2
D8103
BAV99
3
1
2
D8108
BAV99
3
1
2
D8107
BAV99
3
1
2
D8105
BAV99
3
1
2
D8104
BAV99
3
1
2
D8106
BAV99
+
C8101
330UF 35V
R8118
1M 1/6W 5%
C8104
100N 50V
R8107
0.07R
EN
1
DIM
2
GM
3
VFB
4
VSET
5
OVP
6
RT
7CS 8
GND 9
VMOS 10
VCC 11
VBJT 12
VADJ 13
SLP 14
IC8501
PF7001S
R8101
51K 1% 1/8W
C8108
10N 50V
C8114
10N 50V
R8122
15R 1%
2
4
L8101
33UH
R8123
15R 1%
R8124
15R 1%
VFB
LED4
R8125
15R 1%
R8126
15R 1%
LED5
VSET
R8127
15R 1%
Q8101
AOD4126
LED6 LED6
VFB
R8128
15R 1%
LED5
LED5
DIM
LED6
R8132
15R 1%
ON/OFF
C8106
1NF
R8102
150K 1/8W
58
LE39D2380 715G5193P01000002H
C8504
1uF
Q8525
TK12A10K3
ON/OFF
DIM
LED-COMP
C8521
NC
D8512
MBRF10100CT
1
2
3
LED-S
LED-COMP
LED-1
IC8502
PF7700S
1
2
3
4 5
6
7
8
DIM
EN
VCC
LED GND
ISET
GM
COMP
IC8503
PF7700S
1
2
3
4 5
6
7
8
DIM
EN
VCC
LED GND
ISET
GM
COMP
LED-2
LED-4
LED-4
+12V
LED-6
LED-COMP
IC8504
PF7700S
1
2
3
4 5
6
7
8
DIM
EN
VCC
LED GND
ISET
GM
COMP
DIM
R8553
680K 1%
IC8505
PF7700S
1
2
3
4 5
6
7
8
DIM
EN
VCC
LED GND
ISET
GM
COMP
ON/OFF
R8504
11K 1/8W 1%
R8507
165K 1%
LED-1
R8547
27 OHM
IC8506
PF7700S
1
2
3
4 5
6
7
8
DIM
EN
VCC
LED GND
ISET
GM
COMP
R8501
11K 1/8W 1%
R8548
10K 1/8W
R8515
100K 1/4W
R8550
1.5K 1/8W
C8503
1uF
LED-COMP
L8502
5uH
+
C8511
150UF 35V
R8549
470 OHM 1/4W
+12V
DIM
R8552
0.05R
LED-5
+
C8510
220UF 100V
C8523
0.47UF 50V
C8501
1uF
DIM
C8505
1uF
+12V
L8501
25UH
1
2
C8516
NC
R8503
11K 1/8W 1%
+24V
R8506
11K 1/8W 1%
C8522
0.47UF 50V
LED-COMP
R8502
11K 1/8W 1%
<Doc> <Rev Code>
<Title>
A3
11Tuesday , December 20, 2011
Tit le
Size Document Number Rev
Date: Sheet of
LED-3
C8506
1uF
ON/OFF
LED-FB
R8551
240K OHM 1%
C8502
1uF
LED-5
+12V
CN8501
CONN
1
2
3
4
5
6
7
8
9
10
11
12
+
C8509
12UF 160V
R8505
11K 1/8W 1%
+
C8507
47UF 50V
R8554
39K 1/8W 1%
LED-COMP
LED-S
+12V
ON/OFF
ON/OFF
IC8550
PF7900S
1
2
3
4 5
6
7
8
FB
GM
RT
CS DIM
GND
OUT
VCC
+12V
LED-COMP
R8513
100K 1/4W
DIM
LED-6
ON/OFF
+12V
DIM
+12V
C8514
470P 50V
R8514
100K 1/4W
LED-FB
+
C8512
150UF 35V
C8508
100N 50V
LED-2
IC8501
PF7700S
1
2
3
4 5
6
7
8
DIM
EN
VCC
LED GND
ISET
GM
COMP
C8513
1N 50V
LED-S
LED-3
DIM
59
!
R9903
330K 1/ 4W
PS_ON
!
R9155
10K 1/8W
ZD9305
GDZ J 15B
1 2
+
C9340
330UF 16V
Q9103
NC
1
2
3
CN9902
NC
1
2
L9902
12MH
1
2
4
3
1.0
A2
22Wednes day , D ecember 21, 2011
<
⿄⠍
>
02.Power circuit
OEM MOD EL Size
Rev
Date Sheet of
TPV MOD EL
PCB NAME
⿄⠍
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
㍀
䱨
⪰
㌾
㝍
R9366
22K 1/8W
C9153
1U 25V
!
!
T9101
POWER X'FMR
1
2
4
5
6
7
8
9
11
12
10
C9170
100N 50V
C9901
220PF 250V
R9148
NC
C9148
4.7uF 25V
R9337
8K2 1/8W 1%
ZD9352
NC
1 2
C9826
2N2 50V
FB9301
BEAD
1 2
R9324
4R7 1/ 4W 5%
MSS
t
NR 9901
NTCR
1 2
VCC1
!
R9180
27K 1/8W 1%
VBoot
!
R9146
2K43 1/8W 1%
C9338
1NF
D9114
UF1010G
DIM
ZD 9801
GDZJ4.7B
12
IC 9107
AS431AZTR-E1
ZD9104
GDZ J15B
1 2
Q9111
NC
C9804
470PF1KV
C9165
100N 50V
C9144
NC
+
C9830
10UF 50V
Q9306
PMBS3904
C9829
100N 50V
CN 9903
NC
1
2L
N
+24V
!
R9904
NC
R9176
1.5K 1/4W
R9814
680K OHM +-1% 1/4W
VCC1
B-
R9327
100K 1/4W
R9302
2 OHM 1%
R9364
10K 1/8W
R9829
0.1R
C9820
1UF 450V
R9365
220 OHM 1/4W
+
C9147
10UF 50V
R9809
30R +-1% 1/8W
!
D9117
FMW-2156
1
2
3
R9318
1M5 1/4W 5%
R9815
680K OHM +-1% 1/4W
R9158
3.9K 1/4W
IC 9304
AS431AZTR-E1
B1+
C9905
NC
IC9308
PC123X8YFZOF
12
43
R9902
330K 1/4W
+12V
C9908 N C
D9116
FMEN-2308
1
2
3
BOX
CN 902
CONN
1
2
3
4
5
6
7
8
9
10
11
12
13
C9154
560P 50V
C9159
330NF 50V
C9333
220NF
B+
C9909
1NF 250V
D9803
SS0520
12
D9110
NC
C9827
100P 50V
IC 9303
PC123X8Y FZ OF
12
43
R9154
47OHM +-5% 1/8W
+12V
+
C9172
NC
C9902
220PF 250V
!
+
C9341
270UF 25V
D9113
SS0520
12
R9901
330K 1/4W
!
R9807
220 OHM 1/4W
D9305
PG1010R
R9139
NC
RV9901
NC
R9367
2.7K 1/8W
R9325
100K 1/4W
+
C9336
10UF 50V
!
!
C9911
470NF 305V
5V
R9317
1M5 1/4W 5%
R9112
NC
+
C9168
270UF 25V
-
+
BD9901
TS10B06G-06-X0
2
1
3
4
+
C9801
47UF 450V
+12V
!
R9334
220 OHM 1/4W
L9304
5uH
L9106
5uH
VCC
R9328
100K 1/4W
R9142
1M 1% 1/4W
DIM
C9152
10PF 3KV
SG9901
NC
C8517
1000pF 630V
FB9903
BEAD
1 2
B1+
C9157
18NF
R9151
10R 1/ 8W 5%
R9113
0R05 1/ 4W
R9172
5.1K 1/ 4W
C9111
NC
C9150
0.47UF 50V
Q9802
NC
C9828
100N 50V
IC 9301
A6069H
1
2
3
4 5
7
8
S/OCP
BR
GND
FB/OLP VCC
D/ST
D/ST
!
R9323
4.7 MOHM +-5% 1/4W
ZD9101
NC
1 2
+
C9171
270UF 25V
!
R9817
NC
!
L9801
300UH
1
3
R9810
13K OHM 1%
L9901
12MH
1
2
4
3
Q9305
2SD1624T-TD-E
VBoot
+12V
+
C9337
100UF 50V
R9819
0R05 1/4W
VCC1
R9171
5.1K 1/4W
+
C9169
270UF 25V
C9906
330PF 250V
+
C9164
150UF 35V
D9118
NC
1 2
+24V
C9332
470PF1KV
D9119
NC
1 2
R9101
160OHM +-5% 1/8W
C9149
100N 50V
+24V
C9342
100N 50V
R9147
0R05 1/ 4W
R9326
100K 1/4W
C9824
22N 50V
C9343
0.22uF 50V
R9111
NC
B-
!
R9140
NC
C9151
1U 25V
B+
24V
!
C9821
NC
C9904
330PF 250V
+
C9371
10UF 50V
R8511
10K 1/4W
R9331
47 OHM 1/4W
IC9801
R2A20113ASP
1
2
3
4 5
6
7
8
FB
COMP
RT
VREF CS
GND
OUT
VCC
R9144
1M 1% 1/4W
ZD 9103
GDZJ27B
1 2
R9338
7K5 1/8W +/-1%
+
C9803
NC
5V
C9155
1N 50V
R9160
10K 1/4W
F9901
FUSE
R9159
3.3K 1/4W
+
C9163
1000uF 35V
R9336
1K 1/8W
R9143
1M 1% 1/4W
!
IC9101
SSC9512S-TL
1
2
3
4
5
6
7
8
910
11
12
13
14
15
16
17
18
Vsen
Vcc
FB
GND
Css
OC
RC
Reg
RV COM
VGL
NC
NC
VB
VS
VGH
NC
NC
T9301
POWER X'FMR
1
2
3
4
5
7
9
D9307
PG1010R
R9806
200K 1/8W
ZD9102
NC
1 2
R9818
NC
C9145
100N 50V
CN 9901
SOCKET
1 2
!
D9306
1N4148
!
C9907
330PF 250V
C9334
10N 50V
C8518
1000pF 630V
!
Q9101
TK10A50 D
R9163
2K 1/8W 1%
D9112
SS0520
12
+24V
VCC1
DET
!
C9335
100N 50V
C9910
470NF 305V
R9301
2 OHM 1%
R9145
13K OHM 1%
!
C9146
100N 50V
R9330
47 OHM 1/4W
IC9901
NC
1
2
3
4 5
6
7
8
NC
D1
D1
NC NC
D2
D2
NC
D9109
NC
!
C9372
100N 50V
PS_ON
SG9902
NC
R9801
0.07R
R9808
30 OHM 1/4W
R9320
560K 1/8W
R9175
1.5K 1/4W
Q9102
TK10A50 D
5V
BOX
MSS
C9331
1NF
R9161
24K 1/8W 1%
+12V
C9156
100PF1KV
ON/ OF F
L9105
5uH
5V
D9304
PG1010R
VCC
D9309
NC
R8512
10K 1/4W
ZD 9351
GDZJ6.2B
1 2
!
!
ON/OFF
D9802
IN5408G-04
+24V
!
R9805
240K 1/8W 5%
R9335
3K3 1/8W 5%
+24V
R9319
1M5 1/4W 5%
!
FB9802
BEAD
1 2
!
R9816
680K OHM +-1% 1/4W
R9153
10K 1/8W
VCC1
R9813
10K 1/4W
Q9801
TK1 3A60D
R9149
1K 1/8W
C9903
470PF 250V
ZD9303
GDZJ15B
1 2
C9825
47N 50V
D9801
FMNS-1106S
FB9904
BEAD
1 2
+
C9802
47UF 450V
FB9909
BEAD
1 2
D9308
FMW-2156
1
2
3
R9152
47OHM +-5% 1/8W
CN 903
NC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
IC9106
PC123X8YFZOF
12
43
!
!
C9158
NC DET
60
LE42D2380/LE46D2380 715G5246P01W21002S
P_OK
C9162
100N 50V
P_OK
On/Of f
C9833
47PF
C9345
NC
D9307
FR103
R9337
8K2 1/8 W 1%
D9305
FR107
SB+
C9912
470PF 250V
EN
R9320
560K 1% 1/ 8W
SG9903
DSPL-501N -A21F
Q9802
NC
R9819
NC
C9832
NC
R9811
0R05
12V
1 2
ZD9303
GDZ J 15B
R9904
NC
HEAT
SINK(Q9101,Q9102)
R9905
NC
NC
1
D1
2
D1
3
NC
4NC 5
D2 6
D2 7
NC 8
IC 9901
NC
HEAT SINK(BD9901)
R9161
24K 1/ 8W 1%
R9163
2K 1/8 W 1%
C9906
470PF 250V
C9907
470PF 250V
R9807
100 OHM 1/4W
6
1
L9801
450UH
R9180
27K 1/8W 1%
R9309
NC
R9310
NC
B1+
1
2
3
5
6
7
9
10
4
T9301
POWER X'FMR
R9171
5.1K 1/4W
12
D9112
SS1060F L
C9910
330NF 305V
R9810
16K 1% 1/8W
C9911
330NF 305V
PS-On
R9175
1.5K 1/4W
C9170
100N 50V
1
2
6
7
8
9
10
11
12
13
14
15
T9101
POWER X'FMR
3
4
1
2
HS9101
HEAT SIN K
R9307
10K 1% 1/4W
1 2
ZD 9105
GDZJ30B
C9903
470PF 250V
1
2
3
4
HS9301
HEAT SIN K (D9308)
C9335
100N 50V
FU SE5X20
F9901
FUSE
R9338
7K5 1/8 W 1%
On/ Of f
5.2V
DV5
!
R9143
NC
1 2
CN 901
SOCKET
R9324
1K 1/8W 1%
R9339
NC
Main_ov
R9341
NC
R9138
1K 1/8W 1%
R9804
NC
R9331
47 OHM 1/4W
FB
1
COMP
2
RT
3
VREF
4CS 5
GND 6
OUT 7
VCC 8
IC 9801
R2A20113ASP
12
43
IC9303
PC123 X8Y FZ OF
R9340
NC
R9317
1.5M 1% 1/ 4W
R9345
0R051/ 8W
5.2V
R9145
16K9 1/ 8W 1%
24V
R9334
220 OHM 1/4W
C9151
1UF
1 2
ZD 9301
GDZJ18B
C9820
1UF 450V
C9153
1uF
5.2V
C9333
0.47U F 50V
R9311
0 OHM 1/8W
+
C9801
47UF 450V
2
1
3
4
-+
BD9901
KBJ1008G-FU
12V
R9806
56K 1/8W
C9824
22N 50V
C9144
100N 50V
R9151
10 OHM
R9159
20K 1/4W
R9141
0.1R
C9157
22NF
R9329
0.1R
C9825
220N 50V
R9318
1.5M 1% 1/ 4W
C9342
100N 50V
12V
C9827
1N 50V
C9159
330NF 50V
R9147
470 OHM 1/8W
R9336
1K 1/8W 1%
R9140
1K 1/8W 1%
R9149
470 OHM 1/8W
1 2
FB9904
BEAD
!
R9346
220R
change to 150uF
C9826
2N2 50V
R9172
5.1K 1/ 4W
R9153
10K 1/ 8W 1%
R9173
5.1K 1/4W
D9109
1N4148
R9174
5.1K 1/ 4W
SG9902
DSPL-501N -A21F
SG9905
DSPL-501N -A21F
!
SG9904
DSPL-501N -A21F
S/OC P
1
BR
2
GND
3
FB/OLP
4VCC 5
D/ST 7
D/ST 8
IC9301
A6069H
IC9304
AS431AZTR-E1
D9801
FMNS-1106S
5.2V
R9332
2R2 +-5% 1/4W
R9808
10R 1/ 8W 5%
C9828
100N 50V
R9176
1.5K 1/4W
R9177
1.5K 1/4W
C9171
2.2nF 630V
!
Q9305
MMBT3906 PNP
R9335
3K3 1/8 W 5%
R9160
1K 1/8W 1%
R9139
100 OHM 1%
R9101
180R 1%
VCC1
change to 8.5mm
change to 8.5mm
VCC
R9308
10K 1/8 W 1%
DIM
1 2
ZD 9101
GDZJ30B
C9338
1NF
DV5
C9331
1NF
1 2
ZD 9107
BZT52-B22
R9813
10K 1/ 4W
R9814
1M 1/4W 1%
R9809
200 OHM 1/4W
Q9801
TK13 A60 D
R9815
680K OHM +-1% 1/4W
R9342
NC
24V
24V
R9816
680K OHM +-1% 1/4W
R9304
100K 1/8W 1%
R9817
100K +-1% 1/4W
R9330
47 OHM 1/4W
R9148
NC
1 2
ZD 9102
GDZJ15B
24V
Q9106
MMBT3906 PN P
C9343
220N 50V
R9146
2K43 1/ 8W 1%
C9150
0.47UF 50V
OEM MOD EL
Size
Rev
Date Sheet of
TPV MODEL
PCB N AME ⿄⠍
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
㍀
䱨
⪰
㌾
㝍
C
A2
13
<
⿄⠍
>
POWER C IR CU IT 715G5246P01 000002H
Saturday, May 05, 2012
12
43
IC 9106
PC12 3X8Y FZ OF
R9156
10K 1/8W 1%
D9306
1N4148
BOX
+
C9830
10UF 50V
1
2
3
D9308
FMW-2156
1 2
FB9801
BEAD
1 2
FB9802
BEAD
Q9101
TK10A50D
Q9102
TK10A50D
R9158
5.6K
1 2
FB902
BEAD
VBoot
B1+
D9802
IN 5408G-04
R9301
1.0R
B1+
C9156
100PF 1KV
D145T60P7_5-1_2-R
D145T60P7_5-1_2-R
L9304
3UH
!
12
D9113
SS1060FL
BOX
R9303
20K 1/ 4W
L9103
3UH
12
D9803
SS1060F L
C9149
100N 50V
Q9304
NC
C9155
1N 50V
R9343
NC
12V
C9334
1N 50V
L9106
3UH
+
C9344
470UF 25V
VBoot
Vsen
1
Vcc
2
FB
3
GND
4
Css
5
OC
6
RC
7
Reg
8
RV
9COM 10
VGL 11
NC 12
NC 13
VB 14
VS 15
VGH 16
NC 17
NC 18
IC 9101
SSC9522S
C9908
100PF 250V
C9909
100PF 250V
! !
1 2
D9301
SS1060FL
R9801
0.07R
!
R9111
0 OHM +-5% 1/ 8W
C9803
470PF1 KV
C9152
10PF
1
2
3
D9115
FMEN-2308
HEAT SINK(Q9801,D9801 )
C9165
100N 5 0V
VCC1
R9333
2K 1/8W 1%
+
C9302
22UF 50V
VCCVCC1
5.2V
12
D9302
SS1060F L
C9154
560P 50V
Main_o v
Q9303
SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89
1
2
4
3
L9901
12MH
C9301
100N 50V
R9152
47OHM +-5% 1/ 8W
D9110
1N4148
IC 9107
AS431AZTR-E1
1
2
4
3
L9903
12MH
R9154
47OHM +-5% 1/ 8W
+
C9161
560UF 35V
C9146
100N 5 0V
12
43
IC 9302
PC123X8YF ZOF
D9114
UF 4007
R-
C9158
NC
C9145
100N 5 0V
R-
12
t
NR9902
NTCR
12
t
NR9901
NTCR
HEAT
SINK(D8120,Q8101)
+
C9341
470 16V
R9805
200KOHM 1/8W +/-5%
+
C9340
470UF 10V
RV9901
TVR14561KFAOZ F
RV9902
TVR14561KFAOZ F
+24V
R-
C9148
4.7UF 10V
1
2
3
D9116
FMEN-2308
VCC1
HEAT
SINK(D9115,D9116)
R9818
NC
1 2
ZD9304
GDZJ6.2B
R9142
1.5M 1% 1/4W
1
2
3
4
5
6
7
8
9
10
11
12
13
CN902
CONN
R9150
1.5M 1% 1/ 4W
R9144
1.5M 1% 1/4W
+
C9336
10UF 50V
1 2
FB9805
BEAD
C9901
NC
+
C9337
47UF 50V
R9155
NC
+
C9802
47UF 450V
+
C9147
22UF 50V
R9325
100K
R9326
100K
R9327
100K
R9328
100K
!
!
C9913
470PF 250V
!
!
! !
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
R9178
5.1K 1/4W
!
Q9103
PMBS3904
1 2
ZD9104
GDZJ15B
!
!
!
1
2
3
4
HS9103
HEAT SIN K
R2A20113A
R9319
1.5M 1% 1/4W D9304
FR107
C9829
100N 50 V
12
ZD 9106
BZT52-B5V1
+
C9163
470UF 25V
+
C9168
470UF 25V
+
C9169
470UF 25V
+
C9804
47UF 450V
24V-LED
3
4
1
2
HS9102
HEAT SIN K
R9901
1MOHM +-5% 1/2W
1
2
3
4
5
6
7
8
9
10
11
12
CN903
NC
PS-On
R9323
4.7M OHM +-5% 1/4W
1 2
FB9803
BEAD
24V
+
C9160
560UF 35V
Q9104
TK2P60D
C9905
150PF 250V
R9164
1K
+
C9164
330UF 35V
VCC1
+
C9805
47UF 450V
DV5
Q9301
NC
DIM
R9302
100K 1/ 6W 5%
Q9302
2N7002K
On/ Of f
R9165
10KOHM
1
2
3
4
HS9801
HEAT SIN K
1
2
3
4
HS9901
HEAT SIN K
24V
R9102
10 OHM
5.2V
R9103
10 OHM
R9306
2K 1/8W 1%
1 2
FB9804
BEAD
61
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MOD EL
PCB NAME
⿄⠍
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
㍀
䱨
⪰
㌾
㝍
C
A
23
<
⿄⠍
>
24V to VLED (DC/DC) 715G5246-P0C-000-0030
Wednesday , February 29, 2012
12
D8118
SS1060FL
R9315
NC
R8177
0R05
R8147
82K +-1% 1/8W
R8157
10K 1/8W 1%
R9344
NC
R9322
NC
C9346
NC
R8158
47OHM +-5% 1/8W
R8175
0.03R
R8176
NC
Q8101
AOTF454FL
1
2
3
D8120
FME-220B
R8161
10 OHM
R8163
470KOHM +-1% 1/8W
C8106
NC
R8145
300K OHM 1%
Q9308
NC
R8144
82K +-5% 1/8W
C8111
100N 50V
R8153
0 OHM 1/8W
C8113
470N 50V
R8141
20K 1% 1/8W
1 2
ZD8103
NC
R9312
NC
C8105
1N 50V
R8154
100K
R9313
NC
R9321
NC
FB
1
GM
2
RT
3
CS
4DIM 5
GND 6
OUT 7
VCC 8
IC8103
LD7400GS
R8155
100K
R8148
30K 1/8W 1%
Q9306
NC
R8156
100K
R9316
0R051/8W
C8119
1N 50V
R8162
1K 1/8W 1%
LED-COMP
24V-LED
12V
VLED
DIM
EN
12V_LED
On/Of f
12V 12V_LED
+
C8108
100UF 100V
+
C8121
22UF 50V
+
C8118
100UF 100V
1
2
L8101
33UH
62
ⶋǂɖǂǂሓǂ〱
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
⿄⠍
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
㍀
䱨
⪰
㌾
㝍
C
B
33
<
⿄⠍
>
.LED Driv er 715G5246-P0C-000-0030
Wednesday , February 29, 2012
C8514
NC
DIM
1
EN
2
VCC
3
LED
4GND 5
ISET 6
GM 7
COMP 8
IC8511
PF7700S
DIM
1
FLAG
2
VCC
3
LED
4GND 5
ISET 6
GM 7
COMP 8
IC8508
PF7700S
C8506
NC
R8509
11.5KOHM +-1% 1/8W
R8508
11K 1/8W 1%
C8531
100N 50V
DIM
1
FLAG
2
VCC
3
LED
4GND 5
ISET 6
GM 7
COMP 8
IC8504
PF7700S
R8501
NC
DIM
1
FLAG
2
VCC
3
LED
4GND 5
ISET 6
GM 7
COMP 8
IC8514
NC
R8513
NC
R8507
11K 1/8W 1%
C8532
100N 50V
R8503
NC
C8512
1UF 16V
C8517
NC
R8506
11K 1/8W 1%
1
2
3
4
5
6
7
8
9
10
11
12
CN8502
NC
C8501
NC
DIM
1
EN
2
VCC
3
LED
4GND 5
ISET 6
GM 7
COMP 8
IC8512
PF7700S
R8511
11.5KOHM +-1% 1/8W
C8504
NC
C8523
NC
C8526
100N 50V
R8504
11K 1/8W 1%
1
2
3
4
5
6
7
8
CN8504
NC
R8512
11.5KOHM +-1% 1/8W
DIM
1
FLAG
2
VCC
3
LED
4GND 5
ISET 6
GM 7
COMP 8
IC8505
NC
C8520
100N 50V
C8510
1UF 16V
C8529
NC
DIM
1
FLAG
2
VCC
3
LED
4GND 5
ISET 6
GM 7
COMP 8
IC8501
NC C8502
NC
C8507
NC
DIM
1
FLAG
2
VCC
3
LED
4GND 5
ISET 6
GM 7
COMP 8
IC8513
NC
C8530
NC
C8521
NC
DIM
1
EN
2
VCC
3
LED
4GND 5
ISET 6
GM 7
COMP 8
IC8509
PF7700S
R8516
11.5KOHM +-1% 1/8W
R8510
11.5KOHM +-1% 1/8W
R8514
NC
C8513
NC
DIM
1
FLAG
2
VCC
3
LED
4GND 5
ISET 6
GM 7
COMP 8
IC8506
PF7700S
1
2
3
4
5
6
7
8
910
CN8503
CONN
C8527
NC
C8524
NC
1
2
3
4
5
6
7
8
9
10
11
12
CN8501
NC
DIM
1
FLAG
2
VCC
3
LED
4GND 5
ISET 6
GM 7
COMP 8
IC8502
PF7700S
DIM
1
EN
2
VCC
3
LED
4GND 5
ISET 6
GM 7
COMP 8
IC8516
PF7700S
C8505
NC
R8505
NC
C8528
100N 50V
C8518
NC
R8502
11K 1/8W 1%
DIM
1
EN
2
VCC
3
LED
4GND 5
ISET 6
GM 7
COMP 8
IC8510
PF7700S
DIM
1
FLAG
2
VCC
3
LED
4GND 5
ISET 6
GM 7
COMP 8
IC8507
PF7700S
C8511
1UF 16V
C8516
1UF 16V
C8503
NC
C8508
NC
C8519
NC
DIM
1
FLAG
2
VCC
3
LED
4GND 5
ISET 6
GM 7
COMP 8
IC8503
NC
C8509
1UF 16V
C8525
NC
LED-COMP
EN
LED-16
LED-COMP
EN
DIM
EN
12V_LED
EN
LED-5
12V_LED
LED-3
LED-COMP
LED-6
LED-COMP
LED-COMP
LED-14
LED-2
12V_LED
LED-COMP
LED-16
12V_LED
LED-COMP
DIM
LED-6
EN
EN
LED-5
EN
LED-COMP
LED-COMP
LED-COMP
VLED
12V_LED
LED-16
12V_LED
DIM
12V_LED
LED-14
LED-10
12V_LED
LED-3
VLED
VLED
LED-3
LED-1
LED-4
12V_LED
LED-COMP
LED-COMP
LED-8
LED-2
LED-13
12V_LED
LED-COMP
VLED
LED-2
LED-14
DIM
LED-13
VLED
LED-9 VLED
DIM
12V_LED
LED-11
LED-7
LED-COMP
LED-6
LED-13
12V_LED
DIM
LED-4
LED-COMP
DIM
DIM
12V_LED
LED-7
DIM
DIM
LED-1
LED-15
EN
LED-11
DIM
DIM
EN
EN
LED-10
LED-4
LED-15
12V_LED
EN
EN
DIM
LED-12
LED-5
LED-12
LED-15
12V_LED
EN
LED-12
EN
LED-9
EN
LED-8
LED-1
DIM
DIM
63
8.2 IR Board
715G5471R01000004B
GND
1
GND
2
OUT
3
VCC
4
U201
IR M-H636M3/ TR 2
IR
033G8032 5F HR
C201
0.1uF 50V
VCC
R201 15K 1/10W
081G 14 24 EL
OEM MOD EL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
⿄⠍
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
㍀
䱨
⪰
㌾
㝍
A
A
22Wednesday , January 18, 2012
715G5471-R0A-000-0040 <
⿄⠍
>
02-IR&LED
R203 220 OHM 1/10W
LED_B
1
2
3
4
5
67
CN201
CONN
LED_R
1
23
4
RED
BLUE
LED201
LED
R202 220 OHM 1/10W
Dip LED
Top Vie w
IR
16 mm
37mm
64
8.3 Key Board
715G5298K01000004S
FUNC_KEY
PWR-SW
33G8032 4F HR
Source Select
MENU
VOL-
VOL+
Power ON/OFF
CH+
CH-
OEM MOD EL
Size
Rev
Date Sheet of
TPV MOD EL
PCB NAME ⿄⠍
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
㍀
䱨
⪰
㌾
㝍
A
Custom
22Friday , September 02, 2011
715GXXXX <
⿄⠍
>
02-Keypad
1.24~1.45V
2.04V~2.22V
2.48V~2.72V
1.58V~1.79V
0.47V~0.63V
0.85V~1.02V
R05
750OHM +-1% 1/8W
R04
1K 1/8W 1%
R01
7K5 1/8W + /-1%
R03
1K8 +/-1% 1/8W
R06
750OHM +-1% 1/8W
R02
2K7 1/8W 1%
R07
750OHM +-1% 1/8W
SW01
TACT SW FWRD H1.5MM
1
2
3
4
65
CN01
CONN
FUNC_KEY
PWR-SW
77G 607 2 FD
SW02
TACT SW FWRD H1.5MM
SW03
TACT SW FWRD H1.5MM
SW04
TACT SW FWRD H1.5MM
SW05
TACT SW FWRD H1.5MM
SW06
TACT SW FWRD H1.5MM
SW07
TACT SW FWRD H1.5MM

Navigation menu
