- SetGoldPro 4.0 User Manual
- Contents
- 1 Introducing SetGoldPro
- 2 Getting started
- 3 Preparing your printer and target reader
- 4 Creating input profiles
- 5 Creating emulation profiles
- 6 Creating gray balance profiles
- 7 Creating output profiles
- 8 Troubleshooting
- Inking limits
- Editing default values for targets
- Color characterization targets
![](asset-1.png)
SetGoldPro 4.0
User Manual
August 2011
![](asset-2.png)
![](asset-3.png)
Copyright and Trademarks
SetGoldPro 4.0 User Manual
Version 4.0: August 2011
Part number: GG.SETGOLDPRO.4.0
Document issue: 106
Copyright © 2011 Global Graphics Software Ltd. All rights reserved.
Certificate of Computer Registration of Computer Software. Registration No. 2006SR05517
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by
any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permis-
sion of Global Graphics Software Ltd.
The information in this publication is provided for information only and is subject to change without notice.
Global Graphics Software Ltd and its affiliates assume no responsibility or liability for any loss or damage
that may arise from the use of any information in this publication. The software described in this book is fur-
nished under license and may only be used or copied in accordance with the terms of that license.
Harlequin is a registered trademark of Global Graphics Software Ltd.
The Global Graphics Software logo, the Harlequin at Heart Logo, Cortex, Harlequin RIP, Harlequin ColorPro,
EasyTrap, FireWorks, FlatOut, Harlequin Color Management System (HCMS), Harlequin Color Production
Solutions (HCPS), Harlequin Color Proofing (HCP), Harlequin Error Diffusion Screening Plugin 1-bit
(HEDS1), Harlequin Error Diffusion Screening Plugin 2-bit (HEDS2), Harlequin Full Color System (HFCS),
Harlequin ICC Profile Processor (HIPP), Harlequin Standard Color System (HSCS), Harlequin Chain
Screening (HCS), Harlequin Display List Technology (HDLT), Harlequin Dispersed Screening (HDS),
Harlequin Micro Screening (HMS), Harlequin Precision Screening (HPS), HQcrypt, Harlequin Screening
Library (HSL), ProofReady, Scalable Open Architecture (SOAR), SetGold, SetGoldPro, TrapMaster,
TrapWorks, TrapPro, TrapProLite, Harlequin RIP Eclipse Release and Harlequin RIP Genesis Release are all
trademarks of Global Graphics Software Ltd.
Protected by U.S. Patents 5,579,457; 5,808,622; 5,784,049; 5,862,253; 6,343,145; 6,330,072; 6,483,524; 6,380,951;
6,755,498; 6,624,908; 6,809,839.
Other U.S. Patents Pending
Protected by European Patents 0 803 160; 0 772 934; 0 896 771; 672 29 760.8-08.
Portions licensed under U.S. Patent No. 5,212,546; 4,941,038.
TrueType is a registered trademark of Apple Computer, Inc.
The ECI and FOGRA ICC color profiles supplied with this Harlequin RIP are distributed with the kind per-
mission of the ECI (European Color Initiative) and FOGRA respectively, and of Heidelberger Druckmas-
chinen AG (HEIDELBERG).
The IFRA ICC profiles supplied with this Global Graphics Software are distributed with the kind permission
of IFRA and of Gretag Macbeth.
International Cooperation for Integration of Processes in Prepress, Press and Postpress, CIP4, Job Definition
Format, JDF and the CIP4 logo are trademarks of CIP4.
![](asset-4.png)
Adobe, Adobe Photoshop, Adobe Type Manager, Acrobat, Display PostScript, Adobe Illustrator, PostScript,
Distiller and PostScript 3 are either registered trademarks or trademarks of Adobe Systems Incorporated in
the United States and/or other countries which may be registered in certain jurisdictions.
Global Graphics Software Ltd is a licensee of Pantone, Inc. PANTONE®Colors generated by ScriptWorks are
four-color process simulations and may not match PANTONE-identified solid color standards. Consult cur-
rent PANTONE Color Publications for accurate color. PANTONE®, Hexachrome®, and PANTONE
CALIBRATED™are trademarks of Pantone, Inc. © Pantone, Inc., 1991.
Other brand or product names are the registered trademarks or trademarks of their respective holders.
US Government Use
Harlequin RIP software is a computer software program developed at private expense and is subject to the following Restricted Rights Leg-
end: “Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in (i) FAR 52.227-14 Alt III or (ii)
FAR 52.227-19, as applicable. Use by agencies of the Department of Defense (DOD) is subject to Global Graphics Software’s customary com-
mercial license as contained in the accompanying license agreement, in accordance with DFAR 227.7202-1(a). For purposes of the FAR, the
Software shall be deemed to be ‘unpublished’ and licensed with disclosure prohibitions, rights reserved under the copyright laws of the
United States.” Global Graphics Software Incorporated, 31 Nagog Park, Suite 315, Acton MA 01720.
![](asset-5.png)
SetGoldPro 4.0 User Manual 5
Contents
1 Introducing SetGoldPro . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.1 Using SetGoldPro profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
1.2 Merging ICC and SetGoldPro profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2 Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.1 Requirements for running SetGoldPro . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.2 What’s new in SetGoldPro v4.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2.3 Installing SetGoldPro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2.4 Starting SetGoldPro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3 Preparing your printer and target reader. . . . . . . . . . . . . 15
3.1 Checklist of items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3.2 Printer checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
3.3 Spectrophotometer checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
4 Creating input profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
![](asset-6.png)
6 SetGoldPro 4.0 User Manual
4.1 Creating characterization targets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.2 Creating an input profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.3 Using an input profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5 Creating emulation profiles . . . . . . . . . . . . . . . . . . . . . . . . 25
5.1 Using emulation profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.2 Creating emulation profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6 Creating gray balance profiles . . . . . . . . . . . . . . . . . . . . . 35
6.1 Creating gray balance profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6.2 Using a gray balance profile in the RIP . . . . . . . . . . . . . . . . . . . . . . . . . 45
7 Creating output profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
7.1 SetGoldPro procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
7.2 Using the output profile in the RIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
7.3 Creating an ICC profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
8.1Errormessages..............................................55
8.2Symptoms..................................................57
Appendix A Inking limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Appendix B Editing default values for targets . . . . . . . . . . . . . . . . . . . . . 69
Appendix C Color characterization targets. . . . . . . . . . . . . . . . . . . . . . . . 77
![](asset-7.png)
SetGoldPro 4.0 User Manual 7
1
1Introducing SetGoldPro
SetGoldPro™is a wizard-based color utility designed to create high quality
gray balance or “Golden State”, input, emulation and output profiles, opti-
mized for the Harlequin®RIP, in order to satisfy today’s color accurate proof-
ing requirements. Color accurate proofing is only possible if devices can be
calibrated, and profiles are optimized for a given ink, substrate, screening and
resolution combination. SetGoldPro incorporates many solutions for color
profile making by drawing from the latest Graphic Arts community research
resulting in higher levels of color accuracy. Using SetGoldPro profiles along
with the Harlequin RIP ColorPro™feature set, you can solve any workflow
requirements your situation may demand.
1.1 Using SetGoldPro profiles
SetGoldPro profiles can be used for the following purposes:
• To improve color quality and accuracy of your printed output, espe-
cially when used with Harlequin ColorPro™
, Global Graphics’ full fea-
tured color solution for the Harlequin RIP. For more information on
ColorPro see, “Harlequin ColorPro Users Guide”.
![](asset-8.png)
1 Introducing SetGoldPro
8 SetGoldPro 4.0 User Manual
• To build Gray Balance reference profiles—also known as golden state
profiles. These adjust the printer’s raw state to a repeatable optimized
gray-balance state. Once the printer is in this state you can use it to pro-
duce a print-color characterization target.
• Gray Balance profiles improve color output quality without the use of
color management in the Harlequin RIP. Results are greatly improved
when using a Gray Balance profile which, after the initial setup, is
mainly used to compensate for the day-to-day variation of the output
device. It is also possible for multiple users to calibrate their printers to
match the reference, or Golden State. That is, different users can get sim-
ilar results by using the same Gray Balance profile.
• To build input, emulation and output profiles for use in ColorPro. By
using the different profile types you can build sophisticated workflows
that handle various types of incoming data including RGB, CMYK,
LAB, Named Colors and Gray.
1.2 Merging ICC and SetGoldPro profiles
New in SetGoldPro 4.0 is the ability to create profiles directly from CGATS IT8
files containing IT8.74 and ECI data sets, allowing many external data sets to
be used directly, such as those from the www.color.org,www.fogra.org or www.ideal-
liance.org websites.
In addition, SetGoldPro 4.0 contains an improved ink limiting algorithm, and
new larger targets, which together allow you to characterize your printer
much more accurately and create correspondingly more accurate color pro-
files. SetGoldPro 4.0 was used to create the color profiles used to obtain a
Fogra Graphic Technology Research Association (Fogra) certification to ISO
12647-7 for Harlequin Server RIP v9.0 for several different color characteriza-
tions including, for example, Fogra39.
You may, therefore, find that you have less need to create ICC profiles from
SetGoldPro 4.0 onwards. You should however be aware that the profiles cre-
ated by SetGoldPro are not the same as ICC profiles: SetGoldPro profiles con-
tain gray-balance and device calibration information (ICC profiles do not);
ICC profiles contain measurement data and CRD’s based on parameters set in
the profiling package (SetGoldPro profiles do not).
![](asset-9.png)
1.2 Merging ICC and SetGoldPro profiles
SetGoldPro 4.0 User Manual 9
However, SetGoldPro profiles are compatible with ICC profiles, and, if you
would like to use SetGoldPro and ICC profiles together in the Harlequin RIP,
it is recommended that for best all-round results, you follow the advice in
“Creating an ICC profile” on page 52.
![](asset-a.png)
1 Introducing SetGoldPro
10 SetGoldPro 4.0 User Manual
![](asset-b.png)
SetGoldPro 4.0 User Manual 11
2
2Getting started
This section describes how to get started with SetGoldPro and includes a list
of additional components and system resources required to run it.
2.1 Requirements for running SetGoldPro
The following components and system resources are required to install and
run SetGoldPro:
• Harlequin RIP version 5.5r1c or greater.
• Harlequin ColorPro.
• Output plug-in for target printer. Target printer must be equipped with
correct paper and ink that you are creating the profile for.
• Windows®/2000/XP/Vista/ Windows 7.
• Mac OS X 10.3.9 or later.
• A spectrophotometer that is able to produce Lab and Status T
measurements. Note that all references in this manual to the Gretag
Macbeth device apply to the Gretag or Gretag Macbeth SpectroScan
spectrophotometer. In addition, all references to a hand-held device
apply to the Gretag Macbeth Eye-One models.
![](asset-c.png)
2 Getting started
12 SetGoldPro 4.0 User Manual
2.2 What’s new in SetGoldPro v4.0
• Support for the following additional targets: GG4374, GG1426, IT8.74
and ECI. The corresponding data sets are supported via CGATS IT8 files
allowing profiles to be created for many external data sets based on
IT8.74 or ECI, such as from www.color.org.
The new GG4374 and GG1426 targets are designed to allow very accu-
rate color profiling for proofing purposes, and/or to obtain contract
proofing certification against ISO 12647-7.
In addition, patches not present on the targets are now interpolated in
Lab rather than XYZ, resulting in accuracy improvements for all existing
targets.
• Improve the ink limiting algorithm to produced better start points for
the ink limiting stage. Limit Cyan based on changes in Chroma,
Magenta based on changes in LAB 'a' value and Yellow based on
changes in LAB 'b' value.
2.3 Installing SetGoldPro
Follow these steps to install SetGoldPro on Windows or Mac OS X.
1. Insert the media that contains Doc and Tools installer into your system
and open it to show its contents. On Mac OS X the installer is in a ZIP file
called DocTools_XX.zip which should be extracted.
2. Depending on your system, run DocTools_XX.exe (Windows) or
install_XX.app (Mac OS X) to start the installation procedure.
On Windows 7 you should click Yes if a User Access Control message
appears.
3. When the Introduction dialog appears click Next to move onto the next
dialog or Previous to return to the previous dialog.
4. In the Choose Features screen select SetGold along with any other
options you require. Click Next.
5. In the Choose Install Folder screen you can use the default installation
path or change it using the Choose button. We selected click Next.
![](asset-d.png)
2.4 Starting SetGoldPro
SetGoldPro 4.0 User Manual 13
6. In the Choose Shortcut Folder screen select your preferred options and
click Next.
7. The Pre-Installation Summary screen displays your seleted options. If
there options are correct click Install to start the installation. If not, use
the Previous button to change your selections.
8. When the install is complete select Done to close the installer.
2.4 Starting SetGoldPro
To start SetGoldPro on Windows: select Start > All Programs > Global Graphics >
Harlequin RIP vX.xx > SetGold.
To start SetGoldPro on Mac OS X: select Applications:Harlequin
RIP_X_X_DocTools:setgold:SetGold.
Unless you want to run SetGoldPro in demonstration mode, it is essential to
enter your SetGoldPro password when prompted and to have your Harlequin
RIP dongle attached. See “Evaluating SetGoldPro (demo mode)” below.
2.4.1 Entering your SetGoldPro password
When you start SetGoldPro you will be prompted to enter your SetGoldPro
password. If you do not have a password, you can obtain one from your Har-
lequin RIP supplier, or directly from Global Graphics at either of the following
addresses:
UK customers: sales-admin-uk@globalgraphics.com
US customers: sales-admin-us@globalgraphics.com
2.4.2 Evaluating SetGoldPro (demo mode)
You may evaluate SetGoldPro by running the application in demonstration
mode (demo mode). Demo mode allows you to step through all the proce-
dures for creating profiles without requiring any input data. Of course, with-
out input data the application is unable to produce any profiles, but it will
give you a good idea of the application’s capabilities.
![](asset-e.png)
2 Getting started
14 SetGoldPro 4.0 User Manual
To enter demo mode, enter an invalid SetGoldPro serial number (such as 0)
when prompted for a serial number to enable the application. If you decide to
go ahead and purchase a password for SetGoldPro, you may enter it by choos-
ing Options > Upgrade in SetGoldPro.
![](asset-f.png)
SetGoldPro 4.0 User Manual 15
3
3Preparing your printer and
target reader
To achieve a consistent level of accuracy when creating profiles it is essential
to prepare your printer and spectrophotometer correctly, before using them to
create profiles in SetGoldPro.
3.1 Checklist of items
The following items are required to create SetGoldPro profiles:
• A printing press or proofing printer.
• A spectrophotometer, such as the instruments made by Gretag Macbeth
and X-Rite, for measuring light intensity.
•Harlequin RIP operating with plugins for color management, screening
and printer.
• SetGoldPro to create gray-balance profiles, or SetGoldPro to create gray-
balance, input, output and emulation profiles.
![](asset-10.png)
3 Preparing your printer and target reader
16 SetGoldPro 4.0 User Manual
3.2 Printer checklist
To prepare a printer/press for making SetGoldPro profiles, complete this
checklist:
• Load the correct ink and paper into the printer. Since each ink type and
paper type will produce a different profile, create your profiles using
the same ink and paper as you will be using to produce your proofs. If
producing profiles for a press, the press should be loaded with plates
made with the correct screening and resolution.
• The ink delivery system is clean and distributing inks evenly. You may
wish to cycle through the printer’s head cleaning cycle a few times.
• Use the printer to output a test page with areas of solid color, fine lines
and patterns. Then check that:
– All colorants are being delivered evenly.
– Color spectrum is correct.
– No banding appears in areas of solid colors.
– Heads are aligned correctly (check this by printing a head alignment
test page).
• Allow sufficient time for the printer to reach its optimum operating
temperature (consult your printer manual).
3.3 Spectrophotometer checklist
To prepare a spectrophotometer for making SetGoldPro profiles, complete this
checklist:
• Calibrate the spectrophotometer using the calibration plaque supplied
by the manufacturer.
• Allow ample time for the prints to dry before measuring them with the
spectrophotometer. The time varies depending on which ink and paper
types you are using, but 30 – 60 mins is normal (even longer for the final
IT8 profile).
![](asset-11.png)
3.3 Spectrophotometer checklist
SetGoldPro 4.0 User Manual 17
• In SetGoldPro, specify your spectrophotometer device in the Options
screen. If you intend to add calibration data from a file, select the
“Import data from IT8 file...” option.
It has been found that using a white backing produces a more visually accept-
able match on some print comparisons. The white backing should meet the
description for opacity and whiteness as defined in the CGATS.5 standards
document: “Graphic technology — Spectral measurement and colorimetric computa-
tion for graphic arts images”.
![](asset-12.png)
3 Preparing your printer and target reader
18 SetGoldPro 4.0 User Manual
![](asset-13.png)
SetGoldPro 4.0 User Manual 19
4
4Creating input profiles
This chapter describes how to create input profiles with SetGoldPro. Once cre-
ated, the input profile can be used with a color management utility, such as
Harlequin ColorPro™
, to produce accurate, consistent and predictable color
reproduction for a wide range of workflows.
4.1 Creating characterization targets
Input profiles are usually obtained from color characterization target sheets,
which are produced from a print run that is representative of the type of print-
ing that future proofs are intended to match. Sample readings are typically
obtained every five or so sheets to obtain data that is representative of a com-
plete job run.
If you intend to make an input profile from an external data set, such as char-
acterization data published on the www.color.org website, you can omit this step.
Otherwise plan and execute a job run when calibrating a press or imagesetter
that includes at least one of the targets installed in the set-
gold\data\Target_Files folder.
For more information on the targets see “Color characterization targets” on
page 77.
![](asset-14.png)
4 Creating input profiles
20 SetGoldPro 4.0 User Manual
The available targets are:
754_patch.ps
845_patch.ps
928_patch.ps
GG_i1iO_Target1426_A.pdf
GG_i1iO_Target4374.pdf
HQ_1426_A_v1.ps
Alternatively, use the following four targets (which together make up one
large target):
HQ_4374_P1.ps
HQ_4374_P2.ps
HQ_4374_P3.ps
HQ_4374_P4.ps
Random targets:
\color_targets\754_patch_random.zip
\color_targets\845_patch_random.zip
Or use the following two targets (which together make up one large target):
HQ_1617R_p1.ps
HQ_1617R_p2.ps
Note: The 754 and 845 patch random zip files (when uncompressed) become
754_patch_random.eps and 845_patch_random.eps. These files can be placed
into a page using a desktop publishing application and output through your
normal workflow. Use a random target if you are using a press with ink keys.
After the press run, confirm that your process control aims were met in terms
of CMYK ink densities, dot gain, plus any other metrics used for process con-
trol at your site. Then measure the targets with your Gretag Macbeth reader
and save the resulting IT8 data files.
4.2 Creating an input profile
To create an input profile with SetGoldPro:
1. Choose Options in SetGoldPro and select the appropriate device settings
for your current hardware setup. Click Home to return to the first screen
when you have done this.
![](asset-15.png)
4.2 Creating an input profile
SetGoldPro 4.0 User Manual 21
2. Choose Create Input Profile to begin the procedure. The first screen
reminds you that you must allow sufficient time for the ink to com-
pletely dry before attempting to read it with a spectrophotometer. Click
Next to advance to the next screen.

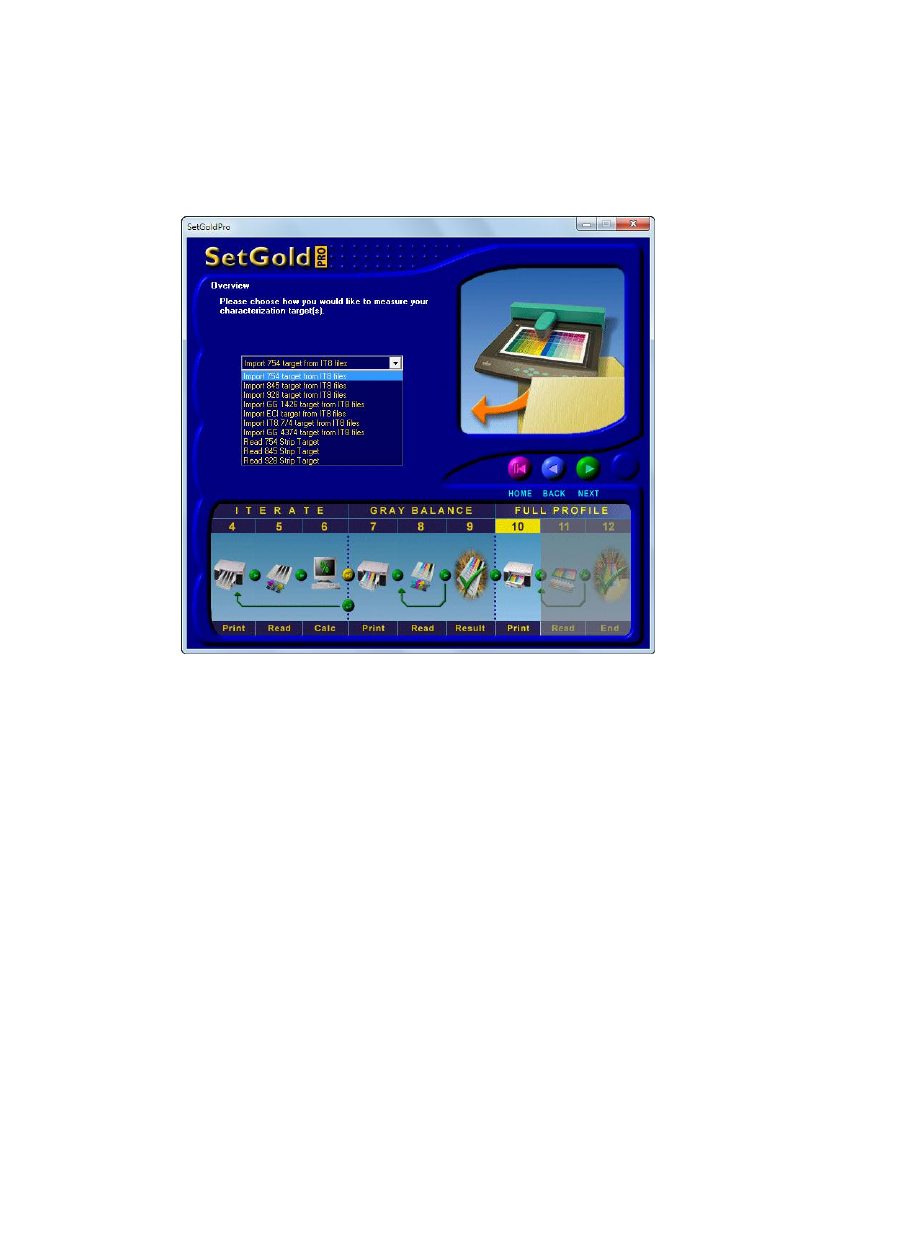

3. From the list of options that are available, choose how you wish to mea-
sure the characterization target.
Make sure you choose the option that matches the type of target that you
measured. For example, if you measured one of the 1426 patch targets
such as the GG_i1iO_Target1426_A.pdf or the HQ_1426_A_v1.ps target,
select Import GG 1426 target from IT8 files.
If you are using an external data set such as one from the www.color.org
website, you will need to choose one of the following options at this
stage:
For IT8.73 data, select Import 928 target from IT8 files.
For IT8.74 data, select Import IT8.7/4 target from IT8 files.
For ECI data, select Import ECI target from IT8 files.
4. Depending on how you are measuring the targets, either browse to the
IT8 data file or files, or read the target with your spectrophotometer, as
directed by SetGoldPro.
If you use a target consisting of multiple files, such as the HQ_1617R or
HQ_4374, you can select all the files at once when browsing to the file
location, or if you prefer you can select them one at a time by using the
Iterate button.
If you are using an external data set, select the IT8 data file.
5. Use Iterate to repeat the measuring procedure for other targets/data files
that you wish to input.
6. Lastly, after measuring all the targets click Gold to make the input pro-
file. Give it a meaningful name to help identify its purpose, for instance,
“GRACol SID (24 Gloss)” for GRACol solid ink densities on 24 pound
gloss paper.
![](asset-16.png)
4 Creating input profiles
22 SetGoldPro 4.0 User Manual
The input profile will be automatically installed in the RIP if you chose
Install profiles in RIP in the SetGoldPro Options screen. Otherwise, you
must install it manually, as described next.
7. Create a page setup that uses the “Preview” device. There must be no
color management, calibration or page features selected in the page
setup.
8. Use the page setup to process your input profile. The RIP will output the
results to:
<HarlequinRIP>\SW\colorspaces\DeviceCMYK\
That’s it. The profile is now ready to be used with color management
software, such as Harlequin Color, as described next.
4.3 Using an input profile
Here’s how to use your new input profile in the Harlequin RIP.

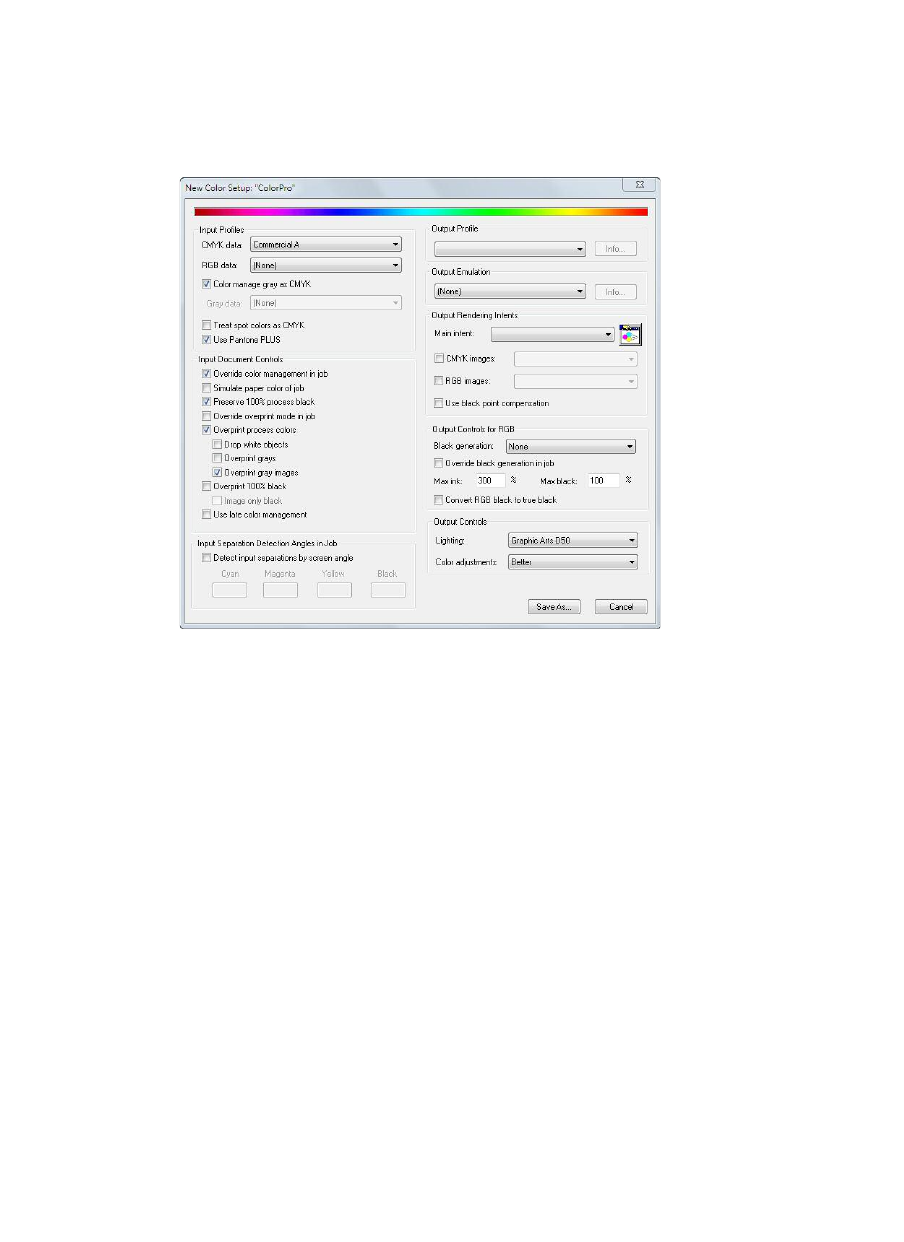

1. In the RIP, open the Color SetUp Manager by choosing Color > Color
Setup Manager.
![](asset-17.png)
4.3 Using an input profile
SetGoldPro 4.0 User Manual 23
2. From the Device list, choose the device you are outputting to, and choose
New ‘ColorPro’Setup. The dialog shown in Figure 4.1 opens.
Figure 4.1 The ColorPro Setup dialog
3. From the CMYK data drop-down list, select the input profile you wish to
use. Other color management options can be chosen as required.
4. Choose Save as and enter a name for the color setup. The name of the
ColorPro setup will now be available in the Color drop-down list in a
Harlequin page setup when the target device is selected.
![](asset-18.png)
4 Creating input profiles
24 SetGoldPro 4.0 User Manual
![](asset-19.png)
SetGoldPro 4.0 User Manual 25
5
5Creating emulation profiles
In today’s digital environment the RGB image format is quickly replacing the
traditional CMYK format. Many magazine and newspaper pages are created
using a combination of copy, CMYK adverts, editorial graphics and RGB
images, all on the same page. The only way to make a digital proof of such a
page on a proofing device and maintain color accuracy, is to use an emulation
profile in the color stream.
5.1 Using emulation profiles
When an emulation profile is used, the CMYK and RGB content are treated
separately to produce a proof that accurately represents the press. This is done
by selecting an input profile, emulation profile and an output profile as
follows:
• CMYK data follows this route: through the input profile selected such
as for web offset (fogra BVD, for example); via absolute colorimetric
rendering for CMYK data, through the emulation profile and then the
output profile that meets the parameters of the inkjet printer being used
for proofing; namely ink, paper, resolution and screening.
![](asset-1a.png)
5 Creating emulation profiles
26 SetGoldPro 4.0 User Manual
• RGB data follows this route: through the RGB input profile via percep-
tual rendering intent to the emulation profile space (which should
define the gamut of the press and is often the same space as the CMYK
data from above); then through the output profile selected above.
In essence, this process maps RGB images to the gamut of the intended press,
via the emulation profile, using perceptual rendering to achieve the best color
for the pictorial image, within the intended press gamut. The CMYK data is
then mapped colorimetrically to achieve the most accurate color match
throughout the process. Finally, once the CMYK and RGB data have all been
mapped to the press gamut, the data is then all mapped colorimetrically to the
proofing device allowing for a color accurate proof for all page elements.
Note that this is just one example of emulation. Other emulation processes,
such as CMYK to CMYK transforms, make it possible to print the same page
on slightly different presses, or on more than one paper stock.
5.2 Creating emulation profiles
Follow these procedures to create emulation profiles. To get started, click
Create Emulation Profile in SetGoldPro.
![](asset-1b.png)
5.2 Creating emulation profiles
SetGoldPro 4.0 User Manual 27
5.2.1 Entering press conditions
To create a properly labeled profile SetGoldPro needs to know your press con-
ditions. In the dialog box (shown in Figure 5.2), enter details of your press
setup and choose an output folder for the emulation profile.

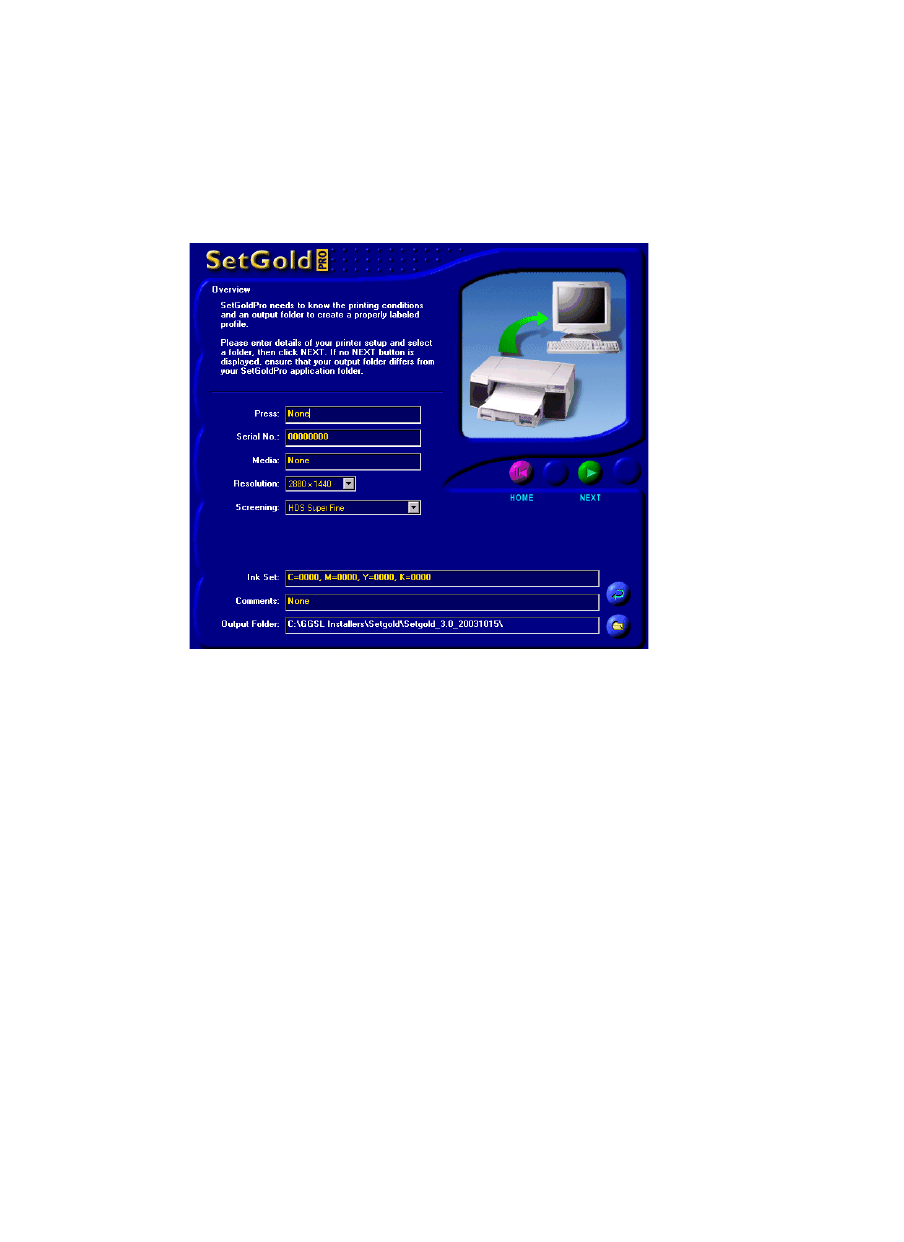

Figure 5.2 Press conditions dialog
Complete the details in the fields as follows:
Press Enter the press device you will enter IT8 data from, for
example Heidelberg 2100 Web Press.
Serial No Enter the device’s serial number to ensure the correct
profile is used with the appropriate printer.
Media Enter the substrate used on the press.
Resolution From the menu select the correct printing resolution for
your setup.
Screening From the menu select the appropriate screening method
for your setup. This field must be completed.
![](asset-1c.png)
5 Creating emulation profiles
28 SetGoldPro 4.0 User Manual
Ink Set Enter the manufacturer’s inks codes.
Comments Enter any general press run data.
Output Folder Select an output folder for the emulation profile, but do
not choose the SetGoldPro application folder. To keep
your profiles separate, use a different folder for each
profile that you create. This field must be completed.
The output folder is where all the files to be printed are
located as well as where folders for input Profiles,
output profile and emulation Profiles are created. It is a
good idea to copy to this folder the IT8 files that you
will later import.
A file called Data is also located here. This file contains
all the details you have entered for the profile you are
making. If you change the working folder, this informa-
tion is updated if there is already a Data file in the new
working folder, otherwise it will create a new Data file.
The current working folder is remembered from a pre-
vious session.
Restore defaults
If you would like to restore the system defaults click
Restore.
Click Next when you have entered all the details. If Next is not displayed,
ensure your Output folder is different from the SetGoldPro application folder.
![](asset-1d.png)
5.2 Creating emulation profiles
SetGoldPro 4.0 User Manual 29
5.2.2 Printing and measuring IT8 Press targets
To create an emulation profile SetGoldPro needs to take measurements from
one or more IT8 press targets. Alternatively, if you intend making an emula-
tion profile to emulate a press characterization such as those that are available
on the www.color.org website, you do not need to measure any IT8 press targets.
Click Next to continue.
Suitable press targets have been installed in the SetGoldPro installation folder.
For more information on the targets see “Color characterization targets” on
page 77.
These targets should be added to a test page that is going to be run on press
and are found in the folder setgold\data\Target_Files\:
754_patch.ps
845_patch.ps
928_patch.ps
GG_i1iO_Target1426_A.pdf
GG_i1iO_Target4374.pdf
HQ_1426_A_v1.ps
Or use the following four targets (which together make up one large target):
HQ_4374_P1.ps
HQ_4374_P2.ps
HQ_4374_P3.ps
HQ_4374_P4.ps
Random targets:
\color_targets\754_patch_random.zip
\color_targets\845_patch_random.zip
Or use the following two targets (which together make up one large target):
HQ_1617R_p1.ps
HQ_1617R_p2.ps
At this point you should decide whether you will import IT8 files from a
Gretag Macbeth device or read the targets using a hand held reader.
If you are using a Gretag Macbeth device, print one or more IT8 press targets
(you may have already done this if you are calibrating a press or image setter).
![](asset-1e.png)
5 Creating emulation profiles
30 SetGoldPro 4.0 User Manual
If you are using a hand held reader as specified in the Device field of Options
screen, print the supplied strip targets (for example 754strip.ps).
Click Next to continue.

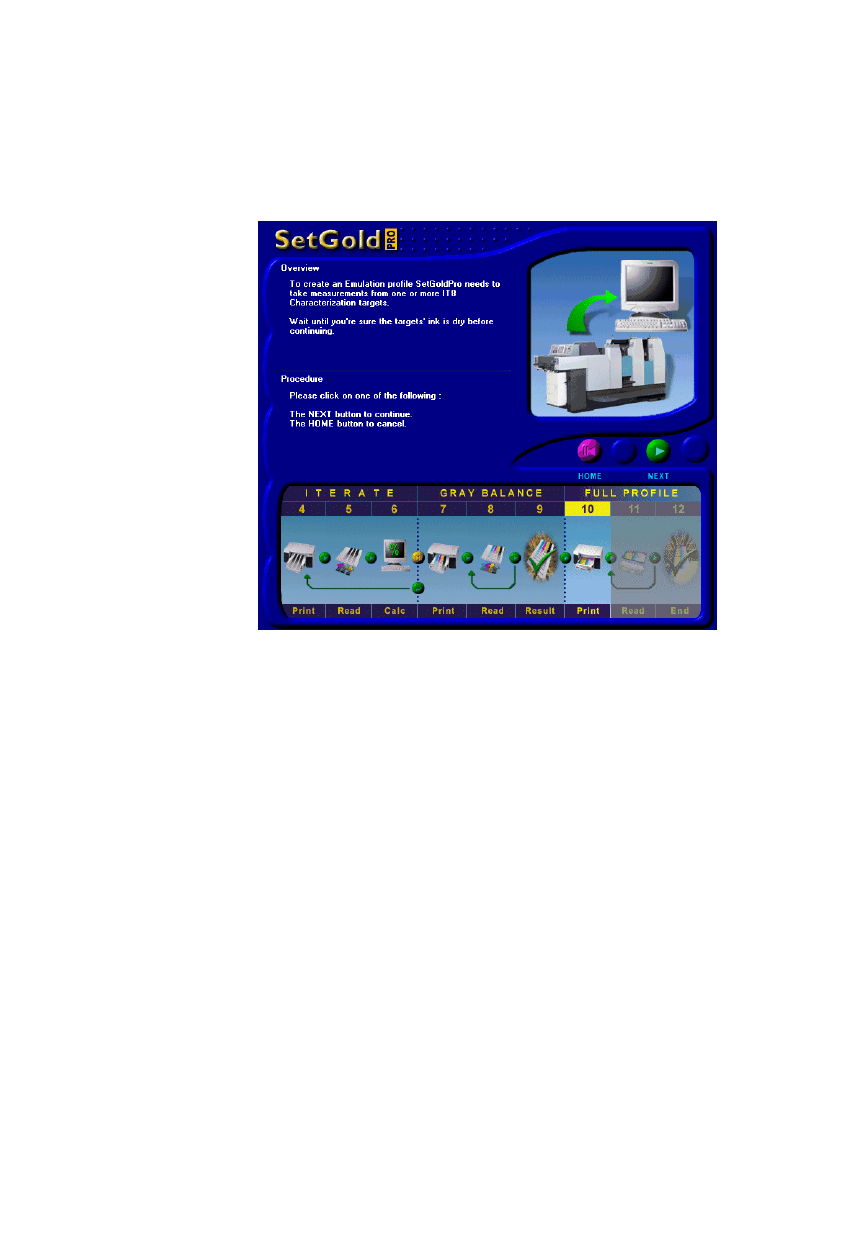

Figure 5.3 Read an IT8 target
5.2.3 Importing or reading the IT8 data files
The next step is to either import the IT8 data files or read the strip targets into
SetGoldPro so the emulation profile can be created.
1. Choose how you would like to measure your characterization targets.
You have the option to either read one of the strip targets using the
reader device specified in the Device field of the Options dialog, or to
select one of the options to import the data from an IT8 file, to import
data from files created on another type of spectrophotometer that Set-
GoldPro is unable to read from directly, such as the Gretag Macbeth
SpectroScan.
If you are creating an emulation profile from an external data set such as
those available on the www.color.org website, you will need to choose one
of the following options at this stage:
![](asset-1f.png)
5.2 Creating emulation profiles
SetGoldPro 4.0 User Manual 31
For IT8.73 data, select Import 928 target from IT8 files
For IT8.74 data, select Import IT8.7/4 target from IT8 files
For ECI data, select Import ECI target from IT8 files.
Figure 5.4 Import the IT8 file into SetGoldPro
2. Click Next to advance to the next procedure.
3. Click Next to read the IT8 files or scan the target with the specified
reader. When reading IT8 files you are presented with a browse dialog to
locate the file. When scanning a target you are presented with a number
of dialogs to guide you through the process.
4. To import the IT8 files, click Next and in the dialog box select the target
you want to import, and click Import. If you have more than one file to
import, click Back and repeat this procedure.
If you use a target consisting of multiple files, such as the HQ_1617R or
HQ_4374, you can select all the files at once when browsing to the file
location, or if you prefer you can select them one at a time by using the
Iterate button.
If you are using an external data set, select the IT8 data file.
![](asset-20.png)
5 Creating emulation profiles
32 SetGoldPro 4.0 User Manual
When you have finished, click Next and SetGoldPro will create the emu-
lation profile.
5. To read the targets, choose the target from the menu and click Next Print
the target and then following the instructions n the dialogs, read each
target using your selected device.
6. When the IT8 data is imported or the patches are read you have the
option to either Iterate and repeat the process or click Gold to create the
profile.
![](asset-21.png)
5.2 Creating emulation profiles
SetGoldPro 4.0 User Manual 33
5.2.4 Saving the emulation profile
We recommend that you store the emulation profile in the profile’s working
folder; then make a copy and store this in the Harlequin RIP. To save the pro-
file, click Next and enter a folder and file name (it is not necessary to specify a
file name extension), and then click Save in the dialog box.

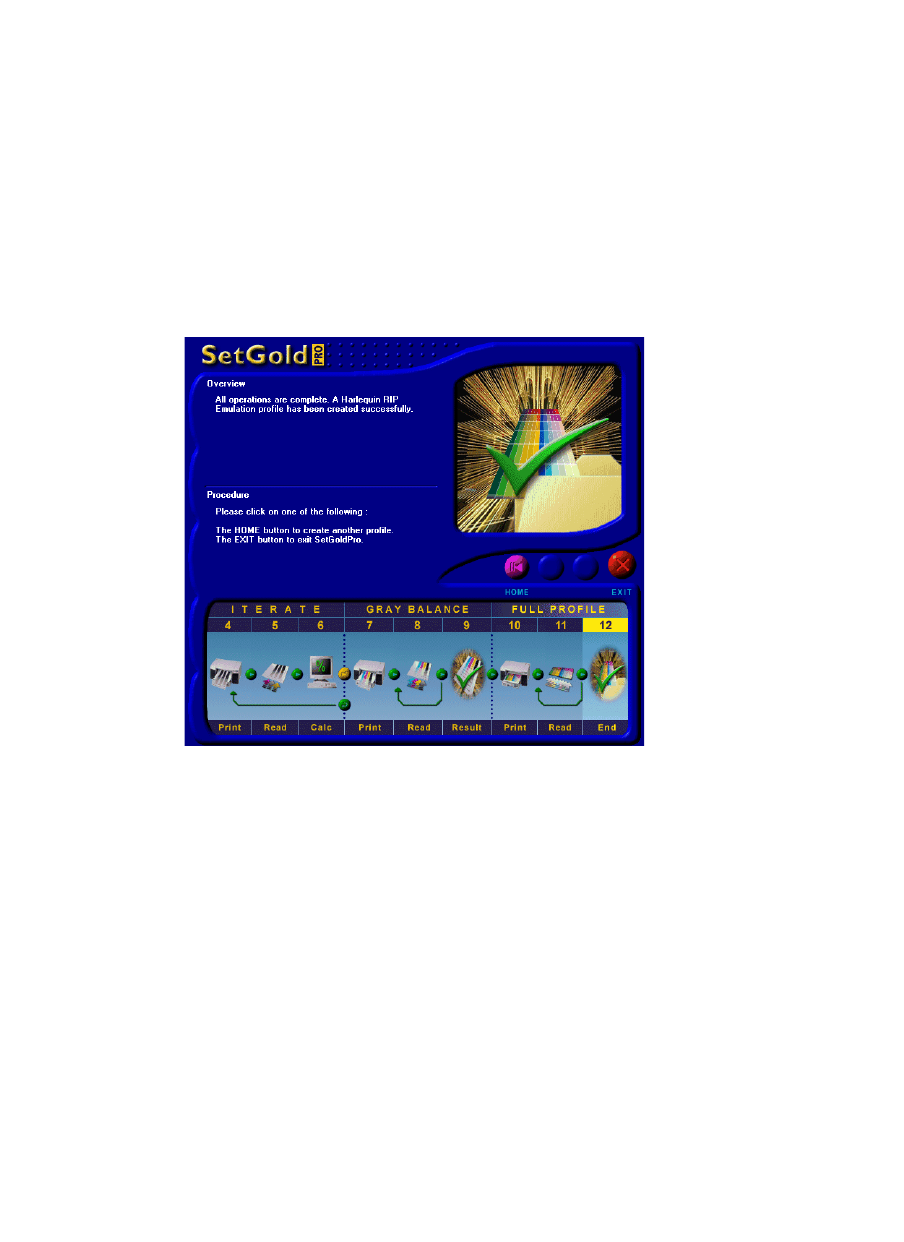

All operations are now complete and a Harlequin RIP emulation profile has
been created.
Figure 5.5 Save the emulation profile
If in the Options dialog you chose the Install profiles in RIP option, the emula-
tion profile will be automatically installed into the selected RIP. If however,
you chose not to install the profiles into the RIP or you want to install the pro-
files in a pre Eclipse release SP3 RIP, use the following procedure.
5.2.5 Installing the emulation profile in the Harlequin RIP
If you have chosen not to automatically install profiles into the RIP or you
want to install the profile in a pre Eclipse Release SP3 RIP, it must be installed
correctly before it can be used in a color management setup.
![](asset-22.png)
5 Creating emulation profiles
34 SetGoldPro 4.0 User Manual
You will find your emulation profile in your specified Output folder. Place a
copy of the emulation profile in the following location:
HarlequinRIP<FOLDER>\SW\Config\emulation\Profiles\CMYK\emulation
You should note that an emulation profile will not work unless an input pro-
file with the same name is installed in the RIP.
When an emulation profile is created an input profile is automatically created.
You install this profile by running it through the RIP:
1. Create a page setup in the Harlequin RIP that uses the Preview device
and has no color management, calibration or page features selected.
2. Print the input profile using the new page setup. The profile is a Post-
Script language file.
The input profile will be installed into the RIP.
![](asset-23.png)
SetGoldPro 4.0 User Manual 35
6
6Creating gray balance
profiles
Gray balance profiles determine the correct inking, gray balance and tonal
scale values for a new device—the so-called “Golden State” of the printer.
They are also used as the first step to building an output profiles are a new
device.
Calibration tables can be created for up to four device types and/or measure-
ment systems, so that any non-reference printer can be adjusted to this
“Golden State”.
6.1 Creating gray balance profiles
To create gray balance profiles, do the following:
1. Start SetGoldPro (or SetGold). Click Options to access settings for your
current hardware setup.
2. Choose the correct device and port that your spectrophotometer reader
is connected to. If the reader is not connected to this computer, choose
None and select the Import data from IT8 file check box instead. Even if you
have a reader connected, you may still select this check box to read addi-
tional IT8 data files; the information will be incorporated into the profile
along with the data from the reader.
![](asset-24.png)
6 Creating gray balance profiles
36 SetGoldPro 4.0 User Manual
3. Click Home to return to the home screen, and click Create Output profile to
start creating a gray balance profile.
4. SetGoldPro needs to know about your printing conditions so it can
create a properly labelled profile. On the screen shown in Figure 6.6,
enter as much information about your printing conditions as you can.

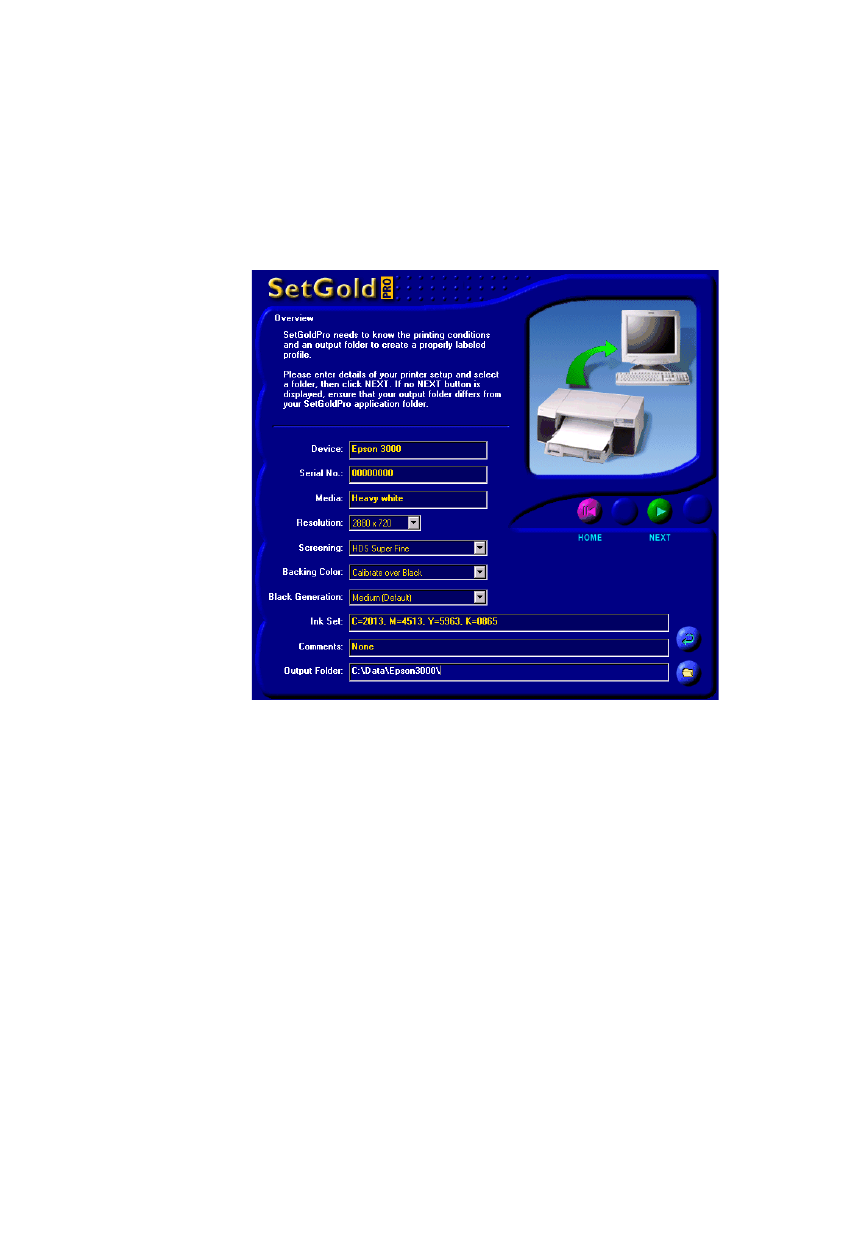

Figure 6.6 Enter details of your printing conditions
5. Enter a location in Output Folder for the profile information generated by
SetGoldPro (you will not be able to advance to the next screen unless
you have selected an output folder). SetGoldPro uses this folder to create
the initial calibration target (Calibrat.ps), as well as target files contain-
ing 754, 845 and 928 color patches.
Click Next when you have entered the requested information.
6. You now have the option of entering an existing gray balance profile. To
do this, click Select and enter the profile. The import profile must be in a
format that SetGoldPro can work with, and have been created for the
same media. Existing profiles may also work for similar media from dif-
![](asset-25.png)
6.1 Creating gray balance profiles
SetGoldPro 4.0 User Manual 37
ferent vendors, provided the inks, resolution, and screening remain con-
stant (although color accuracy may be compromised). Click Next to go to
the next step.
6.1.1 Printing an initial target

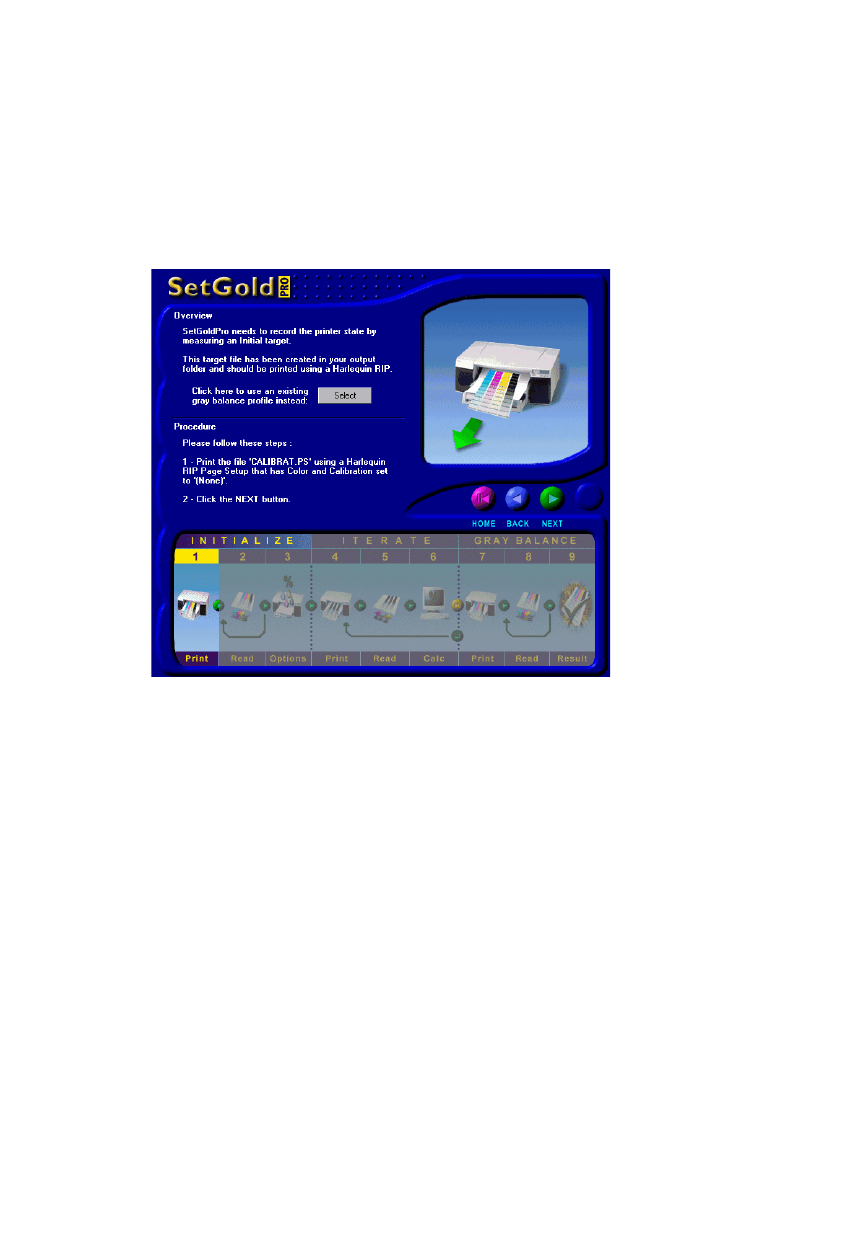

Figure 6.7 The Print initial target screen
The state of the printer is determined by printing and measuring an initial
target as follows:
1. Create a Harlequin RIP page setup that has no color or calibration set-
tings applied to it.
2. Use the page setup to print Calibrat.ps, which can be found in your
output folder. Click Next to continue.
![](asset-26.png)
6 Creating gray balance profiles
38 SetGoldPro 4.0 User Manual
Figure 6.8 The initial target –trim to lines
Note: From v8.1 the date and device name are printed on the calibration
target.
3. SetGoldPro will now prompt you to read the initial target. Make sure the
ink is completely dry before you do this. For correct reading of the target
you must scan it from dark to light, otherwise the profile SetGoldPro
produces will not be correct.
If you selected the option to read calibration readings from IT8 data files,
you will at this point be prompted for the first IT8 file, which must be
called CALIBRAT.IT8 in order for SetGoldPro to be able to use it correctly.
Note: From v8.1 a calibration.csv file is provided which contains the spectra
readings. This file can be read into your database application. If multiple read-
ings are made, they accumulate in the file, newer ones at the end. The first
column in the file is the percentage ink for the patch; the remaining data repre-
sents the measured value.
Trim lines Trim lines
![](asset-27.png)
6.1 Creating gray balance profiles
SetGoldPro 4.0 User Manual 39
6.1.2 Determining inking limits

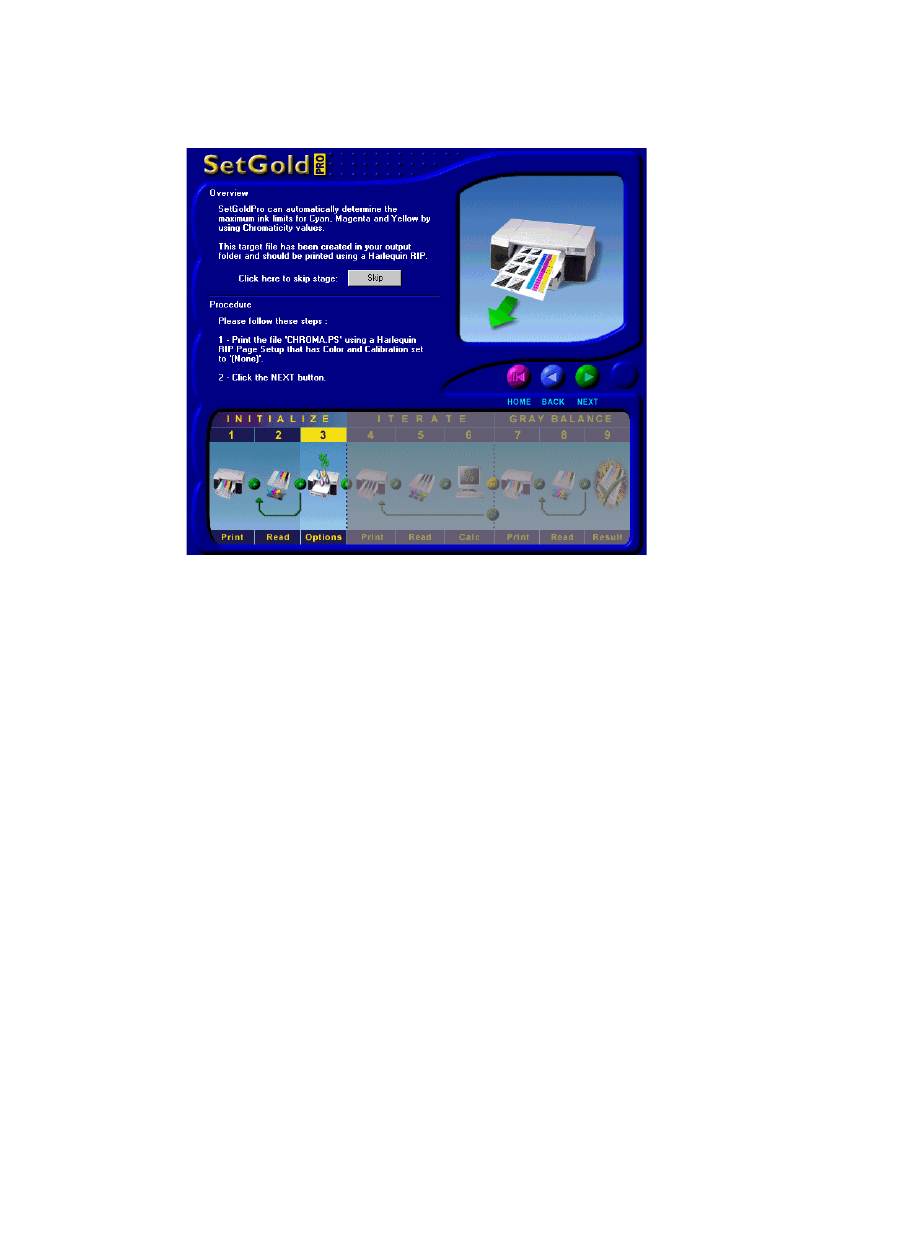

Figure 6.9 The Ink Limits screen
By measuring chromaticity values on a specially prepared target, SetGoldPro
is able to determine the extent of your ink limits and calculate the minimum
amount of ink needed to achieve the maximum gamut for the inkset, paper,
screening and resolution combination in use. In some combinations, however,
over-inking may still occur. Reducing inking further will reduce the gamut on
the output device, which in rare cases may reduce portions of the gamut
inside the press gamut. This results in unprintable colors on the subsequent
proof and therefore a potentially poor color match for some colors. Through
additional testing, you must decide whether a different paper or ink is
required to meet the gamut requirements of the press condition you are proof-
ing to.
If you already know your printer’s inking limits you can enter them yourself,
by choosing Skip in step 3 (Figure 6.9) and entering the values into the fields
shown in Figure 6.10.
![](asset-28.png)
6 Creating gray balance profiles
40 SetGoldPro 4.0 User Manual
Note: From v8.1 a chroma.csv file is created which can be read into a database
application and allows you to analysis the results. If multiple readings are
made, they accumulate in the file, newer ones at the end. The first column in
the file is the percentage ink for the patch; the remaining data represents the
measured value.
For more information on inking limits, see “Inking limits” on page 61.

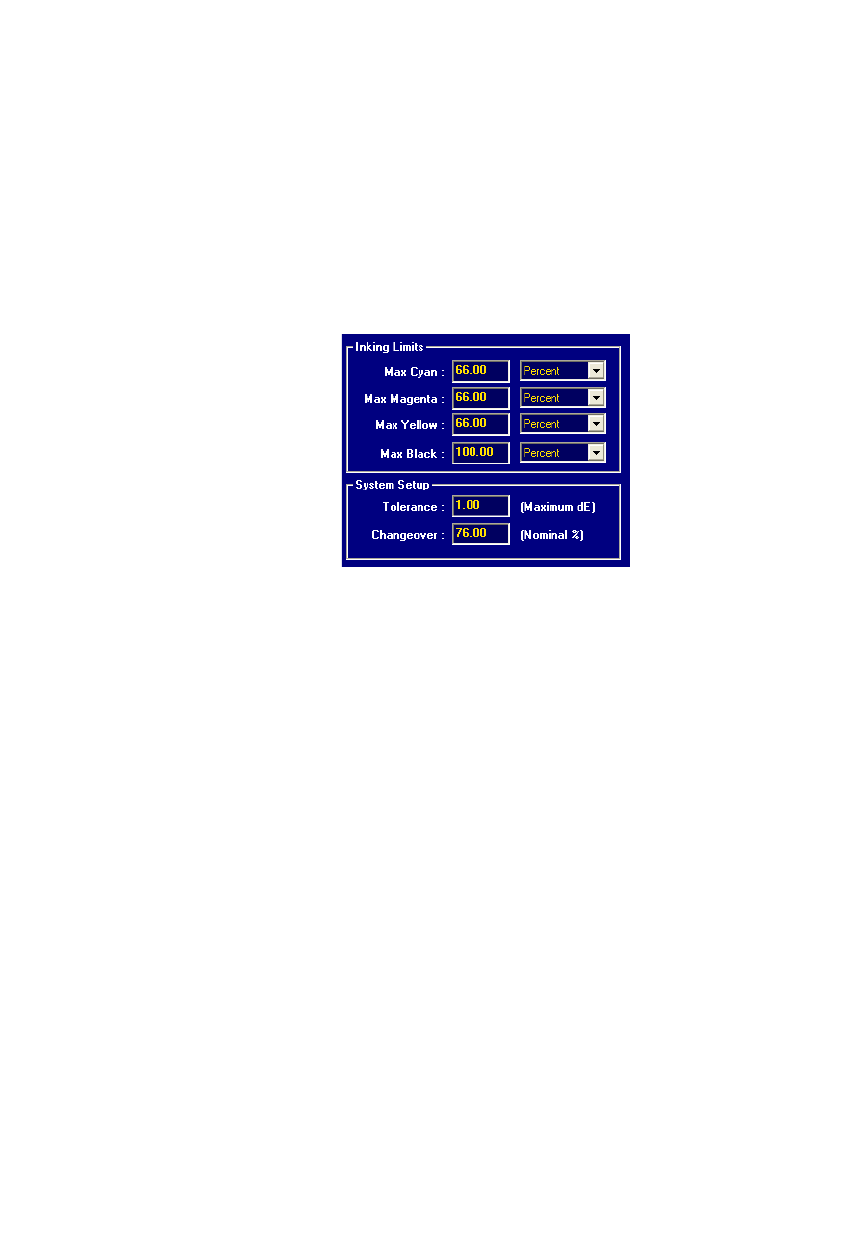

Figure 6.10 Entering printer inking limits
To have SetGoldPro determine your printer’s inking limits, do the following:
1. Using a Harlequin RIP page setup that has no color and calibration set-
tings applied, print the job called CHROMA.PS that can be found in your
SetGoldPro output folder. Ensure the target is fully dry before attempt-
ing to measure it.
2. Click Next to continue.
3. If you have opted to use a spectrophotometer device that is connected to
the computer to read targets, SetGoldPro will prompt you to read the
first strip. Otherwise, you will need to read the target and create an IT8
file called CHROMA.IT8, and then import it when prompted by SetGold-
Pro.
Note: From v8.1 a iteration.csv file is provided which contains the spectra
readings. This file can be read into your database application. If multiple read-
ings are made, they accumulate in the file, newer ones at the end. The first
column in the file is the percentage ink for the patch; the remaining data repre-
sents the measured value.
![](asset-29.png)
6.1 Creating gray balance profiles
SetGoldPro 4.0 User Manual 41
4. Click Next to continue.
5. Enter values for tolerance and changeover as follows:
Note: This step is not required when building a gray balance profile
using the vDot plug-in.
Tolerance Determines the acceptable tolerance between an ideal
grayscale and the measured values. A tolerance of 1.0
dE is just visible to most observers, while most measur-
ing instruments show a variation of 0.2 or 0.3 dE when
repeating a measurement of the same color patch. (In
general, the smaller the tolerance the more measure-
ments you will need to make later in this procedure.) A
higher tolerance setting (2.0 dE or more), may be
required for some combinations of media, ink and
printer. This tolerance setting is a guideline and you can
choose at a later stage to create a Golden State profile
that attains a larger or smaller tolerance. A value of
about 1.00 dE is usually a good choice.
Changeover Defines a percentage point on the Gray Balance target
at which SetGoldPro will switch from producing as per-
fect a neutral color as possible to progressively
approaching the color of the solid CMY overprint. A
high value means the highlight and midtones remain
neutral for longer. A lower value results in smoother
midtones and shadow tones, at the expense of neutral-
ity.
6. Click Next to continue.
6.1.3 Printing and measuring gray balance targets
The process of printing a gray balance target, measuring it and then produc-
ing a new target based on these measurements is the basis for creating a gray
balanced profile. The process is repeated until the defined tolerances are
unable to be improved any further, at which point the profile is said to be
optimized.
![](asset-2a.png)
6 Creating gray balance profiles
42 SetGoldPro 4.0 User Manual
Note: If using the HQ vDot4 plug-in for the Epson Stylus Pro 4900, 7880, 9880,
7900 and/or 9900 this step should be omitted. With the proper ink limits set
by the previous step, along with the further ink mixing done by the Epson
Halftone Module (HTM), the result will be a gray balance suitable for produc-
ing an optimized printing state for color characterization

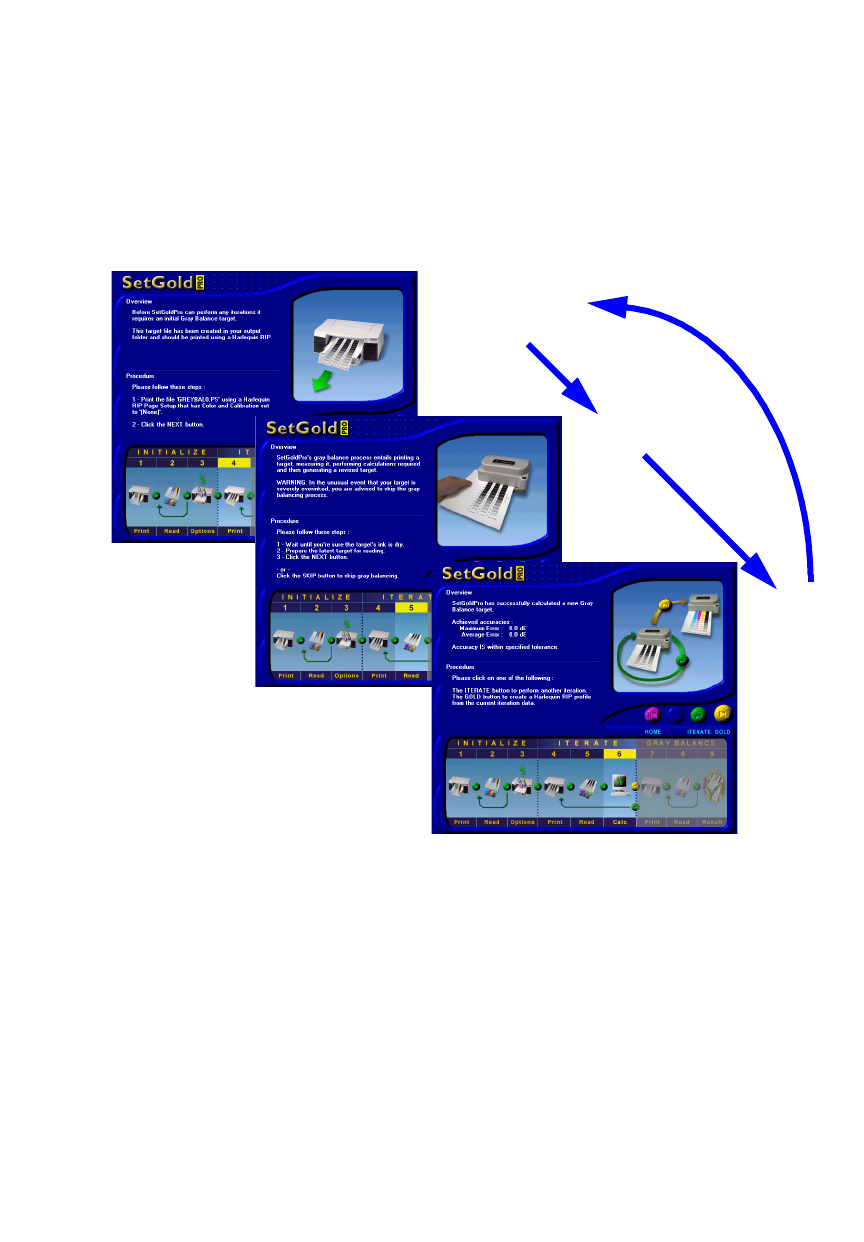

Figure 6.11 The Iteration process
In cases of severe over-inking, such as when the inks flows between patches
on the target, there is little to be gained from gray balancing. For these situa-
tions we suggest that you try a lower resolution setting and/or different paper
type, as a profile that has not been gray-balanced will severely limit the output
quality produced by the printer.
1. Print a
Gray Balance target
2. Read into SetGoldPro
3. Calculate
new target
4. Repeat the
process
![](asset-2b.png)
6.1 Creating gray balance profiles
SetGoldPro 4.0 User Manual 43
To print and measure gray balance targets, do the following:
1. Using a Harlequin RIP page setup that has no color and calibration set-
tings applied, print the job called GREYBAL(x).PS (where xis the target
number, 0 being the first one) that can be found in your SetGoldPro
output folder. Ensure the target is fully dry before attempting to measure
it.
2. Click Next to continue.
3. If you have opted to use a spectrophotometer device that is connected to
the computer to read targets, SetGoldPro will prompt you to read the
first strip. Otherwise, you will need to read the target and create an IT8
file called GREYBAL(x).IT8, and then import it when prompted by Set-
GoldPro.
4. Click Next to continue.
5. If the achieved accuracies are within your acceptable tolerances, click
Gold to proceed to the next phase of the process, where you will use the
golden state profile to create a golden state target to configure the final
Harlequin RIP profile. Otherwise, if the tolerances are not acceptable
and there is still room for improvement in the profile, click Iterate and
repeat step 1 again.
![](asset-2c.png)
6 Creating gray balance profiles
44 SetGoldPro 4.0 User Manual
6.1.4 Creating a gray balance profile
Now that you have a golden state profile you can use it to create a gray bal-
ance profile that can be used in the Harlequin RIP, as described in “Using a
gray balance profile in the RIP” on page 45.

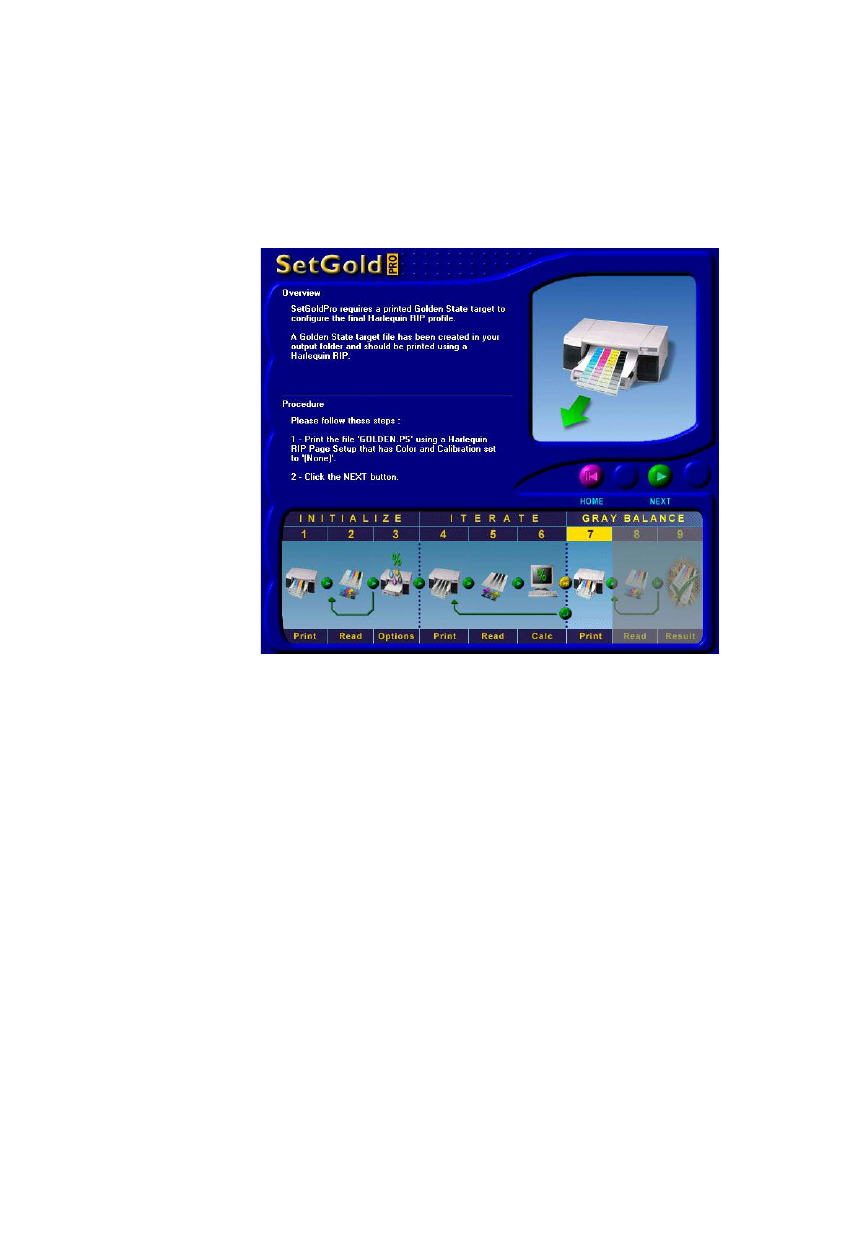

Figure 6.12 Creating a gray balance profile
To create a gray balance profile, do the following:
1. Using a Harlequin RIP page setup that has no color and calibration set-
tings applied, print the job called GOLDEN.PS (where xis the target num-
ber, 0 being the first one) that can be found in your SetGoldPro output
folder. Ensure the target is fully dry before attempting to measure it.
2. Click Next to continue.
3. If you have opted to use a spectrophotometer device that is connected to
the computer to read targets, SetGoldPro will prompt you to read the
first strip. Otherwise, you will need to read the target and create an IT8
file called GOLDEN.IT8, and then import it when prompted.
To handle different density standards (Status T, Din) and measurement
devices, you may include up to four sets of measurements in your
“golden state”, gray-balanced profile.
![](asset-2d.png)
6.2 Using a gray balance profile in the RIP
SetGoldPro 4.0 User Manual 45
4. Click Next to create a gray-balance profile in your output folder with the
name %%Title: Gray-balanced profile.
5. Click Exit to close the application or Home to create another profile.
6.2 Using a gray balance profile in the RIP
Now that you have created a gray balance profile, you can use it in the RIP to
manage color output. To do this, first copy the profile to your Profiles folder
(\SW\devices\plugin\Profiles\device\) and then use it in the RIP as follows:
1. Open the RIP Calibration Manager.
2. From the device list, select the device that you wish to use.
3. Click New to open the Edit uncalibrated target screen.
4. Enter a name for the calibration set.
5. From the Profile list, select the gray balance profile that you wish to use.
6. Make sure the Force Solid Colors option is not selected. This is important.
7. Choose OK to close the window, and then OK to close the Calibration
Manager.
8. To implement the new calibration profile, open or create a new page
setup that uses the target device and choose the profile from the Calibra-
tion list.
Once this procedure has been completed, ICC color characterization targets
from your preferred profiling package should be printed from this state, or
continue onto “Creating output profiles” on page 47 if making SetGoldPro
output profiles.
![](asset-2e.png)
6 Creating gray balance profiles
46 SetGoldPro 4.0 User Manual
![](asset-2f.png)
SetGoldPro 4.0 User Manual 47
7
7Creating output profiles
Output profiles must be built on sound color science principles to produce
color accurate proofs or final print color gamuts. SetGoldPro profiles can
include “golden state” curve data, calibration data and color characterization
target data. Once an output profile has been created for your printer all of the
features of the ColorPro™in-RIP color technology can be used to optimize
printing.
7.1 SetGoldPro procedure
SetGoldPro includes a set of color characterization targets. To create an output
profile you will need to take measurements from one or more of these targets.
1. Using your proofing printer, print one or more of the color characteriza-
tion targets that can be found in the folder setgold\data\Target_Files,
or, if these are unsuitable for your reader, print the targets that have been
supplied with your reader.
For more information on the targets see “Color characterization targets”
on page 77.
![](asset-30.png)
7 Creating output profiles
48 SetGoldPro 4.0 User Manual
754_patch.ps
845_patch.ps
928_patch.ps
GG_i1iO_Target1426_A.pdf
GG_i1iO_Target4374.pdf
HQ_1426_A_v1.ps
Or use the following four targets (which together make up one large target):
HQ_4374_P1.ps
HQ_4374_P2.ps
HQ_4374_P3.ps
HQ_4374_P4.ps
Random targets:
\color_targets\754_patch_random.zip
\color_targets\845_patch_random.zip
Or use the following two targets (which together make up one large target):
HQ_1617R_p1.ps
HQ_1617R_p2.ps
Important: To ensure a full gamut range, you will need to print the tar-
gets using a gray balanced profile that has been created for the paper
and ink installed in the printer. See “Creating gray balance profiles” on
page 35 for details.
2. Allow sufficient time for the ink to dry before measuring the targets.

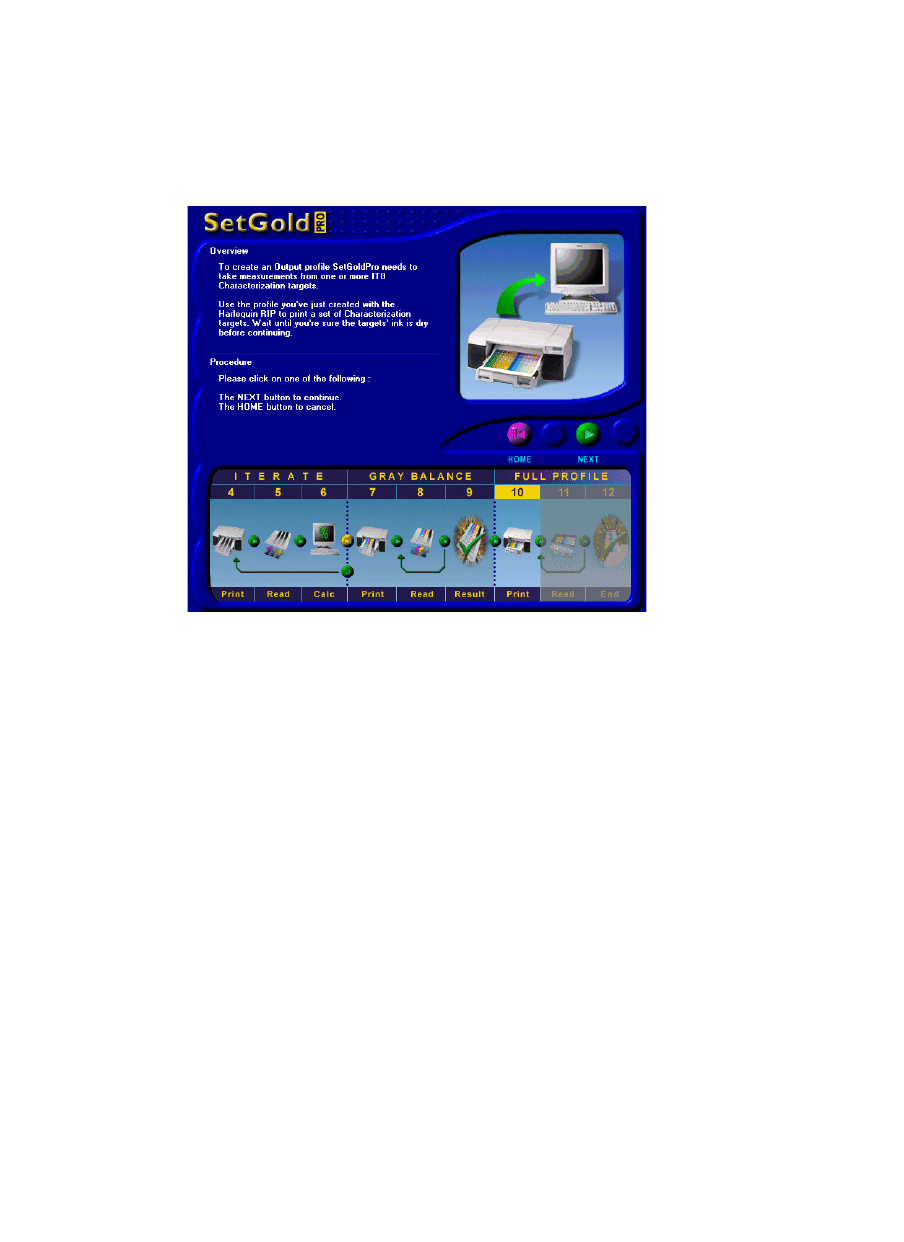

![](asset-32.png)
7 Creating output profiles
50 SetGoldPro 4.0 User Manual
4. If a gray balance profile does not exist, however, SetGoldPro assumes
you have not created one and starts from the beginning. In this case
SetGoldPro needs to know about your printing conditions so it can
create a properly labelled profile. On the screen shown in Figure 7.14,
enter as much information about your printing conditions as you can.

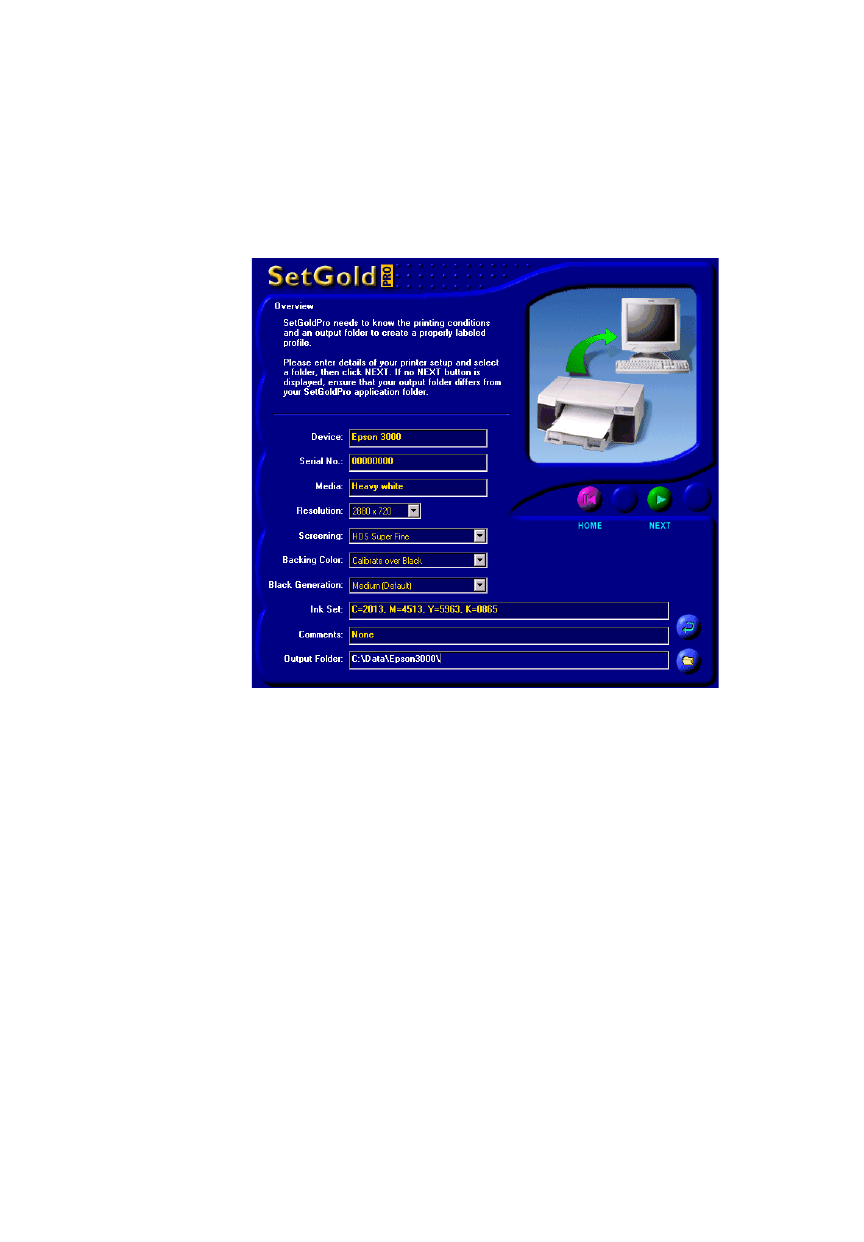

Figure 7.14 Enter details of your printing conditions
Note: The v8.0 Harlequin PLUS Server RIP needs to know which colorants are
set in the printer. From v8.1 The names of the screens have changed and you
have to select the full colorant style “HEDS1 PhotoInk 2211” or “HEDS2 Pho-
toInk 2213” rather than “HEDS2”.
5. Enter a location in Output Folder for the profile information generated by
SetGoldPro (you will not be able to advance to the next screen unless
you have selected an output folder). Click Next when you have entered
the requested information.
Now perform the various steps as described in “Entering printer inking
limits” on page 40. Then proceed to step 6 below.
6. From the drop-down list, choose how you would like to measure your
characterization targets, and then click Next to continue.
![](asset-33.png)
7.1 SetGoldPro procedure
SetGoldPro 4.0 User Manual 51
7. From the list of options that are available, choose how you wish to mea-
sure the characterization target.
For more information on the targets see “Color characterization targets”
on page 77.
Make sure you choose the option that matches the type of target that you
measured. For example, if you measured one of the 1426 patch targets
such as the GG_i1iO_Target1426_A.pdf or the HQ_1426_A_v1.ps target,
select Import GG 1426 target from IT8 files.
If you are using an external data set such as one from the www.color.org
website, you will need to choose one of the following options at this
stage:
For IT8.73 data, select Import 928 target from IT8 files.
For IT8.74 data, select Import IT8.7/4 target from IT8 files.
For ECI data, select Import ECI target from IT8 files.
8. Depending on how you are measuring the targets, either browse to the
IT8 data file or files, or read the target with your spectrophotometer, as
directed by SetGoldPro.
If you use a target consisting of multiple files, such as the HQ_1617R or
HQ_4374, you can select all the files at once when browsing to the file
location, or if you prefer you can select them one at a time by using the
Iterate button.
If you are using an external data set, select the IT8 data file.
9. Use Iterate to repeat the measuring procedure for other targets/data files
that you wish to input.
10. . If using the reader’s own software to read the targets, use the appropri-
ate .csv file from the color_targets folder to measure the targets.
11. After reading the targets, click Gold to create the output profile in your
output folder with the name %%Title: color output profile.
12. Click Exit to close the application or Home to create another profile.
![](asset-34.png)
7 Creating output profiles
52 SetGoldPro 4.0 User Manual
7.2 Using the output profile in the RIP
Once an output profile has been created it can be used by ColorPro™in-RIP
color technology to optimize printing. Refer to the Harlequin ColorPro manual
for details on how to use SetGoldPro output profiles along with rendering
intents for optimal color managed output.
7.3 Creating an ICC profile
Before you create an ICC profile and import it into the RIP check that the TAC
that you intend to implement in your profiling package is sufficient to limit
the ink. The TAC that you should use may have changed because the
SetGoldPro profile that you use to print has changed the response of the
printer.
The exact procedure for creating an ICC profile varies between applications.
However, the procedure described here is suitable for most applications.
1. Print the file ProfileInkLimits.ps which is located in the misc folder
within SetGoldPro’s application folder, using the page setup in which
you have chosen your copied profile.
2. Inspect the Superblack patch on this target (C+M+Y+K) and choose the
highest patch that produces acceptable output. The TAC of this patch
should be your new profiling package TAC, unless you discover the
need for a lower TAC when examining the double overprints in the next
step.
3. Examine the double overprints (C+M, C+Y, M+Y) on this target for signs
of over-inking below the TAC that you intend to set in your profiling
package.
For example, if your intended profiling package TAC is 160% and you see over-
inking in the M+Y patch at 75% (a TAC of 150%), you need to change your
intended profiling package TAC to 140%.
4. If necessary, make a note of your new profiling package TAC.
Note: If you cannot reduce your profiling package TAC to this new limit, you
need to create a new Golden State profile with lower ink limits. See “Method
C” on page 65 for details.
![](asset-35.png)
7.3 Creating an ICC profile
SetGoldPro 4.0 User Manual 53
Once you have checked your intended profiling package TAC, print the color
profiling target using the page setup in which you have chosen the copied
SetGoldPro profile.
If the color profiling target is still subject to over-inking, you may be able to
use the special page feature CMYKInkLimit.
Note: This page feature can only be used when printing targets that use the
setcmykcolor PostScript language operator: it cannot be used when printing
color profiling targets that contain images. It limits the TAC of patches so that
they do not exceed the TAC that you intend to use in your profiling system.
This means that patches that would have been ignored by your profiling
system are prevented from over-inking and ruining neighboring patches.
If necessary, follow the steps below to edit your page setup so that it uses the
CMYKInkLimit page feature:
1. Move the CMYKInkLimit file from the misc folder within the SetGoldPro
application folder into the Page Features folder within the
Harlequin RIP application folder.
2. Open this file and edit the value for the key /InkLimit so that it matches
your intended profiling package TAC.
For example, if you intend to implement a TAC of 140%, change the
value to 1.4.
3. Open the Page Setup Manager and select the page setup that you wish to
edit and click Edit.
4. Select the Enable Feature check box in the Processing section and choose
CMYKInkLimit from the accompanying menu.
5. Click OK twice to close the dialog boxes.
6. Use this edited page setup to print a target that can be successfully
measured.
Once you have generated the ICC profile, using an appropriate TAC control,
install it using the RIP menu option, Color > Install ICC Profile. In the Linear
Calibration From list in the Install ICC Profile dialog box, you must select the
![](asset-36.png)
7 Creating output profiles
54 SetGoldPro 4.0 User Manual
Golden State profile that you have created with SetGoldPro. All the important
data from the Golden State profile is now associated with the installed ICC
profile.
![](asset-37.png)
SetGoldPro 4.0 User Manual 55
8
8Troubleshooting
8.1 Error messages
The following is a list of possible error messages and symptoms that you may
encounter when using SetGoldPro. Suggestions are also made for how you
can overcome these errors.
You can inspect the SetGoldPro.log file, created in the SetGoldPro application
folder or your chosen output folder, for details of error messages, such as
those relayed from the reading device.
Error Bad reading
You should re-read the first patch again. If the error continues (and is
device related as opposed to trimming the target inside of the dashed
lines) then a re-calibration of the device has been known to correct this
issue in some situations.
Error the strip last read is not correct
You have the choice to continue by either selecting Next or selecting Back
to try again.
Error the selected RIP does not support profile install
You have selected a RIP which is not capable of supporting automatic
profile install. You should reselect the RIP ensuring it is a Harlequin RIP
Eclipse Release SP3 (or later) or manually install the profile as described
![](asset-38.png)
8 Troubleshooting
56 SetGoldPro 4.0 User Manual
in “Creating an input profile” on page 20, “Installing the emulation pro-
file in the Harlequin RIP” on page 33 or the Harlequin ColorPro manual.
Error creating setup data
Error writing setup data
Failed to save setup data
SetGoldPro creates a Setup file in the data sub-folder of your application
folder. This file records your choice of reading device and output folder.
These messages appear if there is insufficient disk space to write to this
file or if the disk or file is read-only. To prevent this error, ensure that
enough disk space is available or change the disk and file properties.
Error creating Print-State data file
Error writing Print-State data
Error saving Print-State data file
SetGoldPro creates a data file in your chosen output folder. This file
records printer setup information as well as your print options, such as
inking limits. These messages appear when there is insufficient disk
space to write to this file or if the disk or file is read-only. To prevent this
error, ensure that enough disk space is available or change the disk and
file properties.
Warning - Some default Print-State values used.
This message occurs when default values are used in place of missing
information for the data file in your output folder. Inspect the file to see
if the default values are applicable. If necessary, edit the values.
Error creating file ’C:\...\...\...\ANYFILE.ps’.
This message appears when the named file is read-only. To prevent this
error change the properties of the file so that it is no longer read-only.
Status T Read error ’Bad reading’.
Status T Read error ’LAB read error’.
These messages occur if the reader is unable to correctly read the patch
that it is measuring. To prevent this error, ensure that you feed the target
into the reader at the correct angle. If necessary, re-align the target so that
the middle of the patch that you are reading is in line with the alignment
markings on your reader.
![](asset-39.png)
8.2 Symptoms
SetGoldPro 4.0 User Manual 57
You may need to change the dividing lines on the target so that the
reader can distinguish between neighboring patches. See Appendix B.3
“Editing the dividing lines on all targets” for details.
Status T Read error ’Device needs calibrating’.
This message occurs if your device needs re-calibrating. When re-cali-
brating, ensure that you use the correct calibration plaque for the reader.
Npoint(s) corrected to make Output curve monotonic
This message occurs if SetGoldPro has modified the curve to ensure that
ink saturation values increase rather than decrease for increasing per-
centage levels. Nis the number of points on the curve that SetGoldPro
has modified.
Invalid min/max points in adjustment curve
End points of adjustment curve are invalid
These messages appear when the curve for any of the channels is non-
monotoni?. If this message appears, SetGoldPro has been unable to cor-
rect the tone curve. This means that you will get an error if you try to use
this profile in the Harlequin RIP. In the rare event that you see this mes-
sage, you will need to create another profile.
8.2 Symptoms
Difficulty in reading calibration patches
You may have trimmed the target too much. The dashed lines used as
trim marks must remain on the patch. Try adding a backing piece of the
same type of paper and re-read the patch, or print another target.
You may have selected the wrong model of DTP41. When you click
Options it is important to select the exact model that you are using.
You may have loaded the patch wrongly. Offer the patch up to the align-
ment mark on the spectrophotometer, inserting the target as far as it will
go before you meet firm resistance. Then click Next to start the reading.
There may be insufficient contrast between the patches and the dividing
lines. This is most likely to happen in the black patch of the Initial target,
but is possible elsewhere. To cure the problem, you must edit the
![](asset-3a.png)
8 Troubleshooting
58 SetGoldPro 4.0 User Manual
defaults.lg file to make the dividing lines turn from black to white.
See Appendix B.3 “Editing the dividing lines on all targets” for details.
Your reader may need re-calibrating if you repeatedly get read error
messages. Ensure that you use the correct calibration plaque for the
reader.
SetGoldPro may not be able to communicate with the reader due to the
re-configuration of the communications port by another application. Use
the Task Manager to close SetGoldPro and then close the application that
you suspect is causing the conflict. If necessary reboot your computer.
You can then restart SetGoldPro and configure the communications port
by clicking Options.
Difficulty in achieving the required error tolerance
You may have specified too small a tolerance. Try a larger value. For
example, you may not be able to achieve a tolerance of 1.0 dE for the
combination of media, ink and printer that you are using.
You may have read the same patch twice or you may have read the
patches in the wrong order. If you think this is the case, try re-reading
the patches.
You may be allowing inadequate drying and stabilization time before
measuring targets.
Difficulty seeing the created profile in the RIP
A small number of names seem to cause the name to be unlisted in the
Profile list in the Edit Calibration dialog box. You may also see problems
with names similar to the plugin device, but differing only in the use of
uppercase or lowercase letters.
If you see this problem, try renaming the profile to a dissimilar name
then close and re-open the Edit Calibration dialog box. Please report any
such problems to Global Graphics.
Edit Calibration reports a problem with the profile
This may happen when you exit the repeated printing and measuring of
greybalN.ps files with a large error. The error may have led to invalid
curves in the profile file, such as non-monotonic values.
![](asset-3b.png)
8.2 Symptoms
SetGoldPro 4.0 User Manual 59
Check that you intended to end the iterative measurements in
SetGoldPro at the point that you did. It is possible to resume measure-
ments from a previous session and it may be worth trying one iteration
or more to reduce the reported error values.
![](asset-3c.png)
8 Troubleshooting
60 SetGoldPro 4.0 User Manual
![](asset-3d.png)
SetGoldPro 4.0 User Manual 61
Appendix A
Inking limits
A.1 Introduction
This appendix contains details on why you may wish to set ink limits
in SetGoldPro (even if you are using a separate color profiling package, to, for
example, create an ICC profile), and some guidelines on how to decide on
these limits. Before examining the individual cases where you may need to
use SetGoldPro's ink limiting functionality, it may be helpful to consider the
following questions and answers.
Why are inking limits necessary?
It is sometimes necessary to limit the TAC (Total Area Coverage) to pre-
vent paper from becoming oversaturated. Oversaturated paper may tear
and signifies wastage of ink. In some extreme cases the ink may run and
ruin an image or patches on a target.
In SetGoldPro 4.0 a new ink limiting algorithm should provide more
suitable ink limits for proofing purposes, especially if you are using
SetGoldPro to produce the final output profile. However, in some cases,
you may still find it necessary to manually override the suggested ink
limits, for example to provide the largest possible gamut for perceptual
rendering, or if you are using SetGoldPro alongside another profiling
package to create an ICC profile.
![](asset-3e.png)
Appendix A Inking limits
62 SetGoldPro 4.0 User Manual
Why not limit the TAC in your color profiling package?
If you are using a separate color profiling package alongside
SetGoldPro, it is likely that it will use one of two main methods for creat-
ing a color profile.
One method uses a RGB color profiling target as its starting point. The
user then specifies the TAC as part of the conversion process from a RGB
to a CMYK color profiling target. If using a suitable TAC, this method
should result in a target that does not overink. However, if your profil-
ing package cannot provide a low enough TAC limit, you may need to
use SetGoldPro to help limit inking.
The second and more common method of creating a color profile uses a
CMYK color profiling target as its starting point. This color profiling
target may exhibit over-inking. In most cases, patches on an over-inked
target that are above the specified TAC are ignored. However, severe
over-inking may mean that it is not possible to measure some neighbor-
ing acceptable patches of the color profiling target.
Why not limit the TAC in SetGoldPro?
If you are using a separate color profiling package, for example to create
an ICC profile, and you used just SetGoldPro to limit the TAC, you
would prevent your color profiling package from producing saturated
colors. For example, if you wanted to implement a TAC of 240% in Set-
GoldPro, each color component would be limited to approximately 60%.
Your color profiling package cannot then use 80% Cyan and 90% Yellow
to produce a bright green, even though this would require only 170% ink
coverage. Instead your color profiling package must use the absolute
limits set in SetGoldPro of 60% which would produce a much paler
green.
Having considered the limitations of using just SetGoldPro or just your color
profiling package to limit inking, let us look at some methods for determining
ink limits in SetGoldPro.
![](asset-3f.png)
A.2 Methods for determining SetGoldPro ink limits
SetGoldPro 4.0 User Manual 63
A.2 Methods for determining SetGoldPro ink limits
The list below offers an overview of some possible methods for deciding on
SetGoldPro ink limits. Choose the method that suits your needs and refer to
the relevant section for further details.
•“Method A” on page 64
Use this method to ensure that the ink limits are not reduced below
those of the eventual press, when using the printer as a proofing device.
This method involves setting the ink limits to just above those of the
eventual press.
•“Method B” on page 64
Use this method if you have already created a profile for one resolution
with suitable ink limits and you wish to create a matching profile for
another resolution.
This method involves copying the maximum Status T value for each
color component from the first profile for use in the other profile.
•“Method C” on page 65
If you are using a separate color profiling package alongside
SetGoldPro, use this method to facilitate any of the following needs:
• Establish what your profiling package TAC should be
• Limit inking beyond the ability of your profiling package
This method consists of two main stages.
The first stage involves following a procedure to establish a desired pro-
filing package TAC.
If necessary, the second stage involves deciding on SetGoldPro ink limits
to account for the difference between your desired profiling package
TAC and the actual TAC control offered by your profiling package.
Note: You may still see over-inking when using a Golden State profile that
includes ink limits to print a color profiling target. In most cases this over-
inking can be ignored, as ink is limited by the TAC control of your profiling
package. In some severe cases the ink may run and prevent acceptable patches
from being read.
![](asset-40.png)
Appendix A Inking limits
64 SetGoldPro 4.0 User Manual
A.3 Method A
Use this method in a proofing situation where you know the solid ink densi-
ties for the printing system you wish to proof and where the primary objective
is to ensure that the color gamut of your proofing device is not reduced below
that of your eventual press.
This method involves setting ink limits in SetGoldPro to values just above
those of the eventual press.
For example, you could take the maximum Status T values for each color com-
ponent on a SWOP press and use slightly higher values in SetGoldPro. The
amount by which you should increase the ink limits is a matter of experimen-
tation and analysis.
The table shows some Status T values for a SWOP press.
A.4 Method B
If you have already created a Golden State profile for one resolution you can
use the same inking limits when creating a matching profile for another
resolution.
For a proofing environment this method ensures the color gamuts will match
for a given ink, paper and screening combination, regardless of resolution
setting.
To access the Status T values used in the first profile, follow these steps:
1. Open the Calibration Manager using the Output>Calibration Manager
menu option.
2. Choose the Device for which the profile was created and click New.
3. Choose the Profile that you wish to copy values from.
Table 1.1 SWOP Press - CGATS Type 1
Color Cyan Magenta Yellow Black
Status T 1.22-1.36 1.33-1.47 0.94-1.08 1.52-1.66
![](asset-41.png)
A.5 Method C
SetGoldPro 4.0 User Manual 65
4. Choose Status T (X Rite) from the Measurements as menu.
5. Choose Cyan from the Channel menu and note the Status T value within
the C100 field.
6. Repeat step 5 for the other channels.
7. Use these values in SetGoldPro.
A.5 Method C
Use this method if you are using SetGoldPro alongside another color profiling
package. The method involves either one or two stages.
Stage 1 Complete stage 1 to establish what your profiling pack-
age TAC should be.
This stage involves printing a file that shows output for
different levels of Cyan (C), Magenta (M), Yellow (Y),
Black (K) and Superblack (C+M+Y+K). You decide on
acceptable maximum ink limits for each of these
patches and calculate your desired profiling package
TAC on the basis of these limits.
Stage 1 includes steps 1-4 of the procedure.
Stage 2 Continue to stage 2 if your desired profiling package
TAC is below the level of control offered by your color
profiling package.
This stage involves following guidelines to decide on
SetGoldPro ink limits that account for the difference
between your desired and actual profiling package
TAC.
Stage 2 includes steps 5-8 of the procedure.
Note: As discussed in the introduction, unnecessarily low ink limits
in SetGoldPro prevent a color profiling package from producing saturated col-
ors. Where possible, limit inking using your profiling package rather
than SetGoldPro.
![](asset-42.png)
Appendix A Inking limits
66 SetGoldPro 4.0 User Manual
Follow steps 1-4 of the procedure to establish your desired profiling package
TAC. Complete the whole procedure if your desired profiling package TAC is
below the level of control offered by your color profiling package.
1. Print the file SetGoldLimits.ps located in the misc folder within the Set-
GoldPro application folder, using a page setup in the RIP where Color
and Calibration are set to (None).
The target contains patches for Cyan (C), Magenta (M), Yellow (Y), Black (K)
and Superblack (C+M+Y+K). The percentage levels for the patches of the C, M,
Y and K patches are indicated by the numbers to the left of the Cyan patch.
Numbers to the right of the Superblack patch indicate the TAC levels for the
Superblack patches.
2. Inspect the C, M, Y and K patches and record acceptable ink limits for
each patch.
You should select the highest ink limits possible and use the printing of reversed
text at a specific point size as a means of determining acceptable Output.
3. Inspect the Superblack patch and choose the highest patch that produces
acceptable output. Note the TAC of this patch. This is your aim TAC.
4. If the C, M, Y and K inking limits that you chose in step 2 are all 100%
then the aim TAC that you decided on in step 3 is equal to your desired
profiling package TAC. Otherwise, determine your desired profiling
package TAC using the formula:
Figure A.15 Desired profiling package TAC formula
For example, if the sum of the C, M, Y, and K inking limits is 370% and your
aim TAC is 160% then your desired profiling package TAC is approximately
170% ((160/370) x 400 = 173%).
Desired Profiling
Package TAC Sum of C, M, Y, K Limits ✕= 400
Aim TAC
![](asset-43.png)
A.5 Method C
SetGoldPro 4.0 User Manual 67
5. If your profiling package offers your desired TAC there is no need to set
ink limits in SetGoldPro. Otherwise, calculate the difference between
your desired profiling package TAC and the actual TAC control offered
by your profiling package. In total, you need to reduce the C, M, Y and K
inking limits by this amount.
For example, if your desired profiling package TAC is 170% and your profiling
package only offers a TAC control of 220%, then the difference is 50%.
Note: If your desired profiling package TAC is close to the lowest TAC
offered by your profiling package, then you should limit inking
in SetGoldPro. This means that you can further limit your profiling
package TAC, if necessary, at a later stage. The amount by which you
should limit inking is a matter of judgement.
6. Try to account for this difference, for example 50%, by reducing the
inking limit that you decided on for Black (K) in step 2.
Often, a range of similar patches can be seen in the Black patch. You can
account for some if not all of this difference by choosing the lowest patch in the
range. However, you should not limit any colorant more than necessary. For
example, if the difference is only 10% do not limit Black by more than a further
10%.
7. If necessary, account for the remaining difference by reducing the
C, M, Y inking limits that you chose in step 2.
You can either reduce these colorants equally or account for the remaining dif-
ference by choosing new CMY levels that attain a gray-balance. For example, if
the difference you calculated in step 5 is 50% and you reduce the Black inking
limit by a further 20% in step 6 then you can account for the remaining 30%
difference by reducing each of the other colorants by 10%.
8. Record the revised ink limits that you decided on in steps 6 and 7.
![](asset-44.png)
Appendix A Inking limits
68 SetGoldPro 4.0 User Manual
![](asset-45.png)
SetGoldPro 4.0 User Manual 69
Appendix B
Editing default values for
targets
B.1 Introduction
This appendix describes how to edit some default values used for generating
targets in SetGoldPro. The default values that you can edit are mainly associ-
ated with Gray Balance targets, although you can edit the color of dividing
lines on all targets.
The default values used for generating targets are defined in a PostScript dic-
tionary in the defaults.lg file, located in the data folder within your
SetGoldPro application folder. Values within this dictionary are expressed as
key-value pairs, which include a key that begins with a forward slash, such as
/IterationPrefix and a value such as Greybal.
Note: If you edit the defaults.lg file and wish to return to the default values,
delete the defaults.lg file and restart SetGoldPro. SetGoldPro will create a
new defaults.lg file with default values if no existing file is found.
![](asset-46.png)
Appendix B Editing default values for targets
70 SetGoldPro 4.0 User Manual
B.2 Editing the Gray Balance target
There are two main aspects of the Gray Balance target that you may edit:
Percentages You can change the percentage values of the patches for
all the strips. See “Percentage values” on page 70 for
details.
Filenames You can change the format of file names for both the
Gray Balance target file and the IT8 import file. See
“File names” on page 72 for details.
Refer to the individual sections for details on how and why to edit specific
defaults.
B.2.1 Percentage values
You can change the percentage values of the patches for the No Change strip, as
well as the percentage values that are used in the Magenta Change and Yellow
Change strips when creating the first Gray Balance target. Also, you can spec-
ify the percentages to use on the chromaticity target.
No Change strip
The percentage values used for the patches of the No Change strip on
the Gray Balance target are defined in an array with the key
/Percentage.
/Percentage [ 100.0 95.0 90.0 85.0 80.0 70.0 60.0 50.0
40.0 30.0 20.0 15.0 10.0 8.0 6.0 4.0 2.0 0.0 ]
The default values range from 100-0%, with 5% and 10% increments.
You can choose other values, but there must be 18 patches and the per-
centage values must range from 100.0 to 0.0.
Note: The percentage values reflect a percentage of the maximum
amount of Cyan, Magenta and Yellow that you allow (see “Determining
inking limits” on page 39). The maximum limits for CMY are indicated
on the bottom right of the target. For example, if you set an inking limit
of 40% for C, M and Y the target would read Max CMY (40, 40, 40).
![](asset-47.png)
B.2 Editing the Gray Balance target
SetGoldPro 4.0 User Manual 71
Do not change the maximum percentage value 100.0 to a lower value.
SetGoldPro already provides a mechanism for limiting inking, as
described in “Determining inking limits” on page 39.
You may wish to change other values to place more patches in the high-
lights, midtones or shadow tones sections of the strip.
Magenta Change / Yellow Change strip
You can change the amount by which the percentage values for the
Magenta Change and Yellow Change strips differ from those for the No
Change strip during the first iteration.The amount by which the percent-
age values differ for the first iteration is known as the range.
The default values for the Magenta Change strip are:
/M_Range [ 0.0 -14.0 -10.0 -12.0 -14.0 -18.0 12.0
12.0 12.0 10.0 6.0 6.0 4.0 0.0 ]
The default values for the Yellow Change strip are:
/Y_Range [ 0.0 -12.0 -16.0 -18.0 -16.0 -16.0 12.0
12.0 8.0 8.0 4.0 4.0 4.0 0.0 ]
The arrays of values for the Magenta Change and Yellow Change strips
directly correspond to the array of values for the No Change strip. In this
case the range for both strips at 100% is 0.0. The range for the Magenta
Change strip at 95% is -14.0 which produces a value of 81% for Magenta.
Similarly, the range for the Yellow Change strip at 95% is -12.0 which
produces a value of 83% for Yellow.
You can edit these values in order to optimize SetGoldPro and reduce
the number of iterations that you need to perform to make a Golden
State profile. For example, you can experiment with these values and
analyze the number of iterations that are necessary for varying ranges.
If you change the percentage values for the patches of the No Change
strip, you may wish to change the range for these strips. Determining
suitable ranges for particular percentage levels is a matter of
experimentation.
![](asset-48.png)
Appendix B Editing default values for targets
72 SetGoldPro 4.0 User Manual
Chromaticity values
Default percentages that are used in the Chromaticity stage. You may
find that you can fine tune the ink limits suggested by SetGoldPro, by
editing these values to encompass likely ink limits for your printer. For
example, if the likely ink limits for your printer range from 50% to 70%,
you may wish to use values ranging from 40% to 80%. The steps do not
have to be equal in size, or include 0% or 100%, as long as there are 18 in
total.
/ChromaticityPercentage [ 100.0 98.0 96.0 94.0 92.0 90.0 88.0
86.0 84.0 80.0 75.0 70.0 65.0 60.0 55.0 50.0 45.0 40.0 ]
B.2.2 File names
You can change the file name prefix of the Gray Balance target from its default
value of Greybal. You can also change the format of the file name of the IT8 file
that is searched for when importing data.
Note to OEMs: If you change the stem of the file name for Gray Balance
targets you need to edit the screen prompts detailed in
this document to reflect this change.
B.2.2.1 Gray Balance target file name
You can change the file name prefix used to create the file name of the Gray
Balance target file. The default value is:
/IterationPrefix Greybal
SetGoldPro appends the number of the iteration as well as the file extension
.ps to this file name prefix to create the file name of the Gray Balance target
file. For example, using the default settings, SetGoldPro produces the file
Greybal0.ps the first time it generates a Gray Balance target. Successive itera-
tions are then numbered accordingly, for example Greybal1.ps for the first
iteration and so on.
You can edit the file name prefix to contain any text:
/IterationPrefix AnyPrefix
![](asset-49.png)
B.2 Editing the Gray Balance target
SetGoldPro 4.0 User Manual 73
Note: SetGoldPro displays the file name in uppercase when it prompts you to
print the Gray Balance target file. The file generated in your output folder uses
the same case as the file prefix that you specify.
B.2.2.2 IT8 import file name
You can change the format of the file name of the IT8 file that is searched for
when importing data. You can change the file name prefix of the IT8 file from
its default value of:
/ImportPrefix Greybal
SetGoldPro expects the file name of the IT8 file to consist of the file prefix and
the file extension .it8.
You can also choose whether the file name should use the same numbering
convention as that used for the file names of Gray Balance target files. This
choice is indicated by the value of TRUE or FALSE for the key /ImportAppendNum.
The default value is:
/ImportAppendNum TRUE
When this value is TRUE you must include the number of the iteration for
which the measurements apply in the file name of the IT8 file. For example, if
the IT8 file contained data from measuring the target Greybal1.ps then you
should save the file as Greybal1.it8.
If the value is FALSE, you can use the same file name each time you save IT8
files, for example Greybal.it8.
Note: When you import data from an IT8 file this data is stored in the corre-
sponding Gray Balance target file. This means that you can use a single file
name for IT8 files and overwrite previously imported IT8 files, whilst still
keeping track of iteration data.
![](asset-4a.png)
Appendix B Editing default values for targets
74 SetGoldPro 4.0 User Manual
B.3 Editing the dividing lines on all targets
On all targets, black or white lines separate the patches. The lines must have
enough contrast for the reading device to detect the patch boundaries. You can
change the point at which the dividing lines on a strip change from black to
white for all of the targets used in SetGoldPro. Two main types of target are
used in SetGoldPro:
Golden State/Initial targets
Contain four strips Cyan (C), Magenta (M), Yellow (Y)
and Black (K).
Gray Balance targets
Contain three strips Magenta Change (M), No Change
(N) and Yellow Change (Y).
B.3.1 Initial target and Golden State target
For the Initial target and the Golden State target the default values are:
/BlackStripsCMYK [ 8 8 15 6 ]
The values in the array correspond to the CMYK strips and specify how many
black dividing lines should appear in each strip, counting upwards from the
dividing line below the lowest percentage patch. There are a total of 15 divid-
ing lines in each strip. The default values specify that all of the dividing lines
in the Yellow strip (Y) are black, whereas only the first 6 dividing lines in the
black strip are black.
You may need to modify the changeover point from black to white strips for
targets that display relatively dark colors in the highlights section of the strip.
For example, your reading device may not be able to use the dividing line to
distinguish between neighboring patches. If this is the case reduce the number
of black dividing lines.
B.3.2 Gray Balance targets
For the Gray Balance targets the default values are:
/BlackStripsMNY [5 5 5]
![](asset-4b.png)
B.3 Editing the dividing lines on all targets
SetGoldPro 4.0 User Manual 75
The default values specify that the first 5 dividing lines on all of the strips are
black. The dividing lines are counted from below the lowest percentage patch,
(as for the Initial target). This should restrict the black dividing lines to the
highlights section of the target. However, if the target is relatively dark in the
highlights section, you can use white dividing lines to distinguish between
neighboring patches by reducing the numbers in this array.
![](asset-4c.png)
Appendix B Editing default values for targets
76 SetGoldPro 4.0 User Manual
![](asset-4d.png)
SetGoldPro 4.0 User Manual 77
Appendix C
Color characterization targets
C.1 Introduction
In SetGoldPro 4.0 the number of different color characterization target types
supported has been increased, so that a wide range is now available. This sec-
tion compares the different target types to help in your selection of a suitable
target for your purposes.
C.1.1 Global Graphics 4374 patch target
The Global Graphics 4374 patch target is new for SetGoldPro 4.0 and results in
high quality color profiles. It involves measuring a lot of patches and is mainly
intended for creating output profiles, (which will benefit most from the higher
accuracy), though it can also be used for emulation or input profiles. This is
the recommended target for making the output profiles for you to gain an
independent certification from one of the standards bodies (such as Fogra) for
proofing accuracy to ISO 12647-7.
If you decide to use a 4374 patch target it is important to ensure that you select
Import GG 4374 target from IT8 files in the drop-down menu when you import
the IT8 file.
![](asset-4e.png)
Appendix C Color characterization targets
78 SetGoldPro 4.0 User Manual
If you use a target consisting of multiple files, you can select all the files at
once when browsing to the file location, or if you prefer you can select them
one at a time by using the Iterate button.
Two versions of the 4374 patch target are included with SetGoldPro 4.0 in the
setgold\data\Target_Files folder.
For an X-Rite i1-iO device use:
GG_i1iO_Target4374.pdf
The corresponding .TXT file for the X-Rite i1-iO is:
5P_TC4374-CMYK_Eye-One_iO.txt
The .TXT file is a reference file that describes the target and is used with the
Gretag ProfileMaker Measure Tool application. It is placed in the reference file
folder within the Measure Tool directory.
Alternatively, the following four files together make up one 4374 target
intended for the Gretag Macbeth SpectroScan device:
HQ_4374_P1
HQ_4374_P2
HQ_4374_P3
HQ_4374_P4
The corresponding .CSV files are:
HQ_4374_P1_Target_1.csv
HQ_4374_P2_Target_2.csv
HQ_4374_P3_Target_3.csv
HQ_4374_P4_Target_4.csv
Alternatively, you may create your own target using the same patch values as
the Global Graphics 4374 patch targets and create an IT8 file for import into
SetGoldPro.
C.1.2 Global Graphics 1426 patch target
The Global Graphics 1426 patch is new for SetGoldPro 4.0 and results in high
quality color profiles, although not quite as high quality as the Global
Graphics 4374 patch target. It is a very good all round color characterization
![](asset-4f.png)
C.1 Introduction
SetGoldPro 4.0 User Manual 79
target, and in many cases an output profile created with this target should be
good enough to obtain to an independent certification from one of the stan-
dards bodies (such as Fogra) for proofing accuracy to ISO 12647-7.
If you decide to use a 1426 patch target it is important to ensure that you select
Import GG 1426 target from IT8 files from the drop-down menu when you
import the IT8 file.
Two versions of the 1426 patch target are included with SetGoldPro 4.0 in the
setgold\data\Target_Files folder.
For an X-Rite i1-iO device use:
GG_i1iO_Target1426_A.pdf
For a Gretag Macbeth SpectroScan device use:
HQ_1426_A_v1.ps
The corresponding .TXT file for the X-Rite i1-iO is:
2P_TC1426-CMYK_Eye-One_iO.txt
The .TXT file is a reference file that describes the target and is used with the
Gretag ProfileMaker Measure Tool application. It is placed in the reference file
folder within the Measure Tool directory.
The .CSV file for the Gretag Macbeth SpectroScan is:
HQ_1426_A_v1.csv.
Alternatively, you may create your own target using the same patch values as
the Global Graphics 1426 patch targets and create an IT8 file for import into
SetGoldPro.
C.1.3 IT8.74 1617 patch targets and ECI 1485 patch targets
New for SetGoldPro 4.0 is the ability to import external data sets in IT8.74 and
ECI format via IT8 files, by selecting either Import IT8.7/4 target from IT8 files or
Import ECI target from IT8 files in the drop-down menu. This option is mainly
intended for the creation of input or emulation profiles, such as those required
to obtain an independent certification from one of the standards bodies (for
example Fogra) for proofing accuracy to ISO 12647-7.
![](asset-50.png)
Appendix C Color characterization targets
80 SetGoldPro 4.0 User Manual
However, you can also print the following targets to create your own input,
output or emulation profiles. No profile is provided for the X-Rite i1-iO device
as this already has a built in target for IT8.74 and ECI profiles. No ECI target is
provided but if you wish to make a profile based on printing an ECI data set
you can print a 1617 patch target, and select Import ECI target from IT8 files from
he drop-down menu when importing the IT8 file. However, you will generally
obtain a more accurate profile if you choose to import such an IT8 file by
selecting: Import IT8.7/4 target from IT8 files.
Note: If you use a target consisting of multiple files, you can select all the files
at once when browsing to the file location, or if you prefer you can select them
one at a time by using the Iterate button.
These are in the setgold\data\Target_Files folder.
Both these targets together make up a 1617 patch target for the Gretag Mac-
beth SpectroScan device:
HQ_1617R_p1.ps
HQ_1617R_p2.ps
The corresponding .CSV files are:
HQ_1617R_P1_Target.csv
HQ_1617R_P2_Target.csv
Alternatively, you can create your own target using the IT8.74 patch values
and create an IT8 file for import into SetGoldPro. Similarly, you can create
your own target using the ECI patch values and create an IT8 file for import
into SetGoldPro. In this case you should select Import ECI target from IT8 files
from the drop-down menu when importing the IT8 file.
C.1.4 928, 845 and 754 patch targets
These targets can be used for input, output or emulation profiles. They
involve less measuring than the targets above, but the results will be corre-
spondingly less accurate. If you do this, select Import IT8.7/4 target from IT8 files
when importing the IT8 file. Similarly, a 754 target will usually be less accurate
than a 928 patch target. If you are importing an IT8.7/3 data set from an exter-
nal data source, (for example to make an input profile for an independent cer-
tification for proofing accuracy to ISO 12647-7), you should select Import 928
target from IT8 files from the drop-down menu.
![](asset-51.png)
C.1 Introduction
SetGoldPro 4.0 User Manual 81
If you wish to print your own characterizations for these targets, they are
available in strip form, by selecting, for example Read 754 Strip Target from the
drop down menu.
Alternatively, the following targets are available for the Gretag Macbeth Spec-
troScan device in the setgold\data\Target_Files folder:
754_patch.ps
845_patch.ps
928_patch.ps
They are also available as randomized targets, (which can improve accuracy):
754_patch_random.ps
845_patch_random.ps
928_patch_random.ps
The corresponding .csv files are:
754_patch.csv
845_patch.csv
928_patch.csv
For the randomized target:
754_patch_random.csv
845_patch_random.csv
928_patch_random.csv
Alternatively, you can create your own targets using the same patch values as
the 754, 845 or 928 patch targets and create IT8 files for import into
SetGoldPro.
![](asset-52.png)
Appendix C Color characterization targets
82 SetGoldPro 4.0 User Manual
