PNE802
80" Class (80" Diagonal)
PNE702 70" Class (69 ½" Diagonal)
60" Class (60 " Diagonal)
PNE602
Professional Large Format LED Displays
in Screen Sizes Up to 80" Class
Professional Large Format LED Displays
Image Quality That Can’t Be Beat
We started with full-array LED backlighting (PNE802/
E702) and edge-lit LED backlighting (PNE602). Then
we incorporated Sharp’s UV2A* technology, which
prevents light leakage and helps ensure the display
of truly bright whites, amazingly vivid colours, and
extraordinarily deep blacks. Finally, 1920 (h) x 1080
(v)-pixel full HD resolution helps ensure ne text and
intricate graphics are stunningly crisp and clear.
*UV2A technology stands for Ultraviolet-induced Multi-domain Vertical Alignment,
a photo-alignment technology that helps ensure uniform alignment of liquid
crystal molecules in a certain direction.
Ideal for:
• Corporate lobbies/Boardrooms
• Hotel lobbies/Conference rooms
• Airport corridors
• Museums
• Stadiums
• Trade shows
• Exhibit halls
• Classrooms
• Lecture halls
• Indoor shopping plazas
• Retail spaces
With three spectacularly large screen sizes, all you have to do is choose: big, bigger, or biggest.
The PNE802/E702/E602 are the big, bright, displays your business needs to cut through the clutter and get your
message right to your customers. These models represent the best of large-format digital signage, combining
impressive screen size with sleek design and some of the most advanced display image technology in the industry.
Durability You Can Put to Work
The PNE802/E702/E602 are professional-grade LED
digital signage displays built to withstand the rigors
of professional use. Operate these workhorses around-
the-clock and still enjoy stunning image quality and
uniform brightness. Plus, our outstanding 3-Year On-Site
Limited Warranty covers parts, labour and backlight,
in both landscape and portrait modes. With this much
reassurance, you can focus on running your business,
not worrying about your digital signage display.
PNE602 PNE702
70" Class (69 ½" Diagonal)
PNE802
80" Class (80" Diagonal)
Energy-Ecient Design Helps You Display
More, Consume Less
Why use more energy than you have to? The PNE802/
E702/E602 consume less energy than traditional CCFL-
backlit displays*.
*Compared to Sharp PNE601
Sustainable Sharp
Sharp has a program of award-winning initiatives for
social and environmental responsibility, including:
planning, design, supply chain management,
manufacturing distribution, product-end-of-life,
corporate citizenship and employee volunteers.
Sharp Professional Display products are an integral
part of this program. From Energy Star certications
(where applicable) to advanced energy-saving
features, Sharp professional LED and LCD Display
product are designed to comply
with our environmental strategy.
For more information on Sharp’s
energy-ecient products and
cartridge or electronics recycling
programs, please visit
http://www.sharp.ca/en-CA/AboutUs/SharpAndTheEnvironment.aspx
0
100
200
300
400
500
(W)
Conventional
monitor*
PNE702 PNE602
Down by
approx. 40%
Down by
approx. 33%
Down by
approx. 58%
400W
240W
PNE802
270W
170W
Power Consumption Comparison
Flexible Installation Options
Choose the mode that best suits your content
and application.
Mirror Display Mode (Daisy Chain)
The same image displays on a daisy chain of
monitors to achieve the powerful impact of image
repetition (PNZB01 Expansion Board and DVI-D
cable required).
Dual Screen Display
Picture-in-Picture (PIP) mode allows an AV-sourced
image to be displayed within a PC-sourced one (or
vice-versa), while Picture-by-Picture (PbyP) mode
puts images from AV and PC sources side by side
for split-screen viewing.
• Picture-in-Picture mode • Picture-by-Picture mode
PC display PC displayAV display AV display
Portrait Mode
Landscape Mode
Landscape Mode
PNE802 | PNE702 | PNE602
Professional Large Format LED Displays
3 12/32"
55 13/32"
1 31/32" 1 31/32"
7 7/8" (200)
1 24/32"
2 14/32"
7 7/8" (200)
7 7/8" (200)
7 7/8" (200)
VESA holes*
32 5/32"
52 16/32"*
29 21/32"*
15 16/32
"
20 29/32"

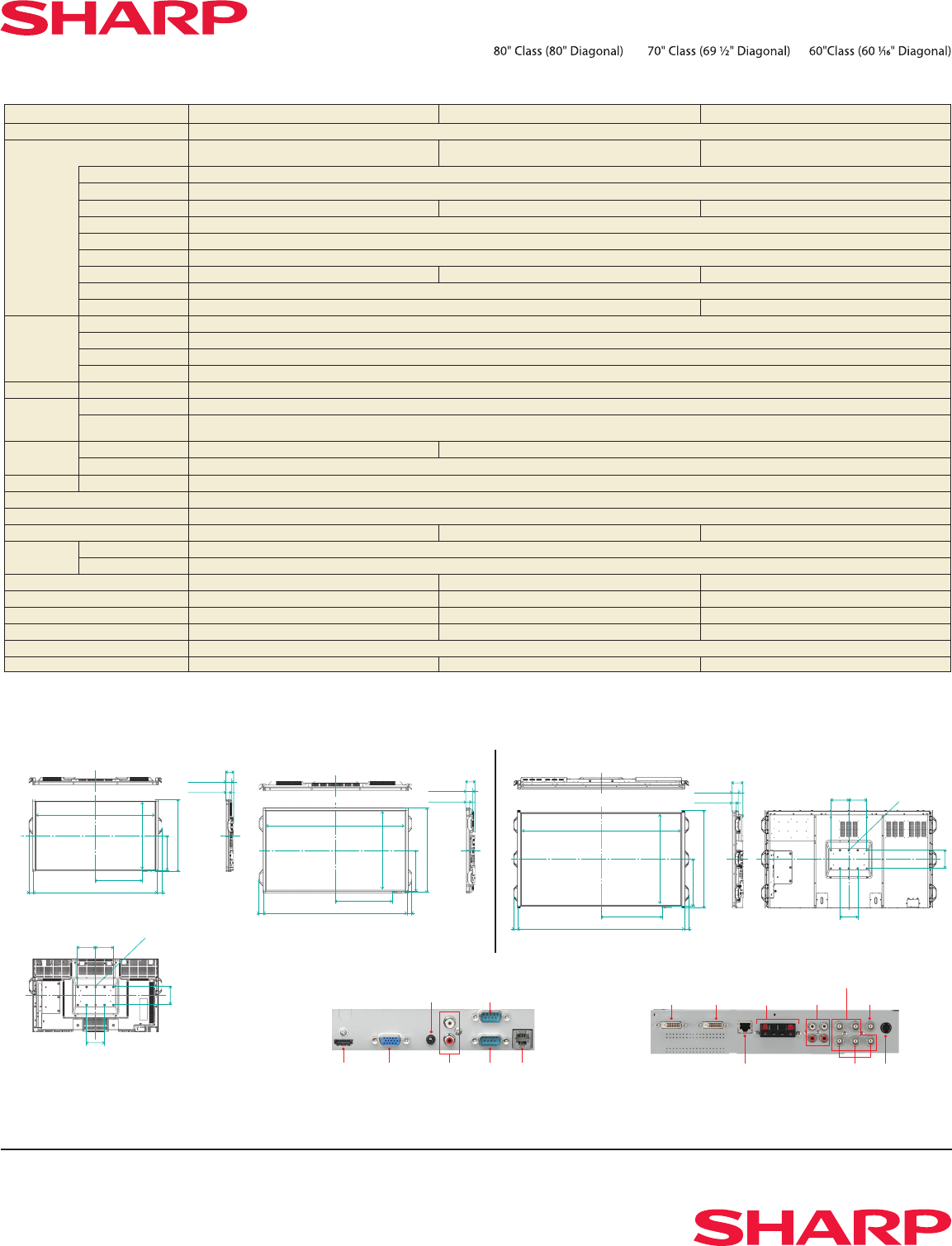

Dimensions
63 19/32"
1 31/32" 1 31/32"
1 24/32"
3 1/32"
3 30/32"
37 9/32"
60 26/32"*
34 8/32"*
18 1/32"
25 4/32"
PNE702 PNE802PNE602
Units: inch
* Screen dimensions
* To use the VESA-standard mounting bracket, use M6 screws that
are 8 to 10 mm plus the thickness of the bracket.
73 9/16"
1 15/16" 1 15/16"
7 7/8"
1 15/16
2 3/4
4 13/16"
7 7/8"
7 7/8"
7 7/8"VESA holes*
43 1/16"
70"*
39 1/2"*
20 7/8"
27"
RS-232C outputAudio input
Audio
output
RS-232C
input
PC/AV
input (HDMI)
Optional
port
PC analog
input RGB (D-sub)
PC/AV input
digital RGB (DVI-D)
PC/AV output
digital RGB (DVI-D)
LAN port
External
speakers
Audio
input
PC analog input RGB (BNC)
Component video input (BNC)
Video input (BNC)
S-Video input
Input/Output Terminals
(standard)
(option) PNZB01 Interface Expansion Board
Model Name PNE802 PNE702 PNE602
Installation Landscape and Portrait Mode
LCD Panel 80" class (80" diagonal) widescreen UV2A LCD 70" class (69-1/2" diagonal) widescreen, UV2A LCD 60" class (60 1/16" diagonal) widescreen, UV2A LCD
with full array LED backlight
Max. Resolution 1920 x 1080 pixels
Max. Display Colours (approx.) 1,064 million
Pixel Pitch (H x V) 0.923 x 0.923 mm 0.802 mm x 0.802 mm 0.692 mm x 0.692 mm
Max. Brightness*1 450 cd/m2
Contrast ratio 4,000:1
Viewing Angle (H/V) 176° / 176° (CR>/=10)
Active Screen Area (WxH) 69-3/4" x 39-1/4" 60-9/16" x 34-1/16" 52-5/16" x 29-7/16"
Response Time 6 ms (grey to grey, avg)
Backlight White LED, full array White LED, edge lit
Computer Input Video Analog RGB (0.7V p-p) (75-ohms), Digital (conforms to DVI 1.0 standards)
Synchronization Horizontal/vertical separation (TTL: positive/negative), sync on green, composite sync (TTL: positive/negative)
Plug & Play VESA DDC2B
Power Management VESA DPMS, DVI DMPM
Video Colour System With Optional PNZB01 NTSC (3.58 MHz; 4.43 MHz), PAL, PAL60, SECAM
Input Terminals*2 Standard PC analog: Mini D-sub 15-pin x 1, HDMI x 1*3, 3.5 mm diameter-mini stereo jack x 1, RS-232C D-sub 9-pin x 1
With Optional PNZB01 PC digital: DVI-D 24-pin x 1, PC analog: BNCx1, Video: BNC x 1, S-Video x 1, Component video:
BNC (Y, Cb/Pb, Cr/Pr) x 1*4*5, Audio RCA pin (L/R) x 2
Output Terminals Standard Audio: RCA pin (L/R) Audio: RCA pin (L/R) x 1, RS-232C D-sub 9-pin x 1
With Optional PNZB01 PC digital: DVI- 24-pin x 1, External speakers: 7W + 7W (6-ohms)
Input/Output Terminals With Optional PNZB01 LAN port
Speaker Output 7W + 7W
Power Supply 100V – 240V AC, 50/60 Hz
Power Consumption 270 W 240 W 170 W
Environmental Operating Temperature 0°C to 40°C
Conditions Operating Humidity 20% to 80% RH (no condensation)
Dimensions ( W x D x H) (approx.) (display only) 73-9/16" x 4-13/16" x 43-1/16" 63-19/32" x 3-15/16" x 37-9/32" 55-13/32" x 3-3/8" x 32-5/32"
Weight (not including PNZB01) (approx.) 174.2 lbs. 110 lbs. 83.8 lbs.
Packing Dimensions (W x H x H) (approx.) 82-11/16" x 18-7/16" x 55-1/8" 72-1/4" x 11-1/4" x 42-5/8" 64-3/16" x 11-1/4" x 37-13/16"
Carton Weight (approx.) 258 lbs. 132 lbs. 105.8 lbs.
Limited Warranty 3 years on-site, parts and labour
UPC 074000069329 074000069244 074000069251
*1 Brightness will depend on input mode and other picture settings. Brightness level will decrease over time. Due to the nature of the equipment, it is not possible to precisely maintain a constant level of brightness. *2 Use a commercially available cable for PC and
other video connections. *3 For both PC and AV components. *4 The analog and component BNC terminals are switchable. Use the menu to select. *5 Does not support Plug & Play.
