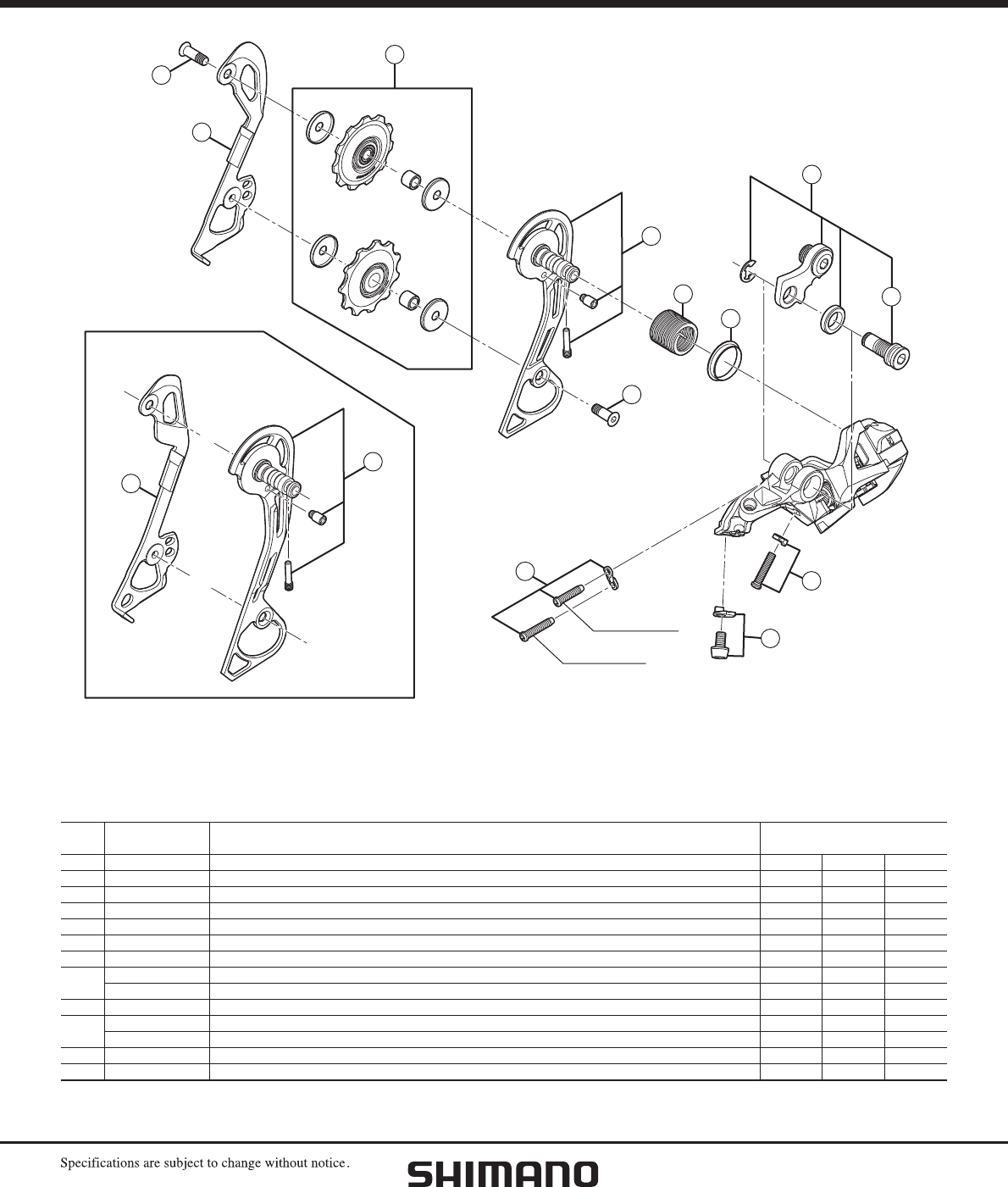

SHIMANO SLX Rear Derailleur
RD-M670 (GS/SGS)
RD-M670-D (GS/SGS)
Mar.-2012-3406
©Shimano Inc.D
A: Same parts.
B: Parts are usable, but differ in materirals, appearance, finish, size, etc.
Absence of mark indicates non-interchangeability.
DESCRIPTION
SHIMANO
CODE NO.
ITEM
NO.
1
2
3
4
5
6
7
8
9
10
11
12
Y50Y98010
Y50Y17000
Y5XP98030
Y5W798030
Y5W798020
Y5UC14000
Y5W722000
Y50Y98020
Y50Y98030
Y5XE98030
Y5XC09100
Y5Y010000
Y53M24400
Y53M24000
Bracket Axle Unit (for normal type)
B-Axle2 (for Direct Mount type)
B-Tension Adjusting Screw (M 4x 18) & Plate
Cable Fixing Bolt (M5 x 8) & Plate
Stroke Adjusting Screws & Plate
P-Seal Ring
P-Tension Spring
Outer Plate Assembly (GS-Type)
Outer Plate Assembly (SGS-Type)
Guide & Tension Pulley Unit
Inner Plate (GS-Type)
Inner Plate (SGS-Type)
Guide Pulley Bolt (M5 x 13.95)
Tension Pulley Bolt (M5 x 12.45)
50Y0000000-6110-003
INTERCHANGEABILITY
RD-M781
B
A
A
A
A
A
A
B
B
A
A
10
SGS Type
3
4
5
1
2
6
7
12
8
9
11
10
8
M4 x 16.5mm
M4 x 18.7mm
