Building Technologies

Fire Safety & Security Products

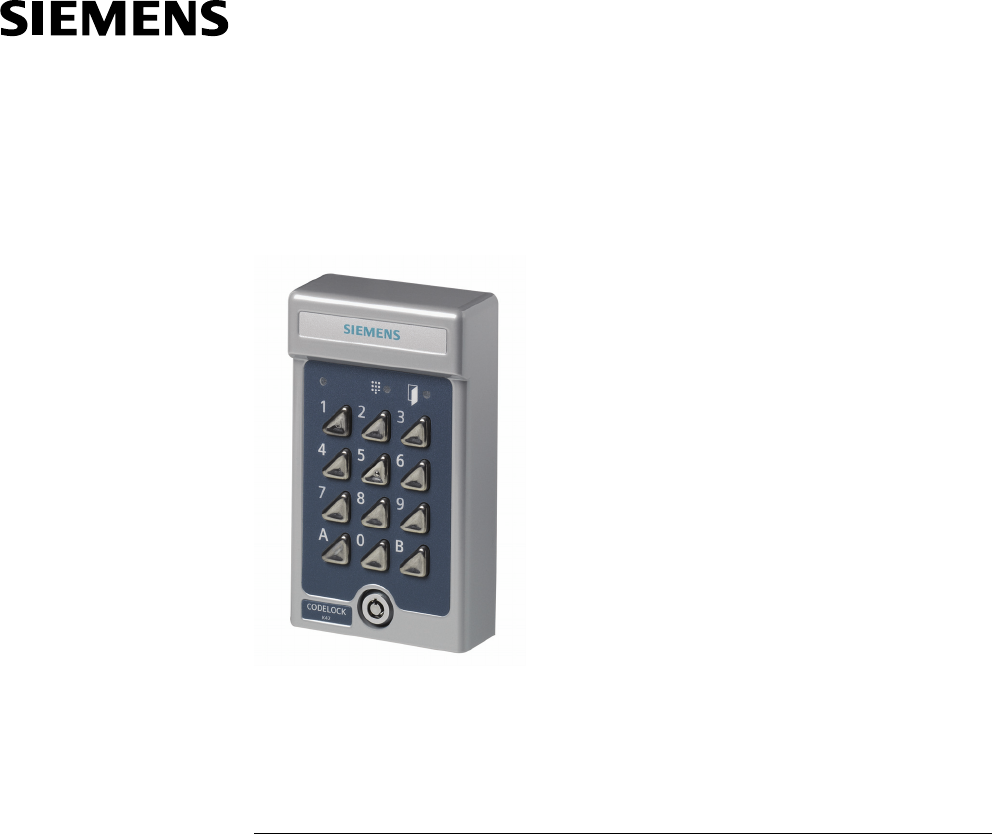

K42 Access Control

Codelock with two codes

z One lock with two codes

z Sturdy construction for outdoor and indoor use

z Best selling codelock in the world

The K42 is the best-selling codelock in the world. It is compact and easy to use with a

modern design that is suitable for either indoor or outdoor mounting. The K42 has a ca-

pacity of two four-digit codes. One can be used by residents while the other is used by

the property caretaker, for example. All settings are made directly in the unit.

Issued by

Siemens Building Technologies

Fire & Security Products GmbH & Co. oHG

D-76181 Karlsruhe

www.buildingtechnologies.siemens.com

© 2009 Copyright by

Siemens Building Technologies

Fire & Security Products GmbH & Co. oHG

Data and design subject to change without notice.

Supply subject to availability.

Document no. A6V10081447

Edition 05.2009

Technical data

K42

Operating voltage 12 to 24 VAC/DC

Current consumption 8 mA in standby

Inputs Exit button requests with delay. Two

separate for code disable.

Outputs Voltage-free relay contact, max. 1 A, 28

VDC.

Opening time 1–30 sec.

Door capacity 1

Code capacity Two four-digit codes

Operating temperature -35 to +55 °C

Environment Indoor or outdoor use (IP54 design). In

very exposed locations, use SH2 or SH1

rain cover.

IP rating IP54

Housing Cast metal with stainless steel buttons

and security lock

Colour Grey

Dimensions (W x H x D) 80 x 140 x 40 mm

Details for ordering

Type Part no Designation Weight

K42 S24246-C3552-A1 Codelock with two codes 0.72 kg
