Building Technologies
Thermostats and
room controllers
■General
■Product range overview
■Thermostats
9
RCCRAB
RDF50.1
RDF60.1
RDF
RCC50.1
RCC60.1
RCU20
RCU60..
RCU61..
RDU
©Siemens Switzerland Ltd.
Building Technologies / HVAC Products
2006
9-2
Thermostats and room controllers
General
The new thermostat range has arrived
Consisting of 16 families, the range covers almost every
commonly encountered application in heating, cooling
or ventilation. It offers an unbeatable price/performance
ratio and is presented in a unified and elegant design.
Applications include low voltage (AC 230 V) and extra
low voltage (<AC 50 V). All devices meet the require-
ments for CE marking.
ON/OFF control Modulating control
(3-position, D...10V, communication)
Heating only/
cooling only
Selection criteria
Monitoring
RCU10
RCU10.1
RAA
RDERDD
RAV
TRG2
RAZ
RAK -TR
-TW
QAF63/64
REV33
REV23M
QAF81
RAK -ST
-TB
REV300

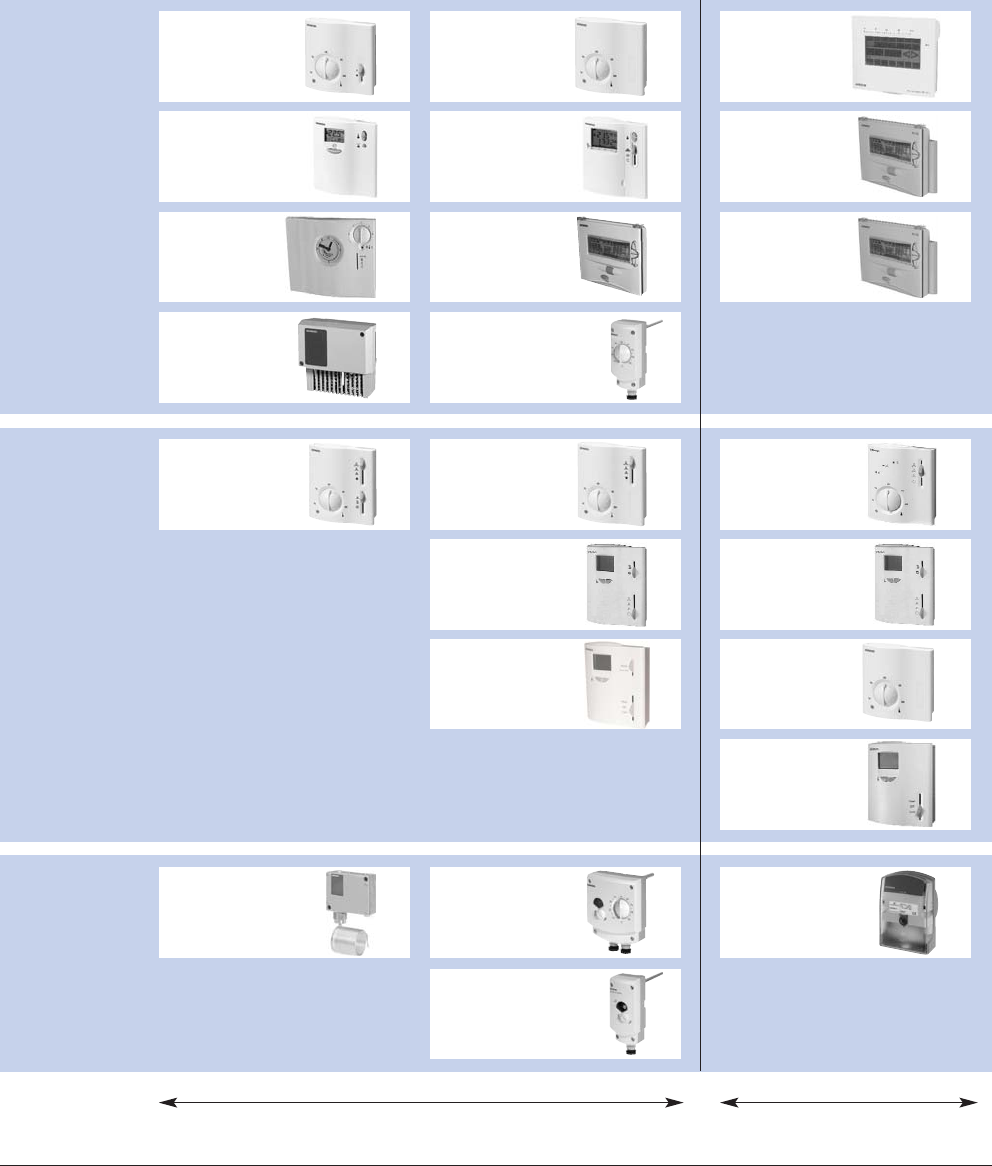

Thermostats overview
The thermostat range of Siemens includes products for
individual room control, for pipe- and duct-mounting and
frost protection.
REV12, REV16,
REV23, REV26,
REV100, REV200
Heating, cooling
and ventilation
RDXHeat pump
©Siemens Switzerland Ltd.
Building Technologies / HVAC Products
2006
9-3
Thermostats and room controllers
Product range overview
Made-to-measure control solutions
Cost-effective application-specific products are available
for mostly non-communicating individual room control
with
• Heating/cooling
• Fan-coil units
• Variable air volume systems (VAV)
• Air ducts
The products operate in standalone mode.
For fan-coil units, the range includes simple ON/OFF
products and versatile products with two proportional
sequences and automatic fan control.
For heating only and/or cooling only, a wide range of
products are available from a simple mechanical
controller up to a 3-position controller with touchscreen
interface.
For the monitoring of heating systems, domestic hot
water heating and frost protection in air ducts, different
variants of the RAK/RAZ and QAF families are available.
Heating only/cooling only
The RAK/RAZ product family
The electromechanical capillary tube thermostats
RAK-TR, RAK-TW with integrated changeover contact are
clamp-on thermostats and immersion thermostats
in one. The RAZ-TW is a combination of RAK-TR and RAK-
TW. All these thermostats convince by their robustness
and installation friendliness.
The RAA product family
These electromechanical ON/OFF room temperature con-
trollers are designed for the simplest heating and cooling
applications.
The RCU/RDU product family (universal)
The RCU/RDU microprocessor-based room temperature
controllers are designed for heating and cooling applica-
tions with 0…10 V, 3-position and ON/OFF field devices.
RDU room temperature controllers have a digital display
(LCD) and their additional functionality extends the varie-
ty of applications.
The RDD product family
The microprocessor-based room temperature controllers
in the RDD product family have a digital display (LCD).
They are available with a simple time setting facility.
The controllers are designed for simple heating control
with a 2-position control algorithm. Battery-powered and
AC 230 V versions are available.
The RDE product family
The microprocessor-based room temperature controllers
in the RDE product family have a digital display (LCD).
They are available in a version with a 7-day program.
These controllers were developed for simple heating
control with a 2-position control algorithm. Battery-powered
and AC 230 V versions are available.
The REV product family
The programmable room temperature controllers REV..
have a digital display (LCD). They ensure optimum com-
fort in apartments and single-family homes, at the same
time lowering costs by reducing energy consumption: for
example, via the function «automatic optimization» (self-
learning control algorithm). They are available in
24-hour or 7-day time programmable versions with op-
tions for remote switching (via telephone), touchscreen
display, 3-position controlling, wireless connection be-
tween controller and receiver as well as connection to an
«OpenTherm Plus» capable boiler.
The RAV product family
The programmable room temperature controllers RAV are
ideal for users who prefer analog rather than digital oper-
ation. They ensure optimum comfort in apartments and
single-family homes, at the same time lowering costs by
reducing energy consumption: for example, via the func-
tion «automatic optimization» (self-learing control algo-
rithm). Our range includes battery-powered RAV11.
Based on the application, the RAV11.x is equipped with
an analog 24-hour or 7-day time switch.
9
Thermostats and room controllers
Range overview
©Siemens Switzerland Ltd.
Building Technologies / HVAC Products
2006
9-4
Heating and cooling
The RAB product family
The electromechanical ON/OFF room temperature
controllers in the RAB family are designed specifically for
fan-coil systems. They are used for control in simple 2-
pipe and 4-pipe systems.
The RCC product family
The RCC room temperature controllers are based on
microprocessor technology and are designed specifically
for moderately complex to complex fan-coil systems.
They can be used for 2-pipe and 4-pipe systems.
The RDF product family with display
RDF is a family of microprocessor-based fan coil
controllers with digital display (LCD). They can be used
for cooling, heating or cooling and heating with auto-
matic changeover. The display and the elegant design
make them especially suitable for offices or hotels where
a display is required. There are variants for 2-pipe and 4-
pipe systems and options for simple ON/OFF,
3-position or analog output signals.
The RDX product family with display
RDX is a family of microprocessor-based controllers with
digital display (LCD). It is designed for 1- or 2-stage
heating and 1-stage cooling with fan coil as well as heat
pump applications with 1-stage compressors and
reversing valve.
VAV
The RCU/RDU product family (VAV)
The RCU/RDU microprocessor-based controllers are
designed for VAV room temperature control acting on
0…10 V, 3-position or ON/OFF field devices. RDU room
temperature controllers have a digital display (LCD)
and their additional functionality extends the variety of
applications.
Monitoring
The RAK/RAZ product family
For temperature limitation of heating systems as well
as domestic hot water, we recommend RAK-TB and RAK-
ST capillary tube thermostats. RAK-ST are similar to RAK-
TB but with increased safety functions. RAZ-ST is in each
case a combination of RAK-TR and RAK-ST. For the safety
limit thermostats (STB), the failsafe function and the
compensation of the ambient
temperature are special features.
The QAF product family
The QAF frost protection thermostats can be used for
frost protection in air conditioning systems. The QAF
family consists of purely electromechanical models with
ON/OFF output as well as capillary tube thermostats with
electronic measurement and modulating as well as
ON/OFF outputs.
Quasi-modulating control
(ON/OFF)
Modulating
control
(communication)
Modulating
control
(3-position)
©Siemens Switzerland Ltd.
Building Technologies / HVAC Products
2006
9-5
Thermostats and room controllers
Fields of application and principal functions
Compact room temperature controllers
Heating only/Cooling only 24-hour clock Weekday/ 7-day clock 7-day clock 7-day clock
week-end clock
Application REV100, REV12, REV16 REV23.., REV200, REV33, REV300 REV23M
RAV11.1 REV26, RAV11.7
Gas boilers ■ ■ ■
Burner control ■■■
Electric room heating ■■■
Cooling fan-coil units ■
Circulating pump control ■■■
3-position mixing control ■
ON/OFF zone control ■■■
Open/closed actuators ■■■
Floor heating distribution ■■■■
«OpenTherm Plus» boiler ■
Heating only/cooling only
RAA.. RCU.. RDU.. RDD.. RDE..
RAA
Tamperproof version 10
Setpoint adjuster 20
Setpoint adjuster, ON/OFF switch 30
Setpoint adjuster, ON/OFF switch, mode indications 30.16 / GR
Setpoint adjuster, 2 ON/OFF switches, 2 mode indications 30.26 / GR
Setpoint adjuster, mode changeover switch for heating or cooling 40
RCU/RDU
Heating or cooling and secondary heating sequence ON/OFF/PWM 10
Heating or cooling and secondary heating sequence,
mode changeover switch ON/OFF/PWM 10.1
Heating or cooling (3-position) 20 20
RDD
LCD and automatic operation mode changeover 10
LCD and automatic operation mode changeover,
battery-powered 10.1
RDE
LCD, 7-day time switch 10
LCD, 7-day time switch, battery-powered 10.1
LCD, 7-day time switch, ext. temperature sensor input, battery-powered 20.1
See the relevant data sheets for technical data and a brief description
9
Thermostats and room controllers
Fields of application and principal functions
©Siemens Switzerland Ltd.
Building Technologies / HVAC Products
2006
9-6
VAV and CAV
RCU.. RDU..
RCU/RDU
One sequence (0…10 V), automatic heat-cool change-over 50 50
One sequence (0…10 V), operating mode selector 50.1
One sequence (0…10 V), operating mode selector 50.2 50.2
2 sequences (0…10 V and ON/OFF / PWM) 60
2 sequences (0…10 V and ON/OFF / PWM), operating mode selector 60.1
2 sequences (0…10 V and 3-position) 61
2 sequences (0…10 V and 3-position), operating mode selector 61.1
Fan-coil systems with RAB../RCC../RDF..
RAB.. RCC.. RDF..
RAB..
2-pipe External changeover with ventilation 20.1
Heating or cooling without ventilation 20
2-pipe Manual changeover with ventilation 10.1
Heating or cooling without ventilation 10
4-pipe Manual changeover with ventilation 30.1
Heating or cooling without ventilation 30
RCC../RDF..
2-pipe Manual changeover heating or cooling 10.2
Heating or cooling 10.1 10.1
Heating or cooling with ext. sensor input 10 10
Heating or cooling with electr. heating 20 20
Heating or cooling (0…10 V) 50.1 50.1
Heating or cooling (3-position) 60.1 60.1
4-pipe Heating or cooling 30 30
See the relevant data sheets for technical data and a brief description
Heat pump
RDX..
RDX
Heat pump controller AC 230 V 42.2
Heat pump controller AC 24 V 42.22
©Siemens Switzerland Ltd.
Building Technologies / HVAC Products
2006
9-7
Thermostats and room controllers
Fields of application and principal functions
Temperature control
Temperature limitation
Frost protection
Air conditioning control
Heating boilers
Domestic hot water heating
Heat exchangers
Underfloor heating
Control thermostat (TR)
Thermal reset limit thermostat (TW)
Safety limit thermostat (STB)
Limit thermostat (TB)
Data sheet number
SPocket 100 mm for PN10
Strap 330 mm in package
Setpoint minimum temperature (°C)
Setpoint maximum temperature (C°)
Setpoint cutout temperature (C°)
Capillary length (mm)
CE ENEC
DIN3440
ISPESL
C-Tick
PED
Immersion thermostats and strap-on thermostats RAK-T®, RAK-S®, RAZ-T®, RAZ-S®
Single and double thermostat, 2-position controller with capillary tube sensor, changeover contact.
See the relevant data sheets for technical data and a brief description
Application Function Data sheet Set Approvals
Type reference
RAK-TR.1000B ■■■■■CE1N1186 ■■15 95 700 ■■■ ■■
RAK-TR.1000S ■■■■■CE1N1186 ■15 95 700 ■■■ ■■
RAK-TR.1210B ■■■■■CE1N1186 ■■15 82 700 ■■■■■■
RAK-TW.1000B ■ ■■■■ ■ CE1N1187 ■■15 95 700 ■■■nr ■■
RAK-TW.1000S ■ ■■■■ ■ CE1N1187 ■15 95 700 ■■■nr ■■
RAK-TW.1200B ■ ■■■■ ■ CE1N1187 ■■40 120 700 ■■■nr ■■
RAK-TW.1200S ■ ■■■■ ■ CE1N1187 ■40 120 700 ■■■nr ■■
RAK-TW.5000S ■■ ■ CE1N1188 ■5 65 1600 ■■nr nr ■■
RAK-TW.5010S ■■ ■ CE1N1188 ■-10 50 1600 ■■nr nr ■■
RAK-ST.010FP ■■ ■CE1N1189 ■95 700 ■■ ■■■
RAK-ST.020FP ■■ ■CE1N1189 ■100 700 ■■ ■■
RAK-ST.030FP ■■ ■CE1N1189 ■110 700 ■■ ■■
RAK-ST.1300P 120..
■■ ■CE1N1189 ■130 700 ■■■ ■■
RAK-ST.1310P ■■ ■CE1N1189 ■90..110 700 ■■■ ■■
RAK-ST.1430S ■■ ■CE1N1189 ■80..100 1600 ■■ ■■
RAK-TB.1400S ■■■ ■CE1N1190 ■45..60 700 ■■ ■■
RAK-TB.1410B ■■ ■CE1N1190 ■■ 50..70 700 ■■ ■■
RAK-TB.1420S ■■ ■CE1N1190 ■65..80 700 ■■ ■■
RAZ-TW.1000P ■■■■CE1N1191 ■15 95 700 ■■■ ■■
RAZ-TW.1200P ■■■■CE1N1191 ■40 120 700 ■■■ ■■
RAZ-ST.010FP ■■ ■ ■ ■ CE1N1192 ■15 95 95 700 ■■ ■■
RAZ-ST.011FP ■■ ■ ■ ■ CE1N1192 ■15 82 95 700 ■■ ■■■
RAZ-ST.020FP ■■ ■ ■ ■ CE1N1192 ■15 95 100 700 ■■ ■■
RAZ-ST.030FP ■■ ■ ■ ■ CE1N1192 ■15 95 110 700 ■■ ■■
RAZ-ST.1500P ■■ ■ ■ ■ CE1N1192 ■40 120 120..
130 700 ■■■ ■■
RAZ-ST.1510P ■■ ■ ■ ■ CE1N1192 ■15 95 90..110 700 ■■■ ■■
Current rating changeover contact: TR & TW: 0.1..10(2.5) / 6(2.5) A nr: not required
Current rating changeover contact: TB & STB: 0.1..10(2.5) / 0.5 A
Voltage range: AC 24..250 V
9
Thermostats and room controllers
Fields of application and most important functions
©Siemens Switzerland Ltd.
Building Technologies / HVAC Products
2006
9-8
Operating voltage (AC)
ON/OFF output
Modulating output
Automatic reset
Manual reset
Data sheet number
Setpoint setting range (°C)
Measuring range (°C)
Capillary tube length (mm)
Minimum active length (mm)
IP protection class
Room thermostat
Double thermostat
Adjustable switching differential
Adjustable switching interval
Changeover thermostat
Fire protection thermostat
Changeover contact (SPDT)
Data sheet number
Measuring range (°C)
IP protection class
1) Note that the QAF6.. modulating frost sensor may be used only with certain control valves, i. e. it is not suitable for use with 0…20 V phase-
cut or AC 230 V actuators.
Frost units QAF8.. and QAF6..1)
Electromechanical frost protection thermostats QAF81.. and electronic frost protection thermostats as well as frost protection sensors QAF6..
with average temperature measurement by a capillary tube filled with gas.
Type reference
QAF81.3 ■■CE1N1284 -5...15 -5...15 3000 300 IP54
QAF81.6 ■■CE1N1284 -5...15 -5...15 6000 300 IP54
QAF81.6M ■■CE1N1284 -5...15 -5...15 6000 300 IP54
QAF63.2 24 V ■CE1N1821 0…15 2000 250 IP42
QAF63.6 24 V ■CE1N1821 0…15 6000 250 IP42
QAF64.2 24 V ■■■■CE1N1283 1…15 0…15 2000 250 IP42
QAF64.6 24 V ■■■■CE1N1283 1…15 0…15 6000 250 IP42
Various thermostats
Simple changeover thermostats and various electromechanical single and double thermostats for industrial applications; with adjustable
switching differentials.
Type reference
TRM2. ■■CE1N1328 5...30 IP30
TKM2 ■■CE1N1291 20...110 IP54
TKM2D ■■CE1N1224 -10...35 IP54
TRG2 ■■ ■CE1N1329 -5...50 IP54
TRG22 ■■ ■ ■CE1N1329 -5...50 IP54
TTM2D ■■CE1N1223 -10…80 IP54
TTW2D. ■■CE1N1223 20…150 IP54
RYT182 ■■CE1N1295 19…30 IP54
See the relevant data sheets for technical data and a brief description
