Terrain Soil and Waste
Product Guide
JANUARY 2008TAGTPL2-PT

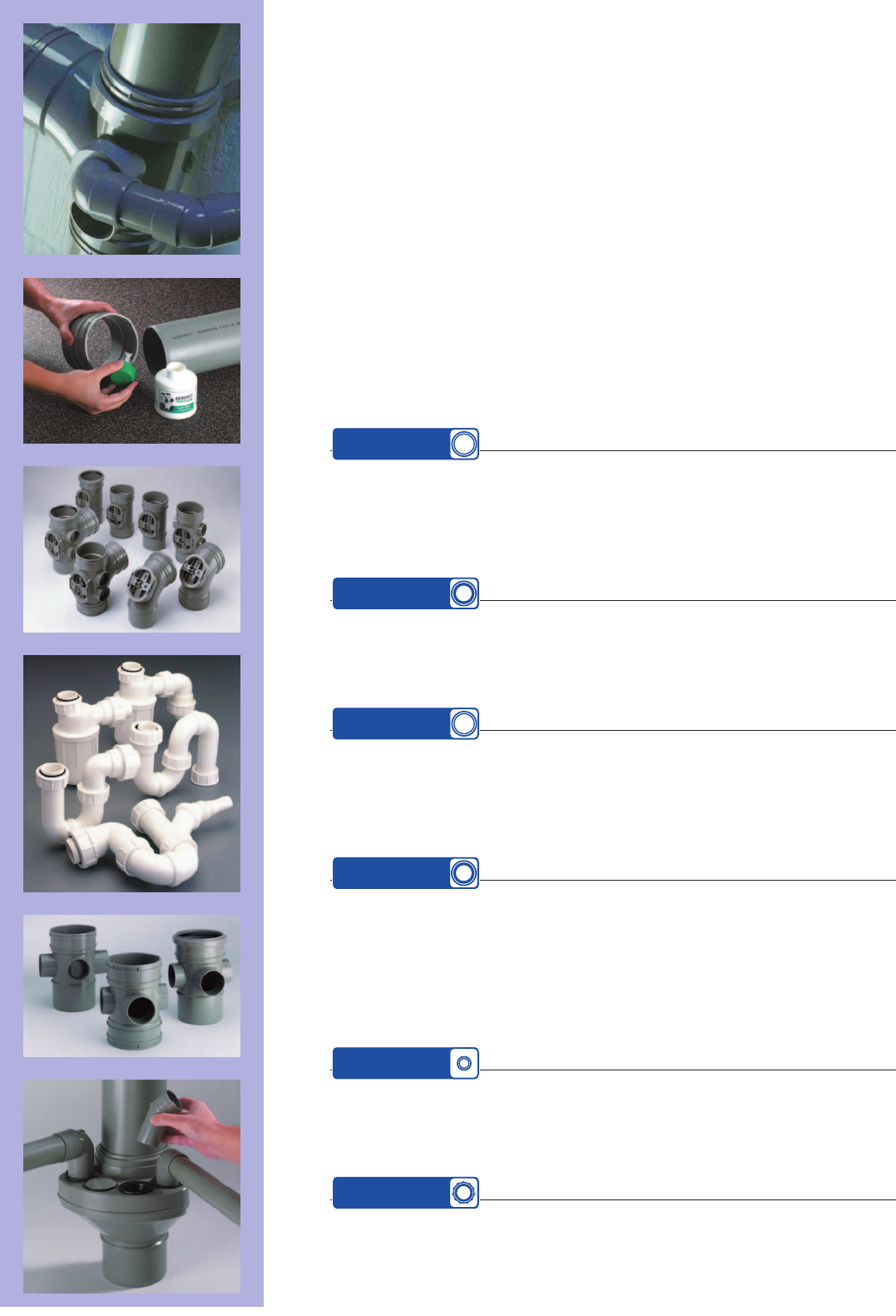

Introduction
Having pioneered the development of solvent-welded systems, Terrain soil and
waste products represent the industry benchmark for quality, installation
flexibility and product innovation backed by the highest levels of customer
service.
Terrain systems include an extensive range of soil and waste drainage products
for commercial, industrial, housing and public sector developments, all built on
the strength of our Terrain brand.
Systems include solvent-welded and push-fit options for both soil and waste
drainage; overflow and trap systems; and a comprehensive range of adaptors
and accessories. Products are available in a range of colours.
■Industry leading range of solvent and push-fit soil and waste solutions.
■Unique products offer unrivalled installation options.
■High quality finish colour matched to Terrain rainwater systems.
■Suitable for commercial and domestic installations.
Terrain Soil System
82, 110 and 160mm PVC-u soil pipes and fittings
■Wide range of bends, branches and access fittings to meet all application
requirements
■BBA certified Air Admittance Valve
Terrain Soil System
82, 110 and 160mm PVC-u soil pipes and fittings for push-fit jointing
■Saves time and labour costs
■Also for use with Terrain roof outlets for rainwater drainage
Terrain Waste System
Solvent-welded MuPVC system
■32, 40 and 50mm integrated systems
■Wide range of bends and adaptors
■Integrated floor gullies
Terrain Waste System
Push-fit polypropylene system
■32, 40 and 50mm integrated systems
■Quick and easy to install
■Saves time and labour costs
■Resistant to most oils, bleaches and detergents
■Wide range of bends and fittings
Terrain Overflow System
Solvent-welded PVC-u system for cold, non-pressure water
■19mm PVC-u pipe and fittings
■Range of tank connectors

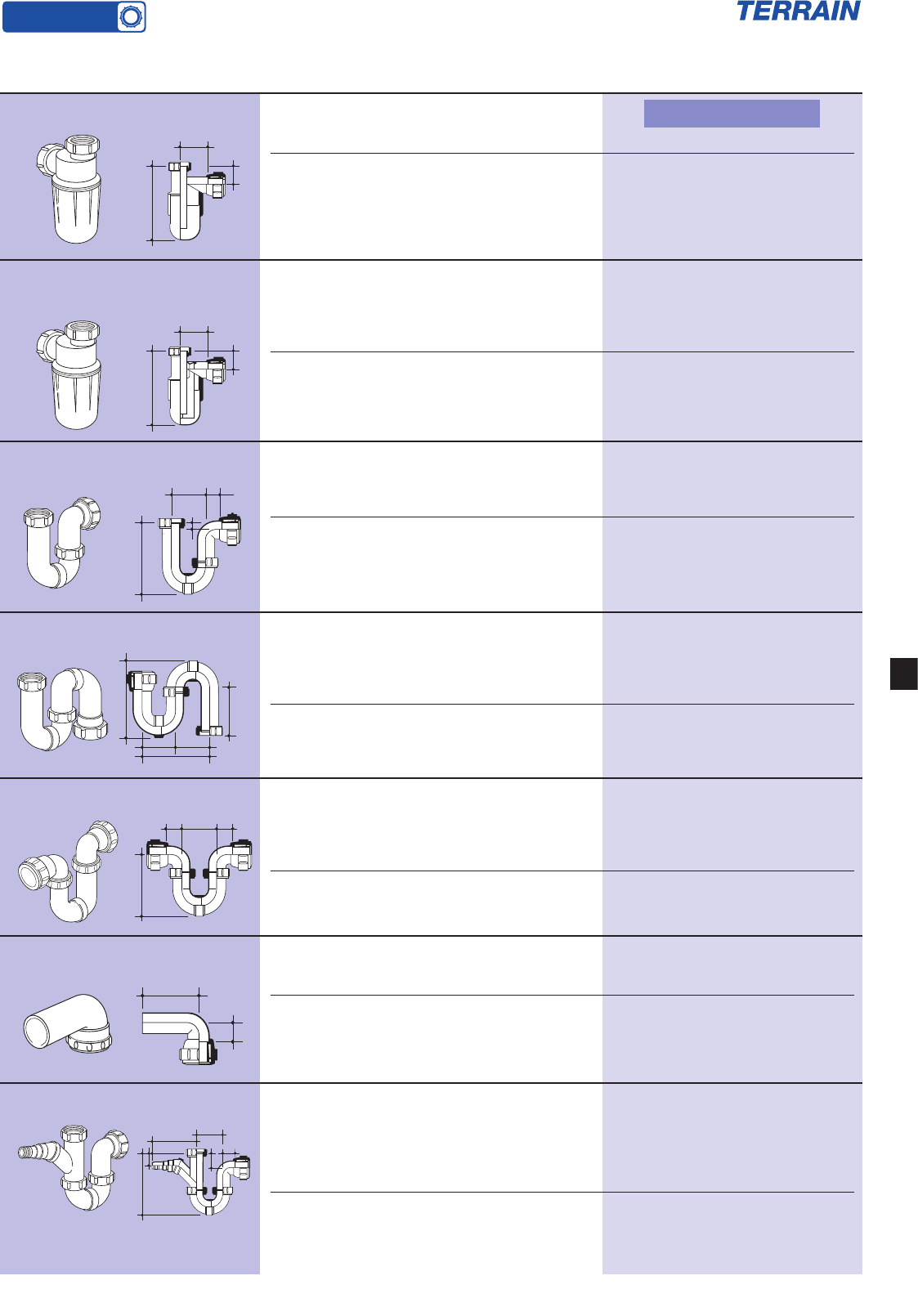

Terrain Traps
Polypropylene traps
■32, 40 and 50mm polypropylene traps
■Range includes telescopic and self resealing bottle traps
■All traps have universal compression outlets which, in addition to all
Terrain waste pipes, will accept: other MuPVC waste pipe
600-Traps
500-Over
flow
300-PushFit
200-Solvent
100P-PushFit
100-Solvent
3
■RANGE INTRODUCTION
■TERRAIN SOIL SYSTEMS
100 Solvent-Weld 4-15
100P Push-Fit 16-20
■TERRAIN WASTE SYSTEMS 21-27
200 Solvent-Weld 21-26
300 Push-Fit 27-28
■TERRAIN OVERFLOW SYSTEM 29-30
500 system 29-30
■TERRAIN TRAPS 31-32
600 system 31-32
■ACCESSORIES/ANCILLARIES 33-34
■SYSTEM PLANNING 35-37
Design considerations 35

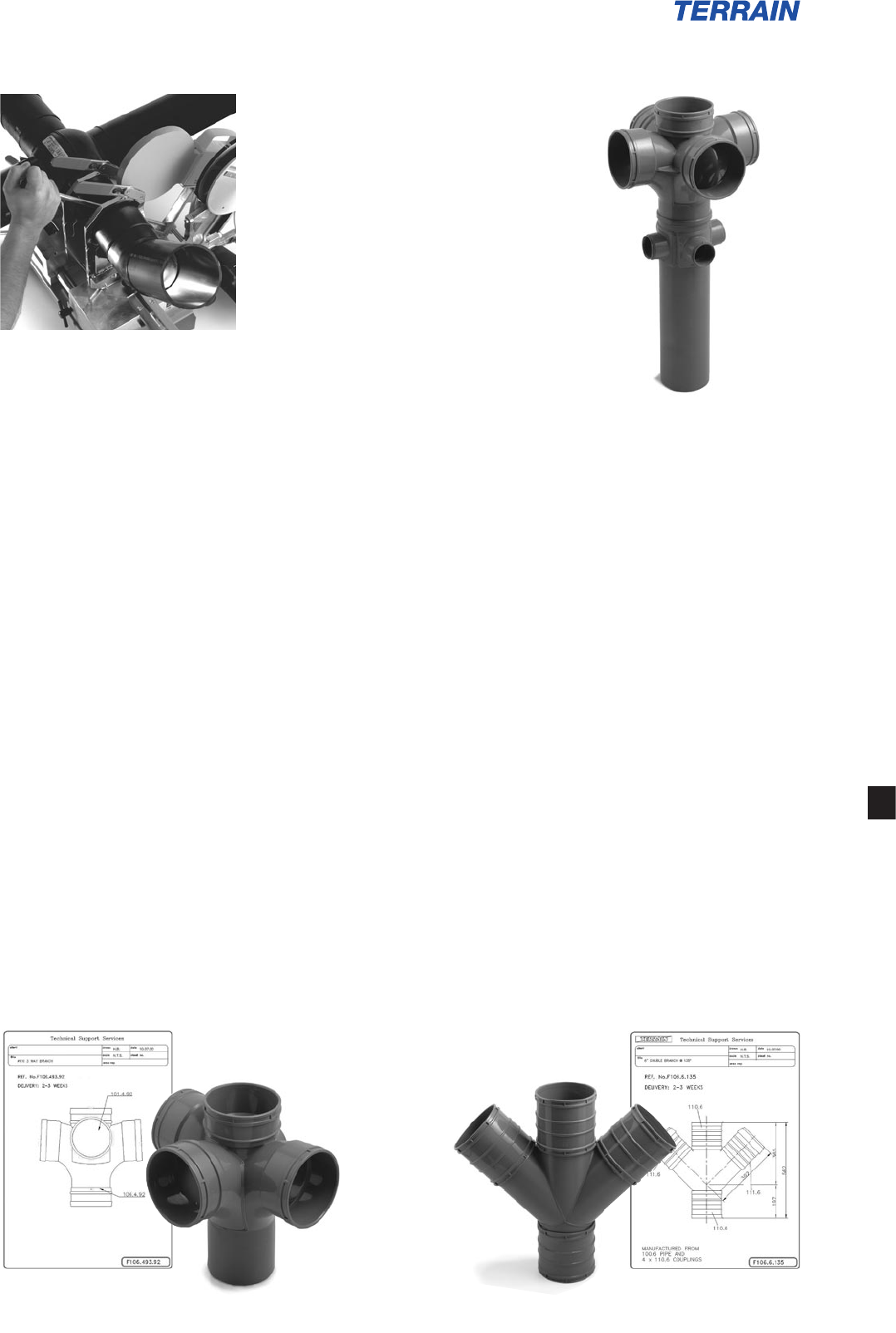

Special fabrication service 36-37
Design data 38-39
Socket dimensions 40
Technical advisory service &
quality details 41
Contents
Products marked in the
product listings are available
in CAD form for ready
incorporation into design
drawings. If you’d like a disk
or CD ROM in the appropriate
format, simply contact the
Technical Advisory Service.
Terrain Soil Systems
Terrain Soil Systems
100-Solvent
4

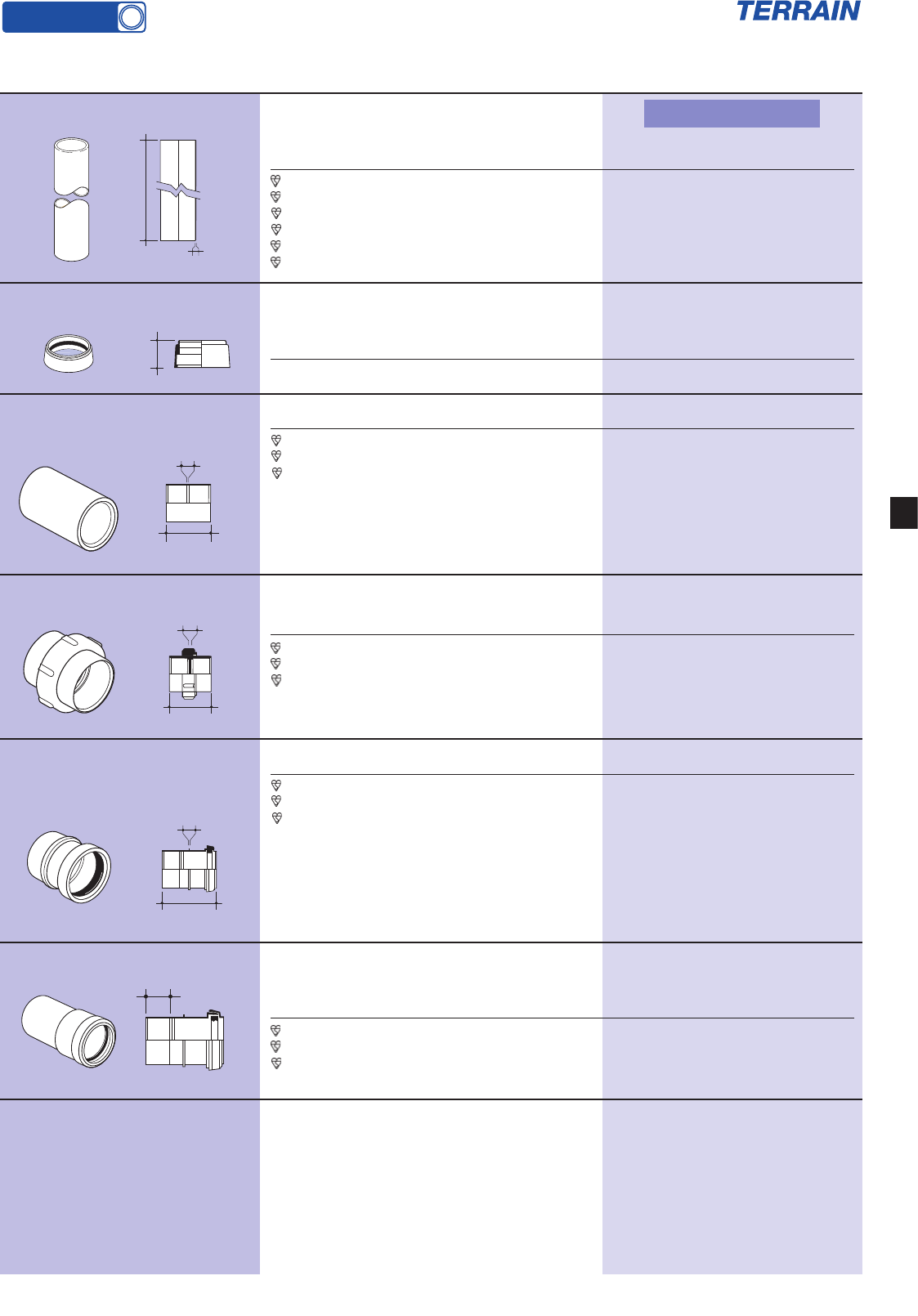

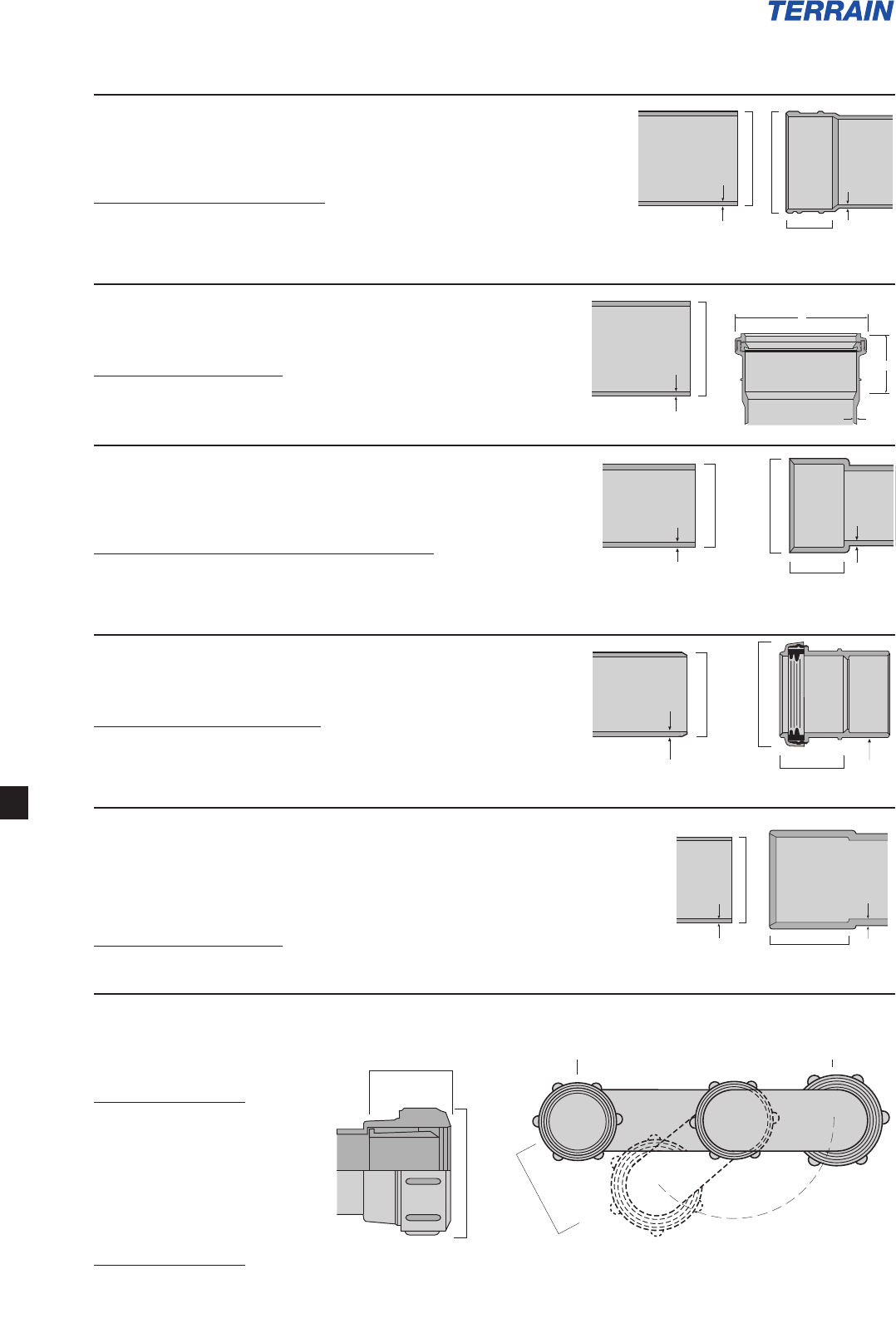

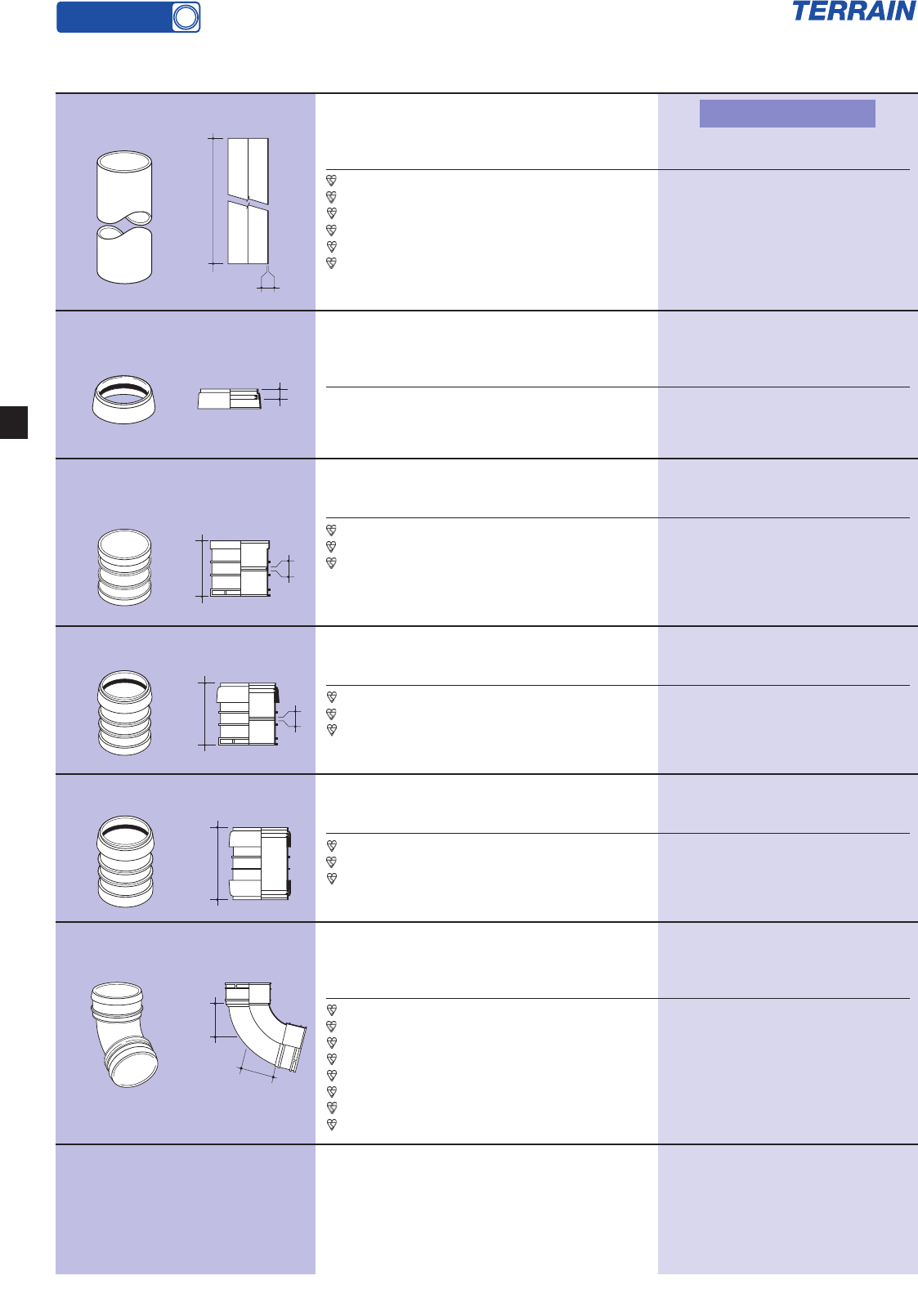

SOIL PIPE
RING SEAL ADAPTOR
STRAIGHT COUPLER
DOUBLE SOCKET
EXPANSION COUPLER
SLIP COUPLER

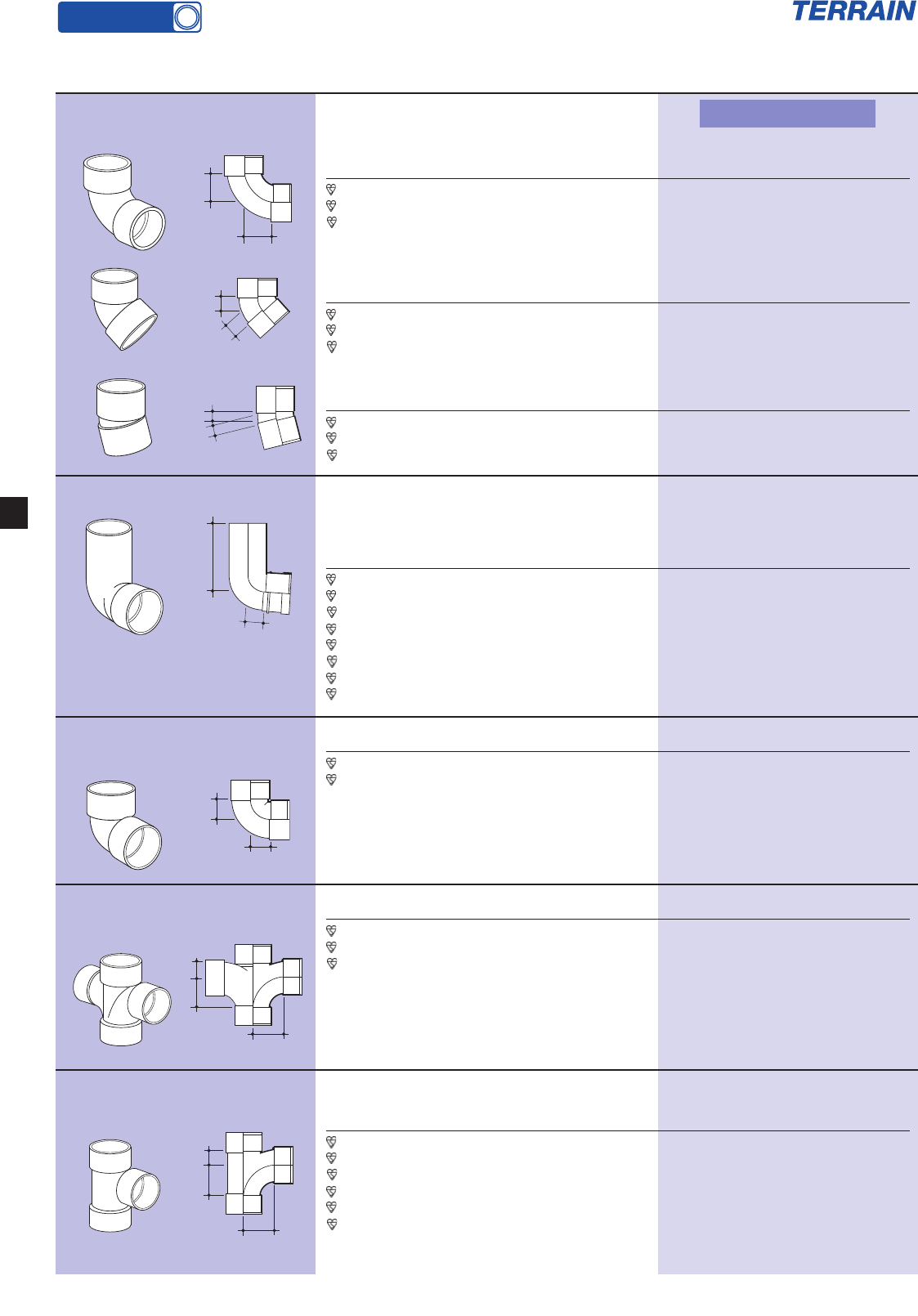

SWEPT BEND
DOUBLE SOCKET
Converts any Terrain solvent socket to a ring seal
expansion socket.
size(mm) A Code Col Pk/bx
82 21 109.3 GB5/120 £3.91
110 21 109.4 GBWR5/180 £3.82
160 26 109.6 G5/60£10.29
Plain ended.
size(mm) L T Code Col Pk/St
(min)
*82 3m 3.2 £10.87 100.3.30 GBW 2/88 £34.78
*82 4m 3.2 £10.87 100.3.40 GBW 2/88 £46.38
*110 3m 3.2 £11.07 100.4.30 GBWR 2/48 £35.45
*110 4m 3.2 £11.07 100.4.40 GBWR 2/48 £47.24
*160 3m 3.3 £28.70 100.6.30 G1/33£91.87
*160 4m 3.3 £28.70 100.6.40 G1/33£122.49
Double solvent socket.
size(mm) L Z Code Col Pk/bx
*82 92 3 110.3 GBW 5/85 £6.15
*110 102 3 110.4 GBWR5/60 £7.69
*160 160 8 110.6 G–/6£22.17
To allow expansion in longer pipe runs.
size(mm) L Z Code Col Pk/bx
*82 113 3 111.3 GBW 5/65 £9.20
*110 123 3 111.4 GBW –/10 £9.40
*160 210 8 111.6 G–/3£28.31
Double ring seal socket.
size(mm) L Code Col Pk/bx
*82 134 111.S.3 G5/30£19.11
*110 144 111.S.4 GB 5/20 £23.93
*160 210 111.S.6 G–/5£61.27
(82mm) 921/2° and 135° as standard.
(110mm) 921/2°, 104°, 1121/2° and 135° as standard.
size(mm) angle° Z1 Z2 Code Col Pk/bx
*82 921/2102 98 101.3.92 GBW5/40 £15.44
*110 921/275 83 101.4.92 GBWR–/10 £18.07
*160 921/2178 184 101.6.92 G–/2£45.00
*110 104 80 76 101.4.104 G 5/20 £18.07
*110 1121/265 63 101.4.112 GB 5/20 £18.07
*82 135 25 25 101.3.135 GBW5/50 £15.44
*110 135 21 30 101.4.135 GBWR5/30 £18.07
*160 135 44 44 101.6.135 G–/4£45.00
Z1
Z2
L
Z
L
ZL
A
L
T
G - Grey B - Black W - White R - Rustic Brown*£ per metre is for estimating purposes only.
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
Terrain Soil Systems
Terrain Soil Systems
5

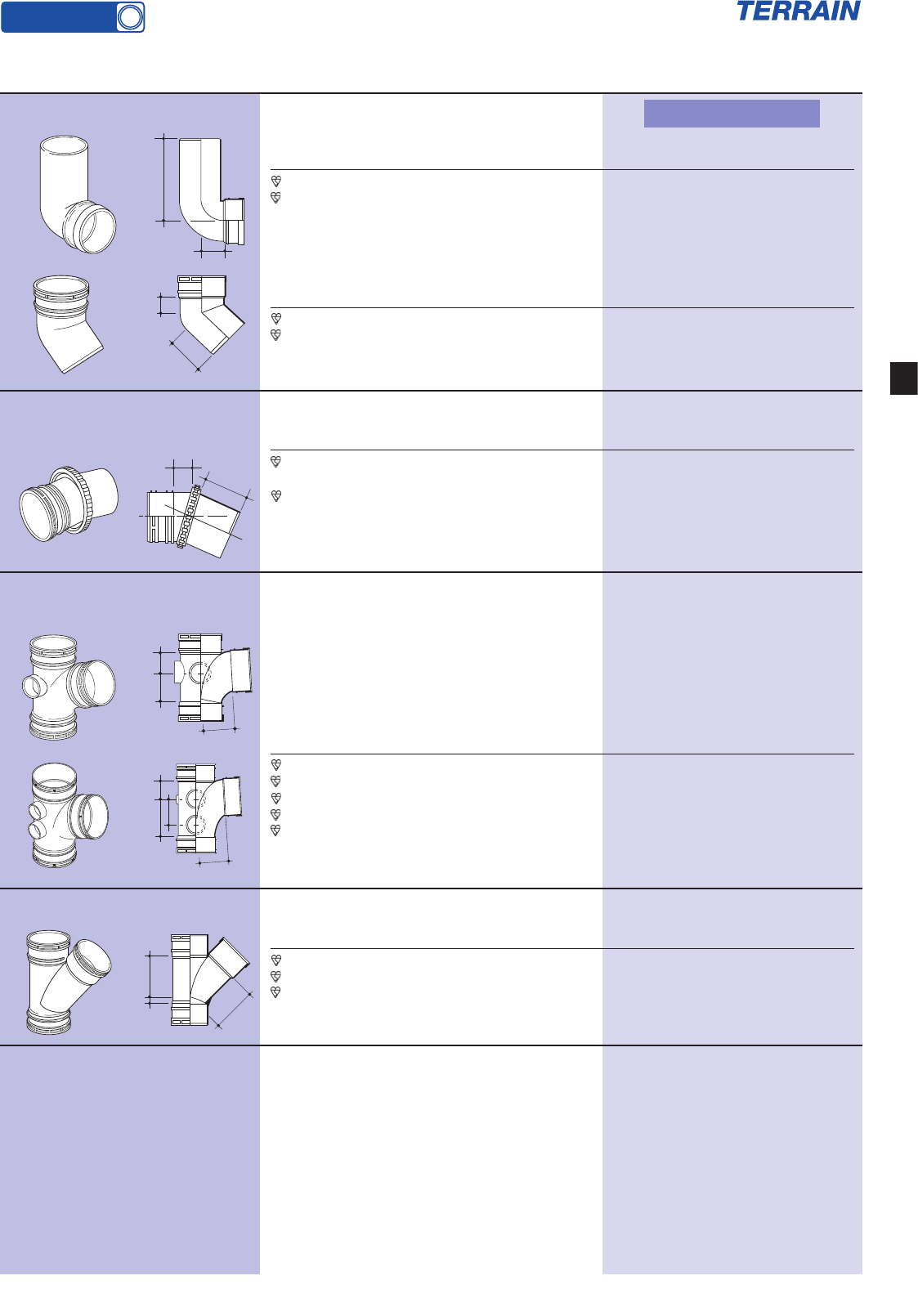

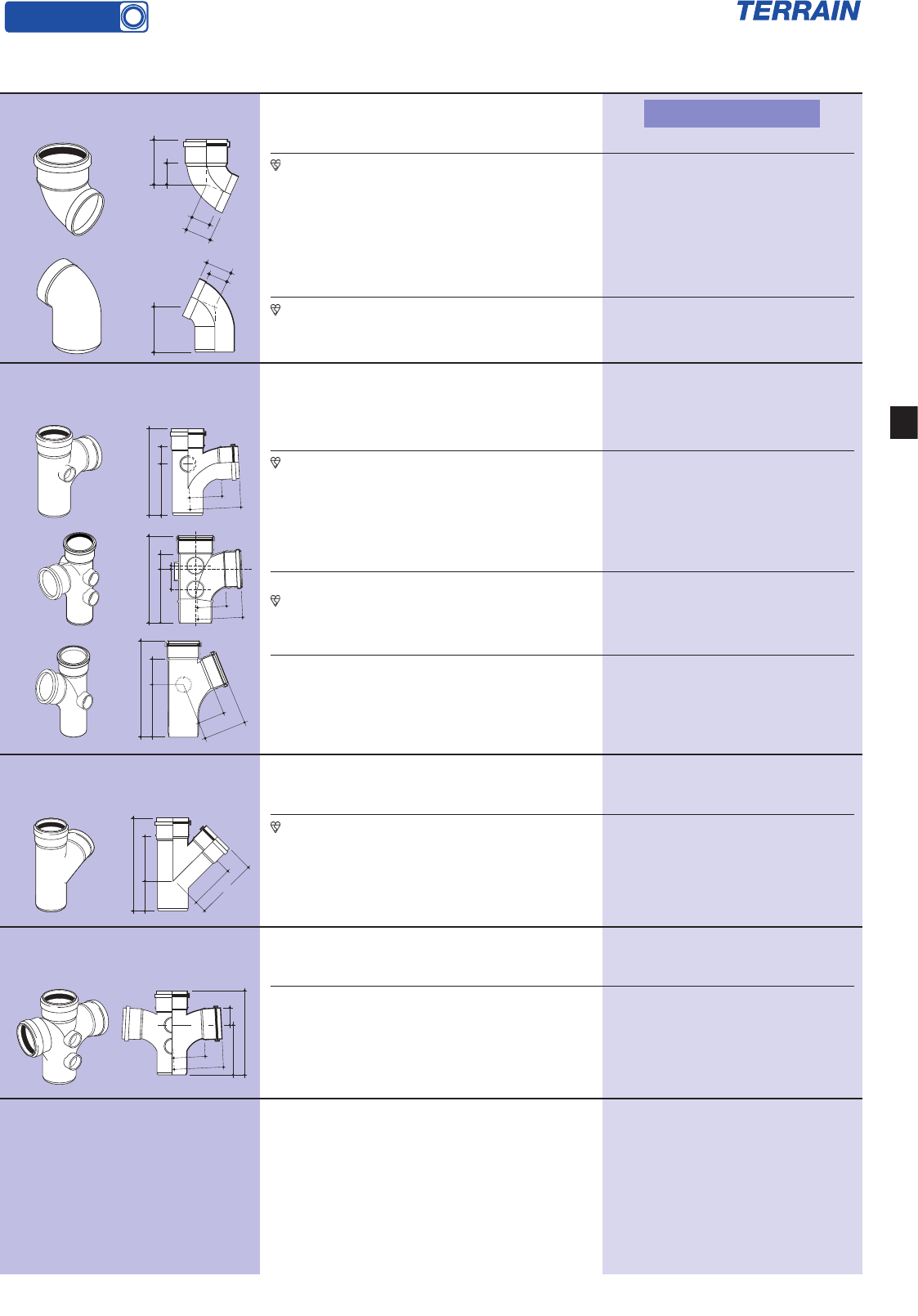

SPIGOT SOCKET BENDS
VARIABLE BEND
SPIGOT/SOCKET
SINGLE EQUAL BRANCH
TRIPLE SOCKET
SINGLE EQUAL BRANCH
size(mm) angle° Z1 Z2 Z2 Code Col Pk/bx
(max) (min)
*110 135 42 85 107.4.135 GBW –/15 £19.65
*160 135 60 130 107P.6.135 G1/8£46.65
Adjustable 0-25°.
size(mm) angle° Z1 Z2 Code Col Pk/bx
*110 0-25 45 110 107.4.025 G5/25£33.93
Double spigot
*110 0-25 45 110 101.4.025 G5/20£33.79
With boss connections.
104.3.92 2 boss horns
104.4.92 3 boss horns
104.4.924 4 boss horns
104.6.92 6 boss horns
Connect to boss horns using 117 boss adaptors
(see page 11)
size(mm) angle° Z1 Z2 Z3 A Code Col Pk/bx
*82 921/270 83 35 104.3.92 GBW 5/25 £21.57
*82 135 19 108 102 104.3.135 GB5/25 £21.57
*110 921/282 82 54 104.4.92 GBWR7£23.90
*110 921/2101 96 50 74 104.4.924 GBW 5/150 £29.00
*160 921/2184 178 160 104.6.92 G4/72£50.74
No waste boss connections.
size(mm) angle° Z1 Z2 Z3 Code Col Pk/bx
*110 104 77 74 72 104.4.104 G 5/10 £29.00
*110 135 25 137 137 104.4.135 GBW –/6 £24.93
*160 135 53 198198 (PUSH FIT) 104.6.135 G3/54£96.84
Long tail.
size(mm) angle° Z1 Z2 Z2 Code Col Pk/bx
(max) (min)
*82 921/241 152 97 107.3.92 G5/40£14.94
*110 921/257 197 110 107.4.92 GBW–/10 £17.51
Z3
Z1
Z2
A
Z3
Z1
Z2
Z1
Z2
Z2
Z1
Z1
Z2
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
100-Solvent
Terrain Soil Systems
Terrain Soil Systems
6

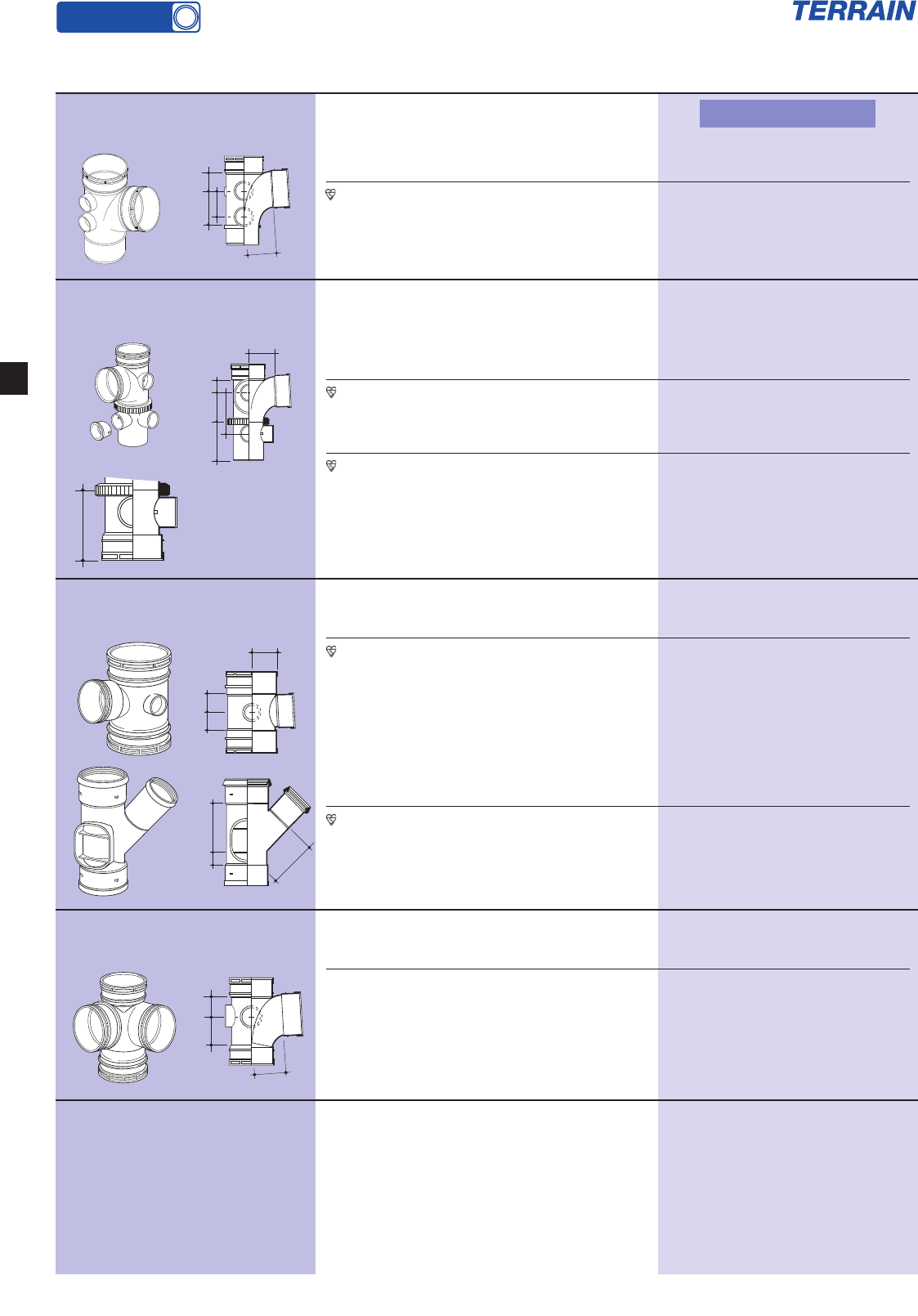

SINGLE BRANCH
SPIGOT OUTLET
SINGLE EQUAL BRANCH
VARIABLE BOSS
SINGLE UNEQUAL BRANCH
TRIPLE SOCKET
CORNER BRANCH
TRIPLE SOCKET
Z2
Z3
Z1 A
B
With boss connections.
4 boss horns.
size(mm) angle° A Z1 Z2 Z3 Code Col Pk/bx
110 921/274 103 96 50 104.104.92 GB –/4 £31.14
2 boss horns
2 waste sockets.
Spigot outlet
size(mm) angle° A B Z1 Z2 Z3 Code Col Pk/bx
110 921/2142 140 91 83 59 104.412.92 G–/4£53.96
Socket outlet
size(mm) angle° A B Z1 Z2 Z3 Code Col Pk/bx
110 921/2142 140 91 83 59 104.422.92 G–/3£53.96
2 boss horns.
size(mm) angle° Z1 Z2 Z3 Code Col Pk/bx
160/110 921/259 87 62 104.64.92 G–/3£57.29
No waste boss connections.
size(mm) angle° Z1 Z2 Z3 Code Col Pk/bx
160/110 135 70 173 164 104.64.135 G–/2£61.57
1 boss horn.
size(mm) angle° Z1 Z2 Z3 Code Col Pk/bx
110 921/294 83 59 106.490.92 G5£104.32
Z3
Z1
Z2
Z2
Z3
Z1
B
Z3
Z1
Z2
A
Z3
Z1
Z2
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
100-Solvent
Terrain Soil Systems
Terrain Soil Systems
7

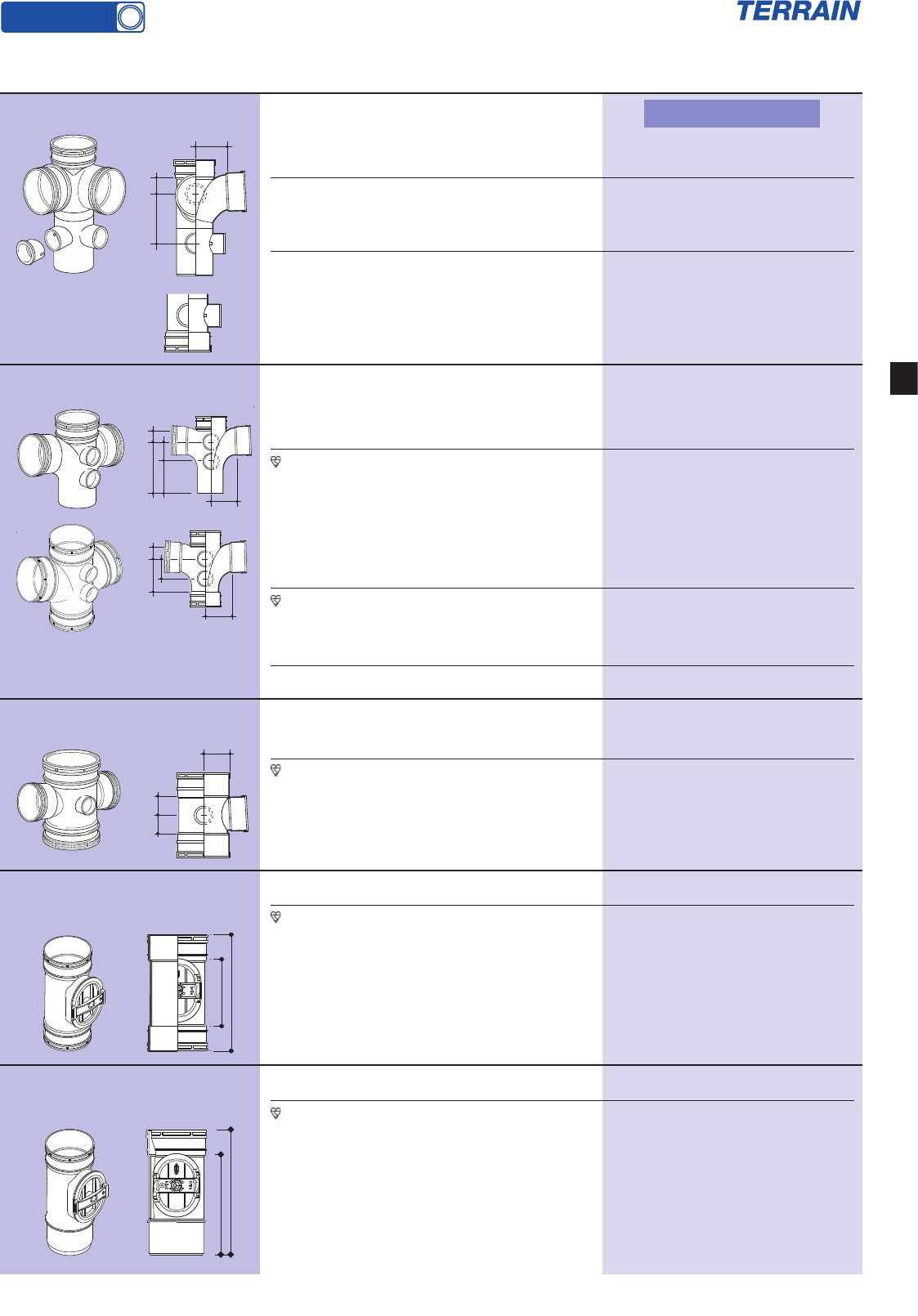

CORNER BOSS BRANCH
DOUBLE BRANCH
DOUBLE UNEQUAL BRANCH
ACCESS PIPE
DOUBLE SOCKET
ACCESS PIPE
SPIGOT OUTLET
Z
L
1 boss horn. 2 waste sockets.
Spigot outlet
size(mm) angle° A Z1 Z2 Code Col Pk/bx
110 921/2120 83 59 106.490.12 G 7/126 £118.68
Socket outlet
size(mm) angle° A Z1 Z2 Code Col Pk/bx
110 921/2120 83 59 106.490.22 G–/3£118.68
4 boss horns.
Spigot outlet
size(mm) angle° A B Z1 Z2 Z3 Code Col Pk/bx
110 921/275 128 203 96 50 106.104.92 G2/60£59.07
4 boss horns.
Socket outlet
size(mm) angle° A B Z1 Z2 Z3 Code Col Pk/bx
110 921/274 – 138 95 50 106.4.92 GBW 2/60 £59.07
No bosses.
size(mm) angle° A B Z1 Z2 Z3 Code Col Pk/bx
110 135 – – 25 137 137 106.4.135 G–/3£61.74
2 boss horns.
size(mm) angle° Z1 Z2 Z3 Code Col Pk/bx
160/110 921/259 87 62 106.64.92 G –/2 £106.71
size(mm) L Z Code Col Pk/bx
110 216 115 138.4 GBWR –/10 £25.35
size(mm) L Z Code Col Pk/bx
110 216 166 139.4 GB–/10 £25.35
ZL
Z2
Z1
Z3
Z1
Z2
A
Z3
Z3
Z1
Z2
A
B
Z1
Z2
A
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
100-Solvent
Terrain Soil Systems
Terrain Soil Systems
8

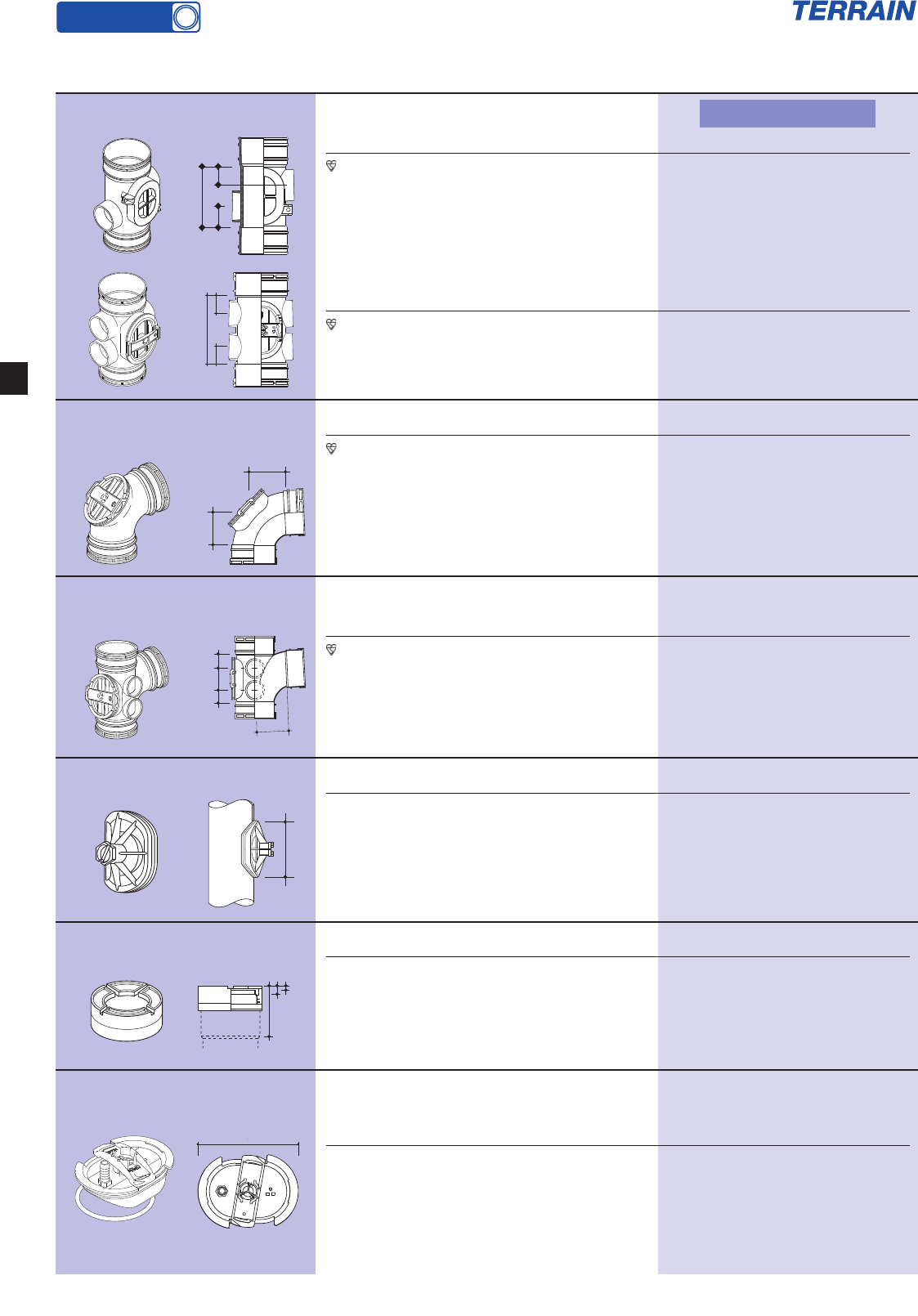

ACCESS PIPE CONNECTOR
ACCESS BEND
DOUBLE SOCKET
SINGLE ACCESS BRANCH
TRIPLE SOCKET
ACCESS DOOR
ACCESS CAP
ACCESS DOOR WITH
TEST NIPPLE
2 boss horns.
size(mm) A B Z Code Col Pk/bx
82 41 39 120 137.3 GBW 5/25 £37.79
4 boss horns.
size(mm) A B Z Code Col Pk/bx
110 41 35 149 137.4 GBW 5/15 £38.39
size(mm) angle° Z1 Z2 Code Col Pk/bx
110 921/2102 98 103.4.92 GBW5/15 £50.12
4 boss horns.
size(mm) angle° Z1 Z2 Z3 Code Col Pk/bx
110 921/299 96 50 105.4.92 GB–/6 £40.92
size(mm) L hole saw ø Code Col Pk/bx
82 114 48 135.3 G 5/90 £20.55
110 152 73 135.4 GB5/45 £20.55
160 152 73 135.6 G5/50£36.72
size(mm) A Z1 Z2 Code Col Pk/bx
82 83 16 32 136.3 GW5/70 £14.55
110 97 21 46 136.4 GBWR5/30 £17.15
160 122 22 42 136.6 G5/35£32.28
Standard oval access door with test nipple for
manometer connection.
A Code Col Pk/bx
127 6592/DVW GBWR 1 POA
A
Z1
Z2
A
L
Z3
Z1
Z3
Z2
Z2
Z1
Z
A
B
Z
A
B
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
100-Solvent
Terrain Soil Systems
Terrain Soil Systems
9

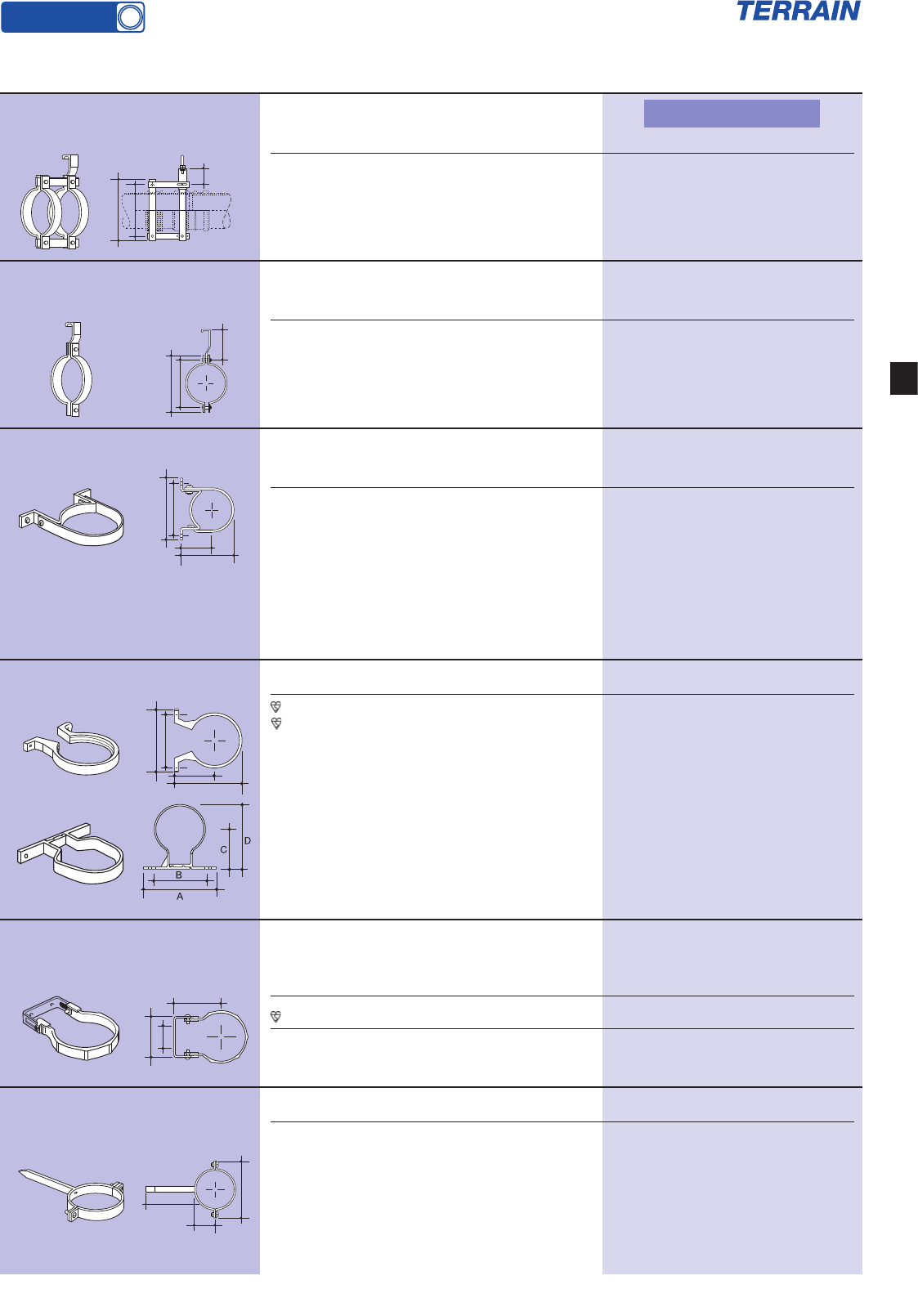

THERMAL MOVEMENT
LIMITER
INTERMEDIATE SUPPORT
BRACKET
TWO-PIECE PIPE BRACKET
ONE-PIECE PIPE BRACKET
ADJUSTABLE PIPE BRACKET
PLASTIC-COATED
PIPE BRACKET
GALVANISED DRIVE-IN
size(mm) A B C Code Col Pk/bx
82 100 129 154 190.3 Self 1/20 £29.76
110 100 158 178 190.4 Self 5/15 £32.38
160 100 232 260 190.6 Self 1/5 £51.33
To support horizontal pipework.
size(mm) A B C Code Col Pk/bx
82 100 129 154 191.3 Self 1/30 £15.15
110 100 158 178 191.4 Self 1/20 £16.47
160 100 232 260 191.6 Self –/10 £22.04
Galvanised steel
size(mm) A B C D Code Col Pk/bx
82 140 114 76 124 140.3 Self 10/40 £4.80
110 175 147 89 152 140.4 Self 10/30 £4.99
160 216 196 114 197 140.6 Self 5/25 £12.01
size(mm) A B C D Code Col Pk/bx
82 132 110 76 117 143.3 GBW5/150 £3.57
110 164 141 90 155 143.4 GBWR10/80 £3.34
size(mm) A B C Code Col Pk/bx
110 178 152 59 142.4 Self 10/20 £10.37
A
C
B
C
AB
AB
C
D
AB
C
D
A
CB
A
CB
Both have self coloured backplates.
size(mm) A B C C Code Col Pk/bx
(max) (min)
110 99 64 108 80 144.4 B 1/30 £6.78
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
100-Solvent
Terrain Soil Systems
Terrain Soil Systems
10

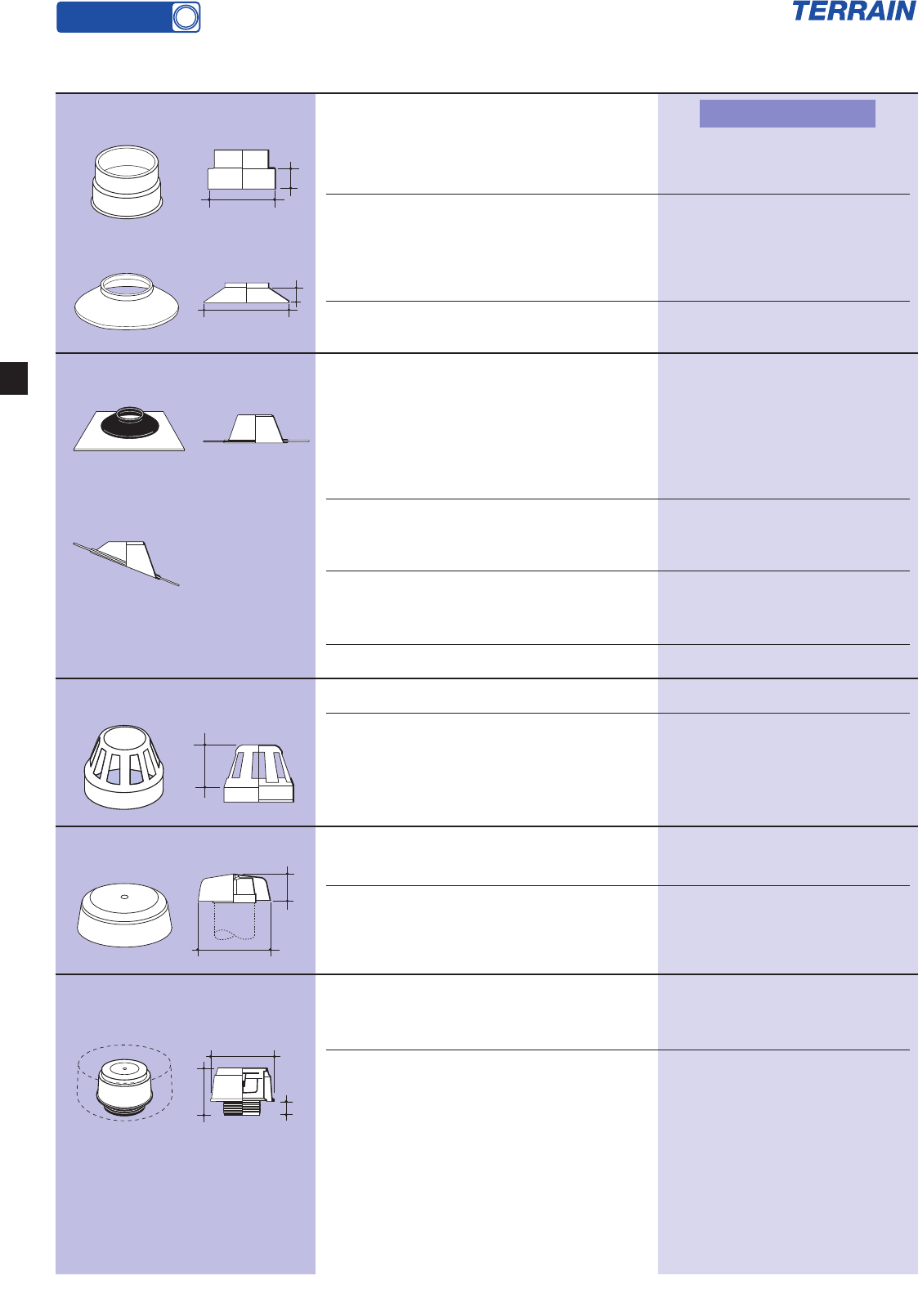

WEATHERING APRON
WEATHERING SLATES
VENT COWL
DUCT COWL
AUTOMATIC AIR
ADMITTANCE VALVE
Makes weathertight cover between soil pipe and lead
slate at roof level.
For lead slates
size(mm) A B Code Col Pk/bx
82 102 38 131.3 GB 5/60 £4.35
110 128 48 131.4 GBWR 5/90 £4.99
160 179 51 131.6 G 5/50 £15.02
For asphalt upstand
size(mm) C D Code Col Pk/bx
82 204 59 131.3.200 G 5/35 £18.36
110 203 46 131.4.200 G5/30£18.36
Makes watertight seal around pipe at roof level.
Available for flat or pitched roof.
Colours: Base – Aluminium
Cone – Black
For flat roof
size(mm) Plate size Code Col Pk/bx
82 to 110 406 x 406 149.16.00 Alu/B –/10 £51.74
For sloping roof (min 30°)
size(mm) Plate size Code Col Pk/bx
82 to 110 457 x 457 149.18.22 Alu/B 1/10 £53.05
For sloping roof (min 17°)
size(mm) Plate size Code Col Pk/bx
82 to 110 610 x 610 149.24.22 Alu/B 1/10 £71.69
size(mm) A Code Col Pk/bx
82 51 150.3 GB5/120 £4.35
110 64 150.4 GBWR 5/185 £4.40
160 83 150.6 G 5/65 £11.51
Stops rainwater from entering ventilation ducts.
size(mm) A L Code Col Pk/bx
110 205 80 152.4 GBR5/25 £19.71
Allows air to enter soil system, protecting water seals in
traps from effects of negative pressure.
size(mm) A B L Code Col Pk/bx
82/110 160 50 138 153.3.4 G5/15£52.67
Polystyrene Cover 153.3.4I Self 1 £1.88
A
L
B
L
A
A
D
C
B
A
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
100-Solvent
Terrain Soil Systems
Terrain Soil Systems
11
TWO PART WASTE BOSS
SOLVENT SOCKET
SOCKET PLUG
SELF LOCKING BOSS
SEAL RING SOCKET
SINGLE BOSSED PIPE
CONNECTOR
DOUBLE SOCKET
SINGLE BOSSED PIPE
CONNECTOR SPIGOT
For 32mm waste pipe
size(mm) A Z hole saw ø Code Col Pk/bx
110/32 79 53 48 112.4.125 G 5/200 £8.44
For 40mm waste pipe
size(mm) A Z hole saw ø Code Col Pk/bx
82/40 69 39 57 112.3.15 G 5/150 £8.44
110/40 82 53 57 112.4.15 G 5/150 £8.44
For 50mm waste pipe
size(mm) A Z hole saw ø Code Col Pk/bx
110/50 86 53 70 112.4.2 GW5/100 £8.76
160/50 110 77 70 112.6.2 G 5/100 £11.95
size(mm) L Code Col Pk/bx
110 69 130.4 GBW 5/50 £10.61
160 92 130.6 G 5/35 £19.49
For 32mm waste pipe
size(mm) A Z hole saw ø Code Col Pk/bx
110/32 111 60 60 122.4.125 GW 5/130 £11.28
For 40mm waste pipe
size(mm) A Z hole saw ø Code Col Pk/bx
110/40 111 60 64 122.4.15 GB 5/100 £11.78
For 50mm waste pipe
size(mm) A Z hole saw ø Code Col Pk/bx
110/50 119 60 75 122.4.2 GBW 5/60 £15.22
For 32mm waste pipe
size(mm) Z1 Z2 Z3 Code Col Pk/bx
110/32 30 56 31 120.4.125 GBWR 5/30 £6.46
For 40mm waste pipe
size(mm) Z1 Z2 Z3 Code Col Pk/bx
110/40 30 56 31 120.4.15 GBWR 5/30 £6.46
For 50mm waste pipe
size(mm) Z1 Z2 Z3 Code Col Pk/bx
110/50 30 59 31 123.4 GBW 5/30 £6.81
For 40mm waste pipe
size(mm) Z1 Z2 Z3 Code Col Pk/bx
110/40 28 56 27 120.412.15 GR5/30 £6.27
Z3
Z1
Z2
Z3
Z1
Z2
A
Z
A
Z
L
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
100-Solvent
Terrain Soil Systems
Terrain Soil Systems
12
DOUBLE BOSSED PIPE
CONNECTOR DOUBLE SOCKET
TRIPLE BOSSED PIPE
CONNECTOR DOUBLE SOCKET
FOUR-WAY BOSS PIPE
DOUBLE SOLVENT SOCKET
FOUR-WAY BOSS PIPE
SOLVENT SOCKET/SPIGOT
UNIVERSAL SOIL MANIFOLD
SOCKET REDUCER
SOCKET/SPIGOT
A
Z
2 50mm waste sockets
2 blanking plugs
For 50mm waste pipes (40mm with adaptor)
size(mm) Z1 Z2 Z3 Code Col Pk/bx
82/50 50 38 65 120.3.2 GB5/30 £12.97
size(mm) Z1 Z2 Z3 Code Col Pk/bx
110/40 30 56 30 121.4.15 GB5/25 £10.48
2 boss horns, 2 waste sockets.
size(mm) Z1 Z2 Z3 Z4 Z5 Code Col Pk/bx
110 44 40 56 55 59 120.4.2 G5/9
£10.48
2 boss horns, 2 waste sockets.
size(mm) Z1 Z2 Z3 Z4 Z5 Code Col Pk/bx
110 44 40 56 55 59 120.412.2 G5/9
£10.48

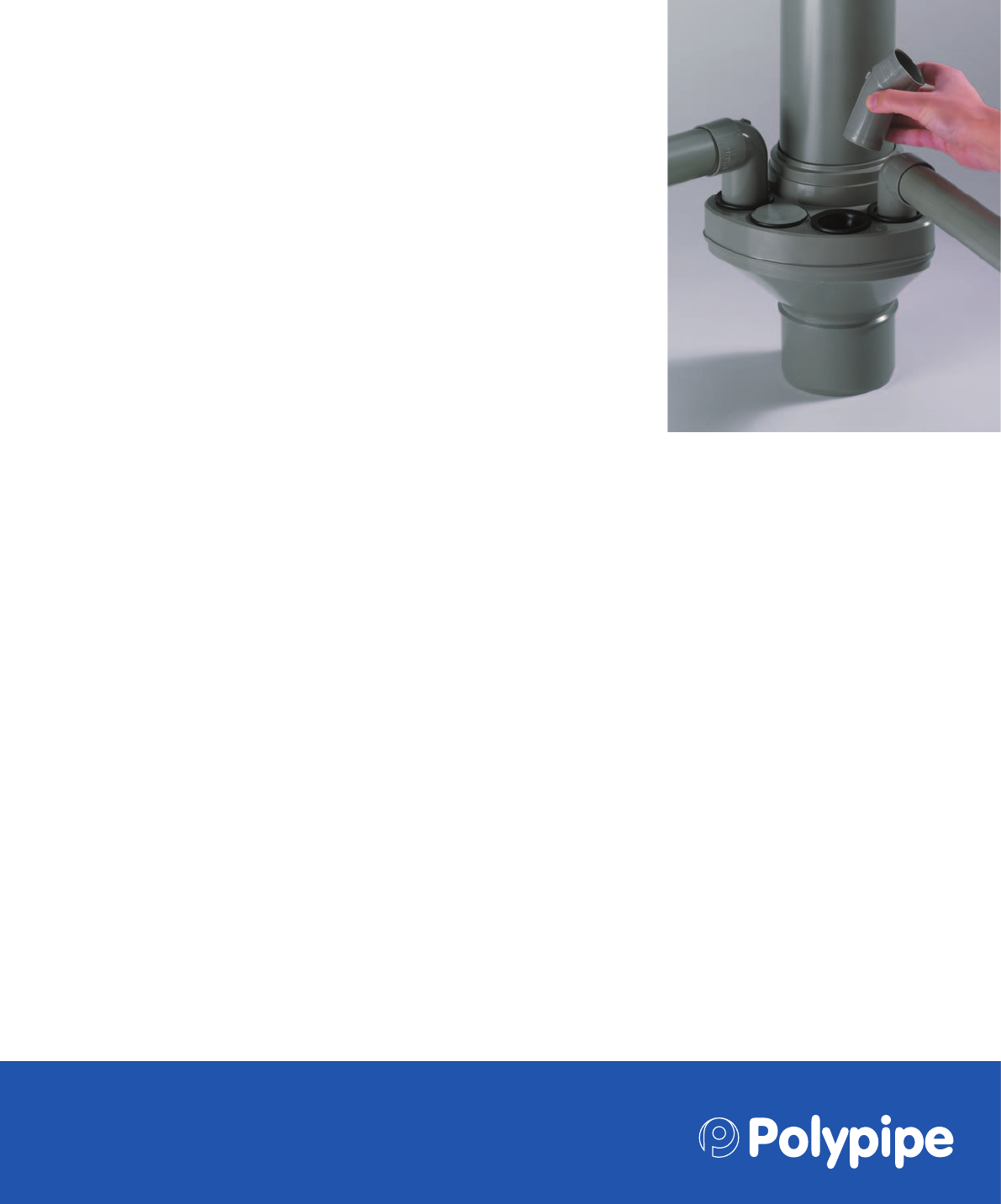

For Solvent waste connections
For connection of BS 5254/BS 5255 40mm waste pipes
at floor level. Incorporates 4 inlets to accept 40mm
waste pipes without need for adaptors. Use with Swivel
Elbow or Swept Bend.
For Pushfit waste connections see page 18
size(mm) L1 L2 L3 L4 Z1 Code Col Pk/bx
110 228 189 199 217 105 119.412.15 G1/5
£32.29
size(mm) A Z Code Col Pk/bx
82/50 11 3 124.3.2 GW5/90 £9.35
110/50 24 3 124.4.2 GBW5/60 £11.66
110/82 11 3 124.4.3 GBW 5/60 £12.01
160/110 22 25 124.6.4 G5/45£24.35
L3
L4
Z2
Z1
Z3
Z5
Z4
Z3
Z1
Z2
Z1
Z2
Z3
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
100-Solvent
Terrain Soil Systems
Terrain Soil Systems
13

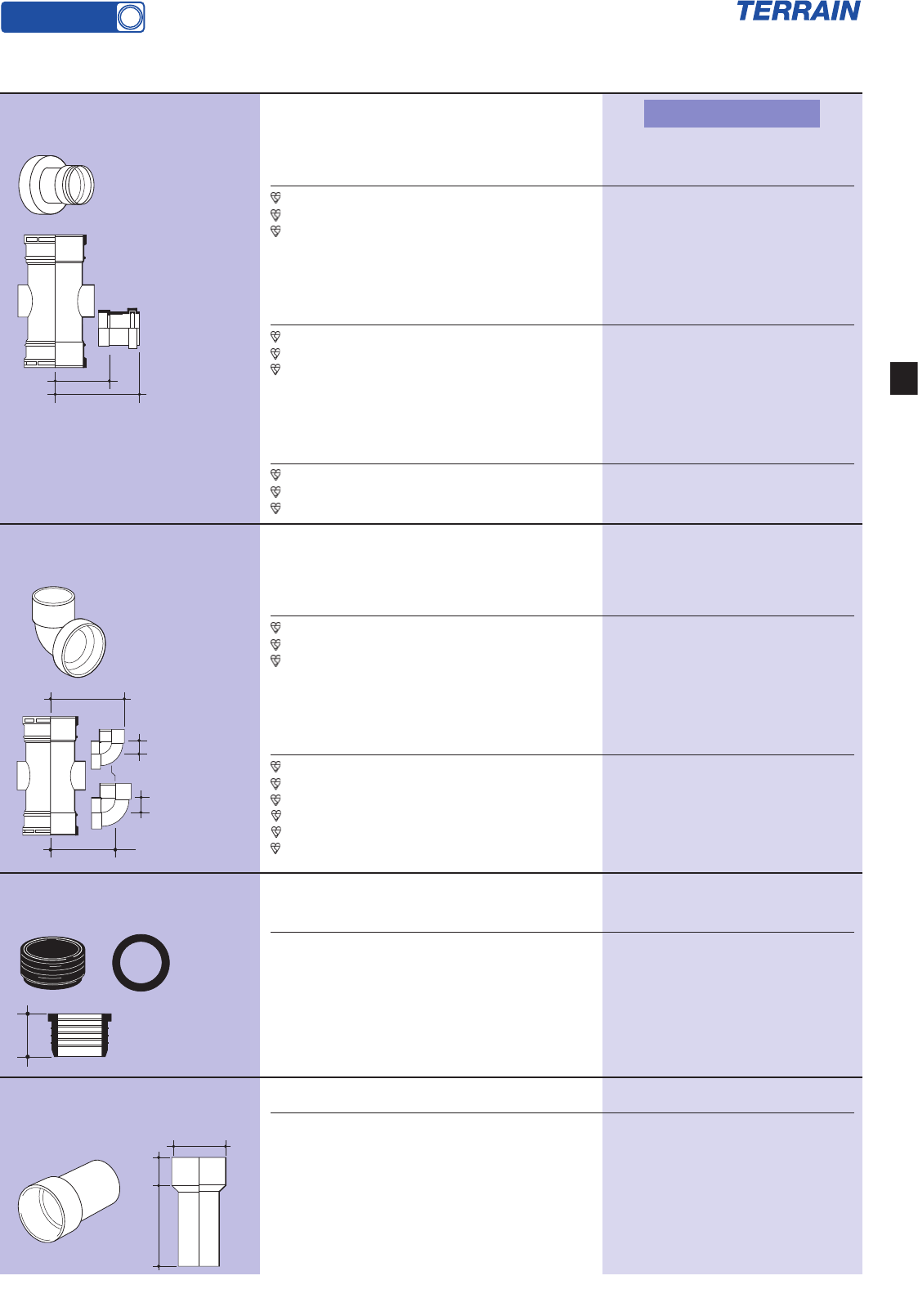

STRAIGHT BOSS ADAPTOR
RING SEAL SOCKET
BOSS ADAPTOR BEND
SOLVENT SOCKET
ADAPTOR TO
UNDERGROUND DRAIN
ADAPTOR TO CAST IRON
SPIGOT
B
A
Z1
size(mm) A B Z1 Code Col Pk/bx
82 60 98 240 126.3.12 G 5/30 £10.92
110 64 127 236 126.4.12 G 5/15 £14.66
L
Push fit into bore of underground pipe.
size(mm) L Code Col Pk/bx
82/110 54 4DW3 B 5/50 £15.17
Note: As a Terrain Underground product different
discount structure applies.
A
Z2
Z2
Z1
For 40mm waste pipe
use on
stack
size(mm) A Z1 Z2 hole saw ø Code Col Pk/bx
82 106 82 22 51 117.15.90 GBW 5/125 £5.01
110 119 95 22 51 117.15.90 GBW 5/125 £5.01
160 145 121 22 51 117.15.90 GBW 5/125 £5.01
For 50mm waste pipe
use on
stack
size(mm) A Z1 Z2 hole saw ø Code Col Pk/bx
82 120 89 30 51 117.2.90 GBW 5/190 £6.01
110 132 101 30 51 117.2.90 GBW 5/190 £6.01
160 158 127 30 51 117.2.90 GBW 5/190 £6.01
82 – 80 11 51 117.2.150 G 5/190 £5.24
110 – 92 11 51 117.2.150 G 5/190 £5.24
160 – 118 11 51 117.2.150 G 5/190 £5.24
Z
A
For 32mm waste pipe
use on
stack
size(mm) A†Z†hole saw ø Code Col Pk/bx
82 107 61 51 117.125 GBW 5/180 £3.36
110 119 74 51 117.125 GBW 5/180 £3.36
160 144 99 51 117.125 GBW 5/180 £3.36
For 40mm waste pipe
use on
stack
size(mm) A†Z†hole saw ø Code Col Pk/bx
82 107 61 51 117.15 GBWR 5/160 £3.36
110 119 74 51 117.15 GBWR 5/160 £3.36
160 144 99 51 117.15 GBWR 5/160 £3.36
For 50mm waste pipe
use on
stack
size(mm) A†Z†hole saw ø Code Col Pk/bx
82 107 61 51 117.2 GBW 5/120 £4.79
110 119 74 51 117.2 GBW 5/120 £4.79
160 144 99 51 117.2 GBW 5/120 £4.79
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
100-Solvent
Terrain Soil Systems
Terrain Soil Systems
14
ADAPTOR SADDLES
PVC-U CAULKING BUSH
WC MANIFOLD CONNECTORS
FIN SEAL SPIGOT
DUOFIX WC MANIFOLD
BEND CONNECTORS
FIN SEAL SPIGOT
WC CONNECTORS
14° FIN SEAL SPIGOTS
WC CONNECTORS
SPIGOT OUTLET
Used with 117 Waste Adaptors to enable direct
connection of 32mm and 40mm waste pipe to
soil pipe.
For 40mm waste pipe
size(mm) Z1 Code Col Pk/bx
110/40 29 115P.4 GR 5/140 £6.94
To connect soil pipe to sockets of other material. Sold
caulked into sockets.
size(mm) A B C Z Code Col Pk/bx
110 133 124 63 67 132.4 G 5/40 £14.44
When used in conjunction with a branch 104, up to
seven WC pans can be connected either side of the soil
stack.
size(mm) angle° Z1 Z2 Code Col Pk/bx
110 5 14 58 129.4.05 W–/6£23.46
110 14 19 58 129.4.14 W–/6£23.46
110 24 24 58 129.4.24 W5/10£23.46
110 34 26 70 129.4.34 W5/10£23.46
size(mm) angle° Z1 Z2 Code Col Pk/bx
90/110 5 52 65 107.35.05 B 5/10 £21.72
90/110 14 57 63 107.35.14 B5/10£21.72
90/110 24 60 70 107.35.24 B 5/10 £21.72
90/110 34 64 78 107.35.34 B 5/10 £21.72
90/110 9 6.4 62.3 F107.35.09 B 1/24 £21.72
90/110 18 11.3 67.4 F107.35.18 B 1/12 £21.72
90/110 29 18.3 77.3 F107.35.29 B 1/12 £21.72
size(mm) Z1 Z2 Z2 Code Col Pk/bx
(max) (min)
110 19 90 57 129.4.104 W 5/30 £14.49
For connection of WC pans to existing soil or waste
pipework previously connected to traditional ‘S’ mode
pan.
size(mm) angle° L Z1 Z2 Code Col Pk/bx
110 98 150 63 240 129.4.90 W –/5 £19.89
Z1
Z2
L
Z1 Z2
Z1 Z2
Z1 Z2
C
Z
B
A
Z1
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
100-Solvent
Terrain Soil Systems
Terrain Soil Systems
15

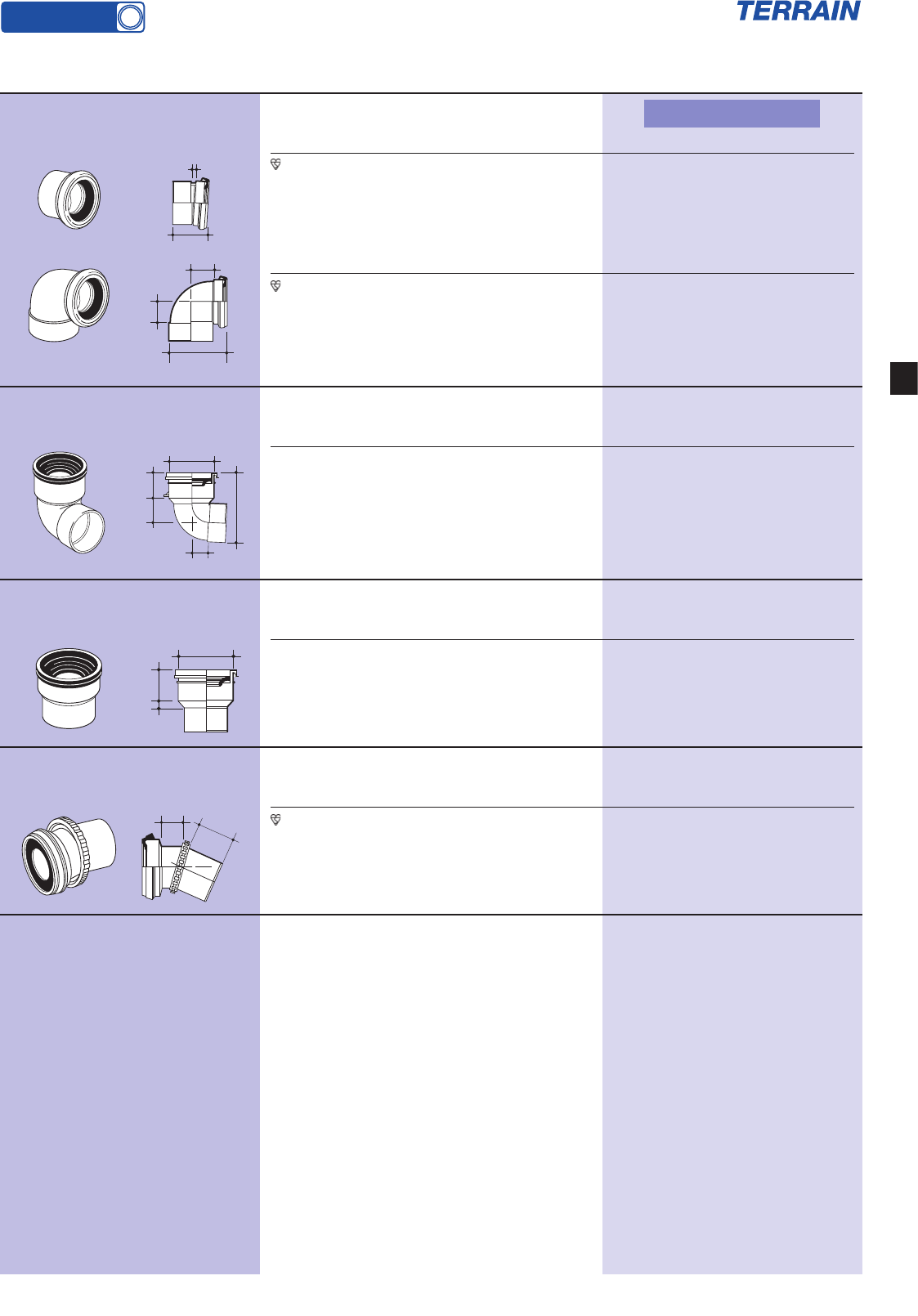

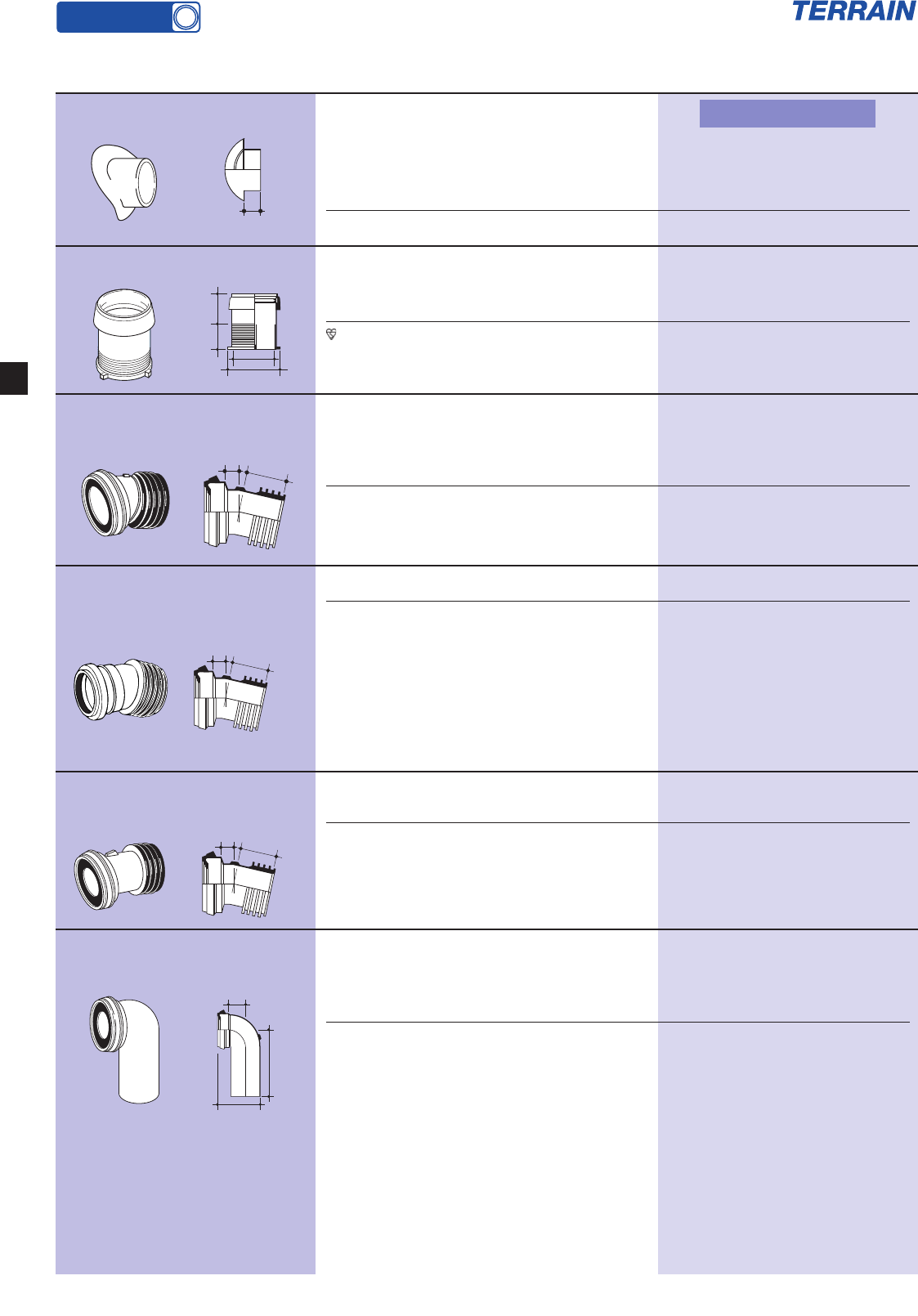

WC CONNECTORS
SOCKET OUTLET
90° WC TURNED CONNECTOR
SOCKET OUTLET
WC STRAIGHT CONNECTOR
SOCKET OUTLET
WC VARIABLE CONNECTOR
VARIABLE BEND
size(mm) angle° L Z1 Code Col Pk/bx
110 21/2101 12 128.4.02 W5/50£10.92
size(mm) angle° L Z1 Z2 Code Col Pk/bx
110 90 155 61 55 128.4.90 W5/25£17.55
For connecting non-BS 5503 WC pans to soil pipe.
size(mm) angle° A B L Z1 Z2 Code Col Pk/bx
110 921/272 133 207 52 72 102.4.5 W 5/20 £28.04
For connecting non-BS 5503 WC pans to soil pipe.
size(mm) A B Z1 Code Col Pk/bx
110 52 133 12 125.4.5 W 5/25 £17.08
Adjustable 0-25°.
size(mm) angle° Z1 Z2 Code Col Pk/bx
110 0-25 45 86 128.4.025 W 5/25 £34.83
Z1 Z2
A
Z1
B
B
A
Z2
Z1
L
Z2
Z1
L
Z1
L
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
100-Solvent
Terrain Soil Systems
Terrain Soil Systems
16
SOIL PIPE
SINGLE SOCKET-ENDED
SLIP COUPLER
DOUBLE SOCKET
STRAIGHT COUPLER
DOUBLE SOCKET
PIPE END SOCKET
SPIGOT/SOCKET
SWEPT BEND
SPIGOT/SOCKET
TIGHT RADIUS BEND
SPIGOT/SOCKET
size(mm) L1 T Code Col Pk/St
(min)
82 3m 3.2 £9.12 100P.3.30 G 1/88 £30.67
82 4m 3.2 £9.11 100P.3.40 G 1/88 £40.80
110 3m 3.2 £9.20 100P.4.30 GBW 2/67 £30.91
110 4m 3.2 £9.20 100P.4.40 GBW 2/67 £41.22
160 3m 3.3 £24.70 100P.6.30 G 1/33 £83.03
160 4m 3.3 £24.72 100P.6.40 G 1/33 £110.75
size(mm) Code Col Pk/bx
110 111.SP4 G5/40
£13.07
With central stop.
size(mm) L Z Code Col Pk/bx
82 103 6 110P.3 G 5/30 £11.81
110 129 6 110P.4 GBW5/40 £10.73
160 188 10 110P.6 G–/5£25.36
size(mm) L1 L2 Z Code Col Pk/bx
82 91 39 4 111P.3 G 5/60 £6.69
110 107 48 3 111P.4 GBW –/20 £7.51
size(mm) angle° L1 Z1 Z2 Code Col Pk/bx
82 921/2149 109 161 101P.3.92 G 5/25 £14.96
110 921/2142 85 145 101P.4.92 GBW–/10 £16.11
160 921/2215 135 215 101P.6.92 G 1/4 £48.36
110 1121/2152 104 184 101P.4.112 G –/10 £18.01
82 135 76 36 89 107P.3.135 G 5/40 £13.17
110 135 89 42 119 107P.4.135 GBW–/15 £16.26
160 135 140 60 130 107P.6.135 G 1/8 £46.65
size(mm) angle° L1 Z1 Z2 Code Col Pk/bx
110 921/2113 65 197 107P.4.92 G–/10£16.27
L1
Z1
Z2
L1
Z1
Z2
L1 Z
L2
LZ
L1
T
G - Grey B - Black W - White R - Rustic Brown
100P-PushFit
*£ per metre is for estimating purposes only.
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
Terrain Soil Systems
Terrain Soil Systems
17
OFFSET BEND
SINGLE BRANCH
SPIGOT OUTLET
SINGLE EQUAL BRANCH
PLAIN
DOUBLE EQUAL BRANCH
SPIGOT OUTLET
Top
size(mm) L1 L2 Z1 Z2 Code Col Pk/bx
110 119 73 71 54 101P.4T.112 GB 5/25 £21.14
Bottom
size(mm) L1 Z1 Z2 Code Col Pk/bx
110 73 54 127 101P.4B.112 GB 5/20 £21.14
With spigot bosses.
2 boss horns.
size(mm) angle° L1 L2 Z1 Z2 Z3 Code Col Pk/bx
82 921/2225 125 54 85 131 104P.3.92 G 5/15 £23.50
5 boss horns.
size(mm) angle° L1 L2 Z1 Z2 Z3 A B Code Col Pk/bx
110 921/2278 152 58 96 164 19 57 104P.4.92 GBW8£21.73
160 921/2440 242 90 155 260 104P.6.92 G 1/4 £56.03
size(mm) angle° L1 L2 Z1 Z2 Z3 Code Col Pk/bx
110 1121/2349 165 95 95 184 104P.4.112 G 1/5 £30.71
No boss connections.
size(mm) angle° L1 L2 Z1 Z2 Z3 Code Col Pk/bx
110 135 328 215 168 168 113 104P.4.135 G –/6 £22.37
4 boss connections.
size(mm) angle° L1 L2 Z1 Z2 Z3 Code Col Pk/bx
110 921/2287 172 66 124 173 106P.4.92 GB–/2 £56.89
Z3
Z2
L2
Z1
L1
Z1
L1
Z3
Z2 L2
Z1
L1
Z3
L2
Z3
Z1
L1
Z3
A
B
Z2
L2
L1
Z1
Z3 Z2
L2
L1
Z1
Z2
L1
Z1
L2
Z2
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
100P-PushFit
Terrain Soil Systems
Terrain Soil Systems
18

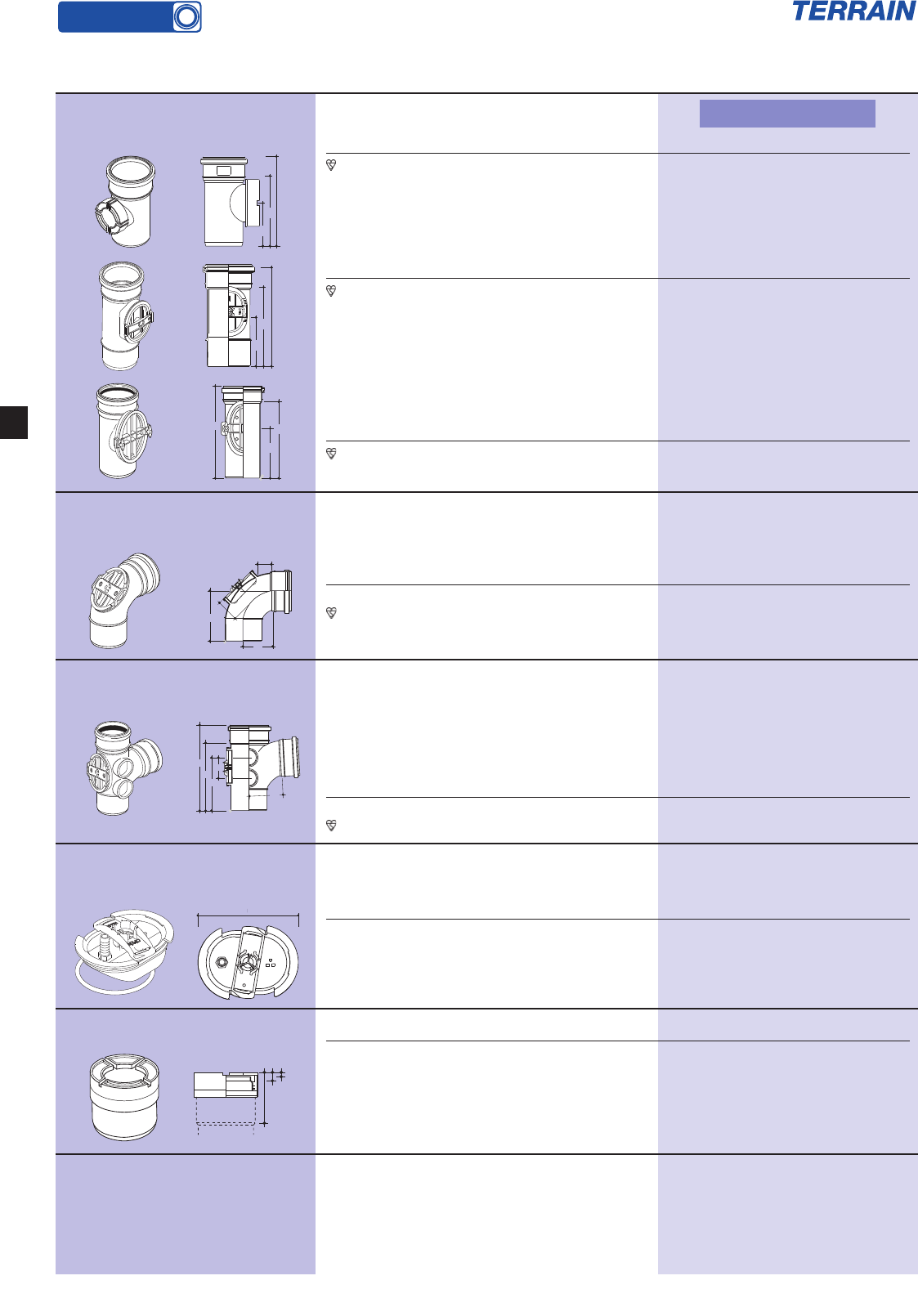

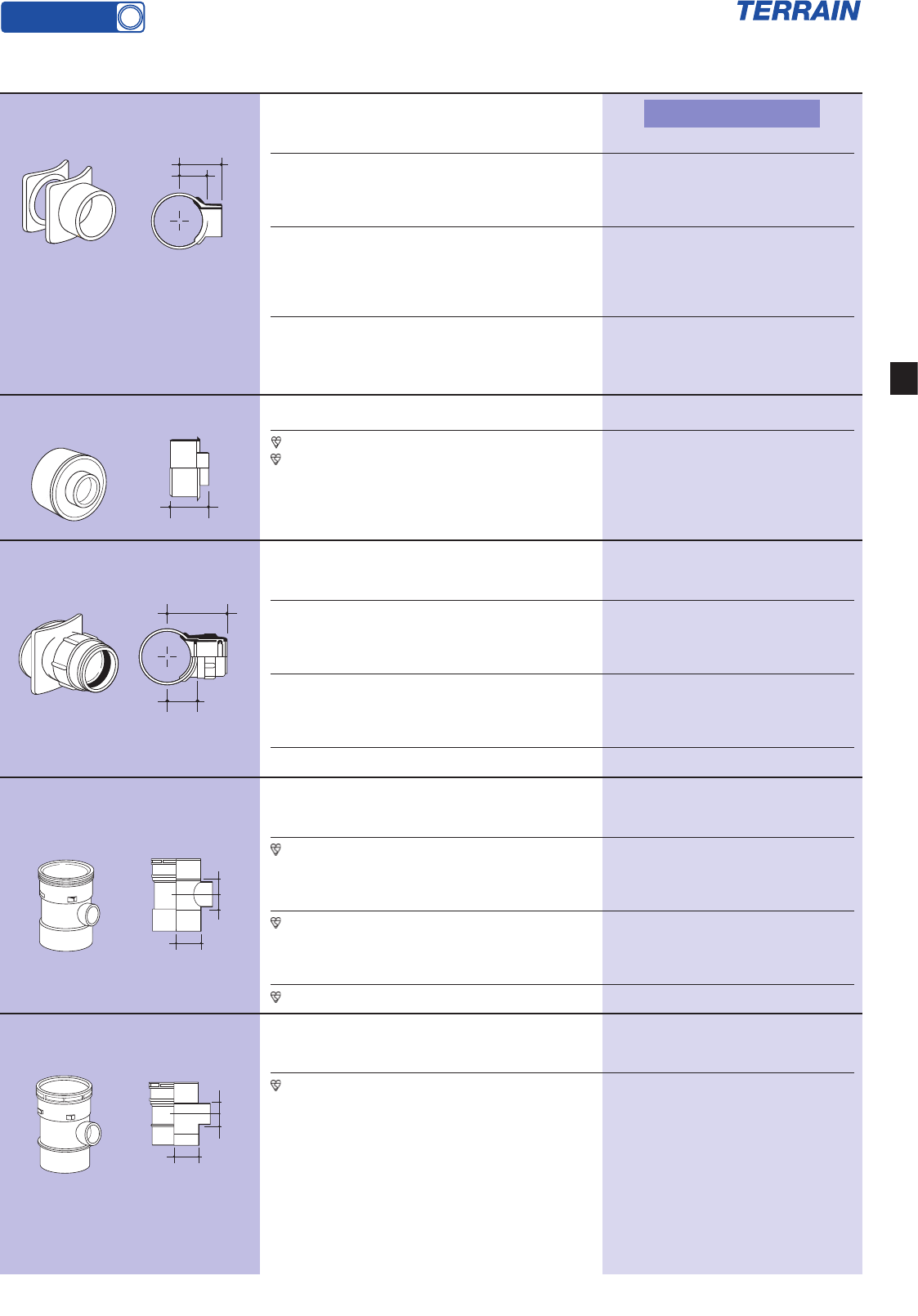

ACCESS PIPE AND COVER
SINGLE SOCKET
ACCESS BEND
SINGLE SOCKET
ACCESS SINGLE EQUAL
BRANCH SINGLE OUTLET
ACCESS DOOR WITH
TEST NIPPLE
ACCESS CAP
size(mm) L1 L2 Z1 Code Col Pk/bx
82 193 97 153 139P.3 G –/10 £29.44
size(mm) L1 L2 Z1 Code Col Pk/bx
110 222 114 175 139P.4 GB–/10 £29.39
Access door aperture size:
172 x 130mm diameter – secured by 2 screws.
size(mm) L1 L2 Z1 Code Col Pk/bx
160 366 198 305 139P.6 G1/5
£61.70
Access door aperture size:
110 x 80mm diameter – secured by locking mechanism
(use self tapping screw for anti-vandal locking).
size(mm) angle° L1 L2 Z1 Z2 Code Col Pk/bx
110 921/241 69 91 157 103P.4.92 GB5/15 £44.36
With waste bosses.
4 boss horns.
Access door aperture size:
114 x 80mm diameter – secured by locking mechanism
(use self tapping screw for anti-vandal locking).
size(mm) L1 L2 Z1 Z2 Z3 Code Col Pk/bx
110 136 74 87 105 172 105P.4.92 G–/4
£50.99
Standard oval access door with test nipple for
manometer connection.
A Code Col Pk/bx
127 6592/DVW GBWR 1 POA
size(mm) A Z1 Z2 Code Col Pk/bx
82 81 26 13 136P.3 G 5/40 £11.99
110 102 34 10 136P.4 GBW 5/40 £14.14
160 134 34 10 136P.6 G 1/15 £33.23
L1 L2
Z1
Z3
Z2
L1
L2
Z2
Z1
L1 Z1
L2
L1
Z1
L2
L1
Z1
L2
A
Z1
Z2
A
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
100P-PushFit
Terrain Soil Systems
Terrain Soil Systems
19

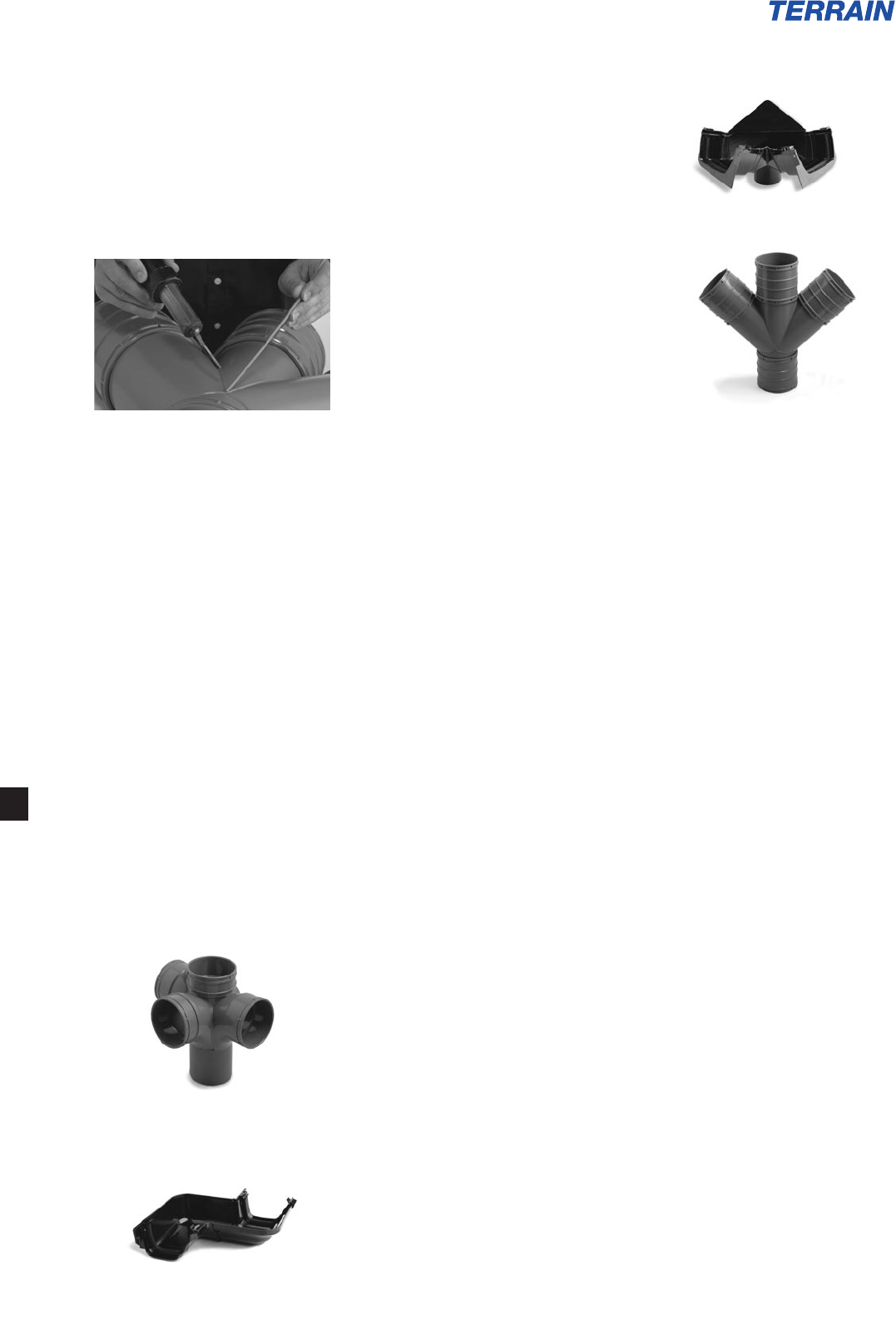

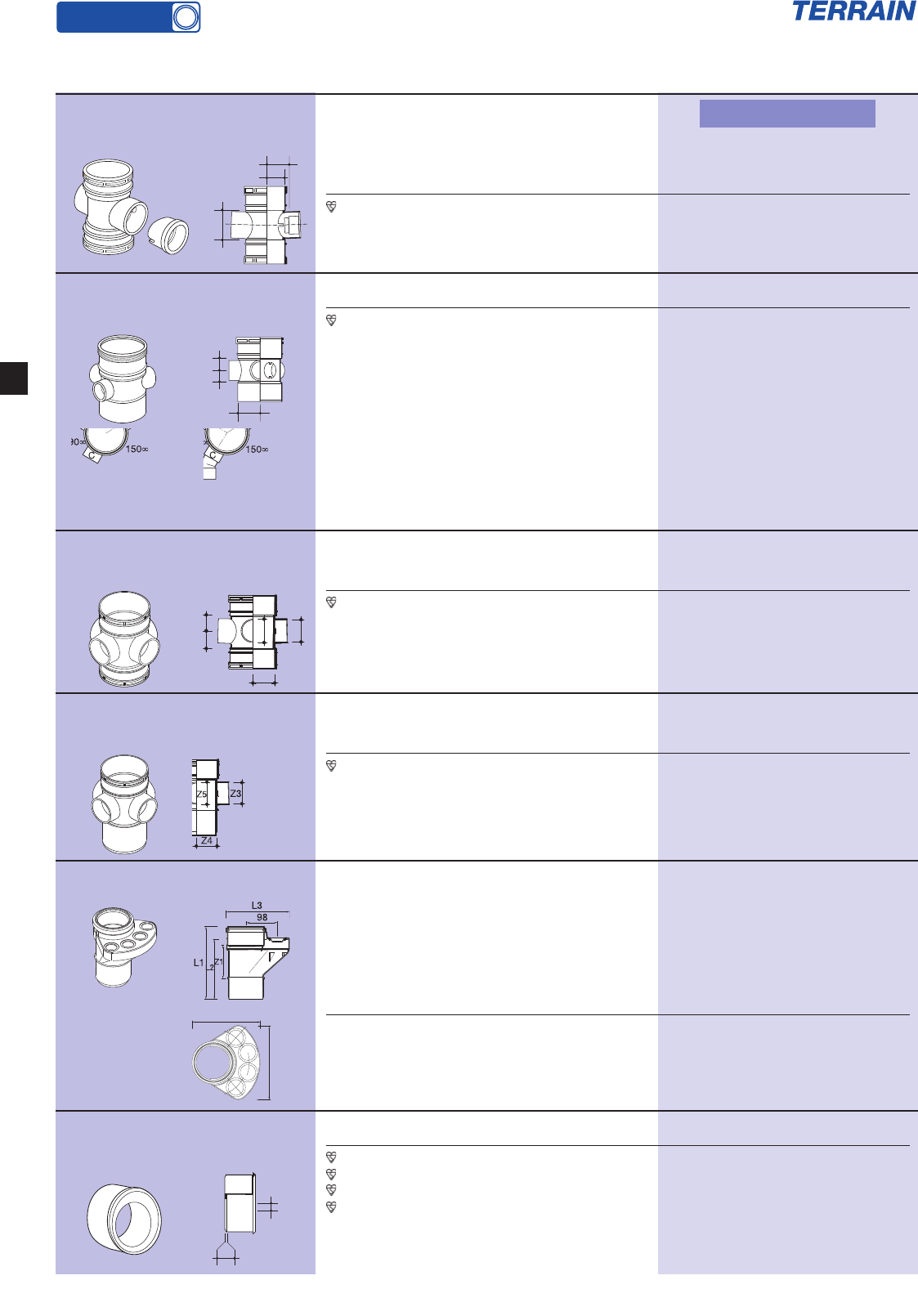

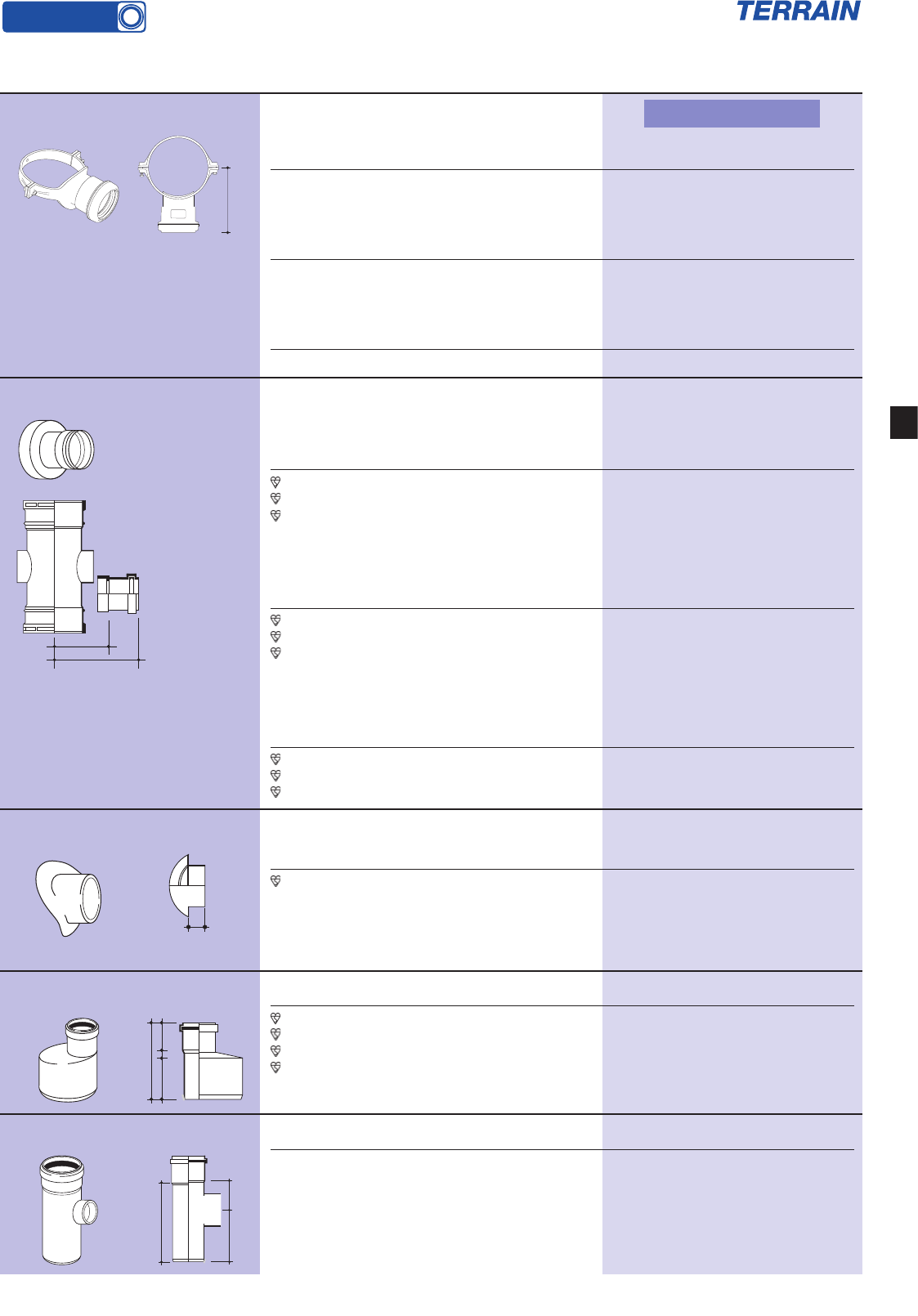

STRAP-ON BOSS
NEW!
Now allows back-to-back
dual connection of similar
and/or dissimilar pipe
diameters
BOSS ADAPTORS STRAIGHT
ADAPTOR SADDLES
REDUCERS
SHORT BOSSED PIPE
L1
Z1
Z2
For 32mm waste pipe
Code Col Pk/bx
size(mm) L1 hole saw ø
110/32 116 60 Part No. 9105.237 112P.4.125 GBW 5/100 £7.17
For 40mm waste pipe
Code Col Pk/bx
size(mm) L1 hole saw ø
110/40 116 60 Part No. 9105.237 112P.4.15 GBW 5/90 £7.17
For 50mm waste pipe
Code Col Pk/bx
size(mm) L1 hole saw ø
110/50 120 60 Part No. 9105.237 112P.4.2 GB 5/85 £7.24
For 32mm waste pipe
use on
stack
size(mm) A†Z†hole saw ø Code Col Pk/bx
82 107 61 51 117.125 GBW 5/180 £3.36
110 119 74 51 117.125 GBW 5/180 £3.36
160 144 99 51 117.125 GBW 5/180 £3.36
For 40mm waste pipe
use on
stack
size(mm) A†Z†hole saw ø Code Col Pk/bx
82 107 61 51 117.15 GBWR 5/160 £3.36
110 119 74 51 117.15 GBWR 5/160 £3.36
160 144 99 51 117.15 GBWR 5/160 £3.36
For 50mm waste pipe
use on
stack
size(mm) A†Z†hole saw ø Code Col Pk/bx
82 107 61 51 117.2 GBW 5/120 £4.79
110 119 74 51 117.2 GBW 5/120 £4.79
160 144 99 51 117.2 GBW 5/120 £4.79
For 40mm waste pipe
size(mm) Z1 hole saw ø Code Col Pk/bx
110/40 29 51 115P.4 G 5/140 £6.94
size(mm) L1 L2 Z1 Code Col Pk/bx
82/50 117 44 15 124P.3.2 G 5/60 £11.03
110/50 136 45 16 124P.4.2 GB5/50 £15.36
110/82 140 55 18 124P.4.3 G 5/40 £15.36
160/110 233 75 44 124P.6.4 G 5/15 £22.14
size(mm) L1 Z1 Z2 Code Col Pk/bx
82 145 48 97 123P.3 G 5/20 £8.71
110 212 43 110 123P.4 GB –/10 £8.80
L2
L1 Z1
Z1
L1
Z
A
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
100P-PushFit
Terrain Soil Systems
Terrain Soil Systems
20

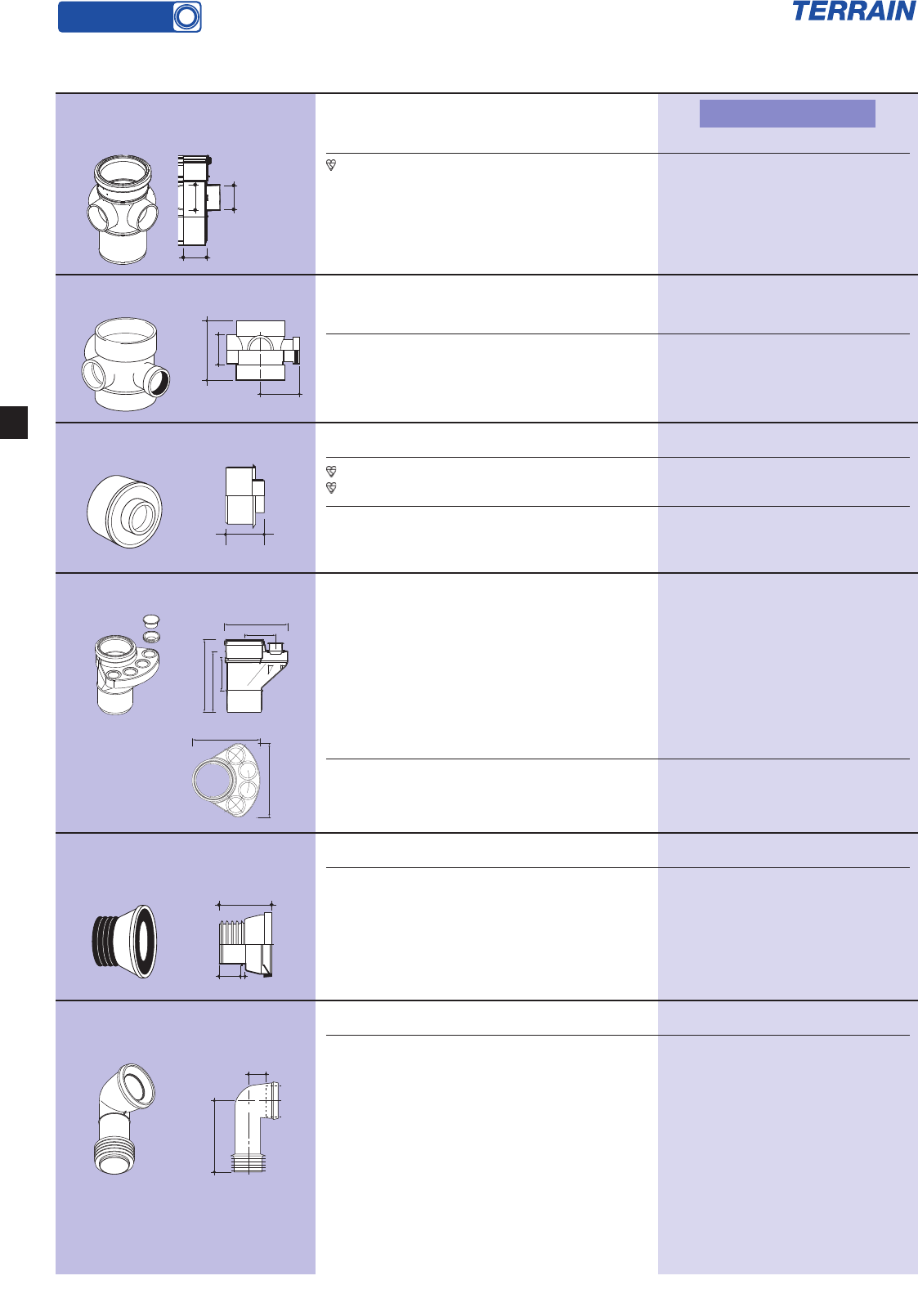

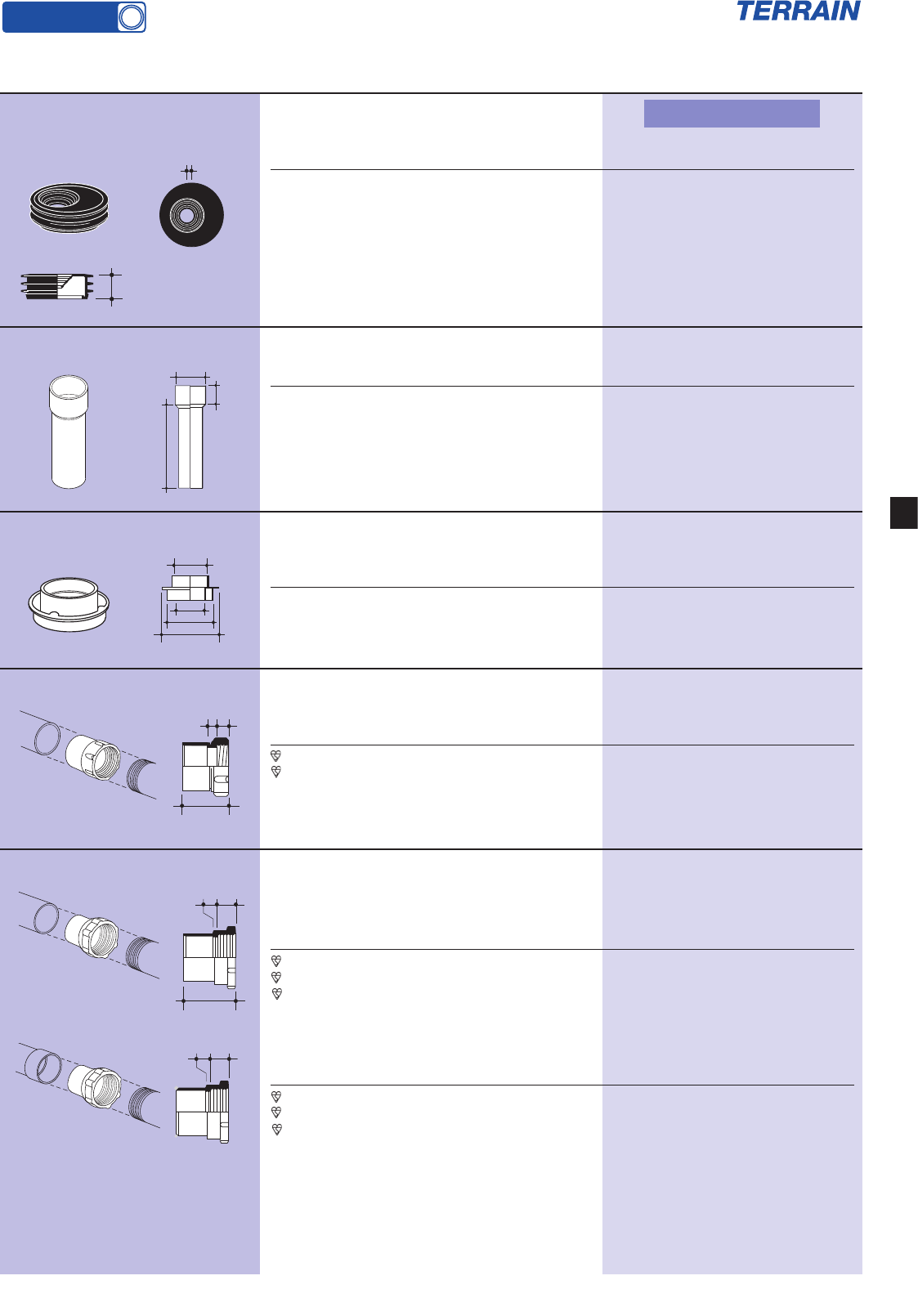

FOUR-WAY BOSS PIPE
PUSH-FIT SOCKET/SPIGOT
TRIPLE BOSS COLLAR
SOCKET PLUG
UNIVERSAL SOIL MANIFOLD
WC CONNECTOR
STRAIGHT FIN SEAL
WC CONNECTOR
90° FIN SEAL BEND
2 boss horns.
size(mm) Z1 Z2 Z3 Z4 Z5 Code Col Pk/bx
110 44 40 56 55 59 120P.412.2 G5/15
£11.34
size(mm) L1 L2 Z1 Code Col Pk/bx
110/40 65 95 125 120P.4.15 GB5/30 £8.80
size(mm) L Code Col Pk/bx
110 69 130.4 GBW 5/50 £10.61
160 92 130.6 G 5/35 £19.49
For Pushfit waste connections
For connection of BS 5254/BS 5255 32mm and 40mm
waste pipes at floor level. Incorporates 4 inlets to
accept 32mm or 40mm waste pipes without need for
adaptors. Use with Swivel Elbow or Swept Bend.
Complete with 4 sealing gaskets, and 3 removable
plugs.
For Solvent waste connections see page 10
size(mm) L1 L2 L3 L4 Z1 Code Col Pk/bx
110 228 189 199 217 105 119P.4.15 G–/5
£32.74
size(mm) L Z1 Z2 Code Col Pk/bx
110 125 10 56 129P.4.00 W5/40
£13.16
size(mm) angle° Z1 Z2 Code Col Pk/bx
110 90 230 60 129P.4.90 W –/5 £13.15
Full range of WC Connectors available, page 12–13.
For pipe brackets see page 7.
Z2
Z1
90°
L
Z2 Z1
L1
L3
98
L2Z1
Z1 L1
L2
Z3
Z5
Z4
L3
L4
L
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
100P-PushFit
Terrain Waste Systems
Terrain Waste Systems
21

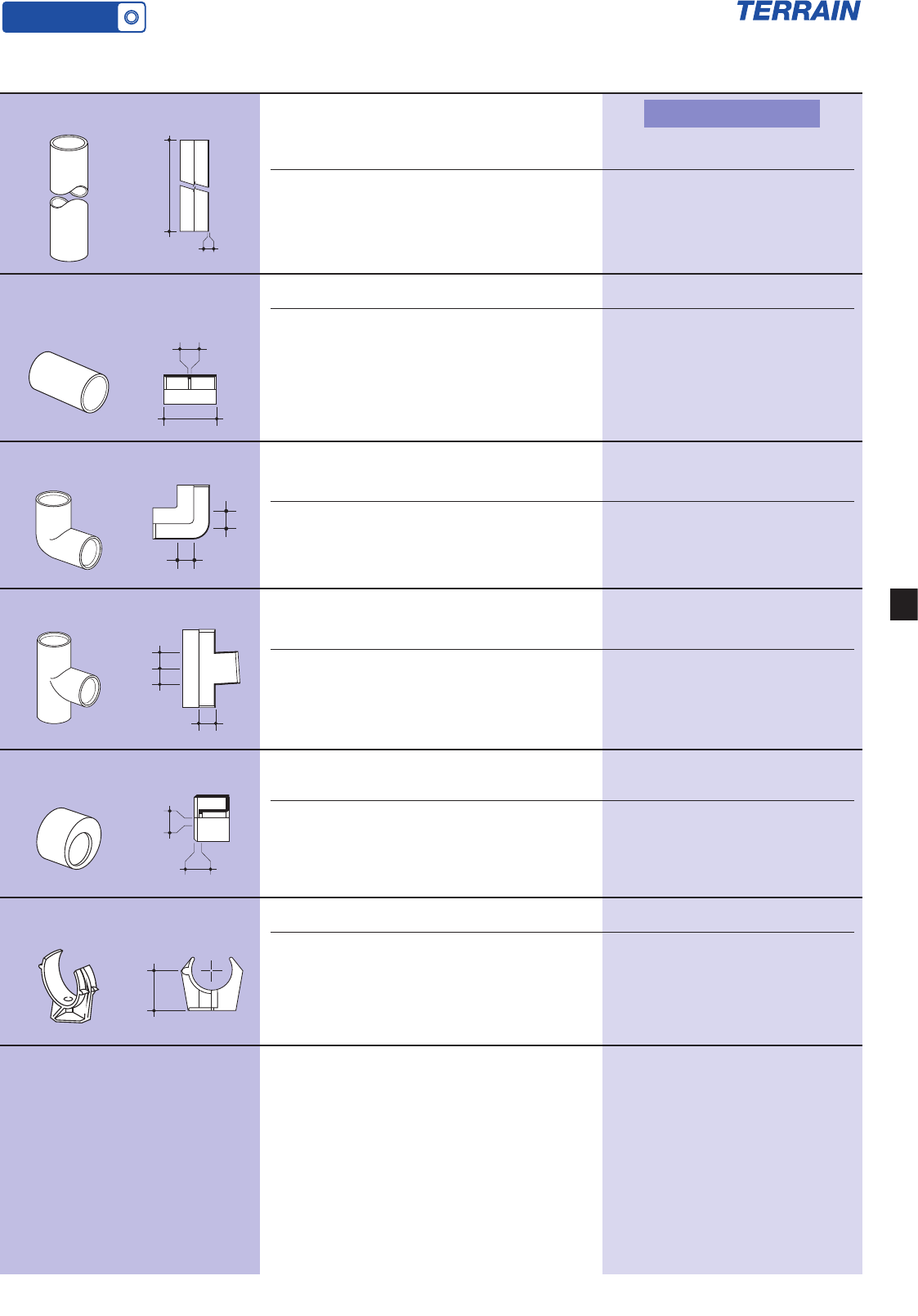

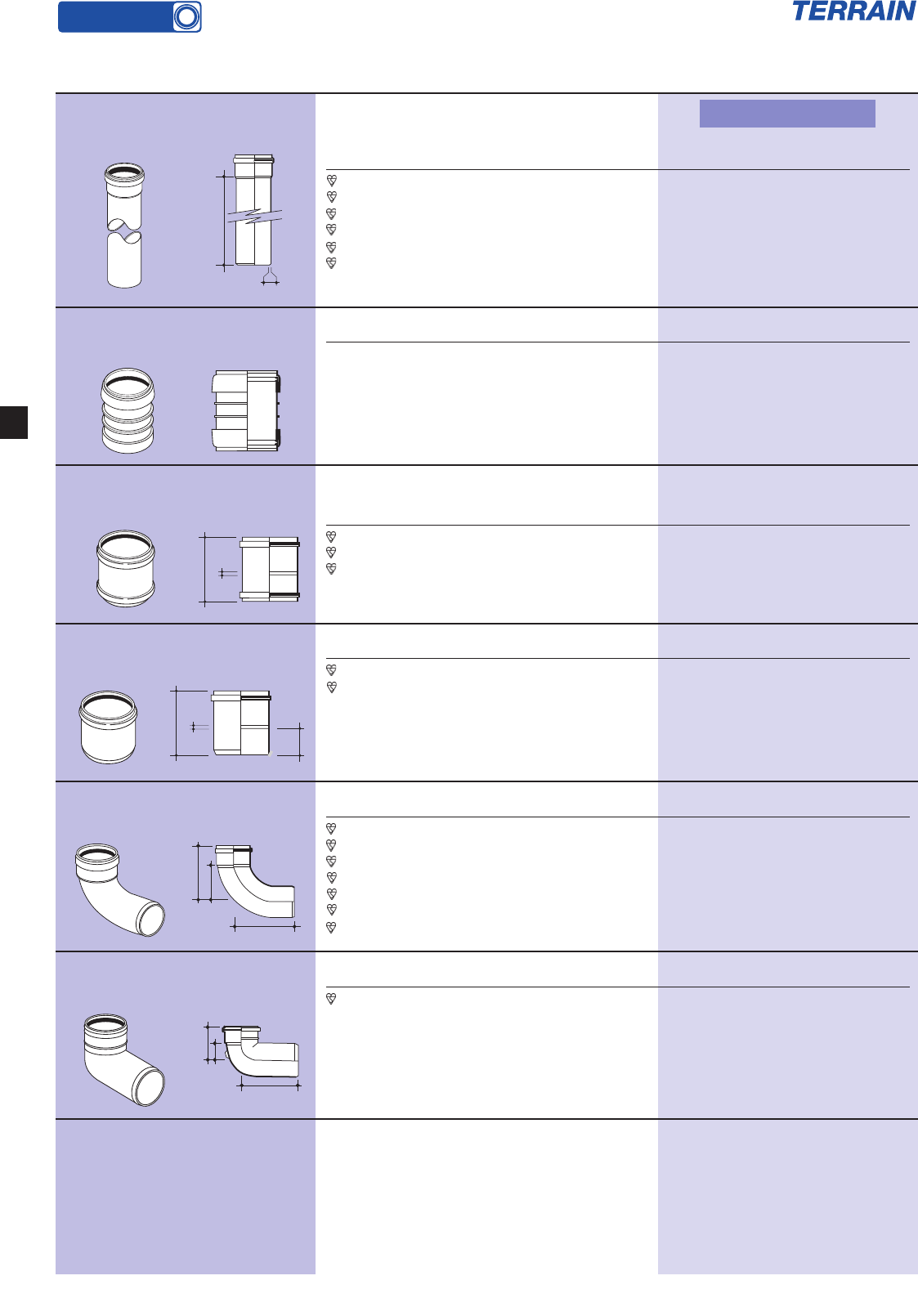

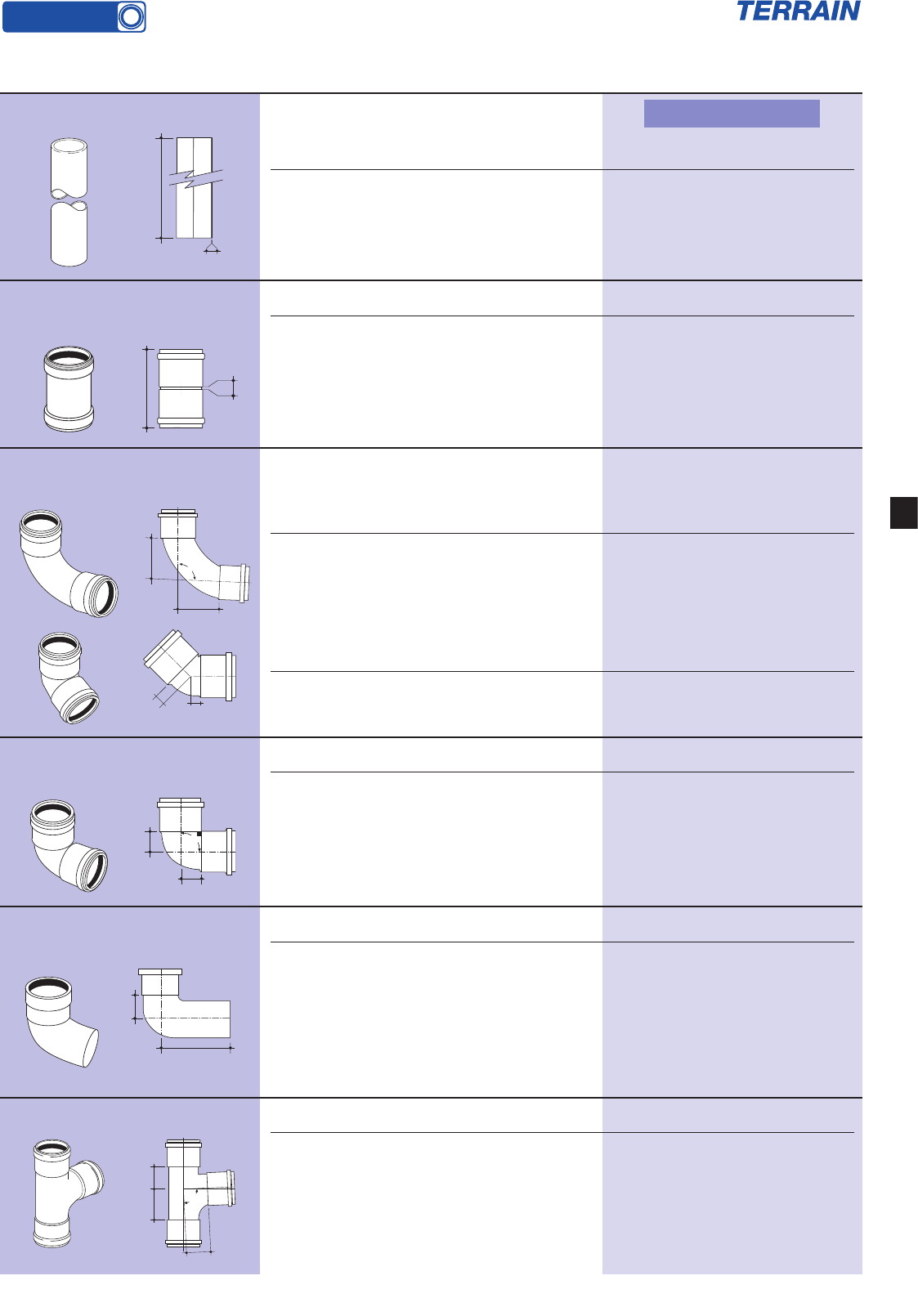

WASTE PIPE
SEAL RING ADAPTOR
STRAIGHT COUPLER
DOUBLE SOCKET
UNION DOUBLE SOCKET
EXPANSION COUPLER
SEAL RING AND
SOLVENT SOCKET
SPIGOT/SOCKET COUPLER
Plain-ended.
size(mm) L T Code Col Pk/bx
(min)
32 3m 1.8 £2.44 200.125.30 GW 5 £7.68
32 4m 1.8 £2.44 200.125.40 GBWR 5 £10.23
40 3m 1.9 £3.02 200.15.30 GW 5 £9.50
40 4m 1.9 £3.02 200.15.40 GBWR 5 £12.66
50 3m 2.0 £4.54 200.2.30 W5£14.31
50 4m 2.0 £4.55 200.2.40 GBW 5 £19.09
To convert 50mm 207.2 spigot socket bends to
expansion fitting.
size(mm) A Code Col Pk/bx
50 65 209.2 GW 5/250 £3.68
size(mm) L Z Code Col Pk/bx
32 52 2 210.125 GBWR
10/350
£1.60
40 58 2 210.15 GBWR5/240 £1.59
50 65 2 210.2 GBW
10/140
£2.91
Threaded union for easy disconnection if required.
size(mm) L Z Code Col Pk/bx
32 59 8 211.125 G
5/200
£6.68
40 65 8 211.15 G 5/130 £8.75
50 73 8 211.2 G
5/90
£9.97
size(mm) L Z Code Col Pk/bx
32 67 4 225.125 GW
10/240
£2.81
40 70 4 225.15 GW
10/180
£3.39
50 77 4 225.2 GW5/100 £4.59
To create a close-coupled expansion joint for all MuPVC
fittings.
size(mm) Z Code Col Pk/bx
32 27 227.125 GW 5/250 £2.81
40 30 227.15 GW5/180 £3.39
50 35* 227.2 G 5/100 £4.59
*dimension includes expansion
Z
Z
L
Z
L
Z
L
A
L
T
G - Grey B - Black W - White R - Rustic Brown
200-Solvent
*£ per metre is for estimating purposes only.
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
Terrain Waste Systems
Terrain Waste Systems
22
SWEPT BEND
DOUBLE SOCKET
SPIGOT/SOCKET BENDS
KNUCKLE BEND
DOUBLE SOCKET
SWEPT CROSS
ALL SOCKET
SWEPT TEE
ALL SOCKET
911/4°, 135° and 165° as standard.
For 911/4° swept bend
size(mm) angle° Z1 Z2 Code Col Pk/bx
32 911/434 34 201.125.91 GBWR
20/220
£1.62
40 911/438 38 201.15.91 GBWR5/140 £1.81
50 911/445 45 201.2.91 GBW 5/70 £3.18
For 135° swept bend
size(mm) angle° Z1 Z2 Code Col Pk/bx
32 135 10 10 201.125.135 GBWR
10/280
£1.62
40 135 11 11 201.15.135 GBWR5/200 £1.81
50 135 14 14 201.2.135 GBW 5/100 £3.18
For 165° swept bend
size(mm) angle° Z1 Z2 Code Col Pk/bx
32 165 5 5 201.125.165 G
10/320
£2.46
40 165 5 5 201.15.165 G 5/220 £3.19
50 165 6 6 201.2.165 G 5/250 £4.20
To change pipe direction in limited-space situations:
921/2° and 150° as standard.
size(mm) angle° Z1 Z2 Z2 Code Col Pk/bx
(max) (min)
32 921/219 92 46 207.125.92 GBW 5/180 £2.66
40 921/221 95 52 207.15.92 GBW 5/120 £3.05
50 921/229 102 64 207.2.92 GW5/60 £4.33
32 135 8 30 – 207.125.135 W 5/300 £2.64
40 135 11 38 – 207.15.135 GBW 5/180 £3.04
50 135 13 46 – 207.2.135 GW 5/100 £4.41
32 150 8 52 29 207.125.150 GB
10/260
£2.75
40 150 9 49 33 207.15.150 GB5/200 £3.14
size(mm) angle° Z1 Z2 Code Col Pk/bx
32 911/419 19 202.125.91 GBWR
10/280
£1.48
40 911/422 22 202.15.91 GBWR
10/200
£1.63
size(mm) angle° Z1 Z2 Z3 Code Col Pk/bx
40 911/444 44 20 206.15.91 GW 5/105 £6.71
50 911/451 51 25 206.2.91 GW 5/55 £7.03
50 135 13 71 71 206.2.135 G5/55£45.98
911/4° and 135° as standard.
size(mm) angle° Z1 Z2 Z3 Code Col Pk/bx
32 911/430 30 19 204.125.91 GBWR5/120 £2.18
40 911/432 35 22 204.15.91 GBWR5/90 £2.76
50 911/443 43 29 204.2.91 GBW 5/45 £5.39
32 135 8 48 48 204.125.135 GW 5/120 £2.61
40 135 10 57 57 204.15.135 GW5/80 £3.45
50 135 13 71 71 204.2.135 GBW 5/80 £5.39
Z3
Z1
Z2
Z3
Z1
Z2
Z2
Z1
Z2
Z1
Z2
Z1
Z2
Z1
Z2
Z1
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
200-Solvent
Terrain Waste Systems
Terrain Waste Systems
23

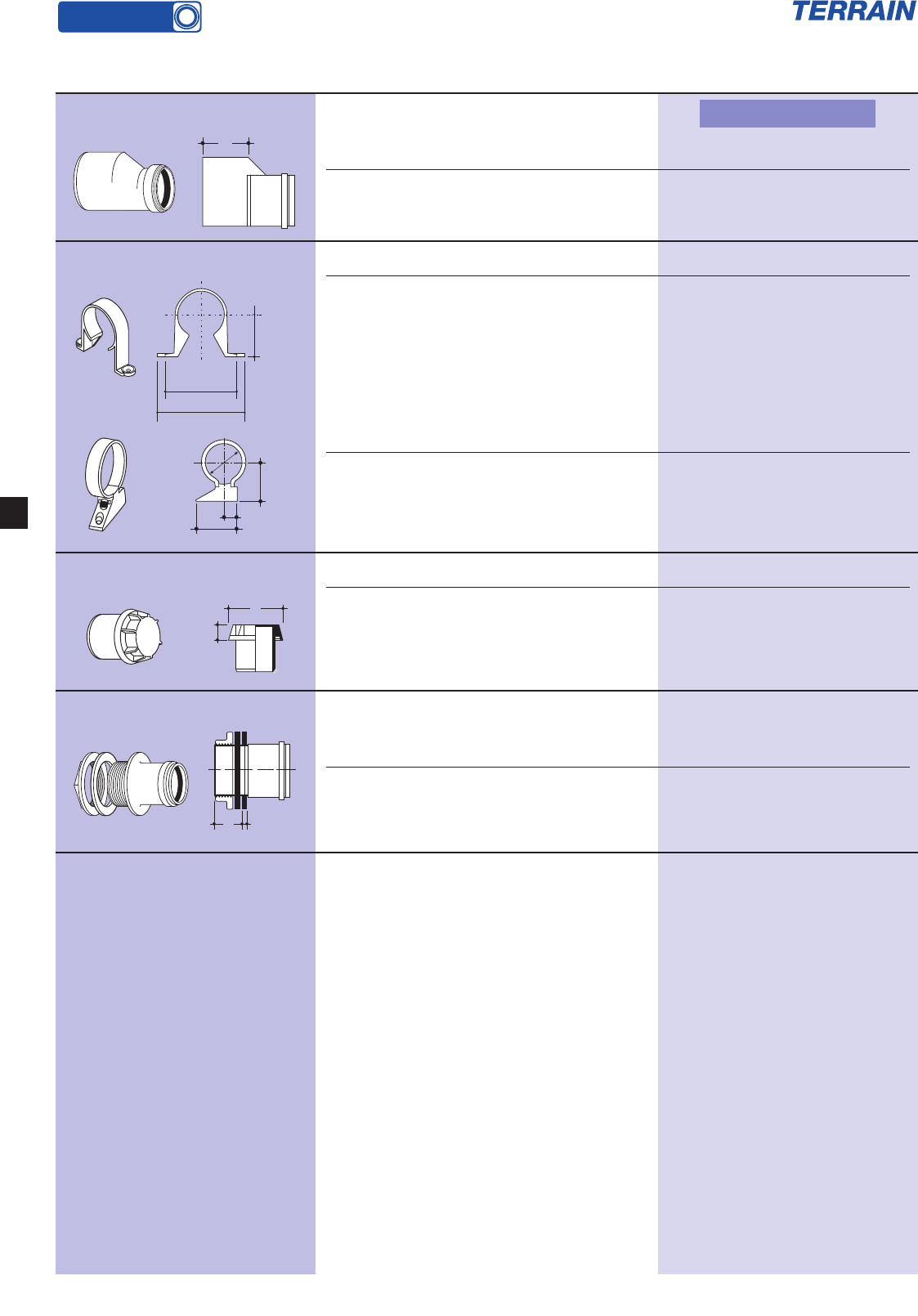

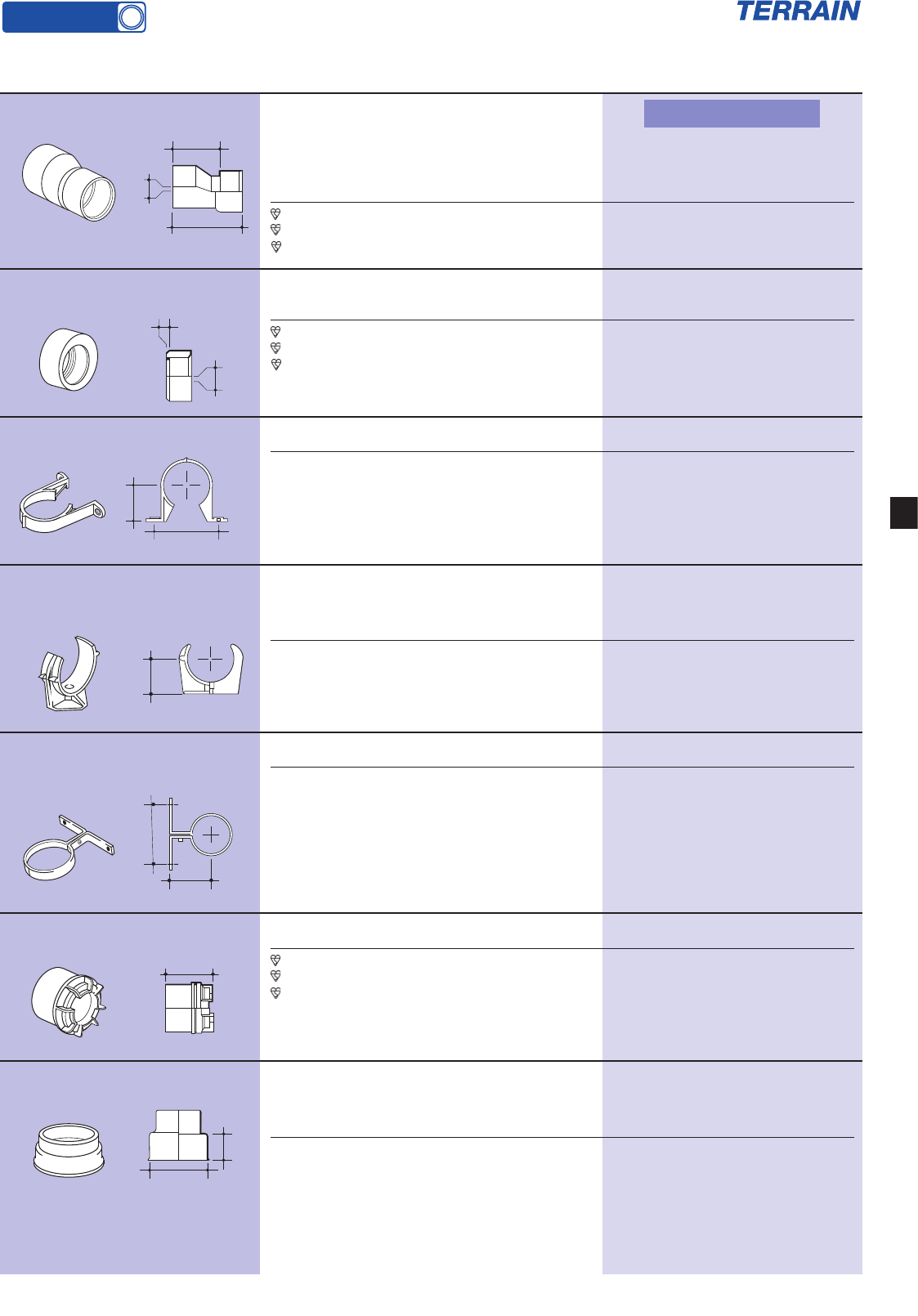

LEVEL INVERT TAPER
SOCKET REDUCER
PIPE FIXING CLIP
EXPANSION FITTING
FIXING CLIP
PIPE AND FITTING BRACKET
(METAL)
ACCESS PLUG
WEATHERING APRON
To reduce socket of any standard fitting to accept a
smaller size pipe. Larger end spigot and smaller end
socket.
size(mm) A L Z Code Col Pk/bx
centres
40/32 4 73 47 223.15.125 G 5/230 £1.99
50/32 10 98 73 223.2.125 GW
10/190
£2.47
50/40 7 90 62 223.2.15 G
10/160
£2.46
size(mm) A Z Code Col Pk/bx
centres
40/32 0 3 224.15.125 GBWR
20/640
£1.60
50/32 7 6 224.2.125 GBW
10/350
£2.31
50/40 4 3 224.2.15 GBW
10/350
£2.82
To secure control thermal expansion at regular points
along pipework.
size(mm) A Code Col Pk/bx
32 33 242.125 GW
10/750
£0.63
40 37 242.15 W
10/500
£0.71
50 43 242.2 GW
10/300
£1.53
size(mm) A B Code Col Pk/bx
32 57 44 243.125 Self
10/120
£2.29
40 60 48 243.15 Self
10/100
£2.73
50 75 53 243.2 Self 10/70 £3.47
size(mm) L Code Col Pk/bx
32 47 237.125 GBW
10/350
£1.48
40 54 237.15 GBW
10/320
£1.48
50 56 237.2 GBW 5/180 £2.13
To provide weathertight cover over lead slate around
50mm waste pipe penetrating roof.
size(mm) A B Code Col Pk/bx
50 76 38 231.2 G 5/135 £3.38
B
A
L
A
B
A
A
B
Z
A
Z
A
L
size(mm) A B Code Col Pk/bx
32 33 54 240.125 GBWR
20/1000
£0.52
40 37 60 240.15 GBWR
20/800
£0.60
50 43 76 240.2 GBW
10/500
£0.80
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
200-Solvent
Terrain Waste Systems
Terrain Waste Systems
24

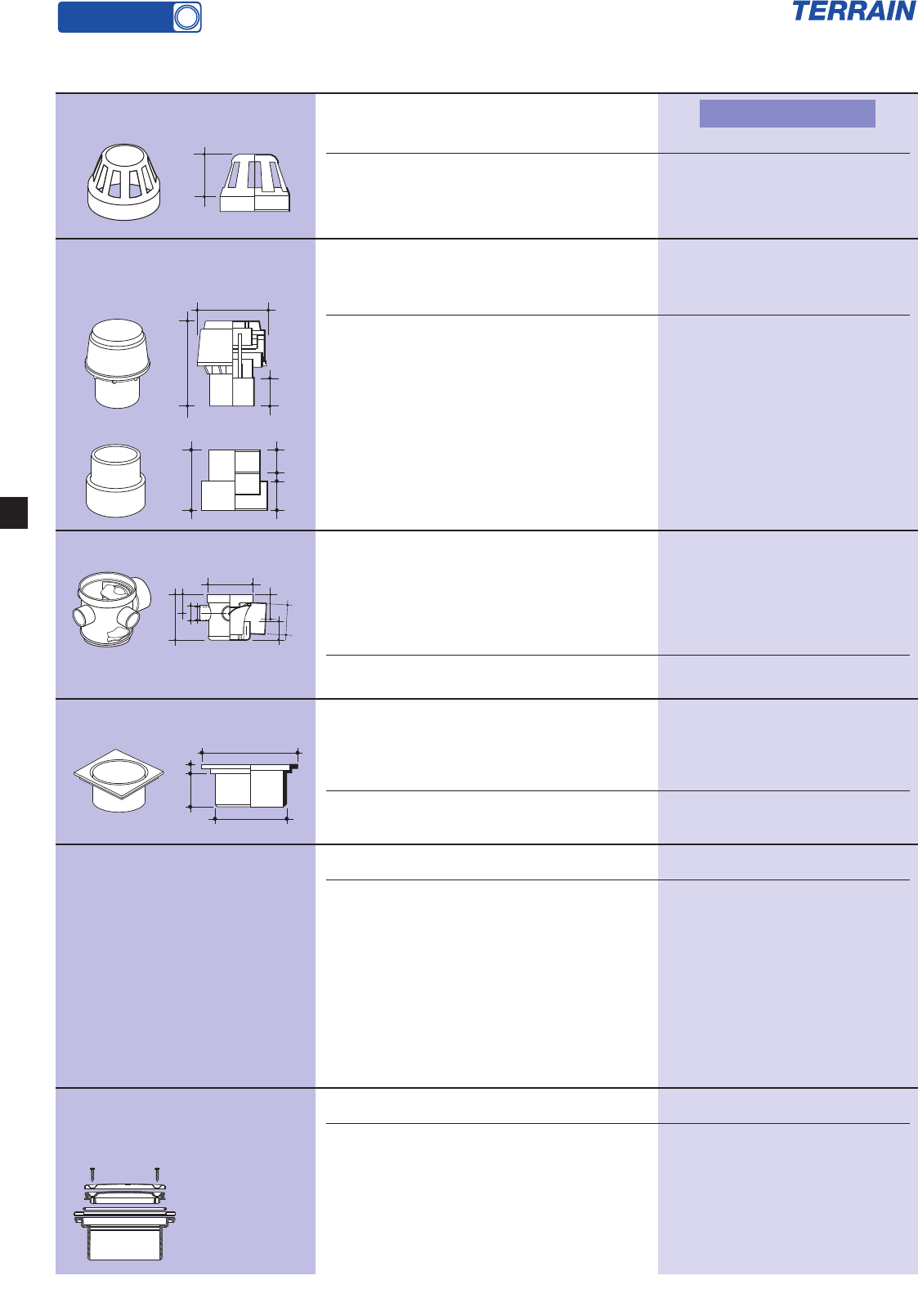

VENT COWL
AUTOMATIC AIR
ADMITTANCE VALVE
TRAPPED FLOOR GULLY
FLOOR GULLY INLETS
SEALED GULLY
RAISING PIECE
SEALED GULLY
RAISING PIECE
STAINLESS STEEL COVER
size(mm) A Code Col Pk/bx
50 34 250.2 GW5/300 £3.84
Allows air into waste system when negative pressure
occurs. Helps prevent syphonage of traps.
size(mm) A B L L1 C D Code Col Pk/bx
32/40/50 65 26 80 55 25 25 253W W5/70£20.36
Under-floor trap (e.g. for shower areas) with 3 sockets
to accept 40mm waste pipe.
Seal depth: 50mm.
Cleaning access via removable baffle with integral
gasket to maintain airtight seal.
size(mm) A B C D E F G H Code Col Bx
110/82 169 69 77 64 51 42 82 110 281.43 GT2/20 £21.22
160/110 169 70 85 69 55 50 110 160 281.64 GT1/12£21.22
Two-part fitting to be set in standard-tiled floor
(e.g. in shower areas). Comprises of raising piece with
50mm square top, and snap-in cover.
size(mm) A B Z1 Z2 Code Col Bx
110 PVC 50x150 110 14 48 282.6 GW1/36£7.70
110 SS 50x150 110 14 48 283.6 Self 1/36 £15.58
size(mm) Code Col Bx
110 284.6 GW1/36
£9.43
size(mm) Code Col Bx
110 285.6 Self 1/36 £15.94
A
Z1
Z2
B
H
A
B
EFC
G
D
L1
C
D
A
L
B
A
G - Grey B - Black W - White R - Rustic Brown T - Terracotta
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
200-Solvent
Terrain Waste Systems
Terrain Waste Systems
25
ADAPTOR TO UNDERGROUND
DRAIN PIPE
ADAPTOR TO METAL PIPE
CAULKING BUSH
REVERSE NUT ADAPTOR
200 WASTE TO MALE IRON
ZA
Spigot and threaded socket.
size(mm) A Z Code Col Pk/bx
32/32 23 3 216.125 G 5/400 £2.73
40/40 23 3 216.15 G 5/320 £3.21
50/50 23 3 216.2 G 5/200 £4.59
ZA
L
For solvent-weld connection of MuPVC waste pipe or
fitting to BSP threaded male pipe or fitting.
Socket and threaded socket.
size(mm) A L Z Code Col Pk/bx
32/32 23 51 3 212.125 G
10/270
£2.84
40/40 23 54 3 212.15 G
10/220
£2.84
50/50 23 57 3 212.2 G 5/140 £4.10
ZA
L
For solvent-weld connection of MuPVC waste pipe (or
waste fitting) to BSP male threaded fitting or pipe.
size(mm) A L Z Code Col Pk/bx
32/32 15 50 11 218.125 W
10/300
£3.63
40/40 15 53 11 218.15 W
10/250
£3.63
A
B
C
D
For connecting MuPVC waste pipe to 50mm socket of
other material. Solvent-weld to pipe.
size(mm) A B C D Code Col Pk/bx
32/40/50 43 36 56 70 232 G
10/350
£3.81
A
B
Z
Supplied with seal ring.
size(mm) A B Z Code Col Pk/bx
50 70 42 358 226.2 G 5/55 £8.75
L
A
Push-fit connection into pipes with nominal 100mm
bore. External use only.
size(mm) A L Code Col Pk/bx
32/40/50 8 40 4DW200 B5/60
£15.17
Note: As a Terrain Underground product different
discount structure applies.
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
200-Solvent
Terrain Waste Systems
Terrain Waste Systems
26
200 WASTE TO FEMALE IRON For solvent-weld connection of MuPVC waste pipe or
fitting to BSP threaded female pipe or fitting.
Socket and threaded socket.
size(mm) A L Z Code Col Pk/bx
32/32 19 48 3 213.125 G
10/320
£2.42
40/40 19 51 3 213.15 GW
10/240
£2.84
50/50 19 54 3 213.2 GW5/140 £4.10
Spigot and threaded socket.
size(mm) A Z Code Col Pk/bx
32/32 19 6 217.125 G 5/300 £2.73
40/40 19 6 217.15 G 5/240 £3.21
50/50 19 6 217.2 GW 5/160 £4.32
ZA
ZA
L
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS

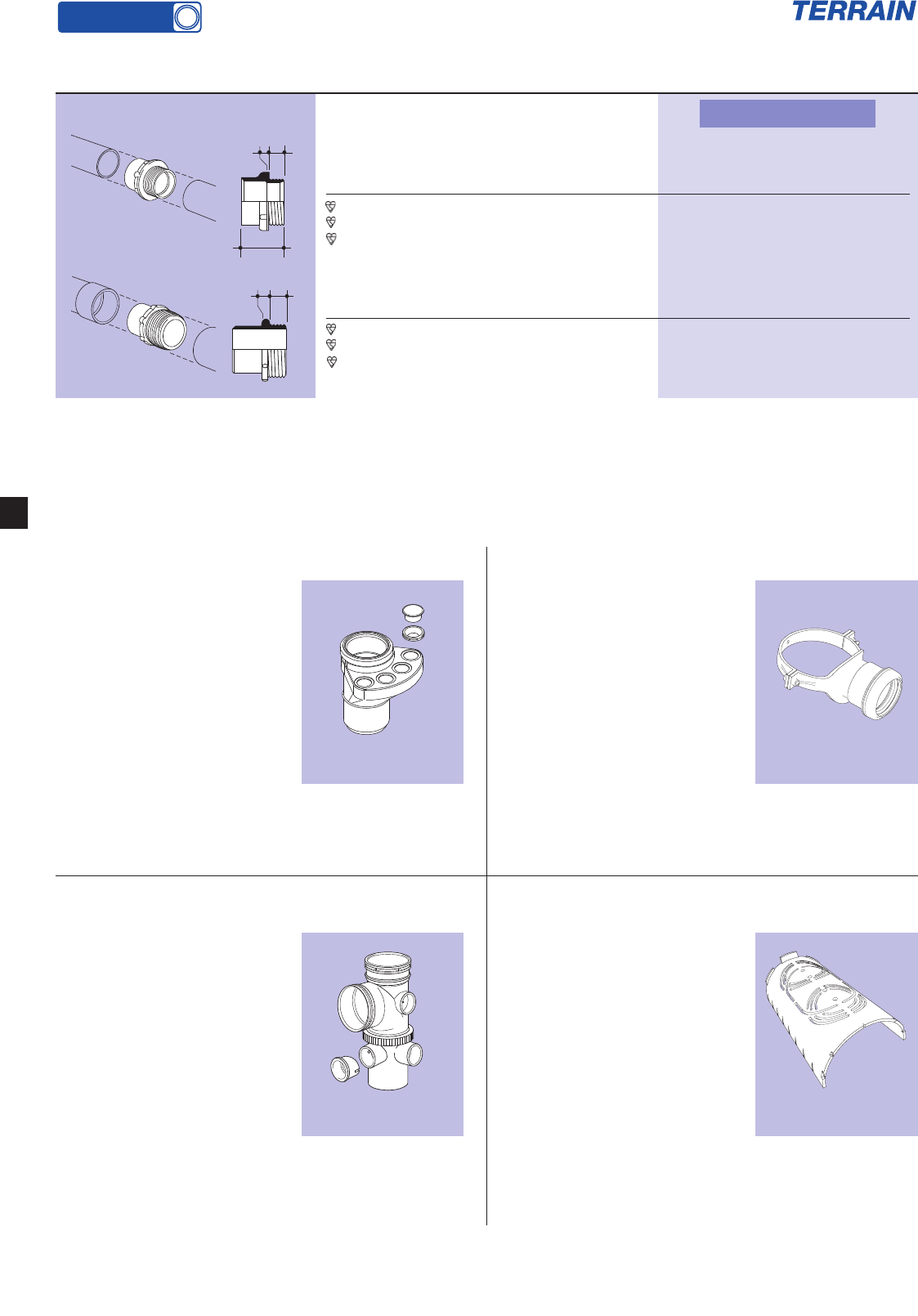

Universal Soil Manifold
■Assembled using mirror
welding technology –
providing a consistent,
stronger and more durable
weld
■The most compact four
entry manifold available
■Terrain branded waste
plugs, easily removable for
installation flexibility
■Now available with solvent weld inlets
■See pages 10 and 18 for further details
119P.4.15
New Strap-on Boss
■Detachable rear strap
provides back to back
connection of common or
different diameters
■32mm, 40mm and 50mm
boss diameters
■Same diameter of stack
opening for all boss sizes
■Increased contact area for
greater installation security
■See page 17 for further details
112P.4.2
Single Equal Branch – Variable Boss
■Unrivalled installation
flexibility – branch and boss
pipe incorporated in a single
adjustable fitting
■Direct pipe connection (x2)
for 50mm waste runs – no
additional fitting required
■Joint design assures vertical
alignment during installation
and operation
■Anti-tamper proof joint means that major product
parts can no longer be separated
■See page 4 for further details
104.412.92
New Pipe Marking Template
■Marking template for access
doors and associated Terrain
waste bosses
■With the aid of a spirit level
it is a tool for measuring
gradients of fall between
0.5, 1.0 and 2.5 degrees
■Can be used to mark angles
of rotation 0, 15, 45, 90,
135 and 165 degrees
■Made from polypropylene, the template is tough,
durable and will not be affected by solvent cement
■See page 31 for further details
9105.500
200-Solvent
Innovative Products
Innovative Products
Terrain Waste Systems
Terrain Waste Systems
27
WASTE PIPE
STRAIGHT COUPLER
DOUBLE SOCKET
SWEPT BEND
DOUBLE SOCKET
KNUCKLE BEND 90°
DOUBLE SOCKET
SWIVEL ELBOW BEND 90°
SINGLE SOCKET/SPIGOT
SWEPT TEE 911/4°
Z1
Z3
Z2
911/4°
Plain-ended.
size(mm) L T Code Col Pk/bx
(min)
32 3m 1.8 £1.23 300.125.30 GBW10 £4.12
40 3m 1.9 £1.52 300.15.30 GBW10 £5.10
50 3m 2 £2.53 300.2.30 G 10 £8.50
size(mm) L Z1 Code Col Pk/bx
32 80 2 310.125 GBW
10/350
£1.31
40 80 2 310.15 GBW
10/300
£1.31
50 70 2 310.2 G
10/200
£2.26
911/4° and 135° as standard.
For 911/4° swept bend
size(mm) angle° Z1 Code Col Pk/bx
32 911/455 301.125.91 GBW
10/240
£1.31
40 911/455 301.15.91 GBW
10/200
£1.31
50 911/465 301.2.91 G 10/90 £2.26
For 135° swept bend
size(mm) angle° Z1 Code Col Pk/bx
32 135 10 301.125.135 GBW
10/300
£1.31
40 135 11 301.15.135 GBW
10/280
£1.31
50 135 14 301.2.135 G
10/100
£2.26
size(mm) angle° Z1 Code Col Pk/bx
32 90 20 302.125.90 GBW
10/160
£1.31
40 90 23 302.15.90 GBW
10/220
£1.31
50 90 28 302.2.90 G
10/100
£2.25
size(mm) angle° Z1 Z2 Code Col Pk/bx
32 90 30 60 307.125.90 GW
10/170
£1.31
40 90 25 60 307.15.90 GW
10/110
£1.31
size(mm) angle° Z1 Z2 Z3 Code Col Pk/bx
32 911/425 30 35 304.125.91 GBW
10/160
£1.44
40 911/430 33 40 304.15.91 GBW
10/120
£1.44
50 911/435 40 46 304.2.91 G 10/70 £2.43
Z1
Z2
90°
Z1
Z1
90°
Z1 Z1
Z1
Z1
911/4°
LZ1
L
T
G - Grey B - Black W - White R - Rustic Brown
300-PushFit
*£ per metre is for estimating purposes only.
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
Terrain Waste Systems
Terrain Waste Systems
28
SOCKET REDUCER
PIPE AND FITTING CLIP
ACCESS PLUG
TANK CONNECTOR
To reduce waste socket to accept smaller diameter
waste pipe.
size(mm) Z1 Code Col Pk/bx
40/32 35 323.15.125 GBW
10/400
£1.41
50/32 35 323.2.125 G
10/180
£1.41
50/40 35 323.2.15 G
10/150
£2.43
size(mm) L1 C1 C2 Code Col Pk/bx
32 70 34 54 340.125 GBW
20/800
£0.46
40 77 37 61 340.15 GBW
20/800
£0.46
size(mm) L1 C1 C2 Code Col Pk/bx
50 60 51 22 343.2 G
10/600
£1.11
size(mm) L1 Z1 Code Col Pk/bx
32 55 17 337.125 GBW
10/500
£1.31
40 49 17 337.15 GBW
10/500
£1.31
50 59 10 337.2 G
10/200
£2.26
For connecting push-fit polypropylene pipe to water
tank. Supplied with 2 sealing washers.
size(mm) L1 Z1 Code Col Pk/bx
32 24 7 311.125 GW
10/300
£1.31
40 24 7 311.15 GW
10/300
£1.31
50 25 7 311.2 G
10/200
£2.26
L1
Z1
L1
Z1
C1
C2
L1
C1
C2
L1
Z1
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
300-PushFit
Terrain Overflow
Terrain Overflow
29
OVERFLOW PIPE
STRAIGHT COUPLER
DOUBLE SOCKET
BEND DOUBLE SOCKET
BRANCH
SOCKET REDUCER
PIPE FIXING CLIP (PLASTIC)
Plain-ended.
size(mm) L T Code Col Pk/bx
(min)
19 4m 1.1 £1.44 500.75.40 W20£6.46
size(mm) L Z Code Col Pk/bx
19 40 2 510.75 W
50/1000
£1.72
911/4° and 135° as standard.
size(mm) angle° Z1 Z2 Code Col Pk/bx
19 911/412 12 501.75.91 W
50/750
£2.03
19 135 6 6 501.75.135 W
50/1100
£2.04
911/4° as standard.
size(mm) angle° Z1 Z2 Z3 Code Col Pk/bx
19 911/413 13 13 504.75.91 W
10/500
£2.21
size(mm) A Z Code Col Pk/bx
centre
19/32 5 5 524.75 W
10/1000
£2.41
size(mm) A Code Col Pk/bx
19 20 540.75 W
50/2500
£0.63
A
A
Z
Z3
Z1
Z2
Z2
Z1
Z
L
L
T
G - Grey B - Black W - White R - Rustic Brown
500-Over
flow
*£ per metre is for estimating purposes only.
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
Terrain Overflow
Terrain Overflow
30

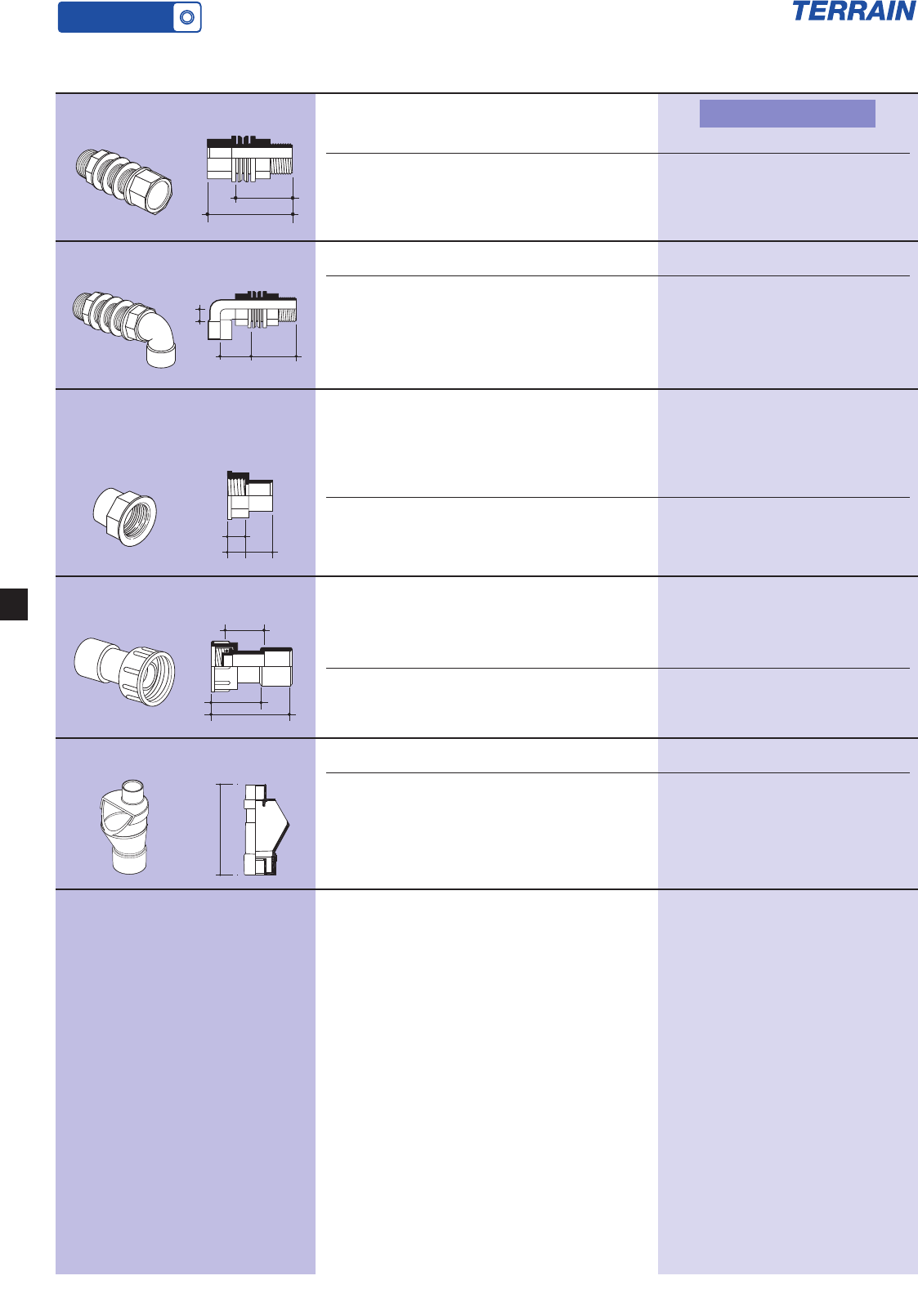

STRAIGHT TANK CONNECTOR
BENT TANK CONNECTOR 90°
BSP ADAPTOR
SOLVENT-WELD SOCKET
AND 3/4" BSP SOCKET
REVERSE NUT CONNECTOR
TUNDISH
To connect cistern/tank to overflow pipe.
size(mm) A L Code Col Pk/bx
19 48 69 511.75 W
10/250
£2.67
size(mm) angle° A Z1 Z2 Code Col Pk/bx
19 90 48 13 32 502.75.90 W
10/200
£3.17
To connect PVC-u overflow pipe to threaded
components. Solvent-weld socket to receive overflow
pipe. Threaded socket to receive 3/4" BSP male
threaded pipe end.
size(mm) A L Code Col Pk/bx
19 14 39 512.75 W
10/750
£2.93
To connect PVC-u overflow pipe to threaded
components. Threaded loose nut to receive 3/4" BSP
male threaded pipe end.
size(mm) A L Z1 Code Col Pk/bx
19 35 54 25 519.75 W
20/300
£0.80
size(mm) L Code Col Pk/bx
19 117 590.75 W
5/100
£42.83
L
Z1
A
L
A
L
Z1
Z2 A
L
A
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
500-Over
flow
Terrain Traps
Terrain Traps
31

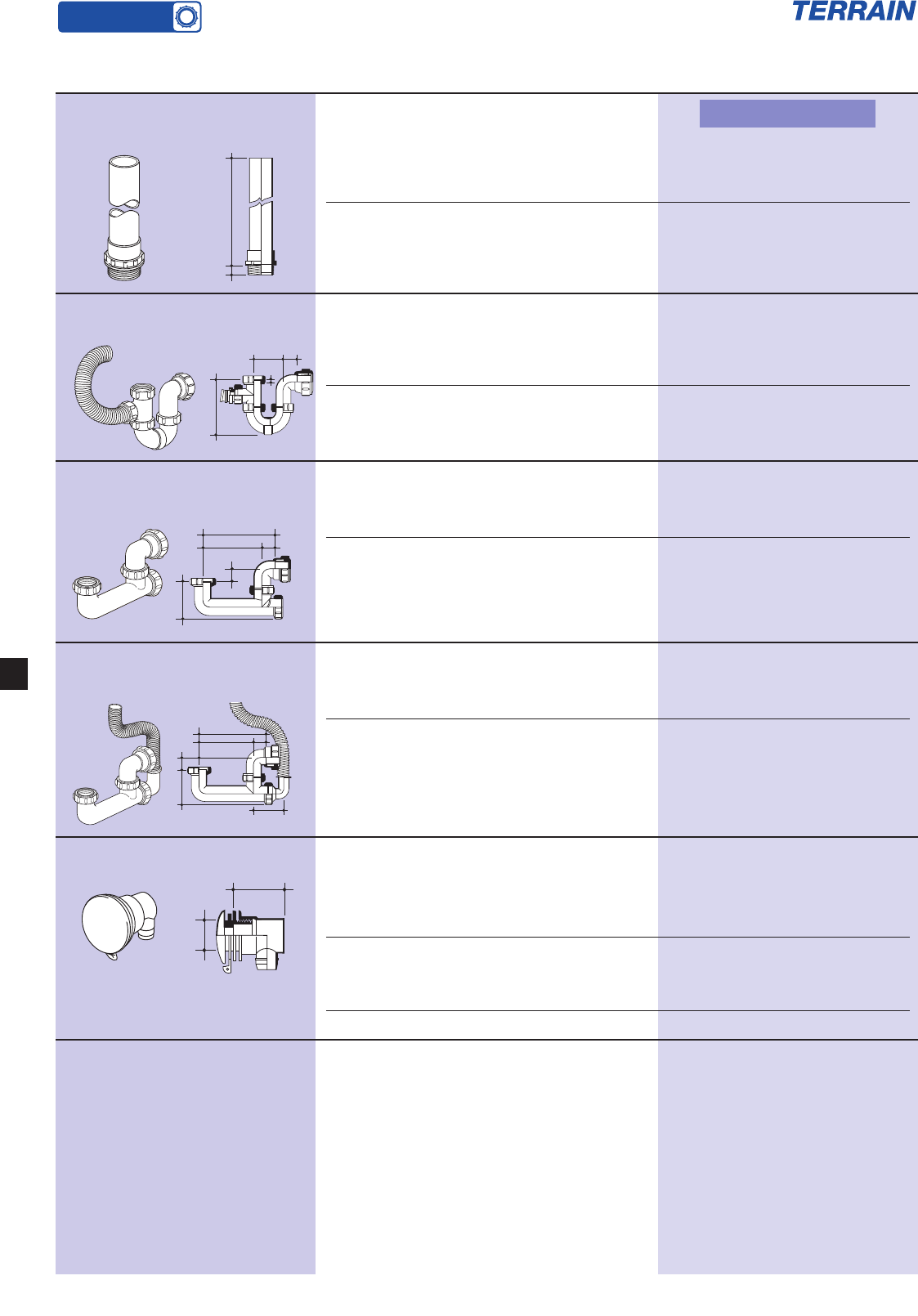

BOTTLE ‘P’ TRAP
BOTTLE ‘P’ TRAP
SELF RE-SEALING
TUBULAR ‘P’ TRAP
TUBULAR ‘S’ TRAP
TUBULAR RUNNING ‘P’ TRAP
SPIGOT/SOCKET BEND
WASHING MACHINE TRAP
75mm water seal.
size(mm) L Z1 Z2 Code Col Pk/bx
32 166 47 62 611.125 W5/60£8.15
40 170 50 59 611.15 W5/60£9.72
Supplied with insert to create an air by-pass to protect
water seal.
75mm water seal.
size(mm) L Z1 Z2 Code Col Pk/bx
32 166 47 62 615.125 W5/60£10.14
40 170 50 59 615.15 W5/50£11.85
Mid-point release nut to allow adjustment.
75mm water seal.
size(mm) L Z1 Z2 Z3 Code Col Pk/bx
32 136 11 66 29 631.125 W5/80£7.32
40 148 11 72 31 631.15 W5/65£8.45
Mid-point release nut to allow adjustment.
75mm water seal.
size(mm) C C L Z1 Z2 Z3 Code Col Pk/bx
(max) (min)
32 132 48 136 95 66 66 632.125 W5/60£9.27
40 144 55 148 107 72 72 632.15 W 5/50 £10.84
Universal compression inlet and outlet to suit copper
and plastic pipes.
75mm water seal.
size(mm) L Z1 Z2 Z3 Code Col Pk/bx
32 135 28 66 28 645.125 W5/60£11.21
40 145 31 72 31 645.15 W5/45£12.30
To convert tubular or bottle ‘P’ traps to ‘S’ traps.
size(mm) Z1 Z2 Code Col Pk/bx
32 27 61 607.125.90 W 5/135 £2.89
40 31 65 607.15.90 W 5/110 £3.07
Ramped entry for washing machine connection to
prevent splash back through waste outlet. Multi-joint
connection for washing machine e.g. plain hose or
reverse nut thread for 19mm and 25mm connection.
size(mm) L Z1 Z2 Z3 Z4 Z5 Code Col Pk/bx
40 177 37 72 31 132 28 633.15 W5/40£14.65
Z2
Z4
Z5
L
Z3
Z1
Z2
Z1
Z3 Z2 Z1
L
L
Z1
Z3
C
Z2
Z2 Z3
L
Z1
Z2
L
Z1
Z2
L
Z1
G - Grey B - Black W - White R - Rustic Brown
600-Traps
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
Terrain Traps
Terrain Traps
32
WASHING MACHINE
STANDPIPE
TUBULAR ‘P’ BATH TRAPS
TUBULAR LOWLINE ‘P’
BATH TRAPS
TUBULAR LOWLINE ‘P’
BATH TRAP WITH OVERFLOW
BATH OVERFLOW OUTLET
To accept flexible waste pipes from domestic washing
machines and dishwashers. Providing necessary air
break to prevent continuous syphoning.
size(mm) A L BSP Code Col Pk/bx
thread
40 19 501 40 9250 W5/75£11.10
Supplied with flexible overflow hose.
75mm water seal.
Install with 690, 691, 692 or 693 overflow outlets.
size(mm) L Z1 Z2 Z3 Code Col Pk/bx
40 143 2 72 31 651.15 W5/30£15.66
Supplied with blanking plug-cleaning eye.
50mm water seal.
size(mm) A L Z1 Z2 Z3 Code Col Pk/bx
40 172 93 32 141 31 657.15 W5/50£10.15
50mm water seal.
Install with 690 or 691 overflow outlets.
size(mm) A B L Z1 Z2 Z3 Code Col Pk/bx
40 172 77 93 32 141 31 659.15 W5/25£15.72
Spigot outlet accepts flexible overflow tube.
Supplied with plug and chain.
Plastic
A B Code Col Pk/bx
42 57 690.075 W 5/100 £9.78
Chrome-plated
A B Code Col Pk/bx
42 57 691.075 W* 5/100 £10.96
B
A
Z1
Z2
Z3
A
Z1
L
B
A
Z2 Z3
Z1
L
Z2 Z3
Z1
L
L
A
G - Grey B - Black W - White R - Rustic Brown
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
600-Traps
33

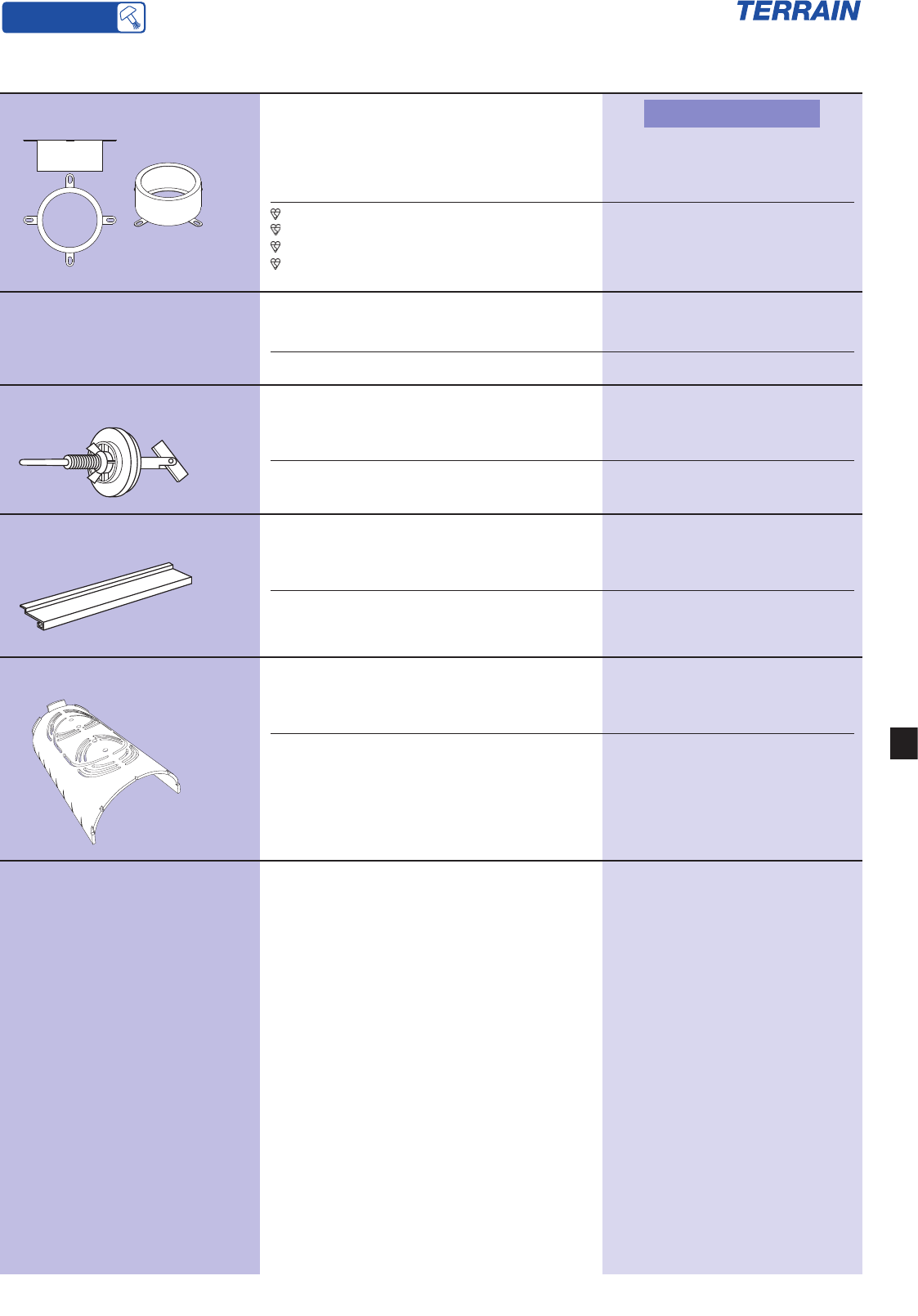

INTUMESCENT PIPE COLLAR
FIXING BOLTS
TOGGLE BOLT
PACKING PIECE
PIPE MARKING TEMPLATE
An intumescent sleeve is designed to prevent the
spread of fire and smoke where PVC-u pipes penetrate
a fire rated compartment wall or floor.
size(mm) weight(g) fire Code Col Pk/bx
rating
50 472 2 hrs 1725.2 S/Steel 5/50 £41.24
82 778 2 hrs 1725.3 S/Steel 5/50 £49.36
110 1016 2 hrs 1725.4 S/Steel 5/25 £55.60
160 2534 2 hrs 1725.6 S/Steel 5/10 £106.25
Heavy duty expanding fixing bolts – pack of 4.
Code Col Bx
1726 1/100 £2.32
To clamp 112 and 115 Boss Connectors while solvent-
welding.
Code Col Pk/bx
9115 Self 1/50 £26.60
For use with 140 and 142 Pipe Brackets and 191
Intermediate Support Brackets.
size(mm) Code Col Pk/bx
82 9104.3 G 1£3.25
110 9104.4 GB
10/200
£3.01
160 9104.6 G 1/100 £5.85
Marking guide for Terrain Soil Systems, access and boss
connection
size(mm) Code Col Pk/bx
110 9105.500 Blue
1/–
£12.04
G - Grey B - Black W - White R - Rustic Brown
Accessories/Ancillaries
Accessories/Ancillaries
Accessories
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
Accessories/Ancillaries
Accessories/Ancillaries
34
G - Grey B - Black W - White R - Rustic Brown
WC PAN SEAL (SOIL)
SPARE SEAL RINGS (SOIL)
SPARE SEAL RING (WASTE)
SEALING INSERT (SPARE)
MANIFOLD PLUG (SPARE)
CLEANING FLUID
LUBRICANT
LIQUID WELD
Material: EPDM
Suitable for:
– soil system expansion sockets and soil pipe
– use with 126 Adaptors to Cast Iron
– soil fittings (as listed).
size(mm) For fittings Code Col Pk/bx
110 Push Fit Soil (P) range 9116.4 B 1£1.66
160 Push Fit Soil (P) range 9116.6 B 1£3.14
82 109/111/111.S/126/132 9120 B 1£2.43
110 103/105/109/111/111.S/126/132/137 9119.B B 1£2.77
Material: EPDM
Allows soil fittings to accept metric copper pipe to BS
2871.
size(mm) Code Col Pk/bx
110 9149 Red 1£5.98
Material: EPDM
Replacement seal for pan outlet diameter 951/4–121mm.
size(mm) Code Col Pk/bx
110 9124 B 1/100 £8.05
Suitable for:
– 200 Waste System Fittings to accept pipe
manufactured to BS 5255 and BS 5254.
Acceptable for:
– copper pipe to BS 659 and BS 2781.
size(mm) Code Col Pk/bx
32 9132.125 B 1£0.47
40 9132.15 B 1£0.52
50 9132.2 B 1£0.69
Material: EPDM.
size(mm) Code Col Pk/bx
40 9113 B 1£0.96
Material: Polypropylene.
size(mm) Code Col Pk/bx
40 9114 G 1£1.08
Material: Acetone.
For cleaning PVC-u pipe and fittings before applying
Liquid Weld.
Screw top cans.
size(ml) Code Col Pk/bx
125 9101.125 12/24 £6.48
250 9101.250 12/24 £8.30
Material: Silicone grease Soluble lubricant.
For lubricating seal rings on expansion fittings.
size(ml) Code Col Pk/bx
50 Tube (silicone) 9136.50 10/150£10.12
250 Tub (silicone) 9136.250 10/40 £34.91
500 Tub (soluble) 9136.500 10/20 £6.14
For solvent jointing of PVC-u pipes and fittings cap
incorporates integral brush.
size(ml) Code Col Pk/bx
125 9100.125 12/24 £8.83
250 9100.250 12/24 £12.13
500 9100.500 12 £22.42
COLOUR CODES IN BOLD
AVAILABLE AS SINGLE ITEMS
Accessories
35
Building Regulations
Requirements
All sanitary pipework and drainage
installations must satisfy the relevant
requirements of Part H1 of the
approved documents to the
England, Wales and Northern
Ireland Building Regulations 1990
and the Building Standards
(Scotland) amendment regulations
1982.
Installations in accordance with BS
EN 12056:2
Code of practice for sanitary
pipework will also meet Building
Regulations requirements.
Ventilation
The discharge stack must be
ventilated in order to prevent
pressure building up within the
system and drawing the water seals
in the traps.
Separate ventilation of branch pipes
is required only if the length and
slope of the branch exceeds the
following dimensions:
Maximum length:
(32mm) 1.7 metres
(40mm) 3 metres
(50mm) 4 metres
Slope: 18-90mm per metre
In such cases, the branch pipe
should be ventilated by a branch
ventilating pipe or an anti-syphon
trap should be fitted.
The Automatic Air Admittance Valve
reduces the number of stack
ventilating pipes required to
penetrate the roof in multi-
installations, without affecting
performance of the drainage
system.
Thermal expansion
Within a solvent-weld system it is
important to make adequate
allowance for thermal movement.
This is most easily achieved by
fitting an expansion ring seal joint
between two fixed solvent-weld
joints.
The expansion gap should be
created by pushing the spigot fully
into the ring seal socket, and
marking the position at the socket
face. Then withdraw the spigot by
10mm.
Check subsequently to ensure that
the expansion gap is not lost during
further installation work.
Branch connections
The distance between the centreline
of the lowest branch connection to
the discharge stack and the invert of
the bend at the foot of the stack
should be in accordance with the
following:
A branch pipe should not discharge
into a stack in a way which could
cause crossflow into any other
branch pipe.
Working temperatures
Terrain Soil and Waste systems may
be used to convey liquids with a
maximum temperature of 76°C
when subjected to continuous flow.
Intermittent discharges of up to
100°C may occur provided they are
of less than 2 minutes duration.
Chemical discharges
Terrain Soil and Waste systems are
generally resistant to most
commonly used acids and those
that may be discharged to the
public sewer system. The rubber
seals, however, are less resistant and
it is advised that before any
chemicals are conveyed through the
systems, checks are made to
establish their effects on the
product. Refer to BS CP 312 Part 1
Code of Practice for Plastic Pipework
for further information.
Access
Sufficient and suitable access must
be provided to enable all pipework
to be tested and maintained
effectively. Access covers, plugs or
caps should be installed in positions
to facilitate use of testing
equipment and removal of
blockages.
Fire Spread
In large commercial or housing
developments, compartmentation
may be required by the Building
Regulations 1991 (Part B 3(2)
Schedule 1). In such cases, any
penetrations by sanitary pipework
must be suitably fire stopped.
Suitable measures include the
containment of pipes from floor to
ceiling in a fire resistant enclosure
(with appropriate fire rating).
In addition, the Terrain Firebrake
Intumescent Sleeve has been
designed to meet the highest fire
stopping requirements.
Pipe support
Pipes must be adequately supported
when installed vertically or
horizontally (to falls).
Design Considerations
Design Considerations
≤ 3 storeys 450mm min.
≤ 5 storeys 750mm min.
5 storeys + Ground floor
connections
should discharge
direct to drain or
into their own
stack
20 storeys + Ground and
first floor
connections
should discharge
into their own
stack
36
Fabricated specials
Our Fabrication Service is able to
help you by producing Specials
to overcome those tricky
problems that arise in the design
process and on site.
Standard specials
■These are produced by
making slight modifications
to existing Terrain products
to suit frequently occurring
design problems e.g. special
gutter angles for bay
windows, conservatories etc.
■These products tend to be
required regularly, but in
small quantities.
■Delivery lead time is usually
the same as for standard
catalogue items.
■Standard Specials have an F
prefix added to the standard
number and can be found in
our price list.
Custom specials
■These are designed and
fabricated specifically to
meet the unique design
requirements created by
special architectural features.
They can be made not only
on a one-off or small batch
basis, but also in their
hundreds, subject to the
demands of your particular
project.
■They can be produced to
your precise specification in
virtually any size or shape.
■Custom Specials provide
solutions to otherwise
unsolvable design problems.
■Delivery time depends upon
the complexity of the design
and number required.
■Examples of situations in
which Custom Specials have
provided solutions include a
PVC drain outlet filter
designed to catch tiny pieces
of gold fillings positioned
beneath the operating area
in a dental surgery; and
specially designed silt traps
to deal with drainage needs
at football grounds.
Pre-fabricated stacks
With increased labour shortages,
the more aspects of the
construction process that can be
dealt with in the factory rather
than on-site, the greater the
benefits for everyone.
Solving problems at the design
and manufacturing stage
ensures ‘right first time’ quality,
increased predictability of
construction time and cost, and
improvements to both site
productivity and health and
safety.
Prefab Stacks consist of soil and
waste pipes and fittings pre-
assembled at the factory to pre-
determined lengths to provide a
modular soil and vent stack.
These offer a number of
benefits:
■Time and labour costs on
site are reduced by mini-
mising the joints to be
made.
■Highly efficient for
commercial, leisure and
housing projects where
identical plumbing
arrangements are repeated a
number of times.
■Can be quickly installed,
reducing the need to re-
locate residents, making
them ideal for refurbishment
work.
Taking a typical house as an
example, stacks are pre-welded
and supplied in four sections:
■Drain socket to kitchen
connection.
■Intermediate section
including bathroom
connection.
■Top section through roof.
■Connection to W.C.
They are available in four
colours: grey, white, black and
rustic brown. Delivery time is
dependent on quantities
required.
You provide us with architect
drawings and, ideally the
sanitaryware schedule, and we
do the rest.
Fabrication Service
Fabrication Service
Our experienced fabricators are able
to satisfy the requirements of any
project.
Raked angle gutter outlet with built-
in overshoot guard.
Gutter offset unit bespoke to fit
individual building dimensions.
Double branches can be made to any
size and angle.
Multi entry branch designed to suit
customer’s unique requirements.
Fabrication Service
Fabrication Service
37
TERRAIN FABRICATION
SERVICE
Specialists in
fabrication
The Terrain Fabrication team
works closely with our Technical
Services Department, employing
the latest design and
manufacturing technologies.
Together, they produce high
quality Pre-fabricated Stacks and
Specials, either by making
modifications to existing
products from the Terrain range,
or by conceiving components
from scratch to deal with
particularly awkward problems.
Where fittings are designed
specially, CAD technology is used
to provide accurate drawings,
along with indications of all
relevant dimensions.
Our fabrication team provides
services in two key areas.
Specials
There are occasions on which
even the most comprehensive
standard product system won’t
meet up to the demands of a
particularly complex design or
installation.
And at times like this, the Terrain
Fabrication Service is uniquely
placed to help you.
Pre-fabrication
Shortage of skilled labour is just
one reason for the growth of
pre-fabrication within
construction. Moving significant
elements of the process from site
to factory provides improvements
in quality, cost and time
predictability, productivity and
safety.
With unrivalled expertise in PVC
and HDPE fabrication systems,
our Fabrication Service has been
helping specifiers and
contractors overcome problems,
both at the design stage and on
site, for over 30 years.
Three easy steps for
our Special Fabrication
Service
It couldn’t be simpler to order
Specials or have a Pre-fabricated
Stack manufactured for you.
1. Send a dimensioned sketch
and specification by email,
fax or post to our Technical
Services Department.
2. We will then advise you on
design possibilities and send
you back CAD diagrams, if
necessary, complete with a
part number and price for
your approval.
If the special is being
incorporated into the design
stage of a drainage layout,
be sure to include the
unique part number with
any plans to be passed to
the contractor.
3. You place the order through
your local merchant, stating
the unique product number
and price.
Whether at the design stage or
on site, should you come up
against a problem related to
plumbing and drainage, look no
further than the Terrain Special
Fabrication Service.
38
Design Data
Design Data
Table A: Discharge units (DU) Values
Table B: Typical frequency factors (K)
Appliance
Usage of appliances
Wash basin, bidet 0.3
0.5
0.7
1.0
1.2
0.4
1.3
0.4
–
0.2*
1.3
1.3
0.2
0.6
1.2
**
1.2 to 1.7***
1.4 to 1.8***
1.6 to 2.0***
–
–
–
Shower without plug
Shower with plug
Single urinal with cistern
Urinal with flushing valve
Slab urinal
Bath
Kitchen sink
Dishwasher (household)
Washing machine up to 6 kg
Washing machine up to 12 kg
WC with 4.0 L cistern
WC with 6.0 L cistern
WC with 7.5 L cistern
WC with 9.0 L cistern
Floor gully DN 50
Floor gully DN 70
Floor gully DN 100
*Per person.
** Not permitted.
***Depending upon type (valid for WC’s with siphon flush cistern only).
–Not used or no data.
System III DU l/s
K
Example
10 storey building with
4WC
2WHB
2Baths
]
On each floor
2 Showers
2 Sinks
2 W/MC
4 x 1.5 = 6.0
2 x 0.3 = 0.6
2 x 1.3 = 2.6
2 x 0.4 = 0.8
2 x 1.3 = 2.6
2 x 0.6 = 1.2
–––
13.8 x 10 = 138 DU
Domestic Building Use K = 0.5
0.5 √138 = 5.87 l/s
See Table C and D for capacities
of pipes.
Frequency factor (K)
Typical frequency factors associated
with different usage of appliances
Table B.
Calculation of flowrate
Waste water flowrate (Qww)
Qww is the expected flowrate of
waste water in a part or in the whole
drainage system where only domestic
sanitary appliances are connected to
the system
Qww =K√∑DU
where:
Qww = Waste water
flowrate (l/s)
K = Frequency factor
∑DU = Sum of discharge
units.
NB Under no
circumstances
should pipe of
a larger
diameter be
connected to
pipe of a
smaller
diameter in
the direction
of flow.
Intermittent use, e.g. in
dwelling, guesthouse, office
Frequent use, e.g. in hospital,
school, restaurant, hotel
Congested use, e.g. in toilets
and/or showers open to public
Special use, e.g. laboratory
Design Data
Design Data
39
Table C: Stack with only Primary Vent Table D: Stack with Secondary Venting
Stack and
stack vent
DN
60
70
80*
90
100**
125
150
200
*Minimum size where WC’s are connected in system II.
** Minimum size where WC’s are connected in system I, III,
IV.
#Equal branch junctions that are more than 45°, or has a centre line radius less than the internal pipe diameter.
For branch pipe sizing based on System III the following sizing charts should be used.
Ventilated discharge branches
Sizes and limitations upon the use of ventilated discharge branches are
given in the tables above. Limitations given in the second table are
simplifications, for further information see national and local regulations
and practice.
*Minimum size where WC’s are connected in system II.
** Minimum size where WC’s are connected in system I,
III, IV.
Square #entries
0.5
1.5
2.0
2.7
4.0
5.8
9.5
16.0
Swept entries DN DN Square #entries Swept entries
0.7 60
70
80*
90
100**
125
150
200
50
50
50
50
50
70
80
100
0.7
2.0
2.6
3.5
5.6
7.6
12.4
21.0
0.9
2.6
3.4
4.6
7.3
10.0
18.3
27.3
2.0
2.6
3.5
5.2
7.6
12.4
21.0
System I, II, III, IV
Qmax (L/s)
Stack and
stack vent
Secondary
vent
System I, II, III, IV
Qmax (L/s)
Limitations for unventilated branch discharge pipes, system III
Appliance
Washbasin, bidet
(30mm diameter trap) 30 75 1.7 2.21) 00
Washbasin, bidet
(30mm diameter trap) 30 75 1.1 4.41) 00
Washbasin, bidet
(30mm diameter trap) 30 75 0.7 8.71) 00
Washbasin, bidet
(30mm diameter trap) 40 75 3.0 1.8 to 4.4 2 0
Shower, bath 40 50 No Limit2) 1.8 to 9.0 No Limit 1.5
Bowl urinal 40 75 3.03) 1.8 to 9.0 No Limit4) 1.5
Trough urinal 50 75 3.03) 1.8 to 9.0 No Limit4) 1.5
Slab urinal3) 60 50 3.03) 1.8 to 9.0 No Limit4) 1.5
Kitchen sink
(40mm diameter trap) 40 75 No Limit2) 1.8 to 9.0 No Limit 1.5
Household dishwasher or
washing machine 40 75 3.0 1.8 to 4.4 No Limit 1.5
WC with outlet up to
80mm6) 75 50 No Limit 1.8 Min. No Limit4) 1.5
WC with outlet greater
than 80mm6) 100 50 No Limit 1.8 Min. No Limit4) 1.5
Sanitary towel
disposal unit 40 Min. 758) 3.03) 5.4 Min. No Limit4) 1.5
Up to 5 spray tap
basins9)
1) Steeper gradient permitted if pipe is less than maximum permitted length.
2) If length is greater than 3m noisy discharge may result with an increased risk of blockage.
3) Should be as short as possible to limit problems with deposition.
4) Sharp throated bends should be avoided.
5) For slab urinal for up to 7 persons. Longer slabs to have more than one outlet.
6) Swept-entry branches serving WC’s.
7) Includes small potato-peeling machines.
8) Tubular not bottle or resealing traps.
9) Spray tap basins shall have flush-grated wastes without plugs.
30 Max. 50 4.53) 1.8 to 4.4 No Limit4) 0
Food waste disposal7) 40 Min. 758) 3.03) 13.5 Min. No Limit4) 1.5
Floor drain 50 50 No Limit3) 1.8 Min. No Limit 1.5
Floor drain 70 50 No Limit3) 1.8 Min. No Limit 1.5
Floor drain 100 50 No Limit3) 1.8 Min. No Limit 1.5
4 basins 50 75 4.0 1.8 to 4.4 0 0
Bowl urinals3) 50 75 No Limit3) 1.8 to 1.9 No Limit4) 1.5
Maximum of 8 WC’s6) 100 50 15.0 0.9 to 9.0 2 1.5
Diameter
DN
Min. trap
seal
depth
mm
Max length
(L) of pipe
from trap
outlet to
stack
m
Pipe
gradient
Max.
number of
bends
Max.
drop
(H)
m
Appliance
Washbasin, bidet
(30mm diameter trap) 30 75 3.0 1.8 Min. 2 3.0
Washbasin, bidet
(30mm diameter trap) 40 75 3.0 1.8 Min. No Limit 3.0
Shower, bath 40 50 No Limit2) 1.8 Min. No Limit No Limit
Bowl urinal 40 75 3.03) 1.8 Min. No Limit4) 3.0
Trough urinal 50 75 3.03) 1.8 Min. No Limit4) 3.0
Slab urinal3) 60 50 3.03) 1.8 Min. No Limit4) 3.0
Kitchen sink
(40mm diameter trap) 40 75 No Limit2) 1.8 Min. No Limit No Limit
Household dishwasher or
washing machine 40 75 No Limit3) 1.8 Min. No Limit No Limit
WC with outlet up to
80mm6) & 14) 75 50 No Limit 1.8 Min. No Limit4) 1.5
WC with outlet greater
than 80mm6) & 14) 100 50 No Limit 1.8 Min. No Limit4) 1.5
Sanitary towel
disposal unit 40 Min. 758) 3.03) 5.4 Min. No Limit4) 3.0
Up to 5 spray tap
basins12)
1) For maximum distances from trap to vent (see Figure 8 of BS EN 1205-2:2000).
2) If length is greater than 3m noisy discharge may result with an increased risk of blockage.
3) Should be as short as possible to limit problems with deposition.
4) Sharp throated bends should be avoided.
5) For slab urinal for up to 7 persons. Longer slabs to have more than one outlet.
6) Swept-entry branches serving WC’s.
7) Includes small potato-peeling machines.
8) Tubular not bottle or resealing traps.
9) See Figure 9 of BS EN 12056-2:2000).
10) Every basin shall be individually ventilated.
11) Any number.
12) Spray tap basins shall have flush-grated wastes without plugs.
13) The size of ventilating pipes to branches from appliances can be DN 25 but, if they are
longer than 15m or contain more than five bends, a DN 30 pipe shall be used.
14) If the connection of the ventilating pipe is liable to blockage due to repeated splashing or
submergence, it should be DN 50, up to 50mm above the spill-over of the appliance.
30 Max. 50 No Limit3) 1.8 to 4.4 No Limit4) 0
Food waste disposal7) 40 Min. 758) 3.03) 13.5 Min. No Limit4) 3.0
Bath drain, Floor drain 50 50 No Limit3) 1.8 Min. No Limit No Limit
Floor drain 70 50 No Limit3) 1.8 Min. No Limit No Limit
Floor drain 100 50 No Limit3) 1.8 Min. No Limit No Limit
5 basins9) 50 75 7.0 1.8 to 4.4 2) 0
10 basins9) & 10) 50 75 10.0 1.8 to 4.4 No Limit 0
Bowl urinals9) & 11) 50 70 No Limit3) 1.8 Min. No Limit4) No Limit
More than 8 WC’s6) 100 50 No Limit 0.9 Min. No Limit No Limit
Diameter
DN
Min. trap
seal
depth
mm
Max length
(L) of pipe
from trap
outlet to
stack
m
Pipe
gradient
Max.
number of
bends
Max.
drop
(H)
m
Limitations for ventilated branch discharge pipes, system III
40
100 SOIL SYSTEM – PVC-u (SOLVENT-WELDED)
82, 110 and 160mm pipe and fittings (Fig. 1)
ABCT1T2
(min) (min)
82 95 51 3.2 3.2
110 122 51 3.2 3.2
160 175 76 3.3 3.5
100P SOIL SYSTEM – PVC-u (PUSH-FIT)
82, 110 and 160mm pipe and fittings (Fig. 2)
A(Fig. 2) DET2
82 100 50 3.2
110 132 58 3.4
160 189 70 4.1
200 WASTE SYSTEM – MuPVC (SOLVENT-WELDED)
32, 40 and 50mm pipe and fittings (Fig. 3)
Nom. A B C D E T1 T2
(min) (min)
32mm 36 422453441.81.8
40mm 43 492760441.91.9
50mm 56 623075442.02.0
300 WASTE SYSTEM – POLYPROPYLENE (PUSH-FIT)
32, 40 and 50mm pipe and fittings (Fig. 4)
Nom. A D E T2 T1
32mm 35 41 20 1.8
40mm 41 47 23 1.9
50mm 54 61 29 2.0
500 OVERFLOW SYSTEM
For cold, non-pressure water. Sockets are for solvent-weld jointing
19mm pipe and fittings (Fig. 5)
A B T1 T2
(min) (min)
21 19 1.1 2.0
600 TRAPS SYSTEM
32, 40 and 50mm sockets (Fig. 6)
size A B
(min)
32mm 55 42
40mm 65 49
Tubular ‘S’ traps limits (Fig. 7)
C maximum C minimum
(trap folded)
Part no. C C
(max) (min)
632.125 136 50
632.15 150 60 All dimensions in mm unless otherwise stated.
Socket Dimensions
Socket Dimensions
T1 T2
*
C
AB Solvent-
welded
T1
*
A
D
E
T2
Push-fit
T2 T2
C
AB
T1 T2
AD
E
T2T1 B
A
C minimum
(trap
folded)
A
B
Fig. 2
Fig. 1
Fig. 3 Solvent-weld jointing
Fig. 4 Seal ring jointing
Fig. 5
Fig. 6 Fig. 7
41
G - Grey B - Black W - White R - Rustic Brown
Materials
100 and 100P Terrain Soil System
PVC-u
200 Terrain Waste System
MuPVC
300 Terrain Waste System
Polypropylene
500 Terrain Overflow System
PVC-u
600 Terrain Traps
Polypropylene
Quality assurance
Terrain is accredited to BS EN ISO
9001:2000 Quality Management
Systems.
Certifications
The Terrain Automatic Air
Admittance Valve is covered by
British Board of Agrément
Certificate 97/3421.
Standards compliance
Terrain systems comply with the
appropriate British and European
Standard and, where applicable,
bear the Kitemark:
BS 4514:2001. PVC-u Soil Systems,
82, 110 and 160mm soil pipes and
fittings (partially replaced with BS
EN 1329-1:2000)
BS 4514 is an Internal Claim only.
Products migrated from BS 4514 to
the new BS EN 1329 standard still
comply fully to BS 4514 but can
only be licensed to BS EN 1329
BS 5254:1976. Polypropylene waste
systems, 32, 40 and 50mm waste
pipe and fitting
BS 5255:1989. MuPVC waste
systems 32, 40 and 50mm waste
pipes and fittings (partially replaced
with BS EN 1329-1:2000)
BS 6209. Solvent Cement: 125, 250
and 500ml tins.
Terrain systems also comply with
many of the requirements of DIN
and ISO.
Availability
For details of local stockists, please
contact Sales Support on 01622
717811.
Further information
and assistance
Terrain products are backed by a
comprehensive technical advisory
service, available to provide advice
and design guidance on all aspects
of above and below ground
drainage.
Technical services include:
■Soil and waste schematics and
applicable details.
■Specification, product
scheduling and estimating.
■CAD drawings, including
products and application details
on disk.
Many products are also
available in CAD form for ready
incorporation into design
drawings (Products marked in
the listings). To obtain a disk or
CD Rom in the appropriate
format, simply contact Technical
Services.
■On site advice and problem
solving.
■Prefabrication and fabrication
design service.
For prompt assistance, please
contact the Terrain Technical
Services Department:
Tel: 01622 717811
Fax: 01622 791049
Tel: 01509 615100
Fax: 08452 760076
Quality
Quality
Commercial Piping and
Sanitary Systems
New Hythe Business Park
College Road
Aylesford
Kent ME20 7PJ
Tel: 01622 795200
Fax: 01622 716796
commercialenquiries@polypipe.com
www.polypipe.com
www.terraindrainage.com
Polypipe Terrain
Printed on material sourced from sustainable and well managed forests

Navigation menu
