Maximises performance and
gets everything across: our technology.
The PLATINUM® range of inverters.
!"#$%&'(!%)(*+$(,-./%#%)0!1%$2343$!)&,/-34!,)+$%30%$
of handling: alongside their superior quality, PLATINUM®
inverters deliver everything that counts in the world of
.#,4,1,543!(06$7!4#$3)$%&'(!%)(*$,&$896:;+$4#%*$3/%$
3-,)"$4#%$-,04$%&'(!%)4$!)$4#%$%)4!/%$!)2<04/*6$=#%*$./,>
vide users with an extensive array of information. The
display on the device shows up-to-the-minute current
and voltage data for the AC and DC side, as well as
the yield values for the day, week, month and year. All
this is available 24 hours a day, with enough storage
capacity for 30 years’ worth of data via the integrated
datalogger. Connection couldn’t be easier thanks to
our quick and easy installation and commissioning. The
entire PLATINUM® range are multi-country devices,
3)2$(3)$4#<0$?%$(,)'"</%2$30$0<(#6
The PLATINUM® product range includes string inverters
in the output class from 2 to 22 kW. We also offer
inverters with single and three-phase feed-in, with or
without a transformer. With devices in the protection
classes IP 65 and IP 66 and the PowerBlock system, the
PLATINUM® range also covers outdoor applications.
Whether for a single-family detached house, a commer-
(!35$/,,&>-,<)4%2$0*04%-$,/$,.%)>'%52$!)0435534!,)0@A$
PLATINUM® offers the right device for every requirement.
1716
Maximum reliability.
!"#$%#&"'$&()*+%,-$+.#&(-(.#/0

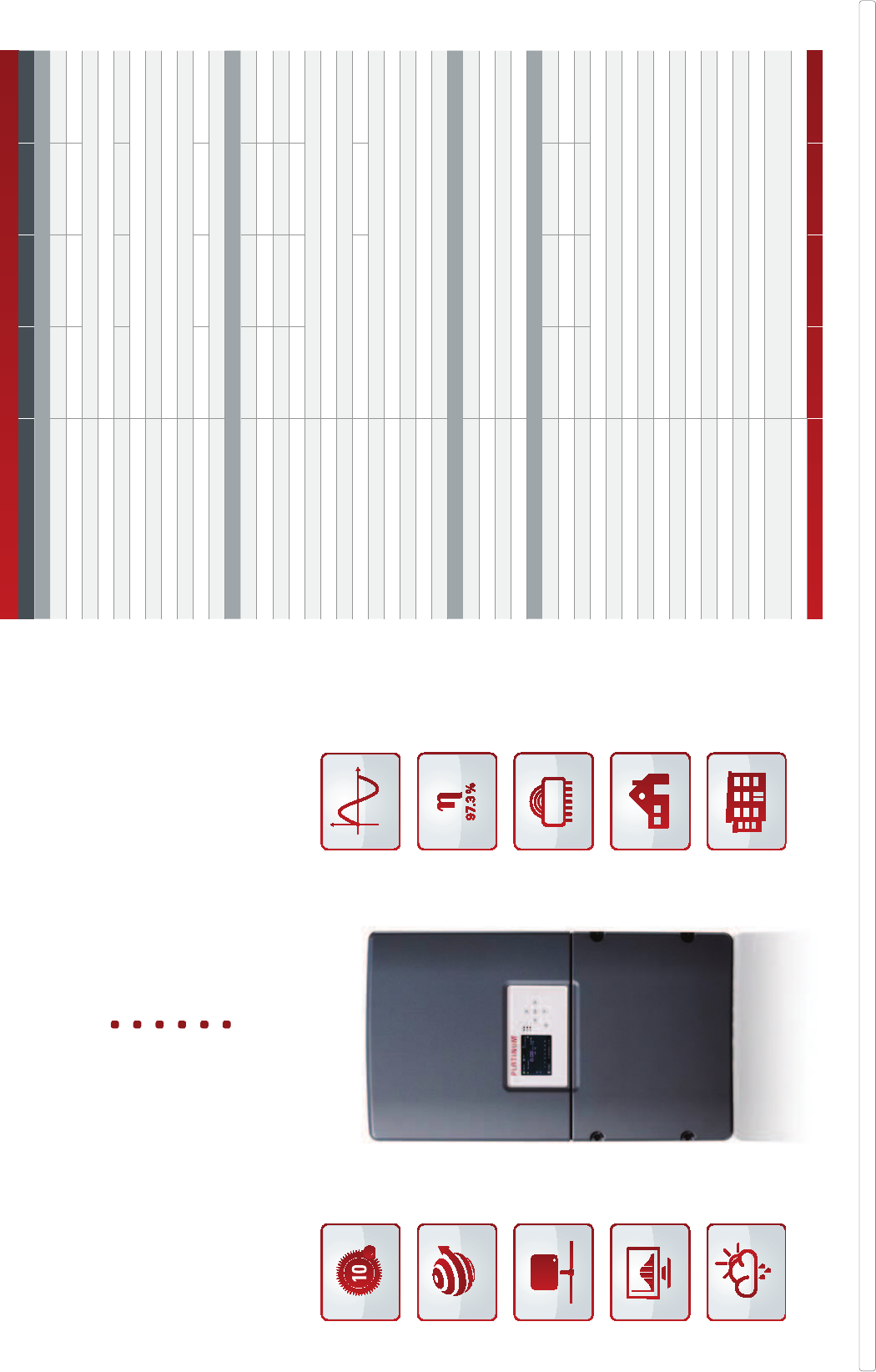

The PLATINUM® S inverter.
Warranty
Multi-country
Datalogger
Graphics display
< 25 kW
10 –100 kW
Single-phase
LF transformer
Based on the circuit principle of ‘galvanic isolation’,
PLATINUM® S inverters offer maximum levels of safety
!"#$%&' ('&')*#+,-('!%"#.')/# #/'0/#"%0$%%#,1#%123
ciency in the class of transformer inverters. Even under
%4)$%-%#,$#/% 5'&*#67+)7 )'!0# -('%!)#+,!"')',!89#
these units are temperature-resistant and operate reli-
ably. Installation is made quick and easy by the DC
and AC connectors. All of the key operating data can
(%#+&% $&*#$% "#1$,-#)/%#0$ :/'+8#"'8:& *;<#%5%!# )#
night. The range contains eight models with a maximum
output ranging from 2.1 to 4.6 kW. Two string inputs
are provided for units with an output of 3.8 kW or higher.
Important note: In order to comply with legal require-
ments, this model is no longer approved for the
German market.
Low-frequency transformer: suitable for
)/'!#2&-#-,"7&%8
RAC-MPP® technology for rapid
MPP location
Optimised data transfer and networking
with other PLATINUM® inverters and
monitoring devices via the PLATINUM®
network EIA 485
Convection cooling
Extremely wide range of input voltages
Integrated datalogger provides storage
capacity for 30 years worth of
operating data
10-year free manufacturer’s warranty

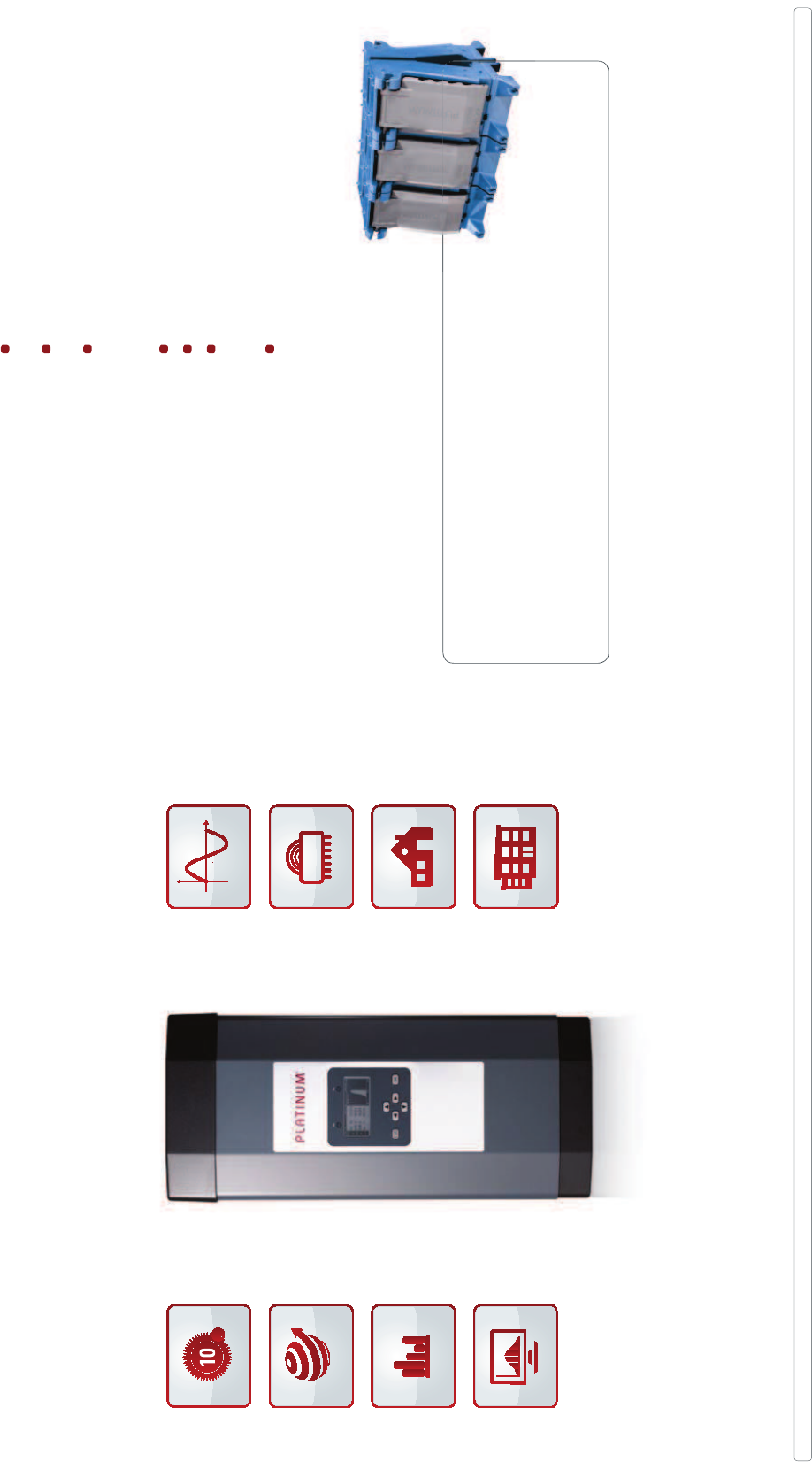

Specially developed for extreme outdoor weather
conditions, the PLATINUM® PowerBlock system
is a genuine alternative to central inverters. The com-
pact, robust housing enables installation of up to six
inverters, thereby offering optimum protection
against rain, hail, sunshine etc.
Intelligent power bundling for outdoor
applications.
The PLATINUM® PowerBlock.
1918
!"#$%#&'$()*
S Inverter 2100 S 2800 S 3100 S 3800 S
DC Input
Max. PV power 2,300 Wp 3,200 Wp 3,450 Wp 4,200 Wp
Max. DC power
(@ cos phi = 1)
2,100 W 2,800 W 3,100 W 3,800 W
MPPT voltage range 206 V ... 390 V 313 V ... 630 V 314 V ... 630 V 315 V ... 630 V
Max. input voltage 480 V 780 V 780 V 780 V
Max. MPPT input current 9.0 A 9.0 A 9.0 A 12.0 A
Number of string inputs 1 1 1 2
Number of MPP trackers 1
DC disconnect optional, device integrated
Reverse polarity protection yes
DC short circuit current 13 A 13 A 13 A 17 A
Ground fault monitoring isolation control (can be activated)
AC Output
Rated power
(@ cos phi = 1)
1,750 W 2,400 W 2,550 W 3,300 W
Rated current 7.6 A 10.4 A 11.1 A 14.3 A
Max. apparent power 1,900 VA 2,600 VA 2,800 VA 3,600 VA
Max. AC current 8.3 A 11.3 A 12.2 A 15.7 A
Power feed starts at 13 W 14 W 14 W 18 W
Mains output voltage !"#$#%&'( "#)*
Feed in phases / connection phases 1 feed in phase / 1 or 3 connection phases
Max. permitted grid impedance |Zmax| (EN 61000-3-11)
n/a
Standby consumption < 2.5 W
Mains frequency +"#,-#%&'(+#)*
Short circuit resistance yes
Power factor
(cos phi)
1
Ground fault monitoring -
Interfaces
DC connection Multicontact MC4
AC connection Wieland RST 3i / 5i
Interfaces PLATINUM® network EIA 485, 2 x RJ45 and screw terminals
Alarm relay max. 24 VAC / 2 A, screw terminals
Appliance data
!"#$%$&'()*#'+*,& ./01#) .+0!#) .+0!#) .+02#)
-%./0'!+&'()*#'+*, .!01#) ./0/#) ./0/#) ./02#)
Weight 30 kg 35 kg 35 kg 42 kg
Dimensions H 720 x W 320 x D 250 mm
Operating temperature -20 °C ... +60 °C
Storage temperature -25 °C ... +80 °C
Relative humidity
(non-condensing)
"#)#000#.+#)
Altitude at rated power 2,000 m / 6,560 ft
Protection degree
(except digital interface)
IP 54 according to DIN EN 60529
Protection class / overvoltage category I / III
Display graphic LCD 170 x 76 pixels
Data logger 3456789#:7;7:<4=#3>?@:<9A4#?56#!"#=9763#5;9674<A8#4<B9
System topology LF transformer, RAC-MPP® technology
Cooling convection cooling fan
Standards / grid codes VDE 0126-1-1, C10/11, G83/1, G59/2, EN 50438, EN 50178, ÖNORM E8001-4-712,
UTE C15-712-1, RD 1663, AS 4777, AS 3100
Warranty 10 years
Type designation 2100 S 2800 S 3100 S 3800 S
Subject to alterations.
C569#4D7A#/+#:5>A46<93#769#:>669A4E=#3>;;5649F0#GA#>;(45(F749#4=;9#F93<8A74<5A#E<34#:7A#H9#?5>AF#<A#4D9#F5IAE57F#7697#5A#5>6#I9H3<49#>AF96#J964<@:7493'KL96L<9I#%73#74#C7=# "M *0#
Due to legal guidelines, this model is no longer approved for the German market.
!"#$%#&'$()*
S Inverter 4300 S 4301 S 4600 S 4601 S
DC Input
Max. PV power 4,800 Wp 4,800 Wp 5,100 Wp 5,100 Wp
Max. DC power
(@ cos phi = 1)
4,300 W 4,300 W 4,600 W 4,600 W
MPPT voltage range 320 V ... 630 V 277 V ... 470 V 320 V ... 630 V 278 V ... 470 V
Max. input voltage 780 V 580 V 780 V 580 V
Max. MPPT input current 12.5 A 15.0 A 13.0 A 16.0 A
Number of string inputs 2 2 2 2
Number of MPP trackers 1
DC disconnect optional, device integrated
Reverse polarity protection yes
DC short circuit current 18 A 21 A 18 A 22 A
Ground fault monitoring isolation control (can be activated)
AC Output
Rated power
(@ cos phi = 1)
3,680 W 3,680 W 3,800 W 3,800 W
Rated current 16.0 A 16.0 A 16.5 A 16.5 A
Max. apparent power 4,050 VA 4,050 VA 4,200 VA 4,200 VA
Max. AC current 17.6 A 17.6 A 18.3 A 18.3 A
Power feed starts at 18 W 17 W 18 W 17 W
Mains output voltage !"#$#%&'( "#)*
Feed in phases / connection phases 1 feed in phase / 1 or 3 connection phases
Max. permitted grid impedance |Zmax| (EN 61000-3-11)
n/a /2"#BN /2"#BN
Standby consumption < 2.5 W
Mains frequency +"#,-#%&'(+#)*
Short circuit resistance yes
Power factor
(cos phi)
1
Ground fault monitoring -
Interfaces
DC connection Multicontact MC4
AC connection Wieland RST 3i / 5i
Interfaces PLATINUM® network EIA 485, 2 x RJ45 and screw terminals
Alarm relay max. 24 VAC / 2 A, screw terminals
Appliance data
!"#$%$&'()*#'+*,& .+02#) ./02#) .+02#) ./02#)
-%./0'!+&'()*#'+*, ./01#) .!0.#) ./0O#) .!0O#)
Weight 42 kg 43 kg 42 kg 43 kg
Dimensions H 720 x W 320 x D 250 mm
Operating temperature -20 °C ... +60 °C
Storage temperature -25 °C ... +80 °C
Relative humidity
(non-condensing)
"#)#000#.+#)
Altitude at rated power 2,000 m / 6,560 ft
Protection degree
(except digital interface)
IP 54 according to DIN EN 60529
Protection class / overvoltage category I / III
Display graphic LCD 170 x 76 pixels
Data logger 3456789#:7;7:<4=#3>?@:<9A4#?56#!"#=9763#5;9674<A8#4<B9
System topology LF transformer, RAC-MPP® technology
Cooling fan
Standards / grid codes VDE 0126-1-1, C10/11, G83/1, G59/2, EN 50438, EN 50178, ÖNORM E8001-4-712,
UTE C15-712-1, RD 1663, AS 4777, AS 3100
Warranty 10 years
Type designation 4300 S 4301 S 4600 S 4601 S
Subject to alterations.
C569#4D7A#/+#:5>A46<93#769#:>669A4E=#3>;;5649F0#GA#>;(45(F749#4=;9#F93<8A74<5A#E<34#:7A#H9#?5>AF#<A#4D9#F5IAE57F#7697#5A#5>6#I9H3<49#>AF96#J964<@:7493'KL96L<9I#%73#74#C7=# "M *0#
Due to legal guidelines, this model is no longer approved for the German market.
2120
Setting the standard
for isolated string inverters.

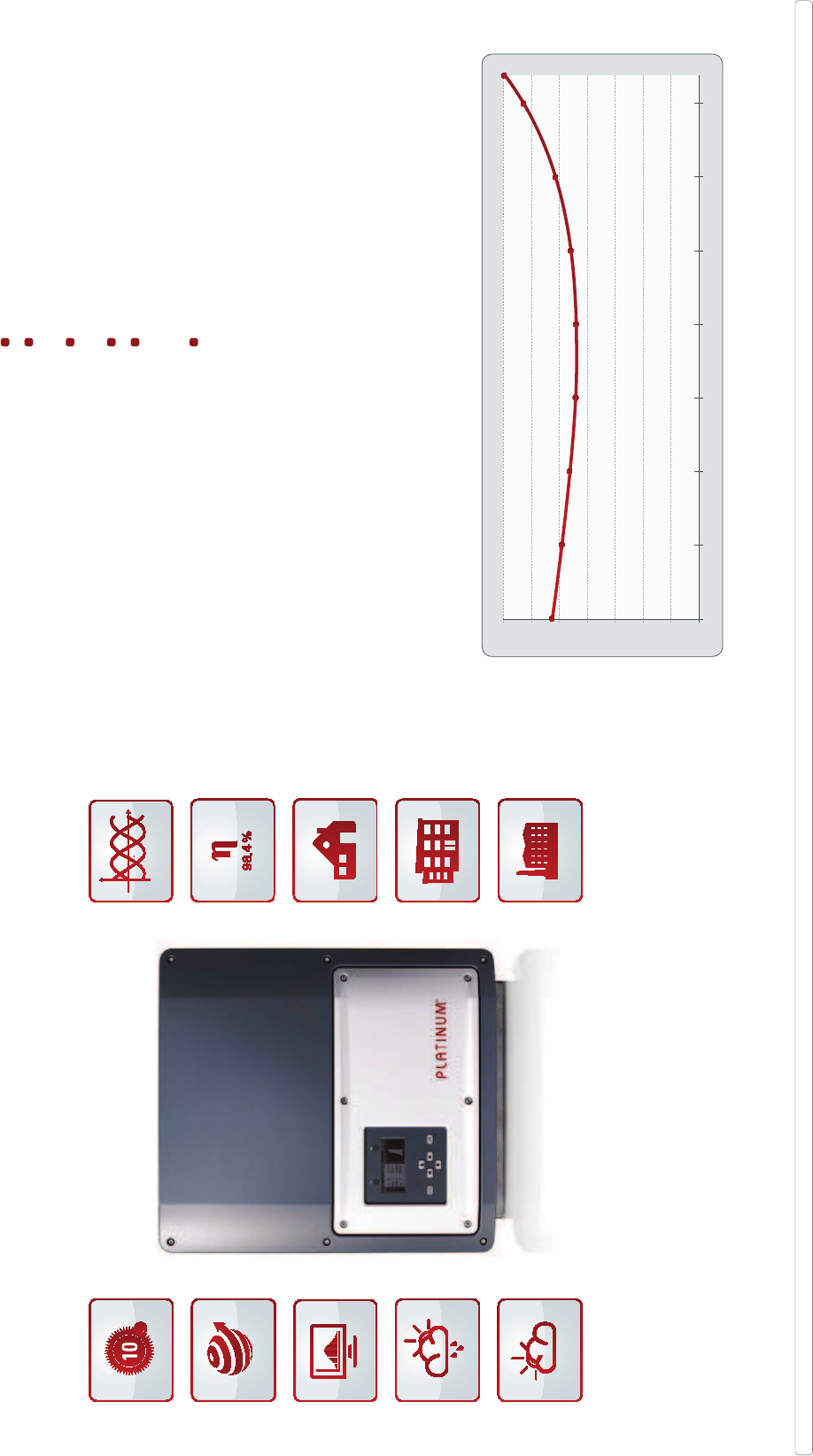

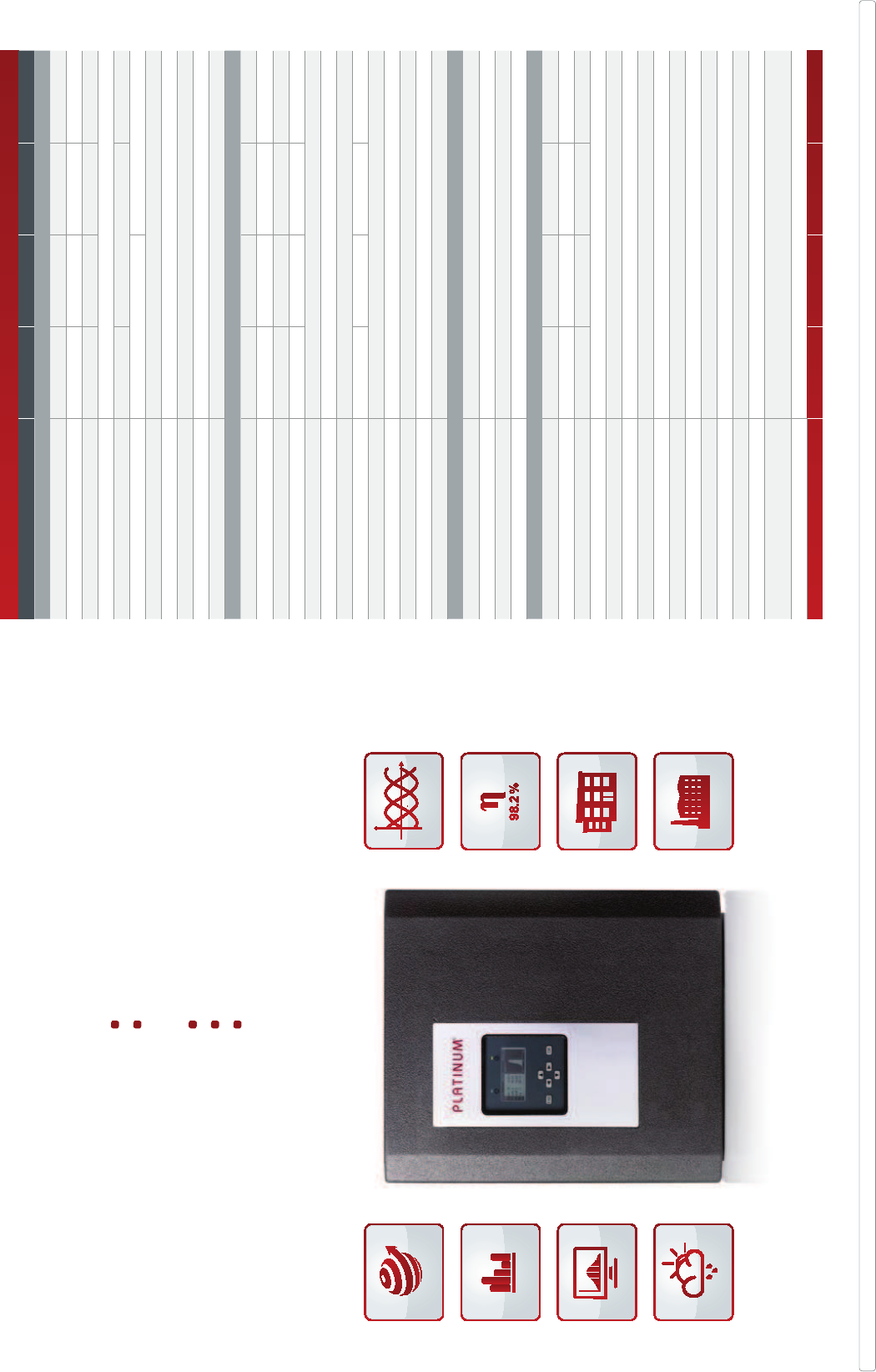

The PLATINUM® H inverter.
The PLATINUM® H inverter offers safety, user-friendliness
!"#$%&#%'(%&)$#"&(*&&#+,#&,-.'&!./#'!#$%&#')+0 $&"#
inverter market. Thanks to the low weight of these units
and the fact that all settings can be adjusted directly
on the inverter, installation is made a lot easier and re-
quires no additional software tools. Excellent informa-
tion is provided by the graphics display and the integrated
web server, which allows the unit to be monitored
from a PC in real-time. The PLATINUM® H series includes
four models ranging from 2.1 to 4.6 kW and is suitable
for all module types.
## #1,-.'&!./#+,#23#$+##4567#8
Convection cooling
Weight: 19 – 21 kg
Integrated web server
Graphics display
10-year free manufacturer’s warranty
9%&#!&:#;<=9>?@AB#C#)&*'&)#) $')-&)#$%&#D1!&*(/#A ! (&E&!$#FGH#11IJK#E *L&$#*&M2'*&E&!$#)3&.'-. $'+!# !"#$%&#D<+:NO+0$ (&#P'*&.$'O&#QP1#=RN?NSTUVK6
Warranty
Multi-country
Web server
Graphics display
Outdoor IP 65
HF transformer
< 25 kW
10 –100 kW
Single-phase
Efficiency
*UK and Denmark: Adjustable current limit of 16 A.
Subject to alterations.
A+*&#$% !#SV#.+2!$*'&)# *&#.2**&!$0/#)233+*$&"6#=!#23N$+N" $&#$/3&#"&)'(! $'+!#0')$#. !#W&#,+2!"#'!#$%&#"+:!0+ "# *& #+!#+2*#:&W)'$!"&*#X&*$'-. $&)YZO&*O'&:#F )# $#A /#[UT[J6#
!"#$%#&'$()*
H Inverter 2100 H 3000 H 4000 H 4600 H
DC Input
Max. PV power 2,350 Wp 3,450 Wp 4,450 Wp 5,150 Wp
Max. DC power
(@ cos phi = 1)
2,100 W 3,000 W 4,000 W 4,600 W
MPPT voltage range 230 V ... 480 V
Max. input voltage 600 V
Max. MPPT input current 9.5 A 13.5 A 18.0 A 21.0 A
Number of string inputs 3
Number of MPP trackers 1
DC disconnect optional, device integrated
Reverse polarity protection yes
DC short circuit current 14.2 A 20.2 A 27 A 31.5 A
Ground fault monitoring isolation control
AC Output
Rated power
(@ cos phi = 1)
2,000 W 2,900 W 3,800 W 4,400 W
Rated current 9.0 A 13.0 A 17.0 A (16.0 A*) 20.0 A (16.0 A*)
Max. apparent power 2,000 VA 2,900 VA 3,800 VA 4,400 VA
Max. AC current 10.5 A 15.2 A 19.7 A 23.0 A
Power feed starts at 7 W
Mains output voltage [7U#Q#F\YN[U#8J
Feed in phases / connection phases 1 feed in phase / 1 connection phase
Max. permitted grid impedance |Zmax| (EN 61000-3-11)
n/a SSH#E] 754#E]
Standby consumption < 1 W
Mains frequency VU#C^#F\YNTU#8J
Short circuit resistance yes
Power factor
(cos phi)
0.9 ind. ... 0.9 cap.
Ground fault monitoring -
Interfaces
DC connection Multicontact MC4
AC connection screw terminals
Interfaces Ethernet / CAN
Alarm relay -
Appliance data
!"#$%$&'()*#'+*,& 4H64#8 456U#8 456[#8 4567#8
-%./0'!+&'()*#'+*, 4H6U#8 4H6[#8 4H6H#8 4H64#8
Weight 19 kg 19 kg 21 kg 21 kg
Dimensions H 610 x W 353 x D 154 mm
Operating temperature -25 °C ... +65 °C
Storage temperature -30 °C ... +80 °C
Relative humidity
(non-condensing)
S#8#666#44#8
Altitude at rated power 2,000 m / 6,560 ft
Protection degree IP 65 according to DIN EN 60529
Protection class / overvoltage category I / III
Display graphic color LCD, three LEDs for visual status indication
Data logger )$+* (&#. 3 .'$/#)2,-.'&!$#,+*#[U#/& *)#+3&* $'!(#$'E&#Y#'!$&(* $&"#:&W)&*O&*
System topology HF transformer with galvanic isolation
Cooling convection cooling
Standards / grid codes VDE 0126-1-1, VDE AR-N 4105, CEI 0-21, C10/11, G83/1, EN 50438, ÖNORM E8001-4-712,
UTE C15-712-1, RD 1663, IEC 62109
Warranty 10 years
Type designation 2100 H 3000 H 4000 H 4600 H
2322
Delivering high performance
without compromise:
!"#$ %#&'()* +',!'-.'*,'/0'1
.

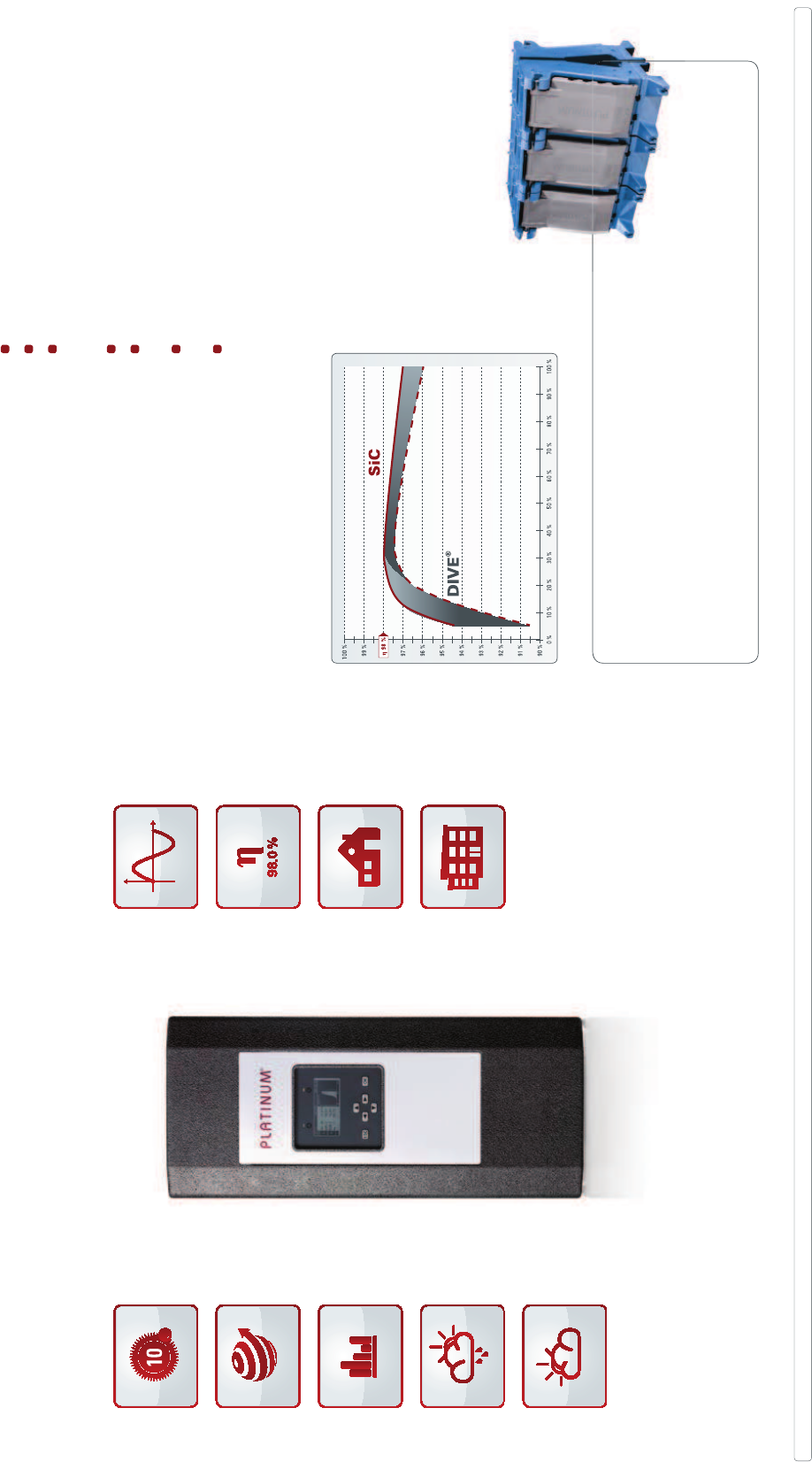

The single-phase PLATINUM® TL inverter.
!!"#$ %&'()*"%$"+,-.!/"01."2,+3!4056"7468"68."9:5.1;<")050;.+.56"=>?"::@AB"+01C.6"1.DE41.+.56"/3.24F2064,5G"68."9%.285420!"@E4-.!45./"H,1"
#,7.1"@.5.10645;"#!056/"I,55.26.-"6,"68.").-4E+"J,!60;."@14-B"05-"68."9$,7KL,!60;."M41.264L." NK'KOPQRBS"%84/"/E3.1/.-./"-41.264L."JM:"QPT?KPKPS
Warranty
Multi-country Efficiency
Single-phase
Datalogger < 25 kW
10 –100 kW
Outdoor IP 66
Shading
%8."4521.0/.-".HF24.52<"/3.24F20!!<"45"68."!,7.1"3,7.1"
output range resulting from the combination of state-
of-the-art SiC components and the innovative DIVE® tech-
nology is the key factor that contributes to the peak
.HF24.52<",H"UVWS" /"46"80/"X..5"-./4;5.-"05-"XE4!6"6,"
meet the requirements of protection class IP 66, the
TL series is exceptionally well suited to outdoor instal-
lation. One particular advantage in use is the ease
with which these units can be connected up via the
PLATINUM® network EIA 485. Thanks to the auto-
matic master programming employed in this system, all
of the device settings are transmitted to all connected
inverters. All of the key operating data can be clearly
read from the graphics display – even at night. The
TL series covers seven single-phase models ranging
from 3.8 to 7.2 kW.
"" :HF24.52<",H"UV"W
Integrated phase balancing function
Integrated datalogger provides storage
capacity for 30 years worth of
operating data
Exceptionally wide DC input voltage range
"" "M&J:*"6.285,!,;<"H,1"4521.0/.-".HF24.52<"
in the lower power output range
RAC-MPP® technology for rapid
MPP location
10-year free manufacturer’s warranty
SiC (silicon carbide
semiconductor technology)
DIVE® (Dynamic Input
Value Enhancement)
2)3$4$+ 5' !"#$ %#&'*6)%7+'*,'
SiC and DIVE® technology.
Specially developed for extreme outdoor weather
conditions, the PLATINUM® PowerBlock system
is a genuine alternative to central inverters. The com-
pact, robust housing enables installation of up to six
inverters, thereby offering optimum protection
against rain, hail, sunshine etc.
Intelligent power bundling for outdoor
applications.
The PLATINUM® PowerBlock.
2524
Subject to alterations.
!"#$%&'($)*$+!,(%"-#.$'"#$+,""#(%/0$.,11!"%#23$4($,15%!52'%#$%01#$2#.-6('%-!($/-.%$+'($7#$8!,(2$-($%&#$2!9(/!'2$'"#'$!($!,"$9#7.-%#$,(2#"$:#"%-;+'%#.<=>#">-#9$?'.$'%$ '0$@AB@C3$
!"#$%#&'$()*
TL Inverter 3801 TL 3800 TL 4300 TL 4800 TL
DC Input
Max. PV power 4,000 Wp 4,300 Wp 4,900 Wp 5,400 Wp
Max. DC power
(@ cos phi = 1)
3,480 W 3,800 W 4,300 W 4,800 W
MPPT voltage range 349 V ... 710 V 350 V ... 710 V 351 V ... 710 V 348 V ... 710 V
Max. input voltage 880 V
Max. MPPT input current 10.5 A 11.5 A 13.0 A 14.5 A
Number of string inputs 2 2 2 2
Number of MPP trackers 1
DC disconnect optional, device integrated
Reverse polarity protection yes
DC short circuit current 15 A 16 A 18 A 20 A
Ground fault monitoring isolation control
AC Output
Rated power
(@ cos phi = 1)
3,330 W 3,680 W 4,120 W 4,600 W
Rated current 14.5 A 16.0 A 17.9 A 20.0 A
Max. apparent power 3,330 VA 3,680 VA 4,120 VA 4,600 VA
Max. AC current 14.5 A 16.0 A 17.9 A 20.0 A
Power feed starts at 7 W 7 W 7 W 7 W
Mains output voltage @DA$E$?F<5@A$GC
Feed in phases / connection phases 1 feed in phase / 1 or 3 connection phases
Max. permitted grid impedance |Zmax| (EN 61000-3-11)
n/a )@)$HI DJK$HI
Standby consumption < 2 W
Mains frequency *A$LM$?F<5$*$GC
Short circuit resistance yes
Power factor
(cos phi)
0.7 ind. ... 0.7 cap.
Ground fault monitoring RCD
Interfaces
DC connection Multicontact MC4
AC connection spring clamp connectors
Interfaces PLATINUM® network EIA 485, 2 x RJ45 and screw terminals
Alarm relay max. 24 VAC / 2 A, screw terminals
Appliance data
!"#$%$&'()*#'+*,& KJ3J$G KJ3J$G KJ3J$G KJ3J$G
-%./0'!+&'()*#'+*, KJ3)$G KJ3)$G KJ3)$G KJ3)$G
Weight 27 kg 27 kg 27 kg 28 kg
Dimensions H 720 x W 320 x D 250 mm
Operating temperature -20 °C ... +60 °C
Storage temperature -25 °C ... +80 °C
Relative humidity
(non-condensing)
A$G$333$K*$G
Altitude at rated power 2,000 m / 6,560 ft
Protection degree
(except digital interface)
IP 66 according to DIN EN 60529
Protection class / overvoltage category I / III
Display graphic LCD 170 x 76 pixels
Data logger .%!"'6#$+'1'+-%0$.,8;+-#(%$8!"$DA$0#'".$!1#"'%-(6$%-H#
System topology transformerless, DIVE®, RAC-MPP® technology
Cooling convection cooling
Standards / grid codes VDE 0126-1-1, VDE AR-N 4105, BDEW-2008, CEI 0-21, C10/11, G83/1, G59/2, EN 50438,
ÖNORM E8001-4-712, UTE C15-712-1, RD 1663/661, IEC 62109, AS 4777, AS 3100
Warranty 10 years
Type designation 3801 TLD 3800 TLD 4300 TLD 4800 TLD
!"#$%#&'$()*
TL Inverter 5300 TL 6300 TL 7200 TL
DC Input
Max. PV power 6,000 Wp 7,100 Wp 8,000 Wp
Max. DC power
(@ cos phi = 1)
5,300 W 6,300 W 7,200 W
MPPT voltage range 349 V ... 710 V 350 V ... 710 V 351 V ... 710 V
Max. input voltage 880 V
Max. MPPT input current 16.0 A 18.5 A 21.0 A
Number of string inputs 2 3 3
Number of MPP trackers 1
DC disconnect optional, device integrated
Reverse polarity protection yes
DC short circuit current 22 A 26 A 29 A
Ground fault monitoring isolation control
AC Output
Rated power
(@ cos phi = 1)
5,000 W 6,000 W 6,900 W
Rated current 21.7 A 26.1 A 30.0 A
Max. apparent power 5,000 VA 6,000 VA 6,900 VA
Max. AC current 21.7 A 26.1 A 30.0 A
Power feed starts at 7 W 8 W 8 W
Mains output voltage @DA$E$?F<5@A$GC
Feed in phases / connection phases 1 feed in phase / 1 or 3 connection phases
Max. permitted grid impedance |Zmax| (EN 61000-3-11)
D)K$HI @KA$HI @*D$HI
Standby consumption < 2 W
Mains frequency *A$LM$?F<5$*$GC
Short circuit resistance yes
Power factor
(cos phi)
0.7 ind. ... 0.7 cap.
Ground fault monitoring RCD
Interfaces
DC connection Multicontact MC4
AC connection spring clamp connectors
Interfaces PLATINUM® network EIA 485, 2 x RJ45 and screw terminals
Alarm relay max. 24 VAC / 2 A, screw terminals
Appliance data
!"#$%$&'()*#'+*,& KJ3J$G KN3A$G KN3A$G
-%./0'!+&'()*#'+*, KJ3)$G KJ3*$G KJ3*$G
Weight 28 kg 29 kg 29 kg
Dimensions H 720 x W 320 x D 250 mm
Operating temperature -20 °C ... +60 °C
Storage temperature -25 °C ... +80 °C
Relative humidity
(non-condensing)
A$G$333$K*$G
Altitude at rated power 2,000 m / 6,560 ft
Protection degree
(except digital interface)
IP 66 according to DIN EN 60529
Protection class / overvoltage category I / III
Display graphic LCD 170 x 76 pixels
Data logger .%!"'6#$+'1'+-%0$.,8;+-#(%$8!"$DA$0#'".$!1#"'%-(6$%-H#
System topology transformerless, DIVE®, RAC-MPP® technology
Cooling fan
Standards / grid codes VDE 0126-1-1, VDE AR-N 4105, BDEW-2008, CEI 0-21, C10/11, G83/1, G59/2, EN 50438,
ÖNORM E8001-4-712, UTE C15-712-1, RD 1663/661, IEC 62109, AS 4777, AS 3100
Warranty 10 years
Type designation 5300 TLD 6300 TLD 7200 TLD
Subject to alterations.
!"#$%&'($)*$+!,(%"-#.$'"#$+,""#(%/0$.,11!"%#23$4($,15%!52'%#$%01#$2#.-6('%-!($/-.%$+'($7#$8!,(2$-($%&#$2!9(/!'2$'"#'$!($!,"$9#7.-%#$,(2#"$:#"%-;+'%#.<=>#">-#9$?'.$'%$ '0$@AB@C3$
2726
Delivering an impressive
!"#$ %#&'(!')*+,-
The three-phase PLATINUM® TL inverter.
Warranty Three-phase
Multi-country
10 –100 kW
Efficiency
3 MPP trackers
> 100 kWGraphics display
Outdoor IP 65 Shading
!!"#$ %&'()*"%$"+,-.!/"01."2,+3!4056"7468"68."9:5.1;<")050;.+.56"=>?"::@AB"+01C.6"1.DE41.+.56"/3.24F2064,5G"68."9%.285420!"@E4-.!45./"H,1"
#,7.1"@.5.10645;"#!056/"I,55.26.-"6,"68.").-4E+"J,!60;."@14-B"05-"68."9$,7KL,!60;."M41.264L." NK'KOPQRBS"%84/"/E3.1/.-./"-41.264L."JM:"QPT?KPKPS
The sibling of the single-phase TL inverter impresses
7468"68."/0+."3.0C".HF24.52<",H"UVWS"%84/"4/"!01;.!<"
-,75"6,"68."4521.0/."45".HF24.52<"301642E!01!<"45"68."!,7.1"
output range achieved by using of state-of-the-art
SiC components in conjunction with the innovative DIVE®
technology. The TL series is designed and constructed
to meet the requirements of protection class IP 65 and
is therefore, suitable for outdoor applications. One main
advantage for users is the ease with which the system can
be set into operation via the PLATINUM® network
EIA 485: the inputs that are programmed at an inverter
are transmitted to all networked devices. All of the
key operating data can be clearly read from the graphics
-4/3!0<"X".L.5"06"54;86S"%8."105;."452!E-./"FL."681..K
phase models ranging from 13 to 22 kW.
SiC (silicon carbide
semiconductor technology)
DIVE® (Dynamic Input
Value Enhancement)
./0$1$2 3' !"#$ %#&'45/%62'4('
SiC and DIVE® technology.
Specially developed for extreme outdoor weather
conditions, the PLATINUM® PowerBlock system is
a genuine alternative to central inverters. The com-
pact and robust housing offers optimum protection
against rain, hail, sunshine etc.
Intelligent power bundling for outdoor
applications.
The PLATINUM® PowerBlock.
"" :HF24.52<",H"UV"W
3 independent MPP trackers
Integrated datalogger provides storage
capacity for 30 years worth of
operating data
Exceptionally wide DC input voltage range
"" "M&J:*"6.285,!,;<"H,1"4521.0/.-".HF24.52<"
in the lower power output range
RAC-MPP® technology for rapid
MPP location
10-year free manufacturer’s warranty
2928
!"#$%#&'$()*
TL Inverter 13000 TL 16000 TL 19000 TL
DC Input
Max. PV power 14,700 Wp 18,000 Wp 21,300 Wp
Max. DC power
(@ cos phi = 1)
12,900 W 15,900 W 18,900 W
MPPT voltage range 351 V ... 710 V 349 V ... 710 V 350 V ... 710 V
Max. input voltage 880 V
Max. MPPT input current 3 x 13.0 A 3 x 16.0 A 3 x 18.5 A
Number of string inputs 6 6 9
Number of MPP trackers 3
DC disconnect optional, device integrated
Reverse polarity protection yes
DC short circuit current 3 x 18 A 3 x 22 A 3 x 26 A
Ground fault monitoring isolation control
AC Output
Rated power
(@ cos phi = 1)
12,360 W 15,000 W 18,000 W
Rated current 17.9 A 21.7 A 26.1 A
Max. apparent power 12,360 VA 15,000 VA 18,000 VA
Max. AC current 17.9 A 21.7 A 26.1 A
Power feed starts at 21 W 21 W 24 W
Mains output voltage !"#$ %#&#'#(%%#&#)#*##+)',$%#-.
Feed in phases / connection phases 3 feed in phases / 3 connection phases
Max. permitted grid impedance |Zmax| (EN 61000-3-11)
($(#/0 (1#/0 $1%#/0
Standby consumption < 6 W
Mains frequency 2%#34#+)',#2#-.
Short circuit resistance yes
Power factor
(cos phi)
0.7 ind. ... 0.7 cap.
Ground fault monitoring RCD
Interfaces
DC connection Multicontact MC4
AC connection spring clamp connectors
Interfaces PLATINUM® network EIA 485, 2 x RJ45 and screw terminals
Alarm relay max. 24 VAC / 2 A, screw terminals
Appliance data
!"#$%$&'()*#'+*,& 1565#- 1565#- 176%#-
-%./0'!+&'()*#'+*, 156(#- 156(#- 1562#-
Weight 81 kg 84 kg 87 kg
Dimensions H 743 x W 972 x D 262 mm
Operating temperature -20 °C ... +60 °C
Storage temperature -25 °C ... +80 °C
Relative humidity
(non-condensing)
%#-#666#12#-
Altitude at rated power 2,000 m / 6,560 ft
Protection degree
(except digital interface)
IP 65 according to DIN EN 60529
Protection class / overvoltage category I / III
Display graphic LCD 170 x 76 pixels
Data logger 89:;<=>#?<@<?A9B#8CDE?A>F9#D:;# %#B><;8#:@>;<9AF=#9A/>
System topology transformerless, DIVE®, RAC-MPP® technology
Cooling convection cooling fan
Standards / grid codes VDE 0126-1-1, VDE AR-N 4105, BDEW-2008, CEI 0-21, C10/11, G83/1, G59/2, EN 50438,
ÖNORM E8001-4-712, UTE C15-712-1, RD 1663/661, IEC 62109, AS 4777, AS 3100
Warranty 10 years
Type designation 13000 TLD 16000 TLD 19000 TLD
Subject to alterations.
G:;>#9H<F#(2#?:CF9;A>8#<;>#?C;;>F9IB#8C@@:;9>J6#!F#C@,9:,J<9>#9B@>#J>8A=F<9A:F#IA89#?<F#K>#D:CFJ#AF#9H>#J:LFI:<J#<;><#:F#:C;#L>K8A9>#CFJ>;#">;9AE?<9>8'MN>;NA>L#+<8#<9#G<B#$%O$.6#
!"#$%#&'$()*
TL Inverter 22001 TL 22000 TL
DC Input
Max. PV power 23,000 Wp 24,000 Wp
Max. DC power
(@ cos phi = 1)
20,800 W 21,600 W
MPPT voltage range 351 V ... 710 V 351 V ... 710 V
Max. input voltage 880 V
Max. MPPT input current 3 x 20.2 A 3 x 21.0 A
Number of string inputs 9 9
Number of MPP trackers 3
DC disconnect optional, device integrated
Reverse polarity protection yes
DC short circuit current 3 x 28 A 3 x 29 A
Ground fault monitoring isolation control
AC Output
Rated power
(@ cos phi = 1)
20,000 W 20,700 W
Rated current 29.0 A 30.0 A
Max. apparent power 20,000 VA 20,700 VA
Max. AC current 29.0 A 30.0 A
Power feed starts at 24 W 24 W
Mains output voltage !"#$ %#&#'#(%%#&#)#*##+)',$%#-.
Feed in phases / connection phases 3 feed in phases / 3 connection phases
Max. permitted grid impedance |Zmax| (EN 61000-3-11)
$PO#/0 $2 #/0
Standby consumption < 6 W
Mains frequency 2%#34#+)',#2#-.
Short circuit resistance yes
Power factor
(cos phi)
0.7 ind. ... 0.7 cap.
Ground fault monitoring RCD
Interfaces
DC connection Multicontact MC4
AC connection spring clamp connectors
Interfaces PLATINUM® network EIA 485, 2 x RJ45 and screw terminals
Alarm relay max. 24 VAC / 2 A, screw terminals
Appliance data
!"#$%$&'()*#'+*,& 176%#- 176%#-
-%./0'!+&'()*#'+*, 1562#- 1562#-
Weight 87 kg 87 kg
Dimensions H 743 x W 972 x D 262 mm
Operating temperature -20 °C ... +60 °C
Storage temperature -25 °C ... +80 °C
Relative humidity
(non-condensing)
%#-#666#12#-
Altitude at rated power 2,000 m / 6,560 ft
Protection degree
(except digital interface)
IP 65 according to DIN EN 60529
Protection class / overvoltage category I / III
Display graphic LCD 170 x 76 pixels
Data logger 89:;<=>#?<@<?A9B#8CDE?A>F9#D:;# %#B><;8#:@>;<9AF=#9A/>
System topology transformerless, DIVE®, RAC-MPP® technology
Cooling fan
Standards / grid codes VDE 0126-1-1, VDE AR-N 4105, BDEW-2008, CEI 0-21, C10/11, G83/1, G59/2, EN 50438,
ÖNORM E8001-4-712, UTE C15-712-1, RD 1663/661, IEC 62109, AS 4777, AS 3100
Warranty 10 years
Type designation 22001 TLD 22000 TLD
Subject to alterations.
G:;>#9H<F#(2#?:CF9;A>8#<;>#?C;;>F9IB#8C@@:;9>J6#!F#C@,9:,J<9>#9B@>#J>8A=F<9A:F#IA89#?<F#K>#D:CFJ#AF#9H>#J:LFI:<J#<;><#:F#:C;#L>K8A9>#CFJ>;#">;9AE?<9>8'MN>;NA>L#+<8#<9#G<B#$%O$.6#
3130
!""#$%!&$'$(%%"$)*+,$-+$
The PLATINUM® R3 inverter.
Warranty
Multi-country
Outdoor IP 66
Efficiency
< 25 kW
10 –100 kW
> 100 kW
Shading
Graphics display
Three-phase
!!"#$ %&'()*"+,"-./0!1"230"4.-5!6278"968:"8:0";<703=>")272=0-078"?@A"<<BCD"-23E08"30FG630-078"15046H4286.7I"8:0";%04:7642!"BG6/0!6701"J.3"
#.903"B07032867="#!2781"K.770480/"8."8:0")0/6G-"L.!82=0"B36/D"27/"8:0";$.9MN.!82=0"O630486N0" +M'MPQRSDT"%:61"1G50310/01"/630486N0"LO<"RQUAMQMQT
The transformerless, three-phase high-performance R3
inverter is a logical extension of the PLATINUM® prod-
uct family: smaller, more compact, more lightweight and
-.30"0JH46078T"%:27E1"8."8:0"677.N286N0"O( $MV*"804:-
7.!.=>I"68"24:60N01"2"502E"0JH46074>".J"WXTPY"27/"8:G1"
offers an excellent yield. Factors that contribute to
8:61"0Z40586.72!!>":6=:"0JH46074>"674!G/0"8:0"5G30!>"4.7M
vection-based cooling system and the excellent MPP
tracking, while the low weight and automatic master
programming via the PLATINUM® network EIA 485
help to make installation and commissioning incredibly
easy. All of the key operating data can be clearly read
off from the graphics display – even at night. The range
4.782671"HN0"-./0!1"J3.-"["8."QA"E\T
"" <JH46074>".J"WXTP"Y
"" "O&L<*"804:7.!.=>"J.3"67430210/"0JH46074>"
in the lower power output range
RAC-MPP® technology for rapid
MPP location
Convection cooling
Integrated datalogger provides storage
capacity for 30 years worth of
operating data
10-year free manufacturer’s warranty
Excellent yield values thanks to
DUAL-X® technology.
]6=:"0JH46074>"243.11"8:0"078630")##%"N.!82=0"327=0"8:27E1"8."677.N286N0"OG2!MV*"804:7.!.=>T
%:0"2/N2782=0^"0Z40586.72!!>":6=:">60!/1"968:".586-G-"/016=7"_0Z6`6!68>T
98.4 %
98.2 %
98.0 %
97.8 %
97.6 %
97.4 %
97.2 %
97.0 %
350 400 450 500 550 600 650 700
eta [%]
V [DC]
3332
!"#$%#&'$()*
R3 Inverter 7000 R3•• • • 9000 R3 11000 R3
DC Input
Max. PV power 6,700 Wp 9,000 Wp 11,200 Wp
Max. DC power
(@ cos phi = 1)
6,100 W 8,200 W 10,200 W
MPPT voltage range 350 V ... 720 V
Max. input voltage 900 V
Max. MPPT input current x 10 A 2 x 13 A 2 x 16 A
Number of string input• •••••••••••••••••••••••••••••••••••••••••••••••••••!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !"! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!2 + 2
Number of MPP trackers 1
DC disconnect yes
Reverse polarity protection yes
DC short circuit current 14 A 18 A 22 A
Ground fault monitoring isolation control
AC Output
Rated power
(@ cos phi = 1)
6,000 W 8,000 W 10,000 W
Rated current 8.7 A 11.6 A 14.5 A
Max. apparent power 6,000 VA 8,000 VA 10,000 VA
Max. AC current 11.2 A 14.8 A 18.5 A
Power feed starts at 20 W
Mains output voltage !"#$ %#&#'#(%%#&#)#*##+)',$%#-.
Feed in phases / connection phases 3 feed in phases / 3 connection phases
Max. permitted grid impedance |Zmax| (EN 61000-3-11)
n/a
Standby consumption < 2 W
Mains frequency /%#01#+)',#/#-.
Short circuit resistance yes
Power factor
(cos phi)
0.7 ind. ... 0.7 cap.
Ground fault monitoring RCD
Interfaces
DC connection Multicontact MC4
AC connection spring clamp connectors
Interfaces PLATINUM® network EIA 485, 2 x RJ45 and screw terminals
Alarm relay -
Appliance data
!"#$%$&'()*#'+*,& 234(#- 234(#- 234(#-
-%./0'!+&'()*#'+*, 2545#- 2543#- 2542#-
Weight 45 kg
Dimensions H 626 x W 547 x D 290 mm
Operating temperature -20 °C ... +60 °C
Storage temperature -25 °C ... +80 °C
Relative humidity
(non-condensing)
%#-#444#2/#-
Altitude at rated power 2,000 m / 6,560 ft
Protection degree IP 66 according to DIN EN 60529
Protection class / overvoltage category I / III
Display graphic LCD 170 x 76 pixels
Data logger 6789:;<#=:>:=?7@#6ABC=?<D7#B89# %#@<:96#8><9:7?D;#7?E<
System topology transformerless, DIVE®, RAC-MPP® technology
Cooling convection cooling
Standards / grid codes VDE 0126-1-1, VDE AR-N 4105, BDEW-2008, CEI 0-21, C10/11, G83/1, G59/2, EN 50438,
ÖNORM E8001-4-712, UTE C15-712-1, RD 1663/661, IEC 62109, AS 4777, AS 3100
Warranty 10 years
Type designation 7000 R3-MDX 9000 R3-MDX 11000 R3-MDX
Subject to alterations.
F89<#7G:D#(/#=8AD79?<6#:9<#=A99<D7H@#6A>>897<I4#!D#A>,78,I:7<#7@><#I<6?;D:7?8D#H?67#=:D#J<#B8ADI#?D#7G<#I8KDH8:I#:9<:#8D#8A9#K<J6?7<#ADI<9#"<97?C=:7<6'LM<9M?<K#+:6#:7#F:@#$%N$.4#
!"#$%#&'$()*
R3 Inverter 14000 R3 16000 R3
DC Input
Max. PV power 14,600 Wp 16,900 Wp
Max. DC power
(@ cos phi = 1)
13,300 W 15,350 W
MPPT voltage range 350 V ... 720 V
Max. input voltage 900 V
Max. MPPT input current 2 x 21 A 2 x 24 A
Number of string inputs 2 + 2
Number of MPP trackers 1
DC disconnect yes
Reverse polarity protection yes
DC short circuit current 29 A 33 A
Ground fault monitoring isolation control
AC Output
Rated power
(@ cos phi = 1)
13,000 W 15,000 W
Rated current 18.9 A 22.0 A
Max. apparent power 13,000 VA 15,000 VA
Max. AC current 22.0 A 22.0 A
Power feed starts at 20 W
Mains output voltage !"#$ %#&#'#(%%#&#)#*##+)',$%#-.
Feed in phases / connection phases 3 feed in phases / 3 connection phases
Max. permitted grid impedance |Zmax| (EN 61000-3-11)
(%$#EO (/#EO
Standby consumption < 2 W
Mains frequency /%#01#+)',#/#-.
Short circuit resistance yes
Power factor
(cos phi)
0.7 ind. ... 0.7 cap.
Ground fault monitoring RCD
Interfaces
DC connection Multicontact MC4
AC connection spring clamp connectors
Interfaces PLATINUM® network EIA 485, 2 x RJ45 and screw terminals
Alarm relay -
Appliance data
!"#$%$&'()*#'+*,& 234(#- 234(#-
-%./0'!+&'()*#'+*, 234%#- 234%#-
Weight 45 kg
Dimensions H 626 x W 547 x D 290 mm
Operating temperature -20 °C ... +60 °C
Storage temperature -25 °C ... +80 °C
Relative humidity
(non-condensing)
%#-#444#2/#-
Altitude at rated power 2,000 m / 6,560 ft
Protection degree IP 66 according to DIN EN 60529
Protection class / overvoltage category I / III
Display graphic LCD 170 x 76 pixels
Data logger 6789:;<#=:>:=?7@#6ABC=?<D7#B89# %#@<:96#8><9:7?D;#7?E<
System topology transformerless, DIVE®, RAC-MPP® technology
Cooling convection cooling
Standards / grid codes VDE 0126-1-1, VDE AR-N 4105, BDEW-2008, CEI 0-21, C10/11, G83/1, G59/2, EN 50438,
ÖNORM E8001-4-712, UTE C15-712-1, RD 1663/661, IEC 62109, AS 4777, AS 3100
Warranty 10 years
Type designation 14000 R3-MDX 16000 R3-MDX
Subject to alterations.
F89<#7G:D#(/#=8AD79?<6#:9<#=A99<D7H@#6A>>897<I4#!D#A>,78,I:7<#7@><#I<6?;D:7?8D#H?67#=:D#J<#B8ADI#?D#7G<#I8KDH8:I#:9<:#8D#8A9#K<J6?7<#ADI<9#"<97?C=:7<6'LM<9M?<K#+:6#:7#F:@#$%N$.4#
3534
An outstanding top performer –
three-phase from 11 to 20 kW.
The PLATINUM® TL3 inverter.
!"#$%&'(&'!)&!*+!,-&)./0*)#'&0*102*'&'(3(,(+-&"01(%%&"&
wide input voltage range, the PLATINUM® TL3 inverter
0"#&4),*5)1&)./0*)#0-&(.&23&'(&6789&:8& !)&'!1));3!"%)&
feed-in eliminates the risk of unbalance between phase
loads. The PLATINUM® network and standardised con-
nections ensure that networking of the multi-country-
device could not be easier. As all programming is per-
formed via the PLATINUM® network EIA 485, all of the
adjustments made to device settings are automatically
transmitted to all connected inverters. All of the key
operating data can be clearly read from the graphics
display – even at night. The range contains four
models from 11 to 20 kW.
&& &<./0*)#0-&23&'(&6789&:
Integrated datalogger provides storage
capacity for 30 years worth of
operating data
Convection cooling
Weight: 40 kg
Protection class IP 65
Multi-country
Datalogger
Graphics display
Outdoor IP 65
Efficiency
10 –100 kW
> 100 kW
Three-phase
=,,&>?= @ABCD& ?E&F(4),%&"1)&0(F3,*"#'&G*'!&'!)&H<#)1+-&C"#"+)F)#'&IJK&<<LMN&F"1$)'&1)O2*1)F)#'&%3)0*/0"'*(#P&'!)&H )0!#*0",&L2*4),*#)%&.(1&
>(G)1&L)#)1"'*#+&>,"#'%&Q(##)0')4&'(&'!)&C)4*2F&R(,'"+)&L1*4N&"#4&'!)&H?(G;5(,'"+)&S*1)0'*5)&=T;A;UVWXN8& !*%&%23)1%)4)%&4*1)0'*5)&RS<&WV9K;V;V8
!"#$%#&'$()*
TL3 Inverter 11000 TL3 13000 TL3 17000 TL3 20000 TL3
DC Input
Max. PV power 11,000 Wp 13,600 Wp 18,100 Wp 21,200 Wp
Max. DC power
(@ cos phi = 1)
10,300 W 12,800 W 16,900 W 19,650 W
MPPT voltage range 380 V ... 850 V 420 V ... 850 V 445 V ... 850 V 480 V ... 850 V
Max. input voltage 1000 V
Max. MPPT input current 29.0 A 30.0 A 38.5 A 41.0 A
Number of string inputs 4 6
Number of MPP trackers 1
DC disconnect integrated in the device
Reverse polarity protection yes
DC short circuit current 50 A
Ground fault monitoring isolation control
AC Output
Rated power
(@ cos phi = 1)
10,000 W 12,400 W 16,500 W 19,200 W
Rated current 14.5 A 18.0 A 23.9 A 27.8 A
Max. apparent power 10,000 VA 12,400 VA 16,500 VA 19,200 VA
Max. AC current 18.0 A 18.0 A 29.0 A 29.0 A
Power feed starts at 20 W
Mains output voltage E=Q&UWW&R&Y&A&&IYZ;9W&:M
Feed in phases / connection phases 3 feed in phases / 3 connection phases
Max. permitted grid impedance |Zmax| (EN 61000-3-11)
n/a U99&F[ EV7&F[ 9\E&F[
Standby consumption < 2.5 W
Mains frequency XW&]^&Z&KW&]^&IYZ;X&:M
Short circuit resistance yes
Power factor
(cos phi)
0.9 ind. ... 0.9 cap.
Ground fault monitoring RCD
Interfaces
DC connection Multicontact MC4
AC connection Phoenix plug connector (supplied)
Interfaces PLATINUM® network EIA 485, 2 x RJ45 and screw terminals
Alarm relay max. 24 VAC / 2 A, screw terminals
Appliance data
!"#$%$&'()*#'+*,& 678W&: 678W&: 6789&: 6789&:
-%./0'!+&'()*#'+*, 6\8U&: 6\8X&: 6\87&: 6\87&:
Weight 39 kg 39 kg 40 kg 40 kg
Dimensions H 626 x W 543 x D 281 mm
Operating temperature -25 °C ... +55 °C
Storage temperature -20 °C ... +70 °C
Relative humidity
(non-condensing)
W&:&888&6E&:
Altitude at rated power 2,000 m / 6,560 ft
Protection degree
(except digital interface)
IP 65 according to DIN EN 60529
Protection class / overvoltage category I / III
Display graphic LCD 170 x 76 pixels
Data logger %'(1"+)&0"3"0*'-&%2./0*)#'&.(1&EW&-)"1%&(3)1"'*#+&'*F)
System topology transformerless, 3-phase high-performance topology
Cooling convection cooling
Standards / grid codes VDE 0126-1-1, VDE AR-N 4105, BDEW-2008, CEI 0-21, C10/11, G59/2, EN 50438,
ÖNORM E8001-4-712, UTE C 15-712-1, RD 1663/661, IEC 62109, AS 4777.
Warranty 5 years
Type designation 11000 TL3 13000 TL3 17000 TL3 20000 TL3
Subject to alterations.
C(1)&'!"#&UX&0(2#'1*)%&"1)&0211)#',-&%233(1')48&=#&23;'(;4"')&'-3)&4)%*+#"'*(#&,*%'&0"#&_)&.(2#4&*#&'!)&4(G#,("4&"1)"&(#&(21&G)_%*')&2#4)1&Q)1'*/0"')%Z`5)15*)G&I"%&"'&C"-&9WV9M8&
3736
!"#$%&"$'(#$#)*+"&),#)'$+-$"#.#/'#0$+)$'1&$+,2&"'!)'$
2"&3#/'-$+)$4#*#55&6$-&7'($&%$87"+)9$'(#$&2#):;#50$2(&'&:
voltaic system built in 2011, which delivers a total output
of 1,231 kWp, and an environmentally-friendly free-
range livestock/poultry farm. PLATINUM® supplied 174
inverters (model: 7200 TL) for around 7,000 modules.
Equipment:
174 Diehl 7200 TL inverters
7,038 modules, each delivering 175 Wp
PLATINUM® inverters are in use across the whole of Eu-
rope, from the UK to Greece. Customers particularly
value the outstanding performance, exceptional quality
and ease of installation and commissioning of the
multi-country devices. This list of international references
&)/#$!<!+)$(+<(5+<('-$'(#$-+<)+;/!)/#$&%$+)*#"'#"$'#/(-
)&5&<=$+)$'#",-$&%$'(#$#%;/+#)/=$&%$2(&'&*&5'!+/$-=--
tems and therefore, for the long-term success of solar
energy.

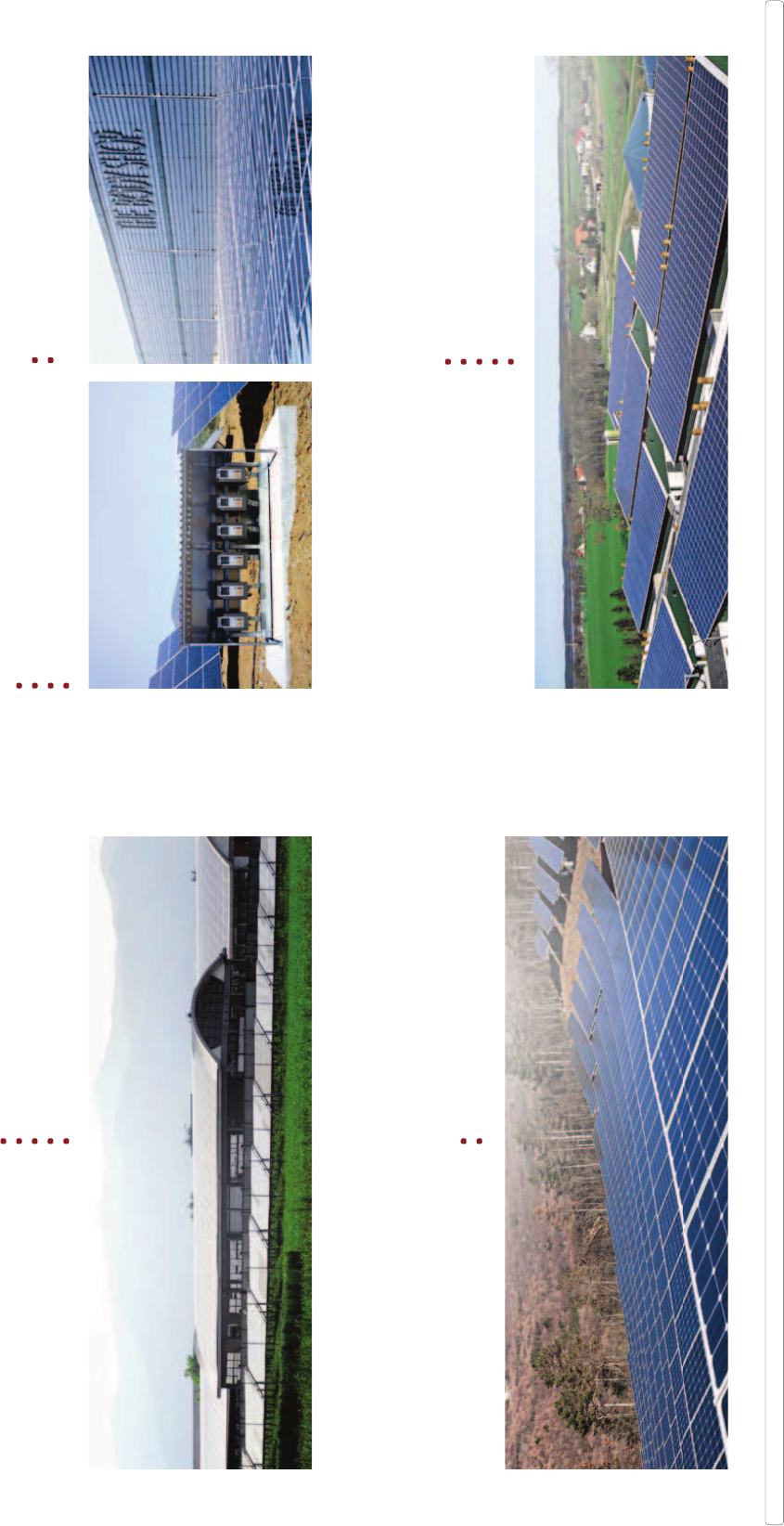

Revello, Piemont, Italy.
Eco-electricity and happy hens.
Delivering the best yield across Europe.
The PLATINUM® range of inverters.
Reference systems.
3938
Piscina, Turin region, Italy.
Increased yield with multi-MPP tracking.
In the case of this plant near Turin, which was constructed
in 2011, the problem of curved roofs with modules
aligned in different directions was overcome by using
string inverters and separate MPP-tracking for each
row of modules. The yield of the plant was maximised
with the aid of multi-MPP tracking and was increased
!"#$$%&'(%)# "*%)+%,-%.%,/0%!#12 "(*%&#%&'(%#"3435 6%
forecasts. The total output of the plant is 269 kWp.
Equipment:
24 Diehl 7200 TL inverters
6 Diehl 6300 TL inverters
12 Diehl 4800 TL inverters
426 modules, each delivering 180 Wp
678 modules, each delivering 285 Wp
Littlehampton, West Sussex, south England.
The biggest rooftop solar power plant in the British
Isles.
Britain’s largest rooftop solar power plant with a total
area of 6,355 m2 and an output of 883 kWp was
planned and installed in just three months in 2011. The
electricity produced here is to be used in a self-sus-
taining system in order to reduce the energy costs of
its operating company. In addition, this also helps to
save 390 tons of CO
2
emissions every year. The plant
can supply electricity to 200 households per year.
Equipment:
40 Diehl 22000 TL inverters
3,800 modules, each delivering 230 Wp
Warin, Mecklenburg-West Pomerania, Germany.
Flexible deployment of 115 PLATINUM® inverters on a
total of ten roofs.
This installation, which is distributed over many roofs,
presented a special challenge: thanks to the wide per-
formance spectrum of the units in the PLATINUM® range,
it was possible to equip eight large halls, one smaller
' 66% 5*%#5(%#78!(%)936*354%.%( !'%:3&'% 5% 2(;%"##7%
pitched at 14° – with the best models to deliver the
optimum power output. A total of 115 transformerless
PLATINUM® inverters deliver high yield values, while
four PLATINUM® WebMaster units are used for com-
prehensive monitoring. Constructed in 2010, the solar
plant delivers an output of 904 kWp.
Equipment:
104 Diehl 7200 TL inverters
1 Diehl 6300 TL inverter
1 Diehl 4800 TL inverter
3 Diehl 4300 TL inverters
4,880 modules, each delivering 185 Wp
Podnanos, Vipava, Slovenia.
Decentralised solution with PLATINUM®
string inverters.
With a power output of 950 kWp, the plant in Podnanos
is one of the largest photovoltaic installations in Slove-
nia. In this plant, a decentralised solution is implemented
solely with PLATINUM® string inverters. These deliver
a higher yield than centralised inverters and suffer fewer
failures. With the aid of the 135 MPP trackers of the 44
PLATINUM® 22000 TL inverters, it is possible to com-
pensate for terrain-related differences in angle between
he modules via multi-MPP tracking and thus to sig-
538
cantly increase the yield.
Equipment:
44 Diehl 22000 TL inverters
3,168 modules, each delivering 300 Wp

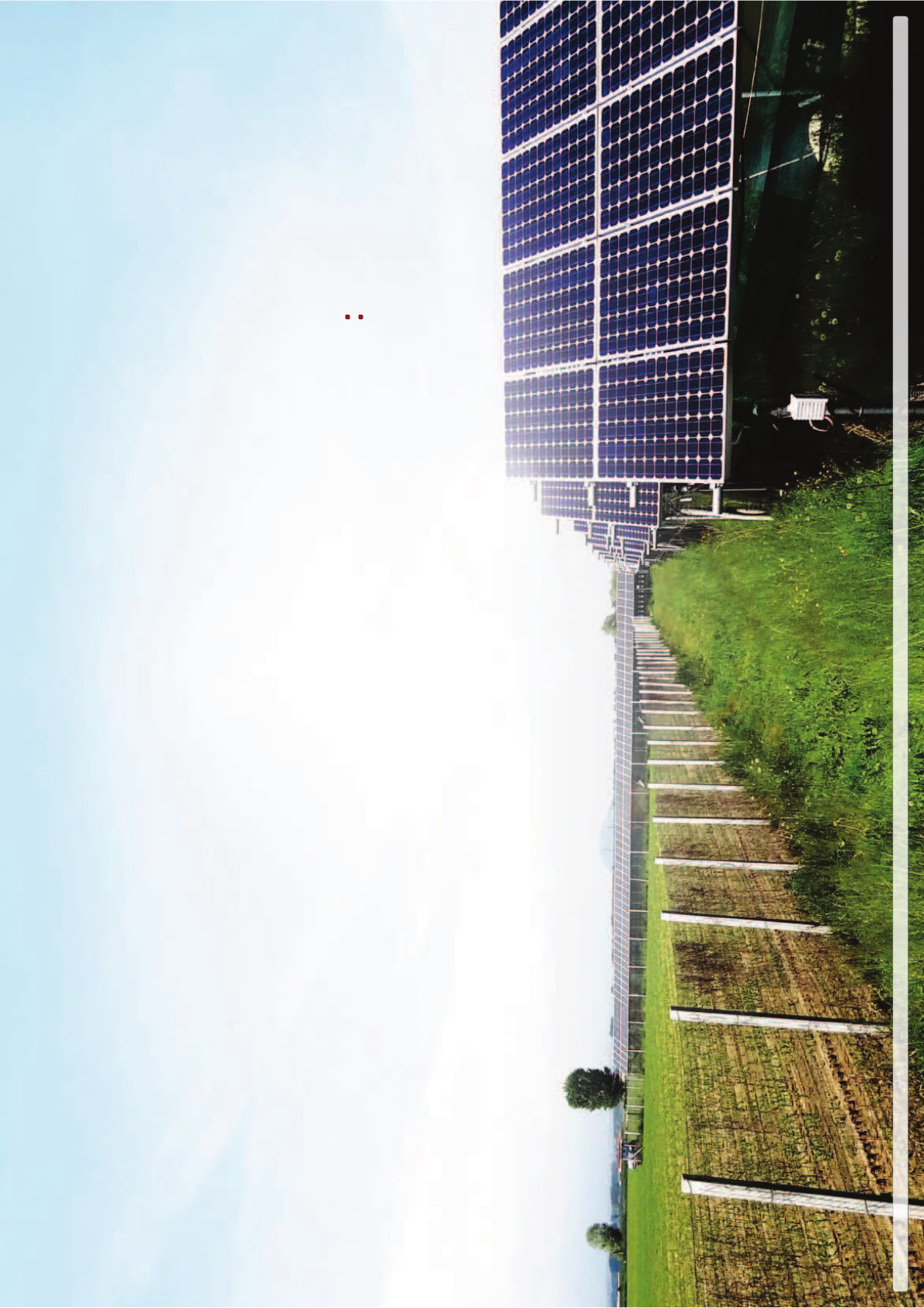

Euaggelismos Messinias, Peloponnese, Greece.
200 kWp with 30 PLATINUM® inverters.
These two photovoltaic parks in Euaggelismos Messinias
in Greece each deliver an output of 2 x 100 kWp from a
surface area of 10,000 m2. The plant has been designed
to run for 20 years and was constructed over a period
of two months. Last year, the feed-in power was 2,150
kWh per kWp. There were two reasons why PLATINUM®
inverters were chosen for this project: high quality and
excellent value for money.
Equipment:
11 Diehl 7200 TL inverters per park
4 Diehl 4300 TL inverters per park
20 single-axis solar trackers
454 modules, each delivering 220 Wp
Impressive performance both in the
north and south. The PLATINUM® range
of inverters. Reference systems.
