SERVICE MANUAL

Sony Corporation

Audio&Video Business Group

HCD-HDX285/HDX287WC/HDX585/HDX587WC/

HDX589W/HDX685/HDX686W

SPECIFICATIONS

US Model

HCD-HDX285/HDX287WC/HDX585/

DVD RECEIVER

9-889-396-01

2009B05-1

HDX587WC/HDX589W

Canadian Model

HCD-HDX685/HDX686W

E Model

HCD-HDX285

Ver. 1.0 2009.02

• HCD-HDX285 is the amplifier, super audio

CD/DVD, tuner and video section in DAV-

HDX285.

• HCD-HDX287WC is the amplifier, super

audio CD/DVD, tuner and video section in

DAV-HDX287WC.

• HCD-HDX585 is the amplifier, super audio

CD/DVD, tuner and video section in DAV-

HDX585.

• HCD-HDX587WC is the amplifier, super

audio CD/DVD, tuner and video section in

DAV-HDX587WC.

• HCD-HDX589W is the amplifier, super audio

CD/DVD, tuner and video section in DAV-

HDX589W.

• HCD-HDX685 is the amplifier, super audio

CD/DVD, tuner and video section in DAV-

HDX685.

• HCD-HDX686W is the amplifier, super audio

CD/DVD, tuner and video section in DAV-

HDX686W.

Photo: HCD-HDX285

Model Name Using Similar Mechanism HCD-HDX275

DVD Mechanism Type CDM81C-DVBU101

Optical Pick-up Block Name KHM-310CAB or

KHM-313CAB

– Continued on next page –

This product incorporates copyright protection technology that is protected by

U.S. patents and other intellectual property rights. Use of this copyright protection

technology must be authorized by Macrovision, and is intended for home and other

limited viewing uses only unless otherwise authorized by Macrovision. Reverse

engineering or disassembly is prohibited.

This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive

matrix surround decoder and the DTS** Digital Surround System.

* Manufactured under license from Dolby Laboratories.

Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Labora-

tories.

** Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674;

5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued

& pending. DTS and DTS Digital Surround are registered trademarks and the

DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2008 DTS, Inc.

All Rights Reserved.

This system incorporates High-Def nition Multimedia Interface (HDMITM) tech-

nology.

HDMI, the HDMI logo and High-Def nition Multimedia Interface are trademarks

or registered trademarks of HDMI Licensing LLC.

“DVD-RW,” “DVD-R,” “DVD+RW,” “DVD+R,” “DVD VIDEO,” and the “CD”

logos are trademarks.

“BRAVIA” is a trademark of Sony Corporation.

“PLAYSTATION” is a trademark of Sony Computer Entertainment Inc.

®

DivX is a video f le compression technology, developed by DivX, Inc. (Except

for North American models).

DivX, DivX Certif ed, and associated logos are trademarks of DivX, Inc. and are

used under license (Except for North American models).

“S-AIR” and its logo are trademarks of Sony Corporation.

AUDIO POWER SPECIFICATIONS

for the U.S. model

POWER OUTPUT AND TOTAL HARMONIC

DISTORTION:

With 3 ohms loads, both

channels driven, from 180

- 20,000 Hz; rated 84 watts

per channel minimum

RMS power, with no more

than 0.7% total harmonic

distortion from 250 milli

watts to rated output.

Amplifier Section (HDX285/HDX287WC/HDX585/

HDX587WC/HDX685)

U.S. models:

Surround mode (reference) RMS output power

FL/FR/C/SL/SR*: 144 watts

(per channel at 3 ohms, 1

kHz, 10% THD)

Subwoofer*: 280 watts (at

1.5 ohms, 80 Hz, 10%

THD)

Other models:

Stereo mode (rated) 108 W + 108 W (at 3 ohms,

1 kHz, 1% THD)

Surround mode (reference) RMS output power

FL/FR/C/SL/SR*: 144 watts

(per channel at 3 ohms, 1

kHz, 10% THD)

Subwoofer*: 280 watts (at

1.5 ohms, 80 Hz, 10%

THD)

* Depending on the decoding mode settings and the

source, there may be no sound output.

Inputs (Analog)

TV/VIDEO (AUDIO IN) Sensitivity: 450/250 mV

AUDIO IN Sensitivity: 250/125 mV

Inputs (Digital)

TV/VIDEO (COAXIAL IN/OPTICAL IN)

Impedance: 75 ohms/-

Input Stream: Dolby

Digital 5.1ch/DTS 5.1ch/

Linear PCM 2ch

(Sampling Frequency: less

than 48 kHz)

Outputs (Analog)

Phones Accepts low- and high-

impedance headphones.

Amplifier Section (HDX589W/HDX686W)

U.S. models:

Surround mode (reference) RMS output power

FL/FR/C*: 144 watts

(per

channel at 3 ohms, 1 kHz,

10% THD)

Subwoofer*: 280 watts (at

1.5 ohms, 80 Hz, 10%

THD)

Other models:

Stereo mode (rated) 108 W + 108 W (at 3 ohms,

1 kHz, 1% THD)

Surround mode (reference) RMS output power

FL/FR/C*: 144 watts

(per

channel at 3 ohms, 1 kHz,

10% THD)

Subwoofer*: 280 watts (at

1.5 ohms, 80 Hz, 10%

THD)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

2

SAFETY-RELATED COMPONET WARNING!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE

WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN

THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.

REPLACE THESE COMPONENTS WITH SONY PARTS

WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS

MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!

LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR

LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES

PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC-

TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE

PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON-

NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS

PUBLIÉS PAR SONY.

Super Audio CD/DVD System

Laser Diode Properties Emission Duration:

Continuous

Laser Output: Less than

44.6MW

* This output is the value measurement at a distance

of 200mm from the objective lens surface on the

Optical Pick-up Block with 7mm aperture.

Signal format system

North American models: NTSC

Other models: PAL/NTSC

Tuner Section

System PLL quartz-locked digital

synthesizer

FM tuner section

Tuning range

North American models: 87.5 MHz - 108.0 MHz

(100 kHz step)

Other models: 87.5 MHz - 108.0 MHz (50

kHz step)

Antenna (aerial) FM wire antenna (aerial)

Antenna (aerial) terminals 75 ohms, unbalanced

Intermediate frequency 10.7 MHz

AM tuner section

Tuning range

North American model: 530 kHz - 1,710 kHz (with

the interval set at 10 kHz)

531 kHz - 1,710 kHz (with

the interval set at 9 kHz)

Middle Eastern model: 531 kHz - 1,602 kHz (with

the interval set at 9 kHz)

Other models: 531 kHz - 1,602 kHz (with

the interval set at 9 kHz)

530 kHz - 1,610 kHz (with

the interval set at 10 kHz)

Antenna (aerial) AM loop antenna (aerial)

Intermediate frequency 450 kHz

Video Section

Outputs VIDEO: 1 Vp-p 75 ohms

COMPONENT:

Y: 1 Vp-p 75 ohms

PB/CB, PR/CR: 0.7 Vp-p

75 ohms

HDMI OUT: Type A (19

pin)

General

Power requirements

North American models: 120 V AC, 60 Hz

Other models: 220 V - 240 V AC,

50/60 Hz

Power

HDX285/HDX287WC/HDX585/HDX587WC/HDX685

HDX589W/HDX686W

consumption On: 160 W

Standby: 0.3 W (at the

Power Saving mode)

Power consumption On: 120 W

Standby: 0.3 W (at the

Power Saving mode)

Output voltage (DIGITAL MEDIA PORT)

DC 5 V

Output current (DIGITAL MEDIA PORT)

700 mA

Di

HDX285/HDX585/HDX685

HDX287WC/HDX587W/HDX589W/HDX686W

mensions (approx.) 430 mm × 85 mm × 415

mm (17 in × 3 3/8 in ×

16 3/8 in) (w/h/d) incl.

projecting parts

Ma

Design and specifications are subject to change

without notice.

ss (approx.) 5.2 kg (11 lb 8 oz)

Dimensions (approx.) 430 mm × 85 mm × 420

mm (17 in × 3 3/8in ×

16 5/8in) (w/h/d) incl.

projecting parts

430 mm × 85 mm × 450

mm (17 in × 3 3/8in ×

17 3/4in) (w/h/d) with the

wireless transceiver

inserted

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

3

SAFETY CHECK-OUT

After correcting the original service problem, perform the follow-

ing safety check before releasing the set to the customer:

Check the antenna terminals, metal trim, “metallized” knobs,

screws, and all other exposed metal parts for AC leakage.

Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and

from all exposed metal parts to any exposed metal part having a

return to chassis, must not exceed 0.5 mA (500 microamperes.).

Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA

WT-540A. Follow the manufacturers’ instructions to use these

instruments.

2. A battery-operated AC milliammeter. The Data Precision 245

digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a

VOM or battery-operated AC voltmeter. The “limit” indication

is 0.75 V, so analog meters must have an accurate low-voltage

scale. The Simpson 250 and Sanwa SH-63Trd are examples

of a passive VOM that is suitable. Nearly all battery operated

digital multimeters that have a 2 V AC range are suitable. (See

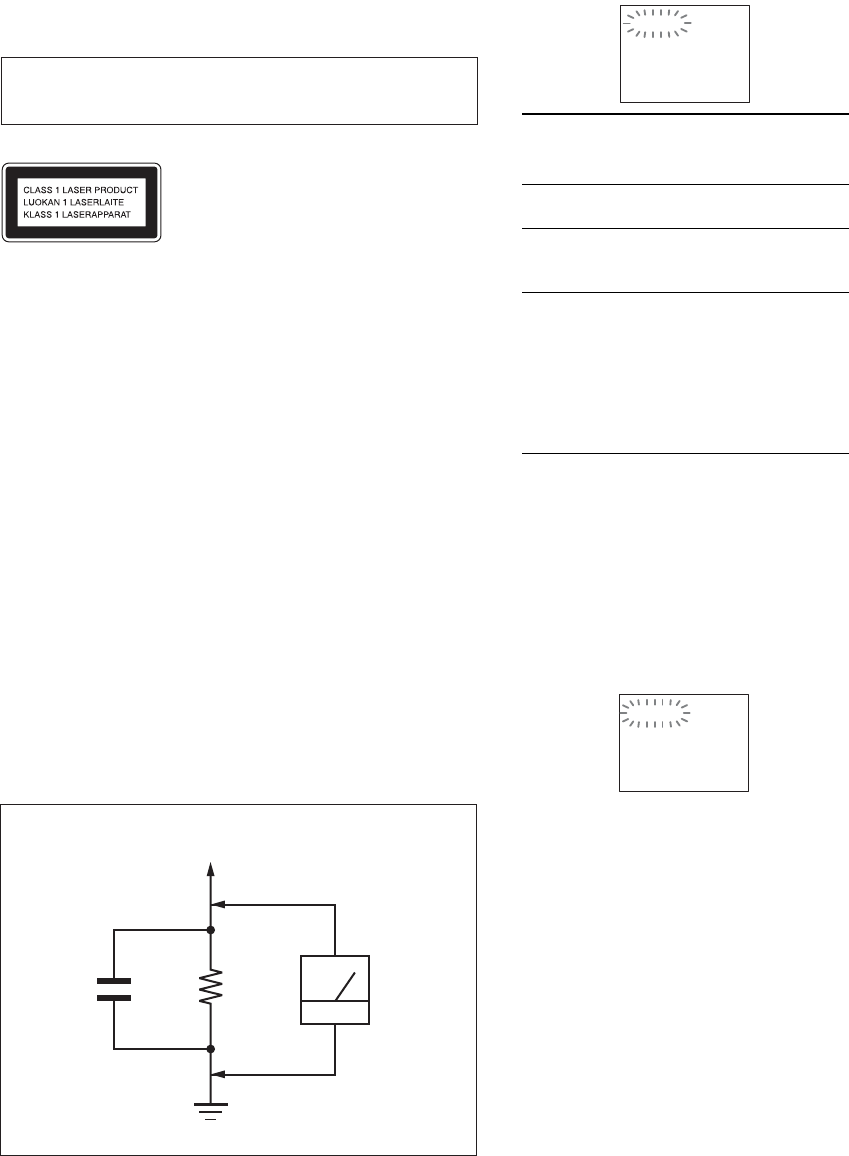

Fig. A)

1.5 kΩ0.15 μF

AC

voltmeter

(0.75 V)

To Exposed Metal

Parts on Set

Earth Ground

Fig. A. Using an AC voltmeter to check AC leakage.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

This appliance is

classified as a CLASS 1

LASER product. This

marking is located on the

rear exterior.

SELF DIAGNOSIS FUNCTION

(When letters/numbers appear in the

display)

When the self-diagnosis function is activated to

prevent the system from malfunctioning, a 5-

character service number (e.g., C 13 50) with a

combination of a letter and 4 digits appears on

the TV screen or front panel display. In this case,

check the following table.

When the version number

appears on the TV screen

When you turn on the system, the version

number [VER.X.XX] (X is a number) may

appear on the TV screen. Although this is not a

malfunction and for Sony service use only,

normal system operation will not be possible.

Turn off the system, and then turn on the system

again to operate.

First 3

characters of

the service

number

Cause and/or corrective action

C 13 The disc is dirty.

Clean the disc with a soft cloth.

C 31 The disc is not inserted correctly.

Restartthesystem,thenre-insert

the disc correctly.

EXX

(XX is a

number)

To prevent a malfunction, the

system has performed the self-

diagnosis function.

Contact your nearest Sony

dealer or local authorized Sony

service facility and give the 5-

character service number.

Example: E 61 10

C:13:50

VER.X.XX

NOTES ON CHIP COMPONENT REPLACEMENT

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be dam-

aged by heat.

FLEXIBLE CIRCUIT BOARD REPAIRING

• Keep the temperature of soldering iron around 270 °C during

repairing.

• Do not touch the soldering iron on the same conductor of the

circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering

or unsoldering.

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

4

1. SERVICING NOTES ............................................. 5

2. GENERAL .................................................................. 9

3. DISASSEMBLY

3-1. Disassembly Flow ........................................................... 11

3-2. Case (DCY) ..................................................................... 12

3-3. S-AIR-CON Board (HDX285/HDX585/HDX685) ........ 12

3-4. S-AIR INCLUDE Board

(HDX287WC/HDX587WC/HDX589W/HDX686W) ... 13

3-5. Front Panel Block ........................................................... 13

3-6. Cover (CDM-DCY) ........................................................ 14

3-7. DVD Mechanism Deck Block ........................................ 14

3-8. DVD Mechanism Deck (CDM81C-DVBU101) ............. 15

3-9. SPEAKER Board ............................................................ 16

3-10. MAIN Board ................................................................... 16

3-11. Tray (Main) Assy ............................................................ 17

3-12. MOTOR Board ............................................................... 17

3-13. Base Unit ......................................................................... 18

3-14. Optical Pick-up Block

(KHM-310CAB or KHM-313CAB) ............................... 18

3-15. Gear (Sub Tray 1)/Gear (Sub Tray 2) ............................. 19

3-16. Lever (Mode) .................................................................. 19

3-17. Stocker Block .................................................................. 20

3-18. Cam (Stocker) ................................................................. 20

3-19. Gear (Stocker 3) .............................................................. 21

3-20. Rotary Encoder (MD) (S771) ......................................... 21

3-21. Gear (BU1) ..................................................................... 22

4. TEST MODE ............................................................ 23

5. ELECTRICAL ADJUSTMENTS ........................ 27

6. DIAGRAMS

6-1. Block Diagram - RF SERVO/VIDEO Section - ............. 28

6-2. Block Diagram

- CHANGER/HDMI/DMPORT Section - ...................... 29

6-3. Block Diagram - TUNER/S-AIR Section - .................... 30

6-4. Block Diagram - AMP Section - ..................................... 31

6-5. Block Diagram

- PANEL/POWER SUPPLY Section - ............................ 32

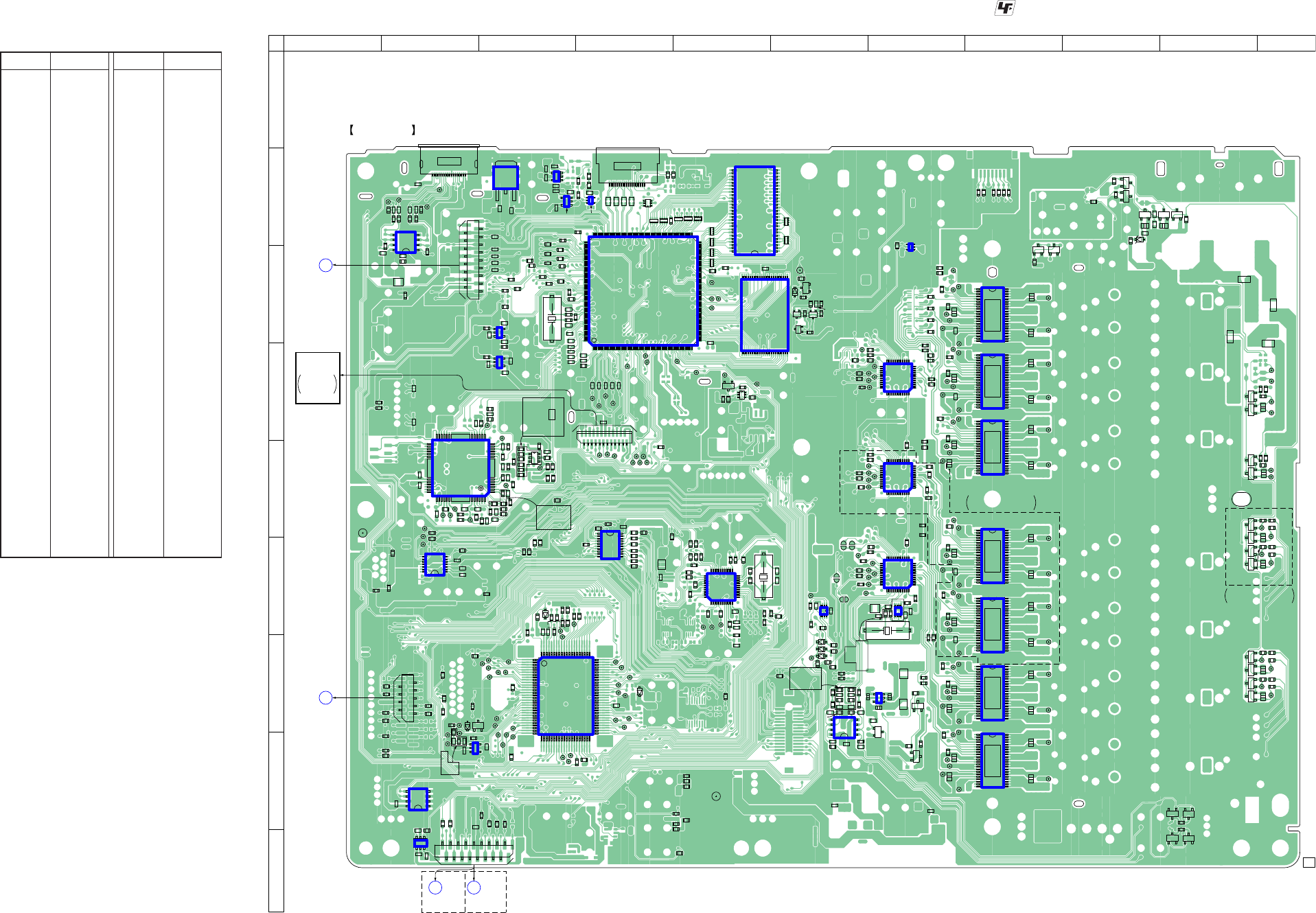

6-6. Printed Wiring Board

- MAIN Board (Component Side) - ................................ 34

6-7. Printed Wiring Board

- MAIN Board (Conductor Side) - .................................. 35

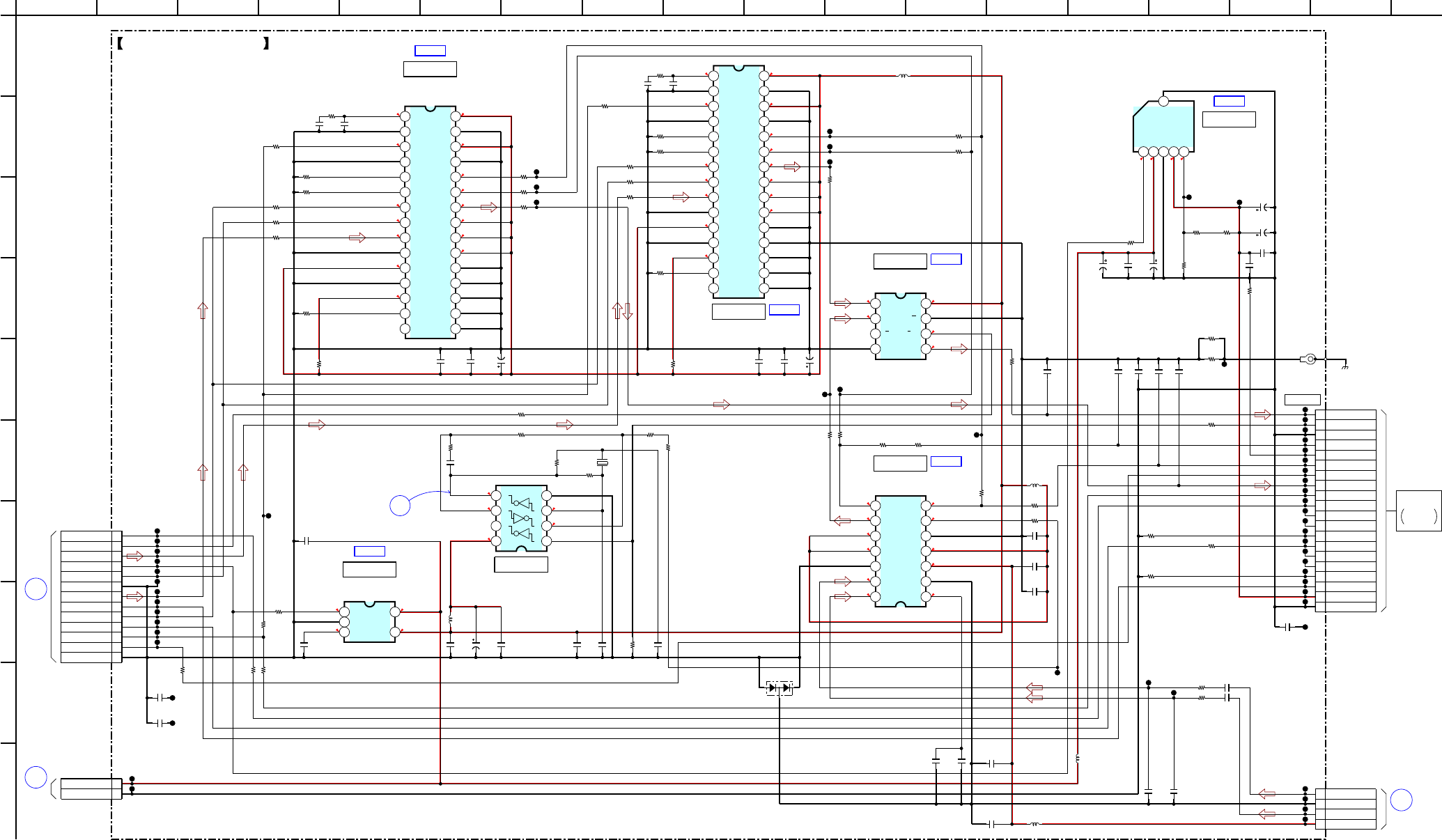

6-8. Schematic Diagram - MAIN Board (1/10) - ................... 36

6-9. Schematic Diagram - MAIN Board (2/10) - ................... 37

6-10. Schematic Diagram - MAIN Board (3/10) - ................... 38

6-11. Schematic Diagram - MAIN Board (4/10) - ................... 39

6-12. Schematic Diagram - MAIN Board (5/10) - ................... 40

6-13. Schematic Diagram - MAIN Board (6/10) - ................... 41

6-14. Schematic Diagram - MAIN Board (7/10) - ................... 42

6-15. Schematic Diagram - MAIN Board (8/10) - ................... 43

6-16. Schematic Diagram - MAIN Board (9/10) - ................... 44

6-17. Schematic Diagram - MAIN Board (10/10) - ................. 45

6-18. Printed Wiring Boards - RELAY Section - ..................... 46

6-19. Schematic Diagram - RELAY Section - ......................... 47

6-20. Schematic Diagram - SERIPARA Board - ...................... 48

6-21. Printed Wiring Board - SERIPARA Board - ................... 49

6-22. Schematic Diagram - S-AIR-CON Board

(HDX285/HDX585/HDX685) - ..................................... 49

6-23. Schematic Diagram - S-AIR INCLUDE Board

(HDX287WC/HDX587WC/HDX589W/

HDX686W) - .................................................................. 50

6-24. Printed Wiring Boards - S-AIR Section - ....................... 51

TABLE OF CONTENTS

6-25. Printed Wiring Board - I/O Board - ................................ 52

6-26. Schematic Diagram - I/O Board - ................................... 53

6-27. Printed Wiring Board - FL-JACK Board (Suffi x-11) - ... 54

6-28. Printed Wiring Board - FL-JACK Board (Suffi x-12) - ... 54

6-29. Schematic Diagram - FL-JACK Board - ........................ 55

6-30. Schematic Diagram - KEY/P-SW Boards - .................... 56

6-31. Printed Wiring Boards - KEY/P-SW Boards - ................ 57

6-32. Printed Wiring Board - SPEAKER Board - .................... 58

6-33. Schematic Diagram - SPEAKER Board - ....................... 58

6-34. Printed Wiring Board - POWER Board - ........................ 60

6-35. Schematic Diagram - POWER Board - .......................... 61

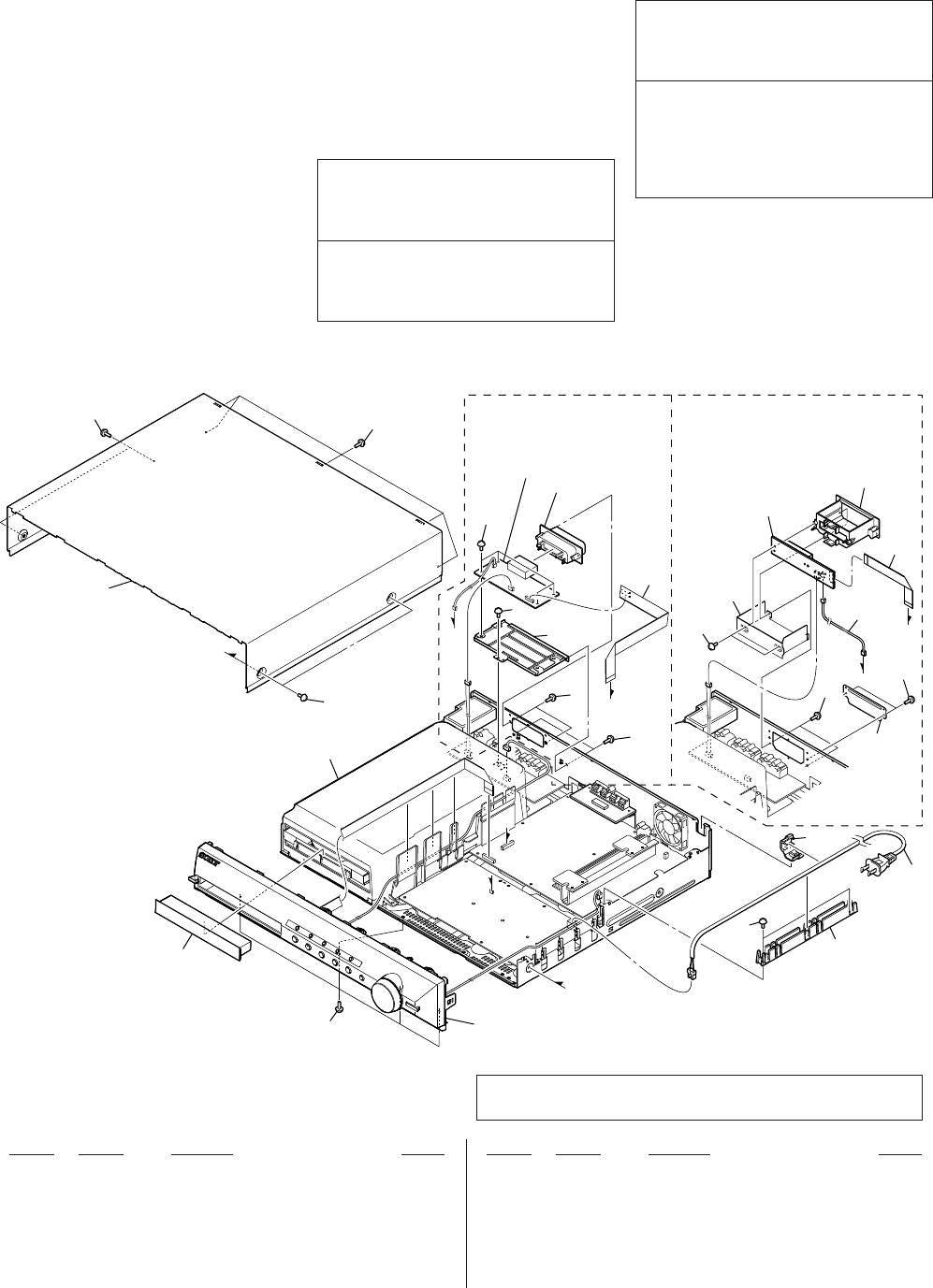

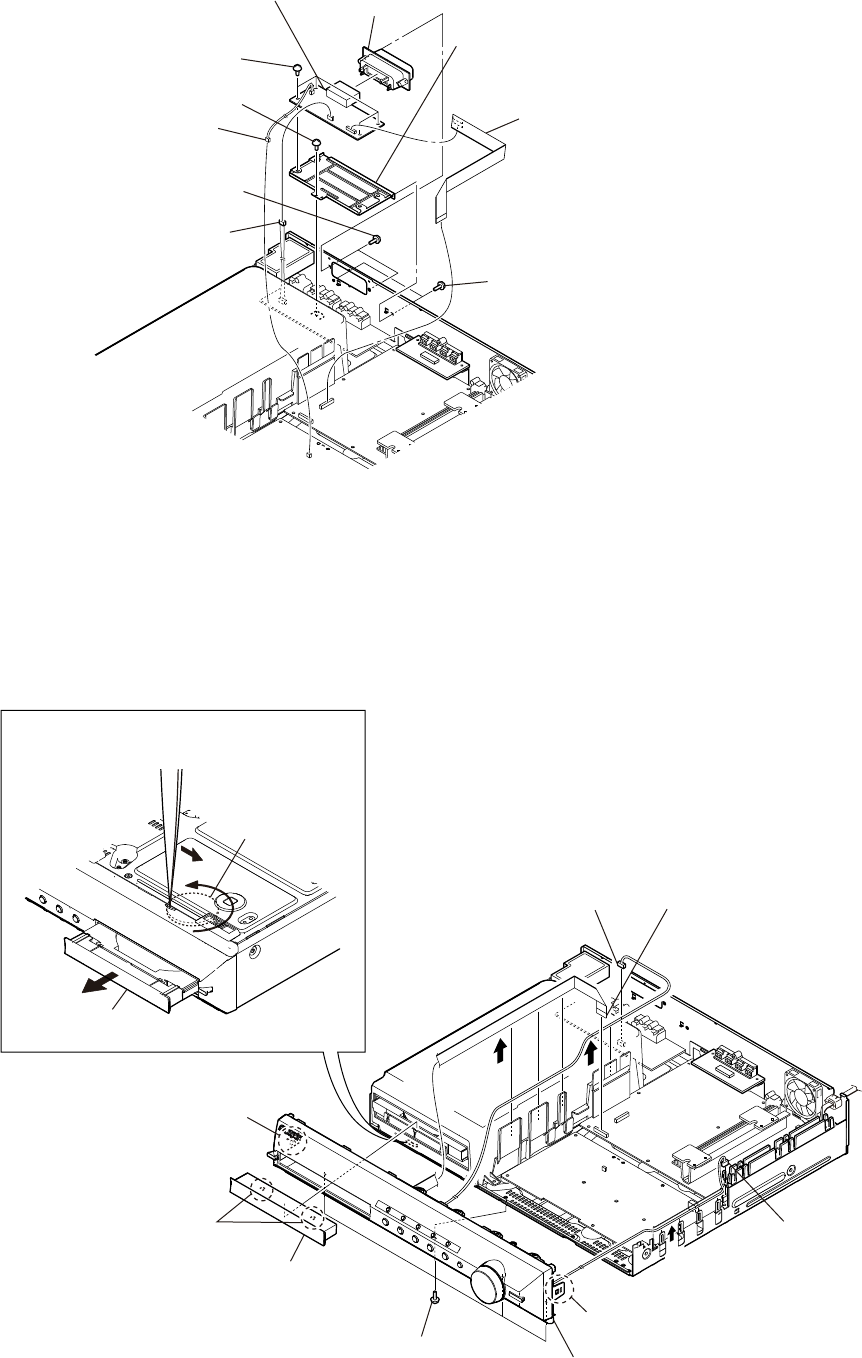

7. EXPLODED VIEWS

7-1. Case Section .................................................................... 80

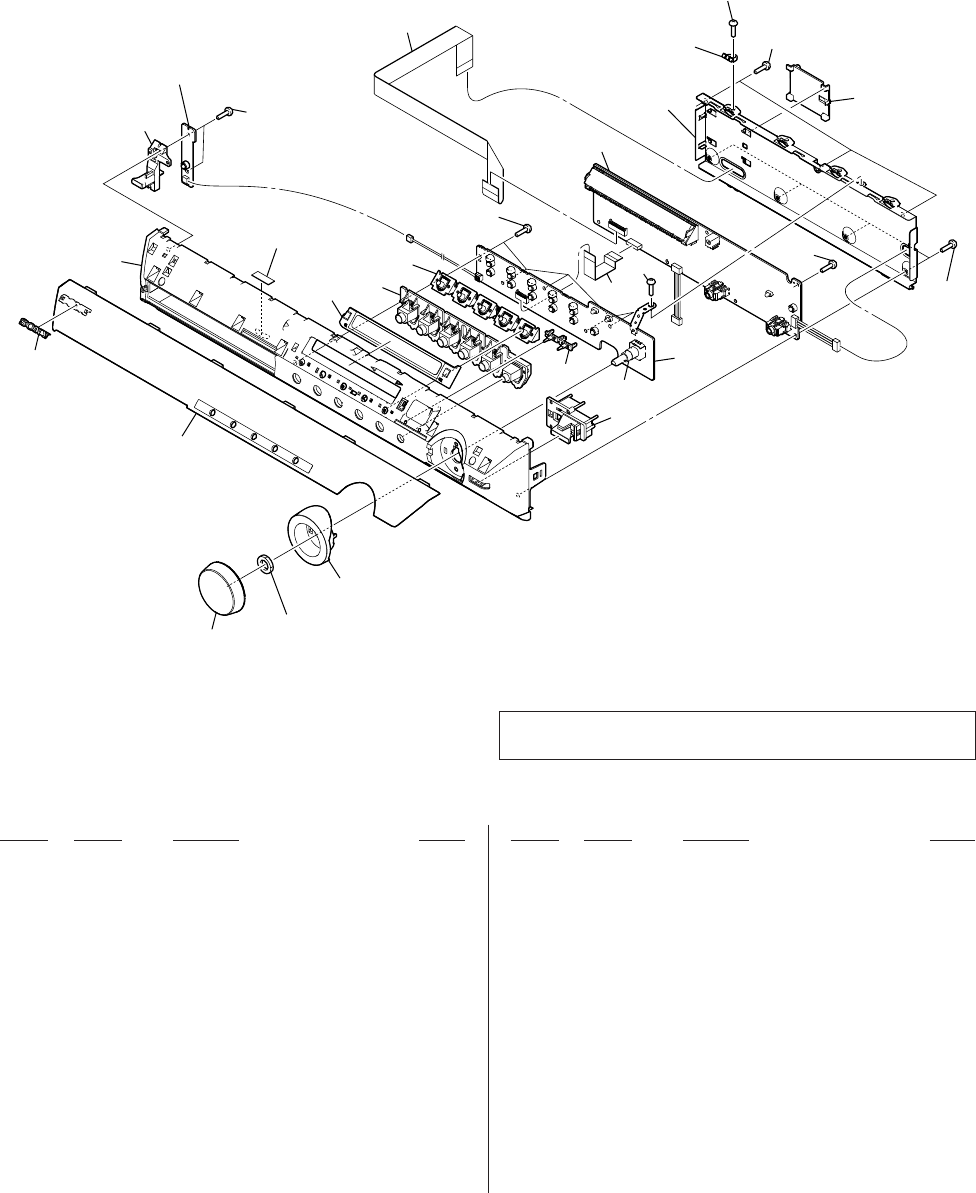

7-2. Front Panel Section ......................................................... 81

7-3. Back Panel Section ......................................................... 82

7-4. MAIN/POWER Board Section ....................................... 83

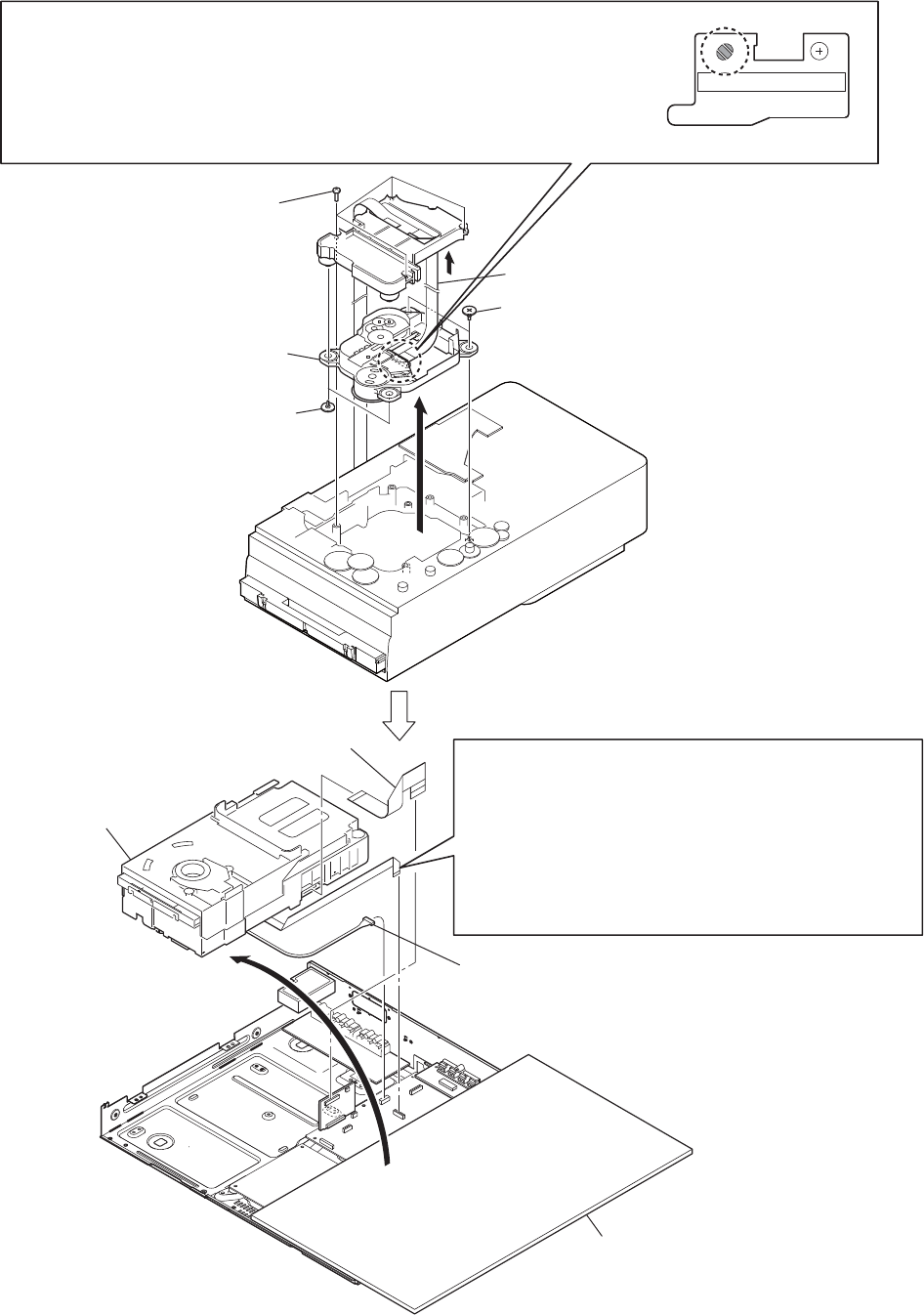

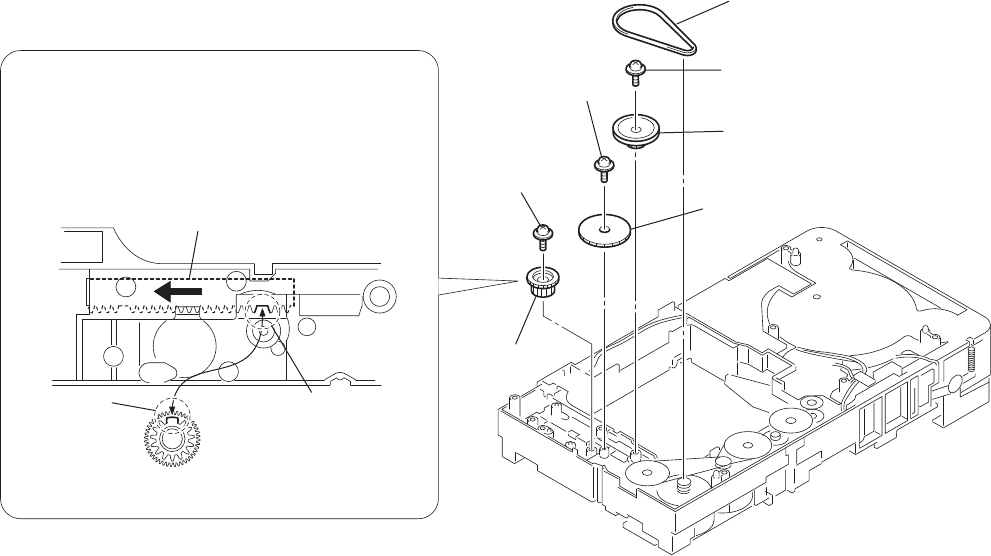

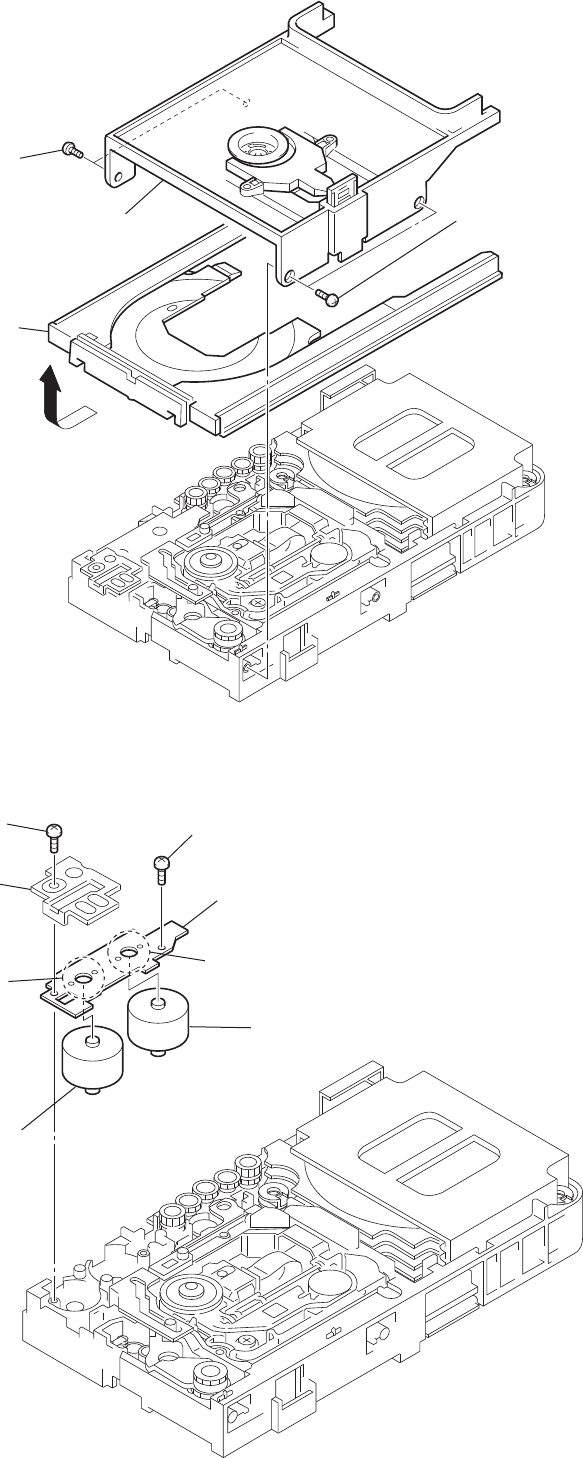

7-5. DVD Mechanism Deck Section-1

(CDM81C-DVBU101) ................................................... 84

7-6. DVD Mechanism Deck Section-2

(CDM81C-DVBU101) ................................................... 85

7-7. DVD Mechanism Deck Section-3

(CDM81C-DVBU101) ................................................... 86

7-8. Optical Pick-up Section .................................................. 87

8. ELECTRICAL PARTS LIST .............................. 88

Accessories are given in the last of the electrical parts list.

Note: Refer to the Servicing Notes “FL-JACK AND P-SW

BOARDS DISCRIMINATION” (page 5) for how to distin-

guish Suffi x-11 and Suffi x-12.

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

5

SECTION 1

SERVICING NOTES

NOTES ON HANDLING THE OPTICAL PICK-UP

BLOCK OR BASE UNIT

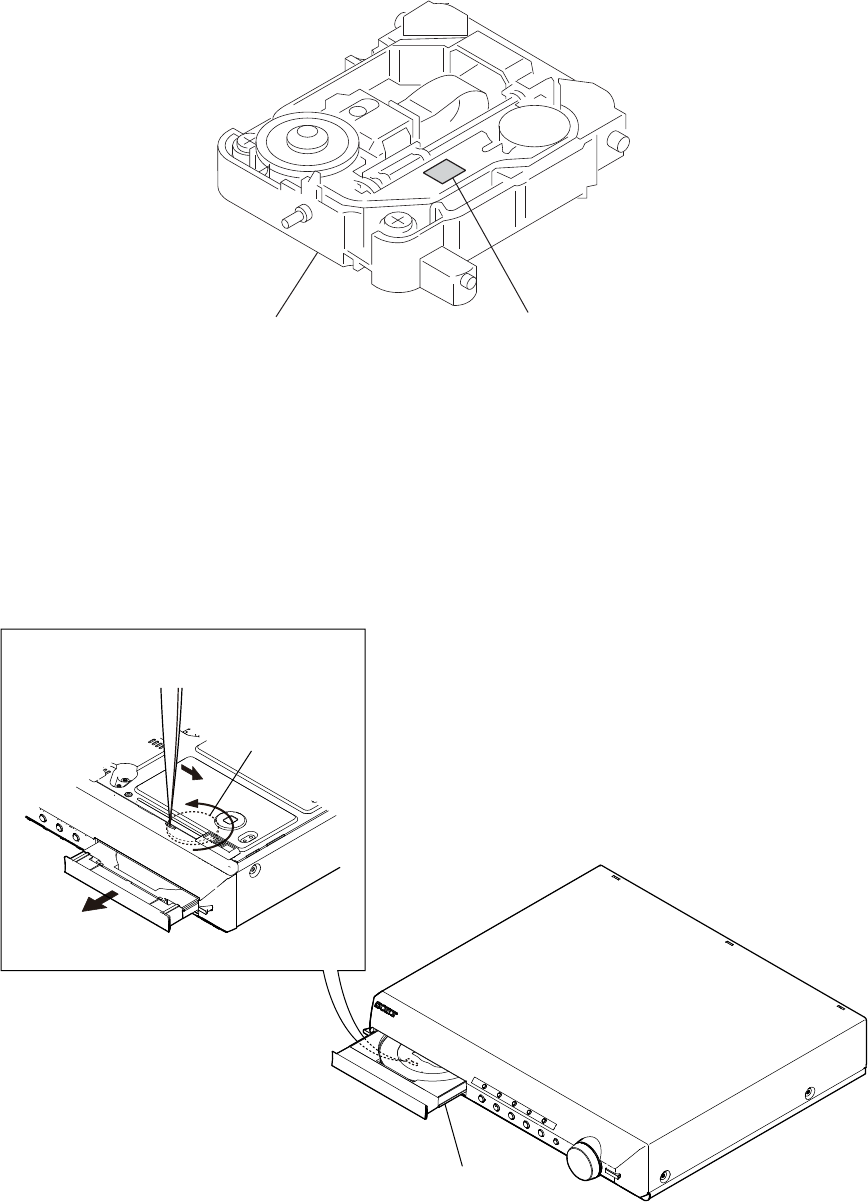

The laser diode in the optical pick-up block may suffer electrostat-

ic break-down because of the potential difference generated by the

charged electrostatic load, etc. on clothing and the human body.

During repair, pay attention to electrostatic break-down and also

use the procedure in the printed matter which is included in the

repair parts.

The fl exible board is easily damaged and should be handled with

care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused

on the disc refl ective surface by the objective lens in the optical

pickup block. Therefore, when checking the laser diode emission,

observe from more than 30 cm away from the objective lens.

RELEASING THE TRAY LOCK

The disc tray lock function for the antitheft of an demonstration

disc in the store is equipped.

Releasing Procedure:

1. Press the [?/1] button to turn on the system.

2. Press the [FUNCTION] button repeatedly to select “DVD”.

3. While pressing the [x] button, press the [Z] button until “UN-

LOCKED” displayed on the fl uorescent indicator tube (around

5 seconds).

Note: When “LOCKED” is displayed, the tray lock is not released by

turning power on/off with the [?/1] button.

RELEASING THE DEMO PLAY LOCK

Releasing Procedure:

1. Press the [?/1] button to turn on the system.

2. Press the [FUNCTION] button repeatedly to select “DVD”.

3. While pressing the [x] button, press the [N] button until

“DEMO OFF” displayed on the fl uorescent indicator tube

(around 5 seconds).

Note: When “DEMO ON” is displayed, the set is not possible to turn off

the system.

NOTE OF REPLACING THE IC1103 ON THE MAIN

BOARD

IC1103 on the MAIN board cannot exchange with single. When

this part is damaged, exchange the entire mounted board.

Model Part No.

HDX585 4-120-917-0[]

HDX686W 4-120-917-1[]

HDX685 4-120-917-2[]

HDX287WC 4-120-917-3[]

HDX587WC 4-120-917-4[]

HDX589W 4-120-917-5[]

HDX285: US model 4-120-917-6[]

HDX285: 240V AC area in E model 4-120-917-8[]

HDX285: Saudi Arabia model 4-120-917-9[]

MODEL IDENTIFICATION

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the lead-

free mark (LF) indicating the solder contains no lead.

(Caution: Some printed circuit boards may not come printed with

the lead free mark due to their particular size)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

• Unleaded solder melts at a temperature about 40 °C higher

than ordinary solder.

Ordinary soldering irons can be used but the iron tip has to be

applied to the solder joint for a slightly longer time.

Soldering irons using a temperature regulator should be set to

about 350 °C.

Caution: The printed pattern (copper foil) may peel away if

the heated tip is applied for too long, so be careful!

• Strong viscosity

Unleaded solder is more viscous (sticky, less prone to fl ow)

than ordinary solder so use caution not to let solder bridges

occur such as on IC pins, etc.

• Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may

also be added to ordinary solder.

CENTER

SUBWOOFER

FRONT R FRONT L SUR R SUR L

SPEAKER

HDMI OUT

SPEAKER

COAXIAL 75

AM

FM

ANTENNA

DMPORT

DC5V

0.7A MAX

AUDIO IN

P

B

/C

B

P

R

/C

R

YLR

VIDEO

OUT

TV/VIDEO

COMPONENT VIDEO OUT

EZW-T100

DIGITAL IN

COAXIALOPTICAL

TV

PART No.

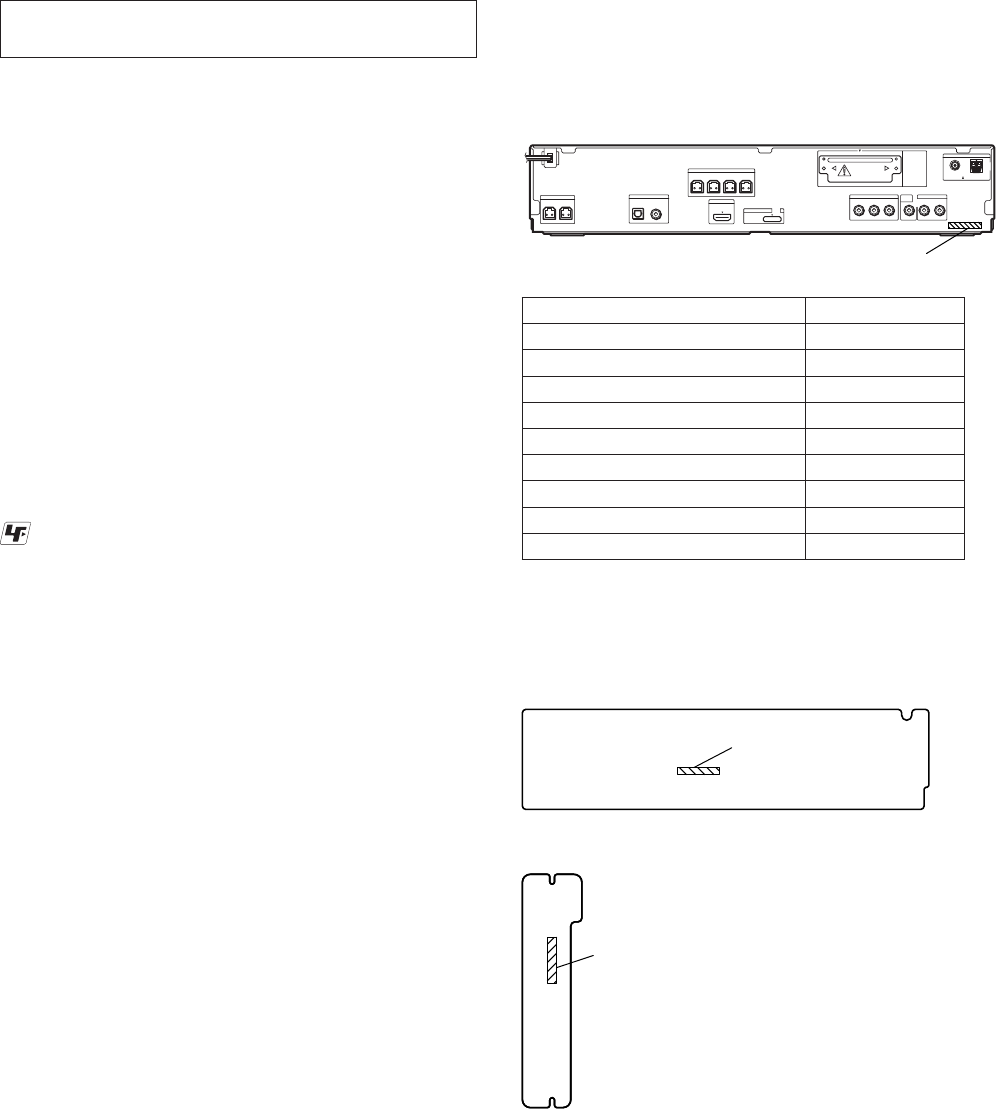

FL-JACK AND P-SW BOARDS DISCRIMINATION

In this set, the FL-JACK and P-SW boards have been changed in

the midway of production. Repair after distinguishing each type

set to doing the repair referring to following.

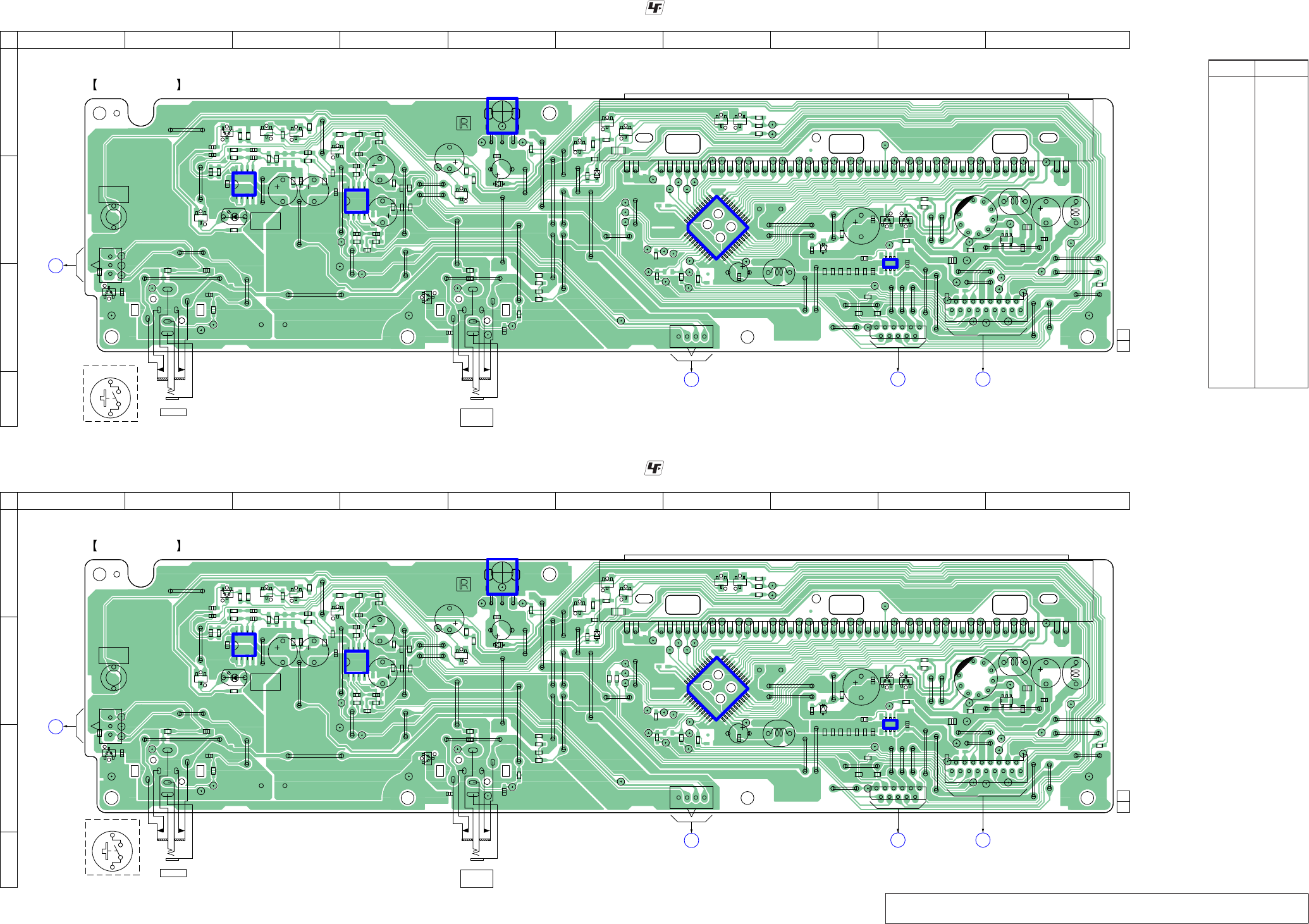

– FL-JACK Board (Component Side) –

– P-SW Board (Component Side) –

Suffix-11 : 1-878-159-11

Suffix-12 : 1-878-159-12

Suffix-11 : 1-878-158-11

Suffix-12 : 1-878-158-12

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

6

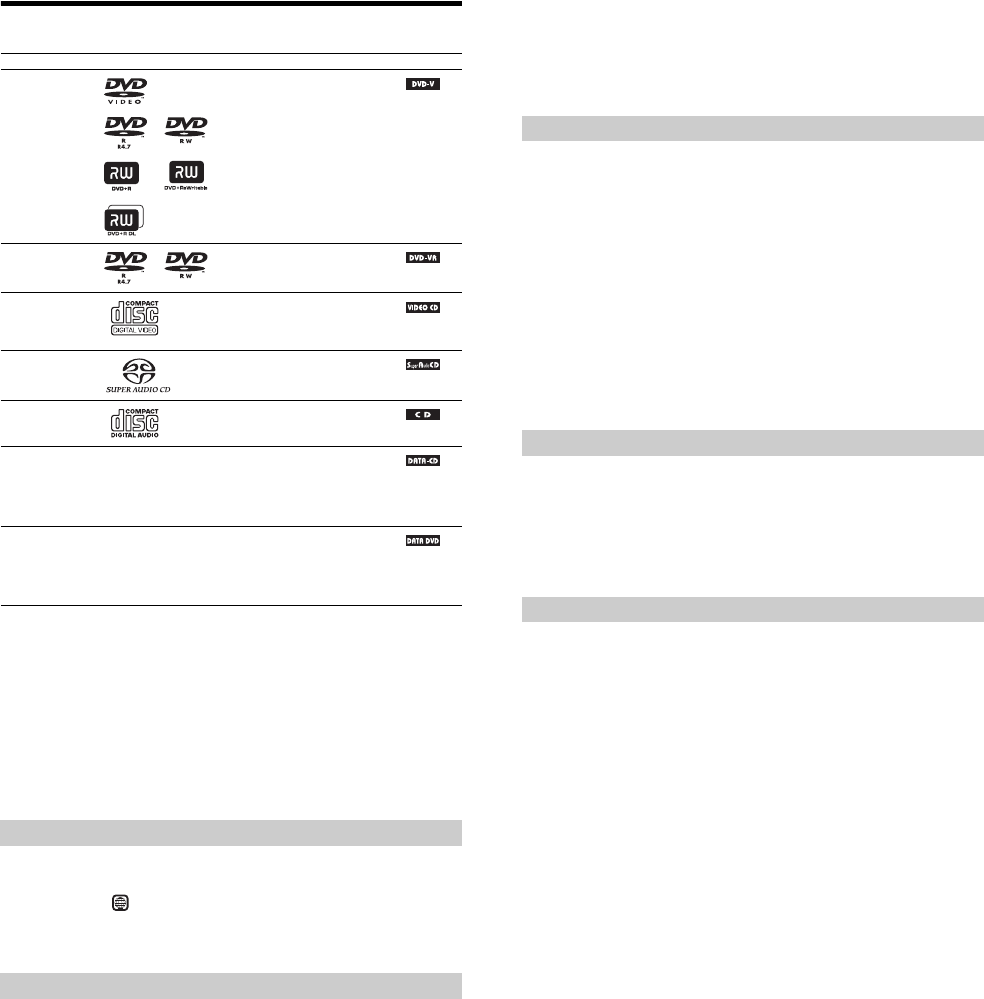

Playable Discs

1)MP3 (MPEG1 Audio Layer 3) is a standard format defined by ISO/MPEG for compresses audio data. MP3 files

must be in MPEG1 Audio Layer 3 format.

2)JPEG image files must conform to the DCF image file format. (DCF “Design rule for Camera File system”: Image

standards for digital cameras regulated by Japan Electronics and Information Technology Industries Association

(JEITA).)

3)Except for North American models.

Type Disc logo Characteristics Icon

DVD VIDEO • DVD VIDEO

• DVD-R/DVD-RW in DVD VIDEO

format or video mode

• DVD+R/DVD+RW in DVD VIDEO

format

VR (Video

Recording) mode

• DVD-R/DVD-RW in VR (Video

Recording) mode (except for DVD-R

DL)

VIDEO CD • VIDEO CD (Ver. 1.1 and 2.0 discs)

• Super VCD

• CD-R/CD-RW/CD-ROM in video CD

format or Super VCD format

Super Audio CD • Super Audio CD

CD • Audio CD

• CD-R/CD-RW in audio CD format

DATA CD – • CD-R/CD-RW/CD-ROM in DATA CD

format, containing MP3 files1), JPEG

image files2), DivX video files3), and

MPEG4 video files3), and conforming to

ISO 96604) Level 1/Level 2, or Joliet

(extended format)

DATA DVD – • DVD-ROM/DVD-R/DVD-RW/

DVD+R/DVD+RW in DATA DVD

format, containing MP3 files1), JPEG

image files2), DivX video files3), and

MPEG4 video files3), and conforming to

UDF (Universal Disk Format)

4)A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for

Standardization).

Notes on discs

This product is designed to playback discs that conform to the Compact Disc (CD) standard.

DualDiscs and some of the music discs encoded with copyright protection technologies do not conform

to the Compact Disc (CD) standard, therefore, these discs may not be playable by this product.

The system cannot play the following discs:

• CD-ROM/CD-R/CD-RW other than those recorded in the formats listed on page 7

• CD-ROM recorded in PHOTO CD format

• Data part of CD-Extra

• CD Graphics disc

• DVD Audio

• DATA CD/DATA DVD that does not contain MP3 files, JPEG image files, DivX video files*, or

MPEG4 video files*

•DVD-RAM

•Blu-ray Disc

* Except for North American models.

Also, the system cannot play the following discs:

• A DVD VIDEO with a different region code (page 9)

• A disc that has a non-standard shape (e.g., card, heart)

• A disc with paper or stickers on it

• A disc that has the adhesive of cellophane tape or a sticker still left on it

In some cases, CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW cannot be played on this system

due to the recording quality or physical condition of the disc, or the characteristics of the recording

device and authoring software.

The disc will not play if it has not been correctly finalized. For more information, refer to the operating

instructions for the recording device.

Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have

been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA

DVDs created in Packet Write format cannot be played.

• This system can play a Multi Session CD when an MP3 file is contained in the first session. Any

subsequent MP3 files recorded in later sessions can also be played back.

• This system can play a Multi Session CD when a JPEG image file is contained in the first session.

Any subsequent JPEG image files recorded in later sessions can also be played back.

Example of discs that the system cannot play

Note about CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW

About Multi Session CD

• If MP3 files and JPEG image files in music CD format or video CD format are recorded in the first

session, only the first session will be played back.

Your system has a region code printed on the rear of the unit and will only play a DVD labeled with

the same region code.

A DVD VIDEO labeled will also play on this system.

If you try to play any other DVD VIDEO, the message [Playback prohibited by area limitations.] will

appear on the TV screen. Depending on the DVD VIDEO, no region code indication may be given even

though playing the DVD VIDEO is prohibited by area restrictions.

Some playback operations on a DVD or VIDEO CD may be intentionally set by software producers.

Since this system will play a DVD or VIDEO CD according to the disc contents the software producers

designed, some playback features may not be available. Be sure to read the operating instructions

supplied with the DVD or VIDEO CD.

Region code

Note about playback operations of a DVD or VIDEO CD

ALL

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

7

HOW TO IDENTIFY OPTICAL PICK-UP BLOCK

Printed of KHM-310CAB or KHM-313CAB.

OPTICAL PICK-UP BLOCK

Note: There are two kinds of OPTICAL PICK-UP BLOCK in this set.

When replacing the OPTICAL PICK-UP BLOCK, make sure which

OPTICAL PICK-UP BLOCK it is following the “How to Identify”

in the figure shown below.

HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF

Turn gear (BU1) from a hole at the bottom,

and pull out a tray.

gear (BU1)

tray

– bottom view –

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

8

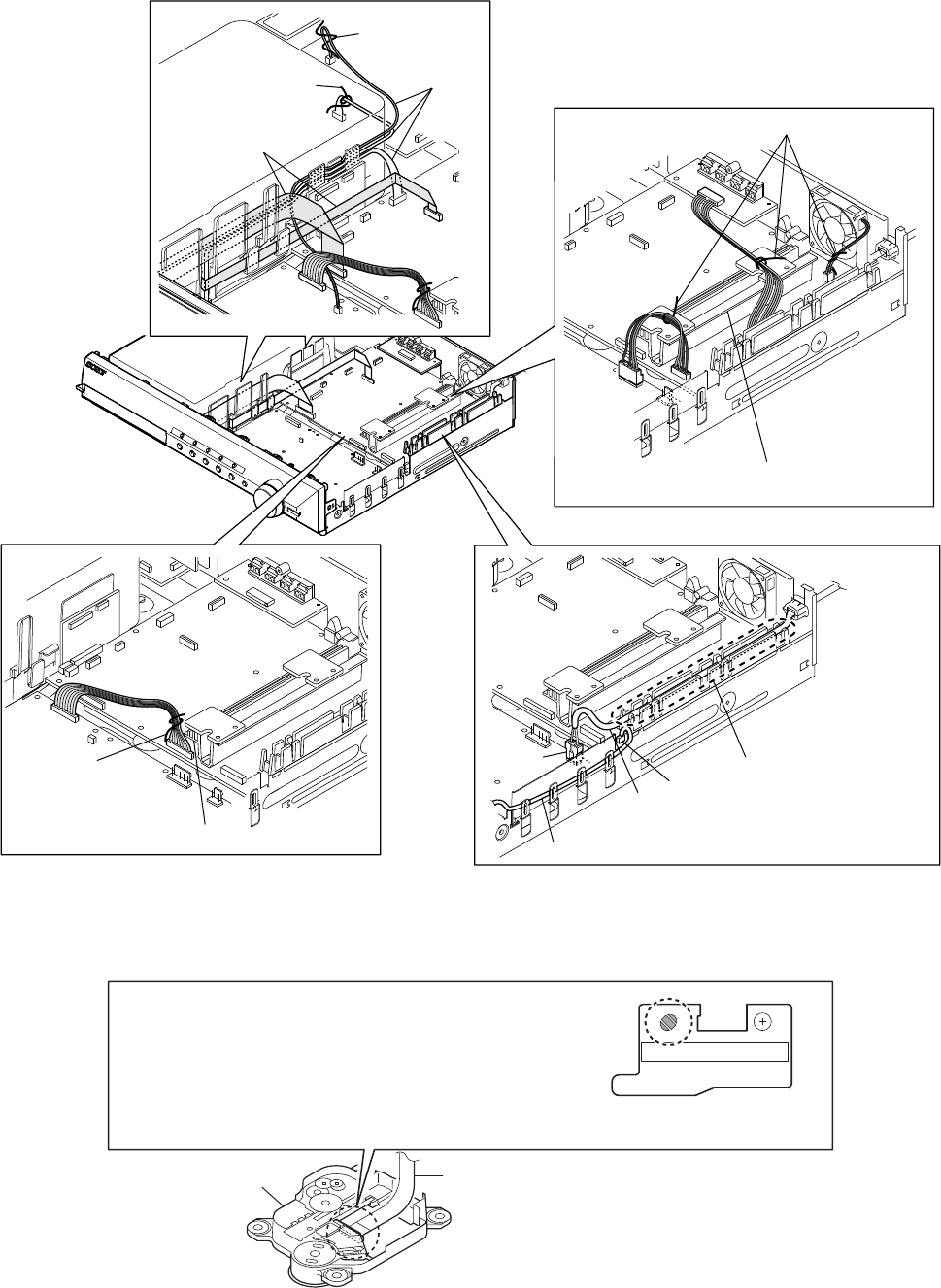

HARNESS SETTING

PRECAUTION WHEN REMOVE GOOD OPTICAL PICK-UP BLOCK

wires (flat type)

lead wires

lead pin

lead pin

lead pin

lead pin

Note 1: Check not touch the heatsink.

Note 2: Check not touch the heatsink.

Note 3: Insert fully until

click the power cord.

power cord

lead wire

CN901

CN3001

wire (flat type) (24 core)

optical pick-up block

CAUTION

Be sure to bridge here, and then disconnect the

wire (flat type) (24 core).

(optical pick-up block will be destroyed without bridging)

On the contrary at the installation, connect the

wire (flat type) (24 core) first, and then remove the bridge.

Note: For a soldering iron, use the one with a ground wire.

(Refer to DISASSEMBLY 3-12. OPTICAL PICK-UP BLOCK (KHM-310CAB or KHM-313CAB))

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

9

SECTION 2

GENERAL This section is extracted

from instruction manual.

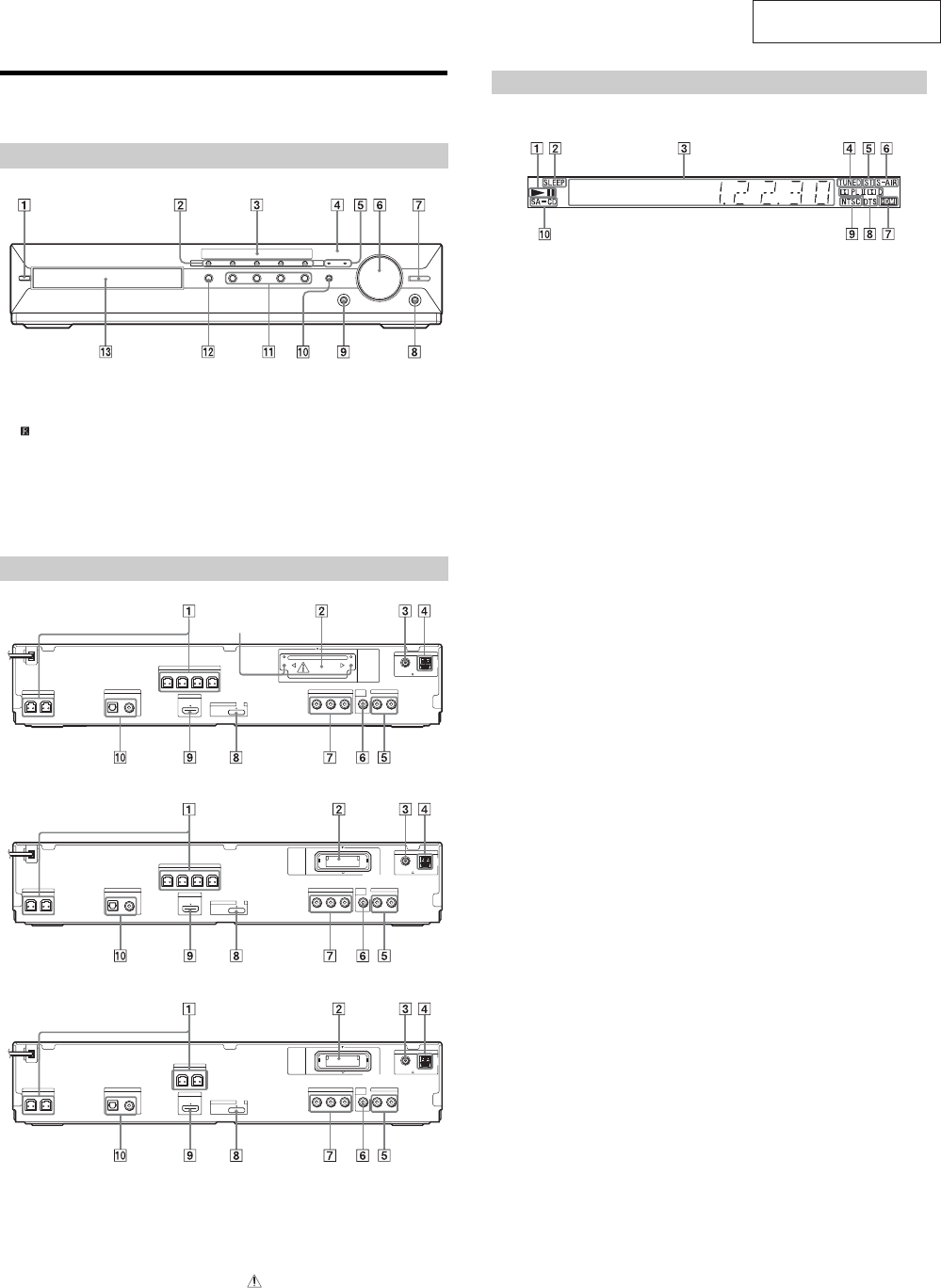

Index to Parts and Control

For more information, refer to the pages indicated in parentheses.

"/(on/standby)

#DISC 1-5 buttons/indicators

$Front panel display

%(remote sensor)

&MOVIE/MUSIC indicator

'VOLUME control

(DMPORT BOOSTER

)PHONES jack

*AUDIO IN/A.CAL MIC jack

+FUNCTION

,Play operation buttons

-;(open/close)

.Disc tray

Front panel

"SPEAKER jacks

#EZW-T100 slot (HDX285/HDX585/HDX685)

#EZW-RT10 slot (HDX287WC/HDX587WC/

HDX589W/HDX686W)

$COAXIAL 757FM jack

%AM terminal

&TV/VIDEO (AUDIO IN R/L) jacks

'VIDEO OUT jack

(COMPONENT VIDEO OUT jacks

)DMPORT (DIGITAL MEDIA PORT) jack

*HDMI OUT jack

+TV/VIDEO (DIGITAL IN COAXIAL/

OPTICAL) jacks

*CAUTION

Please do not remove the screws unless you

are installing the EZW-T100.

Rear panel

CENTER

SUBWOOFER

FRONT R FRONT L SUR R SUR L

SPEAKER

HDMI OUT

SPEAKER

COAXIAL 75

AM

FM

ANTENNA

DMPORT

DC5V

0.7A MAX

AUDIO IN

P

B

/C

B

P

R

/C

R

YLR

VIDEO

OUT

TV/VIDEO

COMPONENT VIDEO OUT

EZW-T100

DIGITAL IN

COAXIALOPTICAL

TV

Screws*

(HDX285/HDX585/HDX685)

(HDX287WC/HDX587WC)

(HDX589W/HDX686W)

CENTER

SUBWOOFER

FRONT R FRONT L SUR R SUR L

SPEAKER

HDMI OUT

SPEAKER

COAXIAL 75

AM

FM

ANTENNA

DMPORT

DC5V

0.7A MAX

AUDIO IN

P

B

/C

B

P

R

/C

R

YLR

VIDEO

OUT

TV/VIDEO

COMPONENT VIDEO OUT

DIGITAL IN

COAXIALOPTICAL

TV

EZW-RT10

CENTER

SUBWOOFER

FRONT R FRONT L

SPEAKER

HDMI OUT

SPEAKER

COAXIAL 75

AM

FM

ANTENNA

DMPORT

DC5V

0.7A MAX

AUDIO IN

P

B

/C

B

P

R

/C

R

YLR

VIDEO

OUT

TV/VIDEO

COMPONENT VIDEO OUT

DIGITAL IN

COAXIALOPTICAL

TV

EZW-RT10

About the indications in the front panel display

"Playing status

#Flashes when the sleep timer is set.

$Displays the system’s status such as

chapter, title, or track number, time

information, radio frequency, playing

status, decoding mode, etc.

%Lights up when a station is received.

(Radio only)

&Stereo/Monaural effect (Radio only)

'Lights up when the S-AIR transmitter

(not supplied) is inserted in the unit

and the system transmits the sound.

(Lights up when the HDMI OUT jack is

correctly connected to HDCP (High-

bandwidth Digital Content Protection)

compliant device with HDMI or DVI

(Digital Visual Interface) input.

)Current surround format (Except for

JPEG image file)

*Lights up when the color system is set

to NTSC. (Asian, Australian, and Middle

Eastern models only)

+Lights up when a Super Audio CD/CD

is loaded.

Front panel display

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

10

Remote control

SNOITPIRCSEDNOTTUBREDROLACITEBAHPLA

Z–PO–A

ANGLE 

AUDIO RI

CLEAR FT

D.TUNING XT

DISC SKIP FE

DISPLAY XB

DVD MENU XH

DVD TOP MENU RE

DYNAMIC BASS 

ENTER XG

FUNCTION +/– 

MENU XH

MUTING 

NIGHT XE

ONE-TOUCH PLAY FH

PICTURE NAVI RH

PRESET +/– XK

PROG +/–1) XK

S-AIR MODE 

SLEEP RK

SOUND MODE 

SUBTITLE XT

SYSTEM MENU XG

THEATER/THEATRE2) RL

TOOLS XI

TUNING +/– 

TV XM

TV CH +/–3) XK

TV INPUT X

TV VOL +/– FG

VOLUME +/– 

Number buttons RG

</(on/standby) 

TV </(on/standby) RM

$/9/Y/D/RT

REPLAY/ADVANCE



/XK

N/.

STEP / 

SLOW / 

)(play) F

Y(stop) XL

9(pause) RB

DISPLAY4) XI

0RETURN FB

-/--1) FT

3) FT

1)Except for North American

models.

2)Thebuttonnamediffers

depending on the area.

3)North American models

only.

4)This button is available for

the “DVD” or “DMPORT”

function. Depending on the

DIGITAL MEDIA PORT

adapter, this button may not

work.

(HDX285/HDX585/HDX685)

Remote control

SNOITPIRCSEDNOTTUBREDROLACITEBAHPLA

Z–PO–A

ANGLE 

AUDIO RI

CLEAR FT

D.TUNING XT

DISC SKIP FE

DISPLAY XB

DVD MENU XH

DVD TOP MENU RE

DYNAMIC BASS 

ENTER XG

FUNCTION +/– 

MENU XH

MUTING 

NIGHT XE

ONE-TOUCH PLAY FH

PICTURE NAVI RH

PRESET +/– XK

S-AIR MODE 

SLEEP RK

SOUND MODE 

SUBTITLE XT

SYSTEM MENU XG

THEATER RL

TOOLS XI

TUNING +/– 

TV XM

TV CH +/– XK

TV INPUT X

TV VOL +/– FG

VOLUME +/– 

Number buttons RG

</(on/standby) 

TV </(on/standby) RM

$/9/Y/D/RT

REPLAY/ADVANCE



/XK

N/.

STEP / 

SLOW / 

)(play) F

Y(stop) XL

9(pause) RB

DISPLAY* XI

0RETURN FB

FT

* This button is available for

the “DVD” or “DMPORT”

function. Depending on the

DIGITAL MEDIA PORT

adapter, this button may not

work.

(HDX287WC/HDX587WC/HDX589W/HDX686W)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

11

SECTION 3

DISASSEMBLY

• This set can be disassembled in the order shown below.

3-1. DISASSEMBLY FLOW

SET

3-2. CASE (DCY)

(Page 12)

3-5. FRONT PANEL BLOCK

(Page 13)

3-4. S-AIR INCLUD BOARD

(HDX287WC/HDX587WC/HDX589W/HDX686W)

(Page 13)

3-3. S-AIR-CON BOARD

(HDX285/HDX585/HDX685)

(Page 12)

3-7. DVD MECHANISM DECK BLOCK

(Page 14)

3-6. COVER (CDM-DCY)

(Page 14)

3-8. DVD MECHANISM DECK

(CDM81C-DVBU101)

(Page 15)

3-10. MAIN BOARD

(Page 16)

3-9. SPEAKER BOARD

(Page 16)

3-11. TRAY (MAIN) ASSY

(Page 17)

3-12. MOTOR BOARD

(Page 17)

3-13. BASE UNIT

(Page 18)

3-14. OPTICAL PICK-UP BLOCK

(KHM-310CAB OR KHM-313CAB)

(Page 18)

3-15. GEAR (SUB TRAY 1)/

GEAR (SUB TRAY 2)

(Page 19)

3-16. LEVER (MODE)

(Page 19)

3-17. STOCKER BLOCK

(Page 20)

3-18. CAM (STOCKER)

(Page 20)

3-19. GEAR (STOCKER 3)

(Page 21)

3-20. ROTARY ENCODER (MD) (S771)

(Page 21)

3-21 . GEAR (BU1)

(Page 22)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

12

3-3. S-AIR-CON BOARD (HDX285/HDX585/HDX685)

Note: Follow the disassembly procedure in the numerical order given.

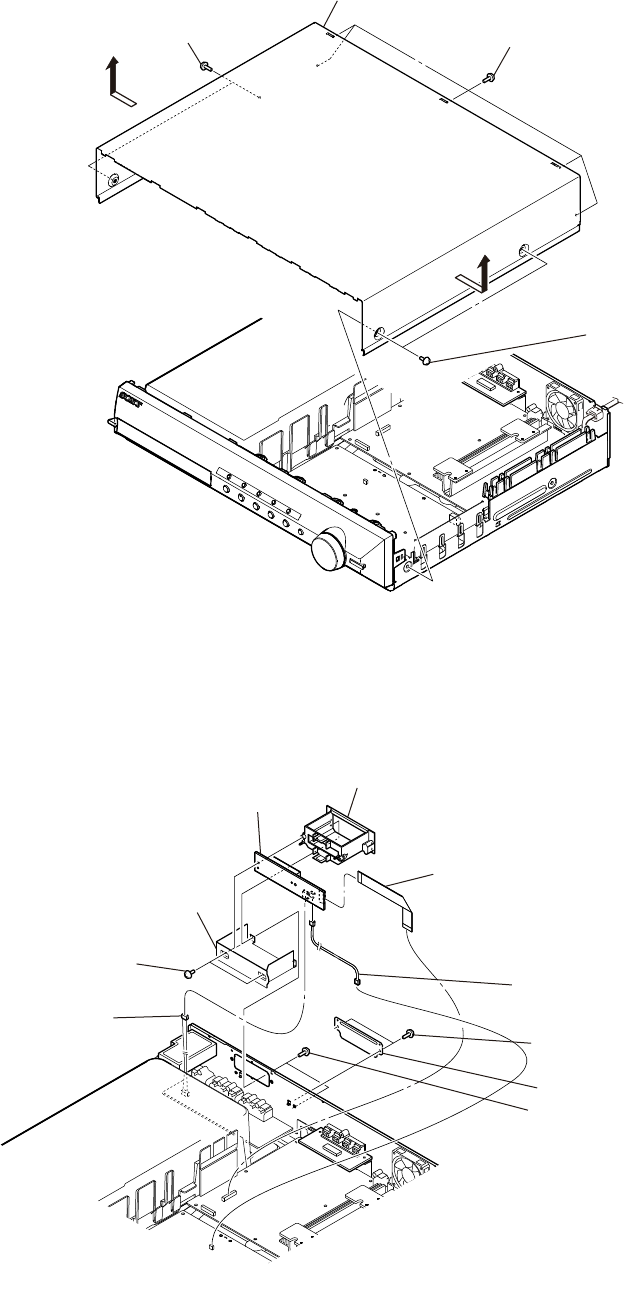

3-2. CASE (DCY)

 two screws

(case 3 TP2)

 case (DCY)

 five screws

(BV/RING)





 two screws

(case 3 TP2)

 two screws

(BV3 (3-CR))

 two screws

(BV3 (3-CR))

 two screws

(BV3 (3-CR))

 wire (flat type) (13 core)

(S-AIR-CON board: CN100,

MAIN board: CN306)

R S-AIR-CON board

 card slot

(S-AIR)

 lid (S-AIR)

 shield plate (S-AIR)

 cord

(S-AIR-CON board: CN102,

POWER board: CN908)

 cnnector

(CN101)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

13

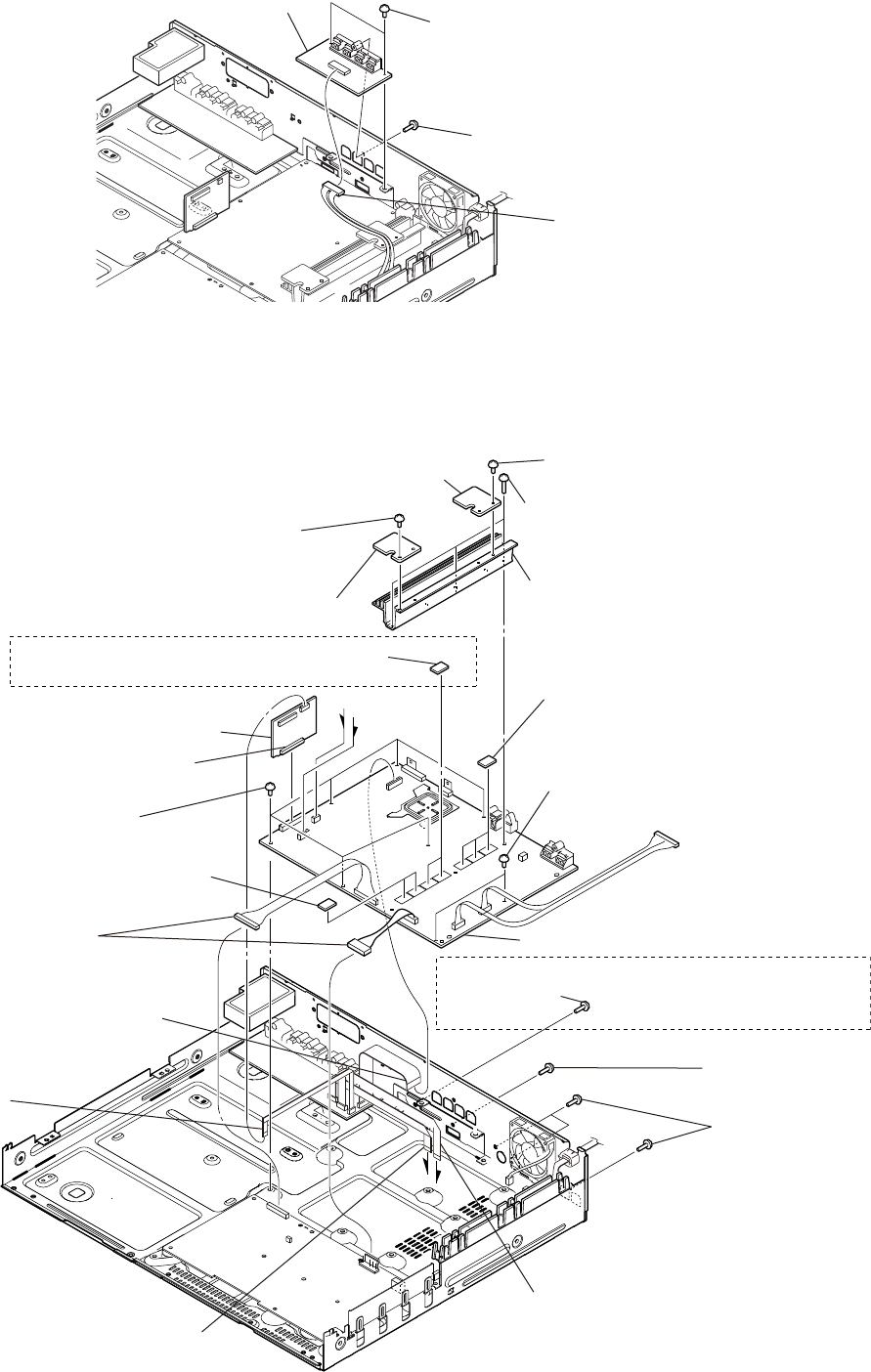

3-4. S-AIR INCLUDE BOARD (HDX287WC/HDX587WC/HDX589W/HDX686W)

3-5. FRONT PANEL BLOCK

 two screws

(BV3 (3-CR))

 screw

(BV3 (3-CR))

 two screws

(BV3 (3-CR))

 wire (flat type) (13 core)

(S-AIR INCLUDE board: CN804,

MAIN board: CN306)

 connector

(CN908)

 bracket

(S-AIR INC board)

 card slot

(S-AIR2)

 four screws

(BV3 (3-CR))

R S-AIR INCLUDE board

 connector

(CN801)

 Turn gear (BU1) from a hole

at the bottom, and pull out a tray.

 Open the tray.

gear (BU1)

RT claw

RT claw

RE front panel block

RB four screws

(BV3 (3-CR))

 loading panel (DCY)

 wire (flat type) (17 core)

(CN506)

 connector

(CN3001)





R

 connector

(CN4014)

 two claws

– bottom view –

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

14

3-6. COVER (CDM-DCY)

3-7. DVD MECHANISM DECK BLOCK

 four screws

(BV3 (3-CR))

 cover

(CDM-DCY)



 three screws

(BVTP3

× 10)

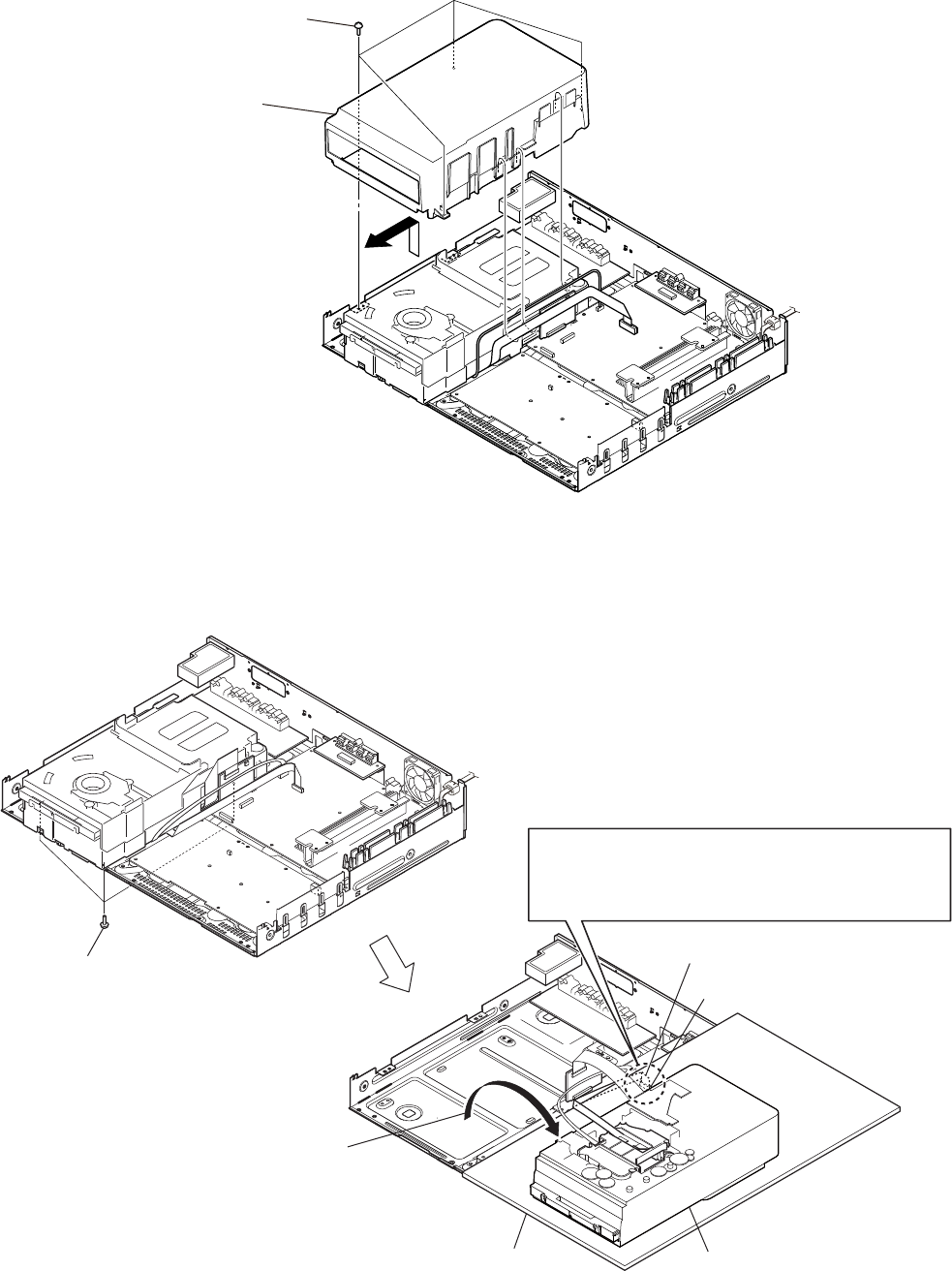

 Turn over the DVD mechanism deck block.

 DVD mechanism deck block



Please place a sheet for insulation.

wire (flat type) (24 core)

CN101

Note: Don’t remove the wire (flat type) (24 core) (CN101).

If you remove the wire (flat type) (24 core) (CN101),

solder the bridge of optical pick-up.

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

15

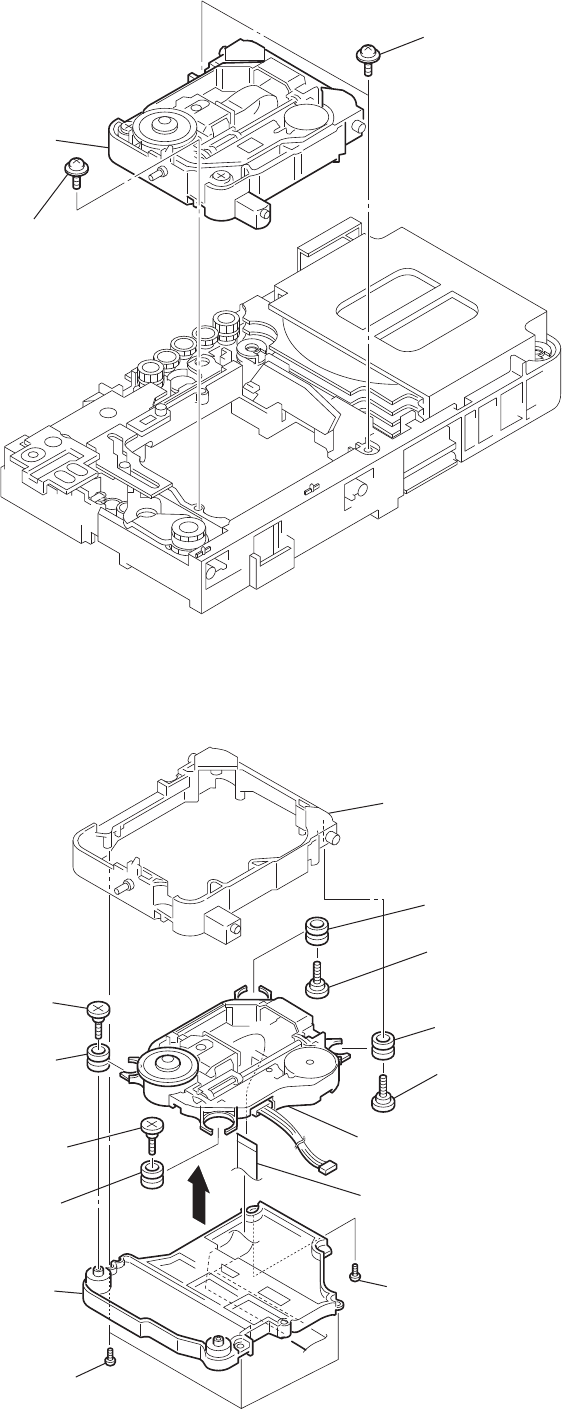

3-8. DVD MECHANISM DECK (CDM81C-DVBU101)

wire (flat type) (24 core)

sheet for insulation

optical pick-up block

PRECAUTION WHEN REMOVING GOOD OPTICAL PICK-UP

 four screws

(BTP2.6

× 8)

 two insulator screws





R connector

(CN1201)

RB DVD mechanism deck

(CDM81C-DVBU101)

 wire (flat type) (21 core)

(SERIPARA board: CN651,

RELAY board: CN701)

 two insulator screws

Be sure to bridge here, and then disconnect the wire (flat type) (24 core).

(optical pick-up block will be destroyed without bridging)

On the contrary at the installation, connect the

wire (flat type) (24 core) first, and then remove the bridge.

Note: For a soldering iron, use the one with a ground wire.

(Refer to DISASSEMBLY 3-12. OPTICAL PICK-UP BLOCK (KHM-310CAB or KHM-313CAB))

PRECAUTION WHEN REMOVING DVD MECHANISM DECK

(CDM81C-DVBU101)

Perform work with this wire (flat type) (24 core) connected,

or make a bidge as mentioned above and then disconnect

the wire (flat type) (24 core).

(optical pick-up block will be destroyed without bridging.)

On the contrary at the installation, connect the

wire (flat type) (24 core) first, and then remove the bridge.

Note: For a soldering iron, use the one with a ground wire.

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

16

RB screw

(BV3 (3-CR))

RH three screws

(BV3 (3-CR))

RE screw

(BV3 (3-CR))

RL six screws

(BV3 (3-CR))

RL two screws

(BV3 (3-CR))

R two connectors

(CN904, CN906)

 connector

(CN001)

 wire (flat type) (5 core)

(CN003)

 SERIPARA board

RM MAIN board

"

"

#

#

 wire (flat type) (5 core)

(CN303)

 wire (flat type) (9 core)

(CN502)

 wire (flat type) (17 core)

(CN472)

RK three radiation

sheets

RK two radiation

sheets

XT two radiation

sheets

 screw

(BV3 (3-CR))

 three screws

(BV3 (3-CR))

RI heatsink (DDV)

RT HEATSINK A board

RG HEATSINK B board

(HDX285/HDX287WC/HDX585/

HDX587WC/HDX685)

(HDX285: US/HDX287WC/

HDX585/HDX587WC/HDX589W/

HDX685/HDX686W)

 screw

(B3

× 6)

 two screws

(BV3 (3-CR))

 screw

(BV3 (3-CR))

 SPEAKER board

 connector

(CN5300: (HDX589W/HDX686W),

CN5301: HDX285/HDX287WC

/HDX585/HDX587WC/HDX685)

3-9. SPEAKER BOARD

3-10. MAIN BOARD

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

17

3-11. TRAY (MAIN) ASSY

3-12. MOTOR BOARD

tray (main) assy

Remove the tray (main) assy

in the direction of the arrow.

bracket (top) block

two screws

(BTTP M2.6)

two screws

(BTTP M2.6)

 screw

(BTTP M2.6)

 cover (PWB)

 screw

(BTTP M2.6)

 MOTOR board

 Remove two solders.

 motor (81) assy (loading)

(M761)

 Remove two solders.

 motor (81) assy (stocker up/down)

(M762 )

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

18

3-13. BASE UNIT

3-14. OPTICAL PICK-UP BLOCK (KHM-310CAB OR KHM-313CAB)

 two floating screws

(PTPWH M2.6)

 floating screw

(PTPWH M2.6)

 base unit

 screw

(BTP2.6 × 8)

 three screws

(BTP2.6 × 8)

 base (310)

 insulator screw

 insulator screw

 holder (310)

RT optical pick-up block

(KHM-310CAB or KHM-313CAB)

RB flexible flat cable (24 core)



 insulator

R insulator

 insulator screw

R insulator

 insulator screw

R insulator

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

19

3-15. GEAR (SUB TRAY 1)/GEAR (SUB TRAY 2)

3-16. LEVER (MODE)

 five screws

(PTPWH2.6 × 8)

 gear (sub tray 2)

 gear (sub tray 2)

 three gears

(sub tray 1)

gear (sub tray 2)

gear (sub tray 2)

gear (sub tray 1)

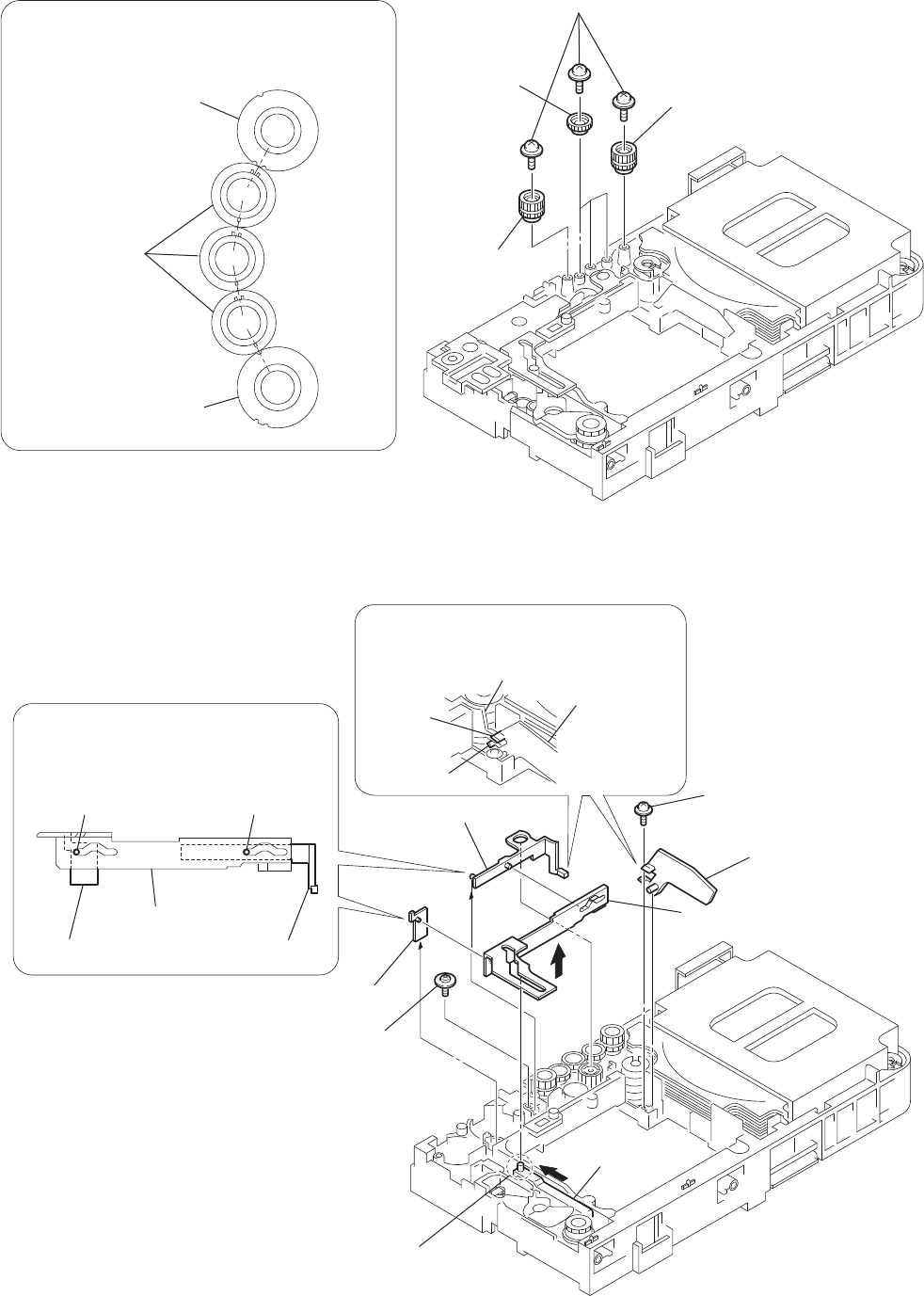

PRECAUTION DURING GEAR (SUB TRAY 1/2) INSTALLATION

Align the marks of the gears as shown in the illustration.

 screw

(PWH2.6 × 8)

 floating screw

(PTPWH M2.6)

 lever (sub tray)

lever (sub tray)

 lever (release)

lever (release)

 lever (mode)

cam (BU)

lever (mode)

 shutter (tray)



lever (sub tray)

shutter (tray)

When re-assembling, insert the lever (sub tray)

between the bosses of the shutter (tray).

boss

boss

Before re-assembling, slide the cam (BU)

in the direction of the arrow.

Before re-assembling, align the lever (release)

and the lever (sub tray) with the lever (mode)

as shown in the illustration.

dowel dowel

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

20

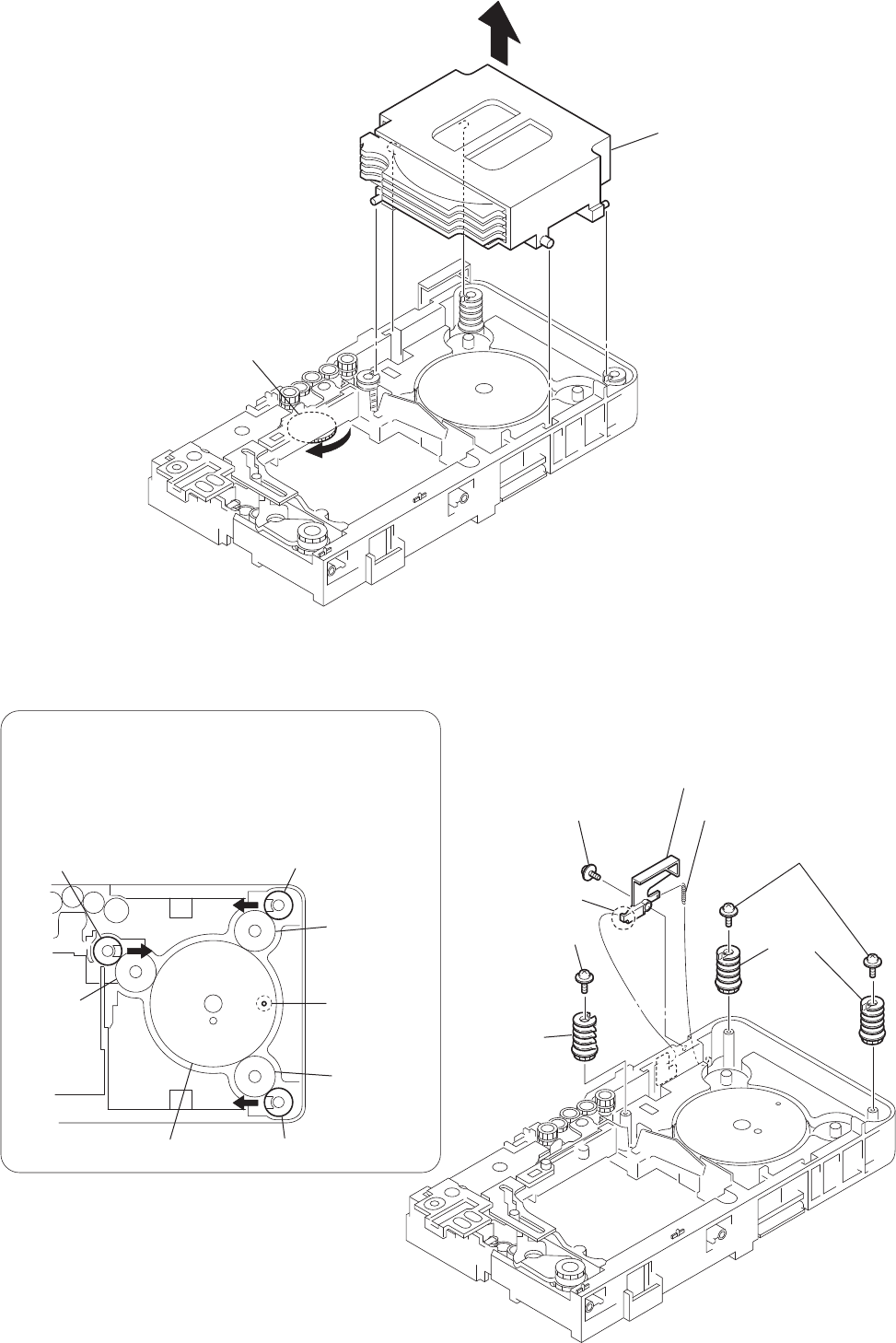

3-17. STOCKER BLOCK

3-18. CAM (STOCKER)

 stocker block

 Rotate the gear (SS3) in the

direction of the arrow.

 two screws

(PWH2.6 × 8)

 two cams

(stocker)

 cam

(stocker)

cam (stocker)

cam (stocker)

cam (stocker)

hole

gear

(stocker 2)

gear

(stocker 2)

gear

(stocker 2)

gear (stocker 3)

 tension spring (SW)

 lever (SW)

 floating screw

(PTPWH M2.6)

 screw

(PWH2.6 × 8)

 hook

PRECAUTION DURING CAM (STOCKER) INSTALLATION

Before installing the cams (stocker), fix the gear (stocker 3) in

the manner so that the hole of the gear (stocker 3) should be

aligned with the hole of the chassis located beneath

the gear (stocker 3). Be sure to install the cams (stocker) in

such a way that the grooves of the cams (stocker) face

the direction of the arrows.

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

21

3-19. GEAR (STOCKER 3)

3-20. ROTARY ENCODER (MD) (S771)

 step tapping screw

(PTPWH M2.6)

 gear (stocker 3)

gear (stocker 3)

(reverse-side)

rotary encoder

(ST U/D encoder)

PRECAUTION DURING GEAR (STOCKER 3) INSTALLATION

Be sure to align the rib of the gear (stocker 3) with the groove

of the rotary encoder.

groove

rib

rotary encoder (MD)

gear (BU1)

PRECAUTION DURING ROTARY ENCODER (MD) INSTALLATION

cam (BU)

Slide the cam (BU) in the direction of the arrow so that the mark

of the gear (BU1) can be seen. Engage the gears while aligning

the mark of the gear (BU1) with the protruding part of the

rotary encoder.

protruding part

mark

– CD mechanism deck bottom view –

bracket (encoder)

rotary encoder (MD)

(S771)

two claws



Remove the five solders.

three screws

(BTTP M2.6)

step tapping screw

(2

× 6 PWH)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

22

3-21. GEAR (BU1)

 screw

(PWH2.6 × 8)

 screw

(PWH2.6 × 8)

 screw

(PWH2.6 × 8)

 pulley (BU)

 gear (BU1)

 gear (BU2)

 belt (sub tray)

gear (BU2)

cam (BU)

PRECAUTION DURING GEAR (BU2) INSTALLATION

Before re-assembling, slide the cam (BU) in the direction of

the arrow.

Assemble the gear (BU2) in such a manner that the groove

of the cam (BU) is aligned with the rib of the gear (BU2).

rib groove

– CD mechanism deck bottom view –

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

23

SECTION 4

TEST MODE

Note: Incorrect operations may be performed if the test mode is not en-

tered properly. In this case, press the [?/1] button to turn the power

off, and retry to enter the test mode.

COLD RESET

The cold reset clears all data including preset data stored in the

RAM to initial conditions. Execute this mode when returning the

set to the customers.

Procedure:

1. Press the [?/1] button to turn the power on.

2. Press three buttons [x], [N] and [?/1] simultaneously.

3. When this button is operated, display as “COLD RESET” for

a while and all of the settings are reset.

PANEL TEST MODE

This mode is used to check the software version, FL, LED and

KEY.

1. Display Test Mode

Procedure:

1. Press the [?/1] button to turn the power on.

2. Press three buttons [x], [.] and [FUNCTION] simultane-

ously.

3. When the display test mode is activated, all segments are

turned on. When the [x] button is pressed in this state, test pat-

tern 1 is displayed on the fl uorescent indicator tube. (The half

of the segments on the fl uorescent indicator tube are turned

on) When the [x] button is pressed again, test pattern 2 is dis-

played on the fl uorescent indicator tube. (Half the segments of

the remainder on the fl uorescent indicator tube are turned on)

When the [x] button is pressed again, all segments are turned

on.

4. To exit from this mode, press three buttons [x], [.] and

[FUNCTION] simultaneously.

2. Version Test Mode

Procedure:

1. When the display test mode is activated, press the [.] but-

ton and model name is displayed, the version test mode is acti-

vated.

2. Whenever the [.] button is pressed, the display changes in

order of model name → destination → MC → model name.

Note: Model name/destination is different according to model.

3. Press the [>] button and the date of the software production

is displayed.

4. Press the [>] button again and the version is displayed.

5. To exit from this mode, press three buttons [x], [.] and

[FUNCTION] simultaneously.

3. Key Test Mode

Procedure:

1. When the display test mode is activated, press the [N] button,

to select the key test mode.

2. To enter the KEY test mode, the fl uorescent indicator displays

“K0 V0”. Each time an another button is pressed, “K” value

increases. However, once a button is pressed, it is no longer

taken into account. When all keys are pressed correctly, “K12

V0” is displayed.

3. When the [VOLUME] dial is turned in the direction of (+),

“V0” is changed to “V1”, then ... “V9”.

When the [VOLUME] dial is turned in the direction of (–),

“V0” is changed to “V9”, then ... “V1”.

4. To exit from this mode, press three buttons [x], [.] and

[FUNCTION] simultaneously.

DISC TRAY LOCK

The disc tray lock function for the antitheft of an demonstration

disc in the store is equipped.

Setting Procedure:

1. Press the [?/1] button to turn the set on.

2. Press the [FUNCTION] button to set DVD function.

3. Insert a disc.

4. Press the [x] button and the [Z] button simultaneously for fi ve

seconds.

5. The message “LOCKED” is displayed and the tray is locked.

Releasing Procedure:

1. Press the [x] button and the [Z] button simultaneously for fi ve

seconds again.

2. The message “UNLOCKED” is displayed and the tray is un-

locked.

Note: When “LOCKED” is displayed, the tray lock is not released by

turning power on/off with the [?/1] button.

DVD SHIP MODE

Use this mode when returning the set to the customer after repair.

Procedure:

1. Press the [?/1] button to turn the set on.

2. Press the [FUNCTION] button to set the function “DVD”.

3. Remove all discs, and then press two buttons [N] and [?/1]

simultaneously.

4. After a message “MECHA LOCK” h “UNPLAG” is dis-

played on the fl uorescent indicator tube, pull out the AC plug.

5. To exit from this mode, press the [?/1] button to turn the set

on.

AM STEP CHANGE (Except HDX285: 240V AC area in E

and Saudi Arabia models)

A step of AM channels can be changed over between 9 kHz and

10 kHz.

Procedure:

1. Press the [?/1] button to turn the power on.

2. Press the [FUNCTION] button to set the function “TUNER

AM”.

3. Press the [?/1] button to turn the power off.

4. Press two buttons [>] and [?/1] simultaneously, and the dis-

play of fl uorescent indicator tube changes to “AM 9k STEP” or

“AM 10k STEP”, and thus the channel step is changed over.

PRODUCT OUT

This mode moves the optical pick-up to the position durable to vi-

bration and clears all data including preset data stored in the RAM

to initial conditions. Use this mode when returning the set to the

customer after repair.

Procedure:

1. Press the [?/1] button to turn the power on.

2. Enter the DVD service mode referring to “2. ENTERING

DVD SERVICE MODE” (page 25).

3. Select “Version information” pressing the [4] button on the re-

mote commander.

4. Press the button on the remote commander in order of [DVD

MENU] → [CLEAR].

5. The message “initialize...” is displayed on the fl uorescent indi-

cator tube. After a while, the message “Complete” is displayed

on the fl uorescent indicator tube and the display disappears.

6. The message “MECHA LOCK” h “UNPLAG” is displayed

on the fl uorescent indicator tube disconnect the AC power

plug, then the ship mode is set.

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

24

VERSION DISPLAY

This mode displays the version of the STR/DVD micro controller.

Note: Not used for the servicing.

AUTOMATIC ACOUSTIC FIELD CALIBRATION MICRO-

PHONE TEST MODE

Procedure:

1. Press the [?/1] button to turn the power on.

2. Insert ECM-AC2 supplied as an accessory into the AUDIO IN/

A.CAL MIC jack.

3. While pressing the [x] and [Z] buttons simultaneously, turn

the [VOLUME] dial in the direction of (–).

4. Confi rm that the following are shown on the display panel.

1 The jack inserted/non-inserted detection display and the

STEREO/MONO detection display.

2 Presence of DIGITAL voice input to the microcomputer.

(OK: input, NG: no input)

3 The value of the MIC input to the micro controller. (shown

“255h”)

* * * * * * * *

1 2 3

1 “NON” : Not detected

“ST” : STEREO

“MN” : MONO

2 OK : input

NG : no input

3 0-255 (Changes in real time)

5. To exit this mode, press two buttons [x] and [Z] simultane-

ously, turn the [VOLUME] dial in the direction of (–).

DEMO PLAY OUT

It is a mode to release the demonstration reproduct by the dedi-

cated demonstration disc.

Procedure:

1. During playback the DEMO disc, press the [x] and [N] but-

tons for fi ve seconds simultaneously.

2. The message “DEMO OFF” is displayed, a mode to reproduct

the demonstration is released.

AMP TEST MODE

The examination of the AMP measurement safety standard/tem-

perature characteristic modes can be easily executed by executing

this mode in a short time.

Procedure:

1. Press the [?/1] button to turn the power on.

2. Press three buttons [x], [N] and [Z] simultaneously.

3. The message “MEASURE” is displayed on the fl uorescent in-

dicator tube and enter the AMP measurement mode.

4. When the [DISPLAY] button on the remote commander is

pressed in the state of step 3, the message “SAFETY” is dis-

played on the fl uorescent indicator tube and enter the AMP

safety standard/temperature characteristic mode.

5. When the [MUTING] button on the remote commander is

pressed in the state of step 3, the message “VOL N” is dis-

played on the fl uorescent indicator tube.

6. When the [MUTING] button on the remote commander is

pressed in the state of step 5, the message “VOL M/M” is

displayed on the fl uorescent indicator tube and enter the vol-

ume MIN/MAX mode. In this mode, the message “VOLUME

MAX” is displayed on the fl uorescent indicator tube when

[VOLUME +] button on the remote commander is pressed,

and the message "VOLUME MIN” is displayed on the fl uores-

cent indicator tube when [VOLUME –] button on the remote

commander is pressed.

7. To exit from this mode, press the [?/1] button. The message

“COLD RESET” is displayed on the fl uorescent indicator tube

for a while and all the settings are reset.

PROTECTION FACTOR (SD DETECTION/DC DETEC-

TION) IDENTIFICATION TEST MODE

When an error is detected, the fl orescent indicator tube alternately

displays

“PROTECTOR” h “PUSH POWER”.

Press the [?/1] button.

* Buttons other than the [?/1] button are invalid.

“STANDBY” blinks three times on the fl orescent indicator tube.

The protection release state (POWER OFF) is established.

(No fl orescent indicator tube display)

Press the [?/1] button twice.

The power to the system turns on, and the normal operation is es-

tablished. (Restore)

During the protection state:

1. If the AC plug is connected or disconnected during the protec-

tion state, the protection state is released, and the normal op-

eration is established. (The protection state is not maintained)

2. The protection factor is displayed by pressing the button on

the remote commander in order of [RETURN] → [3] → [2] →

[0] → [0] → [ANGLE] during the protection state. (during the

“PROTECTOR” h “PUSH POWER” display)

When SD is detected: Repeats

“SD DETECT” h “PUSH POWER”.

When DC is detected: Repeats

“DC DETECT” h “PUSH POWER”.

SD detection:

When the “L” output from the SD (shutdown) port on the

S-MASTER POWER Driver Shutdown and voltage descent

(15V or less) of 30V power supply (PVDD) are detected.

DC detection:

When the “L” output from the power/speaker error detection

circuit (DC detection port) is detected for two seconds continu-

ally, the power system other than that of the fl orescent indica-

tor tube is turned off, and the protection state is established.

COLOR SYSTEM CHANGE (HDX285: 240V AC area in E

and Saudi Arabia models only)

This mode let you change the color system of the video output

from PAL to NTSC or vice-versa.

Procedure:

1. Press the [?/1] button to turn the power on.

2. Press the [FUNCTION] button to select the “DVD”.

3. Press the [?/1] button to turn the power off.

4. Press two buttons [.] and [?/1] simultaneously.

5. The message “COLOR PAL” or “COLOR NTSC” will be dis-

played on the fl uorescent indicator tube and color system of the

video output is changed.

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

25

DIGITAL MEDIA PORT TEST

Procedure:

1. Connect the DMPORT CHECK JIG (Part No.: J-2501-309-A)

with the terminal DMPORT.

2. Press the [?/1] button to turn the power on.

3. Confi rm that both LEDs of the DMPORT confi rmation JIG

lights. (Confi rmation the power supply line.)

4. Set the [FUNCTION] button with “DMPORT” on this model.

5. Press three buttons [x], [N] and [FUNCTION] simultane-

ously, the DMPORT test mode is activated.

6. It is confi rmed that “DMPORT OK” is displayed on this set

display. (Confi rmation of communication line)

7. To a pinjack of the DMPORT confi rmation JIG input informa-

tion relevant to audio signal (sine-wave 1.0Vrms) and compos-

ite video signal (white 100% 1.0 Vp-p, color bar, etc.)

8. Confi rm the output of speakers and monitor TV. (Confi rmation

of analog signal)

9. To exit from this mode, press three buttons [x], [N] and

[FUNCTION] simultaneously.

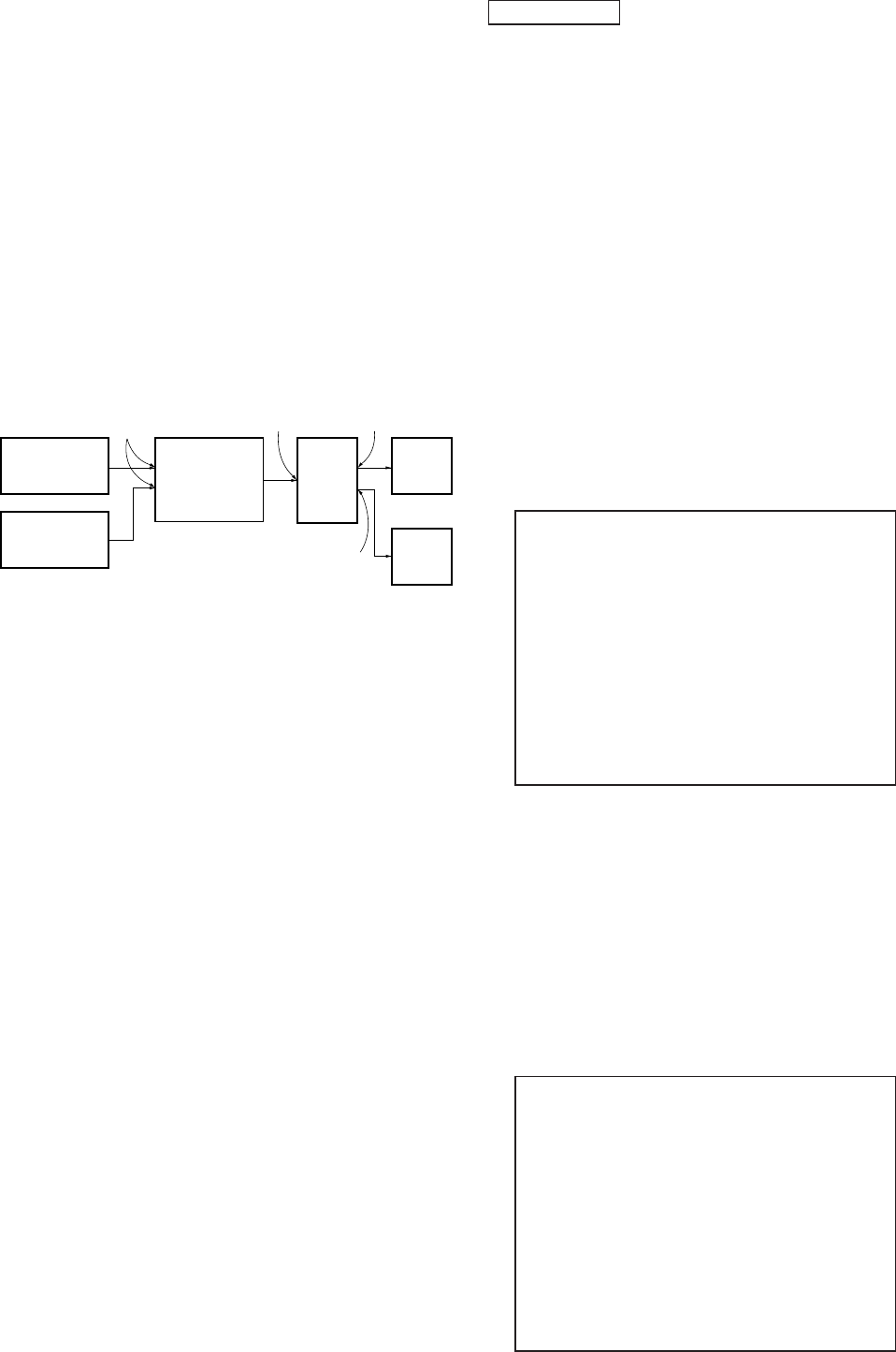

color pattern

generator

DMPORT

check jig

(Part No.:

J-2501-309-A)

J001

AF oscillator

set

TV

monitor

FL/FR

speaker

MAIN board

CN451

SPEAKER board

TB5300 (HDX589W/HDX686W)

TB5301 (HDX285/HDX287WC/

HDX585/HDX587WC/HDX685)

I/O board

J4001

1. DVD SERVICE MODE GENERAL DESCRIPTION

This mode let you make diagnosis and adjustment easily by using

the remote commander and the TV screen. The instructions, diag-

nostic results, etc. are given on the on-screen display.

Be sure to execute the IOP measurement when a base unit is re-

placed.

Note: In this mode, disregard it because it doesn't use them in the servic-

ing though the message such as “2A0” might be displayed on the

fl uorescent indicator tube.

2. ENTERING DVD SERVICE MODE

Procedure:

1. Press the [?/1] button to turn on the system.

2. Press the [FUNCTION] button repeatedly to select the

“DVD”.

3. While pressing the [x] and [Z] buttons simultaneously, turn

[VOLUME] dial in the direction of (+) with the DVD player in

power on.

4. The message “SERVICE IN” appears on the fl uorescent in-

dicator tube and top menu of the Remocon Diagnosis Menu

appears on the on-screen display on the TV screen as follows.

The model name, IF-con version and Syscon version are dis-

played at the bottom of the on-screen display.

Remocon Diagnosis Menu

0. External Chip Check

1. Servo Parameter Check

2. Drive Manual Operation

3. Emergency History

4. Version Information

Model Name :xxxx_xx

IF-con:Ver.xx.xx(xxxx)

Syscon:Ver.x.xxx

5. To execute each function, press its number by using numeric

button on the remote commander.

6. To release from this mode, press the [?/1] button to turn off the

system.

3. EXECUTING IOP MEASUREMENT

In order to execute IOP measurement, the following standard pro-

cedures must be followed.

Procedure:

1. From the top menu of Remocon Diagnosis Menu, select “2

Drive Manual Operation” by pressing the [2] button on the

remote commander. The following screen appears on the on-

screen display

Drive Manual Operation

1. Servo Control

2. Track/Layer Jump

3. Manual Adjustment

4. Mecha test mode

5. MIRR time Adjust

0. Return to Top Menu

DVD SECTION

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

26

2. Select “3. Manual Adjustment” by pressing the [3] button on

the remote commander. The following screen appears on the

on-screen display.

Manual Adjust

1. Track Balance Adjust:

2. Track Gain Adjust:

3. Focus Balance Adjust:

4. Focus Gain Adjust:

5. Eq Boost Adjust:

6. Iop:

7. TRV. Level:

8. S curve(FE) Level:

9. RFL(PI) Level:

0. MIRR Time:

[V][v] Change Value

[RETURN]Return to previous menu

3. Select “6. Iop:” by pressing [6] button on the remote com-

mander.

4. Wait until a hexadecimal number appear in the on-screen dis-

play as below.

Manual Adjust

1. Track Balance Adjust:

2. Track Gain Adjust:

3. Focus Balance Adjust:

4. Focus Gain Adjust:

5. Eq Boost Adjust:

6. Iop: ED:

7. TRV. Level:

8. S curve(FE) Level:

9. RFL(PI) Level:

0. MIRR Time:

[V][v] Change Value

[RETURN]Return to previous menu

5. Convert data from hexadecimal to decimal by using conver-

sion table.

6. If the value is smaller than 93 (decimal), then it is OK. How-

ever if the value is higher than 93, then BU (base unit) is defec-

tive and need to be change.

7. Press the [O RETURN] button on the remote commander to

return to previous menu.

8. Press the [0] button on the remote commander to return to the

top menu of Remocon Diagnosis Menu.

9. Press the [?/1] button to turn off the system.

4. CHECKING EMERGENCY HISTORY

To check the emergency history, please follow the following pro-

cedure.

Procedure:

1. From the top menu of Remocon Diagnosis Menu, select “3.

Emergency History” by pressing the [3] button on the remote

commander. The following screen appears on the on-screen

display.

Emg. History Check

Laser Hours CD 999h 59min

DVD 999h 59min

01. 01 05 04 04 00 92 46 00

00 00 00 00 00 00 23 45

02. 02 02 01 01 00 A9 4B 00

00 00 00 00 00 00 23 45

[Next]Next page [Prev]Prev page

[0]Return to Top Menu

2. You can check the total time when the laser is turned on during

playback of DVD and CD from the above menu. The maxi-

mum time, which can be displayed are 999h 59min.

3. You can check the error code of latest 10 emergency history

from the above menu. To view the previous or next page of

emergency history, press the [.] or [>] button on the re-

mote commander. The error code consists of three kinds of er-

ror codes.

A. Error code

Example of Error code

01. 01 05 04 04 00 92 46 00

00 00 00 00 00 00 23 45

The meaning of error code is as below:

01: Communication error (No reply from syscon)

02: Syscon hung up

03: Power OFF request when syscon hung up

19: Thermal shutdown

24: MoveSledHome error

25: Mechanical move error (5 changer)

26: Mechanical move stack error

30: DC motor adjustment error

31: DPD offset adjustment error

32: TE balance adjustment error

33. TE sensor adjustment error

34. TE loop gain adjustment error

35. FE loop gain adjustment error

36. Bad jitter after adjustment

40. Focus NG

42. Focus layer jump NG

51: Spindle stop error

52. Open kick spindle error

60: Focus on error

61: Seek fail error

62: Read Q data/ID error

70: Lead in data read fail

71: TOC read time out (CD)

80: Can’t buffering

81: Unknown media type

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

2727

SECTION 5

ELECTRICAL ADJUSTMENTS

When the base unit is replaced, perform the adjustment and the

measurement as shown below in this order.

EXECUTING IOP MEASUREMENT (See page 25)

FM TUNE LEVEL CHECK

signal

generator

set

Procedure:

1. Turn on the set.

2. Input the following signal from signal generator to FM antenna

input directly.

Carrier frequency : A = 87.5 MHz, B = 98 MHz, C = 108 MHz

Deviation : 75 kHz

Modulation : 1 kHz

ANT input : 35 dBu (EMF)

Note: Use 75 ohm coaxial cable to connect signal generator and the set.

You cannot use video cable for checking.

Use signal generator whose output impedance is 75 ohm.

3. Set to FM tuner function and tune A, B and C signals.

4. Confi rm “TUNED” is lit on the display for A, B and C sig-

nals.

When the selected station signal is received in good condition,

“TUNED” is displayed.

DVD SECTION TUNER SECTION

B. Parameter of error code

This is the detail of error code.

Example of Error code

01. 01 05 04 04 00 92 46 00

00 00 00 00 00 00 23 45

C. Time of error code

This is the laser time when an error occurred.

Example of Error code

01. 01 05 04 04 00 92 46 00

00 00 00 00 00 00 23 45

To Clear the Laser Hour

Press the [ DISPLAY] button on the remote commander and then

press the [CLEAR] button on the remote commander. The data for

both CD and DVD data are reset.

Emg. History Check

Laser Hours CD 0h 0min

DVD 0h 0min

01. 01 05 04 04 00 92 46 00

00 00 00 00 00 00 23 45

02. 02 02 01 01 00 A9 4B 00

00 00 00 00 00 00 23 45

[Next]Next page [Prev]Prev page

[0]Return to Top Menu

To Clear the Emergency History

Press the [DVD TOP MENU] button on the remote commander

and then press the [CLEAR] button on the remote commander. The

error code for all emergency history would be reset.

Emg. History Check

Laser Hours CD 999h 59min

DVD 999h 59min

01. 00 00 00 00 00 00 00 00

00 00 00 00 00 00 00 00

02. 00 00 00 00 00 00 00 00

00 00 00 00 00 00 00 00

[Next]Next page [Prev]Prev page

[0]Return to Top Menu

To Execute the Initialize Setup Data

Procedure:

1. Press the [DVD MENU] button on the remote commander and

then press the [CLEAR] button on the remote commander. The

following screen appears on the on-screen display.

Emg. History Check

Laser Hours CD 999h 59min

DVD 999h 59min

Initialize setup data...

[Next]Next page [Prev]Prev page

[0]Return to Top Menu

2. The screen after a while returns to former display.

To Return to the Top Menu of Remocon Diagnosis Menu

Press the [0] button on the remote commander.

5. CHECKING VERSION INFORMATION

To check the version information, please follow the following pro-

cedure.

Procedure:

1. From the top menu of Remocon Diagnosis Menu, select “4.

Version Information” by pressing the [4] button on the remote

commander. The following screen appears on the on-screen

display.

Version information

Firm(Main): Ver. X.XXXX

Firm(Sub): XX.XX

RISC: XXXXXX

8032: XXXXXX

Audio DSP: XX.XX.XX.XX

Servo DSP: XX.XX.XX.XX

Phy. Adr.: X.X.X

[0]Return to Top Menu

2. To return to the top menu of Remocon Diagnosis Menu, press

the [0] on the remote commander.

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

2828

SECTION 6

DIAGRAMS

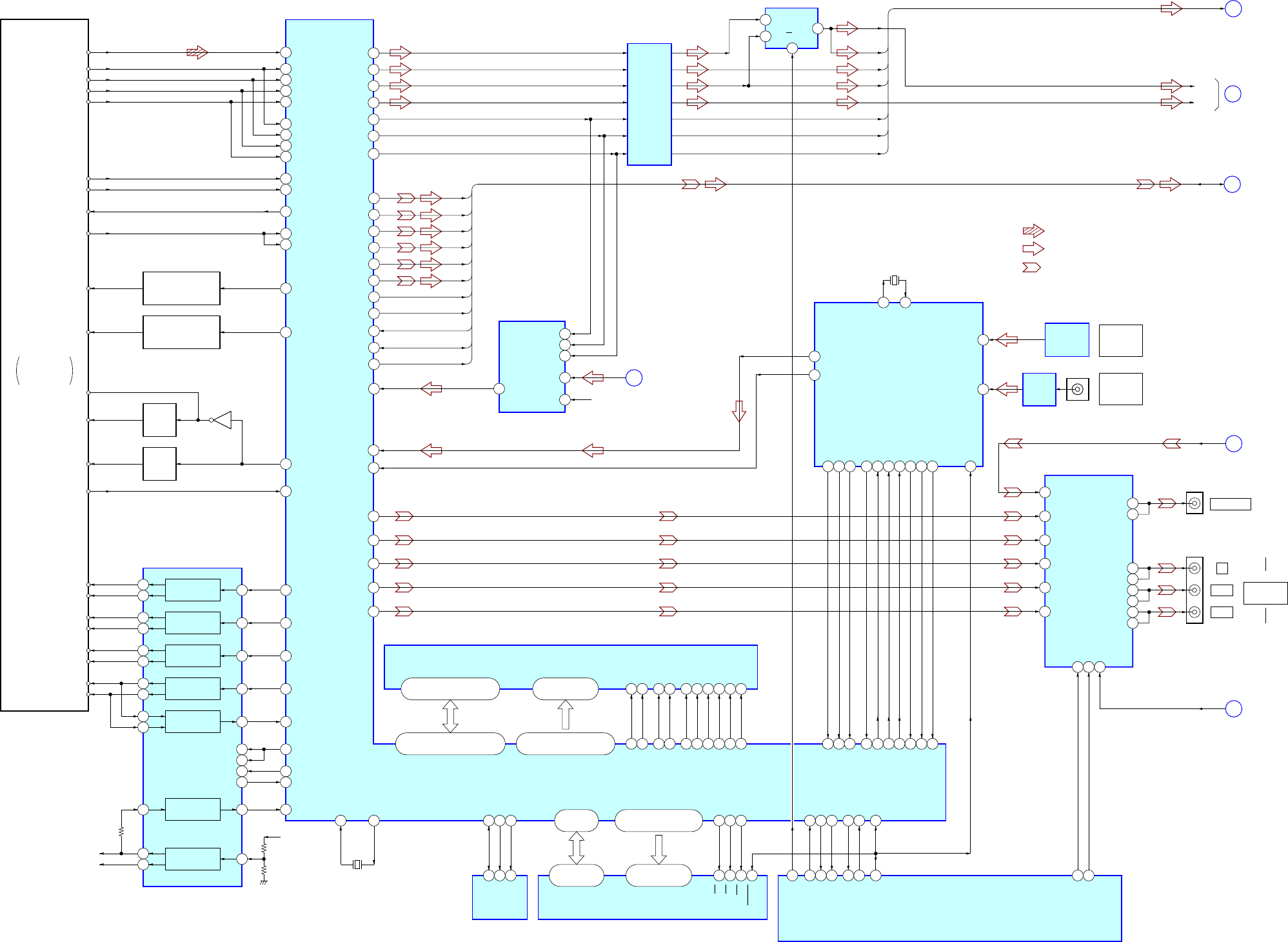

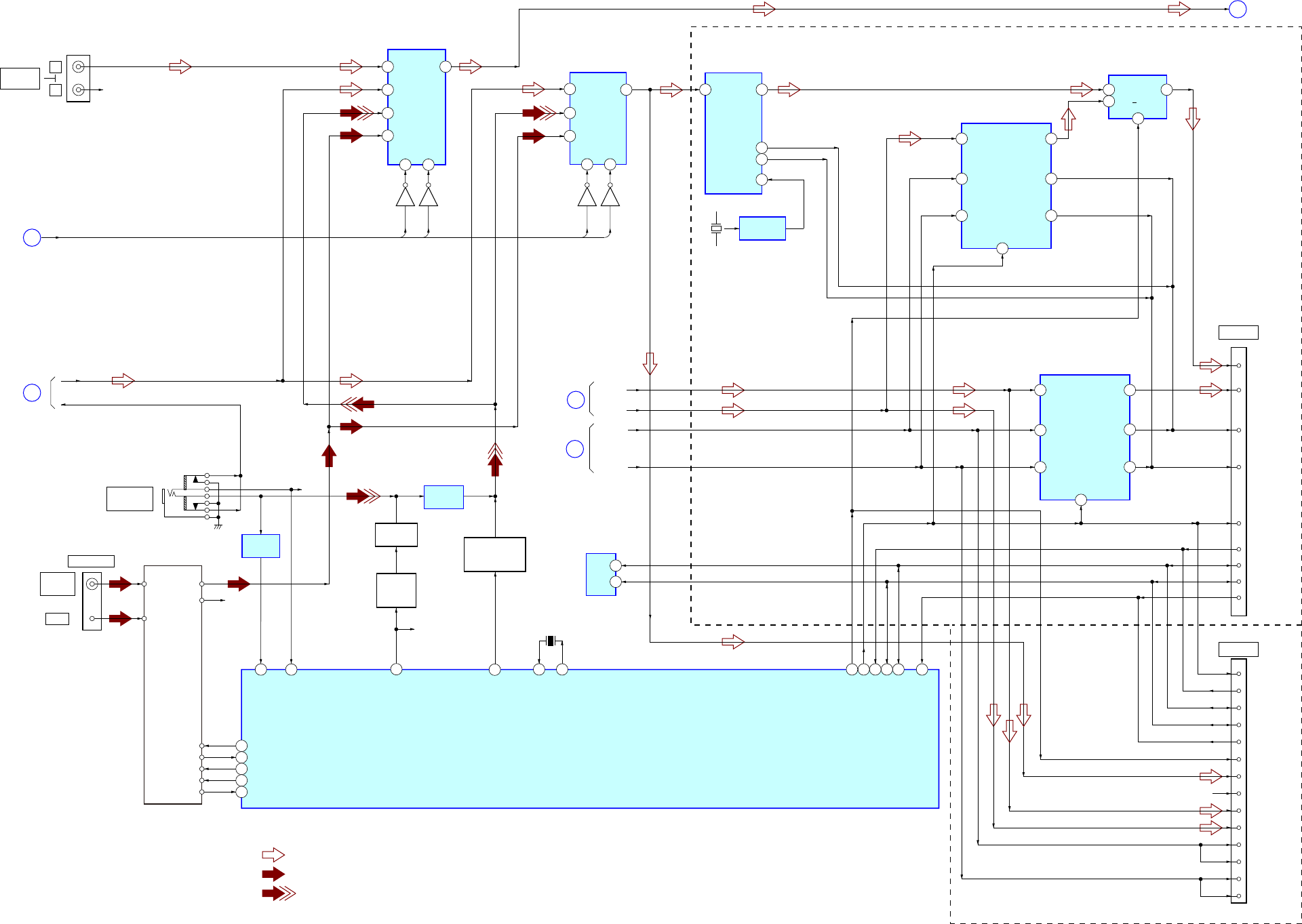

6-1. BLOCK DIAGRAM - RF SERVO/VIDEO Section -

DQ0 – DQ7

HD0 – HD7

A-1, A0 – A20

HA0 – HA21

OPTICAL PICK-UP

BLOCK

RF AMP, SERVO DSP,

MPEG DECODER,

HDMI TRANSMITTER

IC1101

FOCUS/TRACKING COIL DRIVE,

SPINDLE/SLED MOTOR DRIVE

IC1201

AUTOMATIC POWER

CONTROL (FOR CD)

Q1102-1

DVDRFIP

10

DVDA

6

DVDB

7

DVDC

8

DVDD

9

RF

MA11

MB

12

MC

13

MD

14

VOA/A

VOB/B

VOC/C

VOD/D

TNI17VOE/E+G

TPI18VOF/F+H

V2O28VC

LDO122LD (780) CD

AUTOMATIC POWER

CONTROL (FOR DVD)

Q1102-2

LDO2

21LD (650) DVD

FOO41

CD ON

SWITCH

Q1101-1

DVD ON

SWITCH

Q1101-2

VR (780) CD

MSW

LIMITSW

54 52

53

VR (650) DVD

FCS+

MSW

MDI119

MDI2

20

PD

LIMIT

Q1103

XROMCSCE

SD-RAM

IC1104

X1101

27MHz

36

FCS– 37 1

TRO

40

TRK+ 35

TRK– 34 4

FMO

37

SL+ 29

SL– 30 10

DMO

36

SP+ 27

SP– 28

31

32

41

46

47

13

OP_INP

35

45

BCK

ABCK

226

ALRCK

223

ACLK

225

79, 80,

82 – 86, 89

29, 31, 33, 35,

38, 40, 42, 44

92, 77, 56 – 62, 74 – 67,

91, 63, 64, 75, 87

45, 25 – 18, 8 – 1,

48, 17, 16, 9, 10

DQ0 – DQ15

RD0 – RD15

A0 – A11

RA0 – RA11

2, 4, 5, 7, 8, 10, 11, 13, 42,

44, 45, 47, 48, 50, 51, 53

121 – 119, 117 – 113,

129 – 122

140, 141, 143, 144,

155 – 150, 139, 149

23 – 26,

29 – 34, 22, 35

76

XTALI

239

26

XRDOE

78

28

XWRWE

66

11

RESET

12

BA0 BA0

137

20

BA1 BA1

138

21

DRCLK CLK

146

38

CKE CLKE

147

37

DQM0 LDQM

111

15

DQM1 UDQM

132

39

RAS# /RAS

135

18

CAS# /CAS

134

17

RCS# /CS

136

19

RWE# /WE

133

DIR_DO

231

16

• SIGNAL PATH

: CD/DVD PLAY

: AUDIO

: VIDEO

FOCUS

COIL DRIVE

TRACKING

COIL DRIVE

SLED

MOTOR DRIVE

SPINDLE

MOTOR DRIVE

REGULATOR

MUTE123MUTE123 157

19

MUTEMUTE4 158

20

TSD_MTSD-M 130

22

IOPMON

3940

8

PS 21

BUFFER

BUFFER

RF+3.3V

SDASDA

102

5

SCLSCL

101 112

6

EEWPWE

7

REGO2

REGO1

DVD_SDO IFSDO

48

97

DVD_XIFCS xIFCS

51

99

51

DVD_SDI IFSDI

47

LINK_SW

63

100

DVD_SCO IFCK

49

98

DVD_XIFBUSY IFBSY

50

110

DVD_RST xSYSRST

45

V_SEL1

82

108

SYSTEM CONTROLLER

IC503 (1/5)

LRCK

MCK

D2

D3

D1

189

C

191

Y

183

B/Cb/Pb

185

Y/G

182

R/Cr/Pr

VIDEO AMP, 75 Ω DRIVER

IC4002

11 CYIN

13 CbIN

15 CrIN

6CVBS IN

4CIN

8YIN

5

MUTE1

14

MUTE2

7

YC MIX

V_SEL0

81

KHM-310CAB

OR

KHM-313CAB

J4000

COMPONENT

VIDEO OUT

Y

PB/CB

PR/CR

J4001 (1/2)

30

VOUTa

24

CYOUTa

21

CbOUTa

18

CrOUTa

VIDEO OUT

FLASH ROM

IC1102

EEPROM

IC1103

XTALO

238

A

AUDIO_BUS

HDMI_BUS

D2

D4

C

D

204

ASDATA2

205

ASDATA1

203

ADIN(SPDATA)

DIR_AUDIO

202

ASDATA0

ASDATA3

DMPORT_VIDEO

E

V_SEL2

TX0P

TX0N

TX1P

TX1N

TX2P

TX2N

TXCP

TXCN

HTPLG

174

173

177

176

179

171

170

DDC_DA

DDC_CLK

TX0P

TX0N

TX1P

TX1N

TX2P

TX2N

TCKP

TCKN

HPD

SDA

SCL

159

161

MC_DATA(ADIN) 206

162

180

222 BUFFER

IC471

AUDIO SELECTOR

IC307

1A

2B

6

A/B

5Y

B

VinL

14

13

VinR

BCK

7

LRCK

6

8

SCKI

A/D CONVERTER

IC303

9DOUT

M

AUDIO1

R-CH

DIGITAL AUDIO

INTERFACE RECEIVER

IC304

DO (O)

35 36

DI (I)

CL (I)

38

CE (I)

3714

BCK (O)

LRCK (O)

15

CKOUT (O)

13

CSFLAG (O)

25

ERROR (O)

34

XSTATE (O)

17

XMODE (I)

48

DIR_DI

230

DIR_CL

227

DIR_CE

221

SPBCK

200

SPLRCK

201

SPMCK

199

DIR_CSFLAG

214

DIR_ERROR

DIR_XSTATE

198

5DIN2 (I)

OPTICAL

RECEIVER

IC502

TV

DIGITAL IN

OPTICAL

TV

DIGITAL IN

COAXIAL

J501

4DIN1 (I)

WAVE

SHAPER

IC501

XIN (I)

22

XOUT (O)

21

X301

24.576MHz

16 DATA (O)

24 AUDIO- (O)

29

VOUTb

23

CYOUTb

20

CbOUTb

17

CrOUTb

(Page 31)

(Page 30)

(Page 29)

(Page 29)

(Page 29)

(Page 30)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

2929

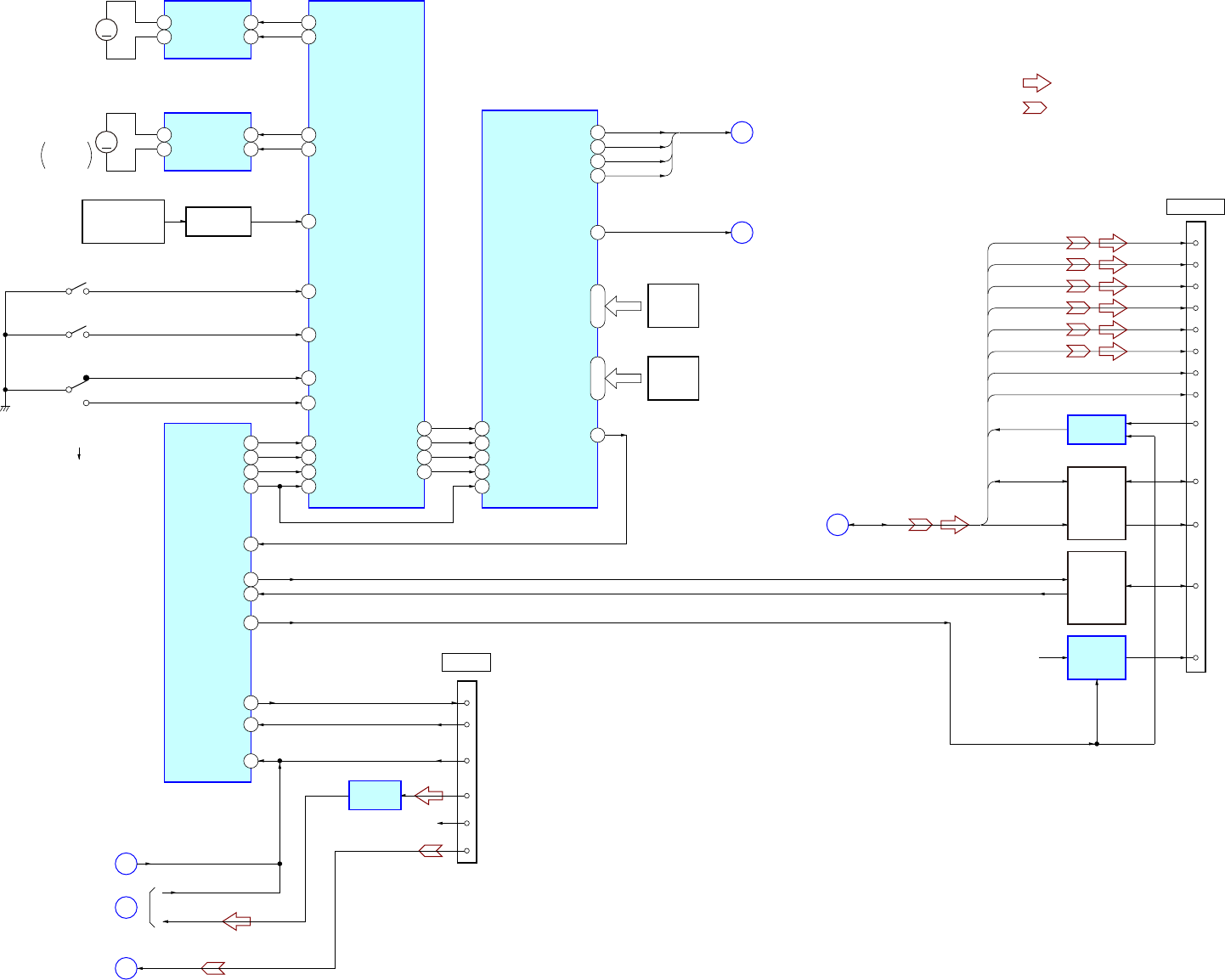

6-2. BLOCK DIAGRAM - CHANGER/HDMI/DMPORT Section -

TX0P

TX0N

TX1P

TX1N

TX2P

TX2N

TCKP

TCKN

7

TMDS DATA0 +

HDMI OUT

9

TMDS DATA0 –

4

TMDS DATA1 +

6

TMDS DATA1 –

1

TMDS DATA2 +

3

TMDS DATA2 –

10

TMDS CLOCK +

12

TMDS CLOCK –

16

SDA

15

SCL

18

+5V POWER

19

HPD

HPD

CN1701

5

RXD

6

TXD

7

DET

13

Lch

14

RchR-CH

17

VIDEO

CN451

DMPORT

LEVEL SHIFT

IC1705

LINE AMP

IC451

LEVEL SHIFT

Q1701

13

CEC

+5V

REGULATOR

IC1707

+6V

SDA

SCL

CHDMI BUS

DMPORT_VIDEO

G

D

DMPORT_L

F

IO_DI

P0FIN

CHANGER CONTROLLER

IC001

247

P1RIN 23

OUT1

4

OUT2

2 9

LOADING MOTOR DRIVER

IC701

M761

(LOADING)

(STOCKER POSITION)

ROTARY

ENCODER

S781

M

P4FIN 207

P5RIN 19

P8

12

OUT1

4

OUT2

2 9

STOCKER UP/DOWN

MOTOR DRIVER

IC711

M762

STOCKER

UP/DOWN

M

S761

(SUB TRAY OUT)

P11

9

S731

(SUB TRAY IN)

S721

(MAIN TRAY OPEN/CLOSE)

P10

10

P911

P12

8

86

DMP_TX_OUT 35

DM_RX_IN 36

JACK1/JACK2/

DMP_DET 65

DI1

26

IO_CLK 88 CLK3

IO_CE 84 LATCH4

IO_RESET 85

DO1 15

DO2 25

CLKO 14

LATCHO 13

RESET_B

2

CEC_TX_OUT 26

CEC_RX_IN 6

HDMI_PCONT 72

IO-DO 87

AUDIO/VIDEO CONTROLLER

IC002

DI1

26

DI2

16

CLK

3

LATCH

4

RESET_B

2

LEVEL SHIFT

Q751

DO2 25

9 – 12

P11 – P8

(MODE)

ROTARY

ENCODER

S771

5 – 8

P15 – P12

SYSTEM

CONTROLLER

IC503 (2/5)

• SIGNAL PATH

: AUDIO

:VIDEO

• R-CH is omitted due to same as L-CH.

CEC DATA

SWITCH

Q9724, 9726,

Q9728, 9729

P6 18

P7 17 A_SEL0

A_SEL1

P2 22

P3 21 A_SEL4

A_SEL5

E

J

P1 23 V_SEL2

A_SEL

DISC INSERT

DETECT SENSOR

IC751

PLUG_DET1

PLUG_DET2

CLOSE

OPEN

(Page 30)

(Page 28)

(Page 28)

(Page 31)

(Page 30)

(Page 28)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

3030

6-3. BLOCK DIAGRAM - TUNER/S-AIR Section -

A_SEL4

A_SEL5

A_SEL0

A_SEL1

AUDIO SELECTOR

IC4007

R-CH

R-CH

77 ST_DI

91

MONO/ST_DET

90

A.CALMIC

LEVEL

42

DC_CONT

78 ST_DO

79 ST_CLK

76 ST_CE

80 TUNED

R-CH

TUNER (FM/AM)

AM

FM ANT

AM ANT

L-CH

R-CH

DIN

TUNED

DO

CLK

CE

FM 75Ω

COAXIAL

ANTENNA

4Y3

2 3Y2 Y

1Y0

10

A

9

B

J4001 (2/2)

TV/VIDEO

AUDIO IN

L

RR-CH

Q4012 Q4011

Xin

15

Xout

13

S-AIR_ADC_SEL

38

S-AIR_RST

37

E2P_SDA/S-AIR_SDA

30

E2P_CLK/S-AIR_CLK

29

S-AIR_GPIO2/CLK1

33

X501

5MHz

SYSTEM CONTROLLER

IC503 (3/5)

• SIGNAL PATH

: TUNER

: AUDIO

• R-ch is omitted due to same as L-ch.

: AUDIO IN

AUDIO IN/

A.CAL MIC

J5000

5Y1

AUDIO SELECTOR

IC808

1A

2 5BY

6

A/B

SAMPLE RATE

CONVERTER

IC806

7ILRCK

924

SDTI SDTO

25OBCK

26OLRCK

8IBICK

3

PDN

SAMPLE RATE

CONVERTER

IC805

7ILRCK

924

SDTI SDTO

25OBCK

26OLRCK

8IBICK

3

PDN

LINE AMP

IC5003

LINE AMP

IC5004

MUTING

Q5005, 5011

MUTING

CONTROL

Q5004

GAIN

CONTROL

Q5006, 5008, 5010

MIC_GAIN

43

DMPORT_L

JA_SEL

AUDIO SELECTOR

IC4004

5

3

Y1

Y

1Y0

10

A

9

B

2Y2

A/D CONVERTER

IC807

9DOUT

8BCK

7LRCK

6SCKI

13 VINL

Q4008 Q4007

D4

D2

BCK

LRCK

B

M

K

X800

12.288MHz

OSC BUFFER

IC802

17

BCK

15

LRCK

12

RESET

RESN

GPI02

I2C_SDA

I2C_SCL

GND (for DET)

ADC_SEL

Lch

Rch

SD2

SD1

BCK1

BCK2

LRCK1

LRCK2

7

INIT

14

I2C_SDA

11

3

I2C_SCL

GND (for DET)

CN803

EZW-RT10

CN103

EZW-T100

13

SDIN_B(Surr)

20

7

11

18

19

15

16

24

23

14

4

12

26

2

SDIN_A(2nd)

(HDX287WC/HDX587WC/HDX589W/HDX686W)

AUDIO1

25

R-CH

(HDX285/HDX585/HDX685)

EEPROM

IC505

S-AIR_DET/RST1

34

GPLUG_DET1

5SDA

6SCL

(Page 29)

(Page 29) (Page 28)

(Page 31)

(Page 28)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

3131

6-4. BLOCK DIAGRAM - AMP Section -

DIGITAL POWER AMP

IC3150

TB5301

31 11DATA

LAT1

INIT

SOFTMUTE

SCDT

SHIFT

OUTL1(+)

9OUTL2(–)

6OUTR1(+)

4OUTR2(–)

48XFSOIN

37FSOCKO

38FSOI

14XFSOOUT

OVER LOAD

DETECT

Q3151, 3152

SYSTEM CONTROLLER

IC503 (4/5)

SPEAKER

TB3901

SPEAKER

FRONT L

FRONT R

SUR L

SUR R

CENTER

MCK

BCK

LRCK

OVF1

DC DETECT

Q3551

M+14V

AMP+32V

D3551

AAUDIO_BUS

R

DIAG

STREAM PROCESSOR

IC3010

8 PWM_A OUT_A

16

7

PWM_B

/RESET

6

/SD

36 XFSIIN

30 BCK

29 LRCK

HPOUTL1

HPOUTL2

HPOUTR1

HPOUTR2

21 SCDT

22 SCSHIFT

23 SCLATCH

27 INIT

19 SOFTMUTE

24 OVF FLAGR

25 OVF FLAGL

D1

HP_MUTE

OVER LOAD

DETECT

Q3201, 3202

OVER LOAD

DETECT

Q3301, 3302

OVER LOAD

DETECT

Q3251, 3252

59

60

61

X3051

49.1MHz

R-CH

OSC BUFFER

IC3051

31 11DATA

LAT2

INIT

SOFTMUTE

SCDT

SHIFT

OUTL1(+)

9OUTL2(–)

48XFSOIN

38FSOI

14XFSOOUT

31 11DATA

LAT3

INIT

SOFTMUTE

SCDT

SHIFT

OUTL1(+)

9OUTL2(–)

6OUTR1(+)

4OUTR2(–)

48XFSOIN

38FSOI

MCK

BCK

LRCK

OVF2

STREAM PROCESSOR

IC3030

36 XFSIIN

30 BCK

29 LRCK

21 SCDT

22 SCSHIFT

23 SCLATCH

27 INIT

19 SOFTMUTE

24 OVF FLAGR

OVF1 25 OVF FLAGL

D3D1

D2

D3

MCK

BCK

LRCK

OVF1

STREAM PROCESSOR

IC3020

36 XFSIIN

30 BCK

29 LRCK

21 SCDT

22 SCSHIFT

23 SCLATCH

27 INIT

19 SOFTMUTE

24 OVF FLAGR

D2

DAMP_LAT1 LAT2

LAT1

SHIFT

SCDT

DAMP_LAT2

1

2

DAMP_SCDT

DAMP_SHIFT

LAT3

71

HP_MUTE HP_MUTE

DAMP_LAT3

68

A.CAL_OUT

INIT

55

58

57

56

DAMP_INIT SOFTMUTE

SOFT_MUTE OVF1

OVERFLOW1 OVF2

OVERFLOW2

54

DRIVER_RST (EN)

67

SD/PVDD_DET

66

DC_DET

34 – 36

OUT_B 31 – 33

DIGITAL POWER AMP

IC3300

8 PWM_A OUT_A

16

7

PWM_B

/RESET

6

/SD

34 – 36

OUT_B 31 – 33

PROTECT DETECT

Q3552 – 3555

DIGITAL POWER AMP

IC3400

16 PWM_B OUT_B

8

7

PWM_A

/RESET

6

/SD

31 – 33

OUT_A 34 – 36

DIGITAL POWER AMP

IC3250

8 PWM_A OUT_A

16

7

PWM_B

/RESET

6

/SD

34 – 36

OUT_B 31 – 33

DIGITAL POWER AMP

IC3500

16 PWM_B OUT_B

8

7

PWM_A

/RESET

6

/SD

31 – 33

OUT_A 34 – 36

L.P.F.

L.P.F.

L.P.F.

L.P.F.

L.P.F.

L.P.F.

L.P.F.

L.P.F.

L.P.F.

L.P.F.

• SIGNAL PATH

: AUDIO

MM001

(FAN)

+

–

TB5300

SPEAKER

FRONT L

+

–

+

–

+

–

+

–

+

–

K

6OUTR1(+)

4OUTR2(–) R-CH

R-CH

R-CH

BCK

LRCK

BCK

LRCK

FAN MOTOR

DRIVE

Q3000 – 3002

25 OVF FLAGL

PHONES

J5001

(HDX589W/HDX686W)

(HDX589W/HDX686W)

HDX285/HDX287WC/

HDX585/HDX587WC/

HDX685

• R-CH is omitted due to same as L-CH.

45

43

41

39

HEADPHONE

AMP

IC3001

MUTING CONTROL

Q3081

MUTING

Q3117, 3119

MUTING

Q3116, 3118

+

–

FRONT R

R-CH

+

–

D3071

D3072

D3073

PLUG_DET2

F

D3552

SUBWOOFER

(Page 29)

(Page 28)

(Page 30)

(Page 32)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

3232

6-5. BLOCK DIAGRAM - PANEL/POWER SUPPLY Section -

POWER CONTROL

IC921

D902 DZ904

D908

D906, 907

D905

Q947

RESET

SYSTEM CONTROLLER

IC503 (5/5)

AMP+32V

RESET

SWITCH

Q501

8CLK

9STB

7DIN

ND5000

FLUORESCENT

INDICATOR

TUBE

GR1 – GR12 SG2 – SG16

42 – 31 15 – 29

5FL_DATA/LED_DATA

7 FL_CLK/LED_CLK

3FL_CS

52 LED LAT

FLUORESCENT INDICATOR

TUBE DRIVER

IC5001

4CLK

5LCK

3DATA

LED DRIVER

IC5100

Q8

Q9

15(ORG)

(GRN) 14

D5104

DISC 1

Q6

Q7

13(ORG)

(GRN) 12

D5103

DISC 2

Q4

Q5

11(ORG)

(GRN) 10

D5102

DISC 3

Q2

Q3

9(ORG)

(GRN) 8

D5101

DISC 4

Q0

Q1

7(ORG)

(GRN) 6

D5100

DISC 5 LED DRIVE

Q5100

LED DRIVE

Q5101

LED DRIVE

Q5102

LED DRIVE

Q5103

LED DRIVE

Q5104

LED DRIVE

Q5105

LED DRIVE

Q5106

LED DRIVE

Q5107

LED DRIVE

Q5108

LED DRIVE

Q5109

KEY0 – KEY2

S5000, 5100, 5101,

S5103 – 5110, 5112, 5400

(FRONT & TOP PANEL KEY)

97, 95, 94

SIRCS_IN

REMOTE CONTROL

RECEIVER

IC5002

4

KEY_INT

73

(AC IN)

F901

LINE FILTER

LF901, 902

RECT

D901

TH901

9D

7VIN

4VCC

1ZC

2FB

POWER CONTROL

IC901

3D

5 FB/OLP

1OCP/

SYNC

4VCC

RIPPLE FILTER

Q922

ISOLATOR

PC902

ISOLATOR

PC901

ISOLATOR

PC903

B+ SWICH

Q901

T903

SUB POWER

TRANSFORMER

T901

MAIN POWER

TRANSFORMER

D910

RECT

D931

RECT

D912

A+12V, M+12V

+9V

POWER ON/OFF

CONTROL

Q943, 949, 950

SHUNT

REGULATOR

IC932

SHUNT

REGULATOR

IC923

ISOLATOR

PC904

+12V

REGULATOR

IC941

RECT

D916

M+9V

AUDIO+5V

+6V

B+ SWITCH

Q945

RECT

D947

+9V

REGULATOR

IC4009

SERVO DSP+1.8V

S-AIR+3.3V

+1.8V

REGULATOR

IC3050

S-AIR RT+3.3V

(HDX287WC/HDX578WC/HDX589W/HDX686W)

(HDX285/HDX585/HDX685)

S-AIR CON+4V

AMP+1.8V

REMOTE CONTROL

VCC

+1.8V

REGULATOR

IC1110

RESET SIGNAL

GENERATOR

IC506

RF+3.3V

DMPORT+5V

+5V

REGULATOR

IC452

+5V

REGULATOR

IC504

+3.3V

REGULATOR

IC5000

+3.3V

REGULATOR

IC800

SW+3.3V

D+3.3V

+3.3V

REGULATOR

IC510

HDMI+3.3V

+3.3V

REGULATOR

IC1708

DAC+3.3V

+3.3V

REGULATOR

IC1105

+3.3V

REGULATOR

IC804

+3.3V

REGULATOR

IC1107

VIDEO AMP +5V

+5V

REGULATOR

IC4003

+5V

REGULATOR

IC507

VFL

FOR FLUORESCENT

INDICATOR TUBE

RECT

D5000, 5001

OSC

Q5000

FL

FL

T5000

DC/DC

CONVERTER

D5006

12

AC_CUT 20

P_CONT3 41

P_CONT1 39

M+14V

ROTARY

ENCOCER

S5113

VOLUME

POWER ON/OFF

CONTROL

Q930

STANDBY

CONTROL

Q921

B+ SWITCH

Q100, 101

LED DRIVE

Q5002

LED DRIVE

Q5001

LED DRIVE

Q5003

LED1

1

LED2

2

LED33

D5003

MOVIE

D5004

MUSIC

D5005

DMPORT

BOOSTER

PS954

DIAG R

DC DETECT

Q502, 503

PS956

F945

RECT

D911

(Page 31)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

3333

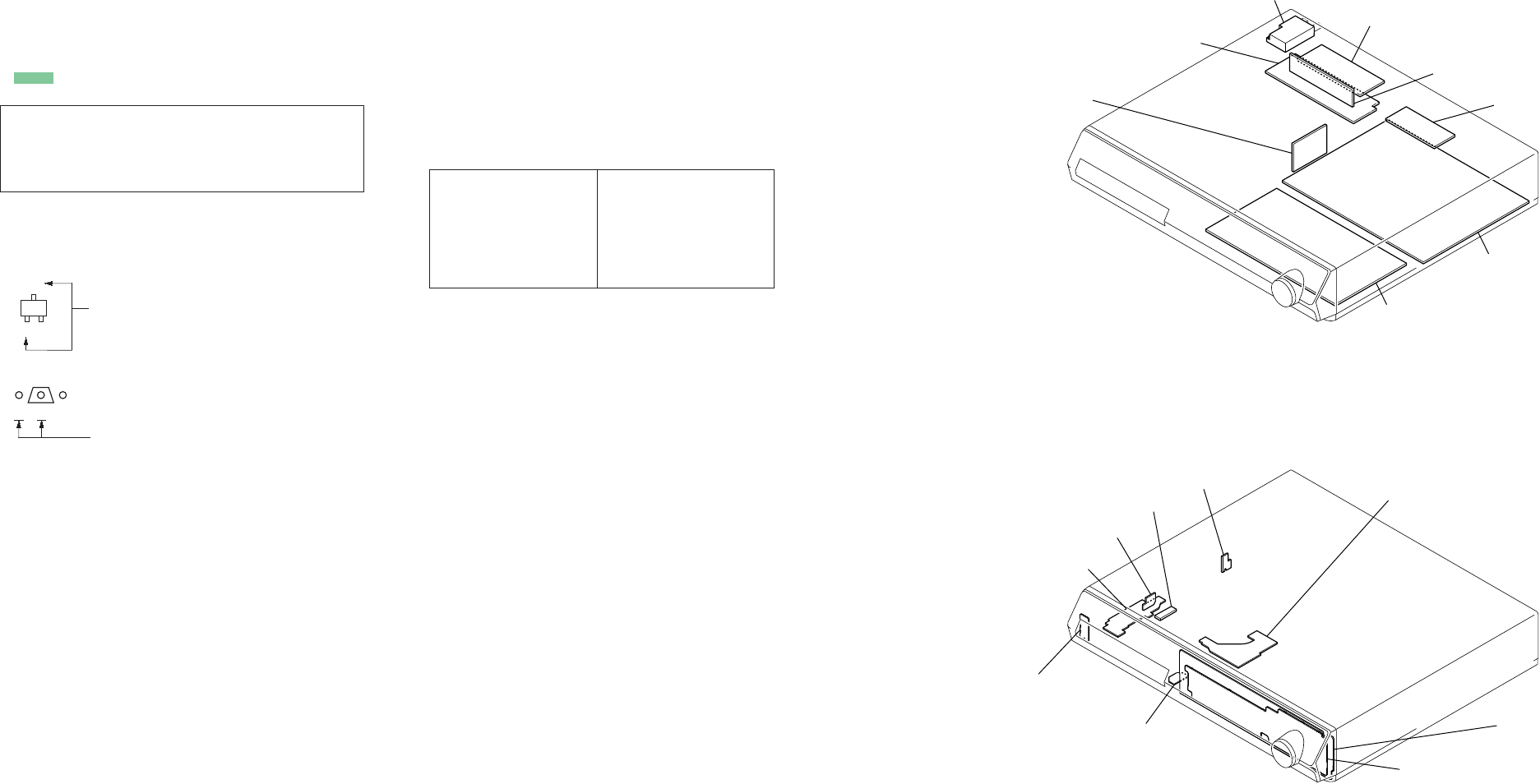

For Schematic Diagrams.

Note:

• All capacitors are in μF unless otherwise noted. (p: pF) 50

WV or less are not indicated except for electrolytics and

tantalums.

• All resistors are in Ω and 1/4 W or less unless otherwise

specifi ed.

• f : internal component.

• 2 : nonfl ammable resistor.

• 5 : fusible resistor.

• C : panel designation.

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.

(In addition to this, the necessary note is printed in each block.)

• A : B+ Line.

• B : B– Line.

• Voltages and waveforms are dc with respect to ground

under no-signal conditions.

no mark

: TUNER

[ ] : DVD PLAY

* : Impossible to measure

• Voltages are taken with VOM (Input impedance 10 MΩ).

Voltage variations may be noted due to normal production

tolerances.

• Waveforms are taken with a oscilloscope.

Voltage variations may be noted due to normal production

tolerances.

• Circled numbers refer to waveforms.

• Signal path.

F : AUDIO

J : CD/DVD PLAY

f : TUNER

i : AUDIO IN

E : VIDEO

• Abbreviation

CND : Canadian model

E3 : 240V AC area in E model

EA : Saudi Arabia model

For Printed Wiring Boards.

Note:

• X : parts extracted from the component side.

• Y : parts extracted from the conductor side.

• f : internal component.

• : Pattern from the side which enables seeing.

(The other layers' patterns are not indicated.)

• Indication of transistor.

C

B

These are omitted.

E

Q

B

These are omitted.

CE

Q

Note:

The components identi-

fi ed by mark 0 or dotted

line with mark 0 are criti-

cal for safety.

Replace only with part

number specifi ed.

Note:

Les composants identifi és

par une marque 0 sont

critiques pour la sécurité.

Ne les remplacer que par

une piéce portant le nu-

méro spécifi é.

Caution:

Pattern face side:

(Conductor Side)

Parts face side:

(Component Side)

Parts on the pattern face side seen from

the pattern face are indicated.

Parts on the parts face side seen from

the parts face are indicated.

• Circuit Boards Location

• MAIN board is multi-layer printed board.

However, the patterns of intermediate layers have not

been included in diagrams.

• Abbreviation

CND : Canadian model

E3 : 240V AC area in E model

EA : Saudi Arabia model

I/O board

TUNER (FM/AM)

KEY board

SERIPARA board SPEAKER board

POWER board

P-SW board

MAIN board

MOTOR board

SW (2) board RELAY board

SW (1) board

SENSOR board

ENCODER board

S-AIR INCLUDE board

(HDX287WC/HDX587WC

/HDX589W/HDX686W)

S-AIR-CON board

(HDX285/HDX585/HDX685)

FL-JACK board

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

3434

6-6. PRINTED WIRING BOARD - MAIN Board (Component Side) - • : Uses unleaded solder.

• See page 33 for Circuit Boards Location.

119

B

E

B

E

D1

G2

S2 G1

D2

S1

24

1

25

48

B

E

BE

B

E

B

E

B

E

B

E

B

E

B

E

BEBEBE

B

E

B

E

1

12

13

48

24

25

3637

B

E

B

E

B

E

B

E

BE BE

B

E

B

E

B

E

B

E

1

24

25

36

37

48

12

13

81

45

1

14

87

B

E

224

123

BE

D1

G2

S2

G1

D2

S1

C1

E1

B1

B2

E2

C2

BE

1

24

25

36

37 48

12

13

1

24

25

36

37 48

12

13

1

24

25

36

37 48

12

13

BE

BE

2

9

1

8

BE

81

45

1

10 11

20

1

2

17

16

BE

1

2

1716

1

4

5

8

144

22 23

144

22 23

144

22 23

144

22 23

144

22 23

144

22 23

144

22 23

1

18

1

2728

54

R400

C3058

R401

R3225

R3031

C3059

CN1701

R3226

R3032

R403

R3227

R3033

R3034

C3250

L451

R3035

R3037

IC3030

C3254

C3060

C1120

R409

Q3251

C1121

Q3252

C1122

C1123

C3258

JL3098

C1124

R3425

R3426

R603

R3427

R410

R604

R605

R3041

Q1701

R606

R412

R3042

R607

R413

R3043

R414

R3044

JL1160

R3045

R3046

C3263

R1107

R3047

R1108

IC1101

R1109

IC1102

C1132

C1133

R610

IC1104

R611

C1135

IC1105

C1136

R613

IC1107

C1137

R614

C1138

R1110

R3050

R615

C1139

R1111

R616

R3052

R1112

R617

R3053

R1113

TP3110

R3054

R1114

L471

R619

R3055

R1115

R1116

R3057

R1117

IC3050

R1118

IC1110

IC3051

C3083

C3084

R3251

Q3081

C3085

R3252

C3086

SL3003

R623

C3087

C1147

SL3004

R624

R3254

C3088

R1120

C1148

SL3005

R625

TP3311

C1725

R1121

SL3006

R627

R3257

C1727

R1123

IC3250

R628

R1124

C1729

R1125

R3067

R3068

C3092

C1152

C3093

C1153

TP3510

C1730

D3071

TP3129

C1731

D3072

C1732

D3073

C1733

C1734

IC1705

IC1707

R3074

TP3130

IC1708

R3075

TP3131

R3076

R1136

TP3136

R3080

R451

R3275

R452

R3276

R1142

R453

R3277

CL304

R454

R3085

R456

R3086

R1146

R457

R3087

R3088

R3089

R460

R3090

R3091

R1151

R462

R3092

R3093 TP3150

R3094

R465

R466

R1156

R3098 R3099

R1159

C1182

C1183

C1184

CN451

C1186

R1160

R471

R1161

R2101

R472

R1162

R473

R1163

R474

R1164

JL3101

R1165

R1742

CL327

R1743

JL3104

R479

C1192

JL3107

R1747

C1193

R1748

C1195

R480

R2110

C1198

R481

R482

R483

CL528

JL3110

R2114

CL529

R2115

R486

JL3112

R1752

R487

JL3113

R488

JL3116

R1758

C451

CN472

C452

C453

R2120

C456

CL343

C457

R1183

CL344

R1184

CL345

CL1201

R1185

R1186

CL348

CL1204

CL349

CL1205

CL1206

CL1207

CL1208

C461

C462

R2130

Q501

R2131

R1192

Q502

Q503

R2136

CL1213

JL451 JL452

JL453

JL454

C3104

Q3101

Q3102

RB1103

RB1104

C3108

RB1105

C476

RB1106

RB1109

C3304

Q3301

Q3302

C3113

C3308

RB1110

RB1111

RB1112

RB1113

RB1114

C3500

RB1115

Q3116

Q3117

Q3118

C3504

Q3119

C3313

C3508

JL471

C3124

C3125

C3126

C3127

C3128

C3129

R3101

R2161

R3102

R2162 C3513

R3104

R3107

R2167

IC3100

R2168

R3301

R3302

R3304

R3307

IC3300

R3501

X1101

R3502

C1203

R3504

C1205

C1206

R3507

IC3500

C1208

C1209

R301 R3125

R302

R3126

R3127

C3920

C1210

C3921

X3051

C1211

R306

C1212

C1213

C3924

R308

C3154

C1214

Q3151

C1215

Q3152

C3158

R3901

R3325

C1219

R3902

R3326

R3327

JL3385

R3905

R505

JL3386

R3906

C1221

R316

TP3002

C1222

R317

C3163

R318

C1224

IC451

R319

TP3005

TP3006

R510

R512

C3553

R514

R1204

Q3551

R516

C3556

Q3552

R1206

R3917

Q3553

R1207

R3918

R1208

Q3554

R3919

IC1201

R1209

Q3555

R327

C1233

R328

TP3015

CN502

R3920

R1210

R3921

R3151

CN506

R3152

R1212

R330

R524

TP3210

R3154

R1214

R525

R1215

R526

R1216

R333

R527

R3157

IC3150

R528

R1219

TP3022

R337

R338

TP3024

IC471

TP3026

TP3410

R1220

R531

TP3029

R1221

R532

R533

R1223

R340

R534

R1224

R535

R1225

R536

R1226

D3552

R537

C308

TP3030

C309

R539

R3552

TP3032

R347

R348

R3554

L3051

TP3229

R3556

TP3036

L3053

C310

R540

R3558

L3054

Q9724

R1230

X301

R1231

R3559

Q9726

R543

R1233

R544

TP3230

Q9728

R351

R3175

TP3231

Q9729

R3176

R3177

C318

R355

C319

R3561

TP3236

R3562

R3563

R359

D9712

C514

C320

C321

C515

L1701

R552

C516

L1702

R553

C517

L1703

R554

R360

L1704

R555

R3185

R3186

R362 C326

R1246

C327

R1247

R364

JL501

JL502

JL503

R368

JL504

C520

R369

JL505

C521

JL506

C522

JL507

C523

JL508

C524

JL509

C525

C526

C333

C527

C334

R370

R564

TP3250

R1254

R371

R372

JL510

R374

R375

JL511

R569

JL512

R376

JL513

JL515

JL516

JL517

R570

JL518

R9924

R571

JL519

R380

R9928

R9929

R577

JL520

JL3010

JL521

JL3011

JL522

R387

JL523

JL3013

JL524

JL3014

JL525

JL3015

JL526

JL3016

JL527

JL3017

C544

JL528

JL3018

R9934

JL529

JL3019

R9935

FB2120

FB2121

R392

FB2122

R394

JL530

JL3020

FB2124

R395

JL531

JL3021

FB2125

CL1101

R396

JL532

JL3022

R397 JL3023

JL3024

R399

JL3025

R9941

CL1105

JL3026

JL3027

JL3028

CL1108

JL3029

R9945

R592

CL1301

R596

C9972

CL1302

R597

CL1303

R598

JL3030

CL1110

CL1304

R599

JL3031

CL1305

JL3032

CL1112

JL3033

CL1113

JL3034

CL1114

D501

JL3035

CL1115

D502

JL3036

CL1116

D503

JL3037

CL1117

C3003

JL3038

CL1118

Q3001

JL3039

Q3002

C3008

C3200

JL3040

CL1121

JL3041

JL3042

JL3043

C3204

JL3044

Q3201

JL3045

Q3202

JL3046

CL1702

JL3047

C3208

JL3048

JL3049

IC303

IC304

C3400

IC307

C3404

JL3050

Q3401

JL3051

Q3402

JL3052

C3213

JL3053

C3408

JL3054

IC501

JL3055

JL3056

IC503

JL3057

IC504

JL3058

IC505

JL3059

IC506

R3001

C3413

JL3060

JL3062

IC3001

R3201

CN1101

R3202

R3204

R3011

R3012

R3207

R3013

IC3200

R3014

R3015

R3017 IC3010

R3401

C1101

R3402

R3404

Q1101

Q1102

R3407

Q1103

IC3400

R3021

R3022

R3023

R3024

CL2101

R3026

CL2102

CL2103

IC3020

C1110

JL3085

C3052

JL3086

C3053 JL3087

C1113

CL2107

CL2108

C3055

CL2109

C3057

1

34

5

1

3

4

5

1

3

13

4

5

164

65

128

129192

193

256

1

34

5

14

58

1

3

4

5

14

58

1

34

5

1

34

5

1

34

5

1

3

46

30

31 50

100 81

1

51

80

M

I/O BOARD

CN4017

F

I/O BOARD

CN4009

H2

FL-JACK

BOARD

CN5001

H1

FL-JACK

BOARD

CN5001

1-878-150- 11

MAIN BOARD (COMPONENT SIDE)

DMPORT

HDMI OUT

(EXCEPT HDX285)

HDX285/HDX287WC/HDX585/

HDX587WC/HDX685

HDX285/HDX287WC/HDX585/

HDX587WC/HDX685

OPTICAL

PICK-UP

BLOCK

KHM-310CAB

OR

KHM-313CAB

(1/2)

A

B

C

D

E

F

G

H

I

1234567891011

(SUFFIX-11) (SUFFIX-12)

Ref. No. Location

• Semiconductor Location

Ref. No. Location

D501 F-3

D502 G-2

D503 G-4

D3071 G-6

D3072 G-6

D3073 G-6

D3552 B-9

D9712 C-6

IC303 F-2

IC304 F-5

IC307 F-6

IC451 B-1

IC471 F-4

IC501 C-7

IC503 G-3

IC504 I-2

IC505 H-2

IC506 H-2

IC1101 C-4

IC1102 C-5

IC1104 B-5

IC1105 C-3

IC1107 D-3

IC1110 B-3

IC1201 E-2

IC1705 B-4

IC1707 B-3

IC1708 B-3

IC3001 G-6

IC3010 F-7

IC3020 E-7

IC3030 D-7

IC3050 G-7

IC3051 F-7

IC3100 H-8

IC3150 G-8

IC3200 F-8

IC3250 F-8

IC3300 E-8

IC3400 D-8

IC3500 C-8

Q501 G-3

Q502 G-7

Q503 H-7

Q1101 D-5

Q1102 E-3

Q1103 D-5

Q1701 B-4

Q3001 C-8

Q3002 C-8

Q3081 H-7

Q3101 G-10

Q3102 G-10

Q3116 I-10

Q3117 H-10

Q3118 I-10

Q3119 H-10

Q3151 G-10

Q3152 G-10

Q3201 F-10

Q3202 F-10

Q3251 D-10

Q3252 D-10

Q3301 E-10

Q3302 E-10

Q3401 E-10

Q3402 F-10

Q3551 B-10

Q3552 B-10

Q3553 B-9

Q3554 B-9

Q3555 B-9

Q9724 C-6

Q9726 C-6

Q9728 C-6

Q9729 C-6

(Page 52)

(Page 52)

(Page 54) (Page 54)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

3535

6-7. PRINTED WIRING BOARD - MAIN Board (Conductor Side) - • : Uses unleaded solder.

• See page 33 for Circuit Boards Location.

Note: IC1103 cannot exchange with single. When this part is

damaged, exchange the entire mounted board.

6

1

5

6

1

5

6

1

5

1

45

8

R402

C3253

C3255

C3256

JL3096

C3257

C1125

C1126

C1127

R3040

R1101

C1129

R1103

CL2120

R415

R609

TP3101

R1105

JL2101

CL2121

R416

TP3102

R1106

JL2102

CL2122

TP3103

JL2103

CL2123

TP3104

C1130

JL2104

CL2124

C3071

JL2105

CL2125

JL2106

CL2126

C3267

IC1103

JL2107

JL2108

JL2109

TP3301

R3051

TP3302

TP3303

TP3304

JL2110

TP3305 JL2111

TP3306

JL2112

R3056

TP3307

JL2113

TP3308

C1140

JL2114

R3059

TP3309

JL2115

CL2135

JL2116

JL2117

CL2137

C1144

JL2118

CL2138

JL2119

CL2139

C1146

R3060

TP3310

C1149

JL2120

CL2140

R629

R3065

JL2121

CL2141

JL2122

JL2123

JL2124

C1151

D4201

D4202

R630

C1154

C1155

R632

C1156

R633

R634

C1158

R635

C1159

R636

R1132

R1133

R1135

D4401

D4402

C1160

C2100

C1161

C1162

C1163

C1164

C1165

R1140

C2108

CL301

C1169

R1141

CL302

CL303

CL305

R455

CL306

CL307

CL308

R458

C1170

CL309

R459

C1171

C1172

C1174

C2114

CL501

C1175

C2115

CL502

C1176

C2116

CL503

C2117

CL310

CL504

C2118

CL311

R461

CL505

C1179

C2119

CL312

CL506

C2502

CL313

R463

CL507

C2503

CL314

R464

CL508

R1730

R1154

CL315

CL509

R3095

R1155

CL316

R3096

CL317

CL318

C1180

CL319

C1181

CL510

CL511 CL512

CL513

CL320

CL514

CL321

CL515

CL322

CL516

CL323

CL517

CL324

CL518

R2104

CL325

CL519

CL326

CL328

C2130

CL329

C1191

CL520

CL521

R1749

CL522

CL523

C1197

CL330

CL524

CL331

CL525

C1199

R1171

CL332

CL526

CL333

CL527

CL334

R1750

CL335

R1751

CL336

R1176

CL337

R1753

CL338

CL339

D4251

D4252

CL530

CL531

CL532

CL533

CL340

R490

CL534

CL341

R491

CL535

CL342

R492

CL536

CL537

CL538

CL539

CL346

CL1202

CL347

CL1203

R499

R2129

CL540

CL541

CL1209

CL542

C463

CL543

CL350

CL544

CL545

R1191

CL546

CL352

C466

CL547

CL353

C467

R1193

CL548

CL1210

CL549

CL1211

CL356

CL1212

CL357

CL358

R1198

CL359

L301

L302

L303

C3103

CL550

JL455

CL551

C3105

JL456

CL552

C3106

CL553

C3107

CL360

CL554

CL361

CL555

CL362

CL556

CL363

CL557

CL364

CL558

CL365

CL559

L501

JL1201

R1781

CL366

L502

JL1202

R1782

CL367

C3303

JL1203

CL368

JL1204

CL369

C3305

JL1205

C3306

JL1206

C3307 JL1207

CL560

JL1208

CL561

JL1209

CL562

CL563

C3117

CL370

CL564

R2150

CL371

CL565

R2151

CL372

CL566

R2152

CL373

CL567

C3503

CL374

CL568

JL1210

CL375

CL569

C3505

JL1211

R2155

CL376

C3506

JL1212

R2156

CL377

C3507

JL1213

R2157

CL378

R2158

CL379

R2159

JL472

C3122

JL473

C3317

C3123

JL474

CL570

JL475

CL571

JL476

CL572

JL477

CL573

CL380

JL478

CL574

R2160

CL381

JL479

CL575

CL382

CL576

CL383

CL577

CL384

CL578

CL385

CL579

CL386

C3322

CL387

C3517

C3323

CL388

JL480

CL389

JL481

C3901

JL482

C3902

JL483

C3903

JL484

C3904

JL485

CL390

CL391

CL392

CL393

CL394

CL395

CL396

CL397

CL398

R2178

CL399

C3911

R2179

C3912

C3913

L3000

C3914

R2180

R2184

R2185

R303

R304

R305R307

C3153

R309

C3155

C3156

C3157

R501

R502

R310

R504

R506

R3907

R508

TP3000

TP3001 FB1106

TP3003

FB1107

TP3004

FB1108

FB1109

IC452

TP3007

C3167

R511

R3911

R3912

R513

R3913

R3914

R515

R1205

FB1111

FB1112

FB1113

FB1115

C3172

FB1116

C3173

FB1117

FB1118

R329

R1213

R331

R332

R334

R335

C303

C305

D3551

R3551

D4301

D4302

R3553

R349

C501

D4111

L3052

D4112

C504

R541

R542

R1232

R350

C508

R1234

C509

R545

D4501

R352

C316

D4502

R353

C317

R354

R548

R1238

R549

C510

C511

C512

C513

R550

R3183

C323

R3184

C518

C325

C519

R363

R557

R365

C329

TP3053

TP3054

R560

R561

R3191

R3192

R563

R9918

FB2101

R373

FB2103

R568

JL3001

JL3002

R377

JL3003

R378

C530

JL3004

JL3005

R379

C531

R9922

R572

R573

C538

C539

R576 R579

R388

R389

D4151

D4152

R581

R582

R583

R584

R585

R393

TP3081

TP3082

JL533

TP3083

JL534

C550

C551

JL535

CL1106

CL1107

C554

R590

R591

CL1109

R594

R595

C3002

CL451

CL452

CL453

CL454

CL455

CL456

CL457

CL458

CL459

C3203

CL1123

C3205

CL1701

C3206

C3012

C3207

C3013

JL1107

CL460

C3014

JL1108

CL461

C3015

JL1109

CL462

C3016

C3017

C3018

C3019

C3403

JL1110

C3405

JL1111

C3406

JL1112

C3407

C3020

C3022

C3217

C3023

C3024

CL471

C3025

C3026

IC507

C3027

C3028

C3029

R3002

R3003

R3004

R3006

FB3107

C3417

IC510

FB3108

C3030

FB3109

C3032

C3033

C3034 C3035

C3036

C3037

C3038

C3039

C3422

C3423

C3040

C1102

C1106

C1108

C1109

CL2104

C3051

C1114

C1115

C1116

C3314

C3315

C3316

C3514

C3515

C3516

C3414

C3415

C3416

C3264

C3265

C3266

C3114

C3115

C3116

C3164

C3165

C3166

C3214

C3215

C3216

1

2EB

L3901

L3902

L3903

L3904

C1177

C1190

EB3001

LP3000

C3551

C3552

C505

C507

CN3000

C3000

C3001

Q3000

C3005

J501

1

6

2

1

4

5

1

9

13

12

12

114

3

C1145

C3090

C3091

C2109

C2110

C1187

EB3002

C455

C464

C465

C468

C471

CN1201

C1217

C1218

C1220

CN303

CN505

CN509

LP501

C304

C311

C313

C314

C315

C528

C529

C532

C536

C537

C540

C552

C553

C3011

ET501

C1105

C1111

C1112

C3054

C3056

14

16

1

3

C1118

C1119

C3081

C3082

LP301

CN904

CN3001

C3021

C3031

CN1105

C1117

L3301

L3501

TB3901

L3201

L3202

L3401

C3561

IC502

L3101

L3102

1

5

3

1

5

3

CN3100

LP3001

CN3200

CN306

C3259

C3262

C3109

C3112

C3309

C3312

C3509

C3512

C3159

C3162

C3209

C3212

C3409

C3412

X501

MAIN BOARD (CONDUCTOR SIDE)

1-878-150- 11

A

SPEAKER

BOARD

CN5301

C

SPEAKER

BOARD

CN5300

B

SPEAKER

BOARD

CN5301

D1

FL-JACK

BOARD

CN5004

D2

FL-JACK

BOARD

CN5004 EPOWER BOARD

CN904 JPOWER BOARD

CN906

K2

S-AIR-CON

BOARD

CN100

G

SERIPARA

BOARD

CN001

L

I/O BOARD

CN4012

K1

S-AIR INCLUDE

BOARD

CN804

(CHASSIS) (CHASSIS)

(CHASSIS)

(CHASSIS)

SPEAKER

CENTER SUBWOOFER

M001

(FAN)

MCOAXIAL

OPTICAL

TV

DIGITAL IN

32

1

(NC)

HDX287WC/HDX587WC/

HDX589W/HDX686W

HDX285/HDX585/

HDX685

OPTICAL

PICK-UP

BLOCK

KHM-310CAB

OR

KHM-313CAB

(2/2)

HDX285/HDX287WC/HDX585/

HDX587WC/HDX685

HDX285/HDX287WC/HDX585/

HDX587WC/HDX685

HDX589W/

HDX686W

(HDX589W/HDX686W)

A

B

C

D

E

F

G

H

I

12345678910 11

(SUFFIX-11)

(SUFFIX-12)

Ref. No. Location

• Semiconductor Location

Ref. No. Location

D3551 C-3

D4111 H-4

D4112 H-4

D4151 G-4

D4152 G-4

D4201 G-4

D4202 F-4

D4251 F-4

D4252 F-4

D4301 E-4

D4302 E-4

D4401 D-4

D4402 D-4

D4501 C-4

D4502 C-4

IC452 C-10

IC502 B-5

IC507 I-7

IC510 H-7

IC1103 C-6

Q3000 B-4

(Page 58)

(Page 58)

(Page 58)

(Page 54)

(Page 54) (Page 60) (Page 60)

(Page 51)

(Page 51)

(Page 49)

(Page 52)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

3636

6-8. SCHEMATIC DIAGRAM - MAIN Board (1/10) - • See page 62 for IC Block Diagrams.

BOARD

(2/10)

MAIN

4

5

MAIN

(3/10)

BOARD

1

(5/10)

MAIN

BOARD

IC B/DIC B/DIC B/D

(4/10)

BOARD

2

MAIN

(5/10)

BOARD

3

MAIN

32.6

16.3

16.3

16.3

16.3

16.3

16.3

32.6

32.6

32.6

32.6

32.6

32.6

32.6

32.6

32.6

27.3

11. 9

3.1

3.3

1.7

1.1

3.3

1.7

11. 9

27.3

11. 9

16.3

3.1

27.3

16.3

1.7

11. 9

16.3

32.6

32.6

16.3

32.6

32.6

32.6

16.3

16.3

27.3

3.2

1

3.3

11. 9

32.6

1.7

32.6

32.6

32.6

32.6

11. 9

16.3

3.1

27.3

16.3

1.7

11. 9

16.3

32.6

32.6

16.3

32.6

32.6

32.6

16.3

16.3

27.3

3.3

1

3.3

11. 9

32.6

1.7

32.6

32.6

32.6

32.6

11. 9

16.216.2

00

16.216.216.2

16.2

0

16.2

0

16.2

3.3

00.6

0

0

3.1

0

0

0.6

0

6.9

7.4

14

0 0.7

0.7 0

0.1

C3308

0.1

C3313

0.1

C3413

C3508

0.1

C3513

0.1 0.1

C3408

16V

47

C3001

35V

100

C3412

35V

C3509

100

35V

C3512

100

35V

100

C3409

35V

100

C3312

35V

100

C3309

0.1

C3002

16V

100

C3000

C3416

2200

35V

C3316

2200

35V

50V

1

C3551

50V

10

C3552

1

C3315

C3514

11

C3314

1

C3414

C3515

11

C3415

R3402

47

R3401

47

47

R3302

47

R3301

100

R3065

1.5k

R3004

1.5k

R3003

R3006

2.2k 10k

R3001

10k

R3002

10k

R3553

100k

R3554

100k

R3551

100k

R3326

100kR3325

100k

R3276

100k

R3275

0R3304

0R3404

R3504 0

47uH

L3000

1

2

2P

CN3000

DC-FAN -

DC-FAN +

2SC3052EF-T1-LEF

Q3002

2SC3052EF-T1-LEF

Q3551

2SC3052EF-T1-LEF

Q3001

JL3060

JL3052

JL3051

JL3050

JL3049

JL3048

JL3047

JL3046

JL3045

JL3020

JL3019

JL3018

JL3017

JL3016

JL3015

JL3014

JL3013

JL3011

JL3010

JL3002

JL3001

TP3004

TP3311

TP3003

TP3000

TP3410

TP3001

TP3510

EN

15kR3407

JL3101

C3516

2200

35V

JL3104

JL3112

JL3098

15kR3307

R3507 15k

JL3086JL3085

JL3096

0

R3044

A12V

R3045

0

R3046

0

0.01

C3071

TP3307

TP3308

TP3309

TP3310

C3904

1000p

C3902

1000p

C3903

1000p

C3901

1000p

0.01

C3914

0.01

C3913 C3912

0.01

C3911

0.01

TP3007

2SC3052EF-T1-LEF

Q3553

C3556

0.1 10k

R3558

4.7k

R3556

22k

R3552

C3553

0.1

2SC3052EF-T1-LEF

Q3552

0

R3901

0

R3902

R3905

0

0

R3906

TP3305

TP3306

0

R3914

0

R3913

0

R3911

0

R3912

R3918 0

R3919 0

R3920 0

R3921 0

RSA39LATE25

D4301

RSA39LATE25

D4302

RSA39LATE25

D4401

RSA39LATE25

D4402

RSA39LATE25

D4501

RSA39LATE25

D4502

E

EB3001

0.1

C3317

0.1

C3417

0.1

C3517

2SC3052EF-T1-LEF

Q3554

2SC3052EF-T1-LEF

Q3555

10k

R3559

47k

R3561

10k

R3562

M-GND

M+14V

100k

R3563

ISA1235AC1TP-1EF

Q3301

ISA1235AC1TP-1EF

Q3252

ISA1235AC1TP-1EF

Q3302

ISA1235AC1TP-1EF

Q3251

L3903

L3901

L3904

L3902

3

2

1

4

10uH

L3301

3

2

1

4

L3401

10uH

3

2

1

4

L3501

10uH

MAZ8150G0LS0

D3552

50V

10

C3005

2SD1388TP-34

Q3000

MC2840-T112-1

D3551

6.3V

47

C3561

DC-DET

SD_PVDD_DET

10

C3304

0.1

C3404

1

44 43 42 41 40 39 38

234567

37 36 35 34 33

89101112

32 31 30 29 28 27

13 14 15 16 17 18 19

26 25 24 23

20 21 22

CXD9936TN

IC3300

NC

NC

BST_A

GVDD_A

/OTW

/SD

/RESET

PWM_A

OC_ADJ

GND

AGND

VREG

M3

M2

M1

PWM_B

VDD

GND

GVDD_B

BST_B

NC

NC

PVDD_B

PVDD_B

PVDD_B

PVDD_B

PVDD_B

PGND

PGND

PGND

OUT_B

OUT_B

OUT_B

OUT_A

OUT_A

OUT_A

PGND

PGND

PGND

PVDD_A

PVDD_A

PVDD_A

PVDD_A

PVDD_A

1

44 43 42 41 40 39 38

234567

37 36 35 34 33

89101112

32 31 30 29 28 27

13 14 15 16 17 18 19

26 25 24 23

20 21 22

CXD9936TN

IC3500

NC

NC

BST_A

GVDD_A

/OTW

/SD

/RESET

PWM_A

OC_ADJ

GND

AGND

VREG

M3

M2

M1

PWM_B

VDD

GND

GVDD_B

BST_B

NC

NC

PVDD_B

PVDD_B

PVDD_B

PVDD_B

PVDD_B

PGND

PGND

PGND

OUT_B

OUT_B

OUT_B

OUT_A

OUT_A

OUT_A

PGND

PGND

PGND

PVDD_A

PVDD_A

PVDD_A

PVDD_A

PVDD_A

1

44 43 42 41 40 39 38

234567

37 36 35 34 33

89101112

32 31 30 29 28 27

13 14 15 16 17 18 19

26 25 24 23

20 21 22

CXD9936TN

IC3400

NC

NC

BST_A

GVDD_A

/OTW

/SD

/RESET

PWM_A

OC_ADJ

GND

AGND

VREG

M3

M2

M1

PWM_B

VDD

GND

GVDD_B

BST_B

NC

NC

PVDD_B

PVDD_B

PVDD_B

PVDD_B

PVDD_B

PGND

PGND

PGND

OUT_B

OUT_B

OUT_B

OUT_A

OUT_A

OUT_A

PGND

PGND

PGND

PVDD_A

PVDD_A

PVDD_A

PVDD_A

PVDD_A

0.033

C3306

0.033

C3406

C3506

0.033

C3507

0.033 0.033

C3407 0.033

C3307

C3504 0.1

C3503

0.1

C3500

0.1

C3505

0.1

C3400

0.1 0.1

C3405

0.1

C3403

1

C3305C3924

10

1

C3303

100k

R3327

C3128

2.2

100k

R3277

10

C3129

M-GND

A12V

R3907

0

R3501

47

R3502

47

IC3500 IC3400 IC3300

DIGITAL POWER AMP

M

(FAN)

M001

2

3

4

5

6

7

9

11

13

12

8

10

MAIN BOARD (1/10)

Q3552-3555

PROTECT DETECT

DC DETECT

FAN MOTOR DRIVE

Q3000-3002

(CHASSIS)

(CHASSIS)

SPEAKER

SUBWOOFER

CENTER

TB3901

DIGITAL POWER AMPDIGITAL POWER AMP

Q3251, 3252, 3301, 3302

OVER LOAD DETECT

J

4

B

166911

D

15

H

10

K

1735 12

C

F

181

E

8

G

14

A

213

I

7

-

-

+

+

(Page 40)

(Page 39)

(Page 40)

(Page 37)

(Page 38)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

3737

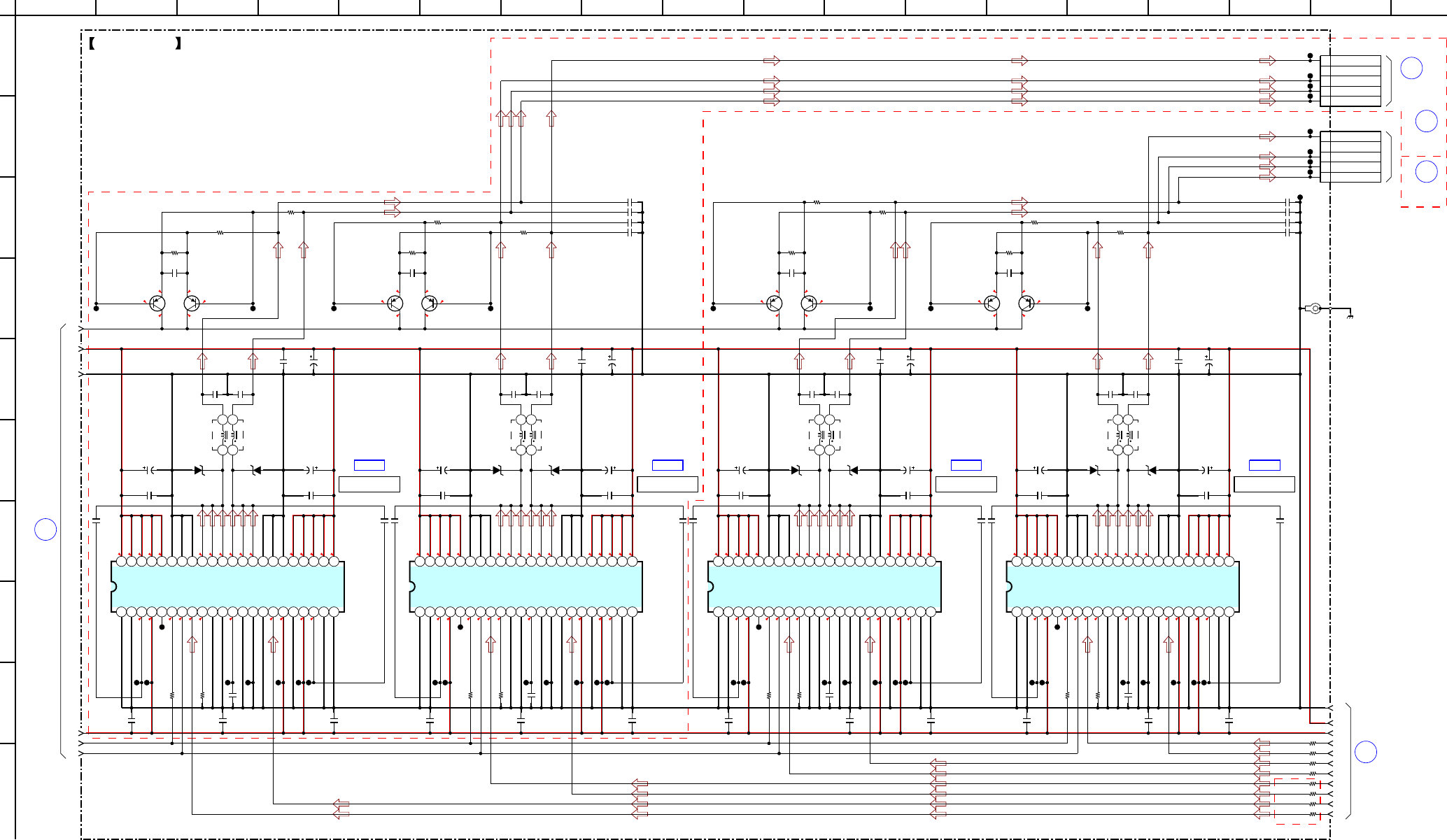

6-9. SCHEMATIC DIAGRAM - MAIN Board (2/10) - • See page 62 for IC Block Diagrams.

CN5301

SPEAKER

A

BOARD

4

MAIN

(1/10)

BOARD

6

MAIN

(3/10)

BOARD

IC B/D IC B/D IC B/D IC B/D

B

CN5301

SPEAKER

BOARD

SPEAKER

C

BOARD

CN5300

11.9

27.3

11.9

1.7

3.3

1.1

1.7

3.3

3.1

11.9

27.3

32.6

32.6

32.6

32.6

32.6

32.6

32.6

32.6

32.6

16.3

16.3

16.3

16.3

16.3

16.3

32.6

11.9

27.3

11.9

1.7

3.3

1.1

1.7

3.3

3.1

11.9

27.3

32.6

32.6

32.6

32.6

32.6

32.6

32.6

32.6

32.6

16.3

16.3

16.3

16.3

16.3

16.3

32.6

11.9

27.3

11.9

1.7

3.3

1.1

1.7

3.3

3.1

11.9

27.3

32.6

32.6

32.6

32.6

32.6

32.6

32.6

32.6

32.6

16.3

16.3

16.3

16.3

16.3

16.3

32.6

11.9

27.3

11.9

1.7

3.2

1

1.7

3.3

3.1

11.9

27.3

32.6

32.6

32.6

32.6

32.6

32.6

32.6

32.6

32.6

16.3

16.3

16.3

16.3

16.3

16.3

32.6

16.2

16.2

0

16.2

0

16.2

16.2

16.2

0

16.2

0

16.2

16.2

16.2

0

16.2

0

16.2

16.2

16.2

0

16.2

0

16.2

0.1

C3163

0.1

C3208

0.1

C3263

0.1

C3258

0.1

C3108

0.1

C3213

0.1

C3158

35V

100

C3212

35V

100

C3159

35V

100

C3259

35V

100

C3162

35V

100

C3109

35V

100

C3209

35V

100

C3112

35V

100

C3262

C3216

2200

35V

C3266

2200

35V

C3166

2200

35V

1

C3114

1

C3115

1

C3164

1

C3264

1

C3165

1

C3265

1

C3215

1

C3214

1000pC3123

1000p

C3423

1000pC3122

1000pC3172

1000pC3422

1000pC3173

47

R3102

47

R3252

47

R3251

47

R3202

47

R3201

R3152 47

R3151 47

47R3101

15kR3157

100k

R3226

100k

R3426

100kR3425 100kR3125

100k

R3225 R3176

100k

R3175

100k

100k

R3126

0

R3104

0

R3154

0R3204

0R3254

C3113

0.1

C3116

2200

35V

JL3059 JL3058

JL3057

JL3056 JL3055 JL3054 JL3053

JL3044

JL3043

JL3042

JL3041

JL3040

JL3039

JL3038

JL3037

JL3036

JL3035

JL3034

JL3033

JL3032

JL3031

JL3030

JL3029

JL3028

JL3027

JL3026

JL3025

JL3024

JL3023

JL3022

JL3021

TP3301

TP3102

TP3103

TP3304

TP3302

TP3250

TP3101

TP3303

TP3110

TP3150

TP3210

TP3104

JL3107

JL3110

JL3113

JL3116

15kR3257

15kR3207

15kR3107

1000pC3323

JL3087

1000p

C3322

RSA39LATE25

D4 111

RSA39LATE25

D4112

RSA39LATE25

D4151

RSA39LATE25

D4152

RSA39LATE25

D4201

RSA39LATE25

D4202

RSA39LATE25

D4251

RSA39LATE25

D4252

E

EB3002

0.1

C3117

0.1

C3167

0.1

C3217

0.1

C3267

ISA1235AC1TP-1EF

Q3152

ISA1235AC1TP-1EF

Q3101

ISA1235AC1TP-1EF

Q3151

ISA1235AC1TP-1EF

Q3102

ISA1235AC1TP-1EF

Q3201

ISA1235AC1TP-1EF

Q3402

ISA1235AC1TP-1EF

Q3202

ISA1235AC1TP-1EF

Q3401

3

2

1

4

10uH

L3101

3

2

1

4

10uH

L3102

3

2

1

4

10uH

L3201

3

2

1

4

10uH

L3202

10

C3154

1

44 43 42 41 40 39 38

234567

37 36 35 34 33

89101112

32 31 30 29 28 27

13 14 15 16 17 18 19

26 25 24 23

20 21 22

CXD9936TN

IC3100

NC

NC

BST_A

GVDD_A

/OTW

/SD

/RESET

PWM_A

OC_ADJ

GND

AGND

VREG

M3

M2

M1

PWM_B

VDD

GND

GVDD_B

BST_B

NC

NC

PVDD_B

PVDD_B

PVDD_B

PVDD_B

PVDD_B

PGND

PGND

PGND

OUT_B

OUT_B

OUT_B

OUT_A

OUT_A

OUT_A

PGND

PGND

PGND

PVDD_A

PVDD_A

PVDD_A

PVDD_A

PVDD_A

1

44 43 42 41 40 39 38

234567

37 36 35 34 33

89101112

32 31 30 29 28 27

13 14 15 16 17 18 19

26 25 24 23

20 21 22

CXD9936TN

IC3250

NC

NC

BST_A

GVDD_A

/OTW

/SD

/RESET

PWM_A

OC_ADJ

GND

AGND

VREG

M3

M2

M1

PWM_B

VDD

GND

GVDD_B

BST_B

NC

NC

PVDD_B

PVDD_B

PVDD_B

PVDD_B

PVDD_B

PGND

PGND

PGND

OUT_B

OUT_B

OUT_B

OUT_A

OUT_A

OUT_A

PGND

PGND

PGND

PVDD_A

PVDD_A

PVDD_A

PVDD_A

PVDD_A

1

44 43 42 41 40 39 38

234567

37 36 35 34 33

89101112

32 31 30 29 28 27

13 14 15 16 17 18 19

26 25 24 23

20 21 22

CXD9936TN

IC3200

NC

NC

BST_A

GVDD_A

/OTW

/SD

/RESET

PWM_A

OC_ADJ

GND

AGND

VREG

M3

M2

M1

PWM_B

VDD

GND

GVDD_B

BST_B

NC

NC

PVDD_B

PVDD_B

PVDD_B

PVDD_B

PVDD_B

PGND

PGND

PGND

OUT_B

OUT_B

OUT_B

OUT_A

OUT_A

OUT_A

PGND

PGND

PGND

PVDD_A

PVDD_A

PVDD_A

PVDD_A

PVDD_A

1

44 43 42 41 40 39 38

234567

37 36 35 34 33

89101112

32 31 30 29 28 27

13 14 15 16 17 18 19

26 25 24 23

20 21 22

CXD9936TN

IC3150

NC

NC

BST_A

GVDD_A

/OTW

/SD

/RESET

PWM_A

OC_ADJ

GND

AGND

VREG

M3

M2

M1

PWM_B

VDD

GND

GVDD_B

BST_B

NC

NC

PVDD_B

PVDD_B

PVDD_B

PVDD_B

PVDD_B

PGND

PGND

PGND

OUT_B

OUT_B

OUT_B

OUT_A

OUT_A

OUT_A

PGND

PGND

PGND

PVDD_A

PVDD_A

PVDD_A

PVDD_A

PVDD_A

0.033

C3107

0.033

C3207

0.033

C3257

0.033

C3106

0.033

C3206

0.033

C3256

0.033

C3156

0.033

C3157

10

C3104

C3254 0.1

C3204 0.1

JL3005

C3253

0.1

C3255

0.1

C3250

0.1

C3203

0.1

C3205

0.1

C3200

0.1

C3921

10

1

C3153

1

C3155 C3920

10

1

C3103

1

C3105

C3124

2.2

100k

R3127

100k

R3177

C3125

2.2

100k

R3427

C3126

2.2

100k

R3227

C3127

2.2

IC3250 IC3200 IC3150 IC3100

(CHASSIS)

2

4

3

6

7

5

17

15

18

16

21

19

22

20

24

23

25

MAIN BOARD (2/10)

DIGITAL POWER AMP DIGITAL POWER AMP DIGITAL POWER AMP DIGITAL POWER AMP

SR +

5P

4

NC

1

2

5

CN3200

3 SR -

SL +

SL -

FL -

FR -

5P

FR +

2

1

NC

4

FL +

3

CN3100

5

OVER LOAD DETECT

Q3101, 3102, 3151, 3152Q3201, 3202, 3401, 3402

OVER LOAD DETECT

(HDX285/HDX287WC/HDX585/HDX587WC/HDX685)

(HDX285/HDX287WC/HDX585/HDX587WC/HDX685)

(HDX589W/HDX686W)

J

4

B

166911

D

15

H

10 1735 12

C

F

181

E

8

G

14

A

213

I

7

(Page 36)

(Page 58)

(Page 58)

(Page 58)

(Page 38)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

3838

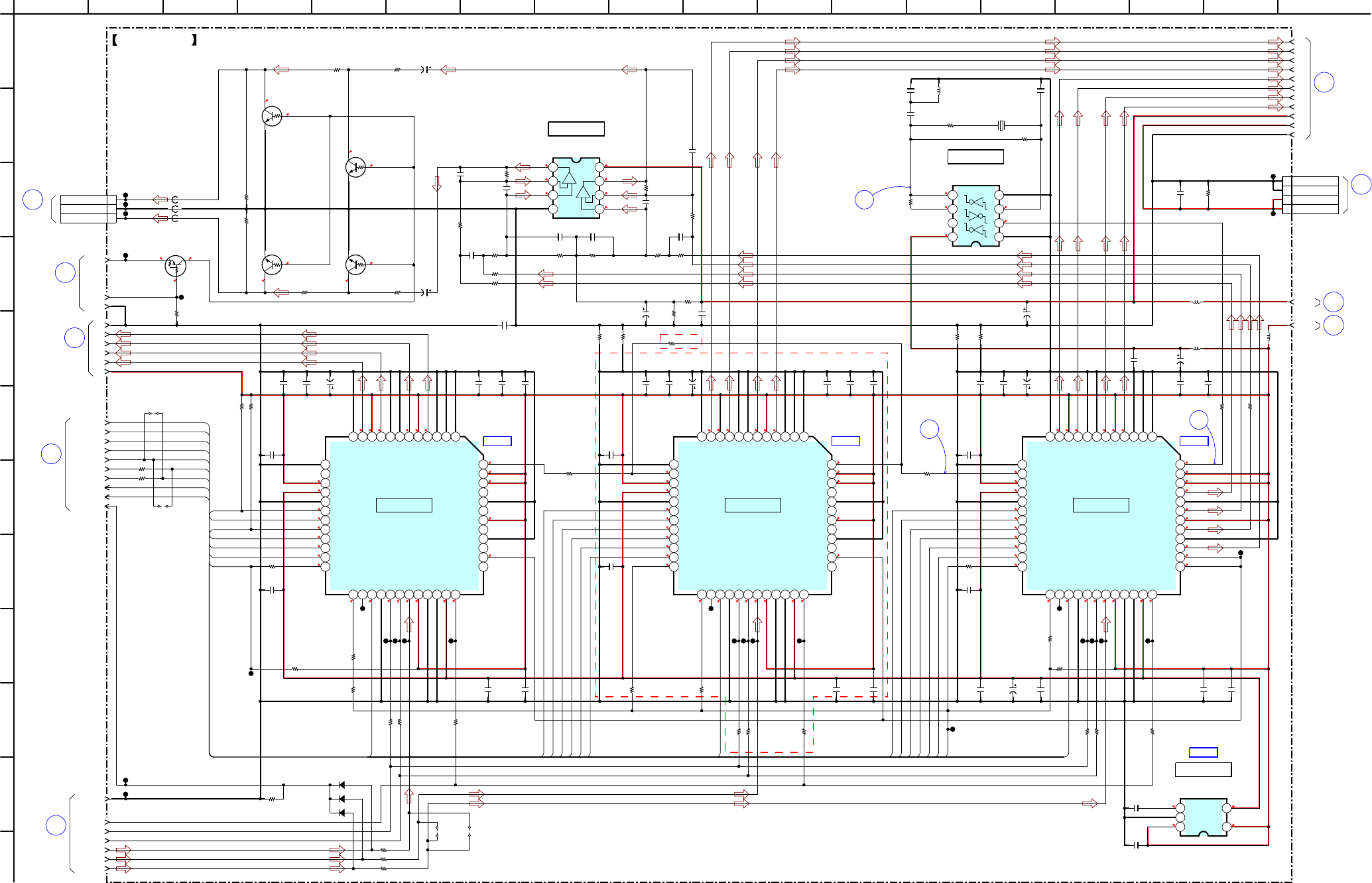

6-10. SCHEMATIC DIAGRAM - MAIN Board (3/10) - • See page 59 for Waveforms. • See page 62 for IC Block Diagrams.

BOARD

CN5004

D

FL-JACK

BOARD

CN904

E

POWER

5

MAIN

(1/10)

BOARD

6

MAIN

(2/10)

BOARD

1

32

7

BOARD

(5/10)

MAIN

8

BOARD

(5/10)

MAIN

IC B/DIC B/DIC B/D

IC B/D

(4/10)

MAIN

BOARD

10

(5/10)

MAIN

BOARD

11

(6/10)

BOARD

MAIN

9

0

3.3

0

3.3

3.33.3

3.33.3

000

6.7 11.9

6.7

4.2

4.2

4.2

4.2 1.7

1.7

3.3

∗

1.7

1.7

3.3

1.7

1.7

1.7

3.3

1.7

1.7

1.7

3.3

3.3

1.7

1.7

1.7

1.7

3.3

3.3

1.7

3.3

1.8

0

3.3

3.3

0

0

3.3

3.3

1.8

3.3

3.3

0

3.3

0

0

3.3

3.3

1.7 1.7

1.8

0

0

3.3

3.3

3.3

3.3

3.3

0

1.7

3.3

3.3

3.3

1.7

1.7

3.3

1.7

3.3

3.3

1.7

3.3

3.3

3.3

1.7

1.7

1.7

1.7

1.7

1.7

3.3

1.7

0.6

3.3

1.7

1.7

1.8

3.4

1.7

3.3

1.3

1.7

1.8

3.3

1.7

3.4

1.7

3.3

1.3

1.7

1.8

3.3

1.7

3.4

1.3

3.3

1.8

3.3

10V

100

C3090

16V

C3021

47

16V

56

C3031

16V

56

C3011

0.1

C3051

10V

220

C3056

10V

100

C3054

16V

220

C3091

5p

C3058

100p

C3083

100p

C3087

100p

C3088

1000p

C3003

100p

C3085

100p

C3086

100p

C3084

0.1

C3053

1000p

C3059

1

C3055

0.01

C3057

0.1

C3018

0.1

C3040

0.1

C3039

0.1

C3038

0.1

C3037

0.1

C3036

0.1

C3035

0.1

C3034

0.1

C3033

0.1

C3032

0.1

C3030

0.1

C3012

0.1

C3028

0.1

C3027

0.1

C3026

0.1

C3023

0.1

C3022

0.1

C3020

0.1

C3019

0.1

C3017

0.1

C3016

0.1

C3015

0.1

C3014

0.1

C3029

0.1

C3025

0.1

C3024

0.1

C3013

47

R3054

47R3076

47R3075

∗

R3057

47

R3055

100

R3053

100

R3037

47R3035

22

R3034

100

R3026

47R3024

22R3023

100

R3017

47R3015

22

R3014

470

R3012

470

R3011

470

R3032

470

R3031

470

R3021

470

R3022

10k

R3033

10kR3059

10k

R3060

22kR3091

22k

R3092

22k

R3093

22k

R3094

33k

R3085

33k

R3086

R3080

100k

1M

R3052

1uH

L3054

5

43

2

1

TK11118CSCL-G

IC3050

CONT

GND

NP VOUT

VIN

RT1P141C-TP-1

Q3081

8

7

6

54

3

2

1

NJM4565M(TE2)

IC3001

C3060

10p

JL3062

JL3004

JL3003

TP3006

TP3083

TP3082

TP3054

TP3030

TP3005

TP3022

TP3053

TP3015

TP3236

TP3032

TP3002

TP3081

TP3136

TP3024

TP3036

TP3026

NS_INIT

SOFT_MUTE

SCDT

SHIFT

LAT1

LAT2

LAT3

HPMUTE

D-GND

AMP_D1

AMP_D2

AMP_D3

AMP_BCKO

AMP_LRCKO

AMP_MCKO

D3.3V

A12V

E3.3V

1

C3052

0

R3041

0

R3042

0

R3040

0

R3043

TP3029

TP3131

TP3130

TP3129

TP3231

TP3230

TP3229

R3074 47

0

R3917

100p

C3092

100p

C3093

10k

R3087

10k

R3088

10k

R3090

10k

R3089

33k

R3099

33k

R3098

4.7k

R3096

100k

R3051

10V

220

C3082

10V

220

C3081

C3008

0.1

1

2

3

4

4P

CN904

P-GND

P-GND

PVDD

PVDD

123456789101112

13

14

15

16

17

18

19

20

21

22

23

24

25 26 27 28 29 30 31 32 33 34 35 36

37

38

39

40

41

42

43

44

45

46

47

48

CXD9788AR

IC3010

XVSS

VSUBC

VSSR

OUTR2(-)

VDDR

OUTR1(+)

VSSR

VSSL

OUTL2(-)

VDDL

OUTL1(+)

VSSL

XOVSS

XFSOOUT

XOVDD

DVDD

DVSS

NSPMUTE

SOFTMUTE

PGMUTE

SCDT

SCSHIFT

SCLATCH

OVF FLAGR

OVF FLAGL

SFLAG

INIT

MCKSEL

LRCK

BCK

DATA

BFVDD

BFVSS

TEST

DVDD

XFSIIN

FSOCKO

FSOI

HPOUTR2

HPVSSR

HPOUTR1

HPVDDR

HPOUTL2

HPVSSL

HPOUTL1

HPVDDL

XVDD

XFSOIN

123456789101112

13

14

15

16

17

18

19

20

21

22

23

24

25 26 27 28 29 30 31 32 33 34 35 36

37

38

39

40

41

42

43

44

45

46

47

48

CXD9788AR

IC3020

XVSS

VSUBC

VSSR

OUTR2(-)

VDDR

OUTR1(+)

VSSR

VSSL

OUTL2(-)

VDDL

OUTL1(+)

VSSL

XOVSS

XFSOOUT

XOVDD

DVDD

DVSS

NSPMUTE

SOFTMUTE

PGMUTE

SCDT

SCSHIFT

SCLATCH

OVF FLAGR

OVF FLAGL

SFLAG

INIT

MCKSEL

LRCK

BCK

DATA

BFVDD

BFVSS

TEST

DVDD

XFSIIN

FSOCKO

FSOI

HPOUTR2

HPVSSR

HPOUTR1

HPVDDR

HPOUTL2

HPVSSL

HPOUTL1

HPVDDL

XVDD

XFSOIN

123456789101112

13

14

15

16

17

18

19

20

21

22

23

24

25 26 27 28 29 30 31 32 33 34 35 36

37

38

39

40

41

42

43

44

45

46

47

48

CXD9788AR

IC3030

XVSS

VSUBC

VSSR

OUTR2(-)

VDDR

OUTR1(+)

VSSR

VSSL

OUTL2(-)

VDDL

OUTL1(+)

VSSL

XOVSS

XFSOOUT

XOVDD

DVDD

DVSS

NSPMUTE

SOFTMUTE

PGMUTE

SCDT

SCSHIFT

SCLATCH

OVF FLAGR

OVF FLAGL

SFLAG

INIT

MCKSEL

LRCK

BCK

DATA

BFVDD

BFVSS

TEST

DVDD

XFSIIN

FSOCKO

FSOI

HPOUTR2

HPVSSR

HPOUTR1

HPVDDR

HPOUTL2

HPVSSL

HPOUTL1

HPVDDL

XVDD

XFSOIN

R3056 010uH

L3053 10uH

L3051

L3052

10uH

MA2J1110GLS0

D3072

MA2J1110GLS0

D3073

MA2J1110GLS0

D3071

8

7

6

54

3

2

1

TC7WHU04FK(T5RSOYF

IC3051

1A

3Y

2A

GND

2Y

3A

1Y

VCC

0

R3050

D-GND R3047

10k

R3192

47

R3191

47

RTAN430C-T112A-1

Q3117

FB3109 R3184

4.7k

RTAN430C-T112A-1

Q3118

R3183

4.7k

R3186

22

RTAN430C-T112A-1

Q3116

RTAN430C-T112A-1

Q3119

FB3108

FB3107

R3185

22

49.1MHz

X3051

0R3068

0R3067

A.CAL_OUT

OVF2

OVF1

1

2

3

3P

CN3001

HP-R

GND

HP-L

3.3k

R3095

10k

R3013

SCDT

PGMUTE

NS_INIT

SOFT_MUTE

SHIFT

SCDT

PGMUTE

SHIFT

LAT1

SOFT_MUTE

NS_INIT

NS_INIT

SOLATCH2

NSPMUTE

NSPMUTE

OVF2

OVF1

SHIFT

SCDT

SOFT_MUTE

NS_INIT

SOLATCH2

SOLATCH3

SOLATCH3

OVF2

OVF1

LAT1

NSPMUTE

SOFT_MUTE

PGMUTE

SCDT

SHIFT

-

-

+

+

13

8

9

10

11

12

25

15

16

17

18

19

20

21

22

23

24

STREAM PROCESSOR

IC3030 IC3020 IC3010

IC3051

OSC BUFFER

IC3001

HEADPHONE AMP

MAIN BOARD (3/10)

+1.8V REGULATOR

IC3050

SL3003

SL3004

SL3006 SL3005

GND

VCC

MUTING

MUTING

MUTINGMUTING

MUTING CONTROL

STREAM PROCESSOR STREAM PROCESSOR

47 (HDX285/HDX287WC/HDX585/HDX587WC/HDX685)

∗R3057

0 (HDX589W/HDX686W)

J

4

B

166911

D

15

H

L

10

K

1735 12

C

F

181

E

8

G

14

A

213

I

7

(HDX285/HDX287WC/HDX585/HDX587WC/HDX685)

(HDX589W/HDX686W)

(Page 55)

(Page 40)

(Page 36)

(Page 40)

(Page 41)

(Page 37)

(Page 61)

(Page 39)

(Page 40)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

3939

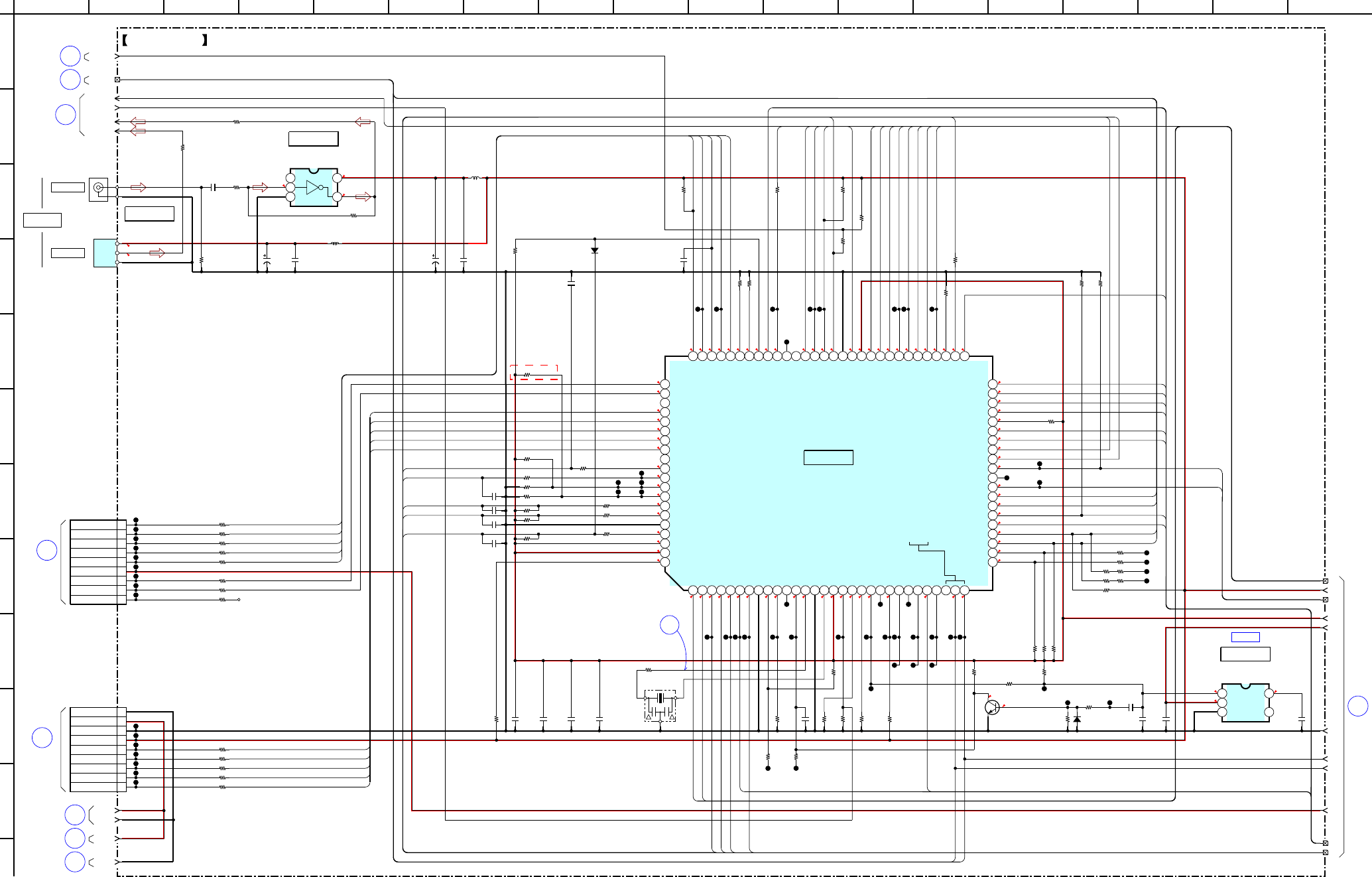

6-11. SCHEMATIC DIAGRAM - MAIN Board (4/10) - • See page 59 for Waveforms. • See page 62 for IC Block Diagrams. • See page 70 for IC Pin Function Description.

BOARD

MAIN

(5/10)

16

BOARD

SERIPARA

CN001

G

BOARD

I/O

CN4009

F

4

(10/10)

BOARD

13

MAIN

(6/10)

BOARD

14

MAIN

(6/10)

BOARD

12

MAIN

10

BOARD

(3/10)

MAIN

15

BOARD

(9/10)

MAIN

2

BOARD

(1/10)

MAIN

IC B/D

3.3

0.2

1.7

3.3

1.7

3.3

3.3

3.3

3.3

3.3

0

0

0

0

0

2.3

3.3

2.2

3.3

3.3

3.3

3.3

3.3

0

2.9

3.3

0

0

0

3.1

3.3

0

2.4

3.1

3.3

1.7

3.3 [0]

3.3

3.3

3.3

3.3

0

3.3

3.3

3.3

3.3

3.3

0

0

0

0

3.3

0

0.1

0.1

3.5

3.3

3.3

0

1.8

1.5

3.3

3.3

0

0

3.3

3.3

3.3

3.3

0

2.5

3.3

0.1

∗

3.3

3.3

3.3

0

0

3.2

3.3

3.3 [0]

∗

0

3.3

3.3

3.3

3.3

3.3

3.3

0

03.3

4.1

0.01

C509

R510 100

100

R511

100

R512

100

R513

100

R514

100

R515

R516 100

R531 ∗

R548

10k

R550 10k

R585

10k

10kR572

R549 10k

C510

0.01

R536 ∗

JL532

JL529

JL518

CL505

CL508

CL507

CL503

CL506

CL509

CL511

CL528

CL504

CL510

CL529

R508 100

S-AIR

0.1

C519

0R564

5MHz

X501

0.1

C518

47k

R597

JL531

47k

R582

2SC3052EF-T1-LEF

Q501

JL530

100k

R596

47k

R598

0.22

C523

10k

R599

0.01

C524

0.1

C525

10k

R577

0.1

C517

1k

R533

1k

R534

1kR543

10k

R545

0.01

C512

0.1

C513

0.1

C515

0.1

C511

0.1

C514

10k

R541

0

R594

10k

R591

JL516

R539

10k

R579 4.7k

R581

4.7k

10k

R563

1M

R537

JL517

JL519

R576

100

1kR544

1kR540

CL526

CL527

JL501

L502

10uH

R506

100

16V

C505

100

R502

75

R501

470

J501

16V

C507

100

L501

10uH

5

43

2

1

TC7SHU04FU(T5RSOJF)

IC501

R504

47k

R505

100

VCC

OUT

GND

TORX147L

IC502

1

2

3C508

0.1

C504

0.1

C501

0.1

10k

R557

4.7k

R560

R573

0

COAX-IN

M_ST

OPT-IN

10k

R542

MA2J1110GLS0

D502

DMP_DET

R595 0

R592 10k

0.022

C527

JL509

JL510

JL511

JL508

JL507

A12V

CL519

CL524

R526 100

M-GND

R527 100

CL522

CL525

CL521

R525 100

CL523

CL520

R528 100

R524 100

10kR568

1

2

3

4

5

6

7

8

9

9P

CN505

M-GND

M+12V

D-GND

D3.3V

IORST

IOCE

IOCLK

IODO

IODI

JL506

JL520

JL525

JL527

JL524

JL523

JL522

JL521

JL515

JL513

JL512

JL505

JL504

JL503

JL502

JL526

JL528

R632 10k

10kR633

10kR634

10kR635

R590

47k

1

2

3

4

5

6

7

8

9

9P

CN502

TV_SEL

V_SEL1

V_SEL0

A12V

ST_DI/MIC_DATA

ST_CE

ST_DO

ST_CLK/MIC_CLK

TUNED

5

43

2

1

S-80935CNMC-G85T2G

IC506

OUT

VDD

GND NC

Cd

MA2J1110GLS0

D501

47p

C554

R636 10k

1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627282930

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

515253545556575859606162636465666768697071727374757677787980

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

IC503

R5F3640DDFAR

DAMP_SCDT

DAMP_SHIFT

FL_CS

SIRCS_IN

FL_DATA/LED_DATA

CEC_RX_IN

FL_CLK/LED_CLK

BYTE

CNVss

DIR_ERROR

DIR_RST

RESET

Xout

Vss

Xin

Vcc

DIR_XSTATE

DIR_ZERO

DIR_CSFLAG

AC_CUT

DSP_SF_CE

DSP_MISO

DSP_SPICLK

DSP_MOSI

DSP_SPIDS

CEC_TX_OUT

DSP_RESET

LED_PWM

E2P_CLK/S-AIR_CLK

E2P_SDA/S-AIR_SDA

TXD1

RXD1

S-AIR_GPIO2/CLK1

S-AIR_DET/RST1

DMP_TX_OUT

DMP_RX_IN

S-AIR_RST

S-AIR_ADC_SEL

P_CONT1

P_CONT2

P_CONT3

DC_CONT

MIC_GAIN

CDM_OPEN_SW

DVD_RST

WRITE CE

DVD_SDI

DVD_SDO

DVD_SCO

XIFBUSY

DVD_

DVD_XIFCS

LED LAT

KMODE

DRIVER_RST(EN)

OVERFLOW1

OVERFLOW2

DAMP_INIT

SOFT_MUTE

DAMP_LAT1

DAMP_LAT2

DAMP_LAT3

Vcc

LINK_SW

Vss

JACK1/JACK2/DMP_DET

DC_DET

SD/PVDD_DET

A.CAL_OUT

SACD_SEL

DIR_HCE

HP_MUTE

HDMI_PCONT

KEY_INT

RDS_DATA

RDS_CLK

ST_CE

ST_DI

ST_DO

ST_CLK

TUNED

V_SEL0

V_SEL1

V_SEL2

IO_CE

IO_RESET

IO_DI

IO_DO

IO_CLK

ASEL5

MONO/ST_DET

A.CAL MIC LEVEL

DESTINATION

MODEL

KEY2

KEY1

Vss

KEY0

Vref

Vcc

DIR_

HDOUT

CL387

CL389

CL390

CL392

CL391

CL396

∗

R535

R532 ∗

M-GND

A12V

SIRCS

TUNED

ST_DI

ST_CE

ST_DO

ST_CLK

DIR-XSTATE

M_ST

IODI

DMP_TXD

XSYSRST

IFSDI

IFSCK

XIFBSY

XIFCS

OVF1

LAT1

LAT2

LED_LAT

IORST

IOCE

IOCLK

IODO

IODI

CEC_TX_OUT

S-AIR_RST

DC_CONT

MIC_GAIN

OCSW1SIG

TUNED

HPMUTE

SHIFT

SCDT

CEC_RX_IN

FL_CS

S-AIR_SDA

FL_DATA

OVF2

HDMI_PCONT

SOFT_MUTE

EN

A.CAL_OUT

NS_INIT

JACK1+2

M_ST

ST_DO

ST_CLK

LAT3

KEY0

A.CAL

KEY2

KEY1

IOCE

IORST

MONO/ST_DET

ST_CE

DC-DET

SD_PVDD_DET

S-AIR_DET

S-AIR_ADC_SEL

GPIO2

DMP_RXD

IFSDO

P_CONT1

P_CONT3

S-AIR_SCL

IODO

IOCLK

ST_DI

FL_CLK

IC506

RESET SIGNAL GENERATOR

SYSTEM CONTROLLER

IC503

OPTICAL RECEIVER

IC502

WAVE SHAPER

IC501

31

32

34

35

36

37

38

39

33

40

41

MAIN BOARD (4/10)

VCCNC

GND

RESET SWITCH

10k (E3, EA)

∗R531

47k (US, CND)

(EXCEPT HDX285)

∗R532

47k (E3, EA)

22k (US, CND)

∗R535

1k (HDX285)

22k (HDX585)

33k (HDX287WC/HDX587WC)

47k (HDX589W/HDX685/HDX686W)

15k (HDX685)

∗R536

10k (HDX686W)

47k (HDX287WC/HDX585/HDX587WC/HDX589W)

DIGITAL IN

TV

COAXIAL

OPTICAL

J

4

B

166911

D

15

H

L

10

K

1735 12

C

F

181

E

8

G

14

A

213

I

7

R614 100

R607 100

R606 100

R605 100

R604

100

R603

100

CL554

CL553

CL551

CL550

CL549 CL548

(Page 45)

(Page 41)

(Page 41)

(Page 53)

(Page 48)

(Page 36)

(Page

38)

(Page 44)

(Page

40)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

4040

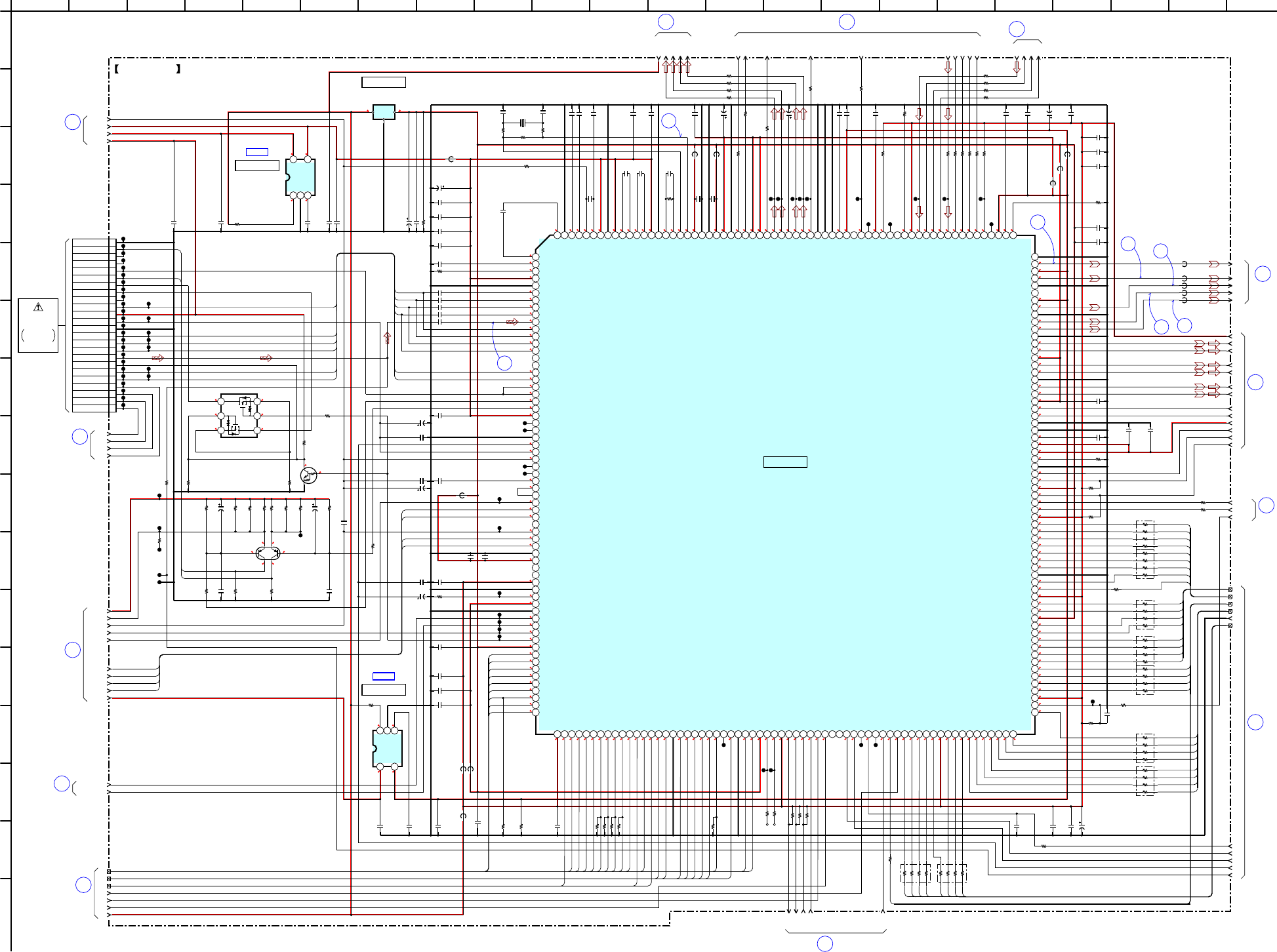

6-12. SCHEMATIC DIAGRAM - MAIN Board (5/10) - • See page 62 for IC Block Diagrams.

BOARD

16

MAIN

(4/10)

BOARD

POWER

J

CN906

BOARD

FL-JACK

H

CN5001

IC B/DIC B/D

MAIN

BOARD

25

(8/10)

MAIN

BOARD

23

(8/10)

MAIN

BOARD

22

(10/10)

MAIN

BOARD

26

(9/10)

MAIN

BOARD

24

(7/10)

BOARD

(6/10)

MAIN

21

IC B/D

MAIN

7

BOARD

(3/10)

MAIN

3

BOARD

(1/10)

MAIN

8

BOARD

(3/10)

11

(3/10)

MAIN

BOARD

1

(1/10)

MAIN

BOARD

17

(6/10)

MAIN

BOARD

18

(9/10)

MAIN

BOARD

20

(10/10)

MAIN

BOARD

19

(8/10)

MAIN

BOARD

3.3

3.3

3.3

5

6.5 3.2

1.3

1

5

6.5

3.3

4.1

3.3

1

3.3

0.6 0

0 3.2

CL531

CL536

CL540

CL545

CL544

CL539

CL538

CL537

CL542

CL530

CL535

CL541

CL543

CL534

A.CAL_OUT

OVF2

OVF1

SD_PVDD_DET

100

R552

100

R553

100

R571

100

R555

100

R570

1k

R554

0.1

C522

CL579

CL578

CL563

CL577

CL556

CL557

CL561

CL558

CL560

CL559

0.1

C544

1000p

C551

CL567

CL569

CL568

CL570

CL564

CL562

CL566

CL575

CL574

CL573

R627

100

IFSCK

IFSDO

CEC_RX_IN

A12V

6.3V

1000

C536

DC-DET

10k

R624

2SC3052EF-T1-LEF

Q503

47k

R623

JL535

JL534

JL533

2SC3052EF-T1-LEF

Q502

R628

1k

PCON_DMP

+6V

DMP_TXD

DMP_RXD

16V

100

C552

R569

1k

CL532

CL533

0.01

C531

0.01

C538

1.5k

R616

10k

R613

39k

R611

0.1

C530

22k

R617

10V

100

C529

1k

R610

10k

R619

0.01

C539

10V

100

C537

100

R630

R615

1k

R625

1k

CL576

16V

100

C540

16V

100

C532

M-GND

2

3

4

5

6

7

8

9

10

11

12

13

14

14P

CN509

NC

1 P_CONT1

EN

P_CONT3

E4V

6V

6V

D-GND

D-GND

M+9V

M-GND

14V DC-FAN

A+12V

A-GND

M+14V

CL565

LAT3

EN

NS_INIT

SOFT_MUTE

HPMUTE

SCDT

SHIFT

E3.3V

LAT1

LAT2

D-GND

D3.3V

XSYSRST

5V

XIFCS

IFSDI

XIFBSY

CEC_TX_OUT

M+9V

A-GND

R609

10k

CL555

CL552

R583

4.7k

R584

4.7k

C526

0.1

0.1

C520

123

456

TK11250CMCL-G

IC504

CONT

GND

NpVout

GND

Vin

C528

1000

6.3V

HDMI_PCONT

P_CONT3

0.1

C550

1234

6

5

SI-3010KM-TLS

IC507

Vcont

Vin

GND

Vout

Sense

1234

6

5

SI-3010KM-TLS

IC510

Vcont

Vin

GND

Vout

Sense

MA2J1110GLS0

D503

100

R629

OCSW1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

17P

CN506

FL_CS

KEY2

FL_CLK

KEY1

FL_DATA

KEY0

SIRCS

D_GND(FL)

E4V

5V

LED_LATCH

A_CAL

D_GND

PLUG_DET

DC_CONT

MO/ST_DET

GAIN_CONT

16V

470

C553

8765

4321

BR24S16F-WE2

IC505

A0

A1

A2

GND SDA

SCL

WE

VCC

R561

1k

1

C521

D-GND

D3.3V

5V

D-GND

D3.3V

CL398

E3.3V

D-GND

+6V

5V

1

C516

OVF2

OVF1

LAT3

LAT2

LAT1

SHIFT

SCDT

SOFT_MUTE

NS_INIT

XIFCS

CEC_TX_OUT

CEC_RX_IN

DC-DET

IFSCK

IFSDO

IFSDI

XSYSRST

XIFBSY

MIC_GAIN

DC_CONT

FL_CLK

MONO/ST_DET

JACK1+2

KEY2

FL_DATA

P_CONT3

OCSW1SIG

HDMI_PCONT

SIRCS

FL_CS

DMP_RXD

DMP_TXD

P_CONT3

P_CONT1

EN

SD_PVDD_DET

KEY1

KEY0

LED_LAT

A.CAL

P_CONT1

HPMUTE

A.CAL_OUT

36

37

31

35

33

32

39

38

34

40

41

IC504

+5V REGULATOR

IC505

EEPROM

IC507

+5V REGULATOR

IC510

Q502, 503

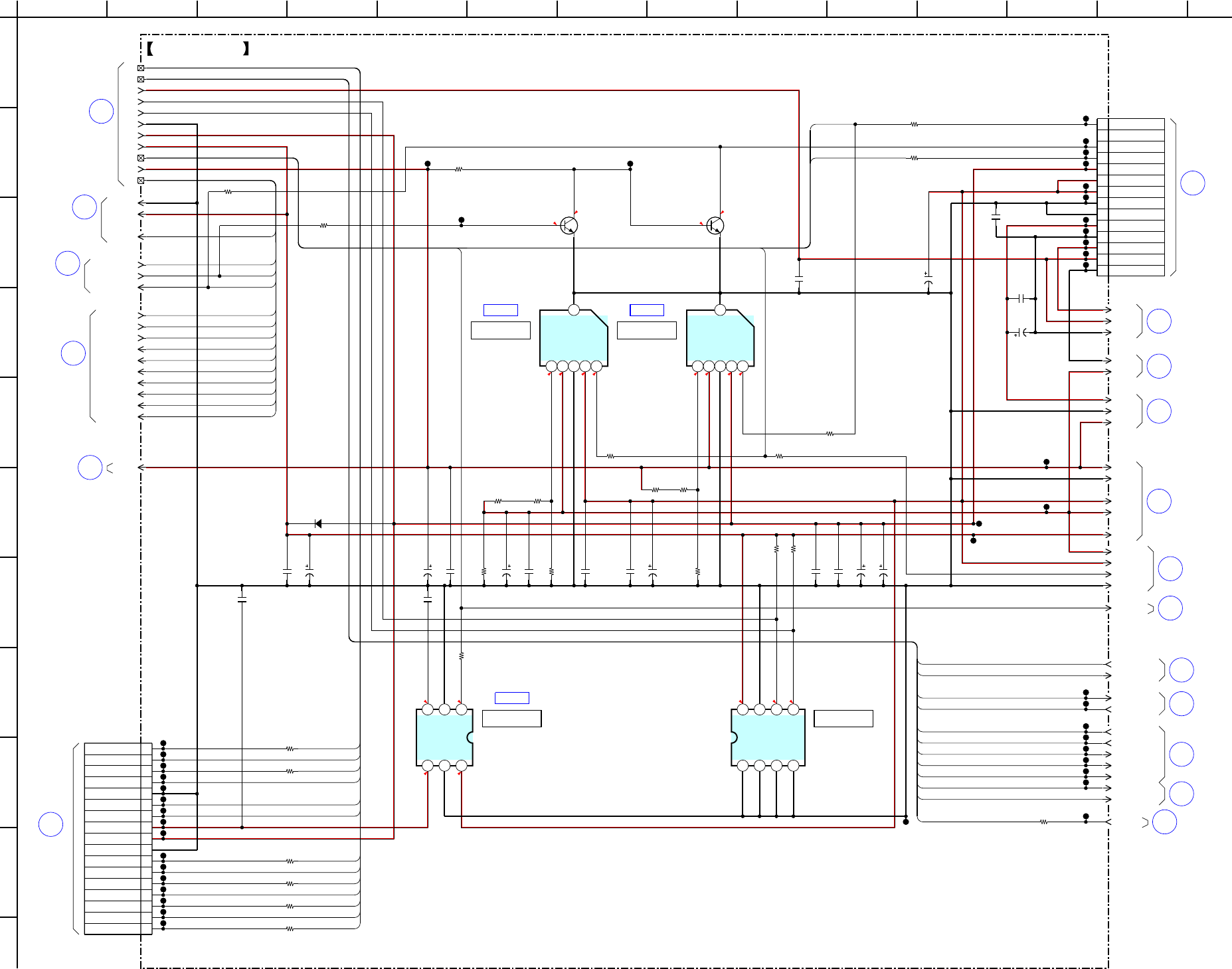

MAIN BOARD (5/10)

+3.3V REGULATOR

DC DETECT

J

4

B

6911

D

H

10

K

35 12

C

F

1

E

8

G

14

A

213

I

7

(Page 39)

(Page 38)

(Page 36)

(Page 38)

(Page 38)

(Page 55)

(Page 44)

(Page 43)

(Page 42)

(Page 43)

(Page 45)

(Page 41)

(Page 45)

(Page 43)

(Page 44)

(Page 41)

(Page 36)

(Page 61)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

4141

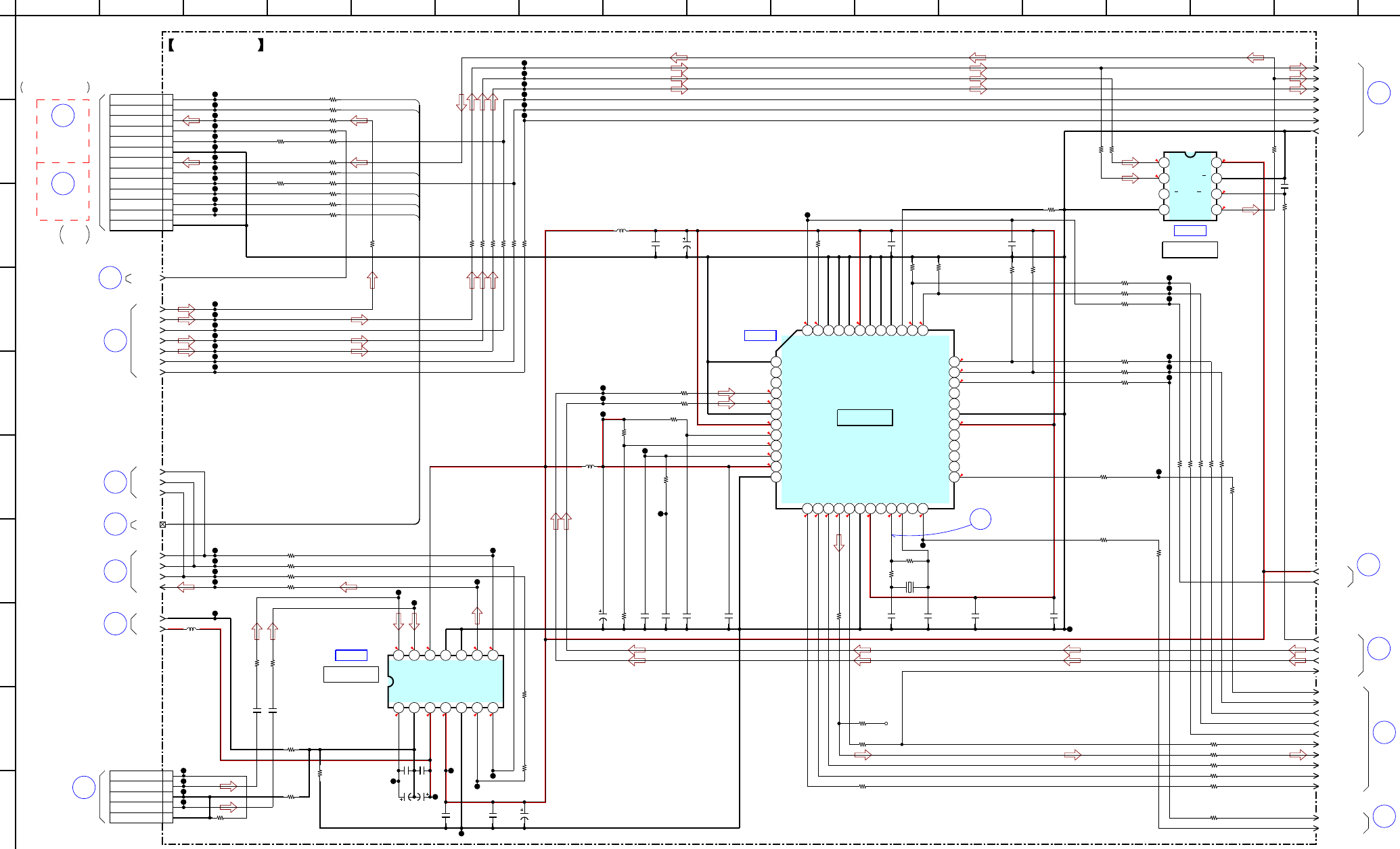

6-13. SCHEMATIC DIAGRAM - MAIN Board (6/10) - • See page 59 for Waveforms. • See page 62 for IC Block Diagrams.

L

I/O

BOARD

CN4012

5

IC B/D

IC B/D

IC B/D

(3/10)

MAIN

9

BOARD

(7/10)

MAIN

32

BOARD

BOARD

31

MAIN

(7/10)

BOARD

12

MAIN

(4/10)

BOARD

30

MAIN

(8/10)

MAIN

BOARD

14

(4/10)

MAIN

BOARD

28

(10/10)

MAIN

BOARD

29

(7/10)

MAIN

BOARD

17

(5/10)

MAIN

BOARD

21

(5/10)

MAIN

BOARD

27

(10/10)

INCLUDE

K1

BOARD

S-AIR

CN804

S-AIR-CON

CN100

K2

BOARD

0

0

3.3

3.3

3.3

0.1

1.7

3.3

1.6

3

3

3.3

0

0.1

3.3

3.3

3.3

1.6

1.6

1.7

0

0

3.3

3.3

1.6

1.5

1.7

1.5

5

3.3

2.5

3.3

1.3

1.6

2.5

2.5

0

1.3

3.3

3.3

1.3

R302 100

R304 100

R307 100

R310 100

CL305

CL306

CL309

CL310

CL311

CL312

CL322

CL319

CL320

CL321

CL323

CL324

CL325

CL332

CL333

CL334

5V

A-GND

OPT-IN

COAX-IN

0

R348

100

R368

100

R369

1k

R374

0.1

C325

CL356

1M

R370

100

R372

100

R395

0R397

0

R396

0.1

C329

100

R364

100

R362

100

R334

100R337

100R338

0.1

C323

0.01

C316

10V

220

C315

0.01

C317

0.1

C321

0.1

C319 C320

0.0133k

R330

100

R340

R335

5.6k

R329

4.7k

10V

220

C304

0R350

0R351

0R352

0R353

0R354

0R355

D3.3V

ASD0

ASD1

ASD2

BCKO

LRCKO

MCKO

R347

0

R333

0

47

R332

47

R331

ABCK

ACLK

ALRCK

ADIN

R316 22

R317 22

R318

22

R319 22

CL364

CL365

CL369

CL336

CL338

CL339

CL342

CL350

CL349

CL348

CL337

CL335

CL304

CL303

CL302

CL301

CL340

CL344

CL345

CL341

0

R327

R328

0

50V

10

C313

50V

10

C311

50V

10

C314

0.1

C310

0.1

C309

0.1

C308

1

2

3

4

5

5P

CN303

R-IN

A-GND

L-IN

A-GND

C334

0.1

8

7

6

54

3

2

1

TC7WH157FK(TE85R)

IC307

A

B

Y

GND Y

A/B

G

VCC

R412

100

M_ST

0.1

C333

R413

100

R409

100

R410

100

C318

0.01

14 13 12 11 10 9 8

7654321

IC303

PCM1808PWR

Vref

AGND

AVc c

DVdd

DGND

SCKI

LRCK BCK

DOUT

MOD0

MOD1

FMT

VinL

VinR

7p

C326

7p

C327

330

R371

R306 100

R308 100

R309 100

R394

100

R380 0

R379 0

R378 0

R377 0

R375 0

R388 0

R389 0

R399 0

R400

0

R401

0

R387 0

R373

100

SPMCK

SPBCK

SPLRCK

SPDATA

MDIR_XSTATE

MDIR_AUDIO

MDIR_ERROR

XSYSRST

MDIR_CL

MDIR_CE

MDIR_DI

MDIR_DO

MDIR_CSFLAG

ASD3

R349

0

R402 0

R301 100

1

2

3

4

5

6

7

8

9

10

11

12

13 14 15 16 17 18 19 20 21 22 23 24

25

26

27

28

29

30

31

32

33

34

35

36

3738394041424344

45464748

LC89056W

IC304

DISEL(I)

SPDIF(O)

DIN0(I)

DIN1(I)

DIN2(I)

DGND

DVDD

SDIN / R

AGND / VIN

LPF(O)

AVD D

AGND

CKOUT(O)

BCK(O)

LRCK(O)

DATA(O)

XSTATE(O)

DGND

DVDD

XMCK(O)

XOUT(O)

XIN(I)

EMPHA(O)

AUDIO-(O)

CSFLAG(O)

F0(O)

F1(O)

F2(O)

VF(O)

DVDD

DGND

VREF / LOCK(O)

BPSYNC(O)

ERROR(O)

DO(O)

DI(I)

CE(I)

CL(I)

XSEL(I)

MODE0(I)

MODE1(I)

DGND

DVDD

DOSEL0(I)

DOSEL1(I)

CKSEL0(I)

CKSEL1(I)

XMODE(I)

AMP_D2

AMP_D3

AMP_BCKO

AMP_LRCKO

AMP_MCKO

AMP_D1

R359

0

R360

0

R376

0

CL327

10uH

L302

10uH

L301

10uH

L303

R363

10k

R365

10k

P_CONT3

S-AIR

R303 100

CL307

CL308

CL313

CL314

CL315

CL316

CL331

CL360

CL370

CL366

CL367

CL346

CL347

CL353

CL352

CL357

CL358

CL359

CL361

CL362

CL363

1

2

3

4

5

6

7

8

9

10

11

12

13

13P

CN306

R305 100

R414

0

24.576MHz

X301

0

R415

0R416

2.2

C303

2.2

C305

R403 100

D-GND

10k

R393

10k

R392

ACLK

ABCK

ALRCK

DIR_XSTATE

S-AIR_SCL

S-AIR_ADC_SEL

GPIO2

S-AIR_RST

S-AIR_SDA

S-AIR_DET

AUDIO SELECTOR

IC307

(6/10)MAIN BOARD

GND

I2C_SDA

RESET

GPIO2

LRCK

S-AIR_DET

SD2(SL/SR)

GND

ADC_SEL

I2C_SCL

SD1(DMIX/XM)

P-CONT3

BCK

XVOICE

IC304

DIGITAL AUDIO

A/D CONVERTER

IC303

INTERFACE RECEIVER

HDX685

HDX285/

HDX585/

J

4

B

166911

D

15

H

10 1735 12

C

F

1

E

8

G

14

A

213

I

7

HDX589W/HDX686W

HDX287WC/HDX578WC/

(Page 50)

(Page 49)

(Page 40)

(Page 45)

(Page 45)

(Page 39)

(Page 42)

(Page 40)

(Page 53)

(Page

38)

(Page 43)

(Page

39)

(Page

42)

(Page 42)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

4242

6-14. SCHEMATIC DIAGRAM - MAIN Board (7/10) - • See page 59 for Waveforms. • See page 62 for IC Block Diagrams. • See page 70 for IC Pin Function Description.

(8/10)

BOARD

40

MAIN

(8/10)

BOARD

38

MAIN

(8/10)

MAIN

36

BOARD

12

11

10 9

87

6

IC B/D

IC B/D

(9/10)

BOARD

35

MAIN

(9/10)

BOARD

33

MAIN

MAIN

BOARD

34

(9/10)

MAIN

BOARD

32

(6/10)

41

MAIN

(10/10)

BOARD BOARD

MAIN

(6/10)

31

BOARD

MAIN

(6/10)

29

BOARD

MAIN

24

(5/10)

BOARD

(10/10)

MAIN

37

BOARD

(9/10)

MAIN

39

1.6

1.4 [1.9]

1.4

1.4

0 [1.7]

3.3

3.3

0 [1.5]

1.6

1.6

3.3

0 [1.5]

1 [1.4]

1 [0.6]

0.9

0.7

1.8

1.8

3.3

0.1

0

3.3

3.3

0

0

1.2

1.6

0.6

1.2

0

0.9

3.3

3.3

1.8

2.9

0

3.3

1.3

1.7

1.6

1.4

0

1.7

1.6

1.6

3.3

3.2

3.3

1.2

1.2

0.4

3.3

0.7

3.3

0.4

0.7

0.7

0.2

0.2

0.2

0.2

1.8

1.8

0.2

0.2

0.1

0.1

0

3.3

3.3

1.3

0

3.2

1.8

3.2

3.3

3.3

3.3

1.6 [∗]

1.7 [∗]

1 [1.6]

2.5 [1.7]

0.1

0

0

3.3

1.6

3.3

1.2 [∗]

1.4 [∗]

1.8 [∗]

1.8

0.3 [∗]

0.1

1.2 [∗]

1.4 [∗]

3.1 [∗]

3.2 [∗]

3.2

3.3 [∗]

1.8

2.2 [∗]

3.3

3.3

1.6

1.5

0.9

3.3

1.6

1.6

1.6

1.6

1.6

2

2

2

2

2

2

0

0

3.3 [2.6]

3.3

3.3

2.8

2

1.4

1.4

1.7

1.4 [0]

1.4 [2.3]

1.4

1.6

1.4

1.4

1.8

3.3

0.8

1.8

3.3

0

0 [3.3]

3.3 [0]

1.8

2.1

2.2

2.1

2.1 [1.8]

2.2 [2.5]

2.2 [1.8]

1.2 [∗]

1.5 [∗]

0

3.3

0

0

2

0

0

2

0.1

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

2.6

2.3

3.3

3.3

1.4 [0.1]

1.8 [0.9]

1.9 [1.1]

2 [0.6]

1.7 [∗]

1.5 [2.3]

0.9 [∗]

1.7 [∗]

1.4 [1.7]

1.6 [1.8]

1.3 [1]

1.2 [1.4]

1.8

1.9 [∗]

1 [∗]

2.2 [∗]

1.9

1.8

1.4 [∗]

0.4 [∗]

0.4 [∗]

0.8 [∗]

1.2 [∗]

1.2 [∗]

0.9 [∗]

1.4 [∗]

1.3 [∗]

0.4 [∗]

2.3 [∗]

2.5 [∗]

2.3 [∗]

2 [∗]

5

3.3 1.3

3.3

0 [3.3]

4.9 [0.1]

3.3

3.73.7 [3.2]

3.3 [2.6]

1.4[2.6] 1

0

0

0.1 [4.9]

0

3.3 [0]

0

3.3 1.8

5

3.3

3.3

1.3

2.4 [∗]

0.1

C1149

47k

R1124

0.1

C1133

47

R1185

0.01

C1162

22

R1161

3.3k

R2151

0.1

C1192

100

R1156

54

321

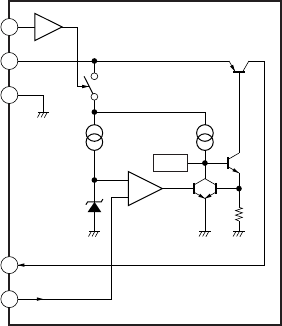

TK11133CSCL-G

IC1105

CONT

GND

NOISE

VOUT

VIN

22

R111 2

0.01

C1156

4700p

C1199

0

RB1113

100k

R111 4

0.1

C111 6

0.1

C1137

0

R1109

0.01

C111 3

0.01

C1164

1

C1120

22

R111 5

0.01

C1175

0.033

C1135

1

C1122

100

R1101

10k

R1107

0.01

C1136

0.22C1195

47k

R111 7

0.22

C1182

1k

R111 6

0.1

C1126

47

R1184

0.01

C1161

1

C1124

3.3k

R2150

0.01

C1101

22

R1121

0.1

C111 5

0.1

C1184

0.1

C1130

1M

R1108

0.01

C1155

47

R1159

47

R1160

0.1

C1125

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

CN1101

24P

GND (LD)

LD (650) DVD

NC

NC

PD

LD (780) CD

VR (650) DVD

VR (780) CD

NC

VOE/E+G

VCC

VC

GND (PDIC)

VOF/F+H

VOB/B

VOA/A

RF

(LO:DVD.HI:CD)MSW

VOD/D

VOC/C

TRK-

TRK+

FCS+

FCS-

0.01

C1106

3.3k

R2152

0.01

C1163

47

R1183

0.1

C1132

22p

C1139

22

R111 3

0.01

C1158

0

RB1112

5 4

321

TK11133CSCL-G

IC1107

CONT

GND

NOISE VOUT

VIN

0.01

C1174

100k

R1132

0.01

C1127

47k

R111 0

0.22

C1193

0.1

C1146

22

R111 8

RT1N241C-TP-1

Q1103

0.01

C1160

0.01

C1176

22

R1120

1

C1123

100k

R2129

15k

R1136

100

R1111

R2115 0

C1169

0.1

1

C1121

D1

G2

S2

D2

G1

S1

UM6K1N-TN

Q1101

Q1102

QST8TR

-1

-2

JL2101

JL2102

JL2105

JL2106

JL2107

JL2108

JL2110

JL2111

JL2112

JL2113

JL2114

JL2115

JL2116

JL2117

JL2118

JL2119

JL2120

JL2121

JL2122

JL2123

JL2124

JL1160

CL1106

CL1107

CL1108

CL1105

CL1101

REG01

TRK-

TRK+

FCS+

FCS-

REG02

TRO

IOP

FOO

IOPMON

SPFG

TSD_M

DMO

FMO

VREFO

RF+3.3V

5V

D3.3V

IO

G

MM1661JTRE

IC1110

13

2

1C1198

0.33C1183

1kR2178

5V

0.22

C1186

10k

R1151

FB1112

CL1121

CL2101

CL2102

CL1123

LIMITSW

22

R2114

47

RB1110

47

RB1109

R1176

10k

0

R1133

FB2121

FB2120

FB2124

FB2122

MUTE

MUTE123

ADIN

0.1

C1171

0

R2167

12p

C1152

12p

C1153

1000p

C1151

680kR1141

FB1107

FB2101

4.7

C2108

FB2103

CL 1112

CL 1113

CL 1114

CL 1115

CL 1116

CL 1117

CL 1118

FB1106

1000pC1138

330

R2168

CL2103

CL2104

R1125 47

0.1

C111 4

CL2120

0.1C1154

CL2139

CL2140

CL2141

0.1C1165

FB1109

JL2103

JL2104

JL2109

CL1109

100

R1171

100

R2179

CL2138

CL2137

CL2135

R1165 47

SPMCK

R1164 47

SPDATA

R1163 47

SPLRCK

R1162 47

SPBCK

100

R2184

100

R2185

10kR2180

4.7k

R2104

CL1110

CL2107

CL2108

CL2109

10

C1129

0.1

C1159

0.1

C1108

0.1

C1109

FB1115

FB1116

10

C2115

0.1C2114

0.1

C2116

10

C2117

FB1117

0.1C2118

4.7C2503

FB1118

0.1

C1172

1000p

C2119

CL2121

CL2122

CL2123

CL2124

CL2125

CL2126

1500p

C1170

10k

R2155

10kR2156

10kR2157

10kR2158

10kR2159

560

R2101

100

R2131

1k

R1140

XIFCS

XIFBSY

IFSDI

0.01

C1144

MDIR_ERROR

MDIR_AUDIO

R2130 100

R2136

47

100

R2120

0

R2161

0R2162

MDIR_DO

47

R1146

3.3k

R1781

ALRCK

ACLK

ABCK

ASDATA0

ASDATA1

ASDATA2

MDIR_CL

ASDATA3

MDIR_CE

MDIR_DI

C

CB/B

CR/R

Y/G

IFSCK

IFSDO

CL1301

CL1302

FB2125

Y

10V

47

C1187

R2160

10k

50V

10

C1145

10V

100

C2109

16V

47

C1105

16V

47

C111 2

10V

100

C1111

16V

47

C111 9

16V

47

C111 8

16V

47

C111 7

10V

100

C2110

22

RB1114

22

RB1115

47

RB1103

47

RB1104

47

RB1111

27MHz

X1101

1k

R1186

1k

R1192

10V

220

C1177

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 11 0 111 112 11 3 114 115 11 6 117 11 8 119 120 121 122 123 124 125 126 127 128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194195196197198199200201202203204205206207208

209210

211

212213214215

216217218219220221222223224225226227228229230240 231232233234235236237238239241242243244255256 245246247248249250251252253254

IC1101

OSN

RFGC

IREF

AVDD3

AGND

DVDA

DVDB

DVDC

DVDD

DVDRFIP

MA

MB

MC

MD

SA

SB

TNI

TPI

MDI1

MDI2

LDO2

LDO1

SVDD3

CSO

RFLVL

SGND

V2REFO

V2O

VREFO

FEO

TEO

TEZISLV

OP_OUT

OP_INN

OP_INP

DMO

FMO

TROPENPWM

IOPMON

TRO

FOO

AGND18

AVD D1 8

USB_DP

USB_DM

USB_VDD3

USB_VSS

PAD_VRT

USB_VDD18

USB_VSS

DIR_ERROR

DIR_AUDIO

LIMITSW

MSW

DVDD18

HA2

HA3

HA4

HA5

HA6

HA7

HA8

HA18

HA19

DVDD3

XWR

HA16

HA15

HA14

HA13

HA12

HA11

HA10

HA9

HA20

XROMCS

HA1

XRD

HD0

HD1

DVSS

HD2

HD3

HD4

HD5

HD6

HA21

RESERVED

HD7

DVSS

HA17

HA0

DVDD18

FWD

REV

DVDD3

IFSDO

IFCK

xIFCS

IFSDI

SCL

SDA

CKSW

OCSW

RXD

TXD

ICE

xSYSRST

RESERVED

xIFBSY

DQM0

EEWP

RD7

RD6

RD5

RD4

RD3

DVDD3

RD2

RD1

RD0

RD15

RD14

RD13

RD12

RD11

RD10

RD9

RD8

TSD_M

DVDD3

DQM1

RWE#

CAS#

RAS#

RCS#

BA0

BA1

RA10

RA0

RA1

DVDD18

RA2

RA3

DVDD3

DRCLK

CKE

DVSS

RA11

RA9

RA8

RA7

RA6

RA5

RA4

DVDD3

MUTE123

MUTE

DDC_DA

DVDD18

DDC_CLK

HTPLG

AGND3

EXT_RES

AVDD3

AVDD3

EXT_CAP

AGND3

AGND18

TXCN

TXCP

AVDD18

TX0N

TX0P

AGND18

TX1N

TX1P

AVDD18

TX2N

TX2P

AGND18

R/Cr/Pr

B/Cb/Pb

DACVSSA

Y/G

DACVDDA

CVBS

DACVSSB

C

DACVDDB

Y

DACVSSC

FS

VREF

DACVDDC

VBUS_OE

VBUS_OC

DIR_XSTATE

SPMCK

SPBCK

SPLRCK

ADIN(SPDATA)

ACLK

ABCK

ALRCK

MC_DATA(ADIN)

DVDD3

MIC

WIDE

RGB_SEL/DSEL

TRG_SW

DVDD18

KMOD

DIR_CSFLAG

SPDIF

APLLVDD3

APLLCAP

APLLVSS

ADACVSS2

ADACVSS1

DIR_CE

ASDATA3

ASDATA2

AVCM

ASDATA1

ASDATA0

DIR_CL

ADACVDD1

ADACVDD2

DIR_DI

DIR_DO

ADACVSS3

ADACVDD3

SADCVDD18

SADCVSS18

RFGND18

RFVDD18

XTALO

XTALI

JITFO

JITFN

PLLVSS

PLLVDD3

LPFON

LPFIP

LPFIN

LPFOP

ADCVDD3

ADCVSS

RFVDD3

RFRPDC

RFRPAC

HRFZC

CRTPLP

RFGND18

OSP

0.047

C1148

0.047

C1147

100k

R1142

0.1

C1140

5.1k

R1103

0

R1123

3.3k

R1782

2.7k

R1730

5600p

C2502

CL1305

CL1303

CL1304

A20

HD2

HD4

CD_LD

RD6

RD5

RD4

RD3

RD2

RD1

RD0

VOE

VOF

VOB

VOA

VOD

VOC

A19

A18

A2

A3

A4

A5

A6

A7

XROMCS

A1

XRD

HD0

HD1

A17

DQMO

RD7

RA4

RA5

RA6

RA7

CLKE

RA3

RA2

RA1

RA0

RA10

BA1

BA0

RCS

RAS

CAS

RWE

DQM1

RD8

RD9

RD10

RD11

RD12

RD13

RD14

RD15

VOD

VOC

VOB

VOA

VOE

VOF

DMO

FMO

TRO

FOO

DMO

FMO

TRO

FOO

A8

HD3

A21

A15

A12

A11

A9

A10

A0

A16

A14

A13

CD_LD

DVD_LD

DVD_LD

RA11

RA9

RA8

DRCLK

HD5

HD6

XWR

HD7

RF AMP, SERVO DSP, MPEG DECODER,

IC1101

IC1110

+1.8V REGULATOR

IC1107

IC1105

51

52

53

54

55

56

57

58

59

60

61

62

64

63

65

66

67

69

68

MAIN BOARD (7/10)

77

75

79

78

80

76

81

74

70

73

71

72

+3.3V REGULATOR

+3.3V REGULATOR

INVERTER

Q1101-1

CD ON SWITCH

DVD ON SWITCH

Q1101-2

AUTOMATIC POWER CONTROL (CD)

Q1102-2

Q1102-1

AUTOMATIC POWER CONTROL (DVD)

OPTICAL

(1/2)

KHM-310CAB

OR

PICK-UP

KHM-313CAB

BLOCK

J

4

B

16621911

D

N

15

H

L

10

K

1735 12

C

F

18

M

119

E

8

G

2014

A

213

I

722

O

P

HDMI TRANSMITTER

CXD9917R-A (E3, EA)

CXD9927R-A (US, CND)

MDIR_

XSTATE

MDIR_

CSFLAG

(Page 44)

(Page 44)

(Page 44)

(Page 41)

(Page 43)

(Page 45) (Page 41) (Page 41)

(Page

45)

(Page

43)

(Page 44)

(Page

43)

(Page 40)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

4343

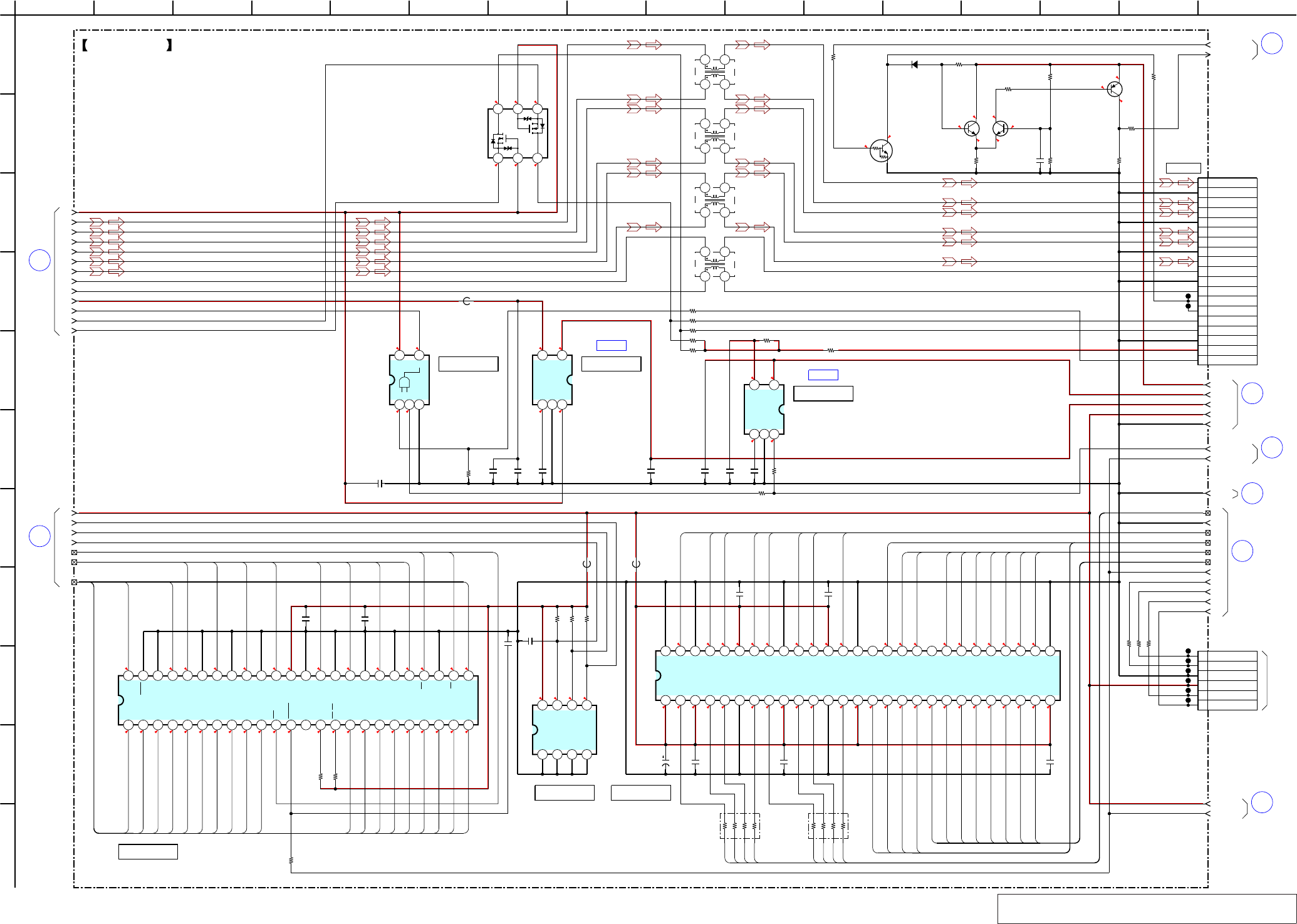

6-15. SCHEMATIC DIAGRAM - MAIN Board (8/10) - • See page 62 for IC Block Diagrams.

Note: IC1103 cannot exchange with single. When this part is

damaged, exchange the entire mounted board.

(7/10)

BOARD

40

MAIN

(7/10)

BOARD

38

MAIN

(7/10)

36

MAIN

BOARD

IC B/D

IC B/D

(5/10)

MAIN

25

BOARD

BOARD

MAIN

(5/10)

23

BOARD

MAIN

(5/10)

19

BOARD

MAIN

(6/10)

30

43

(10/10)

BOARD

MAIN

5

3.3

3.2

3.2

5

3.3

3.3

3.3

0

5

1.3

3.3

3.3

0

5

6.53.3

1.3

0

3.3

3.3

3.3

2.9

1.7

2.8 2.8

3.3

2.9

0

0

0

0

3.3

3.3

3.3

3.3

2.1

2.2

2.1

2.2 [1.8]

2.2 [2.5]

2.2 [1.8]

1.2 [∗]

1.5 [∗]

1.7 [∗]

0.9 [∗]

1.5 [2.3]

1.7 [∗]

2 [0.6]

1.9 [1.1]

1.8 [0.9]

1.4 [0.1]

2

0

0

1.4 [1.7]

1.6 [1.8]

1.3 [1]

1.2 [1.4]

3.3

2

1.8

1.9 [∗]

2.2 [∗]

1.9

1 [∗]

3.3

3.3

3.3

3.3

3.3

3.3

3.3

0

0

0.1

1.6

1.8

0.4 [∗]

1.3 [∗]

2.3 [∗]

2.5 [∗]

2.3 [∗]

2 [∗]

2.4 [∗]

2.2 [∗]

2.5 [1.7]

1 [1.6]

1.7 [∗]

1.6 [∗]

3.3

3.3

3.3

3.3

3.3

3.2

1.4 [∗]

0.9 [∗]

1.2 [∗]

1.2 [∗]

0.8 [∗]

0.4 [∗]

0.4 [∗]

1.4 [∗]

2.6 [1.8]

3.3 [∗]

3.2 [∗]

3.1 [∗]

1.4 [∗]

1.2 [∗]

0.1

0.3 [∗]

1.4 [∗]

1.8 [∗]

1.2 [∗]

47

RB1106

1

C1102

0.1

C1179

2.7kR2110

10k

R1105

1k

R1193

47

RB1105

100

R1155

10k

R1106

1k

R1191

0.1

C1191

0.1

C1197

0.1

C1180

JL1107

JL1108

JL1109

JL1110

JL1111

JL1112

D-GND

D3.3V

FB1108

0.1

C1181

1k

R1135

0.01

C2130

FB 1111

100R1154

C111 0

0.1

54

321

TK11150CSCL-G

IC1707

CONT

GND

NOISE VOUT

VIN

54

321

TC7SZ08FU(TE85R)

IC1705

A

B

VSS Y

VDD

CL1701

0.01

C1725

CL1702

220

R9945

0

R9935

RT1N141C-TP-1

Q9729

2SC4154TP-1EF

Q9728

2SC4154TP-1EF

Q9726

27k

R9941

22k

R9928

1k

R9924

10k

R9934

22k

R9929

10k

R9922

1k

R9918

0.1

C9972

48 43

65

46

4321

47 45 44 42 41 37383940

1210 11987

36 3132333435

181716151413

30 29 28 27 26 25

242322212019

MX29LV320DBTI-70-CHI-0902CE (E3, EA)

IC1102

MX29LV320DBTI-70-CHI-0902UC (US, CND)

A15

A14

A13

A12

A11

A10

A9

A8

A19

N.C

WE

RESET

N.C.

N.C.

RY/BY

A18

A17

A7

A6

A5

A4

A3

A2

A1 A0

CE

VSS

OE

DQ0

DQ8

DQ1

DQ9

DQ2

DQ10

DQ3

DQ11

VCC

DQ4

DQ12

DQ5

DQ13

DQ6

DQ14

DQ7

DQ15/A-1

VSS

BYTE

A16

E3.3V

CEC_TX_OUT

XSYSRST

1.8k

R1749

100

R1198

+6V

1

2

3

4

5

6

6P

CN1105

TXD

RXD

GND

+3.3V

V2REFO

RFMON

ISA1602AM1TP-1EF

Q9724

0.01

C2100

47k

R1742

CEC_RX_IN

MA2J1110GLS0

D9712

10V

100

C1190

FB1113

12

34

L1701

12

34

L1704

12

34

L1702

12

34

L1703

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

CN1701

19P

TMDS DATA2+

TMDS DATA2 SHIELD

TMDS DATA2-

TMDS DATA1+

TMDS DATA1 SHIELD

TMDS DATA1-

TMDS DATA0+

TMDS DATA0 SHIELD

TMDS DATA0-

TMDS CLOCK+

TMDS CLOCK SHIELD

TMDS CLOCK-

CEC

Reserved

SCL

SDA

DOC/CEC GND

+5 POWER

HPD

54

321

TK11133CSCL-G

IC1708

CONT

GND

NOISE VOUT

VIN

C1732

0.1

5V

C1734

1

HDMI_PCONT

R1758

10k

8765

4321

BR24S64F-WE2

IC1103

A0

A1

A2

GND SDA

SCL

WE

VCC

474849

8

5051525354

1234567

414243444546

14131211109

3440 3536373839

1615 17 18 19 20 21

28

27

2930313233

2625242322

W9864G6IH-6J-ER10

IC1104

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDD

LDQM

/WE

/CAS

/RAS

/CS

BA0

BA1

A10

A0

A1

A2

A3

VDD VSS

A4

A5

A6

A7

A8

A9

A11

NC

CKE

CLK

UDQM

NC

VSS

DQ8

VDDQ

DQ9

DQ10

VSSQ

DQ11

DQ12

VDDQ

DQ13

DQ14

VSSQ

DQ15

VSS

1.8kR1750

0

R1753

0

R1743

0.22

C1730

0.1

C1727

0.22

C1729

C1731

0.22

C1733

0.22

1k

R1752

0R1747

0R1748

0

R1751

D1 G2 S2

D2G1S1

UM6K1N-TN

Q1701

XSYSRST

D-GND

D3.3V

A16

A15

A14

A13

A12

A11

A10

A9

A20

A19

A18

A8

A7

A6

A5

A4

A3

A2

XWR

A21

RD9

RD10

RD11

RD12

RD13

RD14

RD15

RD8

RD7

RD6

RD5

RD4

RD3

RD2

RD1

RD0

DQMO

RWE

CAS

RAS

RCS

BA0

BA1

RA10

RA0

RA1

RA2

RA3

CLKE

DRCLK

RA11

RA9

RA8

RA7

RA6

RA5

RA4

DQM1

A17

A0

HD7

HD6

HD5

HD4

HD3

HD2

HD1

HD0

XRD

XROMCS

A1

67

69

66

68

65

64

63

60

58

51

61

54

56

62

52

57

59

55

53

IC1104

SD-RAM

IC1707

IC1708

+3.3V REGULATOR

IC1705

LEVEL SHIFT

FLASH ROM

IC1102

EEPROM

IC1103

MAIN BOARD (8/10)

71

74

73

70

72

81

79

75

78

76

80

77

LEVEL

SHIFT

+5V REGULATOR

(NC)

HDMI OUT

Q9724, 9726, 9728, 9729

CEC DATA SWITCH

J

4

B

166911

D

15

H

10

K

35 12

C

F

1

E

8

G

14

A

213

I

7

(Page

42)

(Page

42)

(Page 41)

(Page 42)

(Page 45)

(Page 40)

(Page 40)

(Page 40)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

4444

6-16. SCHEMATIC DIAGRAM - MAIN Board (9/10) -

(7/10)

MAIN

39

BOARD

MAIN

(7/10)

BOARD

33

MAIN

(10/10)

BOARD

42

MAIN

(7/10)

BOARD

35

MAIN

(7/10)

BOARD

34

18

BOARD

(5/10)

MAIN

15

BOARD

(4/10)

MAIN

26

(5/10)

BOARD

MAIN

1.41.4

1.4 4.8

4.8

4.8

4.9

3.7

4.8

4.8

4.8

4.8

0

10

3.3

3.3

3.3

3.3

1.4

1.4

1.4

1.4

1.4

3.3

1.4

1.4

1.4

1.4

3.3

2.2

1.4

1.4

2.6

2.6

5

10

10

2.7

3.3

4.8

3.3

0.01

C1212

100k

R1223

33k

R1208

220p

C1205

56k

R1221

15kR1231

27k

R1219

1.2k

R1204

0.033

C1211

0.01

C1203

12k

R1216

0.01

C1219

15k

R1214

56k

R1226

0.01

C1213

0.01

C1210

4700p

C1233

33k

R1209

10kR1205

10k

R1206

18k

R1232

82k

R1230

100k

R1225

0.033

C1209

10k

R1224

0.01

C1208

1k

R1247

47k

R1210

10k

R1234

0.01

C1224

10k

R1212

6.8k

R1213

12k

R1215

4.7k

R1246

1k

R1220

220p

C1206

0.01

C1215

1000p

C1214

2.7k

R1207

JL1206

JL1205

JL1203

JL1204

JL1202

JL1201

R1254

4.7k

1

2

3

4

5

6

7

8

9

10

11

12

13 14 15 16 17 18 19 20 21 22 23 24

25

26

27

28

29

30

31

32

33

34

35

36

373839404142434445464748

FIN

FIN

FIN

FIN

IC1201

FAN8036L

IN1-

OUT1

IN2+

IN2-

OUT2

RES1

RES2

REGCTL

IN3+

IN3-

OUT3

IN4+

IN4-

OUT4

CTL

FWD

REV

SGND MUTE123

MUTE4

PS

TSD_M

PVCC2

DO5-

DO5+

PGND2

DO4-

DO4+

DO3-

DO3+

REGO2

REGO1

PGND1

DO2-

DO2+

DO1-

DO1+

PVCC1

REGVCC

OPOUT2

OPIN2-

OPIN2+

VREFSVCC

OPOUT1

OPIN1-

OPIN1+

IN1+

CL1213

SPFG

5V

TRO

VREFO

FMO

D3.3V

IOP

DMO

IOPMON

FCS-

D-GND

LIMITSW

FCS+

TRK+

MUTE123

FOO

TRK-

RF+3.3V

MUTE

REG01

TSD_M

REG02

M+9V

M-GND

0.1

C1222

CL1201

CL1202

CL1203

CL1204

CL1205

CL1206

CL1207

CL1208

CL1209

CL1210

CL1211

CL1212

0.1

C1221

R1238

1k

1

2

3

4

5

6

6P

CN1201

SP-

SP+

LIMIT

(GND)LIMIT

SL-

SL+

16V

47

C1217

50V

10

C1220

50V

10

C1218

OCSW1

33k

R1233

5V

5V

FCS-

FCS+

TRK+

TRK-

FCS+

TRK+

TRK-

SL+

SP-

SP+

SL-

FCS-

SP-

SP+

SL-

SL+

-

D+

-

-

D

S

+

+

+

M

+

+

-

C

-

-

-

S

+

+

+

W

-

-

MAIN BOARD (9/10)

FOCUS/TRACKING COIL DRIVE,

IC1201

SPINDLE/SLED MOTOR DRIVE

(2/2)

KHM-313CAB

PICK-UP

OR

KHM-310CAB

OPTICAL

BLOCK

4

B

6911

D

H

1035 12

C

F

1

E

8

G

A

27

(Page 42)

(Page 42)

(Page 45)

(Page 42)

(Page 40)

(Page 39)

(Page 40)

(Page 42)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

4545

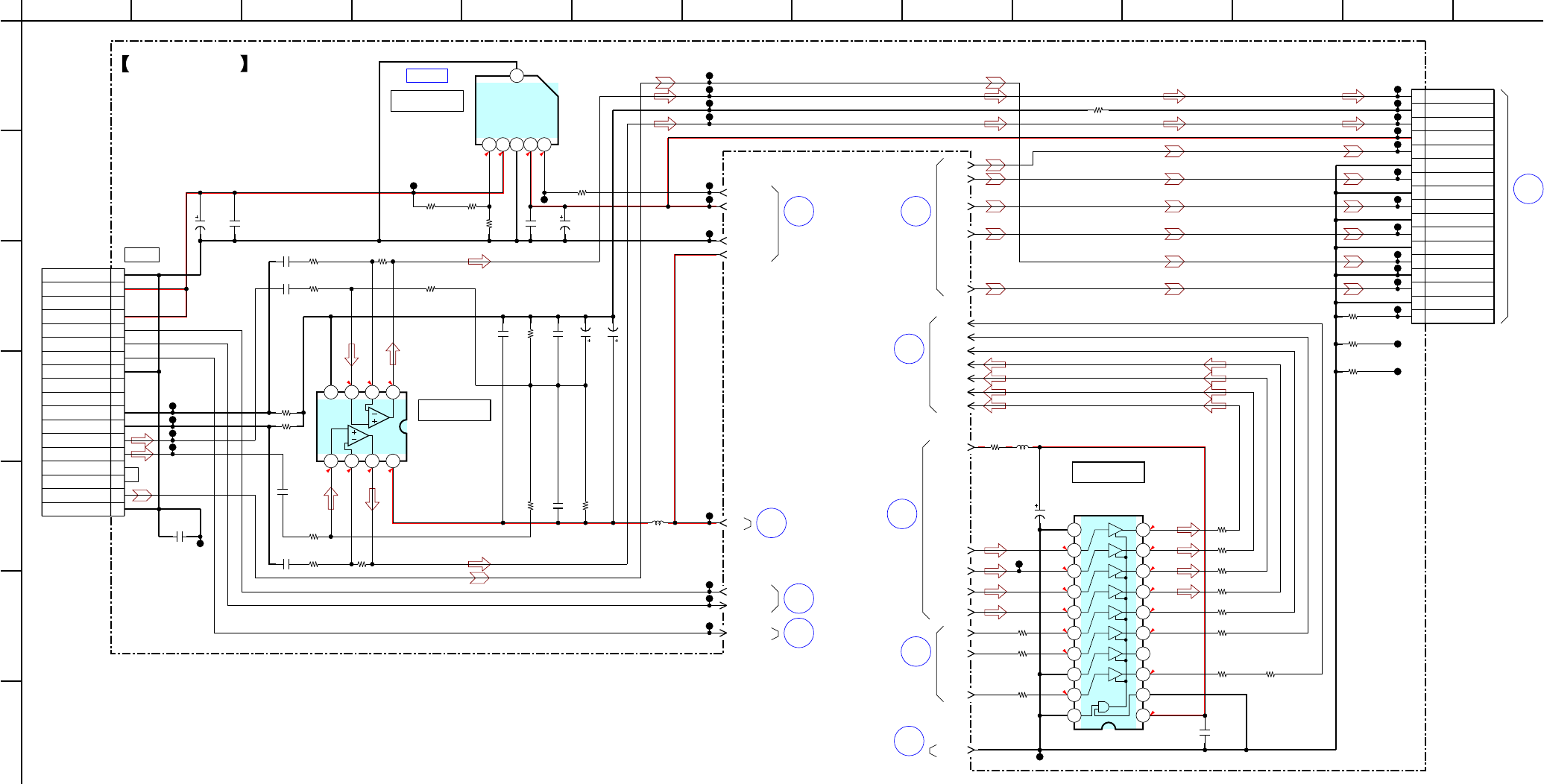

6-17. SCHEMATIC DIAGRAM - MAIN Board (10/10) - • See page 62 for IC Block Diagrams.

IC B/D

BOARD

(5/10)

MAIN

20

22

MAIN

BOARD

(5/10)

42

MAIN

BOARD

(9/10)

13

MAIN

BOARD

(4/10)

I/O

M

CN4017

BOARD

MAIN

37

BOARD

(7/10)

MAIN

27

BOARD

(6/10)

MAIN

(7/10)

BOARD

41

MAIN

(6/10)

BOARD

28

MAIN

(8/10)

BOARD

43

1

5

6.5

3.3

3

3

3

3

5

3

3

1.2

1.2

0

0

1.2

0.6

1.6

1.7

1.5

1.2

1.7

1.7

0.6

1.8

3.3

R462

1k

R455

22k

R459

22k

R464

1k

C466

0.1

R461

10k

C467

0.1

R463

39k

CL451

CL452

CL453

CL454

CL455

CL456

CL457

CL458

CL459

CL460

JL456

JL455

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

18P

CN451

D-GND

VBUS(5V)

NC

VIDEO5V

RXD

TXD

DET

DGND

WM DET

WM A/D

(Lch)AGND

(Rch)AGND

Lch

Rch

WM RX

WM TX

VIDEO

VGND

R460

22k

0.1

C457

R454

3.3k

R458

4.7k

C463

0.1

C456

0.1

10uH

L451

C452

1

C453

1

C461

1

C462

1

PCON_DMP

D-GND

+6V

5V

DMP_TXD

DMP_RXD

DMP_DET

CL461

CL462

JL451

JL452

JL453

JL454

1234

6

5

SI-3010KM-TLS

IC452

Vcont

Vin

GND

Vout

Sense

16V

C468

100

10V

C465

100

8765

4321

NJM4565M(TE2)

IC451

V-

V+

R465

100

R466

100

C451

1000p

R453

22k

R452

22k

R451

22k

C464

16V

47

R456

22k

R457

22k

5V

50V

C455

22

LINE AMP

IC451

IC452

+5V REGULATOR

MAIN BOARD (10/10)

DMPORT

4

B

6

D

35

C

1

E

A

27

C476

0.01

22

R472

22

R474

JL471

JL472

JL473

JL474

JL475

JL476

JL477

JL478

R491

0

ASDATA2

ASDATA1

D-GND

C

D3.3V

Y/G

CB/B

CR/R

ABCK

ALRCK

ACLK

22

R473

CL471

ASDATA0

R487

47

C471

10V

100

JL479

ASDATA3

ASD0

BCKO

ASD2

ASD1

LRCKO

MCKO

ASD3

R499 0

R488

0

20

19

18

17

16

15

14

13

12

1110

9

8

7

6

5

4

3

2

1

TC74LCX541FT(EKJ)

IC471

JL480

JL484

JL481

JL482

JL483

Y

JL485

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

17P

CN472

47uH

L471

R479

47

47

R483

47

R481

33

R486

47

R482

47

R480

R490

0

R492

0

R471

0

DMP-L

A-GND

Cr/R

D-GND

+6V

D-GND

Y/G

Cb/B

Y

D-GND

D-GND

D-GND

C

DMP-V

WIDE

D-GND

DMP-R

IC471

BUFFER

V-

V+

911810121413

G

F

(Page 43)

(Page 39)

(Page 40)

(Page 41)

(Page 42)

(Page 44)

(Page 41)

(Page 42)(Page 40)

(Page

53)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

4646

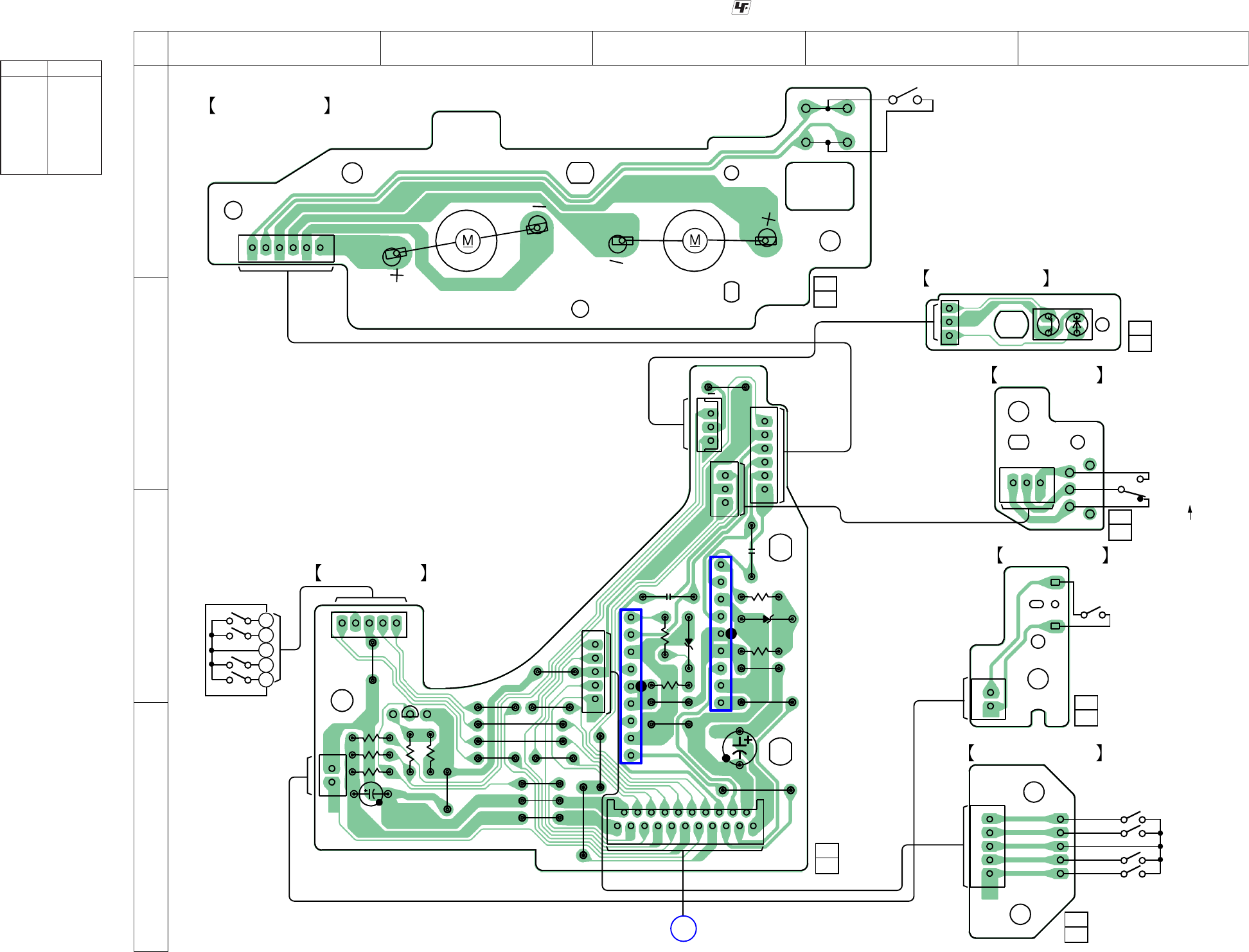

6-18. PRINTED WIRING BOARDS - RELAY Section - • : Uses unleaded solder.

• See page 33 for Circuit Boards Location.

JW701

S761

(SUB TRAY OUT)

R753

R754

R751

C702

JW713

Q751

R752

R755

JW712

JW709

JW710

JW711

JW714

IC711 R712

R711

C701

JW702

R701

R702

CN761

CN751

JW705

JW707

JW708

JW706

IC701

CN705

CN731

CN771

CN701

IC751

JW703

JW704

S721

(MAIN TRAY)

S731

(SUB TRAY IN)

S771

ROTARY ENCODER

(MODE)

S781

ROTARY ENCODER

(STOCKER POSITION)

CN721

JW715

JW716

JW718

JW719

JW720

JW717

CN706

CN702

CN707

CN703

C762

C761

D701

D711

MOTOR BOARD

SENSOR BOARD

SW(2) BOARD

SW(1) BOARD

ENCODER BOARD

RELAY BOARD

12

(13)

1-861-241-

12

(13)

1-861-242-

12

(13)

1-861-243-

12

(13)

1-861-245-

12

(13)

1-861-244-

12

(13)

1-861-240-

SERIPARA

BOARD

CN002

U

M761

(LOADING)

M762

(STOCKER UP/DOWN)

4

3

2

1

G

1

1

1

1

1

1

1

1

6

2

3

3

3

3

1

1

2

2

3

4

1

5

G

9

9

20

21

1

6

E

OPEN

CLOSE

A

B

C

D

1234 5

1

2

1

5

Ref. No. Location

• Semiconductor

Location

D701 C-3

D711 C-3

IC701 C-3

IC711 C-3

IC751 B-5

Q751 D-2

(Page 49)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

4747

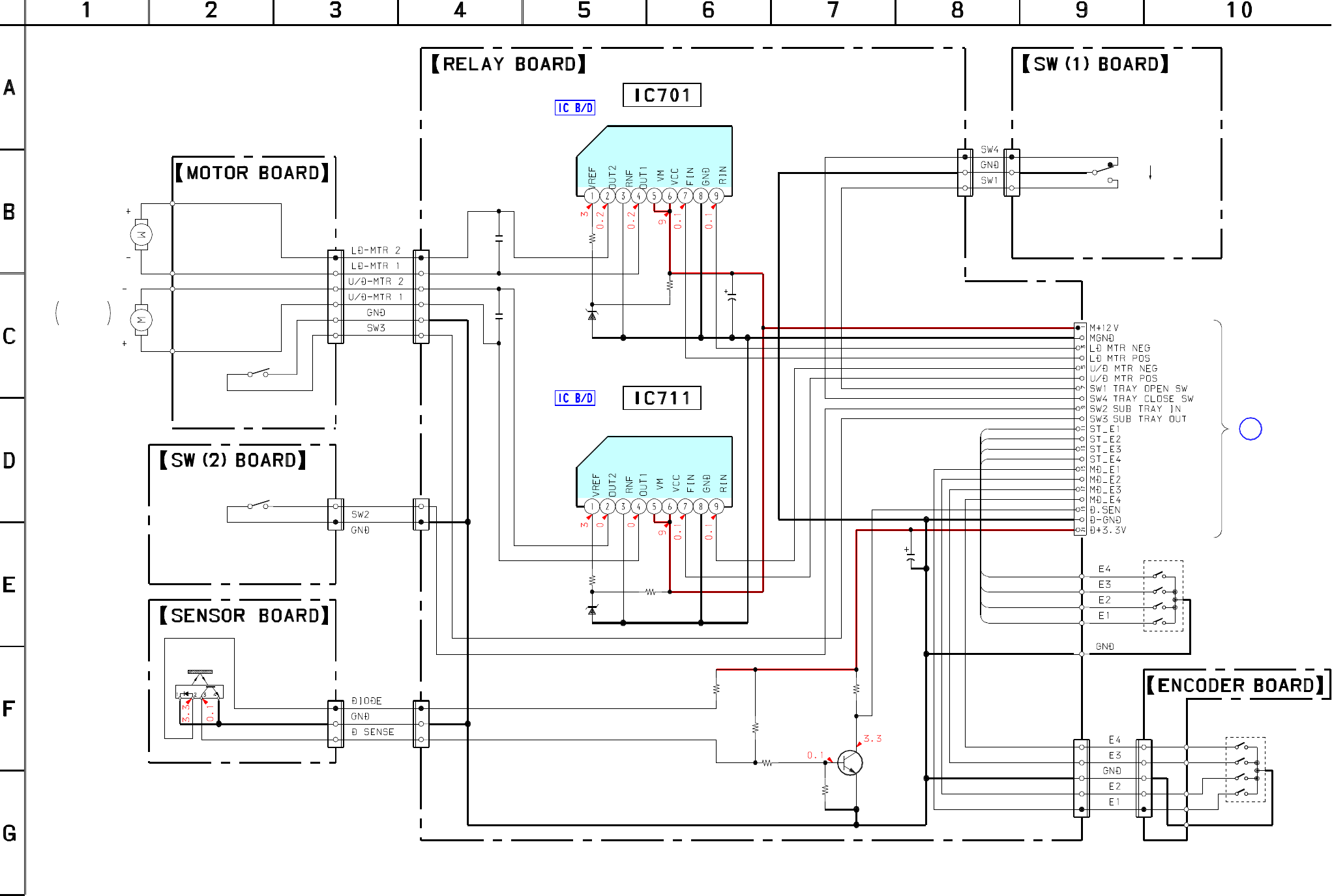

6-19. SCHEMATIC DIAGRAM - RELAY Section - • See page 62 for IC Block Diagrams.

U

SERIPARA

BOARD

CN002

M762

S761

S731 CN731 CN703

IC751

CN751 CN705

R711

R712

D711

IC711

D701

C762

C761 R702

R701

C701

IC701

CN702 CN721

S721

CN701

C702

R751

R754 Q751

R753

R752

R755

CN707 CN771

S771

S781

CN706

CN761

M761

(LOADING)

STOCKER

UP/DOWN

(SUB TRAY OUT)

(SUB TRAY IN) 2P 2P

RPR-359F DISC INSERT

DETECT SENSOR

3P 3P

680

100

MTZJ-T-77-4.3A

BA6956AN

STOCKER UP/DOWN MOTOR DRIVER

MTZJ-T-77-4.7B

0.01

0.01 100

680

47

16V

BA6956AN

3P 3P

(MAIN TRAY IN/OUT)

21P

10

16V

91

12k 2SC1740S-QRT

LEVEL SHIFT

10k

10k

10k

5P 5P

ROTARY ENCODER

(MODE)

ROTARY

ENCODER

(STOCKER POSITION)

6P

6P

ST-E2

ST-E3

ST-E4

ST-E1

ST-E4

ST-E3

ST-E2

ST-E1

LOADING MOTOR DRIVER

CLOSE

OPEN

(Page 48)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

4848

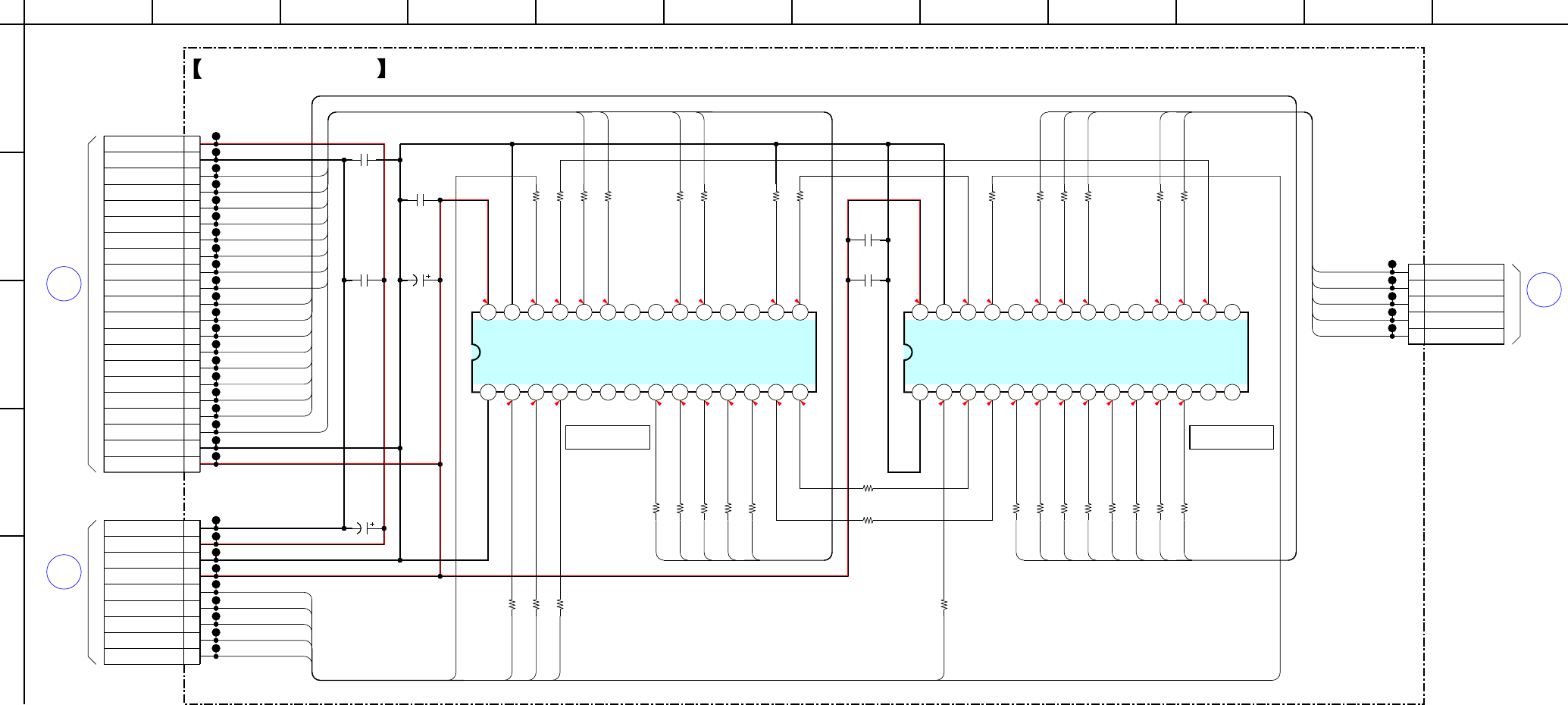

6-20. SCHEMATIC DIAGRAM - SERIPARA Board - • See page 70 for IC Pin Function Description.

CN4005

I/O

P

BOARD

CN505

(4/10)

MAIN

G

BOARD

CN701

RELAY

U

BOARD

3.3

3.3

0

0

0

0

0

0

0

0

3.3

3.3

3.3

0

3.3

3.3

3.3

3.3

3.3

3.3

0

0

0

3.3

3.3

3.3 [0]

0

3.3 [0]

3.3

3.3

3.3

0

3.3 [2.6]

3.3 [2.6]

3.3 [2.6]

3.3 [2.6]

3.3 [2.6]

0

0

28 27 26 25 24 23 22

7654321

21 20 16171819

1312111089

15

14

BH2210FV-E2

IC001

CONTROLLER

CHANGE

CTLIO

RESET_B

CLK

LATCH

P15

P14

P13

P12

P11

P10

P9

P8

LATCHO

CLKO

DO1

DI2

P7

P6

P5

P4

P3

P2

P1

P0

DO2

DI1

VSS

VCC

0.1

C003

220

R005

1000p

C005

10k

R017

220

R007

0.1

C004

100

R020

28 27 26 25 24 23 22

7654321

21 20 16171819

1312111089

15

14

CTLIO

RESET_B

CLK

LATCH

P15

P14

P13

P12

P11

P10

P9

P8

LATCHO

CLKO

DO1

DI2

P7

P6

P5

P4

P3

P2

P1

P0

DO2

DI1

VSS

VCC

100

R019

220

R023

100

R024

0.1

C006

0.1

C007

100

R018

220

R003

16V

100

C002

6.3V

100

C001

100

R004

100

R006

JL001

JL003

JL005

JL007

JL009

JL011

JL013

JL015

JL017

JL002

JL004

JL006

JL008

JL010

JL012

JL014

JL016

JL018

JL019

JL020

JL021

JL022

JL023

JL024

JL025

JL026

JL027

JL028

JL029

JL030

220

R010

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

21P

CN002

M+12V

MGND

LD MTR NEG

LD MTR POS

U/D MTR NEG

U/D MTR POS

SW1 TRAY OPEN SW

SW4 TRAY CLOSE SW

SW2 SUB TRAY IN

SW3 SUB TRAY OUT

ST_E1

ST_E2

ST_E3

ST_E4

MD_E1

MD_E2

MD_E3

MD_E4

D.SEN

D-GND

D+3.3V

JL037

JL036

JL033

JL032

JL031

1

2

3

4

5

5P

CN003

V_SEL2

A_SEL0

A_SEL1

A_SEL4

A_SEL5

100

R008

100

R009

100

R011

100

R013

100

R012

100

R014

100

R015

100

R016

100

R025

100

R027

100

R029

100

R031

100

R033

100

R035

100

R037

100

R039

100

R038

100

R036

100

R030

100

R028

100

R026

1

2

3

4

5

6

7

8

9

9P

CN001

M-GND

M+12V

D-GND

D3.3V

IORST

IOCE

IOCLK

IODO

IODI

IOCLK

IORST

IORST

IOCE

IODI

IORST

IOCE

IOCLK

IODO

IODI

MA1

MA2

MC1

MC2

OCSW

SEN5

SEN6

D-SEN

SEN7

VSEL2

ASEL5

ASEL4

ASEL1

ASEL0

MEN10

MEN11

MEN12

MEN13

MEN20

MEN21

MEN22

MEN23

MA2

MA1

MC2

MC1

OCSW

SEN7

SEN6

SEN5

D-SEN

MEN10

MEN11

MEN12

MEN13

MEN20

MEN21

MEN22

MEN23

IODO

VSEL2

ASEL0

ASEL1

ASEL4

ASEL5

IC001

BH2210FV-E2

IC002

CONTROLLER

VIDEO/AUDIO

IC002

SERIPARA BOARD

4

B

6911

D

1035 12

C

1

E

8

A

27

(Page 47)

(Page 39)

(Page 53)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

4949

6-21. PRINTED WIRING BOARD - SERIPARA Board -

• : Uses unleaded solder.

• See page 33 for Circuit Boards Location.

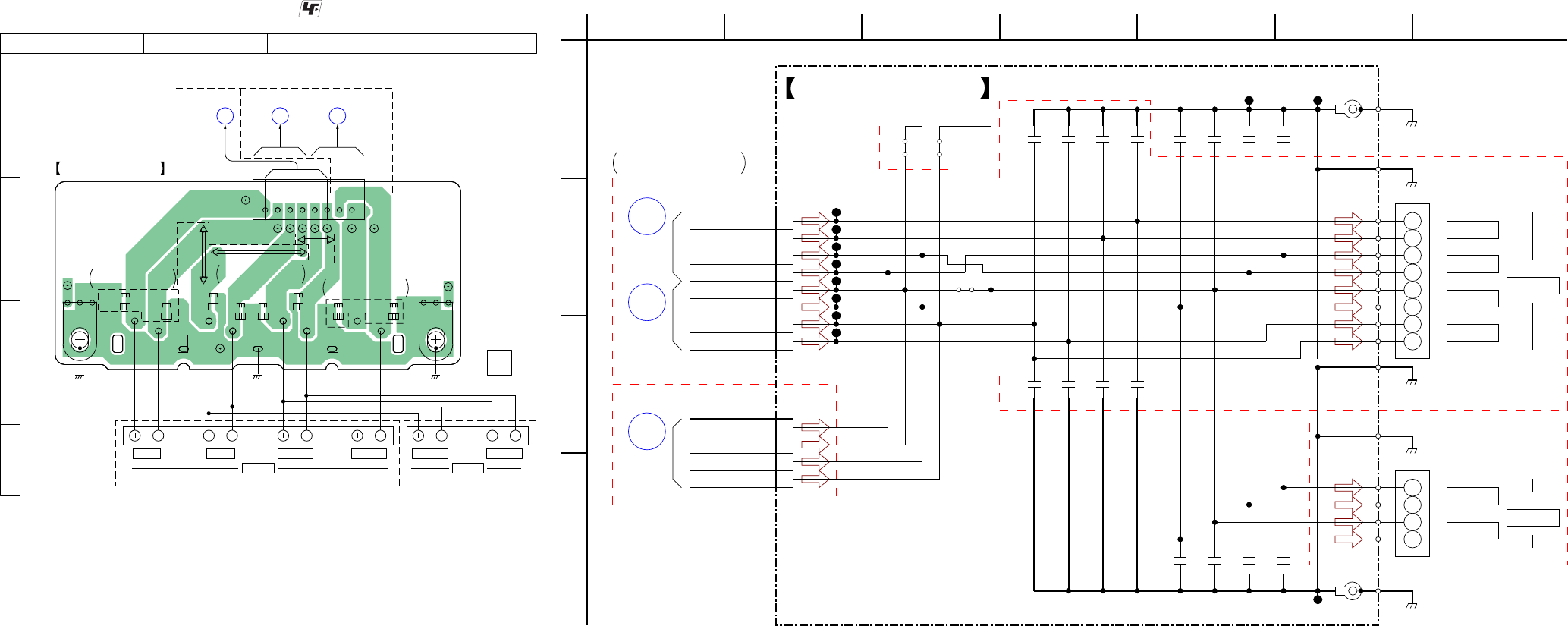

6-22. SCHEMATIC DIAGRAM - S-AIR-CON Board (HDX285/HDX585/HDX685) -

R025

R029

R033

R037

C004

C005

C006

JL001

JL002 JL003

JL004

JL005

JL006 JL007

JL008

JL009

JL010

JL011

JL012

JL013

JL014

JL015

JL016

JL017

JL018

JL019

JL020

JL021

JL022

JL023

JL024

JL025

JL026

JL027

JL028

JL029

JL030

JL031

JL032

JL033

JL036

JL037

R004

R008

R010

R011

R012

R014

R015

R016

21

20

1

2

4

51

2

1

9

CN001

CN002

CN003 C001

C002

1

14

15

28

1

14

15 28

R018

R019

R020

R023

R024

R026

R027

R028

R030

R031

R035

R036

R038

R039

C003

C007

IC001

IC002

R003

R005

R006

R007

R009

R013

R017

1-878-164-

11

(11)

SERIPARA BOARD (CONDUCTOR SIDE)

G

MAIN

BOARD

CN505

U

RELAY

BOARD

CN701

P

I/O BOARD

CN4005

1-878-164-

11

(11)

SERIPARA BOARD (COMPONENT SIDE)

A

B

C

12345

BOARD

CN4008

Q2

I/O

BOARD

CN908

R2

POWER

BOARD

(6/10)

CN306

K2

MAIN

3.2

0.6

3.4

4.2

4.2

CL113

CL122

CL120

470

R102

CL126

CL101

CL100

CL125

CL115

CL112

CL102

CL105

CL119

CL110

CL108

CL114

CL106

CL109

CL107

CL121

CL104

CL111

CL124

CL103

CL128

CL117

CL118

CL127

2SB1690KT146

Q101

RT1N441C-TP-1

Q100

47k

R103

470

R101

10kR107

10kR104

10kR105

10kR106

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

30P

CN103

A5V

Rch

AGND

Lch

GPI00

GPI01

GPI02

GPIO3

4V

GND

RESN

ADC_SEL

GND

LRCK1

BCK1

SD1

GND

I2C_SCL

I2C_SDA

SRC_MUTE

IFMT0(Low)

GND

LRCK2

BCK2

GND (for DET)

SD2

SD3

SD4

SPDIF

SPDIF_SEL

CL116

CL123

1

2

3

4

CN101

4P

Lch

AGND

Rch

A+5V

1

2

2P

CN102

GND

E4V

CL129

CL130

1

2

3

4

5

6

7

8

9

10

11

12

13

CN100

13P

GND

I2C_SDA

RESET

GPIO2

LRCK

S-AIR_DET

SD2 (SL/SR)

GND

BCK

P-CONT3

SD1 (DMIX/XM)

ADC_SEL

I2C_SCL

CL131

S-AIR-CON BOARD

EZW-T100

TRANSCEIVER

WIRELESS

(EZW-T100)

B+ SWITCH

Q100, 101

4

B

6

D

35

C

1

E

A

27

470

R100

(Page 46)

(Page 52)

(Page 35)

(Page 53)

(Page 61)

(Page 41)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

5050

6-23. SCHEMATIC DIAGRAM - S-AIR INCLUDE Board (HDX287WC/HDX587WC/HDX589W/HDX686W) - • See page 59 for Waveforms. • See page 62 for IC Block Diagrams.

BOARD

I/O

CN4008

Q1

BOARD

POWER

CN908

R1

BOARD

MAIN

(6/10)

K1

CN306

31

IC B/D

IC B/D

IC B/D

IC B/D

IC B/D

IC B/D

3.2

4.1

3.3

1

3.3

3.3 [0]

1.3 [∗]

∗

1.3

1.7

1.2

3.3

2.6

3.3

2.6

1.7

1.7

3.3

5.1

2.6

0.9

∗

1.7

3.3

3.3

1.3

1.7

3.3

∗

1.7

1.7

3.3

3.3

3.3

3.3

0.9

∗

1.7

1.7

1.3 [0]

3.3

3.3

3.3

3.3

3.3

3.3

3.3

1.7

1.7

∗ [0]

1.7

1.7 1.7

1.7

3.3

3.2

1.3

4.1

3.3

100

R828

100

R852

100

R824

0.1

C832

220

R854

100

R827

100

R829

100

R853

100

R858

100

R834

0.1

C833

220

R859

100

R860

100

R833

220

R851

C823

100p

C816

100p

100

R825

100

R865

R869

10k

R867

10k

100

R868

R870

1k

R871

10k

CL845

CL847

CL846

CL849

CL848

CL851

CL850

CL853

CL852

CL855

CL854

CL857

CL856

CL859

CL858

CL860

CL863

CL862

CL840

CL839

CL841

CL828

CL829

CL830

CL831

CL801

CL804

CL814

CL806

CL805

CL802

CL808

CL810

CL811

CL812

CL816

CL817

CL818

10

R800

10

R801

100

R826

47

R815

8

7

6

54

3

2

1

TC7WHU04FK(T5RSOYF

IC802

1A

3Y

2A

GND

2Y

3A

1Y

VCC

15p

C805

100k

R812

18p

C809

3.3k

R804

1k

R803

0.01

C804

100

R832

100

R831

50V

10

C808

0.1

C807

10uH

L800

0.1

C830

10uH

L803

0.1

C829

CL837

CL836

10V

100

C839

0.1

C837

0.1

C836

10V

100

C838

100

R814

CL835

CL834

CL861

CL844

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

20P

CN803

GND

VCC_3.3V

GND(for DET)

MCLK

A0

A1

INT

Debug_TXD

CONNECT

Link_IND

I2C_SCL

RESET

SDIN_B(Surr)

I2C_SDA

LRCK

SDIN_D

BCK

GND

SDIN_C

SDIN_A(2nd)

10uH

L804

10V

220

C845

10

R863

10

R864

C813

1

C814

1

CL819

1

C806

1

C811

10V

1000

C819

0.01

C826

22k

R848

1.5k

R847

CL832

R830

1k

0.01

C820

CL833

10k

R849

CL820

CL821

C849

100p

100p

C801

100p

C803

10C828

10

C840

1

2

3

4

4P

CN801

Lch

GND

Rch

A+5V

10

C831

1

2

CN802

2P

GND

E4V

10V

1000

C815

L801

10uH

10V

470

C827

1234

6

5

SI-3010KM-TLS

IC804

Vcont

Vin

GND

Vout

Sense

MC2840-T112-1

D800

0

R855

CL800

CL815

CL807

CL809

CL803

CL842

CL843

10uH

L802

E

ET800

12.288MHz

X800

2200p

C824

1

C817

1

C818

2200p

C825

220

R872

220

R873

8

7

6

54

3

2

1

TC7WH157FK(TE85R)

IC808

A

B

Y

GND Y

A/B

G

VCC

0.1

C852

CL838

1

2

3

4

5

6

7

8

9

10

11

12

13

13P

CN804

0

R875

0

R878

0

R882

30

29

28

27

26

25

247

6

5

4

3

2

1

18

19

20

21

22

238

9

10

17

16

11

12

13

14

15

AK4127

IC805

FILT

AVS S

PDN

SMUTE

DITHER

PLL2

ILRCK

IBICK

SDTI

IDIF0

IDIF1

IDIF2

PLL0

PLL1

UNLOCK

OBIT0

OBIT1

IMCLK

CMODE0

CMODE1

CMODE2

ODIF0

ODIF1

SDTO

OBICK

OLRCK

OMCLK

DVDD

DVSS

AVD D

30

29

28

27

26

25

247

6

5

4

3

2

1

18

19

20

21

22

238

9

10

17

16

11

12

13

14

15

AK4127

IC806

FILT

AVS S

PDN

SMUTE

DITHER

PLL2

ILRCK

IBICK

SDTI

IDIF0

IDIF1

IDIF2

PLL0

PLL1

UNLOCK

OBIT0

OBIT1

IMCLK

CMODE0

CMODE1

CMODE2

ODIF0

ODIF1

SDTO

OBICK

OLRCK

OMCLK

DVDD

DVSS

AVDD

0

R884

0

R861

5

43

2

1

TK11133CSCL-G

IC800

xSD

VSS

NC VOUT

VIN

1000p

C851

1k

R837

0

R841

R881

0

0

R839

0

R845

R877

0

0

R843

1k

R838

220

R874

14

13

12

11

10

9

87

6

5

4

3

2

1

PCM1808PWR

IC807

VREF

AGND

AVCC

VDD

DGND

SCKI

LRCKBCK

DOUT

MD0

MD1

FMT

VINL

VINR

220

R835

0.1

C846

C841

470p

C847

47p

C848

47p

C844

47p

C843

47p

100R807

1k

R805

100k

R806 100

R836

0.1

C834

10

C835

GND

SD2(SL/SR)

S-AIR_DET

LRCK

GPIO2

RESET

I2C_SDA

GND

P-CONT3

BCK

ADC_SEL

SD1(DMIX/XM)

I2C_SCL

IC800

+3.3V REGULATOR

+3.3V REGULATOR

IC804

IC802

OSC BUFFER

IC805

SAMPLE

IC806

IC808

AUDIO SELECTOR

IC807

A/D CONVERTER

(CHASSIS)

S-AIR INCLUDE BOARD

EZW-RT10

WIRELESS

TRANSCEIVER

RATE CONVERTER

RATE CONVERTER

SAMPLE

J

4

B

166911

D

15

H

10 1735 12

C

F

181

E

8

G

14

A

213

I

7

EZW-RT10A

OR

EZW-RT10

(Page

41)

(Page 61)

(Page 53)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

5151

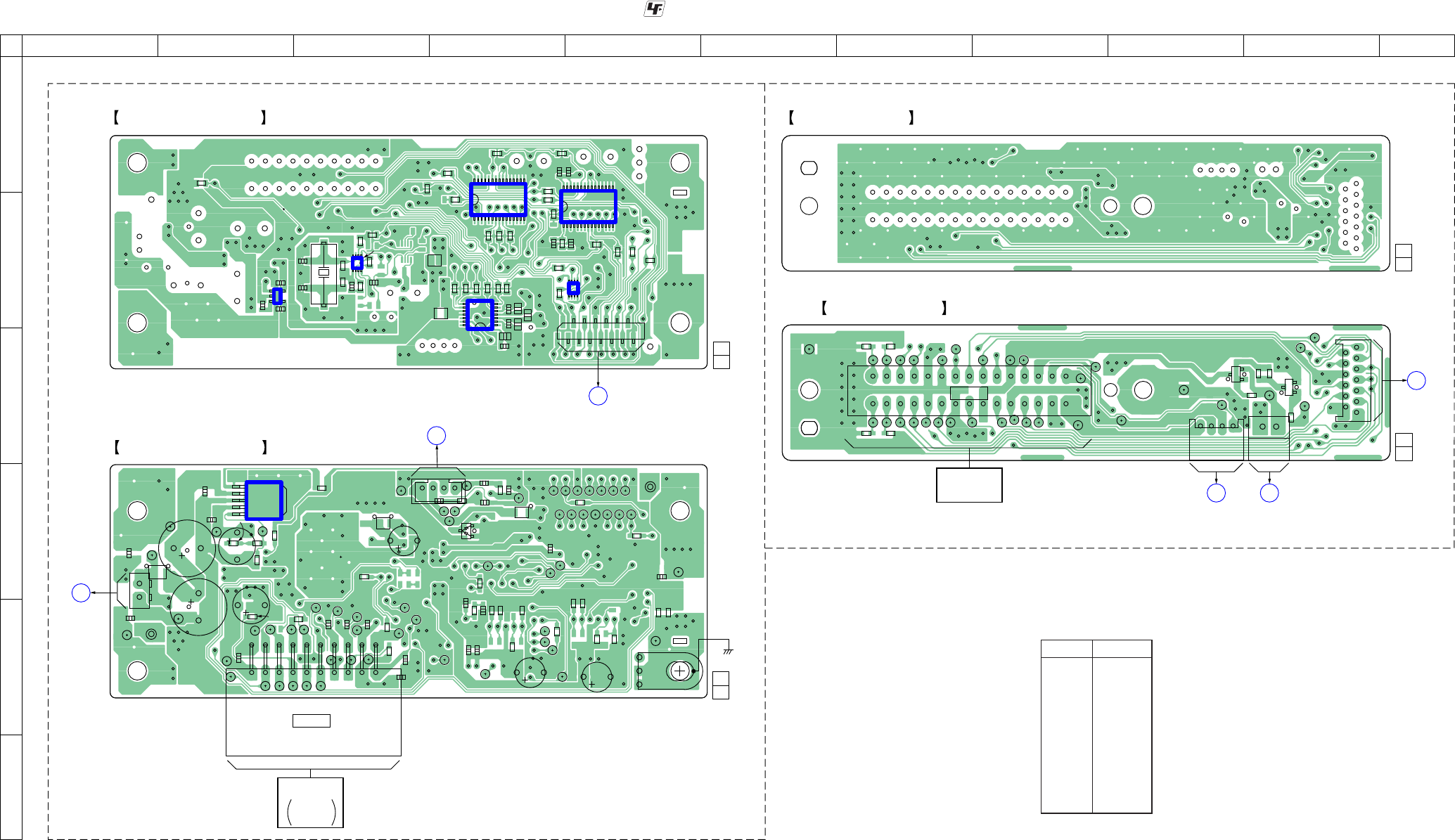

6-24. PRINTED WIRING BOARDS - S-AIR Section - • : Uses unleaded solder.

• See page 33 for Circuit Boards Location.

6

1

5

R800

R801

R805

R825

R826

R830

R838

R839

C801

C803

R841

R843

R845

R847

R848

R849

C813

C814

C816

C818

R859

C820

C823

R861

C825

C826

R863

R864

R867 R868

C833

R870

R871

C837

R877

R878

C841

C843

C844

R881

R882

C846

C847

R884

C848

C849

C852

D800

IC804

CL800

CL801

CL802

CL803 CL804

CL805

CL806

CL807

CL808 CL809

CL810 CL811

CL812

CL813 CL814

CL815

CL816

CL817

CL818

CL819

CL820

CL821

CL828

CL829

CL830

CL831

CL832

CL833

CL834

CL835

CL836

CL837

CL838

CL839

CL840

CL841

CL842

CL843

CL844

CL845

CL846

CL847

CL848

CL849

CL850

CL851

CL852

CL853

CL854

CL855

CL856

CL857

CL858

L800

CL859

L801

L803

CL860

CL861

CL862

CL863

1

4

1

2

1

2

19

20

CN801

CN802

CN803

LP801

C808

C815

C819

C827

C838

C839

C845

ET800

LP800

1

14

87

115

1630

115

16

30

1

2

13

12

R803

R804

R806

R807

R812

R814

R815

CN804

R824

R827

R828

R829

R831

R832

R833

R834

R835

R836

R837

C804

C805

C806

C807

C809

X800

C811

R851

R852

C817

R853

R854

R855

R858

C824

R860

C828

R865

C829

R869

C830

C831

C832

C834

C835

R872

C836

R873

R874 R875

C840

C851

IC800

IC802

IC805

IC806

IC807

IC808

L802

L804

BE

BE

CL100

CL101

CL102

CL103 CL104

CL105

CL106

CL107

CL108

CL109

CL110

CL111

CL112

CL113

CL114

CL115

CL116

CL117

CL118

CL119

CL120CL121

CL122

CL123

CL124

CL125

CL126

CL127

CL128

CL129

CL130

CL131

Q100

Q101

R100

R101

R102

R103

R104

R105

R106

R107

14 12

1

2

30

29

13

12

1

2

CN100

CN101 CN102

CN103

1-878-165-

11

(11)

S-AIR INCLUDE BOARD (CONDUCTOR SIDE)

Q1

I/O BOARD

CN4008

R1

POWER

BOARD

CN908

(CHASSIS)

EZW-RT10

WIRELESS

TRANSCEIVER

EZW-RT10

OR

EZW-RT10A

1

34

5

1-878-165-

11

(11)

S-AIR INCLUDE BOARD (COMPONENT SIDE)

K1

MAIN BOARD

CN306

58

14

1-878-166-

11

(11)

S-AIR-CON BOARD (COMPONENT SIDE)

1-878-166-

11

(11)

S-AIR-CON BOARD (CONDUCTOR SIDE)

K2

MAIN

BOARD

CN306

R2

POWER BOARD

CN908

Q2

I/O BOARD

CN4008

EZW-T100

WIRELESS

TRANSCEIVER

(EZW-T100)

(HDX287WC/HDX587WC/HDX589W/HDX686W) (HDX285/HDX585/HDX685)

5

8

1 4

A

B

C

D

E

F

1234567891011

Ref. No. Location

• Semiconductor

Location

D800 D-4

IC800 B-2

IC802 B-3

IC804 D-2

IC805 B-5

IC806 B-4

IC807 B-4

IC808 B-5

Q100 C-10

Q101 C-9

(Page 60)

(Page 52) (Page 35)

(Page 52) (Page 60)

(Page 35)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

5252

6-25. PRINTED WIRING BOARD - I/O Board - • : Uses unleaded solder.

• See page 33 for Circuit Boards Location.

JL4030

JL4031

JL4032

JL4033

JL4034

JL4035

JL4036

JL4037

JL4038

JL4039

JL4040

JL4041

JL4042

JL4043

JL4044

JL4047

JL4048

JL4049

JL4050

JL4051

D4003

D4004

D4006

JL4060

JL4061

JL4064

JL4065

JL4066 JL4067

JL4068

JL4069

C4039

JL4070

JL4071

JL4072

JL4073

JL4076 JL4077

C4043

JL4078

JL4080

JL4082

JL4083

C4050

JL4087

C4053

JL4089

C4055

R4032

R4034

JL4091

JL4092

JL4093

JL4094

JL4095

JL4096

JL4097

JL4098

R4041

R4043

R4048

C4070

R4049

R4050

C4078

R4051

R4052

R4053

R4054

R4055

C4087

C4089

R4072 R4073

R4074 R4075

R4076

R4077

R4082

R4085

R4086

R4089 R4093

R4094 JL4102

C4100

C4104

C4113

R4103

R4104

R4105

R4108

R4110

R4111

R4114

R4115

R4146

R4147

R4148

R4149

R4150

R4166

CL4002

JL4024

JL4025

JL4026

JL4027

JL4028

JL4029

1

2

8

9

14

CN4008

CN4016

C4054

C4056

C4057

C4077

R4056

C4083 C4088 C4090

C4093

C4109

C4110

14

2

189

2

1

4

5

1

23

CN4009

CN4012

CN4014

C4030 C4033 C4036

IC4009

C4040

C4046

LP4001

C4101

LP4002

C4116

J4000

J4001

116

98

BEBE

BEBE

1

2

4

5

116

98

1

2

17

16

116

17

32

CN4005

CN4017

Q4007

Q4008

Q4011

Q4012

C4028

C4031

IC4002

IC4003

C4034

IC4004

C4037

IC4007

C4041

C4042

C4044

C4045

C4047

C4048

C4049

C4059

R4035

R4036

R4037

R4038

R4039

R4044

R4045

R4058

R4061

C4094

R4070

R4095

C4123

R4116

L4000

R4124

R4128

R4131

R4133

R4156

R4157 R4164

A

B

C

D

E

F

1234567 8

F

MAIN BOARD

CN502

L

MAIN BOARD

CN303

S2

FL-JACK BOARD

CN5002

FL-JACK BOARD

CN5002

Q2

S-AIR-CON

BOARD

CN101

Q1

S-AIR

INCLUDE

BOARD

CN801

1-878-170-

11

(11)

I/O BOARD (CONDUCTOR SIDE)

COMPONENT VIDEO OUT

VIDEO

OUT

TV/VIDEO

AUDIO IN

(CHASSIS)

(CHASSIS)

LR

TUNER

(FM/AM)

FM 75Ω

COAXIAL

ANTENNA

AM

HDX287WC/HDX587WC/

HDX589W/HDX686W

(SUFFIX-11) (SUFFIX-12)

HDX285/HDX585/

HDX685

1

3

4

5

1-878-170-

11

(11)

I/O BOARD (COMPONENT SIDE)

PSERIPARA

BOARD

CN003

MMAIN BOARD

CN472

PB/CBPR/CRY

S1

Ref. No. Location

• Semiconductor

Location

D4003 F-4

D4004 D-3

D4006 E-6

IC4002 A-7

IC4003 B-7

IC4004 B-3

IC4007 B-4

IC4009 E-6

Q4007 C-4

Q4008 C-4

Q4011 C-5

Q4012 B-5

(Page 51) (Page 51) (Page 54) (Page 54) (Page 35) (Page 34)

(Page 34)

(Page 49)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

5353

6-26. SCHEMATIC DIAGRAM - I/O Board - • See page 59 for Waveforms. • See page 62 for IC Block Diagrams.

FL-JACK

CN5002

BOARD

S

SERIPARA

CN003

BOARD

P

MAIN

CN502

(4/10)

BOARD

F

MAIN

CN303

(6/10)

BOARD

L

MAIN

CN472

(10/10)

BOARD

M

26

27

28

29

25

24

22

21

23

IC B/D

IC B/D

IC B/D IC B/D

CN101

Q2

BOARD

S-AIR-CON

S-AIR

INCLUDE

BOARD

Q1

CN801

3.2 [0]

3.2 [0]

0 [9]

0 [9]

4.5

0 [9]

0 [9]

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

9

0

4.5

9

4.5

0

4.5

4.5 4.5

4.5

4.5

4.5

0

0

3.2

3.2

911.9

5

2.2

3.3

0.1

0

1.6

2.2

1.6

5

3.3

2.2

2.2

2.2

2.2

2.2

2.2

1.4 [1.7]

1.4 [1.7]

1.6 [1.9]

1.6 [1.9]

5

6.5

1.3

11. 9

6.3V

1000

C4036

75

R4032

75

R4034

75

R4041

16V

100

C4030

16V

100

C4033

0.1

C4037

0.1

C4045

JL4043

0.1

C4031

0.1

C4028

1

C4034

25V

22

C4110

16V

100

C4093

47k

R4055

R4164 10k

47k

R4104

RT1N241C-TP-1

Q4012

R4103

4.7k

25V

22

C4057

47k

R4094

R4111

4.7k

220p

C4078

RT1N241C-TP-1

Q4011

0.1

C4094

10uH

L4000

220p

C4087

25V

22

C4083

1k

R4128

25V

22

C4054

47k

R4116

R4058 10k

47k

R4085

10k

R4131

R4070

1k

R4061

1k 1k

R4133

22k

R4053

47k

R4115

47k

R4050

3.3k

R4089

RT1N241C-TP-1

Q4007

25V

22

C4077

22k

R4051

47k

R4086

25V

22

C4088

47k

R4105

220p

C4070

RT1N241C-TP-1

Q4008

220p

C4089

47k

R4095

3.3k

R4093

16

15

14

13

12

11

10

98

7

6

5

4

3

2

1

MC14052 BDR2

IC4004

Y0

Y2

Y

Y3

Y1

INH

VEE

VSS B

A

X3

X0

X

X1

X2

VDD

25V

22

C4090

16

15

14

13

12

11

10

98

7

6

5

4

3

2

1

MC14052 BDR2

IC4007

Y0

Y2

Y

Y3

Y1

INH

VEE

VSS B

A

X3

X0

X

X1

X2

VDD

10k

R4124

25V

22

C4109

47k

R4054

47k

R4049

1

2

3

4

CN4014

4P

F_AUDIO (L)

9V

F_AUDIO (R)

GND

75

R4043

6.3V

1000

C4040

JL4032

JL4026

JL4025

JL4024

JL4029

JL4080

JL4082

JL4083

JL4027

JL4091

JL4092

JL4093

JL4094

JL4097

JL4095

JL4096

JL4098

0

R4157

JL4040

JL4037

JL4041

J4000

JL4061

JL4064

1

2

3

4

5

5P

CN4012

A-GND

L-IN

A-GND

R-IN

XVOICE

1

2

3

4

5

6

7

8

9

9P

CN4016

L-CH

+ B 9V

R-CH

GND

TUNED

CE

DI

CL

DO

1

C4048

R4045

1k

1C4049

0.1

C4047

J4001

2200p

C4043

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

17P

CN4017

WIDE

VGND

C

VGND

DMP_V

VGND

Y

VGND

Y/G

VGND

Cb/B

VGND

Cr/R

+6V

DMP_R

AGND

DMP_L

0.1

C4044

CL4002

R4082

0

R4148

0

MAZ8051G0LS0

D4004 50V

C4056

10

R4077

0

R4108

0

R4056

220

1

2

3

4

CN4008

4P

Lch

GND

Rch

A+5V

1

2

3

4

5

6

7

8

9

9P

CN4009

TV_SEL

V_SEL1

V_SEL0

A12V

ST_DI/MIC_DATA

ST_CE

ST_DO

ST_CLK/MIC_CLK

TUNED

MC2840-T112-1

D4003

10V

470

C4046

C4050

1000p

JL4044

JL4028

JL4031

JL4033

JL4034

JL4035

JL4036

JL4039

JL4038

JL4030

JL4042

JL4102

1

C4041

1

C4042

10

C4123

100

R4076

R4073 100

R4072 0

100

R4075

R4074

0

0.1

C4113

0.1

C4104C4100

1

JL4049

JL4051

JL4048

JL4050

JL4047

JL4070

JL4065

JL4069

JL4072

JL4071

JL4068

JL4067

JL4073

JL4066

JL4077

JL4076

JL4078

JL4089

JL4087

0

R4156

100k

R4146

100k

R4150

16V

100

C4116

16V

47

C4101

R4166

0

1

2

3

4

5

5P

CN4005

A_SEL5

A_SEL4

A_SEL1

A_SEL0

V_SEL2

JL4060

MA2J1110GLS0

D4006

IO

G

KIA7809API-U/PF

IC4009

12

3

4.7k

R4110

4.7k

R4114

100p

C4055

100p

C4053

323130292827

123456

262524

789

23222120

101112

191817

13141516

BH7868FS-E2

IC4002

Vcc1

S1

S2

CIN

MUTE1

CVBS IN

YC MIX

YIN

BIAS

CLP

CYIN

GND

CbIN

MUTE2

CrIN

Vcc2

CrOUTb

CrOUTa

GND

CbOUTb

CbOUTa

GND

CYOUTb

CYOUTa

GND

YOUTb

YOUTa

GND

VOUTb

VOUTa

S-DC OUT

C OUT

R4052

100k

R4048

100k

150

R4036

R4044

75

150

R4035

150

R4037

150

R4038

150

R4039

5

43

2

1

TK11150CSCL-G

IC4003

CONT

GND

NpVout

Vin

C4059

0.1

100k

R4149

100k

R4147

1000p

C4039

ASEL0

ASEL1

ASEL1

ASEL0

VSEL1

VSEL0

VSEL2

TD

TD

CE

CE

DI

DI

CK

DO

DO

CK

ASEL5

ASEL4

ASEL5

ASEL4

VSEL1

VSEL2

VSEL0

IC4002

VIDEO AMP,

IC4003

+5V REGULATOR

IC4004

AUDIO SELECTOR

I/O BOARD

AUDIO SELECTOR

IC4007

+9V REGULATOR

IC4009

75Ω DRIVER

INVERTER

INVERTER

INVERTER

INVERTER

TUNER

FM 75Ω

COAXIAL

(FM/AM)

AM

ANTENNA

HDX589W/HDX686W

HDX287WC/HDX578WC/

HDX685

HDX585/

HDX285/

L

R

AUDIO IN

TV/VIDEO

VIDEO OUT

(CHASSIS)

(CHASSIS)

VIDEO OUT

COMPONENT P

B

/C

B

Y

P

R

/C

R

J

4

B

166911

D

15

H

10

K

1735 12

C

F

181

E

8

G

14

A

213

I

7

1W

(Page 45)

(Page 55)

(Page 48)

(Page 39)

(Page 41)

(Page 50)

(Page 49)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

5454

6-27. PRINTED WIRING BOARD - FL-JACK Board (Suffi x-11) - • : Uses unleaded solder.

• See page 33 for Circuit Boards Location.

6-28. PRINTED WIRING BOARD - FL-JACK Board (Suffi x-12) - • : Uses unleaded solder.

• See page 33 for Circuit Boards Location.

Note: Refer to the Servicing Notes “FL-JACK AND P-SW BOARDS DISCRIMINATION”

(page 5) for how to distinguish Suffi x-11 and Suffi x-12.

1

2

5

51 48

52

216

17

1

1

4

11

10

1

2

13

JW5036

JW5037

JW5039

JW5040

JW5041

JW5042

JW5043

JW5044

JW5045

JW5046

JW5048

JW5049

JW5051

JW5052

JW5054

JW5055

JW5058

JW5059

JW5060

JW5062

JW5064

JW5065

JW5067

JW5069

ND5000

CN5000

CN5001

CN5002

CN5004

C5002

C5009

C5011

C5020

C5025

C5028

D5005

C5030

C5031

IC5002

C5037

S5000 T5000

J5000

J5001

L5000

L5001

L5002

JW5001

JW5002

JW5003

JW5004

JW5006

JW5007

JW5008

JW5009

JW5010 JW5011

JW5012

JW5013

JW5014

JW5015

JW5017

JW5019

JW5022

JW5023

JW5024

JW5025

JW5026

JW5027

JW5028

JW5029

JW5030

JW5031

JW5032

JW5033

C C

BBE

BE

BE

BE

BE

BE

BE

BE

BE

BE

BE

8

14

5

8

14

5

1

11

23

33

22

34

44

12

CL5000

CL5001

CL5002

CL5003

CL5004

CL5005

CL5006

CL5007

CL5008

CL5009

CL5010

CL5011

CL5012

CL5013

CL5014

CL5015

CL5016

CL5017

CL5018

CL5019

CL5020

CL5021

CL5022

CL5023

CL5024

CL5025

CL5026

CL5027

CL5028

CL5029

CL5030

CL5031

CL5032

CL5033

CL5034

CL5035

CL5036

CL5037

CL5038

CL5039

CL5040

CL5041

CL5042

CL5043

CL5044

CL5045

CL5046

CL5047

CL5048

CL5049 CL5050

CL5051

CL5052

CL5053

CL5054

C5000

CL5055

CL5056

CL5057

C5003

CL5058

C5004

Q5000

CL5059

C5005

C5006

C5007

Q5003

C5008

Q5004

Q5005

Q5006

Q5007

CL5060

Q5008

CL5061

Q5009

CL5062

CL5063

CL5064

C5010

CL5065

CL5066 C5012

CL5067

CL5068

Q5010

CL5069

Q5011

Q5012

CL5072

CL5073

CL5074

CL5075

C5021

CL5076

CL5077

C5023

CL5078

C5024

D5000

CL5079

D5001

C5026

D5002

C5027

R5000

C5029

R5001

D5006

D5007

R5003

CL5080

D5008

R5004

D5009

R5005

R5006

R5007

IC5000

R5008

R5009

IC5001

C5032

IC5003

D5010

IC5004

C5035

C5036

C5038

R5010

R5011

R5012

R5013

R5016

R5017

C5040

R5018

C5041

R5019

C5042

C5043 C5044

C5045

C5046

R5020

R5021

R5022

R5023

R5024

R5025

R5026 R5027

C5050

R5028

R5029

C5058

R5030

C5059

R5031

R5032

R5033

R5034

R5035

R5036

R5037

R5038

C5061

R5039

R5041

R5043

R5044

R5045

R5047 R5048

R5049

R5050

R5051

R5052

R5053

R5054

R5055

R5056

JR5005

JR5006

R5083

R5084

R5085

R5086

R5087

R5088

JR5014 JR5015

JR5019

FB5000

FB5001

FB5002

FB5003

FB5006

1-878-158-

11

(11)

1

3

64

D1

MAIN

BOARD

CN3001

S1

I/O BOARD

CN4014

H1

MAIN BOARD

CN506

T1

KEY BOARD

CN5101

FL-JACK BOARD

K

A/K

A

FLUORESCENT INDICATOR TUBE

123

DC/DC

CONVERTER

DMPORT

BOOSTER

DMPORT

BOOSTER

PHONES AUDIO IN/

A.CAL MIC

A

B

C

D

123456789 10

1

9

S5000

1

2

5

51 48

52

216

17

1

1

4

11

10

1

2

13

JW5036

JW5037

JW5039

JW5040

JW5041

JW5042

JW5043

JW5044

JW5045

JW5046

JW5048

JW5049

JW5051

JW5052

JW5054

JW5055

JW5058

JW5059

JW5060

JW5064

JW5065

JW5067

JW5069

ND5000

CN5000

CN5001

CN5002

CN5004

C5002

C5009

C5011

C5020

C5025

C5028 C5030

C5031

IC5002

C5037

S5000 T5000

J5000

J5001

L5000

L5001

L5002

JW5001

JW5002

JW5003

JW5004

JW5006

JW5007

JW5008

JW5009

JW5010 JW5011

JW5012

JW5013

JW5014

JW5015

JW5017

JW5019

JW5022

JW5023

JW5024

JW5025

JW5026

JW5027

JW5028

JW5029

JW5030

JW5031

JW5032

JW5033

C C

BBE

BE

BE

BE

BE

BE

BE

BE

BE

BE

BE

8

14

5

8

14

5

1

11

23

33

22

34

44

12

CL5000

CL5001

CL5002

CL5003

CL5004

CL5005

CL5006

CL5007

CL5008

CL5009

CL5010

CL5011

CL5012

CL5013

CL5014

CL5015

CL5016

CL5017

CL5018

CL5019

CL5020

CL5021

CL5022

CL5023

CL5024

CL5025

CL5026

CL5027

CL5028

CL5029

CL5030

CL5031

CL5032

CL5033

CL5034

CL5035

CL5036

CL5037

CL5038

CL5039

CL5040

CL5041

CL5042

CL5043

CL5044

CL5045

CL5046

CL5047

CL5048

CL5049 CL5050

CL5051

CL5052

CL5053

CL5054

C5000

CL5055

CL5056

CL5057

C5003

CL5058

C5004

Q5000

CL5059

C5005

C5006

C5007

Q5003

C5008

Q5004

Q5005

Q5006

Q5007

CL5060

Q5008

CL5061

Q5009

CL5062

CL5063

CL5064

C5010

CL5065

CL5066 C5012

CL5067

CL5068

Q5010

CL5069

Q5011

Q5012

CL5072

CL5073

CL5074

CL5075

C5021

CL5076

CL5077

C5023

CL5078

C5024

D5000

CL5079

D5001

C5026

D5002

C5027

R5000

C5029

R5001

D5006

D5007

R5003

CL5080

D5008

R5004

D5009

R5005

R5006

R5007

IC5000

R5008

R5009

IC5001

C5032

IC5003

D5010

IC5004

C5035

C5036

C5038

R5010

R5011

R5012

R5013

R5091

R5090

R5017

C5040

R5018

C5041

R5019

C5042

C5043 C5044

C5045

C5046

R5020

R5021

R5022

R5023

R5024

R5025

R5026 R5027

C5050

R5028

R5029

C5058

R5030

C5059

R5031

R5032

R5033

R5034

R5035

R5036

R5037

R5038

C5061

R5039

R5041

R5043

R5044

R5045

R5047 R5048

R5049

R5050

R5051

R5052

R5053

R5054

R5055

R5056

JR5005

JR5006

R5083

R5084

R5085

R5086

R5087

R5088

JR5014 JR5015

JR5019

FB5000

FB5001

FB5002

FB5003

FB5006

JW5062

D5005

R5016

1-878-158-

12

(12)

1

3

64

D2

MAIN

BOARD

CN3001

S2

I/O BOARD

CN4014

H2

MAIN BOARD

CN506

T2

KEY BOARD

CN5101

FL-JACK BOARD

K

A/K

A

FLUORESCENT INDICATOR TUBE

123

DC/DC

CONVERTER

PHONES AUDIO IN/

A.CAL MIC

A

B

C

D

123456789 10

1

9

S5000

DMPORT

BOOSTER

DMPORT

BOOSTER

Ref. No. Location

• Semiconductor

Location

D5000 B-9

D5001 B-9

D5002 B-8

D5005 B-3

D5006 B-5

D5007 A-2

D5008 B-6

D5009 C-4

D5010 C-1

IC5000 B-9

IC5001 B-7

IC5002 A-5

IC5003 B-4

IC5004 B-3

Q5000 B-10

Q5003 B-2

Q5004 A-7

Q5005 A-6

Q5006 A-3

Q5007 A-7

Q5008 A-3

Q5009 A-6

Q5010 A-3

Q5011 B-5

Q5012 A-6

(Page 35)

(Page 52) (Page 57) (Page 34)

(Page 35)

(Page 52) (Page 57) (Page 34)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

5555

6-29. SCHEMATIC DIAGRAM - FL-JACK Board -

I/O

BOARD

CN4014

S

MAIN

BOARD

CN3001

(3/10)

D

KEY

BOARD

CN5101

T

MAIN

BOARD

CN506

(5/10)

H

IC B/D

IC B/D

41

(SUFFIX-11)

(SUFFIX-12)

(SUFFIX-11) (SUFFIX-12)

(SUFFIX-11)

(SUFFIX-12)

(SUFFIX-11)

(SUFFIX-12)

(SUFFIX-11)

(SUFFIX-12)

-25.4

-25.4

-25.4

-25.4

-25.4

-25.4

-25.4

-25.4

-25.4

3.3

-21

0

2.8

0

3.3

0.1

0.1

4.7

4.7

0

2.8

3.3

3.3 0

0

0

0.2

2.5

2.5

0

0

0

9

4.7

4.7

4.7

4.7

4.7

4.7

9

4.7

4.7

4.7

8.6

3.5

3.5

-25.4

-25.4

-25.4

-27.8

-25

-21

-27.2

-27.2

-27.2

-18.9

-16.8

-21

-16.8

-18.9

-25

-27.2

-25

-16.8

3.3

3.3

0

2.2

0

0.1

3.3

4.6

4.6

-0.2

-0.2

4.8

1.3 3.3

4.1

0

1.9

1000p

C5045

CL5062

470

R5043

4.7k

R5044

1k

R5051

CL5068

CL5072

CL5063

0.47

C5044

68p

C5042

22k

R5055

CL5074

CL5069

0.1

C5050

CL5067

0

R5056

1

C5023

15k

R5019

100k

R5048

12k

R5023

C5037

50V

10

10V

100

C5030

0.47

C5024

0.068

C5043

CL5060

470

R5047

C5059

0.01

CL5064

22k

R5049

22k

R5038

1k

R5050

C5038

1000p

1M

R5054

CL5061

470p

C5027

16V

47

C5028

CL5066

CL5073

C5058

0.01

0.1

C5032

C5029

0.1

470p

C5041

CL5059

50V

10

C5031

J5000

470p

C5046

3.3k

R5041

1

2

3

4

CN5002

4P

F-AUDIO(L)

9V

F-AUDIO(R)

GND

J5001

8

7

6

54

3

2

1

NJM4558M-TE2

IC5004

100k

R5045

CL5065

1k

R5027

2SC3052EF-T1-LEF

Q5006

10k

R5033

Q5010

RT1P140C-TP-1

1k

R5028

RT1N441C-TP-1

Q5008

10k

R5025

10k

R5024

CL5058

100k

R5034

RT1P141C-TP-1

Q5011

1k

R5020 680

R5029

2.2k

R5036

RB751V-40TE-17

D5008

100

R5032

10V

100

C5025

2SC3052EF-T1-LEF

Q5004

RT1P141C-TP-1

Q5009

10k

R5021

10k

R5022

2.2k

R5037

0

R5035

150

R5030

2SC3052EF-T1-LEF

Q5005

RT1N441C-TP-1

Q5007

RT1N141C-TP-1

Q5003

FB5001

FB5000

FB5002 FB5003

FB5006

MC2840-T112-1

D5007

MC2840-T112-1

D5009

MC2840-T112-1

D5010

220p

C5026

220p

C5040

22

R5026

15k

R5031

CPH5504-TL-E

Q5000

10

C5000

47

R5008

CL5051

CL5024

47uH

L5001

CL5004

35V

47

C5009

6.3V

100

C5002

CL5002

CL5026

0.01

C5008

CL5012

CL5040

33k

R5006

0.022

C5005

47

R5009

CL5016

CL5020

CL5023

CL5010

CL5035

CL5032

47

R5018

2

3

5

6

8

7

1

49

T5000

C5012

0.1

CL5031

CL5015

CL5005

D5002

MAZ8051GLLS0

CL5033

CL5028

CL5036

CL5030

CL5034

CL5022

CL5006

CL5029

47uH

L5002

CL5039

CL5007

82k

R5013

CL5011

CL5021

CL5042

CL5009

3.9k

R5000

VCC

OUT

GND

NJL23H400A

IC5002

123

4

5

CL5017

CL5013

47uH

L5000

16V

10

C5011

CL5014

16V

10

C5020

CL5037

CL5027

0.1

C5010

CL5045

CL5003

CL5025

1234567891011

12

13

14

15

16

17

18

19

20

21

22

2324252627282930313233

34

35

36

37

38

39

40

41

42

43

44

HT16515

IC5001

LED1

LED2

LED3

LED4

OSC

DOUT

DIN

CLK

STB

K1

K2

VSS

VDD

SG1

SG2

SG3

SG4

SG5

SG6

SG7

SG8

SG9

SG10

SG11

SG12

SG13

SG14

SG15

SG16

VEE

GR12

GR11

GR10

GR9

GR8

GR7

GR6

GR5

GR4

GR3

GR2

GR1

VDD

VSS

CL5018

0.1

C5003

CL5001

MA2J1110GLS0

D5006

(SUFFIX-11)

(SUFFIX-12)

CL5047

CL5019

CL5000

CL5038

ND5000

1 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 52251

4700p

C5004

220

R5003

220

R5007

220

R5004

1

C5007

220

R5005

1k

R5001

CL5008

D5001

MC2840-T112-1

D5000

MC2840-T112-1

1k

R5017

S5000

CL5046

CL5049

CL5050

CL5048

CL5052

CL5053

CL5054

CL5055

CL5056

CL5057

CL5043

CL5044

CL5041

120

R5016

RT1N441C-TP-1

Q5012

220

R5083

220

R5084

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

17P

CN5001

FL_CS

KEY2

FL_CLK

KEY1

FL_DATA

KEY0

SIRCS

D_GND(FL)

E4V

5V

LED_LATCH

A_CAL

D_GND

PLUG_DET

DC_CONT

MO/ST_DET

GAIN_CONT

4.7k

R5085

4.7k

R5086

22k

R5087

47k

R5088

1

2

34

5

6

TK11233CMCL-G

IC5000

Cont

GND

Np Vout

GND

Vin

0.1

C5061

D5005

SLI-325YCT31W

8

7

6

54

3

2

1

NJM4558M-TE2

IC5003

1

2

3

4

5

6

7

8

9

10

11

11P

CN5000

KEY2

D_GND

D_GND

KEY0

3.3V

KEY1

FL_DATA

LED1

FL_CLK

LED2

LED_LATCH

CL5075

CL5076

1

2

3

CN5004

3P

HP-R

GND

HP-L

CL5078

CL5077

CL5079

CL5080

1

C5006

100

R5010

100

R5012

100

R5011

0.01

C5021

1000p

C5035

1000p

C5036

1k

R5039

2.2k

R5052

0

R5053

S11

G9

S10

G8

S16

G4

S9

S4

G7

G5

S15

S6

S5

S14

G11

G6

S5

G7

S6

S4

S7

G8

S8

S3

G9

S2

G10

G1

G6

G11

S9

S11

G12

S12

G5

S8

G3

S13

G4

S16

G3

S15

G10

G12

S14

G2

S10

S13

S7

S2

S12

S3

G1

G2

-

+

+

-

-

+

-

+

+3.3V REGULATOR

IC5000

IC5001

FLUORESCENT INDICATOR

IC5002

REMOTE CONTROL RECEIVER

IC5003

LINE AMP

IC5004

LINE AMP

FL-JACK BOARD

VCC

GND GND

VCC

Q5006, 5008, 5010

GAIN CONTROL

MUTING

TUBE DRIVER

FLUORESCENT INDICATOR TUBE

-1

-2

OSC

DC/DC

CONVERTER

(CHASSIS)

DMPORT BOOSTER

DMPORT

BOOSTER

LED DRIVE

PHONES

A.CAL MIC

AUDIO IN/

J

4

B

166911

D

15

H

L

10

K

1735 12

C

F

181

E

8

G

14

A

213

I

7

MUTING

MUTING CONTROL

MUTING

MUTING

MUTING CONTROL

100

R5090

100

R5091

Note: Refer to the Servicing Notes “FL-JACK AND P-SW BOARDS DISCRIMINATION”

(page 5) for how to distinguish Suffi x-11 and Suffi x-12.

• See page 62 for IC Block Diagrams.

(Page

56)

(Page

40)

(Page 53)

(Page 38)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

5656

6-30. SCHEMATIC DIAGRAM - KEY/P-SW Boards - • See page 70 for IC Pin Function Description.

FL-JACK

CN5000

T

BOARD

3.3

3.3

3.3

3.3

3.3

3.3

0

0

0.1

3.3

3.3

3.3

3.3

3.3

3.3

3.3 0

03.3

3.3

3.3

3.3

0

03.3

3.3

03.3

3.3

0

3.3

3.3

0

3.3

3.3

0

3.3

3.3

0

3.3

3.3

0

3.3

3.3

0

3.2

2

0.1

S5109

CL5108

S5112

S5101

2.2k

R5114

CL5109

S5110

S5103

2.2k

R5123

1

2

2P

CN5100

GND

KEY0

CL5107

1k

R5122

0.01

C5111

0.01

C5112

2.2k

R5124

S5100

100

R5104

RT1P141C-TP-1

Q5103

RT1P141C-TP-1

Q5102

RT1P141C-TP-1

Q5100

100

R5101

100

R5109

100

R5100

100

R5106

100

R5107

RT1P141C-TP-1

Q5104

RT1P141C-TP-1

Q5107

100

R5105

RT1P141C-TP-1

Q5106

SML79423C-TP15

D5102

100

R5108

SML79423C-TP15

D5103

0.1

C5105

RT1P141C-TP-1

Q5105

RT1P141C-TP-1

Q5101

100

R5103

201918

17161514131211

10 9 87654321

BU2099FV

IC5100

VSS

NC

DATA

CLK

LCK

Q0

Q1

Q2

Q3

Q4Q5

Q6

Q7

Q8

Q9

Q10

Q11

SO

X-OE

VDD

SML79423C-TP15

D5101

RT1P141C-TP-1

Q5108

RT1P141C-TP-1

Q5109

SML79423C-TP15

D5104

(ORG)

(GRN)

(ORG)

(GRN)

(ORG)

(GRN)

(ORG)

(GRN)

(ORG)

(GRN)

SML79423C-TP15

D5100

100

R5102

CL5102

S5104 S5105 S5106 S5107 S5108

S5113

3

1

2

0.1

C5101

47uH

L5100

10V

47

C5100

1k

R5113

2.2k

R5117

10k

R5125

4.7k

R5128

22k

R5126

4.7k

R5127

CL5104

CL5100

CL5106

CL5105

CL5111

4.7k

R5118

10k

R5119

22k

R5120

47k

R5121

1

2

3

4

5

6

7

8

9

10

11

11P

CN5101

LED_LATCH

LED2

FL_CLK

LED1

FL_DATA

KEY1

3.3V

KEY0

D_GND

D_GND

KEY2

RT1N141C-TP-1

Q5001

RT1N141C-TP-1

Q5002

SLR-325YCT31

D5003

SLR-325YCT31

D5004

100

R5014

100

R5015

100

R5130

100

R5131

CL5103

CL5101

CL5112

CL5113

E

CL5110

1k

R5110

1k

R5111

1k

R5112

2.2k

R5116

CL5401

100p

C5400

1

2

2P

CN5400

GND

KEY0

CL5400

S5400

DISC 1

DISC 2

DISC 3

DISC 4

DISC 5

LED DRIVER

IC5100

(CHASSIS)

KEY BOARD

FUNCTION DISC 5 DISC 4 DISC 3 DISC 2 DISC 1

VOLUME

MOVIE MUSIC

Q5100-5109

LED DRIVE

LED DRIVE

LED DRIVE

/

P-SW BOARD

4

B

6911

D

15

H

1035 12

C

F

1

E

8

G

14

A

2137

ROTARY ENCODER

(Page 55)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

5757

6-31. PRINTED WIRING BOARDS - KEY/P-SW Boards - • : Uses unleaded solder.

• See page 33 for Circuit Boards Location.

1

2

1

2

11

10

GOGOGOGOGO

D5003D5004

L5100

JW5101

JW5102

JW5103

JW5104

JW5105

JW5106

JW5107

JW5112

JW5115

JW5116

JW5117

JW5118

JW5119

JW5120

JW5121JW5122

JW5123

JW5124

JW5125

JW5126

JW5127

CL5110

CN5100

CN5101

C5100

D5100 D5101 D5102 D5103 D5104

S5100

S5101 S5103

S5104 S5105 S5106 S5107 S5108

S5109

S5110

S5112

S5113

BE

BE

BE BE BE BE BE BE BE BE BE BE

11 20

1

10

Q5001

Q5002

R5014

R5015

JW5108

JW5109

JW5110

JW5111

JW5113

JW5114

CL5100

CL5101

CL5102

CL5103

CL5104

CL5105

CL5106

CL5107

CL5108

CL5109

CL5111

CL5112

CL5113

C5101

Q5100

C5105

Q5101 Q5102

Q5103 Q5104

Q5105 Q5106 Q5107 Q5108 Q5109

C5111

C5112 R5100 R5101 R5102 R5103 R5104

R5105 R5106

R5107 R5108

IC5100

R5109

R5110

R5111

R5112

R5113

R5114 R5116

R5117

R5118

R5119

R5120 R5121

R5122

R5123

R5124

R5125

R5126

R5127

R5128

R5130

R5131

12

CN5400

S5400

CL5400

CL5401

C5400

12

CN5400

S5400

CL5400

CL5401

C5400

KEY BOARD

1-878-160-

11, 12

(11, 12)

S5100, 5101,

S5103 – 5110,

S5112, 5400

(CHASSIS)

VOLUME

123

DISC 5

D5100, S5104

DISC 4

D5101, S5105

DISC 3

D5102, S5106

DISC 2

D5103, S5107

DISC 1

D5104, S5108

;

/

Y





FUNCTION

MUSIC MOVIE

P-SW BOARD

1-878-159-

11

(11)



A

B

C

D

1234567891011

ROTARY

ENCODER

D5100 – 5104

T2

FL-JACK

BOARD

CN5000

T1

FL-JACK

BOARD

CN5000

(SUFFIX-11) (SUFFIX-12)

P-SW BOARD

1-878-159-

12

(12)



(SUFFIX-11) (SUFFIX-12)

Ref. No. Location

• Semiconductor

Location

D5003 B-4

D5004 B-3

D5100 B-5

D5101 B-6

D5102 B-7

D5103 B-8

D5104 B-9

IC5100 C-6

Q5001 B-3

Q5002 B-3

Q5100 C-4

Q5101 C-5

Q5102 C-5

Q5103 C-6

Q5104 C-6

Q5105 C-7

Q5106 C-7

Q5107 C-8

Q5108 C-8

Q5109 C-9

Note: Refer to the Servicing Notes “FL-JACK AND P-SW BOARDS DISCRIMINATION”

(page 5) for how to distinguish Suffi x-11 and Suffi x-12.

(Page 54) (Page 54)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

5858

6-32. PRINTED WIRING BOARD - SPEAKER Board -

• : Uses unleaded solder.

• See page 33 for Circuit Boards Location.

6-33. SCHEMATIC DIAGRAM - SPEAKER Board -

1

41

8

JS5301

JS5302

JS5303

TB5300TB5301

ET5300 ET5301

CN5300 CN5301

CL5300 CL5301

CL5302

CL5303

CL5304

CL5305

CL5306

CL5307

CL5308

CL5309

CL5310

C5300

C5301

C5302

C5303

C5304

C5305

C5306

C5307

C5308

C5309

C5310

C5311

C5312

C5313

C5314

C5315

(CHASSIS) (CHASSIS) (CHASSIS)

BMAIN

BOARD

CN3100

AMAIN

BOARD

CN3200

C

MAIN

BOARD

CN3100

1-878-161-

11, 12

(11, 12)

SPEAKER BOARD

SUR RSUR L FRONT RFRONT L FRONT L FRONT R

SPEAKER SPEAKER

(HDX285/HDX287WC/HDX585/HDX587WC/HDX685) (HDX589W/HDX686W)

(HDX589W/HDX686W)

(HDX589W/HDX686W)

HDX285/HDX287WC/HDX585/

HDX587WC/HDX685 HDX285/HDX287WC/HDX585/

HDX587WC/HDX685

HDX285/HDX287WC/HDX585/

HDX587WC/HDX685

(HDX285/HDX287WC/HDX585/HDX587WC/HDX685)

(HDX589W/HDX686W)

A

B

C

D

123 4

CN3100

(2/10)

C

MAIN

BOARD

CN3100

(2/10)

B

MAIN

BOARD

(2/10)

CN3200

BOARD

MAIN

A

C5304

0.01

0.01

C5310

C5305

1000p

1000p

C5313

1000p

C5311

1000p

C5315

CL5307

C5306

0.01

CL5304

1000p

C5309

E

ET5301

CL5309

1

2

3

4

5

6

7

8

8P

CN5301

FR+

FR-

FL-

FL+

SR+

SR-

SL-

SL+

0.01

C5314

CL5302

0.01

C5312

C5301

1000p

CL5310

C5303

1000p

E

ET5300

CL5301

CL5306

CL5305

CL5303

0.01

C5308

C5307

1000p

CL5300

CL5308

C5300

0.01

C5302

0.01

1

2

3

4

4P

CN5300

FR+

FR-

FL-

FL+

JS5302

JS5301

JS5303

(CHASSIS)

(CHASSIS)

(CHASSIS)

(CHASSIS)

(CHASSIS)

SPEAKER BOARD

(HDX589W/HDX686W)

HDX587WC/HDX685

HDX285/HDX287WC/HDX585/

(HDX589W/HDX686W)

TB5301

FRONT L

SPEAKER

FRONT R

SUR R

SUR L

FRONT R

FRONT L

TB5300

SPEAKER

(HDX589W/HDX686W)

4

B

6

D

35

C

1

A

27

-

+

-

+

-

-

+

+

-

-

+

+

(Page 35) (Page 35) (Page 35)

(Page 37)

(Page 37)

(Page 37)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

5959

• Waveforms

– MAIN Board –

IC3051 

2 V/DIV, 10 ns/DIV

20.4 ns

3.2 Vp-p

IC3010 SL (XFSOIN)

2 V/DIV, 10 ns/DIV

20.4 ns

3.3 Vp-p

IC3010 RG (XFSOOUT)

2 V/DIV, 10 ns/DIV

20.4 ns

3.5 Vp-p

IC503 RE (Xout)

2 V/DIV, 100 ns/DIV

200 ns

3.4 Vp-p

IC304 XB (XOUT(O))

2 V/DIV, 20 ns/DIV

40.8 ns

3.9 Vp-p

IC1101 R (DVDRFIP)

(DVD play mode)

420 mVp-p



200 mV/DIV, 100 ns/DIV

IC1101 [Y (R/Cr/Pr)

(Color bar)

H

0.8 Vp-p

RB

H

1 Vp-p

RT IC1101 YD (XTALO)

1 V/DIV, 1 ms/DIV

800 ns

1.4 Vp-p

500 mV/DIV, 50 μs/DIV

IC1101 [D (B/Cb/Pb)

(Color bar)

H

0.8 Vp-p

500 mV/DIV, 50 μs/DIV

500 mV/DIV, 50 μs/DIV

R IC1101 [ (C)

(Color bar)

IC1101 [[ (Y)

(Color bar)

H

0.9 Vp-p

500 mV/DIV, 20 μs/DIV

IC1101 [C (Y/G)

(Color bar)

H

1 Vp-p

500 mV/DIV, 50 μs/DIV

XB IC4002  (CIN)

(Color bar)

500 mV/DIV, 20 μs/DIV

H

0.9 Vp-p

XT IC4002  (YIN)

(Color bar)

500 mV/DIV, 50 μs/DIV

H

1 Vp-p

XE IC4002 RB (CYIN)

(Color bar)

500 mV/DIV, 50 μs/DIV

H

1 Vp-p

XG IC4002 RE (CbIN)

(Color bar)

200 mV/DIV, 20 μs/DIV

H

0.7 Vp-p

XH IC4002 RH (CrIN)

(Color bar)

200 mV/DIV, 20 μs/DIV

H

0.7 Vp-p

XI IC4002 RL (CrOUTa)

(Color bar)

500 mV/DIV, 20 μs/DIV

H

1.5 Vp-p

XK IC4002 XB (CbOUTa)

(Color bar)

500 mV/DIV, 20 μs/DIV

H

1.5 Vp-p

XL IC4002 XG (CYOUTa)

(Color bar)

1 V/DIV, 50 μs/DIV

H

2.1 Vp-p

XM IC4002 F (VOUTa)

(Color bar)

1 V/DIV, 20 μs/DIV

H

2.5 Vp-p

81 ns

3.7 Vp-p

FB IC802 

2 V/DIV, 50 ns/DIV

SB Q5000 (Collector)

10 V/DIV, 5 μs/DIV

6.9 μs

15.6 Vp-p

– I/O Board – – S-AIR INCLUDE Board –

– FL-JACK Board –

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

6060

6-34. PRINTED WIRING BOARD - POWER Board - • : Uses unleaded solder.

• See page 33 for Circuit Boards Location.

15

2

4

3

1

13 5

17

3

2

4

59

1

13

12

EB

EB

HS921 IC921

D946

D947

HS931

HS947

F901

Q901

Q922

PC901

PC902

PC903

PC904

EB902

EB904 EB907

EB908

L931

VDR901

R901

R903

R904

L954

L956

R912

R914

R916

CN901

CN904

CN906

R922

CN908

JV901

JV902

JV903

JV904

JV905

JV906

JV907

JV908

JV909

PS954

FR929

FH901

C901

PS956

FH902

C902

C903

JV910

JV911

TH901

C905

JV912

C906

JV913

JV914

C908

JV915

JV916

JV917

JV918

JV919

C910

C912

C913

JV920

JV921

JV922

JV923

JV924

C918

LF901

LF902

JV927

C920

C921

C924

C926

C927

C928

C929

C930

C932

C933

C934

C938

C939

C940

C942

C943

JW901

JW902

JW903

JW904

JW905

JW906

JW907

JW908

JW909

D901

D902

C963

JW910

C964

JW911

D905

JW912

JW913

JW914

JW915

JW916

JW917

JW918

JW919

D911

D912

D913

JW920

D916

C976

JW923

JW924

C980

IC901

HS901

D921

T901

T903

D931

BE

GS

BE

BE

BE

BE

BE

6

15

DZ904

D948

D949

DZ915

IC932

DZ932

DZ951

DZ953

TP901

TP902

TP903

TP904

TP905

TP906

TP907

TP908

TP909

TP910 TP911

TP912

TP913

TP914

TP915

TP916

TP917

TP918

TP919

TP920

TP921 TP922

TP923

TP924 TP925 TP926 TP927

TP928

F945

Q921

Q930

Q943

Q945

Q947

Q949

Q950

L944

L945 L947 L948

R905

R906

L953

R907

R908

R909

R910

R911

R917

R919

R920

CL001

R921

CL002

CL003

R923

CL004

R924

CL005

R925

CL006

R926

CL007

R927

CL008

R928

CL009

CL010

R930

CL011

R931

CL012

R932

CL013

R933

CL014

R934

CL015

R935

CL016

R936

CL017

R937

CL018

R938

R939

R940

R941

R942

R943

C907

R945

C909

R946

R949

R951

C916

R952

R954

R955

R956

R957

R958

R959

C922

C923

R960

R962

R963

R965

R966

R967

C935

R972

C936

C937

R974

R975

R976

R978

C941

C950

C951

R992

C956

R998 R999

D906

D907

D908

C969

D909

C970

D910

C971

C972

C973

D914

C975

C981

D922

D923

C983

D924

C984

C987

C990 C991

C992

C993

C997

JR930

JR931

DZ901

DZ902

DZ903

IC923

IC941

(CHASSIS) (CHASSIS) (CHASSIS)

MAIN POWER

TRANSFORMER

SUB POWER

TRANSFORMER

(AC IN)

(CHASSIS)

EMAIN BOARD

CN904

JMAIN BOARD

CN509

R1

S-AIR

INCLUDE

BOARD

CN802

R2

S-AIR-CON

BOARD

CN102

POWER BOARD

1-878-176-

12

(12)

1578

16 9

1

23

4

21

4343

21

21

4343

21

12

34

(E3, EA)

C906 (E3, EA)

C980 (US, CND)

(US, CND)

HDX287WC/HDX587WC/

HDX589W/HDX686W

HDX285/HDX585/

HDX685

A

B

C

D

E

F

12345678910

D

Ref. No. Location

• Semiconductor

Location

D901 B-9

D902 C-2

D905 C-4

D906 B-4

D907 A-5

D908 B-4

D909 B-6

D910 B-3

D911 D-3

D912 D-2

D913 B-4

D914 C-5

D916 D-2

D921 B-3

D922 B-1

D923 B-1

D924 C-2

D931 E-5

D946 B-3

D947 D-3

D948 B-1

D949 B-1

DZ901 B-2

DZ902 B-2

DZ903 B-2

DZ904 B-2

DZ915 C-5

DZ932 D-6

DZ951 B-2

DZ953 C-2

IC901 B-5

IC921 B-2

IC923 D-1

IC932 D-7

IC941 E-1

PC901 C-7

PC902 C-1

PC903 C-6

PC904 C-1

Q901 B-4

Q921 C-2

Q922 A-2

Q930 D-1

Q943 D-6

Q945 E-2

Q947 D-6

Q949 D-7

Q950 D-7

(Page 35)

(Page 51) (Page 51)

(Page 35)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

6161

6-35. SCHEMATIC DIAGRAM - POWER Board -

BOARD

MAIN

J

(5/10)

CN509

BOARD

MAIN

E

(3/10)

CN904

IC B/D

IC B/D

IC B/D

BOARD

CN102

R2

S-AIR-CON

BOARD

R1

S-AIR

INCLUDE

CN802

0.5

165.4

20.2

3.3

19.6

1.8

7.9

32.6

31.5

3.1

4.1

29.6

2.5

0.1

31.5

0.1 3.1

0.43.1

0.1

3.1

10.2 9.9

11. 9

3.3

14.1

11. 9

1

2.6

2.5

0

0.7

1.6 3.6

2.6

3.6

0.2

165

165

15.4

1.5

2

21.2 27.9

21.8

1.10

0

20.320.2

275V

0.22

C902

TH901

~

~

D5SBA60F01

D901

250V

0.01

C920

250V

0.01

C918

250V

100p

C930

250V

100p

C913

∗

R903 ∗

R904

SARS03

D913

12345

STR-F6138-LF1352

IC901

OCP/SYNC

GND

D

VCC

FB/OLP

C906

1000p

220p

C909

220

R911

10

R905

D1NL20U-TR2

D905

2SA1015TP-YGR

Q901

10k

R907

C907

2.2k

R910

50V

C910

22

PS2561AL1-1-V-W

PC901

1

23

4

35V

2200

C934

0.1

C939

470k

R936

0.047

C937

1k

R935

RT1N441C-TP-1

Q943

RT1N441C-TP-1

Q947

10uH

L945

TP901

TP902

TP903

TP904

TP911

TP908

TP914

TP918

TP912

1k

R967

10uH

L947

10uH

L948

TP915

TP916

TP917

R901

∗

275V

0.22

C901

∗

F901

1

3

3P

CN901

LIVE

NUTRAL

2

NC

∗

C903

2W

0.33

R912

C972

0.1

C973

0.1

3300p

C980

1.5kV 1.5kV

∗

C905

14

32

LF901

14

32

LF902

1

3

10

11

2

9

12

13

14

5

8

4

6

T901

JW905

L944

10uH

0.01

C936

C935

0.01

∗

C964

∗

C963

FMX-22SL

D931

5.6uH

L931

E

EB902

E

EB904

R914

∗

VDR901

100k

R928

2SC3243-TP-E

Q922

1000p

C922

400V

3300p

C924

D1NL20U-TR2

D902

2200p

C923

PS2561AL1-1-V-W

PC902

1

2

3

4

25V

47

C912

10

R925

4.7k

R917

470

R930

22k

R923

3.9k

R954

2.2k

R998

470

R956

10k

R921

0.01

C992

3W

100k

R916

2SC3052EF-T1-LEF

Q949

RT1N441C-TP-1

Q950

22k

R945

3.3k

R946

4.7

R992

220p

C994

2SC3052EF-T1-LEF

Q921

2SC3052EF-T1-LEF

Q930

1

2

4

5

5P

CN904

P-GND

NC

3P-GND

PVDD

PVDD

R975

100k

R976

220k

22k

R927

10k

R999

MA2J1110GLS0

D909

MA2J1110GLS0

D914

MA2J1110GLS0

D908

MA2J1110GLS0

D924

MA2J1110GLS0

D923

MA2J1110GLS0

D922

MA2J1110GLS0

D949

MA2J1110GLS0

D948

MA2J1110GLS0

D910

MAZ8120GMLS0

DZ903

MAZ8100GMLS0

DZ915

MA2J1110GLS0

D906

TP910

2.2k

R939

TP905

TP906

TP921

TP922

TP923

TP924

TP925

TP926

TP927

TP928

PS2561AL1-1-V-W

PC904

1

23

4

PS2561AL1-1-V-W

PC903

1

2

3

4

0.01

C984

22k

R932

MAZ8056GMLS0

DZ904

10uH

L953

R952

1k

MAZ8033G0LS0

DZ953

470

R960

10k

R937

10k

R940

1k

R938

MAZ8056GMLS0

DZ932

10k

R959

1

9

7

5

4

3

2

MR4020-7103

IC921

ZC

FB

GND

VCC

S/OCL

VIN

D

T903

2

9

12

10

11

14

16

13

15

3

4

7

8

1

5

22k

R924

EG01C LF-F7

D921

EG01C LF-F7

D946

10uH

L956

10uH

L954

1/2W

FR929

1

MAZ8180GMLS0

DZ901

MAZ8220GLLSO

DZ902

JR930

0

250V

470p

C938

PS954

PS956

470

R963

0.1

C990

0.1

C991

0.1

C993

C916

0.1

E

EB907

1

2

3

4

5

6

7

8

9

10

11

12

13

13P

CN906

P_CONT1

EN

P_CONT3

E+4V

6V

6V

D-GND

D-GND

M+9V

M-GND

14V DC-FAN

A+12V

A-GND

1

2

CN908

2P

GND

E4V

100k

R926

1k

R951

1k

R934

4.7k

R978

4.7k

R908

2kV

150p

C921

32V

2A

F945

43

12

MM1431CURE

IC932

A

K Vref

0

R962

1k

R943

1k

R933

2.2k

R920

1k

R958

10k

R942

0.01

C971

47k

R957

0.1

C951

1k

R966

0.1

C975

S

RSR025N03TL

Q945

10k

R972

25V

470

C942

TP919

100k

R941

16V

100

C976

3.3k

R974

TP907

TP913

0.1

C969

0.1

C970

CL002

0.1

C950

0.047

C983

25V

1000

C929

43

12

MM1431CURE

IC923

A

K Vref

JR931

0

1234

6

5

SI-3010KM-TLS

IC941

Vcont

Vin

GND

Vout

Sense

10k

R909

3.3k

R949

50V

47

C908

MA2J1110GLS0

D907

C987

0.1

CL004

CL006

CL007

10V

3300

C927

16V

2700

C928

16V

1000

C940

TP909

CL009

CL010

CL013

CL014

100V

C941

47p

22k

R919

3.3k

R906

2W

R922

0.18

16V

470

C943

TP920

C956

0.01

SG10SC9

D912

SG10SC6M

D916

SG10SC6M

D911

SG10SC6M

D947

35V

2200

C932

35V

2200

C933

C981

4700p

C997

1

100V

22

C926

CL017

CL018

CL001

1.5k

R931

4.7k

R965

1k

R955

NC

NC

POWER CONTROL

IC921

SHUNT REGULATOR

IC923

(CHASSIS)

IC941

+12V REGULATOR

(CHASSIS)

IC901

POWER CONTROL

IC932

SHUNT REGULATOR

(CHASSIS)

POWER BOARD

(AC IN)

ISOLATOR

ISOLATOR

B+ SWITCH

MAIN POWER TRANSFORMER

SUB POWER TRANSFORMER

POWER ON/OFF CONTROL

B+ SWITCH

ISOLATOR

ISOLATOR

STANDBY CONTROL

RIPPLE

FILTER

(US, CND)

STR-F6168-LF1352 (E3, EA)

(E3, EA) (US, CND)

Q943, 949, 950

POWER ON/OFF CONTROL

HDX685

HDX585/

HDX285/

J

4

B

166911

D

15

H

10

K

1735 12

C

F

181

E

8

G

14

A

213

I

7

∗F901

8A 125V (US, CND)

T5AH 250V (E3, EA)

1M 1/2W (US, CND)

∗R901

1.5M 1/2W (E3, EA)

2200p 250V (US, CND)

∗C963, 964

470p 250V (E3, EA)

330 450V (E3, EA)

∗C903

1000 200V (US, CND)

1000p (E3, EA)

1500p (US, CND)

1 5W (E3, EA)

∗R914

0.034 5W (US, CND)

100k 3W (E3, EA)

33k 3W (US, CND)

∗R903, 904

3300p 400V (E3, EA)

∗C905

0.01 400V (US, CND)

INVERTER

HDX589W/HDX686W

HDX287WC/HDX578WC/

UDZSUSTE-1730B

DZ951

(US, CND)

• See page 62 for IC Block Diagrams.

(Page 38)

(Page 50)

(Page 49)

(Page 40)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

6262

• IC Block Diagrams

– MAIN Board –

IC303 PCM1808PWR

DELTA-SIGMA

MODULATOR

DELTA-SIGMA

MODULATOR

ANTIALIAS

LOW-PASS FILTER

ANTIALIAS

LOW-PASS FILTER

AGND

VCC

2

3

VDD

DGND

4

5

LRCK 7

REFERENCE

×1/64

DECIMATION

FILTER

WITH

HIGH-PASS

FILTER

SERIAL

INTERFACE

&

MODE/FORMAT

CONTROL

FMT

12

VINR

14

VINL

13

MD1

11

MD0

10

DOUT

9

BCK

8

CLOCK & TIMING CONTROL

POWER

SUPPLY

SCKI 6

VREF 1

38

37

36

23

24

1 2 3 4 5

44

8 9 10

46

17

22

21

20

3035 2526272829323334

16

45 13

14

15

47

40

41

48

CL

39XSEL

CE

DI

EMPHA

AUDIO

DISEL

DOUT

DINO

DINI

DIN2

6

DGND

7

DVDD

11

AVDD

12

AGND

DOSEL0

R

VIN

LPF

CKSEL0

XSTATE

18 DGND

19 DVDD

XIN

XOUT

XMCK

XSEL

31

DGND

DO

CSFLAG

F0

F1

F2

VF

ERR9P

BPSYNC

ERROR

DATAO

DOSEL1 CKOUT

BCK

LRCK

CKSEL1

MODE0

MODE1

42DGND

43DVDD

XMODE

TIMING

MICROCOMPUTER

INTERFACE

SAMPLING

FREQUENCY

C BIT

DETECT

PA/PB

DETECT

LOCK

DETECT

INPUT

CIRCUIT

DATA

DEMODULATOR

PLL

X’ TAL

SELECT

116

ST

117

A1

2

3

A

B

Y

5

Y

B

GND 4

VCC

8

Y

EN G

Y

1VC

TSD

2VIN

3GND

4VOUT

5ADJ

+

–

REF

1 2 3

6 4

CONT

GND

NP

VIN

5

GND

VOUT

CONTROL

CIRCUIT

BANDGAP

REFERENCE

CONSTANT

CURRENT

SOURCE

OVER HEAT &

OVER CURRENT

PROTECT

VDD 2

OUT 1

VSS 3

+

–

VREF

CD5

NC4

DELAY

CIRCUIT

CONTROL

CIRCUIT

BANDGAP

REFERENCE

+

–

OVER HEAT &

OVER CURRENT

PROTECTION

1

VCONT

3

NP

2

GND

4

VOUT

5

VIN

IC304 LC89056W-E IC307 TC7WH157FK (TE85R)

IC452, 507, 510 SI-3010KM-TLS

IC504 TK11250CMCL-G

IC506 S-80935CNMC-G85T2G

IC1105, 1107, 1708 TK11133CSCL-G

IC1707 TK11150CSCL-G

IC3050 TK11118CSCL-G

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

63

12

11

10

9

8

7

6

5

4

3

VSUBC

XVSS

OUTR2

VSSR

OUTR1

VDDR

VSSL

VSSR

OUTL2

OUTL1

VSSL

VDDL

2

1

PWM

CLOCK

GENERATOR

(SECONDARY)

CLOCK

GENERATOR

(PRIMARY)

31

29

25 OVFFLAGL

26 SFLAG

27 INIT

30

SH P

GAIN

CONTROL

INIT/

MUTE

SAMPLING

RATE

CONVERTER

FILTER &

LOW CUT

FILTER

LINER

INTERPOLATOR

Δ Σ

48

XFSOIN

47

XVDD

HPVDDL

46 45

HPOUTL1

HPVSSL

44 43

HPOUTL2

HPVDDR

42 41

HPOUTR1

HPVSSR

40

HPOUTR2

39 37

FSOCKO

38

FSOI

13

XOVSS

14

XFSOOUT

15

XOVDD

16

DVDD

17

DVSS

18

NSPMUTE

19

SOFTMUTE

20

PGMUTE

SERIAL

CONTROLLER

21

SCDT

22

SCSHIFT

23

SCLATCH

24

OVFFLAGR

28 MCKSEL

32 BFVDD

33 BFVSS

34 TEST

35 DVDD

36 XFSIIN

LRCK

BCK

DATA

IC3010, 3020, 3030 CXD9788AR

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

64

3

12

11

10

13

14

15

16

9

8

17

18

19

20

5

6

7

26

25

4

AGND

GND

GND

PGND

PGND

PGND

PGND

PGND

PGND

44

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

Stuck

Detect

Stuck

Detect

Timing

Control

Timing

Control Protection

Logic

Protection

Logic

Gate

Drive

Gate

Drive

Gate

Drive

Gate

Drive

Over

Current

Fault

Over

Current

Fault

Over

Current

Fault

Over

Current

Fault

Programmable

Current sense

OUT_B

OUT_B

OUT_B

PVDD_B

PVDD_B

PVDD_B

PVDD_B

PVDD_B

OUT_A

OUT_A

OUT_A

PVDD_

A

PVDD_

A

PVDD_

A

REG

BST_B

GVDD_B

VDD

PWM_B

M1

M2

M3

VREG

OC_ADJ

PWM_A

/RESET

/SD

/OTW

GVDD_A

BST_A

2

NC

1

NC

22

NC

21

NC

Protection

and

Reset

Logic

OLP

OTP

CB3C

Temperature

waming/error

Power-Up

Reset

Under

Voltage

Protection

/HIZ_HS_B

/HIZ_HS_A

/HIZ_LS_B

/HIZ_LS_A

/OCL_B

/OCL_A

/OCH_B

/OCH_A

/RESET_A

/RESET_B

VREG

/HIZ_HS_X

/HIZ_LS_X

/OCH_X

/OCL_X

/RESET_X

/PCR

/UVP

/UVP

/UVP_VREG

43 PVDD_

A

42 PVDD_

A

24

23

VREG

GVDD_A

GVDD_B

VREG

123456789

CONTROL LOGIC

TSD

VREF

OUT2

OUT1

RNF

VM

VCC

FIN

GND

RIN

CONTROL

CIRCUIT

BANDGAP

REFERENCE

+

–

OVER HEAT &

OVER CURRENT

PROTECTION

1

VCONT

3

NP

2

GND

4

VOUT

5

VIN

IC3100, 3150, 3200, 3250, 3300, 3400, 3500 CXD9936TN

– RELAY Board –

IC701, 711 BA6956AN

– S-AIR INCLUDE Board –

IC800 TK11133CSCL-G

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

65

1VC

TSD

2VIN

3GND

4VOUT

5ADJ

+

–

REF

1FILT

2AVSS

3PDN

4SMUTE

5DITHER

6PLL2

9SDTI

10IDIF0

11IDIF1

12IDIF2

13PLL0

14PLL1

7ILRCK

8IBICK

15UNLOCK

SERIAL

AUDIO

I/F

PLL

SAMPLE

RATE

CONVERTER

SERIAL

AUDIO

I/F

18 IMCLK

17 OBIT1

16 OBIT0

20 CMODE1

19 CMODE0

24 SDTO

23 ODIF1

26 OLRCK

25 OBICK

28 DVDD

27 OMCLK

22 ODIF0

21 CMODE2

29 DVSS

30 AVDD

DELTA-SIGMA

MODULATOR

DELTA-SIGMA

MODULATOR

ANTIALIAS

LOW-PASS FILTER

ANTIALIAS

LOW-PASS FILTER

AGND

VCC

2

3

VDD

DGND

4

5

LRCK 7

REFERENCE

×1/64

DECIMATION

FILTER

WITH

HIGH-PASS

FILTER

SERIAL

INTERFACE

&

MODE/FORMAT

CONTROL

FMT

12

VINR

14

VINL

13

MD1

11

MD0

10

DOUT

9

BCK

8

CLOCK & TIMING CONTROL

POWER

SUPPLY

SCKI 6

VREF 1

SELECT

116

ST

117

A1

2

3

A

B

Y

5

Y

B

GND 4

VCC

8

Y

EN G

Y

IC804 SI-3010KM-TLS IC805, 806 AK4127VF-E2

IC807 PCM1808PWR

IC808 TC7WH157FK (TE85R)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

66

30

1

2

3

29

28

CV OUT

VCC1

6CV IN

5MUTE1

7SEL (CV/MIX)

13PB/B IN

15PR/R IN

14MUTE2

16VCC2

11PY/G IN

12GND

8Y IN

10SEL (BIAS/CLAMP)

4C IN

S1

S2

CV OUT SAG

GND

BIAS 6dB

75Ω

32 C OUT

75Ω

31 S-DC OUT

6MHz

LPF

27

26

Y OUT

Y OUT SAG

75Ω

6MHz

LPF

6MHz

LPF

S-DC OUT

S1/S2

+

25 GND

24

23

PY/G OUT

PY/G OUT SAG

75Ω

12MHz

LPF

22 GND

21

20

PB/B OUT

PB/B OUT SAG

75Ω

12MHz

LPF

19 GND

18

17

PR/R OUT

PR/R OUT SAG

75Ω

12MHz

LPF

CLAMP 6dB

CLAMP 6dB

6dB

9BIAS BIAS

BIAS 6dB

BIAS 6dB

CLAMP

BIAS

MUTE1

MUTE2

H

L

L

H

CONTROL

CIRCUIT

BANDGAP

REFERENCE

+

–

OVER HEAT &

OVER CURRENT

PROTECTION

1

VCONT

3

NP

2

GND

4

VOUT

5

VIN

1

2

3

4

5

6

7

8

16

15

14

13

12

11

10

9

2Y0

1Y2

VCC

1Y1

1-COM

1Y0

1Y3

A

B

GND

GND

INH

2Y1

2Y3

2-COM

2Y2

– I/O Board –

IC4002 BH7868FS-E2

IC4003 TK11150CSCL-G IC4004, 4007 MC14052 BDR2

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

67

1 2 3

6 4

CONT

GND

NP

VIN

5

GND

VOUT

CONTROL

CIRCUIT

BANDGAP

REFERENCE

CONSTANT

CURRENT

SOURCE

OVER HEAT &

OVER CURRENT

PROTECT

5

OSC OSC DATA

SELECTOR

6

DO

7

DI

8

CLK

9

CS

10

KEY0

11

KEY1

SERIAL

INTERFACE

DISPLAY RAM

24 BITS x 12 WORDS

24-BIT OUTPUT

LATCH

12-BIT SHIFT

REGISTER

SEGMENT

DRIVER

TIMING GENERATOR

KEY SCAN

COMMAND

DECODER

DIMMING

CIRCUIT

KEY DATA MEMORY

(2 x 16)

4-BIT LATCH

1

LED0

2

LED1

3

LED2

4

LED3

24 16 16

12 4

8

8

4

8

27 SEG14/KS14

29 SEG16/KS16

30 VEE

28 SEG15/KS15

831 SEG17/GRID12

33 SEG19/GRID10

32 SEG18/GRID11

23 SEG10/KS10

24 SEG11/KS11

25 SEG12/KS12

26 SEG13/KS13

22

SEG9/KS9

21

SEG8/KS8

20

SEG7/KS7

19

SEG6/KS6

18

SEG5/KS5

17

SEG4/KS4

16

SEG3/KS3

15

SEG2/KS2

14

SEG1/KS1

MULTIPLEXED

DRIVER

34

SEG20/GRID9

35

SEG21/GRID8

36

SEG22/GRID7

37

SEG23/GRID6

39

GRID4

40

GRID3

41

GRID2

42

GRID1

43

VDD

44

VSS

13

VDD

12

VSS

38

SEG24/GRID5

GRID

DRIVER

– FL-JACK Board –

IC5000 TK11233CMCL-G

IC5001 HT16515

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

68

OVER

CURRENT

PROTECT

2

LOGIC

OSC

INTERNAL BIAS

DELAY

DELAY LATCH

CURRENT

MIRROR

OVER

CURRENT

PROTECT

2

OVER

CURRENT

PROTECT

1

FEED

BACK

INH

2

INH

1

BOTTOM

SKIP

LOGIC

OCP/INH

1

S/GND

2

DRAIN

3

VCC

4

FB/OCP

5

UNDER VOLTAGE

LOCK OUT

OVER LOAD

PROTECT

THERMAL

SHUT DOWN

OVER VOLTAGE

PROTECT

SWITCHING

REGULATOR

BLOCK

1

Z/C

ZERO

CURRENT

DETECT

ONDEAD

TIMER

STANDBY

CIRCUIT

2

FB

+

−

ON

TIMER

SR

Q

SOFT-DRIVE

CIRCUIT

BURST MODE

OVERCURRENT

THRESHOLD

COMPARATOR

OVERCURRENT

PROTECT

THRESHOLD

COMPARATOR

5

EMITTER/OCL

OVERVOLTAGE

PROTECT

COMPARATOR

THERMAL

SHUTDOWN

CIRCUIT

LATCH CIRCUIT

RESET

COMPARATOR

S

R

Q

UNDERVOLTAGE

LOCKOUT

COMPARATOR

START-UP CIRCUIT

UNDERVOLTAGE

LOCKOUT

COMPARATOR

START-UP

CIRCUIT

4

VCC

3

GND

RESTART

TIMER

7

VIN

9

COLLECTOR

– POWER Board –

IC901 STR-F6138-LF1352 (US and Canadian models)

IC901 STR-F6168-LF1352 (240V AC area in E and Saudi Arabia models)

IC921 MR4020-7103

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

69

1VC

TSD

2VIN

3GND

4VOUT

5ADJ

+

–

REF

IC941 SI-3010KM-TLS

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

70

Pin No. Pin Name I/O Description

1 DAMP_SCDT O Serial data output to the stream processor

2 DAMP_SHIFT O Serial data transfer clock signal output to the stream processor

3 FL_CS O Chip select signal output to the fl uorescent indicator tube driver

4 SIRCS_IN I SIRCS signal input from the remote control receiver

5 FL_DATA/LED_DATA O Serial data output to the fl uorescent indicator tube driver and LED driver

6 CEC_RX_IN I CEC data input from the HDMI OUT connector

7 FL_CLK/LED_CLK O Serial data transfer clock signal output to the fl uorescent indicator tube driver and LED driver

8 BYTE I External data bus width selection signal input terminal Fixed at "L" in this set

9 CNVSS I Processor mode switch input terminal

10 DIR_ERROR I PLL lock error signal and input data error detection signal input terminal Not used

11 DIR_RST O Reset signal output terminal Not used

12 RESET I System reset signal input from the reset signal generator "L": reset

For several hundreds msec. after the power supply rises, "L" is input, then it change to "H"

13 Xout O Main system clock output terminal (5 MHz)

14 Vss - Ground terminal

15 Xin I Main system clock input terminal (5 MHz)

16 Vcc - Power supply terminal (+3.3V)

17 DIR_XSTATE I Clock change status detection signal input from the digital audio interface receiver

"L": change Not used

18 DIR_ZERO I Zero data detection signal input from the digital audio interface receiver Not used

19 DIR_CSFLAG I Channel change status detection signal input from the digital audio interface receiver

"H": change Not used

20 AC_CUT I AC cut detection signal input terminal "L": AC cut on

21 DSP_SF_CE O Chip enable signal output terminal Not used

22 DSP_MISO I Serial data input terminal Not used

23 DSP_SPICLK O Serial data transfer clock signal output terminal Not used

24 DSP_MOSI O Serial data output terminal Not used

25 DSP_SPIDS O Device selection signal output terminal Not used

26 CEC_TX_IN O CEC data output to the HDMI OUT connector

27 DSP_RESET O Reset signal output terminal Not used

28 LED_PWM O LED drive signal output terminal Not used

29 E2P_CLK/S-AIR_CLK I/O Serial data transfer clock signal output to the EEPROM and two-way clock bus with the wire-

less transceiver

30 E2P_SDA/S-AIR_SDA I/O Two-way data bus with the EEPROM and wireless transceiver

31 TXD1 O Transmission data for fl ash writing output terminal

32 RXD1 I Receive data for fl ash writing input terminal

33 S-AIR_GPIO2/CLK1 I Interrupt signal input from the wireless transceiver

Request to send signal for fl ash writing input terminal

34 S-AIR_DET/RTS1 I Wireless transceiver detection signal input terminal

Clock signal for fl ash writing input terminal

35 DMP_TX_OUT O Serial data output to the DMPORT connector

36 DMP_RX_IN I Serial data input from the DMPORT connector

37 S-AIR_RST O

Reset signal output to the wireless transceiver "L": reset (HCD-HDX285/HDX585/HDX685)

Reset signal output to the wireless transceiver and sample rate converter "L": reset

(HCD-HDX287WC/HDX587WC/HDX589W/HDX686W)

38 S-AIR_ADC_SEL O

A/D converter selection signal output to the wireless transceiver

(HCD-HDX285/HDX585/HDX685)

Audio data selection signal output terminal

(HCD-HDX287WC/HDX587WC/HDX589W/HDX686W)

39 P_CONT1 O Power supply on/off control signal output terminal "H": power on

40 P_CONT2 O Power supply on/off control signal output terminal Not used

41 P_CONT3 O Power supply on/off control signal output terminal "H": power on

42 DC_CONT O Auto calibration microphone DC control signal output terminal

43 MIC_GAIN O Microphone gain control signal output terminal

44 CDM_OPEN_SW I Disc tray open/close detection switch input terminal Not used

• IC Pin Function Description

MAIN BOARD IC503 R5F3640DDFAR (SYSTEM CONTROLLER)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

71

Pin No. Pin Name I/O Description

45 DVD_RST O Reset signal output to the digital audio interface receiver, servo DSP and fl ash memory

"L": reset

46 WRITE_CE I Chip enable signal for fl ash writing input terminal Not used

47 DVD_SDI O Serial data output to the servo DSP

48 DVD_SDO I Serial data input from the servo DSP

49 DVD_SCO I Serial data transfer clock signal input from the servo DSP

50 DVD_XIFBUSY O Busy signal output to the servo DSP

51 DVD_XIFCS I Chip select signal input from the servo DSP

52 LED LAT O Serial data latch pulse signal output to the LED driver

53 KMODE I Karaoke mode information input terminal Not used

54 DRIVER_RST (EN) O Reset signal output to the digital power amplifi er "L": reset

55, 56 OVERFLOW1,

OVERFLOW2 I Overfl ow detection signal input from the stream processor

57 DAMP_INIT O Reset signal output to the stream processor "L": reset

58 SOFT_MUTE O Soft muting on/off control signal output to the stream processor "L": muting on

59 DAMP_LAT1 O Serial data latch pulse signal output to the stream processor

60 DAMP_LAT2 O Serial data latch pulse signal output to the stream processor

(HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX685)

61 DAMP_LAT3 O Serial data latch pulse signal output to the stream processor

62 Vcc - Power supply terminal (+3.3V)

63 LINK_SW O Link control signal output terminal

64 Vss - Ground terminal

65 JACK1/JACK2

/DMP_DET IAuto calibration microphone, headphone and digital media port adapter connecting detection

signal input terminal

66 DC_DET I Speaker DC detection signal input terminal

67 SD/PVDD_DET I Shut down signal input from the digital power amplifi er

PVDD power supply detection signal input terminal

68 A.CAL_OUT I Speaker output detection signal for auto calibration input terminal

69 SACD_SEL O SA-CD selection signal output terminal Not used

70 DIR_HCE O Chip enable signal output terminal Not used

71 HP_MUTE O Headphone muting on/off control signal output terminal "L": muting on

72 HDMI_PCONT O HDMI hot plug detection control signal output terminal

HDMI +5V power on/off control signal output terminal "H": power on

73 KEY_INT I Wake up signal input terminal

74 RDS_DATA I RDS data input terminal Not used

75 RDS_CLK I RDS clock signal input terminal Not used

76 ST_CE O Chip enable signal output to the tuner (FM/AM)

77 ST_DI O Serial data output to the tuner (FM/AM)

78 ST_DO I Serial data input from the tuner (FM/AM)

79 ST_CLK O Serial data transfer clock signal output to the tuner (FM/AM)

80 TUNED I Tuning detection signal input from the tuner (FM/AM) "L": tuned

81 V_SEL0 O Video data selection signal output to the video amplifi er "L": video muting on

82 V_SEL1 O Video data selection signal output to the video amplifi er "L": DMPORT, "H": others

83 V_SEL2 O Video data selection signal output terminal Not used

84 IO_CE O Chip enable signal output to the changer controller

85 IO_RESET O Reset signal output to the changer controller and audio/video controller "L": reset

86 IO_DI O Serial data output to the changer controller

87 IO_DO I Serial data input from the audio/video controller

88 IO_CLK O Serial data transfer clock signal output to the changer controller

89 A_SEL5 O Audio data selection signal output terminal Not used

90 MONO/ST_DET I Monaural/stereo detection signal input terminal

91 A.CAL MIC LEVEL I Microphone input level detection signal for auto calibration input terminal

92 DESTINATION I Destination setting terminal

93 MODEL I Model setting terminal

94, 95 KEY2, KEY1 I Front panel key input terminal (A/D input)

96 Vss - Ground terminal

97 KEY0 I Front panel key input terminal (A/D input)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

72

Pin No. Pin Name I/O Description

98 Vref - Reference voltage (+3.3V) terminal

99 Vcc - Power supply terminal (+3.3V)

100 DIR_HDOUT I Serial data input terminal Not used

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

73

Pin No. Pin Name I/O Description

1 OSN - RF offset cancellation capacitor connecting terminal

2 RFGC O RF AGC loop capacitor connecting terminal for DVD-ROM

3 IREF I Reference current input terminal

4 AVDD3 - Power supply terminal (+3.3V)

5 AGND - Ground terminal

6 DVDA I AC coupled input path A

7 DVDB I AC coupled input path B

8 DVDC I AC coupled input path C

9 DVDD I AC coupled input path D

10 DVDRFP I AC coupled DVD RF signal input from the optical pick-up block

11 MA I DC coupled main-beam RF signal input A

12 MB I DC coupled main-beam RF signal input B

13 MC I DC coupled main-beam RF signal input C

14 MD I DC coupled main-beam RF signal input D

15 SA I DC coupled sub-beam RF signal input A Not used

16 SB I DC coupled sub-beam RF signal input B Not used

17 TNI I 3 beam satellite PD signal negative input from the optical pick-up block

18 TPI I 3 beam satellite PD signal positive input from the optical pick-up block

19, 20 MDI1, MDI2 I Laser power monitor input from the optical pick-up block

21 LDO2 O Laser diode drive signal output to the optical pick-up block (for DVD)

22 LDO1 O Laser diode drive signal output to the optical pick-up block (for CD)

23 SVDD3 - Power supply terminal (+3.3V)

24 CSO O Central servo signal output terminal Not used

25 RFLVL O RFRP low pass output terminal Not used

26 SGND - Ground terminal

27 V2REFO O Reference voltage (+2.8V) output terminal Not used

28 V2O O Reference voltage (+2V) output to the optical pick-up block

29 VREFO O Reference voltage (+1.4V) output terminal

30 FEO O Focus error monitor output terminal Not used

31 TEO O Tracking error monitor output terminal Not used

32 TEZISLV O Tracking error slicing level output terminal Not used

33 OP_OUT O Output from the internal operational amplifi er Not used

34 OP_INN I Negative input to the internal operational amplifi er Not used

35 OP_INP I Positive input to the internal operational amplifi er Not used

36 DMO O Spindle motor control signal output to the motor driver

37 FMO O Sled motor control signal output to the motor driver

38 TROPENPWM O Loading motor control signal output terminal Not used

39 IOPMON I Power monitor terminal

40 TRO O Tracking coil control signal output to the coil driver

41 FOO O Focus coil control signal output to the coil driver

42 AGND18 - Ground terminal

43 AVDD18 - Power supply terminal (+1.8V)

44 USB_DP I/O USB communication data (+) input/output terminal Not used

45 USB_DM I/O USB communication data (-) input/output terminal Not used

46 USB_VDD3 - Power supply terminal (+3.3V)

47 USB_VSS - Ground terminal

48 PAD_VRT I/O USB generating reference current input/output terminal Not used

49 USB_VDD18 - Power supply terminal (+1.8V)

50 USB_VSS - Ground terminal

51 DIR_ERROR I PLL lock error signal and input data error detection signal input from the digital audio inter-

face receiver "H": error

52 DIR_AUDIO I PCM/Non PCM detection signal input from the digital audio interface receiver

"L": PCM, "H": Non PCM

MAIN BOARD IC1101 CXD9917R-A (240V AC area in E and Saudi Arabia models),

CXD9927R-A (US and Canadian models)

(RF AMP, SERVO DSP, MPEG DECODER, HDMI TRANSMITTER)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

74

Pin No. Pin Name I/O Description

53 LIMITSW I Limit detection switch input terminal

54 MSW O CD/DVD selection signal output terminal "L": CD, "H": DVD

55 DVDD18 - Power supply terminal (+1.8V)

56 to 64 HA2 to HA8,

HA18, HA19 O Address signal output to the fl ash ROM

65 DVDD3 - Power supply terminal (+3.3V)

66 XWR O Write enable signal output to the fl ash ROM

67 to 75 HA16 to HA9, HA20 O Address signal output to the fl ash ROM

76 XROMCS O Chip select signal output to the fl ash ROM

77 HA1 O Address signal output to the fl ash ROM

78 XRD O Read enable signal output to the fl ash ROM

79, 80 HD0, HD1 I/O Two-way data bus with the fl ash ROM

81 DVSS - Ground terminal

82 to 86 HD2 to HD6 I/O Two-way data bus with the fl ash ROM

87 HA21 O Address signal output to the fl ash ROM

88 RESERVED O Not used

89 HD7 I/O Two-way data bus terminal with the fl ash ROM

90 DVSS - Ground terminal

91, 92 HA17, HA0 O Address signal output to the fl ash ROM

93 DVDD18 - Power supply terminal (+1.8V)

94 FWD O Loading motor drive signal output terminal (forward direction) Not used

95 REV O Loading motor drive signal output terminal (reverse direction) Not used

96 DVDD3 - Power supply terminal (+3.3V)

97 IFSDO O Serial data output to the system controller

98 IFCK O Serial data transfer clock signal output to the system controller

99 xIFCS O Chip select signal output to the system controller

100 IFSDI I Serial data input from the system controller

101 SCL O Serial data transfer clock signal output to the EEPROM

102 SDA I/O Two-way data bus with the EEPROM

103 CKSW I Chucking detection switch input terminal Not used

104 OCSW I Disc tray open/close detection switch input terminal Not used

105 RXD I Receive data for fl ash writing input terminal

106 TXD O Transmission data for fl ash writing output terminal

107 ICE I ICE mode enable signal input terminal Not used

108 xSYSRST I Reset signal input from the system controller "L": reset

109 RESERVED I Not used

110 IFBSY I Busy signal input from the system controller

111 DQM0 O Data mask signal output to the SD-RAM

112 EEWP O Write protect signal output to the EEPROM

113 to 117 RD7 to RD3 I/O Two-way data bus with the SD-RAM

118 DVDD3 - Power supply terminal (+3.3V)

119 to 129 RD2 to RD0,

RD15 to RD8 I/O Two-way data bus with the SD-RAM

130 TSD_M O Thermal shut down signal output to the coil/motor driver

131 DVDD3 - Power supply terminal (+3.3V)

132 DQM1 O Data mask signal output to the SD-RAM

133 RWE# O Write enable signal output to the SD-RAM

134 CAS# O Column address strobe signal output to the SD-RAM

135 RAS# O Row address strobe signal output to the SD-RAM

136 RCS# O Chip select signal output to the SD-RAM

137, 138 BA0, BA1 O Bank address signal output to the SD-RAM

139 to 141 RA10, RA0, RA1 O Address signal output to the SD-RAM

142 DVDD18 - Power supply terminal (+1.8V)

143, 144 RA2, RA3 O Address signal output to the SD-RAM

145 DVDD3 - Power supply terminal (+3.3V)

146 DRCLK O Serial data transfer clock signal output to the SD-RAM

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

75

Pin No. Pin Name I/O Description

147 CKE O Clock enable signal output to the SD-RAM

148 DVSS - Ground terminal

149 to 155 RA11, RA9 to RA4 O Address signal output to the SD-RAM

156 DVDD3 - Power supply terminal (+3.3V)

157 MUTE123 O Muting signal output to the coil/motor driver (for focus/tracking coil and sled motor)

158 MUTE O Muting signal output to the coil/motor driver (for spindle motor)

159 DDC_DA I/O Two-way data bus with the HDMI OUT connector

160 DVDD18 - Power supply terminal (+1.8V)

161 DDC_CLK O Serial data transfer clock signal output to the HDMI OUT connector

162 HTPLG I HDMI hot plug detection signal input terminal

163 AGND3 - Ground terminal

164 EXT_RES I External resistor connecting terminal

165, 166 AVDD3 - Power supply terminal (+3.3V)

167 EXT_CAP I External capacitor connecting terminal

168, 169 AGND3, AGND18 - Ground terminal

170 TXCN O TMDS clock signal (negative) output to the HDMI OUT connector

171 TXCP O TMDS clock signal (positive) output to the HDMI OUT connector

172 AVDD18 - Power supply terminal (+1.8V)

173 TX0N O TMDS data (negative) output to the HDMI OUT connector

174 TX0P O TMDS data (positive) output to the HDMI OUT connector

175 AGND18 - Ground terminal

176 TX1N O TMDS data (negative) output to the HDMI OUT connector

177 TX1P O TMDS data (positive) output to the HDMI OUT connector

178 AVDD18 - Power supply terminal (+1.8V)

179 TX2N O TMDS data (negative) output to the HDMI OUT connector

180 TX2P O TMDS data (positive) output to the HDMI OUT connector

181 AGND18 - Ground terminal

182 R/Cr/Pr O Component video (Pr/Cr) signal output to the video amplifi er

183 B/Cb/Pb O Component video (Pb/Cb) signal output to the video amplifi er

184 DACVSSA - Ground terminal

185 Y/G O Component video (Y) signal output to the video amplifi er

186 DACVDDA - Power supply terminal (+3.3V)

187 CVBS O Composite video signal output to the video amplifi er Not used

188 DACVSSB - Ground terminal

189 C O Chroma signal output to the video amplifi er

190 DACVDDB - Power supply terminal (+3.3V)

191 Y O Y signal output to the video amplifi er

192 DACVSSC - Ground terminal

193 FS I Full scale adjustment terminal

194 VREF I Bandgap reference voltage terminal

195 DACVDDC - Power supply terminal (+3.3V)

196 VBUS_OE O VBUS control signal output terminal Not used

197 VBUS_OC I VBUS over current detection signal input terminal Not used

198 DIR_XSTATE I Clock change status detection signal input from the digital audio interface receiver

"L": change

199 SPMCK I Master clock signal input from the digital audio interface receiver

200 SPBCK I Bit clock signal input from the digital audio interface receiver

201 SPLRCK I L/R sampling clock signal input from the digital audio interface receiver

202 ADIN(SPDATA) I Audio data input from the digital audio interface receiver

203 ACLK O Master clock signal output to the stream processor

204 ABCK O Bit clock signal output to the stream processor

205 ALRCK O L/R sampling clock signal output to the stream processor

206 MC_DATA(ADIN) I Audio data input from the A/D converter

207 DVDD3 - Power supply terminal (+3.3V)

208 MIC I Karaoke microphone detection signal input terminal Not used

209 WIDE O Normal/squeeze selection signal output terminal Not used

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

76

Pin No. Pin Name I/O Description

210 REG_SEL/DSEL O RGB and disc selection signal output terminal Not used

211 TRG_SW I Trigger detection switch input terminal Not used

212 DVDD18 - Power supply terminal (+1.8V)

213 KMOD O Karaoke mode status output terminal Not used

214 DIR_CSFCAG I Channel change status detection signal input from the digital audio interface receiver

"H": change

215 SPDIF O SPDIF audio data output terminal Not used

216 APLLVDD3 - Power supply terminal (+3.3V)

217 APLLCAP I External capacitor connecting terminal

218 APLLVSS - Ground terminal

219, 220 ADACVSS2,

ADACVSS1 - Ground terminal

221 DIR_CE O Chip enable signal output to the digital audio interface receiver

222 ASDATA3 O Audio data output to the wireless transceiver

223 ASDATA2 O Audio data output to the stream processor

224 AVCM - Audio D/A converter reference voltage terminal

225 ASDATA1 O

Audio data output to the wireless transceiver and stream processor

(HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX685)

Audio data output to the wireless transceiver (HCD-HDX589W/HDX686W)

226 ASDATA0 O Audio data output to the wireless transceiver and stream processor

227 DIR_CL O Serial data transfer clock signal output to the digital audio interface receiver

228, 229 ADACVDD1,

ADACVDD2 - Power supply terminal (+3.3V)

230 DIR_DI O Serial data output to the digital audio interface receiver

231 DIR_DO I Serial data input from the digital audio interface receiver

232 ADACVSS1 - Ground terminal

233 ADACVDD1 - Power supply terminal (+3.3V)

234 SADCVDD18 - Power supply terminal (+1.8V)

235 SADCVSS18 - Ground terminal

236 RFGND18 - Ground terminal

237 RFVDD18 - Power supply terminal (+1.8V)

238 XTALO O System clock output terminal (27 MHz)

239 XTALI I System clock input terminal (27 MHz)

240 JITFO O Output terminal of the RF jitter meter

241 JITFN I Input terminal of the RF jitter meter

242 PLLVSS - Ground terminal

243 PLLVDD3 - Power supply terminal (+3.3V)

244 LPFON O Loop fi lter amplifi er negative output terminal

245 LPFIP I Loop fi lter amplifi er positive input terminal

246 LPFIN I Loop fi lter amplifi er negative input terminal

247 LPFOP O Loop fi lter amplifi er positive output terminal

248 ADCVDD3 - Power supply terminal (+3.3V)

249 ADCVSS - Ground terminal

250 RFVDD3 - Power supply terminal (+3.3V)

251 RFRPDC O RF ripple detection signal output terminal

252 RFRPAC I RF ripple detection signal input terminal

253 HRFZC I High frequency RF ripple zero crossing terminal

254 CRTPLP O Defect level fi lter capacitor connecting terminal

255 RFGND18 - Ground terminal

256 OSP O RF offset cancellation capacitor connecting terminal

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

77

Pin No. Pin Name I/O Description

1 CTLIO I Input/output selection signal input terminal "L": input, "H": output Fixed at "L": in this set

2 RESET_B I Reset signal input from the system controller "L": reset

3 CLK I Serial data transfer clock signal input from the system controller

4 LATCH I Serial data latch pulse signal input from the system controller

5 to 7 P15 to P13 I Not used

8 P12 I Main tray open detection switch input terminal "L": main tray is opened

9 P11 I Sub tray out detection switch input terminal "L": sub tray out

10 P10 I Sub tray in detection switch input terminal "L": sub tray in

11 P9 I Main tray close detection switch input terminal "L": main tray is closed

12 P8 I Disc insert detection signal input terminal

13 LATCHO O Serial data latch pulse signal output to the audio/video controller

14 CLKO O Serial data transfer clock signal output to the audio/video controller

15 DO1 O Serial data output to the audio/video controller

16 DI2 I Serial data input terminal Not used

17, 18 P7, P6 O Not used

19, 20 P5, P4 O Stocker up/down motor drive signal output terminal

21, 22 P3, P2 O Not used

23, 24 P1, P0 O Loading motor drive signal output terminal

25 DO2 O Serial data output to the audio/video controller

26 DI2 I Serial data input from the system controller

27 VSS - Ground terminal

28 VCC - Power supply terminal (+3.3V)

SERIPARA BOARD IC001 BH2210FV-E2 (CHANGER CONTROLLER)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

78

Pin No. Pin Name I/O Description

1 CTLIO I Input/output selection signal input terminal "L": input, "H": output Fixed at "L": in this set

2 RESET_B I Reset signal input from the system controller "L": reset

3 CLK I Serial data transfer clock signal input from the changer controller

4 LATCH I Serial data latch pulse signal input from the changer controller

5 to 8 P15 to P12 I Stocker position detection rotary encoder input terminal

9 to 12 P11 to P8 I Mode detection rotary encoder input terminal

13 LATCHO O Serial data latch pulse signal output terminal Not used

14 CLKO O Serial data transfer clock signal output terminal Not used

15 DO1 O Serial data output terminal Not used

16 DI2 I Serial data input from the system controller

17 P7 O Audio data selection signal output terminal

"L": DVD, DMPORT, AUDIO, "H": TUNER, TV/VIDEO

18 P6 O Audio data selection signal output terminal

"L": DVD, TV/VIDEO, DMPORT, "H": TUNER, AUDIO

19, 20 P5, P4 O Not used

21 P3 O Audio data selection signal output terminal "L": AUDIO, "H": others

22 P2 O Audio data selection signal output terminal "L": DMPORT, "H": others

23 P1 O Video data selection signal output terminal "L": others, "H": DMPORT

24 P0 O Not used

25 DO2 O Serial data output to the system controller

26 DI2 I Serial data input from the changer controller

27 VSS - Ground terminal

28 VCC - Power supply terminal (+3.3V)

SERIPARA BOARD IC002 BH2210FV-E2 (AUDIO/VIDEO CONTROLLER)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

79

Pin No. Pin Name I/O Description

1 VSS - Ground terminal

2 NC - Not used

3 DATA I Serial data input from the system controller

4 CLK I Serial data transfer clock signal input from the system controller

5 LCK I Serial data latch pulse signal input from the system controller

6 Q0 O LED drive signal output terminal for DISC 5 indicator (green) "L": LED on

7 Q1 O LED drive signal output terminal for DISC 5 indicator (orange) "L": LED on

8 Q2 O LED drive signal output terminal for DISC 4 indicator (green) "L": LED on

9 Q3 O LED drive signal output terminal for DISC 4 indicator (orange) "L": LED on

10 Q4 O LED drive signal output terminal for DISC 3 indicator (green) "L": LED on

11 Q5 O LED drive signal output terminal for DISC 3 indicator (orange) "L": LED on

12 Q6 O LED drive signal output terminal for DISC 2 indicator (green) "L": LED on

13 Q7 O LED drive signal output terminal for DISC 2 indicator (orange) "L": LED on

14 Q8 O LED drive signal output terminal for DISC 1 indicator (green) "L": LED on

15 Q9 O LED drive signal output terminal for DISC 1 indicator (orange) "L": LED on

16, 17 Q10, Q11 - Not used

18 SO O Serial data output terminal Not used

19 X-OE I Output enable signal input terminal Not used

20 VDD - Power supply terminal (+3.3V)

KEY BOARD IC802 BU2099FV (LED DRIVER)

80

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

SECTION 7

EXPLODED VIEWS

1 4-120-908-01 PANEL, LOADING (DCY)

2 3-077-331-21 +BV3 (3-CR)

3 4-120-919-01 CASE (DCY)

4 3-363-099-22 SCREW (CASE 3 TP2)

5 3-704-515-32 SCREW (BV/RING)

6 3-077-331-01 +BV3 (3-CR)

7 1-828-331-11 WIRE (FLAT TYPE) (13 CORE)

8 1-828-330-11 WIRE (FLAT TYPE) (13 CORE)

9 3-077-331-11 +BV3 (3-CR)

10 3-703-244-00 CORD BUSH (2104)

0 11 1-834-966-41 POWER-SUPPLY CORD (EA, E3)

0 11 1-834-978-11 CORD, POWER (US, CND)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

7-1. CASE SECTION

The components identifi ed by mark 0

or dotted line with mark 0 are critical for

safety.

Replace only with part number specifi ed.

Les composants identifi és par une marque

0 sont critiques pour la sécurité.

Ne les remplacer que par une pièce portant

le numéro spécifi é.

Note:

• -XX and -X mean standardized parts, so

they may have some difference from the

original one.

• Items marked “*” are not stocked since

they are seldom required for routine ser-

vice. Some delay should be anticipated

when ordering these items.

• The mechanical parts with no reference

number in the exploded views are not sup-

plied.

• Color Indication of Appearance Parts Ex-

ample:

KNOB, BALANCE (WHITE) . . . (RED)

↑ ↑

Parts Color Cabinet’s Color

• Abbreviation

CND : Canadian model

E3 : 240V AC area in E model

EA : Saudi Arabia model

The components identifi ed by mark 9 con-

tain confi dential information.

Strictly follow the instructions whenever the

components are repaired and/or replaced.

Les composants identifi és par la marque

9 contiennent des informations confi den-

tielles.

Suivre scrupuleusement les instructions

chaque fois qu’un composant est remplacé

et / ou réparé.

1

3

4

4

5

9

2

6

2

7

6

8

9

10

11

2

9

2

"#

#

"

$

$

$

#

not supplied

not supplied not supplied

(S-AIR-CON board)

not supplied

(S-AIR INCLUDE board)

not supplied

not

supplied

not

supplied

not

supplied

not

supplied

back panel section

front panel section

(HDX287WC/HDX587WC/

HDX589W/HDX686W)

(HDX285/HDX585/HDX685)

Note: If wire (fl at type) is replaced, install it after bending it in the

same form as thet before replacement

81

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

7-2. FRONT PANEL SECTION

51 4-120-907-01 KNOB (VOL-DCY)

52 3-943-995-01 EMBLEM (NO.5), SONY

53 4-120-905-02 WINDOW (DCY) (HDX585)

53 4-120-905-12 WINDOW (DCY) (HDX686W)

53 4-120-905-22 WINDOW (DCY) (HDX685)

53 4-120-905-32 WINDOW (DCY) (HDX287WC)

53 4-120-905-42 WINDOW (DCY) (HDX587WC)

53 4-120-905-52 WINDOW (DCY) (HDX589W)

53 4-120-905-62 WINDOW (DCY) (HDX285)

54 4-120-906-02 RING (VOL-DCY)

55 4-120-904-01 PANEL, FRONT (DCY)

(HDX285: US/HDX585/HDX685)

55 4-120-904-11 PANEL, FRONT (DCY)

(HDX287WC/HDX587WC/HDX589W/HDX686W)

55 4-120-904-21 PANEL, FRONT (DCY) (HDX285: EA, E3)

56 4-120-909-01 BUTTON (POWER-DCY) (I/1)

57 4-120-913-01 FILTER (COLOR-DCY)

58 4-120-910-01 BUTTON (PLAY-DCY)

(Z, N, x, ., ., FUNCTION)

59 4-120-922-01 BUTTON (DISC)

60 4-120-911-02 BUTTON (BOOSTER) (DMPORT BOOSTER)

61 4-120-912-01 INDICATOR (MM-DCY)

62 A-1602-530-A KEY BOARD, COMPLETE

63 3-087-053-01 +BVTP2.6 (3CR)

64 1-828-317-11 WIRE (FLAT TYPE) (11 CORE)

65 1-828-353-11 WIRE (FLAT TYPE) (17 CORE)

66 A-1602-528-A FL-JACK BOARD, COMPLETE

67 3-077-331-21 +BV3 (3-CR)

68 4-120-914-01 HOLDER (FFC-DCY)

S5113 1-480-136-11 ENCODER, ROTARY (12 TYPE) (VOLUME)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

51

54

52

55

56

57

53

not supplied

(P-SW board)

not supplied

not supplied

not supplied

supplied with S5113

58

59

60

61 62

64

67

63

65

67

63

63

68

66

63

63

S5113

Note: If wire (fl at type) is replaced, install it after bending it in the

same form as thet before replacement

82

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

7-3. BACK PANEL SECTION

101 4-120-915-01 COVER (CDM-DCY)

102 3-077-331-21 +BV3 (3-CR)

103 1-828-370-11 WIRE (FLAT TYPE) (21 CORE)

104 A-1602-537-A I/O BOARD, COMPLETE

105 1-828-347-11 WIRE (FLAT TYPE) (17 CORE)

106 1-828-289-11 WIRE (FLAT TYPE) (5 CORE)

107 1-828-310-11 WIRE (FLAT TYPE) (9 CORE)

108 1-828-955-11 WIRE (FLAT TYPE) (9 CORE)

109 1-693-778-11 TUNER (FM/AM) (EA, E3)

109 1-693-779-11 TUNER (FM/AM) (US, CND)

110 3-077-331-01 +BV3 (3-CR)

M001 1-787-396-11 D.C. FAN (50 SQUARE)

#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

#2 7-685-871-01 SCREW +BVTT 3X6 (S)

#3 7-682-547-04 SCREW +B 3X6

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

101

102

103

104

105

106

102

107 110

110

110

102

110

110

106

108

109

#1

#3

#2

#1

not supplied

M001

DVD mechanism deck

section-1

(CDM81C-DVBU101)

MAIN/POWER board section

(US, CND)

Note: If wire (fl at type) is replaced, install it after bending it in the

same form as thet before replacement

83

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

7-4. MAIN/POWER BOARD SECTION

151 A-1568-848-A POWER BOARD, COMPLETE (EA, E3)

151 A-1568-850-A POWER BOARD, COMPLETE (US, CND)

152 2-677-839-01 +PWH 3X8 (SUMITITE)

9 153 A-1602-539-A MAIN BOARD, COMPLETE (for SERVICE)

(HDX285: EA, E3)

9 153 A-1602-547-A MAIN BOARD, COMPLETE (for SERVICE)

(HDX285: US)

9 153 A-1602-568-A MAIN BOARD, COMPLETE (for SERVICE)

(HDX589W)

9 153 A-1602-575-A MAIN BOARD, COMPLETE (for SERVICE)

(HDX287WC/HDX587WC)

9 153 A-1602-588-A MAIN BOARD, COMPLETE (for SERVICE)

(HDX685)

9 153 A-1602-597-A MAIN BOARD, COMPLETE (for SERVICE)

(HDX686W)

9 153 A-1703-692-A MAIN BOARD, COMPLETE (for SERVICE)

(HDX585)

154 4-125-473-01 SHEEET, RADIATION (US)

154 4-125-473-11 SHEEET, RADIATION (CND, E3, EA)

155 3-077-331-21 +BV3 (3-CR)

156 A-1602-535-A SERIPARA BOARD, COMPLETE

157 3-077-331-01 +BV3 (3-CR)

158 4-232-478-51 FOOT

159 3-077-331-11 +BV3 (3-CR)

0 F901 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA.5) (8A/125V)

(US, CND)

0 F901 1-576-232-51 FUSE (H.B.C.) (T5AH/250V) (EA, E3)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

158

158

152

151

153

154

155

156

154

155

159

157

157

154

155

not supplied

not supplied

not supplied

not supplied

not supplied not supplied

(SPEAKER board)

not supplied

(HEATSINK A board)

not supplied

(HEATSINK B board)

F901

(US, CND)

(HDX285)

(HDX285/HDX287WC/HDX585/

HDX587WC/HDX685)

84

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

7-5. DVD MECHANISM DECK SECTION-1 (CDM81C-DVBU101)

251 4-251-849-01 LEVER (SW2)

252 4-251-991-01 SPRING (SW2), TORSION

253 4-251-860-01 LEVER (LOCK)

254 4-251-867-01 SPRING (LOCK), TORSION

255 4-251-828-01 TRAY (MAIN)

256 4-251-822-01 JOINT (LIFTER)

257 4-251-857-01 COVER (R)

258 4-251-830-01 SLIDER (ST)

259 4-251-858-01 COVER (L)

260 4-251-829-02 TRAY (SUB)

261 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING

262 4-251-923-01 YOKE (310)

263 4-251-821-03 BRACKET (TOP)

264 4-251-922-01 PULLEY B (310), CHUCKING

265 4-251-824-01 LIFTER

266 4-251-837-01 PULLEY A (310), CHUCKING

267 4-218-253-52 SCREW (M2.6), +BTTP

268 4-674-137-11 SCREW (PTP 2X5)

#8 7-685-102-19 SCREW +P 2X4 TYPE2 NON-SLIT

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

251

268 267

252

255

253

267

267

254

257

258

259

260

262

266

263

264

265

261

256

not supplied

not supplied

DVD mechanism deck section-2

(CDM81C-DVBU101)

not

supplied

#8

#8

#8

85

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

7-6. DVD MECHANISM DECK SECTION-2 (CDM81C-DVBU101)

301 4-251-868-01 BELT (SUB TRAY)

302 4-251-869-01 BELT (MAIN TRAY)

303 4-251-850-01 GEAR (MAIN TRAY 1)

304 4-251-873-01 SPRING (MODE), COMPRESSION

305 4-239-618-01 SCREW (+PWH, 2X6), STEP TAPPING

306 4-251-872-01 SPRING (LEVER), TORSION

307 4-251-870-01 BELT (BU)

308 4-251-853-01 PULLEY (BU)

309 4-251-834-01 LEVER (MAIN TRAY)

310 4-251-852-01 GEAR (MAIN TRAY 3)

311 4-251-856-01 GEAR (BU2)

312 4-251-841-01 GEAR (SUB TRAY 1)

313 4-251-854-01 GEAR (BU1)

314 4-251-842-02 GEAR (SUB TRAY 2)

315 4-251-851-01 GEAR (MAIN TRAY 2)

316 4-218-253-52 SCREW (M2.6), +BTTP

M761 A-4713-174-A MOTOR (81) ASSY (LOADING)

M762 A-4713-174-A MOTOR (81) ASSY (STOCKER UP/DOWN)

S771 1-478-552-11 ENCODER, ROTARY (MD)

#7 7-685-902-21 TAPPING +PWH 2.6X8 TYPE2 N-S

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

not supplied

not supplied

(ENCODER board included in RELAY board)

not supplied

not supplied

(MOTOR board)

301

302

303 303 304

309 314

315

312

314

310

306

316

316

316

307

308

308

308

303

313 311

305

#7

#7

#7

#7

#7

#7

#7

M761

M762

#7

#7

#7

#7 #7

#7

S771

DVD mechanism deck section-3

(CDM81C-DVBU101)

86

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

7-7. DVD MECHANISM DECK SECTION-3 (CDM81C-DVBU101)

351 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING

352 4-251-873-01 SPRING (MODE), COMPRESSION

353 4-251-874-02 SPRING (SW), EXTENSION

354 4-251-844-01 GEAR (SS2)

355 4-251-835-01 GEAR (STOCKER 1)

356 4-251-833-01 LEVER (SUB TRAY)

357 4-251-843-01 LEVER (RELEASE)

358 4-251-831-02 LEVER (MODE)

359 4-251-862-01 SHUTTER (TRAY)

360 4-251-845-01 GEAR (SS3)

361 4-251-829-02 TRAY (SUB)

362 4-251-827-01 CAM (STOCKER)

363 4-251-836-01 GEAR (STOCKER 2)

364 4-251-838-01 GEAR (STOCKER 3)

365 4-251-823-01 CHASSIS (CDM81)

366 A-4750-232-A RELAY BOARD, COMPLETE

367 4-239-618-01 SCREW (+PWH, 2X6), STEP TAPPING

368 4-251-825-01 CAM (BU)

369 4-251-832-01 LEVER (STOCKER)

370 4-251-861-01 LEVER (SW)

371 4-251-839-01 GEAR (STOCKER 4)

372 4-251-840-01 GEAR (SUB TRAY)

373 4-251-847-01 GEAR (SS4)

374 4-218-253-52 SCREW (M2.6), +BTTP

375 4-251-841-01 GEAR (SUB TRAY 1)

S781 1-478-551-11 ENCODER, ROTARY (STOCKER UP/DOWN)

#7 7-685-902-21 TAPPING +PWH 2.6X8 TYPE2 N-S

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

not supplied

(SENSOR board)

not supplied

(SW (1) board)

not supplied

(SW (2) board)

351

369

368

351

358

357

370

373

352

372

356

351

351

351

361

353

362

362

363 363

359 364

365

362

363

S781

366

367

351

355

371

360

354

375

374

374

374

374

352

#7 #7 #7

#7

#7 #7

#7

#7

not supplied

optical pick-up section

87

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

7-8. OPTICAL PICK-UP SECTION

401 X-4956-097-1 HOLDER (310) ASSY

0 402 8-820-291-02 OPTICAL PICK-UP BLOCK (KHM-310CAB/C2RP)

(Including sled motor, spindle motor)

0 402 8-820-322-04 OPTICAL PICK-UP BLOCK (KHM-313CAB/C2RP)

(Including sled motor, spindle motor)

403 2-634-618-01 INSULATOR

404 3-087-599-01 INSULATOR SCREW

406 1-836-385-11 FLEXIBLE FLAT CABLE 24P

#6 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

401

403

403

403

404

404

404

406

404

402

(including spindle motor,

spindle motor)

403

#6

#6

not supplied

not supplied

not supplied

(spindle motor)

not supplied

(sled motor)

not supplied

Note 1: If fl exible fl at cable is replaced, install it after bending it

in the same form as thet before replacement.

Note 2: Refer to the Servicing Notes “HOW TO IDENTIFY OPTI-

CAL PICK-UP BLOCK” (page 7), if replacing the Ref.

No. 402.

88

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

SECTION 8

ELECTRICAL PARTS LIST

ENCODER BOARD (Included in RELAY board)

***************

************************************************************

A-1602-528-A FL-JACK BOARD, COMPLETE

***********************

< CAPACITOR >

C5000 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V

C5002 1-124-584-00 ELECT 100uF 20% 6.3V

C5003 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C5004 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

C5005 1-163-037-11 CERAMIC CHIP 0.022uF 10% 50V

C5006 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C5007 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C5008 1-162-974-11 CERAMIC CHIP 0.01uF 50V

C5009 1-119-772-91 ELECT 47uF 20% 35V

C5010 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C5011 1-126-157-11 ELECT 10uF 20% 16V

C5012 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C5020 1-126-157-11 ELECT 10uF 20% 16V

C5021 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C5023 1-115-156-11 CERAMIC CHIP 1uF 10V

C5024 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V

C5025 1-124-584-00 ELECT 100uF 20% 10V

C5026 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C5027 1-164-315-11 CERAMIC CHIP 470PF 5% 50V

C5028 1-124-589-11 ELECT 47uF 20% 16V

C5029 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C5030 1-124-584-00 ELECT 100uF 20% 10V

C5031 1-124-261-00 ELECT 10uF 20% 50V

C5032 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C5035 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C5036 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C5037 1-124-261-00 ELECT 10uF 20% 50V

C5038 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C5040 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C5041 1-164-315-11 CERAMIC CHIP 470PF 5% 50V

C5042 1-162-925-11 CERAMIC CHIP 68PF 5% 50V

C5043 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V

C5044 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V

C5045 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C5046 1-164-315-11 CERAMIC CHIP 470PF 5% 50V

C5050 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C5058 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C5059 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C5061 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

< CONNECTOR >

CN5000 1-779-279-11 CONNECTOR, FFC (LIF (NON-ZIF)) 11P

CN5001 1-779-554-21 CONNECTOR, FFC (LIF (NON-ZIF)) 17P

< DIODE >

D5000 6-500-848-01 DIODE MC2840-T112-1

D5001 6-500-848-01 DIODE MC2840-T112-1

D5002 6-501-729-01 DIODE MAZ8051GLLS0

D5005 6-500-525-01 LED SLI-325YCT31W (DMPORT BOOSTER)

D5006 6-501-817-01 DIODE MA2J1110GLS0

D5007 6-500-848-01 DIODE MC2840-T112-1

D5008 8-719-060-48 DIODE RB751V-40TE-17

D5009 6-500-848-01 DIODE MC2840-T112-1

D5010 6-500-848-01 DIODE MC2840-T112-1

< FERRITE BEAD >

FB5000 1-500-236-22 BEAD, FERRITE (CHIP) (1608)

FB5001 1-500-236-22 BEAD, FERRITE (CHIP) (1608)

FB5002 1-500-236-22 BEAD, FERRITE (CHIP) (1608)

FB5003 1-500-236-22 BEAD, FERRITE (CHIP) (1608)

FB5006 1-500-236-22 BEAD, FERRITE (CHIP) (1608)

< IC >

IC5000 6-704-470-01 IC TK11233CMCL-G

IC5001 6-713-497-01 IC HT16515

IC5002 6-600-349-21 IC NJL23H400A

IC5003 8-759-100-96 IC uPC4558G2

IC5004 8-759-100-96 IC uPC4558G2

< JACK >

J5000 1-822-262-11 JACK (AUDIO IN/A.CAL MIC)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

ENCODER

When indicating parts by reference num-

ber, please include the board name.

Note:

• Due to standardization, replacements in

the parts list may be different from the

parts specifi ed in the diagrams or the com-

ponents used on the set.

• -XX and -X mean standardized parts, so

they may have some difference from the

original one.

• Items marked “*” are not stocked since

they are seldom required for routine ser-

vice. Some delay should be anticipated

when ordering these items.

• RESISTORS

All resistors are in ohms.

METAL: Metal-fi lm resistor.

METAL OXIDE: Metal oxide-fi lm resistor.

F: nonfl ammable

• CAPACITORS

uF: μF

• COILS

uH: μH

• SEMICONDUCTORS

In each case, u: μ, for example:

uA. . : μA. . , uPA. . , μPA. . ,

uPB. . : μPB. . , uPC. . , μPC. . ,

uPD. . : μPD. .

• Abbreviation

CND : Canadian model

E3 : 240V AC area in E model

EA : Saudi Arabia model

The components identifi ed by mark 0

or dotted line with mark 0 are critical for

safety.

Replace only with part number specifi ed.

Les composants identifi és par une marque

0 sont critiques pour la sécurité.

Ne les remplacer que par une pièce portant

le numéro spécifi é.

The components identifi ed by mark 9 con-

tain confi dential information.

Strictly follow the instructions whenever the

components are repaired and/or replaced.

Les composants identifi és par la marque

9 contiennent des informations confi den-

tielles.

Suivre scrupuleusement les instructions

chaque fois qu’un composant est remplacé

et / ou réparé.

FL-JACK

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

8989

J5001 1-822-262-11 JACK (PHONES)

< JUMPER RESISTOR >

JR5005 1-216-296-11 SHORT CHIP 0

JR5006 1-216-864-11 SHORT CHIP 0

JR5014 1-216-864-11 SHORT CHIP 0

JR5015 1-216-864-11 SHORT CHIP 0

JR5019 1-216-864-11 SHORT CHIP 0

< COIL >

L5000 1-410-671-31 INDUCTOR 47uH

L5001 1-410-671-31 INDUCTOR 47uH

L5002 1-410-671-31 INDUCTOR 47uH

< FLUORESCENT INDICATOR TUBE >

ND5000 1-519-988-21 INDICATOR TUBE, FLUORESCENT

< TRANSISTOR >

Q5000 6-550-065-01 TRANSISTOR CPH5504-TL-E

Q5003 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q5004 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q5005 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q5006 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q5007 8-729-038-28 TRANSISTOR RT1N441C-TP-1

Q5008 8-729-038-28 TRANSISTOR RT1N441C-TP-1

Q5009 8-729-027-23 TRANSISTOR DTA114EKA-T146

Q5010 8-729-038-11 TRANSISTOR RT1P140C-TP-1

Q5011 8-729-027-23 TRANSISTOR DTA114EKA-T146

Q5012 8-729-038-28 TRANSISTOR RT1N441C-TP-1

< RESISTOR >

R5000 1-216-828-11 METAL CHIP 3.9K 5% 1/10W

R5001 1-216-821-11 METAL CHIP 1K 5% 1/10W

R5003 1-216-813-11 METAL CHIP 220 5% 1/10W

R5004 1-216-813-11 METAL CHIP 220 5% 1/10W

R5005 1-216-813-11 METAL CHIP 220 5% 1/10W

R5006 1-216-839-11 METAL CHIP 33K 5% 1/10W

R5007 1-216-813-11 METAL CHIP 220 5% 1/10W

R5008 1-216-805-11 METAL CHIP 47 5% 1/10W

R5009 1-216-805-11 METAL CHIP 47 5% 1/10W

R5010 1-216-809-11 METAL CHIP 100 5% 1/10W

R5011 1-216-809-11 METAL CHIP 100 5% 1/10W

R5012 1-216-809-11 METAL CHIP 100 5% 1/10W

R5013 1-216-844-11 METAL CHIP 82K 5% 1/10W

R5016 1-216-810-11 METAL CHIP 120 5% 1/10W

R5017 1-216-821-11 METAL CHIP 1K 5% 1/10W

R5018 1-216-805-11 METAL CHIP 47 5% 1/10W

R5019 1-216-835-11 METAL CHIP 15K 5% 1/10W

R5020 1-216-821-11 METAL CHIP 1K 5% 1/10W

R5021 1-216-833-11 METAL CHIP 10K 5% 1/10W

R5022 1-216-833-11 METAL CHIP 10K 5% 1/10W

R5023 1-216-834-11 METAL CHIP 12K 5% 1/10W

R5024 1-216-833-11 METAL CHIP 10K 5% 1/10W

R5025 1-216-833-11 METAL CHIP 10K 5% 1/10W

R5026 1-216-801-11 METAL CHIP 22 5% 1/10W

R5027 1-216-821-11 METAL CHIP 1K 5% 1/10W

R5028 1-216-821-11 METAL CHIP 1K 5% 1/10W

R5029 1-216-819-11 METAL CHIP 680 5% 1/10W

R5030 1-216-811-11 METAL CHIP 150 5% 1/10W

R5031 1-216-835-11 METAL CHIP 15K 5% 1/10W

I/O

R5032 1-216-809-11 METAL CHIP 100 5% 1/10W

R5033 1-216-833-11 METAL CHIP 10K 5% 1/10W

R5034 1-216-845-11 METAL CHIP 100K 5% 1/10W

R5035 1-216-864-11 SHORT CHIP 0

R5036 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R5037 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R5038 1-216-837-11 METAL CHIP 22K 5% 1/10W

R5039 1-216-821-11 METAL CHIP 1K 5% 1/10W

R5041 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W

R5043 1-216-817-11 METAL CHIP 470 5% 1/10W

R5044 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R5045 1-216-845-11 METAL CHIP 100K 5% 1/10W

R5047 1-216-817-11 METAL CHIP 470 5% 1/10W

R5048 1-216-845-11 METAL CHIP 100K 5% 1/10W

R5049 1-216-837-11 METAL CHIP 22K 5% 1/10W

R5050 1-216-821-11 METAL CHIP 1K 5% 1/10W

R5051 1-216-821-11 METAL CHIP 1K 5% 1/10W

R5052 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R5053 1-216-864-11 SHORT CHIP 0

R5054 1-216-857-11 METAL CHIP 1M 5% 1/10W

R5055 1-216-837-11 METAL CHIP 22K 5% 1/10W

R5056 1-216-864-11 SHORT CHIP 0

R5083 1-216-813-11 METAL CHIP 220 5% 1/10W

R5084 1-216-813-11 METAL CHIP 220 5% 1/10W

R5085 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R5086 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R5087 1-216-837-11 METAL CHIP 22K 5% 1/10W

R5088 1-216-841-11 METAL CHIP 47K 5% 1/10W

R5090 1-216-809-11 METAL CHIP 100 5% 1/10W

(SUFFIX-12)

R5091 1-216-809-11 METAL CHIP 100 5% 1/10W

(SUFFIX-12)

< SWITCH >

S5000 1-762-875-21 SWITCH, KEYBOARD (DMPORT BOOSTER)

< TRANSFORMER >

T5000 1-443-645-11 TRANSFORMER, DC CONVERTER

************************************************************

A-1602-537-A I/O BOARD, COMPLETE

*******************

< CAPACITOR >

C4028 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C4030 1-126-933-11 ELECT 100uF 20% 16V

C4031 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C4033 1-126-933-11 ELECT 100uF 20% 16V

C4034 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C4036 1-126-916-11 ELECT 1000uF 20% 6.3V

C4037 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C4039 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C4040 1-126-916-11 ELECT 1000uF 20% 6.3V

C4041 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C4042 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C4043 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C4044 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C4045 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C4046 1-126-925-91 ELECT 470uF 20% 10V

C4047 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

FL-JACK

Note: Refer to the Servicing Notes “FL-JACK AND P-SW BOARDS DISCRIMINATION”

(page 5) for how to distinguish Suffi x-11 and Suffi x-12.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

90

C4048 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C4049 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C4050 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C4053 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C4054 1-104-662-91 ELECT 22uF 20% 25V

C4055 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C4056 1-126-964-11 ELECT 10uF 20% 50V

C4057 1-104-662-91 ELECT 22uF 20% 25V

C4059 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C4070 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C4077 1-104-662-91 ELECT 22uF 20% 25V

C4078 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C4083 1-104-662-91 ELECT 22uF 20% 25V

C4087 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C4088 1-104-662-91 ELECT 22uF 20% 25V

C4089 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C4090 1-104-662-91 ELECT 22uF 20% 25V

C4093 1-126-933-11 ELECT 100uF 20% 16V

C4094 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C4100 1-127-573-11 CERAMIC CHIP 1uF 10% 16V

C4101 1-126-947-11 ELECT 47uF 20% 35V

C4104 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C4109 1-104-662-91 ELECT 22uF 20% 25V

C4110 1-104-662-91 ELECT 22uF 20% 25V

C4113 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C4116 1-126-933-11 ELECT 100uF 20% 16V

C4123 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V

< CONNECTOR >

CN4005 1-784-365-51 CONNECTOR, FFC/FPC 5P

CN4009 1-779-277-11 CONNECTOR, FFC (LIF (NON-ZIF)) 9P

CN4012 1-779-273-11 CONNECTOR, FFC (LIF (NON-ZIF)) 5P

CN4014 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P

CN4016 1-784-770-11 CONNECTOR, FFC 9P

CN4017 1-820-116-41 CONNECTOR, FFC/FPC 17P

< DIODE >

D4003 6-500-848-01 DIODE MC2840-T112-1

D4004 6-501-728-01 DIODE MAZ8051G0LS0

D4006 6-501-817-01 DIODE MA2J1110GLS0

< IC >

IC4002 6-707-489-01 IC BH7868FS-E2

IC4003 6-705-337-01 IC TK11150CSCL-G

IC4004 8-759-385-76 IC MC14052 BDR2

IC4007 8-759-385-76 IC MC14052 BDR2

IC4009 6-713-032-01 IC KIA7809API-U/PF

< JACK >

J4000 1-822-283-11 JACK, PIN 3P (COMPONENT VIDEO OUT)

J4001 1-822-280-11 JACK, PIN 3P (TV/VIDEO AUDIO IN, VIDEO OUT)

< COIL >

L4000 1-469-525-91 INDUCTOR 10uH

< TRANSISTOR >

Q4007 8-729-027-52 TRANSISTOR DTC124EKA-T146

Q4008 8-729-027-52 TRANSISTOR DTC124EKA-T146

Q4011 8-729-027-52 TRANSISTOR DTC124EKA-T146

Q4012 8-729-027-52 TRANSISTOR DTC124EKA-T146

< RESISTOR >

R4032 1-218-285-11 METAL CHIP 75 5% 1/10W

R4034 1-218-285-11 METAL CHIP 75 5% 1/10W

R4035 1-218-827-11 METAL CHIP 150 0.5% 1/10W

R4036 1-218-827-11 METAL CHIP 150 0.5% 1/10W

R4037 1-218-827-11 METAL CHIP 150 0.5% 1/10W

R4038 1-218-827-11 METAL CHIP 150 0.5% 1/10W

R4039 1-218-827-11 METAL CHIP 150 0.5% 1/10W

R4041 1-218-285-11 METAL CHIP 75 5% 1/10W

R4043 1-218-285-11 METAL CHIP 75 5% 1/10W

R4044 1-218-285-11 METAL CHIP 75 5% 1/10W

R4045 1-216-821-11 METAL CHIP 1K 5% 1/10W

R4048 1-216-845-11 METAL CHIP 100K 5% 1/10W

R4049 1-216-841-11 METAL CHIP 47K 5% 1/10W

R4050 1-216-841-11 METAL CHIP 47K 5% 1/10W

R4051 1-216-837-11 METAL CHIP 22K 5% 1/10W

R4052 1-216-845-11 METAL CHIP 100K 5% 1/10W

R4053 1-216-837-11 METAL CHIP 22K 5% 1/10W

R4054 1-216-841-11 METAL CHIP 47K 5% 1/10W

R4055 1-216-841-11 METAL CHIP 47K 5% 1/10W

0 R4056 1-215-865-51 METAL OXIDE 220 5% 1W F

R4058 1-216-833-11 METAL CHIP 10K 5% 1/10W

R4061 1-216-821-11 METAL CHIP 1K 5% 1/10W

R4070 1-216-821-11 METAL CHIP 1K 5% 1/10W

R4072 1-216-864-11 SHORT CHIP 0

R4073 1-216-809-11 METAL CHIP 100 5% 1/10W

R4074 1-216-864-11 SHORT CHIP 0

R4075 1-216-809-11 METAL CHIP 100 5% 1/10W

R4076 1-216-809-11 METAL CHIP 100 5% 1/10W

R4077 1-216-864-11 SHORT CHIP 0

R4082 1-216-864-11 SHORT CHIP 0

R4085 1-216-841-11 METAL CHIP 47K 5% 1/10W

R4086 1-216-841-11 METAL CHIP 47K 5% 1/10W

R4089 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R4093 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R4094 1-216-841-11 METAL CHIP 47K 5% 1/10W

R4095 1-216-841-11 METAL CHIP 47K 5% 1/10W

R4103 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R4104 1-216-841-11 METAL CHIP 47K 5% 1/10W

R4105 1-216-841-11 METAL CHIP 47K 5% 1/10W

R4108 1-216-864-11 SHORT CHIP 0

R4110 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R4111 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R4114 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R4115 1-216-841-11 METAL CHIP 47K 5% 1/10W

R4116 1-216-841-11 METAL CHIP 47K 5% 1/10W

R4124 1-216-833-11 METAL CHIP 10K 5% 1/10W

R4128 1-216-821-11 METAL CHIP 1K 5% 1/10W

R4131 1-216-833-11 METAL CHIP 10K 5% 1/10W

R4133 1-216-821-11 METAL CHIP 1K 5% 1/10W

R4146 1-216-845-11 METAL CHIP 100K 5% 1/10W

R4147 1-216-845-11 METAL CHIP 100K 5% 1/10W

R4148 1-216-864-11 SHORT CHIP 0

R4149 1-216-845-11 METAL CHIP 100K 5% 1/10W

R4150 1-216-845-11 METAL CHIP 100K 5% 1/10W

R4156 1-216-864-11 SHORT CHIP 0

R4157 1-216-864-11 SHORT CHIP 0

R4164 1-216-833-11 METAL CHIP 10K 5% 1/10W

I/O

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

9191

R4166 1-216-864-11 SHORT CHIP 0

************************************************************

A-1602-530-A KEY BOARD, COMPLETE

********************

< CAPACITOR >

C5100 1-126-947-11 ELECT 47uF 20% 35V

C5101 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C5105 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C5111 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C5112 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

< CONNECTOR >

CN5101 1-779-548-21 CONNECTOR, FFC (LIF (NON-ZIF)) 11P

< LED >

D5003 8-719-060-26 LED SLR-325YCT31 (MOVIE)

D5004 8-719-060-26 LED SLR-325YCT31 (MUSIC)

D5100 8-719-056-13 LED SML79423C-TP15 (DISC 5)

D5101 8-719-056-13 LED SML79423C-TP15 (DISC 4)

D5102 8-719-056-13 LED SML79423C-TP15 (DISC 3)

D5103 8-719-056-13 LED SML79423C-TP15 (DISC 2)

D5104 8-719-056-13 LED SML79423C-TP15 (DISC 1)

< IC >

IC5100 6-704-046-01 IC BU2099FV

< JUMPER RESISTOR >

JW5108 1-216-864-11 SHORT CHIP 0

JW5109 1-216-864-11 SHORT CHIP 0

JW5110 1-216-864-11 SHORT CHIP 0

JW5111 1-216-864-11 SHORT CHIP 0

JW5113 1-216-864-11 SHORT CHIP 0

JW5114 1-216-864-11 SHORT CHIP 0

< COIL >

L5100 1-410-671-31 INDUCTOR 47uH

< TRANSISTOR >

Q5001 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q5002 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q5100 8-729-027-23 TRANSISTOR DTA114EKA-T146

Q5101 8-729-027-23 TRANSISTOR DTA114EKA-T146

Q5102 8-729-027-23 TRANSISTOR DTA114EKA-T146

Q5103 8-729-027-23 TRANSISTOR DTA114EKA-T146

Q5104 8-729-027-23 TRANSISTOR DTA114EKA-T146

Q5105 8-729-027-23 TRANSISTOR DTA114EKA-T146

Q5106 8-729-027-23 TRANSISTOR DTA114EKA-T146

Q5107 8-729-027-23 TRANSISTOR DTA114EKA-T146

Q5108 8-729-027-23 TRANSISTOR DTA114EKA-T146

Q5109 8-729-027-23 TRANSISTOR DTA114EKA-T146

< RESISTOR >

R5014 1-216-809-11 METAL CHIP 100 5% 1/10W

R5015 1-216-809-11 METAL CHIP 100 5% 1/10W

R5100 1-216-809-11 METAL CHIP 100 5% 1/10W

R5101 1-216-809-11 METAL CHIP 100 5% 1/10W

R5102 1-216-809-11 METAL CHIP 100 5% 1/10W

R5103 1-216-809-11 METAL CHIP 100 5% 1/10W

R5104 1-216-809-11 METAL CHIP 100 5% 1/10W

R5105 1-216-809-11 METAL CHIP 100 5% 1/10W

R5106 1-216-809-11 METAL CHIP 100 5% 1/10W

R5107 1-216-809-11 METAL CHIP 100 5% 1/10W

R5108 1-216-809-11 METAL CHIP 100 5% 1/10W

R5109 1-216-809-11 METAL CHIP 100 5% 1/10W

R5110 1-216-821-11 METAL CHIP 1K 5% 1/10W

R5111 1-216-821-11 METAL CHIP 1K 5% 1/10W

R5112 1-216-821-11 METAL CHIP 1K 5% 1/10W

R5113 1-216-821-11 METAL CHIP 1K 5% 1/10W

R5114 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R5116 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R5117 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R5118 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R5119 1-216-833-11 METAL CHIP 10K 5% 1/10W

R5120 1-216-837-11 METAL CHIP 22K 5% 1/10W

R5121 1-216-841-11 METAL CHIP 47K 5% 1/10W

R5122 1-216-821-11 METAL CHIP 1K 5% 1/10W

R5123 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R5124 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R5125 1-216-833-11 METAL CHIP 10K 5% 1/10W

R5126 1-216-837-11 METAL CHIP 22K 5% 1/10W

R5127 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R5128 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R5130 1-216-809-11 METAL CHIP 100 5% 1/10W

R5131 1-216-809-11 METAL CHIP 100 5% 1/10W

< SWITCH/ROTARY ENCODER >

S5100 1-762-875-21 SWITCH, KEYBOARD (Z)

S5101 1-762-875-21 SWITCH, KEYBOARD (FUNCTION)

S5103 1-762-875-21 SWITCH, KEYBOARD (x)

S5104 1-762-875-21 SWITCH, KEYBOARD (DISC 5)

S5105 1-762-875-21 SWITCH, KEYBOARD (DISC 4)

S5106 1-762-875-21 SWITCH, KEYBOARD (DISC 3)

S5107 1-762-875-21 SWITCH, KEYBOARD (DISC 2)

S5108 1-762-875-21 SWITCH, KEYBOARD (DISC 1)

S5109 1-762-875-21 SWITCH, KEYBOARD (N)

S5110 1-762-875-21 SWITCH, KEYBOARD (.)

S5112 1-762-875-21 SWITCH, KEYBOARD (>)

S5113 1-480-136-11 ENCODER, ROTARY (12 TYPE) (VOLUME)

************************************************************

9 A-1602-539-A MAIN BOARD COMPLETE (for SERVICE)

(HDX285: E3, EA)

9 A-1602-547-A MAIN BOARD COMPLETE (for SERVICE)

(HDX285: US)

9 A-1602-568-A MAIN BOARD COMPLETE (for SERVICE)

(HDX589W)

9 A-1602-575-A MAIN BOARD COMPLETE (for SERVICE)

(HDX287WC/HDX587WC)

9 A-1602-588-A MAIN BOARD COMPLETE (for SERVICE)

(HDX685)

9 A-1602-597-A MAIN BOARD COMPLETE (for SERVICE)

(HDX686W)

9 A-1703-692-A MAIN BOARD COMPLETE (for SERVICE)

(HDX585)

********************

< CAPACITOR >

C303 1-100-742-91 CERAMIC CHIP 2.2uF 20% 10V

C304 1-126-923-91 ELECT 220uF 20% 10V

MAINI/O KEY

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

92

C305 1-100-742-91 CERAMIC CHIP 2.2uF 20% 10V

C308 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C309 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C310 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C311 1-126-964-11 ELECT 10uF 20% 50V

C313 1-126-964-11 ELECT 10uF 20% 50V

C314 1-126-964-11 ELECT 10uF 20% 50V

C315 1-126-923-91 ELECT 220uF 20% 10V

C316 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C317 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C318 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V

C319 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C320 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C321 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C323 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C325 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C326 1-162-912-11 CERAMIC CHIP 7PF 0.5PF 50V

C327 1-162-912-11 CERAMIC CHIP 7PF 0.5PF 50V

C329 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C333 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C334 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C451 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C452 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C453 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C455 1-126-965-91 ELECT 22uF 20% 50V

C456 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C457 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C461 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C462 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C463 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C464 1-126-947-11 ELECT 47uF 20% 35V

C465 1-104-658-91 ELECT 100uF 20% 10V

C466 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C467 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C468 1-126-933-11 ELECT 100uF 20% 16V

C471 1-104-658-91 ELECT 100uF 20% 10V

C476 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C501 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C504 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C505 1-126-933-11 ELECT 100uF 20% 16V

C507 1-126-933-11 ELECT 100uF 20% 16V

C508 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C509 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C510 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C511 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C512 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C513 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C514 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C515 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C516 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C517 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C518 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C519 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C520 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C521 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C522 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C523 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V

C524 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C525 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C526 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C527 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V

C528 1-126-916-11 ELECT 1000uF 20% 6.3V

C529 1-104-658-91 ELECT 100uF 20% 10V

C530 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C531 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C532 1-126-933-11 ELECT 100uF 20% 16V

C536 1-126-916-11 ELECT 1000uF 20% 6.3V

C537 1-104-658-91 ELECT 100uF 20% 10V

C538 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C539 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C540 1-126-933-11 ELECT 100uF 20% 16V

C544 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C550 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C551 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C552 1-126-933-11 ELECT 100uF 20% 16V

C553 1-126-935-11 ELECT 470uF 20% 16V

C554 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

C1101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1102 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C1105 1-126-947-11 ELECT 47uF 20% 35V

C1106 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1108 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1109 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1110 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1111 1-104-658-91 ELECT 100uF 20% 10V

C1112 1-126-947-11 ELECT 47uF 20% 35V

C1113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1114 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1115 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1116 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1117 1-126-947-11 ELECT 47uF 20% 35V

C1118 1-126-947-11 ELECT 47uF 20% 35V

C1119 1-126-947-11 ELECT 47uF 20% 35V

C1120 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C1121 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C1122 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C1123 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C1124 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C1125 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1127 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1129 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V

C1130 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1132 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1135 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V

C1136 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1137 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1138 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C1139 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

C1140 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1144 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1145 1-126-964-11 ELECT 10uF 20% 50V

C1146 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1147 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

C1148 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

C1149 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1151 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C1152 1-162-916-11 CERAMIC CHIP 12PF 5% 50V

C1153 1-162-916-11 CERAMIC CHIP 12PF 5% 50V

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

9393

C1154 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1155 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1156 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1158 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1159 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1160 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1161 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1163 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1164 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1165 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1169 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1170 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V

C1171 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1172 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1174 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1175 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1176 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1177 1-126-923-91 ELECT 220uF 20% 10V

C1179 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1180 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1181 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1182 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V

C1183 1-128-934-11 CERAMIC CHIP 0.33uF 20% 10V

C1184 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1186 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V

C1187 1-126-947-11 ELECT 47uF 20% 35V

C1190 1-104-658-91 ELECT 100uF 20% 10V

C1191 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1192 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1193 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V

C1195 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V

C1197 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1198 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C1199 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

C1203 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1205 1-164-230-11 CERAMIC CHIP 220PF 5% 50V

C1206 1-164-230-11 CERAMIC CHIP 220PF 5% 50V

C1208 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1209 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V

C1210 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1211 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V

C1212 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1213 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1214 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C1215 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1217 1-126-947-11 ELECT 47uF 20% 35V

C1218 1-126-964-11 ELECT 10uF 20% 50V

C1219 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1220 1-126-964-11 ELECT 10uF 20% 50V

C1221 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1222 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1224 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1233 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

C1725 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1727 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1729 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V

C1730 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V

C1731 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V

C1732 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C1733 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V

C1734 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C2100 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C2108 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V

C2109 1-104-658-91 ELECT 100uF 20% 10V

C2110 1-104-658-91 ELECT 100uF 20% 10V

C2114 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C2115 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V

C2116 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C2117 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V

C2118 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C2119 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C2130 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C2502 1-164-172-11 CERAMIC CHIP 0.0056uF 10% 25V

C2503 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V

C3000 1-126-382-11 ELECT 100uF 20% 16V

C3001 1-126-947-11 ELECT 47uF 20% 35V

C3002 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3003 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C3005 1-126-795-11 ELECT 10uF 20% 50V

C3008 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3011 1-165-726-31 ELECT 56uF 20% 16V

C3012 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3013 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3014 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3015 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3016 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3017 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3018 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3019 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3020 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3021 1-126-947-11 ELECT 47uF 20% 35V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3022 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3023 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3024 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3025 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3026 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3027 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3028 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3029 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3030 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3031 1-165-726-31 ELECT 56uF 20% 16V

C3032 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

94

C3033 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3034 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3035 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3036 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3037 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3038 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3039 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3040 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3051 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3052 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C3053 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3054 1-104-658-91 ELECT 100uF 20% 10V

C3055 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C3056 1-126-923-91 ELECT 220uF 20% 10V

C3057 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C3058 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V

C3059 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C3060 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

C3071 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C3081 1-126-923-91 ELECT 220uF 20% 10V

C3082 1-126-923-91 ELECT 220uF 20% 10V

C3083 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C3084 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C3085 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C3086 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C3087 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C3088 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C3090 1-104-658-91 ELECT 100uF 20% 10V

C3091 1-126-934-11 ELECT 220uF 20% 16V

C3092 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C3093 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C3103 1-100-352-91 CERAMIC CHIP 1uF 20% 16V

C3104 1-100-966-91 CERAMIC CHIP 10uF 20% 10V

C3105 1-100-352-91 CERAMIC CHIP 1uF 20% 16V

C3106 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V

C3107 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V

C3108 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3109 1-112-246-11 ELECT 100uF 20% 35V

C3112 1-112-246-11 ELECT 100uF 20% 35V

C3113 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3114 1-114-885-51 FILM 1uF 5% 50V

C3115 1-114-885-51 FILM 1uF 5% 50V

C3116 1-112-831-31 ELECT 2200uF 20% 35V

C3117 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3122 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C3123 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C3124 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V

C3125 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V

C3126 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3127 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3128 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V

C3129 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V

C3153 1-100-352-91 CERAMIC CHIP 1uF 20% 16V

C3154 1-100-966-91 CERAMIC CHIP 10uF 20% 10V

C3155 1-100-352-91 CERAMIC CHIP 1uF 20% 16V

C3156 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V

C3157 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V

C3158 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3159 1-112-246-11 ELECT 100uF 20% 35V

C3162 1-112-246-11 ELECT 100uF 20% 35V

C3163 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3164 1-114-885-51 FILM 1uF 5% 50V

C3165 1-114-885-51 FILM 1uF 5% 50V

C3166 1-112-831-31 ELECT 2200uF 20% 35V

C3167 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3172 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C3173 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C3200 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3203 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3204 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3205 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3206 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3207 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3208 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3209 1-112-246-11 ELECT 100uF 20% 35V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3212 1-112-246-11 ELECT 100uF 20% 35V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3213 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3214 1-114-885-51 FILM 1uF 5% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3215 1-114-885-51 FILM 1uF 5% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3216 1-112-831-31 ELECT 2200uF 20% 35V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3217 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3250 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3253 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3254 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3255 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

9595

C3256 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3257 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3258 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3259 1-112-246-11 ELECT 100uF 20% 35V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3262 1-112-246-11 ELECT 100uF 20% 35V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3263 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3264 1-114-885-51 FILM 1uF 5% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3265 1-114-885-51 FILM 1uF 5% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3266 1-112-831-31 ELECT 2200uF 20% 35V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3267 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3303 1-100-352-91 CERAMIC CHIP 1uF 20% 16V

C3304 1-100-966-91 CERAMIC CHIP 10uF 20% 10V

C3305 1-100-352-91 CERAMIC CHIP 1uF 20% 16V

C3306 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V

C3307 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V

C3308 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3309 1-112-246-11 ELECT 100uF 20% 35V

C3312 1-112-246-11 ELECT 100uF 20% 35V

C3313 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3314 1-114-885-51 FILM 1uF 5% 50V

C3315 1-114-885-51 FILM 1uF 5% 50V

C3316 1-112-831-31 ELECT 2200uF 20% 35V

C3317 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3322 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3323 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3400 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3403 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3404 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V

C3405 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3406 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V

C3407 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V

C3408 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3409 1-112-246-11 ELECT 100uF 20% 35V

C3412 1-112-246-11 ELECT 100uF 20% 35V

C3413 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3414 1-114-885-51 FILM 1uF 5% 50V

C3415 1-114-885-51 FILM 1uF 5% 50V

C3416 1-112-831-31 ELECT 2200uF 20% 35V

C3417 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3422 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3423 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C3500 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3503 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3504 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V

C3505 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C3506 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V

C3507 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V

C3508 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3509 1-112-246-11 ELECT 100uF 20% 35V

C3512 1-112-246-11 ELECT 100uF 20% 35V

C3513 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3514 1-114-885-51 FILM 1uF 5% 50V

C3515 1-114-885-51 FILM 1uF 5% 50V

C3516 1-112-831-31 ELECT 2200uF 20% 35V

C3517 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3551 1-115-871-11 ELECT 1uF 20% 50V

C3552 1-126-964-11 ELECT 10uF 20% 50V

C3553 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3556 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V

C3561 1-126-513-11 ELECT 47uF 20% 6.3V

C3901 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C3902 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C3903 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C3904 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C3911 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

C3912 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

C3913 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

C3914 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

C3920 1-114-419-21 CERAMIC CHIP 10uF 10% 16V

C3921 1-114-419-21 CERAMIC CHIP 10uF 10% 16V

C3924 1-114-419-21 CERAMIC CHIP 10uF 10% 16V

C9972 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

< CONNECTOR >

CN303 1-779-273-11 CONNECTOR, FFC (LIF (NON-ZIF)) 5P

CN306 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P

CN451 1-817-615-21 CONNECTOR, SQUARE TYPE (RECE) (DMPORT)

CN472 1-820-116-41 CONNECTOR, FFC/FPC 17P

CN502 1-820-112-41 CONNECTOR, FFC/FPC 9P

CN505 1-784-038-21 CONNECTOR, BOARD TO BOARD 9P

CN506 1-820-116-41 CONNECTOR, FFC/FPC 17P

CN1101 1-815-763-32 CONNECTOR, FFC/FPC 24P

CN1105 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P

CN1201 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P

CN1701 1-821-755-11 HDMI CONNECTOR (HDMI OUT)

CN3000 1-564-704-41 PIN, CONNECTOR (SMALL TYPE) 2P

CN3001 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P

< DIODE >

D501 6-501-817-01 DIODE MA2J1110GLS0

D502 6-501-817-01 DIODE MA2J1110GLS0

D503 6-501-817-01 DIODE MA2J1110GLS0

D3071 6-501-817-01 DIODE MA2J1110GLS0

D3072 6-501-817-01 DIODE MA2J1110GLS0

D3073 6-501-817-01 DIODE MA2J1110GLS0

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

96

D3551 6-500-848-01 DIODE MC2840-T112-1

D3552 6-501-774-01 DIODE MAZ8150G0LS0

D4111 6-501-696-01 DIODE RSA39LTE25

D4112 6-501-696-01 DIODE RSA39LTE25

D4151 6-501-696-01 DIODE RSA39LTE25

D4152 6-501-696-01 DIODE RSA39LTE25

D4201 6-501-696-01 DIODE RSA39LTE25 (HDX285/HDX287WC/

HDX585/HDX587WC/HDX685)

D4202 6-501-696-01 DIODE RSA39LTE25 (HDX285/HDX287WC/

HDX585/HDX587WC/HDX685)

D4251 6-501-696-01 DIODE RSA39LTE25 (HDX285/HDX287WC/

HDX585/HDX587WC/HDX685)

D4252 6-501-696-01 DIODE RSA39LTE25 (HDX285/HDX287WC/

HDX585/HDX587WC/HDX685)

D4301 6-501-696-01 DIODE RSA39LTE25

D4302 6-501-696-01 DIODE RSA39LTE25

D4401 6-501-696-01 DIODE RSA39LTE25

D4402 6-501-696-01 DIODE RSA39LTE25

D4501 6-501-696-01 DIODE RSA39LTE25

D4502 6-501-696-01 DIODE RSA39LTE25

D9712 6-501-817-01 DIODE MA2J1110GLS0

< FERRITE BEAD >

FB1106 1-469-324-21 FERRITE, EMI (SMD) (2012)

FB1107 1-469-324-21 FERRITE, EMI (SMD) (2012)

FB1108 1-469-324-21 FERRITE, EMI (SMD) (2012)

FB1109 1-469-324-21 FERRITE, EMI (SMD) (2012)

FB1111 1-469-670-21 FERRITE, EMI (SMD) (2012)

FB1112 1-469-670-21 FERRITE, EMI (SMD) (2012)

FB1113 1-469-670-21 FERRITE, EMI (SMD) (2012)

FB1115 1-469-670-21 FERRITE, EMI (SMD) (2012)

FB1116 1-469-670-21 FERRITE, EMI (SMD) (2012)

FB1117 1-469-670-21 FERRITE, EMI (SMD) (2012)

FB1118 1-469-670-21 FERRITE, EMI (SMD) (2012)

FB2101 1-469-324-21 FERRITE, EMI (SMD) (2012)

FB2103 1-469-324-21 FERRITE, EMI (SMD) (2012)

FB2120 1-469-118-21 FERRITE, EMI (SMD) (1608)

FB2121 1-469-118-21 FERRITE, EMI (SMD) (1608)

FB2122 1-469-118-21 FERRITE, EMI (SMD) (1608)

FB2124 1-469-118-21 FERRITE, EMI (SMD) (1608)

FB2125 1-469-118-21 FERRITE, EMI (SMD) (1608)

FB3107 1-469-118-21 FERRITE, EMI (SMD) (1608)

FB3108 1-469-118-21 FERRITE, EMI (SMD) (1608)

FB3109 1-469-118-21 FERRITE, EMI (SMD) (1608)

< IC >

IC303 6-710-554-01 IC PCM1808PWR

IC304 8-759-825-15 IC LC89056W-E

IC307 8-759-680-48 IC TC7WH157FK (TE85R)

IC451 8-759-710-97 IC NJM4565M-D

IC452 6-712-613-01 IC SI-3010KM-TLS

IC471 6-707-853-01 IC TC74LCX541FT (EKJ)

IC501 6-706-492-01 IC TC7SHU04FU (T5RSOJF)

IC502 6-600-466-01 IC TORX147L (SONY) (TV DIGITAL IN OPTICAL)

IC503 A-1602-156-A IC R5F3640DDFAR (for SERVICE)

IC504 6-705-338-01 IC TK11250CMCL-G

IC505 6-713-500-01 IC BR24S16F-WE2

IC506 6-705-203-01 IC S-80935CNMC-G85T2G

IC507 6-712-613-01 IC SI-3010KM-TLS

IC510 6-712-613-01 IC SI-3010KM-TLS

IC1101 6-713-716-01 IC CXD9917R-A (E3, EA)

IC1101 6-713-717-01 IC CXD9927R-A (US, CND)

IC1102 6-808-686-01 IC MX29LV320DBTI-70-CHI-0902UC (US, CND)

IC1102 6-808-687-01 IC MX29LV320DBTI-70-CHI-0902CE (E3, EA)

IC1103 (Not supplied) IC BR24S64F-WE2

IC1104 6-713-754-01 IC W9864G6IH-6J-ER10

IC1105 6-702-302-01 IC TK11133CSCL-G

IC1107 6-702-302-01 IC TK11133CSCL-G

IC1110 6-707-739-01 IC MM1661JTRE

IC1201 6-704-524-01 IC FAN8036L

IC1705 8-759-592-47 IC TC7SZ08FU (TE85R)

IC1707 6-705-337-01 IC TK11150CSCL-G

IC1708 6-702-302-01 IC TK11133CSCL-G

IC3001 8-759-710-97 IC NJM4565M-D

IC3010 6-705-979-01 IC CXD9788AR

IC3020 6-705-979-01 IC CXD9788AR (HDX285/HDX287WC/HDX585/

HDX587WC/HDX685)

IC3030 6-705-979-01 IC CXD9788AR

IC3050 6-702-300-01 IC TK11118CSCL-G

IC3051 6-709-888-01 IC TC7WHU04FK (T5RSOYF

IC3100 6-712-370-01 IC CXD9936TN

IC3150 6-712-370-01 IC CXD9936TN

IC3200 6-712-370-01 IC CXD9936TN (HDX285/HDX287WC/HDX585/

HDX587WC/HDX685)

IC3250 6-712-370-01 IC CXD9936TN (HDX285/HDX287WC/HDX585/

HDX587WC/HDX685)

IC3300 6-712-370-01 IC CXD9936TN

IC3400 6-712-370-01 IC CXD9936TN

IC3500 6-712-370-01 IC CXD9936TN

< JACK >

J501 1-822-282-11 JACK, PIN 1P (TV DIGITAL IN COAXIAL)

< COIL >

L301 1-469-525-91 INDUCTOR 10uH

L302 1-469-525-91 INDUCTOR 10uH

L303 1-469-525-91 INDUCTOR 10uH

L451 1-469-525-91 INDUCTOR 10uH

L471 1-469-527-91 INDUCTOR 47uH

L501 1-469-525-91 INDUCTOR 10uH

L502 1-469-525-91 INDUCTOR 10uH

L1701 1-457-374-21 COMMOM MODE CHOKE COIL

L1702 1-457-374-21 COMMOM MODE CHOKE COIL

L1703 1-457-374-21 COMMOM MODE CHOKE COIL

L1704 1-457-374-21 COMMOM MODE CHOKE COIL

L3000 1-469-527-91 INDUCTOR 47uH

L3051 1-469-525-91 INDUCTOR 10uH

L3052 1-469-525-91 INDUCTOR 10uH

L3053 1-469-525-91 INDUCTOR 10uH

L3054 1-412-939-11 INDUCTOR 1uH

L3101 1-457-579-21 INDUCTOR 10uH

L3102 1-457-579-21 INDUCTOR 10uH

L3201 1-457-579-21 INDUCTOR 10uH (HDX285/HDX287WC/

HDX585/HDX587WC/HDX685)

L3202 1-457-579-21 INDUCTOR 10uH (HDX285/HDX287WC/

HDX585/HDX587WC/HDX685)

L3301 1-457-579-21 INDUCTOR 10uH

L3401 1-457-579-21 INDUCTOR 10uH

L3501 1-457-579-21 INDUCTOR 10uH

L3901 1-457-078-11 AIR-CORE COIL

L3902 1-457-077-11 AIR-CORE COIL

MAIN

Note: IC1103 cannot exchange with single. When this part is

damaged, exchange the entire mounted board.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

9797

L3903 1-457-078-11 AIR-CORE COIL

L3904 1-457-077-11 AIR-CORE COIL

< TRANSISTOR >

Q501 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q502 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q503 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q1101 6-550-008-01 FET UM6K1N-TN

Q1102 6-550-653-01 TRANSISTOR QST8TR

Q1103 8-729-027-52 TRANSISTOR DTC124EKA-T146

Q1701 6-550-008-01 FET UM6K1N-TN

Q3000 8-729-111-29 TRANSISTOR 2SD1616A-K

Q3001 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q3002 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q3081 8-729-027-23 TRANSISTOR DTA114EKA-T146

Q3101 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF

Q3102 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF

Q3116 6-551-953-01 TRANSISTOR RTAN430C-T112A-1

Q3117 6-551-953-01 TRANSISTOR RTAN430C-T112A-1

Q3118 6-551-953-01 TRANSISTOR RTAN430C-T112A-1

Q3119 6-551-953-01 TRANSISTOR RTAN430C-T112A-1

Q3151 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF

Q3152 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF

Q3201 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF (HDX285/

HDX287WC/HDX585/HDX587WC/HDX685)

Q3202 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF(HDX285/

HDX287WC/HDX585/HDX587WC/HDX685)

Q3251 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF

Q3252 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF

Q3301 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF

Q3302 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF

Q3401 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF (HDX285/

HDX287WC/HDX585/HDX587WC/HDX685)

Q3402 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF (HDX285/

HDX287WC/HDX585/HDX587WC/HDX685)

Q3551 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q3552 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q3553 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q3554 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q3555 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q9724 6-551-699-01 TRANSISTOR ISA1602AM1TP-1EF

Q9726 8-729-620-13 TRANSISTOR 2SC4154TP-1EF

Q9728 8-729-620-13 TRANSISTOR 2SC4154TP-1EF

Q9729 8-729-027-43 TRANSISTOR DTC114EKA-T146

< RESISTOR >

R301 1-216-809-11 METAL CHIP 100 5% 1/10W

R302 1-216-809-11 METAL CHIP 100 5% 1/10W

R303 1-216-809-11 METAL CHIP 100 5% 1/10W

R304 1-216-809-11 METAL CHIP 100 5% 1/10W

R305 1-216-809-11 METAL CHIP 100 5% 1/10W

R306 1-216-809-11 METAL CHIP 100 5% 1/10W

R307 1-216-809-11 METAL CHIP 100 5% 1/10W

R308 1-216-809-11 METAL CHIP 100 5% 1/10W

R309 1-216-809-11 METAL CHIP 100 5% 1/10W

R310 1-216-809-11 METAL CHIP 100 5% 1/10W

R316 1-216-801-11 METAL CHIP 22 5% 1/10W

R317 1-216-801-11 METAL CHIP 22 5% 1/10W

R318 1-216-801-11 METAL CHIP 22 5% 1/10W

R319 1-216-801-11 METAL CHIP 22 5% 1/10W

R327 1-216-864-11 SHORT CHIP 0

R328 1-216-864-11 SHORT CHIP 0

R329 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R330 1-216-839-11 METAL CHIP 33K 5% 1/10W

R331 1-216-805-11 METAL CHIP 47 5% 1/10W

R332 1-216-805-11 METAL CHIP 47 5% 1/10W

R333 1-216-864-11 SHORT CHIP 0

R334 1-216-809-11 METAL CHIP 100 5% 1/10W

R335 1-216-830-11 METAL CHIP 5.6K 5% 1/10W

R337 1-216-809-11 METAL CHIP 100 5% 1/10W

R338 1-216-809-11 METAL CHIP 100 5% 1/10W

R340 1-216-809-11 METAL CHIP 100 5% 1/10W

R347 1-216-864-11 SHORT CHIP 0

R348 1-216-864-11 SHORT CHIP 0

R349 1-216-864-11 SHORT CHIP 0

R350 1-216-864-11 SHORT CHIP 0

R351 1-216-864-11 SHORT CHIP 0

R352 1-216-864-11 SHORT CHIP 0

R353 1-216-864-11 SHORT CHIP 0

R354 1-216-864-11 SHORT CHIP 0

R355 1-216-864-11 SHORT CHIP 0

R359 1-216-864-11 SHORT CHIP 0

R360 1-216-864-11 SHORT CHIP 0

R362 1-216-809-11 METAL CHIP 100 5% 1/10W

R363 1-216-833-11 METAL CHIP 10K 5% 1/10W

R364 1-216-809-11 METAL CHIP 100 5% 1/10W

R365 1-216-833-11 METAL CHIP 10K 5% 1/10W

R368 1-216-809-11 METAL CHIP 100 5% 1/10W

R369 1-216-809-11 METAL CHIP 100 5% 1/10W

R370 1-216-857-11 METAL CHIP 1M 5% 1/10W

R371 1-216-815-11 METAL CHIP 330 5% 1/10W

R372 1-216-809-11 METAL CHIP 100 5% 1/10W

R373 1-216-809-11 METAL CHIP 100 5% 1/10W

R374 1-216-821-11 METAL CHIP 1K 5% 1/10W

R375 1-216-864-11 SHORT CHIP 0

R376 1-216-864-11 SHORT CHIP 0

R377 1-216-864-11 SHORT CHIP 0

R378 1-216-864-11 SHORT CHIP 0

R379 1-216-864-11 SHORT CHIP 0

R380 1-216-864-11 SHORT CHIP 0

R387 1-216-864-11 SHORT CHIP 0

R388 1-216-864-11 SHORT CHIP 0

R389 1-216-864-11 SHORT CHIP 0

R392 1-216-833-11 METAL CHIP 10K 5% 1/10W

R393 1-216-833-11 METAL CHIP 10K 5% 1/10W

R394 1-216-809-11 METAL CHIP 100 5% 1/10W

R395 1-216-809-11 METAL CHIP 100 5% 1/10W

R396 1-216-864-11 SHORT CHIP 0

R397 1-216-864-11 SHORT CHIP 0

R399 1-216-864-11 SHORT CHIP 0

R400 1-216-864-11 SHORT CHIP 0

R401 1-216-864-11 SHORT CHIP 0

R402 1-216-864-11 SHORT CHIP 0

R403 1-216-809-11 METAL CHIP 100 5% 1/10W

R409 1-216-809-11 METAL CHIP 100 5% 1/10W

R410 1-216-809-11 METAL CHIP 100 5% 1/10W

R412 1-216-809-11 METAL CHIP 100 5% 1/10W

R413 1-216-809-11 METAL CHIP 100 5% 1/10W

R414 1-216-864-11 SHORT CHIP 0

R415 1-216-864-11 SHORT CHIP 0

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

98

R416 1-216-864-11 SHORT CHIP 0

R451 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

R452 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

R453 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

R454 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R455 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

R456 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

R457 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

R458 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R459 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

R460 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

R461 1-218-871-11 METAL CHIP 10K 0.5% 1/10W

R462 1-218-847-11 METAL CHIP 1K 0.5% 1/10W

R463 1-218-885-11 METAL CHIP 39K 0.5% 1/10W

R464 1-216-821-11 METAL CHIP 1K 5% 1/10W

R465 1-216-809-11 METAL CHIP 100 5% 1/10W

R466 1-216-809-11 METAL CHIP 100 5% 1/10W

R471 1-216-864-11 SHORT CHIP 0

R472 1-216-801-11 METAL CHIP 22 5% 1/10W

R473 1-216-801-11 METAL CHIP 22 5% 1/10W

R474 1-216-801-11 METAL CHIP 22 5% 1/10W

R479 1-216-805-11 METAL CHIP 47 5% 1/10W

R480 1-216-805-11 METAL CHIP 47 5% 1/10W

R481 1-216-805-11 METAL CHIP 47 5% 1/10W

R482 1-216-805-11 METAL CHIP 47 5% 1/10W

R483 1-216-805-11 METAL CHIP 47 5% 1/10W

R486 1-216-803-11 METAL CHIP 33 5% 1/10W

R487 1-216-805-11 METAL CHIP 47 5% 1/10W

R488 1-216-864-11 SHORT CHIP 0

R490 1-216-864-11 SHORT CHIP 0

R491 1-216-864-11 SHORT CHIP 0

R492 1-216-864-11 SHORT CHIP 0

R499 1-216-864-11 SHORT CHIP 0

R501 1-216-817-11 METAL CHIP 470 5% 1/10W

R502 1-218-285-11 METAL CHIP 75 5% 1/10W

R504 1-216-841-11 METAL CHIP 47K 5% 1/10W

R505 1-216-809-11 METAL CHIP 100 5% 1/10W

R506 1-216-809-11 METAL CHIP 100 5% 1/10W

R508 1-216-809-11 METAL CHIP 100 5% 1/10W

R510 1-216-809-11 METAL CHIP 100 5% 1/10W

R511 1-216-809-11 METAL CHIP 100 5% 1/10W

R512 1-216-809-11 METAL CHIP 100 5% 1/10W

R513 1-216-809-11 METAL CHIP 100 5% 1/10W

R514 1-216-809-11 METAL CHIP 100 5% 1/10W

R515 1-216-809-11 METAL CHIP 100 5% 1/10W

R516 1-216-809-11 METAL CHIP 100 5% 1/10W

R524 1-216-809-11 METAL CHIP 100 5% 1/10W

R525 1-216-809-11 METAL CHIP 100 5% 1/10W

R526 1-216-809-11 METAL CHIP 100 5% 1/10W

R527 1-216-809-11 METAL CHIP 100 5% 1/10W

R528 1-216-809-11 METAL CHIP 100 5% 1/10W

R531 1-216-833-11 METAL CHIP 10K 5% 1/10W

(E3, EA)

R531 1-216-841-11 METAL CHIP 47K 5% 1/10W

(US, CND)

R532 1-216-837-11 METAL CHIP 22K 5% 1/10W

(US, CND)

R532 1-216-841-11 METAL CHIP 47K 5% 1/10W

(E3, EA)

R533 1-216-821-11 METAL CHIP 1K 5% 1/10W

R534 1-216-821-11 METAL CHIP 1K 5% 1/10W

R535 1-216-821-11 METAL CHIP 1K 5% 1/10W

(HDX285)

R535 1-216-837-11 METAL CHIP 22K 5% 1/10W

(HDX585)

R535 1-216-839-11 METAL CHIP 33K 5% 1/10W

(HDX287WC/HDX587WC)

R535 1-216-841-11 METAL CHIP 47K 5% 1/10W

(HDX589W/HDX685/HDX686W)

R536 1-216-833-11 METAL CHIP 10K 5% 1/10W

(HDX686W)

R536 1-216-835-11 METAL CHIP 15K 5% 1/10W

(HDX685)

R536 1-216-841-11 METAL CHIP 47K 5% 1/10W

(HDX287WC/HDX585/HDX587WC/HDX589W)

R537 1-216-857-11 METAL CHIP 1M 5% 1/10W

R539 1-216-833-11 METAL CHIP 10K 5% 1/10W

R540 1-216-821-11 METAL CHIP 1K 5% 1/10W

R541 1-216-833-11 METAL CHIP 10K 5% 1/10W

R542 1-216-833-11 METAL CHIP 10K 5% 1/10W

R543 1-216-821-11 METAL CHIP 1K 5% 1/10W

R544 1-216-821-11 METAL CHIP 1K 5% 1/10W

R545 1-216-833-11 METAL CHIP 10K 5% 1/10W

R548 1-216-833-11 METAL CHIP 10K 5% 1/10W

R549 1-216-833-11 METAL CHIP 10K 5% 1/10W

R550 1-216-833-11 METAL CHIP 10K 5% 1/10W

R552 1-216-809-11 METAL CHIP 100 5% 1/10W

R553 1-216-809-11 METAL CHIP 100 5% 1/10W

R554 1-216-821-11 METAL CHIP 1K 5% 1/10W

R555 1-216-809-11 METAL CHIP 100 5% 1/10W

R557 1-216-833-11 METAL CHIP 10K 5% 1/10W

R560 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R561 1-216-821-11 METAL CHIP 1K 5% 1/10W

R563 1-216-833-11 METAL CHIP 10K 5% 1/10W

R564 1-216-864-11 SHORT CHIP 0

R568 1-216-833-11 METAL CHIP 10K 5% 1/10W

R569 1-216-821-11 METAL CHIP 1K 5% 1/10W

R570 1-216-809-11 METAL CHIP 100 5% 1/10W

R571 1-216-809-11 METAL CHIP 100 5% 1/10W

R572 1-216-833-11 METAL CHIP 10K 5% 1/10W

R573 1-216-864-11 SHORT CHIP 0

R576 1-216-809-11 METAL CHIP 100 5% 1/10W

R577 1-216-833-11 METAL CHIP 10K 5% 1/10W

R579 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R581 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R582 1-216-841-11 METAL CHIP 47K 5% 1/10W

R583 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R584 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R585 1-216-833-11 METAL CHIP 10K 5% 1/10W

R590 1-216-841-11 METAL CHIP 47K 5% 1/10W

R591 1-216-833-11 METAL CHIP 10K 5% 1/10W

R592 1-216-833-11 METAL CHIP 10K 5% 1/10W

R594 1-216-864-11 SHORT CHIP 0

R595 1-216-864-11 SHORT CHIP 0

R596 1-216-845-11 METAL CHIP 100K 5% 1/10W

R597 1-216-841-11 METAL CHIP 47K 5% 1/10W

R598 1-216-841-11 METAL CHIP 47K 5% 1/10W

R599 1-216-833-11 METAL CHIP 10K 5% 1/10W

R603 1-216-809-11 METAL CHIP 100 5% 1/10W

R604 1-216-809-11 METAL CHIP 100 5% 1/10W

R605 1-216-809-11 METAL CHIP 100 5% 1/10W

R606 1-216-809-11 METAL CHIP 100 5% 1/10W

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

9999

R607 1-216-809-11 METAL CHIP 100 5% 1/10W

R609 1-216-833-11 METAL CHIP 10K 5% 1/10W

R610 1-218-847-11 METAL CHIP 1K 0.5% 1/10W

R611 1-218-885-11 METAL CHIP 39K 0.5% 1/10W

R613 1-218-871-11 METAL CHIP 10K 0.5% 1/10W

R614 1-216-809-11 METAL CHIP 100 5% 1/10W

R615 1-216-821-11 METAL CHIP 1K 5% 1/10W

R616 1-218-851-11 METAL CHIP 1.5K 0.5% 1/10W

R617 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

R619 1-218-871-11 METAL CHIP 10K 0.5% 1/10W

R623 1-216-841-11 METAL CHIP 47K 5% 1/10W

R624 1-216-833-11 METAL CHIP 10K 5% 1/10W

R625 1-216-821-11 METAL CHIP 1K 5% 1/10W

R627 1-216-809-11 METAL CHIP 100 5% 1/10W

R628 1-216-821-11 METAL CHIP 1K 5% 1/10W

R629 1-216-809-11 METAL CHIP 100 5% 1/10W

R630 1-216-809-11 METAL CHIP 100 5% 1/10W

R632 1-216-833-11 METAL CHIP 10K 5% 1/10W

R633 1-216-833-11 METAL CHIP 10K 5% 1/10W

R634 1-216-833-11 METAL CHIP 10K 5% 1/10W

R635 1-216-833-11 METAL CHIP 10K 5% 1/10W

R636 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1101 1-216-809-11 METAL CHIP 100 5% 1/10W

R1103 1-218-864-11 METAL CHIP 5.1K 0.5% 1/10W

R1105 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1106 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1107 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1108 1-216-857-11 METAL CHIP 1M 5% 1/10W

R1109 1-216-864-11 SHORT CHIP 0

R1110 1-216-841-11 METAL CHIP 47K 5% 1/10W

R1111 1-216-809-11 METAL CHIP 100 5% 1/10W

R1112 1-211-977-11 METAL CHIP 22 0.5% 1/10W

R1113 1-211-977-11 METAL CHIP 22 0.5% 1/10W

R1114 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1115 1-211-977-11 METAL CHIP 22 0.5% 1/10W

R1116 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1117 1-216-841-11 METAL CHIP 47K 5% 1/10W

R1118 1-216-801-11 METAL CHIP 22 5% 1/10W

R1120 1-216-801-11 METAL CHIP 22 5% 1/10W

R1121 1-216-801-11 METAL CHIP 22 5% 1/10W

R1123 1-216-864-11 SHORT CHIP 0

R1124 1-216-841-11 METAL CHIP 47K 5% 1/10W

R1125 1-216-805-11 METAL CHIP 47 5% 1/10W

R1132 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1133 1-216-864-11 SHORT CHIP 0

R1135 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1136 1-216-835-11 METAL CHIP 15K 5% 1/10W

R1140 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1141 1-216-855-11 METAL CHIP 680K 5% 1/10W

R1142 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1146 1-216-805-11 METAL CHIP 47 5% 1/10W

R1151 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1154 1-216-809-11 METAL CHIP 100 5% 1/10W

R1155 1-216-809-11 METAL CHIP 100 5% 1/10W

R1156 1-216-809-11 METAL CHIP 100 5% 1/10W

R1159 1-216-805-11 METAL CHIP 47 5% 1/10W

R1160 1-216-805-11 METAL CHIP 47 5% 1/10W

R1161 1-216-801-11 METAL CHIP 22 5% 1/10W

R1162 1-216-805-11 METAL CHIP 47 5% 1/10W

R1163 1-216-805-11 METAL CHIP 47 5% 1/10W

R1164 1-216-805-11 METAL CHIP 47 5% 1/10W

R1165 1-216-805-11 METAL CHIP 47 5% 1/10W

R1171 1-216-809-11 METAL CHIP 100 5% 1/10W

R1176 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1183 1-216-805-11 METAL CHIP 47 5% 1/10W

R1184 1-216-805-11 METAL CHIP 47 5% 1/10W

R1185 1-216-805-11 METAL CHIP 47 5% 1/10W

R1186 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1191 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1192 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1193 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1198 1-216-809-11 METAL CHIP 100 5% 1/10W

R1204 1-216-822-11 METAL CHIP 1.2K 5% 1/10W

R1205 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1206 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1207 1-216-826-11 METAL CHIP 2.7K 5% 1/10W

R1208 1-216-839-11 METAL CHIP 33K 5% 1/10W

R1209 1-216-839-11 METAL CHIP 33K 5% 1/10W

R1210 1-216-841-11 METAL CHIP 47K 5% 1/10W

R1212 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1213 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R1214 1-216-835-11 METAL CHIP 15K 5% 1/10W

R1215 1-216-834-11 METAL CHIP 12K 5% 1/10W

R1216 1-216-834-11 METAL CHIP 12K 5% 1/10W

R1219 1-216-838-11 METAL CHIP 27K 5% 1/10W

R1220 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1221 1-218-889-11 METAL CHIP 56K 0.5% 1/10W

R1223 1-218-895-11 METAL CHIP 100K 0.5% 1/10W

R1224 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1225 1-218-895-11 METAL CHIP 100K 0.5% 1/10W

R1226 1-218-889-11 METAL CHIP 56K 0.5% 1/10W

R1230 1-218-893-11 METAL CHIP 82K 0.5% 1/10W

R1231 1-218-875-11 METAL CHIP 15K 0.5% 1/10W

R1232 1-218-877-11 METAL CHIP 18K 0.5% 1/10W

R1233 1-218-883-11 METAL CHIP 33K 0.5% 1/10W

R1234 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1238 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1246 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R1247 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1254 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R1730 1-216-826-11 METAL CHIP 2.7K 5% 1/10W

R1742 1-216-841-11 METAL CHIP 47K 5% 1/10W

R1743 1-216-864-11 SHORT CHIP 0

R1747 1-216-864-11 SHORT CHIP 0

R1748 1-216-864-11 SHORT CHIP 0

R1749 1-216-824-11 METAL CHIP 1.8K 5% 1/10W

R1750 1-216-824-11 METAL CHIP 1.8K 5% 1/10W

R1751 1-216-864-11 SHORT CHIP 0

R1752 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1753 1-216-864-11 SHORT CHIP 0

R1758 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1781 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R1782 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R2101 1-218-841-11 METAL CHIP 560 0.5% 1/10W

R2104 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R2110 1-216-826-11 METAL CHIP 2.7K 5% 1/10W

R2114 1-216-801-11 METAL CHIP 22 5% 1/10W

R2115 1-216-864-11 SHORT CHIP 0

R2120 1-216-809-11 METAL CHIP 100 5% 1/10W

R2129 1-216-845-11 METAL CHIP 100K 5% 1/10W

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

100

R2130 1-216-809-11 METAL CHIP 100 5% 1/10W

R2131 1-216-809-11 METAL CHIP 100 5% 1/10W

R2136 1-216-805-11 METAL CHIP 47 5% 1/10W

R2150 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R2151 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R2152 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R2155 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2156 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2157 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2158 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2159 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2160 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2161 1-216-864-11 SHORT CHIP 0

R2162 1-216-864-11 SHORT CHIP 0

R2167 1-216-864-11 SHORT CHIP 0

R2168 1-216-815-11 METAL CHIP 330 5% 1/10W

R2178 1-216-821-11 METAL CHIP 1K 5% 1/10W

R2179 1-216-809-11 METAL CHIP 100 5% 1/10W

R2180 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2184 1-216-809-11 METAL CHIP 100 5% 1/10W

R2185 1-216-809-11 METAL CHIP 100 5% 1/10W

R3001 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3002 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3003 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R3004 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R3006 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R3011 1-216-817-11 METAL CHIP 470 5% 1/10W

R3012 1-216-817-11 METAL CHIP 470 5% 1/10W

R3013 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3014 1-216-801-11 METAL CHIP 22 5% 1/10W

R3015 1-216-805-11 METAL CHIP 47 5% 1/10W

R3017 1-216-809-11 METAL CHIP 100 5% 1/10W

R3021 1-216-817-11 METAL CHIP 470 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3022 1-216-817-11 METAL CHIP 470 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3023 1-216-801-11 METAL CHIP 22 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3024 1-216-805-11 METAL CHIP 47 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3026 1-216-809-11 METAL CHIP 100 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3031 1-216-817-11 METAL CHIP 470 5% 1/10W

R3032 1-216-817-11 METAL CHIP 470 5% 1/10W

R3033 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3034 1-216-801-11 METAL CHIP 22 5% 1/10W

R3035 1-216-805-11 METAL CHIP 47 5% 1/10W

R3037 1-216-809-11 METAL CHIP 100 5% 1/10W

R3040 1-216-864-11 SHORT CHIP 0

R3041 1-216-864-11 SHORT CHIP 0

R3042 1-216-864-11 SHORT CHIP 0

R3043 1-216-864-11 SHORT CHIP 0

R3044 1-216-864-11 SHORT CHIP 0

R3045 1-216-864-11 SHORT CHIP 0

R3046 1-216-864-11 SHORT CHIP 0

R3047 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3050 1-216-864-11 SHORT CHIP 0

R3051 1-216-097-11 METAL CHIP 100K 5% 1/10W

R3052 1-216-857-11 METAL CHIP 1M 5% 1/10W

R3053 1-216-809-11 METAL CHIP 100 5% 1/10W

R3054 1-216-805-11 METAL CHIP 47 5% 1/10W

R3055 1-216-805-11 METAL CHIP 47 5% 1/10W

R3056 1-216-864-11 SHORT CHIP 0 (HDX589W/HDX686W)

R3057 1-216-805-11 METAL CHIP 47 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3057 1-216-864-11 SHORT CHIP 0 (HDX589W/HDX686W)

R3059 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3060 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3065 1-216-809-11 METAL CHIP 100 5% 1/10W

R3067 1-216-864-11 SHORT CHIP 0

R3068 1-216-864-11 SHORT CHIP 0

R3074 1-216-805-11 METAL CHIP 47 5% 1/10W

R3075 1-216-805-11 METAL CHIP 47 5% 1/10W

R3076 1-216-805-11 METAL CHIP 47 5% 1/10W

R3080 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3085 1-216-839-11 METAL CHIP 33K 5% 1/10W

R3086 1-216-839-11 METAL CHIP 33K 5% 1/10W

R3087 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3088 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3089 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3090 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3091 1-216-837-11 METAL CHIP 22K 5% 1/10W

R3092 1-216-837-11 METAL CHIP 22K 5% 1/10W

R3093 1-216-837-11 METAL CHIP 22K 5% 1/10W

R3094 1-216-837-11 METAL CHIP 22K 5% 1/10W

R3095 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R3096 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R3098 1-216-839-11 METAL CHIP 33K 5% 1/10W

R3099 1-216-839-11 METAL CHIP 33K 5% 1/10W

R3101 1-216-805-11 METAL CHIP 47 5% 1/10W

R3102 1-216-805-11 METAL CHIP 47 5% 1/10W

R3104 1-216-864-11 SHORT CHIP 0

R3107 1-216-835-11 METAL CHIP 15K 5% 1/10W

R3125 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3126 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3127 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3151 1-216-805-11 METAL CHIP 47 5% 1/10W

R3152 1-216-805-11 METAL CHIP 47 5% 1/10W

R3154 1-216-864-11 SHORT CHIP 0

R3157 1-216-835-11 METAL CHIP 15K 5% 1/10W

R3175 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3176 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3177 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3183 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R3184 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R3185 1-216-801-11 METAL CHIP 22 5% 1/10W

R3186 1-216-801-11 METAL CHIP 22 5% 1/10W

R3191 1-216-805-11 METAL CHIP 47 5% 1/10W

R3192 1-216-805-11 METAL CHIP 47 5% 1/10W

R3201 1-216-805-11 METAL CHIP 47 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3202 1-216-805-11 METAL CHIP 47 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

101101

R3204 1-216-864-11 SHORT CHIP 0 (HDX285/HDX287WC/

HDX585/HDX587WC/HDX685)

R3207 1-216-835-11 METAL CHIP 15K 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3225 1-216-845-11 METAL CHIP 100K 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3226 1-216-845-11 METAL CHIP 100K 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3227 1-216-845-11 METAL CHIP 100K 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3251 1-216-805-11 METAL CHIP 47 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3252 1-216-805-11 METAL CHIP 47 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3254 1-216-864-11 SHORT CHIP 0

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3257 1-216-835-11 METAL CHIP 15K 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3275 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3276 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3277 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3301 1-216-805-11 METAL CHIP 47 5% 1/10W

R3302 1-216-805-11 METAL CHIP 47 5% 1/10W

R3304 1-216-864-11 SHORT CHIP 0

R3307 1-216-835-11 METAL CHIP 15K 5% 1/10W

R3325 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3326 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3327 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3401 1-216-805-11 METAL CHIP 47 5% 1/10W

R3402 1-216-805-11 METAL CHIP 47 5% 1/10W

R3404 1-216-864-11 SHORT CHIP 0

R3407 1-216-835-11 METAL CHIP 15K 5% 1/10W

R3425 1-216-845-11 METAL CHIP 100K 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3426 1-216-845-11 METAL CHIP 100K 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3427 1-216-845-11 METAL CHIP 100K 5% 1/10W

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

R3501 1-216-805-11 METAL CHIP 47 5% 1/10W

R3502 1-216-805-11 METAL CHIP 47 5% 1/10W

R3504 1-216-864-11 SHORT CHIP 0

R3507 1-216-835-11 METAL CHIP 15K 5% 1/10W

R3551 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3552 1-216-837-11 METAL CHIP 22K 5% 1/10W

R3553 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3554 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3556 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R3558 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3559 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3561 1-216-841-11 METAL CHIP 47K 5% 1/10W

R3562 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3563 1-216-845-11 METAL CHIP 100K 5% 1/10W

R3901 1-216-296-11 SHORT CHIP 0

R3902 1-216-296-11 SHORT CHIP 0

R3905 1-216-296-11 SHORT CHIP 0

R3906 1-216-296-11 SHORT CHIP 0

R3907 1-216-864-11 SHORT CHIP 0

R3911 1-216-864-11 SHORT CHIP 0

R3912 1-216-864-11 SHORT CHIP 0

R3913 1-216-864-11 SHORT CHIP 0

R3914 1-216-864-11 SHORT CHIP 0

R3917 1-216-864-11 SHORT CHIP 0

R3918 1-216-864-11 SHORT CHIP 0

R3919 1-216-864-11 SHORT CHIP 0

R3920 1-216-864-11 SHORT CHIP 0

R3921 1-216-864-11 SHORT CHIP 0

R9918 1-216-821-11 METAL CHIP 1K 5% 1/10W

R9922 1-216-833-11 METAL CHIP 10K 5% 1/10W

R9924 1-216-821-11 METAL CHIP 1K 5% 1/10W

R9928 1-216-837-11 METAL CHIP 22K 5% 1/10W

R9929 1-216-837-11 METAL CHIP 22K 5% 1/10W

R9934 1-216-833-11 METAL CHIP 10K 5% 1/10W

R9935 1-216-864-11 SHORT CHIP 0

R9941 1-216-838-11 METAL CHIP 27K 5% 1/10W

R9945 1-216-813-11 METAL CHIP 220 5% 1/10W

< COMPOSITION CIRCUIT BLOCK >

RB1103 1-234-944-21 RES, NETWORK 47 (1005X4)

RB1104 1-234-944-21 RES, NETWORK 47 (1005X4)

RB1105 1-234-944-21 RES, NETWORK 47 (1005X4)

RB1106 1-234-944-21 RES, NETWORK 47 (1005X4)

RB1109 1-234-944-21 RES, NETWORK 47 (1005X4)

RB1110 1-234-944-21 RES, NETWORK 47 (1005X4)

RB1111 1-234-944-21 RES, NETWORK 47 (1005X4)

RB1112 1-234-400-21 CONDUCTOR, NETWORK (1005X4)

RB1113 1-234-400-21 CONDUCTOR, NETWORK (1005X4)

RB1114 1-234-943-21 RES, NETWORK 22 (1005X4)

RB1115 1-234-943-21 RES, NETWORK 22 (1005X4)

< TERMINAL >

TB3901 1-780-453-11 TERMINAL BOARD (SPEAKER) 2P

(SPEAKER CENTER/SUBWOOFER)

< VIBRATOR >

X301 1-814-106-21 VIBRATOR, CRYSTAL (24.576MHz)

X501 1-795-058-21 VIBRATOR, CERAMIC (5MHz)

X1101 1-814-103-21 VIBRATOR, CRYSTAL (27MHz)

X3051 1-814-108-21 VIBRATOR, CRYSTAL (49.1MHz)

************************************************************

MOTOR BOARD

*************

< SWITCH >

S761 1-786-704-11 SWITCH, LEVER (SUB TRAY OUT)

************************************************************

A-1568-848-A POWER BOARD, COMPLETE (E3, EA)

A-1568-850-A POWER BOARD, COMPLETE (US, CND)

**********************

7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

POWERMAIN MOTOR

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

102

< CAPACITOR >

0 C901 1-165-529-11 MYLAR 0.22uF 10 275V

0 C902 1-165-529-11 MYLAR 0.22uF 10 275V

0 C903 1-112-330-11 ELECT (BLOCK) 1000uF 20% 200V

(US, CND)

0 C903 1-114-347-11 ELECT (BLOCK) 330uF 20% 450V

(E3, EA)

0 C905 1-112-334-91 FILM 0.01uF 5% 400V

(US, CND)

0 C905 1-112-335-91 FILM 0.0033uF 5% 400V

(E3, EA)

0 C906 1-117-815-11 FILM 1000PF 3% 1.5KV

(E3, EA)

0 C907 1-162-964-91 CERAMIC CHIP 0.001uF 10% 50V

(E3, EA)

0 C907 1-162-965-91 CERAMIC CHIP 0.0015uF 10% 50V

(US, CND)

0 C908 1-107-909-91 ELECT 47uF 20% 50V

0 C909 1-162-960-91 CERAMIC CHIP 220PF 10% 50V

0 C910 1-126-965-91 ELECT 22uF 20% 50V

0 C912 1-126-947-91 ELECT 47uF 20% 35V

0 C913 1-112-866-51 CERAMIC 100PF 10% 250V

0 C916 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

0 C918 1-112-887-51 CERAMIC 0.01uF 20% 250V

0 C920 1-112-887-51 CERAMIC 0.01uF 20% 250V

0 C921 1-117-220-81 CERAMIC 150PF 5% 2KV

0 C922 1-162-964-91 CERAMIC CHIP 0.001uF 10% 50V

0 C923 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V

0 C924 1-112-335-91 FILM 0.0033uF 5% 400V

0 C926 1-107-930-91 ELECT 22uF 20% 100V

C927 1-112-223-11 ELECT 3300uF 20% 10V

C928 1-112-232-11 ELECT 2700uF 20% 16V

C929 1-112-241-21 ELECT 1000uF 20% 25V

0 C930 1-112-866-51 CERAMIC 100PF 10% 250V

C932 1-114-994-11 ELECT 2200uF 20% 35V

C933 1-114-994-11 ELECT 2200uF 20% 35V

C934 1-112-831-31 ELECT 2200uF 20% 35V

C935 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

C936 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

C937 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V

0 C938 1-112-869-51 CERAMIC 470PF 10% 250V

C939 1-136-165-00 FILM 0.1uF 5% 50V

C940 1-112-228-21 ELECT 1000uF 20% 16V

0 C941 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

C942 1-126-941-11 ELECT 470uF 20% 25V

C943 1-126-935-11 ELECT 470uF 20% 16V

C950 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C951 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C956 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

0 C963 1-112-869-51 CERAMIC 470PF 10% 250V

(E3, EA)

0 C963 1-112-871-51 CERAMIC 0.0022uF 20% 250V

(US, CND)

0 C964 1-112-869-51 CERAMIC 470PF 10% 250V

(E3, EA)

0 C964 1-112-871-51 CERAMIC 0.0022uF 20% 250V

(US, CND)

C969 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C970 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C971 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C972 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C973 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C975 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C976 1-126-933-11 ELECT 100uF 20% 16V

0 C980 1-117-828-11 FILM 3300PF 3% 1.5KV

(US, CND)

0 C981 1-162-968-91 CERAMIC CHIP 0.0047uF 10% 50V

C983 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V

C984 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C987 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C990 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C991 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C992 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C993 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C997 1-116-078-11 CERAMIC CHIP 1uF 10% 50V

< CONNECTOR >

CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P

CN904 1-785-102-11 PIN, CONNECTOR (3.96mm PITCH) 4P

CN906 1-564-715-11 PIN, CONNECTOR (SMALL TYPE) 13P

CN908 1-564-505-11 PLUG, CONNECTOR 2P

< DIODE >

0 D901 8-719-082-57 DIODE D5SBA60F01

0 D902 8-719-063-74 DIODE D1NL20U-TR2

0 D905 8-719-063-74 DIODE D1NL20U-TR2

0 D906 6-501-817-01 DIODE MA2J1110GLS0

0 D907 6-501-817-01 DIODE MA2J1110GLS0

0 D908 6-501-817-01 DIODE MA2J1110GLS0

0 D909 6-501-817-01 DIODE MA2J1110GLS0

0 D910 6-501-817-01 DIODE MA2J1110GLS0

D911 6-502-484-21 DIODE SG10SC6M-5600

D912 6-501-917-11 DIODE SG10SC9-5600

0 D913 6-500-241-01 DIODE SARS03

0 D914 6-501-817-01 DIODE MA2J1110GLS0

D916 6-502-484-21 DIODE SG10SC6M-5600

0 D921 6-502-234-01 DIODE EG01C LF-F7

0 D922 6-501-817-01 DIODE MA2J1110GLS0

0 D923 6-501-817-01 DIODE MA2J1110GLS0

0 D924 6-501-817-01 DIODE MA2J1110GLS0

D931 6-501-849-01 DIODE FMX-22SL

0 D946 6-502-234-01 DIODE EG01C LF-F7

D947 6-502-484-21 DIODE SG10SC6M-5600

0 D948 6-501-817-01 DIODE MA2J1110GLS0

0 D949 6-501-817-01 DIODE MA2J1110GLS0

0 DZ901 6-501-782-01 DIODE MAZ8180GMLS0

0 DZ902 6-502-231-01 DIODE MAZ8220GLLSO

0 DZ903 6-501-768-01 DIODE MAZ8120GMLS0

0 DZ904 6-501-734-01 DIODE MAZ8056GMLS0

0 DZ915 6-501-760-01 DIODE MAZ8100GMLS0

DZ932 6-501-734-01 DIODE MAZ8056GMLS0

0 DZ951 8-719-083-71 DIODE UDZSUSTE-1730B (US, CND)

DZ953 6-501-713-01 DIODE MAZ8033G0LS0

< EARTH TERMINAL >

EB902 1-537-770-21 TERMINAL BOARD, GROUND

EB904 1-537-770-21 TERMINAL BOARD, GROUND

EB907 1-537-770-21 TERMINAL BOARD, GROUND

< FUSE >

0 F945 1-576-794-11 FUSE (2A/32V)

POWER

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

103103

< FUSE HOLDER >

FH901 1-533-217-31 FUSE HOLDER

FH902 1-533-217-31 FUSE HOLDER

< FUSIBLE RESISTOR >

0 FR929 1-246-373-11 FUSIBLE 1 10% 1/2W F

< IC >

0 IC901 6-707-741-01 IC STR-F6138-LF1352 (US, CND)

0 IC901 6-707-742-01 IC STR-F6168-LF1352 (E3, EA)

IC921 6-711-790-01 IC MR4020-7103

IC923 6-711-947-01 IC MM1431CURE

IC932 6-711-947-01 IC MM1431CURE

IC941 6-712-613-01 IC SI-3010KM-TLS

< JUMPER RESISTOR >

JR930 1-216-864-11 SHORT CHIP 0

JR931 1-216-864-11 SHORT CHIP 0

< COIL >

L931 1-457-438-11 COIL, CHOKE 5.6uH

L944 1-414-398-11 INDUCTOR 10uH

L945 1-414-398-11 INDUCTOR 10uH

L947 1-414-398-11 INDUCTOR 10uH

L948 1-414-398-11 INDUCTOR 10uH

L953 1-414-398-11 INDUCTOR 10uH

L954 1-457-578-11 COIL, CHOKE 10uH

L956 1-457-578-11 COIL, CHOKE 10uH

< LINE FILTER >

0 LF901 1-457-054-21 COIL, LINE FILTER (E3, EA)

0 LF901 1-457-449-11 COIL, LINE FILTER (US, CND)

0 LF902 1-457-054-21 COIL, LINE FILTER (E3, EA)

0 LF902 1-457-449-11 COIL, LINE FILTER (US, CND)

< PHOTO COUPLER >

0 PC901 6-600-276-01 PHOTO COUPLER PS2561AL1-1-V-W

0 PC902 6-600-276-01 PHOTO COUPLER PS2561AL1-1-V-W

0 PC903 6-600-276-01 PHOTO COUPLER PS2561AL1-1-V-W

0 PC904 6-600-276-01 PHOTO COUPLER PS2561AL1-1-V-W

< THERMISTOR >

PS954 1-802-595-11 THERMISTOR, POSITIVE MF-R250

PS956 1-802-596-11 THERMISTOR, POSITIVE MF-R300

< TRANSISTOR >

0 Q901 8-729-231-15 TRANSISTOR 2SA1015TP-YGR

0 Q921 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

0 Q922 6-550-702-01 TRANSISTOR 2SC3243-TP-E

Q930 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q943 8-729-038-28 TRANSISTOR RT1N441C-TP-1

Q945 6-550-718-01 FET RSR025N03TL

Q947 8-729-038-28 TRANSISTOR RT1N441C-TP-1

Q949 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q950 8-729-038-28 TRANSISTOR RT1N441C-TP-1

< RESISTOR >

0 R901 1-219-759-91 METAL 1M 5% 1/2W F

(US, CND)

0 R901 1-240-938-91 METAL 1.5M 5% 0.5W F

(E3, EA)

0 R903 1-215-926-51 METAL OXIDE 33K 5% 3W F

(US, CND)

0 R903 1-215-929-51 METAL OXIDE 100K 5% 3W F

(E3, EA)

0 R904 1-215-926-51 METAL OXIDE 33K 5% 3W F

(US, CND)

0 R904 1-215-929-51 METAL OXIDE 100K 5% 3W F

(E3, EA)

0 R905 1-216-797-91 METAL CHIP 10 5% 1/10W

0 R906 1-216-827-91 METAL CHIP 3.3K 5% 1/10W

0 R907 1-216-833-91 METAL CHIP 10K 5% 1/10W

0 R908 1-216-829-91 METAL CHIP 4.7K 5% 1/10W

0 R909 1-216-833-91 METAL CHIP 10K 5% 1/10W

0 R910 1-216-825-91 METAL CHIP 2.2K 5% 1/10W

0 R911 1-216-813-91 METAL CHIP 220 5% 1/10W

0 R912 1-216-363-61 METAL OXIDE 0.33 5% 2W F

(E3, EA)

0 R914 1-220-891-11 METAL 0.1 10% 5W F

(E3, EA)

0 R914 1-248-180-11 METAL 0.034 5% 5W F

(US, CND)

0 R916 1-215-929-51 METAL OXIDE 100K 5% 3W F

0 R917 1-216-829-91 METAL CHIP 4.7K 5% 1/10W

0 R919 1-216-837-91 METAL CHIP 22K 5% 1/10W

R920 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R921 1-216-833-11 METAL CHIP 10K 5% 1/10W

0 R922 1-246-384-41 METAL 0.18 5% 2W F

0 R923 1-218-879-91 METAL CHIP 22K 0.5% 1/10W

0 R924 1-216-837-91 METAL CHIP 22K 5% 1/10W

0 R925 1-216-797-91 METAL CHIP 10 5% 1/10W

0 R926 1-218-895-91 METAL CHIP 100K 0.5% 1/10W

0 R927 1-216-837-91 METAL CHIP 22K 5% 1/10W

0 R928 1-216-845-91 METAL CHIP 100K 5% 1/10W

R930 1-216-817-11 METAL CHIP 470 5% 1/10W

R931 1-218-851-11 METAL CHIP 1.5K 0.5% 1/10W

R932 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

R933 1-216-821-11 METAL CHIP 1K 5% 1/10W

R934 1-216-821-11 METAL CHIP 1K 5% 1/10W

R935 1-216-821-11 METAL CHIP 1K 5% 1/10W

R936 1-216-853-11 METAL CHIP 470K 5% 1/10W

R937 1-218-871-11 METAL CHIP 10K 0.5% 1/10W

R938 1-218-847-11 METAL CHIP 1K 0.5% 1/10W

R939 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W

R940 1-218-871-11 METAL CHIP 10K 0.5% 1/10W

R941 1-218-895-11 METAL CHIP 100K 0.5% 1/10W

R942 1-218-871-11 METAL CHIP 10K 0.5% 1/10W

R943 1-216-821-11 METAL CHIP 1K 5% 1/10W

R945 1-216-837-11 METAL CHIP 22K 5% 1/10W

R946 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R949 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

0 R951 1-218-847-91 METAL CHIP 1K 0.5% 1/10W

R952 1-216-821-11 METAL CHIP 1K 5% 1/10W

R954 1-218-861-11 METAL CHIP 3.9K 0.5% 1/10W

R955 1-216-821-11 METAL CHIP 1K 5% 1/10W

R956 1-216-817-11 METAL CHIP 470 5% 1/10W

R957 1-216-841-11 METAL CHIP 47K 5% 1/10W

R958 1-216-821-11 METAL CHIP 1K 5% 1/10W

R959 1-218-871-11 METAL CHIP 10K 0.5% 1/10W

R960 1-216-817-11 METAL CHIP 470 5% 1/10W

POWER

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

104

R962 1-216-864-11 SHORT CHIP 0

R963 1-218-839-11 METAL CHIP 470 0.5% 1/10W

R965 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W

R966 1-216-821-11 METAL CHIP 1K 5% 1/10W

R967 1-216-821-11 METAL CHIP 1K 5% 1/10W

R972 1-218-871-11 METAL CHIP 10K 0.5% 1/10W

R974 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

0 R975 1-218-895-91 METAL CHIP 100K 0.5% 1/10W

0 R976 1-218-903-91 METAL CHIP 220K 0.5% 1/10W

0 R978 1-216-829-91 METAL CHIP 4.7K 5% 1/10W

0 R992 1-216-793-91 METAL CHIP 4.7 5% 1/10W

R998 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W

R999 1-218-871-11 METAL CHIP 10K 0.5% 1/10W

< TRANSFORMER >

0 T901 1-443-649-11 TRANSFORMER, CONVERTER (US, CND)

0 T901 1-443-874-11 TRANSFORMER, CONVERTER (E3, EA)

0 T903 1-445-320-11 TRANSFORMER, CONVERTER

< THERMISTOR >

0 TH901 1-805-841-21 THERMISTOR, NTC 3.0 (US, CND)

0 TH901 1-805-842-21 THERMISTOR, NTC 6.0 (E3, EA)

< VARISTOR >

0 VDR901 1-802-839-11 VARISTOR

************************************************************

P-SW BOARD

***********

< CAPACITOR >

C5400 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

< CONNECTOR >

CN5400 1-564-718-11 PIN, CONNECTOR (SMALL TYPE) 2P

< SWITCH >

S5400 1-762-875-21 SWITCH, KEYBOARD (I/1)

************************************************************

A-4750-232-A RELAY BOARD, COMPLETE

(Including ENCODER board)

**********************

< CAPACITOR >

C701 1-126-786-11 ELECT 47uF 20% 16V

C702 1-126-791-11 ELECT 10uF 20% 35V

C761 1-162-306-11 CERAMIC 0.01uF 20% 16V

C762 1-162-306-11 CERAMIC 0.01uF 20% 16V

< CONNECTOR >

CN701 1-779-558-11 CONNECTOR, FFC (LIF (NON-ZIF)) 21P

< DIODE >

D701 8-719-921-40 DIODE MTZJ-4.7C

D711 8-719-982-10 DIODE MTZJ-4.3A

< IC >

IC701 8-759-598-69 IC BA6956AN

IC711 8-759-598-69 IC BA6956AN

< TRANSISTOR >

Q751 8-729-119-78 TRANSISTOR 2SC2785-HFE

< RESISTOR >

R701 1-249-415-11 CARBON 680 5% 1/4W

R702 1-247-807-31 CARBON 100 5% 1/4W

R711 1-249-415-11 CARBON 680 5% 1/4W

R712 1-247-807-31 CARBON 100 5% 1/4W

R751 1-247-806-11 CARBON 91 5% 1/4W

R752 1-249-429-11 CARBON 10K 5% 1/4W

R753 1-249-429-11 CARBON 10K 5% 1/4W

R754 1-249-430-11 CARBON 12K 5% 1/4W

R755 1-249-429-11 CARBON 10K 5% 1/4W

************************************************************

S-AIR INCLUDE BOARD

(HDX287WC/HDX587WC/HDX589W/HDX686W)

*******************

< CAPACITOR >

C801 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C803 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C804 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C805 1-162-917-11 CERAMIC CHIP 15PF 5% 50V

C806 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C807 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C808 1-126-964-11 ELECT 10uF 20% 50V

C809 1-162-918-11 CERAMIC CHIP 18PF 5% 50V

C811 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C813 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C814 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C815 1-126-926-11 ELECT 1000uF 20% 10V

C816 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C817 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V

C818 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V

C819 1-126-926-11 ELECT 1000uF 20% 10V

C820 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C823 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C824 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C825 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C826 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C827 1-126-925-91 ELECT 470uF 20% 10V

C828 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V

C829 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C830 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C831 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V

C832 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C833 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C834 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C835 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V

C836 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C837 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C838 1-104-658-91 ELECT 100uF 20% 10V

C839 1-104-658-91 ELECT 100uF 20% 10V

C840 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V

C841 1-164-315-11 CERAMIC CHIP 470PF 5% 50V

C843 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

C844 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

C845 1-137-649-31 ELECT 220uF 20% 10V

POWER P-SW RELAY S-AIR INCLUDE

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

105105

C846 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C847 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

C848 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

C849 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C851 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C852 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

< CONNECTOR >

CN801 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P

CN803 1-821-747-11 CONNECTOR, CARD EDGE 20P (L) (EZW-RT10)

CN804 1-785-468-41 CONNECTOR, FFC/FPC 13P

< DIODE >

D800 6-500-848-01 DIODE MC2840-T112-1

< IC >

IC800 6-702-302-01 IC TK11133CSCL-G

IC802 6-709-888-01 IC TC7WHU04FK (T5RSOYF

IC804 6-712-613-01 IC SI-3010KM-TLS

IC805 6-713-513-01 IC AK4127VF-E2

IC806 6-713-513-01 IC AK4127VF-E2

IC807 6-710-554-01 IC PCM1808PWR

IC808 8-759-680-48 IC TC7WH157FK (TE85R)

< COIL >

L800 1-469-525-91 INDUCTOR 10uH

L801 1-414-398-11 INDUCTOR 10uH

L802 1-469-525-91 INDUCTOR 10uH

L803 1-469-525-91 INDUCTOR 10uH

L804 1-469-525-91 INDUCTOR 10uH

< RESISTOR >

R800 1-216-797-11 METAL CHIP 10 5% 1/10W

R801 1-216-797-11 METAL CHIP 10 5% 1/10W

R803 1-216-821-11 METAL CHIP 1K 5% 1/10W

R804 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R805 1-216-821-11 METAL CHIP 1K 5% 1/10W

R806 1-216-845-11 METAL CHIP 100K 5% 1/10W

R807 1-216-809-11 METAL CHIP 100 5% 1/10W

R812 1-216-845-11 METAL CHIP 100K 5% 1/10W

R814 1-216-809-11 METAL CHIP 100 5% 1/10W

R815 1-216-805-11 METAL CHIP 47 5% 1/10W

R824 1-216-809-11 METAL CHIP 100 5% 1/10W

R825 1-216-809-11 METAL CHIP 100 5% 1/10W

R826 1-216-809-11 METAL CHIP 100 5% 1/10W

R827 1-216-809-11 METAL CHIP 100 5% 1/10W

R828 1-216-809-11 METAL CHIP 100 5% 1/10W

R829 1-216-809-11 METAL CHIP 100 5% 1/10W

R830 1-216-821-11 METAL CHIP 1K 5% 1/10W

R831 1-216-809-11 METAL CHIP 100 5% 1/10W

R832 1-216-809-11 METAL CHIP 100 5% 1/10W

R833 1-216-809-11 METAL CHIP 100 5% 1/10W

R834 1-216-809-11 METAL CHIP 100 5% 1/10W

R835 1-216-813-11 METAL CHIP 220 5% 1/10W

R836 1-216-809-11 METAL CHIP 100 5% 1/10W

R837 1-216-821-11 METAL CHIP 1K 5% 1/10W

R838 1-216-821-11 METAL CHIP 1K 5% 1/10W

R839 1-216-864-11 SHORT CHIP 0

R841 1-216-864-11 SHORT CHIP 0

R843 1-216-864-11 SHORT CHIP 0

R845 1-216-864-11 SHORT CHIP 0

R847 1-218-851-11 METAL CHIP 1.5K 0.5% 1/10W

R848 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

R849 1-218-871-11 METAL CHIP 10K 0.5% 1/10W

R851 1-216-813-11 METAL CHIP 220 5% 1/10W

R852 1-216-809-11 METAL CHIP 100 5% 1/10W

R853 1-216-809-11 METAL CHIP 100 5% 1/10W

R854 1-216-813-11 METAL CHIP 220 5% 1/10W

R855 1-216-864-11 SHORT CHIP 0

R858 1-216-809-11 METAL CHIP 100 5% 1/10W

R859 1-216-813-11 METAL CHIP 220 5% 1/10W

R860 1-216-809-11 METAL CHIP 100 5% 1/10W

R861 1-216-864-11 SHORT CHIP 0

R863 1-216-797-11 METAL CHIP 10 5% 1/10W

R864 1-216-797-11 METAL CHIP 10 5% 1/10W

R865 1-216-809-11 METAL CHIP 100 5% 1/10W

R867 1-216-833-11 METAL CHIP 10K 5% 1/10W

R868 1-216-809-11 METAL CHIP 100 5% 1/10W

R869 1-216-833-11 METAL CHIP 10K 5% 1/10W

R870 1-216-821-11 METAL CHIP 1K 5% 1/10W

R871 1-216-833-11 METAL CHIP 10K 5% 1/10W

R872 1-216-813-11 METAL CHIP 220 5% 1/10W

R873 1-216-813-11 METAL CHIP 220 5% 1/10W

R874 1-216-813-11 METAL CHIP 220 5% 1/10W

R875 1-216-864-11 SHORT CHIP 0

R877 1-216-864-11 SHORT CHIP 0

R878 1-216-864-11 SHORT CHIP 0

R881 1-216-864-11 SHORT CHIP 0

R882 1-216-864-11 SHORT CHIP 0

R884 1-216-864-11 SHORT CHIP 0

< VIBRATOR >

X800 1-814-109-21 VIBRATOR, CRYSTAL (12.288MHz)

************************************************************

S-AIR-CON BOARD (HDX285/HDX585/HDX685)

***************

< CONNECTOR >

CN100 1-779-550-21 CONNECTOR, FFC (LIF (NON-ZIF)) 13P

CN101 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P

CN102 1-564-517-11 PLUG, CONNECTOR 2P

CN103 1-821-744-11 CONNECTOR, CARD EDGE 30P (EZW-T100)

< TRANSISTOR >

Q100 8-729-038-28 TRANSISTOR RT1N441C-TP-1

Q101 6-550-363-01 TRANSISTOR 2SB1690KT146

< RESISTOR >

R100 1-216-817-11 METAL CHIP 470 5% 1/10W

R101 1-216-817-11 METAL CHIP 470 5% 1/10W

R102 1-216-817-11 METAL CHIP 470 5% 1/10W

R103 1-216-841-11 METAL CHIP 47K 5% 1/10W

R104 1-216-833-11 METAL CHIP 10K 5% 1/10W

R105 1-216-833-11 METAL CHIP 10K 5% 1/10W

R106 1-216-833-11 METAL CHIP 10K 5% 1/10W

R107 1-216-833-11 METAL CHIP 10K 5% 1/10W

************************************************************

S-AIR INCLUDE S-AIR-CON

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

106

SENSOR BOARD

*************

< PHOTO SENSOR >

IC751 8-759-989-76 PHOTO SENSOR RPR-359F

************************************************************

A-1602-535-A SERIPARA BOARD, COMPLETE

*************************

< CAPACITOR >

C001 1-124-584-00 ELECT 100uF 20% 6.3V

C002 1-126-933-11 ELECT 100uF 20% 16V

C003 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C004 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C005 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C006 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C007 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

< CONNECTOR >

CN001 1-784-041-41 CONNECTOR, BOARD TO BOARD 9P

CN002 1-779-558-11 CONNECTOR, FFC (LIF (NON-ZIF)) 21P

CN003 1-779-542-21 CONNECTOR, FFC (LIF (NON-ZIF)) 5P

< IC >

IC001 6-707-095-01 IC BH2210FV-E2

IC002 6-707-095-01 IC BH2210FV-E2

< RESISTOR >

R003 1-216-813-11 METAL CHIP 220 5% 1/10W

R004 1-216-809-11 METAL CHIP 100 5% 1/10W

R005 1-216-813-11 METAL CHIP 220 5% 1/10W

R006 1-216-809-11 METAL CHIP 100 5% 1/10W

R007 1-216-813-11 METAL CHIP 220 5% 1/10W

R008 1-216-809-11 METAL CHIP 100 5% 1/10W

R009 1-216-809-11 METAL CHIP 100 5% 1/10W

R010 1-216-813-11 METAL CHIP 220 5% 1/10W

R011 1-216-809-11 METAL CHIP 100 5% 1/10W

R012 1-216-809-11 METAL CHIP 100 5% 1/10W

R013 1-216-809-11 METAL CHIP 100 5% 1/10W

R014 1-216-809-11 METAL CHIP 100 5% 1/10W

R015 1-216-809-11 METAL CHIP 100 5% 1/10W

R016 1-216-809-11 METAL CHIP 100 5% 1/10W

R017 1-216-833-11 METAL CHIP 10K 5% 1/10W

R018 1-216-809-11 METAL CHIP 100 5% 1/10W

R019 1-216-809-11 METAL CHIP 100 5% 1/10W

R020 1-216-809-11 METAL CHIP 100 5% 1/10W

R023 1-216-813-11 METAL CHIP 220 5% 1/10W

R024 1-216-809-11 METAL CHIP 100 5% 1/10W

R025 1-216-809-11 METAL CHIP 100 5% 1/10W

R026 1-216-809-11 METAL CHIP 100 5% 1/10W

R027 1-216-809-11 METAL CHIP 100 5% 1/10W

R028 1-216-809-11 METAL CHIP 100 5% 1/10W

R029 1-216-809-11 METAL CHIP 100 5% 1/10W

R030 1-216-809-11 METAL CHIP 100 5% 1/10W

R031 1-216-809-11 METAL CHIP 100 5% 1/10W

R033 1-216-809-11 METAL CHIP 100 5% 1/10W

R035 1-216-809-11 METAL CHIP 100 5% 1/10W

R036 1-216-809-11 METAL CHIP 100 5% 1/10W

R037 1-216-809-11 METAL CHIP 100 5% 1/10W

R038 1-216-809-11 METAL CHIP 100 5% 1/10W

R039 1-216-809-11 METAL CHIP 100 5% 1/10W

************************************************************

SPEAKER BOARD

**************

< CAPACITOR >

C5300 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C5301 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C5302 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C5303 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C5304 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

C5305 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C5306 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

C5307 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C5308 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

C5309 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C5310 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

C5311 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C5312 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C5313 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C5314 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

C5315 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

< CONNECTOR >

* CN5300 1-564-519-11 PLUG, CONNECTOR 4P (HDX589W/HDX686W)

CN5301 1-564-523-11 PLUG, CONNECTOR 8P (HDX285/HDX287WC/

HDX585/HDX587WC/HDX685)

< TERMINAL >

TB5300 1-780-576-11 TAMINAL BOARD (SPEAKER) 2P (SPEAKER

FRONT L/FRONT R) (HDX589W/HDX686W)

TB5301 1-780-454-11 TERMINAL BOARD (SPEAKER) 4P

(SPEAKER FRONT L/FRONT R/SUR L/SUR R)

(HDX285/HDX287WC/HDX585/HDX587WC/

HDX685)

************************************************************

SW (1) BOARD

************

< SWITCH >

S721 1-786-084-11 SWITCH, DETECTION

(MAIN TRAY OPEN/CLOSE)

************************************************************

SENSOR SERIPARA SPEAKER SW (1)

Ref. No. Part No. Description Remark

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

107107

SW (2) BOARD

************

< SWITCH >

S731 1-786-382-11 SWITCH, PUSH (1 KEY) (SUB TRAY IN)

*************************************************************

MISCELLANEOUS

**************

7 1-828-331-11 WIRE (FLAT TYPE) (13 CORE)

8 1-828-330-11 WIRE (FLAT TYPE) (13 CORE)

0 11 1-834-966-41 POWER-SUPPLY CORD (EA, E3)

0 11 1-834-978-11 CORD, POWER (US, CND)

64 1-828-317-11 WIRE (FLAT TYPE) (11 CORE)

65 1-828-353-11 WIRE (FLAT TYPE) (17 CORE)

103 1-828-370-11 WIRE (FLAT TYPE) (21 CORE)

105 1-828-347-11 WIRE (FLAT TYPE) (17 CORE)

106 1-828-289-11 WIRE (FLAT TYPE) (5 CORE)

107 1-828-310-11 WIRE (FLAT TYPE) (9 CORE)

108 1-828-955-11 WIRE (FLAT TYPE) (9 CORE)

109 1-693-778-11 TUNER (FM/AM) (EA, E3)

109 1-693-779-11 TUNER (FM/AM) (US, CND)

0 402 8-820-291-02 OPTICAL PICK-UP BLOCK (KHM-310CAB/C2RP)

(Including sled motor, spindle motor)

0 402 8-820-322-04 OPTICAL PICK-UP BLOCK (KHM-313CAB/C2RP)

(Including sled motor, spindle motor)

406 1-836-385-11 FLEXIBLE FLAT CABLE 24P

0 F901 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA.5) (8A/125V)

(US, CND)

0 F901 1-576-232-51 FUSE (H.B.C.) (T5AH/250V) (EA, E3)

M001 1-787-396-11 D.C. FAN (50 SQUARE)

M761 A-4713-174-A MOTOR (81) ASSY (LOADING)

M762 A-4713-174-A MOTOR (81) ASSY (STOCKER UP/DOWN)

S771 1-478-552-11 ENCODER, ROTARY (MD)

S781 1-478-551-11 ENCODER, ROTARY (STOCKER UP/DOWN)

*************************************************************

ACCESSORIES

************

0 1-770-019-71 ADAPTOR, CONVERSION PLUG 3P

(HDX285: EA)

SW (2)

Note 1: If wire (fl at type) and fl exible fl at cable are replaced, in-

stall it after bending it in the same form as thet before

replacement.

Note 2: Refer to the Servicing Notes “HOW TO IDENTIFY OPTICAL

PICK-UP BLOCK” (page 7), if replacing the Ref. No. 402.
