COVER(6th edition)
CAOTION
SCPH-30002D/3D/4D
CONSOLE and MD DISASSEMBLE MANUAL.pdf

SCPH-30000 series

Reproduction Prohibited

NOTICE

permission by Sony Computer Entertainment Inc. No commercial use and rental required.

REVISIONS.

This manual compiled by first edition of SCPH-30000, 30001, 30002, 30003, 30004 B, B’, C, C’, D type design data.

Design and Specification will be subject to changed without notice. The latest versions of service manual, Technical

memo, Technical information should be used together.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK OR DOTTED LINE WITH MARK ON THE SCHEMATIC DIAGRAMS

AND IN THE PARTS LIST ARE CRITICAL TO SAFE PERATION. REPLACE THESE COMPONENTS WITH SONY

PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED

BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ !

LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE

DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM-

POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS

LES SUPPLÉMENTS UBLIÉS PAR SONY.

CAUTION

Replace the battery with a Sony CR2032 battery. Use of any other type of battery may present the risk of fire or

explosion. The battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire.

CAUTION

The use of optical instruments with this product will increase eye Hazard. As the laser beam used in this CD/DVD

player is harmful To eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

WARNING !!

WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS

NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE

THAN 25cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in

hazardous radiation exposure.

CAUTION for electric shock

When power is ON, Don’t touch to Power supply block, AC-inlet, Power switch and so on, not to get an electric shock

at repair.

CAUTION for burning

When current is supplied, Some of part surface temperature like EE, GS, Regulater-IC, power supply, Optical device

and so on. These part surface is become high temperature condition. When it repair, Don’t touch them at a time during

it surface is high temperature condition to take prevent against burning. Do repair after it is cooled down enough.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by

the manufacturer. Discard used batteries according to the manufacturer’s instructions.

ADVARSEL!

Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og

type. Levér det brugte batteri tilbage til leverandøren.

ADVARSEL

Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av

apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner.

VARNING

Explosionsfara vid felaktigt batteribyte. Använt samma batterityp eller en ekvivalent typ som rekommenderas av

apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.

VAROITUS

Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan valmistajan suosittelemaan tyyppiin.

Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

SAFETY CHECK-OUT

After correcting the original service problem, perform the following safety checks before releasing the set to the

customer:

1. Check the area of your repair for unsoldered or cold-soldered connections. Check the entire board surface for

solder splashes and bridges.

2. Check the inter board wiring to ensure that no wires are “pinched” or contact high-wattage resistors.

3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point

them out to the customer and recommend their replacement.

4. Look for parts which, though functioning, show obvious signs of deterioration. Point them out of the customer and

recommend their replacement.

5. Check the line cord for cracks and abrasion. Recommend the replacement of any such line cord to the customer.

6. Check the b+ voltage to see it is at the values specified.

7. Check the antenna terminals, metal trim, “metalized” knobs, screws, and all other exposed metal parts for ac

leakage. Check leakage as described below.

LEAKAGE

The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal

part having a Return to chassis, must not exceed 0.5 mA (500 micro-ampers). Leakage current can be measured by

any one of three methods.

1. A commercial leakage tester, such as the SIMPSON 229 or RCA WT-540A. Follow the manufacturers’ instructions

to use these instruments.

2. A battery-operated AC milli-ammeter. The Data Precision 245 digital multi-meter is suitable for this job

3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated ac voltmeter. The “limit”

indication is 0.75V, so analog meters must have an accurate low-voltage scale. The SIMPSON 250 and SANWA

SH-63TRD are examples of a passive VOM that is suitable. Nearly all battery operated digital multi-meters that

have a 2V AC range are suitable.

Fig A. Using AC voltmeter to check AC leakage

To Exposed Metal

Parts on Set

1.5 k

Ω

0.15

FAC

voltmeter

(0.75V)

Earth Ground

NOTIFICATION for environmental assessment

This model is CR2032 lithium battery onboard inside on the GD MOUNT as Timer backup power. CR2032 life may be

about 5 to 8 years so you have very few need for changing to new one. But if you have necessary to replaced to new

one or disassemble for scrapping, you have to keep your country low, regulation, standard, etc. of environmental

assessment and safty.

— 139 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

TABLE OF CONTENTS

SCPH-30001 (B, B’) .....................................................................................4-38

SCPH-30001 (C) .........................................................................................39-70

SCPH-30002/30003/30004 (C, C’) ...........................................................71-115

SCPH-30001D ........................................................................................116-138

SCPH-30002/30003/30004 (D, D’)

1. Table of Contents and Specifications ................... 139

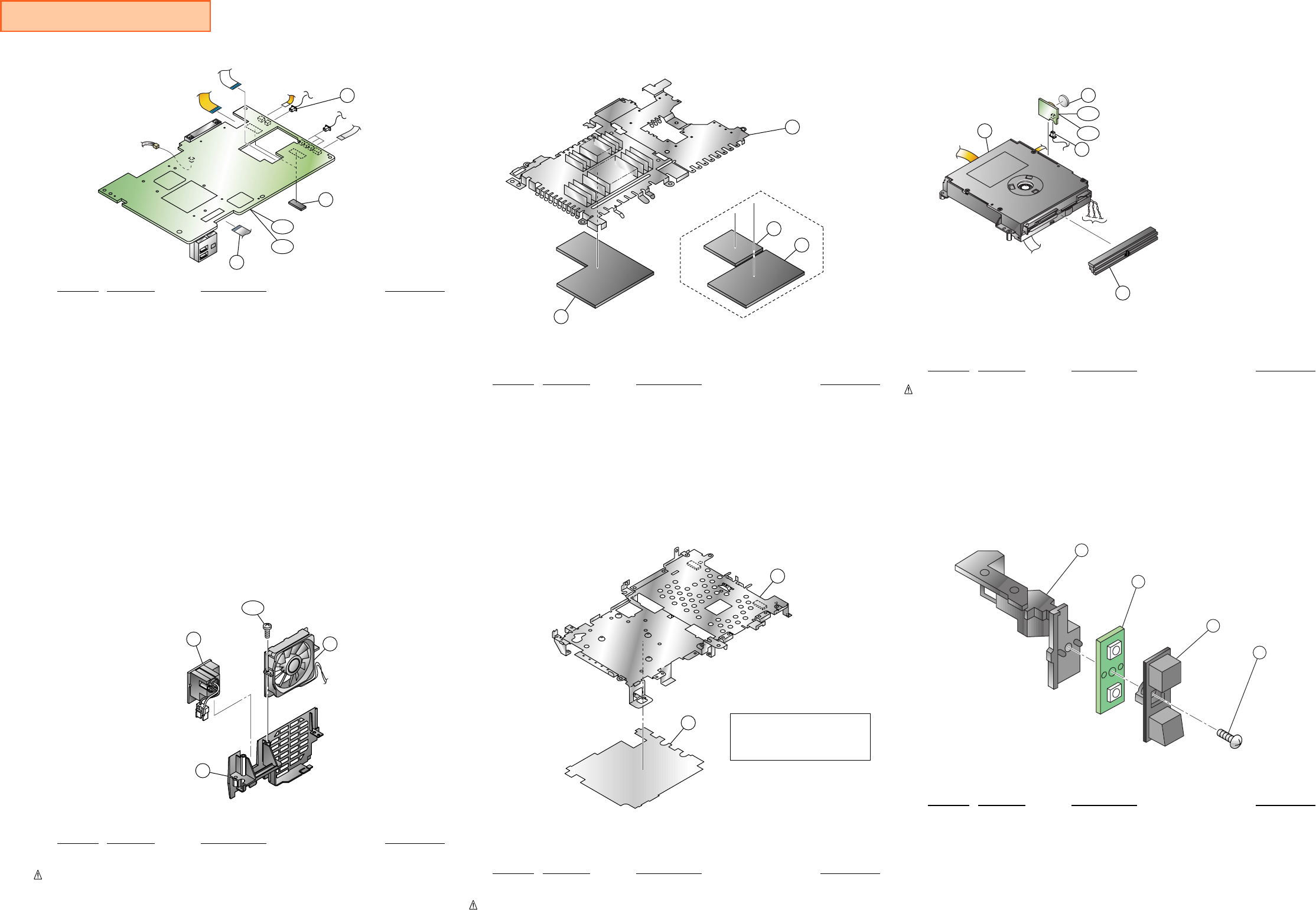

2. Exploded Views

Overall and Main Block .............................................................140

MD Block...................................................................................141

GH-010/GH-012 Block..............................................................142

GB-003/GB-004 and Plate Assy Block .....................................142

Shield (A) Assy Block ...............................................................142

Shield (B) Block.........................................................................142

Fan and Rear Panel Block ..........................................................142

Switch Block ..............................................................................142

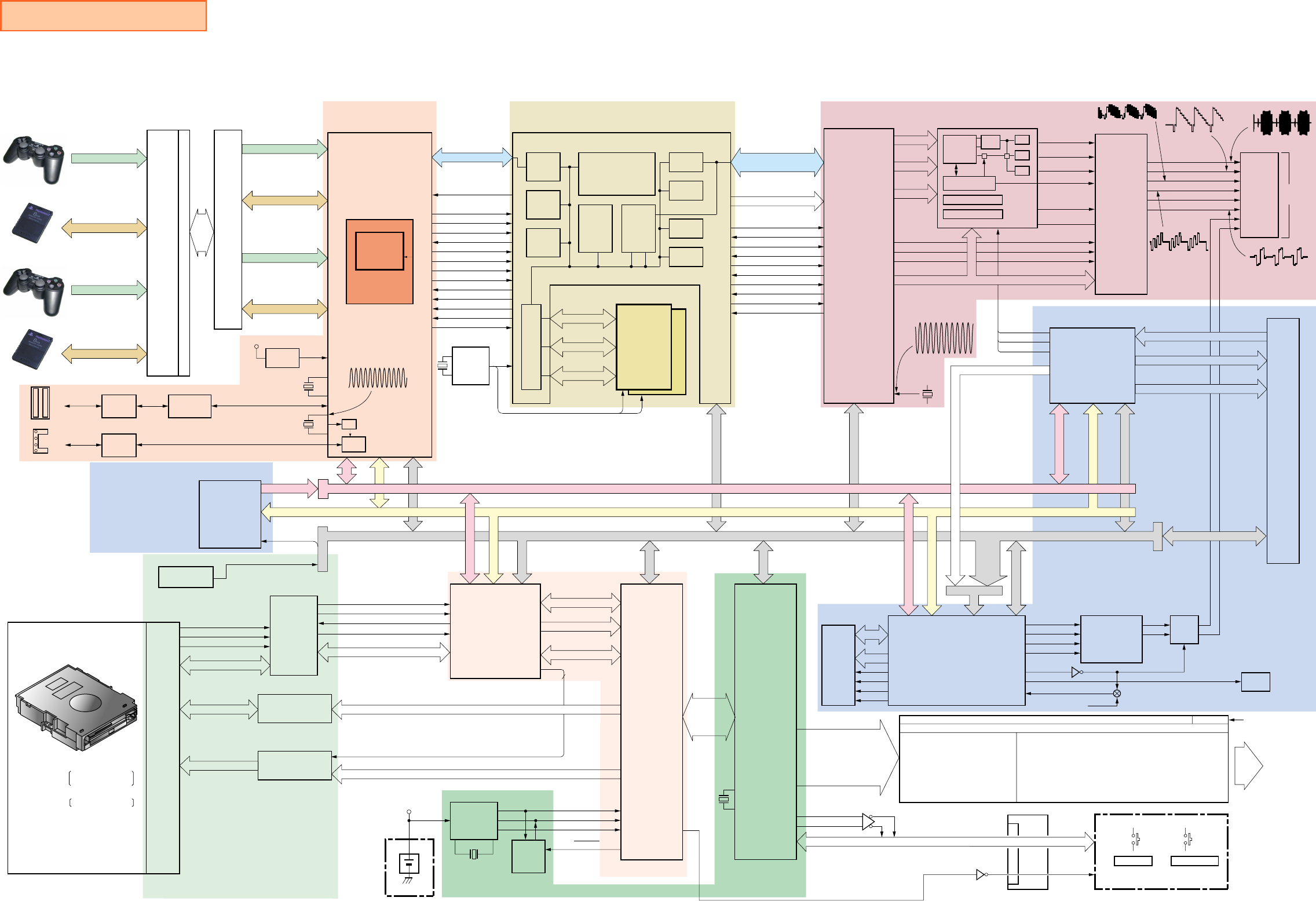

3. Block Diagram for D type ....................................... 143

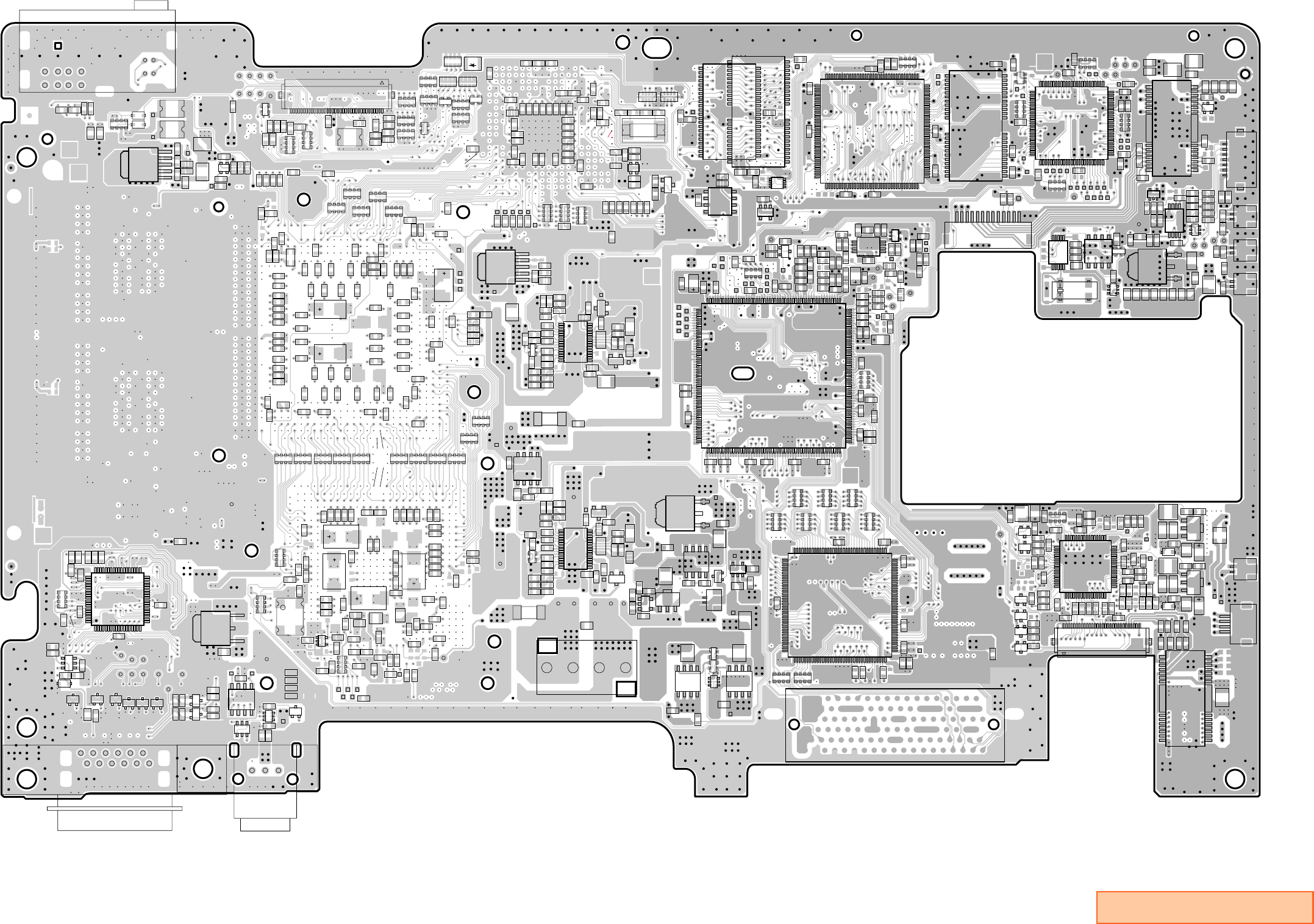

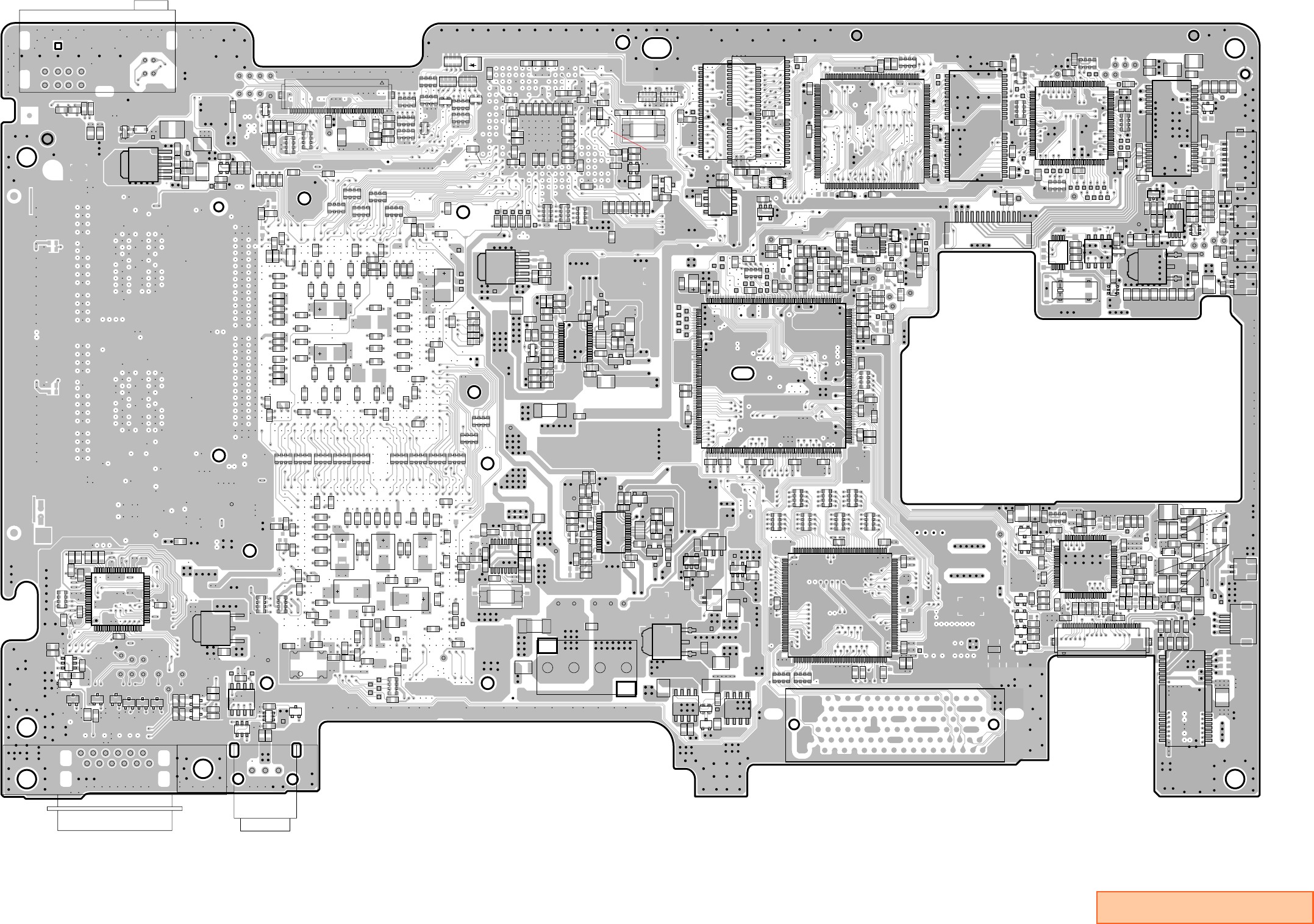

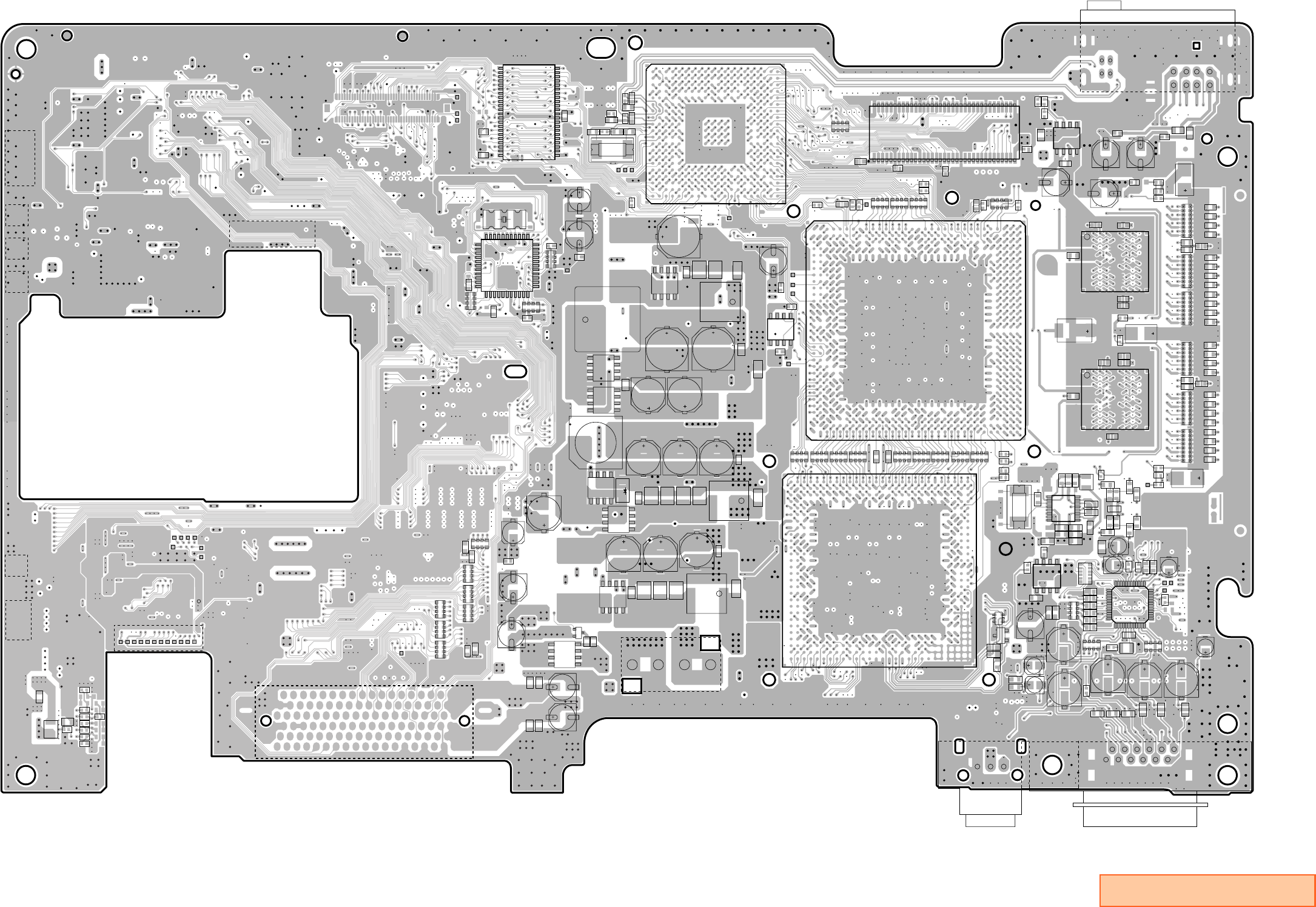

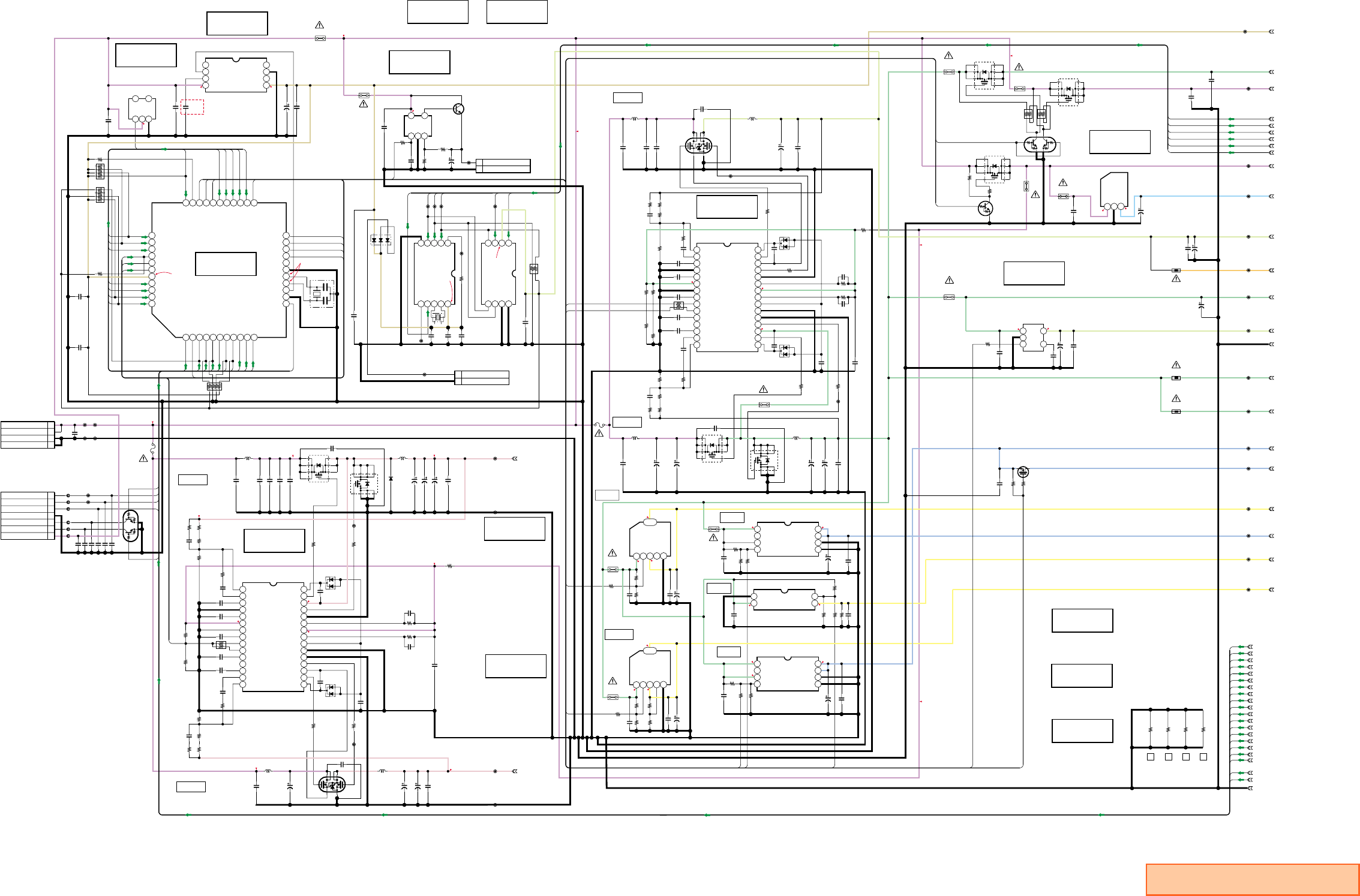

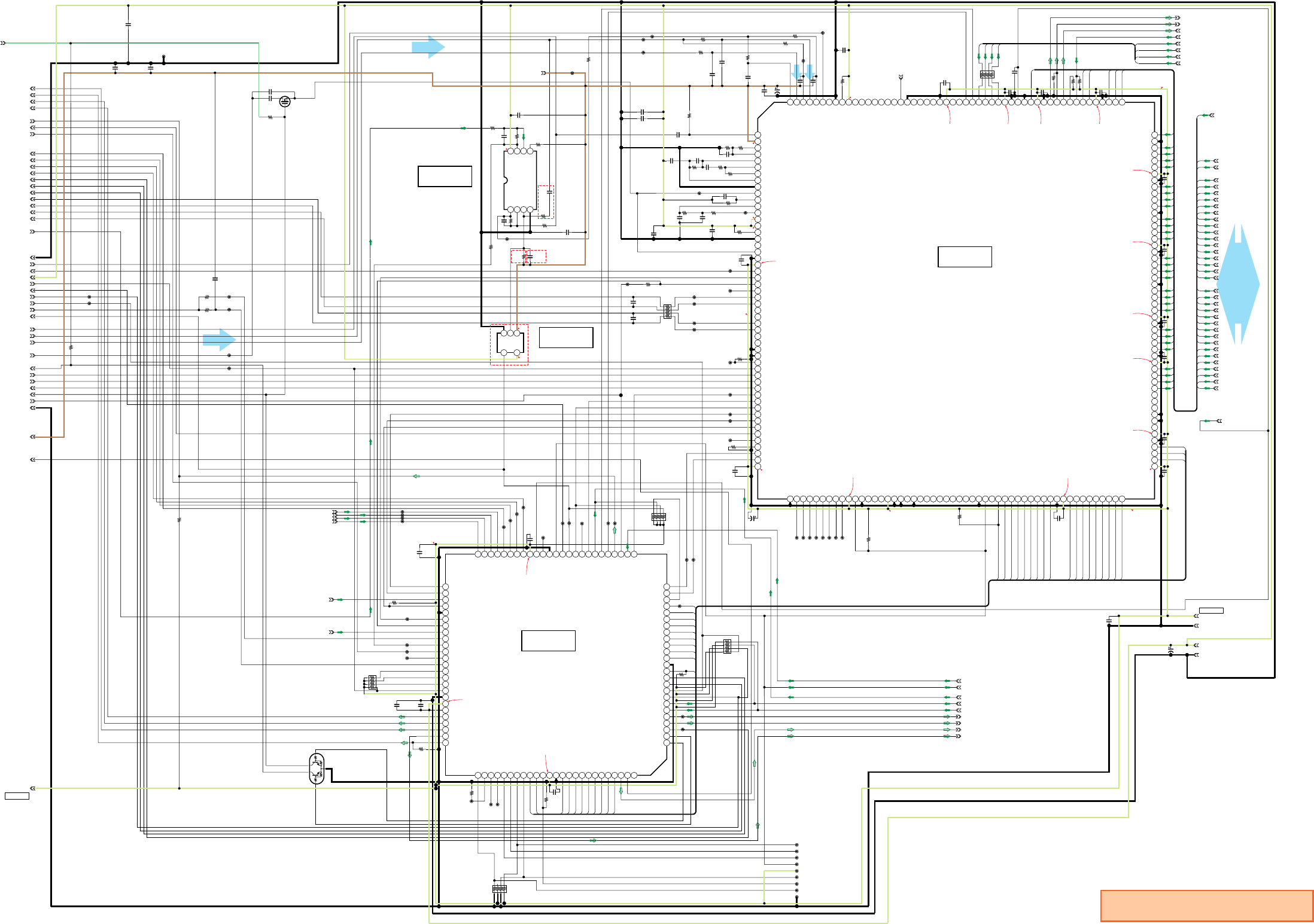

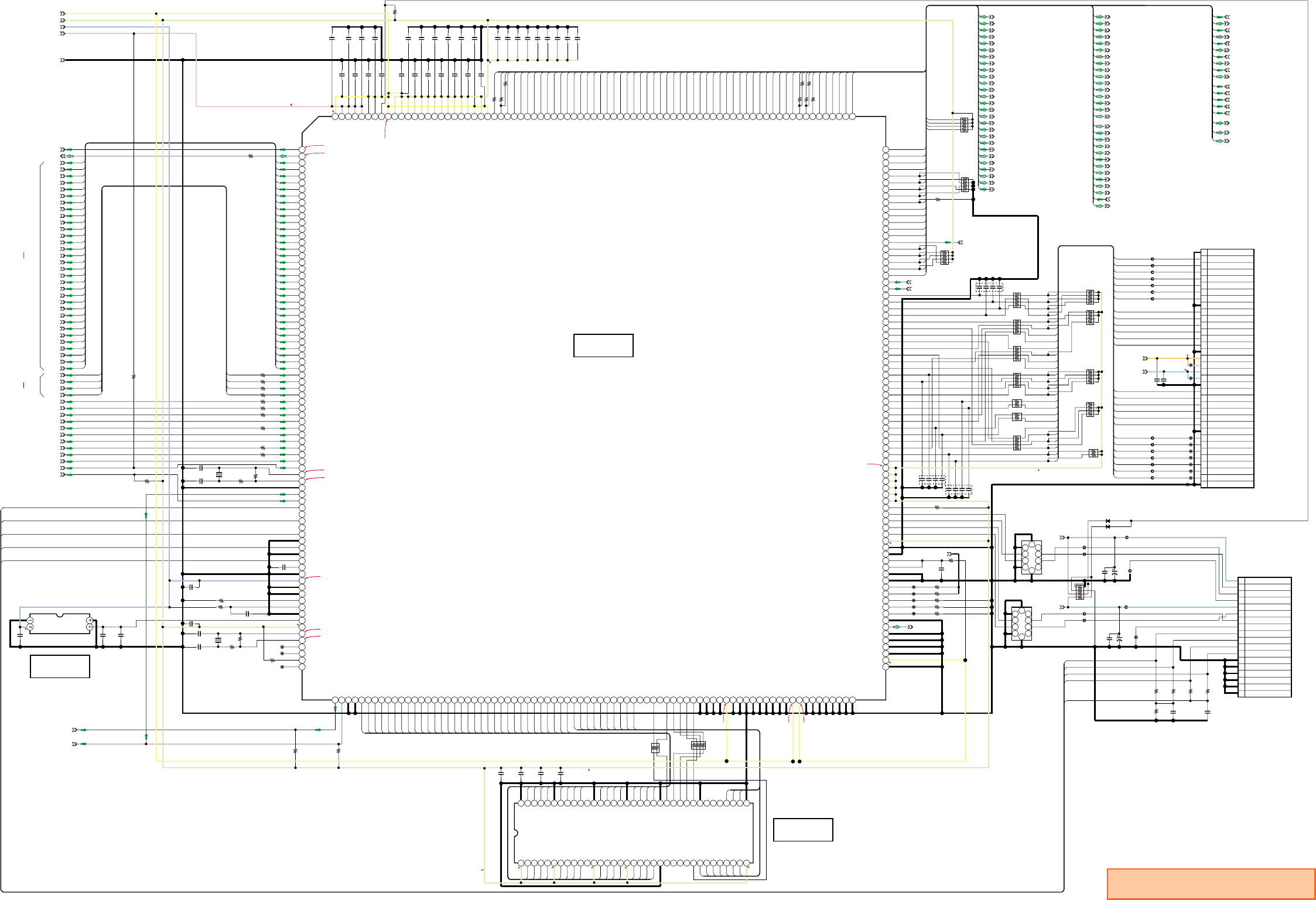

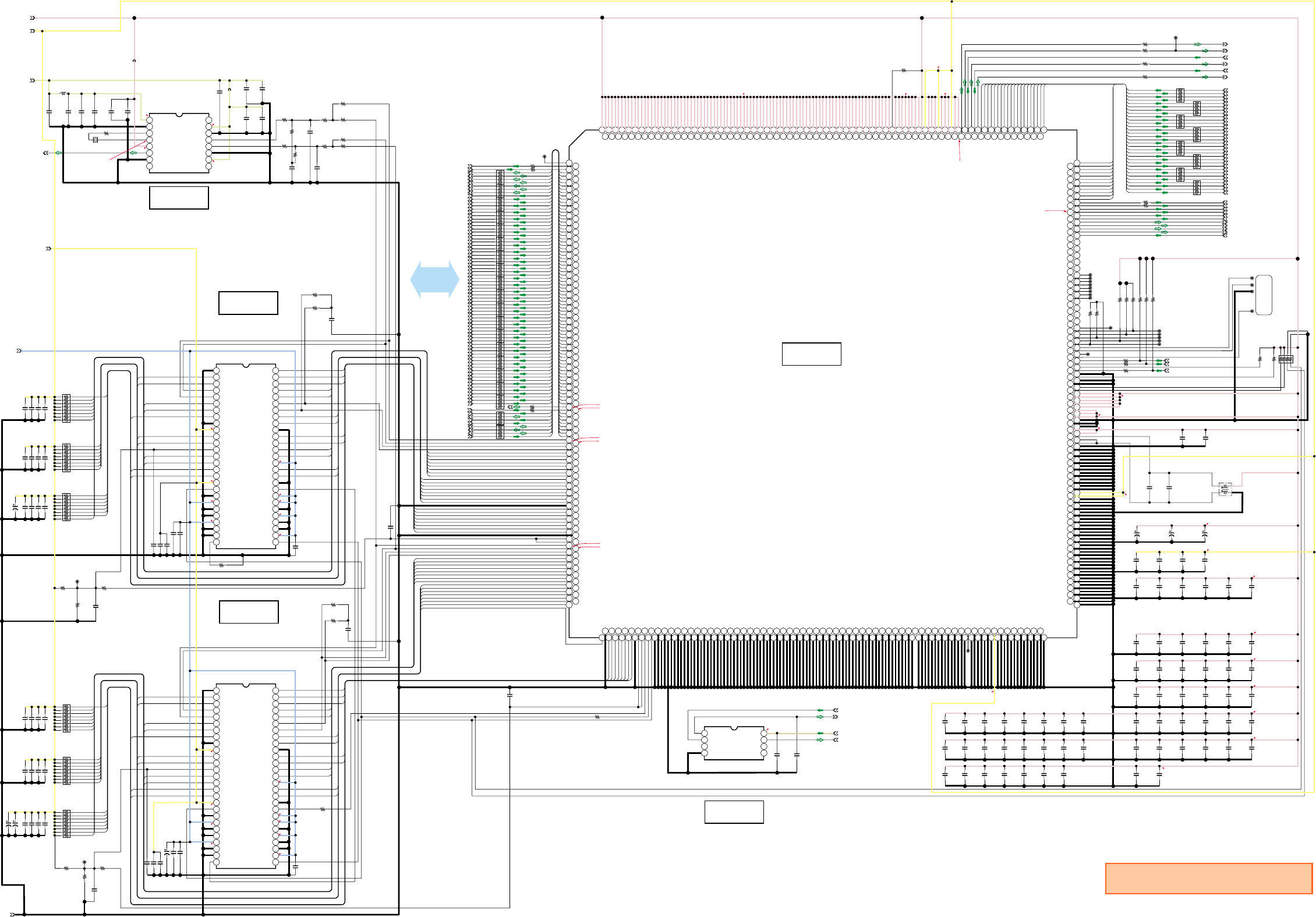

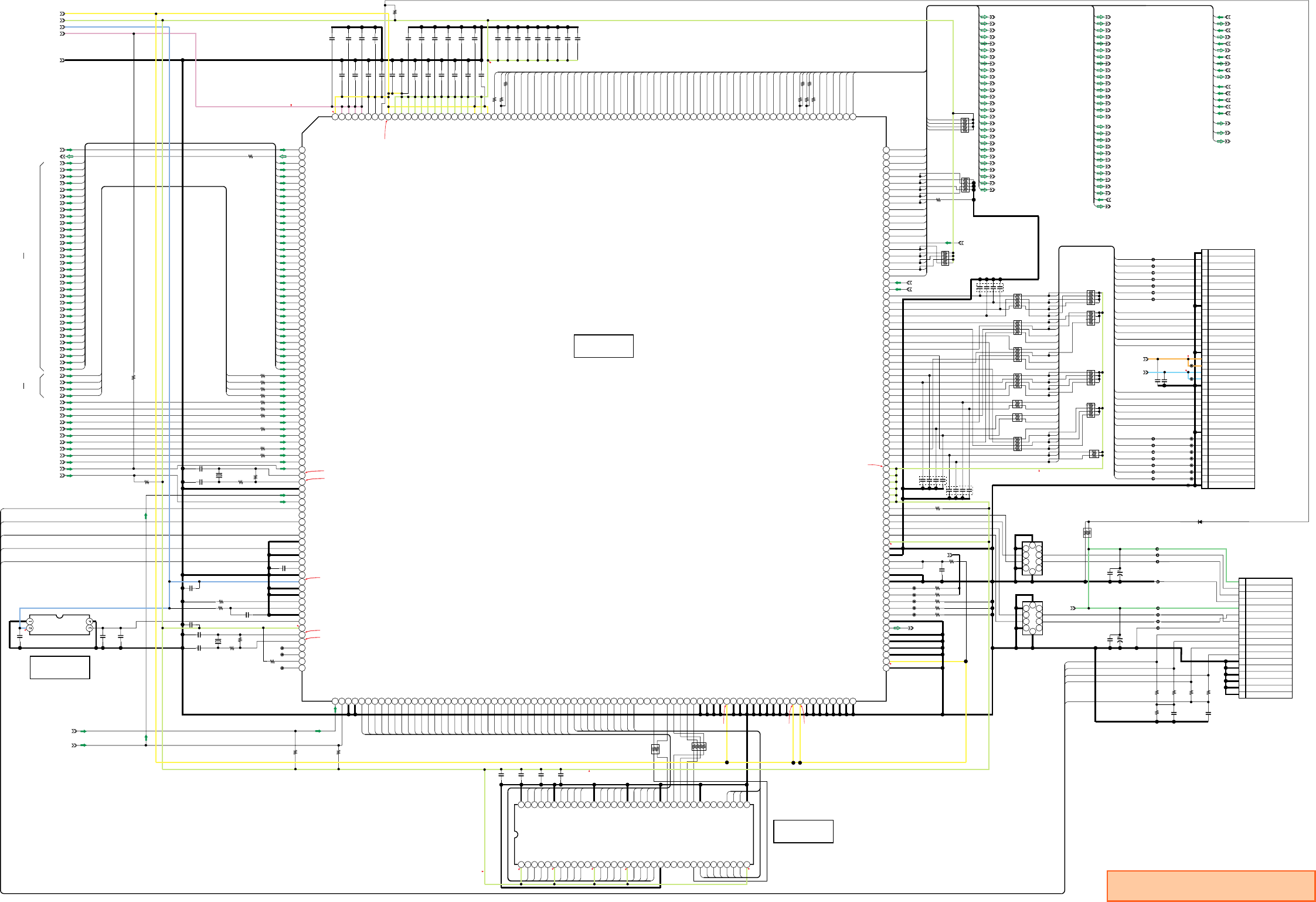

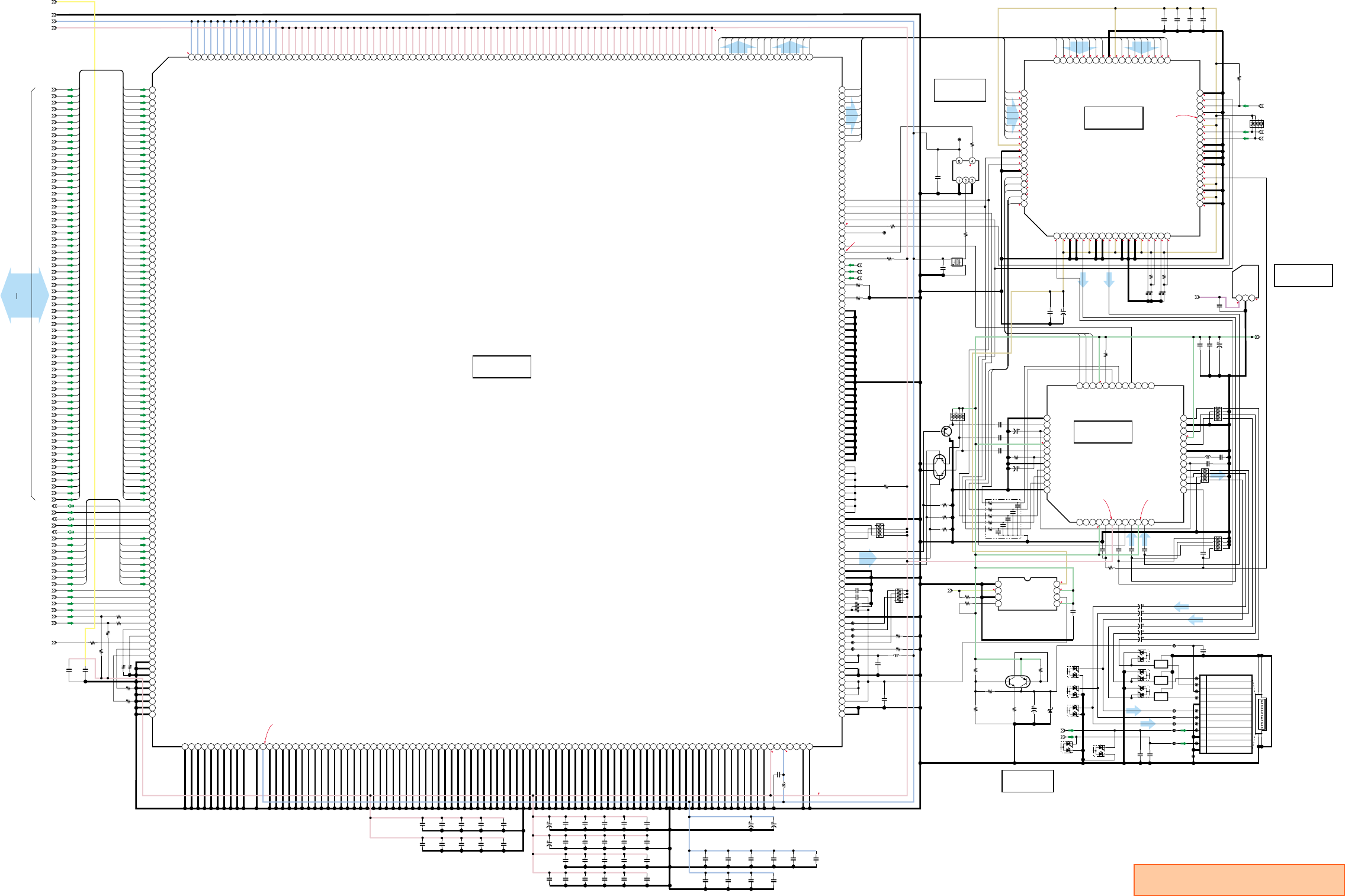

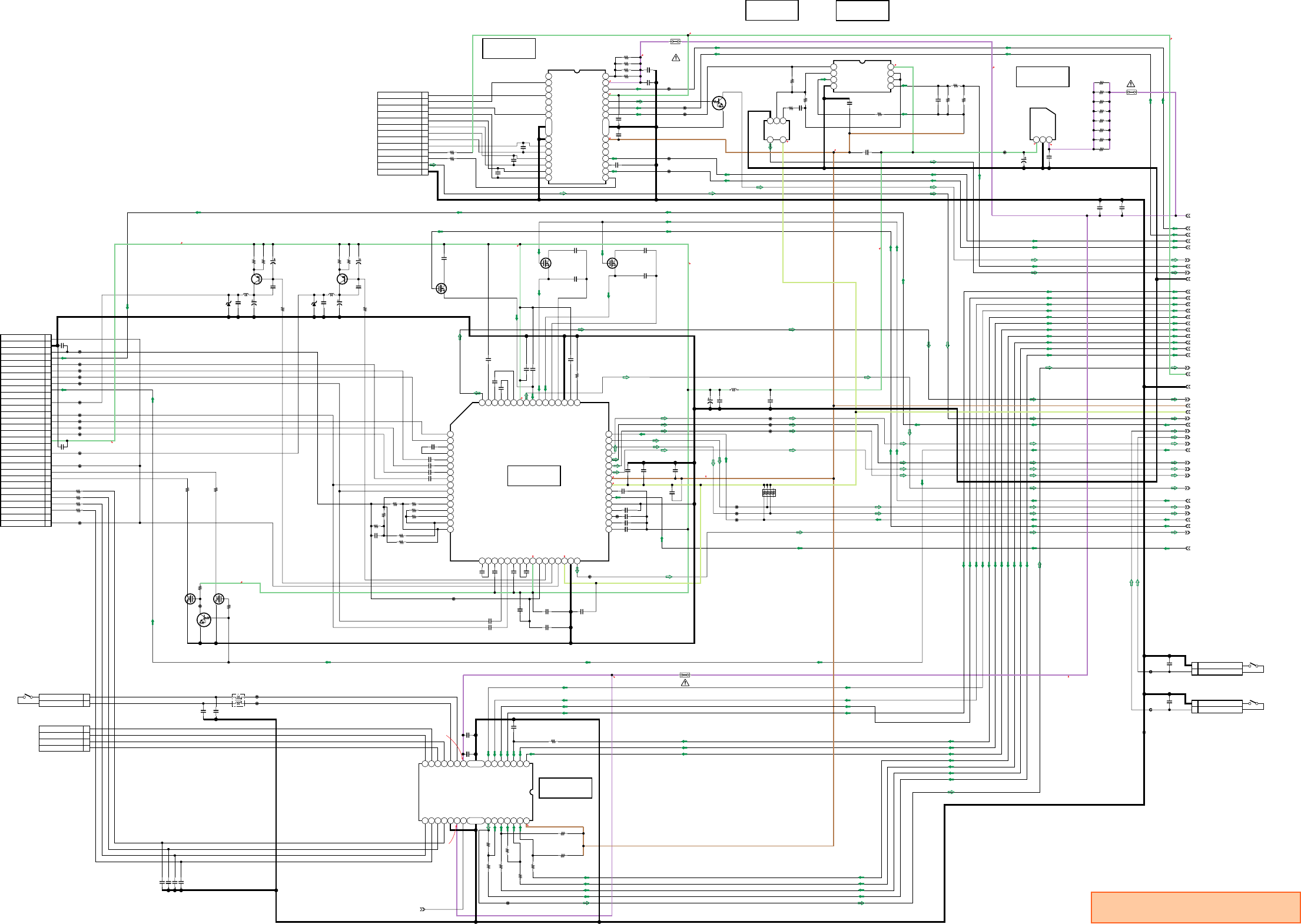

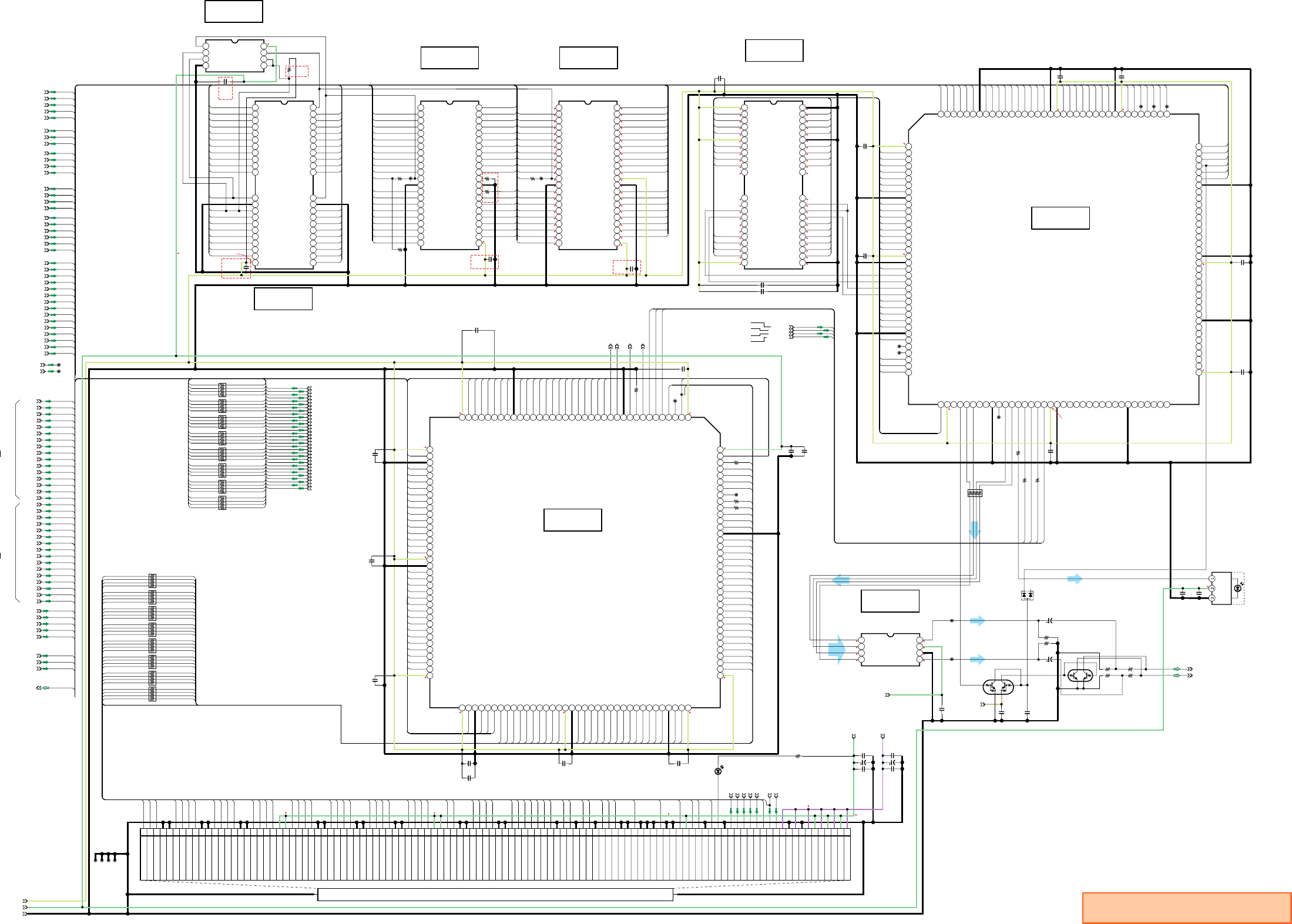

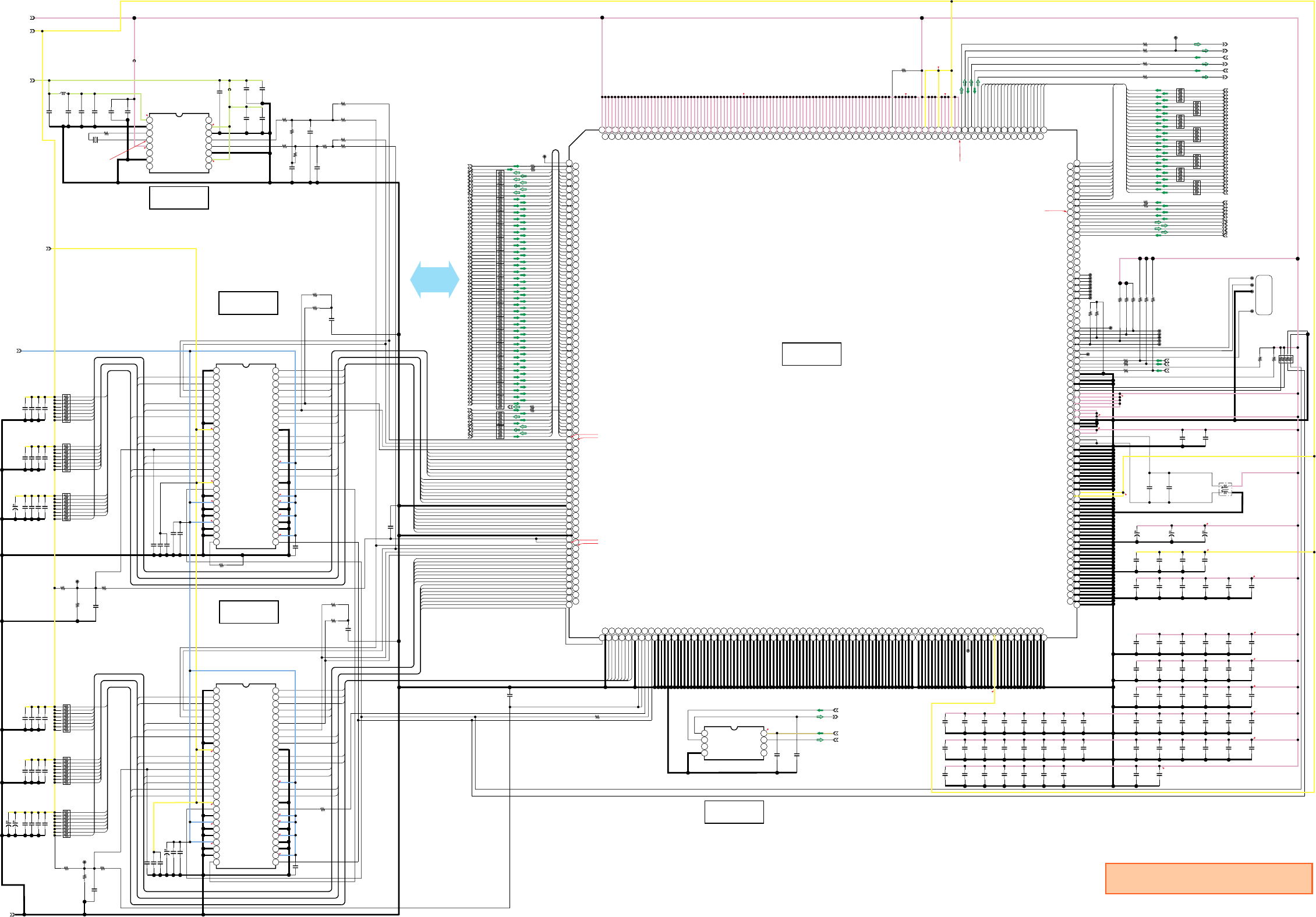

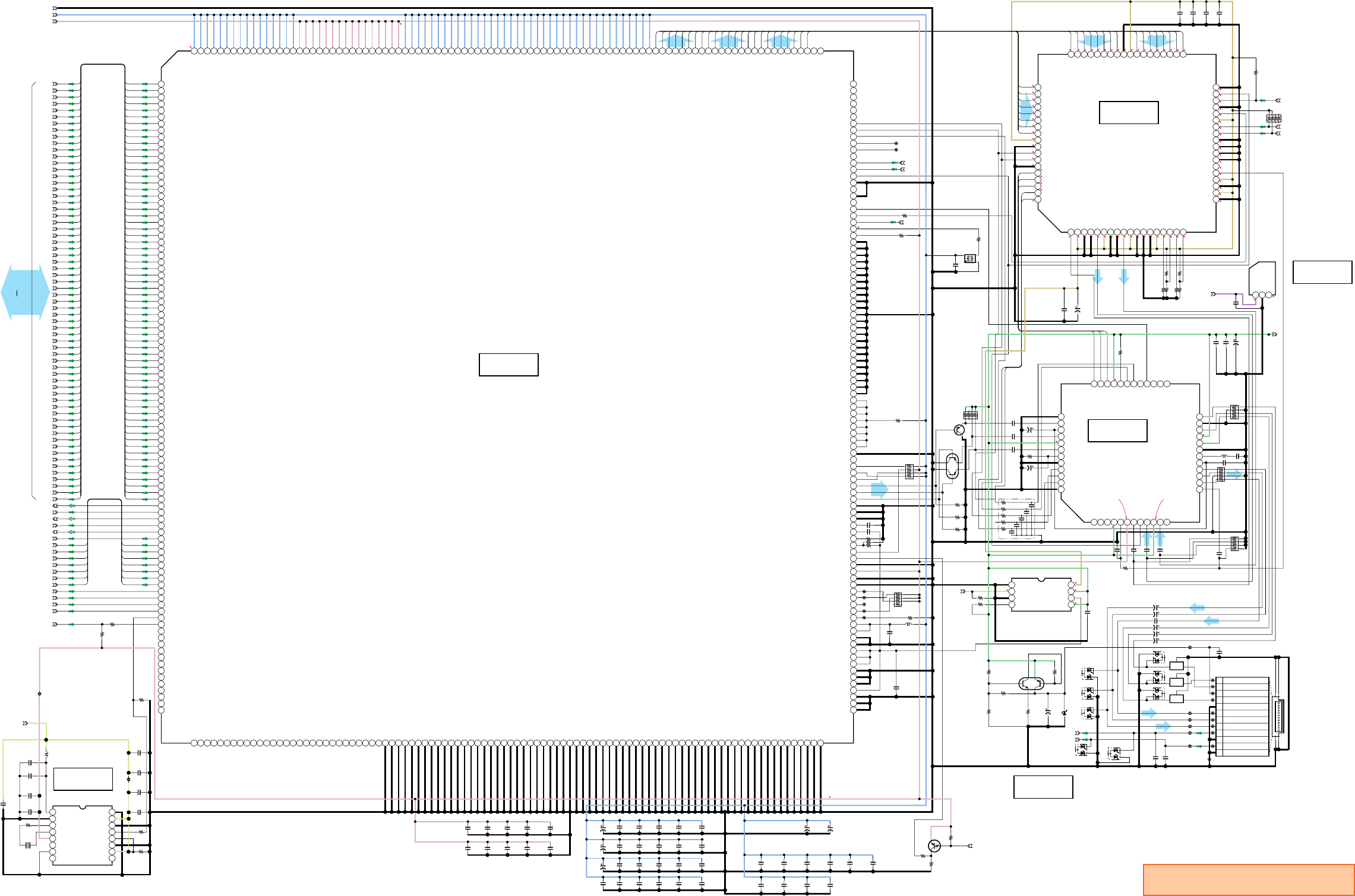

4. Printed Wiring Boards and Schematic Diagrams

for SCPH-30002D/30003D/30004D

This Note is Common for Printed Wiring boards and

Schematic diagrams ...................................................................144

GH-010.......................................................................................145

GB-003.......................................................................................154

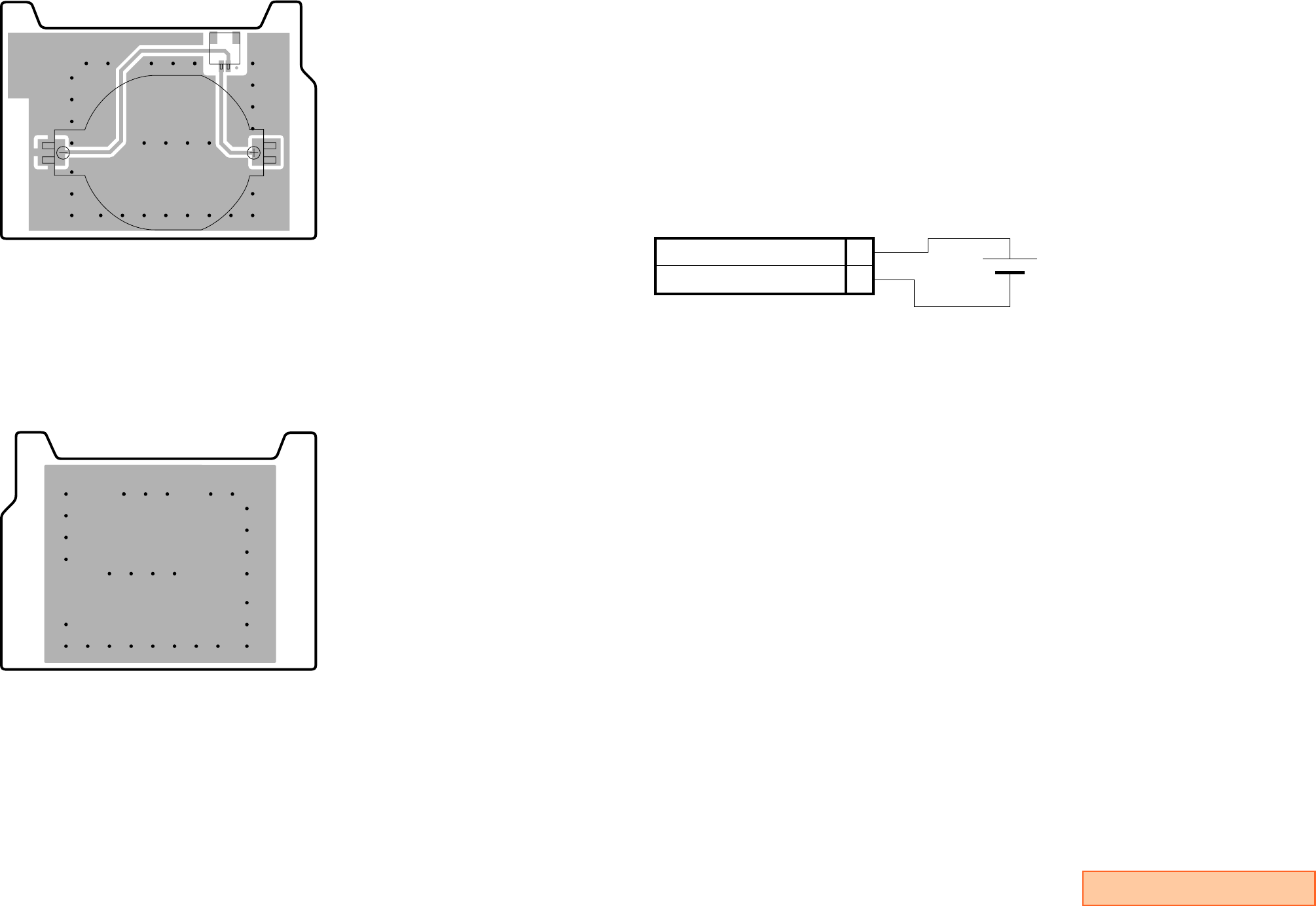

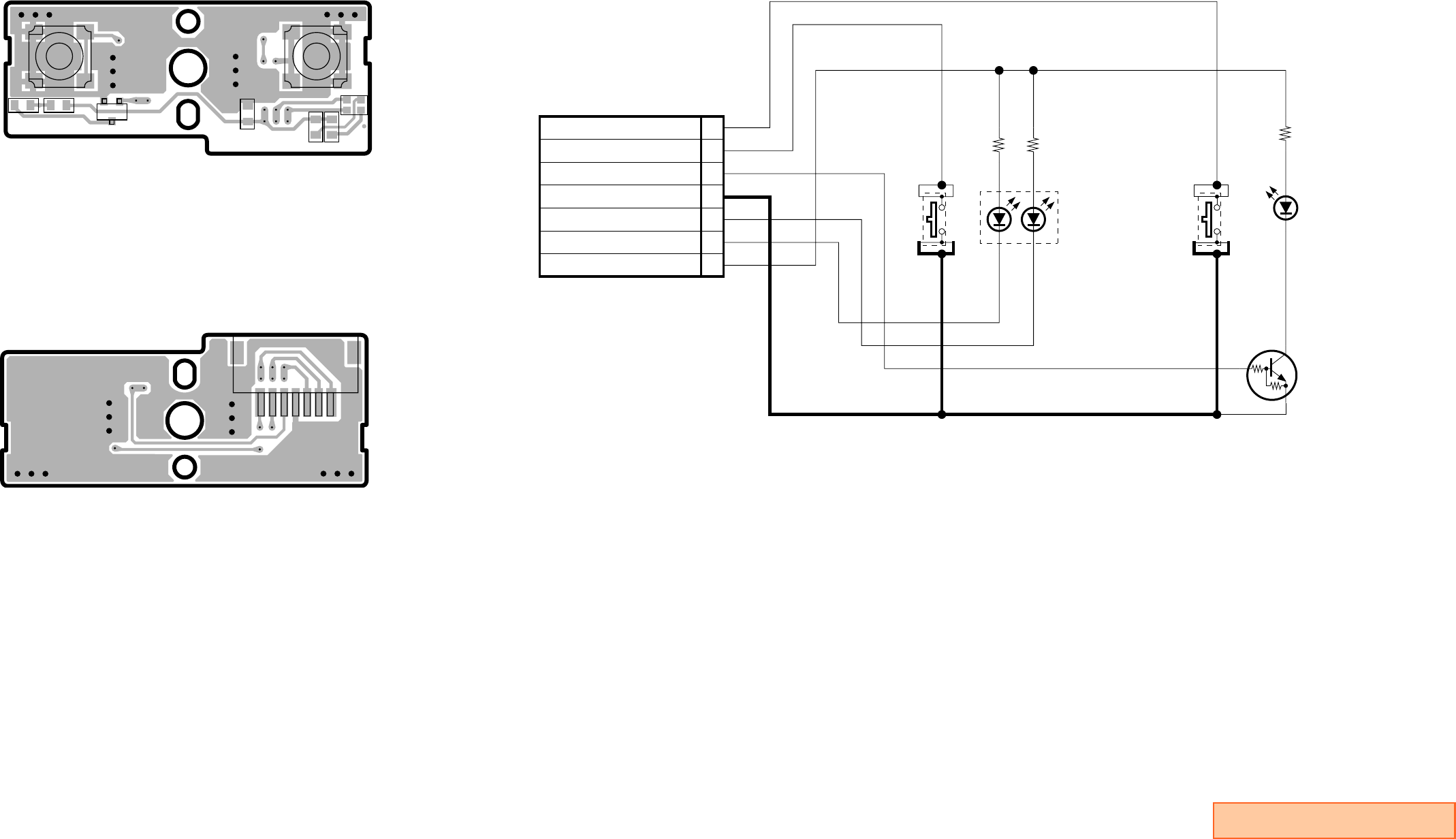

SW-358 ......................................................................................155

5. Electrical Parts List

for SCPH-30002D/30003D/30004D ......................... 156

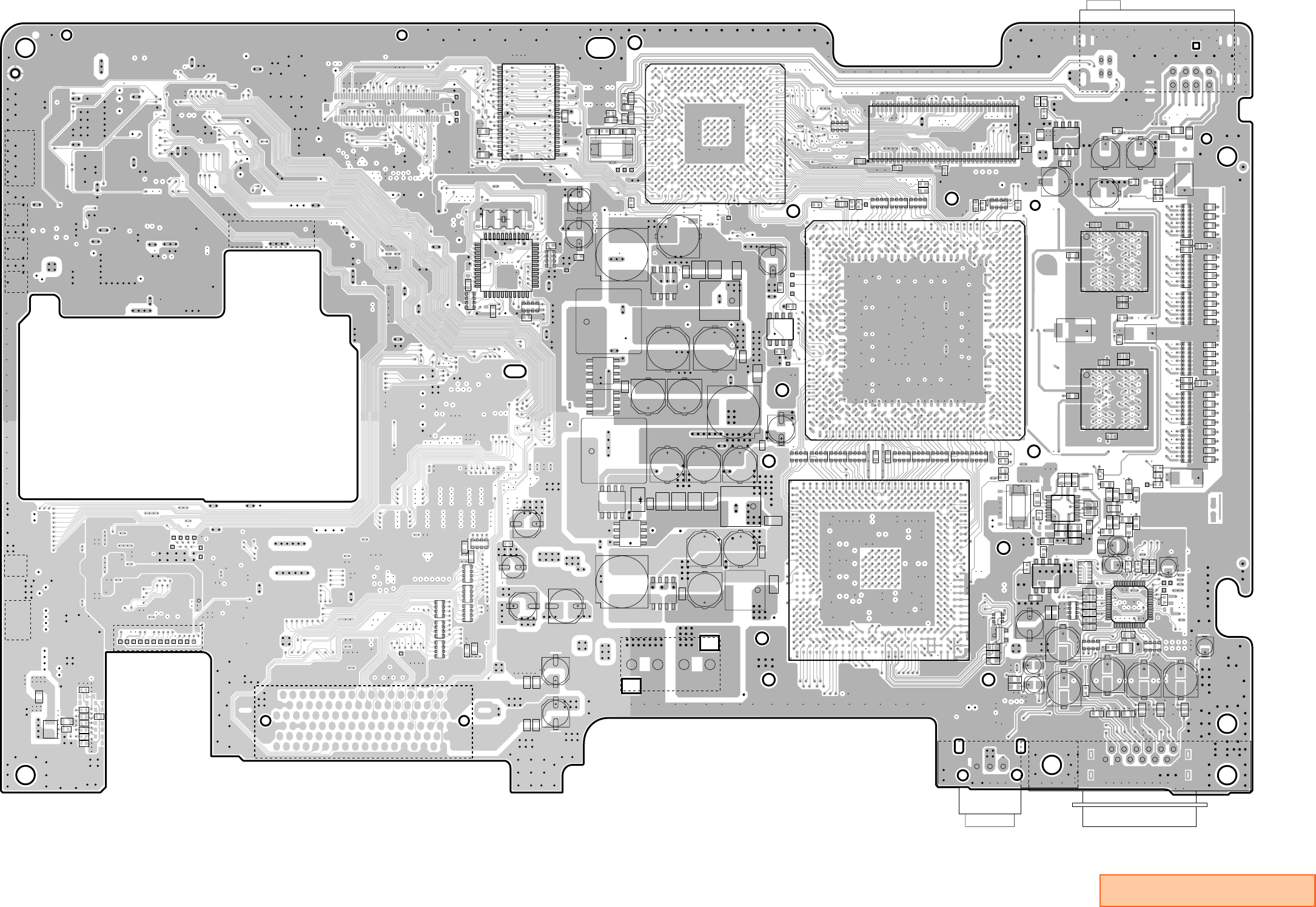

6. Printed Wiring Boards and Schematic Diagrams

for SCPH-30003D’/30004D’

This Note is Common for Printed Wiring boards and

Schematic diagrams ...................................................................162

GH-012.......................................................................................163

GB-004.......................................................................................172

SW-363 ......................................................................................173

7. Electrical Parts List

for SCPH-30003D’/30004D’..................................... 174

SCPH-30000 ...........................................................................................180-202

SECTION 1

SPECIFICATIONS

General

Power requirements

220-240 V AC, 50/60 Hz

Power consumption

50 W

Dimensions

301 × 78 × 182 mm (w/h/d)

Mass

2.4 kg

Inputs/ Outputs on the front

Controller ports (2)

Memory card slots (2)

USB ports (2)

S400 (i-Link) port (1)

Inputs/Outputs on the rear

HDD bay slot (1)

Outputs on the rear

AV Multi out port (1)

RGB, Ycbcr, Y/C, Composite-video,

Audio-L/R, XGA

Digital out port (1)

Optical audio

Supplied accessories

AC power cord (1)

Euro-AV connector (1)

(for SCPH-30003, 30004)

A/V connecting cable (1)

Dualshock2 Analog controller (1)

— 140 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

SECTION 2

EXPLODED VIEWS

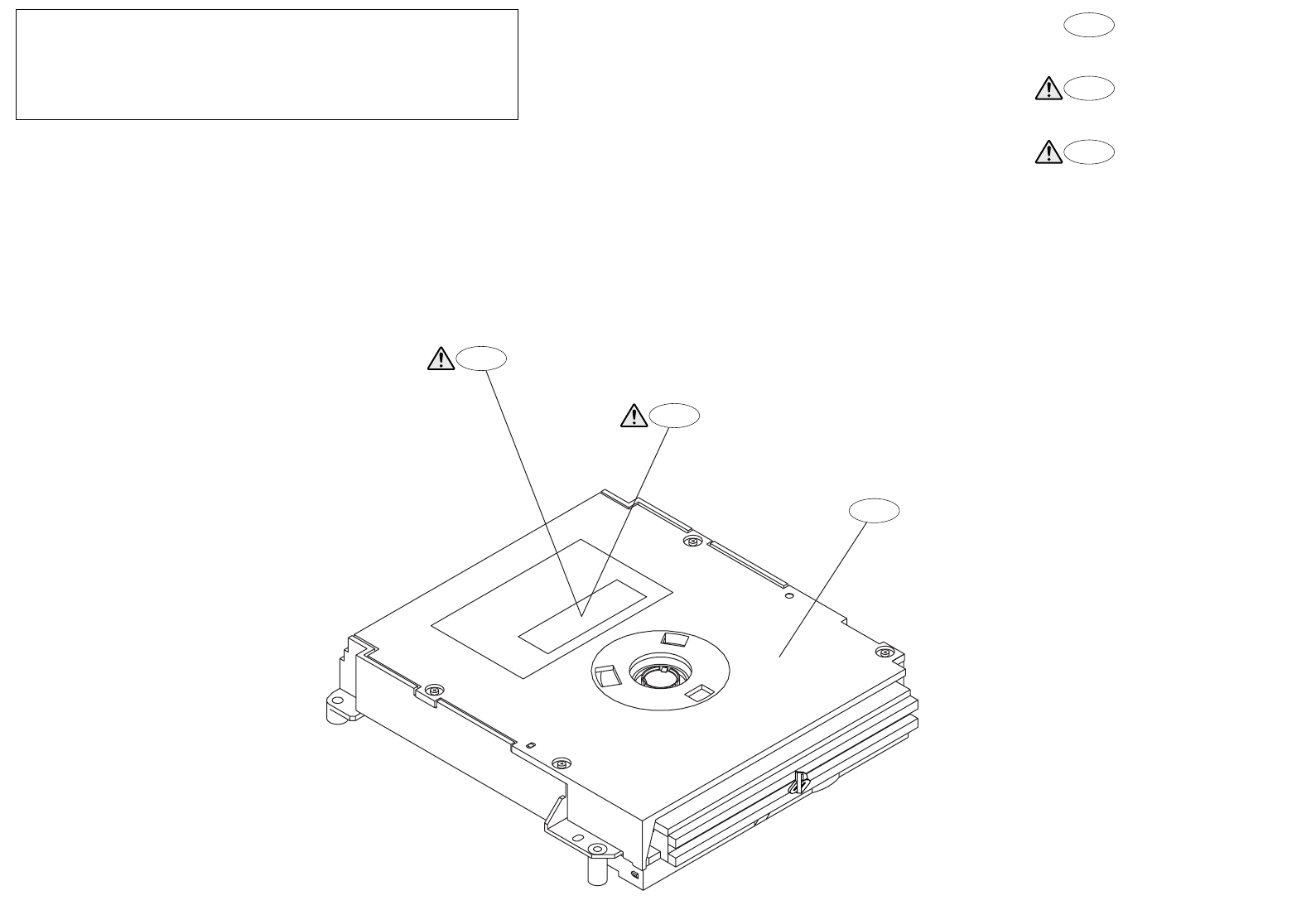

The components identified by

mark ! or dotted line with mark.

! are critical for safety.

Replace only with part number

specified.

CAUTION :

Use of controls or adjustments or performance

of procedures other than those specified herein

may result in hazardous radiation exposure.

CAUTION

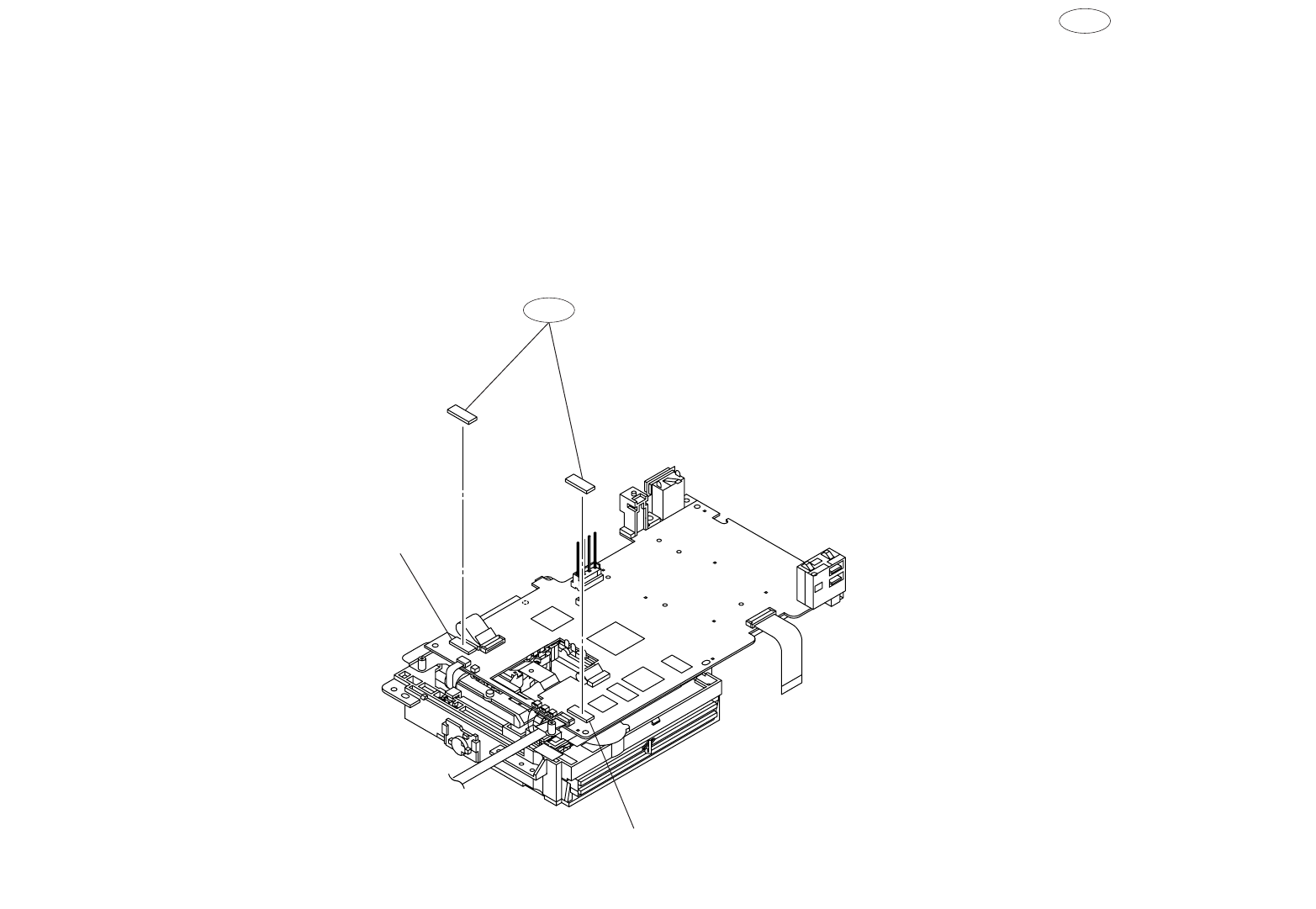

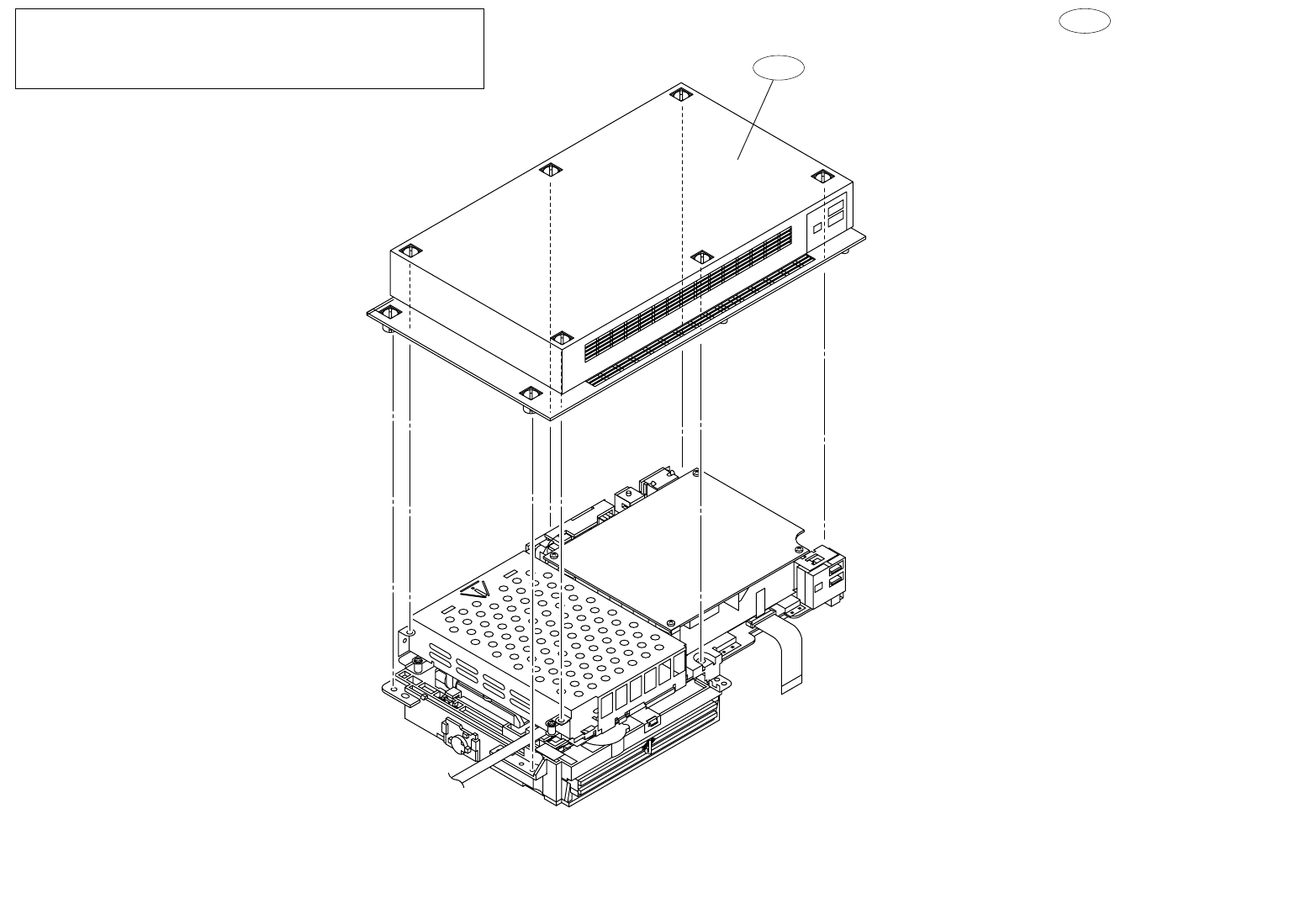

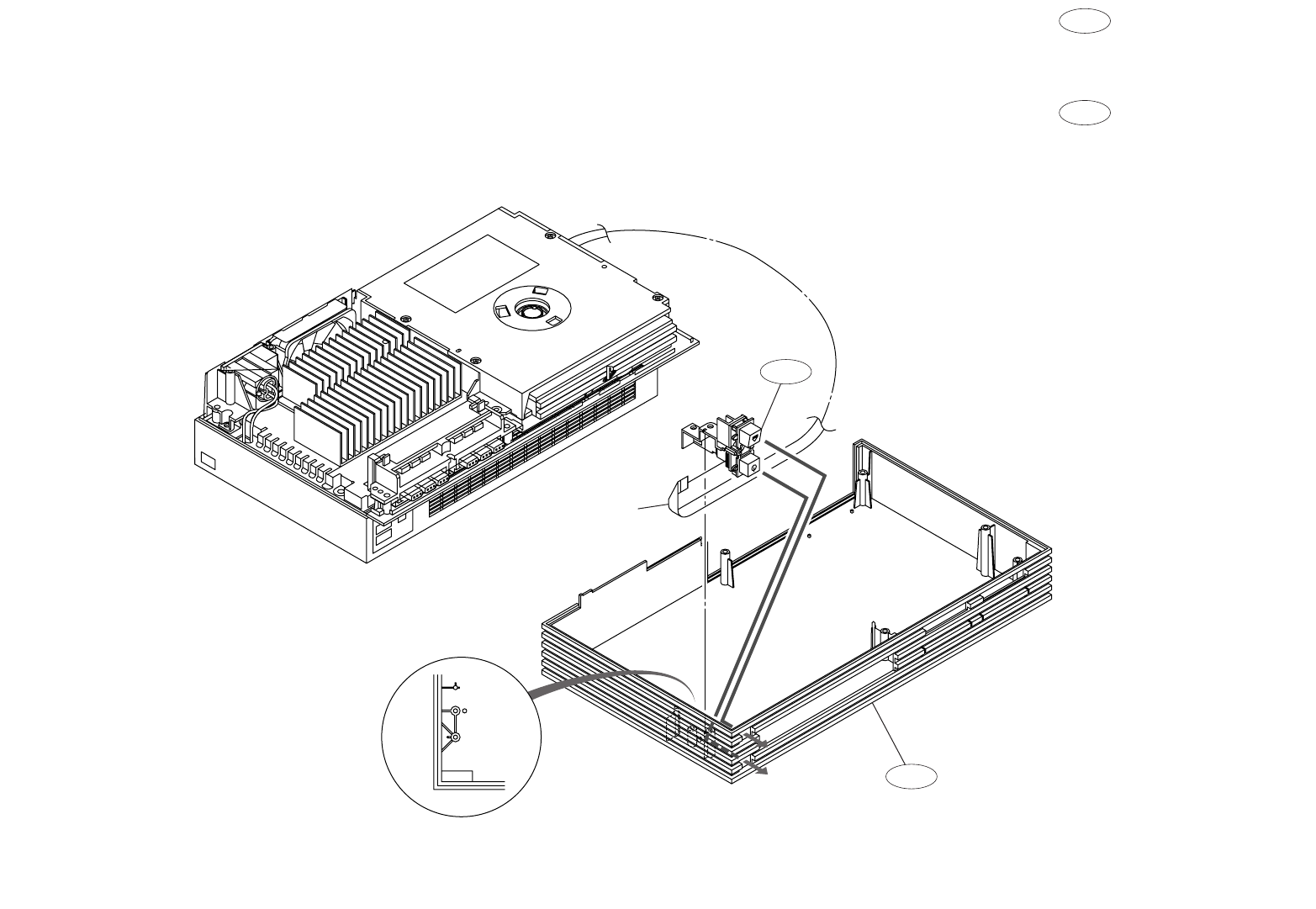

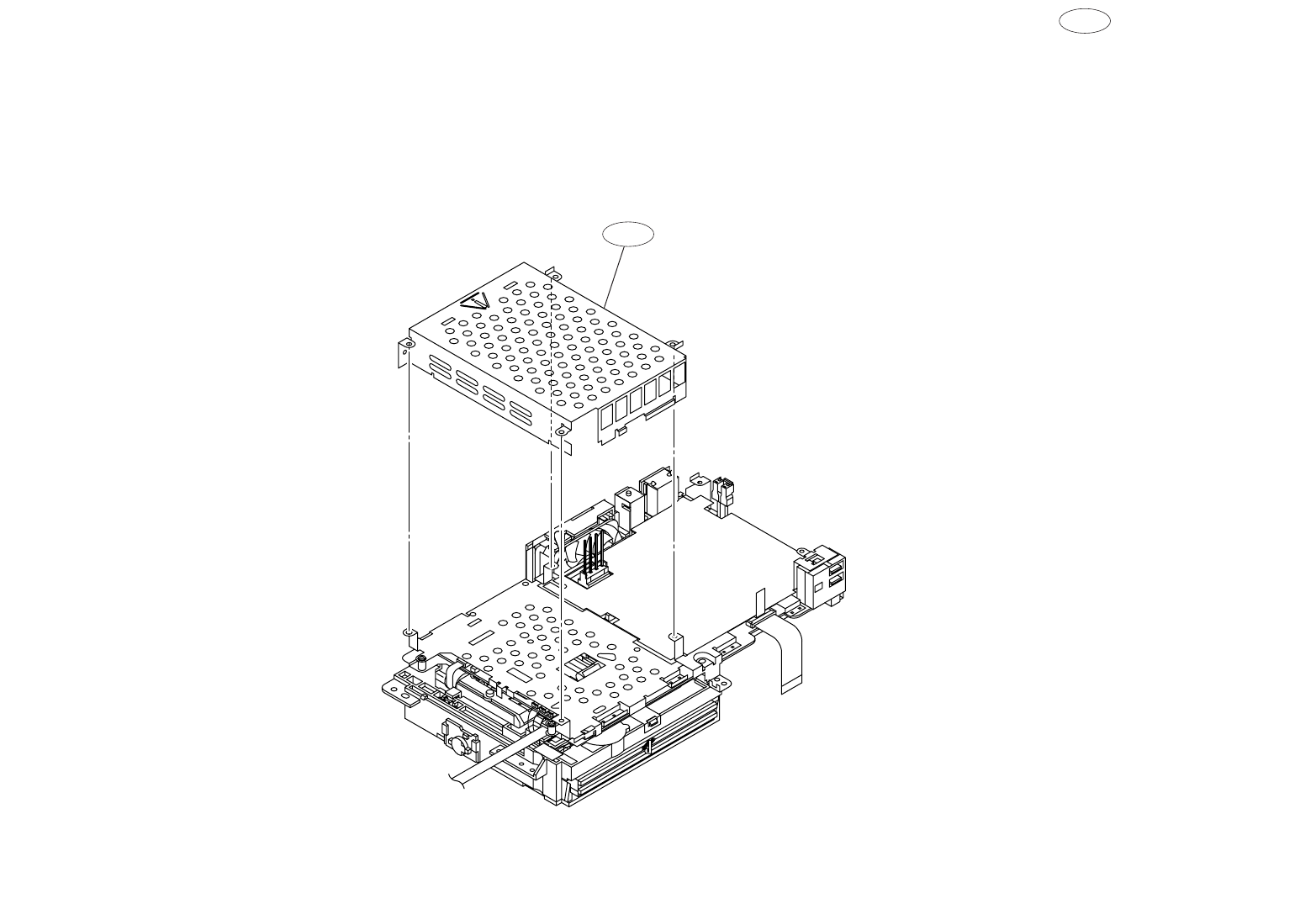

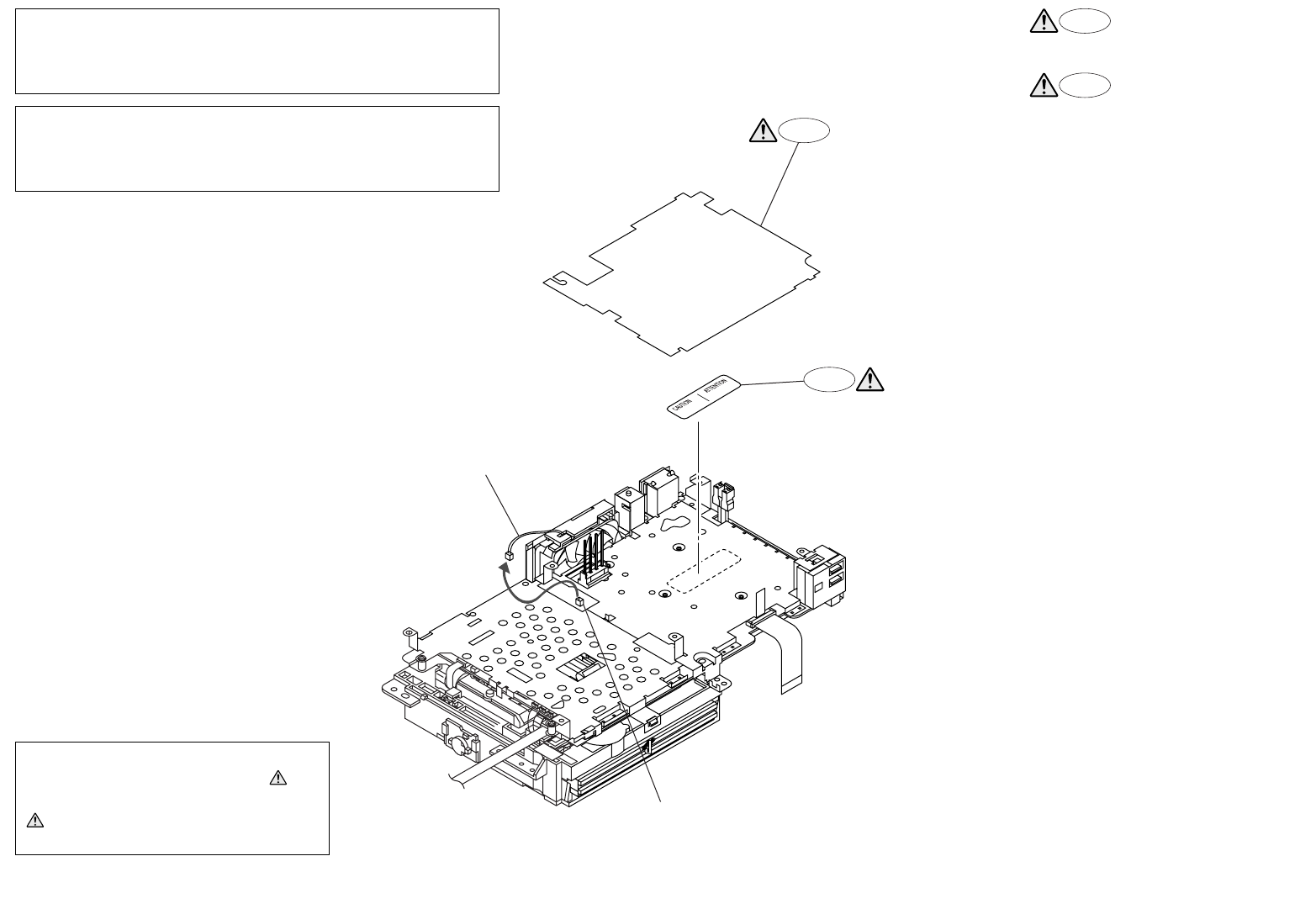

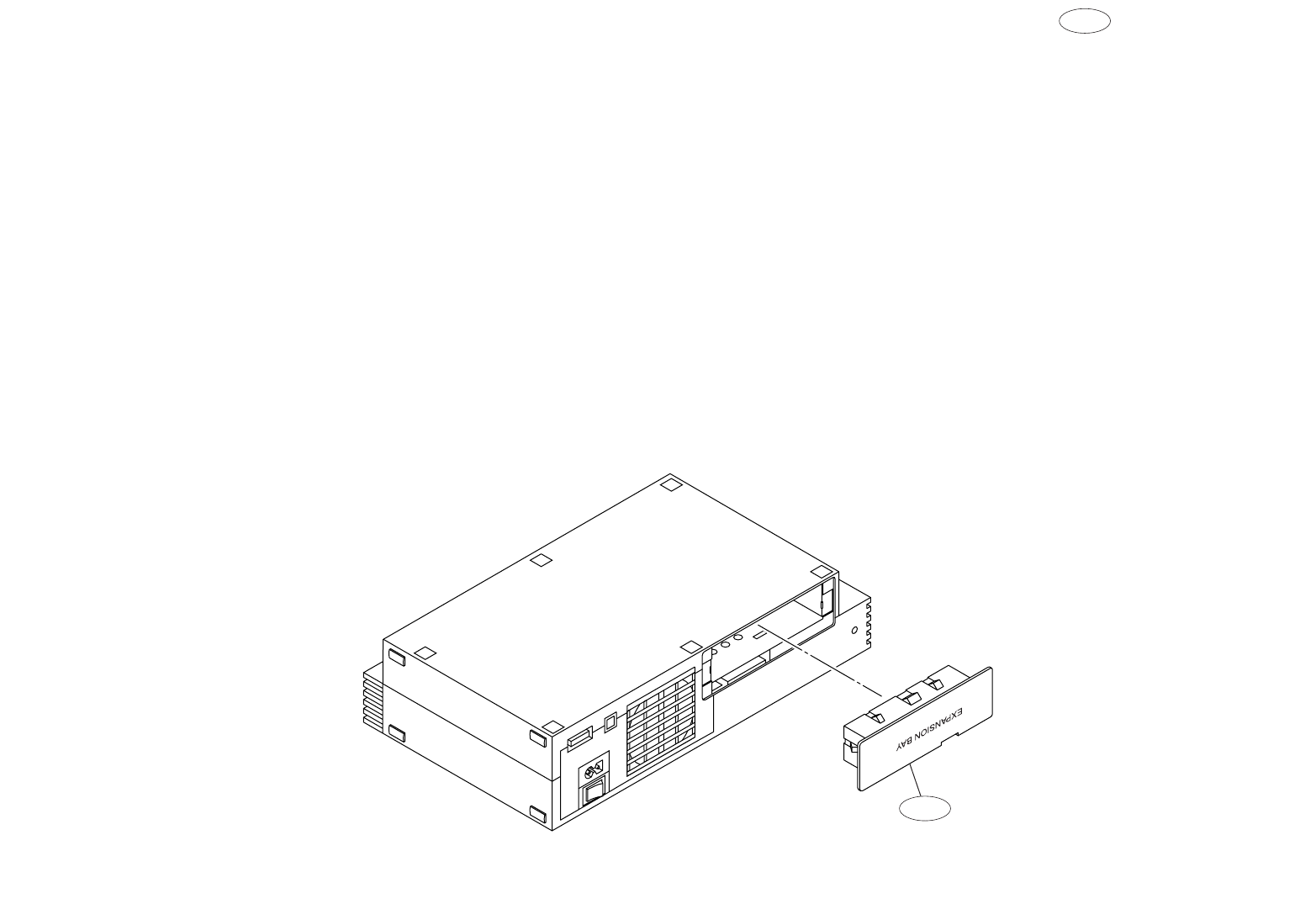

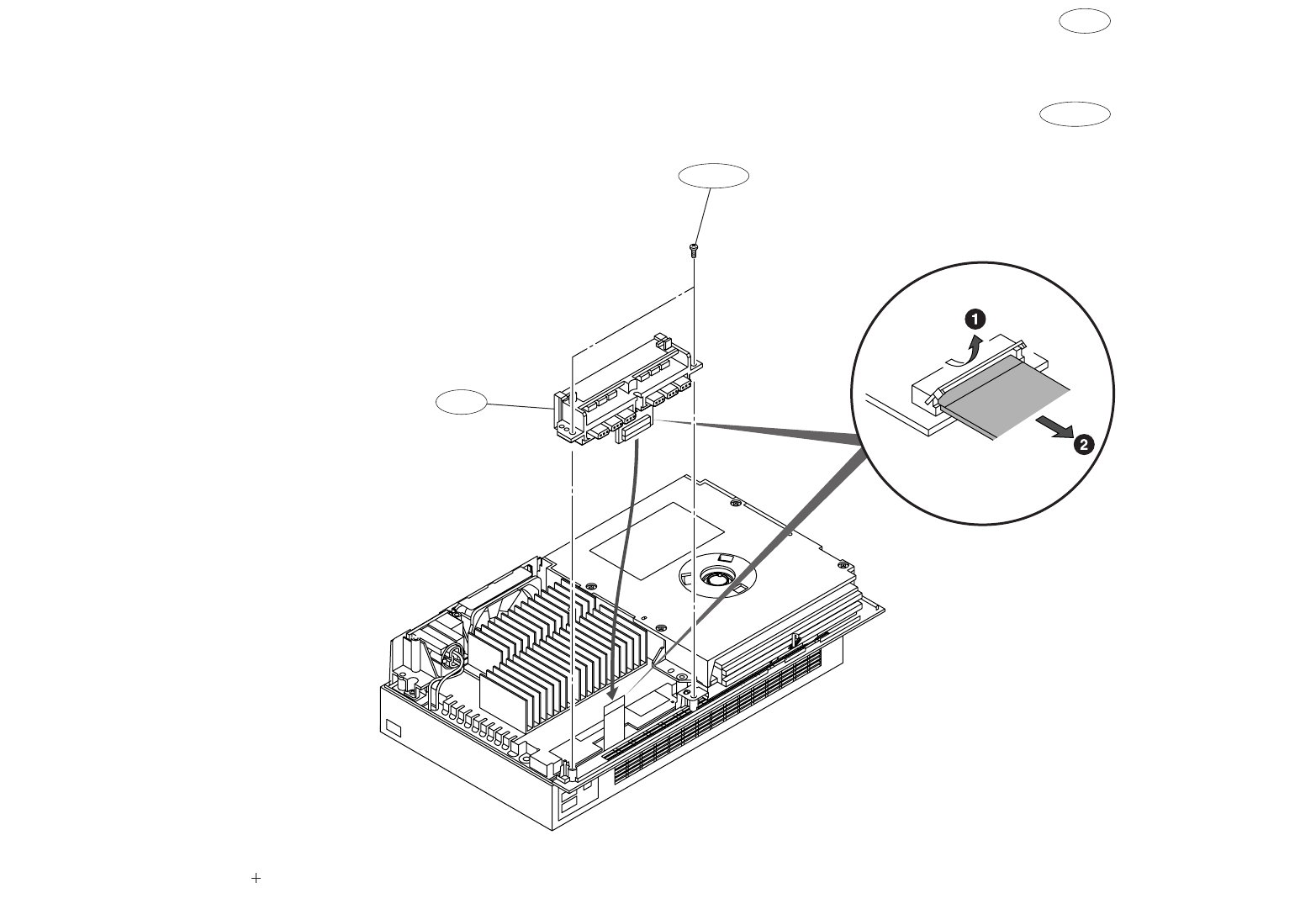

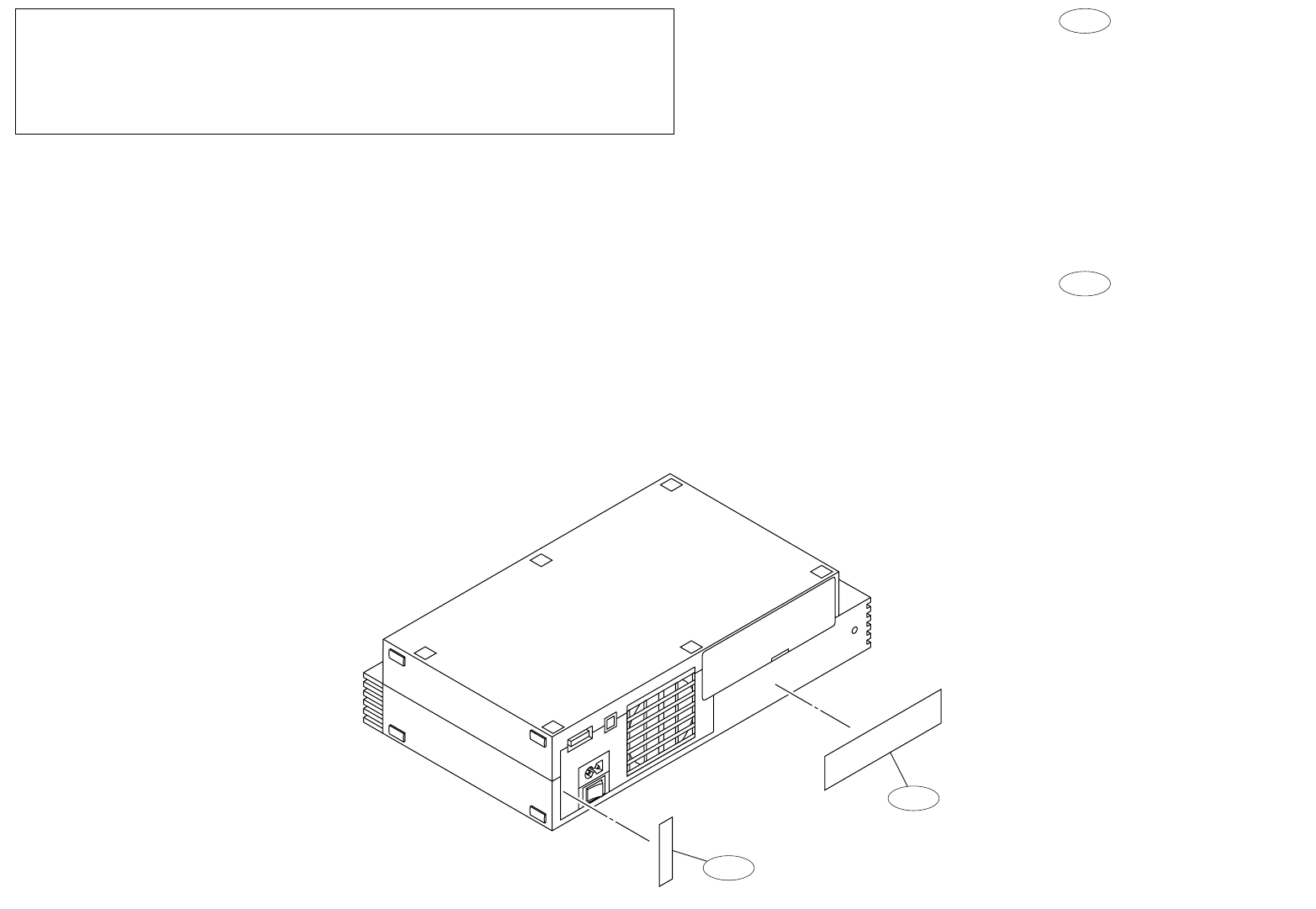

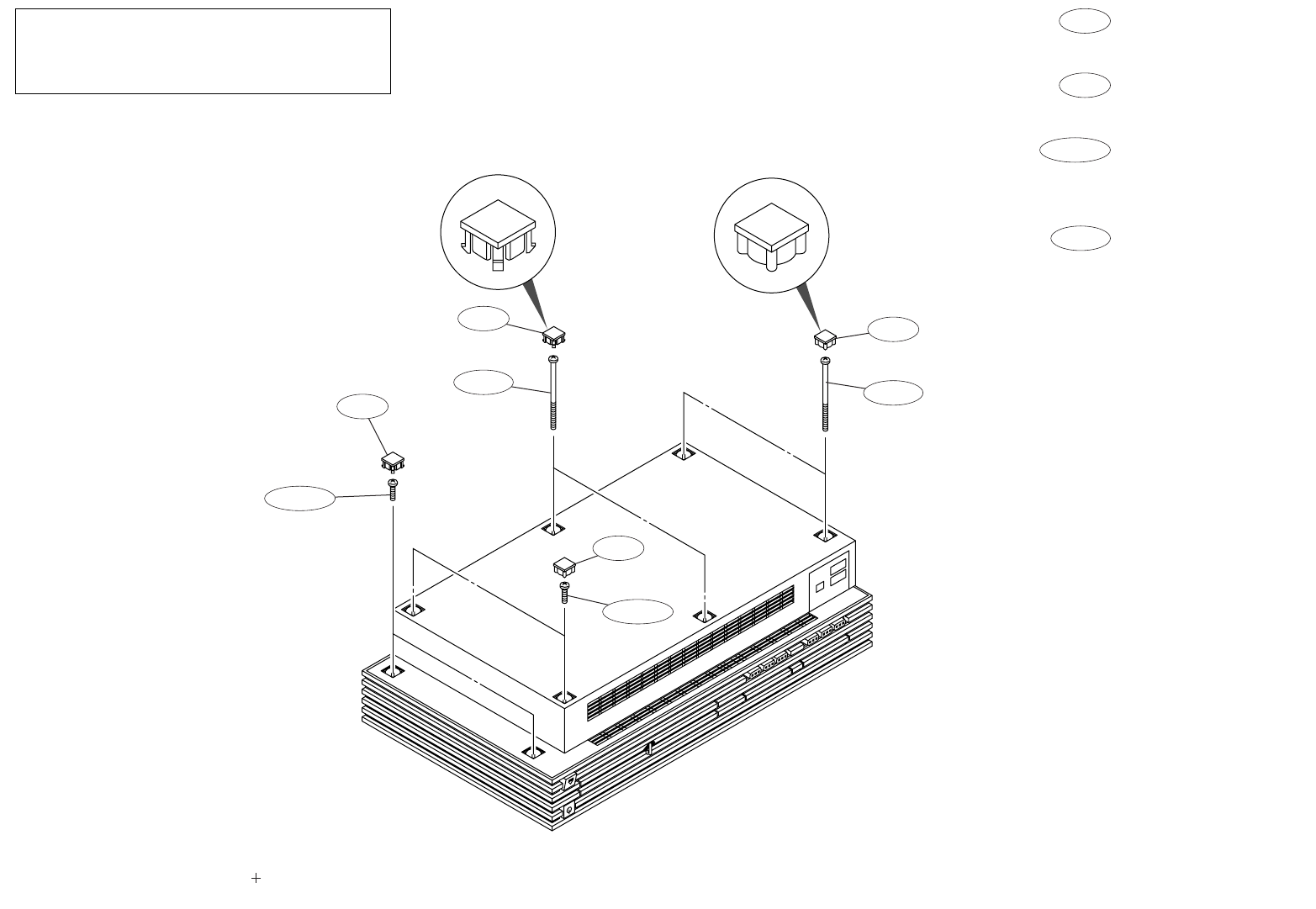

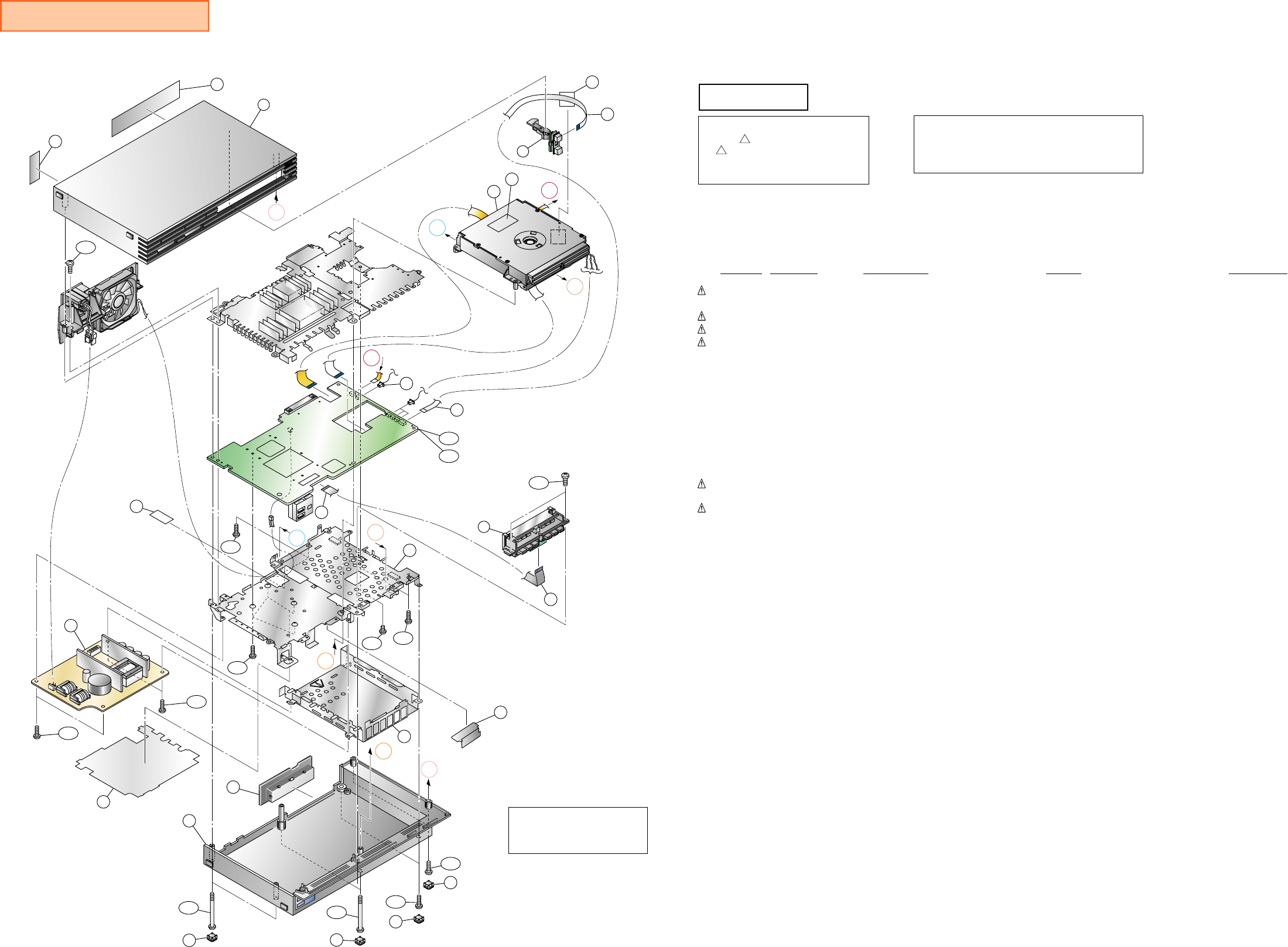

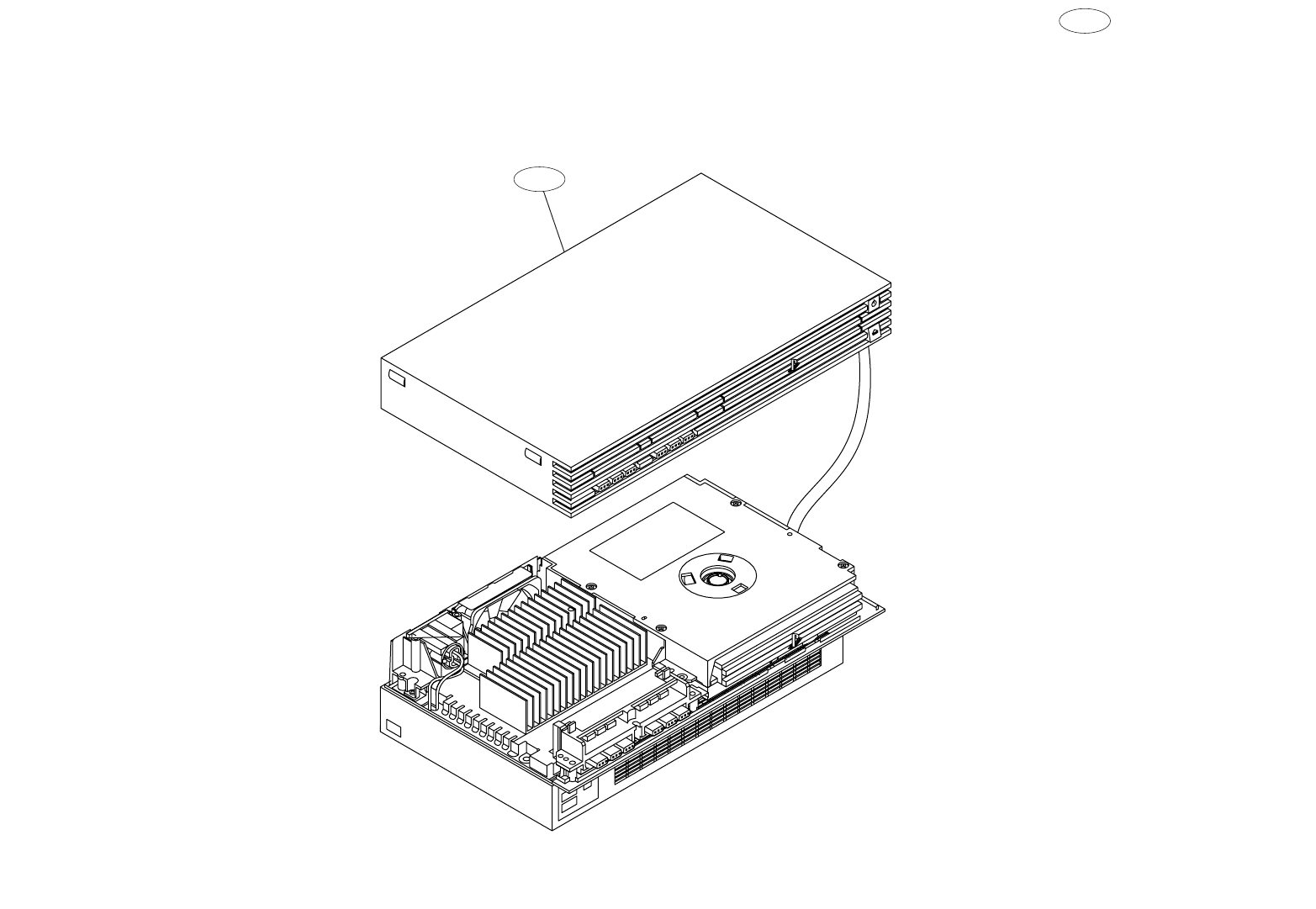

Overall and Main Block

----------------------

OVERALL AND MAIN BLOCK

----------------------

Ref-No. Part No. Description Remark Place code

60 1-468-605-21 POWER BLOCK #00

62 1-694-676-21 TERMINAL BOARD (FRONT) #17

71 3-069-119-01 LABEL, MODEL NUMBER (AU) for SCPH-30002D #87

71 3-069-120-01 LABEL, MODEL NUMBER (CEK) for SCPH-30003D/30003D’ #87

71 3-069-121-01 LABEL, MODEL NUMBER (CEL) for SCPH-30004D/30004D’ #87

75 3-059-626-03 COVER, SCREW #22

76 3-059-627-01 CAP #22

84 3-067-170-01 TAPE (20X20), HARNESS STOPPER #87

91 A-6705-342-A MD BLOCK ASSY #10

92 A-6705-401-A SWITCH BLOCK ASSY #87

93 X-3951-722-1 COVER ASSY, LOWER #87

94 X-3951-721-1 COVER ASSY, UPPER #87

106 X-3951-317-1 LID ASSY #87

112 3-066-498-01 TAPE, VOID #87

135 3-988-711-02 LABEL, LASER COUTION #87

151 1-757-934-11 CABLE, FLAT (FFC-011) #12

152 1-757-935-11 CABLE, FLAT (FFC-012) #12

153 1-961-160-21 HARNESS (HS-059) #12

156 3-068-669-02 SHIELD B #16

157 3-068-674-01 SHEET,INSULATING #16

158 3-068-675-02 SHIELD HDD #87

161 3-070-120-01 SHEET, INTERCEPTION #87

162 3-069-212-01 TAPE, HARNESS STOPPER #16

B265 3-069-170-01 TAPPING (B2X6.5) #87

BV312 3-325-679-21 SCREW, TAPPING +BV 3X12 #87

BV316 3-325-679-91 SCREW (2 LOCK), +BV TAPPING #87

GH010 A-6712-954-A GH-010 MOUNT (32M M) Block for SCPH-30003D/30004D #25GB

GH010 A-6712-957-A GH-010 MOUNT (64M M) Block for SCPH-30002D #25GB

GH010 A-6712-955-A GH-010 MOUNT (64M M) Block for SCPH-30003D/30004D #25GB

GH010 A-6712-958-A GH-010 MOUNT (64M R) Block for SCPH-30002D #25GB

GH010 A-6712-956-A GH-010 MOUNT (64M R) Block for SCPH-30003D/30004D #25GB

GH012 A-6712-985-A GH-012 MOUNT (32M R) Block for SCPH-30003D’/30004D’ #25GH

GH012 A-6712-986-A GH-012 MOUNT (64M R) Block for SCPH-30003D’/30004D’ #25GH

M225 3-069-169-01 SCREW (M2X2.5) #87

M354 3-059-622-02 SCREW (M3X54), HEAD TAPPING #87

M360 3-069-168-01 TITE (CZN), M3X6 +BV S #87

GH010

: for SCPH-30002D/30003D/30004D model

GH012

: for SCPH-30003D’/30004D’ model

153

151

76 76

M354 M354

B265

M225

156

151

152

158

161

106

112

M360

162

BV312

BV316

152

135

157

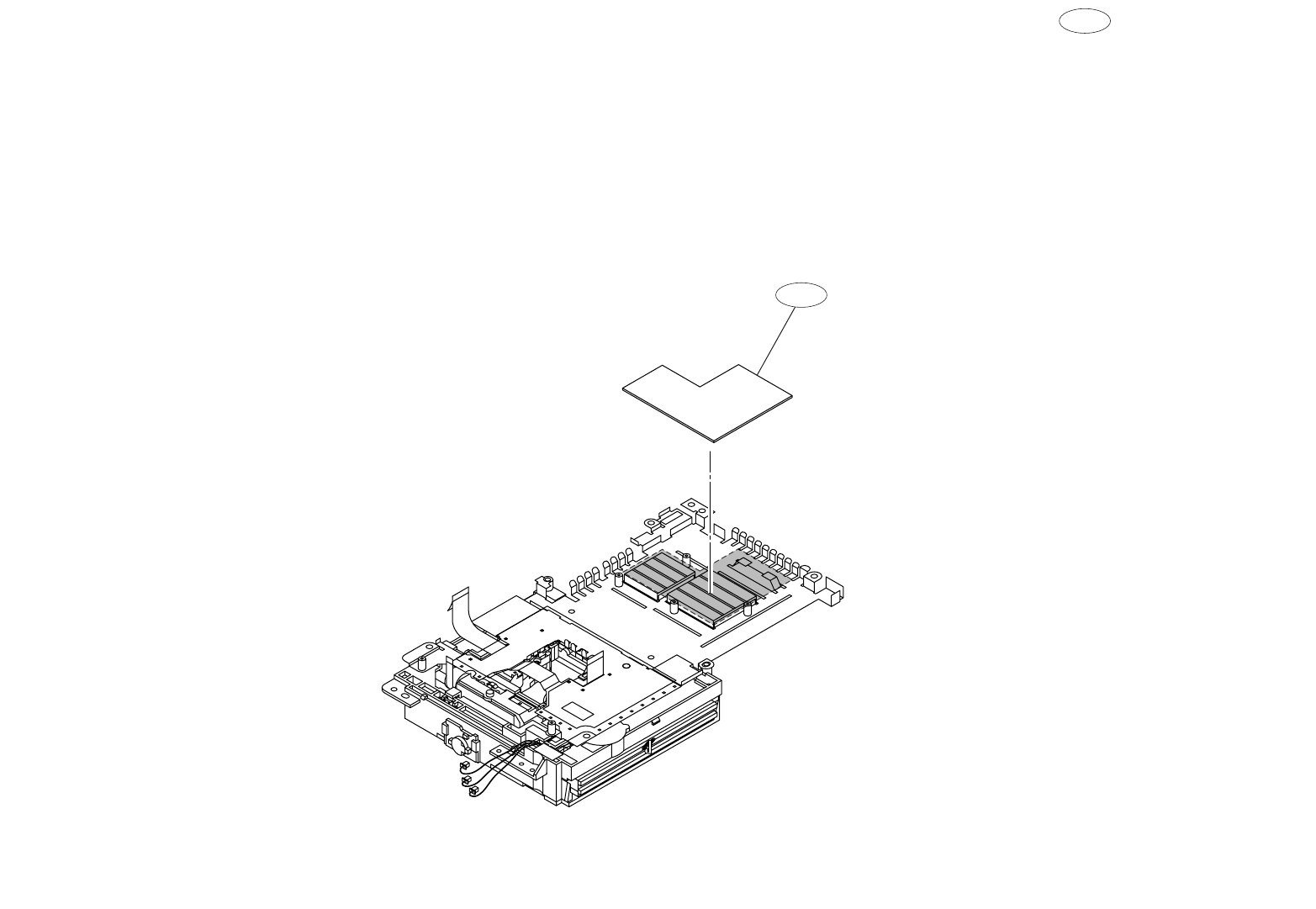

CAUTION

Don't lose the insulating sheet

when assemble the console.

for details

Click here.

— 141 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

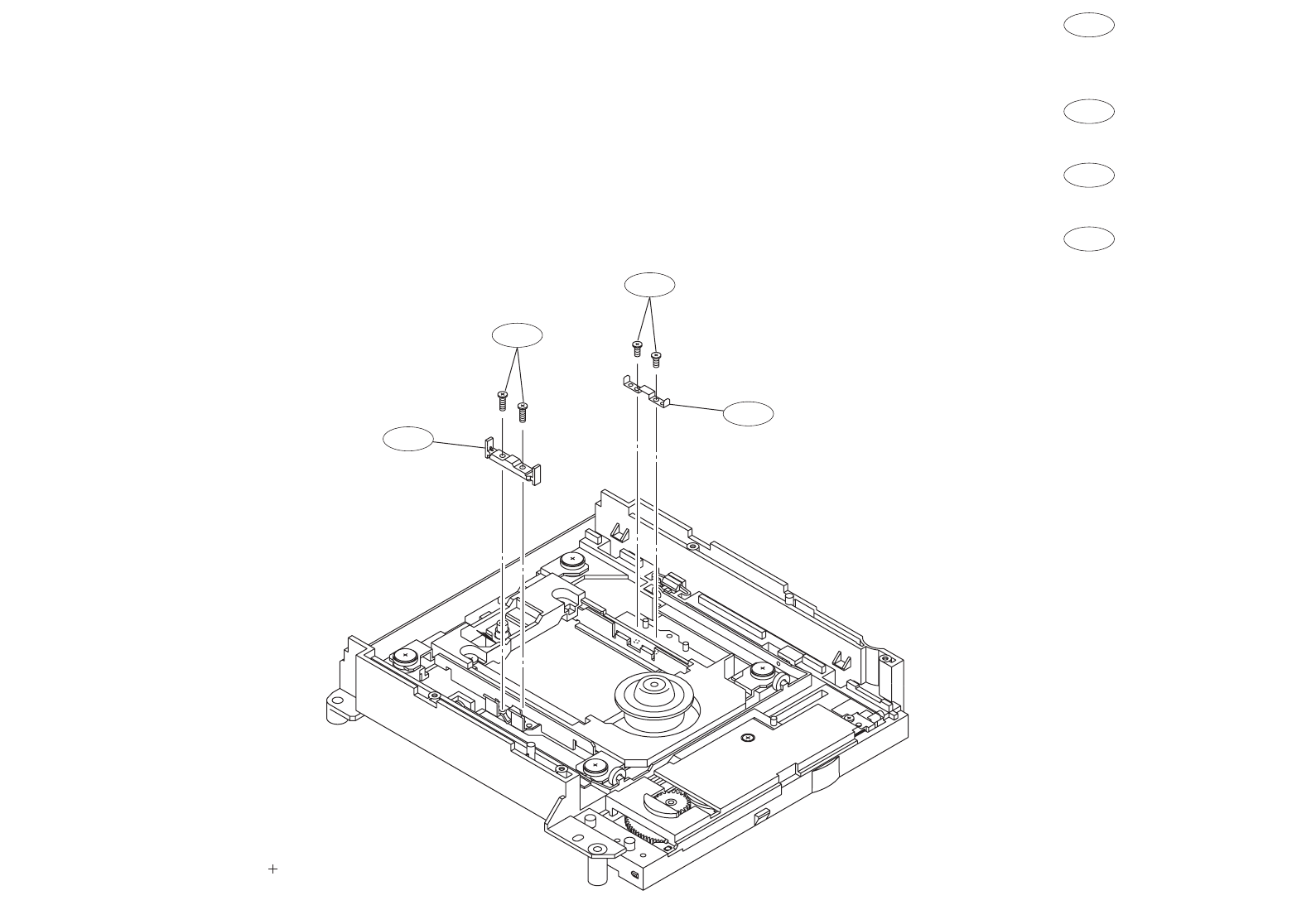

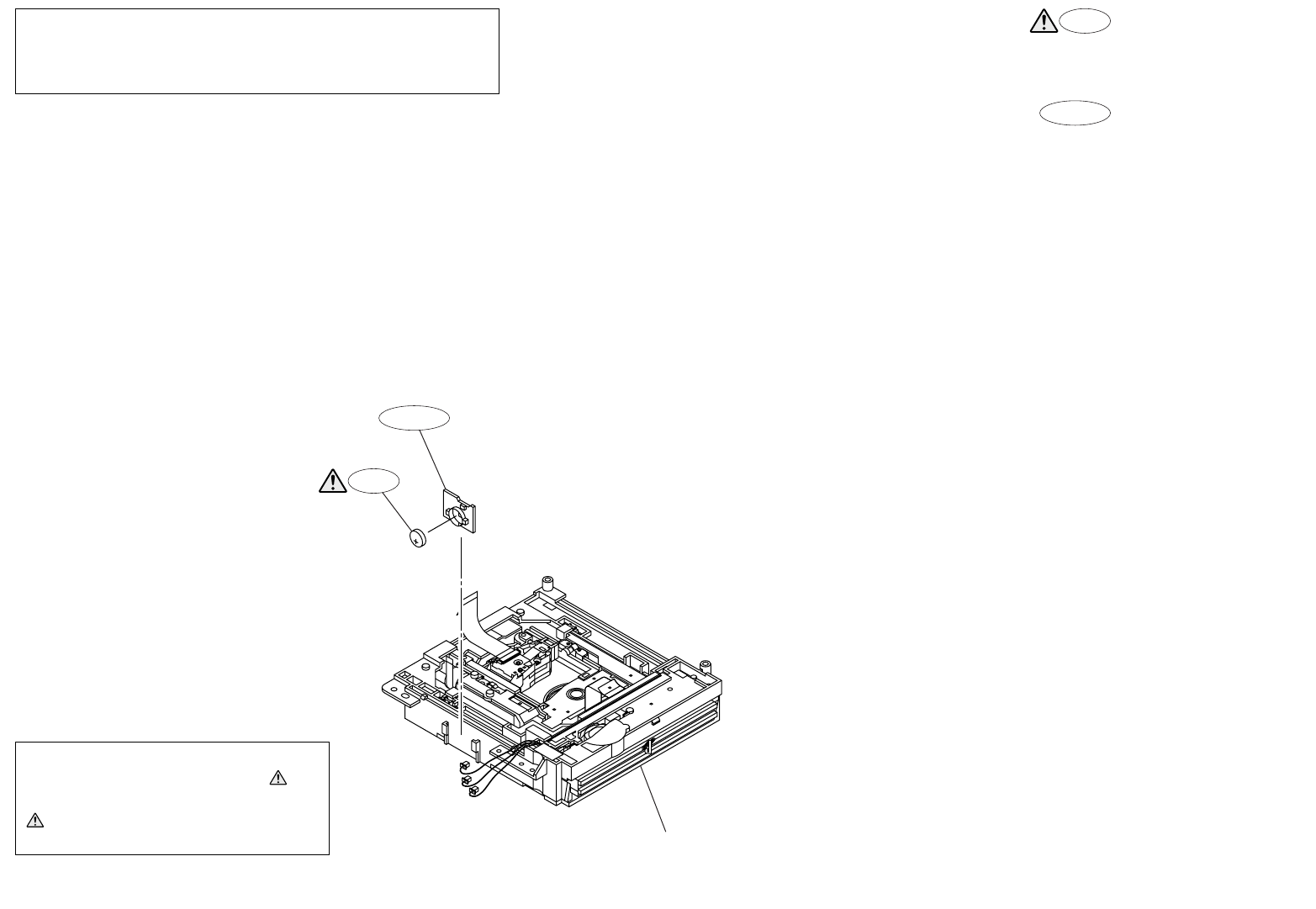

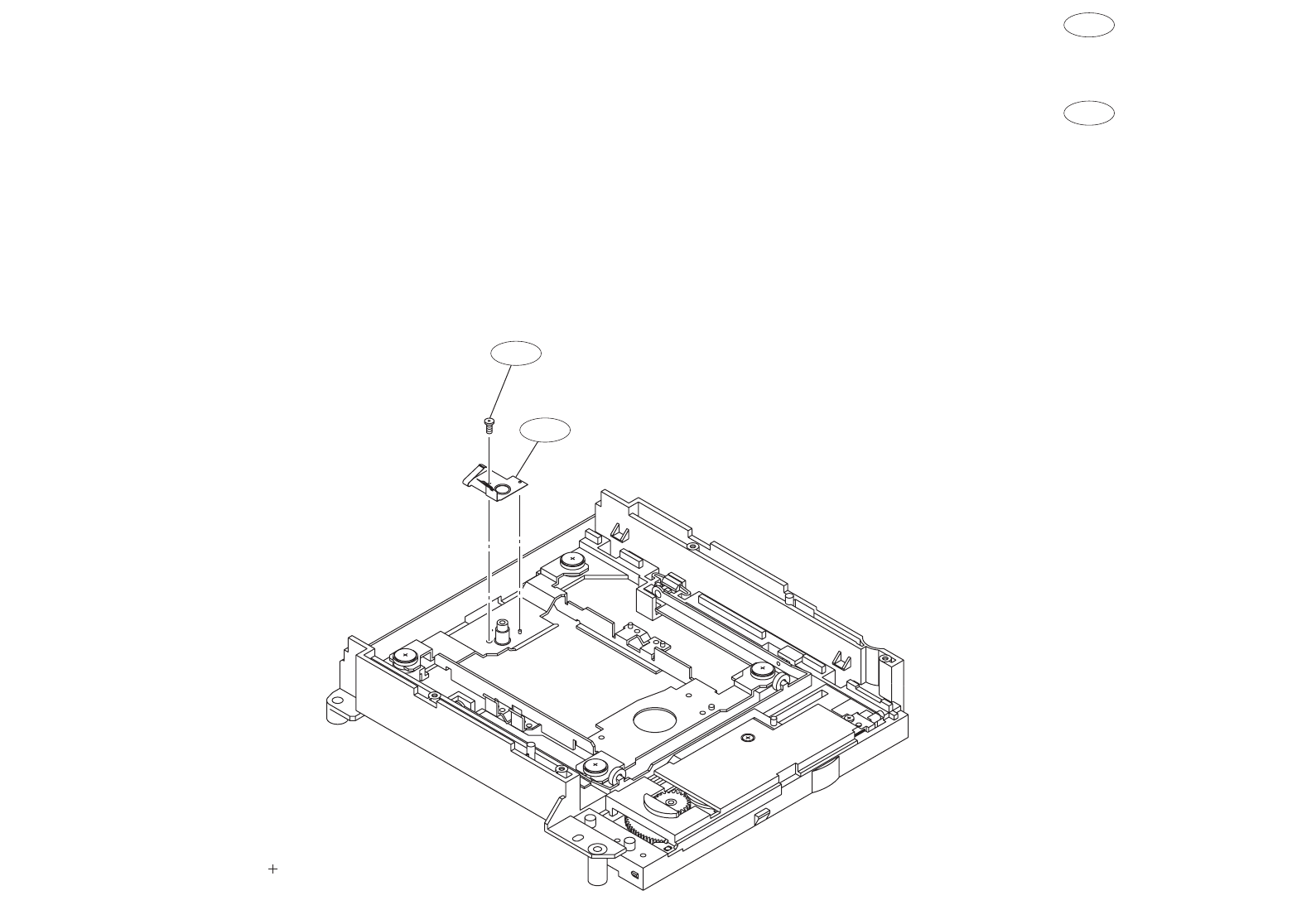

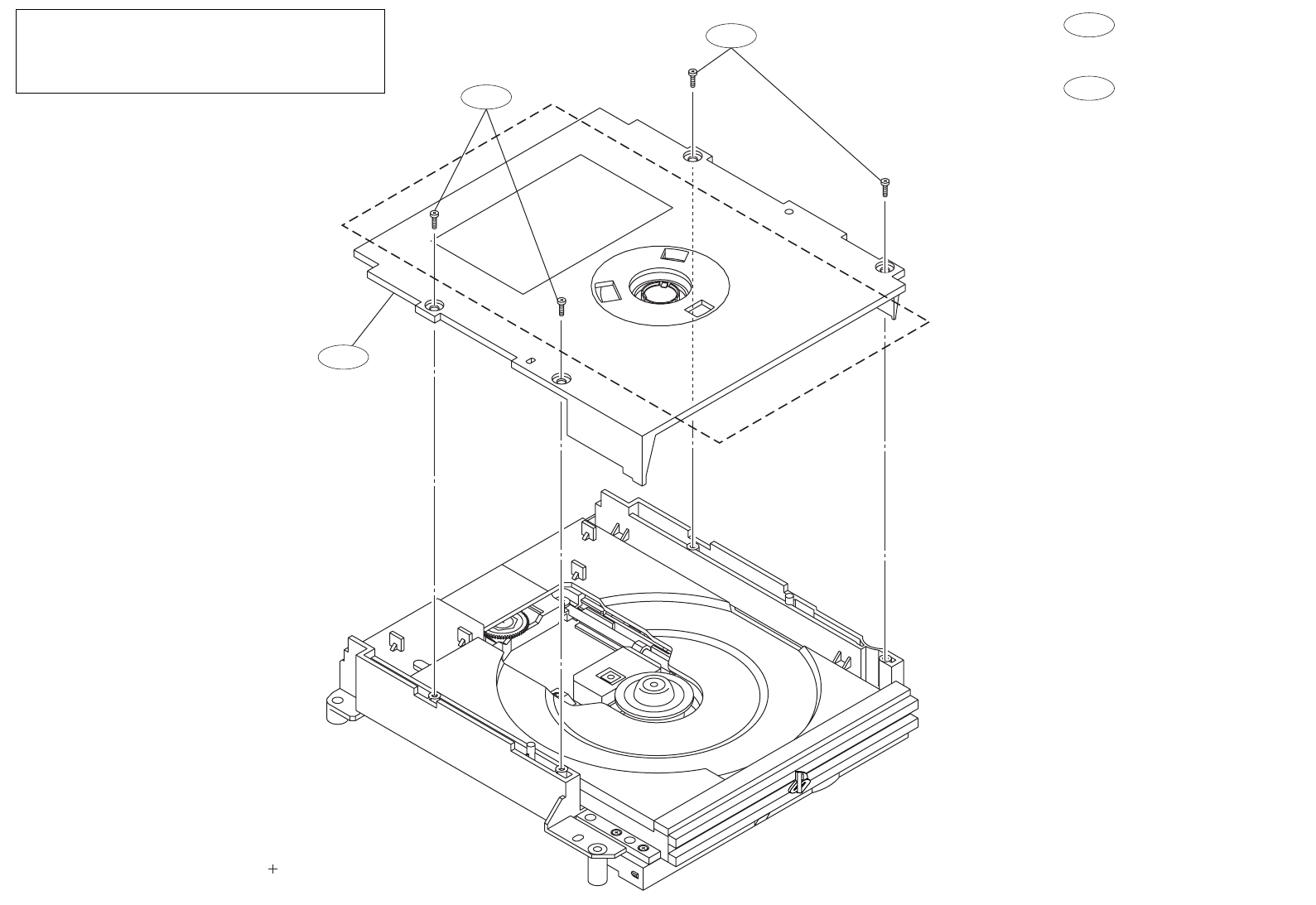

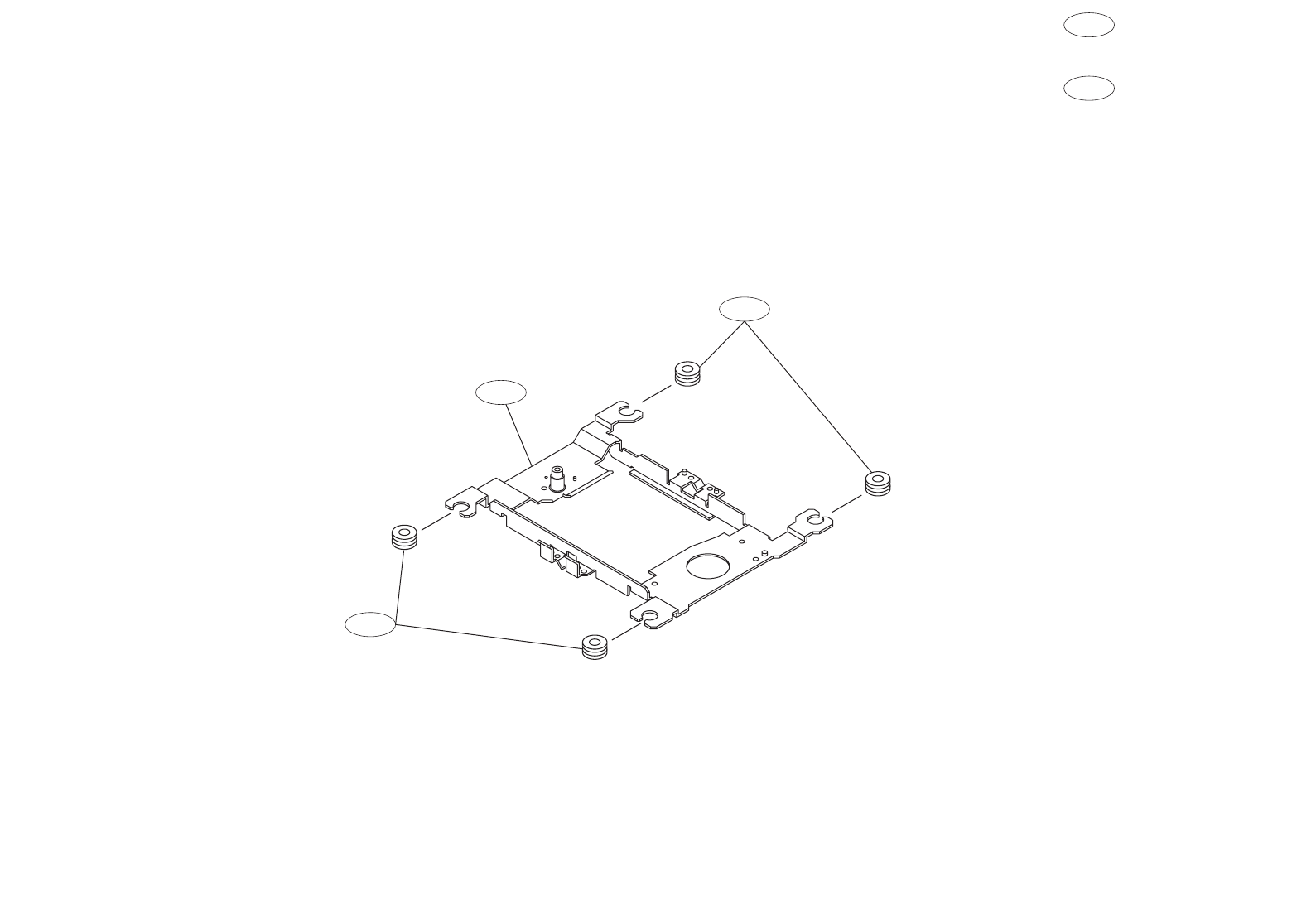

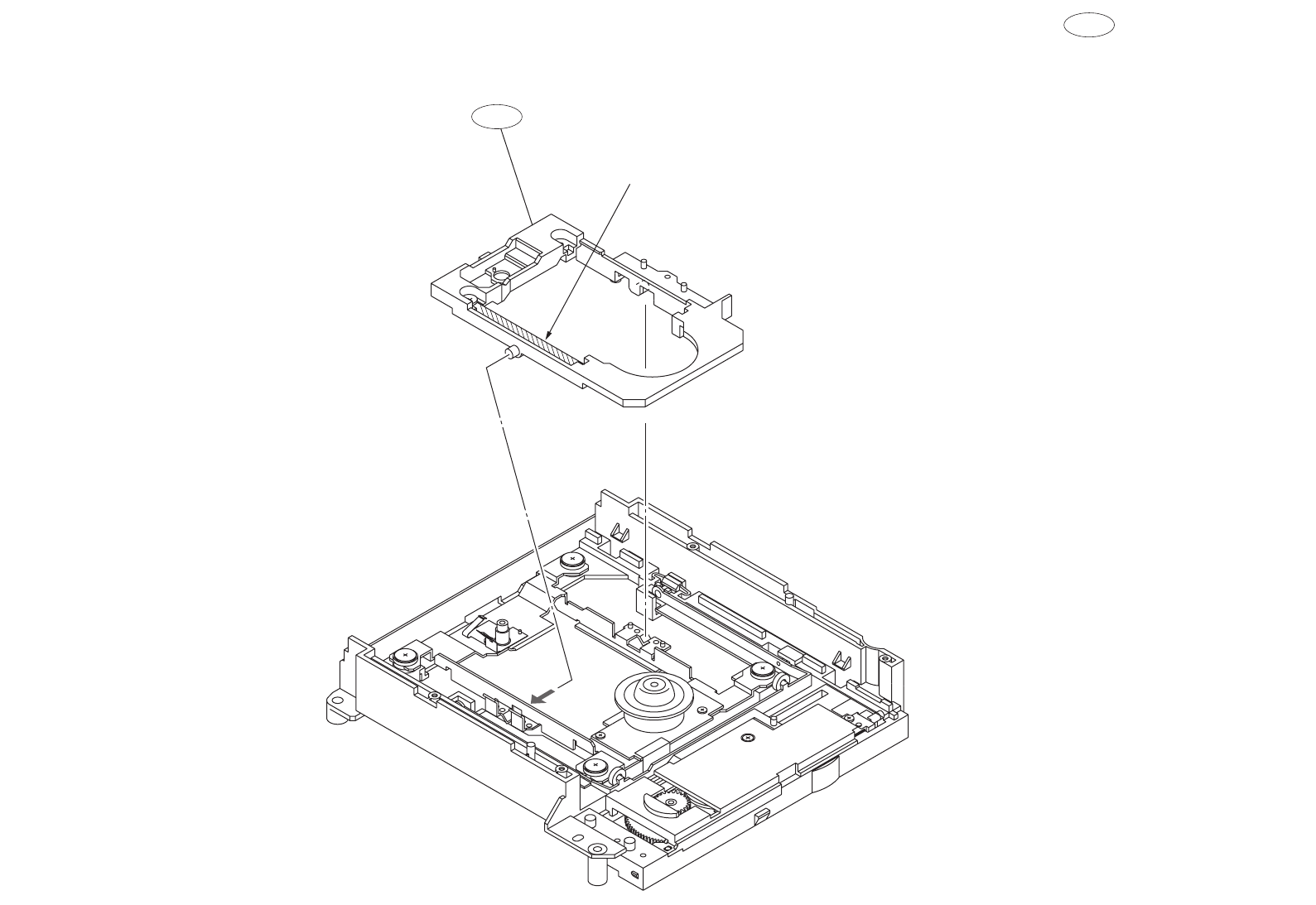

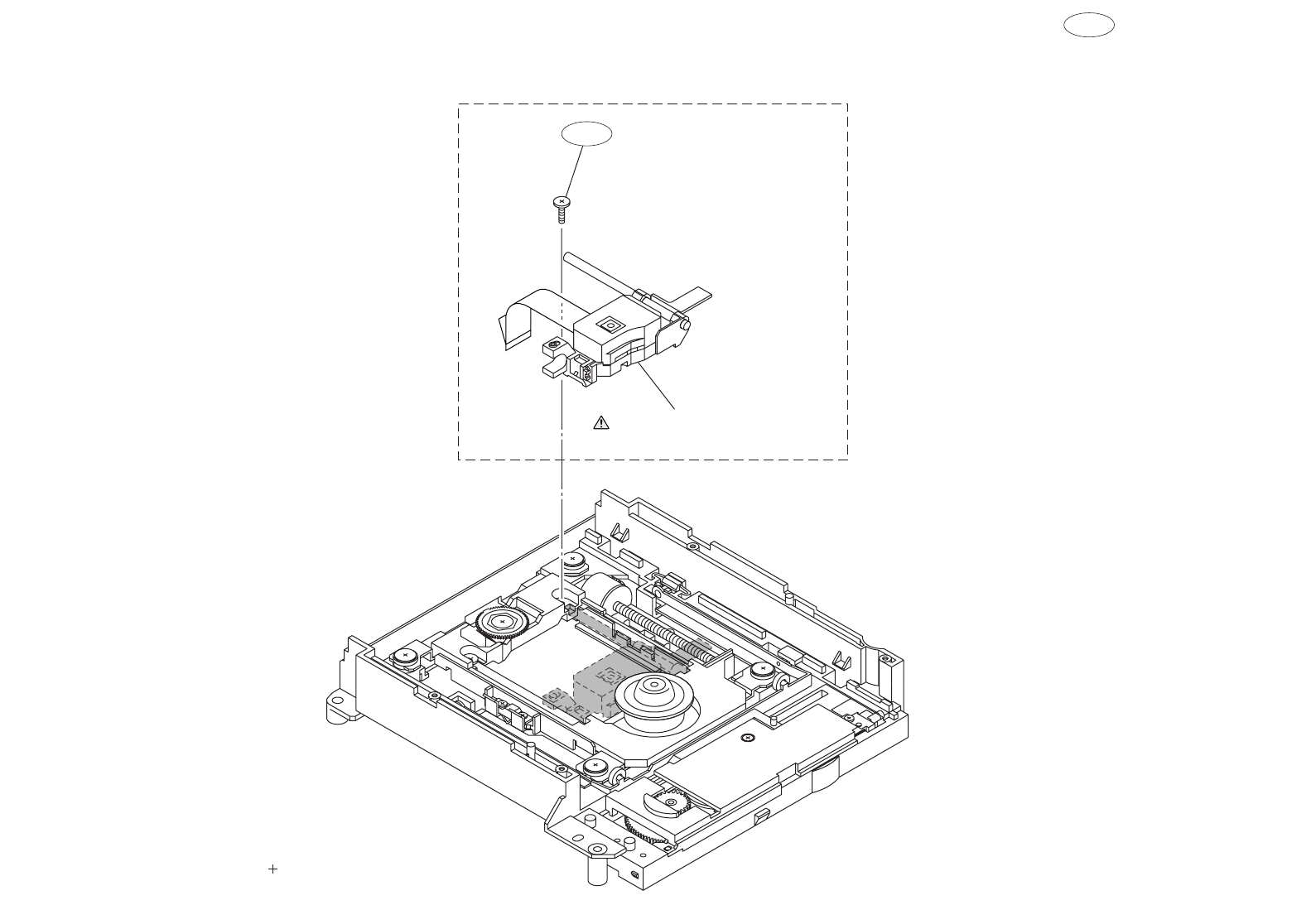

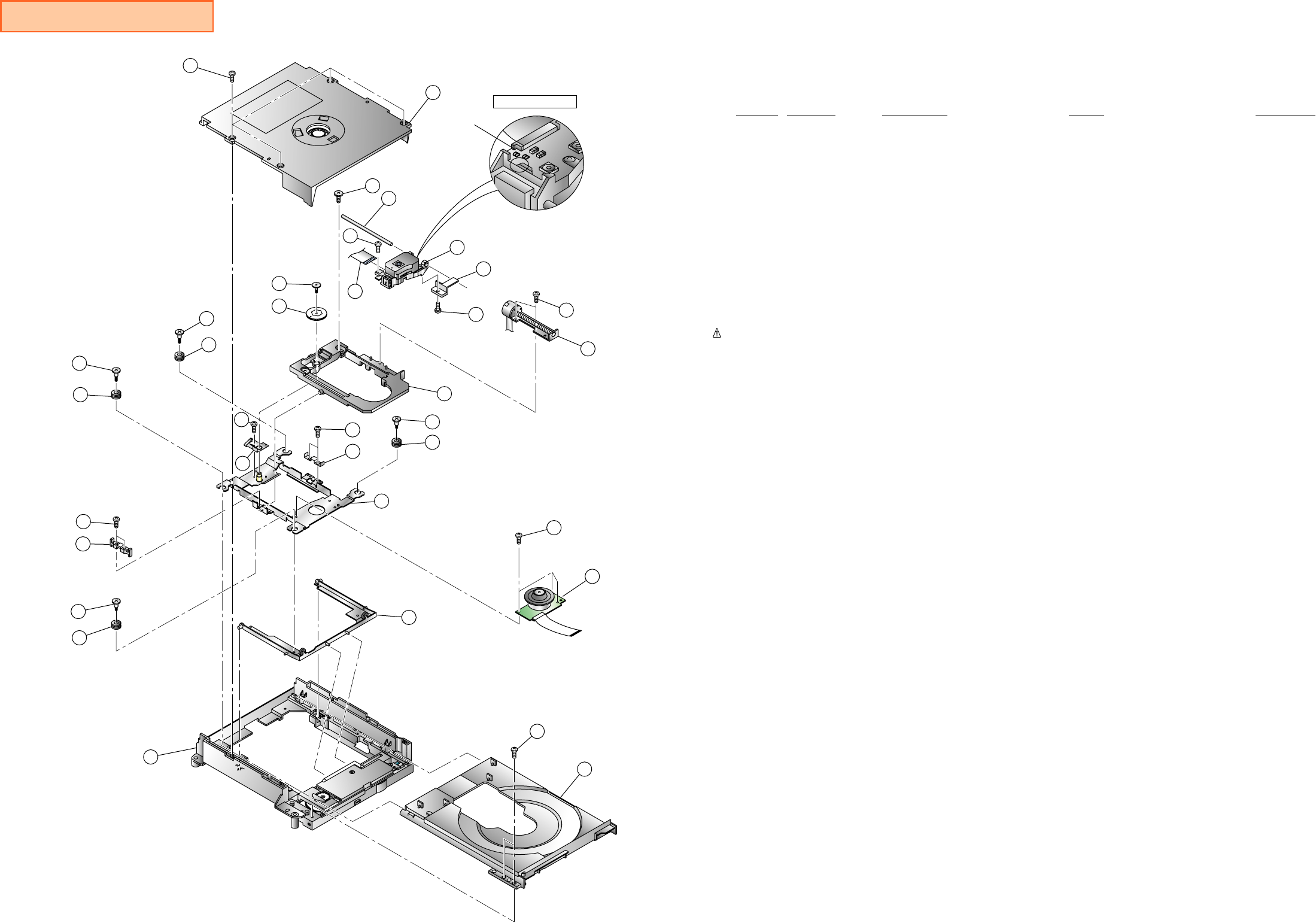

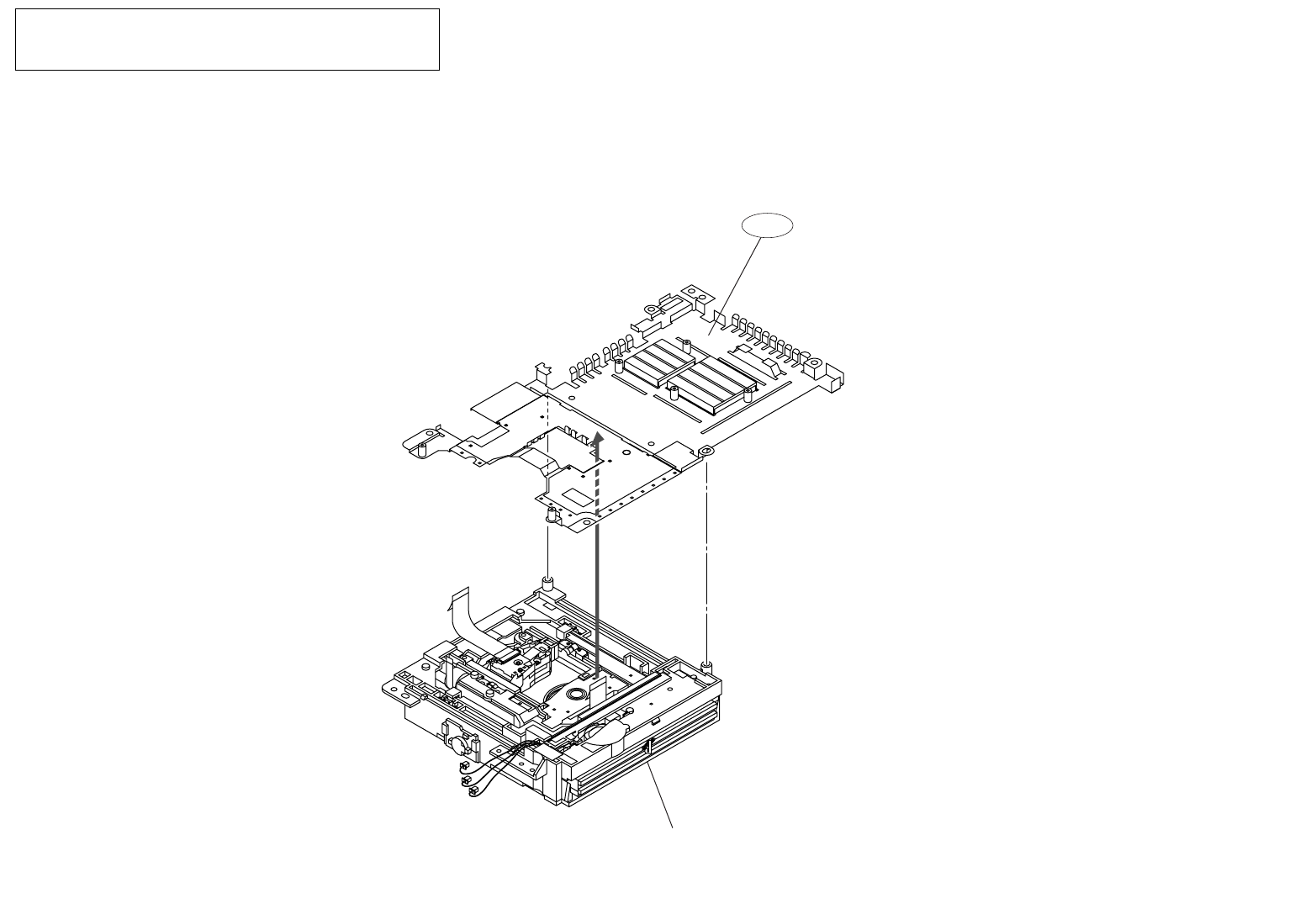

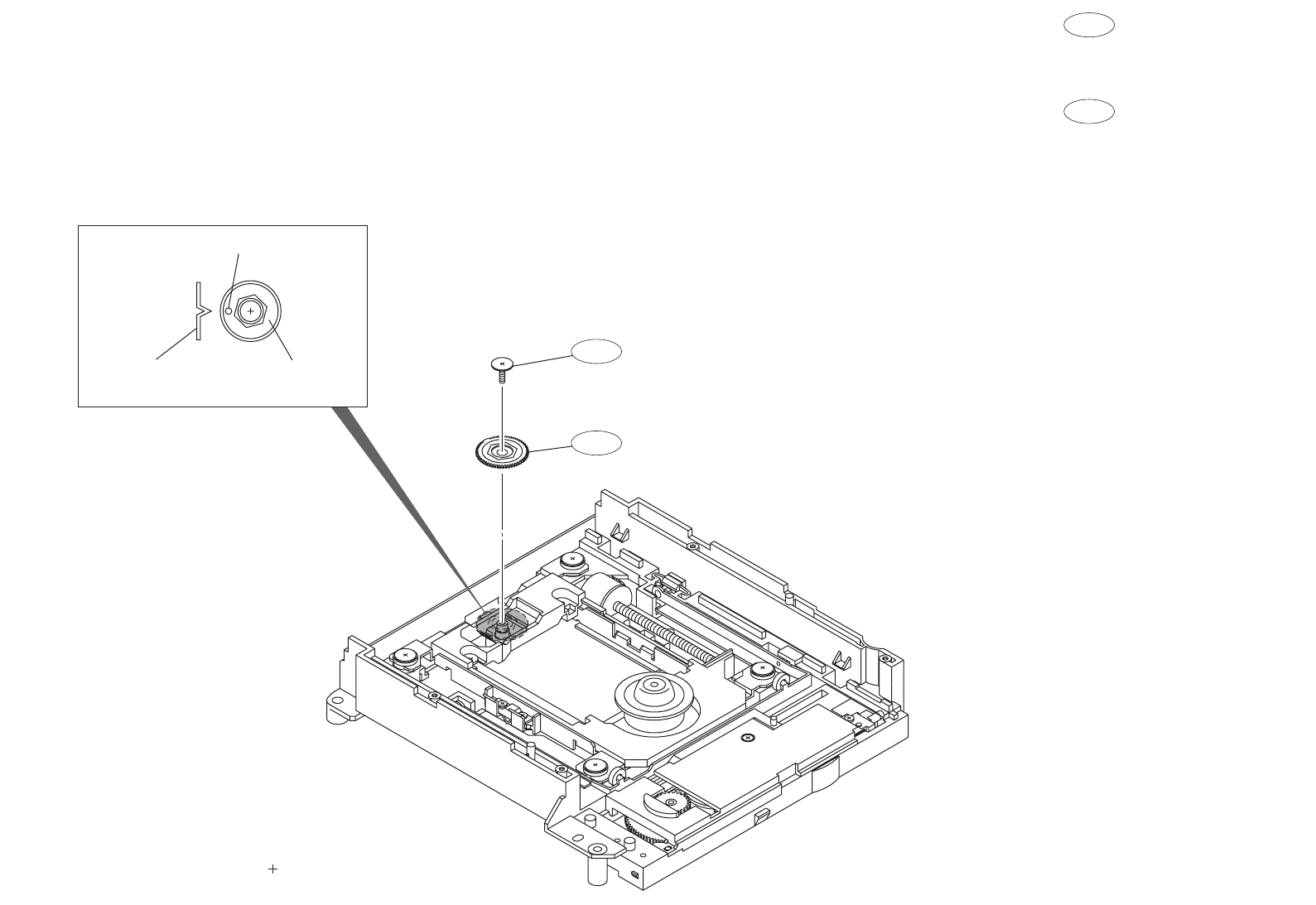

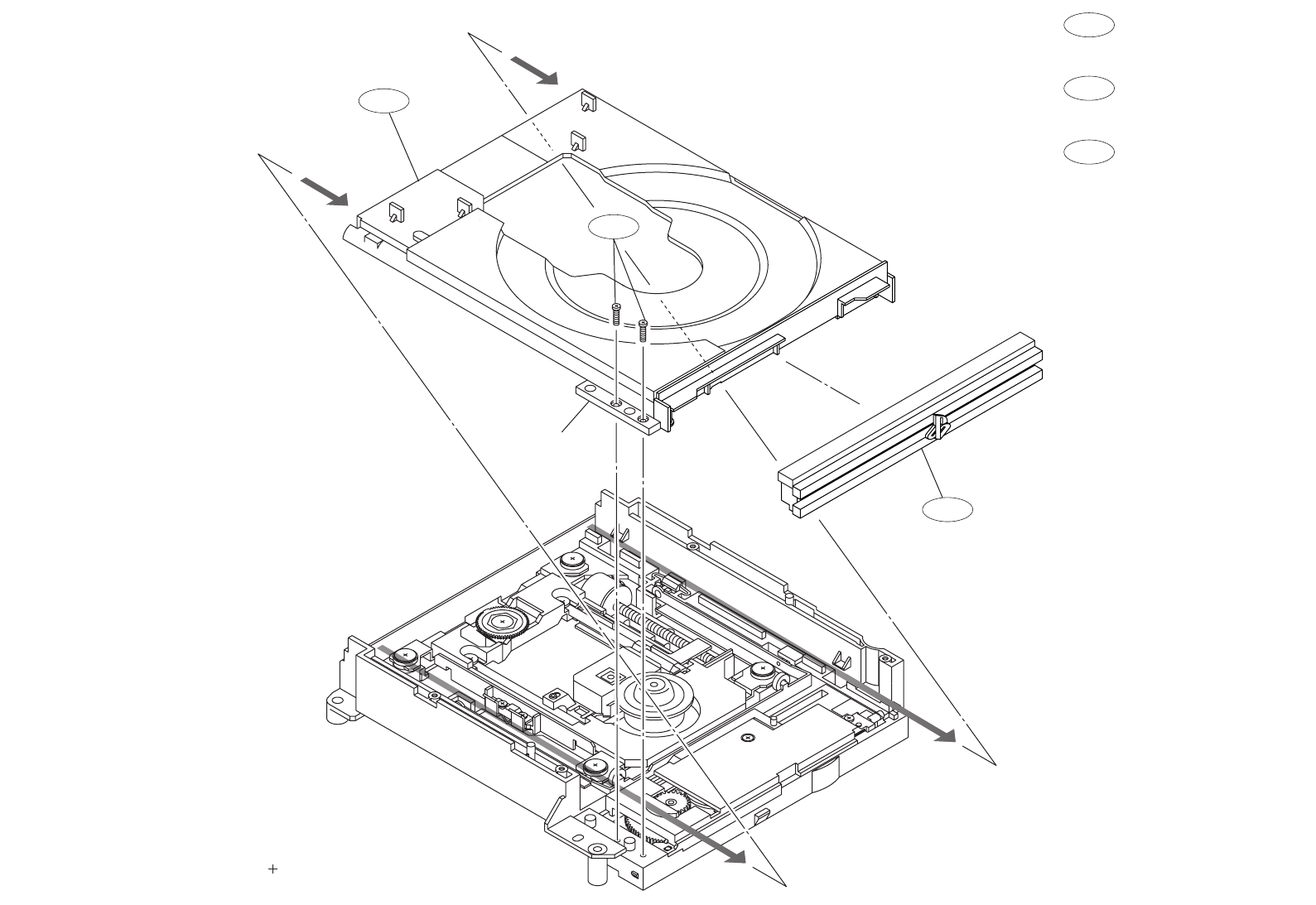

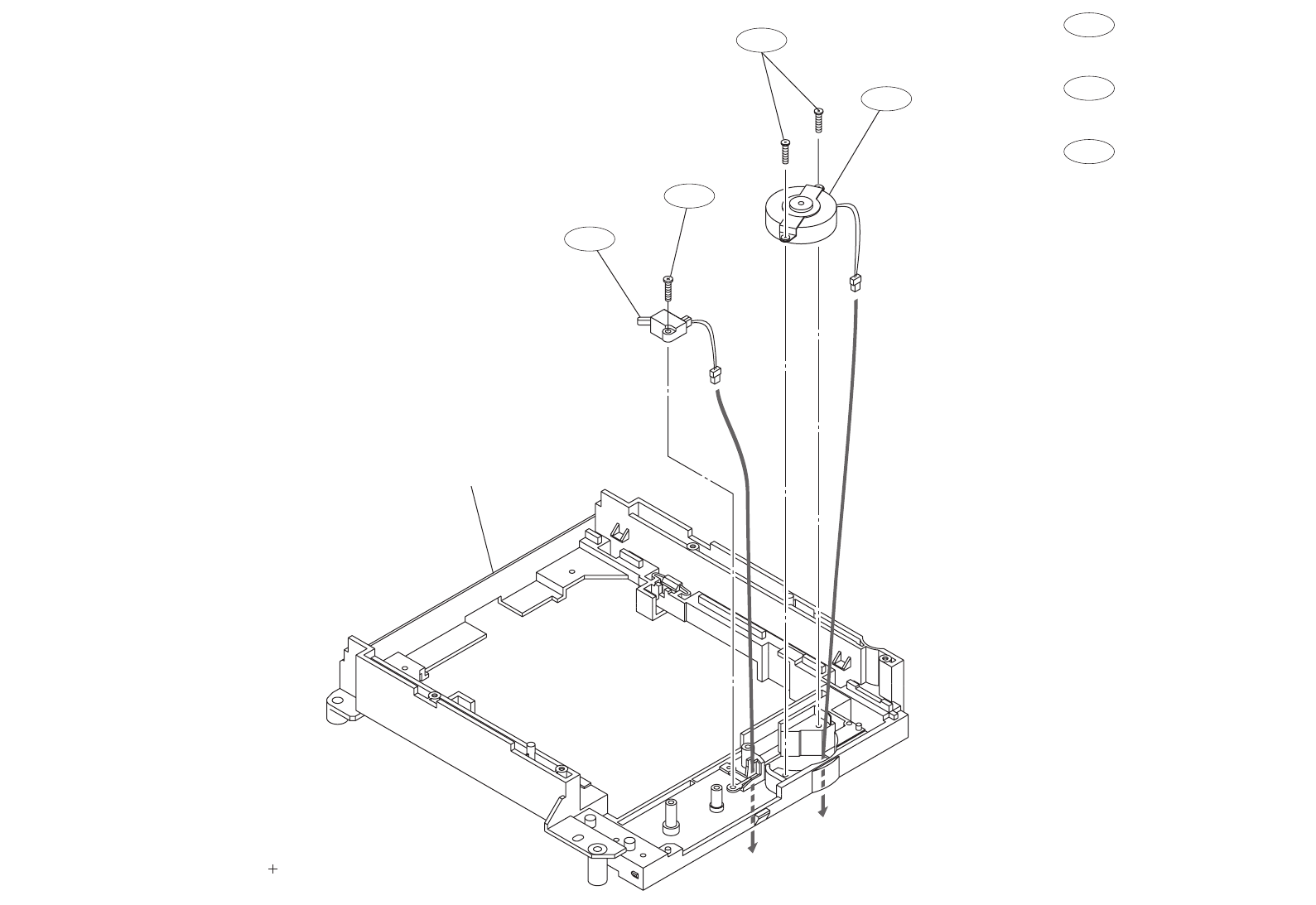

MD Block

--------

MD BLOCK

--------

Ref-No. Part No. Description Remark Place code

2 8-835-733-01 MOTOR, DC SSC28C/C-NP #10SP

2 1-763-700-12 MOTOR, DC (SPINDLE) #10SP

3 1-763-639-21 MOTOR, DC #10

5 3-059-845-01 SCREW (B2X6.5), SHAFT RETAINER #10

7 X-3951-637-1 FRAME ASSY, SUB #10

8 3-065-277-01 INSULATOR #10

9 3-065-276-01 SCREW, STEP #10

10 X-3951-606-1 CHASSIS ASSY, MAIN #10

13 3-059-854-02 SHAFT, MAIN #10

14 3-059-855-02 RACK #10

16 3-060-399-01 SCREW, SKEW #10

17 3-060-400-01 TAPPING (B2X6.5) #10

22 3-062-728-01 0 PLATE 3, MAIN M3X3.2 #10

23 8-820-141-10 DEVICE, OPICAL KHS-400B #10OP

26 X-3951-607-2 CHASSIS ASSY, SUB #10

27 X-3951-609-2 BRACKET ASSY, PULLEY #10

28 X-3951-608-2 TRAY ASSY #10TR

30 X-3951-610-2 FRAME ASSY, MAIN #10

31 1-680-370-12 PWB, FLEXIBLE #10

32 3-068-075-02 SCREW (SUB), STEP #10

33 3-065-278-02 CAM, TILT #10

34 3-068-076-01 SPRING (TILT), LEAF #10

35 3-065-282-01 GUIDE (L) #10

36 3-065-283-01 GUIDE (R) #10

37 3-065-557-01 SCREW (M2X6.0) #10

41 3-065-279-02 SCREW, CAM RETAINER #10

TAP

BOTTOM VIEW

for ditails

Click here

— 142 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

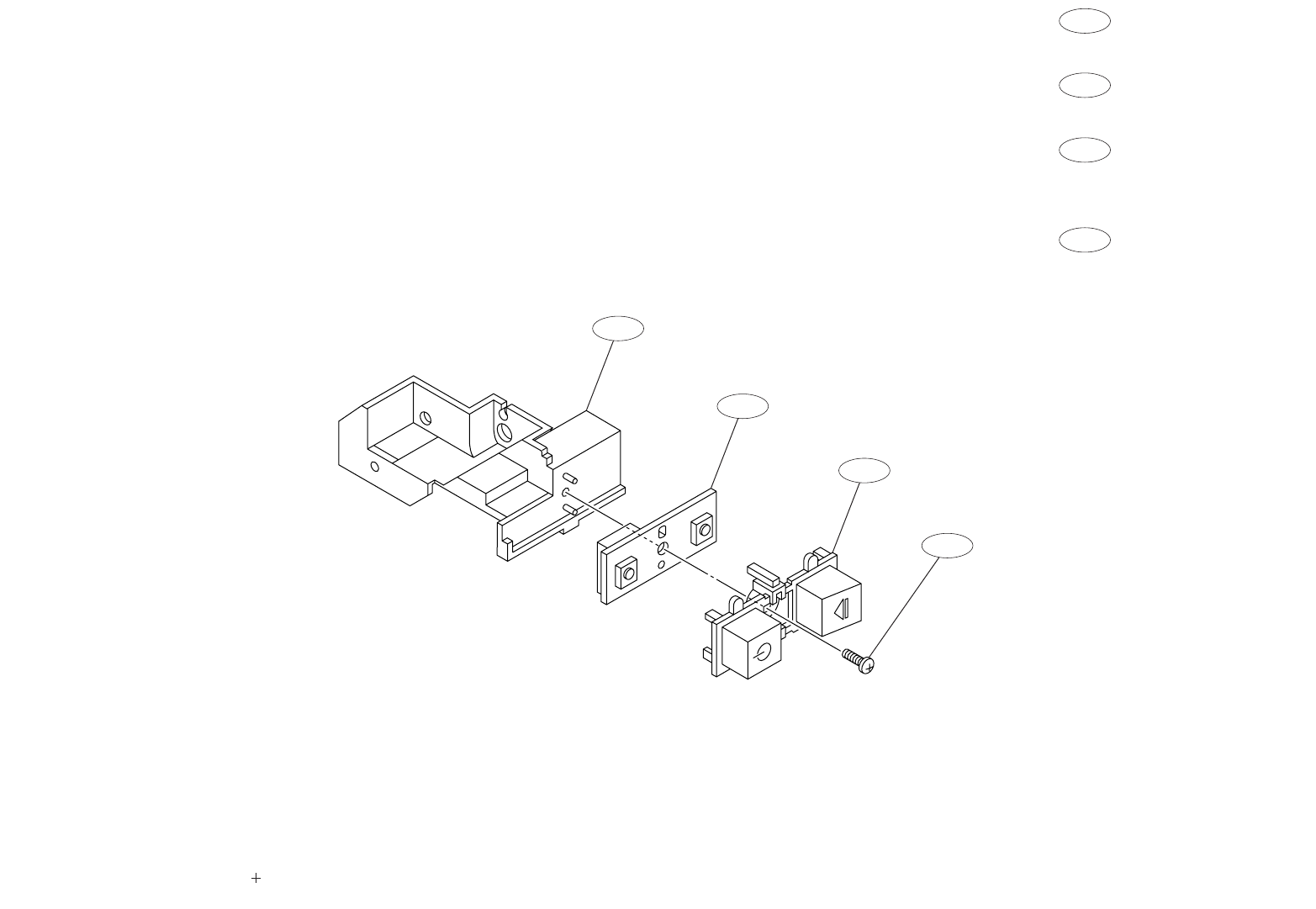

Switch Block

------------

SWITCH BLOCK

------------

Ref-No. Part No. Description Place code

50 3-059-665-03 BUTTON, SWITCH #25SW

51 3-059-666-05 BRACKET, SWITCH #25SW

52 7-685-105-11 TPG +P 2X8, TYPE 2, NON-SLIT #25SW

53 A-6712-922-A SW-358 MOUNT

for SCPH-30002D/30003D/30004D #25SW

53 A-6712-983-A SW-363 MOUNT

for SCPH-30003D’/30004D’ #25SW

------------------------

FAN AND REAR PANEL BLOCK

------------------------

Ref-No. Part No. Description Place code

63 1-763-480-22 DC. FAN #74

64 1-771-995-31 SWITCH, POWER (WITH AC INLET) #00

159 3-068-676-11 PANEL, REAR #87

BV312 3-325-679-21 SCREW, TAPPING +BV 3X12 #87

GH-010/GH-012 Block

GH010

153

151

: for SCPH-30002D/30003D/30004D model

GH012

: for SCPH-30003D’/30004D’ model

-------------------

GH-010/GH-012 BLOCK

-------------------

Ref-No. Part No. Description Place code

87 3-068-806-01 SHEET (DRIVER), ELECTRIC HEAT #25GH

151 1-757-934-11 CABLE, FLAT (FFC-011) #12

153 1-961-160-21 HARNESS (HS-059) #12

GH010 A-6712-954-A GH-010 MOUNT (32M M)

for SCPH-30003D/30004D #25GH

GH010 A-6712-957-A GH-010 MOUNT (64M M)

for SCPH-30002D #25GH

GH010 A-6712-955-A GH-010 MOUNT (64M M)

for SCPH-30003D/30004D #25GH

GH010 A-6712-958-A GH-010 MOUNT (64M R)

for SCPH-30002D #25GH

GH010 A-6712-956-A GH-010 MOUNT (64M R)

for SCPH-30003D/30004D #25GH

GH012 A-6712-985-A GH-012 MOUNT (32M R)

for SCPH-30003D’/30004D’ #25GH

GH012 A-6712-986-A GH-012 MOUNT (64M R)

for SCPH-30003D’/30004D’ #25GH

Shield (A) Assy Block

---------------------

SHIELD (A) ASSY BLOCK

---------------------

Ref-No. Part No. Description Place code

97 X-3951-707-2 SHIELD (A) ASSY #87

120 3-059-652-01 SHEET (A), ELECTRIC HEAT

for SCPH-30002D/30003D/30004D #16

143 3-066-277-01 SHEET (P), ELECTRIC HEAT

for SCPH-30003D’/30004D’ #16

144 3-066-278-01 SHEET (Q), ELECTRIC HEAT

for SCPH-30003D’/30004D’ #16

120

144

143

for SCPH-30003D’/30004D’ model

Shield (B) Block

----------------

SHIELD (B) BLOCK

----------------

Ref-No. Part No. Description Place code

156 3-068-669-02 SHIELD B #16

157 3-068-674-01 SHEET, INSULATING #16

156

157

Fan and Rear Panel Block

64 63

159

BV312

CAUTION

Don't lose the insulating sheet

when assemble the console.

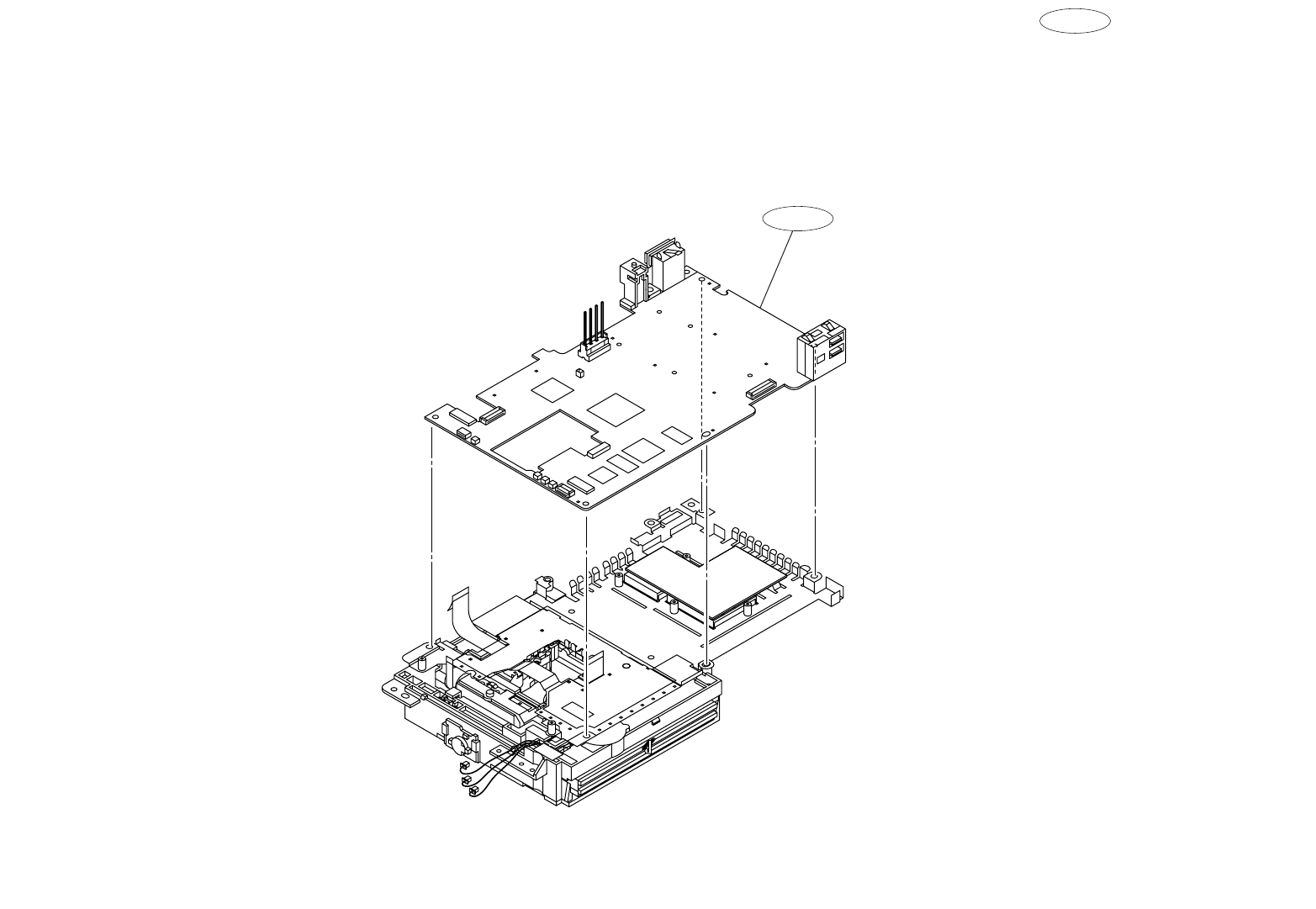

GB-003/GB-004 and Plate Assy Block

GB003

153

: for SCPH-30002D/30003D/30004D model

GB004

: for SCPH-30003D’/30004D’ model

----------------------------------

GB-003/GB-004 AND PLATE ASSY BLOCK

----------------------------------

Ref-No. Part No. Description Place code

61 1-528-174-41 BATTERY, LITHIUM (CR2032 TYPE) #25GB

91 A-6705-342-A MD BLOCK ASSY #10

95 X-3951-099-1 PLATE ASSY, ORNAMENTAL #87

153 1-961-160-21 HARNESS (HS-059) #12

GB003 A-6712-923-A GB-003 MOUNT

for SCPH-30002D/30003D/30004D #25GB

GB004 A-6712-984-A GB-004 MOUNT

for SCPH-30003D’/30004D’ #25GB

— 143 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

SECTION 3

BLOCK DIAGRAM for D type

µCON+DSP

RF-AMP+DRIVER

BOOT

ROM

DVD

ROM

IOP EE+RDRAM GS+VIDEO

SPU2+AUDIO+HDD

CN108

RF-AMP

AUL

AUR

MD BLOCK CN801-806 PD1

PD2

A-F

CONTROL BUS

EVER3.3V

BT101

IC801

5-10

RFD0

TS_SI

RF AMP

CONTROL BUS

TIMER

EEP

ROM

IC405

IC406

X402

32.768MHz

EEP-CE

EEP-SCK

EEP-SO

EEP-SI

STEP(±A, ±B), TRAY(CNT, DRVF, DRVR)

43-46

3,10,11

SP_GAINSW/

SP_PS/

SP_SB/

DRIVER

H (±), H1 (±)

H2 (±), H3 (±)

A1, 2, 3

STD (±A, ±B)

TD _OFST

LOADING (±)

TRK (±)

FCS (±)

IC802

IC803

SPINDLE CONTROL

FORCUS/TRACKING/

SLIDE/LOADING

16,18

22-23

SP_GAINSW/, SP_PS/SPDL/, SP_SB/SP_BR

(FF,FR,TF,TR)DR

(FF,FR,TF,TR) DR

71-73

75,29

MECHA-CON

PB2

/POFF_RDY

SYS_SRST

TRAY_REQ

MCON_ACK

SYSTEM

CONTROL

CD/DVD DSP

HDD_SW, SW1.5,

SW1.9/SW2.5

SW5.1/SW3.3,

SW12, FAN_PWM

PWR_SW,/GREEN_ON,OP/CL_SW,/RED_ON

DIG +3.5V/DIG +5V REG (USB DRIVE)

IC409, Q407, 408 (DC-DC CONVERTER)

IC403 : EVER 3.3V REG

IC407 : DIG +1.8V REG

IC411 : DIG +1.8V REG

IC412 : DIG +2.5V REG

IC413 : SER +3.5V REG

IC414 : CON +8V REG

Q409-411, 414 : HDD +5V/+12V REG

DRAM

RAS

CAS

34,35

PG5

PG6

PG7

PG4

TRAY_LED-ON /BLUE_ON

SPMA0-9

SPMD0-15

SPU2

RST

SYSTEM POWER REGURATOR/FAN DRIVE/USB DRIVE/HDD DRIVE

IC415,Q415 :+8.5V (FAN DRIVE)

Q401,402,404,IC404 :

DIG +1.5V REG

IC408 : DIG +1.8V REG

IC410 : DIG +2.5V REG

SYSTEM

POWER

SUPPLY

POWER SW

OPEN/CLOSE SW

SW-358

OPTICAL

DIGTAL OUT

CN501

DIGITAL OUT

Q506

MUTE

AUDIO D/A

CONVERTER

/RST

105

DAD OUT

DABCK OUT

DALRCK OUT

DACCK

SPMUTE

Q505

IC517

IC504

IC502

IC402

IC604

/SSRST,/RST

SLEEP,POFF_REQ,OP_DISC

GSTBY,LCLK,/GRST

SD0-15

SA0-15,24-26

SPUDI,SPUDATI

SPUBCKI,SPULRCKI

PWRUP_EE,/ESTBY,/ERST

SUB ADDRESS BUS

SYSTEM CONTROL BUS

SA0-26

SD0-15

X101

18.432MHz

IC101

CLOCK

GENERATOR

DRAMC

PLL

400MHz

PHY

55,57

59,61

TPA/TPAn/TPB/TPBn

X301

24.576MHz

179-182

(DATA+,DATA_)X2

4X2

CN303 FL301, 302

CN301

IC503, 506 : for GH-010-32M/GH-012-32M

IC505 : for GH-010-64M/GH-012-64M

BOOT ROM

DVD ROM

IC105

SD0-15

17-24,26-33

1-11,15,40-49

SA0-21

/CS1,/CS2

IC605

RFD0

207

205

204

LOW POWER

THERMOSTAT

T1;70.6dC

T2;76.7dC

i LINK

4X2

USB PORTX2

MEMORY CARD 2 DATA

(Magic Gate)

CONTROLLER 1 DATA

MEMORY CARD 1 DATA

CONTROLLER 2 DATA

(Magic Gate)

FRONT TERMINAL

CN002 CN001, CN302

MEMORY CARD 2 DATA

CONTROLLER 1 DATA

MEMORY CARD 1 DATA

CONTROLLER 2 DATA

IC303

IOP

/BE0-3

IC306

+2.5V

X302

16.9344MHz

VREF

IC305

EDO RAM

MD0-31

MA0-9

CAS0-3

AD0-31

3-34 394-425

35-38 384-387

/BE0-3 /

/RDAC

/WRAC

/RDY

/BREQ

/BGNT

DREQ0

DREQ1

DACK

/SGINT

/SINT

/SRST

388

389

383

426

427

393

392

391

429

428

430

431

390

MSCLK

PGCLK

128bit BUS

RQ_A0-7/RQ_B0-7

DQB_A0-7/DQB_B0-7

DQA_A0-7/DQA_B0-7

SIF

DMAC

IPU

EMOTION ENGINE

IC104

CPU

VU0 VU1

GIF

TIMER

SIO

INTC

GD0-63

11-74 1-64

IC202 IC205

GRAPHICS

SYNTHESIZER

ARED

AGEN

ABLU

GA0-6

4-10 71-77

CLKCG

CLKGC

/VLDCG

/VLDGC

/RDYCG

/RDYGC

GRW

/GACK

/GREQ

/GINT

RGB

YCrCB

MATRIX

SYNC_GEN,HD0,1

CONTROL REGISTER

M-Bus Control Module

DAC

COMPONENT

DIGITAL DATA

MODE0-2

IC206

ANALOG

VIDEO

ENCODER

DIGITAL VIDEO ENCODER

COUT

YOUT

CVBS-OUT

BOUT/CbOUT/PbOUT

GOUT/YOUT

ROUT/CbOUT/PbOUT

RIN1

GIN1

BIN1

D0-2 AUL

AUR

CN201

CN504

HDD DATA (CD0-15)

HDD ADDRESS (CA0-25)

CONTROL

HDD

CONTROLLER

60-71,74

76-78 38,40-53

56-59

SCL

SDA

/POFF_RDY

SLEEP

PO_DISC

POFF_REQ

SCL

SDA

/DVRST

IC501

5,6,7

SPCLK

X202

54MHz

X401

4MHz

266

REF.V

GEN.

MCD0-7

MCA0-8

CONTROL BUS

GREEN_ON

RED_ON

Q405

Q601

AV MULTI

OUT

HDD

79-88

91-96

97-104,106,107

110-115

RDRAM

(16MB)

4.5

CTMN

CTM

IC103

IC102

Mod.

+ +

HSYNC, VSYNC, CSYNC, PAL/NTSC, CLOCK, RGBYC

220

218

219

SA0-15

SPUDI,SPUDATI

SPUBCKI,SPULRCKI

30.31

34-36

71,72

68-70

23 5

29,30,31

DD+SYSTEM

CONTROL

SUB DATA BUS

SPUDATI/SPUBCKI/SPULRCKI

CD-ROM PlayStation Format

PlayStation2 Format

AC12V IN

CN401

GH-010

SD0-15

RO0-7

299-306 37-44

GO0-7

291-298 47-54

BO0-7

283-290 55-62

DVD VIDEO

DVD ROM PlayStation2 Format

AUDIO CD

SD0-15

SA1-10

SPU(DI,

DATI,BCKI,

LRCKI)

GB-003

85,

88,

117,

118

12,

— 144 —

SCPH-30002D/30003D/30004D

SECTION 4

PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

for SCPH-30002D/30003D/30004D

THIS NOTE IS COMMON FOR PRINTED WIRING

BOARDS AND SCHEMATIC DIAGRAMS.

Note on Printed Wiring Boards :

•

•Through hole is omitted.

: Pattern on the side which is seen.

Note on Schematic Diagram :

•

Use caution when replacing chip parts.

New parts must be attached after removal of chip.

Be careful not to heat the minus side of tantalum capacitor,

because it is damaged by the heat.

All capacitors are in µF unless otherwise noted. pF : µµF 50 WV

or less are not indicated except for electrolytics and tantalums.

All resistors are in and 1/4 W (Chip resisters : 1/10W) unless

otherwise specified.

Chip resistors are 1/8 W or 1/10 W unless otherwise noted.

k : 1000 , M : 1000 k .

Note :

The components

identified by mark

dotted line with mark

are critical for safety.

Replace only with part

number specified.

Note :

Les composants identifies par

une marque

sont critiques

pour la securite.

Ne les remplacer que par une

piece portant le nubero specifie.

Unit of voltage is V (volt)

•

+12V :

+8.0V :

+5.0V :

+3.5V :

+3.4V :

IN :

OUT :

•

+3.3V :

+2.5V :

+1.8V :

+1.7V :

+1.5V :

Main Signal Line : ,

Note on DC Power line :

Reproduction Prohibited

— 145 —

SCPH-30002D/30003D/30004D

GH-010 (1/7)

Reproduction Prohibited

DIG_+1.5V1

DIG_+1.8V1

DIG_+1.5V1

DIG_+3.5V

DIG_+1.8v3

DIG_+2.5v3

LCLKIC202 86 pin

FB103

FB102

VDDP

VSS

XOUT

XIN

VDDL

LRCK

VSS

VDD

VSS

CLK

CLKB

VSS

VDD

L102

10uH

3225

C116

0.1u

C170

C123

0.1u

BRB101

RB102

RB103

DQB_A1

RQ_A1

RQ_A3

RQ_A4

RQ_A2

RQ_A7

RQ_A6

RQ_A5

DQA_A2

DQA_A1

DQA_A5

DQA_A0

DQA_A4

DQA_A3

DQA_A7

DQA_A6

DQB_A7

DQB_A6

DQB_A4

DQB_A3

DQB_A5

DQB_A2

DQB_A0

RQ_A0

C117

0.1u

C110

0.1u

C104

0.1u

C124

0.1u

C125

0.1u

C118

0.1u

C111

0.1u

C105

0.1u

C119

0.1u

C112

0.1u

C106

0.1u

RB104

RB105

RB106

DQB_B0

RQ_B4

RQ_B3

RQ_B1

RQ_B2

RQ_B7

RQ_B6

RQ_B5

DQA_B2

DQA_B1

DQA_B4

DQA_B0

DQA_B5

DQA_B3

DQA_B7

DQA_B6

DQB_B7

DQB_B6

DQB_B5

DQB_B3

DQB_B4

DQB_B2

DQB_B1

RQ_B0

C126

0.1u

C120

0.1u

C107

0.1u

C127

0.1u

C121

0.1u

C114

0.1u

C108

0.1u

C122

0.1u

C115

0.1u

C109

0.1u

C101

100u

6.3V

C103

100u

6.3V

TA R103

±0.5%

CL102

GND

R107

100

C134

0.1u

C145

0.1u

C138

0.1u

C140

0.1u

C176

0.1u

C143

0.1u

C968

R984

C141

220u

6.3V

R104

130

±0.5%

C102

100u

6.3V

R101

±0.5% R102

130

±0.5%

C132

0.1u

R106

100

CL101

C129

0.1u

X101

C131

0.01u C135

0.1u

R105 0

C136

0.001u

C168

0.001u

C146

0.001u

C148

0.1u

R110

±0.5%

R111

±0.5%

R112

±0.5%

R121

±0.5%

GS Interface

MLK

TIMIN1

TIMIN0

GA0

GA1

GA2

GA3

GA4

GA5

GA6

GD0

GD1

GD2

GD3

GD4

GD5

GD6

GD7

GD8

GD9

GD10

GD11

GD12

GD13

GD14

GD15

GD16

GD17

GD18

GD19

GD20

GD21

GD22

GD23

GD24

GD25

GD26

GD27

GD28

GD29

RB107

RB108

RB109

RB110

RB111

RB112

RB113

RB114

RB115

RB116

RB117

RB118

RB119

RB120

RB121

RB122

RB123

RB124

RB125

RB126

GD30

GD31

GD32

GD33

GD34

GD35

GD36

GD37

GD38

GD39

GD40

GD41

GD42

GD43

GD44

GD45

GD46

GD47

GD48

GD49

GD50

GD51

GD52

GD53

GD54

GD55

GD56

GD57

GD58

GD59

GD60

GD61

GD62

GD63

CLKCG

CLKGC

/VLDCG

/VLDGC

/RDYCG

/RDYGC

GRW

/GACK

/GREQ

/INTIN1

HBLK1

VBLK1

GA0

GA1

GA2

GA3

GA4

GA5

GA6

GD0

GD2

GD3

GD6

GD7

GD1

GD4

GD5

GD8

GD9

GD10

GD11

GD12

GD14

GD15

GD16

GD17

GD13

GD18

GD19

GD21

GD20

GD23

GD24

GD25

GD26

GD28

GD29

GD31

GD22

GD27

GD30

GD32

GD35

GD34

GD38

GD37

GD33

GD36

GD39

GD42

GD41

GD40

GD43

GD47

GD44

GD45

GD48

GD51

GD46

GD50

GD49

GD52

GD53

GD55

GD54

GD56

GD57

GD58

GD61

GD60

GD62

GD63

GD59

CLKGC

/VLDGC

/RDYCG

/RDYGC

/GACK

/VLDCG

GRW

/GREQ

/GINT

IC202 262 pin, IC303 216 pin

IC202 263 pin, IC303 223 pin

IC202 71 pin

IC202 72 pin

IC202 73 pin

IC202 74 pin

IC202 75 pin

IC202 76 pin

IC202 77 pin

IC202 1 pin

IC202 3 pin

IC202 4 pin

IC202 7 pin

IC202 8 pin

IC202 2 pin

IC202 5 pin

IC202 6 pin

IC202 9 pin

IC202 10 pin

IC202 11 pin

IC202 12 pin

IC202 13 pin

IC202 15 pin

IC202 16 pin

IC202 17 pin

IC202 18 pin

IC202 14 pin

IC202 19 pin

IC202 20 pin

IC202 22 pin

IC202 21 pin

IC202 24 pin

IC202 25 pin

IC202 26 pin

IC202 27 pin

IC202 29 pin

IC202 30 pin

IC202 32 pin

IC202 23 pin

IC202 28 pin

IC202 31 pin

IC202 33 pin

IC202 36 pin

IC202 35 pin

IC202 39 pin

IC202 38 pin

IC202 34 pin

IC202 37 pin

IC202 40 pin

IC202 43 pin

IC202 42 pin

IC202 41 pin

IC202 44 pin

IC202 48 pin

IC202 45 pin

IC202 46 pin

IC202 49 pin

IC202 52 pin

IC202 47 pin

IC202 51 pin

IC202 50 pin

IC202 53 pin

IC202 54 pin

IC202 56 pin

IC202 55 pin

IC202 57 pin

IC202 58 pin

IC202 59 pin

IC202 62 pin

IC202 61 pin

IC202 63 pin

IC202 64 pin

IC202 60 pin

IC202 65 pin

IC202 69 pin

IC202 68 pin

IC202 67 pin

IC202 78 pin

IC202 70 pin

IC202 80 pin

IC202 79 pin

IC202 81 pin CTM_A

CTMN_A

CFM_A

CFMN_A

RQ_A0

RQ_A1

RQ_A2

RQ_A3

RQ_A4

RQ_A5

RQ_A6

RQ_A7

DQA_A0

DQA_A1

DQA_A2

DQA_A3

DQA_A4

DQA_A5

DQA_A6

DQA_A7

DQB_A0

DQB_A1

DQB_A2

DQB_A3

DQB_A4

DQB_A5

DQB_A6

DQB_A7

CTM_B

CTMN_B

CFM_B

CFMN_B

RQ_B0

RQ_B1

RQ_B2

RQ_B3

RQ_B4

RQ_B5

RQ_B6

RQ_B7

DQA_B0

DQA_B1

DQA_B2

DQA_B3

DQA_B4

DQA_B5

DQA_B6

DQA_B7

R974 22

R975 22

R901 47

R902 47

AD20

AD21

AD22

AD23

AD24

AD25

AD26

AD27

AD28

AD29

AD30

AD31

DREQ0

DREQ1

DACK

PGCLK

/WRAC

/RDAC

/BE0

/BE1

/BE2

/BE3

/RDY

/P0EXEA

/P1EXEA

/JMPA

/P1EXEB

P0EXEB

/JMPB

/TPCE

TPC0

TPC1

TPC2

TPC3

/TRIG0

MBST0

MBST1

MBST2

MBST3

MBST4

MBST5

//MBSND

/VU0RUNA

/VU0RUNB

/VU1RUNA

/VU1RUNB

/YU1BLGA

/VU1BLGB

GIFDT0

GIFDT1

PMCLK

JTCK

JTMS

JTDI

JTD0

JTRST

/SCTS

/SRTS

SRXD

STXD

PwrUp

PwrDwn

/NMI

/RESET

SCLKH

/PLLOFF

GearRatio

TestCkSw

TestCk

TestRst

Senbl

Penbl

R59KTM

vbp

vbn

VDDar

VDDa

GNDa

GNDor

Vddio

GNDor

IAD1

IAD3

IAD7

IAD8

IAD6

IAD2

IAD5

IAD0

IAD13

IAD14

IAD10

IAD4

IAD9

IAD11

IAD12

IAD17

IAD19

IAD16

IAD18

IAD15

IAD25

IAD24

IAD21

IAD22

IAD20

IAD26

IAD29

IAD28

IAD31

IAD30

IAD27

IAD23

AD1

AD3

AD7

AD8

AD6

AD2

AD5

AD0

AD13

AD14

AD10

AD4

AD9

AD11

AD12

AD17

AD19

AD16

AD18

AD15

AD25

AD24

AD21

AD22

AD20

AD26

AD29

AD28

AD31

AD30

AD27

AD23

IC303 4 pin

IC303 6 pin

IC303 10 pin

IC303 11 pin

IC303 9 pin

IC303 5 pin

IC303 8 pin

IC303 3 pin

IC303 16 pin

IC303 17 pin

IC303 13 pin

IC303 7 pin

IC303 12 pin

IC303 14 pin

IC303 15 pin

IC303 20 pin

IC303 22 pin

IC303 19 pin

IC303 21 pin

IC303 18 pin

IC303 28 pin

IC303 27 pin

IC303 24 pin

IC303 25 pin

IC303 23 pin

IC303 29 pin

IC303 32 pin

IC303 31 pin

IC303 34 pin

IC303 33 pin

IC303 30 pin

IC303 26 pin

DREQ0

DREQ1

DACK

PGCLK

/WRAC

/RDAC

/BE0

/BE1

/BE2

/BE3

/RDY

IC303 44 pin

IC303 45 pin

IC303 46 pin

IC303 2 pin

IC303 40 pin

IC303 39 pin

IC303 35 pin

IC303 36 pin

IC303 37 pin

IC303 38 pin

IC303 41 pin

DQAb7

DQAb8

DQBb0

DQBb1

DQBb2

DQBb3

DQBb4

DQBb5

DQBb6

DQBb7

DQBb8

VREFB

SIO

SCK

CMD

GND

GNDo

Synclk

GNDo

GNDor

DQB_B0

DQB_B1

DQB_B2

DQB_B3

DQB_B4

DQB_B5

DQB_B6

DQB_B7

VDD

VDDo

VDDor

VDDio

VDDor

VDDio

VDDor

VDDio

VDDor

MSCLK

/SRST

/INTIN0

/INTOUT

/BGNT

/BREQ

AD0

AD1

AD2

AD3

AD4

AD5

AD6

AD7

AD8

AD9

AD10

AD11

AD12

AD13

AD14

AD15

AD16

AD17

AD18

AD19

CL103

R120

±0.5%

R133

10k

R118

±0.5%

R119

±0.5%

R113

±0.5%

R116

±0.5%

R117

±0.5% C154

0.01u

R114

±0.5%

R115

±0.5%

C155

0.1u

C153

0.01u

C156

0.1u

LM74CIMX-3

LOW POWER THERMOSTAT

C157

0.1u

C941

0.1u

C949

0.1u

C957

0.1u

C942

0.1u

C950

0.1u

C958

0.1u

C943

0.1u

C951

0.1u

C959

0.1u

C944

0.1u

C952

0.1u

C960

0.1u

C945

0.1u

C953

0.1u

C961

0.1u

C946

0.1u

C954

0.1u

C962

0.1u

C947

0.1u

C955

0.1u

C963

0.1u

C948

0.1u

C956

0.1u

C906

0.1u

C907

0.1u

C908

0.1u

C914

0.1u

C915

0.1u

C921

0.1u

C922

0.1u

C927

0.1u

C928

0.1u

C933

0.1u

C934

0.1u

C939

0.1u

C940

0.1u

C904

0.1u

C905

0.1u

C912

0.1u

C913

0.1u

C919

0.1u

C920

0.1u

C925

0.1u

C926

0.1u

C931

0.1u

C932

0.1u

C937

0.1u

C903

0.1u

C918

0.1u

C924

0.1u

VDD VDDo Decoupling

Vddor Decoupling

Vddio Decoupling

Additional Power Decoupling

VDDar Filtering

C930

0.1u

C936

0.1u

C902

0.1u

C910

0.1u

C917

0.1u

C923

0.1u

C901

0.1u

C909

0.1u

C158

0.01u

C159

0.1u

C160

68p

JL011

R145 1k

R146 1k

R147 1k

R138 0

R122 0

R139 22 MSCLK

/SRST

/GINT

/SINT

/BGNT

/BREQ

IC303 1 pin

IC303 49 pin

IC303 47 pin

IC303 48 pin

IC303 43 pin

IC303 42 pin

IOPInterface

R125 0

R123 0

RB130 47

RB131 47

RB132 47

RB133 47

RB134 47

RB135 47

RB136 47

RB137 47

R124 0

R126 10k

R127 4.7k

R128 4.7k

R134 10k

R132 10k

R131 10k

R129 1k

R130 470

PWRUP_EE

/EGSTBY

/EGRST

CL109

CL110

CL111

CL112

CL113

CL114

CL115

CL116

JL005

JL006

JL007

JL008

JL009

JJTAG_TCK

JTAG_TMS

JTAG_TDO_GS

JTAG_TDO_EE

JTAG_TRST

IC402 28 pin

IC202 83 pin,IC402 6 pin

IC402 24 pin

JL018

C162

68p

RB139

4.7k

R188

4.7k

R185

4.7k

/NMI

JL001

JL002

JL003

JL004

/PLLOFF

/TEST CK

TESTRST

C164

100u 6.3V

C161

100u 6.3V

C163

100u 6.3V

C965

0.1u

LF101

C966

0.1u

C929

0.1u

C935

0.1u

C938

0.1u

C916

0.1u

C169

100p

CL104

SI/O

GND

/TS_SCK

TS_SI

EVER_+3.3V

/TS_CS

IC402 1 pin

IC402 44 pin

IC402 9 pin

V+

/CS

R196 22

DQA_A3

DQA_A0

RQ_A4

RQ_A0

DQB_A3

DQA_A6

DQA_A1

RQ_A7

RQ_A1

DQB_A2

DQB_A6

DQB_A7

DQB_A4

DQB_A0

RQ_A3

RQ_A5

DQA_A4

DQA_A7

DQB_A5

DQB_A1

RQ_A2

RQ_A6

DQA_A2

DQA_A5

DQA8

DQA3

DQA0

CTMN

CTM

RQ4

RQ0

DQB3

DQB8

VCMOS

DQA6

DQA1

VREFF

RQ7

RQ1

DQB2

DQB6

VCMOS

SCK

GND

VDD

GND

VDD

GND

SIO1

DQB7

DQB4

DQB0

RQ3

RQ5

CFMN

CFM

DQA4

DQA7

GND

DQB5

DQB1

RQ2

RQ6

VDDa

DQA2

DQA5

GND

SIO0

VDD

GND

VDD

GNDa

GND

CMD

DQA_B3

DQA_B0

RQ_B4

RQ_B0

DQB_B3

DQA_B6

DQA_B1

RQ_B7

RQ_B1

DQB_B2

DQB_B6

DQB_B7

DQB_B4

DQB_B0

RQ_B3

RQ_B5

DQA_B4

DQA_B7

DQB_B5

DQB_B1

RQ_B2

RQ_B6

DQA_B2

DQA_B5

DQA8

DQA3

DQA0

CTMN

CTM

RQ4

RQ0

DQB3

DQB8

VCMOS

DQA6

DQA1

VREFF

RQ7

RQ1

DQB2

DQB6

VCMOS

SCK

GND

VDD

GND

VDD

GND

SIO1

DQB7

DQB4

DQB0

RQ3

RQ5

CFMN

CFM

DQA4

DQA7

GND

DQB5

DQB1

RQ2

RQ6

VDDa

DQA2

DQA5

GND

SIO0

VDD

GND

VDD

GNDa

GND

CMD

R136

R135

C147

0.001u

C149

0.1u

C150

0.01u

C152

20p

C151

20p

C144

0.1u

C967

R109

4.7k

C142

0.1u

C137

0.1u

C139

0.1u

C175

0.1u

CL107

C911

0.1u

CLKCG

IC202 66 pin

C128

0.1u

C113

0.1u

CTMa

CTMNa

CFMa

CFMNa

RQa0

RQa1

RQa2

RQa3

RQa4

RQa5

RQa6

RQa7

DQAa0

DQAa1

DQAa2

DQAa3

DQAa4

DQAa5

DQAa6

DQAa7

DQAa8

DQBa0

DQBa1

DQBa2

DQBa3

DQBa4

DQBa5

DQBa6

DQBa7

DQBa8

VREFA

CTMb

CTMNb

CFMb

CFMNb

RQb0

RQb1

RQb2

RQb3

RQb4

RQb5

RQb6

RQb7

DQAb0

DQAb1

DQAb2

DQAb3

DQAb4

DQAb5

DQAb6

404

402

400

398

396

394

392

390

388

386

384

382

380

378

376

374

372

370

368

366

364

362

360

358

356

354

352

350

348

346

344

342

340

338

336

334

332

330

328

326

324

322

320

318

316

314

312

310

308

306

304

302

300

298

296

294

292

290

288

286

284

282

280

278

276

274

272

405

403

401

399

397

395

393

391

389

387

385

383

381

379

377

375

373

371

369

367

365

363

361

359

357

355

353

351

349

347

345

343

341

339

337

335

333

331

329

327

325

323

321

319

317

315

313

311

109

307

305

303

301

299

297

295

293

291

289

287

285

283

281

279

277

275

273

271

136

138

140

142

144

146

148

150

152

154

156

158

160

162

164

166

168

170

172

174

176

178

180

182

184

186

188

190

192

194

196

198

200

202

204

206

208

210

212

214

216

218

220

222

224

226

228

230

232

234

236

238

240

242

244

246

248

250

252

254

256

258

260

262

264

266

268

270

137

139

141

143

145

147

149

151

153

155

157

159

161

163

165

167

169

171

173

175

177

179

181

183

185

187

189

191

193

195

197

199

201

203

205

207

209

211

213

215

217

219

221

223

225

227

229

231

233

235

237

239

241

243

245

247

249

251

253

255

257

259

261

263

265

267

269

540

538

536

534

532

530

528

526

524

522

520

518

516

514

512

510

508

506

504

502

500

498

496

494

492

490

488

486

484

482

480

478

476

474

472

470

468

466

464

462

460

458

456

454

452

450

448

446

444

442

440

438

436

434

432

430

428

426

424

422

420

418

416

414

412

410

408

406

539

537

535

533

531

529

527

525

523

521

519

517

515

513

511

509

507

505

503

501

499

497

495

493

491

489

487

485

483

481

479

477

475

473

471

469

467

465

463

461

459

457

455

453

451

449

447

445

443

441

439

437

435

433

431

429

427

425

423

421

419

417

415

413

411

409

407

100

102

104

106

108

110

112

114

116

118

120

122

124

126

128

130

132

134

101

103

105

107

109

111

113

115

117

119

121

123

125

127

129

131

133

135

IC105

IC101

SN104971APWR

DRCG LITE

IC102

TC59RM716GB-8(YEL)

RD RAM

IC103

TC59RM716GB-8(YEL)

RD RAM

IC104

CXD9615GB

/CTS

/RST

GND

RXD

+5V

TXD

3.3

1.8

1.51.5

1.5

1.8

1.5

1.8

1.5

1.8

1.5

150MHz

400MHz

33MHz

36MHz

3.5

18.432MHz

1.5

3.5

(400MHz)

2.5

1.8

2.5

1.8

2.5

(400MHz)

(35MHz)

— 146 —

SCPH-30002D/30003D/30004D

DIG_+1.8V1

GND

DIG_+2.5V1

DIG_-1.5V3

GD0

GD1

GD2

GD3

GD4

GD5

GD6

GD7

GD8

GD9

GD10

GD11

GD12

GD13

GD14

GD15

GD16

GD17

GD18

GD19

GD20

GD21

GD22

GD23

GD24

GD25

GD26

GD27

GD28

GD29

GD30

GD31

GD32

GD33

GD34

GD35

GD36

GD37

GD38

GD39

GD40

GD41

GD42

GD43

GD44

GD45

GD46

GD47

GD48

GD49

GD50

GD51

GD52

GD53

GD54

GD55

GD56

GD57

GD58

GD59

GD60

GD61

GD62

GD63

IC104 76 pin

IC104 75 pin

IC104 80 pin

IC104 79 pin

IC104 78 pin

IC104 77 pin

IC104 4 pin

IC104 5 pin

IC104 6 pin

IC104 7 pin

IC104 8 pin

IC104 9 pin

IC104 10 pin

IC104 82 pin

IC104 83 pin

IC104 81 pin

IC104 84 pin

GD0

GD1

GD2

GD3

GD4

GD5

GD6

GD7

GD8

GD9

GD10

GD11

GD12

GD13

GD14

GD15

GD16

GD17

GD18

GD19

GD20

GD21

GD22

GD23

GD24

GD25

GD26

GD27

GD28

GD29

GD30

GD31

GD32

GD33

GD34

GD35

GD36

GD37

GD38

GD39

GD40

GD41

GD42

GD43

GD44

GD45

GD46

GD47

GD48

GD49

GD50

GD51

GD52

GD53

GD54

GD55

GD56

GD57

GD58

GD59

GD60

GD61

GD62

GD63

CLKGP

CLKPG

RDYGP

RDYPG

VLDGP

VLDPG

GA0

GA1

GA2

GA3

GA4

GA5

GA6

GACK

GREQ

GRW

INT

RESET

STANDBY

MCLKDIV

CLKSEL

PLLCLK

FULCLKP

FULCLKN

VSS

GO7

BO0

BO1

BO2

BO3

BO4

BO5

BO6

BO7

AO0

AO1

AO2

AO3

AO4

AO5

AO6

AO7

HSYO

VSYO

CSYO

NTPLO

PCLK

FLDO

FSC

GCONT

SPCLK

XSPOE

HBLK1

VBLK1

PCLK2

MXIN

MXOT

SXIN

SXOT

RI0

RI1

RI2

RI3

RI4

RI5

RI6

RI7

GI0

GI1

GI2

GI3

GI4

GI5

GI6

GI7

BI0

BI1

BI2

BI3

BI4

BI5

BI6

BI7

AI0

AI1

AI2

AI3

AI4

AI5

AI6

AI7

FLDI

HSYI

VSYI

SSEL

ADCLK

ARED

ABLU

AGRN

RXIO

BXIO

GXIO

RVB

RVG

IREF

VREF

TEST

TCK

TDI

TDO

TMS

TRST

PLLVDD0

PLLVDD1

PLLVSS0

PLLVSS1

DACAVD

DACVDD

DACVSS

GO7

BO0

BO1

BO2

BO3

BO4

BO5

BO6

BO7

VSS

CKMON

VSS

AVDA

VSS

VSSQ

VSS

VSSGP

VDDGP

DIFVDD

DACVSS

AVDA

AVDB10

AVDB11

DVED

AVD

AVDB00

AVDB01

VDD

VDDQ

R00

R01

R02

R03

R04

R05

R06

R07

G00

G01

G02

G03

G04

G05

G06

R00

R01

R02

R03

R04

R05

R06

R07

G00

G01

G02

G03

G04

G05

G06

CLKGC

CLKCG

/RDYGC

/RDYCG

/VLDGC

/VLDCG

GA0

GA1

GA2

GA3

GA4

GA5

GA6

/GACK

/GREQ

GRW

/GINT

/EGRST

/EGSTBY

LCLK

C294

0.1u

C295

0.1u

R202

10k

R225

10k

R220

R212 0

R264 1k

R265 1k

R213 0

R208

R227

C212

C214

C216

C218

C220

C242

220u

C243

220u

6.3V

C224

C222

C223

C225

C990

C228

C226

C227

C229

C232

C230

C231

C233

C236

C234

C235

C237

C240

C238

C239

C241

C980

0.1u

C986

0.1u

C981

0.1u

C244

220u

C245

220u

C281

L205

10uH

Addditional Power Decoupling

C987

0.1u

C982

0.1u

C988

0.1u

C983

0.1u

C984

0.1u

C985

0.1u

C989

0.1u

C213

C215

C217

C219

C221

C250

4.7u

2012

L203

10uH

JL205

JL204

JL203

JL202

JL201

C247 0.1u B

C248 0.1u B

R217 3.3k ±0.5%

R219 1.5k

±0.5%

R295

470

R218

±0.5%

RB241

4.7k

RB294

4.7k

R294

4.7k

R233

C249

R205 0

R237 4.7k

R236 100

SN74CBT1G125DCKR

OSC.

C283

0.1u

R216

100

R247

C252

0.1u

X202

CL202

CL201

HBLK1

VBLK1

PCLK2

IC303 216 pin

IC104 2 pin

IC303 223 pin

IC104 3 pin

IC303 217 pin

R203 0

Q201

2SA1037AK-T146-QR

RB303

1k C254

0.1u B

R258

33k

C261

10u

16V

CP201

RCN4A5E

IC209

R226

10k

DIG–+3.5V1

GND2

CE2

GND1

CE1

VOUT2(3.3)

VDD2

VOUT1(2.5)

VDD1

R228

10k C257

C267 220u 4V

C268 220u 4V

C270 0.1u

C298 220u 4V

C297 220u 4V

C296 220u 4V

200

47p

C255

0.1u B

C256

0.1u

C262

10u 16v

R246

220

0.5%

R245

220

0.5%

R244

220

0.5%

TRSNK0

TRSNK1

R251

22k

R252

33k

R253

10k

Q204

HN1B01F-GR

(T5LSONY)

R257

1.8k

C276

1500p C277

1500p

D206

UMZ6.8NT106

D205

UMZ6.8NT106

D204

UMZ6.8NT10

D203

UMZ6.8NT10

D202

UMZ6.8NT10

D208

UMZ6.8NT10

FB201

FB202

FB203

FB204

FB205

FB206

JL208

FL201

FL202

FL203

D209

UMZ6.8NT10

D210

UMZ6.8NT106

R259

1.8k

AUR

AUL

D201

MAZF12000LS0

C263

10u

16V

JL209

JL210

JL211

C289

0.001u

CN201 12P

M_G

M_R

M_DCOUT

M_B

M_YCGND

M_C

M_VIDEO

M_Y

M_AUR

M_VIGND

M_AUL

M_AUGND

JL212

JL213

JL214

JL215

JL216

JL207

C286

0.47u

C282

0.47u

R292

10k

RB295

JCP78M05CDTRK

+12V REG.

ANA_+5V

+12V C292

0.1u

2012

123

R278

3.3k

±0.5%

R279

1.5k

±0.5%

R277

1.8k ±0.5%

R273

1.5k ±0.5%

R272

3.3k

±0.5%

C265

4.7u

2012

R261

4.7k C293

47u

16V

RB298

75_0.5%

RB296

75_0.5%

C288

C275

0.1u

C271

0.1u

C269

20p

R263

2.2k

C272

0.1u

RB297

180_0.5%

C287

0.1u B

C291

33p

C290

0.47u

C285

0.47u

C266

10u

16V

R270

1.8k

±0.5%

/DVRST

SCL

SDA

C278

0.47u

GO0

GO1

GO2

GO3

GO4

GO5

GO6

GO7

DVSS2

DVDD2

BO7

BO6

BO5

BO4

BO3

BO2

BO1

BO0

DVDD3

EXT

F_VSYNC

HSYNC

DVSS3

MODE0

MODE1

MODE2

TRSNK1

VCC1

SONGEN

CSYN3_D0

CSYNC3_D1

RGBYC

HSYNC_OUT

YSYNC_OUT

CSYNC_OUT

PVCC1

SCIN

DVCC

CVBS_IN

NTPAL

YIN

PVCC2

CIN

GND1

RIN1

VREF

GIN1

VCC2

BIN1

IREF

GND2

HSYNC_IN

VSYNC_IN

CSYNC1_IN

PGND1

ROUT/CbOUT/PbOUT

PGND3

GOUT/YOUT

PVCC3

BOUT/CbOUT/PbOUT

PGND2

YTRAP

VREF2

CVBS_OUT

YOUT

COUT

CSYNC2_IN

VMUTE

PAL/NTSC

RESET

DVSS1

CLOCK

DVDD1

SCL

SDA

TEST1

TEST0

TP0

CHIPA

TP1

FSCMV

FSCMV VDD

FSCMVB

DABIAS VDD2

DABIASD VSS2

CVBS

CVBS VDD

CVBSB

GND

Y VDD

GND

C VDD

GND

DABIAS VSS1

DABIAS VDD1

IBIAS1

VREFF1

IBIAS2

VREFF2

MODE0

MODE1

MODE2

GND

OUT

MODE0

MODE1

MODE2

TRSNK1

RO0

RO1

RO2

RO3

RO4

RO5

RO6

RO7

C279

0.47u

IC104 11 pin

IC104 74 pin

IC101 6 pin

IC517 5 pin

IC517 8 pin

IC501 10 pin

IC501 12 pin

IC501 13 pin

±0.5%

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

387

386

385

384

383

382

381

380

379

378

377

376

375

374

373

372

371

370

369

368

367

366

365

364

363

362

361

360

359

358

357

356

.3355

354

353

352

351

350

349

348

3473

345

344

343

342

341

340

339

338

337

336

335

334

333

332

331

330

329

328

327

326

325

324

323

322

321

320

319

318

317

316

315

314

313

312

311

310

309

308

307

306

305

304

303

302

301

300

299

298

297

296

295

294

293

292

291

290

289

288

287

286

285

284

283

282

281

280

279

278

277

276

275

274

273

272

271

270

269

268

267

266

265

264

263

262

261

260

259

258

257

256

255

254

253

252

251

250

249

248

247

246

245

244

243

242

241

240

239

238

237

236

235

234

233

232

231

230

229

228

227

226

225

224

223

222

221

220

219

218

217

216

215

214

213

212

211

210

209

208

207

206

205

204

203

202

201

200

199

198

197

196

195

IC202

CXD2944GB

IC205

SC44728BPBEB

DIGITAL VIDEO ENCODER

IC206

CXA3525R-T4

ANALOG VIDEO

ENCODER

IC209

IC208

IC207

TO AV MULTI OUT

00000000

3.3

00001.02.5000.2

0.2

0.8

0.9

3.3

2.5

2.3

1.0 1.0

3.3

3.5

2.5

1.01.03.33.33.3

3.3 0.5 00000.2 000 0

MM3071CFBE

DIG3.5V1 REG.

L206 56uH

Q205

XP4401-TXE

IC104 342 pin

IC402 24 pin

IC104 344 pin

IC402 6 pin

5.0

2.5

1.5

54MHz

1.5

2.5

1.5

2.5

1.5

3.3

3.5

27MHz

GH-010 (2/7)

Reproduction Prohibited

— 147 —

SCPH-30002D/30003D/30004D

GH-010 (3/7)

Reproduction Prohibited

DIG_+1.8V2

DIG_+3.5V1

DIG_+2.5V2

DIG_+1.5V1

GND

MSCLK

PGCLK

AD0

AD1

AD2

AD3

AD4

AD5

AD6

AD7

AD8

AD9

AD10

AD11

AD12

AD13

AD14

AD15

AD16

AD17

AD18

AD19

AD20

AD21

AD22

AD23

AD24

AD25

AD26

AD27

AD28

AD29

AD30

AD31

MSCLK

PGCLK

AD0

AD1

AD2

AD3

AD4

AD5

AD6

AD7

AD8

AD9

AD10

AD11

AD12

AD13

AD14

AD15

AD16

AD17

AD18

AD19

AD20

AD21

AD22

AD23

AD24

AD25

AD26

AD27

AD28

AD29

AD30

AD31

/BE0

/BE1

/BE2

/BE3

/RDAC

/WRAC

/RDY

/BREQ

/BGNT

DREQ0

DREQ1

DACK

/GINT

/SINT

/SRST

CYS_0I

CYS_0O

CYS_1I

CLKBYP1

/RST

TPA1

TPA2

TPAN1

TPAN2

TPB1

TPB2

TPBN1

TPBN2

TPBIAS1

TPBIAS2

AVDD

ACSS0

AVSS1

IREF

PLLVDD

PLLVSS

VREF

VTX

XTALI

XTALO

–

/PDMOD

–

IIDDTP

CLKBYP0

jtp

TESTMOD

MD0

MD1

MD2

MD3

MD4

MD5

MD6

MD7

MD8

MD9

MD10

MD11

MD12

MD13

MD14

MD15

MD16

MD17

MD18

MD19

MD20

MD21

MD22

MD23

MD24

MD25

MD26

MD27

MD28

MD29

MD30

MD31

MA0

MA1

MA2

MA3

MA4

MA5

MA6

MA7

MA8

MA9

MA10

MA11

/RAS0

/RAS1

/CAS0

/CAS1

CAS2

/CAS3

/MWE

VSS

VDD18

VSS

VDD18

VSS

MD0

MD1

MD2

MD3

MD4

MD5

MD6

MD7

MD8

MD9

MD10

MD11

MD12

MD13

MD14

MD15

MD16

MD17

MD18

MD19

MD20

MD21

MD22

MD23

MD24

MD25

MD26

MD27

MD28

MD29

MD30

MD31

MA0

MA1

MA2

MA3

MA4

MA5

MA6

MA7

MA8

MA9

VDD18

VDD15

VDD18

/UOCD

oscvdd

VDD33

VDD18

VDD33

VDD18

SSCLK0

SSCLK1

/SSRST

SD0

SD1

SD2

SD3

SD4

SD5

SD6

SD7

SD8

SD9

SD10

SD11

SD12

SD13

SD14

SD15

SA0

SA1

SA2

SA3

SA4

SA5

SA6

SA7

SA8

SA9

SA10

SA11

SA12

SA13

SA14

SA15

SA16

SA17

SA18

SA19

SA20

SA21

SA22

SA23

SA24

SA25

SA26

/SRD

/SWR

/UBE

/WAIT

/CS1

/CS2

/CS4

/CS5

/CS8

GND

RXD1

TXD1

/DTR1

SAS1

SCK1

/INT1

/DSR1

GND

RXD3

TXD3

/INT3

/DTR3

SCK3

/DSR3

GND

+3.5V

+8.0V

GND

RXD2

TXD2

/INT2

/DTR2

SCK2

/DSR2

GND

RXD0

TXD0

/DTR0

SAS0

SCK0

/INT0

/DSR0

GND

/BE0

/BE1

/BE2

/BE3

/RDAC

/WRAC

/RDY

/BREQ

/BGNT

DREQ0

DREQ1

DACK

/SGINT

/GINT

/SRST

/RST

/BE0

/BE1

/BE2

/BE3

R395

2.2k

R311

4.7k

C302

0.1u

C303

0.1u C304

0.001u

GND

VIN

VOUT

PWRUP_IOP2

PWRUP_IOP1

R350

C311 12p CH

/BE0

/BE1

/BE2

/BE3

R365 47

R366 47

R367 47

R368 47

R361 47

R362 47

R363 0

R364 47

R351 47

R360 47

24.576 MHz

16.9344 MHz

2.5

24.576 MHz

C312 15p CH X302 R321

220

C316

0.33u

C309

0.01u

C310

0.01u

R315

6.2k

±0.5%

R320

10M

R324

10k

R394

10k

C338

0.1u

C356

0.1u

C355

0.1u

MD31

MD30

MD29

MD28

MD27

MD26

MD25

MD24

MD23

MD22

MD21

MD20

MD19

MD18

MD17

MD16

MD0

MD1

MD2

MD3

MD4

MD5

MD6

MD7

MD8

MD9

MD10

MD11

MD12

MD13

MD14

MD15

VCC

I/O1

I/O2

I/O3

I/O4

VCC

I/O5

I/O6

I/O7

I/O8

VCC

I/O9

I/O10

I/O11

I/O12

VCC

I/O13

I/O14

I/O15

I/O16

RAS

VCC

VSS

I/O32

I/O31

I/O30

I/O29

VSS

I/O28

I/O27

I/O26

I/O25

VSS

I/O24

I/O23

I/O22

I/O21

VSS

I/O20

I/O19

I/O18

I/O17

CAS1

CAS2

CAS3

CAS4

A9R

VSS

MA8

MA9

MA7

MA0

MA1

MA2

MA3

MA4

MA5

MA6

RB329

RB305

R327

10k

R318

R316

CL303

CL301

CL302

X301

C315 0.1u

C313 5p CH

C314 5p CH

R322

/CS9

/CS9C

/EXTR

/IOIS16

DREQ4

DREQ5

DREQ8

DREQ9

DREQEX

DACK4

DACK5

DACK8

DACK9

DACKEX

VBLK

/INT4

/INT9

/INT5

/INT8

/INTEX

TCK0

TCK1

HLD0

HLD1

HLD2

HLD3

TXD0

TXD1

TXD2

TXD3

RXD0

RXD1

RXD2

RXD3

/DSR0

/DSR1

/DSR2

/DSR3

/DTR0

/DTR1

/DTR2

/DTR3

SCK0

SCK1

SCK2

SCK3

SAS0

SAS1

SAS2

SAS3

CDC0

CDC1

CDC2

CDC3

S2_REF

UD0+

UD0–

UD1+

UD1–

USBVDD

USBVSS

PLLVDD1

PLLVDD3

PLLVSS3

PLLVSS1

TCK

TMS

TDI

TDO

TRST

VSS

/RT

oscvss

VSS

VDD18

VSS

/INTEX

/WAIT

/IOIS16

/SSRST

HLD0

HLD1

HLD2

HLD3

TXD0

RXD0

/DTR2

SCK2

TXD2

RXD2

/DTR3

SCK3

/DSR0

/DSR1

/DSR2

/DSR3

/DTR0

/DTR1

SCK0

SCK1

TXD3

RXD3

TXD1

RXD1

SAS0

SAS1

RXD1

TXD1

/DTR1

SAS1

SCK1

HLD1

/DSR1

RXD3

TXD3

HLD3

/DTR3

SCK3

/DSR3

FB319

FB320

FB303

FB304

FB305

FB306

FB307

FB317

FB318

FB308

FB309

FB310

FB311

FB312

RXD2

TXD2

HLD2

/DTR2

SCK2

/DSR2

RXD0

TXD0

/DTR0

SAS0

SCK0

HLD0

/DSR0

C307 0.1u B

C318 0.01u B

C317 0.01u B

C319 0.01u B

C321 0.01u B

C323 0.01u B

C325 0.01u B

C327 0.01u B

C329 0.01u B

C331 0.01u B

C333 0.01u B

C335 0.01u B

C337 0.01u B

R330 15

R331 47

R329 47

R359 22

R358

R357 22

C320 0.01u B

C322 0.01u B

C326 0.01u B

C328 0.01u B

C330 0.01u B

C332 0.01u B

C334 0.01u B

C336 0.01u B

C364 0.1u B

C365 0.1u B

C366 0.1u B

C367 0.1u B

R328

47k

RB328

4.7k

RB326

RB327

10k

RB317

RB322

RB324

RB325

RB314

4.7k

C371

0.001u

C370

0.001u

CON_+3.4V JL310

JL311

CON_+8V

CN302 36P

VCC

DATA–

DATA+

GND

VCC

DATA–

DATA+

GND

TPBn

TPB

TPAn

TPA

GND

CN303 18P

RB323

RB318

RB319

RB320

RB311

470

RB321 47

RB312 220

VBLK1

PCLK2

HBLK1

IC202 262 pin

IC104 2 pin,

IC202 264 pin

IC104 3 pin, IC202 263 pin

C339

100p

C340

100p

C341

100p

R347 51 ±0.5%

R349

JL312

JL313

JL314

JL315

JL316

JL317

JL318

JL319

/RT

IC501 22 pin

DIG_+1.5V1

USB_+5V1

USB_+5V2

JL301

R352

C363

0.1u

R334 4.7k

R335 4.7k

R332 470

R333 470

R336 1k

JL302

JL303

JL304

JL305

FL302

567

FL301

FB313

FB314

FB315

FB316

D301

RB501V-40TE-17

RB310

4.7k

C368

0.1u

C369

0.1u

C372

100u

10V

C373

100u

10V

IC104 425 pin

IC104 394 pin

IC104 387 pin

IC104 384 pin

IC104 431 pin

IC104 390 pin

IC104 388 pin

IC104 389 pin

IC104 383 pin

IC104 426 pin

IC104 427 pin

IC104 393 pin

IC104 392 pin

IC104 391 pin

IC104 429 pin

IC104 428 pin

IC104 430 pin

IC402 26 pin

IC402 27 pin

IC402 25 pin, IC501 15 pin,

IC504 105pin, IC604 38 pin,

IC605 63,83 pin, IC802 21 pin

CN601 7 pin, CN602 1 pin

D302

RB501V-40TE-17

C301 0.1u B

C305 0.1u B

C324 0.1u B

C342 0.1u B

C343 0.1u B

C354

0.1u

TPBN1

TPB1

TPA1

TPAN1

TPBIAS1

237

236

235

234

233

232

231

230

229

228

227

226

225

224

223

222

221

220

219

218

217

216

215

214

213

212

211

210

209

208

207

206

205

204

203

202

201

200

199

198

197

196

195

194

193

192

191

190

189

188

187

186

185

184

183

182

181

180

179

178

177

176

175

174

173

172

171

770

169

168

167

166

165

164

163

162

161

160

159

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

316

315

314

313

312

311

310

309

308

307

306

305

304

303

302

301

300

299

298

297

296

295

294

293

292

291

290

289

288

287

286

285

284

283

282

281

280

279

278

277

276

275

274

273

272

271

270

269

268

267

266

265

264

263

262

261

260

259

258

257

256

255

254

253

252

251

250

249

248

247

246

245

244

243

242

241

240

239

238

567

IC306

MM3051NULE

DIG2.5V2 REG.

IC305

T7X16 (YEL)

EDO RAM

IC303

CXD9619GB

IOP TO CONTROLLER

R353

22 R354

FB323

FB324

FB321

FB322

TPA1

TPAN1

TPB1

TPBN1

TPBIAS1

R307

±0.5%

R308

5.1k

±0.5%

C306

240p

C308

0.33u

R309

±0.5%

R310

±0.5%

R312

±0.5%

2.5

3.5

2.5

3.5

3.5 3.5 3.5 3.5

3.5

SA26

SA25

SA24

SA23

SA22

SA21

SA20

SA19

SA18

SA17

SA16

SA15

SA14

SA13

SA12

SA11

SA10

SA9

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

SA0

N.C

IC505 1 pin, IC503/506 44 pin

IC505 2 pin, IC503/506 43 pin

IC505 49 pin, IC503/506 2 pin

IC505 48 pin, IC503/506 3 pin

IC505 11 pin, IC503/506 34 pin

IC505 10 pin, IC503/506 35 pin

IC505 9 pin, IC503/506 36 pin

IC505 8 pin, IC503/506 37 pin

IC505 7 pin, IC503/506 38 pin

IC505 6 pin, IC503/506 39 pin

IC505 5 pin, IC503/506 40 pin

IC505 4 pin, IC503/506 41 pin, IC504 144 pin

IC505 3 pin, IC503/506 42 pin, IC504 143 pin

IC505 47 pin, IC503/506 4 pin, IC504 142 pin

IC505 46 pin, IC503/506 5 pin, IC504 141 pin

IC505 45 pin, IC503/506 6 pin, IC504 140 pin

IC505 44 pin, IC503/506 7 pin, IC504 139 pin

IC505 43 pin, IC503/506 8 pin, IC504 137 pin

IC505 42 pin, IC503/506 9 pin, IC504 136 pin

IC505 41 pin, IC503/506 10 pin, IC504 135 pin

IC505 40 pin, IC503/506 11 pin, IC504 134 pin

IC505 15 pin, IC503 31 pin

IC505 17 pin, IC503/506 31 pin, IC504 133 pin

IC505 19 pin, IC503/506 29 pin, IC504 132 pin

IC505 21 pin, IC503/506 27 pin, IC504 131 pin

IC505 23 pin, IC503/506 25 pin, IC504 130 pin

IC505 26 pin, IC503/506 22 pin, IC504 129 pin

IC505 28 pin, IC503/506 20 pin, IC504 128 pin

IC505 30 pin, IC503/506 18 pin, IC504 125 pin

IC505 32 pin, IC503/506 16 pin, IC504 124 pin

IC505 18 pin, IC503/506 30 pin, IC504 123 pin

IC505 20 pin, IC503/506 28 pin, IC504 122 pin

IC505 22 pin, IC503/506 26 pin, IC504 121 pin

IC505 24 pin, IC503/506 24 pin, IC504 120 pin

IC505 27 pin, IC503/506 21 pin, IC504 119 pin

IC505 29 pin, IC503/506 19 pin, IC504 118 pin

IC505 31 pin, IC503/506 17 pin, IC504 115 pin

IC505 33 pin, IC503/506 15 pin, IC504 114 pin

IC501 25 pin

IC501 29 pin

IC504 108 pin

IC504 110 pin

IC501 26 pin, IC605 166 pin

IC501 30 pin, IC605 167 pin

IC501 107 pin

IC504 109 pin

IC501 27 pin

IC501 31 pin

IC501 14 pin, IC504 104 pin

IC504 103 pin

IC501 143 pin, IC605 171 pin

IC605 173 pin

IC501 32 pin

CL526

IC501 33 pin, IC605 168 pin

IC504 106 pin

IC501 35 pin

IC501 20 pin

IC501 19 pin

CL525

IC501 18 pin, IC605 164 pin

IC504 111 pin

IC505 36 pin, IC503 12 pin, IC518 7 pin

IC505 50 pin, IC503 1 pin, IC518 1 pin

IC501 21 pin

IC505 34 pin, IC503/506 14 pin, IC504 112 pin

IC501 17 pin, IC605 163 pin

IC504 113 pin

IC501 16 pin, IC605 162 pin

IC501 35 pin

IC501 23 pin

IC501 24 pin

DREQ9

DACK9

DREQ8

DACK8

DREQ5

DACK5

DREQ4

DACK4

DREQEX

DACKEX

/INT9

/INT8

/INT5

/INT4

/INTEX

/SSRST

SSCLK1_A

SSCLK1_B

SSCLK0

SD15

SD14

SD13

SD12

SD11

SD10

SD9

SD8

SD7

SD6

SD5

SD4

SD3

SD2

SD1

SD0

/CS9C

/CS9

/CS8

/CS5

/CS4

/CS2

/CS1

/EXTR

/SRD_A

/SRD_B

/SWR_A

/SWR_B

/UBE

/WAIT

/IOIS16

i-LINK

AV USB

OUT

2.5 24.576 MHz

16.9344 MHz

2.5

24.576 MHz

1.5

3.5

1.8

3.5

1.8

3.5

36 MHz

33 MHz

o˝M

1.5

3.5

1.8 1.8

— 148 —

SCPH-30002D/30003D/30004D

GH-010 (4/7)

Reproduction Prohibited

CN403 2P

SN104809DBTR

IC404 R421

2.7

D402

RB495D-T146

C430

0.1u

R417

220

C414

1500p

R423

2.7

R470

100k

R411

33k

±0.5%

R410

33k

±0.5%

R409

R406

150

C409

6800p

INV1

FB1

SOFTSTART1

PWM_SKIP

5V_STBY

GND

REF

STBY1

STBY2

SCP

POWERGOOD

SOFTSTART2

FB2

INV2

LH1

OUT1_U

LL1

OUT1_D

OUTGND1

TRIP1

VCC

TRIP2

VREF5

REG5V_IN

OUTGND2

OUT2_D

LL2

OUT2_U

LH2

R418

470

RB402

1.5k

C415

1500p

C416 0.1u B

C417 43p CH

C418 0.1u B

C419 0.01u B

C420 0.1u B

SW1.5

R408

33k

R412

33k

±0.5%

R413

33k

±0.5%

R414

C410

6800p

R407

150

C431

0.1u

C433

0.1u

2012

R424

L410

22uH

C435

4.7u

3216

D403

RB495D-T146

JL406

R422

C439

150u

L411

10uH

C444

0.1u

C441

150u

1.5V C424

4.7u

C711

39u

16V

Q402

IRF7901D1-TR

JL430

C425

10u

16V

C426

0.1u

/RESET

VIN

GND

OUT

BD3992F-E2 : for GH010-64MR

MM1537DFBE : for GH010-32MM & GH010-64MM

IC403

123

OUT

VDD

VSS

IC401

S-80769SN-J0-T1

C407

0.1u C408

C405

0.1u

/8.5DET

R467

10k

RB410

10k

RB409

10k

C401

0.1u

R469

10k

C403

0.001u

POWER

BLOCK

SW-358

BOARD

CN751

CN401

12V

GND

INV1

FB1

SOFTSTART1

PWM_SKIP

5V_STBY

GND

REF

STBY1

STBY2

SCP

POWERGOOD

SOFTSTART2

FB2

INV2

LH1

OUT1_U

LL1

OUT1_D

OUTGND1

TRIP1

VCC

TRIP2

VREF5

REG5V_IN

OUTGND2

OUT2_D

LL2

OUT2_U

LH2

VIN

VOUT

ADJ

GND

VOUT

12345

VIN

VOUT

ADJ

GND

VOUT

12345

VIN

GND

OUT

123

PQ018PZ01ZP

IC407

PQ070XZ01ZP

IC408

NJM2125F(TE2)

IC415

TMP87C807U-1V33

IC402

SI-3026LSA-TL

IC410

MM3031JULE

IC411

ST-3025LSA-TL

IC412

LP2985IM5X-3.5

IC413

RS5C348A-E2

IC405 BR9080F-E2

IC406

SN104809DBTR

IC409

TA7808F(TE16L)

IC414

VOUT

GND

VDD

VOUT

GND

/WC

/SK

/CS

VCC

R/B

/INTR

OSCOUT

OSCIN

VDD

VSS

SCLK

32KOUT

(/PPG)P14

(/DVD)P13

(/INT2/TC1)P12

(INT1)P11

(/INT0)P10

P51

P50

P67

P66

P65

P64

P73(/SCK)

P72(/PDO/ /PWM)

P71(INT4)

P70(INT3/TC3)

P07

P06

P05

P04

P03

P02

P01

P15(TC2)

P16

P17

P20(/INT5/ /STOP)

P21(XTIN)

P22(XTOUT)

VDD

P77(HSO)

P76(/HCK)

P75(SO)

P74(SI)

P63

P62

P61

P60

N.C

VSS

XOUT

XIN

/RESET

TEST

P00

/SW2.5_3

SW1.8

SW2.5

SW5.1

OP/CL_SW

PWR_SW

TRAY_LED_ON

GND

/GREEN_ON

/RED_ON

EVER+12V

CN406

JL402 JL404

JL401 JL403

C402

2.2u

2012

F001

5.1A

JL421

JL422

FB403

FB404

FB405

FB406

FB407

FB408

GREEN_ON

OP/CL_SW

PWR_SW

TRAY_LED_ON

C706

100p

C701

100p C703

100p C705

100p

C702

100p C704

100p

RED_ON

Q405

XP4213-TXE

1.5V

1.8V

2.5V

3.5V

C707

10u

C421

4.7u

L401

22uH C708

10u C709

10u

C710

10u

Q401

SI4884DY-T1

JL405

C432 0.1u B

2012

Q404

IRF7809A-TR

D405

EC31QS03L-TE12L

L404

1.82uH

C440

100u

C443

100u

C446

100u

4V C450

0.1u

C434

0.001u

/TS_SCK

FAN_PWM

SLEEP

POFF_REQ

HDD_ACK

/EGSTBY

MCON_ACK

/TRESETIN

/TS_CS

/POFF_RDY

GREEN_ON

PWR_SW

SW1.5

SW1.8_2

SW12

SW3.3

PWRUP_EE

PWRUP_IOP1

PWRUP_IOP2

/RST

/EGRST

OP/CL_SW

/8.5DET

POW_CTRL

HDD_SW

SW2.5_2

SW1.8_3

/SYS_SRST

/TRAY_REQ

/HDD_SET

TS_SI

X401

4MHz

RED_ON

RB408

10k

PS001

PS012

C422

0.1

123

Q415

2SC2873Y-TE12L

R474

470k

C423

0.1u

C427

100u

16V

R473

4.7k

±0.5%

R472

10k

±0.5%

IC415

JL408

+8.5V

GND

FAN_PWM

CN402 2P

BATT

GND

GB-003 BOARD

CN101

C453

0.1u

X402

32.768KHz

C452

0.1u

C449

0.001u

C445

4.7u

2012

CL401

JL407

R429 10k JL408

RB403

10k

SW3.3

SW5.1

JL428 DIG_+1.5V3

R426

22k

±0.5%

R427

10k

±0.5%

C437

0.1u

C438

0.1u

BC447

0.1u

3216

R428

5.6

2012

C476

0.1u

2012

Q406

IRF7901D1-TR

L412

22uH

10uH

7.5kaku

C730

4.7u

C714

10u

16V

C715

10u

16V

JL409

R434

120

C460

8200p

JL431 DIG_+1.5V1

JL429

R440

3.3k

±0.5%

R441

22k

±0.5%

R442

8.2k

±0.5%

R446

470

C469

1800p

C470 0.1u B

C471 43p B

C472 0.1u B

C473 0.1u B

C474 0.1u B

R405

100k

R404

100k

RB405

1.5k

R415

33k

R416

33k C475

1200p

R447

470

R443

5.6k

±0.5%

R444

27k

±0.5%

R445

1.2k

±0.5%

C461

8200p

R435

120

F003

5.1A

L414

10uH

C455

4.7u C717

39u

16V

C718

39u

16V

C480

0.1u

2012

Q407

FDS6690A

Q408

IRF7807D1-TR

SW1.8

R431

220

PS002

1.2A R432

4.7k

C456

4.7u

2012 R419

10k C465

0.1u

C467

100u

PS003

1.2A

SW1.8_3

R430

220

R433

4.7k

C457

4.7u

2012

R420

10k

R439

2.7k

±0.5%

R438

1.3k

±0.5%

C468

100u

C466

0.1u

SW2.5_2

SW2.5

C478

4.7u

2012

R449

10k

R450

470

R402

22k

SW1.8_2

C491

100u

C497

0.001u

R403

220k R456

R459

10k

C495

R455

100k

C490

100u

C404

PS004

1.2A

C477

4.7u

2012

R448

10k R451

470

R401

22k

C479

PS006

L408

5.6uH

C487

150u

6.3V C489

150u

6.3V

C494

0.1u

2012

R454

JL410

R458

C488

4.7u

3216

D408

RB495D-T146

C483

0.1u

R452

D407

BR495D-T146

R453

C482

0.1u

R460

10k

±0.5%

C492

0.1u

R457

47k

±0.5%

C493

0.1u

SW3.3

/SW2.5_3

C726

0.001u R475

1M R476

100k

Q413

SI2305DS-T1

/SW2.5_3

TRAY_LED_ON

POFF_REQ

/EGSTBY

/POFF_RDY

/PWRUP_EE

/SYS_SRST

PWRUP_IOP2

/TRAY_REQ

PWRUP_IOP1

MCON_ACK

/HDD_SET

SLEEP

HDD_ACK

/EGRST

POW_CTRL

/TS_CS

TS_SI

/RST

/TS_SCK

/TRESETIN

IC604 99 pin

CN504 96 pin, IC604 74 pin

IC104 344 pin

CN504 95 pin, IC604 32 pin

IC104 345 pin

IC604 7 pin

IC303 80 pin

CN504 99 pin, IC604 6 pin

IC303 81 pin

IC604 4 pin

CN504 98 pin

CN504 94 pin, IC604 5 pin

CN504 92 pin

IC104 342 pin

CN504 97 pin

IC105 7 pin

IC105 1pin

IC303 54 pin, IC501 15 pin, IC504 105 pin,

IC604 38 pin, IC605 63,83 pin, IC802 21 pin,

CN601 7 pin, CN602 1 pin

IC105 2 pin

GND

DIG_+1.8V1JL419

DIG_+1.8V3JL418

DIG_+2.5V3JL414

DIG_+1.8V2

DIG_+1.8V1

DIG_+1.8V3

DIG_+2.5V3

DIG_+1.8V2

JL420

DIG_+2.5V2

DIG_+2.5V1

USB_+5V2

USB_+5V1

JL432

JL415

JL426

JL425

JL413

JL417

JL423

GND

SER_+3.5V

DIG_+5V

C724

47u

16V

C723

68u

10V

TH001

C722

0.001u

C486

47u

16V

C499

2.2u

2012

PS009

PS011

Q409

XP4213-TXE

HDD_SW

R463

SW12

Q410

DTC144EUA-T106

R465

100k

Q412

SI4435DY-T1-REVA

RB407

1M RB406

100k

PS010

PS007

L413

10uH

10.1kaku

C716

150u

6.3V

C485

0.1u

R461

5.6

2012

PS008

1.2A

R466

C498

4.7u

2012

C712

0.01u

C725

10u

16V

C727

0.001u

Q411

SI4435DY-T1-REVA

Q414

SI4435DY-T1-REVA

JL427

C458

0.001u

C462

0.001u

2012

JL411

/EEP_CE

EEP_SI

EEP_SO

EEP_SCK

RT_CE

EEP_READY

IC604 47 pin

IC604 48 pin

IC604 49 pin

IC604 50 pin

IC604 53 pin

IC604 58 pin

+12V

JL412 EVER_+3.3V

HDD_+5V

HDD_+12V

JL424

JL416

CON_+8V

DIG_+3.5V1

CON_+3.4V

DIG_+5V

TH002

TH003

1.8V

CL404

CL405

CL402

CL403

RT_CE

EEP_SO

EEP_SI

EEP_SCK

/EEP_CE

EEP_READY

D404

HN2D02FU-TE85R

4 MHz

IC405 IC406

IC410

IC411

IC412

IC407

IC408

1.5

1.8

2.5

1.8

2.5

53.5

1.5

C496

3216

FAN

MOTOR

1.8

12 3.3

3.3

3.5

1.5

R477

0R478

0R479

0R480

J U E A

100000PF : for GH010-64MR

1uF : for GH010-64MM

CN505 73 pin

— 149 —

SCPH-30002D/30003D/30004D

GH-010 (5/7)

Reproduction Prohibited

for GH010-64MM & GH010-64MR

DIG_+3.5V1

DIG_+5V

GND

/CS5

/INT5

DREQ5

DACK5

/CS9

SA19

SA18

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

/CS2

/SRD_A

SD0

SD8

SD1

SD9

SD2

SD10

SD3

SD11

SA19

SA18

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

/CS2

/SRD_A

SD0

SD8

SD1

SD9

SD2

SD10

SD3

SD11

SA21

SA20

SA9

SA10

SA11

SA12

SA13

SA14

SA15

SA16

SA17

SA0

SD7

SD14

SD6

SD13

SD5

SD12

SD4

SA21

SA20

SA9

SA10

SA11

SA12

SA13

SA14

SA15

SA16

SA17

SD15

SD7

SD14

SD6

SD13

SD5

SD12

SD4

SPMD7

SPMD6

SPMD5

SPMD4

SPMD3

SPMD2

SPMD1

SPMD0

/SPMWE

SPMA0

SPMA1

SPMA2

SPMA3

VSS

DQ16

DQ15

DQ14

DQ13

VSS

DQ12

DQ11

DQ10

DQ9

/LCAS

/UCAS

/OE

VSS

SPMD8

SPMD9

SPMD10

SPMD11

SPMD12

SPMD13

SPMD14

SPMD15

/SPMOE

SPMA9

SPMA8

SPMA7

SPMA6

SPMA5

SPMA4

SPMD0

SPMD1

SPMD2

SPMD3

SPMD4

SPMD5

SPMD6

SPMD7

SPMD8

SPMD9

SPMD10

SPMD11

SPMD12

SPMD13

SPMD14

SPMD15

/SPMRAS

/SPMCAS

SPMA9

SPMA8

SPMA7

SPMA6

SPMA5

SPMA4

SPMA0

SPMA1

SPMA2

+3.3V

SA15

GND

SA14

SA13

SA12

SA11

SA10

SA9

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

+3.3V

GND

SA0

SA26

SA25

SA24

SD15

SD14

SD13

SD12

SD11

SD10

SD9

SD8

SD7

SD6

SD5

SD4

+3.3V

+5V

SCLK

CCLK

AUX_CIN2

AUX_CIN1

AUX_CIN0

CSIG2

CSIG1

/CWR

/CRD

/CCS5

/CCS9

/CCSEX

GND

/CRT

/CUBE

CDREQ9

CDREQ5

CDREQEX

CDACK9

CDACK5

CDACKEX

/WAIT

/CIOIS16

/CINT9

/CINT5

/CINTEX

/CSRST

/CRST

CA15

CA14

CA13

CA12

CA11

CA10

+3.3V

IC605 179 pin

IC605 178 pin

IC605 177 pin

IC605 176 pin

CCLK

CLRCK

CBCK

CDAT

CSIG2

/CWR

/CRD

/CCS5

/CCS9

/CCSEX

/CRT

/CUBE

CDREQ9

CDREQ5

CDREQEX

CDACK9

CDACK5

CDACKEX

/CWAIT

/CIOIS16

/CINT9

/CINT5

/CINTEX

/CSRST

/CRST

CA15

CA14

CA13

CA12

CA11

CA10

+3.3V

SD3

GND

SD2

SD1

SD0

CD0

CD1

CD2

CD3

CD4

CD5

CD6

CD7

CD8

CD9

+3.3V

GND

CD10

CD11

CD12

CD13

CD14

CD15

CA0

CA1

CA2

CA3

CA4

CA5

CA6

CA7

GND

CA8

CA9

+3.3V

/UBE

/INTEX

/INT5

/INT9

DACKEX

DACK5

DACK9

GND

DREQEX

DREQ5

DREQ9

/IOIS16

/WAIT

/RT

/EXTR

/CS9C

/CS9

/CS5

/SRD

/SWR

/RST

/SSRST

I2CDA

I2C_CL

GND

I2C_RT

SIG1

SIG2

AUXOUT0

AUXOUT1

AUXOUT2

CDTCT

POW_CTRL

+3.3V

/UBE

/INTEX

/INT5

/INT9

DACKEX

DACK5

DACK9

DREQEX

DREQ5

DREQ9

/IOIS16

/WAIT

/RT

/EXTR

/CS9C

/CS9

/CS5

/SRD_B

/SWR_B

/RST

/SSRST

SPUDATI

SPUBCKI

SPULRCKI

SDA

SCL

/DVRST

/DEV5EN

IC205 29 pin

IC205 30 pin

IC205 34 pin

IC605 191 pin

CD0

CD1

CD2

CD3

CD4

CD5

CD6

CD7

CD8

CD9

CD10

CD11

CD12

CD13

CD14

CD15

CA0

CA1

CA2

CA3

CA4

CA5

CA6

CA7

CA8

CA9

SD3

SD2

SD1

SD06

SA15

SA14

SA13

SA12

SA11

SA10

SA9

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

SA0

SA26

SA25

SA24

SD15

SD14

SD13

SD12

SD11

SD10

SD9

SD8

SD7

SD6

SD5

SD4

VDD0

MD0

MD1

MD2

MD3

MD4

MD5

MD6

VSS0

MD7

MD8

MD9

MD10

MD11

MD12

MD13

MD14

VDD1

VSS1

MD15

XWE

XRAS

XCAS

XOE

MA9

MA8

MA7

MA6

MA5

VSS2

MA4

MA11

MA10

MA0

MA1

MA2

DREQ1

DREQ0

XIRQ

XRST

XSRST

SYCK

VSS8

TES4

TES3

TES2

TES1

TES0

VSS7

VDD5

TSOF

TSOE

TSOD

TSOC

TSOB

TSOA

TSO9

TSO8

VSS6

TSO7

TSO6

TSO5

TSO4

TSO3

TSO2

TSO1

VDD4

DREQ8

DREQ4

/INT4

/RST

/SSRST

SSCLK1_A

HA10

HA9

HA8

HA7

HA6

HA5

VSSB

HA4

HA3

HA2

HA1

HD15

HD14

HD13

HD12

HD11

HD10

VSSA

VDD7

HD9

HD8

HD7

HD6

HD5

HD4

HD3

HD2

VSS9

VDD6

HD1

HD0

XWR

XRD

XCS

DAK1

DAKK0

MA3

VDD2

MUTE

XCK

DAT1

VSS3

DAT0

BCO0

LRO0

DOUT

DIN

DATI

BCKI

LRCI

VDD3

VSS4

VSS5

TSO0

SPMA3

SPMUTE

DACCLK

DADOUT

DABCKOUT

DALRCKOUT

SPDOUT

SPUDI_A

SPUBCKI_A

SPUDI

SPUDATI

SPUBCKI

SPULRCKI

CL513

R513 47

R516 100

R517 100

C518

0.47u

RB511

/RST

SPDOUT

SPUDI

SPUDATI

SPUBCKI

SPULRCKI

SPUDI

SPUDATI

SPUBCKI

SPULRCKI

Vin

VCC

GND

CN501

C527

0.001u

AUL

AUR

CN201 11 pin

CN201 9 pin

R578

560

R577

560

R579

10k

R576

10k

R575

270k

R580

270k

C530

3.3u

35V

C522

0.1u

C523

0.01u

C521

C537

0.47u

C540

0.47u

CL502

C535

0.47u

C533

0.47u

C534

0.47u

C541

0.47u

R505

SSCLK1_B

R522

10k

R503

R504

C542

100p

C536

0.47u

ANA_+5V

SDATA

/DEM/SCLK

LRCK

MCLK

AOUTL

AGND

AOUTR

DADOUT_A

DABCKOUT_A

DALRCKOUT_A

DACCLK_A CL519

CS4335-KS

AUDIO DUC

EVER_+3.3V

C529

3.3u

35V

Q506

IMH20T108

Q505

RN4904 (TE85R)

C525

0.47u

C524

0.47u

C528

D500

DAP202UT106

SA10

SA9

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

SD15

SD14

SD13

SD12

SD11

SD10

SD9

SD8

SD7

SD6

SD5

SD4

SD3

SD2

SD1

SD0

/SWR_A

/SRD_A

/CS4

DACK8

DACK4

A20

A19

A10

A11

A12

A13

A14

A15

A16

/BYTE

VSS

D15/A-1

D14

D13

D12

VCC

A18

/CE

VSS

/OE

D10

D11

A20

A19

A10

A11

A12

A13

A14

A15

A16

/BYTE

VSS

D15/A-1

D14

D13

D12

VCC

A18

/CE

VSS

/OE

D10

D11

/INT9

DREQ9

DACK9

/CS4

/INT4

DREQ4

DACK4

/WAIT

/RT

DREQ8

DACK8

/CS1

/CS2

/EXTR

/INTEX

/CS9C

/IOIS16

/UBE

DACKEX

DREQEX

SA16

SA17

SA18

SA19

SA20

SA21

SA22

SA23

SA24

SA25

SA26

SSCLK0

/CS8

/INT8

CL525

CL526

32M

64M 32M

R509

C543

0.47u

C526

0.1u

R527

1.0k

C512

0.47u

FC505

0.47u

C508

0.47u

C509 0.47u F

C510 0.47u F

CL511

CL521CL520

CL522

CL512

C516

0.47u

C517

0.47u

CXD2942AR

SPU2

CXD9611AR

HDD CONTROLLER

C513

0.47u

C514

0.47u

R506

100

JL595

R531 100

JL550

CL518

C538

0.47u

C539

0.47u

HDD_SET

POW_CTRL

SD15

SD14

SD13

SD12

SD11

SD10

SD9

SD8

SD7

SD6

SD5

SD4

SD3

SD2

SD1

SD0

SA15

SA14

SA13

SA12

SA11

SA10

SA9

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

SA0

RB525

RB526

CD15_A

CD14_A

CD13_A

CD12_A

CD11_A

CD10_A

CD9_A

CD8_A

CD7_A

CD6_A

CD5_A

CD4_A

CD3_A

CD2_A

CD1_A

CD0-A

CA15_A

CA14_A

CA13_A

CA12_A

CA11_A

CA10_A

CA9_A

CA8_A

CA7_A

CA6_A

CA5_A

CA4_A

CA3_A

CA2_A

CA1_A

CA0-A

CD15

CD14

CD13

CD12

CD11

CD10

CD9

CD8

CD7

CD6

CD5

CD4

CD3

CD2

CD1

CD0

CA15

CA14

CA13

CA12

CA11

CA10

CA9

CA8

CA7

CA6

CA5

CA4

CA3

CA2

CA1

CA0

RB524

RB523

RB522

RB521

RB520

RB519

RB518

RB517

RB527

RB528

RB529

RB530

RB531

RB532

SD15_DVD

SD14_DVD

SD13_DVD

SD12_DVD

SD11_DVD

SD10_DVD

SD9_DVD

SD8_DVD

SD7_DVD

SD6_DVD

SD5_DVD

SD4_DVD

SD3_DVD

SD2_DVD

SD1_DVD

SD0_DVD

SD1_DVD

SD2_DVD

SD3_DVD

SD4_DVD

SD5_DVD

SD6_DVD

SD7_DVD

SD8_DVD

SD9_DVD

SD10_DVD

SD11_DVD

SD12_DVD

SD13_DVD

SD14_DVD

SD15_DVD

SA0_DVD

SA1_DVD

SA2_DVD

SA3_DVD

SA4_DVD

SA5_DVD

SA6_DVD

SA7_DVD

SA8_DVD

SA9_DVD

SA10_DVD

SA11_DVD

SA12_DVD

SA13_DVD

SA14_DVD

SA15_DVD

SD0_DVD

SD1_DVD

SD2_DVD

SD3_DVD

SD4_DVD

SD5_DVD

SD6_DVD

SD7_DVD

SD8_DVD

SD9_DVD

SD10_DVD

SD11_DVD

SD12_DVD

SD13_DVD

SD14_DVD

SD15_DVD

SA0_DVD

SA1_DVD

SA2_DVD

SA3_DVD

SA4_DVD

SA5_DVD

SA6_DVD

SA7_DVD

SA8_DVD

SA9_DVD

SA10_DVD

SA11_DVD

SA12_DVD

SA13_DVD

SA14_DVD

SA15_DVD

IC605 159 pin

IC605 158 pin

IC605 157 pin

IC605 156 pin

IC605 154 pin

IC605 153 pin

IC605 152 pin

IC605 151 pin

IC605 148 pin

IC605 147 pin

IC605 146 pin

IC605 145 pin

IC605 143 pin

IC605 142 pin

IC605 141 pin

IC605 140 pin

IC605 137 pin

IC605 136 pin

IC605 135 pin

IC605 134 pin

IC605 132 pin

IC605 131 pin

IC605 130 pin

IC605 129 pin

IC605 126 pin

IC605 125 pin

IC605 124 pin

IC605 123 pin

IC605 120 pin

IC605 119 pin

IC605 118 pin

IC605 117 pin

SA15_DVD

SA14_DVD

SA13_DVD

SA12_DVD

SA11_DVD

SA10_DVD

SA9_DVD

SA8_DVD

SA7_DVD

SA6_DVD

SA5_DVD

SA4_DVD

SA3_DVD

SA2_DVD

SA1_DVD

SA0_DVD

HDD_+12V

HDD_+5V

LND501

LND502

LND503

LND504

CN504 110P

C507

0.001u

2012

C503

0.001u

2012

R574

180

D501

CL-201TLY-C-TU

C501

1u F

2012

C504

1u F

2012

C544

47u

16V

C545

47u

16V

100

101

102

103

104

105

106

107

108

109

110

CA15

CD15

CA14

GND

CD14

CA13

CD13

CA12

GND

CD12

CA11

CD11

CA10

GND

CD10

CA9

CD9

CA8

HDD_+5V

CD8

CA7

CD7

CA6

GND

CD6

CA5

CD5

CA4

GND

CD4

CA3

CD3

CA2

GND

HDD_ACK

IC402 5 pin

OP_DISC

IC604 98 pin

SLEEP

IC402 3 pin, IC604 5 pin

/POFF_RDY

IC402 10 pin, IC604 32 pin

POFF_REQ

IC402 4 pin, IC604 74 pin

/HDD_SET

IC402 43 pin

/TRAY_REQ

IC402 42 pin,

IC604 6 pin

GND

CD2

CA1

CD1

CA0

HDD_+5V

CD0

/CSRST

GND

/CRST

/CINTEX

/CINT5

/CINT9

GND

/CIOIS16

/CWAIT

CDACKEX

CDACK5

CDACK9

CDREQEX

CDREQ5

GND

CDREQ9

/CUBE

GND

/CCSEX

/CRT

GND

/CCS9

/CWR

/CCS5

GND

/CRD

GND

CCLK

GND

CBCK

HDD_+5V

CLRCK

CSIG2

GND

CDAT

ACS_LED

GND

HDD_ACK

OP_DISC

SLEEP

/POFF_RDY

POFF_REQ

PWR_CTRL

/HDD_SET

/TRAY_REQ

HDD_+12V

GND

HDD_+12V

GND

HDD_+12V

HDD_+5V

HDD_+12V

HDD_+5V

HDD_+12V

HDD_+5V

HDD_+12V

IC303 239 pin, IC605 164 pin

IC303 220 pin, IC605 168 pin

IC303 232 pin, IC605 166 pin

IC303 227 pin, IC605 167 pin

IC303 237 pin

IC303 221 pin

IC303 230 pin

IC303 225 pin

IC303 240 pin

IC303 222 pin

IC303 233 pin

IC303 228 pin

IC303 243 pin

IC303 165 pin

IC303 231 pin

IC303 226 pin

IC303 242 pin

IC303 241 pin

IC303 235 pin

IC303 218 pin

IC303 236 pin

IC303 234 pin

IC303 244 pin

IC303 224 pin

IC303 229 pin

IC303 257 pin

IC303 256 pin

IC303 255 pin

IC303 254 pin

IC303 253 pin

IC303 252 pin

IC303 251 pin

IC303 250 pin

IC303 249 pin

IC303 248 pin

IC303 247 pin

IC303 292 pin, IC605 171 pin

IC303 238 pin

IC303 219 pin

VCC

DQ1

DQ2

DQ3

DQ4

VCC

DQ5

DQ6

DQ7

DQ8

/RAS

VCC

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106

105

104

103

102

101

100

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

120

119

118

117

116

115

114

113

112

111

110

109

100

101

102

103

104

105

106

107

108

IC503

BOOT ROM

IC505

IC518

TC7WB125FK (TE85R)

IC506 IC502

DVD ROM SDMN18165CTM6S

DRAM

IC501

IC504

IC517

SA21

SA20

SA9

SA10

SA11

SA12

SA13

SA14

SA15

SA16

SA17

SA0

SD15

SD7

SD14

SD6

SD13

SD5

SD12

SD4

/CE1

A18

A17

/CE2

GND

/OE

D10

D11

SA19

SA18

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

/SRD_A

SD0

SD8

SD1

SD9

SD2

SD10

SD3

SD11

A20

A19

A10

A11

A12

A13

A14

A15

A16

GND

D15/A-1

D14

D13

D12

VDD

VCC

/OE2

/OE1

GND

IC503

for GH010-32MM & GH010-32MR IC506

for GH010-32MM & GH010-32MR

R510 0

R511

C502

0.47u

SA0

SA1

SA2

SA3

SA4

SA5

SA6

SA7

SA8

SA9

SA10

SA11

SA12

SA13

SA14

SA15

SD0

SD1

SD2

SD3

SD4

SD5

SD6

SD7

SD8

SD9

SD10

SD11

SD12

SD13

SD14

SD15

/SRD_A

/SRD_B

/SWR_A

/SWR_B

/RST

/SSRST

SSCLK1_A

SSCLK1_B

POW_CTRL

IC303 273 pin

IC303 258 pin

IC303 246 pin

IC303 246 pin, IC605 163 pin

IC303 245 pin

IC303 245 pin, IC605 162 pin

IC303 290 pin

IC303 291 pin

IC303 291 pin, IC605 171 pin

IC402 36 pin

IC303 289 pin

IC303 274 pin

IC303 54 pin, IC402 25 pin,

IC604 38 pin, IC605 63,83 pin,

IC802 21 pin,, CN601 7 pin,

CN602 1pin

555

3.5

IC518 : GH010-64MM & GH010-64MR

C526, C543, R527 :

for GH010-64MM & GH010-64MR

C505, C512, R510, R511 :

for GH010-32MM & GH010-32MR

BOOT + DVD ROM

2.2

5.0

2.2

1.7

1.8

0.7

2.1

0.8

2.1

1.7

0.3

0.7

0.1

0.7

1.7

3.5

1.6

1.3

2.2

∗

1.7

3.3

1.6

1.3

1.2

1.6

0.6

3.5

1.5

0.7

0.5

3.5

∗

3.4

3.5

∗

3.5

TO HARD DISK DRIVE

3.5

DIGITAL

OPTICAL

OUT

3.5

2 5

— 150 —

SCPH-30002D/30003D/30004D

GH-010 (6/7)

Reproduction Prohibited

JL602

R619

10k

C601

0.1u

C630

3300p

R625

R643

270k

R644

22k

R640

22k

R661

10k

C606

0.001u

C607

4700p

R699

10k

C609

0.1u

R604

100k

JL601

CD/DVD-SW

CL603

CL602

JL620 RFDO

/RFLO

C689

4700p

C631

4700p

BC633

0.1u

C632

0.1u

C625

0.1u

JL604

R636

R623

22k

R627

22k

R624

270k

MC74VHC1G66DFT1

TD_OFST2

JL614

JL615

VC_+1.7V

TRAY_LED_ON

DIG_+3.5V1

DIG_+5V

CN406 5 pin

CL608

R630 22k

VC_+1.7V

RF-DC

OUT

IN–

IN+

V–

V+

OUT

IN–

IN+

Q600

2SK3018-T106

C603

0.001u C605

0.001u

/EEP_CE

EEP_SI

EEP_SO

EEP-SCK

CL637

CL638

CL639

CL640

STEP_–A

STEP_+A

STEP_–B

STEP_+B

/RFLO

GAIN_SW

RFCO

RFDO

LIMIT_SW

C623

0.1u

C629

0.1u

EEP_SCK

EEP_SO

EEP_SI

/EEP_CE

CL659

CL687

CL686

CL685

CL684

CL627

CL626

CL625

CL624

FCMP_H

FCMP_L

/THDET1

FCMP_H

FCMP_L

CL682

CL683

JL668

JL669

JL670

JL671

JL672

JL673

JL674

JL675

JMCD7

MCD6

MCD5

MCD4

MCD3

MCD2

MCD1

MCD0

/CS_1869

MCA8

MCA7

MCA6

MCA5

MCA4

MCA3

MCA2

MCA1

CL628

/RST

CD/DVD SW

SQCK

SQSO

/POFF_RDY

RCM1

HFG

DISC_DET

/SSRST

SCOR

R613 10k

RB611

10k

Q603

RN1706-TE85R

C624

0.1u B

R620

10k

R606

10k

CL601 R653

100k

C634

0.1u

RF_CNT2

RB602

10k

C688

0.001u B

RT_CE

EEP_READY

IC406 3 pin

IC405 3 pin

IC405 4 pin

IC405 2 pin

IC405 7 pin

IC406 1 pin

GFS

SENS

RT_CE

PIO0/SCS2

SI2

PI2/SO2

SCK2

VSS

AN0

AN1

AN2

AN3

PJ0

PJ1

PJ2

PJ3

PJ4

PJ5

PJ6

PJ7

AVSS

AVREF

AVDD

PK0

PK1

PPK2

PK3

PK4

/INT3

/INT2

/INT1

/INT0

VSS

/XCS1

PC6/XCS1

PC5/XCS2

PC4

PC3

PC2

PC1

PC0

PB7

PB6

PB5

PB4

PK5/TETB

/DVRST

SDA

SCL

PH2/RxD

PH3/TxD

RMC

PH5/TETC

XWR

XRD

VDD

VSS

PB0/A8

PB1

PB2

PB3

TETB

EX_RXD

EX_TXD

TEST_MOD0

TEST_C

/MCWR

/MCRD

PWE

MCA0

MCA1

MCA2

MCA3

MCA4

MCA5

MCA6

MCA7

MCA8

PG7

PG6

PG5

PG4

PWM3

PWM2

PWM1

PWM0

VDD

EXTAL

XTAL

VSS

/RST

PF7

PF6

SCK1

SO1

SI1

PF2

PF1/EC2

PF0/EC0

/CINT

PE5/INT6

/INT5

/INT4

SENS_CLK

FOK

MIRR

EEP_READT

TD_OFST2

MON_SLOW

DISC_MOD0

DISC_MOD1

LIMIT_SW

SP_BR

SP_SB

SP_GAINSW

SP_PS

CL630

CL633

CL634

CL642

CL643

CL653

CL650

CL654

/INT_1869

/CS_1869

MCD7

MCD6

MCD5

MCD4

MCD3

MCD2

MCD1

MCD0

TRAY_CNT

TRAY_DRVF

TRAY_DRVR

TRAYSW_IN /POFF_RDY

/SSRST

/RST

/POFF_RDY

/SYS_SRST

/TRAY_REQ

SLEEP

MCON_ACK

OP_DISC

POFF_REQ

CN504 95 pin,

IC402 41 pin, CN504 95 pin

IC402 42 pin

IC402 3 pin, CN504 94 pin

IC402 7 pin

CN504 93 pin

IC402 4 pin, CN504 96 pin

/SYS_SRST

/TRAY_REQ

MCON_ACK

JL617

JL610

JL611

JL676

JL613

JL677

JL678

JL679

JL609

EX_TXD

EX_RXD

TRAY_LED_ON

OP_DISC

RF_CNT1

RF_CNT2

CL635

/RF_CNT1

RB607

10k

C655

10u

6.3V

C654

0.1u

R689

100k

R614

10k

RB603

10k

R660

10k

R694

15k

R654

100k

R667

2.2M R668

470k

R658

10k

R675

33k

CL610

CL611

CL612

CL613

CE2

VC2

VPC0

VCTL

FILO

FILI

PC0

CLTV

AVS1

RFAC

BIAS

ASYI

ASYO

AVD1

AVD3

CPIG

AVS3

ADM

RFIN

VSS0

VDD0

DFCT

FOK

MIRR

COUT

TFDR

TRDR

SFDR

SRDR

FFDR

FRDR

SFDF

SRDF

VSS1

XPEN

LID

SSTP

RFDO

RFCO

XRFLO

SCOR

SQSO

SQCK

GFS

SENS

SCLK

MDP

PWMI

ATSK

CMPH

CMPL

VDD1

HDB03

VSS12

HDB04

HDB05

HDB06

HDB07

VDD6

VSS11

HDB08

HDB09

HDB10

HDB11

VSS10

HDB12

HDB13

HDB14

HDB15

VDD5

VSS9

HA00

HA01

HA02

HA03

VSS8

HA04

HA05

HA06

HA07

VDD4

VSS7

HA08

HA09

HA10

HA11

VSS6

AVDL

HA12

HA13

HA14

HA15

TST0

TST1

TST2

AVSL

AVSH

TST3

VDD3

VSS5

XWR

XRD

AVDH

VSS2

MNT0

MNT1

MNT2

MNT3

XPCLK

WFCK

RFCK

LOCK

SCEN

TRST

TCK

TDI

TDO

TMS

SCRS

SCCK

SCI

SCO

SCDR

TD7

TD6

TD5

TD4

TD3

TD2

TD1

TD0

VSS3

XRST

XINT0

XINT1

VSS4

VDD2

XCS

RFDC

ADI0

AVS2

IGEN

AVD2

XCEN

VSS19

PATST

RSV2

RSV1

RSV0

VSS18

VDD10

RCM3

RCM2

RCM1

RCM0

DOUT

DAT0

BCK0

LRC0

VDD9

VSS17

SCLK0

VSS16

SCLK1

VDD8

VSS14

HINT

HACK

HDRQ

XHRS

XHCS

XHRD

XHWR

VDD7

VSS13

HDB00

HDB02

HDB03

RFCO

SCOR

SQSO

SQCK

GFS

SENS

SENS_CLK

MDP

CL680

CL688

CL689

CL690

CL691

CL619

JL622

JL621

CL622

FOK

CL614

MIRR

R669

100k

R696

120k

R698 15k

R651 15k

C644

220p

C635

4700p

C639

150p CH

C649

0.01u

C646

0.001u

RB606

C651

2200p

C653

2200p

C648

0.1u

C652

0.1u

C645

0.047u B

C647

0.47u

C643 0.1u

R671 3.3k

R673 3.3k

R672 51k

R670 10k

C650 220p

C638

0.01u

R674

100k

R678

4.7k

C658

220p

C636

0.1u

C637

0.001u

C685

0.47u

C642

0.1u

C640

10u

6.3V

C657 220P

C656 0.1u

/DEV5EN IC501 8 pin

C661

0.1u C662

0.1u

C693

RB609

RCM1

RCM0

SPUDI

SPUDATI

SPUBCKI

SPULRCKI

SSCLK1_B

/ISRD_B

/SWR_B

SD0_DVD

SD1_DVD

SD2_DVD

/INT5

DACK5

DREQ5

/CS5

SPUDI

SPUDATI

SPUBCKI

SPULRCKI

SSCLK1_B

/SRD_B

/SWR_B

SD0_DVD

SD1_DVD

SD2_DVD

SD3_DVD

SD4_DVD

SD5_DVD

SD6_DVD

SD7_DVD

SD8_DVD

SD9_DVD

SD10_DVD

SD11_DVD

SD12_DVD

SD13_DVD

SD14_DVD

SD15_DVD

SA0_DVD

SA1_DVD

SA2_DVD

SA3_DVD

SA4_DVD

SA5_DVD

SA6_DVD

SA7_DVD

SA8_DVD

SA9_DVD

SA10_DVD

SA11_DVD

SA12_DVD

SA13_DVD

SA14_DVD

SA15_DVD

IC303 220 pin, IC501 33 pin

IC303 227 pin, IC501 30 pin

IC303 232 pin, IC501 26 pin

IC303 239 pin, IC501 18 pin

IC504 50 pin

IC504 51 pin

IC504 52 pin

IC504 53 pin

IC501 143 pin

IC303 246 pin,

IC501 17 pin

IC303 245 pin,

IC501 16 pin

IC501 78 pin

IC501 77 pin

IC501 76 pin

IC501 74 pin

IC501 71 pin

IC501 70 pin

IC501 69 pin

IC501 68 pin

IC501 67 pin

IC501 66 pin

IC501 65 pin

IC501 64 pin

IC501 63 pin

IC501 62 pin

IC501 61 pin

IC501 60 pin

IC501 56 pin

IC501 53 pin

IC501 52 pin

IC501 51 pin

IC501 50 pin

IC501 49 pin

IC501 48 pin

IC501 47 pin

IC501 46 pin

IC501 45 pin

IC501 44 pin

IC501 43 pin

IC501 42 pin

IC501 41 pin

IC501 40 pin

IC501 38 pin

C665

0.1u

R649 10k

R642 10k

R650 10k

C660

0.1u

R657

33k

C666

0.1u

C671

0.1u

C672

0.1u

C673

0.1u

C674

0.1u

C675

0.1u

C676

0.1u

C664

10u

6.3V

C668

0.1u

R626

10k

C667

0.1u

/XRST

DIG_+3.5V1

DIG_+3.5V2

SER_+3.5V1

GND DIG

GND SER

R607

10k

JL608

CL608

JL605

JL606

JL607

SSCLK0 IC303 292 pin

/MCWR

/MCRD

MCA0

SSCLK0

321

8765

1234

100

156

155

154

153

152

151

150

149

148

147

146

145

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106

105

987

100

101

102

103

104

208

207

206

205

204

203

202

201

200

199

198

197

196

195

194

193

192

191

190

189

188

187

186

185

184

183

182

181

180

179

178

177

176

175

174

173

172

171

170

169

168

167

166

165

164

163

162

161

160

159

158

157

IC606

NJM2100V-TE2

IC603

IC605

CXD1869AQ

CD/DVD DSP

IC604

MECHA-CON

GND DIG

SP_GAINSW

SP_PS

SP_SB

SP_BR

HFG

MDP

PJ1

STEP_+B

STEP_–B

STEP_+A

STEP_–A

TRAY_CNT

TRAY_DRVF

TRAY_DRVR

FFDR

FRDR

TFDR

TRDR

TD_OFST

ANALOG GND

RFDC

DFCT

SER_+3.5V

LIMIT_SW

GAIN_SW

TRAYSW_IN

TRAYSW_OUT

MONITOR

CD/DVD_SW

RFAC

/RF_CNT2

RFDO

RFCO

/RFLO

/RF_CNT1

MIRR_SLOW

DIG_+3.5V2

IC803 26 pin

IC803 23 pin

IC803 18 pin

IC803 16 pin

IC803 24 pin

IC806 5 pin

IC805 4 pin

IC802 4 pin

IC802 5 pin

IC802 6 pin

IC802 7 pin

IC802 3 pin

IC802 2 pin

IC802 1 pin

IC802 27 pin

IC802 26 pin

IC802 24 pin

IC802 23 pin

IC802 22 pin

IC801 64 pin

IC801 38 pin

CN804 12 pin

IC801 4 pin

IC806 1 pin

IC805 1 pin

IC801 45 pin

IC801 9 pin

IC801 44 pin

IC801 42 pin

IC801 43 pin

IC801 57 pin

IC801 54,55 pin

IC801 47 pin

IC801 46 pin

IC801 48 pin

IC801 56 pin

IC801 32 pin

3.5

3.5 3.5 3.5 3.5

3.5

IC303 290 pin

IC402 25 pin, IC303 54 pin, IC501 15 pin, IC504 105 pin,

IC802 21 pin, CN601 7 pin, CN602 1 pin

3.5 3.5

3.5

1.7

3.5

1.7

3.5

CXP101064-202R-T6

: for SCPH-30003/30004

CXP101064-303R-T6

: for SCPH-30002

for IC801

: SP3727ACA0PMR

(8-759-685-15)

for IC801

: SP3727ACA0PMR

(8-759-685-15)

R640 22k. for IC801 : SP3727ACA0PMR(8-759-685-15)

0. for IC801 : SP3727AFA0PMR(6-700-585-01)

for IC801 : SP3727ACA0PMR(8-759-685-15)

— 151 —

SCPH-30002D/30003D/30004D

GH-010 (7/7)

Reproduction Prohibited

OUT

GND

JC78M05CDTRK

12V REG

IC807

NJM2904V (TE2)

IC806

MC74VHC1G66DFT1

IC805

BA6664FM-E2

SPINDLE CONTROL

IC803

JL852

SP3727ACA0PMR

/ SP3727AFA0PMR

RF AMP

IC801

BA5815FM-E2

TILT DRIVER

IC802

1.7

DFCT

C797

100p

CN805 2P

CN806 2P

GND

TRAYSW_OUT

GND

TRAYSW_IN

FB801

FB802

JL853

C798

100p

C796

0.001u

C795

0.001u

2012

C793

2.2u

2012

321

V+

OUT

IN–

IN+

OUT

IN–

IN+

V–

R882

2012

R875

2012

R881

2012

R879

2012

R877

2012

R880

2012

R878

2012

R876

2012

C792

10u

10V

PS015

C794

0.001u

2012

+12V

SP_GAINSW

SP_PS

SP_SB

SP_BR

HFG

MDP

PJ1

ANALOG GND

IC604 73 pin

IC604 75 pin

IC604 72 pin

IC604 71 pin

IC604 29 pin

IC605 47 pin

IC604 61 pin

STEP_+B

STEP_–B

STEP_+A

STEP_–A

TRAY_CNT

TRAY_DRVF

TRAY_DRVR

FFDR

FRDR

TFDR

TRDR

TD_OFST

DIG_+5V

GND DIG

RFDC

VC_+1.7V

SER_+3.5V

LIMIT_SW

GAIN_SW

TRAYSW_IN

TRAYSW_OUT

MONITOR

CD/DVD_SW

RFAC

/RF_CNT2

RFDO

RFCO

/RFLO

/RF_CNT1

MIRR_SLOW

IC604 46 pin

IC604 45 pin

IC604 44 pin

IC604 43 pin

IC604 3 pin

IC604 11 pin

IC604 10 pin

IC605 30 pin

IC605 31 pin

IC605 26 pin

IC605 27 pin

IC603 6 pin

IC605 203 pin

IC605 37 pin, IC604 67 pin

IC604 37 pin

IC604 8 pin

IC604 9 pin

IC604 59 pin

IC604 36 pin, IC606 4 pin

IC605 10, 19 pin

IC604 2 pin

IC605 38 pin

IC605 39 pin

IC605 40 pin

IC604 1 pin

IC605 24 pin

IC605 22 pin

R873

33k

R874

3.9k

R872

82k

R871

110k

±0.5%

C791

0.015u

1608

C898

0.1u

R868

220k

PS013

1.2A

C897

0.033u

C882

10u

R853

2.2

R854 2.2

R856 2.2

1/10W 2012

R855 2.2

C883

0.1u

F 2012

C868

0.1u

C877

3900p

C879

560p

Q810

2SK3018-T106

Q808

2SK3018-T106

Q806

2SK3018-T106

C860

3900p

C862

560p

C832

0.22u

R817

1/8W

3216

R814

1/8W

3216

GAIN_SW

R816

1/8W

3216

R813

1/8W

3216

Q805

2SB798-T1DL

Q804

2SB798-T1DL

D802

MAZFO4700LS0

D801

MAZFO4700LS0

R818

R815

C824

22u

16V

C811

22u

16V

C821

10u

10V

C810

10u

10V

C819

0.1u

C809

0.1u

C802

0.22u

C801

0.22u

L802

4.7uH

L801

4.7uH

C825

1200p

C812

1200p

C869

0.1u

F 1608

C870

0.1u

C851

0.01u

C845

0.01u

C843

0.01u

R831

120

R830 330

R870

220k

R866

100k

Q814

DTC143ZUA-T106

C899

0.1u

CL805

CL806

CL808

CL809

/RF_CNT2

/RF_CNT1

CL807

GND

H1+

H1–

H2+

H2–

H3+

H3–

RNF

GSW

VCC

GND

ECR

FG2

CNF

CN804 13P

H3–

H3+

H2–

H2+

H1–

H1+

H+

H–

LIMIT_SW

GND

/RF_CNT1

MONITOR

RFDO

RFCO

/RFLO

RB803

10k /RF_CNT2

CL840

CL841

CL842

CL832

CL844

JL827

VC_+2.5V

C866

0.1u

C850

0.1u

C836

0.1u

R823

62k

±0.5%

C826

0.033u

R826 10k ±0.5%

C831 24p CH

C830 2200p B

C829 2200p B

C828 2200p B

C827 2200p B

R827 10k ±0.5%

R828 27k ±0.5%

R822

27k

±0.5%

R821

27k

±0.5%

R820

27k

±0.5%

R819

56k

±0.5%

C857

0.1u B

C841

0.1u B

C840

0.1u B

C846

0.1u B

C854

0.1u B

C842

0.1u B

C834

0.1u

C848

0.47u

2012 R847

100k

R850

10k

±0.5%

R834

10k

±0.5%

/RST

R851

16k

±0.5%

R840

16k

±0.5%

R837

30k

±0.5% R843

30k

±0.5%

R838

30k

±0.5%

1005

R846

30k

±0.5%

C835

10u

C859

0.1u B

MIRR_SLOW

SER_+3.5V

SER_+5V

PS014

CL834

RFAC

RFDC

C895

0.001u

C891

0.01u

C889

0.1u

C880

0.1u

C875

0.1u

C876

2.2u

B 2012

C872 2.2u B

C873

390p CH

C871 0.033u B

C874 0.033u B

C888

0.1u

C890

10u

10V

L803

2.2uH

R857

R852

12k

±0.5%

C863

0.001u

C837

0.1u

BC839

1u B

C844

1u B

C853 0.1u B

C855 0.22u B

CL835

CL836

CL810

CL815

CL822

CL824

CL827

CL823

R802 0

R801 0 R805

100

R806

10k

Q801

2SK2034-TE85L

Q802

DTC143ZUA-T106

Q803

2SK2034-TE85L

R808

10k

“H” DVD “L” CD

R807

100

R803 0

R804 0

CL818

CL819

CL820

CL821

CL814

CL813

CL812

CN801 30P

GND

G.SW

PD1

M.SW

Cd-Lo

PD2

VCC

DVD-LD

VR-DVD

VR-CD

TRK+

TRK–

FCS+

FCS–

CL845

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

PD1

PD2

PDP_A

PDP_B

PDP_C

PDP_D

TPP_E

TPP_F

EF0

/SDEN

SDATA

SCLK

MNTR

V175

V35

TPH

DFT

MIN

MEVO

MLPF

RFDC

TPA

SUMP

SUMN

AIN

AIP

VPA

RFAC

BYP

DIN

DIP

FNP

FNN

VNA

MEV

1234567

829

91011121314

28272625242322

21 30

201918171615

VO1+

VO1–

VO2+

VO2–

VOL+

VOL–

POWVCC12

GND

PREVCC

IN2

IN1

PSAVE

LDCNT

FWD

REV

VO4+

VO4–

VO3+

VO3–

GND

POWVCC34

MUTE

GND

OPOUT3

OPIN3–

OPIN3+

OPOUT4

OPIN4–

OPIN4+

BIAS

CL846

C808

100p

C806

100p

C803

100p

C804

100p

C805

100p

C807

100p

LF801

CL847

CL849

CN803 4P

STD_–B

STD_+B

STD_–A

STD_+A

CN802 2P

LOADING–

LOADING+

TRAY OUT SW

TRAY IN SW

LOADING SW

FEED

MOTOR

DEVICE

OPTICAL

SPINDLE

MOTOR

1.7

3.5

1.7

5 3.5

IC805

IC806

3.5

1.7

IC303 54 pin, IC501 15 pin, IC504 105 pin,

IC604 38 pin, IC605 63,83 pin,

CN601 7 pin, CN602 1 pin

— 152 —

SCPH-30002D/30003D/30004D

GH-010

A side Reproduction Prohibited

IC104

CXD9615GB

IC303

IOP

CXD9619GB

IC202

CXD2944GB

RB102RB101RB103

RB105RB104RB106

C373

C490

C468

C372

C132

C368

C369

C355

R361

R123

C345

C169

C157

R360

C727

R847

R851

R846

R843

R840

R838 R850

R837

R834

R448R401

R196

R366

C356

C465

C450

R125

R395

C477 R451

C466

R109

R103

R902

R901

R145

R134

C176

R220

R104

C134

C175

R102

R101

C102

FB314

FB313

C101

C103

C141

C105

CN303

C404

C111

C118

C124

C154

R362

C444

C502

C539 C536

C534

C476

C494

C480

C432

C433

C503

C501

C504

C507

R139

C730

C455

C424

C421

C714

C707

C708

C709

C710

PS014

D405

C715

C338

C104

C110

C117

C123

C106

C112

C119

C125

R116

R117

C107

C113

C120

C126

C153

C108

C114

C121

C127

C109

C115

C122

C128

R114

R115

RB305

RB130

RB528

RB521RB522RB523

RB524RB517RB518

RB409

RB410

RB408

RB133 RB136

RB109

L401

RB112 RB114 RB115 RB117 RB119 RB121 RB123 RB125

RB139

C144

C967

C143

C968

C138

C145

C140

R974

R975

C142

C139

C137

IC102

RDRAM

IC103

RDRAM

IC105

Q406

Q408

Q407

Q401

Q404

Q402

IC410

3670

351

IC305

X301

C313

C308

R310

R309

R469

R467

C505

C306

R511

C512

C314

X401

R320

R312R307

R318

R308

111

2333

111

IC506

IC402

CL503

CL501

CL505

CL303

CL301

CL302

CL526

JL416

CL107

CL109

CL108

CL116

CL103

CL504

CL840

CL834

CL810

CL836

CL837

CL835

CL841

CL842

CL827

CL824

CL823

CL818

CL819

CL820

CL821

CL822

CL815

CL814

CL813

CL812

R357

C722

C401

C403

C723

C486

C724

C544

C545

C467

C491

C425

C716

C487 C489

L414

L411

L413

C446

C718 C717

C711

C443 C440

C439

C441

C427

L412

L408

L410

C725

L404

C834

C848

C254

C255

FB202FB203FB204

R135

R136

C150

C147

C149

FB103

FB102

R110

L102

R111

C261

CL204

CL205

CL203

CL102

C266

C530

CN201

CN501

C529

C262

C263

Q201 Q205

C267

C148

C146

C116

C257 C269

R263

C271

C272

C275

C288

C287

L206

R245

R246

R244

R580

R575

C136

C135

R119

169

C170

C129

C131

R105

X101

R118

R120

R121

C290

C285

C293

R112

R113

C265

CP201

C151

C152

IC101

IC209

IC206

FL201

FL202 36

FL203 C256

R258

R261

R228

C291

C270

R226

RB297

RB296 RB298

C268

C298 C297 C296

CN401

13 1

CN804

123

1357911

24681012

5678

1234

CN801

CN406

CN805

CN806CN802

CN402

CN803

CN504

— 153 —

SCPH-30002D/30003D/30004D

GH-010

B side Reproduction Prohibited

FB324 FB323

FB321

FB322

FB316

FB315

R430

C479

R439

R328

R438R433

R403

R455

R456

R363

R368

R365

R122

C371

C344

C320

C319

C322

C365

C364

C367

C323

C325

C342

C366

C334

C335

C310

R394 R327

R506

C525

R513

R516

R517

C524

C513 C514

C510

C509

R699

C623

C851C845

R831

R830

C327

C328

C329

R476R475

C426

C526

R354

R358

R359

R353

R330

R329

R331

R188

R133

C159

C158

C942

C905

C903

C916

C915

C914

C963

C913

C904

C940

C962

C960C959

C961

R432

C485

R334

R335

R332

R336

R333

R442

R415

C497

R411

R470

R423

C409

C430

C478

R404

R441

R452

R453

R457

R461

C493

C667

C488

C496

PS002

PS006

PS001

PS011

C925

C939

C908

C941

C945

R131

R147

R124

C906

C907

LF101

R367

C457

PS003

PS004

FL302 FL301

R420

R459

R138

R984

C155

R106

C162

C943

C929

C966 C935

C901

C902

C163

C909

C923

C917

C965

C910

C156

C946

C160

C949

C950 C951 C952

C954

C947

C932

C931

C928

C938

C933

C934

C926

C924

C930

C956

C955

C953

C948

R107

R351

R364

C944

R146

R132

C912

C911

C918

C919 C958

R128

R130

R126

R129

R127

C726

R419

R349

R431

R440

R434

C460 C482

C492

R460

R607

R626

R446

C469

C470

C471

C472

C473

C474

C475

C483

C676 C675

C499

C674 C673 C672 C671

C533

C879

C844

C839

C837

C802 C801

C836 C840

C846

C809

C819

C825R818

R815 C812

C811

C824

C854

R806

R805

R807

R808

C877

C860

C889

C880

C876

R852

C535

R447

R405

R416

R444

R445

R449

R402 R450

R406

R409

R410 R421

C416

R408

R202

C232

C218C226

R225

C215

C214

C213 C247

C283 R219

R233

R579

C278

C282

C168

37 54

18 1

55 72

36 19

R251R253

R257

R252

R578

R576

R577

R478

R477

R479

R480

C522

C521

C523

R247

R218

R217

C248

C988

C233

C234

C235

C236

C237

R264

C986

C239

C240

C241

C294

R237

R295

R205

C223

R212

C231

C983

C230

C229

C228

C227

C220

C989

C982

C990C985C238

C225

C224

C222

C221

C219

C217

C980C216

C981

C212

C249

R216

C528

C527

C276

R259 C286 C279

R278 R279

R277

R272

R273

R270

R292

C277

C289

FB205FB206

R294

C252

X202

R265

L205

L203

C984

C987

C295

R208

R236

R213

R227

R203

C281

R417

C414

C417

C418

C419

C420

C415

R418

R413

R414

R412

C410

R407

R454

R443

C461

R435

C456

C927

C922

C937 C920

C921

C957

C936

R185

R350

C307

C317

C333

C321

C301 C305 C324

R347 R311

R324

C332

C316

C326

C336

C331

C330

C343

R352 R316 C303

C309

C302

C315

C304

R315

C408 C543

C405 C517 C516

C609

R636

R644

C625

R623

C639

R658

R661

C647

C649

C646

C648

C652

C651

C607

C606

R671

R673R675

R614

C645

C633

R651

C657

C685

C644

C656

C658

C693

R642

R650

R668

R669

R694

R696

C605

C631

C603

R604

R630

R640

R627

R624R625

R674

R678

C653

R689

C654

C668

C655

R670 R672

C638

C650

C630C637

C635R654

C643

R667

C640

C636

C689

C601

C632

C642

R700

R643

R698

R649

C662C665

C666

C537

C895

C891

C888

C871

C872

C873

C874

C875

R813

R814

R816

R817

C821

L801L802

C835 LF801

C862

C863

C855

C853

C831

C827

C828

C829

C830

C842

C841

C826 C850

C859

C857 C866

R826

R828

R804

C806

C805

C804

C803

R803

R802

R801

R827

R822

R819

R820

R823

R821

C832

C796

R857

R522C540

R466

C538

C541

C542

R505

R503

R504

R657

C660

C661

R527

C407

C363

C311 C312R322 R321 R509 R510

R531

C518 C508

R660

C629

R613

C843

R619

R653

C624

C688

C634

R606

C869

C868

C706

R868 C705

C704

C703

C702

C899

R873

R429

C452

C449

C445

C870

C701

C797

C798

C807

C808

R870

C897

C898

C791

C453

C434

R871

R872

R874

R880

R879

R878

R877

R876

R875

R882

R881 C793

PS015

C792

R866

FB408

FB801

FB802

FB403

FB404

FB405

FB406

FB407

CN406

CN805

C794

PS013

C882

C795 C883

R853

R854

R855

R856

R620

C337

C318

C370

CN302

136

C341

C339

C340

IC411

C495

RB310

D301

JL316(SCK0)

JL317(/INT0)

JL318(/DSR0)

JL319

JL312

(RXD)

JL313

(TXD)

JL314

(DTR0)

JL315

(SAS0)

TH003

CN303

RB324

RB321

RB319 RB322

RB317

RB320

RB325

RB135

RB137 RB134

RB132

RB131

RB511 RB602

RB603

RB611

RB607

RB107

RB108

RB110RB111RB113RB116RB118RB120RB122RB124RB126

RB294

RB303

RB295

RB241

RB323

RB318

RB327

RB326

RB328

D302

IC408

X302

TH001

TH002

JL418

JL426JL425

RB329

RB314

RB312

RB311

FB311

FB309

FB312

FB310

FB308

FB318

FB303

FB317

FB305

FB307

FB319

FB320

FB304

FB306

D501

IC306

C164

C161

JL414

JL003

(GND)

JL409

JL410

JL415

JL431

JL301

JL302

JL303

JL305

JL304

JL002

(RST)

JL001

(CTS)

JL420

CL525

IC407

IC207

RB405

RB402

Q413

D408

D407

C438

R428

R426

C435

C447

PS012

PS009

PS008

PS010

PS007

C437

R427

R424

R474

C423R473

R574

R422

C431

C422

C712

C498

C462

R472

R463

C458

R465

C402

CN401

CN501

CN201

C250

C292

FB201

JL406

JL405

CL201

D403

IC208

Q505

Q506

Q204

Q415

IC415

D402

IC409

IC503

IC404

IC205

F003

F001

JL430

JL402 JL404JL403

JL419

JL205

JL412(3.3V)

CL519(AUR)CL518(AUL)

JL202 JL201

JL203 JL204

JL216

JL215

JL214JL213JL212

JL210JL208

JL209

JL211

JL207

JL428

JL401 JL433

IC412

IC517

C242

C245

C244 C243

D500

D204D203D202

D210

D209

D208

D206 D205

D201

JL595

(/CE)

JL550(/CE)

CL512

CL653

CL650

CL511

CL682

CL683

CL626

CL625

CL624

CL627

CL628

CL684

CL686

CL637

CL639

CL685

CL687

CL638

CL640

JL615 12

CL659

JL676

JL678

JL611(RXD)

JL610(TXD)

CL601

JL677

JL679

JL620(LIMITSW)

131

CL657

CL608

CL602

CL603

JL606

JL602

JL604

JL607(CE)

CL612

CL613

CL688

CL691

CL680

CL619

JL622

(GFS)

CL622

JL668 JL669

JL673 JL671

JL675

JL670

JL672

JL674

JL621

(SENS)

CL689CL690

CL610

CL642

CL805

(GSW)

CL643

CL634

CL635

CL633

CL630

IC403

IC406

26 36 40

15 11

IC505

72 37

109 144

108 73

136

40 36

1511

IC502

IC803

IC518

IC401

IC504

52 1

105 156

104 53

157 208

IC605

IC604

IC801

26 50

100 76

51 75

814

Q603

JL605(FE)

JL601(RF AC)

JL614

JL421

JL422

JL852

JL609

Q814

Q600

CN806CN802

IC806

IC405

IC805

Q405

IC606

RB403

IC807

X402

CN804

C664

RB609

IC603

RB606

IC414

RB527

RB525

RB519 RB520

RB803

RB526

RB532

RB530

RB531

RB529

72 37

109 144

108 73

136

IC501

CL502

JL413

JL424

JL417

JL427

Q412

Q414

Q411

IC413

RB407RB406

Q409 CN403

Q410

Q804

Q805

CN402

CN803

IC802

2228

14829

C890

L803

Q808

Q802

Q801

Q803

Q810

Q806

JL608(RF DC)

48 33

116

64 49

17 32

CL844

JL827

CL847

(LD_SW+)

CL846

(LD_SW-)

CL832(MLPF)

D801

D802

C810

CN801

130

D404

1197531

12108642 3

11 12

CN504

1.7V

JL617(TEST)

(5V)

(12V)

(C_SYNC)

(Y_SYNC)

(H_SYNC)

(Y)

(C)

(R)

(G)

(B)

(DCOUT)

(G)

(R)

(B) (C) (V) (Y) (AUL)

(AUR)

(CLOCK)

(1.5V)

JL004

(TXD)

(2.5V)

(CLKGC)

(CLKCG)

(PGCLK)

(MSCLK)

24.5MHz 16.9MHz

— 154 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

GB-003

A side

GB-003

B side

BATTRY 2

GND 1

CN101

BT101

CN101

BT101

GB-003

A side

— 155 —

SCPH-30002D/30003D/30004D

SW-358

A side

SW-358

B side

SW-358

Reproduction Prohibited

CN751

S751

R751

10k R752

15k

R753

2.4k

D751

CL–165HR/G1–D–T

D752

CL–190UB–X–T

Q751

DTC144EUA–T106

OP/CL_SW

POWER_SW

TRAY_LED_ON

GND

/GREEN_ON

/RED_ON

EVER_+12V

S752

R751

C751

D752 R753

R752

D751

Q751

S752 S751

CN751

— 156 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description

SECTION 5

ELECTRICAL PARTS LIST

for SCPH-30002D/30003D/30004D GH010 MOUNT

Ref. Part No. Description

NOTE :

•

Due to standardization, replacements in

the parts list may be different from the

parts specified in the diagrams or the

components used on the set.

-XX and -X mean standardized parts, so

they may have some difference from the

original one.

RESISTORS

METAL : Metal-film resistor.

F : nonflammable

Unit is .

•

SEMICONDUCTORS

In each case, u : µ, for example :

uA . .

uPB. .

CAPACITORS

uF : µF

COILS

uH : µH

When indicating parts by reference

number, please include the board.

: µA . .

: µPB. . uPA . . : µPA . .

uPC . . : µPC . . uPD . . : µPD . .

The components identified by

mark ! or dotted line with mark.

! are critical for safety.

Replace only with part number

specified.

Ref. Part No. Description

Dissimilarity Parts

for SCPH-30002 GH010-64MM

*********************

C408 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C526 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C543 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

IC403 8-759-688-08 IC MM1537DFBE

IC505 6-800-199-01 IC TC5364200FT-PA07

IC518 8-759-680-49 IC TC7WB125FK(TE85R)

IC604 8-752-922-01 IC CXP101064-303R-T6

R527 1-216-821-91 RES, CHIP 1.0K (1608)

for SCPH-30002 GH010-64MR

*********************

C408 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C526 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C543 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

IC403 6-700-234-01 IC BD3992F-E2

IC505 6-800-199-01 IC TC5364200FT-PA07

IC518 8-759-680-49 IC TC7WB125FK(TE85R)

IC604 8-752-922-02 IC CXP101064-303R-T7

R527 1-216-821-91 RES, CHIP 1.0K (1608)

for SCPH-30003/-30004 GH010-32MM

*********************

C408 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C505 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C512 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

IC403 8-759-688-08 IC MM1537DFBE

IC503 6-800-197-01 IC MR27V3202F-A7TPZ

IC506 6-800-198-01 IC MR27V1602E-74TPZ

IC604 8-752-921-99 IC CXP101064-202R-T6

R510 1-216-864-91 CONDUCTOR, CHIP (1608)

R511 1-216-864-91 CONDUCTOR, CHIP (1608)

for SCPH-30003/-30004 GH010-64MM

*********************

C408 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C526 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C543 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

IC403 8-759-688-08 IC MM1537DFBE

IC505 6-800-196-01 IC TC5364200FT-PA06

IC518 8-759-680-49 IC TC7WB125FK(TE85R)

IC604 8-752-921-99 IC CXP101064-202R-T6

R527 1-216-821-91 RES, CHIP 1.0K (1608)

C122 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C123 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C124 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C125 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C126 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C127 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C128 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C129 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C131 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C132 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C134 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C135 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C136 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C137 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C138 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C139 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C140 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C141 1-135-609-91 CAP, CHIP TANTALUM ELECT 220MF

C142 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C143 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C144 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C145 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C146 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C147 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C148 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C149 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C150 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C151 1-164-160-91 CAP, CERAMIC 20PF CH (1608)

C152 1-164-160-91 CAP, CERAMIC 20PF CH (1608)

C153 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C154 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C155 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C156 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C157 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C158 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C159 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C160 1-162-925-91 CAP, CERAMIC 68PF CH (1608)

C161 1-128-964-91 CAP, CHIP TANTALUM ELECT 100MF

C162 1-162-925-91 CAP, CERAMIC 68PF CH (1608)

C163 1-128-964-91 CAP, CHIP TANTALUM ELECT 100MF

C164 1-128-964-91 CAP, CHIP TANTALUM ELECT 100MF

C168 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C169 1-164-874-81 CAP, CHIP CERAMIC 100PF CH (1005)

C170 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C175 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C176 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C212 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C213 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C214 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C215 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C216 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C217 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C218 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C219 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C220 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C221 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C222 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C223 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C224 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C225 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C226 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C227 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C228 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C229 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C230 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C231 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C232 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C233 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C234 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C235 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C236 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C237 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C238 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C239 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C240 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C241 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C242 1-128-707-22 CAP, TANTALUM ELECT (SMD) 220

C243 1-135-609-91 CAP, CHIP TANTALUM ELECT 220MF

C244 1-128-707-22 CAP, TANTALUM ELECT (SMD) 220

C245 1-128-707-22 CAP, TANTALUM ELECT (SMD) 220

C247 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C248 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C249 1-115-156-91 CAP, CERAMIC 1000000PF F (1608)

C250 1-127-760-91 CAP, CERAMIC 4.7MF (2012)

C252 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C254 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C255 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C256 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C257 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C261 1-128-004-21 CAP, ELECT (CHIP) 10MF

C262 1-128-004-21 CAP, ELECT (CHIP) 10MF

C263 1-128-004-21 CAP, ELECT (CHIP) 10MF

C265 1-117-720-91 CAP, CERAMIC 4.7MF F (2012)

C266 1-128-004-21 CAP, ELECT (CHIP) 10MF

C267 1-126-210-21 CAP, ELECT 220MF

C268 1-126-210-21 CAP, ELECT 220MF

C269 1-164-160-91 CAP, CERAMIC 20PF CH (1608)

C270 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C271 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C272 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C275 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C276 1-162-965-91 CAP, CERAMIC 1500PF B (1608)

C277 1-162-965-91 CAP, CERAMIC 1500PF B (1608)

C278 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C279 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C281 1-115-156-91 CAP, CERAMIC 1000000PF F (1608)

C282 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C283 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C285 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C286 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C287 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C288 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C289 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C290 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C291 1-164-862-81 CAP, CHIP CERAMIC 33PF CH (1005)

C292 1-107-725-91 CAP, CERAMIC 100000PF B (2012)

C293 1-137-765-21 CAP, ELECT 47MF

C294 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C295 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C296 1-126-210-21 CAP, ELECT 220MF

C297 1-126-210-21 CAP, ELECT 220MF

C298 1-126-210-21 CAP, ELECT 220MF

C301 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C302 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C303 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C304 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C305 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C306 1-164-387-91 CAP, CERAMIC 240PF CH (1608)

C307 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C308 1-165-112-91 CAP, CERAMIC 330000PF F (1608)

C309 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C310 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

for SCPH-30003/-30004 GH010-64MR

*********************

C408 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C526 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C543 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

IC403 6-700-234-01 IC BD3992F-E2

IC505 6-800-196-01 IC TC5364200FT-PA06

IC518 8-759-680-49 IC TC7WB125FK(TE85R)

IC604 8-752-921-99 IC CXP101064-202R-T6

R527 1-216-821-91 RES, CHIP 1.0K (1608)

for IC801 : SP3727ACA0PMR(8-7529-685-15)

*********************

C632 1-107-826-91 CAP, CHIP CERAMIC 100000PF

C689 1-162-968-91 CAP, CHIP CERAMIC 100000PF

IC606 8-759-712-38 IC HD74HC1G66CME

IC606 8-759-712-63 IC MC74VHC1G66DFT1

IC801 8-7529-685-15 IC SP3727ACA0PMR

R640 1-216-837-91 RES, CHIP 22K (1608)

R643 1-216-850-91 RES, CHIP 270K (1608)

for IC801:SP3727AFA0PMR(6-700-585-01)

*********************

IC801 6-700-585-01 IC SP3727AFA0PMR

R640 1-216-864-91 CONDUCTOR, CHIP(1608)

Common Parts <CAPACITOR>

C101 1-128-964-91 CAP, CHIP TANTALUM ELECT 100MF

C102 1-128-964-91 CAP, CHIP TANTALUM ELECT 100MF

C103 1-128-964-91 CAP, CHIP TANTALUM ELECT 100MF

C104 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C105 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C106 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C107 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C108 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C109 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C110 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C111 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C112 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C113 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C114 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C115 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C116 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C117 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C118 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C119 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C120 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C121 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

— 157 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description

C311 1-162-916-91 CAP, CERAMIC 12PF CH (1608)

C312 1-162-917-91 CAP, CERAMIC 15PF CH (1608)

C313 1-162-910-91 CAP, CERAMIC 5.0PF CH (1608)

C314 1-162-910-91 CAP, CERAMIC 5.0PF CH (1608)

C315 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C316 1-165-112-91 CAP, CERAMIC 330000PF F (1608)

C317 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C318 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C319 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C320 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C321 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C322 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C323 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C324 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C325 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C326 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C327 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C328 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C329 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C330 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C331 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C332 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C333 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C334 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C335 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C336 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C337 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C338 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C339 1-125-764-61 CAP, CHIP CERAMIC 100PF CH

C340 1-125-764-61 CAP, CHIP CERAMIC 100PF CH

C341 1-125-764-61 CAP, CHIP CERAMIC 100PF CH

C342 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C343 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C344 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C345 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C355 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C356 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C363 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C364 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C365 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C366 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C367 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C368 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C369 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C370 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C371 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C372 1-165-492-21 CAP, ELECT 100MF

C373 1-165-492-21 CAP, ELECT 100MF

C401 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C402 1-164-505-91 CAP, CHIP CERAMIC 2.2MF F (2012)

C403 1-164-937-81 CAP, CHIP CERAMIC 1000PF B (1005)

C404 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C405 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C407 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C409 1-162-969-91 CAP, CERAMIC 6800PF B (1608)

C410 1-162-969-91 CAP, CERAMIC 6800PF B (1608)

C414 1-162-965-91 CAP, CERAMIC 1500PF B (1608)

C415 1-162-965-91 CAP, CERAMIC 1500PF B (1608)

C416 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C417 1-164-379-91 CAP, CERAMIC 43PF CH (1608)

C418 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C419 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C420 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C421 1-127-820-91 CAP, SQUARE TYPE CHIP 4.7MF

C422 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C423 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C424 1-127-820-91 CAP, SQUARE TYPE CHIP 4.7MF

C425 1-124-779-21 CAP, ELECT 10MF

C426 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C430 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C431 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C432 1-115-339-91 CAP, CERAMIC 0.1MF B (2012)

C433 1-115-339-91 CAP, CERAMIC 0.1MF B (2012)

C434 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C435 1-115-566-91 CAP, CERAMIC 4.7MF B

C437 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C438 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C439 1-135-593-21 CAP, ELECT 150MF

C440 1-135-592-21 CAP, ELECT 100MF

C441 1-135-593-21 CAP, ELECT 150MF

C443 1-135-592-21 CAP, ELECT 100MF

C444 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C445 1-117-720-91 CAP, CERAMIC 4.7MF F (2012)

C446 1-135-592-21 CAP, ELECT 100MF

C447 1-107-682-91 CAP, CERAMIC 1000000PF B (3216)

C449 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C450 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C452 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C453 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C455 1-127-820-91 CAP, SQUARE TYPE CHIP 4.7MF

C456 1-127-760-91 CAP, CERAMIC 4.7MF (2012)

C457 1-127-760-91 CAP, CERAMIC 4.7MF (2012)

C458 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C460 1-164-174-91 CAP, CERAMIC 8200PF B (1608)

C461 1-164-174-91 CAP, CERAMIC 8200PF B (1608)

C462 1-163-009-91 CAP, CHIP CERAMIC 1000PF B (2012)

C465 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C466 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C467 1-126-209-21 CAP, ELECT 100MF

C468 1-126-209-21 CAP, ELECT 100MF

C469 1-162-977-91 CAP, CERAMIC 1800PF B (1608)

C470 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C471 1-164-379-91 CAP, CERAMIC 43PF CH (1608)

C472 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C473 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C474 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C475 1-164-730-91 CAP, CERAMIC 1200PF B (1608)

C476 1-115-339-91 CAP, CERAMIC 0.1MF B (2012)

C477 1-127-760-91 CAP, CERAMIC 4.7MF (2012)

C478 1-127-760-91 CAP, CERAMIC 4.7MF (2012)

C479 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C480 1-115-339-91 CAP, CERAMIC 0.1MF B (2012)

C482 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C483 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C485 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C486 1-137-765-21 CAP, ELECT 47MF

C487 1-131-999-21 CAP, SOLID ELECT 150MF

C488 1-115-566-91 CAP, CERAMIC 4.7MF B

C489 1-131-999-21 CAP, SOLID ELECT 150MF

C490 1-126-209-21 CAP, ELECT 100MF

C491 1-126-209-21 CAP, ELECT 100MF

C492 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C493 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C494 1-107-725-91 CAP, CERAMIC 100000PF B (2012)

C495 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C496 1-107-682-91 CAP, CERAMIC 1000000PF B (3216)

C497 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C498 1-127-760-91 CAP, CERAMIC 4.7MF (2012)

C499 1-164-505-91 CAP, CHIP CERAMIC 2.2MF F (2012)

C501 1-164-346-91 CAP, CHIP CERAMIC 1MF F (2012)

C502 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C503 1-163-009-91 CAP, CHIP CERAMIC 1000PF B (2012)

C504 1-164-346-91 CAP, CHIP CERAMIC 1MF F (2012)

C507 1-163-009-91 CAP, CHIP CERAMIC 1000PF B (2012)

C508 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C509 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C510 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C513 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C514 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C516 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C517 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C518 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C521 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C522 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C523 1-107-726-91 CAP, CHIP CERAMIC 10000PF B (1608)

C524 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C525 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C527 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C528 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C529 1-128-008-21 CAP, ELECT (CHIP) 3.3MF

C530 1-128-008-21 CAP, ELECT (CHIP) 3.3MF

C533 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C534 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C535 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C536 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C537 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C538 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C539 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C540 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C541 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C542 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C544 1-137-765-21 CAP, ELECT 47MF

C545 1-137-765-21 CAP, ELECT 47MF

C601 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C603 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C605 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C606 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C607 1-162-968-91 CAP, CHIP CERAMIC 4700PF B (1608)

C609 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C623 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C624 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C625 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C629 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C630 1-164-173-91 CAP, CERAMIC 3900PF B (1608)

C631 1-162-968-91 CAP, CHIP CERAMIC 4700PF B (1608)

C633 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C634 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C635 1-162-968-91 CAP, CHIP CERAMIC 4700PF B (1608)

C636 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C637 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C638 1-107-726-91 CAP, CHIP CERAMIC 10000PF B (1608)

C639 1-164-217-91 CAP, CERAMIC 150PF CH (1608)

C640 1-135-259-91 CAP, CHIP TANTALUM ELECT 10MF

C642 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C643 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C644 1-164-230-91 CAP, CERAMIC 220PF CH (1608)

C645 1-165-176-91 CAP, CERAMIC 47000PF B (1608)

C646 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C647 1-117-863-91 CAP, CHIP CERAMIC0.47MF B (1608)

C648 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C649 1-107-726-91 CAP, CHIP CERAMIC 10000PF B (1608)

C650 1-164-230-91 CAP, CERAMIC 220PF CH (1608)

C651 1-162-966-91 CAP, CERAMIC 2200PF B (1608)

C652 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C653 1-162-966-91 CAP, CERAMIC 2200PF B (1608)

C654 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C655 1-135-259-91 CAP, CHIP TANTALUM ELECT 10MF

C656 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C657 1-164-230-91 CAP, CERAMIC 220PF CH (1608)

C658 1-164-230-91 CAP, CERAMIC 220PF CH (1608)

C660 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C661 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C662 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C664 1-135-259-91 CAP, CHIP TANTALUM ELECT 10MF

C665 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C666 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C667 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C668 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C671 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C672 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C673 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C674 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C675 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C676 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C685 1-117-863-91 CAP, CHIP CERAMIC0.47MF B (1608)

C688 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C693 1-162-912-91 CAP, CERAMIC 7.0PF CH (1608)

C701 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C702 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C703 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C704 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C705 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C706 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C707 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C708 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C709 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C710 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C711 1-135-346-21 CAP, SOLID ELECT 39MF

C712 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C714 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C715 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C716 1-131-999-21 CAP, SOLID ELECT 150MF

C717 1-135-346-21 CAP, SOLID ELECT 39MF

C718 1-135-346-21 CAP, SOLID ELECT 39MF

C722 1-164-937-81 CAP, CHIPCERAMIC 1000PF B (1005)

C723 1-137-766-21 CAP, ELECT 68MF

C724 1-137-765-21 CAP, ELECT 47MF

C725 1-124-779-21 CAP, ELECT 10MF

C726 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C727 1-164-937-81 CAP, CHIPCERAMIC 1000PF B (1005)

C730 1-127-820-91 CAP, SQUARE TYPE CHIP 4.7MF

C791 1-164-245-91 CAP, CERAMIC 15000PF B (1608)

C792 1-104-851-91 CAP, CHIP TANTALUM ELECT 10MF

C793 1-164-505-91 CAP, CHIP CERAMIC 2.2MF F (2012)

C794 1-163-009-91 CAP, CHIP CERAMIC 1000PF B (2012)

C795 1-163-009-91 CAP, CHIP CERAMIC 1000PF B (2012)

C796 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C797 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C798 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C801 1-115-467-91 CAP, CHIP CERAMIC0.22MF B (1608)

C802 1-115-467-91 CAP, CHIP CERAMIC0.22MF B (1608)

C803 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C804 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C805 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C806 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C807 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C808 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C809 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C811 1-135-900-21 CAP, TANTALUM ELECT 22MF

C812 1-164-730-91 CAP, CERAMIC 1200PF B (1608)

C819 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C821 1-104-851-91 CAP, CHIP TANTALUM ELECT 10MF

C824 1-135-900-21 CAP, TANTALUM ELECT 22MF

C825 1-164-730-91 CAP, CERAMIC 1200PF B (1608)

— 158 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description

C826 1-164-677-91 CAP, CERAMIC 33000PF B (1608)

C827 1-162-966-91 CAP, CERAMIC 2200PF B (1608)

C828 1-162-966-91 CAP, CERAMIC 2200PF B (1608)

C829 1-162-966-91 CAP, CERAMIC 2200PF B (1608)

C830 1-162-966-91 CAP, CERAMIC 2200PF B (1608)

C831 1-162-975-91 CAP, CERAMIC 24PF CH (1608)

C832 1-115-467-91 CAP, CHIP CERAMIC0.22MF B (1608)

C834 1-163-038-91 CAP, CERAMIC 100000PF F (2012)

C835 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C836 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C837 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C839 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C840 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C841 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C842 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C843 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C844 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C845 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C846 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C848 1-107-823-91 CAP, CERAMIC 470000PF B (2012)

C850 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C851 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C853 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C854 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C855 1-115-467-91 CAP, CHIP CERAMIC0.22MF B (1608)

C857 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C859 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C860 1-164-173-91 CAP, CERAMIC 3900PF B (1608)

C862 1-164-739-91 CAP, CERAMIC 560PF CH (1608)

C863 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C866 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C868 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C869 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C870 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C871 1-164-677-91 CAP, CERAMIC 33000PF B (1608)

C872 1-115-467-91 CAP, CHIP CERAMIC0.22MF B (1608)

C873 1-164-392-91 CAP, CERAMIC 390PF CH (1608)

C874 1-164-677-91 CAP, CERAMIC 33000PF B (1608)

C875 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C876 1-125-838-91 CAP, CHIP CERAMIC2.2MF B (2012)

C877 1-164-173-91 CAP, CERAMIC 3900PF B (1608)

C879 1-164-739-91 CAP, CERAMIC 560PF CH (1608)

C880 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C882 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C883 1-163-038-91 CAP, CERAMIC 100000PF F (2012)

C888 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C889 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C890 1-104-851-91 CAP, CHIP TANTALUM ELECT 10MF

C891 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C895 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C897 1-164-677-91 CAP, CERAMIC 33000PF B (1608)

C898 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C899 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C901 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C902 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C903 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C904 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C905 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C906 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C907 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C908 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C909 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C910 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C911 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C912 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C913 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C914 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C915 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C916 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C917 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C918 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C919 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C920 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C921 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C922 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C923 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C924 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C925 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C926 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C927 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C928 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C929 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C930 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C931 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C932 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C933 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C934 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C935 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C936 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C937 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C938 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C939 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C940 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C941 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C942 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C943 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C944 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C945 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C946 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C947 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C948 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C949 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C950 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C951 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C952 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C953 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C954 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C955 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C956 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C957 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C958 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C959 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C960 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C961 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C962 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C963 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C965 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C966 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C967 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C968 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C980 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C981 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C982 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C983 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C984 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C985 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C986 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C987 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C988 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C989 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C990 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

CN201 1-815-631-11 CONNECTOR, SQUARE TYPE 12P

CN302 1-794-206-21 CONNECTOR, FFC/FPC (ZIF) 36P

CN303 1-694-822-11 TERMINAL BOARD (ILINK/USB)

CN401 1-815-630-11 PIN, CONNECTOR 4P

CN402 1-815-648-21 PIN, CONNECTOR (PC BOARD)

CN403 1-784-650-21 CONNECTOR 2P

CN406 1-815-653-21 CONNECTOR, FFC/FPC (ZIF) 7P

CN501 1-476-736-11 TRANSMITTER UNIT, LIGHT

CN504 1-815-632-11 CONNECTOR BOARD TO BOARD 110P

CN801 1-794-237-21 CONNECTOR, FFC/FPC 30P

CN802 1-770-619-41 PIN, CONNECTOR 2P

CN803 1-779-206-21 CONNECTOR, FFC (LIF(NON-ZIF)) 4P

CN804 1-794-194-21 CONNECTOR, FFC/FPC 13P

CN805 1-770-619-21 PIN, CONNECTOR 2P

CN806 1-770-619-81 PIN, CONNECTOR 2P

CP201 1-234-605-21 NETWORK, RC

<DIODE>

D201 8-719-065-78 DIODE MAZF12000LS0

D202 8-719-064-61 DIODE 01BZA8.2 (TE85L)

D203 8-719-064-61 DIODE 01BZA8.2 (TE85L)

D204 8-719-064-61 DIODE 01BZA8.2 (TE85L)

D205 8-719-064-61 DIODE 01BZA8.2 (TE85L)

D206 8-719-064-61 DIODE 01BZA8.2 (TE85L)

D208 8-719-064-61 DIODE 01BZA8.2 (TE85L)

D209 8-719-064-61 DIODE 01BZA8.2 (TE85L)

D210 8-719-064-61 DIODE 01BZA8.2 (TE85L)

D301 8-719-071-87 DIODE MA785-(TX),SO

D302 8-719-071-87 DIODE MA785-(TX),SO

D402 8-719-074-34 DIODE RB495D-T146

D403 8-719-074-34 DIODE RB495D-T146

D404 8-719-033-15 DIODE HN2D02FU-TE85R

D405 8-719-078-04 DIODE EC31QS03L-TE12L

D407 8-719-074-34 DIODE RB495D-T146

D408 8-719-074-34 DIODE RB495D-T146

D500 8-719-941-21 DIODE DAP202UT106

D501 8-719-082-76 DIODE CL-201TLY-C-TU

D801 8-719-065-68 DIODE MAZF04700LS0

D802 8-719-065-68 DIODE MAZF04700LS0

<FUSE>

F001 1-576-434-21 FUSE, CHIP

F003 1-576-434-21 FUSE, CHIP

FB102 1-469-667-21 FERRITE, EMI (SMD)

FB103 1-469-667-21 FERRITE, EMI (SMD)

FB201 1-414-813-21 FERRITE, EMI (SMD)

FB202 1-500-113-22 BEAD, FERRITE (CHIP)

FB203 1-500-113-22 BEAD, FERRITE (CHIP)

FB204 1-500-113-22 BEAD, FERRITE (CHIP)

FB205 1-500-113-22 BEAD, FERRITE (CHIP)

FB206 1-500-113-22 BEAD, FERRITE (CHIP)

FB303 1-414-555-21 FERRITE, EMI (SMD)

FB304 1-414-555-21 FERRITE, EMI (SMD)

FB305 1-414-555-21 FERRITE, EMI (SMD)

FB306 1-414-555-21 FERRITE, EMI (SMD)

FB307 1-414-555-21 FERRITE, EMI (SMD)

FB308 1-414-555-21 FERRITE, EMI (SMD)

FB309 1-414-555-21 FERRITE, EMI (SMD)

FB310 1-414-555-21 FERRITE, EMI (SMD)

FB311 1-414-555-21 FERRITE, EMI (SMD)

FB312 1-414-555-21 FERRITE, EMI (SMD)

FB313 1-469-324-21 FERRITE, EMI (SMD)

FB314 1-469-324-21 FERRITE, EMI (SMD)

FB315 1-469-324-21 FERRITE, EMI (SMD)

FB316 1-469-324-21 FERRITE, EMI (SMD)

FB317 1-469-110-21 FERRITE, EMI (SMD)

FB318 1-469-110-21 FERRITE, EMI (SMD)

FB319 1-469-110-21 FERRITE, EMI (SMD)

FB320 1-469-110-21 FERRITE, EMI (SMD)

FB321 1-469-110-21 FERRITE, EMI (SMD)

FB322 1-469-110-21 FERRITE, EMI (SMD)

FB323 1-469-110-21 FERRITE, EMI (SMD)

FB324 1-469-110-21 FERRITE, EMI (SMD)

FB403 1-469-667-21 FERRITE, EMI (SMD)

FB404 1-469-667-21 FERRITE, EMI (SMD)

FB405 1-469-667-21 FERRITE, EMI (SMD)

FB406 1-469-667-21 FERRITE, EMI (SMD)

FB407 1-469-667-21 FERRITE, EMI (SMD)

FB408 1-469-667-21 FERRITE, EMI (SMD)

FB801 1-469-562-21 FERRITE, EMI (SMD)

FB802 1-469-562-21 FERRITE, EMI (SMD)

FL201 1-469-991-21 EMI FILTER (SMD)

FL202 1-469-991-21 EMI FILTER (SMD)

FL203 1-469-991-21 EMI FILTER (SMD)

FL301 1-234-601-21 NETWORK, RC (USB) (3216)

FL302 1-234-601-21 NETWORK, RC (USB) (3216)

<IC>

IC101 8-759-831-20 IC CY2212ZC-2T

IC101 8-759-834-04 IC SN104971APWR

IC102 6-800-080-01 IC TC59RM716GB-8DYELZ

IC102 8-759-666-89 IC TC59RM716GB-8(YEL

IC102 8-759-837-33 IC K4R271669A-SCK8T00

IC103 6-800-080-01 IC TC59RM716GB-8DYELZ

IC103 8-759-666-89 IC TC59RM716GB-8(YEL

IC103 8-759-837-33 IC K4R271669A-SCK8T00

IC104 8-759-699-09 IC CXD9615GB

IC105 8-759-689-90 IC LM74CIMX-3

IC202 8-759-699-08 IC CXD2944GB

IC205 6-700-230-01 IC SC44728BPBEB

IC206 8-752-093-56 IC CXA3525R-T4

IC206 8-752-099-53 IC CXA3525BR-T4

IC207 8-759-391-69 IC MC78M05CDTRK

IC207 8-759-691-00 IC JCP78M05CDTRK

IC207 8-759-697-61 IC L78M05CDT-TR(P)

IC208 8-759-683-81 IC SN74CBT1G125DCKR

IC209 8-759-697-60 IC MM3071CFBE

IC303 8-759-699-11 IC CXD9619GB

IC305 6-700-119-01 IC T5NB8(YEL)

IC306 8-759-688-07 IC MM3051NULE

IC306 8-759-697-24 IC S-817A12ANB-CUB-T2

IC401 8-759-661-25 IC S-80769SN-J0-T1

IC402 8-759-837-34 IC TMP87C807U-2A69(EL)

IC403 6-700-234-01 IC BD3992F-E2

IC403 8-759-688-08 IC MM1537DFBE

IC404 8-759-689-89 IC SN104809DBTR

IC405 8-759-560-17 IC RS5C348A-E2

IC406 8-759-698-67 IC BR2880F-E2

IC407 8-759-712-66 IC PQ018PZ01ZP

IC408 8-759-712-65 IC PQ070XZ01ZP

IC409 8-759-689-89 IC SN104809DBTR

IC410 8-749-018-42 IC SI-3026LSA-TL

IC411 8-759-688-06 IC MM3031JULE

IC412 8-749-018-41 IC SI-3025LSA-TL

— 159 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description

IC413 6-700-233-01 IC MM1573ZNLE

IC413 8-759-598-12 IC LP2985IM5X-3.5

IC414 8-759-069-41 IC TA7808F(TE16L)

IC414 8-759-473-16 IC BA17808FP-E2

IC414 8-759-697-62 IC NJM7808DL1A(TE1)

IC415 8-759-581-11 IC NJM2125F(TE2)

IC501 6-700-231-01 IC CXD9611AR

IC501 8-759-699-10 IC CXD9611R

IC502 8-759-712-79 IC K4E151612D-TL50T00

IC502 8-759-712-80 IC MT4LC1M16E5TG-5TR

IC502 8-759-712-81 IC GM71V18163CT-5

IC502 8-759-712-82 IC SDMV18165CTM6S

IC503 6-800-197-01 IC MR27V3202F-A7TPZ

IC504 8-752-408-53 IC CXD2942AR

IC504 8-752-410-55 IC CXD2942BR

IC517 8-759-667-10 IC CS4335-KS

IC603 8-759-370-11 IC NJM2100V-TE2

IC605 8-752-413-11 IC CXD1869BQ

IC802 8-759-697-65 IC BA5815FM-E2

IC803 8-759-588-60 IC BA6664FM-E2

IC805 8-759-712-38 IC HD74HC1G66CME

IC805 8-759-712-63 IC MC74VHC1G66DFT1

IC806 8-759-337-40 IC NJM2904V(TE2)

IC807 8-759-391-69 IC MC78M05CDTRK

IC807 8-759-691-00 IC JCP78M05CDTRK

IC807 8-759-697-61 IC L78M05CDT-TR(P)

L102 1-414-398-41 INDUCTOR (SMD) 10.0UH

L203 1-469-967-21 INDUCTOR, CHIP 10UH (2518)

L205 1-469-967-21 INDUCTOR, CHIP 10UH (2518)

L206 1-412-960-21 INDUCTOR, SMALL TYPE 56UH (2518)

L401 1-411-197-21 COIL, DD CONVERTER

L404 1-419-905-21 COIL, CHOKE (SMD) 1.82UH

L408 1-419-898-21 COIL, CHOKE 5.6UH

L410 1-411-197-21 COIL, DD CONVERTER

L411 1-424-789-21 COIL, CHOKE (SMD) 10UH

L412 1-411-197-21 COIL, DD CONVERTER

L413 1-424-789-21 COIL, CHOKE (SMD) 10UH

L414 1-424-789-21 COIL, CHOKE (SMD) 10UH

L801 1-469-524-91 INDUCTOR 4.7UH (NLFV25)

L802 1-469-524-91 INDUCTOR 4.7UH (NLFV25)

L803 1-414-394-41 INDUCTOR (SMD) 2.2UH

<COIL>

LF101 1-419-100-21 COIL, COMMON-MODE CHOKE

LF801 1-416-405-21 FILTER, CHIP EMI (COMMON MODE)

<LINK>

PS001 1-576-519-21 FUSE, MICRO

(1608 TYPE)

PS002 1-533-940-21 RINK, CHIP IC

PS003 1-533-940-21 RINK, CHIP IC

PS004 1-533-940-21 RINK, CHIP IC

PS006 1-533-915-41 RINK, CHIP IC

PS007 1-533-282-21 LINK, IC

PS008 1-533-940-21 RINK, CHIP IC

PS009 1-533-915-41 RINK, CHIP IC

PS010 1-533-282-21 LINK, IC

PS011 1-576-519-21 FUSE, MICRO

(1608 TYPE)

PS012 1-533-915-41 RINK, CHIP IC

PS013 1-533-940-21 RINK, CHIP IC

PS014 1-533-282-21 LINK, IC

PS015 1-533-915-41 RINK, CHIP IC

Q201 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR

Q204 8-729-049-77 TRANSISTOR HN1B01F-GR (T5LSONY)

Q205 8-729-013-22 TRANSISTOR HN1A01FU-TE85R

Q401 8-729-055-58 TRANSISTOR SI4894DY-T1

Q402 8-729-053-80 TRANSISTOR SI4830DY-T1

Q404 8-729-052-07 TRANSISTOR HAT2064R-EL

Q405 8-729-427-47 TRANSISTOR XP4213-TXE

Q406 8-729-053-80 TRANSISTOR SI4830DY-T1

Q407 8-729-046-04 TRANSISTOR FDS6690A

Q408 8-729-051-61 TRANSISTOR IRF7807D1-TR

Q409 8-729-427-47 TRANSISTOR XP4213-TXE

Q410 8-729-013-97 TRANSISTOR RN1304-TE85L

Q411 8-729-043-74 TRANSISTOR SI4435DY-T1-REVA

Q412 8-729-043-74 TRANSISTOR SI4435DY-T1-REVA

Q413 8-729-054-34 TRANSISTOR FDN304P

Q414 8-729-043-74 TRANSISTOR SI4435DY-T1-REVA

Q415 8-729-052-41 TRANSISTOR 2SC4541 (2TL SONY1)

Q505 8-729-021-09 TRANSISTOR RN4904 (TE85R)

Q506 8-729-056-15 TRANSISTOR IMH20T108

Q600 8-729-016-26 TRANSISTOR 2SK1958-T1

Q603 8-729-017-33 TRANSISTOR RN1706-TE85R

Q801 8-729-031-35 TRANSISTOR 2SK2034-TE85L

Q802 8-729-029-13 TRANSISTOR DTC143ZUA-T106

Q803 8-729-031-35 TRANSISTOR 2SK2034-TE85L

Q804 8-729-103-96 TRANSISTOR 2SB798-T1DL

Q805 8-729-103-96 TRANSISTOR 2SB798-T1DL

Q806 8-729-048-50 TRANSISTOR 2SK3018-T106

Q808 8-729-048-50 TRANSISTOR 2SK3018-T106

Q810 8-729-048-50 TRANSISTOR 2SK3018-T106

Q814 8-729-029-13 TRANSISTOR DTC143ZUA-T106

R101 1-220-884-81 RES, CHIP 39 (1005)

R102 1-208-866-81 RES, CHIP 130 (1005)

R103 1-220-884-81 RES, CHIP 39 (1005)

R104 1-208-866-81 RES, CHIP 130 (1005)

R105 1-216-864-91 CONDUCTOR, CHIP (1608)

R106 1-216-809-91 RES, CHIP 100 (1608)

R107 1-216-809-91 RES, CHIP 100 (1608)

R109 1-218-961-81 RES, CHIP 4.7K

R110 1-211-983-91 RES, CHIP 39 (1608)

R111 1-211-983-91 RES, CHIP 39 (1608)

R112 1-211-989-91 RES, CHIP 68 (1608)

R113 1-211-989-91 RES, CHIP 68 (1608)

R114 1-211-983-91 RES, CHIP 39 (1608)

R115 1-211-983-91 RES, CHIP 39 (1608)

R116 1-211-983-91 RES, CHIP 39 (1608)

R117 1-211-983-91 RES, CHIP 39 (1608)

R118 1-211-973-91 RES, CHIP 15 (1608)

R119 1-211-973-91 RES, CHIP 15 (1608)

R120 1-211-973-91 RES, CHIP 15 (1608)

R121 1-211-973-91 RES, CHIP 15 (1608)

R122 1-216-864-91 CONDUCTOR, CHIP (1608)

R123 1-218-990-81 CONDUCTOR, CHIP (1005)

R124 1-216-864-91 CONDUCTOR, CHIP (1608)

R125 1-218-990-81 CONDUCTOR, CHIP (1005)

R126 1-216-833-91 RES, CHIP 10K (1608)

R127 1-216-829-91 RES, CHIP 4.7K (1608)

R128 1-216-829-91 RES, CHIP 4.7K (1608)

R129 1-216-821-91 RES, CHIP 1.0K (1608)

R130 1-216-817-91 RES, CHIP 470 (1608)

R131 1-216-833-91 RES, CHIP 10K (1608)

R132 1-216-833-91 RES, CHIP 10K (1608)

R133 1-216-833-91 RES, CHIP 10K (1608)

R134 1-218-965-81 RES, CHIP 10K

R135 1-216-864-91 CONDUCTOR, CHIP (1608)

R136 1-216-864-91 CONDUCTOR, CHIP (1608)

R138 1-216-864-91 CONDUCTOR, CHIP (1608)

R139 1-216-801-91 RES, CHIP 22 (1608)

R145 1-218-953-81 RES, CHIP 1.0K

R146 1-216-821-91 RES, CHIP 1.0K (1608)

R147 1-216-821-91 RES, CHIP 1.0K (1608)

R185 1-216-829-91 RES, CHIP 4.7K (1608)

R188 1-216-829-91 RES, CHIP 4.7K (1608)

R196 1-218-933-81 RES, CHIP 22

R202 1-216-833-91 RES, CHIP 10K (1608)

R203 1-216-864-91 CONDUCTOR, CHIP (1608)

R205 1-216-864-91 CONDUCTOR, CHIP (1608)

R208 1-216-864-91 CONDUCTOR, CHIP (1608)

R212 1-216-864-91 CONDUCTOR, CHIP (1608)

R213 1-216-864-91 CONDUCTOR, CHIP (1608)

R216 1-216-809-91 RES, CHIP 100 (1608)

R217 1-218-859-91 RES, CHIP 3.3K (1608)

R218 1-218-847-91 RES, CHIP 1.0K (1608)

R219 1-218-851-91 RES, CHIP 1.5K (1608)

R220 1-218-933-81 RES, CHIP 22

R225 1-216-833-91 RES, CHIP 10K (1608)

R226 1-218-965-81 RES, CHIP 10K

R227 1-216-864-91 CONDUCTOR, CHIP (1608)

R228 1-218-965-81 RES, CHIP 10K

R233 1-216-821-91 RES, CHIP 1.0K (1608)

R236 1-216-809-91 RES, CHIP 100 (1608)

R237 1-216-829-91 RES, CHIP 4.7K (1608)

R244 1-218-831-91 RES, CHIP 220 (1608)

R245 1-218-831-91 RES, CHIP 220 (1608)

R246 1-218-831-91 RES, CHIP 220 (1608)

R247 1-216-801-91 RES, CHIP 22 (1608)

R251 1-216-837-91 RES, CHIP 22K (1608)

R252 1-216-839-91 RES, CHIP 33K (1608)

R253 1-216-833-91 RES, CHIP 10K (1608)

R257 1-216-824-91 RES, CHIP 1.8K (1608)

R258 1-208-923-81 RES, CHIP 33K (1005)

R259 1-216-824-91 RES, CHIP 1.8K (1608)

R261 1-218-961-81 RES, CHIP 4.7K

R263 1-216-825-91 RES, CHIP 2.2K (1608)

R264 1-216-821-91 RES, CHIP 1.0K (1608)

R265 1-216-821-91 RES, CHIP 1.0K (1608)

R270 1-218-853-91 RES, CHIP 1.8K (1608)

R272 1-218-859-91 RES, CHIP 3.3K (1608)

R273 1-218-851-91 RES, CHIP 1.5K (1608)

R277 1-218-853-91 RES, CHIP 1.8K (1608)

R278 1-218-859-91 RES, CHIP 3.3K (1608)

R279 1-218-851-91 RES, CHIP 1.5K (1608)

R292 1-216-833-91 RES, CHIP 10K (1608)

R294 1-216-829-91 RES, CHIP 4.7K (1608)

R295 1-216-817-91 RES, CHIP 470 (1608)

R307 1-208-857-81 RES, CHIP 56 (1005)

R308 1-208-904-81 RES, CHIP 5.1K (1005)

R309 1-211-987-91 RES, CHIP 56 (1608)

R310 1-211-987-91 RES, CHIP 56 (1608)

R311 1-216-829-91 RES, CHIP 4.7K (1608)

R312 1-208-857-81 RES, CHIP 56 (1005)

R315 1-218-866-91 RES, CHIP 6.2K (1608)

R316 1-216-797-91 RES, CHIP 10 (1608)

R318 1-218-990-81 CONDUCTOR, CHIP (1005)

R320 1-219-570-91 RES, CHIP 10M (1608)

R321 1-216-813-91 RES, CHIP 220 (1608)

R322 1-216-857-91 RES, CHIP 1.0M (1608)

R324 1-216-833-91 RES, CHIP 10K (1608)

R327 1-216-833-91 RES, CHIP 10K (1608)

R328 1-216-841-91 RES, CHIP 47K (1608)

R329 1-216-805-91 RES, CHIP 47 (1608)

R330 1-211-973-91 RES, CHIP 15 (1608)

R331 1-216-805-91 RES, CHIP 47 (1608)

R332 1-216-817-91 RES, CHIP 470 (1608)

R333 1-216-817-91 RES, CHIP 470 (1608)

R334 1-216-829-91 RES, CHIP 4.7K (1608)

R335 1-216-829-91 RES, CHIP 4.7K (1608)

R336 1-216-821-91 RES, CHIP 1.0K (1608)

R347 1-211-986-91 RES, CHIP 51 (1608)

R349 1-216-821-91 RES, CHIP 1.0K (1608)

R350 1-216-807-91 RES, CHIP 68 (1608)

R351 1-216-805-91 RES, CHIP 47 (1608)

R352 1-216-797-91 RES, CHIP 10 (1608)

R353 1-216-801-91 RES, CHIP 22 (1608)

R354 1-216-801-91 RES, CHIP 22 (1608)

R357 1-218-933-81 RES, CHIP 22

R358 1-216-801-91 RES, CHIP 22 (1608)

R359 1-216-801-91 RES, CHIP 22 (1608)

R360 1-218-937-81 RES, CHIP 47

R361 1-218-937-81 RES, CHIP 47

R362 1-216-805-91 RES, CHIP 47 (1608)

R363 1-216-864-91 CONDUCTOR, CHIP (1608)

R364 1-216-805-91 RES, CHIP 47 (1608)

R365 1-216-805-91 RES, CHIP 47 (1608)

R366 1-218-937-81 RES, CHIP 47

R367 1-216-805-91 RES, CHIP 47 (1608)

R368 1-216-805-91 RES, CHIP 47 (1608)

R394 1-216-833-91 RES, CHIP 10K (1608)

R395 1-218-957-81 RES, CHIP 2.2K

R401 1-218-969-81 RES, CHIP 22K

R402 1-216-837-91 RES, CHIP 22K (1608)

R403 1-216-849-91 RES, CHIP 220K (1608)

R404 1-216-845-91 RES, CHIP 100K (1608)

R405 1-216-845-91 RES, CHIP 100K (1608)

R406 1-216-811-91 RES, CHIP 150 (1608)

R407 1-216-811-91 RES, CHIP 150 (1608)

R408 1-216-839-91 RES, CHIP 33K (1608)

R409 1-216-864-91 CONDUCTOR, CHIP (1608)

R410 1-218-883-91 RES, CHIP 33K (1608)

R411 1-218-883-91 RES, CHIP 33K (1608)

R412 1-218-883-91 RES, CHIP 33K (1608)

R413 1-218-883-91 RES, CHIP 33K (1608)

R414 1-216-864-91 CONDUCTOR, CHIP (1608)

R415 1-216-839-91 RES, CHIP 33K (1608)

R416 1-216-839-91 RES, CHIP 33K (1608)

R417 1-216-813-91 RES, CHIP 220 (1608)

R418 1-216-817-91 RES, CHIP 470 (1608)

R419 1-216-833-91 RES, CHIP 10K (1608)

R420 1-216-833-91 RES, CHIP 10K (1608)

R421 1-216-790-91 RES, CHIP 2.7 (1608)

R422 1-216-797-91 RES, CHIP 10 (1608)

R423 1-216-790-91 RES, CHIP 2.7 (1608)

R424 1-216-797-91 RES, CHIP 10 (1608)

R426 1-218-879-91 RES, CHIP 22K (1608)

R427 1-218-871-91 RES, CHIP 10K (1608)

R428 1-216-309-91 RES, CHIP 5.6 (2012)

R429 1-216-833-91 RES, CHIP 10K (1608)

R430 1-216-813-91 RES, CHIP 220 (1608)

R431 1-216-813-91 RES, CHIP 220 (1608)

R432 1-216-829-91 RES, CHIP 4.7K (1608)

R433 1-216-829-91 RES, CHIP 4.7K (1608)

R434 1-216-810-91 RES, CHIP 120 (1608)

R435 1-216-810-91 RES, CHIP 120 (1608)

R438 1-218-850-91 RES, CHIP 1.3K (1608)

R439 1-218-857-91 RES, CHIP 2.7K (1608)

R440 1-218-859-91 RES, CHIP 3.3K (1608)

R441 1-218-879-91 RES, CHIP 22K (1608)

R442 1-218-869-91 RES, CHIP 8.2K (1608)

— 160 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description

R443 1-218-865-91 RES, CHIP 5.6K (1608)

R444 1-218-881-91 RES, CHIP 27K (1608)

R445 1-218-849-91 RES, CHIP 1.2K (1608)

R446 1-216-817-91 RES, CHIP 470 (1608)

R447 1-216-817-91 RES, CHIP 470 (1608)

R448 1-218-965-81 RES, CHIP 10K

R449 1-216-833-91 RES, CHIP 10K (1608)

R450 1-216-817-91 RES, CHIP 470 (1608)

R451 1-218-949-81 RES, CHIP 470

R452 1-216-797-91 RES, CHIP 10 (1608)

R453 1-216-797-91 RES, CHIP 10 (1608)

R454 1-216-797-91 RES, CHIP 10 (1608)

R455 1-216-845-91 RES, CHIP 100K (1608)

R456 1-216-821-91 RES, CHIP 1.0K (1608)

R457 1-218-887-91 RES, CHIP 47K (1608)

R458 1-216-797-91 RES, CHIP 10 (1608)

R459 1-216-833-91 RES, CHIP 10K (1608)

R460 1-218-871-91 RES, CHIP 10K (1608)

R461 1-216-309-91 RES, CHIP 5.6 (2012)

R463 1-216-857-91 RES, CHIP 1.0M (1608)

R465 1-216-845-91 RES, CHIP 100K (1608)

R466 1-216-821-91 RES, CHIP 1.0K (1608)

R467 1-216-833-91 RES, CHIP 10K (1608)

R469 1-216-833-91 RES, CHIP 10K (1608)

R470 1-216-845-91 RES, CHIP 100K (1608)

R472 1-218-871-91 RES, CHIP 10K (1608)

R473 1-218-863-91 RES, CHIP 4.7K (1608)

R474 1-216-853-91 RES, CHIP 470K (1608)

R475 1-216-857-91 RES, CHIP 1.0M (1608)

R476 1-216-845-91 RES, CHIP 100K (1608)

R479 1-216-864-91 CONDUCTOR, CHIP (1608)

R503 1-216-803-91 RES, CHIP 33 (1608)

R504 1-216-803-91 RES, CHIP 33 (1608)

R505 1-216-803-91 RES, CHIP 33 (1608)

R506 1-216-809-91 RES, CHIP 100 (1608)

R509 1-216-821-91 RES, CHIP 1.0K (1608)

R513 1-216-805-91 RES, CHIP 47 (1608)

R516 1-216-809-91 RES, CHIP 100 (1608)

R517 1-216-809-91 RES, CHIP 100 (1608)

R522 1-216-833-91 RES, CHIP 10K (1608)

R527 1-216-821-91 RES, CHIP 1.0K (1608)

R531 1-216-809-91 RES, CHIP 100 (1608)

R574 1-216-812-91 RES, CHIP 180 (1608)

R575 1-216-850-91 RES, CHIP 270K (1608)

R576 1-216-833-91 RES, CHIP 10K (1608)

R577 1-216-818-91 RES, CHIP 560 (1608)

R578 1-216-818-91 RES, CHIP 560 (1608)

R579 1-216-833-91 RES, CHIP 10K (1608)

R580 1-216-850-91 RES, CHIP 270K (1608)

R604 1-216-845-91 RES, CHIP 100K (1608)

R606 1-216-833-91 RES, CHIP 10K (1608)

R607 1-216-833-91 RES, CHIP 10K (1608)

R613 1-216-833-91 RES, CHIP 10K (1608)

R614 1-216-833-91 RES, CHIP 10K (1608)

R619 1-216-833-91 RES, CHIP 10K (1608)

R620 1-216-833-91 RES, CHIP 10K (1608)

R623 1-216-837-91 RES, CHIP 22K (1608)

R624 1-216-850-91 RES, CHIP 270K (1608)

R625 1-216-864-91 CONDUCTOR, CHIP (1608)

R626 1-216-833-91 RES, CHIP 10K (1608)

R627 1-216-837-91 RES, CHIP 22K (1608)

R630 1-216-837-91 RES, CHIP 22K (1608)

R636 1-216-864-91 CONDUCTOR, CHIP (1608)

R642 1-216-833-91 RES, CHIP 10K (1608)

R644 1-216-837-91 RES, CHIP 22K (1608)

R649 1-216-833-91 RES, CHIP 10K (1608)

R650 1-216-833-91 RES, CHIP 10K (1608)

R651 1-216-835-91 RES, CHIP 15K (1608)

R653 1-216-845-91 RES, CHIP 100K (1608)

R654 1-216-845-91 RES, CHIP 100K (1608)

R657 1-216-839-91 RES, CHIP 33K (1608)

R658 1-216-833-91 RES, CHIP 10K (1608)

R660 1-216-833-91 RES, CHIP 10K (1608)

R661 1-216-833-91 RES, CHIP 10K (1608)

R667 1-216-861-91 RES, CHIP 2.2M (1608)

R668 1-216-853-91 RES, CHIP 470K (1608)

R669 1-216-845-91 RES, CHIP 100K (1608)

R670 1-216-833-91 RES, CHIP 10K (1608)

R671 1-216-827-91 RES, CHIP 3.3K (1608)

R672 1-218-888-91 RES, CHIP 51K (1608)

R673 1-216-827-91 RES, CHIP 3.3K (1608)

R674 1-216-845-91 RES, CHIP 100K (1608)

R675 1-216-839-91 RES, CHIP 33K (1608)

R678 1-216-829-91 RES, CHIP 4.7K (1608)

R689 1-216-845-91 RES, CHIP 100K (1608)

R694 1-216-835-91 RES, CHIP 15K (1608)

R696 1-216-846-91 RES, CHIP 120K (1608)

R698 1-216-835-91 RES, CHIP 15K (1608)

R699 1-216-833-91 RES, CHIP 10K (1608)

R700 1-216-864-91 CONDUCTOR, CHIP (1608)

R801 1-216-864-91 CONDUCTOR, CHIP (1608)

R802 1-216-864-91 CONDUCTOR, CHIP (1608)

R803 1-216-864-91 CONDUCTOR, CHIP (1608)

R804 1-216-864-91 CONDUCTOR, CHIP (1608)

R805 1-216-809-91 RES, CHIP 100 (1608)

R806 1-216-833-91 RES, CHIP 10K (1608)

R807 1-216-809-91 RES, CHIP 100 (1608)

R808 1-216-833-91 RES, CHIP 10K (1608)

R813 1-216-158-91 RES, CHIP 22 (3216)

R814 1-216-158-91 RES, CHIP 22 (3216)

R815 1-216-797-91 RES, CHIP 10 (1608)

R816 1-216-158-91 RES, CHIP 22 (3216)

R817 1-216-158-91 RES, CHIP 22 (3216)

R818 1-216-797-91 RES, CHIP 10 (1608)

R819 1-218-889-91 RES, CHIP 56K (1608)

R820 1-218-881-91 RES, CHIP 27K (1608)

R821 1-218-881-91 RES, CHIP 27K (1608)

R822 1-218-881-91 RES, CHIP 27K (1608)

R823 1-218-890-91 RES, CHIP 62K (1608)

R826 1-218-871-91 RES, CHIP 10K (1608)

R827 1-218-871-91 RES, CHIP 10K (1608)

R828 1-218-881-91 RES, CHIP 27K (1608)

R830 1-216-815-91 RES, CHIP 330 (1608)

R831 1-216-810-91 RES, CHIP 120 (1608)

R834 1-208-911-81 RES, CHIP 10K (1005)

R837 1-208-922-81 RES, CHIP 30K (1005)

R838 1-208-922-81 RES, CHIP 30K (1005)

R840 1-208-916-81 RES, CHIP 16K (1005)

R843 1-208-922-81 RES, CHIP 30K (1005)

R846 1-208-922-81 RES, CHIP 30K (1005)

R847 1-218-977-81 RES, CHIP 100K

R850 1-208-911-81 RES, CHIP 10K (1005)

R851 1-208-916-81 RES, CHIP 16K (1005)

R852 1-218-873-91 RES, CHIP 12K (1608)

R853 1-216-298-91 RES, CHIP 2.2 (2012)

R854 1-216-298-91 RES, CHIP 2.2 (2012)

R855 1-216-298-91 RES, CHIP 2.2 (2012)

R856 1-216-298-91 RES, CHIP 2.2 (2012)

R857 1-216-864-91 CONDUCTOR, CHIP (1608)

R866 1-216-845-91 RES, CHIP 100K (1608)

R868 1-216-849-91 RES, CHIP 220K (1608)

R870 1-216-849-91 RES, CHIP 220K (1608)

R871 1-218-896-91 RES, CHIP 110K (1608)

R872 1-216-844-91 RES, CHIP 82K (1608)

R873 1-216-839-91 RES, CHIP 33K (1608)

R874 1-216-828-91 RES, CHIP 3.9K (1608)

R875 1-216-023-91 RES, CHIP 82 (2012)

R876 1-216-023-91 RES, CHIP 82 (2012)

R877 1-216-023-91 RES, CHIP 82 (2012)

R878 1-216-023-91 RES, CHIP 82 (2012)

R879 1-216-023-91 RES, CHIP 82 (2012)

R880 1-216-023-91 RES, CHIP 82 (2012)

R881 1-216-023-91 RES, CHIP 82 (2012)

R882 1-216-023-91 RES, CHIP 82 (2012)

R901 1-218-937-81 RES, CHIP 47

R902 1-218-937-81 RES, CHIP 47

R974 1-216-801-91 RES, CHIP 22 (1608)

R975 1-216-801-91 RES, CHIP 22 (1608)

R984 1-216-864-91 CONDUCTOR, CHIP (1608)

RB101 1-234-496-21 ARRAY, RESISTOR 39

RB102 1-234-496-21 ARRAY, RESISTOR 39

RB103 1-234-496-21 ARRAY, RESISTOR 39

RB104 1-234-496-21 ARRAY, RESISTOR 39

RB105 1-234-496-21 ARRAY, RESISTOR 39

RB106 1-234-496-21 ARRAY, RESISTOR 39

RB107 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB108 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB109 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB110 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB111 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB112 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB113 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB114 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB116 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB117 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB118 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB119 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB120 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB121 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB122 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB123 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB124 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB125 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB126 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB130 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB131 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB132 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB133 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB134 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB135 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB136 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB137 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB139 1-233-414-21 RES, CHIP NETWORK 4.7K (3216)

RB241 1-233-414-21 RES, CHIP NETWORK 4.7K (3216)

RB294 1-233-414-21 RES, CHIP NETWORK 4.7K (3216)

RB295 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB296 1-234-598-21 RES, CHIP NETWORK 75X4 (3216)

RB297 1-234-599-21 RES, CHIP NETWORK 180X4 (3216)

RB298 1-234-598-21 RES, CHIP NETWORK 75X4 (3216)

RB303 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB305 1-233-575-21 RES, CHIP NETWORK 22

RB310 1-233-414-21 RES, CHIP NETWORK 4.7K (3216)

RB311 1-233-679-91 RES, NETWORK 470 (1608)

RB312 1-233-786-91 RES, NETWORK 220 (1608)

RB314 1-233-681-91 RES, NETWORK 4.7K (1608)

RB317 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB318 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB319 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB320 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB321 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB322 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB323 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB324 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB325 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB326 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB327 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB328 1-233-414-21 RES, CHIP NETWORK 4.7K (3216)

RB329 1-233-783-91 RES, NETWORK 22 (1608)

RB402 1-233-803-91 RES, NETWORK 1.5K (1608)

RB403 1-233-789-91 RES, NETWORK 10K (1608)

RB405 1-233-803-91 RES, NETWORK 1.5K (1608)

RB406 1-233-792-91 RES, NETWORK 100K (1608)

RB407 1-233-795-91 RES, NETWORK 1.0M (1608)

RB408 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB409 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB410 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB511 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB517 1-233-575-21 RES, CHIP NETWORK 22

RB518 1-233-575-21 RES, CHIP NETWORK 22

RB519 1-233-575-21 RES, CHIP NETWORK 22

RB520 1-233-575-21 RES, CHIP NETWORK 22

RB521 1-233-575-21 RES, CHIP NETWORK 22

RB522 1-233-575-21 RES, CHIP NETWORK 22

RB523 1-233-575-21 RES, CHIP NETWORK 22

RB524 1-233-575-21 RES, CHIP NETWORK 22

RB525 1-233-575-21 RES, CHIP NETWORK 22

RB526 1-233-575-21 RES, CHIP NETWORK 22

RB527 1-233-575-21 RES, CHIP NETWORK 22

RB528 1-233-575-21 RES, CHIP NETWORK 22

RB529 1-233-575-21 RES, CHIP NETWORK 22

RB530 1-233-575-21 RES, CHIP NETWORK 22

RB531 1-233-575-21 RES, CHIP NETWORK 22

RB532 1-233-575-21 RES, CHIP NETWORK 22

RB602 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB603 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB606 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB607 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB609 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB611 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB803 1-233-415-21 RES, CHIP NETWORK 10K (3216)

TH001 1-533-817-21 THERMISTOR

TH002 1-533-817-21 THERMISTOR

TH003 1-533-817-21 THERMISTOR

X101 1-781-640-21 VIBRATOR, CRYSTAL

X202 1-781-857-21 OSCILLATOR, CRYSTAL

X301 1-781-856-21 VIBRATOR, CRYSTAL

X302 1-781-768-21 VIBRATOR, CRYSTAL

X401 1-760-496-22 VIBRATOR, LITHIUM NIOBATE

X402 1-767-300-21 VIBRATOR, CRYSTAL

************************************************************

— 161 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description

A-6712-923-A MOUNTED CIRCUIT BOARD, GB-003

*****************************

PLACE CODE #25BG

BT101 1-756-076-21 HOLDER, LITHIUM BATTERY

CN101 1-815-648-21 PIN, CONNECTOR (PC BOARD)

************************************************************

A-6712-922-A MOUNTED CIRCUIT BOARD, SW-358

*****************************

PLACE CODE #25BG

CN751 1-785-470-21 CONNECTOR, FPC(LIF(NON-ZIF))7P

<DIODE>

D751 8-719-078-90 DIODE CL-165HR/G1-D-T

D752 8-719-080-04 DIODE CL-190UB-X-T

Q751 8-729-013-97 TRANSISTOR RN1304-TE85L

R751 1-216-833-91 RES, CHIP 10K (1608)

R752 1-216-835-91 RES, CHIP 15K (1608)

R753 1-216-993-91 RES, CHIP 2.4K (1608)

S751 1-771-917-21 SWITCH, TACTILE

S752 1-771-917-21 SWITCH, TACTILE

************************************************************

SUPPLIED ACCESSORIES PLACE CODE #23

********************

A-6785-242-A ACCESSORY & PACKING GROUP

AC 1-555-074-51 CORD, POWER for SCPH-30002

AC 1-751-115-21 CORD, POWER for SCPH-30003

AC 1-575-131-82 CORD, POWER for SCPH-30004

CONV 1-573-291-12 CONNECTOR, CONVERSION

for SCPH-30003/-30004

AV 1-792-028-11 CORD, CONNECTION

CONT 1-792-238-72 DS2 ANALOG CONTROLLER

SH 3-060-494-01 SHEET, PROTECTION

CU 3-064-714-01 CUSHION

PA 3-065-172-01 PAD, TOGETHER PACKING

for SCPH-30003/-30004

CA 3-066-440-12 INDIVIDUAL CARTON for SCPH-30002

CA 3-066-440-02 INDIVIDUAL CARTON for SCPH-30003

CA 3-066-446-02 INDIVIDUAL CARTON for SCPH-30004

MC 3-066-441-21 MASTER CARTON, 3 SETS

A-6785-208-A ACCESSORY & PACKING GROUP

MANUAL BLOCK ASSY PLACE CODE #23

*****************

A-6785-243-A MANUAL BLOCK ASSY, INSTRUCTION

for SCPH-30002

A-6785-245-A MANUAL BLOCK ASSY, INSTRUCTION

for SCPH-30003

A-6785-241-A MANUAL BLOCK ASSY, INSTRUCTION

for SCPH-30004

RE 3-066-158-02 CARD (A), OWNER REGISTRATION

DISC 3-066-725-02 DISK, DEMONSTRATION

IN 3-068-128-11 INSTRUCTION for SCPH-30002

IN 3-068-129-12 INSTRUCTION for SCPH-30003

IN 3-068-130-13 INSTRUCTION for SCPH-30004

IM 3-068-537-21 MANUAL, INSTRUCTION for SCPH-30002

IM 3-068-537-31 MANUAL, INSTRUCTION for SCPH-30003

IM 3-068-537-41 MANUAL, INSTRUCTION for SCPH-30004

SE 3-987-375-02 SEAL, SEAL

*************************************************************

— 162 —

SCPH-30002D/30003D/30004D

SECTION 6

PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

for SCPH-30003D'/30004D'

THIS NOTE IS COMMON FOR PRINTED WIRING

BOARDS AND SCHEMATIC DIAGRAMS.

Note on Printed Wiring Boards :

•

•Through hole is omitted.

: Pattern on the side which is seen.

Note on Schematic Diagram :

•

Use caution when replacing chip parts.

New parts must be attached after removal of chip.

Be careful not to heat the minus side of tantalum capacitor,

because it is damaged by the heat.

All capacitors are in µF unless otherwise noted. pF : µµF 50 WV

or less are not indicated except for electrolytics and tantalums.

All resistors are in and 1/4 W (Chip resisters : 1/10W) unless

otherwise specified.

Chip resistors are 1/8 W or 1/10 W unless otherwise noted.

k : 1000 , M : 1000 k .

Note :

The components

identified by mark

dotted line with mark

are critical for safety.

Replace only with part

number specified.

Note :

Les composants identifies par

une marque

sont critiques

pour la securite.

Ne les remplacer que par une

piece portant le nubero specifie.

Unit of voltage is V (volt)

•

+12V :

+8.0V :

+5.0V :

+3.5V :

+3.4V :

IN :

OUT :

•

+3.3V :

+2.5V :

+1.8V :

+1.7V :

+1.5V :

Main Signal Line : ,

Note on DC Power line :

Reproduction Prohibited

— 163 —

SCPH-30002D/30003D/30004D

GH-012 (1/7)

Reproduction Prohibited

DIG_+1.5V1

DIG_+1.8V1

DIG_+1.5V1

DIG_+3.5V

DIG_+1.8v3

DIG_+2.5v3

FB103

FB102

VDDP

VSS

XOUT

XIN

VDDL

LRCK

VSS

VDD

VSS

CLK

CLKB

VSS

VDD

L102

10uH

2518

C116

0.1u

C170

C123

0.1u

BRB101

RB102

RB103

DQB_A1

RQ_A1

RQ_A3

RQ_A4

RQ_A2

RQ_A7

RQ_A6

RQ_A5

DQA_A2

DQA_A1

DQA_A5

DQA_A0

DQA_A4

DQA_A3

DQA_A7

DQA_A6

DQB_A7

DQB_A6

DQB_A4

DQB_A3

DQB_A5

DQB_A2

DQB_A0

RQ_A0

C117

0.1u

C110

0.1u

C104

0.1u

C124

0.1u

C125

0.1u

C118

0.1u

C111

0.1u

C105

0.1u

C119

0.1u

C112

0.1u

C106

0.1u

RB104

RB105

RB106

DQB_B0

RQ_B4

RQ_B3

RQ_B1

RQ_B2

RQ_B7

RQ_B6

RQ_B5

DQA_B2

DQA_B1

DQA_B4

DQA_B0

DQA_B5

DQA_B3

DQA_B7

DQA_B6

DQB_B7

DQB_B6

DQB_B5

DQB_B3

DQB_B4

DQB_B2

DQB_B1

RQ_B0

C126

0.1u

C120

0.1u

C107

0.1u

C127

0.1u

C121

0.1u

C114

0.1u

C108

0.1u

C122

0.1u

C115

0.1u

C109

0.1u

C101

100u

6.3V

C103

100u

6.3V

TA R103

±0.5%

CL102

GND

R107

100

C134

0.1u

C145

0.1u

C138

0.1u

C140

0.1u

C176

0.1u

C143

0.1u

C968

R984

C141

220u

6.3V

R104

130

±0.5%

C102

100u

6.3V

R101

±0.5% R102

130

±0.5%

C132

0.1u

R106

100

CL101

C129

0.1u

X101

C131

0.01u C135

0.1u

R105 0

C136

0.001u

C168

0.001u

C146

0.001u

C148

0.1u

R110

±0.5%

R111

±0.5%

R112

±0.5%

R121

±0.5%

GS Interface

MLK

TIMIN1

TIMIN0

GA0

GA1

GA2

GA3

GA4

GA5

GA6

GD0

GD1

GD2

GD3

GD4

GD5

GD6

GD7

GD8

GD9

GD10

GD11

GD12

GD13

GD14

GD15

GD16

GD17

GD18

GD19

GD20

GD21

GD22

GD23

GD24

GD25

GD26

GD27

GD28

GD29

RB107

RB108

RB109

RB110

RB111

RB112

RB113

RB114

RB115

RB116

RB117

RB118

RB119

RB120

RB121

RB122

RB123

RB124

RB125

RB126

GD30

GD31

GD32

GD33

GD34

GD35

GD36

GD37

GD38

GD39

GD40

GD41

GD42

GD43

GD44

GD45

GD46

GD47

GD48

GD49

GD50

GD51

GD52

GD53

GD54

GD55

GD56

GD57

GD58

GD59

GD60

GD61

GD62

GD63

CLKCG

CLKGC

/VLDCG

/VLDGC

/RDYCG

/RDYGC

GRW

/GACK

/GREQ

/INTIN1

HBLK1

VBLK1

GA0

GA1

GA2

GA3

GA4

GA5

GA6

GD0

GD2

GD3

GD6

GD7

GD1

GD4

GD5

GD8

GD9

GD10

GD11

GD12

GD14

GD15

GD16

GD17

GD13

GD18

GD19

GD21

GD20

GD23

GD24

GD25

GD26

GD28

GD29

GD31

GD22

GD27

GD30

GD32

GD35

GD34

GD38

GD37

GD33

GD36

GD39

GD42

GD41

GD40

GD43

GD47

GD44

GD45

GD48

GD51

GD46

GD50

GD49

GD52

GD53

GD55

GD54

GD56

GD57

GD58

GD61

GD60

GD62

GD63

GD59

CLKGC

/VLDGC

/RDYCG

/RDYGC

/GACK

/VLDCG

GRW

/GREQ

/GINT

IC202 276 pin,IC303 216 pin

IC202 275 pin,IC303 223 pin

IC202 71 pin

IC202 72 pin

IC202 73 pin

IC202 74 pin

IC202 75 pin

IC202 76 pin

IC202 77 pin

IC202 1 pin

IC202 3 pin

IC202 4 pin

IC202 7 pin

IC202 8 pin

IC202 2 pin

IC202 5 pin

IC202 6 pin

IC202 9 pin

IC202 10 pin

IC202 11 pin

IC202 12 pin

IC202 13 pin

IC202 15 pin

IC202 16 pin

IC202 17 pin

IC202 18 pin

IC202 14 pin

IC202 19 pin

IC202 20 pin

IC202 22 pin

IC202 21 pin

IC202 24 pin

IC202 25 pin

IC202 26 pin

IC202 27 pin

IC202 29 pin

IC202 30 pin

IC202 32 pin

IC202 23 pin

IC202 28 pin

IC202 31 pin

IC202 33 pin

IC202 36 pin

IC202 35 pin

IC202 39 pin

IC202 38 pin

IC202 34 pin

IC202 37 pin

IC202 40 pin

IC202 43 pin

IC202 42 pin

IC202 41 pin

IC202 44 pin

IC202 48 pin

IC202 45 pin

IC202 46 pin

IC202 49 pin

IC202 52 pin

IC202 47 pin

IC202 51 pin

IC202 50 pin

IC202 53 pin

IC202 54 pin

IC202 56 pin

IC202 55 pin

IC202 57 pin

IC202 58 pin

IC202 59 pin

IC202 62 pin

IC202 61 pin

IC202 63 pin

IC202 64 pin

IC202 60 pin

IC202 65 pin

IC202 69 pin

IC202 68 pin

IC202 67 pin

IC202 78 pin

IC202 70 pin

IC202 80 pin

IC202 79 pin

IC202 81 pin CTM_A

CTMN_A

CFM_A

CFMN_A

RQ_A0

RQ_A1

RQ_A2

RQ_A3

RQ_A4

RQ_A5

RQ_A6

RQ_A7

DQA_A0

DQA_A1

DQA_A2

DQA_A3

DQA_A4

DQA_A5

DQA_A6

DQA_A7

DQB_A0

DQB_A1

DQB_A2

DQB_A3

DQB_A4

DQB_A5

DQB_A6

DQB_A7

CTM_B

CTMN_B

CFM_B

CFMN_B

RQ_B0

RQ_B1

RQ_B2

RQ_B3

RQ_B4

RQ_B5

RQ_B6

RQ_B7

DQA_B0

DQA_B1

DQA_B2

DQA_B3

DQA_B4

DQA_B5

DQA_B6

DQA_B7

R974 22

R975 22

R901 47

R902 47

AD20

AD21

AD22

AD23

AD24

AD25

AD26

AD27

AD28

AD29

AD30

AD31

DREQ0

DREQ1

DACK

PGCLK

/WRAC

/RDAC

/BE0

/BE1

/BE2

/BE3

/RDY

/P0EXEA

/P1EXEA

/JMPA

/P1EXEB

P0EXEB

/JMPB

/TPCE

TPC0

TPC1

TPC2

TPC3

/TRIG0

MBST0

MBST1

MBST2

MBST3

MBST4

MBST5

//MBSND

/VU0RUNA

/VU0RUNB

/VU1RUNA

/VU1RUNB

/YU1BLGA

/VU1BLGB

GIFDT0

GIFDT1

PMCLK

JTCK

JTMS

JTDI

JTD0

JTRST

/SCTS

/SRTS

SRXD

STXD

PwrUp

PwrDwn

/NMI

/RESET

SCLKH

/PLLOFF

GearRatio

TestCkSw

TestCk

TestRst

Senbl

Penbl

R59KTM

vbp

vbn

VDDar

VDDa

GNDa

GNDor

Vddio

GNDor

IAD1

IAD3

IAD7

IAD8

IAD6

IAD2

IAD5

IAD0

IAD13

IAD14

IAD10

IAD4

IAD9

IAD11

IAD12

IAD17

IAD19

IAD16

IAD18

IAD15

IAD25

IAD24

IAD21

IAD22

IAD20

IAD26

IAD29

IAD28

IAD31

IAD30

IAD27

IAD23

AD1

AD3

AD7

AD8

AD6

AD2

AD5

AD0

AD13

AD14

AD10

AD4

AD9

AD11

AD12

AD17

AD19

AD16

AD18

AD15

AD25

AD24

AD21

AD22

AD20

AD26

AD29

AD28

AD31

AD30

AD27

AD23

IC303 4 pin

IC303 6 pin

IC303 10 pin

IC303 11 pin

IC303 9 pin

IC303 5 pin

IC303 8 pin

IC303 3 pin

IC303 16 pin

IC303 17 pin

IC303 13 pin

IC303 7 pin

IC303 12 pin

IC303 14 pin

IC303 15 pin

IC303 20 pin

IC303 22 pin

IC303 19 pin

IC303 21 pin

IC303 18 pin

IC303 28 pin

IC303 27 pin

IC303 24 pin

IC303 25 pin

IC303 23 pin

IC303 29 pin

IC303 32 pin

IC303 31 pin

IC303 34 pin

IC303 33 pin

IC303 30 pin

IC303 26 pin

DREQ0

DREQ1

DACK

PGCLK

/WRAC

/RDAC

/BE0

/BE1

/BE2

/BE3

/RDY

IC303 44 pin

IC303 45 pin

IC303 46 pin

IC303 2 pin

IC303 40 pin

IC303 39 pin

IC303 35 pin

IC303 36 pin

IC303 37 pin

IC303 38 pin

IC303 41 pin

DQAb7

DQAb8

DQBb0

DQBb1

DQBb2

DQBb3

DQBb4

DQBb5

DQBb6

DQBb7

DQBb8

VREFB

SIO

SCK

CMD

GND

GNDo

Synclk

GNDo

GNDor

DQB_B0

DQB_B1

DQB_B2

DQB_B3

DQB_B4

DQB_B5

DQB_B6

DQB_B7

VDD

VDDo

VDDor

VDDio

VDDor

VDDio

VDDor

VDDio

VDDor

MSCLK

/SRST

/INTIN0

/INTOUT

/BGNT

/BREQ

AD0

AD1

AD2

AD3

AD4

AD5

AD6

AD7

AD8

AD9

AD10

AD11

AD12

AD13

AD14

AD15

AD16

AD17

AD18

AD19

CL103

R120

±0.5%

R133

10k

R118

±0.5%

R119

±0.5%

R113

±0.5%

R116

±0.5%

R117

±0.5% C154

0.01u

R114

±0.5%

R115

±0.5%

C155

0.1u

C153

0.01u

C156

0.1u

LM74CIMX-3

LOW POWER THERMOSTAT

C157

0.1u

C941

0.1u

C949

0.1u

C957

0.1u

C942

0.1u

C950

0.1u

C958

0.1u

C943

0.1u

C951

0.1u

C959

0.1u

C944

0.1u

C952

0.1u

C960

0.1u

C945

0.1u

C953

0.1u

C961

0.1u

C946

0.1u

C954

0.1u

C962

0.1u

C947

0.1u

C955

0.1u

C963

0.1u

C948

0.1u

C956

0.1u

C906

0.1u

C907

0.1u

C908

0.1u

C914

0.1u

C915

0.1u

C921

0.1u

C922

0.1u

C927

0.1u

C928

0.1u

C933

0.1u

C934

0.1u

C939

0.1u

C940

0.1u

C904

0.1u

C905

0.1u

C912

0.1u

C913

0.1u

C919

0.1u

C920

0.1u

C925

0.1u

C926

0.1u

C931

0.1u

C932

0.1u

C937

0.1u

C903

0.1u

C918

0.1u

C924

0.1u

VDD VDDo Decoupling

Vddor Decoupling

Vddio Decoupling

Additional Power Decoupling

VDDar Filtering

C930

0.1u

C936

0.1u

C902

0.1u

C910

0.1u

C917

0.1u

C923

0.1u

C901

0.1u

C909

0.1u

C158

0.01u

C159

0.1u

C160

68p

JL011 R145 1k

R146 1k

R147 1k

R138 0

R122 0

R139 22 MSCLK

/SRST

/GINT

/SINT

/BGNT

/BREQ

IC303 1 pin

IC303 49 pin

IC303 47 pin

IC303 48 pin

IC303 43 pin

IC303 42 pin

IOPInterface

R125 0

R123 0

RB130 47

RB131 47

RB132 47

RB133 47

RB134 47

RB135 47

RB136 47

RB137 47

R124 0

R126 10k

R127 4.7k

R128 4.7k

R134 10k

R132 10k

R131 10k

R129 1k

R130 470

PWRUP_EE

/EGSTBY

/EGRST

CL109

CL110

CL111

CL112

CL113

CL114

CL115

CL116

JL005

JL006

JL007

JL008

JL009

JJTAG_TCK

JTAG_TMS

JTAG_TDO_GS

JTAG_TDO_EE

JTAG_TRST

IC402 28 pin

IC202 83 pin,IC402 6 pin

IC202 83 pin,IC402 24 pin

JL018

C162

68p

RB139

4.7k

R188

4.7k

R185

4.7k

/NMI

JL001

JL002

JL003

JL004

/PLLOFF

/TEST CK

TESTRST

C164

100u 6.3V

C161

100u 6.3V

C163

100u 6.3V

C965

0.1u

LF101

C966

0.1u

C929

0.1u

C935

0.1u

C938

0.1u

C916

0.1u

C169

100p

CL104

SI/O

GND

/TS_SCK

TS_SI

EVER_+3.3V

/TS_CS

IC402 1 pin

IC402 44 pin

IC402 9 pin

V+

/CS

R196 22

DQA_A3

DQA_A0

RQ_A4

RQ_A0

DQB_A3

DQA_A6

DQA_A1

RQ_A7

RQ_A1

DQB_A2

DQB_A6

DQB_A7

DQB_A4

DQB_A0

RQ_A3

RQ_A5

DQA_A4

DQA_A7

DQB_A5

DQB_A1

RQ_A2

RQ_A6

DQA_A2

DQA_A5

DQA8

DQA3

DQA0

CTMN

CTM

RQ4

RQ0

DQB3

DQB8

VCMOS

DQA6

DQA1

VREFF

RQ7

RQ1

DQB2

DQB6

VCMOS

SCK

GND

VDD

GND

VDD

GND

SIO1

DQB7

DQB4

DQB0

RQ3

RQ5

CFMN

CFM

DQA4

DQA7

GND

DQB5

DQB1

RQ2

RQ6

VDDa

DQA2

DQA5

GND

SIO0

VDD

GND

VDD

GNDa

GND

CMD

DQA_B3

DQA_B0

RQ_B4

RQ_B0

DQB_B3

DQA_B6

DQA_B1

RQ_B7

RQ_B1

DQB_B2

DQB_B6

DQB_B7

DQB_B4

DQB_B0

RQ_B3

RQ_B5

DQA_B4

DQA_B7

DQB_B5

DQB_B1

RQ_B2

RQ_B6

DQA_B2

DQA_B5

DQA8

DQA3

DQA0

CTMN

CTM

RQ4

RQ0

DQB3

DQB8

VCMOS

DQA6

DQA1

VREFF

RQ7

RQ1

DQB2

DQB6

VCMOS

SCK

GND

VDD

GND

VDD

GND

SIO1

DQB7

DQB4

DQB0

RQ3

RQ5

CFMN

CFM

DQA4

DQA7

GND

DQB5

DQB1

RQ2

RQ6

VDDa

DQA2

DQA5

GND

SIO0

VDD

GND

VDD

GNDa

GND

CMD

R136

C147

0.001u

C149

0.1u

C150

0.01u

C152

20p

C151

20p

C144

0.1u

C967

R109

4.7k

C142

0.1u

C137

0.1u

C139

0.1u

C175

0.1u

CL107

C911

0.1u

CLKCG

IC202 66 pin

C128

0.1u

C113

0.1u

CTMa

CTMNa

CFMa

CFMNa

RQa0

RQa1

RQa2

RQa3

RQa4

RQa5

RQa6

RQa7

DQAa0

DQAa1

DQAa2

DQAa3

DQAa4

DQAa5

DQAa6

DQAa7

DQAa8

DQBa0

DQBa1

DQBa2

DQBa3

DQBa4

DQBa5

DQBa6

DQBa7

DQBa8

VREFA

CTMb

CTMNb

CFMb

CFMNb

RQb0

RQb1

RQb2

RQb3

RQb4

RQb5

RQb6

RQb7

DQAb0

DQAb1

DQAb2

DQAb3

DQAb4

DQAb5

DQAb6

404

402

400

398

396

394

392

390

388

386

384

382

380

378

376

374

372

370

368

366

364

362

360

358

356

354

352

350

348

346

344

342

340

338

336

334

332

330

328

326

324

322

320

318

316

314

312

310

308

306

304

302

300

298

296

294

292

290

288

286

284

282

280

278

276

274

272

405

403

401

399

397

395

393

391

389

387

385

383

381

379

377

375

373

371

369

367

365

363

361

359

357

355

353

351

349

347

345

343

341

339

337

335

333

331

329

327

325

323

321

319

317

315

313

311

109

307

305

303

301

299

297

295

293

291

289

287

285

283

281

279

277

275

273

271

136

138

140

142

144

146

148

150

152

154

156

158

160

162

164

166

168

170

172

174

176

178

180

182

184

186

188

190

192

194

196

198

200

202

204

206

208

210

212

214

216

218

220

222

224

226

228

230

232

234

236

238

240

242

244

246

248

250

252

254

256

258

260

262

264

266

268

270

137

139

141

143

145

147

149

151

153

155

157

159

161

163

165

167

169

171

173

175

177

179

181

183

185

187

189

191

193

195

197

199

201

203

205

207

209

211

213

215

217

219

221

223

225

227

229

231

233

235

237

239

241

243

245

247

249

251

253

255

257

259

261

263

265

267

269

540

538

536

534

532

530

528

526

524

522

520

518

516

514

512

510

508

506

504

502

500

498

496

494

492

490

488

486

484

482

480

478

476

474

472

470

468

466

464

462

460

458

456

454

452

450

448

446

444

442

440

438

436

434

432

430

428

426

424

422

420

418

416

414

412

410

408

406

539

537

535

533

531

529

527

525

523

521

519

517

515

513

511

509

507

505

503

501

499

497

495

493

491

489

487

485

483

481

479

477

475

473

471

469

467

465

463

461

459

457

455

453

451

449

447

445

443

441

439

437

435

433

431

429

427

425

423

421

419

417

415

413

411

409

407

100

102

104

106

108

110

112

114

116

118

120

122

124

126

128

130

132

134

101

103

105

107

109

111

113

115

117

119

121

123

125

127

129

131

133

135

IC105

IC101

CY2212ZC-2T

DRCG LITE

IC102

K4R271669A-SCK8T00

RD RAM

IC103

K4R271669A-SCK8T00

RD RAM

IC104

CXD9615GB

/CTS

/RST

GND

RXD

+5V

TXD

3.3

1.8

1.51.5

1.5

1.8

1.5

1.8

1.5

1.8

1.5

(400MHz)

36MHz

33MHz

3.5

18.432MHz

1.5

3.5

400MHz

2.5

1.8

2.5

1.8

2.5

— 164 —

SCPH-30002D/30003D/30004D

GND

DIG_+2.5V1

DIG_-1.5V3

GD0

GD1

GD2

GD3

GD4

GD5

GD6

GD7

GD8

GD9

GD10

GD11

GD12

GD13

GD14

GD15

GD16

GD17

GD18

GD19

GD20

GD21

GD22

GD23

GD24

GD25

GD26

GD27

GD28

GD29

GD30

GD31

GD32

GD33

GD34

GD35

GD36

GD37

GD38

GD39

GD40

GD41

GD42

GD43

GD44

GD45

GD46

GD47

GD48

GD49

GD50

GD51

GD52

GD53

GD54

GD55

GD56

GD57

GD58

GD59

GD60

GD61

GD62

GD63

IC104 76 pin

IC104 75 pin

IC104 80 pin

IC104 79 pin

IC104 78 pin

IC104 77 pin

IC104 4 pin

IC104 5 pin

IC104 6 pin

IC104 7 pin

IC104 8 pin

IC104 9 pin

IC104 10 pin

IC104 82 pin

IC104 83 pin

IC104 81 pin

IC104 84 pin

GD0

GD1

GD2

GD3

GD4

GD5

GD6

GD7

GD8

GD9

GD10

GD11

GD12

GD13

GD14

GD15

GD16

GD17

GD18

GD19

GD20

GD21

GD22

GD23

GD24

GD25

GD26

GD27

GD28

GD29

GD30

GD31

GD32

GD33

GD34

GD35

GD36

GD37

GD38

GD39

GD40

GD41

GD42

GD43

GD44

GD45

GD46

GD47

GD48

GD49

GD50

GD51

GD52

GD53

GD54

GD55

GD56

GD57

GD58

GD59

GD60

GD61

GD62

GD63

CLKGP

CLKPG

RDYGP

RDYPG

VLDGP

VLDPG

GA0

GA1

GA2

GA3

GA4

GA5

GA6

GACK

GREQ

GRW

INT

MCLK(FULCLK)

RESET

CTR

MMOD0

MMOD1

MMOD2

DISP

MRD0

MRD1

MRD2

MRD3

MWT0

MWT1

MWT2

MWT3

A02

A03

A04

A05

A06

A07

HSYO

VSYO

CSYO

FLD0

DMSK

FSC

HBLK1

VBLK1

NTPLO

NTXIN

NTXOT

PLXIN

PLXOT

GCONT

PCLK

PCLK2

SCPLK

XSPOE

RI0

RI1

RI2

RI3

RI4

RI5

RI6

RI7

GI0

GI1

GI2

GI3

GI4

GI5

GI6

GI7

BI0

BI1

BI2

BI3

BI4

BI5

BI6

BI7

AI0

AI1

AI2

AI3

AI4

AI5

AI6

AI7

FLDI

ADCLK

HSYI

VSYI

SSEL

ARED

ABLU

AGRN

RXIO

BXIO

GXIO

RVB

RVG

IREF

VREF

POFF(PLLCLK)

STANDBY

TEST

TCCM(CLKSEL)

TCCLK(POFF)

MCLKDIV

TCK

TDI

TDO

TMS

TRST

PLLVDD0

PLLVDD1

PLLVSS0

PLLVSS1

DACRAVDD

DACGAVDD

DACBAVDD

DACRAVSS

DACGAVSS

DACBAVSS

DACVDD

DACVSS

VSS54

VSS52

PFCLK0

PFCLK1

PGN0

PGN1

PGN2

PGN3

PGN4

PMS0

PMS1

PMS2

PMS3

PWT0

PWT1

PWT2

PWT3

PWT4

PWT5

PWT6

PWY7

SRV

TRD0

TRD1

TRD2

TRD3

TRD4

TTR0

TTR1

TTR2

TTR4

AVS00

AVS01

AVS10

AVS11

AVS20

AVS21

AVS30

AVS31

AVS40

AVS41

AVS50

AVS51

AVS60

AVS61

AVS70

AVS71

VSS1

VSS2

VSS3

VSS4

VSS5

VSS6

VSS7

VSS8

VSS9

VSS10

VSS11

VSS12

VSS13

VSS14

VSS15

VSS16

VSS17

VSS18

VSS19

VSS20

VSS21

VSS22

VSS23

VSS24

VSS25

VSS26

VSS27

VSS28

VSS29

VSS30

VSS31

VSS32

VSS33

VSS34

VSS35

VSS36

VSS37

VSS38

VSS39

VSS40

VSS41

VSS42

VSS43

VSS44

VSS45

VSS46

VSS47

VSS48

VSS49

VSS50

VSS51

AVD00

AVD01

AVD10

AVD11

AVD20

AVD21

AVD30

AVD31

AVD40

AVD41

AVD50

AVD51

AVD60

AVD61

AVD70

AVD71

DVD1.8 1

DVD1.8 2

DVD1.8 3

DVD1.8 4

DVD1.8 5

DVD1.8 6

DVD1.8 7

DVD1.8 8

DVD1.8 9

DVD1.8 10

DVD1.8 11

DVD1.8 12

DVD1.8 13

DVD1.8 14

DVD1.8 15

DVD1.8 16

DVDD1

DVDD2

DVDD3

DVDD4

DVDD5

DVDD6

DVDD7

DVDD8

DVDD9

DVDD10

DVDD11

DVDD12

DVDD13

DVDD14

DVDD15

DVDD16

DVDD17

DVDD18

DVDD19

DVDD20

DVDD21

DVDD22

DVDD23

DVDD24

VDD1

VDD2

VDD3

VDD4

VDD5

VDD6

VDD7

VDD8

VDD9

VDD10

VDD11

VDD12

VDD13

VDD14

R00

R01

R02

R03

R04

R05

R06

R07

G00

G01

G02

G03

G04

G05

G06

G07

B00

B01

B02

B03

B04

B05

B06

B07

A00

A01

R00

R01

R02

R03

R04

R05

R06

R07

G00

G01

G02

G03

G04

G05

G06

G07

B00

B01

B02

B03

B04

B05

B06

B07

CLKGC

CLKCG

/RDYGC

/RDYCG

/VLDGC

/VLDCG

GA0

GA1

GA2

GA3

GA4

GA5

GA6

/GACK

/GREQ

GRW

/GINT

/EGRST

R202

10k

R264

C212

0.1u

C214

0.1u

C216

0.1u

C218

0.1u

C220

0.1u

C242

220u

C243

220u

6.3V

C224

C222

C223

C225

C990

0.1u

C228

C226

0.1u

C227

0.1u

C229

C232

0.1u

C230

C231

0.1u

C233

C236

0.1u

C234

C235

C237

0.1u

C240

C238

C239

0.1u

C241

C980

0.1u

C986

0.1u

C981

C244

220u

C245

220u

Addditional Power Decoupling

C987

0.1u

C982

0.1u

C988

C983

C984

0.1u

C985

0.1u

R225

4.7K

Q206

UN9115J-(K8).SO

R265

R295

10K

/EGSTBY

C989

0.1u

C213

0.1u

C215

0.1u

C217

0.1u

C219

0.1u

C221

0.1u

C250

4.7u

2012

L203

10uH

JL205

JL204

JL203

JL202

JL201

C247 0.1u B

C248 0.1u B

R217 3.3k ±0.5%

R219 1.5k

±0.5%

R218

±0.5%

RB241

4.7k

RB294

4.7k

R294

4.7k

R233

C249

R237 4.7k

R236 100

R247

C252

0.1u

X202

CL201

HBLK1

VBLK1

PCLK2

IC104 2 pin,IC303 216 pin

IC104 3 pin,IC303 223 pin

IC303 217 pin

CL202

Q201

2SA1037AK-T146-QR

RB303

1k C254

0.1u B

R258

33k

C261

10u

16V

CP201

RCN4A5E

IC209

R226

10k

DIG–+3.5V1

GND2

CE2

GND1

CE1

VOUT2(3.3)

VDD2

VOUT1(2.5)

VDD1

R228

10k C257

C267 220u 4V

C268 220u 4V

C270 0.1u

C298 220u 4V

C297 220u 4V

C296 220u 4V

200

47p

C255

0.1u B

C256

0.1u

C262

10u 16v

R246

220

±0.5%

R245

220

±0.5%

R244

220

±0.5%

TRSNK0

TRSNK1

R251

22k

R252

33k

R253

10k

Q204

HN1B01F-GR

(T5LSONY)

R257

1.8k

C276

1500p C277

1500p

D206

01BZA8.2(TE85L)

D205

01BZA8.2(TE85L)

D204

01BZA8.2(TE85L)

D203

01BZA8.2(TE85L)

D202

01BZA8.2(TE85L)

D208

01BZA8.2(TE85L)

FB201

FB202

FB203

FB204

FB205

FB206

JL208

FL201

FL202

FL203

D209

01BZA8.2(TE85L)

D210

01BZA8.2(TE85L)

R259

1.8k

AUR

AUL

D201

MAZF12000LS0

C263

10u

16V

JL209

JL210

JL211

C289

0.001u

CN201 12P

M_G

M_R

M_DCOUT

M_B

M_YCGND

M_C

M_VIDEO

M_Y

M_AUR

M_VIGND

M_AUL

M_AUGND

JL212

JL213

JL214

JL215

JL216

JL207

C286

0.47u

C282

0.47u

R292

10k

RB295

MC78M05CDTRK

+12V REG.

ANA_+5V

+12V C292

0.1u

2012

123

R278

3.3k

±0.5%

R279

1.5k

±0.5%

R277

1.8k ±0.5%

R273

1.5k ±0.5%

R272

3.3k

±0.5%

C265

4.7u

2012

R261

4.7k C293

47u

16V

RB298

75_0.5%

RB296

75_0.5%

C288

C275

0.1u

C271

0.1u

C269

20p

R263

2.2k

C272

0.1u

RB297

180_0.5%

C287

0.1u B

C291

47p

C290

0.47u

C285

0.47u

C266

10u

16V

R270

1.8k

±0.5%

/DVRST

SCL

SDA

C278

0.47u

GO0

GO1

GO2

GO3

GO4

GO5

GO6

GO7

DVSS2

DVDD2

BO7

BO6

BO5

BO4

BO3

BO2

BO1

BO0

DVDD3

EXT

F_VSYNC

HSYNC

DVSS3

MODE0

MODE1

MODE2

TRSNK1

VCC1

SONGEN

CSYN3_D0

CSYNC3_D1

RGBYC

HSYNC_OUT

YSYNC_OUT

CSYNC_OUT

PVCC1

SCIN

DVCC

CVBS_IN

NTPAL

YIN

PVCC2

CIN

GND1

RIN1

VREF

GIN1

VCC2

BIN1

IREF

GND2

HSYNC_IN

VSYNC_IN

CSYNC1_IN

PGND1

ROUT/CbOUT/PbOUT

PGND3

GOUT/YOUT

PVCC3

BOUT/CbOUT/PbOUT

PGND2

YTRAP

VREF2

CVBS_OUT

YOUT

COUT

CSYNC2_IN

VMUTE

PAL/NTSC

RESET

DVSS1

CLOCK

DVDD1

SCL

SDA

TEST1

TEST0

TP0

CHIPA

TP1

FSCMV

FSCMV VDD

FSCMVB

DABIAS VDD2

DABIASD VSS2

CVBS

CVBS VDD

CVBSB

GND

Y VDD

GND

C VDD

GND

DABIAS VSS1

DABIAS VDD1

IBIAS1

VREFF1

IBIAS2

VREFF2

MODE0

MODE1

MODE2

GND

OUT

MODE0

MODE1

MODE2

TRSNK1

RO0

RO1

RO2

RO3

RO4

RO5

RO6

RO7

C279

0.47u

IC104 11 pin

IC104 74 pin

IC517 5 pin

IC517 8 pin

IC501 10 pin

IC501 12 pin

IC501 13 pin

±0.5%

C246

220u

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

384

383

382

381

380

379

378

377

376

375

374

373

372

371

370

369

368

367

366

365

364

363

362

361

360

359

358

357

356

.355

354

353

352

351

350

349

348

347

346

345

344

343

342

341

340

339

338

337

336

335

334

333

332

331

330

329

328

327

326

325

324

323

322

321

320

319

318

317

316

315

314

313

312

311

310

309

308

307

306

305

304

303

302

301

300

299

298

297

296

295

294

293

292

291

290

289

288

287

286

285

284

283

282

281

280

279

278

277

276

275

274

273

272

271

270

269

268

267

266

265

264

263

262

261

260

259

258

257

256

255

254

253

252

251

250

249

248

247

246

245

244

243

242

241

240

239

238

237

236

235

234

233

232

231

230

229

228

227

226

225

224

223

222

221

220

219

218

217

216

215

214

213

212

211

210

209

208

207

206

205

204

203

202

201

200

199

198

197

196

195

194

193

IC202

CXD2934GB-T7

IC205

SC44728BPBEB

DIGITAL VIDEO ENCODER

IC206

CXA3525R-T4

ANALOG VIDEO

ENCODER

IC207

TO AV MULTI OUT

00000000

3.3

00001.02.5000.2

0.2

0.8

0.9

3.3

2.5

2.3

1.0 1.0

3.3

3.5

2.5

1.01.03.33.33.3

3.3 0.5 00000.2 000 0

L206 27uH

Q205

HNIA01FU-TE85R

IC104 342 pin

IC402 24 pin

VDDP

VSS

XOUT

VIN

VDDL

VCLK

VSS

VDD

VSS

CLK

CLKB

VSS

VDD

C211

0.1u

R209

160

R206

±0.5%

C210

0.001u

C209

0.1u

C208

0.001u

R208

±0.5%

R201

C205

0.1u

C201

0.1u

C206

0.001u

C204

0.01u

C203

0.1u

X201

DIG–+3.5V1

L202

10uH

FB207

FB208

IC209

MM3071CFBE

DIG3.5V1 REG.

IC201

CY2212ZC-2T

54MHz

IC104 344 pin,IC402 6 pin

5.0

2.5

1.5

3.3

3.5

GH-012 (2/7)

Reproduction Prohibited

— 165 —

SCPH-30002D/30003D/30004D

GH-012 (3/7)

Reproduction Prohibited

DIG_+1.8V2

DIG_+3.5V1

DIG_+2.5V2

DIG_+1.5V1

GND

MSCLK

PGCLK

AD0

AD1

AD2

AD3

AD4

AD5

AD6

AD7

AD8

AD9

AD10

AD11

AD12

AD13

AD14

AD15

AD16

AD17

AD18

AD19

AD20

AD21

AD22

AD23

AD24

AD25

AD26

AD27

AD28

AD29

AD30

AD31

MSCLK

PGCLK

AD0

AD1

AD2

AD3

AD4

AD5

AD6

AD7

AD8

AD9

AD10

AD11

AD12

AD13

AD14

AD15

AD16

AD17

AD18

AD19

AD20

AD21

AD22

AD23

AD24

AD25

AD26

AD27

AD28

AD29

AD30

AD31

/BE0

/BE1

/BE2

/BE3

/RDAC

/WRAC

/RDY

/BREQ

/BGNT

DREQ0

DREQ1

DACK

/GINT

/SINT

/SRST

CYS_0I

CYS_0O

CYS_1I

CLKBYP1

/RST

TPA1

TPA2

TPAN1

TPAN2

TPB1

TPB2

TPBN1

TPBN2

TPBIAS1

TPBIAS2

AVDD

ACSS0

AVSS1

IREF

PLLVDD

PLLVSS

VREF

VTX

XTALI

XTALO

–

/PDMOD

–

IIDDTP

CLKBYP0

jtp

TESTMOD

MD0

MD1

MD2

MD3

MD4

MD5

MD6

MD7

MD8

MD9

MD10

MD11

MD12

MD13

MD14

MD15

MD16

MD17

MD18

MD19

MD20

MD21

MD22

MD23

MD24

MD25

MD26

MD27

MD28

MD29

MD30

MD31

MA0

MA1

MA2

MA3

MA4

MA5

MA6

MA7

MA8

MA9

MA10

MA11

/RAS0

/RAS1

/CAS0

/CAS1

CAS2

/CAS3

/MWE

VSS

VDD18

VSS

VDD18

VSS

MD0

MD1

MD2

MD3

MD4

MD5

MD6

MD7

MD8

MD9

MD10

MD11

MD12

MD13

MD14

MD15

MD16

MD17

MD18

MD19

MD20

MD21

MD22

MD23

MD24

MD25

MD26

MD27

MD28

MD29

MD30

MD31

MA0

MA1

MA2

MA3

MA4

MA5

MA6

MA7

MA8

MA9

VDD18

VDD15

VDD18

/UOCD

oscvdd

VDD33

VDD18

VDD33

VDD18

SSCLK0

SSCLK1

/SSRST

SD0

SD1

SD2

SD3

SD4

SD5

SD6

SD7

SD8

SD9

SD10

SD11

SD12

SD13

SD14

SD15

SA0

SA1

SA2

SA3

SA4

SA5

SA6

SA7

SA8

SA9

SA10

SA11

SA12

SA13

SA14

SA15

SA16

SA17

SA18

SA19

SA20

SA21

SA22

SA23

SA24

SA25

SA26

/SRD

/SWR

/UBE

/WAIT

/CS1

/CS2

/CS4

/CS5

/CS8

GND

RXD1

TXD1

/DTR1

SAS1

SCK1

/INT1

/DSR1

GND

RXD3

TXD3

/INT3

/DTR3

SCK3

/DSR3

GND

+3.5V

+8.0V

GND

RXD2

TXD2

/INT2

/DTR2

SCK2

/DSR2

GND

RXD0

TXD0

/DTR0

SAS0

SCK0

/INT0

/DSR0

GND

/BE0

/BE1

/BE2

/BE3

/RDAC

/WRAC

/RDY

/BREQ

/BGNT

DREQ0

DREQ1

DACK

/SGINT

/GINT

/SRST

/RST

/BE0

/BE1

/BE2

/BE3

R395

2.2k

R311

4.7k

C302

0.1u

C303

0.1u C304

0.001u

GND

VIN

VOUT

PWRUP_IOP2

PWRUP_IOP1

R350

C311 12p CH

/BE0

/BE1

/BE2

/BE3

R365 47

R366 47

R367 47

R368 47

R361 47

R362 47

R363 0

R364 47

R351 47

R360 47

24.576 MHz

16.9344 MHz

2.5

24.576 MHz

C312 15p CH X302 R321

220

C316

0.33u

C309

0.01u

C310

0.01u

R315

6.2k

±0.5%

R320

10M

R324

10k

R394

10k

C338

0.1u

C356

0.1u

C355

0.1u

MD31

MD30

MD29

MD28

MD27

MD26

MD25

MD24

MD23

MD22

MD21

MD20

MD19

MD18

MD17

MD16

MD0

MD1

MD2

MD3

MD4

MD5

MD6

MD7

MD8

MD9

MD10

MD11

MD12

MD13

MD14

MD15

VCC

I/O1

I/O2

I/O3

I/O4

VCC

I/O5

I/O6

I/O7

I/O8

VCC

I/O9

I/O10

I/O11

I/O12

VCC

I/O13

I/O14

I/O15

I/O16

RAS

VCC

VSS

I/O32

I/O31

I/O30

I/O29

VSS

I/O28

I/O27

I/O26

I/O25

VSS

I/O24

I/O23

I/O22

I/O21

VSS

I/O20

I/O19

I/O18

I/O17

CAS1

CAS2

CAS3

CAS4

A9R

VSS

MA8

MA9

MA7

MA0

MA1

MA2

MA3

MA4

MA5

MA6

RB329

RB305

R327

10k

R318

R316

CL303

CL301

CL302

X301

C315 0.1u

C313 5p CH

C314 5p CH

R322

/CS9

/CS9C

/EXTR

/IOIS16

DREQ4

DREQ5

DREQ8

DREQ9

DREQEX

DACK4

DACK5

DACK8

DACK9

DACKEX

VBLK

/INT4

/INT9

/INT5

/INT8

/INTEX

TCK0

TCK1

HLD0

HLD1

HLD2

HLD3

TXD0

TXD1

TXD2

TXD3

RXD0

RXD1

RXD2

RXD3

/DSR0

/DSR1

/DSR2

/DSR3

/DTR0

/DTR1

/DTR2

/DTR3

SCK0

SCK1

SCK2

SCK3

SAS0

SAS1

SAS2

SAS3

CDC0

CDC1

CDC2

CDC3

S2_REF

UD0+

UD0–

UD1+

UD1–

USBVDD

USBVSS

PLLVDD1

PLLVDD3

PLLVSS3

PLLVSS1

TCK

TMS

TDI

TDO

TRST

VSS

/RT

oscvss

VSS

VDD18

VSS

/INTEX

/WAIT

/IOIS16

/SSRST

HLD0

HLD1

HLD2

HLD3

TXD0

RXD0

/DTR2

SCK2

TXD2

RXD2

/DTR3

SCK3

/DSR0

/DSR1

/DSR2

/DSR3

/DTR0

/DTR1

SCK0

SCK1

TXD3

RXD3

TXD1

RXD1

SAS0

SAS1

RXD1

TXD1

/DTR1

SAS1

SCK1

HLD1

/DSR1

RXD3

TXD3

HLD3

/DTR3

SCK3

/DSR3

FB319

FB320

FB303

FB304

FB305

FB306

FB307

FB317

FB318

FB308

FB309

FB310

FB311

FB312

RXD2

TXD2

HLD2

/DTR2

SCK2

/DSR2

RXD0

TXD0

/DTR0

SAS0

SCK0

HLD0

/DSR0

C307 0.1u B

C318 0.01u B

C317 0.01u B

C319 0.01u B

C321 0.01u B

C323 0.01u B

C325 0.01u B

C327 0.01u B

C329 0.01u B

C331 0.01u B

C333 0.01u B

C335 0.01u B

C337 0.01u B

R330 15

R331 47

R329 47

R359 22

R358

R357 22

C320 0.01u B

C322 0.01u B

C326 0.01u B

C328 0.01u B

C330 0.01u B

C332 0.01u B

C334 0.01u B

C336 0.01u B

C364 0.1u B

C365 0.1u B

C366 0.1u B

C367 0.1u B

R328

47k

RB328

4.7k

RB326

RB327

10k

RB317

RB322

RB324

RB325

RB314

4.7k

C371

0.001u

C370

0.001u

CON_+3.4V JL310

JL311

CON_+8V

CN302 36P

VCC

DATA–

DATA+

GND

VCC

DATA–

DATA+

GND

TPBn

TPB

TPAn

TPA

GND

CN303 18P

RB323

RB318

RB319

RB320

RB311

470

RB321 47

RB312 220

VBLK1

PCLK2

HBLK1

IC202 267 pin

IC104 2 pin,

IC202 276 pin

IC104 3 pin, IC202 275 pin

C339

100p

C340

100p

C341

100p

R347 51 ±0.5%

R349

JL312

JL313

JL314

JL315

JL316

JL317

JL318

JL319

/RT

IC501 22 pin

DIG_+1.5V1

USB_+5V2

JL301

R352

C363

0.1u

R334 4.7k

R335 4.7k

R332 470

R333 470

R336 1k

JL302

JL303

JL304

JL305

FL302

567

FL301

D301

MA785-(TX),SO

C368

0.1u

C369

0.1u

C372

100u

10V

C373

100u

10V

IC104 425 pin

IC104 394 pin

IC104 387 pin

IC104 384 pin

IC104 431 pin

IC104 390 pin

IC104 388 pin

IC104 389 pin

IC104 383 pin

IC104 426 pin

IC104 427 pin

IC104 393 pin

IC104 392 pin

IC104 391 pin

IC104 429 pin

IC104 428 pin

IC104 430 pin

IC402 26 pin

IC402 27 pin

IC402 25 pin, IC501 15 pin,

IC504 105pin, IC604 38 pin,

IC605 63,83 pin, IC802 21 pin

CN601 7 pin, CN602 1 pin

C301 0.1u B

C305 0.1u B

C324 0.1u B

C342 0.1u B

C343 0.1u B

C344 0.1u B

C345

0.1u

TPBN1

TPB1

TPA1

TPAN1

TPBIAS1

237

236

235

234

233

232

231

230

229

228

227

226

225

224

223

222

221

220

219

218

217

216

215

214

213

212

211

210

209

208

207

206

205

204

203

202

201

200

199

198

197

196

195

194

193

192

191

190

189

188

187

186

185

184

183

182

181

180

179

178

177

176

175

174

173

172

171

770

169

168

167

166

165

164

163

162

161

160

159

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

316

315

314

313

312

311

310

309

308

307

306

305

304

303

302

301

300

299

298

297

296

295

294

293

292

291

290

289

288

287

286

285

284

283

282

281

280

279

278

277

276

275

274

273

272

271

270

269

268

267

266

265

264

263

262

261

260

259

258

257

256

255

254

253

252

251

250

249

248

247

246

245

244

243

242

241

240

239

238

567

IC306

MM3051NULE

DIG2.5V2 REG.

IC305

K4Q153212MJC60T

T5NB8(YEL)

EDO RAM

IC303

CXD9619GB

IOP TO CONTROLLER

R353

22 R354

FB314

FB323

FB324

FB316

FB315

FB313

FB322

FB321

TPA1

TPAN1

TPB1

TPBN1

TPBIAS1

R307

±0.5%

R308

5.1k

±0.5%

C306

240p

C308

0.33u

R309

±0.5%

R310

±0.5%

R312

±0.5%

2.5

3.5

2.5

3.5

3.5 3.5 3.5 3.5

3.5

RB310

4.7k

SA26

SA25

SA24

SA23

SA22

SA21

SA20

SA19

SA18

SA17

SA16

SA15

SA14

SA13

SA12

SA11

SA10

SA9

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

SA0

N.C

IC505 1 pin, IC503/506 44 pin

IC505 2 pin, IC503/506 43 pin

IC505 49 pin, IC503/506 2 pin

IC505 48 pin, IC503/506 3 pin

IC505 11 pin, IC503/506 34 pin

IC505 10 pin, IC503/506 35 pin

IC505 9 pin, IC503/506 36 pin

IC505 8 pin, IC503/506 37 pin

IC505 7 pin, IC503/506 38 pin

IC505 6 pin, IC503/506 39 pin

IC505 5 pin, IC503/506 40 pin

IC505 4 pin, IC503/506 41 pin, IC504 144 pin

IC505 3 pin, IC503/506 42 pin, IC504 143 pin

IC505 47 pin, IC503/506 4 pin, IC504 142 pin

IC505 46 pin, IC503/506 5 pin, IC504 141 pin

IC505 45 pin, IC503/506 6 pin, IC504 140 pin

IC505 44 pin, IC503/506 7 pin, IC504 139 pin

IC505 43 pin, IC503/506 8 pin, IC504 137 pin

IC505 42 pin, IC503/506 9 pin, IC504 136 pin

IC505 41 pin, IC503/506 10 pin, IC504 135 pin

IC505 40 pin, IC503/506 11 pin, IC504 134 pin

IC505 15 pin, IC503 31 pin

IC505 17 pin, IC503/506 31 pin, IC504 133 pin

IC505 19 pin, IC503/506 29 pin, IC504 132 pin

IC505 21 pin, IC503/506 27 pin, IC504 131 pin

IC505 23 pin, IC503/506 25 pin, IC504 130 pin

IC505 26 pin, IC503/506 22 pin, IC504 129 pin

IC505 28 pin, IC503/506 20 pin, IC504 128 pin

IC505 30 pin, IC503/506 18 pin, IC504 125 pin

IC505 32 pin, IC503/506 16 pin, IC504 124 pin

IC505 18 pin, IC503/506 30 pin, IC504 123 pin

IC505 20 pin, IC503/506 28 pin, IC504 122 pin

IC505 22 pin, IC503/506 26 pin, IC504 121 pin

IC505 24 pin, IC503/506 24 pin, IC504 120 pin

IC505 27 pin, IC503/506 21 pin, IC504 119 pin

IC505 29 pin, IC503/506 19 pin, IC504 118 pin

IC505 31 pin, IC503/506 17 pin, IC504 115 pin

IC505 33 pin, IC503/506 15 pin, IC504 114 pin

IC501 25 pin

IC501 29 pin

IC504 108 pin

IC504 110 pin

IC501 26 pin, IC605 166 pin

IC501 30 pin, IC605 167 pin

IC501 107 pin

IC504 109 pin

IC501 27 pin

IC501 31 pin

IC501 14 pin, IC504 104 pin

IC504 103 pin

IC501 143 pin, IC605 171 pin

IC605 173 pin

IC501 32 pin

CL526

IC501 33 pin, IC605 168 pin

IC504 106 pin

IC501 35 pin

IC501 20 pin

IC501 19 pin

CL525

IC501 18 pin, IC605 164 pin

IC504 111 pin

IC505 36 pin, IC503 12 pin, IC518 7 pin

IC505 50 pin, IC503 1 pin, IC518 1 pin

IC501 21 pin

IC505 34 pin, IC503/506 14 pin, IC504 112 pin

IC501 17 pin, IC605 163 pin

IC504 113 pin

IC501 16 pin, IC605 162 pin

IC501 35 pin

IC501 23 pin

IC501 24 pin

DREQ9

DACK9

DREQ8

DACK8

DREQ5

DACK5

DREQ4

DACK4

DREQEX

DACKEX

/INT9

/INT8

/INT5

/INT4

/INTEX

/SSRST

SSCLK1_A

SSCLK1_B

SSCLK0

SD15

SD14

SD13

SD12

SD11

SD10

SD9

SD8

SD7

SD6

SD5

SD4

SD3

SD2

SD1

SD0

/CS9C

/CS9

/CS8

/CS5

/CS4

/CS2

/CS1

/EXTR

/SRD_A

/SRD_B

/SWR_A

/SWR_B

/UBE

/WAIT

/IOIS16

i-LINK

AV USB

OUT

2.5 24.576 MHz

16.9344 MHz

2.5

24.576 MHz

1.5

3.5

1.8

3.5

1.8

3.5

1.5

3.5

1.8 1.8

— 166 —

SCPH-30002D/30003D/30004D

GH-012 (4/7)

Reproduction Prohibited

CN403 2P

SN104809DBTR

IC404 R421

2.7

D402

RB495D-T146

C430

0.1u

R417

220

C414

1500p

R423

2.7

R402

22k

R411

33k

±0.5%

R410

33k

±0.5%

R409

R406

150

C409

6800p

INV1

FB1

SOFTSTART1

PWM_SKIP

5V_STBY

GND

REF

STBY1

STBY2

SCP

POWERGOOD

SOFTSTART2

FB2

INV2

LH1

OUT1_U

LL1

OUT1_D

OUTGND1

TRIP1

VCC

TRIP2

VREF5

REG5V_IN

OUTGND2

OUT2_D

LL2

OUT2_U

LH2

R418

22k

RB402

1.5k

C415

0.047u

C416 0.1u B

C417 43p CH

C418 0.1u B

C419

0.01u

C420

0.1u

SW1.5

R408

1.2k

R412

33k

±0.5%

R413

68k

R414

C431

0.1u

C433

0.1u

2012

R424

L410

22uH

C435

4.7u

3216

D403

RB495D-T146

JL406

R422

C439

150u

L411

10uH

C444

0.1u

C441

150u

C406

150u

C424

4.7u

Q402

SI4830DY-T1 JL430

C425

10u

16V

C426

0.1u

/RESET

VIN

GND

OUT

123

OUT

VDD

VSS

IC401

S-80769SN-J0-T1

C407

0.1u C408

0.1u

C405

0.1u

/8.5DET

R467

10k

RB410

10k

RB409

10k

C401

0.1u

R469

10k

C403

0.001u

POWER

BLOCK

SW-363

BOARD

CN751

CN401 4P

12V

GND

INV1

FB1

SOFTSTART1

PWM_SKIP

5V_STBY

GND

REF

STBY1

STBY2

SCP

POWERGOOD

SOFTSTART2

FB2

INV2

LH1

OUT1_U

LL1

OUT1_D

OUTGND1

TRIP1

VCC

TRIP2

VREF5

REG5V_IN

OUTGND2

OUT2_D

LL2

OUT2_U

LH2

VIN

VOUT

ADJ

GND

VOUT

12345

VIN

VOUT

ADJ

GND

VOUT

12345

VIN

GND

OUT

123

PQ018PZ01ZP

IC407

PQ070XZ01ZP

IC408

NJM2125F(TE2)

IC415

TMP87C807U-2A69

(EL)

IC402

SI-3026LSA-TL

IC410

MM3031JULE

IC411

LP2985IM5X-3.5

IC413

RS5C348A-E2

IC405 BR2880F-E2

IC406

SN104809DBTR

IC409

TA7808F(TE16L)

IC414

VOUT

GND

VDD

VOUT

GND

/WC

/SK

/CS

VCC

R/B

/INTR

OSCOUT

OSCIN

VDD

VSS

SCLK

32KOUT

(/PPG)P14

(/DVD)P13

(/INT2/TC1)P12

(INT1)P11

(/INT0)P10

P51

P50

P67

P66

P65

P64

P73(/SCK)

P72(/PDO/ /PWM)

P71(INT4)

P70(INT3/TC3)

P07

P06

P05

P04

P03

P02

P01

P15(TC2)

P16

P17

P20(/INT5/ /STOP)

P21(XTIN)

P22(XTOUT)

VDD

P77(HSO)

P76(/HCK)

P75(SO)

P74(SI)

P63

P62

P61

P60

N.C

VSS

XOUT

XIN

/RESET

TEST

P00

/SW2.5_3

SW1.8

SW2.5

SW5.1

OP/CL_SW

PWR_SW

TRAY_LED_ON

GND

/GREEN_ON

/RED_ON

EVER+12V

CN406 7P

JL402 JL404

JL401 JL403

C402

2.2u

2012

F001

5.1A

JL421

JL422

FB403

FB404

FB405

FB406

FB407

FB408

GREEN_ON

OP/CL_SW

PWR_SW

TRAY_LED_ON

C706

100p

C701

100p C703

100p C705

100p

C702

100p C704

100p

RED_ON

Q405

XP4213-TXE

1.8V

2.5V

3.5V

C707

10u

C421

4.7u

L401

22uH C708

10u C709

10u

C710

10u

Q401

SI4894DY-T1

JL405

C432 0.1u B

2012

Q404

HAT2064R-EL

D405

EC31QS03L-TE12L

L404

2.0uH

C440

100u

C443

100u

C446

100u

4V C450

0.1u

C434

0.001u

/TS_SCK

FAN_PWM

SLEEP

POFF_REQ

HDD_ACK

/EGSTBY

MCON_ACK

/TRESETIN

/TS_CS

/POFF_RDY

GREEN_ON

PWR_SW

SW1.5

SW1.8_2

SW12

SW3.3

PWRUP_EE

PWRUP_IOP1

PWRUP_IOP2

/RST

/EGRST

OP/CL_SW

/8.5DET

POW_CTRL

HDD_SW

SW2.5_2

SW1.8_3

/SYS_SRST

/TRAY_REQ

/HDD_SET

TS_SI

X401

4MHz

RED_ON

RB408

10k

PS001

PS012

C422

0.1

123

Q415

2SC4541(2TL SONY1)

R474

470k

C423

0.1u

C427

100u

16V

R473

4.7k

±0.5%

R472

10k

±0.5%

IC415

JL408

+8.5V

GND

FAN_PWM

CN402 2P

BATT

GND

GB-004 BOARD

CN101

C453

0.1u

X402

32.768KHz

C452

0.1u

C449

0.001u

C445

4.7u

2012

CL401

JL407

R429 10k JL408

RB403

10k

SW3.3

SW5.1

JL428 DIG_+2.5V5

R426

13k

±0.5%

R449

270k

R427

10k

±0.5%

C437

0.1u

C438

0.1u

C447

3216

R428

5.6

2012

C476

0.1u

2012

Q406

SI4830DY-T1

L412

22uH

10uH

7.5kaku

C730

4.7u

C714

10u

16V

C715

10u

16V

JL409

R434

120

C460

8200p

JL431 DIG_+1.5V1

JL429

R440

3.3k

±0.5%

R441

22k

±0.5%

R442

8.2k

±0.5%

R446

470

C469

1800p

C470 0.1u B

C471 43p B

C472 0.1u B

C473 0.1u B

C474 0.1u B

R405

100k

R404

100k

RB405

1.5k

R415

33k

R416

33k C475

1200p

R447

470

R443

5.6k

±0.5%

R444

27k

±0.5%

R445

1.2k

±0.5%

C461

8200p

R435

120

F003

5.1A

L414

10uH

C455

4.7u C717

39u

16V

C718

39u

16V

C480

0.1u

2012

Q407

FDS6690A

Q408

IRF7807D1-TR

SW1.8

R431

220

PS002

1.2A R432

4.7k

C456

4.7u

2012 R419

10k C465

0.1u

C467

100u

PS003

1.2A

SW1.8_3

R430

220

R433

4.7k

C457

4.7u

2012

R420

10k

R439

2.7k

±0.5%

R438

1.3k

±0.5%

C468

100u

C466

0.1u

SW2.5

SW1.8_2

R403

220k R456

R459

10k

C495

R455

100k

C490

100u

C404

PS004

1.2A

C477

4.7u

2012

R448

10k R451

470

R401

22k

C479

PS006

L408

5.6uH

C487

150u

6.3V C489

150u

6.3V

C494

0.1u

2012

R454

JL410

R458

C488

4.7u

3216

D408

RB495D-T146

C483

0.1u

R452

D407

BR495D-T146

R453

C482

0.1u

R460

10k

±0.5%

C492

0.1u

R457

47k

±0.5%

C493

0.1u

SW3.3

/SW2.5_3

C726

0.001u R475

1M R476

100k

Q413

FDN304P

/SW2.5_3

TRAY_LED_ON

POFF_REQ

/EGSTBY

/POFF_RDY

/PWRUP_EE

/SYS_SRST

PWRUP_IOP2

/TRAY_REQ

PWRUP_IOP1

MCON_ACK

/HDD_SET

SLEEP

HDD_ACK

/EGRST

POW_CTRL

/TS_CS

TS_SI

/RST

/TS_SCK

/TRESETIN

IC604 99 pin

CN504 96 pin, IC604 74 pin

IC104 344 pin, IC202 83 pin

CN504 95 pin, IC604 32 pin

IC104 345 pin

IC604 7 pin

IC303 80 pin

CN504 99 pin, IC604 6 pin

IC303 81 pin

IC604 4 pin

CN504 98 pin

CN504 94 pin, IC604 5 pin

CN504 92 pin

IC104 342 pin, IC202 82 pin

CN504 97 pin

IC105 7 pin

IC105 1pin

IC303 54 pin, IC501 15 pin, IC504 105 pin,

IC604 38 pin, IC605 63,83 pin, IC802 21 pin,

CN601 7 pin, CN602 1 pin

IC105 2 pin

GND

DIG_+1.8V1JL419

DIG_+1.8V3JL418

DIG_+2.5V3JL414

DIG_+1.8V2

DIG_+1.8V1

DIG_+1.8V3

DIG_+2.5V3

DIG_+1.8V2

JL420

DIG_+2.5V2

USB_+5V1

JL432

JL425

JL413

JL417

JL423

GND

SER_+3.5V

DIG_+5V

C724

47u

16V

C723

68u

10V

TH001

C722

0.001u

C486

47u

16V

C499

2.2u

2012

PS009

PS011

Q409

RN1304-TE85L

HDD_SW

R463

SW12

Q410

RN1304-TE85L

R465

100k

Q412

SI4435DY-T1-REVA

R462

220k

RB406

100k

PS010

PS007

L413

10uH

10.1kaku

C716

150u

6.3V

C485

0.1u

R461

5.6

2012

PS008

1.2A

R466

C498

4.7u

2012

C712

0.01u

C725

10u

16V

C727

0.001u

Q411

SI4435DY-T1-REVA

Q414

SI4435DY-T1-REVA

JL427

C458

0.001u

C462

0.001u

2012

JL411

/EEP_CE

EEP_SI

EEP_SO

EEP_SCK

RT_CE

EEP_READY

IC604 47 pin

IC604 48 pin

IC604 49 pin

IC604 50 pin

IC604 53 pin

IC604 58 pin

+12V

JL412 EVER_+3.3V

HDD_+5V

HDD_+12V

JL424

JL416

CON_+8V

DIG_+3.5V1

CON_+3.4V

DIG_+5V

TH002

1.8V

CL404

CL405

CL402

CL403

RT_CE

EEP_SO

EEP_SI

EEP_SCK

/EEP_CE

EEP_READY

D404

HN2D02FU-TE85R

4 MHz

IC405 IC406

IC410

IC411

IC407

IC408

1.5

1.8

2.5

53.5

2.5

C496

3216

FAN

MOTOR

1.8

12 3.3

3.3

3.5

1.5

R477

0R478

0R479

0R480

J U E A

CN505 73 pin

R470

3.3k

BD3992F-E2

IC403

C411

10u

16V

C436

10u

16V

C448

10u

16V

1.8V

— 167 —

SCPH-30002D/30003D/30004D

GH-012 (5/7)

Reproduction Prohibited

for GH012-64MM & GH012-64MR

DIG_+3.5V1

DIG_+5V

GND

/CS5

/INT5

DREQ5

DACK5

/CS9

SA19

SA18

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

/CS2

/SRD_A

SD0

SD8

SD1

SD9

SD2

SD10

SD3

SD11

SA19

SA18

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

/CS2

/SRD_A

SD0

SD8

SD1

SD9

SD2

SD10

SD3

SD11

SA21

SA20

SA9

SA10

SA11

SA12

SA13

SA14

SA15

SA16

SA17

SA0

SD7

SD14

SD6

SD13

SD5

SD12

SD4

SA21

SA20

SA9

SA10

SA11

SA12

SA13

SA14

SA15

SA16

SA17

SD15

SD7

SD14

SD6

SD13

SD5

SD12

SD4

SPMD7

SPMD6

SPMD5

SPMD4

SPMD3

SPMD2

SPMD1

SPMD0

/SPMWE

SPMA0

SPMA1

SPMA2

SPMA3

VSS

DQ16

DQ15

DQ14

DQ13

VSS

DQ12

DQ11

DQ10

DQ9

/LCAS

/UCAS

/OE

VSS

SPMD8

SPMD9

SPMD10

SPMD11

SPMD12

SPMD13

SPMD14

SPMD15

/SPMOE

SPMA9

SPMA8

SPMA7

SPMA6

SPMA5

SPMA4

SPMD0

SPMD1

SPMD2

SPMD3

SPMD4

SPMD5

SPMD6

SPMD7

SPMD8

SPMD9

SPMD10

SPMD11

SPMD12

SPMD13

SPMD14

SPMD15

/SPMRAS

/SPMCAS

SPMA9

SPMA8

SPMA7

SPMA6

SPMA5

SPMA4

SPMA0

SPMA1

SPMA2

+3.3V

SA15

GND

SA14

SA13

SA12

SA11

SA10

SA9

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

+3.3V

GND

SA0

SA26

SA25

SA24

SD15

SD14

SD13

SD12

SD11

SD10

SD9

SD8

SD7

SD6

SD5

SD4

+3.3V

+5V

SCLK

CCLK

AUX_CIN2

AUX_CIN1

AUX_CIN0

CSIG2

CSIG1

/CWR

/CRD

/CCS5

/CCS9

/CCSEX

GND

/CRT

/CUBE

CDREQ9

CDREQ5

CDREQEX

CDACK9

CDACK5

CDACKEX

/WAIT

/CIOIS16

/CINT9

/CINT5

/CINTEX

/CSRST

/CRST

CA15

CA14

CA13

CA12

CA11

CA10

+3.3V

IC605 179 pin

IC605 178 pin

IC605 177 pin

IC605 176 pin

CCLK

CLRCK

CBCK

CDAT

CSIG2

/CWR

/CRD

/CCS5

/CCS9

/CCSEX

/CRT

/CUBE

CDREQ9

CDREQ5

CDREQEX

CDACK9

CDACK5

CDACKEX

/CWAIT

/CIOIS16

/CINT9

/CINT5

/CINTEX

/CSRST

/CRST

CA15

CA14

CA13

CA12

CA11

CA10

+3.3V

SD3

GND

SD2

SD1

SD0

CD0

CD1

CD2

CD3

CD4

CD5

CD6

CD7

CD8

CD9

+3.3V

GND

CD10

CD11

CD12

CD13

CD14

CD15

CA0

CA1

CA2

CA3

CA4

CA5

CA6

CA7

GND

CA8

CA9

+3.3V

/UBE

/INTEX

/INT5

/INT9

DACKEX

DACK5

DACK9

GND

DREQEX

DREQ5

DREQ9

/IOIS16

/WAIT

/RT

/EXTR

/CS9C

/CS9

/CS5

/SRD

/SWR

/RST

/SSRST

I2CDA

I2C_CL

GND

I2C_RT

SIG1

SIG2

AUXOUT0

AUXOUT1

AUXOUT2

CDTCT

POW_CTRL

+3.3V

/UBE

/INTEX

/INT5

/INT9

DACKEX

DACK5

DACK9

DREQEX

DREQ5

DREQ9

/IOIS16

/WAIT

/RT

/EXTR

/CS9C

/CS9

/CS5

/SRD_B

/SWR_B

/RST

/SSRST

SPUDATI

SPUBCKI

SPULRCKI

SDA

SCL

/DVRST

/DEV5EN

IC205 29 pin

IC205 30 pin

IC205 34 pin

IC605 191 pin

CD0

CD1

CD2

CD3

CD4

CD5

CD6

CD7

CD8

CD9

CD10

CD11

CD12

CD13

CD14

CD15

CA0

CA1

CA2

CA3

CA4

CA5

CA6

CA7

CA8

CA9

SD3

SD2

SD1

SD06

SA15

SA14

SA13

SA12

SA11

SA10

SA9

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

SA0

SA26

SA25

SA24

SD15

SD14

SD13

SD12

SD11

SD10

SD9

SD8

SD7

SD6

SD5

SD4

VDD0

MD0

MD1

MD2

MD3

MD4

MD5

MD6

VSS0

MD7

MD8

MD9

MD10

MD11

MD12

MD13

MD14

VDD1

VSS1

MD15

XWE

XRAS

XCAS

XOE

MA9

MA8

MA7

MA6

MA5

VSS2

MA4

MA11

MA10

MA0

MA1

MA2

DREQ1

DREQ0

XIRQ

XRST

XSRST

SYCK

VSS8

TES4

TES3

TES2

TES1

TES0

VSS7

VDD5

TSOF

TSOE

TSOD

TSOC

TSOB

TSOA

TSO9

TSO8

VSS6

TSO7

TSO6

TSO5

TSO4

TSO3

TSO2

TSO1

VDD4

DREQ8

DREQ4

/INT4

/RST

/SSRST

SSCLK1_A

HA10

HA9

HA8

HA7

HA6

HA5

VSSB

HA4

HA3

HA2

HA1

HD15

HD14

HD13

HD12

HD11

HD10

VSSA

VDD7

HD9

HD8

HD7

HD6

HD5

HD4

HD3

HD2

VSS9

VDD6

HD1

HD0

XWR

XRD

XCS

DAK1

DAKK0

MA3

VDD2

MUTE

XCK

DAT1

VSS3

DAT0

BCO0

LRO0

DOUT

DIN

DATI

BCKI

LRCI

VDD3

VSS4

VSS5

TSO0

SPMA3

SPMUTE

DACCLK

DADOUT

DABCKOUT

DALRCKOUT

SPDOUT

SPUDI_A

SPUBCKI_A

SPUDI

SPUDATI

SPUBCKI

SPULRCKI

CL513

R513 47

R516 100

R517 100

C518

0.47u

RB511

/RST

SPDOUT

SPUDI

SPUDATI

SPUBCKI

SPULRCKI

SPUDI

SPUDATI

SPUBCKI

SPULRCKI

Vin

VCC

GND

CN501

C527

0.001u

AUL

AUR

CN201 11 pin

CN201 9 pin

R578

560

R577

560

R579

10k

R576

10k

R575

270k

R580

270k

C530

3.3u

35V

C522

0.1u

C523

0.01u

C521

C537

0.47u

C540

0.47u

CL502

C535

0.47u

C533

0.47u

C534

0.47u

C541

0.47u

R505

SSCLK1_B

R522

10k

R503

R504

C542

100p

C536

0.47u

ANA_+5V

SDATA

/DEM/SCLK

LRCK

MCLK

AOUTL

AGND

AOUTR

DADOUT_A

DABCKOUT_A

DALRCKOUT_A

DACCLK_A CL519

CS4335-KS

AUDIO DUC

EVER_+3.3V

C529

3.3u

35V

Q506

IMH20T108

Q505

RN4904 (TE85R)

C525

0.47u

C524

0.47u

C528

D500

DAP202UT106

SA10

SA9

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

SD15

SD14

SD13

SD12

SD11

SD10

SD9

SD8

SD7

SD6

SD5

SD4

SD3

SD2

SD1

SD0

/SWR_A

/SRD_A

/CS4

DACK8

DACK4

A20

A19

A10

A11

A12

A13

A14

A15

A16

/BYTE

VSS

D15/A-1

D14

D13

D12

VCC

A18

/CE

VSS

/OE

D10

D11

A20

A19

A10

A11

A12

A13

A14

A15

A16

/BYTE

VSS

D15/A-1

D14

D13

D12

VCC

A18

/CE

VSS

/OE

D10

D11

/INT9

DREQ9

DACK9

/CS4

/INT4

DREQ4

DACK4

/WAIT

/RT

DREQ8

DACK8

/CS1

/CS2

/EXTR

/INTEX

/CS9C

/IOIS16

/UBE

DACKEX

DREQEX

SA16

SA17

SA18

SA19

SA20

SA21

SA22

SA23

SA24

SA25

SA26

SSCLK0

/CS8

/INT8

CL525

CL526

32M

64M 32M

R509

C543

470000PF

C526

0.1MF

R527

1.0k

C512

0.47u

FC505

0.47u

C508

0.47u

C509 0.47u F

C510 0.47u F

CL511

CL521CL520

CL522

CL512

C516

0.47u

C517

0.47u

CXD2942AR

:for SCPH-30003D’/30004D’ GH-012-32MR

CXD2942BR

:for SCPH-30003D’/30004D’ GH-012-64MR

CXD9611AR

HDD CONTROLLER

C513

0.47u

C514

0.47u

R506

100

JL595

R531 100

JL550

CL518

C538

0.47u

C539

0.47u

HDD_SET

POW_CTRL

SD15

SD14

SD13

SD12

SD11

SD10

SD9

SD8

SD7

SD6

SD5

SD4

SD3

SD2

SD1

SD0

SA15

SA14

SA13

SA12

SA11

SA10

SA9

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

SA0

RB525

RB526

CD15_A

CD14_A

CD13_A

CD12_A

CD11_A

CD10_A

CD9_A

CD8_A

CD7_A

CD6_A

CD5_A

CD4_A

CD3_A

CD2_A

CD1_A

CD0-A

CA15_A

CA14_A

CA13_A

CA12_A

CA11_A

CA10_A

CA9_A

CA8_A

CA7_A

CA6_A

CA5_A

CA4_A

CA3_A

CA2_A

CA1_A

CA0-A

CD15

CD14

CD13

CD12

CD11

CD10

CD9

CD8

CD7

CD6

CD5

CD4

CD3

CD2

CD1

CD0

CA15

CA14

CA13

CA12

CA11

CA10

CA9

CA8

CA7

CA6

CA5

CA4

CA3

CA2

CA1

CA0

RB524

RB523

RB522

RB521

RB520

RB519

RB518

RB517

RB527

RB528

RB529

RB530

RB531

RB532

SD15_DVD

SD14_DVD

SD13_DVD

SD12_DVD

SD11_DVD

SD10_DVD

SD9_DVD

SD8_DVD

SD7_DVD

SD6_DVD

SD5_DVD

SD4_DVD

SD3_DVD

SD2_DVD

SD1_DVD

SD0_DVD

SD1_DVD

SD2_DVD

SD3_DVD

SD4_DVD

SD5_DVD

SD6_DVD

SD7_DVD

SD8_DVD

SD9_DVD

SD10_DVD

SD11_DVD

SD12_DVD

SD13_DVD

SD14_DVD

SD15_DVD

SA0_DVD

SA1_DVD

SA2_DVD

SA3_DVD

SA4_DVD

SA5_DVD

SA6_DVD

SA7_DVD

SA8_DVD

SA9_DVD

SA10_DVD

SA11_DVD

SA12_DVD

SA13_DVD

SA14_DVD

SA15_DVD

SD0_DVD

SD1_DVD

SD2_DVD

SD3_DVD

SD4_DVD

SD5_DVD

SD6_DVD

SD7_DVD

SD8_DVD

SD9_DVD

SD10_DVD

SD11_DVD

SD12_DVD

SD13_DVD

SD14_DVD

SD15_DVD

SA0_DVD

SA1_DVD

SA2_DVD

SA3_DVD

SA4_DVD

SA5_DVD

SA6_DVD

SA7_DVD

SA8_DVD

SA9_DVD

SA10_DVD

SA11_DVD

SA12_DVD

SA13_DVD

SA14_DVD

SA15_DVD

IC605 159 pin

IC605 158 pin

IC605 157 pin

IC605 156 pin

IC605 154 pin

IC605 153 pin

IC605 152 pin

IC605 151 pin

IC605 148 pin

IC605 147 pin

IC605 146 pin

IC605 145 pin

IC605 143 pin

IC605 142 pin

IC605 141 pin

IC605 140 pin

IC605 137 pin

IC605 136 pin

IC605 135 pin

IC605 134 pin

IC605 132 pin

IC605 131 pin

IC605 130 pin

IC605 129 pin

IC605 126 pin

IC605 125 pin

IC605 124 pin

IC605 123 pin

IC605 120 pin

IC605 119 pin

IC605 118 pin

IC605 117 pin

SA15_DVD

SA14_DVD

SA13_DVD

SA12_DVD

SA11_DVD

SA10_DVD

SA9_DVD

SA8_DVD

SA7_DVD

SA6_DVD

SA5_DVD

SA4_DVD

SA3_DVD

SA2_DVD

SA1_DVD

SA0_DVD

HDD_+12V

HDD_+5V

LND501

LND502

LND503

LND504

CN504 110P

C507

0.001u

2012

C503

0.001u

2012

R574

180

D501

CL-201TLY-C-TU

C501

1u F

2012

C504

1u F

2012

C544

47u

16V

C545

47u

16V

100

101

102

103

104

105

106

107

108

109

110

CA15

CD15

CA14

GND

CD14

CA13

CD13

CA12

GND

CD12

CA11

CD11

CA10

GND

CD10

CA9

CD9

CA8

HDD_+5V

CD8

CA7

CD7

CA6

GND

CD6

CA5

CD5

CA4

GND

CD4

CA3

CD3

CA2

GND

HDD_ACK

IC402 5 pin

OP_DISC

IC604 98 pin

SLEEP

IC402 3 pin, IC604 5 pin

/POFF_RDY

IC402 10 pin, IC604 32 pin

POFF_REQ

IC402 4 pin, IC604 74 pin

/HDD_SET

IC402 43 pin

/TRAY_REQ

IC402 42 pin,

IC604 6 pin

GND

CD2

CA1

CD1

CA0

HDD_+5V

CD0

/CSRST

GND

/CRST

/CINTEX

/CINT5

/CINT9

GND

/CIOIS16

/CWAIT

CDACKEX

CDACK5

CDACK9

CDREQEX

CDREQ5

GND

CDREQ9

/CUBE

GND

/CCSEX

/CRT

GND

/CCS9

/CWR

/CCS5

GND

/CRD

GND

CCLK

GND

CBCK

HDD_+5V

CLRCK

CSIG2

GND

CDAT

ACS_LED

GND

HDD_ACK

OP_DISC

SLEEP

/POFF_RDY

POFF_REQ

PWR_CTRL

/HDD_SET

/TRAY_REQ

HDD_+12V

GND

HDD_+12V

GND

HDD_+12V

HDD_+5V

HDD_+12V

HDD_+5V

HDD_+12V

HDD_+5V

HDD_+12V

IC303 239 pin, IC605 164 pin

IC303 220 pin, IC605 168 pin

IC303 232 pin, IC605 166 pin

IC303 227 pin, IC605 167 pin

IC303 237 pin

IC303 221 pin

IC303 230 pin

IC303 225 pin

IC303 240 pin

IC303 222 pin

IC303 233 pin

IC303 228 pin

IC303 243 pin

IC303 165 pin

IC303 231 pin

IC303 226 pin

IC303 242 pin

IC303 241 pin

IC303 235 pin

IC303 218 pin

IC303 236 pin

IC303 234 pin

IC303 244 pin

IC303 224 pin

IC303 229 pin

IC303 257 pin

IC303 256 pin

IC303 255 pin

IC303 254 pin

IC303 253 pin

IC303 252 pin

IC303 251 pin

IC303 250 pin

IC303 249 pin

IC303 248 pin

IC303 247 pin

IC303 292 pin, IC605 171 pin

IC303 238 pin

IC303 219 pin

VCC

DQ1

DQ2

DQ3

DQ4

VCC

DQ5

DQ6

DQ7

DQ8

/RAS

VCC

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106

105

104

103

102

101

100

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

120

119

118

117

116

115

114

113

112

111

110

109

100

101

102

103

104

105

106

107

108

IC503

BOOT ROM

IC505

IC518

TC7WB125FK (TE85R)

IC506 IC502

DVD ROM SDMV18165CTM6S

DRAM

IC501

IC504

IC517

SA21

SA20

SA9

SA10

SA11

SA12

SA13

SA14

SA15

SA16

SA17

SA0

SD15

SD7

SD14

SD6

SD13

SD5

SD12

SD4

/CE1

A18

A17

/CE2

GND

/OE

D10

D11

SA19

SA18

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

/SRD_A

SD0

SD8

SD1

SD9

SD2

SD10

SD3

SD11

A20

A19

A10

A11

A12

A13

A14

A15

A16

GND

D15/A-1

D14

D13

D12

VDD

VCC

/OE2

/OE1

GND

IC503,IC506 :

for GH012-32MM & GH012-32MR

R510 0

R511

C502

0.47u

SA0

SA1

SA2

SA3

SA4

SA5

SA6

SA7

SA8

SA9

SA10

SA11

SA12

SA13

SA14

SA15

SD0

SD1

SD2

SD3

SD4

SD5

SD6

SD7

SD8

SD9

SD10

SD11

SD12

SD13

SD14

SD15

/SRD_A

/SRD_B

/SWR_A

/SWR_B

/RST

/SSRST

SSCLK1_A

SSCLK1_B

POW_CTRL

IC303 273 pin

IC303 258 pin

IC303 246 pin

IC303 246 pin, IC605 163 pin

IC303 245 pin

IC303 245 pin, IC605 162 pin

IC303 290 pin

IC303 291 pin

IC303 291 pin, IC605 171 pin

IC402 36 pin

IC303 289 pin

IC303 274 pin

IC303 54 pin, IC402 25 pin,

IC604 38 pin, IC605 63,83 pin,

IC802 21 pin,, CN601 7 pin,

CN602 1pin

555

3.5

IC518 : for GH012-64MM & GH012-64MR

C526, C543, R527 :

for GH012-64MM & GH012-64MR

C505, C512, R510, R511 :

for GH012-32MM & GH012-32MR

BOOT + DVD ROM

2.2

5.0

2.2

1.7

1.8

0.7

2.1

0.8

2.1

1.7

0.3

0.7

0.1

0.7

1.7

3.5

1.6

1.3

2.2

∗

1.7

3.3

1.6

1.3

1.2

1.6

0.6

3.5

1.5

0.7

0.5

3.5

∗

3.4

3.5

∗

3.5

TO HARD DISK DRIVE

3.5

DIGITAL

OPTICAL

OUT

3.5

— 168 —

SCPH-30002D/30003D/30004D

GH-012 (6/7)

Reproduction Prohibited

JL602

R619

10k

C601

0.1u

C630

3900p

R625

R643

270k

R644

22k

R640

22k

R661

10k

C606

0.001u

C607

4700p

R699

10k

C609

0.1u

R604

100k

JL601

CD/DVD-SW

CL603

CL602

JL620 RFDO

/RFLO

C689

4700p

C631

4700p

BC633

0.1u

C632

0.1u

C625

0.1u

JL604

R636

R623

22k

R627

22k

R624

270k

MC74VHC1G66DFT1

TD_OFST2

JL614

JL615

VC_+1.7V

TRAY_LED_ON

DIG_+3.5V1

DIG_+5V

CN406 5 pin

CL608

R630 22k

VC_+1.7V

RF-DC

OUT

IN–

IN+

V–

V+

OUT

IN–

IN+

Q600

2SK1958-T1

C603

0.001u C605

0.001u

/EEP_CE

EEP_SI

EEP_SO

EEP-SCK

CL637

CL638

CL639

CL640

STEP_–A

STEP_+A

STEP_–B

STEP_+B

/RFLO

GAIN_SW

RFCO

RFDO

LIMIT_SW

C623

0.1u

C629

0.1u

EEP_SCK

EEP_SO

EEP_SI

/EEP_CE

CL659

CL687

CL686

CL685

CL684

CL627

CL626

CL625

CL624

FCMP_H

FCMP_L

/THDET1

FCMP_H

FCMP_L

CL682

CL683

JL668

JL669

JL670

JL671

JL672

JL673

JL674

JL675

JMCD7

MCD6

MCD5

MCD4

MCD3

MCD2

MCD1

MCD0

/CS_1869

MCA8

MCA7

MCA6

MCA5

MCA4

MCA3

MCA2

MCA1

CL628

/RST

CD/DVD SW

SQCK

SQSO

/POFF_RDY

RCM1

HFG

DISC_DET

/SSRST

SCOR

R613 10k

RB611

10k

Q603

RN1706-TE85R

C624

0.1u B

R620

10k

R606

10k

CL601 R653

100k

C634

0.1u

RF_CNT2

RB602

10k

C688

0.001u B

RT_CE

EEP_READY

IC406 3 pin

IC405 3 pin

IC405 4 pin

IC405 2 pin

IC405 7 pin

IC406 1 pin

GFS

SENS

RT_CE

PIO0/SCS2

SI2

PI2/SO2

SCK2

VSS

AN0

AN1

AN2

AN3

PJ0

PJ1

PJ2

PJ3

PJ4

PJ5

PJ6

PJ7

AVSS

AVREF

AVDD

PK0

PK1

PPK2

PK3

PK4

/INT3

/INT2

/INT1

/INT0

VSS

/XCS1

PC6/XCS1

PC5/XCS2

PC4

PC3

PC2

PC1

PC0

PB7

PB6

PB5

PB4

PK5/TETB

/DVRST

SDA

SCL

PH2/RxD

PH3/TxD

RMC

PH5/TETC

XWR

XRD

VDD

VSS

PB0/A8

PB1

PB2

PB3

TETB

EX_RXD

EX_TXD

TEST_MOD0

TEST_C

/MCWR

/MCRD

PWE

MCA0

MCA1

MCA2

MCA3

MCA4

MCA5

MCA6

MCA7

MCA8

PG7

PG6

PG5

PG4

PWM3

PWM2

PWM1

PWM0

VDD

EXTAL

XTAL

VSS

/RST

PF7

PF6

SCK1

SO1

SI1

PF2

PF1/EC2

PF0/EC0

/CINT

PE5/INT6

/INT5

/INT4

SENS_CLK

FOK

MIRR

EEP_READT

TD_OFST2

MON_SLOW

DISC_MOD0

DISC_MOD1

LIMIT_SW

SP_BR

SP_SB

SP_GAINSW

SP_PS

CL630

CL633

CL634

CL642

CL643

CL653

CL650

CL654

/INT_1869

/CS_1869

MCD7

MCD6

MCD5

MCD4

MCD3

MCD2

MCD1

MCD0

TRAY_CNT

TRAY_DRVF

TRAY_DRVR

TRAYSW_IN /POFF_RDY

/SSRST

/RST

/POFF_RDY

/SYS_SRST

/TRAY_REQ

SLEEP

MCON_ACK

OP_DISC

POFF_REQ

CN504 95 pin,

IC402 41 pin, CN504 95 pin

IC402 42 pin

IC402 3 pin, CN504 94 pin

IC402 7 pin

CN504 93 pin

IC402 4 pin, CN504 96 pin

/SYS_SRST

/TRAY_REQ

MCON_ACK

JL617

JL610

JL611

JL676

JL613

JL677

JL678

JL679

JL609

EX_TXD

EX_RXD

TRAY_LED_ON

OP_DISC

RF_CNT1

RF_CNT2

CL635

/RF_CNT1

RB607

10k

C655

10u

6.3V

C654

0.1u

R689

100k

R614

10k

RB603

10k

R660

10k

R694

15k

R654

100k

R667

2.2M R668

470k

R658

10k

R675

33k

CL610

CL611

CL612

CL613

CE2

VC2

VPC0

VCTL

FILO

FILI

PC0

CLTV

AVS1

RFAC

BIAS

ASYI

ASYO

AVD1

AVD3

CPIG

AVS3

ADM

RFIN

VSS0

VDD0

DFCT

FOK

MIRR

COUT

TFDR

TRDR

SFDR

SRDR

FFDR

FRDR

SFDF

SRDF

VSS1

XPEN

LID

SSTP

RFDO

RFCO

XRFLO

SCOR

SQSO

SQCK

GFS

SENS

SCLK

MDP

PWMI

ATSK

CMPH

CMPL

VDD1

HDB03

VSS12

HDB04

HDB05

HDB06

HDB07

VDD6

VSS11

HDB08

HDB09

HDB10

HDB11

VSS10

HDB12

HDB13

HDB14

HDB15

VDD5

VSS9

HA00

HA01

HA02

HA03

VSS8

HA04

HA05

HA06

HA07

VDD4

VSS7

HA08

HA09

HA10

HA11

VSS6

AVDL

HA12

HA13

HA14

HA15

TST0

TST1

TST2

AVSL

AVSH

TST3

VDD3

VSS5

XWR

XRD

AVDH

VSS2

MNT0

MNT1

MNT2

MNT3

XPCLK

WFCK

RFCK

LOCK

SCEN

TRST

TCK

TDI

TDO

TMS

SCRS

SCCK

SCI

SCO

SCDR

TD7

TD6

TD5

TD4

TD3

TD2

TD1

TD0

VSS3

XRST

XINT0

XINT1

VSS4

VDD2

XCS

RFDC

ADI0

AVS2

IGEN

AVD2

XCEN

VSS19

PATST

RSV2

RSV1

RSV0

VSS18

VDD10

RCM3

RCM2

RCM1

RCM0

DOUT

DAT0

BCK0

LRC0

VDD9

VSS17

SCLK0

VSS16

SCLK1

VDD8

VSS14

HINT

HACK

HDRQ

XHRS

XHCS

XHRD

XHWR

VDD7

VSS13

HDB00

HDB02

HDB03

RFCO

SCOR

SQSO

SQCK

GFS

SENS

SENS_CLK

MDP

CL680

CL688

CL689

CL690

CL691

CL619

JL622

JL621

CL622

FOK

CL614

MIRR

R669

100k

R696

120k

R698 15k

R651 15k

C644

220p

C635

4700p

C639

150p CH

C649

0.01u

C646

0.001u

RB606

C651

2200p

C653

2200p

C648

0.1u

C652

0.1u

C645

0.047u B

C647

0.47u

C643 0.1u

R671 3.3k

R673 3.3k

R672 51k

R670 10k

C650 220p

C638

0.01u

R674

100k

R678

4.7k

C658

220p

C636

0.1u

C637

0.001u

C685

0.47u

C642

0.1u

C640

10u

6.3V

C657 220P

C656 0.1u

/DEV5EN IC501 8 pin

C661

0.1u C662

0.1u

C693

RB609

RCM1

RCM0

SPUDI

SPUDATI

SPUBCKI

SPULRCKI

SSCLK1_B

/ISRD_B

/SWR_B

SD0_DVD

SD1_DVD

SD2_DVD

/INT5

DACK5

DREQ5

/CS5

SPUDI

SPUDATI

SPUBCKI

SPULRCKI

SSCLK1_B

/SRD_B

/SWR_B

SD0_DVD

SD1_DVD

SD2_DVD

SD3_DVD

SD4_DVD

SD5_DVD

SD6_DVD

SD7_DVD

SD8_DVD

SD9_DVD

SD10_DVD

SD11_DVD

SD12_DVD

SD13_DVD

SD14_DVD

SD15_DVD

SA0_DVD

SA1_DVD

SA2_DVD

SA3_DVD

SA4_DVD

SA5_DVD

SA6_DVD

SA7_DVD

SA8_DVD

SA9_DVD

SA10_DVD

SA11_DVD

SA12_DVD

SA13_DVD

SA14_DVD

SA15_DVD

IC303 220 pin, IC501 33 pin

IC303 227 pin, IC501 30 pin

IC303 232 pin, IC501 26 pin

IC303 239 pin, IC501 18 pin

IC504 50 pin

IC504 51 pin

IC504 52 pin

IC504 53 pin

IC501 143 pin

IC303 246 pin,

IC501 17 pin

IC303 245 pin,

IC501 16 pin

IC501 78 pin

IC501 77 pin

IC501 76 pin

IC501 74 pin

IC501 71 pin

IC501 70 pin

IC501 69 pin

IC501 68 pin

IC501 67 pin

IC501 66 pin

IC501 65 pin

IC501 64 pin

IC501 63 pin

IC501 62 pin

IC501 61 pin

IC501 60 pin

IC501 56 pin

IC501 53 pin

IC501 52 pin

IC501 51 pin

IC501 50 pin

IC501 49 pin

IC501 48 pin

IC501 47 pin

IC501 46 pin

IC501 45 pin

IC501 44 pin

IC501 43 pin

IC501 42 pin

IC501 41 pin

IC501 40 pin

IC501 38 pin

C665

0.1u

R649 10k

R642 10k

R650 10k

C660

0.1u

R657

33k

C666

0.1u

C671

0.1u

C672

0.1u

C673

0.1u

C674

0.1u

C675

0.1u

C676

0.1u

C664

10u

6.3V

C668

0.1u

R626

10k

C667

0.1u

/XRST

DIG_+3.5V1

DIG_+3.5V2

SER_+3.5V1

GND DIG

GND SER

R607

10k

JL608

CL608

JL605

JL606

JL607

SSCLK0 IC303 292 pin

/MCWR

/MCRD

MCA0

SSCLK0

321

8765

1234

100

156

155

154

153

152

151

150

149

148

147

146

145

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106

105

987

100

101

102

103

104

208

207

206

205

204

203

202

201

200

199

198

197

196

195

194

193

192

191

190

189

188

187

186

185

184

183

182

181

180

179

178

177

176

175

174

173

172

171

170

169

168

167

166

165

164

163

162

161

160

159

158

157

IC606

NJM2100V-TE2

IC603

IC605

CXD1869AQ-2

CD/DVD DSP

IC604

MECHA-CON

R700

GND DIG

SP_GAINSW

SP_PS

SP_SB

SP_BR

HFG

MDP

PJ1

STEP_+B

STEP_–B

STEP_+A

STEP_–A

TRAY_CNT

TRAY_DRVF

TRAY_DRVR

FFDR

FRDR

TFDR

TRDR

TD_OFST

ANALOG GND

RFDC

DFCT

SER_+3.5V

LIMIT_SW

GAIN_SW

TRAYSW_IN

TRAYSW_OUT

MONITOR

CD/DVD_SW

RFAC

/RF_CNT2

RFDO

RFCO

/RFLO

/RF_CNT1

MIRR_SLOW

DIG_+3.5V2

IC803 26 pin

IC803 23 pin

IC803 18 pin

IC803 16 pin

IC803 24 pin

IC806 5 pin

IC805 4 pin

IC802 4 pin

IC802 5 pin

IC802 6 pin

IC802 7 pin

IC802 3 pin

IC802 2 pin

IC802 1 pin

IC802 27 pin

IC802 26 pin

IC802 24 pin

IC802 23 pin

IC802 22 pin

IC801 64 pin

IC801 38 pin

CN804 12 pin

IC801 4 pin

IC806 1 pin

IC805 1 pin

IC801 45 pin

IC801 9 pin

IC801 44 pin

IC801 42 pin

IC801 43 pin

IC801 57 pin

IC801 54,55 pin

IC801 47 pin

IC801 46 pin

IC801 48 pin

IC801 56 pin

IC801 32 pin

3.5

3.5 3.5 3.5 3.5

3.5

IC303 290 pin

IC402 25 pin, IC303 54 pin, IC501 15 pin, IC504 105 pin,

IC802 21 pin, CN601 7 pin, CN602 1 pin

3.5 3.5

3.5

1.7

3.5

1.7

3.5

CXP102064-202R-T6

: for SCPH-30003/30004

CXP102064-203R-T6

: for SCPH-30002

for IC801 : SP3727ACA0PMR(8-759-685-15)

for IC801 : SP3727ACA0PMR

(8-759-685-15)

for IC801 : SP3727ACA0PMR(8-759-685-15)

R640 22k. for IC801 : SP3727ACA0PMR(8-759-685-15)

0. for IC801 : SP3727AFA0PMR(6-700-585-01)

— 169 —

SCPH-30002D/30003D/30004D

GH-012 (7/7)

Reproduction Prohibited

OUT

GND

MC78M05CDTRK

12V REG

IC807

NJM2904V (TE2)

IC806

MC74VHC1G66DFT1

IC805

BA6664FM-E2

SPINDLE CONTROL

IC803

JL852

SP3727ACA0PMR

/ SP3727AFA0PMR

RF AMP

IC801

BA5815FM-E2

TILT DRIVER

IC802

1.7

DFCT

C797

100p

CN805 2P

CN806 2P

GND

TRAYSW_OUT

GND

TRAYSW_IN

FB801

FB802

JL853

C798

100p

C795

0.001u

2012

C793

2.2u

2012

321

V+

OUT

IN–

IN+

OUT

IN–

IN+

V–

R882

2012

R875

2012

R881

2012

R879

2012

R877

2012

R880

2012

R878

2012

R876

2012

C792

10u

10V

PS015

C794

0.001u

2012

+12V

SP_GAINSW

SP_PS

SP_SB

SP_BR

HFG

MDP

PJ1

ANALOG GND

IC604 73 pin

IC604 75 pin

IC604 72 pin

IC604 71 pin

IC604 29 pin

IC605 47 pin

IC604 61 pin

STEP_+B

STEP_–B

STEP_+A

STEP_–A

TRAY_CNT

TRAY_DRVF

TRAY_DRVR

FFDR

FRDR

TFDR

TRDR

TD_OFST

DIG_+5V

GND DIG

RFDC

VC_+1.7V

SER_+3.5V

LIMIT_SW

GAIN_SW

TRAYSW_IN

TRAYSW_OUT

MONITOR

CD/DVD_SW

RFAC

/RF_CNT2

RFDO

RFCO

/RFLO

/RF_CNT1

MIRR_SLOW

IC604 46 pin

IC604 45 pin

IC604 44 pin

IC604 43 pin

IC604 3 pin

IC604 11 pin

IC604 10 pin

IC605 30 pin

IC605 31 pin

IC605 26 pin

IC605 27 pin

IC603 6 pin

IC605 203 pin

IC605 37 pin, IC604 67 pin

IC604 37 pin

IC604 8 pin

IC604 9 pin

IC604 59 pin

IC604 36 pin, IC606 4 pin

IC605 10, 19 pin

IC604 2 pin

IC605 38 pin

IC605 39 pin

IC605 40 pin

IC604 1 pin

IC605 24 pin

IC605 22 pin

R873

33k

R874

3.9k

R872

82k

R871

110k

±0.5%

C791

0.015u

1608

C898

0.1u

R868

220k

PS013

1.2A

C897

0.033u

C882

10u

R853

2.2

R854 2.2

R856 2.2

1/10W 2012

R855 2.2

C883

0.1u

F 2012

C868

0.1u

C877

3900p

C879

560p

Q810

2SK3018-T106

Q808

2SK3018-T106

Q806

2SK3018-T106

C860

3900p

C862

560p

C832

0.22u

R817

1/8W

3216

R814

1/8W

3216

GAIN_SW

R816

1/8W

3216

R813

1/8W

3216

Q805

2SB798-T1DL

Q804

2SB798-T1DL

D802

MAZF04700LS0

D801

MAZF04700LS0

R818

R815

C824

22u

16V

C811

22u

16V

C821

10u

10V

C810

10u

10V

C819

0.1u

C809

0.1u

C802

0.22u

C801

0.22u

L802

4.7uH

L801

4.7uH

C825

1200p

C812

1200p

C869

0.1u

F 1608

C870

0.1u

C851

0.01u

C845

0.01u

C843

0.01u

R831

120

R830 330

R870

220k

R866

100k

Q814

DTC143ZUA-T106

C899

0.1u

CL805

CL806

CL808

CL809

/RF_CNT2

/RF_CNT1

CL807

GND

H1+

H1–

H2+

H2–

H3+

H3–

RNF

GSW

VCC

GND

ECR

FG2

CNF

CN804 13P

H3–

H3+

H2–

H2+

H1–

H1+

H+

H–

LIMIT_SW

GND

/RF_CNT1

MONITOR

RFDO

RFCO

/RFLO

RB803

10k /RF_CNT2

CL840

CL841

CL842

CL832

CL844

JL827

VC_+2.5V

C866

0.1u

C850

0.1u

C836

0.1u

R823

62k

±0.5%

C826

0.033u

R826 10k ±0.5%

C831 24p CH

C830 2200p B

C829 2200p B

C828 2200p B

C827 2200p B

R827 10k ±0.5%

R828 27k ±0.5%

R822

27k

±0.5%

R821

27k

±0.5%

R820

27k

±0.5%

R819

56k

±0.5%

C857

0.1u B

C841

0.1u B

C840

0.1u B

C846

0.1u B

C854

0.1u B

C842

0.1u B

C834

0.1u

C848

0.47u

2012 R847

100k

R850

10k

±0.5%

R834

10k

±0.5%

/RST

R851

16k

±0.5%

R840

16k

±0.5%

R837

30k

±0.5% R843

30k

±0.5%

R838

30k

±0.5%

1005

R846

30k

±0.5%

C835

10u

C859

0.1u B

MIRR_SLOW

SER_+3.5V

SER_+5V

PS014

CL834

RFAC

RFDC

C895

0.001u

C891

0.01u

C889

0.1u

C880

0.1u

C875

0.1u

C876

2.2u

B 2012

C872 0.22u B

C873

390p CH

C871 0.033u B

C874 0.033u B

C888

0.1u

C890

10u

10V

L803

2.2uH

R852

12k

±0.5%

C863

0.001u

C837

0.1u

BC839

1u B

C844

1u B

C853 0.1u B

C855 0.22u B

CL835

CL836

CL810

CL815

CL822

CL824

CL827

CL823

R802 0

R801 0 R805

100

R806

10k

Q801

2SK2034-TE85L

Q802

DTC143ZUA-T106

Q803

2SK2034-TE85L

R808

10k

“H” DVD “L” CD

R807

100

R803 0

R804 0

CL818

CL819

CL820

CL821

CL814

CL813

CL812

CN801 30P

GND

G.SW

PD1

M.SW

Cd-Lo

PD2

VCC

DVD-LD

VR-DVD

VR-CD

TRK+

TRK–

FCS+

FCS–

CL845

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

PD1

PD2

PDP_A

PDP_B

PDP_C

PDP_D

TPP_E

TPP_F

EF0

/SDEN

SDATA

SCLK

MNTR

V175

V35

TPH

DFT

MIN

MEVO

MLPF

RFDC

TPA

SUMP

SUMN

AIN

AIP

VPA

RFAC

BYP

DIN

DIP

FNP

FNN

VNA

MEV

1234567

829

91011121314

28272625242322

21 30

201918171615

VO1+

VO1–

VO2+

VO2–

VOL+

VOL–

POWVCC12

GND

PREVCC

IN2

IN1

PSAVE

LDCNT

FWD

REV

VO4+

VO4–

VO3+

VO3–

GND

POWVCC34

MUTE

GND

OPOUT3

OPIN3–

OPIN3+

OPOUT4

OPIN4–

OPIN4+

BIAS

CL846

C808

100p

C806

100p

C803

100p

C804

100p

C805

100p

C807

100p

LF801

CL847

CL849

CN803 4P

STD_–B

STD_+B

STD_–A

STD_+A

CN802 2P

LOADING–

LOADING+

TRAY OUT SW

TRAY IN SW

LOADING SW

FEED

MOTOR

DEVICE

OPTICAL

SPINDLE

MOTOR

1.7

3.5

1.7

5 3.5

IC805

IC806

3.5

1.7

IC303 54 pin, IC501 15 pin, IC504 105 pin,

IC604 38 pin, IC605 63,83 pin,

CN601 7 pin, CN602 1 pin

— 170 —

SCPH-30002D/30003D/30004D

GH-012

A side Reproduction Prohibited

IC104

CXD9615GB

IC303

IOP

CXD9619GB

IC202

CXD2944GB

RB102RB101RB103

RB105RB104RB106

C373

C490

C468

C372

C132

C368

C369

C355

R361

R123

C345

C169

C157

R360

C727

R463

R465

R847

R851

R846

R843

R840

R838 R850

R837

R834

R448R401

R196

R366

C356

C465

C450

R125

R395

C477 R451

C466

R109

R103

R902

R901

R145

R134

C176

R104

C134

C175

R102

R101

C102

FB314

FB313

C101

C103

C141

C105

CN303

C404

C111

C118

C124

C154

R362

C444

C502

C539 C536

C534

C476

C494

C480

C432

C433

C503

C501

C504

C507

R139

C730

C455

C424

C421

C714

C707

C708

C709

C710

C411

C436

C448

PS014

D405

C715

C338

C104

C110

C117

C123

C106

C112

C119

C125

R116

R117

C107

C113

C120

C126

C153

C108

C114

C121

C127

C109

C115

C122

C128

R114

R115

RB305

RB130

RB528

RB521RB522RB523

RB524RB517RB518

RB409

RB410

RB408

RB133 RB136

RB109

L401

RB112 RB114 RB115 RB117 RB119 RB121 RB123 RB125

RB139

C144

C967

C143

C968

C138

C145

C140

R974

R975

C142

C139

C137 IC102

RDRAM

IC103

RDRAM

IC105

Q406

Q408

Q407

Q401

Q404

Q402

Q412

IC410

3670

351

IC305

X301

C313

C308

R310

R309

R469

R467

C306

C314

X401

R320

R312R307

R318

R308

111

4434

IC402

CL503

CL501

CL505

CL303

CL301

CL302

CL526

JL416

CL107

CL109

CL108

CL116

CL103

CL504

CL840

CL834

CL810

CL836

CL837

CL835

CL841

CL842

CL827

CL824

CL823

CL818

CL819

CL820

CL821

CL822

CL815

CL814

CL813

CL812

R357

C722

C401

C403

C723

C724

C486

C544

C545

C467

C425

C716

C487 C489

C446

C718 C717

C443 C440

C439

C406 C441

L412

L408

L410

C427

C725

L404

C834

C848

C254

C255

C256

FB202FB203FB204

C150

C147

C149

FB103

FB102

R110

L102

R111

C261

CL204

CL205

CL203

CL102

C266

C530

CN201

CN501

C529

C262

C263

Q201 Q205

C267

C148

C146

C116

C257 C269

R263

C271

C272

C275

C288

C287

L206

R246

R245

R244

R580

R575

C136

C135

R119

169

C170

C129

C131

R105

X101

R118

R120

R121

C290

C285

C293

R112

R113

C265

CP201

C151

C152

IC101

IC209

IC206

FL201

FL202 36

FL203

R258

R261

R228

C291

C270

R226

RB297

RB296 RB298

C268

C298 C297 C296

CN401

13 1

CN804

123

1357911

24681012

5678

1234

CN801

CN406

CN805

CN806CN802

CN402

CN803

CN504

Q410

C505

C512

R511

IC506

— 171 —

SCPH-30002D/30003D/30004D

GH-012

B side Reproduction Prohibited

FB324 FB323

FB321

FB322

FB316

FB315

R430

C479

R439

R328

R438R433

R403

R455

R456

R363

R368

R365

R122

C371

C344

C320

C319

C322

C365

C364

C367

C323

C325

C342

C366

C334

C335

C310

R394 R327

R506

C525

R513

R516

R517

C524

C513 C514

C510

C509

R699

C623

C851C845

R831

R830

C327

C328

C329

R476R475

C426

C526

R354

R358

R359

R353

R330

R329

R331

R188

R133

C159

C158

C942

C905

C903

C916

C915

C914

C963

C913

C904

C940

C962

C960C959

C961

R432

C485

R334

R335

R332

R336

R333

R442

R415

R409

R411

R410

R421

R423

C409 R406

C417

R404

R441

R452

R453

R457

R461

C493

C667

C488

C496

PS002

PS006

PS001

PS011

C925

C939

C908

C941

C945

R131

R147

R124

C906

C907

LF101

R367

C457

PS003

PS004

FL302 FL301

R420

R459

R138

R984

C155

R106

C162

C943

C929

C966 C935

C901

C902

C163

C909

C923

C917

C965

C910

C156

C946

C160

C949

C950 C951 C952

C954

C947

C932

C931

C928

C938

C933

C934

C926

C924

C930

C956

C955

C953

C948

R107

R351

R364

C944

R146

R132

C912

C911

C918

C919 C958

R128

R130

R126

R129

R127

R419

R349

R431

R440

R434

C460 C482

C492

R460

R607

R626

R446

C469

C470

C471

C472

C473

C474

C475

C483

C676 C675 C674 C673 C672 C671

C533

C879

C844

C839

C837

C802 C801

C836 C840

C846

C809

C819

C825R818

R815 C812(CD-LD Iop)

(DVD-LD Iop)

C811

C824

C854

R806

R805

R807

R808

C877

C860

C889

C880

C876

R852

C535

R447

R405

R416

R444

R445

C418

C419

C420

C415

R418

R413

R414

R402

R408

R417

C414

C416

C430 C437

R449

R472

C423

R424

R422

R427

R470

C208

C209

C201

R202

R201

L202

R225

R295

C225

C990

C223

C215

R219

R218

R247

R294

R579

C278

C282

C168

37 54

18 1

55 72

36 19

R251R253

R257

R252

R578

R576

R577

C522

C521

C523

C252

R217

C989

R264

C233

C986

R233

C241C216

C988

C239

C221 C220

C240

C238

C236

C234

C219

C217

C232

C214

C230

C228

C212

C231

C218

C229

C984

C222

C224

C227

C226

C980

C981

C982C983

C213

C249

C248

C247

C528

C527

C276

R259 C286 C279

R278 R279

R277

R272

R273

R270

R292

C277

C289

FB205FB206

C985

X202

R265

L203

C237

C235C987

R236 R237

R209

R206

R208

C211C210

C203

C204

C206

C205

R454

R458

R443

C461

R435

C456

C927

C922

C937 C920

C921

C957

C936

R185

R350

C307

C317

C333

C321

C301 C305 C324

R347 R311

R324

C332

C316

C326

C336

C331

C330

C343

R352 R316 C303

C309

C302

C726

C315

C304

R315

C408 C543

C405 C517 C516

C609

R636

R644

R623

C639

R658

R661

C647

C649

C646

C648

C652

C651

C607

C606

R671

R673R675

R614

C645

C633

R651

C657

C685

C644

C656

C658

C693

R642

R650

R668

R669

R694

R696

C605

C631

C603

R604

R630

R640

R627

R624R625

R674

R678

C653

R689

C654

C668

C655

R670 R672

C638

C650

C630C637

C635R654

C643

R667

C640

C636

C689

C601

C632

C642

R700

R643

R698

R649

C662C665

C666

C537

C895

C891

C888

C871

C872

C873

C874

C875

R813

R814

R816

R817

C821

L801L802

C835 LF801

C862

C863

C855

C853

C831

C827

C828

C829

C830

C842

C841

C826 C850

C859

C857 C866

R826

R828

R804

C806

C805

C804

C803

R803

R802

R801

R827

R822

R819

R820

R823

R821

C832

C479

R522C540

R466

C538

C541

C542

R505

R503

R504

R657

C660

C661

R527

C407

C363

C311 C312R322 R321 R509

R531

C518 C508

R660

C629

R613

C843

R619

R653

C624

C688

C634

R606

C869

C868

C706

R868 C705

C704

C703

C702

C899

R873

R429

C452

C449

C445

C870

C701

C797

C798

C807

C808

R870

C897

C898

C791

C453

C434

R871

R872

R874

R880

R879

R878

R877

R876

R875

R882

R881 C793

PS015

C792

R866

FB408

FB801

FB802

FB403

FB404

FB405

FB406

FB407

CN406

CN805

C794

PS013

C882

C795 C883

R853

R854

R855

R856

R620

C337

C318

C370

CN302

136

C341

C339

C340

3IC411

C495

D301

JL316(SCK)

JL317

JL318

JL319

JL311

(8V)

JL312

(RXD)

JL313

(TXD)

JL314

(DTR)

JL315

(SAS)

CN303

RB324

RB321

RB319 RB322

RB317

RB320

RB325

RB135

RB137 RB134

RB132

RB131

RB511 RB602

RB603

RB611

RB607

RB107

RB108

RB110RB111RB113RB116RB118RB120RB122RB124RB126

RB294

RB303

RB295

RB241

RB323

RB318

RB327

RB326

RB328

IC408

X302

TH001

TH002

JL418

(1.8V)

JL425

RB329

RB314

RB312

RB311

FB311

FB309

FB312

FB310

FB308

FB318

FB303

FB317

FB305

FB307

FB319

FB320

FB304

FB306

D501

IC306

C164

C161

JL414

JL003

(GND)

JL004

(TXD)

JL409

(OUT1_D)

JL410

(OUT2_D)

JL431

JL301(TCK)

JL302(TMS)

JL303(TDI)

JL305(TRST)

JL304(TDO)

JL002

(RST)

JL001

(CTS)

JL420

CL525

(/CS8)

(MSCLK)

(PGCLK)

IC407

IC207

RB405

RB402

Q413

D408

D407

R426

R473

R474

C438

C422

R428

C435

C447

PS012

PS010

PS009

PS007

PS008

C431

R574

R462

R412

C712

C498

C462

C499

C458

C402

CN401

CN501

CN201

C250

C292

FB201

JL406

JL411

JL405

CL201(FLDO)

D403

Q505

Q506

Q204

Q415

IC415

D402

IC409

IC503

IC201

IC404

IC205

F003

F001

JL430

JL402 JL404JL403

JL419

(1.8V)

(1.5V)

(2.5V)

(8.5V)

(3.5V)

(12V)

(8V)

(5V)

(3.5V)

(1.5V)

(2.5V)(2.5V)

(1.5V)

CL206

JL205

(TRST)

JL412

(3.3V)

CL519

(AUR)

CL518

(AUL)

(12V)

(5V)

JL202

(TDI)

JL201

JL203

JL204

(TMS)

JL216

JL215

JL214JL213JL212

JL210JL208

JL209

(R)

(B) (C) (V) (Y) (AUL)

(AUR)

(G)( (DCOUT)

JL211

JL207

JL428

JL401 JL433

IC517

C243

C242

C244C246 C245

D500

D204D203D202

D210

D209

D208

D206 D205

D201

JL595

(/CE)

JL550

(/CE)

CL512

CL653

CL650

CL511

CL682

CL683

CL626

CL625

CL624

CL627

CL628

CL684

CL686

CL637

CL639

CL685

CL687

CL638

CL640

JL615

(TROUT)

CL659

JL676(RST)

JL678

JL611(RXD)

JL610

(TXD)

CL601

JL677

JL679

JL620

(LIMITSW)

131

CL657

CL608

CL602

CL603

JL606

JL602

JL604

JL607

(CE)

CL612

CL613

CL688

CL691

CL680

CL619

JL622

(GFS)

CL622

JL668

(MNT0)

JL669

JL673 JL671

JL675

(LOCK)

JL670

(MNT2)

JL672

(XPCLK)

JL674

(RFCK)

JL621

(SENS)

CL689CL690

CL610

CL642

CL805

(GSW)

CL643

CL634

CL635

CL633

CL630

IC403

IC406

26 36 40

15 11

IC505

72 37

109 144

108 73

136

40 36

1511

IC502

IC803

IC518

IC401

IC504

521

105 156

104 53

157 208

IC605

IC604

IC801

26 50

100 76

51 75

814

Q603

JL605

(FE)

JL601

(RF AC)

JL614(TRIN)

JL421(OP/CL)

JL422

(POW_SW)

JL852

JL609

(GND)

JL611(TEST)

Q814

Q600

CN806CN802

IC806

IC405

IC805

Q405

IC606

RB403

IC807

X402

CN804

C664

RB609

5IC603

RB606

IC414

RB527

RB525

RB519 RB520

RB803

RB526

RB532

RB530

RB531

RB529

72 37

109 144

108 73

136

IC501

CL502

JL413

JL424

JL417

JL427

Q414

Q411

IC413

CN403

Q804

Q805

CN402

CN803

IC802

2228

14829

C890

L803

Q808

Q802

Q801

Q803

Q810

Q806

JL608

(RF DC)

48 33

116

64 49

17 32

CL844

(MIRR_SLOW)

JL827

CL847

(LD_SW+)

CL846

(LD_SW-)

CL832

(MLPF)

D801

D802

C810

CN801

130

D404

1197531

12108642 3

11 12

CN504

RB310

FB207 FB208

X201

Q409

RB406

R510

C625

(CLOCK)

(R)

(G)

(B)

(Y)

(V_SYNC)

(H_SYNC)

(C_SYNC)

(C)

(2.5V)

(12V)

(3.3V)

(3.5V)

(5V)

(1.7V)

(12V)

(5V)

(1.8V)

(1.5V)

(3.5V)

(12V)

(1.5V)

(5V)

(3.3V)

(16.9MHz)

(24.5MHz)

(1.5V)

(5V) (5V

)

(2.5V)

(1.8V)

— 172 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

GB-004

A side

GB-004

B side

BATTRY 2

GND 1

CN101

BT101

CN101

BT101

GB-004

A side

— 173 —

SCPH-30002D/30003D/30004D

SW-363

A side

SW-363

B side

SW-363

Reproduction Prohibited

CN751

S751

R751

10k R752

15k

R753

2.4k

D751

CL–165HR/G1–D–T

D752

CL–190UB–X–T

Q751

DTC144EUA–T106

OP/CL_SW

POWER_SW

TRAY_LED_ON

GND

/GREEN_ON

/RED_ON

EVER_+12V

S752

R751

C751

D752 R753

R752

D751

Q751

S752 S751

CN751

— 174 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description

SECTION 7

ELECTRICAL PARTS LIST

for SCPH-30003D'/30004D' GH012 MOUNT

Ref. Part No. Description

NOTE :

•

Due to standardization, replacements in

the parts list may be different from the

parts specified in the diagrams or the

components used on the set.

-XX and -X mean standardized parts, so

they may have some difference from the

original one.

RESISTORS

METAL : Metal-film resistor.

F : nonflammable

Unit is .

•

SEMICONDUCTORS

In each case, u : µ, for example :

uA . .

uPB. .

CAPACITORS

uF : µF

COILS

uH : µH

When indicating parts by reference

number, please include the board.

: µA . .

: µPB. . uPA . . : µPA . .

uPC . . : µPC . . uPD . . : µPD . .

The components identified by

mark ! or dotted line with mark.

! are critical for safety.

Replace only with part number

specified.

Ref. Part No. Description

A-6712-985-A GH-012 MOUNT (32M R)

for SCPH-30003D’& 30004D’ GH-012-32MR

A-6712-986-A GH-012 MOUNT (64M R)

for SCPH-30003D’& 30004D’ GH-012-64MR

**************************************

Dissimilarity Parts

for SCPH-30003D’& 30004D’ GH-012-32MR

*********************************

C505 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C512 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

IC503 6-800-197-01 IC MR27V3202F-A7TPZ

IC504 8-752-408-53 IC CXD2942AR

IC506 6-800-198-01 IC MR27V1602E-74TPZ

R510 1-216-864-91 CONDUCTOR, CHIP (1608)

R511 1-216-864-91 CONDUCTOR, CHIP (1608)

for SCPH-30003D’& 30004D’ GH-012-64MR

*********************************

C526 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C543 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

IC504 8-752-410-55 IC CXD2942BR

IC505 6-800-196-01 IC TC5364200FT-PA06

IC518 8-759-680-49 IC TC7WB125FK(TE85R)

R527 1-216-821-91 RES, CHIP 1.0K (1608)

for IC801 : SP3727ACA0PMR(8-7529-685-15)

*************************************

C632 1-107-826-91 CAP, CHIP CERAMIC 100000PF

C689 1-162-968-91 CAP, CHIP CERAMIC 100000PF

IC606 8-759-712-38 IC HD74HC1G66CME

IC606 8-759-712-63 IC MC74VHC1G66DFT1

IC801 8-7529-685-15 IC SP3727ACA0PMR

R640 1-216-837-91 RES, CHIP 22K (1608)

R643 1-216-850-91 RES, CHIP 270K (1608)

for IC801:SP3727AFA0PMR(6-700-585-01)

********************************

IC801 6-700-585-01 IC SP3727AFA0PMR

R640 1-216-864-91 CONDUCTOR, CHIP(1608)

Common Parts <CAPACITOR>

C101 1-128-964-91 CAP, CHIP TANTALUM ELECT 100MF

C102 1-128-964-91 CAP, CHIP TANTALUM ELECT 100MF

C103 1-128-964-91 CAP, CHIP TANTALUM ELECT 100MF

C104 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C105 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C106 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C107 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C108 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C109 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C110 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C111 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C112 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C113 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C114 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C115 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C116 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C117 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C118 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C119 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C120 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C121 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C122 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C123 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C124 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C125 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C126 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C127 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C128 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C129 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C131 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C132 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C134 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C135 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C136 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C137 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C138 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C139 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C140 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C141 1-135-609-91 CAP, CHIP TANTALUM ELECT 220MF

C142 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C143 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C144 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C145 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C146 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C147 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C148 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C149 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C150 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C151 1-164-160-91 CAP, CERAMIC 20PF CH (1608)

C152 1-164-160-91 CAP, CERAMIC 20PF CH (1608)

C153 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C154 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C155 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C156 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C157 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C158 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C159 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C160 1-162-925-91 CAP, CERAMIC 68PF CH (1608)

C161 1-128-964-91 CAP, CHIP TANTALUM ELECT 100MF

C162 1-162-925-91 CAP, CERAMIC 68PF CH (1608)

C163 1-128-964-91 CAP, CHIP TANTALUM ELECT 100MF

C164 1-128-964-91 CAP, CHIP TANTALUM ELECT 100MF

C168 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C169 1-164-874-81 CAP, CHIP CERAMIC 100PF CH (1005)

C170 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C175 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C176 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C201 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C203 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C204 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C205 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C206 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C208 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C209 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C210 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C211 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C212 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C213 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C214 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C215 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C216 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C217 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C218 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C219 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C220 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C221 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C222 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C223 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C224 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C225 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C226 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C227 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C228 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C229 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C230 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C231 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C232 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C233 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C234 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C235 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C236 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C237 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C238 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C239 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C240 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C241 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C242 1-128-707-22 CAP, TANTALUM ELECT (SMD)220

C243 1-128-707-22 CAP, TANTALUM ELECT (SMD)220

C244 1-135-609-91 CAP, CHIP TANTALUM ELECT 220MF

C245 1-128-707-22 CAP, TANTALUM ELECT (SMD)220

C246 1-135-609-91 CAP, CHIP TANTALUM ELECT 220MF

C247 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C248 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C249 1-115-156-91 CAP, CERAMIC 1000000PF F (1608)

C250 1-127-760-91 CAP, CERAMIC 4.7MF (2012)

C252 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C254 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C255 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C256 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C257 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C261 1-128-004-21 CAP, ELECT (CHIP) 10MF

C262 1-128-004-21 CAP, ELECT (CHIP) 10MF

C263 1-128-004-21 CAP, ELECT (CHIP) 10MF

C265 1-117-720-91 CAP, CERAMIC 4.7MF F (2012)

C266 1-128-004-21 CAP, ELECT (CHIP) 10MF

C267 1-126-210-21 CAP, ELECT 220MF

C268 1-126-210-21 CAP, ELECT 220MF

C269 1-164-160-91 CAP, CERAMIC 20PF CH (1608)

C270 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C271 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C272 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C275 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C276 1-162-965-91 CAP, CERAMIC 1500PF B (1608)

C277 1-162-965-91 CAP, CERAMIC 1500PF B (1608)

C278 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C279 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C282 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C285 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C286 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C287 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C288 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C289 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C290 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C291 1-164-866-81 CAP, CHIP CERAMIC 47PF CH (1005)

C292 1-107-725-91 CAP, CERAMIC 100000PF B (2012)

C293 1-137-765-21 CAP, ELECT 47MF

C296 1-126-210-21 CAP, ELECT 220MF

C297 1-126-210-21 CAP, ELECT 220MF

C298 1-126-210-21 CAP, ELECT 220MF

C301 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C302 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C303 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C304 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C305 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C306 1-164-387-91 CAP, CERAMIC 240PF CH (1608)

C307 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C308 1-165-112-91 CAP, CERAMIC 330000PF F (1608)

C309 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C310 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C311 1-162-916-91 CAP, CERAMIC 12PF CH (1608)

C312 1-162-917-91 CAP, CERAMIC 15PF CH (1608)

C313 1-162-910-91 CAP, CERAMIC 5.0PF CH (1608)

C314 1-162-910-91 CAP, CERAMIC 5.0PF CH (1608)

C315 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C316 1-165-112-91 CAP, CERAMIC 330000PF F (1608)

C317 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C318 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C319 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C320 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C321 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C322 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C323 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C324 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C325 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C326 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C327 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C328 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C329 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C330 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C331 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C332 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C333 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C334 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C335 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C336 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C337 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C338 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C339 1-125-764-61 CAP, CHIP CERAMIC 100PF CH

— 175 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description

C340 1-125-764-61 CAP, CHIP CERAMIC 100PF CH

C341 1-125-764-61 CAP, CHIP CERAMIC 100PF CH

C342 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C343 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C344 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C345 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C355 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C356 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C363 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C364 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C365 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C366 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C367 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C368 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C369 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C370 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C371 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C372 1-165-492-21 CAP, ELECT 100MF

C373 1-165-492-21 CAP, ELECT 100MF

C401 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C402 1-164-505-91 CAP, CHIP CERAMIC 2.2MF F (2012)

C403 1-164-937-81 CAP, CHIPCERAMIC 1000PF B (1005)

C404 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C405 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C406 1-135-593-21 CAP, ELECT 150MF

C407 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C408 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C409 1-162-969-91 CAP, CERAMIC 6800PF B (1608)

C411 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C414 1-162-965-91 CAP, CERAMIC 1500PF B (1608)

C415 1-165-176-91 CAP, CERAMIC 47000PF B (1608)

C416 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C417 1-164-379-91 CAP, CERAMIC 43PF CH (1608)

C418 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C419 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C420 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C421 1-127-820-91 CAP, SQUARE TYPE CHIP 4.7MF

C422 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C423 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C424 1-127-820-91 CAP, SQUARE TYPE CHIP 4.7MF

C425 1-124-779-21 CAP, ELECT 10MF

C426 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C427 1-117-681-21 CAP, ELECT 100MF

C430 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C431 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C432 1-115-339-91 CAP, CERAMIC 0.1MF B (2012)

C433 1-115-339-91 CAP, CERAMIC 0.1MF B (2012)

C434 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C435 1-115-566-91 CAP, CERAMIC 4.7MF B

C436 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C437 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C438 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C439 1-135-593-21 CAP, ELECT 150MF

C440 1-135-592-21 CAP, ELECT 100MF

C441 1-135-593-21 CAP, ELECT 150MF

C443 1-135-592-21 CAP, ELECT 100MF

C444 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C445 1-117-720-91 CAP, CERAMIC 4.7MF F (2012)

C446 1-135-592-21 CAP, ELECT 100MF

C447 1-107-682-91 CAP, CERAMIC 1000000PF B (3216)

C448 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C449 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C450 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C452 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C453 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C455 1-127-820-91 CAP, SQUARE TYPE CHIP 4.7MF

C456 1-127-760-91 CAP, CERAMIC 4.7MF (2012)

C457 1-127-760-91 CAP, CERAMIC 4.7MF (2012)

C458 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C460 1-164-174-91 CAP, CERAMIC 8200PF B (1608)

C461 1-164-174-91 CAP, CERAMIC 8200PF B (1608)

C462 1-163-009-91 CAP, CHIP CERAMIC 1000PF B (2012)

C465 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C466 1-125-777-81 CAP, CHIP CERAMIC 0.1MF B (1005)

C467 1-126-209-21 CAP, ELECT 100MF

C468 1-126-209-21 CAP, ELECT 100MF

C469 1-162-977-91 CAP, CERAMIC 1800PF B (1608)

C470 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C471 1-164-379-91 CAP, CERAMIC 43PF CH (1608)

C472 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C473 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C474 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C475 1-164-730-91 CAP, CERAMIC 1200PF B (1608)

C476 1-115-339-91 CAP, CERAMIC 0.1MF B (2012)

C477 1-127-760-91 CAP, CERAMIC 4.7MF (2012)

C479 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C480 1-115-339-91 CAP, CERAMIC 0.1MF B (2012)

C482 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C483 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C485 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C486 1-137-765-21 CAP, ELECT 47MF

C487 1-131-999-21 CAP, SOLID ELECT 150MF

C488 1-115-566-91 CAP, CERAMIC 4.7MF B

C489 1-131-999-21 CAP, SOLID ELECT 150MF

C490 1-126-209-21 CAP, ELECT 100MF

C492 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C493 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C494 1-107-725-91 CAP, CERAMIC 100000PF B (2012)

C495 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C496 1-107-682-91 CAP, CERAMIC 1000000PF B (3216)

C498 1-127-760-91 CAP, CERAMIC 4.7MF (2012)

C499 1-164-505-91 CAP, CHIP CERAMIC 2.2MF F (2012)

C501 1-164-346-91 CAP, CHIP CERAMIC 1MF F (2012)

C502 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C503 1-163-009-91 CAP, CHIP CERAMIC 1000PF B (2012)

C504 1-164-346-91 CAP, CHIP CERAMIC 1MF F (2012)

C507 1-163-009-91 CAP, CHIP CERAMIC 1000PF B (2012)

C508 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C509 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C510 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C513 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C514 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C516 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C517 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C518 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C521 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C522 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C523 1-107-726-91 CAP, CHIP CERAMIC 10000PF B (1608)

C524 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C525 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C527 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C528 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C529 1-128-008-21 CAP, ELECT (CHIP) 3.3MF

C530 1-128-008-21 CAP, ELECT (CHIP) 3.3MF

C533 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C534 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C535 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C536 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C537 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C538 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C539 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C540 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C541 1-113-619-91 CAP, CERAMIC 470000PF F (1608)

C542 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C544 1-137-765-21 CAP, ELECT 47MF

C545 1-137-765-21 CAP, ELECT 47MF

C601 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C603 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C605 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C606 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C607 1-162-968-91 CAP, CHIP CERAMIC 4700PF B (1608)

C609 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C623 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C624 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C625 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C629 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C630 1-164-173-91 CAP, CERAMIC 3900PF B (1608)

C631 1-162-968-91 CAP, CHIP CERAMIC 4700PF B (1608)

C633 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C634 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C635 1-162-968-91 CAP, CHIP CERAMIC 4700PF B (1608)

C636 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C637 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C638 1-107-726-91 CAP, CHIP CERAMIC 10000PF B (1608)

C639 1-164-217-91 CAP, CERAMIC 150PF CH (1608)

C640 1-135-259-91 CAP, CHIP TANTALUM ELECT 10MF

C642 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C643 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C644 1-164-230-91 CAP, CERAMIC 220PF CH (1608)

C645 1-165-176-91 CAP, CERAMIC 47000PF B (1608)

C646 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C647 1-117-863-91 CAP, CHIP CERAMIC0.47MF B (1608)

C648 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C649 1-107-726-91 CAP, CHIP CERAMIC 10000PF B (1608)

C650 1-164-230-91 CAP, CERAMIC 220PF CH (1608)

C651 1-162-966-91 CAP, CERAMIC 2200PF B (1608)

C652 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C653 1-162-966-91 CAP, CERAMIC 2200PF B (1608)

C654 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C655 1-135-259-91 CAP, CHIP TANTALUM ELECT 10MF

C656 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C657 1-164-230-91 CAP, CERAMIC 220PF CH (1608)

C658 1-164-230-91 CAP, CERAMIC 220PF CH (1608)

C660 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C661 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C662 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C664 1-135-259-91 CAP, CHIP TANTALUM ELECT 10MF

C665 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C666 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C667 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C668 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C671 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C672 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C673 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C674 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C675 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C676 1-164-360-91 CAP, CERAMIC 0.1MF F (1608)

C685 1-117-863-91 CAP, CHIP CERAMIC0.47MF B (1608)

C688 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C693 1-162-912-91 CAP, CERAMIC 7.0PF CH (1608)

C701 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C702 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C703 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C704 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C705 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C706 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C707 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C708 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C709 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C710 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C712 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C714 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C715 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C716 1-131-999-21 CAP, SOLID ELECT 150MF

C717 1-135-346-21 CAP, SOLID ELECT 39MF

C718 1-135-346-21 CAP, SOLID ELECT 39MF

C722 1-164-937-81 CAP, CHIPCERAMIC 1000PF B (1005)

C723 1-137-766-21 CAP, ELECT 68MF

C724 1-137-765-21 CAP, ELECT 47MF

C725 1-124-779-21 CAP, ELECT 10MF

C726 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C727 1-164-937-81 CAP, CHIPCERAMIC 1000PF B (1005)

C730 1-127-820-91 CAP, SQUARE TYPE CHIP 4.7MF

C791 1-164-245-91 CAP, CERAMIC 15000PF B (1608)

C792 1-104-851-91 CAP, CHIP TANTALUM ELECT 10MF

C793 1-164-505-91 CAP, CHIP CERAMIC 2.2MF F (2012)

C794 1-163-009-91 CAP, CHIP CERAMIC 1000PF B (2012)

C795 1-163-009-91 CAP, CHIP CERAMIC 1000PF B (2012)

C797 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C798 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C801 1-115-467-91 CAP, CHIP CERAMIC0.22MF B (1608)

C802 1-115-467-91 CAP, CHIP CERAMIC0.22MF B (1608)

C803 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C804 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C805 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C806 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C807 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C808 1-162-927-91 CAP, CERAMIC 100PF CH (1608)

C809 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C810 1-104-851-91 CAP, CHIP TANTALUM ELECT 10MF

C811 1-135-900-21 CAP, TANTALUM ELECT 22MF

C812 1-164-730-91 CAP, CERAMIC 1200PF B (1608)

C819 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C821 1-104-851-91 CAP, CHIP TANTALUM ELECT 10MF

C824 1-135-900-21 CAP, TANTALUM ELECT 22MF

C825 1-164-730-91 CAP, CERAMIC 1200PF B (1608)

C826 1-164-677-91 CAP, CERAMIC 33000PF B (1608)

C827 1-162-966-91 CAP, CERAMIC 2200PF B (1608)

C828 1-162-966-91 CAP, CERAMIC 2200PF B (1608)

C829 1-162-966-91 CAP, CERAMIC 2200PF B (1608)

C830 1-162-966-91 CAP, CERAMIC 2200PF B (1608)

C831 1-162-975-91 CAP, CERAMIC 24PF CH (1608)

C832 1-115-467-91 CAP, CHIP CERAMIC0.22MF B (1608)

C834 1-163-038-91 CAP, CERAMIC 100000PF F (2012)

C835 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C836 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C837 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C839 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C840 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C841 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C842 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C843 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C844 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C845 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C846 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C848 1-107-823-91 CAP, CERAMIC 470000PF B (2012)

C850 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C851 1-162-970-91 CAP, CERAMIC 10000PF B (1608)

C853 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C854 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C855 1-115-467-91 CAP, CHIP CERAMIC0.22MF B (1608)

C857 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C859 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C860 1-164-173-91 CAP, CERAMIC 3900PF B (1608)

— 176 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description

C862 1-164-739-91 CAP, CERAMIC 560PF CH (1608)

C863 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C866 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C868 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C869 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C870 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C871 1-164-677-91 CAP, CERAMIC 33000PF B (1608)

C872 1-115-467-91 CAP, CHIP CERAMIC0.22MF B (1608)

C873 1-164-392-91 CAP, CERAMIC 390PF CH (1608)

C874 1-164-677-91 CAP, CERAMIC 33000PF B (1608)

C875 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C876 1-125-838-91 CAP, CHIP CERAMIC2.2MF B (2012)

C877 1-164-173-91 CAP, CERAMIC 3900PF B (1608)

C879 1-164-739-91 CAP, CERAMIC 560PF CH (1608)

C880 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C882 1-127-692-91 CAP, CHIP CERAMIC 10MF B (3225)

C883 1-163-038-91 CAP, CERAMIC 100000PF F (2012)

C888 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C889 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C890 1-104-851-91 CAP, CHIP TANTALUM ELECT 10MF

C891 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C895 1-162-964-91 CAP, CHIP CERAMIC 1000PF B (1608)

C897 1-164-677-91 CAP, CERAMIC 33000PF B (1608)

C898 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C899 1-164-156-91 CAP, CHIP CERAMIC 0.1MF F (1608)

C901 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C902 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C903 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C904 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C905 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C906 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C907 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C908 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C909 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C910 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C911 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C912 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C913 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C914 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C915 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C916 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C917 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C918 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C919 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C920 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C921 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C922 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C923 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C924 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C925 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C926 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C927 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C928 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C929 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C930 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C931 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C932 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C933 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C934 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C935 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C936 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C937 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C938 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C939 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C940 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C941 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C942 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C943 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C944 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C945 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C946 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C947 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C948 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C949 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C950 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C951 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C952 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C953 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C954 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C955 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C956 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C957 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C958 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C959 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C960 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C961 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C962 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C963 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C965 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C966 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C967 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C968 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C980 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C981 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C982 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C983 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C984 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C985 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C986 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C987 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C988 1-125-837-91 CAP, CHIP CERAMIC 1MF B (1608)

C989 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

C990 1-107-826-91 CAP, CHIP CERAMIC 100000PF B

CN201 1-815-631-11 CONNECTOR, SQUARE TYPE 12P

CN302 1-794-206-21 CONNECTOR, FFC/FPC (ZIF) 36P

CN303 1-694-822-11 TERMINAL BOARD (ILINK/USB)

CN401 1-815-630-11 PIN, CONNECTOR 4P

CN402 1-815-648-21 PIN, CONNECTOR (PC BOARD) 2P

CN403 1-784-650-21 CONNECTOR 2P

CN406 1-815-653-21 CONNECTOR, FFC/FPC (ZIF) 7P

CN501 1-476-736-11 TRANSMITTER UNIT, LIGHT

CN504 1-815-632-11 CONNECTOR BOARD TO BOARD 110P

CN801 1-794-237-21 CONNECTOR, FFC/FPC 30P

CN802 1-770-619-41 PIN, CONNECTOR 2P

CN803 1-779-206-21 CONNECTOR, FFC(LIF(NON-ZIF)4P

CN804 1-794-194-21 CONNECTOR, FFC/FPC 13P

CN805 1-770-619-21 PIN, CONNECTOR 2P

CN806 1-770-619-81 PIN, CONNECTOR 2P

CP201 1-234-605-21 NETWORK, RC

<DIODE>

D201 8-719-065-78 DIODE MAZF12000LS0

D202 8-719-064-61 DIODE 01BZA8.2(TE85L)

D203 8-719-064-61 DIODE 01BZA8.2(TE85L)

D204 8-719-064-61 DIODE 01BZA8.2(TE85L)

D205 8-719-064-61 DIODE 01BZA8.2(TE85L)

D206 8-719-064-61 DIODE 01BZA8.2(TE85L)

D208 8-719-064-61 DIODE 01BZA8.2(TE85L)

D209 8-719-064-61 DIODE 01BZA8.2(TE85L)

D210 8-719-064-61 DIODE 01BZA8.2(TE85L)

D301 8-719-071-87 DIODE MA785-(TX),SO

D402 8-719-074-34 DIODE RB495D-T146

D403 8-719-074-34 DIODE RB495D-T146

D404 8-719-033-15 DIODE HN2D02FU-TE85R

D405 8-719-078-04 DIODE EC31QS03L-TE12L

D407 8-719-074-34 DIODE RB495D-T146

D408 8-719-074-34 DIODE RB495D-T146

D500 8-719-941-21 DIODE DAP202UT106

D501 8-719-082-76 DIODE CL-201TLY-C-TU

D801 8-719-065-68 DIODE MAZF04700LS0

D802 8-719-065-68 DIODE MAZF04700LS0

<FUSE>

F001 1-576-434-21 FUSE, CHIP

F003 1-576-434-21 FUSE, CHIP

FB102 1-469-667-21 FERRITE, EMI (SMD)

FB103 1-469-667-21 FERRITE, EMI (SMD)

FB201 1-414-813-21 FERRITE, EMI (SMD)

FB202 1-500-113-22 BEAD, FERRITE (CHIP)

FB203 1-500-113-22 BEAD, FERRITE (CHIP)

FB204 1-500-113-22 BEAD, FERRITE (CHIP)

FB205 1-500-113-22 BEAD, FERRITE (CHIP)

FB206 1-500-113-22 BEAD, FERRITE (CHIP)

FB207 1-469-667-21 FERRITE, EMI (SMD)

FB208 1-469-667-21 FERRITE, EMI (SMD)

FB303 1-414-555-21 FERRITE, EMI (SMD)

FB304 1-414-555-21 FERRITE, EMI (SMD)

FB305 1-414-555-21 FERRITE, EMI (SMD)

FB306 1-414-555-21 FERRITE, EMI (SMD)

FB307 1-414-555-21 FERRITE, EMI (SMD)

FB308 1-414-555-21 FERRITE, EMI (SMD)

FB309 1-414-555-21 FERRITE, EMI (SMD)

FB310 1-414-555-21 FERRITE, EMI (SMD)

FB311 1-414-555-21 FERRITE, EMI (SMD)

FB312 1-414-555-21 FERRITE, EMI (SMD)

FB313 1-469-324-21 FERRITE, EMI (SMD)

FB314 1-469-324-21 FERRITE, EMI (SMD)

FB315 1-469-324-21 FERRITE, EMI (SMD)

FB316 1-469-324-21 FERRITE, EMI (SMD)

FB317 1-469-110-21 FERRITE, EMI (SMD)

FB318 1-469-110-21 FERRITE, EMI (SMD)

FB319 1-469-110-21 FERRITE, EMI (SMD)

FB320 1-469-110-21 FERRITE, EMI (SMD)

FB321 1-469-110-21 FERRITE, EMI (SMD)

FB322 1-469-110-21 FERRITE, EMI (SMD)

FB323 1-469-110-21 FERRITE, EMI (SMD)

FB324 1-469-110-21 FERRITE, EMI (SMD)

FB403 1-469-667-21 FERRITE, EMI (SMD)

FB404 1-469-667-21 FERRITE, EMI (SMD)

FB405 1-469-667-21 FERRITE, EMI (SMD)

FB406 1-469-667-21 FERRITE, EMI (SMD)

FB407 1-469-667-21 FERRITE, EMI (SMD)

FB408 1-469-667-21 FERRITE, EMI (SMD)

FB409 1-469-667-21 FERRITE, EMI (SMD)

FB801 1-469-562-21 FERRITE, EMI (SMD)

FB802 1-469-562-21 FERRITE, EMI (SMD)

FL201 1-469-991-21 EMI FILTER (SMD)

FL202 1-469-991-21 EMI FILTER (SMD)

FL203 1-469-991-21 EMI FILTER (SMD)

FL301 1-234-601-21 NETWORK, RC (USB) (3216)

FL302 1-234-601-21 NETWORK, RC (USB) (3216)

<IC>

IC101 8-759-831-20 IC CY2212ZC-2T

IC102 8-759-837-33 IC K4R271669A-SCK8T00

IC103 8-759-837-33 IC K4R271669A-SCK8T00

IC104 8-759-699-09 IC CXD9615GB

IC105 8-759-689-90 IC LM74CIMX-3

IC201 8-759-831-20 IC CY2212ZC-2T

for CEX-DA10002B/C model only

IC202 8-752-404-01 IC CXD2934GB-T7

for CEX-DA10002B/C model only

IC205 6-700-230-01 IC SC44728BPBEB

IC206 8-752-093-56 IC CXA3525R-T4

IC206 8-752-099-53 IC CXA3525BR-T4

IC207 8-759-391-69 IC MC78M05CDTRK

IC207 8-759-691-00 IC JCP78M05CDTRK

IC207 8-759-697-61 IC L78M05CDT-TR(P)

IC209 8-759-697-60 IC MM3071CFBE

IC303 8-759-699-11 IC CXD9619GB

IC305 6-700-549-01 IC K4Q153212MJC60T

IC305 6-700-119-01 IC T5NB8(YEL)

IC306 8-759-688-07 IC MM3051NULE

IC306 8-759-697-24 IC S-817A12ANB-CUB-T2

IC401 8-759-661-25 IC S-80769SN-J0-T1

IC402 8-759-837-34 IC TMP87C807U-2A69(EL)

IC403 6-700-234-01 IC BD3992F-E2

IC404 8-759-689-89 IC SN104809DBTR

IC405 8-759-560-17 IC RS5C348A-E2

IC406 8-759-698-67 IC BR2880F-E2

IC407 8-759-712-66 IC PQ018PZ01ZP

IC408 8-759-712-65 IC PQ070XZ01ZP

IC409 8-759-689-89 IC SN104809DBTR

IC410 8-749-018-42 IC SI-3026LSA-TL

IC411 8-759-688-06 IC MM3031JULE

IC413 6-700-233-01 IC MM1573ZNLE

IC413 8-759-598-12 IC LP2985IM5X-3.5

IC414 8-759-069-41 IC TA7808F(TE16L)

IC414 8-759-473-16 IC BA17808FP-E2

IC414 8-759-697-62 IC NJM7808DL1A(TE1)

IC415 8-759-581-11 IC NJM2125F(TE2)

IC501 6-700-231-01 IC CXD9611AR

IC501 8-759-699-10 IC CXD9611R

IC502 8-759-712-79 IC K4E151612D-TL50T00

IC502 8-759-712-80 IC MT4LC1M16E5TG-5TR

IC502 8-759-712-81 IC GM71V18163CT-5

IC502 8-759-712-82 IC SDMV18165CTM6S

IC504 8-752-408-53 IC CXD2942AR

IC517 8-759-667-10 IC CS4335-KS

IC603 8-759-370-11 IC NJM2100V-TE2

IC604 8-752-921-99 IC CXP102064-202R-T6

IC604 8-752-924-75 IC CXP102064-203R-T6

IC605 8-752-414-53 IC CXD1869AQ-2

IC605 8-752-413-11 IC CXD1869BQ

IC802 8-759-697-65 IC BA5815FM-E2

IC803 8-759-588-60 IC BA6664FM-E2

IC805 8-759-712-38 IC HD74HC1G66CME

IC805 8-759-712-63 IC MC74VHC1G66DFT1

IC806 8-759-337-40 IC NJM2904V(TE2)

IC807 8-759-391-69 IC MC78M05CDTRK

IC807 8-759-691-00 IC JCP78M05CDTRK

IC807 8-759-697-61 IC L78M05CDT-TR(P)

— 177 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description

L102 1-469-967-21 INDUCTOR, CHIP 10UH (2518)

L202 1-469-967-21 INDUCTOR, CHIP 10UH (2518)

L203 1-469-967-21 INDUCTOR, CHIP 10UH (2518)

L206 1-412-956-21 INDUCTOR, SMALL TYPE 27UH (2518)

L401 1-411-197-21 COIL, DD CONVERTER

L404 1-424-854-21 COIL (SMD), CHOKE 2.0UH

L408 1-419-898-21 COIL, CHOKE 5.6UH

L410 1-411-197-21 COIL, DD CONVERTER

L412 1-411-197-21 COIL, DD CONVERTER

L801 1-469-524-91 INDUCTOR 4.7UH (NLFV25)

L802 1-469-524-91 INDUCTOR 4.7UH (NLFV25)

L803 1-414-394-41 INDUCTOR (SMD) 2.2UH

<COIL>

LF101 1-419-100-21 COIL, COMMON-MODE CHOKE

LF801 1-416-405-21 FILTER, CHIP EMI (COMMON MODE)

<LINK>

PS001 1-576-519-21 FUSE, MICRO (1608) TYPE)

PS002 1-533-940-21 RINK, CHIP IC

PS003 1-533-940-21 RINK, CHIP IC

PS004 1-533-940-21 RINK, CHIP IC

PS006 1-533-915-41 RINK, CHIP IC

PS007 1-533-282-21 LINK, IC

PS008 1-533-940-21 RINK, CHIP IC

PS009 1-533-915-41 RINK, CHIP IC

PS010 1-533-282-21 LINK, IC

PS011 1-576-519-21 FUSE, MICRO (1608) TYPE)

PS012 1-533-915-41 RINK, CHIP IC

PS013 1-533-940-21 RINK, CHIP IC

PS014 1-533-282-21 LINK, IC

PS015 1-533-915-41 RINK, CHIP IC

Q201 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR

Q204 8-729-049-77 TRANSISTOR HN1B01F-GR(T5LSONY)

Q205 8-729-013-22 TRANSISTOR HN1A01FU-TE85R

Q206 8-729-037-63 TRANSISTOR UN9115J-(TX).SO

for SCPH-30003D'/-30004D'

Q401 8-729-055-58 TRANSISTOR SI4894DY-T1

Q402 8-729-053-80 TRANSISTOR SI4830DY-T1

Q404 8-729-052-07 TRANSISTOR HAT2064R-EL

Q405 8-729-427-47 TRANSISTOR XP4213-TXE

Q406 8-729-053-80 TRANSISTOR SI4830DY-T1

Q407 8-729-046-04 TRANSISTOR FDS6690A

Q408 8-729-051-61 TRANSISTOR IRF7807D1-TR

Q409 8-729-013-97 TRANSISTOR RN1304-TE85L

Q410 8-729-013-97 TRANSISTOR RN1304-TE85L

Q411 8-729-043-74 TRANSISTOR SI4435DY-T1-REVA

Q412 8-729-043-74 TRANSISTOR SI4435DY-T1-REVA

Q413 8-729-054-34 TRANSISTOR FDN304P

Q414 8-729-043-74 TRANSISTOR SI4435DY-T1-REVA

Q415 8-729-052-41 TRANSISTOR 2SC4541 (2TL SONY1)

Q505 8-729-021-09 TRANSISTOR RN4904(TE85R)

Q506 8-729-056-15 TRANSISTOR IMH20T108

Q600 8-729-016-26 TRANSISTOR 2SK1958-T1

Q603 8-729-017-33 TRANSISTOR RN1706-TE85R

Q801 8-729-031-35 TRANSISTOR 2SK2034-TE85L

Q802 8-729-029-13 TRANSISTOR DTC143ZUA-T106

Q803 8-729-031-35 TRANSISTOR 2SK2034-TE85L

Q804 8-729-103-96 TRANSISTOR 2SB798-T1DL

Q805 8-729-103-96 TRANSISTOR 2SB798-T1DL

Q806 8-729-048-50 TRANSISTOR 2SK3018-T106

Q808 8-729-048-50 TRANSISTOR 2SK3018-T106

Q810 8-729-048-50 TRANSISTOR 2SK3018-T106

Q814 8-729-029-13 TRANSISTOR DTC143ZUA-T106

R101 1-220-884-81 RES, CHIP 39 (1005)

R102 1-208-866-81 RES, CHIP 130 (1005)

R103 1-220-884-81 RES, CHIP 39 (1005)

R104 1-208-866-81 RES, CHIP 130 (1005)

R105 1-216-864-91 CONDUCTOR, CHIP (1608)

R106 1-216-809-91 RES, CHIP 100 (1608)

R107 1-216-809-91 RES, CHIP 100 (1608)

R109 1-218-961-81 RES, CHIP 4.7K

R110 1-211-983-91 RES, CHIP 39 (1608)

R111 1-211-983-91 RES, CHIP 39 (1608)

R112 1-211-989-91 RES, CHIP 68 (1608)

R113 1-211-989-91 RES, CHIP 68 (1608)

R114 1-211-983-91 RES, CHIP 39 (1608)

R115 1-211-983-91 RES, CHIP 39 (1608)

R116 1-211-983-91 RES, CHIP 39 (1608)

R117 1-211-983-91 RES, CHIP 39 (1608)

R118 1-211-973-91 RES, CHIP 15 (1608)

R119 1-211-973-91 RES, CHIP 15 (1608)

R120 1-211-973-91 RES, CHIP 15 (1608)

R121 1-211-973-91 RES, CHIP 15 (1608)

R122 1-216-864-91 CONDUCTOR, CHIP (1608)

R123 1-218-990-81 CONDUCTOR, CHIP (1005)

R124 1-216-864-91 CONDUCTOR, CHIP (1608)

R125 1-218-990-81 CONDUCTOR, CHIP (1005)

R126 1-216-833-91 RES, CHIP 10K (1608)

R127 1-216-829-91 RES, CHIP 4.7K (1608)

R128 1-216-829-91 RES, CHIP 4.7K (1608)

R129 1-216-821-91 RES, CHIP 1.0K (1608)

R130 1-216-817-91 RES, CHIP 470 (1608)

R131 1-216-833-91 RES, CHIP 10K (1608)

R132 1-216-833-91 RES, CHIP 10K (1608)

R133 1-216-833-91 RES, CHIP 10K (1608)

R134 1-218-965-81 RES, CHIP 10K

R138 1-216-864-91 CONDUCTOR, CHIP (1608)

R139 1-216-801-91 RES, CHIP 22 (1608)

R145 1-218-953-81 RES, CHIP 1.0K

R146 1-216-821-91 RES, CHIP 1.0K (1608)

R147 1-216-821-91 RES, CHIP 1.0K (1608)

R185 1-216-829-91 RES, CHIP 4.7K (1608)

R188 1-216-829-91 RES, CHIP 4.7K (1608)

R196 1-218-933-81 RES, CHIP 22

R201 1-216-864-91 CONDUCTOR, CHIP (1608)

R202 1-216-833-91 RES, CHIP 10K (1608)

R206 1-211-989-91 RES, CHIP 68 (1608)

R208 1-211-992-91 RES, CHIP 91 (1608)

R209 1-218-828-91 RES, CHIP 160 (1608)

R217 1-218-859-91 RES, CHIP 3.3K (1608)

R218 1-218-847-91 RES, CHIP 1.0K (1608)

R219 1-218-851-91 RES, CHIP 1.5K (1608)

R225 1-216-829-91 RES, CHIP 4.7K (1608)

R226 1-218-965-81 RES, CHIP 10K

R228 1-218-965-81 RES, CHIP 10K

R233 1-216-821-91 RES, CHIP 1.0K (1608)

R236 1-216-809-91 RES, CHIP 100 (1608)

R237 1-216-829-91 RES, CHIP 4.7K (1608)

R244 1-218-831-91 RES, CHIP 220 (1608)

R245 1-218-831-91 RES, CHIP 220 (1608)

R246 1-218-831-91 RES, CHIP 220 (1608)

R247 1-216-801-91 RES, CHIP 22 (1608)

R251 1-216-837-91 RES, CHIP 22K (1608)

R252 1-216-839-91 RES, CHIP 33K (1608)

R253 1-216-833-91 RES, CHIP 10K (1608)

R257 1-216-824-91 RES, CHIP 1.8K (1608)

R258 1-208-923-81 RES, CHIP 33K (1005)

R259 1-216-824-91 RES, CHIP 1.8K (1608)

R261 1-218-961-81 RES, CHIP 4.7K

R263 1-216-825-91 RES, CHIP 2.2K (1608)

R264 1-216-821-91 RES, CHIP 1.0K (1608)

R265 1-216-821-91 RES, CHIP 1.0K (1608)

R270 1-218-853-91 RES, CHIP 1.8K (1608)

R272 1-218-859-91 RES, CHIP 3.3K (1608)

R273 1-218-851-91 RES, CHIP 1.5K (1608)

R277 1-218-853-91 RES, CHIP 1.8K (1608)

R278 1-218-859-91 RES, CHIP 3.3K (1608)

R279 1-218-851-91 RES, CHIP 1.5K (1608)

R292 1-216-833-91 RES, CHIP 10K (1608)

R294 1-216-829-91 RES, CHIP 4.7K (1608)

R295 1-216-833-91 RES, CHIP 10K (1608)

R307 1-208-857-81 RES, CHIP 56 (1005)

R308 1-208-904-81 RES, CHIP 5.1K (1005)

R309 1-211-987-91 RES, CHIP 56 (1608)

R310 1-211-987-91 RES, CHIP 56 (1608)

R311 1-216-829-91 RES, CHIP 4.7K (1608)

R312 1-208-857-81 RES, CHIP 56 (1005)

R315 1-218-866-91 RES, CHIP 6.2K (1608)

R316 1-216-797-91 RES, CHIP 10 (1608)

R318 1-218-990-81 CONDUCTOR, CHIP (1005)

R320 1-219-570-91 RES, CHIP 10M (1608)

R321 1-216-813-91 RES, CHIP 220 (1608)

R322 1-216-857-91 RES, CHIP 1.0M (1608)

R324 1-216-833-91 RES, CHIP 10K (1608)

R327 1-216-833-91 RES, CHIP 10K (1608)

R328 1-216-841-91 RES, CHIP 47K (1608)

R329 1-216-805-91 RES, CHIP 47 (1608)

R330 1-211-973-91 RES, CHIP 15 (1608)

R331 1-216-805-91 RES, CHIP 47 (1608)

R332 1-216-817-91 RES, CHIP 470 (1608)

R333 1-216-817-91 RES, CHIP 470 (1608)

R334 1-216-829-91 RES, CHIP 4.7K (1608)

R335 1-216-829-91 RES, CHIP 4.7K (1608)

R336 1-216-821-91 RES, CHIP 1.0K (1608)

R347 1-211-986-91 RES, CHIP 51 (1608)

R349 1-216-821-91 RES, CHIP 1.0K (1608)

R350 1-216-807-91 RES, CHIP 68 (1608)

R351 1-216-805-91 RES, CHIP 47 (1608)

R352 1-216-797-91 RES, CHIP 10 (1608)

R353 1-216-801-91 RES, CHIP 22 (1608)

R354 1-216-801-91 RES, CHIP 22 (1608)

R357 1-218-933-81 RES, CHIP 22

R358 1-216-801-91 RES, CHIP 22 (1608)

R359 1-216-801-91 RES, CHIP 22 (1608)

R360 1-218-937-81 RES, CHIP 47

R361 1-218-937-81 RES, CHIP 47

R362 1-216-805-91 RES, CHIP 47 (1608)

R363 1-216-864-91 CONDUCTOR, CHIP (1608)

R364 1-216-805-91 RES, CHIP 47 (1608)

R365 1-216-805-91 RES, CHIP 47 (1608)

R366 1-218-937-81 RES, CHIP 47

R367 1-216-805-91 RES, CHIP 47 (1608)

R368 1-216-805-91 RES, CHIP 47 (1608)

R394 1-216-833-91 RES, CHIP 10K (1608)

R395 1-218-957-81 RES, CHIP 2.2K

R401 1-218-969-81 RES, CHIP 22K

R402 1-216-837-91 RES, CHIP 22K (1608)

R403 1-216-849-91 RES, CHIP 220K (1608)

R404 1-216-845-91 RES, CHIP 100K (1608)

R405 1-216-845-91 RES, CHIP 100K (1608)

R406 1-216-811-91 RES, CHIP 150 (1608)

R408 1-216-822-91 RES, CHIP 1.2K (1608)

R409 1-216-864-91 CONDUCTOR, CHIP (1608)

R410 1-218-883-91 RES, CHIP 33K (1608)

R411 1-218-883-91 RES, CHIP 33K (1608)

R412 1-218-883-91 RES, CHIP 33K (1608)

R413 1-218-891-91 RES, CHIP 68K (1608)

R414 1-218-859-91 RES, CHIP 3.3K (1608)

R415 1-216-839-91 RES, CHIP 33K (1608)

R416 1-216-839-91 RES, CHIP 33K (1608)

R417 1-216-813-91 RES, CHIP 220 (1608)

R418 1-216-837-91 RES, CHIP 22K (1608)

R419 1-216-833-91 RES, CHIP 10K (1608)

R420 1-216-833-91 RES, CHIP 10K (1608)

R421 1-216-790-91 RES, CHIP 2.7 (1608)

R422 1-216-797-91 RES, CHIP 10 (1608)

R423 1-216-790-91 RES, CHIP 2.7 (1608)

R424 1-216-797-91 RES, CHIP 10 (1608)

R426 1-218-874-91 RES, CHIP 13K (1608)

R427 1-218-871-91 RES, CHIP 10K (1608)

R428 1-216-309-91 RES, CHIP 5.6 (2012)

R429 1-216-833-91 RES, CHIP 10K (1608)

R430 1-216-813-91 RES, CHIP 220 (1608)

R431 1-216-813-91 RES, CHIP 220 (1608)

R432 1-216-829-91 RES, CHIP 4.7K (1608)

R433 1-216-829-91 RES, CHIP 4.7K (1608)

R434 1-216-810-91 RES, CHIP 120 (1608)

R435 1-216-810-91 RES, CHIP 120 (1608)

R438 1-218-850-91 RES, CHIP 1.3K (1608)

R439 1-218-857-91 RES, CHIP 2.7K (1608)

R440 1-218-859-91 RES, CHIP 3.3K (1608)

R441 1-218-879-91 RES, CHIP 22K (1608)

R442 1-218-869-91 RES, CHIP 8.2K (1608)

R443 1-218-865-91 RES, CHIP 5.6K (1608)

R444 1-218-881-91 RES, CHIP 27K (1608)

R445 1-218-849-91 RES, CHIP 1.2K (1608)

R446 1-216-817-91 RES, CHIP 470 (1608)

R447 1-216-817-91 RES, CHIP 470 (1608)

R448 1-218-965-81 RES, CHIP 10K

R449 1-216-850-91 RES, CHIP 270K (1608)

R451 1-218-949-81 RES, CHIP 470

R452 1-216-797-91 RES, CHIP 10 (1608)

R453 1-216-797-91 RES, CHIP 10 (1608)

R454 1-216-797-91 RES, CHIP 10 (1608)

R455 1-216-845-91 RES, CHIP 100K (1608)

R456 1-216-821-91 RES, CHIP 1.0K (1608)

R457 1-218-887-91 RES, CHIP 47K (1608)

R458 1-216-797-91 RES, CHIP 10 (1608)

R459 1-216-833-91 RES, CHIP 10K (1608)

R460 1-218-871-91 RES, CHIP 10K (1608)

R461 1-216-309-91 RES, CHIP 5.6 (2012)

R462 1-216-849-91 RES, CHIP 220K (1608)

R463 1-216-857-91 RES, CHIP 1.0M (1608)

R465 1-216-845-91 RES, CHIP 100K (1608)

R466 1-216-821-91 RES, CHIP 1.0K (1608)

R467 1-216-833-91 RES, CHIP 10K (1608)

R469 1-216-833-91 RES, CHIP 10K (1608)

R470 1-216-827-91 RES, CHIP 3.3K (1608)

R472 1-218-871-91 RES, CHIP 10K (1608)

R473 1-218-863-91 RES, CHIP 4.7K (1608)

R474 1-216-853-91 RES, CHIP 470K (1608)

R475 1-216-857-91 RES, CHIP 1.0M (1608)

R476 1-216-845-91 RES, CHIP 100K (1608)

R479 1-216-864-91 CONDUCTOR, CHIP (1608)

R503 1-216-803-91 RES, CHIP 33 (1608)

R504 1-216-803-91 RES, CHIP 33 (1608)

R505 1-216-803-91 RES, CHIP 33 (1608)

R506 1-216-809-91 RES, CHIP 100 (1608)

— 178 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description

R509 1-216-821-91 RES, CHIP 1.0K (1608)

R513 1-216-805-91 RES, CHIP 47 (1608)

R516 1-216-809-91 RES, CHIP 100 (1608)

R517 1-216-809-91 RES, CHIP 100 (1608)

R522 1-216-833-91 RES, CHIP 10K (1608)

R531 1-216-809-91 RES, CHIP 100 (1608)

R574 1-216-812-91 RES, CHIP 180 (1608)

R575 1-216-850-91 RES, CHIP 270K (1608)

R576 1-216-833-91 RES, CHIP 10K (1608)

R577 1-216-818-91 RES, CHIP 560 (1608)

R578 1-216-818-91 RES, CHIP 560 (1608)

R579 1-216-833-91 RES, CHIP 10K (1608)

R580 1-216-850-91 RES, CHIP 270K (1608)

R604 1-216-845-91 RES, CHIP 100K (1608)

R606 1-216-833-91 RES, CHIP 10K (1608)

R607 1-216-833-91 RES, CHIP 10K (1608)

R613 1-216-833-91 RES, CHIP 10K (1608)

R614 1-216-833-91 RES, CHIP 10K (1608)

R619 1-216-833-91 RES, CHIP 10K (1608)

R620 1-216-833-91 RES, CHIP 10K (1608)

R623 1-216-837-91 RES, CHIP 22K (1608)

R624 1-216-850-91 RES, CHIP 270K (1608)

R625 1-216-864-91 CONDUCTOR, CHIP (1608)

R626 1-216-833-91 RES, CHIP 10K (1608)

R627 1-216-837-91 RES, CHIP 22K (1608)

R630 1-216-837-91 RES, CHIP 22K (1608)

R636 1-216-864-91 CONDUCTOR, CHIP (1608)

R642 1-216-833-91 RES, CHIP 10K (1608)

R644 1-216-837-91 RES, CHIP 22K (1608)

R649 1-216-833-91 RES, CHIP 10K (1608)

R650 1-216-833-91 RES, CHIP 10K (1608)

R651 1-216-835-91 RES, CHIP 15K (1608)

R653 1-216-845-91 RES, CHIP 100K (1608)

R654 1-216-845-91 RES, CHIP 100K (1608)

R657 1-216-839-91 RES, CHIP 33K (1608)

R658 1-216-833-91 RES, CHIP 10K (1608)

R660 1-216-833-91 RES, CHIP 10K (1608)

R661 1-216-833-91 RES, CHIP 10K (1608)

R667 1-216-861-91 RES, CHIP 2.2M (1608)

R668 1-216-853-91 RES, CHIP 470K (1608)

R669 1-216-845-91 RES, CHIP 100K (1608)

R670 1-216-833-91 RES, CHIP 10K (1608)

R671 1-216-827-91 RES, CHIP 3.3K (1608)

R672 1-218-888-91 RES, CHIP 51K (1608)

R673 1-216-827-91 RES, CHIP 3.3K (1608)

R674 1-216-845-91 RES, CHIP 100K (1608)

R675 1-216-839-91 RES, CHIP 33K (1608)

R678 1-216-829-91 RES, CHIP 4.7K (1608)

R689 1-216-845-91 RES, CHIP 100K (1608)

R694 1-216-835-91 RES, CHIP 15K (1608)

R696 1-216-846-91 RES, CHIP 120K (1608)

R698 1-216-835-91 RES, CHIP 15K (1608)

R699 1-216-833-91 RES, CHIP 10K (1608)

R700 1-216-864-91 CONDUCTOR, CHIP (1608)

R801 1-216-864-91 CONDUCTOR, CHIP (1608)

R802 1-216-864-91 CONDUCTOR, CHIP (1608)

R803 1-216-864-91 CONDUCTOR, CHIP (1608)

R804 1-216-864-91 CONDUCTOR, CHIP (1608)

R805 1-216-809-91 RES, CHIP 100 (1608)

R806 1-216-833-91 RES, CHIP 10K (1608)

R807 1-216-809-91 RES, CHIP 100 (1608)

R808 1-216-833-91 RES, CHIP 10K (1608)

R813 1-216-158-91 RES, CHIP 22 (3216)

R814 1-216-158-91 RES, CHIP 22 (3216)

R815 1-216-797-91 RES, CHIP 10 (1608)

R816 1-216-158-91 RES, CHIP 22 (3216)

R817 1-216-158-91 RES, CHIP 22 (3216)

R818 1-216-797-91 RES, CHIP 10 (1608)

R819 1-218-889-91 RES, CHIP 56K (1608)

R820 1-218-881-91 RES, CHIP 27K (1608)

R821 1-218-881-91 RES, CHIP 27K (1608)

R822 1-218-881-91 RES, CHIP 27K (1608)

R823 1-218-890-91 RES, CHIP 62K (1608)

R826 1-218-871-91 RES, CHIP 10K (1608)

R827 1-218-871-91 RES, CHIP 10K (1608)

R828 1-218-881-91 RES, CHIP 27K (1608)

R830 1-216-815-91 RES, CHIP 330 (1608)

R831 1-216-810-91 RES, CHIP 120 (1608)

R834 1-208-911-81 RES, CHIP 10K (1005)

R837 1-208-922-81 RES, CHIP 30K (1005)

R838 1-208-922-81 RES, CHIP 30K (1005)

R840 1-208-916-81 RES, CHIP 16K (1005)

R843 1-208-922-81 RES, CHIP 30K (1005)

R846 1-208-922-81 RES, CHIP 30K (1005)

R847 1-218-977-81 RES, CHIP 100K

R850 1-208-911-81 RES, CHIP 10K (1005)

R851 1-208-916-81 RES, CHIP 16K (1005)

R852 1-218-873-91 RES, CHIP 12K (1608)

R853 1-216-298-91 RES, CHIP 2.2 (2012)

R854 1-216-298-91 RES, CHIP 2.2 (2012)

R855 1-216-298-91 RES, CHIP 2.2 (2012)

R856 1-216-298-91 RES, CHIP 2.2 (2012)

R866 1-216-845-91 RES, CHIP 100K (1608)

R868 1-216-849-91 RES, CHIP 220K (1608)

R870 1-216-849-91 RES, CHIP 220K (1608)

R871 1-218-896-91 RES, CHIP 110K (1608)

R872 1-216-844-91 RES, CHIP 82K (1608)

R873 1-216-839-91 RES, CHIP 33K (1608)

R874 1-216-828-91 RES, CHIP 3.9K (1608)

R875 1-216-023-91 RES, CHIP 82 (2012)

R876 1-216-023-91 RES, CHIP 82 (2012)

R877 1-216-023-91 RES, CHIP 82 (2012)

R878 1-216-023-91 RES, CHIP 82 (2012)

R879 1-216-023-91 RES, CHIP 82 (2012)

R880 1-216-023-91 RES, CHIP 82 (2012)

R881 1-216-023-91 RES, CHIP 82 (2012)

R882 1-216-023-91 RES, CHIP 82 (2012)

R901 1-218-937-81 RES, CHIP 47

R902 1-218-937-81 RES, CHIP 47

R974 1-216-801-91 RES, CHIP 22 (1608)

R975 1-216-801-91 RES, CHIP 22 (1608)

R984 1-216-864-91 CONDUCTOR, CHIP (1608)

RB101 1-234-496-21 ARRAY, RESISTOR 39

RB102 1-234-496-21 ARRAY, RESISTOR 39

RB103 1-234-496-21 ARRAY, RESISTOR 39

RB104 1-234-496-21 ARRAY, RESISTOR 39

RB105 1-234-496-21 ARRAY, RESISTOR 39

RB106 1-234-496-21 ARRAY, RESISTOR 39

RB107 1-233-575-21 RES, CHIP NETWORK 22

RB108 1-233-575-21 RES, CHIP NETWORK 22

RB109 1-233-575-21 RES, CHIP NETWORK 22

RB110 1-233-575-21 RES, CHIP NETWORK 22

RB111 1-233-575-21 RES, CHIP NETWORK 22

RB112 1-233-575-21 RES, CHIP NETWORK 22

RB113 1-233-575-21 RES, CHIP NETWORK 22

RB114 1-233-575-21 RES, CHIP NETWORK 22

RB115 1-233-575-21 RES, CHIP NETWORK 22

RB116 1-233-575-21 RES, CHIP NETWORK 22

RB117 1-233-575-21 RES, CHIP NETWORK 22

RB118 1-233-575-21 RES, CHIP NETWORK 22

RB119 1-233-575-21 RES, CHIP NETWORK 22

RB120 1-233-575-21 RES, CHIP NETWORK 22

RB121 1-233-575-21 RES, CHIP NETWORK 22

RB122 1-233-575-21 RES, CHIP NETWORK 22

RB123 1-233-575-21 RES, CHIP NETWORK 22

RB124 1-233-575-21 RES, CHIP NETWORK 22

RB125 1-233-575-21 RES, CHIP NETWORK 22

RB126 1-233-575-21 RES, CHIP NETWORK 22

RB130 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB131 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB132 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB133 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB134 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB135 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB136 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB137 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB139 1-233-414-21 RES, CHIP NETWORK 4.7K (3216)

RB241 1-233-414-21 RES, CHIP NETWORK 4.7K (3216)

RB294 1-233-414-21 RES, CHIP NETWORK 4.7K (3216)

RB295 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB296 1-234-598-21 RES, CHIP NETWORK 75X4 (3216)

RB297 1-234-599-21 RES, CHIP NETWORK 180X4 (3216)

RB298 1-234-598-21 RES, CHIP NETWORK 75X4 (3216)

RB303 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB305 1-233-575-21 RES, CHIP NETWORK 22

RB310 1-233-681-91 RES, NETWORK 4.7K (1608)

RB311 1-233-679-91 RES, NETWORK 470 (1608)

RB312 1-233-786-91 RES, NETWORK 220 (1608)

RB314 1-233-681-91 RES, NETWORK 4.7K (1608)

RB317 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB318 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB319 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB320 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB321 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB322 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB323 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB324 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB325 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB326 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB327 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB328 1-233-414-21 RES, CHIP NETWORK 4.7K (3216)

RB329 1-233-783-91 RES, NETWORK 22 (1608)

RB402 1-233-803-91 RES, NETWORK 1.5K (1608)

RB403 1-233-789-91 RES, NETWORK 10K (1608)

RB405 1-233-803-91 RES, NETWORK 1.5K (1608)

RB406 1-233-792-91 RES, NETWORK 100K (1608)

RB408 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB409 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB410 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB511 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB517 1-233-575-21 RES, CHIP NETWORK 22

RB518 1-233-575-21 RES, CHIP NETWORK 22

RB519 1-233-575-21 RES, CHIP NETWORK 22

RB520 1-233-575-21 RES, CHIP NETWORK 22

RB521 1-233-575-21 RES, CHIP NETWORK 22

RB522 1-233-575-21 RES, CHIP NETWORK 22

RB523 1-233-575-21 RES, CHIP NETWORK 22

RB524 1-233-575-21 RES, CHIP NETWORK 22

RB525 1-233-575-21 RES, CHIP NETWORK 22

RB526 1-233-575-21 RES, CHIP NETWORK 22

RB527 1-233-575-21 RES, CHIP NETWORK 22

RB528 1-233-575-21 RES, CHIP NETWORK 22

RB529 1-233-575-21 RES, CHIP NETWORK 22

RB530 1-233-575-21 RES, CHIP NETWORK 22

RB531 1-233-575-21 RES, CHIP NETWORK 22

RB532 1-233-575-21 RES, CHIP NETWORK 22

RB602 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB603 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB606 1-233-412-21 RES, CHIP NETWORK 1.0K (3216)

RB607 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB609 1-233-423-21 RES, CHIP NETWORK 47 (3216)

RB611 1-233-415-21 RES, CHIP NETWORK 10K (3216)

RB803 1-233-415-21 RES, CHIP NETWORK 10K (3216)

TH001 1-804-479-21 THERMISTOR, POSITIVE

TH002 1-804-478-21 THERMISTOR, POSITIVE

X101 1-781-640-21 VIBRATOR, CRYSTAL

X201 1-781-640-21 VIBRATOR, CRYSTAL

X202 1-781-857-21 OSCILLATOR, CRYSTAL

X301 1-781-856-21 VIBRATOR, CRYSTAL

X302 1-781-768-21 VIBRATOR, CRYSTAL

X401 1-760-496-22 VIBRATOR, LITHIUM NIOBATE

X402 1-767-300-21 VIBRATOR, CRYSTAL

************************************************************

A-6712-984-A MOUNTED CIRCUIT BOARD, GB-004

*****************************

PLACE CODE #25BG

BT101 1-756-076-21 HOLDER, LITHIUM BATTERY

CN101 1-815-648-21 PIN, CONNECTOR (PC BOARD) 2P

************************************************************

A-6712-983-A MOUNTED CIRCUIT BOARD, SW-363

*****************************

PLACE CODE #25SW

CN751 1-785-470-21 CONNECTOR, FPC(LIF(NON-ZIF)7P

<DIODE>

D751 8-719-078-90 DIODE CL-165HR/G1-D-T

D752 8-719-080-04 DIODE CL-190UB-X-T

Q751 8-729-013-97 TRANSISTOR RN1304-TE85L

Q751 8-729-029-14 TRANSISTOR DTC144EUA-T106

R751 1-216-833-71 RES, CHIP 10K (1608)

R751 1-216-833-81 RES, CHIP 10K (1608)

R751 1-216-833-91 RES, CHIP 10K (1608)

R751 1-220-740-51 RES, METAL FILM 10K (1608)

R752 1-216-835-91 RES, CHIP 15K (1608)

R753 1-216-993-91 RES, CHIP 2.4K (1608)

S751 1-771-917-21 SWITCH, TACTILE

S752 1-771-917-21 SWITCH, TACTILE

************************************************************

— 179 —

SCPH-30002D/30003D/30004D

Reproduction Prohibited

Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description

SUPPLIED ACCESSORIES PLACE CODE #23

********************

AC 1-751-115-21 CORD, POWER SCPH-30003D'

MC 3-066-441-11 MASTER CARTON, 3 SETS SCPH-30003D'

AC 1-575-131-82 CORD, POWER SCPH-30004D'

MC 3-066-441-01 MASTER CARTON, 3 SETS SCPH-30004D'

CONV 1-573-291-12 CONNECTOR, CONVERSION

AV 1-792-028-11 CORD, CONNECTION

CONT 1-792-238-72 CORD, CONNECTION

SH 3-060-494-01 SHEET, PROTECTION

CU 3-064-714-01 CUSHION

PA 3-065-172-01 PAD, TOGETHER PACKING

CA 3-066-440-12 INDIVIDUAL CARTON

MANUAL BLOCK ASSY PLACE CODE #23

*****************

RE 3-066-159-02 CARD (B), OWNER REGISTRATION

for SCPH-30003D'

DISC 3-066-725-02 DISK, DEMONSTRATION for SCPH-30003D'

IN 3-068-129-12 INSTRUCTION for SCPH-30003D'

IM 3-068-537-32 MANUAL, INSTRUCTION for SCPH-30003D'

SE 3-987-375-02 SEAL, SEAL for SCPH-30003D'

RE 3-066-160-03 CARD (C), OWNER REGISTRATION

for SCPH-30004D'

IN 3-068-130-13 INSTRUCTION for SCPH-30004D'

IM 3-068-537-42 MANUAL, INSTRUCTION for SCPH-30004D'

IM 3-068-537-52 MANUAL, INSTRUCTION for SCPH-30004D'

*************************************************************

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same

or equivalent type recommended by the manufacturer. Discard used batteries

according to the manufacturer's instruction.

ADVARSEL

Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en

tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold

til fabrikantens instruksjoner.

Table of contents

CONSOLE ......................................................................................................... 3

MD BLOCK ..................................................................................................... 23

REVISIONS

Design and Specification are subject to change without notice.

WARNING!!

WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE

EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER

BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE

THAN 25 CM FROM THE SURFACE OF THE OBJECTIVE LENS ON THE

OPTICAL PICK-UP BLOCK.

CAUTION for electric shock

When power is ON, Don't touch to Power block, AC-inlet, Power switch and so on,

not to get an electric shock at repair.

CAUTION for burning

When current is supplied, Some of part surface temperature like EE, GS, Regulator-

IC, Power supply, Optical device and so on. These part surface is become high

temperature condition. When it repair, Don't touch them at a time during it surface

is high temperature condition to take prevent against burning. Do repair after it is

cooled down enough.

NOTIFICATION for environmental assessment

This model is CR2032 lithium battery on board inside on the GB003 as timer back-

up power. CR2032 life may be about 5-8 years so you have very few need for chang-

ing to new one. But if you have necessary to new one or disassemble for scrapping,

you have to keep your to country low, regulation, stndard, etc. of environmentl

assess-ment and safety.

CAUTION

This use of optical instruments with this product will increase eye Hazard.

As the laser beam used in this PlayStation 2 is harmful to eyes do not attempt

to disassemble the cabinet. Refer servicing to qualified personnel only.

NOTICE

This service manual published 2.2001 by Sony Computer Entertainment Inc..

All right received. Reproduction and distribution without the permission of Sony

Computer Entertainment Inc. is strictly prohibited. Commercial use or Rental pro-

hibited. This service manual is the proprietary property of Sony Computer Enter-

tainment Inc.. It's use is authorized person who work for PlayStation 2 only.

VAROITUS

Paristo voi rajahtaa, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan

valmistajan suosittelemaan tyyppiin. Havita kaytetty paristo valmistajan ohjeiden

mukaisesti.

VARNING

Explosionsfara vid felaktigt batteribyte. anvant samme batterityp eller en ekvivalent

typ som rekommenderas av apparattillverkaren. Kassera anvant batteri enligt

fabrikantens instruktion.

ADVARSEL!

Lithiumbatteri-Eksplosionsfare ved fejlagtig handtering. Udskiftning ma kun ske med

batteri af samme fabrikat og type. lever det brugte batteri tilbage til leverandoren.

TAPE, VOID

LABEL, MODEL

NUMBER

112

CAUTION for static electricity

For disassemble and assemble the console, Don' t charge static electricity on

your body and around equipment. Get rid static electricity by grounding your body

and around equipment.

Static electricity will be destroyed key devives like ICs, OPT and etc.

LID ASSY106

106

SCREW (2 LOCK),

+BV TAPPING

CAP

COVER, SCREW

SCREW (M3 X 54),

HEAD TAPPING

Never scratch for CAPs and SCREW COVERs

when removing them.

Step 8

Step 7

Step 5

Step 6

Step 1

Step 4

Step 3

Step 2

M354

M354 M354

BV316

TOOLS :SCREW DRIVER ( #3)

CAUTION

When tighten the BV316 and M354 screws,

Tighten them in order to the steps shown figure.

COVER ASSY, UPPER94

SWITCH BLOCK ASSY92

UPPER COVER ASSY

CABLE, FLAT

(FFC-012)

TPG +P 2 X 8,

TYPE 2, NON-SLIT

BRACKET, SWITCH

BUTTON, SWITCH

SW-358 MOUNT

SW-363 MOUNT

TOOLS :SCREW DRIVER ( #0)

TERMINAL BOARD

(FRONT)

TOOLS :SCREW DRIVER ( #3)

SCREW,

TAPPING +BV 3 x 12

BV312

COVER ASSY,LOWER93

CAUTION

For exchanging the LOWER COVER ASSY. to new one,

Check the carved seal on surface of LOWER COVER ASSY. 93

CABLE, FLAT

(FFC-011)

CABLE, FLAT

(FFC-012)

CAUTION

Use of controls or adjustments or performance of procedures other

thn those specified herein may result in hazardous radiation exposure.

SCREW +P 3 X 6

POWER BLOCK

TOOLS :SCREW DRIVER ( #3)

P360

CAUTION

The components identified by mark or

dotted line with mark.

are critical for safety. Replace only with

part number specified.

CN1

Harness from

SWITCH, POWER

(WITH AC INLET)

CN2

P360

SHIELD HDD158

158

Harness from FAN

CN403

CAUTION

Never lose the fitting of INSULATING SHEET put on the

SHIELD(B) when assemble the console.

CAUTION

Never lose the fitting of LABELs put on the SHIELD(B) when

assemble the console.

LABEL, CUTION,

BARRIER

for SCPH-30001

SHEET, INSULATING

160

157

160

CAUTION

The components identified by mark or

dotted line with mark.

are critical for safety. Replace only with

part number specified.

SWITCH, POWER

(WITH AC INLET)

CAUTION

The components identified by mark or

dotted line with mark.

are critical for safety. Replace only with

part number specified.

PANEL, REAR

DC. FAN

159

SCREW, TAPPING

+BV 3 X 12

BV312

TOOLS :SCREW DRIVER ( #3)

159

BV312

VIEW

0 PART-NO.3 MAIN

M2 X 2.5

TAPPING (B2 X 6.5)

SHIELD B

156

TOOLS :SCREW DRIVER ( #0)

B265

M225

156

B265

M225

VIEW B

VIEW A

Never lose the fitting of SHEET(DRIVER),

ELECTRIC HEAT put on the IC802 and IC803

when assemble the console.

IC802

IC803

SHEET (DRIVER),

ELECRIC HEAT

VIEW A

HARNESS (HS-059)

CABLE, FLAT

(FFC-012)

CABLE, FLAT

(FFC-011)

152

151

153

GH010 MOUNT

CN802

(RED)

CN806

(YELLOW)

CN805

(WHITE)

Harness from GEAR BOX

CN406

CN804

Pattern side down

CN803

FFC from

Sled motor

FFC from OPT

CN402

CN801

FFC from Spindle motor

CN302 CN302

152

153 151

151

Join the FFC and the Harness into connecter sureiy,

Loose connection of FFC and Harness will be caused the

many troubles and some times broken the key device like

OPT, EE, etc.

VIEW A

GH-010/-012 MOUNT

GH010

Never lose the fitting SHEET(A) ELECTRIC HEAT

put on SHIELD(A) ASSY. when assemble the console.

SHEET (A),

ELECTRIC HEAT

120

97. SHIELD (A) ASSY

CAUTION

Don't touch the OPTICAL DEVICE not to brocken it.

MD BLOCK ASSY

GB-003/-004 MOUNT

BATTERY, LITHIUM

(CR2032 TYPE)

CAUTION

For dumping the consumed CR2032 Lithium battery,

Obey your countly law Standard procedures.

GB003

MD BLOCK ASSY

GB003

CAUTION

The components identified by mark or

dotted line with mark.

are critical for safety. Replace only with

part number specified.

BACK

LABEL, LASER

CAUTION

LABEL, CAUTION

MD BLOCK ASSY

103

104

: for SCPH-30002D/30003D/30004D

104

: for SCPH-30001D

103

CAUTION

PULLEY BRACKET change to new one by repaier

LABEL has to put on new PULLEY BRACKET due

to in your country law and standart procedure for safty.

PULLEY,

BRACKET ASSY

TOOLS :SCREW DRIVER ( #0)

TAPPING (B2 X 6.5)

CAUTION

Don't touch the place surrounded square shown

figure when tighten screws.

PLATE ASSY,

ORNAMENTAL

(Guide)

TRAY ASSY

TAPPING (B2 X 6.5)

TOOLS :SCREW DRIVER ( #0)

SCREW (B2 X 6.5),

SHAFT RETAINER

TOOLS :SCREW DRIVER ( #0)

DEVICE OPTICAL ASSY

KHS-400B

0 PLATE 3 MAIN

M2 X 3.2

SCREW, SKEW

PWB, FLEXIBLE

DEVICE, OPTICAL

KHS-400B

TOOLS :SCREW DRIVER ( #0)

HEXAGRAM SCREW DRIVER (T5)

SHAFT, MAIN

RACK

Don't touch the adjustment

resistor.

BOTTOM SIDE VIEW

TOP SIDE VIEW

Insert FLEXIBLE PWB.

to connector correctly and

Lock the stopper surely

not to FLEXIBLE PWB.

pull out.

Up side the Pattern

CAUTION

When OPTICAL DEVICE has to change to new one.

Remove the shorting solder on tap ( 2)

CAM, TILT

SCREW,

CAM RETAINER

CAM, TILT

POSITIONING MARK

SPRING(TILT),

LEAF

TOOLS :SCREW DRIVER ( #0)

TAPPING (B2 X 6.5)

MOTOR, DC

TOOLS :SCREW DRIVER ( #0)

Froil (SG474C)

7-651-000-22

GUIDE (L)

0 PLATE 3 MAIN

M2 X 3.2

GUIDE (R)

SCREW, SKEW

TOOLS :SCREW DRIVER ( #0)

CHASSIS ASSY, SUB26

Froil (SG474C)

7-651-000-22

0 PLATE 3 MAIN

M2 X 3.2

SPINDLE

MOTOR, DC

TOOLS :SCREW DRIVER ( #0)

SPRING (TILT),

LEAF

0 PLATE 3 MAIN

M2 X 3.2

TOOLS :SCREW DRIVER ( #0)

SCREW (SUB), STEP

SCREW, STEP

TOOLS :SCREW DRIVER ( #0)

CHASSIS ASSY,

MAIN

INSULATOR

MAIN FRAME ASSY

SUB FRAME ASSY

BELT, RUBBERMF4

MF4

COVER GEAR

MF5

TAPPING (B2 X 6.5)

MF6

SWITCH LEAF

MF7

TOOLS :SCREW DRIVER ( #0)

CAM, SLIDEMF1

PULLEY

MF2

GEAR, DRIVING

MF3

MF1

MF2

MF3

TAPPING (B2 X 6.5)MF6

SWITCH LEAF

3-068-294-0

FRAME, MAIN

MF8

LOADING MOTOR, DC

MF9

TOOLS :SCREW DRIVER ( #0)

MF6

MF8

MF9

BACK

COVER PAGE

Sony PS2 Official Service Manual

Sony PS2 Official Service Manual manual pdf -FilePursuit

Navigation menu

Versions of this User Manual:

Views

Navigation
