SpiraTeam® | Quick Start Guide

Inflectra Corporation

Page 2 of 33

This document contains Inflectra proprietary information

Contents

Introduction 2

1. Logging In and Selecting a Project 3

2. Define the Requirements 4

3. Create the Release and Iteration Plan 7

4. Adding Requirement Tasks 9

5. Adding the Test Cases 12

6. Planning the Iteration 16

7. Assigning the Requirements & Tasks 18

8. Scheduling the Testing Activities 22

9. Running Tests and Logging Incidents 24

10. Triaging Issues and Defects 28

11. Reviewing Your Project 32

Legal Notices 33

Introduction

The Spira™ family of applications from

Inflectra® are a powerful set of tools that

help you manage your software

lifecycle.

SpiraTeam® is our integrated

Application Lifecycle Management

(ALM) system that manages your

project's requirements, releases, test

cases, issues and tasks in one unified

environment.

This guide provides a quick step-by-step

tutorial for creating a sample SpiraTeam

project, adding some requirements and

releases, building the test plan,

assigning the backlog items to the

various sprints, executing the tests and

logging defects, and finally triaging and

resolving the bugs/issues raised.

For further information on using

SpiraTeam, please refer to the more

comprehensive SpiraTeam User

Manual.

For information on setting up a new

SpiraTeam instance, creating projects

and users and other administration

tasks, please refer to the SpiraTeam

Administration Guide.

Page 3 of 33

This document contains Inflectra proprietary information

1. Logging In and Selecting a Project

Once you have either downloaded and installed a trial version of SpiraTeam or signed up for a hosted

trial, you should be able to see the following login screen in your web browser:

Enter the following default login and password to start using the system:

• Login: administrator

• Password: PleaseChange

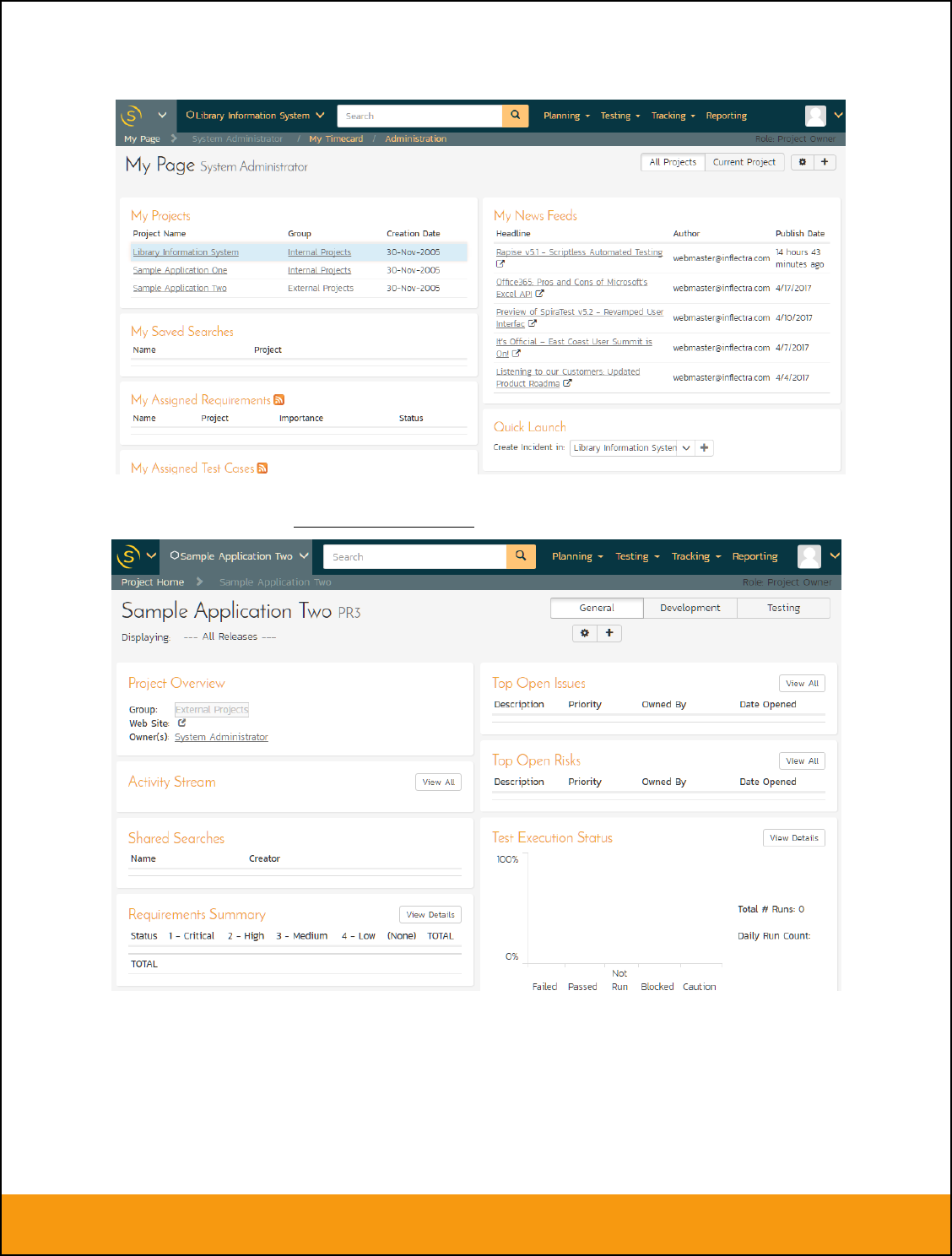

Once you have logged-in, you should be taken to the “My Page” for your user. Please note, that the very

first time you log in you will be asked if you want to take a quick orientation tour of the application (which

will look similar to the screenshot below).

Page 4 of 33

This document contains Inflectra proprietary information

Initially this page will be fairly empty, with only the list of sample projects populated. This is normal.

For this tutorial we want to start out with an empty project that has no data in it, so click the hyperlink

under “My Projects” for “Sample Application Two”. That will bring up the homepage for the empty project:

The project home page will display various widgets containing key project metrics; however they will be

initially empty. The next step will be to start entering your project’s data.

2. Define the Requirements

Click on the Planning > Requirements menu option to display the project’s requirements list page:

Page 5 of 33

This document contains Inflectra proprietary information

The terminology in SpiraTeam is designed to be methodology agnostic, however the following table

illustrates the nomenclature used in SpiraTeam and how it relates to some common agile methodologies:

SpiraTeam

Extreme

Programming

Scrum

AgileUP / DSDM

Summary

Requirement

Epic

Feature Group

Requirement

User Story

Backlog Item

Requirement

Task

Release

Iteration

Sprint

Iteration

Initially the requirements list will be empty. Click on the “Insert” button in the main toolbar to create the

following requirements in turn:

• Functional Requirements

• Module 1

• System must allow entry of users

• System must allow the modification of users

• System must allow the deletion of users

• Module 2

• System should allow administrators to setup notifications

You should now have a simple flat requirements list, as illustrated below:

Now to correctly indent the requirements, select the checkboxes of all the requirements under “Functional

Requirements” and click ‘Indent’. Then select the three requirements under “Module 1” and click ‘Indent’

again. Finally, right-click on the last requirement and choose ‘Indent’ from the popup context menu. You

should now have a list that looks like:

Page 6 of 33

This document contains Inflectra proprietary information

We finally want to set a type and priority value for the different requirements, to do that we can simply

click the “select all” checkbox at the top of the list and then click on the top ‘Edit’ button in the right-hand

column of that same row. That will make all the requirement rows editable:

Now, set the type of all your requirements to ‘User Story’ and choose some different values for the

‘Importance’ field and click Update. Now you will have a prioritized list of user story requirements:

Now that we have prioritized the requirements, the developers or business analysts responsible for

estimating the complexity of each requirement need to enter estimates. To do that we first need to display

the estimate column in the grid. To do that, click on the “Show/Hide Columns” dropdown list and show the

Estimate column. This will display the requirements’ estimates in the grid:

Page 7 of 33

This document contains Inflectra proprietary information

By default, all the requirements will have been assigned a default estimate of 1.0 points. The points are

not a defined number of hours, but are instead an indication of the size of the requirement. The estimates

should reflect how big each of the requirements are relative to each other.

Now, we can simply click the “select all” checkbox at the top of the list and then click on the top ‘Edit’

button in the right-hand column. The requirements will be displayed in editable mode again. Enter the

following initial estimates for the requirements:

Requirement

Estimate

System must allow entry of users

1.5 points

System must allow the modification of users

2.0 points

System must allow the deletion of users

1.0 points

System should allow administrators to setup notifications

2.0 points

You should now have the requirements’ estimates displayed in the system:

Now that we have a list of prioritized, estimated requirements, the next task is to enter in our planned list

of releases and iterations for the project.

3. Create the Release and Iteration Plan

Click on the Planning > Releases menu option to display the project’s release list page:

Initially the release list will be empty. Click on the “Insert” button in the main toolbar to enter the following

releases in turn:

• Release 1.0 – version number 1.0.0.0

Page 8 of 33

This document contains Inflectra proprietary information

o Start Date: Today’s Date

o End Date: Today’s Date + 2 months

• Release 1.1 – version number 1.1.0.0

o Start Date: Today’s Date + 2 months

o End Date: Today’s Date + 4 months

You should now have a list of releases that looks like the following:

Now that we have the releases defined, we need to add one additional level of detail to each release –

the list of iterations or sprints that will take place in each release. We shall enter in some sample iterations

for the first release only.

Select the checkbox for the second release (Release 1.1) and choose the menu option Insert > New

Iteration. A new iteration will be inserted between Release 1.0 and Release 1.1. Choose a name for the

iteration, specify the date-range for the iteration, and click ‘Update’. Now repeat this process twice and

you should now have three iterations added to the list. We recommend making each iteration last 2-

weeks and have each one scheduled in series:

Finally, to indent the three iterations under the parent release, select the checkboxes of the three

iterations and click the ‘Indent’ button. You should now have a release hierarchy that looks like:

Finally, we need to specify the number of resources that will be assigned to each iteration and release. To

do that, click on the “Show/Hide Columns” dropdown list and Show the “# Resources” column. To make

room you can hide the “Iteration?” column. Once the column is visible, select the checkboxes for

“Release 1.0” and click the Bulk Edit button again. Now you should be able to adjust the # resources for

the release and its iterations to 2. Then click Update:

Page 9 of 33

This document contains Inflectra proprietary information

The screen now shows that the Plan Effort for each of the iterations has been doubled. This is the amount

of time that you have available to allocate.

4. Adding Requirement Tasks

Now that we have defined the macro-schedule for Release 1.0, the next stage is to have the developers

take each of the requirements defined so far and define the various tasks that will need to be carried out

to develop the functionality outlined in the requirement. Each task will have its own estimate associated

with it. In addition, you can optionally specify date-ranges and priorities to each of the individual tasks.

To start adding tasks, click on Planning > Requirements to display the requirements list. Now, click on the

hyperlink for the first requirement (“System must allow entry of users”) and the requirements details page

will be displayed:

Notice that the system displays an initial resource estimate of 12.00 hours for this requirement. This is

simply based on an initial project setting of 8 hours per story point. Once you start adding tasks and

getting metrics based on the actual team velocity (how many story points they can accomplish in a given

time frame), the system can update that conversion metric.

Now click on the “Tasks” tab to display the list of tasks defined for this requirement:

Page 10 of 33

This document contains Inflectra proprietary information

Initially the list of tasks will be empty. Before entering the tasks, first click on the “Show/Hide Columns”

dropdown list and show the “Show Est. Effort” column. This will display the estimated effort for each Task.

Now, click on the “New Task” button to add a new task associated with this requirement:

Enter the name of the task “Create user data tables” and the estimated effort 10.0h and click Update. The

new task should now have been added:

Now we need to add the remaining tasks; the following table outlines all the tasks that need to be added

under each of the requirements (we have included the one already created for completeness):

Requirement / Task

Est. Estimate

System must allow entry of users

Create user data tables

10.0h

Develop user business object

10.0h

Build user creation screens

20.0h

System must allow the modification of users

Extend user business object to handle updates

5.0h

Add user list page

15.0h

Add user details page

20.0h

Page 11 of 33

This document contains Inflectra proprietary information

Add user permissions page

15.0h

System must allow the deletion of users

Extend user business object to handle deletes

5.0h

Update user list page to add delete functionality

10.0h

System should allow administrators to setup notifications

Create user administration home page

15.0h

Add user settings for notifications to database

10.0h

Create user notifications administration page

20.0h

You should now have the following requirements list page:

Note that we’ve hidden the “Author” field and shown the “Task Effort” field to show the detailed task effort

aggregated up to the parent requirements.

Now when we add new requirements, it would be nice if the system would use this updated information

when determining the estimated number of hours to deliver requirements with a specified number of story

points. To update the metric the system uses, go to the dropdown menu to the right of the “S” logo and

select Administration > Planning> Planning Options:

As you can see, the system lists 8.0 hours as the current number of hours required to deliver a single

story point of functionality. Now that we have some actual tasks in the project, click on the “Suggest”

button to have the system provide its suggestion of the new metric:

Page 12 of 33

This document contains Inflectra proprietary information

Click the ‘Apply’ button to update the planning metric, and then click the main ‘Save button to confirm the

change.

5. Adding the Test Cases

Click on the Testing > Test Cases menu option to display the project’s test case list page:

Initially the test case list will be empty and the only folder visible in the folder tree on the left hand side will

be “root”. Click on the “Add” button underneath the folder tree on the left, enter the new folder name

“Functional Tests” and click the ‘Save button. You now should have a new folder in the tree view, and

after clicking the “Refresh” button above the list on the right, you will see a single folder:

Now click on this folder from the folder tree on the left, and click “New Test Case” from the main toolbar.

Enter the name of the new test case:

• Test ability to add new users

and click “Save”. Now repeat this for the following other test cases:

• Test ability to edit existing users

• Test ability to delete existing users

• Test ability to edit notifications

You should now have the following test case list:

Page 13 of 33

This document contains Inflectra proprietary information

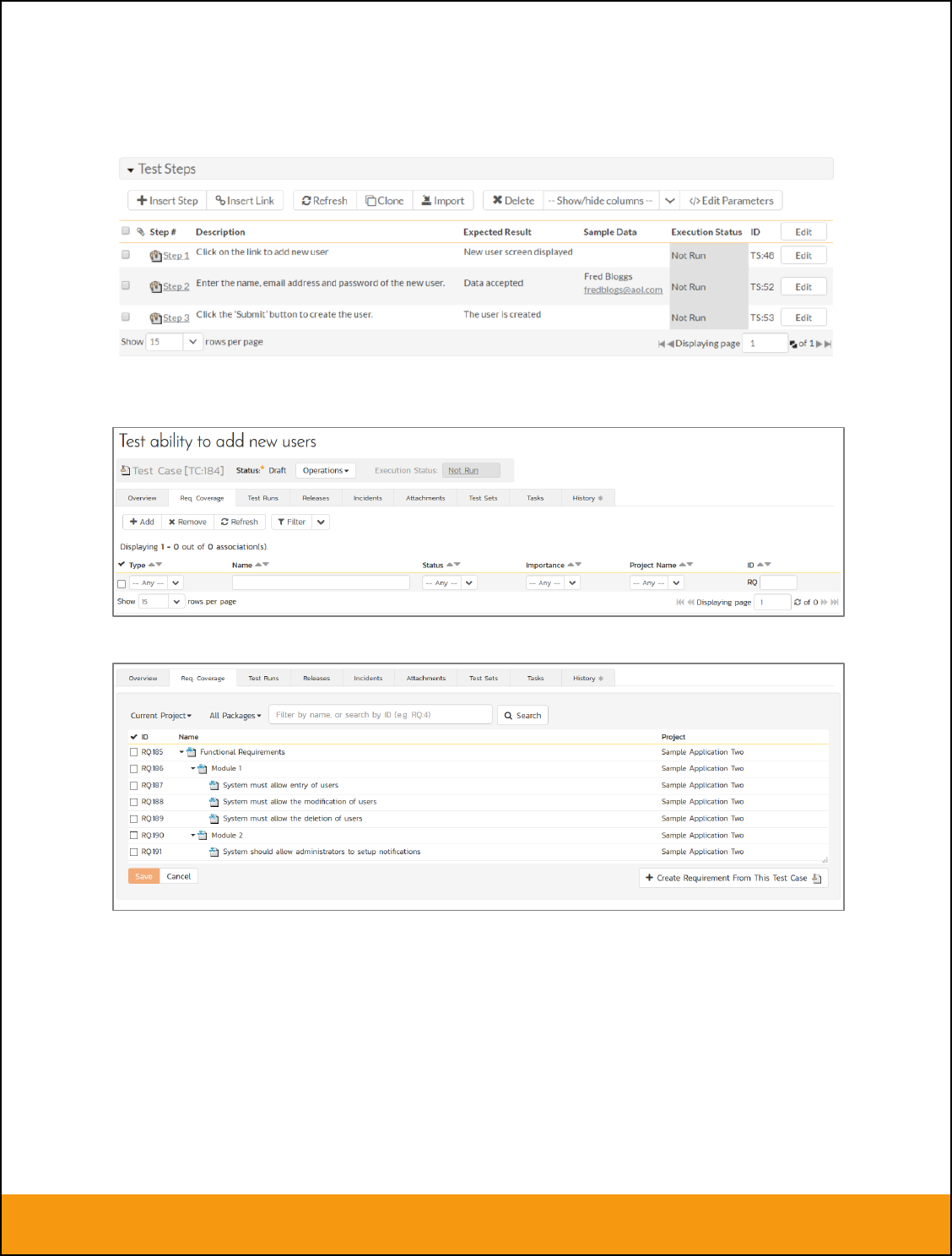

The next step will be to enter the detailed test steps and assign the test cases to the appropriate

requirements that we previously entered.

Click on the hyperlink for the first test case “Test ability to add new users”. This will bring up the test case

details page:

In the Description box, enter a brief overview of the test case (e.g. “this test case verifies that you can add

new users to the system and that all of the fields get saved correctly.”). In the “Test Steps” section, you

will see a single test step is already automatically created for you with some suggested text:

Enter the following three test steps (click on the ‘Insert Step’ link twice to add two more new test steps):

Test Step Description

Expected Result

Sample Data

Click on the link to add new user

New user screen

displayed

Enter the name, email address and

password of the new user.

Data accepted

Fred Bloggs

fredblogs@aol.com

Click the ‘Submit’ button to create the user.

The user is created

Page 14 of 33

This document contains Inflectra proprietary information

After the first two, click the ‘Insert’ button to commit the change and add another row. After the third and

final test step, click the ‘Save button to commit the change.

You should now have the following test steps in the test case:

Now we need to link this test case to the requirement(s) that it validates. To do this, click on the “Req.

Coverage” tab:

Click on the ‘+ Add’ button to display the association adding panel:

Choose the “System must allow the entry of users” requirement. Now click on the ‘Save’ button to add the

test case to this requirement:

Page 15 of 33

This document contains Inflectra proprietary information

Now repeat the process for the other test cases, adding a couple of test steps for each one and linking

the test cases to the requirements according to this table:

Test Case

Requirement

Test ability to add new users

System must allow entry of users

Test ability to edit existing users

System must allow the modification of users

Test ability to delete existing users

System must allow the deletion of users

Test ability to edit notifications

System should allow administrators to setup

notifications

Now that we have our test cases entered and test coverage established, we need to specify which

releases and iterations they can be tested in. To do that, first navigate to the project’s test case list page

again. Next, you need to select all of the contents of the “Functional Tests” folder. To do so you can put a

checkbox in the box to the left of the folder name. Alternatively, you can click on the folder to show its

contents. To quickly select all the test cases shown in the folder, you can check the checkbox in the

header row of the table. Once the right selection has been made, click on Tools > Add to Release:

Now select “Release 1.0” and click “Add”. You will now have added all the tests to the overarching

Release. To add the tests to the different iterations, simply select the checkboxes of the different tests

and then choose the Tools > Add to Release and add the individual tests to the appropriate iterations:

Test Case

Iteration(s)

Test ability to add new users

Release 1.0 - Iteration 1

Release 1.0 - Iteration 2

Release 1.0 - Iteration 3

Test ability to edit existing users

Release 1.0 - Iteration 1

Release 1.0 - Iteration 2

Release 1.0 - Iteration 3

Page 16 of 33

This document contains Inflectra proprietary information

Test ability to delete existing users

Release 1.0 - Iteration 2

Release 1.0 - Iteration 3

Test ability to edit notifications

Release 1.0 - Iteration 3

As illustrated, you typically want to include previous functionality in each of the successive iterations to

ensure regression coverage. So, each iteration includes all the new test cases for the additional

requirements, plus the existing test cases for the pre-existing functionality.

6. Planning the Iteration

Now that the developers have elaborated each of the requirements to include the necessary tasks, the

next step is to scope out the plan for each iteration / sprint. Click on the Planning > Planning Board option

on the main menu to display the product backlog planning board. Make sure the “Group By” dropdown on

the left is set to “By Priority”:

Now to view the iteration plan for a specific release, select ‘Release 1.0’ and ‘Group by Priority’ from the

drop-down menus at the top-left of the screen. That will display the iteration plan for the selected release:

Expand the ‘(Unassigned Items)’ entry to display the requirements that are in the product backlog:

Page 17 of 33

This document contains Inflectra proprietary information

Each backlog item (requirement or incident) is represented by a virtual “story card” in the iteration. The

left-hand side of each item displays the priority color and the progress bar at the bottom of each item

depicts the progress of the item. You can flip through each iteration to see the work planned by clicking

the left/right arrow buttons at the sides of the screen.

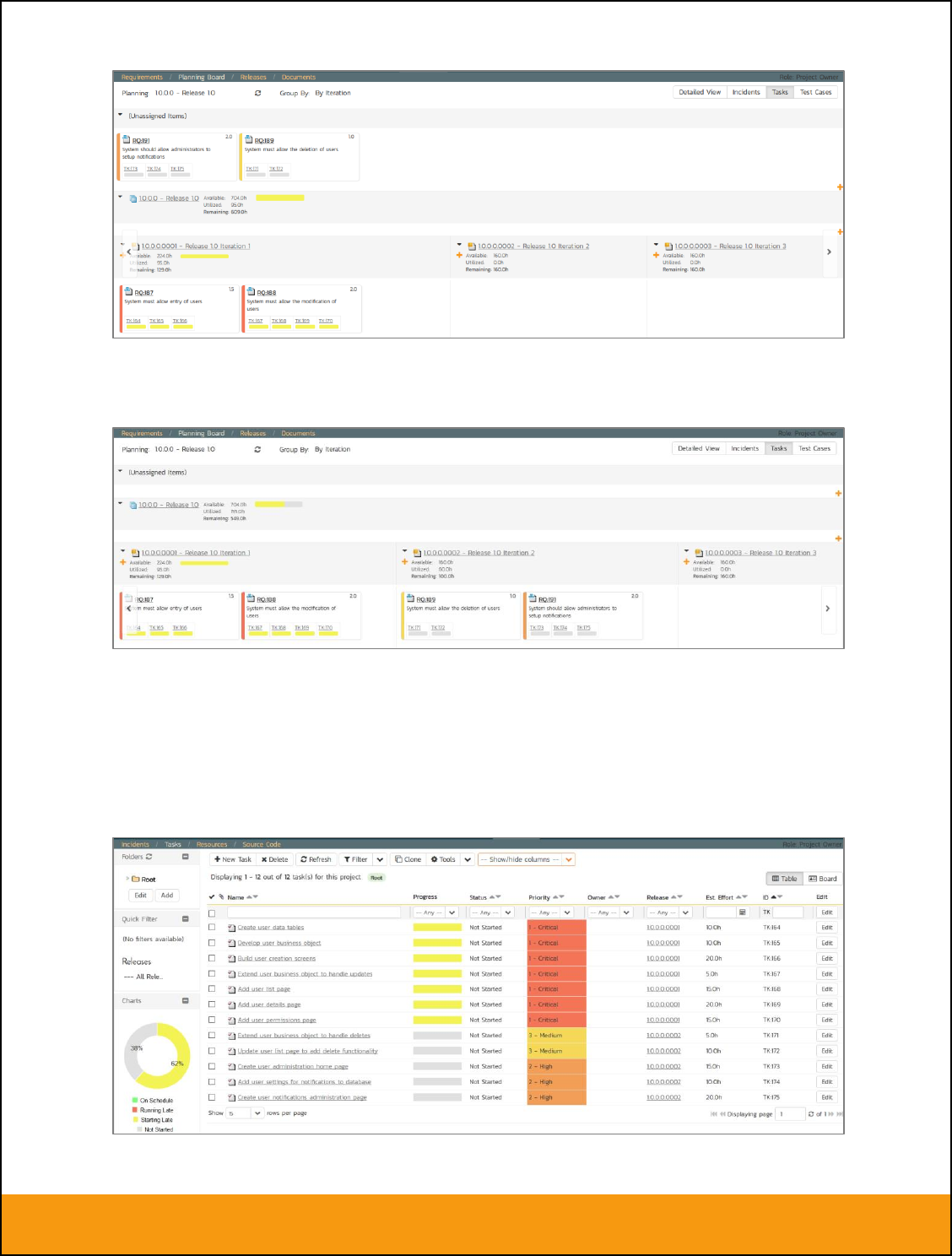

Now drag the two highest priority requirements (the ones with Importance = 1-Critical) to the first iteration:

If you would like to see more information about each requirement, simply enable the ‘Detailed View’

option:

To see the individual tasks associated with each requirement, you can also select the ‘Tasks’ option:

Page 18 of 33

This document contains Inflectra proprietary information

You can now determine how much time has been scheduled in the first iteration and how much time is

remaining. Although we do have spare time available in Iteration 1 we will leave room left for fixing

incidents, so next, drag and drop the remaining two requirements to the second iteration:

7. Assigning the Requirements & Tasks

Now that we have planned which requirements (user stories) and tasks are planned for each iteration, we

can assign the individual tasks to the appropriate developer(s). The process you follow will depend on

your methodology (e.g. in Scrum the developers simply pick the tasks, whereas in Extreme Programming

the project manager will usually do the assignment).

To assign the tasks, click on Tracking > Tasks to display the main tasks list page:

Click on the ‘Board’ option on the top-right of the screen to change to the Kanban board view:

Page 19 of 33

This document contains Inflectra proprietary information

You can see at a glance which tasks are in each status (in this case, they are all marked as ‘not started’).

To see the distribution of tasks by person for specific iteration, change the release selection to ‘Release

1.0 Iteration 1’, and the ‘Group By’ dropdown to ‘By Person’:

For our sample project we have two project members listed (included ourselves). As an example, select

the first four tasks (which are all priority = 1 – Critical) and drag them to your user’s section:

Now you can clearly see the four tasks that have been assigned to your user. To simulate how this would

appear to a developer, click on the main SpiraTeam icon (in the top-left) to display your user’s “My Page”

dashboard:

Page 20 of 33

This document contains Inflectra proprietary information

This page lists all the development tasks that have been assigned to your user. Click on the first task

“Create user data tables” to display the task details page:

This task has been estimated at 10.0 hours and is currently not started. The next step is to start working

on the assigned task and report back progress. As an example, click the workflow operation “Start Task”,

then enter an actual effort of 3.0 hours, a remaining effort of 5.0 hours and add a comment “Added initial

set of data tables”. Upon clicking ‘Save’, the progress indicator will reflect the changes and the new

comment will have been added to the list:

Page 21 of 33

This document contains Inflectra proprietary information

Now click on the other three assigned tasks, start them, and specify the following:

Requirement / Task

Est. Estimate

Actual Effort

Remaining Effort

Create user data tables

10.0h

3.0h

5.0h

Develop user business object

10.0h

2.0h

7.5h

Build user creation screens

20.0h

3.0h

18.0h

Extend user business object to handle updates

5.0h

0.5h

4.0h

After updating the assigned tasks, the ‘My Page’ dashboard will now reflect the changes:

Similarly, for the project manager, clicking on Planning > Requirements to display the requirements list

will show the task progress as it impacts the various requirements:

Page 22 of 33

This document contains Inflectra proprietary information

8. Scheduling the Testing Activities

Now that we have created our test plan for each release and iteration we now want to schedule the test

cases for execution by our testers. As an example, we’ll create a single test set (also known as test

suites) that contains a list of test cases to be executed by a specific tester.

Click on the Testing > Test Sets menu option to display the project’s test set list page:

Initially the test set list will be empty and the folder tree on the left will only show “root”. Click on the “Add”

button beneath the folder tree, enter the new folder name “Test Cycle #1” and click the ‘Add’ button.

Select that folder from the folder tree. After clicking ‘Refresh’ on the main toolbar, you now should have a

single folder in the list on the right hand side:

Now click on the folder and then click on the “New Test Set” from the main toolbar. Enter the name of the

new test set “Testing new functionality” and click Save. You should now have the following test set list:

Click on the hyperlink for the test set to bring up the test set details page:

Page 23 of 33

This document contains Inflectra proprietary information

The first task is to add the appropriate test cases to this set. To do this, click on the “Add” button in the

“Test Cases” section half way down the page to bring up the following dialog box:

Choose the ‘Functional Tests’ folder and the test cases in that folder will be displayed:

Select the following test cases and click the ‘Add’ button:

• Test ability to add new users

• Test ability to edit existing users

You should now have the following displayed:

Page 24 of 33

This document contains Inflectra proprietary information

The next step is to assign this test set to a specific release/iteration and to a particular tester. To do that,

choose the following values for the following fields and click ‘Save’:

• Owner = System Administrator (your user)

• Release = Release 1.0 - Iteration 1

• Planned Date = (Today’s Date).

You have now scheduled this test set to be executed by your user by the end of today against the first

iteration of release 1.0:

9. Running Tests and Logging Incidents

Now that you have scheduled the test set, if you go to the ‘My Page’ by clicking on the orange SpiraTeam

application logo in the top-left, you’ll see your newly assigned test set down on the left:

Page 25 of 33

This document contains Inflectra proprietary information

Click on the ‘Execute’ button (with the play icon) to the right of this new test set. That will start the test

execution wizard:

On the first screen, the release dropdown list will have been automatically pre-selected to the

release/iteration specified in the test set, so just click the ‘Next’ button to move to the first test step in the

first test case:

Page 26 of 33

This document contains Inflectra proprietary information

Note that when you first visit this page, you will be shown a quick guided tour of how the page works.

As a tester, you can progress through each of the test steps in each test case in the test set in turn. For

each test step you can enter Pass, Fail, Blocked, Caution, or Not Applicable. If you enter any status

other than Pass you need to enter a value for the ‘Actual Result’. For a pass status, the Actual Result is

optional.

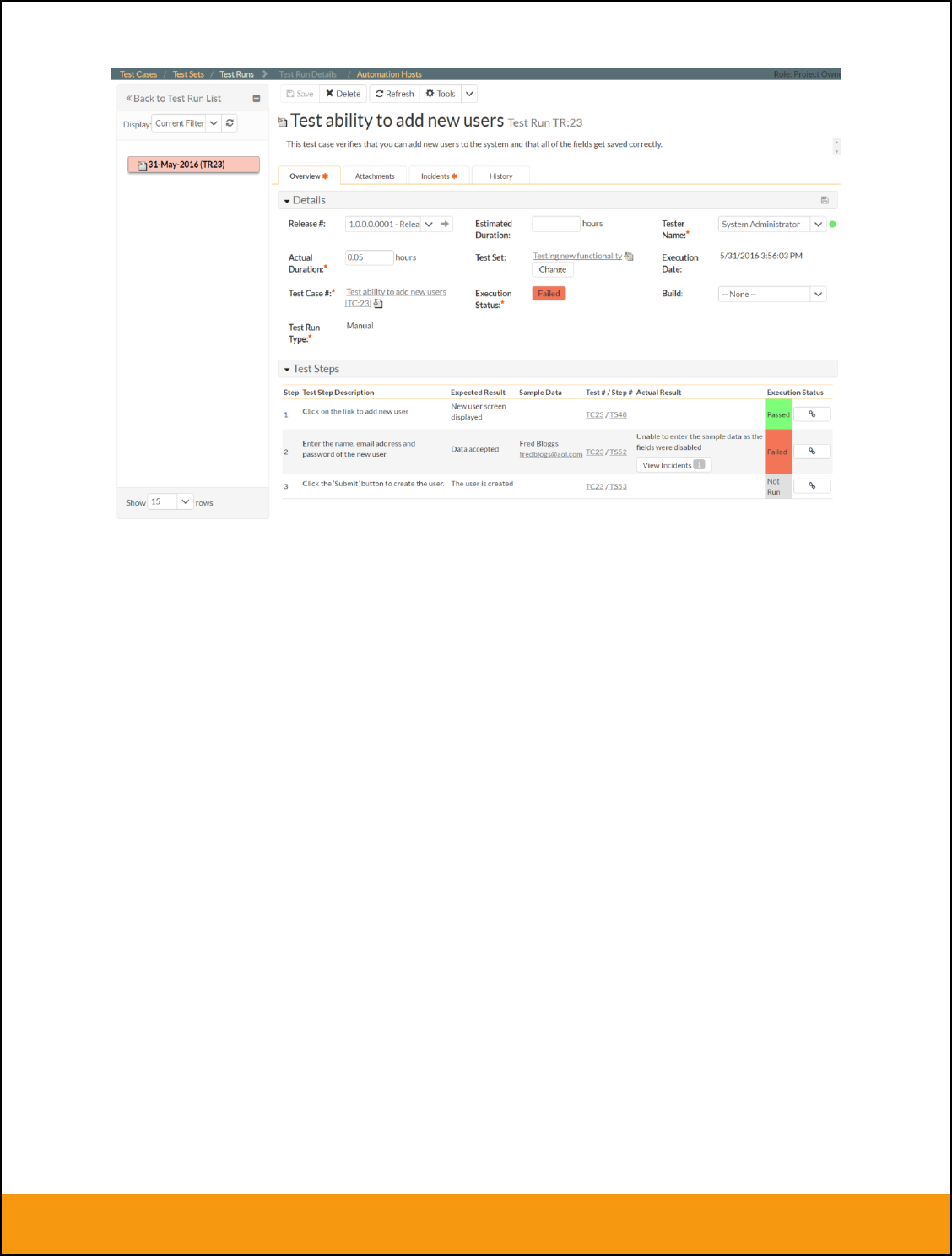

First, click on the Pass button to pass the first test step. As soon as you do, the test will automatically

progress to the second test step:

Now for the second test step, enter in the actual result field “Unable to enter the sample data as the fields

were disabled”. Before clicking the Fail button we also want to enter in the following fields in the Incident

form (accessed by clicking the “Incidents” tab):

• Name = Error displaying user fields

• Type = Bug

• Priority = 2 – High

Now click the Fail button and you will have recorded a test failure and a new incident/defect:

Page 27 of 33

This document contains Inflectra proprietary information

Now that we have logged the test failure and the new incident/defect, if you click on the main “Sample

Application Two” option on the top-navigation bar, you’ll be taken to the project homepage with the

requirements and test case metrics now visible:

If you go to the Testing > Test Sets page, you also see the status of our test set:

If you go to the Planning > Requirements page, you’ll see the different requirements’ test coverage and

the status of the tests associated with each requirement:

Page 28 of 33

This document contains Inflectra proprietary information

The final step in the process is to triage the logged defect and assign it to a developer to be fixed.

10. Triaging Issues and Defects

Now that a new incident has been logged, the next step in the process is to review the incident and

assign it to a developer to be fixed. First, click on the Tracking > Incidents menu item. This will display the

incident list page for the project:

You can also view the same list of incidents in a Kanban board view:

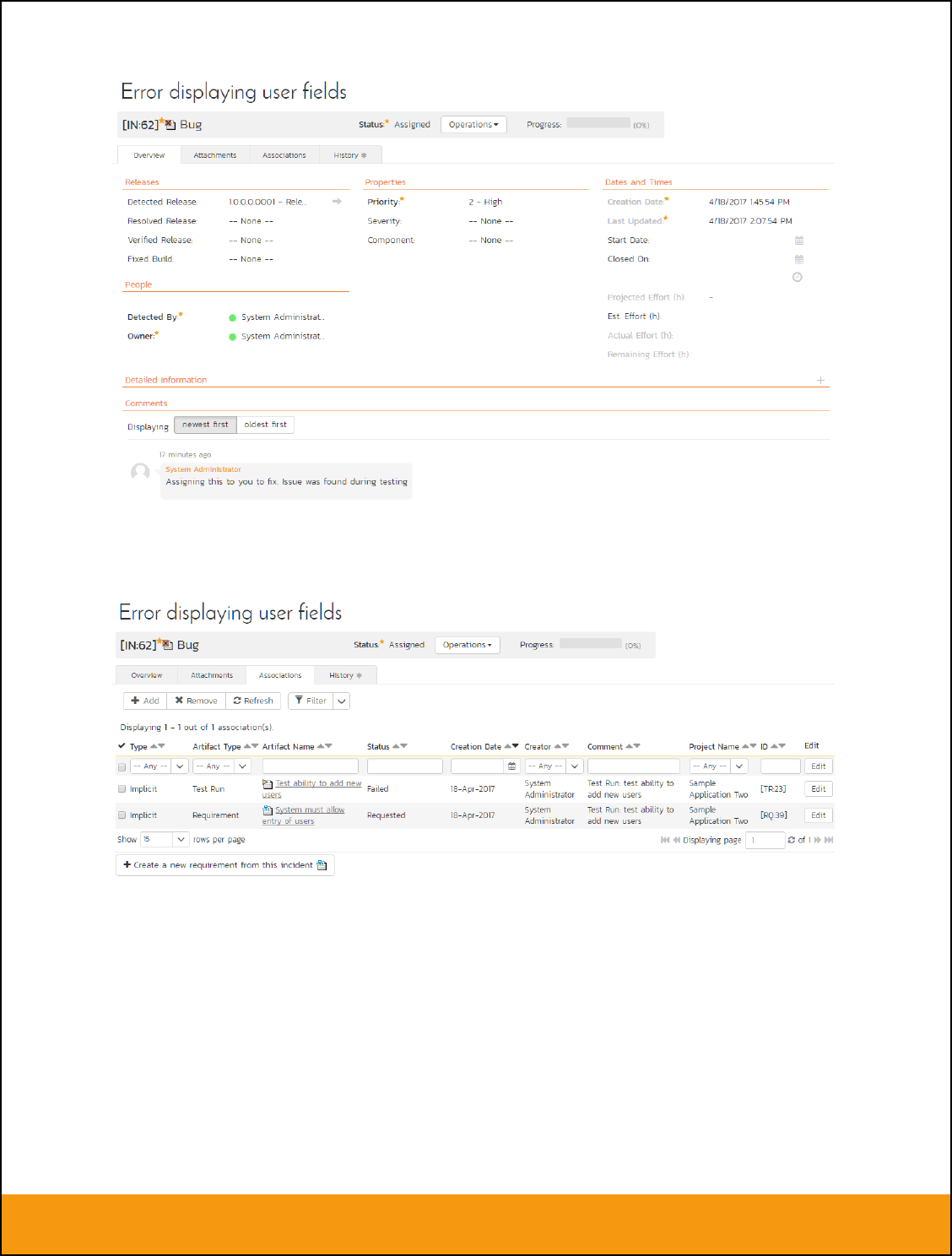

In either view, click on the hyperlink for the new incident “Error displaying user fields”. This will display the

incident details page:

Page 29 of 33

This document contains Inflectra proprietary information

Click on the “Assign Incident” option in the “Operations” dropdown underneath the large incident name

near the top of the page. This will switch the status of the incident from New > Assigned. You now need to

enter the following fields:

• Owner = System Administrator (your user)

Also add a new comment in the “Comments” section – “Assigning this to you to fix. Issue was found

during testing.” Now click the Save button in the toolbar and the incident will be assigned to your user for

fixing.

To simulate this process, go back to the “My Page” by clicking on the orange Spira icon in the top-left of

the screen:

You can now see that you’ve been assigned an incident under the “My Assigned Incidents” widget (on the

right-hand side). Now click on the hyperlink for the incident to bring up the incident details page:

Page 30 of 33

This document contains Inflectra proprietary information

You can see that the status has been changed to “Assigned” and the comment from the project manager

is clearly visible. To help you reproduce the issue to be fixed, you can also click on the “Associations” tab

to display the test run and requirements associated with this incident:

If you click on the test run hyperlink “Test ability to add new users”, you will see the detailed information

about the test execution that resulted in the bug being logged:

Page 31 of 33

This document contains Inflectra proprietary information

This allows the developer to retrace the steps taken by the tester and attempt to reproduce the issue.

Assuming that we have been able to reproduce and fix the issue, we will now resolve the incident.

Back on the incident details screen, click on the workflow operation link “Resolve Incident”, fill in the

following fields and click Save:

• Resolved Release = Release 1.0 - Iteration 2

• New Comment = “Fixed the incident.”

The incident will now change from Assigned > Resolved and an email will be sent to the tester letting

them know that they need to retest the test case and close the incident.

Page 32 of 33

This document contains Inflectra proprietary information

11. Reviewing Your Project

You can check on the overall status of the project by clicking the project name from the navigation bar.

This will take you to the project home page. Below is what this home page looks like for a more complete

project than we have been working through in this quick start guide. Note how you can change between

several views (the buttons on the right) to show different information based on your role or current needs,

or only show data for a particular release (see the dropdown beneath the project name on the left).

Congratulations! You have now completed the software development and

testing lifecycle using SpiraTeam. For more information about any of the

features, please refer to the SpiraTeam User Manual.

Page 33 of 33

This document contains Inflectra proprietary information

Legal Notices

This publication is provided as is without warranty of any kind, either express or implied, including, but not

limited to, the implied warranties of merchantability, fitness for a particular purpose, or non-infringement.

This publication could include technical inaccuracies or typographical errors. Changes are periodically

added to the information contained herein; these changes will be incorporated in new editions of the

publication. Inflectra® Corporation may make improvements and/or changes in the product(s) and/or

program(s) and/or service(s) described in this publication at any time.

The sections in this guide that discuss internet web security are provided as suggestions and guidelines.

Internet security is constantly evolving field, and our suggestions are no substitute for an up-to-date

understanding of the vulnerabilities inherent in deploying internet or web applications, and Inflectra®

cannot be held liable for any losses due to breaches of security, compromise of data or other cyber-

attacks that may result from following our recommendations.

The section of the manual that describes modifying the Windows System Registry (“Registry”) should only

be attempted by experienced Windows administrators who are familiar with its organization and contents.

Inflectra® cannot be held liable for any losses due to damage to the system registry made by

inexperienced personnel.

SpiraTest®, SpiraPlan®, SpiraTeam® and Inflectra® are registered trademarks of Inflectra Corporation in

the United States of America and other countries. Microsoft®, Windows®, Explorer® and Microsoft Project®

are registered trademarks of Microsoft Corporation. All other trademarks and product names are property

of their respective holders.

Please send comments and questions to:

Technical Publications

Inflectra Corporation

8121 Georgia Ave

Suite 504

Silver Spring, MD 20910

U.S.A.

support@inflectra.com

SpiraTeam Quick Start Guide Spira Team

Navigation menu

Versions of this User Manual:

Views

Navigation
