SpiraTeam® | External Bug-Tracking Integration Guide
Inflectra Corporation
Page 1 of 158
© Copyright 2006-2016, Inflectra Corporation
This document contains Inflectra proprietary information
Contents
Introduction ........................................... 1
1. Setting up Data Synchronization ...... 2
2. Using SpiraTeam with JIRA 5+ ........ 9
3. Using SpiraTeam with JIRA 3 / 4 .... 29
4. Using SpiraTest with Bugzilla ......... 43
5. Using SpiraTest with MS-TFS ........ 55
6. Using SpiraTest with FogBugz ....... 79
7. Using SpiraTeam with Mantis ......... 92
8. Using SpiraTeam with ClearQuest 103
9. Using SpiraTeam with IBM RTC ... 115
10. Using Spira with Axosoft 14+ ..... 123
11. Using SpiraTeam with Redmine . 133
12. Using Spira with OnTime 11 ....... 144
Introduction
SpiraTeam® is an integrated Application
Lifecycle Management (ALM) system that
manages your project's requirements, releases,
test cases, issues and tasks in one unified
environment:
SpiraTeam® contains all of the features
provided by SpiraTest® - our highly acclaimed
quality assurance system and SpiraPlan® - our
agile-enabled project management solution.
With integrated customizable dashboards of key
project information, SpiraTeam® allows you to
take control of your entire project lifecycle and
synchronize the hitherto separate worlds of
development and testing.
However many organizations may be already
using other bug-tracking systems and not want
to have to migrate all their users over to
SpiraTeam. Therefore SpiraPlan, SpiraTest and
SpiraTeam are capable of integrating with a
variety of commercial and open-source bug-
tracking systems.
This guide outlines how to integrate and use
SpiraTest, SpiraPlan and SpiraTeam in
conjunction with other external Bug/Issue
Tracking systems.
This guide assumes that the reader is familiar
with both SpiraTeam and the appropriate tool
being discussed. For information regarding how
to use SpiraTeam, please refer to the
SpiraTeam User Manual.
Each of the sections covers a different tool so
we recommend using the table of contents on
the left to locate the tool you’re looking to either
integrate or migrate from, then read the
installation and usage instructions.
Page 2 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
1. Setting up Data Synchronization
This section outlines the general data synchronization configuration to use any of the supported bug
trackers with SpiraTest, SpiraPlan or SpiraTeam (hereafter referred to as Spira).
Please read this section first, before performing the configuration steps specific to your bug-tracker.
The built-in data-synchronization service that comes with Spira, allows the quality assurance team to
manage their requirements and test cases in Spira, execute their test runs, and then have the new
defects/bugs generated during the run be automatically loaded into an external bug-tracker. Once the
incidents are loaded into the external bug-tracker, the development team can then manage the lifecycle of
these defects/bugs in their chosen tool, and have the status changes be reflected back in Spira.
In addition, any issues logged directly into the external bug-tracker will get imported into Spira as either
new incidents or new requirements (depending on their type) so that they can be used as part of the
planning and testing lifecycle.
There are three possible deployment options for the Spira data synchronization:
1. You have both Spira and the External Bug Tracker cloud-hosted
2. You have Spira installed on-premise (External Bug Tracker can be either)
3. You have Spira cloud-hosted, but the External Bug Tracker installed on-premise
We shall provide the configuration steps for each option:
1.1. Spira & External Tool Cloud Hosted
When you sign up for Spira as a cloud-hosted subscription, you have the option of including the Spira
DataSync service as an add-on feature to the subscription:
Make sure you include the ‘Spira DataSync’ add-on with your subscription. Once your subscription is
provisioned, you will be able to configure the connection to Spira by going to your secure Customer Area
on our website:
Click on the ‘Configure’ button associated with the Spira-DataSync addon row:
Page 3 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Enter a login and password that can connect to your Spira instance. This user needs to be a member of
the project(s) that will be synchronized with the external bug-tracker and needs to have at least Incident
create/modify/view permissions and Release create/modify/view permissions in these projects.
Click on the ‘Test’ button to verify the credentials, and once they validate, make sure the ‘Active’ flag is
checked and then click ‘Save’. You have now configured the synchronization.
You should now see a list of the plugins currently configured in your Spira instance:
If you click on any of the ‘Manage’ buttons you will be taken to your Spira instance where you can
complete the plugin configuration:
The steps for configuring each plugin are specific to each external bug-tracking tool. Please refer to the
appropriate section in this document for the tool you are using.
Page 4 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
1.2. Spira Installed On-Premise
With Spira installed on-premise, there is a built-in Windows® service that is installed with Spira that is not
running by default, but is available for data-synchronization.
The steps that need to be performed to configure integration are as follows:
Download appropriate plug-in for Spira from our website
Configure the DataSync Service
Start the service and proceed to the plugin specific section of this manual
1.2.1. Download the Data-Sync Plug-In
Go to the Inflectra website and open up the page that lists the various downloads available for Spira
(http://www.inflectra.com/SpiraTeam/Downloads.aspx). Listed on this page will be the data-
synchronization plug-In for your desired bug-tracking tool. Right-click on this link and save the Zip
compressed folder to the hard-drive of the server where Spira is installed.
Open up the compressed folder and extract the DLL assembly files and place them in the C:\Program
Files (x86)\SpiraTeam\Bin folder (it may be SpiraTest or SpiraPlan depending on which product you’re
running). This folder should already contain the DataSyncService.exe and DataSyncService.exe.config
files that are the primary files used for managing the data synchronization between Spira and other
systems.
1.2.2. Configuring the Synchronization Service
To configure the integration service, please open up the DataSyncService.exe.config file located in
C:\Program Files (x86)\SpiraTeam\Bin with a text editor such as Notepad. Once open, it should look like:
<?xml version="1.0" encoding="utf-8"?>
<configuration>
<configSections>
<sectionGroup name="applicationSettings" type="System.Configuration.ApplicationSettingsGroup,
System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" >
<section name="Inflectra.SpiraTest.DataSyncService.Properties.Settings"
type="System.Configuration.ClientSettingsSection, System, Version=2.0.0.0, Culture=neutral,
PublicKeyToken=b77a5c561934e089" requirePermission="false" />
</sectionGroup>
</configSections>
<applicationSettings>
<Inflectra.SpiraTest.DataSyncService.Properties.Settings>
<setting name="PollingInterval" serializeAs="String">
<value>600000</value>
</setting>
<setting name="WebServiceUrl" serializeAs="String">
<value>http://localhost/SpiraTeam</value>
</setting>
<setting name="Login" serializeAs="String">
<value>fredbloggs</value>
</setting>
<setting name="Password" serializeAs="String">
<value>fredbloggs</value>
</setting>
<setting name="EventLogSource" serializeAs="String">
<value>SpiraTeam Data Sync Service</value>
</setting>
<setting name="TraceLogging" serializeAs="String">
<value>False</value>
</setting>
</Inflectra.SpiraTest.DataSyncService.Properties.Settings>
</applicationSettings>
</configuration>
Page 5 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The sections that need to be verified and possibly changed are marked in yellow above. You need to
check the following information:
The polling interval allows you to specify how frequently the data-synchronization service will ask
Spira and the external system for new data updates. The value is specified in milliseconds and
we recommend a value no smaller than 5 minutes (i.e. 300,000ms). The larger the number, the
longer it will take for data to be synchronized, but the lower the network and server overhead.
The base URL to your instance Spira. It is typically of the form http://<server
name>/SpiraTeam. Make sure that when you enter this URL on a browser on the server itself,
the application login page appears.
A valid login name and password to your instance of Spira. This user needs to be a member of
the project(s) that will be synchronized with the external bug-tracker and needs to have at least
Incident create/modify/view permissions and Release create/modify/view permissions in
these projects.
Once you have made these changes, please refer to the section in this document that covers the specific
bug-tracking tool you will be integrating with.
Note: If you are using the MS-TFS plugin on premise, you will also need to switch over your IIS
application pool running Spira to “Enable 32-bit Applications. You will also need to download the
recompiled 32-bit version of the DataSyncService.exe application from our support knowledge base -
KB14 - Using SpiraTeam Data Synchronization with TFS on a 64-bit system.
1.2.3. Starting the Data-Synchronization Service
When Spira is installed, a Windows Service SpiraTeam Data Sync Service is installed along with the
web application. However to avoid wasting system resources, this service is initially set to run manually.
To ensure continued synchronization of SpiraTeam with the external tool, we recommend starting the
service and setting its startup-type to Automatic.
To make these changes, open up the Windows Control Panel, click on the “Administrative Tools” link, and
then choose the Services option. This will bring up the Windows Service control panel:
Click on the ‘SpiraTeam Data Sync Service’ entry and click on the link to start the service. Then right-click
the service entry and choose the option to set the startup type to ‘Automatic’. This will ensure that
synchronization continues after a reboot of the server.
Page 6 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
1.3. Spira Cloud Hosted, External Tool On-Premise
The Desktop Data Synchronization utility (hereafter referred to as the “Desktop DataSync”) is a
standalone utility than can be used to run the various Data Synchronization PlugIns without a server
installation of Spira.
This is useful where you have your SpiraTeam instance cloud hosted, but the external tool is locally
installed behind your firewall.
1.3.1. Installation
To obtain the Desktop DataSync, go to the Inflectra website and under the “Downloads and Add-Ons”
section you will find a Windows Installation (MSI) package that will install the Desktop DataSync onto your
computer. The installer will install both a 64-bit version of the Desktop Data Sync and a 32-bit version.
You should use the 64-bit version for all plugins except the Microsoft TFS plugin which will require the 32-
bit version.
Next you need to download the appropriate plug-in(s) for the various bug-trackers (as described in the
appropriate section of this document) and place the assemblies (DLL files) into the same folder that
contains the DesktopDataSync.exe application.
1.3.2. Usage
Once you have downloaded and installed the application and appropriate plug-ins, go to Start > Programs
> Inflectra > Desktop DataSync to launch the application.
This will bring up the main options window of the application:
Page 7 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You should then enter the URL, login and password to your Spira installation and click [Test]. Assuming
that this information is correct, you will see a confirmation message:
Now you should complete the configuation by setting the Polling Interval (how often the utility will
synchronize data between Spira and the external system) and whether Trace Logging is enabled (useful
when verifying your data mapping, but will fill up the application log, so leave unchecked for production
use). Then click the [Update] button to save your settings or [Start] to save your settings and start
synchronization immediately.
Once the Options window closes, the application will remain active in the system tray of your computer:
Page 8 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You can then use the right-click context menu to start synchronization, stop synchronization, view the
status (if synchronization is running) or exit the application altogether.
During synchronization, any errors will be logged to the Windows Application Event Log and you can use
those logs to diagnose any issues connecting to the external bug-tracker or any data mapping
configuration changes that need to be made.
Page 9 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
2. Using SpiraTeam with JIRA 5+
This section outlines how to use SpiraTest, SpiraPlan or SpiraTeam (hereafter referred to as SpiraTeam)
in conjunction with the JIRA issue/bug tracking system version 5.0 and later. The built-in integration
service allows the quality assurance team to manage their requirements and test cases in SpiraTeam,
execute test runs in SpiraTest, and then have the new incidents generated during the run be
automatically loaded into JIRA. Once the incidents are loaded into JIRA as issues, the development team
can then manage the lifecycle of these issues in JIRA, and have the status changes in JIRA be reflected
back in SpiraTeam.
In addition, any issues logged directly into JIRA will get imported into SpiraTeam as either new incidents
or new requirements (depending on their type) so that they can be used as part of the planning and
testing lifecycle.
STOP! Please make sure you have first read the Instructions in Section 1 before proceeding!
2.1. Configuring the Plug-In
This section outlines how to configure the integration service to export incidents into JIRA, import new
issues from JIRA and pick up subsequent status changes in JIRA and have them update SpiraTeam. It
assumes that you already have a working installation of SpiraTest, SpiraPlan or SpiraTeam and a
working installation of JIRA.
The following versions of SpiraTeam and JIRA are supported:
The JIRA 5.x plugin supports JIRA 5.0 or later and SpiraTeam v4.0 or later
The JIRA 4.x plugin supports JIRA 4.0 or later and SpiraTeam v3.0 or later (see section 3)
The JIRA 3.x plugin supports JIRA 3.0 or later and SpiraTeam v2.3 or later (see section 3)
If you have an earlier version of SpiraTeam, you will need to upgrade to at least v2.3 before trying to
integrate with JIRA.
The next step is to configure the plug-in within SpiraTeam so that the system knows how to access the
JIRA server. To start the configuration, please open up SpiraTeam in a web browser, log in using a valid
account that has System-Administration level privileges and click on the System > Data Synchronization
administration option from the left-hand navigation:
This screen lists all the plug-ins already configured in the system. Depending on whether you chose the
option to include sample data in your installation or not, you will see either an empty screen or a list of
sample data-synchronization plug-ins.
If you already see an entry for JiraDataSync you should click on its “Edit” link. If you don’t see such an
entry in the list, please click on the [Add] button instead. In either case you will be taken to the following
screen where you can enter or modify the JIRA Data-Synchronization plug-in:
Page 10 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You need to fill out the following fields for the JIRA Plug-in to operate correctly:
Name this needs to be set to JiraDataSync.
Caption this is the display name of the plugin. Normally you can use something generic such
as “Jira”, however if you have multiple JIRA instances you might want to name it something
specific such as “Jira External”. If you don’t enter a value, the display name will be “JiraDataSync”
Description this should be set to a description of the plug-in. This is an optional field that is
used for documentation purposes and is not actually used by the system.
Connection Info this should the full URL to the JIRA installation being connected to (including
any custom port numbers). Entering this URL into a web browser should bring up the JIRA login
page.
For JIRA cloud customers, it is typically of the form:
https://mycompany.atlassian.net
For JIRA server customers, it is typically of the form:
http://myserver:8080
Login this should be set to a valid login to the JIRA installation. The login needs to have
permissions to create and view issues and versions within JIRA.
Password this should be set to the password of the login specified above.
Time Offset normally this should be set to zero, but if you find that issues being changed in
JIRA are not being updated in SpiraTeam, try increasing the value as this will tell the data-
synchronization plug-in to add on the time offset (in hours) when comparing date-time stamps.
Page 11 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Also if your JIRA installation is running on a server set to a different time-zone, then you should
add in the number of hours difference between the servers’ time-zones here.
Auto-Map Users This changes the way that the plugin maps users in SpiraTeam to those in
JIRA:
Auto-Map = True
With this setting, all users in SpiraTeam need to have the same username as those in
JIRA. If this is the case then you do not need to perform the user-mapping task outlined
in section 2.2.2. This is a big time-saver if you can guarantee that all usernames are the
same in both systems.
Auto-Map = False
With this setting, users in SpiraTeam and JIRA are free to have different usernames
because you specify the corresponding JIRA name for each user as outlined in section
2.2.2.
Custom 01 This is used to specify a JIRA custom property that should be mapped to the built-
in SpiraTeam Incident Severity field (which does not exist in JIRA). This can be left empty for now
and will be discussed below in section 2.2.
Custom 02 This should be set to the word “True” if you want to have the new issues submitted
to JIRA be submitted using a specified SecurityLevel. If you’re not using the security level feature
of JIRA, leave the field blank.
Custom 03 This should be set to the word “True” if you want to have the plugin restrict
synchronization to only loading new incidents from SpiraTeam > JIRA and updating existing
items. This is useful if you want to prevent existing issues in JIRA from being loaded into
SpiraTeam. Leave blank if you want the plugin to synchronize normally.
Custom 04 This should be set to a comma-separated list of IDs of any JIRA issue types that
you want to be synchronized with SpiraTeam requirements instead of incidents. If you leave this
blank, all JIRA issue types will be synchronized with incidents.
Custom 05 This should be set to the name of the JIRA issue link type that you want SpiraTeam
incident associations to use. If you leave this blank, incident associations in SpiraTeam will not be
imported into JIRA. You can get the list of issue link types from the following screen in JIRA:
Note: For most users, we recommend leaving Custom 01 Custom 04 blank.
2.2. Configuring the Data Mapping
Next, you need to configure the data mapping between SpiraTeam and JIRA. This allows the various
projects, users, releases, incident types, statuses, priorities and custom property values used in the two
applications to be related to each other. This is important, as without a correct mapping, there is no way
for the integration service to know that an “Enhancement” in SpiraTeam is the same as a “New Feature”
in JIRA (for example).
Page 12 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The following mapping information needs to be setup in SpiraTeam:
The mapping of the project identifiers for the projects that need to be synchronized
The mapping of users in the system
The mapping of releases (equivalent to JIRA versions) in the system
The mapping of the various standard fields in the system
The mapping of the various custom properties in the system
Each of these is explained in turn below:
2.2.1. Configuring the Project Mapping

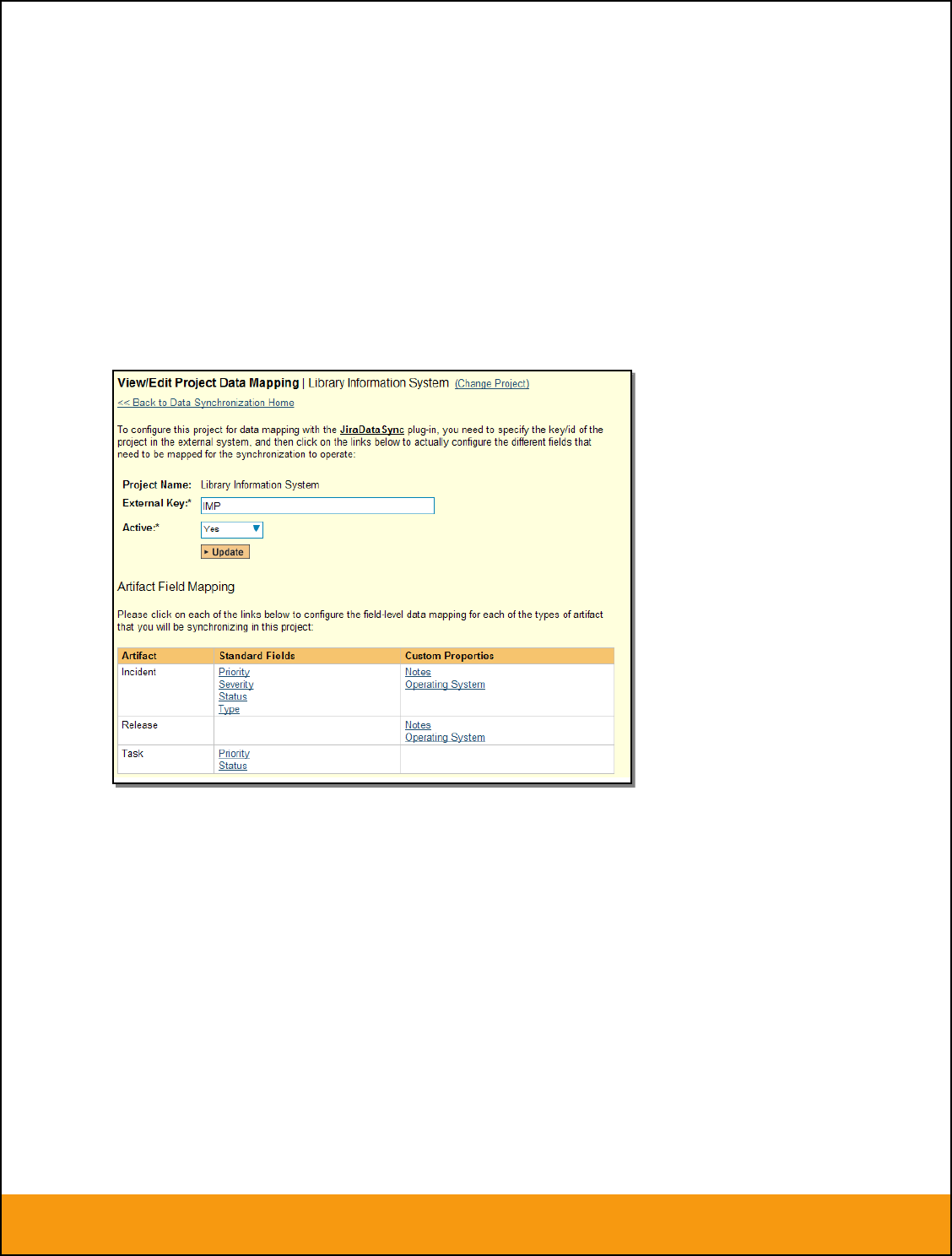

From the data synchronization administration page, you need to click on the “View Project Mappings”
hyperlink next to the JIRA plug-in name. This will take you to the data-mapping home page for the
currently selected project:
If the project name does not match the name of the project you want to configure the data-mapping for,
click on the “(Change Project)” hyperlink to change the current project.

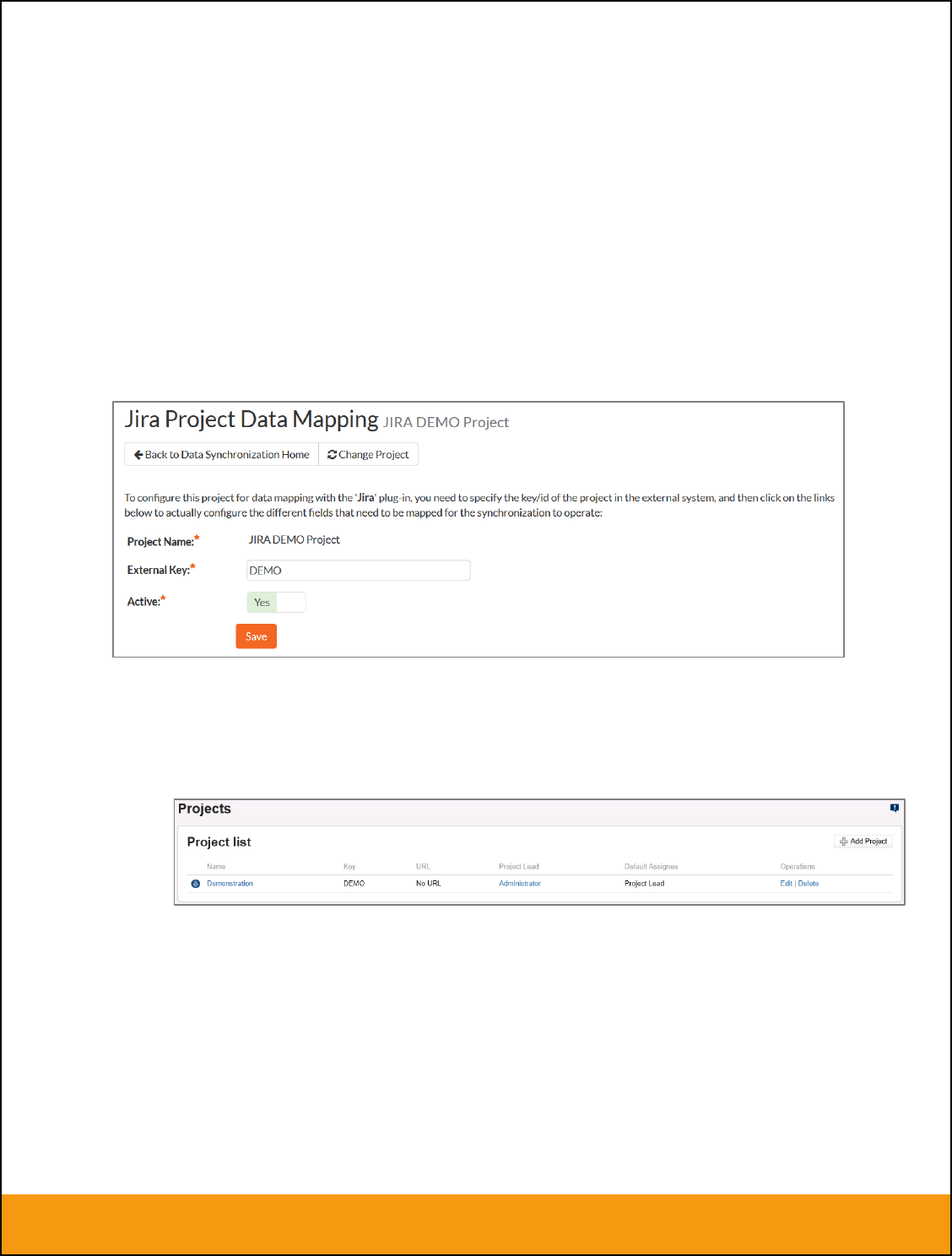

To enable this project for data-synchronization with JIRA, you need to enter:
External Key This should be set to the name of the project Key in JIRA. Typically this is a short
acronym for the project:
Active Flag Set this to ‘Yes’ so that SpiraTeam knows that you want to synchronize data for
this project. Once the project has been completed, setting the value to “No” will stop data
synchronization, reducing network utilization.
Click [Update] to confirm these settings. Once you have enabled the project for data-synchronization, you
can now enter the other data mapping values outlined below.
Note: Once you have successfully configured the project, when creating a new project, you
should choose the option to “Create Project from Existing Project” rather than “Use Default
Template” so that all the project mappings get copied across to the new project.
Page 13 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
2.2.2. Configuring the User Mapping
To configure the mapping of users in the two systems, you need to go to Administration > Users > View
Edit Users, which will bring up the list of users in the system. Then click on the “Edit” button for a
particular user that will be editing issues in JIRA:

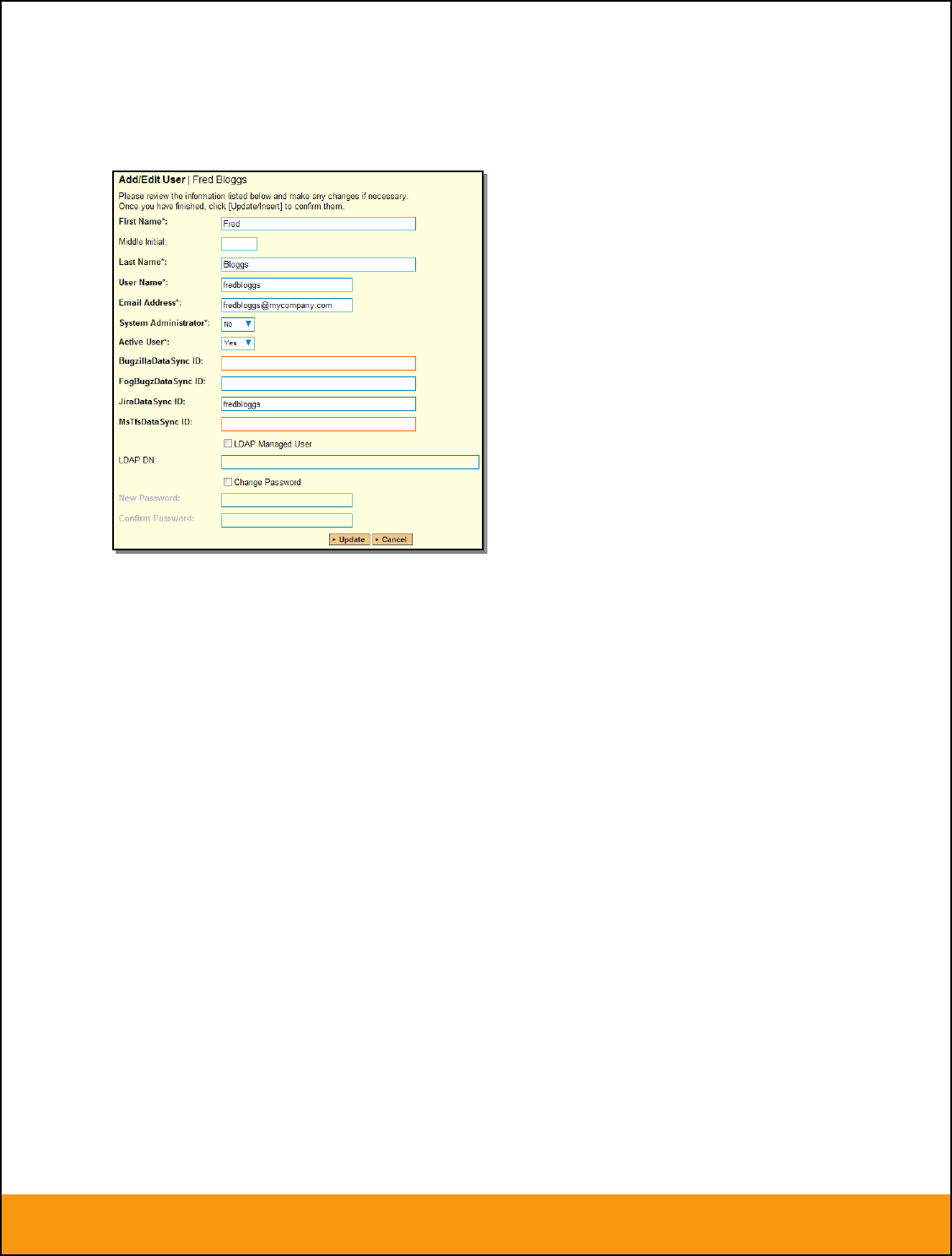

Click on the ‘Data Mapping’ tab to list all the configured data-synchronization plug-ins for this user. In the
text box next to the JIRA Data-Sync plug-in you need to enter the login for this username in JIRA. This
will allow the data-synchronization plug-in to know which user in SpiraTeam match which equivalent user
in JIRA. Click [Save] once you’ve entered the appropriate login name. You should now repeat for the
other users who will be active in both systems.
If you have set the “Auto-Map Users” option in the JIRA plugin, you can skip this section completely.
2.2.3. Configuring the Release Mapping
When the data-synchronization service runs, when it comes across a release/iteration in SpiraTeam that it
has not seen before, it will create a corresponding “Version” in JIRA. Similarly, if it comes across a new
Version in JIRA that it has not seen before, it will create a new Release in SpiraTeam. Therefore, when
using both systems together, it is recommended that you only enter new Releases/Versions in one
system and let the data-synchronization service add them to the other system.
However, you may start out with the situation where you already have pre-existing Releases/Version in
both systems that you need to associate in the data-mapping. If you don’t do this, you may find that
duplicates get created when you first enable the data-synchronization service. Therefore, for any
Releases/Iterations that already exist in BOTH systems please navigate to Planning > Releases and click
on the Release/Iteration in question. Make sure you have the ‘Overview’ tab visible and expand the
“Details” section of the release/iteration:
Page 14 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information

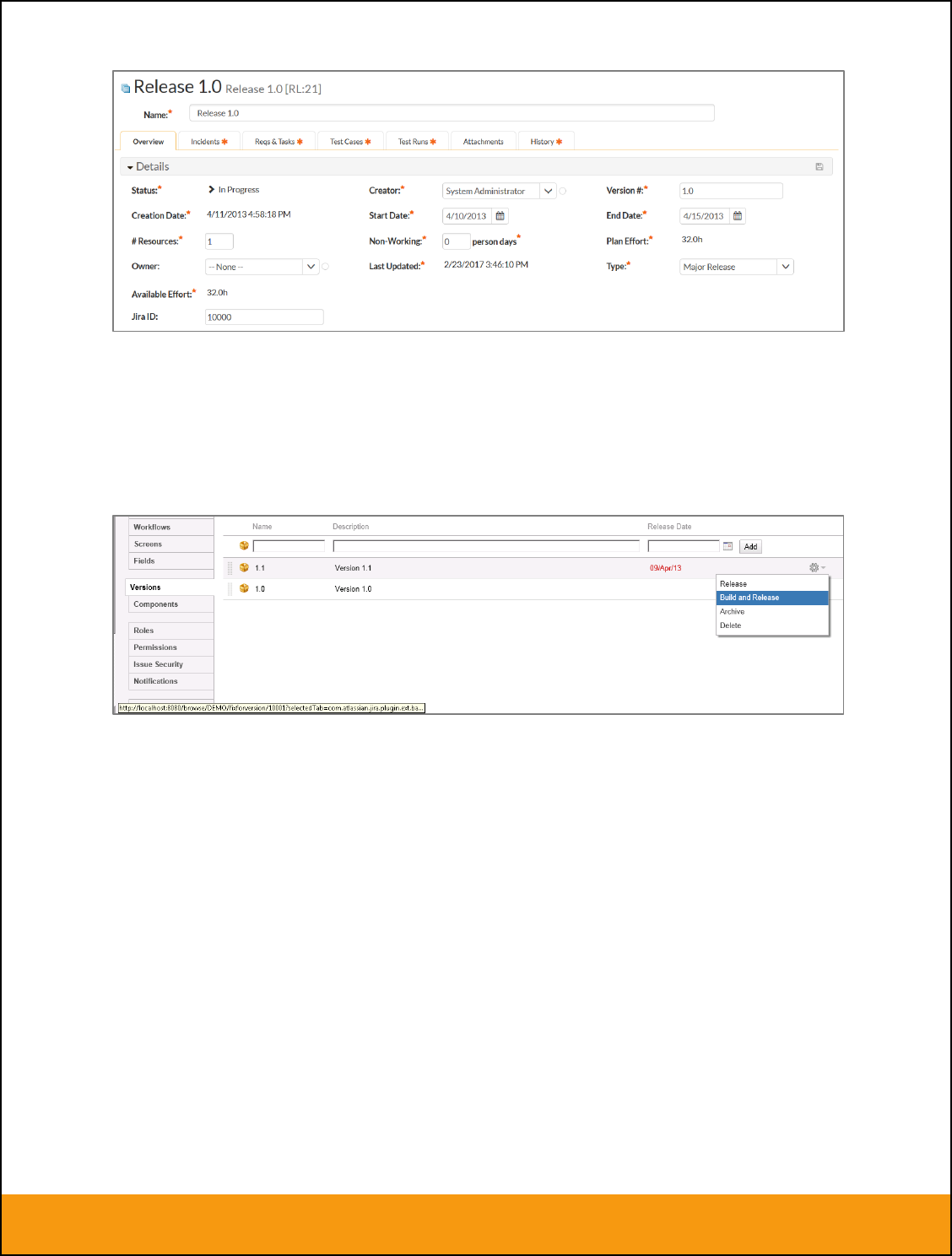

In addition to the standard fields and custom properties, you will see an additional text property called
Jira ID” that is used to store the mapped external identifier for the equivalent Version in JIRA. You need
to locate the ID of the equivalent version in JIRA, enter it into this text-box and click [Save]. You should
now repeat for all the other pre-existing releases.
The JIRA ID can be found by looking at the URL inside JIRA when choosing to Edit the version’s “Build
and Release”. The URL will include the numeric ID of the version inside JIRA in the URL (in the example
below, the ID would be 10001.

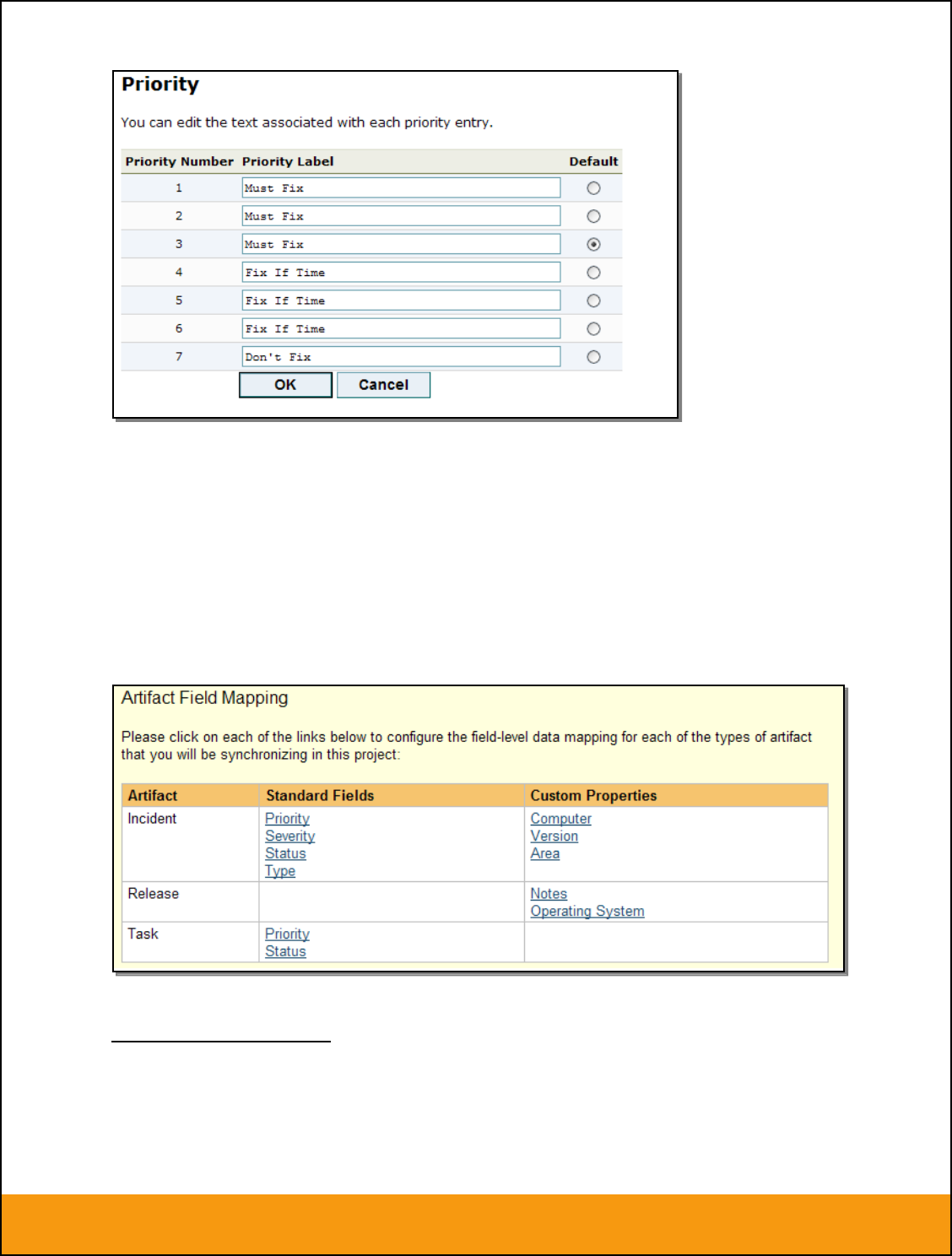

2.2.4. Configuring the Standard Field Mapping
Now that the projects, user and releases have been mapped correctly, we need to configure the standard
incident and requirement fields. To do this, go to Administration > System > Data Synchronization and
click on the “View Project Mappings” for the JiraDataSync plug-in entry:
Page 15 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information

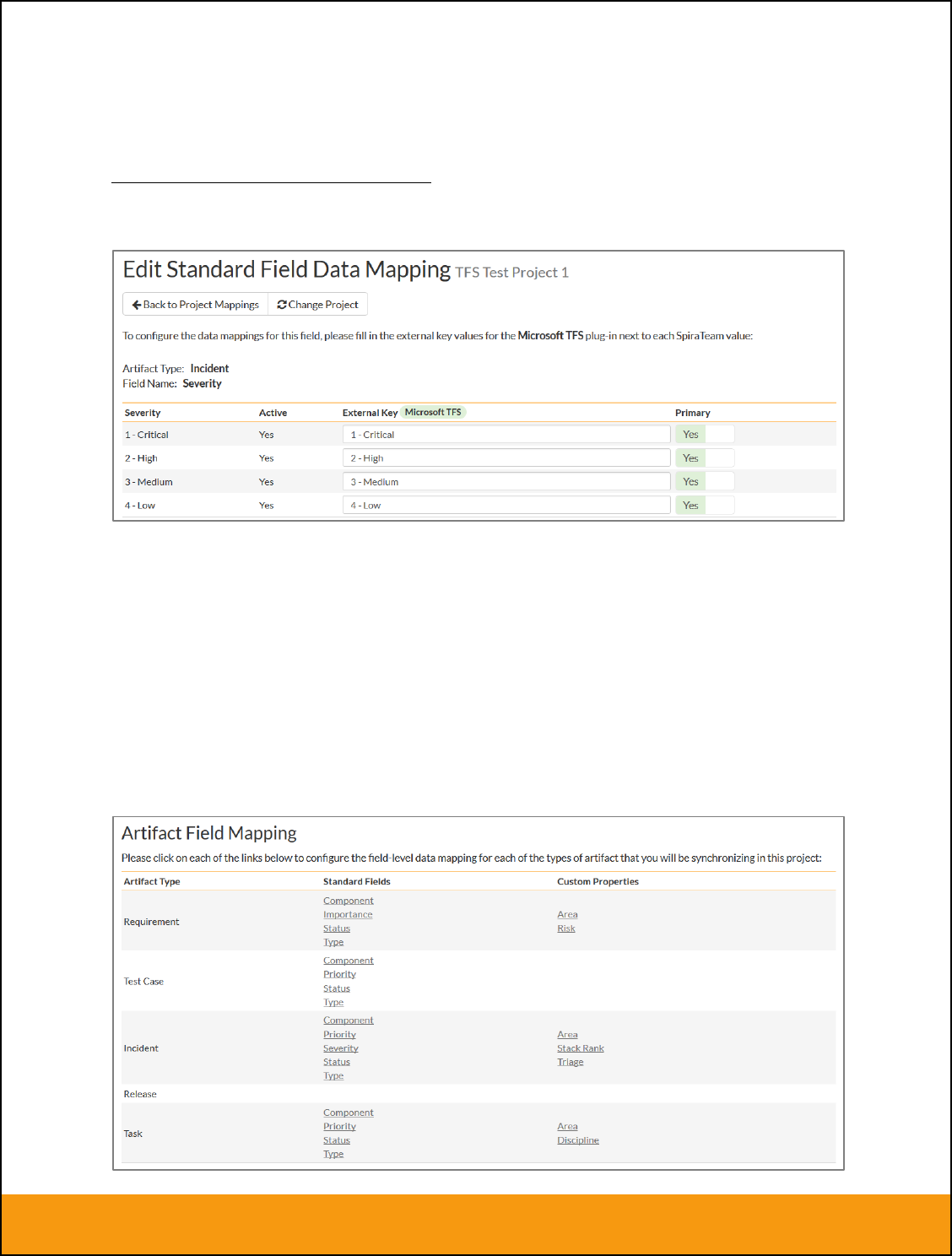

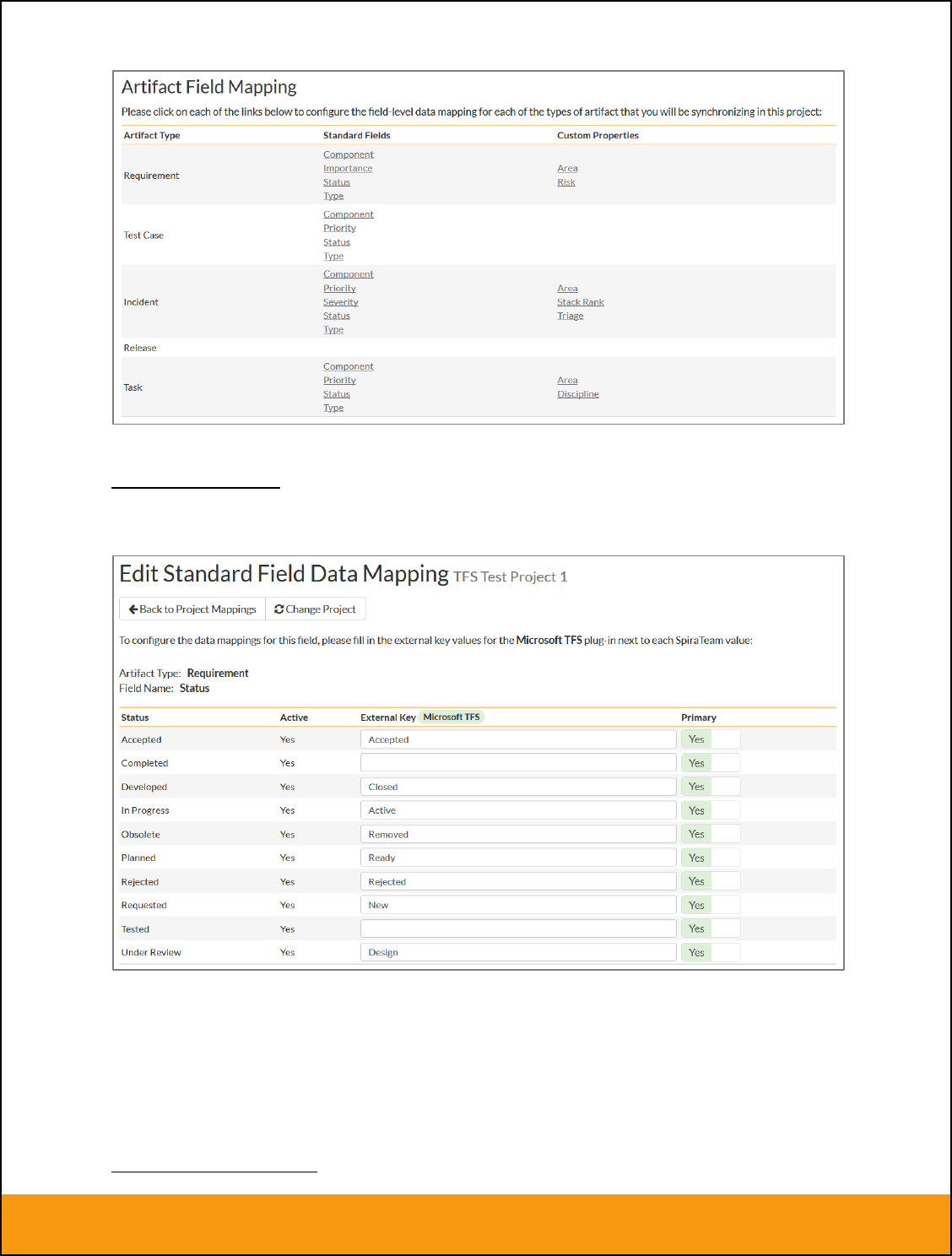

From this screen, you need to click on Priority, Severity, Component, Status and Type in turn to configure
the incident field mappings. If you’re using the option to have JIRA also synchronize some issue types as
requirements, then you’ll need to also configure the Requirement Importance, Type, Component and
Status fields.
a) Incident Type

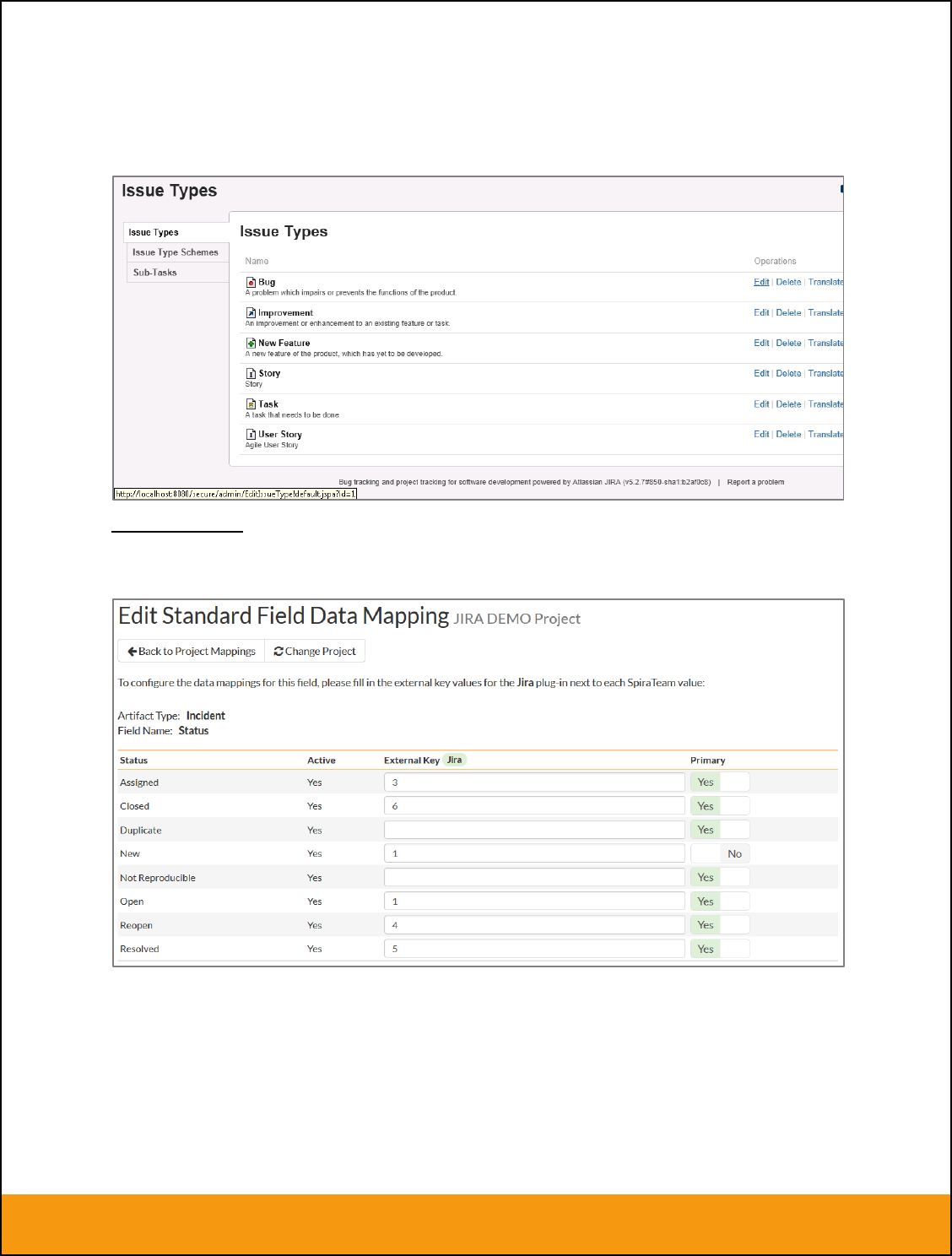

Click on the “Type” hyperlink under Incident Standard Fields to bring up the Incident type mapping
configuration screen:

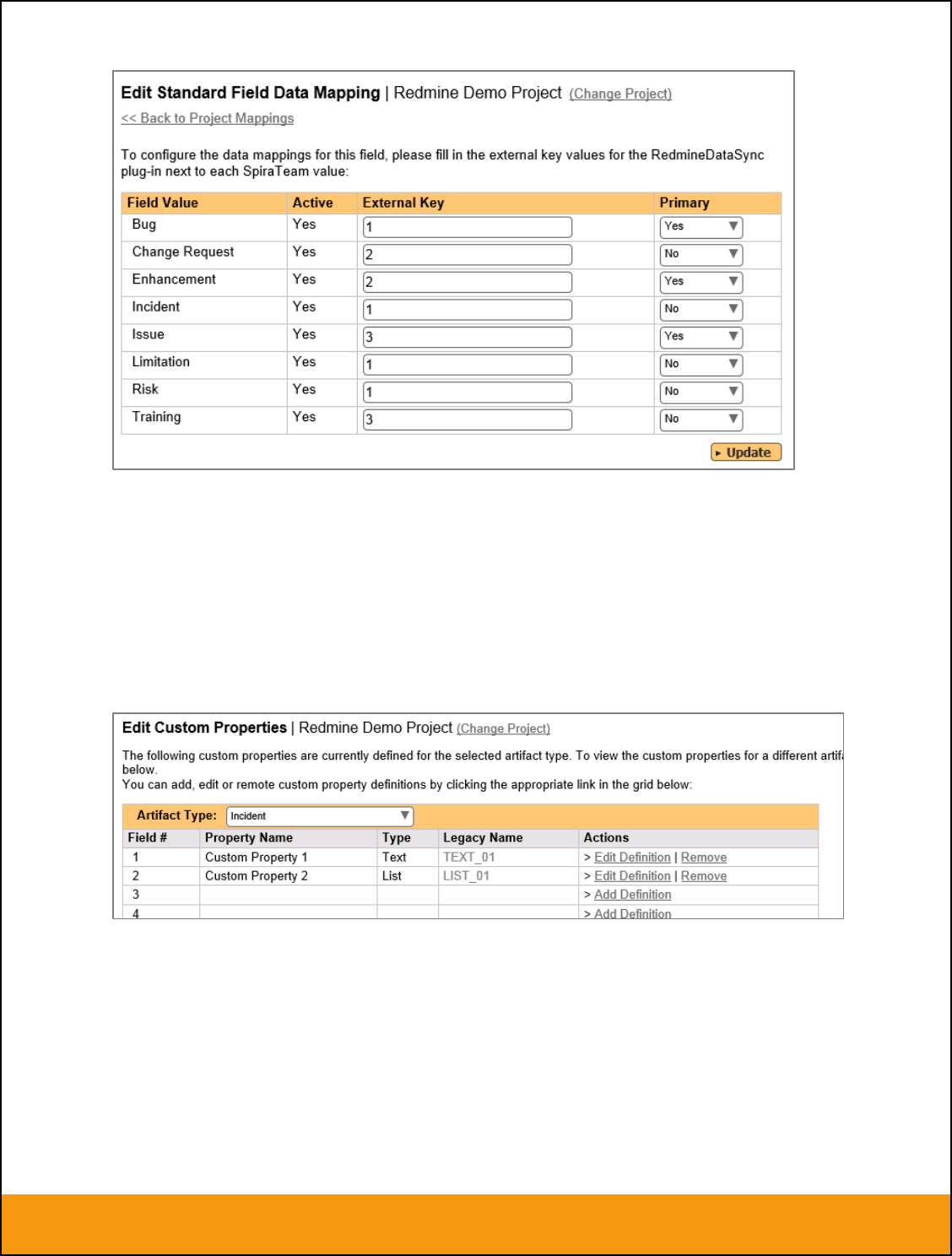

The table lists each of the incident types available in SpiraTeam and provides you with the ability to enter
the matching JIRA issue type ID for each one. You can map multiple SpiraTeam fields to the same JIRA
fields (e.g. Bug and Incident in SpiraTeam are both equivalent to Bug in JIRA), in which case only one of
Page 16 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
the two values can be listed as Primary = Yes as that’s the value that’s used on the reverse
synchronization (from JIRA > SpiraTeam).
The JIRA ID can be found by looking at the URL inside JIRA when choosing to View/Edit the Issue Type.
The URL will include the section: id=X where X is the numeric ID of the Issue Type inside JIRA.
b) Incident Status
Click on the “Status” hyperlink under Incident Standard Fields to bring up the Incident status mapping
configuration screen:
The table lists each of the incident statuses available in SpiraTeam and provides you with the ability to
enter the matching JIRA issue status ID for each one. You can map multiple SpiraTeam fields to the
same JIRA fields (e.g. New and Open in SpiraTeam are both equivalent to Open in JIRA), in which case
only one of the two values can be listed as Primary = Yes as that’s the value that’s used on the reverse
synchronization (from JIRA > SpiraTeam).
We recommend that you always point the New and Open statuses inside SpiraTeam to point to the ID for
“Open” inside JIRA and make Open in SpiraTeam the Primary status of the two. This is recommended so
that as new incidents in SpiraTeam get synched over to JIRA, they will get switched to the Open status in
Page 17 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
JIRA which will then be synched back to “Open” in SpiraTeam. That way you’ll be able to see at a glance
which incidents have been synched with JIRA and those that haven’t.
The JIRA ID can be found by looking at the URL inside JIRA when choosing to View/Edit the Issue
Status. The URL will include the section: id=X where X is the numeric ID of the Issue Status inside JIRA.
c) Incident Priority
Click on the “Priority” hyperlink under Incident Standard Fields to bring up the Incident Priority mapping
configuration screen:
The table lists each of the incident priorities available in SpiraTeam and provides you with the ability to
enter the matching JIRA priority ID for each one. You can map multiple SpiraTeam fields to the same
JIRA fields, in which case only one of the two values can be listed as Primary = Yes as that’s the value
that’s used on the reverse synchronization (from JIRA > SpiraTeam).
The JIRA ID can be found by looking at the URL inside JIRA when choosing to View/Edit the Priority. The
URL will include the section: id=X where X is the numeric ID of the Priority inside JIRA:
Page 18 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
d) Incident Component (Optional)
Click on the “Component” hyperlink under Incident Standard Fields to bring up the Incident component
mapping configuration screen:
The table lists each of the components available in SpiraTeam and provides you with the ability to enter
the matching JIRA component ID for each one. You can map multiple SpiraTeam fields to the same JIRA
fields, in which case only one of the two values can be listed as Primary = Yes as that’s the value that’s
used on the reverse synchronization (from JIRA > SpiraTeam).
The JIRA ID can be found by looking at the URL inside JIRA when choosing to View/Edit the Component.
The URL will include the section: id=X where X is the numeric ID of the Component inside JIRA:

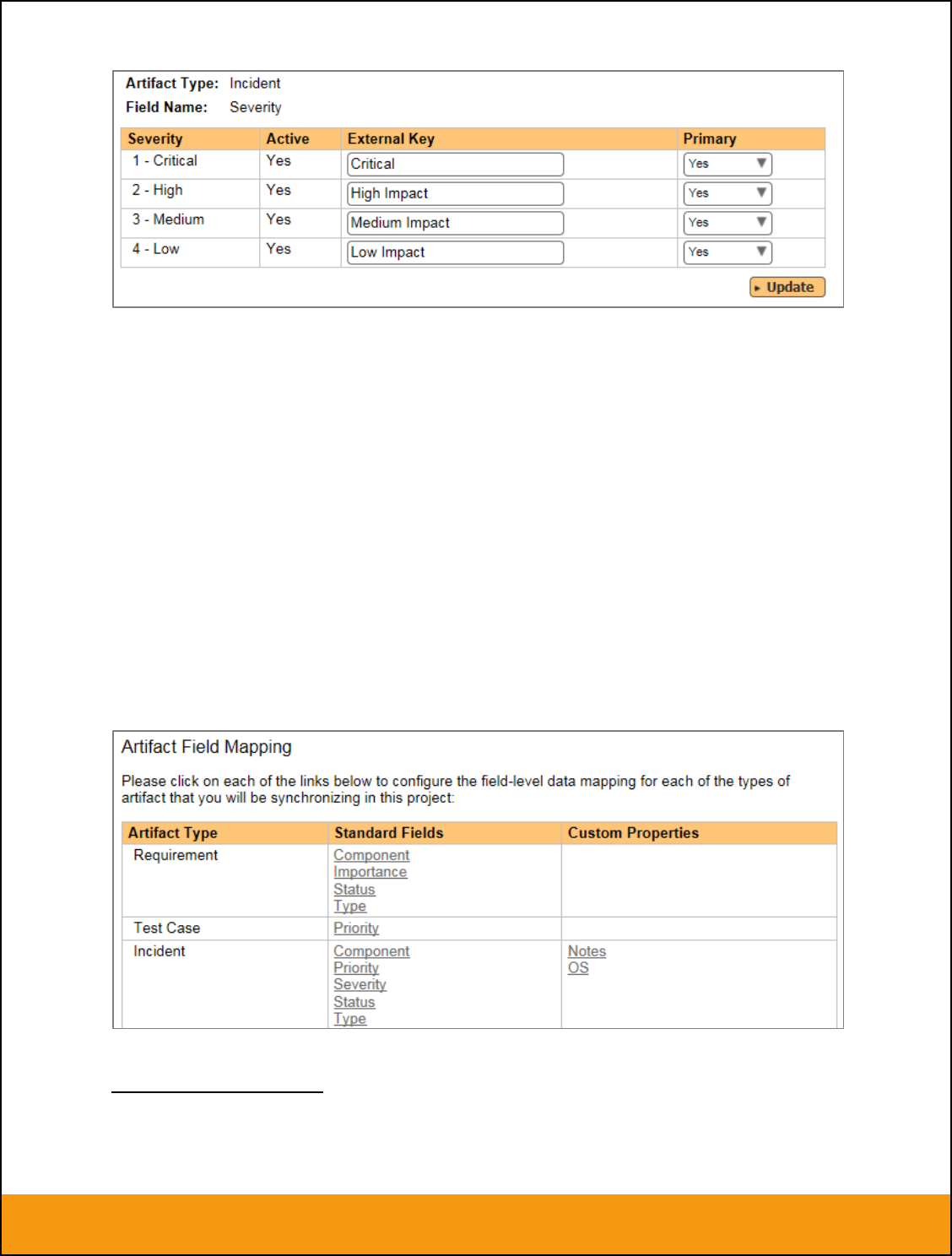

e) Incident Severity (Optional)
Click on the “Severity” hyperlink under Incident Standard Fields to bring up the Incident severity mapping
configuration screen:
Unlike the other incident standard fields, JIRA doesn’t actually have a built-in field for storing the severity
of an issue, so if you want to be able to see the SpiraTeam incident severity in JIRA, you’ll need to create
Page 19 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
a JIRA custom list field to store the different severity values. If you don’t want to synchronize severity
values with JIRA, you can skip the rest of this section.
Once you have created a custom field in JIRA to contain the list of severity values, you need to now
populate the above table with the name (Not the ID) of the severity custom property values inside JIRA
and click Update. Secondly you need to go to the Plug-in configuration screen:
On this screen you need to enter the ID of the custom field that you’re using to store severities in JIRA
and populate the Custom 01 property with this value (see above). The ID can be found by looking at
the URL inside JIRA when choosing to View/Edit the Custom Field. The URL will include the section:
id=X where X is the numeric ID of the Custom Field inside JIRA:
e) Requirement Status (Optional)
Click on the “Status” hyperlink under Requirement Standard Fields to bring up the Requirement status
mapping configuration screen:
The table lists each of the requirement statuses available in SpiraTeam and provides you with the ability
to enter the matching JIRA issue status ID for each one. You can map multiple SpiraTeam fields to the
same JIRA fields, in which case only one of the two values can be listed as Primary = Yes as that’s the
value that’s used on the reverse synchronization (from JIRA > SpiraTeam).
The JIRA ID can be found by looking at the URL inside JIRA when choosing to View/Edit the Issue
Status. The URL will include the section: id=X where X is the numeric ID of the Issue Status inside JIRA.
Page 20 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information

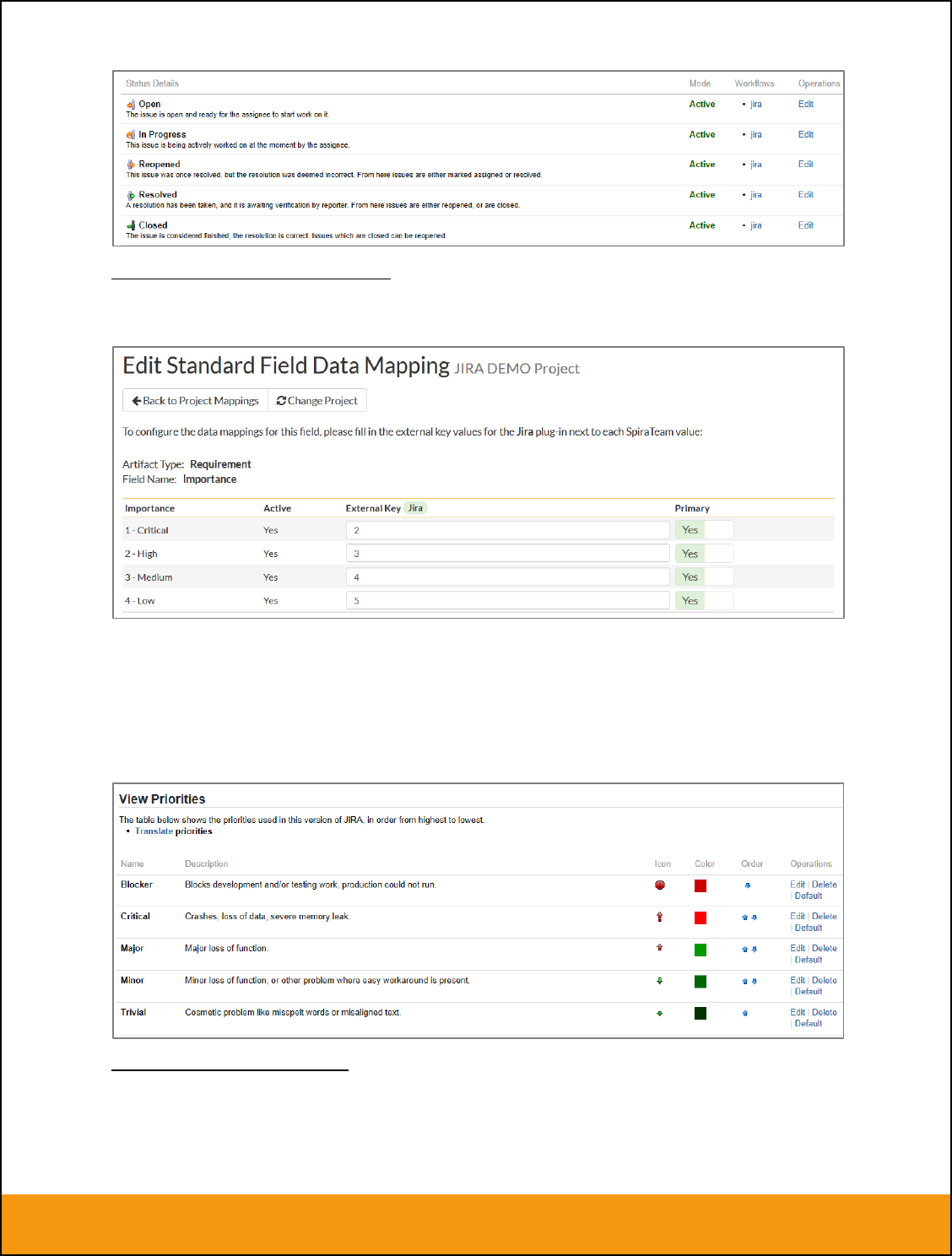

f) Requirement Importance (Optional)
Click on the “Importance” hyperlink under Requirement Standard Fields to bring up the Requirement
Importance mapping configuration screen:
The table lists each of the requirement importances available in SpiraTeam and provides you with the
ability to enter the matching JIRA priority ID for each one. You can map multiple SpiraTeam fields to the
same JIRA fields, in which case only one of the two values can be listed as Primary = Yes as that’s the
value that’s used on the reverse synchronization (from JIRA > SpiraTeam).
The JIRA ID can be found by looking at the URL inside JIRA when choosing to View/Edit the Priority. The
URL will include the section: id=X where X is the numeric ID of the Priority inside JIRA:
g) Requirement Type (Optional)
Click on the “Type” hyperlink under Requirement Standard Fields to bring up the Requirement type
mapping configuration screen:
Page 21 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The table lists each of the requirement types available in SpiraTeam and provides you with the ability to
enter the matching JIRA issue type ID for each one. You can map multiple SpiraTeam fields to the same
JIRA fields (e.g. Use Case and User Story in SpiraTeam are both equivalent to User Story in JIRA), in
which case only one of the two values can be listed as Primary = Yes as that’s the value that’s used on
the reverse synchronization (from JIRA > SpiraTeam).
The JIRA ID can be found by looking at the URL inside JIRA when choosing to View/Edit the Issue Type.
The URL will include the section: id=X where X is the numeric ID of the Issue Type inside JIRA.
h) Requirement Component (Optional)
Click on the “Component” hyperlink under Requirement Standard Fields to bring up the Requirement
component mapping configuration screen:
Page 22 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The table lists each of the components available in SpiraTeam and provides you with the ability to enter
the matching JIRA component ID for each one. You can map multiple SpiraTeam fields to the same JIRA
fields, in which case only one of the two values can be listed as Primary = Yes as that’s the value that’s
used on the reverse synchronization (from JIRA > SpiraTeam).
The JIRA ID can be found by looking at the URL inside JIRA when choosing to View/Edit the Component.
The URL will include the section: id=X where X is the numeric ID of the Component inside JIRA:
2.2.5. Configuring the Custom Property Mapping
Now that the various SpiraTeam standard fields have been mapped correctly, we need to configure the
custom property mappings. This is used for both custom properties in SpiraTeam that map to custom
fields in JIRA and also for custom properties in SpiraTeam that are used to map to standard fields in JIRA
(Environment, Resolution and SecurityLevel) that don’t exist in SpiraTeam.
From the View/Edit Project Data Mapping screen, you need to click on the name of the Incident or
Requirement Custom Property that you want to add data-mapping information for. We will consider the
four different types of mapping that you might want to enter:
Page 23 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
a) Scalar Custom Properties
This refers to custom properties that have a simple user-entered value and don’t need to have their
specific options mapped between SpiraTeam and JIRA. All of the custom property types except List and
Multi-List fall into this category (e.g. Text, Date, User, Boolean, Decimal, Integer, etc.)
Click on the hyperlink of the scalar custom property under Incident/Requirement Custom Properties to
bring up the custom property mapping configuration screen. For scalar custom properties, there will be no
values listed in the lower half of the screen.
You need to lookup the ID of the custom field in JIRA that matches this custom property in SpiraTeam.
Once you have entered the id of the custom field, click [Update].
The ID can be found by looking at the URL inside JIRA when choosing to View/Edit the Custom Field.
The URL will include the section: id=X where X is the numeric ID of the Custom Field inside JIRA:
Page 24 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information

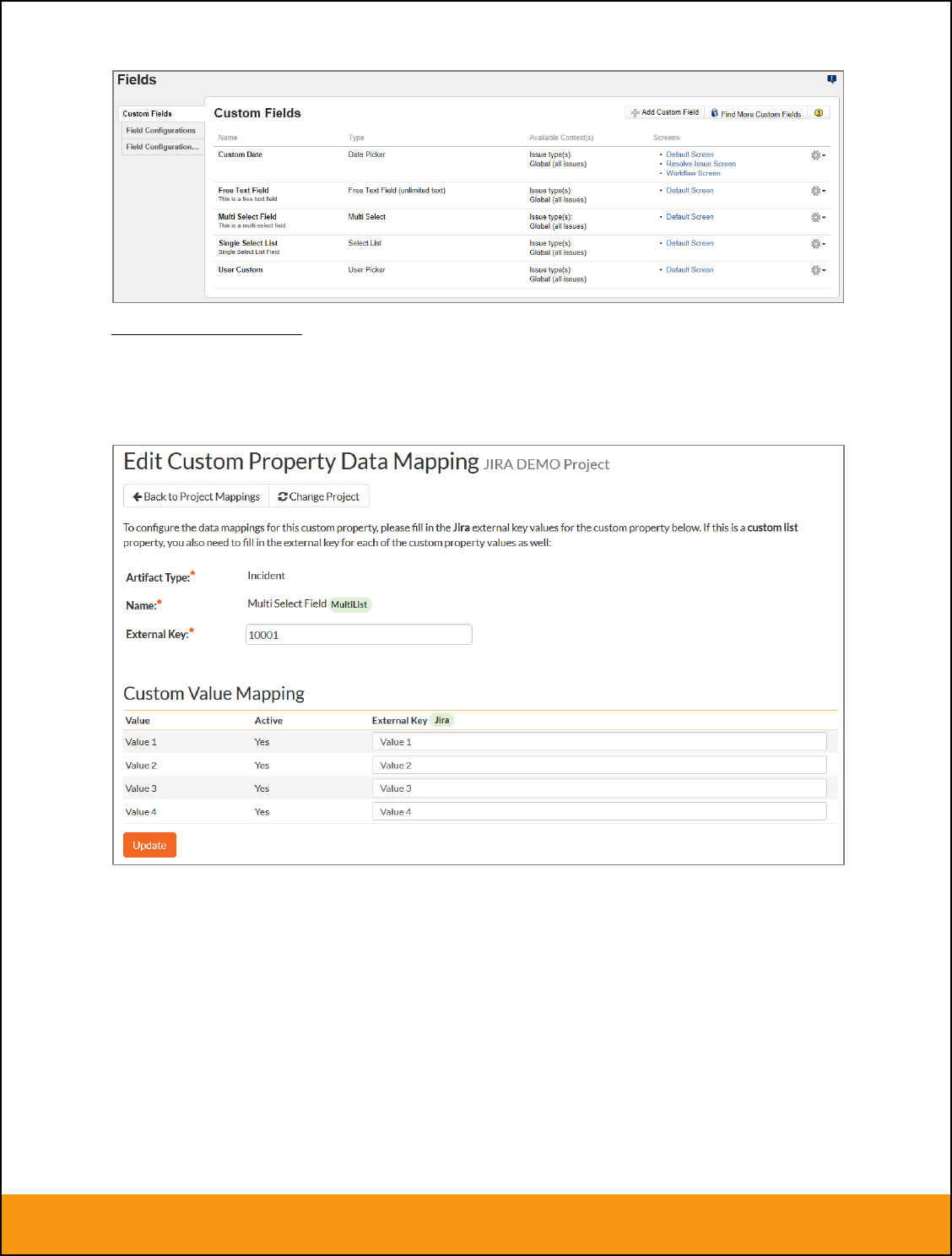

b) List Custom Properties
This refers to custom properties that are either of type List or Multi-List. Click on the hyperlink of the list
custom property under Incident/Requirement Custom Properties to bring up the custom property mapping
configuration screen. For list custom properties there will be a textbox for both the custom field itself and
a mapping table for each of the custom property values that need to be mapped:
First you need to lookup the ID of the custom field in JIRA that matches this custom property in
SpiraTeam. This should be entered in the ‘External Key’ field below the name of the custom property. The
ID can be found by looking at the URL inside JIRA when choosing to View/Edit the Custom Field. The
URL will include the section: id=X where X is the numeric ID of the Custom Field inside JIRA.
Page 25 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the full
name (not the id this time) of the custom field value as specified in JIRA:
c) JIRA’s Resolution Field
If you would like the values of the JIRA ‘Resolution’ field to be synchronized back to SpiraTeam, then
you will need to fill out this section. You first need to create an incident custom property in SpiraTeam of
type ‘LIST’ that contains the various resolution names that exist inside JIRA.
Then click on the hyperlink of this new list custom property under Incident Custom Properties to bring up
the custom property mapping configuration screen:
Page 26 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
First you need to enter the word “Resolution” as the External Key of the custom property. This tells the
data-sync plug-in that the custom property in SpiraTeam should be mapped to built-in Resolution field in
JIRA.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the JIRA
ID of the various Resolutions that are configured in JIRA. The external ID can be found by looking at the
URL inside JIRA which choosing to View/Edit the resolution name/description.
d) JIRA’s Environment Field
If your instance of JIRA requires that all new issues are submitted with an ‘Environment’ description
specified, then you will need to fill out this section. You first need to create an incident custom property in
SpiraTeam of type ‘TEXT’ that will be used to store the environment description within SpiraTeam.
Then click on the hyperlink of this new list custom property under Incident Custom Properties to bring up
the custom property mapping configuration screen:
All you need to do on this screen is enter the word “Environment” in the External Key textbox and the
data-sync plug-in will know that this custom property is mapped to the built-in Environment field in JIRA.
e) JIRA’s Security Level Field
Page 27 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
If your instance of JIRA requires that all new issues are submitted with a ‘Security Level’ then you will
need to fill out this section. You first need to create an incident custom property in SpiraTeam of type
‘LIST’ that contains the various security levels that exist inside JIRA.
Then click on the hyperlink of this new list custom property under Incident Custom Properties to bring up
the custom property mapping configuration screen.
First you need to enter the word “SecurityLevel” as the External Key of the custom property. This tells
the data-sync plug-in that the custom property in SpiraTeam should be mapped to built-in Security Level
field in JIRA.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the JIRA
ID of the various Security Levels that are configured in JIRA. The external ID can be found by looking at
the URL inside JIRA which choosing to View/Edit the security level name/description.
f) JIRA’s Issue Key Field
It can be convenient to create a SpiraTeam custom property to store the JIRA Issue Key (the ID used to
identify an issue in JIRA). This allows you to display a list of incients in SpiraTest and see the
corresponding JIRA ID in the same list. You first need to create an incident custom property in SpiraTeam
of type ‘TEXT’ that will be used to store the JIRA issue key within SpiraTeam.

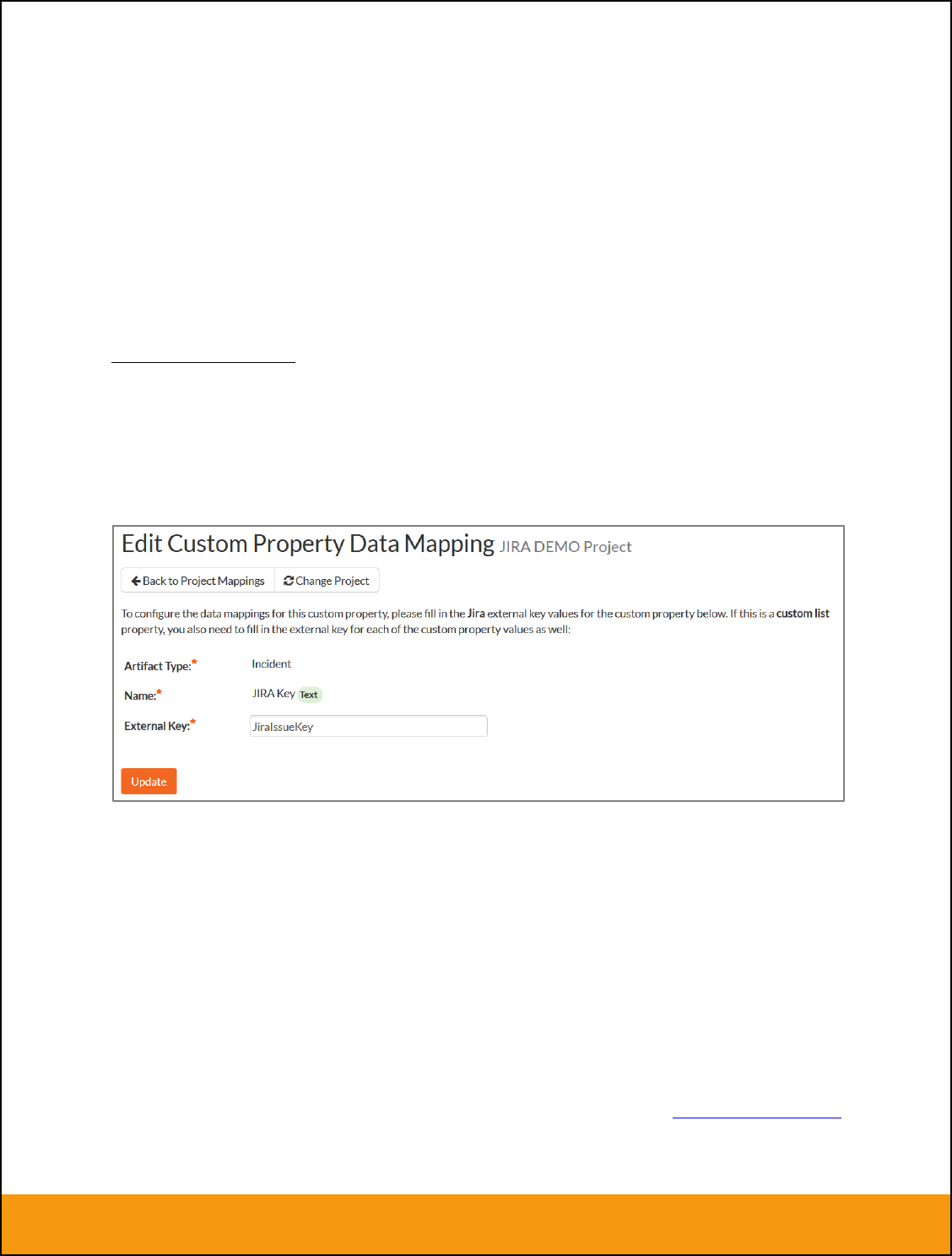

Then click on the hyperlink of this new list custom property under Incident Custom Properties to bring up
the custom property mapping configuration screen:

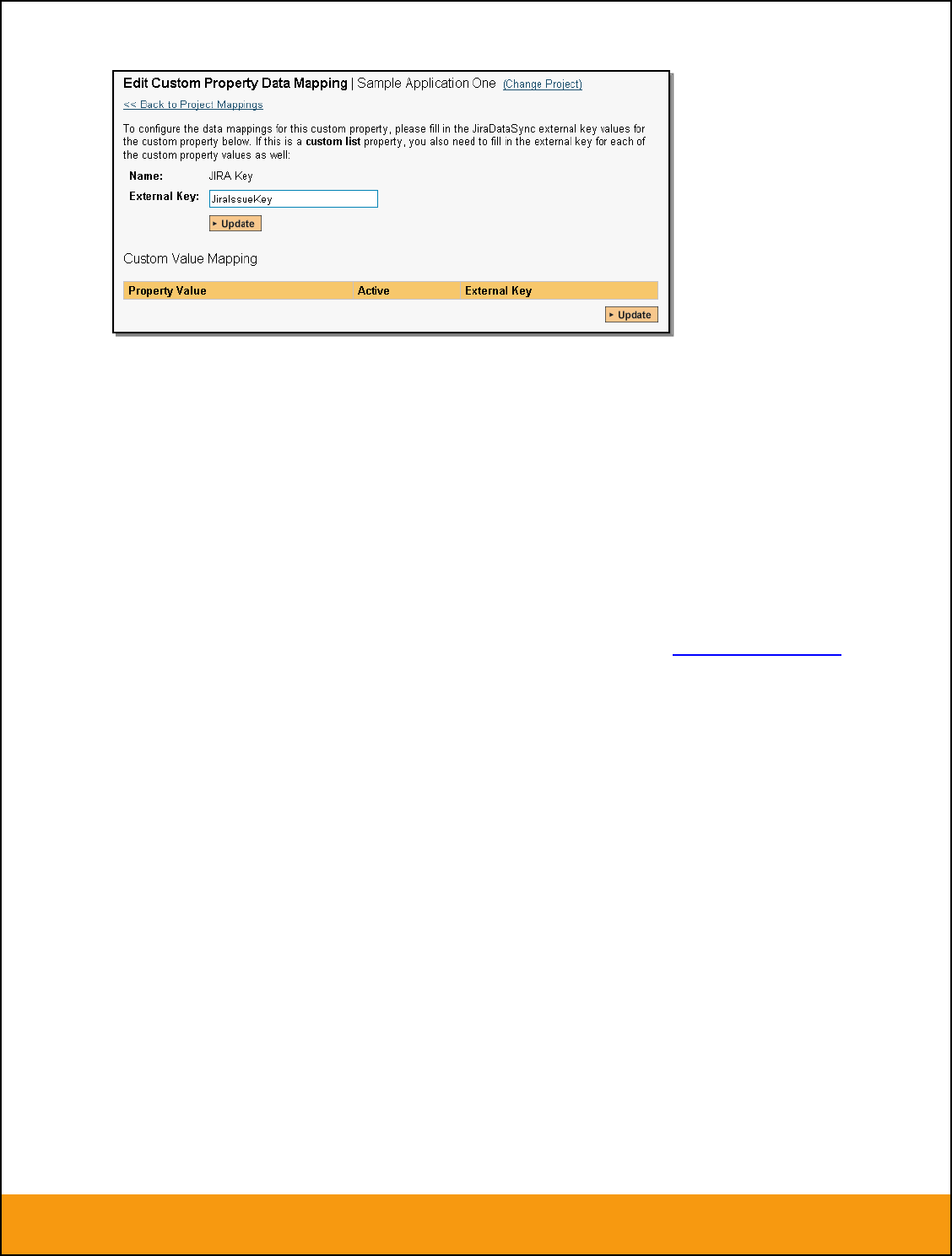

All you need to do on this screen is enter the word “JiraIssueKey” in the External Key textbox and the
data-sync plug-in will know that this custom property is mapped to the built-in Issue Key field in JIRA.
Once you have updated the various mapping sections, you are now ready to use the integration.
2.3. Using SpiraTeam with JIRA
Now that the integration service has been configured and the service started, initially any incidents
created in SpiraTeam for the specified projects will be imported into JIRA and any existing issues in JIRA
will get loaded into SpiraTeam as either incidents or requirements (depending on your configuration).
At this point we recommend opening the Windows Event Viewer and choosing the Application Log. In this
log any error messages raised by the SpiraTeam Data Sync Service will be displayed. If you see any
error messages at this point, we recommend immediately stopping the SpiraTeam service and checking
the various mapping entries. If you cannot see any issues with the mapping information, we recommend
sending a copy of the event log message(s) to Inflectra customer services (support@inflectra.com) who
will help you troubleshoot the problem.
Page 28 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
To use SpiraTeam with JIRA on an ongoing basis, we recommend the following general processes be
followed:
When running tests in SpiraTest or SpiraTeam, defects found should be logged through the Test
Execution Wizard as normal.
Developers can log new defects into either SpiraTeam or JIRA. In either case they will get loaded
into the other system.
Once created in one of the systems and successfully replicated to the other system, the incident
should not be modified again inside SpiraTeam
At this point, the incident should not be acted upon inside SpiraTeam and all data changes to the
issue should be made inside JIRA. To enforce this, you should modify the workflows set up in
SpiraTeam so that the various fields are marked as inactive for all the incident statuses other than
the “New” status. This will allow someone to submit an incident in SpiraTeam, but will prevent
them making changes in conflict with JIRA after that point.
As the issue progresses through the customized JIRA workflow, changes to the type of issue,
changes to its status, priority, description and resolution will be updated automatically in
SpiraTeam. In essence, SpiraTeam acts as a read-only viewer of these incidents.
You are now able to perform test coverage and incident reporting inside SpiraTest/SpiraTeam
using the test cases managed by SpiraTest/SpiraTeam and the incidents managed on behalf of
SpiraTest/SpiraTeam inside JIRA.
Page 29 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
3. Using SpiraTeam with JIRA 3 / 4
This section outlines how to use SpiraTest, SpiraPlan or SpiraTeam (hereafter referred to as SpiraTeam)
in conjunction with the JIRA issue/bug tracking system versions 3.0 4.0. The built-in integration service
allows the quality assurance team to manage their requirements and test cases in SpiraTeam, execute
test runs in SpiraTest, and then have the new incidents generated during the run be automatically loaded
into JIRA. Once the incidents are loaded into JIRA as issues, the development team can then manage
the lifecycle of these issues in JIRA, and have the status changes in JIRA be reflected back in
SpiraTeam.
In addition, if you are using JIRA 4.x or higher, any issues logged directly into JIRA will get imported into
SpiraTeam so that they can be linked to test cases and requirements.
STOP! Please make sure you have first read the Instructions in Section 1 before proceeding!
3.1. Configuring the Plug-In
The next step is to configure the plug-in within SpiraTeam so that the system knows how to access the
JIRA server. To start the configuration, please open up SpiraTeam in a web browser, log in using a valid
account that has System-Administration level privileges and click on the System > Data Synchronization
administration option from the left-hand navigation:
This screen lists all the plug-ins already configured in the system. Depending on whether you chose the
option to include sample data in your installation or not, you will see either an empty screen or a list of
sample data-synchronization plug-ins.
If you already see an entry for JiraDataSync you should click on its “Edit” link. If you don’t see such an
entry in the list, please click on the [Add] button instead. In either case you will be taken to the following
screen where you can enter or modify the JIRA Data-Synchronization plug-in:
Page 30 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You need to fill out the following fields for the JIRA Plug-in to operate correctly:
Name this needs to be set to JiraDataSync. This needs to match the name of the plug-in DLL
assembly that was copied into the C:\Program Files\SpiraTeam\Bin folder (minus the .dll file
extension). If you renamed the JiraDataSync.dll file for any reason, then you need to change the
name here to match.
Description this should be set to a description of the plug-in. This is an optional field that is
used for documentation purposes and is not actually used by the system.
Connection Info this should the full URL to the JIRA installation’s web-service API. This is
typically http://<jira server name>/rpc/soap/jirasoapservice-v2.
Login this should be set to a valid login to the JIRA installation. The login needs to have
permissions to create and view issues and versions within JIRA.
Password this should be set to the password of the login specified above.
Time Offset normally this should be set to zero, but if you find that issues being changed in
JIRA are not being updated in SpiraTeam, try increasing the value as this will tell the data-
synchronization plug-in to add on the time offset (in hours) when comparing date-time stamps.
Also if your JIRA installation is running on a server set to a different time-zone, then you should
add in the number of hours difference between the servers’ time-zones here.
The remaining fields work differently depending on which version of the plugin you are using (JIRA 3.x or
JIRA 4.x):
a) JIRA 3.x Plugin
Please fill out the fields as follows:
Auto-Map Users this is not currently used and can be ignored.
Page 31 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Custom 01 This is used to specify a JIRA custom property that should be mapped to the built-
in SpiraTeam Incident Severity field (which does not exist in JIRA). This can be left empty for now
and will be discussed below in section 3.2.
Custom 02 05 these are not currently used by the plug-in and should be left blank.
b) JIRA 4.x Plugin
Please fill out the fields as follows:
Auto-Map Users This changes the way that the plugin maps users in SpiraTeam to those in
JIRA:
Auto-Map = True
With this setting, all users in SpiraTeam need to have the same username as those in
JIRA. If this is the case then you do not need to perform the user-mapping task outlined
in section 3.2.2. This is a big time-saver if you can guarantee that all usernames are the
same in both systems.
Auto-Map = False
With this setting, users in SpiraTeam and JIRA are free to have different usernames
because you specify the corresponding JIRA name for each user as outlined in section
3.2.2.
Custom 01 This is used to specify a JIRA custom property that should be mapped to the built-
in SpiraTeam Incident Severity field (which does not exist in JIRA). This can be left empty for now
and will be discussed below in section 3.2.
Custom 02 This should be set to the word “True” if you want to have the new issues submitted
to JIRA be submitted using a specified SecurityLevel. If you’re not using the security level feature
of JIRA, leave the field blank.
Custom 03 This should be set to the word “True” if you want to have the plugin restrict
synchronization to only loading new incidents from SpiraTeam > JIRA and updating existing
items. This is useful if you want to prevent existing issues in JIRA from being loaded into
SpiraTeam. Leave blank if you want the plugin to synchronize normally.
Custom 04 This should be set to the word “True” if you want to have the plugin copy file
attachments from SpiraTeam > JIRA. This can use additional system resources and may fail if
the files are too large for JIRA’s API to handle. Leave the field blank if you want the default
behavior which is to not synchronize attachments.
Custom 05 - When you click “Force Resync” inside SpiraTeam it will attempt to resynchronize all
incidents/issues from 1/1/1900. Sometimes that causes the JIRA API to timeout or exceed the
maximum allowed number of results if there are a large number of existing issues in JIRA.
You can set this field to a specific year (e.g. 1995) or year and month (e.g. 2010-11) to restrict
how far back the system will look for existing issues. If you leave this field blank it will use the
default value of “1900-01”.
Note: For most users, we recommend leaving Custom 01 Custom 05 blank.
3.2. Configuring the Data Mapping
Next, you need to configure the data mapping between SpiraTeam and JIRA. This allows the various
projects, users, releases, incident types, statuses, priorities and custom property values used in the two
applications to be related to each other. This is important, as without a correct mapping, there is no way
for the integration service to know that an “Enhancement” in SpiraTeam is the same as a “New Feature”
in JIRA (for example).
The following mapping information needs to be setup in SpiraTeam:
Page 32 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The mapping of the project identifiers for the projects that need to be synchronized
The mapping of users in the system
The mapping of releases (equivalent to JIRA versions) in the system
The mapping of the various standard fields in the system
The mapping of the various custom properties in the system
Each of these is explained in turn below:
3.2.1. Configuring the Project Mapping
From the data synchronization administration page, you need to click on the “View Project Mappings”
hyperlink next to the JIRA plug-in name. This will take you to the data-mapping home page for the
currently selected project:
If the project name does not match the name of the project you want to configure the data-mapping for,
click on the “(Change Project)” hyperlink to change the current project.
To enable this project for data-synchronization with JIRA, you need to enter:
External Key This should be set to the name of the project token in JIRA. Typically this is a
three-letter acronym for the project.
Active Flag Set this to ‘Yes’ so that SpiraTeam knows that you want to synchronize data for
this project. Once the project has been completed, setting the value to “No” will stop data
synchronization, reducing network utilization.
Click [Update] to confirm these settings. Once you have enabled the project for data-synchronization, you
can now enter the other data mapping values outlined below.
Note: Once you have successfully configured the project, when creating a new project, you
should choose the option to Create Project from Existing Project” rather than “Use Default
Template” so that all the project mappings get copied across to the new project.
Page 33 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
3.2.2. Configuring the User Mapping
To configure the mapping of users in the two systems, you need to go to Administration > Users > View
Edit Users, which will bring up the list of users in the system. Then click on the “Edit” button for a
particular user that will be editing issues in JIRA:
You will notice that below the Active flag for the user is a list of all the configured data-synchronization
plug-ins. In the text box next to the JIRA Data-Sync plug-in you need to enter the login for this username
in JIRA. This will allow the data-synchronization plug-in to know which user in SpiraTeam match which
equivalent user in JIRA. Click [Update] once you’ve entered the appropriate login name. You should now
repeat for the other users who will be active in both systems.
3.2.3. Configuring the Release Mapping
When the data-synchronization service runs, when it comes across a release/iteration in SpiraTeam that it
has not seen before, it will create a corresponding “Version” in JIRA. Similarly if it comes across a new
Version in JIRA that it has not seen before, it will create a new Release in SpiraTeam. Therefore when
using both systems together, it is recommended that you only enter new Releases/Versions in one
system and let the data-synchronization service add them to the other system.
However you may start out with the situation where you already have pre-existing Releases/Version in
both systems that you need to associate in the data-mapping. If you don’t do this, you may find that
duplicates get created when you first enable the data-synchronization service. Therefore for any
Releases/Iterations that already exist in BOTH systems please navigate to Planning > Releases and click
on the Release/Iteration in question. Make sure you have the ‘Overview’ tab visible and expand the
“Details” section of the release/iteration:
Page 34 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
In addition to the standard fields custom properties configured for Releases, you will see an additional
text property called “JiraDataSync ID” that is used to store the mapped external identifier for the
equivalent Version in JIRA. You need to locate the ID of the equivalent version in JIRA, enter it into this
text-box and click [Save]. You should now repeat for all the other pre-existing releases.
Note: The JIRA ID can be found by looking at the URL inside JIRA when choosing to View/Edit the
version name/description. The URL will include the section: id=X where X is the numeric ID of the version
inside JIRA.
3.2.4. Configuring the Standard Field Mapping
Now that the projects, user and releases have been mapped correctly, we need to configure the standard
incident fields. To do this, go to Administration > System > Data Synchronization and click on the “View
Project Mappings” for the JiraDataSync plug-in entry:
From this screen, you need to click on Priority, Severity, Status and Type in turn to configure their values:
a) Incident Type
Click on the “Type” hyperlink under Incident Standard Fields to bring up the Incident type mapping
configuration screen:
Page 35 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The table lists each of the incident types available in SpiraTeam and provides you with the ability to enter
the matching JIRA issue type ID for each one. You can map multiple SpiraTeam fields to the same JIRA
fields (e.g. Bug and Incident in SpiraTeam are both equivalent to Bug in JIRA), in which case only one of
the two values can be listed as Primary = Yes as that’s the value that’s used on the reverse
synchronization (from JIRA > SpiraTeam).
Note: The JIRA ID can be found by looking at the URL inside JIRA when choosing to View/Edit the Issue
Type. The URL will include the section: id=X where X is the numeric ID of the Issue Type inside JIRA.
b) Incident Status
Click on the “Status” hyperlink under Incident Standard Fields to bring up the Incident status mapping
configuration screen:
The table lists each of the incident statuses available in SpiraTeam and provides you with the ability to
enter the matching JIRA issue status ID for each one. You can map multiple SpiraTeam fields to the
same JIRA fields (e.g. New and Open in SpiraTeam are both equivalent to Open in JIRA), in which case
only one of the two values can be listed as Primary = Yes as that’s the value that’s used on the reverse
synchronization (from JIRA > SpiraTeam).
Page 36 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
We recommend that you always point the New and Open statuses inside SpiraTeam to point to the ID for
“Open” inside JIRA and make Open in SpiraTeam the Primary status of the two. This is recommended so
that as new incidents in SpiraTeam get synched over to JIRA, they will get switched to the Open status in
JIRA which will then be synched back to “Open” in SpiraTeam. That way you’ll be able to see at a glance
which incidents have been synched with JIRA and those that haven’t.
Note: The JIRA ID can be found by looking at the URL inside JIRA when choosing to View/Edit the Issue
Status. The URL will include the section: id=X where X is the numeric ID of the Issue Status inside JIRA.
c) Incident Priority
Click on the “Priority” hyperlink under Incident Standard Fields to bring up the Incident Priority mapping
configuration screen:
The table lists each of the incident priorities available in SpiraTeam and provides you with the ability to
enter the matching JIRA priority ID for each one. You can map multiple SpiraTeam fields to the same
JIRA fields, in which case only one of the two values can be listed as Primary = Yes as that’s the value
that’s used on the reverse synchronization (from JIRA > SpiraTeam).
Note: The JIRA ID can be found by looking at the URL inside JIRA when choosing to View/Edit the
Priority. The URL will include the section: id=X where X is the numeric ID of the Priority inside JIRA.
d) Incident Severity (Optional)
Click on the “Severity” hyperlink under Incident Standard Fields to bring up the Incident severity mapping
configuration screen:
Unlike the other incident standard fields, JIRA doesn’t actually have a built-in field for storing the severity
of an issue, so if you want to be able to see the SpiraTeam incident severity in JIRA, you’ll need to create
a JIRA custom list field to store the different severity values. If you don’t want to synchronize severity
values with JIRA, you can skip the rest of this section.
Page 37 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Once you have created a custom field in JIRA to contain the list of severity values, you need to now
populate the above table with the name (Not the ID) of the severity custom property values inside JIRA
and click Update. Secondly you need to go to the Plug-in configuration screen:
On this screen you need to enter the ID of the custom field that you’re using to store severities in JIRA
and populate the Custom 01 property with this value (see above). Note: The ID can be found by looking
at the URL inside JIRA when choosing to View/Edit the Custom Field. The URL will include the section:
id=X where X is the numeric ID of the Custom Field inside JIRA.
3.2.5. Configuring the Custom Property Mapping
Now that the various SpiraTeam standard fields have been mapped correctly, we need to configure the
custom property mappings. This is used for both custom properties in SpiraTeam that map to custom
fields in JIRA and also for custom properties in SpiraTeam that are used to map to standard fields in JIRA
(Component, Environment, Resolution and SecurityLevel) that don’t exist in SpiraTeam.
From the View/Edit Project Data Mapping screen, you need to click on the name of the Incident Custom
Property that you want to add data-mapping information for. We will consider the four different types of
mapping that you might want to enter:
Page 38 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
a) Text Custom Properties
Click on the hyperlink of the text custom property under Incident Custom Properties to bring up the
custom property mapping configuration screen. For text custom properties there will be no values listed in
the lower half of the screen.
You need to lookup the ID of the custom field in JIRA that matches this custom property in SpiraTeam.
Once you have entered the id of the custom field, click [Update].
Note: The ID can be found by looking at the URL inside JIRA when choosing to View/Edit the Custom
Field. The URL will include the section: id=X where X is the numeric ID of the Custom Field inside JIRA.
b) List Custom Properties
Page 39 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Click on the hyperlink of the list custom property under Incident Custom Properties to bring up the custom
property mapping configuration screen. For list custom properties there will be a textbox for both the
custom field itself and a mapping table for each of the custom property values that need to be mapped:
First you need to lookup the ID of the custom field in JIRA that matches this custom property in
SpiraTeam. This should be entered in the ‘External Key’ field below the name of the custom property.
Note: The ID can be found by looking at the URL inside JIRA when choosing to View/Edit the Custom
Field. The URL will include the section: id=X where X is the numeric ID of the Custom Field inside JIRA.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the full
name (not the id this time) of the custom field value as specified in JIRA.
c) JIRA’s Component Field
If your instance of JIRA requires that all new issues are submitted with a ‘Component’ then you will need
to fill out this section. You first need to create an incident custom property in SpiraTeam of type ‘LIST’ that
contains the various component names that exist inside JIRA.
Then click on the hyperlink of this new list custom property under Incident Custom Properties to bring up
the custom property mapping configuration screen:
Page 40 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
First you need to enter the word “Component” as the External Key of the custom property. This tells the
data-sync plug-in that the custom property in SpiraTeam should be mapped to built-in Component field in
JIRA.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the JIRA
ID of the various Components that are configured in JIRA. The external ID can be found by looking at the
URL inside JIRA which choosing to View/Edit the component name/description.
d) JIRA’s Resolution Field
If you would like the values of the JIRA ‘Resolution’ field to be synchronized back to SpiraTeam, then
you will need to fill out this section. You first need to create an incident custom property in SpiraTeam of
type ‘LIST’ that contains the various resolution names that exist inside JIRA.
Then click on the hyperlink of this new list custom property under Incident Custom Properties to bring up
the custom property mapping configuration screen:
First you need to enter the word “Resolution” as the External Key of the custom property. This tells the
data-sync plug-in that the custom property in SpiraTeam should be mapped to built-in Resolution field in
JIRA.
Page 41 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the JIRA
ID of the various Resolutions that are configured in JIRA. The external ID can be found by looking at the
URL inside JIRA which choosing to View/Edit the resolution name/description.
e) JIRA’s Environment Field
If your instance of JIRA requires that all new issues are submitted with an ‘Environment’ description
specified, then you will need to fill out this section. You first need to create an incident custom property in
SpiraTeam of type ‘TEXT’ that will be used to store the environment description within SpiraTeam.
Then click on the hyperlink of this new list custom property under Incident Custom Properties to bring up
the custom property mapping configuration screen:
All you need to do on this screen is enter the word “Environment” in the External Key textbox and the
data-sync plug-in will know that this custom property is mapped to the built-in Environment field in JIRA.
f) JIRA’s Security Level Field (JIRA 4.x Plug-In Only)
If your instance of JIRA requires that all new issues are submitted with a ‘Security Level’ then you will
need to fill out this section. You first need to create an incident custom property in SpiraTeam of type
‘LIST’ that contains the various security levels that exist inside JIRA.
Then click on the hyperlink of this new list custom property under Incident Custom Properties to bring up
the custom property mapping configuration screen.
First you need to enter the word SecurityLevel” as the External Key of the custom property. This tells
the data-sync plug-in that the custom property in SpiraTeam should be mapped to built-in Security Level
field in JIRA.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the JIRA
ID of the various Security Levels that are configured in JIRA. The external ID can be found by looking at
the URL inside JIRA which choosing to View/Edit the security level name/description.
g) JIRA’s Issue Key Field (JIRA 4.x Plug-In Only)
It can be convenient to create a SpiraTeam custom property to store the JIRA Issue Key (the ID used to
identify an issue in JIRA). This allows you to display a list of incients in SpiraTest and see the
corresponding JIRA ID in the same list. You first need to create an incident custom property in SpiraTeam
of type ‘TEXT’ that will be used to store the JIRA issue key within SpiraTeam.
Then click on the hyperlink of this new list custom property under Incident Custom Properties to bring up
the custom property mapping configuration screen:
Page 42 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
All you need to do on this screen is enter the word “JiraIssueKey” in the External Key textbox and the
data-sync plug-in will know that this custom property is mapped to the built-in Issue Key field in JIRA.
Once you have updated the various mapping sections, you are now ready to start using the system.
3.3. Using SpiraTeam with JIRA
Now that the integration service has been configured and the service started, initially any incidents
created in SpiraTeam for the specified projects will be imported into JIRA and if using JIRA 4.x, any
existing issues in JIRA will get loaded into SpiraTeam
At this point we recommend opening the Windows Event Viewer and choosing the Application Log. In this
log any error messages raised by the SpiraTeam Data Sync Service will be displayed. If you see any
error messages at this point, we recommend immediately stopping the SpiraTeam service and checking
the various mapping entries. If you cannot see any issues with the mapping information, we recommend
sending a copy of the event log message(s) to Inflectra customer services (support@inflectra.com) who
will help you troubleshoot the problem.
To use SpiraTeam with JIRA on an ongoing basis, we recommend the following general processes be
followed:
When running tests in SpiraTest or SpiraTeam, defects found should be logged through the Test
Execution Wizard as normal.
Developers using JIRA 4.x can log new defects into either SpiraTeam or JIRA. In either case they
will get loaded into the other system.
Once created in one of the systems and successfully replicated to the other system, the incident
should not be modified again inside SpiraTeam
At this point, the incident should not be acted upon inside SpiraTeam and all data changes to the
issue should be made inside JIRA. To enforce this, you should modify the workflows set up in
SpiraTeam so that the various fields are marked as inactive for all the incident statuses other than
the “New” status. This will allow someone to submit an incident in SpiraTeam, but will prevent
them making changes in conflict with JIRA after that point.
As the issue progresses through the customized JIRA workflow, changes to the type of issue,
changes to its status, priority, description and resolution will be updated automatically in
SpiraTeam. In essence, SpiraTeam acts as a read-only viewer of these incidents.
You are now able to perform test coverage and incident reporting inside SpiraTest/SpiraTeam
using the test cases managed by SpiraTest/SpiraTeam and the incidents managed on behalf of
SpiraTest/SpiraTeam inside JIRA.
Page 43 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
4. Using SpiraTest with Bugzilla
This section outlines how to use SpiraTest in conjunction with the open-source Bugzilla bug tracking
system. The built-in integration service allows the quality assurance team to manage their requirements
and test cases in SpiraTest, execute test runs in SpiraTest, and then have the new incidents generated
during the run be automatically loaded into Bugzilla. Once the incidents are loaded into Bugzilla as bugs,
the development team can then manage the lifecycle of these bugs in Bugzilla, and have the status
changes in Bugzilla be reflected back in SpiraTest.
In addition, if you are using Bugzilla 4.x or higher, any issues logged directly into Bugzilla will get imported
into SpiraTeam so that they can be linked to test cases and requirements.
STOP! Please make sure you have first read the Instructions in Section 1 before proceeding!
4.1. Configuring the Plug-In
The next step is to configure the plug-in within SpiraTeam so that the system knows how to access the
Bugzilla server. To start the configuration, please open up SpiraTeam in a web browser, log in using a
valid account that has System-Administration level privileges and click on the System > Data
Synchronization administration option from the left-hand navigation:
This screen lists all the plug-ins already configured in the system. Depending on whether you chose the
option to include sample data in your installation or not, you will see either an empty screen or a list of
sample data-synchronization plug-ins.
If you already see an entry for BugzillaDataSync you should click on its “Edit” link. If you don’t see such
an entry in the list, please click on the [Add] button instead. In either case you will be taken to the
following screen where you can enter or modify the Bugzilla Data-Synchronization plug-in:
Page 44 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You need to fill out the following fields for the Bugzilla Plug-in to operate correctly:
Name this needs to be set to BugzillaDataSync. This needs to match the name of the plug-in
DLL assembly that was copied into the C:\Program Files\SpiraTeam\Bin folder (minus the .dll file
extension). If you renamed the BugzillaDataSync.dll file for any reason, then you need to change
the name here to match.
Description this should be set to a description of the plug-in. This is an optional field that is
used for documentation purposes and is not actually used by the system.
Connection Info this should the full URL to the Bugzilla installation’s web-service API. This is
typically http://<Bugzilla server name>/xmlrpc.cgi
Login this should be set to a valid login to the Bugzilla installation typically an email address.
The login needs to have permissions to create and view bugs within Bugzilla.
Password this should be set to the password of the login specified above.
Time Offset normally this should be set to zero, but if you find that issues being changed in
Bugzilla are not being updated in SpiraTeam, try increasing the value as this will tell the data-
synchronization plug-in to add on the time offset (in hours) when comparing date-time stamps.
Also if your Bugzilla installation is running on a server set to a different time-zone, then you
should add in the number of hours difference between the servers’ time-zones here.
Auto-Map Users this is not currently used by the Bugzilla data-sync plug-in and can be
ignored.
Page 45 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Custom 01 When connecting to Bugzilla, sometimes the connection gets dropped by the server
without notifying the plug-in. This happens when using HTTP 1.1 Keep-Alive connections. If you
set this property to “False”, it will tell the plug-in to not-use HTTP keep-alives when connecting to
Bugzilla, otherwise set it to “True”.
Custom 02 When connecting to a Bugzilla instance that is running under HTTPS (SSL) this
custom property can be set to determine if the plug-in should verify that the SSL certificate is a
trusted root certificate. Set to True” if you are using an SSL certificate that was issued by a
trusted Certification Authority, and set to “False” if you are using a self-signed certificate.
Custom 03 05 these are not currently used by the Bugzilla data-sync plug-in and can be left
blank.
4.2. Configuring the Data Mapping
Next, you need to configure the data mapping between SpiraTeam and Bugzilla. This allows the various
projects, users, releases, incident types, statuses, priorities and custom property values used in the two
applications to be related to each other. This is important, as without a correct mapping, there is no way
for the integration service to know that an “Duplicate incident in SpiraTeam is the same as an
UNCONFIRMEDbug in Bugzilla (for example).
The following mapping information needs to be setup in SpiraTeam:
The mapping of the project identifiers for the projects that need to be synchronized
The mapping of users in the system
The mapping of releases (equivalent to Bugzilla versions) in the system
The mapping of the various standard fields in the system
The mapping of the various custom properties in the system
Each of these is explained in turn below:
4.2.1. Configuring the Project Mapping
From the data synchronization administration page, you need to click on the “View Project Mappings
hyperlink next to the Bugzilla plug-in name. This will take you to the data-mapping home page for the
currently selected project:
Page 46 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
If the project name does not match the name of the project you want to configure the data-mapping for,
click on the “(Change Project)” hyperlink to change the current project.
To enable this project for data-synchronization with Bugzilla, you need to enter:
External Key This should be set to the name of the equivalent Product in Bugzilla.
Active Flag Set this to ‘Yes’ so that SpiraTeam knows that you want to synchronize data for
this project. Once the project has been completed, setting the value to “No” will stop data
synchronization, reducing network utilization.
Click [Update] to confirm these settings. Once you have enabled the project for data-synchronization, you
can now enter the other data mapping values outlined below.
Note: Once you have successfully configured the project, when creating a new project, you
should choose the option to Create Project from Existing Project” rather than “Use Default
Template” so that all the project mappings get copied across to the new project.
4.2.2. Configuring the User Mapping
To configure the mapping of users in the two systems, you need to go to Administration > Users > View
Edit Users, which will bring up the list of users in the system. Then click on the “Edit” button for a
particular user that will be editing issues in Bugzilla:
Page 47 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You will notice that below the Active flag for the user is a list of all the configured data-synchronization
plug-ins. In the text box next to the Bugzilla Data-Sync plug-in you need to enter the login for this
username in Bugzilla. This will allow the data-synchronization plug-in to know which user in SpiraTeam
match which equivalent user in Bugzilla. Click [Update] once you’ve entered the appropriate login name.
You should now repeat for the other users who will be active in both systems.
4.2.3. Configuring the Release Mapping
Now that the projects and users have been mapped correctly, we need to configure the mapping between
Releases/Iterations in SpiraTeam and Versions in Bugzilla. To do this, please navigate to Planning >
Releases and click on the Release/Iteration in question. Make sure you have the ‘Overview’ tab visible
and expand the “Details” section of the release/iteration:
In addition to the standard fields and custom properties configured for Releases, you will see an
additional text property called “BugzillaDataSync ID” that is used to store the mapped external identifier
for the equivalent Version in Bugzilla. You need to enter the name of the equivalent version in Bugzilla,
enter it into this text-box and click [Save]. You should now repeat for all the other releases and iterations
in the project.
If you are using the plugin for Bugzilla 4.x then any Versions that have already been created in Bugzilla
will be automatically imported into SpiraTeam if they do not already exist in SpiraTeam and they have not
already been mapped.
Page 48 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
4.2.4. Configuring the Standard Field Mapping
Now that the projects, user and releases have been mapped correctly, we need to configure the standard
incident fields. To do this, go to Administration > System > Data Synchronization and click on the “View
Project Mappings” for the BugzillaDataSync plug-in entry:
From this screen, you need to click on Priority, Severity and Status in turn to configure their values:
a) Incident Status
Click on the “Status” hyperlink under Incident Standard Fields to bring up the Incident status mapping
configuration screen:
Page 49 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The table lists each of the incident statuses available in SpiraTeam and provides you with the ability to
enter the matching Bugzilla bug status for each one. You can map multiple SpiraTeam fields to the same
Bugzilla fields (e.g. New and Open in SpiraTeam are both equivalent to NEW in Bugzilla), in which case
only one of the two values can be listed as Primary = Yes as that’s the value that’s used on the reverse
synchronization (from Bugzilla > SpiraTeam).
We recommend that you always point the New and Open statuses inside SpiraTeam to point to the NEW
status inside Bugzilla and make Open in SpiraTeam the Primary status of the two. This is recommended
so that as new incidents in SpiraTeam get synched over to Bugzilla, they will get switched to the NEW
status in Bugzilla which will then be synched back to “Open” in SpiraTeam. That way you’ll be able to see
at a glance which incidents have been synched with Bugzilla and those that haven’t.
b) Incident Priority
Click on the “Priority” hyperlink under Incident Standard Fields to bring up the Incident Priority mapping
configuration screen:
The table lists each of the incident priorities available in SpiraTeam and provides you with the ability to
enter the matching Bugzilla priority for each one. You can map multiple SpiraTeam fields to the same
Bugzilla fields, in which case only one of the two values can be listed as Primary = Yes as that’s the value
that’s used on the reverse synchronization (from Bugzilla > SpiraTeam).
c) Incident Severity
Click on the “Severity” hyperlink under Incident Standard Fields to bring up the Incident severity mapping
configuration screen:
Page 50 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The table lists each of the incident severities available in SpiraTeam and provides you with the ability to
enter the matching Bugzilla severity for each one. You can map multiple SpiraTeam fields to the same
Bugzilla fields, in which case only one of the two values can be listed as Primary = Yes as that’s the value
that’s used on the reverse synchronization (from Bugzilla > SpiraTeam).
4.2.5. Configuring the Custom Property Mapping
Now that the various SpiraTeam standard fields have been mapped correctly, we need to configure the
custom property mappings. This is used for custom properties in SpiraTeam that are used to map to
standard fields in Bugzilla (Component, Hardware, Operating System and Resolution) that don’t exist in
SpiraTeam. You need to make sure that you have first added custom lists in SpiraTeam that contain the
list of Components, Hardware platforms and Operating Systems used in Bugzilla and that you have setup
those lists as Custom Properties on the Incident artifact type.
Once that’s done, from the View/Edit Project Data Mapping screen, you need to click on the name of the
Incident Custom Property that you want to add data-mapping information for. We will consider the four
different types of mapping that you might want to enter in turn:
Page 51 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
a) Bugzilla’s Component Field
If your instance of Bugzilla requires that all new bugs are submitted with a ‘Component’ then you will need
to fill out this section. You first need to create an incident custom property in SpiraTeam of type ‘LIST’ that
contains the various component names that exist inside Bugzilla.
Then click on the hyperlink of this new list custom property under Incident Custom Properties to bring up
the custom property mapping configuration screen:
First you need to enter the word “Component” as the External Key of the custom property. This tells the
data-sync plug-in that the custom property in SpiraTeam should be mapped to built-in Component field in
Bugzilla.
Page 52 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the
Bugzilla name of the various Components that are configured in Bugzilla.
b) Bugzilla’s Operating System Field
If your instance of Bugzilla requires that all new issues are submitted with an Operating System’ then you
will need to fill out this section. You first need to create an incident custom property in SpiraTeam of type
‘LIST’ that contains the various operating system names that exist inside Bugzilla.
Then click on the hyperlink of this new list custom property under Incident Custom Properties to bring up
the custom property mapping configuration screen:
First you need to enter the word “OperatingSystem” as the External Key of the custom property. This tells
the data-sync plug-in that the custom property in SpiraTeam should be mapped to built-in Operating
System field in Bugzilla.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the
Bugzilla name of the various Operating System values that are configured in Bugzilla.
c) Bugzilla’s Hardware Field
If your instance of Bugzilla requires that all new issues are submitted with a ‘Hardware’ value then you will
need to fill out this section. You first need to create an incident custom property in SpiraTeam of type
‘LIST’ that contains the various hardware platform names that exist inside Bugzilla.
Then click on the hyperlink of this new list custom property under Incident Custom Properties to bring up
the custom property mapping configuration screen:
Page 53 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
First you need to enter the word “Hardware” as the External Key of the custom property. This tells the
data-sync plug-in that the custom property in SpiraTeam should be mapped to built-in Hardware field in
Bugzilla.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the
Bugzilla name of the various Hardware platforms that are configured in Bugzilla.
d) Bugzilla’s Resolution Field (Optional)
When incidents in SpiraTeam are updated with changes made in Bugzilla, the value of the Bugzilla
resolution field (FIXED, INVALID, WONTFIX, LATER, REMIND, DUPLICATE, WORKSFORME, MOVED,
DEPLOY) is used to populate the Resolution/Comments text box within SpiraTeam.
However the Resolution/Comments field in SpiraTeam cannot be displayed in the incident list page as it’s
a long text-field, so if you would like to be able to see the list of Bugzilla Resolution codes displayed in a
list, it is necessary to add a TEXT custom property to Incidents that can be used to store this returned
value and then be filtered in the list. The rest of this section describes how to map this text custom
property so that it picks up the Resolution field values from Bugzilla.
To configure the mapping, click on the hyperlink of this new text custom property under Incident Custom
Properties to bring up the custom property mapping configuration screen:
Page 54 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
All you need to do on this screen is enter the word “Resolution” in the External Key textbox and the data-
sync plug-in will know that this custom property is mapped to the built-in Resolution field in Bugzilla.
Once you have updated the various mapping sections, you are now ready to use the synchronization.
4.3. Using SpiraTest with Bugzilla
Now that the integration service has been configured and the service started, initially any incidents
created in SpiraTeam for the specified projects will be imported into Bugzilla. At this point we recommend
opening the Windows Event Viewer and choosing the Application Log. In this log any error messages
raised by the Data Synchronization service will be displayed. If you see any error messages at this point,
we recommend immediately stopping the service and checking the various mapping entries. If you cannot
see any issues with the mapping information, we recommend sending a copy of the event log message(s)
to Inflectra customer services (support@inflectra.com) who will help you troubleshoot the problem.
To use SpiraTeam with Bugzilla on an ongoing basis, we recommend the following general processes be
followed:
When running tests in SpiraTeam, defects found should be logged through the ‘Add Incident’
option as normal.
Once an incident has been created during the running of the test, it will now be populated across
into Bugzilla as a bug. It will be populated with the information captured in SpiraTeam.
At this point, the incident should not be acted upon inside SpiraTeam, and all data changes to the
issue should be made inside Bugzilla. To enforce this, you can modify the workflows set up in
SpiraTeam so that the various fields are marked as inactive for all the incident statuses other than
the “New” status. This will allow someone to submit an incident in SpiraTeam, but will prevent
them making changes in conflict with Bugzilla after that point.
As the issue progresses through the Bugzilla workflow, changes to the status, priority, severity,
and resolution will be updated automatically in SpiraTeam. In essence, SpiraTeam acts as a
read-only viewer of these incidents.
If you are using the plugin for Bugzilla 4.x, changes to the hardware, operating system
and component will also be synchronized back into SpiraTeam. In addition, any
comments added to the bug in Bugzilla 4.x will get added to the corresponding incident in
SpiraTeam
You are now able to perform test coverage and incident reporting inside SpiraTeam using the test
cases managed by SpiraTeam and the incidents managed on behalf of SpiraTeam inside
Bugzilla.
Page 55 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
5. Using SpiraTest with MS-TFS
This section outlines how to use SpiraTest, SpiraPlan or SpiraTeam (hereafter referred to as SpiraTeam)
in conjunction with the work item tracking functionality of Microsoft Visual Studio Team Services (MS-
VSTS), Visual Studio Online (VSO), or Microsoft Team Foundation Server (TFS) hereafter referred to as
TFS.
The built-in integration service allows the quality assurance team to manage their requirements and test
cases in SpiraTeam, execute test runs in SpiraTest, and then have the new incidents generated during
the run be automatically loaded into TFS. Once the incidents are loaded into TFS as work items, the
development team can then manage the lifecycle of these work items in TFS, and have the status
changes in TFS be reflected back in SpiraTeam.
Similarly, as the requirements are decomposed into discrete project tasks in SpiraTeam, the integration
service will automatically load these new tasks into TFS as task work items where the development team
can manage their lifecycle, with schedule and progress changes in TFS being reflected back in
SpiraTeam.
STOP! Please make sure you have first read the Instructions in Section 1 before proceeding!
Note: Only the MS-TFS 2012+ Plug-In is Available on the Inflectra Cloud-Based DataSync Service.
5.1. Configuring the Plug-In
The next step is to configure the plug-in within SpiraTeam so that the system knows how to access the
TFS server. To start the configuration, please open up SpiraTeam in a web browser, log in using a valid
account that has System-Administration level privileges and click on the System > Data Synchronization
administration option from the left-hand navigation:
This screen lists all the plug-ins already configured in the system. Depending on whether you chose the
option to include sample data in your installation or not, you will see either an empty screen or a list of
sample data-synchronization plug-ins.
If you already see an entry for MsTfsDataSync you should click on its “Edit” link. If you don’t see such an
entry in the list, please click on the [Add] button instead. In either case you will be taken to the following
screen where you can enter or modify the TFS Data-Synchronization plug-in:
Page 56 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You need to fill out the following fields for the TFS Plug-in to operate correctly:
Name this needs to be set to MsTfsDataSync.
Caption this is the display name of the plugin. Normally you can use something generic such
as “Microsoft TFS”, however if you have multiple TFS instances you might want to name it
something specific such as “TFS External”. If you don’t enter a value, the display name will be
“MsTfsDataSync”
Description this should be set to a description of the plug-in. This is an optional field that is
used for documentation purposes and is not actually used by the system.
Connection Info this should the URL that you use for connecting Visual Studio to the Team
Foundation Server.
For Visual Studio Online, it is of the format https://mycompany.visualstudio.com. See
our special KB213 regarding Visual Studio Online.
For TFS 2010+ it is of the format http://servername:8080/tfs/collectionname where
“collectionname” is the name of the project collection you’re integrating with.
For TFS 2005/2008 it is of the format http://servername:8080.
Login this should be set to a valid user that has permissions to access the TFS installation. The
login needs to have permissions to create and view work items and iterations within TFS.
Note: Do not include the Windows Active Directory Domain in this field if you are using a
Windows domain user.
Password this should be set to the password of the user specified above.
Page 57 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Time Offset normally this should be set to zero, but if you find that work items being changed in
TFS are not being updated in SpiraTeam, try increasing the value as this will tell the data-
synchronization plug-in to add on the time offset (in hours) when comparing date-time stamps.
Also if your TFS installation is running on a server set to a different time-zone, then you should
add in the number of hours difference between the servers’ time-zones here.
If you are using Visual Studio Online (VSO) instead of a local TFS instance, you will need to login to the
instance of Visual Studio Online and access your profile:
Click on the Security Option. Then in the user security menu, choose the option to enter 'Alternate
Credentials'. You need to now enter a login and password that SpiraTeam will use to connect to VSO:
The remaining fields work differently depending on which version of the TFS plugin you are using (2012,
2010 or 2005/2008):
a) TFS 2012 Plugin
Please fill out the fields as follows:
Auto-Map Users This changes the way the plugin maps users in SpiraTeam to those in TFS:
Auto-Map = True
With this setting, all users in SpiraTeam need to have the same username as those in
TFS. If this is the case then you do not need to perform the user-mapping task outlined in
Page 58 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
section 5.2.2. This is a big time-saver if you can guarantee that all usernames are the
same in both systems.
Auto-Map = False
With this setting, users in SpiraTeam and TFS are free to have different usernames
because you specify the corresponding TFS name for each user as outlined in 5.2.2.
Custom 01 This is used to specify the Windows Active Directory Domain that the Windows
user specified above is a member of. If you are running TFS on a Windows workgroup, just use
the server name and make sure that the Windows user above is a user on that server itself. If you
are using a Window Live ID, just leave this field blank
Custom 02 This field should contain a comma-separated list of work item types that you want
to synchronize as SpiraTeam Tasks as opposed to Incidents. Normally you would want to list at
least the TFS “Task” work item type in this field.
Custom 03 If you would like the system to display the SpiraTeam artifact ID (e.g. IN5 for
incidents or TK36 for tasks) in a custom field inside TFS, you should just enter the name of the
appropriate TFS field from your process template (e.g. Spira.IncidentId) and then when the
incident or task is added to TFS, the corresponding SpiraTeam ID will be added to that field of the
work item.
Custom 04 - Depending on your TFS process template, the data-synchronization plugin may not
be allowed to set the detector of the incident inside TFS. If you would like the system to display
the detector of the incident (as recorded in SpiraTeam) in a custom field inside TFS, you should
just enter the name of the appropriate TFS field from your process template (e.g.
Spira.Detector) and then when the incident is added to TFS, the corresponding detector’s
name will be added to that field of the work item.
Custom 05 This field should contain a comma-separated list of work item types that you want
to synchronize as SpiraTeam Requirements as opposed to Incidents. Normally you would want to
list at least the TFS “User Story” work item type in this field.
b) TFS 2010 Plugin
Please fill out the fields as follows:
Auto-Map Users this is not used by this version of the plugin and can be ignored.
Custom 01 This is used to specify the Windows Active Directory Domain that the Windows
user specified above is a member of. If you are running TFS on a Windows workgroup, just use
the server name and make sure that the Windows user above is a user on that server itself.
Custom 02 This is used to specify if you want to synchronize Incidents, Tasks or Both. By
default this field is blank, meaning synchronize both types of artifact. However if you enter in
Incidents” into this field it will tell the system to only synchronize incidents, and if you enter
Tasks” it will tell the system to only synchronize tasks.
Custom 03 If you would like the system to display the SpiraTeam artifact ID (e.g. IN5 for
incidents or TK36 for tasks) in a custom field inside TFS, you should just enter the name of the
appropriate TFS field from your process template (e.g. Spira.IncidentId) and then when the
incident or task is added to TFS, the corresponding SpiraTeam ID will be added to that field of the
work item.
Custom 04 - Depending on your TFS process template, the data-synchronization plugin may not
be allowed to set the detector of the incident inside TFS. If you would like the system to display
the detector of the incident (as recorded in SpiraTeam) in a custom field inside TFS, you should
just enter the name of the appropriate TFS field from your process template (e.g.
Spira.Detector) and then when the incident is added to TFS, the corresponding detector’s
name will be added to that field of the work item.
Custom 05 this is not used by this version of the plugin and can be ignored.
Page 59 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
c) TFS 2005/2008 Plugin
Please fill out the fields as follows:
Auto-Map Users this is not used by this version of the plugin and can be ignored.
Custom 01 This is used to specify the Windows Active Directory Domain that the Windows
user specified above is a member of. If you are running TFS on a Windows workgroup, just use
the server name and make sure that the Windows user above is a user on that server itself.
Custom 02 This is used to specify if you want to synchronize Incidents, Tasks or Both. By
default this field is blank, meaning synchronize both types of artifact. However if you enter in
Incidents” into this field it will tell the system to only synchronize incidents, and if you enter
Tasks” it will tell the system to only synchronize tasks.
Custom 03 this is not used by this version of the plugin and can be ignored.
Custom 04 this is not used by this version of the plugin and can be ignored.
Custom 05 this is not used by this version of the plugin and can be ignored.
5.2. Configuring the Data Mapping
Next, you need to configure the data mapping between SpiraTeam and TFS. This allows the various
projects, users, releases, incident types, statuses, priorities and custom property values used in the two
applications to be related to each other. This is important, as without a correct mapping, there is no way
for the integration service to know that a “Not Reproducible” incident in SpiraTeam is the same as a
Closed + Cannot Reproduce bug work item in TFS (for example).
The following mapping information needs to be setup in SpiraTeam:
The mapping of the project identifiers for the projects that need to be synchronized
The mapping of users in the system
The mapping of releases (equivalent to TFS iterations) in the system
The mapping of the various standard incident fields in the system
The mapping of the various custom incident properties in the system
The mapping of the various standard requirement fields in the system (if synching requirements)
The mapping of the various custom requirement properties in the system (if synching
requirements)
The mapping of the various standard task fields in the system (if synching tasks)
The mapping of the various custom task properties in the system (if synching tasks)
Note: If using SpiraTest, you do not need to setup the last two sets of mappings as Tasks are not
available in SpiraTest.
5.2.1. Configuring the Project Mapping
From the data synchronization administration page, you need to click on the “View Project Mappings”
hyperlink next to the TFS plug-in name. This will take you to the data-mapping home page for the
currently selected project:
Page 60 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
If the project name does not match the name of the project you want to configure the data-mapping for,
click on the “(Change Project)” hyperlink to change the current project.
To enable this project for data-synchronization with TFS, you need to enter:
External Key This should be set to the name of the project in TFS as visible from the Visual
Studio Team Explorer:
Active Flag Set this to ‘Yes’ so that SpiraTeam knows that you want to synchronize data for
this project. Once the project has been completed, setting the value to “No” will stop data
synchronization, reducing network utilization.
Click [Update] to confirm these settings. Once you have enabled the project for data-synchronization, you
can now enter the other data mapping values outlined below.
Note: Once you have successfully configured the project, when creating a new project, you
should choose the option to Create Project from Existing Project” rather than “Use Default
Template” so that all the project mappings get copied across to the new project.
5.2.2. Configuring the User Mapping
To configure the mapping of users in the two systems, you need to go to Administration > Users > View
Edit Users, which will bring up the list of users in the system. Then click on the “Edit” button for a
particular user that will be editing work items in TFS:
Page 61 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You will notice that in the special Data Mapping tab, there is a list of all the configured data-
synchronization plug-ins. In the text box next to the TFS Data-Sync plug-in you need to enter the full
name of this Windows User (not the login). This is the name of the user as they appear inside work items
within TFS:
This will allow the data-synchronization plug-in to know which user in SpiraTeam match which equivalent
user in TFS. Click [Update] once you’ve entered the appropriate login name. You should now repeat for
the other users who will be active in both systems.
If you have set the “Auto-Map Users” option in the TFS 2012 plugin, you can skip this section completely.
5.2.3. Configuring the Release Mapping
When the data-synchronization service runs, when it comes across a release/iteration in SpiraTeam that it
has not seen before, it will create a corresponding “Iteration” in TFS. Similarly if it comes across a new
Iteration in TFS that it has not seen before, it will create a new Release/Iteration in SpiraTeam. Therefore
when using both systems together, it is recommended that you only enter new Releases/Iterations in one
system and let the data-synchronization service add them to the other system.
However you may start out with the situation where you already have pre-existing Releases/Iterations in
both systems that you need to associate in the data-mapping. If you don’t do this, you may find that
duplicates get created when you first enable the data-synchronization service. Therefore for any
Releases/Iterations that already exist in BOTH systems please navigate to Planning > Releases and click
on the Release/Iteration in question. Make sure you have the ‘Overview’ tab visible and expand the
“Details” section of the release/iteration:
Page 62 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
In addition to the standard fields and custom properties configured for Releases, you will see an
additional text property called “MsTfsDataSync ID” that is used to store the mapped external identifier for
the equivalent Version in TFS. You need to locate the ID of the equivalent Iteration in TFS, enter it into
this text-box and click [Save]. You should now repeat for all the other pre-existing releases.
The TFS Iteration ID is not visible in the TFS user interface, but can instead be located by opening up the
SQL Server that it’s installed on, opening the TfsWorkItemTracking database (in TFS 2010 it will named
after your project collection instead) and locating the ‘TreeNodes’ table:
Once you have found the matching Iteration (by name), the numeric value stored in the ID column (the
one on the left) is the value that needs to get added as the MsTfsDataSync ID inside SpiraTeam.
5.2.4. Configuring the Standard Incident Field Mapping
Now that the projects, user and releases have been mapped correctly, we need to configure the standard
incident fields. To do this, go to Administration > System > Data Synchronization and click on the “View
Project Mappings” for the MsTfsDataSync plug-in entry:
Page 63 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
From this screen, you need to click on Priority, Severity, Status and Type in turn to configure their values:
a) Incident Type
Click on the “Type” hyperlink under Incident Standard Fields to bring up the Incident type mapping
configuration screen:
The table lists each of the incident types available in SpiraTeam and provides you with the ability to enter
the matching TFS work item type name for each one. To make this easier, we recommend that inside the
Administration > Edit Incident Statuses screen you first make all incident types inactive except Risk, Issue
and Bug since only those types make sense to synchronize with TFS.
b) Incident Status
Click on the “Status” hyperlink under Incident Standard Fields to bring up the Incident status mapping
configuration screen:
Page 64 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The table lists each of the incident statuses available in SpiraTeam and provides you with the ability to
enter the matching TFS work item State + Reason for each one. Since TFS uses separate State (Active,
Resolved, Closed) and Reason (Fixed, Duplicate, Not Fixed, etc.) codes and SpiraTeam uses a single
status code, you need to concatenate the TFS State and Reason together with a ‘plus’ (+) sign so that the
system knows that the incident status in SpiraTeam corresponds to that specific combination.
You can map multiple SpiraTeam fields to the same TFS fields (e.g. New and Open in SpiraTeam are
both equivalent to ‘Active+New’ in TFS), in which case only one of the two values can be listed as
Primary = Yes as that’s the value that’s used on the reverse synchronization (from TFS > SpiraTeam).
We recommend that you always point the New and Open statuses inside SpiraTeam to point to the
“Active+NewTFS state+reason, and make Open in SpiraTeam the Primary status of the two. This is
recommended so that as new incidents in SpiraTeam get synched over to TFS, they will get switched to
the “Active+New” status in TFS which will then be synched back to “Open” in SpiraTeam. That way you’ll
be able to see at a glance which incidents have been synched with TFS and those that haven’t.
c) Incident Priority
Click on the “Priority” hyperlink under Incident Standard Fields to bring up the Incident Priority mapping
configuration screen:
Page 65 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The table lists each of the incident priorities available in SpiraTeam and provides you with the ability to
enter the matching TFS priority value for each one. To make this easier, we recommend that inside the
Administration > Edit Incident Priorities screen you first make any statuses not used in TFS inactive in
SpiraTeam.
d) Incident Severity (TFS 2012 plugin only)
Click on the “Severity” hyperlink under Incident Standard Fields to bring up the Incident Severity mapping
configuration screen:
The table lists each of the incident severities available in SpiraTeam and provides you with the ability to
enter the matching TFS severity value for each one. To make this easier, we recommend that inside the
Administration > Edit Incident Severities screen you first make any statuses not used in TFS inactive in
SpiraTeam.
5.2.5. Configuring the Incident Custom Property Mapping
Now that the various SpiraTeam standard incident fields have been mapped correctly, we need to
configure the custom property mappings. This is used for both custom properties in SpiraTeam that map
to custom fields in TFS and also for custom properties in SpiraTeam that are used to map to standard
fields in TFS (e.g. Area) that don’t exist in SpiraTeam.
From the View/Edit Project Data Mapping screen, you need to click on the name of the Incident Custom
Property that you want to add data-mapping information for:
Page 66 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
a) TFS’s Area Field
First you need to go to Administration > Edit Custom Lists and create a new custom list that contains all
the different Areas that are being used in TFS.
Then you need to go to Administration > Edit Custom Properties and add a new list custom property onto
the Incident artifact type called ‘Area’ and link it to the Area custom list you created in the previous step.
This will now be available for mapping.
Now, back in the data-mapping page, click on the ‘Area’ hyperlink under Incident Custom Properties to
bring up the custom property mapping configuration screen:
First you need to enter the word “Area” as the External Key of the custom property. This tells the data-
sync plug-in that the custom property in SpiraTeam should be mapped to built-in Area field in TFS.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the ID of
the various Areas that are configured in TFS. The TFS Area ID is not visible in the TFS user interface, but
can instead be located by opening up the SQL Server that it’s installed on, opening the
TfsWorkItemTracking database (in TFS 2010 and later it will named after your project collection instead)
and locating the ‘TreeNodes’ table:
Once you have found the matching Area (by name), the numeric value stored in the ID column (the one
on the left) is the value that needs to get added as the External Key inside SpiraTeam.
b) TFS Custom Fields
If the custom field in TFS is a list field, first you need to go to Administration > Edit Custom Lists in
SpiraTeam and create a new custom list that contains all the different values that are being used in TFS.
Then for both list-fields and value-fields you need to go to Administration > Edit Custom Properties and
add a new custom property onto the Incident artifact type with the name of the appropriate TFS field (e.g.
Page 67 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Triage, Rank, etc.) and if a list-field, link it to the custom list you created in the previous step. The custom
property will now be available for data-mapping.
Now, back in the data-synchronization data-mapping page, click on the hyperlink under Incident Custom
Properties that corresponds to the custom property to bring up the custom property mapping configuration
screen:
First you need to enter the full Reference Name of the TFS field as the External Key of the custom
property. This tells the data-sync plug-in that the custom property in SpiraTeam should be mapped to this
specific field in TFS. To see a list of fields and their reference names, you can run the following SQL
query against your TFS database:
SELECT Name, ReferenceName FROM Fields ORDER BY Name
We have included a list of fields in the Agile process template in section 5.5 of this guide as a helpful
reference.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the
name of the field values as they appear in TFS as the External Key.
5.2.6. Configuring the Standard Task Field Mapping
Now that the projects, user, releases and incident fields have been mapped correctly, we need to
configure the standard task fields. To do this, go to Administration > System > Data Synchronization and
click on the “View Project Mappings” for the MsTfsDataSync plug-in entry:
Page 68 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
From this screen, you need to click on Priority and Status in turn to configure their values:
a) Task Status
Click on the “Status” hyperlink under Task Standard Fields to bring up the Task status mapping
configuration screen:
The table lists each of the task statuses available in SpiraTeam and provides you with the ability to enter
the matching TFS work item State for each one. Unlike the mapping for incidents (see above) SpiraTeam
does not track the reason codes associated with the tasks in MS TFS, so you only need to map the State
names from TFS with the task status names.
You can map multiple SpiraTeam fields to the same TFS fields (e.g. Blocked, Completed and Deferred in
SpiraTeam are all equivalent to State = Closed in TFS), in which case only one of the values can be listed
as Primary = Yes as that’s the value that’s used on the reverse synchronization (from TFS > SpiraTeam).
b) Task Priority (TFS 2012 Plugin Only)
Click on the “Priority” hyperlink under Task Standard Fields to bring up the Task Priority mapping
configuration screen:
Page 69 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The table lists each of the task priorities available in SpiraTeam and provides you with the ability to enter
the matching TFS priority value for each one.
5.2.7. Configuring the Task Custom Property Mapping
Now that the various SpiraTeam standard task fields have been mapped correctly, we need to configure
the custom property mappings. This is used for both custom properties in SpiraTeam that map to custom
fields in TFS and also for custom properties in SpiraTeam that are used to map to standard fields in TFS
(e.g. Area) that don’t exist in SpiraTeam.
From the View/Edit Project Data Mapping screen, you need to click on the name of the Task Custom
Property that you want to add data-mapping information for:
a) TFS’s Area Field
First you need to go to Administration > Edit Custom Lists and create a new custom list that contains all
the different Areas that are being used in TFS.
Then you need to go to Administration > Edit Custom Properties and add a new list custom property onto
the Task artifact type called ‘Area’ and link it to the Area custom list you created in the previous step. This
will now be available for mapping.
Now, back in the data-mapping page, click on the ‘Area’ hyperlink under Task Custom Properties to bring
up the custom property mapping configuration screen:
Page 70 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
First you need to enter the word “Area” as the External Key of the custom property. This tells the data-
sync plug-in that the custom property in SpiraTeam should be mapped to built-in Area field in TFS.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the ID of
the various Areas that are configured in TFS. The TFS Area ID is not visible in the TFS user interface, but
can instead be located by opening up the SQL Server that it’s installed on, opening the
TfsWorkItemTracking database (in TFS 2010 and later it will named after your project collection instead)
and locating the ‘TreeNodes’ table:
Once you have found the matching Area (by name), the numeric value stored in the ID column (the one
on the left) is the value that needs to get added as the External Key inside SpiraTeam.
b) TFS Custom Fields
If the custom field in TFS is a list field, first you need to go to Administration > Edit Custom Lists in
SpiraTeam and create a new custom list that contains all the different values that are being used in TFS.
Then for both list-fields and value-fields you need to go to Administration > Edit Custom Properties and
add a new custom property onto the Task artifact type with the name of the appropriate TFS field (e.g.
Discipline, Stack Rank, etc.) and if a list-field, link it to the custom list you created in the previous step.
The custom property will now be available for data-mapping.
Now, back in the data-synchronization data-mapping page, click on the hyperlink under Task Custom
Properties that corresponds to the custom property to bring up the custom property mapping configuration
screen:
Page 71 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
First you need to enter the full Reference Name of the TFS field as the External Key of the custom
property. This tells the data-sync plug-in that the custom property in SpiraTeam should be mapped to this
specific field in TFS. To see a list of fields and their reference names, you can run the following SQL
query against your TFS database:
SELECT Name, ReferenceName FROM Fields ORDER BY Name
We have included a list of fields in the Agile process template in section 5.5 of this guide as a helpful
reference.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the
name of the field values as they appear in TFS as the External Key.
5.2.8. Configuring the Standard Requirement Field Mapping (2012 Plugin Only)
Now that the projects, user, releases, incident and task fields have been mapped correctly, we need to
configure the standard requirement fields. To do this, go to Administration > System > Data
Synchronization and click on the “View Project Mappings” for the MsTfsDataSync plug-in entry:
Page 72 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
From this screen, you need to click on Importance and Status in turn to configure their values:
a) Requirement Status
Click on the “Status” hyperlink under Requirement Standard Fields to bring up the Requirement status
mapping configuration screen:
The table lists each of the requirement statuses available in SpiraTeam and provides you with the ability
to enter the matching TFS work item State for each one. Unlike the mapping for incidents (see above)
SpiraTeam does not track the reason codes associated with the requirements in MS TFS, so you only
need to map the State names from TFS with the requirement status names.
You can map multiple SpiraTeam fields to the same TFS fields, in which case only one of the values can
be listed as Primary = Yes as that’s the value that’s used on the reverse synchronization (from TFS >
SpiraTeam).
b) Requirement Importance
Page 73 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Click on the “Importance” hyperlink under Requirement Standard Fields to bring up the Requirement
Importance mapping configuration screen:
The table lists each of the requirement importance values available in SpiraTeam and provides you with
the ability to enter the matching TFS work item priority value for each one.
5.2.9. Configuring the Requirement Custom Property Mapping (2012 Plugin Only)
Now that the various SpiraTeam standard requirement fields have been mapped correctly, we need to
configure the custom property mappings. This is used for both custom properties in SpiraTeam that map
to custom fields in TFS and also for custom properties in SpiraTeam that are used to map to standard
fields in TFS (e.g. Area) that don’t exist in SpiraTeam.
From the View/Edit Project Data Mapping screen, you need to click on the name of the Requirement
Custom Property that you want to add data-mapping information for:
a) TFS’s Area Field
First you need to go to Administration > Edit Custom Lists and create a new custom list that contains all
the different Areas that are being used in TFS.
Then you need to go to Administration > Edit Custom Properties and add a new list custom property onto
the Requirement artifact type called ‘Area’ and link it to the Area custom list you created in the previous
step. This will now be available for mapping.
Page 74 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Now, back in the data-mapping page, click on the ‘Area’ hyperlink under Requirement Custom Properties
to bring up the custom property mapping configuration screen:
First you need to enter the word “Area” as the External Key of the custom property. This tells the data-
sync plug-in that the custom property in SpiraTeam should be mapped to built-in Area field in TFS.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the ID of
the various Areas that are configured in TFS. The TFS Area ID is not visible in the TFS user interface, but
can instead be located by opening up the SQL Server that it’s installed on, opening the
TfsWorkItemTracking database (in TFS 2010 and later it will named after your project collection instead)
and locating the ‘TreeNodes’ table:
Once you have found the matching Area (by name), the numeric value stored in the ID column (the one
on the left) is the value that needs to get added as the External Key inside SpiraTeam.
b) TFS Custom Fields
If the custom field in TFS is a list field, first you need to go to Administration > Edit Custom Lists in
SpiraTeam and create a new custom list that contains all the different values that are being used in TFS.
Then for both list-fields and value-fields you need to go to Administration > Edit Custom Properties and
add a new custom property onto the Requirement artifact type with the name of the appropriate TFS field
(e.g. Risk, Stack Rank, etc.) and if a list-field, link it to the custom list you created in the previous step.
The custom property will now be available for data-mapping.
Now, back in the data-synchronization data-mapping page, click on the hyperlink under Requirement
Custom Properties that corresponds to the custom property to bring up the custom property mapping
configuration screen:
Page 75 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
First you need to enter the full Reference Name of the TFS field as the External Key of the custom
property. This tells the data-sync plug-in that the custom property in SpiraTeam should be mapped to this
specific field in TFS. To see a list of fields and their reference names, you can run the following SQL
query against your TFS database:
SELECT Name, ReferenceName FROM Fields ORDER BY Name
We have included a list of fields in the Agile process template in section 5.5 of this guide as a helpful
reference.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the
name of the field values as they appear in TFS as the External Key.
Once you have updated the various mapping sections, you are now ready to start the service.
5.3. Using SpiraTeam with TFS
Now that the integration service has been configured and the service started, initially any incidents
already created in SpiraTeam for the specified projects will be imported into TFS and any requirements,
tasks or bugs already created in TFS will be imported into SpiraTeam. At this point we recommend
opening the Windows Event Viewer and choosing the Application Log. In this log any error messages
raised by the SpiraTeam Data Sync Service will be displayed. If you see any error messages at this point,
we recommend immediately stopping the SpiraTeam service and checking the various mapping entries. If
you cannot see any work items with the mapping information, we recommend sending a copy of the event
log message(s) to Inflectra customer services (support@inflectra.com) who will help you troubleshoot the
problem.
To use SpiraTeam with TFS on an ongoing basis, we recommend the following general processes be
followed:
When running tests in SpiraTest or SpiraTeam, defects found should be logged through the Test
Execution Wizard as normal.
Once an incident has been created during the running of the test, it will now be populated
across into TFS as a work item of type corresponding to the types setup in the incident
type mappings.
Page 76 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
At this point, the incident can be worked on in either system, with changes being
synchronized to the other system. However in general we recommend that the
QA/Testing team use SpiraTeam and the development team use TFS. E.g. the
developers will mark the bugs as resolved in MSTS once they have completed fixing
them and the QA team will either reopen or close then in SpiraTeam once they have had
a change to verify the resolution.
You are now able to perform test coverage and incident reporting inside
SpiraTest/SpiraTeam using the test cases managed by SpiraTest/SpiraTeam and the
incidents managed collaboratively between SpiraTest/SpiraTeam and TFS.
You can create project requirements and associated tasks in either SpiraTeam or TFS, however
the synchronization service is only unidirectional for requirements and tasks, so when you create
or update a requirement or task in TFS, the change will be reflected in SpiraTeam, but not the
other way around.
5.4. Troubleshooting
In most cases once you have started the service, once it’s up and running you will not see any error or
warning messages from the Data-Sync service. However, if you have new users created in SpiraTeam
that have not been mapped to users in TFS, when you assign incidents, requirements or tasks to those
items, you may see warning messages in the Event Viewer letting you know which users needs to be
mapped.
5.5. TFS Field Reference
The following fields are available in TFS for data-mapping when using the TFS agile process template:
Display Name
Reference Name
Accepted By
Microsoft.VSTS.CodeReview.AcceptedBy
Accepted Date
Microsoft.VSTS.CodeReview.AcceptedDate
Activated By
Microsoft.VSTS.Common.ActivatedBy
Activated Date
Microsoft.VSTS.Common.ActivatedDate
Activity
Microsoft.VSTS.Common.Activity
Application Launch Instructions
Microsoft.VSTS.Feedback.ApplicationLaunchInstructions
Application Start Information
Microsoft.VSTS.Feedback.ApplicationStartInformation
Application Type
Microsoft.VSTS.Feedback.ApplicationType
Area ID
System.AreaId
Area Level 1
System.AreaLevel1
Area Level 2
System.AreaLevel2
Area Level 3
System.AreaLevel3
Area Level 4
System.AreaLevel4
Area Level 5
System.AreaLevel5
Area Level 6
System.AreaLevel6
Area Level 7
System.AreaLevel7
Area Path
System.AreaPath
Assigned To
System.AssignedTo
Associated Context
Microsoft.VSTS.CodeReview.Context
Associated Context Code
Microsoft.VSTS.CodeReview.ContextCode
Associated Context Owner
Microsoft.VSTS.CodeReview.ContextOwner
Associated Context Type
Microsoft.VSTS.CodeReview.ContextType
Attached File Count
System.AttachedFileCount
Page 77 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Attached Files
System.AttachedFiles
Authorized As
System.AuthorizedAs
Authorized Date
System.AuthorizedDate
Automated Test Id
Microsoft.VSTS.TCM.AutomatedTestId
Automated Test Name
Microsoft.VSTS.TCM.AutomatedTestName
Automated Test Storage
Microsoft.VSTS.TCM.AutomatedTestStorage
Automated Test Type
Microsoft.VSTS.TCM.AutomatedTestType
Automation status
Microsoft.VSTS.TCM.AutomationStatus
BIS Links
System.BISLinks
Changed By
System.ChangedBy
Changed Date
System.ChangedDate
Changed Set
System.ChangedSet
Closed By
Microsoft.VSTS.Common.ClosedBy
Closed Date
Microsoft.VSTS.Common.ClosedDate
Closed Status
Microsoft.VSTS.CodeReview.ClosedStatus
Closed Status Code
Microsoft.VSTS.CodeReview.ClosedStatusCode
Closing Comment
Microsoft.VSTS.CodeReview.ClosingComment
Completed Work
Microsoft.VSTS.Scheduling.CompletedWork
Created By
System.CreatedBy
Created Date
System.CreatedDate
Description
System.Description
Due Date
Microsoft.VSTS.Scheduling.DueDate
External Link Count
System.ExternalLinkCount
Finish Date
Microsoft.VSTS.Scheduling.FinishDate
Found In
Microsoft.VSTS.Build.FoundIn
History
System.History
Hyperlink Count
System.HyperLinkCount
ID
System.Id
InAdminOnlyTreeFlag
System.InAdminOnlyTreeFlag
InDeletedTreeFlag
System.InDeletedTreeFlag
Integration Build
Microsoft.VSTS.Build.IntegrationBuild
Issue
Microsoft.VSTS.Common.Issue
Iteration ID
System.IterationId
Iteration Level 1
System.IterationLevel1
Iteration Level 2
System.IterationLevel2
Iteration Level 3
System.IterationLevel3
Iteration Level 4
System.IterationLevel4
Iteration Level 5
System.IterationLevel5
Iteration Level 6
System.IterationLevel6
Iteration Level 7
System.IterationLevel7
Iteration Path
System.IterationPath
Link Type
System.Links.LinkType
Linked Files
System.LinkedFiles
Local Data Source
Microsoft.VSTS.TCM.LocalDataSource
Node Name
System.NodeName
Node Type
System.NodeType
Not a field
System.NotAField
Original Estimate
Microsoft.VSTS.Scheduling.OriginalEstimate
Page 78 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Parameters
Microsoft.VSTS.TCM.Parameters
PersonID
System.PersonId
Priority
Microsoft.VSTS.Common.Priority
ProjectID
System.ProjectId
Rating
Microsoft.VSTS.Common.Rating
Reason
System.Reason
Related Link Count
System.RelatedLinkCount
Related Links
System.RelatedLinks
Remaining Work
Microsoft.VSTS.Scheduling.RemainingWork
Repro Steps
Microsoft.VSTS.TCM.ReproSteps
Resolved By
Microsoft.VSTS.Common.ResolvedBy
Resolved Date
Microsoft.VSTS.Common.ResolvedDate
Resolved Reason
Microsoft.VSTS.Common.ResolvedReason
Rev
System.Rev
Reviewed By
Microsoft.VSTS.Common.ReviewedBy
Revised Date
System.RevisedDate
Risk
Microsoft.VSTS.Common.Risk
Severity
Microsoft.VSTS.Common.Severity
Stack Rank
Microsoft.VSTS.Common.StackRank
Start Date
Microsoft.VSTS.Scheduling.StartDate
State
System.State
State Change Date
Microsoft.VSTS.Common.StateChangeDate
State Code
Microsoft.VSTS.Common.StateCode
Steps
Microsoft.VSTS.TCM.Steps
Story Points
Microsoft.VSTS.Scheduling.StoryPoints
System Info
Microsoft.VSTS.TCM.SystemInfo
Tags
System.Tags
Team Project
System.TeamProject
TF Server
System.TFServer
Title
System.Title
Tree
System.Tree
Watermark
System.Watermark
WEF_BD66C4E18FB54884A18B2299E91AD
E1B_Extension Marker
WEF_BD66C4E18FB54884A18B2299E91ADE1B_Syste
m.ExtensionMarker
WEF_BD66C4E18FB54884A18B2299E91AD
E1B_Kanban Column
WEF_BD66C4E18FB54884A18B2299E91ADE1B_Kanba
n.Column
Work Item Form
System.WorkItemForm
Work Item FormID
System.WorkItemFormId
Work Item Type
System.WorkItemType
WorkItem
System.WorkItem
WorkItemLink
System.WorkItemLink
WorkItemTypeExtension
System.WorkItemTypeExtension
For a full list of the available TFS fields in the different process templates, please refer to:
http://msdn.microsoft.com/en-us/library/vstudio/dd997792.aspx
Page 79 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
6. Using SpiraTest with FogBugz
This section outlines how to use SpiraTest, SpiraPlan or SpiraTeam (hereafter referred to as SpiraTeam)
in conjunction with the FogBugz issue/bug tracking system. The built-in integration service allows the
quality assurance team to manage their requirements and test cases in SpiraTeam, execute test runs in
SpiraTest, and then have the new incidents generated during the run be automatically loaded into
FogBugz.
Once the incidents are loaded into FogBugz as cases, the development team can then manage the
lifecycle of these cases in FogBugz, and have the status changes in FogBugz be reflected back in
SpiraTeam. In addition, any cases logged into FogBugz will get imported into SpiraTeam so that they can
be linked to test cases and requirements.
STOP! Please make sure you have first read the Instructions in Section 1 before proceeding!
6.1. Configuring the Plug-In
The next step is to configure the plug-in within SpiraTeam so that the system knows how to access the
FogBugz server. To start the configuration, please open up SpiraTeam in a web browser, log in using a
valid account that has System-Administration level privileges and click on the System > Data
Synchronization administration option from the left-hand navigation:
This screen lists all the plug-ins already configured in the system. Depending on whether you chose the
option to include sample data in your installation or not, you will see either an empty screen or a list of
sample data-synchronization plug-ins.
If you already see an entry for FogBugzDataSync you should click on its “Edit” link. If you don’t see such
an entry in the list, please click on the [Add] button instead. In either case you will be taken to the
following screen where you can enter or modify the FogBugz Data-Synchronization plug-in:
Page 80 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You need to fill out the following fields for the FogBugz Plug-in to operate correctly:
Name this needs to be set to FogBugzDataSync. This needs to match the name of the plug-in
DLL assembly that was copied into the C:\Program Files\SpiraTeam\Bin folder (minus the .dll file
extension). If you renamed the FogBugzDataSync.dll file for any reason, then you need to change
the name here to match.
Description this should be set to a description of the plug-in. This is an optional field that is
used for documentation purposes and is not actually used by the system.
Connection Info this should the URL that you use to access your instance of FogBugz (e.g.
https://mycompany.fogbugz.com)
Login this should be set to a valid login to the FogBugz installation. The login needs to have
permissions to create and view cases and versions within FogBugz.
Password this should be set to the password of the login specified above.
Time Offset normally this should be set to zero, but if you find that cases being changed in
FogBugz are not being updated in SpiraTeam, try increasing the value as this will tell the data-
synchronization plug-in to add on the time offset (in hours) when comparing date-time stamps.
Also if your FogBugz installation is running on a server set to a different time-zone, then you
should add in the number of hours difference between the servers’ time-zones here.
Auto-Map Users this is not currently used by the FogBugz data-sync plug-in and can be
ignored.
Custom 01 When connecting to FogBugz, sometimes the connection gets dropped by the
server without notifying the plug-in. This happens when using HTTP 1.1 Keep-Alive connections.
If you set this property to “False”, it will tell the plug-in to not-use HTTP keep-alives when
connecting to FogBugz, otherwise set it to “True”.
Custom 02 When connecting to a FogBugz instance that is running under HTTPS (SSL) this
custom property can be set to determine if the plug-in should verify that the SSL certificate is a
trusted root certificate. Set to True” if you are using an SSL certificate that was issued by a
trusted Certification Authority, and set to “False” if you are using a self-signed certificate.
Page 81 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Custom 03 Normally all rich text (HTML) descriptions in SpiraTeam are converted into plain
text when added to FogBugz. However, more recent version of FogBugz can now support rich
text. So if you have rich-text enabled in your instance of FogBugz, you should enter the world
True” in Custom 03 to enable rich text description transfer.
Custom 04 05 these are not currently used by the FogBugz data-sync plug-in and can be left
blank.
6.2. Configuring the Data Mapping
Next, you need to configure the data mapping between SpiraTeam and FogBugz. This allows the various
projects, users, releases, incident types, statuses, priorities and custom property values used in the two
applications to be related to each other. This is important, as without a correct mapping, there is no way
for the integration service to know that an “Enhancement” in SpiraTeam is the same as a “Feature” in
FogBugz (for example).
The following mapping information needs to be setup in SpiraTeam:
The mapping of the project identifiers for the projects that need to be synchronized
The mapping of users in the system
The mapping of releases (equivalent to FogBugz releases/fix-fors) in the system
The mapping of the various standard fields in the system
The mapping of the various custom properties in the system
Each of these is explained in turn below:
6.2.1. Configuring the Project Mapping
From the data synchronization administration page, you need to click on the “View Project Mappings”
hyperlink next to the FogBugz plug-in name. This will take you to the data-mapping home page for the
currently selected project:
Page 82 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
If the project name does not match the name of the project you want to configure the data-mapping for,
click on the “(Change Project)” hyperlink to change the current project.
To enable this project for data-synchronization with FogBugz, you need to enter:
External Key This should be set to the ID of the project in FogBugz. This can be found by
navigating to Settings > Projects in FogBugz:
Then hover the mouse over the project name. The project ID will be displayed in the URL line as
ixProject=X where X is the numeric ID of the project.
Active Flag Set this to ‘Yes’ so that SpiraTeam knows that you want to synchronize data for
this project. Once the project has been completed, setting the value to “No” will stop data
synchronization, reducing network utilization.
Click [Update] to confirm these settings. Once you have enabled the project for data-synchronization, you
can now enter the other data mapping values outlined below.
Note: Once you have successfully configured the project, when creating a new project, you
should choose the option to Create Project from Existing Project” rather than “Use Default
Template” so that all the project mappings get copied across to the new project.
Page 83 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
6.2.2. Configuring the User Mapping
To configure the mapping of users in the two systems, you need to go to Administration > Users > View
Edit Users, which will bring up the list of users in the system. Then click on the “Edit” button for a
particular user that will be editing cases in FogBugz:
You will notice that below the Active flag for the user is a list of all the configured data-synchronization
plug-ins. In the text box next to the FogBugz Data-Sync plug-in you need to enter the ID of this user in
FogBugz. This will allow the data-synchronization plug-in to know which user in SpiraTeam match which
equivalent user in FogBugz. The ID can be found in FogBugz by going to Settings > Users:
Then hover the mouse over the user’s name. The user ID will be displayed in the URL line as ixPerson=X
where X is the numeric ID of the user.
Back in SpiraTeam, click [Update] once you’ve entered the appropriate user ID in the mapping box. You
should now repeat for the other users who will be active in both systems.
6.2.3. Configuring the Release Mapping
When the data-synchronization service runs, when it comes across a release/iteration in SpiraTeam that it
has not seen before, it will create a corresponding Release/Fix-For in FogBugz. Similarly if it comes
across a new Release/Fix-For in FogBugz that it has not seen before, it will create a new Release in
SpiraTeam. Therefore when using both systems together, it is recommended that you only enter new
Releases/Versions in one system and let the data-synchronization service add them to the other system.
However you may start out with the situation where you already have pre-existing Releases/Versions in
both systems that you need to associate in the data-mapping. If you don’t do this, you may find that
duplicates get created when you first enable the data-synchronization service. Therefore for any
Releases/Iterations that already exist in BOTH systems please navigate to Planning > Releases and click
Page 84 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
on the Release/Iteration in question. Make sure you have the ‘Overview’ tab visible and expand the
“Details” section of the release/iteration:
In addition to the standard fields and custom properties configured for Releases, you will see an
additional text property called “FogBugzDataSync ID” that is used to store the mapped external identifier
for the equivalent Release in FogBugz. You need to locate the ID of the equivalent Release in FogBugz,
enter it into this text-box and click [Save]. You should now repeat for all the other pre-existing releases.
The FogBugz Release ID can be found by going to Settings > Projects and viewing the releases:
Then hover the mouse over the release name. The release ID will be displayed in the URL line as
ixFixFor=X where X is the numeric ID of the release.
6.2.4. Configuring the Standard Field Mapping
Now that the projects, user and releases have been mapped correctly, we need to configure the standard
incident fields. To do this, go to Administration > System > Data Synchronization and click on the “View
Project Mappings” for the FogBugzDataSync plug-in entry:
Page 85 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
From this screen, you need to click on Priority, Status and Type in turn to configure their values:
a) Incident Type
Click on the “Type” hyperlink under Incident Standard Fields to bring up the Incident type mapping
configuration screen:
The table lists each of the incident types available in SpiraTeam and provides you with the ability to enter
the matching FogBugz case category ID for each one. You can map multiple SpiraTeam fields to the
same FogBugz fields (e.g. Bug and Incident in SpiraTeam are both equivalent to Bug in FogBugz), in
which case only one of the two values can be listed as Primary = Yes as that’s the value that’s used on
the reverse synchronization (from FogBugz > SpiraTeam).
The values for the category ID are fixed for FogBugz and should be:
Category ID
1
2
3
So, depending on which types have been configured in SpiraTeam, you’ll need to adjust the mapping so
that the appropriate SpiraTeam types correspond to the equivalent FogBugz category.
b) Incident Status
Click on the “Status” hyperlink under Incident Standard Fields to bring up the Incident status mapping
configuration screen:
Page 86 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The table lists each of the incident statuses available in SpiraTeam and provides you with the ability to
enter the matching FogBugz case status ID for each one. You can map multiple SpiraTeam fields to the
same FogBugz fields (e.g. New, Open, Assigned, and Reopen in SpiraTeam are all equivalent to Active
in FogBugz), in which case only one of the four values can be listed as Primary = Yes as that’s the value
that’s used on the reverse synchronization (from FogBugz > SpiraTeam).
We recommend that you always point the New, Open, Assigned and Reopen statuses inside SpiraTeam
to point to the ID for “Assigned” inside FogBugz and make Assigned in SpiraTeam the Primary status of
the four. This is recommended so that as new incidents in SpiraTeam get synched over to FogBugz, they
will get switched to the Active status in FogBugz which will then be synched back to “Assigned” in
SpiraTeam. That way you’ll be able to see at a glance which incidents have been synched with FogBugz
and those that haven’t.
You also might want to consider changing the statuses in SpiraTeam to match the 16 discrete statuses in
FogBugz to make things easier for your users. In which case you’ll need to create the new statuses and
configure the workflow (as described in the SpiraTeam Administration Guide).
The status IDs in FogBugz are fixed and should be:
Status ID
Status Name
1
Active
2
Resolved (Fixed)
3
Resolved (Not Reproducible)
4
Resolved (Duplicate)
5
Resolved (Postponed)
6
Resolved (Won't Fix)
7
Resolved (By Design)
8
Resolved (Implemented)
9
Resolved (Won't Implement)
10
Resolved (Already Exists)
11
Resolved (Responded)
12
Resolved (Won't Respond)
13
Resolved (SPAM)
14
Resolved (Waiting For Info)
15
Resolved (Completed)
16
Resolved (Canceled)
Page 87 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
In addition to these statuses, FogBugz also has the concept of a ‘Closed’ case which is one where
the case has been assigned to the special Closed user (user id 1). If you want to map a SpiraTeam
status to this special closed status, for the external key just enter ‘Closed’ instead of a numeric ID
and that will tell the plug-in to associate that SpiraTest status with the special condition of a
FogBugz case that is assigned to the ‘closed’ user.
c) Incident Priority
Click on the “Priority” hyperlink under Incident Standard Fields to bring up the Incident Priority mapping
configuration screen:
The table lists each of the incident priorities available in SpiraTeam and provides you with the ability to
enter the matching FogBugz priority ID for each one. You can map multiple SpiraTeam fields to the same
FogBugz fields, in which case only one of the two values can be listed as Primary = Yes as that’s the
value that’s used on the reverse synchronization (from FogBugz > SpiraTeam).
Since both applications allow you to customize the priority list, we recommend that you modify the list in
both systems to be the same and then map them one to one as this will be easier for users to understand.
In the example above, we have switched over SpiraTeam to match the priorities in FogBugz, but you
could do it the other way around as well.
The FogBugz Priority IDs can be found by going to Settings > Priorities and viewing the priorities:
Page 88 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The priority ID is the “priority number” value displayed in the left hand column.
6.2.5. Configuring the Custom Property Mapping
Now that the various SpiraTeam standard fields have been mapped correctly, we need to configure the
custom property mappings. This is used for custom properties in SpiraTeam that are used to map to
standard fields in FogBugz (Computer, Version and Area) that don’t exist in SpiraTeam.
From the View/Edit Project Data Mapping screen, you need to click on the name of the Incident Custom
Property that you want to add data-mapping information for. We will consider the three different types of
mapping that you typically will want to enter:
a) FogBugz’s Computer Field
You first need to create an incident custom property in SpiraTeam of type ‘TEXT’ that will be used to store
the Computer description within SpiraTeam.
Then click on the hyperlink of this new text custom property under Incident Custom Properties to bring up
the custom property mapping configuration screen:
Page 89 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
All you need to do on this screen is enter the word “Computer” in the External Key textbox and the data-
sync plug-in will know that this custom property is mapped to the built-in Computer field in FogBugz.
b) FogBugz’s Version Field
You first need to create an incident custom property in SpiraTeam of type ‘TEXT’ that will be used to store
the Version description within SpiraTeam.
Then click on the hyperlink of this new text custom property under Incident Custom Properties to bring up
the custom property mapping configuration screen:
All you need to do on this screen is enter the word “Version” in the External Key textbox and the data-
sync plug-in will know that this custom property is mapped to the built-in Version field in FogBugz.
c) FogBugz’s Area Field
You first need to create an incident custom property in SpiraTeam of type ‘LIST’ that will be used to store
the list of project areas within SpiraTeam. You will need to create a new custom list to store the different
possible values of area and then use that list when creating the new custom property.
Then back on the Data Mapping page, click on the hyperlink of this new list custom property under
Incident Custom Properties to bring up the custom property mapping configuration screen:
Page 90 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
First you need to enter the word “Area” as the External Key of the custom property. This tells the data-
sync plug-in that the custom property in SpiraTeam should be mapped to built-in Area field in FogBugz.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the
FogBugz ID of the various Areas that are configured in FogBugz. The FogBugz Area ID can be found by
going to Settings > Projects and viewing the areas in the project:
Then hover the mouse over the area name. The area ID will be displayed in the URL line as ixArea=X
where X is the numeric ID of the area.
Once you have updated the various mapping sections, you are now ready to use the synchronization.
6.3. Using SpiraTeam with FogBugz
Now that the integration service has been configured and the service started, initially any incidents
created in SpiraTeam for the specified projects will be imported into FogBugz and any existing cases in
FogBugz will get loaded into SpiraTeam. At this point we recommend opening the Windows Event Viewer
and choosing the Application Log. In this log any error messages raised by the SpiraTeam Data Sync
Service will be displayed. If you see any error messages at this point, we recommend immediately
stopping the SpiraTeam service and checking the various mapping entries. If you cannot see any cases
with the mapping information, we recommend sending a copy of the event log message(s) to Inflectra
customer services (support@inflectra.com) who will help you troubleshoot the problem.
To use SpiraTeam with FogBugz on an ongoing basis, we recommend the following general processes
be followed:
Page 91 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
When running tests in SpiraTest or SpiraTeam, defects found should be logged through the Test
Execution Wizard as normal.
Developers using FogBugz can log new defects into either SpiraTeam or FogBugz. In either case
they will get loaded into the other system.
Once created in one of the systems and successfully replicated to the other system, the incident
should not be modified again inside SpiraTeam. Since FogBugz is considered the master system
for incidents/cases, all data changes to the case should be made inside FogBugz. To enforce
this, you should modify the workflows set up in SpiraTeam so that the various fields are marked
as inactive for all the incident statuses other than the “New” status. This will allow someone to
submit an incident in SpiraTeam, but will prevent them making changes in conflict with FogBugz
after that point.
As the case progresses through the FogBugz workflow, changes to the type of case, changes to
its status, priority, description and resolution will be updated automatically in SpiraTeam. In
essence, SpiraTeam acts as a read-only viewer of these incidents.
You are now able to perform test coverage and incident reporting inside SpiraTest/SpiraTeam
using the test cases managed by SpiraTest/SpiraTeam and the incidents managed on behalf of
SpiraTest/SpiraTeam inside FogBugz.
Page 92 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
7. Using SpiraTeam with Mantis
This section outlines how to use SpiraTest, SpiraPlan or SpiraTeam (hereafter referred to as SpiraTeam)
in conjunction with the Mantis issue tracking system. The built-in integration service allows the quality
assurance team to manage their requirements and test cases in SpiraTeam, execute test runs in
SpiraTest, and then have the new incidents generated during the run be automatically loaded into Mantis.
Once the incidents are synchronized into Mantis, the development team can then manage the issues in
Mantis and have the status changes and additional notes entered in Mantis be reflected back in
SpiraTeam. In addition, any new issues logged into mantis will get imported into SpiraTeam so that they
can be linked to test cases and requirements.
STOP! Please make sure you have first read the Instructions in Section 1 before proceeding!
7.1. Configuring the Plug-In
The next step is to configure the plug-in within SpiraTeam so that the system knows how to access the
Mantis server. To start the configuration, open up SpiraTeam in a web browser, log in using a valid
account that has System-Administration level privileges and click on the System > Data Synchronization
administration option from the left-hand navigation:
This screen lists all the plug-ins already configured in the system. Depending on whether you chose the
option to include sample data in your installation or not, you will see either an empty screen or a list of
sample data-synchronization plug-ins.
If you already see an entry for MantisDataSync you should click on its “Edit” link. If you don’t see such
an entry in the list, please click on the [Add] button instead. In either case you will be taken to the
following screen where you can enter or modify the Mantis Data-Synchronization plug-in:
Page 93 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You need to fill out the following fields for the Mantis Plug-in to operate correctly:
Name this needs to be set to MantisDataSync. This needs to match the name of the plug-in
DLL assembly that was copied into the C:\Program Files\SpiraTeam\Bin folder (minus the .dll file
extension). If you renamed the MantisDataSync.dll file for any reason, then you need to change
the name here to match.
Description this should be set to a description of the plug-in. This is an optional field that is
used for documentation purposes and is not actually used by the system.
Connection Info this should the URL that you use to access your instance of Mantis (e.g.
https://www.mycompany.com/bugs)
Login this should be set to a valid login to the Mantis installation. The login needs to have
permissions to create and view issues and versions within Mantis for the projects that you will be
syncing to SpiraTeam.
Password this should be set to the password of the login specified above.
Time Offset The time offset between the two servers, if the Mantis server is on a different
server than SpiraTeam. For example, if the Mantis server’s clock is set to Pacific Standard Time
(PST) and the SpiraTeam server is set to Eastern Standard Time (EST), the Mantis server would
be three hours behind SpiraTeam, so you would need to put -3 into this field.
Auto-Map Users If enabled and a mapped user is not found between the two systems, a
search will be made comparing logins between SpiraTeam and Mantis for matching UserIDs. If
one is found, than that user will be used. If not enabled and a match is not found, then the UserID
used will be the connecting user for the Data Sync. (The SpiraTeam User for issues coming into
SpiraTeam, and the Mantis Login for issues imported into Mantis.)
Custom 01 This field specifies whether or not a Resolution item in SpiraTeam, or a Note item in
Mantis will be created when an issue is created in either system for a new issue. Valid values are
True or False. Default (or blank) is True.
Custom 02 This field indicates whether or not to convert Carriage Returns and spaces in
Mantis issues when synchronizing them into SpiraTeam. If enabled, then carriage returns will be
converted to HTML breaks, and multiple spaces will be converted to non-breaking spaces to
preserve formatting when importing into SpiraTeam. If disabled, then carriage returns and spaces
will be left as-is. Valid values are True or False. Default (or blank) is True.
Page 94 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Custom 03 This field is only used when ‘Auto-Map Users’ is enabled and for Incidents
synchronized from SpiraTeam into Mantis. If enabled, and the Auto-Map User did not find a user
with a matching Login ID, then the Login ID will be set to the User in Spira, even if that user may
not exist in Mantis. Depending on Mantis configuration, the user may be accepted, or it may
default back to the Mantis UserID that the Data Sync runs under. Valid values are True or
False. Default (or blank) is False.
Custom 04 If enabled, this option specifies whether or not to append the “Additional
Information” and “Steps To Reproduce” fields to the end of the Description field in Spira. During
transfer of new issues from Mantis to SpiraTeam, the Description field in SpiraTeam will consist
of the Description field in Mantis appended by the Additional Information field in Mantis, and
finally the Steps To Reproduce field in Mantis. If this option is disabled, only the Description will
be transferred over. Valid values are True or False. Default (or blank) is False.
Custom 05 This is not currently used by the MantisDataSync, and can be left blank.
7.2. Configuring the Data Mapping
Next, you need to configure the data mapping between SpiraTeam and Mantis. This allows the various
projects, users, releases, incident types, statuses, priorities and custom property values used in the two
applications to be related to each other. This is important, as without a correct mapping, there is no way
for the integration service to know that an “Enhancement” in SpiraTeam is the same as a “Feature” in
Mantis (for example).
The following mapping information needs to be setup in SpiraTeam:
The linking between the project in SpiraTeam and the project in Mantis.
The linking of users between the two systems.
The linking of releases between the two systems.
The linking of standard SpiraTeam fields to Mantis fields.
The linking of custom SpiraTeam fields to Mantis custom fields.
Each of these is explained in turn below:
7.2.1. Configuring the Project Mapping
While working in the project you want to map, from the data synchronization administration page you
need to click on the “View Project Mappings” hyperlink next to the Mantis plug-in name. This will take you
to the data-mapping overview page:
Page 95 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
If the project name does not match the name of the project you want to configure the data-mapping for,
click on the “(Change Project)” hyperlink to change the current project.
To enable this project for data-synchronization with Mantis, you need to enter:
External Key This should be set to the ID of the project in Mantis. To get the ID of the Project
in Mantis, log in as an administrator and go to Manage -> Manage Projects:
Then hover the mouse over the project name. The project ID will be displayed in the URL line as
project_id=X where X is the numeric ID of the project.
Active Flag Set this to ‘Yes’ so that SpiraTeam knows that you want to synchronize data for
this project. Once the project has been completed, setting the value to “No” will stop data
synchronization, reducing network utilization.
Click [Update] to confirm these settings. Once you have enabled the project for data-synchronization, you
can now enter the other data mapping values outlined below.
Note: Once you have successfully configured the project, when creating a new project, you should choose
the option to “Create Project from Existing Project” rather than “Use Default Template” so that all the project
mappings get copied across to the new project, if you are going to want to Sync the new project up to
Mantis.
7.2.2. Configuring the User Mapping
To configure the mapping of users in the two systems, you need to go to Administration > Users > View
Edit Users, which will bring up the list of users in the system. Then click on the “Edit” button for a
particular user that will be editing issues in Mantis:
Page 96 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You will notice that below the Active flag for the user is a list of all the configured data-synchronization
plug-ins. In the text box next to the MantisDataSync ID you need to enter the Login ID of this user in
Mantis. If you have the “Automap Users” checkbox enabled in the MantisDataSync plugin, then if no link
is created, the system will scan for a matching Login ID from both systems and use a match. (If you then
do not have Custom3 set to False”, then for data going into Mantis the User ID will be forced to that of
the User ID in SpiraTeam.)
Once you have entered the Mantis Login ID in, click [Update]. You should now repeat for the other users
who will be active in both systems.
7.2.3. Configuring the Release Mapping
When the data-synchronization service runs and it comes across a release in SpiraTeam (or a Version in
Mantis) that it has not linked before, it will create a corresponding entry in the other system. When starting
out a new project, it is recommended that you let the MantisDataSync handle creation of the
releases/versions in either system, and then edit the information once the link is made.
In cases where you are syncing up two existing projects in both systems, it is advised that you link any
existing releases that exist in both systems manually, and then only create new releases in one system.
To link a release in SpiraTeam up to a version in Mantis, please navigate to Planning > Releases and
click on the Release/Iteration in question. Make sure you have the ‘Overview’ tab visible and expand the
“Details” section of the release/iteration:
Page 97 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
In addition to the standard fields and custom properties configured for Releases, you will see an
additional text property called MantisDataSync ID” that is used to store the mapped external identifier
for the equivalent Release in Mantis. The Mantis ID of a version is the string that is in the
The Mantis Release ID can be found by going to Manage -> Manage Projects -> Versions and
viewing a release’s details:
The Mantis Release ID is the highlighted text field. Copy and paste this into the field in SpiraTeam.
Depending on your regional settings in both applications, this field will likely be case-sensitive.
For versions imported into Mantis from SpiraTeam, the Version will have an “(S)” appended to the name,
and for versions in SpiraTeam imported from Mantis the version field of the Release will have “(M)”
appended to the name.
7.2.4. Configuring the Standard Field Mapping
Now that the projects, user and releases have been mapped correctly, we need to configure the standard
incident fields. To do this, go to Administration > System > Data Synchronization and click on the “View
Project Mappings” for the MantisDataSync plug-in entry:
Page 98 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
From this screen, you need to set up the Priority, Severity, Status, and Type fields:
a) Incident Type
The Incident Type field is optional and can be linked to the Mantis Category selection.
If you do not link values, then all issues being imported into SpiraTeam from Mantis will be set to the
Default Type (as specified in the “View/Edit Types” screen), and issues going from SpiraTeam into Mantis
will be assigned to the first Category in the list. (Usually Mantis orders them alphabetically, but this may
change depending on your installation. If you do not have any Categories set-up, then issues will not
transfer over and error messages will be logged.) For existing issues, updates to this field will not be
transferred.
The table lists each of the incident types available in SpiraTeam and provides you with the ability to enter
the matching Mantis Category for each one. The value to put in External ID is the Category text:
The Mantis Release ID is the highlighted text field. Copy and paste this into the field in SpiraTeam.
Depending on your regional settings in both applications, this field will likely be case-sensitive.
Page 99 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You can map multiple SpiraTeam fields to the same Mantis fields (e.g. Bug and Incident in SpiraTeam are
both equivalent to category “development” in Mantis). In a situation like this, enter in the Mantis category
in both Big and Incident external keys, and decide which one will be primary. For issues coming from
Mantis into SpiraTeam, the one marked Primary will be used, and for issues being created in Mantis, the
same category will be used to create the issue.
b) Incident Status
The Incident Status is an optional field to be linked to the Mantis field by the same name.
If you do not link values, then defaults will be used. For issues coming from Mantis into SpiraTeam,
incidents will be marked as ‘New’ (as defined by the “View/Edit Status” in Administration), and for issues
being transferred to Mantis, the default is ‘new’. Note that if an issue has an Owner in SpiraTeam, then
the default for the new issue in Mantis is ‘assigned’. For existing issues, updates to the field will not be
transferred over.
The table lists each of the incident types available in SpiraTeam and provides you with the ability to enter
the matching Mantis Category for each one. The values to put in External Key is any one of the Status
values in Mantis. By default in Mantis, the available statuses are:
The Mantis values are in the highlighted text field. Type these into the External Key field in SpiraTeam.
Depending on your regional settings in both applications, this field will likely be case-sensitive.
You can map multiple SpiraTeam fields to the same Mantis fields, just like the Incident Type above.
c) Incident Priority & Severity
The Incident Priority and Severity are optional fields that are linked to Mantis fields by the same name.
If you do not link values, then defaults will be used. For issues coming from Mantis into SpiraTeam,
incidents will leave those fields undefined (unset). For issues coming from SpiraTeam into Mantis, the
Page 100 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
default priority of ‘normal’ and severity of ‘minor’ is used. For existing issues, updates to the field will not
be transferred over.
The table lists each of the priorities available in SpiraTeam and provides you with the ability to enter the
matching Mantis priority for each one. (The table for Severities has the same functionality.) The values to
put in External Key are any one of the Priority (or Severity) values in Mantis. By default in Mantis, the
available values are:
The Mantis values are in the highlighted fields above. Type these into the External Key field in
SpiraTeam. Depending on your regional settings in both applications, this field will likely be case-
sensitive.
You can map multiple SpiraTeam fields to the same Mantis fields, just like described in Incident Type
above.
Page 101 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
7.2.5. Configuring the Custom Property Mapping
Now that the various SpiraTeam standard fields have been mapped correctly, we need to configure the
custom property mappings. At the moment, only custom fields in Mantis can be linked to custom fields in
SpiraTeam.
From the View/Edit Project Data Mapping screen, you need to click on the name of the Incident Custom
Property that you want to add data-mapping information for. Both field types in SpiraTeam can be linked
up to any of the supported field types in Mantis. Linking between the two systems is done in text values
only that means that if you have a SpiraTeam custom list, then the values that will be put into Mantis will
be the strings of the list. The same works for moving fields back from Mantis. Rules for linking different
field types up are as follows:
SpiraTeam List to Mantis Enum, List, or Multiselection: For linking these types of fields together,
the available values must match. For example, if you have “Windows” as an item in your list in
SpiraTeam, then in the associated field in Mantis, “Windows” must be an available item as well. In
instances where there is no match, then the default will be used in either system. On a Multiselection-type
field, for importing back into SpiraTeam, only the first (top) selected value will be stored.
SpiraTeam List to Mantis ‘Numeric’, ‘Float’, ‘Date’, ‘Text’, or ‘Email’: In this case, the text value of
the SpiraTeam list will be assigned to the Mantis field, and values must be exact. For example, if you
linked a SpiraTeam List to a Mantis Date field, the value for the List must be a valid date, like “1/1/2010”.
If any value fails the Mantis validation, the value will be ignored and the custom field will be set blank or to
default. When transferring a value back from Mantis into SpiraTeam, the text must equal an available item
in the custom list, or the field will be left blank.
SpiraTeam ‘Text’ to Mantis ‘Numeric’, ‘Float’, ‘Date’, ‘Text’, or ‘Email’: In this case, text will be copied
over as-is. Note that in some special cases, like the number, date, and e-mail fields, Mantis may apply
formatting or verification on values transferred over.
SpiraTeam ‘Text’ to Mantis Enum, List, or Multiselection: When pulling data from Mantis, the
SpiraTeam custom field will be translated as the field in Mantis displays. However, when transferring data
to Mantis, if the text in the SpiraTeam field does not match an available item in the lists, then Mantis may
leave the field blank or set it to the default value.
a) Mapping custom fields
For a SpiraTeam test field, all you need to do is link the custom field to the custom field in Mantis. To do
this, click on the name of the custom field under the “Custom Properties” header in the MantisDataSync
Project Mappings, and you will see a screen allowing you to enter the External Key:
[insert screenshot of custom map text prop screen with mapping for below]
In the External Key field, put the name of your custom field in Mantis:
Once you have updated the various mapping sections, you are now ready to use the service.
Page 102 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
7.3. Using SpiraTeam with Mantis
Now that the integration service has been configured and the service started, initially any incidents
created in SpiraTeam for the specified projects will be imported into Mantis and any existing issues in
Mantis will get loaded into SpiraTeam. After the first sync, we recommend opening the Windows Event
Viewer and viewing the Application Log. Any errors (unable to connect messages, invalid required field
mappings) and warnings (incomplete field mappings) will be displayed. If on Server 2008/Vista or later,
you can filter by the Application name “MantisDataSync”. If you see any error messages (or warning
messages that you want to correct before continuing) at this point, we recommend immediately stopping
the SpiraTeam service and checking the various mapping entries. If you cannot see any issues with the
mapping information, we recommend sending a copy of the event log message(s) to Inflectra customer
services (support@inflectra.com) who will help you troubleshoot the problem.
To use SpiraTeam with Mantis on an ongoing basis, we recommend the following general processes be
followed:
When running tests in SpiraTest or SpiraTeam, defects found should be logged through the Test
Execution Wizard as normal.
Developers using Mantis can log new defects into either SpiraTeam or Mantis. In either case they
will get loaded into the other system.
Once created in one of the systems and successfully replicated to the other system, the incident
should not be modified again inside SpiraTeam. Since Mantis is considered the master system
for incidents/issues, all data changes to the issue should be made inside Mantis. To enforce this,
you should modify the workflows set up in SpiraTeam so that the various fields are marked as
inactive for all the incident statuses other than the “New” status. This will allow someone to
submit an incident in SpiraTeam, but will prevent them from making changes in conflict with
Mantis after that point.
As the issue progresses in Mantis, changes to the type of issue, changes to its status, priority,
description and resolution will be updated automatically in SpiraTeam. In essence, SpiraTeam
acts as a read-only viewer of these incidents.
You are now able to perform test coverage and incident reporting inside SpiraTeam using the test
cases managed by SpiraTeam and the incidents managed on behalf of SpiraTeam inside Mantis.
Page 103 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
8. Using SpiraTeam with ClearQuest
This section outlines how to use SpiraTest, SpiraPlan or SpiraTeam (hereafter referred to as SpiraTeam)
in conjunction with the ClearQuest defect tracking system. The built-in integration service allows the
quality assurance team to manage their requirements and test cases in SpiraTeam, execute test runs in
SpiraTest, and then have the new incidents generated during the run be automatically loaded into
ClearQuest. Once the incidents are loaded into ClearQuest as defects, the development team can then
manage the lifecycle of these defects in ClearQuest, and have the status changes in ClearQuest be
reflected back in SpiraTeam. In addition, any issues logged directly into ClearQuest will get imported into
SpiraTeam so that they can be linked to test cases and requirements.
Note: The ClearQuest Plug-In is Not Available on the Inflectra Cloud-Based DataSync Service.
8.1. Configuring the Integration Service
This section outlines how to configure the integration service to export incidents into ClearQuest and pick
up subsequent status changes in ClearQuest and have them be updated in SpiraTeam. It assumes that
you already have a working installation of SpiraTest, SpiraPlan or SpiraTeam (v3.0 or higher) and a
working installation of IBM Rational ClearQuest 7.0 or higher.
If you have an earlier version of SpiraTeam, you will need to upgrade to at least v3.0 before trying to
integrate with ClearQuest.
The steps that need to be performed to configure integration with ClearQuest are as follows:
Download the latest ClearQuest Data-Sync plug-in for SpiraTeam from our website
Setup the plug-in in SpiraTeam to point to the correct instance of ClearQuest
Configure the data field mappings between SpiraTeam and ClearQuest
Start the service and verify data transfer
8.1.1. Download the ClearQuest Plug-In
Go to the Inflectra website and open up the page that lists the various downloads available for SpiraTeam
(http://www.inflectra.com/SpiraTeam/Downloads.aspx). Listed on this page will be the ClearQuest Plug-In
for SpiraTeam. Right-click on this link and save the Zip compressed folder to the hard-drive of the server
where SpiraTeam is installed.
Open up the compressed folder and extract the ClearQuestDataSync.dll file and place it in the
C:\Program Files\SpiraTeam\Bin folder (it may be SpiraTest or SpiraPlan depending on which product
you’re running). This folder should already contain the DataSyncService.exe and
DataSyncService.exe.config files that are the primary files used for managing the data synchronization
between SpiraTeam and other systems.
You will then need to install the ClearQuest client application itself onto the SpiraTeam server. This is
needed because the ClearQuest plugin communicates with the ClearQuest API which is part of the
ClearQuest client installation. The SpiraTeam plugin will use a single ClearQuest user license when it
connects to ClearQuest.
If you do not have an on-premise installation of SpiraTeam, but instead are using a hosted subscription
provided by Inflectra (or a third party company) you will not have access to the DataSyncService
background service. In such situations, you should use the Desktop DataSync application instead. This
application is described in Appendix 1 and can be used instead of the server-based DataSyncService.
Page 104 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
8.1.2. Configuring the Service
To configure the integration service, please open up the DataSyncService.exe.config file located in
C:\Program Files\SpiraTeam\Bin with a text editor such as Notepad. Once open, it should look like:
<?xml version="1.0" encoding="utf-8"?>
<configuration>
<configSections>
<sectionGroup name="applicationSettings" type="System.Configuration.ApplicationSettingsGroup,
System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" >
<section name="Inflectra.SpiraTest.DataSyncService.Properties.Settings"
type="System.Configuration.ClientSettingsSection, System, Version=2.0.0.0, Culture=neutral,
PublicKeyToken=b77a5c561934e089" requirePermission="false" />
</sectionGroup>
</configSections>
<applicationSettings>
<Inflectra.SpiraTest.DataSyncService.Properties.Settings>
<setting name="PollingInterval" serializeAs="String">
<value>600000</value>
</setting>
<setting name="WebServiceUrl" serializeAs="String">
<value>http://localhost/SpiraTeam</value>
</setting>
<setting name="Login" serializeAs="String">
<value>fredbloggs</value>
</setting>
<setting name="Password" serializeAs="String">
<value>fredbloggs</value>
</setting>
<setting name="EventLogSource" serializeAs="String">
<value>SpiraTeam Data Sync Service</value>
</setting>
<setting name="TraceLogging" serializeAs="String">
<value>False</value>
</setting>
</Inflectra.SpiraTest.DataSyncService.Properties.Settings>
</applicationSettings>
</configuration>
The sections that need to be verified and possibly changed are marked in yellow above. You need to
check the following information:
The polling interval allows you to specify how frequently the data-synchronization service will ask
SpiraTeam and the external system for new data updates. The value is specified in milliseconds
and we recommend a value no smaller than 5 minutes (i.e. 300,000ms). The larger the number,
the longer it will take for data to be synchronized, but the lower the network and server overhead.
The base URL to your instance SpiraTeam. It is typically of the form http://<server
name>/SpiraTeam. Make sure that when you enter this URL on a browser on the server itself,
the application login page appears.
A valid login name and password to your instance of SpiraTeam. This user needs to be a
member of the project(s) that will be synchronized with ClearQuest and needs to have at least
Incident create/modify/view permissions and Release create/modify/view permissions in
these projects.
Once you have made these changes, save the file and proceed to the next stage.
8.1.3. Configuring the Plug-In
The next step is to configure the plug-in within SpiraTeam so that the system knows how to access the
ClearQuest server. To start the configuration, please open up SpiraTeam in a web browser, log in using a
Page 105 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
valid account that has System-Administration level privileges and click on the System > Data
Synchronization administration option from the left-hand navigation:
This screen lists all the plug-ins already configured in the system. Depending on whether you chose the
option to include sample data in your installation or not, you will see either an empty screen or a list of
sample data-synchronization plug-ins.
If you already see an entry for ClearQuestDataSync you should click on its “Edit” link. If you don’t see
such an entry in the list, please click on the [Add] button instead. In either case you will be taken to the
following screen where you can enter or modify the ClearQuest Data-Synchronization plug-in:
You need to fill out the following fields for the ClearQuest Plug-in to operate correctly:
Name this needs to be set to ClearQuestDataSync. This needs to match the name of the plug-
in DLL assembly that was copied into the C:\Program Files\SpiraTeam\Bin folder (minus the .dll
file extension). If you renamed the ClearQuestDataSync.dll file for any reason, then you need to
change the name here to match.
Description this should be set to a description of the plug-in. This is an optional field that is
used for documentation purposes and is not actually used by the system.
Connection Info this should the name of the ClearQuest master database. In most installations
this is simply called “MASTR”.
Login this should be set to a valid login for your ClearQuest installation. The login needs to
have permissions to create and view defects within ClearQuest.
Password this should be set to the password of the login specified above.
Time Offset normally this should be set to zero, but if you find that issues being changed in
ClearQuest are not being updated in SpiraTeam, try increasing the value as this will tell the data-
synchronization plug-in to add on the time offset (in hours) when comparing date-time stamps.
Page 106 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Also if your ClearQuest installation is running on a server set to a different time-zone, then you
should add in the number of hours difference between the servers’ time-zones here.
Auto-Map Users this is not currently used and can be ignored.
Custom 01 This should be set to the word “True” if you want to have the plugin restrict
synchronization to only loading new incidents from SpiraTeam > ClearQuest and updating
existing items. This is useful if you want to prevent existing issues in ClearQuest from being
loaded into SpiraTeam. Leave blank if you want the plugin to synchronize normally.
Custom 02 Sometimes you don’t want all the incidents in SpiraTeam to be added to
ClearQuest. You can optionally enter a filter definition in this box to restrict the incidents that get
synchronized. The filter uses the following syntax:
[Property]=[Value|*]:[Property]=[Value|*]
For example, to limit the incidents to only have those where List01 = 5 and Text08 = “Hello” and
Text05 is not blank you would use:
List01=5:Text08=Hello:Text05=*
Custom 03 ClearQuest doesn’t have a built-in Detected in Release field. If you would like to
map a custom ClearQuest field to the SpiraTeam Detected in Release, simply enter in the name
of the ClearQuest field here.
Custom 04 ClearQuest doesn’t have a built-in Resolved in Release field. If you would like to
map a custom ClearQuest field to the SpiraTeam Resolved in Release, simply enter in the name
of the ClearQuest field here.
Custom 05 This is the optional “DBset” value, when you have installations with more than one
database set. If you have a single database set you can just leave this blank.
If you enter a field name in either Custom 03 or Custom 04, you will need to also map the various
releases in SpiraTeam to their corresponding equivalent field value in ClearQuest. To do that, click on
Planning > Releases and choose a specific release. Then in the “ClearQuest DataSync ID” field under the
“Custom Properties” tab you need to enter the name of the equivalent ClearQuest release.
8.2. Configuring the Data Mapping
Next, you need to configure the data mapping between SpiraTeam and ClearQuest. This allows the
various projects, users, incident statuses, priorities, severities and custom property values used in the two
applications to be related to each other. This is important, as without a correct mapping, there is no way
for the integration service to know that a “New” item in SpiraTeam is equivalent to a “Submitteditem in
ClearQuest (for example).
The following mapping information needs to be setup in SpiraTeam:
The mapping of the project identifiers for the projects that need to be synchronized
The mapping of users in the system
The mapping of the various standard fields in the system
The mapping of the various custom properties in the system
Each of these is explained in turn below:
Page 107 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
8.2.1. Configuring the Project Mapping
From the data synchronization administration page, you need to click on the “View Project Mappings”
hyperlink next to the ClearQuest plug-in name. This will take you to the data-mapping home page for the
currently selected project:
If the project name does not match the name of the project you want to configure the data-mapping for,
click on the “(Change Project)” hyperlink to change the current project.
To enable this project for data-synchronization with ClearQuest, you need to enter:
External Key This should be set to the name of the project database in ClearQuest that will be
mapped to the specific SpiraTeam project.
Active Flag Set this to ‘Yes’ so that SpiraTeam knows that you want to synchronize data for
this project. Once the project has been completed, setting the value to “No” will stop data
synchronization, reducing network utilization.
Click [Update] to confirm these settings. Once you have enabled the project for data-synchronization, you
can now enter the other data mapping values outlined below.
Note: Once you have successfully configured the project, when creating a new project, you
should choose the option to Create Project from Existing Project” rather than “Use Default
Template” so that all the project mappings get copied across to the new project.
8.2.2. Configuring the User Mapping
To configure the mapping of users in the two systems, you need to go to Administration > Users > View
Edit Users, which will bring up the list of users in the system. Then click on the “Edit” button for a
particular user that will be editing issues in ClearQuest:
Page 108 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You will notice that in the Data Mapping tab for the user, there is a list of all the configured data-
synchronization plug-ins. In the text box next to the ClearQuest Data-Sync plug-in you need to enter the
login for this username in ClearQuest. This will allow the data-synchronization plug-in to know which user
in SpiraTeam match which equivalent user in ClearQuest. Click [Update] once you’ve entered the
appropriate login name. You should now repeat for the other users who will be active in both systems.
8.2.3. Configuring the Standard Field Mapping
Now that the projects, user and releases have been mapped correctly, we need to configure the standard
incident fields. To do this, go to Administration > System > Data Synchronization and click on the “View
Project Mappings” for the ClearQuestDataSync plug-in entry:
Page 109 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
From this screen, you need to click on Priority, Severity and Status in turn to configure their values:
a) Incident Status
Click on the “Status” hyperlink under Incident Standard Fields to bring up the Incident status mapping
configuration screen:
The table lists each of the incident statuses available in SpiraTeam and provides you with the ability to
enter the matching ClearQuest issue status name for each one. You can map multiple SpiraTeam fields
to the same ClearQuest fields (e.g. Open and Reopen in SpiraTeam are both equivalent to Opened in
ClearQuest), in which case only one of the two values can be listed as Primary = Yes as that’s the value
that’s used on the reverse synchronization (from ClearQuest > SpiraTeam).
b) Incident Priority
Page 110 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Click on the “Priority” hyperlink under Incident Standard Fields to bring up the Incident Priority mapping
configuration screen:
The table lists each of the incident priorities available in SpiraTeam and provides you with the ability to
enter the matching ClearQuest priority name for each one. You can map multiple SpiraTeam fields to the
same ClearQuest fields, in which case only one of the two values can be listed as Primary = Yes as that’s
the value that’s used on the reverse synchronization (from ClearQuest > SpiraTeam).
c) Incident Severity
Click on the “Severity” hyperlink under Incident Standard Fields to bring up the Incident severity mapping
configuration screen:
The table lists each of the incident severities available in SpiraTeam and provides you with the ability to
enter the matching ClearQuest severity name for each one. You can map multiple SpiraTeam fields to the
same ClearQuest fields, in which case only one of the two values can be listed as Primary = Yes as that’s
the value that’s used on the reverse synchronization (from ClearQuest > SpiraTeam).
Page 111 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
8.2.4. Configuring the Custom Property Mapping
Now that the various SpiraTeam standard fields have been mapped correctly, we need to configure the
custom property mappings. This is used for both custom properties in SpiraTeam that map to custom
fields in ClearQuest and also for custom properties in SpiraTeam that are used to map to standard fields
in ClearQuest (e.g. Project, Resolution) that don’t exist in SpiraTeam.
From the View/Edit Project Data Mapping screen, you need to click on the name of the Incident Custom
Property that you want to add data-mapping information for. We will consider the two different types of
mapping that you might want to enter:
a) Text Custom Properties
Click on the hyperlink of the text custom property under Incident Custom Properties to bring up the
custom property mapping configuration screen. For text custom properties there will be no values listed in
the lower half of the screen.
You need to lookup the ID of the custom field in ClearQuest that matches this custom property in
SpiraTeam. Once you have entered the id of the custom field, click [Update].
Page 112 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Note: The ID can be found by looking at the URL inside ClearQuest when choosing to View/Edit the
Custom Field. The URL will include the section: id=X where X is the numeric ID of the Custom Field
inside ClearQuest.
b) List Custom Properties
Click on the hyperlink of the list custom property under Incident Custom Properties to bring up the custom
property mapping configuration screen. For list custom properties there will be a textbox for both the
custom field itself and a mapping table for each of the custom property values that need to be mapped:
First you need to lookup the name of the field in ClearQuest that matches this custom property in
SpiraTeam. This should be entered in the ‘External Key’ field below the name of the custom property. The
easiest way to determine this is to use the ClearQuest Designer which lets you see all the fields
associated with a ClearQuest defect:
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the full
name of the possible field values as displayed in the ClearQuest client application.
Once you have updated the various mapping sections, you are now ready to start the service.
Page 113 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
8.3. Enabling the Data-Synchronization
8.3.1. Starting the Service
When SpiraTeam is installed, a Windows Service SpiraTeam Data Sync Service is installed along
with the web application. However to avoid wasting system resources, this service is initially set to run
manually. To ensure continued synchronization of SpiraTeam with ClearQuest, we recommend starting
the service and setting its startup-type to Automatic.
To make these changes, open up the Windows Control Panel, click on the “Administrative Tools” link, and
then choose the Services option. This will bring up the Windows Service control panel:
Click on the ‘SpiraTeam Data Sync Service’ entry and click on the link to start the service. Then right-click
the service entry and choose the option to set the startup type to ‘Automatic’. This will ensure that
synchronization continues between SpiraTeam and ClearQuest after a reboot of the server.
8.3.2. Using SpiraTeam with ClearQuest
Now that the integration service has been configured and the service started, initially any incidents
created in SpiraTeam for the specified projects will be imported into ClearQuest and any existing defects
in ClearQuest will get loaded into SpiraTeam
At this point we recommend opening the Windows Event Viewer and choosing the Application Log. In this
log any error messages raised by the SpiraTeam Data Sync Service will be displayed. If you see any
error messages at this point, we recommend immediately stopping the SpiraTeam service and checking
the various mapping entries. If you cannot see any issues with the mapping information, we recommend
sending a copy of the event log message(s) to Inflectra customer services (support@inflectra.com) who
will help you troubleshoot the problem.
To use SpiraTeam with ClearQuest on an ongoing basis, we recommend the following general processes
be followed:
When running tests in SpiraTest or SpiraTeam, defects found should be logged through the Test
Execution Wizard as normal.
Developers using ClearQuest can log new defects into either SpiraTeam or ClearQuest. In either
case they will get loaded into the other system.
Once created in one of the systems and successfully replicated to the other system, the incident
should not be modified again inside SpiraTeam
At this point, the incident should not be acted upon inside SpiraTeam and all data changes to the
issue should be made inside ClearQuest. To enforce this, you should modify the workflows set up
Page 114 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
in SpiraTeam so that the various fields are marked as inactive for all the incident statuses other
than the “New” status. This will allow someone to submit an incident in SpiraTeam, but will
prevent them making changes in conflict with ClearQuest after that point.
As the issue progresses through the customized ClearQuest workflow, changes to the type of
issue, changes to its status, priority, description and resolution will be updated automatically in
SpiraTeam. In essence, SpiraTeam acts as a read-only viewer of these incidents.
You are now able to perform test coverage and incident reporting inside SpiraTest/SpiraTeam
using the test cases managed by SpiraTest/SpiraTeam and the incidents managed on behalf of
SpiraTest/SpiraTeam inside ClearQuest.
Page 115 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
9. Using SpiraTeam with IBM RTC
This section outlines how to use SpiraTest, SpiraPlan or SpiraTeam (hereafter referred to as SpiraTeam)
in conjunction with the IBM Rational Team Concert (hereafter referred to as RTC) work item tracking
system. The built-in integration service allows the quality assurance team to manage their requirements
and test cases in SpiraTeam, execute test runs in SpiraTest, and then have the new incidents generated
during the run be automatically loaded into RTC.
Once the incidents are loaded into RTC as work items, the development team can then manage the
lifecycle of these work items in RTC, and have the status changes in RTC be reflected back in
SpiraTeam. In addition, any issues logged directly into RTC will get imported into SpiraTeam so that they
can be linked to test cases and requirements.
STOP! Please make sure you have first read the Instructions in Section 1 before proceeding!
9.1. Configuring the Plug-In
The next step is to configure the plug-in within SpiraTeam so that the system knows how to access the
RTC server. To start the configuration, please open up SpiraTeam in a web browser, log in using a valid
account that has System-Administration level privileges and click on the System > Data Synchronization
administration option from the left-hand navigation:
This screen lists all the plug-ins already configured in the system. Depending on whether you chose the
option to include sample data in your installation or not, you will see either an empty screen or a list of
sample data-synchronization plug-ins.
If you already see an entry for RtcDataSync you should click on its “Edit” link. If you don’t see such an
entry in the list, please click on the [Add] button instead. In either case you will be taken to the following
screen where you can enter or modify the RTC Data-Synchronization plug-in:
Page 116 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You need to fill out the following fields for the RTC Plug-in to operate correctly:
Name this needs to be set to RtcDataSync. This needs to match the name of the plug-in DLL
assembly that was copied into the C:\Program Files\SpiraTeam\Bin folder (minus the .dll file
extension). If you renamed the RtcDataSync.dll file for any reason, then you need to change the
name here to match.
Description this should be set to a description of the plug-in. This is an optional field that is
used for documentation purposes and is not actually used by the system.
Connection Info this should be the base URL for connecting to your instance of RTC (for
example https://servername:9443/ccm).
Login this should be set to a valid login for your RTC installation. The login needs to have
permissions to create and view work items within RTC.
Password this should be set to the password of the login specified above.
Time Offset normally this should be set to zero, but if you find that issues being changed in
RTC are not being updated in SpiraTeam, try increasing the value as this will tell the data-
synchronization plug-in to add on the time offset (in hours) when comparing date-time stamps.
Also if your RTC installation is running on a server set to a different time-zone, then you should
add in the number of hours difference between the servers’ time-zones here.
Auto-Map Users this is not currently used and can be ignored.
Custom 01 this is not currently used and can be ignored
Custom 02 this is not currently used and can be ignored
Custom 03 this is not currently used and can be ignored
Custom 04 this is not currently used and can be ignored
Custom 05 this is not currently used and can be ignored
Page 117 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
9.2. Configuring the Data Mapping
Next, you need to configure the data mapping between SpiraTeam and RTC. This allows the various
projects, users, incident statuses, priorities, severities and custom property values used in the two
applications to be related to each other. This is important, as without a correct mapping, there is no way
for the integration service to know that a “New” item in SpiraTeam is equivalent to a “New” item in RTC
(for example).
The following mapping information needs to be setup in SpiraTeam:
The mapping of the project identifiers for the projects that need to be synchronized
The mapping of the various standard fields in the system
The mapping of the various custom properties in the system
Each of these is explained in turn below:
9.2.1. Configuring the Project Mapping
From the data synchronization administration page, you need to click on the “View Project Mappings”
hyperlink next to the RTC plug-in name. This will take you to the data-mapping home page for the
currently selected project:
If the project name does not match the name of the project you want to configure the data-mapping for,
click on the “(Change Project)” hyperlink to change the current project.
To enable this project for data-synchronization with RTC, you need to enter:
External Key This should be set to the display name of the project in RTC that will be mapped
to the specific SpiraTeam project.
Active Flag Set this to ‘Yes’ so that SpiraTeam knows that you want to synchronize data for
this project. Once the project has been completed, setting the value to “No” will stop data
synchronization, reducing network utilization.
Click [Update] to confirm these settings. Once you have enabled the project for data-synchronization, you
can now enter the other data mapping values outlined below.
Page 118 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Note: Once you have successfully configured the project, when creating a new project, you
should choose the option to Create Project from Existing Project” rather than “Use Default
Template” so that all the project mappings get copied across to the new project.
9.2.2. Configuring the Standard Field Mapping
Now that the projects, user and releases have been mapped correctly, we need to configure the standard
incident fields. To do this, go to Administration > System > Data Synchronization and click on the “View
Project Mappings” for the RtcDataSync plug-in entry:
From this screen, you need to click on Status and Type in turn to configure their values:
a) Incident Status
Click on the “Status” hyperlink under Incident Standard Fields to bring up the Incident status mapping
configuration screen:
Page 119 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The table lists each of the incident statuses available in SpiraTeam and provides you with the ability to
enter the matching RTC work item status name for each one. You can map multiple SpiraTeam fields to
the same RTC fields (e.g. Closed and Resolved in SpiraTeam are both equivalent to Complete in RTC),
in which case only one of the two values can be listed as Primary = Yes as that’s the value that’s used on
the reverse synchronization (from RTC > SpiraTeam).
b) Incident Type
Click on the “Type” hyperlink under Incident Standard Fields to bring up the Incident type mapping
configuration screen:
The table lists each of the incident types available in SpiraTeam and provides you with the ability to enter
the matching RTC work item type name for each one. You can map multiple SpiraTeam fields to the
same RTC fields, in which case only one of the two values can be listed as Primary = Yes as that’s the
value that’s used on the reverse synchronization (from RTC > SpiraTeam).
9.2.3. Configuring the Custom Property Mapping
Now that the various SpiraTeam standard fields have been mapped correctly, we need to configure the
custom property mappings. This is used to associate custom properties in SpiraTeam that map to custom
fields in RTC. From the View/Edit Project Data Mapping screen, you need to click on the name of the
Incident Custom Property that you want to add data-mapping information for.
We will consider the two different types of mapping that you might want to enter:
Page 120 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
a) Text Custom Properties
Click on the hyperlink of the text custom property under Incident Custom Properties to bring up the
custom property mapping configuration screen. For text custom properties there will be no values listed in
the lower half of the screen.
You need to obtain the fully qualified XML name of the custom field in RTC that matches this custom
property in SpiraTeam from the RTC documentation. Once you have entered the name of the custom
field, click [Update].
b) List Custom Properties
Click on the hyperlink of the list custom property under Incident Custom Properties to bring up the custom
property mapping configuration screen. For list custom properties there will be a textbox for both the
custom field itself and a mapping table for each of the custom property values that need to be mapped:
Page 121 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
First you need to obtain the fully qualified XML name of the field in RTC that matches this custom
property in SpiraTeam. This should be entered in the ‘External Key’ field below the name of the custom
property. Then you need enter the possible values in RTC for the custom property, mapping each one to
the corresponding SpiraTeam custom property value.
Once you have updated the various mapping sections, you are now ready to use the service.
9.3. Using SpiraTeam with RTC
Now that the integration service has been configured and the service started, initially any incidents
created in SpiraTeam for the specified projects will be imported into RTC and any existing work items in
RTC will get loaded into SpiraTeam
At this point we recommend opening the Windows Event Viewer and choosing the Application Log. In this
log any error messages raised by the SpiraTeam Data Sync Service will be displayed. If you see any
error messages at this point, we recommend immediately stopping the SpiraTeam service and checking
the various mapping entries. If you cannot see any issues with the mapping information, we recommend
sending a copy of the event log message(s) to Inflectra customer services
(http://www.inflectra.com/Support) who will help you troubleshoot the problem.
To use SpiraTeam with RTC on an ongoing basis, we recommend the following general processes be
followed:
When running tests in SpiraTest or SpiraTeam, defects found should be logged through the Test
Execution Wizard as normal.
Developers using RTC can log new work items into either SpiraTeam or RTC. In either case they
will get loaded into the other system.
Once created in one of the systems and successfully replicated to the other system, the incident
should not be modified again inside SpiraTeam
At this point, the incident should not be acted upon inside SpiraTeam and all data changes to the
issue should be made inside RTC. To enforce this, you should modify the workflows set up in
SpiraTeam so that the various fields are marked as inactive for all the incident statuses other than
the “New” status. This will allow someone to submit an incident in SpiraTeam, but will prevent
them making changes in conflict with RTC after that point.
Page 122 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
As the issue progresses through the customized RTC workflow, changes to the type of work item,
changes to its status, description and custom fields will be updated automatically in SpiraTeam.
In essence, SpiraTeam acts as a read-only viewer of these incidents.
You are now able to perform test coverage and incident reporting inside SpiraTest/SpiraTeam using the
test cases managed by SpiraTest/SpiraTeam and the incidents managed on behalf of
SpiraTest/SpiraTeam inside RTC.
Page 123 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
10. Using Spira with Axosoft 14+
This section outlines how to use SpiraTest, SpiraPlan or SpiraTeam (hereafter referred to as SpiraTeam)
in conjunction with the OnTime defect tracking system from AxoSoft (hereafter called OnTime). The built-
in integration service allows the quality assurance team to manage their requirements and test cases in
SpiraTeam, execute test runs in SpiraTest, and then have the new incidents generated during the run be
automatically loaded into OnTime.
Once the incidents are loaded into OnTime as defects, the development team can then manage the
lifecycle of these defects in OnTime, and have the status changes in OnTime be reflected back in
SpiraTeam.
STOP! Please make sure you have first read the Instructions in Section 1 before proceeding!
10.1. Configuring the Plug-In
This section outlines how to configure the integration service to export incidents into OnTime and pick up
subsequent status changes in OnTime and have them update SpiraTeam. It assumes that you already
have a working installation of SpiraTest, SpiraPlan or SpiraTeam v4.0 or later and a working installation
of AxoSoft OnTime 14 or later (either hosted in the cloud or on-premise). If you have an earlier version of
SpiraTeam, you will need to upgrade to at least v4.0 before trying to integrate with OnTime.
The steps that need to be performed to configure integration with OnTime are as follows:
Enable the REST API in OnTime
Setup the plug-in in SpiraTeam to point to the correct instance of OnTime
Configure the data field mappings between SpiraTeam and OnTime
Start synchronization and verify data transfer
10.1.1. Enable the REST API in OnTime
First you will need to login to your instance of OnTime and click on Tools > System Options. Then click on
the ‘Axosoft API Settings’ section:
Check the box to ‘Enable API’ and then click on the [Manage API Keys] button:
Page 124 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
On this screen you will need to enter the name of the application you are creating an API key for (e.g.
“Spira”) and then record the following two pieces of information:
Client ID
Client Secret
You will need these later on. Then click Save.
The OnTime Client Secret is a long hash that will be of the form:
ykk8WD3eYfMJ6WbV1HtkutJv_w9jS2ah1tSbwqs-408Gp0_cPh5wTnjwfqPLN3-
_oCSHPVG5tpFkETHBgxUBKbXaTzzVqYtKC9_S
For SpiraTeam 4.2 and earlier there is a limitation on the length of client secret that can be accepted, so
you need to break down the client secret into three parts of roughly equal length that you can enter into
SpiraTeam. For example we could have used:
ykk8WD3eYfMJ6WbV1HtkutJv_w9jS2ah1tSbwqs-
408Gp0_cPh5wTnjwfqPLN3-
_oCSHPVG5tpFkETHBgxUBKbXaTzzVqYtKC9_S
10.1.2. Configuring the Plug-In
The next step is to configure the plug-in within SpiraTeam so that the system knows how to access the
OnTime server. To start the configuration, please open up SpiraTeam in a web browser, log in using a
valid account that has System-Administration level privileges and click on the System > Data
Synchronization administration option from the left-hand navigation:
This screen lists all the plug-ins already configured in the system. Depending on whether you chose the
option to include sample data in your installation or not, you will see either an empty screen or a list of
sample data-synchronization plug-ins.
Page 125 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
If you already see an entry for OnTimeDataSync you should click on its “Edit” link. If you don’t see such
an entry in the list, please click on the [Add] button instead. In either case you will be taken to the
following screen where you can enter or modify the OnTime Data-Synchronization plug-in:
You need to fill out the following fields for the OnTime Plug-in to operate correctly:
Name this needs to be set to OnTimeDataSync. This needs to match the name of the plug-in
DLL assembly that was copied into the C:\Program Files\SpiraTeam\Bin folder (minus the .dll file
extension). If you renamed the OnTimeDataSync.dll file for any reason, then you need to change
the name here to match.
Description this should be set to a description of the plug-in. This is an optional field that is
used for documentation purposes and is not actually used by the system.
Connection Info this should the full URL to OnTime. This is typically something like:
https://mysite.axosoft.com.
Login this should be set to the login that you use to access OnTime through its web interface
Password this should be set to the password that you use to access OnTime through its web
interface
Time Offset normally this should be set to zero, but if you find that defects being changed in
OnTime are not being updated in SpiraTeam, try increasing the value as this will tell the data-
synchronization plug-in to add on the time offset (in hours) when comparing date-time stamps.
Auto-Map Users This changes the way that the plugin maps users in SpiraTeam to those in
OnTime:
Auto-Map = True
With this setting, all users in SpiraTeam need to have the same username as those in
OnTime. If this is the case then you do not need to perform the user-mapping task
Page 126 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
outlined in section 10.2.2. This is a big time-saver if you can guarantee that all
usernames are the same in both systems.
Auto-Map = False
With this setting, users in SpiraTeam and OnTime are free to have different usernames
because you specify the corresponding OnTime login for each user as outlined in section
10.2.2.
Custom 01 This should contain the Client ID value from the OnTime API Key screen
Custom 02 04 This should contain the three segments of the OnTime Client Secret that
you obtained from the OnTime API Key Screen.
Custom 05 this is not currently used by the OnTime data-sync plug-in and can be left blank.
10.2. Configuring the Data Mapping
Next, you need to configure the data mapping between SpiraTeam and OnTime. This allows the various
projects, users, releases, incident statuses, priorities, severities and custom property values used in the
two applications to be related to each other. This is important, as without a correct mapping, there is no
way for the integration service to know that an “Open” incident in SpiraTeam is the same as an “Open”
defect in OnTime (for example).
The following mapping information needs to be setup in SpiraTeam:
The mapping of the project identifiers for the projects that need to be synchronized
The mapping of users in the system
The mapping of releases in the system
The mapping of the various standard fields in the system
The mapping of the various custom properties in the system
Each of these is explained in turn below:
10.2.1. Configuring the Project Mapping
From the data synchronization administration page, you need to click on the “View Project Mappings”
hyperlink next to the OnTime plug-in name. This will take you to the data-mapping home page for the
currently selected project:
If the project name does not match the name of the project you want to configure the data-mapping for,
click on the “(Change Project)” hyperlink to change the current project.
To enable this project for data-synchronization with OnTime, you need to enter:
Page 127 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
External Key This should be set to the name of the project token in OnTime:
If you have a sub-project, you need to include both the parent and sub-project names separated
by a forward slash (/), e.g. MyProject/SubProject1.
Active Flag Set this to ‘Yes’ so that SpiraTeam knows that you want to synchronize data for
this project. Once the project has been completed, setting the value to “No” will stop data
synchronization, reducing network utilization.
Click [Update] to confirm these settings. Once you have enabled the project for data-synchronization, you
can now enter the other data mapping values outlined below.
Note: Once you have successfully configured the project, when creating a new project, you
should choose the option to Create Project from Existing Project” rather than “Use Default
Template” so that all the project mappings get copied across to the new project.
10.2.2. Configuring the User Mapping
(This section can be skipped if you enabled the ‘AutoMap Users’ option earlier).
To configure the mapping of users in the two systems, you need to go to Administration > Users > View
Edit Users, which will bring up the list of users in the system. Then click on the “Edit” button for a
particular user that will be editing defects in OnTime:
You will notice that in the Data Mapping tab for the user is a list of all the configured data-synchronization
plug-ins. In the text box next to the OnTime Data-Sync plug-in you need to enter the Login Name for this
username in OnTime. This will allow the data-synchronization plug-in to know which user in SpiraTeam
match which equivalent user in OnTime. Click [Update] once you’ve entered the appropriate login name.
You should now repeat for the other users who will be active in both systems.
10.2.3. Configuring the Release Mapping
When the data-synchronization service runs, when it comes across a release/iteration in SpiraTeam that it
has not seen before, it will create a corresponding Release in OnTime. Similarly if it comes across a new
Release in OnTime that it has not seen before, it will create a new Release in SpiraTeam. Therefore
when using both systems together, it is recommended that you only enter new Releases in one system
and let the data-synchronization service add them to the other system.
Page 128 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
To see this mapping, inside SpiraTeam, navigate to Planning > Releases and click on the
Release/Iteration in question. Make sure you have the ‘Overview’ tab visible and expand the “Details”
section of the release/iteration:
In addition to the standard fields and custom properties configured for Releases, you will see an
additional text property called “OnTimeDataSync ID” that is used to store the mapped external identifier
for the equivalent Version in OnTime.
10.2.4. Configuring the Standard Field Mapping
Now that the projects, user and releases have been mapped correctly, we need to configure the standard
incident fields. To do this, go to Administration > System > Data Synchronization and click on the “View
Project Mappings” for the OnTimeDataSync plug-in entry:
From this screen, you need to click on Priority, Severity and Status in turn to configure their values
(OnTime doesn’t support different defect types):
a) Incident Status
Click on the “Status” hyperlink under Incident Standard Fields to bring up the Incident status mapping
configuration screen:
Page 129 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The table lists each of the incident statuses available in SpiraTeam and provides you with the ability to
enter the matching OnTime defect status names for each one. You can map multiple SpiraTeam fields to
the same OnTime fields (e.g. New and Open in SpiraTeam are both equivalent to Open in OnTime), in
which case only one of the two values can be listed as Primary = Yes as that’s the value that’s used on
the reverse synchronization (from OnTime > SpiraTeam).
We recommend that you always point the New and Open statuses inside SpiraTeam to point to the
“Open” status inside OnTime and make Open in SpiraTeam the Primary status of the two. This is
recommended so that as new incidents in SpiraTeam get synched over to OnTime, they will get switched
to the Open status in OnTime which will then be synched back to “Open” in SpiraTeam. That way you’ll
be able to see at a glance which incidents have been synched with OnTime and those that haven’t.
Note: The OnTime external key needs to exactly match the display name of the status inside OnTime. If
you change the name of a status in OnTime, you’ll need to update the value in the data-mapping
configuration as well.
b) Incident Priority
Click on the “Priority” hyperlink under Incident Standard Fields to bring up the Incident Priority mapping
configuration screen:
The table lists each of the incident priorities available in SpiraTeam and provides you with the ability to
enter the matching OnTime priority name for each one. You can map multiple SpiraTeam fields to the
same OnTime fields, in which case only one of the two values can be listed as Primary = Yes as that’s the
value that’s used on the reverse synchronization (from OnTime > SpiraTeam).
Note: The OnTime external key needs to exactly match the display name of the priority inside OnTime. If
you change the name of a priority in OnTime, you’ll need to update the value in the data-mapping
configuration as well.
c) Incident Severity
Click on the “Severity” hyperlink under Incident Standard Fields to bring up the Incident severity mapping
configuration screen:
Page 130 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The table lists each of the incident severities available in SpiraTeam and provides you with the ability to
enter the matching OnTime severity name for each one. You can map multiple SpiraTeam fields to the
same OnTime fields, in which case only one of the two values can be listed as Primary = Yes as that’s the
value that’s used on the reverse synchronization (from OnTime > SpiraTeam).
Note: The OnTime external key needs to exactly match the display name of the severity inside OnTime. If
you change the name of a severity in OnTime, you’ll need to update the value in the data-mapping
configuration as well.
10.2.5. Configuring the Custom Property Mapping
Now that the various SpiraTeam standard fields have been mapped correctly, we need to configure the
custom property mappings. This is used for both custom properties in SpiraTeam that map to custom
fields in OnTime and also for custom properties in SpiraTeam that are used to map to standard fields in
OnTime (currently only Replication Procedures) that don’t exist in SpiraTeam.
From the View/Edit Project Data Mapping screen, you need to click on the name of the Incident Custom
Property that you want to add data-mapping information for. We will consider the three different types of
mapping that you might want to enter:
a) Scalar Custom Properties
This refers to custom properties that have a simple user-entered value and don’t need to have their
specific options mapped between SpiraTeam and OnTime. All of the custom property types except List
and Multi-List fall into this category (e.g. Text, Date, User, Boolean, Decimal, Integer, etc.)
Page 131 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Click on the hyperlink of the text custom property under Incident Custom Properties to bring up the
custom property mapping configuration screen. For text custom properties there will be no values listed in
the lower half of the screen.
You need to lookup the display name of the custom field in OnTime that matches this custom property in
SpiraTeam. Once you have entered the id of the custom field, click [Update].
b) List Custom Properties
Click on the hyperlink of the list custom property under Incident Custom Properties to bring up the custom
property mapping configuration screen. For list custom properties there will be a textbox for both the
custom field itself and a mapping table for each of the custom property values that need to be mapped:
First you need to lookup the display name of the custom field in OnTime that matches this custom
property in SpiraTeam. This should be entered in the ‘External Key’ field below the name of the custom
property.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the full
name of the custom field value as specified in OnTime.
Once you have updated the various mapping sections, you are now ready to use the service.
Page 132 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
10.3. Using SpiraTeam with OnTime
Now that the integration service has been configured and the service started, initially any incidents
created in SpiraTeam for the specified projects will be imported into OnTime and vice versa.
At this point we recommend opening the Windows Event Viewer and choosing the Application Log. In this
log any error messages raised by the SpiraTeam Data Sync Service will be displayed. If you see any
error messages at this point, we recommend immediately stopping the SpiraTeam service and checking
the various mapping entries. If you cannot see any defects with the mapping information, we recommend
sending a copy of the event log message(s) to Inflectra customer services (support@inflectra.com) who
will help you troubleshoot the problem.
To use SpiraTeam with OnTime on an ongoing basis, we recommend the following general processes be
followed:
When running tests in SpiraTeam, defects found should be logged through the ‘Add Incident’
option as normal.
Developers can log new defects into either SpiraTeam or OnTime. In either case they will get
loaded into the other system.
Once created in one of the systems and successfully replicated to the other system, the incident
should not be modified again inside SpiraTeam
At this point, the incident should not be acted upon inside SpiraTeam, and all data changes to the
defect should be made inside OnTime. To enforce this, you can modify the workflows set up in
SpiraTeam so that the various fields are marked as inactive for all the incident statuses other than
the “New” status. This will allow someone to submit an incident in SpiraTeam, but will prevent
them making changes in conflict with OnTime after that point.
As the defect progresses through the OnTime workflow, changes to the status, priority, severity,
and resolution will be updated automatically in SpiraTeam. In essence, SpiraTeam acts as a
read-only viewer of these incidents.
You are now able to perform test coverage and incident reporting inside SpiraTeam using the test
cases managed by SpiraTeam and the incidents managed on behalf of SpiraTeam inside
OnTime.
Page 133 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
11. Using SpiraTeam with Redmine
This section outlines how to use SpiraTeam in conjunction with the open-source Redmine bug-tracking
and project management system. The built-in integration service allows the quality assurance team to
manage their requirements and test cases in SpiraTeam, execute test runs in SpiraTeam, and then have
the new incidents generated during the run be automatically loaded into Redmine. Once the incidents are
loaded into Redmine as issues, the development team can then manage the lifecycle of these issues in
Redmine, and have the status changes in Redmine be reflected back in SpiraTeam.
In addition, any issues logged directly into Redmine will get imported into SpiraTeam so that they can be
linked to test cases and requirements.
STOP! Please make sure you have first read the Instructions in Section 1 before proceeding!
11.1. Configuring the Plug-In
The next step is to configure the plug-in within SpiraTeam so that the system knows how to access the
Redmine server. To start the configuration, please open up SpiraTeam in a web browser, log in using a
valid account that has System-Administration level privileges and click on the System > Data
Synchronization administration option from the left-hand navigation:
This screen lists all the plug-ins already configured in the system. Depending on whether you chose the
option to include sample data in your installation or not, you will see either an empty screen or a list of
sample data-synchronization plug-ins.
If you already see an entry for RedmineDataSync you should click on its “Edit” link. If you don’t see such
an entry in the list, please click on the [Add] button instead. In either case you will be taken to the
following screen where you can enter or modify the Redmine Data-Synchronization plug-in:
Page 134 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You need to fill out the following fields for the Redmine Plug-in to operate correctly:
Name this needs to be set to RedmineDataSync. This needs to match the name of the plug-in
DLL assembly that was copied into the C:\Program Files\SpiraTeam\Bin folder (minus the .dll file
extension). If you renamed the RedmineDataSync.dll file for any reason, then you need to change
the name here to match.
Description this should be set to a description of the plug-in. This is an optional field that is
used for documentation purposes and is not actually used by the system.
Connection Info this should be the base URL of the Redmine installation. As an example, for
the public demo installation of Redmine, it would be: http://demo.redmine.org
Login this should be set to a valid login to the Redmine installation the login needs to have
permissions to create and view bugs and versions within Redmine.
Password this should be set to the password of the login specified above.
Time Offset normally this should be set to zero, but if you find that issues being changed in
Redmine are not being updated in SpiraTeam, try increasing the value as this will tell the data-
synchronization plug-in to add on the time offset (in hours) when comparing date-time stamps.
Also if your Redmine installation is running on a server set to a different time-zone, then you
should add in the number of hours difference between the servers’ time-zones here.
Auto-Map Users This changes the way that the plugin maps users in SpiraTeam to those in
Redmine:
Auto-Map = True
With this setting, all users in SpiraTeam need to have the same username as those in
Redmine. If this is the case then you do not need to perform the user-mapping task
Page 135 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
outlined in section 11.2.2. This is a big time-saver if you can guarantee that all
usernames are the same in both systems.
Auto-Map = False
With this setting, users in SpiraTeam and Redmine are free to have different usernames
because you specify the corresponding Redmine name for each user as outlined in
section 11.2.2.
Custom 01 This should be set to the word “false” if you want to have the plugin restrict
synchronization to not create any new incidents in Spira.
Custom 02 This should be set to the word “false” if you want to have the plugin restrict
synchronization to not create any new issues in Redmine.
Custom 03 05 these are not currently used by the Redmine data-sync plug-in and can be left
blank.
11.2. Configuring the Data Mapping
Next, you need to configure the data mapping between SpiraTeam and Redmine. This allows the various
projects, users, releases, incident types, statuses, priorities and custom property values used in the two
applications to be related to each other. This is important, as without a correct mapping, there is no way
for the integration service to know that an “Duplicate” incident in SpiraTeam is the same as a Rejected
bug in Redmine (for example).
The following mapping information needs to be setup in SpiraTeam:
The mapping of the project identifiers for the projects that need to be synchronized
The mapping of users in the system
The mapping of releases (equivalent to Redmine versions) in the system
The mapping of the various standard fields in the system
The mapping of the various custom properties in the system
Each of these is explained in turn below:
11.2.1. Configuring the Project Mapping
From the data synchronization administration page, you need to click on the “View Project Mappings”
hyperlink next to the Redmine plug-in name. This will take you to the data-mapping home page for the
currently selected project:
Page 136 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
If the project name does not match the name of the project you want to configure the data-mapping for,
click on the “(Change Project)” hyperlink to change the current project.
To enable this project for data-synchronization with Redmine, you need to enter:
External Key This should be set to the name of the equivalent project in Redmine.
Active Flag Set this to ‘Yes’ so that SpiraTeam knows that you want to synchronize data for
this project. Once the project has been completed, setting the value to “No” will stop data
synchronization, reducing network utilization.
Click [Update] to confirm these settings. Once you have enabled the project for data-synchronization, you
can now enter the other data mapping values outlined below.
Note: Once you have successfully configured the project, when creating a new project, you
should choose the option to Create Project from Existing Project” rather than “Use Default
Template” so that all the project mappings get copied across to the new project.
11.2.2. Configuring the User Mapping
To configure the mapping of users in the two systems, you need to go to Administration > Users > View
Edit Users, which will bring up the list of users in the system. Then click on the “Edit” button for a
particular user that will be editing issues in Redmine:
Page 137 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You will notice that in the special Data Mapping tab for the user is a list of all the configured data-
synchronization plug-ins. In the text box next to the Redmine Data-Sync plug-in you need to enter the
numeric ID for this user in Redmine. This will allow the data-synchronization plug-in to know which user
in Redmine matches this SpiraTeam user. Click [Update] once you’ve entered the appropriate ID value.
You should now repeat for the other users who will be active in both systems.
11.2.3. Configuring the Release Mapping
Now that the projects and users have been mapped correctly, we need to configure the mapping between
Releases/Iterations in SpiraTeam and Versions in Redmine. To do this, please navigate to Planning >
Releases and click on the Release/Iteration in question. Make sure you have the ‘Overview’ tab visible
and expand the “Details” section of the release/iteration:
In addition to the standard fields and custom properties configured for Releases, you will see an
additional text property called “RedmineDataSync ID” that is used to store the mapped external identifier
for the equivalent Version in Redmine. You need to enter the numeric ID of the equivalent version in
Redmine, enter it into this text-box and click [Save]. You should now repeat for all the other releases and
iterations in the project.
Page 138 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
In addition, any Versions that have already been created in Redmine will be automatically imported into
SpiraTeam if they do not already exist in SpiraTeam and they have not already been mapped.
11.2.4. Configuring the Standard Field Mapping
Now that the projects, user and releases have been mapped correctly, we need to configure the standard
incident fields. To do this, go to Administration > System > Data Synchronization and click on the “View
Project Mappings” for the RedmineDataSync plug-in entry:
From this screen, you need to click on Priority, Type and Status in turn to configure their values:
a) Incident Status
Click on the “Status” hyperlink under Incident Standard Fields to bring up the Incident status mapping
configuration screen:
Page 139 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The table lists each of the incident statuses available in SpiraTeam and provides you with the ability to
enter the matching Redmine bug status ID for each one. You can map multiple SpiraTeam fields to the
same Redmine fields (e.g. Open and Assigned in SpiraTeam are both equivalent to “In Progress” (ID=2)
in Redmine), in which case only one of the two values can be listed as Primary = Yes as that’s the value
that’s used on the reverse synchronization (from Redmine > SpiraTeam).
b) Incident Priority
Click on the “Priority” hyperlink under Incident Standard Fields to bring up the Incident Priority mapping
configuration screen:
The table lists each of the incident priorities available in SpiraTeam and provides you with the ability to
enter the matching Redmine priority ID for each one. You can map multiple SpiraTeam fields to the same
Redmine fields, in which case only one of the two values can be listed as Primary = Yes as that’s the
value that’s used on the reverse synchronization (from Redmine > SpiraTeam).
c) Incident Type
Incident types in SpiraTeam are equivalent to Trackers in Redmine. Click on the “Type” hyperlink under
Incident Standard Fields to bring up the Incident type mapping configuration screen:
Page 140 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The table lists each of the incident types available in SpiraTeam and provides you with the ability to enter
the matching Redmine Tracker ID for each one. You can map multiple SpiraTeam fields to the same
Redmine tracker values, in which case only one of the two values can be listed as Primary = Yes as that’s
the value that’s used on the reverse synchronization (from Redmine > SpiraTeam).
11.2.5. Configuring the Custom Property Mapping
Now that the various SpiraTeam standard fields have been mapped correctly, we need to configure the
custom property mappings. This is used for custom properties in SpiraTeam that map to custom fields in
Redmine. You will need to first make sure that the custom properties and associated custom lists have
been created in both systems:
From the View/Edit Project Data Mapping screen, you need to click on the name of the Incident Custom
Property that you want to add data-mapping information for:
Page 141 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
We will consider the two different types of mapping that you might want to enter.
a) Scalar Custom Properties
This refers to custom properties that have a simple user-entered value and don’t need to have their
specific options mapped between SpiraTeam and Redmine. All of the custom property types except List
and Multi-List fall into this category (e.g. Text, Date, Boolean, Decimal, Integer, etc.)
Click on the hyperlink of the scalar custom property under Incident Custom Properties to bring up the
custom property mapping configuration screen. For scalar custom properties there will be no values listed
in the lower half of the screen.
You need to enter the ID of the custom field in Redmine that matches this custom property in SpiraTeam.
Once you have entered the id of the custom field, click [Update].
b) List Custom Properties
This refers to custom properties that are either of type List or Multi-List. Click on the hyperlink of the list
custom property under Incident Custom Properties to bring up the custom property mapping configuration
screen. For list custom properties there will be a textbox for both the custom field itself and a mapping
table for each of the custom property values that need to be mapped:
Page 142 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
First you need to find the ID of the custom field in Redmine that matches this custom property in
SpiraTeam. This should be entered in the ‘External Key’ field below the name of the custom property.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the full
name (not the id this time) of the custom field value as specified in Redmine.
Once you have updated the various mapping sections, you are now ready to use the service.
11.3. Using SpiraTest with Redmine
Now that the integration service has been configured and the service started, initially any incidents
created in SpiraTeam for the specified projects will be imported into Redmine. At this point we
recommend opening the Windows Event Viewer and choosing the Application Log. In this log any error
messages raised by the Data Synchronization service will be displayed. If you see any error messages at
this point, we recommend immediately stopping the service and checking the various mapping entries. If
you cannot see any issues with the mapping information, we recommend sending a copy of the event log
message(s) to Inflectra customer services (support@inflectra.com) who will help you troubleshoot the
problem.
To use SpiraTeam with Redmine on an ongoing basis, we recommend the following general processes
be followed:
When running tests in SpiraTeam, defects found should be logged through the Test Execution
Wizard as normal.
Developers can log new defects into either SpiraTeam or Redmine. In either case they will get
loaded into the other system.
Once created in one of the systems and successfully replicated to the other system, the incident
should not be modified again inside SpiraTeam
All data changes to the issue should be made inside Redmine.
To enforce this, you can modify the workflows set up in SpiraTeam so that the various
fields are marked as inactive for all the incident statuses other than the “New” status.
This will allow someone to submit an incident in SpiraTeam, but will prevent them making
changes in conflict with Redmine after that point.
As the issue progresses through the Redmine workflow, changes to the status, priority, tracker,
and target version will be updated automatically in SpiraTeam, and any notes added will be
Page 143 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
added to SpiraTeam as new comments. In essence, SpiraTeam acts as a read-only viewer of
these incidents.
You are now able to perform test coverage and incident reporting inside SpiraTeam using the test
cases managed by SpiraTeam and the incidents managed on behalf of SpiraTeam inside
Redmine.
Page 144 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
12. Using Spira with OnTime 11
This section outlines how to use SpiraTest, SpiraPlan or SpiraTeam (hereafter referred to as SpiraTeam)
in conjunction with the OnTime 11+ defect tracking system from AxoSoft. The built-in integration service
allows the quality assurance team to manage their requirements and test cases in SpiraTeam, execute
test runs in SpiraTest, and then have the new incidents generated during the run be automatically loaded
into OnTime.
Once the incidents are loaded into OnTime as defects, the development team can then manage the
lifecycle of these defects in OnTime, and have the status changes in OnTime be reflected back in
SpiraTeam.
Note: This section refers to integrating with the older SOAP API that was available in AxoSoft
OnTime 11 (2010). This API was removed from AxoSoft OnTime in 2012 and we recommend you
use the AxoSoft OnTime 14 Plugin instead that is described in section 10 above if you are using
OnTime 14 or later.
Note: The OnTime11 Plug-In is Not Available on the Inflectra Cloud-Based DataSync Service.
12.1. Configuring the Integration Service
This section outlines how to configure the integration service to export incidents into OnTime and pick up
subsequent status changes in OnTime and have them update SpiraTeam. It assumes that you already
have a working installation of SpiraTest, SpiraPlan or SpiraTeam v2.3 or later and a working installation
of OnTime 2010 or later. If you have an earlier version of SpiraTeam, you will need to upgrade to at least
v2.3 before trying to integrate with OnTime.
The steps that need to be performed to configure integration with OnTime are as follows:
Install and configure the OnTime SDK if you have not already done so
Download the OnTime11 Data-Sync plug-in for SpiraTeam from our website
Setup the plug-in in SpiraTeam to point to the correct instance of OnTime
Configure the data field mappings between SpiraTeam and OnTime
Start the service and verify data transfer
12.1.1. Install and Configure the OnTime SDK
The API for accessing OnTime remotely is a separate download from the main OnTime application, and
should be downloaded and installed from AxoSoft’s website onto your OnTime server. It typically adds a
separate IIS virtual directory (e.g. http://servername/OnTimeSdk) to the existing OnTime virtual directory
(e.g. http://servername/OnTime). Please make sure you have both virtual directories listed in IIS before
continuing.
Once you have installed the OnTime SDK, you need to navigate to the location that it was installed
(typically C:\inetpub\wwwroot\OnTimeSdk) and open up the Web.Config file in Notepad and locate the
appSettings” part of the file:
<appSettings>
<add key="ConnectionString" value="server=SERVER;database=OnTime;uid=USER;pwd=PASSWORD;"/>
<add key="SecurityToken" value="{66ACD352-16C0-4485-8498-8C461BE7CE44}"/>
<add key="WebServicesUser" value="1"/>
<add key="EnableDataCache" value="False"/>
</appSettings>
Page 145 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You need to make sure that you fill out the ConnectionString that points to the Microsoft SQL Server
database that OnTime is connecting to. Also for the SecurityToken field you need to generate a new
GUID and add it to the file. This security token will be used by SpiraTeam when it connects to the OnTime
API. Once you have made the necessary changes, save the file.
12.1.2. Download the OnTime Plug-In
Go to the Inflectra website and open up the page that lists the various downloads available for SpiraTeam
(http://www.inflectra.com/SpiraTeam/Downloads.aspx). Listed on this page will be the OnTime11 Plug-In
for SpiraTeam. Right-click on this link and save the Zip compressed folder to the hard-drive of the server
where SpiraTeam is installed.
Open up the compressed folder and extract the OnTimeDataSync.dll file and place it in the C:\Program
Files\SpiraTeam\Bin folder (it may be SpiraTest or SpiraPlan depending on which product you’re
running). This folder should already contain the DataSyncService.exe and DataSyncService.exe.config
files that are the primary files used for managing the data synchronization between SpiraTeam and other
systems.
If you do not have an on-premise installation of SpiraTeam, but instead are using a hosted subscription
provided by Inflectra (or a third party company) you will not have access to the DataSyncService
background service. In such situations, you should use the Desktop DataSync application instead. This
application is described in Appendix 1 and can be used instead of the server-based DataSyncService.
12.1.3. Configuring the Service
To configure the integration service, please open up the DataSyncService.exe.config file located in
C:\Program Files\SpiraTeam\Bin with a text editor such as Notepad. Once open, it should look like:
<?xml version="1.0" encoding="utf-8"?>
<configuration>
<configSections>
<sectionGroup name="applicationSettings" type="System.Configuration.ApplicationSettingsGroup,
System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" >
<section name="Inflectra.SpiraTest.DataSyncService.Properties.Settings"
type="System.Configuration.ClientSettingsSection, System, Version=2.0.0.0, Culture=neutral,
PublicKeyToken=b77a5c561934e089" requirePermission="false" />
</sectionGroup>
</configSections>
<applicationSettings>
<Inflectra.SpiraTest.DataSyncService.Properties.Settings>
<setting name="PollingInterval" serializeAs="String">
<value>600000</value>
</setting>
<setting name="WebServiceUrl" serializeAs="String">
<value>http://localhost/SpiraTeam</value>
</setting>
<setting name="Login" serializeAs="String">
<value>fredbloggs</value>
</setting>
<setting name="Password" serializeAs="String">
<value>fredbloggs</value>
</setting>
<setting name="EventLogSource" serializeAs="String">
<value>SpiraTeam Data Sync Service</value>
</setting>
<setting name="TraceLogging" serializeAs="String">
<value>False</value>
</setting>
</Inflectra.SpiraTest.DataSyncService.Properties.Settings>
</applicationSettings>
</configuration>
Page 146 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The sections that need to be verified and possibly changed are marked in yellow above. You need to
check the following information:
The polling interval allows you to specify how frequently the data-synchronization service will ask
SpiraTeam and the external system for new data updates. The value is specified in milliseconds
and we recommend a value no smaller than 5 minutes (i.e. 300,000ms). The larger the number,
the longer it will take for data to be synchronized, but the lower the network and server overhead.
The base URL to your instance SpiraTeam. It is typically of the form http://<server
name>/SpiraTeam. Make sure that when you enter this URL on a browser on the server itself,
the application login page appears.
A valid login name and password to your instance of SpiraTeam. This user needs to be a
member of the project(s) that will be synchronized with OnTime and needs to have at least
Incident create/modify/view permissions and Release create/modify/view permissions in
these projects.
Once you have made these changes, save the file and proceed to the next stage.
12.1.4. Configuring the Plug-In
The next step is to configure the plug-in within SpiraTeam so that the system knows how to access the
OnTime server. To start the configuration, please open up SpiraTeam in a web browser, log in using a
valid account that has System-Administration level privileges and click on the System > Data
Synchronization administration option from the left-hand navigation:
This screen lists all the plug-ins already configured in the system. Depending on whether you chose the
option to include sample data in your installation or not, you will see either an empty screen or a list of
sample data-synchronization plug-ins.
If you already see an entry for OnTimeDataSync you should click on its “Edit” link. If you don’t see such
an entry in the list, please click on the [Add] button instead. In either case you will be taken to the
following screen where you can enter or modify the OnTime Data-Synchronization plug-in:
Page 147 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You need to fill out the following fields for the OnTime Plug-in to operate correctly:
Name this needs to be set to OnTimeDataSync. This needs to match the name of the plug-in
DLL assembly that was copied into the C:\Program Files\SpiraTeam\Bin folder (minus the .dll file
extension). If you renamed the OnTimeDataSync.dll file for any reason, then you need to change
the name here to match.
Description this should be set to a description of the plug-in. This is an optional field that is
used for documentation purposes and is not actually used by the system.
Connection Info this should the full URL to the OnTime SDK. This is typically something like:
http://<OnTime server name>/OnTimeSdk. You may need to check in the IIS Management
Console of the OnTime server to verify the virtual directory name.
Login this should be set to the GUID that you specified in the Web.Config file in step 2.1.1
above.
Password this should be left blank as it’s not used by the OnTime data-sync plug-in.
Time Offset normally this should be set to zero, but if you find that defects being changed in
OnTime are not being updated in SpiraTeam, try increasing the value as this will tell the data-
synchronization plug-in to add on the time offset (in hours) when comparing date-time stamps.
Also if your OnTime installation is running on a server set to a different time-zone, then you
should add in the number of hours difference between the servers’ time-zones here.
Auto-Map Users this is not currently used by the OnTime data-sync plug-in and can be
ignored.
Custom 01 05 these are not currently used by the OnTime data-sync plug-in and can be left
blank.
12.2. Configuring the Data Mapping
Next, you need to configure the data mapping between SpiraTeam and OnTime. This allows the various
projects, users, releases, incident statuses, priorities, severities and custom property values used in the
two applications to be related to each other. This is important, as without a correct mapping, there is no
Page 148 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
way for the integration service to know that an “Open” incident in SpiraTeam is the same as an “Open”
defect in OnTime (for example).
The following mapping information needs to be setup in SpiraTeam:
The mapping of the project identifiers for the projects that need to be synchronized
The mapping of users in the system
The mapping of releases in the system
The mapping of the various standard fields in the system
The mapping of the various custom properties in the system
Each of these is explained in turn below:
12.2.1. Configuring the Project Mapping
From the data synchronization administration page, you need to click on the “View Project Mappings”
hyperlink next to the OnTime plug-in name. This will take you to the data-mapping home page for the
currently selected project:
If the project name does not match the name of the project you want to configure the data-mapping for,
click on the “(Change Project)” hyperlink to change the current project.
To enable this project for data-synchronization with OnTime, you need to enter:
External Key This should be set to the numeric ID of the project token in OnTime. You can find
this in OnTime by selecting the project in the project explorer inside OnTime and then clicking the
Edit icon. This brings up the project details screen:
Page 149 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
The ID of the project is the value listed in the browser URL directly after the “ProjectId=” text. In
the example above, the project ID would be 3.
Active Flag Set this to ‘Yes’ so that SpiraTeam knows that you want to synchronize data for
this project. Once the project has been completed, setting the value to “No” will stop data
synchronization, reducing network utilization.
Click [Update] to confirm these settings. Once you have enabled the project for data-synchronization, you
can now enter the other data mapping values outlined below.
Note: Once you have successfully configured the project, when creating a new project, you
should choose the option to Create Project from Existing Project” rather than “Use Default
Template” so that all the project mappings get copied across to the new project.
12.2.2. Configuring the User Mapping
To configure the mapping of users in the two systems, you need to go to Administration > Users > View
Edit Users, which will bring up the list of users in the system. Then click on the “Edit” button for a
particular user that will be editing defects in OnTime:
You will notice that below the Active flag for the user is a list of all the configured data-synchronization
plug-ins. In the text box next to the OnTime Data-Sync plug-in you need to enter the Login ID for this
username in OnTime. This will allow the data-synchronization plug-in to know which user in SpiraTeam
Page 150 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
match which equivalent user in OnTime. Click [Update] once you’ve entered the appropriate login name.
You should now repeat for the other users who will be active in both systems.
12.2.3. Configuring the Release Mapping
When the data-synchronization service runs, when it comes across a release/iteration in SpiraTeam that it
has not seen before, it will create a corresponding Release in OnTime. Similarly if it comes across a new
Release in OnTime that it has not seen before, it will create a new Release in SpiraTeam. Therefore
when using both systems together, it is recommended that you only enter new Releases in one system
and let the data-synchronization service add them to the other system.
However you may start out with the situation where you already have pre-existing Releases in both
systems that you need to associate in the data-mapping. If you don’t do this, you may find that duplicates
get created when you first enable the data-synchronization service. Therefore for any Releases/Iterations
that already exist in BOTH systems please navigate to Planning > Releases and click on the
Release/Iteration in question. Make sure you have the ‘Overview’ tab visible and expand the “Details”
section of the release/iteration:
In addition to the standard fields and custom properties configured for Releases, you will see an
additional text property called “OnTimeDataSync ID” that is used to store the mapped external identifier
for the equivalent Version in OnTime. You need to locate the ID of the equivalent version in OnTime,
enter it into this text-box and click [Save]. You should now repeat for all the other pre-existing releases.
Note: The OnTime ID can be found by looking at the URL inside OnTime when choosing to Edit the
release in question. The URL will include the section: ReleaseId=X where X is the numeric ID of the
version inside OnTime:
Page 151 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
12.2.4. Configuring the Standard Field Mapping
Now that the projects, user and releases have been mapped correctly, we need to configure the standard
incident fields. To do this, go to Administration > System > Data Synchronization and click on the “View
Project Mappings” for the OnTimeDataSync plug-in entry:
From this screen, you need to click on Priority, Severity and Status in turn to configure their values
(OnTime doesn’t support different defect types):
a) Incident Status
Click on the “Status” hyperlink under Incident Standard Fields to bring up the Incident status mapping
configuration screen:
The table lists each of the incident statuses available in SpiraTeam and provides you with the ability to
enter the matching OnTime defect status names for each one. You can map multiple SpiraTeam fields to
the same OnTime fields (e.g. New and Open in SpiraTeam are both equivalent to Open in OnTime), in
which case only one of the two values can be listed as Primary = Yes as that’s the value that’s used on
the reverse synchronization (from OnTime > SpiraTeam).
Page 152 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
We recommend that you always point the New and Open statuses inside SpiraTeam to point to the
“Open” status inside OnTime and make Open in SpiraTeam the Primary status of the two. This is
recommended so that as new incidents in SpiraTeam get synched over to OnTime, they will get switched
to the Open status in OnTime which will then be synched back to “Open” in SpiraTeam. That way you’ll
be able to see at a glance which incidents have been synched with OnTime and those that haven’t.
Note: The OnTime external key needs to exactly match the display name of the status inside OnTime. If
you change the name of a status in OnTime, you’ll need to update the value in the data-mapping
configuration as well.
b) Incident Priority
Click on the “Priority” hyperlink under Incident Standard Fields to bring up the Incident Priority mapping
configuration screen:
The table lists each of the incident priorities available in SpiraTeam and provides you with the ability to
enter the matching OnTime priority name for each one. You can map multiple SpiraTeam fields to the
same OnTime fields, in which case only one of the two values can be listed as Primary = Yes as that’s the
value that’s used on the reverse synchronization (from OnTime > SpiraTeam).
Note: The OnTime external key needs to exactly match the display name of the priority inside OnTime. If
you change the name of a priority in OnTime, you’ll need to update the value in the data-mapping
configuration as well.
c) Incident Severity
Click on the “Severity” hyperlink under Incident Standard Fields to bring up the Incident severity mapping
configuration screen:
The table lists each of the incident severities available in SpiraTeam and provides you with the ability to
enter the matching OnTime severity name for each one. You can map multiple SpiraTeam fields to the
same OnTime fields, in which case only one of the two values can be listed as Primary = Yes as that’s the
value that’s used on the reverse synchronization (from OnTime > SpiraTeam).
Page 153 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Note: The OnTime external key needs to exactly match the display name of the severity inside OnTime. If
you change the name of a severity in OnTime, you’ll need to update the value in the data-mapping
configuration as well.
12.2.5. Configuring the Custom Property Mapping
Now that the various SpiraTeam standard fields have been mapped correctly, we need to configure the
custom property mappings. This is used for both custom properties in SpiraTeam that map to custom
fields in OnTime and also for custom properties in SpiraTeam that are used to map to standard fields in
OnTime (currently only Replication Procedures) that don’t exist in SpiraTeam.
From the View/Edit Project Data Mapping screen, you need to click on the name of the Incident Custom
Property that you want to add data-mapping information for. We will consider the three different types of
mapping that you might want to enter:
a) Text Custom Properties
Click on the hyperlink of the text custom property under Incident Custom Properties to bring up the
custom property mapping configuration screen. For text custom properties there will be no values listed in
the lower half of the screen.
Page 154 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
You need to lookup the display name of the custom field in OnTime that matches this custom property in
SpiraTeam. Once you have entered the id of the custom field, click [Update].
b) List Custom Properties
Click on the hyperlink of the list custom property under Incident Custom Properties to bring up the custom
property mapping configuration screen. For list custom properties there will be a textbox for both the
custom field itself and a mapping table for each of the custom property values that need to be mapped:
First you need to lookup the display name of the custom field in OnTime that matches this custom
property in SpiraTeam. This should be entered in the ‘External Key’ field below the name of the custom
property.
Next for each of the Property Values in the table (in the lower half of the page) you need to enter the full
name of the custom field value as specified in OnTime.
c) OnTime’s Replication Procedures Field
If you want new defects in OnTime to be loaded with the “replication prodcedures” standard text field
populated, then you will need to fill out this section. You first need to create an incident custom property in
SpiraTeam of type ‘TEXT’ that will be used to store the environment description within SpiraTeam.
Then click on the hyperlink of this new list custom property under Incident Custom Properties to bring up
the custom property mapping configuration screen:
Page 155 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
All you need to do on this screen is enter the word “ReplicationProcedures” in the External Key textbox
and the data-sync plug-in will know that this custom property is mapped to the built-in Replication
Procedures field in OnTime. Note that there is no space between the words Replication and Procedures!!
Once you have updated the various mapping sections, you are now ready to start the service.
12.3. Enabling the Data-Synchronization
12.3.1. Starting the Service
When SpiraTeam is installed, a Windows Service SpiraTeam Data Sync Service is installed along
with the web application. However to avoid wasting system resources, this service is initially set to run
manually. To ensure continued synchronization of SpiraTeam with OnTime, we recommend starting the
service and setting its startup-type to Automatic.
To make these changes, open up the Windows Control Panel, click on the “Administrative Tools” link, and
then choose the Services option. This will bring up the Windows Service control panel:
Click on the ‘SpiraTeam Data Sync Service’ entry and click on the link to start the service. Then right-click
the service entry and choose the option to set the startup type to ‘Automatic’. This will ensure that
synchronization continues between SpiraTeam and OnTime after a reboot of the server.
12.3.2. Using SpiraTeam with OnTime
Now that the integration service has been configured and the service started, initially any incidents
created in SpiraTeam for the specified projects will be imported into OnTime.
At this point we recommend opening the Windows Event Viewer and choosing the Application Log. In this
log any error messages raised by the SpiraTeam Data Sync Service will be displayed. If you see any
error messages at this point, we recommend immediately stopping the SpiraTeam service and checking
the various mapping entries. If you cannot see any defects with the mapping information, we recommend
sending a copy of the event log message(s) to Inflectra customer services (support@inflectra.com) who
will help you troubleshoot the problem.
To use SpiraTeam with OnTime on an ongoing basis, we recommend the following general processes be
followed:
When running tests in SpiraTeam, defects found should be logged through the ‘Add Incident’
option as normal.
Once an incident has been created during the running of the test, it will now be populated across
into OnTime as a defect. It will be populated with the information captured in SpiraTeam.
Page 156 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
At this point, the incident should not be acted upon inside SpiraTeam, and all data changes to the
defect should be made inside OnTime. To enforce this, you can modify the workflows set up in
SpiraTeam so that the various fields are marked as inactive for all the incident statuses other than
the “New” status. This will allow someone to submit an incident in SpiraTeam, but will prevent
them making changes in conflict with OnTime after that point.
As the defect progresses through the OnTime workflow, changes to the status, priority, severity,
and resolution will be updated automatically in SpiraTeam. In essence, SpiraTeam acts as a
read-only viewer of these incidents.
You are now able to perform test coverage and incident reporting inside SpiraTeam using the test
cases managed by SpiraTeam and the incidents managed on behalf of SpiraTeam inside
OnTime.
Page 157 of 158
© Copyright 2006-2017, Inflectra Corporation
This document contains Inflectra proprietary information
Legal Notices
This publication is provided as is without warranty of any kind, either express or implied, including, but not
limited to, the implied warranties of merchantability, fitness for a particular purpose, or non-infringement.
This publication could include technical inaccuracies or typographical errors. Changes are periodically
added to the information contained herein; these changes will be incorporated in new editions of the
publication. Inflectra Corporation may make improvements and/or changes in the product(s) and/or
program(s) and/or service(s) described in this publication at any time.
The sections in this guide that discuss internet web security are provided as suggestions and guidelines.
Internet security is constantly evolving field, and our suggestions are no substitute for an up-to-date
understanding of the vulnerabilities inherent in deploying internet or web applications, and Inflectra cannot
be held liable for any losses due to breaches of security, compromise of data or other cyber-attacks that
may result from following our recommendations.
SpiraTest®, SpiraPlan®, SpiraTeam® and Inflectra® are registered trademarks of Inflectra Corporation in
the United States of America and other countries. Microsoft®, Windows®, Explorer® and Microsoft Project®
are registered trademarks of Microsoft Corporation. All other trademarks and product names are property
of their respective holders.
Please send comments and questions to:
Technical Publications
Inflectra Corporation
8121 Georgia Ave, Suite 504
Silver Spring, MD 20910-4957
U.S.A.
support@inflectra.com

Navigation menu
