Spring Integration Reference Manual
5.1.1.RELEASE
Mark Fisher , Marius Bogoevici , Iwein Fuld , Jonas Partner , Oleg Zhurakousky , Gary Russell ,
Dave Syer , Josh Long , David Turanski , Gunnar Hillert , Artem Bilan , Amol Nayak , Jay Bryant
Copyright © 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 Pivotal Software, Inc. All Rights Reserved.
Copies of this document may be made for your own use and for distribution to others, provided that you do not charge any fee
for such copies and further provided that each copy contains this Copyright Notice, whether distributed in print or electronically.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration iii
Table of Contents
............................................................................................................................................. xxvii
I. Preface ................................................................................................................................... 1
1. Requirements ................................................................................................................. 2
1.1. Compatible Java Versions .................................................................................... 2
1.2. Compatible Versions of the Spring Framework ...................................................... 2
2. Code Conventions .......................................................................................................... 3
3. Conventions in This Guide .............................................................................................. 4
II. What’s New? ......................................................................................................................... 5
4. What’s New in Spring Integration 5.1? ............................................................................ 6
4.1. New Components ................................................................................................ 6
AmqpDedicatedChannelAdvice ...................................................................... 6
Improved Function Support ................................................................................. 6
@LongRunningTest .......................................................................................... 6
4.2. General Changes ................................................................................................ 6
Java DSL ........................................................................................................... 7
Dispatcher Exceptions ........................................................................................ 7
Global Channel Interceptors ............................................................................... 7
Channel Interceptors .......................................................................................... 7
ObjectToJsonTransformer ............................................................................ 8
Integration Flows: Generated Bean Names .......................................................... 8
Aggregator Changes .......................................................................................... 8
@Publisher annotation changes .......................................................................... 8
4.3. Files Changes ..................................................................................................... 8
4.4. AMQP Changes .................................................................................................. 8
4.5. JDBC Changes ................................................................................................... 9
4.6. FTP and SFTP Changes ..................................................................................... 9
4.7. TCP Support ....................................................................................................... 9
4.8. Twitter Support .................................................................................................... 9
4.9. JMS Support ..................................................................................................... 10
4.10. HTTP/WebFlux Support ................................................................................... 10
4.11. JMX Changes .................................................................................................. 10
4.12. Micrometer Support Changes ........................................................................... 10
4.13. Integration Graph Customization ....................................................................... 10
4.14. Integration Global Properties ............................................................................ 10
4.15. The receiveTimeout for @Poller ................................................................ 10
III. Overview of Spring Integration Framework ............................................................................ 11
5. Spring Integration Overview .......................................................................................... 12
5.1. Background ....................................................................................................... 12
5.2. Goals and Principles .......................................................................................... 12
5.3. Main Components ............................................................................................. 13
Message .......................................................................................................... 13
Message Channel ............................................................................................ 13
Message Endpoint ............................................................................................ 14
5.4. Message Endpoints ........................................................................................... 14
Message Transformer ....................................................................................... 15
Message Filter ................................................................................................. 15
Message Router ............................................................................................... 15
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration iv
Splitter ............................................................................................................. 15
Aggregator ....................................................................................................... 16
Service Activator .............................................................................................. 16
Channel Adapter .............................................................................................. 17
Endpoint Bean Names ...................................................................................... 17
5.5. Configuration and @EnableIntegration .......................................................... 20
5.6. Programming Considerations .............................................................................. 21
Considerations When Using Packaged (for example, Shaded) Jars ...................... 21
5.7. Programming Tips and Tricks ............................................................................. 23
XML Schemas .................................................................................................. 23
Finding Class Names for Java and DSL Configuration ........................................ 24
5.8. POJO Method invocation ................................................................................... 26
IV. Core Messaging .................................................................................................................. 28
6. Messaging Channels .................................................................................................... 29
6.1. Message Channels ............................................................................................ 29
The MessageChannel Interface ......................................................................... 29
PollableChannel .................................................................................. 29
SubscribableChannel .......................................................................... 29
Message Channel Implementations ................................................................... 29
PublishSubscribeChannel .................................................................. 30
QueueChannel ........................................................................................ 30
PriorityChannel .................................................................................. 30
RendezvousChannel .............................................................................. 31
DirectChannel ...................................................................................... 31
ExecutorChannel .................................................................................. 33
Scoped Channel ....................................................................................... 33
Channel Interceptors ........................................................................................ 33
MessagingTemplate ...................................................................................... 35
Configuring Message Channels ......................................................................... 35
DirectChannel Configuration ................................................................. 36
Datatype Channel Configuration ................................................................ 36
QueueChannel Configuration ................................................................... 38
PublishSubscribeChannel Configuration ............................................. 40
ExecutorChannel .................................................................................. 40
PriorityChannel Configuration ............................................................. 41
RendezvousChannel Configuration ......................................................... 41
Scoped Channel Configuration .................................................................. 41
Channel Interceptor Configuration ............................................................. 42
Global Channel Interceptor Configuration ................................................... 42
Wire Tap .................................................................................................. 43
Conditional Wire Taps .............................................................................. 45
Global Wire Tap Configuration .................................................................. 45
Special Channels ............................................................................................. 45
6.2. Poller ................................................................................................................ 45
Polling Consumer ............................................................................................. 46
Pollable Message Source ................................................................................. 46
Deferred Acknowledgment Pollable Message Source ......................................... 47
Conditional Pollers for Message Sources ........................................................... 48
Background .............................................................................................. 48
"Smart" Polling ........................................................................................ 48
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration v
SimpleActiveIdleMessageSourceAdvice .......................................... 49
CompoundTriggerAdvice ...................................................................... 49
6.3. Channel Adapter ............................................................................................... 50
Configuring An Inbound Channel Adapter .......................................................... 50
Configuring An Outbound Channel Adapter ........................................................ 51
Channel Adapter Expressions and Scripts ......................................................... 52
6.4. Messaging Bridge .............................................................................................. 53
Configuring a Bridge with XML .......................................................................... 53
Configuring a Bridge with Java Configuration ..................................................... 54
Configuring a Bridge with the Java DSL ............................................................ 54
7. Message ...................................................................................................................... 56
7.1. The Message Interface ...................................................................................... 56
7.2. Message Headers ............................................................................................. 56
MessageHeaderAccessor API ....................................................................... 57
Message ID Generation .................................................................................... 59
Read-only Headers ........................................................................................... 59
Header Propagation ......................................................................................... 60
7.3. Message Implementations .................................................................................. 60
7.4. The MessageBuilder Helper Class .................................................................. 61
8. Message Routing ......................................................................................................... 63
8.1. Routers ............................................................................................................. 63
Overview .......................................................................................................... 63
Common Router Parameters ............................................................................. 65
Inside and Outside of a Chain ................................................................... 65
Top-Level (Outside of a Chain) ................................................................. 67
Router Implementations .................................................................................... 67
PayloadTypeRouter .............................................................................. 67
HeaderValueRouter .............................................................................. 68
RecipientListRouter .......................................................................... 70
RecipientListRouterManagement ...................................................... 71
XPath Router ........................................................................................... 72
Routing and Error Handling ....................................................................... 72
Configuring a Generic Router ............................................................................ 72
Configuring a Content-based Router with XML ........................................... 72
Routers and the Spring Expression Language (SpEL) ........................................ 74
Configuring a Router with Annotations ....................................................... 75
Dynamic Routers .............................................................................................. 76
Manage Router Mappings using the Control Bus ........................................ 78
Manage Router Mappings by Using JMX ................................................... 79
Routing Slip ............................................................................................. 79
Process Manager Enterprise Integration Pattern ......................................... 81
8.2. Filter ................................................................................................................. 82
Configuring a Filter with XML ............................................................................ 82
Configuring a Filter with Annotations ................................................................. 85
8.3. Splitter .............................................................................................................. 85
Programming Model ......................................................................................... 85
Iterators ................................................................................................... 86
Stream and Flux ...................................................................................... 86
Configuring a Splitter with XML ......................................................................... 86
Configuring a Splitter with Annotations .............................................................. 87
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration vi
8.4. Aggregator ........................................................................................................ 88
Functionality ..................................................................................................... 88
Programming Model ......................................................................................... 88
AggregatingMessageHandler .............................................................. 89
ReleaseStrategy .................................................................................. 91
Aggregating Large Groups ........................................................................ 93
Correlation Strategy .................................................................................. 93
Lock Registry ........................................................................................... 94
Avoiding Deadlocks .................................................................................. 94
Configuring an Aggregator in Java DSL ............................................................. 94
Configuring an Aggregator with XML ......................................................... 95
Configuring an Aggregator with Annotations ............................................. 101
Managing State in an Aggregator: MessageGroupStore ................................. 102
8.5. Resequencer ................................................................................................... 104
Functionality ................................................................................................... 104
Configuring a Resequencer ............................................................................. 105
8.6. Message Handler Chain ................................................................................... 107
Configuring a Chain ........................................................................................ 107
Using the id Attribute ...................................................................................... 108
Calling a Chain from within a Chain ................................................................ 109
8.7. Scatter-Gather ................................................................................................. 110
Functionality ................................................................................................... 110
Auction ................................................................................................... 110
Distribution ............................................................................................. 110
Configuring a Scatter-Gather Endpoint ............................................................. 111
8.8. Thread Barrier ................................................................................................. 112
9. Message Transformation ............................................................................................. 115
9.1. Transformer ..................................................................................................... 115
Configuring a Transformer with XML ................................................................ 115
Transformers and Spring Expression Language (SpEL) .................................... 116
Common Transformers ................................................................................... 116
Object-to-String Transformer ................................................................... 116
Object-to-Map and Map-to-Object Transformers .................................... 117
Stream Transformer ................................................................................ 119
JSON Transformers ................................................................................ 119
Configuring a Transformer with Annotations ..................................................... 122
Header Filter .................................................................................................. 122
Codec-Based Transformers ............................................................................. 122
9.2. Content Enricher .............................................................................................. 123
Header Enricher ............................................................................................. 123
POJO Support ........................................................................................ 124
SpEL Support ......................................................................................... 124
Configuring a Header Enricher with Java Configuration ............................. 124
Configuring a Header Enricher with the Java DSL .................................... 125
Header Channel Registry ........................................................................ 125
Payload Enricher ............................................................................................ 126
Configuration .......................................................................................... 127
Examples ............................................................................................... 128
How Do I Pass Only a Subset of Data to the Request Channel? ................ 129
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration vii
How Can I Enrich Payloads with Static Information without Using a
Request Channel? .................................................................................. 129
9.3. Claim Check .................................................................................................... 130
Incoming Claim Check Transformer ................................................................. 130
Outgoing Claim Check Transformer ................................................................. 131
Claim Once .................................................................................................... 132
A Word on Message Store .............................................................................. 133
9.4. Codec ............................................................................................................. 133
EncodingPayloadTransformer .................................................................. 133
DecodingTransformer ................................................................................ 133
CodecMessageConverter ............................................................................ 133
Kryo ............................................................................................................... 133
Customizing Kryo ................................................................................... 134
10. Messaging Endpoints ................................................................................................ 136
10.1. Message Endpoints ........................................................................................ 136
Message Handler ........................................................................................... 136
Event-driven Consumer ................................................................................... 136
Polling Consumer ........................................................................................... 137
Endpoint Namespace Support ......................................................................... 139
Examples ............................................................................................... 140
AOP Advice chains ................................................................................. 141
Changing Polling Rate at Runtime ................................................................... 143
Payload Type Conversion ............................................................................... 143
Content Type Conversion ............................................................................... 145
Asynchronous Polling ..................................................................................... 146
Endpoint Inner Beans ..................................................................................... 146
10.2. Endpoint Roles .............................................................................................. 147
10.3. Leadership Event Handling ............................................................................. 148
10.4. Messaging Gateways ..................................................................................... 149
Enter the GatewayProxyFactoryBean ......................................................... 149
Gateway XML Namespace Support ................................................................. 150
Setting the Default Reply Channel ................................................................... 150
Gateway Configuration with Annotations and XML ............................................ 151
Expressions and "Global" Headers ........................................................ 152
Mapping Method Arguments to a Message ...................................................... 152
Mapping Method Arguments .................................................................... 153
@MessagingGateway Annotation ................................................................... 154
Invoking No-Argument Methods ....................................................................... 154
Error Handling ................................................................................................ 155
Gateway Timeouts .......................................................................................... 157
Asynchronous Gateway .................................................................................. 158
ListenableFuture .............................................................................. 159
AsyncTaskExecutor ............................................................................ 159
CompletableFuture ............................................................................ 160
Reactor Mono ......................................................................................... 161
Downstream Flows Returning an Asynchronous Type ............................... 162
void Return Type .................................................................................. 162
Gateway Behavior When No response Arrives ................................................. 162
Long-running Process Downstream ......................................................... 162
Downstream Component Returns null ...................................................... 163
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration viii
Downstream Component Return Signature is void While Gateway Method
Signature Is Non-void ............................................................................. 163
Downstream Component Results in Runtime Exception ............................ 163
10.5. Service Activator ............................................................................................ 164
Configuring Service Activator .......................................................................... 164
Service Activators and the Spring Expression Language (SpEL) ................ 166
Asynchronous Service Activator ...................................................................... 167
Service Activator and Method Return Type ...................................................... 167
10.6. Delayer .......................................................................................................... 167
Configuring a Delayer ..................................................................................... 168
Delayer and a Message Store ......................................................................... 170
Release Failures ............................................................................................ 171
10.7. Scripting Support ........................................................................................... 171
Script Configuration ........................................................................................ 172
Script Variable Bindings .......................................................................... 173
10.8. Groovy support .............................................................................................. 174
Groovy Configuration ...................................................................................... 175
Groovy Object Customization .......................................................................... 175
Groovy Script Compiler Customization ............................................................. 176
Control Bus .................................................................................................... 177
10.9. Adding Behavior to Endpoints ......................................................................... 177
Provided Advice Classes ................................................................................ 178
Retry Advice .......................................................................................... 178
Circuit Breaker Advice ............................................................................ 184
Expression Evaluating Advice .................................................................. 185
Custom Advice Classes .................................................................................. 186
Other Advice Chain Elements ......................................................................... 187
Handling Message Advice ............................................................................... 188
Transaction Support ....................................................................................... 188
Advising Filters ............................................................................................... 190
Advising Endpoints Using Annotations ............................................................. 190
Ordering Advices within an Advice Chain ......................................................... 190
Advised Handler Properties ............................................................................. 190
Idempotent Receiver Enterprise Integration Pattern .......................................... 191
10.10. Logging Channel Adapter ............................................................................. 193
Using Java Configuration ................................................................................ 194
Configuring with the Java DSL ........................................................................ 194
10.11. java.util.function Interfaces Support ................................................... 195
Kotlin Lambdas .............................................................................................. 196
11. Java DSL ................................................................................................................. 198
11.1. DSL Basics ................................................................................................... 199
11.2. Message Channels ........................................................................................ 200
11.3. Pollers ........................................................................................................... 202
11.4. DSL and Endpoint Configuration ..................................................................... 202
11.5. Transformers ................................................................................................. 203
11.6. Inbound Channel Adapters ............................................................................. 203
11.7. Message Routers ........................................................................................... 204
11.8. Splitters ......................................................................................................... 205
11.9. Aggregators and Resequencers ...................................................................... 205
11.10. Service Activators and the .handle() method ............................................. 206
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration ix
11.11. Operator log() .............................................................................................. 207
11.12. MessageChannelSpec.wireTap() ............................................................ 207
11.13. Working With Message Flows ....................................................................... 208
11.14. FunctionExpression ............................................................................... 209
11.15. Sub-flows support ........................................................................................ 209
11.16. Using Protocol Adapters ............................................................................... 211
11.17. IntegrationFlowAdapter ........................................................................ 212
11.18. Dynamic and Runtime Integration Flows ........................................................ 213
11.19. IntegrationFlow as Gateway ................................................................... 215
12. System Management ................................................................................................ 217
12.1. Metrics and Management ............................................................................... 217
Configuring Metrics Capture ............................................................................ 217
Micrometer Integration .................................................................................... 218
MessageChannel Metric Features ................................................................. 220
MessageHandler Metric Features .................................................................... 221
Time-Based Average Estimates ....................................................................... 221
Metrics Factory ............................................................................................... 222
Customizing the Default Channel and Handler Statistics ............................ 222
Advanced Customization ......................................................................... 223
Performance Improvement ...................................................................... 223
12.2. JMX Support ................................................................................................. 223
Notification-listening Channel Adapter .............................................................. 223
Notification-publishing Channel Adapter ........................................................... 224
Attribute-polling Channel Adapter .................................................................... 225
Tree-polling Channel Adapter .......................................................................... 225
Operation-invoking Channel Adapter ................................................................ 226
Operation-invoking Outbound Gateway ............................................................ 226
MBean Exporter ............................................................................................. 226
MBean Object Names ............................................................................. 227
JMX Improvements ................................................................................. 228
Orderly Shutdown Managed Operation .................................................... 231
12.3. Message History ............................................................................................ 231
Message History Configuration ........................................................................ 231
12.4. Message Store .............................................................................................. 232
Using MessageGroupFactory ...................................................................... 235
Persistent MessageGroupStore and Lazy-load .............................................. 235
12.5. Metadata Store .............................................................................................. 235
Idempotent Receiver and Metadata Store ........................................................ 236
MetadataStoreListener ............................................................................ 237
12.6. Control Bus ................................................................................................... 237
12.7. Orderly Shutdown .......................................................................................... 238
12.8. Integration Graph ........................................................................................... 239
Graph Runtime Model ..................................................................................... 242
12.9. Integration Graph Controller ........................................................................... 243
V. Integration Endpoints .......................................................................................................... 245
13. Endpoint Quick Reference Table ............................................................................... 246
14. AMQP Support ......................................................................................................... 250
14.1. Inbound Channel Adapter ............................................................................... 250
Configuring with Java Configuration ................................................................. 253
Configuring with the Java DSL ........................................................................ 254
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration x
14.2. Polled Inbound Channel Adapter ..................................................................... 255
14.3. Inbound Gateway ........................................................................................... 255
Configuring with Java Configuration ................................................................. 256
Configuring with the Java DSL ........................................................................ 257
14.4. Inbound Endpoint Acknowledge Mode ............................................................. 258
14.5. Outbound Channel Adapter ............................................................................ 258
Configuring with Java Configuration ................................................................. 260
Configuring with the Java DSL ........................................................................ 261
14.6. Outbound Gateway ........................................................................................ 262
Configuring with Java Configuration ................................................................. 264
Configuring with the Java DSL ........................................................................ 265
14.7. Asynchronous Outbound Gateway .................................................................. 266
Configuring with Java Configuration ................................................................. 268
Configuring with the Java DSL ........................................................................ 269
14.8. Outbound Message Conversion ...................................................................... 269
14.9. Outbound User ID .......................................................................................... 270
14.10. Delayed Message Exchange ......................................................................... 271
14.11. AMQP-backed Message Channels ................................................................ 271
Configuring with Java Configuration ................................................................. 272
Configuring with the Java DSL ........................................................................ 273
14.12. AMQP Message Headers ............................................................................. 273
Overview ........................................................................................................ 273
contentType Header ....................................................................................... 275
14.13. Strict Message Ordering ............................................................................... 276
Inbound .......................................................................................................... 276
Outbound ....................................................................................................... 276
14.14. AMQP Samples ........................................................................................... 277
15. Spring ApplicationEvent Support ......................................................................... 278
15.1. Receiving Spring Application Events ............................................................... 278
15.2. Sending Spring Application Events .................................................................. 279
16. Feed Adapter ........................................................................................................... 280
16.1. Feed Inbound Channel Adapter ...................................................................... 280
16.2. Duplicate Entries ............................................................................................ 281
16.3. Other Options ................................................................................................ 281
16.4. Java DSL Configuration ................................................................................. 281
17. File Support ............................................................................................................. 283
17.1. Reading Files ................................................................................................ 283
Message Headers .......................................................................................... 286
Directory Scanning and Polling ........................................................................ 286
Namespace Support ....................................................................................... 286
WatchServiceDirectoryScanner .............................................................. 288
Limiting Memory Consumption ........................................................................ 289
Configuring with Java Configuration ................................................................. 290
Configuring with the Java DSL ........................................................................ 290
'tail’ing Files ................................................................................................... 291
Dealing With Incomplete Data ......................................................................... 293
17.2. Writing files ................................................................................................... 293
Generating File Names ................................................................................... 294
Specifying the Output Directory ....................................................................... 295
Using the directory Attribute ............................................................... 295
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xi
Using the directory-expression Attribute ......................................... 295
Using the auto-create-directory Attribute ....................................... 295
Dealing with Existing Destination Files ............................................................. 295
Flushing Files When Using APPEND_NO_FLUSH ............................................... 296
File Timestamps ............................................................................................. 297
File Permissions ............................................................................................. 297
File Outbound Channel Adapter ...................................................................... 297
Outbound Gateway ......................................................................................... 298
Configuring with Java Configuration ................................................................. 298
Configuring with the Java DSL ........................................................................ 299
17.3. File Transformers ........................................................................................... 299
17.4. File Splitter .................................................................................................... 300
Configuring with Java Configuration ................................................................. 302
Configuring with the Java DSL ........................................................................ 302
18. FTP/FTPS Adapters .................................................................................................. 303
18.1. FTP Session Factory ..................................................................................... 303
Default Factories ............................................................................................ 303
18.2. Advanced Configuration ................................................................................. 304
FTPS and Shared SSLSession ....................................................................... 305
18.3. Delegating Session Factory ............................................................................ 306
18.4. FTP Inbound Channel Adapter ....................................................................... 307
More on File Filtering and Incomplete Files ...................................................... 309
Poller Configuration Notes for the Inbound FTP Adapter ................................... 310
Recovering from Failures ................................................................................ 310
Configuring with Java Configuration ................................................................. 311
Configuring with the Java DSL ........................................................................ 312
Dealing With Incomplete Data ......................................................................... 313
18.5. FTP Streaming Inbound Channel Adapter ....................................................... 313
Configuring with Java Configuration ................................................................. 314
18.6. Inbound Channel Adapters: Polling Multiple Servers and Directories .................. 315
18.7. Inbound Channel Adapters: Controlling Remote File Fetching ........................... 317
18.8. FTP Outbound Channel Adapter ..................................................................... 318
Avoiding Partially Written Files ........................................................................ 319
Configuring with Java Configuration ................................................................. 319
Configuring with the Java DSL ........................................................................ 320
18.9. FTP Outbound Gateway ................................................................................. 321
Using the ls Command .................................................................................. 322
Using the nlst Command .............................................................................. 322
Using the get Command ................................................................................ 323
Using the mget Command .............................................................................. 324
Using the put Command ................................................................................ 325
Using the rm Command .................................................................................. 325
Using the mv Command .................................................................................. 326
Additional Information about FTP Outbound Gateway Commands ...................... 326
Configuring with Java Configuration ................................................................. 327
Configuring with the Java DSL ........................................................................ 327
Outbound Gateway Partial Success (mget and mput) ...................................... 328
18.10. FTP Session Caching ................................................................................... 329
18.11. Using RemoteFileTemplate ...................................................................... 329
18.12. Using MessageSessionCallback .............................................................. 330
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xii
19. Pivotal GemFire and Apache Geode Support ............................................................. 332
19.1. Inbound Channel Adapter ............................................................................... 332
19.2. Continuous Query Inbound Channel Adapter ................................................... 333
19.3. Outbound Channel Adapter ............................................................................ 334
19.4. Gemfire Message Store ................................................................................. 335
19.5. Gemfire Lock Registry .................................................................................... 336
19.6. Gemfire Metadata Store ................................................................................. 336
20. HTTP Support .......................................................................................................... 338
20.1. Http Inbound Components .............................................................................. 338
20.2. HTTP Outbound Components ......................................................................... 340
Using HttpRequestExecutingMessageHandler ......................................... 340
Using Cookies ................................................................................................ 341
20.3. HTTP Namespace Support ............................................................................. 341
Inbound .......................................................................................................... 342
Request Mapping Support ............................................................................... 342
Cross-origin Resource Sharing (CORS) Support ............................................... 343
Response Status Code ................................................................................... 344
URI Template Variables and Expressions ........................................................ 345
Outbound ....................................................................................................... 346
Mapping URI Variables ................................................................................... 348
Controlling URI Encoding ................................................................................ 349
20.4. Configuring HTTP Endpoints with Java ........................................................... 350
20.5. Timeout Handling ........................................................................................... 351
HTTP Inbound Gateway ................................................................................. 353
20.6. HTTP Proxy configuration ............................................................................... 353
Standard Java Proxy configuration .................................................................. 353
Spring’s SimpleClientHttpRequestFactory ............................................. 354
20.7. HTTP Header Mappings ................................................................................. 354
20.8. Integration Graph Controller ........................................................................... 355
20.9. HTTP Samples .............................................................................................. 355
Multipart HTTP Request — RestTemplate (Client) and Http Inbound Gateway
(Server) .......................................................................................................... 355
21. JDBC Support .......................................................................................................... 357
21.1. Inbound Channel Adapter ............................................................................... 357
Polling and Transactions ................................................................................. 359
max-rows Versus max-messages-per-poll ................................................ 359
21.2. Outbound Channel Adapter ............................................................................ 360
Passing Parameters by Using SpEL Expressions ............................................. 360
Using the PreparedStatement Callback ....................................................... 361
Batch Update ................................................................................................. 362
21.3. Outbound Gateway ........................................................................................ 362
21.4. JDBC Message Store ..................................................................................... 363
Initializing the Database .................................................................................. 363
The Generic JDBC Message Store .................................................................. 364
Backing Message Channels ............................................................................ 364
Supported Databases ............................................................................. 364
Custom Message Insertion ...................................................................... 365
Concurrent Polling .................................................................................. 365
Priority Channel ...................................................................................... 366
Partitioning a Message Store .......................................................................... 367
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xiii
21.5. Stored Procedures ......................................................................................... 367
Supported Databases ..................................................................................... 367
Configuration .................................................................................................. 368
Common Configuration Attributes .................................................................... 368
Common Configuration Sub-Elements ............................................................. 369
Defining Parameter Sources ........................................................................... 371
Stored Procedure Inbound Channel Adapter .................................................... 371
Stored Procedure Outbound Channel Adapter .................................................. 372
Stored Procedure Outbound Gateway .............................................................. 372
Examples ....................................................................................................... 373
21.6. JDBC Lock Registry ....................................................................................... 374
21.7. JDBC Metadata Store .................................................................................... 375
22. JPA Support ............................................................................................................. 377
22.1. Functionality .................................................................................................. 377
22.2. Supported Persistence Providers .................................................................... 378
22.3. Java Implementation ...................................................................................... 378
22.4. Namespace Support ....................................................................................... 379
Common XML Namespace Configuration Attributes .......................................... 379
Providing JPA Query Parameters .................................................................... 380
Transaction Handling ...................................................................................... 380
22.5. Inbound Channel Adapter ............................................................................... 381
Configuration Parameter Reference ................................................................. 382
Configuring with Java Configuration ................................................................. 384
Configuring with the Java DSL ........................................................................ 384
22.6. Outbound Channel Adapter ............................................................................ 385
Using an Entity Class ..................................................................................... 385
Using JPA Query Language (JPA QL) ............................................................. 386
Using Native Queries ...................................................................................... 387
Using Named Queries .................................................................................... 387
Configuration Parameter Reference ................................................................. 388
Configuring with Java Configuration ................................................................. 389
Configuring with the Java DSL ........................................................................ 390
22.7. Outbound Gateways ....................................................................................... 391
Common Configuration Parameters ................................................................. 392
Updating Outbound Gateway .......................................................................... 392
Configuring with Java Configuration ................................................................. 393
Configuring with the Java DSL ........................................................................ 393
Retrieving Outbound Gateway ......................................................................... 394
Configuring with Java Configuration ................................................................. 395
Configuring with the Java DSL ........................................................................ 395
JPA Outbound Gateway Samples .................................................................... 396
Update by Using an Entity Class ............................................................. 396
Update using JPQL ................................................................................ 397
Retrieving an Entity using JPQL .............................................................. 397
Retrieving an Entity by Using id-expression ........................................ 397
Update using a Named Query ................................................................. 397
23. JMS Support ............................................................................................................ 399
23.1. Inbound Channel Adapter ............................................................................... 399
Transactions ................................................................................................... 400
23.2. Message-driven Channel Adapter ................................................................... 401
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xiv
Inbound Conversion Errors ............................................................................. 402
23.3. Outbound Channel Adapter ............................................................................ 402
Transactions ................................................................................................... 403
23.4. Inbound Gateway ........................................................................................... 403
23.5. Outbound Gateway ........................................................................................ 404
Using a <reply-listener/> ....................................................................... 405
Idle Reply Listeners ........................................................................................ 406
Gateway Reply Correlation ............................................................................. 406
Async Gateway .............................................................................................. 408
Attribute Reference ......................................................................................... 408
23.6. Mapping Message Headers to and from JMS Message .................................... 411
23.7. Message Conversion, Marshalling, and Unmarshalling ..................................... 412
23.8. JMS-backed Message Channels ..................................................................... 412
23.9. Using JMS Message Selectors ....................................................................... 413
23.10. JMS Samples .............................................................................................. 414
24. Mail Support ............................................................................................................. 415
24.1. Mail-sending Channel Adapter ........................................................................ 415
24.2. Mail-receiving Channel Adapter ...................................................................... 416
24.3. Inbound Mail Message Mapping ..................................................................... 416
24.4. Mail Namespace Support ............................................................................... 418
IMAP idle and Lost Connections ................................................................... 420
24.5. Marking IMAP Messages When \Recent Is Not Supported .............................. 422
24.6. Email Message Filtering ................................................................................. 422
24.7. Transaction Synchronization ........................................................................... 423
25. MongoDb Support ..................................................................................................... 425
25.1. Connecting to MongoDb ................................................................................. 425
Using MongoDbFactory ................................................................................ 425
25.2. MongoDB Message Store ............................................................................... 426
MongoDB Channel Message Store .................................................................. 427
MongoDB Metadata Store ............................................................................... 427
25.3. MongoDB Inbound Channel Adapter ............................................................... 428
25.4. MongoDB Outbound Channel Adapter ............................................................. 430
25.5. MongoDB Outbound Gateway ........................................................................ 430
Configuring with Java Configuration ................................................................. 431
Configuring with the Java DSL ........................................................................ 432
26. MQTT Support ......................................................................................................... 434
26.1. Inbound (Message-driven) Channel Adapter .................................................... 434
Adding and Removing Topics at Runtime ........................................................ 436
Configuring with Java Configuration ................................................................. 436
26.2. Outbound Channel Adapter ............................................................................ 437
Configuring with Java Configuration ................................................................. 438
27. Redis Support .......................................................................................................... 440
27.1. Connecting to Redis ....................................................................................... 440
Using RedisConnectionFactory ................................................................ 440
Using RedisTemplate .................................................................................. 441
27.2. Messaging with Redis .................................................................................... 441
Redis Publish/Subscribe channel ..................................................................... 441
Redis Inbound Channel Adapter ...................................................................... 442
Redis Outbound Channel Adapter ................................................................... 442
Redis Queue Inbound Channel Adapter ........................................................... 443
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xv
Redis Queue Outbound Channel Adapter ........................................................ 444
Redis Application Events ................................................................................ 445
27.3. Redis Message Store ..................................................................................... 445
Redis Channel Message Stores ...................................................................... 446
27.4. Redis Metadata Store .................................................................................... 446
27.5. Redis Store Inbound Channel Adapter ............................................................ 447
27.6. RedisStore Outbound Channel Adapter ........................................................... 449
27.7. Redis Outbound Command Gateway .............................................................. 450
27.8. Redis Queue Outbound Gateway .................................................................... 451
27.9. Redis Queue Inbound Gateway ...................................................................... 452
27.10. Redis Lock Registry ..................................................................................... 453
28. Resource Support ..................................................................................................... 454
28.1. Resource Inbound Channel Adapter ................................................................ 454
29. RMI Support ............................................................................................................. 456
29.1. Outbound RMI ............................................................................................... 456
29.2. Inbound RMI .................................................................................................. 456
29.3. RMI namespace support ................................................................................ 456
29.4. Configuring with Java Configuration ................................................................ 457
30. SFTP Adapters ......................................................................................................... 458
30.1. SFTP Session Factory ................................................................................... 458
Configuration Properties .................................................................................. 459
30.2. Proxy Factory Bean ....................................................................................... 460
30.3. Delegating Session Factory ............................................................................ 461
30.4. SFTP Session Caching .................................................................................. 461
30.5. Using RemoteFileTemplate ........................................................................ 462
30.6. SFTP Inbound Channel Adapter ..................................................................... 463
More on File Filtering and Large Files ............................................................. 465
Recovering from Failures ................................................................................ 465
Configuring with Java Configuration ................................................................. 466
Configuring with the Java DSL ........................................................................ 467
Dealing With Incomplete Data ......................................................................... 468
30.7. SFTP Streaming Inbound Channel Adapter ..................................................... 468
Configuring with Java Configuration ................................................................. 469
30.8. Inbound Channel Adapters: Polling Multiple Servers and Directories .................. 470
30.9. Inbound Channel Adapters: Controlling Remote File Fetching ........................... 472
30.10. SFTP Outbound Channel Adapter ................................................................. 473
SpEL and the SFTP Outbound Adapter ........................................................... 473
Avoiding Partially Written Files ........................................................................ 473
Configuring with Java Configuration ................................................................. 474
Configuring with the Java DSL ........................................................................ 475
30.11. SFTP Outbound Gateway ............................................................................. 476
Using the ls Command .................................................................................. 476
Using the get Command ................................................................................ 477
Using the mget Command .............................................................................. 478
Using the put Command ................................................................................ 479
Using the mput Command .............................................................................. 479
Using the mv Command .................................................................................. 480
Additional Command Information ..................................................................... 480
Configuring with Java Configuration ................................................................. 481
Configuring with the Java DSL ........................................................................ 481
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xvi
Outbound Gateway Partial Success (mget and mput) ...................................... 482
30.12. SFTP/JSCH Logging .................................................................................... 483
30.13. MessageSessionCallback ............................................................................. 483
31. STOMP Support ....................................................................................................... 484
31.1. Overview ....................................................................................................... 484
31.2. STOMP Inbound Channel Adapter .................................................................. 484
31.3. STOMP Outbound Channel Adapter ............................................................... 485
31.4. STOMP Headers Mapping .............................................................................. 485
31.5. STOMP Integration Events ............................................................................. 485
31.6. STOMP Adapters Java Configuration .............................................................. 486
31.7. STOMP Namespace Support .......................................................................... 487
Understanding the <int-stomp:outbound-channel-adapter> Element ..... 488
Understanding the <int-stomp:inbound-channel-adapter> Element ....... 489
32. Stream Support ........................................................................................................ 490
32.1. Reading from Streams ................................................................................... 490
32.2. Writing to Streams ......................................................................................... 491
32.3. Stream Namespace Support ........................................................................... 491
33. Syslog Support ......................................................................................................... 493
33.1. Syslog Inbound Channel Adapter .................................................................... 493
Example Configuration .................................................................................... 494
34. TCP and UDP Support ............................................................................................. 496
34.1. Introduction .................................................................................................... 496
34.2. UDP Adapters ............................................................................................... 497
Outbound UDP Adapters (XML Configuration) .................................................. 497
Outbound UDP Adapters (Java Configuration) .................................................. 498
Outbound UDP Adapters (Java DSL Configuration) .......................................... 498
Inbound UDP Adapters (XML Configuration) .................................................... 498
Inbound UDP Adapters (Java Configuration) .................................................... 499
Inbound UDP Adapters (Java DSL Configuration) ............................................. 499
Server Listening Events .................................................................................. 499
Advanced Outbound Configuration .................................................................. 499
34.3. TCP Connection Factories .............................................................................. 500
TCP Caching Client Connection Factory .......................................................... 504
TCP Failover Client Connection Factory .......................................................... 504
TCP Thread Affinity Connection Factory .......................................................... 505
34.4. TCP Connection Interceptors .......................................................................... 505
34.5. TCP Connection Events ................................................................................. 506
34.6. TCP Adapters ................................................................................................ 507
34.7. TCP Gateways .............................................................................................. 509
34.8. TCP Message Correlation .............................................................................. 510
Gateways ....................................................................................................... 510
Collaborating Outbound and Inbound Channel Adapters ................................... 510
Transferring Headers ...................................................................................... 511
34.9. About Non-blocking I/O (NIO) ......................................................................... 513
Pool Size ....................................................................................................... 513
Thread Pool Task Executor with CALLER_RUNS Policy ..................................... 513
34.10. SSL/TLS Support ......................................................................................... 515
Getting Started ............................................................................................... 515
Host Verification ............................................................................................. 516
34.11. Advanced Techniques .................................................................................. 517
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xvii
Strategy Interfaces ......................................................................................... 517
The TcpSSLContextSupport Strategy Interface .................................... 517
The TcpSocketFactorySupport Strategy Interface .............................. 517
The TcpSocketSupport Strategy Interface ............................................ 518
The TcpNetConnectionSupport Strategy Interface .............................. 518
The TcpNioConnectionSupport Strategy Interface .............................. 519
Example: Enabling SSL Client Authentication ................................................... 519
34.12. IP Configuration Attributes ............................................................................ 520
34.13. IP Message Headers .................................................................................... 527
34.14. Annotation-Based Configuration .................................................................... 529
35. WebFlux Support ...................................................................................................... 532
35.1. WebFlux Inbound Components ....................................................................... 532
35.2. WebFlux Outbound Components .................................................................... 533
35.3. WebFlux Namespace Support ........................................................................ 534
Inbound .......................................................................................................... 534
Outbound ....................................................................................................... 535
35.4. Configuring WebFlux Endpoints with Java ....................................................... 535
35.5. WebFlux Header Mappings ............................................................................ 536
36. WebSockets Support ................................................................................................ 537
36.1. Overview ....................................................................................................... 537
36.2. WebSocket Inbound Channel Adapter ............................................................. 538
36.3. WebSocket Outbound Channel Adapter .......................................................... 539
36.4. WebSockets Namespace Support ................................................................... 540
<int-websocket:client-container> Attributes ....................................... 540
<int-websocket:server-container> Attributes ....................................... 541
<int-websocket:outbound-channel-adapter> Attributes ....................... 542
<int-websocket:inbound-channel-adapter> Attributes ......................... 543
36.5. Using ClientStompEncoder ........................................................................ 544
37. Web Services Support .............................................................................................. 545
37.1. Outbound Web Service Gateways ................................................................... 545
37.2. Inbound Web Service Gateways ..................................................................... 546
37.3. Web Service Namespace Support ................................................................... 546
37.4. Outbound URI Configuration ........................................................................... 548
Controlling URI Encoding ................................................................................ 548
37.5. WS Message Headers ................................................................................... 548
37.6. MTOM Support .............................................................................................. 550
38. XML Support - Dealing with XML Payloads ................................................................ 551
38.1. Namespace Support ....................................................................................... 551
XPath Expressions ......................................................................................... 552
Providing Namespaces (Optional) to XPath Expressions ........................... 553
Using XPath Expressions with Default Namespaces ................................. 553
38.2. Transforming XML Payloads ........................................................................... 554
Configuring Transformers as Beans ................................................................. 555
UnmarshallingTransformer ...................................................................... 555
Using MarshallingTransformer ........................................................ 555
XsltPayloadTransformer .......................................................................... 556
Using ResultTransformer Implementations ......................................... 556
Namespace Support for XML Transformers ...................................................... 557
Using an UnmarshallingTransformer ................................................ 557
Using a MarshallingTransformer ..................................................... 557
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xviii
Using an XsltPayloadTransformer .................................................... 558
Namespace Configuration and Result Transformers ......................................... 559
XsltPayloadTransformer and <xsl:output method="text"/> ..... 560
38.3. Transforming XML Messages with XPath ........................................................ 560
Simple XPath Transformation .......................................................................... 560
Node Mappers ................................................................................................ 561
XML Payload Converter .................................................................................. 561
38.4. Splitting XML Messages ................................................................................. 562
38.5. Routing XML Messages with XPath ................................................................ 563
XML Payload Converter .................................................................................. 564
38.6. XPath Header Enricher .................................................................................. 565
38.7. Using the XPath Filter .................................................................................... 566
38.8. #xpath SpEL Function .................................................................................... 567
38.9. XML Validating Filter ...................................................................................... 567
39. XMPP Support ......................................................................................................... 569
39.1. XMPP Connection .......................................................................................... 569
39.2. XMPP Messages ........................................................................................... 570
Inbound Message Channel Adapter ................................................................. 570
Outbound Message Channel Adapter .............................................................. 571
39.3. XMPP Presence ............................................................................................ 572
Inbound Presence Message Channel Adapter .................................................. 572
Outbound Presence Message Channel Adapter ............................................... 572
39.4. Advanced Configuration ................................................................................. 573
39.5. XMPP Message Headers ............................................................................... 574
39.6. XMPP Extensions .......................................................................................... 574
40. Zookeeper Support ................................................................................................... 577
40.1. Zookeeper Metadata Store ............................................................................. 577
40.2. Zookeeper Lock Registry ................................................................................ 577
40.3. Zookeeper Leadership Event Handling ............................................................ 578
VI. Appendices ....................................................................................................................... 579
A. Spring Expression Language (SpEL) ........................................................................... 580
A.1. SpEL Evaluation Context Customization ........................................................... 580
A.2. SpEL Functions ............................................................................................... 581
Built-in SpEL Functions ................................................................................... 582
A.3. Property Accessors ......................................................................................... 582
B. Message Publishing ................................................................................................... 584
B.1. Message Publishing Configuration .................................................................... 584
Annotation-driven Configuration with the @Publisher Annotation ..................... 584
XML-based Approach with the <publishing-interceptor> element ............ 586
Asynchronous Publishing ........................................................................ 588
Producing and Publishing Messages Based on a Scheduled Trigger .................. 588
C. Transaction Support ................................................................................................... 590
C.1. Understanding Transactions in Message flows .................................................. 590
Poller Transaction Support .............................................................................. 591
C.2. Transaction Boundaries ................................................................................... 592
C.3. Transaction Synchronization ............................................................................ 593
C.4. Pseudo Transactions ....................................................................................... 595
D. Security in Spring Integration ...................................................................................... 596
D.1. Securing channels ........................................................................................... 596
D.2. Security Context Propagation ........................................................................... 598
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xix
E. Configuration ............................................................................................................. 600
E.1. Namespace Support ........................................................................................ 600
E.2. Configuring the Task Scheduler ....................................................................... 601
E.3. Error Handling ................................................................................................. 602
E.4. Global Properties ............................................................................................. 604
E.5. Annotation Support .......................................................................................... 605
Using the @Poller Annotation ....................................................................... 607
Using the @InboundChannelAdapter Annotation .......................................... 609
Using the @IntegrationComponentScan Annotation .................................... 609
E.6. Messaging Meta-Annotations ........................................................................... 609
Annotations on @Bean Methods ...................................................................... 610
Creating a Bridge with Annotations .................................................................. 612
Advising Annotated Endpoints ......................................................................... 613
E.7. Message Mapping Rules and Conventions ........................................................ 613
Sample Scenarios .......................................................................................... 613
Annotation-based Mapping .............................................................................. 614
Complex Scenarios ......................................................................................... 615
F. Testing support .......................................................................................................... 618
F.1. Testing Utilities ................................................................................................ 619
TestUtils ......................................................................................................... 619
Using the SocketUtils Class ....................................................................... 619
Using OnlyOnceTrigger .............................................................................. 620
Support Components ...................................................................................... 621
JUnit Rules and Conditions ............................................................................. 621
Hamcrest and Mockito Matchers ..................................................................... 621
F.2. Spring Integration and the Test Context ............................................................ 622
F.3. Integration Mocks ............................................................................................ 623
MockIntegration .............................................................................................. 623
F.4. Other Resources ............................................................................................. 624
G. Spring Integration Samples ........................................................................................ 625
G.1. Where to Get Samples .................................................................................... 625
G.2. Submitting Samples or Sample Requests ......................................................... 625
How Can I Contribute My Own Samples? ........................................................ 626
Code Contribution Process ............................................................................. 626
Sample Requests ........................................................................................... 626
G.3. Samples Structure ........................................................................................... 626
G.4. Samples ......................................................................................................... 627
Loan Broker ................................................................................................... 628
Design ................................................................................................... 629
Composed Message Processor ............................................................... 630
The Cafe Sample ........................................................................................... 632
The XML Messaging Sample .......................................................................... 637
H. Additional Resources ................................................................................................. 638
I. Change History ........................................................................................................... 639
I.1. Changes between 4.3 and 5.0 ........................................................................... 639
I.2. New Components ............................................................................................. 639
Java DSL ....................................................................................................... 639
Testing Support .............................................................................................. 639
MongoDB Outbound Gateway ......................................................................... 639
WebFlux Gateways and Channel Adapters ...................................................... 639
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xx
Content Type Conversion ............................................................................... 639
ErrorMessagePublisher and ErrorMessageStrategy ............................. 639
JDBC Metadata Store ..................................................................................... 640
I.3. General Changes ............................................................................................. 640
Core Changes ................................................................................................ 640
Gateway Changes .......................................................................................... 641
Aggregator Performance Changes ................................................................... 641
Splitter Changes ............................................................................................. 641
JMS Changes ................................................................................................ 641
Mail Changes ................................................................................................. 641
Feed Changes ................................................................................................ 641
File Changes .................................................................................................. 641
FTP and SFTP Changes ................................................................................ 642
Integration Properties ...................................................................................... 643
Stream Changes ............................................................................................ 643
Barrier Changes ............................................................................................. 643
AMQP Changes ............................................................................................. 643
HTTP Changes .............................................................................................. 643
MQTT Changes .............................................................................................. 643
STOMP Changes ........................................................................................... 644
Web Services Changes .................................................................................. 644
Redis Changes ............................................................................................... 644
TCP Changes ................................................................................................ 644
Gemfire Changes ........................................................................................... 644
JDBC Changes .............................................................................................. 645
Metrics Changes ............................................................................................ 645
@EndpointId Annotations ............................................................................. 645
I.4. Changes between 4.2 and 4.3 ........................................................................... 645
I.5. New Components ............................................................................................. 645
AMQP Async Outbound Gateway .................................................................... 645
MessageGroupFactory ................................................................................ 645
PersistentMessageGroup .......................................................................... 645
FTP and SFTP Streaming Inbound Channel Adapters ...................................... 646
StreamTransformer .................................................................................... 646
Integration Graph ............................................................................................ 646
JDBC Lock Registry ....................................................................................... 646
LeaderInitiator for LockRegistry .......................................................... 646
I.6. General Changes ............................................................................................. 646
Core Changes ................................................................................................ 646
Outbound Gateway within a Chain .......................................................... 646
Asynchronous Service Activator .............................................................. 646
Messaging Annotation Support changes .................................................. 646
Mail Changes ................................................................................................. 647
Customizable User Flag .......................................................................... 647
Mail Message Mapping ........................................................................... 647
JMS Changes ................................................................................................ 647
Header Mapper ...................................................................................... 647
Asynchronous Gateway .......................................................................... 647
Aggregator Changes ....................................................................................... 647
TCP/UDP Changes ......................................................................................... 647
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xxi
Events ................................................................................................... 647
Stream Deserializers ............................................................................... 647
TCP Message Mapper ............................................................................ 648
File Changes .................................................................................................. 648
Destination Directory Creation ................................................................. 648
Buffer Size ............................................................................................. 648
Appending and Flushing ......................................................................... 648
Preserving Timestamps ........................................................................... 648
Splitter Changes ..................................................................................... 648
File Filters .............................................................................................. 648
AMQP Changes ............................................................................................. 648
Content Type Message Converter ........................................................... 648
Headers for Delayed Message Handling .................................................. 649
AMQP-Backed Channels ......................................................................... 649
Redis Changes ............................................................................................... 649
List Push/Pop Direction ........................................................................... 649
Queue Inbound Gateway Default Serializer .............................................. 649
HTTP Changes .............................................................................................. 649
SFTP Changes ............................................................................................... 649
Factory Bean .......................................................................................... 649
chmod Changes ..................................................................................... 649
FTP Changes ................................................................................................. 650
Session Changes ................................................................................... 650
Router Changes ............................................................................................. 650
Header Mapping ............................................................................................. 650
General .................................................................................................. 650
AMQP Header Mapping .......................................................................... 650
Groovy Scripts ................................................................................................ 650
@InboundChannelAdapter Changes ............................................................ 650
XMPP Changes .............................................................................................. 650
WireTap Late Binding ..................................................................................... 651
ChannelMessageStoreQueryProvider Changes ........................................ 651
WebSocket Changes ...................................................................................... 651
I.7. Changes between 4.1 and 4.2 ........................................................................... 651
I.8. New Components ............................................................................................. 651
Major Management/JMX Rework ..................................................................... 651
MongoDB Metadata Store ............................................................................... 651
SecuredChannel Annotation ............................................................................ 651
SecurityContext Propagation ..................................................................... 651
FileSplitter ...................................................................................................... 652
Zookeeper Support ......................................................................................... 652
Thread Barrier ................................................................................................ 652
STOMP Support ............................................................................................. 652
Codec ............................................................................................................ 652
Message PreparedStatement Setter ................................................................ 652
I.9. General Changes ............................................................................................. 652
WireTap ......................................................................................................... 652
File Changes .................................................................................................. 652
Appending New Lines ............................................................................. 653
Ignoring Hidden Files .............................................................................. 653
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xxii
Writing InputStream Payloads .............................................................. 653
HeadDirectoryScanner ...................................................................... 653
Last Modified Filter ................................................................................. 653
Watch Service Directory Scanner ............................................................ 653
Persistent File List Filter Changes ........................................................... 653
Class Package Change .................................................................................. 653
TCP Changes ................................................................................................ 653
TCP Serializers ...................................................................................... 653
Server Socket Exceptions ....................................................................... 653
TCP Server Port ..................................................................................... 654
TCP Gateway Remote Timeout ............................................................... 654
TCP SSLSession Available for Header Mapping ....................................... 654
TCP Events ............................................................................................ 654
@InboundChannelAdapter Changes ............................................................ 654
API Changes .................................................................................................. 654
JMS Changes ................................................................................................ 654
Reply Listener Lazy Initialization .............................................................. 654
Conversion Errors in Message-Driven Endpoints ...................................... 655
Default Acknowledge Mode ..................................................................... 655
Shared Subscriptions .............................................................................. 655
Conditional Pollers .......................................................................................... 655
AMQP Changes ............................................................................................. 655
Publisher Confirmations .......................................................................... 655
Correlation Data ..................................................................................... 655
Inbound Gateway Properties ................................................................... 655
XPath Splitter Improvements ........................................................................... 656
HTTP Changes .............................................................................................. 656
CORS .................................................................................................... 656
Inbound Gateway Timeout ...................................................................... 656
Form Data .............................................................................................. 656
Gateway Changes .......................................................................................... 656
Gateway Methods can Return CompletableFuture<?> ......................... 656
MessagingGateway Annotation ................................................................ 656
Aggregator Changes ....................................................................................... 656
Aggregator Performance ......................................................................... 656
Output Message Group Processor ........................................................... 657
FTP and SFTP Changes ................................................................................ 657
Inbound Channel Adapters ...................................................................... 657
Gateway Partial Results .......................................................................... 657
Delegating Session Factory ..................................................................... 657
Default Sftp Session Factory ................................................................... 657
Message Session Callback ..................................................................... 657
Websocket Changes ....................................................................................... 658
Application Event Adapters changes ................................................................ 658
I.10. Changes between 4.0 and 4.1 ......................................................................... 658
New Components ........................................................................................... 658
Promise<?> Gateway ............................................................................. 658
WebSocket support ................................................................................ 658
Scatter-Gather Enterprise Integration Pattern ........................................... 658
Routing Slip Pattern ................................................................................ 658
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xxiii
Idempotent Receiver Pattern ................................................................... 658
Boon JsonObjectMapper ..................................................................... 659
Redis Queue Gateways .......................................................................... 659
PollSkipAdvice .................................................................................. 659
General Changes ........................................................................................... 659
AMQP Inbound Endpoints, Channel ......................................................... 659
AMQP Outbound Endpoints .................................................................... 659
SimpleMessageStore .............................................................................. 659
Web Service Outbound Gateway: encode-uri ....................................... 659
Http Inbound Channel Adapter and Status Code ....................................... 659
MQTT Adapter Changes ......................................................................... 659
FTP and SFTP Adapter Changes ............................................................ 660
Splitter and Iterator ................................................................................. 660
Aggregator ............................................................................................. 660
Content Enricher Improvements .............................................................. 660
Header Channel Registry ........................................................................ 660
Orderly Shutdown ................................................................................... 660
Management for RecipientListRouter ............................................... 660
AbstractHeaderMapper: NON_STANDARD_HEADERS token ................... 661
AMQP Channels: template-channel-transacted ............................. 661
Syslog Adapter ....................................................................................... 661
Asynchronous Gateway .......................................................................... 661
Aggregator Advice Chain ........................................................................ 661
Outbound Channel Adapter and Scripts ................................................... 661
Resequencer Changes ........................................................................... 661
Optional POJO method parameter ........................................................... 661
QueueChannel backed Queue type ........................................................ 661
ChannelInterceptor Changes ............................................................ 661
IMAP PEEK ........................................................................................... 662
I.11. Changes between 3.0 and 4.0 ......................................................................... 662
New Components ........................................................................................... 662
MQTT Channel Adapters ........................................................................ 662
@EnableIntegration .......................................................................... 662
@IntegrationComponentScan ............................................................ 662
"@EnableMessageHistory" .................................................................. 662
@MessagingGateway ............................................................................ 662
Spring Boot @EnableAutoConfiguration ........................................... 662
@GlobalChannelInterceptor ............................................................ 662
@IntegrationConverter .................................................................... 663
@EnablePublisher .............................................................................. 663
Redis Channel Message Stores .............................................................. 663
MongodDB Channel Message Store ........................................................ 663
@EnableIntegrationMBeanExport .................................................... 663
ChannelSecurityInterceptorFactoryBean .................................... 663
Redis Command Gateway ...................................................................... 663
RedisLockRegistry and GemfireLockRegistry ............................... 663
@Poller ................................................................................................ 663
@InboundChannelAdapter and SmartLifecycle for Annotated
Endpoints ............................................................................................... 664
Twitter Search Outbound Gateway .......................................................... 664
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xxiv
Gemfire Metadata Store .......................................................................... 664
@BridgeFrom and @BridgeTo Annotations ............................................ 664
Meta-messaging Annotations ................................................................... 664
General Changes ........................................................................................... 664
Requires Spring Framework 4.0 .............................................................. 664
Header Type for XPath Header Enricher .................................................. 664
Object To JSON Transformer: Node Result .............................................. 664
JMS Header Mapping ............................................................................. 665
JMS Outbound Channel Adapter ............................................................. 665
JMS Inbound Channel Adapter ................................................................ 665
Datatype Channels ................................................................................. 665
Simpler Retry Advice Configuration ......................................................... 665
Correlation Endpoint: Time-based Release Strategy ................................. 665
Redis Metadata Store ............................................................................. 665
JdbcChannelMessageStore and PriorityChannel ........................... 665
AMQP Endpoints Delivery Mode ............................................................. 665
FTP Timeouts ........................................................................................ 666
Twitter: StatusUpdatingMessageHandler .......................................... 666
JPA Retrieving Gateway: id-expression .............................................. 666
TCP Deserialization Events ..................................................................... 666
Messaging Annotations on @Bean Definitions ........................................... 666
I.12. Changes Between 2.2 and 3.0 ........................................................................ 666
New Components ........................................................................................... 666
HTTP Request Mapping .......................................................................... 666
Spring Expression Language (SpEL) Configuration ................................... 667
SpEL Functions Support ......................................................................... 667
SpEL PropertyAccessors Support ............................................................ 667
Redis: New Components ........................................................................ 667
Header Channel Registry ........................................................................ 667
MongoDB support: New ConfigurableMongoDbMessageStore ............ 667
Syslog Support ....................................................................................... 667
tail Support ......................................................................................... 668
JMX Support .......................................................................................... 668
TCP/IP Connection Events and Connection Management .......................... 668
Inbound Channel Adapter Script Support ................................................. 668
Content Enricher: Headers Enrichment Support ........................................ 668
General Changes ........................................................................................... 668
Message ID Generation .......................................................................... 669
"<gateway>" Changes ........................................................................... 669
HTTP Endpoint Changes ........................................................................ 669
Jackson Support (JSON) ........................................................................ 669
Chain Elements id Attribute ................................................................... 670
Aggregator empty-group-min-timeout property .......................................... 670
Persistent File List Filters (file, (S)FTP) .................................................... 670
Scripting Support: Variables Changes ...................................................... 670
Direct Channel Load Balancing configuration ............................................ 670
PublishSubscribeChannel Behavior .......................................................... 670
FTP, SFTP and FTPS Changes .............................................................. 670
requires-reply Attribute for Outbound Gateways ........................................ 671
AMQP Outbound Gateway Header Mapping ............................................ 672
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xxv
Stored Procedure Components Improvements .......................................... 672
Web Service Outbound URI Configuration ............................................... 673
Redis Adapter Changes .......................................................................... 673
Advising Filters ....................................................................................... 673
Advising Endpoints using Annotations ...................................................... 673
ObjectToStringTransformer Improvements ................................................ 673
JPA Support Changes ............................................................................ 673
Delayer: delay expression ....................................................................... 674
JDBC Message Store Improvements ....................................................... 674
IMAP Idle Connection Exceptions ............................................................ 674
Message Headers and TCP .................................................................... 674
JMS Message Driven Channel Adapter .................................................... 674
RMI Inbound Gateway ............................................................................ 674
XsltPayloadTransformer .................................................................. 674
I.13. Changes between 2.1 and 2.2 ......................................................................... 675
New Components ........................................................................................... 675
RedisStore Inbound and Outbound Channel Adapters ........................... 675
MongoDB Inbound and Outbound Channel Adapters ................................ 675
JPA Endpoints ........................................................................................ 675
General Changes ........................................................................................... 675
Spring 3.1 Used by Default ..................................................................... 675
Adding Behavior to Endpoints ................................................................. 675
Transaction Synchronization and Pseudo Transactions ............................. 676
File Adapter: Improved File Overwrite and Append Handling ...................... 676
Reply-Timeout Added to More Outbound Gateways .................................. 676
Spring-AMQP 1.1 ................................................................................... 676
JDBC Support - Stored Procedures Components ...................................... 677
JDBC Support: Outbound Gateway ......................................................... 677
JDBC Support: Channel-specific Message Store Implementation ............... 677
Orderly Shutdown ................................................................................... 677
JMS Outbound Gateway Improvements ................................................... 677
ObjectToJsonTransformer ................................................................ 677
HTTP Support ........................................................................................ 678
I.14. Changes between 2.0 and 2.1 ......................................................................... 678
New Components ........................................................................................... 678
JSR-223 Scripting Support ...................................................................... 678
GemFire Support .................................................................................... 678
AMQP Support ....................................................................................... 678
MongoDB Support .................................................................................. 679
Redis Support ........................................................................................ 679
Support for Spring’s Resource abstraction ............................................... 679
Stored Procedure Components ................................................................ 679
XPath and XML Validating Filter .............................................................. 680
Payload Enricher .................................................................................... 680
FTP and SFTP Outbound Gateways ........................................................ 680
FTP Session Caching ............................................................................. 680
Framework Refactoring ................................................................................... 680
Standardizing Router Configuration .......................................................... 680
XML Schemas updated to 2.1 ................................................................. 681
Source Control Management and Build Infrastructure ....................................... 681
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xxvi
Source Code Now Hosted on Github ....................................................... 682
Improved Source Code Visibility with Sonar ............................................. 682
New Samples ................................................................................................. 682
I.15. Changes between Versions 1.0 and 2.0 ........................................................... 682
Spring 3 support ............................................................................................. 682
Support for the Spring Expression Language (SpEL) ................................ 682
Conversion Service and Converter .......................................................... 682
TaskScheduler and Trigger .............................................................. 682
RestTemplate and HttpMessageConverter ...................................... 683
Enterprise Integration Pattern Additions ........................................................... 683
Message History ..................................................................................... 683
Message Store ....................................................................................... 683
Claim Check .......................................................................................... 683
Control Bus ............................................................................................ 683
New Channel Adapters and Gateways ............................................................. 683
TCP and UDP Adapters .......................................................................... 683
Twitter Adapters ..................................................................................... 683
XMPP Adapters ...................................................................................... 684
FTP and FTPS Adapters ......................................................................... 684
SFTP Adapters ....................................................................................... 684
Feed Adapters ........................................................................................ 684
Other Additions .............................................................................................. 684
Groovy Support ...................................................................................... 684
Map Transformers .................................................................................. 684
JSON Transformers ................................................................................ 684
Serialization Transformers ....................................................................... 684
Framework Refactoring ................................................................................... 684
New Source Control Management and Build Infrastructure ................................ 685
New Spring Integration Samples ..................................................................... 685
Spring Tool Suite Visual Editor for Spring Integration ........................................ 685
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration xxvii
© 2009-2018 Pivotal Software, Inc. All rights reserved.
Note
Copies of this document may be made for your own use and for distribution to others, provided
that you do not charge any fee for such copies and further provided that each copy contains this
Copyright Notice, whether distributed in print or electronically.
Part I. Preface
This chapter includes:
• Chapter 1, Requirements
• Chapter 2, Code Conventions
• Chapter 3, Conventions in This Guide
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 2
1. Requirements
This section details the compatible Java and Spring Framework versions.
1.1 Compatible Java Versions
For Spring Integration 5.1.x, the minimum compatible Java version is Java SE 8. Older versions of Java
are not supported.
1.2 Compatible Versions of the Spring Framework
Spring Integration 5.1.x requires Spring Framework 5.1 or later.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 3
2. Code Conventions
Spring Framework 2.0 introduced support for namespaces, which simplifies the XML configuration of
the application context and lets Spring Integration provide broad namespace support.
In this reference guide, the int namespace prefix is used for Spring Integration’s core namespace
support. Each Spring Integration adapter type (also called a module) provides its own namespace, which
is configured by using the following convention:
The following example shows the int, int-event, and int-stream namespaces in use:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:int="http://www.springframework.org/schema/integration"
xmlns:int-webflux="http://www.springframework.org/schema/integration/webflux"
xmlns:int-stream="http://www.springframework.org/schema/integration/stream"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/integration
http://www.springframework.org/schema/integration/spring-integration.xsd
http://www.springframework.org/schema/integration/webflux
http://www.springframework.org/schema/integration/webflux/spring-integration-webflux.xsd
http://www.springframework.org/schema/integration/stream
http://www.springframework.org/schema/integration/stream/spring-integration-stream.xsd">
…
</beans>
For a detailed explanation regarding Spring Integration’s namespace support, see Section E.1,
“Namespace Support”.
Note
The namespace prefix can be freely chosen. You may even choose not to use any namespace
prefixes at all. Therefore, you should apply the convention that best suits your application. Be
aware, though, that SpringSource Tool Suite™ (STS) uses the same namespace conventions for
Spring Integration as used in this reference guide.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 4
3. Conventions in This Guide
In some cases, to aid formatting when specifying long fully qualified class names, we shorten
org.springframework to o.s and org.springframework.integration to o.s.i, such as with
o.s.i.transaction.TransactionSynchronizationFactory.
Part II. What’s New?
For those who are already familiar with Spring Integration, this chapter provides a brief overview of the
new features of version 5.1. If you are interested in the changes and features that were introduced in
earlier versions, see the Appendix I, Change History.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 6
4. What’s New in Spring Integration 5.1?
This chapter provides an overview of the new features and improvements that have been introduced
with Spring Integration 5.1. If you are interested in more details, see the Issue Tracker tickets that were
resolved as part of the 5.1 development process.
4.1 New Components
The following components are new in 5.1:
• the section called “AmqpDedicatedChannelAdvice”
AmqpDedicatedChannelAdvice
See Section 14.13, “Strict Message Ordering”.
Improved Function Support
The java.util.function interfaces now have improved integration support in the Framework
components. Also Kotlin lambdas now can be used for handler and source methods.
See Section 10.11, “java.util.function Interfaces Support”.
@LongRunningTest
A JUnit 5 @LongRunningTest conditional annotation is provided to check the environment or system
properties for the RUN_LONG_INTEGRATION_TESTS entry with the value of true to determine if test
should be run or skipped.
See the section called “JUnit Rules and Conditions”.
4.2 General Changes
The following changes have been made in version 5.1:
• the section called “Java DSL”
• the section called “Dispatcher Exceptions”
• the section called “Global Channel Interceptors”
• the section called “ObjectToJsonTransformer”
• the section called “Integration Flows: Generated Bean Names”
• the section called “Aggregator Changes”
• the section called “@Publisher annotation changes”
• Section 4.13, “Integration Graph Customization”
• Section 4.14, “Integration Global Properties”
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 7
• Section 4.15, “The receiveTimeout for @Poller”
Java DSL
The IntegrationFlowContext is now an interface and IntegrationFlowRegistration is an
inner interface of IntegrationFlowContext.
A new logAndReply() operator has been introduced for convenience when you wish to log at the
end of a flow for request-reply configurations. This avoid confusion with log() which is treated as a
one-way end flow component.
A generated bean name for any NamedComponent within an integration flow is now based on the
component type for better readability from visual tools, logs analyzers and metrics collectors.
The GenericHandler.handle() now excepts a MessageHeaders type for the second argument.
Dispatcher Exceptions
Exceptions caught and re-thrown by AbstractDispatcher are now more consistent:
• A MessagingException of any kind that has a failedMessage property is re-thrown unchanged.
• All other exceptions are wrapped in a MessageDeliveryException with the failedMessage
property set.
Previously:
• A MessagingException of any kind that has a failedMessage property was re-thrown
unchanged
• A MessagingException that had no failedMessage property was wrapped in a
MessagingException with the failedMessage property set.
• Other RuntimeException instances were re-thrown unchanged.
• Checked exceptions were wrapped in a MessageDeliveryException with the failedMessage
property set.
Global Channel Interceptors
Global channel interceptors now apply to dynamically registered channels, such as through
the IntegrationFlowContext when using the Java DSL or beans that are initialized using
beanFactory.initializeBean(). Previously, when beans were created after the application
context was refreshed, interceptors were not applied.
Channel Interceptors
ChannelInterceptor.postReceive() is no longer called when no message is received; it is
no longer necessary to check for a null Message<?>. Previously, the method was called. If you
have an interceptor that relies on the previous behavior, implement afterReceiveCompleted()
instead, since that method is invoked, regardless of whether a message is received or not.
Furthermore, the PolledAmqpChannel and PolledJmsChannel previously did not invoke
afterReceiveCompleted() with null; they now do.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 8
ObjectToJsonTransformer
A new ResultType.BYTES mode is introduced for the ObjectToJsonTransformer.
See the section called “JSON Transformers” for more information.
Integration Flows: Generated Bean Names
Starting with version 5.0.5, generated bean names for the components in an IntegrationFlow
include the flow bean name, followed by a dot, as a prefix. For example, if a flow bean were named
flowBean, a generated bean might be named flowBean.generatedBean.
See Section 11.13, “Working With Message Flows” for more information.
Aggregator Changes
If the groupTimeout is evaluated to a negative value, an aggregator now expires the group
immediately. Only null is considered as a signal to do nothing for the current message.
A new popSequence property has been introduced to allow (by
default) to call a MessageBuilder.popSequenceDetails() for the output
message. Also an AbstractAggregatingMessageGroupProcessor returns now an
AbstractIntegrationMessageBuilder instead of the whole Message for optimization.
See Section 8.4, “Aggregator” for more information.
@Publisher annotation changes
Starting with version 5.1, you must explicitly turn on the @Publisher AOP functionality
by using @EnablePublisher or by using the <int:enable-publisher> child element on
<int:annotation-config>.
See the section called “Annotation-driven Configuration with the @Publisher Annotation” for more
information.
4.3 Files Changes
If you are using FileExistsMode.APPEND or FileExistsMode.APPEND_NO_FLUSH you can
provide a newFileCallback that will be called when creating a new file. This callback receives the
newly created file and the message that triggered the callback. This could be used to write a CSV
header, for an example.
The FileReadingMessageSource now doesn’t check and create a directory until its start() is
called. So, if an Inbound Channel Adapter for the FileReadingMessageSource has autoStartup
= false, there are no failures against the file system during application start up.
See Chapter 17, File Support for more information.
4.4 AMQP Changes
We have made ID and Timestamp header mapping changes in the DefaultAmqpHeaderMapper.
See the note near the bottom of Section 14.12, “AMQP Message Headers” for more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 9
The contentType header is now correctly mapped as an entry in the general headers map. See the
section called “contentType Header” for more information.
4.5 JDBC Changes
A confusing max-rows-per-poll property on the JDBC Inbound Channel Adapter and JDBC
Outbound Gateway has been deprecated in favor of the newly introduced max-rows property.
The JdbcMessageHandler supports now a batchUpdate functionality when the payload of the
request message is an instance of an Iterable type.
See Chapter 21, JDBC Support for more information.
4.6 FTP and SFTP Changes
A RotatingServerAdvice is now available to poll multiple servers and directories with the inbound
channel adapters. See Section 18.6, “Inbound Channel Adapters: Polling Multiple Servers and
Directories” and Section 30.8, “Inbound Channel Adapters: Polling Multiple Servers and Directories” for
more information.
Also, inbound adapter localFilenameExpression instances can contain the #remoteDirectory
variable, which contains the remote directory being polled. The generic type of the
comparators (used to sort the fetched file list for the streaming adapters) has changed from
Comparator<AbstractFileInfo<F>> to Comparator<F>. See Section 18.5, “FTP Streaming
Inbound Channel Adapter” and Section 30.7, “SFTP Streaming Inbound Channel Adapter” for more
information.
In addition, the synchronizers for inbound channel adapters can now be provided with a Comparator.
This is useful when using maxFetchSize to limit the files retrieved.
The CachingSessionFactory has a new property testSession which, when true, causes the
factory to perform a test() operation on the Session when checking out an existing session from
the cache.
See Section 30.4, “SFTP Session Caching” and Section 18.10, “FTP Session Caching” for more
information.
The outbound gateway MPUT command now supports a message payload with a collection of files or
strings. See Section 30.11, “SFTP Outbound Gateway” and Section 18.9, “FTP Outbound Gateway”
for more information.
4.7 TCP Support
When using SSL, host verification is now enabled, by default, to prevent man-in-the-middle attacks with
a trusted certificate. See the section called “Host Verification” for more information.
In addition the key and trust store types can now be configured on the
DefaultTcpSSLContextSupport.
4.8 Twitter Support
Since the Spring Social project has moved to end of life status, Twitter support in Spring Integration has
been moved to the Extensions project. See Spring Integration Social Twitter for more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 10
4.9 JMS Support
The JmsSendingMessageHandler now provides deliveryModeExpression and
timeToLiveExpression options to determine respective QoS options for JMS message to send
at runtime. The DefaultJmsHeaderMapper now allows to map inbound JMSDeliveryMode
and JMSExpiration properties via setting to true respective setMapInboundDeliveryMode()
and setMapInboundExpiration() options. When a JmsMessageDrivenEndpoint or
JmsInboundGateway is stopped, the associated listener container is now shut down; this closes its
shared connection and any consumers. You can configure the endpoints to revert to the previous
behavior.
See Chapter 23, JMS Support for more information.
4.10 HTTP/WebFlux Support
The statusCodeExpression (and Function) is now supplied with the RequestEntity<?> as a
root object for evaluation context, so request headers, method, URI and body are available for target
status code calculation.
See Chapter 20, HTTP Support and Chapter 35, WebFlux Support for more information.
4.11 JMX Changes
Object name key values are now quoted if they contain any characters other than those allowed in a
Java identifier (or period .). e.g. org.springframework.integration:type=MessageChannel,
name="input:foo.myGroup.errors". This has the side effect that
previously "allowed" names, with such characters, will now
be quoted. e.g. org.springframework.integration:type=MessageChannel,
name="input#foo.myGroup.errors".
4.12 Micrometer Support Changes
It is now simpler to customize the standard Micrometer meters created by the framework. See the section
called “Micrometer Integration” for more information.
4.13 Integration Graph Customization
It is now possible to add additional properties to the IntegrationNode s via
Function<NamedComponent, Map<String, Object>> additionalPropertiesCallback
on the IntegrationGraphServer. See Section 12.8, “Integration Graph” for more information.
4.14 Integration Global Properties
The Integration global properties (including defaults) can now be printed in the logs, when a DEBUG logic
level is turned on for the org.springframework.integration category. See Section E.4, “Global
Properties” for more information.
4.15 The receiveTimeout for @Poller
The @Poller annotation now provides a receiveTimeout option for convenience. See the section
called “Using the @Poller Annotation” for more information.
Part III. Overview of Spring
Integration Framework
Spring Integration provides an extension of the Spring programming model to support the well known
Enterprise Integration Patterns. It enables lightweight messaging within Spring-based applications and
supports integration with external systems through declarative adapters. Those adapters provide a
higher level of abstraction over Spring’s support for remoting, messaging, and scheduling. Spring
Integration’s primary goal is to provide a simple model for building enterprise integration solutions while
maintaining the separation of concerns that is essential for producing maintainable, testable code.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 12
5. Spring Integration Overview
This chapter provides a high-level introduction to Spring Integration’s core concepts and components.
It includes some programming tips to help you make the most of Spring Integration.
5.1 Background
One of the key themes of the Spring Framework is Inversion of Control (IoC). In its broadest sense,
this means that the framework handles responsibilities on behalf of the components that are managed
within its context. The components themselves are simplified, because they are relieved of those
responsibilities. For example, dependency injection relieves the components of the responsibility of
locating or creating their dependencies. Likewise, aspect-oriented programming relieves business
components of generic cross-cutting concerns by modularizing them into reusable aspects. In each
case, the end result is a system that is easier to test, understand, maintain, and extend.
Furthermore, the Spring framework and portfolio provide a comprehensive programming model for
building enterprise applications. Developers benefit from the consistency of this model and especially
from the fact that it is based upon well established best practices, such as programming to interfaces and
favoring composition over inheritance. Spring’s simplified abstractions and powerful support libraries
boost developer productivity while simultaneously increasing the level of testability and portability.
Spring Integration is motivated by these same goals and principles. It extends the Spring programming
model into the messaging domain and builds upon Spring’s existing enterprise integration support to
provide an even higher level of abstraction. It supports message-driven architectures where inversion
of control applies to runtime concerns, such as when certain business logic should run and where the
response should be sent. It supports routing and transformation of messages so that different transports
and different data formats can be integrated without impacting testability. In other words, the messaging
and integration concerns are handled by the framework. Business components are further isolated from
the infrastructure, and developers are relieved of complex integration responsibilities.
As an extension of the Spring programming model, Spring Integration provides a wide variety of
configuration options, including annotations, XML with namespace support, XML with generic "bean"
elements, and direct usage of the underlying API. That API is based upon well defined strategy interfaces
and non-invasive, delegating adapters. Spring Integration’s design is inspired by the recognition of
a strong affinity between common patterns within Spring and the well known patterns described in
Enterprise Integration Patterns, by Gregor Hohpe and Bobby Woolf (Addison Wesley, 2004). Developers
who have read that book should be immediately comfortable with the Spring Integration concepts and
terminology.
5.2 Goals and Principles
Spring Integration is motivated by the following goals:
• Provide a simple model for implementing complex enterprise integration solutions.
• Facilitate asynchronous, message-driven behavior within a Spring-based application.
• Promote intuitive, incremental adoption for existing Spring users.
Spring Integration is guided by the following principles:
• Components should be loosely coupled for modularity and testability.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 13
• The framework should enforce separation of concerns between business logic and integration logic.
• Extension points should be abstract in nature (but within well-defined boundaries) to promote reuse
and portability.
5.3 Main Components
From a vertical perspective, a layered architecture facilitates separation of concerns, and interface-
based contracts between layers promote loose coupling. Spring-based applications are typically
designed this way, and the Spring framework and portfolio provide a strong foundation for following
this best practice for the full stack of an enterprise application. Message-driven architectures add a
horizontal perspective, yet these same goals are still relevant. Just as "layered architecture" is
an extremely generic and abstract paradigm, messaging systems typically follow the similarly abstract
"pipes-and-filters" model. The "filters" represent any components capable of producing or
consuming messages, and the "pipes" transport the messages between filters so that the components
themselves remain loosely-coupled. It is important to note that these two high-level paradigms are not
mutually exclusive. The underlying messaging infrastructure that supports the "pipes" should still be
encapsulated in a layer whose contracts are defined as interfaces. Likewise, the "filters" themselves
should be managed within a layer that is logically above the application’s service layer, interacting with
those services through interfaces in much the same way that a web tier would.
Message
In Spring Integration, a message is a generic wrapper for any Java object combined with metadata used
by the framework while handling that object. It consists of a payload and headers. The payload can be
of any type, and the headers hold commonly required information such as ID, timestamp, correlation ID,
and return address. Headers are also used for passing values to and from connected transports. For
example, when creating a message from a received file, the file name may be stored in a header to be
accessed by downstream components. Likewise, if a message’s content is ultimately going to be sent by
an outbound mail adapter, the various properties (to, from, cc, subject, and others) may be configured
as message header values by an upstream component. Developers can also store any arbitrary key-
value pairs in the headers.
Figure 5.1. Message
Message Channel
A message channel represents the "pipe" of a pipes-and-filters architecture. Producers send messages
to a channel, and consumers receive messages from a channel. The message channel therefore
decouples the messaging components and also provides a convenient point for interception and
monitoring of messages.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 14
Figure 5.2. Message Channel
A message channel may follow either point-to-point or publish-subscribe semantics. With a point-to-
point channel, no more than one consumer can receive each message sent to the channel. Publish-
subscribe channels, on the other hand, attempt to broadcast each message to all subscribers on the
channel. Spring Integration supports both of these models.
Whereas "point-to-point" and "publish-subscribe" define the two options for how many consumers
ultimately receive each message, there is another important consideration: Should the channel buffer
messages? In Spring Integration, pollable channels are capable of buffering Messages within a
queue. The advantage of buffering is that it allows for throttling the inbound messages and thereby
prevents overloading a consumer. However, as the name suggests, this also adds some complexity,
since a consumer can only receive the messages from such a channel if a poller is configured.
On the other hand, a consumer connected to a subscribable channel is simply message-driven. the
section called “Message Channel Implementations” has a detailed discussion of the variety of channel
implementations available in Spring Integration.
Message Endpoint
One of the primary goals of Spring Integration is to simplify the development of enterprise integration
solutions through inversion of control. This means that you should not have to implement consumers
and producers directly, and you should not even have to build messages and invoke send or receive
operations on a message channel. Instead, you should be able to focus on your specific domain model
with an implementation based on plain objects. Then, by providing declarative configuration, you can
"connect" your domain-specific code to the messaging infrastructure provided by Spring Integration.
The components responsible for these connections are message endpoints. This does not mean
that you should necessarily connect your existing application code directly. Any real-world enterprise
integration solution requires some amount of code focused upon integration concerns such as routing
and transformation. The important thing is to achieve separation of concerns between the integration
logic and the business logic. In other words, as with the Model-View-Controller (MVC) paradigm for web
applications, the goal should be to provide a thin but dedicated layer that translates inbound requests
into service layer invocations and then translates service layer return values into outbound replies. The
next section provides an overview of the message endpoint types that handle these responsibilities, and,
in upcoming chapters, you can see how Spring Integration’s declarative configuration options provide
a non-invasive way to use each of these.
5.4 Message Endpoints
A Message Endpoint represents the "filter" of a pipes-and-filters architecture. As mentioned earlier,
the endpoint’s primary role is to connect application code to the messaging framework and to do so
in a non-invasive manner. In other words, the application code should ideally have no awareness of
the message objects or the message channels. This is similar to the role of a controller in the MVC
paradigm. Just as a controller handles HTTP requests, the message endpoint handles messages. Just
as controllers are mapped to URL patterns, message endpoints are mapped to message channels. The
goal is the same in both cases: isolate application code from the infrastructure. These concepts and all
of the patterns that follow are discussed at length in the Enterprise Integration Patterns book. Here, we
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 15
provide only a high-level description of the main endpoint types supported by Spring Integration and
the roles associated with those types. The chapters that follow elaborate and provide sample code as
well as configuration examples.
Message Transformer
A message transformer is responsible for converting a message’s content or structure and returning
the modified message. Probably the most common type of transformer is one that converts the payload
of the message from one format to another (such as from XML to java.lang.String). Similarly, a
transformer can add, remove, or modify the message’s header values.
Message Filter
A message filter determines whether a message should be passed to an output channel at all. This
simply requires a boolean test method that may check for a particular payload content type, a property
value, the presence of a header, or other conditions. If the message is accepted, it is sent to the
output channel. If not, it is dropped (or, for a more severe implementation, an Exception could be
thrown). Message filters are often used in conjunction with a publish-subscribe channel, where multiple
consumers may receive the same message and use the criteria of the filter to narrow down the set of
messages to be processed.
Note
Be careful not to confuse the generic use of "filter" within the pipes-and-filters architectural
pattern with this specific endpoint type that selectively narrows down the messages flowing
between two channels. The pipes-and-filters concept of a "filter" matches more closely with
Spring Integration’s message endpoint: any component that can be connected to a message
channel in order to send or receive messages.
Message Router
A message router is responsible for deciding what channel or channels (if any) should receive the
message next. Typically, the decision is based upon the message’s content or the metadata available in
the message headers. A message router is often used as a dynamic alternative to a statically configured
output channel on a service activator or other endpoint capable of sending reply messages. Likewise,
a message router provides a proactive alternative to the reactive message filters used by multiple
subscribers, as described earlier.
Figure 5.3. Message Router
Splitter
A splitter is another type of message endpoint whose responsibility is to accept a message from its input
channel, split that message into multiple messages, and send each of those to its output channel. This
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 16
is typically used for dividing a "composite" payload object into a group of messages containing the
subdivided payloads.
Aggregator
Basically a mirror-image of the splitter, the aggregator is a type of message endpoint that receives
multiple messages and combines them into a single message. In fact, aggregators are often downstream
consumers in a pipeline that includes a splitter. Technically, the aggregator is more complex than a
splitter, because it is required to maintain state (the messages to be aggregated), to decide when the
complete group of messages is available, and to timeout if necessary. Furthermore, in case of a timeout,
the aggregator needs to know whether to send the partial results, discard them, or send them to a
separate channel. Spring Integration provides a CorrelationStrategy, a ReleaseStrategy, and
configurable settings for timeout, whether to send partial results upon timeout, and a discard channel.
Service Activator
A Service Activator is a generic endpoint for connecting a service instance to the messaging system.
The input message channel must be configured, and, if the service method to be invoked is capable of
returning a value, an output message Channel may also be provided.
Note
The output channel is optional, since each message may also provide its own Return Address
header. This same rule applies for all consumer endpoints.
The service activator invokes an operation on some service object to process the request message,
extracting the request message’s payload and converting (if the method does not expect a message-
typed parameter). Whenever the service object’s method returns a value, that return value is likewise
converted to a reply message if necessary (if it is not already a message type). That reply message is
sent to the output channel. If no output channel has been configured, the reply is sent to the channel
specified in the message’s "return address", if available.
A request-reply service activator endpoint connects a target object’s method to input and output
Message Channels.
Figure 5.4. Service Activator
Note
As discussed earlier, in Message Channel, channels can be pollable or subscribable. In the
preceding diagram, this is depicted by the "clock" symbol and the solid arrow (poll) and the
dotted arrow (subscribe).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 17
Channel Adapter
A channel adapter is an endpoint that connects a message channel to some other system or transport.
Channel adapters may be either inbound or outbound. Typically, the channel adapter does some
mapping between the message and whatever object or resource is received from or sent to the other
system (file, HTTP Request, JMS message, and others). Depending on the transport, the channel
adapter may also populate or extract message header values. Spring Integration provides a number of
channel adapters, which are described in upcoming chapters.
Figure 5.5. An inbound channel adapter endpoint connects a source system to a MessageChannel.
Note
Message sources can be pollable (for example, POP3) or message-driven_ (for example, IMAP
Idle). In the preceding diagram, this is depicted by the "clock" symbol and the solid arrow (poll)
and the dotted arrow (message-driven).
Figure 5.6. An outbound channel adapter endpoint connects a MessageChannel to a target system.
Note
As discussed earlier in Message Channel, channels can be pollable or subscribable. In the
preceding diagram, this is depicted by the "clock" symbol and the solid arrow (poll) and the
dotted arrow (subscribe).
Endpoint Bean Names
Consuming endpoints (anything with an inputChannel) consist of two beans, the consumer and the
message handler. The consumer has a reference to the message handler and invokes it as messages
arrive.
Consider the following XML example:
<int:service-activator id = "someService" ... />
Given the preceding example, the bean names are as follows:
• Consumer: someService (the id)
• Handler: someService.handler
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 18
When using Enterprise Integration Pattern (EIP) annotations, the names depend on several factors.
Consider the following example of an annotated POJO:
@Component
public class SomeComponent {
@ServiceActivator(inputChannel = ...)
public String someMethod(...) {
...
}
}
Given the preceding example, the bean names are as follows:
• Consumer: someComponent.someMethod.serviceActivator
• Handler: someComponent.someMethod.serviceActivator.handler
Starting with version 5.0.4, you can modify these names by using the @EndpointId annotation, as the
following example shows:
@Component
public class SomeComponent {
@EndpointId("someService")
@ServiceActivator(inputChannel = ...)
public String someMethod(...) {
...
}
}
Given the preceding example, the bean names are as follows:
• Consumer: someService
• Handler: someService.handler
The @EndpointId creates names as created by the id attribute with XML configuration. Consider the
following example of an annotated bean:
@Configuratiom
public class SomeConfiguration {
@Bean
@ServiceActivator(inputChannel = ...)
public MessageHandler someHandler() {
...
}
}
Given the preceding example, the bean names are as follows:
• Consumer: someConfiguration.someHandler.serviceActivator
• Handler: someHandler (the @Bean name)
Starting with version 5.0.4, you can modify these names by using the @EndpointId annotation, as the
following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 19
@Configuratiom
public class SomeConfiguration {
@Bean("someService.handler") ❶
@EndpointId("someService") ❷
@ServiceActivator(inputChannel = ...)
public MessageHandler someHandler() {
...
}
}
❶Handler: someService.handler (the bean name)
❷Consumer: someService (the endpoint ID)
The @EndpointId annotation creates names as created by the id attribute with XML configuration,
as long as you use the convention of appending .handler to the @Bean name.
There is one special case where a third bean is created: For architectural reasons, if a
MessageHandler @Bean does not define an AbstractReplyProducingMessageHandler, the
framework wraps the provided bean in a ReplyProducingMessageHandlerWrapper. This wrapper
supports request handler advice handling and emits the normal produced no reply debug log messages.
Its bean name is the handler bean name plus .wrapper (when there is an @EndpointId — otherwise,
it is the normal generated handler name).
Similarly Pollable Message Sources create two beans, a SourcePollingChannelAdapter (SPCA)
and a MessageSource.
Consider the following XML configuration:
<int:inbound-channel-adapter id = "someAdapter" ... />
Given the preceding XML configuration, the bean names are as follows:
• SPCA: someAdapter (the id)
• Handler: someAdapter.source
Consider the following Java configuration of a POJO to define an @EndpointId:
@EndpointId("someAdapter")
@InboundChannelAdapter(channel = "channel3", poller = @Poller(fixedDelay = "5000"))
public String pojoSource() {
...
}
Given the preceding Java configuration example, the bean names are as follows:
• SPCA: someAdapter
• Handler: someAdapter.source
Consider the following Java configuration of a bean to define an @EndpointID:
@Bean("someAdapter.source")
@EndpointId("someAdapter")
@InboundChannelAdapter(channel = "channel3", poller = @Poller(fixedDelay = "5000"))
public MessageSource<?> source() {
return () -> {
...
};
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 20
Given the preceding example, the bean names are as follows:
• SPCA: someAdapter
• Handler: someAdapter.source (as long as you use the convention of appending .source to the
@Bean name)
5.5 Configuration and @EnableIntegration
Throughout this document, you can see references to XML namespace support for declaring elements
in a Spring Integration flow. This support is provided by a series of namespace parsers that generate
appropriate bean definitions to implement a particular component. For example, many endpoints consist
of a MessageHandler bean and a ConsumerEndpointFactoryBean into which the handler and an
input channel name are injected.
The first time a Spring Integration namespace element is encountered, the framework automatically
declares a number of beans (a task scheduler, an implicit channel creator, and others) that are used
to support the runtime environment.
Important
Version 4.0 introduced the @EnableIntegration annotation, to allow the registration of Spring
Integration infrastructure beans (see the Javadoc). This annotation is required when only Java
configuration is used — for example with Spring Boot or Spring Integration Messaging Annotation
support and Spring Integration Java DSL with no XML integration configuration.
The @EnableIntegration annotation is also useful when you have a parent context with no Spring
Integration components and two or more child contexts that use Spring Integration. It lets these common
components be declared once only, in the parent context.
The @EnableIntegration annotation registers many infrastructure components with the application
context. In particular, it:
• Registers some built-in beans, such as errorChannel and its LoggingHandler, taskScheduler
for pollers, jsonPath SpEL-function, and others.
• Adds several BeanFactoryPostProcessor instances to enhance the BeanFactory for global
and default integration environment.
• Adds several BeanPostProcessor instances to enhance or convert and wrap particular beans for
integration purposes.
• Adds annotation processors to parse messaging annotations and registers components for them with
the application context.
The @IntegrationComponentScan annotation also permits classpath scanning. This annotation
plays a similar role as the standard Spring Framework @ComponentScan annotation, but it is restricted
to components and annotations that are specific to Spring Integration, which the standard Spring
Framework component scan mechanism cannot reach. For an example, see the section called
“@MessagingGateway Annotation”.
The @EnablePublisher annotation registers a PublisherAnnotationBeanPostProcessor
bean and configures the default-publisher-channel for those @Publisher annotations that
are provided without a channel attribute. If more than one @EnablePublisher annotation is found,
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 21
they must all have the same value for the default channel. See the section called “Annotation-driven
Configuration with the @Publisher Annotation” for more information.
The @GlobalChannelInterceptor annotation has been introduced to mark
ChannelInterceptor beans for global channel interception. This annotation is an analogue of the
<int:channel-interceptor> XML element (see the section called “Global Channel Interceptor
Configuration”). @GlobalChannelInterceptor annotations can be placed at the class level (with a
@Component stereotype annotation) or on @Bean methods within @Configuration classes. In either
case, the bean must implement ChannelInterceptor.
Starting with version 5.1, global channel interceptors apply to dynamically registered channels — such
as beans that are initialized by using beanFactory.initializeBean() or through the
IntegrationFlowContext when using the Java DSL. Previously, interceptors were not applied when
beans were created after the application context was refreshed.
The @IntegrationConverter annotation marks Converter, GenericConverter, or
ConverterFactory beans as candidate converters for integrationConversionService. This
annotation is an analogue of the <int:converter> XML element (see the section called “Payload
Type Conversion”). You can place @IntegrationConverter annotations at the class level (with a
@Component stereotype annotation) or on @Bean methods within @Configuration classes.
See Section E.5, “Annotation Support” for more information about messaging mnnotations.
5.6 Programming Considerations
You should use plain old java objects (POJOs) whenever possible and only expose the framework in
your code when absolutely necessary. See Section 5.8, “POJO Method invocation” for more information.
If you do expose the framework to your classes, there are some considerations that need to be taken
into account, especially during application startup:
• If your component is ApplicationContextAware, you should generally not use the
ApplicationContext in the setApplicationContext() method. Instead, store a reference
and defer such uses until later in the context lifecycle.
• If your component is an InitializingBean or uses @PostConstruct methods, do not send any
messages from these initialization methods. The application context is not yet initialized when these
methods are called, and sending such messages is likely to fail. If you need to send a messages
during startup, implement ApplicationListener and wait for the ContextRefreshedEvent.
Alternatively, implement SmartLifecycle, put your bean in a late phase, and send the messages
from the start() method.
Considerations When Using Packaged (for example, Shaded) Jars
Spring Integration bootstraps certain features by using Spring Framework’s SpringFactories
mechanism to load several IntegrationConfigurationInitializer classes. This includes the -
core jar as well as certain others, including -http and -jmx. The information for this process is stored
in a META-INF/spring.factories file in each jar.
Some developers prefer to repackage their application and all dependencies into a single jar by using
well known tools, such as the Apache Maven Shade Plugin.
By default, the shade plugin does not merge the spring.factories files when producing the shaded
jar.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 22
In addition to spring.factories, other META-INF files (spring.handlers and
spring.schemas) are used for XML configuration. These files also need to be merged.
Important
Spring Boot’s executable jar mechanism takes a different approach, in that it nests the jars, thus
retaining each spring.factories file on the class path. So, with a Spring Boot application,
nothing more is needed if you use its default executable jar format.
Even if you do not use Spring Boot, you can still use the tooling provided by Boot to enhance the shade
plugin by adding transformers for the above mentioned files.
You may wish to consult the current spring-boot-starter-parent pom to see the current settings that boot
uses. The following example shows how to configure the plugin:
...
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-shade-plugin</artifactId>
<configuration>
<keepDependenciesWithProvidedScope>true</keepDependenciesWithProvidedScope>
<createDependencyReducedPom>true</createDependencyReducedPom>
</configuration>
<dependencies>
<dependency> ❶
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
<version>${spring.boot.version}</version>
</dependency>
</dependencies>
<executions>
<execution>
<phase>package</phase>
<goals>
<goal>shade</goal>
</goals>
<configuration>
<transformers> ❷
<transformer
implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
<resource>META-INF/spring.handlers</resource>
</transformer>
<transformer
implementation="org.springframework.boot.maven.PropertiesMergingResourceTransformer">
<resource>META-INF/spring.factories</resource>
</transformer>
<transformer
implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
<resource>META-INF/spring.schemas</resource>
</transformer>
<transformer
implementation="org.apache.maven.plugins.shade.resource.ServicesResourceTransformer" />
</transformers>
</configuration>
</execution>
</executions>
</plugin>
</plugins>
...
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 23
Specifically,
❶Add the spring-boot-maven-plugin as a dependency.
❷Configure the transformers.
Example 5.1 pom.xml
You can add a property for ${spring.boot.version} or use an explicit version.
5.7 Programming Tips and Tricks
This section documents some of the ways to get the most from Spring Integration.
XML Schemas
When using XML configuration, to avoid getting false schema validation errors, you should use a
"Spring-aware" IDE, such as the Spring Tool Suite (STS), Eclipse with the Spring IDE plugins, or
IntelliJ IDEA. These IDEs know how to resolve the correct XML schema from the classpath (by using
the META-INF/spring.schemas file in the jars). When using STS or Eclipse with the plugin, you must
enable Spring Project Nature on the project.
The schemas hosted on the internet for certain legacy modules (those that existed in version 1.0) are the
1.0 versions for compatibility reasons. If your IDE uses these schemas, you are likely to see false errors.
Each of these online schemas has a warning similar to the following:
Important
This schema is for the 1.0 version of Spring Integration Core. We cannot update it to the current
schema because that will break any applications using 1.0.3 or lower. For subsequent versions,
the unversioned schema is resolved from the classpath and obtained from the jar. Please refer
to github:
https://github.com/spring-projects/spring-integration/tree/master/spring-integration-core/src/
main/resources/org/springframework/integration/config
The affected modules are
•core (spring-integration.xsd)
•file
•http
•jms
•mail
•rmi
•security
•stream
•ws
•xml
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 24
Finding Class Names for Java and DSL Configuration
With XML configuration and Spring Integration Namespace support, the XML parsers hide how target
beans are declared and wired together. For Java configuration, it is important to understand the
Framework API for target end-user applications.
The first-class citizens for EIP implementation are Message, Channel, and Endpoint (see Section 5.3,
“Main Components”, earlier in this chapter). Their implementations (contracts) are:
•org.springframework.messaging.Message: See Chapter 7, Message;
•org.springframework.messaging.MessageChannel: See Section 6.1, “Message Channels”;
•org.springframework.integration.endpoint.AbstractEndpoint: See Section 6.2,
“Poller”.
The first two are simple enough to understand how to implement, configure, and use. The last one
deserves more attention
The AbstractEndpoint is widely used throughout the Spring Framework for different component
implementations. Its main implementations are:
•EventDrivenConsumer, used when we subscribe to a SubscribableChannel to listen for
messages.
•PollingConsumer, used when we poll for messages from a PollableChannel.
When you use messaging annotations or the Java DSL, you need ot worry about these
components, because the Framework automatically produces them with appropriate annotations and
BeanPostProcessor implementations. When building components manually, you should use the
ConsumerEndpointFactoryBean to help determine the target AbstractEndpoint consumer
implementation to create, based on the provided inputChannel property.
On the other hand, the ConsumerEndpointFactoryBean delegates to an another
first class citizen in the Framework: org.springframework.messaging.MessageHandler.
The goal of the implementation of this interface is to handle the message
consumed by the endpoint from the channel. All EIP components in Spring
Integration are MessageHandler implementations (for example, AggregatingMessageHandler,
MessageTransformingHandler, AbstractMessageSplitter, and others). The target protocol
outbound adapters (FileWritingMessageHandler, HttpRequestExecutingMessageHandler,
AbstractMqttMessageHandler, and others) are also MessageHandler implementations. When
you develop Spring Integration applications with Java configuration, you should look into the
Spring Integration module to find an appropriate MessageHandler implementation to use for the
@ServiceActivator\ configuration. For example, to send an XMPP message (see Chapter 39, XMPP
Support) you should configure something like the following:
@Bean
@ServiceActivator(inputChannel = "input")
public MessageHandler sendChatMessageHandler(XMPPConnection xmppConnection) {
ChatMessageSendingMessageHandler handler = new ChatMessageSendingMessageHandler(xmppConnection);
DefaultXmppHeaderMapper xmppHeaderMapper = new DefaultXmppHeaderMapper();
xmppHeaderMapper.setRequestHeaderNames("*");
handler.setHeaderMapper(xmppHeaderMapper);
return handler;
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 25
The MessageHandler implementations represent the outbound and processing part of the message
flow.
The inbound message flow side has its own components, which are divided into
polling and listening behaviors. The listening (message-driven) components are simple and
typically require only one target class implementation to be ready to produce messages.
Listening components can be one-way MessageProducerSupport implementations, (such as
AbstractMqttMessageDrivenChannelAdapter and ImapIdleChannelAdapter) or request-
reply MessagingGatewaySupport implementations (such as AmqpInboundGateway and
AbstractWebServiceInboundGateway).
Polling inbound endpoints are for those protocols that do not provide a listener API or are not intended for
such a behavior, including any file based protocol (such as FTP), any data bases (RDBMS or NoSQL),
and others.
These inbound endpoints consist of two components: the poller configuration, to initiate the polling
task periodically, and a message source class to read data from the target protocol and produce
a message for the downstream integration flow. The first class for the poller configuration is
a SourcePollingChannelAdapter. It is one more AbstractEndpoint implementation, but
especially for polling to initiate an integration flow. Typically, with the messaging annotations or Java
DSL, you should not worry about this class. The Framework produces a bean for it, based on the
@InboundChannelAdapter configuration or a Java DSL builder spec.
Message source components are more important for the target application development, and
they all implement the MessageSource interface (for example, MongoDbMessageSource and
AbstractTwitterMessageSource). With that in mind, our config for reading data from an RDBMS
table with JDBC could resemble the following:
@Bean
@InboundChannelAdapter(value = "fooChannel", poller = @Poller(fixedDelay="5000"))
public MessageSource<?> storedProc(DataSource dataSource) {
return new JdbcPollingChannelAdapter(dataSource, "SELECT * FROM foo where status = 0");
}
You can find all the required inbound and outbound classes for the target protocols in the particular
Spring Integration module (in most cases, in the respective package). For example, the spring-
integration-websocket adapters are:
•o.s.i.websocket.inbound.WebSocketInboundChannelAdapter: Implements
MessageProducerSupport to listen for frames on the socket and produce message to the channel.
•o.s.i.websocket.outbound.WebSocketOutboundMessageHandler: The one-way
AbstractMessageHandler implementation to convert incoming messages to the appropriate
frame and send over websocket.
If you are familiar with Spring Integration XML configuration, starting with version 4.3, we provide
information in the XSD element definitions about which target classes are used to declare beans for the
adapter or gateway, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 26
<xsd:element name="outbound-async-gateway">
<xsd:annotation>
<xsd:documentation>
Configures a Consumer Endpoint for the 'o.s.i.amqp.outbound.AsyncAmqpOutboundGateway'
that will publish an AMQP Message to the provided Exchange and expect a reply Message.
The sending thread returns immediately; the reply is sent asynchronously; uses
'AsyncRabbitTemplate.sendAndReceive()'.
</xsd:documentation>
</xsd:annotation>
5.8 POJO Method invocation
As discussed in Section 5.6, “Programming Considerations”, we recommend using a POJO
programming style, as the following example shows:
@ServiceActivator
public String myService(String payload) { ... }
In this case, the framework extracts a String payload, invokes your method, and wraps the result in a
message to send to the next component in the flow (the original headers are copied to the new message).
In fact, if you use XML configuration, you do not even need the @ServiceActivator annotation, as
the following paired examples show:
<int:service-activator ... ref="myPojo" method="myService" />
public String myService(String payload) { ... }
You can omit the method attribute as long as there is no ambiguity in the public methods on the class.
You can also obtain header information in your POJO methods, as the following example shows:
@ServiceActivator
public String myService(@Payload String payload, @Header("foo") String fooHeader) { ... }
You can also dereference properties on the message, as the following example shows:
@ServiceActivator
public String myService(@Payload("payload.foo") String foo, @Header("bar.baz") String barbaz) { ... }
Because various POJO method invocations are available, versions prior to 5.0 used
SpEL (Spring Expression Language) to invoke the POJO methods. SpEL (even
interpreted) is usually "fast enough" for these operations, when compared to
the actual work usually done in the methods. However, starting with version 5.0,
the org.springframework.messaging.handler.invocation.InvocableHandlerMethod is
used by default whenever possible. This technique is usually faster to execute than interpreted SpEL
and is consistent with other Spring messaging projects. The InvocableHandlerMethod is similar
to the technique used to invoke controller methods in Spring MVC. There are certain methods that
are still always invoked when using SpEL. Examples include annotated parameters with dereferenced
properties, as discussed earlier. This is because SpEL has the capability to navigate a property path.
There may be some other corner cases that we have not considered that also do not work with
InvocableHandlerMethod instances. For this reason, we automatically fall back to using SpEL in
those cases.
If you wish, you can also set up your POJO method such that it always uses SpEL, with the
UseSpelInvoker annotation, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 27
@UseSpelInvoker(compilerMode = "IMMEDIATE")
public void bar(String bar) { ... }
If the compilerMode property is omitted, the spring.expression.compiler.mode system
property determines the compiler mode. See SpEL compilation for more information about compiled
SpEL.
Part IV. Core Messaging
This section covers all aspects of the core messaging API in Spring Integration. It covers messages,
message channels, and message endpoints. It also covers many of the enterprise integration patterns,
such as filter, router, transformer, service activator , splitter, and aggregator. The section also contains
material about system management, including the control bus and message history support.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 29
6. Messaging Channels
6.1 Message Channels
While the Message plays the crucial role of encapsulating data, it is the MessageChannel that
decouples message producers from message consumers.
The MessageChannel Interface
Spring Integration’s top-level MessageChannel interface is defined as follows:
public interface MessageChannel {
boolean send(Message message);
boolean send(Message message, long timeout);
}
When sending a message, the return value is true if the message is sent successfully. If the send call
times out or is interrupted, it returns false.
PollableChannel
Since message channels may or may not buffer messages (as discussed in the Chapter 5,
Spring Integration Overview), two sub-interfaces define the buffering (pollable) and non-buffering
(subscribable) channel behavior. The following listing shows the definition of the PollableChannel
interface:
public interface PollableChannel extends MessageChannel {
Message<?> receive();
Message<?> receive(long timeout);
}
As with the send methods, when receiving a message, the return value is null in the case of a timeout
or interrupt.
SubscribableChannel
The SubscribableChannel base interface is implemented by channels that send messages directly
to their subscribed MessageHandler instances. Therefore, they do not provide receive methods for
polling. Instead, they define methods for managing those subscribers. The following listing shows the
definition of the SubscribableChannel interface:
public interface SubscribableChannel extends MessageChannel {
boolean subscribe(MessageHandler handler);
boolean unsubscribe(MessageHandler handler);
}
Message Channel Implementations
Spring Integration provides several different message channel implementations. The following sections
briefly describe each one.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 30
PublishSubscribeChannel
The PublishSubscribeChannel implementation broadcasts any Message sent to it to all of its
subscribed handlers. This is most often used for sending event messages, whose primary role
is notification (as opposed to document messages, which are generally intended to be processed
by a single handler). Note that the PublishSubscribeChannel is intended for sending only.
Since it broadcasts to its subscribers directly when its send(Message) method is invoked,
consumers cannot poll for messages (it does not implement PollableChannel and therefore has no
receive() method). Instead, any subscriber must itself be a MessageHandler, and the subscriber’s
handleMessage(Message) method is invoked in turn.
Prior to version 3.0, invoking the send method on a PublishSubscribeChannel that had
no subscribers returned false. When used in conjunction with a MessagingTemplate, a
MessageDeliveryException was thrown. Starting with version 3.0, the behavior has changed such
that a send is always considered successful if at least the minimum subscribers are present (and
successfully handle the message). This behavior can be modified by setting the minSubscribers
property, which defaults to 0.
Note
If you use a TaskExecutor, only the presence of the correct number of subscribers is used for
this determination, because the actual handling of the message is performed asynchronously.
QueueChannel
The QueueChannel implementation wraps a queue. Unlike the PublishSubscribeChannel, the
QueueChannel has point-to-point semantics. In other words, even if the channel has multiple
consumers, only one of them should receive any Message sent to that channel. It provides a default no-
argument constructor (providing an essentially unbounded capacity of Integer.MAX_VALUE) as well
as a constructor that accepts the queue capacity, as the following listing shows:
public QueueChannel(int capacity)
A channel that has not reached its capacity limit storeS messages in its internal queue, and the send()
method returns immediately, even if no receiver is ready to handle the message. If the queue has
reached capacity, the sender blocks until room is available. Alternatively, if you use the send call
that accepts a timeout, the queue blocks until either room is available or the timeout period elapses,
whichever occurs first. Similarly, a receive call returns immediately if a message is available on the
queue, but, if the queue is empty, then a receive call may block until either a message is available or
the timeout elapses. In either case, it is possible to force an immediate return regardless of the queue’s
state by passing a timeout value of 0. Note, however, that calls to the no-arg versions of send() and
receive() block indefinitely.
PriorityChannel
Whereas the QueueChannel enforces first-in-first-out (FIFO) ordering, the PriorityChannel is an
alternative implementation that allows for messages to be ordered within the channel based upon a
priority. By default, the priority is determined by the priority header within each message. However,
for custom priority determination logic, a comparator of type Comparator<Message<?>> can be
provided to the PriorityChannel constructor.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 31
RendezvousChannel
The RendezvousChannel enables a "direct-handoff" scenario, wherein a sender blocks until
another party invokes the channel’s receive() method. The other party blocks until the sender sends
the message. Internally, this implementation is quite similar to the QueueChannel, except that it
uses a SynchronousQueue (a zero-capacity implementation of BlockingQueue). This works well in
situations where the sender and receiver operate in different threads, but asynchronously dropping the
message in a queue is not appropriate. In other words, with a RendezvousChannel, the sender knows
that some receiver has accepted the message, whereas with a QueueChannel, the message would
have been stored to the internal queue and potentially never received.
Tip
Keep in mind that all of these queue-based channels are storing messages in-memory only by
default. When persistence is required, you can either provide a message-store attribute within the
queue element to reference a persistent MessageStore implementation or you can replace the
local channel with one that is backed by a persistent broker, such as a JMS-backed channel or
channel adapter. The latter option lets you take advantage of any JMS provider’s implementation
for message persistence, as discussed in Chapter 23, JMS Support. However, when buffering in
a queue is not necessary, the simplest approach is to rely upon the DirectChannel, discussed
in the next section.
The RendezvousChannel is also useful for implementing request-reply operations. The sender
can create a temporary, anonymous instance of RendezvousChannel, which it then sets as
the replyChannel header when building a Message. After sending that Message, the sender can
immediately call receive (optionally providing a timeout value) in order to block while waiting for a
reply Message. This is very similar to the implementation used internally by many of Spring Integration’s
request-reply components.
DirectChannel
The DirectChannel has point-to-point semantics but otherwise is more similar to the
PublishSubscribeChannel than any of the queue-based channel implementations described
earlier. It implements the SubscribableChannel interface instead of the PollableChannel
interface, so it dispatches messages directly to a subscriber. As a point-to-point channel, however, it
differs from the PublishSubscribeChannel in that it sends each Message to a single subscribed
MessageHandler.
In addition to being the simplest point-to-point channel option, one of its most important features is that
it enables a single thread to perform the operations on "both sides" of the channel. For example, if a
handler subscribes to a DirectChannel, then sending a Message to that channel triggers invocation of
that handler’s handleMessage(Message) method directly in the sender’s thread, before the send()
method invocation can return.
The key motivation for providing a channel implementation with this behavior is to support transactions
that must span across the channel while still benefiting from the abstraction and loose coupling that
the channel provides. If the send call is invoked within the scope of a transaction, the outcome of the
handler’s invocation (for example, updating a database record) plays a role in determining the ultimate
result of that transaction (commit or rollback).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 32
Note
Since the DirectChannel is the simplest option and does not add any additional overhead that
would be required for scheduling and managing the threads of a poller, it is the default channel type
within Spring Integration. The general idea is to define the channels for an application, consider
which of those need to provide buffering or to throttle input, and modify those to be queue-based
PollableChannels. Likewise, if a channel needs to broadcast messages, it should not be a
DirectChannel but rather a PublishSubscribeChannel. Later, we show how each of these
channels can be configured.
The DirectChannel internally delegates to a message dispatcher to invoke its subscribed message
handlers, and that dispatcher can have a load-balancing strategy exposed by load-balancer or
load-balancer-ref attributes (mutually exclusive). The load balancing strategy is used by the
message dispatcher to help determine how messages are distributed amongst message handlers
when multiple message handlers subscribe to the same channel. As a convenience, the load-
balancer attribute exposes an enumeration of values pointing to pre-existing implementations of
LoadBalancingStrategy. round-robin (load-balances across the handlers in rotation) and none
(for the cases where one wants to explicitly disable load balancing) are the only available values.
Other strategy implementations may be added in future versions. However, since version 3.0, you can
provide your own implementation of the LoadBalancingStrategy and inject it by using the load-
balancer-ref attribute, which should point to a bean that implements LoadBalancingStrategy,
as the following example shows:
<int:channel id="lbRefChannel">
<int:dispatcher load-balancer-ref="lb"/>
</int:channel>
<bean id="lb" class="foo.bar.SampleLoadBalancingStrategy"/>
Note that the load-balancer and load-balancer-ref attributes are mutually exclusive.
The load-balancing also works in conjunction with a boolean failover property. If the "failover"
value is true (the default), the dispatcher falls back to any subsequent handlers (as necessary) when
preceding handlers throw exceptions. The order is determined by an optional order value defined on
the handlers themselves or, if no such value exists, the order in which the handlers subscribed.
If a certain situation requires that the dispatcher always try to invoke the first handler and then fall back
in the same fixed order sequence every time an error occurs, no load-balancing strategy should be
provided. In other words, the dispatcher still supports the failover boolean property even when no
load-balancing is enabled. Without load-balancing, however, the invocation of handlers always begins
with the first, according to their order. For example, this approach works well when there is a clear
definition of primary, secondary, tertiary, and so on. When using the namespace support, the order
attribute on any endpoint determines the order.
Note
Keep in mind that load-balancing and failover apply only when a channel has more than one
subscribed message handler. When using the namespace support, this means that more than
one endpoint shares the same channel reference defined in the input-channel attribute.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 33
ExecutorChannel
The ExecutorChannel is a point-to-point channel that supports the same dispatcher configuration as
DirectChannel (load-balancing strategy and the failover boolean property). The key difference
between these two dispatching channel types is that the ExecutorChannel delegates to an instance
of TaskExecutor to perform the dispatch. This means that the send method typically does not block,
but it also means that the handler invocation may not occur in the sender’s thread. It therefore does not
support transactions that span the sender and receiving handler.
Caution
The sender can sometimes block. For example, when using a TaskExecutor with a rejection
policy that throttles the client (such as the ThreadPoolExecutor.CallerRunsPolicy), the
sender’s thread can execute the method any time the thread pool is at its maximum capacity and
the executor’s work queue is full. Since that situation would only occur in a non-predictable way,
you should not rely upon it for transactions.
Scoped Channel
Spring Integration 1.0 provided a ThreadLocalChannel implementation, but that has been removed
as of 2.0. Now the more general way to handle the same requirement is to add a scope attribute to a
channel. The value of the attribute can be the name of a scope that is available within the context. For
example, in a web environment, certain scopes are available, and any custom scope implementations
can be registered with the context. The following example shows a thread-local scope being applied to
a channel, including the registration of the scope itself:
<int:channel id="threadScopedChannel" scope="thread">
<int:queue />
</int:channel>
<bean class="org.springframework.beans.factory.config.CustomScopeConfigurer">
<property name="scopes">
<map>
<entry key="thread" value="org.springframework.context.support.SimpleThreadScope" />
</map>
</property>
</bean>
The channel defined in the previous example also delegates to a queue internally, but the channel is
bound to the current thread, so the contents of the queue are similarly bound. That way, the thread
that sends to the channel can later receive those same messages, but no other thread would be able
to access them. While thread-scoped channels are rarely needed, they can be useful in situations
where DirectChannel instances are being used to enforce a single thread of operation but any reply
messages should be sent to a "terminal" channel. If that terminal channel is thread-scoped, the
original sending thread can collect its replies from the terminal channel.
Now, since any channel can be scoped, you can define your own scopes in addition to thread-Local.
Channel Interceptors
One of the advantages of a messaging architecture is the ability to provide common behavior
and capture meaningful information about the messages passing through the system in a non-
invasive way. Since the Message instances are sent to and received from MessageChannel
instances, those channels provide an opportunity for intercepting the send and receive operations. The
ChannelInterceptor strategy interface, shown in the following listing, provides methods for each
of those operations:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 34
public interface ChannelInterceptor {
Message<?> preSend(Message<?> message, MessageChannel channel);
void postSend(Message<?> message, MessageChannel channel, boolean sent);
void afterSendCompletion(Message<?> message, MessageChannel channel, boolean sent, Exception ex);
boolean preReceive(MessageChannel channel);
Message<?> postReceive(Message<?> message, MessageChannel channel);
void afterReceiveCompletion(Message<?> message, MessageChannel channel, Exception ex);
}
After implementing the interface, registering the interceptor with a channel is just a matter of making
the following call:
channel.addInterceptor(someChannelInterceptor);
The methods that return a Message instance can be used for transforming the Message or can return
null to prevent further processing (of course, any of the methods can throw a RuntimeException).
Also, the preReceive method can return false to prevent the receive operation from proceeding.
Note
Keep in mind that receive() calls are only relevant for PollableChannels. In fact, the
SubscribableChannel interface does not even define a receive() method. The reason for
this is that when a Message is sent to a SubscribableChannel, it is sent directly to zero or more
subscribers, depending on the type of channel (for example, a PublishSubscribeChannel
sends to all of its subscribers). Therefore, the preReceive(...), postReceive(...), and
afterReceiveCompletion(...) interceptor methods are invoked only when the interceptor
is applied to a PollableChannel.
Spring Integration also provides an implementation of the Wire Tap pattern. It is a simple interceptor
that sends the Message to another channel without otherwise altering the existing flow. It can be very
useful for debugging and monitoring. An example is shown in the section called “Wire Tap”.
Because it is rarely necessary to implement all of the interceptor methods, the interface provides no-op
methods (methods returning void method have no code, the Message-returning methods return the
Message as-is, and the boolean method returns true).
Tip
The order of invocation for the interceptor methods depends on the type of channel. As described
earlier, the queue-based channels are the only ones where the receive method is intercepted
in the first place. Additionally, the relationship between send and receive interception depends
on the timing of the separate sender and receiver threads. For example, if a receiver is already
blocked while waiting for a message, the order could be as follows: preSend, preReceive,
postReceive, postSend. However, if a receiver polls after the sender has placed a message on
the channel and has already returned, the order would be as follows: preSend, postSend (some-
time-elapses), preReceive, postReceive. The time that elapses in such a case depends on a
number of factors and is therefore generally unpredictable (in fact, the receive may never happen).
The type of queue also plays a role (for example, rendezvous versus priority). In short, you cannot
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 35
rely on the order beyond the fact that preSend precedes postSend and preReceive precedes
postReceive.
Starting with Spring Framework 4.1 and Spring Integration 4.1, the ChannelInterceptor provides
new methods: afterSendCompletion() and afterReceiveCompletion(). They are invoked
after send()' and 'receive() calls, regardless of any exception that is raised, which allow for
resource cleanup. Note that the channel invokes these methods on the ChannelInterceptor list in
the reverse order of the initial preSend() and preReceive() calls.
Starting with version 5.1, global channel interceptors now apply to dynamically registered channels
- such as through beans that are initialized by using beanFactory.initializeBean() or
IntegrationFlowContext when using the Java DSL. Previously, interceptors were not applied when
beans were created after the application context was refreshed.
Also, starting with version 5.1, ChannelInterceptor.postReceive() is no longer called when
no message is received; it is no longer necessary to check for a null Message<?>. Previously,
the method was called. If you have an interceptor that relies on the previous behavior, implement
afterReceiveCompleted() instead, since that method is invoked, regardless of whether a message
is received or not.
MessagingTemplate
When the endpoints and their various configuration options are introduced, Spring Integration provides
a foundation for messaging components that enables non-invasive invocation of your application code
from the messaging system. However, it is sometimes necessary to invoke the messaging system from
your application code. For convenience when implementing such use cases, Spring Integration provides
a MessagingTemplate that supports a variety of operations across the message channels, including
request and reply scenarios. For example, it is possible to send a request and wait for a reply, as follows:
MessagingTemplate template = new MessagingTemplate();
Message reply = template.sendAndReceive(someChannel, new GenericMessage("test"));
In the preceding example, a temporary anonymous channel would be created internally by the template.
The sendTimeout and receiveTimeout properties may also be set on the template, and other exchange
types are also supported. The following listing shows the signatures for such methods:
public boolean send(final MessageChannel channel, final Message<?> message) { ...
}
public Message<?> sendAndReceive(final MessageChannel channel, final Message<?> request) { ...
}
public Message<?> receive(final PollableChannel<?> channel) { ...
}
Note
A less invasive approach that lets you invoke simple interfaces with payload or header
values instead of Message instances is described in the section called “Enter the
GatewayProxyFactoryBean”.
Configuring Message Channels
To create a message channel instance, you can use the <channel/> element, as follows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 36
<int:channel id="exampleChannel"/>
The default channel type is point-to-point. To create a publish-subscribe channel, use the <publish-
subscribe-channel/> element, as follows:
<int:publish-subscribe-channel id="exampleChannel"/>
When you use the <channel/> element without any sub-elements, it creates a DirectChannel
instance (a SubscribableChannel).
However, you can alternatively provide a variety of <queue/> sub-elements to create any of the pollable
channel types (as described in the section called “Message Channel Implementations”). The following
sections shows examples of each channel type.
DirectChannel Configuration
As mentioned earlier, DirectChannel is the default type. The following listing shows who to define
one in XML:
<int:channel id="directChannel"/>
A default channel has a round-robin load-balancer and also has failover enabled (see the section called
“DirectChannel” for more detail). To disable one or both of these, add a <dispatcher/> sub-
element and configure the attributes as follows:
<int:channel id="failFastChannel">
<int:dispatcher failover="false"/>
</channel>
<int:channel id="channelWithFixedOrderSequenceFailover">
<int:dispatcher load-balancer="none"/>
</int:channel>
Datatype Channel Configuration
Sometimes, a consumer can process only a particular type of payload, forcing you to ensure the payload
type of the input messages. The first thing that comes to mind may be to use a message filter. However,
all that message filter can do is filter out messages that are not compliant with the requirements of the
consumer. Another way would be to use a content-based router and route messages with non-compliant
data-types to specific transformers to enforce transformation and conversion to the required data type.
This would work, but a simpler way to accomplish the same thing is to apply the Datatype Channel
pattern. You can use separate datatype channels for each specific payload data type.
To create a datatype channel that accepts only messages that contain a certain payload type, provide
the data type’s fully-qualified class name in the channel element’s datatype attribute, as the following
example shows:
<int:channel id="numberChannel" datatype="java.lang.Number"/>
Note that the type check passes for any type that is assignable to the channel’s datatype. In other
words, the numberChannel in the preceding example would accept messages whose payload is
java.lang.Integer or java.lang.Double. Multiple types can be provided as a comma-delimited
list, as the following example shows:
<int:channel id="stringOrNumberChannel" datatype="java.lang.String,java.lang.Number"/>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 37
So the numberChannel in the preceding example accepts only messages with a data type of
java.lang.Number. But what happens if the payload of the message is not of the required type?
It depends on whether you have defined a bean named integrationConversionService that is
an instance of Spring’s Conversion Service. If not, then an Exception would be thrown immediately.
However, if you have defined an integrationConversionService bean, it is used in an attempt to
convert the message’s payload to the acceptable type.
You can even register custom converters. For example, suppose you send a message with a String
payload to the numberChannel we configured above. You might handle the message as follows:
MessageChannel inChannel = context.getBean("numberChannel", MessageChannel.class);
inChannel.send(new GenericMessage<String>("5"));
Typically this would be a perfectly legal operation. However, since we use Datatype Channel, the result
of such operation would generate an exception similar to the following:
Exception in thread "main" org.springframework.integration.MessageDeliveryException:
Channel 'numberChannel'
expected one of the following datataypes [class java.lang.Number],
but received [class java.lang.String]
…
The exception happens because we require the payload type to be a Number, but we sent a String.
So we need something to convert a String to a Number. For that, we can implement a converter
similar to the following example:
public static class StringToIntegerConverter implements Converter<String, Integer> {
public Integer convert(String source) {
return Integer.parseInt(source);
}
}
Then we can register it as a converter with the Integration Conversion Service, as the following example
shows:
<int:converter ref="strToInt"/>
<bean id="strToInt" class="org.springframework.integration.util.Demo.StringToIntegerConverter"/>
When the converter element is parsed, it creates the integrationConversionService bean if
one is not already defined. With that converter in place, the send operation would now be successful,
because the datatype channel uses that converter to convert the String payload to an Integer.
For more information regarding payload type conversion, see the section called “Payload Type
Conversion”.
Beginning with version 4.0, the integrationConversionService is invoked by the
DefaultDatatypeChannelMessageConverter, which looks up the conversion service in the
application context. To use a different conversion technique, you can specify the message-converter
attribute on the channel. This must be a reference to a MessageConverter implementation. Only the
fromMessage method is used. It provides the converter with access to the message headers (in case
the conversion might need information from the headers, such as content-type). The method can
return only the converted payload or a full Message object. If the latter, the converter must be careful
to copy all the headers from the inbound message.
Alternatively, you can declare a <bean/> of type MessageConverter with an ID of
datatypeChannelMessageConverter, and that converter is used by all channels with a datatype.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 38
QueueChannel Configuration
To create a QueueChannel, use the <queue/> sub-element. You may specify the channel’s capacity
as follows:
<int:channel id="queueChannel">
<queue capacity="25"/>
</int:channel>
Note
If you do not provide a value for the capacity attribute on this <queue/> sub-element, the resulting
queue is unbounded. To avoid issues such as running out of memory, we highly recommend that
you set an explicit value for a bounded queue.
Persistent QueueChannel Configuration
Since a QueueChannel provides the capability to buffer messages but does so in-memory only
by default, it also introduces a possibility that messages could be lost in the event of a system
failure. To mitigate this risk, a QueueChannel may be backed by a persistent implementation
of the MessageGroupStore strategy interface. For more details on MessageGroupStore and
MessageStore, see Section 12.4, “Message Store”.
Important
The capacity attribute is not allowed when the message-store attribute is used.
When a QueueChannel receives a Message, it adds the message to the message store. When a
Message is polled from a QueueChannel, it is removed from the message store.
By default, a QueueChannel stores its messages in an in-memory queue, which can lead to the lost
message scenario mentioned earlier. However, Spring Integration provides persistent stores, such as
the JdbcChannelMessageStore.
You can configure a message store for any QueueChannel by adding the message-store attribute,
as the following example shows:
<int:channel id="dbBackedChannel">
<int:queue message-store="channelStore"/>
</int:channel>
<bean id="channelStore" class="o.s.i.jdbc.store.JdbcChannelMessageStore">
<property name="dataSource" ref="dataSource"/>
<property name="channelMessageStoreQueryProvider" ref="queryProvider"/>
</bean>
The Spring Integration JDBC module also provides a schema Data Definition Language
(DDL) for a number of popular databases. These schemas are located in the
org.springframework.integration.jdbc.store.channel package of that module (spring-integration-
jdbc).
Important
One important feature is that, with any transactional persistent store (such as
JdbcChannelMessageStore), as long as the poller has a transaction configured, a message
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 39
removed from the store can be permanently removed only if the transaction completes
successfully. Otherwise the transaction rolls back, and the Message is not lost.
Many other implementations of the message store are available as the growing number of Spring
projects related to "NoSQL" data stores come to provide underlying support for these stores. You can
also provide your own implementation of the MessageGroupStore interface if you cannot find one
that meets your particular needs.
Since version 4.0, we recommend that QueueChannel instances be configured to use a
ChannelMessageStore, if possible. These are generally optimized for this use, as compared to a
general message store. If the ChannelMessageStore is a ChannelPriorityMessageStore, the
messages are received in FIFO within priority order. The notion of priority is determined by the message
store implementation. For example, the following example shows the Java configuration for the the
section called “MongoDB Channel Message Store”:
@Bean
public BasicMessageGroupStore mongoDbChannelMessageStore(MongoDbFactory mongoDbFactory) {
MongoDbChannelMessageStore store = new MongoDbChannelMessageStore(mongoDbFactory);
store.setPriorityEnabled(true);
return store;
}
@Bean
public PollableChannel priorityQueue(BasicMessageGroupStore mongoDbChannelMessageStore) {
return new PriorityChannel(new MessageGroupQueue(mongoDbChannelMessageStore, "priorityQueue"));
}
Note
Pay attention to the MessageGroupQueue class. That is a BlockingQueue implementation to
use the MessageGroupStore operations.
The same implementation with Java DSL might look like the following example:
@Bean
public IntegrationFlow priorityFlow(PriorityCapableChannelMessageStore mongoDbChannelMessageStore) {
return IntegrationFlows.from((Channels c) ->
c.priority("priorityChannel", mongoDbChannelMessageStore, "priorityGroup"))
....
.get();
}
Another option to customize the QueueChannel environment is provided by the ref attribute of the
<int:queue> sub-element or its particular constructor. This attribute supplies the reference to any
java.util.Queue implementation. For example, a Hazelcast distributed IQueue can be configured
as follows:
@Bean
public HazelcastInstance hazelcastInstance() {
return Hazelcast.newHazelcastInstance(new Config()
.setProperty("hazelcast.logging.type", "log4j"));
}
@Bean
public PollableChannel distributedQueue() {
return new QueueChannel(hazelcastInstance()
.getQueue("springIntegrationQueue"));
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 40
PublishSubscribeChannel Configuration
To create a PublishSubscribeChannel, use the <publish-subscribe-channel/> element. When
using this element, you can also specify the task-executor used for publishing messages (if none
is specified, it publishes in the sender’s thread), as follows:
<int:publish-subscribe-channel id="pubsubChannel" task-executor="someExecutor"/>
If you provide a resequencer or aggregator downstream from a PublishSubscribeChannel, you can
set the apply-sequence property on the channel to true. Doing so indicates that the channel should
set the sequence-size and sequence-number message headers as well as the correlation ID prior
to passing along the messages. For example, if there are five subscribers, the sequence-size would
be set to 5, and the messages would have sequence-number header values ranging from 1 to 5.
Along with the Executor, you can also configure an ErrorHandler. By default, the
PublishSubscribeChannel uses a MessagePublishingErrorHandler implementation to send
an error to the MessageChannel from the errorChannel header or into the global errorChannel
instance. If an Executor is not configured, the ErrorHandler is ignored and exceptions are thrown
directly to the caller’s thread.
If you provide a Resequencer or Aggregator downstream from a PublishSubscribeChannel,
you can set the apply-sequence property on the channel to true. Doing so indicates that the channel
should set the sequence-size and sequence-number message headers as well as the correlation ID
prior to passing along the messages. For example, if there are five subscribers, the sequence-size would
be set to 5, and the messages would have sequence-number header values ranging from 1 to 5.
The following example shows how to set the apply-sequence header to true:
<int:publish-subscribe-channel id="pubsubChannel" apply-sequence="true"/>
Note
The apply-sequence value is false by default so that a publish-subscribe channel can send
the exact same message instances to multiple outbound channels. Since Spring Integration
enforces immutability of the payload and header references, when the flag is set to true, the
channel creates new Message instances with the same payload reference but different header
values.
ExecutorChannel
To create an ExecutorChannel, add the <dispatcher> sub-element with a task-executor
attribute. The attribute’s value can reference any TaskExecutor within the context. For example,
doing so enables configuration of a thread pool for dispatching messages to subscribed handlers. As
mentioned earlier, doing so breaks the single-threaded execution context between sender and receiver
so that any active transaction context is not shared by the invocation of the handler (that is, the handler
may throw an Exception, but the send invocation has already returned successfully). The following
example shows how to use the dispatcher element and specify an executor in the task-executor
attribute:
<int:channel id="executorChannel">
<int:dispatcher task-executor="someExecutor"/>
</int:channel>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 41
Note
The load-balancer and failover options are also both available on the <dispatcher/> sub-
element, as described earlier in the section called “DirectChannel Configuration”. The same
defaults apply. Consequently, the channel has a round-robin load-balancing strategy with failover
enabled unless explicit configuration is provided for one or both of those attributes, as the following
example shows:
<int:channel id="executorChannelWithoutFailover">
<int:dispatcher task-executor="someExecutor" failover="false"/>
</int:channel>
PriorityChannel Configuration
To create a PriorityChannel, use the <priority-queue/> sub-element, as the following example
shows:
<int:channel id="priorityChannel">
<int:priority-queue capacity="20"/>
</int:channel>
By default, the channel consults the priority header of the message. However, you can instead
provide a custom Comparator reference. Also, note that the PriorityChannel (like the other types)
does support the datatype attribute. As with the QueueChannel, it also supports a capacity
attribute. The following example demonstrates all of these:
<int:channel id="priorityChannel" datatype="example.Widget">
<int:priority-queue comparator="widgetComparator"
capacity="10"/>
</int:channel>
Since version 4.0, the priority-channel child element supports the message-store
option (comparator and capacity are not allowed in that case). The message
store must be a PriorityCapableChannelMessageStore. Implementations of the
PriorityCapableChannelMessageStore are currently provided for Redis, JDBC, and MongoDB.
See the section called “QueueChannel Configuration” and Section 12.4, “Message Store” for more
information. You can find sample configuration in the section called “Backing Message Channels”.
RendezvousChannel Configuration
A RendezvousChannel is created when the queue sub-element is a <rendezvous-queue>. It does
not provide any additional configuration options to those described earlier, and its queue does not accept
any capacity value, since it is a zero-capacity direct handoff queue. The following example shows how
to declare a RendezvousChannel:
<int:channel id="rendezvousChannel"/>
<int:rendezvous-queue/>
</int:channel>
Scoped Channel Configuration
Any channel can be configured with a scope attribute, as the following example shows:
<int:channel id="threadLocalChannel" scope="thread"/>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 42
Channel Interceptor Configuration
Message channels may also have interceptors, as described in the section called “Channel
Interceptors”. The <interceptors/> sub-element can be added to a <channel/> (or the more
specific element types). You can provide the ref attribute to reference any Spring-managed object that
implements the ChannelInterceptor interface, as the following example shows:
<int:channel id="exampleChannel">
<int:interceptors>
<ref bean="trafficMonitoringInterceptor"/>
</int:interceptors>
</int:channel>
In general, we recommend defining the interceptor implementations in a separate location, since they
usually provide common behavior that can be reused across multiple channels.
Global Channel Interceptor Configuration
Channel interceptors provide a clean and concise way of applying cross-cutting behavior per individual
channel. If the same behavior should be applied on multiple channels, configuring the same set of
interceptors for each channel would not be the most efficient way. To avoid repeated configuration while
also enabling interceptors to apply to multiple channels, Spring Integration provides global interceptors.
Consider the following pair of examples:
<int:channel-interceptor pattern="input*, thing2*, thing1, !cat*" order="3">
<bean class="thing1.thing2SampleInterceptor"/>
</int:channel-interceptor>
<int:channel-interceptor ref="myInterceptor" pattern="input*, thing2*, thing1, !cat*" order="3"/>
<bean id="myInterceptor" class="thing1.thing2SampleInterceptor"/>
Each <channel-interceptor/> element lets you define a global interceptor, which is applied on all
channels that match any patterns defined by the pattern attribute. In the preceding case, the global
interceptor is applied on the thing1 channel and all other channels that begin with thing2 or input but
not to channels starting with thing3 (since version 5.0).
Warning
The addition of this syntax to the pattern causes one possible (though perhaps unlikely) problem.
If you have a bean named !thing1 and you included a pattern of !thing1 in your channel
interceptor’s pattern patterns, it no longer matches. The pattern now matches all beans not
named thing1. In this case, you can escape the ! in the pattern with \. The pattern \!thing1
matches a bean named !thing1.
The order attribute lets you manage where this interceptor is injected when there are multiple
interceptors on a given channel. For example, channel inputChannel could have individual interceptors
configured locally (see below), as the following example shows:
<int:channel id="inputChannel">
<int:interceptors>
<int:wire-tap channel="logger"/>
</int:interceptors>
</int:channel>
A reasonable question is "how is a global interceptor injected in relation to
other interceptors configured locally or through other global interceptor
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 43
definitions?" The current implementation provides a simple mechanism for defining the order of
interceptor execution. A positive number in the order attribute ensures interceptor injection after any
existing interceptors, while a negative number ensures that the interceptor is injected before existing
interceptors. This means that, in the preceding example, the global interceptor is injected after (since
its order is greater than 0) the wire-tap interceptor configured locally. If there were another global
interceptor with a matching pattern, its order would be determined by comparing the values of both
interceptors' order attributes. To inject a global interceptor before the existing interceptors, use a
negative value for the order attribute.
Note
Note that both the order and pattern attributes are optional. The default value for order will
be 0 and for pattern, the default is * (to match all channels).
Starting with version 4.3.15, you can configure the
spring.integration.postProcessDynamicBeans = true property to apply any global
interceptors to dynamically created MessageChannel beans. See Section E.4, “Global Properties” for
more information.
Wire Tap
As mentioned earlier, Spring Integration provides a simple wire tap interceptor. You can configure a wire
tap on any channel within an <interceptors/> element. Doing so is especially useful for debugging
and can be used in conjunction with Spring Integration’s logging channel adapter as follows:
<int:channel id="in">
<int:interceptors>
<int:wire-tap channel="logger"/>
</int:interceptors>
</int:channel>
<int:logging-channel-adapter id="logger" level="DEBUG"/>
Tip
The logging-channel-adapter also accepts an expression attribute so that you can evaluate a
SpEL expression against the payload and headers variables. Alternatively, to log the full message
toString() result, provide a value of true for the log-full-message attribute. By default, it
is false so that only the payload is logged. Setting it to true enables logging of all headers
in addition to the payload. The expression option provides the most flexibility (for example,
expression="payload.user.name").
One of the common misconceptions about the wire tap and other similar components (Section B.1,
“Message Publishing Configuration”) is that they are automatically asynchronous in nature. By default,
wire tap as a component is not invoked asynchronously. Instead, Spring Integration focuses on a single
unified approach to configuring asynchronous behavior: the message channel. What makes certain
parts of the message flow synchronous or asynchronous is the type of Message Channel that has been
configured within that flow. That is one of the primary benefits of the message channel abstraction. From
the inception of the framework, we have always emphasized the need and the value of the message
channel as a first-class citizen of the framework. It is not just an internal, implicit realization of the EIP
pattern. It is fully exposed as a configurable component to the end user. So, the wire tap component is
only responsible for performing the following tasks:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 44
• Intercept a message flow by tapping into a channel (for example, channelA)
• Grab each message
• Send the message to another channel (for example, channelB)
It is essentially a variation of the bridge pattern, but it is encapsulated within a channel definition (and
hence easier to enable and disable without disrupting a flow). Also, unlike the bridge, it basically forks
another message flow. Is that flow synchronous or asynchronous? The answer depends on the type of
message channel that channelB is. We have the following options: direct channel, pollable channel, and
executor channel. The last two break the thread boundary, making communication over such channels
asynchronous, because the dispatching of the message from that channel to its subscribed handlers
happens on a different thread than the one used to send the message to that channel. That is what is
going to make your wire-tap flow synchronous or asynchronous. It is consistent with other components
within the framework (such as message publisher) and adds a level of consistency and simplicity by
sparing you from worrying in advance (other than writing thread-safe code) about whether a particular
piece of code should be implemented as synchronous or asynchronous. The actual wiring of two pieces
of code (say, component A and component B) over a message channel is what makes their collaboration
synchronous or asynchronous. You may even want to change from synchronous to asynchronous in
the future, and message channel lets you to do it swiftly without ever touching the code.
One final point regarding the wire tap is that, despite the rationale provided above for not being
asynchronous by default, you should keep in mind that it is usually desirable to hand off the message
as soon as possible. Therefore, it would be quite common to use an asynchronous channel option as
the wire tap’s outbound channel. However we doe not enforce asynchronous behavior by default. There
are a number of use cases that would break if we did, including that you might not want to break a
transactional boundary. Perhaps you use the wire tap pattern for auditing purposes, and you do want
the audit messages to be sent within the original transaction. As an example, you might connect the
wire tap to a JMS outbound channel adapter. That way, you get the best of both worlds: 1) the sending
of a JMS Message can occur within the transaction while 2) it is still a "fire-and-forget" action,
thereby preventing any noticeable delay in the main message flow.
Important
Starting with version 4.0, it is important to avoid circular references when an interceptor
(such as the WireTap class) references a channel. You need to exclude such channels
from those being intercepted by the current interceptor. This can be done with appropriate
patterns or programmatically. If you have a custom ChannelInterceptor that references a
channel, consider implementing VetoCapableInterceptor. That way, the framework asks
the interceptor if it is OK to intercept each channel that is a candidate, based on the supplied
pattern. You can also add runtime protection in the interceptor methods to ensure that the channel
is not one that is referenced by the interceptor. The WireTap uses both of these techniques.
Starting with version 4.3, the WireTap has additional constructors that take a channelName instead
of a MessageChannel instance. This can be convenient for Java configuration and when channel
auto-creation logic is being used. The target MessageChannel bean is resolved from the provided
channelName later, on the first interaction with the interceptor.
Important
Channel resolution requires a BeanFactory, so the wire tap instance must be a Spring-managed
bean.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 45
This late-binding approach also allows simplification of typical wire-tapping patterns with Java DSL
configuration, as the following example shows:
@Bean
public PollableChannel myChannel() {
return MessageChannels.queue()
.wireTap("loggingFlow.input")
.get();
}
@Bean
public IntegrationFlow loggingFlow() {
return f -> f.log();
}
Conditional Wire Taps
Wire taps can be made conditional by using the selector or selector-expression attributes.
The selector references a MessageSelector bean, which can determine at runtime whether the
message should go to the tap channel. Similarly, the selector-expression is a boolean SpEL
expression that performs the same purpose: If the expression evaluates to true, the message is sent
to the tap channel.
Global Wire Tap Configuration
It is possible to configure a global wire tap as a special case of the the section called “Global Channel
Interceptor Configuration”. To do so, configure a top level wire-tap element. Now, in addition to the
normal wire-tap namespace support, the pattern and order attributes are supported and work in
exactly the same way as they do for the channel-interceptor. The following examlpe shows how
to configure a global wire tap:
<int:wire-tap pattern="input*, thing2*, thing1" order="3" channel="wiretapChannel"/>
Tip
A global wire tap provides a convenient way to configure a single-channel wire tap externally
without modifying the existing channel configuration. To do so, set the pattern attribute to the
target channel name. For example, you can use this technique to configure a test case to verify
messages on a channel.
Special Channels
If namespace support is enabled, two special channels are defined within the application context
by default: errorChannel and nullChannel. The nullChannel acts like /dev/null, logging any
message sent to it at the DEBUG level and returning immediately. Any time you face channel resolution
errors for a reply that you do not care about, you can set the affected component’s output-channel
attribute to nullChannel (the name, nullChannel, is reserved within the application context). The
errorChannel is used internally for sending error messages and may be overridden with a custom
configuration. This is discussed in greater detail in Section E.3, “Error Handling”.
See also Section 11.2, “Message Channels” in the Java DSL chapter for more information about
message channel and interceptors.
6.2 Poller
This section describes how polling works in Spring Integration.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 46
Polling Consumer
When Message Endpoints (Channel Adapters) are connected to channels and instantiated, they
produce one of the following instances:
•PollingConsumer
•EventDrivenConsumer
The actual implementation depends on the type of channel to which these
endpoints connect. A channel adapter connected to a channel that implements the
org.springframework.messaging.SubscribableChannel interface produces an instance of
EventDrivenConsumer. On the other hand, a channel adapter connected to a channel that
implements the org.springframework.messaging.PollableChannel interface (such as a
QueueChannel) produces an instance of PollingConsumer.
Polling consumers let Spring Integration components actively poll for Messages rather than process
messages in an event-driven manner.
They represent a critical cross-cutting concern in many messaging scenarios. In Spring Integration,
polling consumers are based on the pattern with the same name, which is described in the book
Enterprise Integration Patterns, by Gregor Hohpe and Bobby Woolf. You can find a description of the
pattern on the book’s website.
Pollable Message Source
Spring Integration offers a second variation of the polling consumer pattern. When inbound channel
adapters are used, these adapters are often wrapped by a SourcePollingChannelAdapter. For
example, when retrieving messages from a remote FTP Server location, the adapter described in
Section 18.4, “FTP Inbound Channel Adapter” is configured with a poller to periodically retrieve
messages. So, when components are configured with pollers, the resulting instances are of one of the
following types:
•PollingConsumer
•SourcePollingChannelAdapter
This means that pollers are used in both inbound and outbound messaging scenarios. Here are some
use cases in which pollers are used:
• Polling certain external systems, such as FTP Servers, Databases, and Web Services
• Polling internal (pollable) message channels
• Polling internal services (such as repeatedly executing methods on a Java class)
Note
AOP advice classes can be applied to pollers, in an advice-chain, such as a transaction
advice to start a transaction. Starting with version 4.1, a PollSkipAdvice is provided. Pollers
use triggers to determine the time of the next poll. The PollSkipAdvice can be used to
suppress (skip) a poll, perhaps because there is some downstream condition that would prevent
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 47
the message being processed. To use this advice, you have to provide it with an implementation of
a PollSkipStrategy. Starting with version 4.2.5, a SimplePollSkipStrategy is provided.
To use it, you can add an instance as a bean to the application context, inject it into a
PollSkipAdvice, and add that to the poller’s advice chain. To skip polling, call skipPolls().
To resume polling, call reset(). Version 4.2 added more flexibility in this area. See the section
called “Conditional Pollers for Message Sources”.
This chapter is meant to only give a high-level overview of polling consumers and how they fit into
the concept of message channels (see Section 6.1, “Message Channels”) and channel adapters (see
Section 6.3, “Channel Adapter”). For more information regarding messaging endpoints in general and
polling consumers in particular, see Section 10.1, “Message Endpoints”.
Deferred Acknowledgment Pollable Message Source
Starting with version 5.0.1, certain modules provide MessageSource implementations that support
deferring acknowledgment until the downstream flow completes (or hands off the message to another
thread). This is currently limited to the AmqpMessageSource and the KafkaMessageSource provided
by the spring-kafka-integration extension project, version 3.0.1 or higher.
With these message sources, the
IntegrationMessageHeaderAccessor.ACKNOWLEDGMENT_CALLBACK header (see the section
called “MessageHeaderAccessor API”) is added to the message. The value of the header is an
instance of AcknowledgmentCallback, as the following example shows:
@FunctionalInterface
public interface AcknowledgmentCallback {
void acknlowledge(Status status);
boolean isAcknowledged();
void noAutoAck();
default boolean isAutoAck();
enum Status {
/**
* Mark the message as accepted.
*/
ACCEPT,
/**
* Mark the message as rejected.
*/
REJECT,
/**
* Reject the message and requeue so that it will be redelivered.
*/
REQUEUE
}
}
Not all message sources (for example, Kafka) support the REJECT status. It is treated the same as
ACCEPT.
Applications can acknowledge a message at any time, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 48
Message<?> received = source.receive();
...
StaticMessageHeaderAccessor.getAcknowledgmentCallback(received)
.acknowledge(Status.ACCEPT);
If the MessageSource is wired into a SourcePollingChannelAdapter, when the poller
thread returns to the adapter after the downstream flow completes, the adapter checks
whether the acknowledgment has already been acknowledged and, if not, sets its status to
ACCEPT it (or REJECT if the flow throws an exception). The status values are defined in the
AcknowledgmentCallback.Status enumeration.
Spring Integration provides MessageSourcePollingTemplate to perform ad-hoc polling
of a MessageSource. This, too, takes care of setting ACCEPT or REJECT on the
AcknowledgmentCallback when the MessageHandler callback returns (or throws an exception).
The following example shows how to poll with the MessageSourcePollingTemplate:
MessageSourcePollingTemplate template =
new MessageSourcePollingTemplate(this.source);
template.poll(h -> {
...
});
In both cases (SourcePollingChannelAdapter and MessageSourcePollingTemplate), you
can disable auto ack/nack by calling noAutoAck() on the callback. You might do this if you hand off
the message to another thread and wish to acknowledge later. Not all implementations support this (for
example, Apache Kafka does not, because the offset commit has to be performed on the same thread).
Conditional Pollers for Message Sources
This section covers how to use conditional pollers.
Background
Advice objects, in an advice-chain on a poller, advise the whole polling task (both message
retrieval and processing). These "around advice" methods do not have access to any context for the
poll — only the poll itself. This is fine for requirements such as making a task transactional or skipping a
poll due to some external condition, as discussed earlier. What if we wish to take some action depending
on the result of the receive part of the poll or if we want to adjust the poller depending on conditions?
For those instances, Spring Integration offers "Smart" Polling.
"Smart" Polling
Version 4.2 introduced the AbstractMessageSourceAdvice. Any Advice objects in the advice-
chain that subclass this class are applied only to the receive operation. Such classes implement the
following methods:
•beforeReceive(MessageSource<?> source) This method is called before the
MessageSource.receive() method. It lets you examine and reconfigure the source. Returning
false cancels this poll (similar to the PollSkipAdvice mentioned earlier).
•Message<?> afterReceive(Message<?> result, MessageSource<?> source) This
method is called after the receive() method. Again, you can reconfigure the source or take any
action (perhaps depending on the result, which can be null if there was no message created by the
source). You can even return a different message
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 49
Thread safety
If an advice mutates the MessageSource, you should not configure the poller with a
TaskExecutor. If an advice mutates the source, such mutations are not thread safe and could
cause unexpected results, especially with high frequency pollers. If you need to process poll
results concurrently, consider using a downstream ExecutorChannel instead of adding an
executor to the poller.
Advice Chain Ordering
You should understand how the advice chain is processed during initialization. Advice objects
that do not extend AbstractMessageSourceAdvice are applied to the whole poll process
and are all invoked first, in order, before any AbstractMessageSourceAdvice. Then
AbstractMessageSourceAdvice objects are invoked in order around the MessageSource
receive() method. If you have, for example, Advice objects a, b, c, d, where b and d
are AbstractMessageSourceAdvice, the objects are applied in the following order: a, c,
b, d. Also, if a MessageSource is already a Proxy, the AbstractMessageSourceAdvice
is invoked after any existing Advice objects. If you wish to change the order, you must wire up
the proxy yourself.
SimpleActiveIdleMessageSourceAdvice
This advice is a simple implementation of AbstractMessageSourceAdvice. When used in
conjunction with a DynamicPeriodicTrigger, it adjusts the polling frequency, depending on whether
or not the previous poll resulted in a message or not. The poller must also have a reference to the same
DynamicPeriodicTrigger.
Important: Async Handoff
SimpleActiveIdleMessageSourceAdvice modifies the trigger based on the receive()
result. This works only if the advice is called on the poller thread. It does not work if the poller has
a task-executor. To use this advice where you wish to use async operations after the result
of a poll, do the async handoff later, perhaps by using an ExecutorChannel.
CompoundTriggerAdvice
This advice allows the selection of one of two triggers based on whether a poll returns a message or not.
Consider a poller that uses a CronTrigger. CronTrigger instances are immutable, so they cannot
be altered once constructed. Consider a use case where we want to use a cron expression to trigger
a poll once each hour but, if no message is received, poll once per minute and, when a message is
retrieved, revert to using the cron expression.
The advice (and poller) use a CompoundTrigger for this purpose. The trigger’s primary trigger can
be a CronTrigger. When the advice detects that no message is received, it adds the secondary trigger
to the CompoundTrigger. When the CompoundTrigger instance’s nextExecutionTime method
is invoked, it delegates to the secondary trigger, if present. Otherwise, it delegates to the primary trigger.
The poller must also have a reference to the same CompoundTrigger.
The following example shows the configuration for the hourly cron expression with a fallback to every
minute:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 50
<int:inbound-channel-adapter channel="nullChannel" auto-startup="false">
<bean class="org.springframework.integration.endpoint.PollerAdviceTests.Source" />
<int:poller trigger="compoundTrigger">
<int:advice-chain>
<bean class="org.springframework.integration.aop.CompoundTriggerAdvice">
<constructor-arg ref="compoundTrigger"/>
<constructor-arg ref="secondary"/>
</bean>
</int:advice-chain>
</int:poller>
</int:inbound-channel-adapter>
<bean id="compoundTrigger" class="org.springframework.integration.util.CompoundTrigger">
<constructor-arg ref="primary" />
</bean>
<bean id="primary" class="org.springframework.scheduling.support.CronTrigger">
<constructor-arg value="0 0 * * * *" /> <!-- top of every hour -->
</bean>
<bean id="secondary" class="org.springframework.scheduling.support.PeriodicTrigger">
<constructor-arg value="60000" />
</bean>
Important: Async Handoff
CompoundTriggerAdvice modifies the trigger based on the receive() result. This works only
if the advice is called on the poller thread. It does not work if the poller has a task-executor.
To use this advice where you wish to use async operations after the result of a poll, do the async
handoff later, perhaps by using an ExecutorChannel.
6.3 Channel Adapter
A channel adapter is a message endpoint that enables connecting a single sender or receiver to a
message channel. Spring Integration provides a number of adapters to support various transports,
such as JMS, file, HTTP, web services, mail, and more. Upcoming chapters of this reference guide
discuss each adapter. However, this chapter focuses on the simple but flexible method-invoking channel
adapter support. There are both inbound and outbound adapters, and each may be configured with XML
elements provided in the core namespace. These provide an easy way to extend Spring Integration, as
long as you have a method that can be invoked as either a source or a destination.
Configuring An Inbound Channel Adapter
An inbound-channel-adapter element can invoke any method on a Spring-managed object and
send a non-null return value to a MessageChannel after converting the method’s output to a Message.
When the adapter’s subscription is activated, a poller tries to receive messages from the source. The
poller is scheduled with the TaskScheduler according to the provided configuration. To configure the
polling interval or cron expression for an individual channel adapter, you can provide a poller element
with one of the scheduling attributes, such as fixed-rate or cron. The following example defines two
inbound-channel-adapter instances:
<int:inbound-channel-adapter ref="source1" method="method1" channel="channel1">
<int:poller fixed-rate="5000"/>
</int:inbound-channel-adapter>
<int:inbound-channel-adapter ref="source2" method="method2" channel="channel2">
<int:poller cron="30 * 9-17 * * MON-FRI"/>
</int:channel-adapter>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 51
See also the section called “Channel Adapter Expressions and Scripts”.
Note
If no poller is provided, then a single default poller must be registered within the context. See the
section called “Endpoint Namespace Support” for more detail.
Important: Poller Configuration
Some inbound-channel-adapter types are backed by a
SourcePollingChannelAdapter, which means they contain a poller configuration that polls
the MessageSource (to invoke a custom method that produces the value that becomes a
Message payload) based on the configuration specified in the Poller. The following example
shows the configuration of two pollers:
<int:poller max-messages-per-poll="1" fixed-rate="1000"/>
<int:poller max-messages-per-poll="10" fixed-rate="1000"/>
In the the first configuration, the polling task is invoked once per poll, and, during each task (poll),
the method (which results in the production of the message) is invoked once, based on the max-
messages-per-poll attribute value. In the second configuration, the polling task is invoked 10
times per poll or until it returns null, thus possibly producing ten messages per poll while each
poll happens at one-second intervals. However, what happens if the configuration looks like the
following example:
<int:poller fixed-rate="1000"/>
Note that there is no max-messages-per-poll specified. As we cover later, the identical poller
configuration in the PollingConsumer (for example, service-activator, filter, router, and others)
would have a default value of -1 for max-messages-per-poll, which means "execute the
polling task non-stop unless the polling method returns null (perhaps
because there are no more messages in the `QueueChannel)`" and then sleep
for one second.
However, in the SourcePollingChannelAdapter, it is a bit different. The default value for
max-messages-per-poll is 1, unless you explicitly set it to a negative value (such as -1).
This makes sure that the poller can react to lifecycle events (such as start and stop) and prevents
it from potentially spinning in an infinite loop if the implementation of the custom method of the
MessageSource has a potential to never return null and happens to be non-interruptible.
However, if you are sure that your method can return null and you need to poll for as many sources
as available per each poll, you should explicitly set max-messages-per-poll to a negative
value, as the following example shows:
<int:poller max-messages-per-poll="-1" fixed-rate="1000"/>
Configuring An Outbound Channel Adapter
An outbound-channel-adapter element can also connect a MessageChannel to any POJO
consumer method that should be invoked with the payload of messages sent to that channel. The
following example shows how to define an outbound channel adapter:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 52
<int:outbound-channel-adapter channel="channel1" ref="target" method="handle"/>
<beans:bean id="target" class="org.MyPojo"/>
If the channel being adapted is a PollableChannel, you must provide a poller sub-element, as the
following example shows:
<int:outbound-channel-adapter channel="channel2" ref="target" method="handle">
<int:poller fixed-rate="3000" />
</int:outbound-channel-adapter>
<beans:bean id="target" class="org.MyPojo"/>
You should use a ref attribute if the POJO consumer implementation can be reused in other
<outbound-channel-adapter> definitions. However, if the consumer implementation is referenced
by only a single definition of the <outbound-channel-adapter>, you can define it as an inner bean,
as the following example shows:
<int:outbound-channel-adapter channel="channel" method="handle">
<beans:bean class="org.Foo"/>
</int:outbound-channel-adapter>
Note
Using both the ref attribute and an inner handler definition in the same <outbound-channel-
adapter> configuration is not allowed, as it creates an ambiguous condition. Such a configuration
results in an exception being thrown.
Any channel adapter can be created without a channel reference, in which case it implicitly creates an
instance of DirectChannel. The created channel’s name matches the id attribute of the <inbound-
channel-adapter> or <outbound-channel-adapter> element. Therefore, if channel is not
provided, id is required.
Channel Adapter Expressions and Scripts
Like many other Spring Integration components, the <inbound-channel-adapter> and
<outbound-channel-adapter> also provide support for SpEL expression evaluation. To use SpEL,
provide the expression string in the expression attribute instead of providing the ref and method
attributes that are used for method-invocation on a bean. When an expression is evaluated, it follows the
same contract as method-invocation where: the expression for an <inbound-channel-adapter>
generates a message any time the evaluation result is a non-null value, while the expression for an
<outbound-channel-adapter> must be the equivalent of a void-returning method invocation.
Starting with Spring Integration 3.0, an <int:inbound-channel-adapter/> can also be configured
with a SpEL <expression/> (or even with a <script/>) sub-element, for when more sophistication
is required than can be achieved with the simple expression attribute. If you provide a script as a
Resource by using the location attribute, you can also set refresh-check-delay, which allows
the resource to be periodically refreshed. If you want the script to be checked on each poll, you would
need to coordinate this setting with the poller’s trigger, as the following example shows:
<int:inbound-channel-adapter ref="source1" method="method1" channel="channel1">
<int:poller max-messages-per-poll="1" fixed-delay="5000"/>
<script:script lang="ruby" location="Foo.rb" refresh-check-delay="5000"/>
</int:inbound-channel-adapter>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 53
See also the cacheSeconds property on the ReloadableResourceBundleExpressionSource
when using the <expression/> sub-element. For more information regarding expressions, see
Appendix A, Spring Expression Language (SpEL). For scripts, see Section 10.8, “Groovy support” and
Section 10.7, “Scripting Support”.
Important
The <int:inbound-channel-adapter/> is endpoint starts a message flow by periodically
triggering to poll some underlying MessageSource. Since, at the time of polling, there is no
message object, expressions and scripts do not have access to a root Message, so there are no
payload or headers properties that are available in most other messaging SpEL expressions. The
script can generate and return a complete Message object with headers and payload or only a
payload, which is added to a message with basic headers.
6.4 Messaging Bridge
A messaging bridge is a relatively trivial endpoint that connects two message channels or channel
adapters. For example, you may want to connect a PollableChannel to a SubscribableChannel
so that the subscribing endpoints do not have to worry about any polling configuration. Instead, the
messaging bridge provides the polling configuration.
By providing an intermediary poller between two channels, you can use a messaging bridge to throttle
inbound messages. The poller’s trigger determines the rate at which messages arrive on the second
channel, and the poller’s maxMessagesPerPoll property enforces a limit on the throughput.
Another valid use for a messaging bridge is to connect two different systems. In such a scenario, Spring
Integration’s role is limited to making the connection between these systems and managing a poller,
if necessary. It is probably more common to have at least a transformer between the two systems, to
translate between their formats. In that case, the channels can be provided as the input-channel and
output-channel of a transformer endpoint. If data format translation is not required, the messaging bridge
may indeed be sufficient.
Configuring a Bridge with XML
You can use the <bridge> element is used to create a messaging bridge between two message
channels or channel adapters. To do so, provide the input-channel and output-channel
attributes, as the following example shows:
<int:bridge input-channel="input" output-channel="output"/>
As mentioned above, a common use case for the messaging bridge is to connect a PollableChannel
to a SubscribableChannel. When performing this role, the messaging bridge may also serve as a
throttler:
<int:bridge input-channel="pollable" output-channel="subscribable">
<int:poller max-messages-per-poll="10" fixed-rate="5000"/>
</int:bridge>
You can use a similar mechanism to connecting channel adapters. The following example shows a
simple "echo" between the stdin and stdout adapters from Spring Integration’s stream namespace:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 54
<int-stream:stdin-channel-adapter id="stdin"/>
<int-stream:stdout-channel-adapter id="stdout"/>
<int:bridge id="echo" input-channel="stdin" output-channel="stdout"/>
Similar configurations work for other (potentially more useful) Channel Adapter bridges, such as file-to-
JMS or mail-to-file. Upcoming chapters cover the various channel adapters.
Note
If no output-channel is defined on a bridge, the reply channel provided by the inbound message
is used, if available. If neither an output nor a reply channel is available, an exception is thrown.
Configuring a Bridge with Java Configuration
The following example shows how to configure a bridge in Java by using the @BridgeFrom annotation:
@Bean
public PollableChannel polled() {
return new QueueChannel();
}
@Bean
@BridgeFrom(value = "polled", poller = @Poller(fixedDelay = "5000", maxMessagesPerPoll = "10"))
public SubscribableChannel direct() {
return new DirectChannel();
}
The following example shows how to configure a bridge in Java by using the @BridgeTo annotation:
@Bean
@BridgeTo(value = "direct", poller = @Poller(fixedDelay = "5000", maxMessagesPerPoll = "10"))
public PollableChannel polled() {
return new QueueChannel();
}
@Bean
public SubscribableChannel direct() {
return new DirectChannel();
}
Alternately, you can use a BridgeHandler, as the following example shows:
@Bean
@ServiceActivator(inputChannel = "polled",
poller = @Poller(fixedRate = "5000", maxMessagesPerPoll = "10"))
public BridgeHandler bridge() {
BridgeHandler bridge = new BridgeHandler();
bridge.setOutputChannelName("direct");
return bridge;
}
Configuring a Bridge with the Java DSL
You can use the Java Domain Specific Language (DSL) to configure a bridge, as the following example
shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 55
@Bean
public IntegrationFlow bridgeFlow() {
return IntegrationFlows.from("polled")
.bridge(e -> e.poller(Pollers.fixedDelay(5000).maxMessagesPerPoll(10)))
.channel("direct")
.get();
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 56
7. Message
The Spring Integration Message is a generic container for data. Any object can be provided as the
payload, and each Message instance includes headers containing user-extensible properties as key-
value pairs.
7.1 The Message Interface
The following listing shows the definition of the Message interface:
public interface Message<T> {
T getPayload();
MessageHeaders getHeaders();
}
The Message interface is a core part of the API. By encapsulating the data in a generic wrapper, the
messaging system can pass it around without any knowledge of the data’s type. As an application
evolves to support new types or when the types themselves are modified or extended, the messaging
system is not affected. On the other hand, when some component in the messaging system does require
access to information about the Message, such metadata can typically be stored to and retrieved from
the metadata in the message headers.
7.2 Message Headers
Just as Spring Integration lets any Object be used as the payload of a Message, it also
supports any Object types as header values. In fact, the MessageHeaders class implements the
java.util.Map_ interface, as the following class definition shows:
public final class MessageHeaders implements Map<String, Object>, Serializable {
...
}
Note
Even though the MessageHeaders class implements Map, it is effectively a read-
only implementation. Any attempt to put a value in the Map results in an
UnsupportedOperationException. The same applies for remove and clear. Since
messages may be passed to multiple consumers, the structure of the Map cannot be modified.
Likewise, the message’s payload Object can not be set after the initial creation. However, the
mutability of the header values themselves (or the payload Object) is intentionally left as a decision
for the framework user.
As an implementation of Map, the headers can be retrieved by calling get(..) with the name of the
header. Alternatively, you can provide the expected Class as an additional parameter. Even better,
when retrieving one of the pre-defined values, convenient getters are available. The following example
shows each of these three options:
Object someValue = message.getHeaders().get("someKey");
CustomerId customerId = message.getHeaders().get("customerId", CustomerId.class);
Long timestamp = message.getHeaders().getTimestamp();
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 57
The following table describes the pre-defined message headers:
Table 7.1. Pre-defined Message Headers
Header Name Header Type Usage
MessageHeaders.ID java.util.UUID An identifier for this message instance. Changes each
time a message is mutated.
MessageHeaders.
TIMESTAMP
java.lang.Long The time the message was created. Changes each
time a message is mutated.
MessageHeaders.
REPLY_CHANNEL
java.lang.Object
(String or
MessageChannel)
A channel to which a reply (if any) is sent when
no explicit output channel is configured and there
is no ROUTING_SLIP or the ROUTING_SLIP
is exhausted. If the value is a String, it must
represent a bean name or have been generated by a
ChannelRegistry.
MessageHeaders.
ERROR_CHANNEL
java.lang.Object
(String or
MessageChannel)
A channel to which errors are sent. If the value is a
String, it must represent a bean name or have been
generated by a ChannelRegistry.
Many inbound and outbound adapter implementations also provide or expect certain headers, and you
can configure additional user-defined headers. Constants for these headers can be found in those
modules where such headers exist — for example. AmqpHeaders, JmsHeaders, and so on.
MessageHeaderAccessor API
Starting with Spring Framework 4.0 and Spring Integration 4.0, the core messaging abstraction
has been moved to the spring-messaging module, and the MessageHeaderAccessor
API has been introduced to provide additional abstraction over messaging implementations.
All (core) Spring Integration-specific message headers constants are now declared in the
IntegrationMessageHeaderAccessor class. The following table describes the pre-defined
message headers:
Table 7.2. Pre-defined Message Headers
Header Name Header Type Usage
IntegrationMessageHeaderAccessor.
CORRELATION_ID
java.lang.Object Used to correlate two or more
messages.
IntegrationMessageHeaderAccessor.
SEQUENCE_NUMBER
java.lang.Integer Usually a sequence number
with a group of messages with a
SEQUENCE_SIZE but can also be
used in a <resequencer/> to
resequence an unbounded group of
messages.
IntegrationMessageHeaderAccessor.
SEQUENCE_SIZE
java.lang.Integer The number of messages within a
group of correlated messages.
IntegrationMessageHeaderAccessor.
EXPIRATION_DATE
java.lang.Long Indicates when a message is
expired. Not used by the framework
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 58
Header Name Header Type Usage
directly but can be set with a
header enricher and used in a
<filter/> that is configured with
an UnexpiredMessageSelector.
IntegrationMessageHeaderAccessor.
PRIORITY
java.lang.Integer Message priority — for example,
within a PriorityChannel.
IntegrationMessageHeaderAccessor.
DUPLICATE_MESSAGE
java.lang.Boolean True if a message was detected as a
duplicate by an idempotent receiver
interceptor. See the section called
“Idempotent Receiver Enterprise
Integration Pattern”.
IntegrationMessageHeaderAccessor.
CLOSEABLE_RESOURCE
java.io.Closeable This header is present if the
message is associated with a
Closeable that should be closed
when message processing is
complete. An example is the
Session associated with a
streamed file transfer using FTP,
SFTP, and so on.
IntegrationMessageHeaderAccessor.
DELIVERY_ATTEMPT
java.lang.
AtomicInteger
If a message-driven channel adapter
supports the configuration of a
RetryTemplate, this header
contains the current delivery attempt.
IntegrationMessageHeaderAccessor.
ACKNOWLEDGMENT_CALLBACK
o.s.i.support.
Acknowledgment
Callback
If a message source supports it,
a call back to accept, reject, or
requeue a message. See the section
called “Deferred Acknowledgment
Pollable Message Source”.
Convenient typed getters for some of these headers are provided on the
IntegrationMessageHeaderAccessor class, as the following example shows:
IntegrationMessageHeaderAccessor accessor = new IntegrationMessageHeaderAccessor(message);
int sequenceNumber = accessor.getSequenceNumber();
Object correlationId = accessor.getCorrelationId();
...
The following table describes headers that also appear in the
IntegrationMessageHeaderAccessor but are generally not used by user code (that is, they are
generally used by internal parts of Spring Integration — their inclusion here is for completeness):
Table 7.3. Pre-defined Message Headers
Header Name Header Type Usage
`IntegrationMessageHeaderAccessor.
SEQUENCE_DETAILS`
`java.util.`
`List<List<Object>>`
A stack of correlation data used
when nested correlation is needed
(for example, splitter->...-
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 59
Header Name Header Type Usage
>splitter->...->aggregator-
>...->aggregator).
`IntegrationMessageHeaderAccessor.
ROUTING_SLIP`
`java.util.`
`Map<List<Object>,
Integer>`
See the section called “Routing Slip”.
Message ID Generation
When a message transitions through an application, each time it is mutated (for example, by a
transformer) a new message ID is assigned. The message ID is a UUID. Beginning with Spring
Integration 3.0, the default strategy used for IS generation is more efficient than the previous
java.util.UUID.randomUUID() implementation. It uses simple random numbers based on a
secure random seed instead of creating a secure random number each time.
A different UUID generation strategy can be selected by declaring a bean that implements
org.springframework.util.IdGenerator in the application context.
Important
Only one UUID generation strategy can be used in a classloader. This means that, if two or more
application contexts run in the same classloader, they share the same strategy. If one of the
contexts changes the strategy, it is used by all contexts. If two or more contexts in the same
classloader declare a bean of type org.springframework.util.IdGenerator, they must all
be an instance of the same class. Otherwise, the context attempting to replace a custom strategy
fails to initialize. If the strategy is the same, but parameterized, the strategy in the first context
to be initialized is used.
In addition to the default strategy, two additional IdGenerators are provided.
org.springframework.util.JdkIdGenerator uses the previous UUID.randomUUID()
mechanism. You can use o.s.i.support.IdGenerators.SimpleIncrementingIdGenerator
when a UUID is not really needed and a simple incrementing value is sufficient.
Read-only Headers
The MessageHeaders.ID and MessageHeaders.TIMESTAMP are read-only headers and cannot be
overridden.
Since version 4.3.2, the MessageBuilder provides the readOnlyHeaders(String...
readOnlyHeaders) API to customize a list of headers that should not be copied from an upstream
Message. Only the MessageHeaders.ID and MessageHeaders.TIMESTAMP are read only by
default. The global spring.integration.readOnly.headers property (see Section E.4, “Global
Properties”) is provided to customize DefaultMessageBuilderFactory for framework components.
This can be useful when you would like do not populate some out-of-the-box headers, such as
contentType by the ObjectToJsonTransformer (see the section called “JSON Transformers”).
When you try to build a new message using MessageBuilder, this kind of header is ignored and a
particular INFO message is emitted to logs.
Starting with version 5.0, Messaging Gateway, Header Enricher, Content Enricher and Header
Filter do not let you configure the MessageHeaders.ID and MessageHeaders.TIMESTAMP
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 60
header names when DefaultMessageBuilderFactory is used, and they throw
BeanInitializationException.
Header Propagation
When messages are processed (and modified) by message-producing endpoints (such as a service
activator), in general, inbound headers are propagated to the outbound message. One exception to this
is a transformer, when a complete message is returned to the framework. In that case, the user code is
responsible for the entire outbound message. When a transformer just returns the payload, the inbound
headers are propagated. Also, a header is only propagated if it does not already exist in the outbound
message, letting you change header values as needed.
Starting with version 4.3.10, you can configure message handlers (that modify messages and produce
output) to suppress the propagation of specific headers. To configure the header(s) you do not want to
be copied, call the setNotPropagatedHeaders() or addNotPropagatedHeaders() methods on
the MessageProducingMessageHandler abstract class.
You can also globally suppress propagation of specific message headers by setting the
readOnlyHeaders property in META-INF/spring.integration.properties to a comma-
delimited list of headers.
Starting with version 5.0, the setNotPropagatedHeaders() implementation on the
AbstractMessageProducingHandler applies simple patterns (xxx*, *xxx, *xxx*, or xxx*yyy)
to allow filtering headers with a common suffix or prefix. See PatternMatchUtils Javadoc for
more information. When one of the patterns is * (asterisk), no headers are propagated. All other
patterns are ignored. In that case, the service activator behaves the same way as a transformer
and any required headers must be supplied in the Message returned from the service method. The
notPropagatedHeaders() option is available in the ConsumerEndpointSpec for the Java DSL
It is also available for XML configuration of the <service-activator> component as a not-
propagated-headers attribute.
Important
Header propagation suppression does not apply to those endpoints that do not modify the
message, such as bridges and routers.
7.3 Message Implementations
The base implementation of the Message interface is GenericMessage<T>, and it provides two
constructors, shown in the following listing:
new GenericMessage<T>(T payload);
new GenericMessage<T>(T payload, Map<String, Object> headers)
When a Message is created, a random unique ID is generated. The constructor that accepts a Map of
headers copies the provided headers to the newly created Message.
There is also a convenient implementation of Message designed to communicate error conditions. This
implementation takes a Throwable object as its payload, as the following example shows:
ErrorMessage message = new ErrorMessage(someThrowable);
Throwable t = message.getPayload();
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 61
Note that this implementation takes advantage of the fact that the GenericMessage base class is
parameterized. Therefore, as shown in both examples, no casting is necessary when retrieving the
Message payload Object.
7.4 The MessageBuilder Helper Class
You may notice that the Message interface defines retrieval methods for its payload and headers but
provides no setters. The reason for this is that a Message cannot be modified after its initial creation.
Therefore, when a Message instance is sent to multiple consumers (for example, through a publish-
subscribe Channel), if one of those consumers needs to send a reply with a different payload type,
it must create a new Message. As a result, the other consumers are not affected by those changes.
Keep in mind that multiple consumers may access the same payload instance or header value, and
whether such an instance is itself immutable is a decision left to you. In other words, the contract for
Message instances is similar to that of an unmodifiable Collection, and the MessageHeaders map
further exemplifies that. Even though the MessageHeaders class implements java.util.Map, any
attempt to invoke a put operation (or remove or clear) on a MessageHeaders instance results in an
UnsupportedOperationException.
Rather than requiring the creation and population of a Map to pass into the GenericMessage constructor,
Spring Integration does provide a far more convenient way to construct Messages: MessageBuilder.
The MessageBuilder provides two factory methods for creating Message instances from either an
existing Message or with a payload Object. When building from an existing Message, the headers
and payload of that Message are copied to the new Message, as the following example shows:
Message<String> message1 = MessageBuilder.withPayload("test")
.setHeader("foo", "bar")
.build();
Message<String> message2 = MessageBuilder.fromMessage(message1).build();
assertEquals("test", message2.getPayload());
assertEquals("bar", message2.getHeaders().get("foo"));
If you need to create a Message with a new payload but still want to copy the headers from an existing
Message, you can use one of the copy methods, as the following example shows:
Message<String> message3 = MessageBuilder.withPayload("test3")
.copyHeaders(message1.getHeaders())
.build();
Message<String> message4 = MessageBuilder.withPayload("test4")
.setHeader("foo", 123)
.copyHeadersIfAbsent(message1.getHeaders())
.build();
assertEquals("bar", message3.getHeaders().get("foo"));
assertEquals(123, message4.getHeaders().get("foo"));
Note that the copyHeadersIfAbsent method does not overwrite existing values. Also, in the
preceding example, you can see how to set any user-defined header with setHeader. Finally, there
are set methods available for the predefined headers as well as a non-destructive method for setting
any header (MessageHeaders also defines constants for the pre-defined header names).
You can also use MessageBuilder to set the priority of messages, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 62
Message<Integer> importantMessage = MessageBuilder.withPayload(99)
.setPriority(5)
.build();
assertEquals(5, importantMessage.getHeaders().getPriority());
Message<Integer> lessImportantMessage = MessageBuilder.fromMessage(importantMessage)
.setHeaderIfAbsent(IntegrationMessageHeaderAccessor.PRIORITY, 2)
.build();
assertEquals(2, lessImportantMessage.getHeaders().getPriority());
The priority header is considered only when using a PriorityChannel (as described in the next
chapter). It is defined as a java.lang.Integer.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 63
8. Message Routing
This chapter covers the details of using Spring Integration to route messages.
8.1 Routers
This section covers how routers work. It includes the following topics:
• the section called “Overview”
• the section called “Common Router Parameters”
• the section called “Router Implementations”
• the section called “Configuring a Generic Router”
• the section called “Routers and the Spring Expression Language (SpEL)”
• the section called “Dynamic Routers”
Overview
Routers are a crucial element in many messaging architectures. They consume messages from a
message channel and forward each consumed message to one or more different message channels
depending on a set of conditions.
Spring Integration provides the following routers:
•Payload Type Router
•Header Value Router
•Recipient List Router
•XPath Router (part of the XML module)
•Error Message Exception Type Router
•(Generic) Router
Router implementations share many configuration parameters. However, certain differences exist
between routers. Furthermore, the availability of configuration parameters depends on whether routers
are used inside or outside of a chain. In order to provide a quick overview, all available attributes are
listed in the two following tables .
The following table shows the configuration parameters available for a router outside of a chain:
Table 8.1. Routers Outside of a Chain
Attribute router header
value
router
xpath
router
payload
type
router
recipient
list route
exception
type
router
apply-sequence
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 64
Attribute router header
value
router
xpath
router
payload
type
router
recipient
list route
exception
type
router
default-output-channel
resolution-required
ignore-send-failures
timeout
id
auto-startup
input-channel
order
method
ref
expression
header-name
evaluate-as-string
xpath-expression-ref
converter
The following table shows the configuration parameters available for a router inside of a chain:
Table 8.2. Routers Inside of a Chain
Attribute router header
value
router
xpath
router
payload
type
router
recipient
list router
exception
type
router
apply-sequence
default-output-channel
resolution-required
ignore-send-failures
timeout
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 65
Attribute router header
value
router
xpath
router
payload
type
router
recipient
list router
exception
type
router
id
auto-startup
input-channel
order
method
ref
expression
header-name
evaluate-as-string
xpath-expression-ref
converter
Important
As of Spring Integration 2.1, router parameters have been more standardized across all router
implementations. Consequently, a few minor changes may break older Spring Integration based
applications.
Since Spring Integration 2.1, the ignore-channel-name-resolution-failures attribute is
removed in favor of consolidating its behavior with the resolution-required attribute. Also,
the resolution-required attribute now defaults to true.
Prior to these changes, the resolution-required attribute defaulted to false, causing
messages to be silently dropped when no channel was resolved and no default-output-
channel was set. The new behavior requires at least one resolved channel and, by default,
throws a MessageDeliveryException if no channel was determined (or an attempt to send
was not successful).
If you do desire to drop messages silently, you can set default-output-
channel="nullChannel".
Common Router Parameters
This section describes the parameters common to all router parameters (the parameters with all their
boxes ticked in the two tables shown earlier in this chapter).
Inside and Outside of a Chain
The following parameters are valid for all routers inside and outside of chains.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 66
apply-sequence
This attribute specifies whether sequence number and size headers should be added to each
message. This optional attribute defaults to false.
default-output-channel
If set, this attribute provides a reference to the channel where messages should be sent if channel
resolution fails to return any channels. If no default output channel is provided, the router throws an
exception. If you would like to silently drop those messages instead, set the default output channel
attribute value to nullChannel.
Note
A message is sent only to the default-output-channel if resolution-required is
false and the channel is not resolved.
resolution-required
This attribute specifies whether channel names must always be successfully resolved to channel
instances that exist. If set to true, a MessagingException is raised when the channel cannot
be resolved. Setting this attribute to false causes any unresovable channels to be ignored. This
optional attribute defaults to true.
Note
A Message is sent only to the default-output-channel, if specified, when resolution-
required is false and the channel is not resolved.
ignore-send-failures
If set to true, failures to send to a message channel is ignored. If set to false, a
MessageDeliveryException is thrown instead, and, if the router resolves more than one
channel, any subsequent channels do not receive the message.
The exact behavior of this attribute depends on the type of the Channel to which the messages are
sent. For example, when using direct channels (single threaded), send failures can be caused by
exceptions thrown by components much further downstream. However, when sending messages to
a simple queue channel (asynchronous), the likelihood of an exception to be thrown is rather remote.
Note
While most routers route to a single channel, they can return more than one channel name.
The recipient-list-router, for instance, does exactly that. If you set this attribute to
true on a router that only routes to a single channel, any caused exception is swallowed,
which usually makes little sense. In that case, it would be better to catch the exception in an
error flow at the flow entry point. Therefore, setting the ignore-send-failures attribute
to true usually makes more sense when the router implementation returns more than one
channel name, because the other channel(s) following the one that fails would still receive
the message.
This attribute defaults to false.
timeout
The timeout attribute specifies the maximum amount of time in milliseconds to wait when sending
messages to the target Message Channels. By default, the send operation blocks indefinitely.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 67
Top-Level (Outside of a Chain)
The following parameters are valid only across all top-level routers that are outside of chains.
id
Identifies the underlying Spring bean definition, which, in the case of routers, is an instance
of EventDrivenConsumer or PollingConsumer, depending on whether the router’s input-
channel is a SubscribableChannel or a PollableChannel, respectively. This is an optional
attribute.
auto-startup
This "lifecycle" attribute signaled whether this component should be started during startup of
the application context. This optional attribute defaults to true.
input-channel
The receiving message channel of this endpoint.
order
This attribute defines the order for invocation when this endpoint is connected as a subscriber to a
channel. This is particularly relevant when that channel uses a failover dispatching strategy. It has
no effect when this endpoint itself is a polling consumer for a channel with a queue.
Router Implementations
Since content-based routing often requires some domain-specific logic, most use cases require
Spring Integration’s options for delegating to POJOs by using either the XML namespace support or
annotations. Both of these are discussed later. However, we first present a couple of implementations
that fulfill common requirements.
PayloadTypeRouter
A PayloadTypeRouter sends messages to the channel defined by payload-type mappings, as the
following example shows:
<bean id="payloadTypeRouter"
class="org.springframework.integration.router.PayloadTypeRouter">
<property name="channelMapping">
<map>
<entry key="java.lang.String" value-ref="stringChannel"/>
<entry key="java.lang.Integer" value-ref="integerChannel"/>
</map>
</property>
</bean>
Configuration of the PayloadTypeRouter is also supported by the namespace provided by Spring
Integration (see <<configuration-namespace>>), which essentially simplifies configuration by
combining the <router/> configuration and its corresponding implementation (defined by using a
<bean/> element) into a single and more concise configuration element. The following example shows
a PayloadTypeRouter configuration that is equivalent to the one above but uses the namespace
support:
<int:payload-type-router input-channel="routingChannel">
<int:mapping type="java.lang.String" channel="stringChannel" />
<int:mapping type="java.lang.Integer" channel="integerChannel" />
</int:payload-type-router>
The following example shows the equivalent router configured in Java:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 68
@ServiceActivator(inputChannel = "routingChannel")
@Bean
public PayloadTypeRouter router() {
PayloadTypeRouter router = new PayloadTypeRouter();
router.setChannelMapping(String.class.getName(), "stringChannel");
router.setChannelMapping(Integer.class.getName(), "integerChannel");
return router;
}
When using the Java DSL, there are two options.
First, you can define the router object as shown in the preceding example:
@Bean
public IntegrationFlow routerFlow1() {
return IntegrationFlows.from("routingChannel")
.route(router())
.get();
}
public PayloadTypeRouter router() {
PayloadTypeRouter router = new PayloadTypeRouter();
router.setChannelMapping(String.class.getName(), "stringChannel");
router.setChannelMapping(Integer.class.getName(), "integerChannel");
return router;
}
Note that the router can be, but does not have to be, a @Bean. The flow registers it if it is not a @Bean.
Second, you can define the routing function within the DSL flow itself, as the following example shows:
@Bean
public IntegrationFlow routerFlow2() {
return IntegrationFlows.from("routingChannel")
.<Object, Class<?>>route(Object::getClass, m -> m
.channelMapping(String.class, "stringChannel")
.channelMapping(Integer.class, "integerChannel"))
.get();
}
HeaderValueRouter
A HeaderValueRouter sends Messages to the channel based on the individual header value
mappings. When a HeaderValueRouter is created, it is initialized with the name of the header to be
evaluated. The value of the header could be one of two things:
• An arbitrary value
• A channel name
If it is an arbitrary value, additional mappings for these header values to channel names are required.
Otherwise, no additional configuration is needed.
Spring Integration provides a simple namespace-based XML configuration to configure
a HeaderValueRouter. The following example demonstrates configuration for the
HeaderValueRouter when mapping of header values to channels is required:
<int:header-value-router input-channel="routingChannel" header-name="testHeader">
<int:mapping value="someHeaderValue" channel="channelA" />
<int:mapping value="someOtherHeaderValue" channel="channelB" />
</int:header-value-router>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 69
During the resolution process, the router defined in the preceding example may encounter channel
resolution failures, causing an exception. If you want to suppress such exceptions and send unresolved
messages to the default output channel (identified with the default-output-channel attribute) set
resolution-required to false.
Normally, messages for which the header value is not explicitly mapped to a channel are sent to the
default-output-channel. However, when the header value is mapped to a channel name but the
channel cannot be resolved, setting the resolution-required attribute to false results in routing
such messages to the default-output-channel.
Important
As of Spring Integration 2.1, the attribute was changed from ignore-channel-name-
resolution-failures to resolution-required. Attribute resolution-required
defaults to true.
The following example shows the equivalent router configured in Java:
@ServiceActivator(inputChannel = "routingChannel")
@Bean
public HeaderValueRouter router() {
HeaderValueRouter router = new HeaderValueRouter("testHeader");
router.setChannelMapping("someHeaderValue", "channelA");
router.setChannelMapping("someOtherHeaderValue", "channelB");
return router;
}
When using the Java DSL, there are two options. First, you can define the router object as shown in
the preceding example:
@Bean
public IntegrationFlow routerFlow1() {
return IntegrationFlows.from("routingChannel")
.route(router())
.get();
}
public HeaderValueRouter router() {
HeaderValueRouter router = new HeaderValueRouter("testHeader");
router.setChannelMapping("someHeaderValue", "channelA");
router.setChannelMapping("someOtherHeaderValue", "channelB");
return router;
}
Note that the router can be, but does not have to be, a @Bean. The flow registers it if it is not a @Bean.
Second, you can define the routing function within the DSL flow itself, as the following example shows:
@Bean
public IntegrationFlow routerFlow2() {
return IntegrationFlows.from("routingChannel")
.<Message<?>, String>route(m -> m.getHeaders().get("testHeader", String.class), m -> m
.channelMapping("someHeaderValue", "channelA")
.channelMapping("someOtherHeaderValue", "channelB"),
e -> e.id("headerValueRouter"))
.get();
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 70
Configuration where mapping of header values to channel names is not required, because header values
themselves represent channel names. The following example shows a router that does not require
mapping of header values to channel names:
<int:header-value-router input-channel="routingChannel" header-name="testHeader"/>
Note
Since Spring Integration 2.1, the behavior of resolving channels is more explicit. For example, if
you omit the default-output-channel attribute, the router was unable to resolve at least one
valid channel, and any channel name resolution failures were ignored by setting resolution-
required to false, then a MessageDeliveryException is thrown.
Basically, by default, the router must be able to route messages successfully to at least one
channel. If you really want to drop messages, you must also have default-output-channel
set to nullChannel.
RecipientListRouter
A RecipientListRouter sends each received message to a statically defined list of message
channels. The following example creates a RecipientListRouter:
<bean id="recipientListRouter"
class="org.springframework.integration.router.RecipientListRouter">
<property name="channels">
<list>
<ref bean="channel1"/>
<ref bean="channel2"/>
<ref bean="channel3"/>
</list>
</property>
</bean>
Spring Integration also provides namespace support for the RecipientListRouter configuration
(see Section E.1, “Namespace Support”) as the following example shows:
<int:recipient-list-router id="customRouter" input-channel="routingChannel"
timeout="1234"
ignore-send-failures="true"
apply-sequence="true">
<int:recipient channel="channel1"/>
<int:recipient channel="channel2"/>
</int:recipient-list-router>
The following example shows the equivalent router configured in Java:
@ServiceActivator(inputChannel = "routingChannel")
@Bean
public RecipientListRouter router() {
RecipientListRouter router = new RecipientListRouter();
router.setSendTimeout(1_234L);
router.setIgnoreSendFailures(true);
router.setApplySequence(true);
router.addRecipient("channel1");
router.addRecipient("channel2");
router.addRecipient("channel3");
return router;
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 71
The following example shows the equivalent router configured by using the Java DSL:
@Bean
public IntegrationFlow routerFlow() {
return IntegrationFlows.from("routingChannel")
.routeToRecipients(r -> r
.applySequence(true)
.ignoreSendFailures(true)
.recipient("channel1")
.recipient("channel2")
.recipient("channel3")
.sendTimeout(1_234L))
.get();
}
Note
The apply-sequence flag here has the same effect as it does for a publish-subscribe-channel, and,
as with a publish-subscribe-channel, it is disabled by default on the recipient-list-router.
See the section called “PublishSubscribeChannel Configuration” for more information.
Another convenient option when configuring a RecipientListRouter is to use Spring Expression
Language (SpEL) support as selectors for individual recipient channels. Doing so is similar to using a
filter at the beginning of a chain to act as a "selective consumer". However, in this case, it is all
combined rather concisely into the router’s configuration, as the following example shows:
<int:recipient-list-router id="customRouter" input-channel="routingChannel">
<int:recipient channel="channel1" selector-expression="payload.equals('foo')"/>
<int:recipient channel="channel2" selector-expression="headers.containsKey('bar')"/>
</int:recipient-list-router>
In the preceding configuration, a SpEL expression identified by the selector-expression attribute
is evaluated to determine whether this recipient should be included in the recipient list for a given input
message. The evaluation result of the expression must be a boolean. If this attribute is not defined, the
channel is always among the list of recipients.
RecipientListRouterManagement
Starting with version 4.1, the RecipientListRouter provides several operations to
manipulate recipients dynamically at runtime. These management operations are presented
by RecipientListRouterManagement through the @ManagedResource annotation. They are
available by using Section 12.6, “Control Bus” as well as by using JMX, as the following example shows:
<control-bus input-channel="controlBus"/>
<recipient-list-router id="simpleRouter" input-channel="routingChannelA">
<recipient channel="channel1"/>
</recipient-list-router>
<channel id="channel2"/>
messagingTemplate.convertAndSend(controlBus, "@'simpleRouter.handler'.addRecipient('channel2')");
From the application start up the simpleRouter, has only one channel1 recipient. But after the
addRecipient command, channel2 recipient is added. It is a "registering an interest in
something that is part of the message" use case, when we may be interested in messages
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 72
from the router at some time period, so we are subscribing to the the recipient-list-router and,
at some point, decide to unsubscribe.
Because of the runtime management operation for the <recipient-list-router>, it can
be configured without any <recipient> from the start. In this case, the behavior of
RecipientListRouter is the same when there is no one matching recipient for the
message. If defaultOutputChannel is configured, the message is sent there. Otherwise the
MessageDeliveryException is thrown.
XPath Router
The XPath Router is part of the XML Module. See Section 38.5, “Routing XML Messages with XPath”.
Routing and Error Handling
Spring Integration also provides a special type-based router called
ErrorMessageExceptionTypeRouter for routing error messages (defined as messages whose
payload is a Throwable instance). ErrorMessageExceptionTypeRouter is similar to the
PayloadTypeRouter. In fact, they are almost identical. The only difference is that, while
PayloadTypeRouter navigates the instance hierarchy of a payload instance (for example,
payload.getClass().getSuperclass()) to find the most specific type and channel mappings, the
ErrorMessageExceptionTypeRouter navigates the hierarchy of exception causes (for example,
payload.getCause()) to find the most specific Throwable type or channel mappings and uses
mappingClass.isInstance(cause) to match the cause to the class or any super class.
Note
Since version 4.3 the ErrorMessageExceptionTypeRouter loads all mapping classes during
the initialization phase to fail-fast for a ClassNotFoundException.
The following example shows a sample configuration for ErrorMessageExceptionTypeRouter:
<int:exception-type-router input-channel="inputChannel"
default-output-channel="defaultChannel">
<int:mapping exception-type="java.lang.IllegalArgumentException"
channel="illegalChannel"/>
<int:mapping exception-type="java.lang.NullPointerException"
channel="npeChannel"/>
</int:exception-type-router>
<int:channel id="illegalChannel" />
<int:channel id="npeChannel" />
Configuring a Generic Router
Spring Integration provides a generic router. You can use it for general-purpose routing (as opposed to
the other routers provided by Spring Integration, each of which has some form of specialization).
Configuring a Content-based Router with XML
The router element provides a way to connect a router to an input channel and also accepts the
optional default-output-channel attribute. The ref attribute references the bean name of a
custom router implementation (which must extend AbstractMessageRouter). The following example
shows three generic routers:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 73
<int:router ref="payloadTypeRouter" input-channel="input1"
default-output-channel="defaultOutput1"/>
<int:router ref="recipientListRouter" input-channel="input2"
default-output-channel="defaultOutput2"/>
<int:router ref="customRouter" input-channel="input3"
default-output-channel="defaultOutput3"/>
<beans:bean id="customRouterBean" class="org.foo.MyCustomRouter"/>
Alternatively, ref may point to a POJO that contains the @Router annotation (shown later), or you
can combine the ref with an explicit method name. Specifying a method applies the same behavior
described in the @Router annotation section, later in this document. The following example defines a
router that points to a POJO in its ref attribute:
<int:router input-channel="input" ref="somePojo" method="someMethod"/>
We generally recommend using a ref attribute if the custom router implementation is referenced in
other <router> definitions. However if the custom router implementation should be scoped to a single
definition of the <router>, you can provide an inner bean definition, as the following example shows:
<int:router method="someMethod" input-channel="input3"
default-output-channel="defaultOutput3">
<beans:bean class="org.foo.MyCustomRouter"/>
</int:router>
Note
Using both the ref attribute and an inner handler definition in the same <router> configuration
is not allowed. Doing so creates an ambiguous condition and throws an exception.
Important
If the ref attribute references a bean that extends AbstractMessageProducingHandler
(such as routers provided by the framework itself), the configuration is optimized to reference
the router directly. In this case, each ref attribute must refer to a separate bean instance
(or a prototype-scoped bean) or use the inner <bean/> configuration type. However, this
optimization applies only if you do not provide any router-specific attributes in the router XML
definition. If you inadvertently reference the same message handler from multiple beans, you get
a configuration exception.
The following example shows the equivalent router configured in Java:
@Bean
@Router(inputChannel = "routingChannel")
public AbstractMessageRouter myCustomRouter() {
return new AbstractMessageRouter() {
@Override
protected Collection<MessageChannel> determineTargetChannels(Message<?> message) {
return // determine channel(s) for message
}
};
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 74
The following example shows the equivalent router configured by using the Java DSL:
@Bean
public IntegrationFlow routerFlow() {
return IntegrationFlows.from("routingChannel")
.route(myCustomRouter())
.get();
}
public AbstractMessageRouter myCustomRouter() {
return new AbstractMessageRouter() {
@Override
protected Collection<MessageChannel> determineTargetChannels(Message<?> message) {
return // determine channel(s) for message
}
};
}
Alternately, you can route on data from the message payload, as the following example shows:
@Bean
public IntegrationFlow routerFlow() {
return IntegrationFlows.from("routingChannel")
.route(String.class, p -> p.contains("foo") ? "fooChannel" : "barChannel")
.get();
}
Routers and the Spring Expression Language (SpEL)
Sometimes, the routing logic may be simple, and writing a separate class for it and configuring it as a
bean may seem like overkill. As of Spring Integration 2.0, we offer an alternative that lets you use SpEL
to implement simple computations that previously required a custom POJO router.
Note
For more information about the Spring Expression Language, see the relevant chapter in the
Spring Framework Reference Guide:
Generally, a SpEL expression is evaluated and its result is mapped to a channel, as the following
example shows:
<int:router input-channel="inChannel" expression="payload.paymentType">
<int:mapping value="CASH" channel="cashPaymentChannel"/>
<int:mapping value="CREDIT" channel="authorizePaymentChannel"/>
<int:mapping value="DEBIT" channel="authorizePaymentChannel"/>
</int:router>
The following example shows the equivalent router configured in Java:
@Router(inputChannel = "routingChannel")
@Bean
public ExpressionEvaluatingRouter router() {
ExpressionEvaluatingRouter router = new ExpressionEvaluatingRouter("payload.paymentType");
router.setChannelMapping("CASH", "cashPaymentChannel");
router.setChannelMapping("CREDIT", "authorizePaymentChannel");
router.setChannelMapping("DEBIT", "authorizePaymentChannel");
return router;
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 75
The following example shows the equivalent router configured in the Java DSL:
@Bean
public IntegrationFlow routerFlow() {
return IntegrationFlows.from("routingChannel")
.route("payload.paymentType", r -> r
.channelMapping("CASH", "cashPaymentChannel")
.channelMapping("CREDIT", "authorizePaymentChannel")
.channelMapping("DEBIT", "authorizePaymentChannel"))
.get();
}
To simplify things even more, the SpEL expression may evaluate to a channel name, as the following
expression shows:
<int:router input-channel="inChannel" expression="payload + 'Channel'"/>
In the preceding configuration, the result channel is computed by the SpEL expression, which
concatenates the value of the payload with the literal String, Channel.
Another virtue of SpEL for configuring routers is that an expression can return a Collection, effectively
making every <router> a recipient list router. Whenever the expression returns multiple channel
values, the message is forwarded to each channel. The following example shows such an expression:
<int:router input-channel="inChannel" expression="headers.channels"/>
In the above configuration, if the message includes a header with a name of channels and the value of
that header is a List of channel names, the message is sent to each channel in the list. You may also
find collection projection and collection selection expressions useful when you need to select multiple
channels. For further information, see:
•Collection Projection
•Collection Selection
Configuring a Router with Annotations
When using @Router to annotate a method, the method may return either a MessageChannel or
a String type. In the latter case, the endpoint resolves the channel name as it does for the default
output channel. Additionally, the method may return either a single value or a collection. If a collection is
returned, the reply message is sent to multiple channels. To summarize, the following method signatures
are all valid:
@Router
public MessageChannel route(Message message) {...}
@Router
public List<MessageChannel> route(Message message) {...}
@Router
public String route(Foo payload) {...}
@Router
public List<String> route(Foo payload) {...}
In addition to payload-based routing, a message may be routed based on metadata available within the
message header as either a property or an attribute. In this case, a method annotated with @Router
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 76
may include a parameter annotated with @Header, which is mapped to a header value as the following
example shows and documented in Section E.5, “Annotation Support”:
@Router
public List<String> route(@Header("orderStatus") OrderStatus status)
Note
For routing of XML-based Messages, including XPath support, see Chapter 38, XML Support -
Dealing with XML Payloads.
See also Section 11.7, “Message Routers” in the Java DSL chapter for more information about router
configuration.
Dynamic Routers
Spring Integration provides quite a few different router configurations for common content-based
routing use cases as well as the option of implementing custom routers as POJOs. For example,
PayloadTypeRouter provides a simple way to configure a router that computes channels based on
the payload type of the incoming message while HeaderValueRouter provides the same convenience
in configuring a router that computes channels by evaluating the value of a particular message
Header. There are also expression-based (SpEL) routers, in which the channel is determined based on
evaluating an expression. All of these type of routers exhibit some dynamic characteristics.
However, these routers all require static configuration. Even in the case of expression-based routers,
the expression itself is defined as part of the router configuration, which means that the same expression
operating on the same value always results in the computation of the same channel. This is acceptable
in most cases, since such routes are well defined and therefore predictable. But there are times when
we need to change router configurations dynamically so that message flows may be routed to a different
channel.
For example, you might want to bring down some part of your system for maintenance and temporarily
re-reroute messages to a different message flow. As another example, you may want to introduce
more granularity to your message flow by adding another route to handle a more concrete type of
java.lang.Number (in the case of PayloadTypeRouter).
Unfortunately, with static router configuration to accomplish either of those goals, you would have to
bring down your entire application, change the configuration of the router (change routes), and bring the
application back up. This is obviously not a solution anyone wants.
The dynamic router pattern describes the mechanisms by which you can change or configure routers
dynamically without bringing down the system or individual routers.
Before we get into the specifics of how Spring Integration supports dynamic routing, we need to consider
the typical flow of a router:
1. Compute a channel identifier, which is a value calculated by the router once it receives the message.
Typically, it is a String or an instance of the actual MessageChannel.
2. Resolve the channel identifier to a channel name. We describe specifics of this process later in this
section.
3. Resolve the channel name to the actual MessageChannel
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 77
There is not much that can be done with regard to dynamic routing if Step 1 results in the actual
instance of the MessageChannel, because the MessageChannel is the final product of any router’s
job. However, if the first step results in a channel identifier that is not an instance of MessageChannel,
you have quite a few possible ways to influence the process of deriving the MessageChannel. Consider
the following example of a payload type router:
<int:payload-type-router input-channel="routingChannel">
<int:mapping type="java.lang.String" channel="channel1" />
<int:mapping type="java.lang.Integer" channel="channel2" />
</int:payload-type-router>
Within the context of a payload type router, the three steps mentioned earlier would be realized as
follows:
1. Compute a channel identifier that is the fully qualified name of the payload type (for example,
java.lang.String).
2. Resolve the channel identifier to a channel name, where the result of the previous step is used to
select the appropriate value from the payload type mapping defined in the mapping element.
3. Resolve the channel name to the actual instance of the MessageChannel as a reference to a bean
within the application context (which is hopefully a MessageChannel) identified by the result of the
previous step.
In other words, each step feeds the next step until the process completes.
Now consider an example of a header value router:
<int:header-value-router input-channel="inputChannel" header-name="testHeader">
<int:mapping value="foo" channel="fooChannel" />
<int:mapping value="bar" channel="barChannel" />
</int:header-value-router>
Now we can consider how the three steps work for a header value router:
1. Compute a channel identifier that is the value of the header identified by the header-name attribute.
2. Resolve the channel identifier a to channel name, where the result of the previous step is used to
select the appropriate value from the general mapping defined in the mapping element.
3. Resolve the channel name to the actual instance of the MessageChannel as a reference to a bean
within the application context (which is hopefully a MessageChannel) identified by the result of the
previous step.
The preceding two configurations of two different router types look almost identical. However, if you look
at the alternate configuration of the HeaderValueRouter we clearly see that there is no mapping sub
element, as the following listing shows:
<int:header-value-router input-channel="inputChannel" header-name="testHeader">
However, the configuration is still perfectly valid. So the natural question is what about the mapping in
the second step?
The second step is now optional. If mapping is not defined, then the channel identifier value computed
in the first step is automatically treated as the channel name, which is now resolved to the actual
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 78
MessageChannel, as in the third step. What it also means is that the second step is one of the key steps
to providing dynamic characteristics to the routers, since it introduces a process that lets you change
the way channel identifier resolves to the channel name, thus influencing the process of determining
the final instance of the MessageChannel from the initial channel identifier.
For example, in the preceding configuration, assume that the testHeader value is kermit, which is
now a channel identifier (the first step). Since there is no mapping in this router, resolving this channel
identifier to a channel name (the second step) is impossible and this channel identifier is now treated
as the channel name. However, what if there was a mapping but for a different value? The end result
would still be the same, because, if a new value cannot be determined through the process of resolving
the channel identifier to a channel name, the channel identifier becomes the channel name.
All that is left is for the third step to resolve the channel name (kermit) to an actual instance of the
MessageChannel identified by this name. That basically involves a bean lookup for the provided name.
Now all messages that contain the header-value pair as testHeader=kermit are going to be routed
to a MessageChannel whose bean name (its id) is kermit.
But what if you want to route these messages to the simpson channel? Obviously changing a static
configuration works, but doing so also requires bringing your system down. However, if you had access
to the channel identifier map, you could introduce a new mapping where the header-value pair is now
kermit=simpson, thus letting the second step treat kermit as a channel identifier while resolving it to
simpson as the channel name.
The same obviously applies for PayloadTypeRouter, where you can now remap or remove a
particular payload type mapping. In fact, it applies to every other router, including expression-based
routers, since their computed values now have a chance to go through the second step to be resolved
to the actual channel name.
Any router that is a subclass of the AbstractMappingMessageRouter (which includes most
framework-defined routers) is a dynamic router, because the channelMapping is defined at the
AbstractMappingMessageRouter level. That map’s setter method is exposed as a public method
along with the setChannelMapping and removeChannelMapping methods. These let you change, add,
and remove router mappings at runtime, as long as you have a reference to the router itself. It also
means that you could expose these same configuration options through JMX (see Section 12.2, “JMX
Support”) or the Spring Integration control bus (see Section 12.6, “Control Bus”) functionality.
Manage Router Mappings using the Control Bus
One way to manage the router mappings is through the control bus pattern, which exposes a
control channel to which you can send control messages to manage and monitor Spring Integration
components, including routers.
Note
For more information about the control bus, see Section 12.6, “Control Bus”.
Typically, you would send a control message asking to invoke a particular operation on a particular
managed component (such as a router). The following managed operations (methods) are specific to
changing the router resolution process:
•public void setChannelMapping(String key, String channelName): Lets you add a
new or modify an existing mapping between channel identifier and channel name
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 79
•public void removeChannelMapping(String key): Lets you remove a particular channel
mapping, thus disconnecting the relationship between channel identifier and channel name
Note that these methods can be used for simple changes (such as updating a single route or adding
or removing a route). However, if you want to remove one route and add another, the updates are
not atomic. This means that the routing table may be in an indeterminate state between the updates.
Starting with version 4.0, you can now use the control bus to update the entire routing table atomically.
The following methods let you do so:
•public Map<String, String>getChannelMappings(): Returns the current mappings.
•public void replaceChannelMappings(Properties channelMappings): Updates the
mappings. Note that the channelMappings parameter is a Properties object. This arrangement
lets a control bus command use the built-in StringToPropertiesConverter, as the following
example shows:
"@'router.handler'.replaceChannelMappings('foo=qux \n baz=bar')"
Note that each mapping is separated by a newline character (\n). For programmatic changes to the
map, we recommend that you use the setChannelMappings method, due to type-safety concerns.
replaceChannelMappings ignores keys or values that are not String objects.
Manage Router Mappings by Using JMX
You can also use Spring’s JMX support to expose a router instance and then use your favorite JMX client
(for example, JConsole) to manage those operations (methods) for changing the router’s configuration.
Note
For more information about Spring Integration’s JMX support, see Section 12.2, “JMX Support”.
Routing Slip
Starting with version 4.1, Spring Integration provides an implementation of the routing slip enterprise
integration pattern. It is implemented as a routingSlip message header, which is used to determine
the next channel in AbstractMessageProducingHandler instances, when an outputChannel is
not specified for the endpoint. This pattern is useful in complex, dynamic cases, when it can become
difficult to configure multiple routers to determine message flow. When a message arrives at an endpoint
that has no output-channel, the routingSlip is consulted to determine the next channel to which
the message is sent. When the routing slip is exhausted, normal replyChannel processing resumes.
Configuration for the routing slip is presented as a HeaderEnricher option — a semicolon-separated
routing slip that contains path entries, as the following example shows:
<util:properties id="properties">
<beans:prop key="myRoutePath1">channel1</beans:prop>
<beans:prop key="myRoutePath2">request.headers[myRoutingSlipChannel]</beans:prop>
</util:properties>
<context:property-placeholder properties-ref="properties"/>
<header-enricher input-channel="input" output-channel="process">
<routing-slip
value="${myRoutePath1}; @routingSlipRoutingPojo.get(request, reply);
routingSlipRoutingStrategy; ${myRoutePath2}; finishChannel"/>
</header-enricher>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 80
The preceding example has:
• A <context:property-placeholder> configuration to demonstrate that the entries in the routing
slip path can be specified as resolvable keys.
• The <header-enricher> <routing-slip> sub-element is used to populate the
RoutingSlipHeaderValueMessageProcessor to the HeaderEnricher handler.
• The RoutingSlipHeaderValueMessageProcessor accepts a String array of resolved routing
slip path entries and returns (from processMessage()) a singletonMap with the path as key
and 0 as initial routingSlipIndex.
Routing Slip path entries can contain MessageChannel bean names,
RoutingSlipRouteStrategy bean names, and Spring expressions (SpEL). The
RoutingSlipHeaderValueMessageProcessor checks each routing slip path entry against the
BeanFactory on the first processMessage invocation. It converts entries (which are not bean names
in the application context) to ExpressionEvaluatingRoutingSlipRouteStrategy instances.
RoutingSlipRouteStrategy entries are invoked multiple times, until they return null or an empty
String.
Since the routing slip is involved in the getOutputChannel process, we have a request-
reply context. The RoutingSlipRouteStrategy has been introduced to determine the next
outputChannel that uses the requestMessage and the reply object. An implementation of
this strategy should be registered as a bean in the application context, and its bean name
is used in the routing slip path. The ExpressionEvaluatingRoutingSlipRouteStrategy
implementation is provided. It accepts a SpEL expression and an internal
ExpressionEvaluatingRoutingSlipRouteStrategy.RequestAndReply object is used as the
root object of the evaluation context. This is to avoid the overhead of EvaluationContext
creation for each ExpressionEvaluatingRoutingSlipRouteStrategy.getNextPath()
invocation. It is a simple Java bean with two properties: Message<?> request and
Object reply. With this expression implementation, we can specify routing slip path
entries by using SpEL (for example, @routingSlipRoutingPojo.get(request, reply)
and request.headers[myRoutingSlipChannel]) and avoid defining a bean for the
RoutingSlipRouteStrategy.
Note
The requestMessage argument is always a Message<?>. Depending on context, the reply
object may be a Message<?>, an AbstractIntegrationMessageBuilder, or an arbitrary
application domain object (when, for example, it is returned by a POJO method invoked by a
service activator). In the first two cases, the usual Message properties (payload and headers)
are available when using SpEL (or a Java implementation). For an arbitrary domain object, these
properties are not available. For this reason, be careful when you use routing slips in conjunction
with POJO methods if the result is used to determine the next path.
Important
If a routing slip is involved in a distributed environment, we recommend not using
inline expressions for the Routing Slip path. This recommendation applies to distributed
environments such as cross-JVM applications, using a request-reply through a message
broker (such asChapter 14, AMQP Support or Chapter 23, JMS Support), or using
a persistent MessageStore (Section 12.4, “Message Store”) in the integration flow.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 81
The framework uses RoutingSlipHeaderValueMessageProcessor to convert them to
ExpressionEvaluatingRoutingSlipRouteStrategy objects, and they are used in the
routingSlip message header. Since this class is not Serializable (it cannot be, because
it depends on the BeanFactory), the entire Message becomes non-serializable and, in any
distributed operation, we end up with a NotSerializableException. To overcome this
limitation, register an ExpressionEvaluatingRoutingSlipRouteStrategy bean with the
desired SpEL and use its bean name in the routing slip path configuration.
For Java configuration, you can add a RoutingSlipHeaderValueMessageProcessor instance to
the HeaderEnricher bean definition, as the following example shows:
@Bean
@Transformer(inputChannel = "routingSlipHeaderChannel")
public HeaderEnricher headerEnricher() {
return new HeaderEnricher(Collections.singletonMap(IntegrationMessageHeaderAccessor.ROUTING_SLIP,
new RoutingSlipHeaderValueMessageProcessor("myRoutePath1",
"@routingSlipRoutingPojo.get(request, reply)",
"routingSlipRoutingStrategy",
"request.headers[myRoutingSlipChannel]",
"finishChannel")));
}
The routing slip algorithm works as follows when an endpoint produces a reply and no outputChannel
has been defined:
• The routingSlipIndex is used to get a value from the routing slip path list.
• If the value from routingSlipIndex is String, it is used to get a bean from BeanFactory.
• If a returned bean is an instance of MessageChannel, it is used as the next outputChannel and
the routingSlipIndex is incremented in the reply message header (the routing slip path entries
remain unchanged).
• If a returned bean is an instance of RoutingSlipRouteStrategy and its getNextPath does not
return an empty String, that result is used as a bean name for the next outputChannel. The
routingSlipIndex remains unchanged.
• If RoutingSlipRouteStrategy.getNextPath returns an empty String, the
routingSlipIndex is incremented and the getOutputChannelFromRoutingSlip is invoked
recursively for the next Routing Slip path item.
• If the next routing slip path entry is not a String, it must be an instance of
RoutingSlipRouteStrategy.
• When the routingSlipIndex exceeds the size of the routing slip path list, the algorithm moves
to the default behavior for the standard replyChannel header.
Process Manager Enterprise Integration Pattern
Enterprise integration patterns include the process manager pattern. You can now easily implement
this pattern by using custom process manager logic encapsulated in a RoutingSlipRouteStrategy
within the routing slip. In addition to a bean name, the RoutingSlipRouteStrategy can return
any MessageChannel object, and there is no requirement that this MessageChannel instance be
a bean in the application context. This way, we can provide powerful dynamic routing logic when
there is no way to predict which channel should be used. A MessageChannel can be created within
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 82
the RoutingSlipRouteStrategy and returned. A FixedSubscriberChannel with an associated
MessageHandler implementation is a good combination for such cases. For example, you can route
to a reactor stream, as the following example shows:
@Bean
public PollableChannel resultsChannel() {
return new QueueChannel();
}
@Bean
public RoutingSlipRouteStrategy routeStrategy() {
return (requestMessage, reply) -> requestMessage.getPayload() instanceof String
? new FixedSubscriberChannel(m ->
Mono.just((String) m.getPayload())
.map(String::toUpperCase)
.subscribe(v -> messagingTemplate().convertAndSend(resultsChannel(), v)))
: new FixedSubscriberChannel(m ->
Mono.just((Integer) m.getPayload())
.map(v -> v * 2)
.subscribe(v -> messagingTemplate().convertAndSend(resultsChannel(), v)));
}
8.2 Filter
Message filters are used to decide whether a Message should be passed along or dropped based
on some criteria, such as a message header value or message content itself. Therefore, a message
filter is similar to a router, except that, for each message received from the filter’s input channel, that
same message may or may not be sent to the filter’s output channel. Unlike the router, it makes no
decision regarding which message channel to send the message to but decides only whether to send
the message at all.
Note
As we describe later in this section, the filter also supports a discard channel. In certain cases, it
can play the role of a very simple router (or "switch"), based on a boolean condition.
In Spring Integration, you can configure a message filter as a message endpoint that delegates to an
implementation of the MessageSelector interface. That interface is itself quite simple, as the following
listing shows:
public interface MessageSelector {
boolean accept(Message<?> message);
}
The MessageFilter constructor accepts a selector instance, as the following example shows:
MessageFilter filter = new MessageFilter(someSelector);
In combination with the namespace and SpEL, you can configure powerful filters with very little Java
code.
Configuring a Filter with XML
You can use the <filter> element is used to create a message-selecting endpoint. In addition to
input-channel and output-channel attributes, it requires a ref attribute. The ref can point to a
MessageSelector implementation, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 83
<int:filter input-channel="input" ref="selector" output-channel="output"/>
<bean id="selector" class="example.MessageSelectorImpl"/>
Alternatively, you can add the method attribute. In that case, the ref attribute may refer to any object.
The referenced method may expect either the Message type or the payload type of inbound messages.
The method must return a boolean value. If the method returns true, the message is sent to the output
channel. The following example shows how to configure a filter that uses the method attribute:
<int:filter input-channel="input" output-channel="output"
ref="exampleObject" method="someBooleanReturningMethod"/>
<bean id="exampleObject" class="example.SomeObject"/>
If the selector or adapted POJO method returns false, a few settings control the handling of the
rejected message. By default (if configured as in the preceding example), rejected messages are
silently dropped. If rejection should instead result in an error condition, set the throw-exception-
on-rejection attribute to true, as the following example shows:
<int:filter input-channel="input" ref="selector"
output-channel="output" throw-exception-on-rejection="true"/>
If you want rejected messages to be routed to a specific channel, provide that reference as the
discard-channel, as the following example shows:
<int:filter input-channel="input" ref="selector"
output-channel="output" discard-channel="rejectedMessages"/>
See also the section called “Advising Filters”.
Note
Message filters are commonly used in conjunction with a publish-subscribe channel. Many filter
endpoints may be subscribed to the same channel, and they decide whether or not to pass the
message to the next endpoint, which could be any of the supported types (such as a service
activator). This provides a reactive alternative to the more proactive approach of using a message
router with a single point-to-point input channel and multiple output channels.
We recommend using a ref attribute if the custom filter implementation is referenced in other <filter>
definitions. However, if the custom filter implementation is scoped to a single <filter> element, you
should provide an inner bean definition, as the following example shows:
<int:filter method="someMethod" input-channel="inChannel" output-channel="outChannel">
<beans:bean class="org.foo.MyCustomFilter"/>
</filter>
Note
Using both the ref attribute and an inner handler definition in the same <filter> configuration
is not allowed, as it creates an ambiguous condition and throws an exception.
Important
If the ref attribute references a bean that extends MessageFilter (such as filters provided by
the framework itself), the configuration is optimized by injecting the output channel into the filter
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 84
bean directly. In this case, each ref must be to a separate bean instance (or a prototype-
scoped bean) or use the inner <bean/> configuration type. However, this optimization applies
only if you do not provide any filter-specific attributes in the filter XML definition. If you inadvertently
reference the same message handler from multiple beans, you get a configuration exception.
With the introduction of SpEL support, Spring Integration added the expression attribute to the filter
element. It can be used to avoid Java entirely for simple filters, as the following example shows:
<int:filter input-channel="input" expression="payload.equals('nonsense')"/>
The string passed as the value of the expression attribute is evaluated as a SpEL expression with
the message available in the evaluation context. If you must include the result of an expression in
the scope of the application context, you can use the #{} notation, as defined in the SpEL reference
documentation, as the following example shows:
<int:filter input-channel="input"
expression="payload.matches(#{filterPatterns.nonsensePattern})"/>
If the expression itself needs to be dynamic, you can use an expression sub-element. That provides
a level of indirection for resolving the expression by its key from an ExpressionSource. That is a
strategy interface that you can implement directly, or you can rely upon a version available in Spring
Integration that loads expressions from a "resource bundle" and can check for modifications after a
given number of seconds. All of this is demonstrated in the following configuration example, where the
expression could be reloaded within one minute if the underlying file had been modified:
<int:filter input-channel="input" output-channel="output">
<int:expression key="filterPatterns.example" source="myExpressions"/>
</int:filter>
<beans:bean id="myExpressions" id="myExpressions"
class="o.s.i.expression.ReloadableResourceBundleExpressionSource">
<beans:property name="basename" value="config/integration/expressions"/>
<beans:property name="cacheSeconds" value="60"/>
</beans:bean>
If the ExpressionSource bean is named expressionSource, you need not provide the` source`
attribute on the <expression> element. However, in the preceding example, we show it for
completeness.
The config/integration/expressions.properties file (or any more-specific version with a locale extension
to be resolved in the typical way that resource-bundles are loaded) can contain a key/value pair, as the
following example shows:
filterPatterns.example=payload > 100
Note
All of these examples that use expression as an attribute or sub-element can also be
applied within transformer, router, splitter, service-activator, and header-enricher elements. The
semantics and role of the given component type would affect the interpretation of the evaluation
result, in the same way that the return value of a method-invocation would be interpreted. For
example, an expression can return strings that are to be treated as message channel names by a
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 85
router component. However, the underlying functionality of evaluating the expression against the
message as the root object and resolving bean names if prefixed with @ is consistent across all
of the core EIP components within Spring Integration.
Configuring a Filter with Annotations
The following example shows how to configure a filter by using annotations:
public class PetFilter {
...
@Filter ❶
public boolean dogsOnly(String input) {
...
}
}
❶An annotation indicating that this method is to be used as a filter. It must be specified if this class
is to be used as a filter.
All of the configuration options provided by the XML element are also available for the @Filter
annotation.
The filter can be either referenced explicitly from XML or, if the @MessageEndpoint annotation is
defined on the class, detected automatically through classpath scanning.
See also the section called “Advising Endpoints Using Annotations”.
8.3 Splitter
The splitter is a component whose role is to partition a message into several parts and send the resulting
messages to be processed independently. Very often, they are upstream producers in a pipeline that
includes an aggregator.
Programming Model
The API for performing splitting consists of one base class, AbstractMessageSplitter. It is a
MessageHandler implementation that encapsulates features common to splitters, such as filling in the
appropriate message headers (CORRELATION_ID, SEQUENCE_SIZE, and SEQUENCE_NUMBER) on the
messages that are produced. This filling enables tracking down the messages and the results of their
processing (in a typical scenario, these headers get copied to the messages that are produced by the
various transforming endpoints). The values can then be used, for example, by a composed message
processor.
The following example shows an excerpt from AbstractMessageSplitter:
public abstract class AbstractMessageSplitter
extends AbstractReplyProducingMessageConsumer {
...
protected abstract Object splitMessage(Message<?> message);
}
To implement a specific splitter in an application, you can extend AbstractMessageSplitter and
implement the splitMessage method, which contains logic for splitting the messages. The return
value can be one of the following:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 86
• A Collection or an array of messages or an Iterable (or Iterator) that iterates over messages.
In this case, the messages are sent as messages (after the CORRELATION_ID, SEQUENCE_SIZE
and SEQUENCE_NUMBER are populated). Using this approach gives you more control — for example,
to populate custom message headers as part of the splitting process.
• A Collection or an array of non-message objects or an Iterable (or Iterator) that iterates
over non-message objects. It works like the prior case, except that each collection element is used
as a message payload. Using this approach lets you focus on the domain objects without having to
consider the messaging system and produces code that is easier to test.
• a Message or non-message object (but not a collection or an array). It works like the previous cases,
except that a single message is sent out.
In Spring Integration, any POJO can implement the splitting algorithm, provided that it defines a method
that accepts a single argument and has a return value. In this case, the return value of the method is
interpreted as described earlier. The input argument might either be a Message or a simple POJO. In the
latter case, the splitter receives the payload of the incoming message. We recommend this approach,
because it decouples the code from the Spring Integration API and is typically easier to test.
Iterators
Starting with version 4.1, the AbstractMessageSplitter supports the Iterator type for the
value to split. Note, in the case of an Iterator (or Iterable), we don’t have access to the
number of underlying items and the SEQUENCE_SIZE header is set to 0. This means that the
default SequenceSizeReleaseStrategy of an <aggregator> won’t work and the group for the
CORRELATION_ID from the splitter won’t be released; it will remain as incomplete. In this case
you should use an appropriate custom ReleaseStrategy or rely on send-partial-result-on-
expiry together with group-timeout or a MessageGroupStoreReaper.
Starting with version 5.0, the AbstractMessageSplitter provides protected
obtainSizeIfPossible() methods to allow the determination of the size of the Iterable and
Iterator objects if that is possible. For example XPathMessageSplitter can determine the size
of the underlying NodeList object. And starting with version 5.0.9, this method also properly returns a
size of the com.fasterxml.jackson.core.TreeNode.
An Iterator object is useful to avoid the need for building an entire collection in the memory before
splitting. For example, when underlying items are populated from some external system (e.g. DataBase
or FTP MGET) using iterations or streams.
Stream and Flux
Starting with version 5.0, the AbstractMessageSplitter supports the Java Stream and Reactive
Streams Publisher types for the value to split. In this case, the target Iterator is built on their
iteration functionality.
In addition, if the splitter’s output channel is an instance of a
ReactiveStreamsSubscribableChannel, the AbstractMessageSplitter produces a Flux
result instead of an Iterator, and the output channel is subscribed to this Flux for back-pressure-
based splitting on downstream flow demand.
Configuring a Splitter with XML
A splitter can be configured through XML as follows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 87
<int:channel id="inputChannel"/>
<int:splitter id="splitter" ❶
ref="splitterBean" ❷
method="split" ❸
input-channel="inputChannel" ❹
output-channel="outputChannel" /> ❺
<int:channel id="outputChannel"/>
<beans:bean id="splitterBean" class="sample.PojoSplitter"/>
❶The ID of the splitter is optional.
❷A reference to a bean defined in the application context. The bean must implement the splitting
logic, as described in the earlier section. Optional. If a reference to a bean is not provided,
it is assumed that the payload of the message that arrived on the input-channel is an
implementation of java.util.Collection and the default splitting logic is applied to the
collection, incorporating each individual element into a message and sending it to the output-
channel.
❸The method (defined on the bean) that implements the splitting logic. Optional.
❹The input channel of the splitter. Required.
❺The channel to which the splitter sends the results of splitting the incoming message. Optional
(because incoming messages can specify a reply channel themselves).
We recommend using a ref attribute if the custom splitter implementation can be referenced in other
<splitter> definitions. However if the custom splitter handler implementation should be scoped to
a single definition of the <splitter>, you can configure an inner bean definition, as the following
example follows:
<int:splitter id="testSplitter" input-channel="inChannel" method="split"
output-channel="outChannel">
<beans:bean class="org.foo.TestSplitter"/>
</int:splitter>
Note
Using both a ref attribute and an inner handler definition in the same <int:splitter>
configuration is not allowed, as it creates an ambiguous condition and results in an exception
being thrown.
Important
If the ref attribute references a bean that extends AbstractMessageProducingHandler
(such as splitters provided by the framework itself), the configuration is optimized by injecting
the output channel into the handler directly. In this case, each ref must be a separate bean
instance (or a prototype-scoped bean) or use the inner <bean/> configuration type. However,
this optimization applies only if you do not provide any splitter-specific attributes in the splitter
XML definition. If you inadvertently reference the same message handler from multiple beans,
you get a configuration exception.
Configuring a Splitter with Annotations
The @Splitter annotation is applicable to methods that expect either the Message type or the
message payload type, and the return values of the method should be a Collection of any type. If
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 88
the returned values are not actual Message objects, each item is wrapped in a Message as the payload
of the Message. Each resulting Message is sent to the designated output channel for the endpoint on
which the @Splitter is defined.
The following example shows how to configure a splitter by using the @Splitter annotation:
@Splitter
List<LineItem> extractItems(Order order) {
return order.getItems()
}
See also the section called “Advising Endpoints Using Annotations”.
See also Section 11.8, “Splitters” in the Java DSL chapter.
8.4 Aggregator
Basically a mirror-image of the splitter, the aggregator is a type of message handler that receives multiple
messages and combines them into a single message. In fact, an aggregator is often a downstream
consumer in a pipeline that includes a splitter.
Technically, the aggregator is more complex than a splitter, because it is stateful. It must hold the
messages to be aggregated and determine when the complete group of messages is ready to be
aggregated. In order to do so, it requires a MessageStore.
Functionality
The Aggregator combines a group of related messages, by correlating and storing them, until the group
is deemed to be complete. At that point, the aggregator creates a single message by processing the
whole group and sends the aggregated message as output.
Implementing an aggregator requires providing the logic to perform the aggregation (that is, the creation
of a single message from many). Two related concepts are correlation and release.
Correlation determines how messages are grouped for aggregation. In
Spring Integration, correlation is done by default, based on the
IntegrationMessageHeaderAccessor.CORRELATION_ID message header. Messages with the
same IntegrationMessageHeaderAccessor.CORRELATION_ID are grouped together. However,
you can customize the correlation strategy to allow other ways of specifying how the messages should
be grouped together. To do so, you can implement a CorrelationStrategy (covered later in this
chapter).
To determine the point at which a group of messages is ready to be processed, a ReleaseStrategy is
consulted. The default release strategy for the aggregator releases a group when all messages included
in a sequence are present, based on the IntegrationMessageHeaderAccessor.SEQUENCE_SIZE
header. You can override this default strategy by providing a reference to a custom ReleaseStrategy
implementation.
Programming Model
The Aggregation API consists of a number of classes:
• The interface MessageGroupProcessor, and its subclasses:
MethodInvokingAggregatingMessageGroupProcessor and
ExpressionEvaluatingMessageGroupProcessor
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 89
• The ReleaseStrategy interface and its default implementation:
SimpleSequenceSizeReleaseStrategy
• The CorrelationStrategy interface and its default implementation:
HeaderAttributeCorrelationStrategy
AggregatingMessageHandler
The AggregatingMessageHandler (a subclass of AbstractCorrelatingMessageHandler) is
a MessageHandler implementation, encapsulating the common functionality of an aggregator (and
other correlating use cases), which are as follows:
• Correlating messages into a group to be aggregated
• Maintaining those messages in a MessageStore until the group can be released
• Deciding when the group can be released
• Aggregating the released group into a single message
• Recognizing and responding to an expired group
The responsibility for deciding how the messages should be grouped together is delegated to a
CorrelationStrategy instance. The responsibility for deciding whether the message group can be
released is delegated to a ReleaseStrategy instance.
The following listing shows a brief highlight of the base
AbstractAggregatingMessageGroupProcessor (the responsibility for implementing the
aggregatePayloads method is left to the developer):
public abstract class AbstractAggregatingMessageGroupProcessor
implements MessageGroupProcessor {
protected Map<String, Object> aggregateHeaders(MessageGroup group) {
// default implementation exists
}
protected abstract Object aggregatePayloads(MessageGroup group, Map<String, Object> defaultHeaders);
}
The CorrelationStrategy is owned by the AbstractCorrelatingMessageHandler and has
a default value based on the IntegrationMessageHeaderAccessor.CORRELATION_ID message
header, as the following example shows:
public AbstractCorrelatingMessageHandler(MessageGroupProcessor processor, MessageGroupStore store,
CorrelationStrategy correlationStrategy, ReleaseStrategy releaseStrategy) {
...
this.correlationStrategy = correlationStrategy == null ?
new HeaderAttributeCorrelationStrategy(IntegrationMessageHeaderAccessor.CORRELATION_ID) :
correlationStrategy;
this.releaseStrategy = releaseStrategy == null ? new SimpleSequenceSizeReleaseStrategy() :
releaseStrategy;
...
}
As for the actual processing of the message group, the default implementation is the
DefaultAggregatingMessageGroupProcessor. It creates a single Message whose payload
is a List of the payloads received for a given group. This works well for simple scatter-gather
implementations with a splitter, a publish-subscribe channel, or a recipient list router upstream.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 90
Note
When using a publish-subscribe channel or a recipient list router in this type of scenario, be sure
to enable the apply-sequence flag. Doing so adds the necessary headers: CORRELATION_ID,
SEQUENCE_NUMBER, and SEQUENCE_SIZE. That behavior is enabled by default for splitters in
Spring Integration, but it is not enabled for publish-subscribe channels or for recipient list routers
because those components may be used in a variety of contexts in which these headers are not
necessary.
When implementing a specific aggregator strategy for an application, you can extend
AbstractAggregatingMessageGroupProcessor and implement the aggregatePayloads
method. However, there are better solutions, less coupled to the API, for implementing the aggregation
logic, which can be configured either through XML or through annotations.
In general, any POJO can implement the aggregation algorithm if it provides a method that accepts a
single java.util.List as an argument (parameterized lists are supported as well). This method is
invoked for aggregating messages as follows:
• If the argument is a java.util.Collection<T> and the parameter type T is assignable to
Message, the whole list of messages accumulated for aggregation is sent to the aggregator.
• If the argument is a non-parameterized java.util.Collection or the parameter type is not
assignable to Message, the method receives the payloads of the accumulated messages.
• If the return type is not assignable to Message, it is treated as the payload for a Message that is
automatically created by the framework.
Note
In the interest of code simplicity and promoting best practices such as low coupling, testability,
and others, the preferred way of implementing the aggregation logic is through a POJO and using
the XML or annotation support for configuring it in the application.
Starting with version 5.1, after processing message group, an
AbstractCorrelatingMessageHandler performs a
MessageBuilder.popSequenceDetails() message headers modification for the proper splitter-
aggregator scenario with several nested levels. It is done only if the message group release result
is not a message or collection of messages. In that case a target MessageGroupProcessor
is responsible for the MessageBuilder.popSequenceDetails() call while building those
messages. This functionality can be controlled by a new popSequence boolean property, so the
MessageBuilder.popSequenceDetails() can be disabled in some scenarios when correlation
details have not been populated by the standard splitter. This property, essentially, undoes what has
been done by the nearest upstream applySequence = true in the AbstractMessageSplitter.
See Section 8.3, “Splitter” for more information.
Important
The SimpleMessageGroup.getMessages() method returns an
unmodifiableCollection. Therefore, if your aggregating POJO method has a
Collection<Message> parameter, the argument passed in is exactly that Collection
instance and, when you use a SimpleMessageStore for the aggregator, that
original Collection<Message> is cleared after releasing the group. Consequently, the
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 91
Collection<Message> variable in the POJO is cleared too, if it is passed out of the aggregator.
If you wish to simply release that collection as-is for further processing, you must build a new
Collection (for example, new ArrayList<Message>(messages)). Starting with version
4.3, the framework no longer copies the messages to a new collection, to avoid undesired extra
object creation.
If the processMessageGroup method of the MessageGroupProcessor returns a collection, it must
be a collection of Message<?> objects. In this case, the messages are individually released. Prior to
version 4.2, it was not possible to provide a MessageGroupProcessor by using XML configuration.
Only POJO methods could be used for aggregation. Now, if the framework detects that the referenced
(or inner) bean implements MessageProcessor, it is used as the aggregator’s output processor.
If you wish to release a collection of objects from a custom MessageGroupProcessor as the payload
of a message, your class should extend AbstractAggregatingMessageGroupProcessor and
implement aggregatePayloads().
Also, since version 4.2, a SimpleMessageGroupProcessor is provided. It returns the collection
of messages from the group, which, as indicated earlier, causes the released messages to be sent
individually.
This lets the aggregator work as a message barrier, where arriving messages are held until the release
strategy fires and the group is released as a sequence of individual messages.
ReleaseStrategy
The ReleaseStrategy interface is defined as follows:
public interface ReleaseStrategy {
boolean canRelease(MessageGroup group);
}
In general, any POJO can implement the completion decision logic if it provides a method that accepts
a single java.util.List as an argument (parameterized lists are supported as well) and returns a
boolean value. This method is invoked after the arrival of each new message, to decide whether the
group is complete or not, as follows:
• If the argument is a java.util.List<T> and the parameter type T is assignable to Message, the
whole list of messages accumulated in the group is sent to the method.
• If the argument is a non-parametrized java.util.List or the parameter type is not assignable to
Message, the method receives the payloads of the accumulated messages.
• The method must return true if the message group is ready for aggregation or false otherwise.
The following example shows how to use the @ReleaseStrategy annotation for a List of type
Message:
public class MyReleaseStrategy {
@ReleaseStrategy
public boolean canMessagesBeReleased(List<Message<?>>) {...}
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 92
The following example shows how to use the @ReleaseStrategy annotation for a List of type
String:
public class MyReleaseStrategy {
@ReleaseStrategy
public boolean canMessagesBeReleased(List<String>) {...}
}
Based on the signatures in the preceding two examples, the POJO-based release strategy is passed
a Collection of not-yet-released messages (if you need access to the whole Message) or a
Collection of payload objects (if the type parameter is anything other than Message). This satisfies
the majority of use cases. However if, for some reason, you need to access the full MessageGroup,
you should provide an implementation of the ReleaseStrategy interface.
Warning
When handling potentially large groups, you should understand how these methods are invoked,
because the release strategy may be invoked multiple times before the group is released. The
most efficient is an implementation of ReleaseStrategy, because the aggregator can invoke
it directly. The second most efficient is a POJO method with a Collection<Message<?>>
parameter type. The least efficient is a POJO method with a Collection<Something> type.
The framework has to copy the payloads from the messages in the group into a new collection
(and possibly attempt conversion on the payloads to Something) every time the release strategy
is called. Using Collection<?> avoids the conversion but still requires creating the new
Collection.
For these reasons, for large groups, we recommended that you implement ReleaseStrategy.
When the group is released for aggregation, all its not-yet-released messages are processed and
removed from the group. If the group is also complete (that is, if all messages from a sequence
have arrived or if there is no sequence defined), then the group is marked as complete. Any new
messages for this group are sent to the discard channel (if defined). Setting expire-groups-upon-
completion to true (the default is false) removes the entire group, and any new messages (with
the same correlation ID as the removed group) form a new group. You can release partial sequences
by using a MessageGroupStoreReaper together with send-partial-result-on-expiry being
set to true.
Important
To facilitate discarding of late-arriving messages, the aggregator must maintain state about the
group after it has been released. This can eventually cause out-of-memory conditions. To avoid
such situations, you should consider configuring a MessageGroupStoreReaper to remove the
group metadata. The expiry parameters should be set to expire groups once a point has been
reach after after which late messages are not expected to arrive. For information about configuring
a reaper, see the section called “Managing State in an Aggregator: MessageGroupStore”.
Spring Integration provides an implementation for ReleaseStrategy:
SimpleSequenceSizeReleaseStrategy. This implementation consults the SEQUENCE_NUMBER
and SEQUENCE_SIZE headers of each arriving message to decide when a message group is complete
and ready to be aggregated. As shown earlier, it is also the default strategy.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 93
Note
Before version 5.0, the default release strategy was SequenceSizeReleaseStrategy, which
does not perform well with large groups. With that strategy, duplicate sequence numbers are
detected and rejected. This operation can be expensive.
If you are aggregating large groups, you don’t need to release partial groups, and you don’t need
to detect/reject duplicate sequences, consider using the SimpleSequenceSizeReleaseStrategy
instead - it is much more efficient for these use cases, and is the default since version 5.0 when partial
group release is not specified.
Aggregating Large Groups
The 4.3 release changed the default Collection for messages in a SimpleMessageGroup to
HashSet (it was previously a BlockingQueue). This was expensive when removing individual
messages from large groups (an O(n) linear scan was required). Although the hash set is generally
much faster to remove, it can be expensive for large messages, because the hash has to be calculated
on both inserts and removes. If you have messages that are expensive to hash, consider using
some other collection type. As discussed in the section called “Using MessageGroupFactory”,
a SimpleMessageGroupFactory is provided so that you can select the Collection that best
suits your needs. You can also provide your own factory implementation to create some other
Collection<Message<?>>.
The following example shows how to configure an aggregator with the previous implementation and a
SimpleSequenceSizeReleaseStrategy:
<int:aggregator input-channel="aggregate"
output-channel="out" message-store="store" release-strategy="releaser" />
<bean id="store" class="org.springframework.integration.store.SimpleMessageStore">
<property name="messageGroupFactory">
<bean class="org.springframework.integration.store.SimpleMessageGroupFactory">
<constructor-arg value="BLOCKING_QUEUE"/>
</bean>
</property>
</bean>
<bean id="releaser" class="SimpleSequenceSizeReleaseStrategy" />
Correlation Strategy
The CorrelationStrategy interface is defined as follows:
public interface CorrelationStrategy {
Object getCorrelationKey(Message<?> message);
}
The method returns an Object that represents the correlation key used for associating the message
with a message group. The key must satisfy the criteria used for a key in a Map with respect to the
implementation of equals() and hashCode().
In general, any POJO can implement the correlation logic, and the rules for mapping a message to a
method’s argument (or arguments) are the same as for a ServiceActivator (including support for
@Header annotations). The method must return a value, and the value must not be null.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 94
Spring Integration provides an implementation for CorrelationStrategy:
HeaderAttributeCorrelationStrategy. This implementation returns the value of one of the
message headers (whose name is specified by a constructor argument) as the correlation key. By
default, the correlation strategy is a HeaderAttributeCorrelationStrategy that returns the value
of the CORRELATION_ID header attribute. If you have a custom header name you would like to use for
correlation, you can configure it on an instance of HeaderAttributeCorrelationStrategy and
provide that as a reference for the aggregator’s correlation strategy.
Lock Registry
Changes to groups are thread safe. So, when you send messages for the same correlation ID
concurrently, only one of them will be processed in the aggregator, making it effectively as a single-
threaded per message group. A LockRegistry is used to obtain a lock for the resolved correlation ID.
A DefaultLockRegistry is used by default (in-memory). For synchronizing updates across servers
where a shared MessageGroupStore is being used, you must configure a shared lock registry.
Avoiding Deadlocks
As discussed above, when message groups are mutated (messages added or released) a lock is held.
Consider the following flow:
...->aggregator1-> ... ->aggregator2-> ...
If there are multiple threads, and the aggregators share a common lock registry, it is possible to get
a deadlock. This will cause hung threads and jstack <pid> might present a result such as:
Found one Java-level deadlock:
=============================
"t2":
waiting for ownable synchronizer 0x000000076c1cbfa0, (a java.util.concurrent.locks.ReentrantLock
$NonfairSync),
which is held by "t1"
"t1":
waiting for ownable synchronizer 0x000000076c1ccc00, (a java.util.concurrent.locks.ReentrantLock
$NonfairSync),
which is held by "t2"
There are several ways to avoid this problem:
• ensure each aggregator has its own lock registry (this can be a shared registry across application
instances but two or more aggregators in the flow must each have a distinct registry)
• use an ExecutorChannel or QueueChannel as the output channel of the aggregator so that the
downstream flow runs on a new thread
• starting with version 5.1.1, set the releaseLockBeforeSend aggregator property to true
Note
This problem can also be caused if, for some reason, the output of a single aggregator is eventually
routed back to the same aggregator. Of course, the first solution above does not apply in this case.
Configuring an Aggregator in Java DSL
See Section 11.9, “Aggregators and Resequencers” for how to configure an aggregator in Java DSL.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 95
Configuring an Aggregator with XML
Spring Integration supports the configuration of an aggregator with XML through the <aggregator/>
element. The following example shows an example of an aggregator:
<channel id="inputChannel"/>
<int:aggregator id="myAggregator" ❶
auto-startup="true" ❷
input-channel="inputChannel" ❸
output-channel="outputChannel" ❹
discard-channel="throwAwayChannel" ❺
message-store="persistentMessageStore" ❻
order="1" ❼
send-partial-result-on-expiry="false" ❽
send-timeout="1000" ❾
correlation-strategy="correlationStrategyBean" ❿
correlation-strategy-method="correlate" 11
correlation-strategy-expression="headers['foo']" 12
ref="aggregatorBean" 13
method="aggregate" 14
release-strategy="releaseStrategyBean" 15
release-strategy-method="release" 16
release-strategy-expression="size() == 5" 17
expire-groups-upon-completion="false" 18
empty-group-min-timeout="60000" 19
lock-registry="lockRegistry" 20
group-timeout="60000" 21
group-timeout-expression="size() ge 2 ? 100 : -1" 22
expire-groups-upon-timeout="true" 23
scheduler="taskScheduler" > 24
<expire-transactional/> 25
<expire-advice-chain/> 26
</aggregator>
<int:channel id="outputChannel"/>
<int:channel id="throwAwayChannel"/>
<bean id="persistentMessageStore" class="org.springframework.integration.jdbc.store.JdbcMessageStore">
<constructor-arg ref="dataSource"/>
</bean>
<bean id="aggregatorBean" class="sample.PojoAggregator"/>
<bean id="releaseStrategyBean" class="sample.PojoReleaseStrategy"/>
<bean id="correlationStrategyBean" class="sample.PojoCorrelationStrategy"/>
❶The id of the aggregator is optional.
❷Lifecycle attribute signaling whether the aggregator should be started during application context
startup. Optional (the default is true).
❸The channel from which where aggregator receives messages. Required.
❹The channel to which the aggregator sends the aggregation results. Optional (because incoming
messages can themselves specify a reply channel in the replyChannel message header).
❺The channel to which the aggregator sends the messages that timed out (if send-partial-
result-on-expiry is false). Optional.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 96
❻A reference to a MessageGroupStore used to store groups of messages under their correlation
key until they are complete. Optional. By default, it is a volatile in-memory store. See Section 12.4,
“Message Store” for more information.
❼The order of this aggregator when more than one handle is subscribed to the same
DirectChannel (use for load-balancing purposes). Optional.
❽Indicates that expired messages should be aggregated and sent to the
output-channel or replyChannel once their containing MessageGroup is expired
(see MessageGroupStore.expireMessageGroups(long)). One way of expiring a
MessageGroup is by configuring a MessageGroupStoreReaper. However you can alternatively
expire MessageGroup by calling MessageGroupStore.expireMessageGroups(timeout).
You can accomplish that through a Control Bus operation or, if you have a reference to the
MessageGroupStore instance, by invoking expireMessageGroups(timeout). Otherwise,
by itself, this attribute does nothing. It serves only as an indicator of whether to discard or send
to the output or reply channel any messages that are still in the MessageGroup that is about to
be expired. Optional (the default is false). NOTE: This attribute might more properly be called
send-partial-result-on-timeout, because the group may not actually expire if expire-
groups-upon-timeout is set to false.
❾The timeout interval to wait when sending a reply Message to the output-channel or discard-
channel. Defaults to -1, which results in blocking indefinitely. It is applied only if the output
channel has some sending limitations, such as a QueueChannel with a fixed capacity. In
this case, a MessageDeliveryException is thrown. For AbstractSubscribableChannel
implementations, the send-timeout is ignored . For group-timeout(-expression), the
MessageDeliveryException from the scheduled expire task leads this task to be rescheduled.
Optional.
❿A reference to a bean that implements the message correlation (grouping) algorithm. The bean
can be an implementation of the CorrelationStrategy interface or a POJO. In the latter case,
the correlation-strategy-method attribute must be defined as well. Optional (by default,
the aggregator uses the IntegrationMessageHeaderAccessor.CORRELATION_ID header).
11 A method defined on the bean referenced by correlation-strategy. It implements the
correlation decision algorithm. Optional, with restrictions (correlation-strategy must be
present).
12 A SpEL expression representing the correlation strategy. Example: "headers['something']".
Only one of correlation-strategy or correlation-strategy-expression is allowed.
13 A reference to a bean defined in the application context. The bean must implement the aggregation
logic, as described earlier. Optional (by default, the list of aggregated messages becomes a
payload of the output message).
14 A method defined on the bean referenced by the ref attribute. It implements the message
aggregation algorithm. Optional (it depends on ref attribute being defined).
15 A reference to a bean that implements the release strategy. The bean can be an implementation
of the ReleaseStrategy interface or a POJO. In the latter case, the release-strategy-
method attribute must be defined as well. Optional (by default, the aggregator uses the
IntegrationMessageHeaderAccessor.SEQUENCE_SIZE header attribute).
16 A method defined on the bean referenced by the release-strategy attribute. It implements the
completion decision algorithm. Optional, with restrictions (release-strategy must be present).
17 A SpEL expression representing the release strategy. The root object for the expression is a
MessageGroup. Example: "size() == 5". Only one of release-strategy or release-
strategy-expression is allowed.
18 When set to true (the default is false), completed groups are removed from the message store,
letting subsequent messages with the same correlation form a new group. The default behavior is
to send messages with the same correlation as a completed group to the discard-channel.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 97
19 Applies only if a MessageGroupStoreReaper is configured for the MessageStore of the
<aggregator>. By default, when a MessageGroupStoreReaper is configured to expire partial
groups, empty groups are also removed. Empty groups exist after a group is normally released.
The empty groups enable the detection and discarding of late-arriving messages. If you wish to
expire empty groups on a longer schedule than expiring partial groups, set this property. Empty
groups are then not removed from the MessageStore until they have not been modified for at
least this number of milliseconds. Note that the actual time to expire an empty group is also affected
by the reaper’s timeout property, and it could be as much as this value plus the timeout.
20 A reference to a org.springframework.integration.util.LockRegistry bean. It used
to obtain a Lock based on the groupId for concurrent operations on the MessageGroup. By
default, an internal DefaultLockRegistry is used. Use of a distributed LockRegistry, such
as the ZookeeperLockRegistry, ensures only one instance of the aggregator can operate
on a group concurrently. See Section 27.10, “Redis Lock Registry”, Section 19.5, “Gemfire Lock
Registry”, and Section 40.2, “Zookeeper Lock Registry” for more information.
21 A timeout (in milliseconds) to force the MessageGroup complete when the ReleaseStrategy
does not release the group when the current message arrives. This attribute provides a built-in time-
based release strategy for the aggregator when there is a need to emit a partial result (or discard
the group) if a new message does not arrive for the MessageGroup within the timeout. When a new
message arrives at the aggregator, any existing ScheduledFuture<?> for its MessageGroup is
canceled. If the ReleaseStrategy returns false (meaning do not release) and groupTimeout
> 0, a new task is scheduled to expire the group. We do not advise setting this attribute to zero
(or a negative value). Doing so effectively disables the aggregator, because every message group
is immediately completed. You can, however, conditionally set it to zero (or a negative value) by
using an expression. See group-timeout-expression for information. The action taken during
the completion depends on the ReleaseStrategy and the send-partial-group-on-expiry
attribute. See the section called “Aggregator and Group Timeout” for more information. It is mutually
exclusive with group-timeout-expression attribute.
22 The SpEL expression that evaluates to a groupTimeout with the MessageGroup as the #root
evaluation context object. Used for scheduling the MessageGroup to be forced complete. If
the expression evaluates to null, the completion is not scheduled. If it evaluates to zero, the
group is completed immediately on the current thread. In effect, this provides a dynamic group-
timeout property. See group-timeout for more information. Mutually exclusive with group-
timeout attribute.
23 When a group is completed due to a timeout (or by a MessageGroupStoreReaper), the group is
expired (completely removed) by default. Late arriving messages start a new group. You can set
this to false to complete the group but have its metadata remain so that late arriving messages
are discarded. Empty groups can be expired later using a MessageGroupStoreReaper together
with the empty-group-min-timeout attribute. It defaults to true.
24 A TaskScheduler bean reference to schedule the MessageGroup to be forced complete
if no new message arrives for the MessageGroup within the groupTimeout. If not
provided, the default scheduler (taskScheduler) registered in the ApplicationContext
(ThreadPoolTaskScheduler) is used. This attribute does not apply if group-timeout or
group-timeout-expression is not specified.
25 Since version 4.1. It lets a transaction be started for the forceComplete operation. It is
initiated from a group-timeout(-expression) or by a MessageGroupStoreReaper and
is not applied to the normal add, release, and discard operations. Only this sub-element or
<expire-advice-chain/> is allowed.
26 Since version 4.1. It allows the configuration of any Advice for the forceComplete operation. It
is initiated from a group-timeout(-expression) or by a MessageGroupStoreReaper and
is not applied to the normal add, release, and discard operations. Only this sub-element or
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 98
<expire-transactional/> is allowed. A transaction Advice can also be configured here by
using the Spring tx namespace.
Expiring Groups
There are two attributes related to expiring (completely removing) groups. When a group is
expired, there is no record of it, and, if a new message arrives with the same correlation, a
new group is started. When a group is completed (without expiry), the empty group remains
and late-arriving messages are discarded. Empty groups can be removed later by using a
MessageGroupStoreReaper in combination with the empty-group-min-timeout attribute.
expire-groups-upon-completion relates to "normal" completion when the
ReleaseStrategy releases the group. This defaults to false.
If a group is not completed normally but is released or discarded because of a timeout, the group
is normally expired. Since version 4.1, you can control this behavior by using expire-groups-
upon-timeout. It defaults to true for backwards compatibility.
Note
When a group is timed out, the ReleaseStrategy is given one more opportunity to
release the group. If it does so and expire-groups-upon-timeout is false, expiration
is controlled by expire-groups-upon-completion. If the group is not released by the
release strategy during timeout, then the expiration is controlled by the expire-groups-
upon-timeout. Timed-out groups are either discarded or a partial release occurs (based
on send-partial-result-on-expiry).
Since version 5.0, empty groups are also scheduled for removal after empty-
group-min-timeout. If expireGroupsUponCompletion == false and
minimumTimeoutForEmptyGroups > 0, the task to remove the group is scheduled when
normal or partial sequences release happens.
We generally recommend using a ref attribute if a custom aggregator handler implementation may
be referenced in other <aggregator> definitions. However, if a custom aggregator implementation
is only being used by a single definition of the <aggregator>, you can use an inner bean definition
(starting with version 1.0.3) to configure the aggregation POJO within the <aggregator> element, as
the following example shows:
<aggregator input-channel="input" method="sum" output-channel="output">
<beans:bean class="org.foo.PojoAggregator"/>
</aggregator>
Note
Using both a ref attribute and an inner bean definition in the same <aggregator> configuration
is not allowed, as it creates an ambiguous condition. In such cases, an Exception is thrown.
The following example shows an implementation of the aggregator bean:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 99
public class PojoAggregator {
public Long add(List<Long> results) {
long total = 0l;
for (long partialResult: results) {
total += partialResult;
}
return total;
}
}
An implementation of the completion strategy bean for the preceding example might be as follows:
public class PojoReleaseStrategy {
...
public boolean canRelease(List<Long> numbers) {
int sum = 0;
for (long number: numbers) {
sum += number;
}
return sum >= maxValue;
}
}
Note
Wherever it makes sense to do so, the release strategy method and the aggregator method can
be combined into a single bean.
An implementation of the correlation strategy bean for the example above might be as follows:
public class PojoCorrelationStrategy {
...
public Long groupNumbersByLastDigit(Long number) {
return number % 10;
}
}
The aggregator in the preceding example would group numbers by some criterion (in this case, the
remainder after dividing by ten) and hold the group until the sum of the numbers provided by the payloads
exceeds a certain value.
Note
Wherever it makes sense to do so, the release strategy method, the correlation strategy method,
and the aggregator method can be combined in a single bean. (Actually, all of them or any two
of them can be combined.)
Aggregators and Spring Expression Language (SpEL)
Since Spring Integration 2.0, you can handle the various strategies (correlation, release, and
aggregation) with SpEL, which we recommend if the logic behind such a release strategy is relatively
simple. Suppose you have a legacy component that was designed to receive an array of objects. We
know that the default release strategy assembles all aggregated messages in the List. Now we have
two problems. First, we need to extract individual messages from the list. Second, we need to extract
the payload of each message and assemble the array of objects. The following example solves both
problems:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 100
public String[] processRelease(List<Message<String>> messages){
List<String> stringList = new ArrayList<String>();
for (Message<String> message : messages) {
stringList.add(message.getPayload());
}
return stringList.toArray(new String[]{});
}
However, with SpEL, such a requirement could actually be handled relatively easily with a one-line
expression, thus sparing you from writing a custom class and configuring it as a bean. The following
example shows how to do so:
<int:aggregator input-channel="aggChannel"
output-channel="replyChannel"
expression="#this.![payload].toArray()"/>
In the preceding configuration, we use a collection projection expression to assemble a new collection
from the payloads of all the messages in the list and then transform it to an array, thus achieving the
same result as the earlier Java code.
You can apply the same expression-based approach when dealing with custom release and correlation
strategies.
Instead of defining a bean for a custom CorrelationStrategy in the correlation-strategy
attribute, you can implement your simple correlation logic as a SpEL expression and configure it in the
correlation-strategy-expression attribute, as the following example shows:
correlation-strategy-expression="payload.person.id"
In the preceding example, we assume that the payload has a person attribute with an id, which is
going to be used to correlate messages.
Likewise, for the ReleaseStrategy, you can implement your release logic as a SpEL expression and
configure it in the release-strategy-expression attribute. The root object for evaluation context
is the MessageGroup itself. The List of messages can be referenced by using the message property
of the group within the expression.
Note
In releases prior to version 5.0, the root object was the collection of Message<?>, as the previous
example shows:
release-strategy-expression="!messages.?[payload==5].empty"
In the preceding example, the root object of the SpEL evaluation context is the MessageGroup itself,
and you are stating that, as soon as there is a message with payload of 5 in this group, the group should
be released.
Aggregator and Group Timeout
Starting with version 4.0, two new mutually exclusive attributes have been introduced: group-timeout
and group-timeout-expression (see the earlier description). See the section called “Configuring
an Aggregator with XML”. In some cases, you may need to emit the aggregator result (or discard the
group) after a timeout if the ReleaseStrategy does not release when the current message arrives.
For this purpose, the groupTimeout option lets scheduling the MessageGroup be forced to complete,
as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 101
<aggregator input-channel="input" output-channel="output"
send-partial-result-on-expiry="true"
group-timeout-expression="size() ge 2 ? 10000 : -1"
release-strategy-expression="messages[0].headers.sequenceNumber ==
messages[0].headers.sequenceSize"/>
With this example, the normal release is possible if the aggregator receives the last message in
sequence as defined by the release-strategy-expression. If that specific message does not
arrive, the groupTimeout forces the group to complete after ten seconds, as long as the group contains
at least two Messages.
The results of forcing the group to complete depends on the ReleaseStrategy and the send-
partial-result-on-expiry. First, the release strategy is again consulted to see if a normal release
is to be made. While the group has not changed, the ReleaseStrategy can decide to release the
group at this time. If the release strategy still does not release the group, it is expired. If send-partial-
result-on-expiry is true, existing messages in the (partial) MessageGroup are released as a
normal aggregator reply message to the output-channel. Otherwise, it is discarded.
There is a difference between groupTimeout behavior and MessageGroupStoreReaper (see the
section called “Configuring an Aggregator with XML”). The reaper initiates forced completion for all
MessageGroup s in the MessageGroupStore periodically. The groupTimeout does it for each
MessageGroup individually if a new message does not arrive during the groupTimeout. Also, the
reaper can be used to remove empty groups (empty groups are retained in order to discard late
messages if expire-groups-upon-completion is false).
Configuring an Aggregator with Annotations
The following example shows an aggregator configured with annotations:
public class Waiter {
...
@Aggregator ❶
public Delivery aggregatingMethod(List<OrderItem> items) {
...
}
@ReleaseStrategy ❷
public boolean releaseChecker(List<Message<?>> messages) {
...
}
@CorrelationStrategy ❸
public String correlateBy(OrderItem item) {
...
}
}
❶An annotation indicating that this method should be used as an aggregator. It must be specified
if this class is used as an aggregator.
❷An annotation indicating that this method is used as the release strategy of an aggregator. If not
present on any method, the aggregator uses the SimpleSequenceSizeReleaseStrategy.
❸An annotation indicating that this method should be used as the correlation strategy
of an aggregator. If no correlation strategy is indicated, the aggregator uses the
HeaderAttributeCorrelationStrategy based on CORRELATION_ID.
All of the configuration options provided by the XML element are also available for the @Aggregator
annotation.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 102
The aggregator can be either referenced explicitly from XML or, if the @MessageEndpoint is defined
on the class, detected automatically through classpath scanning.
Annotation configuration (@Aggregator and others) for the Aggregator component covers only
simple use cases, where most default options are sufficient. If you need more control over
those options when using annotation configuration, consider using a @Bean definition for the
AggregatingMessageHandler and mark its @Bean method with @ServiceActivator, as the
following example shows:
@ServiceActivator(inputChannel = "aggregatorChannel")
@Bean
public MessageHandler aggregator(MessageGroupStore jdbcMessageGroupStore) {
AggregatingMessageHandler aggregator =
new AggregatingMessageHandler(new DefaultAggregatingMessageGroupProcessor(),
jdbcMessageGroupStore);
aggregator.setOutputChannel(resultsChannel());
aggregator.setGroupTimeoutExpression(new ValueExpression<>(500L));
aggregator.setTaskScheduler(this.taskScheduler);
return aggregator;
}
See the section called “Programming Model” and the section called “Annotations on @Bean Methods”
for more information.
Note
Starting with version 4.2, the AggregatorFactoryBean is available to simplify Java
configuration for the AggregatingMessageHandler.
Managing State in an Aggregator: MessageGroupStore
Aggregator (and some other patterns in Spring Integration) is a stateful pattern that requires decisions
to be made based on a group of messages that have arrived over a period of time, all with the same
correlation key. The design of the interfaces in the stateful patterns (such as ReleaseStrategy) is
driven by the principle that the components (whether defined by the framework or by a user) should be
able to remain stateless. All state is carried by the MessageGroup and its management is delegated
to the MessageGroupStore. The MessageGroupStore interface is defined as follows:
public interface MessageGroupStore {
int getMessageCountForAllMessageGroups();
int getMarkedMessageCountForAllMessageGroups();
int getMessageGroupCount();
MessageGroup getMessageGroup(Object groupId);
MessageGroup addMessageToGroup(Object groupId, Message<?> message);
MessageGroup markMessageGroup(MessageGroup group);
MessageGroup removeMessageFromGroup(Object key, Message<?> messageToRemove);
MessageGroup markMessageFromGroup(Object key, Message<?> messageToMark);
void removeMessageGroup(Object groupId);
void registerMessageGroupExpiryCallback(MessageGroupCallback callback);
int expireMessageGroups(long timeout);
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 103
For more information, see the Javadoc.
The MessageGroupStore accumulates state information in MessageGroups while waiting for a
release strategy to be triggered, and that event might not ever happen. So, to prevent stale messages
from lingering, and for volatile stores to provide a hook for cleaning up when the application shuts down,
the MessageGroupStore lets you register callbacks to apply to its MessageGroups when they expire.
The interface is very straightforward, as the following listing shows:
public interface MessageGroupCallback {
void execute(MessageGroupStore messageGroupStore, MessageGroup group);
}
The callback has direct access to the store and the message group so that it can manage the persistent
state (for example, by entirely removing the group from the store).
The MessageGroupStore maintains a list of these callbacks, which it applies, on demand,
to all messages whose timestamps are earlier than a time supplied as a parameter (see
the registerMessageGroupExpiryCallback(..) and expireMessageGroups(..) methods,
described earlier). For more detail, see the section called “Managing State in an Aggregator:
MessageGroupStore”.
Important
It is important not to use the same MessageGroupStore instance in different aggregator
components, when you intend to rely on the expireMessageGroups functionality. Every
AbstractCorrelatingMessageHandler registers its own MessageGroupCallback based
on the forceComplete() callback. This way each group for expiration may be completed or
discarded by the wrong aggregator. Starting with version 5.0.10, a UniqueExpiryCallback
is used from the AbstractCorrelatingMessageHandler for the registration callback in the
MessageGroupStore. The MessageGroupStore, in turn, checks for presence an instance of
this class and logs an error with an appropriate message if one is already present in the callbacks
set. This way the Framework disallows usage of the MessageGroupStore instance in different
aggregators/resequencers to avoid the mentioned side effect of expiration the groups not created
by the particular correlation handler.
You can call the expireMessageGroups method with a timeout value. Any message older than the
current time minus this value is expired and has the callbacks applied. Thus, it is the user of the store
that defines what is meant by message group "expiry".
As a convenience for users, Spring Integration provides a wrapper for the message expiry in the form
of a MessageGroupStoreReaper, as the following example shows:
<bean id="reaper" class="org...MessageGroupStoreReaper">
<property name="messageGroupStore" ref="messageStore"/>
<property name="timeout" value="30000"/>
</bean>
<task:scheduled-tasks scheduler="scheduler">
<task:scheduled ref="reaper" method="run" fixed-rate="10000"/>
</task:scheduled-tasks>
The reaper is a Runnable. In the preceding example, the message group store’s expire method is
called every ten seconds. The timeout itself is 30 seconds.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 104
Note
It is important to understand that the timeout property of MessageGroupStoreReaper is an
approximate value and is impacted by the the rate of the task scheduler, since this property
is only checked on the next scheduled execution of the MessageGroupStoreReaper task.
For example, if the timeout is set for ten minutes but the MessageGroupStoreReaper task is
scheduled to run every hour and the last execution of the MessageGroupStoreReaper task
happened one minute before the timeout, the MessageGroup does not expire for the next 59
minutes. Consequently, we recommend setting the rate to be at least equal to the value of the
timeout or shorter.
In addition to the reaper, the expiry callbacks are invoked when the application shuts down through a
lifecycle callback in the AbstractCorrelatingMessageHandler.
The AbstractCorrelatingMessageHandler registers its own expiry callback, and this is the link
with the boolean flag send-partial-result-on-expiry in the XML configuration of the aggregator.
If the flag is set to true, then, when the expiry callback is invoked, any unmarked messages in groups
that are not yet released can be sent on to the output channel.
Important
When a shared MessageStore is used for different correlation endpoints, you must configure
a proper CorrelationStrategy to ensure uniqueness for group IDs. Otherwise, unexpected
behavior may happen when one correlation endpoint releases or expire messages from others.
Messages with the same correlation key are stored in the same message group.
Some MessageStore implementations allow using the same physical resources, by
partitioning the data. For example, the JdbcMessageStore has a region property, and the
MongoDbMessageStore has a collectionName property.
For more information about the MessageStore interface and its implementations, see
Section 12.4, “Message Store”.
8.5 Resequencer
The resequencer is related to the aggregator but serves a different purpose. While the aggregator
combines messages, the resequencer passes messages through without changing them.
Functionality
The resequencer works in a similar way to the aggregator, in the sense that it uses the
CORRELATION_ID to store messages in groups. he difference is that the Resequencer does not process
the messages in any way. Instead, it releases them in the order of their SEQUENCE_NUMBER header
values.
With respect to that, you can opt to release all messages at once (after the whole sequence, according
to the SEQUENCE_SIZE, and other possibilities) or as soon as a valid sequence is available. (We cover
what we mean by "a valid sequence" later in this chapter.)
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 105
Important
The resequencer is intended to resequence relatively short sequences of messages with small
gaps. If you have a large number of disjoint sequences with many gaps, you may experience
performance issues.
Configuring a Resequencer
See Section 11.9, “Aggregators and Resequencers” for configuring a resequencer in Java DSL.
Configuring a resequencer requires only including the appropriate element in XML.
The following example shows a resequencer configuration:
<int:channel id="inputChannel"/>
<int:channel id="outputChannel"/>
<int:resequencer id="completelyDefinedResequencer" ❶
input-channel="inputChannel" ❷
output-channel="outputChannel" ❸
discard-channel="discardChannel" ❹
release-partial-sequences="true" ❺
message-store="messageStore" ❻
send-partial-result-on-expiry="true" ❼
send-timeout="86420000" ❽
correlation-strategy="correlationStrategyBean" ❾
correlation-strategy-method="correlate" ❿
correlation-strategy-expression="headers['something']" 11
release-strategy="releaseStrategyBean" 12
release-strategy-method="release" 13
release-strategy-expression="size() == 10" 14
empty-group-min-timeout="60000" 15
lock-registry="lockRegistry" 16
group-timeout="60000" 17
group-timeout-expression="size() ge 2 ? 100 : -1" 18
scheduler="taskScheduler" /> 19
expire-group-upon-timeout="false" /> 20
❶The id of the resequencer is optional.
❷The input channel of the resequencer. Required.
❸The channel to which the resequencer sends the reordered messages. Optional.
❹The channel to which the resequencer sends the messages that timed out (if send-partial-
result-on-timeout is set to false). Optional.
❺Whether to send out ordered sequences as soon as they are available or only after the whole
message group arrives. Optional. (The default is false.)
❻A reference to a MessageGroupStore that can be used to store groups of messages under their
correlation key until they are complete. Optional. (The default is a volatile in-memory store.)
❼Whether, upon the expiration of the group, the ordered group should be sent out (even if some
of the messages are missing). Optional. (The default is false.) See the section called “Managing
State in an Aggregator: MessageGroupStore”.
❽The timeout interval to wait when sending a reply Message to the output-channel or
discard-channel. Defaults to -1, which blocks indefinitely. It is applied only if the output
channel has some sending limitations, such as a QueueChannel with a fixed capacity. In
this case, a MessageDeliveryException is thrown. The send-timeout is ignored for
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 106
AbstractSubscribableChannel implementations. For group-timeout(-expression),
the MessageDeliveryException from the scheduled expire task leads this task to be
rescheduled. Optional.
❾A reference to a bean that implements the message correlation (grouping) algorithm. The bean
can be an implementation of the CorrelationStrategy interface or a POJO. In the latter case,
the correlation-strategy-method attribute must also be defined. Optional. (By default, the
aggregator uses the IntegrationMessageHeaderAccessor.CORRELATION_ID header.)
❿A method that is defined on the bean referenced by correlation-strategy and that
implements the correlation decision algorithm. Optional, with restrictions (requires correlation-
strategy to be present).
11 A SpEL expression representing the correlation strategy. Example: "headers['something']".
Only one of correlation-strategy or correlation-strategy-expression is allowed.
12 A reference to a bean that implements the release strategy. The bean can be an implementation
of the ReleaseStrategy interface or a POJO. In the latter case, the release-strategy-
method attribute must also be defined. Optional (by default, the aggregator will use the
IntegrationMessageHeaderAccessor.SEQUENCE_SIZE header attribute).
13 A method that is defined on the bean referenced by release-strategy and that implements
the completion decision algorithm. Optional, with restrictions (requires release-strategy to be
present).
14 A SpEL expression representing the release strategy. The root object for the expression is a
MessageGroup. Example: "size() == 5". Only one of release-strategy or release-
strategy-expression is allowed.
15 Only applies if a MessageGroupStoreReaper is configured for the <resequencer>
MessageStore. By default, when a MessageGroupStoreReaper is configured to expire partial
groups, empty groups are also removed. Empty groups exist after a group is released normally.
This is to enable the detection and discarding of late-arriving messages. If you wish to expire empty
groups on a longer schedule than expiring partial groups, set this property. Empty groups are then
not removed from the MessageStore until they have not been modified for at least this number
of milliseconds. Note that the actual time to expire an empty group is also affected by the reaper’s
timeout property, and it could be as much as this value plus the timeout.
16 See the section called “Configuring an Aggregator with XML”.
17 See the section called “Configuring an Aggregator with XML”.
18 See the section called “Configuring an Aggregator with XML”.
19 See the section called “Configuring an Aggregator with XML”.
20 By default, when a group is completed due to a timeout (or by a MessageGroupStoreReaper),
the empty group’s metadata is retained. Late arriving messages are immediately discarded. Set
this to true to remove the group completely. Then, late arriving messages start a new group and
are not be discarded until the group again times out. The new group is never released normally
because of the "hole" in the sequence range that caused the timeout. Empty groups can be expired
(completely removed) later by using a MessageGroupStoreReaper together with the empty-
group-min-timeout attribute. Starting with version 5.0, empty groups are also scheduled for
removal after the empty-group-min-timeout elapses. The default is false.
Note
Since there is no custom behavior to be implemented in Java classes for resequencers, there is
no annotation support for it.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 107
8.6 Message Handler Chain
The MessageHandlerChain is an implementation of MessageHandler that can be configured as
a single message endpoint while actually delegating to a chain of other handlers, such as filters,
transformers, splitters, and so on. When several handlers need to be connected in a fixed, linear
progression, this can lead to a much simpler configuration. For example, it is fairly common to provide a
transformer before other components. Similarly, when you provide a filter before some other component
in a chain, you essentially create a selective consumer. In either case, the chain requires only a single
input-channel and a single output-channel, eliminating the need to define channels for each
individual component.
Tip
Spring Integration’s Filter provides a boolean property: throwExceptionOnRejection.
When you provide multiple selective consumers on the same point-to-point channel with different
acceptance criteria, you should set this value true (the default is false) so that the dispatcher
knows that the message was rejected and, as a result, tries to pass the message on to other
subscribers. If the exception were not thrown, it would appear to the dispatcher that the message
had been passed on successfully even though the filter had dropped the message to prevent
further processing. If you do indeed want to "drop" the messages, the filter’s discard-channel
might be useful, since it does give you a chance to perform some operation with the dropped
message (such as sending it to a JMS queue or writing it to a log).
The handler chain simplifies configuration while internally maintaining the same degree of loose
coupling between components, and it is trivial to modify the configuration if at some point a non-linear
arrangement is required.
Internally, the chain is expanded into a linear setup of the listed endpoints, separated by
anonymous channels. The reply channel header is not taken into account within the chain. Only
after the last handler is invoked is the resulting message forwarded to the reply channel or the
chain’s output channel. Because of this setup, all handlers except the last must implement the
MessageProducer interface (which provides a setOutputChannel() method). If the outputChannel
on the MessageHandlerChain is set, the last handler needs only an output channel.
Note
As with other endpoints, the output-channel is optional. If there is a reply message at the
end of the chain, the output-channel takes precedence. However, if it is not available, the chain
handler checks for a reply channel header on the inbound message as a fallback.
In most cases, you need not implement MessageHandler yourself. The next section focuses on
namespace support for the chain element. Most Spring Integration endpoints, such as service activators
and transformers, are suitable for use within a MessageHandlerChain.
Configuring a Chain
The <chain> element provides an input-channel attribute. If the last element in the chain is capable
of producing reply messages (optional), it also supports an output-channel attribute. The sub-
elements are then filters, transformers, splitters, and service-activators. The last element may also be
a router or an outbound channel adapter. The following example shows a chain definition:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 108
<int:chain input-channel="input" output-channel="output">
<int:filter ref="someSelector" throw-exception-on-rejection="true"/>
<int:header-enricher>
<int:header name="thing1" value="thing2"/>
</int:header-enricher>
<int:service-activator ref="someService" method="someMethod"/>
</int:chain>
The <header-enricher> element used in the preceding example sets a message header named
thing1 with a value of thing2 on the message. A header enricher is a specialization of Transformer
that touches only header values. You could obtain the same result by implementing a MessageHandler
that did the header modifications and wiring that as a bean, but the header-enricher is a simpler option.
The <chain> can be configured as the last black-box consumer of the message flow. For this solution,
you can to put it at the end of the <chain> some <outbound-channel-adapter>, as the following example
shows:
<int:chain input-channel="input">
<int-xml:marshalling-transformer marshaller="marshaller" result-type="StringResult" />
<int:service-activator ref="someService" method="someMethod"/>
<int:header-enricher>
<int:header name="thing1" value="thing2"/>
</int:header-enricher>
<int:logging-channel-adapter level="INFO" log-full-message="true"/>
</int:chain>
Disallowed Attributes and Elements
Certain attributes, such as order and input-channel are not allowed to be specified on
components used within a chain. The same is true for the poller sub-element.
For the Spring Integration core components, the XML schema itself enforces some of these
constraints. However, for non-core components or your own custom components, these
constraints are enforced by the XML namespace parser, not by the XML schema.
These XML namespace parser constraints were added with Spring Integration 2.2. If
you try to use disallowed attributes and elements, the XML namespace parser throws a
BeanDefinitionParsingException.
Using the id Attribute
Beginning with Spring Integration 3.0, if a chain element is given an id attribute, the bean name for
the element is a combination of the chain’s id and the id of the element itself. Elements without id
attributes are not registered as beans, but each one is given a componentName that includes the chain
id. Consider the following example:
<int:chain id="somethingChain" input-channel="input">
<int:service-activator id="somethingService" ref="someService" method="someMethod"/>
<int:object-to-json-transformer/>
</int:chain>
In the preceding example:
• The <chain> root element has an id of somethingChain. Consequently, the AbstractEndpoint
implementation (PollingConsumer or EventDrivenConsumer, depending on the input-
channel type) bean takes this value as its bean name.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 109
• The MessageHandlerChain bean acquires a bean alias (somethingChain.handler), which allows
direct access to this bean from the BeanFactory.
• The <service-activator> is not a fully fledged messaging endpoint (it is not a
PollingConsumer or EventDrivenConsumer). It is a MessageHandler within the
<chain>. In this case, the bean name registered with the BeanFactory is somethingChain
$child.somethingService.handler.
• The componentName of this ServiceActivatingHandler takes the same value but without the
.handler suffix. It becomes somethingChain$child.somethingService.
• The last <chain> sub-component, <object-to-json-transformer>, does not have an id
attribute. Its componentName is based on its position in the <chain>. In this case, it is
somethingChain$child#1. (The final element of the name is the order within the chain, beginning with
#0). Note, this transformer is not registered as a bean within the application context, so it does not get
a beanName. However its componentName has a value that is useful for logging and other purposes.
The id attribute for <chain> elements lets them be eligible for JMX export, and they are trackable
in the message history. You can access them from the BeanFactory by using the appropriate bean
name, as discussed earlier.
Tip
It is useful to provide an explicit id attribute on <chain> elements to simplify the identification of
sub-components in logs and to provide access to them from the BeanFactory etc.
Calling a Chain from within a Chain
Sometimes, you need to make a nested call to another chain from within a chain and then come back
and continue execution within the original chain. To accomplish this, you can use a messaging gateway
by including a <gateway> element, as the following example shows:
<int:chain id="main-chain" input-channel="in" output-channel="out">
<int:header-enricher>
<int:header name="name" value="Many" />
</int:header-enricher>
<int:service-activator>
<bean class="org.foo.SampleService" />
</int:service-activator>
<int:gateway request-channel="inputA"/>
</int:chain>
<int:chain id="nested-chain-a" input-channel="inputA">
<int:header-enricher>
<int:header name="name" value="Moe" />
</int:header-enricher>
<int:gateway request-channel="inputB"/>
<int:service-activator>
<bean class="org.foo.SampleService" />
</int:service-activator>
</int:chain>
<int:chain id="nested-chain-b" input-channel="inputB">
<int:header-enricher>
<int:header name="name" value="Jack" />
</int:header-enricher>
<int:service-activator>
<bean class="org.foo.SampleService" />
</int:service-activator>
</int:chain>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 110
In the preceding example, nested-chain-a is called at the end of main-chain processing by the
gateway element configured there. While in nested-chain-a, a call to a nested-chain-b is made
after header enrichment. Then the flow comes back to finish execution in nested-chain-b. Finally, the
flow returns to main-chain. When the nested version of a <gateway> element is defined in the chain,
it does not require the service-interface attribute. Instead, it takes the message in its current state
and places it on the channel defined in the request-channel attribute. When the downstream flow
initiated by that gateway completes, a Message is returned to the gateway and continues its journey
within the current chain.
8.7 Scatter-Gather
Starting with version 4.1, Spring Integration provides an implementation of the scatter-gather enterprise
integration pattern. It is a compound endpoint for which the goal is to send a message to the recipients
and aggregate the results. As noted in Enterprise Integration Patterns, it is a component for scenarios
such as "best quote", where we need to request information from several suppliers and decide which
one provides us with the best term for the requested item.
Previously, the pattern could be configured by using discrete components. This enhancement brings
more convenient configuration.
The ScatterGatherHandler is a request-reply endpoint that combines
a PublishSubscribeChannel (or a RecipientListRouter) and an
AggregatingMessageHandler. The request message is sent to the scatter channel, and the
ScatterGatherHandler waits for the reply that the aggregator sends to the outputChannel.
Functionality
The Scatter-Gather pattern suggests two scenarios: "auction" and "distribution". In
both cases, the aggregation function is the same and provides all the options available for
the AggregatingMessageHandler. (Actually, the ScatterGatherHandler requires only an
AggregatingMessageHandler as a constructor argument.) See Section 8.4, “Aggregator” for more
information.
Auction
The auction Scatter-Gather variant uses "publish-subscribe" logic for the request message,
where the "scatter" channel is a PublishSubscribeChannel with apply-sequence="true".
However, this channel can be any MessageChannel implementation (as is the case with the request-
channel in the ContentEnricher — see Section 9.2, “Content Enricher”). However, in this case, you
should create your own custom correlationStrategy for the aggregation function.
Distribution
The distribution Scatter-Gather variant is based on the RecipientListRouter (see the section
called “RecipientListRouter”) with all available options for the RecipientListRouter. This
is the second ScatterGatherHandler constructor argument. If you want to rely on only the
default correlationStrategy for the recipient-list-router and the aggregator, you should
specify apply-sequence="true". Otherwise, you should supply a custom correlationStrategy
for the aggregator. Unlike the PublishSubscribeChannel variant (the auction variant), having a
recipient-list-router selector option lets filter target suppliers based on the message. With
apply-sequence="true", the default sequenceSize is supplied, and the aggregator can release
the group correctly. The distribution option is mutually exclusive with the auction option.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 111
For both the auction and the distribution variants, the request (scatter) message is enriched with the
gatherResultChannel header to wait for a reply message from the aggregator.
By default, all suppliers should send their result to the replyChannel header (usually by omitting the
output-channel from the ultimate endpoint). However, the gatherChannel option is also provided,
letting suppliers send their reply to that channel for the aggregation.
Configuring a Scatter-Gather Endpoint
The following example shows Java configuration for the bean definition for Scatter-Gather:
@Bean
public MessageHandler distributor() {
RecipientListRouter router = new RecipientListRouter();
router.setApplySequence(true);
router.setChannels(Arrays.asList(distributionChannel1(), distributionChannel2(),
distributionChannel3()));
return router;
}
@Bean
public MessageHandler gatherer() {
return new AggregatingMessageHandler(
new ExpressionEvaluatingMessageGroupProcessor("^[payload gt 5] ?: -1D"),
new SimpleMessageStore(),
new HeaderAttributeCorrelationStrategy(
IntegrationMessageHeaderAccessor.CORRELATION_ID),
new ExpressionEvaluatingReleaseStrategy("size() == 2"));
}
@Bean
@ServiceActivator(inputChannel = "distributionChannel")
public MessageHandler scatterGatherDistribution() {
ScatterGatherHandler handler = new ScatterGatherHandler(distributor(), gatherer());
handler.setOutputChannel(output());
return handler;
}
In the preceding example, we configure the RecipientListRouter distributor bean
with applySequence="true" and the list of recipient channels. The next bean is
for an AggregatingMessageHandler. Finally, we inject both those beans into the
ScatterGatherHandler bean definition and mark it as a @ServiceActivator to wire the scatter-
gather component into the integration flow.
The following example shows how to configure the <scatter-gather> endpoint by using the XML
namespace:
<scatter-gather
id="" ❶
auto-startup="" ❷
input-channel="" ❸
output-channel="" ❹
scatter-channel="" ❺
gather-channel="" ❻
order="" ❼
phase="" ❽
send-timeout="" ❾
gather-timeout="" ❿
requires-reply="" > 11
<scatterer/> 12
<gatherer/> 13
</scatter-gather>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 112
❶The id of the endpoint. The ScatterGatherHandler bean is registered with an alias of
id + '.handler'. The RecipientListRouter bean is registered with an alias of id +
'.scatterer'. The AggregatingMessageHandler`bean is registered with an
alias of `id + '.gatherer'. Optional. (The BeanFactory generates a default id value.)
❷Lifecycle attribute signaling whether the endpoint should be started during application context
initialization. In addition, the ScatterGatherHandler also implements Lifecycle and starts
and stops gatherEndpoint, which is created internally if a gather-channel is provided.
Optional. (The default is true.)
❸The channel on which to receive request messages to handle them in the
ScatterGatherHandler. Required.
❹The channel to which the ScatterGatherHandler sends the aggregation results. Optional.
(Incoming messages can specify a reply channel themselves in the replyChannel message
header).
❺The channel to which to send the scatter message for the auction scenario. Optional. Mutually
exclusive with the <scatterer> sub-element.
❻The channel on which to receive replies from each supplier for the aggregation. It is
used as the replyChannel header in the scatter message. Optional. By default, the
FixedSubscriberChannel is created.
❼The order of this component when more than one handler is subscribed to the same
DirectChannel (use for load balancing purposes). Optional.
❽Specifies the phase in which the endpoint should be started and stopped. The startup order
proceeds from lowest to highest, and the shutdown order is from highest to lowest. By default, this
value is Integer.MAX_VALUE, meaning that this container starts as late as possible and stops
as soon as possible. Optional.
❾The timeout interval to wait when sending a reply Message to the output-channel. By
default, the send blocks for one second. It applies only if the output channel has some
sending limitations — for example, a QueueChannel with a fixed capacity that is full. In
this case, a MessageDeliveryException is thrown. The send-timeout is ignored for
AbstractSubscribableChannel implementations. For group-timeout(-expression),
the MessageDeliveryException from the scheduled expire task leads this task to be
rescheduled. Optional.
❿Lets you specify how long the scatter-gather waits for the reply message before returning. By
default, it waits indefinitely. null is returned if the reply times out. Optional. It defaults to -1, meaning
to wait indefinitely.
11 Specifies whether the scatter-gather must return a non-null value. This value is true by default.
Consequently, a ReplyRequiredException is thrown when the underlying aggregator returns
a null value after gather-timeout. Note, if null is a possibility, the gather-timeout should
be specified to avoid an indefinite wait.
12 The <recipient-list-router> options. Optional. Mutually exclusive with scatter-
channel attribute.
13 The <aggregator> options. Required.
8.8 Thread Barrier
Sometimes, we need to suspend a message flow thread until some other asynchronous event occurs.
For example, consider an HTTP request that publishes a message to RabbitMQ. We might wish to
not reply to the user until the RabbitMQ broker has issued an acknowledgment that the message was
received.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 113
In version 4.2, Spring Integration introduced the <barrier/> component for this purpose.
The underlying MessageHandler is the BarrierMessageHandler. This class also implements
MessageTriggerAction, in which a message passed to the trigger() method releases a
corresponding thread in the handleRequestMessage() method (if present).
The suspended thread and trigger thread are correlated by invoking a CorrelationStrategy
on the messages. When a message is sent to the input-channel, the thread is suspended for
up to timeout milliseconds, waiting for a corresponding trigger message. The default correlation
strategy uses the IntegrationMessageHeaderAccessor.CORRELATION_ID header. When a
trigger message arrives with the same correlation, the thread is released. The message sent to the
output-channel after release is constructed by using a MessageGroupProcessor. By default,
the message is a Collection<?> of the two payloads, and the headers are merged by using a
DefaultAggregatingMessageGroupProcessor.
Caution
If the trigger() method is invoked first (or after the main thread times out), it is suspended for
up to timeout waiting for the suspending message to arrive. If you do not want to suspend the
trigger thread, consider handing off to a TaskExecutor instead so that its thread is suspended
instead.
The requires-reply property determines the action to take if the suspended thread times out before
the trigger message arrives. By default, it is false, which means the endpoint returns null, the flow
ends, and the thread returns to the caller. When true, a ReplyRequiredException is thrown.
You can call the trigger() method programmatically (obtain the bean reference by using the name,
barrier.handler — where barrier is the bean name of the barrier endpoint). Alternatively, you
can configure an <outbound-channel-adapter/> to trigger the release.
Important
Only one thread can be suspended with the same correlation. The same correlation can be used
multiple times but only once concurrently. An exception is thrown if a second thread arrives with
the same correlation.
The following example shows how to use a custom header for correlation:
<int:barrier id="barrier1" input-channel="in" output-channel="out"
correlation-strategy-expression="headers['myHeader']"
output-processor="myOutputProcessor"
discard-channel="lateTriggerChannel"
timeout="10000">
</int:barrier>
<int:outbound-channel-adapter channel="release" ref="barrier1.handler" method="trigger" />
Depending on which one has a message arrive first, either the thread sending a message to in or the
thread sending a message to release waits for up to ten seconds until the other message arrives.
When the message is released, the out channel is sent a message that combines the result of invoking
the custom MessageGroupProcessor bean, named myOutputProcessor. If the main thread times
out and a trigger arrives later, you can configure a discard channel to which the late trigger is sent. The
following example shows the Java configuration to do so:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 114
@Configuration
@EnableIntegration
public class Config {
@ServiceActivator(inputChannel="in")
@Bean
public BarrierMessageHandler barrier() {
BarrierMessageHandler barrier = new BarrierMessageHandler(10000);
barrier.setOutputChannel(out());
barrier.setDiscardChannel(lateTriggers());
return barrier;
}
@ServiceActivator (inputChannel="release")
@Bean
public MessageHandler releaser() {
return new MessageHandler() {
@Override
public void handleMessage(Message<?> message) throws MessagingException {
barrier().trigger(message);
}
};
}
}
For an example of this component, see the barrier sample application.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 115
9. Message Transformation
9.1 Transformer
Message transformers play a very important role in enabling the loose-coupling of message producers
and message consumers. Rather than requiring every message-producing component to know what
type is expected by the next consumer, you can add transformers between those components. Generic
transformers, such as one that converts a String to an XML Document, are also highly reusable.
For some systems, it may be best to provide a canonical data model, but Spring Integration’s general
philosophy is not to require any particular format. Rather, for maximum flexibility, Spring Integration
aims to provide the simplest possible model for extension. As with the other endpoint types, the use of
declarative configuration in XML or Java annotations enables simple POJOs to be adapted for the role
of message transformers. The rest of this chapter describes these configuration options.
Note
For the sake of maximizing flexibility, Spring does not require XML-based message payloads.
Nevertheless, the framework does provide some convenient transformers for dealing with XML-
based payloads if that is indeed the right choice for your application. For more information on
those transformers, see Chapter 38, XML Support - Dealing with XML Payloads.
Configuring a Transformer with XML
The <transformer> element is used to create a message-transforming endpoint. In addition to
input-channel and output-channel attributes, it requires a ` attribute`. The ref may either point
to an object that contains the @Transformer annotation on a single method (see the section called
“Configuring a Transformer with Annotations”), or it may be combined with an explicit method name
value provided in the method attribute.
<int:transformer id="testTransformer" ref="testTransformerBean" input-channel="inChannel"
method="transform" output-channel="outChannel"/>
<beans:bean id="testTransformerBean" class="org.foo.TestTransformer" />
Using a ref attribute is generally recommended if the custom transformer handler implementation
can be reused in other <transformer> definitions. However, if the custom transformer handler
implementation should be scoped to a single definition of the <transformer>, you can define an inner
bean definition, as the following example shows:
<int:transformer id="testTransformer" input-channel="inChannel" method="transform"
output-channel="outChannel">
<beans:bean class="org.foo.TestTransformer"/>
</transformer>
Note
Using both the ref attribute and an inner handler definition in the same <transformer>
configuration is not allowed, as it creates an ambiguous condition and results in an exception
being thrown.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 116
Important
If the ref attribute references a bean that extends AbstractMessageProducingHandler
(such as transformers provided by the framework itself), the configuration is optimized by injecting
the output channel into the handler directly. In this case, each ref must be to a separate bean
instance (or a prototype-scoped bean) or use the inner <bean/> configuration type. If you
inadvertently reference the same message handler from multiple beans, you get a configuration
exception.
When using a POJO, the method that is used for transformation may expect either the Message type
or the payload type of inbound messages. It may also accept message header values either individually
or as a full map by using the @Header and @Headers parameter annotations, respectively. The return
value of the method can be any type. If the return value is itself a Message, that is passed along to
the transformer’s output channel.
As of Spring Integration 2.0, a message transformer’s transformation method can no longer return
null. Returning null results in an exception, because a message transformer should always be
expected to transform each source message into a valid target message. In other words, a message
transformer should not be used as a message filter, because there is a dedicated <filter> option for
that. However, if you do need this type of behavior (where a component might return null and that
should not be considered an error), you could use a service activator. Its requires-reply value is
false by default, but that can be set to true in order to have exceptions thrown for null return values,
as with the transformer.
Transformers and Spring Expression Language (SpEL)
Like routers, aggregators, and other components, as of Spring Integration 2.0, transformers can also
benefit from SpEL support whenever transformation logic is relatively simple. The following example
shows how to use a SpEL expression:
<int:transformer input-channel="inChannel"
output-channel="outChannel"
expression="payload.toUpperCase() + '- [' + T(java.lang.System).currentTimeMillis() + ']'"/>
The preceding example transforms the payload without writing a custom transformer. Our payload
(assumed to be a String) is upper-cased, concatenated with the current timestamp, and has some
formatting applied.
Common Transformers
Spring Integration provides a few transformer implementations.
Object-to-String Transformer
Because it is fairly common to use the toString() representation of an Object, Spring Integration
provides an ObjectToStringTransformer whose output is a Message with a String payload. That
String is the result of invoking the toString() operation on the inbound Message’s payload. The
following example shows how to declare an instance of the object-to-string transformer:
<int:object-to-string-transformer input-channel="in" output-channel="out"/>
A potential use for this transformer would be sending some arbitrary object to the outbound-channel-
adapter in the file namespace. Whereas that channel adapter only supports String, byte-array, or
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 117
java.io.File payloads by default, adding this transformer immediately before the adapter handles
the necessary conversion. That works fine as long as the result of the toString() call is what you
want to be written to the file. Otherwise, you can provide a custom POJO-based transformer by using
the generic transformer element shown previously.
Tip
When debugging, this transformer is not typically necessary, since the logging-channel-adapter
is capable of logging the message payload. See the section called “Wire Tap” for more detail.
Note
The object-to-string transformer is very simple. It invokes toString() on the inbound payload.
Since Spring Integration 3.0, there are two exceptions to this rule:
• If the payload is a char[], it invokes new String(payload).
• If the payload is a byte[], it invokes new String(payload, charset), where charset
is UTF-8 by default. The charset can be modified by supplying the charset attribute on the
transformer.
For more sophistication (such as selection of the charset dynamically, at runtime), you can use a
SpEL expression-based transformer instead, as the following example shows:
<int:transformer input-channel="in" output-channel="out"
expression="new java.lang.String(payload, headers['myCharset']" />
If you need to serialize an Object to a byte array or deserialize a byte array back into an Object, Spring
Integration provides symmetrical serialization transformers. These use standard Java serialization by
default, but you can provide an implementation of Spring 3.0’s serializer or seserializer strategies
by using the serializer and deserializer attributes, respectively. The following example shows to use
Spring’s serializer and deserializer:
<int:payload-serializing-transformer input-channel="objectsIn" output-channel="bytesOut"/>
<int:payload-deserializing-transformer input-channel="bytesIn" output-channel="objectsOut"
white-list="com.mycom.*,com.yourcom.*"/>
Important
When deserializing data from untrusted sources, you should consider adding a white-list of
package and class patterns. By default, all classes are deserialized.
Object-to-Map and Map-to-Object Transformers
Spring Integration also provides Object-to-Map and Map-to-Object transformers, which use the JSON
to serialize and de-serialize the object graphs. The object hierarchy is introspected to the most primitive
types (String, int, and so on). The path to this type is described with SpEL, which becomes the key
in the transformed Map. The primitive type becomes the value.
Consider the following example:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 118
public class Parent{
private Child child;
private String name;
// setters and getters are omitted
}
public class Child{
private String name;
private List<String> nickNames;
// setters and getters are omitted
}
The two classes in the preceding example are transformed to the following Map:
{person.name=George, person.child.name=Jenna, person.child.nickNames[0]=Jen ...}
The JSON-based Map lets you describe the object structure without sharing the actual types, which lets
you restore and rebuild the object graph into a differently typed object graph, as long as you maintain
the structure.
For example, the preceding structure could be restored back to the following object graph by using the
Map-to-Object transformer:
public class Father {
private Kid child;
private String name;
// setters and getters are omitted
}
public class Kid {
private String name;
private List<String> nickNames;
// setters and getters are omitted
}
If you need to create a "structured" map, you can provide the flatten attribute. The default is true. If
you set it to false, the structure is a Map of Map objects.
Consider the following example:
public class Parent {
private Child child;
private String name;
// setters and getters are omitted
}
public class Child {
private String name;
private List<String> nickNames;
// setters and getters are omitted
}
The two classes in the preceding example are transformed to the following Map:
{name=George, child={name=Jenna, nickNames=[Bimbo, ...]}}
To configure these transformers, Spring Integration provides namespace support for Object-to-Map, as
the following example shows:
<int:object-to-map-transformer input-channel="directInput" output-channel="output"/>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 119
You can also set the flatten attribute to false, as follows:
<int:object-to-map-transformer input-channel="directInput" output-channel="output" flatten="false"/>
Spring Integration provides namespace support for Map-to-Object, as the following example shows:
<int:map-to-object-transformer input-channel="input"
output-channel="output"
type="org.something.Person"/>
Alterately, you could use a ref attribute and a prototype-scoped bean, as the following example shows:
<int:map-to-object-transformer input-channel="inputA"
output-channel="outputA"
ref="person"/>
<bean id="person" class="org.something.Person" scope="prototype"/>
Note
The ref and type attributes are mutually exclusive. Also, if you use the ref attribute, you must point
to a prototype scoped bean. Otherwise, a BeanCreationException is thrown.
Starting with version 5.0, you can supply the ObjectToMapTransformer with a customized
JsonObjectMapper — for when you need special formats for dates or nulls for empty collections
(and other uses). See the section called “JSON Transformers” for more information about
JsonObjectMapper implementations.
Stream Transformer
The StreamTransformer transforms InputStream payloads to a byte[]( or a String if a
charset is provided).
The following example shows how to use the stream-tansformer element in XML:
<int:stream-transformer input-channel="directInput" output-channel="output"/> <!-- byte[] -->
<int:stream-transformer id="withCharset" charset="UTF-8"
input-channel="charsetChannel" output-channel="output"/> <!-- String -->
The following example shows how to use the StreamTransformer class and the @Transformer
annotation to configure a stream transformer in Java:
@Bean
@Transformer(inputChannel = "stream", outputChannel = "data")
public StreamTransformer streamToBytes() {
return new StreamTransformer(); // transforms to byte[]
}
@Bean
@Transformer(inputChannel = "stream", outputChannel = "data")
public StreamTransformer streamToString() {
return new StreamTransformer("UTF-8"); // transforms to String
}
JSON Transformers
Spring Integration provides Object-to-JSON and JSON-to-Object transformers. The following pair of
examples show how to declare them in XML:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 120
<int:object-to-json-transformer input-channel="objectMapperInput"/>
<int:json-to-object-transformer input-channel="objectMapperInput"
type="foo.MyDomainObject"/>
By default, the transformers in the preceding listing use a vanilla JsonObjectMapper. It is based
on an implementation from the classpath. You can provide your own custom JsonObjectMapper
implementation with appropriate options or based on a required library (such as GSON), as the following
example shows:
<int:json-to-object-transformer input-channel="objectMapperInput"
type="something.MyDomainObject" object-mapper="customObjectMapper"/>
Note
Beginning with version 3.0, the object-mapper attribute references an instance of a new
strategy interface: JsonObjectMapper. This abstraction lets multiple implementations of JSON
mappers be used. Implementations that wrap Boon and Jackson 2 are provided, with the
version being detected on the classpath. These classes are BoonJsonObjectMapper and
Jackson2JsonObjectMapper, respectively.
Note, BoonJsonObjectMapper was added in version 4.1.
Important
If you have requirements to use both Jackson and Boon in the same application, keep in mind that,
before version 3.0, the JSON transformers used only Jackson 1.x. From 4.1 on, the framework
selects Jackson 2 by default, preferring it to the Boon implementation if both are on the classpath.
Jackson 1.x is no longer supported by the framework internally. However, you can still use it within
your code by including the necessary library. To avoid unexpected issues with JSON mapping
features when you use annotations, you may need to apply annotations from both Jackson and
Boon on domain classes, as the following example shows:
@org.codehaus.jackson.annotate.JsonIgnoreProperties(ignoreUnknown=true)
@com.fasterxml.jackson.annotation.JsonIgnoreProperties(ignoreUnknown=true)
@org.boon.json.annotations.JsonIgnoreProperties("thing1")
public class Thing1 {
@org.codehaus.jackson.annotate.JsonProperty("thing1Thing2")
@com.fasterxml.jackson.annotation.JsonProperty("thing1Thing2")
@org.boon.json.annotations.JsonProperty("thing1Thing2")
public Object thing2;
}
You may wish to consider using a FactoryBean or a factory method to create the JsonObjectMapper
with the required characteristics. The following example shows how to use such a factory:
public class ObjectMapperFactory {
public static Jackson2JsonObjectMapper getMapper() {
ObjectMapper mapper = new ObjectMapper();
mapper.configure(JsonParser.Feature.ALLOW_COMMENTS, true);
return new Jackson2JsonObjectMapper(mapper);
}
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 121
The following example shows how to do the same thing in XML
<bean id="customObjectMapper" class="something.ObjectMapperFactory"
factory-method="getMapper"/>
Important
Beginning with version 2.2, the object-to-json-transformer sets the content-type
header to application/json, by default, if the input message does not already have that
header.
It you wish to set the content-type header to some other value or explicitly overwrite any
existing header with some value (including application/json), use the content-type
attribute. If you wish to suppress the setting of the header, set the content-type attribute to an
empty string (""). Doing so results in a message with no content-type header, unless such
a header was present on the input message.
Beginning with version 3.0, the ObjectToJsonTransformer adds headers, reflecting the source
type, to the message. Similarly, the JsonToObjectTransformer can use those type headers when
converting the JSON to an object. These headers are mapped in the AMQP adapters so that they are
entirely compatible with the Spring-AMQP JsonMessageConverter.
This enables the following flows to work without any special configuration:
•...->amqp-outbound-adapter---->
•---->amqp-inbound-adapter->json-to-object-transformer->...
Where the outbound adapter is configured with a JsonMessageConverter and the inbound adapter
uses the default SimpleMessageConverter.
•...->object-to-json-transformer->amqp-outbound-adapter---->
•---->amqp-inbound-adapter->...
Where the outbound adapter is configured with a SimpleMessageConverter and the inbound
adapter uses the default JsonMessageConverter.
•...->object-to-json-transformer->amqp-outbound-adapter---->
•---->amqp-inbound-adapter->json-to-object-transformer->
Where both adapters are configured with a SimpleMessageConverter.
Note
When using the headers to determine the type, you should not provide a class attribute, because
it takes precedence over the headers.
In addition to JSON Transformers, Spring Integration provides a built-in #jsonPath SpEL function for
use in expressions. For more information see Appendix A, Spring Expression Language (SpEL).
Since version 3.0, Spring Integration also provides a built-in #xpath SpEL function for use in
expressions. For more information see Section 38.8, “#xpath SpEL Function”.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 122
Beginning with version 4.0, the ObjectToJsonTransformer supports the resultType property,
to specify the node JSON representation. The result node tree representation depends on the
implementation of the provided JsonObjectMapper. By default, the ObjectToJsonTransformer
uses a Jackson2JsonObjectMapper and delegates the conversion of the object to the node tree
to the ObjectMapper#valueToTree method. The node JSON representation provides efficiency for
using the JsonPropertyAccessor when the downstream message flow uses SpEL expressions with
access to the properties of the JSON data. See Section A.3, “Property Accessors” for more information.
When using Boon, the NODE representation is a Map<String, Object>
Beginning with version 5.1, the resultType can be configured as BYTES to produce a message with
the byte[] payload for convenience when working with downstream handlers which operate with this
data type.
Configuring a Transformer with Annotations
You can add the @Transformer annotation to methods that expect either the Message type or the
message payload type. The return value is handled in the exact same way as described earlier in
the section describing the <transformer> element. The following example shows how to use the
@Transformer annotation to transform a String into an Order:
@Transformer
Order generateOrder(String productId) {
return new Order(productId);
}
Transformer methods can also accept the @Header and @Headers annotations, as documented in
<<annotations>>. The following examples shows how to use the @Header annotation:
@Transformer
Order generateOrder(String productId, @Header("customerName") String customer) {
return new Order(productId, customer);
}
See also the section called “Advising Endpoints Using Annotations”.
Header Filter
Sometimes, your transformation use case might be as simple as removing a few headers. For such a use
case, Spring Integration provides a header filter that lets you specify certain header names that should
be removed from the output message (for example, removing headers for security reasons or a value
that was needed only temporarily). Basically, the header filter is the opposite of the header enricher. The
latter is discussed in the section called “Header Enricher”. The following example defines a header filter:
<int:header-filter input-channel="inputChannel"
output-channel="outputChannel" header-names="lastName, state"/>
As you can see, configuration of a header filter is quite simple. It is a typical endpoint with input and output
channels and a header-names attribute. That attribute accepts the names of the headers (delimited
by commas if there are multiple) that need to be removed. So, in the preceding example, the headers
named lastName and state are not present on the outbound message.
Codec-Based Transformers
See Section 9.4, “Codec”.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 123
9.2 Content Enricher
At times, you may have a requirement to enhance a request with more information than was provided
by the target system. The data enricher pattern describes various scenarios as well as the component
(Enricher) that lets you address such requirements.
The Spring Integration Core module includes two enrichers:
•Header Enricher
•Payload Enricher
It also includes three adapter-specific header enrichers:
•XPath Header Enricher (XML Module)
•Mail Header Enricher (Mail Module)
•XMPP Header Enricher (XMPP Module)
See the adapter-specific sections of this reference manual to learn more about those adapters.
For more information regarding expressions support, see Appendix A, Spring Expression Language
(SpEL).
Header Enricher
If you need do nothing more than add headers to a message and the headers are not dynamically
determined by the message content, referencing a custom implementation of a transformer may be
overkill. For that reason, Spring Integration provides support for the header enricher pattern. It is
exposed through the <header-enricher> element. The following example shows how to use it:
<int:header-enricher input-channel="in" output-channel="out">
<int:header name="foo" value="123"/>
<int:header name="bar" ref="someBean"/>
</int:header-enricher>
The header enricher also provides helpful sub-elements to set well known header names, as the
following example shows:
<int:header-enricher input-channel="in" output-channel="out">
<int:error-channel ref="applicationErrorChannel"/>
<int:reply-channel ref="quoteReplyChannel"/>
<int:correlation-id value="123"/>
<int:priority value="HIGHEST"/>
<routing-slip value="channel1; routingSlipRoutingStrategy; request.headers[myRoutingSlipChannel]"/>
<int:header name="bar" ref="someBean"/>
</int:header-enricher>
The preceding configuration shows that, for well known headers (such as errorChannel,
correlationId, priority, replyChannel, routing-slip, and others), instead of using generic
<header> sub-elements where you would have to provide both header name and value, you can use
convenient sub-elements to set those values directly.
Starting with version 4.1, the header enricher provides a routing-slip sub-element. See the section
called “Routing Slip” for more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 124
POJO Support
Often, a header value cannot be defined statically and has to be determined dynamically based on
some content in the message. That is why the header enricher lets you also specify a bean reference
by using the ref and method attributes. The specified method calculates the header value. Consider
the following configuration and a bean with a method that modifies a String:
<int:header-enricher input-channel="in" output-channel="out">
<int:header name="something" method="computeValue" ref="myBean"/>
</int:header-enricher>
<bean id="myBean" class="thing1.thing2.MyBean"/>
public class MyBean {
public String computeValue(String payload){
return payload.toUpperCase() + "_US";
}
}
You can also configure your POJO as an inner bean, as the following example shows:
<int:header-enricher input-channel="inputChannel" output-channel="outputChannel">
<int:header name="some_header">
<bean class="org.MyEnricher"/>
</int:header>
</int:header-enricher>
You can similarly point to a Groovy script, as the following example shows:
<int:header-enricher input-channel="inputChannel" output-channel="outputChannel">
<int:header name="some_header">
<int-groovy:script location="org/SampleGroovyHeaderEnricher.groovy"/>
</int:header>
</int:header-enricher>
SpEL Support
In Spring Integration 2.0, we introduced the convenience of the Spring Expression Language (SpEL)
to help configure many different components. The header enricher is one of them. Look again at the
POJO example shown earlier. You can see that the computation logic to determine the header value is
pretty simple. A natural question would be: "Is there an even simpler way to accomplish this?". That is
where SpEL shows its true power. Consider the following example:
<int:header-enricher input-channel="in" output-channel="out">
<int:header name="foo" expression="payload.toUpperCase() + '_US'"/>
</int:header-enricher>
By using SpEL for such simple cases, you no longer have to provide a separate class and configure it
in the application context. All you need do is configured the expression attribute with a valid SpEL
expression. The payload and headers variables are bound to the SpEL evaluation context, giving you
full access to the incoming message.
Configuring a Header Enricher with Java Configuration
The following two examples show how to use Java Configuration for header enrichers:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 125
@Bean
@Transformer(inputChannel = "enrichHeadersChannel", outputChannel = "emailChannel")
public HeaderEnricher enrichHeaders() {
Map<String, ? extends HeaderValueMessageProcessor<?>> headersToAdd =
Collections.singletonMap("emailUrl",
new StaticHeaderValueMessageProcessor<>(this.imapUrl));
HeaderEnricher enricher = new HeaderEnricher(headersToAdd);
return enricher;
}
@Bean
@Transformer(inputChannel="enrichHeadersChannel", outputChannel="emailChannel")
public HeaderEnricher enrichHeaders() {
Map<String, HeaderValueMessageProcessor<?>> headersToAdd = new HashMap<>();
headersToAdd.put("emailUrl", new StaticHeaderValueMessageProcessor<String>(this.imapUrl));
Expression expression = new SpelExpressionParser().parseExpression("payload.from[0].toString()");
headersToAdd.put("from",
new ExpressionEvaluatingHeaderValueMessageProcessor<>(expression, String.class));
HeaderEnricher enricher = new HeaderEnricher(headersToAdd);
return enricher;
}
The first example adds a single literal header. The second example adds two headers, a literal header
and one based on a SpEL expression.
Configuring a Header Enricher with the Java DSL
The following example shows Java DSL Configuration for a header enricher:
@Bean
public IntegrationFlow enrichHeadersInFlow() {
return f -> f
...
.enrichHeaders(h -> h.header("emailUrl", this.emailUrl)
.headerExpression("from", "payload.from[0].toString()"))
.handle(...);
}
Header Channel Registry
Starting with Spring Integration 3.0, a new sub-element <int:header-channels-to-string/
> is available. It has no attributes. This new sub-element converts existing replyChannel and
errorChannel headers (when they are a MessageChannel) to a String and stores the channels
in a registry for later resolution, when it is time to send a reply or handle an error. This is useful for
cases where the headers might be lost — for example, when serializing a message into a message
store or when transporting the message over JMS. If the header does not already exist or it is not a
MessageChannel, no changes are made.
Using this functionality requires the presence of a HeaderChannelRegistry bean. By default,
the framework creates a DefaultHeaderChannelRegistry with the default expiry (60 seconds).
Channels are removed from the registry after this time. To change this behavior, define a bean with an
id of integrationHeaderChannelRegistry and configure the required default delay by using a
constructor argument (in milliseconds).
Since version 4.1, you can set a property called removeOnGet to true on the <bean/> definition,
and the mapping entry is removed immediately on first use. This might be useful in a high-volume
environment and when the channel is only used once, rather than waiting for the reaper to remove it.
The HeaderChannelRegistry has a size() method to determine the current size of the registry.
The runReaper() method cancels the current scheduled task and runs the reaper immediately. The
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 126
task is then scheduled to run again based on the current delay. These methods can be invoked directly
by getting a reference to the registry, or you can send a message with, for example, the following content
to a control bus:
"@integrationHeaderChannelRegistry.runReaper()"
This sub-element is a convenience, and is the equivalent of specifying the following configuration:
<int:reply-channel
expression="@integrationHeaderChannelRegistry.channelToChannelName(headers.replyChannel)"
overwrite="true" />
<int:error-channel
expression="@integrationHeaderChannelRegistry.channelToChannelName(headers.errorChannel)"
overwrite="true" />
Starting with version 4.1, you can now override the registry’s configured reaper delay so that the the
channel mapping is retained for at least the specified time, regardless of the reaper delay. The following
example shows how to do so:
<int:header-enricher input-channel="inputTtl" output-channel="next">
<int:header-channels-to-string time-to-live-expression="120000" />
</int:header-enricher>
<int:header-enricher input-channel="inputCustomTtl" output-channel="next">
<int:header-channels-to-string
time-to-live-expression="headers['channelTTL'] ?: 120000" />
</int:header-enricher>
In the first case, the time to live for every header channel mapping will be two minutes. In the second
case, the time to live is specified in the message header and uses an Elvis operator to use two minutes
if there is no header.
Payload Enricher
In certain situations, the header enricher, as discussed earlier, may not be sufficient and payloads
themselves may have to be enriched with additional information. For example, order messages that
enter the Spring Integration messaging system have to look up the order’s customer based on the
provided customer number and then enrich the original payload with that information.
Spring Integration 2.1 introduced the payload enricher. The payload enricher defines an endpoint that
passes a Message to the exposed request channel and then expects a reply message. The reply
message then becomes the root object for evaluation of expressions to enrich the target payload.
The payload enricher provides full XML namespace support through the enricher element. In order to
send request messages, the payload enricher has a request-channel attribute that lets you dispatch
messages to a request channel.
Basically, by defining the request channel, the payload enricher acts as a gateway, waiting for the
message sent to the request channel to return. The enricher then augments the message’s payload
with the data provided by the reply message.
When sending messages to the request channel, you also have the option to send only a subset of the
original payload by using the request-payload-expression attribute.
The enriching of payloads is configured through SpEL expressions, providing a maximum degree of
flexibility. Therefore, you can not only enrich payloads with direct values from the reply channel’s
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 127
Message, but you can use SpEL expressions to extract a subset from that message or to apply additional
inline transformations, letting you further manipulate the data.
If you need only to enrich payloads with static values, you need not provide the request-channel
attribute.
Note
Enrichers are a variant of transformers. In many cases, you could use a payload enricher or
a generic transformer implementation to add additional data to your message payloads. You
should familiarize yourself with all transformation-capable components that are provided by Spring
Integration and carefully select the implementation that semantically fits your business case best.
Configuration
The following example shows all available configuration options for the payload enricher:
<int:enricher request-channel="" ❶
auto-startup="true" ❷
id="" ❸
order="" ❹
output-channel="" ❺
request-payload-expression="" ❻
reply-channel="" ❼
error-channel="" ❽
send-timeout="" ❾
should-clone-payload="false"> ❿
<int:poller></int:poller> 11
<int:property name="" expression="" null-result-expression="'Could not determine the name'"/> 12
<int:property name="" value="23" type="java.lang.Integer" null-result-expression="'0'"/>
<int:header name="" expression="" null-result-expression=""/> 13
<int:header name="" value="" overwrite="" type="" null-result-expression=""/>
</int:enricher>
❶Channel to which a message is sent to get the data to use for enrichment. Optional.
❷Lifecycle attribute signaling whether this component should be started during the application
context startup. Defaults to true. Optional.
❸ID of the underlying bean definition, which is either an EventDrivenConsumer or a
PollingConsumer. Optional.
❹Specifies the order for invocation when this endpoint is connected as a subscriber to a channel.
This is particularly relevant when that channel is using a "failover" dispatching strategy. It has
no effect when this endpoint is itself a polling consumer for a channel with a queue. Optional.
❺Identifies the message channel where a message is sent after it is being processed by this endpoint.
Optional.
❻By default, the original message’s payload is used as payload that is sent to the request-
channel. By specifying a SpEL expression as the value for the request-payload-
expression attribute, you can use a subset of the original payload, a header value, or any other
resolvable SpEL expression as the basis for the payload that is sent to the request-channel. For the
expression evaluation, the full message is available as the root object. For instance, the following
SpEL expressions (among others) are possible:
•payload.something
•headers.something
•new java.util.Date()
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 128
•'thing1' + 'thing2'
❼Channel where a reply message is expected. This is optional. Typically, the auto-generated
temporary reply channel suffices. Optional.
❽The channel to which an ErrorMessage is sent if an Exception occurs downstream of the
request-channel. This enables you to return an alternative object to use for enrichment. If it is
not set, an Exception is thrown to the caller. Optional.
❾Maximum amount of time in milliseconds to wait when sending a message to the channel, if
the channel might block. For example, a queue channel can block until space is available,
if its maximum capacity has been reached. Internally, the send timeout is set on the
MessagingTemplate and ultimately applied when invoking the send operation on the
MessageChannel. By default, the send timeout is set to -1, which can cause the send operation
on the MessageChannel, depending on the implementation, to block indefinitely. Optional.
❿Boolean value indicating whether any payload that implements Cloneable should be cloned prior
to sending the message to the request channel for acquiring the enriching data. The cloned version
would be used as the target payload for the ultimate reply. The default is false. Optional.
11 Lets you configure a message poller if this endpoint is a polling consumer. Optional.
12 Each property sub-element provides the name of a property (through the mandatory name
attribute). That property should be settable on the target payload instance. Exactly one of the
value or expression attributes must be provided as well — the former for a literal value to set
and the latter for a SpEL expression to be evaluated. The root object of the evaluation context
is the message that was returned from the flow initiated by this enricher — the input message if
there is no request channel or the application context (using the @<beanName>.<beanProperty>
SpEL syntax). Starting with version 4.0, when specifying a value attribute, you can also specify an
optional type attribute. When the destination is a typed setter method, the framework coerces the
value appropriately (as long as a PropertyEditor) exists to handle the conversion. If, however,
the target payload is a Map, the entry is populated with the value without conversion. The type
attribute lets you, for example, convert a String containing a number to an Integer value in
the target payload. Starting with version 4.1, you can also specify an optional null-result-
expression attribute. When the enricher returns null, it is evaluated, and the output of the
evaluation is returned instead.
13 Each header sub-element provides the name of a message header (through the mandatory
name attribute). Exactly one of the value or expression attributes must also be provided — the
former for a literal value to set and the latter for a SpEL expression to be evaluated. The root
object of the evaluation context is the message that was returned from the flow initiated by this
enricher — the input message if there is no request channel or the application context (using the
@<beanName>.<beanProperty> SpEL syntax). Note that, similarly to the <header-enricher>,
the <enricher> element’s header element has type and overwrite attributes. However, a
key difference is that, with the <enricher>, the overwrite attribute is true by default, to be
consistent with the <enricher> element’s <property> sub-element. Starting with version 4.1,
you can also specify an optional null-result-expression attribute. When the enricher
returns null, it is evaluated, and the output of the evaluation is returned instead.
Examples
This section contains several examples of using a payload enricher in various situations.
Tip
The code samples shown here are part of the Spring Integration Samples project. See
Appendix G, Spring Integration Samples.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 129
In the following example, a User object is passed as the payload of the Message:
<int:enricher id="findUserEnricher"
input-channel="findUserEnricherChannel"
request-channel="findUserServiceChannel">
<int:property name="email" expression="payload.email"/>
<int:property name="password" expression="payload.password"/>
</int:enricher>
The User has several properties, but only the username is set initially. The enricher’s request-
channel attribute is configured to pass the User to the findUserServiceChannel.
Through the implicitly set reply-channel, a User object is returned and, by using the property
sub-element, properties from the reply are extracted and used to enrich the original payload.
How Do I Pass Only a Subset of Data to the Request Channel?
When using a request-payload-expression attribute, a single property of the payload instead of
the full message can be passed on to the request channel. In the following example, the username
property is passed on to the request channel:
<int:enricher id="findUserByUsernameEnricher"
input-channel="findUserByUsernameEnricherChannel"
request-channel="findUserByUsernameServiceChannel"
request-payload-expression="payload.username">
<int:property name="email" expression="payload.email"/>
<int:property name="password" expression="payload.password"/>
</int:enricher>
Keep in mind that, although only the username is passed, the resulting message to the request channel
contains the full set of MessageHeaders.
How Can I Enrich Payloads that Consist of Collection Data?
In the following example, instead of a User object, a Map is passed in:
<int:enricher id="findUserWithMapEnricher"
input-channel="findUserWithMapEnricherChannel"
request-channel="findUserByUsernameServiceChannel"
request-payload-expression="payload.username">
<int:property name="user" expression="payload"/>
</int:enricher>
The Map contains the username under the username map key. Only the username is passed on to
the request channel. The reply contains a full User object, which is ultimately added to the Map under
the user key.
How Can I Enrich Payloads with Static Information without Using a Request Channel?
The following example does not use a request channel at all but solely enriches the message’s payload
with static values:
<int:enricher id="userEnricher"
input-channel="input">
<int:property name="user.updateDate" expression="new java.util.Date()"/>
<int:property name="user.firstName" value="William"/>
<int:property name="user.lastName" value="Shakespeare"/>
<int:property name="user.age" value="42"/>
</int:enricher>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 130
Note that the word, static, is used loosely here. You can still use SpEL expressions for setting those
values.
9.3 Claim Check
In earlier sections, we covered several content enricher components that can help you deal with
situations where a message is missing a piece of data. We also discussed content filtering, which lets you
remove data items from a message. However, there are times when we want to hide data temporarily.
For example, in a distributed system, we may receive a message with a very large payload. Some
intermittent message processing steps may not need access to this payload and some may only need
to access certain headers, so carrying the large message payload through each processing step may
cause performance degradation, may produce a security risk, and may make debugging more difficult.
The store in library (or claim check) pattern describes a mechanism that lets you store data in a well
known place while maintaining only a pointer (a claim check) to where that data is located. You can
pass that pointer around as the payload of a new message, thereby letting any component within the
message flow get the actual data as soon as it needs it. This approach is very similar to the certified
mail process, where you get a claim check in your mailbox and then have to go to the post office to
claim your actual package. It is also the same idea as baggage claim after a flight or in a hotel.
Spring Integration provides two types of claim check transformers:
• Incoming Claim Check Transformer
• Outgoing Claim Check Transformer
Convenient namespace-based mechanisms are available to configure them.
Incoming Claim Check Transformer
An incoming claim check transformer transforms an incoming message by storing it in the message store
identified by its message-store attribute. The following example defines an incoming claim check
transformer:
<int:claim-check-in id="checkin"
input-channel="checkinChannel"
message-store="testMessageStore"
output-channel="output"/>
In the preceding configuration, the message that is received on the input-channel is persisted to the
message store identified with the message-store attribute and indexed with a generated ID. That ID is
the claim check for that message. The claim check also becomes the payload of the new (transformed)
message that is sent to the output-channel.
Now, assume that at some point you do need access to the actual message. You can access the
message store manually and get the contents of the message, or you can use the same approach
(creating a transformer) except that now you transform the Claim Check to the actual message by using
an outgoing claim check transformer.
The following listing provides an overview of all available parameters of an incoming claim check
transformer:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 131
<int:claim-check-in auto-startup="true" ❶
id="" ❷
input-channel="" ❸
message-store="messageStore" ❹
order="" ❺
output-channel="" ❻
send-timeout=""> ❼
<int:poller></int:poller> ❽
</int:claim-check-in>
❶Lifecycle attribute signaling whether this component should be started during application context
startup. It defaults to true. This attribute is not available inside a Chain element. Optional.
❷ID identifying the underlying bean definition (MessageTransformingHandler). This attribute is
not available inside a Chain element. Optional.
❸The receiving message channel of this endpoint. This attribute is not available inside a Chain
element. Optional.
❹Reference to the MessageStore to be used by this claim check transformer. If not specified, the
default reference is to a bean named messageStore. Optional.
❺Specifies the order for invocation when this endpoint is connected as a subscriber to a channel.
This is particularly relevant when that channel uses a failover dispatching strategy. It has no
effect when this endpoint is itself a polling consumer for a channel with a queue. This attribute is
not available inside a Chain element. Optional.
❻Identifies the message channel where the message is sent after being processed by this endpoint.
This attribute is not available inside a Chain element. Optional.
❼Specifies the maximum amount of time (in milliseconds) to wait when sending a reply message
to the output channel. Defaults to -1 — blocking indefinitely. This attribute is not available inside
a Chain element. Optional.
❽Defines a poller. This element is not available inside a Chain element. Optional.
Outgoing Claim Check Transformer
An outgoing claim check transformer lets you transform a message with a claim check payload into a
message with the original content as its payload.
<int:claim-check-out id="checkout"
input-channel="checkoutChannel"
message-store="testMessageStore"
output-channel="output"/>
In the preceding configuration, the message received on the input-channel should have a claim
check as its payload. The outgoing claim check transformer transforms it into a message with the original
payload by querying the message store for a message identified by the provided claim check. It then
sends the newly checked-out message to the output-channel.
The following listing provides an overview of all available parameters of an outgoing claim check
transformer:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 132
<int:claim-check-out auto-startup="true" ❶
id="" ❷
input-channel="" ❸
message-store="messageStore" ❹
order="" ❺
output-channel="" ❻
remove-message="false" ❼
send-timeout=""> ❽
<int:poller></int:poller> ❾
</int:claim-check-out>
❶Lifecycle attribute signaling whether this component should be started during application context
startup. It defaults to true. This attribute is not available inside a Chain element. Optional.
❷ID identifying the underlying bean definition (MessageTransformingHandler). This attribute is
not available inside a Chain element. Optional.
❸The receiving message channel of this endpoint. This attribute is not available inside a Chain
element. Optional.
❹Reference to the MessageStore to be used by this claim check transformer. If not specified, the
default reference is to a bean named messageStore. Optional.
❺Specifies the order for invocation when this endpoint is connected as a subscriber to a channel.
This is particularly relevant when that channel is using a failover dispatching strategy. It has no
effect when this endpoint is itself a polling consumer for a channel with a queue. This attribute is
not available inside a Chain element. Optional.
❻Identifies the message channel where the message is sent after being processed by this endpoint.
This attribute is not available inside a Chain element. Optional.
❼If set to true, the message is removed from the MessageStore by this transformer. This setting
is useful when Message can be "claimed" only once. It defaults to false. Optional.
❽Specifies the maximum amount of time (in milliseconds) to wait when sending a reply message
to the output channel. It defaults to -1 — blocking indefinitely. This attribute is not available inside
a Chain element. Optional.
❾Defines a poller. This element is not available inside a Chain element. Optional.
Claim Once
Sometimes, a particular message must be claimed only once. As an analogy, consider process of
handling airplane luggage. You checking in your luggage on departure and claiming it on arrival.
Once the luggage has been claimed, it can not be claimed again without first checking it back in. To
accommodate such cases, we introduced a remove-message boolean attribute on the claim-check-
out transformer. This attribute is set to false by default. However, if set to true, the claimed message
is removed from the MessageStore so that it cannot be claimed again.
This feature has an impact in terms of storage space, especially in the case of the in-memory
Map-based SimpleMessageStore, where failing to remove messages could ultimately lead to an
OutOfMemoryException. Therefore, if you do not expect multiple claims to be made, we recommend
that you set the remove-message attribute’s value to true. The following example show how to use
the remove-message attribute:
<int:claim-check-out id="checkout"
input-channel="checkoutChannel"
message-store="testMessageStore"
output-channel="output"
remove-message="true"/>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 133
A Word on Message Store
Although we rarely care about the details of the claim checks (as long as they work), you should know
that the current implementation of the actual claim check (the pointer) in Spring Integration uses a UUID
to ensure uniqueness.
org.springframework.integration.store.MessageStore is a strategy interface for storing
and retrieving messages. Spring Integration provides two convenient implementations of it:
•SimpleMessageStore: An in-memory, Map-based implementation (the default, good for testing)
•JdbcMessageStore: An implementation that uses a relational database over JDBC
9.4 Codec
Version 4.2 of Spring Integration introduced the Codec abstraction. Codecs encode and decode objects
to and from byte[]. They offer an alternative to Java serialization. One advantage is that, typically,
objects need not implement Serializable. We provide one implementation that uses Kryo for
serialization, but you can provide your own implementation for use in any of the following components:
•EncodingPayloadTransformer
•DecodingTransformer
•CodecMessageConverter
EncodingPayloadTransformer
This transformer encodes the payload to a byte[] by using the codec. It does not affect message
headers.
See the Javadoc for more information.
DecodingTransformer
This transformer decodes a byte[] by using the codec. It needs to be configured with the Class to
which the object should be decoded (or an expression that resolves to a Class). If the resulting object
is a Message<?>, inbound headers are not retained.
See the Javadoc for more information.
CodecMessageConverter
Certain endpoints (such as TCP and Redis) have no concept of message headers. They support the
use of a MessageConverter, and the CodecMessageConverter can be used to convert a message
to or from a byte[] for transmission.
See the Javadoc for more information.
Kryo
Currently, this is the only implementation of Codec, and it provides two kinds of Codec:
•PojoCodec: Used in the transformers
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 134
•MessageCodec: Used in the CodecMessageConverter
The framework provides several custom serializers:
•FileSerializer
•MessageHeadersSerializer
•MutableMessageHeadersSerializer
The first can be used with the PojoCodec by initializing it with the FileKryoRegistrar. The second
and third are used with the MessageCodec, which is initialized with the MessageKryoRegistrar.
Customizing Kryo
By default, Kryo delegates unknown Java types to its FieldSerializer. Kryo also registers default
serializers for each primitive type, along with String, Collection, and Map. FieldSerializer
uses reflection to navigate the object graph. A more efficient approach is to implement a custom
serializer that is aware of the object’s structure and can directly serialize selected primitive fields. The
following example shows such a serializer:
public class AddressSerializer extends Serializer<Address> {
@Override
public void write(Kryo kryo, Output output, Address address) {
output.writeString(address.getStreet());
output.writeString(address.getCity());
output.writeString(address.getCountry());
}
@Override
public Address read(Kryo kryo, Input input, Class<Address> type) {
return new Address(input.readString(), input.readString(), input.readString());
}
}
The Serializer interface exposes Kryo, Input, and Output, which provide complete control over
which fields are included and other internal settings, as described in the Kryo documentation.
Note
When registering your custom serializer, you need a registration ID. The registration IDs are
arbitrary. However, in our case, the IDs must be explicitly defined, because each Kryo instance
across the distributed application must use the same IDs. Kryo recommends small positive
integers and reserves a few ids (value < 10). Spring Integration currently defaults to using 40,
41, and 42 (for the file and message header serializers mentioned earlier). We recommend you
start at 60, to allow for expansion in the framework. You can override these framework defaults
by configuring the registrars mentioned earlier.
Using a Custom Kryo Serializer
If you need custom serialization, see the Kryo documentation, because you need to use the native API
to do the customization. For an example, see the MessageCodec implementation.
Implementing KryoSerializable
If you have write access to the domain object source code, you can implement KryoSerializable
as described here. In this case, the class provides the serialization methods itself and no further
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 135
configuration is required. However benchmarks have shown this is not quite as efficient as registering
a custom serializer explicitly. The following example shows a custom Kryo serializer:
public class Address implements KryoSerializable {
...
@Override
public void write(Kryo kryo, Output output) {
output.writeString(this.street);
output.writeString(this.city);
output.writeString(this.country);
}
@Override
public void read(Kryo kryo, Input input) {
this.street = input.readString();
this.city = input.readString();
this.country = input.readString();
}
}
You can also use this technique to wrap a serialization library other than Kryo.
Using the @DefaultSerializer Annotation
Kryo also provides a @DefaultSerializer annotation, as described here.
@DefaultSerializer(SomeClassSerializer.class)
public class SomeClass {
// ...
}
If you have write access to the domain object, this may be a simpler way to specify a custom serializer.
Note that this does not register the class with an ID, which may make the technique unhelpful for certain
situations.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 136
10. Messaging Endpoints
10.1 Message Endpoints
The first part of this chapter covers some background theory and reveals quite a bit about the underlying
API that drives Spring Integration’s various messaging components. This information can be helpful if
you want to really understand what goes on behind the scenes. However, if you want to get up and
running with the simplified namespace-based configuration of the various elements, feel free to skip
ahead to the section called “Endpoint Namespace Support” for now.
As mentioned in the overview, message endpoints are responsible for connecting the various messaging
components to channels. Over the next several chapters, we cover a number of different components
that consume messages. Some of these are also capable of sending reply messages. Sending
messages is quite straightforward. As shown earlier in Section 6.1, “Message Channels”, you can send
a message to a message channel. However, receiving is a bit more complicated. The main reason is
that there are two types of consumers: polling consumers and event-driven consumers.
Of the two, event-driven consumers are much simpler. Without any need to manage and schedule a
separate poller thread, they are essentially listeners with a callback method. When connecting to one
of Spring Integration’s subscribable message channels, this simple option works great. However, when
connecting to a buffering, pollable message channel, some component has to schedule and manage
the polling threads. Spring Integration provides two different endpoint implementations to accommodate
these two types of consumers. Therefore, the consumers themselves need only implement the callback
interface. When polling is required, the endpoint acts as a container for the consumer instance. The
benefit is similar to that of using a container for hosting message-driven beans, but, since these
consumers are Spring-managed objects running within an ApplicationContext, it more closely
resembles Spring’s own MessageListener containers.
Message Handler
Spring Integration’s MessageHandler interface is implemented by many of the components within the
framework. In other words, this is not part of the public API, and you would not typically implement
MessageHandler directly. Nevertheless, it is used by a message consumer for actually handling the
consumed messages, so being aware of this strategy interface does help in terms of understanding the
overall role of a consumer. The interface is defined as follows:
public interface MessageHandler {
void handleMessage(Message<?> message);
}
Despite its simplicity, this interface provides the foundation for most of the components (routers,
transformers, splitters, aggregators, service activators, and others) covered in the following chapters.
Those components each perform very different functionality with the messages they handle, but the
requirements for actually receiving a message are the same, and the choice between polling and event-
driven behavior is also the same. Spring Integration provides two endpoint implementations that host
these callback-based handlers and let them be connected to message channels.
Event-driven Consumer
Because it is the simpler of the two, we cover the event-driven consumer endpoint first. You may recall
that the SubscribableChannel interface provides a subscribe() method and that the method
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 137
accepts a MessageHandler parameter (as shown in the section called “SubscribableChannel”).
The following listing shows the definition of the subscribe method:
subscribableChannel.subscribe(messageHandler);
Since a handler that is subscribed to a channel does not have to actively poll that channel, this
is an event-driven consumer, and the implementation provided by Spring Integration accepts a
SubscribableChannel and a MessageHandler, as the following example shows:
SubscribableChannel channel = context.getBean("subscribableChannel", SubscribableChannel.class);
EventDrivenConsumer consumer = new EventDrivenConsumer(channel, exampleHandler);
Polling Consumer
Spring Integration also provides a PollingConsumer, and it can be instantiated in the same way
except that the channel must implement PollableChannel, as the following example shows:
PollableChannel channel = context.getBean("pollableChannel", PollableChannel.class);
PollingConsumer consumer = new PollingConsumer(channel, exampleHandler);
Note
For more information regarding polling consumers, see Section 6.2, “Poller” and Section 6.3,
“Channel Adapter”.
There are many other configuration options for the polling consumer. For example, the trigger is a
required property. The following example shows how to set the trigger:
PollingConsumer consumer = new PollingConsumer(channel, handler);
consumer.setTrigger(new IntervalTrigger(30, TimeUnit.SECONDS));
Spring Integration currently provides two implementations of the Trigger interface:
IntervalTrigger and CronTrigger. The IntervalTrigger is typically defined with a simple
interval (in milliseconds) but also supports an initialDelay property and a boolean fixedRate
property (the default is false — that is, no fixed delay). The following example sets both properties:
IntervalTrigger trigger = new IntervalTrigger(1000);
trigger.setInitialDelay(5000);
trigger.setFixedRate(true);
The result of the three settings in the preceding example is a trigger that waits five seconds and then
triggers every second.
The CronTrigger requires a valid cron expression. See the Javadoc for details. The following example
sets a new CronTrigger:
CronTrigger trigger = new CronTrigger("*/10 * * * * MON-FRI");
The result of the trigger defined in the previous example is a trigger that triggers every ten seconds,
Monday through Friday.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 138
In addition to the trigger, you can specify two other polling-related configuration properties:
maxMessagesPerPoll and receiveTimeout. The following example shows how to set these two
properties:
PollingConsumer consumer = new PollingConsumer(channel, handler);
consumer.setMaxMessagesPerPoll(10);
consumer.setReceiveTimeout(5000);
The maxMessagesPerPoll property specifies the maximum number of messages to receive within a
given poll operation. This means that the poller continues calling receive() without waiting, until either
null is returned or the maximum value is reached. For example, if a poller has a ten-second interval
trigger and a maxMessagesPerPoll setting of 25, and it is polling a channel that has 100 messages
in its queue, all 100 messages can be retrieved within 40 seconds. It grabs 25, waits ten seconds, grabs
the next 25, and so on.
The receiveTimeout property specifies the amount of time the poller should wait if no messages are
available when it invokes the receive operation. For example, consider two options that seem similar on
the surface but are actually quite different: The first has an interval trigger of 5 seconds and a receive
timeout of 50 milliseconds, while the second has an interval trigger of 50 milliseconds and a receive
timeout of 5 seconds. The first one may receive a message up to 4950 milliseconds later than it arrived
on the channel (if that message arrived immediately after one of its poll calls returned). On the other
hand, the second configuration never misses a message by more than 50 milliseconds. The difference
is that the second option requires a thread to wait. However, as a result, it can respond much more
quickly to arriving messages. This technique, known as "long polling", can be used to emulate
event-driven behavior on a polled source.
A polling consumer can also delegate to a Spring TaskExecutor, as the following example shows:
PollingConsumer consumer = new PollingConsumer(channel, handler);
TaskExecutor taskExecutor = context.getBean("exampleExecutor", TaskExecutor.class);
consumer.setTaskExecutor(taskExecutor);
Furthermore, a PollingConsumer has a property called adviceChain. This property lets you to
specify a List of AOP advices for handling additional cross cutting concerns including transactions.
These advices are applied around the doPoll() method. For more in-depth information, see the
sections on AOP advice chains and transaction support under the section called “Endpoint Namespace
Support”.
The earlier examples show dependency lookups. However, keep in mind that these consumers are most
often configured as Spring bean definitions. In fact, Spring Integration also provides a FactoryBean
called ConsumerEndpointFactoryBean that creates the appropriate consumer type based on the
type of channel. Also, Spring Integration has full XML namespace support to even further hide those
details. The namespace-based configuration is in this guide featured as each component type is
introduced.
Note
Many of the MessageHandler implementations can generate reply messages. As mentioned
earlier, sending messages is trivial when compared to receiving messages. Nevertheless,
when and how many reply messages are sent depends on the handler type. For example,
an aggregator waits for a number of messages to arrive and is often configured as a
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 139
downstream consumer for a splitter, which can generate multiple replies for each message it
handles. When using the namespace configuration, you do not strictly need to know all of the
details. However, it still might be worth knowing that several of these components share a
common base class, the AbstractReplyProducingMessageHandler, and that it provides a
setOutputChannel(..) method.
Endpoint Namespace Support
Throughout this reference manual, you can find specific configuration examples for endpoint elements,
such as router, transformer, service-activator, and so on. Most of these support an input-channel
attribute and many support an output-channel attribute. After being parsed, these endpoint elements
produce an instance of either the PollingConsumer or the EventDrivenConsumer, depending on
the type of the input-channel that is referenced: PollableChannel or SubscribableChannel,
respectively. When the channel is pollable, the polling behavior is based on the endpoint element’s
poller sub-element and its attributes.
The following listing lists all of the available configuration options for a poller:
<int:poller cron="" ❶
default="false" ❷
error-channel="" ❸
fixed-delay="" ❹
fixed-rate="" ❺
id="" ❻
max-messages-per-poll="" ❼
receive-timeout="" ❽
ref="" ❾
task-executor="" ❿
time-unit="MILLISECONDS" 11
trigger=""> 12
<int:advice-chain /> 13
<int:transactional /> 14
</int:poller>
❶Provides the ability to configure pollers by using Cron expressions. The underlying implementation
uses an org.springframework.scheduling.support.CronTrigger. If this attribute is set,
none of the following attributes must be specified: fixed-delay, trigger, fixed-rate, and
ref.
❷By setting this attribute to true, you can define exactly one global default poller. An exception is
raised if more than one default poller is defined in the application context. Any endpoints connected
to a PollableChannel (PollingConsumer) or any SourcePollingChannelAdapter that
does not have an explicitly configured poller then uses the global default poller. It defaults to false.
Optional.
❸Identifies the channel to which error messages are sent if a failure occurs in this poller’s invocation.
To completely suppress exceptions, you can provide a reference to the nullChannel. Optional.
❹The fixed delay trigger uses a PeriodicTrigger under the covers. If you do not use the time-
unit attribute, the specified value is represented in milliseconds. If this attribute is set, none of the
following attributes must be specified: fixed-rate, trigger, cron, and ref.
❺The fixed rate trigger uses a PeriodicTrigger under the covers. If you do not use the time-
unit attribute, the specified value is represented in milliseconds. If this attribute is set, none of the
following attributes must be specified: fixed-delay, trigger, cron, and ref.
❻The ID referring to the poller’s underlying bean-definition, which is of type
org.springframework.integration.scheduling.PollerMetadata. The id attribute is
required for a top-level poller element, unless it is the default poller (default="true").
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 140
❼See the section called “Configuring An Inbound Channel Adapter” for more information. If not
specified, the default value depends on the context. If you use a PollingConsumer, this attribute
defaults to -1. However, if you use a SourcePollingChannelAdapter, the max-messages-
per-poll attribute defaults to 1. Optional.
❽Value is set on the underlying class PollerMetadata. If not specified, it defaults to 1000
(milliseconds). Optional.
❾Bean reference to another top-level poller. The ref attribute must not be present on the top-level
poller element. However, if this attribute is set, none of the following attributes must be specified:
fixed-rate, trigger, cron, and fixed-delay.
❿Provides the ability to reference a custom task executor. See the section called “TaskExecutor
Support” for further information. Optional.
11 This attribute specifies the java.util.concurrent.TimeUnit enum value on the
underlying org.springframework.scheduling.support.PeriodicTrigger. Therefore,
this attribute can be used only in combination with the fixed-delay or fixed-rate attributes.
If combined with either cron or a trigger reference attribute, it causes a failure. The minimal
supported granularity for a PeriodicTrigger is milliseconds. Therefore, the only available
options are milliseconds and seconds. If this value is not provided, any fixed-delay or fixed-
rate value is interpreted as milliseconds. Basically, this enum provides a convenience for
seconds-based interval trigger values. For hourly, daily, and monthly settings, we recommend using
a cron trigger instead.
12 Reference to any Spring-configured bean that implements the
org.springframework.scheduling.Trigger interface. However, if this attribute is set, none
of the following attributes must be specified: fixed-delay, fixed-rate, cron, and ref.
Optional.
13 Allows specifying extra AOP advices to handle additional cross-cutting concerns. See the section
called “Transaction Support” for further information. Optional.
14 Pollers can be made transactional. See the section called “AOP Advice chains” for further
information. Optional.
Examples
A simple interval-based poller with a 1-second interval can be configured as follows:
<int:transformer input-channel="pollable"
ref="transformer"
output-channel="output">
<int:poller fixed-rate="1000"/>
</int:transformer>
As an alternative to using the fixed-rate attribute, you can also use the fixed-delay attribute.
For a poller based on a Cron expression, use the cron attribute instead, as the following example shows:
<int:transformer input-channel="pollable"
ref="transformer"
output-channel="output">
<int:poller cron="*/10 * * * * MON-FRI"/>
</int:transformer>
If the input channel is a PollableChannel, the poller configuration is required. Specifically, as
mentioned earlier, the trigger is a required property of the PollingConsumer class. Therefore, if
you omit the poller sub-element for a polling consumer endpoint’s configuration, an exception may
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 141
be thrown. The exception may also be thrown if you attempt to configure a poller on the element that
is connected to a non-pollable channel.
It is also possible to create top-level pollers, in which case only a ref attribute is required, as the
following example shows:
<int:poller id="weekdayPoller" cron="*/10 * * * * MON-FRI"/>
<int:transformer input-channel="pollable"
ref="transformer"
output-channel="output">
<int:poller ref="weekdayPoller"/>
</int:transformer>
Note
The ref attribute is allowed only on the inner poller definitions. Defining this attribute on a top-
level poller results in a configuration exception being thrown during initialization of the application
context.
Global Default Pollers
To simplify the configuration even further, you can define a global default poller. A single top-
level poller within an ApplicationContext may have the default attribute set to true. In that
case, any endpoint with a PollableChannel for its input channel, that is defined within the same
ApplicationContext, and has no explicitly configured poller sub-element uses that default. The
following example shows such a poller and a transformer that uses it:
<int:poller id="defaultPoller" default="true" max-messages-per-poll="5" fixed-rate="3000"/>
<!-- No <poller/> sub-element is necessary, because there is a default -->
<int:transformer input-channel="pollable"
ref="transformer"
output-channel="output"/>
Transaction Support
Spring Integration also provides transaction support for the pollers so that each receive-and-forward
operation can be performed as an atomic unit of work. To configure transactions for a poller, add the
<transactional/> sub-element. The following example shows the available attributes:
<int:poller fixed-delay="1000">
<int:transactional transaction-manager="txManager"
propagation="REQUIRED"
isolation="REPEATABLE_READ"
timeout="10000"
read-only="false"/>
</int:poller>
For more information, see the section called “Poller Transaction Support”.
AOP Advice chains
Since Spring transaction support depends on the proxy mechanism with TransactionInterceptor
(AOP Advice) handling transactional behavior of the message flow initiated by the poller, you must
sometimes provide extra advices to handle other cross cutting behavior associated with the poller.
For that, the poller defines an advice-chain element that lets you add more advices in a class
that implements the MethodInterceptor interface. The following example shows how to define an
advice-chain for a poller:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 142
<int:service-activator id="advicedSa" input-channel="goodInputWithAdvice" ref="testBean"
method="good" output-channel="output">
<int:poller max-messages-per-poll="1" fixed-rate="10000">
<int:advice-chain>
<ref bean="adviceA" />
<beans:bean class="org.something.SampleAdvice" />
<ref bean="txAdvice" />
</int:advice-chain>
</int:poller>
</int:service-activator>
For more information on how to implement the MethodInterceptor interface, see the AOP sections
of the Spring Framework Reference Guide. An advice chain can also be applied on a poller that does
not have any transaction configuration, letting you enhance the behavior of the message flow initiated
by the poller.
Important
When using an advice chain, the <transactional/> child element cannot be specified. Instead,
declare a <tx:advice/> bean and add it to the <advice-chain/>. See the section called
“Poller Transaction Support” for complete configuration details.
TaskExecutor Support
The polling threads may be executed by any instance of Spring’s TaskExecutor abstraction. This
enables concurrency for an endpoint or group of endpoints. As of Spring 3.0, the core Spring Framework
has a task namespace, and its <executor/> element supports the creation of a simple thread pool
executor. That element accepts attributes for common concurrency settings, such as pool-size and
queue-capacity. Configuring a thread-pooling executor can make a substantial difference in how the
endpoint performs under load. These settings are available for each endpoint, since the performance
of an endpoint is one of the major factors to consider (the other major factor being the expected volume
on the channel to which the endpoint subscribes). To enable concurrency for a polling endpoint that is
configured with the XML namespace support, provide the task-executor reference on its <poller/
> element and then provide one or more of the properties shown in the following example:
<int:poller task-executor="pool" fixed-rate="1000"/>
<task:executor id="pool"
pool-size="5-25"
queue-capacity="20"
keep-alive="120"/>
If you do not provide a task-executor, the consumer’s handler is invoked in the caller’s thread. Note that
the caller is usually the default TaskScheduler (see Section E.2, “Configuring the Task Scheduler”).
You should also keep in mind that the task-executor attribute can provide a reference to any
implementation of Spring’s TaskExecutor interface by specifying the bean name. The executor
element shown earlier is provided for convenience.
As mentioned earlier in the background section for polling consumers, you can also configure a polling
consumer in such a way as to emulate event-driven behavior. With a long receive-timeout and
a short interval-trigger, you can ensure a very timely reaction to arriving messages even on a
polled message source. Note that this applies only to sources that have a blocking wait call with a
timeout. For example, the file poller does not block. Each receive() call returns immediately and either
contains new files or not. Therefore, even if a poller contains a long receive-timeout, that value
would never be used in such a scenario. On the other hand, when using Spring Integration’s own queue-
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 143
based channels, the timeout value does have a chance to participate. The following example shows
how a polling consumer can receive messages nearly instantaneously:
<int:service-activator input-channel="someQueueChannel"
output-channel="output">
<int:poller receive-timeout="30000" fixed-rate="10"/>
</int:service-activator>
Using this approach does not carry much overhead, since, internally, it is nothing more then a timed-
wait thread, which does not require nearly as much CPU resource usage as (for example) a thrashing,
infinite while loop.
Changing Polling Rate at Runtime
When configuring a poller with a fixed-delay or a fixed-rate attribute, the default implementation
uses a PeriodicTrigger instance. The PeriodicTrigger is part of the core Spring Framework. It
accepts the interval only as a constructor argument. Therefore, it cannot be changed at runtime.
However, you can define your own implementation of the
org.springframework.scheduling.Trigger interface. You could even use the
PeriodicTrigger as a starting point. Then you can add a setter for the interval (period), or you can
even embed your own throttling logic within the trigger itself. The period property is used with each call
to nextExecutionTime to schedule the next poll. To use this custom trigger within pollers, declare
the bean definition of the custom trigger in your application context and inject the dependency into your
poller configuration by using the trigger attribute, which references the custom trigger bean instance.
You can now obtain a reference to the trigger bean and change the polling interval between polls.
For an example, see the Spring Integration Samples project. It contains a sample called dynamic-
poller, which uses a custom trigger and demonstrates the ability to change the polling interval at
runtime.
The sample provides a custom trigger that implements the
org.springframework.scheduling.Trigger interface. The sample’s trigger is based on Spring’s
PeriodicTrigger implementation. However, the fields of the custom trigger are not final, and the
properties have explicit getters and setters, letting you dynamically change the polling period at runtime.
Note
It is important to note, though, that because the Trigger method is nextExecutionTime(),
any changes to a dynamic trigger do not take effect until the next poll, based on the existing
configuration. It is not possible to force a trigger to fire before its currently configured next
execution time.
Payload Type Conversion
Throughout this reference manual, you can also see specific configuration and implementation
examples of various endpoints that accept a message or any arbitrary Object as an input parameter.
In the case of an Object, such a parameter is mapped to a message payload or part of the payload
or header (when using the Spring Expression Language). However, the type of input parameter of
the endpoint method sometimes does not match the type of the payload or its part. In this scenario,
we need to perform type conversion. Spring Integration provides a convenient way for registering
type converters (by using the Spring ConversionService) within its own instance of a conversion
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 144
service bean named integrationConversionService. That bean is automatically created as
soon as the first converter is defined by using the Spring Integration infrastructure. To register a
converter, you can implement org.springframework.core.convert.converter.Converter,
org.springframework.core.convert.converter.GenericConverter, or
org.springframework.core.convert.converter.ConverterFactory.
The Converter implementation is the simplest and converts from a single type to another. For more
sophistication, such as converting to a class hierarchy, you can implement a GenericConverter
and possibly a ConditionalConverter. These give you complete access to the from and to
type descriptors, enabling complex conversions. For example, if you have an abstract class called
Something that is the target of your conversion (parameter type, channel data type, and so on), you
have two concrete implementations called Thing1 and Thing, and you wish to convert to one or the
other based on the input type, the GenericConverter would be a good fit. For more information, see
the Javadoc for these interfaces:
•org.springframework.core.convert.converter.Converter
•org.springframework.core.convert.converter.GenericConverter
•org.springframework.core.convert.converter.ConverterFactory
When you have implemented your converter, you can register it with convenient namespace support,
as the following example shows:
<int:converter ref="sampleConverter"/>
<bean id="sampleConverter" class="foo.bar.TestConverter"/>
Alternately, you can use an inner bean, as the following example shows:
<int:converter>
<bean class="o.s.i.config.xml.ConverterParserTests$TestConverter3"/>
</int:converter>
Starting with Spring Integration 4.0, you can use annotations to create the preceding configuration, as
the following example shows:
@Component
@IntegrationConverter
public class TestConverter implements Converter<Boolean, Number> {
public Number convert(Boolean source) {
return source ? 1 : 0;
}
}
Alternately, you can use the @Configuration annotation, as the following example shows:
@Configuration
@EnableIntegration
public class ContextConfiguration {
@Bean
@IntegrationConverter
public SerializingConverter serializingConverter() {
return new SerializingConverter();
}
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 145
Important
When configuring an application context, the Spring Framework lets you add a
conversionService bean (see Configuring a ConversionService chapter). This service is
used, when needed, to perform appropriate conversions during bean creation and configuration.
In contrast, the integrationConversionService is used for runtime conversions. These
uses are quite different. Converters that are intended for use when wiring bean constructor
arguments and properties may produce unintended results if used at runtime for Spring Integration
expression evaluation against messages within data type channels, payload type transformers,
and so on.
However, if you do want to use the Spring conversionService as the Spring Integration
integrationConversionService, you can configure an alias in the application context, as
the following example shows:
<alias name="conversionService" alias="integrationConversionService"/>
In this case, the converters provided by the conversionService are available for Spring
Integration runtime conversion.
Content Type Conversion
Starting with version 5.0, by default, the method invocation mechanism is based on
the org.springframework.messaging.handler.invocation.InvocableHandlerMethod
infrastructure. Its HandlerMethodArgumentResolver implementations (such as
PayloadArgumentResolver and MessageMethodArgumentResolver) can use the
MessageConverter abstraction to convert an incoming payload to the target method argument
type. The conversion can be based on the contentType message header. For this purpose, Spring
Integration provides the ConfigurableCompositeMessageConverter, which delegates to a list of
registered converters to be invoked until one of them returns a non-null result. By default, this converter
provides (in strict order):
1. MappingJackson2MessageConverter if the Jackson processor is present on the classpath
2. ByteArrayMessageConverter
3. ObjectStringMessageConverter
4. GenericMessageConverter
See the Javadoc (linked in the preceding list) for more information about their purpose and appropriate
contentType values for conversion. The ConfigurableCompositeMessageConverter is used
because it can be be supplied with any other MessageConverter implementations, including or
excluding the previously mentioned default converters. It can also be registered as an appropriate bean
in the application context, overriding the default converter, as the following example shows:
@Bean(name = IntegrationContextUtils.ARGUMENT_RESOLVER_MESSAGE_CONVERTER_BEAN_NAME)
public ConfigurableCompositeMessageConverter compositeMessageConverter() {
List<MessageConverter> converters =
Arrays.asList(new MarshallingMessageConverter(jaxb2Marshaller()),
new JavaSerializationMessageConverter());
return new ConfigurableCompositeMessageConverter(converters);
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 146
Those two new converters are registered in the composite before the defaults. You can also not use
a ConfigurableCompositeMessageConverter but provide your own MessageConverter by
registering a bean with the name, integrationArgumentResolverMessageConverter (by setting
the IntegrationContextUtils.ARGUMENT_RESOLVER_MESSAGE_CONVERTER_BEAN_NAME
property).
Note
The MessageConverter-based (including contentType header) conversion is not available
when using SpEL method invocation. In this case, only the regular class-to-class conversion
mentioned above in the the section called “Payload Type Conversion” is available.
Asynchronous Polling
If you want the polling to be asynchronous, a poller can optionally specify a task-executor attribute
that points to an existing instance of any TaskExecutor bean (Spring 3.0 provides a convenient
namespace configuration through the task namespace). However, there are certain things you must
understand when configuring a poller with a TaskExecutor.
The problem is that there are two configurations in place, the poller and the TaskExecutor. They must
be in tune with each other. Otherwise, you might end up creating an artificial memory leak.
Consider the following configuration:
<int:channel id="publishChannel">
<int:queue />
</int:channel>
<int:service-activator input-channel="publishChannel" ref="myService">
<int:poller receive-timeout="5000" task-executor="taskExecutor" fixed-rate="50" />
</int:service-activator>
<task:executor id="taskExecutor" pool-size="20" />
The preceding configuration demonstrates an out-of-tune configuration.
By default, the task executor has an unbounded task queue. The poller keeps scheduling new tasks
even though all the threads are blocked, waiting for either a new message to arrive or the timeout to
expire. Given that there are 20 threads executing tasks with a five-second timeout, they aree executed
at a rate of 4 per second. However, new tasks are being scheduled at a rate of 20 per second, so the
internal queue in the task executor grows at a rate of 16 per second (while the process is idle), so we
have a memory leak.
One of the ways to handle this is to set the queue-capacity attribute of the task executor. Even 0 is
a reasonable value. You can also manage it by specifying what to do with messages that can not be
queued by setting the rejection-policy attribute of the Task Executor (for example, to DISCARD).
In other words, there are certain details you must understand when configuring TaskExecutor. See
"Task Execution and Scheduling" in the Spring reference manual for more detail on the subject.
Endpoint Inner Beans
Many endpoints are composite beans. This includes all consumers and all polled inbound channel
adapters. Consumers (polled or event-driven) delegate to a MessageHandler. Polled adapters obtain
messages by delegating to a MessageSource. Often, it is useful to obtain a reference to the delegate
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 147
bean, perhaps to change configuration at runtime or for testing. These beans can be obtained from
the ApplicationContext with well known names. MessageHandler instances are registered with
the application context with bean IDs similar to someConsumer.handler (where consumer is the
value of the endpoint’s id attribute). MessageSource instances are registered with bean IDs similar
to somePolledAdapter.source, where somePolledAdapter is the ID of the adapter.
The preceding only applies to the framework component itself. You can instead use an inner bean
definition, as the following example shows:
<int:service-activator id="exampleServiceActivator" input-channel="inChannel"
output-channel = "outChannel" method="foo">
<beans:bean class="org.foo.ExampleServiceActivator"/>
</int:service-activator>
The bean is treated like any inner bean declared and is not registered with the application context. If
you wish to access this bean in some other manner, declare it at the top level with an id and use the
ref attribute instead. See the Spring Documentation for more information.
10.2 Endpoint Roles
Starting with version 4.2, endpoints can be assigned to roles. Roles let endpoints be started and
stopped as a group. This is particularly useful when using leadership election, where a set of endpoints
can be started or stopped when leadership is granted or revoked, respectively. For this purpose the
framework registers a SmartLifecycleRoleController bean in the application context with the
name IntegrationContextUtils.INTEGRATION_LIFECYCLE_ROLE_CONTROLLER. Whenever it
is necessary to control lifecycles, this bean can be injected or @Autowired:
<bean class="com.some.project.SomeLifecycleControl">
<property name="roleController" ref="integrationLifecycleRoleController"/>
</bean>
You can assign endpoints to roles using XML, Java configuration, or programmatically. The following
example shows how to configure endpoint roles with XML:
<int:inbound-channel-adapter id="ica" channel="someChannel" expression="'foo'" role="cluster"
auto-startup="false">
<int:poller fixed-rate="60000" />
</int:inbound-channel-adapter>
The following example shows how to configure endpoint roles for a bean created in Java:
@Bean
@ServiceActivator(inputChannel = "sendAsyncChannel", autoStartup="false")
@Role("cluster")
public MessageHandler sendAsyncHandler() {
return // some MessageHandler
}
The following example shows how to configure endpoint roles on a method in Java:
@Payload("#args[0].toLowerCase()")
@Role("cluster")
public String handle(String payload) {
return payload.toUpperCase();
}
The following example shows how to configure endpoint roles by using the
SmartLifecycleRoleController in Java:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 148
@Autowired
private SmartLifecycleRoleController roleController;
...
this.roleController.addSmartLifeCycleToRole("cluster", someEndpoint);
...
The following example shows how to configure endpoint roles by using an IntegrationFlow in Java:
IntegrationFlow flow -> flow
.handle(..., e -> e.role("cluster"));
Each of these adds the endpoint to the cluster role.
Invoking roleController.startLifecyclesInRole("cluster") and the corresponding
stop... method starts and stops the endpoints.
Note
Any object that implements SmartLifecycle can be programmatically added — not just
endpoints.
The SmartLifecycleRoleController implements
ApplicationListener<AbstractLeaderEvent> and it automatically starts and stops its
configured SmartLifecycle objects when leadership is granted or revoked (when some bean
publishes OnGrantedEvent or OnRevokedEvent, respectively).
Important
When using leadership election to start and stop components, it is important to set the auto-
startup XML attribute (autoStartup bean property) to false so that the application context
does not start the components during context initialization.
Starting with version 4.3.8, the SmartLifecycleRoleController provides several status methods:
public Collection<String> getRoles() ❶
public boolean allEndpointsRunning(String role) ❷
public boolean noEndpointsRunning(String role) ❸
public Map<String, Boolean> getEndpointsRunningStatus(String role) ❹
❶Returns a list of the roles being managed.
❷Returns true if all endpoints in the role are running.
❸Returns true if none of the endpoints in the role are running.
❹Returns a map of component name : running status. The component name is usually the
bean name.
10.3 Leadership Event Handling
Groups of endpoints can be started and stopped based on leadership being granted or revoked,
respectively. This is useful in clustered scenarios where shared resources must be consumed by only
a single instance. An example of this is a file inbound channel adapter that is polling a shared directory.
(See Section 17.1, “Reading Files”).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 149
To participate in a leader election and be notified when elected leader, when leadership is revoked,
or on failure to acquire the resources to become leader, an application creates a component in the
application context called a "leader initiator". Normally, a leader initiator is a SmartLifecycle,
so it starts (optionally) when the context starts and then publishes notifications when leadership
changes. You can also receive failure notifications by setting the publishFailedEvents to
true (starting with version 5.0), for cases when you want take a specific action if a failure
occurs. By convention, you should provide a Candidate that receives the callbacks. You can
also revoke the leadership through a Context object provided by the framework. Your code
can also listen for o.s.i.leader.event.AbstractLeaderEvent instances (the super class
of OnGrantedEvent and OnRevokedEvent) and respond accordingly (for instance, by using a
SmartLifecycleRoleController). The events contain a reference to the Context object. The
following listing shows the definition of the Context interface:
public interface Context {
boolean isLeader();
void yield();
String getRole();
}
Starting with version 5.0.6, the context provides a reference to the candidate’s role.
Spring Integration provides a basic implementation of a leader initiator that is based on the
LockRegistry abstraction. To use it, you need to create an instance as a bean, as the following
example shows:
@Bean
public LockRegistryLeaderInitiator leaderInitiator(LockRegistry locks) {
return new LockRegistryLeaderInitiator(locks);
}
If the lock registry is implemented correctly, there is only ever at most one leader. If the lock registry
also provides locks that throw exceptions (ideally, InterruptedException) when they expire or are
broken, the duration of the leaderless periods can be as short as is allowed by the inherent latency in
the lock implementation. By default, the busyWaitMillis property adds some additional latency to
prevent CPU starvation in the (more usual) case that the locks are imperfect and you only know they
expired when you try to obtain one again.
See Section 40.3, “Zookeeper Leadership Event Handling” for more information about leadership
election and events that use Zookeeper.
10.4 Messaging Gateways
A gateway hides the messaging API provided by Spring Integration. It lets your application’s business
logic be unaware of the Spring Integration API. By using a generic Gateway, your code interacts with
only a simple interface.
Enter the GatewayProxyFactoryBean
As mentioned earlier, it would be great to have no dependency on the Spring Integration API — including
the gateway class. For that reason, Spring Integration provides the GatewayProxyFactoryBean,
which generates a proxy for any interface and internally invokes the gateway methods shown below.
By using dependency injection, you can then expose the interface to your business methods.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 150
The following example shows an interface that can be used to interact with Spring Integration:
package org.cafeteria;
public interface Cafe {
void placeOrder(Order order);
}
Gateway XML Namespace Support
Namespace support is also provided. It lets you configure an interface as a service, as the following
example shows:
<int:gateway id="cafeService"
service-interface="org.cafeteria.Cafe"
default-request-channel="requestChannel"
default-reply-timeout="10000"
default-reply-channel="replyChannel"/>
With this configuration defined, the cafeService can now be injected into other beans, and the code
that invokes the methods on that proxied instance of the Cafe interface has no awareness of the Spring
Integration API. The general approach is similar to that of Spring Remoting (RMI, HttpInvoker, and so
on). See the "Samples" Appendix for an example that uses the gateway element (in the Cafe demo).
The defaults in the preceding configuration are applied to all methods on the gateway interface. If a reply
timeout is not specified, the calling thread waits indefinitely for a reply. See the section called “Gateway
Behavior When No response Arrives”.
The defaults can be overridden for individual methods. See the section called “Gateway Configuration
with Annotations and XML”.
Setting the Default Reply Channel
Typically, you need not specify the default-reply-channel, since a Gateway auto-creates a
temporary, anonymous reply channel, where it listens for the reply. However, some cases may prompt
you to define a default-reply-channel (or reply-channel with adapter gateways, such as
HTTP, JMS, and others).
For some background, we briefly discuss some of the inner workings of the gateway. A gateway creates
a temporary point-to-point reply channel. It is anonymous and is added to the message headers with the
name, replyChannel. When providing an explicit default-reply-channel (reply-channel with
remote adapter gateways), you can point to a publish-subscribe channel, which is so named because
you can add more than one subscriber to it. Internally, Spring Integration creates a bridge between the
temporary replyChannel and the explicitly defined default-reply-channel.
Suppose you want your reply to go not only to the gateway but also to some other consumer. In this
case, you want two things:
• A named channel to which you can subscribe
• That channel to be a publish-subscribe-channel
The default strategy used by the gateway does not satisfy those needs, because the reply channel
added to the header is anonymous and point-to-point. This means that no other subscriber can get a
handle to it and, even if it could, the channel has point-to-point behavior such that only one subscriber
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 151
would get the message. By defining a default-reply-channel you can point to a channel of your
choosing. In this case, that is a publish-subscribe-channel. The gateway creates a bridge from
it to the temporary, anonymous reply channel that is stored in the header.
You might also want to explicitly provide a reply channel for monitoring or auditing through an interceptor
(for example, wiretap). To configure a channel interceptor, you need a named channel.
Gateway Configuration with Annotations and XML
Consider the following example, which expands on the previous Cafe interface example by adding a
@Gateway annotation:
public interface Cafe {
@Gateway(requestChannel="orders")
void placeOrder(Order order);
}
The @Header annotation lets you add values that are interpreted as message headers, as the following
example shows:
public interface FileWriter {
@Gateway(requestChannel="filesOut")
void write(byte[] content, @Header(FileHeaders.FILENAME) String filename);
}
If you prefer the XML approach to configuring gateway methods, you can add method elements to the
gateway configuration, as the following example shows:
<int:gateway id="myGateway" service-interface="org.foo.bar.TestGateway"
default-request-channel="inputC">
<int:default-header name="calledMethod" expression="#gatewayMethod.name"/>
<int:method name="echo" request-channel="inputA" reply-timeout="2" request-timeout="200"/>
<int:method name="echoUpperCase" request-channel="inputB"/>
<int:method name="echoViaDefault"/>
</int:gateway>
You can also use XML to provide individual headers for each method invocation. This could be useful
if the headers you want to set are static in nature and you do not want to embed them in the gateway’s
method signature by using @Header annotations. For example, in the loan broker example, we want
to influence how aggregation of the loan quotes is done, based on what type of request was initiated
(single quote or all quotes). Determining the type of the request by evaluating which gateway method
was invoked, although possible, would violate the separation of concerns paradigm (the method is a
Java artifact). However, expressing your intention (meta information) in message headers is natural in
a messaging architecture. The following example shows how to add a different message header for
each of two methods:
<int:gateway id="loanBrokerGateway"
service-interface="org.springframework.integration.loanbroker.LoanBrokerGateway">
<int:method name="getLoanQuote" request-channel="loanBrokerPreProcessingChannel">
<int:header name="RESPONSE_TYPE" value="BEST"/>
</int:method>
<int:method name="getAllLoanQuotes" request-channel="loanBrokerPreProcessingChannel">
<int:header name="RESPONSE_TYPE" value="ALL"/>
</int:method>
</int:gateway>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 152
In the preceding example a different value is set for the RESPONSE_TYPE header, based on the
gateway’s method.
Expressions and "Global" Headers
The <header/> element supports expression as an alternative to value. The SpEL expression is
evaluated to determine the value of the header. There is no #root object, but the following variables
are available:
• #args: An Object[] containing the method arguments
• #gatewayMethod: The object (derived from java.reflect.Method) that represents the method in
the service-interface that was invoked. A header containing this variable can be used later in
the flow (for example, for routing). For example, if you wish to route on the simple method name, you
might add a header with the following expression: #gatewayMethod.name.
Note
The java.reflect.Method is not serializable. A header with an expression of
#gatewayMethod is lost if you later serialize the message. Consequently, you may wish to use
#gatewayMethod.name or #gatewayMethod.toString() in those cases. The toString()
method provides a String representation of the method, including parameter and return types.
Since version 3.0, <default-header/> elements can be defined to add headers to all the messages
produced by the gateway, regardless of the method invoked. Specific headers defined for a method
take precedence over default headers. Specific headers defined for a method here override any
@Header annotations in the service interface. However, default headers do NOT override any @Header
annotations in the service interface.
The gateway now also supports a default-payload-expression, which is applied for all methods
(unless overridden).
Mapping Method Arguments to a Message
Using the configuration techniques in the previous section allows control of how method arguments are
mapped to message elements (payload and headers). When no explicit configuration is used, certain
conventions are used to perform the mapping. In some cases, these conventions cannot determine
which argument is the payload and which should be mapped to headers. Consider the following
example:
public String send1(Object thing1, Map thing2);
public String send2(Map thing1, Map thing2);=
In the first case, the convention is to map the first argument to the payload (as long as it is not a Map)
and the contents of the second argument become headers.
In the second case (or the first when the argument for parameter thing1 is a Map), the framework
cannot determine which argument should be the payload. Consequently, mapping fails. This can
generally be resolved using a payload-expression, a @Payload annotation, or a @Headers
annotation.
Alternatively (and whenever the conventions break down), you can take the entire responsibility for
mapping the method calls to messages. To do so, implement an MethodArgsMessageMapper and
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 153
provide it to the <gateway/> by using the mapper attribute. The mapper maps a MethodArgsHolder,
which is a simple class that wraps the java.reflect.Method instance and an Object[] containing
the arguments. When providing a custom mapper, the default-payload-expression attribute and
<default-header/> elements are not allowed on the gateway. Similarly, the payload-expression
attribute and <header/> elements are not allowed on any <method/> elements.
Mapping Method Arguments
The following examples show how method arguments can be mapped to the message and shows some
examples of invalid configuration:
public interface MyGateway {
void payloadAndHeaderMapWithoutAnnotations(String s, Map<String, Object> map);
void payloadAndHeaderMapWithAnnotations(@Payload String s, @Headers Map<String, Object> map);
void headerValuesAndPayloadWithAnnotations(@Header("k1") String x, @Payload String s, @Header("k2")
String y);
void mapOnly(Map<String, Object> map); // the payload is the map and no custom headers are added
void twoMapsAndOneAnnotatedWithPayload(@Payload Map<String, Object> payload, Map<String, Object>
headers);
@Payload("#args[0] + #args[1] + '!'")
void payloadAnnotationAtMethodLevel(String a, String b);
@Payload("@someBean.exclaim(#args[0])")
void payloadAnnotationAtMethodLevelUsingBeanResolver(String s);
void payloadAnnotationWithExpression(@Payload("toUpperCase()") String s);
void payloadAnnotationWithExpressionUsingBeanResolver(@Payload("@someBean.sum(#this)") String s); //
❶
// invalid
void twoMapsWithoutAnnotations(Map<String, Object> m1, Map<String, Object> m2);
// invalid
void twoPayloads(@Payload String s1, @Payload String s2);
// invalid
void payloadAndHeaderAnnotationsOnSameParameter(@Payload @Header("x") String s);
// invalid
void payloadAndHeadersAnnotationsOnSameParameter(@Payload @Headers Map<String, Object> map);
}
❶Note that, in this example, the SpEL variable, #this, refers to the argument — in this case, the
value of s.
The XML equivalent looks a little different, since there is no #this context for the method argument.
However, expressions can refer to method arguments by using the #args variable, as the following
example shows:
<int:gateway id="myGateway" service-interface="org.something.MyGateway">
<int:method name="send1" payload-expression="#args[0] + 'thing2'"/>
<int:method name="send2" payload-expression="@someBean.sum(#args[0])"/>
<int:method name="send3" payload-expression="#method"/>
<int:method name="send4">
<int:header name="thing1" expression="#args[2].toUpperCase()"/>
</int:method>
</int:gateway>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 154
@MessagingGateway Annotation
Starting with version 4.0, gateway service interfaces can be marked with a @MessagingGateway
annotation instead of requiring the definition of a <gateway /> xml element for configuration. The
following pair of examples compares the two approaches for configuring the same gateway:
<int:gateway id="myGateway" service-interface="org.something.TestGateway"
default-request-channel="inputC">
<int:default-header name="calledMethod" expression="#gatewayMethod.name"/>
<int:method name="echo" request-channel="inputA" reply-timeout="2" request-timeout="200"/>
<int:method name="echoUpperCase" request-channel="inputB">
<int:header name="thing1" value="thing2"/>
</int:method>
<int:method name="echoViaDefault"/>
</int:gateway>
@MessagingGateway(name = "myGateway", defaultRequestChannel = "inputC",
defaultHeaders = @GatewayHeader(name = "calledMethod",
expression="#gatewayMethod.name"))
public interface TestGateway {
@Gateway(requestChannel = "inputA", replyTimeout = 2, requestTimeout = 200)
String echo(String payload);
@Gateway(requestChannel = "inputB", headers = @GatewayHeader(name = "thing1", value="thing2"))
String echoUpperCase(String payload);
String echoViaDefault(String payload);
}
Important
Similarly to the XML version, when Spring Integration discovers these annotations during
a component scan, it creates the proxy implementation with its messaging infrastructure.
To perform this scan and register the BeanDefinition in the application context, add
the @IntegrationComponentScan annotation to a @Configuration class. The standard
@ComponentScan infrastructure does not deal with interfaces. Consequently, we introduced
the custom @IntegrationComponentScan logic to fine the @MessagingGateway annotation
on the interfaces and register GatewayProxyFactoryBean instances for them. See also
Section E.5, “Annotation Support”.
Note
If you have no XML configuration, the @EnableIntegration annotation is required on at least
one @Configuration class. See Section 5.5, “Configuration and @EnableIntegration” for
more information.
Invoking No-Argument Methods
When invoking methods on a Gateway interface that do not have any arguments, the default behavior
is to receive a Message from a PollableChannel.
Sometimes, however, you may want to trigger no-argument methods so that you can interact with other
components downstream that do not require user-provided parameters, such as triggering no-argument
SQL calls or stored procedures.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 155
To achieve send-and-receive semantics, you must provide a payload. To generate a payload, method
parameters on the interface are not necessary. You can either use the @Payload annotation or the
payload-expression attribute in XML on the method element. The following list includes a few
examples of what the payloads could be:
• a literal string
• #gatewayMethod.name
• new java.util.Date()
• @someBean.someMethod()'s return value
The following example shows how to use the @Payload annotation:
public interface Cafe {
@Payload("new java.util.Date()")
List<Order> retrieveOpenOrders();
}
If a method has no argument and no return value but does contain a payload expression, it is treated
as a send-only operation.
Error Handling
The gateway invocation can result in errors. By default, any error that occurs downstream is re-thrown
"as is" upon the gateway’s method invocation. For example, consider the following simple flow:
gateway -> service-activator
If the service invoked by the service activator throws a MyException (for example), the framework
wraps it in a MessagingException and attaches the message passed to the service activator in the
failedMessage property. Consequently, any logging performed by the framework has full the context
of the failure. By default, when the exception is caught by the gateway, the MyException is unwrapped
and thrown to the caller. You can configure a throws clause on the gateway method declaration to
match the particular exception type in the cause chain. For example, if you want to catch a whole
MessagingException with all the messaging information of the reason of downstream error, you
should have a gateway method similar to the following:
public interface MyGateway {
void performProcess() throws MessagingException;
}
Since we encourage POJO programming, you may not want to expose the caller to messaging
infrastructure.
If your gateway method does not have a throws clause, the gateway traverses the cause tree, looking
for a RuntimeException that is not a MessagingException. If none is found, the framework
throws the MessagingException. If the MyException in the preceding discussion has a cause
of SomeOtherException and your method throws SomeOtherException, the gateway further
unwraps that and throws it to the caller.
When a gateway is declared with no service-interface, an internal framework interface
RequestReplyExchanger is used.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 156
Consider the following example:
public interface RequestReplyExchanger {
Message<?> exchange(Message<?> request) throws MessagingException;
}
Before version 5.0, this exchange method did not have a throws clause and, as a result, the exception
was unwrapped. If you use this interface and want to restore the previous unwrap behavior, use a custom
service-interface instead or access the cause of the MessagingException yourself.
However, you may want to log the error rather than propagating it or you may want to treat an exception
as a valid reply (by mapping it to a message that conforms to some "error message" contract that
the caller understands). To accomplish this, the gateway provides support for a message channel
dedicated to the errors by including support for the error-channel attribute. In the following example,
a transformer creates a reply Message from the Exception:
<int:gateway id="sampleGateway"
default-request-channel="gatewayChannel"
service-interface="foo.bar.SimpleGateway"
error-channel="exceptionTransformationChannel"/>
<int:transformer input-channel="exceptionTransformationChannel"
ref="exceptionTransformer" method="createErrorResponse"/>
The exceptionTransformer could be a simple POJO that knows how to create the expected error
response objects. That becomes the payload that is sent back to the caller. You could do many more
elaborate things in such an "error flow", if necessary. It might involve routers (including Spring
Integration’s ErrorMessageExceptionTypeRouter), filters, and so on. Most of the time, a simple
transformer should be sufficient, however.
Alternatively, you might want to only log the exception (or send it somewhere asynchronously). If
you provide a one-way flow, nothing would be sent back to the caller. If you want to completely
suppress exceptions, you can provide a reference to the global nullChannel (essentially a /dev/
null approach). Finally, as mentioned above, if no error-channel is defined, then the exceptions
propagate as usual.
When you use the @MessagingGateway annotation (see <<messaging-gateway-
annotation>>), you can use use the errorChannel attribute.
Starting with version 5.0, when you use a gateway method with a void return type (one-way flow),
the error-channel reference (if provided) is populated in the standard errorChannel header of
each sent message. This feature allows a downstream asynchronous flow, based on the standard
ExecutorChannel configuration (or a QueueChannel), to override a default global errorChannel
exceptions sending behavior. Previously you had to manually specify an errorChannel header with
the @GatewayHeader annotation or the <header> element. The error-channel property was
ignored for void methods with an asynchronous flow. Instead, error messages were sent to the default
errorChannel.
Important
Exposing the messaging system through simple POJI Gateways provides benefits, but "hiding"
the reality of the underlying messaging system does come at a price, so there are certain things
you should consider. We want our Java method to return as quickly as possible and not hang for an
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 157
indefinite amount of time while the caller is waiting on it to return (whether void, a return value, or a
thrown Exception). When regular methods are used as a proxies in front of the messaging system,
we have to take into account the potentially asynchronous nature of the underlying messaging.
This means that there might be a chance that a message that was initiated by a gateway could
be dropped by a filter and never reach a component that is responsible for producing a reply.
Some service activator method might result in an exception, thus providing no reply (as we do not
generate null messages). In other words, multiple scenarios can cause a reply message to never
come. That is perfectly natural in messaging systems. However, think about the implication on
the gateway method. The gateway’s method input arguments were incorporated into a message
and sent downstream. The reply message would be converted to a return value of the gateway’s
method. So you might want to ensure that, for each gateway call, there is always a reply message.
Otherwise, your gateway method might never return and hang indefinitely. One way to handle this
situation is by using an asynchronous gateway (explained later in this section). Another way of
handling it is to explicitly set the reply-timeout attribute. That way, the gateway does not hang
any longer than the time specified by the reply-timeout and returns null if that timeout does
elapse. Finally, you might want to consider setting downstream flags, such as requires-reply, on
a service-activator or throw-exceptions-on-rejection on a filter. These options are discussed in
more detail in the final section of this chapter.
Note
If the downstream flow returns an ErrorMessage, its payload (a Throwable) is treated as
a regular downstream error. If there is an error-channel configured, it is sent to the error
flow. Otherwise the payload is thrown to the caller of the gateway. Similarly, if the error flow
on the error-channel returns an ErrorMessage, its payload is thrown to the caller. The
same applies to any message with a Throwable payload. This can be useful in asynchronous
situations when when you need to propagate an Exception directly to the caller. To do so, you
can either return an Exception (as the reply from some service) or throw it. Generally, even
with an asynchronous flow, the framework takes care of propagating an exception thrown by the
downstream flow back to the gateway. The TCP Client-Server Multiplex sample demonstrates
both techniques to return the exception to the caller. It emulates a socket IO error to the waiting
thread by using an aggregator with group-timeout (see the section called “Aggregator and
Group Timeout”) and a MessagingTimeoutException reply on the discard flow.
Gateway Timeouts
Gateways have two timeout properties: requestTimeout and replyTimeout. The request timeout
applies only if the channel can block (for example, a bounded QueueChannel that is full). The
replyTimeout value is how long the gateway waits for a reply or returns null. It defaults to infinity.
The timeouts can be set as defaults for all methods on the gateway (defaultRequestTimeout and
defaultReplyTimeout) or on the MessagingGateway interface annotation. Individual methods can
override these defaults (in <method/> child elements) or on the @Gateway annotation.
Starting with version 5.0, the timeouts can be defined as expressions, as the following example shows:
@Gateway(payloadExpression = "#args[0]", requestChannel = "someChannel",
requestTimeoutExpression = "#args[1]", replyTimeoutExpression = "#args[2]")
String lateReply(String payload, long requestTimeout, long replyTimeout);
The evaluation context has a BeanResolver (use @someBean to reference other beans), and the
#args array variable is available.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 158
When configuring with XML, the timeout attributes can be a long value or a SpEL expression, as the
following example shows:
<method name="someMethod" request-channel="someRequestChannel"
payload-expression="#args[0]"
request-timeout="1000"
reply-timeout="#args[1]">
</method>
Asynchronous Gateway
As a pattern, the messaging gateway offers a nice way to hide messaging-specific code
while still exposing the full capabilities of the messaging system. As described earlier, the
GatewayProxyFactoryBean provides a convenient way to expose a proxy over a service-interface
giving you POJO-based access to a messaging system (based on objects in your own domain,
primitives/Strings, or other objects). However, when a gateway is exposed through simple POJO
methods that return values, it implies that, for each request message (generated when the method is
invoked), there must be a reply message (generated when the method has returned). Since messaging
systems are naturally asynchronous, you may not always be able to guarantee the contract where "for
each request, there will always be be a reply". Spring Integration 2.0 introduced support
for an asynchronous gateway, which offers a convenient way to initiate flows when you may not know
if a reply is expected or how long it takes for replies to arrive.
To handle these types of scenarios, Spring Integration uses java.util.concurrent.Future
instances to support an asynchronous gateway.
From the XML configuration, nothing changes, and you still define asynchronous gateway the same
way as you define a regular gateway, as the following example shows:
<int:gateway id="mathService"
service-interface="org.springframework.integration.sample.gateway.futures.MathServiceGateway"
default-request-channel="requestChannel"/>
However, the gateway interface (a service interface) is a little different, as follows:
public interface MathServiceGateway {
Future<Integer> multiplyByTwo(int i);
}
As the preceding example shows, the return type for the gateway method is a Future. When
GatewayProxyFactoryBean sees that the return type of the gateway method is a Future, it
immediately switches to the asynchronous mode by using an AsyncTaskExecutor. That is the extent
of the differences. The call to such a method always returns immediately with a Future instance. Then
you can interact with the Future at your own pace to get the result, cancel, and so on. Also, as with
any other use of Future instances, calling get() may reveal a timeout, an execution exception, and
so on. The following example shows how to use a Future that returns from an asynchronous gateway:
MathServiceGateway mathService = ac.getBean("mathService", MathServiceGateway.class);
Future<Integer> result = mathService.multiplyByTwo(number);
// do something else here since the reply might take a moment
int finalResult = result.get(1000, TimeUnit.SECONDS);
For a more detailed example, see the async-gateway sample in the Spring Integration samples.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 159
ListenableFuture
Starting with version 4.1, asynchronous gateway methods can also return ListenableFuture
(introduced in Spring Framework 4.0). These return types let you provide a callback, which is invoked
when the result is available (or an exception occurs). When the gateway detects this return type and
the task executor is an AsyncListenableTaskExecutor, the executor’s submitListenable()
method is invoked. The following example shows how to use a ListenableFuture:
ListenableFuture<String> result = this.asyncGateway.async("something");
result.addCallback(new ListenableFutureCallback<String>() {
@Override
public void onSuccess(String result) {
...
}
@Override
public void onFailure(Throwable t) {
...
}
});
AsyncTaskExecutor
By default, the GatewayProxyFactoryBean uses
org.springframework.core.task.SimpleAsyncTaskExecutor when submitting internal
AsyncInvocationTask instances for any gateway method whose return type is a Future. However,
the async-executor attribute in the <gateway/> element’s configuration lets you provide a reference
to any implementation of java.util.concurrent.Executor available within the Spring application
context.
The (default) SimpleAsyncTaskExecutor supports both Future and ListenableFuture return
types, returning FutureTask or ListenableFutureTask respectively. See the section called
“CompletableFuture”. Even though there is a default executor, it is often useful to provide an external
one so that you can identify its threads in logs (when using XML, the thread name is based on the
executor’s bean name), as the following example shows:
@Bean
public AsyncTaskExecutor exec() {
SimpleAsyncTaskExecutor simpleAsyncTaskExecutor = new SimpleAsyncTaskExecutor();
simpleAsyncTaskExecutor.setThreadNamePrefix("exec-");
return simpleAsyncTaskExecutor;
}
@MessagingGateway(asyncExecutor = "exec")
public interface ExecGateway {
@Gateway(requestChannel = "gatewayChannel")
Future<?> doAsync(String foo);
}
If you wish to return a different Future implementation, you can provide a custom executor or
disable the executor altogether and return the Future in the reply message payload from the
downstream flow. To disable the executor, set it to null in the GatewayProxyFactoryBean (by
using setAsyncTaskExecutor(null)). When configuring the gateway with XML, use async-
executor="". When configuring by using the @MessagingGateway annotation, use code similar to
the following:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 160
@MessagingGateway(asyncExecutor = AnnotationConstants.NULL)
public interface NoExecGateway {
@Gateway(requestChannel = "gatewayChannel")
Future<?> doAsync(String foo);
}
Important
If the return type is a specific concrete Future implementation or some other sub-interface that
is not supported by the configured executor, the flow runs on the caller’s thread and the flow must
return the required type in the reply message payload.
CompletableFuture
Starting with version 4.2, gateway methods can now return CompletableFuture<?>. There are two
modes of operation when returning this type:
• When an async executor is provided and the return type is exactly CompletableFuture
(not a subclass), the framework runs the task on the executor and immediately returns
a CompletableFuture to the caller. CompletableFuture.supplyAsync(Supplier<U>
supplier, Executor executor) is used to create the future.
• When the async executor is explicitly set to null and the return type is CompletableFuture or the
return type is a subclass of CompletableFuture, the flow is invoked on the caller’s thread. In this
scenario, the downstream flow is expected to return a CompletableFuture of the appropriate type.
Usage Scenarios
In the following scenario, the caller thread returns immediately with a
CompletableFuture<Invoice>, which is completed when the downstream flow replies to the
gateway (with an Invoice object).
CompletableFuture<Invoice> order(Order order);
<int:gateway service-interface="something.Service" default-request-channel="orders" />
In the following scenario, the caller thread returns with a CompletableFuture<Invoice> when the
downstream flow provides it as the payload of the reply to the gateway. Some other process must
complete the future when the invoice is ready.
CompletableFuture<Invoice> order(Order order);
<int:gateway service-interface="foo.Service" default-request-channel="orders"
async-executor="" />
In the following scenario, the caller thread returns with a CompletableFuture<Invoice> when the
downstream flow provides it as the payload of the reply to the gateway. Some other process must
complete the future when the invoice is ready. If DEBUG logging is enabled, a log entry is emitted,
indicating that the async executor cannot be used for this scenario.
MyCompletableFuture<Invoice> order(Order order);
<int:gateway service-interface="foo.Service" default-request-channel="orders" />
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 161
CompletableFuture instances can be used to perform additional manipulation on the reply, as the
following example shows:
CompletableFuture<String> process(String data);
...
CompletableFuture result = process("foo")
.thenApply(t -> t.toUpperCase());
...
String out = result.get(10, TimeUnit.SECONDS);
Reactor Mono
Starting with version 5.0, the GatewayProxyFactoryBean allows the use of Project Reactor with
gateway interface methods, using a Mono<T> return type. The internal AsyncInvocationTask is
wrapped in a Mono.fromCallable().
A Mono can be used to retrieve the result later (similar to a Future<?>), or you can consume from it
with the dispatcher by invoking your Consumer when the result is returned to the gateway.
Important
The Mono is not immediately flushed by the framework. Consequently, the underlying message
flow is not started before the gateway method returns (as it is with a Future<?> Executor task).
The flow starts when the Mono is subscribed to. Alternatively, the Mono (being a Composable)
might be a part of Reactor stream, when the subscribe() is related to the entire Flux. The
following example shows how to create a gateway with Project Reactor:
@MessagingGateway
public static interface TestGateway {
@Gateway(requestChannel = "promiseChannel")
Mono<Integer> multiply(Integer value);
}
...
@ServiceActivator(inputChannel = "promiseChannel")
public Integer multiply(Integer value) {
return value * 2;
}
...
Flux.just("1", "2", "3", "4", "5")
.map(Integer::parseInt)
.flatMap(this.testGateway::multiply)
.collectList()
.subscribe(integers -> ...);
Another example that uses Project Reactor is a simple callback scenario, as the following example
shows:
Mono<Invoice> mono = service.process(myOrder);
mono.subscribe(invoice -> handleInvoice(invoice));
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 162
The calling thread continues, with handleInvoice() being called when the flow completes.
Downstream Flows Returning an Asynchronous Type
As mentioned in the ListenableFuture section above, if you wish some downstream component to
return a message with an async payload (Future, Mono, and others), you must explicitly set the async
executor to null (or "" when using XML configuration). The flow is then invoked on the caller thread
and the result can be retrieved later.
void Return Type
Unlike the return types mentioned earlier, when the method return type is void, the framework cannot
implicitly determine that you wish the downstream flow to run asynchronously, with the caller thread
returning immediately. In this case, you must annotate the interface method with @Async, as the
following example shows:
@MessagingGateway
public interface MyGateway {
@Gateway(requestChannel = "sendAsyncChannel")
@Async
void sendAsync(String payload);
}
Unlike the Future<?> return types, there is no way to inform the caller if some exception is thrown
by the flow, unless some custom TaskExecutor (such as an ErrorHandlingTaskExecutor) is
associated with the @Async annotation.
Gateway Behavior When No response Arrives
As explained earlier, the gateway provides a convenient way of interacting with a messaging system
through POJO method invocations. However, a typical method invocation, which is generally expected
to always return (even with an Exception), might not always map one-to-one to message exchanges
(for example, a reply message might not arrive — the equivalent to a method not returning).
The rest of this section covers various scenarios and how to make the gateway behave more predictably.
Certain attributes can be configured to make synchronous gateway behavior more predictable, but some
of them might not always work as you might expect. One of them is reply-timeout (at the method
level or default-reply-timeout at the gateway level). We examine the reply-timeout attribute
to see how it can and cannot influence the behavior of the synchronous gateway in various scenarios.
We examine a single-threaded scenario (all components downstream are connected through a direct
channel) and multi-threaded scenarios (for example, somewhere downstream you may have a pollable
or executor channel that breaks the single-thread boundary).
Long-running Process Downstream
Sync Gateway, single-threaded
If a component downstream is still running (perhaps because of an infinite loop or a slow service),
setting a reply-timeout has no effect, and the gateway method call does not return until the
downstream service exits (by returning or throwing an exception).
Sync Gateway, multi-threaded
If a component downstream is still running (perhaps because of an infinite loop or a slow
service) in a multi-threaded message flow, setting the reply-timeout has an effect by
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 163
allowing gateway method invocation to return once the timeout has been reached, because the
GatewayProxyFactoryBean polls on the reply channel, waiting for a message until the timeout
expires. However, if the timeout has been reached before the actual reply was produced, it could
result in a null return from the gateway method. You should understand that the reply message (if
produced) is sent to a reply channel after the gateway method invocation might have returned, so
you must be aware of that and design your flow with it in mind.
Downstream Component Returns null
Sync Gateway — single-threaded
If a component downstream returns null and no reply-timeout has been configured, the gateway
method call hangs indefinitely, unless a reply-timeout has been configured or the requires-
reply attribute has been set on the downstream component (for example, a service activator) that
might return null. In this case, an exception would be thrown and propagated to the gateway.
Sync Gateway — multi-threaded
The behavior is the same as the previous case.
Downstream Component Return Signature is void While Gateway Method Signature Is Non-
void
Sync Gateway — single-threaded
If a component downstream returns void and no reply-timeout has been configured, the
gateway method call hangs indefinitely unless a reply-timeout has been configured.
Sync Gateway — multi-threaded
The behavior is the same as the previous case.
Downstream Component Results in Runtime Exception
Sync Gateway — single-threaded
If a component downstream throws a runtime exception, the exception is propagated through an
error message back to the gateway and re-thrown.
Sync Gateway — multi-threaded
The behavior is the same as the previous case.
Important
You should understand that, by default, reply-timeout is unbounded. Consequently, if you do
not explicitly set the reply-timeout, your gateway method invocation might hang indefinitely.
So, to make sure you analyze your flow and if there is even a remote possibility of one of these
scenarios to occur, you should set the reply-timeout attribute to a "safe" value. Even better,
you can set the requires-reply attribute of the downstream component to true to ensure
a timely response, as produced by the throwing of an exception as soon as that downstream
component returns null internally. However you should also realize that there are some scenarios
(see the first one) where reply-timeout does not help. That means it is also important to
analyze your message flow and decide when to use a synchronous gateway rather than an
asynchrnous gateway. As described earlier, the latter case is a matter of defining gateway
methods that return Future instances. Then you are guaranteed to receive that return value,
and you have more granular control over the results of the invocation. Also, when dealing with
a router, you should remember that setting the resolution-required attribute to true results
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 164
in an exception thrown by the router if it can not resolve a particular channel. Likewise, when
dealing with a Filter, you can set the throw-exception-on-rejection attribute. In both of
these cases, the resulting flow behaves like it contain a service activator with the requires-reply
attribute. In other words, it helps to ensure a timely response from the gateway method invocation.
Note
reply-timeout is unbounded for <gateway/> elements (created by the
GatewayProxyFactoryBean). Inbound gateways for external integration (WS, HTTP, and so
on) share many characteristics and attributes with these gateways. However, for those inbound
gateways, the default reply-timeout is 1000 milliseconds (one second). If a downstream
asynchronous hand-off is made to another thread, you may need to increase this attribute to allow
enough time for the flow to complete before the gateway times out.
Important
You should understand that the timer starts when the thread returns to the gateway — that is,
when the flow completes or a message is handed off to another thread. At that time, the calling
thread starts waiting for the reply. If the flow was completely synchronous, the reply is immediately
available. For asynchronous flows, the thread waits for up to this time.
See Section 11.19, “IntegrationFlow as Gateway” in the Java DSL chapter for options to define
gateways through IntegrationFlows.
10.5 Service Activator
The service activator is the endpoint type for connecting any Spring-managed object to an input channel
so that it may play the role of a service. If the service produces output, it may also be connected to an
output channel. Alternatively, an output-producing service may be located at the end of a processing
pipeline or message flow, in which case the inbound message’s replyChannel header can be used.
This is the default behavior if no output channel is defined. As with most of the configuration options
described here, the same behavior actually applies for most of the other components.
Configuring Service Activator
To create a service activator, use the service-activator element with the input-channel and ref attributes,
as the following example shows:
<int:service-activator input-channel="exampleChannel" ref="exampleHandler"/>
The preceding configuration selects all the methods from the exampleHandler that meet one of the
messaging requirements, which are as follows:
• annotated with @ServiceActivator
• is public
• not return void if requiresReply == true
The target method for invocation at runtime is selected for each request message by their payload
type or as a fallback to the Message<?> type if such a method is present on target class.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 165
Starting with version 5.0, one service method can be marked with the
@org.springframework.integration.annotation.Default as a fallback for all non-matching
cases. This can be useful when using content-type conversion with the target method being invoked
after conversion.
To delegate to an explicitly defined method of any object, you can add the method attribute, as the
following example shows:
<int:service-activator input-channel="exampleChannel" ref="somePojo" method="someMethod"/>
In either case, when the service method returns a non-null value, the endpoint tries to send the reply
message to an appropriate reply channel. To determine the reply channel, it first checks whether an
output-channel was provided in the endpoint configuration, as the following example shows:
<int:service-activator input-channel="exampleChannel" output-channel="replyChannel"
ref="somePojo" method="someMethod"/>
If the method returns a result and no output-channel is defined, the framework then checks
the request message’s replyChannel header value. If that value is available, it then checks its
type. If it is a MessageChannel, the reply message is sent to that channel. If it is a String, the
endpoint tries to resolve the channel name to a channel instance. If the channel cannot be resolved,
a DestinationResolutionException is thrown. It it can be resolved, the message is sent there.
If the request message does not have a replyChannel header and the reply object is a Message,
its replyChannel header is consulted for a target destination. This is the technique used for request-
reply messaging in Spring Integration, and it is also an example of the return address pattern.
If your method returns a result and you want to discard it and end the flow, you should configure the
output-channel to send to a NullChannel. For convenience, the framework registers one with the
name, nullChannel. See the section called “Special Channels” for more information.
The service activator is one of those components that is not required to produce a reply
message. If your method returns null or has a void return type, the service activator
exits after the method invocation, without any signals. This behavior can be controlled by the
AbstractReplyProducingMessageHandler.requiresReply option, which is also exposed as
requires-reply when configuring with the XML namespace. If the flag is set to true and the method
returns null, a ReplyRequiredException is thrown.
The argument in the service method could be either a message or an arbitrary type. If the latter, then
it is assumed to be a message payload, which is extracted from the message and injected into the
service method. We generally recommend this approach, as it follows and promotes a POJO model
when working with Spring Integration. Arguments may also have @Header or @Headers annotations,
as described in Section E.5, “Annotation Support”.
Note
The service method is not required to have any arguments, which means you can implement
event-style service activators (where all you care about is an invocation of the service method)
and not worry about the contents of the message. Think of it as a null JMS message. An example
use case for such an implementation is a simple counter or monitor of messages deposited on
the input channel.
Starting with version 4.1, the framework correctly converts message properties (payload and
headers) to the Java 8 Optional POJO method parameters, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 166
public class MyBean {
public String computeValue(Optional<String> payload,
@Header(value="foo", required=false) String foo1,
@Header(value="foo") Optional<String> foo2) {
if (payload.isPresent()) {
String value = payload.get();
...
}
else {
...
}
}
}
We generally recommend using a ref attribute if the custom service activator handler implementation
can be reused in other <service-activator> definitions. However, if the custom service activator
handler implementation is only used within a single definition of the <service-activator>, you can
provide an inner bean definition, as the following example shows:
<int:service-activator id="exampleServiceActivator" input-channel="inChannel"
output-channel = "outChannel" method="someMethod">
<beans:bean class="org.something.ExampleServiceActivator"/>
</int:service-activator>
Note
Using both the ref attribute and an inner handler definition in the same <service-activator>
configuration is not allowed, as it creates an ambiguous condition and results in an exception
being thrown.
Important
If the ref attribute references a bean that extends AbstractMessageProducingHandler
(such as handlers provided by the framework itself), the configuration is optimized by injecting
the output channel into the handler directly. In this case, each ref must be to a separate bean
instance (or a prototype-scoped bean) or use the inner <bean/> configuration type. If you
inadvertently reference the same message handler from multiple beans, you get a configuration
exception.
Service Activators and the Spring Expression Language (SpEL)
Since Spring Integration 2.0, service activators can also benefit from SpEL.
For example, you can invoke any bean method without pointing to the bean in a ref attribute or including
it as an inner bean definition, as follows:
<int:service-activator input-channel="in" output-channel="out"
expression="@accountService.processAccount(payload, headers.accountId)"/>
<bean id="accountService" class="thing1.thing2.Account"/>
In the preceding configuration, instead of injecting accountService by using a ref or as an inner bean,
we use SpEL’s @beanId notation and invoke a method that takes a type compatible with the message
payload. We also pass a header value. Any valid SpEL expression can be evaluated against any content
in the message. For simple scenarios, your service activators need not reference a bean if all logic can
be encapsulated in such an expression, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 167
<int:service-activator input-channel="in" output-channel="out" expression="payload * 2"/>
In the preceding configuration, our service logic is to multiply the payload value by two. SpEL lets us
handle it relatively easily.
See Section 11.10, “Service Activators and the .handle() method” in the Java DSL chapter for more
information about configuring service activator.
Asynchronous Service Activator
The service activator is invoked by the calling thread. This is an upstream thread if the input channel
is a SubscribableChannel or a poller thread for a PollableChannel. If the service returns a
ListenableFuture<?>, the default action is to send that as the payload of the message sent
to the output (or reply) channel. Starting with version 4.3, you can now set the async attribute
to true (by using setAsync(true) when using Java configuration). If the service returns a
ListenableFuture<?> when this the async attribute is set to true, the calling thread is released
immediately and the reply message is sent on the thread (from within your service) that completes
the future. This is particularly advantageous for long-running services that use a PollableChannel,
because the poller thread is released to perform other services within the framework.
If the service completes the future with an Exception, normal error processing occurs. An
ErrorMessage is sent to the errorChannel message header, if present. Otherwise, an
ErrorMessage is sent to the default errorChannel (if available).
Service Activator and Method Return Type
The service method can return any type which becomes reply message payload. In this case a new
Message<?> object is created and all the headers from a request message are copied. This works the
same way for most Spring Integration MessageHandler implementations, when interaction is based
on a POJO method invocation.
A complete Message<?> object can also be returned from the method. However keep in mind that,
unlike transformers, for a Service Activator this message will be modified by copying the headers from
the request message if they are not already present in the returned message. So, if your method
parameter is a Message<?> and you copy some, but not all, existing headers in your service method,
they will reappear in the reply message. It is not a Service Activator responsibility to remove headers
from a reply message and, pursuing the loosely-coupled principle, it is better to add a HeaderFilter
in the integration flow. Alternatively, a Transformer can be used instead of a Service Activator but, in
that case, when returning a full Message<?> the method is completely responsible for the message,
including copying request message headers (if needed). You must ensure that important framework
headers (e.g. replyChannel, errorChannel), if present, have to be preserved.
10.6 Delayer
A delayer is a simple endpoint that lets a message flow be delayed by a certain interval. When a message
is delayed, the original sender does not block. Instead, the delayed messages are scheduled with an
instance of org.springframework.scheduling.TaskScheduler to be sent to the output channel
after the delay has passed. This approach is scalable even for rather long delays, since it does not
result in a large number of blocked sender threads. On the contrary, in the typical case, a thread pool
is used for the actual execution of releasing the messages. This section contains several examples of
configuring a delayer.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 168
Configuring a Delayer
The <delayer> element is used to delay the message flow between two message channels. As with the
other endpoints, you can provide the input-channel and output-channel attributes, but the delayer also
has default-delay and expression attributes (and the expression element) that determine the number of
milliseconds by which each message should be delayed. The following example delays all messages
by three seconds:
<int:delayer id="delayer" input-channel="input"
default-delay="3000" output-channel="output"/>
If you need to determine the delay for each message, you can also provide the SpEL expression by
using the expression attribute, as the following expression shows:
<int:delayer id="delayer" input-channel="input" output-channel="output"
default-delay="3000" expression="headers['delay']"/>
In the preceding example, the three-second delay applies only when the expression evaluates to null
for a given inbound message. If you want to apply a delay only to messages that have a valid result of
the expression evaluation, you can use a default-delay of 0 (the default). For any message that has a
delay of 0 (or less), the message is sent immediately, on the calling thread.
The following example shows the Java configuration equivalent of the preceding example:
@ServiceActivator(inputChannel = "input")
@Bean
public DelayHandler delayer() {
DelayHandler handler = new DelayHandler("delayer.messageGroupId");
handler.setDefaultDelay(3_000L);
handler.setDelayExpressionString("headers['delay']");
handler.setOutputChannelName("output");
return handler;
}
The following example shows the Java DSL equivalent of the preceding example:
@Bean
public IntegrationFlow flow() {
return IntegrationFlows.from("input")
.delay("delayer.messageGroupId", d -> d
.defaultDelay(3_000L)
.delayExpression("headers['delay']"))
.channel("output")
.get();
}
Note
The XML parser uses a message group ID of <beanName>.messageGroupId.
Tip
The delay handler supports expression evaluation results that represent an interval in milliseconds
(any Object whose toString() method produces a value that can be parsed into a Long)
as well as java.util.Date instances representing an absolute time. In the first case, the
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 169
milliseconds are counted from the current time (for example a value of 5000 would delay the
message for at least five seconds from the time it is received by the delayer). With a Date instance,
the message is not released until the time represented by that Date object. A value that equates
to a non-positive delay or a Date in the past results in no delay. Instead, it is sent directly to the
output channel on the original sender’s thread. If the expression evaluation result is not a Date
and can not be parsed as a Long, the default delay (if any — the default is 0) is applied.
Important
The expression evaluation may throw an evaluation exception for various reasons, including an
invalid expression or other conditions. By default, such exceptions are ignored (though logged
at the DEBUG level) and the delayer falls back to the default delay (if any). You can modify
this behavior by setting the ignore-expression-failures attribute. By default, this attribute
is set to true and the delayer behavior is as described earlier. However, if you wish to not
ignore expression evaluation exceptions and throw them to the delayer’s caller, set the ignore-
expression-failures attribute to false.
Tip
In the preceding example, the delay expression is specified as headers['delay']. This is
the SpEL Indexer syntax to access a Map element (MessageHeaders implements Map). It
invokes: headers.get("delay"). For simple map element names (that do not contain .) you
can also use the SpEL "dot accessor" syntax, where the header expression shown earlier
can be specified as headers.delay. However, different results are achieved if the header is
missing. In the first case, the expression evaluates to null. The second results in something
similar to the following:
org.springframework.expression.spel.SpelEvaluationException: EL1008E:(pos 8):
Field or property 'delay' cannot be found on object of
type 'org.springframework.messaging.MessageHeaders'
Consequently, if there is a possibility of the header being omitted and you want to fall back to the
default delay, it is generally more efficient (and recommended) to use the indexer syntax instead
of dot property accessor syntax, because detecting the null is faster than catching an exception.
The delayer delegates to an instance of Spring’s TaskScheduler abstraction. The default scheduler
used by the delayer is the ThreadPoolTaskScheduler instance provided by Spring Integration on
startup. See Section E.2, “Configuring the Task Scheduler”. If you want to delegate to a different
scheduler, you can provide a reference through the delayer element’s scheduler attribute, as the
following example shows:
<int:delayer id="delayer" input-channel="input" output-channel="output"
expression="headers.delay"
scheduler="exampleTaskScheduler"/>
<task:scheduler id="exampleTaskScheduler" pool-size="3"/>
Tip
If you configure an external ThreadPoolTaskScheduler, you can set
waitForTasksToCompleteOnShutdown = true on this property. It allows successful
completion of delay tasks that are already in the execution state (releasing the message)
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 170
when the application is shutdown. Before Spring Integration 2.2, this property was available
on the <delayer> element, because DelayHandler could create its own scheduler
on the background. Since 2.2, the delayer requires an external scheduler instance and
waitForTasksToCompleteOnShutdown was deleted. You should use the scheduler’s own
configuration.
Tip
ThreadPoolTaskScheduler has a property errorHandler, which can be
injected with some implementation of org.springframework.util.ErrorHandler.
This handler allows processing an Exception from the thread of
the scheduled task sending the delayed message. By default, it uses
an org.springframework.scheduling.support.TaskUtils$LoggingErrorHandler,
and you can see a stack trace in the logs. You might want to consider using an
org.springframework.integration.channel.MessagePublishingErrorHandler,
which sends an ErrorMessage into an error-channel, either from the failed message’s
header or into the default error-channel. This error handling is performed after a transaction
rolls back (if present). See the section called “Release Failures”.
Delayer and a Message Store
The DelayHandler persists delayed messages into the message group in the provided
MessageStore. (The groupId is based on the required id attribute of the <delayer> element.) A
delayed message is removed from the MessageStore by the scheduled task immediately before
the DelayHandler sends the message to the output-channel. If the provided MessageStore is
persistent (such as JdbcMessageStore), it provides the ability to not lose messages on the application
shutdown. After application startup, the DelayHandler reads messages from its message group in the
MessageStore and reschedules them with a delay based on the original arrival time of the message
(if the delay is numeric). For messages where the delay header was a Date, that Date is used when
rescheduling. If a delayed message remains in the MessageStore more than its delay, it is sent
immediately after startup.
The <delayer> can be enriched with either of two mutually exclusive elements: <transactional>
and <advice-chain>. The List of these AOP advices is applied to the proxied internal
DelayHandler.ReleaseMessageHandler, which has the responsibility to release the message,
after the delay, on a Thread of the scheduled task. It might be used, for example, when the downstream
message flow throws an exception and the transaction of the ReleaseMessageHandler is rolled
back. In this case, the delayed message remains in the persistent MessageStore. You can use
any custom org.aopalliance.aop.Advice implementation within the <advice-chain>. The
<transactional> element defines a simple advice chain that has only the transactional advice. The
following example shows an advice-chain within a <delayer>:
<int:delayer id="delayer" input-channel="input" output-channel="output"
expression="headers.delay"
message-store="jdbcMessageStore">
<int:advice-chain>
<beans:ref bean="customAdviceBean"/>
<tx:advice>
<tx:attributes>
<tx:method name="*" read-only="true"/>
</tx:attributes>
</tx:advice>
</int:advice-chain>
</int:delayer>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 171
The DelayHandler can be exported as a JMX MBean with managed operations
(getDelayedMessageCount and reschedulePersistedMessages), which allows the
rescheduling of delayed persisted messages at runtime — for example, if the TaskScheduler has
previously been stopped. These operations can be invoked through a Control Bus command, as the
following example shows:
Message<String> delayerReschedulingMessage =
MessageBuilder.withPayload("@'delayer.handler'.reschedulePersistedMessages()").build();
controlBusChannel.send(delayerReschedulingMessage);
Note
For more information regarding the message store, JMX, and the control bus, see Chapter 12,
System Management.
Release Failures
Starting with version 5.0.8, there are two new properties on the delayer:
•maxAttempts (default 5)
•retryDelay (default 1 second)
When a message is released, if the downstream flow fails, the release will be attempted after the
retryDelay. If the maxAttempts is reached, the message is discarded (unless the release is
transactional, in which case the message will remain in the store, but will no longer be scheduled
for release, until the application is restarted, or the reschedulePersistedMessages() method is
invoked, as discussed above).
In addition, you can configure a delayedMessageErrorChannel; when a release
fails, an ErrorMessage is sent to that channel with the exception as the payload
and has the originalMessage property. The ErrorMessage contains a header
IntegrationMessageHeaderAccessor.DELIVERY_ATTEMPT containing the current count.
If the error flow consumes the error message and exits normally, no further action is taken; if the release
is transactional, the transaction will commit and the message deleted from the store. If the error flow
throws an exception, the release will be retried up to maxAttempts as discussed above.
10.7 Scripting Support
Spring Integration 2.1 added support for the JSR223 Scripting for Java specification, introduced in Java
version 6. It lets you use scripts written in any supported language (including Ruby, JRuby, Javascript,
and Groovy) to provide the logic for various integration components, similar to the way the Spring
Expression Language (SpEL) is used in Spring Integration. For more information about JSR223, see
the documentation.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-scripting</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 172
Gradle.
compile "org.springframework.integration:spring-integration-scripting:5.1.1.RELEASE"
In addition you need to add a script engine implementation, e.g. JRuby, Jython.
Important
Note that this feature requires Java 6 or higher.
In order to use a JVM scripting language, a JSR223 implementation for that language must be included
in your class path. Java 6 natively supports Javascript. The Groovy and JRuby projects provide JSR233
support in their standard distributions.
Important
Various JSR223 language implementations have been developed by third parties. A particular
implementation’s compatibility with Spring Integration depends on how well it conforms to the
specification and the implementer’s interpretation of the specification.
Tip
If you plan to use Groovy as your scripting language, we recommended you use Spring-
Integration’s Groovy Support as it offers additional features specific to Groovy. However, this
section is relevant as well.
Script Configuration
Depending on the complexity of your integration requirements, scripts may be provided inline as
CDATA in XML configuration or as a reference to a Spring resource that contains the script. To enable
scripting support, Spring Integration defines a ScriptExecutingMessageProcessor, which binds
the message payload to a variable named payload and the message headers to a headers variable,
both accessible within the script execution context. All you need to do is write a script that uses these
variables. The following pair of examples show sample configurations that create filters:
<int:filter input-channel="referencedScriptInput">
<int-script:script lang="ruby" location="some/path/to/ruby/script/RubyFilterTests.rb"/>
</int:filter>
<int:filter input-channel="inlineScriptInput">
<int-script:script lang="groovy">
<![CDATA[
return payload == 'good'
]]>
</int-script:script>
</int:filter>
Example 10.1 Filter
As the preceding examples show, the script can be included inline or can be included by reference to
a resource location (by using the location attribute). Additionally, the lang attribute corresponds to
the language name (or its JSR223 alias)
Other Spring Integration endpoint elements that support scripting include router, service-
activator, transformer, and splitter. The scripting configuration in each case would be
identical to the above (besides the endpoint element).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 173
Another useful feature of scripting support is the ability to update (reload) scripts without having to
restart the application context. To do so, specify the refresh-check-delay attribute on the script
element, as the following example shows:
<int-script:script location="..." refresh-check-delay="5000"/>
In the preceding example, the script location is checked for updates every 5 seconds. If the script is
updated, any invocation that occurs later than 5 seconds since the update results in running the new
script.
Consider the following example:
<int-script:script location="..." refresh-check-delay="0"/>
In the preceding example, the context is updated with any script modifications as soon as such
modification occurs, providing a simple mechanism for real-time configuration. Any negative value
means the script is not reloaded after initialization of the application context. This is the default behavior.
The following example shows a script that never updates:
<int-script:script location="..." refresh-check-delay="-1"/>
Important
Inline scripts can not be reloaded.
Script Variable Bindings
Variable bindings are required to enable the script to reference variables externally provided to the
script’s execution context. By default, payload and headers are used as binding variables. You can
bind additional variables to a script by using <variable> elements, as the following example shows:
<script:script lang="js" location="foo/bar/MyScript.js">
<script:variable name="foo" value="thing1"/>
<script:variable name="bar" value="thing2"/>
<script:variable name="date" ref="date"/>
</script:script>
As shown in the preceding example, you can bind a script variable either to a scalar value or to a Spring
bean reference. Note that payload and headers are still included as binding variables.
With Spring Integration 3.0, in addition to the variable element, the variables attribute has been
introduced. This attribute and the variable elements are not mutually exclusive, and you can combine
them within one script component. However, variables must be unique, regardless of where they are
defined. Also, since Spring Integration 3.0, variable bindings are allowed for inline scripts, too, as the
following example shows:
<service-activator input-channel="input">
<script:script lang="ruby" variables="thing1=THING1, date-ref=dateBean">
<script:variable name="thing2" ref="thing2Bean"/>
<script:variable name="thing3" value="thing2"/>
<![CDATA[
payload.foo = thing1
payload.date = date
payload.bar = thing2
payload.baz = thing3
payload
]]>
</script:script>
</service-activator>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 174
The preceding example shows a combination of an inline script, a variable element, and a
variables attribute. The variables attribute contains a comma-separated value, where each
segment contains an = separated pair of the variable and its value. The variable name can be suffixed
with -ref, as in the date-ref variable in the preceding example. That means that the binding variable
has the name, date, but the value is a reference to the dateBean bean from the application context.
This may be useful when using property placeholder configuration or command-line arguments.
If you need more control over how variables are generated, you can implement your own Java class
that uses the ScriptVariableGenerator strategy, which is defined by the following interface:
public interface ScriptVariableGenerator {
Map<String, Object> generateScriptVariables(Message<?> message);
}
This interface requires you to implement the generateScriptVariables(Message) method.
The message argument lets you access any data available in the message payload and headers,
and the return value is the Map of bound variables. This method is called every time the script
is executed for a message. The following example shows how to provide an implementation of
ScriptVariableGenerator and reference it with the script-variable-generator attribute:
<int-script:script location="foo/bar/MyScript.groovy"
script-variable-generator="variableGenerator"/>
<bean id="variableGenerator" class="foo.bar.MyScriptVariableGenerator"/>
If a script-variable-generator is not provided, script components use
DefaultScriptVariableGenerator, which merges any provided <variable> elements with
payload and headers variables from the Message in its generateScriptVariables(Message)
method.
Important
You cannot provide both the script-variable-generator attribute and <variable>
element(s). They are mutually exclusive.
10.8 Groovy support
In Spring Integration 2.0, we added Groovy support, letting you use the Groovy scripting language
to provide the logic for various integration components — similar to the way the Spring Expression
Language (SpEL) is supported for routing, transformation, and other integration concerns. For more
information about Groovy, see the Groovy documentation, which you can find on the project website.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-groovy</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 175
compile "org.springframework.integration:spring-integration-groovy:5.1.1.RELEASE"
Groovy Configuration
With Spring Integration 2.1, the configuration namespace for the Groovy support is an
extension of Spring Integration’s scripting support and shares the core configuration and
behavior described in detail in the Section 10.7, “Scripting Support” section. Even though
Groovy scripts are well supported by generic scripting support, the Groovy support
provides the Groovy configuration namespace, which is backed by the Spring Framework’s
org.springframework.scripting.groovy.GroovyScriptFactory and related components,
offering extended capabilities for using Groovy. The following listing shows two sample configurations:
<int:filter input-channel="referencedScriptInput">
<int-groovy:script location="some/path/to/groovy/file/GroovyFilterTests.groovy"/>
</int:filter>
<int:filter input-channel="inlineScriptInput">
<int-groovy:script><![CDATA[
return payload == 'good'
]]></int-groovy:script>
</int:filter>
Example 10.2 Filter
As the preceding examples show, the configuration looks identical to the general scripting support
configuration. The only difference is the use of the Groovy namespace, as indicated by the int-groovy
namespace prefix. Also note that the lang attribute on the <script> tag is not valid in this namespace.
Groovy Object Customization
If you need to customize the Groovy object itself (beyond setting variables) you can reference a bean that
implements GroovyObjectCustomizer by using the customizer attribute. For example, this might
be useful if you want to implement a domain-specific language (DSL) by modifying the MetaClass and
registering functions to be available within the script. The following example shows how to do so:
<int:service-activator input-channel="groovyChannel">
<int-groovy:script location="somewhere/SomeScript.groovy" customizer="groovyCustomizer"/>
</int:service-activator>
<beans:bean id="groovyCustomizer" class="org.something.MyGroovyObjectCustomizer"/>
Setting a custom GroovyObjectCustomizer is not mutually exclusive with <variable> elements
or the script-variable-generator attribute. It can also be provided when defining an inline script.
Spring Integration 3.0 introduced the variables attribute, which works in conjunction with the
variable element. Also, groovy scripts have the ability to resolve a variable to a bean in the
BeanFactory, if a binding variable was not provided with the name. The following example shows how
to use a variable (entityManager):
<int-groovy:script>
<![CDATA[
entityManager.persist(payload)
payload
]]>
</int-groovy:script>
entityManager must be an appropriate bean in the application context.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 176
For more information regarding the <variable> element, the variables attribute, and the script-
variable-generator attribute, see the section called “Script Variable Bindings”.
Groovy Script Compiler Customization
The @CompileStatic hint is the most popular Groovy compiler customization option. It can be used
on the class or method level. For more information, see the Groovy Reference Manual and, specifically,
@CompileStatic. To utilize this feature for short scripts (in integration scenarios), we are forced to
change simple scripts to more Java-like code. Consider the following <filter> script:
headers.type == 'good'
The preceding script becomes the following method in Spring Integration:
@groovy.transform.CompileStatic
String filter(Map headers) {
headers.type == 'good'
}
filter(headers)
With that, the filter() method is transformed and compiled to static Java code, bypassing the Groovy
dynamic phases of invocation, such as getProperty() factories and CallSite proxies.
Starting with version 4.3, you can configure the Spring Integration Groovy components with
the compile-static boolean option, specifying that ASTTransformationCustomizer for
@CompileStatic should be added to the internal CompilerConfiguration. With that in place, you
can omit the method declaration with @CompileStatic in our script code and still get compiled plain
Java code. In this case, the preceding script can be short but still needs to be a little more verbose than
interpreted script, as the following example shows:
binding.variables.headers.type == 'good'
You must access the headers and payload (or any other) variables through the
groovy.lang.Script binding property because, with @CompileStatic, we do not have the
dynamic GroovyObject.getProperty() capability.
In addition, we introduced the compiler-configuration bean reference. With this attribute, you can
provide any other required Groovy compiler customizations, such as ImportCustomizer. For more
information about this feature, see the Groovy Documentation for advanced compiler configuration.
Note
Using compilerConfiguration does not automatically add an
ASTTransformationCustomizer for the @CompileStatic annotation, and it overrides
the compileStatic option. If you still need CompileStatic, you should manually
add a new ASTTransformationCustomizer(CompileStatic.class) into the
CompilationCustomizers of that custom compilerConfiguration.
Note
The Groovy compiler customization does not have any effect on the refresh-check-delay
option, and reloadable scripts can be statically compiled, too.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 177
Control Bus
As described in (Enterprise Integration Patterns), the idea behind the control bus is that you can use the
same messaging system for monitoring and managing the components within the framework as is used
for "application-level" messaging. In Spring Integration, we build upon the adapters described
earlier so that you can send Messages as a means of invoking exposed operations. One option for those
operations is Groovy scripts. The following example configures a Groovy script for the control bus:
<int-groovy:control-bus input-channel="operationChannel"/>
The control bus has an input channel that can be accessed to invoke operations on the beans in the
application context.
The Groovy control bus runs messages on the input channel as Groovy scripts. It takes a
message, compiles the body to a script, customizes it with a GroovyObjectCustomizer, and
runs it. The control bus' MessageProcessor exposes all beans in the application context that
are annotated with @ManagedResource and implement Spring’s Lifecycle interface or extend
Spring’s CustomizableThreadCreator base class (for example, several of the TaskExecutor and
TaskScheduler implementations).
Important
Be careful about using managed beans with custom scopes (such as request) in the Control
Bus' command scripts, especially inside an asynchronous message flow. If MessageProcessor
of the control bus cannot expose a bean from the application context, you may end up
with some BeansException during the command script’s run. For example, if a custom
scope’s context is not established, the attempt to get a bean within that scope triggers a
BeanCreationException.
If you need to further customize the Groovy objects, you can also provide a reference to a bean that
implements GroovyObjectCustomizer through the customizer attribute, as the following example
shows:
<int-groovy:control-bus input-channel="input"
output-channel="output"
customizer="groovyCustomizer"/>
<beans:bean id="groovyCustomizer" class="org.foo.MyGroovyObjectCustomizer"/>
10.9 Adding Behavior to Endpoints
Prior to Spring Integration 2.2, you could add behavior to an entire Integration flow by adding an AOP
Advice to a poller’s <advice-chain/> element. However, suppose you want to retry, say, just a REST
Web Service call, and not any downstream endpoints.
For example, consider the following flow:
inbound-adapter->poller->http-gateway1->http-gateway2->jdbc-outbound-adapter
If you configure some retry-logic into an advice chain on the poller and the call to http-gateway2 failed
because of a network glitch, the retry causes both http-gateway1 and http-gateway2 to be called
a second time. Similarly, after a transient failure in the jdbc-outbound-adapter, both HTTP gateways are
called a second time before again calling the jdbc-outbound-adapter.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 178
Spring Integration 2.2 adds the ability to add behavior to individual endpoints. This is achieved by the
addition of the <request-handler-advice-chain/> element to many endpoints. The following
example shows how to the <request-handler-advice-chain/> element within an outbound-
gateway:
<int-http:outbound-gateway id="withAdvice"
url-expression="'http://localhost/test1'"
request-channel="requests"
reply-channel="nextChannel">
<int:request-handler-advice-chain>
<ref bean="myRetryAdvice" />
</request-handler-advice-chain>
</int-http:outbound-gateway>
In this case, myRetryAdvice is applied only locally to this gateway and does not apply to further actions
taken downstream after the reply is sent to nextChannel. The scope of the advice is limited to the
endpoint itself.
Important
At this time, you cannot advise an entire <chain/> of endpoints. The schema does not allow a
<request-handler-advice-chain> as a child element of the chain itself.
However, a <request-handler-advice-chain> can be added to individual reply-producing
endpoints within a <chain> element. An exception is that, in a chain that produces no reply,
because the last element in the chain is an outbound-channel-adapter, that last element
cannot be advised. If you need to advise such an element, it must be moved outside of the chain
(with the output-channel of the chain being the input-channel of the adapter). The adapter
can then be advised as usual. For chains that produce a reply, every child element can be advised.
Provided Advice Classes
In addition to providing the general mechanism to apply AOP advice classes, Spring Integration provides
three standard advice classes:
•RequestHandlerRetryAdvice (described in the section called “Retry Advice”)
•RequestHandlerCircuitBreakerAdvice (described in the section called “Circuit Breaker
Advice”)
•ExpressionEvaluatingRequestHandlerAdvice (described in the section called “Expression
Evaluating Advice”)
Retry Advice
The retry advice (o.s.i.handler.advice.RequestHandlerRetryAdvice) leverages the rich
retry mechanisms provided by the Spring Retry project. The core component of spring-retry is the
RetryTemplate, which allows configuration of sophisticated retry scenarios, including RetryPolicy
and BackoffPolicy strategies (with a number of implementations) as well as a RecoveryCallback
strategy to determine the action to take when retries are exhausted.
Stateless Retry
Stateless retry is the case where the retry activity is handled entirely within the advice. The thread
pauses (if configured to do so) and retries the action.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 179
Stateful Retry
Stateful retry is the case where the retry state is managed within the advice but where an exception
is thrown and the caller resubmits the request. An example for stateful retry is when we want the
message originator (for example,JMS) to be responsible for resubmitting, rather than performing it
on the current thread. Stateful retry needs some mechanism to detect a retried submission.
For more information on spring-retry, see the project’s Javadoc and the reference documentation
for Spring Batch, where spring-retry originated.
Warning
The default back off behavior is to not back off. Retries are attempted immediately. Using a
back off policy that causes threads to pause between attempts may cause performance issues,
including excessive memory use and thread starvation. In high-volume environments, back off
policies should be used with caution.
Configuring the Retry Advice
The examples in this section use the following <service-activator> that always throws an
exception:
public class FailingService {
public void service(String message) {
throw new RuntimeException("error");
}
}
Simple Stateless Retry
The default RetryTemplate has a SimpleRetryPolicy which tries three times. There is no
BackOffPolicy, so the three attempts are made back-to-back-to-back with no delay between
attempts. There is no RecoveryCallback, so the result is to throw the exception to the caller
after the final failed retry occurs. In a Spring Integration environment, this final exception might
be handled by using an error-channel on the inbound endpoint. The following example uses
RetryTemplate and shows its DEBUG output:
<int:service-activator input-channel="input" ref="failer" method="service">
<int:request-handler-advice-chain>
<bean class="o.s.i.handler.advice.RequestHandlerRetryAdvice"/>
</request-handler-advice-chain>
</int:service-activator>
DEBUG [task-scheduler-2]preSend on channel 'input', message: [Payload=...]
DEBUG [task-scheduler-2]Retry: count=0
DEBUG [task-scheduler-2]Checking for rethrow: count=1
DEBUG [task-scheduler-2]Retry: count=1
DEBUG [task-scheduler-2]Checking for rethrow: count=2
DEBUG [task-scheduler-2]Retry: count=2
DEBUG [task-scheduler-2]Checking for rethrow: count=3
DEBUG [task-scheduler-2]Retry failed last attempt: count=3
Simple Stateless Retry with Recovery
The following example adds a RecoveryCallback to the preceding example and uses an
ErrorMessageSendingRecoverer to send an ErrorMessage to a channel:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 180
<int:service-activator input-channel="input" ref="failer" method="service">
<int:request-handler-advice-chain>
<bean class="o.s.i.handler.advice.RequestHandlerRetryAdvice">
<property name="recoveryCallback">
<bean class="o.s.i.handler.advice.ErrorMessageSendingRecoverer">
<constructor-arg ref="myErrorChannel" />
</bean>
</property>
</bean>
</request-handler-advice-chain>
</int:int:service-activator>
DEBUG [task-scheduler-2]preSend on channel 'input', message: [Payload=...]
DEBUG [task-scheduler-2]Retry: count=0
DEBUG [task-scheduler-2]Checking for rethrow: count=1
DEBUG [task-scheduler-2]Retry: count=1
DEBUG [task-scheduler-2]Checking for rethrow: count=2
DEBUG [task-scheduler-2]Retry: count=2
DEBUG [task-scheduler-2]Checking for rethrow: count=3
DEBUG [task-scheduler-2]Retry failed last attempt: count=3
DEBUG [task-scheduler-2]Sending ErrorMessage :failedMessage:[Payload=...]
Stateless Retry with Customized Policies, and Recovery
For more sophistication, we can provide the advice with a customized RetryTemplate. This
example continues to use the SimpleRetryPolicy but increases the attempts to four. It also adds
an ExponentialBackoffPolicy where the first retry waits one second, the second waits five
seconds and the third waits 25 (for four attempts in all). The following listing shows the example
and its DEBUG output:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 181
<int:service-activator input-channel="input" ref="failer" method="service">
<int:request-handler-advice-chain>
<bean class="o.s.i.handler.advice.RequestHandlerRetryAdvice">
<property name="recoveryCallback">
<bean class="o.s.i.handler.advice.ErrorMessageSendingRecoverer">
<constructor-arg ref="myErrorChannel" />
</bean>
</property>
<property name="retryTemplate" ref="retryTemplate" />
</bean>
</request-handler-advice-chain>
</int:service-activator>
<bean id="retryTemplate" class="org.springframework.retry.support.RetryTemplate">
<property name="retryPolicy">
<bean class="org.springframework.retry.policy.SimpleRetryPolicy">
<property name="maxAttempts" value="4" />
</bean>
</property>
<property name="backOffPolicy">
<bean class="org.springframework.retry.backoff.ExponentialBackOffPolicy">
<property name="initialInterval" value="1000" />
<property name="multiplier" value="5.0" />
<property name="maxInterval" value="60000" />
</bean>
</property>
</bean>
27.058 DEBUG [task-scheduler-1]preSend on channel 'input', message: [Payload=...]
27.071 DEBUG [task-scheduler-1]Retry: count=0
27.080 DEBUG [task-scheduler-1]Sleeping for 1000
28.081 DEBUG [task-scheduler-1]Checking for rethrow: count=1
28.081 DEBUG [task-scheduler-1]Retry: count=1
28.081 DEBUG [task-scheduler-1]Sleeping for 5000
33.082 DEBUG [task-scheduler-1]Checking for rethrow: count=2
33.082 DEBUG [task-scheduler-1]Retry: count=2
33.083 DEBUG [task-scheduler-1]Sleeping for 25000
58.083 DEBUG [task-scheduler-1]Checking for rethrow: count=3
58.083 DEBUG [task-scheduler-1]Retry: count=3
58.084 DEBUG [task-scheduler-1]Checking for rethrow: count=4
58.084 DEBUG [task-scheduler-1]Retry failed last attempt: count=4
58.086 DEBUG [task-scheduler-1]Sending ErrorMessage :failedMessage:[Payload=...]
Namespace Support for Stateless Retry
Starting with version 4.0, the preceding configuration can be greatly simplified, thanks to the
namespace support for the retry advice, as the following example shows:
<int:service-activator input-channel="input" ref="failer" method="service">
<int:request-handler-advice-chain>
<bean ref="retrier" />
</request-handler-advice-chain>
</int:service-activator>
<int:handler-retry-advice id="retrier" max-attempts="4" recovery-channel="myErrorChannel">
<int:exponential-back-off initial="1000" multiplier="5.0" maximum="60000" />
</int:handler-retry-advice>
In the preceding example, the advice is defined as a top-level bean so that it can be used in multiple
request-handler-advice-chain instances. You can also define the advice directly within the
chain, as the following example shows:
<int:service-activator input-channel="input" ref="failer" method="service">
<int:request-handler-advice-chain>
<int:retry-advice id="retrier" max-attempts="4" recovery-channel="myErrorChannel">
<int:exponential-back-off initial="1000" multiplier="5.0" maximum="60000" />
</int:retry-advice>
</request-handler-advice-chain>
</int:service-activator>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 182
A <handler-retry-advice> can have a <fixed-back-off> or <exponential-back-off>
child element or have no child element. A <handler-retry-advice> with no child element uses
no back off. If there is no recovery-channel, the exception is thrown when retries are exhausted.
The namespace can only be used with stateless retry.
For more complex environments (custom policies etc), use normal <bean> definitions.
Simple Stateful Retry with Recovery
To make retry stateful, we need to provide the advice with a RetryStateGenerator
implementation. This class is used to identify a message as being a resubmission so that the
RetryTemplate can determine the current state of retry for this message. The framework provides
a SpelExpressionRetryStateGenerator, which determines the message identifier by using
a SpEL expression. This example again uses the default policies (three attempts with no back off).
As with stateless retry, these policies can be customized. The following listing shows the example
and its DEBUG output:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 183
<int:service-activator input-channel="input" ref="failer" method="service">
<int:request-handler-advice-chain>
<bean class="o.s.i.handler.advice.RequestHandlerRetryAdvice">
<property name="retryStateGenerator">
<bean class="o.s.i.handler.advice.SpelExpressionRetryStateGenerator">
<constructor-arg value="headers['jms_messageId']" />
</bean>
</property>
<property name="recoveryCallback">
<bean class="o.s.i.handler.advice.ErrorMessageSendingRecoverer">
<constructor-arg ref="myErrorChannel" />
</bean>
</property>
</bean>
</int:request-handler-advice-chain>
</int:service-activator>
24.351 DEBUG [Container#0-1]preSend on channel 'input', message: [Payload=...]
24.368 DEBUG [Container#0-1]Retry: count=0
24.387 DEBUG [Container#0-1]Checking for rethrow: count=1
24.387 DEBUG [Container#0-1]Rethrow in retry for policy: count=1
24.387 WARN [Container#0-1]failure occurred in gateway sendAndReceive
org.springframework.integration.MessagingException: Failed to invoke handler
...
Caused by: java.lang.RuntimeException: foo
...
24.391 DEBUG [Container#0-1]Initiating transaction rollback on application exception
...
25.412 DEBUG [Container#0-1]preSend on channel 'input', message: [Payload=...]
25.412 DEBUG [Container#0-1]Retry: count=1
25.413 DEBUG [Container#0-1]Checking for rethrow: count=2
25.413 DEBUG [Container#0-1]Rethrow in retry for policy: count=2
25.413 WARN [Container#0-1]failure occurred in gateway sendAndReceive
org.springframework.integration.MessagingException: Failed to invoke handler
...
Caused by: java.lang.RuntimeException: foo
...
25.414 DEBUG [Container#0-1]Initiating transaction rollback on application exception
...
26.418 DEBUG [Container#0-1]preSend on channel 'input', message: [Payload=...]
26.418 DEBUG [Container#0-1]Retry: count=2
26.419 DEBUG [Container#0-1]Checking for rethrow: count=3
26.419 DEBUG [Container#0-1]Rethrow in retry for policy: count=3
26.419 WARN [Container#0-1]failure occurred in gateway sendAndReceive
org.springframework.integration.MessagingException: Failed to invoke handler
...
Caused by: java.lang.RuntimeException: foo
...
26.420 DEBUG [Container#0-1]Initiating transaction rollback on application exception
...
27.425 DEBUG [Container#0-1]preSend on channel 'input', message: [Payload=...]
27.426 DEBUG [Container#0-1]Retry failed last attempt: count=3
27.426 DEBUG [Container#0-1]Sending ErrorMessage :failedMessage:[Payload=...]
If you compare the preceding example with the stateless examples, you can see that, with stateful
retry, the exception is thrown to the caller on each failure.
Exception Classification for Retry
Spring Retry has a great deal of flexibility for determining which exceptions can invoke retry. The
default configuration retries for all exceptions and the exception classifier looks at the top-level
exception. If you configure it to, say, retry only on MyException and your application throws a
SomeOtherException where the cause is a MyException, retry does not occur.
Since Spring Retry 1.0.3, the BinaryExceptionClassifier has a property called
traverseCauses (the default is false). When true, it traverses exception causes until it finds
a match or runs out of causes to traverse.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 184
To use this classifier for retry, use a SimpleRetryPolicy created with the constructor that takes
the max attempts, the Map of Exception objects, and the traverseCauses boolean. Then you
can inject this policy into the RetryTemplate.
Circuit Breaker Advice
The general idea of the circuit breaker pattern is that, if a service is not
currently available, do not waste time (and resources) trying to use it. The
o.s.i.handler.advice.RequestHandlerCircuitBreakerAdvice implements this pattern.
When the circuit breaker is in the closed state, the endpoint attempts to invoke the service. The circuit
breaker goes to the open state if a certain number of consecutive attempts fail. When it is in the open
state, new requests "fail fast" and no attempt is made to invoke the service until some time has
expired.
When that time has expired, the circuit breaker is set to the half-open state. When in this state, if even
a single attempt fails, the breaker immediately goes to the open state. If the attempt succeeds, the
breaker goes to the closed state, in which case it does not go to the open state again until the configured
number of consecutive failures again occur. Any successful attempt resets the state to zero failures for
the purpose of determining when the breaker might go to the open state again.
Typically, this advice might be used for external services, where it might take some time to fail (such as
a timeout attempting to make a network connection).
The RequestHandlerCircuitBreakerAdvice has two properties: threshold and
halfOpenAfter. The threshold property represents the number of consecutive failures that need
to occur before the breaker goes open. It defaults to 5. The halfOpenAfter property represents the
time after the last failure that the breaker waits before attempting another request. The default is 1000
milliseconds.
The following example configures a circuit breaker and shows its DEBUG and ERROR output:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 185
<int:service-activator input-channel="input" ref="failer" method="service">
<int:request-handler-advice-chain>
<bean class="o.s.i.handler.advice.RequestHandlerCircuitBreakerAdvice">
<property name="threshold" value="2" />
<property name="halfOpenAfter" value="12000" />
</bean>
</int:request-handler-advice-chain>
</int:service-activator>
05.617 DEBUG [task-scheduler-1]preSend on channel 'input', message: [Payload=...]
05.638 ERROR [task-scheduler-1]org.springframework.messaging.MessageHandlingException:
java.lang.RuntimeException: foo
...
10.598 DEBUG [task-scheduler-2]preSend on channel 'input', message: [Payload=...]
10.600 ERROR [task-scheduler-2]org.springframework.messaging.MessageHandlingException:
java.lang.RuntimeException: foo
...
15.598 DEBUG [task-scheduler-3]preSend on channel 'input', message: [Payload=...]
15.599 ERROR [task-scheduler-3]org.springframework.messaging.MessagingException: Circuit Breaker is Open
for ServiceActivator
...
20.598 DEBUG [task-scheduler-2]preSend on channel 'input', message: [Payload=...]
20.598 ERROR [task-scheduler-2]org.springframework.messaging.MessagingException: Circuit Breaker is Open
for ServiceActivator
...
25.598 DEBUG [task-scheduler-5]preSend on channel 'input', message: [Payload=...]
25.601 ERROR [task-scheduler-5]org.springframework.messaging.MessageHandlingException:
java.lang.RuntimeException: foo
...
30.598 DEBUG [task-scheduler-1]preSend on channel 'input', message: [Payload=foo...]
30.599 ERROR [task-scheduler-1]org.springframework.messaging.MessagingException: Circuit Breaker is Open
for ServiceActivator
In the preceding example, the threshold is set to 2 and halfOpenAfter is set to 12 seconds. A new
request arrives every 5 seconds. The first two attempts invoked the service. The third and fourth failed
with an exception indicating that the circuit breaker is open. The fifth request was attempted because the
request was 15 seconds after the last failure. The sixth attempt fails immediately because the breaker
immediately went to open.
Expression Evaluating Advice
The final supplied advice class is the
o.s.i.handler.advice.ExpressionEvaluatingRequestHandlerAdvice. This advice is
more general than the other two advices. It provides a mechanism to evaluate an expression on the
original inbound message sent to the endpoint. Separate expressions are available to be evaluated,
after either success or failure. Optionally, a message containing the evaluation result, together with the
input message, can be sent to a message channel.
A typical use case for this advice might be with an <ftp:outbound-channel-adapter/>, perhaps
to move the file to one directory if the transfer was successful or to another directory if it fails:
The advice has properties to set an expression when successful, an expression for failures, and
corresponding channels for each. For the successful case, the message sent to the successChannel
is an AdviceMessage, with the payload being the result of the expression evaluation. An additional
property, called inputMessage, contains the original message sent to the handler. A message sent to
the failureChannel (when the handler throws an exception) is an ErrorMessage with a payload of
MessageHandlingExpressionEvaluatingAdviceException. Like all MessagingException
instances, this payload has failedMessage and cause properties, as well as an additional property
called evaluationResult, which contains the result of the expression evaluation.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 186
When an exception is thrown in the scope of the advice, by default, that exception is thrown to the caller
after any failureExpression is evaluated. If you wish to suppress throwing the exception, set the
trapException property to true. The following advice shows how to configure an advice with Java
DSL:
@SpringBootApplication
public class EerhaApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context = SpringApplication.run(EerhaApplication.class, args);
MessageChannel in = context.getBean("advised.input", MessageChannel.class);
in.send(new GenericMessage<>("good"));
in.send(new GenericMessage<>("bad"));
context.close();
}
@Bean
public IntegrationFlow advised() {
return f -> f.handle((GenericHandler<String>) (payload, headers) -> {
if (payload.equals("good")) {
return null;
}
else {
throw new RuntimeException("some failure");
}
}, c -> c.advice(expressionAdvice()));
}
@Bean
public Advice expressionAdvice() {
ExpressionEvaluatingRequestHandlerAdvice advice = new
ExpressionEvaluatingRequestHandlerAdvice();
advice.setSuccessChannelName("success.input");
advice.setOnSuccessExpressionString("payload + ' was successful'");
advice.setFailureChannelName("failure.input");
advice.setOnFailureExpressionString(
"payload + ' was bad, with reason: ' + #exception.cause.message");
advice.setTrapException(true);
return advice;
}
@Bean
public IntegrationFlow success() {
return f -> f.handle(System.out::println);
}
@Bean
public IntegrationFlow failure() {
return f -> f.handle(System.out::println);
}
}
Custom Advice Classes
In addition to the provided advice classes described earlier, you can implement your own
advice classes. While you can provide any implementation of org.aopalliance.aop.Advice
(usually org.aopalliance.intercept.MethodInterceptor), we generally recommend that you
subclass o.s.i.handler.advice.AbstractRequestHandlerAdvice. This has the benefit of
avoiding the writing of low-level aspect-oriented programming code as well as providing a starting point
that is specifically tailored for use in this environment.
Subclasses need to implement the doInvoke()` method, the definition of which follows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 187
/**
* Subclasses implement this method to apply behavior to the {@link MessageHandler} callback.execute()
* invokes the handler method and returns its result, or null).
* @param callback Subclasses invoke the execute() method on this interface to invoke the handler
method.
* @param target The target handler.
* @param message The message that will be sent to the handler.
* @return the result after invoking the {@link MessageHandler}.
* @throws Exception
*/
protected abstract Object doInvoke(ExecutionCallback callback, Object target, Message<?> message) throws
Exception;
The callback parameter is a convenience to avoid subclasses that deal with AOP directly. Invoking the
callback.execute() method invokes the message handler.
The target parameter is provided for those subclasses that need to maintain state for a specific
handler, perhaps by maintaining that state in a Map keyed by the target. This feature allows the
same advice to be applied to multiple handlers. The RequestHandlerCircuitBreakerAdvice uses
advice this to keep circuit breaker state for each handler.
The message parameter is the message sent to the handler. While the advice cannot modify the
message before invoking the handler, it can modify the payload (if it has mutable properties). Typically,
an advice would use the message for logging or to send a copy of the message somewhere before or
after invoking the handler.
The return value would normally be the value returned by callback.execute().
However, the advice does have the ability to modify the return value. Note that only
AbstractReplyProducingMessageHandler instances return values. The following example
shows a custom advice class that extends AbstractRequestHandlerAdvice:
public class MyAdvice extends AbstractRequestHandlerAdvice {
@Override
protected Object doInvoke(ExecutionCallback callback, Object target, Message<?> message) throws
Exception {
// add code before the invocation
Object result = callback.execute();
// add code after the invocation
return result;
}
}
Note
In addition to the execute() method, ExecutionCallback provides an additional
method: cloneAndExecute(). This method must be used in cases where the
invocation might be called multiple times within a single execution of doInvoke(),
such as in the RequestHandlerRetryAdvice. This is required because the Spring
AOP org.springframework.aop.framework.ReflectiveMethodInvocation object
maintains state by keeping track of which advice in a chain was last invoked. This state must be
reset for each call.
For more information, see the ReflectiveMethodInvocation Javadoc.
Other Advice Chain Elements
While the abstract class mentioned above is a convenience, you can add any Advice, including a
transaction advice, to the chain.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 188
Handling Message Advice
As discussed in the introduction to this section, advice objects in a request handler advice chain are
applied to just the current endpoint, not the downstream flow (if any). For MessageHandler objects
that produce a reply (such as those that extend AbstractReplyProducingMessageHandler),
the advice is applied to an internal method: handleRequestMessage() (called from
MessageHandler.handleMessage()). For other message handlers, the advice is applied to
MessageHandler.handleMessage().
There are some circumstances where, even if a message handler is an
AbstractReplyProducingMessageHandler, the advice must be applied to the handleMessage
method. For example, the idempotent receiver might return null, which would cause an
exception if the handler’s replyRequired property is set to true. Another example is the
BoundRabbitChannelAdvice — see Section 14.13, “Strict Message Ordering”.
Starting with version 4.3.1, a new HandleMessageAdvice interface and its base implementation
(AbstractHandleMessageAdvice) have been introduced. Advice objects that implement
HandleMessageAdvice are always applied to the handleMessage() method, regardless of the
handler type.
It is important to understand that HandleMessageAdvice implementations (such as idempotent
receiver), when applied to a handlers that return responses, are dissociated from the adviceChain
and properly applied to the MessageHandler.handleMessage() method.
Note
Because of this disassociation, the advice chain order is not honored.
Consider the following configuration:
<some-reply-producing-endpoint ... >
<int:request-handler-advice-chain>
<tx:advice ... />
<bean ref="myHandleMessageAdvice" />
</int:request-handler-advice-chain>
</some-reply-producing-endpoint>
In the preceding example, the <tx:advice> is applied to
the AbstractReplyProducingMessageHandler.handleRequestMessage(). However,
myHandleMessageAdvice is applied for to MessageHandler.handleMessage(). Therefore, it is
invoked before the <tx:advice>. To retain the order, you should follow the standard Spring AOP
configuration approach and use an endpoint id together with the .handler suffix to obtain the target
MessageHandler bean. Note that, in that case, the entire downstream flow is within the transaction
scope.
In the case of a MessageHandler that does not return a response, the advice chain order is retained.
Transaction Support
Starting with version 5.0, a new TransactionHandleMessageAdvice has been introduced to make
the whole downstream flow transactional, thanks to the HandleMessageAdvice implementation.
When a regular TransactionInterceptor is used in the <request-handler-advice-chain>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 189
element (for example, through configuring <tx:advice>), a started transaction is only applied only for
an internal AbstractReplyProducingMessageHandler.handleRequestMessage() and is not
propagated to the downstream flow.
To simplify XML configuration, along with the <request-handler-advice-chain>, a
<transactional> element has been added to all <outbound-gateway> and <service-
activator> and related components. The following example shows <transactional> in use:
<int-rmi:outbound-gateway remote-channel="foo" host="localhost"
request-channel="good" reply-channel="reply" port="#{@port}">
<int-rmi:transactional/>
</int-rmi:outbound-gateway>
<bean id="transactionManager" class="org.mockito.Mockito" factory-method="mock">
<constructor-arg value="org.springframework.transaction.PlatformTransactionManager"/>
</bean>
If you are familiar with the JPA integration components, such a configuration is not new, but now we
can start a transaction from any point in our flow — not only from the <poller> or a message-driven
channel adapter such as JMS.
Java configuration can be simplified by using the TransactionInterceptorBuilder, and the result
bean name can be used in the messaging annotations adviceChain attribute, as the following example
shows:
@Bean
public ConcurrentMetadataStore store() {
return new SimpleMetadataStore(hazelcastInstance()
.getMap("idempotentReceiverMetadataStore"));
}
@Bean
public IdempotentReceiverInterceptor idempotentReceiverInterceptor() {
return new IdempotentReceiverInterceptor(
new MetadataStoreSelector(
message -> message.getPayload().toString(),
message -> message.getPayload().toString().toUpperCase(), store()));
}
@Bean
public TransactionInterceptor transactionInterceptor() {
return new TransactionInterceptorBuilder(true)
.transactionManager(this.transactionManager)
.isolation(Isolation.READ_COMMITTED)
.propagation(Propagation.REQUIRES_NEW)
.build();
}
@Bean
@org.springframework.integration.annotation.Transformer(inputChannel = "input",
outputChannel = "output",
adviceChain = { "idempotentReceiverInterceptor",
"transactionInterceptor" })
public Transformer transformer() {
return message -> message;
}
Note the true parameter on the TransactionInterceptorBuilder constructor. It causes the
creation of a TransactionHandleMessageAdvice, not a regular TransactionInterceptor.
Java DSL supports an Advice through the .transactional() options on the endpoint configuration,
as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 190
@Bean
public IntegrationFlow updatingGatewayFlow() {
return f -> f
.handle(Jpa.updatingGateway(this.entityManagerFactory),
e -> e.transactional(true))
.channel(c -> c.queue("persistResults"));
}
Advising Filters
There is an additional consideration when advising Filter advices. By default, any discard actions
(when the filter returns false) are performed within the scope of the advice chain. This could include
all the flow downstream of the discard channel. So, for example, if an element downstream of the
discard channel throws an exception and there is a retry advice, the process is retried. Also, if
throwExceptionOnRejection is set to true (the exception is thrown within the scope of the advice).
Setting discard-within-advice to false modifies this behavior and the discard (or exception)
occurs after the advice chain is called.
Advising Endpoints Using Annotations
When configuring certain endpoints by using annotations (@Filter, @ServiceActivator,
@Splitter, and @Transformer), you can supply a bean name for the advice chain in the
adviceChain attribute. In addition, the @Filter annotation also has the discardWithinAdvice
attribute, which can be used to configure the discard behavior, as discussed in the section called
“Advising Filters”. The following example causes the discard to be performed after the advice:
@MessageEndpoint
public class MyAdvisedFilter {
@Filter(inputChannel="input", outputChannel="output",
adviceChain="adviceChain", discardWithinAdvice="false")
public boolean filter(String s) {
return s.contains("good");
}
}
Ordering Advices within an Advice Chain
Advice classes are "around" advices and are applied in a nested fashion. The first advice is the
outermost, while the last advice is the innermost (that is, closest to the handler being advised). It is
important to put the advice classes in the correct order to achieve the functionality you desire.
For example, suppose you want to add a retry advice and a transaction advice. You may want to place
the retry advice advice first, followed by the transaction advice. Consequently, each retry is performed
in a new transaction. On the other hand, if you want all the attempts and any recovery operations (in the
retry RecoveryCallback) to be scoped within the transaction, you could put the transaction advice
first.
Advised Handler Properties
Sometimes, it is useful to access handler properties from within the advice. For example, most handlers
implement NamedComponent to let you access the component name.
The target object can be accessed through the target argument (when
subclassing AbstractRequestHandlerAdvice) or invocation.getThis() (when implementing
org.aopalliance.intercept.MethodInterceptor).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 191
When the entire handler is advised (such as when the handler does not produce replies or the
advice implements HandleMessageAdvice), you can cast the target object to an interface, such as
NamedComponent, as shown in the following example:
String componentName = ((NamedComponent) target).getComponentName();
When you implement MethodInterceptor directly, you could cast the target object as follows:
String componentName = ((NamedComponent) invocation.getThis()).getComponentName();
When only the handleRequestMessage() method is advised (in a reply-producing handler), you need
to access the full handler, which is an AbstractReplyProducingMessageHandler. The following
example shows how to do so:
AbstractReplyProducingMessageHandler handler =
((AbstractReplyProducingMessageHandler.RequestHandler) target).getAdvisedHandler();
String componentName = handler.getComponentName();
Idempotent Receiver Enterprise Integration Pattern
Starting with version 4.1, Spring Integration provides an implementation of the Idempotent
Receiver Enterprise Integration Pattern. It is a functional pattern and the whole idempotency
logic should be implemented in the application. However, to simplify the decision-making, the
IdempotentReceiverInterceptor component is provided. This is an AOP Advice that is applied
to the MessageHandler.handleMessage() method and that can filter a request message or
mark it as a duplicate, according to its configuration.
Previously, you could have implemented this pattern by using a custom MessageSelector in a
<filter/> (see Section 8.2, “Filter”), for example. However, since this pattern really defines the
behavior of an endpoint rather than being an endpoint itself, the idempotent receiver implementation
does not provide an endpoint component. Rather, it is applied to endpoints declared in the application.
The logic of the IdempotentReceiverInterceptor is based on the provided MessageSelector
and, if the message is not accepted by that selector, it is enriched with the duplicateMessage
header set to true. The target MessageHandler (or downstream flow) can consult this header to
implement the correct idempotency logic. If the IdempotentReceiverInterceptor is configured
with a discardChannel or throwExceptionOnRejection = true, the duplicate message is
not sent to the target MessageHandler.handleMessage(). Rather, it is discarded. If you want to
discard (do nothing with) the duplicate message, the discardChannel should be configured with a
NullChannel, such as the default nullChannel bean.
To maintain state between messages and provide the ability to compare messages for the idempotency,
we provide the MetadataStoreSelector. It accepts a MessageProcessor implementation (which
creates a lookup key based on the Message) and an optional ConcurrentMetadataStore
(Section 12.5, “Metadata Store”). See the MetadataStoreSelector Javadoc for more information.
You can also customize the value for ConcurrentMetadataStore by using an additional
MessageProcessor. By default, MetadataStoreSelector uses the timestamp message header.
For convenience, the MetadataStoreSelector options are configurable directly on the
<idempotent-receiver> component. The following listing shows all the possible attributes:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 192
<idempotent-receiver
id="" ❶
endpoint="" ❷
selector="" ❸
discard-channel="" ❹
metadata-store="" ❺
key-strategy="" ❻
key-expression="" ❼
value-strategy="" ❽
value-expression="" ❾
throw-exception-on-rejection="" /> ❿
❶The ID of the IdempotentReceiverInterceptor bean. Optional.
❷Consumer endpoint name(s) or pattern(s) to which this interceptor is applied. Separate
names (patterns) with commas (,), such as endpoint="aaa, bbb*, *ccc, *ddd*,
eee*fff". Endpoint bean names matching these patterns are then used to retrieve
the target endpoint’s MessageHandler bean (using its .handler suffix), and the
IdempotentReceiverInterceptor is applied to those beans. Required.
❸A MessageSelector bean reference. Mutually exclusive with metadata-store and key-
strategy (key-expression). When selector is not provided, one of key-strategy or
key-strategy-expression is required.
❹Identifies the channel to which to send a message when the
IdempotentReceiverInterceptor does not accept it. When omitted, duplicate messages are
forwarded to the handler with a duplicateMessage header. Optional.
❺A ConcurrentMetadataStore reference. Used by the underlying MetadataStoreSelector.
Mutually exclusive with selector. Optional. The default MetadataStoreSelector uses an
internal SimpleMetadataStore that does not maintain state across application executions.
❻A MessageProcessor reference. Used by the underlying MetadataStoreSelector. Evaluates
an idempotentKey from the request message. Mutually exclusive with selector and key-
expression. When a selector is not provided, one of key-strategy or key-strategy-
expression is required.
❼A SpEL expression to populate an ExpressionEvaluatingMessageProcessor. Used by
the underlying MetadataStoreSelector. Evaluates an idempotentKey by using the request
message as the evaluation context root object. Mutually exclusive with selector and key-
strategy. When a selector is not provided, one of key-strategy or key-strategy-
expression is required.
❽A MessageProcessor reference. Used by the underlying MetadataStoreSelector. Evaluates
a value for the idempotentKey from the request message. Mutually exclusive with selector
and value-expression. By default, the MetadataStoreSelector uses the timestamp message
header as the Metadata value.
❾A SpEL expression to populate an ExpressionEvaluatingMessageProcessor. Used by the
underlying MetadataStoreSelector. Evaluates a value for the idempotentKey by using the
request message as the evaluation context root object. Mutually exclusive with selector and
value-strategy. By default, the MetadataStoreSelector uses the timestamp message header
as the metadata value.
❿Whether to throw an exception if the IdempotentReceiverInterceptor rejects the message.
Defaults to false. It is applied regardless of whether or not a discard-channel is provided.
For Java configuration, Spring Integration provides the method-level @IdempotentReceiver
annotation. It is used to mark a method that has a messaging annotation (@ServiceActivator,
@Router, and others) to specify which `IdempotentReceiverInterceptor objects
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 193
are applied to this endpoint. The following example shows how to use the @IdempotentReceiver
annotation:
@Bean
public IdempotentReceiverInterceptor idempotentReceiverInterceptor() {
return new IdempotentReceiverInterceptor(new MetadataStoreSelector(m ->
m.getHeaders().get(INVOICE_NBR_HEADER)));
}
@Bean
@ServiceActivator(inputChannel = "input", outputChannel = "output")
@IdempotentReceiver("idempotentReceiverInterceptor")
public MessageHandler myService() {
....
}
When you use the Java DSL, you can add the interceptor to the endpoint’s advice chain, as the following
example shows:
@Bean
public IntegrationFlow flow() {
...
.handle("someBean", "someMethod",
e -> e.advice(idempotentReceiverInterceptor()))
...
}
Note
The IdempotentReceiverInterceptor is designed only for the
MessageHandler.handleMessage(Message<?>) method. Starting with version 4.3.1, it
implements HandleMessageAdvice, with the AbstractHandleMessageAdvice as a base
class, for better dissociation. See the section called “Handling Message Advice” for more
information.
10.10 Logging Channel Adapter
The <logging-channel-adapter> is often used in conjunction with a wire tap, as discussed in
the section called “Wire Tap”. However, it can also be used as the ultimate consumer of any flow.
For example, consider a flow that ends with a <service-activator> that returns a result, but you
wish to discard that result. To do that, you could send the result to NullChannel. Alternatively, you
can route it to an INFO level <logging-channel-adapter>. That way, you can see the discarded
message when logging at INFO level but not see it when logging at (for example) the WARN level. With
a NullChannel, you would see only the discarded message when logging at the DEBUG level. The
following listing shows all the possible attributes for the logging-channel-adapter element:
<int:logging-channel-adapter
channel="" ❶
level="INFO" ❷
expression="" ❸
log-full-message="false" ❹
logger-name="" /> ❺
❶The channel connecting the logging adapter to an upstream component.
❷The logging level at which messages sent to this adapter will be logged. Default: INFO.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 194
❸A SpEL expression representing exactly what parts of the message are logged. Default:
payload — only the payload is logged. if log-full-message is specified, this attribute cannot
be specified.
❹When true, the entire message (including headers) is logged. Default: false — only the payload
is logged. This attribute cannot be specified if expression is specified.
❺Specifies the name of the logger (known as category in log4j). Used to identify log
messages created by this adapter. This enables setting the log name (in the logging
subsystem) for individual adapters. By default, all adapters log under the following name:
org.springframework.integration.handler.LoggingHandler.
Using Java Configuration
The following Spring Boot application shows an example of configuring the LoggingHandler by using
Java configuration:
@SpringBootApplication
public class LoggingJavaApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context =
new SpringApplicationBuilder(LoggingJavaApplication.class)
.web(false)
.run(args);
MyGateway gateway = context.getBean(MyGateway.class);
gateway.sendToLogger("foo");
}
@Bean
@ServiceActivator(inputChannel = "logChannel")
public LoggingHandler logging() {
LoggingHandler adapter = new LoggingHandler(LoggingHandler.Level.DEBUG);
adapter.setLoggerName("TEST_LOGGER");
adapter.setLogExpressionString("headers.id + ': ' + payload");
return adapter;
}
@MessagingGateway(defaultRequestChannel = "logChannel")
public interface MyGateway {
void sendToLogger(String data);
}
}
Configuring with the Java DSL
The following Spring Boot application shows an example of configuring the logging channel adapter by
using the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 195
@SpringBootApplication
public class LoggingJavaApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context =
new SpringApplicationBuilder(LoggingJavaApplication.class)
.web(false)
.run(args);
MyGateway gateway = context.getBean(MyGateway.class);
gateway.sendToLogger("foo");
}
@Bean
public IntegrationFlow loggingFlow() {
return IntegrationFlows.from(MyGateway.class)
.log(LoggingHandler.Level.DEBUG, "TEST_LOGGER",
m -> m.getHeaders().getId() + ": " + m.getPayload());
}
@MessagingGateway
public interface MyGateway {
void sendToLogger(String data);
}
}
10.11 java.util.function Interfaces Support
Starting with version 5.1, Spring Integration provides direct support for interfaces in the
java.util.function package. All messaging endpoints, (Service Activator, Transformer, Filter, etc.)
can now refer to Function (or Consumer) beans. The Messaging Annotations can be applied directly
on these beans similar to regular MessageHandler definitions. For example if you have this Function
bean definition:
@Configuration
public class FunctionConfiguration {
@Bean
public Function<String, String> functionAsService() {
return String::toUpperCase;
}
}
You can use it as a simple reference in an XML configuration file:
<service-activator input-channel="processorViaFunctionChannel" ref="functionAsService"/>
When we configure our flow with Messaging Annotations, the code is straightforward:
@Bean
@Transformer(inputChannel = "functionServiceChannel")
public Function<String, String> functionAsService() {
return String::toUpperCase;
}
When the function returns an array, Collection (essentially, any Iterable), Stream or Reactor
Flux, @Splitter can be used on such a bean to perform iteration over the result content.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 196
The java.util.function.Consumer interface can be used for an <int:outbound-channel-
adapter> or, together with the @ServiceActivator annotation, to perform the final step of a flow:
@Bean
@ServiceActivator(inputChannel = "messageConsumerServiceChannel")
public Consumer<Message<?>> messageConsumerAsService() {
// Has to be an anonymous class for proper type inference
return new Consumer<Message<?>>() {
@Override
public void accept(Message<?> e) {
collector().add(e);
}
};
}
Also, pay attention to the comment in the code snippet above: if you would like to deal with the whole
message in your Function/Consumer you cannot use a lambda definition. Because of Java type
erasure we cannot determine the target type for the apply()/accept() method call.
The java.util.function.Supplier interface can simply be used together with the
@InboundChannelAdapter annotation, or as a ref in an <int:inbound-channel-adapter>:
@Bean
@InboundChannelAdapter(value = "inputChannel", poller = @Poller(fixedDelay = "1000"))
public Supplier<String> pojoSupplier() {
return () -> "foo";
}
With the Java DSL we just need to use a reference to the function bean in the endpoint definitions.
Meanwhile an implementation of the Supplier interface can be used as regular MessageSource
definition:
@Bean
public Function<String, String> toUpperCaseFunction() {
return String::toUpperCase;
}
@Bean
public Supplier<String> stringSupplier() {
return () -> "foo";
}
@Bean
public IntegrationFlow supplierFlow() {
return IntegrationFlows.from(stringSupplier())
.transform(toUpperCaseFunction())
.channel("suppliedChannel")
.get();
}
This function support is useful when used together with the Spring Cloud Function framework, where
we have a function catalog and can refer to its member functions from an integration flow definition.
Kotlin Lambdas
The Framework also has been improved to support Kotlin lambdas for functions so now you can use a
combination of the Kotlin language and Spring Integration flow definitions:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 197
@Bean
@Transformer(inputChannel = "functionServiceChannel")
fun kotlinFunction(): (String) -> String {
return { it.toUpperCase() }
}
@Bean
@ServiceActivator(inputChannel = "messageConsumerServiceChannel")
fun kotlinConsumer(): (Message<Any>) -> Unit {
return { print(it) }
}
@Bean
@InboundChannelAdapter(value = "counterChannel",
poller = [Poller(fixedRate = "10", maxMessagesPerPoll = "1")])
fun kotlinSupplier(): () -> String {
return { "baz" }
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 198
11. Java DSL
The Spring Integration Java configuration and DSL provides a set of convenient builders and a fluent
API that lets you configure Spring Integration message flows from Spring @Configuration classes.
The Java DSL for Spring Integration is essentially a facade for Spring Integration. The DSL provides
a simple way to embed Spring Integration Message Flows into your application by using the fluent
Builder pattern together with existing Java configuration from Spring Framework and Spring
Integration. We also use and support lambdas (available with Java 8) to further simplify Java
configuration.
The cafe offers a good example of using the DSL.
The DSL is presented by the IntegrationFlows factory for the IntegrationFlowBuilder. This
produces the IntegrationFlow component, which should be registered as a Spring bean (by using
the @Bean annotation). The builder pattern is used to express arbitrarily complex structures as a
hierarchy of methods that can accept lambdas as arguments.
The IntegrationFlowBuilder only collects integration components (MessageChannel
instances, AbstractEndpoint instances, and so on) in the IntegrationFlow bean
for further parsing and registration of concrete beans in the application context by the
IntegrationFlowBeanPostProcessor.
The Java DSL uses Spring Integration classes directly and bypasses any XML generation and parsing.
However, the DSL offers more than syntactic sugar on top of XML. One of its most compelling features is
the ability to define inline lambdas to implement endpoint logic, eliminating the need for external classes
to implement custom logic. In some sense, Spring Integration’s support for the Spring Expression
Language (SpEL) and inline scripting address this, but lambdas are easier and much more powerful.
The following example shows how to use Java Configuration for Spring Integration:
@Configuration
@EnableIntegration
public class MyConfiguration {
@Bean
public AtomicInteger integerSource() {
return new AtomicInteger();
}
@Bean
public IntegrationFlow myFlow() {
return IntegrationFlows.from(integerSource::getAndIncrement,
c -> c.poller(Pollers.fixedRate(100)))
.channel("inputChannel")
.filter((Integer p) -> p > 0)
.transform(Object::toString)
.channel(MessageChannels.queue())
.get();
}
}
The result of the preceding configuration example is that it creates, after ApplicationContext start
up, Spring Integration endpoints and message channels. Java configuration can be used both to replace
and augment XML configuration. You need not replace all of your existing XML configuration to use
Java configuration.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 199
11.1 DSL Basics
The org.springframework.integration.dsl package contains the
IntegrationFlowBuilder API mentioned earlier and a number of IntegrationComponentSpec
implementations, which are also builders and provide the fluent API to configure concrete endpoints.
The IntegrationFlowBuilder infrastructure provides common enterprise integration patterns (EIP)
for message-based applications, such as channels, endpoints, pollers, and channel interceptors.
Endpoints are expressed as verbs in the DSL to improve readability. The following list includes the
common DSL method names and the associated EIP endpoint:
• transform # Transformer
• filter # Filter
• handle # ServiceActivator
• split # Splitter
• aggregate # Aggregator
• route # Router
• bridge # Bridge
Conceptually, integration processes are constructed by composing these endpoints into one or more
message flows. Note that EIP does not formally define the term message flow, but it is useful
to think of it as a unit of work that uses well known messaging patterns. The DSL provides an
IntegrationFlow component to define a composition of channels and endpoints between them, but
now IntegrationFlow plays only the configuration role to populate real beans in the application
context and is not used at runtime. The following example uses the IntegrationFlows factory to
define an IntegrationFlow bean by using EIP-methods from IntegrationFlowBuilder:
@Bean
public IntegrationFlow integerFlow() {
return IntegrationFlows.from("input")
.<String, Integer>transform(Integer::parseInt)
.get();
}
The transform method accepts a lambda as an endpoint argument to operate on the message
payload. The real argument of this method is GenericTransformer<S, T>. Consequently, any of
the provided transformers (ObjectToJsonTransformer, FileToStringTransformer, and other)
can be used here.
Under the covers, IntegrationFlowBuilder recognizes the MessageHandler and the endpoint
for it, with MessageTransformingHandler and ConsumerEndpointFactoryBean, respectively.
Consider another example:
@Bean
public IntegrationFlow myFlow() {
return IntegrationFlows.from("input")
.filter("World"::equals)
.transform("Hello "::concat)
.handle(System.out::println)
.get();
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 200
The preceding example composes a sequence of Filter -> Transformer -> Service
Activator. The flow is "one way". That is, it does not provide a reply message but only prints the
payload to STDOUT. The endpoints are automatically wired together by using direct channels.
Lambdas And Message<?> Arguments
When using lambdas in EIP methods, the "input" argument is generally the message payload. If
you wish to access the entire message, use one of the overloaded methods that take a Class<?
> as the first parameter. For example, this won’t work:
.<Message<?>, Foo>transform(m -> newFooFromMessage(m))
This will fail at runtime with a ClassCastException because the lambda doesn’t retain the argument
type and the framework will attempt to cast the payload to a Message<?>.
Instead, use:
.(Message.class, m -> newFooFromMessage(m))
11.2 Message Channels
In addition to the IntegrationFlowBuilder with EIP methods, the Java DSL provides a fluent API
to configure MessageChannel instances. For this purpose the MessageChannels builder factory is
provided. The following example shows how to use it:
@Bean
public MessageChannel priorityChannel() {
return MessageChannels.priority(this.mongoDbChannelMessageStore, "priorityGroup")
.interceptor(wireTap())
.get();
}
The same MessageChannels builder factory can be used in the channel() EIP
method from IntegrationFlowBuilder to wire endpoints, similar to wiring an input-
channel/output-channel pair in the XML configuration. By default, endpoints are wired
with DirectChannel instances where the bean name is based on the following pattern:
[IntegrationFlow.beanName].channel#[channelNameIndex]. This rule is also applied for
unnamed channels produced by inline MessageChannels builder factory usage. However all
MessageChannels methods have a variant that is aware of the channelId that you can use to set
the bean names for MessageChannel instances. The MessageChannel references and beanName
can be used as bean-method invocations. The following example shows the possible ways to use the
channel() EIP method:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 201
@Bean
public MessageChannel queueChannel() {
return MessageChannels.queue().get();
}
@Bean
public MessageChannel publishSubscribe() {
return MessageChannels.publishSubscribe().get();
}
@Bean
public IntegrationFlow channelFlow() {
return IntegrationFlows.from("input")
.fixedSubscriberChannel()
.channel("queueChannel")
.channel(publishSubscribe())
.channel(MessageChannels.executor("executorChannel", this.taskExecutor))
.channel("output")
.get();
}
•from("input") means "find and use the MessageChannel with the "input" id, or create one".
•fixedSubscriberChannel() produces an instance of FixedSubscriberChannel and
registers it with a name of channelFlow.channel#0.
•channel("queueChannel") works the same way but uses an existing queueChannel bean.
•channel(publishSubscribe()) is the bean-method reference.
•channel(MessageChannels.executor("executorChannel", this.taskExecutor))
is the IntegrationFlowBuilder that exposes IntegrationComponentSpec to the
ExecutorChannel and registers it as executorChannel.
•channel("output") registers the DirectChannel bean with output as its name, as long as no
beans with this name already exist.
Note: The preceding IntegrationFlow definition is valid, and all of its channels are applied to
endpoints with BridgeHandler instances.
Important
Be careful to use the same inline channel definition through MessageChannels factory
from different IntegrationFlow instances. Even if the DSL parser registers non-existent
objects as beans, it cannot determine the same object (MessageChannel) from different
IntegrationFlow containers. The following example is wrong:
@Bean
public IntegrationFlow startFlow() {
return IntegrationFlows.from("input")
.transform(...)
.channel(MessageChannels.queue("queueChannel"))
.get();
}
@Bean
public IntegrationFlow endFlow() {
return IntegrationFlows.from(MessageChannels.queue("queueChannel"))
.handle(...)
.get();
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 202
The result of that bad example is the following exception:
Caused by: java.lang.IllegalStateException:
Could not register object [queueChannel] under bean name 'queueChannel':
there is already object [queueChannel] bound
at o.s.b.f.s.DefaultSingletonBeanRegistry.registerSingleton(DefaultSingletonBeanRegistry.java:129)
To make it work, you need to declare @Bean for that channel and use its bean method from different
IntegrationFlow instances.
11.3 Pollers
Spring Integration also provides a fluent API that lets you configure PollerMetadata for
AbstractPollingEndpoint implementations. You can use the Pollers builder factory to configure
common bean definitions or those created from IntegrationFlowBuilder EIP methods, as the
following example shows:
@Bean(name = PollerMetadata.DEFAULT_POLLER)
public PollerSpec poller() {
return Pollers.fixedRate(500)
.errorChannel("myErrors");
}
See Pollers and PollerSpec in the Javadoc for more information.
Important
If you use the DSL to construct a PollerSpec as a @Bean, do not call the get() method in
the bean definition. The PollerSpec is a FactoryBean that generates the PollerMetadata
object from the specification and initializes all of its properties.
11.4 DSL and Endpoint Configuration
All IntegrationFlowBuilder EIP methods have a variant that applies the lambda parameter
to provide options for AbstractEndpoint instances: SmartLifecycle, PollerMetadata,
request-handler-advice-chain, and others. Each of them has generic arguments, so it lets you
configure an endpoint and even its MessageHandler in the context, as the following example shows:
@Bean
public IntegrationFlow flow2() {
return IntegrationFlows.from(this.inputChannel)
.transform(new PayloadSerializingTransformer(),
c -> c.autoStartup(false).id("payloadSerializingTransformer"))
.transform((Integer p) -> p * 2, c -> c.advice(this.expressionAdvice()))
.get();
}
In addition, the EndpointSpec provides an id() method to let you register an endpoint bean with a
given bean name, rather than a generated one.
If the MessageHandler is referenced as a bean, then any existing adviceChain configuration will be
overridden if the .advice() method is present in the DSL definition:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 203
@Bean
public TcpOutboundGateway tcpOut() {
TcpOutboundGateway gateway = new TcpOutboundGateway();
gateway.setConnectionFactory(cf());
gateway.setAdviceChain(Collections.singletonList(fooAdvice()));
return gateway;
}
@Bean
public IntegrationFlow clientTcpFlow() {
return f -> f
.handle(tcpOut(), e -> e.advice(testAdvice()))
.transform(Transformers.objectToString());
}
i.e. they are not merged, only the testAdvice() bean is used in this case.
11.5 Transformers
The DSL API provides a convenient, fluent Transformers factory to be used as inline target object
definition within the .transform() EIP method. The following example shows how to use it:
@Bean
public IntegrationFlow transformFlow() {
return IntegrationFlows.from("input")
.transform(Transformers.fromJson(MyPojo.class))
.transform(Transformers.serializer())
.get();
}
It avoids inconvenient coding using setters and makes the flow definition more straightforward. Note
that you can use Transformers to declare target Transformer instances as @Bean instances and,
again, use them from IntegrationFlow definition as bean methods. Nevertheless, the DSL parser
takes care of bean declarations for inline objects, if they are not yet defined as beans.
See [https://docs.spring.io/spring-integration/api/org/springframework/integration/dsl/
Transformers.html] in the Javadoc for more information and supported factory methods.
Also see Lambdas And Message<?> Arguments.
11.6 Inbound Channel Adapters
Typically, message flows start from an inbound channel adapter (such as <int-jdbc:inbound-
channel-adapter>). The adapter is configured with <poller>, and it asks a MessageSource<?
> to periodically produce messages. Java DSL allows for starting IntegrationFlow
from a MessageSource<?>, too. For this purpose, the IntegrationFlows builder factory
provides an overloaded IntegrationFlows.from(MessageSource<?> messageSource)
method. You can configure the MessageSource<?> as a bean and provide it as an
argument for that method. The second parameter of IntegrationFlows.from() is a
Consumer<SourcePollingChannelAdapterSpec> lambda that lets you provide options (such as
PollerMetadata or SmartLifecycle) for the SourcePollingChannelAdapter. The following
example shows how to use the fluent API and a lambda to create an IntegrationFlow:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 204
@Bean
public MessageSource<Object> jdbcMessageSource() {
return new JdbcPollingChannelAdapter(this.dataSource, "SELECT * FROM something");
}
@Bean
public IntegrationFlow pollingFlow() {
return IntegrationFlows.from(jdbcMessageSource(),
c -> c.poller(Pollers.fixedRate(100).maxMessagesPerPoll(1)))
.transform(Transformers.toJson())
.channel("furtherProcessChannel")
.get();
}
For those cases that have no requirements to build Message objects directly, you can use the
IntegrationFlows.from() variant that is based on the java.util.function.Supplier . The
result of the Supplier.get() is automatically wrapped in a Message (if it is not already a Message).
11.7 Message Routers
Spring Integration natively provides specialized router types, including:
•HeaderValueRouter
•PayloadTypeRouter
•ExceptionTypeRouter
•RecipientListRouter
•XPathRouter
As with many other DSL IntegrationFlowBuilder EIP methods, the route() method can
apply any AbstractMessageRouter implementation or, for convenience, a String as a SpEL
expression or a ref-method pair. In addition, you can configure route() with a lambda and use a
lambda for a Consumer<RouterSpec<MethodInvokingRouter>>. The fluent API also provides
AbstractMappingMessageRouter options such as channelMapping(String key, String
channelName) pairs, as the following example shows:
@Bean
public IntegrationFlow routeFlow() {
return IntegrationFlows.from("routerInput")
.<Integer, Boolean>route(p -> p % 2 == 0,
m -> m.suffix("Channel")
.channelMapping("true", "even")
.channelMapping("false", "odd")
)
.get();
}
The following example shows a simple expression-based router:
@Bean
public IntegrationFlow routeFlow() {
return IntegrationFlows.from("routerInput")
.route("headers['destChannel']")
.get();
}
The routeToRecipients() method takes a Consumer<RecipientListRouterSpec>, as the
following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 205
@Bean
public IntegrationFlow recipientListFlow() {
return IntegrationFlows.from("recipientListInput")
.<String, String>transform(p -> p.replaceFirst("Payload", ""))
.routeToRecipients(r -> r
.recipient("thing1-channel", "'thing1' == payload")
.recipient("thing2-channel", m ->
m.getHeaders().containsKey("recipient")
&& (boolean) m.getHeaders().get("recipient"))
.recipientFlow("'thing1' == payload or 'thing2' == payload or 'thing3' == payload",
f -> f.<String, String>transform(String::toUpperCase)
.channel(c -> c.queue("recipientListSubFlow1Result")))
.recipientFlow((String p) -> p.startsWith("thing3"),
f -> f.transform("Hello "::concat)
.channel(c -> c.queue("recipientListSubFlow2Result")))
.recipientFlow(new FunctionExpression<Message<?>>(m ->
"thing3".equals(m.getPayload())),
f -> f.channel(c -> c.queue("recipientListSubFlow3Result")))
.defaultOutputToParentFlow())
.get();
}
The .defaultOutputToParentFlow() of the .routeToRecipients() definition lets you set the
router’s defaultOutput as a gateway to continue a process for the unmatched messages in the main
flow.
Also see Lambdas And Message<?> Arguments.
11.8 Splitters
To create a splitter, use the split() EIP method. By default, if the payload is an Iterable,
an Iterator, an Array, a Stream, or a reactive Publisher, the split() method outputs
each item as an individual message. It accepts a lambda, a SpEL expression, or any
AbstractMessageSplitter implementation. Alternatively, you can use it without parameters to
provide the DefaultMessageSplitter. The following example shows how to use the split()
method by providing a lambda:
@Bean
public IntegrationFlow splitFlow() {
return IntegrationFlows.from("splitInput")
.split(s ->
s.applySequence(false).get().getT2().setDelimiters(","))
.channel(MessageChannels.executor(this.taskExecutor()))
.get();
}
The preceding example creates a splitter that splits a message containing a comma-delimited
String. Note: The getT2() method comes from a Tuple Collection, which is the result
of EndpointSpec.get(), and represents a pair of ConsumerEndpointFactoryBean and
DefaultMessageSplitter for the preceding example.
Also see Lambdas And Message<?> Arguments.
11.9 Aggregators and Resequencers
An Aggregator is conceptually the opposite of a Splitter. It aggregates a sequence of individual
messages into a single message and is necessarily more complex. By default, an aggregator returns a
message that contains a collection of payloads from incoming messages. The same rules are applied for
the Resequencer. The following example shows a canonical example of the splitter-aggregator pattern:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 206
@Bean
public IntegrationFlow splitAggregateFlow() {
return IntegrationFlows.from("splitAggregateInput")
.split()
.channel(MessageChannels.executor(this.taskExecutor()))
.resequence()
.aggregate()
.get();
}
The split() method splits the list into individual messages and sends them to the
ExecutorChannel. The resequence() method reorders messages by sequence details found in the
message headers. The aggregate() method collects those messages.
However, you can change the default behavior by specifying a release strategy and correlation strategy,
among other things. Consider the following example:
.aggregate(a ->
a.correlationStrategy(m -> m.getHeaders().get("myCorrelationKey"))
.releaseStrategy(g -> g.size() > 10)
.messageStore(messageStore()))
The preceding example correlates messages that have myCorrelationKey headers and releases the
messages once at least ten have been accumulated.
Similar lambda configurations are provided for the resequence() EIP method.
11.10 Service Activators and the .handle() method
The .handle() EIP method’s goal is to invoke any MessageHandler implementation or any method
on some POJO. Another option is to define an "activity" by using lambda expressions. Consequently,
we introduced a generic GenericHandler<P> functional interface. Its handle method requires two
arguments: P payload and MessageHeaders headers (starting with version 5.1). Having that, we
can define a flow as follows:
@Bean
public IntegrationFlow myFlow() {
return IntegrationFlows.from("flow3Input")
.<Integer>handle((p, h) -> p * 2)
.get();
}
The preceding example doubles any integer it receives.
However, one main goal of Spring Integration is loose coupling, through runtime type conversion
from message payload to the target arguments of the message handler. Since Java does not
support generic type resolution for lambda classes, we introduced a workaround with an additional
payloadType argument for the most EIP methods and LambdaMessageProcessor. Doing so
delegates the hard conversion work to Spring’s ConversionService, which uses the provided type
and the requested message to target method arguments. The following example shows what the
resulting IntegrationFlow might look like:
@Bean
public IntegrationFlow integerFlow() {
return IntegrationFlows.from("input")
.<byte[], String>transform(p - > new String(p, "UTF-8"))
.handle(Integer.class, (p, h) -> p * 2)
.get();
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 207
We also can register some BytesToIntegerConverter within ConversionService to get rid of
that additional .transform():
@Bean
@IntegrationConverter
public BytesToIntegerConverter bytesToIntegerConverter() {
return new BytesToIntegerConverter();
}
@Bean
public IntegrationFlow integerFlow() {
return IntegrationFlows.from("input")
.handle(Integer.class, (p, h) -> p * 2)
.get();
}
Also see Lambdas And Message<?> Arguments.
11.11 Operator log()
For convenience, to log the message journey through the Spring Integration flow (<logging-
channel-adapter>), a log() operator is presented. Internally, it is represented by the WireTap
ChannelInterceptor with a LoggingHandler as its subscriber. It is responsible for logging the
incoming message into the next endpoint or the current channel. The following example shows how to
use LoggingHandler:
.filter(...)
.log(LoggingHandler.Level.ERROR, "test.category", m -> m.getHeaders().getId())
.route(...)
In the preceding example, an id header is logged at the ERROR level onto test.category only for
messages that passed the filter and before routing.
When this operator is used at the end of a flow, it is a one-way handler and the flow ends. To make
it as a reply-producing flow, you can either use a simple bridge() after the log() or, starting with
version 5.1, you can use a logAndReply() operator instead. logAndReply can only be used at the
end of a flow.
11.12 MessageChannelSpec.wireTap()
Spring Integration includes a .wireTap() fluent API MessageChannelSpec builders. The following
example shows how to use the wireTap method to log input:
@Bean
public QueueChannelSpec myChannel() {
return MessageChannels.queue()
.wireTap("loggingFlow.input");
}
@Bean
public IntegrationFlow loggingFlow() {
return f -> f.log();
}
Important
If the MessageChannel is an instance of ChannelInterceptorAware, the log() or
wireTap() operators are applied to the current MessageChannel. Otherwise, an intermediate
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 208
DirectChannel is injected into the flow for the currently configured endpoint. In the following
example, the WireTap interceptor is added to myChannel directly, because DirectChannel
implements ChannelInterceptorAware:
@Bean
MessageChannel myChannel() {
return new DirectChannel();
}
...
.channel(myChannel())
.log()
}
When the current MessageChannel does not implement ChannelInterceptorAware, an implicit
DirectChannel and BridgeHandler are injected into the IntegrationFlow, and the WireTap is
added to this new DirectChannel. The following example does not have any channel declaration:
.handle(...)
.log()
}
In the preceding example (and any time no channel has been declared), an implicit DirectChannel
is injected in the current position of the IntegrationFlow and used as an output channel for the
currently configured ServiceActivatingHandler (from the .handle(), described earlier).
11.13 Working With Message Flows
IntegrationFlowBuilder provides a top-level API to produce integration components wired to
message flows. When your integration may be accomplished with a single flow (which is often the case),
this is convenient. Alternately IntegrationFlow instances can be joined via MessageChannel
instances.
By default, MessageFlow behaves as a "chain" in Spring Integration parlance. That is, the endpoints
are automatically and implicitly wired by DirectChannel instances. The message flow is not actually
constructed as a chain, which offers much more flexibility. For example, you may send a message to any
component within the flow, if you know its inputChannel name (that is, if you explicitly define it). You
may also reference externally defined channels within a flow to allow the use of channel adapters (to
enable remote transport protocols, file I/O, and so on), instead of direct channels. As such, the DSL does
not support the Spring Integration chain element, because it does not add much value in this case.
Since the Spring Integration Java DSL produces the same bean definition model as any other
configuration options and is based on the existing Spring Framework @Configuration infrastructure,
it can be used together with XML definitions and wired with Spring Integration messaging annotation
configuration.
You can also define direct IntegrationFlow instances by using a lambda. The following example
shows how to do so:
@Bean
public IntegrationFlow lambdaFlow() {
return f -> f.filter("World"::equals)
.transform("Hello "::concat)
.handle(System.out::println);
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 209
The result of this definition is the same set of integration components that are wired with an implicit
direct channel. The only limitation here is that this flow is started with a named direct channel -
lambdaFlow.input. Also, a Lambda flow cannot start from MessageSource or MessageProducer.
Starting with version 5.1, this kind of IntegrationFlow is wrapped to the proxy to
expose lifecycle control and provide access to the inputChannel of the internally associated
StandardIntegrationFlow.
Starting with version 5.0.6, the generated bean names for the components in
an IntegrationFlow include the flow bean followed by a dot (.) as a
prefix. For example, the ConsumerEndpointFactoryBean for the .transform("Hello
"::concat) in the preceding sample results in a bean name of
lambdaFlow.o.s.i.config.ConsumerEndpointFactoryBean#0. (The o.s.i is a shortened
from org.springframework.integration to fit on the page.) The Transformer implementation
bean for that endpoint has a bean name of lambdaFlow.transformer#0 (starting with version 5.1),
where instead of a fully qualified name of the MethodInvokingTransformer class, its component
type is used. The same pattern is applied for all the NamedComponent s when the bean name has to be
generated within the flow. These generated bean names are prepended with the flow ID for purposes
such as parsing logs or grouping components together in some analysis tool, as well as to avoid a race
condition when we concurrently register integration flows at runtime. See Section 11.18, “Dynamic and
Runtime Integration Flows” for more information.
11.14 FunctionExpression
We introduced the FunctionExpression class (an implementation of SpEL’s Expression interface)
to let us use lambdas and generics. The Function<T, R> option is provided for the DSL
components, along with an expression option, when there is the implicit Strategy variant from Core
Spring Integration. The following example shows how to use a function expression:
.enrich(e -> e.requestChannel("enrichChannel")
.requestPayload(Message::getPayload)
.propertyFunction("date", m -> new Date()))
The FunctionExpression also supports runtime type conversion, as is done in SpelExpression.
11.15 Sub-flows support
Some of if...else and publish-subscribe components provide the ability to specify their logic
or mapping by using sub-flows. The simplest sample is .publishSubscribeChannel(), as the
following example shows:
@Bean
public IntegrationFlow subscribersFlow() {
return flow -> flow
.publishSubscribeChannel(Executors.newCachedThreadPool(), s -> s
.subscribe(f -> f
.<Integer>handle((p, h) -> p / 2)
.channel(c -> c.queue("subscriber1Results")))
.subscribe(f -> f
.<Integer>handle((p, h) -> p * 2)
.channel(c -> c.queue("subscriber2Results"))))
.<Integer>handle((p, h) -> p * 3)
.channel(c -> c.queue("subscriber3Results"));
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 210
You can achieve the same result with separate IntegrationFlow @Bean definitions, but we hope
you find the sub-flow style of logic composition useful. We find that it results in shorter (and so more
readable) code.
A similar publish-subscribe sub-flow composition provides the .routeToRecipients() method.
Another example is using .discardFlow() instead of .discardChannel() on the .filter()
method.
The .route() deserves special attention. Consider the following example:
@Bean
public IntegrationFlow routeFlow() {
return f -> f
.<Integer, Boolean>route(p -> p % 2 == 0,
m -> m.channelMapping("true", "evenChannel")
.subFlowMapping("false", sf ->
sf.<Integer>handle((p, h) -> p * 3)))
.transform(Object::toString)
.channel(c -> c.queue("oddChannel"));
}
The .channelMapping() continues to work as it does in regular Router mapping, but the
.subFlowMapping() tied that sub-flow to the main flow. In other words, any router’s sub-flow returns
to the main flow after .route().
Important
Sometimes, you need to refer to an existing IntegrationFlow @Bean from the
.subFlowMapping(). The following example shows how to do so:
@Bean
public IntegrationFlow splitRouteAggregate() {
return f -> f
.split()
.<Integer, Boolean>route(o -> o % 2 == 0,
m -> m
.subFlowMapping(true, oddFlow())
.subFlowMapping(false, sf -> sf.gateway(evenFlow())))
.aggregate();
}
@Bean
public IntegrationFlow oddFlow() {
return f -> f.handle(m -> System.out.println("odd"));
}
@Bean
public IntegrationFlow evenFlow() {
return f -> f.handle((p, h) -> "even");
}
In this case, when you need to receive a reply from such a sub-flow and continue the main flow, this
IntegrationFlow bean reference (or its input channel) has to be wrapped with a .gateway()
as shown in the preceding example. The oddFlow() reference in the preceding example is
not wrapped to the .gateway(). Therefore, we do not expect a reply from this routing branch.
Otherwise, you end up with an exception similar to the following:
Caused by: org.springframework.beans.factory.BeanCreationException: The
'currentComponent' (org.springframework.integration.router.MethodInvokingRouter@7965a51c) is a
one-way 'MessageHandler' and it isn't appropriate to configure 'outputChannel'. This is the end
of the integration flow.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 211
When you configure a sub-flow as a lambda, the framework handles the request-reply interaction
with the sub-flow and a gateway is not needed.
Sub-flows can be nested to any depth, but we do not recommend doing so. In fact, even in the router
case, adding complex sub-flows within a flow would quickly begin to look like a plate of spaghetti and
be difficult for a human to parse.
11.16 Using Protocol Adapters
All of the examples shown so far illustrate how the DSL supports a messaging architecture by using
the Spring Integration programming model. However, we have yet to do any real integration. Doing so
requires access to remote resources over HTTP, JMS, AMQP, TCP, JDBC, FTP, SMTP, and so on
or access to the local file system. Spring Integration supports all of these and more. Ideally, the DSL
should offer first class support for all of them, but it is a daunting task to implement all of these and keep
up as new adapters are added to Spring Integration. So the expectation is that the DSL is continually
catching up with Spring Integration.
Consequently, we provide the high-level API to seamlessly define protocol-specific messaging. We do
so with the factory and builder patterns and with lambdas. You can think of the factory classes as
"Namespace Factories", because they play the same role as the XML namespace for components
from the concrete protocol-specific Spring Integration modules. Currently, Spring Integration Java DSL
supports the Amqp, Feed, Jms, Files, (S)Ftp, Http, JPA, MongoDb, TCP/UDP, Mail, WebFlux,
and Scripts namespace factories. The following example shows how to use three of them (Amqp,
Jms, and Mail):
@Bean
public IntegrationFlow amqpFlow() {
return IntegrationFlows.from(Amqp.inboundGateway(this.rabbitConnectionFactory, queue()))
.transform("hello "::concat)
.transform(String.class, String::toUpperCase)
.get();
}
@Bean
public IntegrationFlow jmsOutboundGatewayFlow() {
return IntegrationFlows.from("jmsOutboundGatewayChannel")
.handle(Jms.outboundGateway(this.jmsConnectionFactory)
.replyContainer(c ->
c.concurrentConsumers(3)
.sessionTransacted(true))
.requestDestination("jmsPipelineTest"))
.get();
}
@Bean
public IntegrationFlow sendMailFlow() {
return IntegrationFlows.from("sendMailChannel")
.handle(Mail.outboundAdapter("localhost")
.port(smtpPort)
.credentials("user", "pw")
.protocol("smtp")
.javaMailProperties(p -> p.put("mail.debug", "true")),
e -> e.id("sendMailEndpoint"))
.get();
}
The preceding example shows how to use the "namespace factories" as inline adapters
declarations. However, you can use them from @Bean definitions to make the IntegrationFlow
method chain more readable.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 212
Note
We are soliciting community feedback on these namespace factories before we spend effort on
others. We also appreciate any input into prioritization for which adapters and gateways we should
support next.
You can find more Java DSL samples in the protocol-specific chapters throughout this reference manual.
All other protocol channel adapters may be configured as generic beans and wired to the
IntegrationFlow, as the following examples show:
@Bean
public QueueChannelSpec wrongMessagesChannel() {
return MessageChannels
.queue()
.wireTap("wrongMessagesWireTapChannel");
}
@Bean
public IntegrationFlow xpathFlow(MessageChannel wrongMessagesChannel) {
return IntegrationFlows.from("inputChannel")
.filter(new StringValueTestXPathMessageSelector("namespace-uri(/*)", "my:namespace"),
e -> e.discardChannel(wrongMessagesChannel))
.log(LoggingHandler.Level.ERROR, "test.category", m -> m.getHeaders().getId())
.route(xpathRouter(wrongMessagesChannel))
.get();
}
@Bean
public AbstractMappingMessageRouter xpathRouter(MessageChannel wrongMessagesChannel) {
XPathRouter router = new XPathRouter("local-name(/*)");
router.setEvaluateAsString(true);
router.setResolutionRequired(false);
router.setDefaultOutputChannel(wrongMessagesChannel);
router.setChannelMapping("Tags", "splittingChannel");
router.setChannelMapping("Tag", "receivedChannel");
return router;
}
11.17 IntegrationFlowAdapter
The IntegrationFlow interface can be implemented directly and specified as a component for
scanning, as the following example shows:
@Component
public class MyFlow implements IntegrationFlow {
@Override
public void configure(IntegrationFlowDefinition<?> f) {
f.<String, String>transform(String::toUpperCase);
}
}
It is picked up by the IntegrationFlowBeanPostProcessor and correctly parsed and registered
in the application context.
For convenience and to gain the benefits of loosely coupled architecture, we provide the
IntegrationFlowAdapter base class implementation. It requires a buildFlow() method
implementation to produce an IntegrationFlowDefinition by using one of from() methods, as
the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 213
@Component
public class MyFlowAdapter extends IntegrationFlowAdapter {
private final AtomicBoolean invoked = new AtomicBoolean();
public Date nextExecutionTime(TriggerContext triggerContext) {
return this.invoked.getAndSet(true) ? null : new Date();
}
@Override
protected IntegrationFlowDefinition<?> buildFlow() {
return from(this, "messageSource",
e -> e.poller(p -> p.trigger(this::nextExecutionTime)))
.split(this)
.transform(this)
.aggregate(a -> a.processor(this, null), null)
.enrichHeaders(Collections.singletonMap("thing1", "THING1"))
.filter(this)
.handle(this)
.channel(c -> c.queue("myFlowAdapterOutput"));
}
public String messageSource() {
return "T,H,I,N,G,2";
}
@Splitter
public String[] split(String payload) {
return StringUtils.commaDelimitedListToStringArray(payload);
}
@Transformer
public String transform(String payload) {
return payload.toLowerCase();
}
@Aggregator
public String aggregate(List<String> payloads) {
return payloads.stream().collect(Collectors.joining());
}
@Filter
public boolean filter(@Header Optional<String> thing1) {
return thing1.isPresent();
}
@ServiceActivator
public String handle(String payload, @Header String thing1) {
return payload + ":" + thing1;
}
}
11.18 Dynamic and Runtime Integration Flows
IntegrationFlow and all its dependent components can be registered at runtime. Before version 5.0,
we used the BeanFactory.registerSingleton() hook. Starting in the Spring Framework 5.0,
we use the instanceSupplier hook for programmatic BeanDefinition registration. The following
example shows how to programmatically register a bean:
BeanDefinition beanDefinition =
BeanDefinitionBuilder.genericBeanDefinition((Class<Object>) bean.getClass(), () -> bean)
.getRawBeanDefinition();
((BeanDefinitionRegistry) this.beanFactory).registerBeanDefinition(beanName, beanDefinition);
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 214
Note that, in the preceding example, the instanceSupplier hook is the last parameter to the
genericBeanDefinition method, provided by a lambda in this case.
All the necessary bean initialization and lifecycle is done automatically, as it is with the standard context
configuration bean definitions.
To simplify the development experience, Spring Integration introduced IntegrationFlowContext
to register and manage IntegrationFlow instances at runtime, as the following example shows:
@Autowired
private AbstractServerConnectionFactory server1;
@Autowired
private IntegrationFlowContext flowContext;
...
@Test
public void testTcpGateways() {
TestingUtilities.waitListening(this.server1, null);
IntegrationFlow flow = f -> f
.handle(Tcp.outboundGateway(Tcp.netClient("localhost", this.server1.getPort())
.serializer(TcpCodecs.crlf())
.deserializer(TcpCodecs.lengthHeader1())
.id("client1"))
.remoteTimeout(m -> 5000))
.transform(Transformers.objectToString());
IntegrationFlowRegistration theFlow = this.flowContext.registration(flow).register();
assertThat(theFlow.getMessagingTemplate().convertSendAndReceive("foo", String.class),
equalTo("FOO"));
}
This is useful when we have multiple configuration options and have to create several instances of
similar flows. To do so, we can iterate our options and create and register IntegrationFlow instances
within a loop. Another variant is when our source of data is not Spring-based and we must create it on
the fly. Such a sample is Reactive Streams event source, as the following example shows:
Flux<Message<?>> messageFlux =
Flux.just("1,2,3,4")
.map(v -> v.split(","))
.flatMapIterable(Arrays::asList)
.map(Integer::parseInt)
.map(GenericMessage<Integer>::new);
QueueChannel resultChannel = new QueueChannel();
IntegrationFlow integrationFlow =
IntegrationFlows.from(messageFlux)
.<Integer, Integer>transform(p -> p * 2)
.channel(resultChannel)
.get();
this.integrationFlowContext.registration(integrationFlow)
.register();
The IntegrationFlowRegistrationBuilder (as a result of the
IntegrationFlowContext.registration()) can be used to specify a bean name for the
IntegrationFlow to register, to control its autoStartup, and to register, non-Spring Integration
beans. Usually, those additional beans are connection factories (AMQP, JMS, (S)FTP, TCP/UDP, and
others.), serializers and deserializers, or any other required support components.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 215
You can use the IntegrationFlowRegistration.destroy() callback to remove a dynamically
registered IntegrationFlow and all its dependent beans when you no longer need them. See the
IntegrationFlowContext Javadoc for more information.
Note
Starting with version 5.0.6, all generated bean names in an IntegrationFlow definition are
prepended with the flow ID as a prefix. We recommend always specifying an explicit flow ID.
Otherwise, a synchronization barrier is initiated in the IntegrationFlowContext, to generate
the bean name for the IntegrationFlow and register its beans. We synchronize on these
two operations to avoid a race condition when the same generated bean name may be used for
different IntegrationFlow instances.
Also, starting with version 5.0.6, the registration builder API has a new method:
useFlowIdAsPrefix(). This is useful if you wish to declare multiple instances of the same flow and
avoid bean name collisions when components in the flows have the same ID, as the following example
shows:
private void registerFlows() {
IntegrationFlowRegistration flow1 =
this.flowContext.registration(buildFlow(1234))
.id("tcp1")
.useFlowIdAsPrefix()
.register();
IntegrationFlowRegistration flow2 =
this.flowContext.registration(buildFlow(1235))
.id("tcp2")
.useFlowIdAsPrefix()
.register();
}
private IntegrationFlow buildFlow(int port) {
return f -> f
.handle(Tcp.outboundGateway(Tcp.netClient("localhost", port)
.serializer(TcpCodecs.crlf())
.deserializer(TcpCodecs.lengthHeader1())
.id("client"))
.remoteTimeout(m -> 5000))
.transform(Transformers.objectToString());
}
In this case, the message handler for the first flow can be referenced with bean a name of
tcp1.client.handler.
Note
An id attribute is required when you usE useFlowIdAsPrefix().
11.19 IntegrationFlow as Gateway
The IntegrationFlow can start from the service interface that provides a
GatewayProxyFactoryBean component, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 216
public interface ControlBusGateway {
void send(String command);
}
...
@Bean
public IntegrationFlow controlBusFlow() {
return IntegrationFlows.from(ControlBusGateway.class)
.controlBus()
.get();
}
All the proxy for interface methods are supplied with the channel to send messages to the
next integration component in the IntegrationFlow. You can mark the service interface with
the @MessagingGateway annotation and mark the methods with the @Gateway annotations.
Nevertheless, the requestChannel is ignored and overridden with that internal channel for the
next component in the IntegrationFlow. Otherwise, creating such a configuration by using
IntegrationFlow does not make sense.
By default a GatewayProxyFactoryBean gets a conventional bean name, such as
[FLOW_BEAN_NAME.gateway]. You can change that ID by using the @MessagingGateway.name()
attribute or the overloaded from(Class<?> serviceInterface, String beanName) factory
method.
With Java 8, you can even create an integration fateway with the java.util.function interfaces,
as the following example shows:
@Bean
public IntegrationFlow errorRecovererFlow() {
return IntegrationFlows.from(Function.class, "errorRecovererFunction")
.handle((GenericHandler<?>) (p, h) -> {
throw new RuntimeException("intentional");
}, e -> e.advice(retryAdvice()))
.get();
}
That errorRecovererFlow can be used as follows:
@Autowired
@Qualifier("errorRecovererFunction")
private Function<String, String> errorRecovererFlowGateway;
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 217
12. System Management
12.1 Metrics and Management
This section describes how to capture metrics for Spring Integration. In recent versions, we have relied
more on Micrometer (see http://micrometer.io), and we plan to use Micrometer even more in future
releases.
Configuring Metrics Capture
Note
Prior to version 4.2, metrics were only available when JMX was enabled. See Section 12.2, “JMX
Support”.
To enable MessageSource, MessageChannel, and MessageHandler metrics, add an
<int:management/> bean to the application context (in XML) or annotate one of your
@Configuration classes with @EnableIntegrationManagement (in Java). MessageSource
instances maintain only counts, MessageChannel instances and MessageHandler instances
maintain duration statistics in addition to counts. See the section called “MessageChannel Metric
Features” and the section called “MessageHandler Metric Features”, later in this chapter.
Doing so causes the automatic registration of the IntegrationManagementConfigurer bean in
the application context. Only one such bean can exist in the context, and, if registered manually via a
<bean/> definition, it must have the bean name set to integrationManagementConfigurer. This
bean applies its configuration to beans after all beans in the context have been instantiated.
In addition to metrics, you can control debug logging in the main message flow. In very high volume
applications, even calls to isDebugEnabled() can be quite expensive with some logging subsystems.
You can disable all such logging to avoid this overhead. Exception logging (debug or otherwise) is not
affected by this setting.
The following listing shows the available options for controlling logging:
<int:management
default-logging-enabled="true" ❶
default-counts-enabled="false" ❷
default-stats-enabled="false" ❸
counts-enabled-patterns="foo, !baz, ba*" ❹
stats-enabled-patterns="fiz, buz" ❺
metrics-factory="myMetricsFactory" /> ❻
@Configuration
@EnableIntegration
@EnableIntegrationManagement(
defaultLoggingEnabled = "true", ❶
defaultCountsEnabled = "false", ❷
defaultStatsEnabled = "false", ❸
countsEnabled = { "foo", "${count.patterns}" }, ❹
statsEnabled = { "qux", "!*" }, ❺
MetricsFactory = "myMetricsFactory") ❻
public static class ContextConfiguration {
...
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 218
❶❶ Set to false to disable all logging in the main message flow, regardless of the log system category
settings. Set to true to enable debug logging (if also enabled by the logging subsystem). Only
applied if you have not explicitly configured the setting in a bean definition. The default is true.
❷❷ Enable or disable count metrics for components that do not match one of the patterns in <4>. Only
applied if you have not explicitly configured the setting in a bean definition. The default is false.
❸❸ Enable or disable statistical metrics for components that do not match one of the patterns in <5>.
Only applied if you have not explicitly configured the setting in a bean definition. The default is false.
❹❹ A comma-delimited list of patterns for beans for which counts should be enabled. You can negate
the pattern with !. First match (positive or negative) wins. In the unlikely event that you have a
bean name starting with !, escape the ! in the pattern. For example, \!something positively
matches a bean named !something.
❺❺ A comma-delimited list of patterns for beans for which statistical metrics should be enabled. You
can negate the pattern\ with !. First match (positive or negative) wins. In the unlikely event that you
have a bean name starting with !, escape the ! in the pattern. \!something positively matches
a bean named !something. The collection of statistics implies the collection of counts.
❻❻ A reference to a MetricsFactory. See the section called “Metrics Factory”.
At runtime, counts and statistics can be obtained by calling
getChannelMetrics, getHandlerMetrics and getSourceMetrics (all from the
IntegrationManagementConfigurer class), which return MessageChannelMetrics,
MessageHandlerMetrics, and MessageSourceMetrics, respectively.
See the Javadoc for complete information about these classes.
When JMX is enabled (see Section 12.2, “JMX Support”), IntegrationMBeanExporter also
exposes these metrics.
IMPORTANT: defaultLoggingEnabled, defaultCountsEnabled, and
defaultStatsEnabled are applied only if you have not explicitly configured the corresponding setting
in a bean definition.
Starting with version 5.0.2, the framework automatically detects whether the application context has a
single MetricsFactory bean and, if so, uses it instead of the default metrics factory.
Micrometer Integration
Starting with version 5.0.3, the presence of a Micrometer MeterRegistry in the application context
triggers support for Micrometer metrics in addition to the built-in metrics (note that built-in metrics will
be removed in a future release).
Important
Micrometer was first supported in version 5.0.2, but changes were made to the Micrometer
Meters in version 5.0.3 to make them more suitable for use in dimensional systems. Further
changes were made in 5.0.4. If you use Micrometer, a minimum of version 5.0.4 is recommended,
since some of the changes in 5.0.4 were breaking API changes.
To use Micrometer, add one of the MeterRegistry beans to the application context. If the
IntegrationManagementConfigurer detects exactly one MeterRegistry bean, it configures a
MicrometerMetricsCaptor bean with a name of integrationMicrometerMetricsCaptor.
For each MessageHandler and MessageChannel, timers are registered. For each MessageSource,
a counter is registered.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 219
This only applies to objects that extend AbstractMessageHandler, AbstractMessageChannel,
and AbstractMessageSource (which is the case for most framework components).
With Micrometer metrics, the statsEnabled flag has no effect, since statistics capture is delegated to
Micrometer. The countsEnabled flag controls whether the Micrometer Meter instances are updated
when processing each message.
The Timer Meters for send operations on message channels have the following names or tags:
•name: spring.integration.send
•tag: type:channel
•tag: name:<componentName>
•tag: result:(success|failure)
•tag: exception:(none|exception simple class name)
•description: Send processing time
(A failure result with a none exception means the channel’s send() operation returned false.)
The Counter Meters for receive operations on pollable message channels have the following names
or tags:
•name: spring.integration.receive
•tag: type:channel
•tag: name:<componentName>
•tag: result:(success|failure)
•tag: exception:(none|exception simple class name)
•description: Messages received
The Timer Meters for operations on message handlers have the following names or tags:
•name: spring.integration.send
•tag: type:handler
•tag: name:<componentName>
•tag: result:(success|failure)
•tag: exception:(none|exception simple class name)
•description: Send processing time
The Counter meters for message sources have the following names/tags:
•name: spring.integration.receive
•tag: type:source
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 220
•tag: name:<componentName>
•tag: result:success
•tag: exception:none
•description: Messages received
In addition, there are three Gauge Meters:
•spring.integration.channels: The number of MessageChannels in the application.
•spring.integration.handlers: The number of MessageHandlers in the application.
•spring.integration.sources: The number of MessageSources in the application.
It is possible to customize the names and tags of Meters created by integration components by
providing a subclass of MicrometerMetricsCaptor. The MicrometerCustomMetricsTests test case
shows a simple example of how to do that. You can also further customize the meters by overloading
the build() methods on builder subclasses.
MessageChannel Metric Features
These legacy metrics will be removed in a future release. See the section called “Micrometer
Integration”.
Message channels report metrics according to their concrete type. If you are looking at a
DirectChannel, you see statistics for the send operation. If it is a QueueChannel, you also see
statistics for the receive operation as well as the count of messages that are currently buffered by this
QueueChannel. In both cases, some metrics are simple counters (message count and error count),
and some are estimates of averages of interesting quantities. The algorithms used to calculate these
estimates are described briefly in the following table.
Table 12.1. MessageChannel Metrics
Metric Type Example Algorithm
Count Send Count Simple incrementer. Increases by one when an
event occurs.
Error Count Send Error Count Simple incrementer. Increases by one when an
send results in an error.
Duration Send Duration (method
execution time in milliseconds)
Exponential moving average with decay
factor (ten by default). Average of the method
execution time over roughly the last ten (by
default) measurements.
Rate Send Rate (number of
operations per second)
Inverse of Exponential moving average of the
interval between events with decay in time
(lapsing over 60 seconds by default) and per
measurement (last ten events by default).
Error Rate Send Error Rate (number of
errors per second)
Inverse of exponential moving average of the
interval between error events with decay in time
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 221
Metric Type Example Algorithm
(lapsing over 60 seconds by default) and per
measurement (last ten events by default).
Ratio Send Success Ratio (ratio of
successful to total sends)
Estimate the success ratio as the exponential
moving average of the series composed of
values (1 for success and 0 for failure, decaying
as per the rate measurement over time and
events by default). The error ratio is: 1 - success
ratio.
MessageHandler Metric Features
These legacy metrics will be removed in a future release. See the section called “Micrometer
Integration”.
The following table shows the statistics maintained for message handlers. Some metrics are simple
counters (message count and error count), and one is an estimate of averages of send duration. The
algorithms used to calculate these estimates are described briefly in the following table:
Table 12.2. MessageHandlerMetrics
Metric Type Example Algorithm
Count Handle Count Simple incrementer. Increases by one when an
event occurs.
Error Count Handler Error Count Simple incrementer. Increases by one when an
invocation results in an error.
Active Count Handler Active Count Indicates the number of currently active
threads currently invoking the handler (or any
downstream synchronous flow).
Duration Handle Duration (method
execution time in milliseconds)
Exponential moving average with decay
factor (ten by default). Average of the method
execution time over roughly the last ten (default)
measurements.
Time-Based Average Estimates
A feature of the time-based average estimates is that they decay with time if no new measurements
arrive. To help interpret the behavior over time, the time (in seconds) since the last measurement is
also exposed as a metric.
There are two basic exponential models: decay per measurement (appropriate for duration and anything
where the number of measurements is part of the metric) and decay per time unit (more suitable for rate
measurements where the time in between measurements is part of the metric). Both models depend
on the fact that S(n) = sum(i=0,i=n) w(i) x(i) has a special form when w(i) = r^i,
with r=constant: S(n) = x(n) + r S(n-1) (so you only have to store S(n-1) (not the whole
series x(i)) to generate a new metric estimate from the last measurement). The algorithms used in
the duration metrics use r=exp(-1/M) with M=10. The net effect is that the estimate, S(n), is more
heavily weighted to recent measurements and is composed roughly of the last M measurements. So M
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 222
is the "window" or lapse rate of the estimate. For the vanilla moving average, i is a counter over the
number of measurements. For the rate, we interpret i as the elapsed time or a combination of elapsed
time and a counter (so the metric estimate contains contributions roughly from the last M measurements
and the last T seconds).
Metrics Factory
A strategy interface MetricsFactory has been introduced to let you provide custom channel
metrics for your MessageChannel instances and MessageHandler instances. By default, a
DefaultMetricsFactory provides a default implementation of MessageChannelMetrics and
MessageHandlerMetrics, described earlier. To override the default MetricsFactory, configure
it as described earlier, by providing a reference to your MetricsFactory bean instance.
You can either customize the default implementations, as described in the next section, or
provide completely different implementations by extending AbstractMessageChannelMetrics or
AbstractMessageHandlerMetrics.
See also the section called “Micrometer Integration”.
In addition to the default metrics factory described earlier, the framework provides the
AggregatingMetricsFactory. This factory creates AggregatingMessageChannelMetrics
and AggregatingMessageHandlerMetrics instances. In very high volume scenarios, the cost of
capturing statistics can be prohibitive (the time to make two calls to the system and store the data for
each message). The aggregating metrics aggregate the response time over a sample of messages.
This can save significant CPU time.
Caution
The statistics are likely to be skewed if messages arrive in bursts. These metrics are intended for
use with high, constant-volume, message rates.
The following example shows how to define an aggregrating metrics factory:
<bean id="aggregatingMetricsFactory"
class="org.springframework.integration.support.management.AggregatingMetricsFactory">
<constructor-arg value="1000" /> <!-- sample size -->
</bean>
The preceding configuration aggregates the duration over 1000 messages. Counts (send and error) are
maintained per-message, but the statistics are per 1000 messages.
Customizing the Default Channel and Handler Statistics
See the section called “Time-Based Average Estimates” and the Javadoc for the
ExponentialMovingAverage* classes for more information about these values.
By default, the DefaultMessageChannelMetrics and DefaultMessageHandlerMetrics use a
"window" of ten measurements, a rate period of one second (meaning rate per second) and a decay
lapse period of one minute.
If you wish to override these defaults, you can provide a custom MetricsFactory that returns
appropriately configured metrics and provide a reference to it in the MBean exporter, as described
earlier.
The following example shows how to do so:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 223
public static class CustomMetrics implements MetricsFactory {
@Override
public AbstractMessageChannelMetrics createChannelMetrics(String name) {
return new DefaultMessageChannelMetrics(name,
new ExponentialMovingAverage(20, 1000000.),
new ExponentialMovingAverageRate(2000, 120000, 30, true),
new ExponentialMovingAverageRatio(130000, 40, true),
new ExponentialMovingAverageRate(3000, 140000, 50, true));
}
@Override
public AbstractMessageHandlerMetrics createHandlerMetrics(String name) {
return new DefaultMessageHandlerMetrics(name, new ExponentialMovingAverage(20, 1000000.));
}
}
Advanced Customization
The customizations described earlier are wholesale and apply to all appropriate beans exported by the
MBean exporter. This is the extent of customization available when you use XML configuration.
Individual beans can be provided with different implementations using by Java @Configuration
or programmatically at runtime (after the application context has been refreshed) by invoking the
configureMetrics methods on AbstractMessageChannel and AbstractMessageHandler.
Performance Improvement
Previously, the time-based metrics (see the section called “Time-Based Average Estimates”) were
calculated in real time. The statistics are now calculated when retrieved instead. This resulted in a
significant performance improvement, at the expense of a small amount of additional memory for each
statistic. As discussed earlier, you can disable the statistics altogether while retaining the MBean that
allows the invocation of Lifecycle methods.
12.2 JMX Support
Spring Integration provides channel Adapters for receiving and publishing JMX Notifications.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-jmx</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-jmx:5.1.1.RELEASE"
An inbound channel adapter allows for polling JMX MBean attribute values, and an outbound channel
adapter allows for invoking JMX MBean operations.
Notification-listening Channel Adapter
The notification-listening channel adapter requires a JMX ObjectName for the MBean that publishes
notifications to which this listener should be registered. A very simple configuration might resemble the
following:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 224
<int-jmx:notification-listening-channel-adapter id="adapter"
channel="channel"
object-name="example.domain:name=publisher"/>
Tip
The notification-listening-channel-adapter registers with an MBeanServer at
startup, and the default bean name is mbeanServer, which happens to be the same bean name
generated when using Spring’s <context:mbean-server/> element. If you need to use a
different name, be sure to include the mbean-server attribute.
The adapter can also accept a reference to a NotificationFilter and a "handback" object to
provide some context that is passed back with each notification. Both of those attributes are optional.
Extending the preceding example to include those attributes as well as an explicit MBeanServer bean
name produces the following example:
<int-jmx:notification-listening-channel-adapter id="adapter"
channel="channel"
mbean-server="someServer"
object-name="example.domain:name=somePublisher"
notification-filter="notificationFilter"
handback="myHandback"/>
The _Notification-listening channel adapter is event-driven and registered with the MBeanServer
directly. It does not require any poller configuration.
Note
For this component only, the object-name attribute can contain an object name pattern (for
example, "org.something:type=MyType,name=*"). In that case, the adapter receives notifications
from all MBeans with object names that match the pattern. In addition, the object-name attribute
can contain a SpEL reference to a <util:list> of object name patterns, as the following
example shows:
<jmx:notification-listening-channel-adapter id="manyNotificationsAdapter"
channel="manyNotificationsChannel"
object-name="#{patterns}"/>
<util:list id="patterns">
<value>org.foo:type=Foo,name=*</value>
<value>org.foo:type=Bar,name=*</value>
</util:list>
The names of the located MBean(s) are logged when DEBUG level logging is enabled.
Notification-publishing Channel Adapter
The notification-publishing channel adapter is relatively simple. It requires only a JMX object name in
its configuration, as the following example shows:
<context:mbean-export/>
<int-jmx:notification-publishing-channel-adapter id="adapter"
channel="channel"
object-name="example.domain:name=publisher"/>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 225
It also requires that an MBeanExporter be present in the context. That is why the <context:mbean-
export/> element is also shown in the preceding example.
When messages are sent to the channel for this adapter, the notification is created from the message
content. If the payload is a String, it is passed as the message text for the notification. Any other
payload type is passed as the userData of the notification.
JMX notifications also have a type, and it should be a dot-delimited String. There are two ways
to provide the type. Precedence is always given to a message header value associated with
the JmxHeaders.NOTIFICATION_TYPE key. Alternatively, you can provide a fallback default-
notification-type attribute in the configuration, as the following example shows:
<context:mbean-export/>
<int-jmx:notification-publishing-channel-adapter id="adapter"
channel="channel"
object-name="example.domain:name=publisher"
default-notification-type="some.default.type"/>
Attribute-polling Channel Adapter
The attribute-polling channel adapter is useful when you need to periodically check on some value that
is available through an MBean as a managed attribute. You can configured the poller in the same way
as any other polling adapter in Spring Integration (or you can rely on the default poller). The object-
name and the attribute-name are required. An MBeanServer reference is also required. However,
by default, it automatically checks for a bean named mbeanServer, same as the notification-listening
channel adapter described earlier. The following example shows how to configure an attribute-polling
channel adapter with XML:
<int-jmx:attribute-polling-channel-adapter id="adapter"
channel="channel"
object-name="example.domain:name=someService"
attribute-name="InvocationCount">
<int:poller max-messages-per-poll="1" fixed-rate="5000"/>
</int-jmx:attribute-polling-channel-adapter>
Tree-polling Channel Adapter
The tree-polling channel adapter queries the JMX MBean tree and sends a message with a payload that
is the graph of objects that matches the query. By default, the MBeans are mapped to primitives and
simple objects, such as Map, List, and arrays. Doing so permits simple transformation to (for example)
JSON. An MBeanServer reference is also required. However, by default, it automatically checks for a
bean named mbeanServer, same as the notification-listening channel adapter described earlier. The
following example shows how to configure an tree-polling channel adapter with XML:
<int-jmx:tree-polling-channel-adapter id="adapter"
channel="channel"
query-name="example.domain:type=*">
<int:poller max-messages-per-poll="1" fixed-rate="5000"/>
</int-jmx:tree-polling-channel-adapter>
The preceding example includes all of the attributes on the selected MBeans. You can filter the attributes
by providing an MBeanObjectConverter that has an appropriate filter configured. You can provide
the converter as a reference to a bean definition by using the converter attribute, or you can use an
inner <bean/> definition. Spring Integration provides a DefaultMBeanObjectConverter that can
take a MBeanAttributeFilter in its constructor argument.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 226
Spring Integration provides two standard filters. The NamedFieldsMBeanAttributeFilter lets you
specify a list of attributes to include. The NotNamedFieldsMBeanAttributeFilter lets you specify
a list of attributes to exclude. You can also implement your own filter.
Operation-invoking Channel Adapter
The operation-invoking channel adapter enables message-driven invocation of any managed operation
exposed by an MBean. Each invocation requires the operation name to be invoked and the object name
of the target MBean. Both of these must be explicitly provided by adapter configuration, as the following
example shows:
<int-jmx:operation-invoking-channel-adapter id="adapter"
object-name="example.domain:name=TestBean"
operation-name="ping"/>
Then the adapter only needs to be able to discover the mbeanServer bean. If a different bean name
is required, then provide the mbean-server attribute with a reference.
The payload of the message is mapped to the parameters of the operation, if any. A Map-typed payload
with String keys is treated as name/value pairs, whereas a List or array is passed as a simple
argument list (with no explicit parameter names). If the operation requires a single parameter value,
the payload can represent that single value. Also, if the operation requires no parameters, the payload
would be ignored.
If you want to expose a channel for a single common operation to be invoked by messages that need
not contain headers, that last option works well.
Operation-invoking Outbound Gateway
Similarly to the operation-invoking channel adapter, Spring Integration also provides an operation-
invoking outbound gateway, which you can use when dealing with non-void operations when a return
value is required. The return value is sent as the message payload to the reply-channel specified by
the gateway. The following example shows how to configure an operation-invoking outbound gateway
with XML:
<int-jmx:operation-invoking-outbound-gateway request-channel="requestChannel"
reply-channel="replyChannel"
object-name="o.s.i.jmx.config:type=TestBean,name=testBeanGateway"
operation-name="testWithReturn"/>
If you do not provide the reply-channel attribute, the reply message is sent to the channel identified
by the IntegrationMessageHeaderAccessor.REPLY_CHANNEL header. That header is typically
auto-created by the entry point into a message flow, such as any gateway component. However, if the
message flow was started by manually creating a Spring Integration message and sending it directly to
a channel, you must specify the message header explicitly or use the reply-channel attribute.
MBean Exporter
Spring Integration components may themselvesbe exposed as MBeans when
the IntegrationMBeanExporter is configured. To create an instance of the
IntegrationMBeanExporter, define a bean and provide a reference to an MBeanServer and
a domain name (if desired). You can leave out the domain, in which case the default domain is
org.springframework.integration. The following example shows how to declare an instance of
an IntegrationMBeanExporter and an associated MBeanServer instance:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 227
<int-jmx:mbean-export id="integrationMBeanExporter"
default-domain="my.company.domain" server="mbeanServer"/>
<bean id="mbeanServer" class="org.springframework.jmx.support.MBeanServerFactoryBean">
<property name="locateExistingServerIfPossible" value="true"/>
</bean>
Important
The MBean exporter is orthogonal to the one provided in Spring core. It registers message
channels and message handlers but does not register itself. You can expose the exporter itself
(and certain other components in Spring Integration) by using the standard <context:mbean-
export/> tag. The exporter has some metrics attached to it — for instance, a count of the number
of active handlers and the number of queued messages.
It also has a useful operation, as discussed in the section called “Orderly Shutdown Managed
Operation”.
Spring Integration 4.0 introduced the @EnableIntegrationMBeanExport annotation to
allow for convenient configuration of a default integrationMbeanExporter bean of type
IntegrationMBeanExporter with several useful options at the @Configuration class level. The
following example shows how to configure this bean:
@Configuration
@EnableIntegration
@EnableIntegrationMBeanExport(server = "mbeanServer", managedComponents = "input")
public class ContextConfiguration {
@Bean
public MBeanServerFactoryBean mbeanServer() {
return new MBeanServerFactoryBean();
}
}
If you need to provide more options or have several IntegrationMBeanExporter beans (such as
for different MBean Servers or to avoid conflicts with the standard Spring MBeanExporter — such as
through @EnableMBeanExport), you can configure an IntegrationMBeanExporter as a generic
bean.
MBean Object Names
All the MessageChannel, MessageHandler, and MessageSource instances in the application are
wrapped by the MBean exporter to provide management and monitoring features. The generated JMX
object names for each component type are listed in the following table:
Table 12.3. MBean Object Names
Component Type Object Name
MessageChannel `o.s.i:type=MessageChannel,name=<channelName>`
MessageSource `o.s.i:type=MessageSource,name=<channelName>,bean=<source>`
MessageHandler `o.s.i:type=MessageSource,name=<channelName>,bean=<source>`
The bean attribute in the object names for sources and handlers takes one of the values in the following
table:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 228
Table 12.4. bean ObjectName Part
Bean Value Description
endpoint The bean name of the enclosing endpoint (for example <service-
activator>), if there is one
anonymous An indication that the enclosing endpoint did not have a user-specified
bean name, so the JMX name is the input channel name.
internal For well known Spring Integration default components
handler/source None of the above. Fall back to the toString() method of the object
being monitored (handler or source)
You can append custom elements to the object name by providing a reference to a Properties object
in the object-name-static-properties attribute.
Also, since Spring Integration 3.0, you can use a custom ObjectNamingStrategy by setting the
object-naming-strategy attribute. Doing so permits greater control over the naming of the
MBeans, such as grouping all integration MBeans under an Integration type. The following example
shows one possible custom naming strategy implementation:
public class Namer implements ObjectNamingStrategy {
private final ObjectNamingStrategy realNamer = new KeyNamingStrategy();
@Override
public ObjectName getObjectName(Object managedBean, String beanKey) throws MalformedObjectNameException
{
String actualBeanKey = beanKey.replace("type=", "type=Integration,componentType=");
return realNamer.getObjectName(managedBean, actualBeanKey);
}
}
The beanKey argument is a String that contain the standard object name, beginning with the
default-domain and including any additional static properties. The preceding example moves the
standard type part to componentType and sets the type to Integration, enabling selection of all
Integration MBeans in one query:"my.domain:type=Integration,*. Doing so also groups the
beans under one tree entry under the domain in such tools as VisualVM.
Note
The default naming strategy is a MetadataNamingStrategy. The exporter propagates the
default-domain to that object to let it generate a fallback object name if parsing of the bean key
fails. If your custom naming strategy is a MetadataNamingStrategy (or a subclass of it), the
exporter does not propagate the default-domain. You must configure it on your strategy bean.
Starting with version 5.1; any bean names (represented by the name key in the object name) will be
quoted if they contain any characters that are not allowed in a Java identifier (or period .).
JMX Improvements
Version 4.2 introduced some important improvements, representing a fairly major overhaul to the JMX
support in the framework. These resulted in a significant performance improvement of the JMX statistics
collection and much more control thereof. However, it has some implications for user code in a few
specific (uncommon) situations. These changes are detailed below, with a caution where necessary.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 229
Metrics Capture
Previously, MessageSource, MessageChannel, and MessageHandler metrics were captured
by wrapping the object in a JDK dynamic proxy to intercept appropriate method calls and capture the
statistics. The proxy was added when an integration MBean exporter was declared in the context.
Now, the statistics are captured by the beans themselves. See Section 12.1, “Metrics and
Management” for more information.
Warning
This change means that you no longer automatically get an MBean or statistics
for custom MessageHandler implementations, unless those custom handlers
extend AbstractMessageHandler. The simplest way to resolve this is to
extend AbstractMessageHandler. If you cannot do so, another work around
is to implement the MessageHandlerMetrics interface. For convenience, a
DefaultMessageHandlerMetrics is provided to capture and report statistics. You
should invoke the beforeHandle and afterHandle at the appropriate times. Your
MessageHandlerMetrics methods can then delegate to this object to obtain each statistic.
Similarly, MessageSource implementations must extend AbstractMessageSource or
implement MessageSourceMetrics. Message sources capture only a count, so there is no
provided convenience class. You should maintain the count in an AtomicLong field.
The removal of the proxy has two additional benefits:
• Stack traces in exceptions are reduced (when JMX is enabled) because the proxy is not on the
stack
• Cases where two MBeans were exported for the same bean now only export a single MBean with
consolidated attributes and operations (see the MBean consolidation bullet, later).
Resolution
System.nanoTime() (rather than System.currentTimeMillis()) is now used to capture
times . This may provide more accuracy on some JVMs, espcially when you expect durations of
less than one millisecond.
Setting Initial Statistics Collection State
Previously, when JMX was enabled, all sources, channels, and handlers captured statistics. You
can now control whether the statistics are enabled on an individual component. Further, you can
capture simple counts on MessageChannel instances and MessageHandler instances instead
of capturing the complete time-based statistics. This can have significant performance implications,
because you can selectively configure where you need detailed statistics and enable and disable
collection at runtime.
See Section 12.1, “Metrics and Management”.
@IntegrationManagedResource
Similar to the @ManagedResource annotation, the @IntegrationManagedResource marks a
class as being eligible to be exported as an MBean. However, it is exported only if the application
context has an IntegrationMBeanExporter.
Certain Spring Integration classes (in the org.springframework.integration) package)
that were previously annotated with`@ManagedResource` are now annotated with both
@ManagedResource and @IntegrationManagedResource. This is for backwards compatibility
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 230
(see the next item). Such MBeans are exported by any context MBeanServer or by an
IntegrationMBeanExporter (but not both — if both exporters are present, the bean is exported
by the integration exporter if the bean matches a managed-components pattern).
Consolidated MBeans
Certain classes within the framework (mapping routers, for example) have additional attributes and
operations over and above those provided by metrics and Lifecycle. We use a Router as an
example here.
Previously, beans of these types were exported as two distinct MBeans:
• The metrics MBean (with an object name such as
intDomain:type=MessageHandler,name=myRouter,bean=endpoint). This MBean had
metrics attributes and metrics/Lifecycle operations.
• A second MBean (with an object name such as
ctxDomain:name=org.springframework.integration.config.
RouterFactoryBean#0,type=MethodInvokingRouter`) was exported with the channel
mappings attribute and operations.
Now the attributes and operations are consolidated into a single MBean. The object name
depends on the exporter. If exported by the integration MBean exporter, the object name
is, for example: intDomain:type=MessageHandler,name=myRouter,bean=endpoint.
If exported by another exporter, the object name is,
for example: ctxDomain:name=org.springframework.integration.config.
RouterFactoryBean#0,type=MethodInvokingRouter. There is no difference between
these MBeans (aside from the object name), except that the statistics are not enabled (the
attributes are 0) by exporters other than the integration exporter. You can enable statistics at
runtime by using the JMX operations. When exported by the integration MBean exporter, the
initial state can be managed as described earlier.
Warning
If you currently use the second MBean to change, for example, channel mappings and you
use the integration MBean exporter, note that the object name has changed because of
the MBean consolidation. There is no change if you are not using the integration MBean
exporter.
MBean Exporter Bean Name Patterns
Previously, the managed-components patterns were inclusive only. If a bean name matched one
of the patterns, it would be included. Now, the pattern can be negated by prefixing it with !. For
example, !thing*, things matches all bean names that do not start with thing except things.
Patterns are evaluated left to right. The first match (positive or negative) wins, and then no further
patterns are applied.
Warning
The addition of this syntax to the pattern causes one possible (although perhaps unlikely)
problem. If you have a bean named "!thing" and you included a pattern of !thing in your
MBean exporter’s managed-components patterns, it no longer matches; the pattern now
matches all beans not named thing. In this case, you can escape the ! in the pattern with
\. The \!thing pattern matches a bean named !thing.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 231
IntegrationMBeanExporter changes
The IntegrationMBeanExporter no longer implements SmartLifecycle. This means that
start() and stop() operations are no longer available to registerand unregister MBeans. The
MBeans are now registered during context initialization and unregistered when the context is
destroyed.
Orderly Shutdown Managed Operation
The MBean exporter provides a JMX operation to shut down the application in an orderly manner,
intended for use before terminating the JVM. The following example shows how to use it:
public void stopActiveComponents(long howLong)
Its use and operation are described in Section 12.7, “Orderly Shutdown”.
12.3 Message History
The key benefit of a messaging architecture is loose coupling such that participating components do
not maintain any awareness about one another. This fact alone makes an application extremely flexible,
letting you change components without affecting the rest of the flow, change messaging routes, change
message consuming styles (polling versus event driven), and so on. However, this unassuming style
of architecture could prove to be difficult when things go wrong. When debugging, you probably want
as much information (its origin, the channels it has traversed, and other details) about the message as
you can get.
Message history is one of those patterns that helps by giving you an option to maintain some level of
awareness of a message path either for debugging purposes or for maintaining an audit trail. Spring
integration provides a simple way to configure your message flows to maintain the message history by
adding a header to the message and updating that header every time a message passes through a
tracked component.
Message History Configuration
To enable message history, you need only define the message-history element in your configuration,
as shown in the following example:
<int:message-history/>
Now every named component (component that has an id defined) is tracked. The framework sets the
history header in your message. Its value a List<Properties>.
Consider the following configuration example:
<int:gateway id="sampleGateway"
service-interface="org.springframework.integration.history.sample.SampleGateway"
default-request-channel="bridgeInChannel"/>
<int:chain id="sampleChain" input-channel="chainChannel" output-channel="filterChannel">
<int:header-enricher>
<int:header name="baz" value="baz"/>
</int:header-enricher>
</int:chain>
The preceding configuration produces a simple message history structure, with output similar to the
following:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 232
[{name=sampleGateway, type=gateway, timestamp=1283281668091},
{name=sampleChain, type=chain, timestamp=1283281668094}]
To get access to message history, you need only access the MessageHistory header. The folloiwng
example shows how to do so:
Iterator<Properties> historyIterator =
message.getHeaders().get(MessageHistory.HEADER_NAME, MessageHistory.class).iterator();
assertTrue(historyIterator.hasNext());
Properties gatewayHistory = historyIterator.next();
assertEquals("sampleGateway", gatewayHistory.get("name"));
assertTrue(historyIterator.hasNext());
Properties chainHistory = historyIterator.next();
assertEquals("sampleChain", chainHistory.get("name"));
You might not want to track all of the components. To limit the history to certain components based on
their names, you can provide the tracked-components attribute and specify a comma-delimited list
of component names and patterns that match the components you want to track. The following example
shows how to do so:
<int:message-history tracked-components="*Gateway, sample*, aName"/>
In the preceding example, message history is maintained only for the components that end with
Gateway, start with sample, or match the name, aName, exactly.
Starting with version 4.0, you can also use the @EnableMessageHistory annotation in a
@Configuration class. In addition, the MessageHistoryConfigurer bean is now exposed
as a JMX MBean by the IntegrationMBeanExporter (see the section called “MBean
Exporter”), letting you change the patterns at runtime. Note, however, that the bean must
be stopped (turning off message history) in order to change the patterns. This feature might
be useful to temporarily turn on history to analyze a system. The MBean’s object name is
<domain>:name=messageHistoryConfigurer,type=MessageHistoryConfigurer.
Important
If multiple beans (declared by @EnableMessageHistory and <message-history/>) exist,
they must all have identical component name patterns (when trimmed and sorted). Do not use a
generic <bean/> definition for the MessageHistoryConfigurer.
Note
By definition, the message history header is immutable (you cannot re-write history). Therefore,
when writing message history values, the components either create new messages (when the
component is an origin) or they copy the history from a request message, modifying it and setting
the new list on a reply message. In either case, the values can be appended even if the message
itself is crossing thread boundaries. That means that the history values can greatly simplify
debugging in an asynchronous message flow.
12.4 Message Store
The Enterprise Integration Patterns (EIP) book identifies several patterns that have the ability to
buffer messages. For example, an aggregator buffers messages until they can be released, and a
QueueChannel buffers messages until consumers explicitly receive those messages from that channel.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 233
Because of the failures that can occur at any point within your message flow, EIP components that buffer
messages also introduce a point where messages could be lost.
To mitigate the risk of losing messages, EIP defines the message store pattern, which lets EIP
components store messages, typically in some type of persistent store (such as an RDBMS).
Spring Integration provides support for the message store pattern by:
• Defining an org.springframework.integration.store.MessageStore strategy interface
• Providing several implementations of this interface
• Exposing a message-store attribute on all components that have the capability to buffer messages
so that you can inject any instance that implements the MessageStore interface.
Details on how to configure a specific message store implementation and how to inject a MessageStore
implementation into a specific buffering component are described throughout the manual (see the
specific component, such as QueueChannel, Aggregator, Delayer, and others). The following pair of
examples show how to add a reference to a message store for a QueueChannel and for an aggregator:
<int:channel id="myQueueChannel">
<int:queue message-store="refToMessageStore"/>
<int:channel>
Example 12.1 QueueChannel
<int:aggregator … message-store="refToMessageStore"/>
Example 12.2 Aggregator
By default, messages are stored in-memory by using o.s.i.store.SimpleMessageStore, an
implementation of MessageStore. That might be fine for development or simple low-volume
environments where the potential loss of non-persistent messages is not a concern. However, the typical
production application needs a more robust option, not only to mitigate the risk of message loss but also
to avoid potential out-of-memory errors. Therefore, we also provide MessageStore implementations
for a variety of data-stores. The following is a complete list of supported implementations:
• Section 21.4, “JDBC Message Store”: Uses an RDBMS to store messages
• Section 27.3, “Redis Message Store”: Uses a Redis key/value datastore to store messages
• Section 25.2, “MongoDB Message Store”: Uses a MongoDB document store to store messages
• Section 19.4, “Gemfire Message Store”: Uses a Gemfire distributed cache to store messages
Important
However, be aware of some limitations while using persistent implementations of the
MessageStore.
The Message data (payload and headers) is serialized and deserialized by using different
serialization strategies, depending on the implementation of the MessageStore. For example,
when using JdbcMessageStore, only Serializable data is persisted by default. In this
case, non-Serializable headers are removed before serialization occurs. Also, be aware
of the protocol-specific headers that are injected by transport adapters (such as FTP,
HTTP, JMS, and others). For example, <http:inbound-channel-adapter/> maps HTTP
headers into message headers, and one of them is an ArrayList of non-serializable
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 234
org.springframework.http.MediaType instances. However, you can inject your own
implementation of the Serializer and Deserializer strategy interfaces into some
MessageStore implementations (such as JdbcMessageStore) to change the behavior of
serialization and deserialization.
Pay special attention to the headers that represent certain types of data. For example, if one of
the headers contains an instance of some Spring bean, upon deserialization, you may end up with
a different instance of that bean, which directly affects some of the implicit headers created by the
framework (such as REPLY_CHANNEL or ERROR_CHANNEL). Currently, they are not serializable,
but, even if they were, the deserialized channel would not represent the expected instance.
Beginning with Spring Integration version 3.0, you can resolve this issue with a header
enricher configured to replace these headers with a name after registering the channel with the
HeaderChannelRegistry.
Also, consider what happens when you configure a message-flow as follows: gateway # queue-
channel (backed by a persistent Message Store) # service-activator. That gateway creates a
temporary reply channel, which is lost by the time the service-activator’s poller reads from
the queue. Again, you can use the header enricher to replace the headers with a String
representation.
For more information, see the section called “Header Enricher”.
Spring Integration 4.0 introduced two new interfaces:
•ChannelMessageStore: To implement operations specific for QueueChannel instances
•PriorityCapableChannelMessageStore: To mark MessageStore implementations to be used
for PriorityChannel instances and to provide priority order for persisted messages.
The real behavior depends on the implementation. The framework provides the following
implementations, which can be used as a persistent MessageStore for QueueChannel and
PriorityChannel:
• the section called “Redis Channel Message Stores”
• the section called “MongoDB Channel Message Store”
• the section called “Backing Message Channels”
Caution about SimpleMessageStore
Starting with version 4.1, the SimpleMessageStore no longer copies the message group when
calling getMessageGroup(). For large message groups, this was a significant performance
problem. 4.0.1 introduced a boolean copyOnGet property that lets you control this behavior.
When used internally by the aggregator, this property was set to false to improve performance.
It is now false by default.
Users accessing the group store outside of components such as aggregators now get a direct
reference to the group being used by the aggregator instead of a copy. Manipulation of the group
outside of the aggregator may cause unpredictable results.
For this reason, you should either not perform such manipulation or set the copyOnGet property
to true.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 235
Using MessageGroupFactory
Starting with version 4.3, some MessageGroupStore implementations can be injected with a custom
MessageGroupFactory strategy to create and customize the MessageGroup instances used by
the MessageGroupStore. This defaults to a SimpleMessageGroupFactory, which produces
SimpleMessageGroup instances based on the GroupType.HASH_SET (LinkedHashSet) internal
collection. Other possible options are SYNCHRONISED_SET and BLOCKING_QUEUE, where the last one
can be used to reinstate the previous SimpleMessageGroup behavior. Also the PERSISTENT option
is available. See the next section for more information. Starting with version 5.0.1, the LIST option is
also available for when the order and uniqueness of messages in the group does not matter.
Persistent MessageGroupStore and Lazy-load
Starting with version 4.3, all persistent MessageGroupStore instances retrieve MessageGroup
instances and their messages from the store in the lazy-load manner. In most cases, it is useful
for the correlation MessageHandler instances (see Section 8.4, “Aggregator” and Section 8.5,
“Resequencer”), when it would add overhead to load entire the MessageGroup from the store on each
correlation operation.
You can use the AbstractMessageGroupStore.setLazyLoadMessageGroups(false) option
to switch off the lazy-load behavior from the configuration.
Our performance tests for lazy-load on MongoDB MessageStore (Section 25.2, “MongoDB Message
Store”) and <aggregator> (Section 8.4, “Aggregator”) use a custom release-strategy similar to
the following:
<int:aggregator input-channel="inputChannel"
output-channel="outputChannel"
message-store="mongoStore"
release-strategy-expression="size() == 1000"/>
It produces results similar to the following for 1000 simple messages:
...
StopWatch 'Lazy-Load Performance': running time (millis) = 38918
-----------------------------------------
ms % Task name
-----------------------------------------
02652 007% Lazy-Load
36266 093% Eager
...
12.5 Metadata Store
Many external systems, services, or resources are not transactional (Twitter, RSS, file systems, and
so on), and there is no any ability to mark the data as read. Also, sometimes, you may need to
implement the Enterprise Integration Pattern idempotent receiver in some integration solutions. To
achieve this goal and store some previous state of the endpoint before the next interaction with external
system or to deal with the next message, Spring Integration provides the metadata store component as
an an implementation of the org.springframework.integration.metadata.MetadataStore
interface with a general key-value contract.
The metadata store is designed to store various types of generic metadata (for example, the
published date of the last feed entry that has been processed) to help components such as the
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 236
feed adapter deal with duplicates. If a component is not directly provided with a reference to a
MetadataStore, the algorithm for locating a metadata store is as follows: First, look for a bean with a
metadataStore ID in the application context. If one is found, use it. Otherwise, create a new instance
of SimpleMetadataStore, which is an in-memory implementation that persists only metadata within
the lifecycle of the currently running application context. This means that, upon restart, you may end
up with duplicate entries.
If you need to persist metadata between application context restarts, the framework provides the
following persistent MetadataStores:
•PropertiesPersistingMetadataStore
• Section 19.6, “Gemfire Metadata Store”
• Section 21.7, “JDBC Metadata Store”
• the section called “MongoDB Metadata Store”
• Section 27.4, “Redis Metadata Store”
• Section 40.1, “Zookeeper Metadata Store”
The PropertiesPersistingMetadataStore is backed by a properties file and a
PropertiesPersister.
By default, it persists only the state when the application context is closed normally. It implements
Flushable so that you can persist the state at will, by invoking flush(). The following example shows
how to configure a PropertiesPersistingMetadataStore with XML:
<bean id="metadataStore"
class="org.springframework.integration.metadata.PropertiesPersistingMetadataStore"/>
Alternatively, you can provide your own implementation of the MetadataStore interface (for example,
JdbcMetadataStore) and configure it as a bean in the application context.
Starting with version 4.0, SimpleMetadataStore, PropertiesPersistingMetadataStore, and
RedisMetadataStore implement ConcurrentMetadataStore. These provide for atomic updates
and can be used across multiple component or application instances.
Idempotent Receiver and Metadata Store
The metadata store is useful for implementing the EIP idempotent receiver pattern when there is need
to filter an incoming message if it has already been processed and you can discard it or perform some
other logic on discarding. The following configuration shows an example of how to do so:
<int:filter input-channel="serviceChannel"
output-channel="idempotentServiceChannel"
discard-channel="discardChannel"
expression="@metadataStore.get(headers.businessKey) == null"/>
<int:publish-subscribe-channel id="idempotentServiceChannel"/>
<int:outbound-channel-adapter channel="idempotentServiceChannel"
expression="@metadataStore.put(headers.businessKey, '')"/>
<int:service-activator input-channel="idempotentServiceChannel" ref="service"/>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 237
The value of the idempotent entry may be an expiration date, after which that entry should be removed
from metadata store by some scheduled reaper.
See also the section called “Idempotent Receiver Enterprise Integration Pattern”.
MetadataStoreListener
Some metadata stores (currently only zookeeper) support registering a listener to receive events when
items change, as the following example shows:
public interface MetadataStoreListener {
void onAdd(String key, String value);
void onRemove(String key, String oldValue);
void onUpdate(String key, String newValue);
}
See the Javadoc for more information. The MetadataStoreListenerAdapter can be subclassed
if you are interested only in a subset of events.
12.6 Control Bus
As described in the Enterprise Integration Patterns (EIP) book, the idea behind the control bus is that
the same messaging system can be used for monitoring and managing the components within the
framework as is used for "application-level" messaging. In Spring Integration, we build upon the
adapters described above so that you can send messages as a means of invoking exposed operations.
The following example shows how to configure a control bus with XML:
<int:control-bus input-channel="operationChannel"/>
The control bus has an input channel that can be accessed for invoking operations on the beans in the
application context. It also has all the common properties of a service activating endpoint. For example,
you can specify an output channel if the result of the operation has a return value that you want to send
on to a downstream channel.
The control bus runs messages on the input channel as Spring Expression Language (SpEL)
expressions. It takes a message, compiles the body to an expression, adds some context, and then
runs it. The default context supports any method that has been annotated with @ManagedAttribute
or @ManagedOperation. It also supports the methods on Spring’s Lifecycle interface, and it
supports methods that are used to configure several of Spring’s TaskExecutor and TaskScheduler
implementations. The simplest way to ensure that your own methods are available to the control bus is
to use the @ManagedAttribute or @ManagedOperation annotations. Since those annotations are
also used for exposing methods to a JMX MBean registry, they offer a convenient by-product: Often, the
same types of operations you want to expose to the control bus are reasonable for exposing through
JMX). Resolution of any particular instance within the application context is achieved in the typical SpEL
syntax. To do so, provide the bean name with the SpEL prefix for beans (@). For example, to execute a
method on a Spring Bean, a client could send a message to the operation channel as follows:
Message operation = MessageBuilder.withPayload("@myServiceBean.shutdown()").build();
operationChannel.send(operation)
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 238
The root of the context for the expression is the Message itself, so you also have access to the payload
and headers as variables within your expression. This is consistent with all the other expression support
in Spring Integration endpoints.
With Java annotations, you can configured the control bus as follows:
@Bean
@ServiceActivator(inputChannel = "operationChannel")
public ExpressionControlBusFactoryBean controlBus() {
return new ExpressionControlBusFactoryBean();
}
Similarly, you can configure Java DSL flow definitions as follows:
@Bean
public IntegrationFlow controlBusFlow() {
return IntegrationFlows.from("controlBus")
.controlBus()
.get();
}
If you prefer to use lambdas with automatic DirectChannel creation, you can create a control bus
as follows:
@Bean
public IntegrationFlow controlBus() {
return IntegrationFlowDefinition::controlBus;
}
In this case, the channel is named controlBus.input.
12.7 Orderly Shutdown
As described in "the section called “MBean Exporter”", the MBean exporter provides a JMX operation
called stopActiveComponents, which is used to stop the application in an orderly manner. The
operation has a single Long parameter. The parameter indicates how long (in milliseconds) the
operation waits to allow in-flight messages to complete. The operation works as follows:
1. Call beforeShutdown() on all beans that implement OrderlyShutdownCapable.
Doing so lets such components prepare for shutdown. Examples of components that implement
this interface and what they do with this call include JMS and AMQP message-driven adapters that
stop their listener containers, TCP server connection factories that stop accepting new connections
(while keeping existing connections open), TCP inbound endpoints that drop (log) any new messages
received, and HTTP inbound endpoints that return 503 - Service Unavailable for any new
requests.
2. Stop any active channels, such as JMS- or AMQP-backed channels.
3. Stop all MessageSource instances.
4. Stop all inbound MessageProducer s (that are not OrderlyShutdownCapable).
5. Wait for any remaining time left, as defined by the value of the Long parameter passed in to the
operation.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 239
Doing so lets any in-flight messages complete their journeys. It is therefore important to select an
appropriate timeout when invoking this operation.
6. Call afterShutdown() on all OrderlyShutdownCapable components.
Doing so lets such components perform final shutdown tasks (closing all open sockets, for example).
As discussed in the section called “Orderly Shutdown Managed Operation”, this operation can be
invoked by using JMX. If you wish to programmatically invoke the method, you need to inject or otherwise
get a reference to the IntegrationMBeanExporter. If no id attribute is provided on the <int-
jmx:mbean-export/> definition, the bean has a generated name. This name contains a random
component to avoid ObjectName collisions if multiple Spring Integration contexts exist in the same
JVM (MBeanServer).
For this reason, if you wish to invoke the method programmatically, we recommend that you provide the
exporter with an id attribute so that you can easily access it in the application context.
Finally, the operation can be invoked by using the <control-bus> element. See the monitoring Spring
Integration sample application for details.
Note
The algorithm described earlier was improved in version 4.1. Previously, all task executors and
schedulers were stopped. This could cause mid-flow messages in QueueChannel instances
to remain. Now the shutdown leaves pollers running, to let these messages be drained and
processed.
12.8 Integration Graph
Starting with version 4.3, Spring Integration provides access to an application’s runtime object model,
which can, optionally, include component metrics. It is exposed as a graph, which may be used to
visualize the current state of the integration application. The o.s.i.support.management.graph
package contains all the required classes to collect, build, and render the runtime state of Spring
Integration components as a single tree-like Graph object. The IntegrationGraphServer should be
declared as a bean to build, retrieve, and refresh the Graph object. The resulting Graph object can be
serialized to any format, although JSON is flexible and convenient to parse and represent on the client
side. A Spring Integration application with only the default components would expose a graph as follows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 240
{
"contentDescriptor": {
"providerVersion": "4.3.0.RELEASE",
"providerFormatVersion": 1.0,
"provider": "spring-integration",
"name": "myApplication"
},
"nodes": [
{
"nodeId": 1,
"name": "nullChannel",
"stats": null,
"componentType": "channel"
},
{
"nodeId": 2,
"name": "errorChannel",
"stats": null,
"componentType": "publish-subscribe-channel"
},
{
"nodeId": 3,
"name": "_org.springframework.integration.errorLogger",
"stats": {
"duration": {
"count": 0,
"min": 0.0,
"max": 0.0,
"mean": 0.0,
"standardDeviation": 0.0,
"countLong": 0
},
"errorCount": 0,
"standardDeviationDuration": 0.0,
"countsEnabled": true,
"statsEnabled": true,
"loggingEnabled": false,
"handleCount": 0,
"meanDuration": 0.0,
"maxDuration": 0.0,
"minDuration": 0.0,
"activeCount": 0
},
"componentType": "logging-channel-adapter",
"output": null,
"input": "errorChannel"
}
],
"links": [
{
"from": 2,
"to": 3,
"type": "input"
}
]
}
In the preceding example, the graph consists of three top-level elements.
The contentDescriptor graph element contains general information about the application providing
the data. The name can be customized on the IntegrationGraphServer bean or in the
spring.application.name application context environment property. Other properties are provided
by the framework and let you distinguish a similar model from other sources.
The links graph element represents connections between nodes from the nodes graph element and,
therefore, between integration components in the source Spring Integration application. For example,
from a MessageChannel to an EventDrivenConsumer with some MessageHandler or from an
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 241
AbstractReplyProducingMessageHandler to a MessageChannel. For convenience and to let
you determine a link’s purpose, the model includes the type attribute. The possible types are:
•input: Identifies the direction from MessageChannel to the endpoint, inputChannel, or
requestChannel property
•output: The direction from the MessageHandler, MessageProducer, or
SourcePollingChannelAdapter to the MessageChannel through an outputChannel or
replyChannel property
•error: From MessageHandler on PollingConsumer or MessageProducer or
SourcePollingChannelAdapter to the MessageChannel through an errorChannel property;
•discard: From DiscardingMessageHandler (such as MessageFilter) to the
MessageChannel through an errorChannel property.
•route: From AbstractMappingMessageRouter (such as HeaderValueRouter) to the
MessageChannel. Similar to output but determined at run-time. May be a configured channel
mapping or a dynamically resolved channel. Routers typically retain only up to 100 dynamic routes
for this purpose, but you can modify this value by setting the dynamicChannelLimit property.
The information from this element can be used by a visualization tool to render connections between
nodes from the nodes graph element, where the from and to numbers represent the value from the
nodeId property of the linked nodes. For example, the link element can be used to determine the
proper port on the target node.
The following "text image" shows the relationships between the types:
+---(discard)
|
+----o----+
| |
| |
| |
(input)--o o---(output)
| |
| |
| |
+----o----+
|
+---(error)
The nodes graph element is perhaps the most interesting, because its elements contain not only the
runtime components with their componentType instances and name values but can also optionally
contain metrics exposed by the component. Node elements contain various properties that are
generally self-explanatory. For example, expression-based components include the expression
property that contains the primary expression string for the component. To enable the metrics, add an
@EnableIntegrationManagement to a @Configuration class or add an <int:management/
> element to your XML configuration. You can control exactly which components in the framework
collect statistics. See Section 12.1, “Metrics and Management” for complete information. See the stats
attribute from the o.s.i.errorLogger component in the JSON example shown earlier. In this case,
The nullChannel and errorChannel do not provide statistics information, because the configuration
for this example was as follows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 242
@Configuration
@EnableIntegration
@EnableIntegrationManagement(statsEnabled = "_org.springframework.integration.errorLogger.handler",
countsEnabled = "!*",
defaultLoggingEnabled = "false")
public class ManagementConfiguration {
@Bean
public IntegrationGraphServer integrationGraphServer() {
return new IntegrationGraphServer();
}
}
The nodeId represents a unique incremental identifier to let you distinguish one component from
another. It is also used in the links element to represent a relationship (connection) of this component
to others, if any. The input and output attributes are for the inputChannel and outputChannel
properties of the AbstractEndpoint, MessageHandler, SourcePollingChannelAdapter, or
MessageProducerSupport. See the next section for more information.
Starting with version 5.1, the IntegrationGraphServer accepts a Function<NamedComponent,
Map<String, Object>> additionalPropertiesCallback for population of additional
properties on the IntegrationNode for a particular NamedComponent. For example you can expose
the SmartLifecycle autoStartup and running properties into the target graph:
server.setAdditionalPropertiesCallback(namedComponent -> {
Map<String, Object> properties = null;
if (namedComponent instanceof SmartLifecycle) {
SmartLifecycle smartLifecycle = (SmartLifecycle) namedComponent;
properties = new HashMap<>();
properties.put("auto-startup", smartLifecycle.isAutoStartup());
properties.put("running", smartLifecycle.isRunning());
}
return properties;
});
Graph Runtime Model
Spring Integration components have various levels of complexity. For example, any polled
MessageSource also has a SourcePollingChannelAdapter and a MessageChannel to which to
periodically send messages from the source data. Other components might be middleware request-reply
components (such as JmsOutboundGateway) with a consuming AbstractEndpoint to subscribe
to (or poll) the requestChannel (input) for messages, and a replyChannel (output) to produce
a reply message to send downstream. Meanwhile, any MessageProducerSupport implementation
(such as ApplicationEventListeningMessageProducer) wraps some source protocol listening
logic and sends messages to the outputChannel.
Within the graph, Spring Integration components are represented by using the IntegrationNode
class hierarchy, which you can find in the o.s.i.support.management.graph package.
For example, you can use the ErrorCapableDiscardingMessageHandlerNode for the
AggregatingMessageHandler (because it has a discardChannel option) and can produce
errors when consuming from a PollableChannel by using a PollingConsumer. Another
example is CompositeMessageHandlerNode — for a MessageHandlerChain when subscribed to
a SubscribableChannel by using an EventDrivenConsumer.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 243
Note
The @MessagingGateway (see Section 10.4, “Messaging Gateways”) provides nodes for each
of its method, where the name attribute is based on the gateway’s bean name and the short
method signature. Consider the following example of a gateway:
@MessagingGateway(defaultRequestChannel = "four")
public interface Gate {
void foo(String foo);
void foo(Integer foo);
void bar(String bar);
}
The preceding gateway produces nodes similar to the following:
{
"nodeId" : 10,
"name" : "gate.bar(class java.lang.String)",
"stats" : null,
"componentType" : "gateway",
"output" : "four",
"errors" : null
},
{
"nodeId" : 11,
"name" : "gate.foo(class java.lang.String)",
"stats" : null,
"componentType" : "gateway",
"output" : "four",
"errors" : null
},
{
"nodeId" : 12,
"name" : "gate.foo(class java.lang.Integer)",
"stats" : null,
"componentType" : "gateway",
"output" : "four",
"errors" : null
}
You can use this IntegrationNode hierarchy for parsing the graph model on the client side as well
as to understand the general Spring Integration runtime behavior. See also Section 5.7, “Programming
Tips and Tricks” for more information.
12.9 Integration Graph Controller
If your application is web-based (or built on top of Spring Boot with an embedded web container) and the
Spring Integration HTTP or WebFlux module (see Chapter 20, HTTP Support and Chapter 35, WebFlux
Support, respectively) is present on the classpath, you can use a IntegrationGraphController
to expose the IntegrationGraphServer functionality as a REST service. For this purpose,
the @EnableIntegrationGraphController and @Configuration class annotations and the
<int-http:graph-controller/> XML element are available in the HTTP module. Together
with the @EnableWebMvc annotation (or <mvc:annotation-driven/> for XML definitions),
this configuration registers an IntegrationGraphController @RestController where its
@RequestMapping.path can be configured on the @EnableIntegrationGraphController
annotation or <int-http:graph-controller/> element. The default path is /integration.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 244
The IntegrationGraphController @RestController provides the following services:
•@GetMapping(name = "getGraph"): To retrieve the state of the Spring
Integration components since the last IntegrationGraphServer refresh. The
o.s.i.support.management.graph.Graph is returned as a @ResponseBody of the REST
service.
•@GetMapping(path = "/refresh", name = "refreshGraph"): To refresh the current Graph
for the actual runtime state and return it as a REST response. It is not necessary to refresh the graph
for metrics. They are provided in real-time when the graph is retrieved. Refresh can be called if the
application context has been modified since the graph was last retrieved. In that case, the graph is
completely rebuilt.
You can set security and cross-origin restrictions for the IntegrationGraphController with the
standard configuration options and components provided by the Spring Security and Spring MVC
projects. The following example achieves those goals:
<mvc:annotation-driven />
<mvc:cors>
<mvc:mapping path="/myIntegration/**"
allowed-origins="http://localhost:9090"
allowed-methods="GET" />
</mvc:cors>
<security:http>
<security:intercept-url pattern="/myIntegration/**" access="ROLE_ADMIN" />
</security:http>
<int-http:graph-controller path="/myIntegration" />
The following example shows how to do the same thing with Java configuration:
@Configuration
@EnableWebMvc // or @EnableWebFlux
@EnableWebSecurity // or @EnableWebFluxSecurity
@EnableIntegration
@EnableIntegrationGraphController(path = "/testIntegration", allowedOrigins="http://localhost:9090")
public class IntegrationConfiguration extends WebSecurityConfigurerAdapter {
@Override
protected void configure(HttpSecurity http) throws Exception {
http
.authorizeRequests()
.antMatchers("/testIntegration/**").hasRole("ADMIN")
// ...
.formLogin();
}
//...
}
Note that, for convenience, the @EnableIntegrationGraphController annotation provides an
allowedOrigins attribute. This provides GET access to the path. For more sophistication, you can
configure the CORS mappings by using standard Spring MVC mechanisms.
Part V. Integration Endpoints
This section covers the various channel adapters and messaging gateways provided by Spring
Integration to support message-based communication with external systems.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 246
13. Endpoint Quick Reference Table
As discussed in the earlier sections, Spring Integration provides a number of endpoints used to interface
with external systems, file systems, and others.
For transparent dependency management Spring Integration provides a bill-of-materials POM to be
imported into the Maven configuration:
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-bom</artifactId>
<version>5.1.1.RELEASE</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
To recap:
• Inbound channel adapters are used for one-way integration to bring data into the messaging
application.
• Outbound channel adapters are used for one-way integration to send data out of the messaging
application.
• Inbound gateways are used for a bidirectional integration flow, where some other system invokes the
messaging application and receives a reply.
• Outbound Gateways are used for a bidirectional integration flow, where the messaging application
invokes some external service or entity and expects a result.
The following table summarizes the various endpoints with quick links to the appropriate chapter.
Table 13.1. Endpoint Quick Reference
Module Inbound Adapter Outbound
Adapter
Inbound
Gateway
Outbound
Gateway
AMQP Section 14.1,
“Inbound Channel
Adapter”
Section 14.5,
“Outbound
Channel Adapter”
Section 14.3,
“Inbound
Gateway”
Section 14.6,
“Outbound
Gateway”
Events Section 15.1,
“Receiving Spring
Application
Events”
Section 15.2,
“Sending Spring
Application
Events”
N N
Feed Section 16.1,
“Feed Inbound
Channel Adapter”
NNN
File Section 17.1,
“Reading Files”
and the section
Section 17.2,
“Writing files”
N Section 17.2,
“Writing files”
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 247
Module Inbound Adapter Outbound
Adapter
Inbound
Gateway
Outbound
Gateway
called “'tail’ing
Files”
FTP(S) Section 18.4,
“FTP Inbound
Channel Adapter”
Section 18.8,
“FTP Outbound
Channel Adapter”
N Section 18.9,
“FTP Outbound
Gateway”
Gemfire Section 19.1,
“Inbound Channel
Adapter” and
Section 19.2,
“Continuous
Query Inbound
Channel Adapter”
Section 19.3,
“Outbound
Channel Adapter”
N N
HTTP Section 20.3,
“HTTP
Namespace
Support”
Section 20.3,
“HTTP
Namespace
Support”
Section 20.1,
“Http Inbound
Components”
Section 20.2,
“HTTP Outbound
Components”
JDBC Section 21.1,
“Inbound Channel
Adapter” and the
section called
“Stored Procedure
Inbound Channel
Adapter”
Section 21.2,
“Outbound
Channel Adapter”
and the section
called “Stored
Procedure
Outbound
Channel Adapter”
N Section 21.3,
“Outbound
Gateway” and
the section called
“Stored Procedure
Outbound
Gateway”
JMS Section 23.1,
“Inbound Channel
Adapter” and
Section 23.2,
“Message-driven
Channel Adapter”
Section 23.3,
“Outbound
Channel Adapter”
Section 23.4,
“Inbound
Gateway”
Section 23.5,
“Outbound
Gateway”
JMX the section called
“Notification-
listening Channel
Adapter” and the
section called
“Attribute-polling
Channel Adapter”
and the section
called “Tree-
polling Channel
Adapter”
the section called
“Notification-
publishing
Channel Adapter”
and the section
called “Operation-
invoking Channel
Adapter”
N the section called
“Operation-
invoking
Outbound
Gateway”
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 248
Module Inbound Adapter Outbound
Adapter
Inbound
Gateway
Outbound
Gateway
JPA Section 22.5,
“Inbound Channel
Adapter”
Section 22.6,
“Outbound
Channel Adapter”
N the section
called “Updating
Outbound
Gateway” and
the section
called “Retrieving
Outbound
Gateway”
Mail Section 24.2,
“Mail-receiving
Channel Adapter”
Section 24.1,
“Mail-sending
Channel Adapter”
N N
MongoDB Section 25.3,
“MongoDB
Inbound Channel
Adapter”
Section 25.4,
“MongoDB
Outbound
Channel Adapter”
N N
MQTT Section 26.1,
“Inbound
(Message-driven)
Channel Adapter”
Section 26.2,
“Outbound
Channel Adapter”
N N
Redis the section called
“Redis Inbound
Channel Adapter”
and the section
called “Redis
Queue Inbound
Channel Adapter”
and Section 27.5,
“Redis Store
Inbound Channel
Adapter”
the section called
“Redis Outbound
Channel Adapter”
and the section
called “Redis
Queue Outbound
Channel Adapter”
and Section 27.6,
“RedisStore
Outbound
Channel Adapter”
Section 27.9,
“Redis Queue
Inbound Gateway”
Section 27.7,
“Redis Outbound
Command
Gateway” and
Section 27.8,
“Redis Queue
Outbound
Gateway”
Resource Section 28.1,
“Resource
Inbound Channel
Adapter”
NNN
RMI N N Section 29.2,
“Inbound RMI”
Section 29.1,
“Outbound RMI”
SFTP Section 30.6,
“SFTP Inbound
Channel Adapter”
Section 30.10,
“SFTP Outbound
Channel Adapter”
N Section 30.11,
“SFTP Outbound
Gateway”
STOMP Section 31.2,
“STOMP Inbound
Channel Adapter”
Section 31.3,
“STOMP
N N
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 249
Module Inbound Adapter Outbound
Adapter
Inbound
Gateway
Outbound
Gateway
Outbound
Channel Adapter”
Stream Section 32.1,
“Reading from
Streams”
Section 32.2,
“Writing to
Streams”
N N
Syslog Section 33.1,
“Syslog Inbound
Channel Adapter”
NNN
TCP Section 34.6,
“TCP Adapters”
Section 34.6,
“TCP Adapters”
Section 34.7,
“TCP Gateways”
Section 34.7,
“TCP Gateways”
UDP Section 34.2,
“UDP Adapters”
Section 34.2,
“UDP Adapters”
N N
Web Services N N Section 37.2,
“Inbound
Web Service
Gateways”
Section 37.1,
“Outbound
Web Service
Gateways”
Web Sockets Section 36.2,
“WebSocket
Inbound Channel
Adapter”
Section 36.3,
“WebSocket
Outbound
Channel Adapter”
N N
XMPP Section 39.2,
“XMPP
Messages” and
Section 39.3,
“XMPP Presence”
Section 39.2,
“XMPP
Messages” and
Section 39.3,
“XMPP Presence”
N N
In addition, as discussed in Part IV, “Core Messaging”, Spring Integration provides endpoints for
interfacing with Plain Old Java Objects (POJOs). As discussed in Section 6.3, “Channel Adapter”,
the <int:inbound-channel-adapter> element lets you poll a Java method for data. The
<int:outbound-channel-adapter> element lets you send data to a void method. As discussed
in Section 10.4, “Messaging Gateways”, the <int:gateway> element lets any Java program invoke
a messaging flow. Each of these works without requiring any source-level dependencies on Spring
Integration. The equivalent of an outbound gateway in this context is using a service activator (see
Section 10.5, “Service Activator”) to invoke a method that returns an Object of some kind.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 250
14. AMQP Support
Spring Integration provides channel adapters for receiving and sending messages by using the
Advanced Message Queuing Protocol (AMQP).
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-amqp</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-amqp:5.1.1.RELEASE"
The following adapters are available:
•Inbound Channel Adapter
•Inbound Gateway
•Outbound Channel Adapter
•Outbound Gateway
•Async Outbound Gateway
Spring Integration also provides a point-to-point message channel and a publish-subscribe message
channel backed by AMQP Exchanges and Queues.
To provide AMQP support, Spring Integration relies on (Spring AMQP), which applies core Spring
concepts to the development of AMQP-based messaging solutions. Spring AMQP provides similar
semantics to (Spring JMS).
Whereas the provided AMQP Channel Adapters are intended for unidirectional messaging (send or
receive) only, Spring Integration also provides inbound and outbound AMQP gateways for request-reply
operations.
TIP: You should familiarize yourself with the reference documentation of the Spring AMQP project.
It provides much more in-depth information about Spring’s integration with AMQP in general and
RabbitMQ in particular.
14.1 Inbound Channel Adapter
The following listing shows the possible configuration options for an AMQP Inbound Channel Adapter:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 251
<int-amqp:inbound-channel-adapter
id="inboundAmqp" ❶
channel="inboundChannel" ❷
queue-names="si.test.queue" ❸
acknowledge-mode="AUTO" ❹
advice-chain="" ❺
channel-transacted="" ❻
concurrent-consumers="" ❼
connection-factory="" ❽
error-channel="" ❾
expose-listener-channel="" ❿
header-mapper="" 11
mapped-request-headers="" 12
listener-container="" 13
message-converter="" 14
message-properties-converter="" 15
phase="" 16
prefetch-count="" 17
receive-timeout="" 18
recovery-interval="" 19
missing-queues-fatal="" 20
shutdown-timeout="" 21
task-executor="" 22
transaction-attribute="" 23
transaction-manager="" 24
tx-size="" 25
consumers-per-queue /> 26
❶The unique ID for this adapter. Optional.
❷Message channel to which converted messages should be sent. Required.
❸Names of the AMQP queues (comma-separated list) from which messages should be consumed.
Required.
❹Acknowledge mode for the MessageListenerContainer. When set to MANUAL, the delivery
tag and channel are provided in message headers amqp_deliveryTag and amqp_channel,
respectively. The user application is responsible for acknowledgement. NONE means no
acknowledgements (autoAck). AUTO means the adapter’s container acknowledges when the
downstream flow completes. Optional (defaults to AUTO). See Section 14.4, “Inbound Endpoint
Acknowledge Mode”.
❺Extra AOP Advices to handle cross-cutting behavior associated with this inbound channel adapter.
Optional.
❻Flag to indicate that channels created by this component are transactional. If true, it tells the
framework to use a transactional channel and to end all operations (send or receive) with a commit
or rollback, depending on the outcome, with an exception that signals a rollback. Optional (Defaults
to false).
❼Specify the number of concurrent consumers to create. The default is 1. We recommend raising the
number of concurrent consumers to scale the consumption of messages coming in from a queue.
However, note that any ordering guarantees are lost once multiple consumers are registered. In
general, use one consumer for low-volume queues. Not allowed when consumers-per-queue is
set. Optional.
❽Bean reference to the RabbitMQ ConnectionFactory. Optional (defaults to connectionFactory).
❾Message channel to which error messages should be sent. Optional.
❿Whether the listener channel (com.rabbitmq.client.Channel) is exposed to a registered
ChannelAwareMessageListener. Optional (defaults to true).
11 A reference to an AmqpHeaderMapper to use when receiving AMQP Messages. Optional. By
default, only standard AMQP properties (such as contentType) are copied to Spring Integration
MessageHeaders. Any user-defined headers within the AMQP MessageProperties are NOT
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 252
copied to the message by the default DefaultAmqpHeaderMapper. Not allowed if request-
header-names is provided.
12 Comma-separated list of the names of AMQP Headers to be mapped from the AMQP request into
the MessageHeaders. This can only be provided if the header-mapper reference is not provided.
The values in this list can also be simple patterns to be matched against the header names (such
as "*" or "thing1*, thing2" or "*something").
13 Reference to the AbstractMessageListenerContainer to use for receiving AMQP
Messages. If this attribute is provided, no other attribute related to the listener container
configuration should be provided. In other words, by setting this reference, you must take full
responsibility for the listener container configuration. The only exception is the MessageListener
itself. Since that is actually the core responsibility of this channel adapter implementation, the
referenced listener container must not already have its own MessageListener. Optional.
14 The MessageConverter to use when receiving AMQP messages. Optional.
15 The MessagePropertiesConverter to use when receiving AMQP messages. Optional.
16 Specifies the phase in which the underlying AbstractMessageListenerContainer should be
started and stopped. The startup order proceeds from lowest to highest, and the shutdown order
is the reverse of that. By default, this value is Integer.MAX_VALUE, meaning that this container
starts as late as possible and stops as soon as possible. Optional.
17 Tells the AMQP broker how many messages to send to each consumer in a single request.
Often, you can set this value high to improve throughput. It should be greater than or equal to the
transaction size (see the tx-size attribute, later in this list). Optional (defaults to 1).
18 Receive timeout in milliseconds. Optional (defaults to 1000).
19 Specifies the interval between recovery attempts of the underlying
AbstractMessageListenerContainer (in milliseconds). Optional (defaults to 5000).
20 If true and none of the queues are available on the broker, the container throws a fatal exception
during startup and stops if the queues are deleted when the container is running (after making three
attempts to passively declare the queues). If false, the container does not throw an exception and
goes into recovery mode, attempting to restart according to the recovery-interval. Optional
(defaults to true).
21 The time to wait for workers (in milliseconds) after the underlying
AbstractMessageListenerContainer is stopped and before the AMQP connection is forced
closed. If any workers are active when the shutdown signal comes, they are allowed to finish
processing as long as they can finish within this timeout. Otherwise, the connection is closed and
messages remain unacknowledged (if the channel is transactional). Optional (defaults to 5000).
22 By default, the underlying AbstractMessageListenerContainer uses a
SimpleAsyncTaskExecutor implementation, that fires up a new thread for each task, running
it asynchronously. By default, the number of concurrent threads is unlimited. Note that this
implementation does not reuse threads. Consider using a thread-pooling TaskExecutor
implementation as an alternative. Optional (defaults to SimpleAsyncTaskExecutor).
23 By default, the underlying AbstractMessageListenerContainer creates a new instance of
the DefaultTransactionAttribute (it takes the EJB approach to rolling back on runtime but
not checked exceptions). Optional (defaults to DefaultTransactionAttribute).
24 Sets a bean reference to an external PlatformTransactionManager on the underlying
AbstractMessageListenerContainer. The transaction manager works in conjunction with
the channel-transacted attribute. If there is already a transaction in progress when the
framework is sending or receiving a message and the channelTransacted flag is true, the
commit or rollback of the messaging transaction is deferred until the end of the current transaction.
If the channelTransacted flag is false, no transaction semantics apply to the messaging
operation (it is auto-acked). For further information, see Transactions with Spring AMQP. Optional.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 253
25 Tells the SimpleMessageListenerContainer how many messages to process in a single
transaction (if the channel is transactional). For best results, it should be less than or equal to the
value set in prefetch-count. Not allowed when consumers-per-queue is set. Optional (defaults
to 1).
26 Indicates that the underlying listener container should be a
DirectMessageListenerContainer instead of the default
SimpleMessageListenerContainer. See the Spring AMQP Reference Manual for more
information.
container
Note that when configuring an external container, you cannot use the Spring AMQP namespace
to define the container. This is because the namespace requires at least one <listener/>
element. In this environment, the listener is internal to the adapter. For this reason, you must define
the container by using a normal Spring <bean/> definition, as the following example shows:
<bean id="container"
class="org.springframework.amqp.rabbit.listener.SimpleMessageListenerContainer">
<property name="connectionFactory" ref="connectionFactory" />
<property name="queueNames" value="aName.queue" />
<property name="defaultRequeueRejected" value="false"/>
</bean>
Important
Even though the Spring Integration JMS and AMQP support is similar, important differences
exist. The JMS inbound channel adapter is using a JmsDestinationPollingSource under
the covers and expects a configured poller. The AMQP inbound channel adapter uses an
AbstractMessageListenerContainer and is message driven. In that regard, it is more
similar to the JMS message-driven channel adapter.
Configuring with Java Configuration
The following Spring Boot application shows an example of configuring the inbound adapter with Java
configuration:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 254
@SpringBootApplication
public class AmqpJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(AmqpJavaApplication.class)
.web(false)
.run(args);
}
@Bean
public MessageChannel amqpInputChannel() {
return new DirectChannel();
}
@Bean
public AmqpInboundChannelAdapter inbound(SimpleMessageListenerContainer listenerContainer,
@Qualifier("amqpInputChannel") MessageChannel channel) {
AmqpInboundChannelAdapter adapter = new AmqpInboundChannelAdapter(listenerContainer);
adapter.setOutputChannel(channel);
return adapter;
}
@Bean
public SimpleMessageListenerContainer container(ConnectionFactory connectionFactory) {
SimpleMessageListenerContainer container =
new SimpleMessageListenerContainer(connectionFactory);
container.setQueueNames("aName");
container.setConcurrentConsumers(2);
// ...
return container;
}
@Bean
@ServiceActivator(inputChannel = "amqpInputChannel")
public MessageHandler handler() {
return new MessageHandler() {
@Override
public void handleMessage(Message<?> message) throws MessagingException {
System.out.println(message.getPayload());
}
};
}
}
Configuring with the Java DSL
The following Spring Boot application provides an example of configuring the inbound adapter with the
Java DSL:
@SpringBootApplication
public class AmqpJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(AmqpJavaApplication.class)
.web(false)
.run(args);
}
@Bean
public IntegrationFlow amqpInbound(ConnectionFactory connectionFactory) {
return IntegrationFlows.from(Amqp.inboundAdapter(connectionFactory, "aName"))
.handle(m -> System.out.println(m.getPayload()))
.get();
}
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 255
14.2 Polled Inbound Channel Adapter
Version 5.0.1 introduced a polled channel adapter, letting you fetch individual messages on
demand — for example, with a MessageSourcePollingTemplate or a poller. See the section called
“Deferred Acknowledgment Pollable Message Source” for more information.
It does not currently support XML configuration.
The following example shows how to configure an AmqpMessageSource with Java configuration:
@Bean
public AmqpMessageSource source(ConnectionFactory connectionFactory) {
return new AmpqpMessageSource(connectionFactory, "someQueue");
}
See the Javadoc for configuration properties.
The following example shows how to configure an inboundPolledAdapter with the Java DSL:
@Bean
public IntegrationFlow flow() {
return IntegrationFlows.from(Amqp.inboundPolledAdapter(connectionFactory(), DSL_QUEUE),
e -> e.poller(Pollers.fixedDelay(1_000)).autoStartup(false))
.handle(p -> {
...
})
.get();
}
14.3 Inbound Gateway
The inbound gateway supports all the attributes on the inbound channel adapter (except that channel is
replaced by request-channel), plus some additional attributes. The following listing shows the available
attributes:
<int-amqp:inbound-gateway
id="inboundGateway" ❶
request-channel="myRequestChannel" ❷
header-mapper="" ❸
mapped-request-headers="" ❹
mapped-reply-headers="" ❺
reply-channel="myReplyChannel" ❻
reply-timeout="1000" ❼
amqp-template="" ❽
default-reply-to="" /> ❾
❶The Unique ID for this adapter. Optional.
❷Message channel to which converted messages are sent. Required.
❸A reference to an AmqpHeaderMapper to use when receiving AMQP Messages. Optional. By
default, only standard AMQP properties (such as contentType) are copied to and from Spring
Integration MessageHeaders. Any user-defined headers within the AMQP MessageProperties
are not copied to or from an AMQP message by the default DefaultAmqpHeaderMapper. Not
allowed if request-header-names or reply-header-names is provided.
❹Comma-separated list of names of AMQP Headers to be mapped from the AMQP request into
the MessageHeaders. This attribute can be provided only if the header-mapper reference is not
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 256
provided. The values in this list can also be simple patterns to be matched against the header
names (e.g. "\*" or "thing1*, thing2" or "*thing1").
❺Comma-separated list of names of MessageHeaders to be mapped into the AMQP message
properties of the AMQP reply message. All standard Headers (such as contentType) are mapped
to AMQP Message Properties, while user-defined headers are mapped to the headers property.
This attribute can only be provided if the header-mapper reference is not provided. The values in
this list can also be simple patterns to be matched against the header names (for example, "\*"
or "foo*, bar" or "*foo").
❻Message Channel where reply Messages are expected. Optional.
❼Sets the receiveTimeout on the underlying o.s.i.core.MessagingTemplate for receiving
messages from the reply channel. If not specified, this property defaults to 1000 (1 second). Only
applies if the container thread hands off to another thread before the reply is sent.
❽The customized AmqpTemplate bean reference (to have more control over the reply messages
to send). You can provide an alternative implementation to the RabbitTemplate.
❾The replyTo o.s.amqp.core.Address to be used when the requestMessage does not have
a replyTo property. If this option is not specified, no amqp-template is provided, no replyTo
property exists in the request message, and an IllegalStateException is thrown because the
reply cannot be routed. If this option is not specified and an external amqp-template is provided,
no exception is thrown. You must either specify this option or configure a default exchange and
routingKey on that template, if you anticipate cases when no replyTo property exists in the
request message.
See the note in Section 14.1, “Inbound Channel Adapter” about configuring the listener-container
attribute.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the inbound gateway with
Java configuration:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 257
@SpringBootApplication
public class AmqpJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(AmqpJavaApplication.class)
.web(false)
.run(args);
}
@Bean
public MessageChannel amqpInputChannel() {
return new DirectChannel();
}
@Bean
public AmqpInboundGateway inbound(SimpleMessageListenerContainer listenerContainer,
@Qualifier("amqpInputChannel") MessageChannel channel) {
AmqpInboundGateway gateway = new AmqpInboundGateway(listenerContainer);
gateway.setRequestChannel(channel);
gateway.setDefaultReplyTo("bar");
return gateway;
}
@Bean
public SimpleMessageListenerContainer container(ConnectionFactory connectionFactory) {
SimpleMessageListenerContainer container =
new SimpleMessageListenerContainer(connectionFactory);
container.setQueueNames("foo");
container.setConcurrentConsumers(2);
// ...
return container;
}
@Bean
@ServiceActivator(inputChannel = "amqpInputChannel")
public MessageHandler handler() {
return new AbstractReplyProducingMessageHandler() {
@Override
protected Object handleRequestMessage(Message<?> requestMessage) {
return "reply to " + requestMessage.getPayload();
}
};
}
}
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the inbound gateway with
the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 258
@SpringBootApplication
public class AmqpJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(AmqpJavaApplication.class)
.web(false)
.run(args);
}
@Bean // return the upper cased payload
public IntegrationFlow amqpInboundGateway(ConnectionFactory connectionFactory) {
return IntegrationFlows.from(Amqp.inboundGateway(connectionFactory, "foo"))
.transform(String.class, String::toUpperCase)
.get();
}
}
14.4 Inbound Endpoint Acknowledge Mode
By default, the inbound endpoints use the AUTO acknowledge mode, which means the container
automatically acknowledges the message when the downstream integration flow completes (or a
message is handed off to another thread by using a QueueChannel or ExecutorChannel). Setting
the mode to NONE configures the consumer such that acknowledgments are not used at all (the
broker automatically acknowledges the message as soon as it is sent). Setting the mode to MANUAL
lets user code acknowledge the message at some other point during processing. To support this,
with this mode, the endpoints provide the Channel and deliveryTag in the amqp_channel and
amqp_deliveryTag headers, respectively.
You can perform any valid Rabbit command on the Channel but, generally, only basicAck and
basicNack (or basicReject) are used. In order to not interfere with the operation of the container,
you should not retain a reference to the channel and use it only in the context of the current message.
Note
Since the Channel is a reference to a "live" object, it cannot be serialized and is lost if a
message is persisted.
The following example shows how you might use MANUAL acknowledgement:
@ServiceActivator(inputChannel = "foo", outputChannel = "bar")
public Object handle(@Payload String payload, @Header(AmqpHeaders.CHANNEL) Channel channel,
@Header(AmqpHeaders.DELIVERY_TAG) Long deliveryTag) throws Exception {
// Do some processing
if (allOK) {
channel.basicAck(deliveryTag, false);
// perhaps do some more processing
}
else {
channel.basicNack(deliveryTag, false, true);
}
return someResultForDownStreamProcessing;
}
14.5 Outbound Channel Adapter
The following example shows the available properties for an AMQP outbound channel adapter:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 259
<int-amqp:outbound-channel-adapter id="outboundAmqp" ❶
channel="outboundChannel" ❷
amqp-template="myAmqpTemplate" ❸
exchange-name="" ❹
exchange-name-expression="" ❺
order="1" ❻
routing-key="" ❼
routing-key-expression="" ❽
default-delivery-mode"" ❾
confirm-correlation-expression="" ❿
confirm-ack-channel="" 11
confirm-nack-channel="" 12
return-channel="" 13
error-message-strategy="" 14
header-mapper="" 15
mapped-request-headers="" 16
lazy-connect="true" /> 17
❶The unique ID for this adapter. Optional.
❷Message channel to which messages should be sent to have them converted and published to an
AMQP exchange. Required.
❸Bean reference to the configured AMQP template. Optional (defaults to amqpTemplate).
❹The name of the AMQP exchange to which messages are sent. If not provided, messages are sent
to the default, no-name exchange. Mutually exclusive with exchange-name-expression. Optional.
❺A SpEL expression that is evaluated to determine the name of the AMQP exchange to which
messages are sent, with the message as the root object. If not provided, messages are sent to the
default, no-name exchange. Mutually exclusive with exchange-name. Optional.
❻The order for this consumer when multiple consumers are registered, thereby
enabling load-balancing and failover. Optional (defaults to Ordered.LOWEST_PRECEDENCE
[=Integer.MAX_VALUE]).
❼The fixed routing-key to use when sending messages. By default, this is an empty String. Mutually
exclusive with routing-key-expression. Optional.
❽A SpEL expression that is evaluated to determine the routing key to use when sending messages,
with the message as the root object (for example, payload.key). By default, this is an empty
String. Mutually exclusive with routing-key. Optional.
❾The default delivery mode for messages: PERSISTENT or NON_PERSISTENT. Overridden
if the header-mapper sets the delivery mode. If the Spring Integration message header
amqp_deliveryMode is present, the DefaultHeaderMapper sets the value. If this attribute
is not supplied and the header mapper does not set it, the default depends on the underlying
Spring AMQP MessagePropertiesConverter used by the RabbitTemplate. If that is not
customized at all, the default is PERSISTENT. Optional.
❿An expression that defines correlation data. When provided, this configures the underlying
AMQP template to receive publisher confirmations. Requires a dedicated RabbitTemplate
and a CachingConnectionFactory with the publisherConfirms property set to true.
When a publisher confirmation is received and correlation data is supplied, it is written to either
the confirm-ack-channel or the confirm-nack-channel, depending on the confirmation
type. The payload of the confirmation is the correlation data, as defined by this expression.
The message has an amqp_publishConfirm header set to true (ack) or false (nack).
Examples: headers['myCorrelationData'] and payload. Version 4.1 introduced the
amqp_publishConfirmNackCause message header. It contains the cause of a nack for a
publisher confirmation. Starting with version 4.2, if the expression resolves to a Message<?>
instance (such as #this), the message emitted on the ack/nack channel is based on that
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 260
message, with the additional header(s) added. Previously, a new message was created with the
correlation data as its payload, regardless of type. Optional.
11 The channel to which positive (ack) publisher confirms are sent. The payload is the correlation
data defined by the confirm-correlation-expression. If the expression is #root or #this,
the message is built from the original message, with the amqp_publishConfirm header set to
true. Optional (the default is nullChannel).
12 The channel to which negative (nack) publisher confirmations are sent. The payload is
the correlation data defined by the confirm-correlation-expression (if there is no
ErrorMessageStrategy configured). If the expression is #root or #this, the message
is built from the original message, with the amqp_publishConfirm header set to false.
When there is an ErrorMessageStrategy, the message is an ErrorMessage with a
NackedAmqpMessageException payload. Optional (the default is nullChannel).
13 The channel to which returned messages are sent. When provided, the underlying AMQP
template is configured to return undeliverable messages to the adapter. When there
is no ErrorMessageStrategy configured, the message is constructed from the data
received from AMQP, with the following additional headers: amqp_returnReplyCode,
amqp_returnReplyText, amqp_returnExchange, amqp_returnRoutingKey. When
there is an ErrorMessageStrategy, the message is an ErrorMessage with a
ReturnedAmqpMessageException payload. Optional.
14 A reference to an ErrorMessageStrategy implementation used to build ErrorMessage
instances when sending returned or negatively acknowledged messages.
15 A reference to an AmqpHeaderMapper to use when sending AMQP Messages. By
default, only standard AMQP properties (such as contentType) are copied to the Spring
Integration MessageHeaders. Any user-defined headers is not copied to the message by the
default`DefaultAmqpHeaderMapper`. Not allowed if request-header-names is provided. Optional.
16 Comma-separated list of names of AMQP Headers to be mapped from the MessageHeaders to
the AMQP Message. Not allowed if the header-mapper reference is provided. The values in this list
can also be simple patterns to be matched against the header names (e.g. "\*" or "thing1*,
thing2" or "*thing1").
17 When set to false, the endpoint attempts to connect to the broker during application context
initialization. This allows "fail fast" detection of bad configuration but also causes initialization
to fail if the broker is down. When true (the default), the connection is established (if it does not
already exist because some other component established it) when the first message is sent.
return-channel
Using a return-channel requires a RabbitTemplate with the mandatory property set to
true and a CachingConnectionFactory with the publisherReturns property set to true.
When using multiple outbound endpoints with returns, a separate RabbitTemplate is needed
for each endpoint.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the outbound adapter with
Java configuration:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 261
@SpringBootApplication
@IntegrationComponentScan
public class AmqpJavaApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context =
new SpringApplicationBuilder(AmqpJavaApplication.class)
.web(false)
.run(args);
MyGateway gateway = context.getBean(MyGateway.class);
gateway.sendToRabbit("foo");
}
@Bean
@ServiceActivator(inputChannel = "amqpOutboundChannel")
public AmqpOutboundEndpoint amqpOutbound(AmqpTemplate amqpTemplate) {
AmqpOutboundEndpoint outbound = new AmqpOutboundEndpoint(amqpTemplate);
outbound.setRoutingKey("foo"); // default exchange - route to queue 'foo'
return outbound;
}
@Bean
public MessageChannel amqpOutboundChannel() {
return new DirectChannel();
}
@MessagingGateway(defaultRequestChannel = "amqpOutboundChannel")
public interface MyGateway {
void sendToRabbit(String data);
}
}
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the outbound adapter with
the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 262
@SpringBootApplication
@IntegrationComponentScan
public class AmqpJavaApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context =
new SpringApplicationBuilder(AmqpJavaApplication.class)
.web(false)
.run(args);
MyGateway gateway = context.getBean(MyGateway.class);
gateway.sendToRabbit("foo");
}
@Bean
public IntegrationFlow amqpOutbound(AmqpTemplate amqpTemplate) {
return IntegrationFlows.from(amqpOutboundChannel())
.handle(Amqp.outboundAdapter(amqpTemplate)
.routingKey("foo")) // default exchange - route to queue 'foo'
.get();
}
@Bean
public MessageChannel amqpOutboundChannel() {
return new DirectChannel();
}
@MessagingGateway(defaultRequestChannel = "amqpOutboundChannel")
public interface MyGateway {
void sendToRabbit(String data);
}
}
14.6 Outbound Gateway
The following listing shows the possible properties for an AMQP Outbound Gateway:
<int-amqp:outbound-gateway id="inboundGateway" ❶
request-channel="myRequestChannel" ❷
amqp-template="" ❸
exchange-name="" ❹
exchange-name-expression="" ❺
order="1" ❻
reply-channel="" ❼
reply-timeout="" ❽
requires-reply="" ❾
routing-key="" ❿
routing-key-expression="" 11
default-delivery-mode"" 12
confirm-correlation-expression="" 13
confirm-ack-channel="" 14
confirm-nack-channel="" 15
return-channel="" 16
error-message-strategy="" 17
lazy-connect="true" /> 18
❶The unique ID for this adapter. Optional.
❷Message channel to which messages are sent to have them converted and published to an AMQP
exchange. Required.
❸Bean reference to the configured AMQP template. Optional (defaults to amqpTemplate).
❹The name of the AMQP exchange to which messages should be sent. If not provided, messages
are sent to the default, no-name cxchange. Mutually exclusive with exchange-name-expression.
Optional.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 263
❺A SpEL expression that is evaluated to determine the name of the AMQP exchange to which
messages should be sent, with the message as the root object. If not provided, messages are sent
to the default, no-name exchange. Mutually exclusive with exchange-name. Optional.
❻The order for this consumer when multiple consumers are registered, thereby
enabling load-balancing and failover. Optional (defaults to Ordered.LOWEST_PRECEDENCE
[=Integer.MAX_VALUE]).
❼Message channel to which replies should be sent after being received from an AMQP queue and
converted. Optional.
❽The time the gateway waits when sending the reply message to the reply-channel. This only
applies if the reply-channel can block — such as a QueueChannel with a capacity limit that
is currently full. Defaults to infinity.
❾When true, the gateway throws an exception if no reply message is received within the
AmqpTemplate's replyTimeout property. Defaults to true.
❿The routing-key to use when sending messages. By default, this is an empty String. Mutually
exclusive with routing-key-expression. Optional.
11 A SpEL expression that is evaluated to determine the routing-key to use when sending
messages, with the message as the root object (for example, payload.key). By default, this is an
empty String. Mutually exclusive with routing-key. Optional.
12 The default delivery mode for messages: PERSISTENT or NON_PERSISTENT. Overridden
if the header-mapper sets the delivery mode. If the Spring Integration message header
amqp_deliveryMode is present, the DefaultHeaderMapper sets the value. If this attribute
is not supplied and the header mapper does not set it, the default depends on the underlying
Spring AMQP MessagePropertiesConverter used by the RabbitTemplate. If that is not
customized at all, the default is PERSISTENT. Optional.
13 Since version 4.2. An expression defining correlation data. When provided, this configures the
underlying AMQP template to receive publisher confirms. Requires a dedicated RabbitTemplate
and a CachingConnectionFactory with the publisherConfirms property set to true.
When a publisher confirm is received and correlation data is supplied, it is written to either the
confirm-ack-channel or the confirm-nack-channel, depending on the confirmation type.
The payload of the confirm is the correlation data, as defined by this expression. The message has a
header amqp_publishConfirm set to true (ack) or false (nack). For nack confirmations, Spring
Integration provides an additional header amqp_publishConfirmNackCause. Examples:
headers['myCorrelationData'] and payload. If the expression resolves to a Message<?
> instance (such as #this), the message emitted on the ack/nack channel is based on that
message, with the additional headers added. Previously, a new message was created with the
correlation data as its payload, regardless of type. Optional.
14 The channel to which positive (ack) publisher confirmations are sent. The payload is the correlation
data defined by confirm-correlation-expression. If the expression is #root or #this,
the message is built from the original message, with the amqp_publishConfirm header set to
true. Optional (the default is nullChannel).
15 The channel to which negative (nack) publisher confirmations are sent. The payload
is the correlation data defined by confirm-correlation-expression (if there is no
ErrorMessageStrategy configured). If the expression is #root or #this, the message
is built from the original message, with the amqp_publishConfirm header set to false.
When there is an ErrorMessageStrategy, the message is an ErrorMessage with a
NackedAmqpMessageException payload. Optional (the default is nullChannel).
16 The channel to which returned messages are sent. When provided, the underlying AMQP
template is configured to return undeliverable messages to the adapter. When there
is no ErrorMessageStrategy configured, the message is constructed from the data
received from AMQP, with the following additional headers: amqp_returnReplyCode,
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 264
amqp_returnReplyText, amqp_returnExchange, and amqp_returnRoutingKey. When
there is an ErrorMessageStrategy, the message is an ErrorMessage with a
ReturnedAmqpMessageException payload. Optional.
17 A reference to an ErrorMessageStrategy implementation used to build ErrorMessage
instances when sending returned or negatively acknowledged messages.
18 When set to false, the endpoint attempts to connect to the broker during application context
initialization. This allows "fail fast" detection of bad configuration by logging an error message
if the broker is down. When true (the default), the connection is established (if it does not already
exist because some other component established it) when the first message is sent.
return-channel
Using a return-channel requires a RabbitTemplate with the mandatory property set to
true and a CachingConnectionFactory with the publisherReturns property set to true.
When using multiple outbound endpoints with returns, a separate RabbitTemplate is needed
for each endpoint.
Important
The underlying AmqpTemplate has a default replyTimeout of five seconds. If you require a
longer timeout, you must configure it on the template.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the outbound gateway
with Java configuration:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 265
@SpringBootApplication
@IntegrationComponentScan
public class AmqpJavaApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context =
new SpringApplicationBuilder(AmqpJavaApplication.class)
.web(false)
.run(args);
MyGateway gateway = context.getBean(MyGateway.class);
String reply = gateway.sendToRabbit("foo");
System.out.println(reply);
}
@Bean
@ServiceActivator(inputChannel = "amqpOutboundChannel")
public AmqpOutboundEndpoint amqpOutbound(AmqpTemplate amqpTemplate) {
AmqpOutboundEndpoint outbound = new AmqpOutboundEndpoint(amqpTemplate);
outbound.setExpectReply(true);
outbound.setRoutingKey("foo"); // default exchange - route to queue 'foo'
return outbound;
}
@Bean
public MessageChannel amqpOutboundChannel() {
return new DirectChannel();
}
@MessagingGateway(defaultRequestChannel = "amqpOutboundChannel")
public interface MyGateway {
String sendToRabbit(String data);
}
}
Note that the only difference between the outbound adapter and outbound gateway configuration is the
setting of the expectReply property.
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the outbound adapter with
the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 266
@SpringBootApplication
@IntegrationComponentScan
public class AmqpJavaApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context =
new SpringApplicationBuilder(AmqpJavaApplication.class)
.web(false)
.run(args);
RabbitTemplate template = context.getBean(RabbitTemplate.class);
MyGateway gateway = context.getBean(MyGateway.class);
String reply = gateway.sendToRabbit("foo");
System.out.println(reply);
}
@Bean
public IntegrationFlow amqpOutbound(AmqpTemplate amqpTemplate) {
return IntegrationFlows.from(amqpOutboundChannel())
.handle(Amqp.outboundGateway(amqpTemplate)
.routingKey("foo")) // default exchange - route to queue 'foo'
.get();
}
@Bean
public MessageChannel amqpOutboundChannel() {
return new DirectChannel();
}
@MessagingGateway(defaultRequestChannel = "amqpOutboundChannel")
public interface MyGateway {
String sendToRabbit(String data);
}
}
14.7 Asynchronous Outbound Gateway
The gateway discussed in the previous section is synchronous, in that the sending thread is suspended
until a reply is received (or a timeout occurs). Spring Integration version 4.3 added an asynchronous
gateway, which uses the AsyncRabbitTemplate from Spring AMQP. When a message is sent, the
thread returns immediately after the send operation completes, and, when the message is received, the
reply is sent on the template’s listener container thread. This can be useful when the gateway is invoked
on a poller thread. The thread is released and is available for other tasks in the framework.
The following listing shows the possible configuration options for an AMQP asynchronous outbound
gateway:
<int-amqp:outbound-gateway id="inboundGateway" ❶
request-channel="myRequestChannel" ❷
async-template="" ❸
exchange-name="" ❹
exchange-name-expression="" ❺
order="1" ❻
reply-channel="" ❼
reply-timeout="" ❽
requires-reply="" ❾
routing-key="" ❿
routing-key-expression="" 11
default-delivery-mode"" 12
confirm-correlation-expression="" 13
confirm-ack-channel="" 14
confirm-nack-channel="" 15
return-channel="" 16
lazy-connect="true" /> 17
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 267
❶The unique ID for this adapter. Optional.
❷Message channel to which messages should be sent in order to have them converted and published
to an AMQP exchange. Required.
❸Bean reference to the configured AsyncRabbitTemplate. Optional (it defaults to
asyncRabbitTemplate).
❹The name of the AMQP exchange to which messages should be sent. If not provided, messages
are sent to the default, no-name exchange. Mutually exclusive with exchange-name-expression.
Optional.
❺A SpEL expression that is evaluated to determine the name of the AMQP exchange to which
messages are sent, with the message as the root object. If not provided, messages are sent to the
default, no-name exchange. Mutually exclusive with exchange-name. Optional.
❻The order for this consumer when multiple consumers are registered, thereby enabling
load-balancing and failover. Optional (it defaults to Ordered.LOWEST_PRECEDENCE
[=Integer.MAX_VALUE]).
❼Message channel to which replies should be sent after being received from an AMQP queue and
converted. Optional.
❽The time the gateway waits when sending the reply message to the reply-channel. This only
applies if the reply-channel can block — such as a QueueChannel with a capacity limit that
is currently full. The default is infinity.
❾When no reply message is received within the AsyncRabbitTemplate's receiveTimeout
property and this setting is true, the gateway sends an error message to the inbound
message’s errorChannel header. When no reply message is received within the
AsyncRabbitTemplate's receiveTimeout property and this setting is false, the gateway
sends an error message to the default errorChannel (if available). It defaults to true.
❿The routing-key to use when sending Messages. By default, this is an empty String. Mutually
exclusive with routing-key-expression. Optional.
11 A SpEL expression that is evaluated to determine the routing-key to use when sending messages,
with the message as the root object (for example, payload.key). By default, this is an empty
String. Mutually exclusive with routing-key. Optional.
12 The default delivery mode for messages: PERSISTENT or NON_PERSISTENT. Overridden
if the header-mapper sets the delivery mode. If the Spring Integration message header
(amqp_deliveryMode) is present, the DefaultHeaderMapper sets the value. If this attribute
is not supplied and the header mapper does not set it, the default depends on the underlying
Spring AMQP MessagePropertiesConverter used by the RabbitTemplate. If that is not
customized, the default is PERSISTENT. Optional.
13 An expression that defines correlation data. When provided, this configures the underlying AMQP
template to receive publisher confirmations. Requires a dedicated RabbitTemplate and a
CachingConnectionFactory with its publisherConfirms property set to true. When a
publisher confirmation is received and correlation data is supplied, the confirmation is written
to either the confirm-ack-channel or the confirm-nack-channel, depending on the
confirmation type. The payload of the confirmation is the correlation data as defined by this
expression, and the message has its amqp_publishConfirm header set to true (ack) or false
(nack). For nack instances, an additional header (amqp_publishConfirmNackCause) is
provided. Examples: headers['myCorrelationData'], payload. If the expression resolves
to a Message<?> instance (such as "#this"), the message emitted on the ack/nack channel is
based on that message, with the additional headers added. Optional.
14 The channel to which positive (ack) publisher confirmations are sent. The payload is the
correlation data defined by the confirm-correlation-expression. Requires the underlying
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 268
AsyncRabbitTemplate to have its enableConfirms property set to true. Optional (the default
is nullChannel).
15 Since version 4.2. The channel to which negative (nack) publisher confirmations are sent. The
payload is the correlation data defined by the confirm-correlation-expression. Requires
the underlying AsyncRabbitTemplate to have its enableConfirms property set to true.
Optional (the default is nullChannel).
16 The channel to which returned messages are sent. When provided, the underlying
AMQP template is configured to return undeliverable messages to the gateway. The
message is constructed from the data received from AMQP, with the following additional
headers: amqp_returnReplyCode, amqp_returnReplyText, amqp_returnExchange, and
amqp_returnRoutingKey. Requires the underlying AsyncRabbitTemplate to have its
mandatory property set to true. Optional.
17 When set to false, the endpoint tries to connect to the broker during application context
initialization. Doing so allows "fail fast" detection of bad configuration, by logging an error
message if the broker is down. When true (the default), the connection is established (if it does
not already exist because some other component established it) when the first message is sent.
See also the section called “Asynchronous Service Activator” for more information.
RabbitTemplate
When you use confirmations and returns, we recommend that the RabbitTemplate wired
into the AsyncRabbitTemplate be dedicated. Otherwise, unexpected side-effects may be
encountered.
Configuring with Java Configuration
The following configuration shows an example of how to configure the outbound gateway with Java
configuration:
@Configuration
public class AmqpAsyncConfig {
@Bean
@ServiceActivator(inputChannel = "amqpOutboundChannel")
public AsyncAmqpOutboundGateway amqpOutbound(AmqpTemplate asyncTemplate) {
AsyncAmqpOutboundGateway outbound = new AsyncAmqpOutboundGateway(asyncTemplate);
outbound.setRoutingKey("foo"); // default exchange - route to queue 'foo'
return outbound;
}
@Bean
public AsyncRabbitTemplate asyncTemplate(RabbitTemplate rabbitTemplate,
SimpleMessageListenerContainer replyContainer) {
return new AsyncRabbitTemplate(rabbitTemplate, replyContainer);
}
@Bean
public SimpleMessageListenerContainer replyContainer() {
SimpleMessageListenerContainer container = new SimpleMessageListenerContainer(ccf);
container.setQueueNames("asyncRQ1");
return container;
}
@Bean
public MessageChannel amqpOutboundChannel() {
return new DirectChannel();
}
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 269
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the outbound adapter with
the Java DSL:
@SpringBootApplication
public class AmqpAsyncApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context =
new SpringApplicationBuilder(AmqpAsyncApplication.class)
.web(false)
.run(args);
MyGateway gateway = context.getBean(MyGateway.class);
String reply = gateway.sendToRabbit("foo");
System.out.println(reply);
}
@Bean
public IntegrationFlow asyncAmqpOutbound(AsyncRabbitTemplate asyncRabbitTemplate) {
return f -> f
.handle(Amqp.asyncOutboundGateway(asyncRabbitTemplate)
.routingKey("foo")); // default exchange - route to queue 'foo'
}
@MessagingGateway(defaultRequestChannel = "asyncAmqpOutbound.input")
public interface MyGateway {
String sendToRabbit(String data);
}
}
14.8 Outbound Message Conversion
Spring AMQP 1.4 introduced the ContentTypeDelegatingMessageConverter, where the actual
converter is selected based on the incoming content type message property. This can be used by
inbound endpoints.
As of Spring Integration version 4.3, you can use the ContentTypeDelegatingMessageConverter
on outbound endpoints as well, with the contentType header specifying which converter is used.
The following example configures a ContentTypeDelegatingMessageConverter, with the default
converter being the SimpleMessageConverter (which handles Java serialization and plain text),
together with a JSON converter:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 270
<amqp:outbound-channel-adapter id="withContentTypeConverter" channel="ctRequestChannel"
exchange-name="someExchange"
routing-key="someKey"
amqp-template="amqpTemplateContentTypeConverter" />
<int:channel id="ctRequestChannel"/>
<rabbit:template id="amqpTemplateContentTypeConverter"
connection-factory="connectionFactory" message-converter="ctConverter" />
<bean id="ctConverter"
class="o.s.amqp.support.converter.ContentTypeDelegatingMessageConverter">
<property name="delegates">
<map>
<entry key="application/json">
<bean class="o.s.amqp.support.converter.Jackson2JsonMessageConverter" />
</entry>
</map>
</property>
</bean>
Sending a message to ctRequestChannel with the contentType header set to application/
json causes the JSON converter to be selected.
This applies to both the outbound channel adapter and gateway.
Note
Starting with version 5.0, headers that are added to the MessageProperties of the outbound
message are never overwritten by mapped headers (by default). Previously, this was only the
case if the message converter was a ContentTypeDelegatingMessageConverter (in that
case, the header was mapped first so that the proper converter could be selected). For other
converters, such as the SimpleMessageConverter, mapped headers overwrote any headers
added by the converter. This caused problems when an outbound message had some leftover
contentType headers (perhaps from an inbound channel adapter) and the correct outbound
contentType was incorrectly overwritten. The work-around was to use a header filter to remove
the header before sending the message to the outbound endpoint.
There are, however, cases where the previous behavior is desired — for example, when a String
payload that contains JSON, the SimpleMessageConverter is not aware of the content and
sets the contentType message property to text/plain but your application would like to
override that to application/json by setting the contentType header of the message sent
to the outbound endpoint. The ObjectToJsonTransformer does exactly that (by default).
There is now a property called headersMappedLast on the outbound channel adapter and
gateway (as well as on AMQP-backed channels). Setting this to true restores the behavior of
overwriting the property added by the converter.
14.9 Outbound User ID
Spring AMQP version 1.6 introduced a mechanism to allow the specification of a default user
ID for outbound messages. It has always been possible to set the AmqpHeaders.USER_ID
header, which now takes precedence over the default. This might be useful to message recipients.
For inbound messages, if the message publisher sets the property, it is made available in the
AmqpHeaders.RECEIVED_USER_ID header. Note that RabbitMQ validates that the user ID is the
actual user ID for the connection or that the connection allows impersonation.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 271
To configure a default user ID for outbound messages, configure it on a RabbitTemplate and
configure the outbound adapter or gateway to use that template. Similarly, to set the user ID property
on replies, inject an appropriately configured template into the inbound gateway. See the Spring AMQP
documentation for more information.
14.10 Delayed Message Exchange
Spring AMQP supports the RabbitMQ Delayed Message Exchange Plugin. For inbound messages,
the x-delay header is mapped to the AmqpHeaders.RECEIVED_DELAY header. Setting the
AMQPHeaders.DELAY header causes the corresponding x-delay header to be set in outbound
messages. You can also specify the delay and delayExpression properties on outbound endpoints
(delay-expression when using XML configuration). These properties take precedence over the
AmqpHeaders.DELAY header.
14.11 AMQP-backed Message Channels
There are two message channel implementations available. One is point-to-point, and the other is
publish-subscribe. Both of these channels provide a wide range of configuration attributes for the
underlying AmqpTemplate and SimpleMessageListenerContainer (as shown earlier in this
chapter for the channel adapters and gateways). However, the examples we show here have minimal
configuration. Explore the XML schema to view the available attributes.
A point-to-point channel might look like the following example:
<int-amqp:channel id="p2pChannel"/>
Under the covers, the preceding example causes a Queue named si.p2pChannel to be declared,
and this channel sends to that Queue (technically, by sending to the no-name direct exchange with
a routing key that matches the name of this Queue). This channel also registers a consumer on that
Queue. If you want the channel to be "pollable" instead of message-driven, provide the message-
driven flag with a value of false, as the following example shows:
<int-amqp:channel id="p2pPollableChannel" message-driven="false"/>
A publish-subscribe channel might look like the following:
<int-amqp:publish-subscribe-channel id="pubSubChannel"/>
Under the covers, the preceding example causes a fanout exchange named
si.fanout.pubSubChannel to be declared, and this channel sends to that fanout exchange. This
channel also declares a server-named exclusive, auto-delete, non-durable Queue and binds that to
the fanout exchange while registering a consumer on that Queue to receive messages. There is no
"pollable" option for a publish-subscribe-channel. It must be message-driven.
Starting with version 4.1, AMQP-backed message channels (in conjunction with channel-
transacted) support template-channel-transacted to separate transactional
configuration for the AbstractMessageListenerContainer and for the RabbitTemplate. Note
that, previously, channel-transacted was true by default. Now, by default, it is false for the
AbstractMessageListenerContainer.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 272
Prior to version 4.3, AMQP-backed channels only supported messages with Serializable payloads
and headers. The entire message was converted (serialized) and sent to RabbitMQ. Now, you can
set the extract-payload attribute (or setExtractPayload() when using Java configuration)
to true. When this flag is true, the message payload is converted and the headers are mapped,
in a manner similar to when you use channel adapters. This arrangement lets AMQP-backed
channels be used with non-serializable payloads (perhaps with another message converter, such as
the Jackson2JsonMessageConverter). See Section 14.12, “AMQP Message Headers” for more
about the default mapped headers. You can modify the mapping by providing custom mappers that
use the outbound-header-mapper and inbound-header-mapper attributes. You can now also
specify a default-delivery-mode, which is used to set the delivery mode when there is no
amqp_deliveryMode header. By default, Spring AMQP MessageProperties uses PERSISTENT
delivery mode.
Important
As with other persistence-backed channels, AMQP-backed channels are intended to provide
message persistence to avoid message loss. They are not intended to distribute work to other
peer applications. For that purpose, use channel adapters instead.
Important
Starting with version 5.0, the pollable channel now blocks the poller thread for the specified
receiveTimeout (the default is 1 second). Previously, unlike other PollableChannel
implementations, the thread returned immediately to the scheduler if no message was available,
regardless of the receive timeout. Blocking is a little more expensive than using a basicGet()
to retrieve a message (with no timeout), because a consumer has to be created to receive each
message. To restore the previous behavior, set the poller’s receiveTimeout to 0.
Configuring with Java Configuration
The following example shows how to configure the channels with Java configuration:
@Bean
public AmqpChannelFactoryBean pollable(ConnectionFactory connectionFactory) {
AmqpChannelFactoryBean factoryBean = new AmqpChannelFactoryBean();
factoryBean.setConnectionFactory(connectionFactory);
factoryBean.setQueueName("foo");
factoryBean.setPubSub(false);
return factoryBean;
}
@Bean
public AmqpChannelFactoryBean messageDriven(ConnectionFactory connectionFactory) {
AmqpChannelFactoryBean factoryBean = new AmqpChannelFactoryBean(true);
factoryBean.setConnectionFactory(connectionFactory);
factoryBean.setQueueName("bar");
factoryBean.setPubSub(false);
return factoryBean;
}
@Bean
public AmqpChannelFactoryBean pubSub(ConnectionFactory connectionFactory) {
AmqpChannelFactoryBean factoryBean = new AmqpChannelFactoryBean(true);
factoryBean.setConnectionFactory(connectionFactory);
factoryBean.setQueueName("baz");
factoryBean.setPubSub(false);
return factoryBean;
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 273
Configuring with the Java DSL
The following example shows how to configure the channels with the Java DSL:
@Bean
public IntegrationFlow pollableInFlow(ConnectionFactory connectionFactory) {
return IntegrationFlows.from(...)
...
.channel(Amqp.pollableChannel(connectionFactory)
.queueName("foo"))
...
.get();
}
@Bean
public IntegrationFlow messageDrivenInFow(ConnectionFactory connectionFactory) {
return IntegrationFlows.from(...)
...
.channel(Amqp.channel(connectionFactory)
.queueName("bar"))
...
.get();
}
@Bean
public IntegrationFlow pubSubInFlow(ConnectionFactory connectionFactory) {
return IntegrationFlows.from(...)
...
.channel(Amqp.publisSubscribeChannel(connectionFactory)
.queueName("baz"))
...
.get();
}
14.12 AMQP Message Headers
Overview
The Spring Integration AMQP Adapters automatically map all AMQP properties and headers. (This is
a change from 4.3 - previously, only standard headers were mapped). By default, these properties are
copied to and from Spring Integration MessageHeaders by using the DefaultAmqpHeaderMapper.
You can pass in your own implementation of AMQP-specific header mappers, as the adapters have
properties to support doing so.
Any user-defined headers within the AMQP MessageProperties are copied to or from an AMQP
message, unless explicitly negated by the requestHeaderNames or replyHeaderNames properties
of the DefaultAmqpHeaderMapper. By default, for an outbound mapper, no x-* headers are
mapped. See the caution that appears later in this section for why.
To override the default and revert to the pre-4.3 behavior, use STANDARD_REQUEST_HEADERS and
STANDARD_REPLY_HEADERS in the properties.
Tip
When mapping user-defined headers, the values can also contain simple wildcard patterns (such
as thing* or *thing) to be matched. * matches all headers.
Starting with version 4.1, the AbstractHeaderMapper (a DefaultAmqpHeaderMapper superclass)
lets the NON_STANDARD_HEADERS token be configured for the requestHeaderNames and
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 274
replyHeaderNames properties (in addition to the existing STANDARD_REQUEST_HEADERS and
STANDARD_REPLY_HEADERS) to map all user-defined headers.
The org.springframework.amqp.support.AmqpHeaders class identifies the default headers
that are used by the DefaultAmqpHeaderMapper:
•amqp_appId
•amqp_clusterId
•amqp_contentEncoding
•amqp_contentLength
•content-type (see the section called “contentType Header”)
•amqp_correlationId
•amqp_delay
•amqp_deliveryMode
•amqp_deliveryTag
•amqp_expiration
•amqp_messageCount
•amqp_messageId
•amqp_receivedDelay
•amqp_receivedDeliveryMode
•amqp_receivedExchange
•amqp_receivedRoutingKey
•amqp_redelivered
•amqp_replyTo
•amqp_timestamp
•amqp_type
•amqp_userId
•amqp_publishConfirm
•amqp_publishConfirmNackCause
•amqp_returnReplyCode
•amqp_returnReplyText
•amqp_returnExchange
•amqp_returnRoutingKey
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 275
•amqp_channel
•amqp_consumerTag
•amqp_consumerQueue
Caution
As mentioned earlier in this section, using a header mapping pattern of`*` is a common way
to copy all headers. However, this can have some unexpected side effects, because certain
RabbitMQ proprietary properties/headers are also copied. For example, when you use federation,
the received message may have a property named x-received-from, which contains the node
that sent the message. If you use the wildcard character * for the request and reply header
mapping on the inbound gateway, this header is copied, which may cause some issues with
federation. This reply message may be federated back to the sending broker, which may think that
a message is looping and, as a result, silently drop it. If you wish to use the convenience of wildcard
header mapping, you may need to filter out some headers in the downstream flow. For example,
to avoid copying the x-received-from header back to the reply you can use <int:header-
filter ... header-names="x-received-from"> before sending the reply to the AMQP
inbound gateway. Alternatively, you can explicitly list those properties that you actually want
mapped, instead of using wildcards. For these reasons, for inbound messages, the mapper
(by default) does not map any x-* headers. It also does not map the deliveryMode to the
amqp_deliveryMode header, to avoid propagation of that header from an inbound message
to an outbound message. Instead, this header is mapped to amqp_receivedDeliveryMode,
which is not mapped on output.
Starting with version 4.3, patterns in the header mappings can be negated by preceding the pattern
with !. Negated patterns get priority, so a list such as STANDARD_REQUEST_HEADERS,thing1,ba*,!
thing2,!thing3,qux,!thing1 does not map thing1 (nor thing2 nor thing3). The standard
headers plus bad and qux are mapped.
Important
If you have a user-defined header that begins with ! that you do wish to map, you need to escape
it with \, as follows: STANDARD_REQUEST_HEADERS,\!myBangHeader. The header named !
myBangHeader is now mapped.
Note
Starting with version 5.1, the DefaultAmqpHeaderMapper will fall
back to mapping MessageHeaders.ID and MessageHeaders.TIMESTAMP to
MessageProperties.messageId and MessageProperties.timestamp respectively, if the
corresponding amqp_messageId or amqp_timestamp headers are not present on outbound
messages. Inbound properties will be mapped to the amqp_* headers as before. It is useful to
populate the messageId property when message consumers are using stateful retry.
contentType Header
Unlike other headers, the AmqpHeaders.CONTENT_TYPE is not prefixed with amqp_; this allows
transparent passing of the contentType header across different technologies. E.g. an inbound HTTP
message sent to a RabbitMQ queue.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 276
The contentType header is mapped to Spring AMQP’s MessageProperties.contentType
property and that is subsequently mapped to RabbitMQ’s content_type property.
Prior to version 5.1, this header was also mapped as an entry in the MessageProperties.headers
map; this was incorrect and, furthermore, the value could be wrong since the underlying Spring AMQP
message converter might have changed the content type. Such a change would be reflected in the first-
class content_type property, but not in the RabbitMQ headers map. Inbound mapping ignored the
headers map value. contentType is no longer mapped to an entry in the headers map.
14.13 Strict Message Ordering
This section describes message ordering for inbound and outbound messages.
Inbound
If you require strict ordering of inbound messages, you must configure the inbound listener container’s
prefetchCount property to 1. This is because, if a message fails and is redelivered, it arrives after
existing prefetched messages. Since Spring AMQP version 2.0, the prefetchCount defaults to 250
for improved performance. Strict ordering requirements come at the cost of decreased performance.
Outbound
Consider the following integration flow:
@Bean
public IntegrationFlow flow(RabbitTemplate template) {
return IntegrationFlows.from(Gateway.class)
.split(s -> s.delimiters(","))
.<String, String>transform(String::toUpperCase)
.handle(Amqp.outboundAdapter(template).routingKey("rk"))
.get();
}
Suppose we send messages A, B and C to the gateway. While it is likely that messages A, B, C are sent
in order, there is no guarantee. This is because the template "borrows" a channel from the cache for
each send operation, and there is no guarantee that the same channel is used for each message. One
solution is to start a transaction before the splitter, but transactions are expensive in RabbitMQ and can
reduce performance several hundred fold.
To solve this problem in a more efficient manner, starting with version 5.1, Spring Integration provides the
BoundRabbitChannelAdvice which is a HandleMessageAdvice. See the section called “Handling
Message Advice”. When applied before the splitter, it ensures that all downstream operations are
performed on the same channel and, optionally, can wait until publisher confirmations for all sent
messages are received (if the connection factory is configured for confirmations). The following example
shows how to use BoundRabbitChannelAdvice:
@Bean
public IntegrationFlow flow(RabbitTemplate template) {
return IntegrationFlows.from(Gateway.class)
.split(s -> s.delimiters(",")
.advice(new BoundRabbitChannelAdvice(template, Duration.ofSeconds(10))))
.<String, String>transform(String::toUpperCase)
.handle(Amqp.outboundAdapter(template).routingKey("rk"))
.get();
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 277
Notice that the same RabbitTemplate (which implements RabbitOperations) is used in the advice
and the outbound adapter. The advice runs the downstream flow within the template’s invoke method
so that all operations run on the same channel. If the optional timeout is provided, when the flow
completes, the advice calls the waitForConfirmsOrDie method, which throws an exception if the
confirmations are not received within the specified time.
Important
There must be no thread handoffs in the downstream flow (QueueChannel, ExecutorChannel,
and others).
14.14 AMQP Samples
To experiment with the AMQP adapters, check out the samples available in the Spring Integration
samples git repository at https://github.com/SpringSource/spring-integration-samples
Currently, one sample demonstrates the basic functionality of the Spring Integration AMQP adapter by
using an outbound channel adapter and an inbound channel adapter. As AMQP broker implementation
in the sample uses RabbitMQ.
Note
In order to run the example, you need a running instance of RabbitMQ. A local installation
with just the basic defaults suffices. For detailed RabbitMQ installation procedures, see http://
www.rabbitmq.com/install.html
Once the sample application is started, enter some text on the command prompt and a message
containing that entered text is dispatched to the AMQP queue. In return, that message is retrieved by
Spring Integration and printed to the console.
The following image illustrates the basic set of Spring Integration components used in this sample.
Figure 14.1. The Spring Integration graph of the AMQP sample
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 278
15. Spring ApplicationEvent Support
Spring Integration provides support for inbound and outbound ApplicationEvents, as defined by
the underlying Spring Framework. For more information about Spring’s support for events and listeners,
see the Spring Reference Manual.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-event</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-event:5.1.1.RELEASE"
15.1 Receiving Spring Application Events
To receive events and send them to a channel, you can define an instance of Spring Integration’s
ApplicationEventListeningMessageProducer. This class is an implementation of Spring’s
ApplicationListener interface. By default, it passes all received events as Spring Integration
messages. To limit based on the type of event, you can use the eventTypes property to configure the
list of event types that you want to receive. If a received event has a Message instance as its source,
that Message is passed as-is. Otherwise, if a SpEL-based payloadExpression has been provided,
that is evaluated against the ApplicationEvent instance. If the event’s source is not a Message
instance and no payloadExpression has been provided, the ApplicationEvent itself is passed
as the payload.
Starting with version 4.2, the ApplicationEventListeningMessageProducer implements
GenericApplicationListener and can be configured to accept not only ApplicationEvent
types but any type for treating payload events (which are also supported since Spring Framework 4.2).
When the accepted event is an instance of PayloadApplicationEvent, its payload is used for the
message to send.
For convenience, namespace support is provided to configure an
ApplicationEventListeningMessageProducer with the inbound-channel-adapter
element, as the following example shows:
<int-event:inbound-channel-adapter channel="eventChannel"
error-channel="eventErrorChannel"
event-types="example.FooEvent, example.BarEvent, java.util.Date"/>
<int:publish-subscribe-channel id="eventChannel"/>
In the preceding example, all application context events that match one of the types specified by the
event-types (optional) attribute are delivered as Spring Integration messages to the message channel
named eventChannel. If a downstream component throws an exception, a MessagingException
that contains the failed message and exception is sent to the channel named eventErrorChannel. If
no error-channel is specified and the downstream channels are synchronous, the exception is
propagated to the caller.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 279
15.2 Sending Spring Application Events
To send Spring ApplicationEvents, create an instance of the
ApplicationEventPublishingMessageHandler and register it within an endpoint.
This implementation of the MessageHandler interface also implements Spring’s
ApplicationEventPublisherAware interface and consequently acts as a bridge between Spring
Integration messages and ApplicationEvents.
For convenience, namespace support is provided to configure an
ApplicationEventPublishingMessageHandler with the outbound-channel-adapter
element, as the following example shows:
<int:channel id="eventChannel"/>
<int-event:outbound-channel-adapter channel="eventChannel"/>
If you use a PollableChannel (such as a Queue), you can also provide poller as a child element
of the outbound-channel-adapter element. You can also optionally provide a task-executor
reference for that poller. The following example demonstrates both:
<int:channel id="eventChannel">
<int:queue/>
</int:channel>
<int-event:outbound-channel-adapter channel="eventChannel">
<int:poller max-messages-per-poll="1" task-executor="executor" fixed-rate="100"/>
</int-event:outbound-channel-adapter>
<task:executor id="executor" pool-size="5"/>
In the preceding example, all messages sent to the eventChannel channel are published
as ApplicationEvent instances to any relevant ApplicationListener instances that are
registered within the same Spring ApplicationContext. If the payload of the message is
an ApplicationEvent, it is passed as-is. Otherwise, the message itself is wrapped in a
MessagingEvent instance.
Starting with version 4.2, you can configure the ApplicationEventPublishingMessageHandler
(<int-event:outbound-channel-adapter>) with the publish-payload boolean attribute to
publish to the application context payload as is, instead of wrapping it to a MessagingEvent instance.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 280
16. Feed Adapter
Spring Integration provides support for syndication through feed adapters. The implementation is based
on the ROME Framework.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-feed</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-feed:5.1.1.RELEASE"
Web syndication is a way to publish material such as news stories, press releases, blog posts, and other
items typically available on a website but also made available in a feed format such as RSS or ATOM.
Spring integration provides support for web syndication through its feed adapter and provides convenient
namespace-based configuration for it. To configure the feed namespace, include the following elements
within the headers of your XML configuration file:
xmlns:int-feed="http://www.springframework.org/schema/integration/feed"
xsi:schemaLocation="http://www.springframework.org/schema/integration/feed
http://www.springframework.org/schema/integration/feed/spring-integration-feed.xsd"
16.1 Feed Inbound Channel Adapter
The only adapter you really need to provide support for retrieving feeds is an inbound channel adapter.
It lets you subscribe to a particular URL. The following example shows a possible configuration:
<int-feed:inbound-channel-adapter id="feedAdapter"
channel="feedChannel"
url="http://feeds.bbci.co.uk/news/rss.xml">
<int:poller fixed-rate="10000" max-messages-per-poll="100" />
</int-feed:inbound-channel-adapter>
In the preceding configuration, we are subscribing to a URL identified by the url attribute.
As news items are retrieved, they are converted to messages and sent to a
channel identified by the channel attribute. The payload of each message is a
com.sun.syndication.feed.synd.SyndEntry instance. Each one encapsulates various data
about a news item (content, dates, authors, and other details).
The inbound feed channel adapter is a polling consumer. That means that you must provide a poller
configuration. However, one important thing you must understand with regard to a feed is that its inner
workings are slightly different then most other polling consumers. When an inbound feed adapter is
started, it does the first poll and receives a com.sun.syndication.feed.synd.SyndEntryFeed
instance. That object contains multiple SyndEntry objects. Each entry is stored in the local entry
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 281
queue and is released based on the value in the max-messages-per-poll attribute, such that each
message contains a single entry. If, during retrieval of the entries from the entry queue, the queue has
become empty, the adapter attempts to update the feed, thereby populating the queue with more entries
(SyndEntry instances), if any are available. Otherwise the next attempt to poll for a feed is determined
by the trigger of the poller (every ten seconds in the preceding configuration).
16.2 Duplicate Entries
Polling for a feed can result in entries that have already been processed ("I already read that
news item, why are you showing it to me again?"). Spring Integration provides a convenient
mechanism to eliminate the need to worry about duplicate entries. Each feed entry has a "published
date" field. Every time a new Message is generated and sent, Spring Integration stores the value of
the latest published date in an instance of the MetadataStore strategy (see Section 12.5, “Metadata
Store”).
Note
The key used to persist the latest published date is the value of the (required) id attribute
of the feed inbound channel adapter component plus the feedUrl (if any) from the adapter’s
configuration.
16.3 Other Options
Starting with version 5.0, the deprecated com.rometools.fetcher.FeedFetcher option
has been removed and an overloaded FeedEntryMessageSource constructor for an
org.springframework.core.io.Resource is provided. This is useful when the feed source
is not an HTTP endpoint but is any other resource (such as local or remote on FTP). In
the FeedEntryMessageSource logic, such a resource (or provided URL) is parsed by the
SyndFeedInput to the SyndFeed object for the processing mentioned earlier. You can also inject
a customized SyndFeedInput (for example, with the allowDoctypes option) instance into the
FeedEntryMessageSource.
16.4 Java DSL Configuration
The following Spring Boot application shows an example of how to configure the inbound adapter with
the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 282
@SpringBootApplication
public class FeedJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(FeedJavaApplication.class)
.web(false)
.run(args);
}
@Value("org/springframework/integration/feed/sample.rss")
private Resource feedResource;
@Bean
public MetadataStore metadataStore() {
PropertiesPersistingMetadataStore metadataStore = new PropertiesPersistingMetadataStore();
metadataStore.setBaseDirectory(tempFolder.getRoot().getAbsolutePath());
return metadataStore;
}
@Bean
public IntegrationFlow feedFlow() {
return IntegrationFlows
.from(Feed.inboundAdapter(this.feedResource, "feedTest")
.metadataStore(metadataStore()),
e -> e.poller(p -> p.fixedDelay(100)))
.channel(c -> c.queue("entries"))
.get();
}
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 283
17. File Support
Spring Integration’s file support extends the Spring Integration core with a dedicated vocabulary to deal
with reading, writing, and transforming files.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-file</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-file:5.1.1.RELEASE"
It provides a namespace that enables elements defining channel adapters dedicated to files and support
for transformers that can read file contents into strings or byte arrays.
This section explains the workings of FileReadingMessageSource and
FileWritingMessageHandler and how to configure them as beans. It also discusses the support
for dealing with files through file-specific implementations of Transformer. Finally, it explains the file-
specific namespace.
17.1 Reading Files
A FileReadingMessageSource can be used to consume files from the filesystem. This is an
implementation of MessageSource that creates messages from a file system directory. The following
example shows how to configure a FileReadingMessageSource:
<bean id="pollableFileSource"
class="org.springframework.integration.file.FileReadingMessageSource"
p:directory="${input.directory}"/>
To prevent creating messages for certain files, you can supply a FileListFilter. By default, we use
the following filters:
•IgnoreHiddenFileListFilter
•AcceptOnceFileListFilter
The IgnoreHiddenFileListFilter ensures that hidden files are not processed. Note that the exact
definition of hidden is system-dependent. For example, on UNIX-based systems, a file beginning with
a period character is considered to be hidden. Microsoft Windows, on the other hand, has a dedicated
file attribute to indicate hidden files.
Important
Version 4.2 introduced the IgnoreHiddenFileListFilter. In prior versions, hidden files were
included. With the default configuration, the IgnoreHiddenFileListFilter is triggered first,
followed by the AcceptOnceFileListFilter.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 284
The AcceptOnceFileListFilter ensures files are picked up only once from the directory.
Note
The AcceptOnceFileListFilter stores its state in memory. If you wish the state to survive
a system restart, you can use the FileSystemPersistentAcceptOnceFileListFilter.
This filter stores the accepted file names in a MetadataStore implementation (see Section 12.5,
“Metadata Store”). This filter matches on the filename and modified time.
Since version 4.0, this filter requires a ConcurrentMetadataStore. When used with a shared
data store (such as Redis with the RedisMetadataStore), it lets filter keys be shared across
multiple application instances or across a network file share being used by multiple servers.
Since version 4.1.5, this filter has a new property (flushOnUpdate), which causes it to flush the
metadata store on every update (if the store implements Flushable).
The following example configures a FileReadingMessageSource with a filter:
<bean id="pollableFileSource"
class="org.springframework.integration.file.FileReadingMessageSource"
p:inputDirectory="${input.directory}"
p:filter-ref="customFilterBean"/>
A common problem with reading files is that a file may be detected before it is ready (that is, some
other process may still be writing the file). The default AcceptOnceFileListFilter does not prevent
this. In most cases, this can be prevented if the file-writing process renames each file as soon as it is
ready for reading. A filename-pattern or filename-regex filter that accepts only files that are
ready (perhaps based on a known suffix), composed with the default AcceptOnceFileListFilter,
allows for this situation. The CompositeFileListFilter enables the composition, as the following
example shows:
<bean id="pollableFileSource"
class="org.springframework.integration.file.FileReadingMessageSource"
p:inputDirectory="${input.directory}"
p:filter-ref="compositeFilter"/>
<bean id="compositeFilter"
class="org.springframework.integration.file.filters.CompositeFileListFilter">
<constructor-arg>
<list>
<bean class="o.s.i.file.filters.AcceptOnceFileListFilter"/>
<bean class="o.s.i.file.filters.RegexPatternFileListFilter">
<constructor-arg value="^test.*$"/>
</bean>
</list>
</constructor-arg>
</bean>
If it is not possible to create the file with a temporary name and rename to the final name, Spring
Integration provides another alternative. Version 4.2 added the LastModifiedFileListFilter.
This filter can be configured with an age property so that only files older than this value are passed by
the filter. The age defaults to 60 seconds, but you should choose an age that is large enough to avoid
picking up a file early (due to, say, network glitches). The following example shows how to configure
a LastModifiedFileListFilter:
<bean id="filter" class="org.springframework.integration.file.filters.LastModifiedFileListFilter">
<property name="age" value="120" />
</bean>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 285
Starting with version 4.3.7, a ChainFileListFilter (an extension of
CompositeFileListFilter) has been introduced to allow scenarios when subsequent filters should
only see the result of the previous filter. (With the CompositeFileListFilter, all filters see all the
files, but it passes only files that have passed all filters). An example of where the new behavior is
required is a combination of LastModifiedFileListFilter and AcceptOnceFileListFilter,
when we do not wish to accept the file until some amount of time has elapsed. With the
CompositeFileListFilter, since the AcceptOnceFileListFilter sees all the files on the first
pass, it does not pass it later when the other filter does. The CompositeFileListFilter approach is
useful when a pattern filter is combined with a custom filter that looks for a secondary file to indicate that
file transfer is complete. The pattern filter might only pass the primary file (such as something.txt)
but the "done" filter needs to see whether (for example) something.done is present.
Say we have files a.txt, a.done, and b.txt.
The pattern filter passes only a.txt and b.txt, while the "done" filter sees all three files and passes
only a.txt. The final result of the composite filter is that only a.txt is released.
Note
With the ChainFileListFilter, if any filter in the chain returns an empty list, the remaining
filters are not invoked.
Version 5.0 introduced an ExpressionFileListFilter to execute SpEL expression against a file
as a context evaluation root object. For this purpose, all the XML components for file handling (local and
remote), along with an existing filter attribute, have been supplied with the filter-expression
option, as the following example shows:
<int-file:inbound-channel-adapter
directory="${inputdir}"
filter-expression="name matches '.text'"
auto-startup="false"/>
Version 5.0.5 introduced the DiscardAwareFileListFilter implementations that have an interest
in rejected files. For this purpose, such a filter implementation should be supplied with a callback
through addDiscardCallback(Consumer<File>). In the framework, this functionality is used
from the FileReadingMessageSource.WatchServiceDirectoryScanner, in combination with
LastModifiedFileListFilter. Unlike the regular DirectoryScanner, the WatchService
provides files for processing according to the events on the target file system. At the moment of
polling an internal queue with those files, the LastModifiedFileListFilter may discard them
because they are too young relative to its configured age. Therefore, we lose the file for future possible
considerations. The discard callback hook lets us retain the file in the internal queue so that it is
available to be checked against the age in subsequent polls. The CompositeFileListFilter
also implements a DiscardAwareFileListFilter and populates a discard callback to all its
DiscardAwareFileListFilter delegates.
Note
Since CompositeFileListFilter matches the files against all delegates, the
discardCallback may be called several times for the same file.
Starting with version 5.1, the FileReadingMessageSource doesn’t check a directory
for existence and doesn’t create it until its start() is called (typically via wrapping
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 286
SourcePollingChannelAdapter). Previously, there was no simple way to prevent an operation
system permissions error when referencing the directory, for example from tests, or when permissions
are applied later.
Message Headers
Starting with version 5.0, the FileReadingMessageSource (in addition to the payload as a polled
File) populates the following headers to the outbound Message:
•FileHeaders.FILENAME: The File.getName() of the file to send. Can be used for subsequent
rename or copy logic.
•FileHeaders.ORIGINAL_FILE: The File object itself. Typically, this header is populated
automatically by framework components (such as splitters or transformers) when we lose the original
File object. However, for consistency and convenience with any other custom use cases, this header
can be useful to get access to the original file.
•FileHeaders.RELATIVE_PATH: A new header introduced to represent the part of file path relative
to the root directory for the scan. This header can be useful when the requirement is to restore a
source directory hierarchy in the other places. For this purpose, the DefaultFileNameGenerator
(see "`the section called “Generating File Names”) can be configured to use this header.
Directory Scanning and Polling
The FileReadingMessageSource does not produce messages for files from the directory
immediately. It uses an internal queue for eligible files returned by the scanner. The scanEachPoll
option is used to ensure that the internal queue is refreshed with the latest input directory content
on each poll. By default (scanEachPoll = false), the FileReadingMessageSource empties
its queue before scanning the directory again. This default behavior is particularly useful to reduce
scans of large numbers of files in a directory. However, in cases where custom ordering is
required, it is important to consider the effects of setting this flag to true. The order in which
files are processed may not be as expected. By default, files in the queue are processed in
their natural (path) order. New files added by a scan, even when the queue already has files,
are inserted in the appropriate position to maintain that natural order. To customize the order,
the FileReadingMessageSource can accept a Comparator<File> as a constructor argument.
It is used by the internal (PriorityBlockingQueue) to reorder its content according to the
business requirements. Therefore, to process files in a specific order, you should provide a
comparator to the FileReadingMessageSource rather than ordering the list produced by a custom
DirectoryScanner.
Version 5.0 introduced RecursiveDirectoryScanner to perform file tree visiting.
The implementation is based on the Files.walk(Path start, int
maxDepth, FileVisitOption... options) functionality. The root directory
(DirectoryScanner.listFiles(File)) argument is excluded from the result. All other sub-
directories inclusions and exclusions are based on the target FileListFilter implementation.
For example, the SimplePatternFileListFilter filters out directories by default. See
AbstractDirectoryAwareFileListFilter and its implementations for more information.
Namespace Support
The configuration for file reading can be simplified by using the file-specific namespace. To do so, use
the following template:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 287
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:int="http://www.springframework.org/schema/integration"
xmlns:int-file="http://www.springframework.org/schema/integration/file"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/integration
http://www.springframework.org/schema/integration/spring-integration.xsd
http://www.springframework.org/schema/integration/file
http://www.springframework.org/schema/integration/file/spring-integration-file.xsd">
</beans>
Within this namespace, you can reduce the FileReadingMessageSource and wrap it in an inbound
Channel Adapter, as follows:
<int-file:inbound-channel-adapter id="filesIn1"
directory="file:${input.directory}" prevent-duplicates="true" ignore-hidden="true"/>
<int-file:inbound-channel-adapter id="filesIn2"
directory="file:${input.directory}"
filter="customFilterBean" />
<int-file:inbound-channel-adapter id="filesIn3"
directory="file:${input.directory}"
filename-pattern="test*" />
<int-file:inbound-channel-adapter id="filesIn4"
directory="file:${input.directory}"
filename-regex="test[0-9]+\.txt" />
The first channel adapter example relies on the default FileListFilter implementations:
•IgnoreHiddenFileListFilter (do not process hidden files)
•AcceptOnceFileListFilter (prevent duplication)
Therefore, you can also leave off the prevent-duplicates and ignore-hidden attributes, as they
are true by default.
Important
Spring Integration 4.2 introduced the ignore-hidden attribute. In prior versions, hidden files
were included.
The second channel adapter example uses a custom filter, the third uses the filename-pattern
attribute to add an AntPathMatcher based filter, and the fourth uses the filename-regex
attribute to add a regular expression pattern-based filter to the FileReadingMessageSource. The
filename-pattern and filename-regex attributes are each mutually exclusive with the regular
filter reference attribute. However, you can use the filter attribute to reference an instance of
CompositeFileListFilter that combines any number of filters, including one or more pattern-
based filters to fit your particular needs.
When multiple processes read from the same directory, you may want to lock files to prevent them
from being picked up concurrently. To do so, you can use a FileLocker. There is a java.nio-based
implementation available, but it is also possible to implement your own locking scheme. The nio locker
can be injected as follows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 288
<int-file:inbound-channel-adapter id="filesIn"
directory="file:${input.directory}" prevent-duplicates="true">
<int-file:nio-locker/>
</int-file:inbound-channel-adapter>
You can configure a custom locker as follows:
<int-file:inbound-channel-adapter id="filesIn"
directory="file:${input.directory}" prevent-duplicates="true">
<int-file:locker ref="customLocker"/>
</int-file:inbound-channel-adapter>
Note
When a file inbound adapter is configured with a locker, it takes responsibility for acquiring a lock
before the file is allowed to be received. It does not assume the responsibility to unlock the file. If
you have processed the file and keep the locks hanging around, you have a memory leak. If this is
a problem, you should call FileLocker.unlock(File file) yourself at the appropriate time.
When filtering and locking files is not enough, you might need to control the way files are listed
entirely. To implement this type of requirement, you can use an implementation of DirectoryScanner.
This scanner lets you determine exactly what files are listed in each poll. This is also the interface
that Spring Integration uses internally to wire FileListFilter instances and FileLocker to
the FileReadingMessageSource. You can inject a custom DirectoryScanner into the <int-
file:inbound-channel-adapter/> on the scanner attribute, as the following example shows:
<int-file:inbound-channel-adapter id="filesIn" directory="file:${input.directory}"
scanner="customDirectoryScanner"/>
Doing so gives you full freedom to choose the ordering, listing, and locking strategies.
It is also important to understand that filters (including patterns, regex, prevent-duplicates, and
others) and locker instances are actually used by the scanner. Any of these attributes set on the
adapter are subsequently injected into the internal scanner. For the case of an external scanner, all
filter and locker attributes are prohibited on the FileReadingMessageSource. They must be specified
(if required) on that custom DirectoryScanner. In other words, if you inject a scanner into the
FileReadingMessageSource, you should supply filter and locker on that scanner, not on the
FileReadingMessageSource.
Note
By default, the DefaultDirectoryScanner uses an IgnoreHiddenFileListFilter and
an AcceptOnceFileListFilter. To prevent their use, you can configure your own filter (such
as AcceptAllFileListFilter) or even set it to null.
WatchServiceDirectoryScanner
The FileReadingMessageSource.WatchServiceDirectoryScanner relies on file-system
events when new files are added to the directory. During initialization, the directory is registered to
generate events. The initial file list is also built during initialization. While walking the directory tree, any
subdirectories encountered are also registered to generate events. On the first poll, the initial file list
from walking the directory is returned. On subsequent polls, files from new creation events are returned.
If a new subdirectory is added, its creation event is used to walk the new subtree to find existing files
and register any new subdirectories found.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 289
Note
There is an issue with WatchKey when its internal events queue is not drained by the
program as quickly as the directory modification events occur. If the queue size is exceeded, a
StandardWatchEventKinds.OVERFLOW is emitted to indicate that some file system events
may be lost. In this case, the root directory is re-scanned completely. To avoid duplicates,
consider using an appropriate FileListFilter (such as the AcceptOnceFileListFilter)
or removing files when processing is complete.
The WatchServiceDirectoryScanner can be enabled through the
FileReadingMessageSource.use-watch-service option, which is mutually exclusive with the
scanner option. An internal FileReadingMessageSource.WatchServiceDirectoryScanner
instance is populated for the provided directory.
In addition, now the WatchService polling logic can track the
StandardWatchEventKinds.ENTRY_MODIFY and
StandardWatchEventKinds.ENTRY_DELETE.
If you need to track the modification of existing files as well as new files, you should implement the
ENTRY_MODIFY events logic in the FileListFilter. Otherwise, the files from those events are
treated the same way.
The ResettableFileListFilter implementations pick up the ENTRY_DELETE events.
Consequently, their files are provided for the remove() operation. When this event is enabled, filters
such as the AcceptOnceFileListFilter have the file removed As a result, if a file with the same
name appears, it passes the filter and is sent as a message.
For this purpose, the watch-events property
(FileReadingMessageSource.setWatchEvents(WatchEventType... watchEvents)) has
been introduced. (WatchEventType is a public inner enumeration in FileReadingMessageSource.)
With such an option, we can use one downstream flow logic for new files and use some other logic
for modified files. The following example shows how to configure different logic for create and modify
events in the same directory:
<int-file:inbound-channel-adapter id="newFiles"
directory="${input.directory}"
use-watch-service="true"/>
<int-file:inbound-channel-adapter id="modifiedFiles"
directory="${input.directory}"
use-watch-service="true"
filter="acceptAllFilter"
watch-events="MODIFY"/> <!-- The default is CREATE. -->
Limiting Memory Consumption
You can use a HeadDirectoryScanner to limit the number of files retained in memory. This can be
useful when scanning large directories. With XML configuration, this is enabled by setting the queue-
size property on the inbound channel adapter.
Prior to version 4.2, this setting was incompatible with the use of any other filters. Any other filters
(including prevent-duplicates="true") overwrote the filter used to limit the size.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 290
Note
The use of a HeadDirectoryScanner is incompatible with an AcceptOnceFileListFilter.
Since all filters are consulted during the poll decision, the AcceptOnceFileListFilter
does not know that other filters might be temporarily filtering files. Even if files that were
previously filtered by the HeadDirectoryScanner.HeadFilter are now available, the
AcceptOnceFileListFilter filters them.
Generally, instead of using an AcceptOnceFileListFilter in this case, you should remove
the processed files so that the previously filtered files are available on a future poll.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the inbound adapter with
Java configuration:
@SpringBootApplication
public class FileReadingJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(FileReadingJavaApplication.class)
.web(false)
.run(args);
}
@Bean
public MessageChannel fileInputChannel() {
return new DirectChannel();
}
@Bean
@InboundChannelAdapter(value = "fileInputChannel", poller = @Poller(fixedDelay = "1000"))
public MessageSource<File> fileReadingMessageSource() {
FileReadingMessageSource source = new FileReadingMessageSource();
source.setDirectory(new File(INBOUND_PATH));
source.setFilter(new SimplePatternFileListFilter("*.txt"));
return source;
}
@Bean
@Transformer(inputChannel = "fileInputChannel", outputChannel = "processFileChannel")
public FileToStringTransformer fileToStringTransformer() {
return new FileToStringTransformer();
}
}
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the inbound adapter with
the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 291
@SpringBootApplication
public class FileReadingJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(FileReadingJavaApplication.class)
.web(false)
.run(args);
}
@Bean
public IntegrationFlow fileReadingFlow() {
return IntegrationFlows
.from(s -> s.file(new File(INBOUND_PATH))
.patternFilter("*.txt"),
e -> e.poller(Pollers.fixedDelay(1000)))
.transform(Files.toStringTransformer())
.channel("processFileChannel")
.get();
}
}
'tail’ing Files
Another popular use case is to get lines from the end (or tail) of a file,
capturing new lines when they are added. Two implementations are provided. The first,
OSDelegatingFileTailingMessageProducer, uses the native tail command (on operating
systems that have one). This is generally the most efficient implementation on those platforms.
For operating systems that do not have a tail command, the second implementation,
ApacheCommonsFileTailingMessageProducer, uses the Apache commons-io Tailer class.
In both cases, file system events, such as files being unavailable and other events, are published as
ApplicationEvent instances by using the normal Spring event publishing mechanism. Examples of
such events include the following:
[message=tail: cannot open `/tmp/somefile' for reading:
No such file or directory, file=/tmp/somefile]
[message=tail: `/tmp/somefile' has become accessible, file=/tmp/somefile]
[message=tail: `/tmp/somefile' has become inaccessible:
No such file or directory, file=/tmp/somefile]
[message=tail: `/tmp/somefile' has appeared;
following end of new file, file=/tmp/somefile]
The sequence of events shown in the preceding example might occur, for example, when a file is rotated.
Starting with version 5.0, a FileTailingIdleEvent is emitted when there is no data in the file during
idleEventInterval. The following example shows what such an event looks like:
[message=Idle timeout, file=/tmp/somefile] [idle time=5438]
Note
Not all platforms that support a tail command provide these status messages.
Messages emitted from these endpoints have the following headers:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 292
•FileHeaders.ORIGINAL_FILE: The File object
•FileHeaders.FILENAME: The file name (File.getName())
Note
In versions prior to version 5.0, the FileHeaders.FILENAME header contained a string
representation of the file’s absolute path. You can now obtain that string representation by calling
getAbsolutePath() on the original file header.
The following example creates a native adapter with the default options (-F -n 0, meaning to follow the
file name from the current end).
<int-file:tail-inbound-channel-adapter id="native"
channel="input"
task-executor="exec"
file="/tmp/foo"/>
The following example creates a native adapter with -F -n +0 options (meaning follow the file name,
emitting all existing lines).
<int-file:tail-inbound-channel-adapter id="native"
channel="input"
native-options="-F -n +0"
task-executor="exec"
file-delay=10000
file="/tmp/foo"/>
If the tail command fails (on some platforms, a missing file causes the tail to fail, even with -F
specified), the command is retried every 10 seconds.
By default, native adapters capture from standard output and send the content as messages. They also
capture from standard error to raise events. Starting with version 4.3.6, you can discard the standard
error events by setting the enable-status-reader to false, as the following example shows:
<int-file:tail-inbound-channel-adapter id="native"
channel="input"
enable-status-reader="false"
task-executor="exec"
file="/tmp/foo"/>
In the following example, IdleEventInterval is set to 5000, meaning that, if no lines are written for
five seconds, FileTailingIdleEvent is triggered every five seconds:
<int-file:tail-inbound-channel-adapter id="native"
channel="input"
idle-event-interval="5000"
task-executor="exec"
file="/tmp/somefile"/>
This can be useful when you need to stop the adapter.
The following example creates an Apache commons-io Tailer adapter that examines the file for new
lines every two seconds and checks for existence of a missing file every ten seconds:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 293
<int-file:tail-inbound-channel-adapter id="apache"
channel="input"
task-executor="exec"
file="/tmp/bar"
delay="2000"
end="false" ❶
reopen="true" ❷
file-delay="10000"/>
❶The file is tailed from the beginning (end="false") instead of the end (which is the default).
❷The file is reopened for each chunk (the default is to keep the file open).
Important
Specifying the delay, end or reopen attributes forces the use of the Apache commons-io
adapter and makes the native-options attribute unavailable.
Dealing With Incomplete Data
A common problem in file-transfer scenarios is how to determine that the transfer is complete so that
you do not start reading an incomplete file. A common technique to solve this problem is to write the file
with a temporary name and then atomically rename it to the final name. This technique, together with
a filter that masks the temporary file from being picked up by the consumer, provides a robust solution.
This technique is used by Spring Integration components that write files (locally or remotely). By default,
they append .writing to the file name and remove it when the transfer is complete.
Another common technique is to write a second "marker" file to indicate that the file transfer
is complete. In this scenario, you should not consider somefile.txt (for example) to be
available for use until somefile.txt.complete is also present. Spring Integration version 5.0
introduced new filters to support this mechanism. Implementations are provided for the file system
(FileSystemMarkerFilePresentFileListFilter), FTP and SFTP. They are configurable such
that the marker file can have any name, although it is usually related to the file being transferred. See
the Javadoc for more information.
17.2 Writing files
To write messages to the file system, you can use a FileWritingMessageHandler. This class can
deal with the following payload types:
•File
•String
• byte array
•InputStream (since version 4.2)
For a String payload, you can configure the encoding and the charset.
To make things easier, you can configure the FileWritingMessageHandler as part of an outbound
channel adapter or outbound gateway by using the XML namespace.
Starting with version 4.3, you can specify the buffer size to use when writing files.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 294
Starting with version 5.1, you can provide a BiConsumer<File, Message<?>> newFileCallback
which is triggered if you use FileExistsMode.APPEND or FileExistsMode.APPEND_NO_FLUSH
and a new file has to be created. This callback receives a newly created file and the message which
triggered it. This callback could be used to write a CSV header defined in the message header, for an
example.
Generating File Names
In its simplest form, the FileWritingMessageHandler requires only a destination directory for writing
the files. The name of the file to be written is determined by the handler’s FileNameGenerator.
The default implementation looks for a message header whose key matches the constant defined as
FileHeaders.FILENAME.
Alternatively, you can specify an expression to be evaluated against the message to generate a
file name — for example, headers['myCustomHeader'] + '.something'. The expression
must evaluate to a String. For convenience, the DefaultFileNameGenerator also provides the
setHeaderName method, letting you explicitly specify the message header whose value is to be used
as the filename.
Once set up, the DefaultFileNameGenerator employs the following resolution steps to determine
the filename for a given message payload:
1. Evaluate the expression against the message and, if the result is a non-empty String, use it as
the filename.
2. Otherwise, if the payload is a java.io.File, use the File object’s filename.
3. Otherwise, use the message ID appended with .msg as the filename.
When you use the XML namespace support, both the file outbound channel adapter and the file
outbound gateway support the following mutually exclusive configuration attributes:
•filename-generator (a reference to a FileNameGenerator implementation)
•filename-generator-expression (an expression that evaluates to a String)
While writing files, a temporary file suffix is used (its default is .writing). It is appended to the filename
while the file is being written. To customize the suffix, you can set the temporary-file-suffix
attribute on both the file outbound channel adapter and the file outbound gateway.
Note
When using the APPEND file mode, the temporary-file-suffix attribute is ignored, since the
data is appended to the file directly.
Starting with ,version 4.2.5, the generated file name (as a result of filename-generator or
filename-generator-expression evaluation) can represent a child path together with the target
file name. It is used as a second constructor argument for File(File parent, String child)
as before. However, in the past we did not create (mkdirs()) directories for the child path, assuming
only the file name. This approach is useful for cases when we need to restore the file system tree to
match the source directory — for example, when unzipping the archive and saving all the files in the
target directory in the original order.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 295
Specifying the Output Directory
Both, the file outbound channel adapter and the file outbound gateway provide two mutually exclusive
configuration attributes for specifying the output directory:
•directory
•directory-expression
Note
Spring Integration 2.2 introduced the directory-expression attribute.
Using the directory Attribute
When you use the directory attribute, the output directory is set to a fixed value, which is set when
the FileWritingMessageHandler is initialized. If you do not specify this attribute, you must use the
directory-expression attribute.
Using the directory-expression Attribute
If you want to have full SpEL support, you can use the directory-expression attribute. This attribute
accepts a SpEL expression that is evaluated for each message being processed. Thus, you have full
access to a message’s payload and its headers when you dynamically specify the output file directory.
The SpEL expression must resolve to either a String or to java.io.File. Furthermore, the resulting
String or File must point to a directory. If you do not specify the directory-expression attribute,
then you must set the directory attribute.
Using the auto-create-directory Attribute
By default, if the destination directory does not exist, the respective destination directory and any
non-existing parent directories are automatically created. To prevent that behavior, you can set the
auto-create-directory attribute to false. This attribute applies to both the directory and the
directory-expression attributes.
Note
When using the directory attribute and auto-create-directory is false, the following
change was made starting with Spring Integration 2.2:
Instead of checking for the existence of the destination directory when the adapter is initialized,
this check is now performed for each message being processed.
Furthermore, if auto-create-directory is true and the directory was deleted between the
processing of messages, the directory is re-created for each message being processed.
Dealing with Existing Destination Files
When you write files and the destination file already exists, the default behavior is to overwrite that
target file. You can change this behavior by setting the mode attribute on the relevant file outbound
components. The following options exist:
•REPLACE (Default)
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 296
•REPLACE_IF_MODIFIED
•APPEND
•APPEND_NO_FLUSH
•FAIL
•IGNORE
Note
Spring Integration 2.2 introduced the mode attribute and the APPEND, FAIL, and IGNORE options.
REPLACE
If the target file already exists, it is overwritten. If the mode attribute is not specified, this is the default
behavior when writing files.
REPLACE_IF_MODIFIED
If the target file already exists, it is overwritten only if the last modified timestamp differs from that of
the source file. For File payloads, the payload lastModified time is compared to the existing
file. For other payloads, the FileHeaders.SET_MODIFIED (file_setModified) header is
compared to the existing file. If the header is missing or has a value that is not a Number, the file
is always replaced.
APPEND
This mode lets you append message content to the existing file instead of creating a new file each
time. Note that this attribute is mutually exclusive with the temporary-file-suffix attribute
because, when it appends content to the existing file, the adapter no longer uses a temporary file.
The file is closed after each message.
APPEND_NO_FLUSH
This option has the same semantics as APPEND, but the data is not flushed and the file is not
closed after each message. This can provide a significant performance at the risk of data loss in
the event of a failure. See the section called “Flushing Files When Using APPEND_NO_FLUSH” for
more information.
FAIL
If the target file exists, a MessageHandlingException is thrown.
IGNORE
If the target file exists, the message payload is silently ignored.
Note
When using a temporary file suffix (the default is .writing), the IGNORE option applies if either
the final file name or the temporary file name exists.
Flushing Files When Using APPEND_NO_FLUSH
The APPEND_NO_FLUSH mode was added in version 4.3. Using it can improve performance because
the file is not closed after each message. However, this can cause data loss in the event of a failure.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 297
Spring Integration provides several flushing strategies to mitigate this data loss:
• Use flushInterval. If a file is not written to for this period of time, it is automatically flushed. This
is approximate and may be up to 1.33x this time (with an average of 1.167x).
• Send a message containing a regular expression to the message handler’s trigger method. Files
with absolute path names matching the pattern are flushed.
• Provide the handler with a custom MessageFlushPredicate implementation to modify the action
taken when a message is sent to the trigger method.
• Invoke one of the handler’s flushIfNeeded methods by
passing in a custom FileWritingMessageHandler.FlushPredicate or
FileWritingMessageHandler.MessageFlushPredicate implementation.
The predicates are called for each open file. See the Javadoc for these interfaces for more information.
Note that, since version 5.0, the predicate methods provide another parameter: the time that the current
file was first written to if new or previously closed.
When using flushInterval, the interval starts at the last write. The file is flushed only if it is idle for
the interval. Starting with version 4.3.7, an additional property (flushWhenIdle) can be set to false,
meaning that the interval starts with the first write to a previously flushed (or new) file.
File Timestamps
By default, the destination file’s lastModified timestamp is the time when the file was created (except
that an in-place rename retains the current timestamp). Starting with version 4.3, you can now configure
preserve-timestamp (or setPreserveTimestamp(true) when using Java configuration). For
File payloads, this transfers the timestamp from the inbound file to the outbound (regardless of
whether a copy was required). For other payloads, if the FileHeaders.SET_MODIFIED header
(file_setModified) is present, it is used to set the destination file’s lastModified timestamp, as
long as the header is a Number.
File Permissions
Starting with version 5.0, when writing files to a file system that supports Posix permissions, you can
specify those permissions on the outbound channel adapter or gateway. The property is an integer and
is usually supplied in the familiar octal format — for example, 0640, meaning that the owner has read/
write permissions, the group has read-only permission, and others have no access.
File Outbound Channel Adapter
The following example configures a file outbound channel adapter:
<int-file:outbound-channel-adapter id="filesOut" directory="${input.directory.property}"/>
The namespace-based configuration also supports a delete-source-files attribute. If set to true,
it triggers the deletion of the original source files after writing to a destination. The default value for that
flag is false. The following example shows how to set it to true:
<int-file:outbound-channel-adapter id="filesOut"
directory="${output.directory}"
delete-source-files="true"/>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 298
Note
The delete-source-files attribute has an effect only if the inbound message has a File
payload or if the FileHeaders.ORIGINAL_FILE header value contains either the source File
instance or a String representing the original file path.
Starting with version 4.2, the FileWritingMessageHandler supports an append-new-line option.
If set to true, a new line is appended to the file after a message is written. The default attribute value
is false. The following example shows how to use the append-new-line option:
<int-file:outbound-channel-adapter id="newlineAdapter"
append-new-line="true"
directory="${output.directory}"/>
Outbound Gateway
In cases where you want to continue processing messages based on the written file, you can use
the outbound-gateway instead. It plays a role similar to that of the outbound-channel-adapter.
However, after writing the file, it also sends it to the reply channel as the payload of a message.
The following example configures an outbound gateway:
<int-file:outbound-gateway id="mover" request-channel="moveInput"
reply-channel="output"
directory="${output.directory}"
mode="REPLACE" delete-source-files="true"/>
As mentioned earlier, you can also specify the mode attribute, which defines the behavior of how to deal
with situations where the destination file already exists. See the section called “Dealing with Existing
Destination Files” for further details. Generally, when using the file outbound gateway, the result file is
returned as the message payload on the reply channel.
This also applies when specifying the IGNORE mode. In that case the pre-existing destination file is
returned. If the payload of the request message was a file, you still have access to that original file
through the message header. See FileHeaders.ORIGINAL_FILE.
Note
The outbound-gateway works well in cases where you want to first move a file and then send it
through a processing pipeline. In such cases, you may connect the file namespace’s inbound-
channel-adapter element to the outbound-gateway and then connect that gateway’s
reply-channel to the beginning of the pipeline.
If you have more elaborate requirements or need to support additional payload types as input to be
converted to file content, you can extend the FileWritingMessageHandler, but a much better option
is to rely on a Transformer.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the inbound adapter with
Java configuration:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 299
@SpringBootApplication
@IntegrationComponentScan
public class FileWritingJavaApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context =
new SpringApplicationBuilder(FileWritingJavaApplication.class)
.web(false)
.run(args);
MyGateway gateway = context.getBean(MyGateway.class);
gateway.writeToFile("foo.txt", new File(tmpDir.getRoot(), "fileWritingFlow"), "foo");
}
@Bean
@ServiceActivator(inputChannel = "writeToFileChannel")
public MessageHandler fileWritingMessageHandler() {
Expression directoryExpression = new
SpelExpressionParser().parseExpression("headers.directory");
FileWritingMessageHandler handler = new FileWritingMessageHandler(directoryExpression);
handler.setFileExistsMode(FileExistsMode.APPEND);
return handler;
}
@MessagingGateway(defaultRequestChannel = "writeToFileChannel")
public interface MyGateway {
void writeToFile(@Header(FileHeaders.FILENAME) String fileName,
@Header(FileHeaders.FILENAME) File directory, String data);
}
}
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the inbound adapter with
the Java DSL:
@SpringBootApplication
public class FileWritingJavaApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context =
new SpringApplicationBuilder(FileWritingJavaApplication.class)
.web(false)
.run(args);
MessageChannel fileWritingInput = context.getBean("fileWritingInput", MessageChannel.class);
fileWritingInput.send(new GenericMessage<>("foo"));
}
@Bean
public IntegrationFlow fileWritingFlow() {
return IntegrationFlows.from("fileWritingInput")
.enrichHeaders(h -> h.header(FileHeaders.FILENAME, "foo.txt")
.header("directory", new File(tmpDir.getRoot(), "fileWritingFlow")))
.handleWithAdapter(a -> a.fileGateway(m -> m.getHeaders().get("directory")))
.channel(MessageChannels.queue("fileWritingResultChannel"))
.get();
}
}
17.3 File Transformers
To transform data read from the file system to objects and the other way around, you need to do some
work. Unlike FileReadingMessageSource and to a lesser extent FileWritingMessageHandler,
you probably need your own mechanism to get the job done. For this, you can implement the
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 300
Transformer interface. Alternatively, you can extend the AbstractFilePayloadTransformer for
inbound messages. Spring Integration provides some obvious implementations.
See the Javadoc for the Transformer interface to see which Spring Integration classes implement
it. Similarly, you can check the Javadoc for the AbstractFilePayloadTransformer class to see
which Spring Integration classes extend it.
FileToByteArrayTransformer extends AbstractFilePayloadTransformer and transforms a
File object into a byte[] by using Spring’s FileCopyUtils. It is often better to use a sequence of
transformers than to put all transformations in a single class. In that case the File to byte[] conversion
might be a logical first step.
FileToStringTransformer extends AbstractFilePayloadTransformer convert a File
object to a String. If nothing else, this can be useful for debugging (consider using it with a wire tap).
To configure file-specific transformers, you can use the appropriate elements from the file namespace,
as the following example shows:
<int-file:file-to-bytes-transformer input-channel="input" output-channel="output"
delete-files="true"/>
<int-file:file-to-string-transformer input-channel="input" output-channel="output"
delete-files="true" charset="UTF-8"/>
The delete-files option signals to the transformer that it should delete the inbound
file after the transformation is complete. This is in no way a replacement for using an
AcceptOnceFileListFilter when the FileReadingMessageSource is being used in a multi-
threaded environment (such as when you use Spring Integration in general).
17.4 File Splitter
The FileSplitter was added in version 4.1.2, and its namespace support was added in version 4.2.
The FileSplitter splits text files into individual lines, based on BufferedReader.readLine().
By default, the splitter uses an Iterator to emit lines one at a time as they are read from the file.
Setting the iterator property to false causes it to read all the lines into memory before emitting
them as messages. One use case for this might be if you want to detect I/O errors on the file before
sending any messages containing lines. However, it is only practical for relatively short files.
Inbound payloads can be File, String (a File path), InputStream, or Reader. Other payload
types are emitted unchanged.
The following listing shows all the possible attributes for <int-file:splitter>:
<int-file:splitter id="splitter" ❶
iterator="" ❷
markers="" ❸
markers-json="" ❹
apply-sequence="" ❺
requires-reply="" ❻
charset="" ❼
first-line-as-header="" ❽
input-channel="" ❾
output-channel="" ❿
send-timeout="" 11
auto-startup="" 12
order="" 13
phase="" /> 14
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 301
❶The bean name of the splitter.
❷Set to true (the default) to use an iterator or false to load the file into memory before sending
lines.
❸Set to true to emit start-of-file and end-of-file marker messages before and after the file data.
Markers are messages with FileSplitter.FileMarker payloads (with START and END values
in the mark property). You might use markers when sequentially processing files in a downstream
flow where some lines are filtered. They enable the downstream processing to know when a file
has been completely processed. In addition, a file_marker header that contains START or END
is added to these messages. The END marker includes a line count. If the file is empty, only START
and END markers are emitted with 0 as the lineCount. The default is false. When true, apply-
sequence is false by default. See also markers-json (the next attribute).
❹When markers is true, set this to true to have the FileMarker objects be converted to a JSON
string. Requires a supported JSON processor library (Jackson or Boon) on the classpath.
❺Set to false to disable the inclusion of sequenceSize and sequenceNumber headers in
messages. The default is true, unless markers is true. When true and markers is true, the
markers are included in the sequencing. When true and iterator is true, the sequenceSize
header is set to 0, because the size is unknown.
❻Set to true to cause a RequiresReplyException to be thrown if there are no lines in the file.
The default is false.
❼Set the charset name to be used when reading text data into String payloads. The default is the
platform charset.
❽The header name for the first line to be carried as a header in the messages emitted for the
remaining lines. Since version 5.0.
❾Set the input channel used to send messages to the splitter.
❿Set the output channel to which messages are sent.
11 Set the send timeout. Only applies if the output-channel can block — such as a full
QueueChannel.
12 Set to false to disable automatically starting the splitter when the context is refreshed. The default
is true.
13 Set the order of this endpoint if the input-channel is a <publish-subscribe-channel/>.
14 Set the startup phase for the splitter (used when auto-startup is true).
The FileSplitter also splits any text-based InputStream into lines. Starting with version 4.3,
when used in conjunction with an FTP or SFTP streaming inbound channel adapter or an FTP or
SFTP outbound gateway that uses the stream option to retrieve a file, the splitter automatically closes
the session that supports the stream when the file is completely consumed See Section 18.5, “FTP
Streaming Inbound Channel Adapter” and Section 30.7, “SFTP Streaming Inbound Channel Adapter”
as well as Section 18.9, “FTP Outbound Gateway” and Section 30.11, “SFTP Outbound Gateway” for
more information about these facilities.
When using Java configuration, an additional constructor is available, as the following example shows:
public FileSplitter(boolean iterator, boolean markers, boolean markersJson)
When markersJson is true, the markers are represented as a JSON string, as long as a suitable JSON
processor library (such as Jackson or Boon) is on the classpath.
Version 5.0 introduced the firstLineAsHeader option to specify that the first line of content is a
header (such as column names in a CSV file). The argument passed to this property is the header
name under which the first line is carried as a header in the messages emitted for the remaining lines.
This line is not included in the sequence header (if applySequence is true) nor in the lineCount
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 302
associated with FileMarker.END . If a file contains only the header line, the file is treated as empty and,
therefore, only FileMarker instances are emitted during splitting (if markers are enabled — otherwise,
no messages are emitted). By default (if no header name is set), the first line is considered to be data
and becomes the payload of the first emitted message.
If you need more complex logic about header extraction from the file content (not first line, not the whole
content of the line, not one particular header, and so on), consider using header enricher ahead of the
FileSplitter. Note that the lines that have been moved to the headers might be filtered downstream
from the normal content process.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure a file splitter with Java
configuration:
@Splitter(inputChannel="toSplitter")
@Bean
public MessageHandler fileSplitter() {
FileSplitter splitter = new FileSplitter(true, true);
splitter.setApplySequence(true);
splitter.setOutputChannel(outputChannel);
return splitter;
}
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure a file splitter with the Java
DSL:
@SpringBootApplication
public class FileSplitterApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(FileSplitterApplication.class)
.web(false)
.run(args);
}
@Bean
public IntegrationFlow fileSplitterFlow() {
return IntegrationFlows
.from(Files.inboundAdapter(tmpDir.getRoot())
.filter(new ChainFileListFilter<File>()
.addFilter(new AcceptOnceFileListFilter<>())
.addFilter(new ExpressionFileListFilter<>(
new FunctionExpression<File>(f -> "foo.tmp".equals(f.getName()))))))
.split(Files.splitter()
.markers()
.charset(StandardCharsets.US_ASCII)
.firstLineAsHeader("fileHeader")
.applySequence(true))
.channel(c -> c.queue("fileSplittingResultChannel"))
.get();
}
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 303
18. FTP/FTPS Adapters
Spring Integration provides support for file transfer operations with FTP and FTPS.
The File Transfer Protocol (FTP) is a simple network protocol that lets you transfer files between two
computers on the Internet. FTPS stands for "FTP over SSL".
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-ftp</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-ftp:5.1.1.RELEASE"
There are two actors when it comes to FTP communication: client and server. To transfer files with FTP
or FTPS, you use a client that initiates a connection to a remote computer that is running an FTP server.
After the connection is established, the client can choose to send or receive copies of files.
Spring Integration supports sending and receiving files over FTP or FTPS by providing three client-
side endpoints: inbound channel adapter, outbound channel adapter, and outbound gateway. It also
provides convenient namespace-based configuration options for defining these client components.
To use the FTP namespace, add the following to the header of your XML file:
xmlns:int-ftp="http://www.springframework.org/schema/integration/ftp"
xsi:schemaLocation="http://www.springframework.org/schema/integration/ftp
http://www.springframework.org/schema/integration/ftp/spring-integration-ftp.xsd"
18.1 FTP Session Factory
Spring Integration provides factories you can use to create FTP (or FTPS) sessions.
Default Factories
Important
Starting with version 3.0, sessions are no longer cached by default. See Section 18.10, “FTP
Session Caching”.
Before configuring FTP adapters, you must configure an FTP session factory. You can configure
the FTP Session Factory with a regular bean definition where the implementation class is
o.s.i.ftp.session.DefaultFtpSessionFactory. The following example shows a basic
configuration:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 304
<bean id="ftpClientFactory"
class="org.springframework.integration.ftp.session.DefaultFtpSessionFactory">
<property name="host" value="localhost"/>
<property name="port" value="22"/>
<property name="username" value="kermit"/>
<property name="password" value="frog"/>
<property name="clientMode" value="0"/>
<property name="fileType" value="2"/>
<property name="bufferSize" value="100000"/>
</bean>
For FTPS connections, you can use o.s.i.ftp.session.DefaultFtpsSessionFactory instead.
The following example shows a complete configuration:
<bean id="ftpClientFactory"
class="org.springframework.integration.ftp.session.DefaultFtpsSessionFactory">
<property name="host" value="localhost"/>
<property name="port" value="22"/>
<property name="username" value="oleg"/>
<property name="password" value="password"/>
<property name="clientMode" value="1"/>
<property name="fileType" value="2"/>
<property name="useClientMode" value="true"/>
<property name="cipherSuites" value="a,b.c"/>
<property name="keyManager" ref="keyManager"/>
<property name="protocol" value="SSL"/>
<property name="trustManager" ref="trustManager"/>
<property name="prot" value="P"/>
<property name="needClientAuth" value="true"/>
<property name="authValue" value="oleg"/>
<property name="sessionCreation" value="true"/>
<property name="protocols" value="SSL, TLS"/>
<property name="implicit" value="true"/>
</bean>
Note
If you experience connectivity problems and would like to trace session creation as well as see
which sessions are polled, you can enable session tracing by setting the logger to the TRACE level
(for example, log4j.category.org.springframework.integration.file=TRACE).
Now you need only inject these session factories into your adapters. The protocol (FTP or FTPS) that
an adapter uses depends on the type of session factory that has been injected into the adapter.
Note
A more practical way to provide values for FTP or FTPS session factories is to use Spring’s
property placeholder support (See http://docs.spring.io/spring/docs/current/spring-framework-
reference/html/beans.html#beans-factory-placeholderconfigurer).
18.2 Advanced Configuration
DefaultFtpSessionFactory provides an abstraction over the underlying client API, which (since
Spring Integration 2.0) is Apache Commons Net. This spares you from the low-level configuration details
of the org.apache.commons.net.ftp.FTPClient. Several common properties are exposed on
the session factory (since version 4.0, this now includes connectTimeout, defaultTimeout, and
dataTimeout). However, you sometimes need access to lower level FTPClient configuration to
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 305
achieve more advanced configuration (such as setting the port range for active mode). For that purpose,
AbstractFtpSessionFactory (the base class for all FTP Session Factories) exposes hooks, in the
form of the two post-processing methods shown in the following listing:
/**
* Will handle additional initialization after client.connect() method was invoked,
* but before any action on the client has been taken
*/
protected void postProcessClientAfterConnect(T t) throws IOException {
// NOOP
}
/**
* Will handle additional initialization before client.connect() method was invoked.
*/
protected void postProcessClientBeforeConnect(T client) throws IOException {
// NOOP
}
As you can see, there is no default implementation for these two methods. However, by extending
DefaultFtpSessionFactory, you can override these methods to provide more advanced
configuration of the FTPClient, as the following example shows:
public class AdvancedFtpSessionFactory extends DefaultFtpSessionFactory {
protected void postProcessClientBeforeConnect(FTPClient ftpClient) throws IOException {
ftpClient.setActivePortRange(4000, 5000);
}
}
FTPS and Shared SSLSession
When using FTP over SSL or TLS, some servers require the same SSLSession to be used on
the control and data connections. This is to prevent "stealing" data connections. See https://
scarybeastsecurity.blogspot.cz/2009/02/vsftpd-210-released.html for more information.
Currently, the Apache FTPSClient does not support this feature. See NET-408.
The following solution, courtesy of Stack Overflow, uses reflection on the
sun.security.ssl.SSLSessionContextImpl, so it may not work on other JVMs. The stack
overflow answer was submitted in 2015, and the solution has been tested by the Spring Integration
team recently on JDK 1.8.0_112.
The following example shows how to create an FTPS session:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 306
@Bean
public DefaultFtpsSessionFactory sf() {
DefaultFtpsSessionFactory sf = new DefaultFtpsSessionFactory() {
@Override
protected FTPSClient createClientInstance() {
return new SharedSSLFTPSClient();
}
};
sf.setHost("...");
sf.setPort(21);
sf.setUsername("...");
sf.setPassword("...");
sf.setNeedClientAuth(true);
return sf;
}
private static final class SharedSSLFTPSClient extends FTPSClient {
@Override
protected void _prepareDataSocket_(final Socket socket) throws IOException {
if (socket instanceof SSLSocket) {
// Control socket is SSL
final SSLSession session = ((SSLSocket) _socket_).getSession();
final SSLSessionContext context = session.getSessionContext();
context.setSessionCacheSize(0); // you might want to limit the cache
try {
final Field sessionHostPortCache = context.getClass()
.getDeclaredField("sessionHostPortCache");
sessionHostPortCache.setAccessible(true);
final Object cache = sessionHostPortCache.get(context);
final Method method = cache.getClass().getDeclaredMethod("put", Object.class,
Object.class);
method.setAccessible(true);
String key = String.format("%s:%s", socket.getInetAddress().getHostName(),
String.valueOf(socket.getPort())).toLowerCase(Locale.ROOT);
method.invoke(cache, key, session);
key = String.format("%s:%s", socket.getInetAddress().getHostAddress(),
String.valueOf(socket.getPort())).toLowerCase(Locale.ROOT);
method.invoke(cache, key, session);
}
catch (NoSuchFieldException e) {
// Not running in expected JRE
logger.warn("No field sessionHostPortCache in SSLSessionContext", e);
}
catch (Exception e) {
// Not running in expected JRE
logger.warn(e.getMessage());
}
}
}
}
18.3 Delegating Session Factory
Version 4.2 introduced the DelegatingSessionFactory, which allows the selection of the actual
session factory at runtime. Prior to invoking the FTP endpoint, call setThreadKey() on the factory to
associate a key with the current thread. That key is then used to lookup the actual session factory to be
used. You can clear the key by calling clearThreadKey() after use.
We added convenience methods so that you can easily do use a delegating session factory from a
message flow.
The following example shows how to declare a delegating session factory:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 307
<bean id="dsf" class="org.springframework.integration.file.remote.session.DelegatingSessionFactory">
<constructor-arg>
<bean class="o.s.i.file.remote.session.DefaultSessionFactoryLocator">
<!-- delegate factories here -->
</bean>
</constructor-arg>
</bean>
<int:service-activator input-channel="in" output-channel="c1"
expression="@dsf.setThreadKey(#root, headers['factoryToUse'])" />
<int-ftp:outbound-gateway request-channel="c1" reply-channel="c2" ... />
<int:service-activator input-channel="c2" output-channel="out"
expression="@dsf.clearThreadKey(#root)" />
Important
When you use session caching (see Section 18.10, “FTP Session Caching”), each of the delegates
should be cached. You cannot cache the DelegatingSessionFactory itself.
Starting with version 5.0.7, the DelegatingSessionFactory can be used in conjunction with a
RotatingServerAdvice to poll multiple servers; see Section 18.6, “Inbound Channel Adapters:
Polling Multiple Servers and Directories”.
18.4 FTP Inbound Channel Adapter
The FTP inbound channel adapter is a special listener that connects to the FTP server and listens for
the remote directory events (for example, new file created) at which point it initiates a file transfer. The
following example shows how to configure an inbound-channel-adapter:
<int-ftp:inbound-channel-adapter id="ftpInbound"
channel="ftpChannel"
session-factory="ftpSessionFactory"
auto-create-local-directory="true"
delete-remote-files="true"
filename-pattern="*.txt"
remote-directory="some/remote/path"
remote-file-separator="/"
preserve-timestamp="true"
local-filename-generator-expression="#this.toUpperCase() + '.a'"
scanner="myDirScanner"
local-filter="myFilter"
temporary-file-suffix=".writing"
max-fetch-size="-1"
local-directory=".">
<int:poller fixed-rate="1000"/>
</int-ftp:inbound-channel-adapter>
As the preceding configuration shows, you can configure an FTP inbound channel adapter by using
the inbound-channel-adapter element while also providing values for various attributes, such as
local-directory, filename-pattern (which is based on simple pattern matching, not regular
expressions), and the reference to a session-factory.
By default, the transferred file carries the same name as the original file. If you want to override
this behavior, you can set the local-filename-generator-expression attribute, which lets you
provide a SpEL expression to generate the name of the local file. Unlike outbound gateways and
adapters, where the root object of the SpEL evaluation context is a Message, this inbound adapter
does not yet have the message at the time of evaluation, since that’s what it ultimately generates with
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 308
the transferred file as its payload. Consequently, the root object of the SpEL evaluation context is the
original name of the remote file (a String).
The inbound channel adapter first retrieves the File object for a local directory and then emits each
file according to the poller configuration. Starting with version 5.0, you can now limit the number of
files fetched from the FTP server when new file retrievals are needed. This can be beneficial when the
target files are very large or when you run in a clustered system with a persistent file list filter, discussed
later. Use max-fetch-size for this purpose. A negative value (the default) means no limit and all
matching files are retrieved. See Section 18.7, “Inbound Channel Adapters: Controlling Remote File
Fetching” for more information. Since version 5.0, you can also provide a custom DirectoryScanner
implementation to the inbound-channel-adapter by setting the scanner attribute.
Starting with Spring Integration 3.0, you can specify the preserve-timestamp attribute (its default is
false). When true, the local file’s modified timestamp is set to the value retrieved from the server.
Otherwise, it is set to the current time.
Starting with version 4.2, you can specify remote-directory-expression instead of remote-
directory, letting you dynamically determine the directory on each poll — for example, remote-
directory-expression="@myBean.determineRemoteDir()".
Starting with version 4.3, you can omit the remote-directory and remote-directory-
expression attributes. They default to null. In this case, according to the FTP protocol, the client
working directory is used as the default remote directory.
Sometimes, file filtering based on the simple pattern specified with the filename-pattern attribute
might not suffice. If this is the case, you can use the filename-regex attribute to specify a
regular expression (such as filename-regex=".*\.test$"). Also, if you need complete control,
you can use the filter attribute and provide a reference to any custom implementation of the
o.s.i.file.filters.FileListFilter, a strategy interface for filtering a list of files. This filter
determines which remote files are retrieved. You can also combine a pattern-based filter with other
filters (such as an AcceptOnceFileListFilter to avoid synchronizing files that have previously
been fetched) by using a CompositeFileListFilter.
The AcceptOnceFileListFilter stores its state in memory. If you wish the state to survive a system
restart, consider using the FtpPersistentAcceptOnceFileListFilter instead. This filter stores
the accepted file names in an instance of the MetadataStore strategy (see Section 12.5, “Metadata
Store”). This filter matches on the filename and the remote modified time.
Since version 4.0, this filter requires a ConcurrentMetadataStore. When used with a shared data
store (such as Redis with the RedisMetadataStore), it lets filter keys be shared across multiple
application or server instances.
Starting with version 5.0, the FtpPersistentAcceptOnceFileListFilter with in-memory
SimpleMetadataStore is applied by default for the FtpInboundFileSynchronizer. This filter
is also applied with the regex or pattern option in the XML configuration as well as with
FtpInboundChannelAdapterSpec in the Java DSL. Any other use cases can be managed with
CompositeFileListFilter (or ChainFileListFilter).
The preceding discussion refers to filtering the files before retrieving them. Once the files have
been retrieved, an additional filter is applied to the files on the file system. By default, this is an
AcceptOnceFileListFilter which, as discussed earlier, retains state in memory and does not
consider the file’s modified time. Unless your application removes files after processing, the adapter will
re-process the files on disk by default after an application restart.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 309
Also, if you configure the filter to use a FtpPersistentAcceptOnceFileListFilter and the
remote file timestamp changes (causing it to be re-fetched), the default local filter does not let this new
file be processed.
You can use the local-filter attribute to configure the behavior of the local file system filter.
Starting with version 4.3.8, a FileSystemPersistentAcceptOnceFileListFilter is configured
by default. This filter stores the accepted file names and modified timestamp in an instance of the
MetadataStore strategy (see Section 12.5, “Metadata Store”) and detects changes to the local
file modified time. The default MetadataStore is a SimpleMetadataStore, which stores state in
memory.
Since version 4.1.5, these filters have a new property (flushOnUpdate) that causes them to flush the
metadata store on every update (if the store implements Flushable).
Important
Further, if you use a distributed MetadataStore (such as Redis or GemFire), you can have
multiple instances of the same adapter or application and be sure that each file is processed only
once.
The actual local filter is a CompositeFileListFilter that contains the supplied filter and a pattern
filter that prevents processing files that are in the process of being downloaded (based on the
temporary-file-suffix). Files are downloaded with this suffix (the default is .writing), and the
file is renamed to its final name when the transfer is complete, making it visible to the filter.
The remote-file-separator attribute lets you configure a file separator character to use if the
default / is not applicable for your particular environment.
See the schema for more details on these attributes.
You should also understand that the FTP inbound channel adapter is a polling consumer. Therefore,
you must configure a poller (by using either a global default or a local sub-element). Once a file has
been transferred, a message with a java.io.File as its payload is generated and sent to the channel
identified by the channel attribute.
More on File Filtering and Incomplete Files
Sometimes the file that just appeared in the monitored (remote) directory is not complete. Typically, such
a file is written with a temporary extension (such as somefile.txt.writing) and is then renamed
once the writing process finishes. In most cases, you are only interested in files that are complete
and would like to filter for only files that are complete. To handle these scenarios, you can use the
filtering support provided by the filename-pattern, filename-regex, and filter attributes. The
following example uses a custom filter implementation:
<int-ftp:inbound-channel-adapter
channel="ftpChannel"
session-factory="ftpSessionFactory"
filter="customFilter"
local-directory="file:/my_transfers">
remote-directory="some/remote/path"
<int:poller fixed-rate="1000"/>
</int-ftp:inbound-channel-adapter>
<bean id="customFilter" class="org.example.CustomFilter"/>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 310
Poller Configuration Notes for the Inbound FTP Adapter
The job of the inbound FTP adapter consists of two tasks:
1. Communicate with a remote server in order to transfer files from a remote directory to a local directory.
2. For each transferred file, generate a message with that file as a payload and send it to the channel
identified by the channel attribute. That is why they are called "channeladapters" rather than just
"adapters". The main job of such an adapter is to generate a message to send to a message channel.
Essentially, the second task takes precedence in such a way that, if your local directory already
has one or more files, it first generates messages from those. Only when all local files have been
processed does it initiate the remote communication to retrieve more files.
Also, when configuring a trigger on the poller, you should pay close attention to the max-messages-
per-poll attribute. Its default value is 1 for all SourcePollingChannelAdapter instances
(including FTP). This means that, as soon as one file is processed, it waits for the next execution time
as determined by your trigger configuration. If you happened to have one or more files sitting in the
local-directory, it would process those files before it would initiate communication with the remote
FTP server. Also, if the max-messages-per-poll is set to 1 (the default), it processes only one file
at a time with intervals as defined by your trigger, essentially working as "one-poll === one-file".
For typical file-transfer use cases, you most likely want the opposite behavior: to process all the files
you can for each poll and only then wait for the next poll. If that is the case, set max-messages-per-
poll to -1. Then, on each poll, the adapter tries to generate as many messages as it possibly can. In
other words, it processes everything in the local directory, and then it connects to the remote directory
to transfer everything that is available there to be processed locally. Only then is the poll operation
considered complete, and the poller waits for the next execution time.
You can alternatively set the max-messages-per-poll value to a positive value that indicates the upward
limit of messages to be created from files with each poll. For example, a value of 10 means that, on
each poll, it tries to process no more than ten files.
Recovering from Failures
It is important to understand the architecture of the adapter. There is a file synchronizer that fetches
the files and a FileReadingMessageSource that emits a message for each synchronized file. As
discussed earlier, two filters are involved. The filter attribute (and patterns) refers to the remote
(FTP) file list, to avoid fetching files that have already been fetched. The local-filter is used by the
FileReadingMessageSource to determine which files are to be sent as messages.
The synchronizer lists the remote files and consults its filter. The files are then transferred. If an IO
error occurs during file transfer, any files that have already been added to the filter are removed
so that they are eligible to be re-fetched on the next poll. This only applies if the filter implements
ReversibleFileListFilter (such as the AcceptOnceFileListFilter).
If, after synchronizing the files, an error occurs on the downstream flow processing a file, no automatic
rollback of the filter occurs, so the failed file is not reprocessed by default.
If you wish to reprocess such files after a failure, you can use configuration similar to the following to
facilitate the removal of the failed file from the filter:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 311
<int-ftp:inbound-channel-adapter id="ftpAdapter"
session-factory="ftpSessionFactory"
channel="requestChannel"
remote-directory-expression="'/sftpSource'"
local-directory="file:myLocalDir"
auto-create-local-directory="true"
filename-pattern="*.txt">
<int:poller fixed-rate="1000">
<int:transactional synchronization-factory="syncFactory" />
</int:poller>
</int-ftp:inbound-channel-adapter>
<bean id="acceptOnceFilter"
class="org.springframework.integration.file.filters.AcceptOnceFileListFilter" />
<int:transaction-synchronization-factory id="syncFactory">
<int:after-rollback expression="payload.delete()" />
</int:transaction-synchronization-factory>
<bean id="transactionManager"
class="org.springframework.integration.transaction.PseudoTransactionManager" />
The preceding configuration works for any ResettableFileListFilter.
Starting with version 5.0, the inbound channel adapter can build sub-directories locally
that correspond to the generated local file name. That can be a remote sub-path
as well. To be able to read a local directory recursively for modification according
to the hierarchy support, you can now supply an internal FileReadingMessageSource
with a new RecursiveDirectoryScanner based on the Files.walk() algorithm. See
AbstractInboundFileSynchronizingMessageSource.setScanner() for more information.
Also, you can now switch the AbstractInboundFileSynchronizingMessageSource to
the WatchService-based DirectoryScanner by using setUseWatchService() option.
It is also configured for all the WatchEventType instances to react to any
modifications in local directory. The reprocessing sample shown earlier is based on the
built-in functionality of the FileReadingMessageSource.WatchServiceDirectoryScanner
to perform ResettableFileListFilter.remove() when the file is deleted
(StandardWatchEventKinds.ENTRY_DELETE) from the local directory. See the section called
“WatchServiceDirectoryScanner” for more information.
Configuring with Java Configuration
The following Spring Boot application show an example of how to configure the inbound adapter with
Java configuration:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 312
@SpringBootApplication
public class FtpJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(FtpJavaApplication.class)
.web(false)
.run(args);
}
@Bean
public SessionFactory<FTPFile> ftpSessionFactory() {
DefaultFtpSessionFactory sf = new DefaultFtpSessionFactory();
sf.setHost("localhost");
sf.setPort(port);
sf.setUsername("foo");
sf.setPassword("foo");
sf.setTestSession(true);
return new CachingSessionFactory<FTPFile>(sf);
}
@Bean
public FtpInboundFileSynchronizer ftpInboundFileSynchronizer() {
FtpInboundFileSynchronizer fileSynchronizer = new
FtpInboundFileSynchronizer(ftpSessionFactory());
fileSynchronizer.setDeleteRemoteFiles(false);
fileSynchronizer.setRemoteDirectory("foo");
fileSynchronizer.setFilter(new FtpSimplePatternFileListFilter("*.xml"));
return fileSynchronizer;
}
@Bean
@InboundChannelAdapter(channel = "ftpChannel", poller = @Poller(fixedDelay = "5000"))
public MessageSource<File> ftpMessageSource() {
FtpInboundFileSynchronizingMessageSource source =
new FtpInboundFileSynchronizingMessageSource(ftpInboundFileSynchronizer());
source.setLocalDirectory(new File("ftp-inbound"));
source.setAutoCreateLocalDirectory(true);
source.setLocalFilter(new AcceptOnceFileListFilter<File>());
source.setMaxFetchSize(1);
return source;
}
@Bean
@ServiceActivator(inputChannel = "ftpChannel")
public MessageHandler handler() {
return new MessageHandler() {
@Override
public void handleMessage(Message<?> message) throws MessagingException {
System.out.println(message.getPayload());
}
};
}
}
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the inbound adapter with
the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 313
@SpringBootApplication
public class FtpJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(FtpJavaApplication.class)
.web(false)
.run(args);
}
@Bean
public IntegrationFlow ftpInboundFlow() {
return IntegrationFlows
.from(s -> s.ftp(this.ftpSessionFactory)
.preserveTimestamp(true)
.remoteDirectory("foo")
.regexFilter(".*\\.txt$")
.localFilename(f -> f.toUpperCase() + ".a")
.localDirectory(new File("d:\\ftp_files")),
e -> e.id("ftpInboundAdapter")
.autoStartup(true)
.poller(Pollers.fixedDelay(5000)))
.handle(m -> System.out.println(m.getPayload()))
.get();
}
}
Dealing With Incomplete Data
See the section called “Dealing With Incomplete Data”.
The FtpSystemMarkerFilePresentFileListFilter is provided to filter remote files that do not
have a corresponding marker file on the remote system. See the Javadoc (and browse to the parent
classes) for configuration information.
18.5 FTP Streaming Inbound Channel Adapter
Version 4.3 introduced the streaming inbound channel adapter. This adapter produces message
with payloads of type InputStream, letting files be fetched without writing to the local file
system. Since the session remains open, the consuming application is responsible for closing the
session when the file has been consumed. The session is provided in the closeableResource
header (IntegrationMessageHeaderAccessor.CLOSEABLE_RESOURCE). Standard framework
components, such as the FileSplitter and StreamTransformer, automatically close the session.
See Section 17.4, “File Splitter” and the section called “Stream Transformer” for more information
about these components. The follwoing example shows how to configure an inbound-streaming-
channel-adapter:
<int-ftp:inbound-streaming-channel-adapter id="ftpInbound"
channel="ftpChannel"
session-factory="sessionFactory"
filename-pattern="*.txt"
filename-regex=".*\.txt"
filter="filter"
filter-expression="@myFilterBean.check(#root)"
remote-file-separator="/"
comparator="comparator"
max-fetch-size="1"
remote-directory-expression="'foo/bar'">
<int:poller fixed-rate="1000" />
</int-ftp:inbound-streaming-channel-adapter>
Only one of filename-pattern, filename-regex, filter, or filter-expression is allowed.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 314
Important
Starting with version 5.0, by default, the FtpStreamingMessageSource adapter prevents
duplicates for remote files with FtpPersistentAcceptOnceFileListFilter based on the
in-memory SimpleMetadataStore. By default, this filter is also applied with the filename pattern
(or regex). If you need to allow duplicates, you can use AcceptAllFileListFilter. Any other
use cases can be handled by CompositeFileListFilter (or ChainFileListFilter). The
Java configuration (later in the document) shows one technique to remove the remote file after
processing to avoid duplicates.
Use the max-fetch-size attribute to limit the number of files fetched on each poll when a fetch
is necessary. Set it to 1 and use a persistent filter when running in a clustered environment. See
Section 18.7, “Inbound Channel Adapters: Controlling Remote File Fetching” for more information.
The adapter puts the remote directory and file name in the FileHeaders.REMOTE_DIRECTORY
and FileHeaders.REMOTE_FILE headers, respectively. Starting with version 5.0, the
FileHeaders.REMOTE_FILE_INFO header provides additional remote file information (represented
in JSON by default). If you set the fileInfoJson property on the FtpStreamingMessageSource to
false, the header contains an FtpFileInfo object. The FTPFile object provided by the underlying
Apache Net library can be accessed by using the FtpFileInfo.getFileInfo() method. The
fileInfoJson property is not available when you use XML configuration, but you can set it by injecting
the FtpStreamingMessageSource into one of your configuration classes.
Starting with version 5.1, the generic type of the comparator is FTPFile. Previously, it was
AbstractFileInfo<FTPFile>. This is because the sort is now performed earlier in the processing,
before filtering and applying maxFetch.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the inbound adapter with
Java configuration:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 315
@SpringBootApplication
public class FtpJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(FtpJavaApplication.class)
.web(false)
.run(args);
}
@Bean
@InboundChannelAdapter(channel = "stream")
public MessageSource<InputStream> ftpMessageSource() {
FtpStreamingMessageSource messageSource = new FtpStreamingMessageSource(template());
messageSource.setRemoteDirectory("ftpSource/");
messageSource.setFilter(new AcceptAllFileListFilter<>());
messageSource.setMaxFetchSize(1);
return messageSource;
}
@Bean
@Transformer(inputChannel = "stream", outputChannel = "data")
public org.springframework.integration.transformer.Transformer transformer() {
return new StreamTransformer("UTF-8");
}
@Bean
public FtpRemoteFileTemplate template() {
return new FtpRemoteFileTemplate(ftpSessionFactory());
}
@ServiceActivator(inputChannel = "data", adviceChain = "after")
@Bean
public MessageHandler handle() {
return System.out::println;
}
@Bean
public ExpressionEvaluatingRequestHandlerAdvice after() {
ExpressionEvaluatingRequestHandlerAdvice advice = new
ExpressionEvaluatingRequestHandlerAdvice();
advice.setOnSuccessExpression(
"@template.remove(headers['file_remoteDirectory'] + headers['file_remoteFile'])");
advice.setPropagateEvaluationFailures(true);
return advice;
}
}
Notice that, in this example, the message handler downstream of the transformer has an advice that
removes the remote file after processing.
18.6 Inbound Channel Adapters: Polling Multiple Servers and
Directories
Starting with version 5.0.7, the RotatingServerAdvice is available; when configured as a poller
advice, the inbound adapters can poll multiple servers and directories. Configure the advice and add it
to the poller’s advice chain as normal. A DelegatingSessionFactory is used to select the server
see Section 18.3, “Delegating Session Factory” for more information. The advice configuration consists
of a list of RotatingServerAdvice.KeyDirectory objects.
Example.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 316
@Bean
public RotatingServerAdvice advice() {
List<KeyDirectory> keyDirectories = new ArrayList<>();
keyDirectories.add(new KeyDirectory("one", "foo"));
keyDirectories.add(new KeyDirectory("one", "bar"));
keyDirectories.add(new KeyDirectory("two", "baz"));
keyDirectories.add(new KeyDirectory("two", "qux"));
keyDirectories.add(new KeyDirectory("three", "fiz"));
keyDirectories.add(new KeyDirectory("three", "buz"));
return new RotatingServerAdvice(delegatingSf(), keyDirectories);
}
This advice will poll directory foo on server one until no new files exist then move to directory bar and
then directory baz on server two, etc.
This default behavior can be modified with the fair constructor arg:
fair.
@Bean
public RotatingServerAdvice advice() {
...
return new RotatingServerAdvice(delegatingSf(), keyDirectories, true);
}
In this case, the advice will move to the next server/directory regardless of whether the previous poll
returned a file.
Alternatively, you can provide your own RotatingServerAdvice.RotationPolicy to reconfigure
the message source as needed:
policy.
public interface RotationPolicy {
void beforeReceive(MessageSource<?> source);
void afterReceive(boolean messageReceived, MessageSource<?> source);
}
and
custom.
@Bean
public RotatingServerAdvice advice() {
return new RotatingServerAdvice(myRotationPolicy());
}
The local-filename-generator-expression attribute
(localFilenameGeneratorExpression on the synchronizer) can now contain the
#remoteDirectory variable. This allows files retrieved from different directories to be downloaded
to similar directories locally:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 317
@Bean
public IntegrationFlow flow() {
return IntegrationFlows.from(Ftp.inboundAdapter(sf())
.filter(new FtpPersistentAcceptOnceFileListFilter(new
SimpleMetadataStore(), "rotate"))
.localDirectory(new File(tmpDir))
.localFilenameExpression("#remoteDirectory + T(java.io.File).separator + #root")
.remoteDirectory("."),
e -> e.poller(Pollers.fixedDelay(1).advice(advice())))
.channel(MessageChannels.queue("files"))
.get();
}
Important
Do not configure a TaskExecutor on the poller when using this advice; see the section called
“Conditional Pollers for Message Sources” for more information.
18.7 Inbound Channel Adapters: Controlling Remote File
Fetching
There are two properties that you should consider when you configure inbound channel adapters. max-
messages-per-poll, as with all pollers, can be used to limit the number of messages emitted on
each poll (if more than the configured value are ready). max-fetch-size (since version 5.0) can limit
the number of files retrieved from the remote server at one time.
The following scenarios assume the starting state is an empty local directory:
•max-messages-per-poll=2 and max-fetch-size=1: The adapter fetches one file, emits it,
fetches the next file, emits it, and then sleeps until the next poll.
•max-messages-per-poll=2 and max-fetch-size=2): The adapter fetches both files and then
emits each one.
•max-messages-per-poll=2 and max-fetch-size=4: The adapter fetches up to four files (if
available) and emits the first two (if there are at least two). The next two files are emitted on the next
poll.
•max-messages-per-poll=2 and max-fetch-size not specified: The adapter fetches all remote
files and emits the first two (if there are at least two). The subsequent files are emitted on subsequent
polls (two at a time). When all files are consumed, the remote fetch is attempted again, to pick up
any new files.
Important
When you deploy multiple instances of an application, we recommend a small max-fetch-size,
to avoid one instance "grabbing" all the files and starving other instances.
Another use for max-fetch-size is if you want to stop fetching remote files but continue to process
files that have already been fetched. Setting the maxFetchSize property on the MessageSource
(programmatically, with JMX, or with a control bus) effectively stops the adapter from fetching more files
but lets the poller continue to emit messages for files that have previously been fetched. If the poller is
active when the property is changed, the change takes effect on the next poll.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 318
Starting with version 5.1, the synchronizer can be provided with a Comparator<FTPFile>. This is
useful when restricting the number of files fetched with maxFetchSize.
18.8 FTP Outbound Channel Adapter
The FTP outbound channel adapter relies on a MessageHandler implementation that connects to the
FTP server and initiates an FTP transfer for every file it receives in the payload of incoming messages.
It also supports several representations of a file, so you are not limited only to java.io.File-typed
payloads. The FTP outbound channel adapter supports the following payloads:
•java.io.File: The actual file object
•byte[]: A byte array that represents the file contents
•java.lang.String: Text that represents the file contents.
The following example shows how to configure an outbound-channel-adapter:
<int-ftp:outbound-channel-adapter id="ftpOutbound"
channel="ftpChannel"
session-factory="ftpSessionFactory"
charset="UTF-8"
remote-file-separator="/"
auto-create-directory="true"
remote-directory-expression="headers['remote_dir']"
temporary-remote-directory-expression="headers['temp_remote_dir']"
filename-generator="fileNameGenerator"
use-temporary-filename="true"
mode="REPLACE"/>
The preceding configuration shows how you can configure an FTP outbound channel adapter by
using the outbound-channel-adapter element while also providing values for various attributes,
such as filename-generator (an implementation of the o.s.i.file.FileNameGenerator
strategy interface), a reference to a session-factory, and other attributes. You can also
see some examples of *expression attributes that let you use SpEL to configure settings
such as remote-directory-expression, temporary-remote-directory-expression, and
remote-filename-generator-expression (a SpEL alternative to filename-generator,
shown in the preceding example). As with any component that allows the usage of SpEL, access to
the payload and the message Headers is available through the payload and headers variables. See the
schema for more details on the available attributes.
Note
By default, if no file name generator is specified, Spring Integration uses
o.s.i.file.DefaultFileNameGenerator. DefaultFileNameGenerator determines
the file name based on the value of the file_name header (if it exists) in the MessageHeaders,
or, if the payload of the Message is already a java.io.File, it uses the original name of that file.
Important
Defining certain values (such as remote-directory) might be platform- or FTP server-
dependent. For example, as was reported on http://forum.springsource.org/showthread.php?
p=333478&posted=1#post333478, on some platforms, you must add a slash to the end of
the directory definition (for example, remote-directory="/thing1/thing2/" instead of
remote-directory="/thing1/thing2").
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 319
Starting with version 4.1, you can specify the mode when transferring the file. By default, an existing
file is overwritten. The modes are defined by the FileExistsMode enumeration, which includes the
following values:
•REPLACE (default) *APPEND
•IGNORE
•FAIL
IGNORE and FAIL do not transfer the file. FAIL causes an exception to be thrown, while IGNORE silently
ignores the transfer (although a DEBUG log entry is produced).
Avoiding Partially Written Files
One of the common problems that arises when dealing with file transfers is the possibility of processing
a partial file. That is, a file might appear in the file system before its transfer is actually complete.
To deal with this issue, Spring Integration FTP adapters use a common algorithm: Files are transferred
under a temporary name and then renamed once they are fully transferred.
By default, every file that is in the process of being transferred appears in the file system with an
additional suffix, which, by default, is .writing. You can change this suffix by setting the temporary-
file-suffix attribute.
However, there may be situations where you do not want to use this technique (for example, if the server
does not permit renaming files). For situations like this, you can disable this feature by setting use-
temporary-file-name to false (the default is true). When this attribute is false, the file is written
with its final name and the consuming application needs some other mechanism to detect that the file
is completely uploaded before accessing it.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the outbound adapter with
Java configuration:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 320
@SpringBootApplication
@IntegrationComponentScan
public class FtpJavaApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context =
new SpringApplicationBuilder(FtpJavaApplication.class)
.web(false)
.run(args);
MyGateway gateway = context.getBean(MyGateway.class);
gateway.sendToFtp(new File("/foo/bar.txt"));
}
@Bean
public SessionFactory<FTPFile> ftpSessionFactory() {
DefaultFtpSessionFactory sf = new DefaultFtpSessionFactory();
sf.setHost("localhost");
sf.setPort(port);
sf.setUsername("foo");
sf.setPassword("foo");
sf.setTestSession(true);
return new CachingSessionFactory<FTPFile>(sf);
}
@Bean
@ServiceActivator(inputChannel = "ftpChannel")
public MessageHandler handler() {
FtpMessageHandler handler = new FtpMessageHandler(ftpSessionFactory());
handler.setRemoteDirectoryExpressionString("headers['remote-target-dir']");
handler.setFileNameGenerator(new FileNameGenerator() {
@Override
public String generateFileName(Message<?> message) {
return "handlerContent.test";
}
});
return handler;
}
@MessagingGateway
public interface MyGateway {
@Gateway(requestChannel = "toFtpChannel")
void sendToFtp(File file);
}
}
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the outbound adapter
using the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 321
@SpringBootApplication
@IntegrationComponentScan
public class FtpJavaApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context =
new SpringApplicationBuilder(FtpJavaApplication.class)
.web(false)
.run(args);
MyGateway gateway = context.getBean(MyGateway.class);
gateway.sendToFtp(new File("/foo/bar.txt"));
}
@Bean
public SessionFactory<FTPFile> ftpSessionFactory() {
DefaultFtpSessionFactory sf = new DefaultFtpSessionFactory();
sf.setHost("localhost");
sf.setPort(port);
sf.setUsername("foo");
sf.setPassword("foo");
sf.setTestSession(true);
return new CachingSessionFactory<FTPFile>(sf);
}
@Bean
public IntegrationFlow ftpOutboundFlow() {
return IntegrationFlows.from("toFtpChannel")
.handle(Ftp.outboundAdapter(ftpSessionFactory(), FileExistsMode.FAIL)
.useTemporaryFileName(false)
.fileNameExpression("headers['" + FileHeaders.FILENAME + "']")
.remoteDirectory(this.ftpServer.getTargetFtpDirectory().getName())
).get();
}
@MessagingGateway
public interface MyGateway {
@Gateway(requestChannel = "toFtpChannel")
void sendToFtp(File file);
}
}
18.9 FTP Outbound Gateway
The FTP outbound gateway provides a limited set of commands to interact with a remote FTP or FTPS
server. The supported commands are:
•ls (list files)
•nlst (list file names)
•get (retrieve file)
•mget (retrieve file(s))
•rm (remove file(s))
•mv (move/rename file)
•put (send file)
•mput (send multiple files)
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 322
Using the ls Command
ls lists remote files and supports the following options:
•-1: Retrieve a list of file names. The default is to retrieve a list of FileInfo objects.
•-a: Include all files (including those starting with .)
•-f: Do not sort the list
•-dirs: Include directories (they are excluded by default)
•-links: Include symbolic links (they are excluded by default)
•-R: List the remote directory recursively
In addition, filename filtering is provided, in the same manner as the inbound-channel-adapter.
See Section 18.4, “FTP Inbound Channel Adapter”.
The message payload resulting from an ls operation is a list of file names or a list of FileInfo objects.
These objects provide information such as modified time, permissions, and other details.
The remote directory that the ls command acted on is provided in the file_remoteDirectory
header.
When using the recursive option (-R), the fileName includes any subdirectory elements, representing
a relative path to the file (relative to the remote directory). If the -dirs option is included, each recursive
directory is also returned as an element in the list. In this case, it is recommended that you not use the
-1 option, because you would not be able to distinguish files from directories, which you can do with
the FileInfo objects.
Starting with version 4.3, the FtpSession supports null for the list() and listNames() methods.
Therefore, you can omit the expression attribute. For convenience, Java configuration has two
constructors that do not have an expression argument. or LS, NLST, PUT and MPUT commands, null
is treated as the client working directory, according to the FTP protocol. All other commands must be
supplied with the expression to evaluate the remote path against the request message. You can set
the working directory with the FTPClient.changeWorkingDirectory() function when you extend
the DefaultFtpSessionFactory and implement the postProcessClientAfterConnect()
callback.
Using the nlst Command
Version 5 introduced support for the nlst command.
nlst lists remote file names and supports only one option:
•-f: Do not sort the list
The message payload resulting from an nlst operation is a list of file names.
The remote directory that the nlst command acted on is provided in the file_remoteDirectory
header.
Unlike the -1 option for the ls command, which uses the LIST command, the nlst command sends
an NLST command to the target FTP server. This command is useful when the server does not support
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 323
LIST (due to security restrictions, for example). The result of the nlst operation is the names without
other detail. Therefore, the framework cannot determine if an entity is a directory, to perform filtering
or recursive listing, for example.
Using the get Command
get retrieves a remote file. It supports the following option:
•-P: Preserve the timestamp of the remote file.
•-stream: Retrieve the remote file as a stream.
•-D: Delete the remote file after successful transfer. The remote file is not deleted if the transfer is
ignored, because the FileExistsMode is IGNORE and the local file already exists.
The file_remoteDirectory header provides the remote directory name, and the
file_remoteFile header provides the file name.
The message payload resulting from a get operation is a File object that represents the retrieved
file or an InputStream when you use the -stream option. The -stream option allows retrieving
the file as a stream. For text files, a common use case is to combine this operation with a file
splitter or a stream transformer. When consuming remote files as streams, you are responsible for
closing the Session after the stream is consumed. For convenience, the Session is provided
in the closeableResource header, which you can access with a convenience method on
IntegrationMessageHeaderAccessor The following example shows how to do use the covenience
method:
Closeable closeable = new IntegrationMessageHeaderAccessor(message).getCloseableResource();
if (closeable != null) {
closeable.close();
}
Framework components such as the file splitter and the stream transformer automatically close the
session after the data is transferred.
The following example shows how to consume a file as a stream:
<int-ftp:outbound-gateway session-factory="ftpSessionFactory"
request-channel="inboundGetStream"
command="get"
command-options="-stream"
expression="payload"
remote-directory="ftpTarget"
reply-channel="stream" />
<int-file:splitter input-channel="stream" output-channel="lines" />
Note
If you consume the input stream in a custom component, you must close the Session. You can
do so either in your custom code or by routing a copy of the message to a service-activator
and using SpEL, as the following example shows:
<int:service-activator input-channel="closeSession"
expression="headers['closeableResource'].close()" />
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 324
Using the mget Command
mget retrieves multiple remote files based on a pattern and supports the following options:
•-P: Preserve the timestamps of the remote files.
•-R: Retrieve the entire directory tree recursively.
•-x: Throw an exception if no files match the pattern (otherwise an empty list is returned).
•-D: Delete each remote file after successful transfer. The remote file is not deleted if the transfer is
ignored, because the FileExistsMode is IGNORE and the local file already exists.
The message payload resulting from an mget operation is a List<File> object (that is, a List of
File objects, each representing a retrieved file).
Important
Starting with version 5.0, if the FileExistsMode is IGNORE, the payload of the output message
no longer contains files that were not fetched due to the file already existing. Previously, the list
contained all files, including those that already existed.
The expression used to determine the remote path should produce a result that ends with * - e.g.
somedir/* will fetch the complete tree under somedir.
Starting with version 5.0, a recursive mget, combined with the new
FileExistsMode.REPLACE_IF_MODIFIED mode, can be used to periodically synchronize an entire
remote directory tree locally. This mode replaces the local file’s last modified timestamp with the remote
timestamp, regardless of the -P (preserve timestamp) option.
Using recursion (-R)
The pattern is ignored, and * is assumed. By default, the entire remote tree is retrieved. However,
files in the tree can be filtered, by providing a FileListFilter. Directories in the tree can also
be filtered this way. A FileListFilter can be provided by reference, by filename-pattern,
or by filename-regex attributes. For example, filename-regex="(subDir|.*1.txt)"
retrieves all files ending with 1.txt in the remote directory and the subDir child directory.
However, the next example shows an alternative, which version 5.0 made available.
If a subdirectory is filtered, no additional traversal of that subdirectory is performed.
The -dirs option is not allowed (the recursive mget uses the recursive ls to obtain the directory
tree, so the directories themselves cannot be included in the list).
Typically, you would use the #remoteDirectory variable in the local-directory-
expression so that the remote directory structure is retained locally.
Starting with version 5.0, the FtpSimplePatternFileListFilter and
FtpRegexPatternFileListFilter can be configured to always pass directories by setting the
alwaysAcceptDirectories property to true. Doing so allows recursion for a simple pattern, as the
following examples show:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 325
<bean id="starDotTxtFilter"
class="org.springframework.integration.ftp.filters.FtpSimplePatternFileListFilter">
<constructor-arg value="*.txt" />
<property name="alwaysAcceptDirectories" value="true" />
</bean>
<bean id="dotStarDotTxtFilter"
class="org.springframework.integration.ftp.filters.FtpRegexPatternFileListFilter">
<constructor-arg value="^.*\.txt$" />
<property name="alwaysAcceptDirectories" value="true" />
</bean>
Once you have defined filters such as those in the preceding example, you can use one by setting the
filter property on the gateway.
See also the section called “Outbound Gateway Partial Success (mget and mput)”.
Using the put Command
The put commad sends a file to the remote server. The payload of the message can be a
java.io.File, a byte[], or a String. A remote-filename-generator (or expression) is
used to name the remote file. Other available attributes include remote-directory, temporary-
remote-directory, and their *-expression equivalents: use-temporary-file-name and
auto-create-directory. See the schema documentation for more information.
The message payload resulting from a put operation is a String that represents the full path of the
file on the server after transfer.
Using the mput Command
The mput sends multiple files to the server and supports only one option:
•-R: Recursive. Send all files (possibly filtered) in the directory and its subdirectories.
The message payload must be a java.io.File (or String) that represents a local directory. Since
version 5.1, a collection of File or String is also supported.
This command supports the same attributes as the put command. In addition, files in the local
directory can be filtered with one of mput-pattern, mput-regex, mput-filter, or mput-filter-
expression. The filter works with recursion, as long as the subdirectories themselves pass the filter.
Subdirectories that do not pass the filter are not recursed.
The message payload resulting from an mget operation is a List<String> object (that is, a List of
remote file paths that result from the transfer).
See also the section called “Outbound Gateway Partial Success (mget and mput)”.
Using the rm Command
The rm command removes files.
The rm command has no options.
The message payload resulting from an rm operation is Boolean.TRUE if the remove was successful
or Boolean.FALSE otherwise. The file_remoteDirectory header provides the remote directory,
and the file_remoteFile header provides the file name.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 326
Using the mv Command
The mv command moves files
The mv command has no options.
The expression attribute defines the "from" path and the rename-expression attribute defines the
"to" path. By default, the rename-expression is headers['file_renameTo']. This expression
must not evaluate to null or an empty String. If necessary, any necessary remote directories are
created. The payload of the result message is Boolean.TRUE. The file_remoteDirectory header
provides the original remote directory, and file_remoteFile header provides the file name. The new
path is in the file_renameTo header.
Additional Information about FTP Outbound Gateway Commands
The get and mget commands support the local-filename-generator-expression attribute.
It defines a SpEL expression to generate the name of local files during the transfer. The root
object of the evaluation context is the request message. The remoteFileName variable, which
is particularly useful for mget, is also available — for example, local-filename-generator-
expression="#remoteFileName.toUpperCase() + headers.something".
The get and mget commands support the local-directory-expression attribute. It defines
a SpEL expression to generate the name of local directories during the transfer. The root object
of the evaluation context is the request message but. The remoteDirectory variable, which is
particularly useful for mget, is also available — for example: local-directory-expression="'/
tmp/local/' + #remoteDirectory.toUpperCase() + headers.something". This attribute
is mutually exclusive with the local-directory attribute.
For all commands, the expression property of the gateway provides the path on which the command
acts. For the mget command, the expression might evaluate to , meaning to retrieve all files, or
somedirectory/, and so on.
The following example shows a gateway configured for an ls command:
<int-ftp:outbound-gateway id="gateway1"
session-factory="ftpSessionFactory"
request-channel="inbound1"
command="ls"
command-options="-1"
expression="payload"
reply-channel="toSplitter"/>
The payload of the message sent to the toSplitter channel is a list of String objects that each
contain the name of a file. If the command-options attribute was omitted, it holds FileInfo objects.
It uses space-delimited options — for example, command-options="-1 -dirs -links".
Starting with version 4.2, the GET, MGET, PUT and MPUT commands support a FileExistsMode
property (mode when using the namespace support). This affects the behavior when the local file exists
(GET and MGET) or the remote file exists (PUT and MPUT). Supported modes are REPLACE, APPEND,
FAIL, and IGNORE. For backwards compatibility, the default mode for PUT and MPUT operations is
REPLACE. For GET and MGET operations, the default is FAIL.
Starting with version 5.0, the setWorkingDirExpression() (working-dir-expression in XML)
option is provided on the FtpOutboundGateway (<int-ftp:outbound-gateway> in XML). It lets
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 327
you change the client working directory at runtime. The expression is evaluated against the request
message. The previous working directory is restored after each gateway operation.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the outbound gateway
with Java configuration:
@SpringBootApplication
public class FtpJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(FtpJavaApplication.class)
.web(false)
.run(args);
}
@Bean
public SessionFactory<FTPFile> ftpSessionFactory() {
DefaultFtpSessionFactory sf = new DefaultFtpSessionFactory();
sf.setHost("localhost");
sf.setPort(port);
sf.setUsername("foo");
sf.setPassword("foo");
sf.setTestSession(true);
return new CachingSessionFactory<FTPFile>(sf);
}
@Bean
@ServiceActivator(inputChannel = "ftpChannel")
public MessageHandler handler() {
FtpOutboundGateway ftpOutboundGateway =
new FtpOutboundGateway(ftpSessionFactory(), "ls", "'my_remote_dir/'");
ftpOutboundGateway.setOutputChannelName("lsReplyChannel");
return ftpOutboundGateway;
}
}
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the outbound gateway
with the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 328
@SpringBootApplication
public class FtpJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(FtpJavaApplication.class)
.web(false)
.run(args);
}
@Bean
public SessionFactory<FTPFile> ftpSessionFactory() {
DefaultFtpSessionFactory sf = new DefaultFtpSessionFactory();
sf.setHost("localhost");
sf.setPort(port);
sf.setUsername("foo");
sf.setPassword("foo");
sf.setTestSession(true);
return new CachingSessionFactory<FTPFile>(sf);
}
@Bean
public FtpOutboundGatewaySpec ftpOutboundGateway() {
return Ftp.outboundGateway(ftpSessionFactory(),
AbstractRemoteFileOutboundGateway.Command.MGET, "payload")
.options(AbstractRemoteFileOutboundGateway.Option.RECURSIVE)
.regexFileNameFilter("(subFtpSource|.*1.txt)")
.localDirectoryExpression("'localDirectory/' + #remoteDirectory")
.localFilenameExpression("#remoteFileName.replaceFirst('ftpSource', 'localTarget')");
}
@Bean
public IntegrationFlow ftpMGetFlow(AbstractRemoteFileOutboundGateway<FTPFile> ftpOutboundGateway) {
return f -> f
.handle(ftpOutboundGateway)
.channel(c -> c.queue("remoteFileOutputChannel"));
}
}
Outbound Gateway Partial Success (mget and mput)
When you perform operations on multiple files (by using mget and mput), an exception can occur
some time after one or more files have been transferred. In this case (starting with version 4.2),
a PartialSuccessException is thrown. As well as the usual MessagingException properties
(failedMessage and cause), this exception has two additional properties:
•partialResults: The successful transfer results.
•derivedInput: The list of files generated from the request message (for example, local files to
transfer for an mput).
These attributes let you determine which files were successfully transferred and which were not.
In the case of a recursive mput, the PartialSuccessException may have nested
PartialSuccessException occurrences.
Consider the following directory structure:
root/
|- file1.txt
|- subdir/
| - file2.txt
| - file3.txt
|- zoo.txt
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 329
If the exception occurs on file3.txt, the PartialSuccessException thrown by the gateway has
derivedInput of file1.txt, subdir, and zoo.txt and partialResults of file1.txt. Its
cause is another PartialSuccessException with derivedInput of file2.txt and file3.txt
and partialResults of file2.txt.
18.10 FTP Session Caching
Important
Starting with Spring Integration 3.0, sessions are no longer cached by default. The
cache-sessions attribute is no longer supported on endpoints. You must use a
CachingSessionFactory (shown in the next example) if you wish to cache sessions.
In versions prior to 3.0, the sessions were automatically cached by default. A cache-sessions
attribute was available for disabling the auto caching, but that solution did not provide a way to configure
other session caching attributes. For example, you could not limit the number of sessions created. To
support that requirement and other configuration options, a CachingSessionFactory was added.
It provides sessionCacheSize and sessionWaitTimeout properties. The sessionCacheSize
property controls how many active sessions the factory maintains in its cache (the default is unbounded).
If the sessionCacheSize threshold has been reached, any attempt to acquire another session blocks
until either one of the cached sessions becomes available or until the wait time for a session expires
(the default wait time is Integer.MAX_VALUE). The sessionWaitTimeout property configures that
value.
If you want your sessions to be cached, configure your default session factory as described earlier
and then wrap it in an instance of CachingSessionFactory, where you can provide those additional
properties. The following example shows how to do so:
<bean id="ftpSessionFactory" class="o.s.i.ftp.session.DefaultFtpSessionFactory">
<property name="host" value="localhost"/>
</bean>
<bean id="cachingSessionFactory" class="o.s.i.file.remote.session.CachingSessionFactory">
<constructor-arg ref="ftpSessionFactory"/>
<constructor-arg value="10"/>
<property name="sessionWaitTimeout" value="1000"/>
</bean>
The preceding example shows a CachingSessionFactory created with the sessionCacheSize
set to 10 and the sessionWaitTimeout set to one second (its value is in milliseconds).
Starting with Spring Integration 3.0, the CachingConnectionFactory provides a resetCache()
method. When invoked, all idle sessions are immediately closed and in-use sessions are closed when
they are returned to the cache. New requests for sessions establish new sessions as necessary.
Starting with version 5.1, the CachingSessionFactory has a new property testSession. When
true, the session will be tested by sending a NOOP command to ensure it is still active; if not, it will be
removed from the cache; a new session is created if no active sessions are in the cache.
18.11 Using RemoteFileTemplate
Starting with Spring Integration 3.0, a new abstraction is provided over the FtpSession object. The
template provides methods to send, retrieve (as an InputStream), remove, and rename files. In
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 330
addition an execute method is provided allowing the caller to execute multiple operations on the
session. In all cases, the template takes care of reliably closing the session. For more information, see
the Javadoc for RemoteFileTemplate. There is a subclass for FTP: FtpRemoteFileTemplate.
Version 4.1 added added additional methods, including getClientInstance(), which provides
access to the underlying FTPClient and thus gives you access to low-level APIs.
Not all FTP servers properly implement the STAT <path> command. Some return a positive result for
a non-existent path. The NLST command reliably returns the name when the path is a file and it exists.
However, this does not support checking that an empty directory exists since NLST always returns an
empty list when the path is a directory. Since the template does not know whether the path represents
a directory, it has to perform additional checks when the path does not appear to exist (when using
NLST). This adds overhead, requiring several requests to the server. Starting with version 4.1.9, the
FtpRemoteFileTemplate provides the FtpRemoteFileTemplate.ExistsMode property, which
has the following options:
•STAT: Perform the STAT FTP command (FTPClient.getStatus(path)) to check the path
existence. This is the default and requires that your FTP server properly support the STAT command
(with a path).
•NLST: Perform the NLST FTP command — FTPClient.listName(path). Use this if you are
testing for a path that is a full path to a file. It does not work for empty directories.
•NLST_AND_DIRS: Perform the NLST command first and, if it returns no files,
fall back to a technique that temporarily switches the working directory by using
FTPClient.changeWorkingDirectory(path). See FtpSession.exists() for more
information.
Since we know that the FileExistsMode.FAIL case is always only looking for a file (and not
a directory), we safely use NLST mode for the FtpMessageHandler and FtpOutboundGateway
components.
For any other cases, the FtpRemoteFileTemplate can be extended to implement custom logic in
the overridden exist() method.
Starting with version 5.0, the new RemoteFileOperations.invoke(OperationsCallback<F,
T> action) method is available. This method lets several RemoteFileOperations calls be called
in the scope of the same, thread-bounded, Session. This is useful when you need to perform
several high-level operations of the RemoteFileTemplate as one unit of work. For example,
AbstractRemoteFileOutboundGateway uses it with the mput command implementation, where
we perform a put operation for each file in the provided directory and recursively for its sub-directories.
See the Javadoc for more information.
18.12 Using MessageSessionCallback
Starting with Spring Integration 4.2, you can use a MessageSessionCallback<F, T>
implementation with the <int-ftp:outbound-gateway/> (FtpOutboundGateway in Java) to
perform any operations on the Session<FTPFile> with the requestMessage context. It can be used
for any non-standard or low-level FTP operations and allows access from an integration flow definition
and functional interface (Lambda) implementation injection, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 331
@Bean
@ServiceActivator(inputChannel = "ftpChannel")
public MessageHandler ftpOutboundGateway(SessionFactory<FTPFile> sessionFactory) {
return new FtpOutboundGateway(sessionFactory,
(session, requestMessage) -> session.list(requestMessage.getPayload()));
}
Another example might be to pre- or post-process the file data being sent or retrieved.
When using XML configuration, the <int-ftp:outbound-gateway/> provides a session-
callback attribute to let you specify the MessageSessionCallback bean name.
Note
The session-callback is mutually exclusive with the command and expression attributes.
When configuring with Java, different constructors are available in the FtpOutboundGateway
class.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 332
19. Pivotal GemFire and Apache Geode Support
Spring Integration provides support for Pivotal GemFire and Apache Geode.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-gemfire</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-gemfire:5.1.1.RELEASE"
GemFire is a distributed data management platform that provides a key-value data grid along with
advanced distributed system features, such as event processing, continuous querying, and remote
function execution. This guide assumes some familiarity with the commercial Pivotal GemFire or Open
Source Apache Geode.
Spring integration provides support for GemFire by implementing inbound adapters for entry and
continuous query events, an outbound adapter to write entries to the cache, and message and metadata
stores and GemfireLockRegistry implementations. Spring integration leverages the Spring Data for
Pivotal GemFire project, providing a thin wrapper over its components.
Starting with version 5.1, the Spring Integration GemFire module uses the Spring Data for Apache
Geode transitive dependency by default. To switch to the commercial Pivotal GemFire-based Spring
Data for Pivotal GemFire, exclude spring-data-geode from dependencies and add spring-data-
gemfire, as the following Maven snippet shows:
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-gemfire</artifactId>
<exclusions>
<exclusion>
<groupId>org.springframework.data</groupId>
<artifactId>spring-data-geode</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>org.springframework.data</groupId>
<artifactId>spring-data-gemfire</artifactId>
</dependency>
To configure the int-gfe namespace, include the following elements within the headers of your XML
configuration file:
xmlns:int-gfe="http://www.springframework.org/schema/integration/gemfire"
xsi:schemaLocation="http://www.springframework.org/schema/integration/gemfire
http://www.springframework.org/schema/integration/gemfire/spring-integration-gemfire.xsd"
19.1 Inbound Channel Adapter
The inbound channel adapter produces messages on a channel when triggered by a GemFire
EntryEvent. GemFire generates events whenever an entry is CREATED, UPDATED, DESTROYED, or
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 333
INVALIDATED in the associated region. The inbound channel adapter lets you filter on a subset of these
events. For example, you may want to produce messages only in response to an entry being created.
In addition, the inbound channel adapter can evaluate a SpEL expression if, for example, you want your
message payload to contain an event property such as the new entry value. The following example
shows how to configure an inbound channel adapter with a SpEL language (in the expression
attribute):
<gfe:cache/>
<gfe:replicated-region id="region"/>
<int-gfe:inbound-channel-adapter id="inputChannel" region="region"
cache-events="CREATED" expression="newValue"/>
The preceding configuration creates a GemFire Cache and Region by using Spring GemFire’s gfe
namespace. The inbound-channel-adapter element requires a reference to the GemFire region
on which the adapter listens for events. Optional attributes include cache-events, which can contain a
comma-separated list of event types for which a message is produced on the input channel. By default,
CREATED and UPDATED are enabled. If no channel attribute is provided, the channel is created from
the id attribute. This adapter also supports an error-channel. The GemFire EntryEvent is the
#root object of the expression evaluation. The following example shows an expression that replaces
a value for a key:
expression="new something.MyEvent(key, oldValue, newValue)"
If the expression attribute is not provided, the message payload is the GemFire EntryEvent itself.
Note
This adapter conforms to Spring Integration conventions.
19.2 Continuous Query Inbound Channel Adapter
The continuous query inbound channel adapter produces messages on a channel when triggered
by a GemFire continuous query or CqEvent event. In release 1.1, Spring Data introduced
continuous query support, including ContinuousQueryListenerContainer, which provides
a nice abstraction over the GemFire native API. This adapter requires a reference to a
ContinuousQueryListenerContainer instance, creates a listener for a given query, and
executes the query. The continuous query acts as an event source that fires whenever its result set
changes state.
Note
GemFire queries are written in OQL and are scoped to the entire cache (not just one region).
Additionally, continuous queries require a remote (that is, running in a separate process or
remote host) cache server. See the GemFire documentation for more information on implementing
continuous queries.
The following configuration creates a GemFire client cache (recall that a remote cache server is required
for this implementation and its address is configured as a child element of the pool), a client region, and
a ContinuousQueryListenerContainer that uses Spring Data:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 334
<gfe:client-cache id="client-cache" pool-name="client-pool"/>
<gfe:pool id="client-pool" subscription-enabled="true" >
<!--configure server or locator here required to address the cache server -->
</gfe:pool>
<gfe:client-region id="test" cache-ref="client-cache" pool-name="client-pool"/>
<gfe:cq-listener-container id="queryListenerContainer" cache="client-cache"
pool-name="client-pool"/>
<int-gfe:cq-inbound-channel-adapter id="inputChannel"
cq-listener-container="queryListenerContainer"
query="select * from /test"/>
The continuous query inbound channel adapter requires a cq-listener-container attribute,
which must contain a reference to the ContinuousQueryListenerContainer. Optionally, it
accepts an expression attribute that uses SpEL to transform the CqEvent or extract an individual
property as needed. The cq-inbound-channel-adapter provides a query-events attribute that
contains a comma-separated list of event types for which a message is produced on the input
channel. The available event types are CREATED, UPDATED, DESTROYED, REGION_DESTROYED,
and REGION_INVALIDATED. By default, CREATED and UPDATED are enabled. Additional optional
attributes include query-name (which provides an optional query name), expression (which works as
described in the preceding section), and durable (a boolean value indicating if the query is durable — it
is false by default). If you do not provide a channel, the channel is created from the id attribute. This
adapter also supports an error-channel.
Note
This adapter conforms to Spring Integration conventions.
19.3 Outbound Channel Adapter
The outbound channel adapter writes cache entries that are mapped from the message payload. In its
simplest form, it expects a payload of type java.util.Map and puts the map entries into its configured
region. The following example shows how to configure an outbound channel adapter:
<int-gfe:outbound-channel-adapter id="cacheChannel" region="region"/>
Given the preceding configuration, an exception is thrown if the payload is not a Map. Additionally, you
can configure the outbound channel adapter to create a map of cache entries by using SpEL. The
following example shows how to do so:
<int-gfe:outbound-channel-adapter id="cacheChannel" region="region">
<int-gfe:cache-entries>
<entry key="payload.toUpperCase()" value="payload.toLowerCase()"/>
<entry key="'thing1'" value="'thing2'"/>
</int-gfe:cache-entries>
</int-gfe:outbound-channel-adapter>
In the preceding configuration, the inner element (cache-entries) is semantically equivalent to
a Spring map element. The adapter interprets the key and value attributes as SpEL expressions
with the message as the evaluation context. Note that this can contain arbitrary cache entries (not
only those derived from the message) and that literal values must be enclosed in single quotes. In
the preceding example, if the message sent to cacheChannel has a String payload with a value
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 335
Hello, two entries ([HELLO:hello, thing1:thing2]) are written (either created or updated) in
the cache region. This adapter also supports the order attribute, which may be useful if it is bound to
a PublishSubscribeChannel.
19.4 Gemfire Message Store
As described in EIP, a message store lets you persist messages. This can be useful when dealing with
components that have a capability to buffer messages (QueueChannel, Aggregator, Resequencer,
and others) if reliability is a concern. In Spring Integration, the MessageStore strategy interface also
provides the foundation for the claim check pattern, which is described in EIP as well.
Spring Integration’s Gemfire module provides GemfireMessageStore, which is an implementation
of both the the MessageStore strategy (mainly used by the QueueChannel and ClaimCheck
patterns) and the MessageGroupStore strategy (mainly used by the Aggregator and Resequencer
patterns).
The following example configures the cache and region by using the spring-gemfire namespace
(not to be confused with the spring-integration-gemfire namespace):
<bean id="gemfireMessageStore" class="o.s.i.gemfire.store.GemfireMessageStore">
<constructor-arg ref="myRegion"/>
</bean>
<gfe:cache/>
<gfe:replicated-region id="myRegion"/>
<int:channel id="somePersistentQueueChannel">
<int:queue message-store="gemfireMessageStore"/>
<int:channel>
<int:aggregator input-channel="inputChannel" output-channel="outputChannel"
message-store="gemfireMessageStore"/>
Often, it is desirable for the message store to be maintained in one or more remote cache servers in a
client-server configuration. In this case, you should configure a client cache, a client region, and a client
pool and inject the region into the MessageStore. The following example shows how to do so:
<bean id="gemfireMessageStore"
class="org.springframework.integration.gemfire.store.GemfireMessageStore">
<constructor-arg ref="myRegion"/>
</bean>
<gfe:client-cache/>
<gfe:client-region id="myRegion" shortcut="PROXY" pool-name="messageStorePool"/>
<gfe:pool id="messageStorePool">
<gfe:server host="localhost" port="40404" />
</gfe:pool>
Note that the pool element is configured with the address of a cache server (you can substitute a
locator here). The region is configured as a PROXY so that no data is stored locally. The region’s id
corresponds to a region with the same name in the cache server.
Starting with version 4.3.12, the GemfireMessageStore supports the key prefix option to allow
distinguishing between instances of the store on the same GemFire region.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 336
19.5 Gemfire Lock Registry
Starting with version 4.0, the GemfireLockRegistry is available. Certain components (for example,
the aggregator and the resequencer) use a lock obtained from a LockRegistry instance to ensure
that only one thread is manipulating a group at any given time. The DefaultLockRegistry performs
this function within a single component. You can now configure an external lock registry on these
components. When you use a shared MessageGroupStore with the GemfireLockRegistry, it
can provide this functionality across multiple application instances, such that only one instance can
manipulate the group at a time.
Note
One of the GemfireLockRegistry constructors requires a Region as an argument. It is used
to obtain a Lock from the getDistributedLock() method. This operation requires GLOBAL
scope for the Region. Another constructor requires a Cache, and the Region is created with
GLOBAL scope and with the name, LockRegistry.
19.6 Gemfire Metadata Store
Version 4.0 introduced a new Gemfire-based MetadataStore (Section 12.5, “Metadata Store”)
implementation. You can use the GemfireMetadataStore to maintain metadata state across
application restarts. This new MetadataStore implementation can be used with adapters such as:
• Section 16.1, “Feed Inbound Channel Adapter”
• Section 17.1, “Reading Files”
• Section 18.4, “FTP Inbound Channel Adapter”
• Section 30.6, “SFTP Inbound Channel Adapter”
To get these adapters to use the new GemfireMetadataStore, declare a Spring bean with a bean
name of metadataStore. The feed inbound channel adapter automatically picks up and use the
declared GemfireMetadataStore.
Note
The GemfireMetadataStore also implements ConcurrentMetadataStore, letting it be
reliably shared across multiple application instances, where only one instance can store or modify
a key’s value. These methods give various levels of concurrency guarantees based on the scope
and data policy of the region. They are implemented in the peer cache and client-server cache
but are disallowed in peer regions that have NORMAL or EMPTY data policies.
Note
Since version 5.0, the GemfireMetadataStore also implements
ListenableMetadataStore, which lets you listen to cache events by providing
MetadataStoreListener instances to the store, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 337
GemfireMetadataStore metadataStore = new GemfireMetadataStore(cache);
metadataStore.addListener(new MetadataStoreListenerAdapter() {
@Override
public void onAdd(String key, String value) {
...
}
});
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 338
20. HTTP Support
Spring Integration’s HTTP support allows for the running of HTTP requests and the processing
of inbound HTTP requests. The HTTP support consists of the following gateway implementations:
HttpInboundEndpoint and HttpRequestExecutingMessageHandler. See also Chapter 35,
WebFlux Support.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-http</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-http:5.1.1.RELEASE"
The javax.servlet:javax.servlet-api dependency must be provided on the target Servlet
container.
20.1 Http Inbound Components
To receive messages over HTTP, you need to use an HTTP inbound channel adapter or an HTTP
inbound gateway. To support the HTTP inbound adapters, they need to be deployed within a
servlet container such as Apache Tomcat or Jetty. The easiest way to do this is to use Spring’s
HttpRequestHandlerServlet, by providing the following servlet definition in the web.xml file:
<servlet>
<servlet-name>inboundGateway</servlet-name>
<servlet-class>o.s.web.context.support.HttpRequestHandlerServlet</servlet-class>
</servlet>
Notice that the servlet name matches the bean name. For more information on using the
HttpRequestHandlerServlet, see Remoting and web services using Spring, which is part of the
Spring Framework Reference documentation.
If you are running within a Spring MVC application, then the aforementioned explicit servlet definition is
not necessary. In that case, the bean name for your gateway can be matched against the URL path as
you would for a Spring MVC Controller bean. For more information, see Web MVC framework, which
is part of the Spring Framework Reference documentation.
Tip
For a sample application and the corresponding configuration, see the Spring Integration Samples
repository. It contains the HTTP sample application, which demonstrates Spring Integration’s
HTTP support.
The following example bean defines an HTTP inbound endpoint:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 339
<bean id="httpInbound"
class="org.springframework.integration.http.inbound.HttpRequestHandlingMessagingGateway">
<property name="requestChannel" ref="httpRequestChannel" />
<property name="replyChannel" ref="httpReplyChannel" />
</bean>
The HttpRequestHandlingMessagingGateway accepts a list of HttpMessageConverter
instances or else relies on a default list. The converters allow customization of the mapping from
HttpServletRequest to Message. The default converters encapsulate simple strategies, which (for
example) create a String message for a POST request where the content type starts with text. See
the Javadoc for full details. An additional flag (mergeWithDefaultConverters) can be set along with
the list of custom HttpMessageConverter to add the default converters after the custom converters.
By default, this flag is set to false, meaning that the custom converters replace the default list.
The message conversion process uses the (optional) requestPayloadType property and the
incoming Content-Type header. Starting with version 4.3, if a request has no content type header,
application/octet-stream is assumed, as recommended by RFC 2616. Previously, the body of
such messages was ignored.
Spring Integration 2.0 implemented multipart file support. If the request has been wrapped as a
MultipartHttpServletRequest, when you use the default converters, that request is converted to
a Message payload that is a MultiValueMap containing values that may be byte arrays, strings, or
instances of Spring’s MultipartFile, depending on the content type of the individual parts.
Note
The HTTP inbound endpoint locates a MultipartResolver in the context if one has a bean
name of multipartResolver (the same name expected by Spring’s DispatcherServlet). If
it does locate that bean, the support for multipart files is enabled on the inbound request mapper.
Otherwise, it fails when it tries to map a multipart file request to a Spring Integration Message.
For more on Spring’s support for MultipartResolver, see the Spring Reference Manual.
Note
If you wish to proxy a multipart/form-data to another server, it may be better to keep it in
raw form. To handle this situation, do not add the multipartResolver bean to the context.
Configure the endpoint to expect a byte[] request, customize the message converters to include
a ByteArrayHttpMessageConverter, and disable the default multipart converter. You may
need some other converters for the replies. The following example shows such an arrangement:
<int-http:inbound-gateway
channel="receiveChannel"
path="/inboundAdapter.htm"
request-payload-type="byte[]"
message-converters="converters"
merge-with-default-converters="false"
supported-methods="POST" />
<util:list id="converters">
<beans:bean class="org.springframework.http.converter.ByteArrayHttpMessageConverter" />
<beans:bean class="org.springframework.http.converter.StringHttpMessageConverter" />
<beans:bean class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter"
/>
</util:list>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 340
When you send a response to the client, you have a number of ways to customize the behavior of the
gateway. By default, the gateway acknowledges that the request was received by sending a 200 status
code back. It is possible to customize this response by providing a viewName to be resolved by the
Spring MVC ViewResolver. If the gateway should expect a reply to the Message, you can set the
expectReply flag (constructor argument) to cause the gateway to wait for a reply Message before
creating an HTTP response. The following example configures a gateway to serve as a Spring MVC
Controller with a view name:
<bean id="httpInbound"
class="org.springframework.integration.http.inbound.HttpRequestHandlingController">
<constructor-arg value="true" /> <!-- indicates that a reply is expected -->
<property name="requestChannel" ref="httpRequestChannel" />
<property name="replyChannel" ref="httpReplyChannel" />
<property name="viewName" value="jsonView" />
<property name="supportedMethodNames" >
<list>
<value>GET</value>
<value>DELETE</value>
</list>
</property>
</bean>
Because of the constructor-arg value of true, it waits for a reply. The preceding example also
shows how to customize the HTTP methods accepted by the gateway, which are POST and GET by
default.
The reply message is available in the model map. By default, the key for that map entry is reply, but you
can override this default by setting the replyKey property on the endpoint’s configuration.
20.2 HTTP Outbound Components
This section describes Spring Integration’s HTTP outbound components
Using HttpRequestExecutingMessageHandler
To configure the HttpRequestExecutingMessageHandler, write a bean definition similar to the
following:
<bean id="httpOutbound"
class="org.springframework.integration.http.outbound.HttpRequestExecutingMessageHandler">
<constructor-arg value="http://localhost:8080/example" />
<property name="outputChannel" ref="responseChannel" />
</bean>
This bean definition runs HTTP requests by delegating to a RestTemplate. That template, in turn,
delegates to a list of HttpMessageConverter instances to generate the HTTP request body from the
Message payload. You can configure those converters as well as the ClientHttpRequestFactory
instance to use, as the following example shows:
<bean id="httpOutbound"
class="org.springframework.integration.http.outbound.HttpRequestExecutingMessageHandler">
<constructor-arg value="http://localhost:8080/example" />
<property name="outputChannel" ref="responseChannel" />
<property name="messageConverters" ref="messageConverterList" />
<property name="requestFactory" ref="customRequestFactory" />
</bean>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 341
By default, the HTTP request is generated by using an instance of
SimpleClientHttpRequestFactory, which uses the JDK HttpURLConnection. Use of the
Apache Commons HTTP Client is also supported through CommonsClientHttpRequestFactory,
which you can inject (as shown earlier).
Note
For the outbound gateway, the reply message produced by the gateway contains all the message
headers that are present in the request message.
Using Cookies
Basic cookie support is provided by the transfer-cookies attribute on the outbound gateway. When
set to true (the default is false), a Set-Cookie header received from the server in a response is
converted to Cookie in the reply message. This header is then used on subsequent sends. This enables
simple stateful interactions, such as the following:
...->logonGateway->...->doWorkGateway->...->logoffGateway->...
If transfer-cookies is false, any Set-Cookie header received remains as Set-Cookie in the
reply message and is dropped on subsequent sends.
Empty Response Bodies
HTTP is a request-response protocol. However, the response may not have a body, only headers.
In this case, the HttpRequestExecutingMessageHandler produces a reply Message with
the payload being an org.springframework.http.ResponseEntity, regardless of any
provided expected-response-type. According to the HTTP RFC Status Code Definitions,
there are many statuses that mandate that a response must not contain a message-body (for
example, 204 No Content). There are also cases where calls to the same URL might or
might not return a response body. For example, the first request to an HTTP resource returns
content, but the second does not (returning a 304 Not Modified). In all cases, however, the
http_statusCode message header is populated. This can be used in some routing logic after
the HTTP outbound gateway. You could also use a`<payload-type-router/>` to route messages
with a ResponseEntity to a different flow than that used for responses with a body.
expected-response-type
Further to the preceding note about empty response bodies, if a response does contain
a body, you must provide an appropriate expected-response-type attribute or, again,
you receive a ResponseEntity with no body. The expected-response-type must be
compatible with the (configured or default) HttpMessageConverter instances and the
Content-Type header in the response. This can be an abstract class or even an interface
(such as java.io.Serializable when you use Java serialization and Content-Type:
application/x-java-serialized-object).
20.3 HTTP Namespace Support
Spring Integration provides an http namespace and the corresponding schema definition. To include
it in your configuration, provide the following namespace declaration in your application context
configuration file:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 342
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:int="http://www.springframework.org/schema/integration"
xmlns:int-http="http://www.springframework.org/schema/integration/http"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/integration
http://www.springframework.org/schema/integration/spring-integration.xsd
http://www.springframework.org/schema/integration/http
http://www.springframework.org/schema/integration/http/spring-integration-http.xsd">
...
</beans>
Inbound
The XML namespace provides two components for handling HTTP inbound requests: inbound-
channel-adapter and inbound-gateway. In order to process requests without returning a
dedicated response, use the inbound-channel-adapter. The following example shows how to
configure one:
<int-http:inbound-channel-adapter id="httpChannelAdapter" channel="requests"
supported-methods="PUT, DELETE"/>
To process requests that do expect a response, use an inbound-gateway. The following example
shows how to configure one:
<int-http:inbound-gateway id="inboundGateway"
request-channel="requests"
reply-channel="responses"/>
Request Mapping Support
Note
Spring Integration 3.0 improved the REST support by introducing the
IntegrationRequestMappingHandlerMapping. The implementation relies on the
enhanced REST support provided by Spring Framework 3.1 or higher.
The parsing of the HTTP inbound gateway or the HTTP inbound channel
adapter registers an integrationRequestMappingHandlerMapping bean of type
IntegrationRequestMappingHandlerMapping, in case one is not yet registered.
This particular implementation of the HandlerMapping delegates its logic to
RequestMappingInfoHandlerMapping. The implementation provides functionality similar to the
org.springframework.web.bind.annotation.RequestMapping annotation in Spring MVC.
Note
For more information, see Mapping Requests With @RequestMapping.
For this purpose, Spring Integration 3.0 introduces the <request-mapping> element. You can add
this optional element to <http:inbound-channel-adapter> and <http:inbound-gateway>. It
works in conjunction with the path and supported-methods attributes. The following example shows
how to configure it on an inbound gateway:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 343
<inbound-gateway id="inboundController"
request-channel="requests"
reply-channel="responses"
path="/foo/{fooId}"
supported-methods="GET"
view-name="foo"
error-code="oops">
<request-mapping headers="User-Agent"
params="myParam=myValue"
consumes="application/json"
produces="!text/plain"/>
</inbound-gateway>
Based on the preceding configuration, the namespace parser creates an instance
of the IntegrationRequestMappingHandlerMapping (if none exists) and an
HttpRequestHandlingController bean and associates with it an instance of RequestMapping.
This RequestMapping instance is, in turn, converted to the Spring MVC RequestMappingInfo.
The <request-mapping> element provides the following attributes:
•headers
•params
•consumes
•produces
With the path and supported-methods attributes of the <http:inbound-
channel-adapter> or the <http:inbound-gateway>, <request-mapping>
attributes translate directly into the respective options provided by the
org.springframework.web.bind.annotation.RequestMapping annotation in Spring MVC.
The <request-mapping> element lets you configure several Spring Integration HTTP inbound
endpoints to the same path (or even the same supported-methods) and lets you provide different
downstream message flows based on incoming HTTP requests.
Alternatively, you can also declare only one HTTP inbound endpoint and apply routing and filtering logic
within the Spring Integration flow to achieve the same result. This lets you get the Message into the
flow as early as possibly. The following example shows how to do so:
<int-http:inbound-gateway request-channel="httpMethodRouter"
supported-methods="GET,DELETE"
path="/process/{entId}"
payload-expression="#pathVariables.entId"/>
<int:router input-channel="httpMethodRouter" expression="headers.http_requestMethod">
<int:mapping value="GET" channel="in1"/>
<int:mapping value="DELETE" channel="in2"/>
</int:router>
<int:service-activator input-channel="in1" ref="service" method="getEntity"/>
<int:service-activator input-channel="in2" ref="service" method="delete"/>
For more information regarding handler mappings, see the Spring Framework Web Servlet
documentation or the Spring Framework Web Reactive documentation.
Cross-origin Resource Sharing (CORS) Support
Starting with version 4.2, you can configure the <http:inbound-channel-adapter> and
<http:inbound-gateway> with a <cross-origin> element. It represents the same options as
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 344
Spring MVC’s @CrossOrigin for @Controller annotations and allows the configuration of cross-
origin resource sharing (CORS) for Spring Integration HTTP endpoints:
•origin: List of allowed origins. * means that all origins are allowed. These values are placed in the
Access-Control-Allow-Origin header of both the pre-flight and actual responses. The default
value is *.
•allowed-headers: Indicates which request headers can be used during the actual request. *
means that all headers requested by the client are allowed. This property controls the value of the
pre-flight response’s Access-Control-Allow-Headers header. The default value is *.
•exposed-headers: List of response headers that the user-agent lets the client access. This property
controls the value of the actual response’s Access-Control-Expose-Headers header.
•method: The HTTP request methods to allow: GET, POST, HEAD, OPTIONS, PUT, PATCH, DELETE,
TRACE. Methods specified here overrides those in supported-methods.
•allow-credentials: Set to true if the the browser should include any cookies associated to the
domain of the request or false if it should not. An empty string ("") means undefined. If true, the pre-
flight response includes the Access-Control-Allow-Credentials=true header. The default
value is true.
•max-age: Controls the cache duration for pre-flight responses. Setting this to a reasonable value can
reduce the number of pre-flight request-response interactions required by the browser. This property
controls the value of the Access-Control-Max-Age header in the pre-flight response. A value of
-1 means undefined. The default value is 1800 seconds (30 minutes).
The CORS Java Configuration is represented by the
org.springframework.integration.http.inbound.CrossOrigin class, instances of which
can be injected into the HttpRequestHandlingEndpointSupport beans.
Response Status Code
Starting with version 4.1, you can configure the <http:inbound-channel-adapter> with
a status-code-expression to override the default 200 OK status. The expression must
return an object that can be converted to an org.springframework.http.HttpStatus
enum value. The evaluationContext has a BeanResolver and, starting with version 5.1,
is supplied with the RequestEntity<?> as root object. An example might be to resolve, at
runtime, some scoped bean that returns a status code value. However, most likely, it is set
to a fixed value such as status-code=expression="204" (No Content), or status-code-
expression="T(org.springframework.http.HttpStatus).NO_CONTENT". By default,
status-code-expression is null, meaning that the normal 200 OK response status is returned.
Using the RequestEntity<?> as root object, the status code can be conditional e.g. on the request
method, some header, URI content or even request body. The following example shows how to set the
status code to ACCEPTED:
<http:inbound-channel-adapter id="inboundController"
channel="requests" view-name="foo" error-code="oops"
status-code-expression="T(org.springframework.http.HttpStatus).ACCEPTED">
<request-mapping headers="BAR"/>
</http:inbound-channel-adapter>
The <http:inbound-gateway> resolves the status code from the http_statusCode header of the
reply Message. Starting with version 4.2, the default response status code when no reply is received
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 345
within the reply-timeout is 500 Internal Server Error. There are two ways to modify this
behavior:
• Add a reply-timeout-status-code-expression. This has the same semantics as the
status-code-expression on the inbound adapter.
• Add an error-channel and return an appropriate message with an HTTP status code header, as
the following example shows:
<int:chain input-channel="errors">
<int:header-enricher>
<int:header name="http_statusCode" value="504" />
</int:header-enricher>
<int:transformer expression="payload.failedMessage" />
</int:chain>
The payload of the ErrorMessage is a MessageTimeoutException. It must be transformed to
something that can be converted by the gateway, such as a String. A good candidate is the exception’s
message property, which is the value used when you use the expression technique.
If the error flow times out after a main flow timeout, 500 Internal Server Error is returned, or, if
the reply-timeout-status-code-expression is present, it is evaluated.
Note
Previously, the default status code for a timeout was 200 OK. To restore that behavior, set reply-
timeout-status-code-expression="200".
URI Template Variables and Expressions
By using the path attribute in conjunction with the payload-expression attribute and the header
element, you have a high degree of flexibility for mapping inbound request data.
In the following example configuration, an inbound channel adapter is configured to accept requests
using the following URI:
/first-name/{firstName}/last-name/{lastName}
When you use the payload-expression attribute, the {firstName} URI template variable maps to
be the Message payload, while the {lastName} URI template variable maps to the lname message
header, as defined in the following example:
<int-http:inbound-channel-adapter id="inboundAdapterWithExpressions"
path="/first-name/{firstName}/last-name/{lastName}"
channel="requests"
payload-expression="#pathVariables.firstName">
<int-http:header name="lname" expression="#pathVariables.lastName"/>
</int-http:inbound-channel-adapter>
For more information about URI template variables, see uri template patterns in the Spring Reference
Manual.
Since Spring Integration 3.0, in addition to the existing #pathVariables and #requestParams
variables being available in payload and header expressions, we added other useful expression
variables:
•#requestParams: The MultiValueMap from the ServletRequest parameterMap.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 346
•#pathVariables: The Map from URI Template placeholders and their values.
•#matrixVariables: The Map of MultiValueMap according to the Spring MVC Specification. Note
that #matrixVariables requires Spring MVC 3.2 or higher.
•#requestAttributes: The
org.springframework.web.context.request.RequestAttributes associated with the
current request.
•#requestHeaders: The org.springframework.http.HttpHeaders object from the current
request.
•#cookies: The Map<String, Cookie> of javax.servlet.http.Cookie instances from the
current request.
Note that all these values (and others) can be accessed within
expressions in the downstream message flow through the ThreadLocal
org.springframework.web.context.request.RequestAttributes variable, if that message
flow is single-threaded and lives within the request thread. The following example configures a
transformer that uses an expression attribute:
<int-:transformer
expression="T(org.springframework.web.context.request.RequestContextHolder).
requestAttributes.request.queryString"/>
Outbound
To configure the outbound gateway, you can use the namespace support. The following code snippet
shows the available configuration options for an outbound HTTP gateway:
<int-http:outbound-gateway id="example"
request-channel="requests"
url="http://localhost/test"
http-method="POST"
extract-request-payload="false"
expected-response-type="java.lang.String"
charset="UTF-8"
request-factory="requestFactory"
reply-timeout="1234"
reply-channel="replies"/>
Most importantly, notice that the http-method and expected-response-type attributes are provided.
Those are two of the most commonly configured values. The default http-method is POST, and the
default response type is null. With a null response type, the payload of the reply Message contains
the ResponseEntity, as long as its HTTP status is a success (non-successful status codes throw
exceptions). If you expect a different type, such as a String, provide that as a fully-qualified class name
(java.lang.String in the preceding example). See also the note about empty response bodies in
Section 20.2, “HTTP Outbound Components”.
Important
Beginning with Spring Integration 2.1, the request-timeout attribute of the HTTP outbound
gateway was renamed to reply-timeout to better reflect its intent.
Important
Since Spring Integration 2.2, Java serialization over HTTP is no longer enabled by default.
Previously, when setting the expected-response-type attribute to a Serializable
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 347
object, the Accept header was not properly set up. Since Spring Integration 2.2, the
SerializingHttpMessageConverter has now been updated to set the Accept header to
application/x-java-serialized-object.
However, because this could cause incompatibility with existing applications, it was decided
to no longer automatically add this converter to the HTTP endpoints. If you wish to use
Java serialization, you can add the SerializingHttpMessageConverter to the appropriate
endpoints, by using the message-converters attribute (when you use XML configuration) or
by using the setMessageConverters() method (in Java configuration). Alternatively, you may
wish to consider using JSON instead, which is enabled by having the Jackson library on the
classpath.
Beginning with Spring Integration 2.2, you can also determine the HTTP method dynamically by using
SpEL and the http-method-expression attribute. Note that this attribute is mutually exclusive with
http-method. You can also use the expected-response-type-expression attribute instead of
expected-response-type and provide any valid SpEL expression that determines the type of the
response. The following configuration example uses expected-response-type-expression:
<int-http:outbound-gateway id="example"
request-channel="requests"
url="http://localhost/test"
http-method-expression="headers.httpMethod"
extract-request-payload="false"
expected-response-type-expression="payload"
charset="UTF-8"
request-factory="requestFactory"
reply-timeout="1234"
reply-channel="replies"/>
If your outbound adapter is to be used in a unidirectional way, you can use an outbound-channel-
adapter instead. This means that a successful response executes without sending any messages to
a reply channel. In the case of any non-successful response status code, it throws an exception. The
configuration looks very similar to the gateway, as the following example shows:
<int-http:outbound-channel-adapter id="example"
url="http://localhost/example"
http-method="GET"
channel="requests"
charset="UTF-8"
extract-payload="false"
expected-response-type="java.lang.String"
request-factory="someRequestFactory"
order="3"
auto-startup="false"/>
Note
To specify the URL, you can use either the url attribute or the url-expression attribute. The url
attribute takes a simple string (with placeholders for URI variables, as described below). The url-
expression is a SpEL expression, with the Message as the root object, which enables dynamic
urls. The URL that results from the expression evaluation can still have placeholders for URI
variables.
In previous releases, some users used the place holders to replace the entire URL with a URI
variable. Changes in Spring 3.1 can cause some issues with escaped characters, such as ?. For
this reason, we recommend that, if you wish to generate the URL entirely at runtime, you use the
url-expression attribute.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 348
Mapping URI Variables
If your URL contains URI variables, you can map them by using the uri-variable element. This
element is available for the HTTP outbound gateway and the HTTP outbound channel adapter. The
following example maps the zipCode URI variable to an expression:
<int-http:outbound-gateway id="trafficGateway"
url="http://local.yahooapis.com/trafficData?appid=YdnDemo&amp;zip={zipCode}"
request-channel="trafficChannel"
http-method="GET"
expected-response-type="java.lang.String">
<int-http:uri-variable name="zipCode" expression="payload.getZip()"/>
</int-http:outbound-gateway>
The uri-variable element defines two attributes: name and expression. The name attribute
identifies the name of the URI variable, while the expression attribute is used to set the actual value.
By using the expression attribute, you can leverage the full power of the Spring Expression Language
(SpEL), which gives you full dynamic access to the message payload and the message headers. For
example, in the preceding configuration, the getZip() method is invoked on the payload object of the
Message and the result of that method is used as the value of the URI variable named zipCode.
Since Spring Integration 3.0, HTTP outbound endpoints support the uri-variables-expression
attribute to specify an expression that should be evaluated, resulting in a Map of all URI variable
placeholders within the URL template. It provides a mechanism whereby you can use different variable
expressions, based on the outbound message. This attribute is mutually exclusive with the <uri-
variable/> element. The following example shows how to use the uri-variables-expression
attribute:
<int-http:outbound-gateway
url="http://foo.host/{foo}/bars/{bar}"
request-channel="trafficChannel"
http-method="GET"
uri-variables-expression="@uriVariablesBean.populate(payload)"
expected-response-type="java.lang.String"/>
uriVariablesBean might be defined as follows:
public class UriVariablesBean {
private static final ExpressionParser EXPRESSION_PARSER = new SpelExpressionParser();
public Map<String, ?> populate(Object payload) {
Map<String, Object> variables = new HashMap<String, Object>();
if (payload instanceOf String.class)) {
variables.put("foo", "foo"));
}
else {
variables.put("foo", EXPRESSION_PARSER.parseExpression("headers.bar"));
}
return variables;
}
}
Note
The uri-variables-expression must evaluate to a Map. The values of the Map must be
instances of String or Expression. This Map is provided to an ExpressionEvalMap for
further resolution of URI variable placeholders by using those expressions in the context of the
outbound Message.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 349
IMPORTANT
The uriVariablesExpression property provides a very powerful mechanism for evaluating URI
variables. We anticipate that people mostly use simple expressions, such as the preceding example.
However, you can also configure something such as "@uriVariablesBean.populate(#root)"
with an expression in the returned map being variables.put("thing1",
EXPRESSION_PARSER.parseExpression(message.getHeaders().get("thing2",
String.class)));, where the expression is dynamically provided in the message header named
thing2. Since the header may come from an untrusted source, the HTTP outbound endpoints use
SimpleEvaluationContext when evaluating these expressions. SimpleEvaluationContext
uses only a subset of SpEL features. If you trust your message sources and wish to use the restricted
SpEL constructs, set the trustedSpel property of the outbound endpoint to true.
You can achieve scenarios that need to supply a dynamic set of URI variables on a per-message basis
by using a custom url-expression and some utilities for building and encoding URL parameters.
The following example shows how to do so:
url-expression="T(org.springframework.web.util.UriComponentsBuilder)
.fromHttpUrl('http://HOST:PORT/PATH')
.queryParams(payload)
.build()
.toUri()"
The queryParams() method expects a MultiValueMap<String, String> as an argument, so
you can build a real set of URL query parameters in advance, before performing the request.
The whole queryString can also be presented as a uri-variable, as the following example shows:
<int-http:outbound-gateway id="proxyGateway" request-channel="testChannel"
url="http://testServer/test?{queryString}">
<int-http:uri-variable name="queryString" expression="'a=A&amp;b=B'"/>
</int-http:outbound-gateway>
In this case, you must manually provide the URL encoding. For example, you can use
the org.apache.http.client.utils.URLEncodedUtils#format() for this purpose. As
mentioned earlier, a manually built MultiValueMap<String, String> can be converted to the the
List<NameValuePair> format() method argument by using the following Java Streams snippet:
List<NameValuePair> nameValuePairs =
params.entrySet()
.stream()
.flatMap(e -> e
.getValue()
.stream()
.map(v -> new BasicNameValuePair(e.getKey(), v)))
.collect(Collectors.toList());
Controlling URI Encoding
By default, the URL string is encoded (see UriComponentsBuilder) to the URI object before sending
the request. In some scenarios with a non-standard URI (such as the RabbitMQ REST API), it is
undesirable to perform the encoding. The <http:outbound-gateway/> and <http:outbound-
channel-adapter/> provide an encode-uri attribute. To disable encoding the URL, set this
attribute to false (by default, it is true). If you wish to partially encode some of the URL, use an
expression within a <uri-variable/>, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 350
<http:outbound-gateway url="http://somehost/%2f/fooApps?bar={param}" encode-uri="false">
<http:uri-variable name="param"
expression="T(org.apache.commons.httpclient.util.URIUtil)
.encodeWithinQuery('Hello World!')"/>
</http:outbound-gateway>
20.4 Configuring HTTP Endpoints with Java
The following example shows how to configure an inbound gateway with Java:
@Bean
public HttpRequestHandlingMessagingGateway inbound() {
HttpRequestHandlingMessagingGateway gateway =
new HttpRequestHandlingMessagingGateway(true);
gateway.setRequestMapping(mapping());
gateway.setRequestPayloadType(String.class);
gateway.setRequestChannelName("httpRequest");
return gateway;
}
@Bean
public RequestMapping mapping() {
RequestMapping requestMapping = new RequestMapping();
requestMapping.setPathPatterns("/foo");
requestMapping.setMethods(HttpMethod.POST);
return requestMapping;
}
Example 20.1 Inbound Gateway Using Java Configuration
The following example shows how to configure an inbound gateway with the Java DSL:
@Bean
public IntegrationFlow inbound() {
return IntegrationFlows.from(Http.inboundGateway("/foo")
.requestMapping(m -> m.methods(HttpMethod.POST))
.requestPayloadType(String.class))
.channel("httpRequest")
.get();
}
Example 20.2 Inbound Gateway Using the Java DSL
The following example shows how to configure an outbound gateway with Java:
@ServiceActivator(inputChannel = "httpOutRequest")
@Bean
public HttpRequestExecutingMessageHandler outbound() {
HttpRequestExecutingMessageHandler handler =
new HttpRequestExecutingMessageHandler("http://localhost:8080/foo");
handler.setHttpMethod(HttpMethod.POST);
handler.setExpectedResponseType(String.class);
return handler;
}
Example 20.3 Outbound Gateway Using Java Configuration
The following example shows how to configure an outbound gateway with the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 351
@Bean
public IntegrationFlow outbound() {
return IntegrationFlows.from("httpOutRequest")
.handle(Http.outboundGateway("http://localhost:8080/foo")
.httpMethod(HttpMethod.POST)
.expectedResponseType(String.class))
.get();
}
Example 20.4 Outbound Gateway Using the Java DSL
20.5 Timeout Handling
In the context of HTTP components, there are two timing areas that have to be considered:
• Timeouts when interacting with Spring Integration Channels
• Timeouts when interacting with a remote HTTP server
The components interact with message channels, for which timeouts can be specified. For example,
an HTTP Inbound Gateway forwards messages received from connected HTTP Clients to a message
channel (which uses a request timeout) and consequently the HTTP Inbound Gateway receives a
reply message from the reply channel (which uses a reply timeout) that is used to generate the HTTP
Response. The following illustration offers a visual explanation:

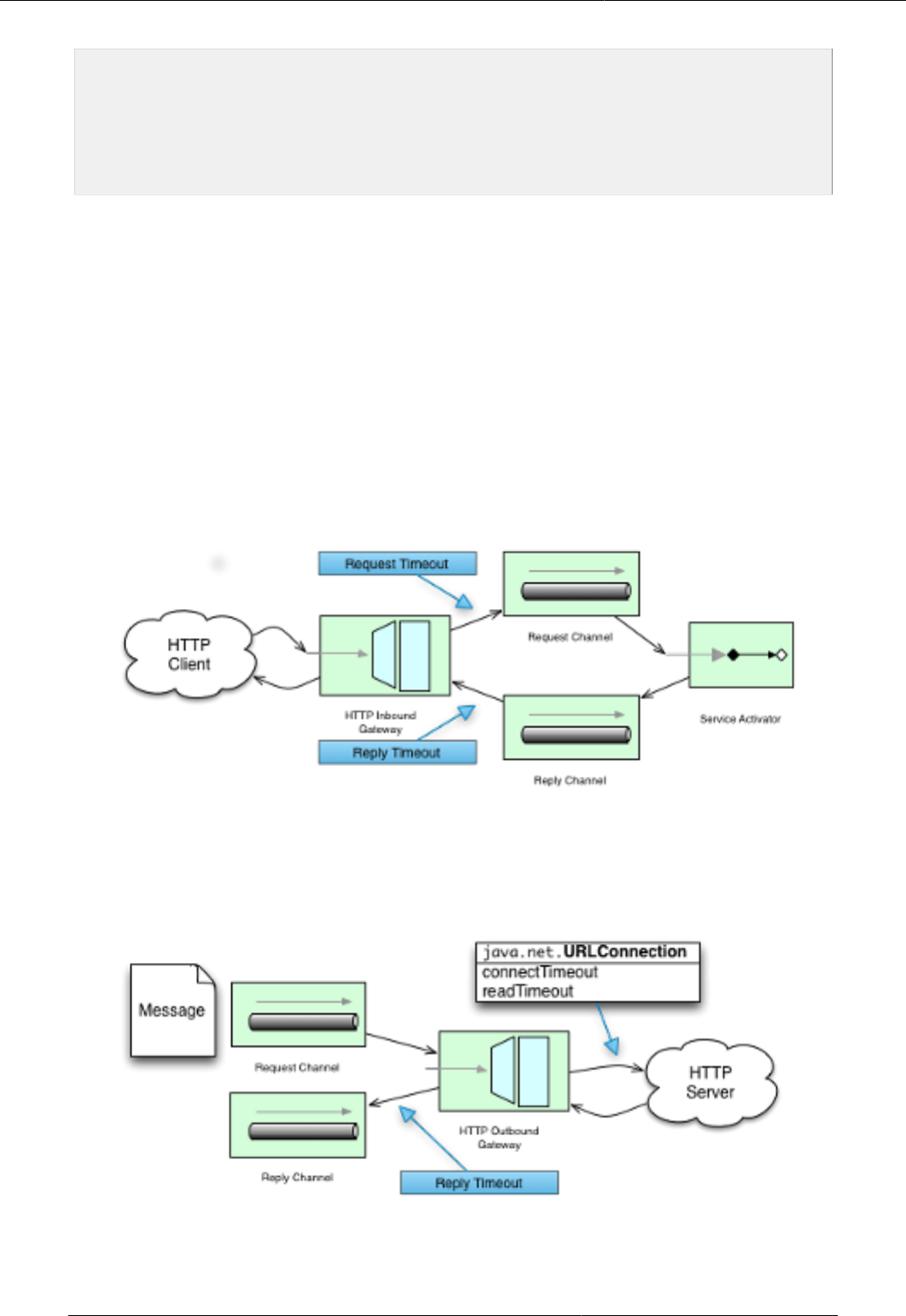

Figure 20.1. How timeout settings apply to an HTTP Inbound Gateway
For outbound endpoints, we need to consider how timing works while interacting with the remote server.
The following image shows this scenario:
Figure 20.2. How timeout settings apply to an HTTP Outbound Gateway
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 352
You may want to configure the HTTP related timeout behavior, when making active HTTP requests by
using the HTTP outbound gateway or the HTTP outbound channel adapter. In those instances, these
two components use Spring’s RestTemplate support to execute HTTP requests.
To configure timeouts for the HTTP outbound gateway and the HTTP outbound channel adapter, you
can either reference a RestTemplate bean directly (by using the rest-template attribute) or you
can provide a reference to a ClientHttpRequestFactory bean (by using the request-factory
attribute). Spring provides the following implementations of the ClientHttpRequestFactory
interface:
•SimpleClientHttpRequestFactory: Uses standard J2SE facilities for making HTTP Requests
•HttpComponentsClientHttpRequestFactory: Uses Apache HttpComponents HttpClient
(since Spring 3.1)
If you do not explicitly configure the request-factory or rest-template attribute, a default
RestTemplate (which uses a SimpleClientHttpRequestFactory) is instantiated.
Note
With some JVM implementations, the handling of timeouts by the URLConnection class may
not be consistent.
For example, from the Java™ Platform, Standard Edition 6 API Specification on
setConnectTimeout:
Some non-standard implementation of this method may ignore the specified
timeout. To see the connect timeout set, please call getConnectTimeout().
If you have specific needs, you should test your timeouts. Consider using
the HttpComponentsClientHttpRequestFactory, which, in turn, uses Apache
HttpComponents HttpClient rather than relying on implementations provided by a JVM.
Important
When you use the Apache HttpComponents HttpClient with a pooling connection manager, you
should be aware that, by default, the connection manager creates no more than two concurrent
connections per given route and no more than 20 connections in total. For many real-world
applications, these limits may prove to be too constraining. See the Apache documentation for
information about configuring this important component.
The following example configures an HTTP outbound gateway by using a
SimpleClientHttpRequestFactory that is configured with connect and read timeouts of 5
seconds, respectively:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 353
<int-http:outbound-gateway url="http://www.google.com/ig/api?weather={city}"
http-method="GET"
expected-response-type="java.lang.String"
request-factory="requestFactory"
request-channel="requestChannel"
reply-channel="replyChannel">
<int-http:uri-variable name="city" expression="payload"/>
</int-http:outbound-gateway>
<bean id="requestFactory"
class="org.springframework.http.client.SimpleClientHttpRequestFactory">
<property name="connectTimeout" value="5000"/>
<property name="readTimeout" value="5000"/>
</bean>
HTTP Outbound Gateway
For the HTTP Outbound Gateway, the XML Schema defines only the
reply-timeout. The reply-timeout maps to the sendTimeout property of the
org.springframework.integration.http.outbound.HttpRequestExecutingMessageHandler class. More
precisely, the property is set on the extended AbstractReplyProducingMessageHandler class,
which ultimately sets the property on the MessagingTemplate.
The value of the sendTimeout property defaults to "-1" and will be applied to the connected
MessageChannel. This means, that depending on the implementation, the Message Channel’s send
method may block indefinitely. Furthermore, the sendTimeout property is only used, when the actual
MessageChannel implementation has a blocking send (such as full bounded QueueChannel).
HTTP Inbound Gateway
For the HTTP inbound gateway, the XML Schema defines the request-timeout attribute, which
is used to set the requestTimeout property on the HttpRequestHandlingMessagingGateway
class (on the extended MessagingGatewaySupport class). You can also use the reply-timeout
attribute to map to the replyTimeout property on the same class.
The default for both timeout properties is 1000ms (one thousand milliseconds or one second). Ultimately,
the request-timeout property is used to set the sendTimeout on the MessagingTemplate
instance. The replyTimeout property, on the other hand, is used to set the receiveTimeout
property on the MessagingTemplate instance.
Tip
To simulate connection timeouts, you can connect to a non-routable IP address, such as
10.255.255.10.
20.6 HTTP Proxy configuration
If you are behind a proxy and need to configure proxy settings for HTTP outbound adapters or gateways,
you can apply one of two approaches. In most cases, you can rely on the standard Java system
properties that control the proxy settings. Otherwise, you can explicitly configure a Spring bean for the
HTTP client request factory instance.
Standard Java Proxy configuration
You can set three system properties to configure the proxy settings that are used by the HTTP protocol
handler:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 354
•http.proxyHost: The host name of the proxy server.
•http.proxyPort: The port number (the default is 80).
•http.nonProxyHosts: A list of hosts that should be reached directly, bypassing the proxy. This is
a list of patterns separated by |. The patterns may start or end with a * for wildcards. Any host that
matches one of these patterns is reached through a direct connection instead of through a proxy.
For HTTPS, the following properties are available:
•https.proxyHost: The host name of the proxy server.
•https.proxyPort: The port number, the default value being 80.
For more information, see http://download.oracle.com/javase/6/docs/technotes/guides/net/proxies.html
Spring’s SimpleClientHttpRequestFactory
If you need more explicit control over the proxy configuration, you can use Spring’s
SimpleClientHttpRequestFactory and configure its proxy property, as the following example
shows:
<bean id="requestFactory"
class="org.springframework.http.client.SimpleClientHttpRequestFactory">
<property name="proxy">
<bean id="proxy" class="java.net.Proxy">
<constructor-arg>
<util:constant static-field="java.net.Proxy.Type.HTTP"/>
</constructor-arg>
<constructor-arg>
<bean class="java.net.InetSocketAddress">
<constructor-arg value="123.0.0.1"/>
<constructor-arg value="8080"/>
</bean>
</constructor-arg>
</bean>
</property>
</bean>
20.7 HTTP Header Mappings
Spring Integration provides support for HTTP header mapping for both HTTP Request and HTTP
Responses.
By default, all standard HTTP headers are mapped from the message to HTTP request or response
headers without further configuration. However, if you do need further customization, you can provide
additional configuration by taking advantage of the namespace support. You can provide a comma-
separated list of header names, and you can include simple patterns with the * character acting as a
wildcard. Provide such values overrides the default behavior. Basically, it assumes you are in complete
control at that point. However, if you do want to include all of the standard HTTP headers, you can
use the shortcut patterns: HTTP_REQUEST_HEADERS and HTTP_RESPONSE_HEADERS. The following
listing shows two examples (the first of which uses a wildcard):
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 355
<int-http:outbound-gateway id="httpGateway"
url="http://localhost/test2"
mapped-request-headers="thing1, thing2"
mapped-response-headers="X-*, HTTP_RESPONSE_HEADERS"
channel="someChannel"/>
<int-http:outbound-channel-adapter id="httpAdapter"
url="http://localhost/test2"
mapped-request-headers="thing1, thing2, HTTP_REQUEST_HEADERS"
channel="someChannel"/>
The adapters and gateways use the DefaultHttpHeaderMapper, which now provides two static
factory methods for inbound and outbound adapters so that the proper direction can be applied (mapping
HTTP requests and responses either in or out, as appropriate).
If you need further customization, you can also configure a DefaultHttpHeaderMapper
independently and inject it into the adapter through the header-mapper attribute.
Before version 5.0, the DefaultHttpHeaderMapper the default prefix for user-defined, non-standard
HTTP headers was X-. Version 5.0 changed the default prefix to an empty string. According
to RFC-6648, the use of such prefixes is now discouraged. You can still customize this option
by setting the DefaultHttpHeaderMapper.setUserDefinedHeaderPrefix() property. The
following example configures a header mapper for an HTTP gateway:
<int-http:outbound-gateway id="httpGateway"
url="http://localhost/test2"
header-mapper="headerMapper"
channel="someChannel"/>
<bean id="headerMapper" class="o.s.i.http.support.DefaultHttpHeaderMapper">
<property name="inboundHeaderNames" value="thing1*, *thing2, thing3"/>
<property name="outboundHeaderNames" value="a*b, d"/>
</bean>
If you need to do something other than what the DefaultHttpHeaderMapper supports, you
can implement the HeaderMapper strategy interface directly and provide a reference to your
implementation.
20.8 Integration Graph Controller
Starting with version 4.3, the HTTP module provides an @EnableIntegrationGraphController
configuration class annotation and an <int-http:graph-controller/> XML element to expose
the IntegrationGraphServer as a REST service. See Section 12.8, “Integration Graph” for more
information.
20.9 HTTP Samples
This section wraps up our coverage of Spring Integration’s HTTP support with a few examples.
Multipart HTTP Request — RestTemplate (Client) and Http Inbound Gateway
(Server)
This example shows how simple it is to send a multipart HTTP request with Spring’s RestTemplate and
receive it with a Spring Integration HTTP inbound adapter. We create a MultiValueMap and populate
it with multipart data. The RestTemplate takes care of the rest (no pun intended) by converting it
to a MultipartHttpServletRequest. This particular client sends a multipart HTTP Request that
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 356
contains the name of the company and an image file (the company logo). The following listing shows
the example:
RestTemplate template = new RestTemplate();
String uri = "http://localhost:8080/multipart-http/inboundAdapter.htm";
Resource s2logo =
new ClassPathResource("org/springframework/samples/multipart/spring09_logo.png");
MultiValueMap map = new LinkedMultiValueMap();
map.add("company", "SpringSource");
map.add("company-logo", s2logo);
HttpHeaders headers = new HttpHeaders();
headers.setContentType(new MediaType("multipart", "form-data"));
HttpEntity request = new HttpEntity(map, headers);
ResponseEntity<?> httpResponse = template.exchange(uri, HttpMethod.POST, request, null);
That is all we need for the client.
On the server side, we have the following configuration:
<int-http:inbound-channel-adapter id="httpInboundAdapter"
channel="receiveChannel"
path="/inboundAdapter.htm"
supported-methods="GET, POST"/>
<int:channel id="receiveChannel"/>
<int:service-activator input-channel="receiveChannel">
<bean class="org.springframework.integration.samples.multipart.MultipartReceiver"/>
</int:service-activator>
<bean id="multipartResolver"
class="org.springframework.web.multipart.commons.CommonsMultipartResolver"/>
The httpInboundAdapter receives the request and converts it to a Message with a payload that is
a LinkedMultiValueMap. We then parse that in the multipartReceiver service-activator, as the
following example shows:
public void receive(LinkedMultiValueMap<String, Object> multipartRequest){
System.out.println("### Successfully received multipart request ###");
for (String elementName : multipartRequest.keySet()) {
if (elementName.equals("company")){
System.out.println("\t" + elementName + " - " +
((String[]) multipartRequest.getFirst("company"))[0]);
}
else if (elementName.equals("company-logo")){
System.out.println("\t" + elementName + " - as UploadedMultipartFile: " +
((UploadedMultipartFile) multipartRequest
.getFirst("company-logo")).getOriginalFilename());
}
}
}
You should see the following output:
### Successfully received multipart request ###
company - SpringSource
company-logo - as UploadedMultipartFile: spring09_logo.png
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 357
21. JDBC Support
Spring Integration provides channel adapters for receiving and sending messages by using database
queries. Through those adapters, Spring Integration supports not only plain JDBC SQL queries but also
stored procedure and stored function calls.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-jdbc</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-jdbc:5.1.1.RELEASE"
By default, the following JDBC components are available:
•Inbound Channel Adapter
•Outbound Channel Adapter
•Outbound Gateway
•Stored Procedure Inbound Channel Adapter
•Stored Procedure Outbound Channel Adapter
•Stored Procedure Outbound Gateway
The Spring Integration JDBC Module also provides a JDBC Message Store.
21.1 Inbound Channel Adapter
The main function of an inbound channel adapter is to execute a SQL SELECT query and turn the result
set into a message. The message payload is the whole result set (expressed as a List), and the types
of the items in the list depend on the row-mapping strategy. The default strategy is a generic mapper
that returns a Map for each row in the query result. Optionally, you can change this by adding a reference
to a RowMapper instance (see the Spring JDBC documentation for more detailed information about
row mapping).
Note
If you want to convert rows in the SELECT query result to individual messages, you can use a
downstream splitter.
The inbound adapter also requires a reference to either a JdbcTemplate instance or a DataSource.
As well as the SELECT statement to generate the messages, the adapter also has an UPDATE statement
that marks the records as processed so that they do not show up in the next poll. The update can
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 358
be parameterized by the list of IDs from the original select. By default, this is done through a naming
convention (a column in the input result set called id is translated into a list in the parameter map for
the update called id). The following example defines an inbound channel adapter with an update query
and a DataSource reference.
<int-jdbc:inbound-channel-adapter query="select * from item where status=2"
channel="target" data-source="dataSource"
update="update item set status=10 where id in (:id)" />
Note
The parameters in the update query are specified with a colon (:) prefix to the name of a parameter
(which, in the preceding example, is an expression to be applied to each of the rows in the polled
result set). This is a standard feature of the named parameter JDBC support in Spring JDBC,
combined with a convention (projection onto the polled result list) adopted in Spring Integration.
The underlying Spring JDBC features limit the available expressions (for example, most special
characters other than a period are disallowed), but since the target is usually a list of objects
(possibly a list of one) that are addressable by bean paths this is not unduly restrictive.
To change the parameter generation strategy, you can inject a SqlParameterSourceFactory into
the adapter to override the default behavior (the adapter has a sql-parameter-source-factory
attribute). Spring Integration provides ExpressionEvaluatingSqlParameterSourceFactory,
which creates a SpEL-based parameter source, with the results of the query as the #root object. (If
update-per-row is true, the root object is the row). If the same parameter name appears multiple
times in the update query, it is evaluated only once, and its result is cached.
You can also use a parameter source for the select query. In this case, since there is no "result"
object to evaluate against, a single parameter source is used each time (rather than using a parameter
source factory). Starting with version 4.0, you can use Spring to create a SpEL based parameter source,
as the following example shows:
<int-jdbc:inbound-channel-adapter query="select * from item where status=:status"
channel="target" data-source="dataSource"
select-sql-parameter-source="parameterSource" />
<bean id="parameterSource" factory-bean="parameterSourceFactory"
factory-method="createParameterSourceNoCache">
<constructor-arg value="" />
</bean>
<bean id="parameterSourceFactory"
class="o.s.integration.jdbc.ExpressionEvaluatingSqlParameterSourceFactory">
<property name="parameterExpressions">
<map>
<entry key="status" value="@statusBean.which()" />
</map>
</property>
</bean>
<bean id="statusBean" class="foo.StatusDetermination" />
The value in each parameter expression can be any valid SpEL expression. The #root object for the
expression evaluation is the constructor argument defined on the parameterSource bean. It is static
for all evaluations (in the preceding example, an empty String).
Starting with version 5.0, you ca supply ExpressionEvaluatingSqlParameterSourceFactory
with sqlParameterTypes to specify the target SQL type for the particular parameter.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 359
The following example provides SQL types for the parameters being used in the query:
<int-jdbc:inbound-channel-adapter query="select * from item where status=:status"
channel="target" data-source="dataSource"
select-sql-parameter-source="parameterSource" />
<bean id="parameterSource" factory-bean="parameterSourceFactory"
factory-method="createParameterSourceNoCache">
<constructor-arg value="" />
</bean>
<bean id="parameterSourceFactory"
class="o.s.integration.jdbc.ExpressionEvaluatingSqlParameterSourceFactory">
<property name="sqlParameterTypes">
<map>
<entry key="status" value="#{ T(java.sql.Types).BINARY}" />
</map>
</property>
</bean>
Important
Use the createParameterSourceNoCache factory method. Otherwise, the parameter source
caches the result of the evaluation. Also note that, because caching is disabled, if the same
parameter name appears in the select query multiple times, it is re-evaluated for each occurrence.
Polling and Transactions
The inbound adapter accepts a regular Spring Integration poller as a child element. Consequently, the
frequency of the polling can be controlled (among other uses). An important feature of the poller for
JDBC usage is the option to wrap the poll operation in a transaction, as the following example shows:
<int-jdbc:inbound-channel-adapter query="..."
channel="target" data-source="dataSource" update="...">
<int:poller fixed-rate="1000">
<int:transactional/>
</int:poller>
</int-jdbc:inbound-channel-adapter>
Note
If you do not explicitly specify a poller, a default value is used. As is normal with Spring Integration,
it can be defined as a top-level bean).
In the preceding example, the database is polled every 1000 milliseconds (or once a second), and
the update and select queries are both executed in the same transaction. The transaction manager
configuration is not shown. However, as long as it is aware of the data source, the poll is transactional.
A common use case is for the downstream channels to be direct channels (the default), so that the
endpoints are invoked in the same thread and, hence, the same transaction. That way, if any of them
fail, the transaction rolls back and the input data is reverted to its original state.
max-rows Versus max-messages-per-poll
The JDBC inbound channel adapter defines an attribute called max-rows. When you specify the
adapter’s poller, you can also define a property called max-messages-per-poll. While these two
attributes look similar, their meaning is quite different.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 360
max-messages-per-poll specifies the number of times the query is executed per polling interval,
whereas max-rows specifies the number of rows returned for each execution.
Under normal circumstances, you would likely not want to set the poller’s max-messages-per-poll
property when you use the JDBC inbound channel adapter. Its default value is 1, which means that the
JDBC inbound channel adapter’s receive() method is executed exactly once for each poll interval.
Setting the max-messages-per-poll attribute to a larger value means that the query is executed that
many times back to back. For more information regarding the max-messages-per-poll attribute,
see the section called “Configuring An Inbound Channel Adapter”.
In contrast, the max-rows attribute, if greater than 0, specifies the maximum number of rows to be used
from the query result set created by the receive() method. If the attribute is set to 0, all rows are
included in the resulting message. The attribute defaults to 0.
Note
It is recommended to use result set limiting via vendor-specific query options, for example MySQL
LIMIT or SQL Server TOP or Oracle’s ROWNUM. See the particular vendor documentation for more
information.
21.2 Outbound Channel Adapter
The outbound channel adapter is the inverse of the inbound: Its role is to handle a message and use it to
execute a SQL query. By default, the message payload and headers are available as input parameters
to the query, as the following example shows:
<int-jdbc:outbound-channel-adapter
query="insert into foos (id, status, name) values (:headers[id], 0, :payload[something])"
data-source="dataSource"
channel="input"/>
In the preceding example, messages arriving on the channel labelled input have a payload of a map
with a key of something, so the [] operator dereferences that value from the map. The headers are
also accessed as a map.
Note
The parameters in the preceding query are bean property expressions on the incoming
message (not SpEL expressions). This behavior is part of the SqlParameterSource,
which is the default source created by the outbound adapter. You can inject a different
SqlParameterSourceFactory to get different behavior.
The outbound adapter requires a reference to either a DataSource or a JdbcTemplate. You can also
inject a SqlParameterSourceFactory to control the binding of each incoming message to a query.
If the input channel is a direct channel, the outbound adapter runs its query in the same thread and,
therefore, the same transaction (if there is one) as the sender of the message.
Passing Parameters by Using SpEL Expressions
A common requirement for most JDBC channel adapters is to pass parameters as part of SQL queries
or stored procedures or functions. As mentioned earlier, these parameters are by default bean property
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 361
expressions, not SpEL expressions. However, if you need to pass SpEL expression as parameters, you
must explicitly inject a SqlParameterSourceFactory.
The following example uses a ExpressionEvaluatingSqlParameterSourceFactory to achieve
that requirement:
<jdbc:outbound-channel-adapter data-source="dataSource" channel="input"
query="insert into MESSAGES (MESSAGE_ID,PAYLOAD,CREATED_DATE) \
values (:id, :payload, :createdDate)"
sql-parameter-source-factory="spelSource"/>
<bean id="spelSource"
class="o.s.integration.jdbc.ExpressionEvaluatingSqlParameterSourceFactory">
<property name="parameterExpressions">
<map>
<entry key="id" value="headers['id'].toString()"/>
<entry key="createdDate" value="new java.util.Date()"/>
<entry key="payload" value="payload"/>
</map>
</property>
</bean>
For further information, see the section called “Defining Parameter Sources”.
Using the PreparedStatement Callback
Sometimes, the flexibility and loose-coupling of SqlParameterSourceFactory does not do
what we need for the target PreparedStatement or we need to do some low-level JDBC
work. The Spring JDBC module provides APIs to configure the execution environment (such
as ConnectionCallback or PreparedStatementCreator) and manipulate parameter values
(such as SqlParameterSource). It can even access APIs for low-level operations, such as
StatementCallback.
Starting with Spring Integration 4.2, MessagePreparedStatementSetter allows the specification
of parameters on the PreparedStatement manually, in the requestMessage context. This class
plays exactly the same role as PreparedStatementSetter in the standard Spring JDBC API.
Actually, it is invoked directly from an inline PreparedStatementSetter implementation when the
JdbcMessageHandler invokes execute on the JdbcTemplate.
This functional interface option is mutually exclusive with sqlParameterSourceFactory and can
be used as a more powerful alternative to populate parameters of the PreparedStatement from the
requestMessage. For example, it is useful when we need to store File data to the DataBase BLOB
column in a streaming manner. The following example shows how to do so:
@Bean
@ServiceActivator(inputChannel = "storeFileChannel")
public MessageHandler jdbcMessageHandler(DataSource dataSource) {
JdbcMessageHandler jdbcMessageHandler = new JdbcMessageHandler(dataSource,
"INSERT INTO imagedb (image_name, content, description) VALUES (?, ?, ?)");
jdbcMessageHandler.setPreparedStatementSetter((ps, m) -> {
ps.setString(1, m.getHeaders().get(FileHeaders.FILENAME));
try (FileInputStream inputStream = new FileInputStream((File) m.getPayload()); ) {
ps.setBlob(2, inputStream);
}
catch (Exception e) {
throw new MessageHandlingException(m, e);
}
ps.setClob(3, new StringReader(m.getHeaders().get("description", String.class)));
});
return jdbcMessageHandler;
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 362
From the XML configuration perspective, the prepared-statement-setter attribute is
available on the <int-jdbc:outbound-channel-adapter> component. It lets you specify a
MessagePreparedStatementSetter bean reference.
Batch Update
Starting with version 5.1, the JdbcMessageHandler performs a JdbcOperations.batchUpdate()
if the payload of the request message is an Iterable instance. Each element of
the Iterable is wrapped to a Message with the headers from the request message.
In the case of regular SqlParameterSourceFactory-based configuration these messages
are used to build an SqlParameterSource[] for an argument used in the mentioned
JdbcOperations.batchUpdate() function. When a MessagePreparedStatementSetter
configuration is applied, a BatchPreparedStatementSetter variant is used to iterate over those
messages for each item and the provided MessagePreparedStatementSetter is called against
them. The batch update is not supported when keysGenerated mode is selected.
21.3 Outbound Gateway
The outbound gateway is like a combination of the outbound and inbound adapters: Its role is to handle
a message and use it to execute a SQL query and then respond with the result by sending it to a reply
channel. By default, the message payload and headers are available as input parameters to the query,
as the following example shows:
<int-jdbc:outbound-gateway
update="insert into mythings (id, status, name) values (:headers[id], 0, :payload[thing])"
request-channel="input" reply-channel="output" data-source="dataSource" />
The result of the preceding example is to insert a record into the mythings table and return a message
that indicates the number of rows affected (the payload is a map: {UPDATED=1}) to the output channel .
If the update query is an insert with auto-generated keys, you can populate the reply message with the
generated keys by adding keys-generated="true" to the preceding example (this is not the default
because it is not supported by some database platforms). The following example shows the changed
configuration:
<int-jdbc:outbound-gateway
update="insert into mything (status, name) values (0, :payload[thing])"
request-channel="input" reply-channel="output" data-source="dataSource"
keys-generated="true"/>
Instead of the update count or the generated keys, you can also provide a select query to execute
and generate a reply message from the result (such as the inbound adapter), as the following example
shows:
<int-jdbc:outbound-gateway
update="insert into foos (id, status, name) values (:headers[id], 0, :payload[foo])"
query="select * from foos where id=:headers[$id]"
request-channel="input" reply-channel="output" data-source="dataSource"/>
Since Spring Integration 2.2, the update SQL query is no longer mandatory. You can now provide only
a select query, by using either the query attribute or the query element. This is extremely useful if you
need to actively retrieve data by using, for example, a generic gateway or a payload enricher. The reply
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 363
message is then generated from the result (similar to how the inbound adapter works) and passed to
the reply channel. The following example show to use the query attribute:
<int-jdbc:outbound-gateway
query="select * from foos where id=:headers[id]"
request-channel="input"
reply-channel="output"
data-source="dataSource"/>
Important
By default, the component for the SELECT query returns only one (the first) row from the cursor.
You can adjust this behavior with the max-rows option. If you need to return all the rows from
the SELECT, consider specifying max-rows="0".
As with the channel adapters, you can also provide SqlParameterSourceFactory instances for
request and reply. The default is the same as for the outbound adapter, so the request message is
available as the root of an expression. If keys-generated="true", the root of the expression is the
generated keys (a map if there is only one or a list of maps if multi-valued).
The outbound gateway requires a reference to either a DataSource or a JdbcTemplate. It can also
have a SqlParameterSourceFactory injected to control the binding of the incoming message to
the query.
Starting with the version 4.2, the request-prepared-statement-setter attribute is available on
the <int-jdbc:outbound-gateway> as an alternative to request-sql-parameter-source-
factory. It lets you specify a MessagePreparedStatementSetter bean reference, which
implements more sophisticated PreparedStatement preparation before its execution.
See Section 21.2, “Outbound Channel Adapter” for more information about
MessagePreparedStatementSetter.
21.4 JDBC Message Store
Spring Integration provides two JDBC specific message store implementations. The
JdbcMessageStore is suitable for use with aggregators and the claim check pattern. The
JdbcChannelMessageStore implementation provides a more targeted and scalable implementation
specifically for message channel.
Note that you can use a JdbcMessageStore to back a message channel,
JdbcChannelMessageStore is optimized for that purpose.
Initializing the Database
Before starting to use JDBC message store components, you should provision a target database with
the appropriate objects.
Spring Integration ships with some sample scripts that can be used to initialize a
database. In the spring-integration-jdbc JAR file, you can find scripts in the
org.springframework.integration.jdbc package. It provides an example create and an
example drop script for a range of common database platforms. A common way to use these scripts
is to reference them in a Spring JDBC data source initializer. Note that the scripts are provided as
samples and as specifications of the the required table and column names. You may find that you need
to enhance them for production use (for, example, by adding index declarations).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 364
The Generic JDBC Message Store
The JDBC module provides an implementation of the Spring Integration MessageStore (important
in the claim check pattern) and MessageGroupStore (important in stateful patterns such as an
aggregator) backed by a database. Both interfaces are implemented by the JdbcMessageStore, and
there is support for configuring store instances in XML, as the following example shows:
<int-jdbc:message-store id="messageStore" data-source="dataSource"/>
You can specify a JdbcTemplate instead of a DataSource.
The following example shows some other optional attributes:
<int-jdbc:message-store id="messageStore" data-source="dataSource"
lob-handler="lobHandler" table-prefix="MY_INT_"/>
In the preceding example, we have specified a LobHandler for dealing with messages as large objects
(which is often necessary for Oracle) and a prefix for the table names in the queries generated by the
store. The table name prefix defaults to INT_.
Backing Message Channels
If you intend to backing message channels with JDBC, we recommend using the
JdbcChannelMessageStore implementation. It works only in conjunction with Message Channels.
Supported Databases
The JdbcChannelMessageStore uses database-specific SQL queries to retrieve messages from
the database. Therefore, you must set the ChannelMessageStoreQueryProvider property on
the JdbcChannelMessageStore. This channelMessageStoreQueryProvider provides the SQL
queries for the particular database you specify. Spring Integration provides support for the following
relational databases:
• PostgreSQL
• HSQLDB
• MySQL
• Oracle
• Derby
• H2
• SqlServer
• Sybase
• DB2
If your database is not listed, you can extend the AbstractChannelMessageStoreQueryProvider
class and provide your own custom queries.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 365
Version 4.0 added the MESSAGE_SEQUENCE column to the table to ensure first-in-first-out (FIFO)
queueing even when messages are stored in the same millisecond.
Custom Message Insertion
Since version 5.0, by overloading the ChannelMessageStorePreparedStatementSetter class,
you can provide a custom implementation for message insertion in the JdbcChannelMessageStore.
You can use it to set different columns or change the table structure or serialization strategy. For
example, instead of default serialization to byte[], you can store its structure as a JSON string.
The following example uses the default implementation of setValues to store common columns and
overrides the behavior to store the message payload as a varchar:
public class JsonPreparedStatementSetter extends ChannelMessageStorePreparedStatementSetter {
public JsonPreparedStatementSetter() {
super();
}
@Override
public void setValues(PreparedStatement preparedStatement, Message<?> requestMessage,
Object groupId, String region, boolean priorityEnabled) throws SQLException {
// Populate common columns
super.setValues(preparedStatement, requestMessage, groupId, region, priorityEnabled);
// Store message payload as varchar
preparedStatement.setString(6, requestMessage.getPayload().toString());
}
}
Important
Generally, we do not recommend using a relational database for queuing. Instead, if possible,
consider using either JMS- or AMQP-backed channels instead. For further reference, see the
following resources:
•5 subtle ways you’re using MySQL as a queue, and why it’ll bite you.
•The Database As Queue Anti-Pattern.
Concurrent Polling
When polling a message channel, you have the option to configure the associated Poller with a
TaskExecutor reference.
Important
Keep in mind, though, that if you use a JDBC backed message channel and you plan to poll
the channel and consequently the message store transactionally with multiple threads, you
should ensure that you use a relational database that supports Multiversion Concurrency Control
(MVCC). Otherwise, locking may be an issue and the performance, when using multiple threads,
may not materialize as expected. For example, Apache Derby is problematic in that regard.
To achieve better JDBC queue throughput and avoid issues when different threads may poll
the same Message from the queue, it is important to set the usingIdCache property of
JdbcChannelMessageStore to true when using databases that do not support MVCC. The
following example shows how to do so:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 366
<bean id="queryProvider"
class="o.s.i.jdbc.store.channel.PostgresChannelMessageStoreQueryProvider"/>
<int:transaction-synchronization-factory id="syncFactory">
<int:after-commit expression="@store.removeFromIdCache(headers.id.toString())" />
<int:after-rollback expression="@store.removeFromIdCache(headers.id.toString())"/>
</int:transaction-synchronization-factory>
<task:executor id="pool" pool-size="10"
queue-capacity="10" rejection-policy="CALLER_RUNS" />
<bean id="store" class="o.s.i.jdbc.store.JdbcChannelMessageStore">
<property name="dataSource" ref="dataSource"/>
<property name="channelMessageStoreQueryProvider" ref="queryProvider"/>
<property name="region" value="TX_TIMEOUT"/>
<property name="usingIdCache" value="true"/>
</bean>
<int:channel id="inputChannel">
<int:queue message-store="store"/>
</int:channel>
<int:bridge input-channel="inputChannel" output-channel="outputChannel">
<int:poller fixed-delay="500" receive-timeout="500"
max-messages-per-poll="1" task-executor="pool">
<int:transactional propagation="REQUIRED" synchronization-factory="syncFactory"
isolation="READ_COMMITTED" transaction-manager="transactionManager" />
</int:poller>
</int:bridge>
<int:channel id="outputChannel" />
Priority Channel
Starting with version 4.0, JdbcChannelMessageStore implements
PriorityCapableChannelMessageStore and provides the priorityEnabled option, letting it
be used as a message-store reference for priority-queue instances. For this purpose, the
INT_CHANNEL_MESSAGE table has a MESSAGE_PRIORITY column to store the value of PRIORITY
message headers. In addition, a new MESSAGE_SEQUENCE column lets us achieve a robust first-
in-first-out (FIFO) polling mechanism, even when multiple messages are stored with the same
priority in the same millisecond. Messages are polled (selected) from the database with order by
MESSAGE_PRIORITY DESC NULLS LAST, CREATED_DATE, MESSAGE_SEQUENCE.
Note
We do not recommend using the same JdbcChannelMessageStore bean for priority
and non-priority queue channels, because the priorityEnabled option applies to the
entire store and proper FIFO queue semantics are not retained for the queue channel.
However, the same INT_CHANNEL_MESSAGE table (and even region) can be used for both
JdbcChannelMessageStore types. To configure that scenario, you can extend one message
store bean from the other, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 367
<bean id="channelStore" class="o.s.i.jdbc.store.JdbcChannelMessageStore">
<property name="dataSource" ref="dataSource"/>
<property name="channelMessageStoreQueryProvider" ref="queryProvider"/>
</bean>
<int:channel id="queueChannel">
<int:queue message-store="channelStore"/>
</int:channel>
<bean id="priorityStore" parent="channelStore">
<property name="priorityEnabled" value="true"/>
</bean>
<int:channel id="priorityChannel">
<int:priority-queue message-store="priorityStore"/>
</int:channel>
Partitioning a Message Store
It is common to use a JdbcMessageStore as a global store for a group of applications or nodes in
the same application. To provide some protection against name clashes and to give control over the
database meta-data configuration, the message store lets the tables be partitioned in two ways. One
way is to use separate table names, by changing the prefix (as described earlier). The other way is to
specify a region name for partitioning data within a single table. An important use case for the second
approach is when the MessageStore is managing persistent queues that back a Spring Integration
Message Channel. The message data for a persistent channel is keyed in the store on the channel
name. Consequently, if the channel names are not globally unique, the channels can pick up data that
is not intended for them. To avoid this danger, you can use the message store region to keep data
separate for different physical channels that have the same logical name.
21.5 Stored Procedures
In certain situations, plain JDBC support is not sufficient. Maybe you deal with legacy relational
database schemas or you have complex data processing needs, but, ultimately, you have to use stored
procedures or stored functions. Since Spring Integration 2.1, we provide three components to execute
stored procedures or stored functions:
• Stored Procedures Inbound Channel Adapter
• Stored Procedures Outbound Channel Adapter
• Stored Procedures Outbound Gateway
Supported Databases
In order to enable calls to stored procedures and stored functions, the stored procedure components
use the org.springframework.jdbc.core.simple.SimpleJdbcCall class. Consequently, the
following databases are fully supported for executing stored procedures:
• Apache Derby
• DB2
• MySQL
• Microsoft SQL Server
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 368
• Oracle
• PostgreSQL
• Sybase
If you want to execute stored functions instead, the following databases are fully supported:
• MySQL
• Microsoft SQL Server
• Oracle
• PostgreSQL
Note
Even though your particular database may not be fully supported, chances are that you can use
the stored procedure Spring Integration components quite successfully anyway, provided your
RDBMS supports stored procedures or stored functions.
As a matter of fact, some of the provided integration tests use the H2 database. Nevertheless, it
is very important to thoroughly test those usage scenarios.
Configuration
The stored procedure components provide full XML Namespace support, and configuring the
components is similar as for the general purpose JDBC components discussed earlier.
Common Configuration Attributes
All stored procedure components share certain configuration parameters:
•auto-startup: Lifecycle attribute signaling whether this component should be started during
application context startup. It defaults to true. Optional.
•data-source: Reference to a javax.sql.DataSource, which is used to access the database.
Required.
•id: Identifies the underlying Spring bean definition, which is an instance of either
EventDrivenConsumer or PollingConsumer, depending on whether the outbound channel
adapter’s channel attribute references a SubscribableChannel or a PollableChannel.
Optional.
•ignore-column-meta-data: For fully supported databases, the underlying SimpleJdbcCall
class can automatically retrieve the parameter information for the stored procedure or stored function
from the JDBC metadata.
However, if the database does not support metadata lookups or if you need to provide customized
parameter definitions, this flag can be set to true. It defaults to false. Optional.
•is-function: If true, a SQL Function is called. In that case, the stored-procedure-name
or stored-procedure-name-expression attributes define the name of the called function. It
defaults to false. Optional.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 369
•stored-procedure-name: This attribute specifies the name of the stored procedure. If the is-
function attribute is set to true, this attribute specifies the function name instead. Either this
property or stored-procedure-name-expression must be specified.
•stored-procedure-name-expression: This attribute specifies the name of the stored procedure
by using a SpEL expression. By using SpEL, you have access to the full message (if available),
including its headers and payload. You can use this attribute to invoke different stored procedures at
runtime. For example, you can provide stored procedure names that you would like to execute as a
message header. The expression must resolve to a String.
If the is-function attribute is set to true, this attribute specifies a stored function. Either this
property or stored-procedure-name must be specified.
•jdbc-call-operations-cache-size: Defines the maximum number of cached
SimpleJdbcCallOperations instances. Basically, for each stored procedure name, a new
SimpleJdbcCallOperations instance is created that, in return, is cached.
Note
Spring Integration 2.2 added the stored-procedure-name-expression attribute and the
jdbc-call-operations-cache-size attribute.
The default cache size is 10. A value of 0 disables caching. Negative values are not permitted.
If you enable JMX, statistical information about the jdbc-call-operations-cache is exposed as
an MBean. See the section called “MBean Exporter” for more information.
•sql-parameter-source-factory: (Not available for the stored procedure inbound channel
adapter.) Reference to a SqlParameterSourceFactory. By default, bean properties of the passed
in Message payload are used as a source for the stored procedure’s input parameters by using a
BeanPropertySqlParameterSourceFactory.
This may suffice for basic use cases. For more sophisticated options, consider passing in one or more
ProcedureParameter values. See the section called “Defining Parameter Sources”. Optional.
•use-payload-as-parameter-source: (Not available for the stored procedure inbound channel
adapter.) If set to true, the payload of the Message is used as a source for providing parameters. If
set to false, however, the entire Message is available as a source for parameters.
If no procedure parameters are passed in, this property defaults to true. This means that, by using
a default BeanPropertySqlParameterSourceFactory, the bean properties of the payload are
used as a source for parameter values for the stored procedure or stored function.
However, if procedure parameters are passed in, this property (by default) evaluates to false.
ProcedureParameter lets SpEL Expressions be provided. Therefore, it is highly beneficial to
have access to the entire Message. The property is set on the underlying StoredProcExecutor.
Optional.
Common Configuration Sub-Elements
The stored procedure components share a common set of child elements that you can use to define
and pass parameters to stored procedures or stored functions. The following elements are available:
•parameter
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 370
•returning-resultset
•sql-parameter-definition
•poller
•parameter: Provides a mechanism to provide stored procedure parameters. Parameters can be
either static or provided by using a SpEL Expressions.
<int-jdbc:parameter name="" ❶
type="" ❷
value=""/> ❸
<int-jdbc:parameter name=""
expression=""/> ❹
+ <1> The name of the parameter to be passed into the Stored Procedure or Stored Function.
Required. <2> This attribute specifies the type of the value. If nothing is provided, this attribute defaults
to java.lang.String. This attribute is used only when the value attribute is used. Optional. <3>
The value of the parameter. You must provide either this attribute or the expression attribute.
Optional. <4> Instead of the value attribute, you can specify a SpEL expression for passing the value
of the parameter. If you specify the expression, the value attribute is not allowed. Optional.
Optional.
•returning-resultset: Stored procedures may return multiple result sets. By setting one or
more returning-resultset elements, you can specify RowMappers to convert each returned
ResultSet to meaningful objects. Optional.
<int-jdbc:returning-resultset name="" row-mapper="" />
•sql-parameter-definition: If you use a database that is fully supported, you typically do
not have to specify the stored procedure parameter definitions. Instead, those parameters can be
automatically derived from the JDBC metadata. However, if you use databases that are not fully
supported, you must set those parameters explicitly by using the sql-parameter-definition
element.
You can also choose to turn off any processing of parameter metadata information obtained through
JDBC by using the ignore-column-meta-data attribute.
<int-jdbc:sql-parameter-definition
name="" ❶
direction="IN" ❷
type="STRING" ❸
scale="5" ❹
type-name="FOO_STRUCT" ❺
return-type="fooSqlReturnType"/> ❻
❶❶ Specifies the name of the SQL parameter. Required.
❷❷ Specifies the direction of the SQL parameter definition. Defaults to IN. Valid values are: IN,
OUT, and INOUT. If your procedure is returning result sets, use the returning-resultset
element. Optional.
❸❸ The SQL type used for this SQL parameter definition. Translates into an integer value, as defined
by java.sql.Types. Alternatively, you can provide the integer value as well. If this attribute is
not explicitly set, it defaults to VARCHAR. Optional.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 371
❹❹ The scale of the SQL parameter. Only used for numeric and decimal parameters. Optional.
❺The typeName for types that are user-named, such as: STRUCT, DISTINCT, JAVA_OBJECT,
and named array types. This attribute is mutually exclusive with the scale attribute. Optional.
❻The reference to a custom value handler for complex types. An implementation of
SqlReturnType. This attribute is mutually exclusive with the scale attribute and is only
applicable for OUT and INOUT parameters. Optional.
•poller: Lets you configure a message poller if this endpoint is a PollingConsumer. Optional.
Defining Parameter Sources
Parameter sources govern the techniques of retrieving and mapping the Spring Integration message
properties to the relevant stored procedure input parameters.
The stored procedure components follow certain rules. By default, the bean properties of the
Message payload are used as a source for the stored procedure’s input parameters. In that case, a
BeanPropertySqlParameterSourceFactory is used. This may suffice for basic use cases. The
next example illustrates that default behavior.
Important
For the "automatic" lookup of bean properties by using the
BeanPropertySqlParameterSourceFactory to work, your bean properties
must be defined in lower case. This is due to the fact that
in org.springframework.jdbc.core.metadata.CallMetaDataContext (the Java
method is matchInParameterValuesWithCallParameters()), the retrieved stored
procedure parameter declarations are converted to lower case. As a result, if you have camel-
case bean properties (such as lastName), the lookup fails. In that case, provide an explicit
ProcedureParameter.
Suppose we have a payload that consists of a simple bean with the following three properties: id, name,
and description. Furthermore, we have a simplistic Stored Procedure called INSERT_COFFEE that
accepts three input parameters: id, name, and description. We also use a fully supported database.
In that case, the following configuration for a stored procedure outbound adapter suffices:
<int-jdbc:stored-proc-outbound-channel-adapter data-source="dataSource"
channel="insertCoffeeProcedureRequestChannel"
stored-procedure-name="INSERT_COFFEE"/>
For more sophisticated options, consider passing in one or more ProcedureParameter values.
If you do provide ProcedureParameter values explicitly, by default, an
ExpressionEvaluatingSqlParameterSourceFactory is used for parameter processing, to
enable the full power of SpEL expressions.
If you need even more control over how parameters are retrieved, consider passing in a
custom implementation of SqlParameterSourceFactory by using the sql-parameter-source-
factory attribute.
Stored Procedure Inbound Channel Adapter
The following listing calls out the attributes that matter for a stored procedure inbound channel adapter:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 372
<int-jdbc:stored-proc-inbound-channel-adapter
channel="" ❶
stored-procedure-name=""
data-source=""
auto-startup="true"
id=""
ignore-column-meta-data="false"
is-function="false"
skip-undeclared-results="" ❷
return-value-required="false" ❸
<int:poller/>
<int-jdbc:sql-parameter-definition name="" direction="IN"
type="STRING"
scale=""/>
<int-jdbc:parameter name="" type="" value=""/>
<int-jdbc:parameter name="" expression=""/>
<int-jdbc:returning-resultset name="" row-mapper="" />
</int-jdbc:stored-proc-inbound-channel-adapter>
❶Channel to which polled messages are sent. If the stored procedure or function does not return
any data, the payload of the Message is null. Required.
❷If this attribute is set to true, all results from a stored procedure call that do not have a
corresponding SqlOutParameter declaration are bypassed. For example, stored procedures can
return an update count value, even though your stored procedure declared only a single result
parameter. The exact behavior depends on the database implementation. The value is set on the
underlying JdbcTemplate. The value defaults to true. Optional.
❸Indicates whether this procedure’s return value should be included. Since Spring Integration 3.0.
Optional.
Stored Procedure Outbound Channel Adapter
The following listing calls out the attributes that matter for a stored procedure outbound channel adapter:
<int-jdbc:stored-proc-outbound-channel-adapter channel="" ❶
stored-procedure-name=""
data-source=""
auto-startup="true"
id=""
ignore-column-meta-data="false"
order="" ❷
sql-parameter-source-factory=""
use-payload-as-parameter-source="">
<int:poller fixed-rate=""/>
<int-jdbc:sql-parameter-definition name=""/>
<int-jdbc:parameter name=""/>
</int-jdbc:stored-proc-outbound-channel-adapter>
❶The receiving message channel of this endpoint. Required.
❷Specifies the order for invocation when this endpoint is connected as a subscriber to a channel.
This is particularly relevant when that channel is using a failover dispatching strategy. It has no
effect when this endpoint is itself a polling consumer for a channel with a queue. Optional.
Stored Procedure Outbound Gateway
The following listing calls out the attributes that matter for a stored procedure outbound channel adapter:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 373
<int-jdbc:stored-proc-outbound-gateway request-channel="" ❶
stored-procedure-name=""
data-source=""
auto-startup="true"
id=""
ignore-column-meta-data="false"
is-function="false"
order=""
reply-channel="" ❷
reply-timeout="" ❸
return-value-required="false" ❹
skip-undeclared-results="" ❺
sql-parameter-source-factory=""
use-payload-as-parameter-source="">
<int-jdbc:sql-parameter-definition name="" direction="IN"
type=""
scale="10"/>
<int-jdbc:sql-parameter-definition name=""/>
<int-jdbc:parameter name="" type="" value=""/>
<int-jdbc:parameter name="" expression=""/>
<int-jdbc:returning-resultset name="" row-mapper="" />
❶The receiving message channel of this endpoint. Required.
❷Message channel to which replies should be sent after receiving the database response. Optional.
❸Lets you specify how long this gateway waits for the reply message to be sent successfully before
throwing an exception. Keep in mind that, when sending to a DirectChannel, the invocation
occurs in the sender’s thread. Consequently, the failing of the send operation may be caused by
other components further downstream. By default, the gateway waits indefinitely. The value is
specified in milliseconds. Optional.
❹Indicates whether this procedure’s return value should be included. Optional.
❺If the skip-undeclared-results attribute is set to true, all results from a stored procedure
call that do not have a corresponding SqlOutParameter declaration are bypassed. For example,
stored procedures may return an update count value, even though your stored procedure only
declared a single result parameter. The exact behavior depends on the database. The value is set
on the underlying JdbcTemplate. The value defaults to true. Optional.
Examples
This section contains two examples that call Apache Derby stored procedures. The first procedure calls
a stored procedure that returns a ResultSet. By using a RowMapper, the data is converted into a
domain object, which then becomes the Spring Integration message payload.
In the second sample, we call a stored procedure that uses output parameters to return data instead.
Note
Have a look at the Spring Integration Samples project.
The project contains the Apache Derby example referenced here, as well as instructions on how
to run it. The Spring Integration Samples project also provides an example of using Oracle stored
procedures.
In the first example, we call a stored procedure named FIND_ALL_COFFEE_BEVERAGES that does not
define any input parameters but that returns a ResultSet.
In Apache Derby, stored procedures are implemented in Java. The following listing shows the method
signature:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 374
public static void findAllCoffeeBeverages(ResultSet[] coffeeBeverages)
throws SQLException {
...
}
The following listing shows the corresponding SQL:
CREATE PROCEDURE FIND_ALL_COFFEE_BEVERAGES() \
PARAMETER STYLE JAVA LANGUAGE JAVA MODIFIES SQL DATA DYNAMIC RESULT SETS 1 \
EXTERNAL NAME 'o.s.i.jdbc.storedproc.derby.DerbyStoredProcedures.findAllCoffeeBeverages';
In Spring Integration, you can now call this stored procedure by using, for example, a stored-proc-
outbound-gateway, as the following example shows:
<int-jdbc:stored-proc-outbound-gateway id="outbound-gateway-storedproc-find-all"
data-source="dataSource"
request-channel="findAllProcedureRequestChannel"
expect-single-result="true"
stored-procedure-name="FIND_ALL_COFFEE_BEVERAGES">
<int-jdbc:returning-resultset name="coffeeBeverages"
row-mapper="org.springframework.integration.support.CoffeBeverageMapper"/>
</int-jdbc:stored-proc-outbound-gateway>
In the second example, we call a stored procedure named FIND_COFFEE that has one input parameter.
Instead of returning a ResultSet, it uses an output parameter. The following example shows the
method signature:
public static void findCoffee(int coffeeId, String[] coffeeDescription)
throws SQLException {
...
}
The following listing shows the corresponding SQL:
CREATE PROCEDURE FIND_COFFEE(IN ID INTEGER, OUT COFFEE_DESCRIPTION VARCHAR(200)) \
PARAMETER STYLE JAVA LANGUAGE JAVA EXTERNAL NAME \
'org.springframework.integration.jdbc.storedproc.derby.DerbyStoredProcedures.findCoffee';
In Spring Integration, you can now call this Stored Procedure by using, for example, a stored-proc-
outbound-gateway, as the following example shows:
<int-jdbc:stored-proc-outbound-gateway id="outbound-gateway-storedproc-find-coffee"
data-source="dataSource"
request-channel="findCoffeeProcedureRequestChannel"
skip-undeclared-results="true"
stored-procedure-name="FIND_COFFEE"
expect-single-result="true">
<int-jdbc:parameter name="ID" expression="payload" />
</int-jdbc:stored-proc-outbound-gateway>
21.6 JDBC Lock Registry
Version 4.3 introduced the JdbcLockRegistry. Certain components (for example, aggregator and
resequencer) use a lock obtained from a LockRegistry instance to ensure that only one thread
manipulates a group at a time. The DefaultLockRegistry performs this function within a single
component. You can now configure an external lock registry on these components. When used with
a shared MessageGroupStore, you can use the JdbcLockRegistry to provide this functionality
across multiple application instances, such that only one instance can manipulate the group at a time.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 375
When a lock is released by a local thread, another local thread can generally acquire the lock
immediately. If a lock is released by a thread that uses a different registry instance, it can take up to
100ms to acquire the lock.
The JdbcLockRegistry is based on the LockRepository abstraction, which has a
DefaultLockRepository implementation. The database schema scripts are located in the
org.springframework.integration.jdbc package, which is divided for the particular RDBMS
vendors. For example, the following listing shows the H2 DDL for the lock table:
CREATE TABLE INT_LOCK (
LOCK_KEY CHAR(36),
REGION VARCHAR(100),
CLIENT_ID CHAR(36),
CREATED_DATE TIMESTAMP NOT NULL,
constraint LOCK_PK primary key (LOCK_KEY, REGION)
);
The INT_ can be changed according to the target database design requirements. Therefore, you must
use prefix property on the DefaultLockRepository bean definition.
Sometimes, one application has moved to such a state that it cannot release the distributed lock
and remove the particular record in the database. For this purpose, such dead locks can be expired
by the other application on the next locking invocation. The timeToLive (TTL) option on the
DefaultLockRepository is provided for this purpose. You may also want to specify CLIENT_ID for
the locks stored for a given DefaultLockRepository instance. If so, you can specify the id to be
associated with the DefaultLockRepository as a constructor parameter.
21.7 JDBC Metadata Store
Version 5.0 introduced the JDBC MetadataStore (see Section 12.5, “Metadata Store”)
implementation. You can use the JdbcMetadataStore to maintain the metadata state across
application restarts. This MetadataStore implementation can be used with adapters such as the
following:
•Feed inbound channel adapters
•files
•FTP inbound channel adapters
•SFTP inbound channel adapters
To configure these adapters to use the JdbcMetadataStore, declare a Spring bean by using a bean
name of metadataStore. The Feed inbound channel adapter and the feed inbound channel adapter
both automatically pick up and use the declared JdbcMetadataStore, as the following example
shows:
@Bean
public MetadataStore metadataStore(DataSource dataSource) {
return new JdbcMetadataStore(dataSource);
}
The org.springframework.integration.jdbc package has Database schema scripts for
several RDMBS vendors. For example, the following listing shows the H2 DDL for the metadata table:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 376
CREATE TABLE INT_METADATA_STORE (
METADATA_KEY VARCHAR(255) NOT NULL,
METADATA_VALUE VARCHAR(4000),
REGION VARCHAR(100) NOT NULL,
constraint METADATA_STORE primary key (METADATA_KEY, REGION)
);
You can change the INT_ prefix to match the target database design requirements. You can also
configure JdbcMetadataStore to use the custom prefix.
The JdbcMetadataStore implements ConcurrentMetadataStore, letting it be reliably shared
across multiple application instances, where only one instance can store or modify a key’s value. All of
these operations are atomic, thanks to transaction guarantees.
Transaction management must use JdbcMetadataStore. Inbound channel adapters can be supplied
with a reference to the TransactionManager in the poller configuration. Unlike non-transactional
MetadataStore implementations, with JdbcMetadataStore, the entry appears in the target
table only after the transaction commits. When a rollback occurs, no entries are added to the
INT_METADATA_STORE table.
Since version 5.0.7, you can configure the JdbcMetadataStore with the RDBMS vendor-specific
lockHint option for lock-based queries on metadata store entries. By default, it is FOR UPDATE and
can be configured with an empty string if the target database does not support row locking functionality.
Consult with your vendor for particular and possible hints in the SELECT expression for locking rows
before updates.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 377
22. JPA Support
Spring Integration’s JPA (Java Persistence API) module provides components for performing various
database operations using JPA.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-jpa</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-jpa:5.1.1.RELEASE"
The JPA API must be included via some vendor-specific implementation, e.g. Hibernate ORM
Framework.
The following components are provided:
•Inbound channel adapter
•Outbound channel adapter
•Updating outbound gateway
•Retrieving outbound gateway
These components can be used to perform select, create, update, and delete operations on the
target databases by sending and receiving messages to them.
The JPA inbound channel adapter lets you poll and retrieve (select) data from the database by using
JPA, whereas the JPA outbound channel adapter lets you create, update, and delete entities.
You can use outbound gateways for JPA to persist entities to the database, letting you continue the flow
and execute further components downstream. Similarly, you can use an outbound gateway to retrieve
entities from the database.
For example, you may use the outbound gateway, which receives a Message with a userId as payload
on its request channel, to query the database, retrieve the user entity, and pass it downstream for further
processing.
Recognizing these semantic differences, Spring Integration provides two separate JPA outbound
gateways:
• Retrieving outbound gateway
• Updating outbound gateway
22.1 Functionality
All JPA components perform their respective JPA operations by using one of the following:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 378
• Entity classes
• Java Persistence Query Language (JPQL) for update, select and delete (JPQL does not support
inserts)
• Native Query
• Named Query
The following sections describe each of these components in more detail.
22.2 Supported Persistence Providers
The Spring Integration JPA support has been tested against the following persistence providers:
• Hibernate
• EclipseLink
When using a persistence provider, you should ensure that the provider is compatible with JPA 2.1.
22.3 Java Implementation
Each of the provided components uses the o.s.i.jpa.core.JpaExecutor class, which, in turn,
uses an implementation of the o.s.i.jpa.core.JpaOperations interface. JpaOperations
operates like a typical Data Access Object (DAO) and provides methods such as find,
persist, executeUpdate, and so on. For most use cases, the default implementation
(o.s.i.jpa.core.DefaultJpaOperations) should be sufficient. However, you can specify your
own implementation if you require custom behavior.
To initialize a JpaExecutor, you must use one of the constructors that accept one of:
• EntityManagerFactory
• EntityManager
• JpaOperations
The following example shows how to initialize a JpaExecutor with an entityManagerFactory and
use it in an outbound gateway:
@Bean
public JpaExecutor jpaExecutor() {
JpaExecutor executor = new JpaExecutor(this.entityManagerFactory);
executor.setJpaParameters(Collections.singletonList(new JpaParameter("firstName", null, "#this")));
executor.setUsePayloadAsParameterSource(true);
executor.setExpectSingleResult(true);
return executor;
}
@ServiceActivator(inputChannel = "getEntityChannel")
@Bean
public MessageHandler retrievingJpaGateway() {
JpaOutboundGateway gateway = new JpaOutboundGateway(jpaExecutor());
gateway.setGatewayType(OutboundGatewayType.RETRIEVING);
gateway.setOutputChannelName("resultsChannel");
return gateway;
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 379
22.4 Namespace Support
When using XML namespace support, the underlying parser classes instantiate the relevant Java
classes for you. Thus, you typically need not deal with the inner workings of the JPA adapter. This
section documents the XML namespace support provided by Spring Integration and shows you how to
use the XML Namespace support to configure the JPA components.
Common XML Namespace Configuration Attributes
Certain configuration parameters are shared by all JPA components:
auto-startup
Lifecycle attribute that signals whether this component should be started during application context
startup. Defaults to true. Optional.
id
Identifies the underlying Spring bean definition, which is an instance of either
EventDrivenConsumer or PollingConsumer. Optional.
entity-manager-factory
The reference to the JPA entity manager factory that the adapter uses to create the
EntityManager. You must provide this attribute, the entity-manager attribute, or the jpa-
operations attribute.
entity-manager
The reference to the JPA Entity Manager that the component uses. You must provide this attribute,
the entity-manager-factory attribute, or the jpa-operations attribute.
Note
Usually, your Spring application context defines only a JPA entity manager factory, and
the EntityManager is injected by using the @PersistenceContext annotation. This
approach does not apply for the Spring Integration JPA components. Usually, injecting the
JPA entity manager factory is best, but, when you want to inject an EntityManager explicitly,
you have to define a SharedEntityManagerBean. For more information, see the relevant
Javadoc.
The following example shows how to explicitly include an entity manager factory:
<bean id="entityManager"
class="org.springframework.orm.jpa.support.SharedEntityManagerBean">
<property name="entityManagerFactory" ref="entityManagerFactoryBean" />
</bean>
jpa-operations
A reference to a bean that implements the JpaOperations interface. In
rare cases, it might be advisable to provide your own implementation of
the JpaOperations interface instead of relying on the default implementation
(org.springframework.integration.jpa.core.DefaultJpaOperations). If you use
the jpa-operations attribute, you must not provide the JPA entity manager or JPA entity
manager factory, because JpaOperations wraps the necessary datasource.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 380
entity-class
The fully qualified name of the entity class. The exact semantics of this attribute vary, depending
on whether we are performing a persist or update operation or whether we are retrieving objects
from the database.
When retrieving data, you can specify the entity-class attribute to indicate that you would like
to retrieve objects of this type from the database. In that case, you must not define any of the query
attributes (jpa-query, native-query, or named-query).
When persisting data, the entity-class attribute indicates the type of object to persist. If not
specified (for persist operations) the entity class is automatically retrieved from the message’s
payload.
jpa-query
Defines the JPA query (Java Persistence Query Language) to be used.
native-query
Defines the native SQL query to be used.
named-query
Refers to a named query. A named query can be defined in either Native SQL or JPAQL, but the
underlying JPA persistence provider handles that distinction internally.
Providing JPA Query Parameters
To provide parameters, you can use the parameter XML element. It has a mechanism that lets you
provide parameters for queries that are based on either the Java Persistence Query Language (JPQL)
or native SQL queries. You can also provide parameters for named queries.
Expression-based Parameters
The following example shows how to set an expression-based parameter:
<int-jpa:parameter expression="payload.name" name="firstName"/>
Value-based Parameters
The following example shows how to set an value-based parameter:
<int-jpa:parameter name="name" type="java.lang.String" value="myName"/>
Positional Parameters
The following example shows how to set an expression-based parameter:
<int-jpa:parameter expression="payload.name"/>
<int-jpa:parameter type="java.lang.Integer" value="21"/>
Transaction Handling
All JPA operations (such as INSERT, UPDATE, and DELETE) require a transaction to be active whenever
they are performed. For inbound channel adapters, you need do nothing special. It works similarly to the
way we configure transaction managers with pollers that are used with other inbound channel adapters.
The following XML example configures a transaction manager that uses a poller with an inbound channel
adapter:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 381
<int-jpa:inbound-channel-adapter
channel="inboundChannelAdapterOne"
entity-manager="em"
auto-startup="true"
jpa-query="select s from Student s"
expect-single-result="true"
delete-after-poll="true">
<int:poller fixed-rate="2000" >
<int:transactional propagation="REQUIRED"
transaction-manager="transactionManager"/>
</int:poller>
</int-jpa:inbound-channel-adapter>
However, you may need to specifically start a transaction when using an outbound channel adapter
or gateway. If a DirectChannel is an input channel for the outbound adapter or gateway and if the
transaction is active in the current thread of execution, the JPA operation is performed in the same
transaction context. You can also configure this JPA operation to run as a new transaction, as the
following example shows:
<int-jpa:outbound-gateway
request-channel="namedQueryRequestChannel"
reply-channel="namedQueryResponseChannel"
named-query="updateStudentByRollNumber"
entity-manager="em"
gateway-type="UPDATING">
<int-jpa:parameter name="lastName" expression="payload"/>
<int-jpa:parameter name="rollNumber" expression="headers['rollNumber']"/>
<int-jpa:transactional propagation="REQUIRES_NEW"
transaction-manager="transactionManager"/>
</int-jpa:outbound-gateway>
In the preceding example, the transactional element of the outbound gateway or adapter specifies the
transaction attributes. It is optional to define this child element if you have DirectChannel as an input
channel to the adapter and you want the adapter to execute the operations in the same transaction
context as the caller. If, however, you use an ExecutorChannel, you must have the transactional
element, because the invoking client’s transaction context is not propagated.
Note
Unlike the transactional element of the poller, which is defined in Spring Integration’s
namespace, the transactional element for the outbound gateway or adapter is defined in the
JPA namespace.
22.5 Inbound Channel Adapter
An inbound channel adapter is used to execute a select query over the database using JPA QL and
return the result. The message payload is either a single entity or a List of entities. The following XML
configures an inbound-channel-adapter:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 382
<int-jpa:inbound-channel-adapter channel="inboundChannelAdapterOne" ❶
entity-manager="em" ❷
auto-startup="true" ❸
query="select s from Student s" ❹
expect-single-result="true" ❺
max-results="" ❻
max-results-expression="" ❼
delete-after-poll="true" ❽
flush-after-delete="true"> ❾
<int:poller fixed-rate="2000" >
<int:transactional propagation="REQUIRED" transaction-manager="transactionManager"/>
</int:poller>
</int-jpa:inbound-channel-adapter>
❶The channel over which the inbound-channel-adapter puts the messages (with the payload)
after executing the JPA QL in the query attribute.
❷The EntityManager instance used to perform the required JPA operations.
❸Attribute signaling whether the component should automatically start when the application context
starts. The value defaults to true.
❹The JPA QL whose result are sent out as the payload of the message
❺This attribute tells whether the JPQL query gives a single entity in the result or a List of entities.
If the value is set to true, the single entity is sent as the payload of the message. If, however,
multiple results are returned after setting this to true, a MessagingException is thrown. The
value defaults to false.
❻This non-zero, non-negative integer value tells the adapter not to select more than the given number
of rows on execution of the select operation. By default, if this attribute is not set, all possible records
are selected by the query. This attribute is mutually exclusive with max-results-expression.
Optional.
❼An expression that is evaluated to find the maximum number of results in a result set. Mutually
exclusive with max-results. Optional.
❽Set this value to true if you want to delete the rows received after execution of the query. You
must ensure that the component operates as part of a transaction. Otherwise, you may encounter
an exception such as: java.lang.IllegalArgumentException: Removing a detached
instance ...
❾Set this value to true if you want to flush the persistence context immediately after deleting
received entities and if you do not want to rely on the flushMode of the EntityManager. The
value defaults to false.
Configuration Parameter Reference
The following listing shows all the values that can be set for an inbound-channel-adapter:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 383
<int-jpa:inbound-channel-adapter
auto-startup="true" ❶
channel="" ❷
delete-after-poll="false" ❸
delete-per-row="false" ❹
entity-class="" ❺
entity-manager="" ❻
entity-manager-factory="" ❼
expect-single-result="false" ❽
id=""
jpa-operations="" ❾
jpa-query="" ❿
named-query="" 11
native-query="" 12
parameter-source="" 13
send-timeout=""> 14
<int:poller ref="myPoller"/>
</int-jpa:inbound-channel-adapter>
❶This lifecycle attribute signals whether this component should automatically start when the
application context starts. This attribute defaults to true. Optional.
❷The channel to which the adapter sends a message with the payload from performing the desired
JPA operation.
❸A boolean flag that indicates whether to delete the selected records after they have been polled
by the adapter. By default, the value is false (that is, the records are not deleted). You must
ensure that the component operates as part of a transaction. Otherwise, you may encounter an
exception, such as: java.lang.IllegalArgumentException: Removing a detached
instance .... Optional.
❹A boolean flag that indicates whether the records can be deleted in bulk or must be deleted one
record at a time. By default the value is false (that is, the records can be bulk-deleted). Optional.
❺The fully qualified name of the entity class to be queried from the database. The adapter
automatically builds a JPA Query based on the entity class name. Optional.
❻An instance of javax.persistence.EntityManager used to perform the JPA operations.
Optional.
❼An instance of javax.persistence.EntityManagerFactory used to obtain an instance of
javax.persistence.EntityManager that performs the JPA operations. Optional.
❽A boolean flag indicating whether the select operation is expected to return a single result or a
List of results. If this flag is set to true, the single entity selected is sent as the payload of the
message. If multiple entities are returned, an exception is thrown. If false, the List of entities is
sent as the payload of the message. The value defaults to false. Optional.
❾An implementation of org.springframework.integration.jpa.core.JpaOperations
used to perform the JPA operations. We recommend not
providing an implementation of your own but using the default
org.springframework.integration.jpa.core.DefaultJpaOperations
implementation. You can use any of the entity-manager, entity-manager-factory, or
jpa-operations attributes. Optional.
❿The JPA QL to be executed by this adapter. Optional.
11 The named query that needs to be executed by this adapter. Optional.
12 The native query executed by this adapter. You can use any of the jpa-query, named-query,
entity-class, or native-query attributes. Optional.
13 An implementation of o.s.i.jpa.support.parametersource.ParameterSource used to
resolve the values of the parameters in the query. Ignored if the entity-class attribute has a
value. Optional.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 384
14 Maximum amount of time (in milliseconds) to wait when sending a message to the channel.
Optional.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the inbound adapter with
Java:
@SpringBootApplication
@EntityScan(basePackageClasses = StudentDomain.class)
public class JpaJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(JpaJavaApplication.class)
.web(false)
.run(args);
}
@Autowired
private EntityManagerFactory entityManagerFactory;
@Bean
public JpaExecutor jpaExecutor() {
JpaExecutor executor = new JpaExecutor(this.entityManagerFactory);
jpaExecutor.setJpaQuery("from Student");
return executor;
}
@Bean
@InboundChannelAdapter(channel = "jpaInputChannel",
poller = @Poller(fixedDelay = "${poller.interval}"))
public MessageSource<?> jpaInbound() {
return new JpaPollingChannelAdapter(jpaExecutor());
}
@Bean
@ServiceActivator(inputChannel = "jpaInputChannel")
public MessageHandler handler() {
return message -> System.out.println(message.getPayload());
}
}
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the inbound adapter with
the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 385
@SpringBootApplication
@EntityScan(basePackageClasses = StudentDomain.class)
public class JpaJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(JpaJavaApplication.class)
.web(false)
.run(args);
}
@Autowired
private EntityManagerFactory entityManagerFactory;
@Bean
public IntegrationFlow pollingAdapterFlow() {
return IntegrationFlows
.from(Jpa.inboundAdapter(this.entityManagerFactory)
.entityClass(StudentDomain.class)
.maxResults(1)
.expectSingleResult(true),
e -> e.poller(p -> p.trigger(new OnlyOnceTrigger())))
.channel(c -> c.queue("pollingResults"))
.get();
}
}
22.6 Outbound Channel Adapter
The JPA outbound channel adapter lets you accept messages over a request channel. The payload can
either be used as the entity to be persisted or used with the headers in the parameter expressions for
a JPQL query. The following sections cover the possible ways of performing these operations.
Using an Entity Class
The following XML configures the outbound channel adapter to persist an entity to the database:
<int-jpa:outbound-channel-adapter channel="entityTypeChannel" ❶
entity-class="org.springframework.integration.jpa.test.entity.Student" ❷
persist-mode="PERSIST" ❸
entity-manager="em"/ > ❹
❶The channel over which a valid JPA entity is sent to the JPA outbound channel adapter.
❷The fully qualified name of the entity class accepted by the adapter to be persisted in the database.
You can actually leave off this attribute in most cases as the adapter can determine the entity class
automatically from the Spring Integration message payload.
❸The operation to be done by the adapter. The valid values are PERSIST, MERGE, and DELETE.
The default value is MERGE.
❹The JPA entity manager to be used.
These four attributes of the outbound-channel-adapter configure it to accept entities over the input
channel and process them to PERSIST, MERGE, or DELETE the entities from the underlying data source.
Note
As of Spring Integration 3.0, payloads to PERSIST or MERGE can
also be of type http://docs.oracle.com/javase/7/docs/api/java/lang/
Iterable.html[java.lang.Iterable]. In that case, each object returned by the Iterable
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 386
is treated as an entity and persisted or merged using the underlying EntityManager. Null values
returned by the iterator are ignored.
Using JPA Query Language (JPA QL)
The previous section showed how to perform a PERSIST action by using an entity. This section shows
how to use an outbound channel adapter with JPA QL.
The following XML configures the outbound channel adapter to persist an entity to the database:
<int-jpa:outbound-channel-adapter channel="jpaQlChannel" ❶
jpa-query="update Student s set s.firstName = :firstName where s.rollNumber = :rollNumber" ❷
entity-manager="em"> ❸
<int-jpa:parameter name="firstName" expression="payload['firstName']"/> ❹
<int-jpa:parameter name="rollNumber" expression="payload['rollNumber']"/>
</int-jpa:outbound-channel-adapter>
❶The input channel over which the message is sent to the outbound channel adapter.
❷The JPA QL to execute. This query may contain parameters that are evaluated by using the
parameter element.
❸The entity manager used by the adapter to perform the JPA operations.
❹The elements (one for each parameter) used to define the value of the parameter names for the
JPA QL specified in the query attribute.
The parameter element accepts an attribute whose name corresponds to the named parameter
specified in the provided JPA QL (point 2 in the preceding example). The value of the parameter can
either be static or be derived by using an expression. The static value and the expression to derive
the value are specified using the value and expression attributes, respectively. These attributes are
mutually exclusive.
If the value attribute is specified, you can provide an optional type attribute. The value of this attribute
is the fully qualified name of the class whose value is represented by the value attribute. By default,
the type is assumed to be a java.lang.String. The following example shows how to define a JPA
parameter:
<int-jpa:outbound-channel-adapter ...
>
<int-jpa:parameter name="level" value="2" type="java.lang.Integer"/>
<int-jpa:parameter name="name" expression="payload['name']"/>
</int-jpa:outbound-channel-adapter>
As the preceding example shows, you can use multiple parameter elements within an outbound
channel adapter element and define some parameters by using expressions and others with static
values. However, take care not to specify the same parameter name multiple times. You should provide
one parameter element for each named parameter specified in the JPA query. For example, we specify
two parameters: level and name. The level attribute is a static value of type java.lang.Integer,
while the name attribute is derived from the payload of the message.
Note
Though specifying select is valid for JPA QL, it makes no sense to do so. Outbound channel
adapters do not return any result. If you want to select some values, consider using the outbound
gateway instead.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 387
Using Native Queries
This section describes how to use native queries to perform operations with the JPA outbound channel
adapter. Using native queries is similar to using JPA QL, except that the queries are native database
queries. By using native queries, we lose database vendor independence, which we get using JPA QL.
One of the things we can achieve by using native queries is to perform database inserts, which is not
possible with JPA QL. (To perform inserts, we send JPA entities to the channel adapter, as described
earlier). Below is a small xml fragment that demonstrates the use of native query to insert values in
a table.
Important
Named parameters may not be supported by your JPA provider in conjunction with native SQL
queries. While they work fine with Hibernate, OpenJPA and EclipseLink do not support them. See
https://issues.apache.org/jira/browse/OPENJPA-111. Section 3.8.12 of the JPA 2.0 spec states:
"Only positional parameter binding and positional access to result items
may be portably used for native queries."
The following example configures an outbound-channel-adapter with a native query:
<int-jpa:outbound-channel-adapter channel="nativeQlChannel"
native-query="insert into STUDENT_TABLE(FIRST_NAME,LAST_UPDATED) values (:lastName,:lastUpdated)" ❶
entity-manager="em">
<int-jpa:parameter name="lastName" expression="payload['updatedLastName']"/>
<int-jpa:parameter name="lastUpdated" expression="new java.util.Date()"/>
</int-jpa:outbound-channel-adapter>
❶The native query executed by this outbound channel adapter.
Note that the other attributes (such as channel and entity-manager) and the parameter element
have the same semantics as they do for JPA QL.
Using Named Queries
Using named queries is similar to using JPA QL or a native query, except that we specify a named
query instead of a query. First, we cover how to define a JPA named query. Then we cover how to
declare an outbound channel adapter to work with a named query. If we have an entity called Student,
we can use annotations on the Student class to define two named queries: selectStudent and
updateStudent. The following example shows how to do so:
@Entity
@Table(name="Student")
@NamedQueries({
@NamedQuery(name="selectStudent",
query="select s from Student s where s.lastName = 'Last One'"),
@NamedQuery(name="updateStudent",
query="update Student s set s.lastName = :lastName,
lastUpdated = :lastUpdated where s.id in (select max(a.id) from Student a)")
})
public class Student {
...
}
Alternatively, you can use orm.xml to define named queries as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 388
<entity-mappings ...>
...
<named-query name="selectStudent">
<query>select s from Student s where s.lastName = 'Last One'</query>
</named-query>
</entity-mappings>
Now that we have shown how to define named queries by using annotations or by using orm.xml, we
now show a small XML fragment that defines an outbound-channel-adapter by using a named
query, as the following example shows:
<int-jpa:outbound-channel-adapter channel="namedQueryChannel"
named-query="updateStudent" ❶
entity-manager="em">
<int-jpa:parameter name="lastName" expression="payload['updatedLastName']"/>
<int-jpa:parameter name="lastUpdated" expression="new java.util.Date()"/>
</int-jpa:outbound-channel-adapter>
❶The named query that we want the adapter to execute when it receives a message over the
channel.
Configuration Parameter Reference
The following listing shows all the attributes that you can set on an outbound channel adapter:
<int-jpa:outbound-channel-adapter
auto-startup="true" ❶
channel="" ❷
entity-class="" ❸
entity-manager="" ❹
entity-manager-factory="" ❺
id=""
jpa-operations="" ❻
jpa-query="" ❼
named-query="" ❽
native-query="" ❾
order="" ❿
parameter-source-factory="" 11
persist-mode="MERGE" 12
flush="true" 13
flush-size="10" 14
clear-on-flush="true" 15
use-payload-as-parameter-source="true" 16
<int:poller/>
<int-jpa:transactional/> 17
<int-jpa:parameter/> 18
</int-jpa:outbound-channel-adapter>
❶Lifecycle attribute signaling whether this component should start during application context startup.
It defaults to true. Optional.
❷The channel from which the outbound adapter receives messages for performing the desired
operation.
❸The fully qualified name of the entity class for the JPA Operation. The entity-class, query,
and named-query attributes are mutually exclusive. Optional.
❹An instance of javax.persistence.EntityManager used to perform the JPA operations.
Optional.
❺An instance of javax.persistence.EntityManagerFactory used to obtain an instance of
javax.persistence.EntityManager, which performs the JPA operations. Optional.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 389
❻An implementation of org.springframework.integration.jpa.core.JpaOperations
used to perform the JPA operations. We recommend not
providing an implementation of your own but using the default
org.springframework.integration.jpa.core.DefaultJpaOperations
implementation. You can use any one of the entity-manager, entity-manager-factory, or
jpa-operations attributes. Optional.
❼The JPA QL to be executed by this adapter. Optional.
❽The named query that needs to be executed by this adapter. Optional.
❾The native query to be executed by this adapter. You can use any one of the jpa-query, named-
query, or native-query attributes. Optional.
❿The order for this consumer when multiple consumers are registered, thereby managing load-
balancing and failover. It defaults to Ordered.LOWEST_PRECEDENCE. Optional.
11 An instance of o.s.i.jpa.support.parametersource.ParameterSourceFactory used
to get an instance of o.s.i.jpa.support.parametersource.ParameterSource, which
is used to resolve the values of the parameters in the query. Ignored if you perform
operations by using a JPA entity. The parameter sub-elements are mutually exclusive
with the parameter-source-factory attribute and must be configured on the provided
ParameterSourceFactory. Optional.
12 Accepts one of the following: PERSIST, MERGE, or DELETE. Indicates the operation that the adapter
needs to perform. Relevant only if you use an entity for JPA operations. Ignored if you provide
JPA QL, a named query, or a native query. It defaults to MERGE. Optional. As of Spring Integration
3.0, payloads to persist or merge can also be of type http://docs.oracle.com/javase/7/
docs/api/java/lang/Iterable.html[java.lang.Iterable]. In that case, each object
returned by the Iterable is treated as an entity and persisted or merged by using the underlying
EntityManager. Null values returned by the iterator are ignored.
13 Set this value to true if you want to flush the persistence context immediately after persist, merge,
or delete operations and do not want to rely on the flushMode of the EntityManager. It defaults
to false. Applies only if you did not specify the flush-size attribute. If this attribute is set to
true, flush-size is implicitly set to 1, if no other value configured it.
14 Set this attribute to a value greater than 0 if you want to flush the persistence context
immediately after persist, merge or delete operations and do not want to rely on the the
flushMode of the EntityManager. The default value is set to 0, which means "no flush".
This attribute is geared towards messages with Iterable payloads. For instance, if flush-
size is set to 3, then entityManager.flush() is called after every third entity. Furthermore,
entityManager.flush() is called once more after the entire loop. If the flush-size attribute is
specified with a value greater than 0, you need not configure the flush attribute.
15 Set this value to true if you want to clear the persistence context immediately after each flush
operation. The attribute’s value is applied only if the flush attribute is set to true or if the flush-
size attribute is set to a value greater than 0.
16 If set to true, the payload of the message is used as a source for parameters. If set to false,
however, the entire Message is available as a source for parameters. Optional.
17 Defines the transaction management attributes and the reference to the transaction manager to
be used by the JPA adapter. Optional.
18 One or more parameter attributes — one for each parameter used in the query. The value or
expression is evaluated to compute the value of the parameter. Optional.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the outbound adapter with
Java:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 390
@SpringBootApplication
@EntityScan(basePackageClasses = StudentDomain.class)
@IntegrationComponentScan
public class JpaJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(JpaJavaApplication.class)
.web(false)
.run(args);
}
@Autowired
private EntityManagerFactory entityManagerFactory;
@MessagingGateway
interface JpaGateway {
@Gateway(requestChannel = "jpaPersistChannel")
@Transactional
void persistStudent(StudentDomain payload);
}
@Bean
public JpaExecutor jpaExecutor() {
JpaExecutor executor = new JpaExecutor(this.entityManagerFactory);
jpaExecutor.setEntityClass(StudentDomain.class);
jpaExecutor.setPersistMode(PersistMode.PERSIST);
return executor;
}
@Bean
@ServiceActivator(channel = "jpaPersistChannel")
public MessageHandler jpaOutbound() {
JpaOutboundGateway adapter = new JpaOutboundGateway(jpaExecutor());
adapter.setProducesReply(false);
return adapter;
}
}
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the outbound adapter with
the Java DSL:
@SpringBootApplication
@EntityScan(basePackageClasses = StudentDomain.class)
public class JpaJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(JpaJavaApplication.class)
.web(false)
.run(args);
}
@Autowired
private EntityManagerFactory entityManagerFactory;
@Bean
public IntegrationFlow outboundAdapterFlow() {
return f -> f
.handle(Jpa.outboundAdapter(this.entityManagerFactory)
.entityClass(StudentDomain.class)
.persistMode(PersistMode.PERSIST),
e -> e.transactional());
}
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 391
22.7 Outbound Gateways
The JPA inbound channel adapter lets you poll a database to retrieve one or more JPA entities. The
retrieved data is consequently used to start a Spring Integration flow that uses the retrieved data as
message payload.
Additionally, you can use JPA outbound channel adapters at the end of your flow in order to persist
data, essentially terminating the flow at the end of the persistence operation.
However, how can you execute JPA persistence operations in the middle of a flow? For example, you
may have business data that you are processing in your Spring Integration message flow and that
you would like to persist, yet you still need to use other components further downstream. Alternatively,
instead of polling the database using a poller, you need to execute JPQL queries and actively retrieve
data, which is then processed in subsequent components within your flow.
This is where JPA Outbound Gateways come into play. They give you the ability to persist data as
well as retrieving data. To facilitate these uses, Spring Integration provides two types of JPA outbound
gateways:
• Updating outbound gateway
• Retrieving outbound gateway
Whenever the outbound gateway is used to perform an action that saves, updates, or solely deletes
some records in the database, you need to use an updating outbound gateway. If, for example, you
use an entity to persist it, a merged and persisted entity is returned as a result. In other cases, the
number of records affected (updated or deleted) is returned instead.
When retrieving (selecting) data from the database, we use a retrieving outbound gateway. With a
retrieving outbound gateway, we can use JPQL, Named Queries (native or JPQL-based), or Native
Queries (SQL) for selecting the data and retrieving the results.
An updating outbound gateway is functionally similar to an outbound channel adapter, except that an
updating outbound gateway sends a result to the gateway’s reply channel after performing the JPA
operation.
A retrieving outbound gateway is similar to an inbound channel adapter.
Note
We recommend you first read the Section 22.6, “Outbound Channel Adapter” section and the
Section 22.5, “Inbound Channel Adapter” sections earlier in this chapter, as most of the common
concepts are explained there.
This similarity was the main factor to use the central JpaExecutor class to unify common functionality
as much as possible.
Common for all JPA outbound gateways and similar to the outbound-channel-adapter, we can
use for performing various JPA operations:
• Entity classes
• JPA Query Language (JPQL)
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 392
• Native query
• Named query
For configuration examples see the section called “JPA Outbound Gateway Samples”.
Common Configuration Parameters
JPA Outbound Gateways always have access to the Spring Integration Message as input.
Consequently, the following parameters is available:
parameter-source-factory
An instance of o.s.i.jpa.support.parametersource.ParameterSourceFactory used
to get an instance of o.s.i.jpa.support.parametersource.ParameterSource. The
ParameterSource is used to resolve the values of the parameters provided in the query. If you
perform operations by using a JPA entity, the parameter-source-factory attribute is ignored.
The parameter sub-elements are mutually exclusive with the parameter-source-factory and
they have to be configured on the provided ParameterSourceFactory. Optional.
use-payload-as-parameter-source
If set to true, the payload of the Message is used as a source for parameters. If set to
false, the entire Message is available as a source for parameters. If no JPA Parameters
are passed in, this property defaults to true. This means that, if you use a default
BeanPropertyParameterSourceFactory, the bean properties of the payload are used as a
source for parameter values for the JPA query. However, if JPA Parameters are passed in, this
property, by default, evaluates to false. The reason is that JPA Parameters let you provide SpEL
Expressions. Therefore, it is highly beneficial to have access to the entire Message, including the
headers. Optional.
Updating Outbound Gateway
The following listing shows all the attributes that you can set on an updating-outbound-gateway and
describes the key attributes:
<int-jpa:updating-outbound-gateway request-channel="" ❶
auto-startup="true"
entity-class=""
entity-manager=""
entity-manager-factory=""
id=""
jpa-operations=""
jpa-query=""
named-query=""
native-query=""
order=""
parameter-source-factory=""
persist-mode="MERGE"
reply-channel="" ❷
reply-timeout="" ❸
use-payload-as-parameter-source="true">
<int:poller/>
<int-jpa:transactional/>
<int-jpa:parameter name="" type="" value=""/>
<int-jpa:parameter name="" expression=""/>
</int-jpa:updating-outbound-gateway>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 393
❶The channel from which the outbound gateway receives messages for performing the desired
operation. This attribute is similar to the channel attribute of the outbound-channel-adapter.
Optional.
❷The channel to which the gateway send the response after performing the required JPA operation.
If this attribute is not defined, the request message must have a replyChannel header. Optional.
❸Specifies the time the gateway waits to send the result to the reply channel. Only applies when the
reply channel itself might block the send operation (for example, a bounded QueueChannel that
is currently full). By default, the gateway waits indefinitely. The value is specified in milliseconds.
Optional.
The remaining attributes are described earlier in this chapter. See the section called “Configuration
Parameter Reference” and the section called “Configuration Parameter Reference”.
Configuring with Java Configuration
The following Spring Boot application shows an example of how configure the outbound adapter with
Java:
@SpringBootApplication
@EntityScan(basePackageClasses = StudentDomain.class)
@IntegrationComponentScan
public class JpaJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(JpaJavaApplication.class)
.web(false)
.run(args);
}
@Autowired
private EntityManagerFactory entityManagerFactory;
@MessagingGateway
interface JpaGateway {
@Gateway(requestChannel = "jpaUpdateChannel")
@Transactional
void updateStudent(StudentDomain payload);
}
@Bean
@ServiceActivator(channel = "jpaUpdateChannel")
public MessageHandler jpaOutbound() {
JpaOutboundGateway adapter =
new JpaOutboundGateway(new JpaExecutor(this.entityManagerFactory));
adapter.setOutputChannelName("updateResults");
return adapter;
}
}
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the outbound adapter
using the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 394
@SpringBootApplication
@EntityScan(basePackageClasses = StudentDomain.class)
public class JpaJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(JpaJavaApplication.class)
.web(false)
.run(args);
}
@Autowired
private EntityManagerFactory entityManagerFactory;
@Bean
public IntegrationFlow updatingGatewayFlow() {
return f -> f
.handle(Jpa.updatingGateway(this.entityManagerFactory),
e -> e.transactional(true))
.channel(c -> c.queue("updateResults"));
}
}
Retrieving Outbound Gateway
The following example shows all the attributes that you can set on a retrieving outbound gateway and
describes the key attributes:
<int-jpa:retrieving-outbound-gateway request-channel=""
auto-startup="true"
delete-after-poll="false"
delete-in-batch="false"
entity-class=""
id-expression="" ❶
entity-manager=""
entity-manager-factory=""
expect-single-result="false" ❷
id=""
jpa-operations=""
jpa-query=""
max-results="" ❸
max-results-expression="" ❹
first-result="" ❺
first-result-expression="" ❻
named-query=""
native-query=""
order=""
parameter-source-factory=""
reply-channel=""
reply-timeout=""
use-payload-as-parameter-source="true">
<int:poller></int:poller>
<int-jpa:transactional/>
<int-jpa:parameter name="" type="" value=""/>
<int-jpa:parameter name="" expression=""/>
</int-jpa:retrieving-outbound-gateway>
❶(Since Spring Integration 4.0) The SpEL expression that determines the primaryKey value
for EntityManager.find(Class entityClass, Object primaryKey) method against
the requestMessage as the root object of evaluation context. The entityClass argument is
determined from the entity-class attribute, if present. Otherwise, it is determined from the
payload class. All other attributes are disallowed if you use id-expression. Optional.
❷A boolean flag indicating whether the select operation is expected to return a single result or a
List of results. If this flag is set to true, a single entity is sent as the payload of the message. If
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 395
multiple entities are returned, an exception is thrown. If false, the List of entities is sent as the
payload of the message. It defaults to false. Optional.
❸This non-zero, non-negative integer value tells the adapter not to select more than the specified
number of rows on execution of the select operation. By default, if this attribute is not set, all
the possible records are selected by given query. This attribute is mutually exclusive with max-
results-expression. Optional.
❹An expression that can be used to find the maximum number of results in a result set. It is mutually
exclusive with max-results. Optional.
❺This non-zero, non-negative integer value tells the adapter the first record from which results are
to be retrieved. This attribute is mutually exclusive with first-result-expression. Version
3.0 introduced this attribute. Optional.
❻This expression is evaluated against the message, to find the position of the first record in the result
set. This attribute is mutually exclusive to first-result. Version 3.0 introduced this attribute.
Optional.
The remaining attributes are described earlier in this chapter. See the section called “Configuration
Parameter Reference” and the section called “Configuration Parameter Reference”.
Configuring with Java Configuration
The following Spring Boot application shows an example of how configure the outbound adapter with
Java:
@SpringBootApplication
@EntityScan(basePackageClasses = StudentDomain.class)
public class JpaJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(JpaJavaApplication.class)
.web(false)
.run(args);
}
@Autowired
private EntityManagerFactory entityManagerFactory;
@Bean
public JpaExecutor jpaExecutor() {
JpaExecutor executor = new JpaExecutor(this.entityManagerFactory);
jpaExecutor.setJpaQuery("from Student s where s.id = :id");
executor.setJpaParameters(Collections.singletonList(new JpaParameter("id", null, "payload")));
jpaExecutor.setExpectSingleResult(true);
return executor;
}
@Bean
@ServiceActivator(channel = "jpaRetrievingChannel")
public MessageHandler jpaOutbound() {
JpaOutboundGateway adapter = new JpaOutboundGateway(jpaExecutor());
adapter.setOutputChannelName("retrieveResults");
adapter.setGatewayType(OutboundGatewayType.RETRIEVING);
return adapter;
}
}
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the outbound adapter with
the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 396
@SpringBootApplication
@EntityScan(basePackageClasses = StudentDomain.class)
public class JpaJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(JpaJavaApplication.class)
.web(false)
.run(args);
}
@Autowired
private EntityManagerFactory entityManagerFactory;
@Bean
public IntegrationFlow retrievingGatewayFlow() {
return f -> f
.handle(Jpa.retrievingGateway(this.entityManagerFactory)
.jpaQuery("from Student s where s.id = :id")
.expectSingleResult(true)
.parameterExpression("id", "payload"))
.channel(c -> c.queue("retrieveResults"));
}
}
Important
When you choose to delete entities upon retrieval and you have retrieved a collection of entities,
by default, entities are deleted on a per-entity basis. This may cause performance issues.
Alternatively, you can set attribute deleteInBatch to true, which performs a batch delete.
However, the limitation of doing so is that cascading deletes are not supported.
JSR 317: Java™ Persistence 2.0 states in chapter 4.10, "Bulk Update and Delete
Operations" that:
"A delete operation only applies to entities of the specified class and
its subclasses. It does not cascade to related entities."
For more information, see JSR 317: Java™ Persistence 2.0
JPA Outbound Gateway Samples
This section contains various examples of using the updating outbound gateway and the retrieving
outbound gateway:
Update by Using an Entity Class
In the following example, an updating outbound gateway is persisted by using the
org.springframework.integration.jpa.test.entity.Student entity class as a JPA
defining parameter:
<int-jpa:updating-outbound-gateway request-channel="entityRequestChannel" ❶
reply-channel="entityResponseChannel" ❷
entity-class="org.springframework.integration.jpa.test.entity.Student"
entity-manager="em"/>
❶This is the request channel for the outbound gateway. It is similar to the channel attribute of the
outbound-channel-adapter.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 397
❷This is where a gateway differs from an outbound adapter. This is the channel over which the reply
from the JPA operation is received. If, however, you are not interested in the reply received and
want only to perform the operation, using a JPA outbound-channel-adapter is the appropriate
choice. In this example, where we use an entity class, the reply is the entity object that was created
or merged as a result of the JPA operation.
Update using JPQL
The following example updates an entity by using the Java Persistence Query Language (JPQL), which
mandates using an updating outbound gateway:
<int-jpa:updating-outbound-gateway request-channel="jpaqlRequestChannel"
reply-channel="jpaqlResponseChannel"
jpa-query="update Student s set s.lastName = :lastName where s.rollNumber = :rollNumber" ❶
entity-manager="em">
<int-jpa:parameter name="lastName" expression="payload"/>
<int-jpa:parameter name="rollNumber" expression="headers['rollNumber']"/>
</int-jpa:updating-outbound-gateway>
❶The JPQL query that the gateway executes. Since we used updating outbound gateway, only
update and delete JPQL queries would be sensible choices.
When you send a message with a String payload that also contains a header called rollNumber
with a long value, the last name of the student with the specified roll number is updated to the value
in the message payload. When using an updating gateway, the return value is always an integer value,
which denotes the number of records affected by execution of the JPA QL.
Retrieving an Entity using JPQL
The following example uses a retrieving outbound gateway and JPQL to retrieve (select) one or more
entities from the database:
<int-jpa:retrieving-outbound-gateway request-channel="retrievingGatewayReqChannel"
reply-channel="retrievingGatewayReplyChannel"
jpa-query="select s from Student s where s.firstName = :firstName and s.lastName = :lastName"
entity-manager="em">
<int-jpa:parameter name="firstName" expression="payload"/>
<int-jpa:parameter name="lastName" expression="headers['lastName']"/>
</int-jpa:outbound-gateway>
Retrieving an Entity by Using id-expression
The following example uses a retrieving outbound gateway with id-expression to retrieve (find) one
and only one entity from the database: The primaryKey is the result of id-expression evaluation.
The entityClass is a class of Message payload.
<int-jpa:retrieving-outbound-gateway
request-channel="retrievingGatewayReqChannel"
reply-channel="retrievingGatewayReplyChannel"
id-expression="payload.id"
entity-manager="em"/>
Update using a Named Query
Using a named query is basically the same as using a JPQL query directly. The difference is that the
named-query attribute is used instead, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 398
<int-jpa:updating-outbound-gateway request-channel="namedQueryRequestChannel"
reply-channel="namedQueryResponseChannel"
named-query="updateStudentByRollNumber"
entity-manager="em">
<int-jpa:parameter name="lastName" expression="payload"/>
<int-jpa:parameter name="rollNumber" expression="headers['rollNumber']"/>
</int-jpa:outbound-gateway>
Note
You can find a complete sample application that uses Spring Integration’s JPA adapter here.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 399
23. JMS Support
Spring Integration provides channel adapters for receiving and sending JMS messages.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-jms</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-jms:5.1.1.RELEASE"
The javax.jms:javax.jms-api must be added explicitly via some JMS vendor-specific
implementation, e.g. Apache ActiveMQ.
There are actually two JMS-based inbound Channel Adapters. The first uses Spring’s JmsTemplate
to receive based on a polling period. The second is "message-driven" and relies on a Spring
MessageListener container. The outbound channel adapter uses the JmsTemplate to convert and
send a JMS message on demand.
By using JmsTemplate and the MessageListener container, Spring Integration relies on Spring’s
JMS support. This is important to understand, since most of the attributes exposed on these adapters
configure the underlying JmsTemplate and MessageListener container. For more details about
JmsTemplate and the MessageListener container, see the Spring JMS documentation.
Whereas the JMS channel adapters are intended for unidirectional messaging (send-only or receive-
only), Spring Integration also provides inbound and outbound JMS Gateways for request and
reply operations. The inbound gateway relies on one of Spring’s MessageListener container
implementations for message-driven reception. It is also capable of sending a return value to
the reply-to destination, as provided by the received message. The outbound gateway sends
a JMS message to a request-destination (or request-destination-name or request-
destination-expression) and then receives a reply message. You can explicitly configure
the reply-destination reference (or reply-destination-name or reply-destination-
expression). Otherwise, the outbound gateway uses a JMS TemporaryQueue.
Prior to Spring Integration 2.2, if necessary, a TemporaryQueue was created (and removed) for each
request or reply. Beginning with Spring Integration 2.2, you can configure the outbound gateway to use a
MessageListener container to receive replies instead of directly using a new (or cached) Consumer
to receive the reply for each request. When so configured, and no explicit reply destination is provided,
a single TemporaryQueue is used for each gateway instead of one for each request.
23.1 Inbound Channel Adapter
The inbound channel adapter requires a reference to either a single JmsTemplate instance or both
a ConnectionFactory and a Destination (you can provide a destinationName in place of the
destination reference). The following example defines an inbound channel adapter with a Destination
reference:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 400
<int-jms:inbound-channel-adapter id="jmsIn" destination="inQueue" channel="exampleChannel">
<int:poller fixed-rate="30000"/>
</int-jms:inbound-channel-adapter>
Tip
Notice from the preceding configuration that the inbound-channel-adapter is a polling
consumer. That means that it invokes receive() when triggered. You should use this should
only in situations where polling is done relatively infrequently and timeliness is not important. For
all other situations (a vast majority of JMS-based use-cases), the message-driven-channel-
adapter (described later) is a better option.
Note
By default, all of the JMS adapters that require a reference to the ConnectionFactory
automatically look for a bean named jmsConnectionFactory. That is why you do not
see a connection-factory attribute in many of the examples. However, if your JMS
ConnectionFactory has a different bean name, you need to provide that attribute.
If extract-payload is set to true (the default), the received JMS Message is passed through the
MessageConverter. When relying on the default SimpleMessageConverter, this means that the
resulting Spring Integration Message has the JMS message’s body as its payload. A JMS TextMessage
produces a string-based payload, a JMS BytesMessage produces a byte array payload, and the
serializable instance of a JMS ObjectMessage becomes the Spring Integration message’s payload. If
you prefer to have the raw JMS message as the Spring Integration message’s payload, set extract-
payload to false, as the following example shows:
<int-jms:inbound-channel-adapter id="jmsIn"
destination="inQueue"
channel="exampleChannel"
extract-payload="false"/>
<int:poller fixed-rate="30000"/>
</int-jms:inbound-channel-adapter>
Starting with version 5.0.8, a default value of the receive-timeout is -1 (no
wait) for the org.springframework.jms.connection.CachingConnectionFactory and
cacheConsumers, otherwise it is 1 second.
Transactions
Starting with version 4.0, the inbound channel adapter supports the session-transacted attribute.
In earlier versions, you had to inject a JmsTemplate with sessionTransacted set to true. (The
adapter did let you set the acknowledge attribute to transacted, but this was incorrect and did not
work).
Note, however, that setting session-transacted to true has little value, because the transaction is
committed immediately after the receive() operation and before the message is sent to the channel.
If you want the entire flow to be transactional (for example, if there is a downstream outbound
channel adapter), you must use a transactional poller with a JmsTransactionManager.
Alternatively, consider using a jms-message-driven-channel-adapter with acknowledge set
to transacted (the default).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 401
23.2 Message-driven Channel Adapter
The message-driven-channel-adapter requires a reference to either an instance of a Spring
MessageListener container (any subclass of AbstractMessageListenerContainer) or both
ConnectionFactory and Destination (a destinationName can be provided in place of the
destination reference). The following example defines a message-driven channel adapter with a
Destination reference:
<int-jms:message-driven-channel-adapter id="jmsIn" destination="inQueue" channel="exampleChannel"/>
Note
The message-driven adapter also accepts several properties that pertain to the
MessageListener container. These values are considered only if you do not provide a
container reference. In that case, an instance of DefaultMessageListenerContainer
is created and configured based on these properties. For example, you can specify the
transaction-manager reference, the concurrent-consumers value, and several other
property references and values. See the Javadoc and Spring Integration’s JMS schema (spring-
integration-jms.xsd) for more details.
If you have a custom listener container implementation (usually a subclass of
DefaultMessageListenerContainer), you can either provide a reference to an instance
of it by using the container attribute or provide its fully qualified class name by using the
container-class attribute. In that case, the attributes on the adapter are transferred to an
instance of your custom container.
Important
Starting with version 4.2, the default acknowledge mode is transacted, unless you provide an
external container. In that case, you should configure the container as needed. We recommend
using transacted with the DefaultMessageListenerContainer to avoid message loss.
The extract-payload property has the same effect, and its default value is true. The poller element is
not applicable for a message-driven channel adapter, as it is actively invoked. For most scenarios, the
message-driven approach is better, since the messages are passed along to the MessageChannel as
soon as they are received from the underlying JMS consumer.
Finally, the <message-driven-channel-adapter> element also accepts the error-channel
attribute. This provides the same basic functionality, as described in the section called “Enter the
GatewayProxyFactoryBean”. The following example shows how to set an error channel on a
message-driven channel adapter:
<int-jms:message-driven-channel-adapter id="jmsIn" destination="inQueue"
channel="exampleChannel"
error-channel="exampleErrorChannel"/>
When comparing the preceding example to the generic gateway configuration or the JMS inbound-
gateway that we discuss later, the key difference is that we are in a one-way flow, since this is a channel-
adapter, not a gateway. Therefore, the flow downstream from the error-channel should also be one-
way. For example, it could send to a logging handler or it could connect to a different JMS <outbound-
channel-adapter> element.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 402
When consuming from topics, set the pub-sub-domain attribute to true. Set subscription-
durable to true for a durable subscription or subscription-shared for a shared subscription
(which requires a JMS 2.0 broker and has been available since version 4.2). Use subscription-
name to name the subscription.
Starting with version 5.1, when the endpoint is stopped while the application remains running,
the underlying listener container is shut down, closing its shared connection and consumers.
Previously, the connection and consumers remained open. To revert to the previous behavior, set the
shutdownContainerOnStop on the JmsMessageDrivenEndpoint to false.
Inbound Conversion Errors
Starting with version 4.2, the error-channel is used for the conversion errors, too. Previously, if a JMS
<message-driven-channel-adapter/> or <inbound-gateway/> could not deliver a message
due to a conversion error, an exception would be thrown back to the container. If the container is
configured to use transactions, the message is rolled back and redelivered repeatedly. The conversion
process occurs before and during message construction so that such errors are not sent to the error-
channel. Now such conversion exceptions result in an ErrorMessage being sent to the error-channel,
with the exception as the payload. If you wish the transaction to roll back and you have an error-channel
defined, the integration flow on the error-channel must re-throw the exception (or another exception). If
the error flow does not throw an exception, the transaction is committed and the message is removed.
If no error-channel is defined, the exception is thrown back to the container, as before.
23.3 Outbound Channel Adapter
The JmsSendingMessageHandler implements the MessageHandler interface and is capable of
converting Spring Integration Messages to JMS messages and then sending to a JMS destination.
It requires either a jmsTemplate reference or both jmsConnectionFactory and destination
references (destinationName may be provided in place of destination). As with the inbound
channel adapter, the easiest way to configure this adapter is with the namespace support. The
following configuration produces an adapter that receives Spring Integration messages from the
exampleChannel, converts those into JMS messages, and sends them to the JMS destination
reference whose bean name is outQueue:
<int-jms:outbound-channel-adapter id="jmsOut" destination="outQueue" channel="exampleChannel"/>
As with the inbound channel adapters, there is an extract-payload property. However, the meaning is
reversed for the outbound adapter. Rather than applying to the JMS message, the boolean property
applies to the Spring Integration message payload. In other words, the decision is whether to pass the
Spring Integration message itself as the JMS message body or to pass the Spring Integration message
payload as the JMS message body. The default value is true. Therefore, if you pass a Spring Integration
message whose payload is a String, a JMS TextMessage is created. If, on the other hand, you want
to send the actual Spring Integration message to another system over JMS, set it to false.
Note
Regardless of the boolean value for payload extraction, the Spring Integration MessageHeaders
map to JMS properties, as long as you rely on the default converter or provide a reference
to another instance of HeaderMappingMessageConverter. (The same holds true for
inbound adapters, except that, in those cases, the JMS properties map to Spring Integration
MessageHeaders).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 403
Starting with version 5.1, the <int-jms:outbound-channel-adapter>
(JmsSendingMessageHandler) can be configured with the deliveryModeExpression and
timeToLiveExpression properties to evaluate an appropriate QoS values for JMS message to send
at runtime against request Spring Message. The new setMapInboundDeliveryMode(true) and
setMapInboundExpiration(true) options of the DefaultJmsHeaderMapper may facilitate as a
source of the information for the dynamic deliveryMode and timeToLive from message headers:
<int-jms:outbound-channel-adapter delivery-mode-expression="headers.jms_deliveryMode"
time-to-live-expression="headers.jms_expiration -
T(System).currentTimeMillis()"/>
Transactions
Starting with version 4.0, the outbound channel adapter supports the session-transacted attribute.
In earlier versions, you had to inject a JmsTemplate with sessionTransacted set to true. The
attribute now sets the property on the built-in default JmsTemplate. If a transaction exists (perhaps
from an upstream message-driven-channel-adapter), the send operation is performed within the
same transaction. Otherwise, a new transaction is started.
23.4 Inbound Gateway
Spring Integration’s message-driven JMS inbound-gateway delegates to a MessageListener
container, supports dynamically adjusting concurrent consumers, and can also handle replies. The
inbound gateway requires references to a ConnectionFactory and a request Destination (or
requestDestinationName). The following example defines a JMS inbound-gateway that receives from
the JMS queue referenced by the bean id, inQueue, and sends to the Spring Integration channel named
exampleChannel:
<int-jms:inbound-gateway id="jmsInGateway"
request-destination="inQueue"
request-channel="exampleChannel"/>
Since the gateways provide request-reply behavior instead of unidirectional send or receive behavior,
they also have two distinct properties for "payload extraction" (as discussed earlier for the channel
adapters' extract-payload setting). For an inbound gateway, the extract-request-payload property
determines whether the received JMS Message body is extracted. If false, the JMS message itself
becomes the Spring Integration message payload. The default is true.
Similarly, for an inbound-gateway, the extract-reply-payload property applies to the Spring Integration
message that is to be converted into a reply JMS Message. If you want to pass the whole Spring
Integration message (as the body of a JMS ObjectMessage), set value this to false. By default, it is
also true that the Spring Integration message payload is converted into a JMS Message (for example,
a String payload becomes a JMS TextMessage).
As with anything else, gateway invocation might result in error. By default, a producer is not notified of
the errors that might have occurred on the consumer side and times out waiting for the reply. However,
there might be times when you want to communicate an error condition back to the consumer (in other
words, you might want to treat the exception as a valid reply by mapping it to a message). To accomplish
this, JMS inbound gateway provides support for a message channel to which errors can be sent for
processing, potentially resulting in a reply message payload that conforms to some contract that defines
what a caller may expect as an "error" reply. You can use the error-channel attribute to configure such
a channel, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 404
<int-jms:inbound-gateway request-destination="requestQueue"
request-channel="jmsinputchannel"
error-channel="errorTransformationChannel"/>
<int:transformer input-channel="exceptionTransformationChannel"
ref="exceptionTransformer" method="createErrorResponse"/>
You might notice that this example looks very similar to that included within the section called “Enter the
GatewayProxyFactoryBean”. The same idea applies here: The exceptionTransformer could be
a POJO that creates error-response objects, you could reference the nullChannel to suppress the
errors, or you could leave error-channel out to let the exception propagate.
See the section called “Inbound Conversion Errors”.
When consuming from topics, set the pub-sub-domain attribute to true. Set subscription-
durable to true for a durable subscription or subscription-shared for a shared subscription
(requires a JMS 2.0 broker and has been available since version 4.2). Use subscription-name to
name the subscription.
Important
Starting with version 4.2, the default acknowledge mode is transacted, unless an external
container is provided. In that case, you should configure the container as needed. We recommend
that you use transacted with the DefaultMessageListenerContainer to avoid message
loss.
Starting with version 5.1, when the endpoint is stopped while the application remains running,
the underlying listener container is shut down, closing its shared connection and consumers.
Previously, the connection and consumers remained open. To revert to the previous behavior, set the
shutdownContainerOnStop on the JmsInboundGateway to false.
23.5 Outbound Gateway
The outbound gateway creates JMS messages from Spring Integration messages and sends them to
a request-destination. It thens handle the JMS reply message either by using a selector to receive
from the reply-destination that you configure or, if no reply-destination is provided, by creating JMS
TemporaryQueue instances.
Caution
Using a reply-destination (or reply-destination-name) together with a
CachingConnectionFactory that has cacheConsumers set to true can cause out-of-
memory conditions. This is because each request gets a new consumer with a new selector
(selecting on the correlation-key value or, when there is no correlation-key, on the sent
JMSMessageID). Given that these selectors are unique, they remain in the cache (unused) after
the current request completes.
If you specify a reply destination, you are advised to not use cached consumers. Alternatively,
consider using a <reply-listener/> as described below.
The following example shows how to configure an outbound gateway:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 405
<int-jms:outbound-gateway id="jmsOutGateway"
request-destination="outQueue"
request-channel="outboundJmsRequests"
reply-channel="jmsReplies"/>
The outbound-gateway payload extraction properties are inversely related to those of the inbound-
gateway (see the earlier discussion). That means that the extract-request-payload property value
applies to the Spring Integration message being converted into a JMS message to be sent as a request.
The extract-reply-payload property value applies to the JMS message received as a reply and is then
converted into a Spring Integration message to be subsequently sent to the reply-channel, as shown
in the preceding configuration example.
Using a <reply-listener/>
Spring Integration 2.2 introduced an alternative technique for handling replies. If you add a <reply-
listener/> child element to the gateway instead of creating a consumer for each reply, a
MessageListener container is used to receive the replies and hand them over to the requesting
thread. This provides a number of performance benefits as well as alleviating the cached consumer
memory utilization problem described in the earlier caution.
When using a <reply-listener/> with an outbound gateway that has no reply-destination,
instead of creating a TemporaryQueue for each request, a single TemporaryQueue is used. (The
gateway creates an additional TemporaryQueue, as necessary, if the connection to the broker is lost
and recovered).
When using a correlation-key, multiple gateways can share the same reply destination, because
the listener container uses a selector that is unique to each gateway.
Caution
If you specify a reply listener and specify a reply destination (or reply destination name) but provide
no correlation key, the gateway logs a warning and falls back to pre-version 2.2 behavior. This
is because there is no way to configure a selector in this case. Thus, there is no way to avoid a
reply going to a different gateway that might be configured with the same reply destination.
Note that, in this situation, a new consumer is used for each request, and consumers can build up
in memory as described in the caution above; therefore cached consumers should not be used
in this case.
The following example shows a reply listener with default attributes:
<int-jms:outbound-gateway id="jmsOutGateway"
request-destination="outQueue"
request-channel="outboundJmsRequests"
reply-channel="jmsReplies">
<int-jms:reply-listener />
</int-jms-outbound-gateway>
The listener is very lightweight, and we anticipate that, in most cases, you need only a single consumer.
However, you can add attributes such as concurrent-consumers, max-concurrent-consumers,
and others. See the schema for a complete list of supported attributes, together with the Spring JMS
documentation for their meanings.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 406
Idle Reply Listeners
Starting with version 4.2, you can start the reply listener as needed (and stop it after an idle time) instead
of running for the duration of the gateway’s lifecycle. This can be useful if you have many gateways in
the application context where they are mostly idle. One such situation is a context with many (inactive)
partitioned Spring Batch jobs using Spring Integration and JMS for partition distribution. If all the reply
listeners are active, the JMS broker has an active consumer for each gateway. By enabling the idle
timeout, each consumer exists only while the corresponding batch job is running (and for a short time
after it finishes).
See idle-reply-listener-timeout in the section called “Attribute Reference”.
Gateway Reply Correlation
This section describes the mechanisms used for reply correlation (ensuring the originating gateway
receives replies to only its requests), depending on how the gateway is configured. See the section
called “Attribute Reference” for complete description of the attributes discussed here.
The following list describes the various scenarios (the numbers are for identification — order does not
matter):
1. No reply-destination* properties and no <reply-listener>
A TemporaryQueue is created for each request and deleted when the request is complete
(successfully or otherwise). correlation-key is irrelevant.
2. A reply-destination* property is provided and neither a <reply-listener/> nor a
correlation-key is provided
The JMSCorrelationID equal to the outgoing message IS is used as a message selector for the
consumer:
messageSelector = "JMSCorrelationID = '" + messageId + "'"
The responding system is expected to return the inbound JMSMessageID in the reply
JMSCorrelationID. This is a common pattern and is implemented by the Spring Integration
inbound gateway as well as Spring’s MessageListenerAdapter for message-driven POJOs.
Note
When you use this configuration, you should not use a topic for replies. The reply may be lost.
3. A reply-destination* property is provided, no <reply-listener/> is provided, and
correlation-key="JMSCorrelationID"
The gateway generates a unique correlation IS and inserts it in the JMSCorrelationID header.
The message selector is:
messageSelector = "JMSCorrelationID = '" + uniqueId + "'"
The responding system is expected to return the inbound JMSCorrelationID in the reply
JMSCorrelationID. This is a common pattern and is implemented by the Spring Integration
inbound gateway as well as Spring’s MessageListenerAdapter for message-driven POJOs.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 407
4. A reply-destination* property is provided, no <reply-listener/> is provided, and
correlation-key="myCorrelationHeader"
The gateway generates a unique correlation ID and inserts it in the myCorrelationHeader
message property. The correlation-key can be any user-defined value. The message selector is:
messageSelector = "myCorrelationHeader = '" + uniqueId + "'"
The responding system is expected to return the inbound myCorrelationHeader in the reply
myCorrelationHeader.
5. A reply-destination* property is provided, no <reply-listener/> is provided, and
correlation-key="JMSCorrelationID*":: (Note the * in the correlation key.)
The gateway uses the value in the jms_correlationId header (if present) from the request
message and inserts it in the JMSCorrelationID header. The message selector is:
messageSelector = "JMSCorrelationID = '" + headers['jms_correlationId'] +
"'"
The user must ensure this value is unique.
If the header does not exist, the gateway behaves as in 3.
The responding system is expected to return the inbound JMSCorrelationID in the reply
JMSCorrelationID. This is a common pattern and is implemented by the Spring Integration
inbound gateway as well as Spring’s MessageListenerAdapter for message-driven POJOs.
6. No reply-destination* properties is provided, and a <reply-listener> is provided
A temporary queue is created and used for all replies from this gateway instance. No correlation data
is needed in the message, but the outgoing JMSMessageID is used internally in the gateway to direct
the reply to the correct requesting thread.
7. A reply-destination* property is provided, a <reply-listener> is provided, and no
correlation-key is provided
Not allowed.
The <reply-listener/> configuration is ignored, and the gateway behaves as in 2. A warning
log message is written to indicate this situation.
8. A reply-destination* property is provided, a <reply-listener> is provided, and
correlation-key="JMSCorrelationID"
The gateway has a unique correlation ID and inserts it, together with an incrementing value in the
JMSCorrelationID header (gatewayId + "_" + ++seq). The message selector is:
messageSelector = "JMSCorrelationID LIKE '" + gatewayId%'"
The responding system is expected to return the inbound JMSCorrelationID in the reply
JMSCorrelationID. This is a common pattern and is implemented by the Spring Integration
inbound gateway as well as Spring’s MessageListenerAdapter for message-driven POJOs.
Since each gateway has a unique ID, each instance gets only its own replies. The complete
correlation data is used to route the reply to the correct requesting thread.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 408
9. A reply-destination* property is provided a <reply-listener/> is provided, and
correlation-key="myCorrelationHeader"
The gateway has a unique correlation ID and inserts it, together with an incrementing value in the
myCorrelationHeader property (gatewayId + "_" + ++seq). The correlation-key can
be any user-defined value. The message selector is:
messageSelector = "myCorrelationHeader LIKE '" + gatewayId%'"
The responding system is expected to return the inbound myCorrelationHeader in the reply
myCorrelationHeader. Since each gateway has a unique ID, each instance only gets its own
replies. The complete correlation data is used to route the reply to the correct requesting thread.
10.A reply-destination* property is provided, a <reply-listener/> is provided, and
correlation-key="JMSCorrelationID*"*
(Note the * in the correlation key)
Not allowed.
User-supplied correlation IDs are not permitted with a reply listener. The gateway does not initialize
with this configuration.
Async Gateway
Starting with version 4.3, you can now specify async="true" (or setAsync(true) in Java) when
configuring the outbound gateway.
By default, when a request is sent to the gateway, the requesting thread is suspended until the reply is
received. The flow then continues on that thread. If async is true, the requesting thread is released
immediately after the send completes, and the reply is returned (and the flow continues) on the listener
container thread. This can be useful when the gateway is invoked on a poller thread. The thread is
released and is available for other tasks within the framework.
async requires a <reply-listener/> (or setUseReplyContainer(true) when using Java
configuration). It also requires a correlationKey (usually JMSCorrelationID) to be specified. If
either of these conditions are not met, async is ignored.
Attribute Reference
The following listing shows all the available attributes for an outbound-gateway:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 409
<int-jms:outbound-gateway
connection-factory="connectionFactory" ❶
correlation-key="" ❷
delivery-persistent="" ❸
destination-resolver="" ❹
explicit-qos-enabled="" ❺
extract-reply-payload="true" ❻
extract-request-payload="true" ❼
header-mapper="" ❽
message-converter="" ❾
priority="" ❿
receive-timeout="" 11
reply-channel="" 12
reply-destination="" 13
reply-destination-expression="" 14
reply-destination-name="" 15
reply-pub-sub-domain="" 16
reply-timeout="" 17
request-channel="" 18
request-destination="" 19
request-destination-expression="" 20
request-destination-name="" 21
request-pub-sub-domain="" 22
time-to-live="" 23
requires-reply="" 24
idle-reply-listener-timeout="" 25
async=""> 26
<int-jms:reply-listener /> 27
</int-jms:outbound-gateway>
❶Reference to a javax.jms.ConnectionFactory. The default jmsConnectionFactory.
❷The name of a property that contains correlation data to correlate responses with replies.
If omitted, the gateway expects the responding system to return the value of the outbound
JMSMessageID header in the JMSCorrelationID header. If specified, the gateway generates
a correlation ID and populates the specified property with it. The responding system must
echo back that value in the same property. It can be set to JMSCorrelationID, in which
case the standard header is used instead of a String property to hold the correlation data.
When you use a <reply-container/>, you must specify the correlation-key if you
provide an explicit reply-destination. Starting with version 4.0.1, this attribute also supports
the value JMSCorrelationID*, which means that if the outbound message already has a
JMSCorrelationID (mapped from the jms_correlationId) header, it is used instead of
generating a new one. Note, the JMSCorrelationID* key is not allowed when you use a
<reply-container/>, because the container needs to set up a message selector during
initialization.
Important
You should understand that the gateway has no way to ensure uniqueness, and unexpected
side effects can occur if the provided correlation ID is not unique.
❸A boolean value indicating whether the delivery mode should be DeliveryMode.PERSISTENT
(true) or DeliveryMode.NON_PERSISTENT (false). This setting takes effect only if
explicit-qos-enabled is true.
❹A DestinationResolver. The default is a DynamicDestinationResolver, which maps the
destination name to a queue or topic of that name.
❺When set to true, it enables the use of quality of service attributes: priority, delivery-mode,
and time-to-live.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 410
❻When set to true (the default), the payload of the Spring Integration reply message is created
from the JMS Reply message’s body (by using the MessageConverter). When set to false,
the entire JMS message becomes the payload of the Spring Integration message.
❼When set to true (the default), the payload of the Spring Integration message is converted
to a JMSMessage (by using the MessageConverter). When set to false, the entire Spring
Integration Message is converted to the JMSMessage. In both cases, the Spring Integration
message headers are mapped to JMS headers and properties by using the HeaderMapper.
❽A HeaderMapper used to map Spring Integration message headers to and from JMS message
headers and properties.
❾A reference to a MessageConverter for converting between JMS messages and the Spring
Integration message payloads (or messages if extract-request-payload is false). The
default is a SimpleMessageConverter.
❿The default priority of request messages. Overridden by the message priority header, if present.
Its range is 0 to 9. This setting takes effect only if explicit-qos-enabled is true.
11 The time (in milliseconds) to wait for a reply. The default is 5000 (five seconds).
12 The channel to which the reply message is sent.
13 A reference to a Destination, which is set as the JMSReplyTo header. At most, only one of
reply-destination, reply-destination-expression, or reply-destination-name
is allowed. If none is provided, a TemporaryQueue is used for replies to this gateway.
14 A SpEL expression evaluating to a Destination, which will be set as the JMSReplyTo
header. The expression can result in a Destination object or a String. It is used by
the DestinationResolver to resolve the actual Destination. At most, only one of
reply-destination, reply-destination-expression, or reply-destination-name
is allowed. If none is provided, a TemporaryQueue is used for replies to this gateway.
15 The name of the destination that is set as the JMSReplyTo header. It is used by
the DestinationResolver to resolve the actual Destination. At most, only one of
reply-destination, reply-destination-expression, or reply-destination-name
is allowed. If none is provided, a TemporaryQueue is used for replies to this gateway.
16 When set to true, it indicates that any reply Destination resolved by the
DestinationResolver should be a Topic rather then a Queue.
17 The time the gateway waits when sending the reply message to the reply-channel. This only
has an effect if the reply-channel can block — such as a QueueChannel with a capacity limit
that is currently full. The default is infinity.
18 The channel on which this gateway receives request messages.
19 A reference to a Destination to which request messages are sent. One of
reply-destination, reply-destination-expression, or reply-destination-name
is required. You can use only one of those three attributes.
20 A SpEL expression evaluating to a Destination to which request messages are sent.
The expression can result in a Destination object or a String. It is used by the
DestinationResolver to resolve the actual Destination. Oneof reply-destination,
reply-destination-expression, or reply-destination-name is required. You can use
only one of those three attributes.
21 The name of the destination to which request messages are sent. It is used by the
DestinationResolver to resolve the actual Destination. One of reply-destination,
reply-destination-expression, or reply-destination-name is required. You can use
only one of those three attributes.
22 When set to true, it indicates that any request Destination resolved by the
DestinationResolver should be a Topic rather then a Queue.
23 Specifies the message time to live. This setting takes effect only if explicit-qos-enabled is
true.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 411
24 Specifies whether this outbound gateway must return a non-null value. By default, this value is
true, and a MessageTimeoutException is thrown when the underlying service does not return
a value after the receive-timeout. Note that, if the service is never expected to return a reply,
it would be better to use a <int-jms:outbound-channel-adapter/> instead of a <int-
jms:outbound-gateway/> with requires-reply="false". With the latter, the sending
thread is blocked, waiting for a reply for the receive-timeout period.
25 When you use a <reply-listener />, its lifecycle (start and stop) matches that of the gateway
by default. When this value is greater than 0, the container is started on demand (when a request is
sent). The container continues to run until at least this time elapses with no requests being received
(and until no replies are outstanding). The container is started again on the next request. The stop
time is a minimum and may actually be up to 1.5x this value.
26 See the section called “Async Gateway”.
27 When this element is included, replies are received by an asynchronous
MessageListenerContainer rather than creating a consumer for each reply. This can be more
efficient in many cases.
23.6 Mapping Message Headers to and from JMS Message
JMS messages can contain meta-information such as JMS API headers and simple properties. You
can map those to and from Spring Integration message headers by using JmsHeaderMapper. The
JMS API headers are passed to the appropriate setter methods (such as setJMSReplyTo), whereas
other headers are copied to the general properties of the JMS Message. JMS outbound gateway is
bootstrapped with the default implementation of JmsHeaderMapper, which will map standard JMS API
Headers as well as primitive or String message headers. You could also provide a custom header
mapper by using the header-mapper attribute of inbound and outbound gateways.
Important
Since version 4.0, the JMSPriority header is mapped to the standard priority header
for inbound messages. (previously, the priority header was only used for outbound
messages). To revert to the previous behavior (that is, to not map the inbound priority), set the
mapInboundPriority property of DefaultJmsHeaderMapper to false.
Important
Since version 4.3, the DefaultJmsHeaderMapper maps the standard correlationId header
as a message property by invoking its toString() method (correlationId is often a
UUID, which is not supported by JMS). On the inbound side, it is mapped as a String.
This is independent of the jms_correlationId header, which is mapped to and from the
JMSCorrelationID header. The JMSCorrelationID is generally used to correlate requests
and replies, whereas the correlationId is often used to combine related messages into a
group (such as with an aggregator or a resequencer).
Starting with version 5.1, the DefaultJmsHeaderMapper can be configured for
mapping inbound JMSDeliveryMode and JMSExpiration properties: ==== [source,java]
---- @Bean public DefaultJmsHeaderMapper jmsHeaderMapper() { DefaultJmsHeaderMapper
mapper = new DefaultJmsHeaderMapper(); mapper.setMapInboundDeliveryMode(true)
mapper.setMapInboundExpiration(true) return mapper; } ---- ====
These JMS properties are mapped to the JmsHeaders.DELIVERY_MODE and
JmsHeaders.EXPIRATION Spring Message headers respectively.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 412
23.7 Message Conversion, Marshalling, and Unmarshalling
If you need to convert the message, all JMS adapters and gateways let you provide a
MessageConverter by setting the message-converter attribute. To do so, provide the bean
name of an instance of MessageConverter that is available within the same ApplicationContext.
Also, to provide some consistency with marshaller and unmarshaller interfaces, Spring provides
MarshallingMessageConverter, which you can configure with your own custom marshallers and
unmarshallers. The following example shows how to do so
<int-jms:inbound-gateway request-destination="requestQueue"
request-channel="inbound-gateway-channel"
message-converter="marshallingMessageConverter"/>
<bean id="marshallingMessageConverter"
class="org.springframework.jms.support.converter.MarshallingMessageConverter">
<constructor-arg>
<bean class="org.bar.SampleMarshaller"/>
</constructor-arg>
<constructor-arg>
<bean class="org.bar.SampleUnmarshaller"/>
</constructor-arg>
</bean>
Note
When you provide your own MessageConverter instance, it is still wrapped within
the HeaderMappingMessageConverter. This means that the extract-request-payload and
extract-reply-payload properties can affect the actual objects passed to your converter. The
HeaderMappingMessageConverter itself delegates to a target MessageConverter while
also mapping the Spring Integration MessageHeaders to JMS message properties and back
again.
23.8 JMS-backed Message Channels
The channel adapters and gateways featured earlier are all intended for applications that integrate
with other external systems. The inbound options assume that some other system is sending JMS
messages to the JMS destination, and the outbound options assume that some other system is receiving
from the destination. The other system may or may not be a Spring Integration application. Of course,
when sending a Spring Integration message instance as the body of the JMS message itself (with
extract-payload value set to false), it is assumed that the other system is based on Spring Integration.
However, that is by no means a requirement. That flexibility is one of the benefits of using a message-
based integration option with the abstraction of "channels"( or destinations in the case of JMS).
Sometimes, both the producer and consumer for a given JMS Destination are intended to be part of the
same application, running within the same process. You can accomplish this by using a pair of inbound
and outbound channel adapters. The problem with that approach is that you need two adapters, even
though, conceptually, the goal is to have a single message channel. A better option is supported as
of Spring Integration version 2.0. Now it is possible to define a single "channel" when using the JMS
namespace, as the following example shows:
<int-jms:channel id="jmsChannel" queue="exampleQueue"/>
The channel in the preceding example behaves much like a normal <channel/> element from the
main Spring Integration namespace. It can be referenced by both the input-channel and output-
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 413
channel attributes of any endpoint. The difference is that this channel is backed by a JMS Queue
instance named exampleQueue. This means that asynchronous messaging is possible between the
producing and consuming endpoints. However, unlike the simpler asynchronous message channels
created by adding a <queue/> element within a non-JMS <channel/> element, the messages are
not stored in an in-memory queue. Instead, those messages are passed within a JMS message body,
and the full power of the underlying JMS provider is then available for that channel. Probably the most
common rationale for using this alternative is to take advantage of the persistence made available by
the store-and-forward approach of JMS messaging.
If configured properly, the JMS-backed message channel also supports transactions. In other words,
a producer would not actually write to a transactional JMS-backed channel if its send operation is part
of a transaction that rolls back. Likewise, a consumer would not physically remove a JMS message
from the channel if the reception of that message is part of a transaction that rolls back. Note that the
producer and consumer transactions are separate in such a scenario. This is significantly different than
the propagation of a transactional context across a simple, synchronous <channel/> element that has
no <queue/> child element.
Since the preceding example above references a JMS Queue instance, it acts as a point-to-point
channel. If, on the other hand, you need publish-subscribe behavior, you can use a separate element
and reference a JMS Topic instead. The following example shows how to do so:
<int-jms:publish-subscribe-channel id="jmsChannel" topic="exampleTopic"/>
For either type of JMS-backed channel, the name of the destination may be provided instead of a
reference, as the following example shows:
<int-jms:channel id="jmsQueueChannel" queue-name="exampleQueueName"/>
<jms:publish-subscribe-channel id="jmsTopicChannel" topic-name="exampleTopicName"/>
In the preceding examples, the destination names are resolved by Spring’s default
DynamicDestinationResolver implementation, but you could provide any implementation of the
DestinationResolver interface. Also, the JMS ConnectionFactory is a required property of the
channel, but, by default, the expected bean name would be jmsConnectionFactory. The following
example provides both a custom instance for resolution of the JMS destination names and a different
name for the ConnectionFactory:
<int-jms:channel id="jmsChannel" queue-name="exampleQueueName"
destination-resolver="customDestinationResolver"
connection-factory="customConnectionFactory"/>
For the <publish-subscribe-channel />, set the durable attribute to true for a durable
subscription or subscription-shared for a shared subscription (requires a JMS 2.0 broker and has
been available since version 4.2). Use subscription to name the subscription.
23.9 Using JMS Message Selectors
With JMS message selectors, you can filter JMS Messages based on JMS headers as well as JMS
properties. For example, if you want to listen to messages whose custom JMS header property,
myHeaderProperty, equals something, you can specify the following expression:
myHeaderProperty = 'something'
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 414
Message selector expressions are a subset of the SQL-92 conditional expression syntax and are defined
as part of the Java Message Service specification (Version 1.1, April 12, 2002). Specifically, see chapter
"3.8, Message Selection". It contains a detailed explanation of the expressions syntax.
You can specify the JMS message selector attribute by using XML namespace configuration for the
following Spring Integration JMS components:
• JMS Channel
• JMS Publish Subscribe Channel
• JMS Inbound Channel Adapter
• JMS Inbound Gateway
• JMS Message-driven Channel Adapter
Important
You cannot reference message body values by using JMS Message selectors.
23.10 JMS Samples
To experiment with these JMS adapters, check out the JMS samples available in the Spring
Integration Samples Git repository at https://github.com/SpringSource/spring-integration-samples/tree/
master/basic/jms.
That repository includes two samples. One provides inbound and outbound channel adapters, and the
other provides inbound and outbound gateways. They are configured to run with an embedded ActiveMQ
process, but you can modify the common.xml Spring application context file of each sample to support
either a different JMS provider or a standalone ActiveMQ process.
In other words, you can split the configuration so that the inbound and outbound adapters run in separate
JVMs. If you have ActiveMQ installed, modify the brokerURL property within the common.xml file to
use tcp://localhost:61616 (instead of vm://localhost). Both of the samples accept input from
stdin and echo back to stdout. Look at the configuration to see how these messages are routed over
JMS.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 415
24. Mail Support
This section describes how to work with mail messages in Spring Integration.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-mail</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-mail:5.1.1.RELEASE"
The javax.mail:javax.mail-api must be included via vendor-specific implementation.
24.1 Mail-sending Channel Adapter
Spring Integration provides support for outbound email with the MailSendingMessageHandler. It
delegates to a configured instance of Spring’s JavaMailSender, as the following example shows:
JavaMailSender mailSender = context.getBean("mailSender", JavaMailSender.class);
MailSendingMessageHandler mailSendingHandler = new MailSendingMessageHandler(mailSender);
MailSendingMessageHandler has various mapping strategies that use Spring’s MailMessage
abstraction. If the received message’s payload is already a MailMessage instance, it is sent directly.
Therefore, we generally recommend that you precede this consumer with a transformer for non-
trivial MailMessage construction requirements. However, Spring Integration supports a few simple
message mapping strategies. For example, if the message payload is a byte array, that is mapped to
an attachment. For simple text-based emails, you can provide a string-based message payload. In that
case, a MailMessage is created with that String as the text content. If you work with a message
payload type whose toString() method returns appropriate mail text content, consider adding Spring
Integration’s ObjectToStringTransformer prior to the outbound mail adapter (see the example in
the section called “Configuring a Transformer with XML” for more detail).
You can also configure the outbound MailMessage with certain values from MessageHeaders. If
available, values are mapped to the outbound mail’s properties, such as the recipients (To, Cc, and
BCc), the from, the reply-to, and the subject. The header names are defined by the following constants:
MailHeaders.SUBJECT
MailHeaders.TO
MailHeaders.CC
MailHeaders.BCC
MailHeaders.FROM
MailHeaders.REPLY_TO
Note
MailHeaders also lets you override corresponding MailMessage values. For example, if
MailMessage.to is set to thing1@things.com and the MailHeaders.TO message header is
provided, it takes precedence and overrides the corresponding value in MailMessage.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 416
24.2 Mail-receiving Channel Adapter
Spring Integration also provides support for inbound email with the MailReceivingMessageSource.
It delegates to a configured instance of Spring Integration’s own MailReceiver interface. There are
two implementations: Pop3MailReceiver and ImapMailReceiver. The easiest way to instantiate
either of these is by passing the uri for a mail store to the receiver’s constructor, as the following example
shows:
MailReceiver receiver = new Pop3MailReceiver("pop3://usr:pwd@localhost/INBOX");
Another option for receiving mail is the IMAP idle command (if supported by your mail server). Spring
Integration provides the ImapIdleChannelAdapter, which is itself a message-producing endpoint.
It delegates to an instance of the ImapMailReceiver but enables asynchronous reception of mail
messages. The next section has examples of configuring both types of inbound channel adapter with
Spring Integration’s namespace support in the mail schema.
Important
Normally, when the IMAPMessage.getContent() method is called, certain headers as well as
the body are rendered (for a simple text email), as the following example shows:
To: thing1@things.com
From: thing2@morethings.com
Subject: Test Email
something
With a simple MimeMessage, getContent() returns the mail body (something in the preceding
example).
Starting with version 2.2, the framework eagerly fetches IMAP messages and exposes them as an
internal subclass of MimeMessage. This had the undesired side effect of changing the getContent()
behavior. This inconsistency was further exacerbated by the Mail Mapping enhancement introduced
in version 4.3, because, when a header mapper was provided, the payload was rendered by the
IMAPMessage.getContent() method. This meant that the IMAP content differed, depending on
whether or not a header mapper was provided. Starting with version 5.0, messages originating from
an IMAP source render the content in accordance with IMAPMessage.getContent() behavior,
regardless of whether a header mapper is provided. If you do not use a header mapper and you wish to
revert to the previous behavior of rendering only the body, set the simpleContent boolean property
on the mail receiver to true. This property now controls the rendering regardless of whether a header
mapper is used. It now allows body-only rendering when a header mapper is provided.
24.3 Inbound Mail Message Mapping
By default, the payload of messages produced by the inbound adapters is the raw MimeMessage. You
can use that object to interrogate the headers and content. Starting with version 4.3, you can provide a
HeaderMapper<MimeMessage> to map the headers to MessageHeaders. For convenience, Spring
Integration provides a DefaultMailHeaderMapper for this purpose. It maps the following headers:
•mail_from: A String representation of the from address.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 417
•mail_bcc: A String array containing the bcc addresses.
•mail_cc: A String array containing the cc addresses.
•mail_to: A String array containing the to addresses.
•mail_replyTo: A String representation of the replyTo address.
•mail_subject: The mail subject.
•mail_lineCount: A line count (if available).
•mail_receivedDate: The received date (if available).
•mail_size: The mail size (if available).
•mail_expunged: A boolean indicating if the message is expunged.
•mail_raw: A MultiValueMap containing all the mail headers and their values.
•mail_contentType: The content type of the original mail message.
•contentType: The payload content type (see below).
When message mapping is enabled, the payload depends on the mail message and its implementation.
Email contents are usually rendered by a DataHandler within the MimeMessage.
For a text/* email, the payload is a String and the contentType header is the same as
mail_contentType.
For a messages with embedded javax.mail.Part instances, the DataHandler usually renders a
Part object. These objects are not Serializable and are not suitable for serialization with alternative
technologies such as Kryo. For this reason, by default, when mapping is enabled, such payloads are
rendered as a raw byte[] containing the Part data. Examples of Part are Message and Multipart.
The contentType header is application/octet-stream in this case. To change this behavior and
receive a Multipart object payload, set embeddedPartsAsBytes to false on MailReceiver.
For content types that are unknown to the DataHandler, the contents are rendered as a byte[] with
a contentType header of application/octet-stream.
When you do not provide a header mapper, the message payload is the MimeMessage presented by
javax.mail. The framework provides a MailToStringTransformer that you can use to convert
the message by using a strategy to convert the mail contents to a String. This is also available by
using the XML namespace, as the following example shows:
<int-mail:mail-to-string-transformer ... >
The following example does the same thing with Java configuration:
@Bean
@Transformer(inputChannel="...", outputChannel="...")
public Transformer transformer() {
return new MailToStringTransformer();
}
The following example does the same thing with the Java DSL:
...
.transform(Mail.toStringTransformer())
...
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 418
Starting with version 4.3, the transformer handles embedded Part instances (as well as
Multipart instances, which were handled previously). The transformer is a subclass of
AbstractMailTransformer that maps the address and subject headers from the preceding
list. If you wish to perform some other transformation on the message, consider subclassing
AbstractMailTransformer.
24.4 Mail Namespace Support
Spring Integration provides a namespace for mail-related configuration. To use it, configure the following
schema locations:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:int-mail="http://www.springframework.org/schema/integration/mail"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/integration/mail
http://www.springframework.org/schema/integration/mail/spring-integration-mail.xsd">
To configure an outbound channel adapter, provide the channel from which to receive and the
MailSender, as the following example shows:
<int-mail:outbound-channel-adapter channel="outboundMail"
mail-sender="mailSender"/>
Alternatively, you can provide the host, username, and password, as the following example shows:
<int-mail:outbound-channel-adapter channel="outboundMail"
host="somehost" username="someuser" password="somepassword"/>
Note
As with any outbound Channel Adapter, if the referenced channel is a PollableChannel, you
should provide a <poller> element (see the section called “Endpoint Namespace Support”).
When you use the namespace support, you can also use a header-enricher message transformer.
Doing so simplifies the application of the headers mentioned earlier to any message prior to sending
to the mail outbound channel adapter.
The following example assumes the payload is a Java bean with appropriate getters for the specified
properties, but you can use any SpEL expression:
<int-mail:header-enricher input-channel="expressionsInput" default-overwrite="false">
<int-mail:to expression="payload.to"/>
<int-mail:cc expression="payload.cc"/>
<int-mail:bcc expression="payload.bcc"/>
<int-mail:from expression="payload.from"/>
<int-mail:reply-to expression="payload.replyTo"/>
<int-mail:subject expression="payload.subject" overwrite="true"/>
</int-mail:header-enricher>
Alternatively, you can use the value attribute to specify a literal. You also can specify default-
overwrite and individual overwrite attributes to control the behavior with existing headers.
To configure an inbound channel adapter, you have the choice between polling or event-driven
(assuming your mail server supports IMAP idle — if not, then polling is the only option). A polling
channel adapter requires the store URI and the channel to which to send inbound messages. The URI
may begin with pop3 or imap. The following example uses an imap URI:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 419
<int-mail:inbound-channel-adapter id="imapAdapter"
store-uri="imaps://[username]:[password]@imap.gmail.com/INBOX"
java-mail-properties="javaMailProperties"
channel="receiveChannel"
should-delete-messages="true"
should-mark-messages-as-read="true"
auto-startup="true">
<int:poller max-messages-per-poll="1" fixed-rate="5000"/>
</int-mail:inbound-channel-adapter>
If you do have IMAP idle support, you may want to configure the imap-idle-channel-adapter
element instead. Since the idle command enables event-driven notifications, no poller is necessary
for this adapter. It sends a message to the specified channel as soon as it receives the notification that
new mail is available. The following example configures an IMAP idle mail channel:
<int-mail:imap-idle-channel-adapter id="customAdapter"
store-uri="imaps://[username]:[password]@imap.gmail.com/INBOX"
channel="receiveChannel"
auto-startup="true"
should-delete-messages="false"
should-mark-messages-as-read="true"
java-mail-properties="javaMailProperties"/>
You can provide javaMailProperties by creating and populating a regular
java.utils.Properties object — for example, by using the util namespace provided by Spring.
Important
If your username contains the @ character, use %40 instead of @ to avoid parsing errors from
the underlying JavaMail API.
The following example shows how to configure a java.util.Properties object:
<util:properties id="javaMailProperties">
<prop key="mail.imap.socketFactory.class">javax.net.ssl.SSLSocketFactory</prop>
<prop key="mail.imap.socketFactory.fallback">false</prop>
<prop key="mail.store.protocol">imaps</prop>
<prop key="mail.debug">false</prop>
</util:properties>
By default, the ImapMailReceiver searches for messages based on the default SearchTerm, which
is all mail messages that:
• Are RECENT (if supported)
• Are NOT ANSWERED
• Are NOT DELETED
• Are NOT SEEN
• hHave not been processed by this mail receiver (enabled by the use of the custom USER flag or
simply NOT FLAGGED if not supported)
The custom user flag is spring-integration-mail-adapter, but you can configure it.
Since version 2.2, the SearchTerm used by the ImapMailReceiver is fully configurable with
SearchTermStrategy, which you can inject by using the search-term-strategy attribute.
SearchTermStrategy is a strategy interface with a single method that lets you create an
instance of the SearchTerm used by the ImapMailReceiver. The following listing shows the
SearchTermStrategy interface:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 420
public interface SearchTermStrategy {
SearchTerm generateSearchTerm(Flags supportedFlags, Folder folder);
}
The following example relies TestSearchTermStrategy rather than the default
SearchTermStrategy:
<mail:imap-idle-channel-adapter id="customAdapter"
store-uri="imap:something"
…
search-term-strategy="searchTermStrategy"/>
<bean id="searchTermStrategy"
class="o.s.i.mail.config.ImapIdleChannelAdapterParserTests.TestSearchTermStrategy"/>
See Section 24.5, “Marking IMAP Messages When \Recent Is Not Supported” for information about
message flagging.
Important: IMAP PEEK
Starting with version 4.1.1, the IMAP mail receiver uses the mail.imap.peek or
mail.imaps.peek JavaMail property, if specified. Previously, the receiver ignored the property
and always set the PEEK flag. Now, if you explicitly set this property to false, the message ise
marked as \Seen regardless of the setting of shouldMarkMessagesRead. If not specified, the
previous behavior is retained (peek is true).
IMAP idle and Lost Connections
When using an IMAP idle channel adapter, connections to the server may be lost (for example, through
network failure) and, since the JavaMail documentation explicitly states that the actual IMAP API is
experimental, it is important to understand the differences in the API and how to deal with them when
configuring IMAP idle adapters. Currently, Spring Integration mail adapters were tested with JavaMail
1.4.1 and JavaMail 1.4.3. Depending on which one is used, you must pay special attention to some of
the JavaMail properties that need to be set with regard to auto-reconnect.
Note
The following behavior was observed with Gmail but should provide you with some tips on how
to solve re-connect issue with other providers. However feedback is always welcome. Again, the
following notes are based on Gmail.
With JavaMail 1.4.1, if you set the mail.imaps.timeout property to a relatively short period of time
(approximately 5 min in our testing), IMAPFolder.idle() throws FolderClosedException after
this timeout. However, if this property is not set (it should be indefinite) the IMAPFolder.idle()
method never returns and never throws an exception. It does, however, reconnect automatically if
the connection was lost for a short period of time (under 10 min in our testing). However, if the
connection was lost for a long period of time (over 10 min), IMAPFolder.idle(), does not throw
FolderClosedException and does not re-establish the connection, and remains in the blocked state
indefinitely, thus leaving you no possibility to reconnect without restarting the adapter. Consequently, the
only way to make re-connecting work with JavaMail 1.4.1 is to set the mail.imaps.timeout property
explicitly to some value, but it also means that such value should be relatively short (under 10 min) and
the connection should be re-established relatively quickly. Again, it may be different with providers other
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 421
than Gmail. With JavaMail 1.4.3 introduced significant improvements to the API, ensuring that there is
always a condition that forces the IMAPFolder.idle() method to return StoreClosedException
or FolderClosedException or to simply return, thus letting you proceed with auto-reconnecting.
Currently auto-reconnecting runs infinitely making attempts to reconnect every ten seconds.
Important
In both configurations, channel and should-delete-messages are required attributes. You
should understand why should-delete-messages is required. The issue is with the POP3
protocol, which does not have any knowledge of messages that were read. It can only know what
has been read within a single session. This means that, when your POP3 mail adapter runs, emails
are successfully consumed as as they become available during each poll and no single email
message is delivered more then once. However, as soon as you restart your adapter and begin a
new session, all the email messages that might have been retrieved in the previous session are
retrieved again. That is the nature of POP3. Some might argue that should-delete-messages
should be true by default. In other words, there are two valid and mutually exclusive use that
make it very hard to pick a single best default. You may want to configure your adapter as the
only email receiver, in which case you want to be able to restart your adapter without fear that
previously delivered messages are not delivered again. In this case, setting should-delete-
messages to true would make the most sense. However, you may have another use case where
you may want to have multiple adapters monitor email servers and their content. In other words,
you want to peek but not touch. Then setting should-delete-messages to false is much
more appropriate. So since it is hard to choose what should be the right default value for the
should-delete-messages attribute, we made it a required attribute to be set by you. Leaving
it up to you also means that you are less likely to end up with unintended behavior.
Note
When configuring a polling email adapter’s should-mark-messages-as-read attribute, you
should be aware of the protocol you are configuring to retrieve messages. For example, POP3
does not support this flag, which means setting it to either value has no effect, as messages are
not marked as read.
Important
You should understand that that these actions (marking messages read and deleting messages)
are performed after the messages are received but before they are processed. This can cause
messages to be lost.
You may wish to consider using transaction synchronization instead. See Section 24.7,
“Transaction Synchronization”.
The <imap-idle-channel-adapter/> also accepts the error-channel attribute. If a downstream
exception is thrown and an error-channel is specified, a MessagingException message containing
the failed message and the original exception is sent to this channel. Otherwise, if the downstream
channels are synchronous, any such exception is logged as a warning by the channel adapter.
Note
Beginning with the 3.0 release, the IMAP idle adapter emits application events (specifically
ImapIdleExceptionEvent instances) when exceptions occur. This allows applications
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 422
to detect and act on those exceptions. You can obtain the events by using an <int-
event:inbound-channel-adapter> or any ApplicationListener configured to receive
an ImapIdleExceptionEvent or one of its super classes.
24.5 Marking IMAP Messages When \Recent Is Not Supported
If shouldMarkMessagesAsRead is true, the IMAP adapters set the \Seen flag.
In addition, when an email server does not support the \Recent flag, the IMAP adapters mark
messages with a user flag (by default, spring-integration-mail-adapter), as long as the server
supports user flags. If not, Flag.FLAGGED is set to true. These flags are applied regardless of the
shouldMarkMessagesRead setting.
As discussed in Section 24.4, “Mail Namespace Support”, the default SearchTermStrategy ignore
messages that are so flagged.
Starting with version 4.2.2, you can set the name of the user flag by using setUserFlag on the
MailReceiver. Doing so lets multiple receivers use a different flag (as long as the mail server supports
user flags). The user-flag attribute is available when configuring the adapter with the namespace.
24.6 Email Message Filtering
Very often, you may encounter a requirement to filter incoming messages (for example, you want to read
only emails that have Spring Integration in the Subject line). You can accomplish this by connecting
an inbound mail adapter with an expression-based Filter. Although it would work, there is a downside
to this approach. Since messages would be filtered after going through the inbound mail adapter, all
such messages would be marked as read (SEEN) or unread (depending on the value of should-mark-
messages-as-read attribute). However, in reality, it be more useful to mark messages as SEEN only if
they pass the filtering criteria. This is similar to looking at your email client while scrolling through all the
messages in the preview pane, but only flagging messages that were actually opened and read as SEEN.
Spring Integration 2.0.4 introduced the mail-filter-expression attribute on inbound-channel-
adapter and imap-idle-channel-adapter. This attribute lets you provide an expression that
is a combination of SpEL and a regular expression. For example if you would like to read only
emails that contain Spring Integration in the subject line, you would configure the mail-filter-
expression attribute like as follows: mail-filter-expression="subject matches '(?
i).*Spring Integration.*".
Since javax.mail.internet.MimeMessage is the root context of the SpEL evaluation context, you
can filter on any value available through MimeMessage, including the actual body of the message. This
one is particularly important, since reading the body of the message typically results in such messages
being marked as SEEN by default. However, since we now set the PEEK flag of every incoming message
to true, only messages that were explicitly marked as SEEN are marked as read.
So, in the following example, only messages that match the filter expression are output by this adapter
and only those messages are marked as read:
<int-mail:imap-idle-channel-adapter id="customAdapter"
store-uri="imaps://some_google_address:${password}@imap.gmail.com/INBOX"
channel="receiveChannel"
should-mark-messages-as-read="true"
java-mail-properties="javaMailProperties"
mail-filter-expression="subject matches '(?i).*Spring Integration.*'"/>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 423
In the preceding example, thanks to the mail-filter-expression attribute, only messages that
contain Spring Integration in the subject line are produced by this adapter.
Another reasonable question is what happens on the next poll or idle event or what happens when such
an adapter is restarted. Can there be duplication of massages to be filtered? In other words, if, on the
last retrieval where you had five new messages and only one passed the filter, what would happen with
the other four? Would they go through the filtering logic again on the next poll or idle? After all, they
were not marked as SEEN. The answer is no. They would not be subject to duplicate processing due to
another flag (RECENT) that is set by the email server and is used by the Spring Integration mail search
filter. Folder implementations set this flag to indicate that this message is new to this folder. That is,
it has arrived since the last time this folder was opened. In other words, while our adapter may peek
at the email, it also lets the email server know that such email was touched and should therefore be
marked as RECENT by the email server.
24.7 Transaction Synchronization
Transaction synchronization for inbound adapters lets you take different actions after a transaction
commits or rolls back. You can enable transaction synchronization by adding a <transactional/
> element to the poller for the polled <inbound-adapter/> or to the <imap-idle-inbound-
adapter/>. Even if there is no real transaction involved, you can still enable this feature by using
a PseudoTransactionManager with the <transactional/> element. For more information, see
Section C.3, “Transaction Synchronization”.
Because of the many different mail servers and specifically the limitations that some have, at this time
we provide only a strategy for these transaction synchronizations. You can send the messages to some
other Spring Integration components or invoke a custom bean to perform some action. For example, to
move an IMAP message to a different folder after the transaction commits, you might use something
similar to the following:
<int-mail:imap-idle-channel-adapter id="customAdapter"
store-uri="imaps://something.com:password@imap.something.com/INBOX"
channel="receiveChannel"
auto-startup="true"
should-delete-messages="false"
java-mail-properties="javaMailProperties">
<int:transactional synchronization-factory="syncFactory"/>
</int-mail:imap-idle-channel-adapter>
<int:transaction-synchronization-factory id="syncFactory">
<int:after-commit expression="@syncProcessor.process(payload)"/>
</int:transaction-synchronization-factory>
<bean id="syncProcessor" class="thing1.thing2.Mover"/>
The following example shows what the Mover class might look like:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 424
public class Mover {
public void process(MimeMessage message) throws Exception{
Folder folder = message.getFolder();
folder.open(Folder.READ_WRITE);
String messageId = message.getMessageID();
Message[] messages = folder.getMessages();
FetchProfile contentsProfile = new FetchProfile();
contentsProfile.add(FetchProfile.Item.ENVELOPE);
contentsProfile.add(FetchProfile.Item.CONTENT_INFO);
contentsProfile.add(FetchProfile.Item.FLAGS);
folder.fetch(messages, contentsProfile);
// find this message and mark for deletion
for (int i = 0; i < messages.length; i++) {
if (((MimeMessage) messages[i]).getMessageID().equals(messageId)) {
messages[i].setFlag(Flags.Flag.DELETED, true);
break;
}
}
Folder somethingFolder = store.getFolder("SOMETHING"));
somethingFolder.appendMessages(new MimeMessage[]{message});
folder.expunge();
folder.close(true);
somethingFolder.close(false);
}
}
Important
For the message to be still available for manipulation after the transaction, should-delete-
messages must be set to false.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 425
25. MongoDb Support
Version 2.1 introduced support for MongoDB: a "high-performance, open source, document-
oriented database".
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-mongodb</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-mongodb:5.1.1.RELEASE"
To download, install, and run MongoDB, see the MongoDB documentation.
25.1 Connecting to MongoDb
To begin interacting with MongoDB, you first need to connect to it. Spring Integration builds on the
support provided by another Spring project, Spring Data MongoDB. It provides a factory class called
MongoDbFactory, which simplifies integration with the MongoDB Client API.
Using MongoDbFactory
To connect to MongoDB you can use an implementation of the MongoDbFactory interface. The
following listing shows the MongoDbFactory interface:
public interface MongoDbFactory {
/**
* Creates a default {@link DB} instance.
*
* @return the DB instance
* @throws DataAccessException
*/
DB getDb() throws DataAccessException;
/**
* Creates a {@link DB} instance to access the database with the given name.
*
* @param dbName must not be {@literal null} or empty.
*
* @return the DB instance
* @throws DataAccessException
*/
DB getDb(String dbName) throws DataAccessException;
}
The following example shows how to use SimpleMongoDbFactory, the out-of-the-box
implementation, in Java:
MongoDbFactory mongoDbFactory = new SimpleMongoDbFactory(new Mongo(), "test");
The following example shows how to use SimpleMongoDbFactory in XML configuration:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 426
<bean id="mongoDbFactory" class="o.s.data.mongodb.core.SimpleMongoDbFactory">
<constructor-arg>
<bean class="com.mongodb.Mongo"/>
</constructor-arg>
<constructor-arg value="test"/>
</bean>
SimpleMongoDbFactory takes two arguments: a Mongo instance and a String that specifies the
name of the database. If you need to configure properties such as host, port, and others, you can pass
those by using one of the constructors provided by the underlying Mongo class. For more information
on how to configure MongoDB, see the Spring-Data-MongoDB reference.
25.2 MongoDB Message Store
As described in the Enterprise Integration Patterns (EIP) book, a Message Store lets you persist
messages. Doing so can be useful when dealing with components that have the ability to buffer
messages (QueueChannel, aggregator, resequencer, and others.) if reliability is a concern. In
Spring Integration, the MessageStore strategy also provides the foundation for the claim check pattern,
which is described in EIP as well.
Spring Integration’s MongoDB module provides the MongoDbMessageStore, which is an
implementation of both the MessageStore strategy (mainly used by the claim check pattern) and the
MessageGroupStore strategy (mainly used by the aggregator and resequencer patterns).
The following example configures a MongoDbMessageStore to use a QueueChannel and an
aggregator:
<bean id="mongoDbMessageStore" class="o.s.i.mongodb.store.MongoDbMessageStore">
<constructor-arg ref="mongoDbFactory"/>
</bean>
<int:channel id="somePersistentQueueChannel">
<int:queue message-store="mongoDbMessageStore"/>
<int:channel>
<int:aggregator input-channel="inputChannel" output-channel="outputChannel"
message-store="mongoDbMessageStore"/>
The preceding example is a simple bean configuration, and it expects a MongoDbFactory as a
constructor argument.
The MongoDbMessageStore expands the Message as a Mongo document with all nested properties
by using the Spring Data Mongo mapping mechanism. It is useful when you need to have access to the
payload or headers for auditing or analytics — for example, against stored messages.
Important
The MongoDbMessageStore uses a custom MappingMongoConverter implementation to
store Message instances as MongoDB documents, and there are some limitations for the
properties (payload and header values) of the Message. For example, there is no ability to
configure custom converters for complex domain payload instances or header values. There is
also no way to provide a custom MongoTemplate (or MappingMongoConverter). To achieve
these capabilities, an alternative MongoDB MessageStore implementation has been introduced
(we describe it next).
Spring Integration 3.0 introduced the ConfigurableMongoDbMessageStore. It implements both
the MessageStore and MessageGroupStore interfaces. This class can receive, as a constructor
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 427
argument, a MongoTemplate, with which you can, for example, configure a custom WriteConcern.
Another constructor requires a MappingMongoConverter and a MongoDbFactory, which lets you
provide some custom conversions for Message instances and their properties. Note that, by default, the
ConfigurableMongoDbMessageStore uses standard Java serialization to write and read Message
instances to and from MongoDB (see MongoDbMessageBytesConverter) and relies on default
values for other properties from MongoTemplate. It builds a MongoTemplate from the provided
MongoDbFactory and MappingMongoConverter. The default name for the collection stored by the
ConfigurableMongoDbMessageStore is configurableStoreMessages. We recommend using
this implementation to create robust and flexible solutions when messages contain complex data types.
MongoDB Channel Message Store
Version 4.0 introduced the new MongoDbChannelMessageStore. It is an optimized
MessageGroupStore for use in QueueChannel instances. With priorityEnabled =
true, you can use it in <int:priority-queue> instances to achieve priority-order polling
for persisted messages. The priority MongoDB document field is populated from the
IntegrationMessageHeaderAccessor.PRIORITY (priority) message header.
In addition, all MongoDB MessageStore instances now have a sequence field for MessageGroup
documents. The sequence value is the result of an $inc operation for a simple sequence document
from the same collection, which is created on demand. The sequence field is used in poll operations to
provide first-in-first-out (FIFO) message order (within priority, if configured) when messages are stored
within the same millisecond.
Note
We do not recommend using the same MongoDbChannelMessageStore bean for priority and
non-priority, because the priorityEnabled option applies to the entire store. However, the
same collection can be used for both MongoDbChannelMessageStore types, because
message polling from the store is sorted and uses indexes. To configure that scenario, you can
extend one message store bean from the other, as the following example shows:
<bean id="channelStore" class="o.s.i.mongodb.store.MongoDbChannelMessageStore">
<constructor-arg name="mongoDbFactory" ref="mongoDbFactory"/>
</bean>
<int:channel id="queueChannel">
<int:queue message-store="store"/>
</int:channel>
<bean id="priorityStore" parent="channelStore">
<property name="priorityEnabled" value="true"/>
</bean>
<int:channel id="priorityChannel">
<int:priority-queue message-store="priorityStore"/>
</int:channel>
MongoDB Metadata Store
Spring Integration 4.2 introduced a new MongoDB-based MetadataStore (see Section 12.5,
“Metadata Store”) implementation. You can use the MongoDbMetadataStore to maintain metadata
state across application restarts. You can use this new MetadataStore implementation with adapters
such as:
•Feed
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 428
•File
•FTP
•SFTP
To instruct these adapters to use the new MongoDbMetadataStore, declare a Spring bean with a
bean name of metadataStore. The feed inbound channel adapter automatically picks up and use the
declared MongoDbMetadataStore. The following example shows how to declare a bean with a name
of metadataStore:
@Bean
public MetadataStore metadataStore(MongoDbFactory factory) {
return new MongoDbMetadataStore(factory, "integrationMetadataStore");
}
The MongoDbMetadataStore also implements ConcurrentMetadataStore, letting it be reliably
shared across multiple application instances, where only one instance is allowed to store or modify a
key’s value. All these operations are atomic, thanks to MongoDB guarantees.
25.3 MongoDB Inbound Channel Adapter
The MongoDB inbound channel adapter is a polling consumer that reads data from MongoDB and sends
it as a Message payload. The following example shows how to configure a MongoDB inbound channel
adapter:
<int-mongodb:inbound-channel-adapter id="mongoInboundAdapter"
channel="replyChannel"
query="{'name' : 'Bob'}"
entity-class="java.lang.Object"
auto-startup="false">
<int:poller fixed-rate="100"/>
</int-mongodb:inbound-channel-adapter>
As the preceding configuration shows, you configure a MongoDb inbound channel adapter by using the
inbound-channel-adapter element and providing values for various attributes, such as:
•query: A JSON query (see MongoDB Querying)
•query-expression: A SpEL expression that is evaluated to a JSON query string (as the query
attribute above) or to an instance of o.s.data.mongodb.core.query.Query. Mutually exclusive
with the query attribute.
•entity-class: The type of the payload object. If not supplied, a com.mongodb.DBObject is
returned.
•collection-name or collection-name-expression: Identifies the name of the MongoDB
collection to use.
•mongodb-factory: Reference to an instance of o.s.data.mongodb.MongoDbFactory
•mongo-template: Reference to an instance of o.s.data.mongodb.core.MongoTemplate
• Other attributes that are common across all other inbound adapters (such as channel).
Note
You cannot set both mongo-template and mongodb-factory.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 429
The preceding example is relatively simple and static, since it has a literal value for the query and uses
the default name for a collection. Sometimes, you may need to change those values at runtime,
based on some condition. To do so, use their -expression equivalents (query-expression and
collection-name-expression), where the provided expression can be any valid SpEL expression.
Also, you may wish to do some post-processing to the successfully processed data that was read from
the MongoDB. For example; you may want to move or remove a document after it has been processed.
You can do so by using that transaction synchronization feature Spring Integration 2.2 added, as the
following example shows:
<int-mongodb:inbound-channel-adapter id="mongoInboundAdapter"
channel="replyChannel"
query-expression="new BasicQuery('{''name'' : ''Bob''}').limit(100)"
entity-class="java.lang.Object"
auto-startup="false">
<int:poller fixed-rate="200" max-messages-per-poll="1">
<int:transactional synchronization-factory="syncFactory"/>
</int:poller>
</int-mongodb:inbound-channel-adapter>
<int:transaction-synchronization-factory id="syncFactory">
<int:after-commit
expression="@documentCleaner.remove(#mongoTemplate, payload, headers.mongo_collectionName)"
channe="someChannel"/>
</int:transaction-synchronization-factory>
<bean id="documentCleaner" class="thing1.thing2.DocumentCleaner"/>
<bean id="transactionManager" class="o.s.i.transaction.PseudoTransactionManager"/>
The following example shows the DocumentCleaner referenced in the preceding example:
public class DocumentCleaner {
public void remove(MongoOperations mongoOperations, Object target, String collectionName) {
if (target instanceof List<?>){
List<?> documents = (List<?>) target;
for (Object document : documents) {
mongoOperations.remove(new BasicQuery(JSON.serialize(document)), collectionName);
}
}
}
}
You can declare your poller to be transactional by using the transactional element. This
element can reference a real transaction manager (for example, if some other part of your
flow invokes JDBC). If you do not have a "real" transaction, you can use an instance of
o.s.i.transaction.PseudoTransactionManager, which is an implementation of Spring’s
PlatformTransactionManager and enables the use of the transaction synchronization features of
the Mongo adapter when there is no actual transaction.
Important
Doing so does not make MongoDB itself transactional. It lets the synchronization of actions be
taken before or after success (commit) or after failure (rollback).
Once your poller is transactional, you can set an instance of the
o.s.i.transaction.TransactionSynchronizationFactory on the transactional
element. TransactionSynchronizationFactory creates an instance of the
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 430
TransactionSynchronization. For your convenience, we have exposed a default SpEL-based
TransactionSynchronizationFactory that lets you configure SpEL expressions, with their
execution being coordinated (synchronized) with a transaction. Expressions for before-commit, after-
commit, and after-rollback events are supported, together with a channel for each event where the
evaluation result (if any) is sent. For each child element, you can specify expression and channel
attributes. If only the channel attribute is present, the received message is sent there as part of the
particular synchronization scenario. If only the expression attribute is present and the result of an
expression is a non-null value, a message with the result as the payload is generated and sent to a
default channel (NullChannel) and appears in the logs (on the DEBUG level). If you want the evaluation
result to go to a specific channel, add a channel attribute. If the result of an expression is null or void,
no message is generated.
For more information about transaction synchronization, see Section C.3, “Transaction
Synchronization”.
25.4 MongoDB Outbound Channel Adapter
The MongoDB outbound channel adapter lets you write the message payload to a MongoDB document
store, as the following example shows:
<int-mongodb:outbound-channel-adapter id="fullConfigWithCollectionExpression"
collection-name="myCollection"
mongo-converter="mongoConverter"
mongodb-factory="mongoDbFactory" />
As the preceding configuration shows, you can configure a MongoDB outbound channel adapter by
using the outbound-channel-adapter element, providing values for various attributes, such as:
•collection-name or collection-name-expression: Identifies the name of the MongoDb
collection to use.
•mongo-converter: Reference to an instance of
o.s.data.mongodb.core.convert.MongoConverter that assists with converting a raw Java
object to a JSON document representation.
•mongodb-factory: Reference to an instance of o.s.data.mongodb.MongoDbFactory.
•mongo-template: Reference to an instance of o.s.data.mongodb.core.MongoTemplate.
NOTE: you can not have both mongo-template and mongodb-factory set.
• Other attributes that are common across all other inbound adapters (such as channel).
The preceding example is relatively simple and static, since it has a literal value for the collection-
name. Sometimes, you may need to change this value at runtime, based on some condition. To do that,
use collection-name-expression, where the provided expression is any valid SpEL expression.
25.5 MongoDB Outbound Gateway
Version 5.0 introduced the MongoDB outbound gateway. It allows you query a database by sending a
message to its request channel. The gateway then send the response to the reply channel. You can
use the message payload and headers to specify the query and the collection name, as the following
example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 431
<int-mongodb:outbound-gateway id="gatewayQuery"
mongodb-factory="mongoDbFactory"
mongo-converter="mongoConverter"
query="{firstName: 'Bob'}"
collection-name="myCollection"
request-channel="in"
reply-channel="out"
entity-class="org.springframework.integration.mongodb.test.entity$Person"/>
You can use the following attributes with a MongoDB outbound Gateway:
•collection-name or collection-name-expression: Identifies the name of the MongoDB
collection to use.
•mongo-converter: Reference to an instance of
o.s.data.mongodb.core.convert.MongoConverter that assists with converting a raw Java
object to a JSON document representation.
•mongodb-factory: Reference to an instance of o.s.data.mongodb.MongoDbFactory.
•mongo-template: Reference to an instance of o.s.data.mongodb.core.MongoTemplate.
NOTE: you can not set both mongo-template and mongodb-factory.
•entity-class: The fully qualified name of the entity class to be passed to the find(..) and
findOne(..) methods in MongoTemplate. If this attribute is not provided, the default value is
org.bson.Document.
•query or query-expression: Specifies the MongoDB query. See the MongoDB documentation
for more query samples.
•collection-callback: Reference to an instance of
org.springframework.data.mongodb.core.CollectionCallback. NOTE: You can not
have both collection-callback and any of the query attributes.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the outbound gateway
with Java configuration:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 432
@SpringBootApplication
public class MongoDbJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(MongoDbJavaApplication.class)
.web(false)
.run(args);
}
@Autowired
private MongoDbFactory mongoDbFactory;
@Bean
@ServiceActivator(inputChannel = "requestChannel")
public MessageHandler mongoDbOutboundGateway() {
MongoDbOutboundGateway gateway = new MongoDbOutboundGateway(this.mongoDbFactory);
gateway.setCollectionNameExpressionString("'myCollection'");
gateway.setQueryExpressionString("'{''name'' : ''Bob''}'");
gateway.setExpectSingleResult(true);
gateway.setEntityClass(Person.class);
gateway.setOutputChannelName("replyChannel");
return gateway;
}
@Bean
@ServiceActivator(inputChannel = "replyChannel")
public MessageHandler handler() {
return message -> System.out.println(message.getPayload());
}
}
Configuring with the Java DSL
The following Spring Boot application show an example of how to configure the outbound gateway with
the Java DSL:
@SpringBootApplication
public class MongoDbJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(MongoDbJavaApplication.class)
.web(false)
.run(args);
}
@Autowired
private MongoDbFactory;
@Autowired
private MongoConverter;
@Bean
public IntegrationFlow gatewaySingleQueryFlow() {
return f -> f
.handle(queryOutboundGateway())
.channel(c -> c.queue("retrieveResults"));
}
private MongoDbOutboundGatewaySpec queryOutboundGateway() {
return MongoDb.outboundGateway(this.mongoDbFactory, this.mongoConverter)
.query("{name : 'Bob'}")
.collectionNameFunction(m -> m.getHeaders().get("collection"))
.expectSingleResult(true)
.entityClass(Person.class);
}
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 433
As an alternate to the query and query-expression properties, you can specify other database
operations by using the collectionCallback property. The following example specifies a count
operation:
private MongoDbOutboundGatewaySpec collectionCallbackOutboundGateway() {
return MongoDb.outboundGateway(this.mongoDbFactory, this.mongoConverter)
.collectionCallback(MongoCollection::count)
.collectionName("myCollection");
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 434
26. MQTT Support
Spring Integration provides inbound and outbound channel adapters to support the Message Queueing
Telemetry Transport (MQTT) protocol.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-mqtt</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-mqtt:5.1.1.RELEASE"
The current implementation uses the Eclipse Paho MQTT Client library.
Configuration of both adapters is achieved using the DefaultMqttPahoClientFactory. Refer to
the Paho documentation for more information about configuration options.
Note
We recommend configuring an MqttConnectOptions object and injecting it into the factory,
instead of setting the (deprecated) options on the factory itself.
26.1 Inbound (Message-driven) Channel Adapter
The inbound channel adapter is implemented by the MqttPahoMessageDrivenChannelAdapter.
For convenience, you can configure it by using the namespace. A minimal configuration might be as
follows:
<bean id="clientFactory"
class="org.springframework.integration.mqtt.core.DefaultMqttPahoClientFactory">
<property name="connectionOptions">
<bean class="org.eclipse.paho.client.mqttv3.MqttConnectOptions">
<property name="userName" value="${mqtt.username}"/>
<property name="password" value="${mqtt.password}"/>
</bean>
</property>
</bean>
<int-mqtt:message-driven-channel-adapter id="mqttInbound"
client-id="${mqtt.default.client.id}.src"
url="${mqtt.url}"
topics="sometopic"
client-factory="clientFactory"
channel="output"/>
The following listing shows the available attributes:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 435
<int-mqtt:message-driven-channel-adapter id="oneTopicAdapter"
client-id="foo" ❶
url="tcp://localhost:1883" ❷
topics="bar,baz" ❸
qos="1,2" ❹
converter="myConverter" ❺
client-factory="clientFactory" ❻
send-timeout="123" ❼
error-channel="errors" ❽
recovery-interval="10000" ❾
channel="out" />
❶The client ID.
❷The broker URL.
❸A comma-separated list of topics from which this adapter receives messages.
❹A commap-separated list of QoS values. It can be a single value that is applied to all topics or a
value for each topic (in which case, the lists must be the same length).
❺An MqttMessageConverter (optional). By default, the default
DefaultPahoMessageConverter produces a message with a String payload with the
following headers:
•mqtt_topic: The topic from which the message was received
•mqtt_duplicate: true if the message is a duplicate
•mqtt_qos: The quality of service You can configure the DefaultPahoMessageConverter
to return the raw byte[] in the payload by declaring it as a <bean/> and setting the
payloadAsBytes property to true.
❻The client factory.
❼The send timeout. It applies only if the channel might block (such as a bounded QueueChannel
that is currently full).
❽The error channel. Downstream exceptions are sent to this channel, if supplied, in an
ErrorMessage. The payload is a MessagingException that contains the failed message and
cause.
❾The recovery interval. It controls the interval at which the adapter attempts to reconnect after a
failure. It defaults to 10000ms (ten seconds).
Note
Starting with version 4.1, you can omit the URL. Instead, you can provide the server URIs in
the serverURIs property of the DefaultMqttPahoClientFactory. Doing so enables, for
example, connection to a highly available (HA) cluster.
Starting with version 4.2.2, an MqttSubscribedEvent is published when the adapter successfully
subscribes to the topics. MqttConnectionFailedEvent events are published when the connection or
subscription fails. These events can be received by a bean that implements ApplicationListener.
Also, a new property called recoveryInterval controls the interval at which the adapter attempts to
reconnect after a failure. It defaults to 10000ms (ten seconds).
Note
Prior to version 4.2.3, the client always unsubscribed when the adapter was stopped. This was
incorrect because, if the client QOS is greater than 0, we need to keep the subscription active
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 436
so that messages arriving while the adapter is stopped are delivered on the next start. This also
requires setting the cleanSession property on the client factory to false. It defaults to true.
Starting with version 4.2.3, the adapter does not unsubscribe (by default) if the cleanSession
property is false.
This behavior can be overridden by setting the consumerCloseAction property on the factory. It
can have values: UNSUBSCRIBE_ALWAYS, UNSUBSCRIBE_NEVER, and UNSUBSCRIBE_CLEAN.
The latter (the default) unsubscribes only if the cleanSession property is true.
To revert to the pre-4.2.3 behavior, use UNSUBSCRIBE_ALWAYS.
Important
Starting with version 5.0, the topic, qos, and retained properties
are mapped to .RECEIVED_... headers (MqttHeaders.RECEIVED_TOPIC,
MqttHeaders.RECEIVED_QOS, and MqttHeaders.RECEIVED_RETAINED), to avoid
inadvertent propagation to an outbound message that (by default) uses the
MqttHeaders.TOPIC, MqttHeaders.QOS, and MqttHeaders.RETAINED headers.
Adding and Removing Topics at Runtime
Starting with version 4.1, you can programmatically change the topics to which the adapter is
subscribed. Spring Integration provides the addTopic() and removeTopic() methods. When
adding topics, you can optionally specify the QoS (default: 1). You can also modify the topics by
sending an appropriate message to a <control-bus/> with an appropriate payload — for example:
"myMqttAdapter.addTopic('foo', 1)".
Stopping and starting the adapter has no effect on the topic list (it does not revert to the original settings
in the configuration). The changes are not retained beyond the life cycle of the application context. A
new application context reverts to the configured settings.
Changing the topics while the adapter is stopped (or disconnected from the broker) takes effect the next
time a connection is established.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the inbound adapter with
Java configuration:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 437
@SpringBootApplication
public class MqttJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(MqttJavaApplication.class)
.web(false)
.run(args);
}
@Bean
public MessageChannel mqttInputChannel() {
return new DirectChannel();
}
@Bean
public MessageProducer inbound() {
MqttPahoMessageDrivenChannelAdapter adapter =
new MqttPahoMessageDrivenChannelAdapter("tcp://localhost:1883", "testClient",
"topic1", "topic2");
adapter.setCompletionTimeout(5000);
adapter.setConverter(new DefaultPahoMessageConverter());
adapter.setQos(1);
adapter.setOutputChannel(mqttInputChannel());
return adapter;
}
@Bean
@ServiceActivator(inputChannel = "mqttInputChannel")
public MessageHandler handler() {
return new MessageHandler() {
@Override
public void handleMessage(Message<?> message) throws MessagingException {
System.out.println(message.getPayload());
}
};
}
}
26.2 Outbound Channel Adapter
The outbound channel adapter is implemented by the MqttPahoMessageHandler, which is wrapped
in a ConsumerEndpoint. For convenience, you can configure it by using the namespace.
Starting with version 4.1, the adapter supports asynchronous send operations, avoiding blocking until
the delivery is confirmed. You can emit application events to enable applications to confirm delivery if
desired.
The following listing shows the attributes available for an outbound channel adapter:
<int-mqtt:outbound-channel-adapter id="withConverter"
client-id="foo" ❶
url="tcp://localhost:1883" ❷
converter="myConverter" ❸
client-factory="clientFactory" ❹
default-qos="1" ❺
qos-expression="" ❻
default-retained="true" ❼
retained-expression="" ❽
default-topic="bar" ❾
topic-expression="" ❿
async="false" 11
async-events="false" 12
channel="target" />
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 438
❶The client ID.
❷The broker URL.
❸An MqttMessageConverter (optional). The default DefaultPahoMessageConverter
recognizes the following headers:
•mqtt_topic: The topic to which the message will be sent
•mqtt_retained: true if the message is to be retained
•mqtt_qos: The quality of service
❹The client factory.
❺The default quality of service. It is used if no mqtt_qos header is found or the qos-expression
returns null. It is not used if you supply a custom converter.
❻An expression to evaluate to determine the qos. The default is headers[mqtt_qos].
❼The default value of the retained flag. It is used if no mqtt_retained header is found. It is not
used if a custom converter is supplied.
❽An expression to evaluate to determine the retained boolean. The default is
headers[mqtt_retained].
❾The default topic to which the message is sent (used if no mqtt_topic header is found).
❿An expression to evaluate to determine the destination topic. The default is headers['topic'].
11 When true, the caller does not block. Rather, it waits for delivery confirmation when a message
is sent. The default is false (the send blocks until delivery is confirmed).
12 When async and async-events are both true, an MqttMessageSentEvent is emitted. It
contains the message, the topic, the messageId generated by the client library, the clientId,
and the clientInstance (incremented each time the client is connected). When the delivery is
confirmed by the client library, an MqttMessageDeliveredEvent is emitted. It contains the the
messageId, the clientId, and the clientInstance, enabling delivery to be correlated with
the send. Any ApplicationListener or an event inbound channel adapter can received these
events. Note that it is possible for the MqttMessageDeliveredEvent to be received before the
MqttMessageSentEvent. The default is false.
Note
Starting with version 4.1, the URL can be omitted. Instead, the server URIs can be provided in the
serverURIs property of the DefaultMqttPahoClientFactory. This enables, for example,
connection to a highly available (HA) cluster.
Configuring with Java Configuration
The following Spring Boot application show an example of how to configure the outbound adapter with
Java configuration:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 439
@SpringBootApplication
@IntegrationComponentScan
public class MqttJavaApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context =
new SpringApplicationBuilder(MqttJavaApplication.class)
.web(false)
.run(args);
MyGateway gateway = context.getBean(MyGateway.class);
gateway.sendToMqtt("foo");
}
@Bean
public MqttPahoClientFactory mqttClientFactory() {
DefaultMqttPahoClientFactory factory = new DefaultMqttPahoClientFactory();
MqttConnectOptions options = new MqttConnectOptions();
options.setServerURIs(new String[] { "tcp://host1:1883", "tcp://host2:1883" });
options.setUserName("username");
options.setPassword("password".toCharArray());
factory.setConnectionOptions(options);
return factory;
}
@Bean
@ServiceActivator(inputChannel = "mqttOutboundChannel")
public MessageHandler mqttOutbound() {
MqttPahoMessageHandler messageHandler =
new MqttPahoMessageHandler("testClient", mqttClientFactory());
messageHandler.setAsync(true);
messageHandler.setDefaultTopic("testTopic");
return messageHandler;
}
@Bean
public MessageChannel mqttOutboundChannel() {
return new DirectChannel();
}
@MessagingGateway(defaultRequestChannel = "mqttOutboundChannel")
public interface MyGateway {
void sendToMqtt(String data);
}
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 440
27. Redis Support
Spring Integration 2.1 introduced support for Redis: "an open source advanced key-value
store". This support comes in the form of a Redis-based MessageStore as well as publish-subscribe
messaging adapters that are supported by Redis through its PUBLISH, SUBSCRIBE, and UNSUBSCRIBE
commands.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-redis</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-redis:5.1.1.RELEASE"
You also need to include Redis client dependency, e.g. Lettuce.
To download, install, and run Redis, see the Redis documentation.
27.1 Connecting to Redis
To begin interacting with Redis, you first need to connect to it. Spring Integration uses support
provided by another Spring project, Spring Data Redis, which provides typical Spring constructs:
ConnectionFactory and Template. Those abstractions simplify integration with several Redis client
Java APIs. Currently Spring Data Redis supports Jedis and Lettuce.
Using RedisConnectionFactory
To connect to Redis, you can use one of the implementations of the RedisConnectionFactory
interface. The following listing shows the interface definition:
public interface RedisConnectionFactory extends PersistenceExceptionTranslator {
/**
* Provides a suitable connection for interacting with Redis.
* @return connection for interacting with Redis.
*/
RedisConnection getConnection();
}
The following example shows how to create a LettuceConnectionFactory in Java:
LettuceConnectionFactory cf = new LettuceConnectionFactory();
cf.afterPropertiesSet();
The following example shows how to create a LettuceConnectionFactory in Spring’s XML
configuration:
<bean id="redisConnectionFactory"
class="o.s.data.redis.connection.lettuce.LettuceConnectionFactory">
<property name="port" value="7379" />
</bean>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 441
The implementations of RedisConnectionFactory provide a set of properties, such as port and host,
that you can set if needed. Once you have an instance of RedisConnectionFactory, you can create
an instance of RedisTemplate and inject it with the RedisConnectionFactory.
Using RedisTemplate
As with other template classes in Spring (such as JdbcTemplate and JmsTemplate)
RedisTemplate is a helper class that simplifies Redis data access code. For more information about
RedisTemplate and its variations (such as StringRedisTemplate) see the Spring Data Redis
documentation.
The following example shows how to create an instance of RedisTemplate in Java:
RedisTemplate rt = new RedisTemplate<String, Object>();
rt.setConnectionFactory(redisConnectionFactory);
The following example shows how to create an instance of RedisTemplate in Spring’s XML
configuration:
<bean id="redisTemplate"
class="org.springframework.data.redis.core.RedisTemplate">
<property name="connectionFactory" ref="redisConnectionFactory"/>
</bean>
27.2 Messaging with Redis
As mentioned in the introduction, Redis provides support for publish-subscribe messaging through its
PUBLISH, SUBSCRIBE, and UNSUBSCRIBE commands. As with JMS and AMQP, Spring Integration
provides message channels and adapters for sending and receiving messages through Redis.
Redis Publish/Subscribe channel
Similarly to JMS, there are cases where both the producer and consumer are intended to be part of
the same application, running within the same process. You can accomplished this by using a pair of
inbound and outbound channel adapters. However, as with Spring Integration’s JMS support, there is
a simpler way to address this use case. You can create a publish-subscribe channel, as the following
example shows:
<int-redis:publish-subscribe-channel id="redisChannel" topic-name="si.test.topic"/>
A publish-subscribe-channel behaves much like a normal <publish-subscribe-channel/
> element from the main Spring Integration namespace. It can be referenced by both the input-
channel and the output-channel attributes of any endpoint. The difference is that this channel
is backed by a Redis topic name: a String value specified by the topic-name attribute. However,
unlike JMS, this topic does not have to be created in advance or even auto-created by Redis. In
Redis, topics are simple String values that play the role of an address. The producer and consumer
can communicate by using the same String value as their topic name. A simple subscription to this
channel means that asynchronous publish-subscribe messaging is possible between the producing
and consuming endpoints. However, unlike the asynchronous message channels created by adding
a <queue/> element within a simple Spring Integration <channel/> element, the messages are not
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 442
stored in an in-memory queue. Instead, those messages are passed through Redis, which lets you rely
on its support for persistence and clustering as well as its interoperability with other non-Java platforms.
Redis Inbound Channel Adapter
The Redis inbound channel adapter (RedisInboundChannelAdapter) adapts incoming Redis
messages into Spring messages in the same way as other inbound adapters. It receives platform-
specific messages (Redis in this case) and converts them to Spring messages by using a
MessageConverter strategy. The following example shows how to configure a Redis inbound channel
adapter:
<int-redis:inbound-channel-adapter id="redisAdapter"
topics="thing1, thing2"
channel="receiveChannel"
error-channel="testErrorChannel"
message-converter="testConverter" />
<bean id="redisConnectionFactory"
class="o.s.data.redis.connection.lettuce.LettuceConnectionFactory">
<property name="port" value="7379" />
</bean>
<bean id="testConverter" class="things.something.SampleMessageConverter" />
The preceding example shows a simple but complete configuration of a Redis inbound channel adapter.
Note that the preceding configuration relies on the familiar Spring paradigm of auto-discovering certain
beans. In this case, the redisConnectionFactory is implicitly injected into the adapter. You can
specify it explicitly by using the connection-factory attribute instead.
Also, note that the preceding configuration injects the adapter with a custom MessageConverter. The
approach is similar to JMS, where MessageConverter instances are used to convert between Redis
messages and the Spring Integration message payloads. The default is a SimpleMessageConverter.
Inbound adapters can subscribe to multiple topic names, hence the comma-separated set of values in
the topics attribute.
Since version 3.0, the inbound adapter, in addition to the existing topics attribute, now has the topic-
patterns attribute. This attribute contains a comma-separated set of Redis topic patterns. For more
information regarding Redis publish-subscribe, see Redis Pub/Sub.
Inbound adapters can use a RedisSerializer to deserialize the body of Redis messages. The
serializer attribute of the <int-redis:inbound-channel-adapter> can be set to an empty
string, which results in a null value for the RedisSerializer property. In this case, the raw byte[]
bodies of Redis messages are provided as the message payloads.
Since version 5.0, you can provide an Executor instance to the inbound adapter by using the task-
executor attribute of the <int-redis:inbound-channel-adapter>. Also, the received Spring
Integration messages now have the RedisHeaders.MESSAGE_SOURCE header to indicate the source
of the published message: topic or pattern. You can use this downstream for routing logic.
Redis Outbound Channel Adapter
The Redis outbound channel adapter adapts outgoing Spring Integration messages into Redis
messages in the same way as other outbound adapters. It receives Spring Integration messages and
converts them to platform-specific messages (Redis in this case) by using a MessageConverter
strategy. The following example shows how to configure a Redis outbound channel adapter:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 443
<int-redis:outbound-channel-adapter id="outboundAdapter"
channel="sendChannel"
topic="thing1"
message-converter="testConverter"/>
<bean id="redisConnectionFactory"
class="o.s.data.redis.connection.lettuce.LettuceConnectionFactory">
<property name="port" value="7379"/>
</bean>
<bean id="testConverter" class="things.something.SampleMessageConverter" />
The configuration parallels the Redis inbound channel adapter. The adapter is implicitly injected with a
RedisConnectionFactory, which is defined with redisConnectionFactory as its bean name.
This example also includes the optional (and custom) MessageConverter (the testConverter
bean).
Since Spring Integration 3.0, the <int-redis:outbound-channel-adapter> offers an alternative
to the topic attribute: You can use the topic-expression attribute to determine the Redis topic for
the message at runtime. These attributes are mutually exclusive.
Redis Queue Inbound Channel Adapter
Spring Integration 3.0 introduced a queue inbound channel adapter to "pop" messages from a Redis
list. By default, it uses "right pop", but you can configure it to use "left pop" instead. The adapter
is message-driven. It uses an internal listener thread and does not use a poller.
The following listing shows all the available attributes for queue-inbound-channel-adapter:
<int-redis:queue-inbound-channel-adapter id="" ❶
channel="" ❷
auto-startup="" ❸
phase="" ❹
connection-factory="" ❺
queue="" ❻
error-channel="" ❼
serializer="" ❽
receive-timeout="" ❾
recovery-interval="" ❿
expect-message="" 11
task-executor="" 12
right-pop=""/> 13
❶The component bean name. If you do not provide the channel attribute, a DirectChannel is
created and registered in the application context with this id attribute as the bean name. In this
case, the endpoint itself is registered with the bean name id plus .adapter. (If the bean name
were thing1, the endpoint is registered as thing1.adapter.)
❷The MessageChannel to which to send Message instances from this Endpoint.
❸A SmartLifecycle attribute to specify whether this endpoint should start automatically after the
application context start or not. It defaults to true.
❹A SmartLifecycle attribute to specify the phase in which this endpoint is started. It defaults to 0.
❺A reference to a RedisConnectionFactory bean. It defaults to redisConnectionFactory.
❻The name of the Redis list on which the queue-based pop operation is performed to get Redis
messages.
❼The MessageChannel to which to send ErrorMessage instances when exceptions
are received from the listening task of the endpoint. By default, the underlying
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 444
MessagePublishingErrorHandler uses the default errorChannel from the application
context.
❽The RedisSerializer bean reference. It can be an empty string, which means no serializer.
In this case, the raw byte[] from the inbound Redis message is sent to the channel as the
Message payload. By default it is a JdkSerializationRedisSerializer.
❾The timeout in milliseconds for pop operation to wait for a Redis message from the queue. The
default is 1 second.
❿The time in milliseconds for which the listener task should sleep after exceptions on the pop
operation, before restarting the listener task.
11 Specifies whether this endpoint expects data from the Redis queue to contain entire Message
instances. If this attribute is set to true, the serializer cannot be an empty string, because
messages require some form of deserialization (JDK serialization by default). Its default is false.
12 A reference to a Spring TaskExecutor (or standard JDK 1.5+ Executor) bean. It is used for the
underlying listening task. It defaults to a SimpleAsyncTaskExecutor.
13 Specifies whether this endpoint should use "right pop" (when true) or "left pop" (when
false) to read messages from the Redis list. If true, the Redis List acts as a FIFO queue when
used with a default Redis queue outbound channel adapter. Set it to false to use with software
that writes to the list with "right push" or to achieve a stack-like message order. Its default is
true. Since version 4.3.
Important
The task-executor has to be configured with more than one thread for processing; otherwise
there is a possible deadlock when the RedisQueueMessageDrivenEndpoint tries to restart
the listener task after an error. The errorChannel can be used to process those errors, to avoid
restarts, but it preferable to not expose your application to the possible deadlock situation. See
Spring Framework Reference Manual for possible TaskExecutor implementations.
Redis Queue Outbound Channel Adapter
Spring Integration 3.0 introduced a queue outbound channel adapter to "push" to a Redis list from
Spring Integration messages. By default, it uses "left push", but you can configure it to use "right
push" instead. The following listing shows all the available attributes for a Redis queue-outbound-
channel-adapter:
<int-redis:queue-outbound-channel-adapter id="" ❶
channel="" ❷
connection-factory="" ❸
queue="" ❹
queue-expression="" ❺
serializer="" ❻
extract-payload="" ❼
left-push=""/> ❽
❶The component bean name. If you do not provide the channel attribute, a DirectChannel is
created and registered in the application context with this id attribute as the bean name. In this
case, the endpoint is registered with a bean name of id plus .adapter. (If the bean name were
thing1, the endpoint is registered as thing1.adapter.)
❷The MessageChannel from which this endpoint receives Message instances.
❸A reference to a RedisConnectionFactory bean. It defaults to redisConnectionFactory.
❹The name of the Redis list on which the queue-based push operation is performed to send Redis
messages. This attribute is mutually exclusive with queue-expression.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 445
❺A SpEL Expression to determine the name of the Redis list. It uses the incoming Message at
runtime as the #root variable. This attribute is mutually exclusive with queue.
❻A RedisSerializer bean reference. It defaults to a JdkSerializationRedisSerializer.
However, for String payloads, a StringRedisSerializer is used, if a serializer reference
is not provided.
❼Specifies whether this endpoint should send only the payload or the entire Message to the Redis
queue. It defaults to true.
❽Specifies whether this endpoint should use "left push" (when true) or "right push" (when
false) to write messages to the Redis list. If true, the Redis list acts as a FIFO queue when
used with a default Redis queue inbound channel adapter. Set it to false to use with software
that reads from the list with "left pop" or to achieve a stack-like message order. It defaults to
true. Since version 4.3.
Redis Application Events
Since Spring Integration 3.0, the Redis module provides an implementation of
IntegrationEvent, which, in turn, is a org.springframework.context.ApplicationEvent.
The RedisExceptionEvent encapsulates exceptions from Redis operations (with
the endpoint being the "source" of the event). For example, the <int-
redis:queue-inbound-channel-adapter/> emits those events after catching
exceptions from the BoundListOperations.rightPop operation. The exception may
be any generic org.springframework.data.redis.RedisSystemException or a
org.springframework.data.redis.RedisConnectionFailureException. Handling these
events with an <int-event:inbound-channel-adapter/> can be useful to determine problems
with background Redis tasks and to take administrative actions.
27.3 Redis Message Store
As described in the Enterprise Integration Patterns (EIP) book, a message store lets you persist
messages. This can be useful when dealing with components that have a capability to buffer
messages (aggregator, resequencer, and others) when reliability is a concern. In Spring Integration, the
MessageStore strategy also provides the foundation for the claim check pattern, which is described
in EIP as well.
Spring Integration’s Redis module provides the RedisMessageStore. The following example shows
how to use it with a aggregator:
<bean id="redisMessageStore" class="o.s.i.redis.store.RedisMessageStore">
<constructor-arg ref="redisConnectionFactory"/>
</bean>
<int:aggregator input-channel="inputChannel" output-channel="outputChannel"
message-store="redisMessageStore"/>
The preceding example is a bean configuration, and it expects a RedisConnectionFactory as a
constructor argument.
By default, the RedisMessageStore uses Java serialization to serialize the message. However, if you
want to use a different serialization technique (such as JSON), you can provide your own serializer by
setting the valueSerializer property of the RedisMessageStore.
Starting with version 4.3.10, the Framework provides Jackson serializer
and deserializer implementations for Message instances and MessageHeaders
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 446
instances — MessageJacksonDeserializer and MessageHeadersJacksonSerializer,
respectively. They have to be configured with the SimpleModule options for the ObjectMapper. In
addition, you should set enableDefaultTyping on the ObjectMapper to add type information for
each serialized complex object. That type information is then used during deserialization. The framework
provides a utility method called JacksonJsonUtils.messagingAwareMapper(), which is already
supplied with all the previously mentioned properties and serializers. To manage JSON serialization in
the RedisMessageStore, you must configure it in a fashion similar to the following example:
RedisMessageStore store = new RedisMessageStore(redisConnectionFactory);
ObjectMapper mapper = JacksonJsonUtils.messagingAwareMapper();
RedisSerializer<Object> serializer = new GenericJackson2JsonRedisSerializer(mapper);
store.setValueSerializer(serializer);
Starting with version 4.3.12, RedisMessageStore supports the prefix option to allow distinguishing
between instances of the store on the same Redis server.
Redis Channel Message Stores
The RedisMessageStore shown earlier maintains each group as a value under a single key
(the group ID). While you can use this to back a QueueChannel for persistence, a specialized
RedisChannelMessageStore is provided for that purpose (since version 4.0). This store uses a LIST
for each channel, LPUSH when sending messages, and RPOP when receiving messages. By default,
this store also uses JDK serialization, but you can modify the value serializer, as described earlier.
We recommend using this store backing channels, instead of using the general RedisMessageStore.
The following example defines a Redis message store and uses it in a channel with a queue:
<bean id="redisMessageStore" class="o.s.i.redis.store.RedisChannelMessageStore">
<constructor-arg ref="redisConnectionFactory"/>
</bean>
<int:channel id="somePersistentQueueChannel">
<int:queue message-store="redisMessageStore"/>
<int:channel>
The keys used to store the data have the form: <storeBeanName>:<channelId> (in the preceding
example, redisMessageStore:somePersistentQueueChannel).
In addition, a subclass RedisChannelPriorityMessageStore is also provided. When you use
this with a QueueChannel, the messages are received in (FIFO) priority order. It uses the standard
IntegrationMessageHeaderAccessor.PRIORITY header and supports priority values (0 - 9).
Messages with other priorities (and messages with no priority) are retrieved in FIFO order after any
messages with priority.
Important
These stores implement only BasicMessageGroupStore and do not implement
MessageGroupStore. They can be used only for situations such as backing a QueueChannel.
27.4 Redis Metadata Store
Spring Integration 3.0 introduced a new Redis-based MetadataStore (see Section 12.5, “Metadata
Store”) implementation. You can use the RedisMetadataStore to maintain the state of a
MetadataStore across application restarts. You can use this new MetadataStore implementation
with adapters such as:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 447
•Feed
•File
•FTP
•SFTP
To instruct these adapters to use the new RedisMetadataStore, declare a Spring bean named
metadataStore. The Feed inbound channel adapter and the feed inbound channel adapter both
automatically pick up and use the declared RedisMetadataStore. The following example shows how
to declare such a bean:
<bean name="metadataStore" class="o.s.i.redis.store.metadata.RedisMetadataStore">
<constructor-arg name="connectionFactory" ref="redisConnectionFactory"/>
</bean>
The RedisMetadataStore is backed by RedisProperties. Interaction with it uses
BoundHashOperations, which, in turn, requires a key for the entire Properties store. In the case
of the MetadataStore, this key plays the role of a region, which is useful in a distributed environment,
when several applications use the same Redis server. By default, this key has a value of MetaData.
Starting with version 4.0, this store implements ConcurrentMetadataStore, letting it be reliably
shared across multiple application instances where only one instance is allowed to store or modify a
key’s value.
Important
You cannot use the RedisMetadataStore.replace() (for example, in the
AbstractPersistentAcceptOnceFileListFilter) with a Redis cluster, since the WATCH
command for atomicity is not currently supported.
27.5 Redis Store Inbound Channel Adapter
The Redis store inbound channel adapter is a polling consumer that reads data from a Redis collection
and sends it as a Message payload. The following example shows how to configure a Redis store
inbound channel adapter:
<int-redis:store-inbound-channel-adapter id="listAdapter"
connection-factory="redisConnectionFactory"
key="myCollection"
channel="redisChannel"
collection-type="LIST" >
<int:poller fixed-rate="2000" max-messages-per-poll="10"/>
</int-redis:store-inbound-channel-adapter>
The preceding example shows how to configure a Redis store inbound channel adapter by using the
store-inbound-channel-adapter element, providing values for various attributes, such as:
•key or key-expression: The name of the key for the collection being used.
•collection-type: An enumeration of the collection types supported by this adapter. The supported
Collections are LIST, SET, ZSET, PROPERTIES, and MAP.
•connection-factory: Reference to an instance of
o.s.data.redis.connection.RedisConnectionFactory.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 448
•redis-template: Reference to an instance of o.s.data.redis.core.RedisTemplate.
• Other attributes that are common across all other inbound adapters (such as channel).
Note
You cannot set both redis-template and connection-factory.
Important
By default, the adapter uses a StringRedisTemplate. This uses StringRedisSerializer
instances for keys, values, hash keys, and hash values. If your Redis store contains objects
that are serialized with other techniques, you must supply a RedisTemplate configured with
appropriate serializers. For example, if the store is written to using a Redis store outbound adapter
that has its extract-payload-elements set to false, you must provide a RedisTemplate
configured as follows:
<bean id="redisTemplate" class="org.springframework.data.redis.core.RedisTemplate">
<property name="connectionFactory" ref="redisConnectionFactory"/>
<property name="keySerializer">
<bean class="org.springframework.data.redis.serializer.StringRedisSerializer"/>
</property>
<property name="hashKeySerializer">
<bean class="org.springframework.data.redis.serializer.StringRedisSerializer"/>
</property>
</bean>
Th RedisTemplate uses String serializers for keys and hash keys and the default JDK
Serialization serializers for values and hash values.
Because it has a literal value for the key, the preceding example is relatively simple and static.
Sometimes, you may need to change the value of the key at runtime based on some condition. To do
so, use key-expression instead, where the provided expression can be any valid SpEL expression.
Also, you may wish to perform some post-processing on the successfully processed data that was
read from the Redis collection. For example, you may want to move or remove the value after its been
processed. You can do so by using the transaction synchronization feature that was added with Spring
Integration 2.2. The following example uses key-expression and transaction synchronization:
<int-redis:store-inbound-channel-adapter id="zsetAdapterWithSingleScoreAndSynchronization"
connection-factory="redisConnectionFactory"
key-expression="'presidents'"
channel="otherRedisChannel"
auto-startup="false"
collection-type="ZSET">
<int:poller fixed-rate="1000" max-messages-per-poll="2">
<int:transactional synchronization-factory="syncFactory"/>
</int:poller>
</int-redis:store-inbound-channel-adapter>
<int:transaction-synchronization-factory id="syncFactory">
<int:after-commit expression="payload.removeByScore(18, 18)"/>
</int:transaction-synchronization-factory>
<bean id="transactionManager" class="o.s.i.transaction.PseudoTransactionManager"/>
You can declare your poller to be transactional by using a transactional element.
This element can reference a real transaction manager (for example, if some other part
of your flow invokes JDBC). If you do not have a "real" transaction, you can use an
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 449
o.s.i.transaction.PseudoTransactionManager, which is an implementation of Spring’s
PlatformTransactionManager and enables the use of the transaction synchronization features of
the Redis adapter when there is no actual transaction.
Important
This does not make the Redis activities themselves transactional. It lets the synchronization of
actions be taken before or after success (commit) or after failure (rollback).
Once your poller is transactional, you can set an instance of the
o.s.i.transaction.TransactionSynchronizationFactory on the transactional
element. TransactionSynchronizationFactory creates an instance of the
TransactionSynchronization. For your convenience, we have exposed a default SpEL-based
TransactionSynchronizationFactory, which lets you configure SpEL expressions, with their
execution being coordinated (synchronized) with a transaction. Expressions for before-commit, after-
commit, and after-rollback are supported, together with channels (one for each kind of event) where the
evaluation result (if any) is sent. For each child element, you can specify expression and channel
attributes. If only the channel attribute is present, the received message is sent there as part of the
particular synchronization scenario. If only the expression attribute is present and the result of an
expression is a non-null value, a message with the result as the payload is generated and sent to a
default channel (NullChannel) and appears in the logs (at the DEBUG level). If you want the evaluation
result to go to a specific channel, add a channel attribute. If the result of an expression is null or void,
no message is generated.
For more information about transaction synchronization, see Section C.3, “Transaction
Synchronization”.
27.6 RedisStore Outbound Channel Adapter
The RedisStore outbound channel adapter lets you write a message payload to a Redis collection, as
the following example shows:
<int-redis:store-outbound-channel-adapter id="redisListAdapter"
collection-type="LIST"
channel="requestChannel"
key="myCollection" />
The preceding configuration a Redis store outbound channel adapter by using the store-inbound-
channel-adapter element. It provides values for various attributes, such as:
•key or key-expression: The name of the key for the collection being used.
•extract-payload-elements: If set to true (the default) and the payload is an instance of a
"multi-value" object (that is, a Collection or a Map), it is stored by using "addAll" and "putAll"
semantics. Otherwise, if set to false, the payload is stored as a single entry regardless of its type.
If the payload is not an instance of a "multi-value" object, the value of this attribute is ignored and
the payload is always stored as a single entry.
•collection-type: An enumeration of the Collection types supported by this adapter. The
supported Collections are LIST, SET, ZSET, PROPERTIES, and MAP.
•map-key-expression: SpEL expression that returns the name of the key for the entry being stored.
It applies only if the collection-type is MAP or PROPERTIES and extract-payload-elements is
false.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 450
•connection-factory: Reference to an instance of
o.s.data.redis.connection.RedisConnectionFactory.
•redis-template: Reference to an instance of o.s.data.redis.core.RedisTemplate.
• Other attributes that are common across all other inbound adapters (such as channel).
Note
You cannot set both redis-template and connection-factory.
Important
By default, the adapter uses a StringRedisTemplate. This uses StringRedisSerializer
instances for keys, values, hash keys, and hash values. However, if extract-payload-
elements is set to false, a RedisTemplate that has StringRedisSerializer instances
for keys and hash keys and JdkSerializationRedisSerializer instances s for values
and hash values will be used. With the JDK serializer, it is important to understand that Java
serialization is used for all values, regardless of whether the value is actually a collection or
not. If you need more control over the serialization of values, consider providing your own
RedisTemplate rather than relying upon these defaults.
Because it has literal values for the key and other attributes, the preceding example is relatively simple
and static. Sometimes, you may need to change the values dynamically at runtime based on some
condition. To do so, use their -expression equivalents (key-expression, map-key-expression,
and so on), where the provided expression can be any valid SpEL expression.
27.7 Redis Outbound Command Gateway
Spring Integration 4.0 introduced the Redis command gateway to let you perform any standard Redis
command by using the generic RedisConnection#execute method. The following listing shows the
available attributes for the Redis outbound gateway:
<int-redis:outbound-gateway
request-channel="" ❶
reply-channel="" ❷
requires-reply="" ❸
reply-timeout="" ❹
connection-factory="" ❺
redis-template="" ❻
arguments-serializer="" ❼
command-expression="" ❽
argument-expressions="" ❾
use-command-variable="" ❿
arguments-strategy="" /> 11
❶The MessageChannel from which this endpoint receives Message instances.
❷The MessageChannel where this endpoint sends reply Message instances.
❸Specifies whether this outbound gateway must return a non-null value. It defaults to true. A
ReplyRequiredException is thrown when Redis returns a null value.
❹The timeout (in milliseconds) to wait until the reply message is sent. It is typically applied for queue-
based limited reply-channels.
❺A reference to a RedisConnectionFactory bean. It defaults to redisConnectionFactory.
It is mutually exclusive with redis-template attribute.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 451
❻A reference to a RedisTemplate bean. It is mutually exclusive with connection-factory attribute.
❼A reference to an instance of
org.springframework.data.redis.serializer.RedisSerializer. It is used to
serialize each command argument to byte[], if necessary.
❽The SpEL expression that returns the command key. It defaults to the redis_command message
header. It must not evaluate to null.
❾Comma-separated SpEL expressions that are evaluated as command arguments. Mutually
exclusive with the arguments-strategy attribute. If you provide neither attribute, the payload
is used as the command arguments. The argument expressions can evaluate to null to support a
variable number of arguments.
❿A boolean flag to specify whether the evaluated Redis command string is
made available as the #cmd variable in the expression evaluation context
in the o.s.i.redis.outbound.ExpressionArgumentsStrategy when argument-
expressions is configured. Otherwise this attribute is ignored.
11 Reference to an instance of o.s.i.redis.outbound.ArgumentsStrategy. It is mutually
exclusive with argument-expressions attribute. If you provide neither attribute, the payload
is used as the command arguments.
You can use the <int-redis:outbound-gateway> as a common component to perform any desired
Redis operation. For example, the following examlpe shows how to get incremented values from Redis
atomic number:
<int-redis:outbound-gateway request-channel="requestChannel"
reply-channel="replyChannel"
command-expression="'INCR'"/>
The Message payload should have a name of redisCounter, which may be
provided by org.springframework.data.redis.support.atomic.RedisAtomicInteger
bean definition.
The RedisConnection#execute method has a generic Object as its return type. Real result
depends on command type. For example, MGET returns a List<byte[]>. For more information about
commands, their arguments and result type, see Redis Specification.
27.8 Redis Queue Outbound Gateway
Spring Integration introduced the Redis queue outbound gateway to perform request and reply
scenarios. It pushes a conversation UUID to the provided queue, pushes the value with that UUID as
its key to a Redis list, and waits for the reply from a Redis list with a key of UUID' plus '.reply.
A different UUID is used for each interaction. The following listing shows the available attributes for a
Redis outbound gateway:
<int-redis:queue-outbound-gateway
request-channel="" ❶
reply-channel="" ❷
requires-reply="" ❸
reply-timeout="" ❹
connection-factory="" ❺
queue="" ❻
order="" ❼
serializer="" ❽
extract-payload=""/> ❾
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 452
❶The MessageChannel from which this endpoint receives Message instances.
❷The MessageChannel where this endpoint sends reply Message instances.
❸Specifies whether this outbound gateway must return a non-null value. This value is false by
default. Otherwise, a ReplyRequiredException is thrown when Redis returns a null value.
❹The timeout (in milliseconds) to wait until the reply message is sent. It is typically applied for queue-
based limited reply-channels.
❺A reference to a RedisConnectionFactory bean. It defaults to redisConnectionFactory.
It is mutually exclusive with the redis-template attribute.
❻The name of the Redis list to which the outbound gateway sends a conversation UUID.
❼The order of this outbound gateway when multiple gateways are registered.
❽The RedisSerializer bean reference. It can be an empty string, which means "no
serializer". In this case, the raw byte[] from the inbound Redis message is sent to the
channel as the Message payload. By default, it is a JdkSerializationRedisSerializer.
❾Specifies whether this endpoint expects data from the Redis queue to contain entire Message
instances. If this attribute is set to true, the serializer cannot be an empty string, because
messages require some form of deserialization (JDK serialization by default).
27.9 Redis Queue Inbound Gateway
Spring Integration 4.1 introduced the Redis queue inbound gateway to perform request and reply
scenarios. It pops a conversation UUID from the provided queue, pops the value with that UUID as its
key from the Redis list, and pushes the reply to the Redis list with a key of UUID plus .reply. The
following listing shows the available attributes for a Redis queue inbound gateway:
<int-redis:queue-inbound-gateway
request-channel="" ❶
reply-channel="" ❷
executor="" ❸
reply-timeout="" ❹
connection-factory="" ❺
queue="" ❻
order="" ❼
serializer="" ❽
receive-timeout="" ❾
expect-message="" ❿
recovery-interval=""/> 11
❶The MessageChannel from which this endpoint receives Message instances.
❷The MessageChannel where this endpoint sends reply Message instances.
❸A reference to a Spring TaskExecutor (or a standard JDK 1.5+ Executor) bean. It is used for
the underlying listening task. It defaults to a SimpleAsyncTaskExecutor.
❹The timeout (in milliseconds) to wait until the reply message is sent. It is typically applied for queue-
based limited reply-channels.
❺A reference to a RedisConnectionFactory bean. It defaults to redisConnectionFactory.
It is mutually exclusive with redis-template attribute.
❻The name of the Redis list for the conversation UUID.
❼The order of this inbound gateway when multiple gateways are registered.
❽The RedisSerializer bean reference. It can be an empty string, which means "no
serializer". In this case, the raw byte[] from the inbound Redis message is sent to the
channel as the Message payload. It default to a JdkSerializationRedisSerializer. (Note
that, in releases before version 4.3, it was a StringRedisSerializer by default. To restore
that behavior, provide a reference to a StringRedisSerializer).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 453
❾The timeout (in milliseconds) to wait until the receive message is fetched. It is typically applied for
queue-based limited request-channels.
❿Specifies whether this endpoint expects data from the Redis queue to contain entire Message
instances. If this attribute is set to true, the serializer cannot be an empty string, because
messages require some form of deserialization (JDK serialization by default).
11 The time (in milliseconds) the listener task should sleep after exceptions on the "right pop"
operation before restarting the listener task.
Important
The task-executor has to be configured with more than one thread for processing; otherwise
there is a possible deadlock when the RedisQueueMessageDrivenEndpoint tries to restart
the listener task after an error. The errorChannel can be used to process those errors, to avoid
restarts, but it preferable to not expose your application to the possible deadlock situation. See
Spring Framework Reference Manual for possible TaskExecutor implementations.
27.10 Redis Lock Registry
Spring Integration 4.0 introduced the RedisLockRegistry. Certain components (for example,
aggregator and resequencer) use a lock obtained from a LockRegistry instance to ensure that only
one thread manipulates a group at a time. The DefaultLockRegistry performs this function within
a single component. You can now configure an external lock registry on these components. When you
use it with a shared MessageGroupStore, you can use the RedisLockRegistry to provide this
functionality across multiple application instances, such that only one instance can manipulate the group
at a time.
When a lock is released by a local thread, another local thread can generally acquire the lock
immediately. If a lock is released by a thread using a different registry instance, it can take up to 100ms
to acquire the lock.
To avoid "hung" locks (when a server fails), the locks in this registry are expired after a default 60
seconds, but you can configure this value on the registry. Locks are normally held for a much smaller
time.
Important
Because the keys can expire, an attempt to unlock an expired lock results in an exception being
thrown. However, the resources protected by such a lock may have been compromised, so such
exceptions should be considered to be severe. You should set the expiry at a large enough value
to prevent this condition, but set it low enough that the lock can be recovered after a server failure
in a reasonable amount of time.
Starting with version 5.0, the RedisLockRegistry implements ExpirableLockRegistry, which
removes locks last acquired more than age ago and that are not currently locked.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 454
28. Resource Support
The resource inbound channel adapter builds upon Spring’s Resource abstraction to support greater
flexibility across a variety of actual types of underlying resources, such as a file, a URL, or a class path
resource. Therefore, it is similar to but more generic than the file inbound channel adapter.
28.1 Resource Inbound Channel Adapter
The resource inbound channel adapter is a polling adapter that creates a Message whose payload is
a collection of Resource objects.
Resource objects are resolved based on the pattern specified by the pattern attribute. The collection
of resolved Resource objects is then sent as a payload within a Message to the adapter’s channel. That
is one major difference between resource inbound channel adapter and file inbound channel adapter:
The latter buffers File objects and sends a single File object per Message.
The following example shows a simple configuration that finds all files that end with the properties
extension in the things.thing1 package available on the classpath and sends them as the payload
of a Message to the channel named resultChannel:
<int:resource-inbound-channel-adapter id="resourceAdapter"
channel="resultChannel"
pattern="classpath:things/thing1/*.properties">
<int:poller fixed-rate="1000"/>
</int:resource-inbound-channel-adapter>
The resource inbound channel adapter relies on the
org.springframework.core.io.support.ResourcePatternResolver strategy interface to
resolve the provided pattern. It defaults to an instance of the current ApplicationContext.
However, you can provide a reference to an instance of your own implementation of
ResourcePatternResolver by setting the pattern-resolver attribute, as the following example
shows:
<int:resource-inbound-channel-adapter id="resourceAdapter"
channel="resultChannel"
pattern="classpath:things/thing1/*.properties"
pattern-resolver="myPatternResolver">
<int:poller fixed-rate="1000"/>
</int:resource-inbound-channel-adapter>
<bean id="myPatternResolver" class="org.example.MyPatternResolver"/>
You may have a use case where you need to further filter the collection of resources
resolved by the ResourcePatternResolver. For example, you may want to prevent resources
that were already resolved from appearing in a collection of resolved resources ever again.
On the other hand, your resources might be updated rather often and you do want them
to be picked up again. In other words, both defining an additional filter and disabling
filtering altogether are valid use cases. You can provide your own implementation of the
org.springframework.integration.util.CollectionFilter strategy interface, as the
following example shows:
public interface CollectionFilter<T> {
Collection<T> filter(Collection<T> unfilteredElements);
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 455
The CollectionFilter receives a collection of un-filtered elements (which are Resource objects in
the preceding example), and it returns a collection of filtered elements of that same type.
If you define the adapter with XML but you do not specify a filter reference, the resource inbound channel
adapter uses a default implementation of CollectionFilter. The implementation class of that
default filter is org.springframework.integration.util.AcceptOnceCollectionFilter. It
remembers the elements passed in the previous invocation in order to avoid returning those elements
more than once.
To inject your own implementation of CollectionFilter instead, use the filter attribute, as the
following example shows:
<int:resource-inbound-channel-adapter id="resourceAdapter"
channel="resultChannel"
pattern="classpath:things/thing1/*.properties"
filter="myFilter">
<int:poller fixed-rate="1000"/>
</int:resource-inbound-channel-adapter>
<bean id="myFilter" class="org.example.MyFilter"/>
If you do not need any filtering and want to disable even the default CollectionFilter strategy,
provide an empty value for the filter attribute (for example, filter="")
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 456
29. RMI Support
This chapter explains how to use channel adapters that are specific to RMI (Remote Method Invocation)
to distribute a system over multiple JVMs. The first section deals with sending messages over RMI. The
second section shows how to receive messages over RMI. The last section shows how to define RMI
channel adapters by using the namespace support.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-rmi</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-rmi:5.1.1.RELEASE"
29.1 Outbound RMI
To send messages from a channel over RMI, you can define an RmiOutboundGateway. This gateway
uses Spring’s RmiProxyFactoryBean internally to create a proxy for a remote gateway. Note that,
to invoke a remote interface that does not use Spring Integration, you should use a service activator in
combination with Spring’s RmiProxyFactoryBean.
To configure the outbound gateway, you can write a bean definition similar the following:
<bean id="rmiOutGateway" class=org.spf.integration.rmi.RmiOutboundGateway>
<constructor-arg value="rmi://host"/>
<property name="replyChannel" value="replies"/>
</bean>
29.2 Inbound RMI
To receive messages over RMI, you need to use an RmiInboundGateway. You can configure the
gateway as shown in the following example:
<bean id="rmiInGateway" class=org.spf.integration.rmi.RmiInboundGateway>
<property name="requestChannel" value="requests"/>
</bean>
Important
If you use an errorChannel on an inbound gateway, it the error flow normally returns a result or
throws an exception. This is because it is likely that there is a corresponding outbound gateway
waiting for a response of some kind. Consuming a message on the error flow and not replying
results in no reply for the inbound gateway. Exceptions (on the main flow when there is no
errorChannel or on the error flow) propagate to the corresponding inbound gateway.
29.3 RMI namespace support
To configure the inbound gateway, you can use the namespace support for it. The following code snippet
shows the different configuration options that are supported:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 457
<int-rmi:inbound-gateway id="gatewayWithDefaults" request-channel="testChannel"/>
<int-rmi:inbound-gateway id="gatewayWithCustomProperties" request-channel="testChannel"
expect-reply="false" request-timeout="123" reply-timeout="456"/>
<int-rmi:inbound-gateway id="gatewayWithHost" request-channel="testChannel"
registry-host="localhost"/>
<int-rmi:inbound-gateway id="gatewayWithPort" request-channel="testChannel"
registry-port="1234" error-channel="rmiErrorChannel"/>
<int-rmi:inbound-gateway id="gatewayWithExecutorRef" request-channel="testChannel"
remote-invocation-executor="invocationExecutor"/>
You can also use the namespace support to configure the outbound gateway. The following code snippet
shows the different configuration for an outbound RMI gateway:
<int-rmi:outbound-gateway id="gateway"
request-channel="localChannel"
remote-channel="testChannel"
host="localhost"/>
29.4 Configuring with Java Configuration
The following example shows how to configure an inbound gateway and an outbound gateway with Java:
@Bean
public RmiInboundGateway inbound() {
RmiInboundGateway gateway = new RmiInboundGateway();
gateway.setRequestChannel(requestChannel());
gateway.setRegistryHost("host");
gateway.setRegistryPort(port);
return gateway;
}
@Bean
@ServiceActivator(inputChannel="inChannel")
public RmiOutboundGateway outbound() {
RmiOutboundGateway gateway = new RmiOutboundGateway("rmi://host:port/"
+ RmiInboundGateway.SERVICE_NAME_PREFIX + "remoteChannelName");
return gateway;
}
As of version 4.3, the outbound gateway has a second constructor that takes an
RmiProxyFactoryBeanConfigurer instance, along with the service url argument. It allows
further configuration before the proxy is created — for example, to inject a Spring Security
ContextPropagatingRemoteInvocationFactory, as the following example shows:
@Bean
@ServiceActivator(inputChannel="inChannel")
public RmiOutboundGateway outbound() {
RmiOutboundGateway gateway = new RmiOutboundGateway("rmi://host:port/"
+ RmiInboundGateway.SERVICE_NAME_PREFIX + "remoteChannelName",
pfb -> {
pfb.setRemoteInvocationFactory(new ContextPropagatingRemoteInvocationFactory());
});
return gateway;
}
Starting with version 5.0, you can set this with the XML namespace by using the configurer attribute.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 458
30. SFTP Adapters
Spring Integration provides support for file transfer operations over SFTP.
The Secure File Transfer Protocol (SFTP) is a network protocol that lets you transfer files between two
computers on the Internet over any reliable stream.
The SFTP protocol requires a secure channel, such as SSH, and visibility to a client’s identity throughout
the SFTP session.
Spring Integration supports sending and receiving files over SFTP by providing three client side
endpoints: inbound channel adapter, outbound channel adapter, and outbound gateway. It also provides
convenient namespace configuration to define these client components.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-sftp</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-sftp:5.1.1.RELEASE"
To include the SFTP namespace in your xml configuration, include the following attributes on the root
element:
xmlns:int-sftp="http://www.springframework.org/schema/integration/sftp"
xsi:schemaLocation="http://www.springframework.org/schema/integration/sftp
http://www.springframework.org/schema/integration/sftp/spring-integration-sftp.xsd"
30.1 SFTP Session Factory
Important
As of version 3.0, sessions are no longer cached by default. See Section 30.4, “SFTP Session
Caching”.
Before configuring SFTP adapters, you must configure an SFTP session factory. You can configure the
SFTP session factory with a regular bean definition, as the following example shows:
<beans:bean id="sftpSessionFactory"
class="org.springframework.integration.sftp.session.DefaultSftpSessionFactory">
<beans:property name="host" value="localhost"/>
<beans:property name="privateKey" value="classpath:META-INF/keys/sftpTest"/>
<beans:property name="privateKeyPassphrase" value="springIntegration"/>
<beans:property name="port" value="22"/>
<beans:property name="user" value="kermit"/>
</beans:bean>
Every time an adapter requests a session object from its SessionFactory, a new SFTP session is
created. Under the covers, the SFTP Session Factory relies on the JSch library to provide the SFTP
capabilities.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 459
However, Spring Integration also supports the caching of SFTP sessions. See Section 30.4, “SFTP
Session Caching” for more information.
Important
JSch supports multiple channels (operations) over a connection to the server. By default, the
Spring Integration session factory uses a separate physical connection for each channel. Since
Spring Integration 3.0, you can configure the session factory (using a boolean constructor arg -
default false) to use a single connection to the server and create multiple JSch channels on
that single connection.
When using this feature, you must wrap the session factory in a caching session factory, as
described later, so that the connection is not physically closed when an operation completes.
If the cache is reset, the session is disconnected only when the last channel is closed.
The connection is refreshed if it is found to be disconnected when a new operation obtains a
session.
Note
If you experience connectivity problems and would like to trace session creation and see
which sessions are polled, you may enable tracing by setting the logger to TRACE level (for
example, log4j.category.org.springframework.integration.sftp=TRACE). See
Section 30.12, “SFTP/JSCH Logging”.
Now all you need to do is inject this SFTP session factory into your adapters.
Note
A more practical way to provide values for the SFTP session factory is to use Spring’s property
placeholder support.
Configuration Properties
The following list describes all the properties that are exposed by the DefaultSftpSessionFactory.
isSharedSession (constructor argument)::When true, a single connection is used, and JSch
Channels are multiplexed. It defaults to false.
clientVersion::Lets you set the client version property. It’s default depends on the underlying JSch
version but it will look like:_SSH-2.0-JSCH-0.1.45_
enableDaemonThread::If true, all threads are daemon threads. If set to false, normal non-daemon
threads are used instead. This property is set on the underlying session. There, this property defaults
to false.
host::The URL of the host to which you want to connect. Required.
hostKeyAlias::Sets the host key alias, which is used when comparing the host key to the known
hosts list.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 460
knownHosts::Specifies the filename that used for a host key repository. The file has the same format
as OpenSSH’s known_hosts file and is required and must be pre-populated if allowUnknownKeys
is false.
password::The password to authenticate against the remote host. If a password is not provided, then
the privateKey property is required. It is not allowed if you set userInfo. The password is obtained
from that object.
port::The port over which the SFTP connection shall be established. If not specified, this value defaults
to 22. If specified, this properties must be a positive number.
privateKey::Lets you set a resource that represents the location of the private key used for
authenticating against the remote host. If the privateKey is not provided, then the password property
is required.
privateKeyPassphrase::The password for the private key. If you set userInfo,
privateKeyPassphrase is not allowed . The passphrase is obtained from that object. Optional.
proxy::Allows for specifying a JSch-based proxy. If set, the proxy object is used to create the connection
to the remote host through the proxy. See Section 30.2, “Proxy Factory Bean” for a convenient way to
configure the proxy.
serverAliveCountMax::Specifies the number of server-alive messages, which are sent without any
reply from the server before disconnecting. If not set, this property defaults to 1.
serverAliveInterval::Sets the timeout interval (in milliseconds) before a server-alive message is
sent, in case no message is received from the server.
sessionConfig::By using Properties, you can set additional configuration setting on the underlying
JSch Session.
socketFactory:Lets you pass in a SocketFactory. The socket factory is used to create a socket
to the target host. When a proxy is used, the socket factory is passed to the proxy. By default, plain
TCP sockets are used.
timeout::The timeout property is used as the socket timeout parameter, as well as the default
connection timeout. Defaults to 0, which means, that no timeout will occur.
user::The remote user to use. Required.
allowUnknownKeys::Set to true to allow connections to hosts with unknown (or changed) keys. Its
default is false. It is applied only if no userInfo is provided. If false, a pre-populated knownHosts
file is required.
userInfo::Set a custom UserInfo to be used during authentication. In particular, promptYesNo()
is invoked when an unknown (or changed) host key is received. See also allowUnknownKeys. When
you provide a UserInfo, the password and private key passphrase are obtained from it, and you
cannot set discrete password and privateKeyPassprase properties.
30.2 Proxy Factory Bean
Jsch provides a mechanism to connect to the server over an HTTP or SOCKS proxy. To use this feature,
configure the Proxy and provide a reference to the DefaultSftpSessionFactory, as discussed
earlier. Three implementations are provided by Jsch: HTTP, SOCKS4, and SOCKS5. Spring Integration
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 461
4.3 introduced a FactoryBean, easing configuration of these proxies by allowing property injection,
as the following example shows:
<bean id="proxySocks5" class="org.springframework.integration.sftp.session.JschProxyFactoryBean">
<constructor-arg value="SOCKS5" />
<constructor-arg value="${sftp.proxy.address}" />
<constructor-arg value="${sftp.proxy.port}" />
<constructor-arg value="${sftp.proxy.user}" />
<constructor-arg value="${sftp.proxy.pw}" />
</bean>
<bean id="sessionFactory"
class="org.springframework.integration.sftp.session.DefaultSftpSessionFactory" >
...
<property name="proxy" ref="proxySocks5" />
...
</bean>
30.3 Delegating Session Factory
Version 4.2 introduced the DelegatingSessionFactory, which allows the selection of the actual
session factory at runtime. Prior to invoking the FTP endpoint, you can call setThreadKey() on the
factory to associate a key with the current thread. That key is then used to look up the actual session
factory to be used. You can clear the key by calling clearThreadKey() after use.
We added convenience methods so that you can more easily do so from a message flow, as the following
example shows:
<bean id="dsf" class="org.springframework.integration.file.remote.session.DelegatingSessionFactory">
<constructor-arg>
<bean class="o.s.i.file.remote.session.DefaultSessionFactoryLocator">
<!-- delegate factories here -->
</bean>
</constructor-arg>
</bean>
<int:service-activator input-channel="in" output-channel="c1"
expression="@dsf.setThreadKey(#root, headers['factoryToUse'])" />
<int-sftp:outbound-gateway request-channel="c1" reply-channel="c2" ... />
<int:service-activator input-channel="c2" output-channel="out"
expression="@dsf.clearThreadKey(#root)" />
Important
When using session caching (see Section 30.4, “SFTP Session Caching”), each of the delegates
should be cached. You cannot cache the DelegatingSessionFactory itself.
Starting with version 5.0.7, the DelegatingSessionFactory can be used in conjunction with a
RotatingServerAdvice to poll multiple servers; see Section 30.8, “Inbound Channel Adapters:
Polling Multiple Servers and Directories”.
30.4 SFTP Session Caching
Important
Starting with Spring Integration version 3.0, sessions are no longer cached by default. The cache-
sessions attribute is no longer supported on endpoints. If you wish to cache sessions, you must
use a CachingSessionFactory (see the next example).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 462
In versions prior to 3.0, the sessions were automatically cached by default. A cache-sessions
attribute was available for disabling the auto caching, but that solution did not provide a way to configure
other session-caching attributes. For example, you could not limit on the number of sessions created.
To support that requirement and other configuration options, we added a CachingSessionFactory.
It provides sessionCacheSize and sessionWaitTimeout properties. As its name suggests, the
sessionCacheSize property controls how many active sessions the factory maintains in its cache (the
default is unbounded). If the sessionCacheSize threshold has been reached, any attempt to acquire
another session blocks until either one of the cached sessions becomes available or until the wait time
for a session expires (the default wait time is Integer.MAX_VALUE). The sessionWaitTimeout
property enables configuration of the wait time.
If you want your sessions to be cached, configure your default session factory (as described earlier)
and then wrap it in an instance of CachingSessionFactory where you may provide those additional
properties. The following example shows how to do so:
<bean id="sftpSessionFactory"
class="org.springframework.integration.sftp.session.DefaultSftpSessionFactory">
<property name="host" value="localhost"/>
</bean>
<bean id="cachingSessionFactory"
class="org.springframework.integration.file.remote.session.CachingSessionFactory">
<constructor-arg ref="sftpSessionFactory"/>
<constructor-arg value="10"/>
<property name="sessionWaitTimeout" value="1000"/>
</bean>
The preceding example creates a CachingSessionFactory with its sessionCacheSize set to 10
and its sessionWaitTimeout set to one second (1000 milliseconds).
Starting with Spring Integration version 3.0, the CachingConnectionFactory provides a
resetCache() method. When invoked, all idle sessions are immediately closed and in-use sessions
are closed when they are returned to the cache. When using isSharedSession=true, the channel is
closed and the shared session is closed only when the last channel is closed. New requests for sessions
establish new sessions as necessary.
Starting with version 5.1, the CachingSessionFactory has a new property testSession. When
true, the session will be tested by performing a stat(getHome()) command to ensure it is still active;
if not, it will be removed from the cache; a new session is created if no active sessions are in the cache.
30.5 Using RemoteFileTemplate
Spring Integration version 3.0 provides a new abstraction over the SftpSession object. The template
provides methods to send, retrieve (as an InputStream), remove, and rename files. In addition, we
provide an execute method to let the caller run multiple operations on the session. In all cases,
the template takes care of reliably closing the session. For more information, see the Javadoc for
RemoteFileTemplate There is a subclass for SFTP: SftpRemoteFileTemplate.
We added additional methods in version 4.1, including getClientInstance(). It provides access to
the underlying ChannelSftp, which enables access to low-level APIs.
Version 5.0 introduced the RemoteFileOperations.invoke(OperationsCallback<F, T>
action) method. This method lets several RemoteFileOperations calls be called in the
scope of the same thread-bounded Session. This is useful when you need to perform
several high-level operations of the RemoteFileTemplate as one unit of work. For example,
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 463
AbstractRemoteFileOutboundGateway uses it with the mput command implementation, where
we perform a put operation for each file in the provided directory and recursively for its sub-directories.
See the Javadoc for more information.
30.6 SFTP Inbound Channel Adapter
The SFTP inbound channel adapter is a special listener that connects to the server and listens for the
remote directory events (such as a new file being created), at which point it initiates a file transfer. The
following example shows how to configure an SFTP inbound channel adapter:
<int-sftp:inbound-channel-adapter id="sftpAdapterAutoCreate"
session-factory="sftpSessionFactory"
channel="requestChannel"
filename-pattern="*.txt"
remote-directory="/foo/bar"
preserve-timestamp="true"
local-directory="file:target/foo"
auto-create-local-directory="true"
local-filename-generator-expression="#this.toUpperCase() + '.a'"
scanner="myDirScanner"
local-filter="myFilter"
temporary-file-suffix=".writing"
max-fetch-size="-1"
delete-remote-files="false">
<int:poller fixed-rate="1000"/>
</int-sftp:inbound-channel-adapter>
The preceding configuration example shows how to provide values for various attributes, including the
following:
•local-directory: The location to which files are going to be transferred
•remote-directory: The remote source directory from which files are going to be transferred
•session-factory: A reference to the bean we configured earlier
By default, the transferred file carries the same name as the original file. If you want to override
this behavior, you can set the local-filename-generator-expression attribute, which lets you
provide a SpEL expression to generate the name of the local file. Unlike outbound gateways and
adapters, where the root object of the SpEL evaluation context is a Message, this inbound adapter
does not yet have the message at the time of evaluation, since that is what it ultimately generates with
the transferred file as its payload. Consequently, the root object of the SpEL evaluation context is the
original name of the remote file (a String).
The inbound channel adapter first retrieves the file to a local directory and then emits each file according
to the poller configuration. Starting with version 5.0, you can limit the number of files fetched from the
FTP server when new file retrievals are needed. This can be beneficial when the target files are large
or when running in a clustered system with a persistent file list filter, discussed later in this section. Use
max-fetch-size for this purpose. A negative value (the default) means no limit and all matching files
are retrieved. See Section 30.9, “Inbound Channel Adapters: Controlling Remote File Fetching” for more
information. Since version 5.0, you can also provide a custom DirectoryScanner implementation to
the inbound-channel-adapter by setting the scanner attribute.
Starting with Spring Integration 3.0, you can specify the preserve-timestamp attribute (the default
is false). When true, the local file’s modified timestamp is set to the value retrieved from the server.
Otherwise, it is set to the current time.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 464
Starting with version 4.2, you can specify remote-directory-expression instead of remote-
directory, which lets you dynamically determine the directory on each poll — for example, remote-
directory-expression="@myBean.determineRemoteDir()".
Sometimes, file filtering based on the simple pattern specified via filename-pattern attribute
might not suffice. If this is the case, you can use the filename-regex attribute to specify a
regular expression (for example, filename-regex=".*\.test$"). If you need complete control,
you can use the filter attribute to provide a reference to a custom implementation of the
org.springframework.integration.file.filters.FileListFilter, which is a strategy
interface for filtering a list of files. This filter determines which remote files are retrieved. You can also
combine a pattern-based filter with other filters (such as an AcceptOnceFileListFilter, to avoid
synchronizing files that have previously been fetched) by using a CompositeFileListFilter.
The AcceptOnceFileListFilter stores its state in memory. If you wish the state to survive a system
restart, consider using the SftpPersistentAcceptOnceFileListFilter instead. This filter stores
the accepted file names in an instance of the MetadataStore strategy (see Section 12.5, “Metadata
Store”). This filter matches on the filename and the remote modified time.
Since version 4.0, this filter requires a ConcurrentMetadataStore. When used with a shared data
store (such as Redis with the RedisMetadataStore), this lets filter keys be shared across multiple
application or server instances.
Starting with version 5.0, the SftpPersistentAcceptOnceFileListFilter with an in-memory
SimpleMetadataStore is applied by default for the SftpInboundFileSynchronizer. This filter
is also applied, together with the regex or pattern option in the XML configuration, as well as through
FtpInboundChannelAdapterSpec in Java DSL. You can handle any other use-cases by using
CompositeFileListFilter (or ChainFileListFilter).
The above discussion refers to filtering the files before retrieving them. Once the files have
been retrieved, an additional filter is applied to the files on the file system. By default, this is
an`AcceptOnceFileListFilter`, which, as discussed in this section, retains state in memory and does not
consider the file’s modified time. Unless your application removes files after processing, the adapter re-
processes the files on disk by default after an application restart.
Also, if you configure the filter to use a FtpPersistentAcceptOnceFileListFilter and the
remote file timestamp changes (causing it to be re-fetched), the default local filter does not allow this
new file to be processed.
You can use the local-filter attribute to configure the behavior of the local file system filter.
Starting with version 4.3.8, a FileSystemPersistentAcceptOnceFileListFilter is configured
by default. This filter stores the accepted file names and modified timestamp in an instance of the
MetadataStore strategy (see Section 12.5, “Metadata Store”) and detects changes to the local file
modified time. The default MetadataStore is a SimpleMetadataStore that stores state in memory.
Since version 4.1.5, these filters have a new property called flushOnUpdate, which causes them to
flush the metadata store on every update (if the store implements Flushable).
Important
Further, if you use a distributed MetadataStore (such as Section 27.4, “Redis Metadata Store”
or Section 19.6, “Gemfire Metadata Store”), you can have multiple instances of the same adapter
or application and be sure that one and only one instance processes a file.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 465
The actual local filter is a CompositeFileListFilter that contains the supplied filter and a pattern
filter that prevents processing files that are in the process of being downloaded (based on the
temporary-file-suffix). Files are downloaded with this suffix (the default is .writing), and the
files are renamed to their final names when the transfer is complete, making them visible to the filter.
See the schema for more detail on these attributes.
SFTP inbound channel adapter is a polling consumer. Therefore, you must configure a poller (either a
global default or a local element). Once the file has been transferred to a local directory, a message with
java.io.File as its payload type is generated and sent to the channel identified by the channel
attribute.
More on File Filtering and Large Files
Sometimes, a file that just appeared in the monitored (remote) directory is not complete. Typically
such a file is written with some temporary extension (such as .writing on a file named
something.txt.writing) and then renamed after the writing process completes. In most cases,
developers are interested only in files that are complete and would like to filter only those files. To handle
these scenarios, you can use the filtering support provided by the filename-pattern, filename-
regex, and filter attributes. If you need a custom filter implementation, you can include a reference
in your adapter by setting the filter attribute. The following example shows how to do so:
<int-sftp:inbound-channel-adapter id="sftpInbondAdapter"
channel="receiveChannel"
session-factory="sftpSessionFactory"
filter="customFilter"
local-directory="file:/local-test-dir"
remote-directory="/remote-test-dir">
<int:poller fixed-rate="1000" max-messages-per-poll="10" task-executor="executor"/>
</int-sftp:inbound-channel-adapter>
<bean id="customFilter" class="org.foo.CustomFilter"/>
Recovering from Failures
You should understand the architecture of the adapter. A file synchronizer fetches the files, and a
FileReadingMessageSource emits a message for each synchronized file. As discussed earlier, two
filters are involved. The filter attribute (and patterns) refers to the remote (SFTP) file list, to avoid
fetching files that have already been fetched. the FileReadingMessageSource uses the local-
filter to determine which files are to be sent as messages.
The synchronizer lists the remote files and consults its filter. The files are then transferred. If an IO
error occurs during file transfer, any files that have already been added to the filter are removed
so that they are eligible to be re-fetched on the next poll. This applies only if the filter implements
ReversibleFileListFilter (such as the AcceptOnceFileListFilter).
If, after synchronizing the files, an error occurs on the downstream flow processing a file, no automatic
rollback of the filter occurs, so the failed file is not reprocessed by default.
If you wish to reprocess such files after a failure, you can use a configuration similar to the following to
facilitate the removal of the failed file from the filter:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 466
<int-sftp:inbound-channel-adapter id="sftpAdapter"
session-factory="sftpSessionFactory"
channel="requestChannel"
remote-directory-expression="'/sftpSource'"
local-directory="file:myLocalDir"
auto-create-local-directory="true"
filename-pattern="*.txt">
<int:poller fixed-rate="1000">
<int:transactional synchronization-factory="syncFactory" />
</int:poller>
</int-sftp:inbound-channel-adapter>
<bean id="acceptOnceFilter"
class="org.springframework.integration.file.filters.AcceptOnceFileListFilter" />
<int:transaction-synchronization-factory id="syncFactory">
<int:after-rollback expression="payload.delete()" />
</int:transaction-synchronization-factory>
<bean id="transactionManager"
class="org.springframework.integration.transaction.PseudoTransactionManager" />
The preceding configuration works for any ResettableFileListFilter.
Starting with version 5.0, the inbound channel adapter can build sub-directories locally,
according to the generated local file name. That can be a remote sub-path as
well. To be able to read a local directory recursively for modification according to
the hierarchy support, you can now supply an internal FileReadingMessageSource
with a new RecursiveDirectoryScanner based on the Files.walk()
algorithm. See https://docs.spring.io/spring-integration/api/org/springframework/integration/file/remote/
synchronizer/AbstractInboundFileSynchronizingMessageSource.html#setScanner-
org.springframework.integration.file.DirectoryScanner[AbstractInboundFileSynchronizingMessageSource.setScanner()]
for more information. Also, you can now switch the
AbstractInboundFileSynchronizingMessageSource to the WatchService-based
DirectoryScanner by using setUseWatchService() option. It is also configured
for all the WatchEventType instances to react for any modifications in
local directory. The reprocessing sample shown earlier is based on the built-
in functionality of the FileReadingMessageSource.WatchServiceDirectoryScanner,
which uses ResettableFileListFilter.remove() when the file is deleted
(StandardWatchEventKinds.ENTRY_DELETE) from the local directory. See the section called
“WatchServiceDirectoryScanner” for more information.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the inbound adapter with
Java:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 467
@SpringBootApplication
public class SftpJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(SftpJavaApplication.class)
.web(false)
.run(args);
}
@Bean
public SessionFactory<LsEntry> sftpSessionFactory() {
DefaultSftpSessionFactory factory = new DefaultSftpSessionFactory(true);
factory.setHost("localhost");
factory.setPort(port);
factory.setUser("foo");
factory.setPassword("foo");
factory.setAllowUnknownKeys(true);
factory.setTestSession(true);
return new CachingSessionFactory<LsEntry>(factory);
}
@Bean
public SftpInboundFileSynchronizer sftpInboundFileSynchronizer() {
SftpInboundFileSynchronizer fileSynchronizer = new
SftpInboundFileSynchronizer(sftpSessionFactory());
fileSynchronizer.setDeleteRemoteFiles(false);
fileSynchronizer.setRemoteDirectory("foo");
fileSynchronizer.setFilter(new SftpSimplePatternFileListFilter("*.xml"));
return fileSynchronizer;
}
@Bean
@InboundChannelAdapter(channel = "sftpChannel", poller = @Poller(fixedDelay = "5000"))
public MessageSource<File> sftpMessageSource() {
SftpInboundFileSynchronizingMessageSource source =
new SftpInboundFileSynchronizingMessageSource(sftpInboundFileSynchronizer());
source.setLocalDirectory(new File("sftp-inbound"));
source.setAutoCreateLocalDirectory(true);
source.setLocalFilter(new AcceptOnceFileListFilter<File>());
source.setMaxFetchSize(1);
return source;
}
@Bean
@ServiceActivator(inputChannel = "sftpChannel")
public MessageHandler handler() {
return new MessageHandler() {
@Override
public void handleMessage(Message<?> message) throws MessagingException {
System.out.println(message.getPayload());
}
};
}
}
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the inbound adapter with
the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 468
@SpringBootApplication
public class SftpJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(SftpJavaApplication.class)
.web(false)
.run(args);
}
@Bean
public IntegrationFlow sftpInboundFlow() {
return IntegrationFlows
.from(s -> s.sftp(this.sftpSessionFactory)
.preserveTimestamp(true)
.remoteDirectory("foo")
.regexFilter(".*\\.txt$")
.localFilenameExpression("#this.toUpperCase() + '.a'")
.localDirectory(new File("sftp-inbound")),
e -> e.id("sftpInboundAdapter")
.autoStartup(true)
.poller(Pollers.fixedDelay(5000)))
.handle(m -> System.out.println(m.getPayload()))
.get();
}
}
Dealing With Incomplete Data
See the section called “Dealing With Incomplete Data”.
The SftpSystemMarkerFilePresentFileListFilter is provided to filter remote files that don’t
have the corresponding marker file on the remote system. See the Javadoc for configuration information.
30.7 SFTP Streaming Inbound Channel Adapter
Version 4.3 introduced the streaming inbound channel adapter. This adapter produces message
with payloads of type InputStream, letting you fetch files without writing to the local file
system. Since the session remains open, the consuming application is responsible for closing the
session when the file has been consumed. The session is provided in the closeableResource
header (IntegrationMessageHeaderAccessor.CLOSEABLE_RESOURCE). Standard framework
components, such as the FileSplitter and StreamTransformer, automatically close the session.
See Section 17.4, “File Splitter” and the section called “Stream Transformer” for more information about
these components. The following example shows how to configure an SFTP streaming inbound channel
adapter:
<int-sftp:inbound-streaming-channel-adapter id="ftpInbound"
channel="ftpChannel"
session-factory="sessionFactory"
filename-pattern="*.txt"
filename-regex=".*\.txt"
filter="filter"
filter-expression="@myFilterBean.check(#root)"
remote-file-separator="/"
comparator="comparator"
max-fetch-size="1"
remote-directory-expression="'foo/bar'">
<int:poller fixed-rate="1000" />
</int-sftp:inbound-streaming-channel-adapter>
You can use only one of filename-pattern, filename-regex, filter, or filter-expression.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 469
Important
Starting with version 5.0, by default, the SftpStreamingMessageSource adapter prevents
duplicates for remote files by using SftpPersistentAcceptOnceFileListFilter based
on the in-memory SimpleMetadataStore. By default, this filter is also applied together
with the filename pattern (or regex) as well. If you need to allow duplicates, you can
use the AcceptAllFileListFilter. You can handle any other use cases by using
CompositeFileListFilter (or ChainFileListFilter). The Java configuration shown
later shows one technique to remove the remote file after processing, avoiding duplicates.
You can use the max-fetch-size attribute to limit the number of files fetched on each poll when a
fetch is necessary. Set it to 1 and use a persistent filter when running in a clustered environment. See
Section 30.9, “Inbound Channel Adapters: Controlling Remote File Fetching” for more information.
The adapter puts the remote directory and the file name in headers
(FileHeaders.REMOTE_DIRECTORY and FileHeaders.REMOTE_FILE, respectively). Starting
with version 5.0, the FileHeaders.REMOTE_FILE_INFO header provides additional
remote file information (in JSON). If you set the fileInfoJson property on the
SftpStreamingMessageSource to false, the header contains an SftpFileInfo object.
You can access the LsEntry object provided by the underlying Jsch library by using the
SftpFileInfo.getFileInfo() method. The fileInfoJson property is not available when you
use XML configuration, but you can set it by injecting the SftpStreamingMessageSource into one
of your configuration classes.
Starting with version 5.1, the generic type of the comparator is LsEntry. Previously, it was
AbstractFileInfo<LsEntry>. This is because the sort is now performed earlier in the processing,
before filtering and applying maxFetch.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the inbound adapter with
Java:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 470
@SpringBootApplication
public class SftpJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(SftpJavaApplication.class)
.web(false)
.run(args);
}
@Bean
@InboundChannelAdapter(channel = "stream")
public MessageSource<InputStream> ftpMessageSource() {
SftpStreamingMessageSource messageSource = new SftpStreamingMessageSource(template());
messageSource.setRemoteDirectory("sftpSource/");
messageSource.setFilter(new AcceptAllFileListFilter<>());
messageSource.setMaxFetchSize(1);
return messageSource;
}
@Bean
@Transformer(inputChannel = "stream", outputChannel = "data")
public org.springframework.integration.transformer.Transformer transformer() {
return new StreamTransformer("UTF-8");
}
@Bean
public SftpRemoteFileTemplate template() {
return new SftpRemoteFileTemplate(sftpSessionFactory());
}
@ServiceActivator(inputChannel = "data", adviceChain = "after")
@Bean
public MessageHandler handle() {
return System.out::println;
}
@Bean
public ExpressionEvaluatingRequestHandlerAdvice after() {
ExpressionEvaluatingRequestHandlerAdvice advice = new
ExpressionEvaluatingRequestHandlerAdvice();
advice.setOnSuccessExpression(
"@template.remove(headers['file_remoteDirectory'] + headers['file_remoteFile'])");
advice.setPropagateEvaluationFailures(true);
return advice;
}
}
Notice that, in this example, the message handler downstream of the transformer has an advice that
removes the remote file after processing.
30.8 Inbound Channel Adapters: Polling Multiple Servers and
Directories
Starting with version 5.0.7, the RotatingServerAdvice is available; when configured as a poller
advice, the inbound adapters can poll multiple servers and directories. Configure the advice and add it
to the poller’s advice chain as normal. A DelegatingSessionFactory is used to select the server
see Section 18.3, “Delegating Session Factory” for more information. The advice configuration consists
of a list of RotatingServerAdvice.KeyDirectory objects.
Example.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 471
@Bean
public RotatingServerAdvice advice() {
List<KeyDirectory> keyDirectories = new ArrayList<>();
keyDirectories.add(new KeyDirectory("one", "foo"));
keyDirectories.add(new KeyDirectory("one", "bar"));
keyDirectories.add(new KeyDirectory("two", "baz"));
keyDirectories.add(new KeyDirectory("two", "qux"));
keyDirectories.add(new KeyDirectory("three", "fiz"));
keyDirectories.add(new KeyDirectory("three", "buz"));
return new RotatingServerAdvice(delegatingSf(), keyDirectories);
}
This advice will poll directory foo on server one until no new files exist then move to directory bar and
then directory baz on server two, etc.
This default behavior can be modified with the fair constructor arg:
fair.
@Bean
public RotatingServerAdvice advice() {
...
return new RotatingServerAdvice(delegatingSf(), keyDirectories, true);
}
In this case, the advice will move to the next server/directory regardless of whether the previous poll
returned a file.
Alternatively, you can provide your own RotatingServerAdvice.RotationPolicy to reconfigure
the message source as needed:
policy.
public interface RotationPolicy {
void beforeReceive(MessageSource<?> source);
void afterReceive(boolean messageReceived, MessageSource<?> source);
}
and
custom.
@Bean
public RotatingServerAdvice advice() {
return new RotatingServerAdvice(myRotationPolicy());
}
The local-filename-generator-expression attribute
(localFilenameGeneratorExpression on the synchronizer) can now contain the
#remoteDirectory variable. This allows files retrieved from different directories to be downloaded
to similar directories locally:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 472
@Bean
public IntegrationFlow flow() {
return IntegrationFlows.from(Ftp.inboundAdapter(sf())
.filter(new FtpPersistentAcceptOnceFileListFilter(new
SimpleMetadataStore(), "rotate"))
.localDirectory(new File(tmpDir))
.localFilenameExpression("#remoteDirectory + T(java.io.File).separator + #root")
.remoteDirectory("."),
e -> e.poller(Pollers.fixedDelay(1).advice(advice())))
.channel(MessageChannels.queue("files"))
.get();
}
Important
Do not configure a TaskExecutor on the poller when using this advice; see the section called
“Conditional Pollers for Message Sources” for more information.
30.9 Inbound Channel Adapters: Controlling Remote File
Fetching
You should consider two properties when configuring inbound channel adapters. max-messages-per-
poll, as with all pollers, can be used to limit the number of messages emitted on each poll (if more
than the configured value are ready). max-fetch-size (since version 5.0) can limit the number of files
retrieved from the remote server at a time.
The following scenarios assume the starting state is an empty local directory:
•max-messages-per-poll=2 and max-fetch-size=1: The adapter fetches one file, emits it,
fetches the next file, and emit it. Then it sleeps until the next poll.
•max-messages-per-poll=2 and max-fetch-size=2): The adapter fetch both files and then
emits each one.
•max-messages-per-poll=2 and max-fetch-size=4: The adapter fetches up to 4 files (if
available) and emits the first two (if there are at least two). The next two files will be emitted on the
next poll.
•max-messages-per-poll=2 and max-fetch-size not specified: The adapter fetches all remote
files and emits the first two (if there are at least two). The subsequent files are emitted on subsequent
polls (two at a time). When all are consumed, the remote fetch is attempted again, to pick up any
new files.
Important
When you deploy multiple instances of an application, we recommend setting a small max-
fetch-size, to avoid one instance "grabbing" all the files and starving other instances.
Another use for max-fetch-size is when you want to stop fetching remote files but continue to process
files that have already been fetched. Setting the maxFetchSize property on the MessageSource
(programmatically, via JMX, or via a control bus) effectively stops the adapter from fetching more files
but lets the poller continue to emit messages for files that have previously been fetched. If the poller is
active when the property is changed, the change takes effect on the next poll.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 473
Starting with version 5.1, the synchronizer can be provided with a Comparator<LsEntry>. This is
useful when restricting the number of files fetched with maxFetchSize.
30.10 SFTP Outbound Channel Adapter
The SFTP outbound channel adapter is a special MessageHandler that connects to the remote
directory and initiates a file transfer for every file it receives as the payload of an incoming Message. It
also supports several representations of the file so that you are not limited to the File object. Similar
to the FTP outbound adapter, the SFTP outbound channel adapter supports the following payloads:
•java.io.File: The actual file object
•byte[]: A byte array that represents the file contents
•java.lang.String: Text that represents the file contents
The following example shows how to configure an SFTP outbound channel adapter:
<int-sftp:outbound-channel-adapter id="sftpOutboundAdapter"
session-factory="sftpSessionFactory"
channel="inputChannel"
charset="UTF-8"
remote-file-separator="/"
remote-directory="foo/bar"
remote-filename-generator-expression="payload.getName() + '-mysuffix'"
filename-generator="fileNameGenerator"
use-temporary-filename="true"
chmod="600"
mode="REPLACE"/>
See the schema for more detail on these attributes.
SpEL and the SFTP Outbound Adapter
As with many other components in Spring Integration, you can use the Spring Expression Language
(SpEL) when you configure an SFTP outbound channel adapter by specifying two attributes: remote-
directory-expression and remote-filename-generator-expression (described earlier).
The expression evaluation context has the message as its root object, which lets you use expressions
that can dynamically compute the file name or the existing directory path based on the data in the
message (from either the payload or the headers). In the preceding example, we define the remote-
filename-generator-expression attribute with an expression value that computes the file name
based on its original name while also appending a suffix: -mysuffix.
Starting with version 4.1, you can specify the mode when you transferring the file. By default, an
existing file is overwritten. The modes are defined by the FileExistsMode enumeration, which has
the following values: REPLACE (default), APPEND, IGNORE, and FAIL. With IGNORE and FAIL, the file
is not transferred. FAIL causes an exception to be thrown, while IGNORE silently ignores the transfer
(although a DEBUG log entry is produced).
Avoiding Partially Written Files
One of the common problems when dealing with file transfers is the possibility of processing a partial
file. A file might appear in the file system before its transfer is actually complete.
To deal with this issue, Spring Integration SFTP adapters use a common algorithm in which files are
transferred under a temporary name and than renamed once they are fully transferred.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 474
By default, every file that is in the process of being transferred appear in the file system with an additional
suffix, which, by default, is .writing. You can change by setting the temporary-file-suffix
attribute.
However, there may be situations where you do not want to use this technique (for example, if the server
does not permit renaming files). For situations like this, you can disable this feature by setting use-
temporary-file-name to false (the default is true). When this attribute is false, the file is written
with its final name, and the consuming application needs some other mechanism to detect that the file
is completely uploaded before accessing it.
Version 4.3 introduced the chmod attribute, which you can use to change the remote file permissions
after upload. You can use the conventional Unix octal format (for example, 600 allows read-write for
the file owner only). When configuring the adapter using java, you can use setChmodOctal("600")
or setChmodDecimal(384).
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the outbound adapter with
Java:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 475
@SpringBootApplication
@IntegrationComponentScan
public class SftpJavaApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context =
new SpringApplicationBuilder(SftpJavaApplication.class)
.web(false)
.run(args);
MyGateway gateway = context.getBean(MyGateway.class);
gateway.sendToSftp(new File("/foo/bar.txt"));
}
@Bean
public SessionFactory<LsEntry> sftpSessionFactory() {
DefaultSftpSessionFactory factory = new DefaultSftpSessionFactory(true);
factory.setHost("localhost");
factory.setPort(port);
factory.setUser("foo");
factory.setPassword("foo");
factory.setAllowUnknownKeys(true);
factory.setTestSession(true);
return new CachingSessionFactory<LsEntry>(factory);
}
@Bean
@ServiceActivator(inputChannel = "toSftpChannel")
public MessageHandler handler() {
SftpMessageHandler handler = new SftpMessageHandler(sftpSessionFactory());
handler.setRemoteDirectoryExpressionString("headers['remote-target-dir']");
handler.setFileNameGenerator(new FileNameGenerator() {
@Override
public String generateFileName(Message<?> message) {
return "handlerContent.test";
}
});
return handler;
}
@MessagingGateway
public interface MyGateway {
@Gateway(requestChannel = "toSftpChannel")
void sendToSftp(File file);
}
}
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the outbound adapter with
the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 476
@SpringBootApplication
public class SftpJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(SftpJavaApplication.class)
.web(false)
.run(args);
}
@Bean
public IntegrationFlow sftpOutboundFlow() {
return IntegrationFlows.from("toSftpChannel")
.handle(Sftp.outboundAdapter(this.sftpSessionFactory, FileExistsMode.FAIL)
.useTemporaryFileName(false)
.remoteDirectory("/foo")
).get();
}
}
30.11 SFTP Outbound Gateway
The SFTP outbound gateway provides a limited set of commands that let you interact with a remote
SFTP server:
•ls (list files)
•nlst (list file names)
•get (retrieve a file)
•mget (retrieve multiple files)
•rm (remove file(s))
•mv (move and rename file)
•put (send a file)
•mput (send multiple files)
Using the ls Command
ls lists remote files and supports the following options:
•-1: Retrieve a list of filenames. The default is to retrieve a list of FileInfo objects
•-a: Include all files (including those starting with .)
•-f: Do not sort the list
•-dirs: Include directories (excluded by default)
•-links: Include symbolic links (excluded by default)
•-R: List the remote directory recursively
In addition, filename filtering is provided in the same manner as the inbound-channel-adapter.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 477
The message payload resulting from an ls operation is a list of file names or a list of FileInfo objects
(depending on whether you usr the -1 switch). These objects provide information such as modified
time, permissions, and others.
The remote directory that the ls command acted on is provided in the file_remoteDirectory
header.
When using the recursive option (-R), the fileName includes any subdirectory elements and represents
the relative path to the file (relative to the remote directory). If you use the -dirs option, each recursive
directory is also returned as an element in the list. In this case, we recommend that you not use the
-1 option, because you would not be able to distinguish files from directories, which you can do when
you use FileInfo objects.
Using nlst Command
Version 5 introduced support for the nlst command.
nlst lists remote file names and supports only one option:
•-f: Do not sort the list
The message payload resulting from an nlst operation is a list of file names.
The file_remoteDirectory header holds the remote directory on which the nlst command acted.
The SFTP protocol does not provide the ability to list names. This command is the equivalent of the ls
command with the -1 option and is added here for convenience.
Using the get Command
get retrieves a remote file and supports the following options:
•-P: Preserve the timestamp of the remote file.
•-stream: Retrieve the remote file as a stream.
•-D: Delete the remote file after successful transfer. The remote file is not deleted if the transfer is
ignored, because the FileExistsMode is IGNORE and the local file already exists.
The file_remoteDirectory header holds the remote directory, and the file_remoteFile header
holds the filename.
The message payload resulting from a get operation is a File object representing the retrieved file.
If you use the -stream option, the payload is an InputStream rather than a File. For text files,
a common use case is to combine this operation with a file splitter or a stream transformer. When
consuming remote files as streams, you are responsible for closing the Session after the stream
is consumed. For convenience, the Session is provided in the closeableResource header, and
IntegrationMessageHeaderAccessor offers convenience method:
Closeable closeable = new IntegrationMessageHeaderAccessor(message).getCloseableResource();
if (closeable != null) {
closeable.close();
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 478
Framework components, such as the File Splitter and Stream Transformer, automatically close the
session after the data is transferred.
The following example shows how to consume a file as a stream:
<int-sftp:outbound-gateway session-factory="ftpSessionFactory"
request-channel="inboundGetStream"
command="get"
command-options="-stream"
expression="payload"
remote-directory="ftpTarget"
reply-channel="stream" />
<int-file:splitter input-channel="stream" output-channel="lines" />
Note
If you consume the input stream in a custom component, you must close the Session. You can
either do that in your custom code or route a copy of the message to a service-activator
and use SpEL, as the following example shows:
<int:service-activator input-channel="closeSession"
expression="headers['closeableResource'].close()" />
Using the mget Command
mget retrieves multiple remote files based on a pattern and supports the following options:
•-P: Preserve the timestamps of the remote files.
•-R: Retrieve the entire directory tree recursively.
•-x: Throw an exception if no files match the pattern (otherwise, an empty list is returned).
•-D: Delete each remote file after successful transfer. If the transfer is ignored, the remote file is not
deleted, because the FileExistsMode is IGNORE and the local file already exists.
The message payload resulting from an mget operation is a List<File> object (that is, a List of
File objects, each representing a retrieved file).
Important
Starting with version 5.0, if the FileExistsMode is IGNORE, the payload of the output message
no longer contain files that were not fetched due to the file already existing. Previously, the array
contained all files, including those that already existed.
The expression you use determine the remote path should produce a result that ends with * for example
myfiles/* fetches the complete tree under myfiles.
Starting with version 5.0, you can use a recursive MGET, combined with the
FileExistsMode.REPLACE_IF_MODIFIED mode, to periodically synchronize an entire remote
directory tree locally. This mode sets the local file’s last modified timestamp to the remote file’s
timestamp, regardless of the -P (preserve timestamp) option.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 479
Notes for when using recursion (-R)
The pattern is ignored and * is assumed. By default, the entire remote tree is retrieved. However,
you can filter files in the tree by providing a FileListFilter. You can also filter directories in
the tree this way. A FileListFilter can be provided by reference or by filename-pattern
or filename-regex attributes. For example, filename-regex="(subDir|.*1.txt)"
retrieves all files ending with 1.txt in the remote directory and the subdirectory subDir.
However, we describe an alternative available after this note.
If you filter a subdirectory, no additional traversal of that subdirectory is performed.
The -dirs option is not allowed (the recursive mget uses the recursive ls to obtain the directory
tree and the directories themselves cannot be included in the list).
Typically, you would use the #remoteDirectory variable in the local-directory-
expression so that the remote directory structure is retained locally.
Starting with version 5.0, you can configure the SftpSimplePatternFileListFilter
and SftpRegexPatternFileListFilter to always pass directories by setting the
alwaysAcceptDirectorties to true. Doing so allows recursion for a simple pattern, as the
following examples show:
<bean id="starDotTxtFilter"
class="org.springframework.integration.sftp.filters.SftpSimplePatternFileListFilter">
<constructor-arg value="*.txt" />
<property name="alwaysAcceptDirectories" value="true" />
</bean>
<bean id="dotStarDotTxtFilter"
class="org.springframework.integration.sftp.filters.SftpRegexPatternFileListFilter">
<constructor-arg value="^.*\.txt$" />
<property name="alwaysAcceptDirectories" value="true" />
</bean>
You can provide one of these filters by using the filter property on the gateway.
See also the section called “Outbound Gateway Partial Success (mget and mput)”.
Using the put Command
put sends a file to the remote server. The payload of the message can be a java.io.File, a
byte[], or a String. A remote-filename-generator (or expression) is used to name the remote
file. Other available attributes include remote-directory, temporary-remote-directory and
their *-expression equivalents: use-temporary-file-name and auto-create-directory.
See the schema documentation for more information.
The message payload resulting from a put operation is a String that contains the full path of the file
on the server after transfer.
Version 4.3 introduced the chmod attribute, which changes the remote file permissions after upload.
You can use the conventional Unix octal format (for example, 600 allows read-write for the file owner
only). When configuring the adapter using java, you can use setChmod(0600).
Using the mput Command
mput sends multiple files to the server and supports the following option:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 480
•-R: Recursive — send all files (possibly filtered) in the directory and subdirectories
The message payload must be a java.io.File (or String) that represents a local directory. Since
version 5.1, a collection of File or String is also supported.
The same attributes as the put command are supported. In addition, you can filter files in the local
directory with one of mput-pattern, mput-regex, mput-filter, or mput-filter-expression.
The filter works with recursion, as long as the subdirectories themselves pass the filter. Subdirectories
that do not pass the filter are not recursed.
The message payload resulting from an mget operation is a List<String> object (that is, a List of
remote file paths resulting from the transfer).
See also the section called “Outbound Gateway Partial Success (mget and mput)”.
Version 4.3 introduced the chmod attribute, which lets you change the remote file permissions after
upload. You can use the conventional Unix octal format (for example, 600 allows read-write for the
file owner only). When configuring the adapter with Java, you can use setChmodOctal("600") or
setChmodDecimal(384).
Using the rm Command
The rm command has no options.
If the remove operation was successful, the resulting message payload is Boolean.TRUE. Otherwise,
the message payload is Boolean.FALSE. The file_remoteDirectory header holds the remote
directory, and the file_remoteFile header holds the file name.
Using the mv Command
The mv command has no options.
The expression attribute defines the "from" path, and the rename-expression attribute defines the
"to" path. By default, the rename-expression is headers['file_renameTo']. This expression
must not evaluate to null or an empty String. If necessary, any remote directories needed are
created. The payload of the result message is Boolean.TRUE. The the file_remoteDirectory
header holds the original remote directory, and the file_remoteFile header holds the filename. The
file_renameTo header holds the new path.
Additional Command Information
The get and mget commands support the local-filename-generator-expression attribute.
It defines a SpEL expression to generate the names of local files during the transfer. The
root object of the evaluation context is the request message. The remoteFileName variable
is also available. It is particularly useful for mget (for example: local-filename-generator-
expression="#remoteFileName.toUpperCase() + headers.foo").
The get and mget commands support the local-directory-expression attribute. It defines a
SpEL expression to generate the names of local directories during the transfer. The root object of
the evaluation context is the request message. The remoteDirectory variable is also available.
It is particularly useful for mget (for example: local-directory-expression="'/tmp/local/'
+ #remoteDirectory.toUpperCase() + headers.myheader"). This attribute is mutually
exclusive with the local-directory attribute.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 481
For all commands, the expression property of the gateway holds the path on which the command acts.
For the mget command, the expression might evaluate to , meaning to retrieve all files, somedirectory/,
and other values that end with *.
The following example shows a gateway configured for an ls command:
<int-ftp:outbound-gateway id="gateway1"
session-factory="ftpSessionFactory"
request-channel="inbound1"
command="ls"
command-options="-1"
expression="payload"
reply-channel="toSplitter"/>
The payload of the message sent to the toSplitter channel is a list of String objects, each of
which contains the name of a file. If you omitted command-options="-1", the payload would be a
list of FileInfo objects. You can provide options as a space-delimited list (for example, command-
options="-1 -dirs -links").
Starting with version 4.2, the GET, MGET, PUT, and MPUT commands support a FileExistsMode
property (mode when using the namespace support). This affects the behavior when the local file exists
(GET and MGET) or the remote file exists (PUT and MPUT). The supported modes are REPLACE, APPEND,
FAIL, and IGNORE. For backwards compatibility, the default mode for PUT and MPUT operations is
REPLACE. For GET and MGET operations, the default is FAIL.
Configuring with Java Configuration
The following Spring Boot application shows an example of how to configure the outbound gateway
with Java:
@SpringBootApplication
public class SftpJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(SftpJavaApplication.class)
.web(false)
.run(args);
}
@Bean
@ServiceActivator(inputChannel = "sftpChannel")
public MessageHandler handler() {
return new SftpOutboundGateway(ftpSessionFactory(), "ls", "'my_remote_dir/'");
}
}
Configuring with the Java DSL
The following Spring Boot application shows an example of how to configure the outbound gateway
with the Java DSL:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 482
@SpringBootApplication
public class SftpJavaApplication {
public static void main(String[] args) {
new SpringApplicationBuilder(SftpJavaApplication.class)
.web(false)
.run(args);
}
@Bean
public SessionFactory<LsEntry> sftpSessionFactory() {
DefaultFtpSessionFactory sf = new DefaultFtpSessionFactory();
sf.setHost("localhost");
sf.setPort(port);
sf.setUsername("foo");
sf.setPassword("foo");
factory.setTestSession(true);
return new CachingSessionFactory<LsEntry>(sf);
}
@Bean
public QueueChannelSpec remoteFileOutputChannel() {
return MessageChannels.queue();
}
@Bean
public IntegrationFlow sftpMGetFlow() {
return IntegrationFlows.from("sftpMgetInputChannel")
.handleWithAdapter(h ->
h.sftpGateway(sftpSessionFactory(), AbstractRemoteFileOutboundGateway.Command.MGET,
"payload")
.options(AbstractRemoteFileOutboundGateway.Option.RECURSIVE)
.regexFileNameFilter("(subSftpSource|.*1.txt)")
.localDirectoryExpression("'myDir/' + #remoteDirectory")
.localFilenameExpression("#remoteFileName.replaceFirst('sftpSource',
'localTarget')"))
.channel("remoteFileOutputChannel")
.get();
}
}
Outbound Gateway Partial Success (mget and mput)
When performing operations on multiple files (by using mget and mput) an exception can occur
some time after one or more files have been transferred. In this case (starting with version 4.2),
a PartialSuccessException is thrown. As well as the usual MessagingException properties
(failedMessage and cause), this exception has two additional properties:
•partialResults: The successful transfer results.
•derivedInput: The list of files generated from the request message (such as local files to transfer
for an mput).
These attributes let you determine which files were successfully transferred and which were not.
In the case of a recursive mput, the PartialSuccessException may have nested
PartialSuccessException instances.
Consider the following directory structure:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 483
root/
|- file1.txt
|- subdir/
| - file2.txt
| - file3.txt
|- zoo.txt
If the exception occurs on file3.txt, the PartialSuccessException thrown by the gateway has
derivedInput of file1.txt, subdir, and zoo.txt and partialResults of file1.txt. Its
cause is another PartialSuccessException with derivedInput of file2.txt and file3.txt
and partialResults of file2.txt.
30.12 SFTP/JSCH Logging
Since we use JSch libraries (http://www.jcraft.com/jsch/) to provide SFTP support, you may at times
require more information from the JSch API itself, especially if something is not working properly (such
as authentication exceptions). Unfortunately JSch does not use commons-logging but instead relies
on custom implementations of their com.jcraft.jsch.Logger interface. As of Spring Integration
2.0.1, we have implemented this interface. So now, to enable JSch logging, you can configure your
logger the way you usually do. For example, the following example is valid configuration of a logger
that uses Log4J:
log4j.category.com.jcraft.jsch=DEBUG
30.13 MessageSessionCallback
Starting with Spring Integration version 4.2, you can use a MessageSessionCallback<F, T>
implementation with the <int-sftp:outbound-gateway/> (SftpOutboundGateway) to perform
any operation on the Session<LsEntry> with the requestMessage context. You can use it for
any non-standard or low-level FTP operation (or several), such as allowing access from an integration
flow definition, or functional interface (lambda) implementation injection. The following example uses
a lambda:
@Bean
@ServiceActivator(inputChannel = "sftpChannel")
public MessageHandler sftpOutboundGateway(SessionFactory<ChannelSftp.LsEntry> sessionFactory) {
return new SftpOutboundGateway(sessionFactory,
(session, requestMessage) -> session.list(requestMessage.getPayload()));
}
Another example might be to pre- or post-process the file data being sent or retrieved.
When using XML configuration, the <int-sftp:outbound-gateway/> provides a session-
callback attribute that lets you specify the MessageSessionCallback bean name.
Note
The session-callback is mutually exclusive with the command and expression attributes.
When configuring with Java, the SftpOutboundGateway class offers different constructors.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 484
31. STOMP Support
Spring Integration version 4.2 introduced STOMP (Simple Text Orientated Messaging Protocol) client
support. It is based on the architecture, infrastructure, and API from the Spring Framework’s messaging
module, stomp package. Spring Integration uses many of Spring STOMP components (such as
StompSession and StompClientSupport). For more information, see the Spring Framework
STOMP Support chapter in the Spring Framework reference manual.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-stomp</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-stomp:5.1.1.RELEASE"
For server side components you need to add a org.springframework:spring-websocket and/
or io.projectreactor.netty:reactor-netty dependencies.
31.1 Overview
To configure STOMP, you should start with the STOMP client object. The Spring Framework provides
the following implementations:
•WebSocketStompClient: Built on the Spring WebSocket API with support for standard JSR-356
WebSocket, Jetty 9, and SockJS for HTTP-based WebSocket emulation with SockJS Client.
•ReactorNettyTcpStompClient: Built on ReactorNettyTcpClient from the reactor-netty
project.
You can provide any other StompClientSupport implementation. See the Javadoc of those classes.
The StompClientSupport class is designed as a factory to produce a StompSession for
the provided StompSessionHandler and all the remaining work is done through the callbacks
to that StompSessionHandler and StompSession abstraction. With the Spring Integration
adapter abstraction, we need to provide some managed shared object to represent our application
as a STOMP client with its unique session. For this purpose, Spring Integration provides the
StompSessionManager abstraction to manage the single StompSession between any provided
StompSessionHandler. This allows the use of inbound or outbound channel adapters (or both) for
the particular STOMP Broker. See StompSessionManager (and its implementations) JavaDocs for
more information.
31.2 STOMP Inbound Channel Adapter
The StompInboundChannelAdapter is a one-stop MessageProducer component that subscribes
your Spring Integration application to the provided STOMP destinations and receives messages from
them (converted from the STOMP frames by using the provided MessageConverter on the connected
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 485
StompSession). You can change the destinations (and therefore STOMP subscriptions) at runtime by
using appropriate @ManagedOperation annotations on the StompInboundChannelAdapter.
For more configuration options, see Section 31.7, “STOMP Namespace Support” and the
StompInboundChannelAdapter Javadoc.
31.3 STOMP Outbound Channel Adapter
The StompMessageHandler is the MessageHandler for the <int-stomp:outbound-channel-
adapter> and is used to send the outgoing Message<?> instances to the STOMP destination
(pre-configured or determined at runtime with a SpEL expression) through the StompSession (which
is provided by the shared StompSessionManager).
For more configuration options see Section 31.7, “STOMP Namespace Support” and the
StompMessageHandler Javadoc.
31.4 STOMP Headers Mapping
The STOMP protocol provides headers as part of its frame. The entire structure of the STOMP frame
has the following format:
....
COMMAND
header1:value1
header2:value2
Body^@
....
Spring Framework provides StompHeaders to represent these headers. See the Javadoc for
more details. STOMP frames are converted to and from Message<?> instances and these
headers are mapped to and from MessageHeaders instances. Spring Integration provides
a default HeaderMapper implementation for the STOMP adapters. The implementation is
StompHeaderMapper. It provides fromHeaders() and toHeaders() operations for the inbound
and outbound adapters, respectively.
As with many other Spring Integration modules, the IntegrationStompHeaders class has been
introduced to map standard STOMP headers to MessageHeaders, with stomp_ as the header name
prefix. In addition, all MessageHeaders instances with that prefix are mapped to the StompHeaders
when sending to a destination.
For more information, see the Javadoc for those classes and the mapped-headers attribute description
in the Section 31.7, “STOMP Namespace Support”.
31.5 STOMP Integration Events
Many STOMP operations are asynchronous, including error handling. For example, STOMP
has a RECEIPT server frame that it returns when a client frame has requested one
by adding the RECEIPT header. To provide access to these asynchronous events, Spring
Integration emits StompIntegrationEvent instances, which you can obtain by implementing
an ApplicationListener or by using an <int-event:inbound-channel-adapter> (see
Section 15.1, “Receiving Spring Application Events”).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 486
Specifically, a StompExceptionEvent is emitted from the AbstractStompSessionManager when
a stompSessionListenableFuture receives onFailure() due to failure to connect to STOMP
broker. Another example is the StompMessageHandler. It processes ERROR STOMP frames, which
are server responses to improper (unaccepted) messages sent by this StompMessageHandler.
The StompMessageHandler emits StompReceiptEvent as a part of
StompSession.Receiptable callbacks in the asynchronous answers for the messages sent to the
StompSession. The StompReceiptEvent can be positive or negative, depending on whether or not
the RECEIPT frame was received from the server within the receiptTimeLimit period, which you
can configure on the StompClientSupport instance. It defaults to 15 * 1000 (in milliseconds, so
15 seconds).
Note
The StompSession.Receiptable callbacks are added only if the RECEIPT STOMP header
of the message to send is not null. You can enable automatic RECEIPT header generation
on the StompSession through its autoReceipt option and on the StompSessionManager
respectively.
See Section 31.6, “STOMP Adapters Java Configuration” for more information how to configure Spring
Integration to accept those ApplicationEvent instances.
31.6 STOMP Adapters Java Configuration
The following example shows a comprehensive Java configuration for STOMP adapters:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 487
@Configuration
@EnableIntegration
public class StompConfiguration {
@Bean
public ReactorNettyTcpStompClient stompClient() {
ReactorNettyTcpStompClient stompClient = new ReactorNettyTcpStompClient("127.0.0.1", 61613);
stompClient.setMessageConverter(new PassThruMessageConverter());
ThreadPoolTaskScheduler taskScheduler = new ThreadPoolTaskScheduler();
taskScheduler.afterPropertiesSet();
stompClient.setTaskScheduler(taskScheduler);
stompClient.setReceiptTimeLimit(5000);
return stompClient;
}
@Bean
public StompSessionManager stompSessionManager() {
ReactorNettyTcpStompSessionManager stompSessionManager = new
ReactorNettyTcpStompSessionManager(stompClient());
stompSessionManager.setAutoReceipt(true);
return stompSessionManager;
}
@Bean
public PollableChannel stompInputChannel() {
return new QueueChannel();
}
@Bean
public StompInboundChannelAdapter stompInboundChannelAdapter() {
StompInboundChannelAdapter adapter =
new StompInboundChannelAdapter(stompSessionManager(), "/topic/myTopic");
adapter.setOutputChannel(stompInputChannel());
return adapter;
}
@Bean
@ServiceActivator(inputChannel = "stompOutputChannel")
public MessageHandler stompMessageHandler() {
StompMessageHandler handler = new StompMessageHandler(stompSessionManager());
handler.setDestination("/topic/myTopic");
return handler;
}
@Bean
public PollableChannel stompEvents() {
return new QueueChannel();
}
@Bean
public ApplicationListener<ApplicationEvent> stompEventListener() {
ApplicationEventListeningMessageProducer producer = new
ApplicationEventListeningMessageProducer();
producer.setEventTypes(StompIntegrationEvent.class);
producer.setOutputChannel(stompEvents());
return producer;
}
}
31.7 STOMP Namespace Support
The Spring Integration STOMP namespace implements the inbound and outbound channel adapter
components. To include it in your configuration, provide the following namespace declaration in your
application context configuration file:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 488
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:int="http://www.springframework.org/schema/integration"
xmlns:int-stomp="http://www.springframework.org/schema/integration/stomp"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/integration
http://www.springframework.org/schema/integration/spring-integration.xsd
http://www.springframework.org/schema/integration/stomp
http://www.springframework.org/schema/integration/stomp/spring-integration-stomp.xsd">
...
</beans>
Understanding the <int-stomp:outbound-channel-adapter> Element
The following listing shows the available attributes for the STOMP outbound channel adapter:
<int-stomp:outbound-channel-adapter
id="" ❶
channel="" ❷
stomp-session-manager="" ❸
header-mapper="" ❹
mapped-headers="" ❺
destination="" ❻
destination-expression="" ❼
auto-startup="" ❽
phase=""/> ❾
❶The component bean name. The MessageHandler is registered with a bean alias of id plus
.handler. If you do not set the channel attribute, a DirectChannel is created and registered
in the application context with the value of this id attribute as the bean name. In this case, the
endpoint is registered with a bean name id plus .adapter.
❷Identifies the channel attached to this adapter if id is present. See id. Optional.
❸Reference to a StompSessionManager bean, which encapsulates the low-level connection and
StompSession handling operations. Required.
❹Reference to a bean that implements HeaderMapper<StompHeaders>, which maps Spring
Integration MessageHeaders to and from STOMP frame headers. It is mutually exclusive with
mapped-headers. It defaults to StompHeaderMapper.
❺Comma-separated list of names of STOMP Headers to be mapped to the STOMP frame headers.
It can be provided only if the header-mapper reference is not set. The values in this list
can also be simple patterns to be matched against the header names (such as myheader* or
*myheader). A special token (STOMP_OUTBOUND_HEADERS) represents all the standard STOMP
headers (content-length, receipt, heart-beat, and so on). They are included by default. If you want
to add your own headers and want the standard headers to also be mapped, you must include this
token or provide your own HeaderMapper implementation by using header-mapper.
❻Name of the destination to which STOMP Messages are sent. It is mutually exclusive with the
destination-expression.
❼A SpEL expression to be evaluated at runtime against each Spring Integration Message as the
root object. It is mutually exclusive with the destination.
❽Boolean value indicating whether this endpoint should start automatically. It defaults to true.
❾The lifecycle phase within which this endpoint should start and stop. The lower the value, the earlier
this endpoint starts and the later it stops. The default is Integer.MIN_VALUE. Values can be
negative. See SmartLifeCycle.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 489
Understanding the <int-stomp:inbound-channel-adapter> Element
The following listing shows the available attributes for the STOMP inbound channel adapter:
<int-stomp:inbound-channel-adapter
id="" ❶
channel="" ❷
error-channel="" ❸
stomp-session-manager="" ❹
header-mapper="" ❺
mapped-headers="" ❻
destinations="" ❼
send-timeout="" ❽
payload-type="" ❾
auto-startup="" ❿
phase=""/> 11
❶The component bean name. If you do not set the channel attribute, a DirectChannel is created
and registered in the application context with the value of this id attribute as the bean name. In
this case, the endpoint is registered with the bean name id plus .adapter.
❷Identifies the channel attached to this adapter.
❸The MessageChannel bean reference to which ErrorMessage instances should be sent.
❹See the same option on the <int-stomp:outbound-channel-adapter>.
❺Comma-separated list of names of STOMP Headers to be mapped from the STOMP frame
headers. You can only provide this if the header-mapper reference is not set. The values in this
list can also be simple patterns to be matched against the header names (for example, myheader*
or *myheader). A special token (STOMP_INBOUND_HEADERS) represents all the standard STOMP
headers (content-length, receipt, heart-beat, and so on). They are included by default. If you want
to add your own headers and want the standard headers to also be mapped, you must also include
this token or provide your own HeaderMapper implementation using header-mapper.
❻See the same option on the <int-stomp:outbound-channel-adapter>.
❼Comma-separated list of STOMP destination names to subscribe. The list of destinations (and
therefore subscriptions) can be modified at runtime through the addDestination() and
removeDestination() @ManagedOperation annotations.
❽Maximum amount of time (in milliseconds) to wait when sending a message to the channel if the
channel can block. For example, a QueueChannel can block until space is available if its maximum
capacity has been reached.
❾Fully qualified name of the Java type for the target payload to convert from the incoming STOMP
frame. It defaults to String.class.
❿See the same option on the <int-stomp:outbound-channel-adapter>.
11 See the same option on the <int-stomp:outbound-channel-adapter>.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 490
32. Stream Support
In many cases, application data is obtained from a stream. It is not recommended to send a reference
to a stream as a message payload to a consumer. Instead, messages are created from data that is read
from an input stream, and message payloads are written to an output stream one by one.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-stream</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-stream:5.1.1.RELEASE"
32.1 Reading from Streams
Spring Integration provides two adapters for streams. Both ByteStreamReadingMessageSource
and CharacterStreamReadingMessageSource implement MessageSource. By configuring one
of these within a channel-adapter element, the polling period can be configured and the message
bus can automatically detect and schedule them. The byte stream version requires an InputStream,
and the character stream version requires a Reader as the single constructor argument. The
ByteStreamReadingMessageSource also accepts the bytesPerMessage property to determine how
many bytes it tries to read into each Message. The default value is 1024. The following example creates
an input stream that creates messages that each contain 2048 bytes:
<bean class="org.springframework.integration.stream.ByteStreamReadingMessageSource">
<constructor-arg ref="someInputStream"/>
<property name="bytesPerMessage" value="2048"/>
</bean>
<bean class="org.springframework.integration.stream.CharacterStreamReadingMessageSource">
<constructor-arg ref="someReader"/>
</bean>
The CharacterStreamReadingMessageSource wraps the reader in a BufferedReader (if it is
not one already). You can set the buffer size used by the buffered reader in the second constructor
argument. Starting with version 5.0, a third constructor argument (blockToDetectEOF) controls
the behavior of the CharacterStreamReadingMessageSource. When false (the default), the
receive() method checks whether the reader is ready() and returns null if not. EOF (end of
file) is not detected in this case. When true, the receive() method blocks until data is available
or EOF is detected on the underlying stream. When EOF is detected, a StreamClosedEvent
(application event) is published. You can consume this event with a bean that implements
ApplicationListener<StreamClosedEvent>.
Note
To facilitate EOF detection, the poller thread blocks in the receive() method until either data
arrives or EOF is detected.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 491
Important
The poller continues to publish an event on each poll once EOF has been detected. The
application listener can stop the adapter to prevent this. The event is published on the poller
thread. Stopping the adapter causes the thread to be interrupted. If you intend to perform
some interruptible task after stopping the adapter, you must either perform the stop() on a
different thread or use a different thread for those downstream activities. Note that sending to a
QueueChannel is interruptible, so, if you wish to send a message from the listener, do it before
stopping the adapter.
This facilitates "piping" or redirecting data to stdin, as the following two examples shows:
cat myfile.txt | java -jar my.jar
java -jar my.jar < foo.txt
This approach lets the application terminate when the pipe is closed.
Four convenient factory methods are available:
public static final CharacterStreamReadingMessageSource stdin() { ... }
public static final CharacterStreamReadingMessageSource stdin(String charsetName) { ... }
public static final CharacterStreamReadingMessageSource stdinPipe() { ... }
public static final CharacterStreamReadingMessageSource stdinPipe(String charsetName) { ... }
32.2 Writing to Streams
For target streams, you can use either of two implementations:
ByteStreamWritingMessageHandler or CharacterStreamWritingMessageHandler. Each
requires a single constructor argument (OutputStream for byte streams or Writer for character
streams), and each provides a second constructor that adds the optional bufferSize. Since both of
these ultimately implement the MessageHandler interface, you can reference them from a channel-
adapter configuration, as described in Section 6.3, “Channel Adapter”.
<bean class="org.springframework.integration.stream.ByteStreamWritingMessageHandler">
<constructor-arg ref="someOutputStream"/>
<constructor-arg value="1024"/>
</bean>
<bean class="org.springframework.integration.stream.CharacterStreamWritingMessageHandler">
<constructor-arg ref="someWriter"/>
</bean>
32.3 Stream Namespace Support
Spring Integration defines a namespace to reduce the configuration needed for stream-related channel
adapters. The following schema locations are needed to use it:
<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns:int-stream="http://www.springframework.org/schema/integration/stream"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:beans="http://www.springframework.org/schema/beans"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/integration/stream
http://www.springframework.org/schema/integration/stream/spring-integration-stream.xsd">
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 492
The following code snippet shows the different configuration options that are supported to configure the
inbound channel adapter:
<int-stream:stdin-channel-adapter id="adapterWithDefaultCharset"/>
<int-stream:stdin-channel-adapter id="adapterWithProvidedCharset" charset="UTF-8"/>
Starting with version 5.0, you can set the detect-eof attribute, which sets the blockToDetectEOF
property. See Section 32.1, “Reading from Streams” for more information.
To configure the outbound channel adapter, you can use the namespace support as well. The following
example shows the different configuration for an outbound channel adapters:
<int-stream:stdout-channel-adapter id="stdoutAdapterWithDefaultCharset"
channel="testChannel"/>
<int-stream:stdout-channel-adapter id="stdoutAdapterWithProvidedCharset" charset="UTF-8"
channel="testChannel"/>
<int-stream:stderr-channel-adapter id="stderrAdapter" channel="testChannel"/>
<int-stream:stdout-channel-adapter id="newlineAdapter" append-newline="true"
channel="testChannel"/>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 493
33. Syslog Support
Spring Integration 2.2 introduced the syslog transformer: SyslogToMapTransformer.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-syslog</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-syslog:5.1.1.RELEASE"
This transformer, together with a UDP or TCP inbound adapter, could be used to receive and analyze
syslog records from other hosts. The transformer creates a message payload that contains a map of
the elements from the syslog message.
Spring Integration 3.0 introduced convenient namespace support for configuring a syslog inbound
adapter in a single element.
Starting with version 4.1.1, the framework now supports the extended syslog format, as specified in RFC
5424>. In addition, when using TCP and RFC5424, both octet counting and non-transparent
framing described in RFC 6587 are supported.
33.1 Syslog Inbound Channel Adapter
This element encompasses a UDP or TCP inbound channel adapter and a MessageConverter to
convert the syslog message to a Spring Integration message. The DefaultMessageConverter
delegates to the SyslogToMapTransformer, creating a message with its payload being the Map
of syslog fields. In addition, all fields except the message are also made available as headers in the
message and are prefixed with syslog_. In this mode, only RFC 3164 (BSD) syslogs are supported.
Since version 4.1, the DefaultMessageConverter has a property called asMap (the default is true).
When it is false, the converter leaves the message payload as the original complete syslog message
(in a byte[]) while still setting the headers.
Since version 4.1.1, RFC 5424 is also supported, by using the RFC5424MessageConverter. In this
case, the fields are not copied as headers, unless asMap is set to false, in which case the original
message is the payload and the decoded fields are headers.
Important
To use RFC 5424 with a TCP transport, you must provide additional configuration to enable
the different framing techniques described in RFC 6587. The adapter needs a TCP connection
factory that is configured with a RFC6587SyslogDeserializer. By default, this deserializer
handles octet counting and non-transparent framing by using a linefeed (LF) to delimit
syslog messages. It uses a ByteArrayLfSerializer when octet counting is not detected.
To use different non-transparent framing, you can provide it with some other deserializer.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 494
While the deserializer can support both octet counting and non-transparent framing,
only one form of the latter is supported. If asMap is false on the converter, you must set the
retainOriginal constructor argument in the RFC6587SyslogDeserializer.
Example Configuration
The following example defines a UDP adapter that sends messages to the syslogIn channel (the
adapter bean name is syslogIn.adapter):
<int-syslog:inbound-channel-adapter id="syslogIn" port="1514" />
The adapter listens on port 1514.
The following example defines a UDP adapter that sends messages to the fromSyslog channel (the
adapter bean name is syslogIn):
<int-syslog:inbound-channel-adapter id="syslogIn"
channel="fromSyslog" port="1514" />
The adapter listens on port 1514.
The following example defines a TCP adapter that sends messages to channel syslogIn (the adapter
bean name is syslogIn.adapter):
<int-syslog:inbound-channel-adapter id="bar" protocol="tcp" port="1514" />
The adapter listens on port 1514.
Note the addition of the protocol attribute. This attribute can contain udp or tcp. It defaults to udp.
The following example shows a UDP adapter that sends messages to channel fromSyslog:
<int-syslog:inbound-channel-adapter id="udpSyslog"
channel="fromSyslog"
auto-startup="false"
phase="10000"
converter="converter"
send-timeout="1000"
error-channel="errors">
<int-syslog:udp-attributes port="1514" lookup-host="false" />
</int-syslog:inbound-channel-adapter>
The preceding example also shows two SmartLifecycle attributes: auto-startup and phase. It
has a reference to a custom org.springframework.integration.syslog.MessageConverter
with an ID of converter and an error-channel. Also notice the udp-attributes child element.
You can set various UDP attributes here, as defined in Table 34.2, “UDP Inbound Channel Adapter
Attributes”.
Note
When you use the udp-attributes element, you must provide the port attribute there rather
than on the inbound-channel-adapter element itself.
The following example shows a TCP adapter that sends messages to channel fromSyslog:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 495
<int-syslog:inbound-channel-adapter id="TcpSyslog"
protocol="tcp"
channel="fromSyslog"
connection-factory="cf" />
<int-ip:tcp-connection-factory id="cf" type="server" port="1514" />
It also shows how to reference an externally defined connection factory, which can be used for
advanced configuration (socket keep-alive and other uses). For more information, see Section 34.3,
“TCP Connection Factories”.
Note
The externally configured connection-factory must be of type server, and the port is
defined there rather than on the inbound-channel-adapter element itself.
The following example shows a TCP adapter that sends messages to channel fromSyslog:
<int-syslog:inbound-channel-adapter id="rfc5424Tcp"
protocol="tcp"
channel="fromSyslog"
connection-factory="cf"
converter="rfc5424" />
<int-ip:tcp-connection-factory id="cf"
using-nio="true"
type="server"
port="1514"
deserializer="rfc6587" />
<bean id="rfc5424" class="org.springframework.integration.syslog.RFC5424MessageConverter" />
<bean id="rfc6587" class="org.springframework.integration.syslog.inbound.RFC6587SyslogDeserializer" />
The preceding example is configured to use the RFC 5424 converter and is configured with a reference
to an externally defined connection factory with the RFC 6587 deserializer (required for RFC 5424).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 496
34. TCP and UDP Support
Spring Integration provides channel adapters for receiving and sending messages over internet
protocols. Both UDP (User Datagram Protocol) and TCP (Transmission Control Protocol) adapters are
provided. Each adapter provides for one-way communication over the underlying protocol. In addition,
Spring Integration provides simple inbound and outbound TCP gateways. These are used when two-
way communication is needed.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-ip</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-ip:5.1.1.RELEASE"
34.1 Introduction
Two flavors each of UDP inbound and outbound channel adapters are provided:
•UnicastSendingMessageHandler sends a datagram packet to a single destination.
•UnicastReceivingChannelAdapter receives incoming datagram packets.
•MulticastSendingMessageHandler sends (broadcasts) datagram packets to a multicast
address.
•MulticastReceivingChannelAdapter receives incoming datagram packets by joining to a
multicast address.
TCP inbound and outbound channel adapters are provided:
•TcpSendingMessageHandler sends messages over TCP.
•TcpReceivingChannelAdapter receives messages over TCP.
An inbound TCP gateway is provided. It allows for simple request-response processing. While the
gateway can support any number of connections, each connection can only be processed serially.
The thread that reads from the socket waits for, and sends, the response before reading again. If the
connection factory is configured for single use connections, the connection is closed after the socket
times out.
An outbound TCP gateway is provided. It allows for simple request-response processing. If the
associated connection factory is configured for single-use connections, a new connection is immediately
created for each new request. Otherwise, if the connection is in use, the calling thread blocks on the
connection until either a response is received or a timeout or I/O error occurs.
The TCP and UDP inbound channel adapters and the TCP inbound gateway support the error-
channel attribute. This provides the same basic functionality as described in the section called “Enter
the GatewayProxyFactoryBean”.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 497
34.2 UDP Adapters
This section describes how to configure and use the UDP adapters.
Outbound UDP Adapters (XML Configuration)
The following example configures a UDP outbound channel adapter:
<int-ip:udp-outbound-channel-adapter id="udpOut"
host="somehost"
port="11111"
multicast="false"
channel="exampleChannel"/>
Tip
When setting multicast to true, you should also provide the multicast address in the host
attribute.
UDP is an efficient but unreliable protocol. Spring Integration adds two attributes to improve reliability:
check-length and acknowledge. When check-length is set to true, the adapter precedes the
message data with a length field (four bytes in network byte order). This enables the receiving side to
verify the length of the packet received. If a receiving system uses a buffer that is too short to contain
the packet, the packet can be truncated. The length header provides a mechanism to detect this.
Starting with version 4.3, you can set the port to 0, in which case the operating system chooses
the port. The chosen port can be discovered by invoking getPort() after the adapter is started and
isListening() returns true.
The preceding example shows an outbound channel adapter that adds length checking to the datagram
packets:
<int-ip:udp-outbound-channel-adapter id="udpOut"
host="somehost"
port="11111"
multicast="false"
check-length="true"
channel="exampleChannel"/>
Tip
The recipient of the packet must also be configured to expect a length to precede the actual data.
For a Spring Integration UDP inbound channel adapter, set its check-length attribute.
The second reliability improvement allows an application-level acknowledgment protocol to be used.
The receiver must send an acknowledgment to the sender within a specified time.
The following example shows an outbound channel adapter that adds length checking to the datagram
packets and waits for an acknowledgment:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 498
<int-ip:udp-outbound-channel-adapter id="udpOut"
host="somehost"
port="11111"
multicast="false"
check-length="true"
acknowledge="true"
ack-host="thishost"
ack-port="22222"
ack-timeout="10000"
channel="exampleChannel"/>
Tip
Setting acknowledge to true implies that the recipient of the packet can interpret the header
added to the packet containing acknowledgment data (host and port). Most likely, the recipient is
a Spring Integration inbound channel adapter.
Tip
When multicast is true, an additional attribute (min-acks-for-success) specifies how many
acknowledgments must be received within the ack-timeout.
Starting with version 4.3, you can set the ackPort to 0, in which case the operating system chooses
the port.
Outbound UDP Adapters (Java Configuration)
The following example shows how to configure an outbound UDP adapter with Java:
@Bean
@ServiceActivator(inputChannel = "udpOut")
public UnicastSendingMessageHandler handler() {
return new UnicastSendingMessageHandler("localhost", 11111);
}
(or MulticastSendingChannelAdapter for multicast).
Outbound UDP Adapters (Java DSL Configuration)
The following example shows how to configure an outbound UDP adapter with the Java DSL:
@Bean
public IntegrationFlow udpOutFlow() {
return IntegrationFlows.from("udpOut")
.handle(Udp.outboundAdapter("localhost", 1234))
.get();
}
Inbound UDP Adapters (XML Configuration)
The following example shows how to configure a basic unicast inbound udp channel adapter.
<int-ip:udp-inbound-channel-adapter id="udpReceiver"
channel="udpOutChannel"
port="11111"
receive-buffer-size="500"
multicast="false"
check-length="true"/>
The following example shows how to configure a basic multicast inbound udp channel adapter:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 499
<int-ip:udp-inbound-channel-adapter id="udpReceiver"
channel="udpOutChannel"
port="11111"
receive-buffer-size="500"
multicast="true"
multicast-address="225.6.7.8"
check-length="true"/>
By default, reverse DNS lookups are done on inbound packets to convert IP addresses to hostnames
for use in message headers. In environments where DNS is not configured, this can cause delays. You
can override this default behavior by setting the lookup-host attribute to false.
Inbound UDP Adapters (Java Configuration)
The following example shows how to configure an inbound UDP adapter with Java:
@Bean
public UnicastReceivingChannelAdapter udpIn() {
UnicastReceivingChannelAdapter adapter = new UnicastReceivingChannelAdapter(11111);
adapter.setOutputChannelName("udpChannel");
return adapter;
}
The following example shows how to configure an inbound UDP adapter with the Java DSL:
Inbound UDP Adapters (Java DSL Configuration)
@Bean
public IntegrationFlow udpIn() {
return IntegrationFlows.from(Udp.inboundAdapter(11111))
.channel("udpChannel")
.get();
}
Server Listening Events
Starting with version 5.0.2, a UdpServerListeningEvent is emitted when an inbound adapter is
started and has begun listening. This is useful when the adapter is configured to listen on port 0, meaning
that the operating system chooses the port. It can also be used instead of polling isListening(), if
you need to wait before starting some other process that will connect to the socket.
Advanced Outbound Configuration
The <int-ip:udp-outbound-channel-adapter> (UnicastSendingMessageHandler) has
destination-expression and socket-expression options.
You can use the destination-expression as a runtime alternative to the hardcoded
host-port pair to determine the destination address for the outgoing datagram packet against a
requestMessage (with the root object for the evaluation context). The expression must evaluate
to an URI, a String in the URI style (see RFC-2396), or a SocketAddress. You can also
use the inbound IpHeaders.PACKET_ADDRESS header for this expression. In the framework,
the DatagramPacketMessageMapper populates this header when we receive datagrams in the
UnicastReceivingChannelAdapter and convert them to messages. The header value is exactly
the result of DatagramPacket.getSocketAddress() of the incoming datagram.
With the socket-expression, the outbound channel adapter can use (for example) an inbound
channel adapter socket to send datagrams through the same port which they were received. It is useful
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 500
in a scenario where our application works as a UDP server and clients operate behind network address
translation (NAT). This expression must evaluate to a DatagramSocket. The requestMessage is
used as the root object for the evaluation context. You cannot use the socket-expression parameter
with the multicast and acknowledge parameters. The following example shows how to configure a
UDP inbound channel adapter with a transformer that converts to upper case and uses a socket:
<int-ip:udp-inbound-channel-adapter id="inbound" port="0" channel="in" />
<int:channel id="in" />
<int:transformer expression="new String(payload).toUpperCase()"
input-channel="in" output-channel="out"/>
<int:channel id="out" />
<int-ip:udp-outbound-channel-adapter id="outbound"
socket-expression="@inbound.socket"
destination-expression="headers['ip_packetAddress']"
channel="out" />
The following example shows the equivalent configuration with the Java DSL:
@Bean
public IntegrationFlow udpEchoUpcaseServer() {
return IntegrationFlows.from(Udp.inboundAdapter(11111).id("udpIn"))
.<byte[], String>transform(p -> new String(p).toUpperCase())
.handle(Udp.outboundAdapter("headers['ip_packetAddress']")
.socketExpression("@udpIn.socket"))
.get();
}
34.3 TCP Connection Factories
For TCP, the configuration of the underlying connection is provided by using a connection factory.
Two types of connection factory are provided: a client connection factory and a server connection
factory. Client connection factories establish outgoing connections. Server connection factories listen
for incoming connections.
An outbound channel adapter uses a client connection factory, but you can also provide a reference to a
client connection factory to an inbound channel adapter. That adapter receives any incoming messages
that are received on connections created by the outbound adapter.
An inbound channel adapter or gateway uses a server connection factory. (In fact, the connection factory
cannot function without one). You can also provide a reference to a server connection factory to an
outbound adapter. You can then use that adapter to send replies to incoming messages on the same
connection.
Tip
Reply messages are routed to the connection only if the reply contains the ip_connectionId
header that was inserted into the original message by the connection factory.
Tip
This is the extent of message correlation performed when sharing connection factories between
inbound and outbound adapters. Such sharing allows for asynchronous two-way communication
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 501
over TCP. By default, only payload information is transferred using TCP. Therefore, any message
correlation must be performed by downstream components such as aggregators or other
endpoints. Support for transferring selected headers was introduced in version 3.0. For more
information, see Section 34.8, “TCP Message Correlation”.
You may give a reference to a connection factory to a maximum of one adapter of each type.
Spring Integration provides connection factories that use java.net.Socket and
java.nio.channel.SocketChannel.
The following example shows a simple server connection factory that uses java.net.Socket
connections:
<int-ip:tcp-connection-factory id="server"
type="server"
port="1234"/>
The following example shows a simple server connection factory that uses
java.nio.channel.SocketChannel connections:
<int-ip:tcp-connection-factory id="server"
type="server"
port="1234"
using-nio="true"/>
Note
Starting with Spring Integration version 4.2, if the server is configured to listen on a random port
(by setting the port to 0), you can get the actual port chosen by the OS by using getPort(). Also,
getServerSocketAddress() lets you get the complete SocketAddress. See the Javadoc
for the TcpServerConnectionFactory interface for more information.
<int-ip:tcp-connection-factory id="client"
type="client"
host="localhost"
port="1234"
single-use="true"
so-timeout="10000"/>
The following example shows a client connection factory that uses java.net.Socket connections
and creates a new connection for each message:
<int-ip:tcp-connection-factory id="client"
type="client"
host="localhost"
port="1234"
single-use="true"
so-timeout="10000"
using-nio=true/>
TCP is a streaming protocol. This means that some structure has to be provided to data transported
over TCP so that the receiver can demarcate the data into discrete messages. Connection factories are
configured to use serializers and deserializers to convert between the message payload and the bits
that are sent over TCP. This is accomplished by providing a deserializer and a serializer for inbound
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 502
and outbound messages, respectively. Spring Integration provides a number of standard serializers and
deserializers.
ByteArrayCrlfSerializer* converts a byte array to a stream of bytes followed by carriage return
and linefeed characters (\r\n). This is the default serializer (and deserializer) and can be used (for
example) with telnet as a client.
The ByteArraySingleTerminatorSerializer* converts a byte array to a stream of bytes followed
by a single termination character (the default is 0x00).
The ByteArrayLfSerializer* converts a byte array to a stream of bytes followed by a single linefeed
character (0x0a).
The ByteArrayStxEtxSerializer* converts a byte array to a stream of bytes preceded by an STX
(0x02) and followed by an ETX (0x03).
The ByteArrayLengthHeaderSerializer converts a byte array to a stream of bytes preceded by
a binary length in network byte order (big endian). This an efficient deserializer because it does not have
to parse every byte to look for a termination character sequence. It can also be used for payloads that
contain binary data. The preceding serializers support only text in the payload. The default size of the
length header is four bytes (an Integer), allowing for messages up to (2^31 - 1) bytes. However, the
length header can be a single byte (unsigned) for messages up to 255 bytes, or an unsigned short
(2 bytes) for messages up to (2^16 - 1) bytes. If you need any other format for the header, you can
subclass ByteArrayLengthHeaderSerializer and provide implementations for the readHeader
and writeHeader methods. The absolute maximum data size is (2^31 - 1) bytes.
The ByteArrayRawSerializer*, converts a byte array to a stream of bytes and adds no additional
message demarcation data. With this serializer (and deserializer), the end of a message is indicated
by the client closing the socket in an orderly fashion. When using this serializer, message reception
hangs until the client closes the socket or a timeout occurs. A timeout does not result in a message.
When this serializer is being used and the client is a Spring Integration application, the client must use
a connection factory that is configured with single-use="true". Doing so causes the adapter to
close the socket after sending the message. The serializer does not, by itself, close the connection. You
should use this serializer only with the connection factories used by channel adapters (not gateways),
and the connection factories should be used by either an inbound or outbound adapter but not both.
See also ByteArrayElasticRawDeserializer, later in this section.
Note
Before version 4.2.2, when using non-blocking I/O (NIO), this serializer treated a timeout (during
read) as an end of file, and the data read so far was emitted as a message. This is unreliable
and should not be used to delimit messages. It now treats such conditions as an exception. In
the unlikely event that you use it this way, you can restore the previous behavior by setting the
treatTimeoutAsEndOfMessage constructor argument to true.
Each of these is a subclass of AbstractByteArraySerializer,
which implements both org.springframework.core.serializer.Serializer and
org.springframework.core.serializer.Deserializer. For backwards compatibility,
connections that use any subclass of AbstractByteArraySerializer for serialization also accept
a String that is first converted to a byte array. Each of these serializers and deserializers converts an
input stream that contains the corresponding format to a byte array payload.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 503
To avoid memory exhaustion due to a badly behaved client (one that does not adhere to the protocol of
the configured serializer), these serializers impose a maximum message size. If an incoming message
exceeds this size, an exception is thrown. The default maximum message size is 2048 bytes. You can
increase it by setting the maxMessageSize property. If you use the default serializer or deserializer
and wish to increase the maximum message size, you must declare the maximum message size as
an explicit bean with the maxMessageSize property set and configure the connection factory to use
that bean.
The classes marked with * earlier in this section use an intermediate buffer and copy the decoded data
to a final buffer of the correct size. Starting with version 4.3, you can configure these buffers by setting a
poolSize property to let these raw buffers be reused instead of being allocated and discarded for each
message, which is the default behavior. Setting the property to a negative value creates a pool that has
no bounds. If the pool is bounded, you can also set the poolWaitTimeout property (in milliseconds),
after which an exception is thrown if no buffer becomes available. It defaults to infinity. Such an exception
causes the socket to be closed.
If you wish to use the same mechanism in custom deserializers, you can
extend AbstractPooledBufferByteArraySerializer (instead of its super class,
AbstractByteArraySerializer) and implement doDeserialize() instead of deserialize().
The buffer is automatically returned to the pool. AbstractPooledBufferByteArraySerializer
also provides a convenient utility method: copyToSizedArray().
Version 5.0 added the ByteArrayElasticRawDeserializer. This is similar to the deserializer side
of ByteArrayRawSerializer above, except that it is not necessary to set a maxMessageSize.
Internally, it uses a ByteArrayOutputStream that lets the buffer grow as needed. The client must
close the socket in an orderly manner to signal end of message.
The MapJsonSerializer uses a Jackson ObjectMapper to convert between a Map and JSON.
You can use this serializer in conjunction with a MessageConvertingTcpMessageMapper and a
MapMessageConverter to transfer selected headers and the payload in JSON.
Note
The Jackson ObjectMapper cannot demarcate messages in the stream. Therefore, the
MapJsonSerializer needs to delegate to another serializer or deserializer to handle message
demarcation. By default, a ByteArrayLfSerializer is used, resulting in messages with a
format of <json><LF> on the wire, but you can configure it to use others instead. (The next
example shows how to do so.)
The final standard serializer is
org.springframework.core.serializer.DefaultSerializer, which you can
use to convert serializable objects with Java serialization.
org.springframework.core.serializer.DefaultDeserializer is provided for inbound
deserialization of streams that contain serializable objects.
To implement a custom serializer and deserializer pair, implement the
org.springframework.core.serializer.Deserializer and
org.springframework.core.serializer.Serializer interfaces.
If you do not wish to use the default serializer and deserializer (ByteArrayCrLfSerializer), you
must set the serializer and deserializer attributes on the connection factory. The following
example shows how to do so:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 504
<bean id="javaSerializer"
class="org.springframework.core.serializer.DefaultSerializer" />
<bean id="javaDeserializer"
class="org.springframework.core.serializer.DefaultDeserializer" />
<int-ip:tcp-connection-factory id="server"
type="server"
port="1234"
deserializer="javaDeserializer"
serializer="javaSerializer"/>
A server connection factory that uses java.net.Socket connections and uses Java serialization on
the wire.
For full details of the attributes available on connection factories, see the reference at the end of this
section.
By default, reverse DNS lookups are done on inbound packets to convert IP addresses to hostnames
for use in message headers. In environments where DNS is not configured, this can cause connection
delays. You can override this default behavior by setting the lookup-host attribute to false.
Note
You can also modify the attributes of sockets and socket factories. See Section 34.10, “SSL/TLS
Support”. As noted there, such modifications are possible whether or not SSL is being used.
TCP Caching Client Connection Factory
As noted earlier, TCP sockets can be single-use (one request or response) or shared. Shared sockets
do not perform well with outbound gateways in high-volume environments, because the socket can only
process one request or response at a time.
To improve performance, you can use collaborating channel adapters instead of gateways, but that
requires application-level message correlation. See Section 34.8, “TCP Message Correlation” for more
information.
Spring Integration 2.2 introduced a caching client connection factory, which uses a pool of shared
sockets, letting a gateway process multiple concurrent requests with a pool of shared connections.
TCP Failover Client Connection Factory
You can configure a TCP connection factory that supports failover to one or more other servers. When
sending a message, the factory iterates over all its configured factories until either the message can be
sent or no connection can be found. Initially, the first factory in the configured list is used. If a connection
subsequently fails, the next factory becomes the current factory. The following example shows how to
configure a failover client connection factory:
<bean id="failCF" class="o.s.i.ip.tcp.connection.FailoverClientConnectionFactory">
<constructor-arg>
<list>
<ref bean="clientFactory1"/>
<ref bean="clientFactory2"/>
</list>
</constructor-arg>
</bean>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 505
Note
When using the failover connection factory, the singleUse property must be consistent between
the factory itself and the list of factories it is configured to use.
TCP Thread Affinity Connection Factory
Spring Integration version 5.0 introduced this connection factory. It binds a connection to the
calling thread, and the same connection is reused each time that thread sends a message. This
continues until the connection is closed (by the server or the network) or until the thread calls the
releaseConnection() method. The connections themselves are provided by another client factory
implementation, which must be configured to provide non-shared (single-use) connections so that each
thread gets a connection.
The following example shows how to configure a TCP thread affinity connection factory:
@Bean
public TcpNetClientConnectionFactory cf() {
TcpNetClientConnectionFactory cf = new TcpNetClientConnectionFactory("localhost",
Integer.parseInt(System.getProperty(PORT)));
cf.setSingleUse(true);
return cf;
}
@Bean
public ThreadAffinityClientConnectionFactory tacf() {
return new ThreadAffinityClientConnectionFactory(cf());
}
@Bean
@ServiceActivator(inputChannel = "out")
public TcpOutboundGateway outGate() {
TcpOutboundGateway outGate = new TcpOutboundGateway();
outGate.setConnectionFactory(tacf());
outGate.setReplyChannelName("toString");
return outGate;
}
34.4 TCP Connection Interceptors
You can configure connection factories with a reference to a
TcpConnectionInterceptorFactoryChain. You can use interceptors to add behavior to
connections, such as negotiation, security, and other options. No interceptors are currently provided
by the framework, but see InterceptedSharedConnectionTests in the source repository for an
example.
The HelloWorldInterceptor used in the test case works as follows:
The interceptor is first configured with a client connection factory. When the first message is sent over an
intercepted connection, the interceptor sends Hello over the connection and expects to receive world!.
When that occurs, the negotiation is complete and the original message is sent. Further messages that
use the same connection are sent without any additional negotiation.
When configured with a server connection factory, the interceptor requires the first message to be Hello
and, if it is, returns world!. Otherwise it throws an exception that causes the connection to be closed.
All TcpConnection methods are intercepted. Interceptor instances are created for each
connection by an interceptor factory. If an interceptor is stateful, the factory should create a
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 506
new instance for each connection. If there is no state, the same interceptor can wrap each
connection. Interceptor factories are added to the configuration of an interceptor factory chain,
which you can provide to a connection factory by setting the interceptor-factory attribute.
Interceptors must extend TcpConnectionInterceptorSupport. Factories must implement the
TcpConnectionInterceptorFactory interface. TcpConnectionInterceptorSupport has
passthrough methods. By extending this class, you only need to implement those methods you wish
to intercept.
The following example shows how to configure a connection interceptor factory chain:
<bean id="helloWorldInterceptorFactory"
class="o.s.i.ip.tcp.connection.TcpConnectionInterceptorFactoryChain">
<property name="interceptors">
<array>
<bean class="o.s.i.ip.tcp.connection.HelloWorldInterceptorFactory"/>
</array>
</property>
</bean>
<int-ip:tcp-connection-factory id="server"
type="server"
port="12345"
using-nio="true"
single-use="true"
interceptor-factory-chain="helloWorldInterceptorFactory"/>
<int-ip:tcp-connection-factory id="client"
type="client"
host="localhost"
port="12345"
single-use="true"
so-timeout="100000"
using-nio="true"
interceptor-factory-chain="helloWorldInterceptorFactory"/>
34.5 TCP Connection Events
Beginning with version 3.0, changes to TcpConnection instances are reported by
TcpConnectionEvent instances. TcpConnectionEvent is a subclass of ApplicationEvent and
can thus be received by any ApplicationListener defined in the ApplicationContext — for
example an event inbound channel adapter.
TcpConnectionEvents have the following properties:
•connectionId: The connection identifier, which you can use in a message header to send data to
the connection.
•connectionFactoryName: The bean name of the connection factory to which the connection
belongs.
•throwable: The Throwable (for TcpConnectionExceptionEvent events only).
•source: The TcpConnection. You can use this, for example, to determine the remote IP Address
with getHostAddress() (cast required).
In addition, since version 4.0, the standard deserializers discussed in Section 34.3, “TCP Connection
Factories” now emit TcpDeserializationExceptionEvent instances when they encounter
problems while decoding the data stream. These events contain the exception, the buffer that
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 507
was in the process of being built, and an offset into the buffer (if available) at the point
where the exception occurred. Applications can use a normal ApplicationListener or an
ApplicationEventListeningMessageProducer (see Section 15.1, “Receiving Spring Application
Events”) to capture these events, allowing analysis of the problem.
Starting with versions 4.0.7 and 4.1.3, TcpConnectionServerExceptionEvent instances are
published whenever an unexpected exception occurs on a server socket (such as a BindException
when the server socket is in use). These events have a reference to the connection factory and the
cause.
Starting with version 4.2, TcpConnectionFailedCorrelationEvent instances are published
whenever an endpoint (inbound gateway or collaborating outbound channel adapter) receives a
message that cannot be routed to a connection because the ip_connectionId header is invalid.
Outbound gateways also publish this event when a late reply is received (the sender thread has timed
out). The event contains the connection ID as well as an exception in the cause property, which contains
the failed message.
Starting with version 4.3, a TcpConnectionServerListeningEvent is emitted when a server
connection factory is started. This is useful when the factory is configured to listen on port 0, meaning
that the operating system chooses the port. It can also be used instead of polling isListening(), if
you need to wait before starting some other process that connects to the socket.
Important
To avoid delaying the listening thread from accepting connections, the event is published on a
separate thread.
Starting with version 4.3.2, a TcpConnectionFailedEvent is emitted whenever a client connection
cannot be created. The source of the event is the connection factory, which you can use to determine
the host and port to which the connection could not be established.
34.6 TCP Adapters
TCP inbound and outbound channel adapters that use connection factories mentioned earlier
are provided. These adapters have two relevant attributes: connection-factory and channel.
The connection-factory attribute indicates which connection factory is to be used to manage
connections for the adapter. The channel attribute specifies the channel on which messages arrive at
an outbound adapter and on which messages are placed by an inbound adapter. While both inbound
and outbound adapters can share a connection factory, server connection factories are always "owned"
by an inbound adapter. Client connection factories are always "owned" by an outbound adapter. Only
one adapter of each type may get a reference to a connection factory. The following example shows
how to define client and server TCP connection factories:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 508
<bean id="javaSerializer"
class="org.springframework.core.serializer.DefaultSerializer"/>
<bean id="javaDeserializer"
class="org.springframework.core.serializer.DefaultDeserializer"/>
<int-ip:tcp-connection-factory id="server"
type="server"
port="1234"
deserializer="javaDeserializer"
serializer="javaSerializer"
using-nio="true"
single-use="true"/>
<int-ip:tcp-connection-factory id="client"
type="client"
host="localhost"
port="#{server.port}"
single-use="true"
so-timeout="10000"
deserializer="javaDeserializer"
serializer="javaSerializer"/>
<int:channel id="input" />
<int:channel id="replies">
<int:queue/>
</int:channel>
<int-ip:tcp-outbound-channel-adapter id="outboundClient"
channel="input"
connection-factory="client"/>
<int-ip:tcp-inbound-channel-adapter id="inboundClient"
channel="replies"
connection-factory="client"/>
<int-ip:tcp-inbound-channel-adapter id="inboundServer"
channel="loop"
connection-factory="server"/>
<int-ip:tcp-outbound-channel-adapter id="outboundServer"
channel="loop"
connection-factory="server"/>
<int:channel id="loop"/>
In the preceding configuration, messages arriving in the input channel are serialized over connections
created by client connection factory, received at the server, and placed on the loop channel. Since
loop is the input channel for outboundServer, the message is looped back over the same connection,
received by inboundClient, and deposited in the replies channel. Java serialization is used on
the wire.
Normally, inbound adapters use a type="server" connection factory, which listens for incoming
connection requests. In some cases, you may want to establish the connection in reverse, such that the
inbound adapter connects to an external server and then waits for inbound messages on that connection.
This topology is supported by setting client-mode="true" on the inbound adapter. In this case, the
connection factory must be of type client and must have single-use set to false.
Two additional attributes support this mechanism. retry-interval specifies (in milliseconds)
how often the framework attempts to reconnect after a connection failure. scheduler supplies a
TaskScheduler to schedule the connection attempts and to test that the connection is still active.
If you don’t provide a scheduler, the framework’s default taskScheduler bean is used.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 509
For an outbound adapter, the connection is normally established when the first message is sent.
client-mode="true" on an outbound adapter causes the connection to be established when the
adapter is started. By default, adapters are automatically started. Again, the connection factory must
be of type client and have single-use="false". retry-interval and scheduler are also
supported. If a connection fails, it is re-established either by the scheduler or when the next message
is sent.
For both inbound and outbound, if the adapter is started, you can force the adapter to establish a
connection by sending a <control-bus /> command: @adapter_id.retryConnection(). Then
you can examine the current state with @adapter_id.isClientModeConnected().
34.7 TCP Gateways
The inbound TCP gateway TcpInboundGateway and outbound TCP gateway
TcpOutboundGateway use a server and client connection factory, respectively. Each connection can
process a single request or response at a time.
The inbound gateway, after constructing a message with the incoming payload and sending it to the
requestChannel, waits for a response and sends the payload from the response message by writing
it to the connection.
Note
For the inbound gateway, you must retain or populate, the ip_connectionId header, because
it is used to correlate the message to a connection. Messages that originate at the gateway
automatically have the header set. If the reply is constructed as a new message, you need to set
the header. The header value can be captured from the incoming message.
As with inbound adapters, inbound gateways normally use a type="server" connection factory, which
listens for incoming connection requests. In some cases, you may want to establish the connection in
reverse, such that the inbound gateway connects to an external server and then waits for and replies
to inbound messages on that connection.
This topology is supported by using client-mode="true" on the inbound gateway. In this case, the
connection factory must be of type client and must have single-use set to false.
Two additional attributes support this mechanism. retry-interval specifies (in milliseconds)
how often the framework tries to reconnect after a connection failure. scheduler supplies a
TaskScheduler to schedule the connection attempts and to test that the connection is still active.
If the gateway is started, you may force the gateway to establish a connection by sending a
<control-bus /> command: @adapter_id.retryConnection() and examine the current state with
@adapter_id.isClientModeConnected().
The outbound gateway, after sending a message over the connection, waits for a response, constructs a
response message, and puts it on the reply channel. Communications over the connections are single-
threaded. Only one message can be handled at a time. If another thread attempts to send a message
before the current response has been received, it blocks until any previous requests are complete (or
time out). If, however, the client connection factory is configured for single-use connections, each new
request gets its own connection and is processed immediately. The following example configures an
inbound TCP gateway:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 510
<int-ip:tcp-inbound-gateway id="inGateway"
request-channel="tcpChannel"
reply-channel="replyChannel"
connection-factory="cfServer"
reply-timeout="10000"/>
If a connection factory configured with the default serializer or deserializer is used, messages is \r\n
delimited data and the gateway can be used by a simple client such as telnet.
The following example shows an outbound TCP gateway:
<int-ip:tcp-outbound-gateway id="outGateway"
request-channel="tcpChannel"
reply-channel="replyChannel"
connection-factory="cfClient"
request-timeout="10000"
remote-timeout="10000"/> <!-- or e.g.
remote-timeout-expression="headers['timeout']" -->
client-mode is not currently available with the outbound gateway.
34.8 TCP Message Correlation
One goal of the IP endpoints is to provide communication with systems other than Spring Integration
applications. For this reason, only message payloads are sent and received by default. Since 3.0, you
can transfer headers by using JSON, Java serialization, or custom serializers and deserializers. See
the section called “Transferring Headers” for more information. No message correlation is provided by
the framework (except when using the gateways) or collaborating channel adapters on the server side.
Later in this document, we discuss the various correlation techniques available to applications. In most
cases, this requires specific application-level correlation of messages, even when message payloads
contain some natural correlation data (such as an order number).
Gateways
Gateways automatically correlate messages. However, you should use an outbound gateway for
relatively low-volume applications. When you configure the connection factory to use a single shared
connection for all message pairs (single-use="false"), only one message can be processed at a time. A
new message has to wait until the reply to the previous message has been received. When a connection
factory is configured for each new message to use a new connection (single-use="true"), this restriction
does not apply. While this setting can give higher throughput than a shared connection environment, it
comes with the overhead of opening and closing a new connection for each message pair.
Therefore, for high-volume messages, consider using a collaborating pair of channel adapters. However,
to do so, you need to provide collaboration logic.
Another solution, introduced in Spring Integration 2.2, is to use a
CachingClientConnectionFactory, which allows the use of a pool of shared connections.
Collaborating Outbound and Inbound Channel Adapters
To achieve high-volume throughput (avoiding the pitfalls of using gateways, as mentioned earlier)
you can configure a pair of collaborating outbound and inbound channel adapters. You can also use
collaborating adapters (server-side or client-side) for totally asynchronous communication (rather than
with request-reply semantics). On the server side, message correlation is automatically handled by the
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 511
adapters, because the inbound adapter adds a header that allows the outbound adapter to determine
which connection to use when sending the reply message.
Note
On the server side, you must populate the ip_connectionId header, because it is used
to correlate the message to a connection. Messages that originate at the inbound adapter
automatically have the header set. If you wish to construct other messages to send, you need to
set the header. You can get the header value from an incoming message.
On the client side, the application must provide its own correlation logic, if needed. You can do so in
a number of ways.
If the message payload has some natural correlation data (such as a transaction ID or an order number)
and you have no need to retain any information (such as a reply channel header) from the original
outbound message, the correlation is simple and would be done at the application level in any case.
If the message payload has some natural correlation data (such as a transaction ID or an order number),
but you need to retain some information (such as a reply channel header) from the original outbound
message, you can retain a copy of the original outbound message (perhaps by using a publish-subscribe
channel) and use an aggregator to recombine the necessary data.
For either of the previous two scenarios, if the payload has no natural correlation data, you can provide
a transformer upstream of the outbound channel adapter to enhance the payload with such data. Such
a transformer may transform the original payload to a new object that contains both the original payload
and some subset of the message headers. Of course, live objects (such as reply channels) from the
headers cannot be included in the transformed payload.
If you choose such a strategy, you need to ensure the connection factory has an appropriate
serializer-deserializer pair to handle such a payload (such as DefaultSerializer and
DefaultDeserializer, which use java serialization, or a custom serializer and deserializer). The
ByteArray*Serializer options mentioned in Section 34.3, “TCP Connection Factories”, including
the default ByteArrayCrLfSerializer, do not support such payloads unless the transformed
payload is a String or byte[].
Note
Before the 2.2 release, when collaborating channel adapters used a client connection factory, the
so-timeout attribute defaulted to the default reply timeout (10 seconds). This meant that, if no
data were received by the inbound adapter for this period of time, the socket was closed.
This default behavior was not appropriate in a truly asynchronous environment, so it now defaults
to an infinite timeout. You can reinstate the previous default behavior by setting the so-timeout
attribute on the client connection factory to 10000 milliseconds.
Transferring Headers
TCP is a streaming protocol. Serializers and Deserializers demarcate messages within the
stream. Prior to 3.0, only message payloads (String or byte[]) could be transferred over TCP.
Beginning with 3.0, you can transfer selected headers as well as the payload. However, "live" objects,
such as the replyChannel header, cannot be serialized.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 512
Sending header information over TCP requires some additional configuration.
The first step is to provide the ConnectionFactory with a
MessageConvertingTcpMessageMapper that uses the mapper attribute. This mapper delegates to
any MessageConverter implementation to convert the message to and from some object that can be
serialized and deserialized by the configured serializer and deserializer.
Spring Integration provides a MapMessageConverter, which allows the specification of a list of
headers that are added to a Map object, along with the payload. The generated Map has two entries:
payload and headers. The headers entry is itself a Map and contains the selected headers.
The second step is to provide a serializer and a deserializer that can convert between a Map and some
wire format. This can be a custom Serializer or Deserializer, which you typically need if the peer
system is not a Spring Integration application.
Spring Integration provides a MapJsonSerializer to convert a Map to and from JSON. It uses a
Spring Integration JsonObjectMapper. You can provide a custom JsonObjectMapper if needed.
By default, the serializer inserts a linefeed (0x0a) character between objects. See the Javadoc for more
information.
Note
The JsonObjectMapper uses whichever version of Jackson is on the classpath.
You can also use standard Java serialization of the Map, by using the DefaultSerializer and
DefaultDeserializer.
The following example shows the configuration of a connection factory that transfers the
correlationId, sequenceNumber, and sequenceSize headers by using JSON:
<int-ip:tcp-connection-factory id="client"
type="client"
host="localhost"
port="12345"
mapper="mapper"
serializer="jsonSerializer"
deserializer="jsonSerializer"/>
<bean id="mapper"
class="o.sf.integration.ip.tcp.connection.MessageConvertingTcpMessageMapper">
<constructor-arg name="messageConverter">
<bean class="o.sf.integration.support.converter.MapMessageConverter">
<property name="headerNames">
<list>
<value>correlationId</value>
<value>sequenceNumber</value>
<value>sequenceSize</value>
</list>
</property>
</bean>
</constructor-arg>
</bean>
<bean id="jsonSerializer" class="o.sf.integration.ip.tcp.serializer.MapJsonSerializer" />
A message sent with the preceding configuration, with a payload of something would appear on the
wire as follows:
{"headers":{"correlationId":"things","sequenceSize":5,"sequenceNumber":1},"payload":"something"}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 513
34.9 About Non-blocking I/O (NIO)
Using NIO (see using-nio in Section 34.12, “IP Configuration Attributes”) avoids dedicating a thread
to read from each socket. For a small number of sockets, you are likely to find that not using NIO,
together with an asynchronous handoff (such as to a QueueChannel), performs as well as or better
than using NIO.
You should consider using NIO when handling a large number of connections. However, the use of NIO
has some other ramifications. A pool of threads (in the task executor) is shared across all the sockets.
Each incoming message is assembled and sent to the configured channel as a separate unit of work
on a thread selected from that pool. Two sequential messages arriving on the same socket might be
processed by different threads. This means that the order in which the messages are sent to the channel
is indeterminate. Strict ordering of the messages arriving on the socket is not maintained.
For some applications, this is not an issue. For others, it is a problem. If you require strict ordering,
consider setting using-nio to false and using an asynchronous handoff.
Alternatively, you can insert a resequencer downstream of the inbound endpoint to return the messages
to their proper sequence. If you set apply-sequence to true on the connection factory, messages
arriving on a TCP connection have sequenceNumber and correlationId headers set. The
resequencer uses these headers to return the messages to their proper sequence.
Pool Size
The pool size attribute is no longer used. Previously, it specified the size of the default thread pool when
a task-executor was not specified. It was also used to set the connection backlog on server sockets.
The first function is no longer needed (see the next paragraph). The second function is replaced by the
backlog attribute.
Previously, when using a fixed thread pool task executor (which was the default) with NIO, it was
possible to get a deadlock and processing would stop. The problem occurred when a buffer was full, a
thread reading from the socket was trying to add more data to the buffer, and no threads were available
to make space in the buffer. This only occurred with a very small pool size, but it could be possible
under extreme conditions. Since 2.2, two changes have eliminated this problem. First, the default task
executor is a cached thread pool executor. Second, deadlock detection logic has been added such that,
if thread starvation occurs, instead of deadlocking, an exception is thrown, thus releasing the deadlocked
resources.
Important
Now that the default task executor is unbounded, it is possible that an out-of-memory condition
might occur with high rates of incoming messages, if message processing takes extended time.
If your application exhibits this type of behavior, you should use a pooled task executor with an
appropriate pool size, but see the next section.
Thread Pool Task Executor with CALLER_RUNS Policy
You should keep in mind some important considerations when you use a fixed thread pool with the
CallerRunsPolicy (CALLER_RUNS when using the <task/> namespace) and the queue capacity
is small.
The following does not apply if you do not use a fixed thread pool.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 514
With NIO connections, there are three distinct task types. The I/O selector processing is performed
on one dedicated thread (detecting events, accepting new connections, and dispatching the I/O read
operations to other threads by using the task executor). When an I/O reader thread (to which the read
operation is dispatched) reads data, it hands off to another thread to assemble the incoming message.
Large messages can take several reads to complete. These "assembler" threads can block while
waiting for data. When a new read event occurs, the reader determines if this socket already has an
assembler and, if not, runs a new one. When the assembly process is complete, the assembler thread
is returned to the pool.
This can cause a deadlock when the pool is exhausted, the CALLER_RUNS rejection policy is in use,
and the task queue is full. When the pool is empty and there is no room in the queue, the IO selector
thread receives an OP_READ event and dispatches the read by using the executor. The queue is full,
so the selector thread itself starts the read process. Now it detects that there is no assembler for this
socket and, before it does the read, fires off an assembler. Again, the queue is full, and the selector
thread becomes the assembler. The assembler is now blocked, waiting for the data to be read, which
never happens. The connection factory is now deadlocked because the selector thread cannot handle
new events.
To avoid this deadlock, we must avoid the selector (or reader) threads performing the assembly task.
We want to use separate pools for the IO and assembly operations.
The framework provides a CompositeExecutor, which allows the configuration of two distinct
executors: one for performing IO operations and one for message assembly. In this environment, an IO
thread can never become an assembler thread, and the deadlock cannot occur.
In addition, the task executors should be configured to use an AbortPolicy (ABORT when using
<task>). When an I/O task cannot be completed, it is deferred for a short time and continually retried
until it can be completed and have an assembler allocated. By default, the delay is 100ms, but you can
change it by setting the readDelay property on the connection factory (read-delay when configuring
with the XML namespace).
The following three examples shows how to configure the composite executor:
@Bean
private CompositeExecutor compositeExecutor() {
ThreadPoolTaskExecutor ioExec = new ThreadPoolTaskExecutor();
ioExec.setCorePoolSize(4);
ioExec.setMaxPoolSize(10);
ioExec.setQueueCapacity(0);
ioExec.setThreadNamePrefix("io-");
ioExec.setRejectedExecutionHandler(new AbortPolicy());
ioExec.initialize();
ThreadPoolTaskExecutor assemblerExec = new ThreadPoolTaskExecutor();
assemblerExec.setCorePoolSize(4);
assemblerExec.setMaxPoolSize(10);
assemblerExec.setQueueCapacity(0);
assemblerExec.setThreadNamePrefix("assembler-");
assemblerExec.setRejectedExecutionHandler(new AbortPolicy());
assemblerExec.initialize();
return new CompositeExecutor(ioExec, assemblerExec);
}
<bean id="myTaskExecutor" class="org.springframework.integration.util.CompositeExecutor">
<constructor-arg ref="io"/>
<constructor-arg ref="assembler"/>
</bean>
<task:executor id="io" pool-size="4-10" queue-capacity="0" rejection-policy="ABORT" />
<task:executor id="assembler" pool-size="4-10" queue-capacity="0" rejection-policy="ABORT" />
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 515
<bean id="myTaskExecutor" class="org.springframework.integration.util.CompositeExecutor">
<constructor-arg>
<bean class="org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor">
<property name="threadNamePrefix" value="io-" />
<property name="corePoolSize" value="4" />
<property name="maxPoolSize" value="8" />
<property name="queueCapacity" value="0" />
<property name="rejectedExecutionHandler">
<bean class="java.util.concurrent.ThreadPoolExecutor.AbortPolicy" />
</property>
</bean>
</constructor-arg>
<constructor-arg>
<bean class="org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor">
<property name="threadNamePrefix" value="assembler-" />
<property name="corePoolSize" value="4" />
<property name="maxPoolSize" value="10" />
<property name="queueCapacity" value="0" />
<property name="rejectedExecutionHandler">
<bean class="java.util.concurrent.ThreadPoolExecutor.AbortPolicy" />
</property>
</bean>
</constructor-arg>
</bean>
34.10 SSL/TLS Support
Secure Sockets Layer/Transport Layer Security is supported. When using NIO, the JDK 5+ SSLEngine
feature is used to handle handshaking after the connection is established. When not using
NIO, standard SSLSocketFactory and SSLServerSocketFactory objects are used to create
connections. A number of strategy interfaces are provided to allow significant customization. The
default implementations of these interfaces provide for the simplest way to get started with secure
communications.
Getting Started
Regardless of whether you use NIO, you need to configure the ssl-context-support attribute on
the connection factory. This attribute references a <bean/> definition that describes the location and
passwords for the required key stores.
SSL/TLS peers require two keystores each:
• A keystore that contains private and public key pairs to identify the peer
• A truststore that contains the public keys for peers that are trusted. See the documentation for the
keytool utility provided with the JDK. The essential steps are
1. Create a new key pair and store it in a keystore.
2. Export the public key.
3. Import the public key into the peer’s truststore.
4. Repeat for the other peer.
Note
It is common in test cases to use the same key stores on both peers, but this should be avoided
for production.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 516
After establishing the key stores, the next step is to indicate their locations to the
TcpSSLContextSupport bean and provide a reference to that bean to the connection factory.
The following example configures an SSL connection:
<bean id="sslContextSupport"
class="o.sf.integration.ip.tcp.connection.support.DefaultTcpSSLContextSupport">
<constructor-arg value="client.ks"/>
<constructor-arg value="client.truststore.ks"/>
<constructor-arg value="secret"/>
<constructor-arg value="secret"/>
</bean>
<ip:tcp-connection-factory id="clientFactory"
type="client"
host="localhost"
port="1234"
ssl-context-support="sslContextSupport" />
The DefaulTcpSSLContextSupport class also has an optional protocol property, which can be
SSL or TLS (the default).
The keystore file names (the first two constructor arguments) use the Spring Resource abstraction. By
default, the files are located on the classpath, but you can override this by using the file: prefix (to
find the files on the filesystem instead).
Starting with version 4.3.6, when you use NIO, you can specify an ssl-handshake-timeout (in
seconds) on the connection factory. This timeout (the default is 30 seconds) is used during SSL
handshake when waiting for data. If the timeout is exceeded, the process is aborted and the socket
is closed.
Host Verification
Starting with version 5.0.8, you can configure whether or not to enable host verification. Starting with
version 5.1, it is enabled by default; the mechanism to disable it depends on whether or not you are
using NIO.
Host verification is used to ensure the server you are connected to matches information in the certificate,
even if the certificate is trusted.
When using NIO, configure the DefaultTcpNioSSLConnectionSupport, for example.
@Bean
public DefaultTcpNioSSLConnectionSupport connectionSupport() {
DefaultTcpSSLContextSupport sslContextSupport = new DefaultTcpSSLContextSupport("test.ks",
"test.truststore.ks", "secret", "secret");
sslContextSupport.setProtocol("SSL");
DefaultTcpNioSSLConnectionSupport tcpNioConnectionSupport =
new DefaultTcpNioSSLConnectionSupport(sslContextSupport, false);
return tcpNioConnectionSupport;
}
The second constructor argument disables host verification. The connectionSupport bean is then
injected into the NIO connection factory.
When not using NIO, the configuration is in the TcpSocketSupport:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 517
connectionFactory.setTcpSocketSupport(new DefaultTcpSocketSupport(false));
Again, the constructor argument disables host verification.
34.11 Advanced Techniques
This section covers advanced techniques that you may find to be helpful in certain situations.
Strategy Interfaces
In many cases, the configuration described earlier is all that is needed to enable secure communication
over TCP/IP. However, Spring Integration provides a number of strategy interfaces to allow
customization and modification of socket factories and sockets:
•TcpSSLContextSupport
•TcpSocketFactorySupport
•TcpSocketSupport
•TcpNetConnectionSupport
•TcpNioConnectionSupport
The TcpSSLContextSupport Strategy Interface
The following listing shows the TcpSSLContextSupport strategy interface:
public interface TcpSSLContextSupport {
SSLContext getSSLContext() throws Exception;
}
Implementations of the TcpSSLContextSupport interface are responsible for creating
an SSLContext object. The implementation provided by the framework is the
DefaultTcpSSLContextSupport, described earlier. If you require different behavior, implement this
interface and provide the connection factory with a reference to a bean of your class' implementation.
The TcpSocketFactorySupport Strategy Interface
The following listing shows the definition of the TcpSocketFactorySupport strategy interface:
public interface TcpSocketFactorySupport {
ServerSocketFactory getServerSocketFactory();
SocketFactory getSocketFactory();
}
Implementations of this interface are responsible for obtaining references to
ServerSocketFactory and SocketFactory. Two implementations are provided. The first is
DefaultTcpNetSocketFactorySupport for non-SSL sockets (when no ssl-context-support
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 518
attribute is defined). This uses the JDK’s default factories. The second implementation is
DefaultTcpNetSSLSocketFactorySupport. By default, this is used when an ssl-context-
support attribute is defined. It uses the SSLContext created by that bean to create the socket
factories.
Note
This interface applies only if using-nio is false. NIO does not use socket factories.
The TcpSocketSupport Strategy Interface
The following listing shows the definition of the TcpSocketSupport strategy interface:
public interface TcpSocketSupport {
void postProcessServerSocket(ServerSocket serverSocket);
void postProcessSocket(Socket socket);
}
Implementations of this interface can modify sockets after they are created and after all configured
attributes have been applied but before the sockets are used. This applies whether you use NIO or not.
For example, you could use an implementation of this interface to modify the supported cipher suites
on an SSL socket, or you could add a listener that gets notified after SSL handshaking is complete. The
sole implementation provided by the framework is the DefaultTcpSocketSupport, which does not
modify the sockets in any way.
To supply your own implementation of TcpSocketFactorySupport or TcpSocketSupport, provide
the connection factory with references to beans of your custom type by setting the socket-factory-
support and socket-support attributes, respectively.
The TcpNetConnectionSupport Strategy Interface
The following listing shows the definition of the TcpNetConnectionSupport strategy interface:
public interface TcpNetConnectionSupport {
TcpNetConnection createNewConnection(Socket socket,
boolean server, boolean lookupHost,
ApplicationEventPublisher applicationEventPublisher,
String connectionFactoryName) throws Exception;
}
This interface is invoked to create objects of type TcpNetConnection (or its subclasses). The
framework provides a single implementation (DefatulTcpNetConnectionSupport), which, by
default, creates simple TcpNetConnection objects. It has two properties: pushbackCapable
and pushbackBufferSize. When push back is enabled, the implementation returns a subclass
that wraps the connection’s InputStream in a PushbackInputStream. Aligned with the
PushbackInputStream default, the buffer size defaults to 1. This lets deserializers "unread" (push
back) bytes into the stream. The following trivial example shows how it might be used in a delegating
deserializer that "peeks" at the first byte to determine which deserializer to invoke:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 519
public class CompositeDeserializer implements Deserializer<byte[]> {
private final ByteArrayStxEtxSerializer stxEtx = new ByteArrayStxEtxSerializer();
private final ByteArrayCrLfSerializer crlf = new ByteArrayCrLfSerializer();
@Override
public byte[] deserialize(InputStream inputStream) throws IOException {
PushbackInputStream pbis = (PushbackInputStream) inputStream;
int first = pbis.read();
if (first < 0) {
throw new SoftEndOfStreamException();
}
pbis.unread(first);
if (first == ByteArrayStxEtxSerializer.STX) {
this.receivedStxEtx = true;
return this.stxEtx.deserialize(pbis);
}
else {
this.receivedCrLf = true;
return this.crlf.deserialize(pbis);
}
}
}
The TcpNioConnectionSupport Strategy Interface
The following listing shows the definition of the TcpNioConnectionSupport strategy interface:
public interface TcpNioConnectionSupport {
TcpNioConnection createNewConnection(SocketChannel socketChannel,
boolean server, boolean lookupHost,
ApplicationEventPublisher applicationEventPublisher,
String connectionFactoryName) throws Exception;
}
This interface is invoked to create TcpNioConnection objects (or objects from subclasses).
Spring Integration provides two implementations: DefaultTcpNioSSLConnectionSupport and
DefaultTcpNioConnectionSupport. Which one is used depends on whether SSL is in
use. A common use case is to subclass DefaultTcpNioSSLConnectionSupport and
override postProcessSSLEngine. See the SSL client authentication example. As with the
DefaultTcpNetConnectionSupport, these implementations also support push back.
Example: Enabling SSL Client Authentication
To enable client certificate authentication when you use SSL, the technique depends on whether you use
NIO. When you do not NIO , provide a custom TcpSocketSupport implementation to post-process
the server socket:
serverFactory.setTcpSocketSupport(new DefaultTcpSocketSupport() {
@Override
public void postProcessServerSocket(ServerSocket serverSocket) {
((SSLServerSocket) serverSocket).setNeedClientAuth(true);
}
});
(When you use XML configuration, provide a reference to your bean by setting the socket-support
attribute).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 520
When you use NIO, provide a custom TcpNioSslConnectionSupport implementation to post-
process the SSLEngine, as the following example shows:
@Bean
public DefaultTcpNioSSLConnectionSupport tcpNioConnectionSupport() {
return new DefaultTcpNioSSLConnectionSupport(serverSslContextSupport) {
@Override
protected void postProcessSSLEngine(SSLEngine sslEngine) {
sslEngine.setNeedClientAuth(true);
}
}
}
@Bean
public TcpNioServerConnectionFactory server() {
...
serverFactory.setTcpNioConnectionSupport(tcpNioConnectionSupport());
...
}
(When you use XML configuration, since version 4.3.7, provide a reference to your bean by setting the
nio-connection-support attribute).
34.12 IP Configuration Attributes
The following table describes attributes that you can set to configure IP connections:
Table 34.1. Connection Factory Attributes
Attribute Name Client? Server? Allowed
Values
Attribute Description
type Y Y client,
server
Determines whether the connection factory
is a client or a server.
host Y N The host name or IP address of the
destination.
port Y Y The port.
serializer Y Y An implementation of Serializer
used to serialize the payload. Defaults to
ByteArrayCrLfSerializer
deserializer Y Y An implementation of Deserializer
used to deserialize the payload. Defaults to
ByteArrayCrLfSerializer
using-nio Y Y true,
false
Whether or not connection uses NIO.
Refer to the java.nio package for more
information. See Section 34.9, “About Non-
blocking I/O (NIO)”. Default: false.
using-direct-
buffers
Y N true,
false
When using NIO, whether or not the
connection uses direct buffers. Refer to the
java.nio.ByteBuffer documentation
for more information. Must be false if
using-nio is false.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 521
Attribute Name Client? Server? Allowed
Values
Attribute Description
apply-sequence Y Y true,
false
When you use NIO, it may be necessary to
resequence messages. When this attribute
is set to true, correlationId and
sequenceNumber headers are added
to received messages. See Section 34.9,
“About Non-blocking I/O (NIO)”. Default:
false.
so-timeout Y Y Defaults to 0 (infinity), except for server
connection factories with single-
use="true". In that case, it defaults to
the default reply timeout (10 seconds).
so-send-buffer-
size
Y Y See java.net.Socket.
setSendBufferSize().
so-receive-
buffer-size
Y Y See java.net.Socket.
setReceiveBufferSize().
so-keep-alive Y Y true,
false
See
java.net.Socket.setKeepAlive().
so-linger Y Y Sets linger to true with
the supplied value. See
java.net.Socket.setSoLinger().
so-tcp-no-delay Y Y true,
false
See
java.net.Socket.setTcpNoDelay().
so-traffic-
class
Y Y See java.net.Socket.
setTrafficClass().
local-address N Y On a multi-homed system, specifies an
IP address for the interface to which the
socket is bound.
task-executor Y Y Specifies a specific executor to be used
for socket handling. If not supplied, an
internal cached thread executor is used.
Needed on some platforms that require the
use of specific task executors, such as a
WorkManagerTaskExecutor.
single-use Y Y true,
false
Specifies whether a connection can be
used for multiple messages. If true, a new
connection is used for each message.
pool-size N N This attribute is no longer used. For
backward compatibility, it sets the backlog,
but you should use backlog to specify the
connection backlog in server factories.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 522
Attribute Name Client? Server? Allowed
Values
Attribute Description
backlog N Y Sets the connection backlog for server
factories.
lookup-host Y Y true,
false
Specifies whether reverse lookups are
done on IP addresses to convert to host
names for use in message headers. If
false, the IP address is used instead.
Default: true.
interceptor-
factory-chain
Y Y See Section 34.4, “TCP Connection
Interceptors”.
ssl-context-
support
Y Y See <<ssl-tls>>.
socket-factory-
support
Y Y See <<ssl-tls>>.
socket-support Y Y See Section 34.10, “SSL/TLS Support”.
nio-connection-
support
Y Y See Section 34.11, “Advanced
Techniques”.
read-delay Y Y long > 0 The delay (in milliseconds) before retrying
a read after the previous attempt failed due
to insufficient threads. Default: 100. Only
applies if using-nio is true.
The following table describes attributes that you can set to configure UDP inbound channel adapters:
Table 34.2. UDP Inbound Channel Adapter Attributes
Attribute
Name
Allowed
Values
Attribute Description
port The port on which the adapter listens.
multicast true, false Whether or not the UDP adapter uses multicast.
multicast-
address
When multicast is true, the multicast address to which the adapter
joins.
pool-size Specifies how many packets can be handled concurrently. It only
applies if task-executor is not configured. Default: 5.
task-executor Specifies a specific executor to be used for socket handling. If not
supplied, an internal pooled executor is used. Needed on some
platforms that require the use of specific task executors such
as a WorkManagerTaskExecutor. See pool-size for thread
requirements.
receive-
buffer-size
The size of the buffer used to receive DatagramPackets.
Usually set to the maximum transmission unit (MTU) size. If a
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 523
Attribute
Name
Allowed
Values
Attribute Description
smaller buffer is used than the size of the sent packet, truncation
can occur. You can detect this by using the check-length
attribute..
check-
length
true, false Whether or not a UDP adapter expects a data length field in the
packet received. Used to detect packet truncation.
so-timeout See the setSoTimeout() methods in
java.net.DatagramSocket for more information.
so-send-
buffer-size
Used for UDP acknowledgment packets. See the
setSendBufferSize() methods in java.net.DatagramSocket
for more information.
so-receive-
buffer-size
See
java.net.DatagramSocket.setReceiveBufferSize() for
more information.
local-
address
On a multi-homed system, specifies an IP address for the
interface to which the socket is bound.
error-
channel
If a downstream component throws an exception, the
MessagingException message that contains the exception and
failed message is sent to this channel.
lookup-host true, false Specifies whether reverse lookups are done on IP addresses to
convert to host names for use in message headers. If false, the
IP address is used instead. Default: true.
The following table describes attributes that you can set to configure UDP outbound channel adapters:
Table 34.3. UDP Outbound Channel Adapter Attributes
Attribute Name Allowed
Values
Attribute Description
host The host name or ip address of the destination. For
multicast udp adapters, the multicast address.
port The port on the destination.
multicast true,
false
Whether or not the udp adapter uses multicast.
acknowledge true,
false
Whether or not a UDP adapter requires an
acknowledgment from the destination. When enabled,
it requires setting the following four attributes: ack-
host, ack-port, ack-timeout, and min-acks-
for- success.
ack-host When acknowledge is true, indicates the host or IP
address to which the acknowledgment should be sent.
Usually the current host, but may be different — for
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 524
Attribute Name Allowed
Values
Attribute Description
example, when Network Address Translation (NAT) is
being used.
ack-port When acknowledge is true, indicates the port to
which the acknowledgment should be sent. The adapter
listens on this port for acknowledgments.
ack-timeout When acknowledge is true, indicates the
time in milliseconds that the adapter waits for an
acknowledgment. If an acknowledgment is not received
in time, the adapter throws an exception.
min-acks-for-
success
Defaults to 1. For multicast adapters, you can set this to
a larger value, which requires acknowledgments from
multiple destinations.
check-length true,
false
Whether or not a UDP adapter includes a data length
field in the packet sent to the destination.
time-to-live For multicast adapters, specifies the time-to-live
attribute for the MulticastSocket. Controls the scope
of the multicasts. Refer to the Java API documentation
for more information.
so-timeout See java.net.DatagramSocket setSoTimeout()
methods for more information.
so-send-buffer-size See the setSendBufferSize() methods in
java.net.DatagramSocket for more information.
so-receive-buffer-
size
Used for UDP acknowledgment packets. See
the setReceiveBufferSize() methods in
java.net.DatagramSocket for more information.
local-address On a multi-homed system, for the UDP adapter,
specifies an IP address for the interface to which the
socket is bound for reply messages. For a multicast
adapter, it also determines which interface the multicast
packets are sent over.
task-executor Specifies a specific executor to be used for
acknowledgment handling. If not supplied, an internal
single threaded executor is used. Needed on some
platforms that require the use of specific task executors,
such as a WorkManagerTaskExecutor. One thread
is dedicated to handling acknowledgments (if the
acknowledge option is true).
destination-
expression
SpEL
expression
A SpEL expression to be evaluated to determine which
SocketAddress to use as a destination address for
the outgoing UDP packets.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 525
Attribute Name Allowed
Values
Attribute Description
socket-expression SpEL
expression
A SpEL expression to be evaluated to determine
which datagram socket use for sending outgoing UDP
packets.
The following table describes attributes that you can set to configure TCP inbound channel adapters:
Table 34.4. TCP Inbound Channel Adapter Attributes
Attribute Name Allowed
Values
Attribute Description
channel The channel to which inbound messages is sent.
connection-factory If the connection factory has a type of server, the
factory is "owned" by this adapter. If it has a type of
client, it is "owned" by an outbound channel adapter,
and this adapter receives any incoming messages on
the connection created by the outbound adapter.
error-channel If an exception is thrown by a downstream component,
the MessagingException message containing
the exception and the failed message is sent to this
channel.
client-mode true,
false
When true, the inbound adapter acts as a client
with respect to establishing the connection and then
receiving incoming messages on that connection.
Default: false. See also retry-interval and
scheduler. The connection factory must be of type
client and have single-use set to false.
retry-interval When in client-mode, specifies the number of
milliseconds to wait between connection attempts or
after a connection failure. Default: 60000 (60 seconds).
scheduler true,
false
Specifies a TaskScheduler to use for managing the
client-mode connection. If not specified, it defaults
to the global Spring Integration taskScheduler bean,
which has a default pool size of 10. See Section E.2,
“Configuring the Task Scheduler”.
The following table describes attributes that you can set to configure TCP outbound channel adapters:
Table 34.5. TCP Outbound Channel Adapter Attributes
Attribute Name Allowed
Values
Attribute Description
channel The channel on which outbound messages arrive.
connection-factory If the connection factory has a type of client, the
factory is "owned" by this adapter. If it has a type of
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 526
Attribute Name Allowed
Values
Attribute Description
server, it is "owned" by an inbound channel adapter,
and this adapter tries to correlate messages to the
connection on which an original inbound message was
received.
client-mode true,
false
When true, the outbound adapter tries to establish
the connection as soon as it is started. When false,
the connection is established when the first message is
sent. Default: false. See also retry-interval and
scheduler. The connection factory must be of type
client and have single-use set to false.
retry-interval When in client-mode, specifies the number of
milliseconds to wait between connection attempts or
after a connection failure. Default: 60000 (60 seconds).
scheduler true,
false
Specifies a TaskScheduler to use for managing the
client-mode connection. If not specified, it defaults
to the global Spring Integration taskScheduler bean,
which has a default pool size of 10. See Section E.2,
“Configuring the Task Scheduler”.
The following table describes attributes that you can set to configure TCP inbound gateways:
Table 34.6. TCP Inbound Gateway Attributes
Attribute Name Allowed
Values
Attribute Description
connection-factory The connection factory must be of type server.
request-channel The channel to which incoming messages are sent.
reply-channel The channel on which reply messages may arrive.
Usually, replies arrive on a temporary reply channel
added to the inbound message header.
reply-timeout The time in milliseconds for which the gateway waits for
a reply. Default: 1000 (1 second).
error-channel If an exception is thrown by a downstream component,
the MessagingException message containing
the exception and the failed message is sent to this
channel. Any reply from that flow is then returned as a
response by the gateway.
client-mode true,
false
When true, the inbound gateway acts as a client
with respect to establishing the connection and then
receiving (and replying to) incoming messages on that
connection. Default: false. See also retry-interval
and scheduler. The connection factory must be of
type client and have single-use set to false.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 527
Attribute Name Allowed
Values
Attribute Description
retry-interval When in client-mode, specifies the number of
milliseconds to wait between connection attempts or
after a connection failure. Default: 60000 (60 seconds).
scheduler true,
false
Specifies a TaskScheduler to use for managing the
client-mode connection. If not specified, it defaults
to the global Spring Integration taskScheduler bean,
which has a default pool size of 10. See Section E.2,
“Configuring the Task Scheduler”.
The following table describes attributes that you can set to configure TCP outbound gateways:
Table 34.7. TCP Outbound Gateway Attributes
Attribute Name Allowed
Values
Attribute Description
connection-factory The connection factory must be of type client.
request-channel The channel on which outgoing messages arrive.
reply-channel Optional. The channel to which reply messages are
sent.
remote-timeout The time in milliseconds for which the gateway waits
for a reply from the remote system. Mutually exclusive
with remote-timeout-expression. Default: 10000
(10 seconds). Note: In versions prior to 4.2 this value
defaulted to reply-timeout (if set).
remote-timeout-
expression
A SpEL expression that is evaluated against the
message to determine the time in milliseconds for which
the gateway waits for a reply from the remote system.
Mutually exclusive with remote-timeout.
request-timeout If a single-use connection factory is not being used, the
time in milliseconds for which the gateway waits to get
access to the shared connection.
reply-timeout The time in milliseconds for which the gateway waits
when sending the reply to the reply-channel. Only
applies if the reply-channel might block (such as a
bounded QueueChannel that is currently full).
34.13 IP Message Headers
IP Message Headers. This module uses the following MessageHeader instances:
Header Name IpHeaders Constant Description
ip_hostname HOSTNAME The host name from which a TCP
message or UDP packet was received.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 528
Header Name IpHeaders Constant Description
If lookupHost is false, this contains
the IP address.
ip_address IP_ADDRESS The IP address from which a TCP
message or UDP packet was received.
ip_port PORT The remote port for a UDP packet.
ip_localInetAddress IP_LOCAL_ADDRESS The local InetAddress to which the
socket is connected (since version
4.2.5).
ip_ackTo ACKADDRESS The remote IP address to which UDP
application-level acknowledgments
are sent. The framework includes
acknowledgment information in the
data packet.
ip_ackId ACK_ID A correlation ID for UDP application-
level acknowledgments. The
framework includes acknowledgment
information in the data packet.
ip_tcp_remotePort REMOTE_PORT The remote port for a TCP connection.
ip_connectionId CONNECTION_ID A unique identifier for a TCP
connection. Set by the framework for
inbound messages. When sending to
a server-side inbound channel adapter
or replying to an inbound gateway, this
header is required so that the endpoint
can determine the connection to which
to send the message.
ip_actualConnectionId ACTUAL_CONNECTION_ID For information only. When using a
cached or failover client connection
factory, it contains the actual
underlying connection ID.
contentType MessageHeaders.
CONTENT_TYPE
An optional content type for inbound
messages Described after this table.
Note that, unlike the other header
constants, this constant is in the
MessageHeaders class, not the
IpHeaders class.
For inbound messages, ip_hostname, ip_address, ip_tcp_remotePort, and
ip_connectionId are mapped by the default TcpHeaderMapper. If you set the mapper’s
addContentTypeHeader property to true, the mapper sets the contentType header
(application/octet-stream;charset="UTF-8", by default). You can change the default
by setting the contentType property. You can add additional headers by subclassing
TcpHeaderMapper and overriding the supplyCustomHeaders method. For example, when you
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 529
use SSL, you can add properties of the SSLSession by obtaining the session object from the
TcpConnection object, which is provided as an argument to the supplyCustomHeaders method.
For outbound messages, String payloads are converted to byte[] with the default (UTF-8) charset.
Set the charset property to change the default.
When customizing the mapper properties or subclassing, declare the mapper as a bean and provide an
instance to the connection factory by using the mapper property
34.14 Annotation-Based Configuration
The following example from the samples repository shows some of the configuration options available
when you use annotations instead of XML:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 530
@EnableIntegration ❶
@IntegrationComponentScan ❷
@Configuration
public static class Config {
@Value(${some.port})
private int port;
@MessagingGateway(defaultRequestChannel="toTcp") ❸
public interface Gateway {
String viaTcp(String in);
}
@Bean
@ServiceActivator(inputChannel="toTcp") ❹
public MessageHandler tcpOutGate(AbstractClientConnectionFactory connectionFactory) {
TcpOutboundGateway gate = new TcpOutboundGateway();
gate.setConnectionFactory(connectionFactory);
gate.setOutputChannelName("resultToString");
return gate;
}
@Bean ❺
public TcpInboundGateway tcpInGate(AbstractServerConnectionFactory connectionFactory) {
TcpInboundGateway inGate = new TcpInboundGateway();
inGate.setConnectionFactory(connectionFactory);
inGate.setRequestChannel(fromTcp());
return inGate;
}
@Bean
public MessageChannel fromTcp() {
return new DirectChannel();
}
@MessageEndpoint
public static class Echo { ❻
@Transformer(inputChannel="fromTcp", outputChannel="toEcho")
public String convert(byte[] bytes) {
return new String(bytes);
}
@ServiceActivator(inputChannel="toEcho")
public String upCase(String in) {
return in.toUpperCase();
}
@Transformer(inputChannel="resultToString")
public String convertResult(byte[] bytes) {
return new String(bytes);
}
}
@Bean
public AbstractClientConnectionFactory clientCF() { ❼
return new TcpNetClientConnectionFactory("localhost", this.port);
}
@Bean
public AbstractServerConnectionFactory serverCF() { ❽
return new TcpNetServerConnectionFactory(this.port);
}
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 531
❶Standard Spring Integration annotation enabling the infrastructure for an integration application.
❷Searches for @MessagingGateway interfaces.
❸The entry point to the client-side of the flow. The calling application can use @Autowired for this
Gateway bean and invoke its method.
❹Outbound endpoints consist of a MessageHandler and a consumer that wraps it. In this scenario,
the @ServiceActivator configures the endpoint, according to the channel type.
❺Inbound endpoints (in the TCP/UDP module) are all message-driven and so only need to be
declared as simple @Bean instances.
❻This class provides a number of POJO methods for use in this sample flow (a @Transformer and
@ServiceActivator on the server side and a @Transformer on the client side).
❼The client-side connection factory.
❽The server-side connection factory.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 532
35. WebFlux Support
The WebFlux Spring Integration module (spring-integration-webflux) allows for the execution
of HTTP requests and the processing of inbound HTTP requests in a reactive manner.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-webflux</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-webflux:5.1.1.RELEASE"
The io.projectreactor.netty:reactor-netty dependency must be included in case of non-
Servlet-based server configuration.
The WebFlux support consists of the following gateway implementations: WebFluxInboundEndpoint
and WebFluxRequestExecutingMessageHandler. The support is fully based on the Spring
WebFlux and Project Reactor foundations. See Chapter 20, HTTP Support for more information, since
many options are shared between reactive and regular HTTP components.
35.1 WebFlux Inbound Components
Starting with version 5.0, the WebFluxInboundEndpoint implementation of WebHandler is provided.
This component is similar to the MVC-based HttpRequestHandlingEndpointSupport, with which
it shares some common options through the newly extracted BaseHttpInboundEndpoint. It is used
in the Spring WebFlux reactive environment (instead of MVC). The following example shows a simple
implementation of a WebFlux endpoint:
@Configuration
@EnableWebFlux
@EnableIntegration
public class ReactiveHttpConfiguration {
@Bean
public WebFluxInboundEndpoint simpleInboundEndpoint() {
WebFluxInboundEndpoint endpoint = new WebFluxInboundEndpoint();
RequestMapping requestMapping = new RequestMapping();
requestMapping.setPathPatterns("/test");
endpoint.setRequestMapping(requestMapping);
endpoint.setRequestChannelName("serviceChannel");
return endpoint;
}
@ServiceActivator(inputChannel = "serviceChannel")
String service() {
return "It works!";
}
}
The configuration is similar to the HttpRequestHandlingEndpointSupport (mentioned prior to the
example), except that we use @EnableWebFlux to add the WebFlux infrastructure to our integration
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 533
application. Also, the WebFluxInboundEndpoint performs sendAndReceive operations to the
downstream flow by using back-pressure, on-demand based capabilities, provided by the reactive HTTP
server implementation.
Note
The reply part is non-blocking as well and is based on the internal FutureReplyChannel, which
is flat-mapped to a reply Mono for on-demand resolution.
You can configure the WebFluxInboundEndpoint with a custom ServerCodecConfigurer, a
RequestedContentTypeResolver, and even a ReactiveAdapterRegistry. The latter provides
a mechanism you can use to return a reply as any reactive type: Reactor Flux, RxJava Observable,
Flowable, and others. This way, we can implement Server Sent Events scenarios with Spring
Integration components, as the following example shows:
@Bean
public IntegrationFlow sseFlow() {
return IntegrationFlows
.from(WebFlux.inboundGateway("/sse")
.requestMapping(m -> m.produces(MediaType.TEXT_EVENT_STREAM_VALUE)))
.handle((p, h) -> Flux.just("foo", "bar", "baz"))
.get();
}
See the section called “Request Mapping Support” and the section called “Cross-origin Resource
Sharing (CORS) Support” for more possible configuration options.
When the request body is empty or payloadExpression returns null, the request params
(MultiValueMap<String, String>) is used for a payload of the target message to process.
35.2 WebFlux Outbound Components
The WebFluxRequestExecutingMessageHandler (starting with version 5.0) implementation is
similar to HttpRequestExecutingMessageHandler. It uses a WebClient from the Spring
Framework WebFlux module. To configure it, define a bean similar to the following:
<bean id="httpReactiveOutbound"
class="org.springframework.integration.webflux.outbound.WebFluxRequestExecutingMessageHandler">
<constructor-arg value="http://localhost:8080/example" />
<property name="outputChannel" ref="responseChannel" />
</bean>
You can configure a WebClient instance to use, as the following example shows:
<beans:bean id="webClient" class="org.springframework.web.reactive.function.client.WebClient"
factory-method="create"/>
<bean id="httpReactiveOutbound"
class="org.springframework.integration.webflux.outbound.WebFluxRequestExecutingMessageHandler">
<constructor-arg value="http://localhost:8080/example" />
<constructor-arg re="webClient" />
<property name="outputChannel" ref="responseChannel" />
</bean>
The WebClient exchange() operation returns a Mono<ClientResponse>, which is
mapped (by using several Mono.map() steps) to an AbstractIntegrationMessageBuilder
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 534
as the output from the WebFluxRequestExecutingMessageHandler. Together with the
ReactiveChannel as an outputChannel, the Mono<ClientResponse> evaluation is deferred
until a downstream subscription is made. Otherwise, it is treated as an async mode, and
the Mono response is adapted to a SettableListenableFuture for an asynchronous reply
from the WebFluxRequestExecutingMessageHandler. The target payload of the output
message depends on the WebFluxRequestExecutingMessageHandler configuration. The
setExpectedResponseType(Class<?>) or
setExpectedResponseTypeExpression(Expression) identifies the target type of the response
body element conversion. If replyPayloadToFlux is set to true, the response body is converted
to a Flux with the provided expectedResponseType for each element, and this Flux is sent as the
payload downstream. Afterwards, you can use a splitter to iterate over this Flux in a reactive manner.
In addition a BodyExtractor<?, ClientHttpResponse> can be injected into the
WebFluxRequestExecutingMessageHandler instead of the expectedResponseType and
replyPayloadToFlux properties. It can be used for low-level access to the ClientHttpResponse
and more control over body and HTTP headers conversion. Spring Integration provides
ClientHttpResponseBodyExtractor as a identity function to produce (downstream) the whole
ClientHttpResponse and any other possible custom logic.
See Section 20.2, “HTTP Outbound Components” for more possible configuration options.
35.3 WebFlux Namespace Support
Spring Integration provides a webflux namespace and the corresponding schema definition. To
include it in your configuration, include the following namespace declaration in your application context
configuration file:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:int="http://www.springframework.org/schema/integration"
xmlns:int-webflux="http://www.springframework.org/schema/integration/webflux"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/integration
http://www.springframework.org/schema/integration/spring-integration.xsd
http://www.springframework.org/schema/integration/webflux
http://www.springframework.org/schema/integration/webflux/spring-integration-webflux.xsd">
...
</beans>
Inbound
To configure Spring Integration WebFlux with XML, you caus use appropriate components from the
int-webflux namespace: inbound-channel-adapter or inbound-gateway, corresponding to
request and response requirements, respectively. The following example shows how to configure both
an inbound channel adapter and an inbound gateway:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 535
<inbound-channel-adapter id="reactiveFullConfig" channel="requests"
path="test1"
auto-startup="false"
phase="101"
request-payload-type="byte[]"
error-channel="errorChannel"
payload-expression="payload"
supported-methods="PUT"
status-code-expression="'202'"
header-mapper="headerMapper"
codec-configurer="codecConfigurer"
reactive-adapter-registry="reactiveAdapterRegistry"
requested-content-type-resolver="requestedContentTypeResolver">
<request-mapping headers="foo"/>
<cross-origin origin="foo"
method="PUT"/>
<header name="foo" expression="'foo'"/>
</inbound-channel-adapter>
<inbound-gateway id="reactiveFullConfig" request-channel="requests"
path="test1"
auto-startup="false"
phase="101"
request-payload-type="byte[]"
error-channel="errorChannel"
payload-expression="payload"
supported-methods="PUT"
reply-timeout-status-code-expression="'504'"
header-mapper="headerMapper"
codec-configurer="codecConfigurer"
reactive-adapter-registry="reactiveAdapterRegistry"
requested-content-type-resolver="requestedContentTypeResolver">
<request-mapping headers="foo"/>
<cross-origin origin="foo"
method="PUT"/>
<header name="foo" expression="'foo'"/>
</inbound-gateway>
Outbound
If you want to execute the HTTP request in a reactive, non-blocking way, you can use the outbound-
gateway or outbound-channel-adapter. The following example shows how to configure both an
outbound gateway and an outbound channel adapter:
<int-webflux:outbound-gateway id="reactiveExample1"
request-channel="requests"
url="http://localhost/test"
http-method-expression="headers.httpMethod"
extract-request-payload="false"
expected-response-type-expression="payload"
charset="UTF-8"
reply-timeout="1234"
reply-channel="replies"/>
<int-webflux:outbound-channel-adapter id="reactiveExample2"
url="http://localhost/example"
http-method="GET"
channel="requests"
charset="UTF-8"
extract-payload="false"
expected-response-type="java.lang.String"
order="3"
auto-startup="false"/>
35.4 Configuring WebFlux Endpoints with Java
The following example shows how to configure a WebFlux inbound endpoint with Java:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 536
@Bean
public WebFluxInboundEndpoint jsonInboundEndpoint() {
WebFluxInboundEndpoint endpoint = new WebFluxInboundEndpoint();
RequestMapping requestMapping = new RequestMapping();
requestMapping.setPathPatterns("/persons");
endpoint.setRequestMapping(requestMapping);
endpoint.setRequestChannel(fluxResultChannel());
return endpoint;
}
@Bean
public MessageChannel fluxResultChannel() {
return new FluxMessageChannel();
}
@ServiceActivator(inputChannel = "fluxResultChannel")
Flux<Person> getPersons() {
return Flux.just(new Person("Jane"), new Person("Jason"), new Person("John"));
}
The following example shows how to configure a WebFlux inbound gateway with the Java DSL:
@Bean
public IntegrationFlow inboundChannelAdapterFlow() {
return IntegrationFlows
.from(WebFlux.inboundChannelAdapter("/reactivePost")
.requestMapping(m -> m.methods(HttpMethod.POST))
.requestPayloadType(ResolvableType.forClassWithGenerics(Flux.class, String.class))
.statusCodeFunction(m -> HttpStatus.ACCEPTED))
.channel(c -> c.queue("storeChannel"))
.get();
}
The following example shows how to configure a WebFlux outbound gateway with Java:
@ServiceActivator(inputChannel = "reactiveHttpOutRequest")
@Bean
public WebFluxRequestExecutingMessageHandler reactiveOutbound(WebClient client) {
WebFluxRequestExecutingMessageHandler handler =
new WebFluxRequestExecutingMessageHandler("http://localhost:8080/foo", client);
handler.setHttpMethod(HttpMethod.POST);
handler.setExpectedResponseType(String.class);
return handler;
}
The following example shows how to configure a WebFlux outbound gateway with the Java DSL:
@Bean
public IntegrationFlow outboundReactive() {
return f -> f
.handle(WebFlux.<MultiValueMap<String, String>>outboundGateway(m ->
UriComponentsBuilder.fromUriString("http://localhost:8080/foo")
.queryParams(m.getPayload())
.build()
.toUri())
.httpMethod(HttpMethod.GET)
.expectedResponseType(String.class));
}
35.5 WebFlux Header Mappings
Since WebFlux components are fully based on the HTTP protocol, there is no difference in the
HTTP headers mapping. See Section 20.7, “HTTP Header Mappings” for more possible options and
components to use for mapping headers.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 537
36. WebSockets Support
Starting with version 4.1, Spring Integration has WebSocket support. It is based on the architecture,
infrastructure, and API from the Spring Framework’s web-socket module. Therefore, many of Spring
WebSocket’s components (such as SubProtocolHandler or WebSocketClient) and configuration
options (such as @EnableWebSocketMessageBroker) can be reused within Spring Integration. For
more information, see the Spring Framework WebSocket Support chapter in the Spring Framework
reference manual.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-websocket</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-websocket:5.1.1.RELEASE"
For server side, the org.springframework:spring-webmvc dependency must be included
explicitly.
The Spring Framework WebSocket infrastructure is based on the Spring messaging foundation and
provides a basic messaging framework based on the same MessageChannel implementations and
MessageHandler implementations that Spring Integration uses (and some POJO-method annotation
mappings). Consequently, Spring Integration can be directly involved in a WebSocket flow, even without
WebSocket adapters. For this purpose, you can configure a Spring Integration @MessagingGateway
with appropriate annotations, as the following example shows:
@MessagingGateway
@Controller
public interface WebSocketGateway {
@MessageMapping("/greeting")
@SendToUser("/queue/answer")
@Gateway(requestChannel = "greetingChannel")
String greeting(String payload);
}
36.1 Overview
Since the WebSocket protocol is streaming by definition and we can send and receive messages
to and from a WebSocket at the same time, we can deal with an appropriate WebSocketSession,
regardless of being on the client or server side. To encapsulate the connection management
and WebSocketSession registry, the IntegrationWebSocketContainer is provided with
ClientWebSocketContainer and ServerWebSocketContainer implementations. Thanks to the
WebSocket API and its implementation in the Spring Framework (with many extensions), the same
classes are used on the server side as well as the client side (from a Java perspective, of course).
Consequently, most connection and WebSocketSession registry options are the same on both sides.
That lets us reuse many configuration items and infrastructure hooks to build WebSocket applications
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 538
on the server side as well as on the client side. The following example shows how components can
serve both purposes:
//Client side
@Bean
public WebSocketClient webSocketClient() {
return new SockJsClient(Collections.singletonList(new WebSocketTransport(new
JettyWebSocketClient())));
}
@Bean
public IntegrationWebSocketContainer clientWebSocketContainer() {
return new ClientWebSocketContainer(webSocketClient(), "ws://my.server.com/endpoint");
}
//Server side
@Bean
public IntegrationWebSocketContainer serverWebSocketContainer() {
return new ServerWebSocketContainer("/endpoint").withSockJs();
}
The IntegrationWebSocketContainer is designed to achieve bidirectional messaging and can be
shared between inbound and outbound channel adapters (see below), can be referenced from only
one of them when using one-way (sending or receiving) WebSocket messaging. It can be used without
any channel adapter, but, in this case, IntegrationWebSocketContainer only plays a role as the
WebSocketSession registry.
Note
The ServerWebSocketContainer implements WebSocketConfigurer to register
an internal IntegrationWebSocketContainer.IntegrationWebSocketHandler as
an Endpoint. It does so under the provided paths and other server
WebSocket options (such as HandshakeHandler or SockJS fallback)
within the ServletWebSocketHandlerRegistry for the target vendor
WebSocket Container. This registration is achieved with an infrastructural
WebSocketIntegrationConfigurationInitializer component, which does the same as
the @EnableWebSocket annotation. This means that, by using @EnableIntegration (or any
Spring Integration namespace in the application context), you can omit the @EnableWebSocket
declaration, because the Spring Integration infrastructure detects all WebSocket endpoints.
36.2 WebSocket Inbound Channel Adapter
The WebSocketInboundChannelAdapter implements the receiving part of WebSocketSession
interaction. You must supply it with a IntegrationWebSocketContainer, and the adapter registers
itself as a WebSocketListener to handle incoming messages and WebSocketSession events.
Note
Only one WebSocketListener can be registered in the IntegrationWebSocketContainer.
For WebSocket subprotocols, the WebSocketInboundChannelAdapter can be configured with
SubProtocolHandlerRegistry as the second constructor argument. The adapter delegates to
the SubProtocolHandlerRegistry to determine the appropriate SubProtocolHandler for the
accepted WebSocketSession and to convert a WebSocketMessage to a Message according to the
sub-protocol implementation.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 539
Note
By default, the WebSocketInboundChannelAdapter relies only on the raw
PassThruSubProtocolHandler implementation, which converts the WebSocketMessage to
a Message.
The WebSocketInboundChannelAdapter accepts and sends to the underlying integration flow only
Message instances that have SimpMessageType.MESSAGE or an empty simpMessageType header.
All other Message types are handled through the ApplicationEvent instances emitted from a
SubProtocolHandler implementation (such as StompSubProtocolHandler).
On the server side, if the @EnableWebSocketMessageBroker configuration is present, you can
configure WebSocketInboundChannelAdapter with the useBroker = true option. In this case, all
non-MESSAGE Message types are delegated to the provided AbstractBrokerMessageHandler. In
addition, if the broker relay is configured with destination prefixes, those messages that match the Broker
destinations are routed to the AbstractBrokerMessageHandler instead of to the outputChannel
of the WebSocketInboundChannelAdapter.
If useBroker = false and the received message is of the SimpMessageType.CONNECT type,
the WebSocketInboundChannelAdapter immediately sends a SimpMessageType.CONNECT_ACK
message to the WebSocketSession without sending it to the channel.
Note
Spring’s WebSocket Support allows the configuration of only one broker relay. Consequently, we
do not require an AbstractBrokerMessageHandler reference. It is detected in the Application
Context.
For more configuration options, see Section 36.4, “WebSockets Namespace Support”.
36.3 WebSocket Outbound Channel Adapter
The WebSocketOutboundChannelAdapter:
1. Accepts Spring Integration messages from its MessageChannel
2. Determines the WebSocketSession id from the MessageHeaders
3. Retrieves the WebSocketSession from the provided IntegrationWebSocketContainer
4. Delegates the conversion and sending of WebSocketMessage work to the appropriate
SubProtocolHandler from the provided SubProtocolHandlerRegistry.
On the client side, the WebSocketSession id message header is not required, because
ClientWebSocketContainer deals only with a single connection and its WebSocketSession
respectively.
To use the STOMP subprotocol, you should configure this adapter with a
StompSubProtocolHandler. Then you can send any STOMP message type to this adapter, using
StompHeaderAccessor.create(StompCommand...) and a MessageBuilder, or just using a
HeaderEnricher (see the section called “Header Enricher”).
The rest of this chapter covers largely additional configuration options.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 540
36.4 WebSockets Namespace Support
The Spring Integration WebSocket namespace includes several components described in the remainder
of this chapter. To include it in your configuration, use the following namespace declaration in your
application context configuration file:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:int="http://www.springframework.org/schema/integration"
xmlns:int-websocket="http://www.springframework.org/schema/integration/websocket"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/integration
http://www.springframework.org/schema/integration/spring-integration.xsd
http://www.springframework.org/schema/integration/websocket
http://www.springframework.org/schema/integration/websocket/spring-integration-websocket.xsd">
...
</beans>
<int-websocket:client-container> Attributes
The following listing shows the attributes available for the <int-websocket:client-container>
element:
<int-websocket:client-container
id="" ❶
client="" ❷
uri="" ❸
uri-variables="" ❹
origin="" ❺
send-time-limit="" ❻
send-buffer-size-limit="" ❼
auto-startup="" ❽
phase=""> ❾
<int-websocket:http-headers>
<entry key="" value=""/>
</int-websocket:http-headers> ❿
</int-websocket:client-container>
❶The component bean name.
❷The WebSocketClient bean reference.
❸The uri or uriTemplate to the target WebSocket service. If you use it as a uriTemplate with
URI variable placeholders, the uri-variables attribute is required.
❹Comma-separated values for the URI variable placeholders within the uri attribute value.
The values are replaced into the placeholders according to their order in the uri. See
UriComponents.expand(Object...uriVariableValues).
❺The Origin Handshake HTTP header value.
❻The WebSocket session send timeout limit. Defaults to 10000.
❼The WebSocket session send message size limit. Defaults to 524288.
❽Boolean value indicating whether this endpoint should start automatically. Defaults to false,
assuming that this container is started from the WebSocket inbound adapter.
❾The lifecycle phase within which this endpoint should start and stop. The lower the value, the earlier
this endpoint starts and the later it stops. The default is Integer.MAX_VALUE. Values can be
negative. See SmartLifeCycle.
❿A Map of HttpHeaders to be used with the Handshake request.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 541
<int-websocket:server-container> Attributes
The following listing shows the attributes available for the <int-websocket:server-container>
element:
<int-websocket:server-container
id="" ❶
path="" ❷
handshake-handler="" ❸
handshake-interceptors="" ❹
decorator-factories="" ❺
send-time-limit="" ❻
send-buffer-size-limit="" ❼
allowed-origins=""> ❽
<int-websocket:sockjs
client-library-url="" ❾
stream-bytes-limit="" ❿
session-cookie-needed="" 11
heartbeat-time="" 12
disconnect-delay="" 13
message-cache-size="" 14
websocket-enabled="" 15
scheduler="" 16
message-codec="" 17
transport-handlers="" 18
suppress-cors="true"="" /> 19
</int-websocket:server-container>
❶The component bean name.
❷A path (or comma-separated paths) that maps a particular request to a WebSocketHandler.
Supports exact path mapping URIs (such as /myPath) and ant-style path patterns (such as /
myPath/**).
❸The HandshakeHandler bean reference. Defaults to DefaultHandshakeHandler.
❹List of HandshakeInterceptor bean references.
❺List of one or more factories (WebSocketHandlerDecoratorFactory) that decorate the
handler used to process WebSocket messages. This may be useful for some advanced use
cases (for example, to allow Spring Security to forcibly close the WebSocket session when the
corresponding HTTP session expires). See the Spring Session Project for more information.
❻See the same option on the <int-websocket:client-container>.
❼See the same option on the <int-websocket:client-container>.
❽The allowed origin header values. You can specify multiple origins as a comma-separated list. This
check is mostly designed for browser clients. There is nothing preventing other types of client from
modifying the origin header value. When SockJS is enabled and allowed origins are restricted,
transport types that do not use origin headers for cross-origin requests (jsonp-polling,
iframe-xhr-polling, iframe-eventsource, and iframe-htmlfile) are disabled. As a
consequence, IE6 and IE7 are not supported, and IE8 and IE9 are supported only without cookies.
By default, all origins are allowed.
❾Transports with no native cross-domain communication (such as eventsource and htmlfile)
must get a simple page from the "foreign" domain in an invisible iframe so that code in the iframe
can run from a domain local to the SockJS server. Since the iframe needs to load the SockJS
javascript client library, this property lets you specify the location from which to load it. By default, it
points to https://d1fxtkz8shb9d2.cloudfront.net/sockjs-0.3.4.min.js. However,
you can also set it to point to a URL served by the application. Note that it is possible to specify a
relative URL, in which case the URL must be relative to the iframe URL. For example, assuming a
SockJS endpoint mapped to /sockjs and the resulting iframe URL is /sockjs/iframe.html,
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 542
the relative URL must start with "../../" to traverse up to the location above the SockJS mapping.
For prefix-based servlet mapping, you may need one more traversal.
❿Minimum number of bytes that can be sent over a single HTTP streaming request before it is closed.
Defaults to 128K (that is, 128*1024 or 131072 bytes).
11 The cookie_needed value in the response from the SockJs /info endpoint. This property
indicates whether a JSESSIONID cookie is required for the application to function correctly (for
example, for load balancing or in Java Servlet containers for the use of an HTTP session).
12 The amount of time (in milliseconds) when the server has not sent any messages and after which
the server should send a heartbeat frame to the client in order to keep the connection from breaking.
The default value is 25,000 (25 seconds).
13 The amount of time (in milliseconds) before a client is considered disconnected after not having
a receiving connection (that is, an active connection over which the server can send data to the
client). The default value is 5000.
14 The number of server-to-client messages that a session can cache while waiting for the next HTTP
polling request from the client. The default size is 100.
15 Some load balancers do not support WebSockets. Set this option to false to disable the
WebSocket transport on the server side. The default value is true.
16 The TaskScheduler bean reference. A new ThreadPoolTaskScheduler instance is created
if no value is provided. This scheduler instance is used for scheduling heart-beat messages.
17 The SockJsMessageCodec bean reference to use for encoding and decoding SockJS messages.
By default, Jackson2SockJsMessageCodec is used, which requires the Jackson library to be
present on the classpath.
18 List of TransportHandler bean references.
19 Whether to disable automatic addition of CORS headers for SockJS requests. The default value
is false.
<int-websocket:outbound-channel-adapter> Attributes
The following listing shows the attributes available for the <int-websocket:outbound-channel-
adapter> element:
<int-websocket:outbound-channel-adapter
id="" ❶
channel="" ❷
container="" ❸
default-protocol-handler="" ❹
protocol-handlers="" ❺
message-converters="" ❻
merge-with-default-converters="" ❼
auto-startup="" ❽
phase=""/> ❾
❶The component bean name. If you do not provide the channel attribute, a DirectChannel
is created and registered in the application context with this id attribute as the bean name.
In this case, the endpoint is registered with the bean name id plus .adapter. And the
MessageHandler is registered with the bean alias id plus .handler.
❷Identifies the channel attached to this adapter.
❸The reference to the IntegrationWebSocketContainer bean, which encapsulates the low-
level connection and WebSocketSession handling operations. Required.
❹Optional reference to a SubProtocolHandler instance. It is used when the client did not request
a sub-protocol or it is a single protocol-handler. If this reference or a protocol-handlers list is
not provided, the PassThruSubProtocolHandler is used by default.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 543
❺List of SubProtocolHandler bean references for this channel adapter. If you provide only
a single bean reference and do not provide a default-protocol-handler, that single
SubProtocolHandler is used as the default-protocol-handler. If you do not set this
attribute or default-protocol-handler, the PassThruSubProtocolHandler is used by
default.
❻List of MessageConverter bean references for this channel adapter.
❼Boolean value indicating whether the default converters should be registered after
any custom converters. This flag is used only if message-converters is provided.
Otherwise, all default converters are registered. Defaults to false. The default
converters are (in order): StringMessageConverter, ByteArrayMessageConverter, and
MappingJackson2MessageConverter (if the Jackson library is present on the classpath).
❽Boolean value indicating whether this endpoint should start automatically. Defaults to true.
❾The lifecycle phase within which this endpoint should start and stop. The lower the value, the earlier
this endpoint starts and the later it stops. The default is Integer.MIN_VALUE. Values can be
negative. See SmartLifeCycle.
<int-websocket:inbound-channel-adapter> Attributes
The following listing shows the attributes available for the <int-websocket:outbound-channel-
adapter> element:
<int-websocket:inbound-channel-adapter
id="" ❶
channel="" ❷
error-channel="" ❸
container="" ❹
default-protocol-handler="" ❺
protocol-handlers="" ❻
message-converters="" ❼
merge-with-default-converters="" ❽
send-timeout="" ❾
payload-type="" ❿
use-broker="" 11
auto-startup="" 12
phase=""/> 13
❶The component bean name. If you do not set the channel attribute, a DirectChannel is created
and registered in the application context with this id attribute as the bean name. In this case, the
endpoint is registered with the bean name id plus .adapter.
❷Identifies the channel attached to this adapter.
❸The MessageChannel bean reference to which the ErrorMessage instances should be sent.
❹See the same option on the <int-websocket:outbound-channel-adapter>.
❺See the same option on the <int-websocket:outbound-channel-adapter>.
❻See the same option on the <int-websocket:outbound-channel-adapter>.
❼See the same option on the <int-websocket:outbound-channel-adapter>.
❽See the same option on the <int-websocket:outbound-channel-adapter>.
❾Maximum amount of time (in milliseconds) to wait when sending a message to the channel if the
channel can block. For example, a QueueChannel can block until space is available if its maximum
capacity has been reached.
❿Fully qualified name of the Java type for the target payload to convert from the incoming
WebSocketMessage. Defaults to java.lang.String.
11 Indicates whether this adapter sends non-MESSAGE WebSocketMessage instances and
messages with broker destinations to the AbstractBrokerMessageHandler from the
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 544
application context. When this attribute is true, the Broker Relay configuration is required. This
attribute is used only on the server side. On the client side, it is ignored. Defaults to false.
12 See the same option on the <int-websocket:outbound-channel-adapter>.
13 See the same option on the <int-websocket:outbound-channel-adapter>.
36.5 Using ClientStompEncoder
Starting with version 4.3.13, Spring Integration provides ClientStompEncoder (as an extension of
the standard StompEncoder) for use on the client side of WebSocket channel adapters. For proper
client side message preparation, you must inject an instance of the ClientStompEncoder into the
StompSubProtocolHandler. One problem with the default StompSubProtocolHandler is that
it was designed for the server side, so it updates the SEND stompCommand header into MESSAGE
(as required by the STOMP protocol for the server side). If the client does not send its messages in
the proper SEND web socket frame, some STOMP brokers do not accept them. The purpose of the
ClientStompEncoder, in this case, is to override the stompCommand header and set it to the SEND
value before encoding the message to the byte[].
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 545
37. Web Services Support
This chapter describes Spring Integration’s support for web services, including:
• Section 37.1, “Outbound Web Service Gateways”
• Section 37.2, “Inbound Web Service Gateways”
• Section 37.3, “Web Service Namespace Support”
• Section 37.4, “Outbound URI Configuration”
• Section 37.5, “WS Message Headers”
• Section 37.6, “MTOM Support”
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-ws</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-ws:5.1.1.RELEASE"
37.1 Outbound Web Service Gateways
To invoke a web service when you send a message to a channel, you have two options, both
of which build upon the Spring Web Services project: SimpleWebServiceOutboundGateway
and MarshallingWebServiceOutboundGateway. The former accepts either a String or
javax.xml.transform.Source as the message payload. The latter supports any implementation
of the Marshaller and Unmarshaller interfaces. Both require a Spring Web Services
DestinationProvider, to determine the URI of the web service to be called. The following example
shows both options for invoking a web service:
simpleGateway = new SimpleWebServiceOutboundGateway(destinationProvider);
marshallingGateway = new MarshallingWebServiceOutboundGateway(destinationProvider, marshaller);
Note
When using the namespace support (described later), you need only set a URI. Internally,
the parser configures a fixed URI DestinationProvider implementation. If you need
dynamic resolution of the URI at runtime, however, then the DestinationProvider can
provide such behavior as looking up the URI from a registry. See the Spring Web Services
DestinationProvider Javadoc for more information about this strategy.
Starting with version 5.0, you can supply the SimpleWebServiceOutboundGateway and
MarshallingWebServiceOutboundGateway with an external WebServiceTemplate instance,
which you can configure for any custom properties, including checkConnectionForFault (which
allows your application to deal with non-conforming services).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 546
For more detail on the inner workings, see the Spring Web Services reference guide’s chapter covering
client access and the chapter covering Object/XML mapping.
37.2 Inbound Web Service Gateways
To send a message to a channel upon receiving a web service invocation, you again have two
options: SimpleWebServiceInboundGateway and MarshallingWebServiceInboundGateway.
The former extracts a javax.xml.transform.Source from the WebServiceMessage and sets it
as the message payload. The latter supports implementation of the Marshaller and Unmarshaller
interfaces. If the incoming web service message is a SOAP message, the SOAP action header is added
to the headers of the Message that is forwarded onto the request channel. The following example shows
both options:
simpleGateway = new SimpleWebServiceInboundGateway();
simpleGateway.setRequestChannel(forwardOntoThisChannel);
simpleGateway.setReplyChannel(listenForResponseHere); //Optional
marshallingGateway = new MarshallingWebServiceInboundGateway(marshaller);
//set request and optionally reply channel
Both gateways implement the Spring Web Services MessageEndpoint interface, so they can be
configured with a MessageDispatcherServlet as per standard Spring Web Services configuration.
For more detail on how to use these components, see the Spring Web Services reference guide’s
chapter covering creating a web service. The chapter covering Object/XML mapping is also applicable
again.
To add the SimpleWebServiceInboundGateway and
MarshallingWebServiceInboundGateway configurations to the Spring WS infrastructure, you
should add the EndpointMapping definition between MessageDispatcherServlet and the target
MessageEndpoint implementations, as you would for a normal Spring WS application. For this
purpose (from the Spring Integration perspective), Spring WS provides the following convenient
EndpointMapping implementations:
•o.s.ws.server.endpoint.mapping.UriEndpointMapping
•o.s.ws.server.endpoint.mapping.PayloadRootQNameEndpointMapping
•o.s.ws.soap.server.endpoint.mapping.SoapActionEndpointMapping
•o.s.ws.server.endpoint.mapping.XPathPayloadEndpointMapping
You must specify the beans for these classes in the application context and reference the
SimpleWebServiceInboundGateway and/or MarshallingWebServiceInboundGateway bean
definitions according to the WS mapping algorithm.
See the endpoint mappings for more information.
37.3 Web Service Namespace Support
To configure an outbound web service gateway, use the outbound-gateway element from the ws
namespace, as the following example shows:
<int-ws:outbound-gateway id="simpleGateway"
request-channel="inputChannel"
uri="http://example.org"/>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 547
Note
This example does not provide a reply-channel. If the web service returns a non-empty response,
the Message containing that response is sent to the reply channel defined in the request
message’s REPLY_CHANNEL header. If that is not available, a channel resolution exception is
thrown. If you want to send the reply to another channel instead, provide a reply-channel attribute
on the outbound-gateway element.
Tip
By default, when you invoke a web service that returns an empty response after using a String
payload for the request Message, no reply Message is sent. Therefore, you need not set a reply-
channel or have a REPLY_CHANNEL header in the request Message. If you actually do want to
receive the empty response as a Message, you can set the ignore-empty-responses attribute to
false. Doing so works only for String objects, because using a Source or a Document object
leads to a null response and consequently never generates a reply Message.
To set up an inbound Web Service Gateway, use the inbound-gateway element, as the following
example shows:
<int-ws:inbound-gateway id="simpleGateway"
request-channel="inputChannel"/>
To use Spring OXM marshallers or unmarshallers, you must provide bean references. The following
example shows how to provide a bean reference for an outbound marshalling gateway:
<int-ws:outbound-gateway id="marshallingGateway"
request-channel="requestChannel"
uri="http://example.org"
marshaller="someMarshaller"
unmarshaller="someUnmarshaller"/>
The following example shows how to provide a bean reference for an inbound marshalling gateway:
<int-ws:inbound-gateway id="marshallingGateway"
request-channel="requestChannel"
marshaller="someMarshaller"
unmarshaller="someUnmarshaller"/>
Note
Most Marshaller implementations also implement the Unmarshaller interface. When using
such a Marshaller, only the marshaller attribute is necessary. Even when using a
Marshaller, you may also provide a reference for the request-callback on the outbound
gateways.
For either outbound gateway type, you can specify a destination-provider attribute instead
of the uri (exactly one of them is required). You can then reference any Spring Web Services
DestinationProvider implementation (for example, to lookup the URI from a registry at runtime).
For either outbound gateway type, the message-factory attribute can also be configured with a
reference to any Spring Web Services WebServiceMessageFactory implementation.
For the simple inbound gateway type, you can set the extract-payload attribute to false to forward
the entire WebServiceMessage instead of just its payload as a Message to the request channel. Doing
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 548
so might be useful, for example, when a custom transformer works against the WebServiceMessage
directly.
Starting with version 5.0, the web-service-template reference attribute lets you inject a
WebServiceTemplate with any possible custom properties.
37.4 Outbound URI Configuration
For all URI schemes supported by Spring Web Services (see URIs and Transports) <uri-variable/
> substitution is provided. The following example shows how to define it:
<ws:outbound-gateway id="gateway" request-channel="input"
uri="http://springsource.org/{thing1}-{thing2}">
<ws:uri-variable name="thing1" expression="payload.substring(1,7)"/>
<ws:uri-variable name="thing2" expression="headers.x"/>
</ws:outbound-gateway>
<ws:outbound-gateway request-channel="inputJms"
uri="jms:{destination}?deliveryMode={deliveryMode}&amp;priority={priority}"
message-sender="jmsMessageSender">
<ws:uri-variable name="destination" expression="headers.jmsQueue"/>
<ws:uri-variable name="deliveryMode" expression="headers.deliveryMode"/>
<ws:uri-variable name="priority" expression="headers.jms_priority"/>
</ws:outbound-gateway>
If you supply a DestinationProvider, variable substitution is not supported and a configuration error
occurs if you provide variables.
Controlling URI Encoding
By default, the URL string is encoded (see UriComponentsBuilder) to the URI object before sending
the request. In some scenarios with a non-standard URI, it is undesirable to perform the encoding. Since
version 4.1, the <ws:outbound-gateway/> element provides an encode-uri attribute. To disable
encoding the URL, set this attribute false (it defaults to true). If you wish to partially encode some
of the URL, you can do so by using an expression within a <uri-variable/>, as the following
example shows:
<ws:outbound-gateway url="http://somehost/%2f/fooApps?bar={param}" encode-uri="false">
<http:uri-variable name="param"
expression="T(org.apache.commons.httpclient.util.URIUtil)
.encodeWithinQuery('Hello World!')"/>
</ws:outbound-gateway>
Note
If you set DestinationProvider, encode-uri is ignored.
37.5 WS Message Headers
The Spring Integration web service gateways automatically map the SOAP action header. By default, it is
copied to and from Spring Integration MessageHeaders by using the DefaultSoapHeaderMapper.
You can pass in your own implementation of SOAP-specific header mappers, as the gateways have
properties to support doing so.
Unless explicitly specified by the requestHeaderNames or replyHeaderNames properties of the
DefaultSoapHeaderMapper, any user-defined SOAP headers are not copied to or from a SOAP
Message.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 549
When you use the XML namespace for configuration, you can set these properties by using the mapped-
request-headers and mapped-reply-headers attributes, you can provide a custom mapper by
setting the header-mapper attribute.
Tip
When mapping user-defined headers, the values can also contain simple wildcard patterns (such
myheader* or *myheader). For example, if you need to copy all user-defined headers, you can
use the wildcard character: *.
Starting with version 4.1, the AbstractHeaderMapper (a DefaultSoapHeaderMapper superclass)
lets the NON_STANDARD_HEADERS token be configured for the requestHeaderNames and
replyHeaderNames properties (in addition to existing STANDARD_REQUEST_HEADERS and
STANDARD_REPLY_HEADERS) to map all user-defined headers.
Note
Rather than using the wildcard (*), we recommend using the following combination :
STANDARD_REPLY_HEADERS, NON_STANDARD_HEADERS. Doing so avoids mapping request
headers to the reply.
Starting with version 4.3, you can negate patterns in the header mappings by preceding the pattern with
!. Negated patterns get priority, so a list such as STANDARD_REQUEST_HEADERS,thing1,thing*,!
thing2,!thing3,qux,!thing1 does not map thing1, thing2, or thing3. It does map the
standard headers, thing4, and qux. (Note that thing1 is included in both non-negated and negated
forms. Because negated values take precedence, thing1 is not mapped.)
Important
If you have a user-defined header that begins with ! that you do wish to map, you can escape
it with \, as follows: STANDARD_REQUEST_HEADERS,\!myBangHeader. !myBangHeader is
then mapped.
Inbound SOAP headers (request headers for the inbound gateway and reply headers for the outbound
gateway) are mapped as SoapHeaderElement objects. You can explore the contents by accessing
the Source:
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">
<soapenv:Header>
<auth>
<username>user</username>
<password>pass</password>
</auth>
<bar>BAR</bar>
<baz>BAZ</baz>
<qux>qux</qux>
</soapenv:Header>
<soapenv:Body>
...
</soapenv:Body>
</soapenv:Envelope>
If mapped-request-headers is auth, ca*, the auth, cat, and can headers are mapped, but qux
is not mapped.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 550
The following example shows how to get a value named user from a header named auth:
...
SoapHeaderElement header = (SoapHeaderElement) headers.get("auth");
DOMSource source = (DOMSource) header.getSource();
NodeList nodeList = source.getNode().getChildNodes();
assertEquals("username", nodeList.item(0).getNodeName());
assertEquals("user", nodeList.item(0).getFirstChild().getNodeValue());
...
Starting with version 5.0, the DefaultSoapHeaderMapper supports user-defined headers of type
javax.xml.transform.Source and populates them as child nodes of the <soapenv:Header>.
The following example shows how to do so:
Map<String, Object> headers = new HashMap<>();
String authXml =
"<auth xmlns='http://test.auth.org'>"
+ "<username>user</username>"
+ "<password>pass</password>"
+ "</auth>";
headers.put("auth", new StringSource(authXml));
...
DefaultSoapHeaderMapper mapper = new DefaultSoapHeaderMapper();
mapper.setRequestHeaderNames("auth");
The result of the preceding examples is the following SOAP envelope:
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">
<soapenv:Header>
<auth xmlns="http://test.auth.org">
<username>user</username>
<password>pass</password>
</auth>
</soapenv:Header>
<soapenv:Body>
...
</soapenv:Body>
</soapenv:Envelope>
37.6 MTOM Support
The marshalling inbound and outbound web service gateways support attachments directly through
built-in functionality of the marshaller (for example, Jaxb2Marshaller provides the mtomEnabled
option). Starting with version 5.0, the simple web service gateways can directly operate with inbound and
outbound MimeMessage instances, which have an API to manipulate attachments. When you need to
send web service message with attachments (either a reply from a server or a client request) you should
use the WebServiceMessageFactory directly and send a WebServiceMessage with attachments
as a payload to the request or reply channel of the gateway. The following example shows how to do so:
WebServiceMessageFactory messageFactory = new SaajSoapMessageFactory(MessageFactory.newInstance());
MimeMessage webServiceMessage = (MimeMessage) messageFactory.createWebServiceMessage();
String request = "<test>foo</test>";
TransformerFactory transformerFactory = TransformerFactory.newInstance();
Transformer transformer = transformerFactory.newTransformer();
transformer.transform(new StringSource(request), webServiceMessage.getPayloadResult());
webServiceMessage.addAttachment("myAttachment", new ByteArrayResource("my_data".getBytes()), "plain/
text");
this.webServiceChannel.send(new GenericMessage<>(webServiceMessage));
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 551
38. XML Support - Dealing with XML Payloads
Spring Integration’s XML support extends the core of Spring Integration with the following components:
•Marshalling Transformer
•Unmarshalling Transformer
•XSLT Transformer
•XPath Transformer
•XPath Splitter
•XPath Router
•XPath Header Enricher
•XPath Filter
•#xpath SpEL Function
•Validating Filter
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-xml</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-xml:5.1.1.RELEASE"
These components make working with XML messages in Spring Integration simpler. The messaging
components work with XML that is represented in a range of formats, including instances of
java.lang.String, org.w3c.dom.Document, and javax.xml.transform.Source. However,
where a DOM representation is required (for example, in order to evaluate an XPath expression), the
String payload is converted into the required type and then converted back to String. Components
that require an instance of DocumentBuilder create a namespace-aware instance if you do not
provide one. When you require greater control over document creation, you can provide an appropriately
configured instance of DocumentBuilder.
38.1 Namespace Support
All components within the Spring Integration XML module provide namespace support. In order to
enable namespace support, you need to import the schema for the Spring Integration XML Module. The
following example shows a typical setup:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 552
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:int="http://www.springframework.org/schema/integration"
xmlns:int-xml="http://www.springframework.org/schema/integration/xml"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/integration
http://www.springframework.org/schema/integration/spring-integration.xsd
http://www.springframework.org/schema/integration/xml
http://www.springframework.org/schema/integration/xml/spring-integration-xml.xsd">
</beans>
XPath Expressions
Many of the components within the Spring Integration XML module work with XPath Expressions. Each
of those components either references an XPath Expression that has been defined as a top-level
element or uses a nested <xpath-expression/> element.
All forms of XPath expressions result in the creation of an XPathExpression that uses the Spring
org.springframework.xml.xpath.XPathExpressionFactory. When XPath expressions are
created, the best XPath implementation that is available on the classpath is used (either JAXP 1.3+ or
Jaxen, with JAXP being preferred).
Note
Internally, Spring Integration uses the XPath functionality provided by the Spring Web Services
project (http://www.spring.io/spring-ws). Specifically, we use the Spring Web Services XML
module (spring-xml-x.x.x.jar). For a deeper understanding, see the respective documentation at
http://docs.spring.io/spring-ws/docs/current/reference/html/common.html#xpath.
Here is an overview of all available configuration parameters of the xpath-expression element: The
following listing shows the available attributes for the xpath-expression element:
<int-xml:xpath-expression expression="" ❶
id="" ❷
namespace-map="" ❸
ns-prefix="" ❹
ns-uri=""> ❺
<map></map> ❻
</int-xml:xpath-expression>
❶Defines an XPath expression. Required.
❷The identifier of the underlying bean definition. It is an instance of
org.springframework.xml.xpath.XPathExpression. Optional.
❸Reference to a map that contains namespaces. The key of the map defines the namespace prefix,
and the value of the map sets the namespace URI. It is not valid to specify both this attribute and
the map element or the ns-prefix and ns-uri attributes. Optional.
❹Lets you set the namespace prefix directly as an attribute on the XPath expression element. If you
set ns-prefix, you must also set the ns-uri attribute. Optional.
❺Lets you directly set the namespace URI as an attribute on the XPath expression element. If you
set ns-uri, you must also set the ns-prefix attribute. Optional.
❻Defines a map that contains namespaces. Only one map child element is allowed. The key of the
map defines the namespace prefix, and the value of the map sets the namespace URI. It is not valid
to specify both this element and the map attribute or set the ns-prefix and ns-uri attributes.
Optional.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 553
Providing Namespaces (Optional) to XPath Expressions
For the XPath Expression Element, you can provide namespace information as configuration
parameters. You can define namespaces by using one of the following choices:
• Reference a map by using the namespace-map attribute
• Provide a map of namespaces by using the map sub-element
• Specify the ns-prefix and ns-uri attributes
All three options are mutually exclusive. Only one option can be set.
The following example shows several different ways to use XPath expressions, including the options
for setting the XML namespaces mentioned earlier:
<int-xml:xpath-filter id="filterReferencingXPathExpression"
xpath-expression-ref="refToXpathExpression"/>
<int-xml:xpath-expression id="refToXpathExpression" expression="/name"/>
<int-xml:xpath-filter id="filterWithoutNamespace">
<int-xml:xpath-expression expression="/name"/>
</int-xml:xpath-filter>
<int-xml:xpath-filter id="filterWithOneNamespace">
<int-xml:xpath-expression expression="/ns1:name"
ns-prefix="ns1" ns-uri="www.example.org"/>
</int-xml:xpath-filter>
<int-xml:xpath-filter id="filterWithTwoNamespaces">
<int-xml:xpath-expression expression="/ns1:name/ns2:type">
<map>
<entry key="ns1" value="www.example.org/one"/>
<entry key="ns2" value="www.example.org/two"/>
</map>
</int-xml:xpath-expression>
</int-xml:xpath-filter>
<int-xml:xpath-filter id="filterWithNamespaceMapReference">
<int-xml:xpath-expression expression="/ns1:name/ns2:type"
namespace-map="defaultNamespaces"/>
</int-xml:xpath-filter>
<util:map id="defaultNamespaces">
<util:entry key="ns1" value="www.example.org/one"/>
<util:entry key="ns2" value="www.example.org/two"/>
</util:map>
Using XPath Expressions with Default Namespaces
When working with default namespaces, you may run into situations that behave differently than you
might expect. Assume we have the following XML document (which represents an order of two books):
<?xml version="1.0" encoding="UTF-8"?>
<order>
<orderItem>
<isbn>0321200683</isbn>
<quantity>2</quantity>
</orderItem>
<orderItem>
<isbn>1590596439</isbn>
<quantity>1</quantity>
</orderItem>
</order>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 554
This document does not declare a namespace. Therefore, applying the following XPath Expression
works as expected:
<int-xml:xpath-expression expression="/order/orderItem" />
You might expect that the same expression also works for the following XML file:
<?xml version="1.0" encoding="UTF-8"?>
<order xmlns="http://www.example.org/orders">
<orderItem>
<isbn>0321200683</isbn>
<quantity>2</quantity>
</orderItem>
<orderItem>
<isbn>1590596439</isbn>
<quantity>1</quantity>
</orderItem>
</order>
The preceding example looks exactly the same as the previous example but declares a default
namespace.
However, the previous XPath expression (/order/orderItem) fails in this case.
In order to solve this issue, you must provide a namespace prefix and a namespace URI either by setting
the ns-prefix and ns-uri attributes or by setting the namespace-map attribute. The namespace
URI must match the namespace declared in your XML document. In the preceding example, that is
http://www.example.org/orders.
You can, however, arbitrarily choose the namespace prefix. In fact, providing an empty string actually
works. (However, null is not allowed.) In the case of a namespace prefix consisting of an empty string,
your Xpath expression must use a colon (":") to indicate the default namespace. If you leave off the
colon, the XPath expression does not match. The following XPath Expression matches against the XML
document in the preceding example:
<int-xml:xpath-expression expression="/:order/:orderItem"
ns-prefix="" ns-uri="http://www.example.org/prodcuts"/>
You can also provide any other arbitrarily chosen namespace prefix. The following XPath expression
(which use the myorder namespace prefix) also matches:
<int-xml:xpath-expression expression="/myorder:order/myorder:orderItem"
ns-prefix="myorder" ns-uri="http://www.example.org/prodcuts"/>
The namespace URI is the really important piece of information, not the prefix. The Jaxen FAQ
summarizes the point very well:
In XPath 1.0, all unprefixed names are unqualified. There is no requirement that the
prefixes used in the XPath expression are the same as the prefixes used in the
document being queried. Only the namespace URIs need to match, not the prefixes.
38.2 Transforming XML Payloads
This section covers how to transform XML payloads
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 555
Configuring Transformers as Beans
This section will explain the workings of the following transformers and how to configure them as beans:
•UnmarshallingTransformer
•MarshallingTransformer
•XsltPayloadTransformer
All of the XML transformers extend either AbstractTransformer or
AbstractPayloadTransformer and therefore implement Transformer. When configuring XML
transformers as beans in Spring Integration, you would normally configure the Transformer in
conjunction with a MessageTransformingHandler. This lets the transformer be used as an endpoint.
Finally, we discuss the namespace support , which allows for configuring the transformers as elements
in XML.
UnmarshallingTransformer
An UnmarshallingTransformer lets an XML Source be unmarshalled by using implementations
of the Spring OXM Unmarshaller. Spring’s Object/XML Mapping support provides several
implementations that support marshalling and unmarshalling by using JAXB, Castor, JiBX, and others.
The unmarshaller requires an instance of Source. If the message payload is not an instance of Source,
conversion is still attempted. Currently, String, File, byte[] and org.w3c.dom.Document
payloads are supported. To create a custom conversion to a Source, you can inject an implementation
of a SourceFactory.
Note
If you do not explicitly set a SourceFactory, the property on the
UnmarshallingTransformer is, by default, set to a DomSourceFactory.
Starting with version 5.0, the UnmarshallingTransformer also supports an
org.springframework.ws.mime.MimeMessage as the incoming payload. This can be useful when
we receive a raw WebServiceMessage with MTOM attachments over SOAP . See Section 37.6,
“MTOM Support” for more information.
The following example shows how to define an unmarshalling transformer:
<bean id="unmarshallingTransformer" class="o.s.i.xml.transformer.UnmarshallingTransformer">
<constructor-arg>
<bean class="org.springframework.oxm.jaxb.Jaxb2Marshaller">
<property name="contextPath" value="org.example" />
</bean>
</constructor-arg>
</bean>
Using MarshallingTransformer
The MarshallingTransformer lets an object graph be converted into XML by using a Spring
OXM Marshaller. By default, the MarshallingTransformer returns a DomResult. However,
you can control the type of result by configuring an alternative ResultFactory, such as
StringResultFactory. In many cases, it is more convenient to transform the payload into an
alternative XML format. To do so, configure a ResultTransformer. Spring integration provides two
implementations, one that converts to String and another that converts to Document. The following
example configures a marshalling transformer that transforms to a document:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 556
<bean id="marshallingTransformer" class="o.s.i.xml.transformer.MarshallingTransformer">
<constructor-arg>
<bean class="org.springframework.oxm.jaxb.Jaxb2Marshaller">
<property name="contextPath" value="org.example"/>
</bean>
</constructor-arg>
<constructor-arg>
<bean class="o.s.i.xml.transformer.ResultToDocumentTransformer"/>
</constructor-arg>
</bean>
By default, the MarshallingTransformer passes the payload object to the Marshaller. However,
if its boolean extractPayload property is set to false, the entire Message instance is passed to
the Marshaller instead. That may be useful for certain custom implementations of the Marshaller
interface, but, typically, the payload is the appropriate source object for marshalling when you delegate
to any of the various Marshaller implementations.
XsltPayloadTransformer
The XsltPayloadTransformer transforms XML payloads by using Extensible Stylesheet Language
Transformations (XSLT). The transformer’s constructor requires an instance of either Resource or
Templates to be passed in. Passing in a Templates instance allows for greater configuration of the
TransformerFactory used to create the template instance.
As with the UnmarshallingTransformer, the XsltPayloadTransformer does the actual XSLT
transformation against instances of Source. Therefore, if the message payload is not an instance of
Source, conversion is still attempted. String and Document payloads are supported directly.
To create a custom conversion to a Source, you can inject an implementation of a SourceFactory.
Note
If a SourceFactory is not set explicitly, the property on the XsltPayloadTransformer is, by
default, set to a DomSourceFactory.
By default, the XsltPayloadTransformer creates a message with a Result payload, similar to the
XmlPayloadMarshallingTransformer. You can customize this by providing a ResultFactory
or a ResultTransformer.
The following example configures a bean that works as an XSLT payload transformer:
<bean id="xsltPayloadTransformer" class="o.s.i.xml.transformer.XsltPayloadTransformer">
<constructor-arg value="classpath:org/example/xsl/transform.xsl"/>
<constructor-arg>
<bean class="o.s.i.xml.transformer.ResultToDocumentTransformer"/>
</constructor-arg>
</bean>
Starting with Spring Integration 3.0, you can specify the transformer factory class name by using a
constructor argument. You can do so by using the transformer-factory-class attribute when you
use the namespace.
Using ResultTransformer Implementations
Both the MarshallingTransformer and the XsltPayloadTransformer let you specify a
ResultTransformer. Thus, if the marshalling or XSLT transformation returns a Result, you have
the option to also use a ResultTransformer to transform the Result into another format. Spring
Integration provides two concrete ResultTransformer implementations:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 557
•ResultToDocumentTransformer
•ResultToStringTransformer
By default, the MarshallingTransformer always returns a Result. By specifying a
ResultTransformer, you can customize the type of payload returned.
The behavior is slightly more complex for the XsltPayloadTransformer. By default, if the input
payload is an instance of String or Document the resultTransformer property is ignored.
However, if the input payload is a Source or any other type, the resultTransformer property is
applied. Additionally, you can set the alwaysUseResultFactory property to true, which also causes
the specified resultTransformer to be used.
For more information and examples, see the section called “Namespace Configuration and Result
Transformers”.
Namespace Support for XML Transformers
Namespace support for all XML transformers is provided in the Spring Integration XML namespace, a
template for which was shown earlier. The namespace support for transformers creates an instance
of either EventDrivenConsumer or PollingConsumer, according to the type of the provided input
channel. The namespace support is designed to reduce the amount of XML configuration by allowing
the creation of an endpoint and transformer that use one element.
Using an UnmarshallingTransformer
The namespace support for the UnmarshallingTransformer is shown below. Since the namespace
create an endpoint instance rather than a transformer, you can nest a poller within the element to control
the polling of the input channel. The following example shows how to do so:
<int-xml:unmarshalling-transformer id="defaultUnmarshaller"
input-channel="input" output-channel="output"
unmarshaller="unmarshaller"/>
<int-xml:unmarshalling-transformer id="unmarshallerWithPoller"
input-channel="input" output-channel="output"
unmarshaller="unmarshaller">
<int:poller fixed-rate="2000"/>
<int-xml:unmarshalling-transformer/>
Using a MarshallingTransformer
The namespace support for the marshalling transformer requires an input-channel, an output-
channel, and a reference to a marshaller. You can use the optional result-type attribute to
control the type of result created. Valid values are StringResult or DomResult (the default). The
following example configures a marshalling transformer:
<int-xml:marshalling-transformer
input-channel="marshallingTransformerStringResultFactory"
output-channel="output"
marshaller="marshaller"
result-type="StringResult" />
<int-xml:marshalling-transformer
input-channel="marshallingTransformerWithResultTransformer"
output-channel="output"
marshaller="marshaller"
result-transformer="resultTransformer" />
<bean id="resultTransformer" class="o.s.i.xml.transformer.ResultToStringTransformer"/>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 558
Where the provided result types do not suffice, you can provide a reference to a custom implementation
of ResultFactory as an alternative to setting the result-type attribute by using the result-
factory attribute. The result-type and result-factory attributes are mutually exclusive.
Note
Internally, the StringResult and DomResult result types are represented by
the ResultFactory implementations: StringResultFactory and DomResultFactory
respectively.
Using an XsltPayloadTransformer
Namespace support for the XsltPayloadTransformer lets you either pass in a Resource (in order
to create the Templates instance) or pass in a pre-created Templates instance as a reference. As
with the marshalling transformer, you can control the type of the result output by specifying either the
result-factory or the result-type attribute. When you need to convert result before sending, you
can use a result-transformer attribute to reference an implementation of ResultTransformer.
Important
If you specify the result-factory or the result-type attribute, the
alwaysUseResultFactory property on the underlying XsltPayloadTransformer is set to
true by the XsltPayloadTransformerParser.
The following example configures two XSLT transformers:
<int-xml:xslt-transformer id="xsltTransformerWithResource"
input-channel="withResourceIn" output-channel="output"
xsl-resource="org/springframework/integration/xml/config/test.xsl"/>
<int-xml:xslt-transformer id="xsltTransformerWithTemplatesAndResultTransformer"
input-channel="withTemplatesAndResultTransformerIn" output-channel="output"
xsl-templates="templates"
result-transformer="resultTransformer"/>
You may need to have access to Message data, such as the Message headers, in order to assist
with transformation. For example, you may need to get access to certain Message headers and pass
them on as parameters to a transformer (for example, transformer.setParameter(..)). Spring
Integration provides two convenient ways to accomplish this, as the following example shows:
<int-xml:xslt-transformer id="paramHeadersCombo"
input-channel="paramHeadersComboChannel" output-channel="output"
xsl-resource="classpath:transformer.xslt"
xslt-param-headers="testP*, *foo, bar, baz">
<int-xml:xslt-param name="helloParameter" value="hello"/>
<int-xml:xslt-param name="firstName" expression="headers.fname"/>
</int-xml:xslt-transformer>
If message header names match one-to-one to parameter names, you can use the xslt-param-
headers attribute. In it, you can use wildcards for simple pattern matching. It supports the following
simple pattern styles: xxx*, *xxx, *xxx*, and xxx*yyy.
You can also configure individual XSLT parameters by using the <xslt-param/> element. On that
element, you can set the expression attribute or the value attribute. The expression attribute
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 559
should be any valid SpEL expression with the Message being the root object of the expression
evaluation context. The value attribute (as with any value in Spring beans) lets you specify simple
scalar values. You can also use property placeholders (such as ${some.value}). So, with the
expression and value attributes, you can map XSLT parameters to any accessible part of the
Message as well as any literal value.
Starting with Spring Integration 3.0, you can now specify the transformer factory class name by setting
the transformer-factory-class attribute.
Namespace Configuration and Result Transformers
We cover using result transformers in the section called “Using ResultTransformer
Implementations”. The examples in this section use XML namespace configuration to illustrates several
special use cases. First, we define the ResultTransformer, as the following example shows:
<beans:bean id="resultToDoc" class="o.s.i.xml.transformer.ResultToDocumentTransformer"/>
This ResultTransformer accepts either a StringResult or a DOMResult as input and converts
the input into a Document.
Now we can declare the transformer, as follows:
<int-xml:xslt-transformer input-channel="in" output-channel="fahrenheitChannel"
xsl-resource="classpath:noop.xslt" result-transformer="resultToDoc"/>
If the incoming message’s payload is of type Source, then, as a first step, the Result is determined by
using the ResultFactory. As we did not specify a ResultFactory, the default DomResultFactory
is used, meaning that the transformation yields a DomResult.
However, as we specified a ResultTransformer, it is used and the resulting Message payload is
of type Document.
Important
The specified ResultTransformer is ignored with String or Document payloads. If the
incoming message’s payload is of type String, the payload after the XSLT transformation is a
String. Similarly, if the incoming message’s payload is of type Document, the payload after the
XSLT transformation is a`Document`.
If the message payload is not a Source, a String, or a Document, as a fallback option, we try to create
a`Source` by using the default SourceFactory. As we did not specify a SourceFactory explicitly
by using the source-factory attribute, the default DomSourceFactory is used. If successful, the
XSLT transformation is executed as if the payload was of type Source, as described in the previous
paragraphs.
Note
The DomSourceFactory supports the creation of a DOMSource from a Document, a File, or
a String payload.
The next transformer declaration adds a result-type attribute that uses StringResult as its value.
The result-type is internally represented by the StringResultFactory. Thus, you could have
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 560
also added a reference to a StringResultFactory, by using the result-factory attribute, which
would have been the same. The following example shows that transformer declaration:
<int-xml:xslt-transformer input-channel="in" output-channel="fahrenheitChannel"
xsl-resource="classpath:noop.xslt" result-transformer="resultToDoc"
result-type="StringResult"/>
Because we use a ResultFactory, the alwaysUseResultFactory property of the
XsltPayloadTransformer class is implicitly set to true. Consequently, the referenced
ResultToDocumentTransformer is used.
Therefore, if you transform a payload of type String, the resulting payload is of type Document.
XsltPayloadTransformer and <xsl:output method="text"/>
<xsl:output method="text"/> tells the XSLT template to produce only text content from
the input source. In this particular case, we have no reason to use a DomResult. Therefore, the
XsltPayloadTransformer defaults to StringResult if the output property called method of
the underlying javax.xml.transform.Transformer returns text. This coercion is performed
independently from the inbound payload type. This behavior is available only you set the if the
result-type attribute or the result-factory attribute for the <int-xml:xslt-transformer>
component.
38.3 Transforming XML Messages with XPath
When it comes to message transformation, XPath is a great way to transform messages that have XML
payloads. You can do so by defining XPath transformers with the <xpath-transformer/> element.
Simple XPath Transformation
Consider following transformer configuration:
<int-xml:xpath-transformer input-channel="inputChannel" output-channel="outputChannel"
xpath-expression="/person/@name" />
Also consider the following Message:
Message<?> message =
MessageBuilder.withPayload("<person name='John Doe' age='42' married='true'/>").build();
After sending this message to the inputChannel, the XPath transformer configured earlier transforms
this XML Message to a simple Message with a payload of John Doe, all based on the simple XPath
Expression specified in the xpath-expression attribute.
XPath also lets you perform simple conversion of an extracted element to a desired type. Valid return
types are defined in javax.xml.xpath.XPathConstants and follow the conversion rules specified
by the javax.xml.xpath.XPath interface.
The following constants are defined by the XPathConstants class: BOOLEAN, DOM_OBJECT_MODEL,
NODE, NODESET, NUMBER, and STRING.
You can configure the desired type by using the evaluation-type attribute of the <xpath-
transformer/> element, as the following example shows (twice):
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 561
<int-xml:xpath-transformer input-channel="numberInput" xpath-expression="/person/@age"
evaluation-type="NUMBER_RESULT" output-channel="output"/>
<int-xml:xpath-transformer input-channel="booleanInput"
xpath-expression="/person/@married = 'true'"
evaluation-type="BOOLEAN_RESULT" output-channel="output"/>
Node Mappers
If you need to provide custom mapping for the node extracted by the XPath expression, you can
provide a reference to the implementation of the org.springframework.xml.xpath.NodeMapper
(an interface used by XPathOperations implementations for mapping Node objects on a per-node
basis). To provide a reference to a NodeMapper, you can use the node-mapper attribute, as the
following example shows:
<int-xml:xpath-transformer input-channel="nodeMapperInput" xpath-expression="/person/@age"
node-mapper="testNodeMapper" output-channel="output"/>
The following example shows a NodeMapper implementation that works with the preceding example:
class TestNodeMapper implements NodeMapper {
public Object mapNode(Node node, int nodeNum) throws DOMException {
return node.getTextContent() + "-mapped";
}
}
XML Payload Converter
You can also use an implementation of the
org.springframework.integration.xml.XmlPayloadConverter to provide more granular
transformation. The following example shows how to define one:
<int-xml:xpath-transformer input-channel="customConverterInput"
output-channel="output" xpath-expression="/test/@type"
converter="testXmlPayloadConverter" />
The following example shows an XmlPayloadConverter implementation that works with the
preceding example:
class TestXmlPayloadConverter implements XmlPayloadConverter {
public Source convertToSource(Object object) {
throw new UnsupportedOperationException();
}
//
public Node convertToNode(Object object) {
try {
return DocumentBuilderFactory.newInstance().newDocumentBuilder().parse(
new InputSource(new StringReader("<test type='custom'/>")));
}
catch (Exception e) {
throw new IllegalStateException(e);
}
}
//
public Document convertToDocument(Object object) {
throw new UnsupportedOperationException();
}
}
If you do not provide this reference, the DefaultXmlPayloadConverter is used. It should suffice in
most cases, because it can convert from Node, Document, Source, File, String, InputStream,
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 562
and byte[] payloads. If you need to extend beyond the capabilities of that default implementation,
an upstream Transformer is probably a better option than providing a reference to a custom
implementation of this strategy here.
38.4 Splitting XML Messages
XPathMessageSplitter supports messages with either String or Document payloads. The splitter
uses the provided XPath expression to split the payload into a number of nodes. By default, this
results in each Node instance becoming the payload of a new message. When each message should
be a Document, you can set the createDocuments flag. Where a String payload is passed
in, the payload is converted and then split before being converted back to a number of String
messages. The XPath splitter implements MessageHandler and should therefore be configured in
conjunction with an appropriate endpoint (see the namespace support example after the following
example for a simpler configuration alternative). The following example configures a bean that uses an
XPathMessageSplitter:
<bean id="splittingEndpoint"
class="org.springframework.integration.endpoint.EventDrivenConsumer">
<constructor-arg ref="orderChannel" />
<constructor-arg>
<bean class="org.springframework.integration.xml.splitter.XPathMessageSplitter">
<constructor-arg value="/order/items" />
<property name="documentBuilder" ref="customisedDocumentBuilder" />
<property name="outputChannel" ref="orderItemsChannel" />
</bean>
</constructor-arg>
</bean>
XPath splitter namespace support lets you create a message endpoint with an input channel and output
channel, as the following example shows:
<!-- Split the order into items and create a new message for each item node -->
<int-xml:xpath-splitter id="orderItemSplitter"
input-channel="orderChannel"
output-channel="orderItemsChannel">
<int-xml:xpath-expression expression="/order/items"/>
</int-xml:xpath-splitter>
<!-- Split the order into items, create a new document for each item-->
<int-xml:xpath-splitter id="orderItemDocumentSplitter"
input-channel="orderChannel"
output-channel="orderItemsChannel"
create-documents="true">
<int-xml:xpath-expression expression="/order/items"/>
<int:poller fixed-rate="2000"/>
</int-xml:xpath-splitter>
Starting with version 4.2, the XPathMessageSplitter exposes the outputProperties (such as
OutputKeys.OMIT_XML_DECLARATION) property for an javax.xml.transform.Transformer
instance when a request payload is not of type org.w3c.dom.Node. The following example defines
a property and uses it with the output-properties property:
<util:properties id="outputProperties">
<beans:prop key="#{T (javax.xml.transform.OutputKeys).OMIT_XML_DECLARATION}">yes</beans:prop>
</util:properties>
<xpath-splitter input-channel="input"
output-properties="outputProperties">
<xpath-expression expression="/orders/order"/>
</xpath-splitter>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 563
Starting with version 4.2, the XPathMessageSplitter exposes an iterator option as a
boolean flag (defaults to true). This allows the "streaming" of split nodes in the downstream flow.
With the iterator mode set to true, each node is transformed while iterating. When false, all entries
are first transformed, before the split nodes start being sent to the output channel. (You can think of the
difference as "transform, send, transform, send" versus "transform, transform, send,
send".) See Section 8.3, “Splitter” for more information.
38.5 Routing XML Messages with XPath
Similar to SpEL-based routers, Spring Integration provides support for routing messages based on
XPath expressions, which lets you create a message endpoint with an input channel but no output
channel. Instead, one or more output channels are determined dynamically. The following example
shows how to create such a router:
<int-xml:xpath-router id="orderTypeRouter" input-channel="orderChannel">
<int-xml:xpath-expression expression="/order/type"/>
</int-xml:xpath-router>
Note
For an overview of attributes that are common among Routers, see the section called “Common
Router Parameters”.
Internally, XPath expressions are evaluated as type NODESET and converted to a List<String> that
represents channel names. Typically, such a list contains a single channel name. However, based on
the results of an XPath Expression, the XPath router can also take on the characteristics of a recipient list
router if the XPath expression returns more than one value. In that case, the List<String> contains
more than one channel name. Consequently, messages are sent to all the channels in the list.
Thus, assuming that the XML file passed to the following router configuration contains many responder
sub-elements that represent channel names, the message is sent to all of those channels:
<!-- route the order to all responders-->
<int-xml:xpath-router id="responderRouter" input-channel="orderChannel">
<int-xml:xpath-expression expression="/request/responders"/>
</int-xml:xpath-router>
If the returned values do not represent the channel names directly, you can specify additional mapping
parameters to map those returned values to actual channel names. For example if the /request/
responders expression results in two values (responderA and responderB), but you do not want
to couple the responder names to channel names, you can provide additional mapping configuration,
such as the following:
<!-- route the order to all responders-->
<int-xml:xpath-router id="responderRouter" input-channel="orderChannel">
<int-xml:xpath-expression expression="/request/responders"/>
<int-xml:mapping value="responderA" channel="channelA"/>
<int-xml:mapping value="responderB" channel="channelB"/>
</int-xml:xpath-router>
As already mentioned, the default evaluation type for XPath expressions is NODESET, which is converted
to a List<String> of channel names, which handles single channel scenarios as well as multiple
channel scenarios.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 564
Nonetheless, certain XPath expressions may evaluate as type String from the very beginning.
Consider, for example, the following XPath Expression:
name(./node())
This expression returns the name of the root node. If the default evaluation type NODESET is being used,
it results in an exception.
For these scenarios, you can use the evaluate-as-string attribute, which lets you manage the
evaluation type. It is FALSE by default. However, if you set it to TRUE, the String evaluation type is
used.
Note
XPath 1.0 specifies 4 data types:
• Node-sets
• Strings
• Number
• Boolean
When the XPath Router evaluates expressions by using the optional evaluate-as-string
attribute, the return value is determined by the string() function, as defined in the XPath
specification. This means that, if the expression selects multiple nodes, it return the string value
of the first node.
For further information, see:
•Specification: XML Path Language (XPath) Version 1.0
•XPath specification - string() function
For example, if we want to route based on the name of the root node, we can use the following
configuration:
<int-xml:xpath-router id="xpathRouterAsString"
input-channel="xpathStringChannel"
evaluate-as-string="true">
<int-xml:xpath-expression expression="name(./node())"/>
</int-xml:xpath-router>
XML Payload Converter
For XPath Routers, you can also specify the Converter to use when converting payloads
prior to XPath evaluation. As such, the XPath Router supports custom implementations of the
XmlPayloadConverter strategy, and when configuring an xpath-router element in XML, a
reference to such an implementation may be provided via the converter attribute.
If this reference is not explicitly provided, the DefaultXmlPayloadConverter is used. It should be
sufficient in most cases, since it can convert from Node, Document, Source, File, and String typed
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 565
payloads. If you need to extend beyond the capabilities of that default implementation, then an upstream
Transformer is generally a better option in most cases, rather than providing a reference to a custom
implementation of this strategy here.
38.6 XPath Header Enricher
The XPath header enricher defines a header enricher message transformer that evaluates an XPath
expression against the message payload and inserts the result of the evaluation into a message header.
The following listing shows all the available configuration parameters:
<int-xml:xpath-header-enricher default-overwrite="true" ❶
id="" ❷
input-channel="" ❸
output-channel="" ❹
should-skip-nulls="true"> ❺
<int:poller></int:poller> ❻
<int-xml:header name="" ❼
evaluation-type="STRING_RESULT" ❽
header-type="int" ❾
overwrite="true" ❿
xpath-expression="" 11
xpath-expression-ref=""/> 12
</int-xml:xpath-header-enricher>
❶Specifies the default boolean value for whether to overwrite existing header values. This takes
effect only for child elements that do not provide their own overwrite attribute. If you do not set the
default- overwrite attribute, the specified header values do not overwrite any existing ones with the
same header names. Optional.
❷ID for the underlying bean definition. Optional.
❸The receiving message channel of this endpoint. Optional.
❹Channel to which enriched messages are sent. Optional.
❺Specifies whether null values, such as might be returned from an expression evaluation, should
be skipped. The default value is true. If a null value should trigger removal of the corresponding
header, set this to false. Optional.
❻A poller to use with the header enricher. Optional.
❼The name of the header to be enriched. Mandatory.
❽The result type expected from the XPath evaluation. If you did not set a header-type attribute,
this is the type of the header value. The following values are allowed: BOOLEAN_RESULT,
STRING_RESULT, NUMBER_RESULT, NODE_RESULT, and NODE_LIST_RESULT. If not set, it
defaults internally to XPathEvaluationType.STRING_RESULT. Optional.
❾The fully qualified class name for the header value type. The result of the XPath evaluation is
converted to this type by ConversionService. This allows, for example, a NUMBER_RESULT (a
double) to be converted to an Integer. The type can be declared as a primitive (such as int),
but the result is always the equivalent wrapper class (such as Integer). The same integration
ConversionService discussed in the section called “Payload Type Conversion” is used for
the conversion, so conversion to custom types is supported by adding a custom converter to the
service. Optional.
❿Boolean value to indicate whether this header value should overwrite an existing header value for
the same name if already present on the input Message.
11 The XPath expression as a String. You must set either this attribute or xpath-expression-
ref, but not both.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 566
12 The XPath expression reference. You must set either this attribute or xpath-expression, but
not both.
38.7 Using the XPath Filter
This component defines an XPath-based message filter. Internally, this components uses a
MessageFilter that wraps an instance of AbstractXPathMessageSelector.
Note
See Section 8.2, “Filter” for further details.
to use the XPath filter you must, at a minimum, provide an XPath expression either by declaring the
xpath-expression element or by referencing an XPath Expression in the xpath-expression-
ref attribute.
If the provided XPath expression evaluates to a boolean value, no further configuration parameters
are necessary. However, if the XPath expression evaluates to a String, you should set the match-
value attribute, against which the evaluation result is matched.
match-type has three options:
•exact: Correspond to equals on java.lang.String. The underlying implementation uses a
StringValueTestXPathMessageSelector
•case-insensitive: Correspond to equals-ignore-case on java.lang.String. The
underlying implementation uses a StringValueTestXPathMessageSelector
•regex: Matches operations one java.lang.String. The underlying implementation uses a
RegexTestXPathMessageSelector
When providing a match-type value of regex, the value provided with the match-value attribute must
be a valid regular expression.
The following example shows all the available attributes for the xpath-filter element:
<int-xml:xpath-filter discard-channel="" ❶
id="" ❷
input-channel="" ❸
match-type="exact" ❹
match-value="" ❺
output-channel="" ❻
throw-exception-on-rejection="false" ❼
xpath-expression-ref=""> ❽
<int-xml:xpath-expression ... /> ❾
<int:poller ... /> ❿
</int-xml:xpath-filter>
❶Message channel where you want rejected messages to be sent. Optional.
❷ID for the underlying bean definition. Optional.
❸The receiving message channel of this endpoint. Optional.
❹Type of match to apply between the XPath evaluation result and the match-value. The default
is exact. Optional.
❺String value to be matched against the XPath evaluation result. If you do not set this attribute, the
XPath evaluation must produce a boolean result. Optional.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 567
❻The channel to which messages that matched the filter criteria are dispatched. Optional.
❼By default, this property is set to false and rejected messages (messages that did not match the
filter criteria) are silently dropped. However, if set to true, message rejection results in an error
condition and an exception being propagated upstream to the caller. Optional.
❽Reference to an XPath expression instance to evaluate.
❾This child element sets the XPath expression to be evaluated. If you do not include this element,
you must set the xpath-expression-ref attribute. Also, you can include only one xpath-
expression element.
❿A poller to use with the XPath filter. Optional.
38.8 #xpath SpEL Function
Spring Integration, since version 3.0, provides the built-in #xpath SpEL function, which
invokes the XPathUtils.evaluate(...) static method. This method delegates to an
org.springframework.xml.xpath.XPathExpression. The following listing shows some usage
examples:
<transformer expression="#xpath(payload, '/name')"/>
<filter expression="#xpath(payload, headers.xpath, 'boolean')"/>
<splitter expression="#xpath(payload, '//book', 'document_list')"/>
<router expression="#xpath(payload, '/person/@age', 'number')">
<mapping channel="output1" value="16"/>
<mapping channel="output2" value="45"/>
</router>
The #xpath() also supports a third optional parameter for converting the result of the XPath
evaluation. It can be one of the String constants (string, boolean, number, node, node_list and
document_list) or an org.springframework.xml.xpath.NodeMapper instance. By default,
the #xpath SpEL function returns a String representation of the XPath evaluation.
Note
To enable the #xpath SpEL function, you can add the spring-integration-xml.jar to the
classpath. You need no declare any components from the Spring Integration XML Namespace.
For more information, see "`Appendix A, Spring Expression Language (SpEL).
38.9 XML Validating Filter
The XML Validating Filter lets you validate incoming messages against provided schema instances.
The following schema types are supported:
• xml-schema (http://www.w3.org/2001/XMLSchema)
• relax-ng (http://relaxng.org/ns/structure/1.0)
Messages that fail validation can either be silently dropped or be forwarded to a definable discard-
channel. Furthermore, you can configure this filter to throw an Exception in case validation fails.
The following listing shows all the available configuration parameters:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 568
<int-xml:validating-filter discard-channel="" ❶
id="" ❷
input-channel="" ❸
output-channel="" ❹
schema-location="" ❺
schema-type="xml-schema" ❻
throw-exception-on-rejection="false" ❼
xml-converter="" ❽
xml-validator=""> ❾
<int:poller .../> ❿
</int-xml:validating-filter>
❶Message channel where you want rejected messages to be sent. Optional.
❷ID for the underlying bean definition. Optional.
❸The receiving message channel of this endpoint. Optional.
❹Message channel where you want accepted messages to be sent. Optional.
❺Sets the location of the schema to validate the message’s payload against. Internally uses the
org.springframework.core.io.Resource interface. You can set this attribute or the xml-
validator attribute but not both. Optional.
❻Sets the schema type. Can be either xml-schema or relax-ng. Optional.
If not set, it defaults to xml-schema, which internally translates to
org.springframework.xml.validation.XmlValidatorFactory#SCHEMA_W3C_XML.
❼If true, a MessageRejectedException is thrown if validation fails for the provided Message’s
payload. Defaults to false if not set. Optional.
❽Reference to a custom
org.springframework.integration.xml.XmlPayloadConverter strategy. Optional.
❾Reference to a custom sorg.springframework.xml.validation.XmlValidator strategy.
You can set this attribute or the schema-location attribute but not both. Optional.
❿A poller to use with the XPath filter. Optional.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 569
39. XMPP Support
Spring Integration provides channel adapters for XMPP. XMPP stands for "Extensible Messaging
and Presence Protocol".
XMPP describes a way for multiple agents to communicate with each other in a distributed system. The
canonical use case is to send and receive chat messages, though XMPP can be (and is) used for other
kinds of applications. XMPP describes a network of actors. Within that network, actors may address
each other directly and broadcast status changes (such as "presence").
XMPP provides the messaging fabric that underlies some of the biggest instant messaging networks
in the world, including Google Talk (GTalk, which is also available from within GMail) and Facebook
Chat. Many good open-source XMPP servers are available. Two popular implementations are Openfire
and ejabberd.
Spring integration provides support for XMPP by providing XMPP adapters, which support sending and
receiving both XMPP chat messages and presence changes from other entries in a client’s roster.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-xmpp</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-xmpp:5.1.1.RELEASE"
As with other adapters, the XMPP adapters come with support for a convenient namespace-based
configuration. To configure the XMPP namespace, include the following elements in the headers of your
XML configuration file:
xmlns:int-xmpp="http://www.springframework.org/schema/integration/xmpp"
xsi:schemaLocation="http://www.springframework.org/schema/integration/xmpp
http://www.springframework.org/schema/integration/xmpp/spring-integration-xmpp.xsd"
39.1 XMPP Connection
Before using inbound or outbound XMPP adapters to participate in the XMPP network, an actor must
establish its XMPP connection. All XMPP adapters connected to a particular account can share this
connection object. Typically this requires (at a minimum) user, password, and host. To create a basic
XMPP connection, you can use the convenience of the namespace, as the following example shows:
<int-xmpp:xmpp-connection
id="myConnection"
user="user"
password="password"
host="host"
port="port"
resource="theNameOfTheResource"
subscription-mode="accept_all"/>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 570
Note
For added convenience, you can rely on the default naming convention and omit the id attribute.
The default name (xmppConnection) is used for this connection bean.
If the XMPP connection goes stale, reconnection attempts are made with an automatic login as long as
the previous connection state was logged (authenticated). We also register a ConnectionListener,
which logs connection events if the DEBUG logging level is enabled.
The subscription-mode attribute initiates the roster listener to deal with incoming
subscriptions from other users. This functionality is not always available for the target
XMPP servers. For example, Google Cloud Messaging (GCM) and Firebase Cloud
Messaging (FCM) fully disable it. To switch off the roster listener for subscriptions, you
can configure it with an empty string when using XML configuration (subscription-
mode="") or with XmppConnectionFactoryBean.setSubscriptionMode(null) when using
Java Configuration. Doing so disables the roster at the login phase as well. See
Roster.setRosterLoadedAtLogin(boolean) for more information.
39.2 XMPP Messages
Spring Integration provides support for sending and receiving XMPP messages. For receiving them, it
offers an inbound message channel adapter. For sending them, it offers an outbound message channel
adapter.
Inbound Message Channel Adapter
The Spring Integration adapters support receiving chat messages from other users in the system. To
do so, the inbound message channel adapter "logs in" as a user on your behalf and receives the
messages sent to that user. Those messages are then forwarded to your Spring Integration client. The
inbound-channel-adapter element provides Configuration support for the XMPP inbound message
channel adapter. The following example shows how to configure it:
<int-xmpp:inbound-channel-adapter id="xmppInboundAdapter"
channel="xmppInbound"
xmpp-connection="testConnection"
payload-expression="getExtension('google:mobile:data').json"
stanza-filter="stanzaFilter"
auto-startup="true"/>
Along with the usual attributes (for a message channel adapter), this adapter also requires a reference
to an XMPP Connection.
The XMPP inbound adapter is event-driven and a Lifecycle implementation. When started, it registers
a PacketListener that listens for incoming XMPP chat messages. It forwards any received messages
to the underlying adapter, which converts them to Spring Integration messages and sends them to the
specified channel. When stopped, it unregisters the PacketListener.
Starting with version 4.3, the ChatMessageListeningEndpoint (and
its <int-xmpp:inbound-channel-adapter>) supports the injection of a
org.jivesoftware.smack.filter.StanzaFilter to be registered on the provided
XMPPConnection, together with an internal StanzaListener implementation. See the Javadoc for
more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 571
Version 4.3 introduced the payload-expression attribute for the
ChatMessageListeningEndpoint. The incoming
org.jivesoftware.smack.packet.Message represents a root object for the evaluation context.
This option is useful when you use XMPP extensions. For example, for the GCM protocol we can extract
the body by using the following expression:
payload-expression="getExtension('google:mobile:data').json"
The following example extracts the body for the XHTML protocol:
payload-
expression="getExtension(T(org.jivesoftware.smackx.xhtmlim.packet.XHTMLExtension).NAMESPACE).bodies[0]"
To simplify access to the extension in the XMPP Message, the extension variable is added into the
EvaluationContext. Note that it is added when only one extension is present in the message. The
preceding examples that show the namespace manipulations can be simplified to the following example:
payload-expression="#extension.json"
payload-expression="#extension.bodies[0]"
Outbound Message Channel Adapter
You can also send chat messages to other users on XMPP by using the outbound message channel
adapter. The outbound-channel-adapter element provides configuration support for the XMPP
outbound message channel adapter.
<int-xmpp:outbound-channel-adapter id="outboundEventAdapter"
channel="outboundEventChannel"
xmpp-connection="testConnection"/>
The adapter expects its input to be (at a minimum) a payload of type java.lang.String and a header
value for XmppHeaders.CHAT_TO that specifies to which user the message should be sent. To create
a message, you can use Java code similar to the following:
Message<String> xmppOutboundMsg = MessageBuilder.withPayload("Hello, XMPP!" )
.setHeader(XmppHeaders.CHAT_TO, "userhandle")
.build();
You can also set the header by using the XMPP header-enricher support, as the following example
shows:
<int-xmpp:header-enricher input-channel="input" output-channel="output">
<int-xmpp:chat-to value="test1@example.org"/>
</int-xmpp:header-enricher>
Starting with version 4.3, the packet extension support has been added
to the ChatMessageSendingMessageHandler (the <int-xmpp:outbound-channel-
adapter> in XML configuration). Along with the regular String and
org.jivesoftware.smack.packet.Message payload, now you can send a message
with a payload of org.jivesoftware.smack.packet.ExtensionElement (which
is populated to the org.jivesoftware.smack.packet.Message.addExtension())
instead of setBody(). For convenience, we added an extension-provider
option for the ChatMessageSendingMessageHandler. It lets you inject
org.jivesoftware.smack.provider.ExtensionElementProvider, which builds an
ExtensionElement against the payload at runtime. For this case, the payload must be a string in
JSON or XML format, depending of the XEP protocol.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 572
39.3 XMPP Presence
XMPP also supports broadcasting state. You can use this ability to let people who have you on their
roster see your state changes. This happens all the time with your IM clients. You change your away
status and set an away message, and everybody who has you on their roster sees your icon or username
change to reflect this new state and might see your new "away" message. If you would like to receive
notifications or notify others of state changes, you can use Spring Integration’s "presence" adapters.
Inbound Presence Message Channel Adapter
Spring Integration provides an inbound presence message channel adapter, which supports receiving
presence events from other users in the system who are on your roster. To do this, the adapter "logs
in" as a user on your behalf, registers a RosterListener, and forwards received presence update
events as messages to the channel identified by the channel attribute. The payload of the message is
a org.jivesoftware.smack.packet.Presence object (see https://www.igniterealtime.org/builds/
smack/docs/latest/javadoc/org/jivesoftware/smack/packet/Presence.html).
The presence-inbound-channel-adapter element provides configuration support for the XMPP
inbound presence message channel adapter. The following example configures an inbound presence
message channel adapter:
<int-xmpp:presence-inbound-channel-adapter channel="outChannel"
xmpp-connection="testConnection" auto-startup="false"/>
Along with the usual attributes, this adapter requires a reference to an XMPP Connection. This adapter
is event-driven and a Lifecycle implementation. It registers a RosterListener when started and
unregisters that RosterListener when stopped.
Outbound Presence Message Channel Adapter
Spring Integration also supports sending presence events to be seen by other users in the
network who happen to have you on their roster. When you send a message to the outbound
presence message channel adapter, it extracts the payload (which is expected to be of type
org.jivesoftware.smack.packet.Presence) and sends it to the XMPP Connection, thus
advertising your presence events to the rest of the network.
The presence-outbound-channel-adapter element provides configuration support for the XMPP
outbound presence message channel adapter. The following example shows how to configure an
outbound presence message channel adapter:
<int-xmpp:presence-outbound-channel-adapter id="eventOutboundPresenceChannel"
xmpp-connection="testConnection"/>
It can also be a polling consumer (if it receives messages from a pollable channel) in which case you
would need to register a poller. The following example shows how to do so:
<int-xmpp:presence-outbound-channel-adapter id="pollingOutboundPresenceAdapter"
xmpp-connection="testConnection"
channel="pollingChannel">
<int:poller fixed-rate="1000" max-messages-per-poll="1"/>
</int-xmpp:presence-outbound-channel-adapter>
Like its inbound counterpart, it requires a reference to an XMPP Connection.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 573
Note
If you rely on the default naming convention for an XMPP Connection bean (described earlier)
and you have only one XMPP Connection bean configured in your application context, you can
omit the xmpp-connection attribute. In that case, the bean with named xmppConnection is
located and injected into the adapter.
39.4 Advanced Configuration
Spring Integration’s XMPP support is based on the Smack 4.0 API (http://www.igniterealtime.org/
projects/smack/), which allows more complex configuration of the XMPP Connection object.
As stated earlier, the xmpp-connection namespace support is designed to simplify basic
connection configuration and supports only a few common configuration attributes. However, the
org.jivesoftware.smack.ConnectionConfiguration object defines about 20 attributes, and
adding namespace support for all of them offers no real value. So, for more complex connection
configurations, you can configure an instance of our XmppConnectionFactoryBean as a regular
bean and inject a org.jivesoftware.smack.ConnectionConfiguration as a constructor
argument to that FactoryBean. You can specify every property you need directly on that
ConnectionConfiguration instance. (A bean definition with the p namespace would work well.)
This way, you can directly set SSL (or any other attributes). The following example shows how to do so:
<bean id="xmppConnection" class="o.s.i.xmpp.XmppConnectionFactoryBean">
<constructor-arg>
<bean class="org.jivesoftware.smack.ConnectionConfiguration">
<constructor-arg value="myServiceName"/>
<property name="socketFactory" ref="..."/>
</bean>
</constructor-arg>
</bean>
<int:channel id="outboundEventChannel"/>
<int-xmpp:outbound-channel-adapter id="outboundEventAdapter"
channel="outboundEventChannel"
xmpp-connection="xmppConnection"/>
The Smack API also offers static initializers, which can be helpful. For more complex cases (such
as registering a SASL mechanism), you may need to execute certain static initializers. One of those
static initializers is SASLAuthentication, which lets you register supported SASL mechanisms. For
that level of complexity, we recommend using Spring Java configuration for the XMPP connection
configuration. That way, you can configure the entire component through Java code and execute all
other necessary Java code, including static initializers, at the appropriate time. The following exampe
shows how to configure an XMPP connection with an SASL (Simple Authentication and Security Layer)
in Java:
@Configuration
public class CustomConnectionConfiguration {
@Bean
public XMPPConnection xmppConnection() {
SASLAuthentication.supportSASLMechanism("EXTERNAL", 0); // static initializer
ConnectionConfiguration config = new ConnectionConfiguration("localhost", 5223);
config.setTrustorePath("path_to_truststore.jks");
config.setSecurityEnabled(true);
config.setSocketFactory(SSLSocketFactory.getDefault());
return new XMPPConnection(config);
}
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 574
For more information on using Java for application context configuration, see the following section in
the Spring Reference Manual.
39.5 XMPP Message Headers
The Spring Integration XMPP Adapters automatically map standard XMPP properties. By
default, these properties are copied to and from Spring Integration MessageHeaders by using
DefaultXmppHeaderMapper.
Any user-defined headers are not copied to or from an XMPP Message, unless explicitly specified by
the requestHeaderNames or replyHeaderNames properties of the DefaultXmppHeaderMapper.
Tip
When mapping user-defined headers, the values can also contain simple wildcard patterns (such
"thing*" or "*thing").
Starting with version 4.1, AbstractHeaderMapper (a superclass of DefaultXmppHeaderMapper)
lets you configure the NON_STANDARD_HEADERS token for the requestHeaderNames property (in
addition to STANDARD_REQUEST_HEADERS), to map all user-defined headers.
The org.springframework.xmpp.XmppHeaders class identifies the default headers to be used by
the DefaultXmppHeaderMapper:
•xmpp_from
•xmpp_subject
•xmpp_thread
•xmpp_to
•xmpp_type
Starting with version 4.3, you can negate patterns in the header mappings by preceding the pattern with
!. Negated patterns get priority, so a list such as STANDARD_REQUEST_HEADERS,thing1,thing*,!
thing2,!thing3,qux,!thing1 does not map thing1, thing2,or thing3. That list does map the
standard headers plus thing4 and qux.
Important
If you have a user-defined header that begins with ! that you do wish to map, can escape it with \
thus: STANDARD_REQUEST_HEADERS,\!myBangHeader. In that example, the standard request
headers and !myBangHeader are mapped.
39.6 XMPP Extensions
Extensions put the "Extensible" in the "Extensible Messaging and Presence Protocol".
XMPP is based around XML, a data format that supports a concept known as namespacing. Through
namespacing, you can add bits to XMPP that are not defined in the original specifications. The XMPP
specification deliberately describes only a set of core features:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 575
• How a client connects to a server
• Encryption (SSL/TLS)
• Authentication
• How servers can communicate with each other to relay messages
• A few other basic building blocks
Once you have implemented this, you have an XMPP client and can send any kind of data you like.
However, you may need to do more than the basics. For example, you might need to include formatting
(bold, italic, and so on) in a message, which is not defined in the core XMPP specification. Well, you can
make up a way to do that, but, unless everyone else does it the same way you do, no other software
can interpret it (they ignore namespaces they cannot understand).
To solve that problem, the XMPP Standards Foundation (XSF) publishes a series of extra documents,
known as XMPP Enhancement Proposals (XEPs). In general, each XEP describes a particular activity
(from message formatting to file transfers, multi-user chats, and many more). They also provide a
standard format for everyone to use for that activity.
The Smack API provides many XEP implementations with its extensions and experimental
projects. Starting with Spring Integration version 4.3, you can use any XEP with the existing XMPP
channel adapters.
To be able to process XEPs or any other custom XMPP extensions, you must provide the Smack’s
ProviderManager pre-configuration. You can do so with static Java code, as the following example
shows:
ProviderManager.addIQProvider("element", "namespace", new MyIQProvider());
ProviderManager.addExtensionProvider("element", "namespace", new MyExtProvider());
You can also use a .providers configuration file in the specific instance and access it with a JVM
argument, as the following example shows:
-Dsmack.provider.file=file:///c:/my/provider/mycustom.providers
The mycustom.providers file might be as follows:
<?xml version="1.0"?>
<smackProviders>
<iqProvider>
<elementName>query</elementName>
<namespace>jabber:iq:time</namespace>
<className>org.jivesoftware.smack.packet.Time</className>
</iqProvider>
<iqProvider>
<elementName>query</elementName>
<namespace>http://jabber.org/protocol/disco#items</namespace>
<className>org.jivesoftware.smackx.provider.DiscoverItemsProvider</className>
</iqProvider>
<extensionProvider>
<elementName>subscription</elementName>
<namespace>http://jabber.org/protocol/pubsub</namespace>
<className>org.jivesoftware.smackx.pubsub.provider.SubscriptionProvider</className>
</extensionProvider>
</smackProviders>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 576
For example, the most popular XMPP messaging extension is Google Cloud Messaging (GCM). The
Smack library provides org.jivesoftware.smackx.gcm.provider.GcmExtensionProvider
for that purposes. By default, it registers that class with the smack-experimental jar in the classpath
by using the experimental.providers resource, as the following Maven example shows:
<!-- GCM JSON payload -->
<extensionProvider>
<elementName>gcm</elementName>
<namespace>google:mobile:data</namespace>
<className>org.jivesoftware.smackx.gcm.provider.GcmExtensionProvider</className>
</extensionProvider>
Also, the GcmPacketExtension lets the target messaging protocol parse incoming packets and build
outgoing packets, as the following examples show:
GcmPacketExtension gcmExtension = (GcmPacketExtension)
xmppMessage.getExtension(GcmPacketExtension.NAMESPACE);
String message = gcmExtension.getJson());
GcmPacketExtension packetExtension = new GcmPacketExtension(gcmJson);
Message smackMessage = new Message();
smackMessage.addExtension(packetExtension);
See the section called “Inbound Message Channel Adapter” and the section called “Outbound Message
Channel Adapter” earlier in this chapter for more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 577
40. Zookeeper Support
Version 4.2 added Zookeeper support to the framework in version 4.2, which consists of:
•A metadata store
•A lock registry
•Leadership event handling
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-zookeeper</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-zookeeper:5.1.1.RELEASE"
40.1 Zookeeper Metadata Store
You ca use the ZookeeperMetadataStore where any MetadataStore is needed, such as for
persistent file list filters. See Section 12.5, “Metadata Store” for more information. The following example
configures a Zookeeper metadata store with XML:
<bean id="client" class="org.springframework.integration.zookeeper.config.CuratorFrameworkFactoryBean">
<constructor-arg value="${connect.string}" />
</bean>
<bean id="meta" class="org.springframework.integration.zookeeper.metadata.ZookeeperMetadataStore">
<constructor-arg ref="client" />
</bean>
The following example shows how to configure a Zookeeper metadata store with Java:
@Bean
public MetadataStore zkStore(CuratorFramework client) {
return new ZookeeperMetadataStore(client);
}
40.2 Zookeeper Lock Registry
The ZookeeperLockRegistry can be used where any LockRegistry is needed, such as when
using an aggregator in a clustered environment with a shared MessageStore.
A LockRegistry is used to "look up" a lock based on a key (the aggregator uses correlationId).
By default, locks in the ZookeeperLockRegistry are maintained in zookeeper under the following
path: /SpringIntegration-LockRegistry/. You can customize the path by providing an
implementation of ZookeeperLockRegistry.KeyToPathStrategy, as the following example
shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 578
public interface KeyToPathStrategy {
String pathFor(String key);
boolean bounded();
}
If the strategy returns true from isBounded, unused locks do not need to be harvested. For unbounded
strategies (such as the default), you need to periodically invoke expireUnusedOlderThan(long
age) to remove old unused locks from memory.
40.3 Zookeeper Leadership Event Handling
The following example uses XML to configure an application for leader election in Zookeeper:
<int-zk:leader-listener client="client" path="/siNamespace" role="cluster" />
client is a reference to a CuratorFramework bean. A CuratorFrameworkFactoryBean is
available. When a leader is elected, an OnGrantedEvent is published for the role cluster. Any
endpoints in that role are started. When leadership is revoked, an OnRevokedEvent is published for
the role cluster. Any endpoints in that role are stopped. See Section 10.2, “Endpoint Roles” for more
information.
You can use Java configuration to create an instance of the leader initiator, as the following example
shows:
@Bean
public LeaderInitiatorFactoryBean leaderInitiator(CuratorFramework client) {
return new LeaderInitiatorFactoryBean()
.setClient(client)
.setPath("/siTest/")
.setRole("cluster");
}
Part VI. Appendices
Advanced Topics and Additional Resources
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 580
Appendix A. Spring Expression
Language (SpEL)
You can configure many Spring Integration components by using expressions written in the Spring
Expression Language.
In most cases, the #root object is the Message, which has two properties (headers and payload)
that allow such expressions as payload, payload.thing, headers['my.header'], and so on.
In some cases, additional variables are provided. For example, <int-http:inbound-gateway/>
provides #requestParams (parameters from the HTTP request) and #pathVariables (values from
path placeholders in the URI).
For all SpEL expressions, a BeanResolver is available to enable references to any bean in the
application context (for example, @myBean.foo(payload)). In addition, two PropertyAccessors
are available. A MapAccessor enables accessing values in a Map by using a key and a
ReflectivePropertyAccessor, which allows access to fields and JavaBean compliant properties
(by using getters and setters). This is how you can access the Message headers and payload properties.
A.1 SpEL Evaluation Context Customization
Starting with Spring Integration 3.0, you can add additional PropertyAccessor instances to
the SpEL evaluation contexts used by the framework. The framework provides the (read-only)
JsonPropertyAccessor, which you can use to access fields from a JsonNode or JSON in a String.
You can also create your own PropertyAccessor if you have specific needs.
In addition, you can add custom functions. Custom functions are static methods declared on a class.
Functions and property accessors are available in any SpEL expression used throughout the framework.
The following configuration shows how to directly configure the
IntegrationEvaluationContextFactoryBean with custom property accessors and functions:
<bean id="integrationEvaluationContext"
class="org.springframework.integration.config.IntegrationEvaluationContextFactoryBean">
<property name="propertyAccessors">
<util:map>
<entry key="things">
<bean class="things.MyCustomPropertyAccessor"/>
</entry>
</util:map>
</property>
<property name="functions">
<map>
<entry key="barcalc" value="#{T(things.MyFunctions).getMethod('calc', T(things.MyThing))}"/>
</map>
</property>
</bean>
For convenience, Spring Integration provides namespace support for both property accessors and
functions, as described in the following sections. The framework automatically configures the factory
bean on your behalf.
This factory bean definition overrides the default integrationEvaluationContext bean definition.
It adds the custom accessor and one custom function to the list (which also includes the standard
accessors mentioned earlier).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 581
Note that custom functions are static methods. In the preceding example, the custom function is a static
method called calc on a class called MyFunctions and takes a single parameter of type MyThing.
Suppose you have a Message with a payload that has a type of MyThing. Further suppose that you
need to perform some action to create an object called MyObject from MyThing and then invoke a
custom function called calc on that object.
The standard property accessors do not know how to get a MyObject from a MyThing, so you could
write and configure a custom property accessor to do so. As a result, your final expression might be
"#barcalc(payload.myObject)".
The factory bean has another property (typeLocator), which lets you customize the TypeLocator
used during SpEL evaluation. You might need to do so running in some environments that use a non-
standard ClassLoader. In the following example, SpEL expressions always use the bean factory’s
class loader:
<bean id="integrationEvaluationContext"
class="org.springframework.integration.config.IntegrationEvaluationContextFactoryBean">
<property name="typeLocator">
<bean class="org.springframework.expression.spel.support.StandardTypeLocator">
<constructor-arg value="#{beanFactory.beanClassLoader}"/>
</bean>
</property>
</bean>
A.2 SpEL Functions
Spring Integration provides namespace support to let you create SpEL custom functions.
You can specify <spel-function/> components to provide custom SpEL functions to the
EvaluationContext used throughout the framework. Instead of configuring the factory bean shown
earlier, you can add one or more of these components, and the framework automatically adds them to
the default integrationEvaluationContext factory bean.
For example, suppose you have a useful static method to evaluate XPath. The following example shows
how you can create a custom function to use that method:
<int:spel-function id="xpath"
class="com.something.test.XPathUtils" method="evaluate(java.lang.String, java.lang.Object)"/>
<int:transformer input-channel="in" output-channel="out"
expression="#xpath('//things/@mythings', payload)" />
Given the preceding example:
• The default IntegrationEvaluationContextFactoryBean bean with an ID of
integrationEvaluationContext is registered with the application context.
• The <spel-function/> is parsed and added to the functions Map of
integrationEvaluationContext as a map entry with its id as the key and the static Method
as the value.
• The integrationEvaluationContext factory bean creates a new
StandardEvaluationContext instance, and it is configured with the default PropertyAccessor
instances, a BeanResolver, and the custom functions.
• That EvaluationContext instance is injected into the ExpressionEvaluatingTransformer
bean.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 582
To provide a SpEL Function by using Java configuration, you can declare a
SpelFunctionFactoryBean bean for each function. The following example shows how to create a
custom function:
@Bean
public SpelFunctionFactoryBean xpath() {
return new SpelFunctionFactoryBean(XPathUtils.class, "evaluate");
}
Note
SpEL functions declared in a parent context are also made available in any child contexts. Each
context has its own instance of the integrationEvaluationContext factory bean, because
each needs a different BeanResolver, but the function declarations are inherited and can be
overridden by declaring a SpEL function with the same name.
Built-in SpEL Functions
Spring Integration provides the folloiwng standard functions, which are registered with the application
context automatically on start up:
•#jsonPath: Evaluates a jsonPath on a specified object. This function invokes
JsonPathUtils.evaluate(...), which delegates to the Jayway JsonPath library. The following
listing shows some usage examples:
<transformer expression="#jsonPath(payload, '$.store.book[0].author')"/>
<filter expression="#jsonPath(payload,'$..book[2].isbn') matches '\d-\d{3}-\d{5}-\d'"/>
<splitter expression="#jsonPath(payload, '$.store.book')"/>
<router expression="#jsonPath(payload, headers.jsonPath)">
<mapping channel="output1" value="reference"/>
<mapping channel="output2" value="fiction"/>
</router>
#jsonPath also supports a third (optional) parameter: an array of
com.jayway.jsonpath.Filter, which can be provided by a reference to a bean or bean method
(for example).
Note
Using this function requires the Jayway JsonPath library (json-path.jar) to be on the
classpath. Otherwise the #jsonPath SpEL function is not registered.
For more information regarding JSON see JSON Transformers in Section 9.1, “Transformer”.
•#xpath: To evaluate an xpath on some provided object. For more information regarding XML and
XPath, see Chapter 38, XML Support - Dealing with XML Payloads.
A.3 Property Accessors
Spring Integration provides namespace support to let you create SpEL custom PropertyAccessor
implementations. You can use the <spel-property-accessors/> component to provide a list of
custom PropertyAccessor instances to the EvaluationContext used throughout the framework.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 583
Instead of configuring the factory bean shown earlier, you can add one or more of these components, and
the framework automatically adds the accessors to the default integrationEvaluationContext
factory bean. The following example shows how to do so:
<int:spel-property-accessors>
<bean id="jsonPA" class="org.springframework.integration.json.JsonPropertyAccessor"/>
<ref bean="fooPropertyAccessor"/>
</int:spel-property-accessors>
In the preceding example, two custom PropertyAccessor instances are injected into the
EvaluationContext (in the order in which they are declared).
To provide PropertyAccessor instances by using Java Configuration,
you should declare a SpelPropertyAccessorRegistrar bean with
a name of spelPropertyAccessorRegistrar (dictated by the
IntegrationContextUtils.SPEL_PROPERTY_ACCESSOR_REGISTRAR_BEAN_NAME constant).
The following example shows how to configure two custom PropertyAccessor instances with Java:
@Bean
public SpelPropertyAccessorRegistrar spelPropertyAccessorRegistrar() {
return new SpelPropertyAccessorRegistrar(new JsonPropertyAccessor())
.add(fooPropertyAccessor());
}
Note
Custom PropertyAccessor instances declared in a parent context are also made
available in any child contexts. They are placed at the end of result list (but
before the default org.springframework.context.expression.MapAccessor and
o.s.expression.spel.support.ReflectivePropertyAccessor). If you declare a
PropertyAccessor with the same bean ID in a child context, it overrides the parent accessor.
Beans declared within a <spel-property-accessors/> must have an id attribute. The final
order of usage is as follows:
• The accessors in the current context, in the order in which they are declared
• Any accessors from parent contexts, in order
• The MapAccessor
• The ReflectivePropertyAccessor
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 584
Appendix B. Message Publishing
The (Aspect-oriented Programming) AOP message publishing feature lets you construct and send a
message as a by-product of a method invocation. For example, imagine you have a component and,
every time the state of this component changes, you want to be notified by a message. The easiest way
to send such notifications is to send a message to a dedicated channel, but how would you connect
the method invocation that changes the state of the object to a message sending process, and how
should the notification message be structured? The AOP message publishing feature handles these
responsibilities with a configuration-driven approach.
B.1 Message Publishing Configuration
Spring Integration provides two approaches: XML configuration and annotation-driven (Java)
configuration.
Annotation-driven Configuration with the @Publisher Annotation
The annotation-driven approach lets you annotate any method with the @Publisher annotation to
specify a channel attribute. Starting with version 5.1, to switch this functionality on, you must use the
@EnablePublisher annotation on some @Configuration class. See Section 5.5, “Configuration
and @EnableIntegration” for more information. The message is constructed from the return value
of the method invocation and sent to the channel specified by the channel attribute. To further manage
message structure, you can also use a combination of both @Payload and @Header annotations.
Internally, this message publishing feature of Spring Integration uses both Spring AOP by
defining PublisherAnnotationAdvisor and the Spring Expression Language (SpEL), giving you
considerable flexibility and control over the structure of the Message it publishes.
The PublisherAnnotationAdvisor defines and binds the following variables:
•#return: Binds to a return value, letting you reference it or its attributes (for example,
#return.something, where something is an attribute of the object bound to #return)
•#exception: Binds to an exception if one is thrown by the method invocation
•#args: Binds to method arguments so that you can extract individual arguments by name (for
example, #args.fname)
Consider the following example:
@Publisher
public String defaultPayload(String fname, String lname) {
return fname + " " + lname;
}
In the preceding example, the message is constructed with the following structure:
• The message payload is the return type and value of the method. This is the default.
• A newly constructed message is sent to a default publisher channel that is configured with an
annotation post processor (covered later in this section).
The following example is the same as the preceding example, except that it does not use a default
publishing channel:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 585
@Publisher(channel="testChannel")
public String defaultPayload(String fname, @Header("last") String lname) {
return fname + " " + lname;
}
Instead of using a default publishing channel, we specify the publishing channel by setting the channel
attribute of the @Publisher annotation. We also add a @Header annotation, which results in the
message header named last having the same value as the lname method parameter. That header is
added to the newly constructed message.
The following example is almost identical to the preceding example:
@Publisher(channel="testChannel")
@Payload
public String defaultPayloadButExplicitAnnotation(String fname, @Header String lname) {
return fname + " " + lname;
}
The only difference is that we use a @Payload annotation on the method to explicitly specify that the
return value of the method should be used as the payload of the message.
The following example expands on the previous configuration by using the Spring Expression Language
in the @Payload annotation to further instruct the framework about how the message should be
constructed:
@Publisher(channel="testChannel")
@Payload("#return + #args.lname")
public String setName(String fname, String lname, @Header("x") int num) {
return fname + " " + lname;
}
In the preceding example, the message is a concatenation of the return value of the method invocation
and the lname input argument. The Message header named x has its value determined by the num
input argument. That header is added to the newly constructed message.
@Publisher(channel="testChannel")
public String argumentAsPayload(@Payload String fname, @Header String lname) {
return fname + " " + lname;
}
In the preceding example, you see another usage of the @Payload annotation. Here, we annotate a
method argument that becomes the payload of the newly constructed message.
As with most other annotation-driven features in Spring, you need to register a post-processor
(PublisherAnnotationBeanPostProcessor). The following example shows how to do so:
<bean class="org.springframework.integration.aop.PublisherAnnotationBeanPostProcessor"/>
For a more concise configuration, you can instead use namespace support, as the following example
shows:
<int:annotation-config>
<int:enable-publisher default-publisher-channel="defaultChannel"/>
</int:annotation-config>
For Java configuration, you must use the @EnablePublisher annotation, as the following example
shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 586
@Configuration
@EnableIntegration
@EnablePublisher("defaultChannel")
public class IntegrationConfiguration {
...
}
Similar to other Spring annotations (@Component, @Scheduled, and so on), you can also use
@Publisher as a meta-annotation. This means that you can define your own annotations that are
treated in the same way as the @Publisher itself. The following example shows how to do so:
@Target({ElementType.METHOD, ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Publisher(channel="auditChannel")
public @interface Audit {
...
}
In the preceding example, we define the @Audit annotation, which is itself annotated with @Publisher.
Also note that you can define a channel attribute on the meta-annotation to encapsulate where
messages are sent inside of this annotation. Now you can annotate any method with the @Audit
annotation, as the following example shows:
@Audit
public String test() {
return "Hello";
}
In the preceding example, every invocation of the test() method results in a message with a payload
created from its return value. Each message is sent to the channel named auditChannel. One of
the benefits of this technique is that you can avoid the duplication of the same channel name across
multiple annotations. You also can provide a level of indirection between your own, potentially domain-
specific, annotations and those provided by the framework.
You can also annotate the class, which lets you apply the properties of this annotation on every public
method of that class, as the following example shows:
@Audit
static class BankingOperationsImpl implements BankingOperations {
public String debit(String amount) {
. . .
}
public String credit(String amount) {
. . .
}
}
XML-based Approach with the <publishing-interceptor> element
The XML-based approach lets you configure the same AOP-based message publishing functionality
as a namespace-based configuration of a MessagePublishingInterceptor. It certainly has some
benefits over the annotation-driven approach, since it lets you use AOP pointcut expressions, thus
possibly intercepting multiple methods at once or intercepting and publishing methods to which you do
not have the source code.
To configure message publishing with XML, you need only do the following two things:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 587
• Provide configuration for MessagePublishingInterceptor by using the <publishing-
interceptor> XML element.
• Provide AOP configuration to apply the MessagePublishingInterceptor to managed objects.
The following example shows how to configure a publishing-interceptor element:
<aop:config>
<aop:advisor advice-ref="interceptor" pointcut="bean(testBean)" />
</aop:config>
<publishing-interceptor id="interceptor" default-channel="defaultChannel">
<method pattern="echo" payload="'Echoing: ' + #return" channel="echoChannel">
<header name="things" value="something"/>
</method>
<method pattern="repl*" payload="'Echoing: ' + #return" channel="echoChannel">
<header name="things" expression="'something'.toUpperCase()"/>
</method>
<method pattern="echoDef*" payload="#return"/>
</publishing-interceptor>
The <publishing-interceptor> configuration looks rather similar to the annotation-based
approach, and it also uses the power of the Spring Expression Language.
In the preceding example, the execution of the echo method of a testBean renders a Message with
the following structure:
• The Message payload is of type String with the following content: Echoing: [value], where
value is the value returned by an executed method.
• The Message has a header with a name of things and a value of something.
• The Message is sent to echoChannel.
The second method is very similar to the first. Here, every method that begins with repl renders a
Message with the following structure:
• The Message payload is the same as in the preceding sample.
• The Message has a header named things whose value is the result of the SpEL expression
'something'.toUpperCase().
• The Message is sent to echoChannel.
The second method, mapping the execution of any method that begins with echoDef, produces a
Message with the following structure:
• The Message payload is the value returned by an executed method.
• Since the channel attribute is not provided, the Message is sent to the defaultChannel defined
by the publisher.
For simple mapping rules you can rely on the publisher defaults, as the following example shows:
<publishing-interceptor id="anotherInterceptor"/>
The preceding example maps the return value of every method that matches the pointcut expression
to a payload and is sent to a default-channel. If you do not specify the defaultChannel (as the
preceding example does not do), the messages are sent to the global nullChannel (the equivalent
of /dev/null).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 588
Asynchronous Publishing
Publishing occurs in the same thread as your component’s execution. So, by default, it is synchronous.
This means that the entire message flow has to wait until the publisher’s flow completes. However,
developers often want the complete opposite: to use this message-publishing feature to initiate
asynchronous flows. For example, you might host a service (HTTP, WS, and so on) which receives a
remote request. You may want to send this request internally into a process that might take a while.
However you may also want to reply to the user right away. So, instead of sending inbound requests for
processing to the output channel (the conventional way), you can use output-channel or a replyChannel
header to send a simple acknowledgment-like reply back to the caller while using the message-publisher
feature to initiate a complex flow.
The service in the following example receives a complex payload (which needs to be sent further for
processing), but it also needs to reply to the caller with a simple acknowledgment:
public String echo(Object complexPayload) {
return "ACK";
}
So, instead of hooking up the complex flow to the output channel, we use the message-publishing
feature instead. We configure it to create a new message, by using the input argument of the service
method (shown in the preceding example), and send that to the localProcessChannel. To make
sure this flow is asynchronous, all we need to do is send it to any type of asynchronous channel
(ExecutorChannel in the next example). The following example shows how to an asynchronous
publishing-interceptor:
<int:service-activator input-channel="inputChannel" output-channel="outputChannel" ref="sampleservice"/
>
<bean id="sampleservice" class="test.SampleService"/>
<aop:config>
<aop:advisor advice-ref="interceptor" pointcut="bean(sampleservice)" />
</aop:config>
<int:publishing-interceptor id="interceptor" >
<int:method pattern="echo" payload="#args[0]" channel="localProcessChannel">
<int:header name="sample_header" expression="'some sample value'"/>
</int:method>
</int:publishing-interceptor>
<int:channel id="localProcessChannel">
<int:dispatcher task-executor="executor"/>
</int:channel>
<task:executor id="executor" pool-size="5"/>
Another way of handling this type of scenario is with a wire-tap. See the section called “Wire Tap”.
Producing and Publishing Messages Based on a Scheduled Trigger
In the preceding sections, we looked at the message-publishing feature, which constructs and publishes
messages as by-products of method invocations. However, in those cases, you are still responsible
for invoking the method. Spring Integration 2.0 added support for scheduled message producers and
publishers with the new expression attribute on the inbound-channel-adapter element. You can
schedul based on several triggers, any one of which can be configured on the poller element. Currently,
we support cron, fixed-rate, fixed-delay and any custom trigger implemented by you and
referenced by the trigger attribute value.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 589
As mentioned earlier, support for scheduled producers and publishers is provided via the <inbound-
channel-adapter> XML element. Consider the following example:
<int:inbound-channel-adapter id="fixedDelayProducer"
expression="'fixedDelayTest'"
channel="fixedDelayChannel">
<int:poller fixed-delay="1000"/>
</int:inbound-channel-adapter>
The preceding example creates an inbound channel adapter that constructs a Message, with its payload
being the result of the expression defined in the expression attribute. Such messages are created
and sent every time the delay specified by the fixed-delay attribute occurs.
The following example is similar to the preceding example, except that it uses the fixed-rate attribute:
<int:inbound-channel-adapter id="fixedRateProducer"
expression="'fixedRateTest'"
channel="fixedRateChannel">
<int:poller fixed-rate="1000"/>
</int:inbound-channel-adapter>
The fixed-rate attribute lets you send messages at a fixed rate (measuring from the start time of
each task).
The following example shows how you can apply a Cron trigger with a value specified in the cron
attribute:
<int:inbound-channel-adapter id="cronProducer"
expression="'cronTest'"
channel="cronChannel">
<int:poller cron="7 6 5 4 3 ?"/>
</int:inbound-channel-adapter>
The following example shows how to insert additional headers into the message:
<int:inbound-channel-adapter id="headerExpressionsProducer"
expression="'headerExpressionsTest'"
channel="headerExpressionsChannel"
auto-startup="false">
<int:poller fixed-delay="5000"/>
<int:header name="foo" expression="6 * 7"/>
<int:header name="bar" value="x"/>
</int:inbound-channel-adapter>
The additional message headers can take scalar values or the results of evaluating Spring expressions.
If you need to implement your own custom trigger, you can use the trigger
attribute to provide a reference to any spring configured bean that implements the
org.springframework.scheduling.Trigger interface. The following example shows how to do
so:
<int:inbound-channel-adapter id="triggerRefProducer"
expression="'triggerRefTest'" channel="triggerRefChannel">
<int:poller trigger="customTrigger"/>
</int:inbound-channel-adapter>
<beans:bean id="customTrigger" class="o.s.scheduling.support.PeriodicTrigger">
<beans:constructor-arg value="9999"/>
</beans:bean>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 590
Appendix C. Transaction Support
This chapter covers Spring Integration’s support for transactions. It covers the following topics:
• Section C.1, “Understanding Transactions in Message flows”
• Section C.2, “Transaction Boundaries”
• Section C.3, “Transaction Synchronization”
• Section C.4, “Pseudo Transactions”
C.1 Understanding Transactions in Message flows
Spring Integration exposes several hooks to address the transactional needs of your message flows.
To better understand these hooks and how you can benefit from them, we must first revisit the six
mechanisms that you can use to initiate message flows and see how you can address the transactional
needs of these flows within each of these mechanisms.
The following six mechanisms initiate a message flow (details for each are provided throughout this
manual):
• Gateway proxy: A basic messaging gateway.
• Message channel: Direct interactions with MessageChannel methods (for example,
channel.send(message)).
• Message publisher: The way to initiate a message flow as the by-product of method invocations on
Spring beans.
• Inbound channel adapters and gateways: The way to initiate a message flow based on connecting
third-party system with the Spring Integration messaging system (for example, [JmsMessage] ->
Jms Inbound Adapter[SI Message] -> SI Channel).
• Scheduler: The way to initiate a message flow based on scheduling events distributed by a pre-
configured scheduler.
• Poller: Similar to the scheduler, this is the way to initiate message flow based on scheduling or interval-
based events distributed by a pre-configured poller.
We can split these six mechanisms into two general categories:
• Message flows initiated by a user process: Example scenarios in this category would be invoking
a gateway method or explicitly sending a Message to a MessageChannel. In other words, these
message flows depend on a third party process (such as some code that you wrote) to be initiated.
• Message flows initiated by a daemon process: Example scenarios in this category include a Poller
polling a message queue to initiate a new message flow with the polled message or a scheduler
scheduling the process by creating a new message and initiating a message flow at a predefined time.
Clearly the gateway proxy, MessageChannel.send(...) and MessagePublisher all belong to the
first category, and inbound adapters and gateways, scheduler, and poller belong to the second category.
So, how can you address transactional needs in various scenarios within each category, and is there
a need for Spring Integration to provide something explicit with regard to transactions for a particular
scenario? Or can you use Spring’s transaction support instead?
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 591
Spring itself provides first class support for transaction management. So our goal here is not to provide
something new but rather use Spring to benefit from its existing support for transactions. In other words,
as a framework, we must expose hooks to Spring’s transaction management functionality. However,
since Spring Integration configuration is based on Spring configuration, we need not always expose
these hooks, because Spring already exposes them . After all, every Spring Integration component is
a Spring Bean.
With this goal in mind, we can again consider the two scenarios: messgae flows initiated by a user
process and message flows initiated by a daemon.
Message flows that are initiated by a user process and configured in a Spring application context
are subject to the usual transactional configuration of such processes. Therefore they need not be
explicitly configured by Spring Integration to support transactions. The transaction could and should be
initiated through Spring’s standard transaction support. The Spring Integration message flow naturally
honors the transactional semantics of the components, because it is itself configured by Spring. For
example, a gateway or service activator method could be annotated with @Transactional, or a
TransactionInterceptor could be defined in an XML configuration with a pointcut expression that
pointa to specific methods that should be transactional. The bottom line is that you have full control over
transaction configuration and boundaries in these scenarios.
However, things are a bit different when it comes to message flows initiated by a daemon process.
Although configured by the developer, these flows do not directly involve a human or some other process
to be initiated. These are trigger-based flows that are initiated by a trigger process (a daemon process)
based on the configuration of the process. For example, we could have a scheduler initiate a message
flow every Friday night. We can also configure a trigger that initiates a message flow every second and
so on. As a result, we need a way to let these trigger-based processes know of our intention to make the
resulting message flows be transactional, so that a Transaction context can be created whenever a new
message flow is initiated. In other words, we need to expose some transaction configuration, but only
enough to delegate to the transaction support already provided by Spring (as we do in other scenarios).
Poller Transaction Support
Spring Integration provides transactional support for pollers. Pollers are a special type of component
because, within a poller task, we can call receive() against a resource that is itself transactional, thus
including the receive() call in the the boundaries of the transaction, which lets it be rolled back in
case of a task failure. If we were to add the same support for channels, the added transactions would
affect all downstream components starting with the send() call. That provides a rather wide scope for
transaction demarcation without any strong reason, especially when Spring already provides several
ways to address the transactional needs of any component downstream. However the receive()
method being included in a transaction boundary is the "strong reason" for pollers.
Any time you configure a Poller, you can provide transactional configuration by using the
transactional child element and its attributes,as the following example shows:
<int:poller max-messages-per-poll="1" fixed-rate="1000">
<transactional transaction-manager="txManager"
isolation="DEFAULT"
propagation="REQUIRED"
read-only="true"
timeout="1000"/>
</poller>
The preceding configuration looks similar to a native Spring transaction configuration. You must still
provide a reference to a transaction manager and either specify transaction attributes or rely on
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 592
defaults (for example, if the transaction-manager attribute is not specified, it defaults to the bean
named transactionManager). Internally, the process is wrapped in Spring’s native transaction, where
TransactionInterceptor is responsible for handling transactions. For more information on how to
configure a transaction manager, the types of transaction managers (such as JTA, Datasource, and
others), and other details related to transaction configuration, see the Spring Framework Reference
Guide.
With the preceding configuration, all message flows initiated by this poller are transactional. For more
information and details on a poller’s transactional configuration, see the section called “Polling and
Transactions”.
Along with transactions, you might need to address several more cross-cutting concerns when you
run a poller. To help with that, the poller element accepts an <advice-chain> child element, which
lets you define a custom chain of advice instances to be applied on the Poller. (See the section
called “Pollable Message Source” for more details.) In Spring Integration 2.0, the Poller went through a
refactoring effort and now uses a proxy mechanism to address transactional concerns as well as other
cross-cutting concerns. One of the significant changes evolving from this effort is that we made the
<transactional> and <advice-chain> elements be mutually exclusive. The rationale behind this
is that, if you need more than one advice and one of them is Transaction advice, you can include it in the
<advice-chain> with the same convenience as before but with much more control, since you now
have an option to position the advice in the desired order. The following example shows how to do so:
<int:poller max-messages-per-poll="1" fixed-rate="10000">
<advice-chain>
<ref bean="txAdvice"/>
<ref bean="someAotherAdviceBean" />
<beans:bean class="foo.bar.SampleAdvice"/>
</advice-chain>
</poller>
<tx:advice id="txAdvice" transaction-manager="txManager">
<tx:attributes>
<tx:method name="get*" read-only="true"/>
<tx:method name="*"/>
</tx:attributes>
</tx:advice>
The preceding example shows a basic XML-based configuration of Spring Transaction advice
(txAdvice) and included it within the <advice-chain> defined by the Poller. If you need to address
only the transactional concerns of the poller, you can still use the <transactional> element as a
convenience.
C.2 Transaction Boundaries
Another important factor is the boundaries of Transactions within a Message flow. When a transaction is
started, the transaction context is bound to the current thread. So regardless of how many endpoints and
channels you have in your Message flow your transaction context will be preserved as long as you are
ensuring that the flow continues on the same thread. As soon as you break it by introducing a Pollable
Channel or Executor Channel or initiate a new thread manually in some service, the Transactional
boundary will be broken as well. Essentially the Transaction will END right there, and if a successful
handoff has transpired between the threads, the flow would be considered a success and a COMMIT
signal would be sent even though the flow will continue and might still result in an Exception somewhere
downstream. If such a flow were synchronous, that Exception could be thrown back to the initiator of the
Message flow who is also the initiator of the transactional context and the transaction would result in a
ROLLBACK. The middle ground is to use transactional channels at any point where a thread boundary
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 593
is being broken. For example, you can use a Queue-backed Channel that delegates to a transactional
MessageStore strategy, or you could use a JMS-backed channel.
C.3 Transaction Synchronization
In some environments, it help to synchronize operations with a transaction that encompasses the
entire flow. For example, consider a <file:inbound-channel-adapter/> at the start of a flow that
performs a number of database updates. If the transaction commits, we might want to move the file to a
success directory, while we might want to move it to a failure directory if the transaction rolls back.
Spring Integration 2.2 introduced the capability of synchronizing these operations with a transaction.
In addition, you can configure a PseudoTransactionManager if you do not have a real transaction
but still want to perform different actions on success or failure. For more information, see Section C.4,
“Pseudo Transactions”.
The following listing shows the key strategy interfaces for this feature:
public interface TransactionSynchronizationFactory {
TransactionSynchronization create(Object key);
}
public interface TransactionSynchronizationProcessor {
void processBeforeCommit(IntegrationResourceHolder holder);
void processAfterCommit(IntegrationResourceHolder holder);
void processAfterRollback(IntegrationResourceHolder holder);
}
The factory is responsible for creating a TransactionSynchronization
object. You can implement your own or use the one
provided by the framework: DefaultTransactionSynchronizationFactory.
This implementation returns a TransactionSynchronization that delegates
to a default implementation of TransactionSynchronizationProcessor:
ExpressionEvaluatingTransactionSynchronizationProcessor. This processor supports
three SpEL expressions: beforeCommitExpression, afterCommitExpression, and
afterRollbackExpression.
These actions should be self-explanatory to those familiar with transactions. In each case, the #root
variable is the original Message. In some cases, other SpEL variables are made available, depending on
the MessageSource being polled by the poller. For example, the MongoDbMessageSource provides
the #mongoTemplate variable, which references the message source’s MongoTemplate. Similarly,
the RedisStoreMessageSource provides the #store variable, which references the RedisStore
created by the poll.
To enable the feature for a particular poller, you can provide a reference to the
TransactionSynchronizationFactory on the poller’s <transactional/> element by using the
synchronization-factory attribute.
Starting with version 5.0, Spring Integration provides
PassThroughTransactionSynchronizationFactory, which is applied by default to polling
endpoints when no TransactionSynchronizationFactory is configured but an advice of
type TransactionInterceptor exists in the advice chain. When using any out-of-the-box
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 594
TransactionSynchronizationFactory implementation, polling endpoints bind a polled message
to the current transactional context and provide it as a failedMessage in a MessagingException
if an exception is thrown after the transaction advice. When using a custom transaction
advice that does not implement TransactionInterceptor, you can explicitly configure a
PassThroughTransactionSynchronizationFactory to achieve this behavior. In either case,
the MessagingException becomes the payload of the ErrorMessage that is sent to the
errorChannel, and the cause is the raw exception thrown by the advice. Previously, the
ErrorMessage had a payload that was the raw exception thrown by the advice and did not provide
a reference to the failedMessage information, making it difficult to determine the reasons for the
transaction commit problem.
To simplify configuration of these components, Spring Integration provides namespace support for the
default factory. The following example shows how to use the namespace to configure a file inbound
channel adapter:
<int-file:inbound-channel-adapter id="inputDirPoller"
channel="someChannel"
directory="/foo/bar"
filter="filter"
comparator="testComparator">
<int:poller fixed-rate="5000">
<int:transactional transaction-manager="transactionManager" synchronization-
factory="syncFactory" />
</int:poller>
</int-file:inbound-channel-adapter>
<int:transaction-synchronization-factory id="syncFactory">
<int:after-commit expression="payload.renameTo('/success/' +
payload.name)" channel="committedChannel" />
<int:after-rollback expression="payload.renameTo('/failed/' +
payload.name)" channel="rolledBackChannel" />
</int:transaction-synchronization-factory>
The result of the SpEL evaluation is sent as the payload to either committedChannel or
rolledBackChannel (in this case, this would be Boolean.TRUE or Boolean.FALSE — the result of
the java.io.File.renameTo() method call).
If you wish to send the entire payload for further Spring Integration processing, use the payload
expression.
Important
It is important to understand that this synchronizes the actions with a transaction. It does not make
a resource that is not inherently transactional actually be transactional. Instead, the transaction
(be it JDBC or otherwise) is started before the poll and either committed or rolled back when the
flow completes, followed by the synchronized action.
If you provide a custom TransactionSynchronizationFactory, it is responsible for creating
a resource synchronization that causes the bound resource to be unbound automatically
when the transaction completes. The default TransactionSynchronizationFactory
does so by returning a subclass of ResourceHolderSynchronization, with the default
shouldUnbindAtCompletion() returning true.
In addition to the after-commit and after-rollback expressions, before-commit is also
supported. In that case, if the evaluation (or downstream processing) throws an exception, the
transaction is rolled back instead of being committed.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 595
C.4 Pseudo Transactions
After reading the Section C.3, “Transaction Synchronization” section, you might think it would be useful
to take these success or failure actions when a flow completes, even if there is no "real" transactional
resources (such as JDBC) downstream of the poller. For example, consider a "<file:inbound-
channel-adapter/>" followed by an "<ftp:outbout-channel-adapter/>". Neither of these
components is transactional, but we might want to move the input file to different directories, based on
the success or failure of the FTP transfer.
To provide this functionality, the framework provides a PseudoTransactionManager, enabling
the above configuration even when there is no real transactional resource involved. If the flow
completes normally, the beforeCommit and afterCommit synchronizations are called. On failure,
the afterRollback synchronization is called. Because it is not a real transaction, no actual commit
or rollback occurs. The pseudo transaction is a vehicle used to enable the synchronization features.
To use a PseudoTransactionManager, you can define it as a <bean/>, in the same way you would
configure a real transaction manager. The following example shows how to do so:
<bean id="transactionManager" class="o.s.i.transaction.PseudoTransactionManager" />
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 596
Appendix D. Security in Spring
Integration
Security is one of the important functions in any modern enterprise (or cloud) application. Moreover,
it is critical for distributed systems, such as those built on Enterprise Integration Patterns. Messaging
independence and loose coupling let target systems communicate with each other with any type of
data in the message’s payload. We can either trust all those messages or secure our service against
"infecting" messages.
Spring Integration, together with Spring Security, provides a simple and comprehensive way to secure
message channels, as well as other part of the integration solution.
You need to include this dependency into your project:
Maven.
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-security</artifactId>
<version>5.1.1.RELEASE</version>
</dependency>
Gradle.
compile "org.springframework.integration:spring-integration-security:5.1.1.RELEASE"
D.1 Securing channels
Spring Integration provides the ChannelSecurityInterceptor interceptor, which extends
AbstractSecurityInterceptor and intercepts send and receive calls on the channel. Access
decisions are then made with reference to a ChannelSecurityMetadataSource, which provides
the metadata that describes the send and receive access policies for certain channels. The interceptor
requires that a valid SecurityContext has been established by authenticating with Spring Security.
See the Spring Security Reference Guide for details.
Spring Integration provides Namespace support to allow easy configuration of security constraints. This
support consists of the secured channels tag, which allows definition of one or more channel name
patterns in conjunction with a definition of the security configuration for send and receive. The pattern
is a java.util.regexp.Pattern.
The following example shows how to configure a bean that includes security and how to set up policies
with patterns:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 597
<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns:int="http://www.springframework.org/schema/integration"
xmlns:int-security="http://www.springframework.org/schema/integration/security"
xmlns:beans="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:security="http://www.springframework.org/schema/security"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/security
http://www.springframework.org/schema/security/spring-security.xsd
http://www.springframework.org/schema/integration
http://www.springframework.org/schema/integration/spring-integration.xsd
http://www.springframework.org/schema/integration/security
http://www.springframework.org/schema/integration/security/spring-integration-security.xsd">
<int-security:secured-channels>
<int-security:access-policy pattern="admin.*" send-access="ROLE_ADMIN"/>
<int-security:access-policy pattern="user.*" receive-access="ROLE_USER"/>
</int-security:secured-channels>
By default, the secured-channels namespace element expects a bean named
authenticationManager (which implements AuthenticationManager) and a bean named
accessDecisionManager (which implements AccessDecisionManager). Where this is not the
case, references to the appropriate beans can be configured as attributes of the secured-channels
element, as the following example shows:
<int-security:secured-channels access-decision-manager="customAccessDecisionManager"
authentication-manager="customAuthenticationManager">
<int-security:access-policy pattern="admin.*" send-access="ROLE_ADMIN"/>
<int-security:access-policy pattern="user.*" receive-access="ROLE_USER"/>
</int-security:secured-channels>
Starting with version 4.2, the @SecuredChannel annotation is available for Java configuration in
@Configuration classes.
The following example shows the Java equivalent of the preceding XML examples:
@Configuration
@EnableIntegration
public class ContextConfiguration {
@Bean
@SecuredChannel(interceptor = "channelSecurityInterceptor", sendAccess = "ROLE_ADMIN")
public SubscribableChannel adminChannel() {
return new DirectChannel();
}
@Bean
@SecuredChannel(interceptor = "channelSecurityInterceptor", receiveAccess = "ROLE_USER")
public SubscribableChannel userChannel() {
return new DirectChannel();
}
@Bean
public ChannelSecurityInterceptor channelSecurityInterceptor(
AuthenticationManager authenticationManager,
AccessDecisionManager accessDecisionManager) {
ChannelSecurityInterceptor channelSecurityInterceptor = new ChannelSecurityInterceptor();
channelSecurityInterceptor.setAuthenticationManager(authenticationManager);
channelSecurityInterceptor.setAccessDecisionManager(accessDecisionManager);
return channelSecurityInterceptor;
}
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 598
D.2 Security Context Propagation
To be sure that our interaction with the application is secure, according to its security system rules, we
should supply some security context with an authentication (principal) object. The Spring Security project
provides a flexible, canonical mechanism to authenticate our application clients over HTTP, WebSocket,
or SOAP protocols (as can be done for any other integration protocol with a simple Spring Security
extension). It also provides a SecurityContext for further authorization checks on the application
objects, such as message channels. By default, the SecurityContext is tied to the execution state of
the current Thread by using the (ThreadLocalSecurityContextHolderStrategy). It is accessed
by an AOP (Aspect-oriented Programming) interceptor on secured methods to check (for example)
whether that principal of the invocation has sufficient permissions to call that method. This works
well with the current thread. Often, though, processing logic can be performed on another thread, on
several threads, or even on external systems.
Standard thread-bound behavior is easy to configure if our application is built on the Spring Integration
components and its message channels. In this case, the secured objects can be any service activator
or transformer, secured with a MethodSecurityInterceptor in their <request-handler-
advice-chain> (see Section 10.9, “Adding Behavior to Endpoints”) or even MessageChannel
(see Section D.1, “Securing channels”, earlier). When using DirectChannel communication, the
SecurityContext is automatically available, because the downstream flow runs on the current thread.
However, in the cases of the QueueChannel, ExecutorChannel, and PublishSubscribeChannel
with an Executor, messages are transferred from one thread to another (or several) by the nature of
those channels. In order to support such scenarios, we have two choices:
• Transfer an Authentication object within the message headers and extract and authenticate it on
the other side before secured object access.
• Propagate the SecurityContext to the thread that receives the transferred message.
Version 4.2 introduced SecurityContext propagation. It is implemented as a
SecurityContextPropagationChannelInterceptor, which you can add to any
MessageChannel or configure as a @GlobalChannelInterceptor. The logic of this interceptor is
based on the SecurityContext extraction from the current thread (from the preSend() method) and
its populating to another thread from the postReceive() (beforeHandle()) method. Actually, this
interceptor is an extension of the more generic ThreadStatePropagationChannelInterceptor,
which wraps the message to send with the state to propagate in an internal Message<?> extension
(MessageWithThreadState<S>) on one side and extracts the original message and the state to
propagate on the other side. You can extend the ThreadStatePropagationChannelInterceptor
for any context propagation use case, and SecurityContextPropagationChannelInterceptor
is a good example of doing so.
Important
The logic of the ThreadStatePropagationChannelInterceptor is based on
message modification (it returns an internal MessageWithThreadState object to
send). Consequently, you should be careful when combining this interceptor
with any other that can also modify messages (for example, through the
MessageBuilder.withPayload(...)...build()). The state to propagate may be lost. In
most cases, to overcome the issue, you can order the interceptors for the channel and ensure the
ThreadStatePropagationChannelInterceptor is the last one in the stack.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 599
Propagation and population of SecurityContext is just one half of the work. Since the message
is not an owner of the threads in the message flow and we should be sure that we are secure
against any incoming messages, we have to clean up the SecurityContext from ThreadLocal. The
SecurityContextPropagationChannelInterceptor provides the afterMessageHandled()
interceptor method implementation. It cleans up operation by freeing the thread at the end of invocation
from that propagated principal. This means that, when the thread that processes the handed-off
message finishes processing the message (successful or otherwise), the context is cleared so that it
cannot inadvertently be used when processing another message.
Note
When working with an asynchronous gateway, you should use an appropriate
AbstractDelegatingSecurityContextSupport implementation from Spring Security
Concurrency Support, to let security context propagation be ensured over gateway invocation.
The following example shows how to do so:
@Configuration
@EnableIntegration
@IntegrationComponentScan
public class ContextConfiguration {
@Bean
public AsyncTaskExecutor securityContextExecutor() {
return new DelegatingSecurityContextAsyncTaskExecutor(
new SimpleAsyncTaskExecutor());
}
}
...
@MessagingGateway(asyncExecutor = "securityContextExecutor")
public interface SecuredGateway {
@Gateway(requestChannel = "queueChannel")
Future<String> send(String payload);
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 600
Appendix E. Configuration
Spring Integration offers a number of configuration options. Which option you choose depends upon
your particular needs and at what level you prefer to work. As with the Spring framework in general, you
can mix and match the various techniques to suit the problem at hand. For example, you can choose
the XSD-based namespace for the majority of configuration and combine it with a handful of objects
that you configure with annotations. As much as possible, the two provide consistent naming. The XML
elements defined by the XSD schema match the names of the annotations, and the attributes of those
XML elements match the names of annotation properties. You can also use the API directly, but we
expect most developers to choose one of the higher-level options or a combination of the namespace-
based and annotation-driven configuration.
E.1 Namespace Support
You can configure Spring Integration components with XML elements that map directly to the
terminology and concepts of enterprise integration. In many cases, the element names match those of
the Enterprise Integration Patterns book.
To enable Spring Integration’s core namespace support within your Spring configuration files, add the
following namespace reference and schema mapping in your top-level beans element:
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:int="http://www.springframework.org/schema/integration"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/integration
http://www.springframework.org/schema/integration/spring-integration.xsd">
(We have emphasized the lines that are particular to Spring Integration.)
You can choose any name after "xmlns:". We use int (short for Integration) for clarity, but you might
prefer another abbreviation. On the other hand, if you use an XML editor or IDE support, the availability
of auto-completion may convince you to keep the longer name for clarity. Alternatively, you can create
configuration files that use the Spring Integration schema as the primary namespace, as the following
example shows:
<beans:beans xmlns="http://www.springframework.org/schema/integration"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:beans="http://www.springframework.org/schema/beans"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/integration
http://www.springframework.org/schema/integration/spring-integration.xsd">
(We have emphasized the lines that are particular to Spring Integration.)
When using this alternative, no prefix is necessary for the Spring Integration elements. On the other
hand, if you define a generic Spring bean within the same configuration file, the bean element requires
a prefix (<beans:bean .../>). Since it is generally a good idea to modularize the configuration
files themselves (based on responsibility or architectural layer), you may find it appropriate to use the
latter approach in the integration-focused configuration files, since generic beans are seldom necessary
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 601
within those files. For the purposes of this documentation, we assume the integration namespace is
the primary.
Spring Integration provides many other namespaces. In fact, each adapter type (JMS, file, and so
on) that provides namespace support defines its elements within a separate schema. In order to
use these elements, add the necessary namespaces with an xmlns entry and the corresponding
schemaLocation mapping. For example, the following root element shows several of these
namespace declarations:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:int="http://www.springframework.org/schema/integration"
xmlns:int-file="http://www.springframework.org/schema/integration/file"
xmlns:int-jms="http://www.springframework.org/schema/integration/jms"
xmlns:int-mail="http://www.springframework.org/schema/integration/mail"
xmlns:int-rmi="http://www.springframework.org/schema/integration/rmi"
xmlns:int-ws="http://www.springframework.org/schema/integration/ws"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/integration
http://www.springframework.org/schema/integration/spring-integration.xsd
http://www.springframework.org/schema/integration/file
http://www.springframework.org/schema/integration/file/spring-integration-file.xsd
http://www.springframework.org/schema/integration/jms
http://www.springframework.org/schema/integration/jms/spring-integration-jms.xsd
http://www.springframework.org/schema/integration/mail
http://www.springframework.org/schema/integration/mail/spring-integration-mail.xsd
http://www.springframework.org/schema/integration/rmi
http://www.springframework.org/schema/integration/rmi/spring-integration-rmi.xsd
http://www.springframework.org/schema/integration/ws
http://www.springframework.org/schema/integration/ws/spring-integration-ws.xsd">
...
</beans>
This reference manual provides specific examples of the various elements in their corresponding
chapters. Here, the main thing to recognize is the consistency of the naming for each namespace URI
and schema location.
E.2 Configuring the Task Scheduler
In Spring Integration, the ApplicationContext plays the central role of a message bus, and you
need to consider only a couple of configuration options. First, you may want to control the central
TaskScheduler instance. You can do so by providing a single bean named taskScheduler. This
is also defined as a constant, as follows:
IntegrationContextUtils.TASK_SCHEDULER_BEAN_NAME
By default, Spring Integration relies on an instance of ThreadPoolTaskScheduler, as described in
the Task Execution and Scheduling section of the Spring Framework reference manual. That default
TaskScheduler starts up automatically with a pool of ten threads, but see Section E.4, “Global
Properties”. If you provide your own TaskScheduler instance instead, you can set the autoStartup
property to false or provide your own pool size value.
When polling consumers provide an explicit task executor reference in their configuration, the invocation
of the handler methods happens within that executor’s thread pool and not the main scheduler pool.
However, when no task executor is provided for an endpoint’s poller, it is invoked by one of the main
scheduler’s threads.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 602
Caution
Do not run long-running tasks on poller threads. Use a task executor instead. If you have a lot of
polling endpoints, you can cause thread starvation, unless you increase the pool size. Also, polling
consumers have a default receiveTimeout of one second. Since the poller thread blocks for
this time, we recommend that you use a task executor when many such endpoints exist, again to
avoid starvation. Alternatively, you can reduce the receiveTimeout.
Note
An endpoint is a Polling Consumer if its input channel is one of the queue-based (that is, pollable)
channels. Event-driven consumers are those having input channels that have dispatchers instead
of queues (in other words, they are subscribable). Such endpoints have no poller configuration,
since their handlers are invoked directly.
Important
When running in a JEE container, you may need to use Spring’s
TimerManagerTaskScheduler, as described here, instead of the default taskScheduler.
To do so, define a bean with the appropriate JNDI name for your environment, as the following
example shows:
<bean id="taskScheduler" class="o.s.scheduling.commonj.TimerManagerTaskScheduler">
<property name="timerManagerName" value="tm/MyTimerManager" />
<property name="resourceRef" value="true" />
</bean>
The next section describes what happens if exceptions occur within the asynchronous invocations.
E.3 Error Handling
As described in the overview at the very beginning of this manual, one of the main motivations behind
a message-oriented framework such as Spring Integration is to promote loose coupling between
components. The message channel plays an important role, in that producers and consumers do not
have to know about each other. However, the advantages also have some drawbacks. Some things
become more complicated in a loosely coupled environment, and one example is error handling.
When sending a message to a channel, the component that ultimately handles that message may or
may not be operating within the same thread as the sender. If using a simple default DirectChannel
(when the <channel> element that has no <queue> child element and no task-executor attribute),
the message handling occurs in the same thread that sends the initial message. In that case, if an
Exception is thrown, it can be caught by the sender (or it may propagate past the sender if it is an
uncaught RuntimeException). So far, everything is fine. This is the same behavior as an exception-
throwing operation in a normal call stack.
A message flow that runs on a caller thread might be invoked through a messaging gateway
(see Section 10.4, “Messaging Gateways”) or a MessagingTemplate (see the section called
“MessagingTemplate”). In either case, the default behavior is to throw any exceptions to the caller.
For the messaging gateway, see the section called “Error Handling” for details about how the exception
is thrown and how to configure the gateway to route the errors to an error channel instead. When using
a MessagingTemplate or sending to a MessageChannel directly, exceptions are always thrown to
the caller.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 603
When adding asynchronous processing, things become rather more complicated. For instance, if
the channel element does provide a queue child element, the component that handles the message
operates in a different thread than the sender. The same is true when an ExecutorChannel is used.
The sender may have dropped the Message into the channel and moved on to other things. There is
no way for the Exception to be thrown directly back to that sender by using standard Exception
throwing techniques. Instead, handling errors for asynchronous processes requires that the error-
handling mechanism also be asynchronous.
Spring Integration supports error handling for its components by publishing errors to a message channel.
Specifically, the Exception becomes the payload of a Spring Integration ErrorMessage. That
Message is then sent to a message channel that is resolved in a way that is similar to the replyChannel
resolution. First, if the request Message being handled at the time the Exception occurred contains
an errorChannel header (the header name is defined in the MessageHeaders.ERROR_CHANNEL
constant), the ErrorMessage is sent to that channel. Otherwise, the error handler sends to
a "global" channel whose bean name is errorChannel (this is also defined as a constant:
IntegrationContextUtils.ERROR_CHANNEL_BEAN_NAME).
A default errorChannel bean is created internally by the Framework. However, you can define your
own if you want to control the settings. The following example shows how to define an error channel
backed by a queue with a capacity of 500:
<int:channel id="errorChannel">
<int:queue capacity="500"/>
</int:channel>
Note
The default error channel is a PublishSubscribeChannel.
The most important thing to understand here is that the messaging-based error handling applies only to
exceptions that are thrown by a Spring Integration task that is executing within a TaskExecutor. This
does not apply to exceptions thrown by a handler that operates within the same thread as the sender
(for example, through a DirectChannel as described earlier in this section).
Note
When exceptions occur in a scheduled poller task’s execution, those exceptions are wrapped in
ErrorMessage instances and sent to the errorChannel as well.
To enable global error handling, register a handler on that channel. For example, you can configure
Spring Integration’s ErrorMessageExceptionTypeRouter as the handler of an endpoint that is
subscribed to the errorChannel. That router can then spread the error messages across multiple
channels, based on the Exception type.
Starting with version 4.3.10, Spring Integration provides the ErrorMessagePublisher
and the ErrorMessageStrategy. You can use them as a general mechanism for
publishing ErrorMessage instances. You can call or extend them in any error handling
scenarios. The ErrorMessageSendingRecoverer extends this class as a RecoveryCallback
implementation that can be used with retry, such as the RequestHandlerRetryAdvice.
The ErrorMessageStrategy is used to build an ErrorMessage based on the
provided exception and an AttributeAccessor context. It can be injected into any
MessageProducerSupport or MessagingGatewaySupport. The requestMessage is stored
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 604
under ErrorMessageUtils.INPUT_MESSAGE_CONTEXT_KEY in the AttributeAccessor
context. The ErrorMessageStrategy can use that requestMessage as the originalMessage
property of the ErrorMessage it creates. The DefaultErrorMessageStrategy does exactly that.
E.4 Global Properties
Certain global framework properties can be overridden by providing a properties file on the classpath.
The default properties can be found in /META-INF/spring.integration.default.properties
in the spring-integration-core jar. You can see them on GitHub here. The following listing shows
the default values:
spring.integration.channels.autoCreate=true ❶
spring.integration.channels.maxUnicastSubscribers=0x7fffffff ❷
spring.integration.channels.maxBroadcastSubscribers=0x7fffffff ❸
spring.integration.taskScheduler.poolSize=10 ❹
spring.integration.messagingTemplate.throwExceptionOnLateReply=false ❺
spring.integration.readOnly.headers= ❻
spring.integration.endpoints.noAutoStartup= ❼
spring.integration.postProcessDynamicBeans=false ❽
❶When true, input-channel instances are automatically declared as DirectChannel instances
when not explicitly found in the application context.
❷Sets the default number of subscribers allowed on, for example, a DirectChannel. It can be
used to avoid inadvertently subscribing multiple endpoints to the same channel. You can override
it on individual channels by setting the max-subscribers attribute.
❸This property provides the default number of subscribers allowed on, for example, a
PublishSubscribeChannel. It can be used to avoid inadvertently subscribing more than the
expected number of endpoints to the same channel. You can override it on individual channels by
setting the max-subscribers attribute.
❹The number of threads available in the default taskScheduler bean. See Section E.2,
“Configuring the Task Scheduler”.
❺When true, messages that arrive at a gateway reply channel throw an exception when the gateway
is not expecting a reply (because the sending thread has timed out or already received a reply).
❻A comma-separated list of message header names that should not be
populated into Message instances during a header copying operation. The
list is used by the DefaultMessageBuilderFactory bean and propagated
to the IntegrationMessageHeaderAccessor instances (see the section called
“MessageHeaderAccessor API”) used to build messages via MessageBuilder (see
Section 7.4, “The MessageBuilder Helper Class”). By default, only MessageHeaders.ID and
MessageHeaders.TIMESTAMP are not copied during message building. Since version 4.3.2.
❼A comma-separated list of AbstractEndpoint bean names patterns (xxx*, *xxx, *xxx* or
xxx*yyy) that should not be started automatically during application startup. You can manually
start these endpoints later by their bean name through a Control Bus (see Section 12.6, “Control
Bus”), by their role with the SmartLifecycleRoleController (see Section 10.2, “Endpoint
Roles”), or by Lifecycle bean injection. You can explicitly override the effect of this global
property by specifying auto-startup XML annotation or the autoStartup annotation attribute
or by calling AbstractEndpoint.setAutoStartup() in the bean definition. Since version
4.3.12.
❽A boolean flag to indicate that BeanPostProcessor instances should post-process beans
registered at runtime (for example, message channels created by IntegrationFlowContext
can be supplied with global channel interceptors). Since version 4.3.15.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 605
These properties can be overridden by adding a /META-INF/spring.integration.properties
file to the classpath. You need not provide all the properties — only those that you want to override.
Starting with version 5.1, all the merged global properties are printed in the logs after application
context startup when a DEBUG logic level is turned on for the org.springframework.integration
category. The output looks like this:
Spring Integration global properties:
spring.integration.endpoints.noAutoStartup=fooService*
spring.integration.taskScheduler.poolSize=20
spring.integration.channels.maxUnicastSubscribers=0x7fffffff
spring.integration.channels.autoCreate=true
spring.integration.channels.maxBroadcastSubscribers=0x7fffffff
spring.integration.readOnly.headers=
spring.integration.messagingTemplate.throwExceptionOnLateReply=true
E.5 Annotation Support
In addition to the XML namespace support for configuring message endpoints, you can also use
annotations. First, Spring Integration provides the class-level @MessageEndpoint as a stereotype
annotation, meaning that it is itself annotated with Spring’s @Component annotation and is therefore
automatically recognized as a bean definition by Spring’s component scanning.
Even more important are the various method-level annotations. They indicate that the annotated method
is capable of handling a message. The following example demonstrates both class-level and method-
level annotations:
@MessageEndpoint
public class FooService {
@ServiceActivator
public void processMessage(Message message) {
...
}
}
Exactly what it means for the method to "handle" the Message depends on the particular annotation.
Annotations available in Spring Integration include:
•@Aggregator (see Section 8.4, “Aggregator”)
•@Filter (see Section 8.2, “Filter”)
•@Router (see Section 8.1, “Routers”)
•@ServiceActivator (see Section 10.5, “Service Activator”)
•@Splitter (see Section 8.3, “Splitter”)
•@Transformer (see Section 9.1, “Transformer”)
•@InboundChannelAdapter (see Section 6.3, “Channel Adapter”)
•@BridgeFrom (see the section called “Configuring a Bridge with Java Configuration”)
•@BridgeTo (see the section called “Configuring a Bridge with Java Configuration”)
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 606
•@MessagingGateway (see Section 10.4, “Messaging Gateways”)
•@IntegrationComponentScan (see Section 5.5, “Configuration and @EnableIntegration”)
Note
If you use XML configuration in combination with annotations, the @MessageEndpoint
annotation is not required. If you want to configure a POJO reference from the ref attribute
of a <service-activator/> element, you can provide only the method-level annotations. In
that case, the annotation prevents ambiguity even when no method-level attribute exists on the
<service-activator/> element.
In most cases, the annotated handler method should not require the Message type as its parameter.
Instead, the method parameter type can match the message’s payload type, as the following example
shows:
public class ThingService {
@ServiceActivator
public void bar(Thing thing) {
...
}
}
When the method parameter should be mapped from a value in the MessageHeaders, another option
is to use the parameter-level @Header annotation. In general, methods annotated with the Spring
Integration annotations can accept the Message itself, the message payload, or a header value (with
@Header) as the parameter. In fact, the method can accept a combination, as the following example
shows:
public class ThingService {
@ServiceActivator
public void otherThing(String payload, @Header("x") int valueX, @Header("y") int valueY) {
...
}
}
You can also use the @Headers annotation to provide all of the message headers as a Map, as the
following example shows:
public class ThingService {
@ServiceActivator
public void otherThing(String payload, @Headers Map<String, Object> headerMap) {
...
}
}
Note
The value of the annotation can also be a SpEL expression (for example,
someHeader.toUpperCase()), which is useful when you wish to manipulate the header value
before injecting it. It also provides an optional required property, which specifies whether the
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 607
attribute value must be available within the headers. The default value for the required property
is true.
For several of these annotations, when a message-handling method returns a non-null value, the
endpoint tries to send a reply. This is consistent across both configuration options (namespace and
annotations) in that such an endpoint’s output channel is used (if available), and the REPLY_CHANNEL
message header value is used as a fallback.
Tip
The combination of output channels on endpoints and the reply channel message header enables
a pipeline approach, where multiple components have an output channel and the final component
allows the reply message to be forwarded to the reply channel (as specified in the original request
message). In other words, the final component depends on the information provided by the original
sender and can dynamically support any number of clients as a result. This is an example of the
return address pattern.
In addition to the examples shown here, these annotations also support the inputChannel and
outputChannel properties, as the following example shows:
@Service
public class ThingService {
@ServiceActivator(inputChannel="input", outputChannel="output")
public void otherThing(String payload, @Headers Map<String, Object> headerMap) {
...
}
}
The processing of these annotations creates the same beans as the corresponding XML
components — AbstractEndpoint instances and MessageHandler instances (or MessageSource
instances for the inbound channel adapter). See the section called “Annotations on @Bean Methods”.
The bean names are generated from the following pattern: [componentName].[methodName].
[decapitalizedAnnotationClassShortName] (for example, for the preceding example the
bean name is thingService.otherThing.serviceActivator) for the AbstractEndpoint
and the same name with an additional .handler (.source) suffix for the MessageHandler
(MessageSource) bean. The MessageHandler instances (MessageSource instances) are also
eligible to be tracked by the message history.
Starting with version 4.0, all messaging annotations provide SmartLifecycle options (autoStartup
and phase) to allow endpoint lifecycle control on application context initialization. They default to true
and 0, respectively. To change the state of an endpoint (such as ` start()` or stop()), you can obtain
a reference to the endpoint bean by using the BeanFactory (or autowiring) and invoke the methods.
Alternatively, you can send a command message to the Control Bus (see Section 12.6, “Control
Bus”). For these purposes, you should use the beanName mentioned earlier in the preceding paragraph.
Using the @Poller Annotation
Before Spring Integration 4.0, messaging annotations required that the inputChannel be a reference
to a SubscribableChannel. For PollableChannel instances, an <int:bridge/> element was
needed to configure an <int:poller/> and make the composite endpoint be a PollingConsumer.
Version 4.0 introduced the @Poller annotation to allow the configuration of poller attributes directly
on the messaging annotations, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 608
public class AnnotationService {
@Transformer(inputChannel = "input", outputChannel = "output",
poller = @Poller(maxMessagesPerPoll = "${poller.maxMessagesPerPoll}", fixedDelay =
"${poller.fixedDelay}"))
public String handle(String payload) {
...
}
}
The @Poller annotation provides only simple PollerMetadata options. You can configure the
@Poller annotation’s attributes (maxMessagesPerPoll, fixedDelay, fixedRate, and cron)
with property placeholders. Also, starting with version 5.1, the receiveTimeout option for
PollingConsumer s is also provided. If it is necessary to provide more polling options (for
example, transaction, advice-chain, error-handler, and others), you should configure the
PollerMetadata as a generic bean and use its bean name as the @Poller 's value attribute.
In this case, no other attributes are allowed (they must be specified on the PollerMetadata
bean). Note, if inputChannel is a PollableChannel and no @Poller is configured, the default
PollerMetadata is used (if it is present in the application context). To declare the default poller by
using a @Configuration annotation, use code similar to the following example:
@Bean(name = PollerMetadata.DEFAULT_POLLER)
public PollerMetadata defaultPoller() {
PollerMetadata pollerMetadata = new PollerMetadata();
pollerMetadata.setTrigger(new PeriodicTrigger(10));
return pollerMetadata;
}
The following example shows how to use the default poller:
public class AnnotationService {
@Transformer(inputChannel = "aPollableChannel", outputChannel = "output")
public String handle(String payload) {
...
}
}
The following example shows how to use a named poller:
@Bean
public PollerMetadata myPoller() {
PollerMetadata pollerMetadata = new PollerMetadata();
pollerMetadata.setTrigger(new PeriodicTrigger(1000));
return pollerMetadata;
}
The following example shows an endpoint that uses the default poller:
public class AnnotationService {
@Transformer(inputChannel = "aPollableChannel", outputChannel = "output"
poller = @Poller("myPoller"))
public String handle(String payload) {
...
}
}
Starting with version 4.3.3, the @Poller annotation has the errorChannel attribute for easier
configuration of the underlying MessagePublishingErrorHandler. This attribute plays the same
role as error-channel in the <poller> XML component. See the section called “Endpoint
Namespace Support” for more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 609
Using the @InboundChannelAdapter Annotation
Version 4.0 introduced the @InboundChannelAdapter method-level annotation. It
produces a SourcePollingChannelAdapter integration component based on a
MethodInvokingMessageSource for the annotated method. This annotation is an analogue of the
<int:inbound-channel-adapter> XML component and has the same restrictions: The method
cannot have parameters, and the return type must not be void. It has two attributes: value
(the required MessageChannel bean name) and poller (an optional @Poller annotation, as
described earlier). If you need to provide some MessageHeaders, use a Message<?> return type
and use a MessageBuilder to build the Message<?>. Using a MessageBuilder lets you configure
the MessageHeaders. The following example shows how to use an @InboundChannelAdapter
annotation:
@InboundChannelAdapter("counterChannel")
public Integer count() {
return this.counter.incrementAndGet();
}
@InboundChannelAdapter(value = "fooChannel", poller = @Poller(fixed-rate = "5000"))
public String foo() {
return "foo";
}
Version 4.3 introduced the channel alias for the value annotation attribute, to provide
better source code readability. Also, the target MessageChannel bean is resolved in the
SourcePollingChannelAdapter by the provided name (set by the outputChannelName option)
on the first receive() call, not during the initialization phase. It allows "late binding" logic: The
target MessageChannel bean from the consumer perspective is created and registered a bit later than
the @InboundChannelAdapter parsing phase.
The first example requires that the default poller has been declared elsewhere in the application context.
Using the @MessagingGateway Annotation
See the section called “@MessagingGateway Annotation”.
Using the @IntegrationComponentScan Annotation
The standard Spring Framework @ComponentScan annotation does not scan interfaces for
stereotype @Component annotations. To overcome this limitation and allow the configuration
of @MessagingGateway (see the section called “@MessagingGateway Annotation”), we
introduced the @IntegrationComponentScan mechanism. This annotation must be placed with
a @Configuration annotation and be customized to define its scanning options, such as
basePackages and basePackageClasses. In this case, all discovered interfaces annotated with
@MessagingGateway are parsed and registered as GatewayProxyFactoryBean instances. All
other class-based components are parsed by the standard @ComponentScan.
E.6 Messaging Meta-Annotations
Starting with version 4.0, all messaging annotations can be configured as meta-annotations and all
user-defined messaging annotations can define the same attributes to override their default values. In
addition, meta-annotations can be configured hierarchically, as the following example shows:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 610
@Target({ElementType.METHOD, ElementType.ANNOTATION_TYPE})
@Retention(RetentionPolicy.RUNTIME)
@ServiceActivator(inputChannel = "annInput", outputChannel = "annOutput")
public @interface MyServiceActivator {
String[] adviceChain = { "annAdvice" };
}
@Target({ElementType.METHOD, ElementType.ANNOTATION_TYPE})
@Retention(RetentionPolicy.RUNTIME)
@MyServiceActivator
public @interface MyServiceActivator1 {
String inputChannel();
String outputChannel();
}
...
@MyServiceActivator1(inputChannel = "inputChannel", outputChannel = "outputChannel")
public Object service(Object payload) {
...
}
Configuring meta-annotations hierarchically lets users set defaults for various attributes and enables
isolation of framework Java dependencies to user annotations, avoiding their use in user classes. If the
framework finds a method with a user annotation that has a framework meta-annotation, it is treated as
if the method were annotated directly with the framework annotation.
Annotations on @Bean Methods
Starting with version 4.0, you can configure messaging annotations on @Bean method definitions
in @Configuration classes, to produce message endpoints based on the beans, not the
methods. It is useful when @Bean definitions are "out-of-the-box" MessageHandler instances
(AggregatingMessageHandler, DefaultMessageSplitter, and others), Transformer
instances (JsonToObjectTransformer, ClaimCheckOutTransformer, and others), and
MessageSource instances (FileReadingMessageSource, RedisStoreMessageSource, and
others). The following example shows how to use messaging annotations with @Bean annotations:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 611
@Configuration
@EnableIntegration
public class MyFlowConfiguration {
@Bean
@InboundChannelAdapter(value = "inputChannel", poller = @Poller(fixedDelay = "1000"))
public MessageSource<String> consoleSource() {
return CharacterStreamReadingMessageSource.stdin();
}
@Bean
@Transformer(inputChannel = "inputChannel", outputChannel = "httpChannel")
public ObjectToMapTransformer toMapTransformer() {
return new ObjectToMapTransformer();
}
@Bean
@ServiceActivator(inputChannel = "httpChannel")
public MessageHandler httpHandler() {
HttpRequestExecutingMessageHandler handler = new HttpRequestExecutingMessageHandler("http://foo/
service");
handler.setExpectedResponseType(String.class);
handler.setOutputChannelName("outputChannel");
return handler;
}
@Bean
@ServiceActivator(inputChannel = "outputChannel")
public LoggingHandler loggingHandler() {
return new LoggingHandler("info");
}
}
Version 5.0 introduced support for a @Bean annotated with @InboundChannelAdapter that returns
java.util.function.Supplier, which can produce either a POJO or a Message. The followig
example shows how to use that combination:
@Configuration
@EnableIntegration
public class MyFlowConfiguration {
@Bean
@InboundChannelAdapter(value = "inputChannel", poller = @Poller(fixedDelay = "1000"))
public Supplier<String> pojoSupplier() {
return () -> "foo";
}
@Bean
@InboundChannelAdapter(value = "inputChannel", poller = @Poller(fixedDelay = "1000"))
public Supplier<Message<String>> messageSupplier() {
return () -> new GenericMessage<>("foo");
}
}
The meta-annotation rules work on @Bean methods as well (the @MyServiceActivator annotation
described earlier can be applied to a @Bean definition).
Note
When you use these annotations on consumer @Bean definitions, if the bean definition returns an
appropriate MessageHandler (depending on the annotation type), you must set attributes (such
as outputChannel, requiresReply, order, and others), on the MessageHandler @Bean
definition itself. Only the following annotation attributes are used: adviceChain, autoStartup,
inputChannel, phase, and poller. All other attributes are for the handler.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 612
Note
The bean names are generated with the following algorithm:
• The MessageHandler (MessageSource) @Bean gets its own standard name from the method
name or name attribute on the @Bean. This works as though there were no messaging annotation
on the @Bean method.
• The AbstractEndpoint bean name is generated with the following pattern:
[configurationComponentName].[methodName].
[decapitalizedAnnotationClassShortName]. For example, the
SourcePollingChannelAdapter endpoint for the consoleSource() definition shown earlier
gets a bean name of myFlowConfiguration.consoleSource.inboundChannelAdapter.
See also the section called “Endpoint Bean Names”.
Important
When using these annotations on @Bean definitions, the inputChannel must reference a
declared bean. Channels are not automatically declared in this case.
Note
With Java configuration, you can use any @Conditional (for example, @Profile) definition on
the @Bean method level to skip the bean registration for some conditional reason. The following
example shows how to do so:
@Bean
@ServiceActivator(inputChannel = "skippedChannel")
@Profile("thing")
public MessageHandler skipped() {
return System.out::println;
}
Together with the existing Spring container logic, the messaging endpoint bean (based on the
@ServiceActivator annotation), is also not registered.
Creating a Bridge with Annotations
Starting with version 4.0, Java configuration provides the @BridgeFrom and @BridgeTo @Bean
method annotations to mark MessageChannel beans in @Configuration classes. These really
exists for completeness, providing a convenient mechanism to declare a BridgeHandler and its
message endpoint configuration:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 613
@Bean
public PollableChannel bridgeFromInput() {
return new QueueChannel();
}
@Bean
@BridgeFrom(value = "bridgeFromInput", poller = @Poller(fixedDelay = "1000"))
public MessageChannel bridgeFromOutput() {
return new DirectChannel();
}
@Bean
public QueueChannel bridgeToOutput() {
return new QueueChannel();
}
@Bean
@BridgeTo("bridgeToOutput")
public MessageChannel bridgeToInput() {
return new DirectChannel();
}
You can use these annotations as meta-annotations as well.
Advising Annotated Endpoints
See the section called “Advising Endpoints Using Annotations”.
E.7 Message Mapping Rules and Conventions
Spring Integration implements a flexible facility to map messages to methods and their arguments
without providing extra configuration, by relying on some default rules and defining certain conventions.
The examples in the following sections articulate the rules.
Sample Scenarios
The following example shows a single un-annotated parameter (object or primitive) that is not a Map or
a Properties object with a non-void return type:
public String doSomething(Object o);
The input parameter is a message payload. If the parameter type is not compatible with a message
payload, an attempt is made to convert it by using a conversion service provided by Spring 3.0. The
return value is incorporated as a payload of the returned message.
The following example shows a single un-annotated parameter (object or primitive)that is not a Map or
a Properties with a Message return type:
public Message doSomething(Object o);
The input parameter is a message payload. If the parameter type is not compatible with a message
payload, an attempt is made to convert it by using a conversion service provided by Spring 3.0. The
return value is a newly constructed message that is sent to the next destination.
The followig example shows a single parameter that is a message (or one of its subclasses) with an
arbitrary object or primitive return type:
public int doSomething(Message msg);
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 614
The input parameter is itself a Message. The return value becomes a payload of the Message that
is sent to the next destination.
The following example shows a single parameter that is a Message (or one of its subclasses) with a
Message (or one of its subclasses) as the return type:
public Message doSomething(Message msg);
The input parameter is itself a Message. The return value is a newly constructed Message that is sent
to the next destination.
The following example shows a single parameter of type Map or Properties with a Message as the
return type:
public Message doSomething(Map m);
This one is a bit interesting. Although, at first, it might seem like an easy mapping straight to message
headers, preference is always given to a Message payload. This means that if a Message payload is
of type Map, this input argument represents a Message payload. However, if the Message payload is
not of type Map, the conversion service does not try to convert the payload, and the input argument is
mapped to message headers.
The following example shows two parameters, where one of them is an arbitrary type (an object or a
primitive) that is not a Map or a Properties object and the other is of type Map or Properties type
(regardless of the return):
public Message doSomething(Map h, <T> t);
This combination contains two input parameters where one of them is of type Map. The non-Map
parameters (regardless of the order) are mapped to a Message payload and the Map or Properties
(regardless of the order) is mapped to message headers, giving you a nice POJO way of interacting
with Message structure.
The following example shows no parameters (regardless of the return):
public String doSomething();
This message handler method is invoked based on the Message sent to the input channel to which this
handler is connected. However no Message data is mapped, thus making the Message act as event
or trigger to invoke the handler. The output is mapped according to the rules described earlier.
The following example shows no parameters and a void return:
public void soSomething();
This example is the same as the previous example, but it produces no output.
Annotation-based Mapping
Annotation-based mapping is the safest and least ambiguous approach to map messages to methods.
The following example shows how to explicitly map a method to a header:
public String doSomething(@Payload String s, @Header("someheader") String b)
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 615
As you can see later on, without an annotation this signature would result in an ambiguous condition.
However, by explicitly mapping the first argument to a Message payload and the second argument to
a value of the someheader message header, we avoid any ambiguity.
The following example is nearly identical to the preceding example:
public String doSomething(@Payload String s, @RequestParam("something") String b)
@RequestMapping or any other non-Spring Integration mapping annotation is irrelevant and is
therefore ignored, leaving the second parameter unmapped. Although the second parameter could
easily be mapped to a payload, there can only be one payload. Therefore, the annotations keep this
method from being ambiguous.
The following example shows another similar method that would be ambiguous were it not for
annotations to clarify the intent:
public String foo(String s, @Header("foo") String b)
The only difference is that the first argument is implicitly mapped to the message payload.
The following example shows yet another signature that would definitely be treated as ambiguous
without annotations, because it has more than two arguments:
public String soSomething(@Headers Map m, @Header("something") Map f, @Header("someotherthing") String
bar)
This example would be especially problematic, because two of its arguments are Map instances.
However, with annotation-based mapping, the ambiguity is easily avoided. In this example the first
argument is mapped to all the message headers, while the second and third argument map to the values
of the message headers named something and someotherthing. The payload is not being mapped to
any argument.
Complex Scenarios
The following example uses multiple parameters:
Multiple parameters can create a lot of ambiguity with regards to determining the appropriate mappings.
The general advice is to annotate your method parameters with @Payload, @Header, and @Headers.
The examples in this section show ambiguous conditions that result in an exception being raised.
public String doSomething(String s, int i)
The two parameters are equal in weight. Therefore, there is no way to determine which one is a payload.
The following example shows a similar problem, only with three parameters:
public String foo(String s, Map m, String b)
Although the Map could be easily mapped to message headers, there is no way to determine what to
do with the two String parameters.
The following example shows another ambiguous method:
public String foo(Map m, Map f)
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 616
Although one might argue that one Map could be mapped to the message payload and the other one
to the message headers, we cannot rely on the order.
Tip
Any method signature with more than one method argument that is not (Map, <T>) and with
unannotated parameters results in an ambiguous condition and triggers an exception.
The next set of examples each show mutliple methods that result in ambiguity.
Message handlers with multiple methods are mapped based on the same rules that are described earlier
(in the examples). However, some scenarios might still look confusing.
The following example shows multiple methods with legal (mappable and unambiguous) signatures:
public class Something {
public String doSomething(String str, Map m);
public String doSomething(Map m);
}
(Whether the methods have the same name or different names makes no difference). The Message
could be mapped to either method. The first method would be invoked when the message payload could
be mapped to str and the message headers could be mapped to m. The second method could also be
a candidate by mapping only the message headers to m. To make matters worse, both methods have
the same name. At first, that might look ambiguous because of the following configuration:
<int:service-activator input-channel="input" output-channel="output" method="doSomething">
<bean class="org.things.Something"/>
</int:service-activator>
It works because mappings are based on the payload first and everything else next. In other words, the
method whose first argument can be mapped to a payload takes precedence over all other methods.
Now consider an alternate example, which produces a truly ambiguous condition:
public class Something {
public String doSomething(String str, Map m);
public String doSomething(String str);
}
Both methods have signatures that could be mapped to a message payload. They also have the same
name. Such handler methods will trigger an exception. However, if the method names were different,
you could influence the mapping with a method attribute (shown in the next example). The following
example shows the same example with two different method names:
public class Something {
public String doSomething(String str, Map m);
public String doSomethingElse(String str);
}
The following example shows how to use the method attribute to dictate the mapping:
<int:service-activator input-channel="input" output-channel="output" method="doSomethingElse">
<bean class="org.bar.Foo"/>
</int:service-activator>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 617
Because the configuration explicitly maps the doSomethingElse method, we have eliminated the
ambiguity.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 618
Appendix F. Testing support
Spring Integration provides a number of utilities and annotations to help you test your application. Testing
support is presented by two modules:
•spring-integration-test-support contains core items and shared utilities
•spring-integration-test provides mocking and application context configuration components
for integration tests
spring-integration-test-support (spring-integration-test in versions before 5.0)
provides basic, standalone utilities, rules, and matchers for unit testing. (it also has no dependencies
on Spring Integration itself and is used internally in Framework tests). spring-integration-test
aims to help with integration testing and provides a comprehensive high-level API to mock integration
components and verify the behavior of individual components, including whole integration flows or only
parts of them.
A thorough treatment of testing in the enterprise is beyond the scope of this reference manual. See
the "Test-Driven Development in Enterprise Integration Projects" paper, by Gregor
Hohpe and Wendy Istvanick, for a source of ideas and principles for testing your target integration
solution.
The Spring Integration Test Framework and test utilities are fully based on existing JUnit, Hamcrest,
and Mockito libraries. The application context interaction is based on the Spring test framework. See
the documentation for those projects for further information.
Thanks to the canonical implementation of the EIP in Spring Integration Framework and its first-
class citizens (such as MessageChannel, Endpoint and MessageHandler), abstractions, and
loose coupling principles, you can implement integration solutions of any complexity. With the Spring
Integration API for the flow definitions, you can improve, modify or even replace some part of the flow
without impacting (mostly) other components in the integration solution. Testing such an integration
solution is still a challenge, both from an end-to-end approach and from an in-isolation approach. Several
existing tools can help to test or mock some integration protocols, and they work well with Spring
Integration channel adapters. Examples of such tools include the following:
• Spring MockMVC and its MockRestServiceServer can be used for testing HTTP.
• Some RDBMS vendors provide embedded data bases for JDBC or JPA support.
• ActiveMQ can be embedded for testing JMS or STOMP protocols.
• There are tools for embedded MongoDB and Redis.
• Tomcat and Jetty have embedded libraries to test real HTTP, Web Services, or WebSockets.
• The FtpServer and SshServer from the Apache Mina project can be used for testing the FTP and
SFTP protocols.
• Gemfire and Hazelcast can be run as real-data grid nodes in the tests.
• The Curator Framework provides a TestingServer for Zookeeper interaction.
• Apache Kafka provides admin tools to embed a Kafka Broker in the tests.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 619
Most of these tools and libraries are used in Spring Integration tests. Also, from the GitHub repository
(in the test directory of each module), you can discover ideas for how to build your own tests for
integration solutions.
The rest of this chapter describes the testing tools and utilities provided by Spring Integration.
F.1 Testing Utilities
The spring-integration-test-support module provides utilities and helpers for unit testing.
TestUtils
The TestUtils class is mostly used for properties assertions in JUnit tests, as the following example
shows:
@Test
public void loadBalancerRef() {
MessageChannel channel = channels.get("lbRefChannel");
LoadBalancingStrategy lbStrategy = TestUtils.getPropertyValue(channel,
"dispatcher.loadBalancingStrategy", LoadBalancingStrategy.class);
assertTrue(lbStrategy instanceof SampleLoadBalancingStrategy);
}
TestUtils.getPropertyValue() is based on Spring’s DirectFieldAccessor and provides the
ability to get a value from the target private property. As shown in the preceding example, it also supports
nested properties access by using dotted notation.
The createTestApplicationContext() factory method produces a TestApplicationContext
instance with the supplied Spring Integration environment.
See the Javadoc of other TestUtils methods for more information about this class.
Using the SocketUtils Class
The SocketUtils class provides several methods that select one or more random ports for exposing
server-side components without conflicts, as the following example shows:
<bean id="socketUtils" class="org.springframework.integration.test.util.SocketUtils" />
<int-syslog:inbound-channel-adapter id="syslog"
channel="sysLogs"
port="#{socketUtils.findAvailableUdpSocket(1514)}" />
<int:channel id="sysLogs">
<int:queue/>
</int:channel>
The following example shows how the preceding configuration is used from the unit test:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 620
@Autowired @Qualifier("syslog.adapter")
private UdpSyslogReceivingChannelAdapter adapter;
@Autowired
private PollableChannel sysLogs;
...
@Test
public void testSimplestUdp() throws Exception {
int port = TestUtils.getPropertyValue(adapter1, "udpAdapter.port", Integer.class);
byte[] buf = "<157>JUL 26 22:08:35 WEBERN TESTING[70729]: TEST SYSLOG MESSAGE".getBytes("UTF-8");
DatagramPacket packet = new DatagramPacket(buf, buf.length,
new InetSocketAddress("localhost", port));
DatagramSocket socket = new DatagramSocket();
socket.send(packet);
socket.close();
Message<?> message = foo.receive(10000);
assertNotNull(message);
}
Note
This technique is not foolproof. Some other process could be allocated the "free" port before
your test opens it. It is generally more preferable to use server port 0, let the operating system
select the port for you, and then discover the selected port in your test. We have converted most
framework tests to use this preferred technique.
Using OnlyOnceTrigger
OnlyOnceTrigger is useful for polling endpoints when you need to produce only one test message
and verify the behavior without impacting other period messages. The following example shows how
to configure OnlyOnceTrigger:
<bean id="testTrigger" class="org.springframework.integration.test.util.OnlyOnceTrigger" />
<int:poller id="jpaPoller" trigger="testTrigger">
<int:transactional transaction-manager="transactionManager" />
</int:poller>
The following example shows how to use the preceding configuration of OnlyOnceTrigger for testing:
@Autowired
@Qualifier("jpaPoller")
PollerMetadata poller;
@Autowired
OnlyOnceTrigger testTrigger;
...
@Test
@DirtiesContext
public void testWithEntityClass() throws Exception {
this.testTrigger.reset();
...
JpaPollingChannelAdapter jpaPollingChannelAdapter = new JpaPollingChannelAdapter(jpaExecutor);
SourcePollingChannelAdapter adapter = JpaTestUtils.getSourcePollingChannelAdapter(
jpaPollingChannelAdapter, this.outputChannel, this.poller, this.context,
this.getClass().getClassLoader());
adapter.start();
...
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 621
Support Components
The org.springframework.integration.test.support package contains various abstract
classes that you should implement in target tests
•AbstractRequestResponseScenarioTests
•AbstractResponseValidator
•LogAdjustingTestSupport (Deprecated)
•MessageValidator
•PayloadValidator
•RequestResponseScenario
•SingleRequestResponseScenarioTests
JUnit Rules and Conditions
The LongRunningIntegrationTest JUnit 4 test rule is present to indicate if test should be run
if RUN_LONG_INTEGRATION_TESTS environment or system property is set to true. Otherwise it is
skipped. For the same reason since version 5.1, a @LongRunningTest conditional annotation is
provided for JUnit 5 tests.
Hamcrest and Mockito Matchers
The org.springframework.integration.test.matcher package contains several Matcher
implementations to assert Message and its properties in unit tests. The following example shows how
to use one such matcher (PayloadMatcher):
import static org.springframework.integration.test.matcher.PayloadMatcher.hasPayload;
...
@Test
public void transform_withFilePayload_convertedToByteArray() throws Exception {
Message<?> result = this.transformer.transform(message);
assertThat(result, is(notNullValue()));
assertThat(result, hasPayload(is(instanceOf(byte[].class))));
assertThat(result, hasPayload(SAMPLE_CONTENT.getBytes(DEFAULT_ENCODING)));
}
The MockitoMessageMatchers factory can be used for mocks for stubbing and verifications, as the
following example shows:
static final Date SOME_PAYLOAD = new Date();
static final String SOME_HEADER_VALUE = "bar";
static final String SOME_HEADER_KEY = "test.foo";
...
Message<?> message = MessageBuilder.withPayload(SOME_PAYLOAD)
.setHeader(SOME_HEADER_KEY, SOME_HEADER_VALUE)
.build();
MessageHandler handler = mock(MessageHandler.class);
handler.handleMessage(message);
verify(handler).handleMessage(messageWithPayload(SOME_PAYLOAD));
verify(handler).handleMessage(messageWithPayload(is(instanceOf(Date.class))));
...
MessageChannel channel = mock(MessageChannel.class);
when(channel.send(messageWithHeaderEntry(SOME_HEADER_KEY, is(instanceOf(Short.class)))))
.thenReturn(true);
assertThat(channel.send(message), is(false));
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 622
F.2 Spring Integration and the Test Context
Typically, tests for Spring applications use the Spring Test Framework. Since Spring Integration is
based on the Spring Framework foundation, everything we can do with the Spring Test Framework also
applies when testing integration flows. The org.springframework.integration.test.context
package provides some components for enhancing the test context for integration needs. First of all, we
configure our test class with a @SpringIntegrationTest annotation to enable the Spring Integration
Test Framework, as the following example shows:
@RunWith(SpringRunner.class)
@SpringIntegrationTest(noAutoStartup = {"inboundChannelAdapter", "*Source*"})
public class MyIntegrationTests {
@Autowired
private MockIntegrationContext mockIntegrationContext;
}
The @SpringIntegrationTest annotation populates a MockIntegrationContext bean, which
you can autowire to the test class to access its methods. With the noAutoStartup option, the Spring
Integration Test Framework prevents endpoints that are normally autoStartup=true from starting.
The endpoints are matched to the provided patterns, which support the following simple pattern styles:
xxx*, *xxx, *xxx*, and xxx*yyy.
This is useful when we would like to not have real connections to the target systems from inbound
channel adapters (for example an AMQP Inbound Gateway, JDBC Polling Channel Adapter, WebSocket
Message Producer in client mode, and so on).
The MockIntegrationContext is meant to be used in the target test cases for modifications to beans
in the real application context. For example, endpoints that have autoStartup overridden to false
can be replaced with mocks, as the following example shows:
@Test
public void testMockMessageSource() {
MessageSource<String> messageSource = () -> new GenericMessage<>("foo");
this.mockIntegrationContext.substituteMessageSourceFor("mySourceEndpoint", messageSource);
Message<?> receive = this.results.receive(10_000);
assertNotNull(receive);
}
Note
The mySourceEndpoint refers here to the bean name of the
SourcePollingChannelAdapter for which we replace the real MessageSource with
our mock. Similarly the MockIntegrationContext.substituteMessageHandlerFor()
expects a bean name for the IntegrationConsumer, which wraps a MessageHandler as an
endpoint.
After test is performed you can restore the state of endpoint beans to the real configuration using
MockIntegrationContext.resetBeans():
@After
public void tearDown() {
this.mockIntegrationContext.resetBeans();
}
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 623
See the Javadoc for more information.
F.3 Integration Mocks
The org.springframework.integration.test.mock package offers tools and utilities for
mocking, stubbing, and verification of activity on Spring Integration components. The mocking
functionality is fully based on and compatible with the well known Mockito Framework. (The current
Mockito transitive dependency is on version 2.5.x or higher.)
MockIntegration
The MockIntegration factory provides an API to build mocks for Spring Integration beans that
are parts of the integration flow (MessageSource, MessageProducer, MessageHandler, and
MessageChannel). You can use the target mocks during the configuration phase as well as in the
target test method to replace the real endpoints before performing verifications and assertions, as the
following example shows:
<int:inbound-channel-adapter id="inboundChannelAdapter" channel="results">
<bean class="org.springframework.integration.test.mock.MockIntegration" factory-
method="mockMessageSource">
<constructor-arg value="a"/>
<constructor-arg>
<array>
<value>b</value>
<value>c</value>
</array>
</constructor-arg>
</bean>
</int:inbound-channel-adapter>
The following example shows how to use Java Configuration to achieve the same configuration as the
preceding example:
@InboundChannelAdapter(channel = "results")
@Bean
public MessageSource<Integer> testingMessageSource() {
return MockIntegration.mockMessageSource(1, 2, 3);
}
...
StandardIntegrationFlow flow = IntegrationFlows
.from(MockIntegration.mockMessageSource("foo", "bar", "baz"))
.<String, String>transform(String::toUpperCase)
.channel(out)
.get();
IntegrationFlowRegistration registration = this.integrationFlowContext.registration(flow)
.register();
For this purpose, the aforementioned MockIntegrationContext should be used from the test, as
the following example shows:
this.mockIntegrationContext.substituteMessageSourceFor("mySourceEndpoint",
MockIntegration.mockMessageSource("foo", "bar", "baz"));
Message<?> receive = this.results.receive(10_000);
assertNotNull(receive);
assertEquals("FOO", receive.getPayload());
Unlike the Mockito MessageSource mock object, the MockMessageHandler is a regular
AbstractMessageProducingHandler extension with a chain API to stub handling for incoming
messages. The MockMessageHandler provides handleNext(Consumer<Message<?>>) to
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 624
specify a one-way stub for the next request message. It is used to mock message handlers that do not
produce replies. handleNextAndReply(Function<Message<?>, ?>) is provided for performing
the same stub logic for the next request message and producing a reply for it. They can be chained
to simulate any arbitrary request-reply scenarios for all expected request messages variants. These
consumers and functions are applied to the incoming messages, one at a time from the stack, until the
last, which is then used for all remaining messages. The behavior is similar to the Mockito Answer or
doReturn() API.
In addition, you can supply a Mockito ArgumentCaptor<Message<?>> to the
MockMessageHandler in a constructor argument. Each request message for the
MockMessageHandler is captured by that ArgumentCaptor. During the test, you can use its
getValue() and getAllValues() methods to verify and assert those request messages.
The MockIntegrationContext provides a substituteMessageHandlerFor() API that lets you
replace the actual configured MessageHandler with a MockMessageHandler in the endpoint under
test.
The following example shows a typical usage scenario:
ArgumentCaptor<Message<?>> messageArgumentCaptor = ArgumentCaptor.forClass(Message.class);
MessageHandler mockMessageHandler =
mockMessageHandler(messageArgumentCaptor)
.handleNextAndReply(m -> m.getPayload().toString().toUpperCase());
this.mockIntegrationContext.substituteMessageHandlerFor("myService.serviceActivator",
mockMessageHandler);
GenericMessage<String> message = new GenericMessage<>("foo");
this.myChannel.send(message);
Message<?> received = this.results.receive(10000);
assertNotNull(received);
assertEquals("FOO", received.getPayload());
assertSame(message, messageArgumentCaptor.getValue());
See the MockIntegration and MockMessageHandler Javadoc for more information.
F.4 Other Resources
As well as exploring the test cases in the framework itself, the Spring Integration Samples repository
has some sample applications specifically made to show testing, such as testing-examples and
advanced-testing-examples. In some cases, the samples themselves have comprehensive end-
to-end tests, such as the file-split-ftp sample.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 625
Appendix G. Spring Integration
Samples
As of Spring Integration 2.0, the Spring Integration distribution no longer includes the samples. Instead,
we have switched to a much simpler collaborative model that should promote better community
participation and, ideally, more contributions. Samples now have a dedicated Git repository and a
dedicated JIRA Issue Tracking system. Sample development also has its own lifecycle, which is not
dependent on the lifecycle of the framework releases, although the repository is still tagged with each
major release for compatibility reasons.
The great benefit to the community is that we can now add more samples and make them available
to you right away without waiting for the next release. Having its own JIRA that is not tied to the the
actual framework is also a great benefit. You now have a dedicated place to suggest samples as well as
report issues with existing samples. You can also submit a sample to us as an attachment through JIRA
or, better, through the collaborative model that Git promotes. If we believe your sample adds value, we
would be more then glad to add it to the samples repository, properly crediting you as the author.
G.1 Where to Get Samples
The Spring Integration Samples project is hosted on GitHub. You can find the repository at:
https://github.com/SpringSource/spring-integration-samples
In order to check out or clone the samples, you must have a Git client installed on your system. There
are several GUI-based products available for many platforms (such as EGit for the Eclipse IDE). A
simple Google search can help you find them. You can also use the command line interface for <http://
git-scm.com/,Git>.
Note
If you need more information on how to install or use Git, visit: http://git-scm.com/.
To clone (check out) the Spring Integration samples repository by using the Git command line tool, issue
the following command:
$ git clone https://github.com/SpringSource/spring-integration-samples.git
The preceding command clones the entire samples repository into a directory named spring-
integration-samples within the working directory where you issued that git command. Since the
samples repository is a live repository, you might want to perform periodic pulls (updates) to get new
samples and updates to the existing samples. To do so, issue the following git pull command:
$ git pull
G.2 Submitting Samples or Sample Requests
You can submit both new samples and requests for samples. We greatly appreciate any effort toward
improving the samples, including the sharing of good ideas.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 626
How Can I Contribute My Own Samples?
Github is for social coding: if you want to submit your own code examples to the Spring Integration
Samples project, we encourage contributions through pull requests from forks of this repository. If you
want to contribute code this way, please reference, if possible, a JIRA ticket that provides some details
regarding your sample.
Sign the contributor license agreement
Very important: Before we can accept your Spring Integration sample, we need you to sign the
SpringSource contributor license agreement (CLA). Signing the contributor’s agreement does not
grant anyone commit rights to the main repository, but it does mean that we can accept your
contributions, and you will get an author credit if we do. In order to read and sign the CLA, go to:
https://support.springsource.com/spring_committer_signup
From the Project drop down, select Spring Integration. The Project Lead is Gary Russell.
Code Contribution Process
For the actual code contribution process, read the the Contributor Guidelines for Spring Integration.
They apply for the samples project as well. You can find them at https://github.com/spring-projects/
spring-integration/blob/master/CONTRIBUTING.md
This process ensures that every commit gets peer-reviewed. As a matter of fact, the core committers
follow the exact same rules. We gratefully look forward to your Spring Integration samples!
Sample Requests
As mentioned earlier, the Spring Integration Samples project has a dedicated JIRA issue tracking
system. To submit new sample requests, visit the JIRA Issue Tracking system at https://
jira.springframework.org/browse/INTSAMPLES.
G.3 Samples Structure
Starting with Spring Integration 2.0, the structure of the samples has changed. With plans for more
samples, we realized that not all samples have the same goals. They all share the common goal of
showing you how to apply and work with the Spring Integration framework. However, they differ in
that some samples concentrate on a technical use case, while others focus on a business use case.
Also, some samples are about showcasing various techniques that could be applied to address certain
scenarios (both technical and business). The new categorization of samples lets us better organize
them based on the problem each sample addresses while giving you a simpler way of finding the right
sample for your needs.
Currently there are four categories. Within the samples repository, each category has its own directory,
which is named after the category name:
Basic (samples/basic)
This is a good place to get started. The samples here are technically motivated and demonstrate
the bare minimum with regard to configuration and code. These should help you to get started
quickly by introducing you to the basic concepts, API, and configuration of Spring Integration as well
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 627
as Enterprise Integration Patterns (EIP). For example, if you are looking for an answer on how to
implement and wire a service activator to a message channel, how to use a messaging gateway as
a facade to your message exchange, or how to get started with MAIL, TCP/UDP or other modules,
this is the right place to find a good sample. The bottom line is samples/basic is a good place
to get started.
Intermediate (samples/intermediate)
This category targets developers who are already familiar with the Spring Integration framework
(beyond getting started) but need some more guidance while resolving the more advanced technical
problems they might encounter after switching to a messaging architecture. For example, if you
are looking for an answer on how to handle errors in various message exchange scenarios or how
to properly configure the aggregator for a situation where some messages do not ever arrive for
aggregation, or any other issue that goes beyond a basic implementation and configuration of a
particular component and exposes "what else" types of problems, this is the right place to find
these type of samples.
Advanced (samples/advanced)
This category targets developers who are very familiar with the Spring Integration framework but
are looking to extend it to address a specific custom need by using Spring Integration’s public API.
For example, if you are looking for samples showing you how to implement a custom channel or
consumer (event-based or polling-based) or you are trying to figure out the most appropriate way to
implement a custom bean parser on top of the Spring Integration bean parser hierarchy (perhaps
when implementing your own namespace and schema for a custom component), this is the right
place to look. Here you can also find samples that will help you with adapter development. Spring
Integration comes with an extensive library of adapters to let you connect remote systems with the
Spring Integration messaging framework. However, you might need to integrate with a system for
which the core framework does not provide an adapter. If so, you might decide to implement your
own (please consider contributing it). This category would include samples showing you how.
Applications (samples/applications)
This category targets developers and architects who have a good understanding of message-driven
architecture and EIP and an above-average understanding of Spring and Spring Integration who
are looking for samples that address a particular business problem. In other words, the emphasis
of the samples in this category is business use cases and how they can be solved with a message-
driven architecture and Spring Integration in particular. For example, if you want to see how a loan
broker or travel agent process could be implemented and automated with Spring Integration, this
is the right place to find these types of samples.
Important
Spring Integration is a community-driven framework. Therefore community participation is
IMPORTANT. That includes samples. If you cannot find what you are looking for, let us know!
G.4 Samples
Currently, Spring Integration comes with quite a few samples and you can only expect more. To help
you better navigate through them, each sample comes with its own readme.txt file which covers
several details about the sample (for example, what EIP patterns it addresses, what problem it is trying
to solve, how to run the sample, and other details). However, certain samples require a more detailed
and sometimes graphical explanation. In this section, you can find details on samples that we believe
require special attention.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 628
Loan Broker
This section covers the loan broker sample application that is included in the Spring Integration
samples. This sample is inspired by one of the samples featured in Gregor Hohpe and Bobby
Woolf’s book, Enterprise Integration Patterns.
The following diagram shows the entire process:
Figure G.1. Loan Broker Sample
At the core of an EIP architecture are the very simple yet powerful concepts of pipes, filters, and, of
course: messages. Endpoints (filters) are connected with one another via channels (pipes). Producing
endpoints send messages to the channel, and the consuming endpoint retrieves the messages. This
architecture is meant to define various mechanisms that describe how information is exchanged
between the endpoints, without any awareness of what those endpoints are or what information they
are exchanging. Thus, it provides for a very loosely coupled and flexible collaboration model while
also decoupling integration concerns from business concerns. EIP extends this architecture by further
defining:
• The types of pipes (point-to-point channel, publish-subscribe channel, channel adapter, and others)
• The core filters and patterns around how filters collaborate with pipes (Message router, splitters and
aggregators, various message transformation patterns, and others)
Chapter 9 of the EIP book nicely describes the details and variations of this use case, but here is the
brief summary: While shopping for the best loan quote, a consumer subscribes to the services of a loan
broker, which handles such details as:
• Consumer pre-screening (for example, obtaining and reviewing the consumer’s Credit history)
• Determining the most appropriate banks (for example, based on the consumer’s credit history or
score)
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 629
• Sending a loan quote request to each selected bank
• Collecting responses from each bank
• Filtering responses and determining the best quotes, based on consumer’s requirements.
• Pass the Loan quotes back to the consumer.
The real process of obtaining a loan quote is generally a bit more complex. However, since our goal
is to demonstrate how Enterprise Integration Patterns are realized and implemented within Spring
Integration, the use case has been simplified to concentrate only on the integration aspects of the
process. It is not an attempt to give you advice in consumer finances.
By engaging a loan broker, the consumer is isolated from the details of the loan broker’s operations,
and each loan broker’s operations may defer from one another to maintain competitive advantage, so
whatever we assemble and implement must be flexible so that any changes could be introduced quickly
and painlessly.
Note
The loan broker sample does not actually talk to any imaginary Banks or Credit bureaus. Those
services are stubbed out.
Our goal here is to assemble, orchestrate, and test the integration aspects of the process as a whole.
Only then can we start thinking about wiring such processes to the real services. At that time, the
assembled process and its configuration do not change regardless of the number of banks with which
a particular loan broker deals or the type of communication media (or protocols) used (JMS, WS, TCP,
and so on) to communicate with these banks.
Design
As you analyze the six requirements listed earlier, you can see that they are all integration concerns.
For example, in the consumer pre-screening step, we need to gather additional information about the
consumer and the consumer’s desires and enrich the loan request with additional meta-information. We
then have to filter such information to select the most appropriate list of banks and so on. Enrich, filter,
and select are all integration concerns for which EIP defines a solution in the form of patterns. Spring
Integration provides an implementation of these patterns.
The following image shows a representation of a messaging gateway:
Figure G.2. Messaging Gateway
The messaging gateway pattern provides a simple mechanism to access messaging systems, including
our loan broker. In Spring Integration, you can define the gateway as a plain old java interface (you need
not provide an implementation), configure it with the XML <gateway> element or with an annotation in
Java, and use it as you would any other Spring bean. Spring Integration takes care of delegating and
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 630
mapping method invocations to the messaging infrastructure by generating a message (the payload is
mapped to an input parameter of the method) and sending it to the designated channel. The following
example shows how to define such a gateway with XML:
<int:gateway id="loanBrokerGateway"
default-request-channel="loanBrokerPreProcessingChannel"
service-interface="org.springframework.integration.samples.loanbroker.LoanBrokerGateway">
<int:method name="getBestLoanQuote">
<int:header name="RESPONSE_TYPE" value="BEST"/>
</int:method>
</int:gateway>
Our current gateway provides two methods that could be invoked. One that returns the best single quote
and another one that returns all quotes. Somehow, downstream, we need to know what type of reply
the caller needs. The best way to achieve this in messaging architecture is to enrich the content of the
message with some metadata that describes your intentions. Content Enricher is one of the patterns that
addresses this. Spring Integration does, as a convenience, provide a separate configuration element to
enrich message headers with arbitrary data (described later) However, since the gateway element is
responsible for constructing the initial message, it includes ability to enrich the newly created message
with arbitrary message headers. In our example, we add a RESPONSE_TYPE header with a value of BEST
whenever the getBestQuote() method is invoked. For other methods, we do not add any header.
Now we can check downstream for the existence of this header. Based on its presence and its value,
we can determine what type of reply the caller wants.
Based on the use case, we also know tat some pre-screening steps need to be performed, such as
getting and evaluating the consumer’s credit score, because some premiere banks only accept quote
requests from consumers that meet a minimum credit score requirement. So it would be nice if the
message would be enriched with such information before it is forwarded to the banks. It would also
be nice if, when several processes need to be completed to provide such meta-information, those
processes could be grouped in a single unit. In our use case, we need to determine the credit score
and, based on the credit score and some rule, select a list of message channels (bank channels) to
which to send quote request.
Composed Message Processor
The composed message processor pattern describes rules around building endpoints that maintain
control over message flow, which consists of multiple message processors. In Spring Integration, the
composed message processor pattern is implemented by the <chain> element.
The following image shows the chain pattern:

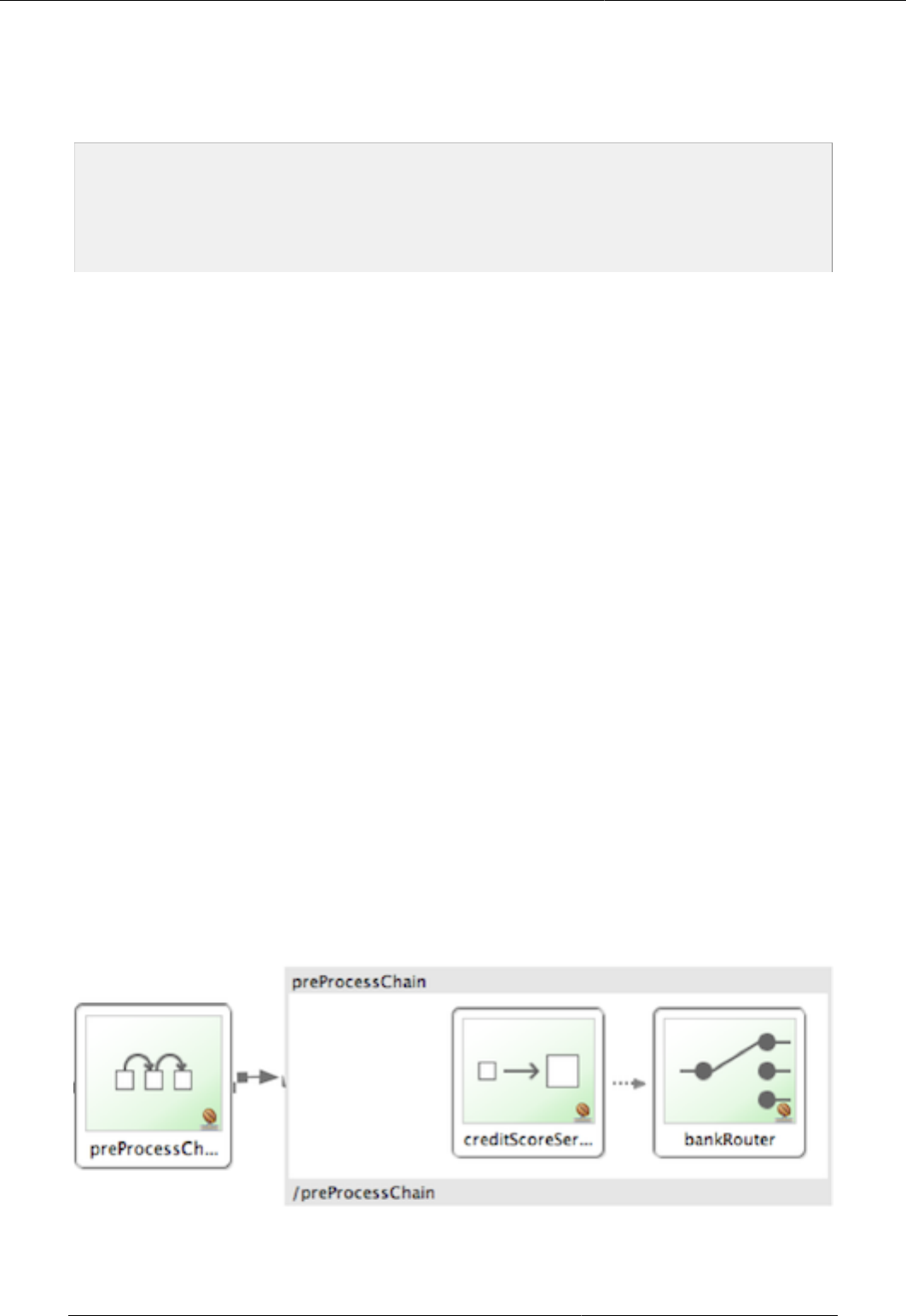

Figure G.3. Chain
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 631
The preceding image shows that we have a chain with an inner header-enricher element that further
enriches the content of the message with the CREDIT_SCORE header and the value (which is determined
by the call to a credit service — a simple POJO spring bean identified by creditBureau name). Then it
delegates to the message router.
The following image shows the message router pattern:
Figure G.4. Message Router
Spring Integration offers several implementations of the message routing pattern. In this case, we use
a router that determines a list of channels based on evaluating an expression (in Spring Expression
Language) that looks at the credit score (determined in the previous step) and selects the list of channels
from the Map bean with an id of banks whose values are premier or secondary, based on the value
of credit score. Once the list of channels is selected, the message is routed to those channels.
Now, one last thing the loan broker needs to receive the loan quotes form the banks, aggregate them
by consumer (we do not want to show quotes from one consumer to another), assemble the response
based on the consumer’s selection criteria (single best quote or all quotes) and send the reply to the
consumer.
The following image shows the message aggregator pattern:
Figure G.5. Message Aggregator
An aggregator pattern describes an endpoint that groups related messages into a single message.
Criteria and rules can be provided to determine an aggregation and correlation strategy. Spring
Integration provides several implementations of the aggregator pattern as well as a convenient
namespace-based configuration.
The following example shows how to define an aggregator:
<int:aggregator id="quotesAggregator"
input-channel="quotesAggregationChannel"
method="aggregateQuotes">
<beans:bean class="org.springframework.integration.samples.loanbroker.LoanQuoteAggregator"/>
</int:aggregator>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 632
Our Loan Broker defines a quotesAggregator bean with the <aggregator> element, which provides
a default aggregation and correlation strategy. The default correlation strategy correlates messages
based on the correlationId header (see the correlation identifier pattern in the EIP book). Note
that we never provided the value for this header. It was automatically set earlier by the router, when it
generated a separate message for each bank channel.
Once the messages are correlated, they are released to the actual aggregator implementation. Although
Spring Integration provides a default aggregator, its strategy (gather the list of payloads from all
messages and construct a new message with this list as its payload) does not satisfy our requirement.
Having all the results in the message is a problem, because our consumer might require a single
best quote or all quotes. To communicate the consumer’s intention, earlier in the process we set the
RESPONSE_TYPE header. Now we have to evaluate this header and return either all the quotes (the
default aggregation strategy would work) or the best quote (the default aggregation strategy does not
work because we have to determine which loan quote is the best).
In a more realistic application, selecting the best quote might be based on complex criteria that might
influence the complexity of the aggregator implementation and configuration. For now, though, we are
making it simple. If the consumer wants the best quote, we select a quote with the lowest interest rate.
To accomplish that, the LoanQuoteAggregator class sorts all the quotes by interest rate and returns
the first one. The LoanQuote class implements Comparable to compare quotes based on the rate
attribute. Once the response message is created, it is sent to the default reply channel of the messaging
gateway (and, thus, to the consumer) that started the process. Our consumer got the loan quote!
In conclusion, a rather complex process was assembled based on POJO (that is existing or legacy)
logic and a light-weight, embeddable messaging framework (Spring Integration) with a loosely coupled
programming model intended to simplify integration of heterogeneous systems without requiring a
heavy-weight ESB-like engine or a proprietary development and deployment environment. As a
developer, you should not need to port your Swing or console-based application to an ESB-like server
or implement proprietary interfaces just because you have an integration concern.
This sample and the other samples in this section are built on top of Enterprise Integration Patterns. You
can consider them to be "building blocks" for your solution. They are not intended to be complete
solutions. Integration concerns exist in all types of application (whether server-based or not). Our goal is
to make is so that integrating applications does not require changes in design, testing, and deployment
strategy.
The Cafe Sample
This section covers the cafe sample application that is included in the Spring Integration samples. This
sample is inspired by another sample featured in Gregor Hohpe’s Ramblings.
The domain is that of a cafe, and the following diagram depicts the basic flow:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 633

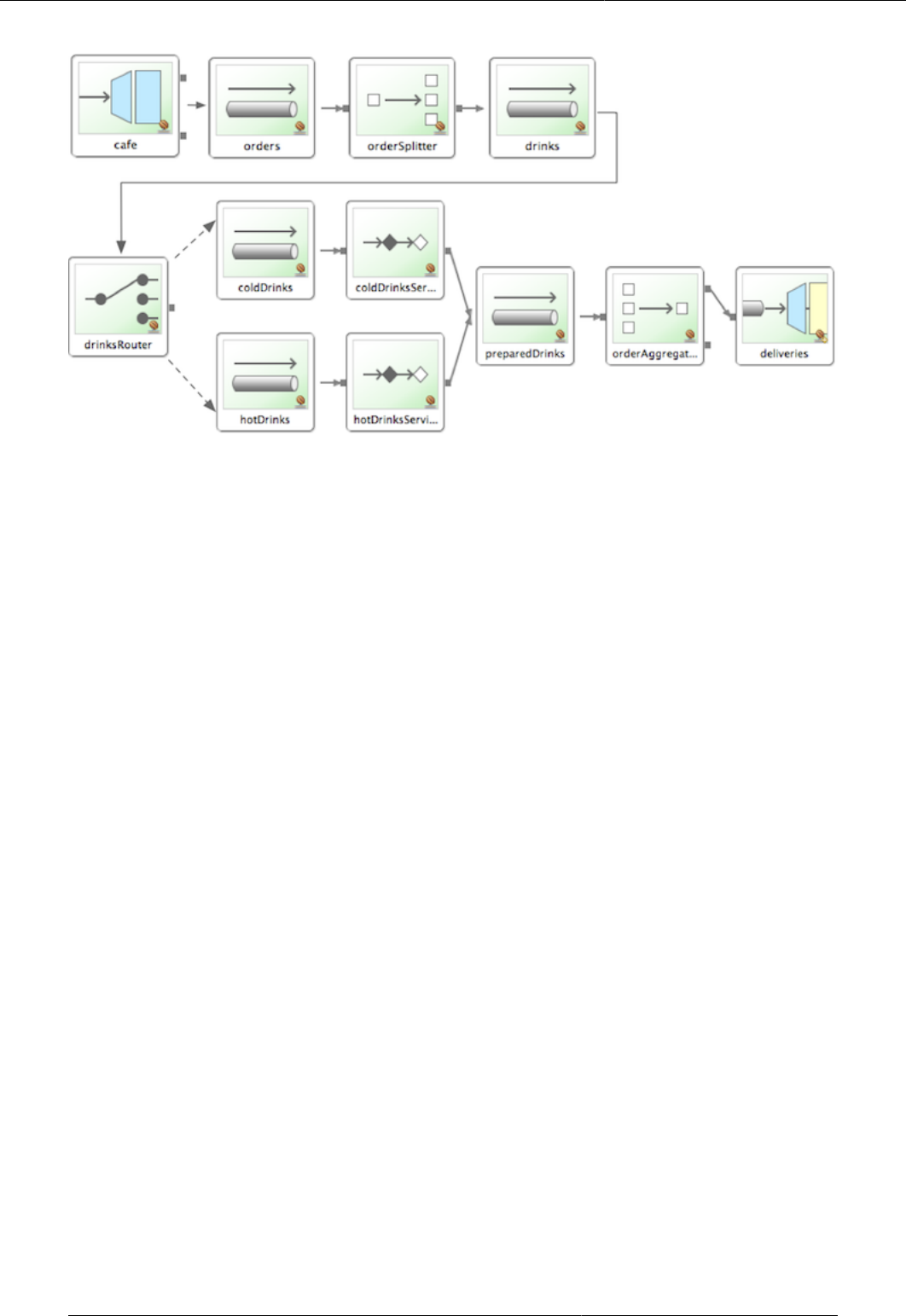

Figure G.6. Cafe Sample
The Order object may contain multiple OrderItems. Once the order is placed, a splitter breaks the
composite order message into a single message for each drink. Each of these is then processed by
a router that determines whether the drink is hot or cold (by checking the OrderItem object’s isIced
property). The Barista prepares each drink, but hot and cold drink preparation are handled by two
distinct methods: prepareHotDrink and prepareColdDrink. The prepared drinks are then sent to the
Waiter where they are aggregated into a Delivery object.
The following listing shows the XML configuration:
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 634
<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns:int="http://www.springframework.org/schema/integration"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:beans="http://www.springframework.org/schema/beans"
xmlns:int-stream="http://www.springframework.org/schema/integration/stream"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/integration
http://www.springframework.org/schema/integration/spring-integration.xsd
http://www.springframework.org/schema/integration/stream
http://www.springframework.org/schema/integration/stream/spring-integration-stream.xsd">
<int:gateway id="cafe" service-interface="o.s.i.samples.cafe.Cafe"/>
<int:channel id="orders"/>
<int:splitter input-channel="orders" ref="orderSplitter"
method="split" output-channel="drinks"/>
<int:channel id="drinks"/>
<int:router input-channel="drinks"
ref="drinkRouter" method="resolveOrderItemChannel"/>
<int:channel id="coldDrinks"><int:queue capacity="10"/></int:channel>
<int:service-activator input-channel="coldDrinks" ref="barista"
method="prepareColdDrink" output-channel="preparedDrinks"/>
<int:channel id="hotDrinks"><int:queue capacity="10"/></int:channel>
<int:service-activator input-channel="hotDrinks" ref="barista"
method="prepareHotDrink" output-channel="preparedDrinks"/>
<int:channel id="preparedDrinks"/>
<int:aggregator input-channel="preparedDrinks" ref="waiter"
method="prepareDelivery" output-channel="deliveries"/>
<int-stream:stdout-channel-adapter id="deliveries"/>
<beans:bean id="orderSplitter"
class="org.springframework.integration.samples.cafe.xml.OrderSplitter"/>
<beans:bean id="drinkRouter"
class="org.springframework.integration.samples.cafe.xml.DrinkRouter"/>
<beans:bean id="barista" class="o.s.i.samples.cafe.xml.Barista"/>
<beans:bean id="waiter" class="o.s.i.samples.cafe.xml.Waiter"/>
<int:poller id="poller" default="true" fixed-rate="1000"/>
</beans:beans>
Each message endpoint connects to input channels, output channels, or both. Each endpoint manages
its own lifecycle (by default, endpoints start automatically upon initialization, to prevent that, add the
auto-startup attribute with a value of false). Most importantly, notice that the objects are simple
POJOs with strongly typed method arguments. The following example shows the Splitter:
public class OrderSplitter {
public List<OrderItem> split(Order order) {
return order.getItems();
}
}
In the case of the router, the return value does not have to be a MessageChannel instance (although
it can be). In this example, a String value that holds the channel name is returned instead, as the
following listing shows.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 635
public class DrinkRouter {
public String resolveOrderItemChannel(OrderItem orderItem) {
return (orderItem.isIced()) ? "coldDrinks" : "hotDrinks";
}
}
Now, turning back to the XML, you can see that there are two <service-activator> elements. Each
of these is delegating to the same Barista instance but with different methods (prepareHotDrink
or prepareColdDrink), each corresponding to one of the two channels where order items have
been routed. The following listing shows the Barista class (which contains the prepareHotDrink and
prepareColdDrink methods)
public class Barista {
private long hotDrinkDelay = 5000;
private long coldDrinkDelay = 1000;
private AtomicInteger hotDrinkCounter = new AtomicInteger();
private AtomicInteger coldDrinkCounter = new AtomicInteger();
public void setHotDrinkDelay(long hotDrinkDelay) {
this.hotDrinkDelay = hotDrinkDelay;
}
public void setColdDrinkDelay(long coldDrinkDelay) {
this.coldDrinkDelay = coldDrinkDelay;
}
public Drink prepareHotDrink(OrderItem orderItem) {
try {
Thread.sleep(this.hotDrinkDelay);
System.out.println(Thread.currentThread().getName()
+ " prepared hot drink #" + hotDrinkCounter.incrementAndGet()
+ " for order #" + orderItem.getOrder().getNumber()
+ ": " + orderItem);
return new Drink(orderItem.getOrder().getNumber(), orderItem.getDrinkType(),
orderItem.isIced(), orderItem.getShots());
}
catch (InterruptedException e) {
Thread.currentThread().interrupt();
return null;
}
}
public Drink prepareColdDrink(OrderItem orderItem) {
try {
Thread.sleep(this.coldDrinkDelay);
System.out.println(Thread.currentThread().getName()
+ " prepared cold drink #" + coldDrinkCounter.incrementAndGet()
+ " for order #" + orderItem.getOrder().getNumber() + ": "
+ orderItem);
return new Drink(orderItem.getOrder().getNumber(), orderItem.getDrinkType(),
orderItem.isIced(), orderItem.getShots());
}
catch (InterruptedException e) {
Thread.currentThread().interrupt();
return null;
}
}
}
As you can see from the preceding code excerpt, the Barista methods have different delays (the hot
drinks take five times as long to prepare). This simulates work being completed at different rates. When
the CafeDemo main method runs, it loops 100 times and sends a single hot drink and a single cold drink
each time. It actually sends the messages by invoking the placeOrder method on the Cafe interface.
In the earlier XML configuration, you can see that the <gateway> element is specified. This triggers
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 636
the creation of a proxy that implements the given service interface and connects it to a channel. The
channel name is provided on the @Gateway annotation of the Cafe interface, as the following interface
definition shows:
public interface Cafe {
@Gateway(requestChannel="orders")
void placeOrder(Order order);
}
Finally, have a look at the main() method of the CafeDemo itself:
public static void main(String[] args) {
AbstractApplicationContext context = null;
if (args.length > 0) {
context = new FileSystemXmlApplicationContext(args);
}
else {
context = new ClassPathXmlApplicationContext("cafeDemo.xml", CafeDemo.class);
}
Cafe cafe = context.getBean("cafe", Cafe.class);
for (int i = 1; i <= 100; i++) {
Order order = new Order(i);
order.addItem(DrinkType.LATTE, 2, false);
order.addItem(DrinkType.MOCHA, 3, true);
cafe.placeOrder(order);
}
}
Tip
To run this sample as well as eight others, refer to the README.txt within the samples directory
of the main distribution (as described at the beginning of this chapter).
When you run cafeDemo, you can see that the cold drinks are initially prepared more quickly than
the hot drinks. Because there is an aggregator, the cold drinks are effectively limited by the rate of
the hot drink preparation. This is to be expected, based on their respective delays of 1000 and 5000
milliseconds. However, by configuring a poller with a concurrent task executor, you can dramatically
change the results. For example, you could use a thread pool executor with five workers for the hot drink
barista while keeping the cold drink barista as it is. The following listing configures such an arrangement:
<int:service-activator input-channel="hotDrinks"
ref="barista"
method="prepareHotDrink"
output-channel="preparedDrinks"/>
<int:service-activator input-channel="hotDrinks"
ref="barista"
method="prepareHotDrink"
output-channel="preparedDrinks">
<int:poller task-executor="pool" fixed-rate="1000"/>
</int:service-activator>
<task:executor id="pool" pool-size="5"/>
Also, notice that the worker thread name is displayed with each invocation. You can see that the hot
drinks are prepared by the task-executor threads. If you provide a much shorter poller interval (such
as 100 milliseconds), you can see that it occasionally throttles the input by forcing the task scheduler
(the caller) to invoke the operation.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 637
Note
In addition to experimenting with the poller’s concurrency settings, you can also add the
transactional child element and then refer to any PlatformTransactionManager instance
within the context.
The XML Messaging Sample
The XML messaging sample in basic/xml shows how to use some of the provided components that
deal with XML payloads. The sample uses the idea of processing an order for books represented as
XML.
Note
This sample shows that the namespace prefix can be whatever you want. While we usually
use, int-xml for integration XML components, the sample uses si-xml. (int is short for
"Integration", and si is short for "Spring Integration".)
First, the order is split into a number of messages, each one representing a single order item from the
XPath splitter component. The following listing shows the configuration of the splitter:
<si-xml:xpath-splitter id="orderItemSplitter" input-channel="ordersChannel"
output-channel="stockCheckerChannel" create-documents="true">
<si-xml:xpath-expression expression="/orderNs:order/orderNs:orderItem"
namespace-map="orderNamespaceMap" />
</si-xml:xpath-splitter>
A service activator then passes the message into a stock checker POJO. The order item document is
enriched with information from the stock checker about the order item stock level. This enriched order
item message is then used to route the message. In the case where the order item is in stock, the
message is routed to the warehouse. The following listing configures the xpath-router that routes
the messages:
<si-xml:xpath-router id="instockRouter" input-channel="orderRoutingChannel" resolution-required="true">
<si-xml:xpath-expression expression="/orderNs:orderItem/@in-stock" namespace-map="orderNamespaceMap"
/>
<si-xml:mapping value="true" channel="warehouseDispatchChannel"/>
<si-xml:mapping value="false" channel="outOfStockChannel"/>
</si-xml:xpath-router>
When the order item is not in stock, the message is transformed with XSLT into a format suitable for
sending to the supplier. The following listing configures the XSLT transformer:
<si-xml:xslt-transformer input-channel="outOfStockChannel"
output-channel="resupplyOrderChannel"
xsl-resource="classpath:org/springframework/integration/samples/xml/bigBooksSupplierTransformer.xsl"/>
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 638
Appendix H. Additional Resources
The definitive source of information about Spring Integration is the Spring Integration Home at http://
spring.io. That site serves as a hub of information and is the best place to find up-to-date announcements
about the project as well as links to articles, blogs, and new sample applications.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 639
Appendix I. Change History
I.1 Changes between 4.3 and 5.0
See the Migration Guide for important changes that might affect your applications. You can find migration
guides for all versions back to 2.1 on the wiki.
I.2 New Components
Version 5.0 added a number of new components.
Java DSL
The separate Spring Integration Java DSL project has now been merged into the core Spring Integration
project. The IntegrationComponentSpec implementations for channel adapters and gateways are
distributed to their specific modules. See Chapter 11, Java DSL for more information about Java DSL
support. See also the 4.3 to 5.0 Migration Guide for the required steps to move to Spring Integration 5.0.
Testing Support
We created a new Spring Integration Test Framework to help with testing Spring Integration applications.
Now, with the @SpringIntegrationTest annotation on test classes and the MockIntegration
factory, you can make your JUnit tests for integration flows somewhat easier.
See Appendix F, Testing support for more information.
MongoDB Outbound Gateway
The new MongoDbOutboundGateway lets you make queries to the database on demand by sending
a message to its request channel.
See Section 25.5, “MongoDB Outbound Gateway” for more information.
WebFlux Gateways and Channel Adapters
We introduced the new WebFlux support module for Spring WebFlux Framework gateways and channel
adapters.
See Chapter 35, WebFlux Support for more information.
Content Type Conversion
Now that we use the new InvocableHandlerMethod-based infrastructure for service method
invocations, we can perform contentType conversion from the payload to a target method argument.
See the section called “Content Type Conversion” for more information.
ErrorMessagePublisher and ErrorMessageStrategy
We added ErrorMessagePublisher and the ErrorMessageStrategy for creating
ErrorMessage instances.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 640
See Section E.3, “Error Handling” for more information.
JDBC Metadata Store
We added a JDBC implementation of the MetadataStore implementation. This is useful when you
need to ensure transactional boundaries for metadata.
See Section 21.7, “JDBC Metadata Store” for more information.
I.3 General Changes
Spring Integration is now fully based on Spring Framework 5.0 and Project Reactor 3.1. Previous
Project Reactor versions are no longer supported.
Core Changes
The @Poller annotation now has the errorChannel attribute for easier configuration of the underlying
MessagePublishingErrorHandler. See Section E.5, “Annotation Support” for more information.
All the request-reply endpoints (based on AbstractReplyProducingMessageHandler) can now
start transactions and, therefore, make the whole downstream flow transactional. See the section called
“Transaction Support” for more information.
The SmartLifecycleRoleController now provides methods to obtain status of endpoints in roles.
See Section 10.2, “Endpoint Roles” for more information.
By default, POJO methods are now invoked by using an InvocableHandlerMethod, but you
can configure them to use SpEL, as before. See Section 5.8, “POJO Method invocation” for more
information.
When targeting POJO methods as message handlers, you can now mark one of the service methods
with the @Default annotation to provide a fallback mechanism for non-matched conditions. See the
section called “Configuring Service Activator” for more information.
We added a simple PassThroughTransactionSynchronizationFactory to always store a
polled message in the current transaction context. That message is used as a failedMessage property
of the MessagingException, which wraps any raw exception thrown during transaction completion.
See Section C.3, “Transaction Synchronization” for more information.
The aggregator expression-based ReleaseStrategy now evaluates the expression against the
MessageGroup instead of just the collection of Message<?>. See the section called “Aggregators and
Spring Expression Language (SpEL)” for more information.
You can now supply the ObjectToMapTransformer with a customized JsonObjectMapper.
See the section called “Aggregators and Spring Expression Language (SpEL)” for more information.
The @GlobalChannelInterceptor annotation and <int:channel-interceptor> now support
negative patterns (via ! prepending) for component names matching. See the section called “Global
Channel Interceptor Configuration” for more information.
When a candidate failed to acquire the lock, the LockRegistryLeaderInitiator now
emits a new OnFailedToAcquireMutexEvent through DefaultLeaderEventPublisher. See
<<leadership-event-handling>> for more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 641
Gateway Changes
When the gateway method has a void return type and an error channel is provided, the gateway
now correctly sets the errorChannel header. Previously, the header was not populated. This
caused synchronous downstream flows (running on the calling thread) to send the exception to the
configured channel, but an exception on an asynchronous downstream flow would be sent to the default
errorChannel instead.
The RequestReplyExchanger interface now has a throws MessagingException clause to meet
the proposed messages exchange contract.
You can now specify the request and reply timeouts with SpEL expressions. See Section 10.4,
“Messaging Gateways” for more information.
Aggregator Performance Changes
By default, aggregators now use a SimpleSequenceSizeReleaseStrategy, which is more efficient,
especially with large groups. Empty groups are now scheduled for removal after empty-group-min-
timeout. See Section 8.4, “Aggregator” for more information.
Splitter Changes
The splitter component can now handle and split Java Stream and Reactive Streams
Publisher objects. If the output channel is a ReactiveStreamsSubscribableChannel, the
AbstractMessageSplitter builds a Flux for subsequent iteration instead of a regular Iterator,
independent of the object being split. In addition, AbstractMessageSplitter provides protected
obtainSizeIfPossible() methods to allow determination of the size of the Iterable and
Iterator objects, if that is possible. See Section 8.3, “Splitter” for more information.
JMS Changes
Previously, Spring Integration JMS XML configuration used a default bean name of
connectionFactory for the JMS connection factory, letting the property be omitted from component
definitions. We renamed it to jmsConnectionFactory, which is the bean name used by Spring Boot
to auto-configure the JMS connection factory bean.
If your application relies on the previous behavior, you can rename your connectionFactory bean
to jmsConnectionFactory or specifically configure your components to use your bean by using its
current name. See Chapter 23, JMS Support for more information.
Mail Changes
Some inconsistencies with rendering IMAP mail content have been resolved. See the note in the "Mail-
receiving Channel Adapter" section for more information.
Feed Changes
Instead of the com.rometools.fetcher.FeedFetcher, which is deprecated in ROME, we
introduced a new Resource property for the FeedEntryMessageSource. See Chapter 16, Feed
Adapter for more information.
File Changes
We introduced the new FileHeaders.RELATIVE_PATH message header to represent relative path
in FileReadingMessageSource.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 642
The tail adapter now supports idleEventInterval to emit events when there is no data in the file
during that period.
The flush predicates for the FileWritingMessageHandler now have an additional parameter.
The file outbound channel adapter and gateway (FileWritingMessageHandler) now support the
REPLACE_IF_MODIFIED FileExistsMode.
They also now support setting file permissions on the newly written file.
A new FileSystemMarkerFilePresentFileListFilter is now available. See the section called
“Dealing With Incomplete Data” for more information.
The FileSplitter now provides a firstLineAsHeader option to carry the first line of content as
a header in the messages emitted for the remaining lines.
See Chapter 17, File Support for more information.
FTP and SFTP Changes
The inbound channel adapters now have a property called max-fetch-size, which is used to limit the
number of files fetched during a poll when no files are currently in the local directory. By default, they
also are configured with a FileSystemPersistentAcceptOnceFileListFilter in the local-
filter.
You can also provide a custom DirectoryScanner implementation to inbound channel adapters by
setting the newly introduced scanner attribute.
You can now configure the regex and pattern filters to always pass directories. This can be useful when
you use recursion in the outbound gateways.
By default, all the inbound channel adapters (streaming and synchronization-based) now use
an appropriate AbstractPersistentAcceptOnceFileListFilter implementation to prevent
duplicate downloads of remote files.
The FTP and SFTP outbound gateways now support the REPLACE_IF_MODIFIED FileExistsMode
when fetching remote files.
The FTP and SFTP streaming inbound channel adapters now add remote file information in a message
header.
The FTP and SFTP outbound channel adapters (as well as the PUT command for outbound gateways)
now support InputStream as payload, too.
The inbound channel adapters can now build file trees locally by using a newly introduced
RecursiveDirectoryScanner. See the scanner option in the Section 18.4, “FTP Inbound Channel
Adapter” section for injection. Also, you can now switch these adapters to the WatchService instead.
We added The NLST command to the AbstractRemoteFileOutboundGateway to perform the list
files names remote command.
You can now supply the FtpOutboundGateway with workingDirExpression to change the FTP
client working directory for the current request message.
The RemoteFileTemplate is supplied now with the invoke(OperationsCallback<F, T>
action) to perform several RemoteFileOperations calls in the scope of the same, thread-bounded,
Session.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 643
We added new filters for detecting incomplete remote files.
The FtpOutboundGateway and SftpOutboundGateway now support an option to remove the
remote file after a successful transfer by using the GET or MGET commands.
See Chapter 18, FTP/FTPS Adapters and Chapter 30, SFTP Adapters for more information.
Integration Properties
Version 4.3.2 added a new spring.integration.readOnly.headers global property to let
you customize the list of headers that should not be copied to a newly created Message by the
MessageBuilder. See Section E.4, “Global Properties” for more information.
Stream Changes
We added a new option on the CharacterStreamReadingMessageSource to let it be used to
"pipe" stdin and publish an application event when the pipe is closed. See Section 32.1, “Reading from
Streams” for more information.
Barrier Changes
The BarrierMessageHandler now supports a discard channel to which late-arriving trigger
messages are sent. See Section 8.8, “Thread Barrier” for more information.
AMQP Changes
The AMQP outbound endpoints now support setting a delay expression when you use the RabbitMQ
Delayed Message Exchange plugin.
The inbound endpoints now support the Spring AMQP DirectMessageListenerContainer.
Pollable AMQP-backed channels now block the poller thread for the poller’s configured
receiveTimeout (default: one second).
Headers, such as contentType, that are added to message properties by the message converter are
now used in the final message. Previously, it depended on the converter type as to which headers and
message properties appeared in the final message. To override the headers set by the converter, set
the headersMappedLast property to true. See Chapter 14, AMQP Support for more information.
HTTP Changes
By default, the DefaultHttpHeaderMapper.userDefinedHeaderPrefix property is now an
empty string instead of X-. See Section 20.7, “HTTP Header Mappings” for more information.
By default, uriVariablesExpression now uses a SimpleEvaluationContext (since 5.0.4).
See the section called “Mapping URI Variables” for more information.
MQTT Changes
Inbound messages are now mapped with the RECEIVED_TOPIC, RECEIVED_QOS, and
RECEIVED_RETAINED headers to avoid inadvertent propagation to outbound messages when an
application relays messages.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 644
The outbound channel adapter now supports expressions for the topic, qos, and retained properties.
The defaults remain the same. See Chapter 26, MQTT Support for more information.
STOMP Changes
We changed the STOMP module to use ReactorNettyTcpStompClient, based on the Project
Reactor 3.1 and reactor-netty extension. We renamed Reactor2TcpStompSessionManager
to ReactorNettyTcpStompSessionManager, according to the ReactorNettyTcpStompClient
foundation. See Chapter 31, STOMP Support for more information.
Web Services Changes
You can now supply WebServiceOutboundGateway instances with an externally configured
WebServiceTemplate instances.
DefaultSoapHeaderMapper can now map a javax.xml.transform.Source user-defined
header to a SOAP header element.
Simple WebService inbound and outbound gateways can now deal with the complete
WebServiceMessage as a payload, allowing the manipulation of MTOM attachments.
See Chapter 37, Web Services Support for more information.
Redis Changes
The RedisStoreWritingMessageHandler is supplied now with additional String-based setters
for SpEL expressions (for convenience with Java configuration). You can now configure the
zsetIncrementExpression on the RedisStoreWritingMessageHandler as well. In addition,
this property has been changed from true to false since the INCR option on ZADD Redis command
is optional.
You can now supply the RedisInboundChannelAdapter with an Executor for
executing Redis listener invokers. In addition, the received messages now contain a
RedisHeaders.MESSAGE_SOURCE header to indicate the source of the message (topic or pattern).
See Chapter 27, Redis Support for more information.
TCP Changes
We added a new ThreadAffinityClientConnectionFactory to bind TCP connections to
threads.
You can now configure the TCP connection factories to support PushbackInputStream instances,
letting deserializers "unread" (push back) bytes after "reading ahead".
We added a ByteArrayElasticRawDeserializer without maxMessageSize to control and buffer
incoming data as needed.
See Chapter 34, TCP and UDP Support for more information.
Gemfire Changes
The GemfireMetadataStore now implements ListenableMetadataStore, letting you listen to
cache events by providing MetadataStoreListener instances to the store. See Chapter 19, Pivotal
GemFire and Apache Geode Support for more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 645
JDBC Changes
The JdbcMessageChannelStore now provides a setter for
ChannelMessageStorePreparedStatementSetter, letting you customize message insertion in
the store.
The ExpressionEvaluatingSqlParameterSourceFactory now provides a setter for
sqlParameterTypes, letting you customize the SQL types of the parameters.
See Chapter 21, JDBC Support for more information.
Metrics Changes
Micrometer application monitoring is now supported (since version 5.0.2). See the section called
“Micrometer Integration” for more information.
Important
Changes were made to the Micrometer Meters in version 5.0.3 to make them more suitable for
use in dimensional systems. Further changes were made in 5.0.4. If you usie Micrometer, we
recommend a minimum of version 5.0.4.
@EndpointId Annotations
Introduced in version 5.0.4, this annotation provides control over bean naming when you use Java
configuration. See the section called “Endpoint Bean Names” for more information.
I.4 Changes between 4.2 and 4.3
See the Migration Guide for important changes that might affect your applications. You can find migration
guides for all versions back to 2.1 on the Wiki.
I.5 New Components
Version 4.3 added a number of new components.
AMQP Async Outbound Gateway
See Section 14.7, “Asynchronous Outbound Gateway”.
MessageGroupFactory
We introduced the MessageGroupFactory strategy to allow control over MessageGroup instances
in MessageGroupStore logic. We added SimpleMessageGroupFactory implementation for the
SimpleMessageGroup, with the GroupType.HASH_SET as the default factory for the standard
MessageGroupStore implementations. See Section 12.4, “Message Store” for more information.
PersistentMessageGroup
We added the PersistentMessageGroup (lazy-load proxy) implementation for persistent
MessageGroupStore instances, which return this instance for the getMessageGroup() when
their lazyLoadMessageGroups is true (the default). See Section 12.4, “Message Store” for more
information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 646
FTP and SFTP Streaming Inbound Channel Adapters
We added inbound channel adapters that return an InputStream for each file, letting you retrieve
remote files without writing them to the local file system. See Section 18.5, “FTP Streaming Inbound
Channel Adapter” and Section 30.7, “SFTP Streaming Inbound Channel Adapter” for more information.
StreamTransformer
We added StreamTransformer to transform an InputStream payload to either a byte[] or a
String. See the section called “Stream Transformer” for more information.
Integration Graph
We added IntegrationGraphServer, together with the IntegrationGraphController REST
service, to expose the runtime model of a Spring Integration application as a graph. See Section 12.8,
“Integration Graph” for more information.
JDBC Lock Registry
We added JdbcLockRegistry for distributed locks shared through a database table. See
Section 21.6, “JDBC Lock Registry” for more information.
LeaderInitiator for LockRegistry
We added LeaderInitiator implementation based on the LockRegistry strategy. See
Section 10.3, “Leadership Event Handling” for more information.
I.6 General Changes
This section describes general changes that version 4.3 brought to Spring Integration.
Core Changes
This section describes general changes to the core of Spring Integration.
Outbound Gateway within a Chain
Previously, you could specify a reply-channel on an outbound gateway within a chain. It was
completely ignored. The gateway’s reply goes to the next chain element or, if the gateway is the last
element, to the chain’s output channel. This condition is now detected and disallowed. If you have such
a configuration, remove the reply-channel.
Asynchronous Service Activator
We added an option to make the service activator be synchronous. See the section called
“Asynchronous Service Activator” for more information.
Messaging Annotation Support changes
The messaging annotation support does not require a @MessageEndpoint (or any other
@Component) annotation declaration on the class level. To restore the previous behavior,
set the spring.integration.messagingAnnotations.require.componentAnnotation of
spring.integration.properties to true. See Section E.4, “Global Properties” and Section E.5,
“Annotation Support” for more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 647
Mail Changes
This section describes general changes to the Spring Integration Mail functionality.
Customizable User Flag
The customizable userFlag (added in 4.2.2 to provide customization of the flag used to denote that
the mail has been seen) is now available in the XML namespace. See Section 24.5, “Marking IMAP
Messages When \Recent Is Not Supported” for more information.
Mail Message Mapping
You can now map inbound mail messages with the MessageHeaders containing the mail headers and
the payload containing the email content. Previously, the payload was always the raw MimeMessage.
See Section 24.3, “Inbound Mail Message Mapping” for more information.
JMS Changes
This section describes general changes to the Spring Integration JMS functionality.
Header Mapper
The DefaultJmsHeaderMapper now maps the standard correlationId header as a message
property by invoking its toString() method. See Section 23.6, “Mapping Message Headers to and
from JMS Message” for more information.
Asynchronous Gateway
The JMS outbound gateway now has an async property. See the section called “Async Gateway” for
more information.
Aggregator Changes
There is a change in behavior when a POJO aggregator releases a collection of Message<?> objects.
This is rare, but, if your application does that, you need to make a small change to your POJO. See
this Important note for more information.
TCP/UDP Changes
This section describes general changes to the Spring Integration TCP/UDP functionality.
Events
A new TcpConnectionServerListeningEvent is emitted when a server connection factory is
started. See Section 34.5, “TCP Connection Events” for more information.
You can now use the destination-expression and socket-expression attributes on <int-
ip:udp-outbound-channel-adapter>. See Section 34.2, “UDP Adapters” for more information.
Stream Deserializers
The various deserializers that cannot allocate the final buffer until the whole message has been
assembled now support pooling the raw buffer into which the data is received rather than creating
and discarding a buffer for each message. See Section 34.3, “TCP Connection Factories” for more
information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 648
TCP Message Mapper
The message mapper now, optionally, sets a configured content type header. See Section 34.13, “IP
Message Headers” for more information.
File Changes
This section describes general changes to the Spring Integration File functionality.
Destination Directory Creation
The generated file name for the FileWritingMessageHandler can represent a sub-path to save
the desired directory structure for a file in the target directory. See the section called “Generating File
Names” for more information.
The FileReadingMessageSource now hides the WatchService directory scanning logic in the
inner class. We added the use-watch-service and watch-events options to enable this behavior.
We deprecated the top-level WatchServiceDirectoryScanner because of inconsistency around
the API. See the section called “WatchServiceDirectoryScanner” for more information.
Buffer Size
When writing files, you can now specify the buffer size.
Appending and Flushing
You can now avoid flushing files when appending and use a number of strategies to flush the data
during idle periods. See the section called “Flushing Files When Using APPEND_NO_FLUSH” for more
information.
Preserving Timestamps
You can now configure the outbound channel adapter to set the destination file’s lastmodified
timestamp. See the section called “File Timestamps” for more information.
Splitter Changes
The FileSplitter now automatically closes an FTP or SFTP session when the file is completely
read. This applies when the outbound gateway returns an InputStream or when you use the new
FTP or SFTP streaming channel adapters. We also introduced a new markers-json option to convert
FileSplitter.FileMarker to JSON String for relaxed downstream network interaction. See
Section 17.4, “File Splitter” for more information.
File Filters
We added ChainFileListFilter as an alternative to CompositeFileListFilter. See
Section 17.1, “Reading Files” for more information.
AMQP Changes
This section describes general changes to the Spring Integration AMQP functionality.
Content Type Message Converter
The outbound endpoints now support a RabbitTemplate configured with a
ContentTypeDelegatingMessageConverter such that you can choose the converter based on
the message content type. See Section 14.8, “Outbound Message Conversion” for more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 649
Headers for Delayed Message Handling
Spring AMQP 1.6 adds support for delayed message exchanges. Header mapping now supports the
headers (amqp_delay and amqp_receivedDelay) used by this feature.
AMQP-Backed Channels
AMQP-backed channels now support message mapping. See Section 14.11, “AMQP-backed Message
Channels” for more information.
Redis Changes
This section describes general changes to the Spring Integration Redis functionality.
List Push/Pop Direction
Previously, the queue channel adapters always used the Redis list in a fixed direction, pushing
to the left end and reading from the right end. You can now configure the reading and writing
direction with the rightPop and leftPush options for the RedisQueueMessageDrivenEndpoint
and RedisQueueOutboundChannelAdapter, respectively. See the section called “Redis Queue
Inbound Channel Adapter” and the section called “Redis Queue Outbound Channel Adapter” for more
information.
Queue Inbound Gateway Default Serializer
The default serializer in the inbound gateway has been changed to a
JdkSerializationRedisSerializer for compatibility with the outbound gateway. See
Section 27.9, “Redis Queue Inbound Gateway” for more information.
HTTP Changes
Previously, with requests that had a body (such as POST) that had no content-type header, the body
was ignored. With this release, the content type of such requests is considered to be application/
octet-stream as recommended by RFC 2616. See Section 20.1, “Http Inbound Components” for
more information.
uriVariablesExpression now uses a SimpleEvaluationContext by default (since 4.3.15). See
the section called “Mapping URI Variables” for more information.
SFTP Changes
This section describes general changes to the Spring Integration SFTP functionality.
Factory Bean
We added a new factory bean to simplify the configuration of Jsch proxies for SFTP. See Section 30.2,
“Proxy Factory Bean” for more information.
chmod Changes
The SFTP outbound gateway (for put and mput commands) and the SFTP outbound channel adapter
now support the chmod attribute to change the remote file permissions after uploading. See <<sftp-
outbound>> and <<sftp-outbound-gateway>> for more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 650
FTP Changes
This section describes general changes to the Spring Integration FTP functionality.
Session Changes
The FtpSession now supports null for the list() and listNames() methods, since underlying
FTP Client can use it. With that, you can now configure the FtpOutboundGateway without
the remoteDirectory expression. You can also configure the <int-ftp:inbound-channel-
adapter> without remote-directory or remote-directory-expression. See Chapter 18,
FTP/FTPS Adapters for more information.
Router Changes
The ErrorMessageExceptionTypeRouter now supports the Exception superclass mappings
to avoid duplication for the same channel in case of multiple inheritors. For this purpose, the
ErrorMessageExceptionTypeRouter loads mapping classes during initialization to fail-fast for a
ClassNotFoundException.
See Section 8.1, “Routers” for more information.
Header Mapping
This section describes the changes to header mapping between version 4.2 and 4.3.
General
AMQP, WS, and XMPP header mappings (such as request-header-mapping and reply-header-
mapping) now support negated patterns. See Section 14.12, “AMQP Message Headers”, Section 37.5,
“WS Message Headers”, and Section 39.5, “XMPP Message Headers” for more information.
AMQP Header Mapping
Previously, only standard AMQP headers were mapped by default. You had to explicitly enable mapping
of user-defined headers. With this release, all headers are mapped by default. In addition, the inbound
amqp_deliveryMode header is no longer mapped by default. See Section 14.12, “AMQP Message
Headers” for more information.
Groovy Scripts
You can now configure groovy scripts with the compile-static hint or any other
CompilerConfiguration options. See the section called “Groovy Configuration” for more
information.
@InboundChannelAdapter Changes
The @InboundChannelAdapter now has an alias channel attribute for the regular value. In
addition, the target SourcePollingChannelAdapter components can now resolve the target
outputChannel bean from its provided name (outputChannelName options) in a late-binding
manner. See Section E.5, “Annotation Support” for more information.
XMPP Changes
The XMPP channel adapters now support the XMPP Extensions (XEP). See Section 39.6, “XMPP
Extensions” for more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 651
WireTap Late Binding
The WireTap ChannelInterceptor now can accept a channelName that is resolved to the target
MessageChannel later, during the first active interceptor operation. See the section called “Wire Tap”
for more information.
ChannelMessageStoreQueryProvider Changes
The ChannelMessageStoreQueryProvider now supports H2 databases. See the section called
“Backing Message Channels” for more information.
WebSocket Changes
The ServerWebSocketContainer now exposes an allowedOrigins option, and
SockJsServiceOptions exposes a suppressCors option. See Chapter 36, WebSockets Support
for more information.
I.7 Changes between 4.1 and 4.2
See the Migration Guide for important changes that might affect your applications. You can find migration
guides for all versions back to 2.1 on the wiki.
I.8 New Components
Version 4.2 added a number of new components.
Major Management/JMX Rework
We added a new MetricsFactory strategy interface. This change, together with other changes in
the JMX and management infrastructure, provides much more control over management configuration
and runtime performance.
However, this has some important implications for (some) user environments.
For complete details, see Section 12.1, “Metrics and Management” and the section called “JMX
Improvements”.
MongoDB Metadata Store
The MongoDbMetadataStore is now available. For more information, see the section called
“MongoDB Metadata Store”.
SecuredChannel Annotation
We introduced the @SecuredChannel annotation, replacing the deprecated
ChannelSecurityInterceptorFactoryBean. For more information, see Appendix D, Security in
Spring Integration.
SecurityContext Propagation
We introduced the SecurityContextPropagationChannelInterceptor for the
SecurityContext propagation from one message flow’s thread to another. For more information, see
Appendix D, Security in Spring Integration.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 652
FileSplitter
In 4.1.2, we added FileSplitter, which splits text files into lines. It now has full support in the int-
file: namespace. See Section 17.4, “File Splitter” for more information.
Zookeeper Support
We added Zookeeper support to the framework to assist when running on a clustered or multi-host
environment. The change impacts the following features:
•ZookeeperMetadataStore
•ZookeeperLockRegistry
• Zookeeper Leadership
See Chapter 40, Zookeeper Support for more information.
Thread Barrier
A new thread <int:barrier/> component is available, letting a thread be suspended until some
asynchronous event occurs. See Section 8.8, “Thread Barrier” for more information.
STOMP Support
We added STOMP support to the framework as an inbound and outbound channel adapters pair. See
Chapter 31, STOMP Support for more information.
Codec
A new Codec abstraction has been introduced, to encode and decode objects to and from byte[].
We added an implementation that uses Kryo. We also added codec-based transformers and message
converters. See Section 9.4, “Codec” for more information.
Message PreparedStatement Setter
A new MessagePreparedStatementSetter functional interface callback is available for
the JdbcMessageHandler (<int-jdbc:outbound-gateway> and <int-jdbc:outbound-
channel-adapter>) as an alternative to using SqlParameterSourceFactory to populate
parameters on the PreparedStatement with the requestMessage context. See Section 21.2,
“Outbound Channel Adapter” for more information.
I.9 General Changes
This section describes general changes from version 4.1 to version 4.2.
WireTap
As an alternative to the existing selector attribute, the <wire-tap/> element now supports the
selector-expression attribute.
File Changes
See Chapter 17, File Support for more information about these changes.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 653
Appending New Lines
The <int-file:outbound-channel-adapter> and <int-file:outbound-gateway> now
support an append-new-line attribute. If set to true, a new line is appended to the file after a
message is written. The default attribute value is false.
Ignoring Hidden Files
We added the ignore-hidden attribute for the <int-file:inbound-channel-adapter> to let
you set whether to pick up hidden files from the source directory. It defaults to true.
Writing InputStream Payloads
The FileWritingMessageHandler now also accepts InputStream as a valid message payload
type.
HeadDirectoryScanner
You can now use the HeadDirectoryScanner with other FileListFilter implementations.
Last Modified Filter
We added the LastModifiedFileListFilter.
Watch Service Directory Scanner
We added the WatchServiceDirectoryScanner.
Persistent File List Filter Changes
The AbstractPersistentFileListFilter has a new property (flushOnUpdate) which, when
set to true, calls flush() on the metadata store if it implements Flushable (for example,
PropertiesPersistingMetadataStore).
Class Package Change
We moved the ScatterGatherHandler class from the
org.springframework.integration.handler to the
org.springframework.integration.scattergather.
TCP Changes
This section describes general changes to the Spring Integration TCP functionality.
TCP Serializers
The TCP Serializers no longer flush() the OutputStream. This is now done by the
TcpNxxConnection classes. If you use the serializers directly within your code, you may have to
flush() the OutputStream.
Server Socket Exceptions
TcpConnectionServerExceptionEvent instances are now published whenever an unexpected
exception occurs on a TCP server socket (also added to 4.1.3 and 4.0.7). See Section 34.5, “TCP
Connection Events” for more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 654
TCP Server Port
If you configure a TCP server socket factory to listen on a random port, you can now obtain the actual
port chosen by the OS by using getPort(). getServerSocketAddress() is also available.
See "Section 34.3, “TCP Connection Factories”" for more information.
TCP Gateway Remote Timeout
The TcpOutboundGateway now supports remote-timeout-expression as an alternative to the
existing remote-timeout attribute. This allows setting the timeout based on each message.
Also, the remote-timeout no longer defaults to the same value as reply-timeout, which has a
completely different meaning.
See Table 34.7, “TCP Outbound Gateway Attributes” for more information.
TCP SSLSession Available for Header Mapping
TcpConnection implementations now support getSslSession() to let you extract information from
the session to add to message headers. See Section 34.13, “IP Message Headers” for more information.
TCP Events
New events are now published whenever a correlation exception occurs — such as sending a message
to a non-existent socket.
The TcpConnectionEventListeningMessageProducer is deprecated. Use the generic event
adapter instead.
See Section 34.5, “TCP Connection Events” for more information.
@InboundChannelAdapter Changes
Previously, the @Poller on an inbound channel adapter defaulted the maxMessagesPerPoll attribute
to -1 (infinity). This was inconsistent with the XML configuration of <inbound-channel-adapter/>,
which defaults to 1. The annotation now defaults this attribute to 1.
API Changes
o.s.integration.util.FunctionIterator now requires a
o.s.integration.util.Function instead of a reactor.function.Function. This was done
to remove an unnecessary hard dependency on Reactor. Any uses of this iterator need to change the
import.
Reactor is still supported for functionality such as the Promise gateway. The dependency was removed
for those users who do not need it.
JMS Changes
This section describes general changes to the Spring Integration TCP functionality.
Reply Listener Lazy Initialization
You can now configure the reply listener in JMS outbound gateways to be initialized on-demand and
stopped after an idle period, instead of being controlled by the gateway’s lifecycle. See Section 23.5,
“Outbound Gateway” for more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 655
Conversion Errors in Message-Driven Endpoints
The error-channel is now used for the conversion errors. In previous versions, they caused
transaction rollback and message redelivery.
See Section 23.2, “Message-driven Channel Adapter” and Section 23.4, “Inbound Gateway” for more
information.
Default Acknowledge Mode
When using an implicitly defined DefaultMessageListenerContainer, the default acknowledge
is now transacted. We recommend using transacted when using this container, to avoid message
loss. This default now applies to the message-driven inbound adapter and the inbound gateway. It was
already the default for JMS-backed channels.
See Section 23.2, “Message-driven Channel Adapter” and Section 23.4, “Inbound Gateway” for more
information.
Shared Subscriptions
We added Namespace support for shared subscriptions (JMS 2.0) to message-driven endpoints and
the <int-jms:publish-subscribe-channel>. Previously, you had to wire up listener containers
as <bean/> declarations to use shared connections.
See Chapter 23, JMS Support for more information.
Conditional Pollers
We now provide much more flexibility for dynamic polling.
See the section called “Conditional Pollers for Message Sources” for more information.
AMQP Changes
This section describes general changes to the Spring Integration AMQP functionality.
Publisher Confirmations
The <int-amqp:outbound-gateway> now supports confirm-correlation-expression,
confirm-ack-channel, and confirm-nack-channel attributes (which have a purpose similar to
that of <int-amqp:outbound-channel-adapter>).
Correlation Data
For both the outbound channel adapter and the inbound gateway, if the correlation data is a Message<?
>, it becomes the basis of the message on the ack or nack channel, with the additional header(s) added.
Previously, any correlation data (including Message<?>) was returned as the payload of the ack or
nack message.
Inbound Gateway Properties
The <int-amqp:inbound-gateway> now exposes the amqp-template attribute to allow more
control over an external bean for the reply RabbitTemplate. You can also provide your own
AmqpTemplate implementation. In addition, you can use default-reply-to if the request message
does not have a replyTo property.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 656
See Chapter 14, AMQP Support for more information.
XPath Splitter Improvements
The XPathMessageSplitter (<int-xml:xpath-splitter>) now allows the configuration of
output-properties for the internal javax.xml.transform.Transformer and supports an
Iterator mode (defaults to true) for the XPath evaluation org.w3c.dom.NodeList result.
See Section 38.4, “Splitting XML Messages” for more information.
HTTP Changes
This section describes general changes to the Spring Integration HTTP functionality.
CORS
The HTTP inbound endpoints (<int-http:inbound-channel-adapter> and <int-
http:inbound-gateway>) now allow the configuration of Cross-origin Resource Sharing (CORS).
See the section called “Cross-origin Resource Sharing (CORS) Support” for more information.
Inbound Gateway Timeout
You can configure the HTTP inbound gate way to return a status code that you specify when a request
times out. The default is now 500 Internal Server Error instead of 200 OK.
See the section called “Response Status Code” for more information.
Form Data
We added documentation for proxying multipart/form-data requests. See Chapter 20, HTTP
Support for more information.
Gateway Changes
This section describes general changes to the Spring Integration Gateway functionality.
Gateway Methods can Return CompletableFuture<?>
When using Java 8, gateway methods can now return CompletableFuture<?>. See the section
called “CompletableFuture” for more information.
MessagingGateway Annotation
The request and reply timeout properties are now String instead of Long to allow configuration with
property placeholders or SpEL. See the section called “@MessagingGateway Annotation”.
Aggregator Changes
This section describes general changes to the Spring Integration aggregator functionality.
Aggregator Performance
This release includes some performance improvements for aggregating components (aggregator,
resequencer, and others), by more efficiently removing messages from groups when they are released.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 657
New methods (removeMessagesFromGroup) have been added to the message store. Set the
removeBatchSize property (default: 100) to adjust the number of messages deleted in each
operation. Currently, the JDBC, Redis, and MongoDB message stores support this property.
Output Message Group Processor
When using a ref or inner bean for the aggregator, you can now directly bind a
MessageGroupProcessor. In addition, we added a SimpleMessageGroupProcessor that
returns the collection of messages in the group. When an output processor produces a
collection of Message<?>, the aggregator releases those messages individually. Configuring the
SimpleMessageGroupProcessor makes the aggregator a message barrier, where messages are
held up until they all arrive and are then released individually. See Section 8.4, “Aggregator” for more
information.
FTP and SFTP Changes
This section describes general changes to the Spring Integration FTP and SFTP functionality.
Inbound Channel Adapters
You can now specify a remote-directory-expression on the inbound channel adapters, to
determine the directory at runtime. See Chapter 18, FTP/FTPS Adapters and Chapter 30, SFTP
Adapters for more information.
Gateway Partial Results
When you use FTP or SFTP outbound gateways to operate on multiple files (with mget and
mput), an exception can occur after part of the request is completed. If such a condition occurs,
a PartialSuccessException that contains the partial results is thrown. See Section 18.9, “FTP
Outbound Gateway” and Section 30.11, “SFTP Outbound Gateway” for more information.
Delegating Session Factory
We added a delegating session factory, enabling the selection of a particular session factory based on
some thread context value.
See Section 18.3, “Delegating Session Factory” and Section 30.3, “Delegating Session Factory” for
more information.
Default Sftp Session Factory
Previously, the DefaultSftpSessionFactory unconditionally allowed connections to unknown
hosts. This is now configurable (default: false).
The factory now requires a configured knownHosts, file unless the allowUnknownKeys property is
true (default: false).
See the section called “Configuration Properties” for more information.
Message Session Callback
We introduced the MessageSessionCallback<F, T> to perform any custom Session operations
with the requestMessage context in the <int-(s)ftp:outbound-gateway/>.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 658
See Section 18.12, “Using MessageSessionCallback” and Section 30.13,
“MessageSessionCallback” for more information.
Websocket Changes
We added WebSocketHandlerDecoratorFactory support to the ServerWebSocketContainer
to allow chained customization for the internal WebSocketHandler. See Section 36.4, “WebSockets
Namespace Support” for more information.
Application Event Adapters changes
The ApplicationEvent adapters can now operate with payload as an event to directly allow
omitting custom ApplicationEvent extensions. For this purpose, we introduced the publish-
payload boolean attribute has been introduced on the <int-event:outbound-channel-
adapter>. See Chapter 15, Spring ApplicationEvent Support for more information.
I.10 Changes between 4.0 and 4.1
See the Migration Guide for important changes that might affect your applications. You can find migration
guides for all versions back to 2.1 on the wiki.
New Components
Version 4.1 added a number of new components.
Promise<?> Gateway
The messaging gateway methods now support a Reactor Promise return type. See the section called
“Asynchronous Gateway”.
WebSocket support
The WebSocket module is now available. It is fully based on the Spring WebSocket and
Spring Messaging modules and provides an <inbound-channel-adapter> and an <outbound-
channel-adapter>. See Chapter 36, WebSockets Support for more information.
Scatter-Gather Enterprise Integration Pattern
We implemented the scatter-gather enterprise integration pattern. See Section 8.7, “Scatter-Gather” for
more information.
Routing Slip Pattern
We added the routing slip EIP pattern implementation. See the section called “Routing Slip” for more
information.
Idempotent Receiver Pattern
We added the idempotent receiver enterprise integration pattern implementation by adding the
<idempotent-receiver> component in XML or the IdempotentReceiverInterceptor and
IdempotentReceiver annotations for Java configuration. See the section called “Idempotent
Receiver Enterprise Integration Pattern” and the Javadoc for more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 659
Boon JsonObjectMapper
We added the Boon JsonObjectMapper for the JSON transformers. See Section 9.1, “Transformer”
for more information.
Redis Queue Gateways
We added the <redis-queue-inbound-gateway> and <redis-queue-outbound-gateway>
components. See Section 27.9, “Redis Queue Inbound Gateway” and Section 27.8, “Redis Queue
Outbound Gateway”.
PollSkipAdvice
We added the PollSkipAdvice, which you can use within the <advice-chain> of the <poller>
to determine if the current poll should be suppressed (skipped) by some condition that you implement
with PollSkipStrategy. See Section 6.2, “Poller” for more information.
General Changes
This section describes general changes from version 4.0 to version 4.1.
AMQP Inbound Endpoints, Channel
Elements that use a message listener container (inbound endpoints and channel) now support the
missing-queues-fatal attribute. See Chapter 14, AMQP Support for more information.
AMQP Outbound Endpoints
The AMQP outbound endpoints support a new property called lazy-connect (default: true). When
true, the connection to the broker is not established until the first message arrives (assuming there
are no inbound endpoints, which always try to establish the connection during startup). When set to
false, an attempt to establish the connection is made during application startup. See Chapter 14,
AMQP Support for more information.
SimpleMessageStore
The SimpleMessageStore no longer makes a copy of the group when calling getMessageGroup().
See Caution about SimpleMessageStore for more information.
Web Service Outbound Gateway: encode-uri
The <ws:outbound-gateway/> now provides an encode-uri attribute to allow disabling the
encoding of the URI object before sending the request.
Http Inbound Channel Adapter and Status Code
The <http:inbound-channel-adapter> can now be configured with a status-code-
expression to override the default 200 OK status. See Section 20.3, “HTTP Namespace Support”
for more information.
MQTT Adapter Changes
You can now configure the MQTT channel adapters to connect to multiple servers — for example, to
support High Availability (HA). See Chapter 26, MQTT Support for more information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 660
The MQTT message-driven channel adapter now supports specifying the QoS setting for each
subscription. See Section 26.1, “Inbound (Message-driven) Channel Adapter” for more information.
The MQTT outbound channel adapter now supports asynchronous sends, avoiding blocking until
delivery is confirmed. See Section 26.2, “Outbound Channel Adapter” for more information.
It is now possible to programmatically subscribe to and unsubscribe from topics at runtime. See
Section 26.1, “Inbound (Message-driven) Channel Adapter” for more information.
FTP and SFTP Adapter Changes
The FTP and SFTP outbound channel adapters now support appending to remote files and taking
specific actions when a remote file already exists. The remote file templates now also supports this, as
well as rmdir() and exists(). In addition, the remote file templates provide access to the underlying
client object, enabling access to low-level APIs.
See Chapter 18, FTP/FTPS Adapters and Chapter 30, SFTP Adapters for more information.
Splitter and Iterator
Splitter components now support an Iterator as the result object for producing output messages.
See Section 8.3, “Splitter” for more information.
Aggregator
Aggregator instancess now support a new attribute expire-groups-upon-timeout. See
Section 8.4, “Aggregator” for more information.
Content Enricher Improvements
We added a null-result-expression attribute, which is evaluated and returned if <enricher>
returns null. You can add it in <header> and <property>. See Section 9.2, “Content Enricher” for
more information.
We added an error-channel attribute, which is used to handle an error flow if an Exception occurs
downstream of the request-channel. This lets you return an alternative object to use for enrichment.
See Section 9.2, “Content Enricher” for more information.
Header Channel Registry
The <header-enricher/> element’s <header-channels-to-string/> child element can now
override the header channel registry’s default time for retaining channel mappings. See the section
called “Header Channel Registry” for more information.
Orderly Shutdown
We made improvements to the orderly shutdown algorithm. See Section 12.7, “Orderly Shutdown” for
more information.
Management for RecipientListRouter
The RecipientListRouter now provides several management operations to configure recipients
at runtime. With that, you can now configure the <recipient-list-router> without any
<recipient> from the start. See the section called “RecipientListRouterManagement” for more
information.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 661
AbstractHeaderMapper: NON_STANDARD_HEADERS token
The AbstractHeaderMapper implementation now provides the additional NON_STANDARD_HEADERS
token to map any user-defined headers, which are not mapped by default. See Section 14.12, “AMQP
Message Headers” for more information.
AMQP Channels: template-channel-transacted
We introduced the template-channel-transacted attribute for AMQP MessageChannel
instances. See Section 14.11, “AMQP-backed Message Channels” for more information.
Syslog Adapter
The default syslog message converter now has an option to retain the original message in the payload
while still setting the headers. See Section 33.1, “Syslog Inbound Channel Adapter” for more information.
Asynchronous Gateway
In addition to the Promise return type mentioned earlier, gateway methods may now return a
ListenableFuture, introduced in Spring Framework 4.0. You can also disable asynchronous
processing in the gateway, letting a downstream flow directly return a Future. See the section called
“Asynchronous Gateway”.
Aggregator Advice Chain
Aggregator and Resequencer now support <expire-advice-chain/> and <expire-
transactional/> child elements to advise the forceComplete operation. See ??? for more
information.
Outbound Channel Adapter and Scripts
The <int:outbound-channel-adapter/> now supports the <script/> child element. The
underlying script must have a void return type or return null. See Section 10.8, “Groovy support” and
Section 10.7, “Scripting Support”.
Resequencer Changes
When a message group in a resequencer times out (using group-timeout or a
MessageGroupStoreReaper), late arriving messages are now, by default, discarded immediately.
See Section 8.5, “Resequencer”.
Optional POJO method parameter
Spring Integration now consistently handles the Java 8’s Optional type. See the section called
“Configuring Service Activator”.
QueueChannel backed Queue type
The QueueChannel backed Queue type has been changed from BlockingQueue to the more
generic Queue. This change allows the use of any external Queue implementation (for example,
Reactor’s PersistentQueue). See the section called “QueueChannel Configuration”.
ChannelInterceptor Changes
The ChannelInterceptor now supports additional afterSendCompletion() and
afterReceiveCompletion() methods. See the section called “Channel Interceptors”.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 662
IMAP PEEK
Since version 4.1.1 there is a change of behavior if you explicitly set the mail.[protocol].peek
JavaMail property to false (where [protocol] is imap or imaps). See Important: IMAP PEEK.
I.11 Changes between 3.0 and 4.0
See the Migration Guide for important changes that might affect your applications. You can find migration
guides for all versions back to 2.1 on the wiki.
New Components
Version 4.0 added a number of new components.
MQTT Channel Adapters
The MQTT channel adapters (previously available in the Spring Integration Extensions repository) are
now available as part of the normal Spring Integration distribution. See Chapter 26, MQTT Support.
@EnableIntegration
We added the @EnableIntegration annotation to permit declaration of standard Spring Integration
beans when using @Configuration classes. See Section E.5, “Annotation Support” for more
information.
@IntegrationComponentScan
We added the @IntegrationComponentScan annotation to permit classpath scanning for Spring
Integration-specific components. See Section E.5, “Annotation Support” for more information.
"@EnableMessageHistory"
You can now enable message history with the @EnableMessageHistory annotation in a
@Configuration class. In addition, a JMX MBean can modify the message history settings. Also,
MessageHistory can track auto-created MessageHandler instances for annotated endpoints (such
as @ServiceActivator, @Splitter, and others). For more information, see Section 12.3, “Message
History”.
@MessagingGateway
You can now configure messaging gateway interfaces with the @MessagingGateway annotation. It
is an analogue of the <int:gateway/> XML element. For more information, see the section called
“@MessagingGateway Annotation”.
Spring Boot @EnableAutoConfiguration
As well as the @EnableIntegration annotation mentioned earlier, we introduced a hook
to allow the Spring Integration infrastructure beans to be configured with Spring Boot’s
@EnableAutoConfiguration annotation. For more information, see "Auto-configuration" in
the Spring Boot Reference Guide.
@GlobalChannelInterceptor
As well as the @EnableIntegration annotation mentioned above, we introduced the
@GlobalChannelInterceptor annotation. For more information, see Section E.5, “Annotation
Support”.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 663
@IntegrationConverter
We introduced the @IntegrationConverter annotation as an analogue of the <int:converter/
> component. For more information, see Section E.5, “Annotation Support”.
@EnablePublisher
We added the @EnablePublisher annotation to allow the specification of a default-publisher-
channel for @Publisher annotations. See Section E.5, “Annotation Support” for more information.
Redis Channel Message Stores
We added a Redis MessageGroupStore that is optimized for use when backing a QueueChannel for
persistence. For more information, see the section called “Redis Channel Message Stores”.
We added a Redis ChannelPriorityMessageStore. You can use it to retrieve messages by priority.
For more information, see the section called “Redis Channel Message Stores”.
MongodDB Channel Message Store
The MongoDB support now provides the MongoDbChannelMessageStore, which is a channel-
specific MessageStore implementation. With priorityEnabled = true, you can use it in
<int:priority-queue> elements to achieve priority order polling of persisted messages. For more
information see the section called “MongoDB Channel Message Store”.
@EnableIntegrationMBeanExport
You can now enable the IntegrationMBeanExporter with the
@EnableIntegrationMBeanExport annotation in a @Configuration class. For more information,
see the section called “MBean Exporter”.
ChannelSecurityInterceptorFactoryBean
ChannelSecurityInterceptorFactoryBean now supports configuration of Spring Security for
message channels that use @Configuration classes. For more information, see Appendix D, Security
in Spring Integration.
Redis Command Gateway
The Redis support now provides the <outbound-gateway> component to perform generic
Redis commands by using the RedisConnection#execute method. For more information, see
Section 27.7, “Redis Outbound Command Gateway”.
RedisLockRegistry and GemfireLockRegistry
The RedisLockRegistry and GemfireLockRegistry are now available to support global locks
visible to multiple application instances and servers. These can be used with aggregating message
handlers across multiple application instances such that group release occurs on only one instance.
For more information, see Section 27.10, “Redis Lock Registry”, Section 19.5, “Gemfire Lock Registry”,
and Section 8.4, “Aggregator”.
@Poller
Annotation-based messaging configuration can now have a poller attribute. This means that methods
annotated with @ServiceActivator, @Aggregator, and similar annotations can now use an
inputChannel that is a reference to a PollableChannel. For more information, see Section E.5,
“Annotation Support”.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 664
@InboundChannelAdapter and SmartLifecycle for Annotated Endpoints
We added the @InboundChannelAdapter method annotation. It is an analogue of the
<int:inbound-channel-adapter> XML component. In addition, all messaging annotations now
provide SmartLifecycle options. For more information, see Section E.5, “Annotation Support”.
Twitter Search Outbound Gateway
We added a new twitter endpoint: <int-twitter-search-outbound-gateway/>. Unlike the
search inbound adapter, which polls by using the same search query each time, the outbound gateway
allows on-demand customized queries. For more information, see Spring Integration Social Twitter.
Gemfire Metadata Store
We added the GemfireMetadataStore, letting it be used, for example, in an
AbstractPersistentAcceptOnceFileListFilter implementation in a multiple application
instance or server environment. For more information, see Section 12.5, “Metadata Store”, Section 17.1,
“Reading Files”, Section 18.4, “FTP Inbound Channel Adapter”, and Section 30.6, “SFTP Inbound
Channel Adapter”.
@BridgeFrom and @BridgeTo Annotations
We introduced @BridgeFrom and @BridgeTo @Bean method annotations to mark MessageChannel
beans in @Configuration classes. For more information, see Section E.5, “Annotation Support”.
Meta-messaging Annotations
Messaging annotations (@ServiceActivator, @Router, @MessagingGateway, and others) can
now be configured as meta-annotations for user-defined messaging annotations. In addition, the user-
defined annotations can have the same attributes (inputChannel, @Poller, autoStartup, and
others). For more information, see Section E.5, “Annotation Support”.
General Changes
This section describes general changes from version 3.0 to version 4.0.
Requires Spring Framework 4.0
We moved the core messaging abstractions (Message, MessageChannel, and others) to the Spring
Framework spring-messaging module. Developers who reference these classes directly in their
code need to make changes, as described in the first section of the 3.0 to 4.0 Migration Guide.
Header Type for XPath Header Enricher
We introduced the header-type attribute for the header child element of the <int-xml:xpath-
header-enricher>. This attribute provides the target type for the header value (to which the result of
the XPath expression evaluation is converted). For more information see Section 38.6, “XPath Header
Enricher”.
Object To JSON Transformer: Node Result
We introduced the result-type attribute for the <int:object-to-json-transformer>. This
attribute provides the target type for the result of mapping an object to JSON. It supports STRING (the
default) and NODE. For more information see the section called “JSON Transformers”.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 665
JMS Header Mapping
The DefaultJmsHeaderMapper now maps an incoming JMSPriority header to the Spring
Integration priority header. Previously, priority was only considered for outbound messages. For
more information, see Section 23.6, “Mapping Message Headers to and from JMS Message”.
JMS Outbound Channel Adapter
The JMS outbound channel adapter now supports the session-transacted attribute (default:
false). Previously, you had to inject a customized JmsTemplate to use transactions. See
Section 23.3, “Outbound Channel Adapter”.
JMS Inbound Channel Adapter
The JMS inbound channel adapter now supports the session-transacted attribute (default: false).
Previously, you had to inject a customized JmsTemplate to use transactions. The adapter allowed
transacted in the acknowledgeMode, which was incorrect and didn’t work. This value is no longer
allowed. See Section 23.1, “Inbound Channel Adapter”.
Datatype Channels
You can now specify a MessageConverter to be used when converting (if necessary) payloads to
one of the accepted datatype instances in a Datatype channel. For more information, see the section
called “Datatype Channel Configuration”.
Simpler Retry Advice Configuration
We added simplified namespace support to configure a RequestHandlerRetryAdvice. For more
information, see the section called “Configuring the Retry Advice”.
Correlation Endpoint: Time-based Release Strategy
We added the mutually exclusive group-timeout and group-timeout-expression attributes to
<int:aggregator> and <int:resequencer>. These attributes allow forced completion of a partial
MessageGroup, provided the ReleaseStrategy does not release a group and no further messages
arrive within the time specified. For more information, see ???.
Redis Metadata Store
The RedisMetadataStore now implements ConcurrentMetadataStore, letting it be used, for
example, in an AbstractPersistentAcceptOnceFileListFilter implementation in a multiple
application instance or server environment. For more information, see Section 27.4, “Redis Metadata
Store”, Section 17.1, “Reading Files”, Section 18.4, “FTP Inbound Channel Adapter”, and Section 30.6,
“SFTP Inbound Channel Adapter”.
JdbcChannelMessageStore and PriorityChannel
T`JdbcChannelMessageStore` now implements PriorityCapableChannelMessageStore, letting
it be used as a message-store reference for priority-queue instances. For more information, see
the section called “Backing Message Channels”.
AMQP Endpoints Delivery Mode
Spring AMQP, by default, creates persistent messages on the broker. You can override this behavior
by setting the amqp_deliveryMode header or customizing the mappers. We added a convenient
default-delivery-mode attribute to the adapters to provide easier configuration of this important
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 666
setting. For more information, see Section 14.5, “Outbound Channel Adapter” and Section 14.6,
“Outbound Gateway”.
FTP Timeouts
The DefaultFtpSessionFactory now exposes the connectTimeout, defaultTimeout, and
dataTimeout properties, avoiding the need to subclass the factory to set these common properties.
The postProcess* methods are still available for more advanced configuration. See Section 18.1,
“FTP Session Factory” for more information.
Twitter: StatusUpdatingMessageHandler
The StatusUpdatingMessageHandler (<int-twitter:outbound-channel-adapter>)
now supports the tweet-data-expression attribute to build a
org.springframework.social.twitter.api.TweetData object for updating the timeline
status. This feature allows, for example, attaching an image. See Spring Integration Social Twitter for
more information.
JPA Retrieving Gateway: id-expression
We introduced the id-expression attribute for <int-jpa:retrieving-outbound-gateway> to
perform EntityManager.find(Class entityClass, Object primaryKey). See the section
called “Retrieving Outbound Gateway” for more information.
TCP Deserialization Events
When one of the standard deserializers encounters a problem decoding the input stream to a message,
it now emits a TcpDeserializationExceptionEvent, letting applications examine the data at the
point at which the exception occurred. See Section 34.5, “TCP Connection Events” for more information.
Messaging Annotations on @Bean Definitions
You can now configure messaging annotations (@ServiceActivator, @Router,
@InboundChannelAdapter, and others) on @Bean definitions in @Configuration classes. For
more information, see Section E.5, “Annotation Support”.
I.12 Changes Between 2.2 and 3.0
See the Migration Guide for important changes that might affect your applications. You can find migration
guides for all versions back to 2.1 on the wiki.
New Components
Version 3.0 added a number of new components.
HTTP Request Mapping
The HTTP module now provides powerful request mapping support for inbound endpoints. We replaced
the UriPathHandlerMapping class with IntegrationRequestMappingHandlerMapping,
which is registered under the bean name of integrationRequestMappingHandlerMapping
in the application context. Upon parsing of the HTTP inbound endpoint, either a new
IntegrationRequestMappingHandlerMapping bean is registered or an existing bean is reused.
To achieve flexible request mapping configuration, Spring Integration provides the <request-
mapping/> child element for <http:inbound-channel-adapter/> and the <http:inbound-
gateway/>. Both HTTP inbound endpoints are now fully based on the request mapping infrastructure
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 667
that was introduced with Spring MVC 3.1. For example, multiple paths are supported on a single inbound
endpoint. For more information see Section 20.3, “HTTP Namespace Support”.
Spring Expression Language (SpEL) Configuration
We added a new IntegrationEvaluationContextFactoryBean to allow configuration of custom
PropertyAccessor implementations and functions for use in SpEL expressions throughout the
framework. For more information, see Appendix A, Spring Expression Language (SpEL).
SpEL Functions Support
To customize the SpEL EvaluationContext with static Method functions, we introduced the <spel-
function/> component. We also added two built-in functions: #jsonPath and #xpath. For more
information, see Section A.2, “SpEL Functions”.
SpEL PropertyAccessors Support
To customize the SpEL EvaluationContext with PropertyAccessor implementations, we added
the <spel-property-accessors/> component. For more information, see Section A.3, “Property
Accessors”.
Redis: New Components
We added a new Redis-based MetadataStore implementation. You can use the
RedisMetadataStore to maintain the state of a MetadataStore across application restarts. This
new MetadataStore implementation can be used with adapters, such as:
• Twitter inbound adapters
• Feed inbound channel adapter
We added new queue-based components. We added the <int-redis:queue-inbound-channel-
adapter/> and <int-redis:queue-outbound-channel-adapter/> components to perform
right pop and left push operations, respectively, on a Redis List.
For more information, "see <<redis>>".
Header Channel Registry
You can now instruct the framework to store reply channels and error channels in a registry for later
resolution. This is useful for cases where the replyChannel or errorChannel might be lost (for
example, when serializing a message). See the section called “Header Enricher” for more information.
MongoDB support: New ConfigurableMongoDbMessageStore
In addition to the existing eMongoDbMessageStore, we introduced a new
ConfigurableMongoDbMessageStore. This provides a more robust and flexible implementation of
MessageStore for MongoDB. It does not have backward compatibility with the existing store, but we
recommend using it for new applications. Existing applications can use it, but messages in the old store
are not available. See Chapter 25, MongoDb Support for more information.
Syslog Support
Building on the 2.2 SyslogToMapTransformer, Spring Integration 3.0 introduces UDP and TCP
inbound channel adapters especially tailored for receiving SYSLOG messages. For more information,
see Chapter 33, Syslog Support.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 668
tail Support
We added file inbound channel adapters that use the tail command to generate messages when lines
are added to the end of text files. See the section called “'tail’ing Files”.
JMX Support
We added <int-jmx:tree-polling-channel-adapter/>. This adapter queries the JMX MBean
tree and sends a message with a payload that is the graph of objects that match the query. By default,
the MBeans are mapped to primitives and simple Objects (such as Map, List, and arrays). It permits
simple transformation to, for example, JSON.
The IntegrationMBeanExporter now allows the configuration of a custom
ObjectNamingStrategy by using the naming-strategy attribute.
For more information, see Section 12.2, “JMX Support”.
TCP/IP Connection Events and Connection Management
TcpConnection instances now emit ApplicationEvent instances (specifically
TcpConnectionEvent instances) when connections are opened or closed or when an exception
occurs. This change lets applications be informed of changes to TCP connections by using the normal
Spring ApplicationListener mechanism.
We renamed AbstractTcpConnection to TcpConnectionSupport. Custom connections that
are subclasses of this class can use its methods to publish events. Similarly, we renamed
AbstractTcpConnectionInterceptor to TcpConnectionInterceptorSupport.
In addition, we added <int-ip:tcp-connection-event-inbound-channel-adapter/>. By
default, this adapter sends all TcpConnectionEvent instances to a Channel.
Further, the TCP connection factories now provide a new method called getOpenConnectionIds(),
which returns a list of identifiers for all open connections. It lets applications broadcast to all open
connections, among other uses.
Finally, the connection factories also provide a new method called closeConnection(String
connectionId), which lets applications explicitly close a connection by using its ID.
For more information see Section 34.5, “TCP Connection Events”.
Inbound Channel Adapter Script Support
The <int:inbound-channel-adapter/> now supports using <expression/> and <script/>
child elements to create a MessageSource. See the section called “Channel Adapter Expressions and
Scripts”.
Content Enricher: Headers Enrichment Support
The content enricher now provides configuration for <header/> child elements, to enrich the outbound
message with headers based on the reply message from the underlying message flow. For more
information see the section called “Payload Enricher”.
General Changes
This section describes general changes from version 2.2 to version 3.0.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 669
Message ID Generation
Previously, message IDs were generated by using the JDK UUID.randomUUID() method. With this
release, the default mechanism has been changed to use a more efficient and significantly faster
algorithm. In addition, we added the ability to change the strategy used to generate message IDs. For
more information see the section called “Message ID Generation”.
"<gateway>" Changes
You can now set common headers across all gateway methods, and we added more options for adding
information to the message about which method was invoked.
You can now entirely customize the way that gateway method calls are mapped to messages.
The GatewayMethodMetadata is now a public class. It lets you programmatically configure the
GatewayProxyFactoryBean from Java.
For more information, see Section 10.4, “Messaging Gateways”.
HTTP Endpoint Changes
•Outbound Endpoint encode-uri: <http:outbound-gateway/> and <http:outbound-
channel-adapter/> now provide an encode-uri attribute to allow disabling the encoding of the
URI object before sending the request.
•Inbound Endpoint merge-with-default-converters: <http:inbound-gateway/> and
<http:inbound-channel-adapter/> now have a merge-with-default-converters
attribute to include the list of default HttpMessageConverter instances after the custom message
converters.
•If-Modified-Since and If-Unmodified-Since HTTP Headers: Previously, the If-
Modified-Since and If-Unmodified-Since HTTP headers were incorrectly processed within
from and to HTTP headers mapped in the DefaultHttpHeaderMapper. Now, in addition to
correcting that issue, DefaultHttpHeaderMapper provides date parsing from formatted strings for
any HTTP headers that accept date-time values.
•Inbound Endpoint Expression Variables: In addition to the existing #requestParams
and #pathVariables, the <http:inbound-gateway/> and <http:inbound-channel-
adapter/> now support additional useful variables: #matrixVariables, #requestAttributes,
#requestHeaders, and #cookies. These variables are available in both payload and header
expressions.
•Outbound Endpoint uri-variables-expression: HTTP outbound endpoints now support the uri-
variables-expression attribute to specify an Expression to evaluate a Map for all URI variable
placeholders within URL template. This allows selection of a different map of expressions based on
the outgoing message.
For more information, see Chapter 20, HTTP Support.
Jackson Support (JSON)
• A new abstraction for JSON conversion has been introduced. Implementations for Jackson 1.x and
Jackson 2 are currently provided, with the version being determined by presence on the classpath.
Previously, only Jackson 1.x was supported.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 670
• The ObjectToJsonTransformer and JsonToObjectTransformer now emit/consume headers
containing type information.
For more information, see "JSON Transformers" in Section 9.1, “Transformer”.
Chain Elements id Attribute
Previously, the id attribute for elements within a <chain> was ignored and, in some cases, disallowed.
Now, the id attribute is allowed for all elements within a <chain>. The bean names of chain elements
is a combination of the surrounding chain’s id and the id of the element itself. For example: myChain
$child.myTransformer.handler. For more information see, Section 8.6, “Message Handler Chain”.
Aggregator empty-group-min-timeout property
The AbstractCorrelatingMessageHandler provides a new property called empty-group-min-
timeout to allow empty group expiry to run on a longer schedule than expiring partial groups. Empty
groups are not removed from the MessageStore until they have not been modified for at least this
number of milliseconds. For more information, see ???.
Persistent File List Filters (file, (S)FTP)
New FileListFilter implementations that use a persistent MetadataStore are now available.
You can use these to prevent duplicate files after a system restart. See Section 17.1, “Reading Files”,
Section 18.4, “FTP Inbound Channel Adapter”, and Section 30.6, “SFTP Inbound Channel Adapter” for
more information.
Scripting Support: Variables Changes
We introduced a new variables attribute for scripting components. In addition, variable bindings are
now allowed for inline scripts. See Section 10.8, “Groovy support” and Section 10.7, “Scripting Support”
for more information.
Direct Channel Load Balancing configuration
Previously, when configuring LoadBalancingStrategy on the channel’s dispatcher child element,
the only available option was to use a pre-defined enumeration of values which did not let developers
set a custom implementation of the LoadBalancingStrategy. You can now use load-balancer-
ref to provide a reference to a custom implementation of the LoadBalancingStrategy. For more
information, see the section called “DirectChannel”.
PublishSubscribeChannel Behavior
Previously, sending to a <publish-subscribe-channel/> that had no subscribers would return a false
result. If used in conjunction with a MessagingTemplate, this would result in an exception being
thrown. Now, the PublishSubscribeChannel has a property called minSubscribers (default: 0).
If the message is sent to at least the minimum number of subscribers, the send operation is deemed
to be successful (even if the number is zero). If an application expects to get an exception under these
conditions, set the minimum subscribers to at least 1.
FTP, SFTP and FTPS Changes
The FTP, SFTP and FTPS endpoints no longer cache sessions by default.
We removed the deprecated cached-sessions attribute from all endpoints. Previously, the embedded
caching mechanism controlled by this attribute’s value did not provide a way to limit the size of the
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 671
cache, which could grow indefinitely. Release 2.1 introduced CachingConnectionFactory, and it
became the preferred (and is now the only) way to cache sessions.
CachingConnectionFactory now provides a new method: resetCache(). This method
immediately closes idle sessions and causes in-use sessions to be closed as and when they are returned
to the cache.
The DefaultSftpSessionFactory (in conjunction with a CachingSessionFactory) now
supports multiplexing channels over a single SSH connection (SFTP Only).
FTP, SFTP and FTPS Inbound Adapters
Previously, there was no way to override the default filter used to process files retrieved
from a remote server. The filter attribute determines which files are retrieved, but the
FileReadingMessageSource uses an AcceptOnceFileListFilter. This means that, if a new
copy of a file is retrieved with the same name as a previously copied file, no message was sent from
the adapter.
With this release, a new attribute local-filter lets you override the default filter (for example, with
an AcceptAllFileListFilter or some other custom filter).
If you want the behavior of the AcceptOnceFileListFilter to be maintained across JVM
executions, you can now configure a custom filter that retains state, perhaps on the file system.
Inbound channel adapters now support the preserve-timestamp attribute, which sets the local file
modified timestamp to the timestamp from the server (default: false).
FTP, SFTP, and FTPS Gateways
The gateways now support the mv command, enabling the renaming of remote files.
The gateways now support recursive ls and mget commands, enabling the retrieval of a remote file
tree.
The gateways now support put and mput commands, enabling sending files to the remote server.
The local-filename-generator-expression attribute is now supported, enabling the naming of
local files during retrieval. By default, the same name as the remote file is used.
The local-directory-expression attribute is now supported, enabling the naming of local
directories during retrieval (based on the remote directory).
Remote File Template
A new higher-level abstraction (RemoteFileTemplate) is provided over the Session
implementations used by the FTP and SFTP modules. While it is used internally by endpoints, you
can also use this abstraction programmatically. Like all Spring *Template implementations, it reliably
closes the underlying session while allowing low level access to the session.
For more information, see Chapter 18, FTP/FTPS Adapters and Chapter 30, SFTP Adapters.
requires-reply Attribute for Outbound Gateways
All outbound gateways (such as <jdbc:outbound-gateway/> or <jms:outbound-gateway/
>) are designed for request-reply scenarios. A response is expected from the external service
and is published to the reply-channel or the replyChannel message header. However, there
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 672
are some cases where the external system might not always return a result (for example, a
<jdbc:outbound-gateway/> when a SELECT ends with an empty ResultSet or perhaps a one-
way web service). Consequently, developers needed an option to configure whether or not a reply
is required. For this purpose, we introduced the requires-reply attribute for outbound gateway
components. In most cases, the default value for requires-reply is true. If there is no result, a
ReplyRequiredException is thrown. Changing the value to false means that, if an external service
does not return anything, the message flow ends at that point, similar to an outbound channel adapter.
Note
The WebService outbound gateway has an additional attribute called ignore-empty-
responses. It is used to treat an empty String response as if no response were received.
By default, it is true, but you can set it to false to allow the application to receive an empty
String in the reply message payload. When the attribute is true, an empty string is treated as
no response for the purposes of the requires-reply attribute. By default, requires-reply
is false for the WebService outbound gateway.
Note that the requiresReply property was previously present but set to false in the
AbstractReplyProducingMessageHandler, and there was no way to configure it on outbound
gateways by using the XML namespace.
Important
Previously, a gateway receiving no reply would silently end the flow (with a DEBUG log message).
By default, with this change, an exception is now thrown by most gateways. To revert to the
previous behavior, set requires-reply to false.
AMQP Outbound Gateway Header Mapping
Previously, the <int-amqp:outbound-gateway/> mapped headers before invoking the message
converter, and the converter could overwrite headers such as content-type. The outbound adapter
maps the headers after the conversion, which means headers like content-type from the outbound
Message (if present) are used.
Starting with this release, the gateway now maps the headers after the message conversion, consistent
with the adapter. If your application relies on the previous behavior (where the converter’s headers
overrode the mapped headers), you either need to filter those headers (before the message reaches
the gateway) or set them appropriately. The headers affected by the SimpleMessageConverter are
content-type and content-encoding. Custom message converters may set other headers.
Stored Procedure Components Improvements
For more complex database-specific types not supported by the standard
CallableStatement.getObject method, we introduced two new additional attributes to the <sql-
parameter-definition/> element with OUT-direction:
•type-name
•return-type
The row-mapper attribute of the stored procedure inbound channel adapter <returning-
resultset/> child element now supports a reference to a RowMapper bean definition. Previously, it
contained only a class name (which is still supported).
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 673
For more information, see Section 21.5, “Stored Procedures”.
Web Service Outbound URI Configuration
The web service outbound gateway uri attribute now supports <uri-variable/> substitution for all
URI schemes supported by Spring Web Services. For more information, see Section 37.4, “Outbound
URI Configuration”.
Redis Adapter Changes
The Redis inbound channel adapter can now use a null value for the serializer property, with the
raw data being the message payload.
The Redis outbound channel adapter now has the topic-expression property to determine the Redis
topic for the Message at runtime.
The Redis inbound channel adapter, in addition to the existing topics attribute, now has the topic-
patterns attribute.
For more information, see Chapter 27, Redis Support.
Advising Filters
Previously, when a <filter/> had a <request-handler-advice-chain/>, the discard action
was all performed within the scope of the advice chain (including any downstream flow on the discard-
channel). The filter element now has an attribute called discard-within-advice (default: true)
to allow the discard action to be performed after the advice chain completes. See the section called
“Advising Filters”.
Advising Endpoints using Annotations
Request handler advice chains can now be configured using annotations. See the section called
“Advising Endpoints Using Annotations”.
ObjectToStringTransformer Improvements
This transformer now correctly transforms byte[] and char[] payloads to String. For more
information, see Section 9.1, “Transformer”.
JPA Support Changes
Payloads to persist or merge can now be of type http://docs.oracle.com/javase/7/docs/
api/java/lang/Iterable.html[java.lang.Iterable].
In that case, each object returned by the Iterable is treated as an entity and persisted or merged by
using the underlying EntityManager. Null values returned by the iterator are ignored.
The JPA adapters now have additional attributes to optionally flush and clear entities from the associated
persistence context after performing persistence operations.
Retrieving gateways had no mechanism to specify the first record to be retrieved, which is a common
use case. The retrieving gateways now support specifying this parameter by adding the first-result
and first-result-expression attributes to the gateway definition. For more information, see the
section called “Retrieving Outbound Gateway”.
The JPA retrieving gateway and inbound adapter now have an attribute to specify the maximum number
of results in a result set as an expression. In addition, we introduced the max-results attribute to
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 674
replace max-number-of-results, which has been deprecated. max-results and max-results-
expression are used to provide the maximum number of results or an expression to compute the
maximum number of results, respectively, in the result set.
For more information, see Chapter 22, JPA Support.
Delayer: delay expression
Previously, the <delayer> provided a delay-header-name attribute to determine the delay value
at runtime. In complex cases, the <delayer> had to be preceded with a <header-enricher>.
Spring Integration 3.0 introduced the expression attribute and expression child element for dynamic
delay determination. The delay-header-name attribute is now deprecated, because you can specify
the header evaluation in the expression. In addition, we introduced the ignore-expression-
failures to control the behavior when an expression evaluation fails. For more information, see
Section 10.6, “Delayer”.
JDBC Message Store Improvements
Spring Integration 3.0 adds a new set of DDL scripts for MySQL version 5.6.4 and higher. Now MySQL
supports fractional seconds and is thus improving the FIFO ordering when polling from a MySQL-based
message store. For more information, see the section called “The Generic JDBC Message Store”.
IMAP Idle Connection Exceptions
Previously, if an IMAP idle connection failed, it was logged, but there was no mechanism to
inform an application. Such exceptions now generate ApplicationEvent instances. Applications
can obtain these events by using an <int-event:inbound-channel-adapter> or any
ApplicationListener configured to receive an ImapIdleExceptionEvent (or one of its super
classes).
Message Headers and TCP
The TCP connection factories now enable the configuration of a flexible mechanism to transfer selected
headers (as well as the payload) over TCP. A new TcpMessageMapper enables the selection of the
headers, and you need to configure an appropriate serializer or deserializer to write the resulting Map to
the TCP stream. We added a MapJsonSerializer as a convenient mechanism to transfer headers
and payload over TCP. For more information, see the section called “Transferring Headers”.
JMS Message Driven Channel Adapter
Previously, when configuring a <message-driven-channel-adapter/>, if you wished to use a
specific TaskExecutor, you had to declare a container bean and provide it to the adapter by setting
the container attribute. We added the task-executor, letting it be set directly on the adapter. This
is in addition to several other container attributes that were already available.
RMI Inbound Gateway
The RMI Inbound Gateway now supports an error-channel attribute. See Section 29.2, “Inbound
RMI”.
XsltPayloadTransformer
You can now specify the transformer factory class name by setting the transformer-factory-
class attribute. See <<xml-xslt-payload-transformers>>.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 675
I.13 Changes between 2.1 and 2.2
See the Migration Guide for important changes that might affect your applications. You can find migration
guides for all versions back to 2.1 on the wiki.
New Components
Version 2.2 added a number of new components.
RedisStore Inbound and Outbound Channel Adapters
Spring Integration now has RedisStore Inbound and Outbound Channel Adapters, letting you write
and read Message payloads to and from Redis collections. For more information, see Section 27.6,
“RedisStore Outbound Channel Adapter” and Section 27.5, “Redis Store Inbound Channel Adapter”.
MongoDB Inbound and Outbound Channel Adapters
Spring Integration now has MongoDB inbound and outbound channel adapters, letting you write
and read Message payloads to and from a MongoDB document store. For more information, see
Section 25.4, “MongoDB Outbound Channel Adapter” and Section 25.3, “MongoDB Inbound Channel
Adapter”.
JPA Endpoints
Spring Integration now includes components for the Java Persistence API (JPA) for retrieving and
persisting JPA entity objects. The JPA Adapter includes the following components:
•Inbound channel adapter
•Outbound channel adapter
•Updating outbound gateway
•Retrieving outbound gateway
For more information, see Chapter 22, JPA Support.
General Changes
This section describes general changes from version 2.1 to version 2.2.
Spring 3.1 Used by Default
Spring Integration now uses Spring 3.1.
Adding Behavior to Endpoints
The ability to add an <advice-chain/> to a poller has been available for some time. However, the
behavior added by this affects the entire integration flow. It did not address the ability to add (for example)
retry to an individual endpoint. The 2.2. release introduced the <request-handler-advice-chain/
> to many endpoints.
In addition, we added three standard advice classes for this purpose:
•MessageHandlerRetryAdvice
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 676
•MessageHandlerCircuitBreakerAdvice
•ExpressionEvaluatingMessageHandlerAdvice
For more information, see Section 10.9, “Adding Behavior to Endpoints”.
Transaction Synchronization and Pseudo Transactions
Pollers can now participate in Spring’s Transaction Synchronization feature. This allows for
synchronizing such operations as renaming files by an inbound channel adapter, depending on whether
the transaction commits or rolls back.
In addition, you can enable these features when no "real" transaction is present, by means of a
PseudoTransactionManager.
For more information, see Section C.3, “Transaction Synchronization”.
File Adapter: Improved File Overwrite and Append Handling
When using the file outbound channel adapter or the file outbound gateway, you can use a new mode
property. Prior to Spring Integration 2.2, target files were replaced when they existed. Now you can
specify the following options:
•REPLACE (default)
•APPEND
•FAIL
•IGNORE
For more information, see the section called “Dealing with Existing Destination Files”.
Reply-Timeout Added to More Outbound Gateways
The XML Namespace support adds the reply-timeout attribute to the following outbound gateways:
• AMQP Outbound Gateway
• File Outbound Gateway
• FTP Outbound Gateway
• SFTP Outbound Gateway
• WS Outbound Gateway
Spring-AMQP 1.1
Spring Integration now uses Spring AMQP 1.1. This enables several features to be used within a Spring
Integration application, including the following:
• A fixed reply queue for the outbound gateway
• HA (mirrored) queues
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 677
• Publisher confirmations
• Returned messages
• Support for dead letter exchanges and dead letter queues
JDBC Support - Stored Procedures Components
SpEL Support
When using the stored procedure components of the Spring Integration JDBC Adapter, you can now
provide stored procedure names or stored function names by using the Spring Expression Language
(SpEL).
Doing so lets you specify the stored procedures to be invoked at runtime. For example, you can provide
stored procedure names that you would like to execute through message headers. For more information,
see Section 21.5, “Stored Procedures”.
JMX Support
The stored procedure components now provide basic JMX support, exposing some of their properties
as MBeans:
• Stored procedure name
• Stored procedure name expression
•JdbcCallOperations cache statistics
JDBC Support: Outbound Gateway
When you use the JDBC outbound gateway, the update query is no longer mandatory. You can now
provide only a select query by using the request message as a source of parameters.
JDBC Support: Channel-specific Message Store Implementation
We added a new message channel-specific message store implementation, providing a more scalable
solution using database-specific SQL queries. For more information, see the section called “Backing
Message Channels”.
Orderly Shutdown
We added a method called stopActiveComponents() to the IntegrationMBeanExporter. It
allows a Spring Integration application to be shut down in an orderly manner, disallowing new inbound
messages to certain adapters and waiting for some time to allow in-flight messages to complete.
JMS Outbound Gateway Improvements
You can now configure the JMS outbound gateway to use a MessageListener container to receive
replies. Doing so can improve performance of the gateway.
ObjectToJsonTransformer
By default, the ObjectToJsonTransformer now sets the content-type header to application/
json. For more information, see Section 9.1, “Transformer”.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 678
HTTP Support
Java serialization over HTTP is no longer enabled by default. Previously, when setting an expected-
response-type on a Serializable object, the Accept header was not properly set up. We updated
the SerializingHttpMessageConverter to set the Accept header to application/x-java-
serialized-object. However, because this could cause incompatibility with existing applications,
we decided to no longer automatically add this converter to the HTTP endpoints.
If you wish to use Java serialization, you need to add the SerializingHttpMessageConverter
to the appropriate endpoints by using the message-converters attribute (when you use XML
configuration) or by using the setMessageConverters() method (in Java).
Alternatively, you may wish to consider using JSON instead. It is enabled by having Jackson on the
classpath.
I.14 Changes between 2.0 and 2.1
See the Migration Guide for important changes that might affect your applications.
New Components
Version 2.1 added a number of new components.
JSR-223 Scripting Support
In Spring Integration 2.0, we added support for Groovy. With Spring Integration 2.1, we expanded
support for additional languages substantially by implementing support for JSR-223 ("Scripting for
the Java™ Platform"). Now you have the ability to use any scripting language that supports JSR-223
including:
• Javascript
• Ruby and JRuby
• Python and Jython
• Groovy
For further details, see Section 10.7, “Scripting Support”.
GemFire Support
Spring Integration provides support for GemFire by providing inbound adapters for entry and
continuous query events, an outbound adapter to write entries to the cache, and MessageStore
and MessageGroupStore implementations. Spring integration leverages the Spring Gemfire project,
providing a thin wrapper over its components.
For further details, see Chapter 19, Pivotal GemFire and Apache Geode Support.
AMQP Support
Spring Integration 2.1 added several channel adapters for receiving and sending messages by using
the Advanced Message Queuing Protocol (AMQP). Furthermore, Spring Integration also provides a
point-to-point message channel and a publish-subscribe message channel, both of which are backed
by AMQP Exchanges and Queues.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 679
For further details, see Chapter 14, AMQP Support.
MongoDB Support
As of version 2.1, Spring Integration provides support for MongoDB by providing a MongoDB-based
MessageStore.
For further details, see Chapter 25, MongoDb Support.
Redis Support
As of version 2.1, Spring Integration supports Redis, an advanced key-value store, by providing a Redis-
based MessageStore as well as publish-subscribe messaging adapters.
For further details, see Chapter 27, Redis Support.
Support for Spring’s Resource abstraction
In version 2.1, we introduced a new resource inbound channel adapter that builds upon Spring’s
resource abstraction to support greater flexibility across a variety of actual types of underlying resources,
such as a file, a URL, or a classpath resource. Therefore, it is similar to but more generic than the file
inbound channel adapter.
For further details, see Section 28.1, “Resource Inbound Channel Adapter”.
Stored Procedure Components
With Spring Integration 2.1, the JDBC Module also provides stored procedure support by adding several
new components, including inbound and outbound channel adapters and an outbound gateway. The
stored procedure support leverages Spring’s SimpleJdbcCall class and consequently supports
stored procedures for:
• Apache Derby
• DB2
• MySQL
• Microsoft SQL Server
• Oracle
• PostgreSQL
• Sybase
The stored procedure components also support SQL functions for the following databases:
• MySQL
• Microsoft SQL Server
• Oracle
• PostgreSQL
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 680
For further details, see Section 21.5, “Stored Procedures”.
XPath and XML Validating Filter
Spring Integration 2.1 provides a new XPath-based message filter. It is part of the XML module. The
XPath filter lets you filter messages by using XPath Expressions. We also added documentation for the
XML validating filter.
For more details, see Section 38.7, “Using the XPath Filter” and Section 38.9, “XML Validating Filter”.
Payload Enricher
Since Spring Integration 2.1, we added the payload enricher. A payload enricher defines an endpoint
that typically passes a Message to the exposed request channel and then expects a reply message. The
reply message then becomes the root object for evaluation of expressions to enrich the target payload.
For further details, see the section called “Payload Enricher”.
FTP and SFTP Outbound Gateways
Spring Integration 2.1 provides two new outbound gateways to interact with remote File Transfer
Protocol (FTP) or Secure File Transfer Protocol (SFT) servers. These two gateways let you directly
execute a limited set of remote commands.
For instance, you can use these outbound gateways to list, retrieve, and delete remote files and have
the Spring Integration message flow continue with the remote server’s response.
For further details, see Section 18.9, “FTP Outbound Gateway” and Section 30.11, “SFTP Outbound
Gateway”.
FTP Session Caching
As of version 2.1, we have exposed more flexibility with regards to session management for remote file
adapters (for example, FTP, SFTP, and others).
Specifically, we deprecated the cache-sessions attribute (which is available via the XML namespace
support). As an alternative, we added the sessionCacheSize and sessionWaitTimeout attributes
on the CachingSessionFactory.
For further details, see Section 18.10, “FTP Session Caching” and Section 30.4, “SFTP Session
Caching”.
Framework Refactoring
We refactored the Spring Integration framework in a number of ways, all described in this section.
Standardizing Router Configuration
We standardized router parameters across all router implementations with Spring Integration 2.1 to
provide a more consistent user experience.
In Spring Integration 2.1, we removed the ignore-channel-name-resolution-failures
attribute in favor of consolidating its behavior with the resolution-required attribute. Also, the
resolution-required attribute now defaults to true.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 681
Starting with Spring Integration 2.1, routers no longer silently drop any messages if no default output
channel was defined. This means that, by default, routers now require at least one resolved channel (if
no default-output-channel was set) and, by default, throw a MessageDeliveryException if
no channel was determined (or an attempt to send was not successful).
If, however, you do want to drop messages silently, you can set default-output-
channel="nullChannel".
Important
With the standardization of router parameters and the consolidation of the parameters described
earlier, older Spring Integration based applications may break.
For further details, see <<router>>.
XML Schemas updated to 2.1
Spring Integration 2.1 ships with an updated XML Schema (version 2.1). It provides many improvements,
such as the Router standardizations discussed earlier.
From now on, developers must always declare the latest XML schema (currently version 2.1).
Alternatively, they can use the version-less schema. Generally, the best option is to use version-less
namespaces, as these automatically use the latest available version of Spring Integration.
The following example declares a version-less Spring Integration namespace:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:int="http://www.springframework.org/schema/integration"
xsi:schemaLocation="http://www.springframework.org/schema/integration
http://www.springframework.org/schema/integration/spring-integration.xsd
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd">
...
</beans>
The following example declares a Spring Integration namespace with an explicit version:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:int="http://www.springframework.org/schema/integration"
xsi:schemaLocation="http://www.springframework.org/schema/integration
http://www.springframework.org/schema/integration/spring-integration-2.2.xsd
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd">
...
</beans>
The old 1.0 and 2.0 schemas are still there. However, if an application context still references one of
those deprecated schemas, the validator fails on initialization.
Source Control Management and Build Infrastructure
Version 2.1 introduced a number of changes to source control management and build infrastructure.
This section covers those changes.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 682
Source Code Now Hosted on Github
Since version 2.0, the Spring Integration project uses Git for version control. To increase community
visibility even further, the project was moved from SpringSource hosted Git repositories to Github. The
Spring Integration Git repository is located at: spring-integration.
For the project, we also improved the process of providing code contributions. Further, we ensure that
every commit is peer-reviewed. In fact, core committers now follow the same process as contributors.
For more details, see Contributing.
Improved Source Code Visibility with Sonar
In an effort to provide better source code visibility and consequently to monitor the quality of Spring
Integration’s source code, we set up an instance of Sonar. We gather metrics nightly and make them
available at sonar.spring.io.
New Samples
For the 2.1 release of Spring Integration, we also expanded the Spring Integration Samples project and
added many new samples, such as samples that cover AMQP support, a sample that showcases the
new payload enricher, a sample illustrating techniques for testing Spring Integration flow fragments, and
a sample for executing stored procedures against Oracle databases. For details, visit spring-integration-
samples.
I.15 Changes between Versions 1.0 and 2.0
See the Migration Guide for important changes that might affect your applications.
Spring 3 support
Spring Integration 2.0 is built on top of Spring 3.0.5 and makes many of its features available to our users.
Support for the Spring Expression Language (SpEL)
You can now use SpEL expressions within the transformer, router, filter, splitter, aggregator, service-
activator, header-enricher, and many more elements of the Spring Integration core namespace as well
as within various adapters. This guide includes many samples.
Conversion Service and Converter
You can now benefit from the conversion service support provided with Spring while configuring many
Spring Integration components, such as a Datatype channel. See the section called “Message Channel
Implementations” and ???. Also, the SpEL support mentioned in the previous point also relies upon the
conversion service. Therefore, you can register converters once and take advantage of them anywhere
you use SpEL expressions.
TaskScheduler and Trigger
Spring 3.0 defines two new strategies related to scheduling: TaskScheduler and Trigger. Spring
Integration (which uses a lot of scheduling) now builds upon these. In fact, Spring Integration 1.0 had
originally defined some of the components (such as CronTrigger) that have now been migrated
into Spring 3.0’s core API. Now you can benefit from reusing the same components within the entire
application context (not just Spring Integration configuration). We also greatly simplified configuration of
Spring Integration pollers by providing attributes for directly configuring rates, delays, cron expressions,
and trigger references. See Section 6.3, “Channel Adapter” for sample configurations.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 683
RestTemplate and HttpMessageConverter
Our outbound HTTP adapters now delegate to Spring’s RestTemplate for executing the HTTP request
and handling its response. This also means that you can reuse any custom HttpMessageConverter
implementations. See Section 20.2, “HTTP Outbound Components” for more details.
Enterprise Integration Pattern Additions
Also in 2.0, we have added support for even more of the patterns described in Hohpe and Woolf’s
Enterprise Integration Patterns book.
Message History
We now provide support for the message history pattern, letting you keep track of all traversed
components, including the name of each channel and endpoint as well as the timestamp of that traversal.
See Section 12.3, “Message History” for more details.
Message Store
We now provide support for the message store pattern. The message store provides a strategy for
persisting messages on behalf of any process whose scope extends beyond a single transaction, such
as the aggregator and the resequencer. Many sections of this guide include samples of how to use a
message store, as it affects several areas of Spring Integration. See Section 12.4, “Message Store”,
Section 9.3, “Claim Check”, Section 6.1, “Message Channels”, Section 8.4, “Aggregator”, Chapter 21,
JDBC Support`", and Section 8.5, “Resequencer” for more details.
Claim Check
We have added an implementation of the claim check pattern. The idea behind the claim check pattern
is that you can exchange a message payload for a "claim ticket". This lets you reduce bandwidth
and avoid potential security issues when sending messages across channels. See Section 9.3, “Claim
Check” for more details.
Control Bus
We have provided implementations of the control bus pattern, which lets you use messaging to manage
and monitor endpoints and channels. The implementations include both a SpEL-based approach and
one that runs Groovy scripts. See Section 12.6, “Control Bus” and the section called “Control Bus” for
more details.
New Channel Adapters and Gateways
We have added several new channel adapters and messaging gateways in Spring Integration 2.0.
TCP and UDP Adapters
We have added channel adapters for receiving and sending messages over the TCP and UDP internet
protocols. See Chapter 34, TCP and UDP Support for more details. See also the following blog: "Using
UDP and TCP Adapters in Spring Integration 2.0 M3".
Twitter Adapters
Twitter adapters provides support for sending and receiving Twitter status updates as well as direct
messages. You can also perform Twitter Searches with an inbound channel adapter. See Spring
Integration Social Twitter for more details.
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 684
XMPP Adapters
The new XMPP adapters support both chat messages and presence events. See Chapter 39, XMPP
Support for more details.
FTP and FTPS Adapters
Inbound and outbound file transfer support over FTP and FTPS is now available. See Chapter 18, FTP/
FTPS Adapters for more details.
SFTP Adapters
Inbound and outbound file transfer support over SFTP is now available. See Chapter 30, SFTP Adapters
for more details.
Feed Adapters
We have also added channel adapters for receiving news feeds (ATOM and RSS). See Chapter 16,
Feed Adapter for more details.
Other Additions
Spring Integration adds a number of other features. This section describes them.
Groovy Support
Spring Integration 2.0 added Groovy support, letting you use the Groovy scripting language to provide
integration and business logic. See Section 10.8, “Groovy support” for more details.
Map Transformers
These symmetrical transformers convert payload objects to and from Map objects. See Section 9.1,
“Transformer” for more details.
JSON Transformers
These symmetrical transformers convert payload objects to and from JSON. See Section 9.1,
“Transformer” for more details.
Serialization Transformers
These symmetrical transformers convert payload objects to and from byte arrays. They also support the
serializer and deserializer strategy interfaces that Spring 3.0.5 added. See Section 9.1, “Transformer”
for more details.
Framework Refactoring
The core API went through some significant refactoring to make it simpler and more usable. Although we
anticipate that the impact to developers should be minimal, you should read through this document to find
what was changed. Specifically, you should read the section called “Dynamic Routers”, Section 10.4,
“Messaging Gateways”, Section 20.2, “HTTP Outbound Components”, Chapter 7, Message, and
Section 8.4, “Aggregator”. If you directly depend on some of the core components (Message,
MessageHeaders, MessageChannel, MessageBuilder, and others), you need to update any import
statements. We restructured some packaging to provide the flexibility we needed for extending the
Spring Integration Reference Manual
5.1.1.RELEASE Spring Integration 685
domain model while avoiding any cyclical dependencies (it is a policy of the framework to avoid such
"tangles").
New Source Control Management and Build Infrastructure
With Spring Integration 2.0, we switched our build environment to use Git for source control. To
access our repository, visit http://git.springsource.org/spring-integration. We have also switched our
build system to Gradle.
New Spring Integration Samples
With Spring Integration 2.0, we have decoupled the samples from our main release distribution. Please
read the following blog to get more information: New Spring Integration Samples. We have also created
many new samples, including samples for every new adapter.
Spring Tool Suite Visual Editor for Spring Integration
There is an amazing new visual editor for Spring Integration included within the latest version of
SpringSource Tool Suite. If you are not already using STS, you can download it athttps://spring.io/tools/
sts[Spring Tool Suite].
