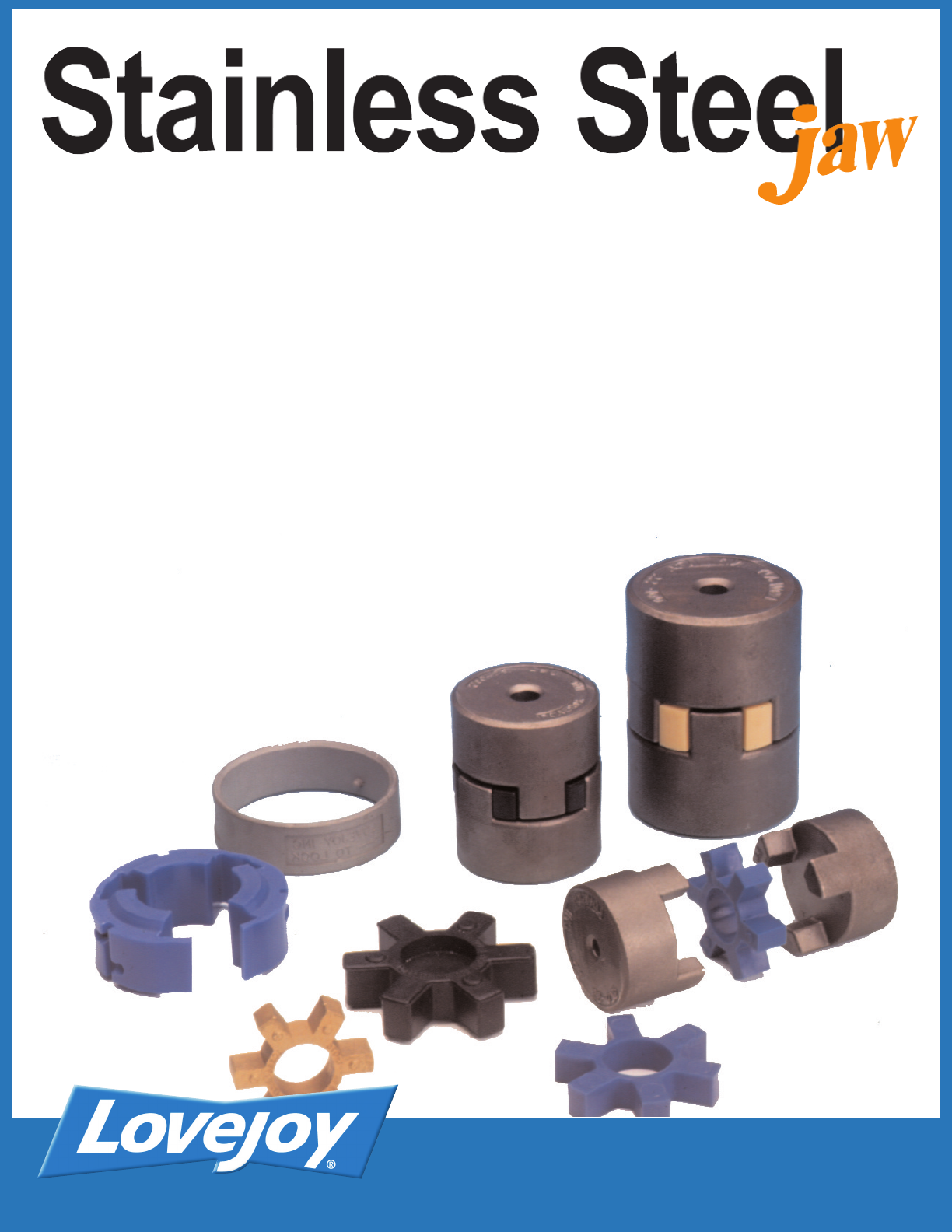

Lovejoy’s Jaw Coupling Now Standard In Stainless Steel.
Amazingly Affordable. Unsurpassed Quality.
–Hubs with finished bores are passivated against rust
–Immediate delivery available in 5 sizes – either rough bore or finished bore and
keyway combinations
–Select from bore sizes 1/4"(SS075) to 1-7/8"(SS150)
–Interchangeable with all hub sizes standard for the L-line and AL-line products
–Hubs can be used with inserts in 4 different materials:
Buna-N (Sox), Urethane, Hytrel and Bronze
–Use with Lovejoy’s Jaw-in-Shear to create a
completely stainless steel in-shear coupling
In applications that require the use of stainless steel components, Lovejoy’s SS-type
jaw coupling offers a new level of affordability and availability.
www.lovejoy-inc.com
WWhheerree TThhee WWoorrlldd TTuurrnnss FFoorr CCoouupplliinnggss..
For more information on the Lovejoy Stainless Steel Jaw
coupling contact us at (630) 852-0500 or visit our web site:
SS075 Spider (Sox) 90.00 10.17 0.140 0.75 19 11,000
Urethane 135.00 15.26 0.280 3,600
Hytrel 227.00 25.65 0.360 3,600
Bronze 227.00 25.65 0.360 250
SS095 Spider (Sox) 194.00 21.92 0.310 1.12 28 9,000
Urethane 291.00 32.90 0.465 3,600
Urethane(JIS) 335.00 38.00 0.530 9,200
Hytrel 561.00 63.38 0.890 3,600
Bronze 561.00 63.38 0.890 250
SS100 Spider (Sox) 417.00 47.11 0.660 1.38 35 7,000
Urethane 477.00 53.90 1.320 3,600
Urethane(JIS) 560.00 63.00 0.890 7,700
Hytrel 1134.00 128.12 1.800 3,600
Bronze 1134.00 128.12 1.800 250
SS110 Spider (Sox) 792.00 89.48 1.260 1.62 42 5,000
Urethane 1188.00 134.00 1.890 3,600
Urethane(JIS) 1090.00 123.00 1.730 5,900
Hytrel 2268.00 256.25 3.600 5,000
Bronze 2268.00 256.25 3.600 250
SS150 Spider (Sox) 1240.00 140.10 2.000 1.88 48 5,000
Urethane 1860.00 210.00 3.000 3,600
Urethane(JIS) 1810.00 205.00 2.870 5,200
Hytrel 3708.00 418.95 5.900 5,000
Bronze 3708.00 418.95 5.900 250
SS075 0.875 22 1.75 2.13 0.50 0.82 1.75 0.31 1/4-20
SS095 1.125 28 2.11 2.51 0.52 1.00 2.11 0.44 5/16-18
SS100 1.375 35 2.54 3.48 0.71 1.38 2.54 0.44 5/16-18
SS110 1.625 42 3.32 4.22 0.88 1.68 3.32 0.75 3/8-16
SS150 1.875 48 3.75 4.50 1.00 1.75 3.75 0.75 3/8-16
Size Max Bore Outside
Diameter
OD
Overall
Length
OAL
Gap
GLength
Thru Bore
LTB
Set
Screw Location
SL
Hub
Diameter Set
Screw Size
T
in mm
SS075 70001 70006 70007 70008 70009 70010 - - -
SS095 70002 70011 70011 70012 70013 70014 70015 70016 -
SS100 70003 - - - 70017 70018 70019 70020 70022
Size RSB* 1/4 1/2 5/8 3/4 1”
7/8 1-1/8 1-3/8
SS110 70004 70023 70024 70026 70027 70028 - -
SS150 70005 70029 70030 70032 70033 70034 70035 70036
1” 1-1/8 1-3/8 1-1/2 1-3/4
1-5/8 1-7/8
RSB*
Size
SS075 $26.00 $50.00 $88.00
SS095 $35.00 $62.00 $97.25
SS100 $50.00 $73.00 $112.00
SS110 $91.00 $137.00 $167.15
SS150 $133.00 $183.00 $227.95
Size Rough
Stock
Bore
Non-Stock
Finished
Bore(1)
Stock
Finished
Bore*
* see chart 3
(1) inch bores – per AGMA 9002–A86
metric bores – per DIN 7154, H7
DIN 6885, JS9
Size Material Torque Rating Maximum Bore Max
RPM
HP/100
in-lbs Nm in mm
Stainless Steel Coupling Ratings – Chart 2
SS – Type
List Prices Per Hub
Stainless Steel Hub UPC Part Numbers – Chart 3
www.lovejoy-inc.com
For more information on the Lovejoy Stainless Steel Jaw
coupling contact us at (630) 852-0500 or visit our web site
*Rough bore must be passivated after reboring to prevent rust.
Prefix is 685144 –

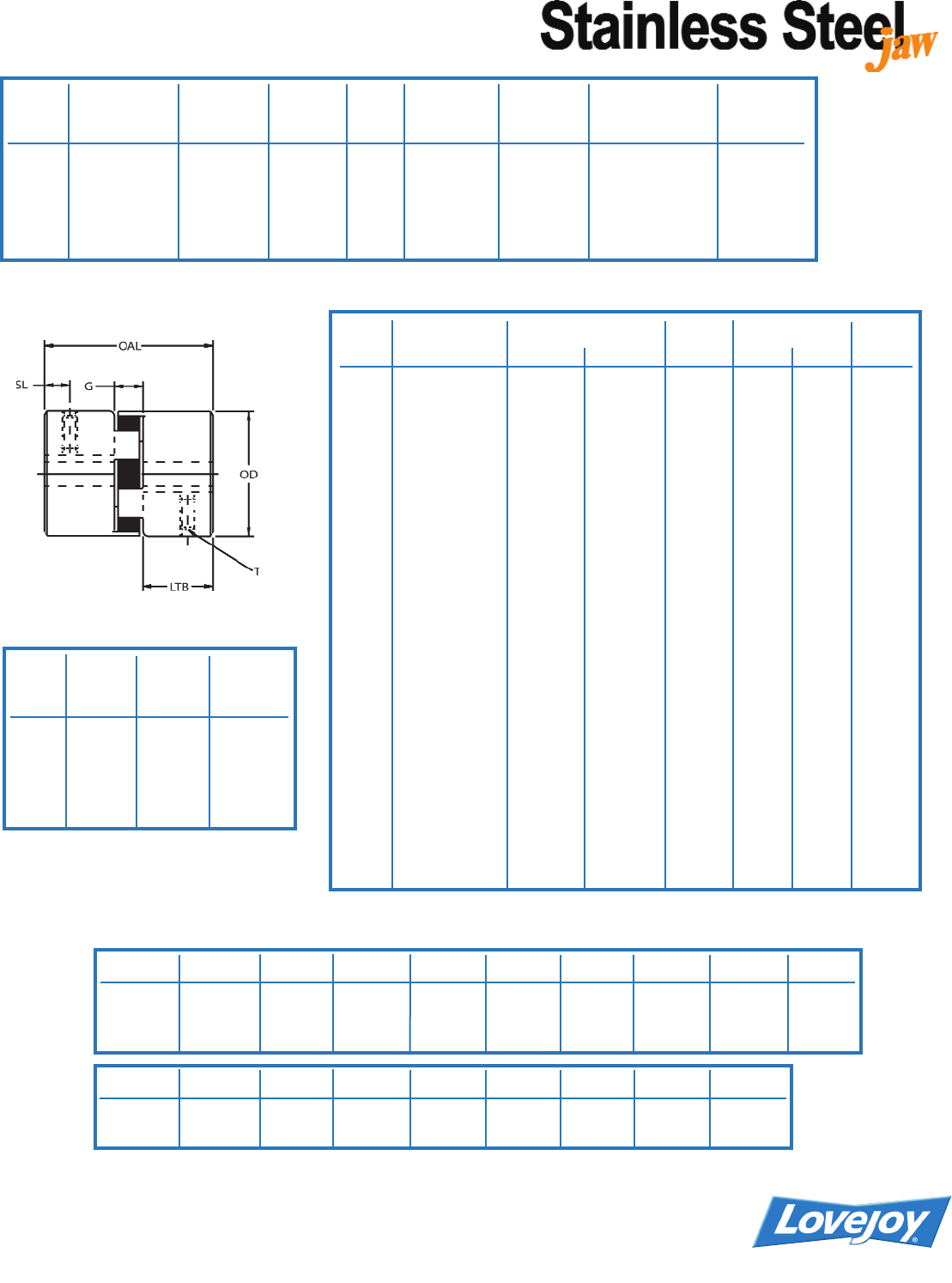

Stainless Steel Coupling Dimensional Data–Inch – Chart 1
Item # 685144-70664 12/00
