MARCH 1994 $5.00 £2.00

STUDIO

SOUND

AND BROADCAST ENGINEERIW;

M:':NIToRING.

The in -ear revolution; _driver analysis

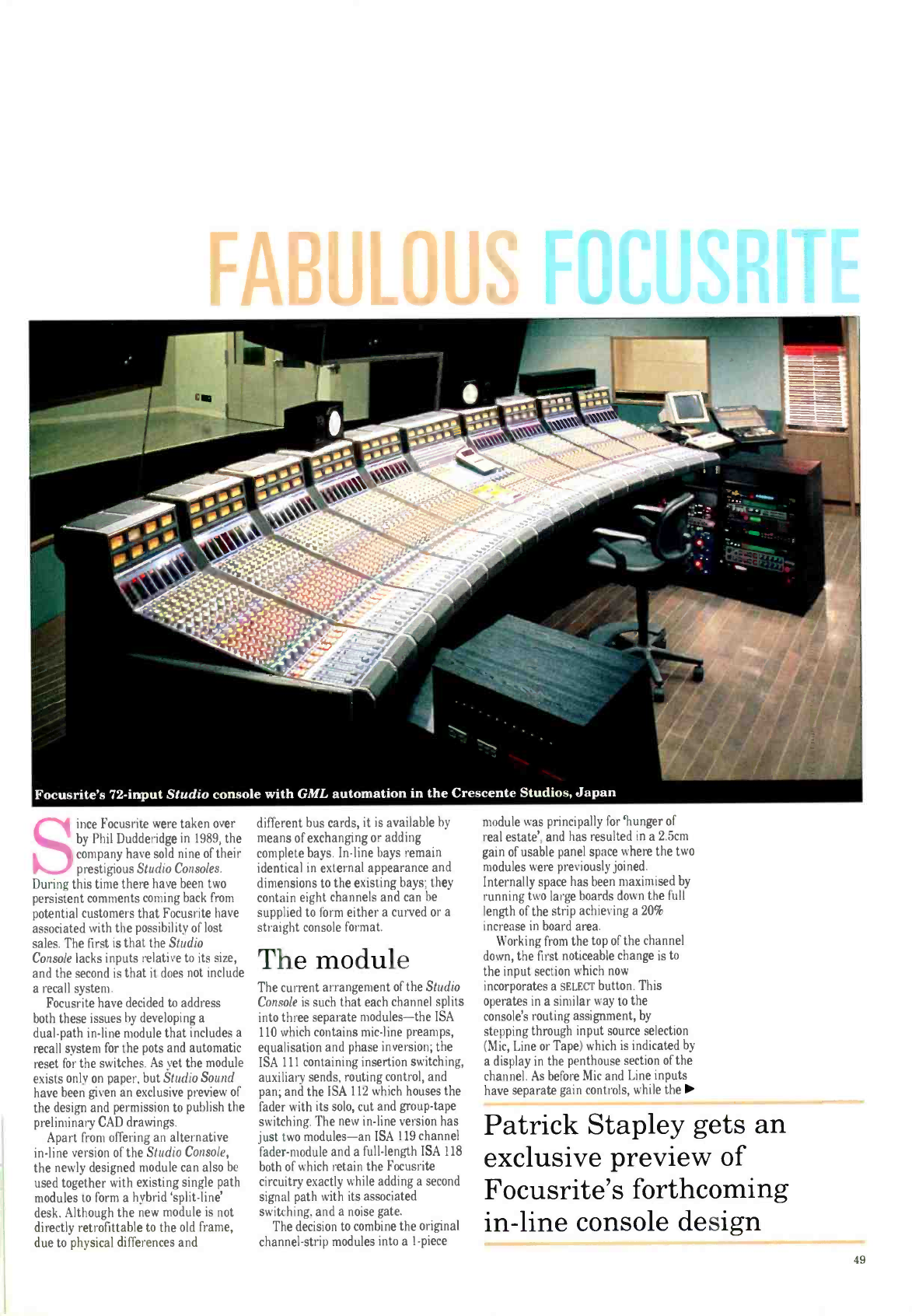

Focusrite In -line

New console exclusive

770

4 594017

www.americanradiohistory.com

"G Pius Sounds Excellent

By Any Standards"

Allen Sides,-Ucean Way

rrrrrrsrrrr rrrrurur>.r>arrrrr>trr iM<r"rrrrrrrs'rrrrrrrrrrarlssrartir>.

rrrr¡rrrrrrirrrrrrrr 1 1 1 1 1 1 1 1 ' -. r'vr+rrrrr+rrlursrrursrar.rtirrrrrrr,rr>,rr.urr

d ..,.: rrrr rrrrrtlr rrrlrht(°lchkY.A

'os ,>.. , . '.

1}tisLr4ít,

wr' `,

iss iAss i*.h4 i.tr.b ..+-11ya+ `.'..

- t[w". - . . . . -.r.az3"5'.+k-.

The world's largest music console -a 100- channel SL 8000 G Plus - is installed at

Ocean Way's 'Record One' facility in Sherman Oaks, California.

"Record One and Ocean Way share a common ethic - to

provide the best possible equipment, classic and modern, to

meet the needs of both artist and producer. I have always

respected the ergonomics and automation of SSL desks. The

addition of Ultimation' ', bypassing the fader VCAs, and

new audio enhancements mean that G Plus sounds excellent

by any standards."

Allen Sides, Owner

Ocean Way, Los Angeles

Solid State Logic

International headquarters:- Begbrokc, Oxford, England, OX51RU. Tel: (0865) 842300

Parisi!) 34 60 46 66 Milan (2) 262 24956 Darmstadt (6151) 93 86 40 Tokyo (3) 54 74 11 44

New York (212) 315 1111 Los Angeles (213) 463 4444 In USA call Toll Free 1- 800 343 0101

www.americanradiohistory.com

STUDIO

SOUN

AND BROADCAST ENGINEERING

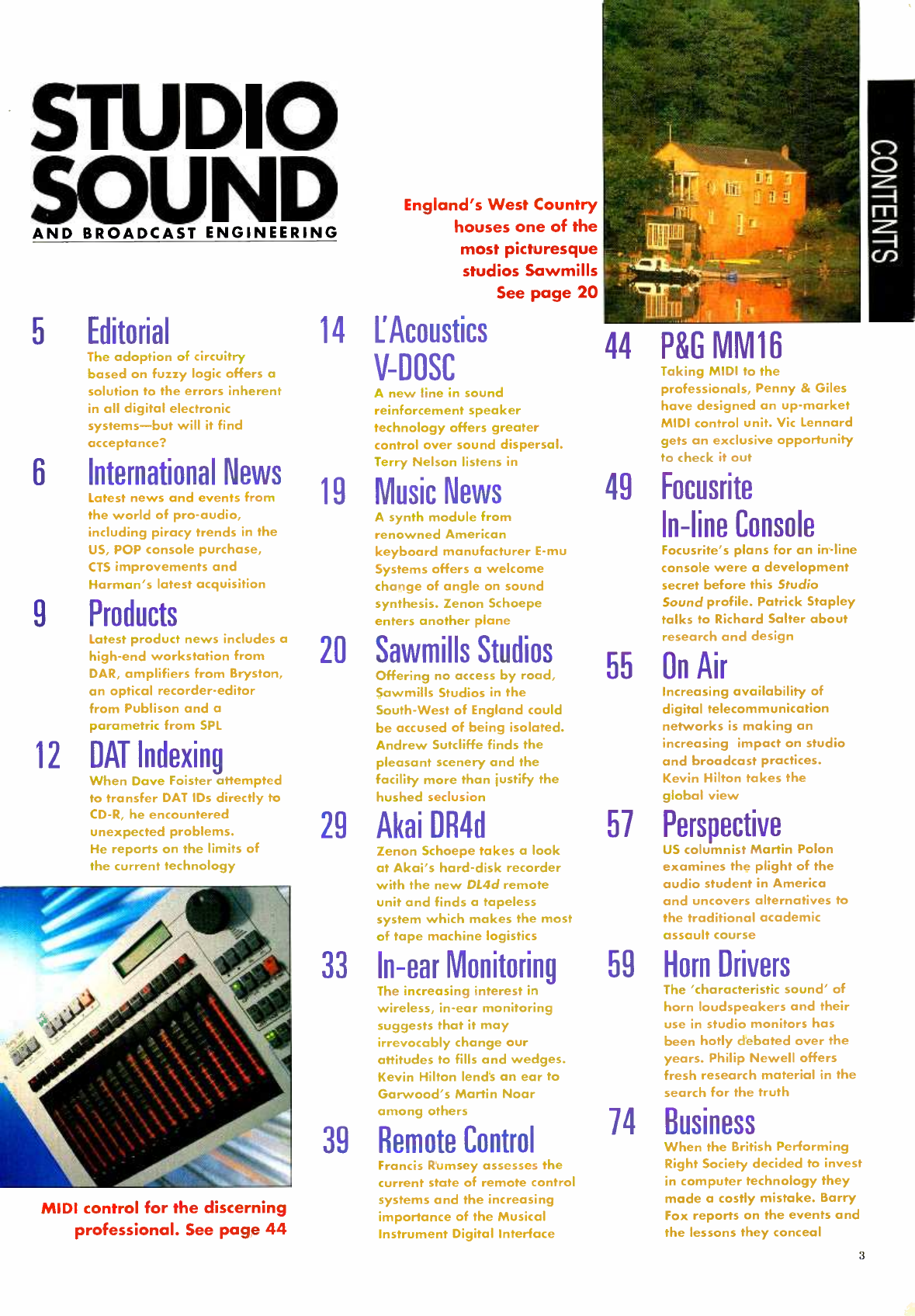

5 Editorial

The adoption of circuitry

based on fuzzy logic offers a

solution to the errors inherent

in all digital electronic

systems -but will it find

acceptance?

6 International News

ADVERTISEMENTS

Executive Ad Manager: Steve Grice

Deputy Ad Manager: Phil Boume

Business Development Manager Georgie Lee

Advertisement Production: Carmen Herbert

Secretary: Lianne Davey

CIRCULATION

Controlled Circulation Manager: Maria Udy

Director: Doug Shuard

Publisher: Steve Haysom

EDITORIAL AND

ADVERTISEMENT OFFICES

Spotlight Publications Ltd, 8th Floor, Ludgate

House, 245 Blackfriars Road, London SE1 9UR,

UK. Tel: 071 620 3636. Fax: 071 401 8036.

NEWSTRADE DISTRIBUTION (UK)

UMD, 1 Benwell Road, London N7 7AX, UK.

Tel: 071 700 4600. Fax: 071 607 3352.

Origination by Craftsmen Colour

Reproductions Ltd, Unit 1, James Street,

Maidstone, Kent ME 14 2UR.

Printed in England by Riverside Press, St Ives

plc, 2 Grant Close, Gillingham Business Park,

Gillingham, Kent MES OQB, UK.

Studio Sound and Broadcast Engineering

incorporates Sound International and Beat

Instrumental.

Studio Sound is published monthly.

The magazine is available on a rigidly

controlled requested basis, only to qualified

personnel.

Subscription Rates:

UK annual subscription: £24.00

Overseas surface mail: £30.50/US:$89

USA airspeeded delivery: $70

Subscription Enquiries

UK: Subscription Dept, Studio Sound

Magazine, Spotlight Publications Ltd,

8th Floor, Ludgate House, 245 Blackfriars

Road, London SE1 9UR.

USA: Studio Sound Magazine, 2 Park Avenue,

18th Floor, New York, NY 10016.

US Postmaster

Please send address corrections to: Studio

Sound Magazine, do Mercury Airfreight

International Ltd Inc, 2323 Randolph Avenue,

Avenel, New Jersey NJ 07001.

US second class postage paid at Rahway, NJ.

ABC

BUREAU Of CIRCULATIONS

Total average net circulation of 19,120 issues during

K:8,194. Overseas: 10,926. (ABC audited)

1 N V A United Newspapers publlcsdon

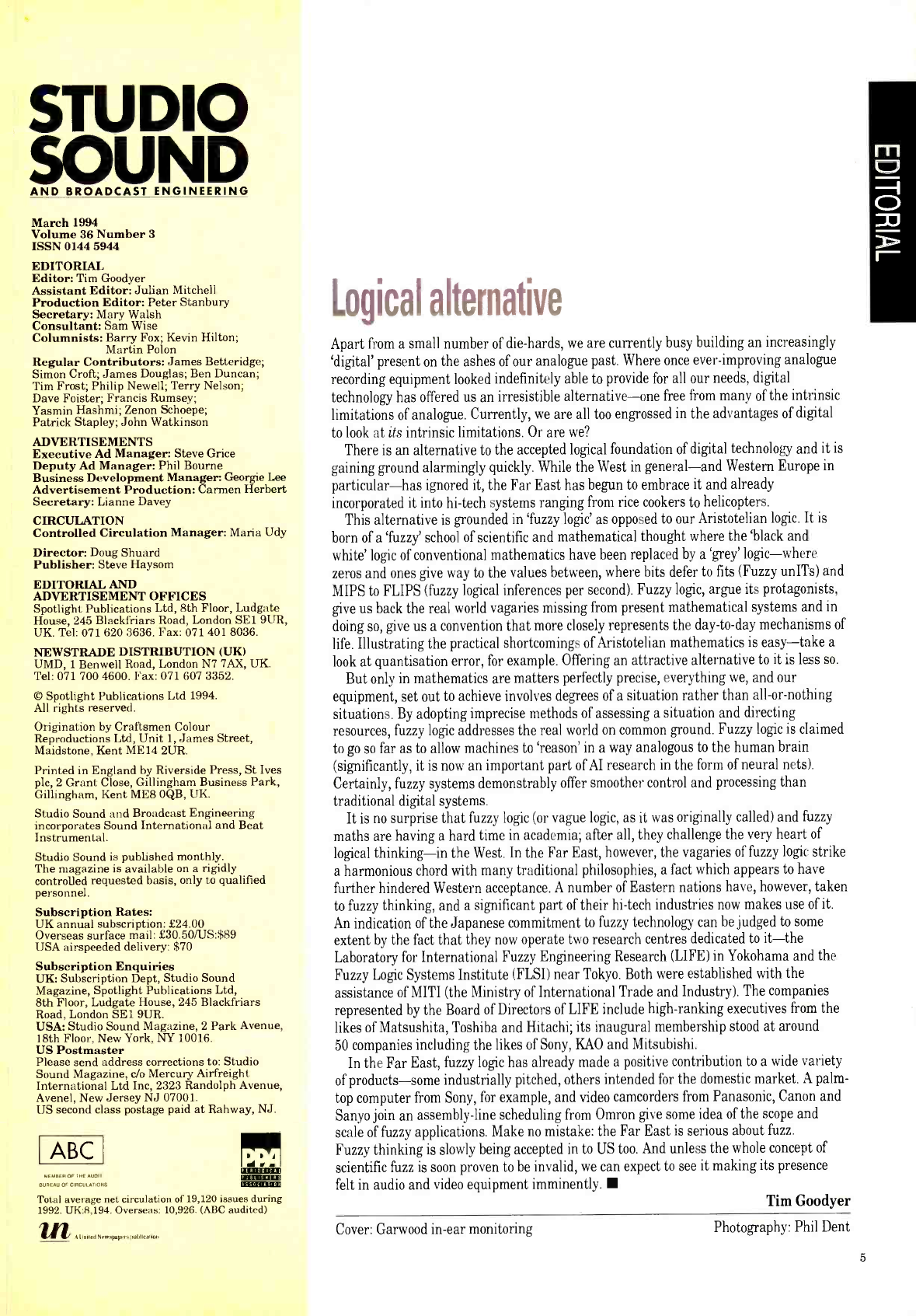

Logical alternative

Apart from a small number of die -hards, we are currently busy building an increasingly

`digital' present on the ashes of our analogue past. Where once ever -improving analogue

recording equipment looked indefinitely able to provide for all our needs, digital

technology has offered us an irresistible alternative-one free from many of the intrinsic

limitations of analogue. Currently, we are all too engrossed in the advantages of digital

to look at its intrinsic limitations. Or are we?

There is an alternative to the accepted logical foundation of digital technology and it is

gaining ground alarmingly quickly. While the West in general -and Western Europe in

particular -has ignored it, the Far East has begun to embrace it and already

incorporated it into hi -tech systems ranging from rice cookers to helicopters.

This alternative is grounded in `fuzzy logic' as opposed to our Aristotelian logic. It is

born of a `fuzzy' school of scientific and mathematical thought where the `black and

white' logic of conventional mathematics have been replaced by a `grey' logic -where

zeros and ones give way to the values between, where bits defer to fits (Fuzzy unITs) and

MIPS to FLIPS (fuzzy logical inferences per second). Fuzzy logic, argue its protagonists,

give us back the real world vagaries missing from present mathematical systems and in

doing so, give us a convention that more closely represents the day -to -day mechanisms of

life. Illustrating the practical shortcomings of Aristotelian mathematics is easy -take a

look at quantisation error, for example. Offering an attractive alternative to it is less so.

But only in mathematics are matters perfectly precise, everything we, and our

equipment, set out to achieve involves degrees of a situation rather than all -or- nothing

situations. By adopting imprecise methods of assessing a situation and directing

resources, fuzzy logic addresses the real world on common ground. Fuzzy logic is claimed

to go so far as to allow machines to `reason' in a way analogous to the human brain

(significantly, it is now an important part of AI research in the form of neural nets).

Certainly, fuzzy systems demonstrably offer smoother control and processing than

traditional digital systems.

It is no surprise that fuzzy logic (or vague logic, as it was originally called) and fuzzy

maths are having a hard time in academia; after all, they challenge the very heart of

logical thinking -in the West. In the Far East, however, the vagaries of fuzzy logic strike

a harmonious chord with many traditional philosophies, a fact which appears to have

further hindered Western acceptance. A number of Eastern nations have, however, taken

to fuzzy thinking, and a significant part of their hi -tech industries now makes use of it.

An indication of the Japanese commitment to fuzzy technology can be judged to some

extent by the fact that they now operate two research centres dedicated to it -the

Laboratory for International Fuzzy Engineering Research (LIFE) in Yokohama and the

Fuzzy Logic Systems Institute (FLSI) near Tokyo. Both were established with the

assistance of MITI (the Ministry of International Trade and Industry). The companies

represented by the Board of Directors of LIFE include high- ranking executives from the

likes of Matsushita, Toshiba and Hitachi; its inaugural membership stood at around

50 companies including the likes of Sony, KAO and Mitsubishi.

In the Far East, fuzzy logic has already made a positive contribution to a wide variety

of products -some industrially pitched, others intended for the domestic market. A palm-

top computer from Sony, for example, and video camcorders from Panasonic, Canon and

Sanyo join an assembly -line scheduling from Omron give some idea of the scope and

scale of fuzzy applications. Make no mistake: the Far East is serious about fuzz.

Fuzzy thinking is slowly being accepted in to US too. And unless the whole concept of

scientific fuzz is soon proven to be invalid, we can expect to see it making its presence

felt in audio and video equipment imminently. Tim Goodyer

Cover: Garwood in -ear monitoring Photography: Phil Dent

www.americanradiohistory.com

In -brief

Dorrough Audio win award

The Academy of Motion Picture Arts

and Sciences has awarded Dorrough

Electronics a Technical Achievement

Award for its Audio Level Meter, now in

wide use in motion picture production,

posting, music mixing and dubbing.

Dorrough Audio. Tel: +1 818 998 2824

Digital Audio courses in Paris

Les Ateliers UPIC Institute in Paris,

have inaugurated an educational

programmme designed to complement

the music production in their three

studios. The nine -month programme,

open to students from around the world,

goes from October 1994 to May 1995.

Courses include Computer Music

Techniques; Compostion Seminar;

Electroacoustics and Studio Technology.

Les Ateliers. Tel: +33 1 60 13 93 39

Changes for Sennheiser

Paul Whiting has been appointed

General Manager of Sennheiser UK,

following the departure of Ralph

Martinke to take up a new position

with a German technology firm.

Sennheiser 11K. Tel: 0628 850811

Young Woman Engineer of 1993

Helen Marshman, Cable Engineer with

Cable and Wireless (Marine) Ltd, Essex,

has been awarded the title 1993 Young

Woman Engineer of the Year. The

aim of the award is to encourage

more young women to pursue a

worthwhile career in the electronic,

electrical or allied engineering fields.

I E E I E. Tel: 071 836 3357

HHB appointments to the board

Pro -audio supplier

HHB Communications have recently

appointed Steve Angel and Mike

Bradley to the board as Sales Director

and Technical Director respectively.

HHB. Tel: 081 960 2144

HHB Communications appoint

Steve Angel (left) and David Bradley

to the board

Emmy award for Nexus team

Members of NTL's Nexus division have

received an EMMY from the National

Academy of Television Arts and

Sciences. Nexus built NBC's technical

facilities for the Barcelona Olympics.

NTL. Tel: 0962 822582

6 Studio Sound, March 1994

International News

RIAA: 'Piracy in

decline after six

years of increase'

The Recording Industry Association

of America have released their 1993

antipiracy statistics reflecting the

first annual decline in counterfeit

cassette seizures in six years.

The RIAA indicates approximately

2 million counterfeit cassettes were

seized in 1993 -down from 2.5

million in 1992.

The association have explained the

decrease in street sales of counterfeit

cassettes is directly linked to a

decrease in the number of

manufacturers, distributors, street

vendors and other individuals

producing and selling counterfeit

cassettes. This fact, they say, is due

to the maturation of a number of

RIAA programmes introduced over

the last few years, targeted at illegal

street vendors as well as

manufacturers and distributors.

They also credit the increased

involvement of the legitimate

recording industry at the retail level,

mainly in building regional coalitions.

Notable statistics and activities

include 144 criminal convictions of

sound recording pirates, a 140%

increase over the past five years. The

report also mentions a small growth

in pirate vinyls and CDs. In New

Ralph Tittley, Senior Editor at Optical Image with the Korg SoundLink. This West

Midlands postproduction house have bought an eight -hour SoundLink digital audio editor

for its studios in Stourbridge, UK. Presently being used in the three Edit Suites and shortly

to be installed in the new Sound Dubbing Suite. The system comes complete with v.4.0

software and Exabyte 8500tape backup system which is five times faster than real time

York the first alleged counterfeit CD

operation in the US was uncovered

with 3,000 CDs seized.

RIAA Inc. Tel: +1 202 775 0101.

Multimedia broadcast first for NAB

Sveriges Television (SVT), the

Swedish national public service

broadcaster, will demonstrate a

prototype of a Multimedia Broadcast

Service at the NAB '94 in Las Vegas,

between March 20 -24th. It will be

the first North American

demonstration of this technology.

The system will exhibit several

potential applications of a multimedia

broadcasting service; interactive

multimedia programs such as games

or educational programs downloaded

to receivers; a current summary of TV

programmes, updates during the

course of the programme; an

electronic newspaper; and an

electronic programme guide.

In operating the multimedia

system, the video, audio and other

data stored in the receiving station

are continuously updated via a digital

transmission link.

Multimedia broadcasting will

become possible as high capacity

digital services are made available to

consumers. Within the NTSC

environment, the National Data

Broadcasting Committee is working

on standards for delivery of high

speed data using the NTSC television

service as a delivery medium. For the

all -digital advanced television service

under consideration by the FCC,

multimedia broadcasting is being

discussed as potential ancillary use of

the digital channel capacity.

The Sveriges Television

demonstration of multimedia

broadcasting shows that there are

few technical barriers preventing

television broadcasters from

becoming multimedia providers and

offering new, improved and unique

broadcasting services to the public.

NAB. Tel: +1 202 429 5350.

CTS Studio One

widens for 1994

Studio One at CTS in North London,

has been given a comprehensive

acoustical face -lift which has resulted

in an increase in floor space as well as

a warmer more reverberant acoustic.

The new -look Studio One is now

wider, after the selective removal of

elements of acoustic treatment

following computer analysis by

designers Recording Architecture.

This provides a more comfortable

environment for the orchestras which

routinely use the studio for classical

and soundtrack recording, as well as

allowing house and visiting engineers

more versatility in the way they set

up those orchestras.

This fine -tuning of Studio One's

acoustic is the latest project in a

long -standing relationship between

the Lansdowne Group's studios and

Recording Architecture, which has

included the attunement of Studios

Two and Three.

CTS. Tel: 081 903 4611.

www.americanradiohistory.com

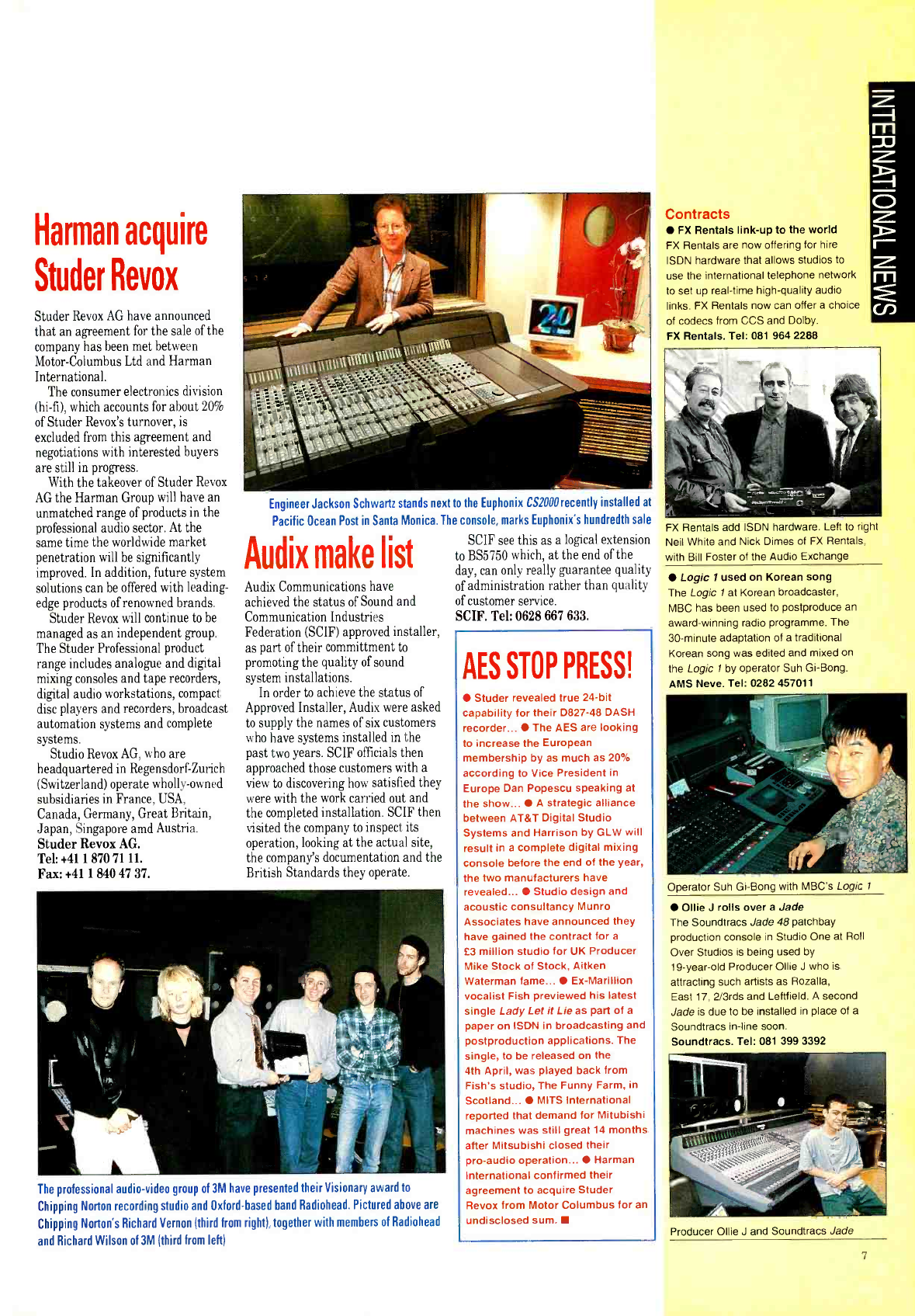

Harman acquire

Studer Revox

Studer Revox AG have announced

that an agreement for the sale of the

company has been met between

Motor -Columbus Ltd and Harman

International.

The consumer electronics division

(hi -fi), which accounts for about 20%

of Studer Revox's turnover, is

excluded from this agreement and

negotiations with interested buyers

are still in progress.

With the takeover of Studer Revox

AG the Harman Group will have an

unmatched range of products in the

professional audio sector. At the

same time the worldwide market

penetration will be significantly

improved. In addition, future system

solutions can be offered with leading -

edge products of renowned brands.

Studer Revox will continue to be

managed as an independent group.

The Studer Professional product

range includes analogue and digital

mixing consoles and tape recorders,

digital audio workstations, compact

disc players and recorders, broadcast

automation systems and complete

systems.

Studio Revox AG, who are

headquartered in Regensdorf -Zurich

(Switzerland) operate wholly -owned

subsidiaries in France, USA,

Canada, Germany, Great Britain,

Japan, Singapore amd Austria.

Studer Revox AG.

Tel: +41 1 870 71 11.

Fax: +41 1 840 47 37.

Engineer Jackson Schwartz stands next to the Euphonix CS2000recently installed at

Pacific Ocean Post in Santa Monica. The console, marks Euphonix's hundredth sale

Audix make list

Audix Communications have

achieved the status of Sound and

Communication Industries

Federation (SCIF) approved installer,

as part of their committment to

promoting the quality of sound

system installations.

In order to achieve the status of

Approved Installer, Audix were asked

to supply the names of six customers

who have systems installed in the

past two years. SCIF officials then

approached those customers with a

view to discovering how satisfied they

were with the work carried out and

the completed installation. SCIF then

visited the company to inspect its

operation, looking at the actual site,

the company's documentation and the

British Standards they operate.

The professional audio -video group of 3M have presented their Visionary award to

Chipping Norton recording studio and Oxford -based band Radiohead. Pictured above are

Chipping Norton's Richard Vernon (third from right), together with members of Radiohead

and Richard Wilson of 3M (third from left)

SCIF see this as a logical extension

to BS5750 which, at the end of the

day, can only really guarantee quality

of administration rather than quality

of customer service.

SCIF. Tel: 0628 667 633.

AES STOP PRESS!

Studer revealed true 24 -bit

capability for their D827 -48 DASH

recorder... The AES are looking

to increase the European

membership by as much as 20%

according to Vice President in

Europe Dan Popescu speaking at

the show... A strategic alliance

between AT &T Digital Studio

Systems and Harrison by GLW will

result in a complete digital mixing

console before the end of the year,

the two manufacturers have

revealed... Studio design and

acoustic consultancy Munro

Associates have announced they

have gained the contract for a

£3 million studio for UK Producer

Mike Stock of Stock, Aitken

Waterman fame... Ex- Marillion

vocalist Fish previewed his latest

single Lady Let it Lie as part of a

paper on ISDN in broadcasting and

postproduction applications. The

single, to be released on the

4th April, was played back from

Fish's studio, The Funny Farm, in

Scotland... MITS International

reported that demand for Mitubishi

machines was still great 14 months

after Mitsubishi closed their

pro -audio operation... Harman

International confirmed their

agreement to acquire Studer

Revox from Motor Columbus for an

undisclosed sum.

Contracts

FX Rentals link -up to the world

FX Rentals are now offering for hire

ISDN hardware that allows studios to

use the international telephone network

to set up real -time high -quality audio

links. FX Rentals now can offer a choice

of codecs from CCS and Dolby.

FX Rentals. Tel: 081 964 2288

FX Rentals add ISDN hardware. Left to right

Neil White and Nick Dimes of FX Rentals,

with Bill Foster of the Audio Exchange

Logic 1 used on Korean song

The Logic 1 at Korean broadcaster,

MBC has been used to postproduce an

award- winning radio programme. The

30- minute adaptation of a traditional

Korean song was edited and mixed on

the Logic 1 by operator Suh Gi -Bong.

AMS Neve. Tel: 0282 457011

Operator Suh Gi -Bong with MBC's Logic 1

011ie J rolls over a Jade

The Soundtracs Jade 48 patchbay

production console in Studio One at Roll

Over Studios is being used by

19- year -old Producer 011ie J who is

attracting such artists as Rozalla,

East 17, 2/3rds and Leftfield. A second

Jade is due to be installed in place of a

Soundtracs in -line soon.

Soundtracs. Tel: 081 399 3392

Producer 011ie J and Soundtracs Jade

www.americanradiohistory.com

THE edit block. The razor blade.

And the splicing tape.

All you need really. Cut,

splice, listen, cut, splice,

listen, boom,

finished.

No waiting to get

what you've done

dumped from a hard

disk. No tying up an

entire facility to do a

simple transfer. You

walk out with your work under

your arm.

Well, now you can have all

that along with digital quality

and the program length offered

by DAT.

Two Fostex D -10 DAT

recorders will lock together and

give you sample accurate

splices. You can scrub back and

D -10 offers instant start at up

to 799 individual programme

points with a search speed up to

250 times normal.

Put simply

working with two

D- l Os is simple and

intuitive, just like

using your ears

and a chinagraph.

Digital doesn't have to be

complicated. The Fostex D -10

is proof of that.

forward, find your mark, hit the

button and there's another edit.

You want a bit of a

gap? DAT with silence

on it as quiet as leader

tape.

You want it to

happen... now? The

r Editing blocks, who needs 'em? Please send me more information about the D -10 or call 081 893 5111,

LNOW EVERYTHING CONNECTS)

FOSTEX (UK) Ltd. Jackson Way, Great Western Industrial Park, Southall. Middlesex UB2 4SA

www.americanradiohistory.com

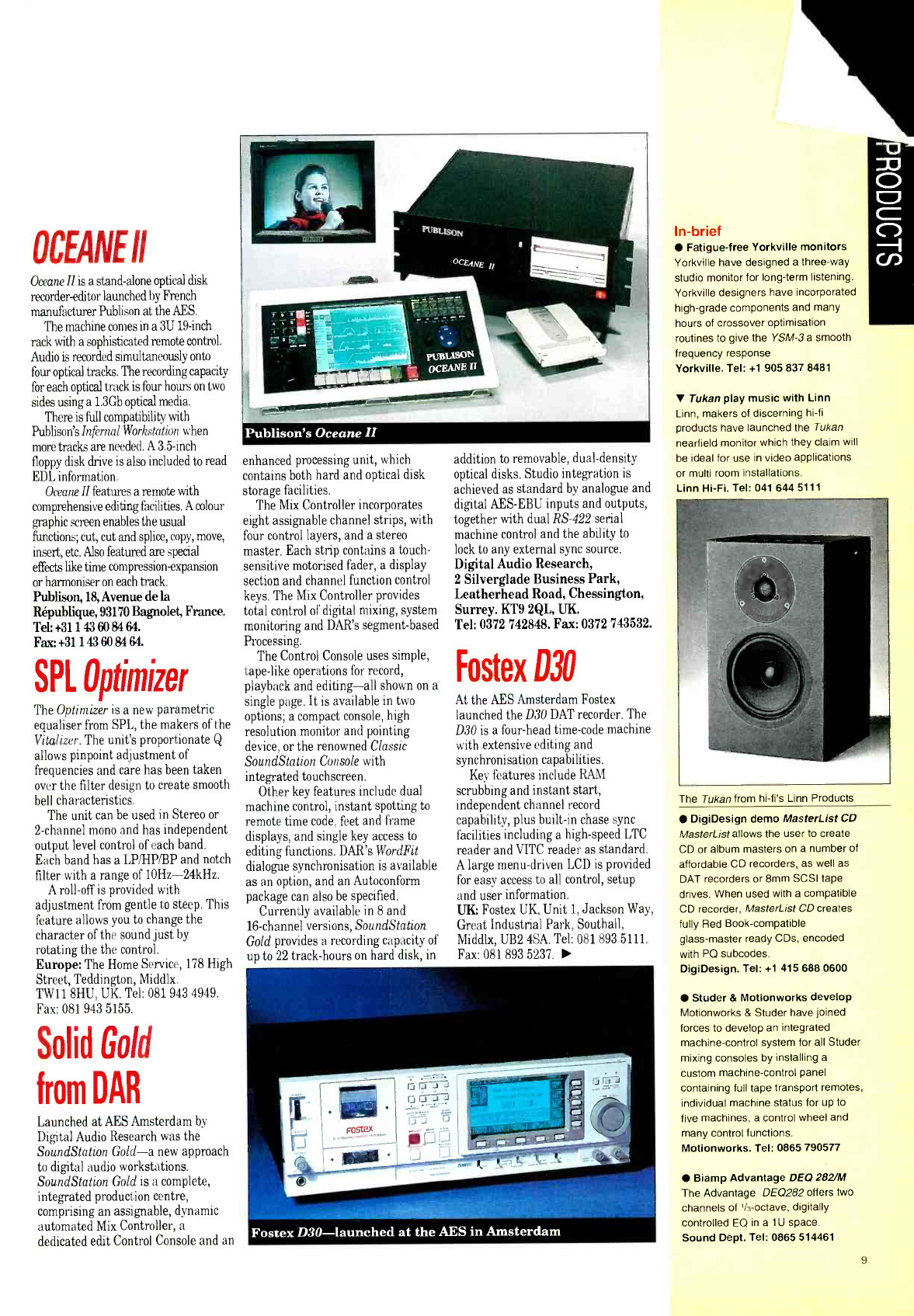

OCEANEII

Oceane II is a stand -alone optical disk

recorder- editor launched by French

manufacturer Publison at the AES.

The machine comes in a 3U 19 -inch

rack with a sophisticated remote control.

Audio is recorded simultaneously onto

four optical tracks. The recording capacity

for each optical track is four hours on two

sides using a 1.3Gó optical media.

There is full compatibility with

Publison's Infernal Workstation when

more tracks are needed. A 3.5 -inch

floppy disk drive is also included to read

EDL information.

Oceane II features a remote with

comprehensive editing facilities. A colour

graphic screen enables the usual

functions; cut, cut and splice, copy, move,

insert, etc. Also featured are special

effects like time compression- expansion

or harmoniser on each track.

Publison, 18, Avenue de la

République, 93170 Bagnolet, France.

Tel: +31 1 43 60 84 64.

Fax +31 1 43 60 84 64.

SPL Optimizer

The Optimizer is a new parametric

equaliser from SPL, the makers of the

Vitalizer. The unit's proportionate Q

allows pinpoint adjustment of

frequencies and care has been taken

over the filter design to create smooth

bell characteristics.

The unit can be used in Stereo or

2- channel mono and has independent

output level control of each band.

Each band has a LP/HP/BP and notch

filter with a range of 10Hz- 24kHz.

A roll -off is provided with

adjustment from gentle to steep. This

feature allows you to change the

character of the sound just by

rotating the the control.

Europe: The Home Service, 178 High

Street, Teddington, Middlx.

TW118HU, UK. Tel: 081 943 4949.

Fax: 081 943 5155.

Solid Gold

from DAR

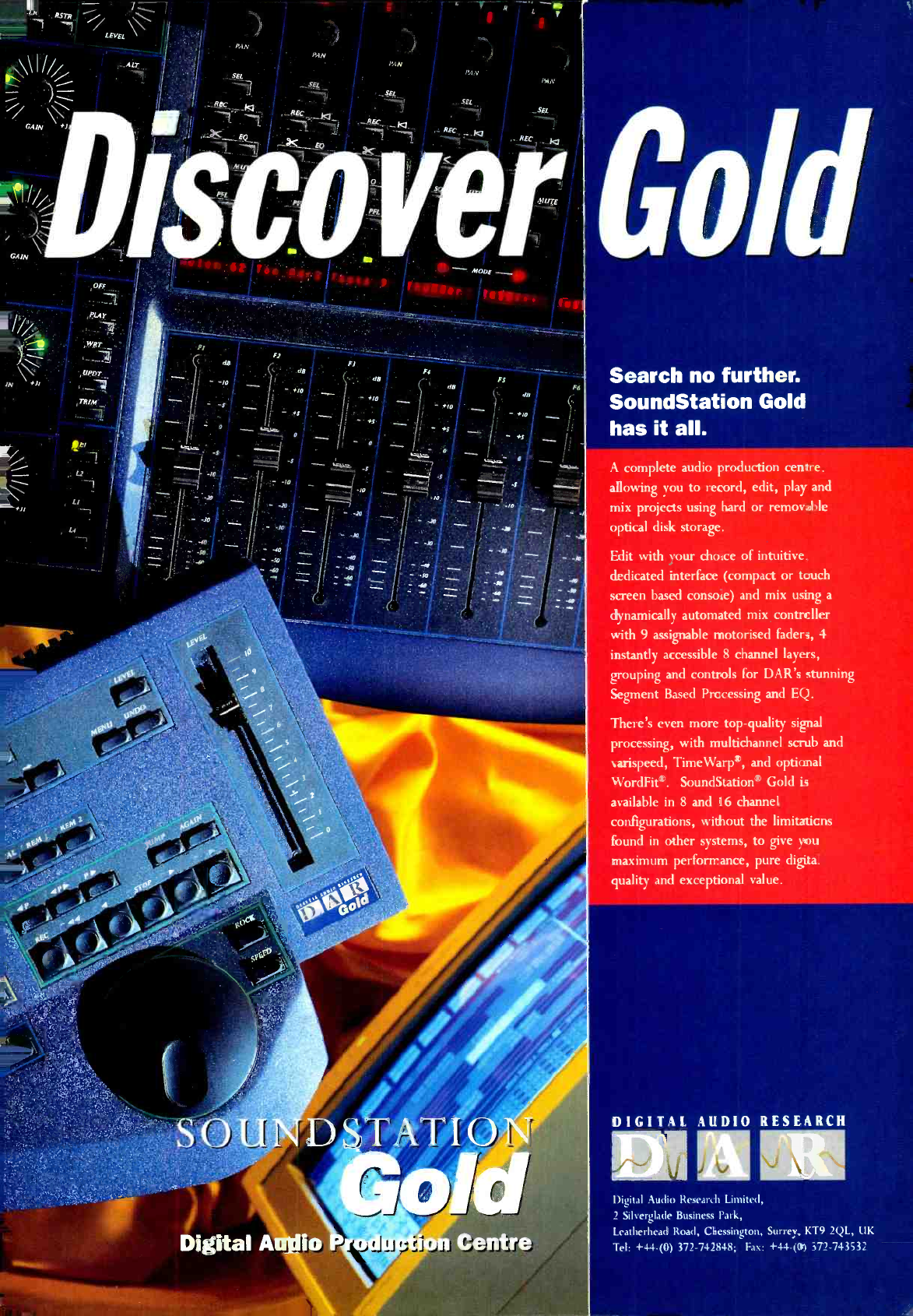

Launched at AES Amsterdam by

Digital Audio Research was the

SoundStation Gold -a new approach

to digital audio workstations.

SoundStation Gold is a complete,

integrated production centre,

comprising an assignable, dynamic

automated Mix Controller, a

dedicated edit Control Console and an

enhanced processing unit, which

contains both hard and optical disk

storage facilities.

The Mix Controller incorporates

eight assignable channel strips, with

four control layers, and a stereo

master. Each strip contains a touch -

sensitive motorised fader, a display

section and channel function control

keys. The Mix Controller provides

total control of digital mixing, system

monitoring and DAR's segment -based

Processing.

The Control Console uses simple,

tape -like operations for record,

playback and editing -all shown on a

single page. It is available in two

options; a compact console, high

resolution monitor and pointing

device, or the renowned Classic

SoundStation Console with

integrated touchscreen.

Other key features include dual

machine control, instant spotting to

remote time code, feet and frame

displays, and single key access to

editing functions. DAR's WordFit

dialogue synchronisation is available

as an option, and an Autoconform

package can also be specified.

Currently available in 8 and

16- channel versions, SoundStation

Gold provides a recording capacity of

up to 22 track -hours on hard disk, in

addition to removable, dual- density

optical disks. Studio integration is

achieved as standard by analogue and

digital AES -EBU inputs and outputs,

together with dual RS -422 serial

machine control and the ability to

lock to any external sync source.

Digital Audio Research,

2 Silverglade Business Park,

Leatherhead Road, Chessington,

Surrey. KT9 2QL, UK.

Tel: 0372 742848. Fax: 0372 743532.

Fostex D30

At the AES Amsterdam Fostex

launched the D30 DAT recorder. The

D30 is a four -head time -code machine

with extensive editing and

synchronisation capabilities.

Key features include RAM

scrubbing and instant start,

independent channel record

capability, plus built -in chase sync

facilities including a high -speed LTC

reader and VITC reader as standard.

A large menu -driven LCD is provided

for easy access to all control, setup

and user information.

UK: Fostex UK, Unit 1, Jackson Way,

Great Industrial Park, Southall,

Middlx, UB2 4SA. Tel: 081 893 5111.

Fax: 081 893 5237.

Fostex D30- launched at the AES in Amsterdam

In -brief

Fatigue -free Yorkville monitors

Yorkville have designed a three -way

studio monitor for long -term listening.

Yorkville designers have incorporated

high -grade components and many

hours of crossover optimisation

routines to give the YSM -3 a smooth

frequency response

Yorkville. Tel: +1 905 837 8481

Tukan play music with Linn

Linn, makers of discerning hi -fi

products have launched the Tukan

nearfield monitor which they claim will

be ideal for use in video applications

or multi room installations.

Linn Hi -Fi. Tel: 041 644 5111

The Tukan from hi -fi's Linn Products

DigiDesign demo MasterList CD

MasterList allows the user to create

CD or album masters on a number of

affordable CD recorders, as well as

DAT recorders or 8mm SCSI tape

drives. When used with a compatible

CD recorder, MasterList CD creates

fully Red Book -compatible

glass- master ready CDs, encoded

with PQ subcodes.

DigiDesign. Tel: +1 415 688 0600

Studer & Motionworks develop

Motionworks & Studer have joined

forces to develop an integrated

machine -control system for all Studer

mixing consoles by installing a

custom machine -control panel

containing full tape transport remotes,

individual machine status for up to

five machines, a control wheel and

many control functions.

Motionworks. Tel: 0865 790577

Biamp Advantage DEQ282/M

The Advantage DEQ282 offers two

channels of '13- octave, digitally

controlled EQ in a 1U space.

Sound Dept. Tel: 0865 514461

www.americanradiohistory.com

Now more

affordable!

Qmx Series

Double 15- Composite full range concert system 133dB SPL

Double 12- Composite full range concert system 133dB SPL

K Series

K 88 2 x 450 Watt at 4SZ

1K2 2 x 600 Watt at 482 K88TX -THX approved

AM Serie

AM 1200 4 x 320 watt at

AM1600 2x810 watt at

4L2

482 AM 2200 Tri- Amp

Renowned for

superb sound

reliability and

versatility

Backed up by

5 year warranty

f ustrMonitor Pty Ltd

53 College Street

Gladesville NSW 2111

Sydney Australia

Telephone 61 2 816 3544

Fax 61 2 8174303

Australian Monitors Europe

Tel 49 7248 4446

Fax 49 7248 4447

Australian Monitors USA

Tel 215 380 1394

Fax 215 380 1358

Australian Monitors Far East

Tel 65 742 9131

Fax 65 742 7288

Australian Monitors Canada

Tel 416 693 0300

Fax 416 691 7193

10 Studio Sound, March 1994

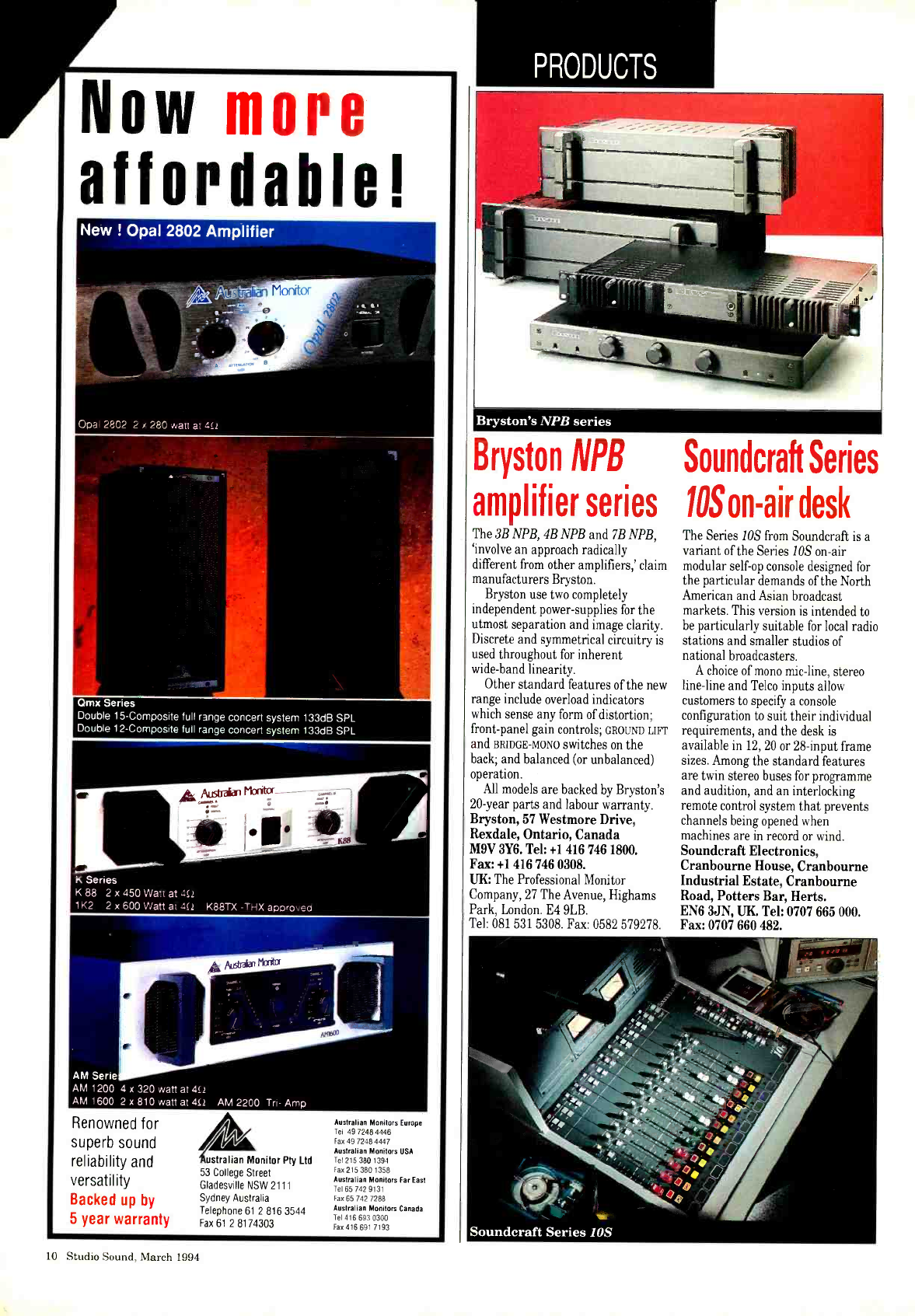

PRODUCTS

Bryston NPB Soundcraft Series

amplifier series lOSon-air desk

The 3B NPB, 4B NPB and 7B NPB,

`involve an approach radically

different from other amplifiers,' claim

manufacturers Bryston.

Bryston use two completely

independent power -supplies for the

utmost separation and image clarity.

Discrete and symmetrical circuitry is

used throughout for inherent

wide -band linearity.

Other standard features of the new

range include overload indicators

which sense any form of distortion;

front -panel gain controls; GROUND LIFT

and BRIDGE -MONO switches on the

back; and balanced (or unbalanced)

operation.

All models are backed by Bryston's

20 -year parts and labour warranty.

Bryston, 57 Westmore Drive,

Rexdale, Ontario, Canada

M9V 3Y6. Tel: +1 416 746 1800.

Fax: +1 416 746 0308.

UK: The Professional Monitor

Company, 27 The Avenue, Highams

Park, London. E4 9LB.

Tel: 081 531 5308. Fax: 0582 579278.

The Series /OS from Soundcraft is a

variant of the Series /OS on -air

modular self -op console designed for

the particular demands of the North

American and Asian broadcast

markets. This version is intended to

be particularly suitable for local radio

stations and smaller studios of

national broadcasters.

A choice of mono mic -line, stereo

line -line and Telco inputs allow

customers to specify a console

configuration to suit their individual

requirements, and the desk is

available in 12, 20 or 28 -input frame

sizes. Among the standard features

are twin stereo buses for programme

and audition, and an interlocking

remote control system that prevents

channels being opened when

machines are in record or wind.

Soundcraft Electronics,

Cranbourne House, Cranbourne

Industrial Estate, Cranbourne

Road, Potters Bar, Herts.

EN6 3JN, UK. Tel: 0707 665 000.

Fax: 0707 660 482.

www.americanradiohistory.com

H 1 G H T E C H

__----^ ppr-nenK

BECAUSE PERFORMERS "LIVE OR DIE" BY ThEIR SOUND S STEMS, WE'RE PROUD TO ANNOUNCE THREE NEW TOUGH

GUYS TO THE PEAVEY POWER AMPLIFIER LINE...THE PV SERIES. THIS NEW LINE COMBINES THE LATEST

SEMICONDUCTOR TECHNOLOGY Y ALONG WITH THE MOST CONTEMPORARY APPROACH TO TRANSFORMER DESIGN

FOR HIGH PERFORMANCE, BFUTE POWER AHD UNMATCHE: RELIABILITY WITH SPECIFICATIONS,

SOUND, AND PRICES THAT CAN'T BE BEAT. PEAVEY ELECTRONICS (U.K.) LTD.

HATTON HOUSE HUNTERS ROAD

CORBY NORTHANTS NN17 51E ENGLAND

TEL 0536 205520 FAX 0536 69029

www.americanradiohistory.com

SOUND

CONNECTION

SOUND

PERFECTION

Life is tough for the humble jack plug. One of

the most frequently used audio components,

it also takes the most amount of wear and

tear: the workhorse of audio equipment.

So we build our 2 - and 3 -pole jack plugs to

stand up to the heaviest professional use,

and still give superb signal performance.

The brass housing is available in nickel, gold or

black chrome finish. A special collet grips the

cable firmly inside the cap. There's even a

strain relief spring to help keep the cable

constantly at the correct angle to the plug.

This latest addition to the DOS Pro -Audio

range is backed by a unique understanding

of the professional market the world over.

And the knowledge of how to engineer

solutions to perfection.

For more information and details of the entire

Deltron DGS Pro -Audio range, contact us today.

DELTRON

DGS

PROM

Deltron Components Ltd

Atlas Works, Atlas Road, London NW10 6DN

Tel: 44 81 -965 5000 Fax: 44 81 -965 6130

DGS Pro -Audio

PO Box 170426, Arlington, Texas TX 76003 -0426

Tel: (817) 473 7272 Fax: (817) 473 7712

12 Studio Sound, March 1994

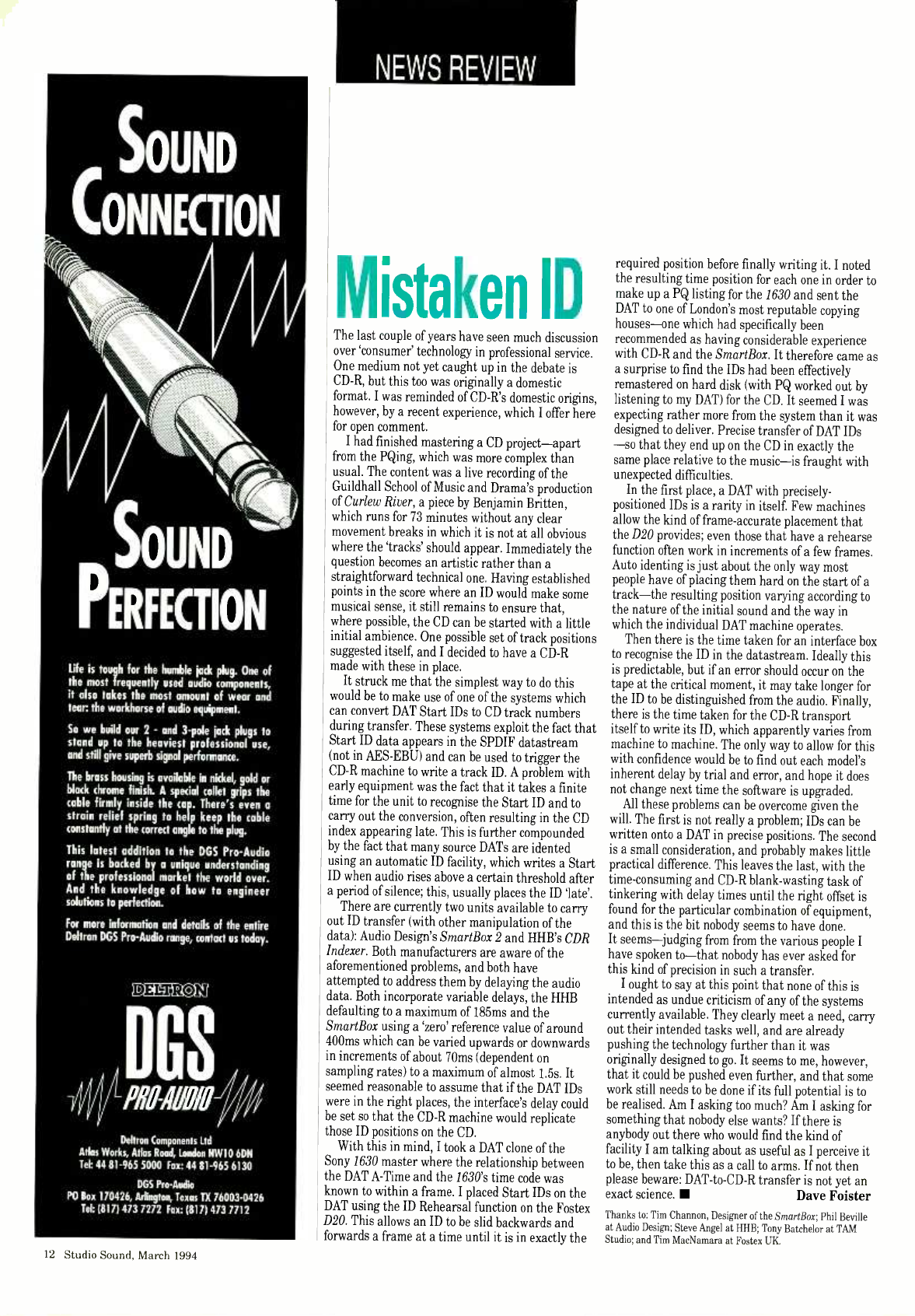

NEWS REVIEW

Mistaken ID

The last couple of years have seen much discussion

over `consumer' technology in professional service.

One medium not yet caught up in the debate is

CD -R, but this too was originally a domestic

format. I was reminded of CD -R's domestic origins,

however, by a recent experience, which I offer here

for open comment.

I had finished mastering a CD project -apart

from the PQing, which was more complex than

usual. The content was a live recording of the

Guildhall School of Music and Drama's production

of Curlew River, a piece by Benjamin Britten,

which runs for 73 minutes without any clear

movement breaks in which it is not at all obvious

where the `tracks' should appear. Immediately the

question becomes an artistic rather than a

straightforward technical one. Having established

points in the score where an ID would make some

musical sense, it still remains to ensure that,

where possible, the CD can be started with a little

initial ambience. One possible set of track positions

suggested itself, and I decided to have a CD -R

made with these in place.

It struck me that the simplest way to do this

would be to make use of one of the systems which

can convert DAT Start IDs to CD track numbers

during transfer. These systems exploit the fact that

Start ID data appears in the SPDIF datastream

(not in AES -EBU) and can be used to trigger the

CD -R machine to write a track ID. A problem with

early equipment was the fact that it takes a finite

time for the unit to recognise the Start ID and to

carry out the conversion, often resulting in the CD

index appearing late. This is further compounded

by the fact that many source DATs are idented

using an automatic ID facility, which writes a Start

ID when audio rises above a certain threshold after

a period of silence; this, usually places the ID late'.

There are currently two units available to carry

out ID transfer (with other manipulation of the

data): Audio Design's SmartBox 2 and HHB's CDR

Indexer. Both manufacturers are aware of the

aforementioned problems, and both have

attempted to address them by delaying the audio

data. Both incorporate variable delays, the HHB

defaulting to a maximum of 185ms and the

SmartBox using a `zero' reference value of around

400ms which can be varied upwards or downwards

in increments of about 70ms (dependent on

sampling rates) to a maximum of almost 1.5s. It

seemed reasonable to assume that if the DAT IDs

were in the right places, the interface's delay could

be set so that the CD -R machine would replicate

those ID positions on the CD.

With this in mind, I took a DAT clone of the

Sony 1630 master where the relationship between

the DAT A -Time and the 1630's time code was

known to within a frame. I placed Start IDs on the

DAT using the ID Rehearsal function on the Fostex

D20. This allows an ID to be slid backwards and

forwards a frame at a time until it is in exactly the

required position before finally writing it. I noted

the resulting time position for each one in order to

make up a PQ listing for the 1630 and sent the

DAT to one of London's most reputable copying

houses -one which had specifically been

recommended as having considerable experience

with CD -R and the SmartBox. It therefore came as

a surprise to find the IDs had been effectively

remastered on hard disk (with PQ worked out by

listening to my DAT) for the CD. It seemed I was

expecting rather more from the system than it was

designed to deliver. Precise transfer of DAT IDs

-so that they end up on the CD in exactly the

same place relative to the music -is fraught with

unexpected difficulties.

In the first place, a DAT with precisely -

positioned IDs is a rarity in itself. Few machines

allow the kind of frame -accurate placement that

the D20 provides; even those that have a rehearse

function often work in increments of a few frames.

Auto identing is just about the only way most

people have of placing them hard on the start of a

track -the resulting position varying according to

the nature of the initial sound and the way in

which the individual DAT machine operates.

Then there is the time taken for an interface box

to recognise the ID in the datastream. Ideally this

is predictable, but if an error should occur on the

tape at the critical moment, it may take longer for

the ID to be distinguished from the audio. Finally,

there is the time taken for the CD -R transport

itself to write its ID, which apparently varies from

machine to machine. The only way to allow for this

with confidence would be to find out each model's

inherent delay by trial and error, and hope it does

not change next time the software is upgraded.

All these problems can be overcome given the

will. The first is not really a problem; IDs can be

written onto a DAT in precise positions. The second

is a small consideration, and probably makes little

practical difference. This leaves the last, with the

time -consuming and CD -R blank- wasting task of

tinkering with delay times until the right offset is

found for the particular combination of equipment,

and this is the bit nobody seems to have done.

It seems judging from from the various people I

have spoken to -that nobody has ever asked for

this kind of precision in such a transfer.

I ought to say at this point that none of this is

intended as undue criticism of any of the systems

currently available. They clearly meet a need, carry

out their intended tasks well, and are already

pushing the technology further than it was

originally designed to go. It seems to me, however,

that it could be pushed even further, and that some

work still needs to be done if its full potential is to

be realised. Am I asking too much? Am I asking for

something that nobody else wants? If there is

anybody out there who would find the kind of

facility I am talking about as useful as I perceive it

to be, then take this as a call to arms. If not then

please beware: DAT- to -CD -R transfer is not yet an

exact science. Dave Foister

Thanks to: Tim Channon, Designer of the SmartBox; Phil Beville

at Audio Design; Steve Angel at HHB; Tony Batchelor at TAM

Studio; and Tim MacNamara at Fostex UK

www.americanradiohistory.com

INTRODUCING APOGEE'S LATEST MASTERPIECE IN ENGINEERING:

THE CRQ -12 MULTI -MOPE D u 1FTu IC EQUALIZER

Featuring unprecedented sonic quality with dynamic range greater than 115dB and distortion

less than 0.003% at +21dBu.

The CRQ -12 is rich with features. Twelve fully parametric filters (each adjustable from 20Hz to

20kHz), four shelving filters and four band -pass filters. All assignable through "Multi-Mode"

operation into three distinct configurations. Fan cooled for ultra -stable filter settings. Four

outputs (two per channel) each with level control and mute switch. Bypass level controls on

all outputs prevent feedback in the event of power loss.

Finally, a sophisticated tool for absolute control that brings out the best in touring systems,

control rooms and everything in between. Call or write for detailed information.

1150 Industrial Avenue

Petaluma, CA 94952

Ph.: (707) 778 -8887

'ax: (707) 778 -6923

See us at MUSIK MESSE, Stand 9.2 B88 www.americanradiohistory.com

C/)

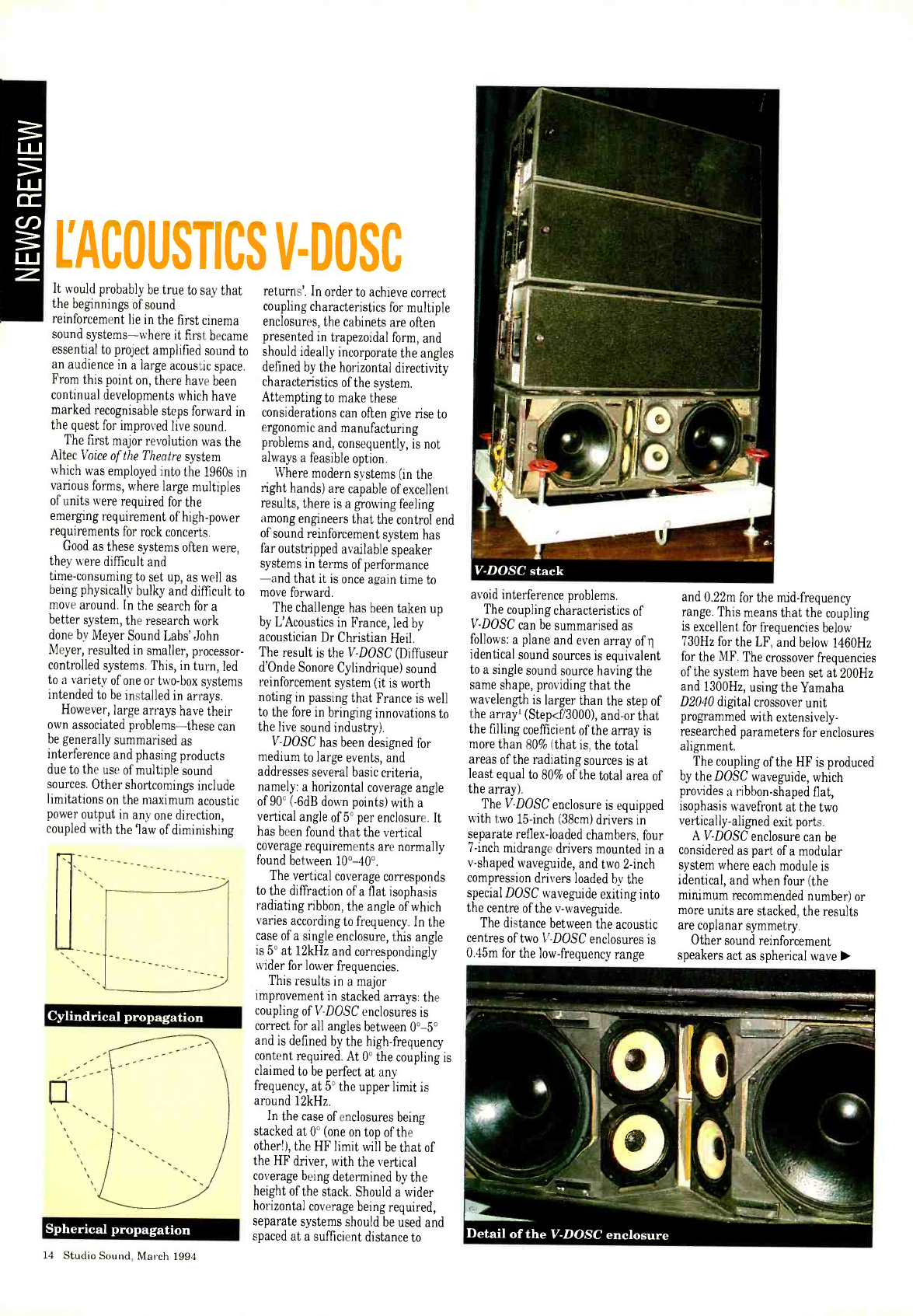

LU L'ACOUSTICS V-DOSC

It would probably be true to say that

the beginnings of sound

reinforcement lie in the first cinema

sound systems -where it first became

essential to project amplified sound to

an audience in a large acoustic space.

From this point on, there have been

continual developments which have

marked recognisable steps forward in

the quest for improved live sound.

The first major revolution was the

Altec Voice of the Theatre system

which was employed into the 1960s in

various forms, where large multiples

of units were required for the

emerging requirement of high -power

requirements for rock concerts.

Good as these systems often were,

they were difficult and

time -consuming to set up, as well as

being physically bulky and difficult to

move around. In the search for a

better system, the research work

done by Meyer Sound Labs' John

Meyer, resulted in smaller, processor -

controlled systems. This, in turn, led

to a variety of one or two -box systems

intended to be installed in arrays.

However, large arrays have their

own associated problems -these can

be generally summarised as

interference and phasing products

due to the use of multiple sound

sources. Other shortcomings include

limitations on the maximum acoustic

power output in any one direction,

coupled with the law of diminishing

Cylindrical propagation

Spherical propagation

14 Studio Sound, March 1994

returns'. In order to achieve correct

coupling characteristics for multiple

enclosures, the cabinets are often

presented in trapezoidal form, and

should ideally incorporate the angles

defined by the horizontal directivity

characteristics of the system.

Attempting to make these

considerations can often give rise to

ergonomic and manufacturing

problems and, consequently, is not

always a feasible option.

Where modern systems (in the

right hands) are capable of excellent

results, there is a growing feeling

among engineers that the control end

of sound reinforcement system has

far outstripped available speaker

systems in terms of performance

-and that it is once again time to

move forward.

The challenge has been taken up

by L'Acoustics in France, led by

acoustician Dr Christian Heil.

The result is the V -DOSC (Diffuseur

d'Onde Sonore Cylindrique) sound

reinforcement system (it is worth

noting in passing that France is well

to the fore in bringing innovations to

the live sound industry).

V -DOSC has been designed for

medium to large events, and

addresses several basic criteria,

namely: a horizontal coverage angle

of 90° ( -6dB down points) with a

vertical angle of 5° per enclosure. It

has been found that the vertical

coverage requirements are normally

found between 10 °-40 °.

The vertical coverage corresponds

to the diffraction of a flat isophasis

radiating ribbon, the angle of which

varies according to frequency. In the

case of a single enclosure, this angle

is 5° at 12kHz and correspondingly

wider for lower frequencies.

This results in a major

improvement in stacked arrays: the

coupling of V -DOSC enclosures is

correct for all angles between 0 ° -5°

and is defined by the high- frequency

content required. At 0° the coupling is

claimed to be perfect at any

frequency, at 5° the upper limit is

around 12kHz.

In the case of enclosures being

stacked at 0° (one on top of the

other!), the HF limit will be that of

the HF driver, with the vertical

coverage being determined by the

height of the stack. Should a wider

horizontal coverage being required,

separate systems should be used and

spaced at a sufficient distance to

avoid interference problems.

The coupling characteristics of

V -DOSC can be summarised as

follows: a plane and even array of 0

identical sound sources is equivalent

to a single sound source having the

same shape, providing that the

wavelength is larger than the step of

the array' (Step<f/3000), and -or that

the filling coefficient of the array is

more than 80% (that is, the total

areas of the radiating sources is at

least equal to 80% of the total area of

the array).

The V -DOSC enclosure is equipped

with two 15 -inch (38cm) drivers in

separate reflex -loaded chambers, four

7 -inch midrange drivers mounted in a

v- shaped waveguide, and two 2 -inch

compression drivers loaded by the

special DOSC waveguide exiting into

the centre of the v- waveguide.

The distance between the acoustic

centres of two V -DOSC enclosures is

0.45m for the low -frequency range

and 0.22m for the mid- frequency

range. This means that the coupling

is excellent for frequencies below

730Hz for the LF, and below 1460Hz

for the MF. The crossover frequencies

of the system have been set at 200Hz

and 1300Hz, using the Yamaha

D2040 digital crossover unit

programmed with extensively-

researched parameters for enclosures

alignment

The coupling of the HF is produced

by the DOSC waveguide, which

provides a ribbon- shaped flat,

isophasis wavefront at the two

vertically- aligned exit ports.

A V -DOSC enclosure can be

considered as part of a modular

system where each module is

identical, and when four (the

minimum recommended number) or

more units are stacked, the results

are coplanar symmetry.

Other sound reinforcement

speakers act as spherical wave

www.americanradiohistory.com

THE CALM

OASIS.

T H E o G 1 C 3

"The first thing I liked about the

new Logic 3 was its size. For all the

things it can do, it's very compact, so it

doesn't take up the whole studio. It

makes the place more relaxed, so you

can plan around it.

"Conceptually it's very different,

but it feels like a normal desk. I got into

it very quickly, there are no complicated

manuals to learn.

"But it's still very powerful. You

don't need to buy extra stuff like EQ and

compressors, because they're already in

there. And you don't have to touch the

patch bay, because the Logic 3 has

assignable routing.

"Yes, feel is very important, the

ergonomics are very good. The physical

contact you have with a desk is integral

to mixing and even though there's a lot

of automation with the Logic 3, you still

get physical things to do. I really like its

character.

ó "And its speed is a great asset.

2 You never need to compromise, even if

o time is short. You always get exactly

what you want.

"That's why a lot of people call it

the 'What -if?' machine. Because there's

so much it can do, you don't reach

technical limitations.

"I did look at other systems, but

you can't touch the heritage of AMS

Neve. The Logic 3 and Aud ioFile really

is a well integrated digital audio work-

station. It's like having a thousand

hands."

AMS

NEVE

A S I E M E N S C O M P A N Y

For more information contact:

AMS Neve plc, Billington Road, Burnlel, Lancs BBII 5ES,

England. Telephone: (44) 282 457011. Fax: (44) 282 39542.

www.americanradiohistory.com

Before You

Jump Into

Digital Nonlinear

Post -Production,

Make Sure

You've Got The

Rillt Equipment.

Moving into digital

post -production is a big

step. But it doesn't have

to be a leap of faith.

Just do what more

professionals have done,

from commercial TV to

Hollywood: choose Avid.

At Avid, you'll find the

first high -quality nonlinear

online video systems. The

world's first true 24 -frame

digital film editing system.

And the first affordable

digital audio workstation to

integrate multitrack audio

with sync -locked digital

motion picture.

The fact is, no

other company offers

you so many choices

for digital editing.

From

online

Prom rdoo to film to

audio, eniyAvid's Emmy

Awara- winning systems

cover :76u every step of the way.

to offline, from

audio to film. And

we 're proven in more

than 2,000 professional

installations, backed by

an outstanding customer

support staff.

Avid knows how to

make editing systems that

unleash your imagination.

That work intuitively, the

way you work. That give

you the power to explore

your ideas more easily,

more quickly, and more

effectively than ever before.

Before you jump

into digital nonlinear

post -production, call the

company that's already

been there :

+44 753 65 59 99 (Pat).

Well make sure your next

digital system is a step in

the right direction.

D°

When You're Ready For The Best.

Avid Technology Europe: Pinewood Studios, Pinewood Road, Iver, Bucks SLO ONH - England

www.americanradiohistory.com

generators and should, ideally,

behave like point -sources. The

V -DOSC system differs in that it

produces a cylindrical wavefront,

with three vertical sound- radiating

`strips'. This provides a very defined

and even coverage angle as well as

giving greater projection.

The soundfield generated by a

V -DOSC system behaves according to

two modes, the Fraunhofer Zone (or

far field) and the Fresnel Zone (or

so -called close field[nearfield]) and a

particularity of the DOSC system is

that the Fresnel Zone extends to a

large portion of the audience area. At

this stage, the reader interested in

delving more deeply into the physics

of the system is referred to the AES

Preprint; here we will examine the

real -world implications of V -DOSC.

I have had the opportunity to

evaluate the system in local free -air

conditions, a large open -air festival

and very recent tests in a large

concert hall designed to accomodate

symphony orchestras rather than

amplified instruments.

The cylindrical wavefront -best

visualised as wedge of cheese

-provides an even coverage over the

audience areas with minimal

variation of SPL from front to back.

High- frequency propagation is

exceptional, with a level of clarity

which -in less elegant terminology

-puts the signal `right in your face'.

Open -air events using V -DOSC have

been covered elsewhere so we will

come right up to date with the results

obtained very recently in the

above -mentioned hall.

The effect of the system is to push

back the barriers of the Critical

NEWS REVIEW

Distance and almost eliminate the

acoustics of the hall -a highly

desirable trait in particularly

reverberant spaces. This in turn

provides greater intelligibility and

control of the signal over the entire

frequency range -including the low

frequencies down to about 50 -60Hz.

The presence -quality of the signal

(especially with vocals) is very

noticeable, and the stereo field was

far wider than is normal with most

systems (once off the centre line, they

tend to collapse hard -left or

hard -right). In fact, the right channel

signal is easily discernible even when

standing near the left wall of the

above venue, and vice versa.

The `worst seat in the house' -or

the areas notoriously difficult to get

any decent sound into -are virtually

always under balconies, where the

combined effects or resonances,

reflections and so on. render poor

sound quality. The V -DOSC system

was able to provide sound so

consistent that it was almost

indistinguishable at the rear of the

hall (under the balcony) from that in

the centre -a remarkable

achievement.

I should not suggest that

L'Acoustics system is a panacea for

all ills, but it is aimed at fulfilling

specific requirements in a specific

manner. The results obtained thus

far show the V -DOSC system to be a

further step forward in the evolution

of sound reinforcement systems -and

to dispelling one of the greatest

rock 'n' roll lies: that it sounded great

`out front'. Terry Nelson

HIGH FREQUENCIES

MID FREQUENCIES

BASS FREQUENCIES

A DOSC stack behaves like an ens

drivers, each specialised in the ra

frequency spectrum. The ensembl

interference -free wave across the

mble of three time -aligned

iation of a specific

is coherent, producing an

audio spectrum i

The DD1000

with \V3.0 is a

serious piece of

hardware, but we

realise that the choile of

working interface is equally

important. The all new

Q -MAC Ill offers you

powerful audio ed tinç with

total visual control anc the

good news is that it

won't put a strain on

your computer or yojr

resources. With Q -MAC Ill

you can choose the way you

want to work and et tie

DD1000 provide high

quality audio.

AKAI Q -MAC Ill

FEATURES INCLUDE

Display Options:

Waveform, Multi Track,

Q -List, CMX Style and

many more

Fast operation from all

current Apple Macintosh

Computers

Non -destructive editirg

on optical disk

Powerful Digital EQ,

Pitch Shift & Timestretch

Full VTR emulation &

RS422 master control

256 cues instantly

available for broadcast/live

proc uction

Want to find out more

brochure and the name,

your nearest dealer.

Akai ';U.K.) Ltd. E.M.I. Divs

Estate, Parkway, Hounslow,

Tel: 081 -897 6388 Fax: 01111

Q-MAC III.

WHAT YOU

SEE IS WHAT

YOU HEAR.

, KAI ?5141114

Iñ)it11000

DISK DPW

www.americanradiohistory.com

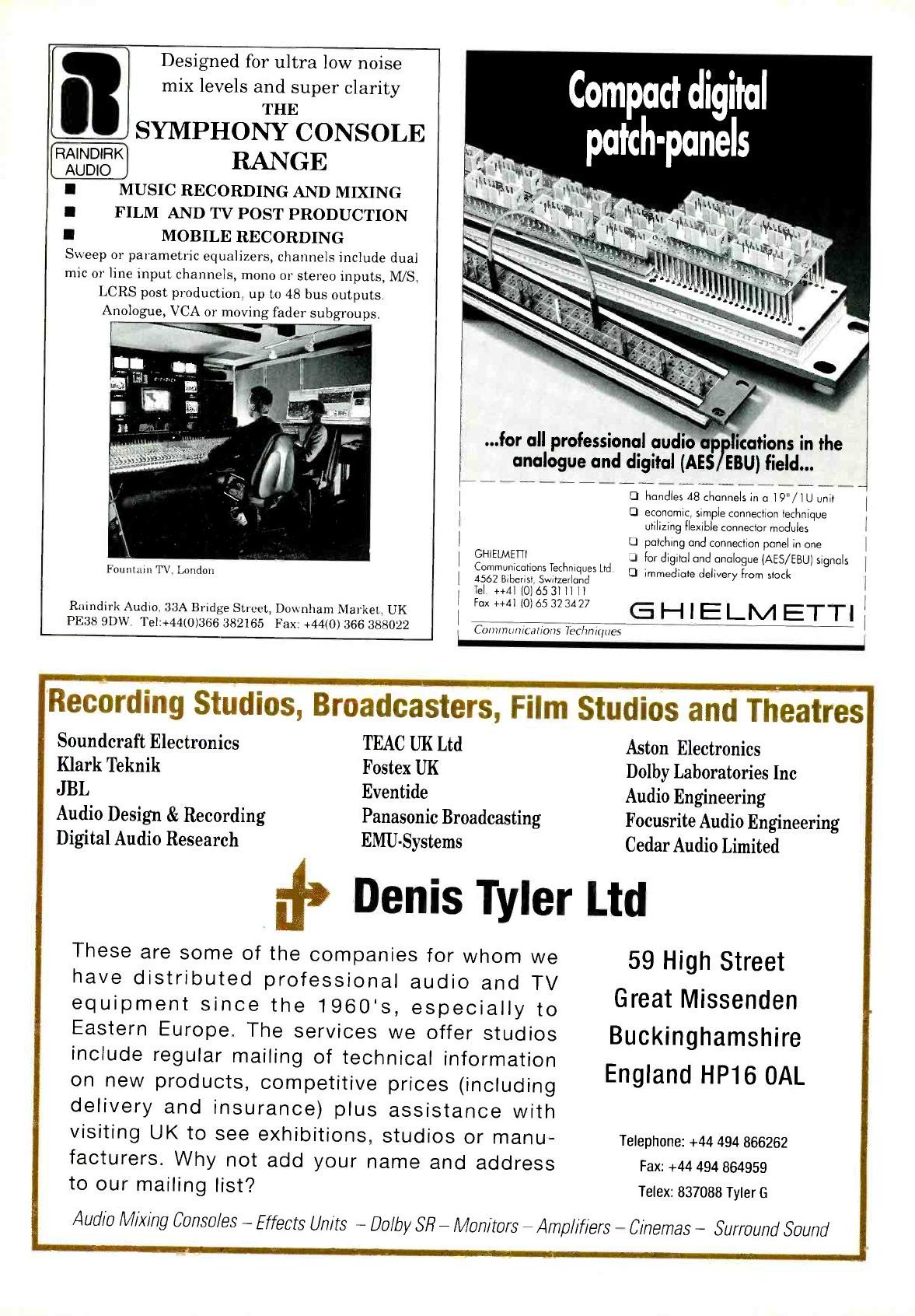

Designed for ultra low noise

mix levels and super clarity

THE

SYMPHONY CONSOLE

RAINDIRK RANGE

AUDIO MUSIC RECORDING AND MIXING

FILM AND TV POST PRODUCTION

MOBILE RECORDING

Sweep or parametric equalizers, channels include dual

mic or line input channels, mono or stereo inputs, M /S,

LCRS post production, up to 48 bus outputs.

Anniogue, VCA or moving fader subgroups.

Fountain TV, London

Raindirk Audio, 33A Bridge Street, Downham Market, UK

PE38 9DW. Tel: +44(0)366 382165 Fax: +44(0) 366 388022

...for all professional audio applications in the

analogue and digital (AES /EBU) field...

GHIELMETTI

Communications Techniques Ltd

4562 Biberist, Switzerland

'J handles 48 channels in a 19" / 1U unit

J economic, simple connection technique

utilizing flexible connector modules

J patching and connection panel in one

J for digital and analogue (AES /EBU) signals

J immediate delivery from stock

Tel. + +41 (0)

Fax + +41 (0)

11 11

34 27 GHI ELM ETTI

Communications Techniques

Recording Studios, Broadcasters, Film Studios and Theatres

Soundcraft Electronics

Klark Teknik

JBL

Audio Design & Recording

Digital Audio Research

TEAC UK Ltd

Fostex UK

Eventide

Panasonic Broadcasting

EMU- Systems

Aston Electronics

Dolby Laboratories Inc

Audio Engineering

Focusrite Audio Engineering

Cedar Audio Limited

di} Denis Tyler Ltd

These are some of the companies for whom we

have distributed professional audio and TV

equipment since the 1960's, especially to

Eastern Europe. The services we offer studios

include regular mailing of technical information

on new products, competitive prices (including

delivery and insurance) plus assistance with

visiting UK to see exhibitions, studios or manu-

facturers. Why not add your name and address

to our mailing list?

59 High Street

Great Missenden

Buckinghamshire

England HP16 OAL

Telephone: +44 494 866262

Fax: +44 494 864959

Telex: 837088 Tyler G

Audio Mixing Consoles - Effects Units - Dolby SR - Monitors - Amplifiers - Cinemas - Surround Sound

www.americanradiohistory.com

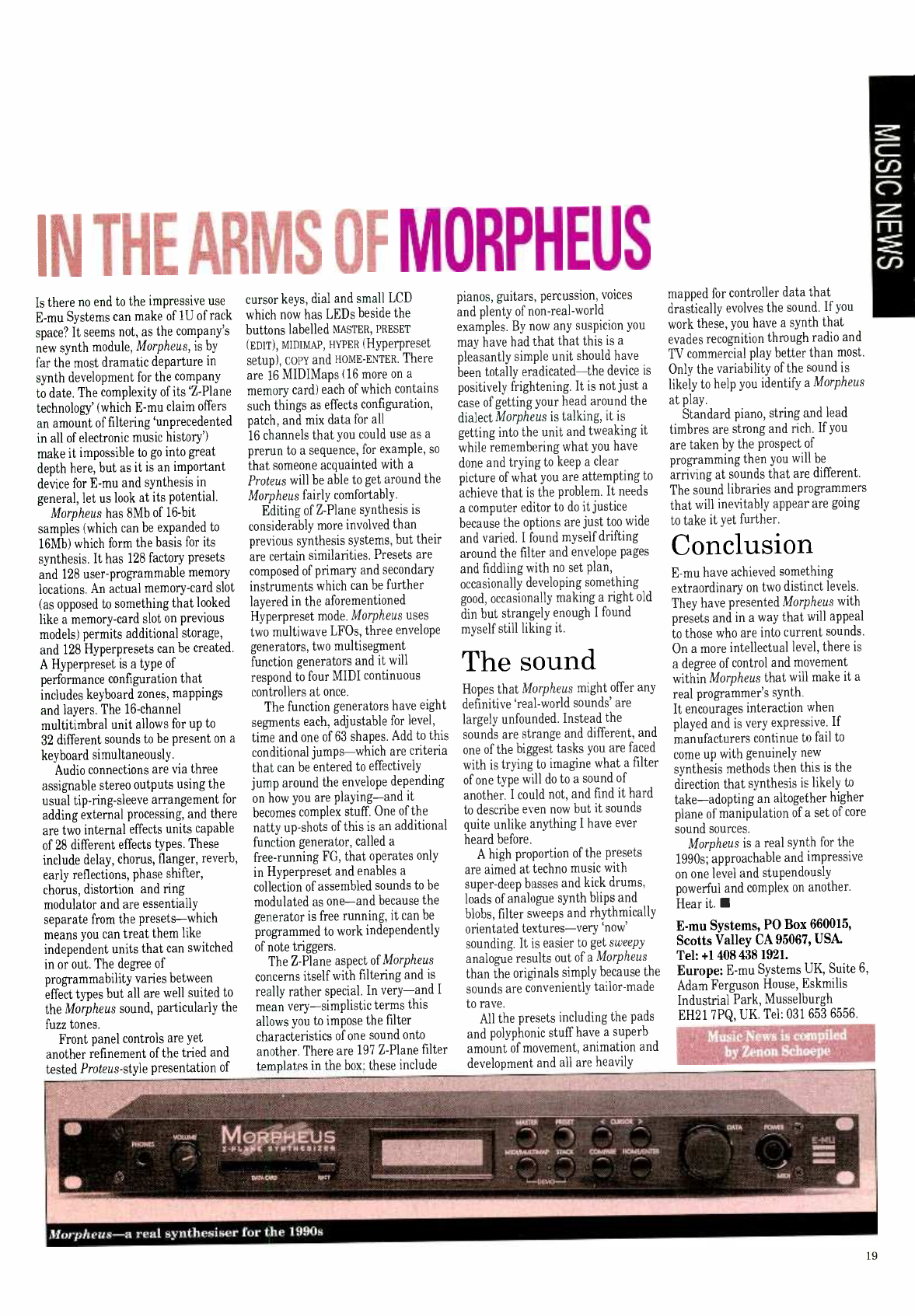

IN THE ARMS OF MORPHEUS

Is there no end to the impressive use

E -mu Systems can make of lU of rack

space? It seems not, as the company's

new synth module, Morpheus, is by

far the most dramatic departure in

synth development for the company

to date. The complexity of its `Z -Plane

technology' (which E -mu claim offers

an amount of filtering `unprecedented

in all of electronic music history')

make it impossible to go into great

depth here, but as it is an important

device for E -mu and synthesis in

general, let us look at its potential.

Morpheus has 8Mb of 16 -bit

samples (which can be expanded to

16Mb) which form the basis for its

synthesis. It has 128 factory presets

and 128 user -programmable memory

locations. An actual memory -card slot

(as opposed to something that looked

like a memory -card slot on previous

models) permits additional storage,

and 128 Hyperpresets can be created.

A Hyperpreset is a type of

performance configuration that

includes keyboard zones, mappings

and layers. The 16- channel

multitimbral unit allows for up to

32 different sounds to be present on a

keyboard simultaneously.

Audio connections are via three

assignable stereo outputs using the

usual tip -ring- sleeve arrangement for

adding external processing, and there

are two internal effects units capable

of 28 different effects types. These

include delay, chorus, flanger, reverb,

early reflections, phase shifter,

chorus, distortion and ring

modulator and are essentially

separate from the presets -which

means you can treat them like

independent units that can switched

in or out. The degree of

programmability varies between

effect types but all are well suited to

the Morpheus sound, particularly the

fuzz tones.

Front panel controls are yet

another refinement of the tried and

tested Proteus -style presentation of

cursor keys, dial and small LCD

which now has LEDs beside the

buttons labelled MASTER, PRESET

(EDIT), MIDIMAP, HYPER (Hyperpreset

setup), COPY and HOME- ENTER. There

are 16 MIDIMaps (16 more on a

memory card) each of which contains

such things as effects configuration,

patch, and mix data for all

16 channels that you could use as a

prerun to a sequence, for example, so

that someone acquainted with a

Proteus will be able to get around the

Morpheus fairly comfortably.

Editing of Z -Plane synthesis is

considerably more involved than

previous synthesis systems, but their

are certain similarities. Presets are

composed of primary and secondary

instruments which can be further

layered in the aforementioned

Hyperpreset mode. Morpheus uses

two multiwave LFOs, three envelope

generators, two multisegment

function generators and it will

respond to four MIDI continuous

controllers at once.

The function generators have eight

segments each, adjustable for level,

time and one of 63 shapes. Add to this

conditional jumps -which are criteria

that can be entered to effectively

jump around the envelope depending

on how you are playing -and it

becomes complex stuff. One of the

natty up -shots of this is an additional

function generator, called a

free -running FG, that operates only

in Hyperpreset and enables a

collection of assembled sounds to be

modulated as one -and because the

generator is free running, it can be

programmed to work independently

of note triggers.

The Z -Plane aspect of Morpheus

concerns itself with filtering and is

really rather special. In very -and I

mean very- simplistic terms this

allows you to impose the filter

characteristics of one sound onto

another. There are 197 Z -Plane filter

templates in the box; these include

pianos, guitars, percussion, voices

and plenty of non -real -world

examples. By now any suspicion you

may have had that that this is a

pleasantly simple unit should have

been totally eradicated -the device is

positively frightening. It is not just a

case of getting your head around the

dialect Morpheus is talking, it is

getting into the unit and tweaking it

while remembering what you have

done and trying to keep a clear

picture of what you are attempting to

achieve that is the problem. It needs

a computer editor to do it justice

because the options are just too wide

and varied. I found myself drifting

around the filter and envelope pages

and fiddling with no set plan,

occasionally developing something

good, occasionally making a right old

din but strangely enough I found

myself still liking it.

The sound

Hopes that Morpheus might offer any

definitive `real -world sounds' are

largely unfounded. Instead the

sounds are strange and different, and

one of the biggest tasks you are faced

with is trying to imagine what a filter

of one type will do to a sound of

another. I could not, and find it hard

to describe even now but it sounds

quite unlike anything I have ever

heard before.

A high proportion of the presets

are aimed at techno music with

super -deep basses and kick drums,

loads of analogue synth blips and

blobs, filter sweeps and rhythmically

orientated textures -very `now'

sounding. It is easier to get sweepy

analogue results out of a Morpheus

than the originals simply because the

sounds are conveniently tailor -made

to rave.

All the presets including the pads

and polyphonic stuff have a superb

amount of movement, animation and

development and all are heavily

mapped for controller data that

drastically evolves the sound. If you

work these, you have a synth that

evades recognition through radio and

TV commercial play better than most.

Only the variability of the sound is

likely to help you identify a Morpheus

at play.

Standard piano, string and lead

timbres are strong and rich. If you

are taken by the prospect of

programming then you will be

arriving at sounds that are different.

The sound libraries and programmers

that will inevitably appear are going

to take it yet further.

Conclusion

E -mu have achieved something

extraordinary on two distinct levels.

They have presented Morpheus with

presets and in a way that will appeal

to those who are into current sounds.

On a more intellectual level, there is

a degree of control and movement

within Morpheus that will make it a

real programmer's synth.

It encourages interaction when

played and is very expressive. If

manufacturers continue to fail to

come up with genuinely new

synthesis methods then this is the

direction that synthesis is likely to

take -adopting an altogether higher

plane of manipulation of a set of core

sound sources.

Morpheus is a real synth for the

1990s; approachable and impressive

on one level and stupendously

powerful and complex on another.

Hear it.

E -mu Systems, PO Box 660015,

Scotts Valley CA 95067, USA.

Tel: +1 408 438 1921.

Europe: E -mu Systems UK, Suite 6,

Adam Ferguson House, Eskmills

Industrial Park, Musselburgh

EH21 7PQ, UK. Tel: 031 653 6556.

Music News is compiled

by Zenon Schoepe

MORPHEUS

Z-AL,t:N'E sYN714£slZéR

Morpheus -a real synthesiser for the 1990s

www.americanradiohistory.com

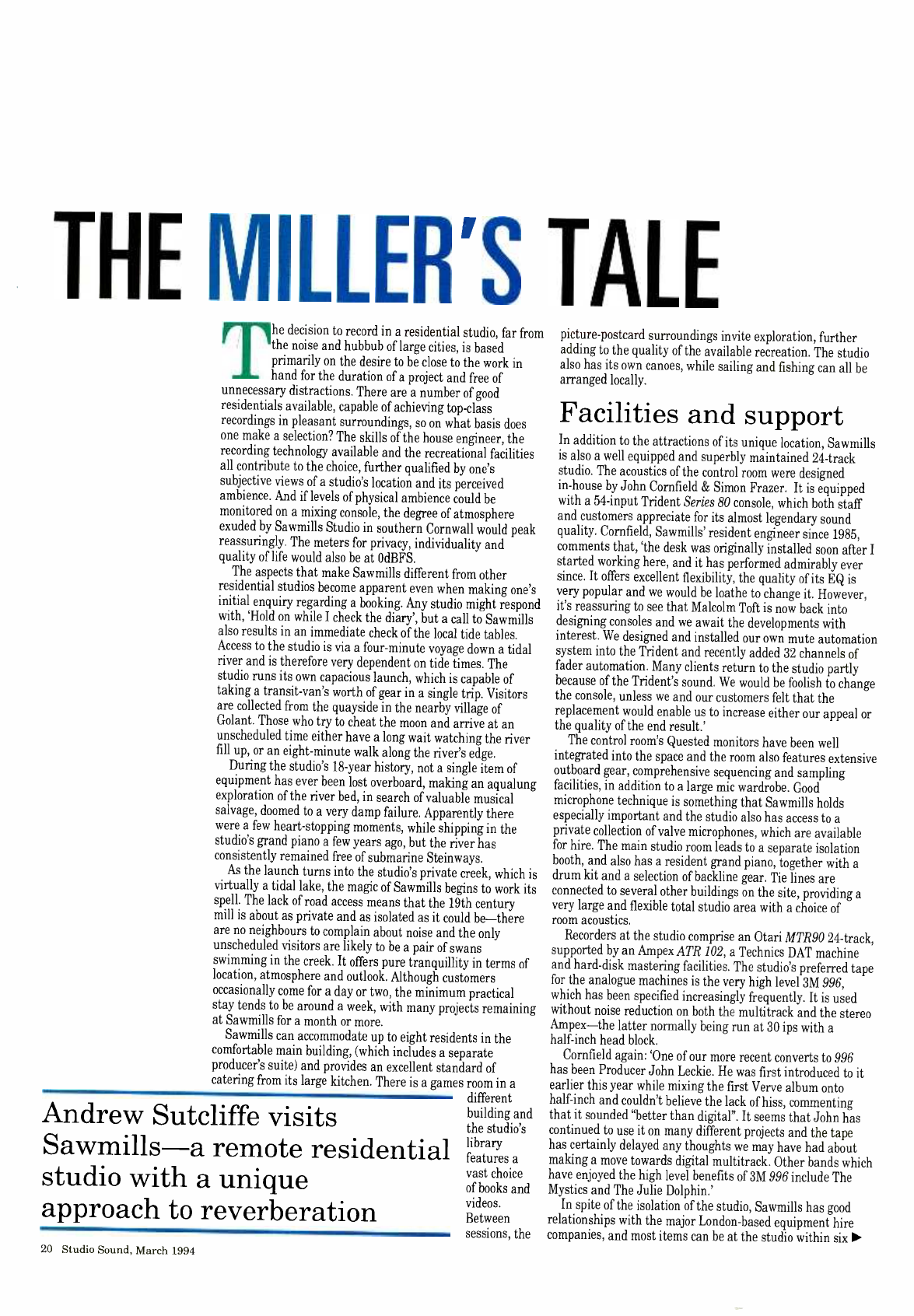

THE MILLER'S TALE

The decision to record in a residential studio, far from

the noise and hubbub of large cities, is based

primarily on the desire to be close to the work in

hand for the duration of a project and free of

unnecessary distractions. There are a number of good

residentials available, capable of achieving top -class

recordings in pleasant surroundings, so on what basis does

one make a selection? The skills of the house engineer, the

recording technology available and the recreational facilities

all contribute to the choice, further qualified by one's

subjective views of a studio's location and its perceived

ambience. And if levels of physical ambience could be

monitored on a mixing console, the degree of atmosphere

exuded by Sawmills Studio in southern Cornwall would peak

reassuringly. The meters for privacy, individuality and

quality of life would also be at OdBFS.

The aspects that make Sawmills different from other

residential studios become apparent even when making one's

initial enquiry regarding a booking. Any studio might respond

with, `Hold on while I check the diary', but a call to Sawmills

also results in an immediate check of the local tide tables.

Access to the studio is via a four -minute voyage down a tidal

river and is therefore very dependent on tide times. The

studio runs its own capacious launch, which is capable of

taking a transit -van's worth of gear in a single trip. Visitors

are collected from the quayside in the nearby village of

Golant. Those who try to cheat the moon and arrive at an

unscheduled time either have a long wait watching the river

fill up, or an eight -minute walk along the river's edge.

During the studio's 18 -year history, not a single item of

equipment has ever been lost overboard, making an aqualung

exploration of the river bed, in search of valuable musical

salvage, doomed to a very damp failure. Apparently there

were a few heart -stopping moments, while shipping in the

studio's grand piano a few years ago, but the river has

consistently remained free of submarine Steinways.

As the launch turns into the studio's private creek, which is

virtually a tidal lake, the magic of Sawmills begins to work its

spell. The lack of road access means that the 19th century

mill is about as private and as isolated as it could be -there

are no neighbours to complain about noise and the only

unscheduled visitors are likely to be a pair of swans

swimming in the creek. It offers pure tranquillity in terms of

location, atmosphere and outlook. Although customers

occasionally come for a day or two, the minimum practical

stay tends to be around a week, with many projects remaining

at Sawmills for a month or more.

Sawmills can accommodate up to eight residents in the

comfortable main building, (which includes a separate

producer's suite) and provides an excellent standard of

catering from its large kitchen. There is a games room in a

different

Andrew Sutcliffe visits

Sawmills -a remote residential

studio with a unique

approach to reverberation

20 Studio Sound, March 1994

building and

the studio's

library

features a

vast choice

of books and

videos.

Between

sessions, the

picture -postcard surroundings invite exploration, further

adding to the quality of the available recreation. The studio

also has its own canoes, while sailing and fishing can all be

arranged locally.

Facilities and support

In addition to the attractions of its unique location, Sawmills

is also a well equipped and superbly maintained 24 -track

studio. The acoustics of the control room were designed

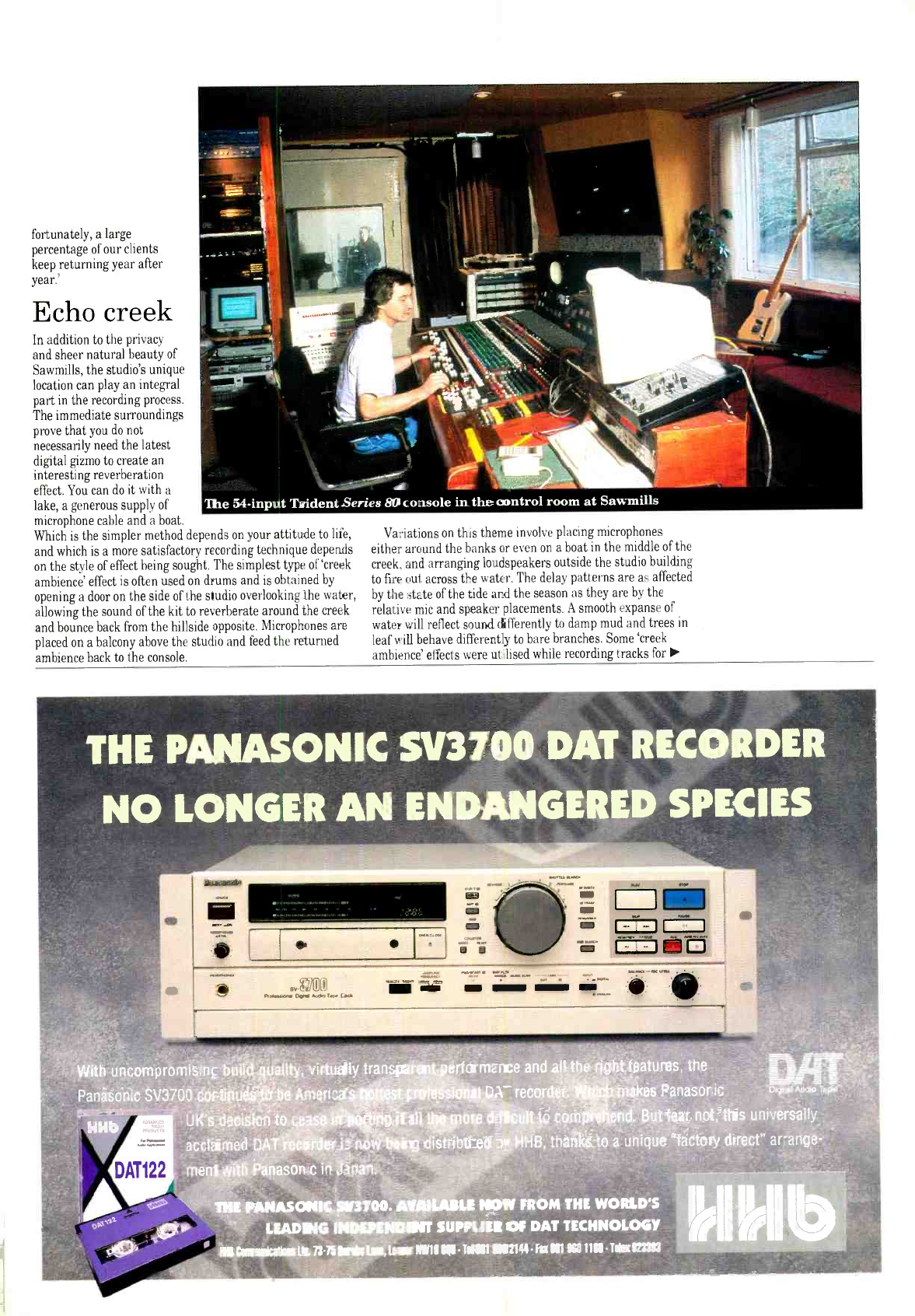

in -house by John Cornfield & Simon Frazer. It is equipped

with a 54 -input Trident Series 80 console, which both staff

and customers appreciate for its almost legendary sound

quality. Cornfield, Sawmills' resident engineer since 1985,

comments that, the desk was originally installed soon after I

started working here, and it has performed admirably ever

since. It offers excellent flexibility, the quality of its EQ is

very popular and we would be loathe to change it. However,

it's reassuring to see that Malcolm Toft is now back into

designing consoles and we await the developments with

interest. We designed and installed our own mute automation

system into the Trident and recently added 32 channels of

fader automation. Many clients return to the studio partly

because of the Trident's sound. We would be foolish to change

the console, unless we and our customers felt that the

replacement would enable us to increase either our appeal or

the quality of the end result.'

The control room's Quested monitors have been well

integrated into the space and the room also features extensive

outboard gear, comprehensive sequencing and sampling

facilities, in addition to a large mic wardrobe. Good

microphone technique is something that Sawmills holds

especially important and the studio also has access to a

private collection of valve microphones, which are available

for hire. The main studio room leads to a separate isolation

booth, and also has a resident grand piano, together with a

drum kit and a selection of backline gear. Tie lines are

connected to several other buildings on the site, providing a

very large and flexible total studio area with a choice of

room acoustics.

Recorders at the studio comprise an Otari MTR90 24- track,

supported by an Ampex ATR 102, a Technics DAT machine

and hard -disk mastering facilities. The studio's preferred tape

for the analogue machines is the very high level 3M 996,

which has been specified increasingly frequently. It is used

without noise reduction on both the multitrack and the stereo

Ampex -the latter normally being run at 30 ips with a

half -inch head block.

Cornfield again: `One of our more recent converts to 996

has been Producer John Leckie. He was first introduced to it

earlier this year while mixing the first Verve album onto

half -inch and couldn't believe the lack of hiss, commenting

that it sounded "better than digital ". It seems that John has

continued to use it on many different projects and the tape

has certainly delayed any thoughts we may have had about

making a move towards digital multitrack. Other bands which

have enjoyed the high level benefits of 3M 996 include The

Mystics and The Julie Dolphin.'

In spite of the isolation of the studio, Sawmills has good

relationships with the major London -based equipment hire

companies, and most items can be at the studio within six

www.americanradiohistory.com

_ .

.. ar.,

www.americanradiohistory.com

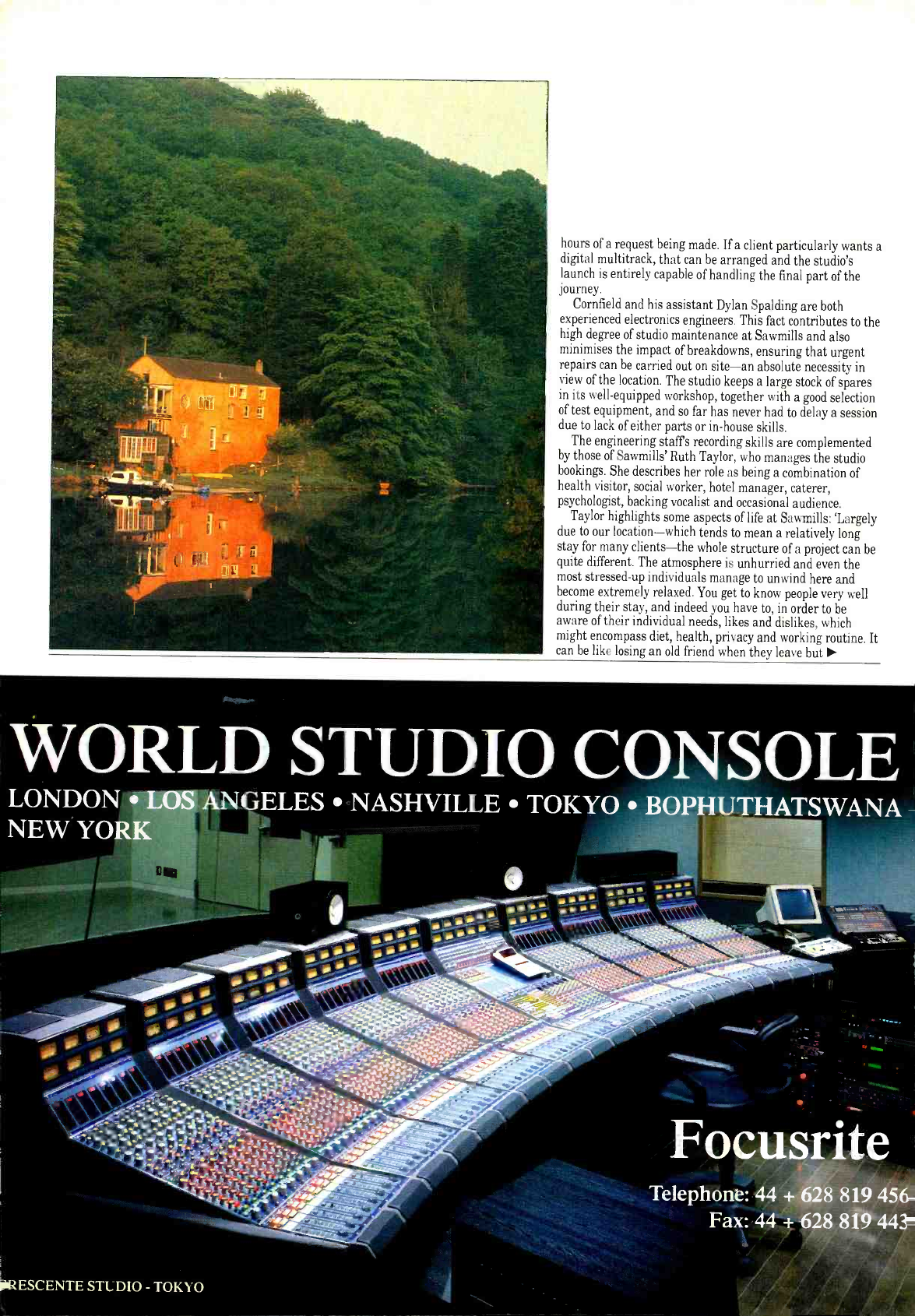

hours of a request being made. If a client particularly wants a

digital multitrack, that can be arranged and the studio's

launch is entirely capable of handling the final part of the

journey.

Cornfield and his assistant Dylan Spalding are both

experienced electronics engineers. This fact contributes to the

high degree of studio maintenance at Sawmills and also

minimises the impact of breakdowns, ensuring that urgent

repairs can be carried out on site -an absolute necessity in

view of the location. The studio keeps a large stock of spares

in its well- equipped workshop, together with a good selection

of test equipment, and so far has never had to delay a session

due to lack of either parts or in -house skills.

The engineering staffs recording skills are complemented

by those of Sawmills' Ruth Taylor, who manages the studio

bookings. She describes her role as being a combination of

health visitor, social worker, hotel manager, caterer,

psychologist, backing vocalist and occasional audience.

Taylor highlights some aspects of life at Sawmills: `Largely

due to our location -which tends to mean a relatively long

stay for many clients -the whole structure of a project can be

quite different. The atmosphere is unhurried and even the

most stressed -up individuals manage to unwind here and

become extremely relaxed. You get to know people very well

during their stay, and indeed you have to, in order to be

aware of their individual needs, likes and dislikes, which

might encompass diet, health, privacy and working routine. It

can be like losing an old friend when they leave but

WORLD STUDIO CONSOLE

LONDON LOS ANGELES NASHVILLE TOKYO BOPHUTHATSWANA

NEW YORK

Focusrite

Telephone: 44 + 628 819 45

Fax: 44 + 628 819 44

ESCENTE STUDIO - TOKYO

www.americanradiohistory.com

b á a, a E

-` Ç Ç C_ C C N v,

(ii ,^ y= Ç O O'.+ U

V/ .L... `v r0 o +s- O O j ú

? E ou a á , . E

il C a O ;Zr .

E Ç

O C

r. v C O U . ?

V Y :co

O 3 s ;3:0

0 ó ar ó b Q o

F tp i

+a ? '"' U 4/ C w N

^I ¢ . d w d OU

V b á C - á ro

.1'4 H C O

aJ L U

p r ro

r -0 T y

-0

W = -O

g -1 il

''^^ U

VJ Ç

www.americanradiohistory.com

125 Hz)

250 Hz(

500Hz1

1 kHz

315' 45'

Whatever your situation

the MKH family ensure

accuracy and intelligibility

in all aspects of recording.

Sennheiser

MKH 80

studio

condenser

microphone

135

2 kHz -

_ 4 kHz

8kHz

16 kHz

Superb studio performance and the ultimate in

flexibility: the MKH 80 variable pattern studio

condenser microphone extends the outstanding

quality of the Sennheiser MKH range.

The MKH 80 features exceptionally low noise,

a wide range of audio control and a high

dynamic range plus switchable pre- attenuation,

HF lift and LF cut to compensate for proximity

effects, and LED indicator for exact orientation.

The most versatile microphone designed for

any recording situation.

50:

ALL THE MICROPHONES

YOU'LL EVER NEED.

SENNHEISER

Sennheiser UK Ltd, Freepost, Loudwater, High Wycombe, Buckinghamshire, HP10 8BR. Telephone 0628 850811. Fax 0628 850958

www.americanradiohistory.com

fortunately, a large

percentage of our clients

keep returning year after

year.'

Echo creek

In addition to the privacy

and sheer natural beauty of

Sawmills, the studio's unique

location can play an integral

part in the recording process.

The immediate surroundings

prove that you do not

necessarily need the latest

digital gizmo to create an

interesting reverberation

effect. You can do it with a

lake, a generous supply of The 54 -input Trident Series &n console in the control room at Sawmills

microphone cable and a boat.

Which is the simpler method depends on your attitude to life,

and which is a more satisfactory recording technique depends

on the style of effect being sought. The simplest type of `creek

ambience' effect is often used on drums and is obtained by

opening a door on the side of the studio overlooking the water,

allowing the sound of the kit to reverberate around the creek

and bounce back from the hillside opposite. Microphones are

placed on a balcony above the studio and feed the returned

ambience back to the console.

Variations on this theme involve placing microphones

either around the banks or even on a boat in the middle of the

creek, and arranging loudspeakers outside the studio building

to fire out across the water. The delay patterns are as affected

by the state of the tide and the season as they are by the

relative mic and speaker placements. A smooth expanse of

water will reflect sound differently to damp mud and trees in

leaf will behave differently to bare branches. Some `creek

ambience' effects were utilised while recording tracks for

THE PANASONIC SV3700 DAT RECORDER

NO LONGER AN ENDANGERED SPECIES

I I

craa.aw Pow 44o Taw Cwy

With uncompromisinç build quality, virtually transparent "perfarmarlce and aii the right features, the

Pa SV3700 cortinuesto be America's stfr s l Da_ recorder° makes Panasor

dectsn to cease irtgÍlall the d filcult to comp fiend. But fear not, this universally

acclaimed DAT "recárder i3 now being''distribu_edjv. HHB, thanks to a unique "factory d rect" ar-ange-

meni with Panason c Japan:

THE PANASONIC SV3700. AVAILABLE NOW FROM THE WORLD'S

'.' LEADING INDEPEND9W SUPPLIER OF DAT TECHNOLOGY

IA 0011021116 16 lh- 73 75 arils Ws, tear NW10 BOU Te1D811187144 Fu OM 11.,; Te ex 9233113

www.americanradiohistory.com

STUDER Mixing Consoles

Mixing ergonomics, economics & technology

In an audio environment, STUDER

signifies expertise, professionalism

and mastery in console technology.

STUDER has an established and

enviable reputation for producing

modular mixing consoles; with

excellent specifications and proven

operational history; to cover the

entire spectrum of mixing

applications.

We design and manufacture

mixing consoles to meet with the

explicit demands of both mobile

applications and fixed installations;

on -air, sound reinforcement, music

production, drama and dubbing

studios - Consoles which span the

range from; analog to hybrid

analog/digital; to complete digital

signal processing systems - with or

without dynamic automation.

The STUDER look and feel

Studer 990 Graphical Con zo ler

t yin N. Config Language Actiotr- Pages HoIp

Recall By Channel ONLINE

Input - advl snap 3

DIRECT

23:59:59.22.

AUX . -r 1 AUX

111 516; ,y COME

BUS

Flt -ILR HMV_

LMF

SPREAD

7/0

INLINE PAN

GATE

Li Zoom View

n Link Desk

Auto Mode - Only po s in use sArzr.raty -- -

Console Display Low Ì1 Mid

Previous I.3 Next

High

F I /man View 1 19

F I 0

F6 fly Function F8

STUDER

PROFESSIONAL AUDIO EQUIPMENT

STUDER, a Division of STUDER REVOX AG, Althardstrasse 30, CH -8105 Regensdorf, Switzerland

Telephone +41 1 870 75 11, Telefax +4I 1 840 47 37

Subsidiaries:

Austria: +43 1 470 76 09/10

U.K.: +44 81 953 35 33

France: +33 1 34 80 87 00

Germany: Berlin +49 30 72 40 88

Japan: +81 3 3465 2211

Singapore: +65 481 56 88

Canada: +1 416 510 1347

USA: Nashville +1 615 391 3399

San Francisco +1 415 326 7030

www.americanradiohistory.com

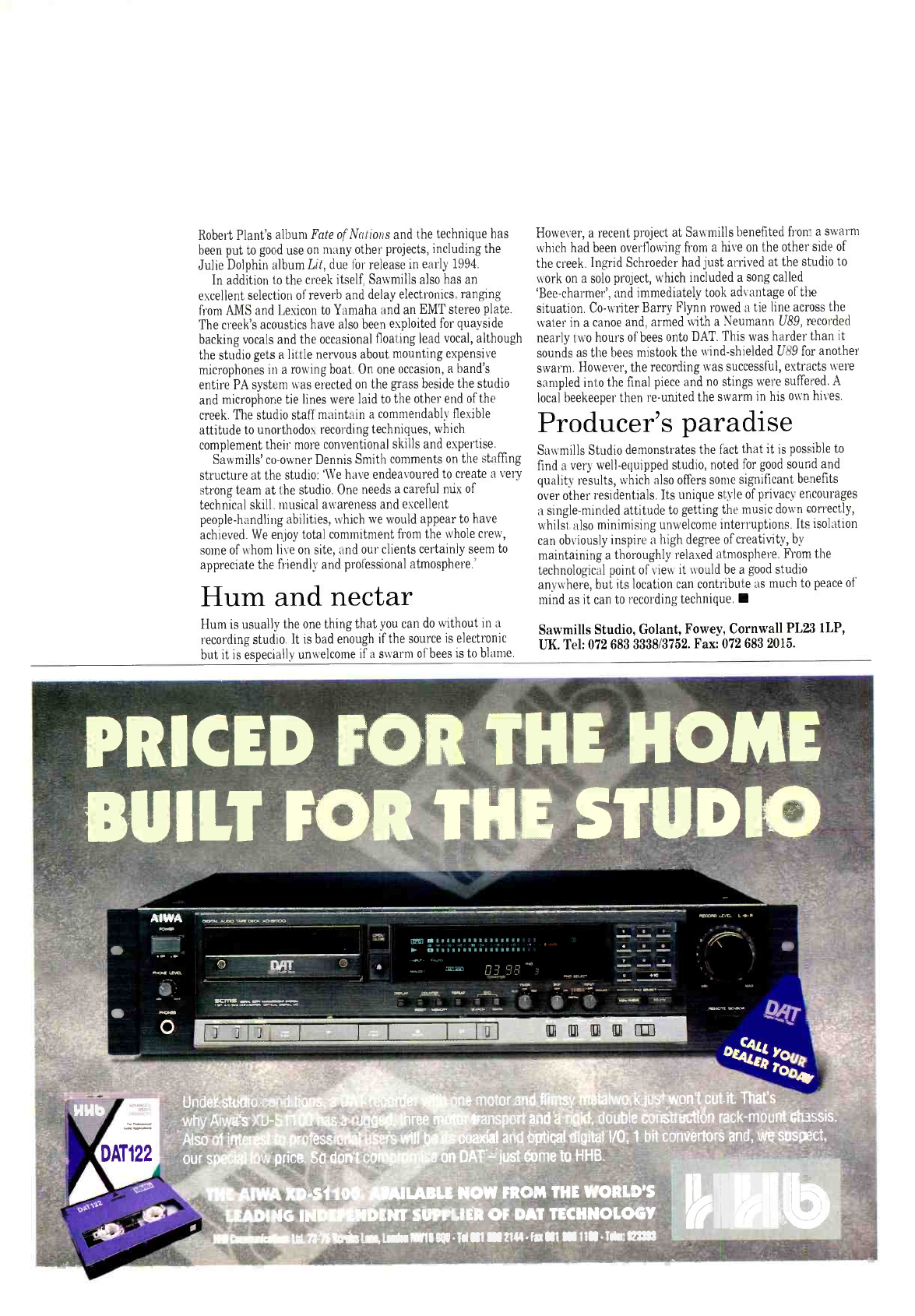

Robert Plant's album Fate of Nations and the technique has

been put to good use on many other projects, including the

Julie Dolphin album Lit, due for release in early 1994.

In addition to the creek itself, Sawmills also has an

excellent selection of reverb and delay electronics, ranging

from AMS and Lexicon to Yamaha and an EMT stereo plate.

The creek's acoustics have also been exploited for quayside

backing vocals and the occasional floating lead vocal, although

the studio gets a little nervous about mounting expensive

microphones in a rowing boat. On one occasion, a band's

entire PA system was erected on the grass beside the studio

and microphone tie lines were laid to the other end of the

creek. The studio staff maintain a commendably flexible

attitude to unorthodox recording techniques, which

complement their more conventional skills and expertise.

Sawmills' co -owner Dennis Smith comments on the staffing

structure at the studio: `We have endeavoured to create a very

strong team at the studio. One needs a careful mix of

technical skill musical awareness and excellent

people -handling abilities, which we would appear to have

achieved. We enjoy total commitment from the whole crew,

some of whom live on site, and our clients certainly seem to

appreciate the friendly and professional atmosphere.'

Hum and nectar

Hum is usually the one thing that you can do without in a

recording studio. It is bad enough if the source is electronic

but it is especially unwelcome if a swarm of bees is to blame.

However, a recent project at Sawmills benefited from a swarm

which had been overflowing from a hive on the other side of

the creek. Ingrid Schroeder had just arrived at the studio to

work on a solo project, which included a song called

`Bee -charmer', and immediately took advantage of the

situation. Co- writer Barry Flynn rowed a tie line across the

water in a canoe and, armed with a Neumann U89, recorded

nearly two hours of bees onto DAT. This was harder than it

sounds as the bees mistook the wind- shielded U89 for another

swarm. However, the recording was successful, extracts were

sampled into the final piece and no stings were suffered. A

local beekeeper then re- united the swarm in his own hives.

Producer's paradise

Sawmills Studio demonstrates the fact that it is possible to

find a very well- equipped studio, noted for good sound and

quality results, which also offers some significant benefits

over other residentials. Its unique style of privacy encourages

a single- minded attitude to getting the music down correctly,

whilst also minimising unwelcome interruptions. Its isolation

can obviously inspire a high degree of creativity, by

maintaining a thoroughly relaxed atmosphere. From the

technological point of view it would be a good studio

anywhere, but its location can contribute as much to peace of

mind as it can to recording technique.

Sawmills Studio, Golant, Fowey, Cornwall PL23 1LP,

UK. Tel: 072 683 3338/3752. Fax: 072 683 2015.

PRICED FOR THE HOME

BUILT FOR THE STUDIO

0338.?

_,. ... ,

Under studio conditions, a . 1 one motor and flimsy Ptalwork just won't cut it.

why Aiwa's XD -S11 as art eglfltttree = transport and a rigid, double construction rack -mount chassis.

Also of int o professíól users will be coaxial and optical digital I /O.1 bit convertors and, we suspect,

ours ßìh price. So don't co on DAT -just come to HHB.

#IWiAm(DoSf1 ': ' LABI.E NOW FROM THE WORLD'S

13ADING ENT SUPPLIER OF DAT TECHNOLOGY

NNOrarwniaUle MA- . la, MN NW1Y A91 Td 911 N62141 Fai A111NA 1186 Teca MINN

www.americanradiohistory.com

I = N E . E C S A R E G S T E R E D IRAS

ACTIVE MONITORING

WITH THE NEW GENELEC 1030A.

THE SMALL WAY

TO MAKE A BIG IMPROVEMENT.

GENELEC®

ULVIIIE 5

FIN -74100 IISALMI, FINLAND

TEL +358 -77 -13311

FAX +358 -77 -12267

Geld! Microphones - The New Industry Standard for

less titan 1/3 the price of the old industry standard

Since their re- discovery, Micratech Gefell microphones are rapidly becoming the new industry

standard. The reason? Because their fantastic audio quality - thanks to the original George

Neurrann M7 capsule design - is available for less than a third of the price of other leading

microphones that used to set the standard.

At Microtech Gefell's factory in Germany, craftsman -like attention to detail is combined with the

latest in R &D and production techniques to enable you to enjoy today's finest microphones - at

yesterday's prices

These are just two of the enormous range of Gefell microphones, call Stirling Audio Systems for

inforrration on the rest:

UM 78 -A switchable Omni -directional /bi- directional /cardioid microphone. Superb

sound. Available in a low -noise version (UM 70S) and as a cardioid -only mic (M 71

or low -noise version M 71S).

UM 92S -A valve mic which also uses the M7 capsule. Complete with flight case,

power supply, Mogami cable, suspension mount and windshield.

Don't just take our word for it:

"This s a top -notch microphone, clean, smooth, accurate, and detailed...Everything I

heard through it sounded natural and convincing...this is an awful lot of microphone

for the money, outshining more expensive competition...it's probably the bargain of

the year" Dave Foister, Studio Sound (review of the UM70)

"With the UM92S, vocals take cn an air of increased confidence and life, yet at the

same time, they retain the impression of being true to the performer...l've tried

severel good valve mics over the past several years

and rea have impressed me as much as this one"

Paul White, Sound on Sound

011 61i 6000

Surlmç Aidio Systems Ltd., Kimberley Road, _ondon NW6 7SF

Tel 07 Q4 6000 Fax 071 372 6370

www.americanradiohistory.com

n these days of software -driven

development, there is a genuine

danger of passing judgment on a

product before it has approached

its full intended potential. While this

state of affairs can be seen as a

mitigation of the cavalier attitude of

those manufacturers who regularly

release equipment before it is fully

grown, we must accept that ongoing

development is now part and parcel of

software -based technology. Indeed, few

digital products would presently be

attractive if it were known that their

facilities were fully developed the

purchase date without the possibility of

future upgrades and enhancements.

AKAI

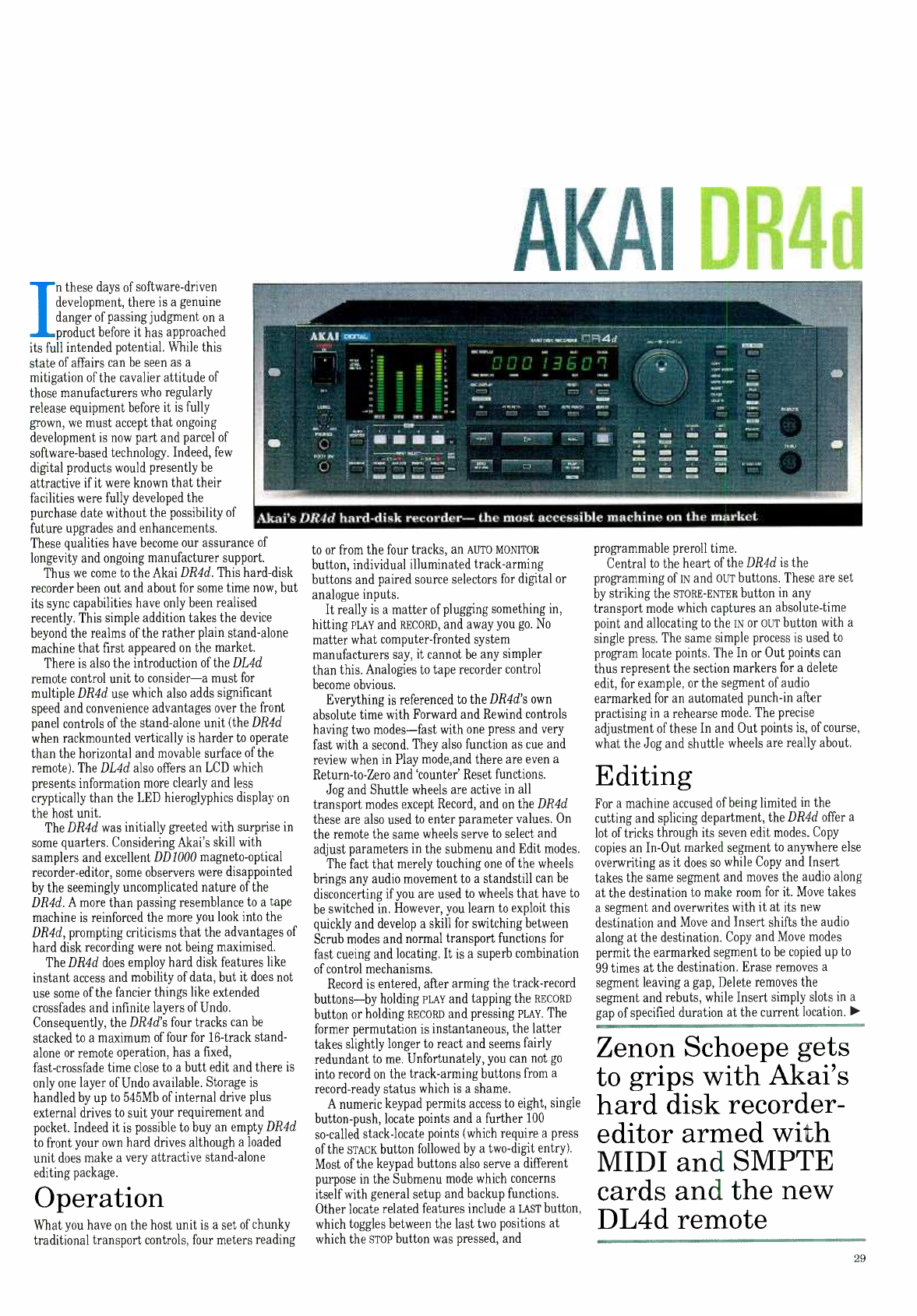

Akai's DR4d hard -disk recorder- the most accessible machine on the market

These qualities have become our assurance of

longevity and ongoing manufacturer support.

Thus we come to the Akai DR4d. This hard -disk

recorder been out and about for some time now, but

its sync capabilities have only been realised

recently. This simple addition takes the device

beyond the realms of the rather plain stand -alone

machine that first appeared on the market.

There is also the introduction of the DL4d

remote control unit to consider -a must for

multiple DR4d use which also adds significant

speed and convenience advantages over the front

panel controls of the stand -alone unit (the DR4d

when rackmounted vertically is harder to operate

than the horizontal and movable surface of the

remote). The DL4d also offers an LCD which

presents information more clearly and less

cryptically than the LED hieroglyphics display on

the host unit.

The DR4d was initially greeted with surprise in

some quarters. Considering Akai's skill with

samplers and excellent DD1000 magneto- optical

recorder -editor, some observers were disappointed

by the seemingly uncomplicated nature of the

DR4d. A more than passing resemblance to a tape

machine is reinforced the more you look into the

DR4d, prompting criticisms that the advantages of

hard disk recording were not being maximised.

The DR4d does employ hard disk features like

instant access and mobility of data, but it does not

use some of the fancier things like extended

crossfades and infinite layers of Undo.

Consequently, the DR4d's four tracks can be

stacked to a maximum of four for 16 -track stand-

alone or remote operation, has a fixed,

fast -crossfade time close to a butt edit and there is

only one layer of Undo available. Storage is

handled by up to 545Mb of internal drive plus

external drives to suit your requirement and

pocket. Indeed it is possible to buy an empty DR4d

to front your own hard drives although a loaded

unit does make a very attractive stand -alone

editing package.

Operation

What you have on the host unit is a set of chunky

traditional transport controls, four meters reading

to or from the four tracks, an AUTO MONITOR

button, individual illuminated track -arming

buttons and paired source selectors for digital or

analogue inputs.

It really is a matter of plugging something in,

hitting PLAY and RECORD, and away you go. No

matter what computer- fronted system

manufacturers say, it cannot be any simpler

than this. Analogies to tape recorder control

become obvious.

Everything is referenced to the DR4d's own

absolute time with Forward and Rewind controls

having two modes -fast with one press and very

fast with a second. They also function as cue and

review when in Play mode,and there are even a

Return -to -Zero and `counter' Reset functions.

Jog and Shuttle wheels are active in all

transport modes except Record, and on the DR4d

these are also used to enter parameter values. On

the remote the same wheels serve to select and

adjust parameters in the submenu and Edit modes.

The fact that merely touching one of the wheels

brings any audio movement to a standstill can be

disconcerting if you are used to wheels that have to

be switched in. However, you learn to exploit this

quickly and develop a skill for switching between

Scrub modes and normal transport functions for

fast cueing and locating. It is a superb combination

of control mechanisms.

Record is entered, after arming the track -record

buttons -by holding PLAY and tapping the RECORD

button or holding RECORD and pressing PLAY. The

former permutation is instantaneous, the latter

takes slightly longer to react and seems fairly

redundant to me. Unfortunately, you can not go

into record on the track -arming buttons from a

record -ready status which is a shame.

A numeric keypad permits access to eight, single

button -push, locate points and a further 100

so- called stack -locate points (which require a press

of the STACK button followed by a two -digit entry).

Most of the keypad buttons also serve a different

purpose in the Submenu mode which concerns

itself with general setup and backup functions.

Other locate related features include a LAST button,

which toggles between the last two positions at

which the STOP button was pressed, and

programmable preroll time.

Central to the heart of the DR4d is the

programming of IN and OUT buttons. These are set

by striking the STORE -ENTER button in any

transport mode which captures an absolute -time

point and allocating to the IN or OUT button with a

single press. The same simple process is used to

program locate points. The In or Out points can

thus represent the section markers for a delete

edit, for example, or the segment of audio

earmarked for an automated punch -in after

practising in a rehearse mode. The precise

adjustment of these In and Out points is, of course,

what the Jog and shuttle wheels are really about.

Editing

For a machine accused of being limited in the

cutting and splicing department, the DR4d offer a

lot of tricks through its seven edit modes. Copy

copies an In -Out marked segment to anywhere else

overwriting as it does so while Copy and Insert

takes the same segment and moves the audio along

at the destination to make room for it. Move takes

a segment and overwrites with it at its new

destination and Move and Insert shifts the audio

along at the destination. Copy and Move modes

permit the earmarked segment to be copied up to

99 times at the destination. Erase removes a

segment leaving a gap, Delete removes the

segment and rebuts, while Insert simply slots in a

gap of specified duration at the current location.

Zenon Schoepe gets

to grips with Akai's

hard disk recorder -

editor armed with

MIDI and SMPTE

cards and the new

DL4d remote

www.americanradiohistory.com

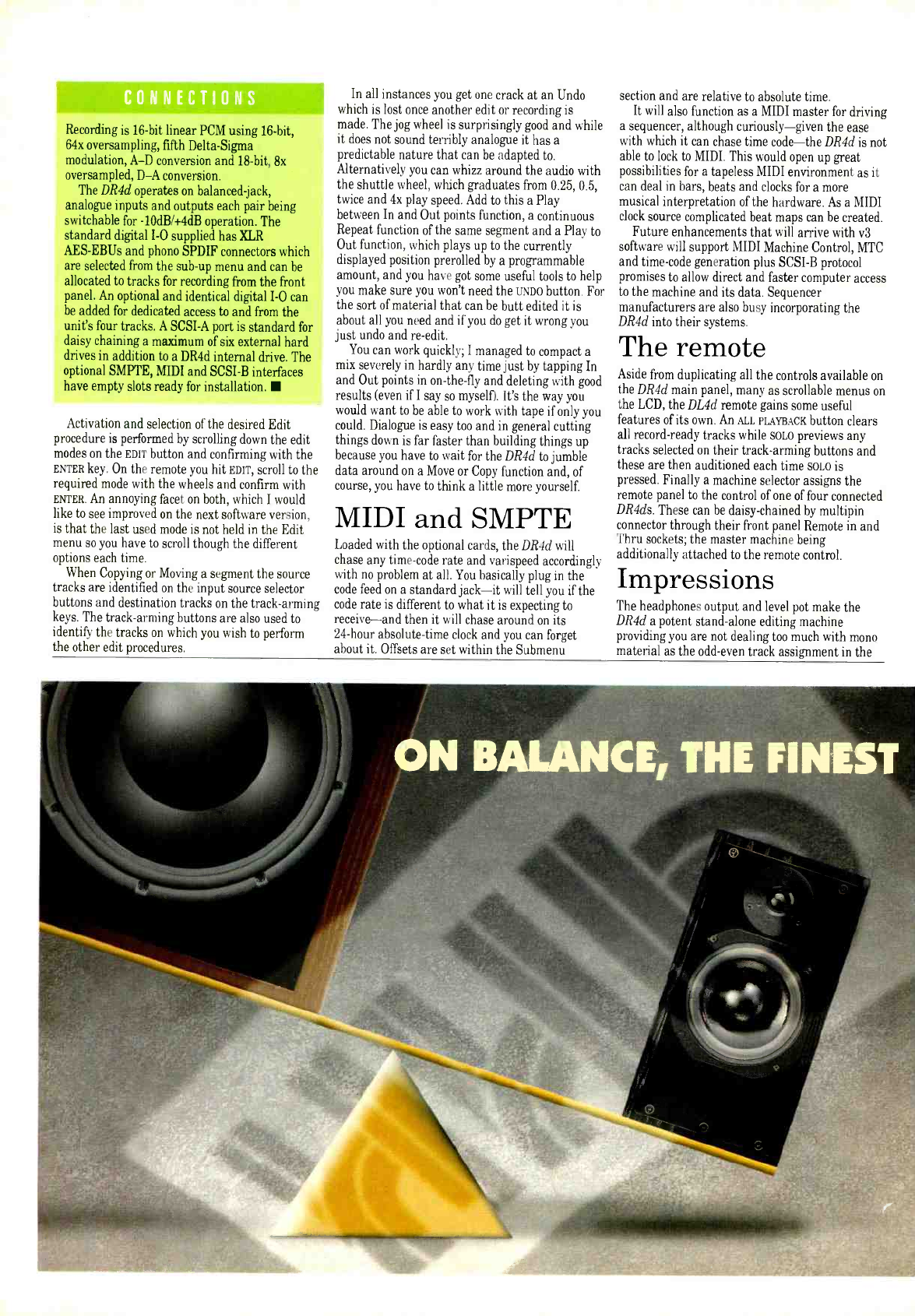

CONNECTIONS

Recording is 16 -bit linear PCM using 16 -bit,

64x oversampling, fifth Delta -Sigma

modulation, A D conversion and 18 -bit, 8x

oversampled, DA conversion.

The DR4d operates on balanced jack,

analogue inputs and outputs each pair being

switchable for -10dB / +4dB operation. The

standard digital I -0 supplied has XLR

AES -EBUs and phono SPDIF connectors which

are selected from the sub -up menu and can be

allocated to tracks for recording from the front

panel. An optional and identical digital I -0 can

be added for dedicated access to and from the

unit's four tracks. A SCSI -A port is standard for

daisy chaining a maximum of six external hard

drives in addition to a DR4d internal drive. The

optional SMPTE, MIDI and SCSI -B interfaces

have empty slots ready for installation.

Activation and selection of the desired Edit

procedure is performed by scrolling down the edit

modes on the EDIT button and confirming with the

ENTER key. On the remote you hit EDIT, scroll to the

required mode with the wheels and confirm with

ENTER. An annoying facet on both, which I would

like to see improved on the next software version,

is that the last used mode is not held in the Edit

menu so you have to scroll though the different

options each time.

When Copying or Moving a segment the source

tracks are identified on the input source selector

buttons and destination tracks on the track -arming

keys. The track -arming buttons are also used to

identify the tracks on which you wish to perform

the other edit procedures.

In all instances you get one crack at an Undo

which is lost once another edit or recording is

made. The jog wheel is surprisingly good and while

it does not sound terribly analogue it has a

predictable nature that can be adapted to.

Alternatively you can whizz around the audio with

the shuttle wheel, which graduates from 0.25, 0.5,

twice and 4x play speed. Add to this a Play

between In and Out points function, a continuous

Repeat function of the same segment and a Play to

Out function, which plays up to the currently

displayed position prerolled by a programmable

amount, and you have got some useful tools to help

you make sure you won't need the UNDO button. For

the sort of material that can be butt edited it is

about all you need and if you do get it wrong you

just undo and re -edit.

You can work quickly; I managed to compact a

mix severely in hardly any time just by tapping In

and Out points in on- the -fly and deleting with good

results (even if I say so myself). It's the way you

would want to be able to work with tape if only you

could. Dialogue is easy too and in general cutting

things down is far faster than building things up

because you have to wait for the DR4d to jumble

data around on a Move or Copy function and, of

course, you have to think a little more yourself.

MIDI and SMPTE

Loaded with the optional cards, the DR4d will

chase any time -code rate and varispeed accordingly

with no problem at all. You basically plug in the

code feed on a standard jack -it will tell you if the

code rate is different to what it is expecting to

receive -and then it will chase around on its

24 -hour absolute -time clock and you can forget

about it. Offsets are set within the Submenu

section and are relative to absolute time.

It will also function as a MIDI master for driving

a sequencer, although curiously -given the ease

with which it can chase time code -the DR4d is not

able to lock to MIDI. This would open up great

possibilities for a tapeless MIDI environment as it

can deal in bars, beats and clocks for a more

musical interpretation of the hardware. As a MIDI

clock source complicated beat maps can be created.

Future enhancements that will arrive with v3

software will support MIDI Machine Control, MTC

and time -code generation plus SCSI -B protocol

promises to allow direct and faster computer access

to the machine and its data. Sequencer

manufacturers are also busy incorporating the

DR4d into their systems.

The remote

Aside from duplicating all the controls available on

the DR4d main panel, many as scrollable menus on

the LCD, the DL4d remote gains some useful

features of its own. An ALL PLAYBACK button clears

all record -ready tracks while SOLO previews any

tracks selected on their track -arming buttons and

these are then auditioned each time SOLO is

pressed. Finally a machine selector assigns the

remote panel to the control of one of four connected

DR4ds. These can be daisy- chained by multipin

connector through their front panel Remote in and

Thru sockets; the master machine being

additionally attached to the remote control.

Impressions

The headphones output and level pot make the

DR4d a potent stand -alone editing machine

providing you are not dealing too much with mono

material as the odd -even track assignment in the

www.americanradiohistory.com

stereo can get you cross -eyed. The remote enhances

the operation considerably simply because it is

easier to understand, but it is worth keeping the

host unit in sight just to remind yourself of which

tracks are active from the meters.

Although you can capture an absolute -time point

in any transport mode, if you capture one on the fly

and then press STOP before allocating it to a locate

memory or In or Out point then it is cancelled. This

irritated me because I was grabbing a location and

knowing that I wanted to do something with it I

was scrubbing or stopping the audio before I had

decided precisely what that would be. The system

is basically rushing you to make a decision.

Analogies to tape run out when you discover that

you can only go to the generous 108 locate points

from Stop. That is pretty daft in my opinion.

Finally, for the amount of use and abuse it gets,

a larger and more substantial STORE -ENTER button

would have been a good idea particularly when you

compare it to the size and usefulness of the ZERO

RETURN button.

However, the machine has a high degree of logic

which means you can get out of a specified routine,

like an edit function, simply by pressing any other

button but the one you are supposed to. I have also

got to say that, despite my best efforts, it did not

crash once -pretty damn good for a brand new

remote and sync card particularly as I was working

it consistently at the limits of the meagre

18.25 track -minutes -48kHz hard disk that was

supplied with it. In such circumstances it can get a

tad sluggish but a larger drive would sort it.

However, you can align the data to rearrange it

more efficiently and for the aforementioned amount

of audio this took around five minutes to perform.

The answer has to be to use less of a larger drive.

About the only thing I really missed was the

ability to slide tracks around easily relative to each

other. You can approximate the effect by sequential

deletion or insertion of minute segments (21ms

minimum deletion, 1 frame minimum insertion)

but it is tedious.

Conclusion

When the DR4d was announced many questioned

the point of having hard disk on tap and presenting

it like a a tape machine. But Akai have got it right.

If we look at the success of the ADAT and

DÁ88 -I am talking about their use across the

professional spectrum -it has proved that people

are not entirely convinced that the hard disk

systems out there at the moment serve as an

adequate and widespread replacement for

traditionally implemented and presented

operational concepts. This is brought in to sharper

focus by cost. The DR4d has got to be the most

accessible hard -disk machine on the market. It is

also the cheapest stand -alone and a 213Mb

internal -drive version with SMPTE, and MIDI will

cost in the region of £2,400 inclusive of VAT in the

UK. You can expand with slave DR4ds for more

tracks, extra external storage and a remote. This

modularity will appeal to many.

The DR4d does not have really sophisticated

editing capabilities but it is still very clever and a

lot more than adequate. It has destructive editing

and one level of Undo -by my reckoning that's a

whole one better than you get on tape, some of

which can not be cut anyway.

The fact that the DR4d now locks reliably and

transparently to SMPTE and generates MIDI as an

output makes it a significant piece of kit. It is a

perfect and natural companion to any tape -based

system not just by expanding the system's tracks

The submenu can only be accessed wlnia ui

Stop. From here you can set the phono, XLR,

SPDIF or AES -EBU nature of the paired input

and output digital connectors, and the SMPTE

rate and offset. You can also preset Preroll and

Play To Out times in seconds, format anc erase

your hard disks, align them, set the sampling

frequency (32kHz, 44.1kHz and 48kHz) and set

emphasis. You also select time -code chase or

MIDI master status from here and create your

beat map.

Varispeed is activated on a dedicated button

and offers -3333% at 48kHz, -2744% to +8.84%

at 44.1kHz and +50% at 32kHz. The downside

to this is that varispeed values have to be

selected while the machine is in Stop, which

makes fine tuning for pitch a bit of a pig [Let's

say a trotter], and varispeed itself can also only

be activated while the machine is stationary.

but by releasing the potential of the machine(s) you

already have. It remains a fast stand -alone

recorder -editor.

Here is a machine you can master to, comp on,

assemble on and rearrange on that is cheap,

accessible, immediate and it sounds good too. For a

lot of applications this is all that is required.

UK: Akai (UK) Ltd, Haslemere Heathrow Estate,

Silver Jubilee Way, Parkway, Hounslow, Middlesex

TW4 6NQ. Tel: 081 897 6388. Fax: 081 759 8268.

US: Akai -AMC, 1316 East Lancaster, Fort Worth,

TX 76102. Tel: +1 817 336 5114.

Fax: +1 817 870 1271.

MONITOR LOUDSPEAKERS IN THE WORLD

410 Nobody builds a loudspeaker quite like ATC, as anyone who has lifted one (or attempted to

lift one) will already know. Crafted by hand in rural Gloucestershire, they combine uncompromising build

quality with highly innovative driver technology to deliver levels of performance that far exceed those of

wank conventional loudspeaker designs. Professional users as diverse as the BBC, Pink

Floyd and The San Francisco Symphony Orchestra already

ATC's legendary soft domemkYan9e driver :: insist on the exceptional accuracy, transparency

and dyñä rc`f.-ñg =óf. ATC monitors. To find out why you should tool

call HHB Communications (or Independent Audio in the USA)

and we'll.. e. s t o rr rt! e .:'de. ,,' n Wtrati. n...

HHB Communications Limited

73 75rrubs Lane London NW10 6QU

Tel 081 960 2144 F íz:081 9601160 Telex. 923393

In the USA contact. Independent Audio 295 Forest Avenue Suite 121, Portland, Maine 041 -2000 el: 207 773 2424 Fátr

www.americanradiohistory.com

IF SILENCE IS GOLDEN1

THIS CONSOLE SHOULD

COST 7486% MORE

Da-

The Uc.';'" R Orion. / rum its Hi /)r/ /,.Qs to its fully inodu/nr design, /twin its rusloni-, r Ned RH-killing

steel frame to its inrirdi/i/l' flexible floating su/çgiaups. Ike hiaidernftrd Urinn is r crn bit a 1)&R.

Next time you audition a console. from anyone at any price. ask

to hear a test for which we're well -known. It grxs Iikc this: We

select 4mic across the board. and assign every channel to the

mix bus. We crank up the studio monitor amp. all the way. We

push up all the channel and master faders. all the way. We turn

the consoles monitor level up. All the way. Next. we invite

each customer to place his or her ear right next to one of the

monitors tweeters.

Gingerly. they listen, to not much at all.

Then. we bring the monitor pot down from what would he

a speaker -destroying level to a merely deafening level. Beiore

ears are plugged and music blasts forth. we invite one last. close

listen. to confirm the remarkable: Even with everything

assigned and cranked up. a D &R console remains effectively -

and astonishingly - silent.

of course. a D &R is much more than the quietest analog

board you can buy. So we equip each handcrafted D &R with

110-

dozens of unique. high- sonic -performance features. And we hach

each ixoard with our renowned factory- direct technical support.

HOW much is all of this worth? Will. if silence is

golden, then every D &R is worth its weight in gold.

In which case. until we raise its price about 75 times. the

D &R console pictured at left is one truly impressive

investment opportunity.

I )&Il I.IPd'IR<).1K'A It\'.

Rijrlarde 1513. i:Iß2 (:.ti WaiHp. TIK Nttñarlanáx

tel (-) 31 2940-18014 fax (-) 31 294(116987

1)&R Wttif:(818)291Sf3.i., I)&R NA,11 \IIJ.f: (615)tì(ii-micr2

D&R 5( )l'I7MINT: (409) 75637:7 I)&R USA: (409) 588.3411

l)CrA hnnrl nr/s aon.adcc Jiff nrnnling, licr soma, lhrnlm p.v-pnN/wr linn and hrrmdrrru. /or t'ndd-rinu ri pnrja -Wright in old" rrunpansn2c basal npun 1 119 market pdrr.c.

www.americanradiohistory.com

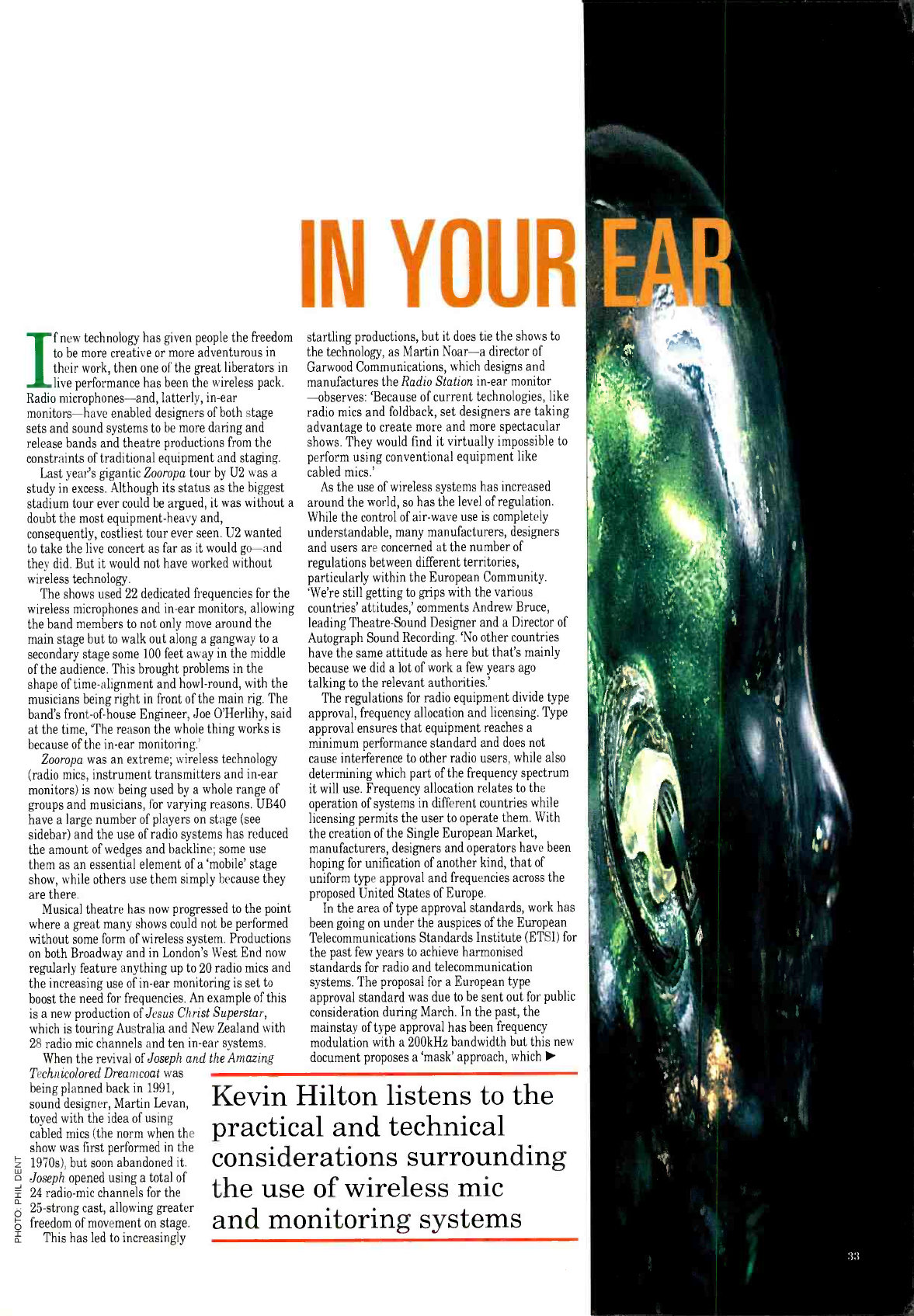

If new technology has given people the freedom

to be more creative or more adventurous in

their work, then one of the great liberators in

live performance has been the wireless pack.

Radio microphones -and, latterly, in -ear

monitors -have enabled designers of both stage

sets and sound systems to be more daring and

release bands and theatre productions from the

constraints of traditional equipment and staging.

Last year's gigantic Zooropa tour by U2 was a

study in excess. Although its status as the biggest

stadium tour ever could be argued, it was without a

doubt the most equipment -heavy and,

consequently, costliest tour ever seen. U2 wanted

to take the live concert as far as it would go-and

they did. But it would not have worked without

wireless technology.

The shows used 22 dedicated frequencies for the

wireless microphones and in -ear monitors, allowing

the band members to not only move around the

main stage but to walk out along a gangway to a

secondary stage some 100 feet away in the middle

of the audience. This brought problems in the

shape of time -alignment and howl -round, with the

musicians being right in front of the main rig. The

band's front -of -house Engineer, Joe O'Herlihy, said

at the time, `The reason the whole thing works is

because of the in -ear monitoring.'

Zooropa was an extreme; wireless technology

(radio mics, instrument transmitters and in -ear

monitors) is now being used by a whole range of

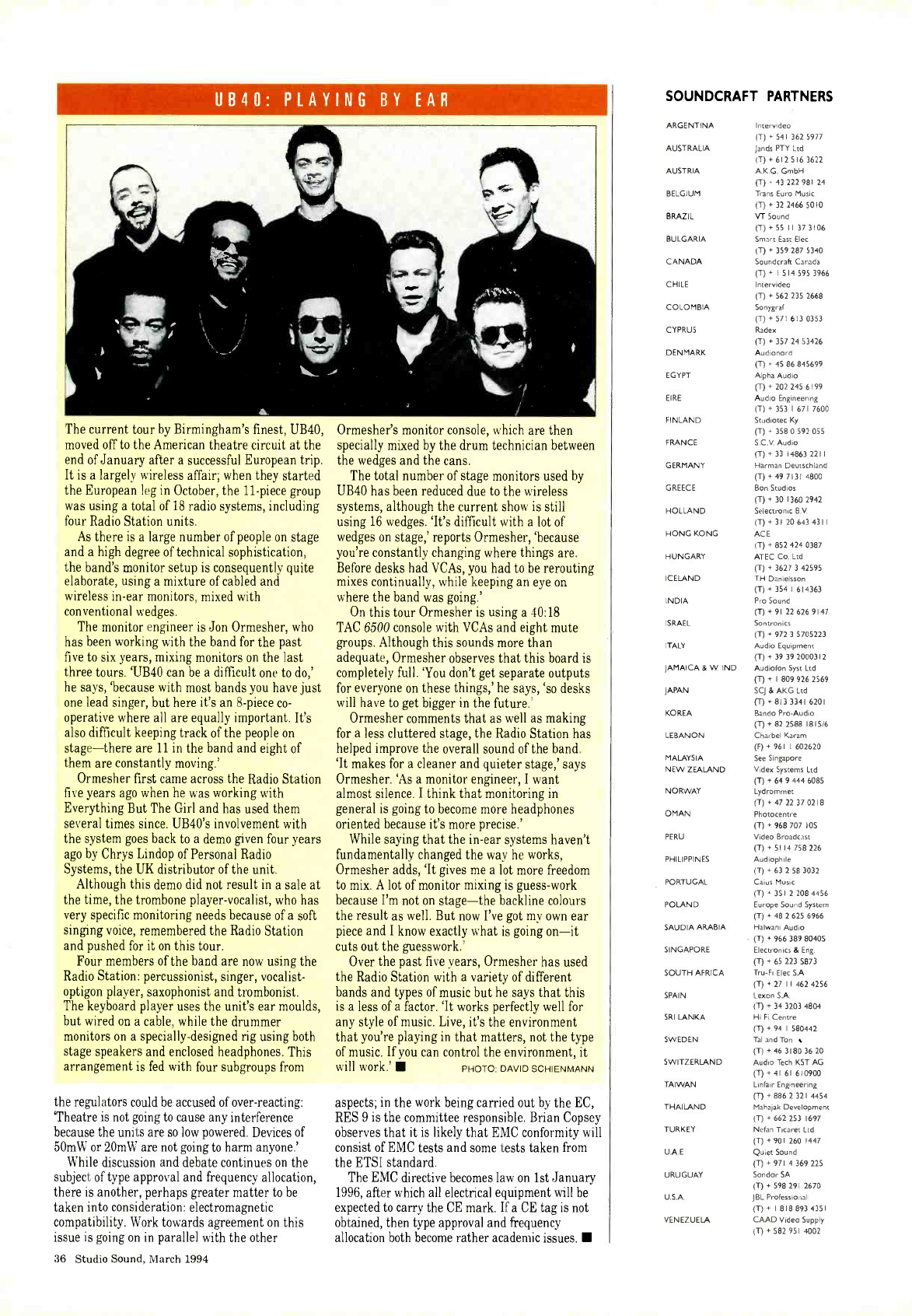

groups and musicians, for varying reasons. UB40

have a large number of players on stage (see

sidebar) and the use of radio systems has reduced

the amount of wedges and backline; some use

them as an essential element of a `mobile' stage

show, while others use them simply because they

are there.

Musical theatre has now progressed to the point

where a great many shows could not be performed

without some form of wireless system. Productions

on both Broadway and in London's West End now

regularly feature anything up to 20 radio mics and

the increasing use of in -ear monitoring is set to

boost the need for frequencies. An example of this

is a new production of Jesus Christ Superstar,

which is touring Australia and New Zealand with

28 radio mic channels and ten in -ear systems.

When the revival of Joseph and the Amazing

Technicolored Dreamcoat was

being planned back in 1991,

sound designer, Martin Levan,

toyed with the idea of using

cabled mics (the norm when the

show was first performed in the

1970s), but soon abandoned it.

ó Joseph opened using a total of

24 radio -mic channels for the

ö25- strong cast, allowing greater

á freedom of movement on stage.

E This has led to increasingly

IN YOUR

startling productions, but it does tie the shows to

the technology, as Martin Noar -a director of

Garwood Communications, which designs and

manufactures the Radio Station in -ear monitor

-observes: `Because of current technologies, like

radio miss and foldback, set designers are taking

advantage to create more and more spectacular

shows. They would find it virtually impossible to

perform using conventional equipment like

cabled mics.'

As the use of wireless systems has increased

around the world, so has the level of regulation.

While the control of air -wave use is completely

understandable, many manufacturers, designers

and users are concerned at the number of

regulations between different territories,

particularly within the European Community.

`We're still getting to grips with the various

countries' attitudes,' comments Andrew Bruce,

leading Theatre -Sound Designer and a Director of

Autograph Sound Recording. `No other countries

have the same attitude as here but that's mainly

because we did a lot of work a few years ago

talking to the relevant authorities.'

The regulations for radio equipment divide type

approval, frequency allocation and licensing. Type

approval ensures that equipment reaches a

minimum performance standard and does not

cause interference to other radio users, while also

determining which part of the frequency spectrum

it will use. Frequency allocation relates to the

operation of systems in different countries while

licensing permits the user to operate them. With

the creation of the Single European Market,

manufacturers, designers and operators have been

hoping for unification of another kind, that of

uniform type approval and frequencies across the

proposed United States of Europe.

In the area of type approval standards, work has

been going on under the auspices of the European

Telecommunications Standards Institute (ETSI) for

the past few years to achieve harmonised

standards for radio and telecommunication

systems. The proposal for a European type

approval standard was due to be sent out for public

consideration during March. In the past, the

mainstay of type approval has been frequency

modulation with a 200kHz bandwidth but this new

document proposes a `mask' approach, which

Kevin Hilton listens to the

practical and technical

considerations surrounding

the use of wireless mic

and monitoring systems

www.americanradiohistory.com

will work on 200kHz, 150kHz and 100kHz -wide

bands. If equipment fits into one of those slots, and

meets the necessary type- approval standards as

regards transmission power and unwanted

emissions, then it will be type approved.

'This should create a significant increase in the

number of channels within the allocated bands,'

says Brian Copsey, Secretary of the UK licensing

agency ASP Frequency Management. 'We're

encouraging manufacturers to be spectrum

efficient.' The proposed document includes radio

microphones using any form of modulation: FM,

linear and even digital. 'Providing they sit within

the mask, it won't be a problem,' says Copsey.

Creative types generally complain that

regulators are just administrators who do not have

an understanding of what designers are trying to

do. Consequently, they say, certain pieces of

equipment are often not taken into consideration.

A leading example is the Radio Station, which

uses some of the same technology as a radio

microphone but is used for a totally different

application. We were told that it would

probably fall into the same category as

radio mics,' explains its designer, Martin

Noar, 'but because it's a unique product,

there was no specific classification as far as

type approval was concerned.'

However, as far as the ETSI standard is

concerned, the attitude of the Association of

Service Providers, (ASP Frequency

Management grew out of the original

industry body), appears relatively laid back.

'The Radio Station is a fixed radio

microphone that just reverses the process,'

comments Copsey. 'It's also a very low -

power unit and it conforms to the basic

requirements.' In a strange way, the Radio

Station would appear to open up the way

for further work in the field of radio

microphones, as Copsey intimates. 'It's a

stereo unit and it sits within the mask with

no problem. Stereo microphones would be

feasible under the mask.'

John Wykes is Senior Engineer at Audio

Engineering, maker of the Micron range of

radio microphones, and is also a contributor

to the ETSI subcommittee RES (Radio and

Electronics Systems) 8, which deals with

technical standards. He says of the

type- approval proposal, 'In principle, it's

very similar to the current UK

type -approval. As far as the UK will be

concerned, there's not going to be any

obvious difference.'

Having now been released into the public

domain for discussion, the bureaucratic timetable

would look this : the document will be up for public

appraisal for about six months, after which it will

return to the committee stage for any

modifications. This would mean that it will be at

least a year before it is finally published.

However, type approval is only the beginning as

far as radio microphone regulations are concerned,

and things certainly get more complicated for the

end user after this point. As John Wykes says, 'If

type approval is accepted on a Europe -wide basis,

that will be statutory but frequencies and power

are still down to each individual country to decide.'

It is this situation which has caused

frustration among manufacturers of radio

equipment and the designers of the productions

that use it. 'There should be one specification,

absolutely,' asserts Noar. 'It's difficult enough for

me to deal with the companies who ask my advice

regarding suitable frequencies. It's even worse if

you think about the problems faced by the US

34 Studio Sound, March 1994

hire companies. They're confronted by a region

half the size of America which has 16 different

standards and 16 different frequencies.'

Andrew Bruce observes, We have to throw

ourselves on the mercy of the local PTT [Postal,

Telegraph and Telephone Administration, the

agency that provinces communication services in

many countries and also often acts as the

regulator]. Before we took Les Miserables to

Madrid, we had a year of to -ing and fro -ing with

the PTT out there. The problem is, in asking for

frequencies you're alerting them to the fact that

you need them. If they say no, they're likely to

come looking if you go ahead.'

Body language

Although the nature of radio microphones and

their importance to productions of every kind is

fully understood by the professional audio

industry, the licensing and regulatory bodies that

they have to deal with, which are generally

part in the process. 'The European Radio

Organisation (ERO) are looking at the frequencies

in the band sweep 29.6 to 900MHz,' he explains,

'and we are looking for a much higher profile for

radio microphones. The ASP have encouraged

people to reply to the relevant bodies so that radio

microphones can have a position within the band.'

When the latest UK Broadcasting Act came into

force in 1990, it proposed that a new national TV

station, Channel 5, would use the frequencies on

Channel 35 (582- 590MHz), which was already

being used for licensed radio microphones.

Pressure was put on the Department of Trade and

Industry (DTI) and consequently Channel 69 was

offered as a replacement, albeit with some

restrictions. Channel 35 is still available for radio

mic use in some areas of the UK, specifically

London, Birmingham and Bristol.

In December 1993, the new 14- channel bandplan

was added to Channel 69 for UHF use. This was

followed at the beginning of February this year by

a new category of licence for nonrental operations.

Single -channel licences currently cost £100

each and (through a SAP3 form) allow a

hire company to extend that licence to cover

the end user as well. The new licence,

costing £130, is for single or multiple

nonhire units, and is targeting such

organisations as small drama groups. The

£130 fee pays for all five VHF frequencies

or for either of the two groups of seven

frequencies on channel 69. Copsey feels it is

unlikely that end users would require all

three licences.

Another change, which was implemented

18 months ago, was to implement band -

edge licensing, with specific regard to fixed -

site systems. 'Where possible, we give the

top or bottom of the spectrum as a licence

block,' explains Copsey. 'This is in general

line with the ETSI standard to improve

spectrum efficiency. We are trying to give

more freedom to the end user and allows for

physically adjacent sites.'

As far as a Europe -wide agreement on

frequencies is concerned, Copsey says,

'Through our ETSI work, a request for

harmonisation of some radio microphone

frequencies has been sent to CEPT (Central

European Post and Telegraph

organisation). The Association has also

been talking to other national bodies.

Within other countries, the allocations often

work on spot frequencies, which is often a

mathematical progression.'

Garwood Communications Ltd

I.m.lon \t\ _ ..k\

Tel i5l- 1 ",2J0 ln, wlJ:: n+ -,

Lovo[

459.511

460.578

465.0 -2

466.267

470.513

471.600

528.113

530.267

534.513

535.600

459.511

460.578

465.022

466.267

Uppor

574.389

575.722

591.278

592.933

588.167

589.500

660.167

662.833

668.167

69.500

ouUVm

574.389

575.722

581.278

582.833

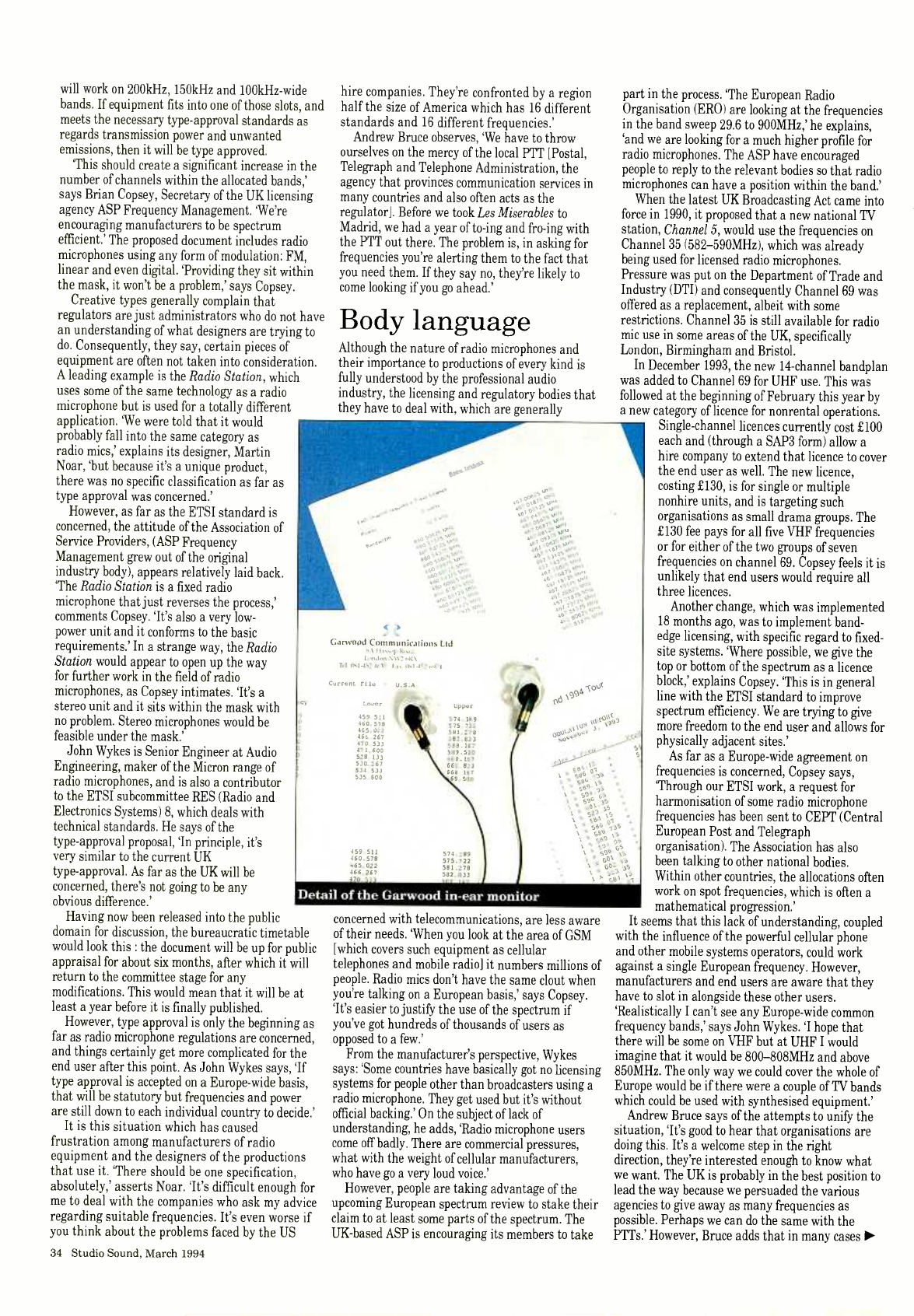

Detail of the Garwood in -ear monitor

concerned with telecommunications, are less aware

of their needs. 'When you look at the area of GSM

[which covers such equipment as cellular

telephones and mobile radio] it numbers millions of

people. Radio mics don't have the same clout when

you're talking on a European basis,' says Copsey.

'It's easier to justify the use of the spectrum if

you've got hundreds of thousands of users as

opposed to a few.'

From the manufacturer's perspective, Wykes

says: 'Some countries have basically got no licensing

systems for people other than broadcasters using a

radio microphone. They get used but it's without

official backing.' On the subject of lack of

understanding, he adds, 'Radio microphone users

come off badly. There are commercial pressures,

what with the weight of cellular manufacturers,

who have go a very loud voice.'

However, people are taking advantage of the

upcoming European spectrum review to stake their

claim to at least some parts of the spectrum. The

UK -based ASP is encouraging its members to take

It seems that this lack of understanding, coupled

with the influence of the powerful cellular phone

and other mobile systems operators, could work

against a single European frequency. However,

manufacturers and end users are aware that they

have to slot in alongside these other users.

'Realistically I can't see any Europe -wide common

frequency bands,' says John Wykes. 'I hope that

there will be some on VHF but at UHF I would

imagine that it would be 800- 808MHz and above

850MHz. The only way we could cover the whole of

Europe would be if there were a couple of TV bands

which could be used with synthesised equipment.'

Andrew Bruce says of the attempts to unify the

situation, 'It's good to hear that organisations are

doing this. It's a welcome step in the right

direction, they're interested enough to know what

we want. The UK is probably in the best position to

lead the way because we persuaded the various

agencies to give away as many frequencies as

possible. Perhaps we can do the same with the

PTTs.' However, Bruce adds that in many cases

www.americanradiohistory.com

A FAMILY OF COMPATIBLE PRODUCTS

THE VIDEO

A Family of Compatible Products

Multiple Systems Mdtiple Users

Solid State Logic

Intmlutionll Heulu9rtm

&gbroke,OdoebE++BImJ

OY751RL,

Tel

13 se :101651 66.Y00

44 M 4 IL26211956 J+ren+ltl1161511 93 66 4 Ta < Y 31M]I114

SSL DIGITAL

Please send me a VHS copy of the Family of Compatible Products Video 1 1 - in PAL in NTSC

Please call to arrange a demonstration of ScreenSound rl VisionTrack O Scenaria O OmniMix O SoundNet O

Please send more information on ScreenSound O VisionTrack O Scenaria O OmniMix O SoundNet O

Name: Position.

Company

Address

993

The Queen's Award for

Technological Achievement

;SR. DIGITAL

Postcode: Telephone No Solid State Logic

www.americanradiohistory.com

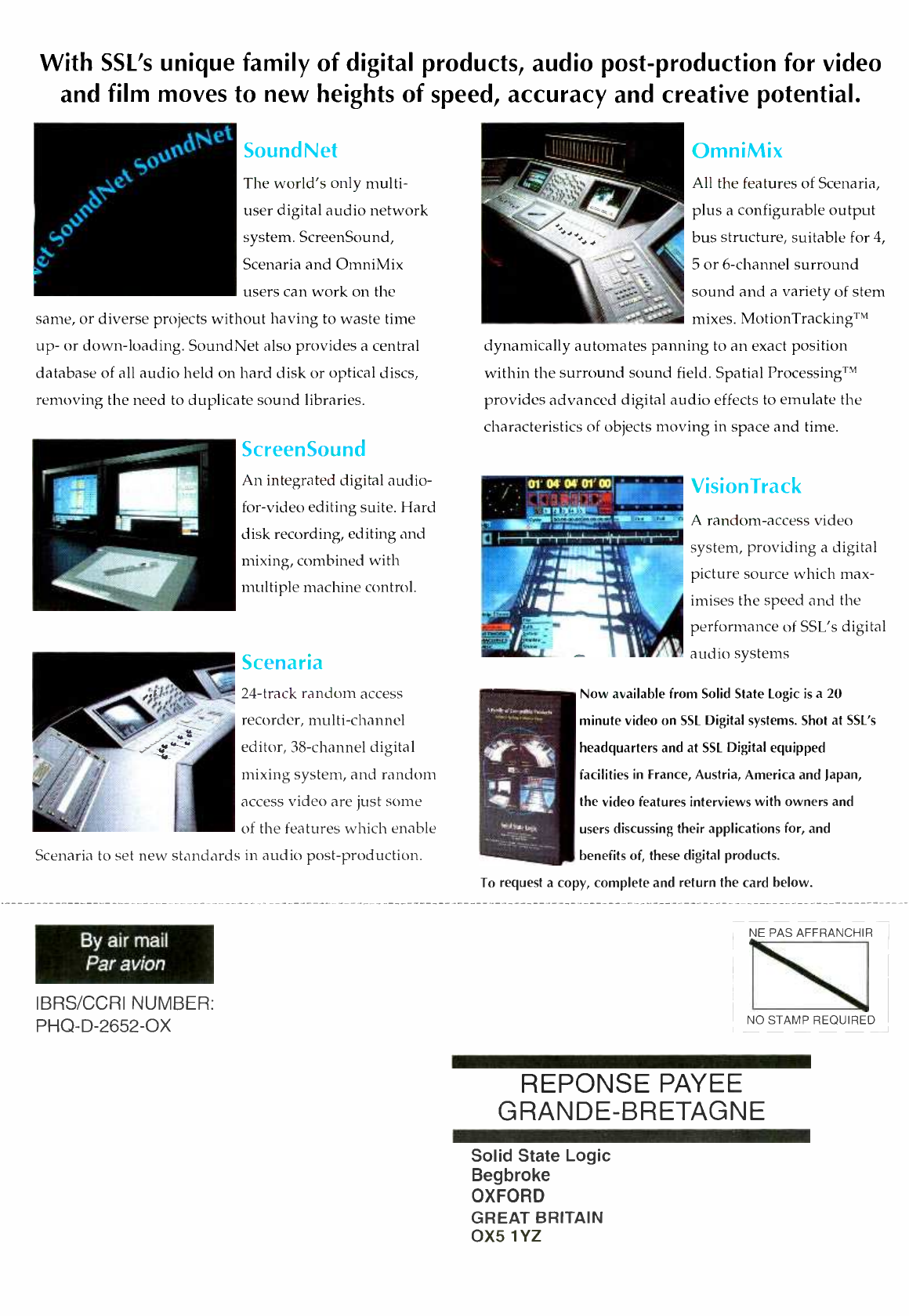

With SSL's unique family of digital products, audio post -production for video

and film moves to new heights of speed, accuracy and creative potential.

ordNet

5 soundNet

The world's only multi -

user digital audio network

system. ScreenSound,

Scenaria and OmniMix

users can work on the

same, or diverse projects without having to waste time

up- or down -loading. SoundNet also provides a central

database of all audio held on hard disk or optical discs,

removing the need to duplicate sound libraries.

ScreenSound

An integrated digital audio -

for -video editing suite. Hard

disk recording, editing and

mixing, combined with

multiple machine control.

Scenaria

24 -track random access

recorder, multi -channel

editor, 38- channel digital

mixing system, and random

access video are just some

of the features which enable

Scenaria to set new standards in audio post -production.

OrnniMlix

All the features of Scenaria,

plus a configurable output

bus structure, suitable for 4,

5 or 6- channel surround

sound and a variety of stem

mixes. MotionTrackingTM

dynamically automates panning to an exact position

within the surround sound field. Spatial ProcessingTM

provides advanced digital audio effects to emulate the

characteristics of objects moving in space and time.

VisionTrack

A random -access video

system, providing a digital

picture source which max-

imises the speed and the

performance of SSL's digital

audio systems

Now available from Solid State Logic is a 20

minute video on SSL Digital systems. Shot at SSL's

headquarters and at SSL Digital equipped

facilities in France, Austria, America and Japan,

the video features interviews with owners and

users discussing their applications for, and

benefits of, these digital products.

To request a copy, complete and return the card below.

By air mail

Par avion

IBRS /CORI NUMBER:

PHQ -D- 2652 -OX

NE PAS AFFRANCHIR

NO STAMP REQUIRED

REPONSE PAYEE

GRANDE -BRETAGNE

Solid State Logic

Begbroke

OXFORD

GREAT BRITAIN

OX5 1 YZ

www.americanradiohistory.com

GO OPTICAL WITH AUGAN

AUDIO EXPERTS DECLARE: "THE FUTURE IS NOW"

REWRITABLE OPTICAL DISCS

¡iï

"First Question":

Who supplies optical player/recorders and editors

from 2 tracks to 24 tracks or beyond?

"Answer from the audio expert":

AUGAN. Take for example their 202 -, 204 - or

their 408 - ONLY, an 8 track machine which you can

combine to 24 tracks usable for music, broadcast or

synchronized to video and film.

"Last question"

What about compatibility?

"Answer"

With a DIN norm for lineair recorded audio on ISO

standard optical disks your audio is retrievable now

and in the future.

WE CONVINCED MANY PROFESSIONAL USERS

WHY NOT LET US CONVINCE You!

AUGAN Instruments BV - Wilhclminastr 31 'Belgium - Ase 02.5200827 'Italy - Audio International 02.27304401 *U.S.A. - A/Z Associates 617.4440191

6881111 VELP (31)85.648966 The Netherlands 'France - TBC Commtnications 1.47457880 'Suitsetland - Mase - 22.3212345 *Korea - Iii Tone 82.2.5765571/2

DISTRIBUTORS: *Germany - Dasa 4103 605468 'United Kingdom - Studer Revox 081.9533533 *Singapore - Auvi 65.2832544

'The Netherlands - Ampco 030.414500 'Sweden - Zima Productions 08.6535710 *Spain - Fading - 01.3772400 'Hong Kong - PL Development 08891009

www.americanradiohistory.com

UB40: PLAYING BY EAR

The current tour by Birmingham's finest, UB40,

moved off to the American theatre circuit at the

end of January after a successful European trip.

It is a largely wireless affair; when they started

the European leg in October, the 11 -piece group

was using a total of 18 radio systems, including

four Radio Station units.

As there is a large number of people on stage

and a high degree of technical sophistication,

the band's monitor setup is consequently quite

elaborate, using a mixture of cabled and

wireless in -ear monitors, mixed with

conventional wedges.

The monitor engineer is Jon Ormesher, who

has been working with the band for the past

five to six years, mixing monitors on the last

three tours. `UB40 can be a difficult one to do,'

he says, `because with most bands you have just

one lead singer, but here it's an 8 -piece co-

operative where all are equally important. It's

also difficult keeping track of the people on

stage -there are 11 in the band and eight of

them are constantly moving.'

Ormesher first came across the Radio Station

five years ago when he was working with

Everything But The Girl and has used them

several times since. UB40's involvement with

the system goes back to a demo given four years

ago by Chrys Lindop of Personal Radio

Systems, the UK distributor of the unit.

Although this demo did not result in a sale at

the time, the trombone player -vocalist, who has

very specific monitoring needs because of a soft

singing voice, remembered the Radio Station

and pushed for it on this tour.

Four members of the band are now using the

Radio Station: percussionist, singer, vocalist -

optigon player, saxophonist and trombonist.

The keyboard player uses the unit's ear moulds,

but wired on a cable, while the drummer

monitors on a specially -designed rig using both

stage speakers and enclosed headphones. This

arrangement is fed with four subgroups from

the regulators could be accused of over -reacting:

`Theatre is not going to cause any interference

because the units are so low powered. Devices of

50mW or 20mW are not going to harm anyone.'

While discussion and debate continues on the

subject of type approval and frequency allocation,

there is another, perhaps greater matter to be

taken into consideration: electromagnetic

compatibility. Work towards agreement on this

issue is going on in parallel with the other

36 Studio Sound, March 1994

Ormesher's monitor console, which are then

specially mixed by the drum technician between

the wedges and the cans.

The total number of stage monitors used by

UB40 has been reduced due to the wireless

systems, although the current show is still

using 16 wedges. It's difficult with a lot of

wedges on stage,' reports Ormesher, `because

you're constantly changing where things are.

Before desks had VCAs, you had to be rerouting

mixes continually, while keeping an eye on

where the band was going.'

On this tour Ormesher is using a 40:18

TAC 6500 console with VCAs and eight mute

groups. Although this sounds more than

adequate, Ormesher observes that this board is

completely full. `You don't get separate outputs

for everyone on these things,' he says, `so desks

will have to get bigger in the future.'

Ormesher comments that as well as making

for a less cluttered stage, the Radio Station has

helped improve the overall sound of the band.

`It makes for a cleaner and quieter stage,' says

Ormesher. `As a monitor engineer, I want

almost silence. I think that monitoring in

general is going to become more headphones

oriented because it's more precise.'

While saying that the in -ear systems haven't

fundamentally changed the way he works,

Ormesher adds, `It gives me a lot more freedom

to mix. A lot of monitor mixing is guess -work

because I'm not on stage -the backline colours

the result as well. But now I've got my own ear

piece and I know exactly what is going on -it

cuts out the guesswork.'

Over the past five years, Ormesher has used

the Radio Station with a variety of different

bands and types of music but he says that this

is a less of a factor. `It works perfectly well for

any style of music. Live, it's the environment

that you're playing in that matters, not the type

of music. If you can control the environment, it

will work.' PHOTO: DAVID SCHIENMANN

aspects; in the work being carried out by the EC,

RES 9 is the committee responsible. Brian Copsey

observes that it is likely that EMC conformity will

consist of EMC tests and some tests taken from

the ETSI standard.

The EMC directive becomes law on 1st January

1996, after which all electrical equipment will be

expected to carry the CE mark. If a CE tag is not

obtained, then type approval and frequency

allocation both become rather academic issues.

SOUNDCRAFT PARTNERS

ARGENTINA

AUSTRALIA

AUSTRIA

BELGIUM

BRAZIL

BULGARIA

CANADA

CHILE

COLOMBIA

CYPRUS

DENMARK

EGYPT

EIRE

FINLAND

FRANCE

GERMANY

GREECE

HOLLAND

HONG KONG

HUNGARY

ICELAND

INDIA

ISRAEL

ITALY

JAMAICA & W. IND

JAPAN

KOREA

LEBANON

MALAYSIA

NEW ZEALAND

NORWAY

OMAN

PERU

PHILIPPINES

PORTUGAL

POLAND

SAUDIA ARABIA

SINGAPORE

SOUTH AFRICA

SPAIN

SRI LANKA

SWEDEN

SWITZERLAND

TAIWAN

THAILAND

TURKEY

U.A.E

URUGUAY

U.S.A.

VENEZUELA

Intervideo

(T) + 541 362 5977

Jands PTY Ltd

(T) + 612 516 3622

A.K.G. GmbH

(T) + 43 222 981 24

Trans Euro Music

(T) + 32 2466 5010

VT Sound

(T) + 55 II 37 3106

Smart East Elec

(T) + 359 287 5340

Soundcraft Canada

(T) + 1 514 595 3966

Intervideo

(T) + 562 235 2668

Sonygraf

(T) + 571 613 0353

Rades

(T) + 357 24 53426

Audionord

(T) 4- 45 86 845699

Alpha Audio

(T) + 202 245 6199

Audio Engineering

(T) + 353 1 671 7600

Studiotec Ky

(T) + 358 0 592 055

S.C.V. Audio

(T) + 33 14863 2211

Harman Deutschland

(T) + 49 7131 4800

Bon Studios

(T) + 30 1360 2942

Selectronic B.V.

(T) + 31 20 643 4311

ACE

(T) + 852 424 0387

ATEC Co. Ltd

(T) + 3627 3 42595

TH Danielsson

(T) + 354 1 614363

Pro Sound

(T) + 91 22 626 9147

Sontronins

(T) + 972 3 5705223

Audio Equipment

(T) + 39 39 2000312

Audiofon Syst Ltd

(T) + 1 809 926 2569

SCJ & AKG Ltd

(T) + 813 3341 6201

Bando Pro -Audio

(T) + 82 2588 1815/6

Charbel Karam

(F) + 961 1 602620

See Singapore

Videx Systems Ltd

(T) + 64 9 444 6085

Lydrommet

(T) + 47 22 37 0218

Photocentre

(T) + 968 707 105

Video Broadcast

(T) + 5114 758 226

Audiophile

(T) + 63 2 58 3032

Caius Music

(T) + 351 2 208 4456

Europe Sound System

(T) o 48 2 625 6966

Halwani Audio

(T) + 966 389 80405

Electronics & Eng.

(T) + 65 223 5873

Tru -Fi Elec S.A

(T) + 27 I 1 462 4256

Lexon S.A.

(T) a- 34 3203 4804

Hi Fi Centre

(T) + 94 1 580442

Tal and Ton

(T) + 46 3180 36 20

Audio Tech KST AG

(T) + 41 61 610900

Linfair Engineering

(T) + 886 2 321 4454

Mahajak Development

(T) + 662 253 1697

Nefan Ticaret Ltd

(T) + 901 260 1447

Quiet Sound

(T) + 971 4 369 225

Sondor SA

(T) + 598 291 2670

JBL Professional

(T) + 1 818 893 4351

CAAD Video Supply

(T) + 582 951 4002

www.americanradiohistory.com

" The engineers love it,

the A &R men love it,

and my accountant

almost broke into

a smile

The DC200C breaks new ground for in -line recording by offering

moving fader technology at a price that you can afford.

As a complete integrated workstation, the DC2000 has in -built

computer control and requires no additional PC. Through its

moving fader technology, the DC2000 provides an accurate and

intuitive aaproach to sound recording, that would be almost

impossible to achieve manually.

With advanced project management capabilities, mixes can now

be created faster and more effectively by utilising the DC2000's

advanced on -board touch screen computer, dedicated softNare

package and hard disk storage...

and as the DC2000 comes from Soundcraft you can trust them to

deliver a product that is produced to the highest standards of

manufacture and service.

So why not make the next move and call your nearest Soundcraft

dealer. It cot.ld make you, and your accountant, extremely happy.

C mOVING 1.11.0111

Harman International I idustries Ltd., Cranborne House, Cranborre Industrial Estate, Cranborne Rd.,

Potters Bar, Herts EN6 3IN, England. Tel: +44 (0) 707 665000 Fax: +44 (0) 707 66)482

M A Harman International Company

C 2000 www.americanradiohistory.com

THE LONG -LIFE, Eco FRIENDLY CABLE

moGAmi Any cable failure often results in problems where the

original cause is extreme y difficult to detect. The

reliability and quality of Mogami cable ensures those

problems do not arise. Long -life, safety, efficiency and

economy make Mogami the No. 1 choice for cable.

BANTAM PATCH CORDS HIGH DEFINITION 7552 AUDIOiVIDEO CABLES LONE FRAME PATCH CORDS

MIDI SYNCHRO CABLES

CONSOLE WIRING CABLES

! - 1 . --I,

- taminau

SCSI - II SINGLE ENDED A CABLE

CL2 RATED SUPER -FLEXIBLE STUDIO

SPEAKER CABLES AES ! EBU 11052 DIGITAL AUDIO CABLE

PARALLEL DIGITAL VIDEO CABLE MUETICORE CABLES WITH AND WITHOUT

OVERALL SHIELD

CALL OUR DISTRIBUTORS FOR A FREE CATALOGUE AND /OR FOR MORE INFORMATION:

AUSTRALIA: GREATER UNION VILLAGE TECHNOLOGY (02) 550 5488 AUSTRIA: DIETMAR KOLLER RECORDING EQUIPMENT (0222) 450 43 43

CANADA: CABLETEK ELECTRONICS LIMITED (604) 942 -1001 CROATIA: AUDIO VIDEO CONSULTING (38) 41 624 622 DENMARK: D A DISTRIBUTION APS (31) 61 0755

FRANCE: D.M.2.J. SARL (1, 39 57 90 44 GERMANY: AUD,O- VERTRIEB PETER STRUVEN GMBH (04106) 6 99 99 HONG KONG: ODYSSEY ENGINEERING CO.LTD.5- 8988111

ITALY: AUDIO LINK (02)294e 6796 JAPAN: MIT INC. (03).3439 -3755 KOREA: AVIX TRADING COMPANY (02) 565 3565 NEW ZEALAND: DENCO AUDIO LTD (3) 3790743

NORTH AMERICA: MARSHALL ELECTRONICS INC. (310) 390 -6608 SINGAPORE: TEAM 108 TECHNICAL SERVICES PTD. LTD. (065) 748 9333

SOUTH AFRICA: EMINENTLY' MORE SUITABLE S . (011) 886 9662 SPAIN: MEDIA -SYS S L. (93) 485 09 11 SWEDEN: TAL 6 TON ELEKTRONIK AB (031) 80 36 20

SWITZERLAND: ZAP SONO ;022) 756 32 27 TAIWAN: SEA POWER CO. LTD. (02)298 2688 THAILAND: VIDHYA SUVANICH 2) 321 4426

THE NETHERLANDS: MAA.RTEN'S SOUNT & VISION (0) 5130 29120 U.K.: STIRLING AUDIO SYSTEMS LTD. (071) 624 -6000 www.americanradiohistory.com

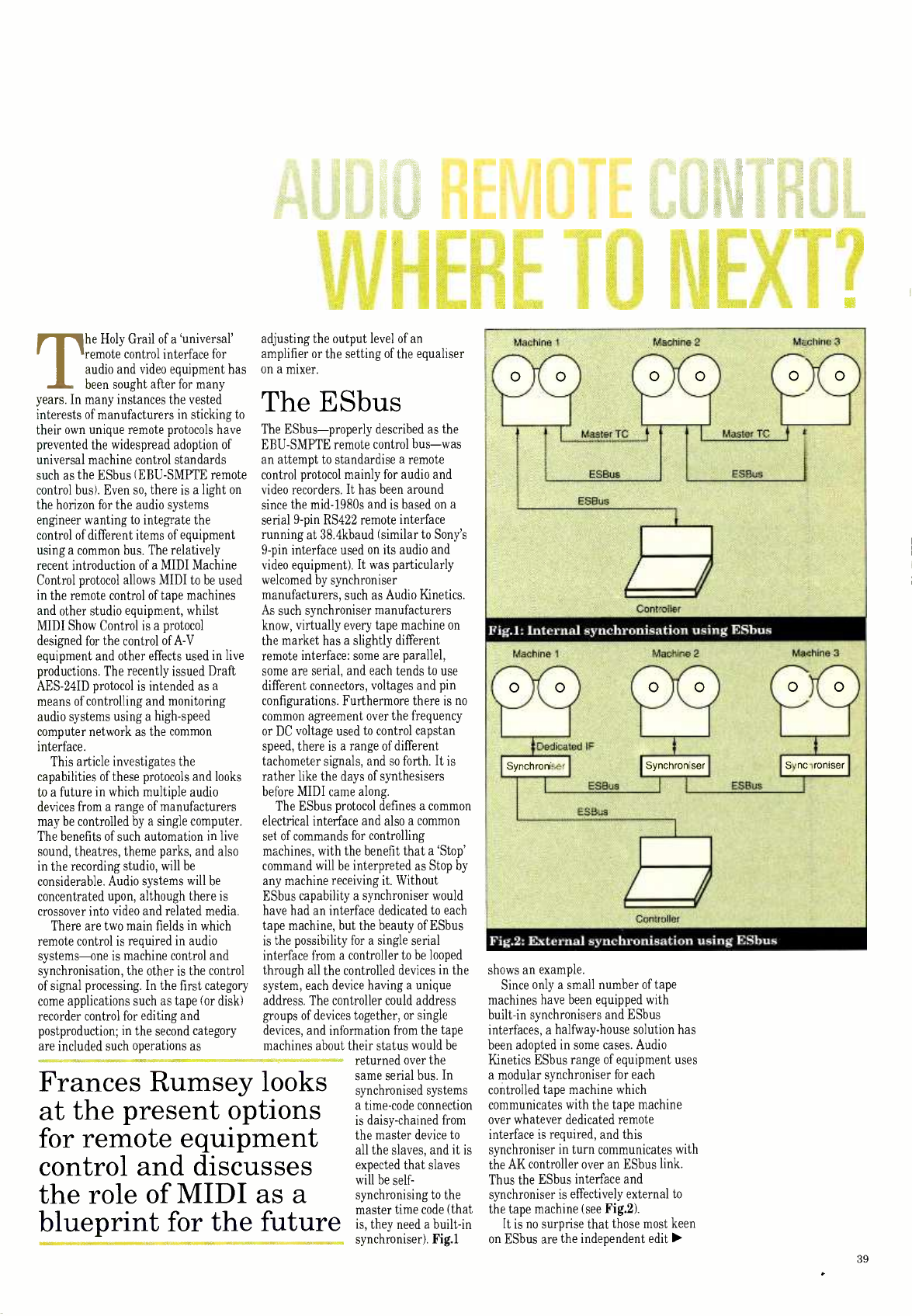

The Holy Grail of a `universal'

remote control interface for

audio and video equipment has

been sought after for many

years. In many instances the vested

interests of manufacturers in sticking to

their own unique remote protocols have

prevented the widespread adoption of

universal machine control standards

such as the ESbus (EBU -SMPTE remote

control bus). Even so, there is a light on

the horizon for the audio systems

engineer wanting to integrate the

control of different items of equipment

using a common bus. The relatively

recent introduction of a MIDI Machine

Control protocol allows MIDI to be used

in the remote control of tape machines

and other studio equipment, whilst

MIDI Show Control is a protocol

designed for the control of A -V

equipment and other effects used in live

productions. The recently issued Draft

AES -24ID protocol is intended as a

means of controlling and monitoring

audio systems using a high -speed

computer network as the common

interface.

This article investigates the

capabilities of these protocols and looks

to a future in which multiple audio

devices from a range of manufacturers

may be controlled by a single computer.

The benefits of such automation in live

sound, theatres, theme parks, and also

in the recording studio, will be

considerable. Audio systems will be

concentrated upon, although there is

crossover into video and related media.

There are two main fields in which

remote control is required in audio

systems -one is machine control and

synchronisation, the other is the control

of signal processing. In the first category

come applications such as tape (or disk)

recorder control for editing and

postproduction; in the second category

are included such operations as

adjusting the output level of an

amplifier or the setting of the equaliser

on a mixer.

The ESbus

The ESbus -properly described as the

EBU -SMPTE remote control bus -was

an attempt to standardise a remote

control protocol mainly for audio and

video recorders. It has been around

since the mid -1980s and is based on a

serial 9 -pin RS422 remote interface

running at 38.4kbaud (similar to Sony's

9 -pin interface used on its audio and

video equipment). It was particularly

welcomed by synchroniser

manufacturers, such as Audio Kinetics.

As such synchroniser manufacturers

know, virtually every tape machine on

the market has a slightly different

remote interface: some are parallel,

some are serial, and each tends to use

different connectors, voltages and pin

configurations. Furthermore there is no

common agreement over the frequency

or DC voltage used to control capstan

speed, there is a range of different

tachometer signals, and so forth. It is

rather like the days of synthesisers

before MIDI came along.

The ESbus protocol defines a common

electrical interface and also a common

set of commands for controlling

machines, with the benefit that a `Stop'

command will be interpreted as Stop by

any machine receiving it. Without

ESbus capability a synchroniser would

have had an interface dedicated to each

tape machine, but the beauty of ESbus

is the possibility for a single serial

interface from a controller to be looped

through all the controlled devices in the

system, each device having a unique

address. The controller could address

groups of devices together, or single

devices, and information from the tape

machines about their status would be

returned over the

same serial bus. In

synchronised systems

a time -code connection

is daisy -chained from

the master device to

all the slaves, and it is

expected that slaves

will be self -

synchronising to the

master time code (that

is, they need a built -in

synchroniser). Fig.1

Frances Rumsey looks

at the present options

for remote equipment

control and discusses

the role of MIDI as a

blueprint for the future

Machine 1

Master TC

ESBus

Machine 2 Machine 3

Master TC

ESBus

Controller

Fig.1: Internal synchronisation using ESbus

Machine 1 Machine 2 Machine 3

Dedicated IF

ESBus

Controller

Fig.2: External synchronisation using ESbus

shows an example.

Since only a small number of tape

machines have been equipped with

built -in synchronisers and ESbus

interfaces, a halfway -house solution has

been adopted in some cases. Audio

Kinetics ESbus range of equipment uses

a modular synchroniser for each

controlled tape machine which

communicates with the tape machine

over whatever dedicated remote

interface is required, and this

synchroniser in turn communicates with

the AK controller over an ESbus link.

Thus the ESbus interface and

synchroniser is effectively external to

the tape machine (see Fig.2).

It is no surprise that those most keen

on ESbus are the independent edit

www.americanradiohistory.com

controller and synchroniser manufacturers

(because it would make their job easier if every

tape machine talked the same language), whereas

many tape machine manufacturers have been less

enthusiastic. If you are a manufacturer of

videotape recorders, for example, you can force

your customers to buy your edit controller by

having a unique remote control interface. With a

universal remote interface, the customer is able to

mix and match machines from different

manufacturers in a large system. There are a few

ESbus -equipped audio tape recorders: Panasonic's

DAT machines are one example.

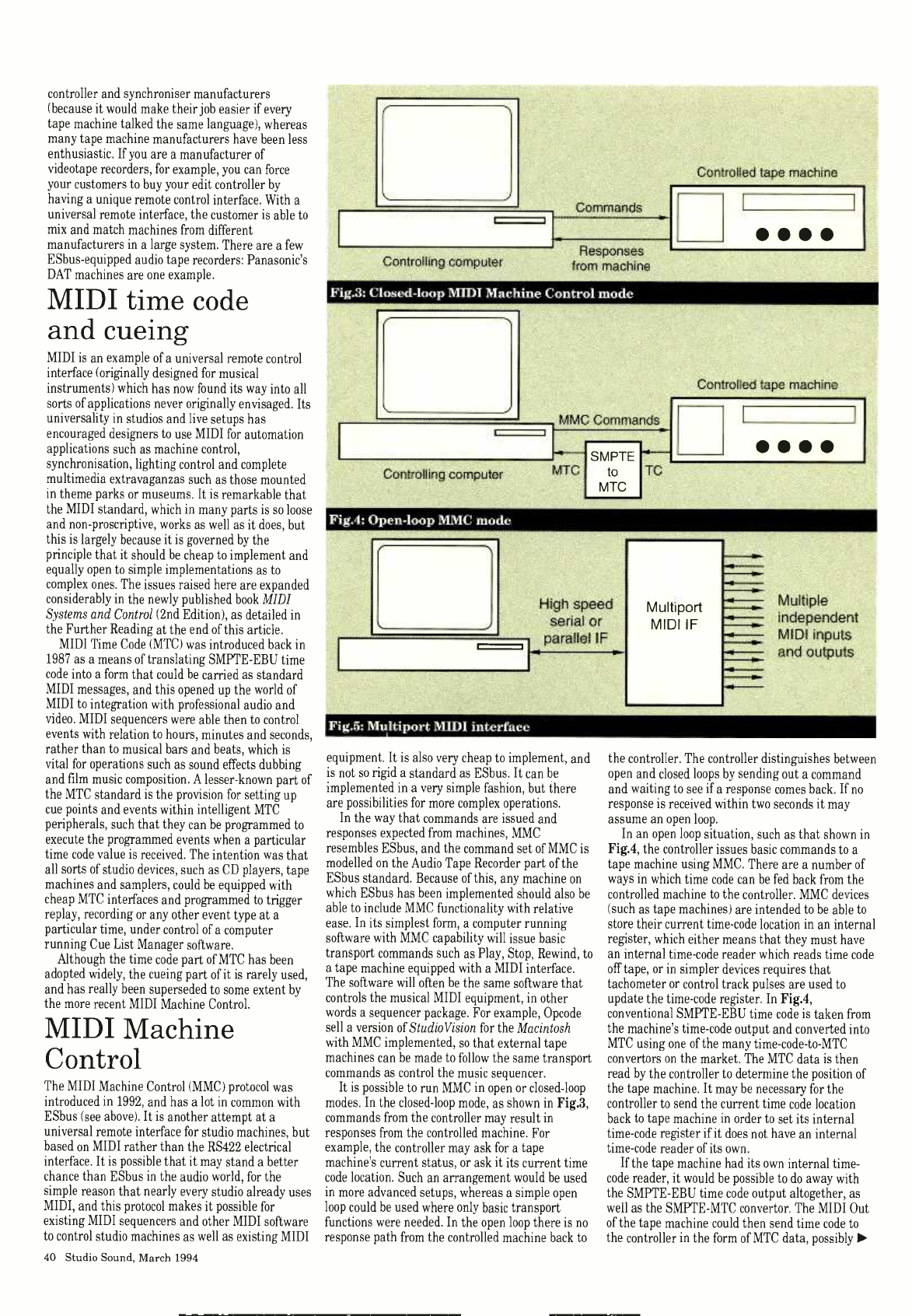

MIDI time code

and cueing

MIDI is an example of a universal remote control

interface (originally designed for musical

instruments) which has now found its way into all

sorts of applications never originally envisaged. Its

universality in studios and live setups has

encouraged designers to use MIDI for automation

applications such as machine control,

synchronisation, lighting control and complete

multimedia extravaganzas such as those mounted

in theme parks or museums. It is remarkable that

the MIDI standard, which in many parts is so loose

and non -proscriptive, works as well as it does, but

this is largely because it is governed by the

principle that it should be cheap to implement and

equally open to simple implementations as to

complex ones. The issues raised here are expanded

considerably in the newly published book MIDI

Systems and Control (2nd Edition), as detailed in

the Further Reading at the end of this article.

MIDI Time Code (MTC) was introduced back in

1987 as a means of translating SMPTE -EBU time

code into a form that could be carried as standard

MIDI messages, and this opened up the world of

MIDI to integration with professional audio and

video. MIDI sequencers were able then to control

events with relation to hours, minutes and seconds,

rather than to musical bars and beats, which is

vital for operations such as sound effects dubbing

and film music composition. A lesser -known part of

the MTC standard is the provision for setting up

cue points and events within intelligent MTC

peripherals, such that they can be programmed to

execute the programmed events when a particular

time code value is received. The intention was that

all sorts of studio devices, such as CD players, tape

machines and samplers, could be equipped with

cheap MTC interfaces and programmed to trigger

replay, recording or any other event type at a

particular time, under control of a computer

running Cue List Manager software.

Although the time code part of MTC has been

adopted widely, the cueing part of it is rarely used,

and has really been superseded to some extent by

the more recent MIDI Machine Control.

MIDI Machine

Control

The MIDI Machine Control (MMC) protocol was

introduced in 1992, and has a lot in common with

ESbus (see above). It is another attempt at a

universal remote interface for studio machines, but

based on MIDI rather than the RS422 electrical

interface. It is possible that it may stand a better

chance than ESbus in the audio world, for the

simple reason that nearly every studio already uses

MIDI, and this protocol makes it possible for

existing MIDI sequencers and other MIDI software

to control studio machines as well as existing MIDI

40 Studio Sound, March 1994

Controlled tape machine

Commands

Controlling computer Responses

from machine

Fig.3: Closed -loop MIDI Machine Control mode

Controlled tape machine

MMC Commands

Controlling computer MTC SMPTE

MTC

Fig.4: Open -loop MMC mode

High speed

serial or

parallel IF

Multiport

MIDI IF

Multiple

independent

MIDI inputs

and outputs

Fig.5: Multiport MIDI interface

equipment. It is also very cheap to implement, and

is not so rigid a standard as ESbus. It can be

implemented in a very simple fashion, but there

are possibilities for more complex operations.

In the way that commands are issued and

responses expected from machines, MMC

resembles ESbus, and the command set of MMC is

modelled on the Audio Tape Recorder part of the

ESbus standard. Because of this, any machine on

which ESbus has been implemented should also be

able to include MMC functionality with relative

ease. In its simplest form, a computer running

software with MMC capability will issue basic

transport commands such as Play, Stop, Rewind, to

a tape machine equipped with a MIDI interface.

The software will often be the same software that

controls the musical MIDI equipment, in other

words a sequencer package. For example, Opcode

sell a version of StudioVision for the Macintosh

with MMC implemented, so that external tape

machines can be made to follow the same transport

commands as control the music sequencer.

It is possible to run MMC in open or closed -loop

modes. In the closed -loop mode, as shown in Fig.3,

commands from the controller may result in

responses from the controlled machine. For

example, the controller may ask for a tape

machine's current status, or ask it its current time

code location. Such an arrangement would be used

in more advanced setups, whereas a simple open

loop could be used where only basic transport

functions were needed. In the open loop there is no

response path from the controlled machine back to

the controller. The controller distinguishes between

open and closed loops by sending out a command

and waiting to see if a response comes back. If no

response is received within two seconds it may

assume an open loop.

In an open loop situation, such as that shown in

Fig.4, the controller issues basic commands to a

tape machine using MMC. There are a number of

ways in which time code can be fed back from the

controlled machine to the controller. MMC devices

(such as tape machines) are intended to be able to

store their current time -code location in an internal

an internal time -code reader which reads time code

off tape, or in simpler devices requires that

tachometer or control track pulses are used to

update the time -code register. In Fig.4,

conventional SMPTE -EBU time code is taken from

the machine's time -code output and converted into

MTC using one of the many time -code -to -MTC

convertors on the market. The MTC data is then

read by the controller to determine the position of

the tape machine. It may be necessary for the

controller to send the current time code location

back to tape machine in order to set its internal

time -code register if it does not have an internal

time -code reader of its own.

If the tape machine had its own internal time -

code reader, it would be possible to do away with

the SMPTE -EBU time code output altogether, as

well as the SMPTE -MTC convertor. The MIDI Out

of the tape machine could then send time code to

the controller in the form of MTC data, possibly

www.americanradiohistory.com

Scc -.

c/P 14/F

?T 941MMp V

a p4/

M/1" cs ,

``` \_ _ `

Soundtracs have earned a repu for i r ,

ducing mixing consoles wh et new

industry standards for quality, i e ation and value.

A reputation our competitors would die for.

Last year we sent them reeling with 'the

stunning, high -erd Jade Production console.

And if Jade turned them green with en

mid -range Solitaire is set to give th nsi7 b1 ,

Awash with features and function, si, : o italre

Production Console combines the Best audio

quality with DSP multi -processor corft*el

including the option of motorised faders`

Like someone once said - "lifff,`ovative in design,

dynamic in operation ". \

Present on every channel theique FdB

Parametric EqualiserTM overcomes the problems

of non -linearity in music and the ear providing

precise control of all frequencies in the audio

spectrum.

In addition, all monitors have a 2 -band equaliser

plus access to the FdB Parametric EqualiserTM

The on- board ADP, (Assignable Dynamics

Processor), provides a comprehensive range of

gating, compression, expansion, limiting, modula-

tion and auto -par functions on each channel.

Plus there's the precision automation, in

motorised fader o. VCA flavours.

Quite a specification. - Quite a console.

Solitaire - much more than moving faders.

lánu.Fir ss°s F9

Soundtracs PLC. 91 Ewell Road. Surbiton. Surrey KT6 6AH. England. Tel: 081 399 3392. Fax: G81 399 682 P.

www.americanradiohistory.com

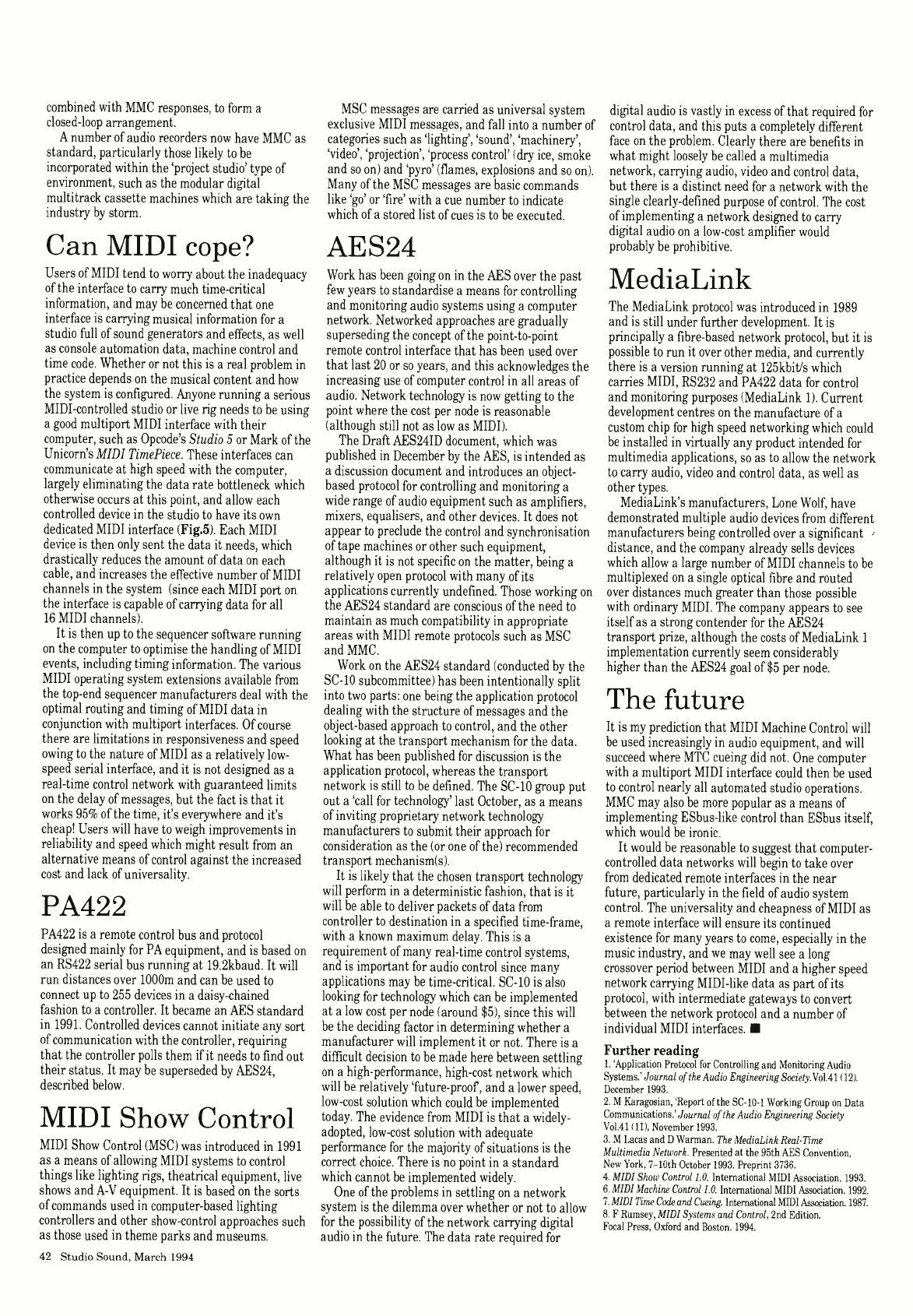

combined with MMC responses, to form a

closed -loop arrangement.

A number of audio recorders now have MMC as

standard, particularly those likely to be

incorporated within the `project studio' type of

environment, such as the modular digital

multitrack cassette machines which are taking the

industry by storm.

Can MIDI cope?

Users of MIDI tend to worry about the inadequacy

of the interface to carry much time -critical

information, and may be concerned that one

interface is carrying musical information for a

studio full of sound generators and effects, as well

as console automation data, machine control and

time code. Whether or not this is a real problem in

practice depends on the musical content and how

the system is configured. Anyone running a serious

MIDI -controlled studio or live rig needs to be using

a good multiport MIDI interface with their

computer, such as Opcode's Studio 5 or Mark of the

Unicorn's MIDI TimePiece. These interfaces can

communicate at high speed with the computer,

largely eliminating the data rate bottleneck which

otherwise occurs at this point, and allow each

controlled device in the studio to have its own

dedicated MIDI interface (Fig.5). Each MIDI

device is then only sent the data it needs, which

drastically reduces the amount of data on each

cable, and increases the effective number of MIDI

channels in the system (since each MIDI port on

the interface is capable of carrying data for all

16 MIDI channels).

It is then up to the sequencer software running

on the computer to optimise the handling of MIDI

events, including timing information. The various

MIDI operating system extensions available from

the top -end sequencer manufacturers deal with the

optimal routing and timing of MIDI data in

conjunction with multiport interfaces. Of course

there are limitations in responsiveness and speed

owing to the nature of MIDI as a relatively low -

speed serial interface, and it is not designed as a

real -time control network with guaranteed limits

on the delay of messages, but the fact is that it

works 95% of the time, it's everywhere and it's

cheap! Users will have to weigh improvements in

reliability and speed which might result from an

alternative means of control against the increased

cost and lack of universality.

PA422

PA422 is a remote control bus and protocol

designed mainly for PA equipment, and is based on

an RS422 serial bus running at 19.2kbaud. It will

run distances over 1000m and can be used to

connect up to 255 devices in a daisy- chained

fashion to a controller. It became an AES standard

in 1991. Controlled devices cannot initiate any sort

of communication with the controller, requiring

that the controller polls them if it needs to find out

their status. It may be superseded by AES24,

described below.

MIDI Show Control

MIDI Show Control (MSC) was introduced in 1991

as a means of allowing MIDI systems to control

things like lighting rigs, theatrical equipment, live

shows and A -V equipment. It is based on the sorts

of commands used in computer -based lighting

controllers and other show -control approaches such

as those used in theme parks and museums.

42 Studio Sound, March 1994

MSC messages are carried as universal system

exclusive MIDI messages, and fall into a number of

categories such as `lighting', `sound', `machinery',

`video', `projection', `process control' (dry ice, smoke

and so on) and `pyro' (flames, explosions and so on).

Many of the MSC messages are basic commands

like `go' or `fire' with a cue number to indicate

which of a stored list of cues is to be executed.

AES24

Work has been going on in the AES over the past

few years to standardise a means for controlling

and monitoring audio systems using a computer

network. Networked approaches are gradually

superseding the concept of the point -to -point

remote control interface that has been used over

that last 20 or so years, and this acknowledges the

increasing use of computer control in all areas of

audio. Network technology is now getting to the

point where the cost per node is reasonable

(although still not as low as MIDI).

The Draft AES24ID document, which was

published in December by the AES, is intended as

a discussion document and introduces an object -

based protocol for controlling and monitoring a

wide range of audio equipment such as amplifiers,

mixers, equalisers, and other devices. It does not

appear to preclude the control and synchronisation

of tape machines or other such equipment,

although it is not specific on the matter, being a

relatively open protocol with many of its

applications currently undefined. Those working on

the AES24 standard are conscious of the need to

maintain as much compatibility in appropriate

areas with MIDI remote protocols such as MSC

and MMC.

Work on the AES24 standard (conducted by the

SC -10 subcommittee) has been intentionally split

into two parts: one being the application protocol

dealing with the structure of messages and the

object -based approach to control, and the other

looking at the transport mechanism for the data.

What has been published for discussion is the

application protocol, whereas the transport

network is still to be defined. The SC -10 group put

out a 'call for technology' last October, as a means

of inviting proprietary network technology

manufacturers to submit their approach for

consideration as the (or one of the) recommended

transport mechanism(s).

It is likely that the chosen transport technology

will perform in a deterministic fashion, that is it

will be able to deliver packets of data from

controller to destination in a specified time -frame,

with a known maximum delay. This is a

requirement of many real -time control systems,

and is important for audio control since many

applications may be time -critical. SC -10 is also

looking for technology which can be implemented

at a low cost per node (around $5), since this will

be the deciding factor in determining whether a

manufacturer will implement it or not. There is a

difficult decision to be made here between settling

on a high -performance, high -cost network which

will be relatively `future- proof, and a lower speed,

low -cost solution which could be implemented

today. The evidence from MIDI is that a widely -

adopted, low -cost solution with adequate

performance for the majority of situations is the

correct choice. There is no point in a standard

which cannot be implemented widely.

One of the problems in settling on a network

system is the dilemma over whether or not to allow

for the possibility of the network carrying digital

audio in the future. The data rate required for

digital audio is vastly in excess of that required for

control data, and this puts a completely different

face on the problem. Clearly there are benefits in

what might loosely be called a multimedia

network, carrying audio, video and control data,

but there is a distinct need for a network with the

single clearly- defined purpose of control. The cost

of implementing a network designed to carry

digital audio on a low -cost amplifier would

probably be prohibitive.

MediaLink

The MediaLink protocol was introduced in 1989

and is still under further development. It is

principally a fibre -based network protocol, but it is

possible to run it over other media, and currently

there is a version running at 125kbit/s which

carries MIDI, RS232 and PA422 data for control

and monitoring purposes (MediaLink 1). Current

development centres on the manufacture of a

custom chip for high speed networking which could

be installed in virtually any product intended for

multimedia applications, so as to allow the network

to carry audio, video and control data, as well as

other types.

MediaLink's manufacturers, Lone Wolf, have

demonstrated multiple audio devices from different

manufacturers being controlled over a significant

distance, and the company already sells devices

which allow a large number of MIDI channels to be

multiplexed on a single optical fibre and routed

over distances much greater than those possible

with ordinary MIDI. The company appears to see

itself as a strong contender for the AES24

transport prize, although the costs of MediaLink 1

implementation currently seem considerably

higher than the AES24 goal of $5 per node.

The future

It is my prediction that MIDI Machine Control will

be used increasingly in audio equipment, and will

succeed where MTC cueing did not. One computer

with a multiport MIDI interface could then be used

to control nearly all automated studio operations.

MMC may also be more popular as a means of

implementing ESbus -like control than ESbus itself,

which would be ironic.

It would be reasonable to suggest that computer -

controlled data networks will begin to take over

from dedicated remote interfaces in the near

future, particularly in the field of audio system

control. The universality and cheapness of MIDI as

a remote interface will ensure its continued

existence for many years to come, especially in the

music industry, and we may well see a long

crossover period between MIDI and a higher speed

network carrying MIDI -like data as part of its

protocol, with intermediate gateways to convert

between the network protocol and a number of

individual MIDI interfaces.

Further reading

1. 'Application Protocol for Controlling and Monitoring Audio

Systems.' Journal of the Audio Engineering Society.VoL41 (12).

December 1993.

2. M Karagosian,'Report of the SC-10-1 Working Group on Data

Communications.' Journal of the Audio Engineering Society

Vol.41 (11), November 1993.

3. M Lacas and D Warman. The MediaLink Real-Time

Multimedia Network. Presented at the 95th AES Convention,

New York, 7-10th October 1993. Preprint 3736.

4. MIDI Show Control 1.0. International MIDI Association. 1993.

6. MIDI Machine Control 1.0. International MIDI Association. 1992.

7. MIDI Time Code and Cueing. International MIDI Association. 1987.

8. F Rumsey, MIDI Systems and Control, 2nd Edition.

Focal Press, Oxford and Boston. 1994.

www.americanradiohistory.com

"THE BEST"

Just Keeps Getting Better...

"The M5000 is part

of my standard rack."

George Massenburg

GrammyTM Award winner and

TEC "Hall of Fame" Engineer

"A cleanliness that makes

me wish I could remix every

record I've ever done."

Roger Nichols

Grammy and TEC Award

winning Engineer

FRANKFURT

Musik Messe

Stand 9.2 B27

-The depth of field and remarkable

quality puts this unit at the top of my

list of reverbs I will use on every project."

Bruce Swedien

Grammy Award winner and

me "Hall of Fame" Engineer

"I won't go into

the studio without it!"

Al Schmitt

Six time Grammy Award

winning Engineer

/I/I S .A UDC Al,..1,WE

o5P.2

AM.1 en:enwvm.nmc<

LOnc

F'ITC!-1 FI!ir FG

1.^ 5,-1

t.C. QIeCtrOMC

111111111

011 Q3510E471 ^w^I111111110

CO UN. MIGF. U711.11, BYPASS

...and better and better. The M5000 is the only software and hardware upgradable digital signal processor in the world.

No need to purchase a new unit every few years. Under continuous refinement, the M5000 will serve you for years to come.

Unlimited User Presets

Talk about storage

capacity...22,077 user

presets will fit on a

standard 1.44Meg

floppy disk. PCMCIA

memory card too.

1 The 60 sec. Upgrade

A "NEW" M5000 is as

near as your mailbox

or modem, since the

latest software is

always on our exclusive

24 hour BBS.

Sampling Here NOW!

Snort sampling is

standard and very

easy to use. Trigger

from analog, digital,

MIDI or pedal inouts.

Minutes of Sampling

Our Extended Sampling

Option permits fast

triggered samples up

to 3 minutes in phase

locked Stereo or

6 minutes in Mono

The 100+ Presets

include Reverb,

Nonlinear,Amaience,

Pitch, Chorus and

Delay like no others.

Third party sot -ware to

be available soon.

Expandable Hardware

Want a second "machine"

in your M5000? Simply

install expansion mod-

ules. It's cost effective

and no additional rack

space is required!

FREE UPGRADES

Upgrading your

M5000 to the latest

standard software is

fast, easy and best of

all FREE of charge!

VER. 1.12 , VER. 1.12

OF DENMARK

t.c. electronic

8 Channels I/O

In the digital domain you

can expand the M5000 to

four independent stereo

"machines" using the

AES/EBU, SPDIF or

Optical VOs.

mc TECHNICAL EXCELLENCE & CREATIEIITY

1993 WINNER

International Head Office - Grimhojvej 3, DK -8220 Brabrand. DENMARK - Phone:( +45) 86 26 28 00 Fax:( +45) 86 26 29 28

AUSTRALIA (02) 975 1211 AUSTRIA (222) 601 17 BELGIUM 011 28 1458 BRASIL 21 325 9221 CANADA (514) 738 3000 CHILE 2 231 2356 CHINA 1 8515533

ENGLAND 0691 -658 550 FINLAND (9) 0592055 FRANCE (1) 48 47 45 26 GERMANY 05231 -3297 GREECE (01) 8837 629 HOLLAND 030 -414500 HONG KONG 3 620202 -5

INDIA (22) 615 -0397 ISRAEL 03- 5441113 ITALY (02) 50841 JAPAN (03) 3332 -3211 KOREA (822) 741 -7385 NORWAY (22) 710710 PORTUGAL 1 4754348

SINGAPORE 7489333 SPAIN (93) 340 55 12 SWITZERLAND 56 32 18 50 TAIWAN 2 719 2388 THAILAND 480 -6923 U.S.A. (805) 373 -1828

www.americanradiohistory.com

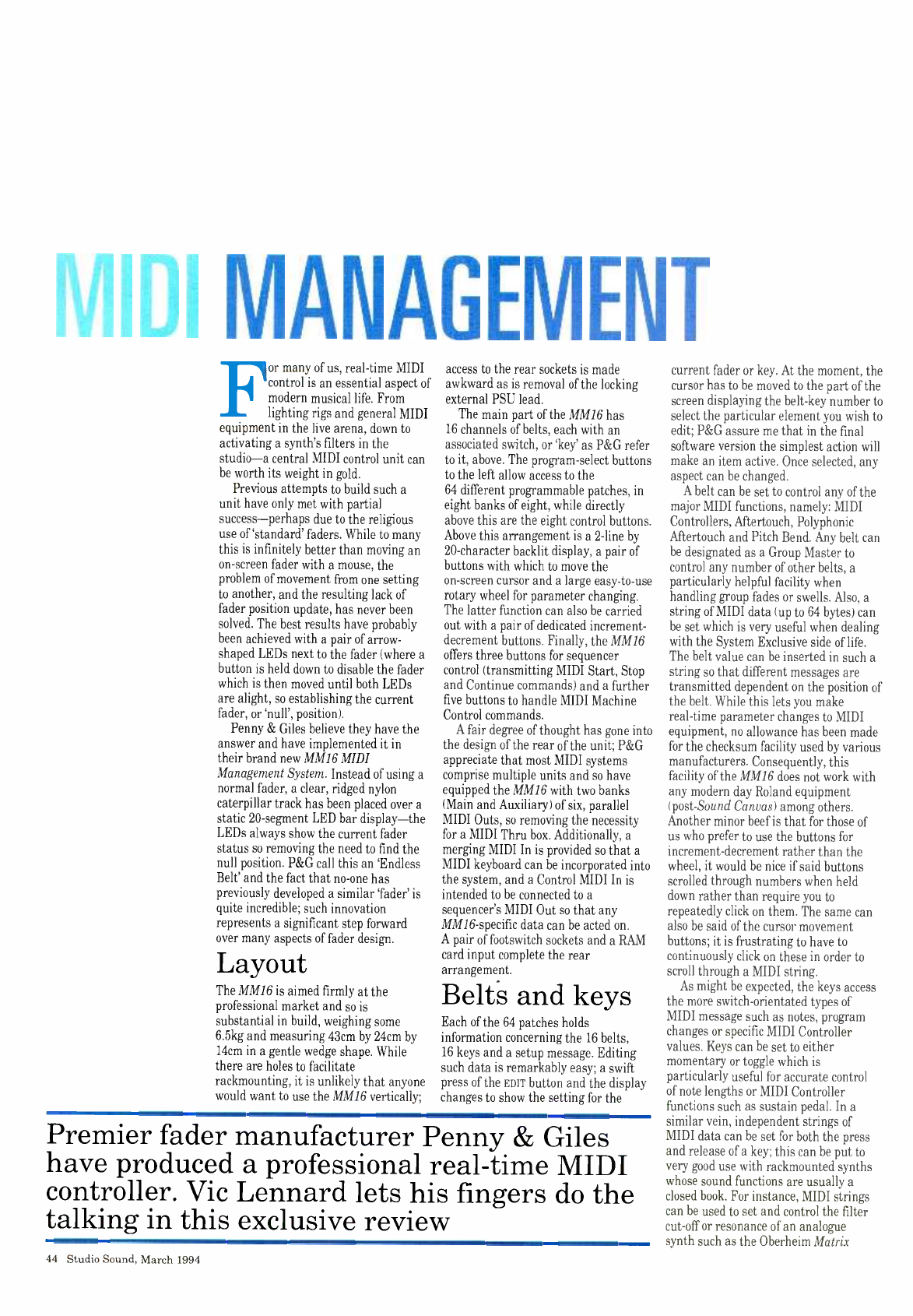

MANAGEMENT

For many of us, real -time MIDI

control is an essential aspect of

modern musical life. From

lighting rigs and general MIDI

equipment in the live arena, down to

activating a synth's filters in the

studio -a central MIDI control unit can

be worth its weight in gold.

Previous attempts to build such a

unit have only met with partial

success -perhaps due to the religious

use of `standard' faders. While to many

this is infinitely better than moving an

on- screen fader with a mouse, the

problem of movement from one setting

to another, and the resulting lack of

fader position update, has never been

solved. The best results have probably

been achieved with a pair of arrow -

shaped LEDs next to the fader (where a

button is held down to disable the fader

which is then moved until both LEDs

are alight, so establishing the current

fader, or `null', position).

Penny & Giles believe they have the

answer and have implemented it in

their brand new MM16 MIDI

Management System. Instead of using a

normal fader, a clear, ridged nylon

caterpillar track has been placed over a

static 20- segment LED bar display -the

LEDs always show the current fader

status so removing the need to find the

null position. P &G call this an `Endless

Belt' and the fact that no -one has

previously developed a similar `fader' is

quite incredible; such innovation

represents a significant step forward

over many aspects of fader design.

Layout

The MM16 is aimed firmly at the

professional market and so is

substantial in build, weighing some

6.5kg and measuring 43cm by 24cm by

14cm in a gentle wedge shape. While

there are holes to facilitate

rackmounting, it is unlikely that anyone

would want to use the MM16 vertically;

access to the rear sockets is made

awkward as is removal of the locking

external PSU lead.

The main part of the MM16 has

16 channels of belts, each with an

associated switch, or `key' as P &G refer

to it, above. The program- select buttons

to the left allow access to the

64 different programmable patches, in

eight banks of eight, while directly

above this are the eight control buttons.

Above this arrangement is a 2 -line by

20- character backlit display, a pair of

buttons with which to move the

on- screen cursor and a large easy -to -use

rotary wheel for parameter changing.

The latter function can also be carried

out with a pair of dedicated increment-

decrement buttons. Finally, the MM16

offers three buttons for sequencer

control (transmitting MIDI Start, Stop

and Continue commands) and a further

five buttons to handle MIDI Machine

Control commands.

A fair degree of thought has gone into

the design of the rear of the unit; P &G

appreciate that most MIDI systems

comprise multiple units and so have

equipped the MM16 with two banks

(Main and Auxiliary) of six, parallel

MIDI Outs, so removing the necessity

for a MIDI Thru box. Additionally, a

merging MIDI In is provided so that a

MIDI keyboard can be incorporated into

the system, and a Control MIDI In is

intended to be connected to a

sequencer's MIDI Out so that any

MM16- specific data can be acted on.

A pair of footswitch sockets and a RAM

card input complete the rear

arrangement.

Belts and keys

Each of the 64 patches holds

information concerning the 16 belts,

16 keys and a setup message. Editing

such data is remarkably easy; a swift

press of the EDIT button and the display

changes to show the setting for the

Premier fader manufacturer Penny & Giles

have produced a professional real -time MIDI

controller. Vic Lennard lets his fingers do the

talking in this exclusive review

44 Studio Sound, March 1994

current fader or key. At the moment, the

cursor has to be moved to the part of the

screen displaying the belt -key number to

select the particular element you wish to

edit; P &G assure me that in the final

software version the simplest action will

make an item active. Once selected, any

aspect can be changed.

A belt can be set to control any of the

major MIDI functions, namely: MIDI

Controllers, Aftertouch, Polyphonic

Aftertouch and Pitch Bend. Any belt can

be designated as a Group Master to

control any number of other belts, a

particularly helpful facility when

handling group fades or swells. Also, a

string of MIDI data (up to 64 bytes) can

be set which is very useful when dealing

with the System Exclusive side of life.

The belt value can be inserted in such a

string so that different messages are

transmitted dependent on the position of

the belt. While this lets you make

real -time parameter changes to MIDI

equipment, no allowance has been made

for the checksum facility used by various

manufacturers. Consequently, this

facility of the MM16 does not work with

any modern day Roland equipment

(post -Sound Canvas) among others.

Another minor beef is that for those of

us who prefer to use the buttons for

increment -decrement rather than the

wheel, it would be nice if said buttons

scrolled through numbers when held

down rather than require you to

repeatedly click on them. The same can

also be said of the cursor movement

buttons; it is frustrating to have to

continuously click on these in order to

scroll through a MIDI string.

As might be expected, the keys access

the more switch -orientated types of

MIDI message such as notes, program

changes or specific MIDI Controller

values. Keys can be set to either

momentary or toggle which is

particularly useful for accurate control

of note lengths or MIDI Controller

functions such as sustain pedal. In a

similar vein, independent strings of

MIDI data can be set for both the press

and release of a key; this can be put to

very good use with rackmounted synths

whose sound functions are usually a

closed book. For instance, MIDI strings

can be used to set and control the filter

cut -off or resonance of an analogue

synth such as the Oberheim Matrix

www.americanradiohistory.com

1000. A key can also mute its associated

belt which gives you the opportunity of

effectively removing a belt from the

scene, setting its position according to

the displayed value and reintroducing it.

Snapshots

At the heart of the MM16 is its ability to

save all current belt positions in one of

128 available snapshot locations simply

by pressing SNAP followed by STORE.

A snapshot can then be fired off at the

press of the SEND button. Also, the

snapshot number can automatically

increment so that you can easily

recreate all necessary scenes for a

performance.

This particular aspect of the machine

has been well thought out. Selection of a

particular patch via the front panel or

an external program- change command

can also be accompanied by the sending

of a snapshot, and either of the rear

panel footswitches can carry out the

same task as hitting the SEND button,

including incrementing or decrementing

the snapshot number. From a live point

of view, this is most desirable.

If there is a fly in the ointment, then

it has to be that snapshots are not

reviewable -you simply cannot check

the various settings.

Other facilities

The optional RAM card can be used to

back up all programs or all snapshots

and you have the option of operating

directly from the card if you wish. This

effectively gives you easy access to

128 programs and snapshots.

With the ability to transmit MIDI

Clock, the MM16 can act as a central

master timing device. The inclusion of

the two dedicated sets of MIDI

sequencer and MMC keys adds strength

to this. However, it would be more

sensible to allow you to set the strings of

MIDI data for these keys; not all

transport -based devices can recognise

MMC commands.

By incorporating a Control In port,

MIDI Controller data from a sequencer

can directly manage the positions of the

belt LEDs. As there are occasions when

this would be undesirable, there is the

option of stating which belts and keys

will respond to update information.

Apart from sending snapshots, the

footswitches can also recall programs,

transmit MIDI program changes, drop

in and out of MMC record, operate the

start- continue feature or create a tempo

change by pressing on a pedal twice. All

of these functions add to the general

worth of the MM16.

Conclusion

There is little doubt that the MM16 has

been built on the back of the Endless

Belts, but there are aspects of the unit

that are of concern bearing in mind the

UK price tag of £1,575.

It is almost impossible to edit at

speed in a live situation. Take the

www.americanradiohistory.com

Development illustration of the MM16

typical situation of working within a

bank of eight programs -to save having

to hit two numerical keys each time (the

first for the bank number, the second for

the program within that bank), the

MM16 has a HOLD key which freezes the

current bank. After entering Edit mode,

manoeuvring your way to the relevant

key or belt, (as noted above, keys and

belts cannot be selected by operation in

this mode), altering a particular aspect

and exiting, the HOLD key is

automatically disabled. In a tight spot,

it is easy to forget to turn HOLD back on

with potentially disastrous results. It is

fair to say that the review model had

software v0.94; some of the noted

problems are likely to have been

corrected by the time v1.0 is available.

An internal memory dump via System

Exclusive will definitely be included.

It would be encouraging to see either

an external video monitor socket or a

computer interface. This would make it

possible to immediately overview all

parameters for a program and to see

snapshot settings. The external power

supply is also of dubious quality

-having opted for a locking metal plug

and socket at the body of MM16, P &G

have then used flimsy bell -wire cable

that may snap.

Were the MM16 to be priced at, say,

£600 or £700 then it would appeal to

almost all those who want a professional

quality, real -time MIDI control device.

As it is, the price tag will certainly place

it out of the reach of any nonprofessional

interested parties (especially as the

Peavey PC1600, which offers similar

facilities, is available for a small fraction

of this asking price).

There is one question that begs an

answer; which console manufacturer

will be the first to utilise these faders?

They offer all the advantages of

expensive, up- market systems (and a

few more besides) at a fraction of the

cost- as such they appear to be custom -

made for a budget automated desk.

Perhaps they should be renamed the

poor man's moving faders...

Penny & Giles Studio Equipment

Ltd, Blackwood, Gwent NP2 2YD.

Tel: 0495 228000. Fax: 0495 227243.

THE LAST WORD IN AUDIO MONITORING

FROM

GENELEC®

DESIGNED AND BUILT IN FINLAND. SOLD WORLDWIDE.

DISTRIBUTED IN THE U.K. BY PROJECT AUDIO.

UNIT 1, 321 ESSEX ROAD, LONDON N1 3PS TEL: 071 -359 0400 FAX: 071 -359 3393

46 Studio Sound, March 1994

www.americanradiohistory.com

Think about fast multitrack editing,

go Xtrack audio workstation.

Think about a powerful tool

for real -time creativity,

immediately operational,

without tedious start -up

delays, for which everything

is fast and easy.

The sound is perfect *,

playback is instant.

Your manipulations

are intuitive,

your movements are natural,

let your inspiration go free,

everything is allowed.

Spontaneously,

you can forge your sounds

on several tracks,

make loops,

use time -stretching...

In the post -production,

you edit your audio directly

synchronised to the frame.

At any moment,

you can quickly modify,

change or enhance

your audio track.

The sound library is

immediately accessible

and multiple levels of backup

let you undo as you like.

Production security is total,

your mind is free,

nothing can stop you...

Think about and go for

an audio workstation

easy to install

and largely compatible,

far from the cost

and complexity

of dedicated systems.

To discover Xtrack,

just return this reply coupon

to receive a demonstration

cassette or documentation.

Digigram

Parc de Pré Milliet,

38330 Montbonnot France.

Phone: 33/76 52 47 47.

Fax: 33/76 52 18 44.

r Name. Surname.

Position.

Company.

Address.

Phone.

Please send me an Xtrack demo tape.

J VHS format =1 PAL J SECAM NTSC

Betacam SP format on request

J Please send me an Xtrack documentatión.

*Xtrack supports layers I and 2

of the ISO /MPEG Audio standard

(Musicam).

Di gig rom www.americanradiohistory.com

Listen to the Truth

hree good reasons why people like George

Massenburg and Bruce Swedien use B &K

microphones when they record their award- winning

albums: clarity, accuracy and transparency. Calum Malcolm,

producer of the Blue Nile and Simple Minds, uses B &Ks in

preference to all else. "In ten years, I haven't found

anything that will outperform the B &K 4003."

Brüel & Kjær

Danish Pro Audio ApS

Hejrevang 11 DK -3450 Allerdd Denmark

Tel.: +45 48 14 28 28 Fax.: +45 48 14 27 00

Australia (03)4289797. Austria (022)3626123. Belgium (02)5227064. Denmark 48142828, Finland (90)582055. France (01)46670210, Germany (081) 4253980,(061)

714026. (0222 )16401326, (030)559 6627, Holland (03) 4025 2570, India (22) 6150397. Ireland (01)545400, Italy (02)5084272, Japan (03) 54207307, New Zealand

(07)847343414. Norway (66)904410, Poland (02)2275061, Portugal (01)692456. Singapore (065)7489333. Spain (03) 2034804. Sweden (046)320370. Switzerland (01)

8400144, UK (081) 4524635, USA & Canada (519) 7451158, Venezuela (582) 358082

b /astcrvDtscT- is a new series of CD- Recordable

discs by Audio Design. Experience indicates that

users, who intend their CDs to be masters, require

the best possible disc performance. All discs have

variations in tolerance and many makes are marginal

in certain areas. This fact, coupled with further

variations in the CD- Recorder mechanisms, can

mean higher error rates than ideal.

Audio Design's policy for,i lastcrtucTM is to constantly

monitor disc manufacturing sources, so as to select

the best disc available for mastering purposes.

Each Iastcv tscT^^ has two additional top protective

layers, so that information can be safely written with

a soft felt -tip, or used with the Audio Design label

segments.

AUDIO 'Vlr DESIGN

: ,

Unit 3 Horseshoe park, Pangbourne, RG8 7JW, UK

Tel: +44 (0) 734 : Fax +44 (0) 734

Audio Design offer a

range of competitive

CD -R media, plus

specialist CD -R services.

including fast turn -round

custom screening,

small quantity label and

inlay printing in mono-

chrome. full process or

line colour.

TM IlasterN, is a trademark of

Audio Design

www.americanradiohistory.com

FABULOUS FOCUSRITE

Focusrite's 72 -input Studio console with GML automation in the Crescente Studios, Japan

Since Focusrite were taken over

by Phil Dudderidge in 1989, the

company have sold nine of their

prestigious Studio Consoles.

During this time there have been two

persistent comments coming back from

potential customers that Focusrite have

associated with the possibility of lost

sales. The first is that the Studio

Console lacks inputs relative to its size,

and the second is that it does not include

a recall system.

Focusrite have decided to address

both these issues by developing a

dual -path in -line module that includes a

recall system for the pots and automatic

reset for the switches. As yet the module

exists only on paper, but Studio Sound

have been given an exclusive preview of

the design and permission to publish the

preliminary CAD drawings.

Apart from offering an alternative

in -line version of the Studio Console,

the newly designed module can also be

used together with existing single path

modules to form a hybrid `split -line'

desk. Although the new module is not

directly retrofittable to the old frame,

due to physical differences and

different bus cards, it is available by

means of exchanging or adding

complete bays. In -line bays remain

identical in external appearance and

dimensions to the existing bays; they

contain eight channels and can be

supplied to form either a curved or a

straight console format.

The module

The current arrangement of the Studio

Console is such that each channel splits

into three separate modules -the ISA

110 which contains mic -line preamps,

equalisation and phase inversion; the

ISA 111 containing insertion switching,

auxiliary sends, routing control, and

pan; and the ISA 112 which houses the

fader with its solo, cut and group -tape

switching. The new in -line version has

just two modules -an ISA 119 channel

fader -module and a full -length ISA 118

both of which retain the Focusrite

circuitry exactly while adding a second

signal path with its associated

switching, and a noise gate.

The decision to combine the original

channel -strip modules into a 1 -piece

module was principally for 'hunger of

real estate', and has resulted in a 2.5cm

gain of usable panel space where the two

modules were previously joined.

Internally space has been maximised by

running two large boards down the full

length of the strip achieving a 20%

increase in board area.

Working from the top of the channel

down, the first noticeable change is to

the input section which now

incorporates a SELECT button. This

operates in a similar way to the

console's routing assignment, by

stepping through input source selection

(Mic, Line or Tape) which is indicated by

a display in the penthouse section of the

channel. As before Mic and Line inputs

have separate gain controls, while the

Patrick Stapley gets an

exclusive preview of

Focusrite's forthcoming

in -line console design

www.americanradiohistory.com

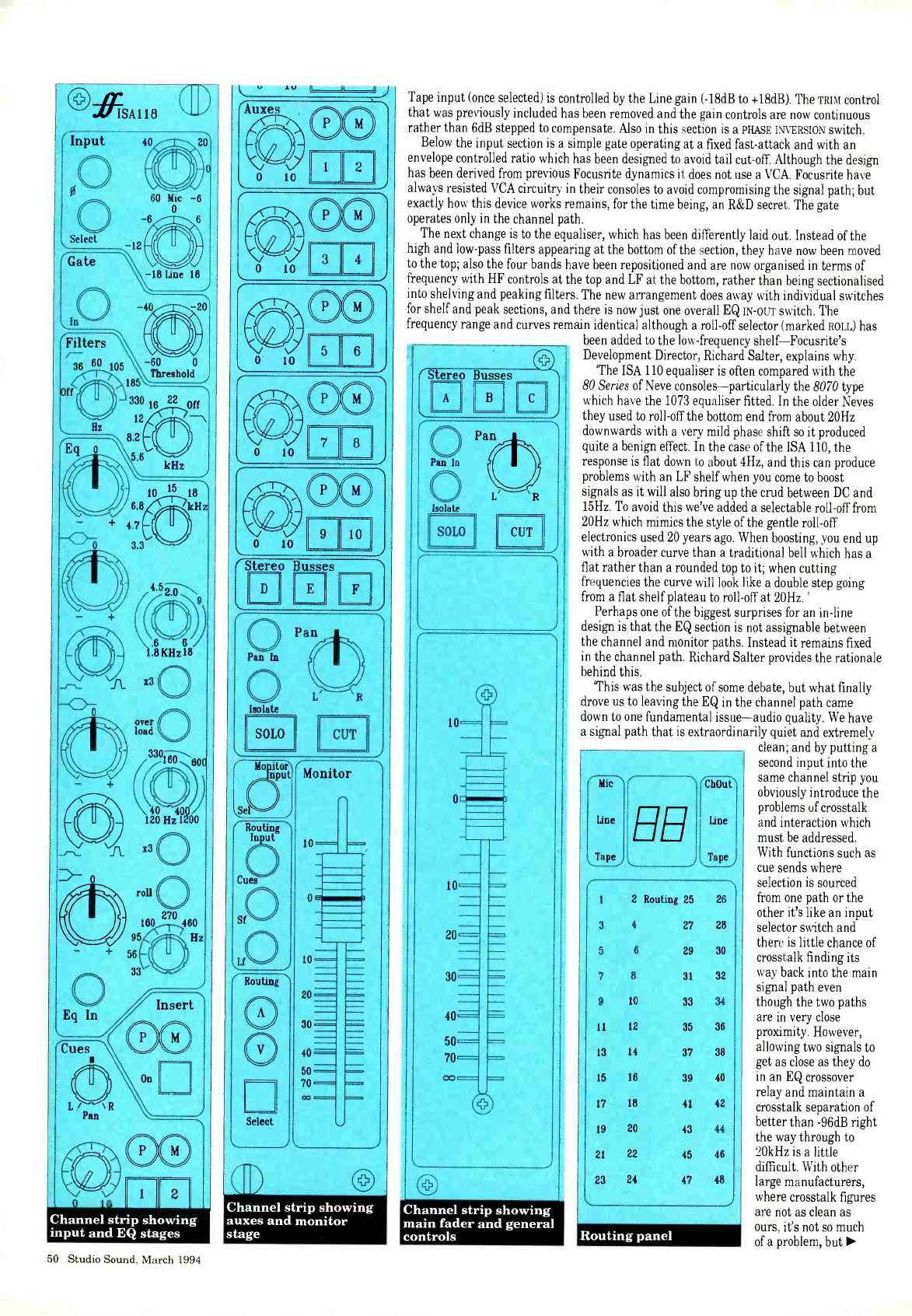

Stereo Busses

D E F i

Pan

Pan In

Isolate

SOLO

CUT

Se s

Mo icor

Routing

Innut

Cues

Sf0

LfO

Routing

O O

Select

Monitor

20 ,

40.

50 c 70

Channel strip showing

auxes and monitor

tage

Stereo Busses

A B C

Pan In

Isolate

Pan Y

SOLO CUT

10,

30,

40=

Tape input (once selected) is controlled by the Line gain ( -18dB to +18dB). The TRIM control

that was previously included has been removed and the gain controls are now continuous

rather than 6dB stepped to compensate. Also in this section is a PHASE INVERSION switch.

Below the input section is a simple gate operating at a fixed fast -attack and with an

envelope controlled ratio which has been designed to avoid tail cut -off. Although the design

has been derived from previous Focusrite dynamics it does not use a VCA. Focusrite have

always resisted VCA circuitry in their consoles to avoid compromising the signal path; but

exactly how this device works remains, for the time being, an R &D secret. The gate

operates only in the channel path.

The next change is to the equaliser, which has been differently laid out. Instead of the

high and low -pass filters appearing at the bottom of the section, they have now been moved

to the top; also the four bands have been repositioned and are now organised in terms of

frequency with HF controls at the top and LF at the bottom, rather than being sectionalised

into shelving and peaking filters. The new arrangement does away with individual switches

for shelf and peak sections, and there is now just one overall EQ 1N-our switch. The

frequency range and curves remain identical although a roll -off selector (marked ROLL) has

been added to the low- frequency shelf -Focusrite's

Development Director, Richard Salter, explains why.

`The ISA 110 equaliser is often compared with the

80 Series of Neve consoles -particularly the 8070 type

which have the 1073 equaliser fitted. In the older Neves

they used to roll -off the bottom end from about 20Hz

downwards with a very mild phase shift so it produced

quite a benign effect. In the case of the ISA 110, the

response is flat down to about 4Hz, and this can produce

problems with an LF shelf when you come to boost

signals as it will also bring up the crud between DC and

15Hz. To avoid this we've added a selectable roll -off from

20Hz which mimics the style of the gentle roll -off

electronics used 20 years ago. When boosting, you end up

with a broader curve than a traditional bell which has a

flat rather than a rounded top to it; when cutting

frequencies the curve will look like a double step going

from a flat shelf plateau to roll -off at 20Hz. '

Perhaps one of the biggest surprises for an in -line

design is that the EQ section is not assignable between

the channel and monitor paths. Instead it remains fixed

in the channel path. Richard Salter provides the rationale

behind this.

`This was the subject of some debate, but what finally

drove us to leaving the EQ in the channel path came

down to one fundamental issue -audio quality. We have

a signal path that is extraordinarily quiet and extremely

clean; and by putting a

second input into the

same channel strip you

obviously introduce the

problems of crosstalk

and interaction which

must be addressed.

With functions such as

cue sends where

selection is sourced

from one path or the

other it's like an input

selector switch and

there is little chance of

crosstalk finding its

way back into the main

signal path even

though the two paths

are in very close

proximity. However,

allowing two signals to

get as close as they do

in an EQ crossover

relay and maintain a

crosstalk separation of

better than -96dB right

the way through to

20kHz is a little

difficult. With other

large manufacturers,

where crosstalk figures

are not as clean as

ours, it's not so much

of a problem, but

Channel strip showing

main fader and general

controls

® .iV ISAl18

Filters

36 60 105

Off

Threshold

reshold

185

330 162720ff

0 10 2

50 Studio Sound, March 1994

Mie

Line

Tape BB

tChOut\

Line

Tape/

1 2 Routing 25 26

3 4 27 28

5 6 29 30

7 8 31 32

9 10 33 34

11 12 35 36

13 14 37 38

15 16 39 40

17 18 41 42

19 20 43 44

21 22 45 46

23 24 47 48

Routing panel

www.americanradiohistory.com

ò X49 2263 47678 ,1.40 GREECE Omikron X301330 2095 "HOLLAND Radio Europa 13' 80 558484 ((( ISRAEL More q

coc

Luu

C'3

Perfect images

For perfect images, Meyer has the Total Meyer's successful formula combines high

SolutionTM - long -throw arrayable loud- performance, top quality loudspeaker

speakers for an arena system, unobtrusive systems with state -of- the -art tools for

high power units for theatres or night clubs, real -time analysis. The results satisfy clients

and compact high- definition studio monitors. and delight audiences throughout the world.

Meyer The Total SolutionTM for quality,

Sound performance and value.

SWITZERLAND Hyperson ff 41 21 648 5960 "UK Autograph Sales ff 44 71 267 6677 *USA 11 510 486 1166 Lty 0Z9£

www.americanradiohistory.com

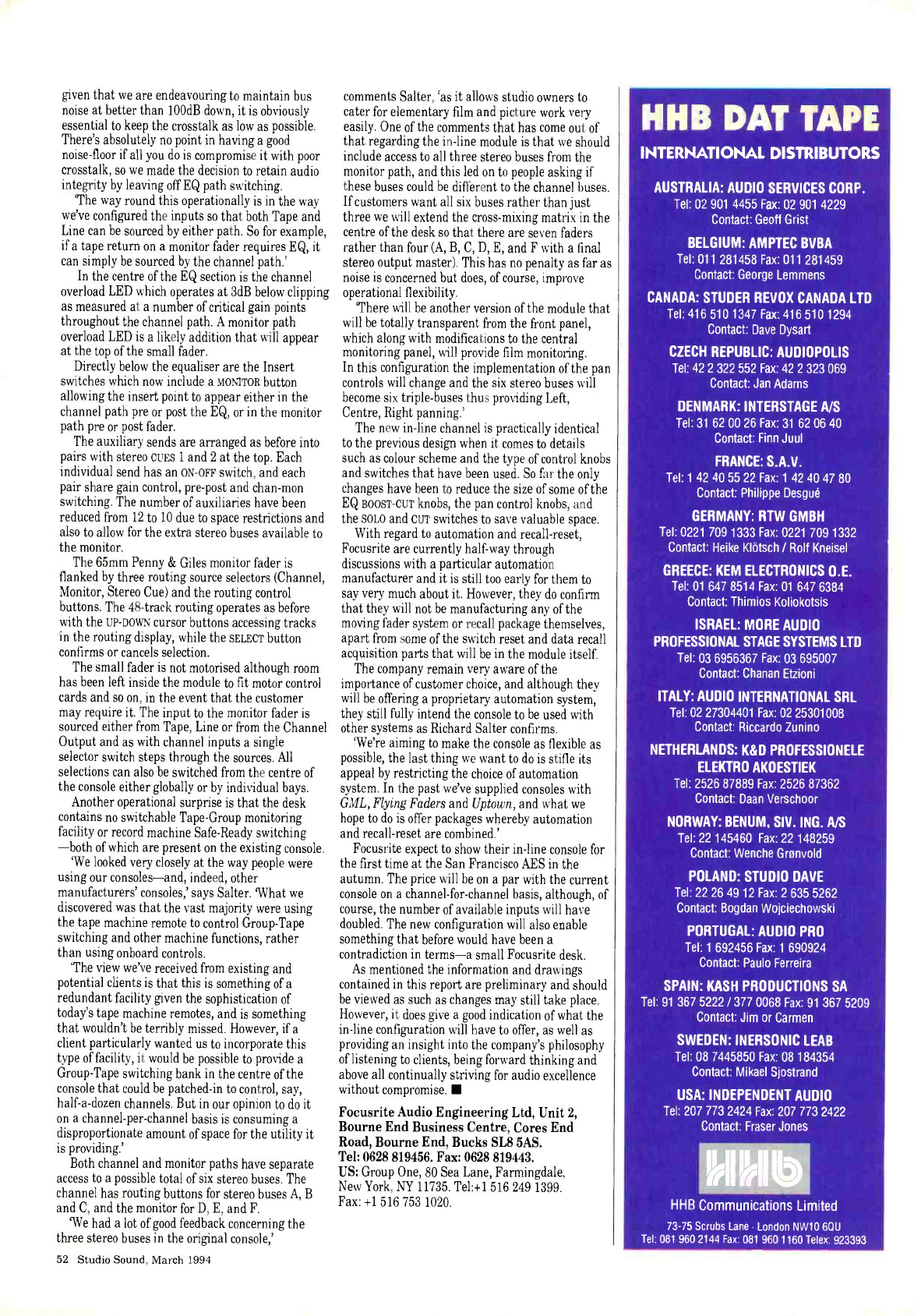

given that we are endeavouring to maintain bus

noise at better than 100dB down, it is obviously

essential to keep the crosstalk as low as possible.

There's absolutely no point in having a good

noise -floor if all you do is compromise it with poor

crosstalk, so we made the decision to retain audio

integrity by leaving off EQ path switching.

`The way round this operationally is in the way

we've configured the inputs so that both Tape and

Line can be sourced by either path. So for example,

if a tape return on a monitor fader requires EQ, it

can simply be sourced by the channel path.'

In the centre of the EQ section is the channel

overload LED which operates at 3dB below clipping

as measured at a number of critical gain points

throughout the channel path. A monitor path

overload LED is a likely addition that will appear

at the top of the small fader.

Directly below the equaliser are the Insert

switches which now include a MONITOR button

allowing the insert point to appear either in the

channel path pre or post the EQ, or in the monitor

path pre or post fader.

The auxiliary sends are arranged as before into

pairs with stereo cuEs 1 and 2 at the top. Each

individual send has an ON -OFF switch, and each

pair share gain control, pre -post and chan -mon

switching. The number of auxiliaries have been

reduced from 12 to 10 due to space restrictions and

also to allow for the extra stereo buses available to

the monitor.

The 65mm Penny & Giles monitor fader is

flanked by three routing source selectors (Channel,

Monitor, Stereo Cue) and the routing control

buttons. The 48 -track routing operates as before

with the UP -DOWN cursor buttons accessing tracks

in the routing display, while the SELECT button

confirms or cancels selection.

The small fader is not motorised although room

has been left inside the module to fit motor control

cards and so on, in the event that the customer

may require it. The input to the monitor fader is

sourced either from Tape, Line or from the Channel

Output and as with channel inputs a single

selector switch steps through the sources. All

selections can also be switched from the centre of

the console either globally or by individual bays.

Another operational surprise is that the desk

contains no switchable Tape -Group monitoring

facility or record machine Safe -Ready switching

-both of which are present on the existing console.

We looked very closely at the way people were

using our consoles -and, indeed, other

manufacturers' consoles,' says Salter. `What we

discovered was that the vast majority were using

the tape machine remote to control Group -Tape

switching and other machine functions, rather

than using onboard controls.

`The view we've received from existing and

potential clients is that this is something of a

redundant facility given the sophistication of

today's tape machine remotes, and is something

that wouldn't be terribly missed. However, if a

client particularly wanted us to incorporate this

type of facility, it would be possible to provide a

Group -Tape switching bank in the centre of the

console that could be patched -in to control, say,

half -a -dozen channels. But in our opinion to do it

on a channel- per -channel basis is consuming a

disproportionate amount of space for the utility it

is providing.'

Both channel and monitor paths have separate

access to a possible total of six stereo buses. The

channel has routing buttons for stereo buses A, B

and C, and the monitor for D, E, and F.

We had a lot of good feedback concerning the

three stereo buses in the original console,'

52 Studio Sound, March 1994

comments Salter, `as it allows studio owners to

cater for elementary film and picture work very

easily. One of the comments that has come out of

that regarding the in -line module is that we should

include access to all three stereo buses from the

monitor path, and this led on to people asking if

these buses could be different to the channel buses.

If customers want all six buses rather than just

three we will extend the cross -mixing matrix in the

centre of the desk so that there are seven faders

rather than four (A, B, C, D, E, and F with a final

stereo output master). This has no penalty as far as

noise is concerned but does, of course, improve

operational flexibility.

`There will be another version of the module that

will be totally transparent from the front panel,

which along with modifications to the central

monitoring panel, will provide film monitoring.

In this configuration the implementation of the pan

controls will change and the six stereo buses will

become six triple -buses thus providing Left,

Centre, Right panning.'

The new in -line channel is practically identical

to the previous design when it comes to details

such as colour scheme and the type of control knobs

and switches that have been used. So far the only

changes have been to reduce the size of some of the

EQ BOOST -CUT knobs, the pan control knobs, and

the SOLO and cur switches to save valuable space.

With regard to automation and recall- reset,

Focusrite are currently half -way through

discussions with a particular automation

manufacturer and it is still too early for them to

say very much about it. However, they do confirm

that they will not be manufacturing any of the

moving fader system or recall package themselves,

apart from some of the switch reset and data recall

acquisition parts that will be in the module itself.

The company remain very aware of the

importance of customer choice, and although they

will be offering a proprietary automation system,

they still fully intend the console to be used with

other systems as Richard Salter confirms.

`We're aiming to make the console as flexible as

possible, the last thing we want to do is stifle its

appeal by restricting the choice of automation

system. In the past we've supplied consoles with

GML, Flying Faders and Uptown, and what we

hope to do is offer packages whereby automation

and recall -reset are combined.'.

Focusrite expect to show their in -line console for

the first time at the San Francisco AES in the

autumn. The price will be on a par with the current

console on a channel- for -channel basis, although, of

course, the number of available inputs will have

doubled. The new configuration will also enable

something that before would have been a

contradiction in terms -a small Focusrite desk.

As mentioned the information and drawings

contained in this report are preliminary and should

be viewed as such as changes may still take place.

However, it does give a good indication of what the

in -line configuration will have to offer, as well as

providing an insight into the company's philosophy

of listening to clients, being forward thinking and

above all continually striving for audio excellence

without compromise.

Focusrite Audio Engineering Ltd, Unit 2,

Bonnie End Business Centre, Cores End

Road, Bourne End, Bucks SL8 5AS.

Tel: 0628 819456. Fax: 0628 819443.

US: Group One, 80 Sea Lane, Farmingdale,

New York, NY 11735. Tel: +1 516 249 1399.

Fax: +1 516 753 1020.

HHB DAT TAPE

INTERNATIONAL DISTRIBUTORS

AUSTRALIA: AUDIO SERVICES CORP.

Tel 02 901 4455 Fax 02 901 4229

Contact Geoff Grist

BELGIUM: AMPTEC BVBA

Tel 011 281458 Fax: 011 281459

Contact: George Lemmens

CANADA: STUDER REVOX CANADA LTD

Tel: 416 510 1347 Fax: 416 510 1294

Contact: Dave Dysart

CZECH REPUBLIC: AUDIOPOLIS

Tel 42 2 322 552 Fax: 42 2 323 069

Contact: Jan Adams

DENMARK: INTERSTAGE A/S

Tel: 31 62 00 26 Fax 31 62 06 40

Contact: Finn Juul

FRANCE: S.A.V.

Tel: 1 42 40 55 22 Fax: 1 42 40 47 80

Contact: Philippe Desgué

GERMANY: RTW GMBH

Tel 0221 709 1333 Fax: 0221 709 1332

Contact: Heike Klötsch / Rolf Kneisel

GREECE: KEM ELECTRONICS O.E.

Tel 01 647 8514 Fax 01 647 6384

Contact: Thimios Koliokotsis

ISRAEL: MORE AUDIO

PROFESSIONAL STAGE SYSTEMS LTD

Tel 03 6956367 Fax: 03 695007

Contact: Chanan Etzioni

ITALY: AUDIO INTERNATIONAL SRL

Tel 02 27304401 Fax 02 25301008

Contact: Riccardo Zunino

NETHERLANDS: K &D PROFESSIONELE

ELEKTRO AKOESTIEK

Tel 2526 87889 Fax 2526 87362

Contact: Daan Verschoor

NORWAY: BENUM, SIV. ING. A/S

Tel 22 145460 Fax 22 148259

Contact: Wenche Gronvold

POLAND: STUDIO DAVE

Tel: 22 26 49 12 Fax 2 635 5262

Contact: Bogdan Wojciechowski

PORTUGAL: AUDIO PRO

Tel 1 692456 Fax 1 690924

Contact: Paulo Ferreira

SPAIN: KASH PRODUCTIONS SA

Tel 91 367 5222 / 377 0068 Fax 91 367 5209

Contact: Jim or Carmen

SWEDEN: INERSONIC LEAB

Tel 08 7445850 Fax 08 184354

Contact: Mikael *strand

USA: INDEPENDENT AUDIO

Tel 207 773 2424 Fax 207 773 2422

Contact: Fraser Jones

HHB Communications Limited

73 -75 Scrubs Lane London NW10 60U

Tel: 081 960 2144 Fax: 081 960 1160 Telex: 923393

www.americanradiohistory.com

ALL DAT TAPES ARE NOT THE SAME

BUT DON'T TAKE OUR WORD FOR IT

Ask Studio Sound, one of the

world's most highly respected pro-

fessional audio publications. They

recently subjected eight leading

DAT tape brands to an exhaustive

ser es of tests and the results

shculd be of interest to

everyone serious about audio.

AAVANCED

MEDIA

PRODUCTS

For Professional

Audio Applications

DAT122

Perhaps even more significant was

the fact that one of these leading

tapes was clearly more consistent

than the others, with its low error

rates changing very little over multi-

ple passes. That tape was HHB.

And when it came

to archiving stability, Studio

In the critical area of block errors, Sound's reviewer was moved to write:

the tapes fell into two distinct cate- "If it were my recordings at risk, it is clear which choice I

genes of performance. Three exhibited would make ". His choice? You guessed it - HHB.

sim larly low error rates with the others presenting error

levels considerably higher. HHB DAT Tape was one of the ` HHB DAT Tape. Would you trust your recordings to any-

leacing three,

ST( Ñó copy of Studio Slob ,

"p/T ..... .....

thin

DAT

autii )

N IHB Communicatbns Ltd 73-75 Scrubs Lane, London NW10 60U, UK.

Tel 08.1 960 2144 Fax 081 960 1160 . Telex 923393

In North America: ndependent Audio 295 Forest Avenue, Suite 121,

Portland, Maine 04101 -2000 Tel 207 773 2424 Fax 207 773 2422

www.americanradiohistory.com

THEY DO

MORE.

THEY DO IT

BETTER.

THEY DO IT

FOR LESS.

It's rarely easy to say it all in just a few words: in fact even those words are supe

ous, since the dynamics processors COMPOSER and INTELLIGATE® are already

among the best -selling signal processors in the world today. Whether they are working

hard on stage, e.g. with Metallica, Def Leppard, Aerosmith and others, or being put

through their paces in thousands of professional recording studios such as Lucas Arts

LA, Robert Scovill etc, With our unique Interactive Technology and the famous

Behringer quality, we have set new industry standards that are considered sensational

by the international trade press.

THEY DO IT BETTER

The COMPOSER is a high -end Compressor, Expander /Gate and Peak Limiter. The

IKA (Interactive Knee Adaption) circuitry automatically combines the musical "soft

knee" function with precise "hard knee" characteristics - without "pumping" as otheí

compressors do. The IRC (Interactive Ratio Control) Expander /Gate eliminates they

troublesome "chatter" effect experienced in conventional gates and the IGC

(Interactive Gain Control) Peak Limiter guarantees 100 % protection against signal

peaks, serving as a zero attack, distortion -free gain threshold. Thus, perfect digital

compatibility is ensured.

Do you know a better compressor?

Because of its UTR (Ultra Transient Response) circuitry and an attack time of only 3

micro seconds, the INTELLIGATE® is probably the fastest expander /gate /ducker in

the world. High -performance Class A VCAs eliminate click noise even with percussive

signals and provide exceptional audio transparency. High -precision Key Filters permit

frequency -selective keying.

Do you know a better gate?

THEY DO MORE

Behringer stands for performance without any compromise: servo -balanced inputs and

outputs, jack and XLR connectors, hard -bypass relays, key extern and key listen func-

tions, additional key inputs and outputs, transformer option, backlit switches, high -pre-

cision potentiometers, cut -in delay etc, etc.

Can you think of any further features?

THEY DO IT FOR LESS

And if you still believe that excellence is only achieved by spending US$ 2,000, - on a

unit, compare Behringer products with any other product on the market and listen to

the difference. The sensational price of US$ 450. -" and a full 5 -year warranty and your

only decision can be to invest in Behringer quality. If you want more information about

the COMPOSER and INTELLIGATE or any others from the extensive Behringer range

please feel free to contact us or your local distributor.

BEHRINGER.

Your Ear Is The Judge

`Recommended list price may alter slightly within countries

° o

/ [ekx7

Il RYtlltiIF ERPU,pFqILLVE

11411 1.151.4.0

CO"PRFRSORIIIM((R

. ( r [

L`I

Ir.

PERCIO.IEq

I r_

. I . _ Ì . . 1 . . ÿ . .'

. . 1 ' . WCUR

1i .o P I r

IRPf,liolR stf(Ch ROlO p[(ER6( MOO pRR( Nruui

BEHRINGER Specialized Studio Equipment Ltd. Otto -Brenner- Stak 4, D -4156 Willich 1 (0) 21 54/42 85 21 I Fax: (0) 21 54/42 85 23

www.americanradiohistory.com

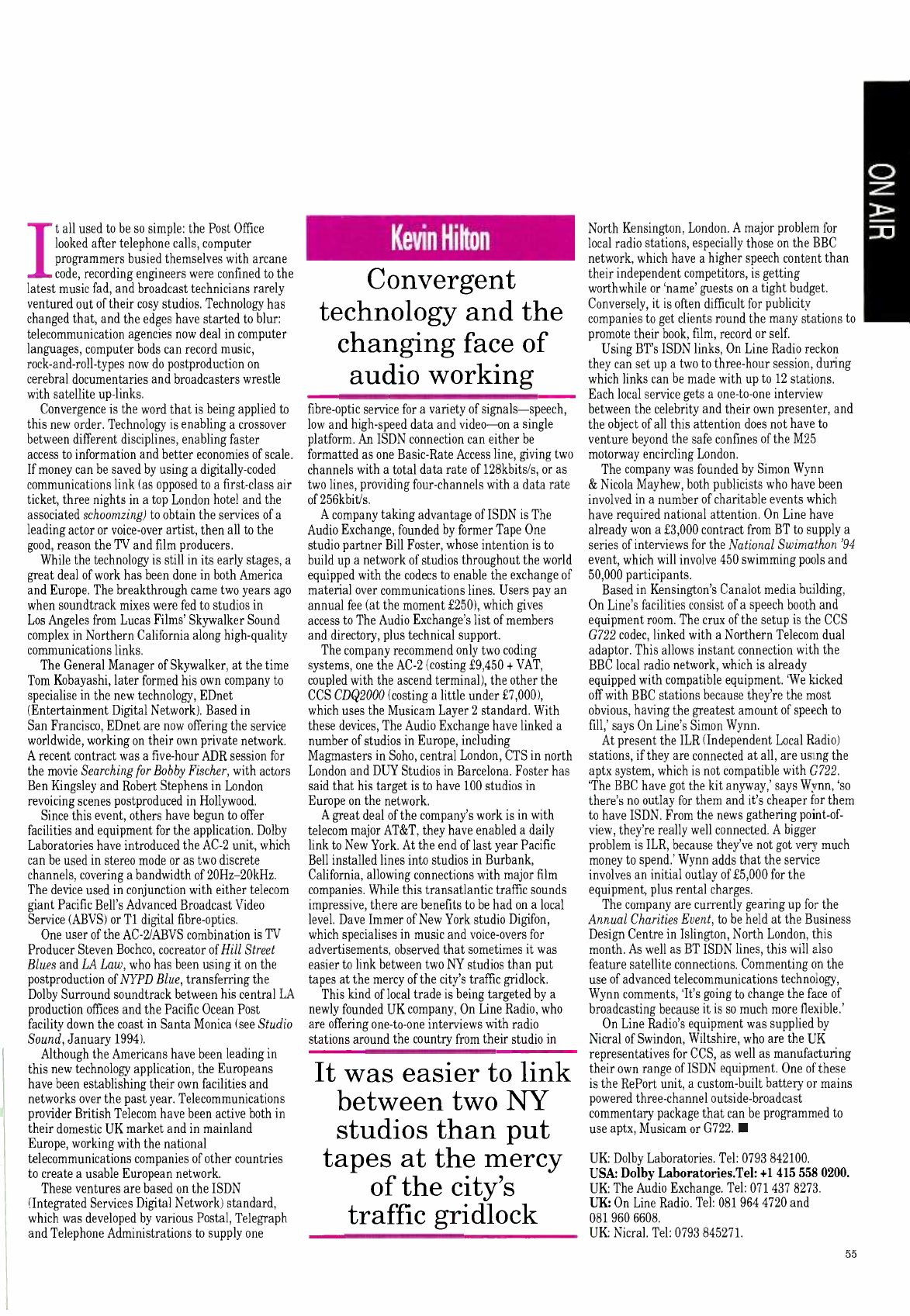

It all used to be so simple: the Post Office

looked after telephone calls, computer

programmers busied themselves with arcane

code, recording engineers were confined to the

latest music fad, and broadcast technicians rarely

ventured out of their cosy studios. Technology has

changed that, and the edges have started to blur:

telecommunication agencies now deal in computer

languages, computer bods can record music,

rock -and -roll -types now do postproduction on

cerebral documentaries and broadcasters wrestle

with satellite up- links.

Convergence is the word that is being applied to

this new order. Technology is enabling a crossover

between different disciplines, enabling faster

access to information and better economies of scale.

If money can be saved by using a digitally -coded

communications link (as opposed to a first -class air

ticket, three nights in a top London hotel and the

associated schoomzing) to obtain the services of a

leading actor or voice -over artist, then all to the

good, reason the TV and film producers.

While the technology is still in its early stages, a

great deal of work has been done in both America

and Europe. The breakthrough came two years ago

when soundtrack mixes were fed to studios in

Los Angeles from Lucas Films' Skywalker Sound

complex in Northern California along high -quality

communications links.

The General Manager of Skywalker, at the time

Tom Kobayashi, later formed his own company to

specialise in the new technology, EDnet

(Entertainment Digital Network). Based in

San Francisco, EDnet are now offering the service

worldwide, working on their own private network.

A recent contract was a five -hour ADR session for

the movie Searching for Bobby Fischer, with actors

Ben Kingsley and Robert Stephens in London

revoicing scenes postproduced in Hollywood.

Since this event, others have begun to offer

facilities and equipment for the application. Dolby

Laboratories have introduced the AC -2 unit, which

can be used in stereo mode or as two discrete

channels, covering a bandwidth of 20Hz- 20kHz.

The device used in conjunction with either telecom

giant Pacific Bell's Advanced Broadcast Video

Service (ABVS) or Ti digital fibre- optics.

One user of the AC- 2/ABVS combination is TV

Producer Steven Bochco, cocreator of Hill Street

Blues and LA Law, who has been using it on the

postproduction of NYPD Blue, transferring the

Dolby Surround soundtrack between his central LA

production offices and the Pacific Ocean Post

facility down the coast in Santa Monica (see Studio

Sound, January 1994).

Although the Americans have been leading in

this new technology application, the Europeans

have been establishing their own facilities and

networks over the past year. Telecommunications

provider British Telecom have been active both in

their domestic UK market and in mainland

Europe, working with the national

telecommunications companies of other countries

to create a usable European network.

These ventures are based on the ISDN

(Integrated Services Digital Network) standard,

which was developed by various Postal, Telegraph

and Telephone Administrations to supply one

Kevin Hilton

Convergent

technology and the

changing face of

audio working

fibre -optic service for a variety of signals- speech,

low and high -speed data and video-on a single

platform. An ISDN connection can either be

formatted as one Basic -Rate Access line, giving two

channels with a total data rate of 128kbits/s, or as

two lines, providing four -channels with a data rate

of 256kbit/s.

A company taking advantage of ISDN is The

Audio Exchange, founded by former Tape One

studio partner Bill Foster, whose intention is to

build up a network of studios throughout the world

equipped with the codecs to enable the exchange of

material over communications lines. Users pay an

annual fee (at the moment £250), which gives

access to The Audio Exchange's list of members

and directory, plus technical support.

The company recommend only two coding

systems, one the AC -2 (costing £9,450 + VAT,

coupled with the ascend terminal), the other the

CCS CDQ2000 (costing a little under £7,000),

which uses the Musicam Layer 2 standard. With

these devices, The Audio Exchange have linked a

number of studios in Europe, including

Magmasters in Soho, central London, CTS in north

London and DUY Studios in Barcelona. Foster has

said that his target is to have 100 studios in

Europe on the network.

A great deal of the company's work is in with

telecom major AT &T, they have enabled a daily

link to New York. At the end of last year Pacific

Bell installed lines into studios in Burbank,

California, allowing connections with major film

companies. While this transatlantic traffic sounds

impressive, there are benefits to be had on a local

level. Dave Immer of New York studio Digifon,

which specialises in music and voice -overs for

advertisements, observed that sometimes it was

easier to link between two NY studios than put

tapes at the mercy of the city's traffic gridlock.

This kind of local trade is being targeted by a

newly founded UK company, On Line Radio, who

are offering one -to -one interviews with radio

stations around the country from their studio in

It was easier to link

between two NY

studios than put

tapes at the mercy

of the city's

traffic gridlock

North Kensington, London. A major problem for

local radio stations, especially those on the BBC

network, which have a higher speech content than

their independent competitors, is getting

worthwhile or `name' guests on a tight budget.

Conversely, it is often difficult for publicity

companies to get clients round the many stations to

promote their book, film, record or self.

Using BT's ISDN links, On Line Radio reckon

they can set up a two to three -hour session, during

which links can be made with up to 12 stations.

Each local service gets a one -to -one interview

between the celebrity and their own presenter, and

the object of all this attention does not have to

venture beyond the safe confines of the M25

motorway encircling London.

The company was founded by Simon Wynn

& Nicola Mayhew, both publicists who have been

involved in a number of charitable events which

have required national attention. On Line have

already won a £3,000 contract from BT to supply a

series of interviews for the National Swimathon '94

event, which will involve 450 swimming pools and

50,000 participants.

Based in Kensington's Canalot media building,

On Line's facilities consist of a speech booth and

equipment room. The crux of the setup is the CCS

G722 codec, linked with a Northern Telecom dual

adaptor. This allows instant connection with the

BBC local radio network, which is already

equipped with compatible equipment. `We kicked

off with BBC stations because they're the most

obvious, having the greatest amount of speech to

fill,' says On Line's Simon Wynn.

At present the ILR (Independent Local Radio)

stations, if they are connected at all, are using the

aptx system, which is not compatible with G722.

`The BBC have got the kit anyway,' says Wynn, `so

there's no outlay for them and it's cheaper for them

to have ISDN. From the news gathering point -of-

view, they're really well connected. A bigger

problem is ILR, because they've not got very much

money to spend.' Wynn adds that the service

involves an initial outlay of £5,000 for the

equipment, plus rental charges.

The company are currently gearing up for the

Annual Charities Event, to be held at the Business

Design Centre in Islington, North London, this

month. As well as BT ISDN lines, this will also

feature satellite connections. Commenting on the

use of advanced telecommunications technology,

Wynn comments, `It's going to change the face of

broadcasting because it is so much more flexible.'

On Line Radio's equipment was supplied by

Nicral of Swindon, Wiltshire, who are the UK

representatives for CCS, as well as manufacturing

their own range of ISDN equipment. One of these

is the RePort unit, a custom -built battery or mains

powered three -channel outside -broadcast

commentary package that can be programmed to

use aptx, Musicam or G722.
