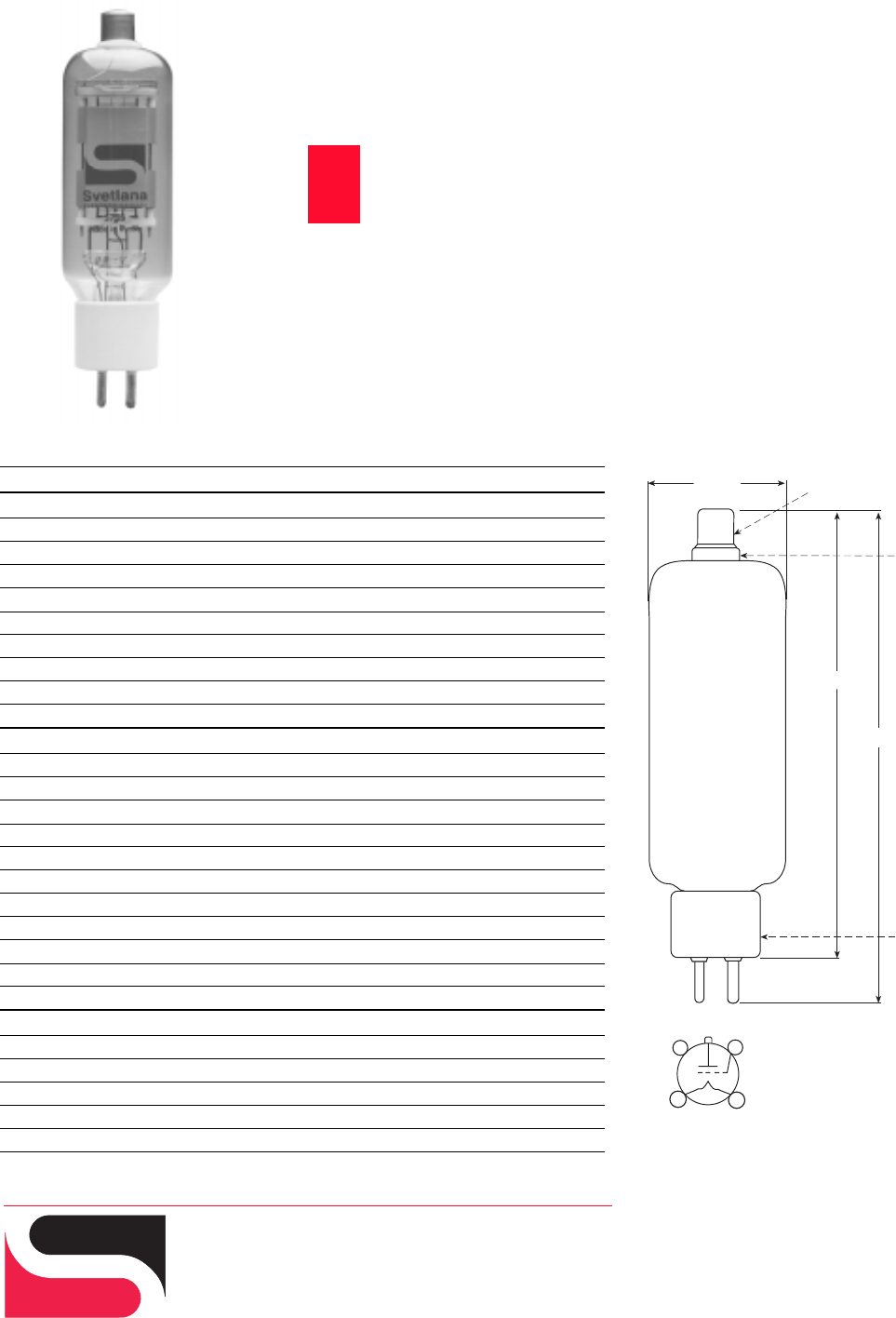

Svetlana Outline drawing
Characteristics
T
SVETLANA TECHNICAL DATA
Marketing & Engineering:
Headquarters:
www.svetlana.com
ELECTRON DEVICES
Svetlana
8200 South Memorial Parkway
Huntsville, AL 35802
USA
Phone: 205 882 1344
Fax: 205 880 8077
3000 Alpine Road
Portola Valley, CA 94028
USA
Phone: 415 233 0429
Fax: 415 233 0439
he Svetlana
™
572B is a high-mu power triode intended for use in class AB, class B
and class C RF and Audio amplifiers. The Svetlana 572B features a massive graphite
anode for high peak overload capability and a high average plate dissipation of 160
Watts. The Svetlana 572B also features a low loss ceramic base and a bonded-
ceramic plate cap thermal insulator for high power RF transmitting tube capability.
The Svetlana 572B has a superior getter system based on titanium adhered to the external
surface of the graphite anode. The titanium coating covers the entire anode area extended by
the inherent micro surface roughness of graphite. The Svetlana 572B envelope is fabricated
from hard glass intended specifically for the high-temperature operation of transmitting tubes.
The internal tube parts are supported by low loss ceramic insulators for high-temperature
operation and high voltage hold-off. The internal structure is well supported and is aligned with
respect to the base pins to avoid internal shorts in equipment designed for horizontal tube
mounting.
The Svetlana 572B may be used as a direct drop-in replacement in equipment designed for
the 811A, T160L or 572B.
Electrical
Filament: Thoriated-tungsten
Voltage (AC or DC) 6.3 V
±
0.3V
Current 4 A
Amplification factor (average) 170
Direct interelectrode capacitances:
Grid to plate 6.0pF
Grid to filament 5.9 pF
Plate to filament 0.8 pF
Maximum frequency for full ratings 30 MHz
Mechanical
Cooling Radiation and forced air
Base Ceramic, standard small four pin
Plate cap Standard medium cap 14 mm dia. with ceramic thermal insulation
Plate connector Svetlana PC-1A or equivalent
Socket Svetlana SK4A, Standard small, four contact
Operating position-Axis vertical, base down or horizontal w/ pins 1 and 4 in vertical plane
Nominal dimensions:
Diameter 45.7 mm (1.8 in.)
Base to plate cap 147.3 mm (5.8 in.)
Overall height 162.6 mm (6.4 in.)
Net weight 113 gm
Linear RF Power Amplifier, Class B Grounded Grid, Maximum ratings
ICAS*
DC plate voltage 2750 V
DC plate current 275 mA
Plate dissipation 160 W
DC Plate input 600 W
DC Grid current 50 mA
*Intermittant commercial and ameteur service
572B
High-Mu Power Triode
8/97
147.3 mm
162.6 mm
45.7 mm
NC P
23
14
G
F
Low loss
ceramic
base, small
four pin
Ceramic
thermal
insulation
Plate connection
standard medium cap,
14 mm Dia.
F
Notes:
The internal structure is aligned with
respect to the base pins to avoid
internal shorting problems in equip-
ment designed for horizontal tube
mounting.
Base pin connections,
bottom view
www.svetlana.com
ELECTRON DEVICES
Svetlana
Typical Operation, Grounded Grid Linear Amplifier
(frequencies to 30 MHz) ICAS**
DC plate voltage 2400 V
DC grid voltage -2 V
Zero-signal DC plate current ** 45 mA
Single-tone DC plate current 250 mA
Driving power 50 W
Single-tone useful output power ** 300 W
** Approximate value
Svetlana 572B
High-Mu Power Triode
Ec = 0
PLATE VOLTAGE (VOLTS)
CURRENT (MILLIAMPERES)
2400160012008000 28002000400
800
600
400
200
0
E
f
= 6.3 Volts
Plate Current
Grid Current

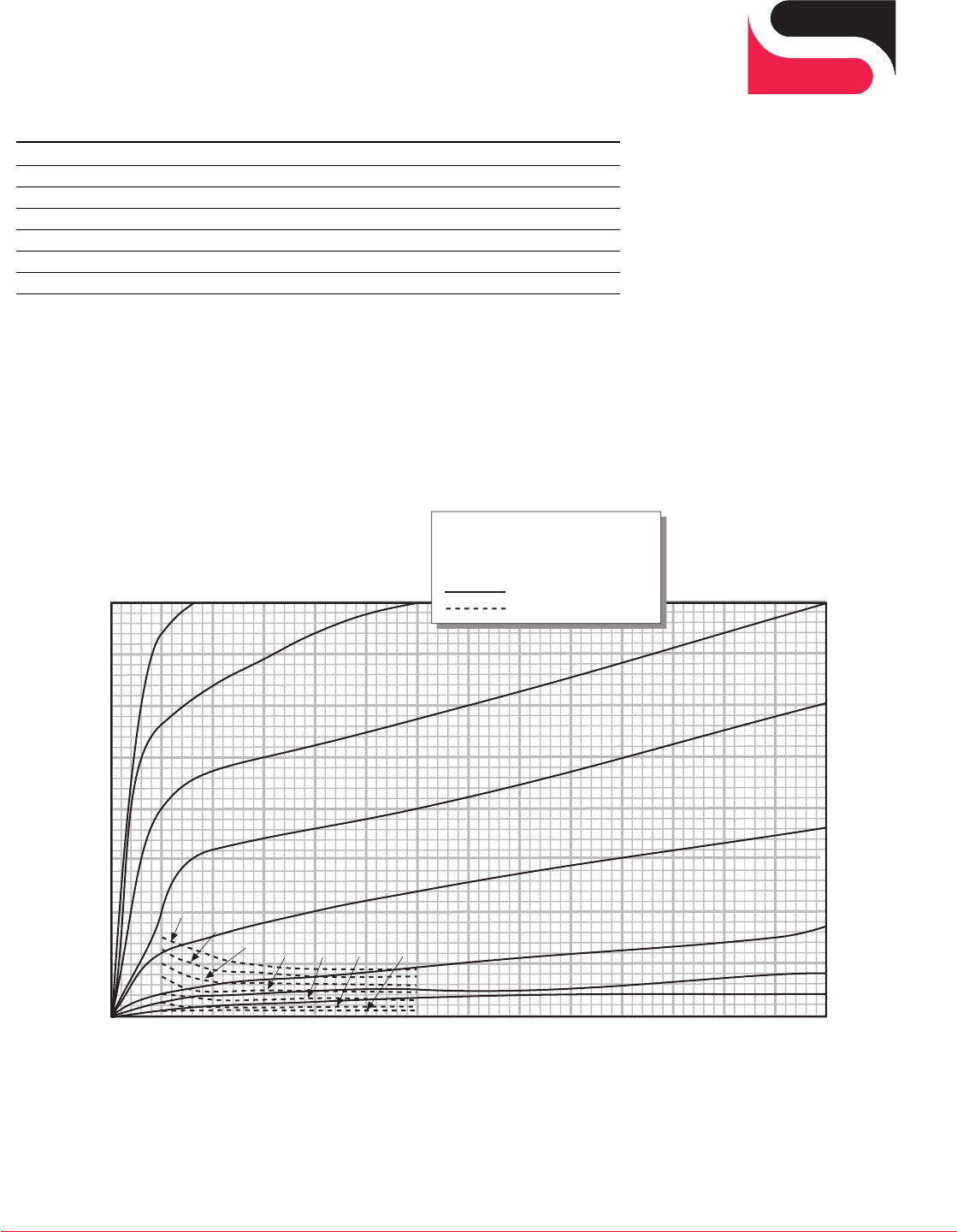

Svetlana 572B
Typical Performance Curves
+10
+20
+40
+60
+80
+100
+120
+120+100+80 +60 +40 +20 +10
Versions of the 572B designed for audio amplifier service are available.
Ask for SV572 Series data.
Mechanical Application
Mounting: The Svetlana 572B may be operated with its axis
vertical and the base down, or horizontally with pins 1 and 4 in
a vertical plane.
