T300/T300e English Operator Manual (CE) T300 T300e CE
User Manual:
Open the PDF directly: View PDF
.
Page Count: 57
T300
T300e
9014525
Rev. 02 (02-2016)
Automatic Floor Scrubber
*9014525*
For the latest Parts manuals and other
language Operator manuals, visit:
www.tennantco.com/manuals
HygenicFully Cleanable Recovery Tank
TennantTrueParts
IRISa Tennant Technology
Pro-PaneltControls
Insta-ClicktMagnetic Disk
English EN
Operator Manual
Europe
2Tennant T300e/T300 (02- 2016)

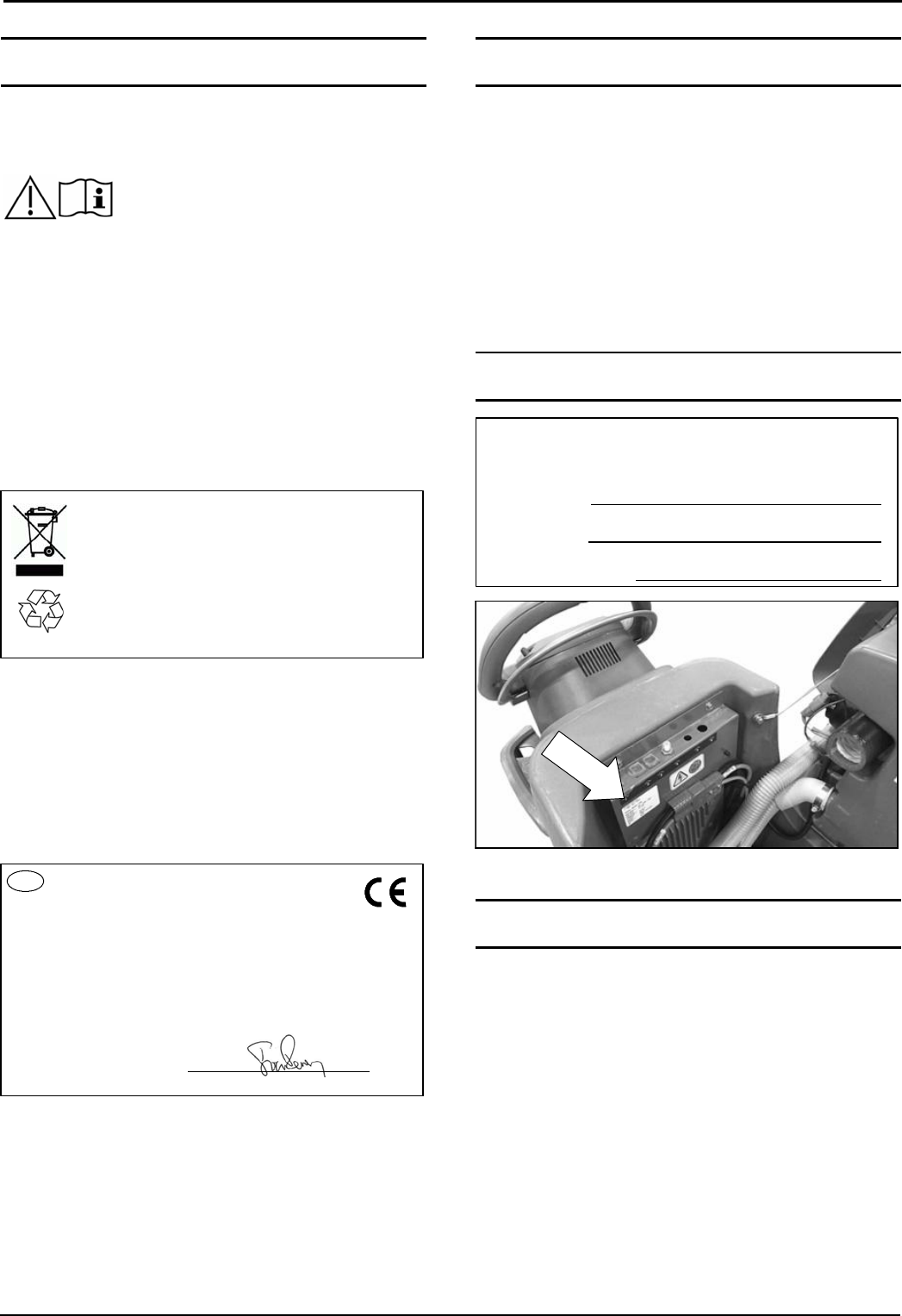

INTRODUCTION
This manual is furnished with each new model.
It provides necessary operation and maintenance
instructions.
Read this manual completel
y
and
understand the machine before
operating or servicing it.
This machine will provide excellent service. However,
the best results will be obtained at minimum costs if:
SThe machine is operated with reasonable care.
SThe machine is maintained regularly - per the
maintenance instructions provided.
SThe machine is maintained with manufacturer
supplied or equivalent parts.
To view, print or download manuals online visit
www.tennantco.com/manuals
PROTECT THE ENVIRONMENT
Please dispose of packaging materials
and used machine components such
as batteries in an environmentally safe
way according to your local waste
disposal regulations.
Always remember to recycle.
TENNANT N.V.
Industrielaan 6 5405 AB
P.O. Box 6 5400 AA
Uden - The Netherlands
Uden, 03/01/2015
EC Declaration of Conformity
Machine Type: Floor Scrubber Model: T300, T300e
This machine is in conformity with the following EU directives:
- Machinery Directive: 2006/42/EC
- Electro Magnetic Compatibility Directive: 2004/108/EC
Applied harmonized standards: EN ISO 14121- 1, EN 1037, EN
60335- 1, EN 60204- 1, EN ISO 13849- 1, EN ISO 13849- 2, EN 60529, EN
ISO 4413, EN 55012, EN 61000- 6- 2, EN ISO 11201, EN ISO 4871, EN
ISO 3744, EN ISO 3741, EN ISO 13059, EN ISO 3450, EN 60335- 2- 72.
EN
(according to Annex II A of the Machinery Directive)
Ives Franssen
Operation Manager
TENNANT N.V.
Industrielaan 6 5405 AB
P.O. Box 6 5400 AA, Uden -The Netherlands
Europe@tennantco.com www.tennantco.com
This product may contain portions of software that have various 3rd party
licenses. More information can be found at: www.tennantco.com/opensource
Specifications and parts are subject to change without notice.
Original Instructions. Copyright E2015- 2016 Tennant Company.
All rights reserved.
INTENDED USE
The automatic floor scrubber is intended for
commercial use, for example in hotels, schools,
hospitals, factories, shops, offices and rental
businesses. It is designed to scrub hard floor surfaces
(concrete, tile, stone, synthetic, etc.) in an indoor
environment. Do not use this machine on carpeted
surfaces. Use only recommended pads/brushes and
commercially available floor cleaning detergents.Do
not use this machine other than described in this
Operator Manual.
MACHINE DATA
Please fill out at time of installation
for future reference.
Model No. -
Serial No. -
Installation Date -
UNCRATING MACHINE
Carefully check machine for signs of damage. Report
damages at once to carrier. Contact distributor or
Tennant for missing items.
To uncrate the machine, remove straps, wheel blocks
and shipping brackets. Using the supplied ramp
carefully back the machine off the pallet. Make sure
scrub head is in the raised position.
ATTENTION: Do not remove machine from pallet
without using ramp, machine damage may occur.
Tennant T300e/T300 (02- 2016) 3
TABLE OF CONTENTS
OPERATION
IMPORTANT SAFETY INSTRUCTIONS 4.......
SAFETY LABELS 6...........................

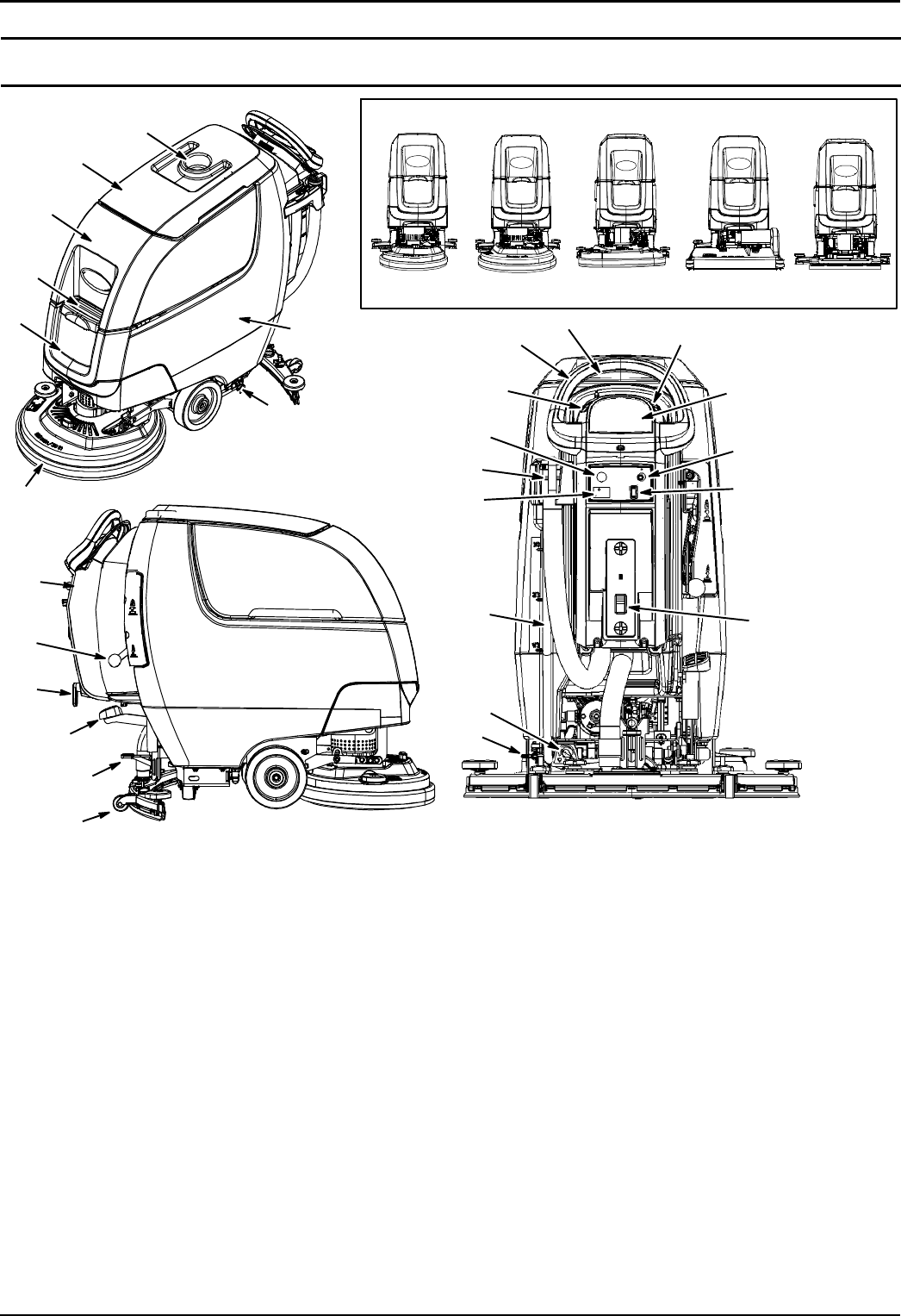

MACHINE COMPONENTS 7...................

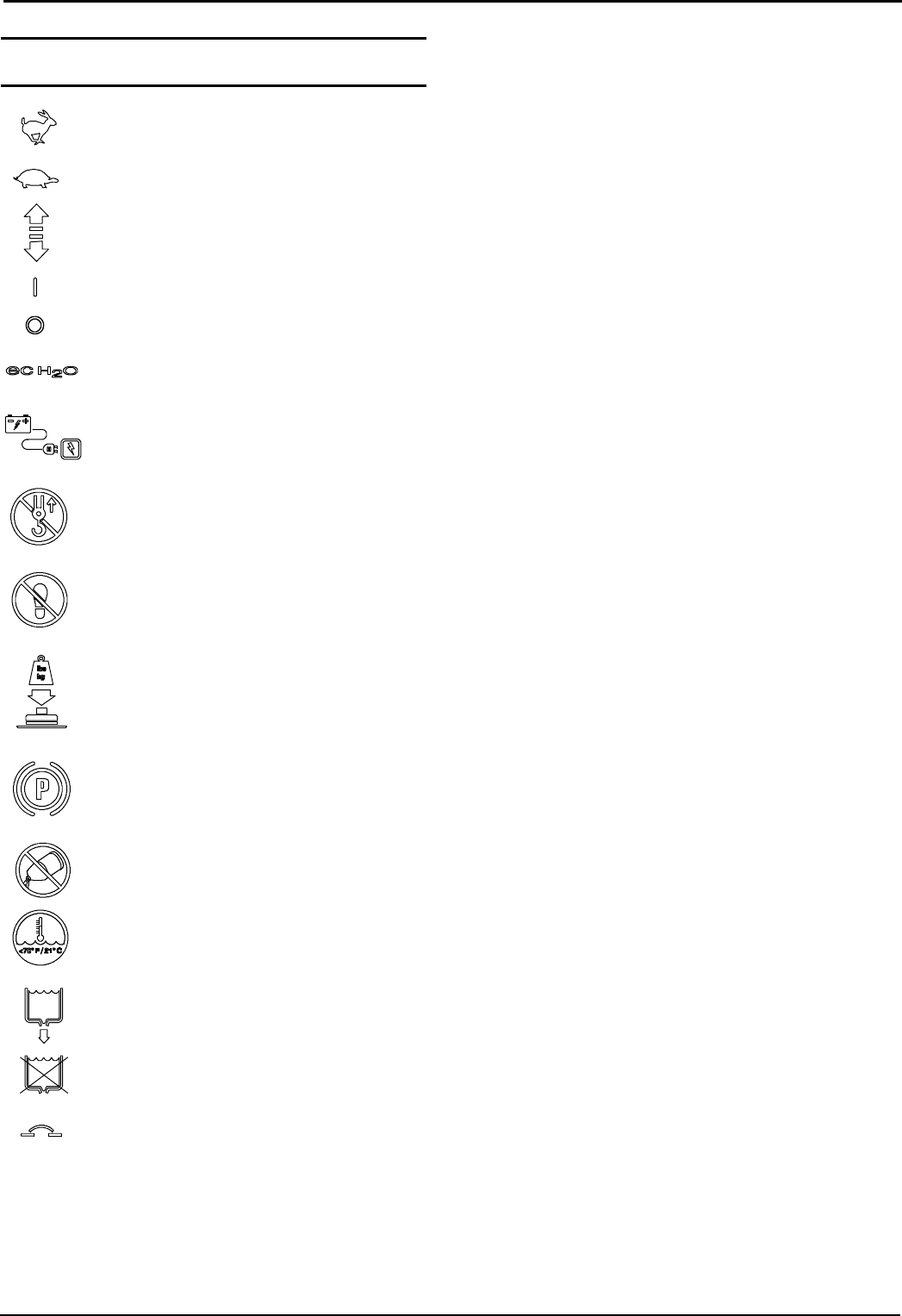

MACHINE SYMBOLS 8.......................

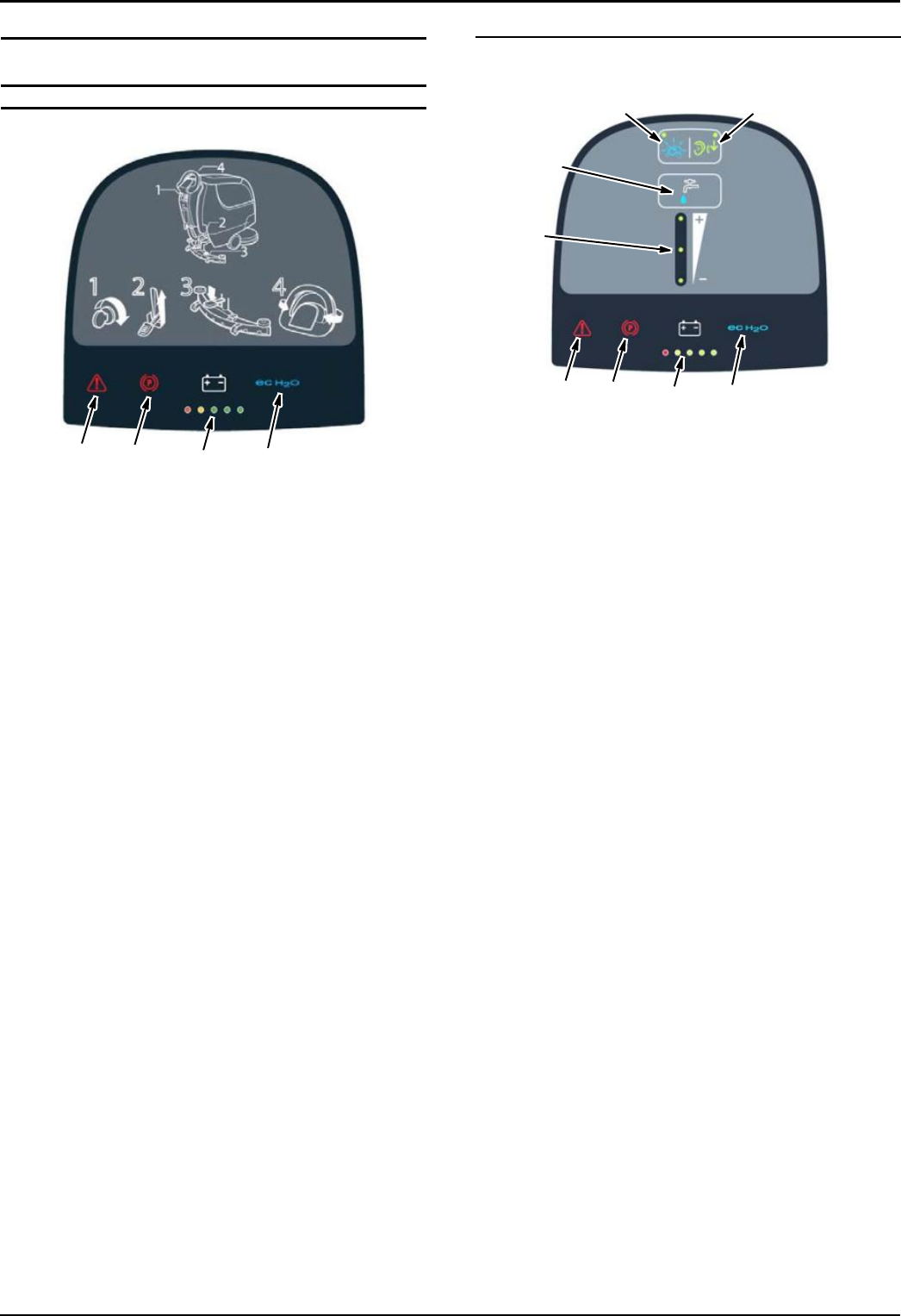

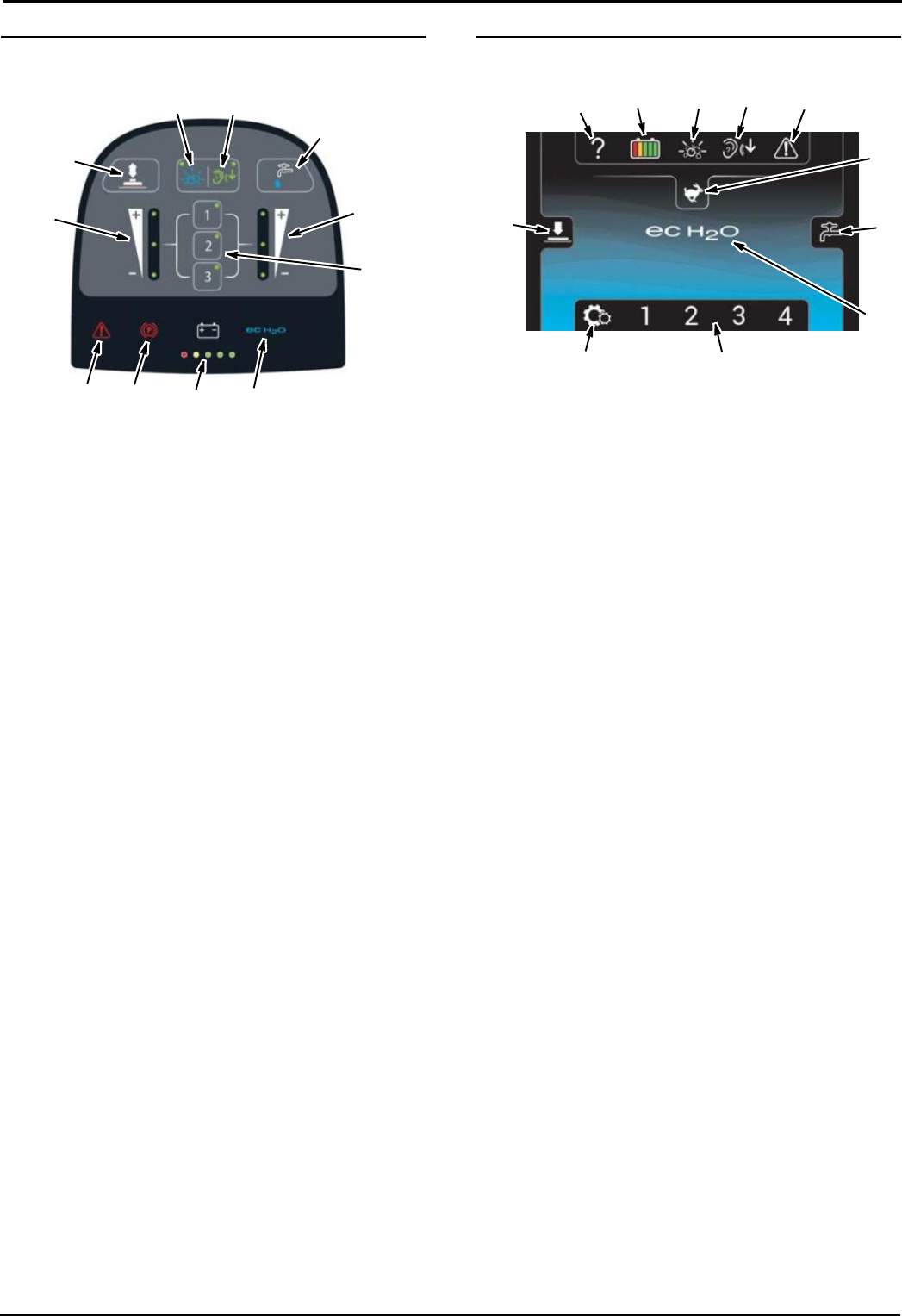

CONTROL PANEL COMPONENTS 9...........
T300e Model Control Panel 9...............
T300 Model with Membrane Control Panel
(Manual down pressure model) 9............
T300 Model with Pro-Membrane Control Panel
(Actuated Down Pressure Model) 10..........
T300 Model with Pro-Panel Controls
(LCD - Liquid Crystal Display) 10............

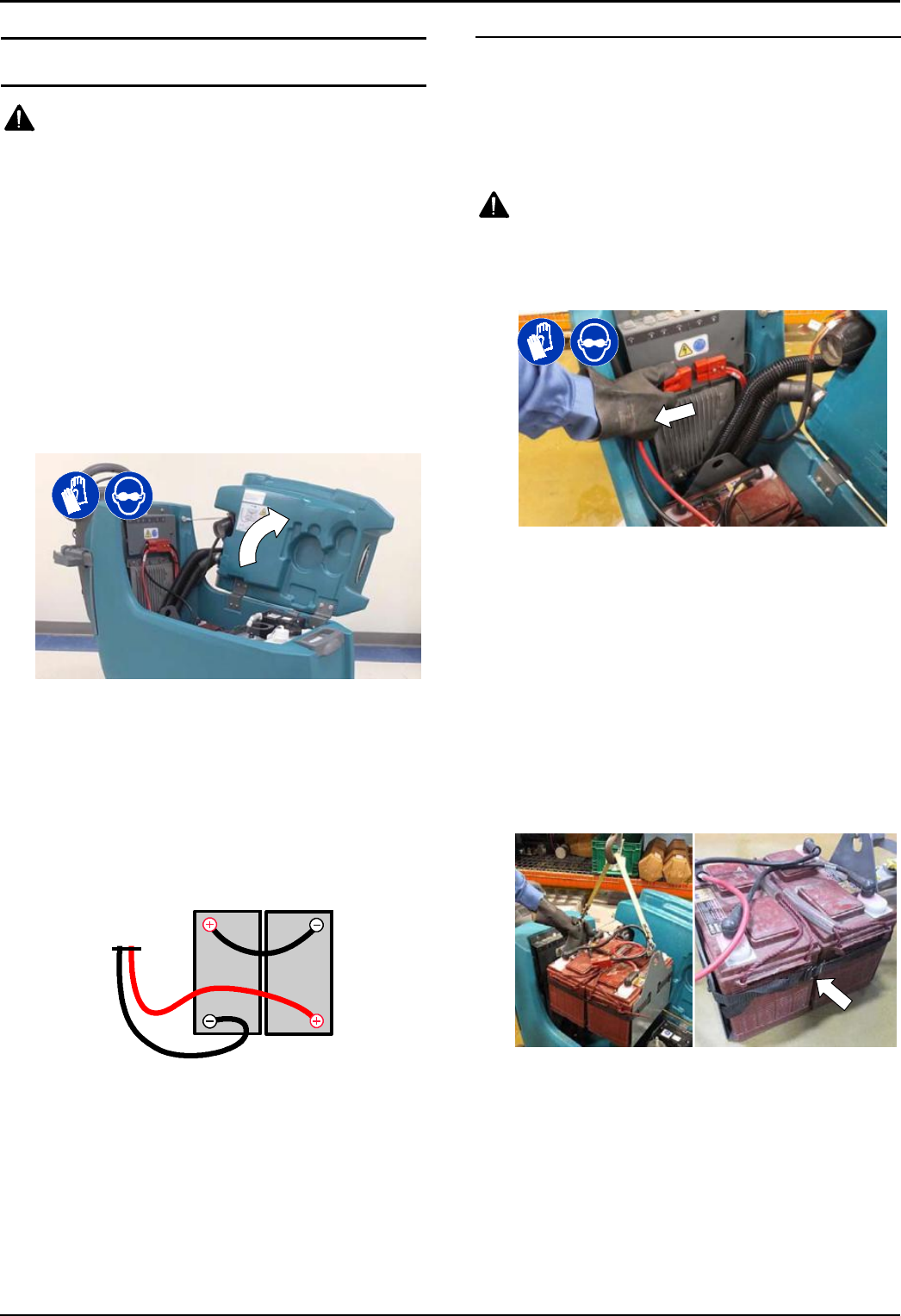

INSTALLING BATTERIES 11...................
BATTERY PACK LIFT- OUT TRAY (Option) 11.
HOW THE MACHINE WORKS 12...............
BRUSH AND PAD INFORMATION 12............
MACHINE SETUP 13..........................

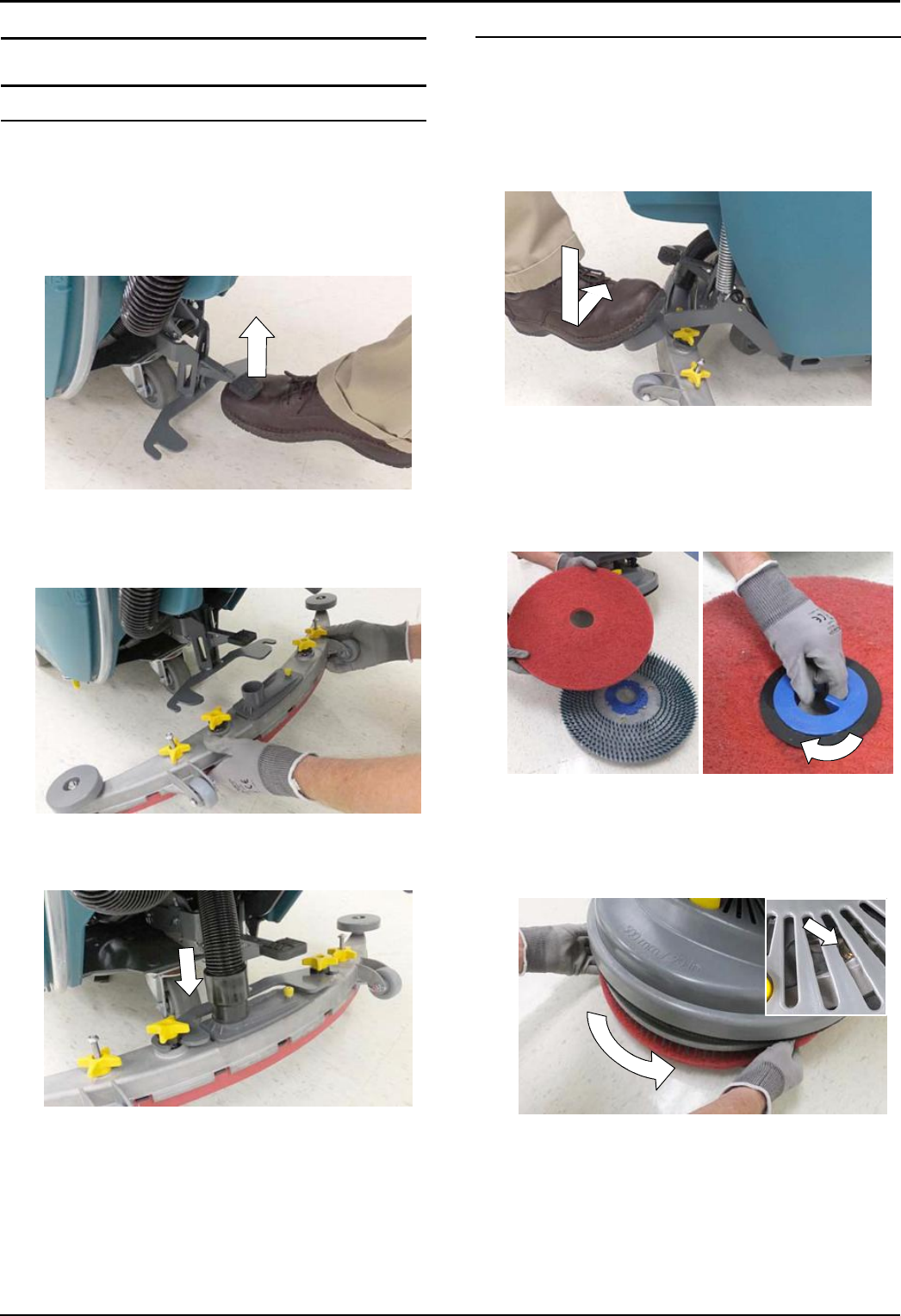

ATTACHING SQUEEGEE ASSEMBLY 13.....

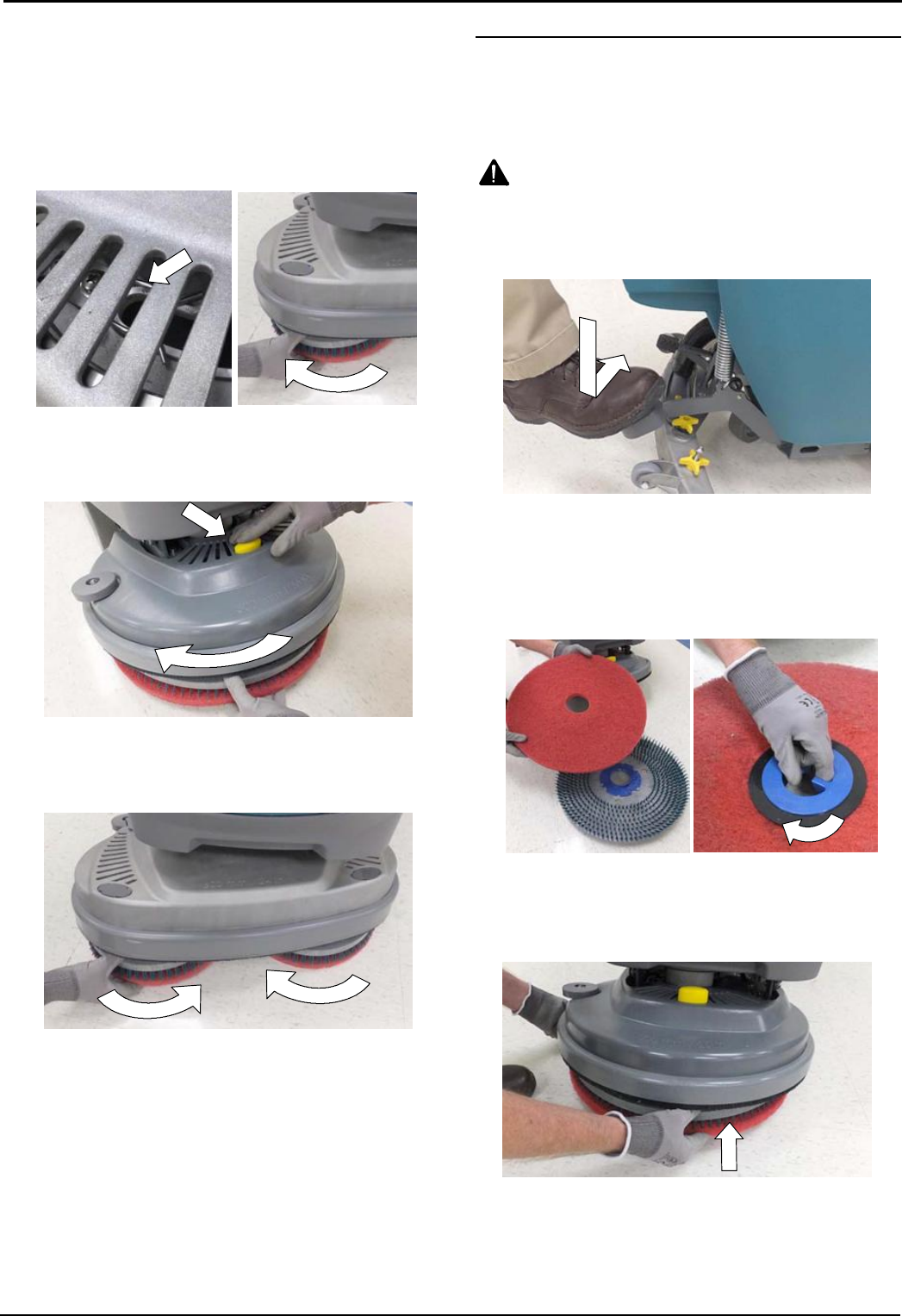

INSTALLING BRUSH/PAD - 3 Lug Disk (T300e) 13
INSTALLING BRUSH/PAD
- Insta-Click Magnetic Disk 14...............
INSTALLING PAD - Orbital 15...............

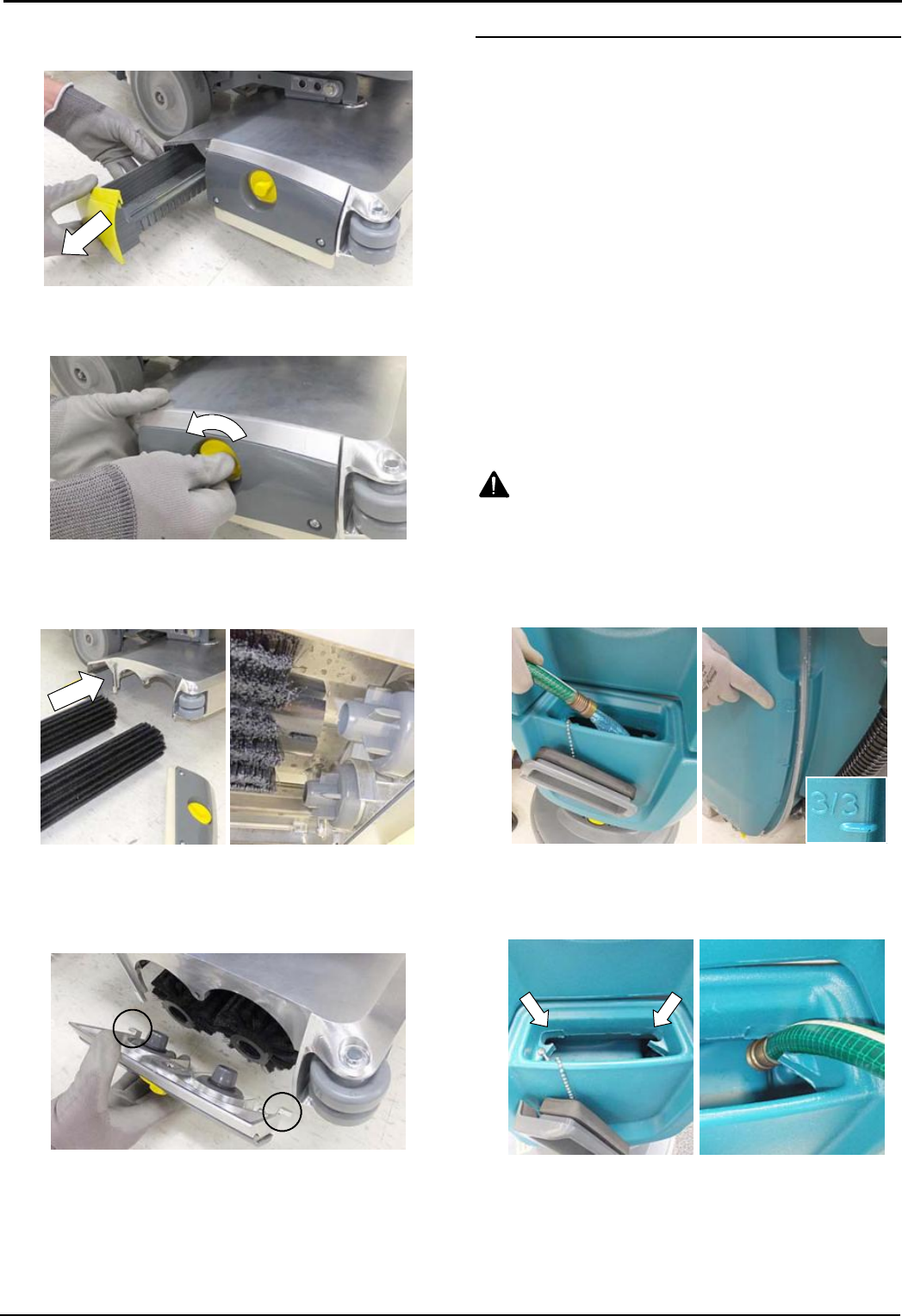

INSTALLING CYLINDRICAL BRUSHES 15....
FILLING SOLUTION TANK 16...............

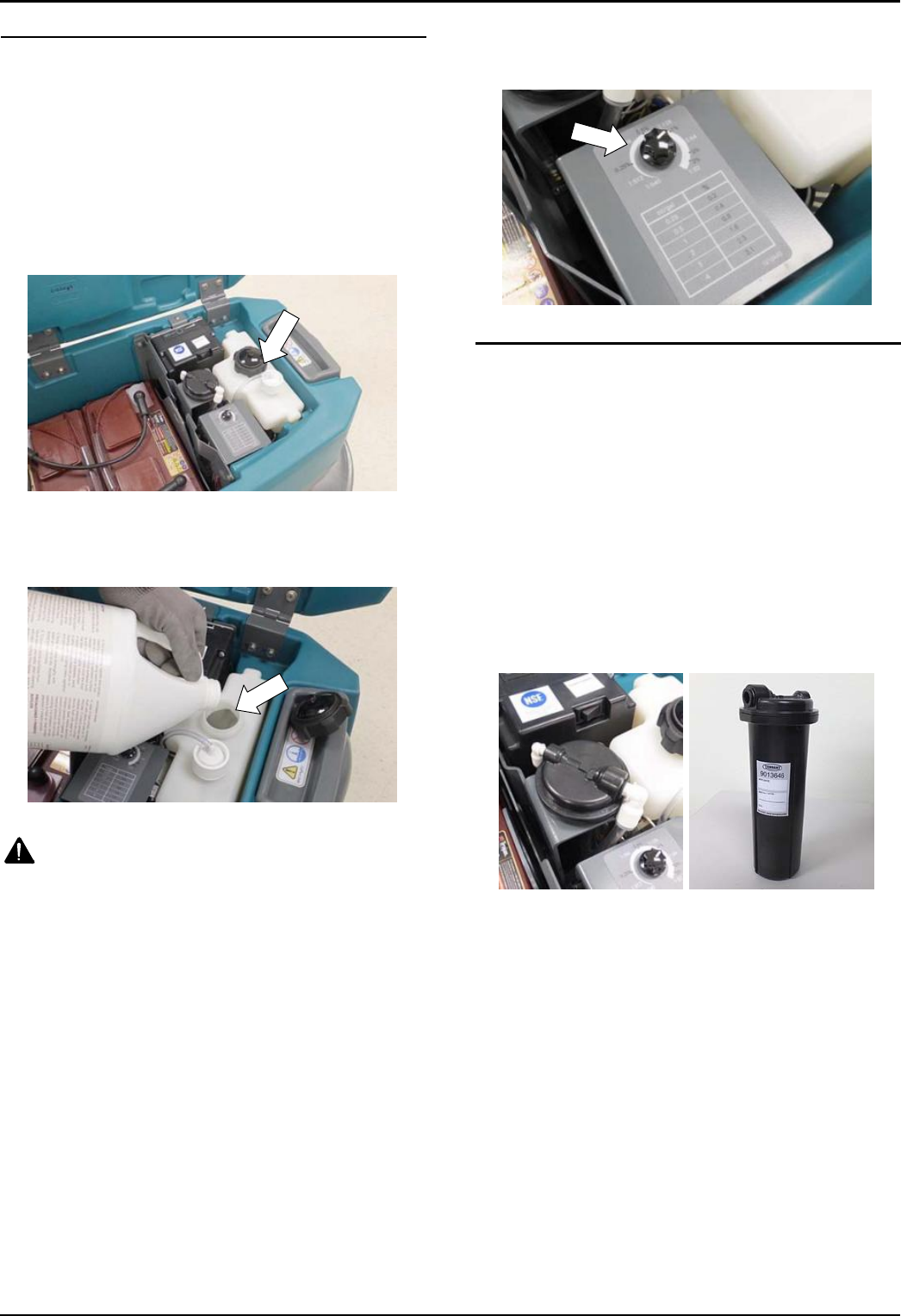

FILLING SEVERE ENVIRONMENT TANK
(T300 ec-H2O model Option) 17.............
ec-H2O NanoClean WATER CONDITIONING
CARTRIDGE (ec-H2O model) 17............

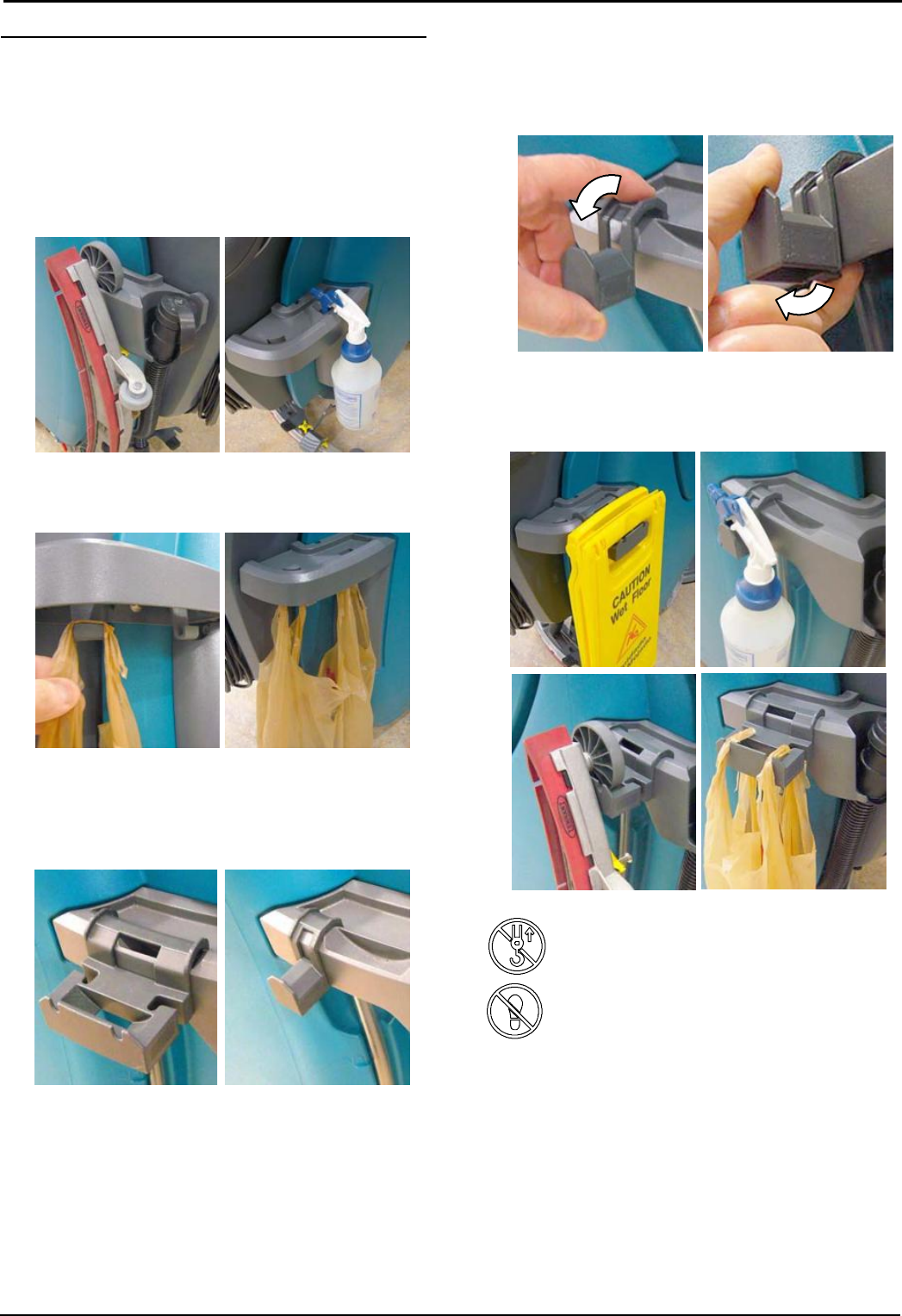

ACCESSORY RAILS 18.....................

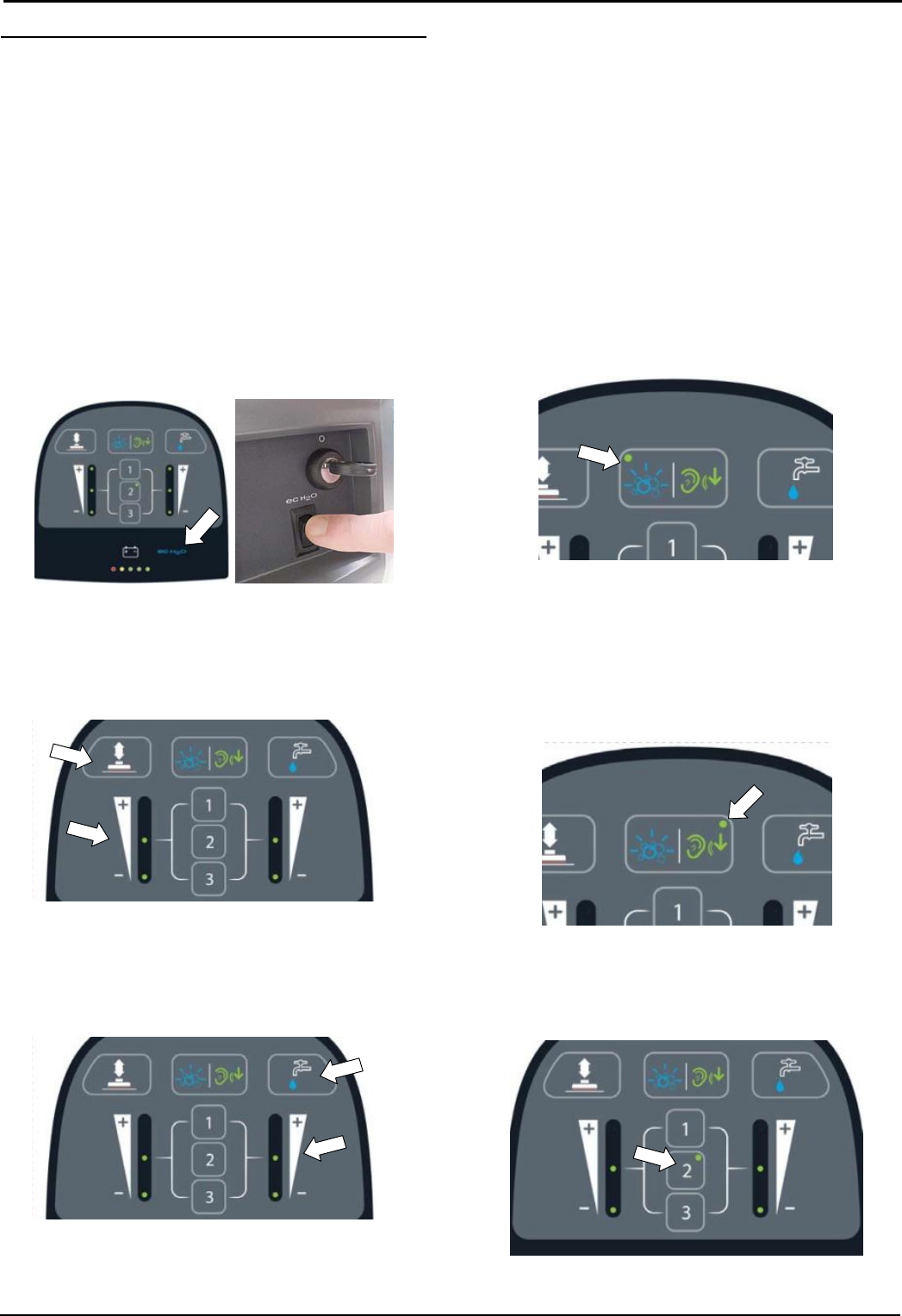

T300 CONTROL PANEL OPERATION 19........
T300 WITH MEMBRANE CONTROL PANEL
(Manual Down Pressure Model) 19...........
T300 WITH PRO-MEMBRANE
CONTROL PANEL 20......................

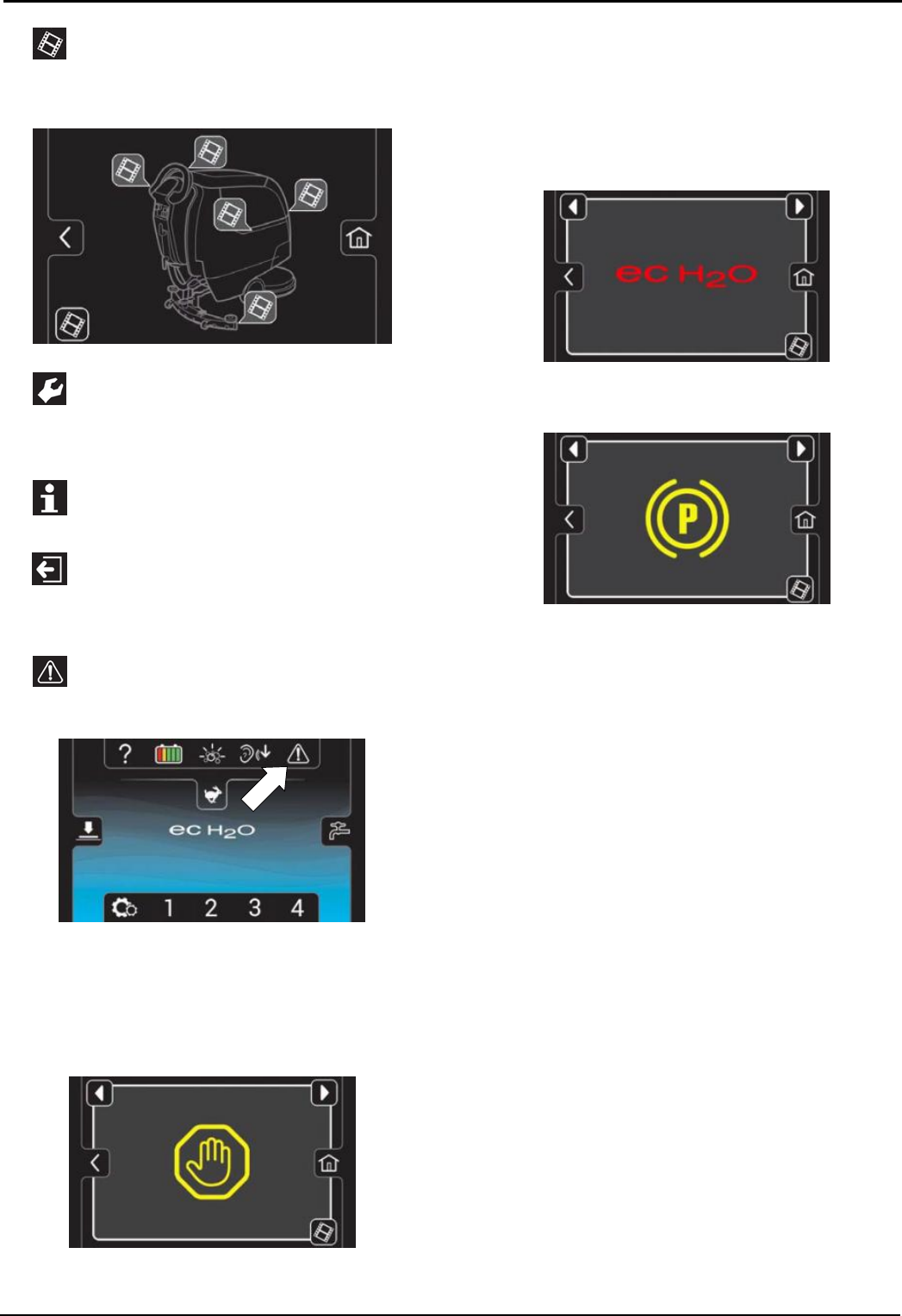

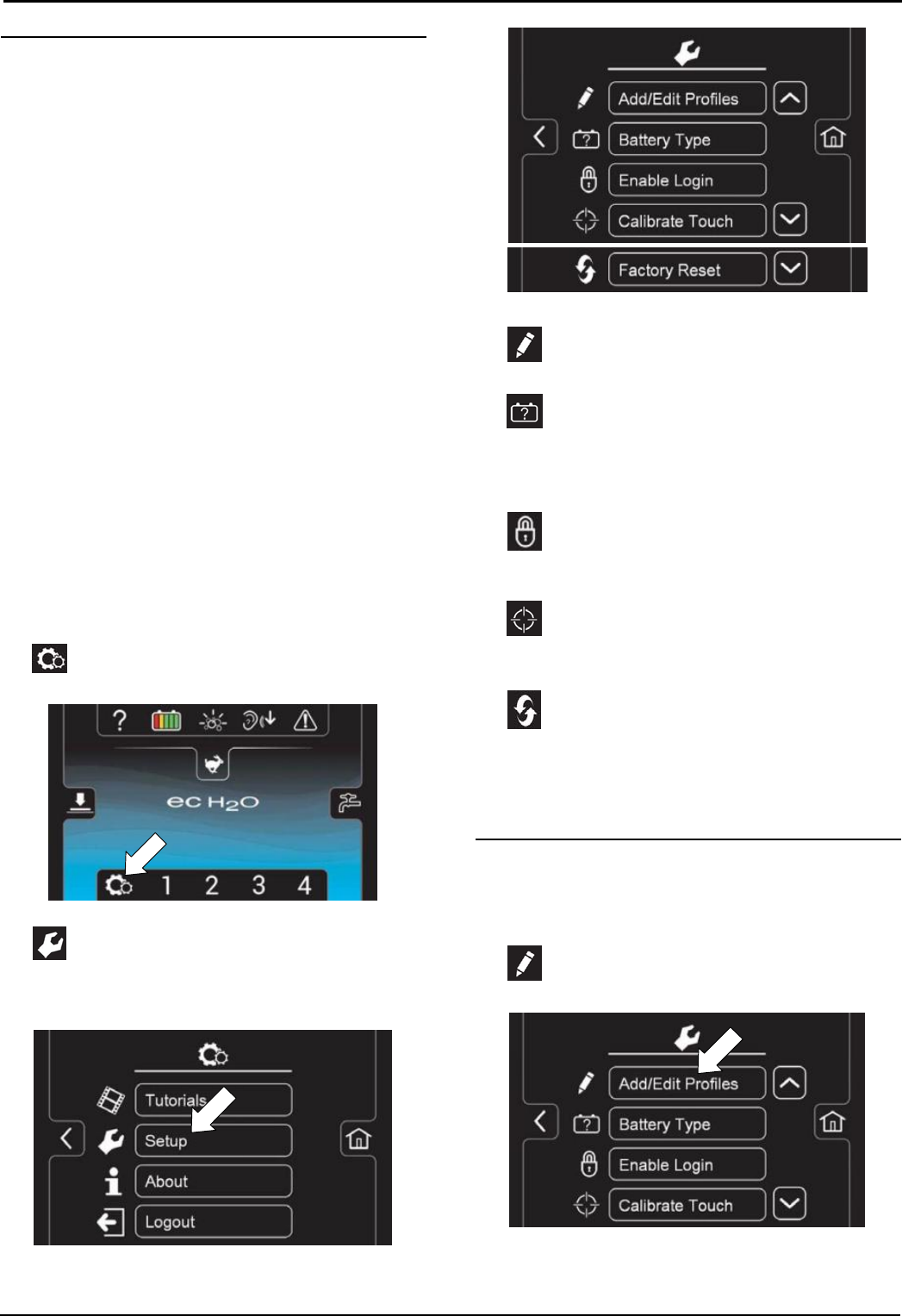

T300 MODEL WITH PRO- PANEL
CONTROLS 21............................
MACHINE OPERATION 25.....................
PRE-OPERATION CHECK LIST 25...........
OPERATING MACHINE 25..................
WHILE OPERATING MACHINE 27...........

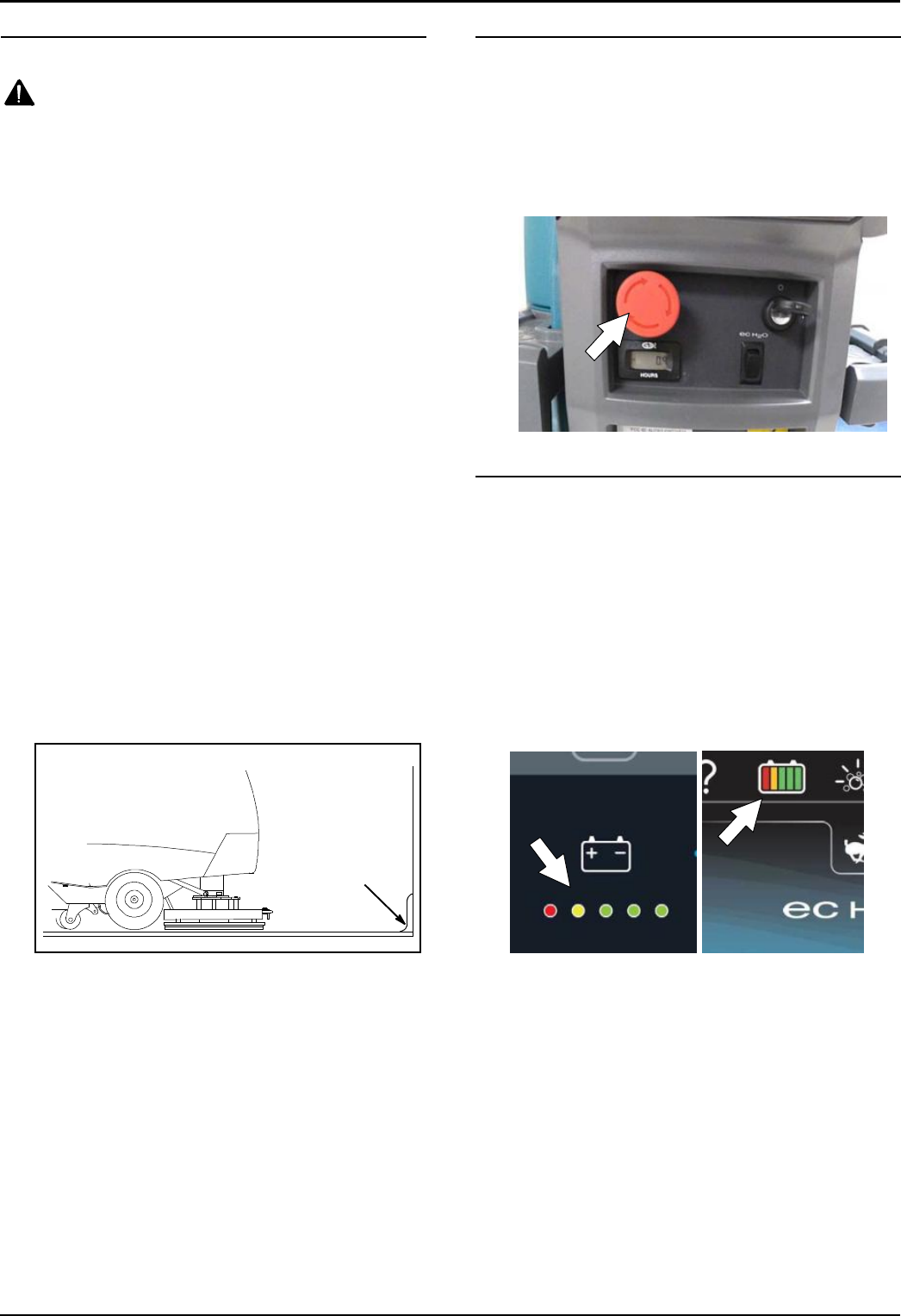

EMERGENCY SHUT-OFF BUTTON
(Drive models) 27..........................
BATTERY DISCHARGE INDICATOR 27.......
CIRCUIT BREAKER PANEL 28..............
HOUR METER 28..........................

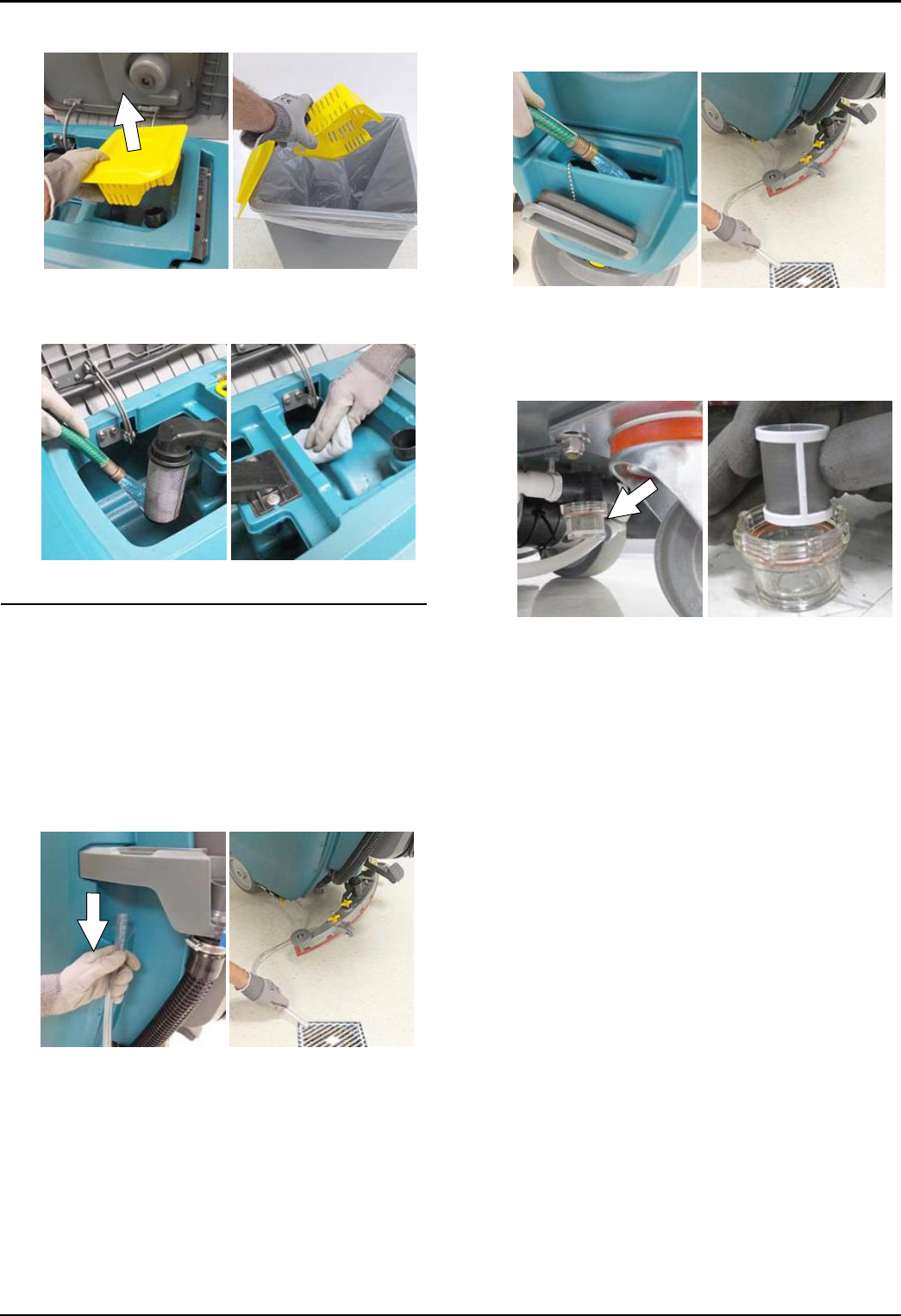

DRAINING TANKS 28..........................
DRAINING RECOVERY TANK 28............
DRAINING SOLUTION TANK 29.............

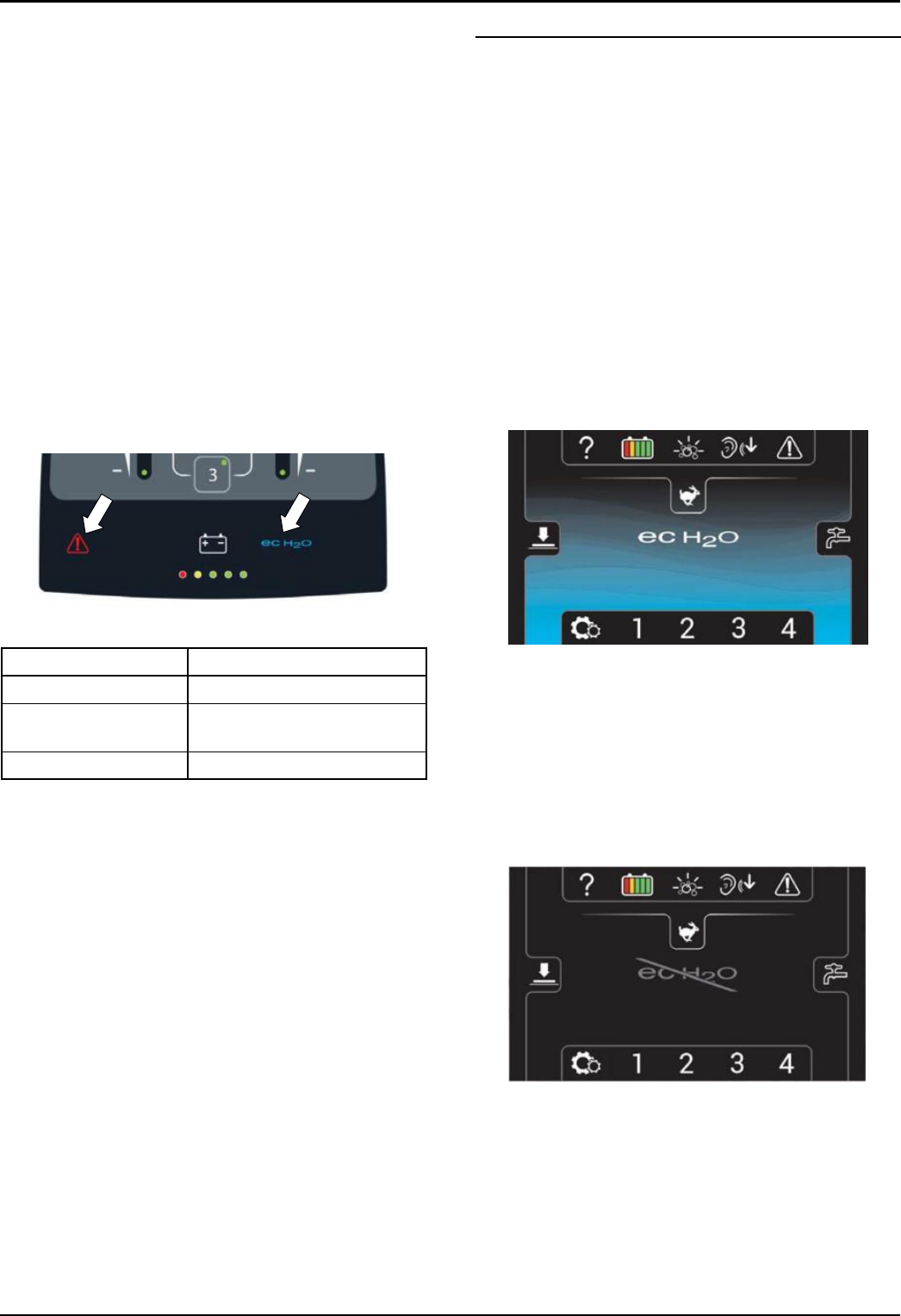

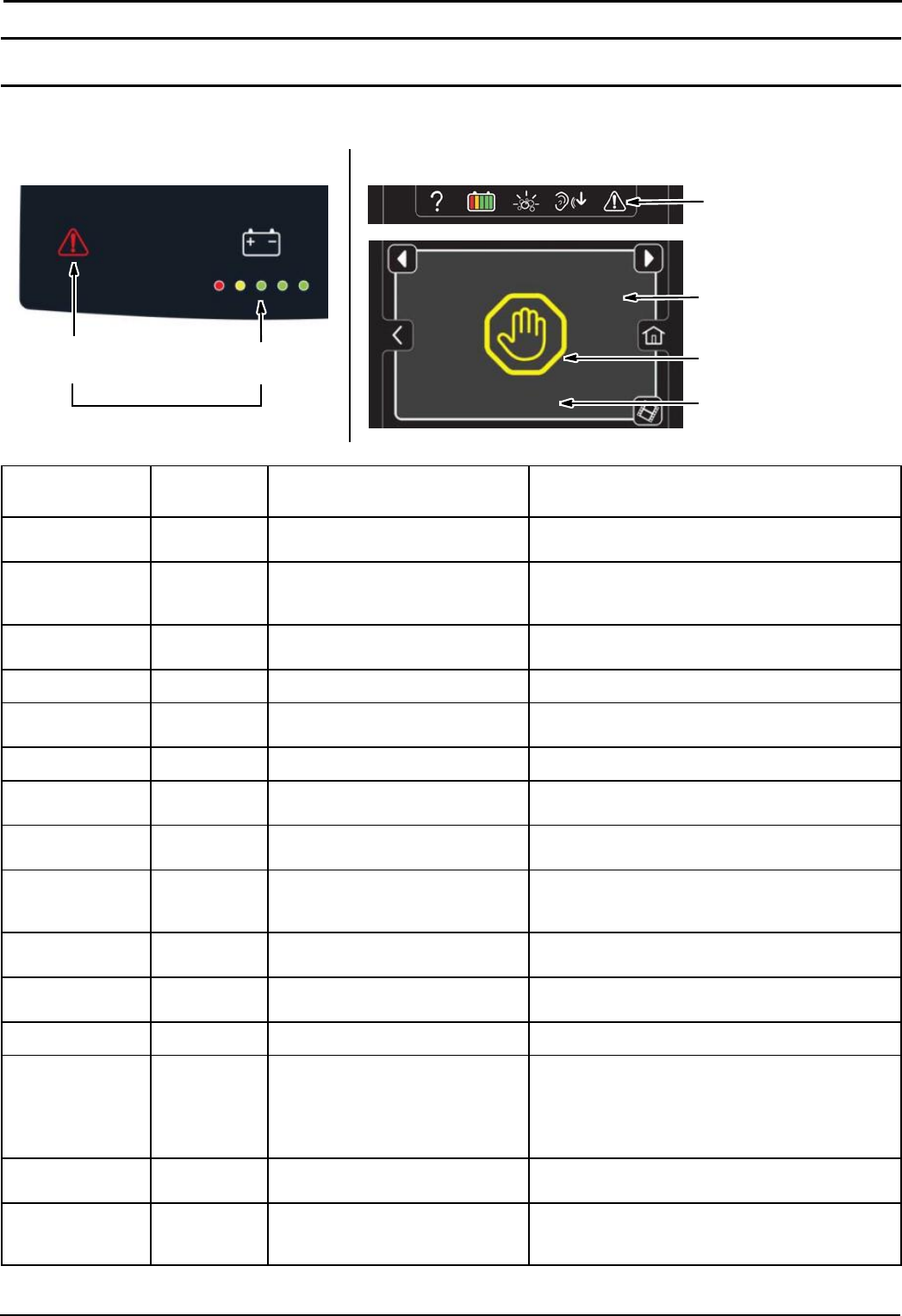

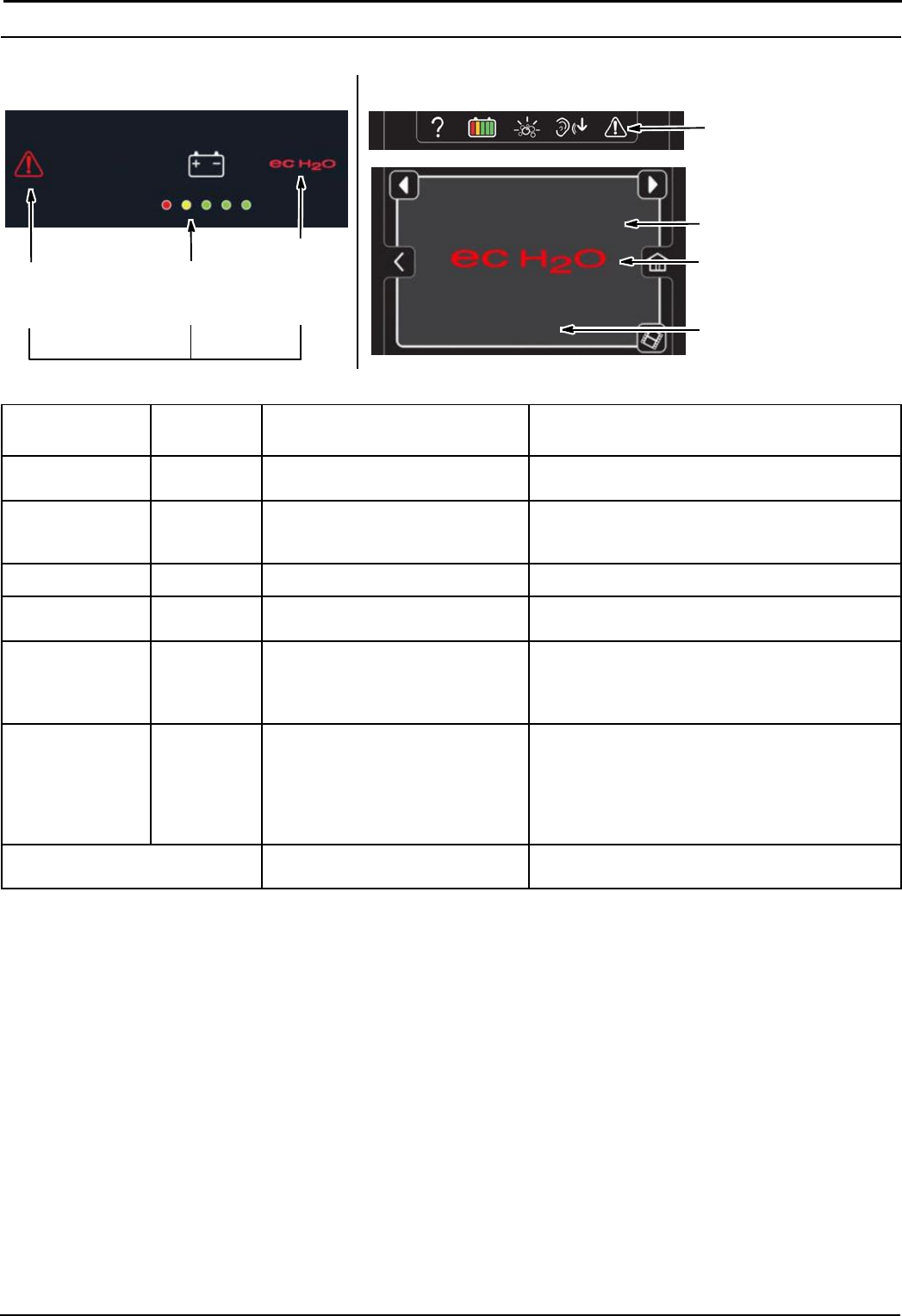

SERVICE INDICATOR CODES 30...............
ON-BOARD BATTERY CHARGER SERVICE
INDICATOR CODES 31....................
ec-H2O SYSTEM SERVICE
INDICATOR CODES 32....................
MAINTENANCE

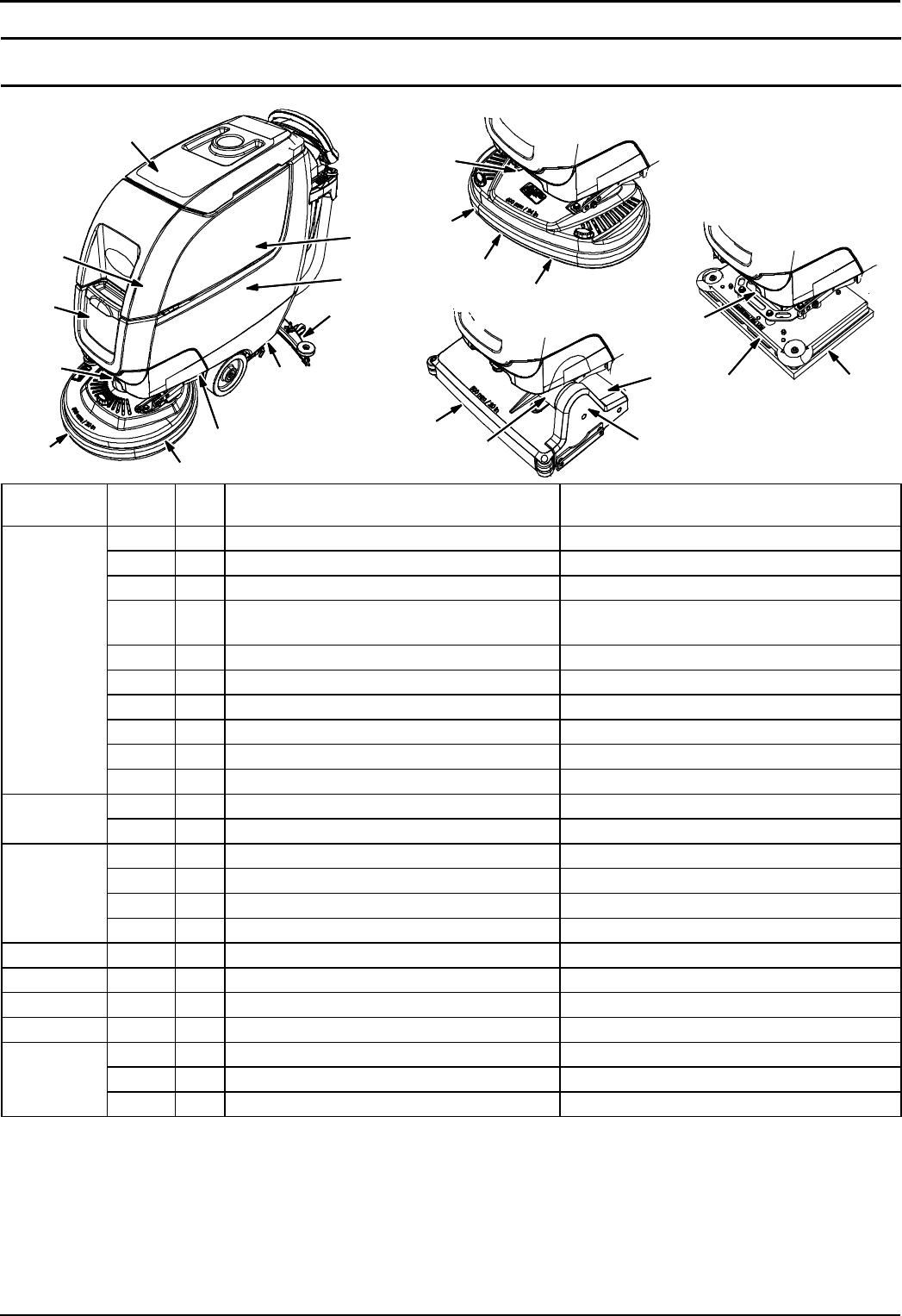

MAINTENANCE CHART 33.....................
MACHINE MAINTENANCE 34..................

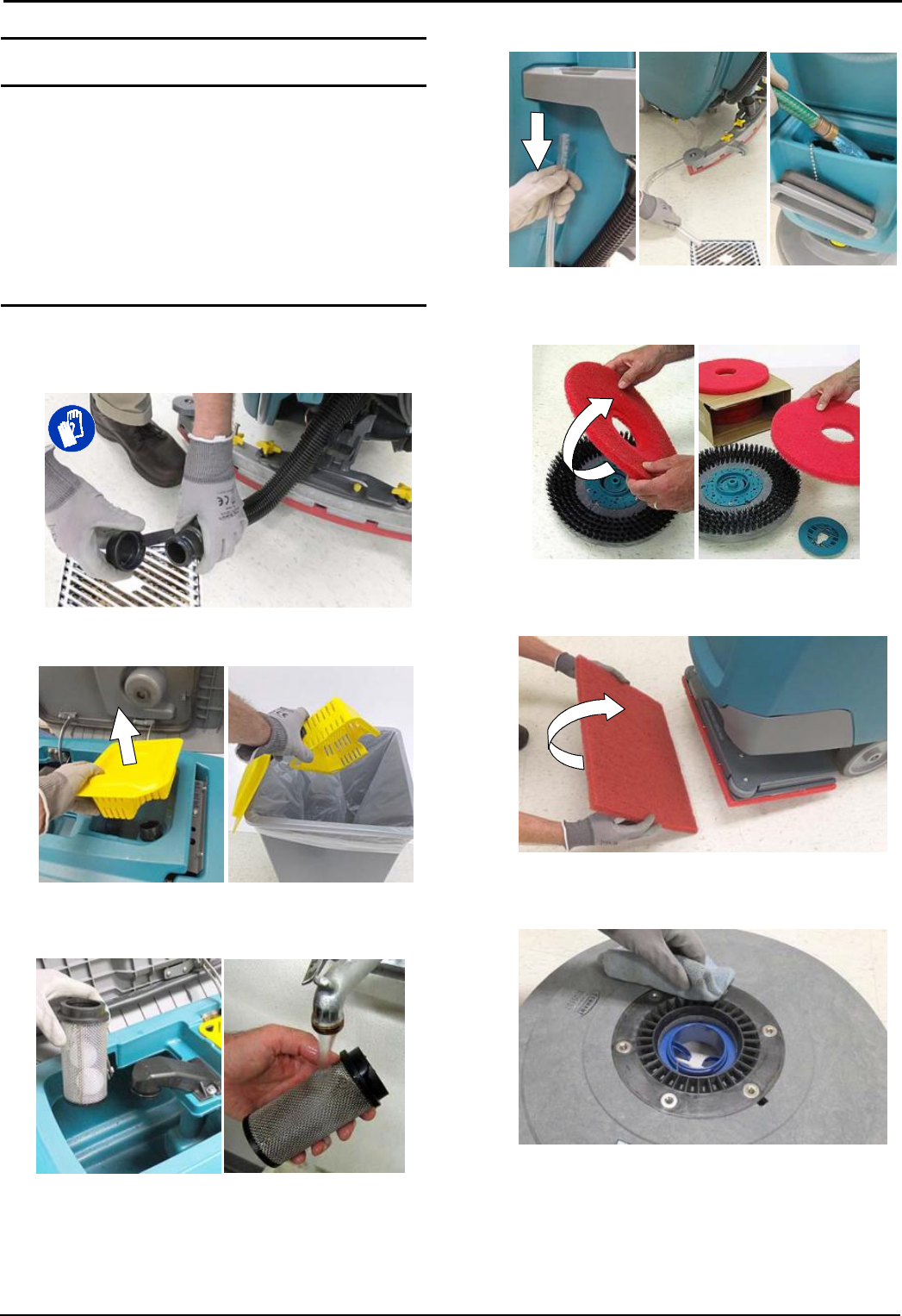

AFTER DAILY USE 34......................
AFTER WEEKLY USE 35...................
AFTER EVERY 50 HOURS OF USE 36.......
AFTER EVERY 100 HOURS OF USE 36......
ELECTRIC MOTORS 36....................

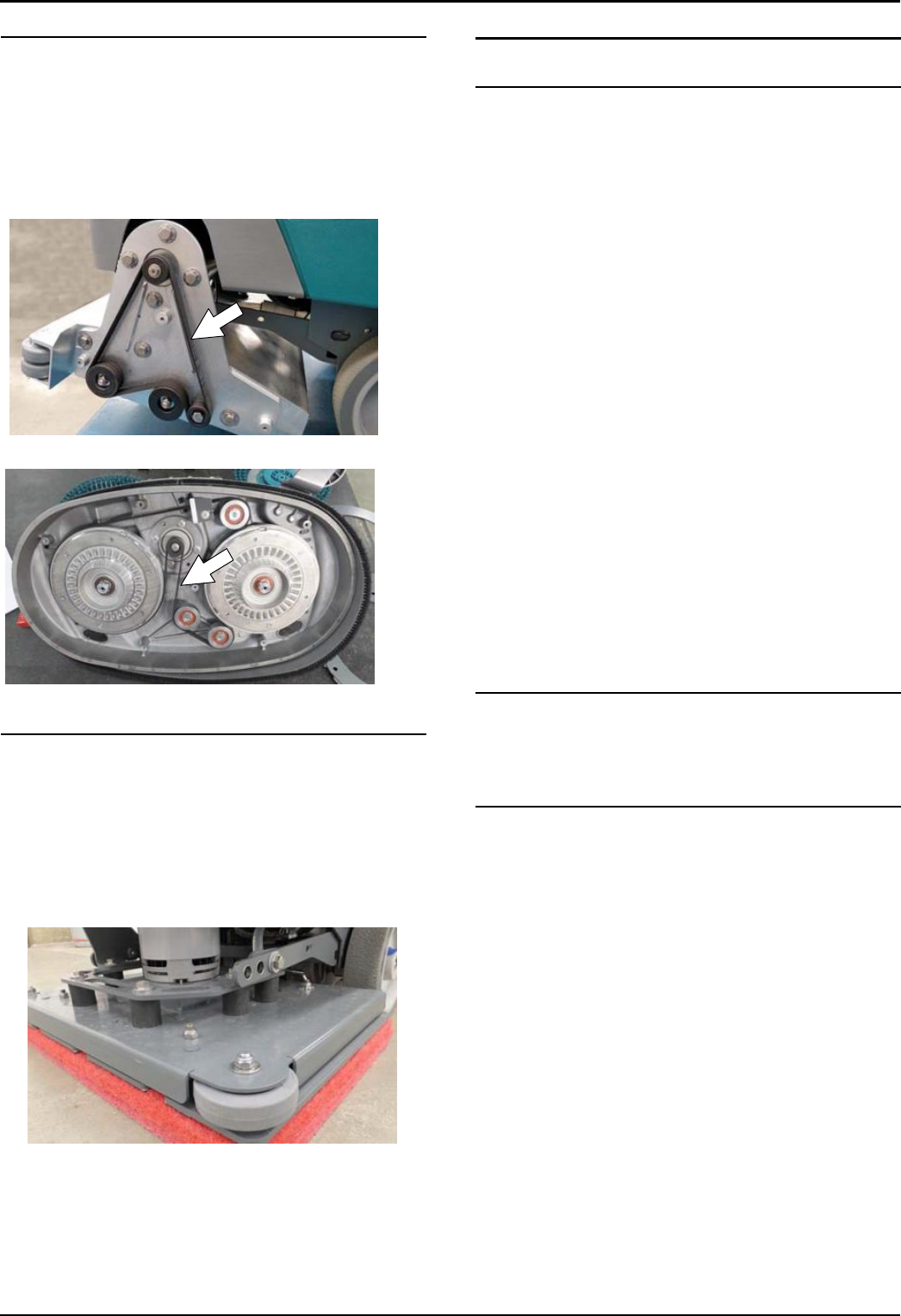

BELTS 37.................................
ORBITAL SCRUB HEAD ISOLATORS 37......
BATTERIES 37................................
MAINTENANCE FREE-BATTERIES 37.......
FLOODEDF (WET) LEAD-ACID BATTERIES 37
CHECKING CONNECTIONS / CLEANING 38..
CHARGING BATTERIES 38.................

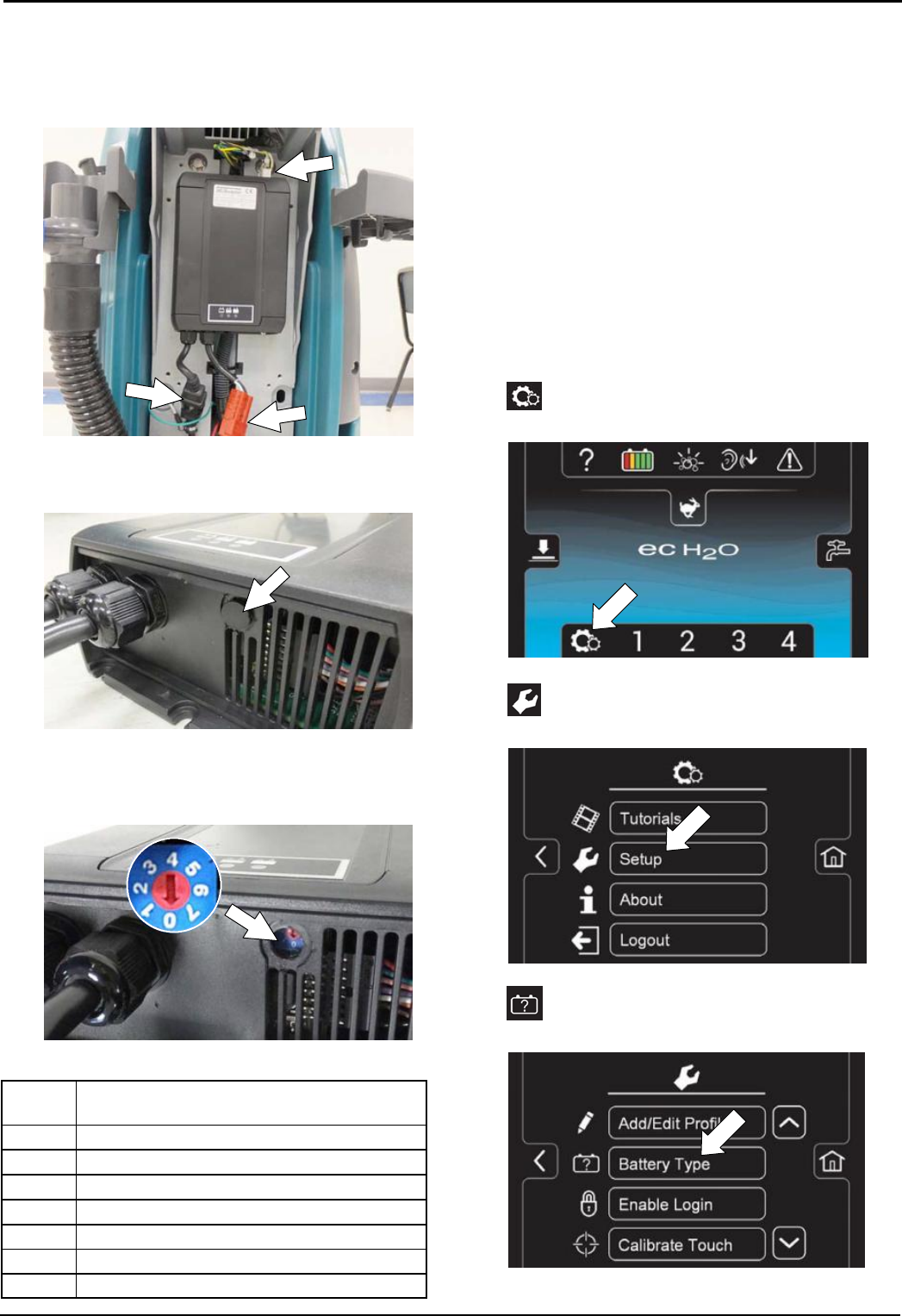

BATTERY CHARGER SETTINGS 39.........

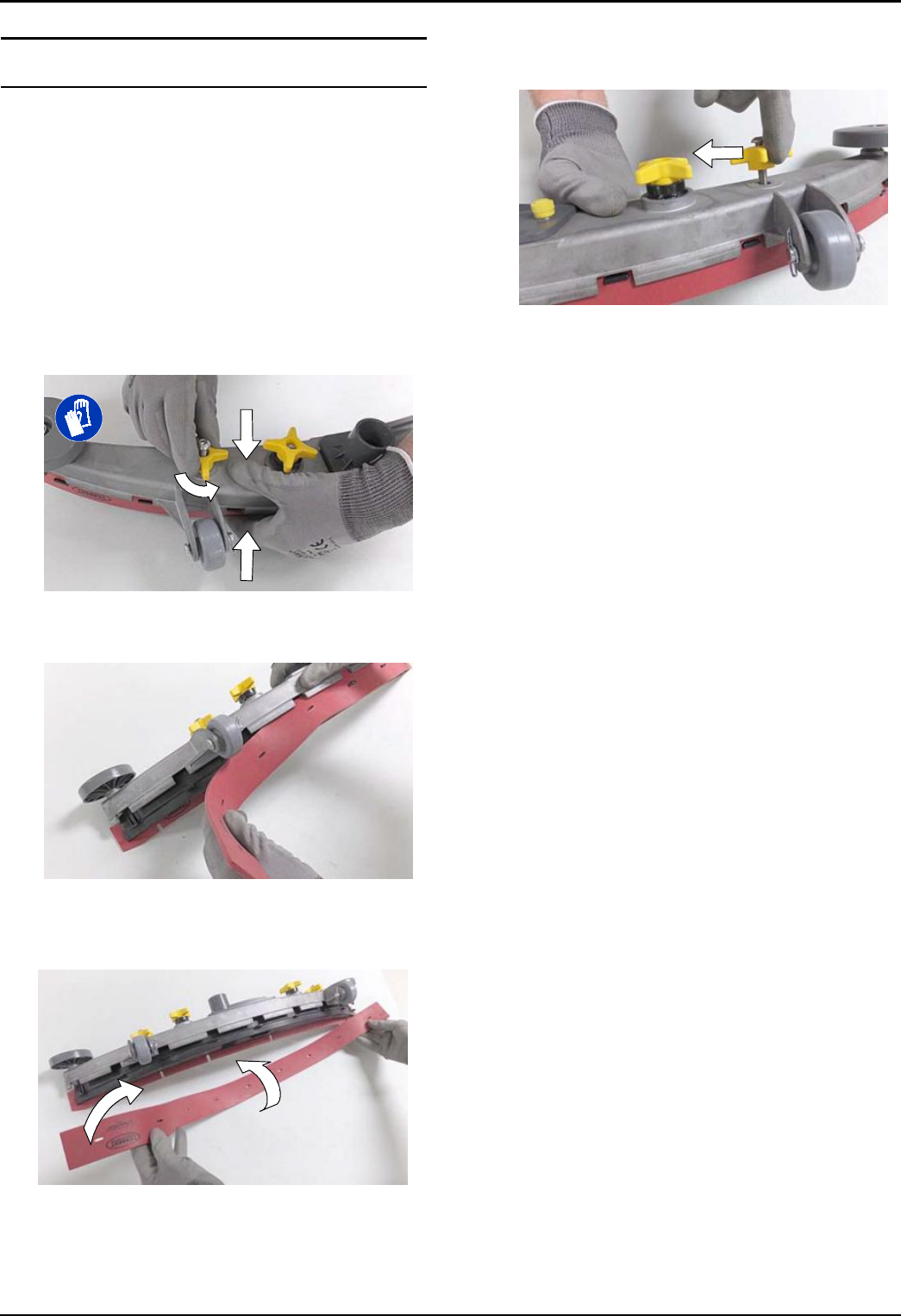

SQUEEGEE BLADE REPLACEMENT 41.........
ec-H2O NanoClean WATER CONDITIONING
CARTRIDGE REPLACEMENT 42...............

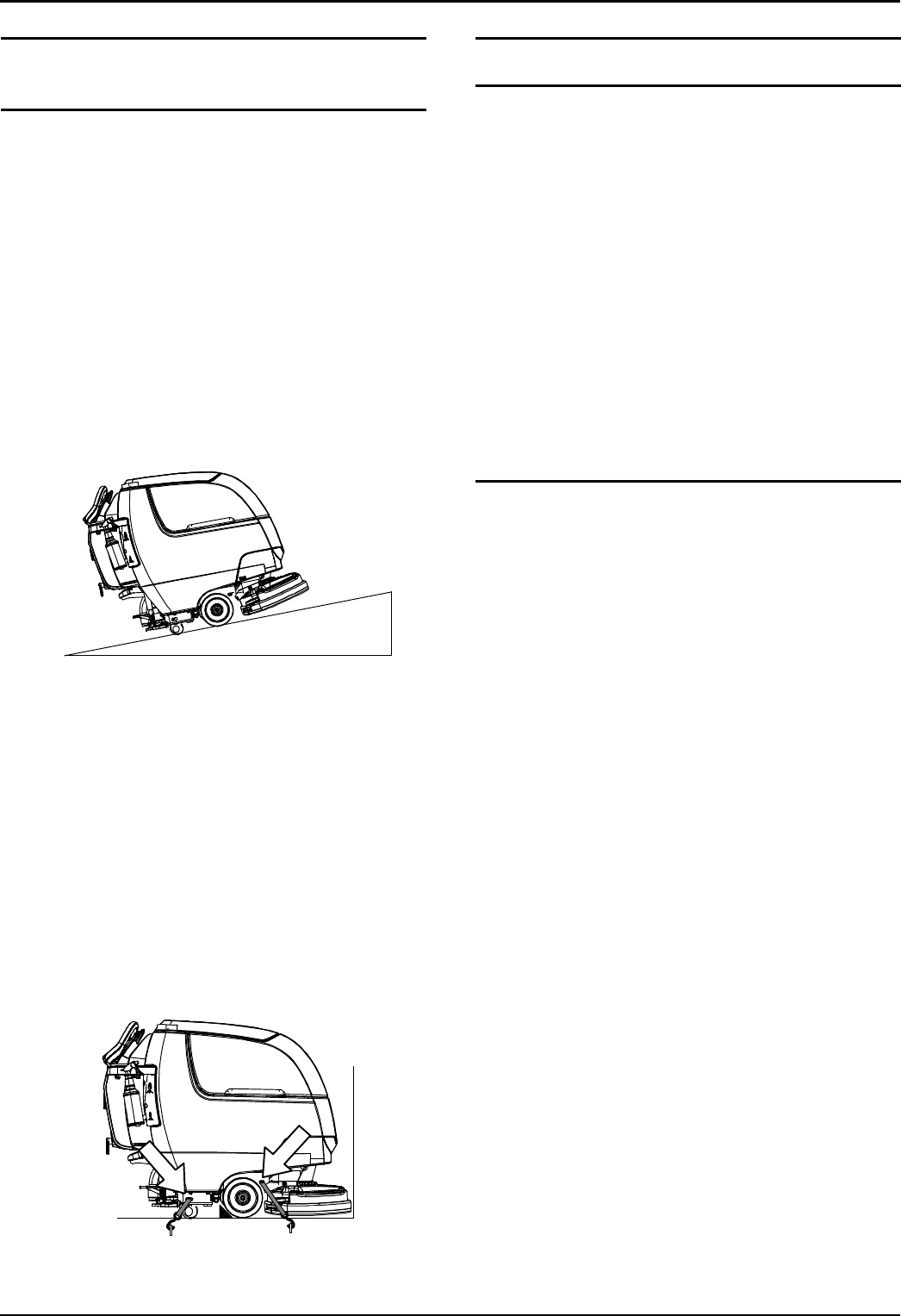

LOADING/UNLOADING MACHINE FOR
TRANSPORTING 43..........................
STORING MACHINE 43........................
Freeze Protection 43........................
TROUBLESHOOTING 44.......................
SPECIFICATIONS
GENERAL MACHINE
DIMENSIONS/CAPACITIES/PERFORMANCE 46..

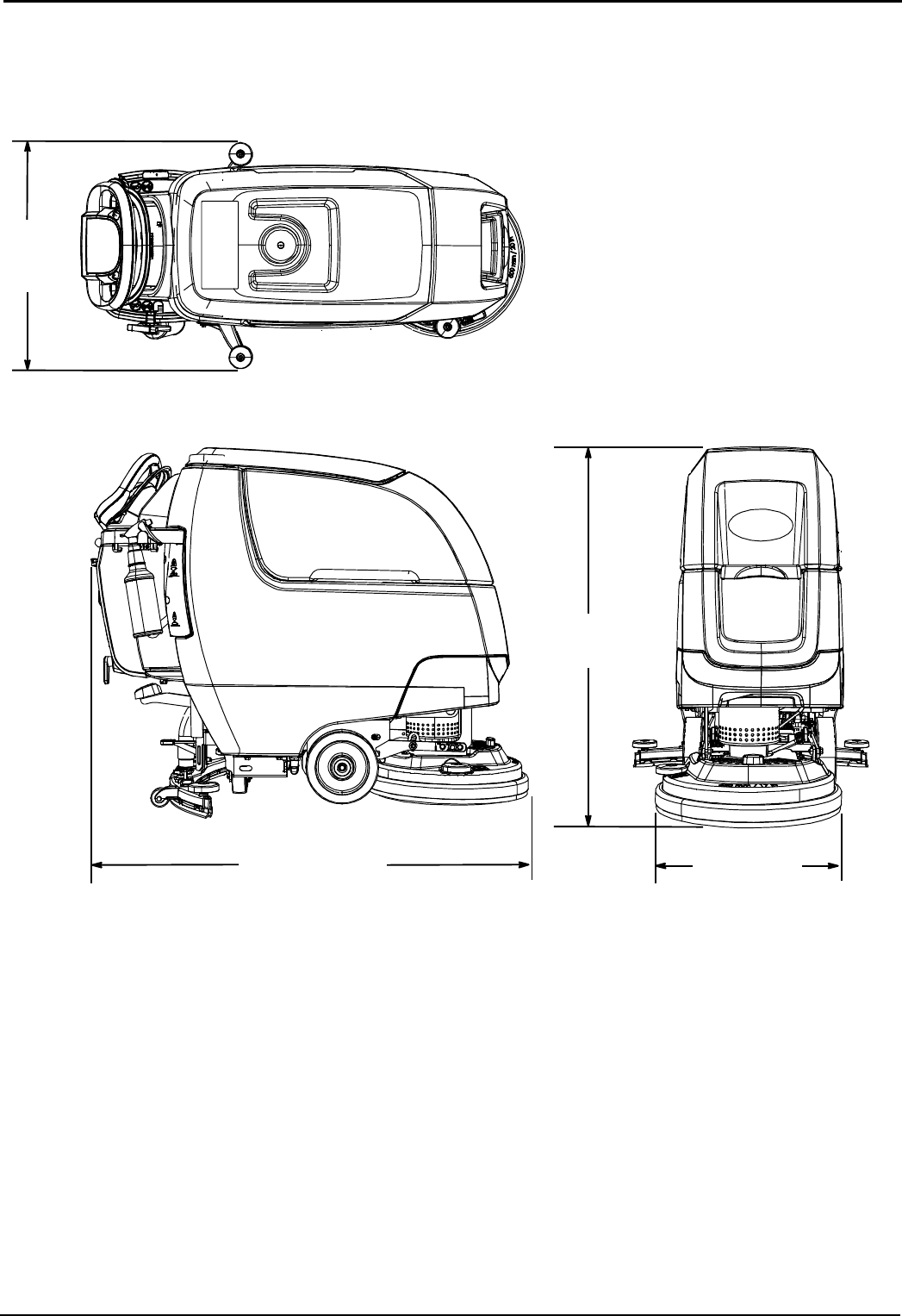

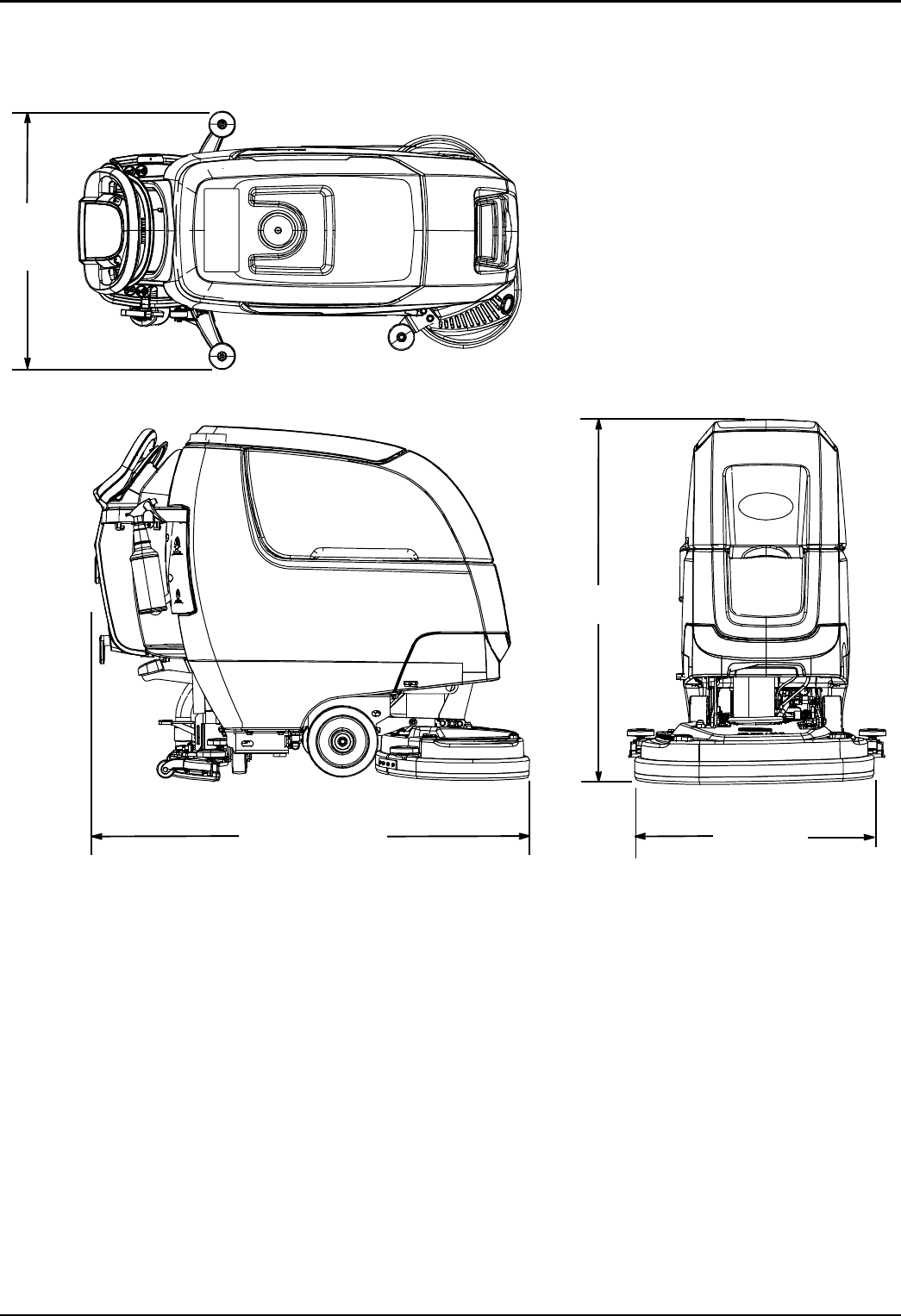

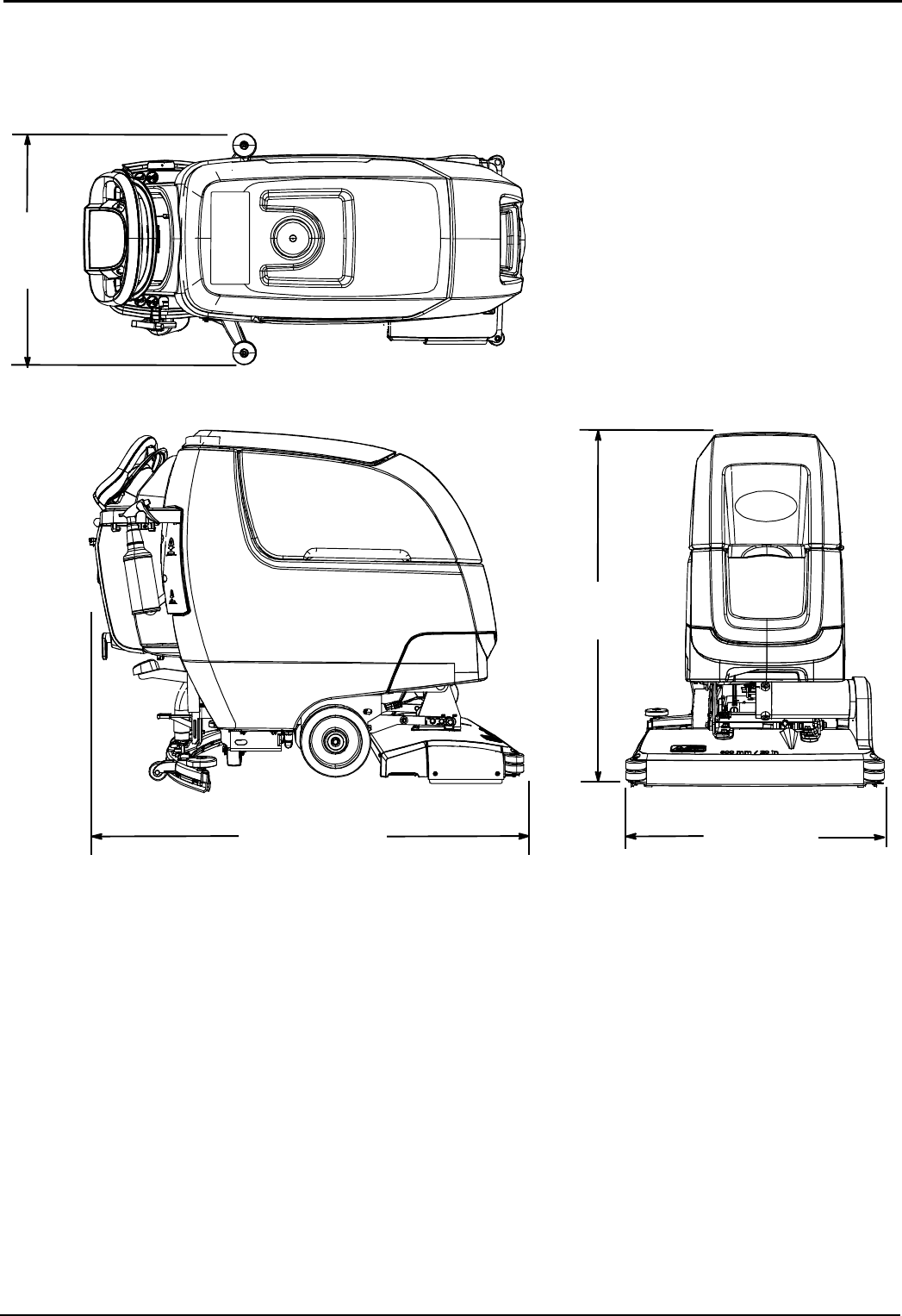

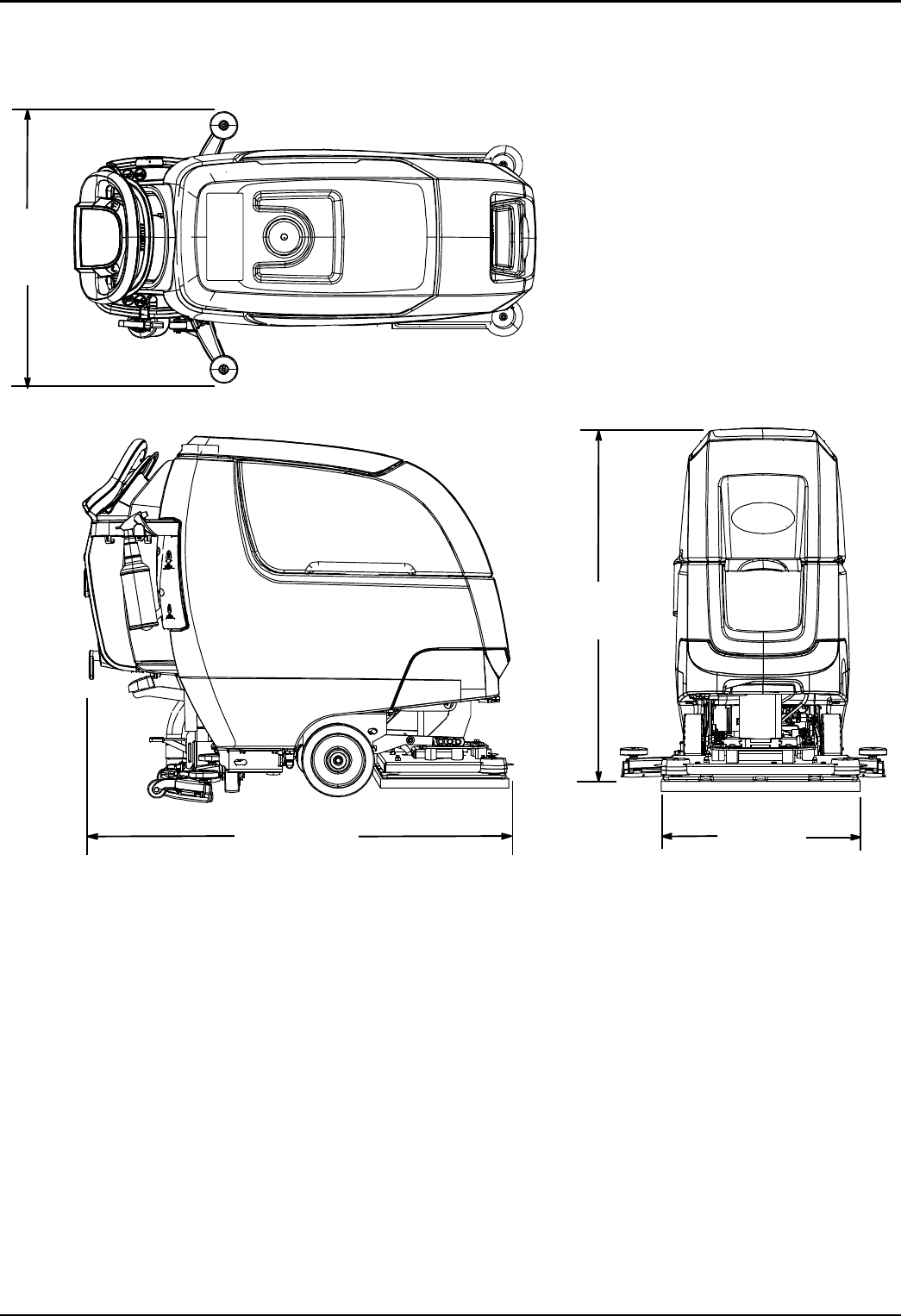

MACHINE DIMENSIONS 48....................

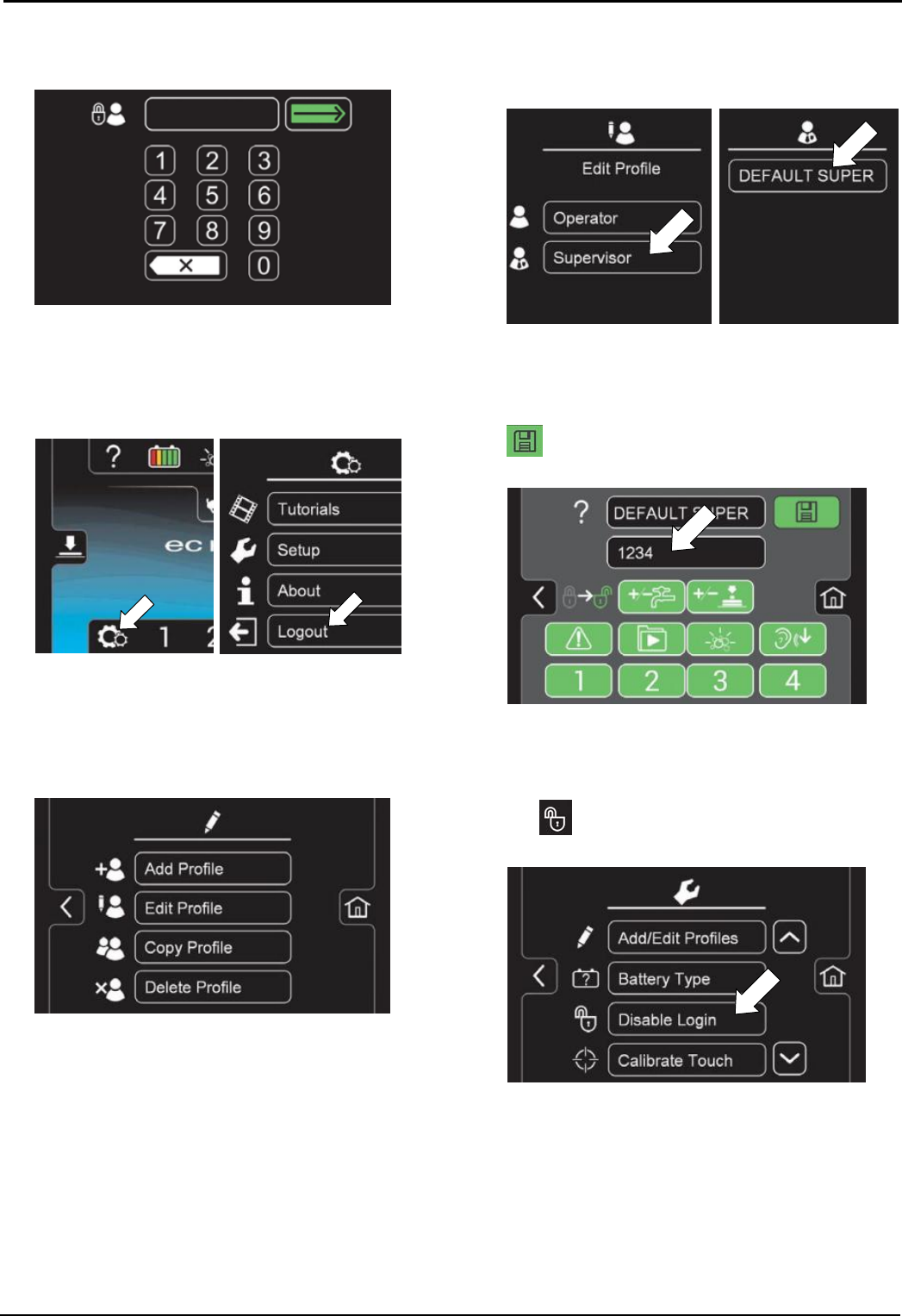

SUPERVISOR CONTROLS
SUPERVISOR CONTROLS 53..................
T300 MODEL WITH PRO-MEMBRANE
CONTROL PANEL 53......................
T300 MODEL WITH PRO-PANEL CONTROLS 54
OPERATION
4Tennant T300e/T300 (03- 2015)
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS
The following warning precautions are used throughout
this manual as indicated in their description:
WARNING: To warn of hazards or unsafe
practices which could result in severe personal
injury or death.
FOR SAFETY: To identify actions which must be
followed for safe operation of equipment.
The following information signals potentially
dangerous conditions to the operator. Know when
these conditions can exist. Locate all safety devices on
the machine. Report machine damage or faulty
operation immediately.
WARNING: To Reduce the Risk of Fire,
Explosion, Electric Shock or Injury:
- Read manual before operating machine.
- Do not use or pick up flammable materials.
- Do not use near flammable liquids, vapors or
combustible dusts.
This machine is not equipped with an
explosion proof motor. The electric motor will
spark upon start up and during operation
which could cause a flash fire or explosion if
machine is used in an area where flammable
vapors/liquids or combustible dusts are
present.
- Batteries emit hydrogen gas. Explosion or fire
can result. Keep sparks and open flame away
when charging.
- Disconnect battery cables and charger cord
before cleaning and servicing machine.
- Do not charge batteries with damaged cord. Do
not modify plug.
If the charger supply cord is damaged or
broken, it must be replaced by the
manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
- Do not use outdoors. Store indoors.
- Spinning pad/brush, keep hands away.
WARNING: Magnetic Field Hazard. Magnetic
pad driver/brush can be harmful to pacemaker
wearers or medical implants.
This machine may be equipped with technology
that automatically communicates over the cellular
network. If the machine will be operated where cell
phone use is restricted because of concerns
related to equipment interference, please contact a
Tennant representative for information on how to
disable the cellular communication functionality.
FOR SAFETY:
1. Do not operate machine:
- Unless trained and authorized.
- Unless operator manual is read and
understood.
- Unless mentally and physically capable of
following machine instructions.
- Under the influence of alcohol or drugs.
- While using a cell phone or other types of
electronic devices.
- If not in proper operating condition.
- In outdoor areas. This machine is for
indoor use only.
- In areas where flammable vapors/liquids or
combustible dusts are present.
- With pads or accessories not supplied or
approved by Tennant. The use of other
pads may impair safety.
- In areas with possible falling objects.
- In areas that are too dark to safely see the
controls or operate machine.
2. Before operating machine:
- Check machine for fluid leaks.
- Make sure all safety devices are in place
and operate properly.
3. When operating machine:
- Use only as described in this manual.
- Report machine damage or faulty operation
immediately.
- Wear closed- toe, non- slip work shoes.
- Reduce speed when turning.
- Go slowly on inclines and slippery
surfaces.
- Do not scrub on inclines that exceed 9%
grade or transport on inclines that exceed
21% grade.
- Follow site safety guidelines concerning
wet floors.
- Follow mixing, handling and disposal
instructions on chemical containers.
- Do not carry passengers on machine.
- Use care when reversing machine.
- Keep children and unauthorized persons
away from machine.
- Do not allow machine to be used as a toy.
OPERATION
Tennant T300e/T300 (03- 2015) 5
4. Before leaving or servicing machine:
- Stop on level surface.
- Set the parking brake, if equipped.
- Turn off machine and remove key.
5. When servicing machine:
- Disconnect battery connection and charger
cord before working on machine.
- All work must be done with sufficient
lighting and visibility.
- All repairs must be performed by trained
personnel.
- Use Tennant supplied or approved
replacement parts.
- Do not modify the machine from its original
design.
- Do not jack up machine.
- Avoid moving parts. Do not wear loose
clothing or jewelry and secure long hair.
- Do not disconnect the off- board charger’s
DC cord from the machine’s receptacle
when the charger is operating. Arcing may
result. If the charger must be interrupted
during charging cycle, disconnect the AC
power supply cord first.
- Do not use incompatible battery chargers
as this may damage battery packs and
potentially cause a fire hazard.
- Inspect charger cord regularly for damage.
- Keep work area well ventilated.
- Avoid contact with battery acid.
- Keep all metal objects off batteries.
- Do not power spray or hose off machine.
- Use a hoist or adequate assistance when
lifting batteries.
- Battery installation must be done by trained
personnel.
- Wear personal protection equipment as
needed and where recommended in this
manual.
For Safety: wear protective gloves.
For Safety: wear eye protection.
6. When loading/unloading machine onto/off
truck or trailer:
- Drain tanks before loading machine.
- Use a ramp, truck or trailer that can support
the machine weight and operator.
- Do not operate the machine on a ramp
incline that exceeds a 21% grade level.
- Use a winch if ramp incline exceeds a 21%
grade level.
- Lower the scrub head and squeegee before
tying down machine.
- Turn machine off and remove key.
- Set parking brake (if equipped).
- Block machine wheels.
- Use tie- down straps to secure machine.
OPERATION
6Tennant T300e/T300 (03- 2015)
SAFETY LABELS
The safety labels appear on the machine in the locations indicated. Replace labels if they are missing or become
damaged or illegible.
WARNING LABEL -
Do not charge
batteries with
damaged cord.
Electric shock can
result. Disconnect
charger cord before
servicing.
Located on control
console.
WARNING LABEL -
Batteries emit
hydrogen gas.
Explosion or fire
can result. Keep
sparks and open
flameawaywhen
charging.
Located on control
console and bottom
side of recovery tank.
WARNING LABEL - Electrical
Hazard. Disconnect battery
cables before servicing
machine.
Located on circuit board panel.
WARNING LABEL -
Spinning pad. Keep
hands away.
Located on disk scrub
head model.
WARNING LABEL -
Magnetic field hazard. Magnetic pad
driver/brush can be harmful to
pacemaker wearers or medical implants.
Located on Insta-Click magnetic pad
driver/brush.
WARNING LABEL -
Flammable
materials or
reactive metals can
cause an explosion
or fire. Do not pick
up.
Located near control
console.
WARNING LABEL -
Flammable
materials can cause
explosion or fire. Do
not use flammable
materials in tank(s).
Located on backside
of solution tank cover.
FOR SAFETY
LABEL - Read
manual before
operating
machine.
Located near
control console.
WARNING LABEL - Spinning
brush. Keep hands away.
Located on cylindrical scrub
head model.
OPERATION
Tennant T300e/T300 (02- 2016) 7
MACHINE COMPONENTS
15
1
17 in / 43cm
Disk 20 in / 50cm
Disk 24 in / 60cm
Dual Disk 20 in / 50cm
Cylindrical 20 in / 50cm
Orbital
Scrub Head Types
2
4
3
5
6
7
26
8
9
10
11
12
14 16
17
20
21
23
18
19
24
25
27
22
13
26
1. Cup holder/tray
2. Recovery tank lid
3. Recovery tank
4. Solution tank fill-port
5. Solution tank
6. Scrub head
7. Battery compartment
8. Accessory rail(s)
9. On-board battery charger cord hooks
10. Scrub head lift pedal
11. Squeegee foot pad
12. Squeegee assembly
13. Control handle
14. Control handle start bail
15. Speed control knob (drive model)
16. Forward/Reverse lever (drive model)
17. Control panel display
18. Emergency stop button
19. Hour meter
20. Key switch
21. ec-H2O on/off switch (option)
22. Off-board battery charger receptacle
23. Recovery tank drain hose
24. Solution tank level/drain hose
25. Parking brake
26. Dual down pressure lever (T300e option and
T300 manual down pressure model)
27. Solution flow control knob (T300e)
OPERATION
8Tennant T300e/T300 (02- 2016)
MACHINE SYMBOLS
Solution flow (T300e)
ec-H2O scrubbing (option)
Circuit breaker
Do not lift by accessory rails
No step
Dual down pressure
(T300e and T300 manual
down pressure models)
No detergent (ec-H2O option)
Water temperature (ec-H2O option)
Battery charge
Fast speed (drive model)
Slow speed (drive model)
Parking brake
Forward / Reverse (drive model)
On
Off
No Solution flow (T300e)
OPERATION
Tennant T300e/T300 (03- 2015) 9
CONTROL PANEL COMPONENTS
T300e Model Control Panel
3
12 4
1. Service indicator - Lights up when a machine or
charger fault is detected.
2. Parking brake indicator - Lights up when parking
brake lever is engaged. To turn off indicator,
disengage parking brake lever near left rear wheel.
3. Battery discharge indicator (BDI) - The battery
discharge indicator serves two functions. In normal
scrub mode it displays the charge level of the
batteries. It also, in conjunction when the service
indicator is flashing, provides specific LED codes
when a machine or charger fault is detected.
4. ec-H2O indicator (Option) - Lights up blue when
ec-H2O system is activated and operating
normally.
T300 Model with Membrane Control Panel
(Manual down pressure model)
3
12 4
7
8
56
1. Service indicator - Lights up when a machine or
charger fault is detected.
2. Parking brake indicator - Lights up when parking
brake lever is engaged. To turn off indicator,
disengage parking brake lever near left rear wheel.
3. Battery discharge indicator (BDI) - The battery
discharge indicator serves two functions. In normal
scrub mode it displays the charge level of the
batteries. It also, in conjunction when the service
indicator is flashing, provides specific LED codes
when a machine or charger fault is detected.
4. ec-H2O indicator (Option) - Lights up blue when
ec-H2O system is activated and operating
normally.
5. Severe Environment on/off button (ec-H2O
Model Option) - Press button to dispense
cleaning detergent as needed for excessive soil
buildup while operating.
6. Quiet mode on/off button (Option) -Press
button to reduce the vacuum motor sound for noise
restricted areas.
7. Solution flow adjustment button - Press button
to adjust the solution flow setting from low,
medium, high or to turn off solution flow.
8. Solution flow indicator - Displays solution flow
setting.
OPERATION
10 Tennant T300e/T300 (02- 2016)
T300 Model with Pro-Membrane Control Panel
(Actuated Down Pressure Model)
3
12 4
5
6
78
9
10
11
1. Service indicator - Lights up when a machine or
charger fault is detected.
2. Parking brake indicator - Lights up when parking
brake lever is engaged. To turn off indicator,
disengage parking brake lever near left rear wheel.
3. Battery discharge indicator (BDI) - The battery
discharge indicator serves two functions. In normal
scrub mode it displays the charge level of the
batteries. It also, in conjunction when the service
indicator is flashing, provides specific LED codes
when a machine or charger fault is detected.
4. ec-H2O indicator (Option) - Lights up blue when
ec-H2O system is activated and operating
normally.
5. Down pressure adjustment button -Press
button to adjust the down pressure from low,
medium or high.
6. Down pressure indicator - Displays down
pressure setting.
7. Severe Environment on/off button (ec-H2O
Model Option) - Press button to dispense
cleaning detergent as needed for excessive soil
buildup while operating.
8. Quiet mode on/off button (Option) -Press
button to reduce the vacuum motor sound for noise
restricted areas.
9. Solution flow adjustment button - Press button
to adjust the solution flow setting from low,
medium, high or to turn off solution flow.
10. Solution flow indicator - Displays solution flow
setting.
11. Zone Settings buttons - Machine comes with
three factory default Zone Settings for quick
operation. The factory zone settings are configured
with different solution flow rates, down pressures
and maximum scrub speeds.

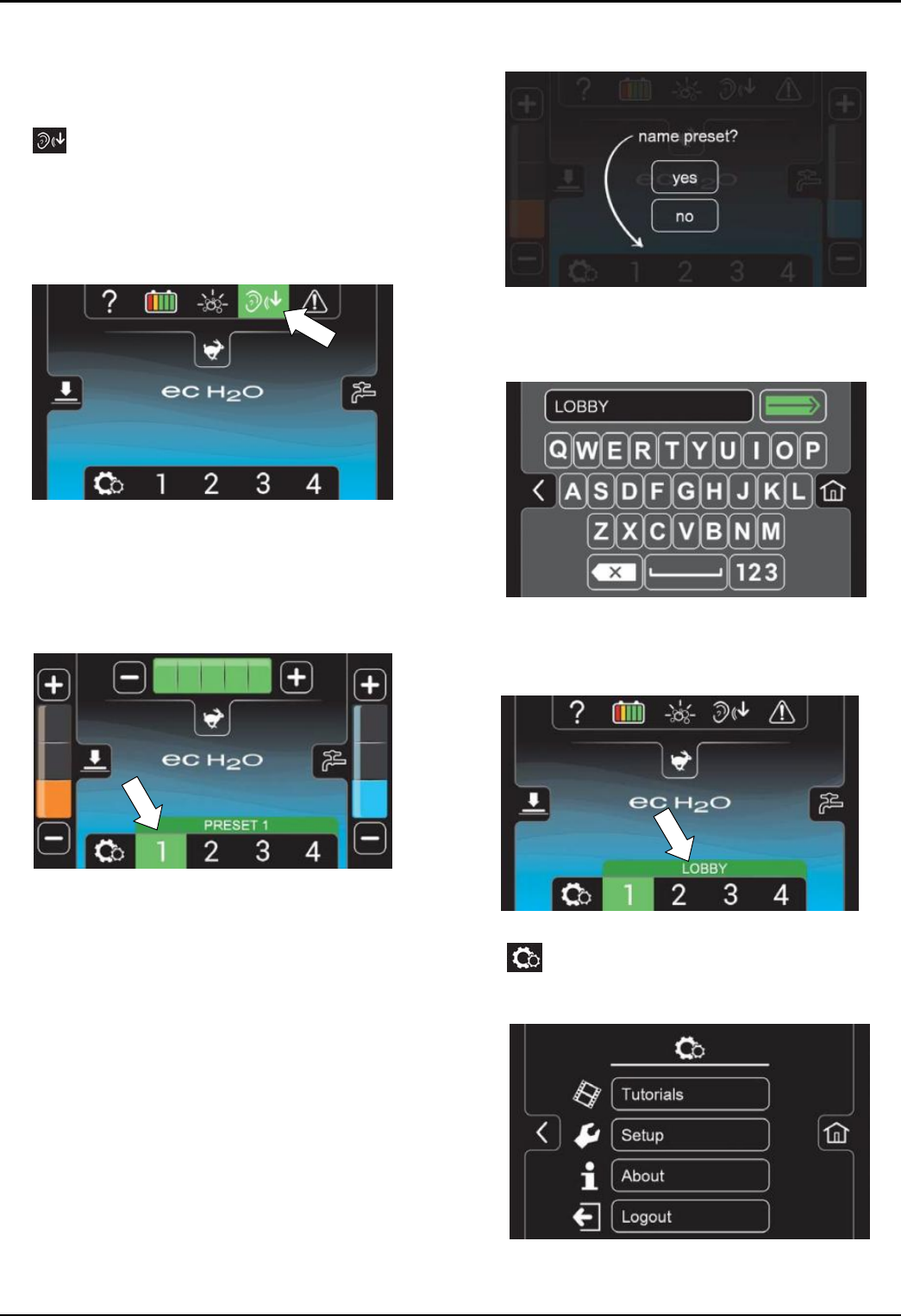

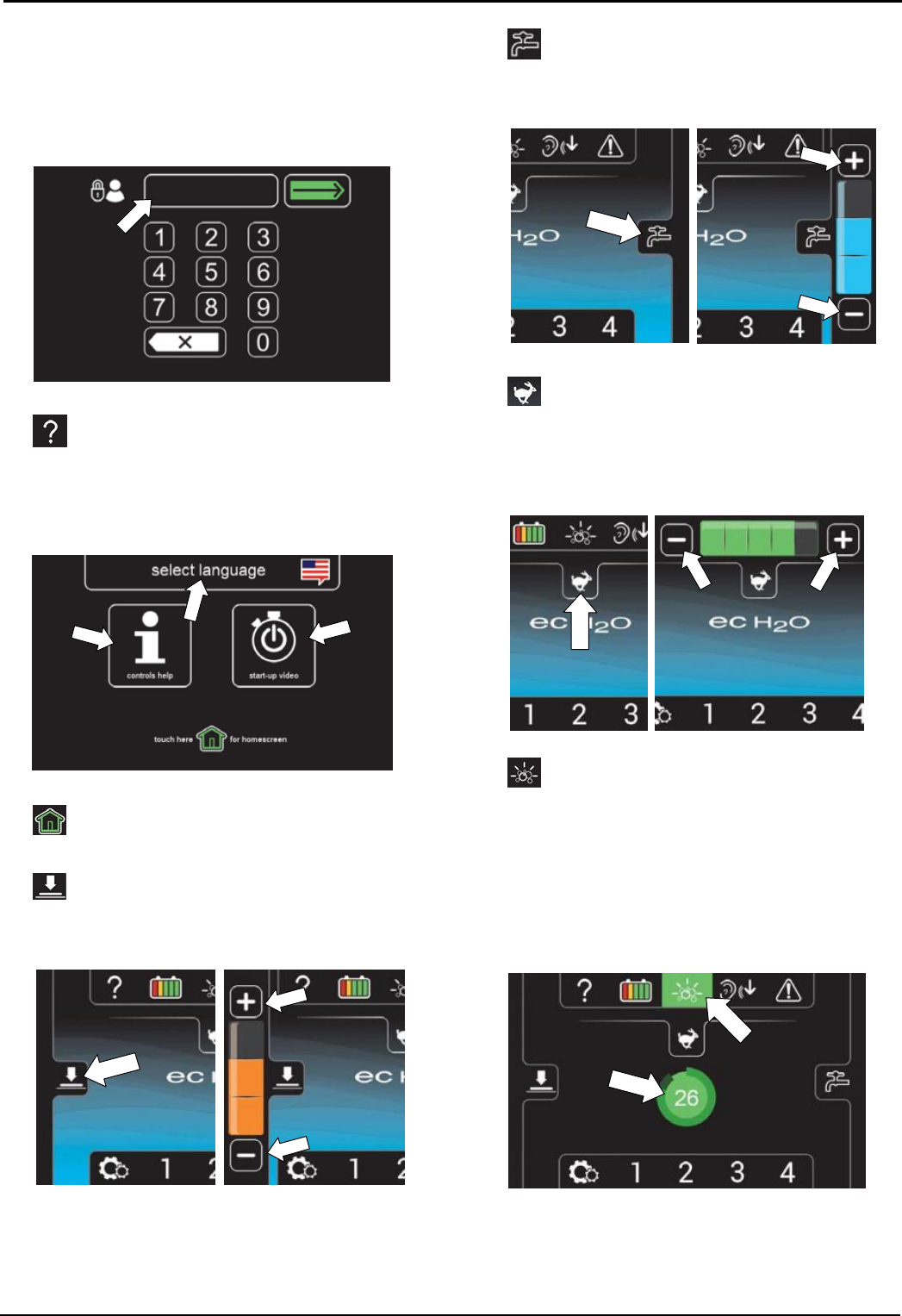

T300 Model with Pro-Panel Controls
(LCD - Liquid Crystal Display)
10
1
7
23 5
8
9
4
11
6
1. Help icon - For first time users. Use to select
display language, identify control panel symbols
and view start-up videos.
2. Battery discharge indicator (BDI) - Displays the
discharge level of batteries.
3. Severe Environment icon (ec-H2O Model
Option) - Press icon to dispense cleaning
detergent as needed for excessive soil buildup.
4. Quiet mode icon (Option) - Press icon to reduce
the vacuum motor sound for noise restricted areas.
5. Service indicator - Lights up and begins flashing
when a machine or charger fault is detected.
6. Maximum scrub speed icon -Pressiconto
adjust the maximum scrubbing speed. Supervisor
mode accessible only.
7. Down pressure Icon - Press icon to adjust the
down pressure setting from low, medium to high.
8. Solution flow icon - Press icon to adjust the
solution flow setting from low, medium, high or to
turn off solution flow.
9. ec-H2O indicator (Option) - The ecH2O icon is
displayed when ec-H2O system is activated and
operating normally.
10. Zone Settings - Machine comes with four zone
settings for quick operation. The factory default
zone settings are configured with different solution
flow rates, down pressures and maximum scrub
speeds.

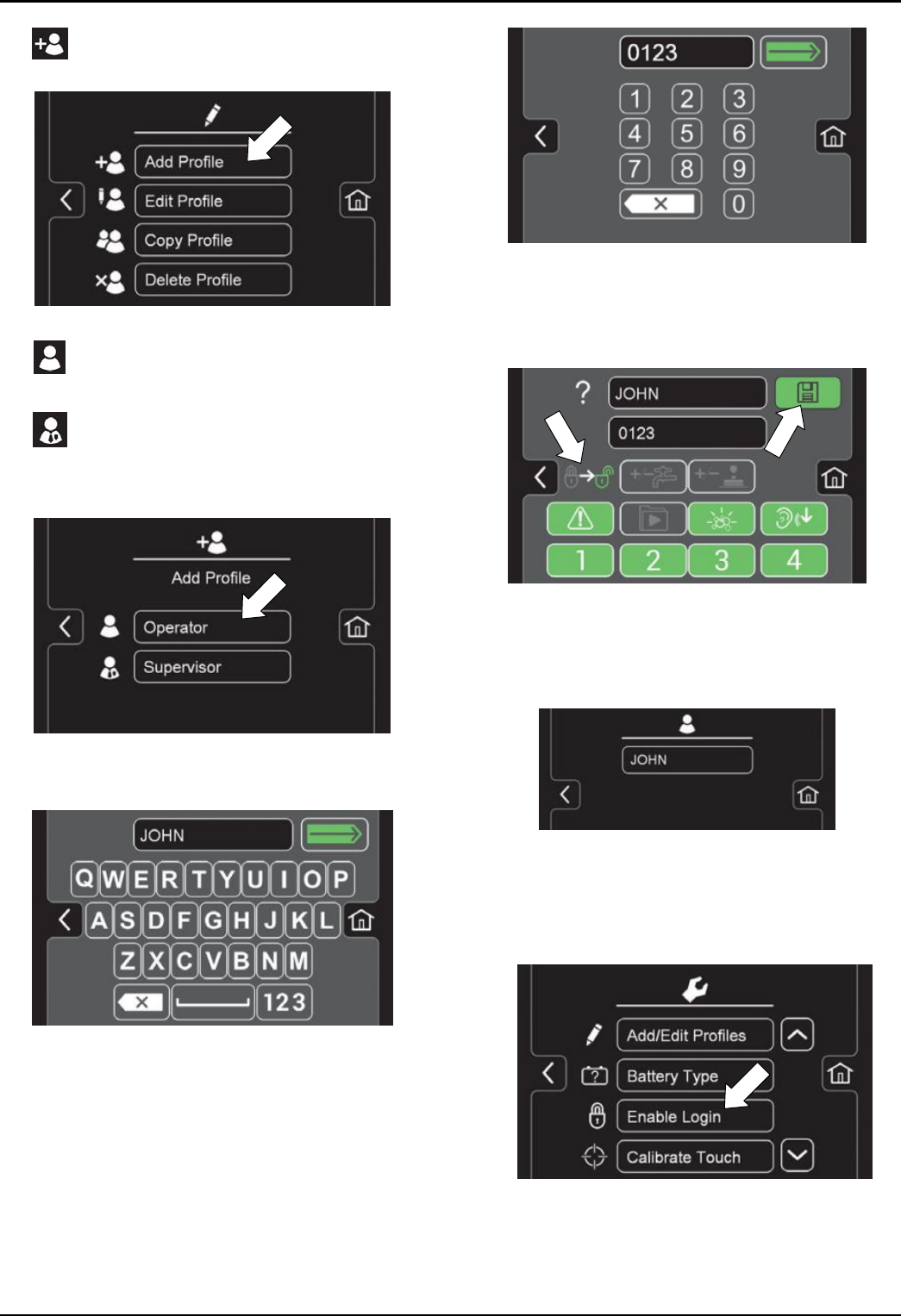

11. Settings icon - Provides access to training video
tutorials, machine software information, battery
type selection and supervisor controls. A
supervisor can setup users with operator login ID
with the ability to program the machine’s settings
with lock-out functionality.
OPERATION
Tennant T300e/T300 (03- 2015) 11
INSTALLING BATTERIES
WARNING: Batteries emit hydrogen gas.
Explosion or fire can result. Keep sparks and open
flame away when charging.
FOR SAFETY: When servicing machine, wear
appropriate personal protection equipment as
needed. Avoid contact with battery acid.
BATTERY SPECIFICATIONS
Two 12 volt deep-cycle batteries.
Contact distributor or Tennant for battery
recommendations.
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
1. Lift the recovery tank to access the battery
compartment (Figure 1).
FIG. 1
2. With adequate assistance, carefully install the
batteries into the battery compartment. Arrange the
batteries as shown (Figure 2).
FOR SAFETY: When servicing machine, use a hoist
or adequate assistance when lifting batteries.
3. Using the supplied battery post boots, connect the
cables to the battery posts as shown (Figure 2).
Connect the machine’s black (- ) battery cable last.
Use insulated tools when working near batteries.
Machine Front
BLACK
RED
FIG. 2
IMPORTANT: Make sure that the machine’s battery
charger is properly set before charging. See
BATTERY CHARGER SETTINGS.
BATTERY PACK LIFT- OUT TRAY (Option)
Models equipped with the optional battery lift-out tray
for quick or frequent battery pack exchange.
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
WARNING: Batteries emit hydrogen gas.
Explosion or fire can result. Keep sparks and open
flame away when charging.
1. Disconnect the battery cable connection at
machine(Figure3).
FIG. 3
FOR SAFETY: When servicing machine, wear
appropriate personal protection equipment as
needed. Avoid contact with battery acid.
2. Using an approved lift strap that supports the
weight of battery pack, connect the strap to the two
lift brackets as shown. Using a lift hoist rated to
handle the weight of the battery pack, carefully lift
the battery packs to and from machine. Keep one
hand on the battery lift-out tray when lifting for
stability (Figure 4).
Before lifting battery pack, make sure the batteries
are secured to the battery lift- out tray with the
supplied battery strap as shown (Figure 4).
FIG. 4
3. Reconnect the battery cable connection after
installing battery pack.
OPERATION
12 Tennant T300e/T300 (03- 2015)
HOW THE MACHINE WORKS
Conventional scrubbing:
When using the conventional scrubbing mode, water
and detergent mixture from the solution tank flows to
the floor and the rotating brush(es)/pad(s) scrub the
floor clean. As the machine moves forward, the
squeegee with vacuum suction picks up the dirty
solution from the floor into the recovery tank.
ec-H2O NanoClean Technology (option):
When using the ec-H2O NanoClean technology, normal
water passes through a module where it is electrically
converted into a cleaning solution. The electrically
converted water attacks the dirt, allowing the machine
to easily scrub away the suspended soil. The converted
water then returns to normal water in the recovery tank.
BRUSH AND PAD INFORMATION
For best cleaning results use the appropriate brush or
pad for your cleaning application. Listed below are
brushes and pads and the applications for which each
is best suited.
NOTE: The amount and type of soilage play an
important role in determining the type of brush or pad
to use. Contact a Tennant representative for specific
recommendations.
Soft nylon bristle scrub brush (White) -
Recommended for cleaning coated floors without
removing finish. Cleans without scuffing.
Polypropylene bristle scrub brush (Black) -
This general purpose polypropylene bristle scrub brush
is used for scrubbing lightly compacted soilage. This
brush works well for maintaining concrete, wood and
grouted tile floors.
Super abrasive bristle scrub brush (Gray) -
Nylon fiber impregnated with abrasive grit to remove
stains and soilage. Strong action on any surface.
Performs well on buildup, grease, or tire marks.
Polishing pad (White) -
Used to maintain highly polished or burnished floors.
Buffing pad (Red) - Used for light duty scrubbing
without removing floor finish.
Scrubbing pad (Blue) - Used for medium to
heavy-duty scrubbing. Removes dirt, spills, and scuffs
and leaves surface clean ready for recoating.
Stripping pad (Brown) - Used for stripping of floor
finish to prepare the floor for recoating.
Heavy duty stripping pad (Black) - Used for
aggressive stripping of heavy finishes/sealers, or very
heavy duty scrubbing.
Surface preparation pad (Maroon) - Used for very
aggressive chemical free removal of floor finish to
prepare the floor for re-coating
OPERATION
Tennant T300e/T300 (03- 2015) 13
MACHINE SETUP
ATTACHING SQUEEGEE ASSEMBLY
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
1. Lift the squeegee mount bracket to the raised
position. Place toe under pedal to lift (Figure 5).
FIG. 5
2. Mount the squeegee assembly to the squeegee
mount bracket (Figure 6). Tighten knobs to secure
squeegee assembly to bracket.
FIG. 6
3. Connect the vacuum hose to the squeegee
assembly (Figure 7).
FIG. 7
INSTALLING BRUSH/PAD - 3 Lug Disk (T300e)
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
1. Step down on the scrub head lift pedal to raise the
scrub head off the floor (Figure 8).
FIG. 8
2. Attach the pad to the pad driver before installing
the disk (Figure 9). Secure pad with centerlock.
FOR SAFETY: Do not operate machine with pads
or accessories not supplied or approved by
Tennant. The use of other pads may impair safety.
FIG. 9
3. Single disk model - Position the three lugs into the
motor hub slots and give the pad driver/brush a
quick counter-clockwise turn to engage hub (Figure
10). View through the scrub head window to align
lugs.
FIG. 10
OPERATION
14 Tennant T300e/T300 (03- 2015)
Dual disk model - Turn the brush motor hub until
the lug slot with spring clip is visible. Position the
three lugs into the motor hub slots and give the pad
driver/brush a quick turn towards the spring clip
(Figure 11). View through the scrub head window to
align lugs.
NOTE: The left and right disks engage the hubs in
opposite directions.
FIG. 11
4. Single disk model - To remove the pad
driver/brush, press down on the plunger and turn
the pad driver/brush clockwise (Figure 12).
FIG. 12
Dual disk model - To remove the pad driver/brush,
grip the disk and give it a quick turn in the direction
as shown (Figure 13).
FIG. 13
INSTALLING BRUSH/PAD - Insta-Click Magnetic
Disk
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
WARNING: Magnetic Field Hazard. Magnetic
pad driver/brush can be harmful to pacemaker
wearers or medical implants.
1. Step down on the scrub head lift pedal to raise the
scrub head off the floor (Figure 14).
FIG. 14
2. Attach the pad to the pad driver before installing
the driver (Figure 15). Secure pad with centerlock.
FOR SAFETY: Do not operate machine with pads
or accessories not supplied or approved by
Tennant. The use of other pads may impair safety.
FIG. 15
3. Place the pad driver/brush under the scrub head
and lift into position. The Insta-Click pad
driver/brush will automatically click into position
(Figure 16).
FIG. 16
OPERATION
Tennant T300e/T300 (03- 2015) 15
4. To remove the pad driver(s)/brush(es), raise the
scrub head and press the yellow plunger button
with foot or hand (Figure 17). Pad will drop to floor.
FIG. 17

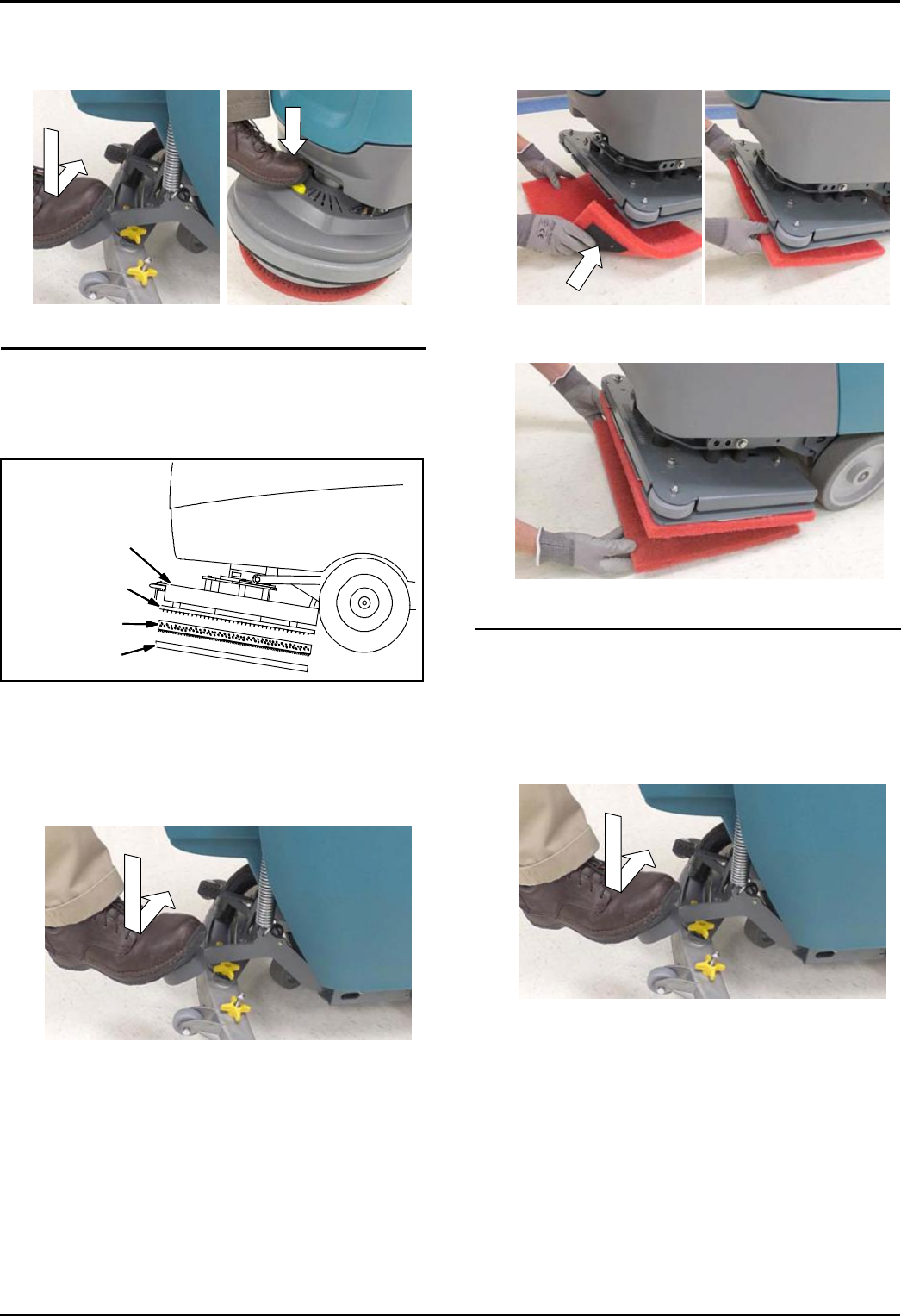

INSTALLING PAD - Orbital
For best cleaning performance and to avoid damaging
the pad driver plate or floor surface, always use backer
pad with work pads (Figure 18).
Backer pad
Work pad
Scrub head
Pad driver plate
FIG. 18
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
1. Step down on the scrub head lift pedal to raise the
scrub head off the floor (Figure 19).
FIG. 19
2. Install the backer pad, retaining strips facing
outward, to bottom of scrub head (Figure 20).
Make sure pad is centered on scrub head.
FIG. 20
3. Attach the work pad to the backer pad (Figure 21).
FIG. 21
INSTALLING CYLINDRICAL BRUSHES
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
1. Step down on the scrub head lift pedal to raise the
scrub head off the floor (Figure 22).
FIG. 22
OPERATION
16 Tennant T300e/T300 (03- 2015)
2. Remove the debris tray by sliding it out from the
scrub head (Figure 23).
FIG. 23
3. Remove the idler plate from the scrub head by
unscrewing the yellow knob (Figure 24).
FIG. 24
4. Slide the brushes into the scrub head and connect
the slotted ends of each brush into the drive hubs
(Figure 25).
FIG. 25
5. Connect the idler plate to the brush ends and
reattach the idler plate. Make sure the idler plate
hooks are engaged before tightening knob (Figure
26).
FIG. 26
6. Replace debris tray.
FILLING SOLUTION TANK
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
Remove the solution tank lid and fill the solution tank.
Stop filling tank when the level reaches the “3/3” mark
on the solution tank drain hose indicator (Figure 27).
ec-H2O Scrubbing - Only use cool clean water (less
than 21C). Do not use hot water or add conventional
floor cleaning detergents. An ec-H2O system fault will
occur if cleaning detergents are added.
Conventional Scrubbing - Use hot water (60C
maximum). Pour a recommended cleaning detergent
into the solution tank according to mixing instructions
on the container.
NOTE: Do not use the ec-H2O system when there are
conventional cleaning detergents in the solution tank.
Drain, rinse, and refill the solution tank with clear cool
water before operating the ec-H2O system.
WARNING: Flammable materials can cause an
explosion or fire. Do not use flammable materials
in tank(s).
ATTENTION: For Conventional Scrubbing, only use
commercially approved cleaning detergents. Machine
damage due to improper detergent usage will void the
manufacturer’s warranty.
FIG. 27
The solution tank fill- port is equipped with two hose
clips to hold hose while filling. The two clips are
different hose diameter sizes (Figure 28).
FIG. 28
OPERATION
Tennant T300e/T300 (03- 2015) 17
FILLING SEVERE ENVIRONMENT TANK
(T300 ec-H2O model Option)
The ec-H2O NanoClean model may come equipped
with the optional Severe Environment mode. The
Severe Environment button allows you to dispense
cleaning detergent as needed for excessive soil
buildup.
1. Lift the recovery tank to access the severe
environment tank (Figure 29). Drain recovery tank
before lifting tank.
FIG. 29
2. Remove cap from tank and add a recommended
cleaning detergent at full concentration (Figure 30).
Do not add water. Replace cap.
FIG. 30
WARNING: Flammable materials can cause an
explosion or fire. Do not use flammable materials
in tank(s).
ATTENTION: Only use commercially approved
cleaning detergents in the severe environment tank. Do
not use cleaners based with d-limonene. Machine
damage due to improper detergent usage will void the
manufacturer’s warranty.
NOTE: To prevent from running out of detergent while
operating, it is recommended to refill the severe
environment tank when refilling the solution tank.
3. Adjust the mixing ratio knob according to the
cleaning detergent’s mixing instructions
(Figure 31).
FIG. 31

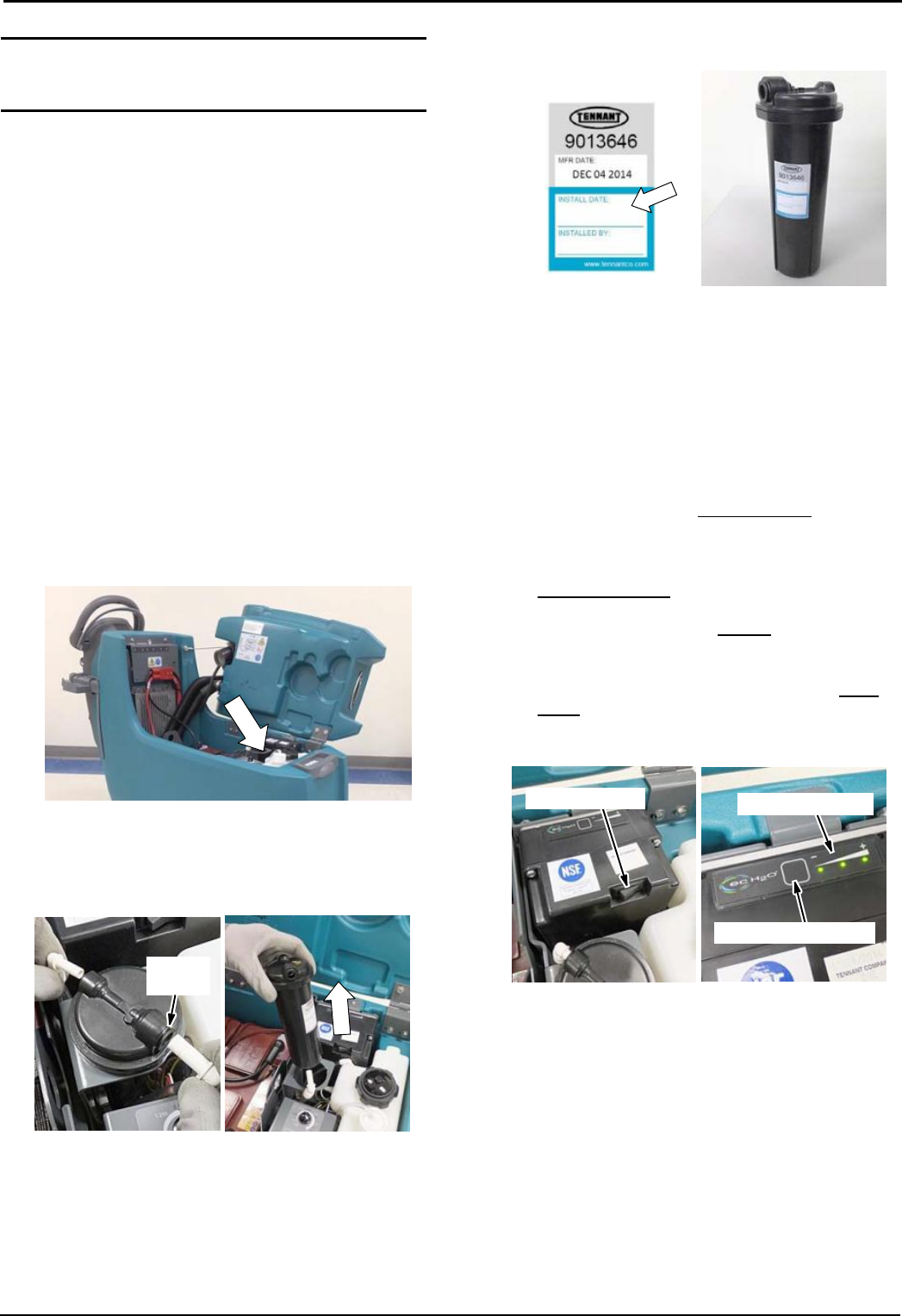

ec-H2O NanoClean WATER CONDITIONING
CARTRIDGE (ec-H2O model)
The ec-H2O system is equipped with a water
conditioning cartridge (Figure 32). The cartridge is
designed to protect the machine’s plumbing system
from potential scaling.
The cartridge is required to be replaced when it reaches
its maximum water usage or expiration time of when the
cartridge was activated, which ever comes first.
Depending on machine usage a new cartridge can last
anywhere from 12 to 24 months.
The control panel will signal a code when it’s time to
replace cartridge. See SERVICE INDICATOR CODES
for further details.
FIG. 32
All cartridges are labeled with a manufacture date. The
shelf-life of an un-installed cartridge is one year from
manufacture date. For new cartridge replacement, the
ecH2O module timer must be reset. See ec-H2O
NanoClean WATER CONDITIONING CARTRIDGE
REPLACEMENT.
ATTENTION: During first time use and after replacing
the water conditioning cartridge, the ec-H2O system
will automatically override the selected solution flow
rateforupto75minutes.
OPERATION
18 Tennant T300e/T300 (03- 2015)
ACCESSORY RAILS
The machine is equipped with one or two accessory
rails which straddle the control console. The left side
rail also serves as the recovery tank and solution tank
drain hose holder.
The accessory rails are designed to store the
squeegee assembly, spray bottles and other accessory
items (Figure 33).
FIG. 33
The J-hooks on the underside of the right side rail allow
debris bag storage (Figure 34).
FIG. 34
ACCESSORY CLIPS (Option) - If model is equipped
with the optional accessory clips, the clips easily clip on
and off the rails for additional accessory storage
(Figure 35).
FIG. 35
To install the accessory clips, hook the clip over the rail
and push downward until it snaps into position. To
remove the accessory clip, reach under the clip and
carefully pull the latch tab downward to release from
rail. (Figure 36)
FIG. 36
The optional accessory clips allow for storage of wet
floor signs, spray bottles, squeegee assembly, debris
bags and other items (Figure 37).
FIG. 37
ATTENTION: Do not use the accessory
rails to lift machine, damage may occur.
ATTENTION: Do not step on accessory
rails, damage may occur.
OPERATION
Tennant T300e/T300 (02- 2016) 19

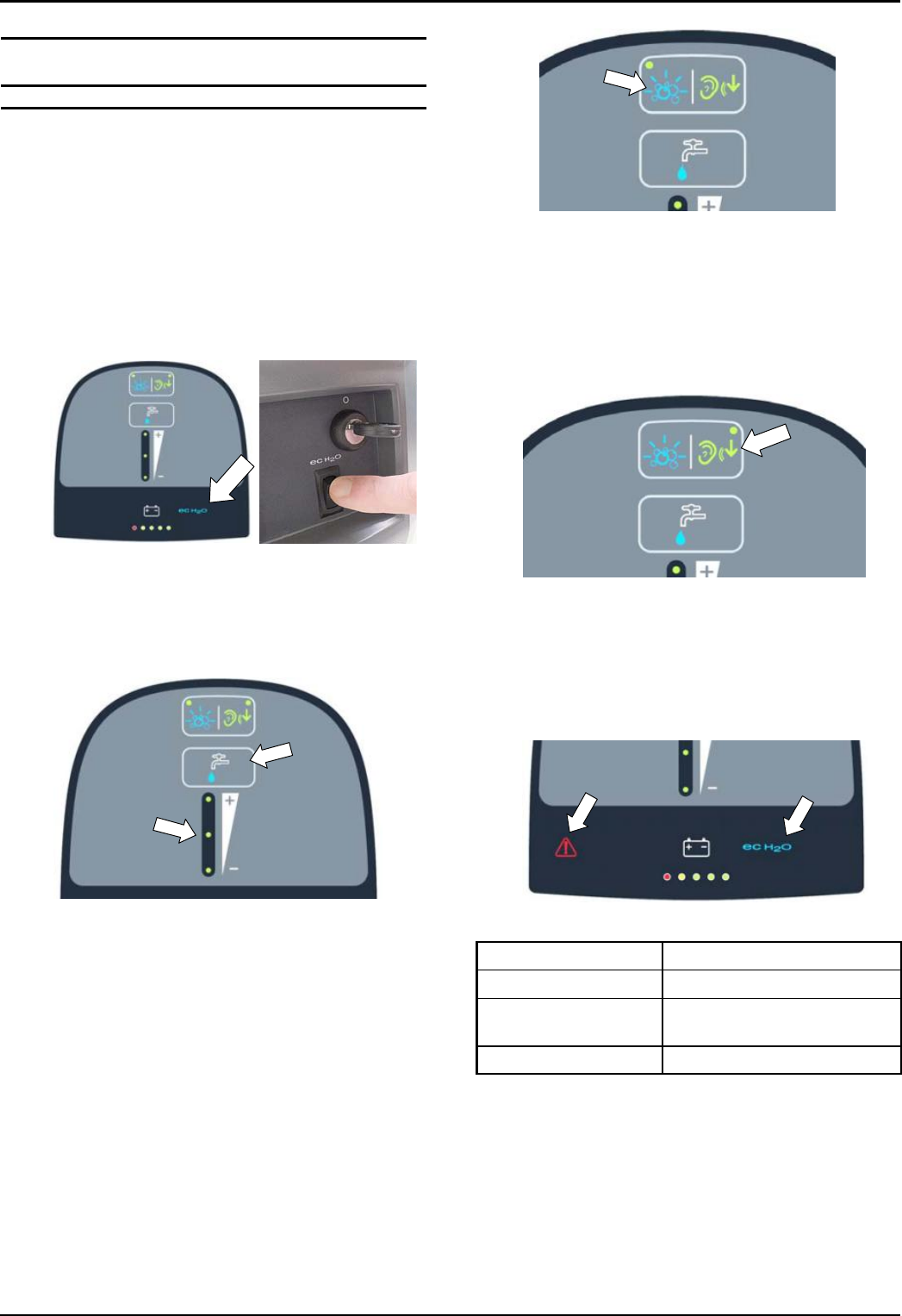

T300 CONTROL PANEL OPERATION
T300 WITH MEMBRANE CONTROL PANEL
(Manual Down Pressure Model)
1. Turn the key to on ( I ) position to power up
machine.
Models equipped with the ec-H2O option - The
ecH2O system will automatically turn on at start up.
A blue ec-H2O icon will appear on the control panel
(Figure 38). This indicates that the ecH2O system
is turned on and ready for operation. To turn off the
ec-H2O system, press the ec-H2O switch located
below the key switch.
FIG. 38
2. Press the solution flow button to increase or
decrease the solution flow rate (Figure 39). The
solution flow indicator will display flow setting.
No LED = No flow, One LED = Low flow, two
LED’s = Medium flow, three LED’s = High flow.
FIG. 39
3. Models equipped with Severe Environment button
option - Press Severe Environment button one
time to dispense cleaning detergent for 30 seconds
(Figure 40). A green LED in the corner will blink
slowly when dispensing. During the last 5 seconds,
the LED will blink rapidly as an alert that the
dispensing is about to stop. For continuous
dispense, press and hold the button for 2 seconds
until LED turns solid green. Press button at
anytime to turn off.
The icon will blink blue when the severe
environment tank needs to be refilled.
NOTE: When the severe environment mode is
turned on, the down pressure and solution flow
settings automatically increase to the high setting.
When turned off, the settings revert back to the
original settings.
FIG. 40
4. Models equipped with Quiet-Mode option - Press
the Quiet-Mode button to reduce the vacuum motor
sound (Figure 41). A green LED in the corner will
turn on when mode is activated. Press button to
turn off.
NOTE: Water pickup will reduce slightly when
Quiet-Mode is activated.
FIG. 41
5. If a machine fault is detected during operation, the
service indicator will light up and begin flashing
(Figure 42). See SERVICE INDICATOR CODES.
If the ec-H2O system detects a fault during
operation, the ec-H2O icon will turn or blink red.
See SERVICE INDICATOR CODES.
FIG. 42
ec-H2O INDICATOR CONDITION
Solid blue Normal operation
Blinking blue/red Water conditioning cartridge
expired. Replace cartridge.
Solid or blinking red See Service Indicator Codes.
OPERATION
20 Tennant T300e/T300 (03- 2015)
T300 WITH PRO-MEMBRANE CONTROL PANEL
(Actuated Down Pressure Model)
The control panel operation can be set up with lockout
functionality by using the supervisor controls feature.
This will prevent an operator from changing or saving
the Zone Settings. See SUPERVISOR CONTROLS
instructions at back of manual.
1. Turn the key to on ( I ) position to power up
machine.
Models equipped with the ec-H2O option - The
ecH2O system will automatically turn on at start up.
A blue ec-H2O icon will appear on the control panel
(Figure 43). This indicates that the ecH2O system
is turned on and ready for operation. To turn off the
ec-H2O system, press the ec-H2O switch located
below the key switch.
FIG. 43
2. Press the down pressure button to increase or
decrease the down pressure (Figure 44). The down
pressure indicator will display the pressure setting.
One LED = Low pressure, two LED’s = Medium
pressure, three LED’s = High pressure.
FIG. 44
3. Press the solution flow button to increase or
decrease the solution flow rate (Figure 45). The
solution flow indicator will display flow setting.
No LED = No flow, One LED = Low flow, two
LED’s = Medium flow, three LED’s = High flow.
FIG. 45
4. Models equipped with Severe Environment button
option - Press Severe Environment button one
time to dispense cleaning detergent for 30 seconds
(Figure 46). A green LED in the corner will blink
slowly when dispensing. During the last 5 seconds,
the LED will blink rapidly as an alert that the
dispensing is about to stop. For continuous
dispense, press and hold the button for 2 seconds
until LED turns solid green. Press button at
anytime to turn off.
The icon will blink blue when the severe
environment tank needs to be refilled.
NOTE: When the severe environment mode is
turned on, the down pressure and solution flow
settings automatically increase to the high setting.
When turned off, the settings revert back to the
original settings.
FIG. 46
5. Models equipped with Quiet-Mode option - Press
the Quiet-Mode button to reduce the vacuum motor
sound (Figure 47). A green LED in the corner will
turn on when mode is activated. Press button to
turn off.
NOTE: Water pickup will reduce slightly when
Quiet-Mode is activated.
FIG. 47
6. Press the Zone Setting numbers for quick
operation (Figure 48). The three preset zones are
factory configured with different solution flow rates
and down pressures.
FIG. 48
OPERATION
Tennant T300e/T300 (02- 2016) 21
To change the Zone Settings for a specific
scrubbing application, configure the new zone
settings and press and hold the zone button until it
blinks three times to save new zone setting.
The zone settings can configure the following
controls:
- Down pressure rate
- Solution flow rate
- Quiet-Mode on or off (option)
- ec-H2O mode on or off (option)
- Severe Environment mode on or off (option).
NOTE: The severe environment mode and ec-H2O
mode cannot be configured together.
7. If a machine fault is detected during operation, the
service indicator will light up and begin flashing
(Figure 49). See SERVICE INDICATOR CODES.
If the ec-H2O system detects a fault during
operation, the ec-H2O icon will turn or blink red.
See SERVICE INDICATOR CODES.
FIG. 49
ec-H2O INDICATOR CONDITION
Solid blue Normal operation
Blinking blue/red Water conditioning cartridge
expired. Replace cartridge.
Solid or blinking red See Service Indicator Codes.
T300 MODEL WITH PRO- PANEL CONTROLS
There are two types of user modes that will interface
with the operator home screen:
Operator Mode - Capable of machine operation with
permissions and restrictions controlled by the
supervisor.
Supervisor Mode - Capable of machine operation
with full use of all controls, along with configuring
permissions and restrictions for the operator mode.
A new machine from the factory will automatically start
up in the supervisor mode by default. To configure the
control panel with permissions and restrictions for the
operator mode, see SUPERVISOR CONTROLS
instructions at back of manual.
1. Turn the key to on ( I ) position. At start up, a
Tennant logo screen will first appear followed by the
operator home screen as shown below (Figure 50).
FIG. 50
Models equipped with the ec-H2O option, the ec-H2O
icon will appear at the center of the display. This
indicates the ec-H2O system is turned on and ready for
operation. The ec-H2O system will automatically turn
on at start up.
To turn off the ec-H2O system, press the ec-H2O on/off
switch located below the key switch. A slash mark over
the icon will indicate that the ec-H2O system is turned
off (Figure 51).
FIG. 51
OPERATION
22 Tennant T300e/T300 (02- 2016)
When supervisor controls are configured for the
operator mode, a login screen will appear at start
up (Figure 52 ). Enter the login number assigned
by the supervisor and press the green arrow to
access the operator home screen. See
SUPERVISOR CONTROLS instructions at back of
manual.
FIG. 52
2. For first time users, press the help icon on the
operator home screen (Figure 50). The help
screen, shown below, will allow you to select a
different display language, help identify control
panel icons and view start-up operator videos
(Figure 53).
FIG. 53
Press the home screen icon at anytime to
return to the operator home screen.
3. Press the down pressure icon to display the
down pressure scale (Figure 54). Press the (+)
symbol to increase down pressure. Press the (- )
symbol to decrease the down pressure.
FIG. 54
4. Press the solution flow icon to display the
solution flow scale (Figure 55). Press the (+) symbol
to increase solution flow. Press the (- ) symbol to
decrease the flow solution or to turn it off.
FIG. 55
5. Press the maximum scrub speed icon to
display the maximum speed scale (Figure 56).
Press (+) symbol to increase the maximum scrub
speed. Press the (- ) symbol to decrease the
maximum scrub speed. Only accessible in
Supervisor Mode.
FIG. 56
6. Models equipped with Severe Environment
option - Press the Severe Environment icon once
to dispense cleaning detergent for 30 seconds. The
icon will turn green and a 30 second count down
timer will start. For continuous dispensing of
detergent, press and hold the icon for 2 seconds
until a continuous timer is displayed. Press the icon
at anytime to turn off. (Figure 57). The icon will
blink yellow when the severe environment tank
needs to be refilled.
FIG. 57
OPERATION
Tennant T300e/T300 (03- 2015) 23
NOTE: When the severe environment mode is
turned on, the down pressure and solution flow
settings automatically increase to the high setting.
When turned off, the settings revert back to the
original settings.
7. Models equipped with Quiet-Mode option -
Press the quiet mode icon to reduce the vacuum
motor sound for noise restricted areas (Figure 58).
The icon will turn green when activated. Press
again to turn off.
NOTE: When the Quiet-Mode is activated the
water pickup will slightly be reduced.
FIG. 58
8. Press the Zone Setting numbers for quick
operation (Figure 59). The zone number will turn
green when activated. Each Zone Setting number
is factory configured with different solution flow
rates, down pressures and maximum scrub
speeds.
FIG. 59
To change the default zone settings - Configure
the desired zone settings then press and hold the
zone number button until it prompts you to name
the new zone setting. Select “yes” to enter a new
name (Figure 60). By selecting “no”, the preset
name will be removed.
NOTE: Only the supervisor mode has the capability
to change the factory zone settings (See
SUPERVISOR CONTROLS instructions at back of
manual).
The zone settings can configure the following
controls:
- Down pressure rate
- Solution flow rate
- Quiet-Mode on or off (option)
- Maximum scrub speed (drive model)
- ec-H2O mode on or off (option)
- Severe Environment mode on or off (option).
NOTE: The Severe Environment and ec-H2O
modes cannot be configured together.
FIG. 60
If the zone settings are configured to scrub a lobby
for example, rename the zone “LOBBY” (Figure
61). Press the green arrow to set new zone setting.
FIG. 61
The name will appear above the zone setting
number when the zone button is pressed (Figure
62). Repeat process for other zone settings.
FIG. 62
9. Press the Settings icon on the operator home
screen to access the following screen (Figure 63).
The buttons are explained as follows.
FIG. 63
OPERATION
24 Tennant T300e/T300 (03- 2015)
Tutorials button - Includes videos on how to
perform specific operation and maintenance
procedures. Press the video icons to start videos
(Figure 64).
FIG. 64
Setup button - Requires the user to be in
supervisor mode to access machine setup. See
SUPERVISOR CONTROLS instructions at back of
manual.
About button - Includes machine systems
information.
Logout button - Required when supervisor
controls are configured with assigned login
numbers. See SUPERVISOR CONTROLS
instructions at back of manual.
10. The service indicator icon on the home
screen will flash yellow or red when a machine fault
is detected (Figure 65).
FIG. 65
In conjunction with a flashing service indicator icon,
the following fault screens will automatically pop up
to indicate the problem.
Yellow machine fault Icon (Figure 66). See
SERVICE INDICATOR CODES to diagnose
machine fault.
FIG. 66
Red or Yellow ec-H2O system fault icon (Figure
67). See SERVICE INDICATOR CODES to
diagnose ec-H2O system fault.
When the ec-H2O system fault icon is blinking
Blue and Red, the water conditioning cartridge has
expired and needs to be replaced. See ec-H2O
NanoClean WATER CONDITIONING CARTRIDGE
REPLACEMENT.
FIG. 67
Yellow Parking brake Icon (figure 68). Parking
brake lever must be released before operating.
FIG. 68
Press arrows at top of screen to cycle through fault
screens.
OPERATION
Tennant T300e/T300 (03- 2015) 25

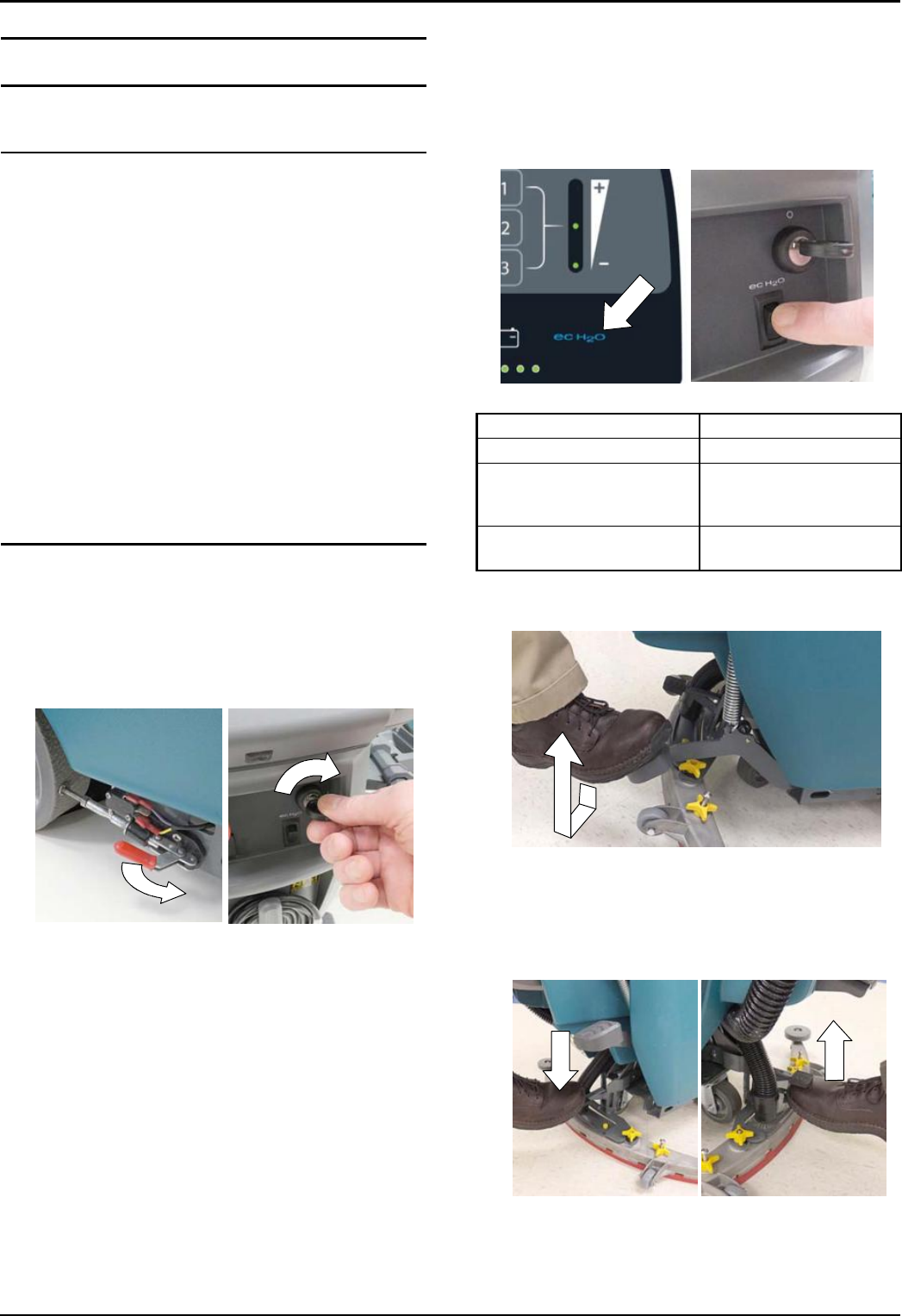

MACHINE OPERATION
FOR SAFETY: Do not operate machine unless
operator manual is read and understood.
PRE-OPERATION CHECK LIST
-Sweep area and remove any obstructions.
-Check brushes/pads for wear and damage.
-Check squeegee blades for wear and damage.
-Confirm recovery tank empty and screen and
debris tray is clean.
-Check scrub head skirt for wear and damage.
-Cylindrical brush model - confirm scrub head
debris tray is empty and clean.
-ec-H2O Scrubbing: Confirm solution tank is filled
with clear cool water only.
-ec-H2O Scrubbing: Ensure all conventional
cleaning agents/restorers are drained and rinsed
from solution tank.
-Check machine for proper operation.
OPERATING MACHINE
For T300 control panel operating instructions, see
CONTROL PANEL OPERATION.
1. Release the parking brake lever, if equipped (Figure
69)
2. Turnthekeytotheon(I)position(Figure69).
FIG. 69
3. ec-H2O models - The ec-H2O system will
automatically turn on at start up. To turn off the
ec-H2O system, press the ec-H2O switch located
below the key switch (Figure 70).
ATTENTION: During first time use and after replacing
the water conditioning cartridge, the ec-H2O system
will automatically override the selected solution flow
rateforupto75minutes.
ATTENTION: If cleaning detergent is accidentally
cycled through ec-H2O system, immediately turn the
ec-H2O system off. Drain solution tank, refill with cool
water and operate the ec-H2O system to flush out
detergent.
T300e models -
T300 models with Membrane control panel -
FIG. 70
ec-H2O INDICATOR CONDITION
Solid blue Normal operation
Blinking blue/red Water conditioning
cartridge expired.
Replace cartridge.
Solid or blinking red See Service Indicator
Codes.
4. Lower the scrub head to the floor by stepping on
the scrub head lift pedal as shown (Figure 71).
FIG. 71
5. Lower the squeegee assembly to floor by stepping
on foot pad as shown (Figure 72). To raise
squeegee assembly, place toe under foot pad and
lift. The vacuum motor will start when squeegee
assembly is lowered.
FIG. 72
OPERATION
26 Tennant T300e/T300 (02- 2016)

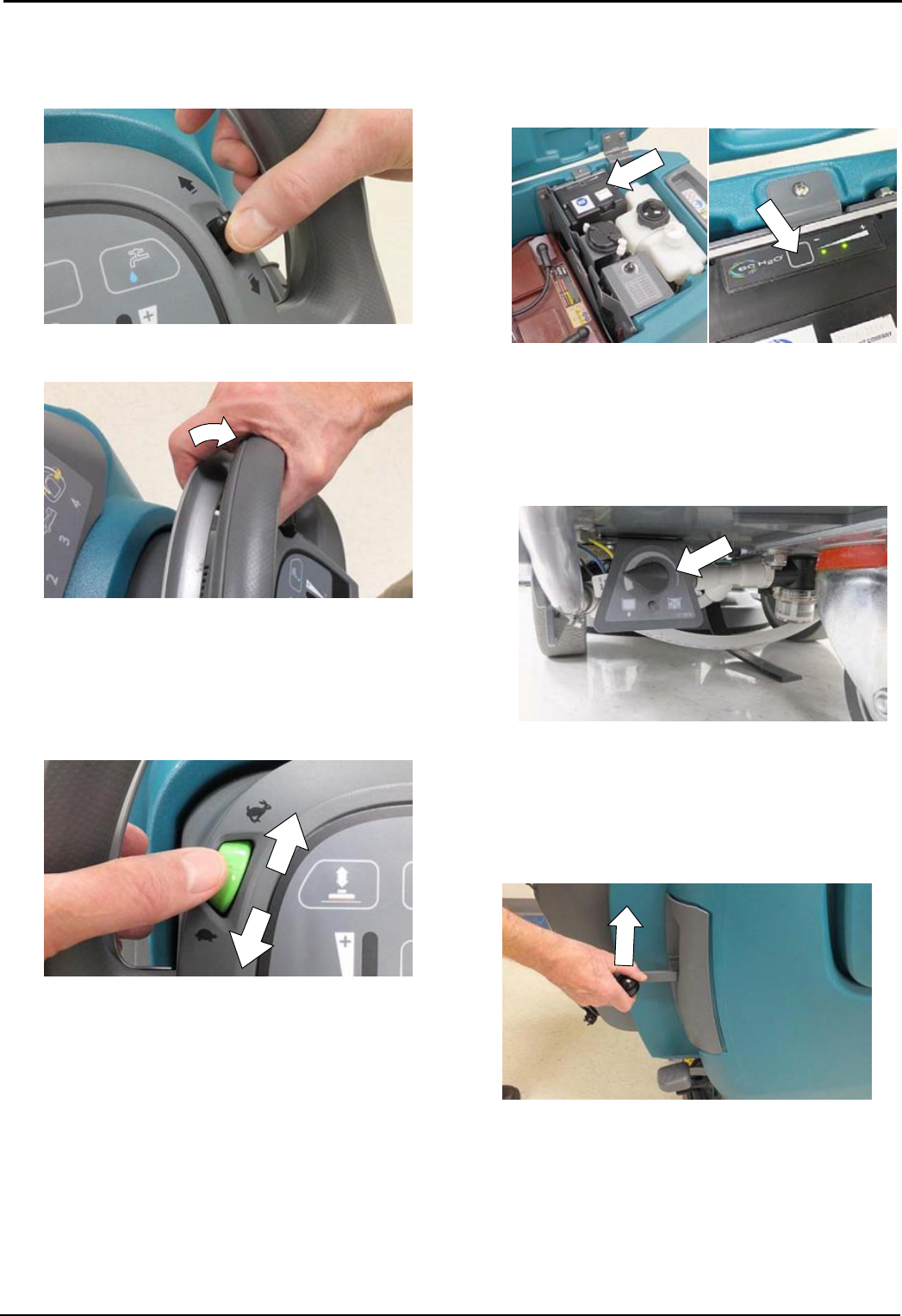

6. Drive models - push the directional lever to the
forwardpositiontogoforward(Figure73).To
reverse the machine pull the directional lever
backwards.
FIG. 73
7. To begin scrubbing, pull the start bail (Figure 74).
FIG. 74
8. Drive models - Adjust the scrubbing speed by
turning the speed dial to the desired speed
(Figure 75).
Push models - Slowly push the machine forward.
The rotating brush(es) will help assist the machine
forward.
FIG. 75
9. T300e ec-H2O model - To adjust the solution flow
rate when ec-H2O scrubbing, press the solution
flow button located on the ec-H2O module (Figure
76). One LED= low, two LED’s=medium, and three
LED’s= high.
FIG. 76
10. T300e model - To adjust the solution flow rate
when conventional scrubbing, turn the solution flow
control knob located underneath machine (Figure
77).
NOTE: The solution flow control knob is only functional
when conventional scrubbing.
FIG. 77
11. T300e model option / T300 manual down pressure
model - When extra brush pressure is needed for
heavily soiled areas lift the down pressure lever
(Figure 78).
NOTE: Release the down pressure lever when raising
scrub head.
FIG. 78
12. To stop scrubbing, release the start bail and raise
the scrub head and squeegee assembly off floor.
Turn key off and set parking brake, if equipped.
OPERATION
Tennant T300e/T300 (03- 2015) 27
WHILE OPERATING MACHINE
WARNING: Flammable materials materials or
reactive metals can cause an explosion or fire. Do
not pick up.
1. Overlap each scrub path by 5 cm.
2. Keep machine moving to prevent damage to floor
finish.
3. Wipe squeegee blades with a cloth if blades leave
streaks.
4. Avoid bumping the machine into posts and walls.
5. T300 Model - When draining and refilling machine,
always top off the optional Severe Environment
tank with detergent.
FOR SAFETY: When operating machine, do not
scrub on inclines that exceed 9% grade or
transport on inclines that exceed 21% grade.
6. Pour a recommended foam control solution into the
recovery tank if excessive foam appears.
ATTENTION: Foam buildup will not activate the
float shut-off screen, vacuum motor damage will
result.
7. Use the double scrubbing method for heavily soiled
areas. First scrub the area with the squeegee up,
let solution set for 3-5 minutes, then scrub the area
a second time with squeegee down.
8. Orbital Scrub Head Model - Use caution when
working near the tile cove (Figure 79) and floor
mounted fixtures such as pedestal sinks and other
breakable items. Keep the metal scrub head edge
away to avoid possible damage.
Tile Cove
FIG. 79
9. When leaving the machine unattended, remove the
key and set the parking brake, if equipped.
10. Do not operate machine in areas where the
ambient temperature is above 43C or below
freezing 0C.
EMERGENCY SHUT-OFF BUTTON (Drive models)
Push the emergency shut-off button in the event of an
emergency (Figure 80). This red button shuts off all
power to machine. To regain power, turn the button
clockwise and restart the key.
Only use this button in the event of an emergency. It is
not intended for routine machine shutdown.
FIG. 80
BATTERY DISCHARGE INDICATOR
The battery discharge indicator (BDI) displays the
charge level of the batteries while the machine is
operating. When the batteries are fully charged, all five
indicators are lit (Figure 81). When the discharge level
reaches the red light, stop scrubbing and recharge the
batteries. If the red light begins to flash, the scrubbing
function will automatically shut off to protect the
batteries from total discharge. Drive Model: The
machine will still propel when the red light is flashing,
this will allow user to transport machine to charging
station.
T300e/T300 T300 LCD
FIG. 81
OPERATION
28 Tennant T300e/T300 (02- 2016)

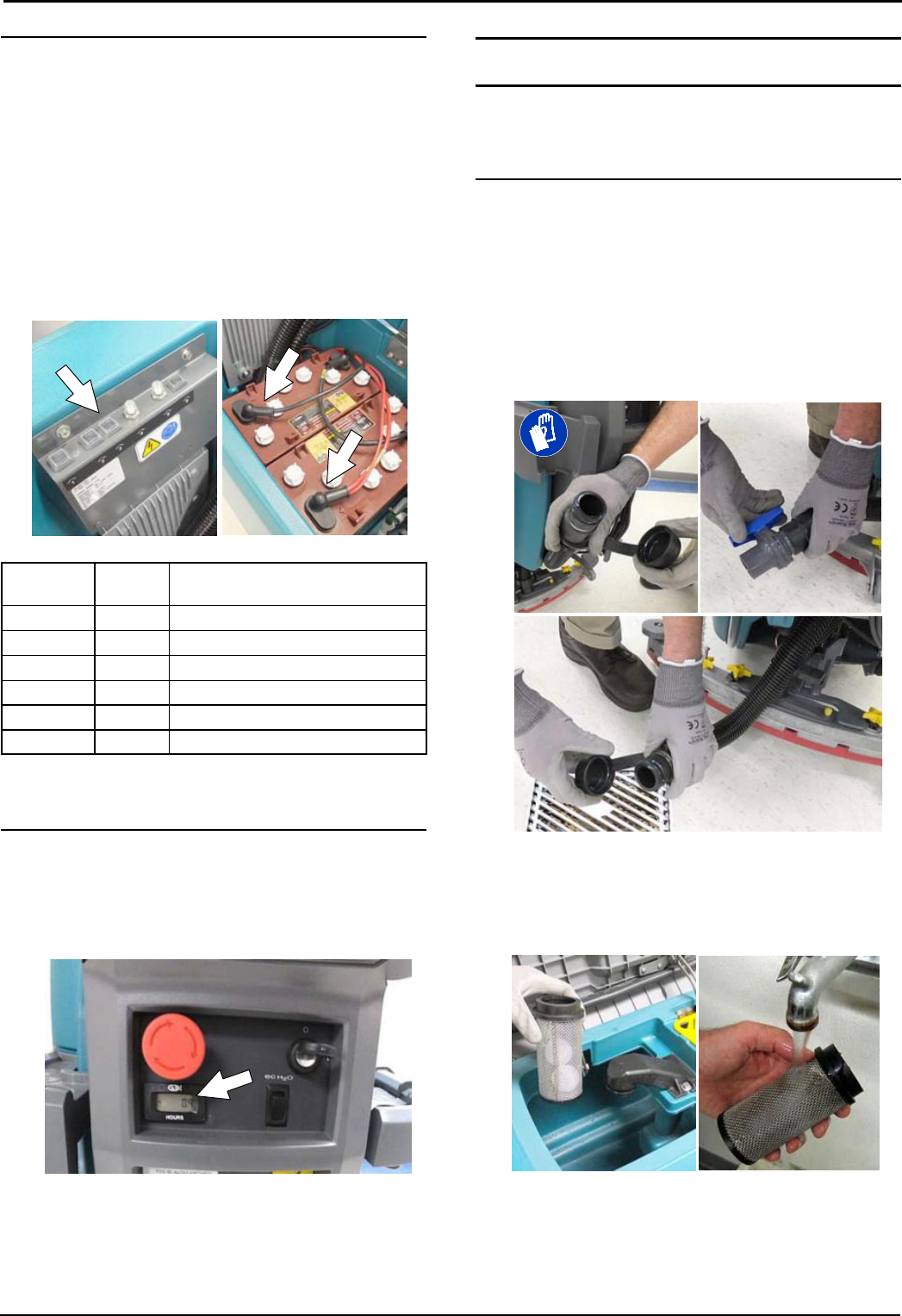

CIRCUIT BREAKER PANEL
The machine is equipped with resettable circuit
breakers to protect the machine from a current
overload. If a circuit breaker trips, disconnect the
battery cable connection and reset the breaker by
pressing the reset button after the breaker has cooled
down. Reconnect the battery cable connection. If the
circuit breaker does not reset or continues to trip
contact service personnel.
The circuit breaker panel is located near the battery
compartment and identified as described below
(Figure 82).
FIG. 82
Circuit
Breaker Rating Circuit protected
CB1 4A Key switch, control board
CB2 4A ec-H2O module
CB3 4A ec-H2O pump
CB4 30 A Propel
CB5 37 A Brush motor (T300e)
CB6 20 A Vacuum motor (T300e)
FOR SAFETY: When servicing machine, all repairs
must be performed by trained personnel.
HOUR METER
The hour meter records the number of hours the
machine has been operated. Use the hour meter to
perform specific maintenance procedures and to record
service history (Figure 83).
FIG. 83
DRAINING TANKS
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
DRAINING RECOVERY TANK
Drain and clean the recovery tank daily and between
solution tank refills.
1. Transport the machine to drain area.
2. For models equipped with drain hose caps, hold
the hose upward, remove cap then slowly lower
hose to drain. For models equipped with flow
control valve drain hose, lower hose and slowly
open valve to drain (Figure 84).
FIG. 84
NOTE: When using a bucket to drain the machine, do
not use the same bucket to fill the solution tank.
3. Remove and clean the float shut-off screen (Figure
85).
FIG. 85
OPERATION
Tennant T300e/T300 (02- 2016) 29
4. Remove the debris tray and empty (Figure 86).
FIG. 86
5. Rinse out the recovery tank with clean water and
wipe clean of any soil residue (Figure 87).
FIG. 87
DRAINING SOLUTION TANK
Drain the solution tank daily.
1. Transport the machine to drain area.
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
2. To drain remaining water from solution tank, pull
the solution hose from the accessory rail
(Figure 88).
FIG. 88
Firmly reconnect the solution hose to accessory rail
after draining tank.
3. Rinse out solution tank with clean water (Figure
89).
FIG. 89
4. Remove the solution tank filter and clean screen
after every 50 hours of use (Figure 90). Solution
filter is located under machine at rear. Drain
solution tank before removing filter.
FIG. 90
OPERATION
30 Tennant T300e/T300 (02- 2016)
SERVICE INDICATOR CODES
When the machine or battery charger detects a fault, the service indicator will flash. A fault code will be provided to
determine problem as described below.
Flashing service
indicator Flashing LED
fault code
T300e/T300 Control Panels T300 Pro-Panel Controls (LCD)
Fault code
xxxxxx
Flashing service indicator
Press icon to access fault
code screen
Fault code screen
Yellow machine fault icon
LED Fault Code
= Flashing
LCD Fault
Code CAUSE SOLUTION
0xFFF0 Emergency stop button
activated. Release emergency stop button and restart
machine.
SSSS0x0201 Head lift actuator, wiring,
connector or control board
problem.
Contact service.
SSS 0x0101 Brush motor wiring, connector
or control board problem. Contact service.
S0x0102 Voltage loss. Contact service.
SSS0x0301 Solution valve wiring, connector
or control board problem. Check connections. Contact service.
SS 0x0303 Solution valve over current. Contact service.
S S0x0307 Solution valve control board
fault. Contact service.
SSSS 0x0501 Vacuum motor wiring, connector
or control board problem. Contact service.
SSS0x0601 Severe environment detergent
pump wiring, connector or
control board problem.
Contact service.
SS S0x0910 Propel circuit breaker tripped. Disconnect battery and reset circuit breaker. If
trip repeats, contact service.
SS 0x0901 Propel motor wiring, connector
or control board problem. Contact service.
SS 0xFF00 Software load failure. Contact service.
SSS
0x0900
0x0903
0x0904
0x0905
0x09200x0934
Propel I-Drive fault
Propel I-Drive communication lost
Propel power cycle fault
Propel current limit fault
Propel faults
Restart machine. If fault repeats,
contact service.
SSS0x0906
0x0907 Propel motor shorted fault Contact service.
SS 0x0103
0x0104
0x0105
Brush motor over current Contact service.
OPERATION
Tennant T300e/T300 (03- 2015) 31
SERVICE INDICATOR CODES - Continued
LED Fault Code
= Flashing
LCD Fault
Code CAUSE SOLUTION
SS0x0902 Start bail is pulled or obstructed
before turning machine on. Release start bail or remove bail obstruction
before turning machine on.
S S
0x0107
0x0207
0x0507
0x0607
Brush motor control board fault
Actuator motor control board fault
Vacuum motor control board fault
Detergent pump control board fault
Disconnect battery cable connection and con-
tact service to replace control board.
S 0x0503
0x0504
0x0505
Vacuum motor over current. Contact service.
SSS 0x0506 Vacuum motor shorted fault. Contact service.
S 0x0603
0x0604
0x0605
Severe environment detergent
pump over current. Contact service.
SS0x0606 Severe environment detergent
pump shorted fault. Contact service.
SS0x0106 Brush motor shorted fault. Contact service.
S S0xF103
0xFF20
0x0704
Charger communication fault
Scrub control board comm. fault
ec-H2O system comm. fault
Restart. If fault code persists, contact service.
ON-BOARD BATTERY CHARGER SERVICE INDICATOR CODES
LED Fault Code
= Flashing
LCD Fault
Code CAUSE SOLUTION
SS 0xF100 Charger error condition. Contact service.
S SS 0xF101 Charger is not connected to bat-
tery pack. Check cable connections.
SSSS 0xF102
Charger overheated. Let charger cool. Move to well ventilated area.
Charge batteries in areas with temperatures
80F/27C or less. If fault persists, contact ser-
vice.
S S0xF103 Charger communication fault Restart charger. If fault code persists, contact
service.
S S0xF104 Charger timer exceeded maxi-
mum charging time. Interrupts
charging cycle.
Replace Batteries.
OPERATION
32 Tennant T300e/T300 (02- 2016)
ec-H2O SYSTEM SERVICE INDICATOR CODES - OPTION
Flashing
service
indicator
Flashing
LED fault
code
T300e/T300 Control Panel T300 Pro-Panel Controls (LCD)
Fault code
xxxxxx
Flashing service indicator
Press icon to access fault
code screen
Fault code screen
Red or yellow ec-H2O
system fault icon
Solid or
blinking Red
ec-H2O
indicator
LED Fault Code
= Flashing
LCD Fault
Code CAUSE SOLUTION
SSS0x0711 ec-H2O pump wiring, connector
or control board problem. Contact service.
S 0x0713
0x0714
0x0715
ec-H2O pump over current Contact service.
SSSS 0x0717 ec-H2O pump shorted fault Contact service.
SSS 0x0703
0x0712 ec-H2O system breaker tripped
ec-H2O pump breaker tripped Reset circuit breaker. If trip repeats, contact
service.
ecH2O indicator
solid red
0x0716
0x0727
0x0741
0x0746
ec-H2O pump shorted fault
ec-H2O control board fault
Water conditioning pump open
Water conditioning pump fault
Contact service.
ecH2O indicator
blinking red*
0x0702
0x0708*
0x072A
0x0721
0x0723
0x0726
ec-H2O pressure switch trip
ec-H2O system over regulation
ec-H2O electrode fault
No ec-H2O cell current
ec-H2O cell over current
ec-H2O cell shorted fault
Contact service.
ecH2O indicator blinking blue/
red Water conditioning cartridge
expired Replace water conditioning cartridge.
*Verify if cleaning detergent was added to solution tank. If ec-H2O system was operated with cleaning detergent, drain solution
tank, add clear water and operate the ec-H2O system until the fault code clears.
MAINTENANCE
Tennant T300e/T300 (03- 2015) 33
MAINTENANCE CHART
6
14
5
4
1
3
2
7
1
8
14
13
9
14
12
10
15
15
12
1
9
11
Interval Person
Resp. Key Description Procedure
Daily O 1 Pad(s) Check, flip or replace
O 1 Brush(es) Check, clean
O 2 Cylindrical Brushes Check, clean
O 3 Recovery tank Drain, rinse, clean float shut-off screen
and debris tray if equipped
O 4 Solution tank Drain, rinse
O 5 Severe environment tank (option) Check, refill
O 6 Squeegee Clean, check for damage and wear
O 7 Batteries Charge if necessary
O 8 Debris trough Clean
O 9 Scrub head skirt Check for damage and wear
Weekly O 7 Battery cells Check electrolyte level
O 6 Squeegee assembly drip trap reservoir Check, clean
50 Hours O 2 Cylindrical brushes. Rotate brushes. Check for wear
O 2 Cylindrical scrub head Clean underside of scrub head
O 3 Recovery tank lid seal Check for wear.
O10 Solution tank filter Clean
100 Hours O 7 Battery watering system (option) Check hoses for damage and wear
200 Hours O 7 Batteries, terminals and cables Check and clean
500 Hours T11 Lower orbital isolators Replace (4 qty)
750 Hours T12 Vacuum motor Replace carbon brushes
1250 Hours T13 Propel motor Replace carbon brushes
T14 Brush motor Replace carbon brushes
T15 Brush belt Replace belt
O = Operator T = Trained Personnel
MAINTENANCE
34 Tennant T300e/T300 (02- 2016)
MACHINE MAINTENANCE
To keep the machine in good working condition, simply
perform the following maintenance procedures.
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
FOR SAFETY: When servicing machine wear
personal protection equipment as needed. All
repairs must be performed by trained personnel
AFTER DAILY USE
1. Drain and rinse out the recovery tank (Figure 91).
See DRAINING TANKS.
FIG. 91
2. Remove the debris tray and empty (Figure 92).
FIG. 92
3. Remove and clean the float shut-off screen (Figure
93).
FIG. 93
4. Drain and rinse out the solution tank (Figure 94).
FIG. 94
5. Disk scrub head - Turn pad over or replace when
worn (Figure 95).
FIG. 95
Orbital scrub head - Turn the work pad over or
replace when worn (Figure 96).
FIG. 96
6. Click-Quick pad driver/brushes - clean any debris
buildup from hub connection area (Figure 97).
FIG. 97
MAINTENANCE
Tennant T300e/T300 (03- 2015) 35

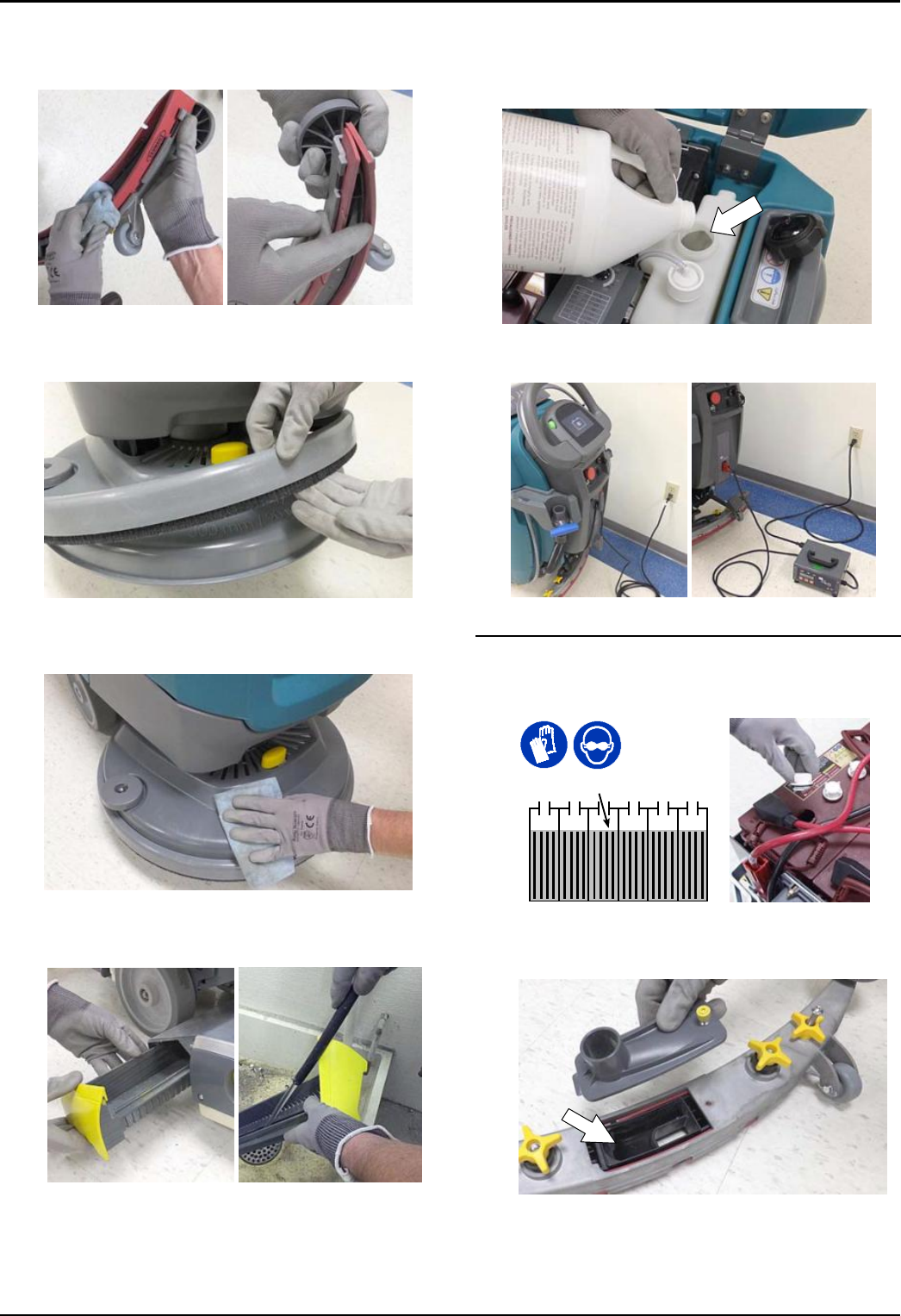

7. Wipe the squeegee blades clean. Inspect blades
for wear and damage (Figure 98). Rotate blade if
worn. See SQUEEGEE BLADE REPLACEMENT.
FIG. 98
8. Check the scrub head skirt for wear or damage
(Figure 99). Replace if worn or damaged.
FIG. 99
9. Clean the outside surface of the machine with an
all purpose cleaner and damp cloth (Figure 100).
FIG. 100
10. Cylindrical scrub head - Remove and clean debris
trough (Figure 101).
FIG. 101
11. Severe environment option - Refill the severe
environment tank with a recommended cleaning
detergent at full concentration (Figure 102).
Replace cap.
FIG. 102
12. Charge batteries (Figure 103). See BATTERIES.
FIG. 103
AFTER WEEKLY USE
1. Check the electrolyte level in all batteries (Figure
104). See BATTERIES.
FIG. 104
2. Remove the drip trap cover from the squeegee
assembly and clean reservoir (Figure 105).
FIG. 105
MAINTENANCE
36 Tennant T300e/T300 (02- 2016)

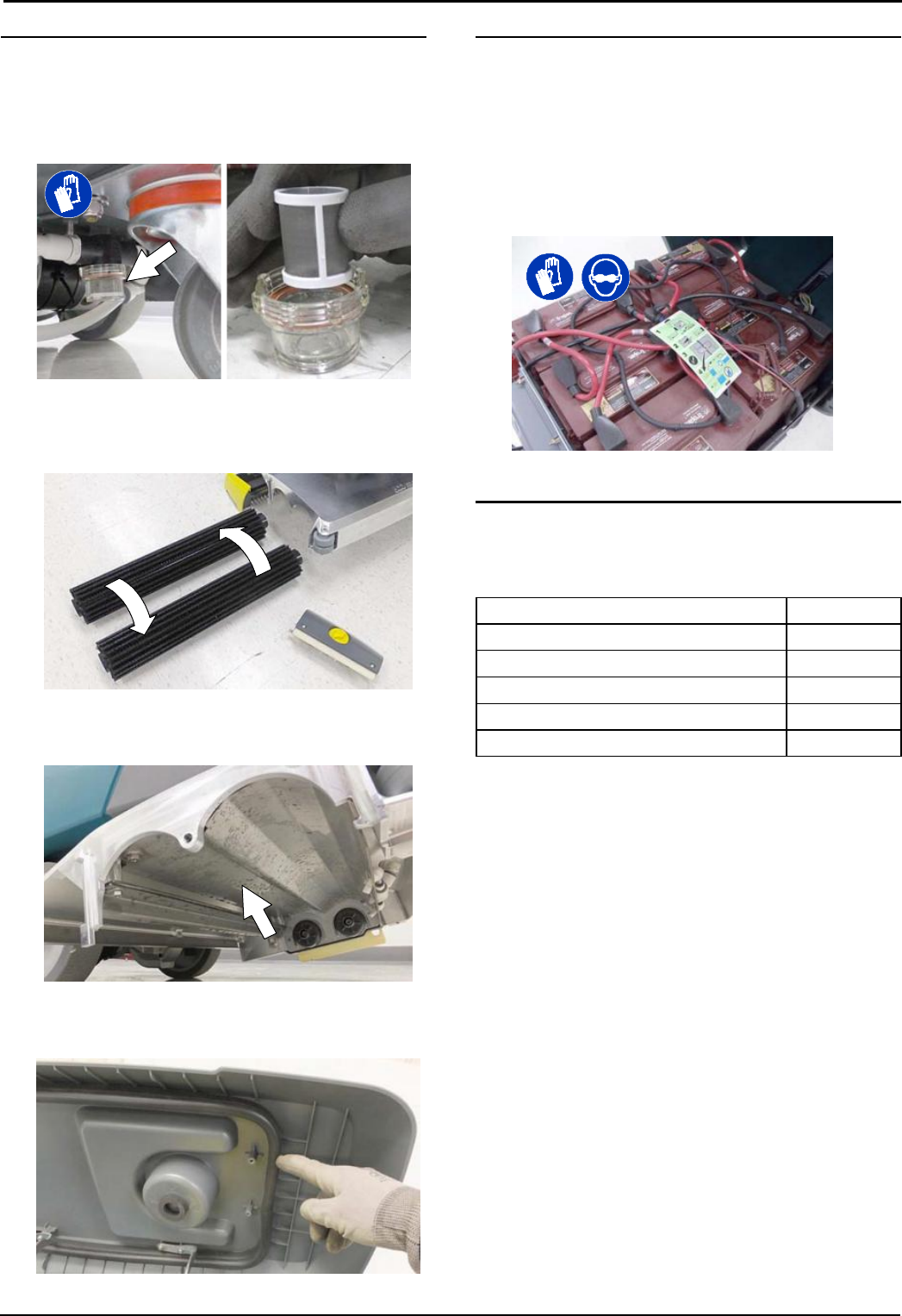

AFTER EVERY 50 HOURS OF USE
1. Remove the solution tank filter and clean screen
(Figure 106). Turn the filter bowl counter-clockwise
to remove. Make sure to drain solution tank before
removing filter.
FIG. 106
2. Cylindrical brushes - Rotate brushes from front to
rear (Figure 107). Replace brushes when they no
longer clean effectively.
FIG. 107
3. Cylindrical scrub head - Remove debris buildup
from underside of scrub head (Figure 108).
FIG. 108
4. Inspect and clean the seal on the recovery tank lid
(Figure 109). Replace seal if damaged.
FIG. 109
AFTER EVERY 100 HOURS OF USE
If machine is equipped with the optional battery
watering system, check the watering hoses and
connections for damage and wear (Figure 110).
Replace system if damaged.
FOR SAFETY: When servicing batteries, wear
personal protection equipment as needed. Avoid
contact with battery acid.
FIG. 110
ELECTRIC MOTORS
Replace motor carbon brushes as indicated. Contact
trained personnel for carbon brush replacement.
Carbon Brush Replacement Hours
Vacuum motor 750
Propel motor (drive model) 1250
Disk brush motor 1250
Cylindrical brush motor 1250
Orbital brush motor 1250
MAINTENANCE
Tennant T300e/T300 (03- 2015) 37
BELTS
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
Replace belts every 1250 hours. Contact trained
personnel for belt replacement (Figure 111).
Cylindrical Brush Drive Belt
Dual Disk Brush Drive Belt
FIG. 111
ORBITAL SCRUB HEAD ISOLATORS
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
Replace the four lower vibration isolators every 500
hours. The lower isolators (hidden) are located
between the deck plate the driver plate. Contact trained
personnel for isolator replacement (Figure 112).
FIG. 112
BATTERIES
FOR SAFETY: Before servicing machine, stop on
level surface, turn off machine, remove key and set
parking brake if equipped.
The lifetime of the batteries depends on their proper
maintenance. To get the most life from the batteries;
SDo not charge the batteries more than once a day
and only after running the machine for a minimum of
15 minutes.
SDo not leave the batteries partially discharged for
long period of time.
SOnly charge the batteries in a well-ventilated area to
prevent gas build up. Charge batteries in areas with
ambient temperatures 27_C or less.
SAllow the charger to complete charging the batteries
before re-using the machine.
SMaintain the proper electrolyte levels of flooded (wet)
batteries by checking levels weekly.
Your machine is equipped with either flooded (wet)
lead-acid or maintenance-free batteries supplied by
Tennant.
FOR SAFETY: When servicing machine, keep all
metal objects off batteries. Avoid contact with
battery acid.
MAINTENANCE-FREE BATTERIES
Maintenance-free (Sealed AGM) batteries do not
require watering. Cleaning and other routine
maintenance is still required.
FLOODED (WET) LEAD-ACID BATTERIES
The flooded (wet) lead-acid batteries require routine
watering as described below. Check the battery
electrolyte level weekly.
The electrolyte level should be slightly above the
battery plates as shown before charging (Figure 113).
Add distilled water if low. DO NOT OVERFILL. The
electrolyte will expand and may overflow when
charging. After charging, distilled water can be added
up to about 3 mm below the sight tubes.
MAINTENANCE
38 Tennant T300e/T300 (03- 2015)

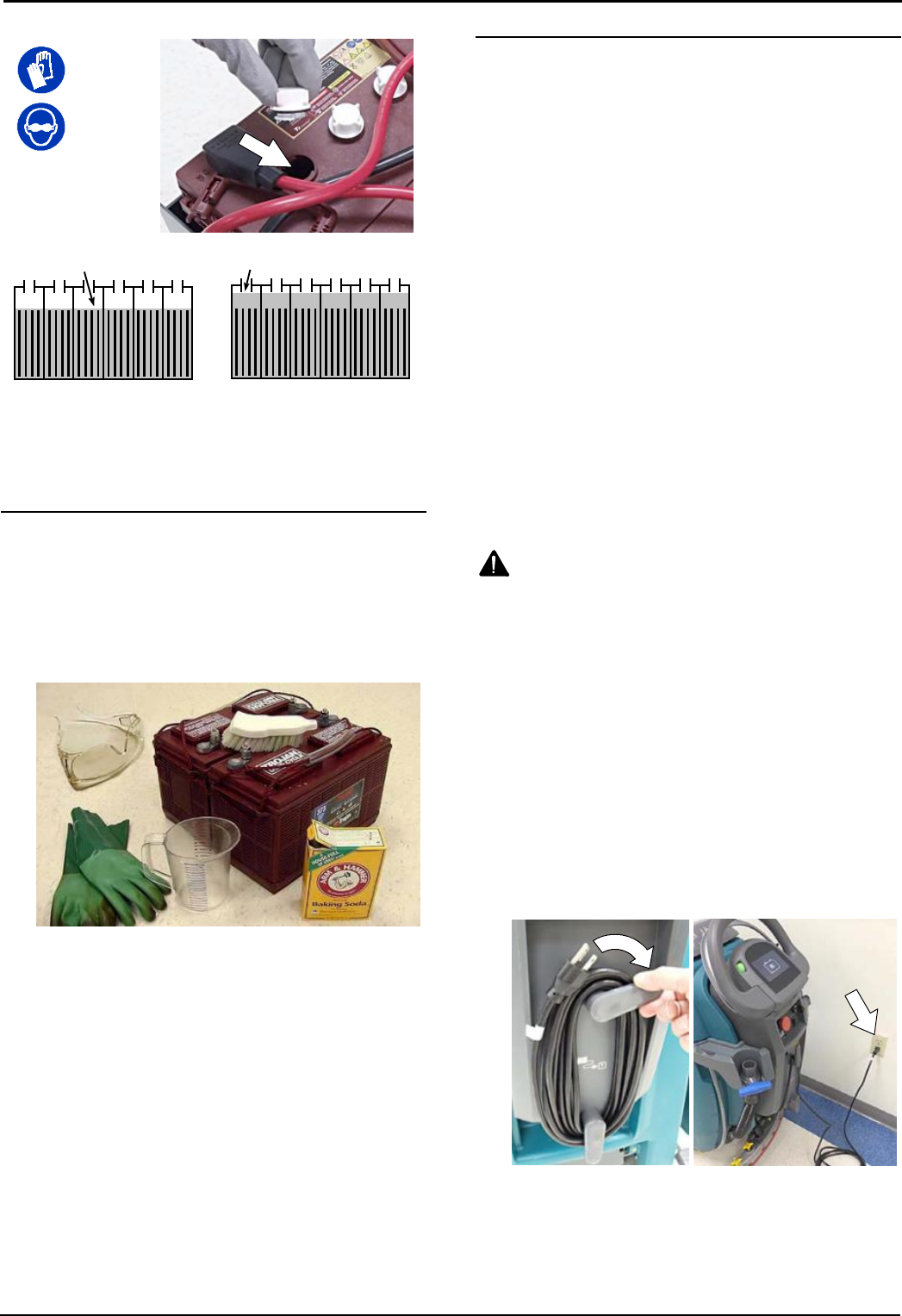

Before Charging After Charging
FIG. 113
NOTE: Make sure the battery caps are in place while
charging. There may be a sulfur smell after charging
batteries. This is normal.
CHECKING CONNECTIONS / CLEANING
After every 200 hours of use, check for loose battery
connections and clean the surface of the batteries,
including terminals and cable clamps to prevent battery
corrosion. Use a scrub brush with a strong mixture of
baking soda and water (Figure 114). Do not remove
battery caps when cleaning batteries.
FIG. 114
CHARGING BATTERIES
The charging instructions in this manual are intended
for the battery charger supplied with your machine. The
use of other battery chargers that are not supplied and
approved by Tennant are prohibited.
If your machine is equipped with an off-board battery
charger refer to the charger’s owners manual for
operating instructions. Contact distributor or Tennant
for battery charger recommendations if machine is not
equipped with charger.
FOR SAFETY: The use of incompatible battery
chargers may damage battery packs and
potentially cause a fire hazard.
IMPORTANT NOTICE: The battery charger is set to
charge the battery type supplied with your machine. If
you choose to change to a different battery type or
capacity (i.e. flooded (wet) lead-acid,
maintenance-free, sealed, AGM batteries, etc.), the
charger’s charging profile must be changed to prevent
battery damage. See BATTERY CHARGER
SETTINGS.
1. Transport the machine to a well-ventilated area.
WARNING: Batteries emit hydrogen gas.
Explosion or fire can result. Keep sparks and open
flame away when charging.
2. Park the machine on a flat, dry surface, turn off
machine and remove key.
FOR SAFETY: When servicing batteries, stop on
level surface, turn off machine, remove key and set
parking brake if equipped.
3. If the machine is equipped with flooded (wet) lead-
acid batteries check the battery electrolyte level
weekly before charging. See FLOODED (WET)
LEAD-ACID BATTERIES.
4. For models equipped with on-board chargers,
remove the charger’s power cord from the storage
hooks and plug power cord into a properly
grounded wall outlet (Figure 115).
FIG. 115
MAINTENANCE
Tennant T300e/T300 (06- 2016) 39

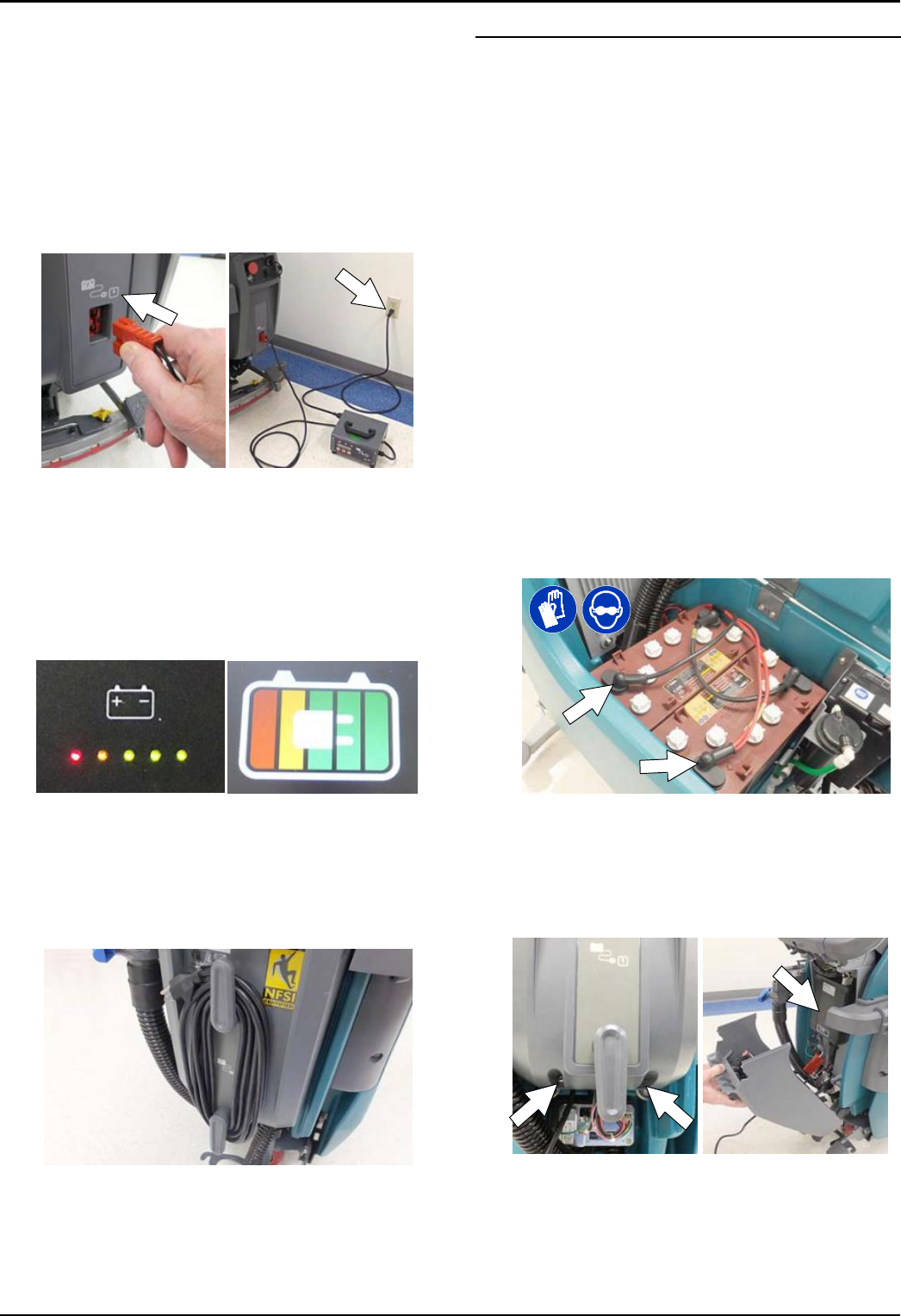

For models equipped with off-board chargers, first
connect the charger’s DC cord into the machine’s
battery charge receptacle then plug the AC power
supply cord into a properly grounded wall outlet
(Figure 116). Refer to the off-board battery
charger’s owner manual for operating instructions.
FOR SAFETY: Do not disconnect the off-board
charger’s DC cord from the machine’s receptacle
when the charger is operating. Arcing may result. If
the charger must be interrupted during charging,
disconnect the AC power supply cord first.
FIG. 116
5. The charger will automatically begin charging and
and shut off when fully charged. The maximum
charging cycle may take up to 6- 12 hours
depending on battery type.
On-board battery charger: The battery discharge
indicator lights will ripple back and forth during the
charging cycle. When all five lights are flashing, the
charging cycle is complete (Figure 117).
T300e/T300 T300 LCD
FIG. 117
6. After charging batteries unplug the power supply cord
and wrap cord around the cord hooks (Figure 118).
For models equipped with an off-board charger,
always disconnect the AC power supply cord first
before disconnecting charger from machine.
FIG. 118
BATTERY CHARGER SETTINGS
The battery charger is set to charge the battery type
supplied with your machine. If you choose to change to
a different battery type or capacity, the charger’s
charging profile must be changed to prevent battery
damage.
If machine is ordered without batteries, adjust the
charger setting to match battery type.
For machine’s equipped with an off-board battery
charger, refer to the off-board charger’s owner manual
to change the charger’s charging profile.
T300e Models-
T300 Models with Membrane Control Panel-
FOR SAFETY: When servicing batteries, stop on
level surface, turn off machine, remove key and set
parking brake if equipped.
To change the on-board battery charger settings for a
different battery type :
1. Disconnect the battery cable connection at
machine (Figure 119).
FIG. 119
2. Unwrap the battery charger power cord from the
cord hooks.
3. Using a T25 star screwdriver, remove the two
screws located at the bottom of the control console
to access battery charger (Figure 120).
FIG. 120
MAINTENANCE
40 Tennant T300e/T300 (03- 2015)
4. Disconnect the battery cable, power cord and wire
harness from charger. Using a T25 star
screwdriver, remove the four screws that mount
charger to machine (Figure 121). Remove charger
from machine.
FIG. 121
5. Remove the black cap from bottom side of charger
to access the profile dial (Figure 122)
FIG. 122
6. Using a small standard screwdriver, turn the dial to
the appropriate battery type according to the
following chart (Figure 123).
FIG. 123
Dial
Position
Battery Description Settings
with AH Ranges
0Factory setting*
1Wet, Trojan 105- 155 AH
2Wet, Enersys/Tab 105- 155 AH
3AGM, Discover 80- 150 AH
4AGM, Fullriver 80- 150 AH
5AGM, TPPL, Enersys 20- 40 AH
6Gel, Sonnenschein 80- 150 AH
* The factory setting, dial position “0”, is pre-programmed
to accommodate the battery type supplied with new
machine. After the dial is changed from the factory
setting, it should not be returned to “0” otherwise battery
damage may result.
7. Replace the black cap on charger, reinstall battery
charger and replace control console.
8. Reconnect the battery cable connection.
T300 Model with Pro-Panel Controls -
NOTE: To perform this procedure, machine must be in
supervisor mode. See SUPERVISOR CONTROLS
instructions at back of manual.
To change the on-board battery charger settings for a
different battery type :
1. Turn the key to the on position.
2. Press the settings button located on the
home screen (Figure 124).
FIG. 124
3. Press the Setup button to access the Setup
screen (Figure 125).
FIG. 125
4. Press the Battery Type button to select the
battery type installed in machine (Figure 126).
FIG. 126
MAINTENANCE
Tennant T300e/T300 (03- 2015) 41
SQUEEGEE BLADE REPLACEMENT
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
Each squeegee blade has four wiping edges. When the
blades become worn, simply rotate the blades
end-for-end or top-to-bottom for a new wiping edge.
Replace blade if all four edges are worn.
1. Remove the squeegee assembly from the machine.
2. Fully loosen the two outside knobs on squeegee
assembly. This will separate the spring loaded
blade retainer from squeegee frame (Figure 127).
To loosen the knobs quickly, squeeze the blade
retainer and squeegee frame together.
FIG. 127
3. Remove worn blade(s) from the blade retainer
(Figure 128).
FIG. 128
4. Rotate the rear blade to a new wiping edge (Figure
129). Make sure to align the slots in the blade with
retainer tabs.
FIG. 129
5. Squeeze the squeegee frame and blade retainer
together and re-tighten the two outside knobs
(Figure 130).
FIG. 130
MAINTENANCE
42 Tennant T300e/T300 (03- 2015)
ec-H2O NanoClean WATER CONDITIONING
CARTRIDGE REPLACEMENT
FOR SAFETY: Before leaving or servicing machine,
stop on level surface, turn off machine, remove key
and set parking brake if equipped.
The water conditioning cartridge is required to be
replaced when it reaches its maximum water usage or
expiration time of when the cartridge was activated,
which ever comes first. The control panel will signal a
code when it’s time to replace cartridge. See
CONTROL PANEL OPERATION for further details.
Depending on machine usage, on average, a new
cartridge can last anywhere from 12 months for heavy
machine usage to 24 months for light machine usage.
ATTENTION: During first time use and after replacing
the water conditioning cartridge, the ec-H2O system
will automatically override the selected solution flow
rateforupto75minutes.
1. Park the machine on a level surface, remove the
key and set parking brake, if equipped.
2. Lift the recovery tank to access the ec-H2O water
conditioning cartridge (Figure 131). Drain recovery
tank before lifting tank.
FIG. 131
3. Disconnect the two hose connectors from the top
of the cartridge by pressing the gray collars inward
and pulling the connectors outward (Figure 132).
Lift cartridge to remove.
Gray
Collar
FIG. 132
4. Fill in the installation date on the new cartridge
label (Figure 133).
FIG. 133
5. Install the new cartridge and reconnect the two
hoses. Make sure the hose connectors are fully
inserted into the cartridge.
6. Reset timer for new cartridge.
Carefully read and understand all steps first before
performing procedure.
a. Turn key on.
b. Press and hold the service switch, located on
the ec-H2O module, for 10 seconds. After
releasing service switch, the three solution flow
indicator lights will begin to (ripple) move back
and forth (Figure 134).
c. Within 5 seconds after releasing the service
switch, while the three indicator lights are
moving back and forth, quickly press and
release the solution flow button located on
ec-H2O module (Figure 134).
The three indicator lights will then blink three
times to indicate timer has been reset.
Repeat process if the three indicator lights do
not blink three times.
Service switch 3 indicator lights
Solution flow button
FIG. 134
MAINTENANCE
Tennant T300e/T300 (02- 2016) 43
LOADING/UNLOADING MACHINE FOR
TRANSPORTING
When transporting the machine by use of trailer or
truck, carefully follow the loading and tie-down
procedure:
1. Raise the scrub head and remove squeegee
assembly.
2. Use a ramp that can support the machine weight
and operator and carefully load machine. Do not
operate the machine on a ramp incline that
exceeds a 21% grade level (Figure 135). A winch
must be used when ramp incline exceeds a 21%
grade level.
FOR SAFETY: When loading/unloading machine
onto/off truck or trailer, use a ramp that can
support the machine weight and operator.
FOR SAFETY: Do not operate the machine on a
ramp incline that exceeds a 21% grade level.
FIG. 135
3. Once loaded, position the front of the machine up
against the front of the trailer or truck. Lower the
scrub head, turn key off and set parking brake, if
equipped (Figure 136).
4. Place a block behind each wheel (Figure 136).
5. Using tie-down straps, secure the machine using
the four tie-down brackets located on the machine
frame (Figure 136). It may be necessary to install
tie-down brackets to the floor of your trailer or
truck.
NOTE: When transporting machine in an open truck or
trailer, secure recovery tank lid.
ATTENTION: Do not use control console area
or accessory storage rails for tie-down
locations, damage may occur.
FIG. 136
STORING MACHINE
The following steps should be taken when storing the
machine for extended periods of time.
1. Charge the batteries before storing machine to
prolong the life of the batteries. Recharge batteries
once a month.
2. Disconnect batteries before storing.
3. Drain and rinse recovery tank and solution tank.
4. Store the machine in a dry area with squeegee and
scrub head in the up position.
ATTENTION: Do not expose machine to rain, store
indoors.
5. Open the recovery tank lid to promote air
circulation.
NOTE: To prevent potential machine damage store
machine in a rodent and insect free environment.
FREEZE PROTECTION
Storing machine in freezing temperatures.
1. Completely drain solution tank and recovery tank.
2. Empty the water from the solution tank filter located
under machine. Replace filter.
3. Pour 1 gallon / 4 liters of propylene glycol based
recreational vehicle (RV) antifreeze into the
solution tank.
Models equipped with optional Severe Environment
detergent tank - Lift out the tank and empty the
detergent from tank. Pour a 1/4 gallon / 1 liter of
propylene glycol based recreational vehicle (RV)
antifreeze into the detergent tank.
4. Turn machine on and operate the solution flow
system. Turn the machine off when the antifreeze
is visible on floor.
Models equipped with ec-H2O option - Operate
ec-H2O scrubbing to cycle antifreeze through
system.
Models equipped with Severe Environment mode
option - Press the Severe Environment button to
cycle antifreeze through system.
5. After storing machine in freezing temperatures,
drain any remaining antifreeze from the solution
tank and from the optional Severe Environment
detergent tank. Add clean water to solution tank
and to optional detergent tank and operate the
machine to flush system.
MAINTENANCE
44 Tennant T300e/T300 (03- 2015)
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Service indicator icon is
blinking Machine or on-board battery charger
fault has been detected See SERVICE INDICATOR CODES
ec-H2o indicator icon is
red or blinking red ec-H2O system fault has been
detected See SERVICE INDICATOR CODES
Machine will not operate Emergency stop button activated Turn button to reset
Machine fault detected See SERVICE INDICATOR CODES
Batteries discharged Recharge batteries
Loose battery cable(s) Tighten loose cables
Faulty battery(s) Replace battery(s)
Faulty key switch Contact service
Faulty start bail switch Contact service
Circuit breaker tripped Reset circuit breaker
Faulty control board Contact service
On-board battery charger
will not operate Plug not connected to power supply Check plug connection
Batteries over discharged Replace batteries
Battery charger fault detected See SERVICE INDICATOR CODES
Faulty charger Replace charger
Machine will not propel
(Drive Model) Propel fault has been detected. See SERVICE INDICATOR CODES
Circuit breaker tripped Reset circuit breaker
Faulty propel motor or wiring Contact service
Worn carbon brushes in motor Contact service
Brush motor will not
operate Brush motor fault has been detected. See SERVICE INDICATOR CODES
Faulty pad motor or wiring Contact service
Circuit breaker tripped (T300e) Reset circuit breaker
Worn carbon brushes in motor Contact service
Broken or loose belt (dual
disk/cylindrical models) Contact service
Vacuum motor will not
operate Squeegee assembly is raised off floor Lower squeegee assembly to floor
Vacuum motor fault has been detected See SERVICE INDICATOR CODES
Faulty vacuum motor or wiring Contact service
Circuit breaker tripped (T300e) Reset circuit breaker
Poor scrubbing
performance Debris caught in brush/pad Remove debris
Worn brush/pad Replace brushes/pad
Incorrect brush pressure Adjust brush pressure
Wrong brush/pad type Use correct brush/pad for application
Low battery charge Recharge batteries
MAINTENANCE
Tennant T300e/T300 (03- 2015) 45
TROUBLESHOOTING - Continued
PROBLEM CAUSE SOLUTION
Trailing water - poor or
not water pickup Full recovery tank or excessive foam
buildup Drain recovery tank
Loose drain hose cap or flow control
valve is open Replace cap or close flow control valve on
drain hose
Worn squeegee blades Rotate or replace squeegee blades
Clogged drip trap (Squeegee
assembly) Remove cover and clean
Clogged squeegee assembly Clean squeegee assembly
Loose vacuum hose connection Secure vacuum hose connection
Clogged vacuum hose Flush vacuum hose
Clogged vacuum hose Flush vacuum hose
Damaged vacuum hose Replace vacuum hose
Clogged float shut-off screen in
recovery tank Clean screen
Recovery tank lid not completely
closed Check lid for obstructions
Defective seals on recovery tank lid Replaced seal
Little or no solution flow Empty solution tank Refill solution tank
Low solution flow rate set Increase solution flow rate
Clogged solution tank filter Clean filter
Plugged solution supply line Flush solution supply line
T300 models option -
Severe environment tank
does not dispense deter-
gent
No detergent Refill tank
Faulty float switch Contact service
Defective pump Contact service
Defective pump potentiometer Contact service
Faulty control panel Contact service
Short run time Low battery charge Charge batteries
Batteries need maintenance See BATTERIES
Defective battery or end of battery life Replace batteries
Battery discharge indicator (BDI)
programmed incorrectly See CHARGING BATTERIES
Faulty charger Replace battery charger
Brush pressure set too high Lower brush pressure. T300e - lower dual
down pressure lever
SPECIFICATIONS
46 Tennant T300e/T300 (02- 2016)
GENERAL MACHINE DIMENSIONS/CAPACITIES/PERFORMANCE
MODEL 43 cm Disk (Push) 50 cm Disk (Push) 43 cm Disk (Drive) 50 cm Disk (Drive)
Length 1302 mm 1372 mm 1302 mm 1372 mm
Width 508 mm 559 mm 508 mm 559 mm
Height 1095 mm 1095 mm 1095 mm 43.1 in / 1095 mm
Weight 98 kg 104 kg 104 kg 109 kg
Weight (with batteries) 166 kg 171 kg 177 kg 181 kg
GVW 207 kg 212 kg 219 kg 223 kg
Squeegee width 772 mm
Recovery tank capacity 53 L
Solution tank capacity 42 L
Severe Environment tank capacity 1.5 L
Scrubbing path width 430 mm 505 mm 430 mm 505 mm
Down pressure - T300 Low: 21.3 kg
Med: 33 kg
High: 40 kg
Low: 23.5 kg
Med: 35 kg
High: 41.7 kg
Low: 21.3 kg
Med: 32 kg
High: 39 kg
Low: 23 kg
Med: 34.5 kg
High: 41 kg
Down pressure - T300e/T300 manual 21.3 kg 23.5 kg 21.3 kg 23 kg
Dual down pressure - T300e/
T300 manual 40 kg 41.7 kg 39 kg 41 kg
Scrubbing speed Pad assist 61 mpm
Transport speed n/a n/a 73 mpm
Reverse speed n/a n/a 44 mpm
Productivity rate - estimated actual 868m2/hr 1041m2/hr 1157m2/hr 1388m2/hr
ec-H2O productivity rate - est. actual 898 m2/hr 1078m2/hr 1198m2/hr 1437m2/hr
Aisle turnaround width 1321 mm 1384 mm 1321 mm 1384 mm
Ramp incline for scrubbing 9% maximum
Ramp incline for transporting 21% maximum
Ramp incline for loading- empty tanks 21% maximum
Solution flow rate - T300e 1.9 L/min maximum
Solution flow rate - T300 Low: .57 L/min, Med: 1.3 L/min, High: 1.9 L/min
ec-H2O solution flow rate Low: .45 L/min, Med: .94 L/min, High: 1.3 L/min
Brush motor 24 VDC, .75kW
Propel motor n/a n/a 24 VDC, .175 kW
Vacuum motor - T300e 24 VDC, .37kW
Water lift - T300e 876 mm
Vacuum motor - T300 24 VDC, .47kW
Water lift - T300 1067 mm
Water lift Quiet- Mode - T300 711 mm
ec-H2O solution pump 24 VDC, 3.8 L/min, min open flow
Machine voltage 24 VDC
Battery capacity 2- 12V 120AH C/5 Wet, 2- 12V 58AH C/5 Sealed/TPPL,
2- 12V 76AH C/5 Sealed/Gel, 2- 12V 105AH C/5 Sealed/Gel
Total power consumption 31.5A nominal 36.5A nominal 34.5A nominal 39.5A nominal
Battery Charger - on-board 100- 240VAC, 50/60Hz, 24VDC, 13A
Battery Charger - smart off-board 100- 240VAC, 50/60Hz, 24VDC, 13A
Protection grade IPX3
Sound pressure level LpA* - T300e 67 dB(A) 67 dB(A) 67 dB(A) 67 dB(A)
Sound pressure level LpA* - T300 64.9 dB(A) 64.9 dB(A) 64.9 dB(A) 64.9 dB(A)
Sound pressure level LpA* - Quiet mode 57.8 dB(A) 57.8 dB(A) 57.8 dB(A) 57.8 dB(A)
Sound uncertainty KpA*0.8 dB(A) 0.8 dB(A) 0.8 dB(A) 0.8 dB(A)
Sound power level uncertainty LwA +
uncertainty KwA *84.3 dB(A) 84.3 dB(A) 84.3 dB(A) 84.3 dB(A)
Machine vibration at hand-arm* <2.5 m/s2
Ambient operating temperature Min: 0C, Max: 43C
*Values per EN 60335- 2- 72. Specifications are subject to change without notice.
SPECIFICATIONS
Tennant T300e/T300 (02- 2016) 47
GENERAL MACHINE DIMENSIONS/CAPACITIES/PERFORMANCE
MODEL 60 cm Dual Disk 50 cm Cylindrical Brush 50 cm Orbital
Length 1314 mm 1283 mm 1245 mm
Width 660 mm 635 mm 521 mm
Height 1095 mm 1095 mm 1095 mm
Weight 113 kg 113 kg 116 kg
Weight (with batteries) 186 kg 186 kg 188 kg
GVW 228 kg 228 kg 230 kg
Squeegee width 772 mm
Recovery tank capacity 53 L
Solution tank capacity 42 L
Severe Environment tank capacity 1.5 L
Scrubbing path width 600 mm 500 mm 500 mm
Down pressure - T300 Low: 26 kg
Med: 36.7 kg
High: 44 kg
Low: 24 kg
Med: 27 kg
High: 29 kg
Low: 28.5 kg
Med: 42 kg
High: 49.5 kg
Down pressure - T300e/T300 manual 26 kg 24 kg 28.5 kg
Dual down pressure - T300e/T300 manual 44 kg 29 kg 49.5 kg
Scrubbing speed 61 mpm
Transport speed 73 mpm
Reverse speed 44 mpm
Productivity rate - estimated actual 1697m2/hr 1388m2/hr 1388m2/hr
ec-H2O productivity rate - est. actual 1756m2/hr 1437m2/hr 1437m2/hr
Aisle turnaround width 1346 mm 1321 mm 1245 mm
Ramp incline for scrubbing 9% max.
Ramp incline for transporting 21% max.
Ramp incline for loading- empty tanks 21% max.
Solution flow rate - T300e .1.9 L/min maximum
Solution flow rate - T300 Low: .57 L/min, Med: 1.3 L/min,
High: 1.9 L/min Low: .57 L/min, Med: 1.0 L/min,
High: 1.3 L/min Low: .57 L/min, Med: 1.3 L/min,
High: 1.9 L/min
ec- H2O solution flow rate Low: .45 L/min, Med: .94 L/min, High: 1.3 L/min
Brush motor 24 VDC, .75kW
Propel motor 24 VDC, .175kW
Vacuum motor - T300e 24 VDC, .37 kW
Water lift - T300e 876 mm
Vacuum motor - T300 24 VDC, .47 kW
Water lift - T300 1067 mm
Water lift - Quiet-Mode - T300 711 mm
ec- H2O solution pump 24 VDC, 3.8 L/min, min open flow
Machine voltage 24 VDC
Battery capacity 2- 12V 120AH C/5 Wet, 2- 12V 58AH C/5 Sealed/TPPL
2- 12V 76AH C/5 Sealed/Gel, 2- 12V 105AH C/5 Sealed/Gel
Total power consumption 36A nominal 40A nominal 30A nominal
Battery Charger - on-board 100- 240VAC, 50/60Hz, 24VDC, 13A
Battery Charger - smart off-board 100- 240VAC, 50/60Hz, 24VDC, 13A
Protection grade IPX3
Sound pressure level LpA* - T300e 67.7 dB(A) 67 dB(A) 67.5 dB(A)
Sound pressure level LpA* - T300 66.5 dB(A) 63.6 dB(A) 65.3 dB(A)
Sound pressure level LpA* - Quiet mode 59.1 dB(A) 57.2 dB(A) 57.6 dB(A)
Sound uncertainty KpA*0.8 dB(A) 0.8 dB(A) 0.8 dB(A)
Sound power level uncertainty LwA +
uncertainty KwA *83.8 dB(A) 85 dB(A) 83.5 dB(A)
Machine vibration at hand-arm* <2.5 m/s2
Ambient operating temperature Min: 0C, Max: 43C
*Values per EN 60335- 2- 72. Specifications are subject to change without notice.
SPECIFICATIONS
48 Tennant T300e/T300 (03- 2015)
MACHINE DIMENSIONS
1095 mm
772 mm
SINGLE DISK MODEL
1302 mm
43 cm Model
1372 mm
50 cm Model
508 mm
43 cm Model
559 mm
50 cm Model
SPECIFICATIONS
Tennant T300e/T300 (03- 2015) 49
1095 mm
772 mm
DUAL DISK MODEL
1314 mm 660 mm
SPECIFICATIONS
50 Tennant T300e/T300 (03- 2015)
1095 mm
772 mm
CYLINDRICAL BRUSH MODEL
1283 mm 635 mm
SPECIFICATIONS
Tennant T300e/T300 (03- 2015) 51
1095 mm
772 mm
ORBITAL PAD MODEL
1245 mm 521 mm
SPECIFICATIONS
52 Tennant T300e/T300 (03- 2015)
SUPERVISOR CONTROLS
Tennant T300e/T300 (02- 2016) 53
ATTENTION: The following instructions are intended
for supervisor use only. Remove pages from manual if
necessary.
SUPERVISOR CONTROLS
The supervisor controls feature allows a supervisor to
program the machine’s scrubbing settings for operator
use. The lockout functionality will prevent the operator
from changing or saving the Zone Settings.
The supervisor controls feature will lower machine
variability for consistent, repeatable cleaning results,
machine quality assurance regardless of user
experience, and reduce user training requirements.
NOTE: The T300e model is not equipped with the
supervisor controls feature.
T300 MODEL WITH PRO-MEMBRANE
CONTROL PANEL
The machine has three supervisor control modes of
operation to choose from:
Unlocked Mode 1: Operator has full control of all
scrubbing parameters with the ability to save Zone
Settings. The Unlocked Mode 1 is the factory default
setting.
Lockout Mode 2: Zone Settings are configured and
locked by supervisor. Operator has control to
reconfigure the zone settings, but are not able to save
them.
Lockout Mode 3: Zone Settings are configured and
locked by supervisor. Operator is restricted to only use
the Zone Settings configured by supervisor.
To enter the supervisor controls mode follow the
instructions below:
1. Park the machine on a level surface and turn the
key to off ( O ) position.
2. Press and hold the Down Pressure button while
turning the key on. Release button when the far
right battery discharge indicator LED turns on
(Figure 137).

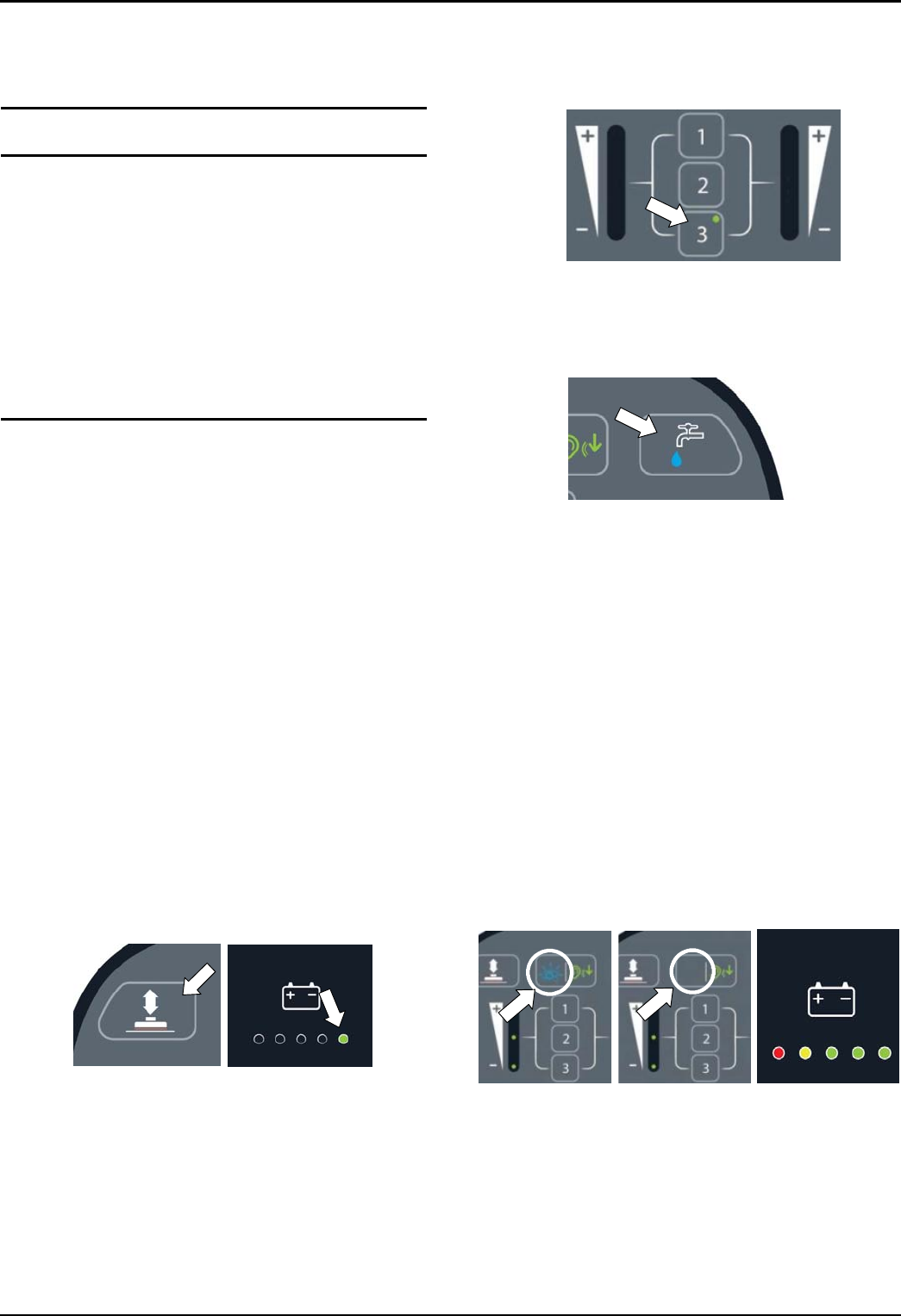

FIG. 137
3. Select the preferred supervisor control mode by
pressing the following Zone Setting buttons as
described:
Zone 1 button = Unlocked mode 1
Zone 2 button = Lockout mode 2
Zone 3 button = Lockout mode 3
Hold down the Zone Setting button until it blinks
three times to save the preferred supervisor control
mode (Figure 138). In this example, Lockout mode
3 was selected.
FIG. 138
4. If Lockout mode 2 or 3 was selected, press the
Solution Flow button. This will allow you to
configure the Zone Settings for the selected
supervisor control mode (Figure 139).
FIG. 139
5. Configure the following Zone Settings for zone 1.
After the Zone Settings are configured, press and
hold the zone button until it blinks three times to
save Zone Setting. Repeat process for other
zones.
Zone Settings:
- Down pressure rate
- Solution flow rate
- Quiet-Mode on or off (option)
- ec-H2O mode on or off (option)
- Maximum scrubbing speed (drive model)
To adjust the maximum scrub speed, press the
circled button to cycle through the five speed
selections as described below (Figure 140).
The speed selection is displayed by the battery
discharge indicator LED’s. The red LED represents
the lowest speed. The far right green LED
represents the highest speed (Figure 140).
Low High
Speed Selection
Hidden Button
Severe Env. Button
FIG. 140
6. To exit the supervisor control mode, turn key off.
SUPERVISOR CONTROLS
54 Tennant T300e/T300 (03- 2015)
T300 MODEL WITH PRO-PANEL CONTROLS
There are two types of user modes that will interface
with the operator home screen:
Operator Mode - Capable of machine operation with
permissions and restrictions controlled by the
supervisor.
Supervisor Mode - Capable of machine operation
with full use of all controls, along with configuring
permissions and restrictions for the operator mode.
A new machine from the factory will automatically start up
in the supervisor mode with a preassigned default
supervisor profile. The machine’s factory-assigned
supervisor login number is “1234”. This login number is
not required until it’s enabled. The default supervisor
profile name and login number can be changed as
described in this section. If the new assigned supervisor
mode login number is forgotten, use the recovery login
code 836626826.
To enter the supervisor controls follow the instructions
below:
1. Park the machine on a level surface and turn the
key to the on ( I ) position. The home screen will
display at start up (Figure 141). This is the factory
default screen at start up.
NOTE: If a login screen appears at start up. Enter
the factory-assigned supervisor login number or
your saved personalized supervisor login number
to access the operator home screen.
2. Press the settings button located on the
home screen (Figure 141).
FIG. 141
3. Press the Setup button to access the Setup
screen (Figure 142). The Setup screen is only
accessible with an assigned supervisor login
number.
FIG. 142
4. The Setup screen allows supervisor access to the
following controls as described below.
FIG. 143
Add/Edit Profiles - Provides the capability
to add, edit, copy or delete user profiles.
Battery Type - Use this to select battery
type installed in machine. This ensures the
on-board battery charger charging profile is
properly programmed to your battery type. See
BATTERIES.
Enable Login - Activates a required login
number at machine start up for all user profiles to
operate machine.
Calibrate Touch Icon - Use this to calibrate
the touch screen if the touch points become
misaligned.
Factory Reset - Resets the supervisor login
number back to the factory default number 1234,
removes user profiles and resets any custom
preset zone setting names back to the factory
preset names.
To Add/Edit User Profiles
Before adding new user profiles, it is recommended to
configure the four Zone Settings in advance (See
CONTROL PANEL OPERATION).
1. Press the “Add/Edit Profiles” button to enter
the user profile settings (Figure 144).
FIG. 144
SUPERVISOR CONTROLS
Tennant T300e/T300 (NIL) 55
2. Press the “Add Profile” button to add a new
user profile (Figure 145).
FIG. 145
3. Press the “Operator” button to add a new
operator (Figure 146).
Or press the “Supervisor” button to add an
additional supervisor (Figure 146).
Note: The machine’s default supervisor profile can
not be deleted from profile list.
FIG. 146
4. Enter the new user’s profile ID (identification) then
press the green forward arrow (Figure 147).
FIG. 147
5. Create an assigned login number for the new user
profile then press the green arrow (Figure 148).
The new login number can be any combination of
numbers ranging from 3 to 8 digits long.
FIG. 148
6. Now select the controls that the new user should
have access to use (Figure 149). Green represents
unlocked controls and gray represents locked
controls. Press the blinking save icon to save new
profile.
FIG. 149
7. The new user profile is now saved to the operator
profile list as shown (Figure 150). Multiple Operator
and Supervisor user profiles can be added. Press
the back arrow to return to the previous screen to
add more user profiles or to enable login.
FIG. 150
8. To enable the login number at start up, press the
“Enable Login” button (Figure 151). This button will
change from “Enable Login” to “Disable Login”.
This will allow you to disable a required login
number at start up as described in step 13.
FIG. 151
SUPERVISOR CONTROLS
56 Tennant T300e/T300 (03- 2015)
9. Now at machine start up, a login screen will display
(Figure 152). The new user will need to enter their
assigned login number to operate machine
FIG. 152
10. When the user is done operating the machine, it is
recommended to have the user log out by pressing
the Settings button, then pressing the logout button
(Figure 153). Turning the key to the off position is
another way to also logout.
FIG. 153
11. Use the edit, copy and delete profile buttons to
manage the current user profiles (Figure 154).
For example, to edit any user profile settings
including the factory-assigned default supervisor
login number, press the “Edit Profile” button
FIG. 154
To change the factory-assigned default supervisor
login number, press the Supervisor button. Then
press the “DEFAULT SUPER” profile button to
enter the profile settings (Figure 155 ).
FIG. 155
Within the profile settings screen, press the
factory-assigned login number and enter a new
login number (Figure 156).
Press the blinking save icon to save the new
login number.
FIG. 156
13. To setup the machine without a login number
requirement for a specific user profile as the
default, follow the instructions below:
a. Press the “Disable Login” button
(Figure 157).
FIG. 157
SUPERVISOR CONTROLS
Tennant T300e/T300 (03- 2015) 57
b. Press the “yes” button to enter the Default
User screen (Figure 158).

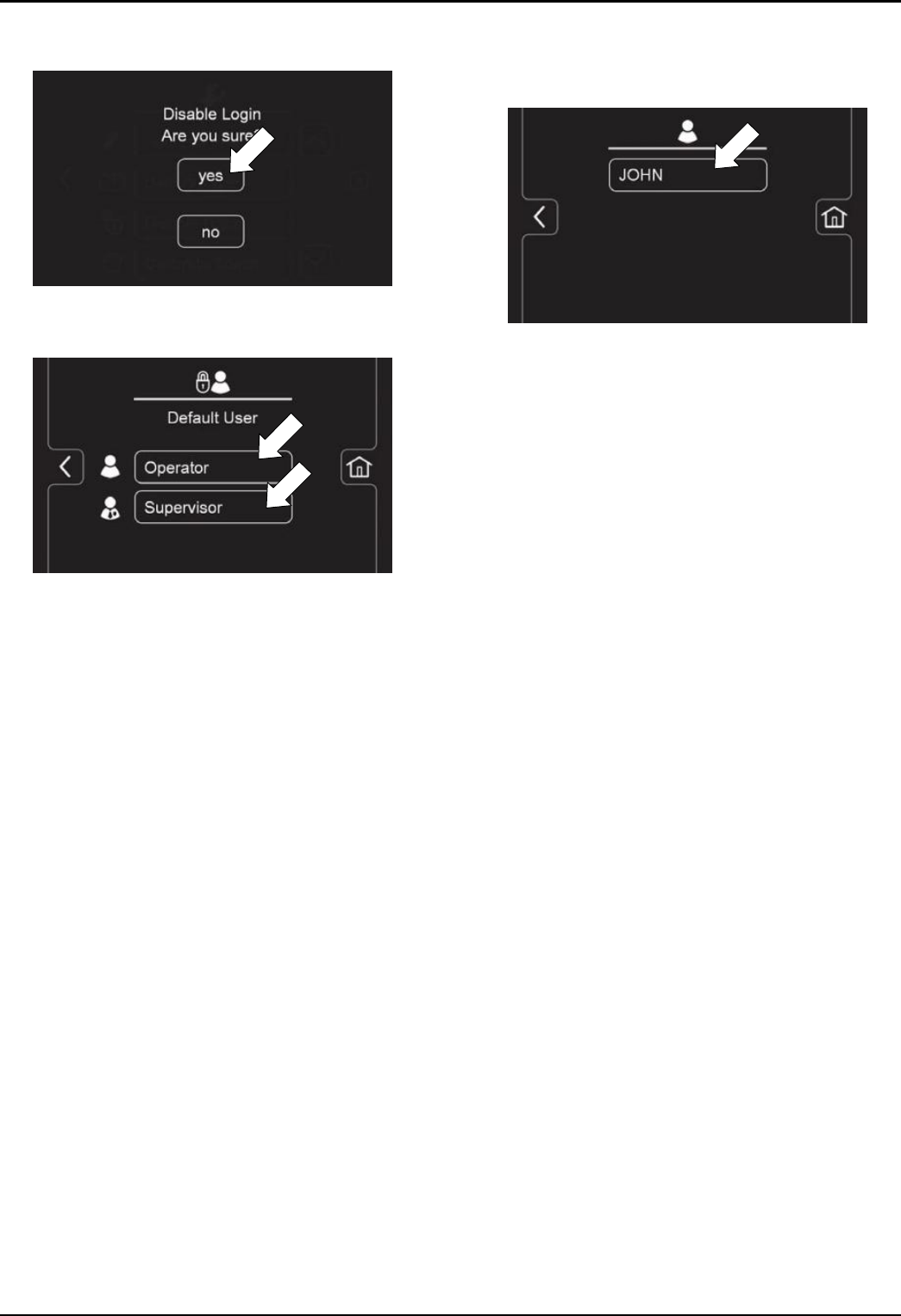

FIG. 158
c. Select the desired default user by pressing the
Operator or Supervisor button (Figure 159).
FIG. 159
d. Select a pre-assigned user profile. In this
example, operator profile “JOHN” is selected
(Figure 160). Turn the key off to apply the
setting.
FIG. 160
e. At start up, the home screen is now set without
a login requirement for John’s operator profile
as the default.
