T7+ Parts Manual 9013336 Rev03 CE (Europe) T7 Europe
User Manual:
Open the PDF directly: View PDF
.
Page Count: 143 [warning: Documents this large are best viewed by clicking the View PDF Link!]
- HOW TO ORDER PARTS
- GENERAL RECOMMENDED MAINTENANCE
- STANDARD PARTS

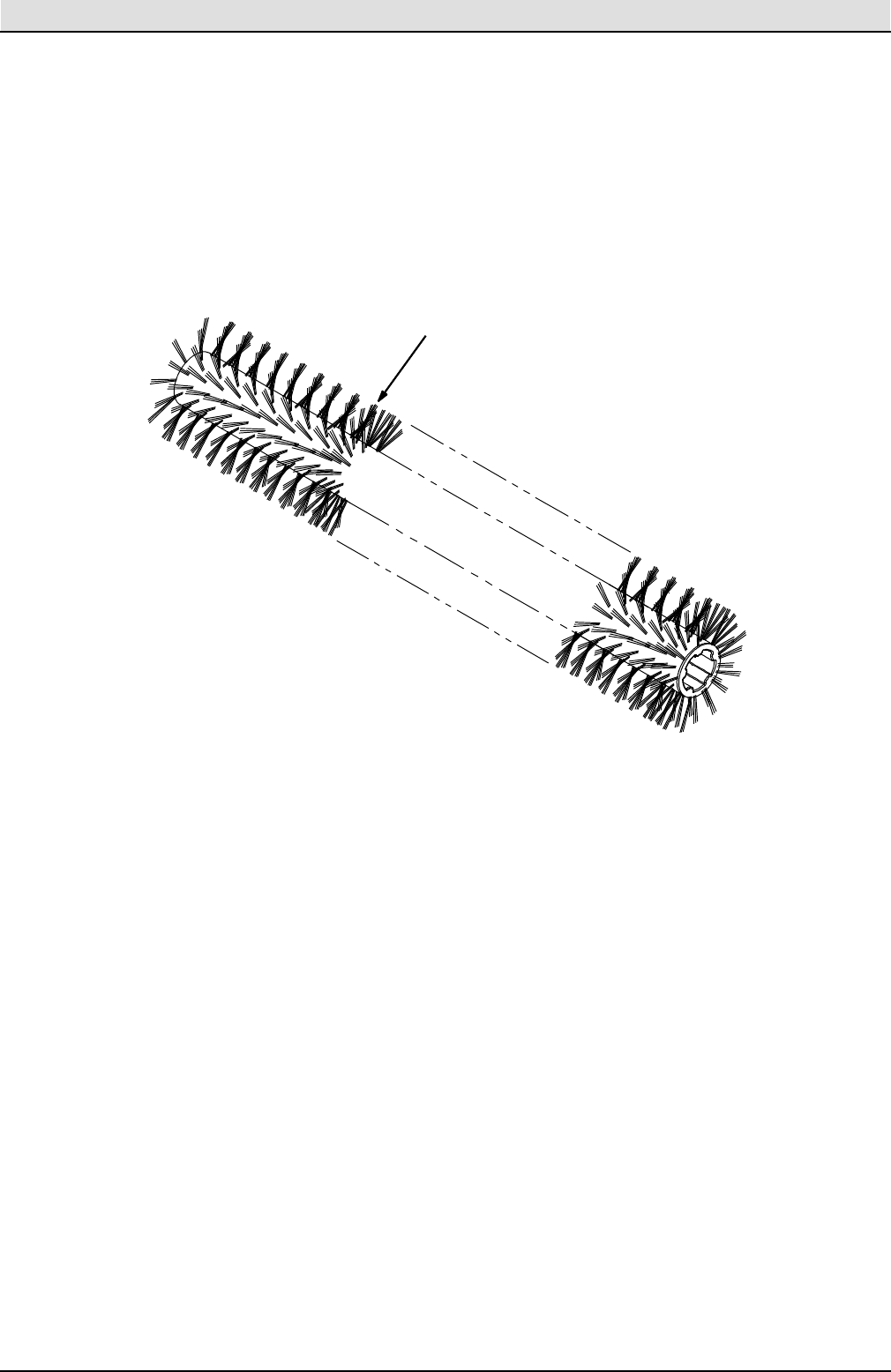

- Fig. 1 - Replacement Brushes, Cylindrical

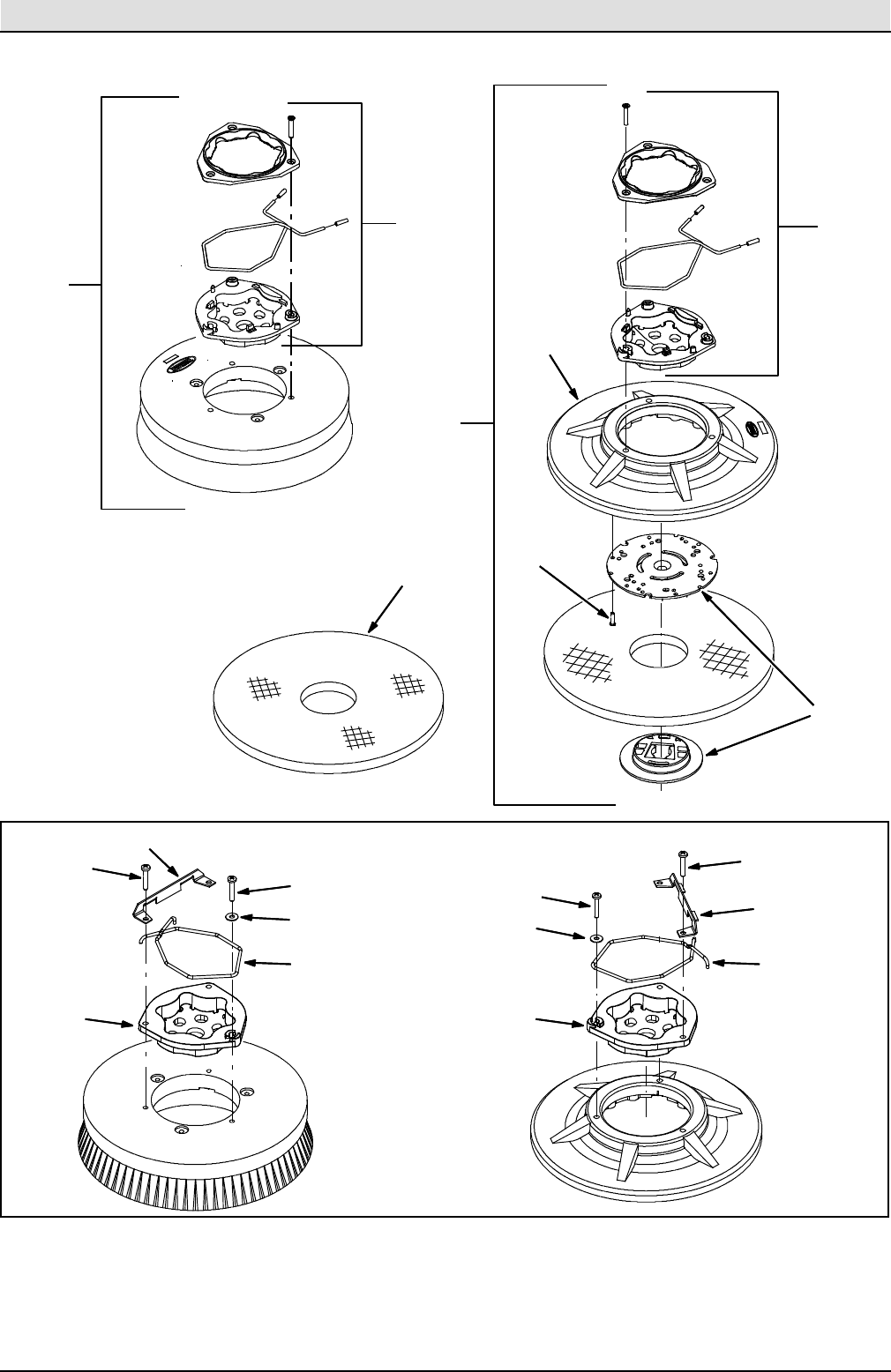

- Fig. 2 - Replacement Brushes And Pad Drivers, 650 mm
- Fig. 3 - Replacement Brushes And Pad Drivers, 800 mm

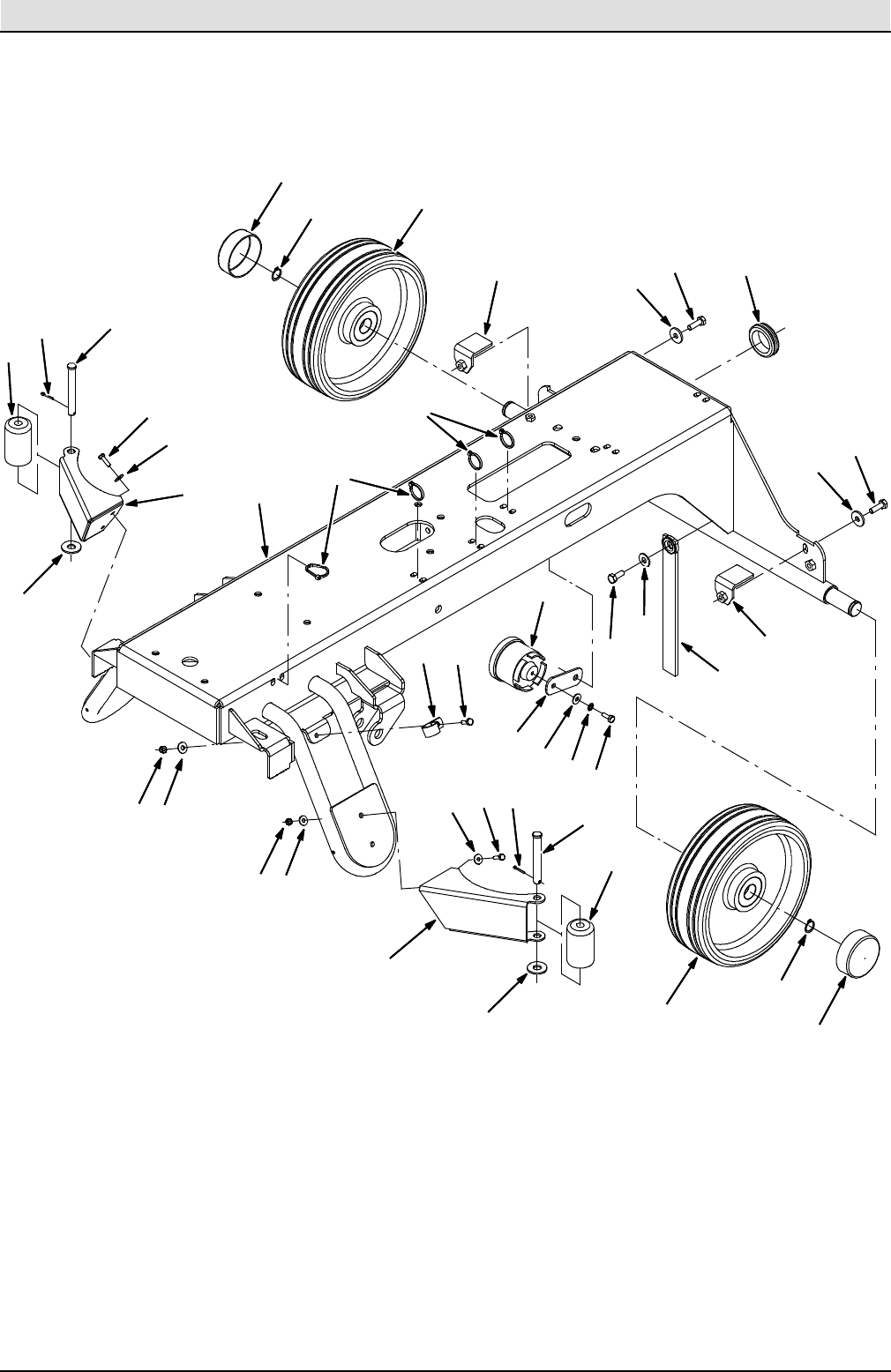

- Fig. 4 - Main Frame Group, Disk Scrub Head
- Fig. 5 - Main Frame Group, Cylindrical Scrub Head, 700 mm
- Fig. 6 - Main Frame Group, Cylindrical Scrub Head, 800 mm
- Fig. 7 - Seat Group

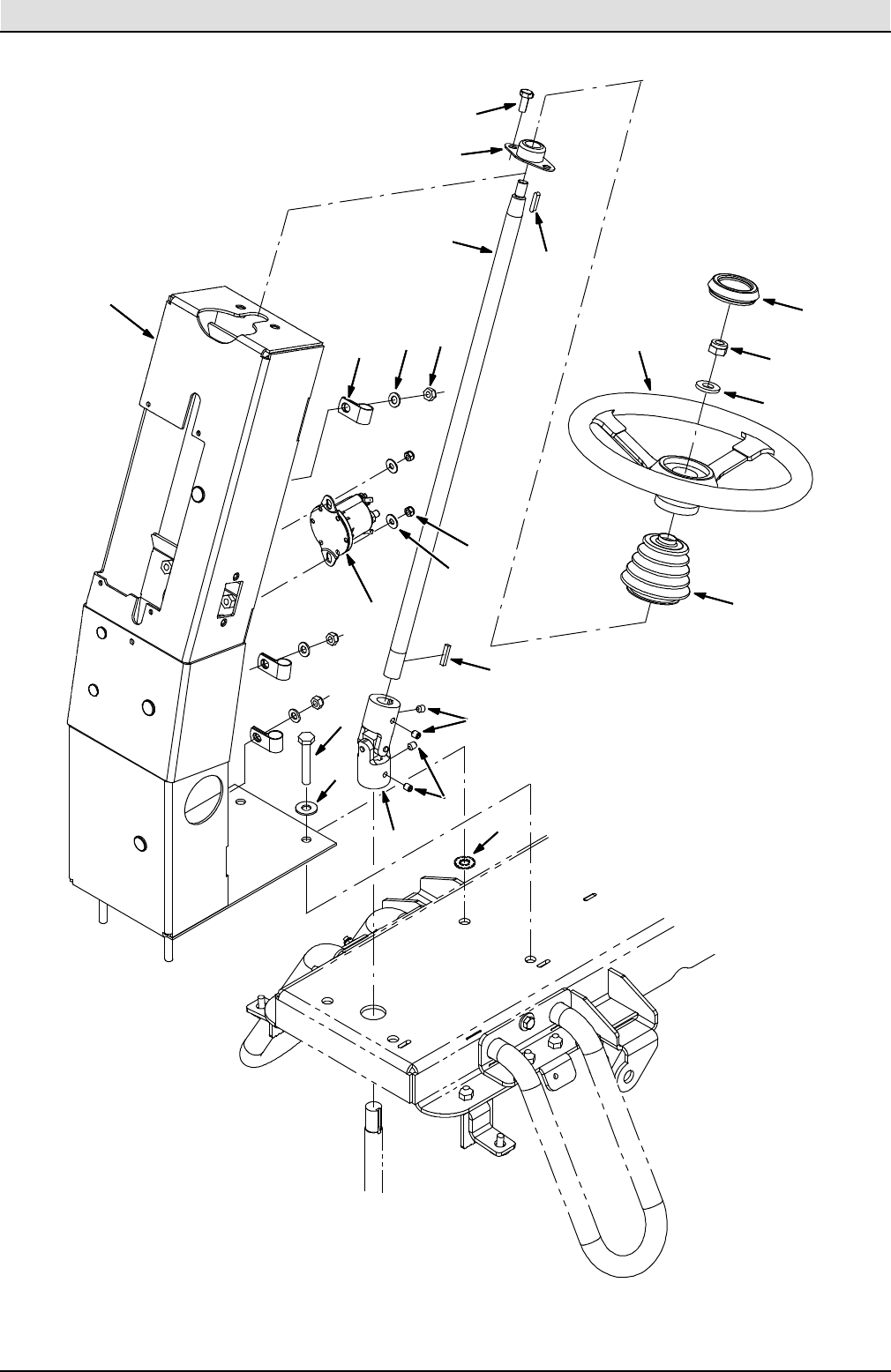

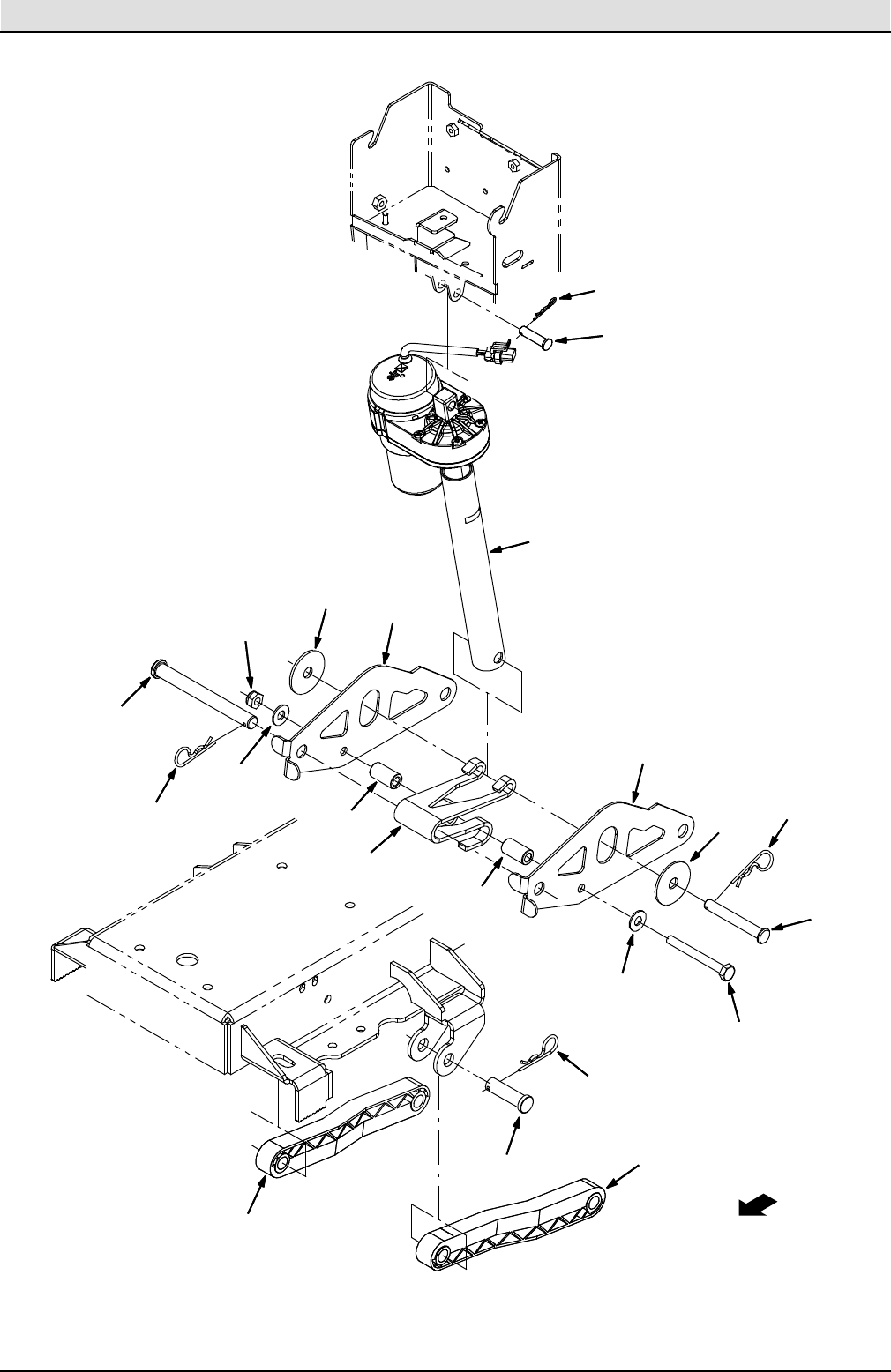

- Fig. 8 - Steering Group

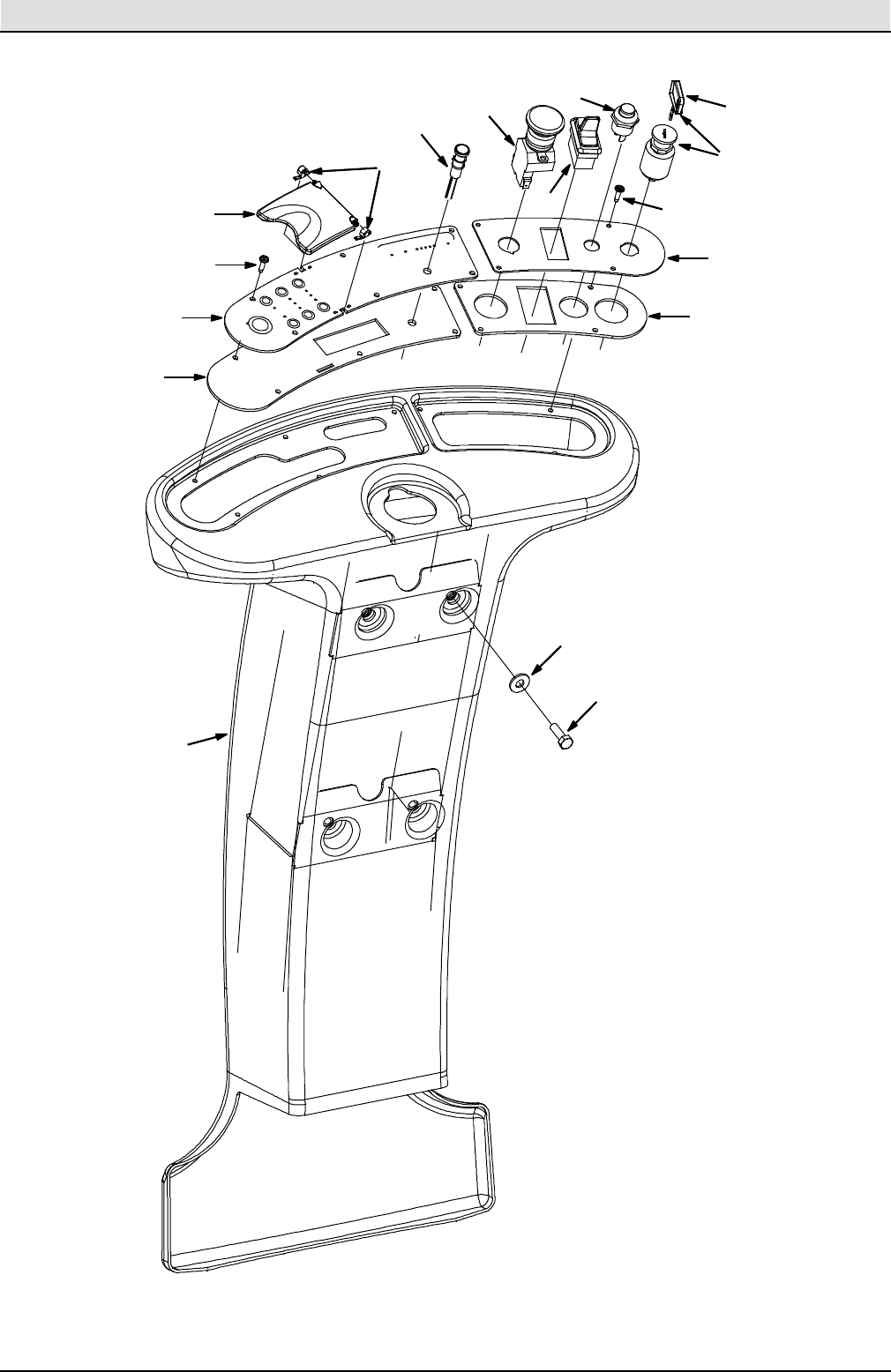

- Fig. 9 - Instrument Panel Group

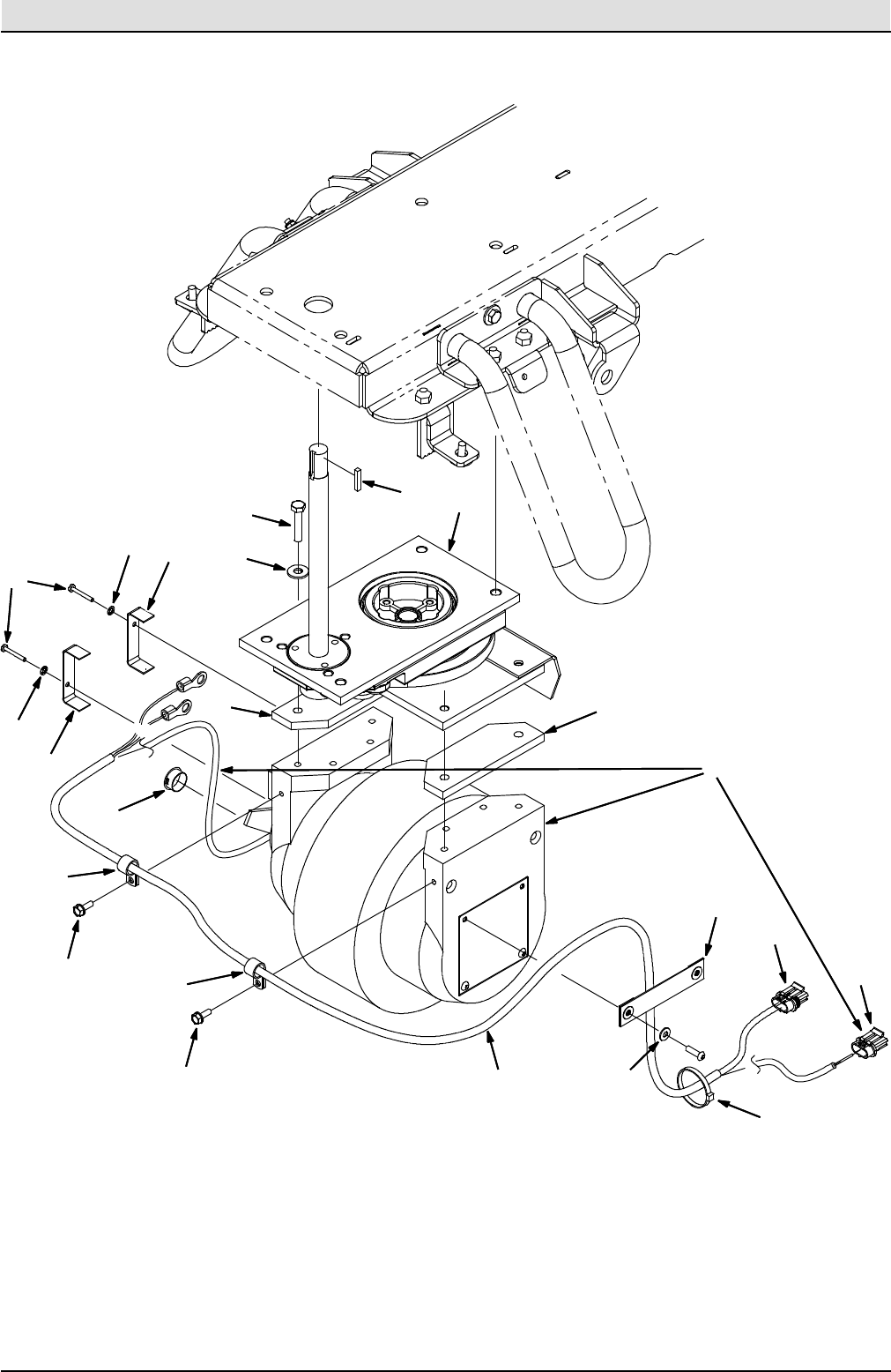

- Fig. 10 - Front Drive Wheel Group

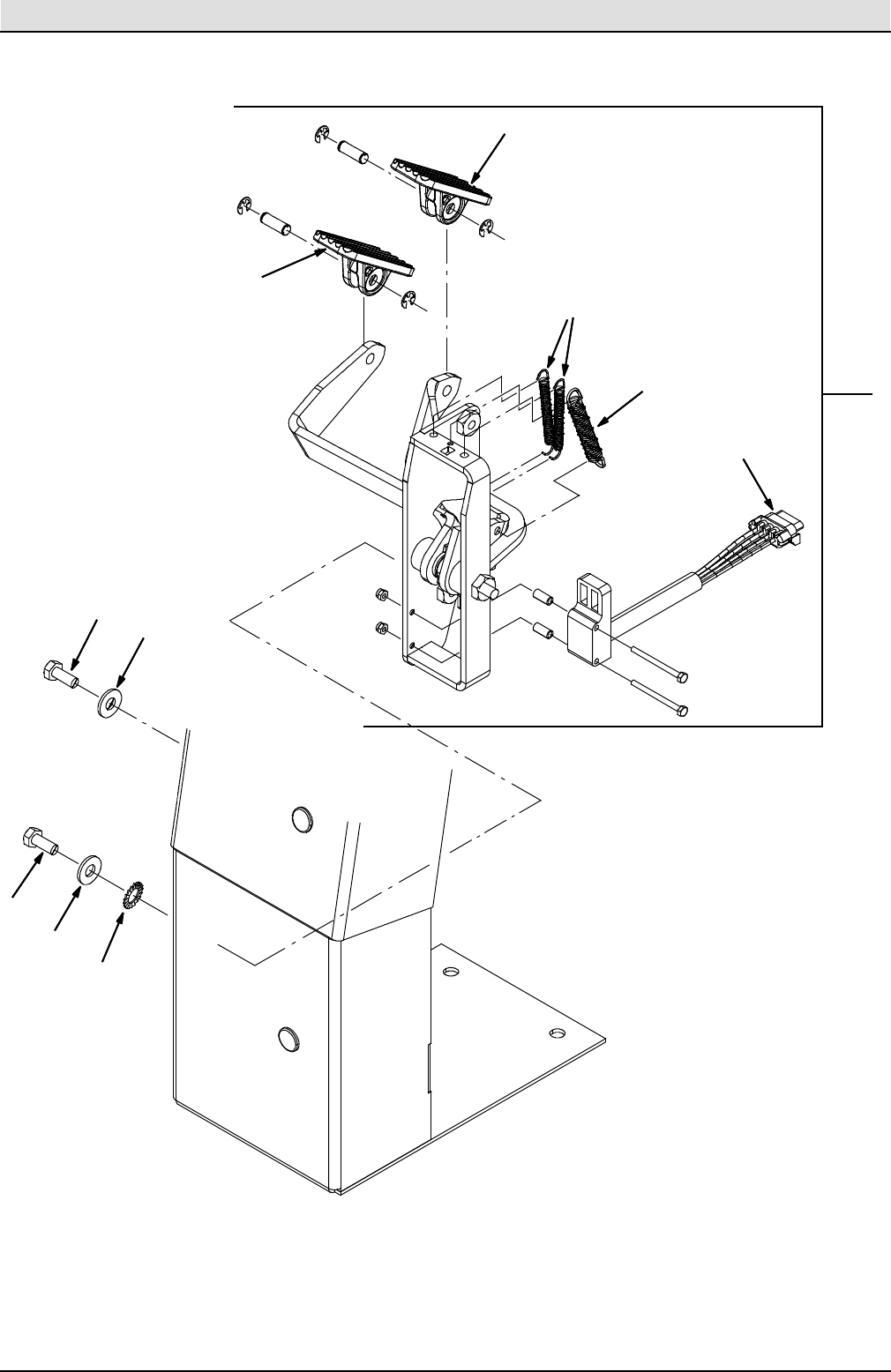

- Fig. 11 - Brake Pedal and Accelerator Pedal Group

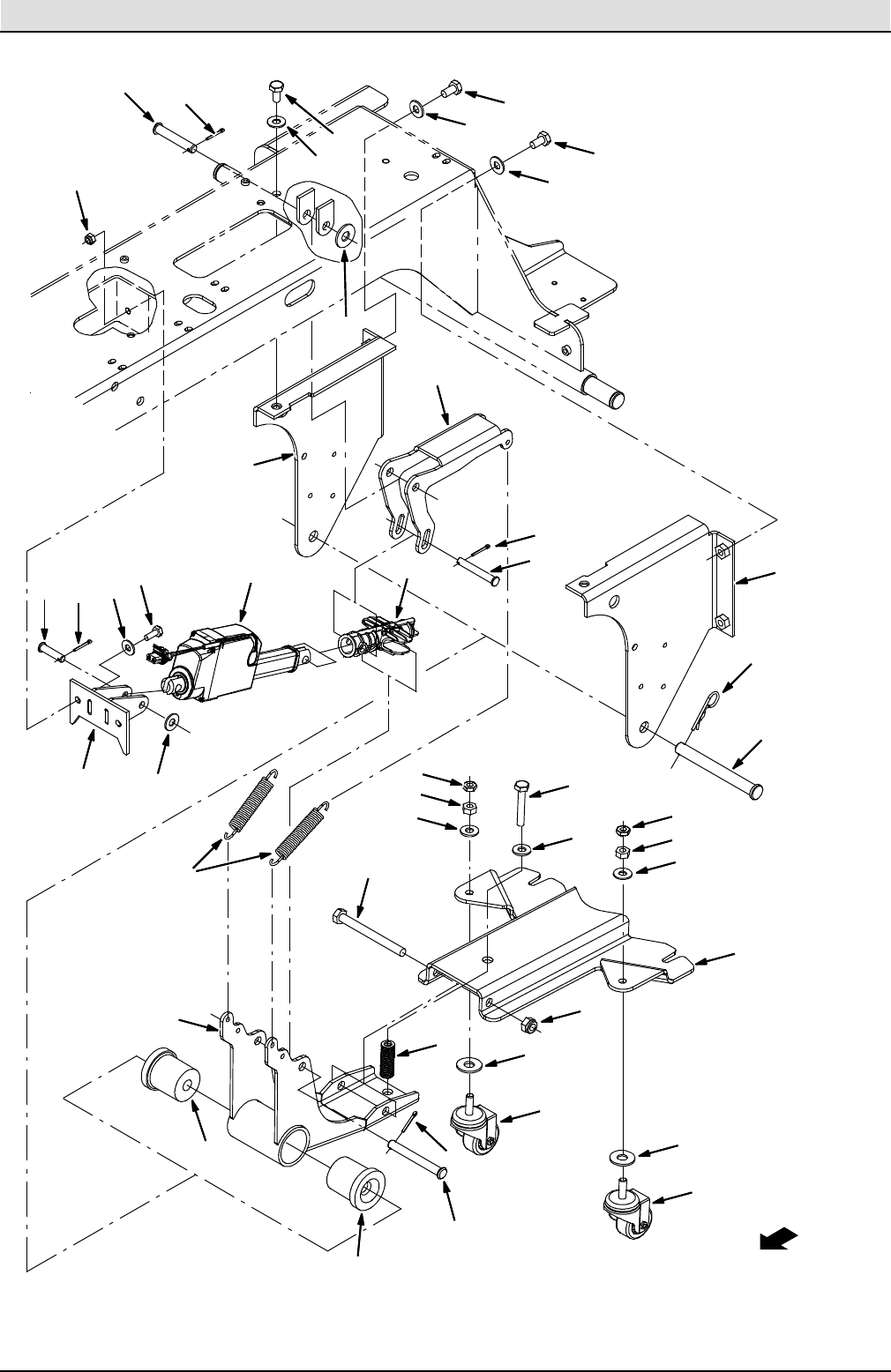

- Fig. 12 - Disk Scrub Head Lift Group

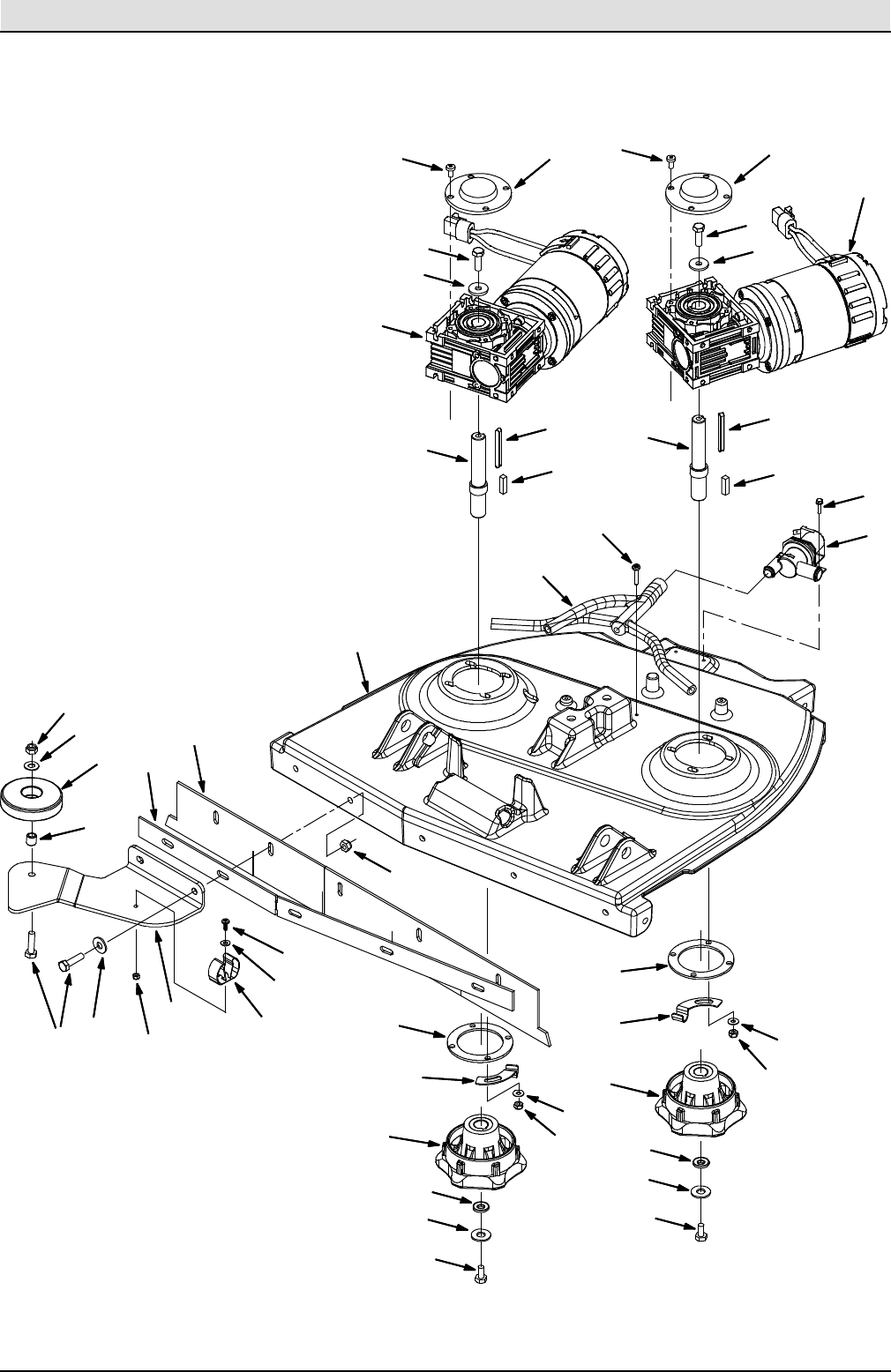

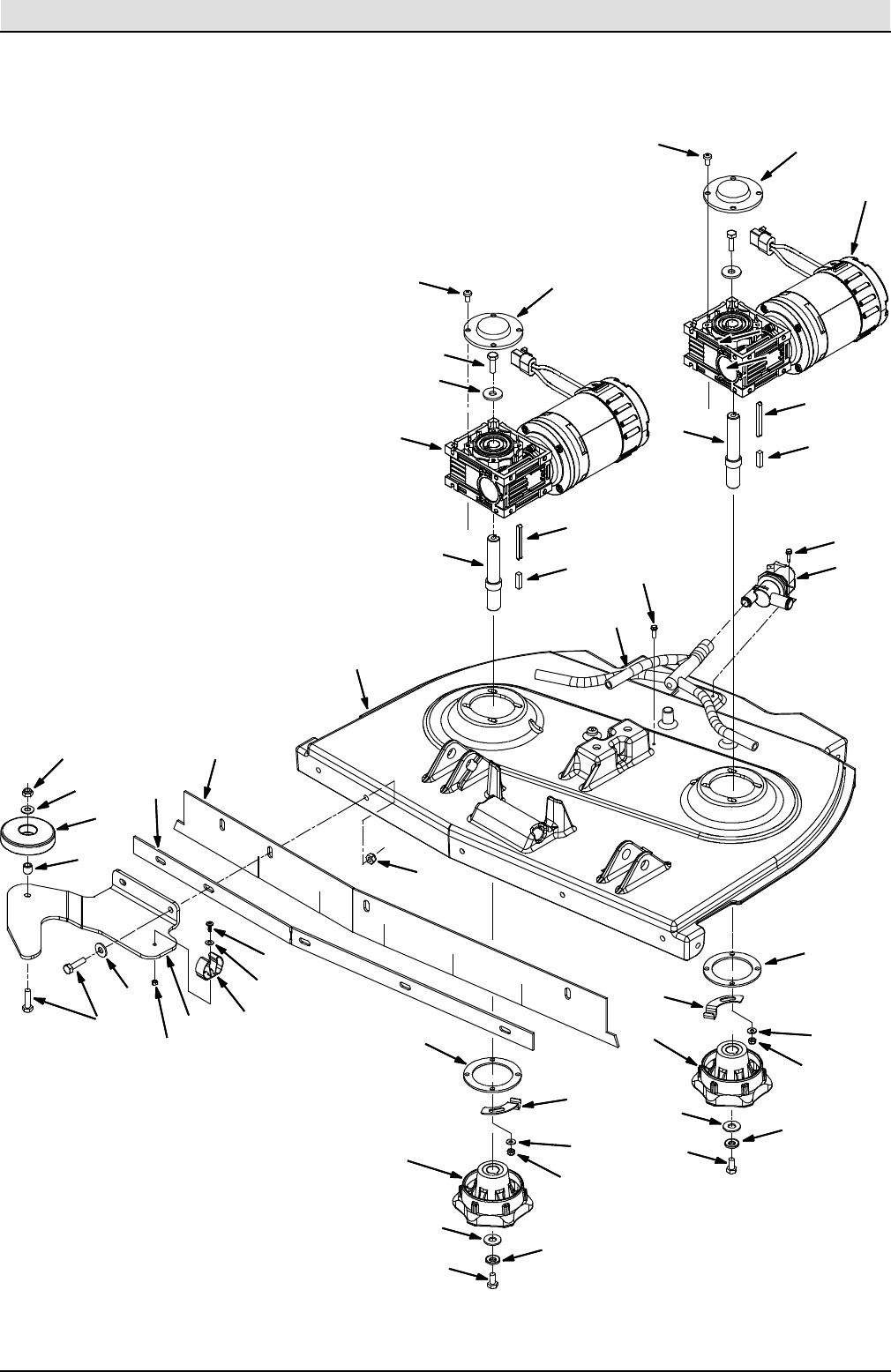

- Fig. 13 - Disk Scrub Head Drive Motor Group, 650 mm
- Fig. 14 - Disk Scrub Head Drive Motor Group, 800 mm

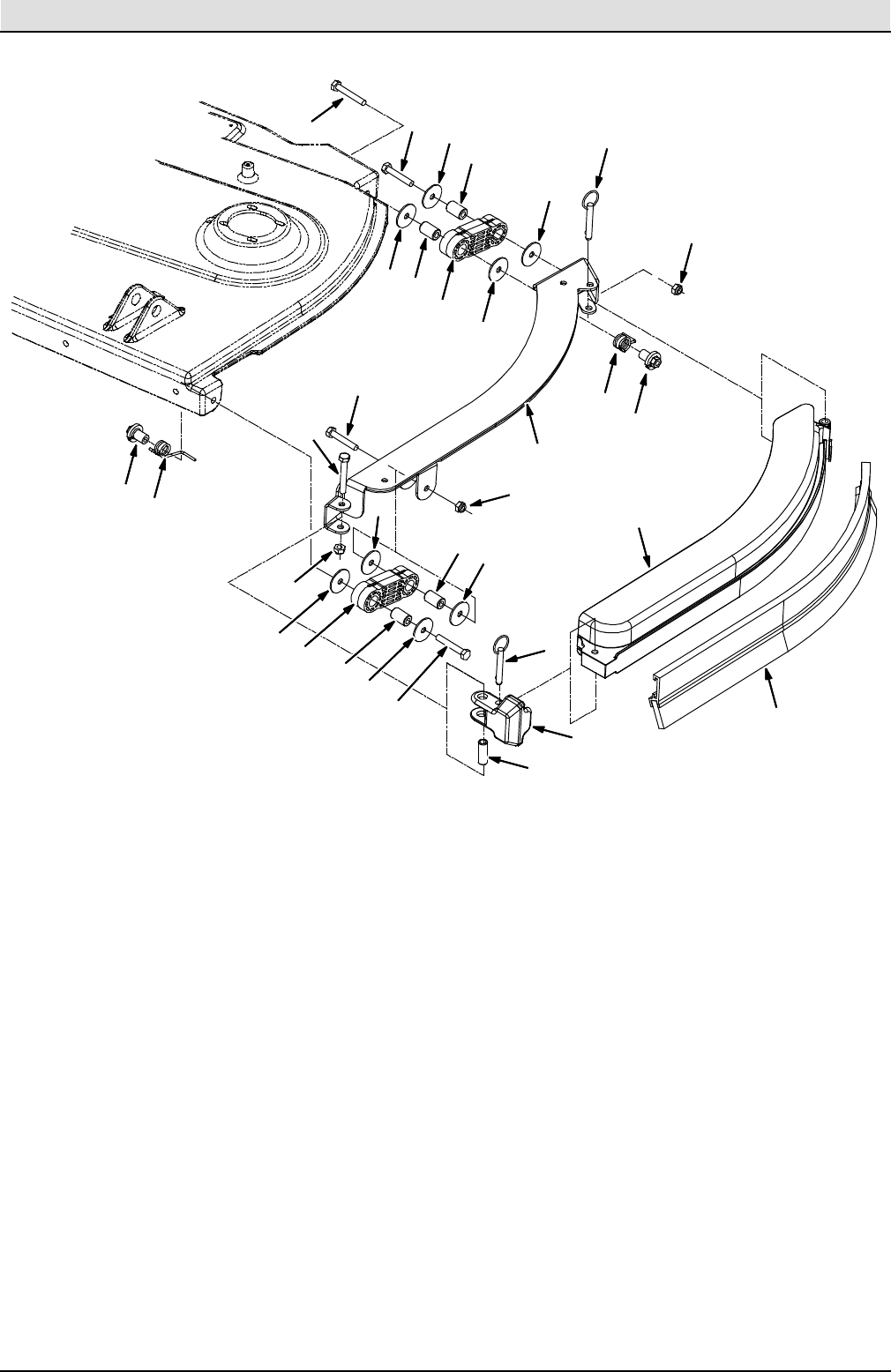

- Fig. 15 - Disk Scrub Head Side Squeegee Group, Right
- Fig. 16 - Disk Scrub Head Side Squeegee Group, Left

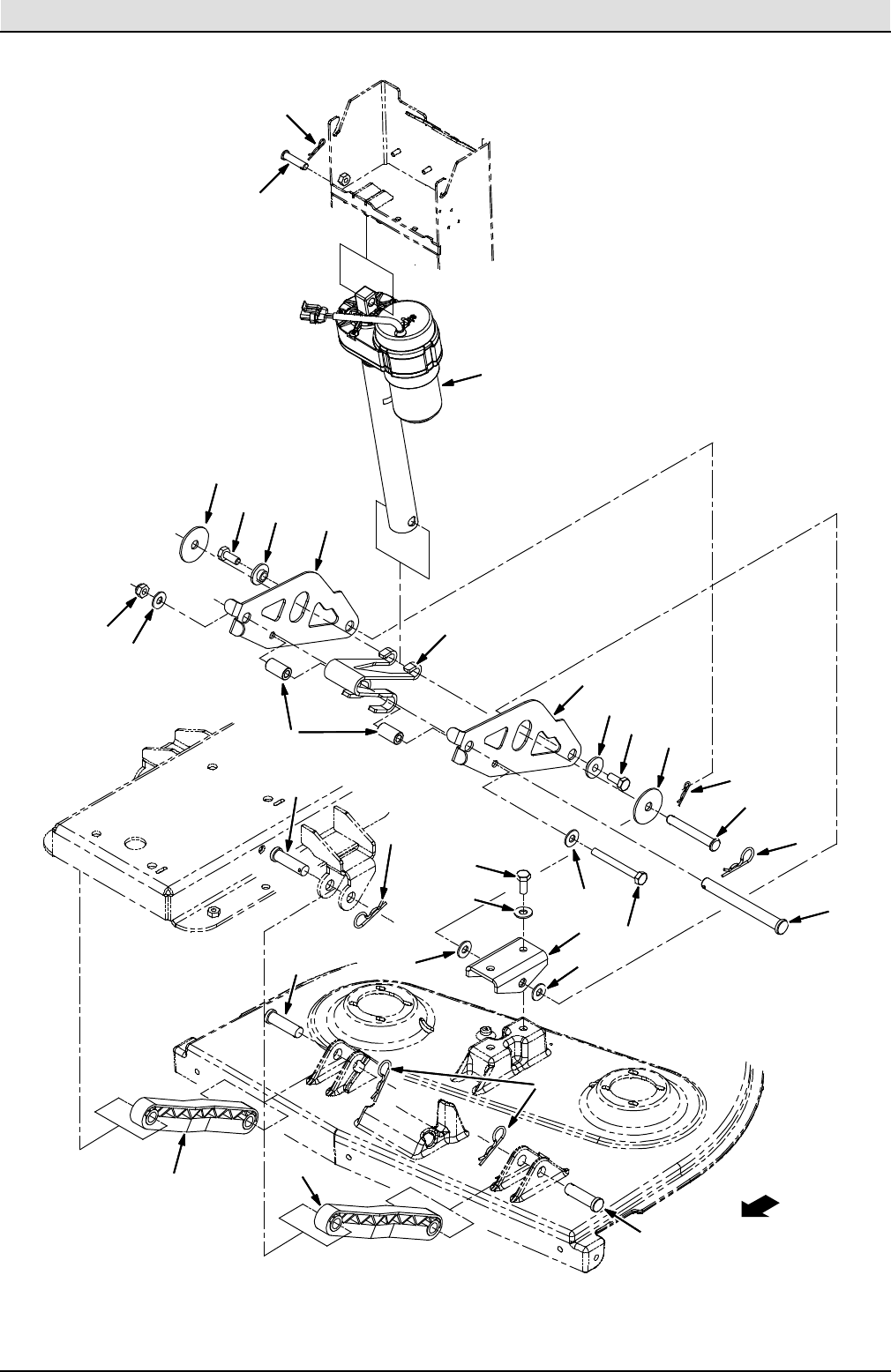

- Fig. 17 - Cylindrical Scrub Head Lift Group
- Fig. 18 - Cylindrical Scrub Head Group, 700 mm
- Fig. 19 - Cylindrical Scrub Head Group, 800 mm

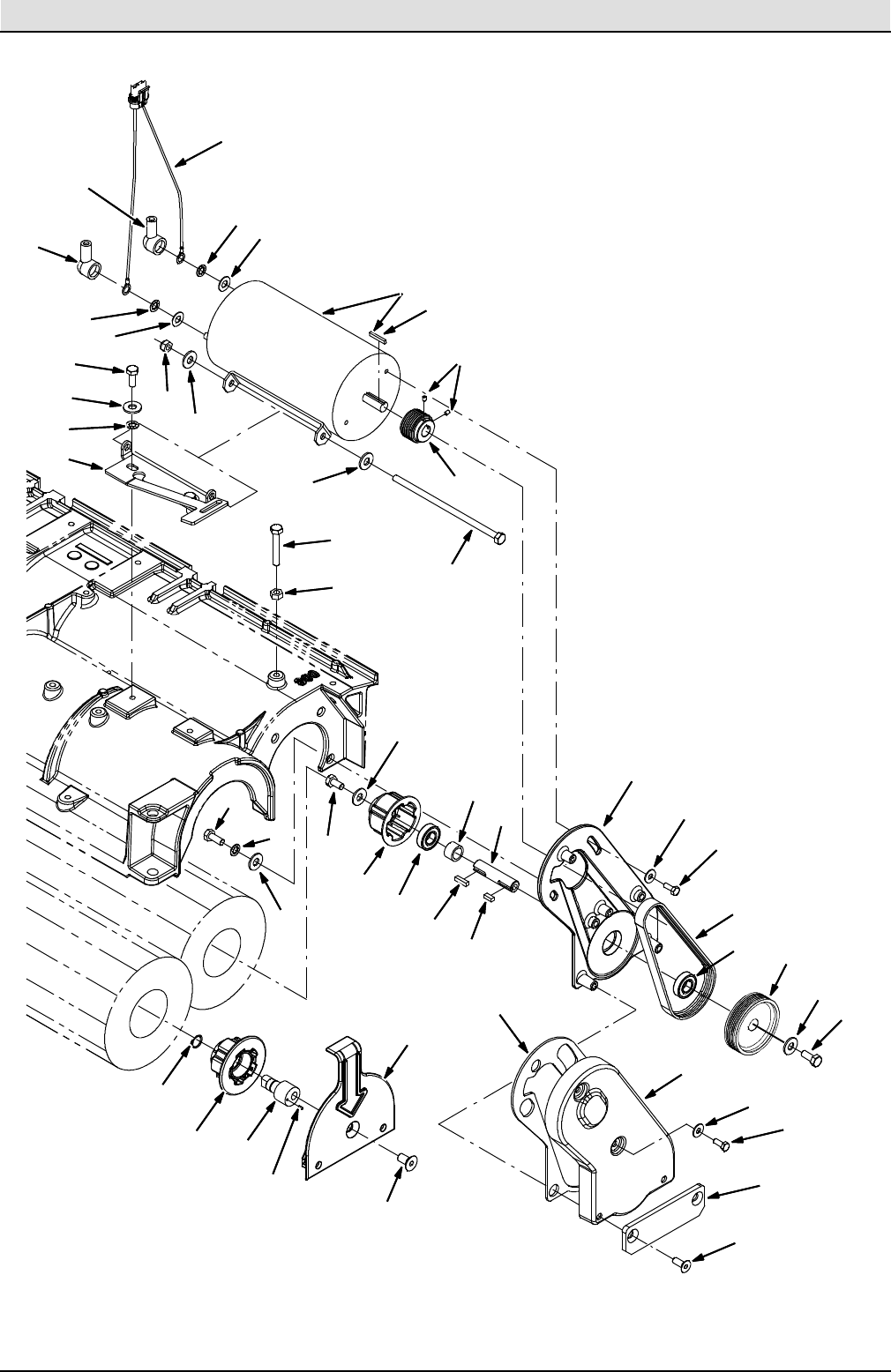

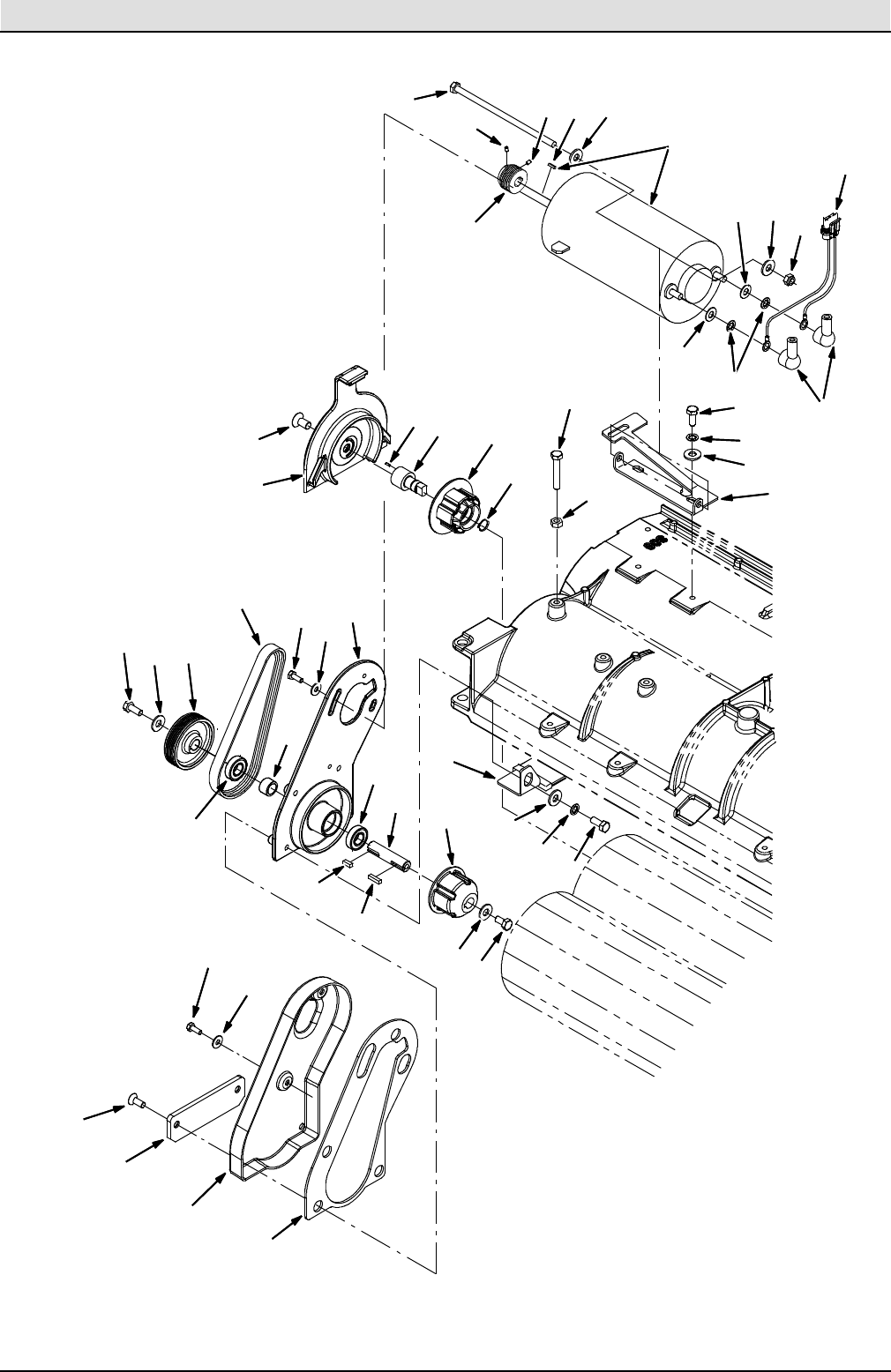

- Fig. 20 - Cylindrical Scrub Head Drive Group, Right Side
- Fig. 21 - Cylindrical Scrub Head Drive Group, Left Side

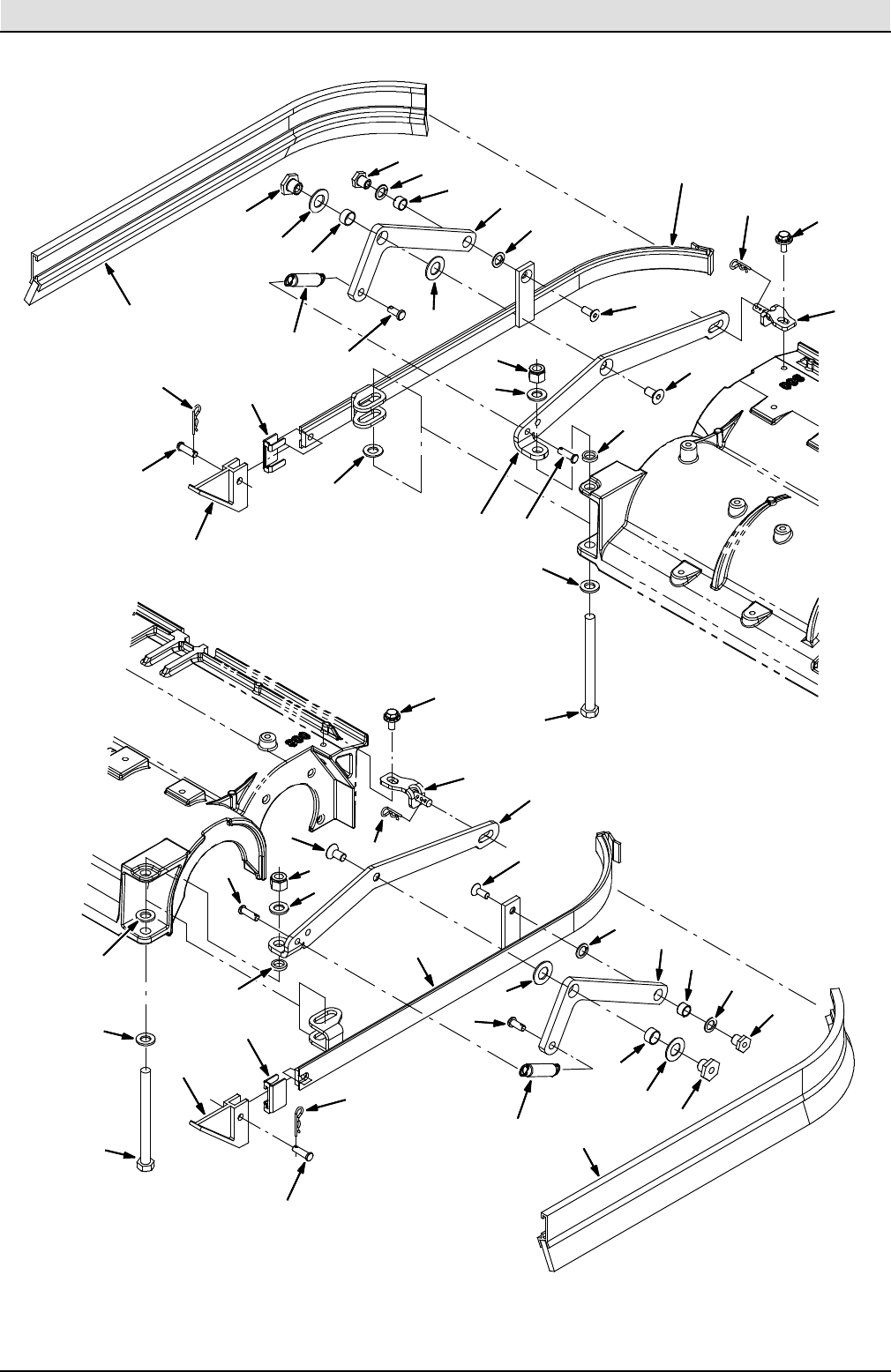

- Fig. 22 - Cylindrical Scrub Head Squeegee Group
- Fig. 23 - Recovery Tank Group

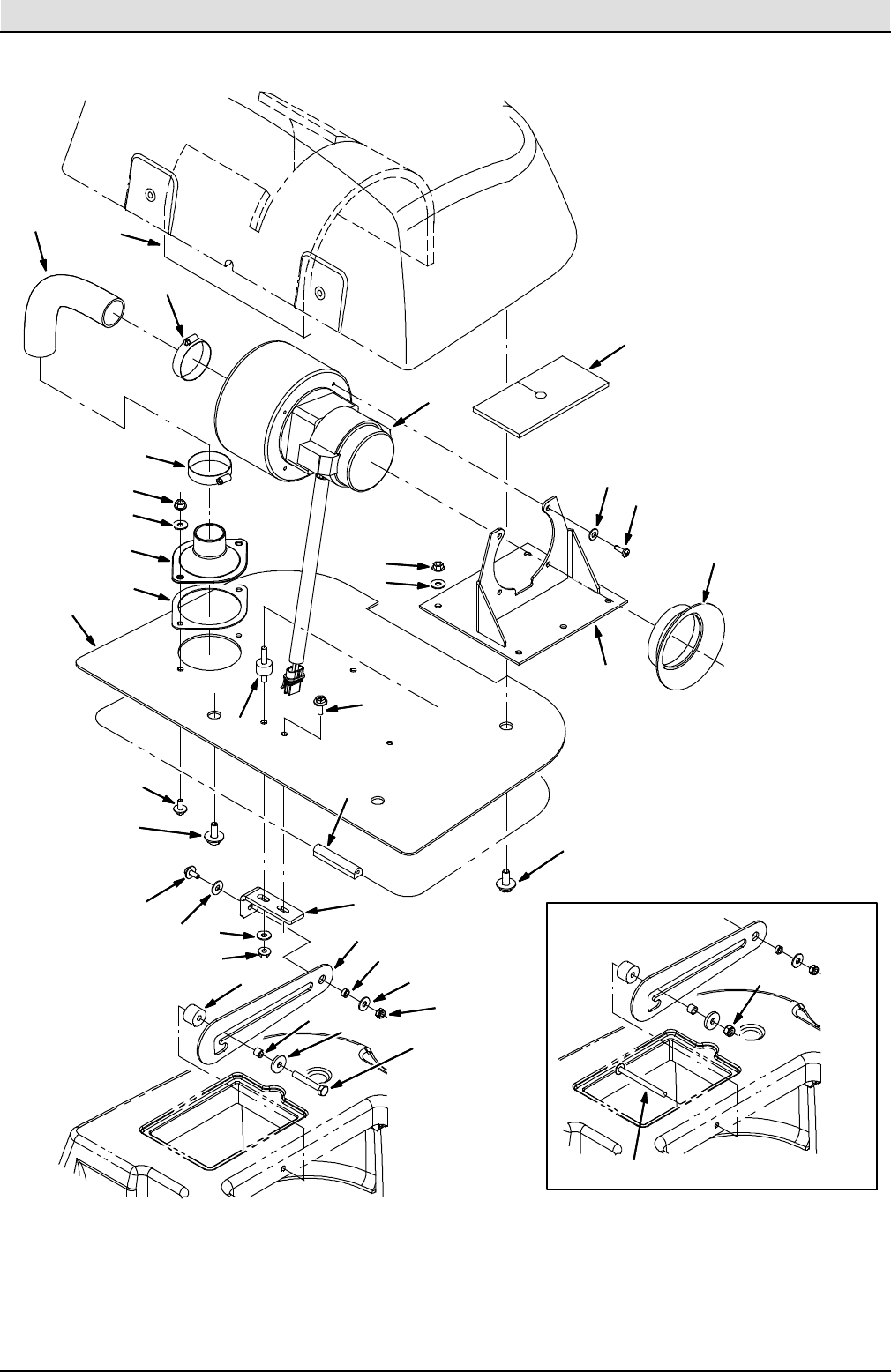

- Fig. 24 - Vacuum Fan Group
- Fig. 25 - Solution Tank Group, Disk Scrub Head
- Fig. 26 - Solution Tank Group, Cylindrical Scrub Head

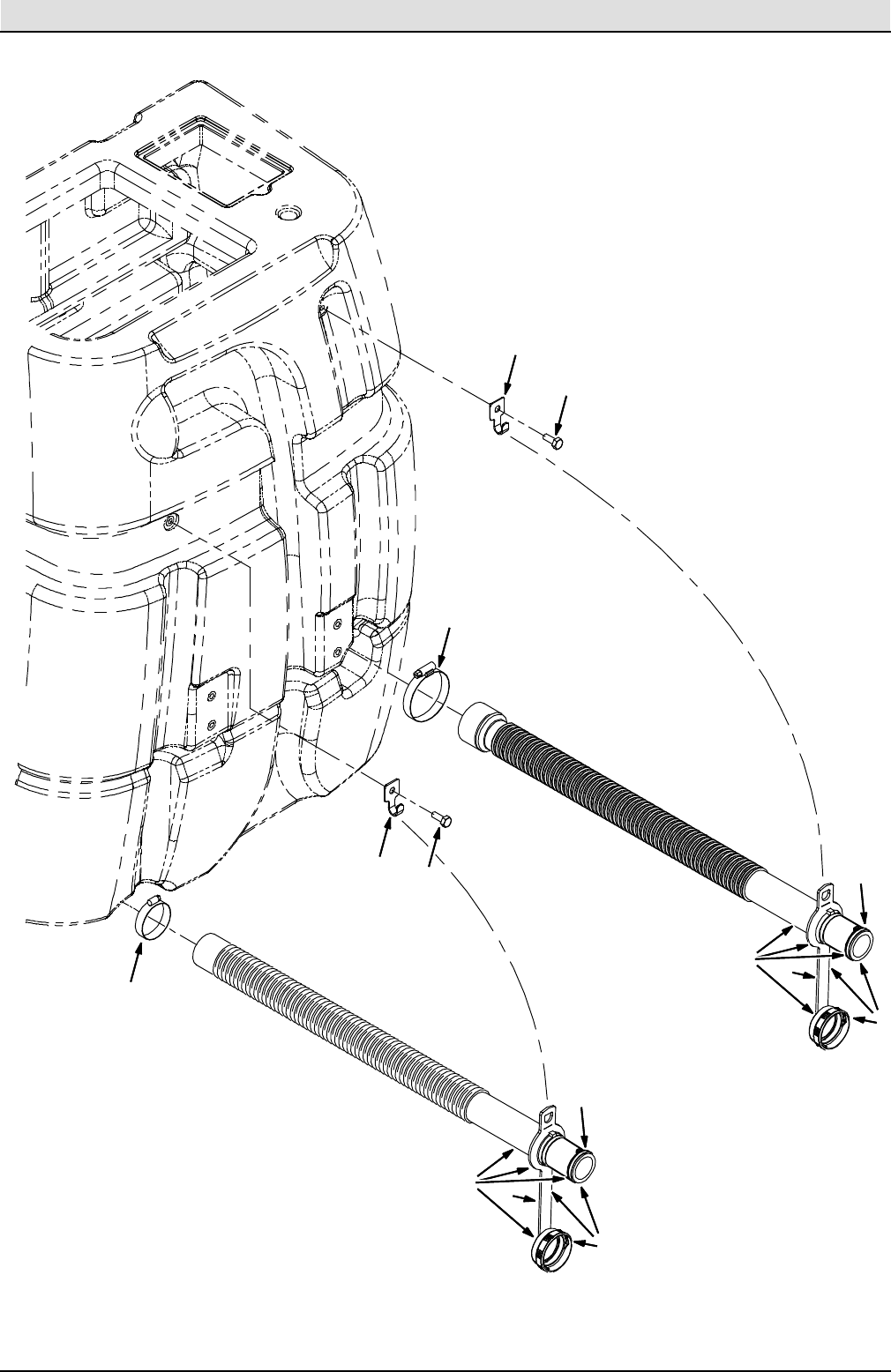

- Fig. 27 - Tanks Drain Group
- Fig. 28 - Rear Squeegee Lift Group, Disk Scrub Head
- Fig. 29 - Rear Squeegee Lift Group, Cylindrical Scrub Head

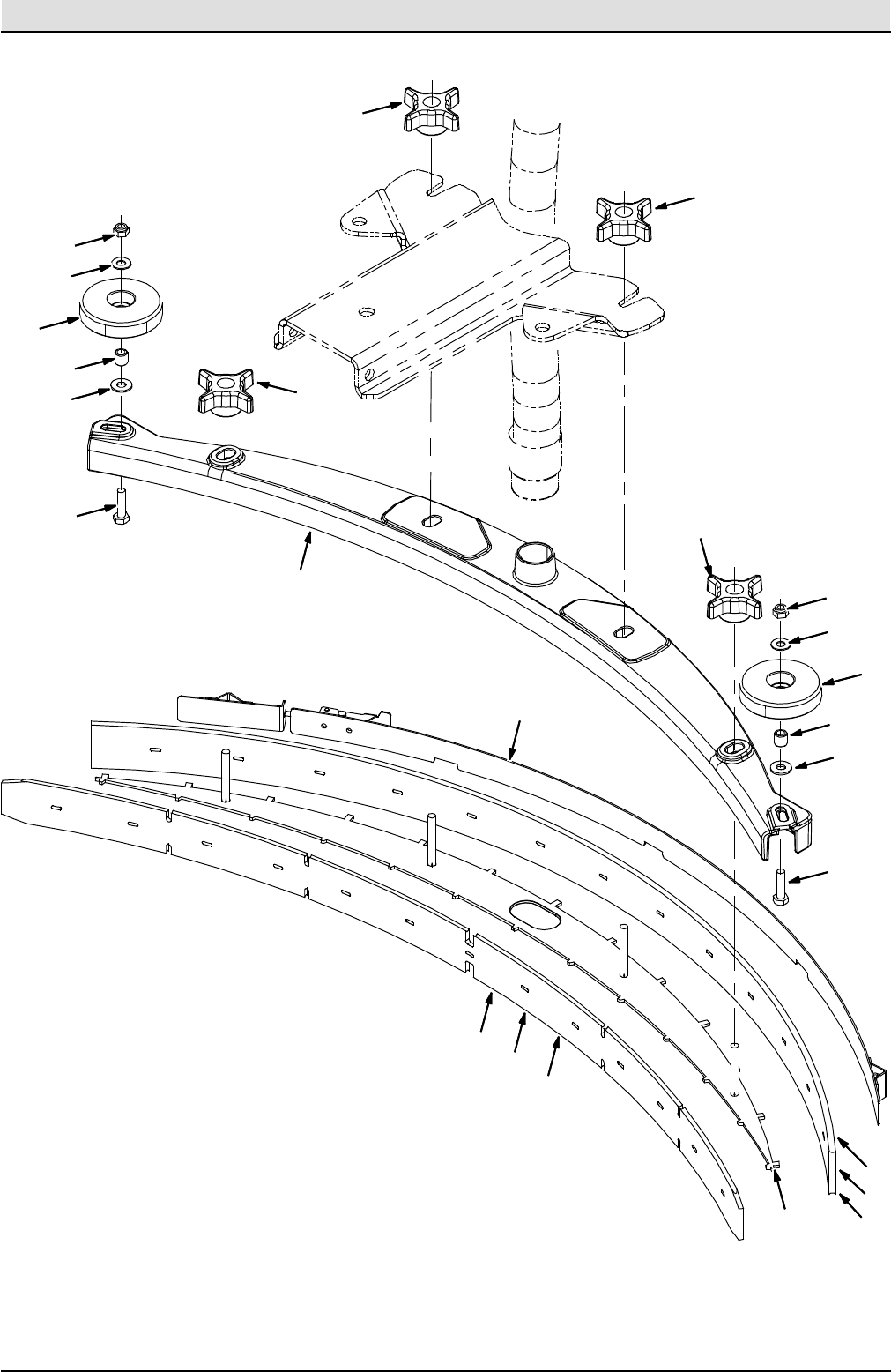

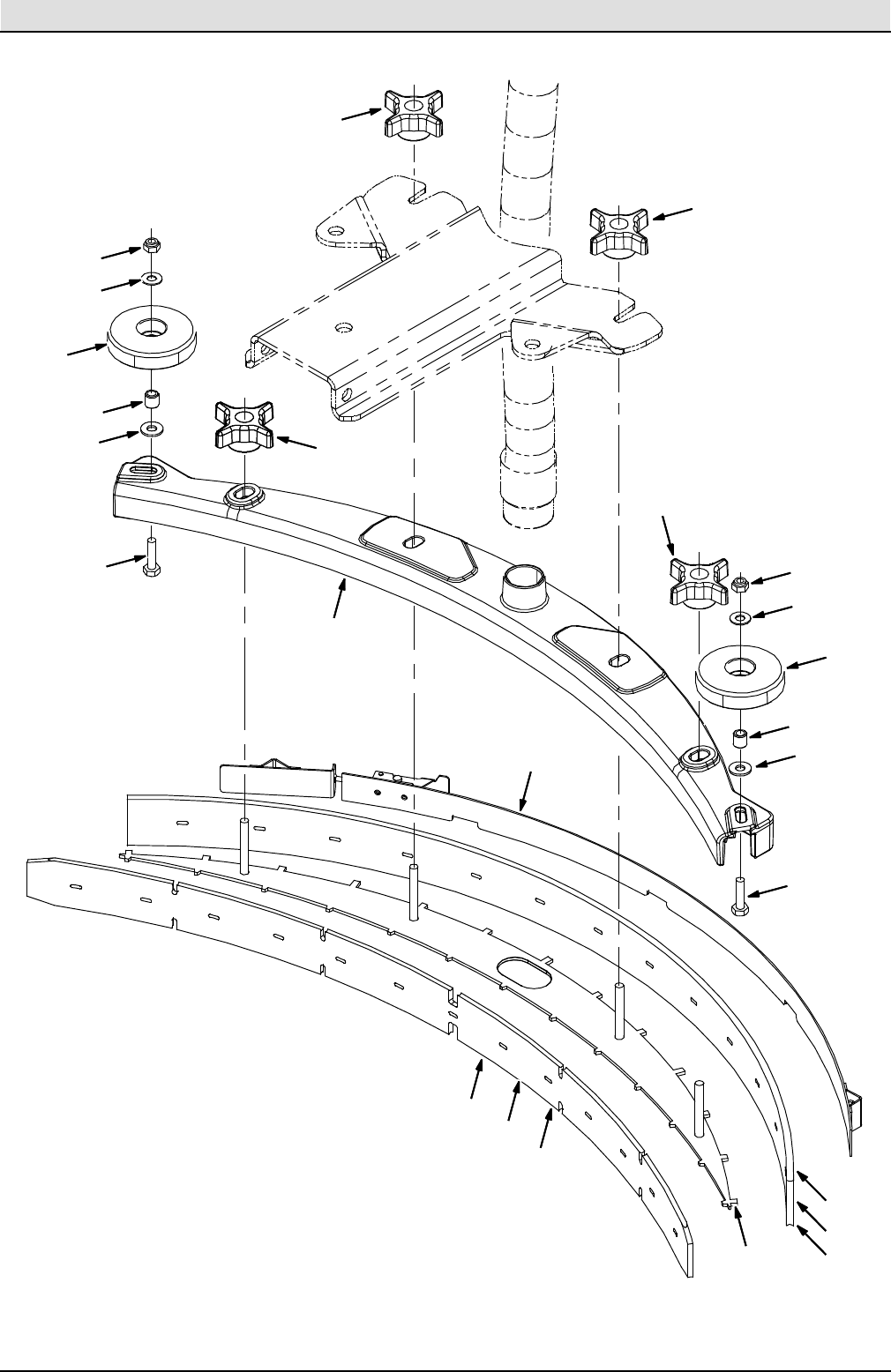

- Fig. 30 - Rear Squeegee Group, 650 mm
- Fig. 31 - Rear Squeegee Group, 800 mm
- Fig. 32 - Circuit Board Group
- Fig. 33 - Electrical Group

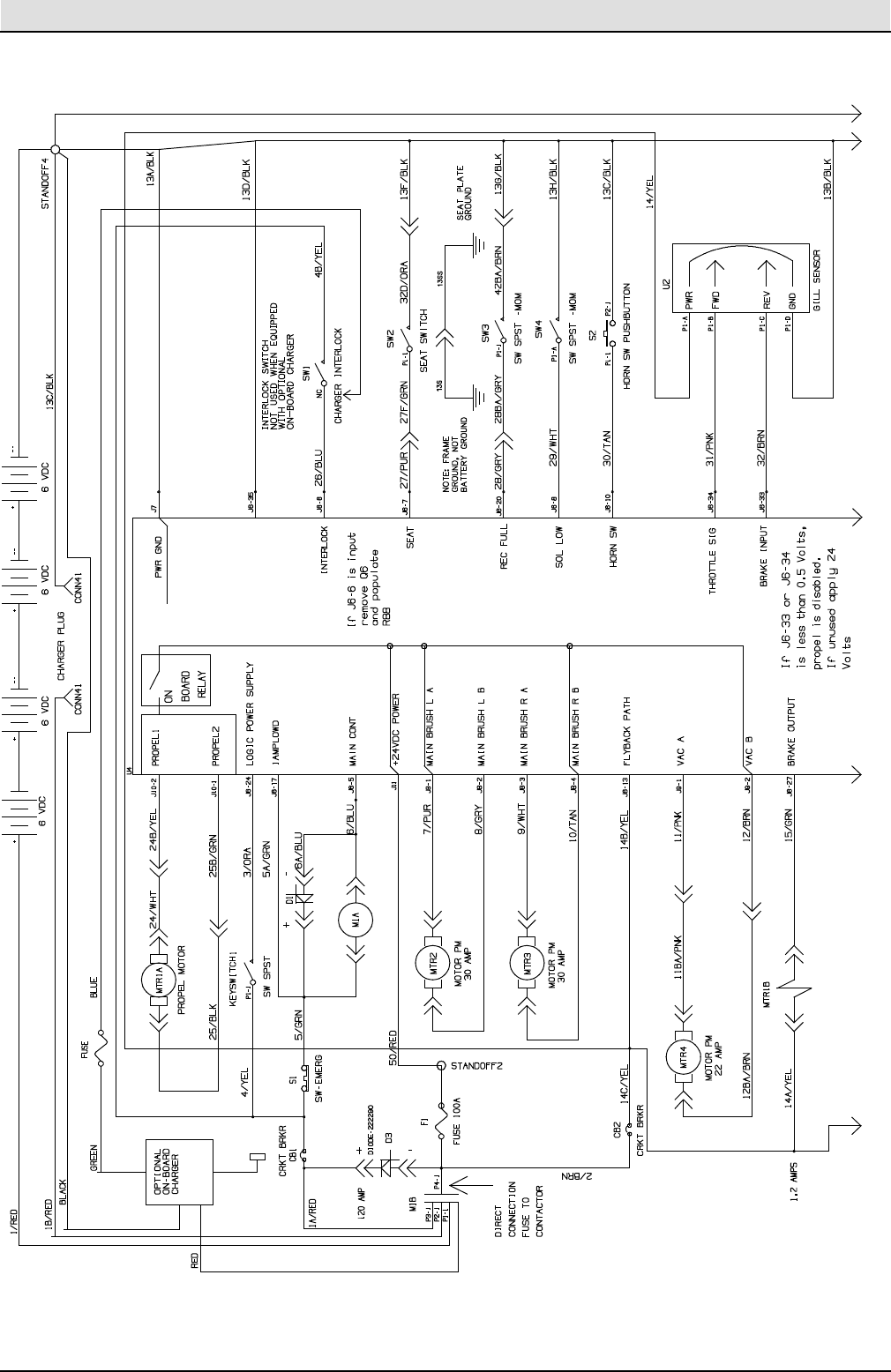

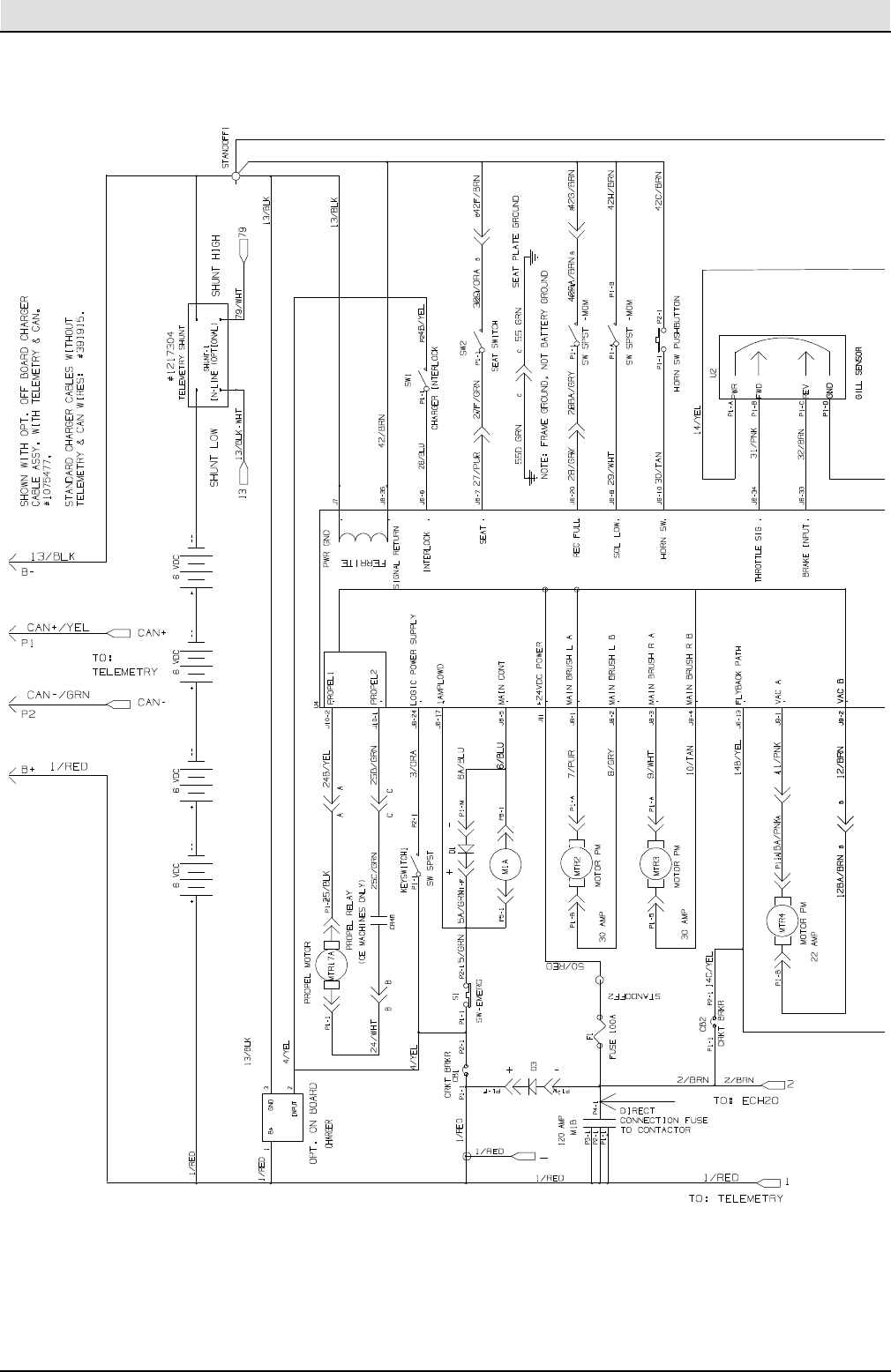

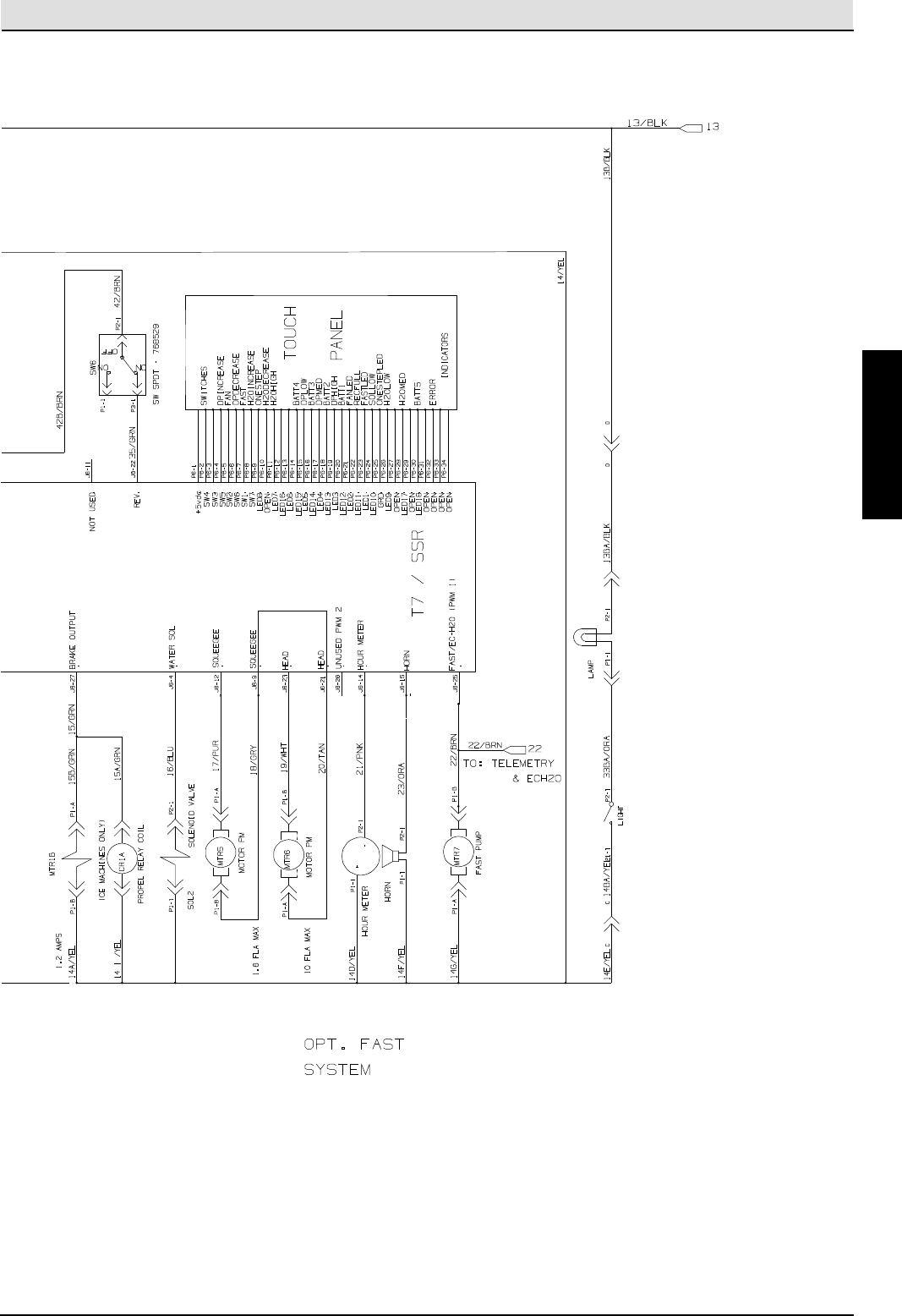

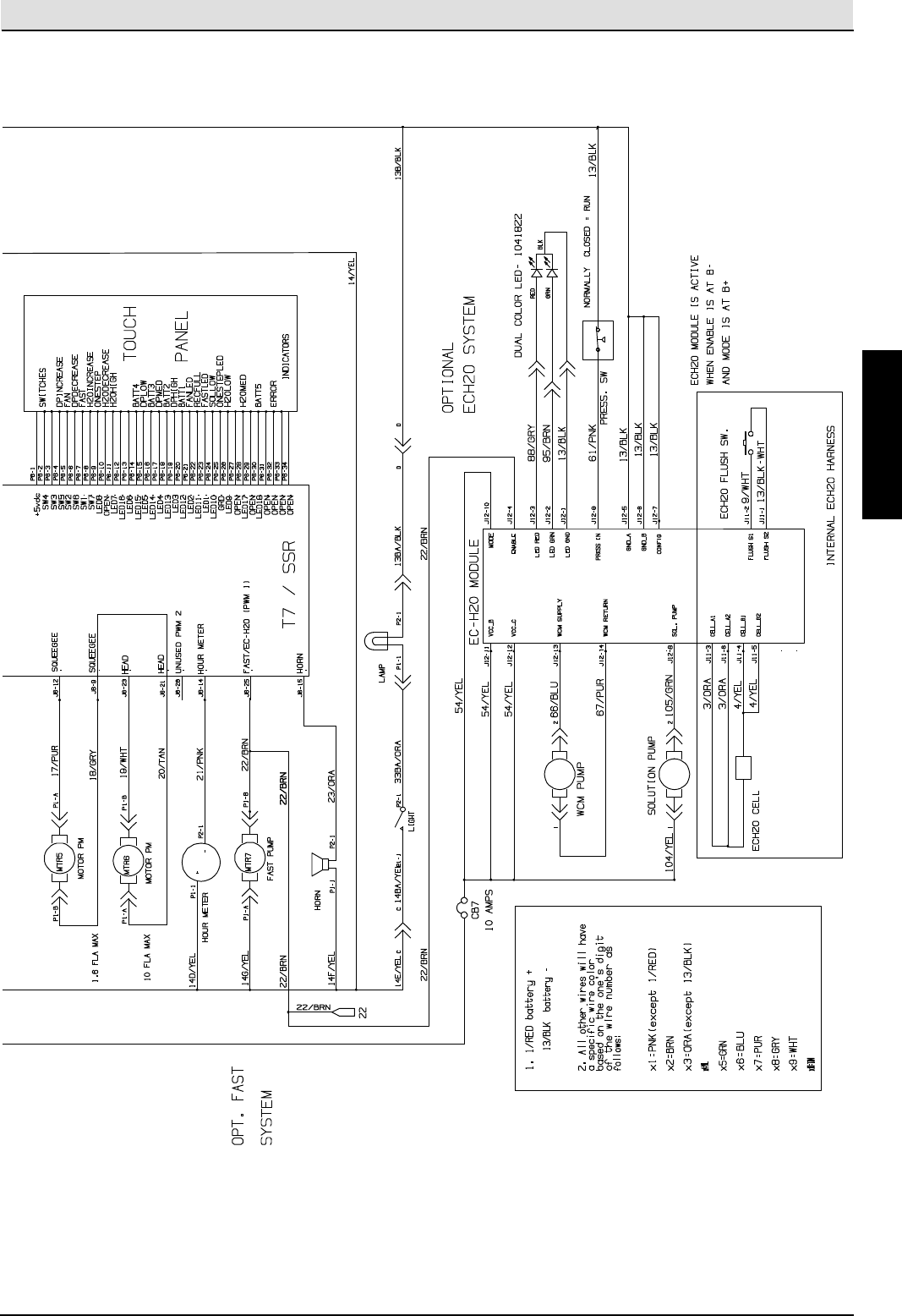

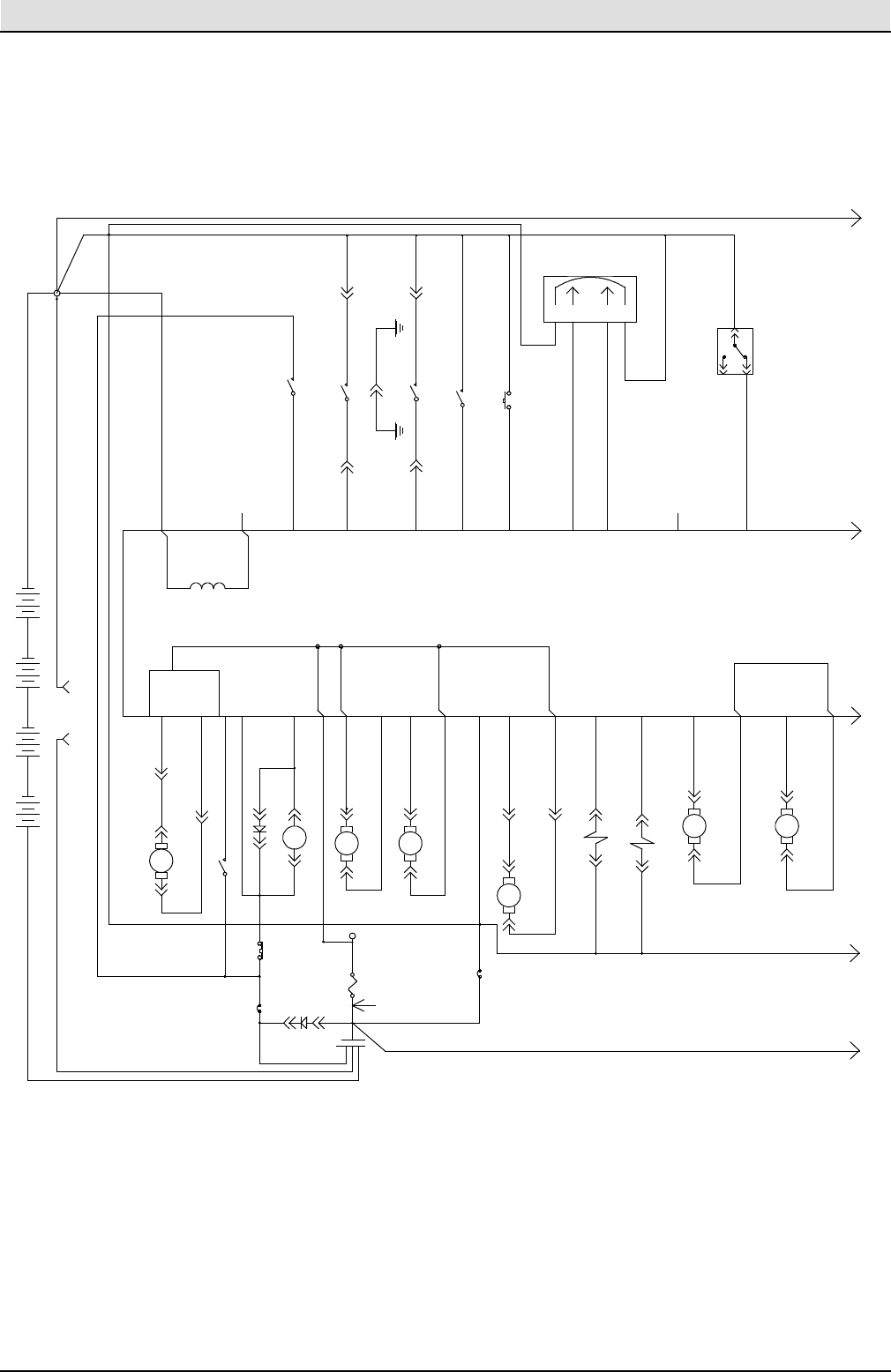

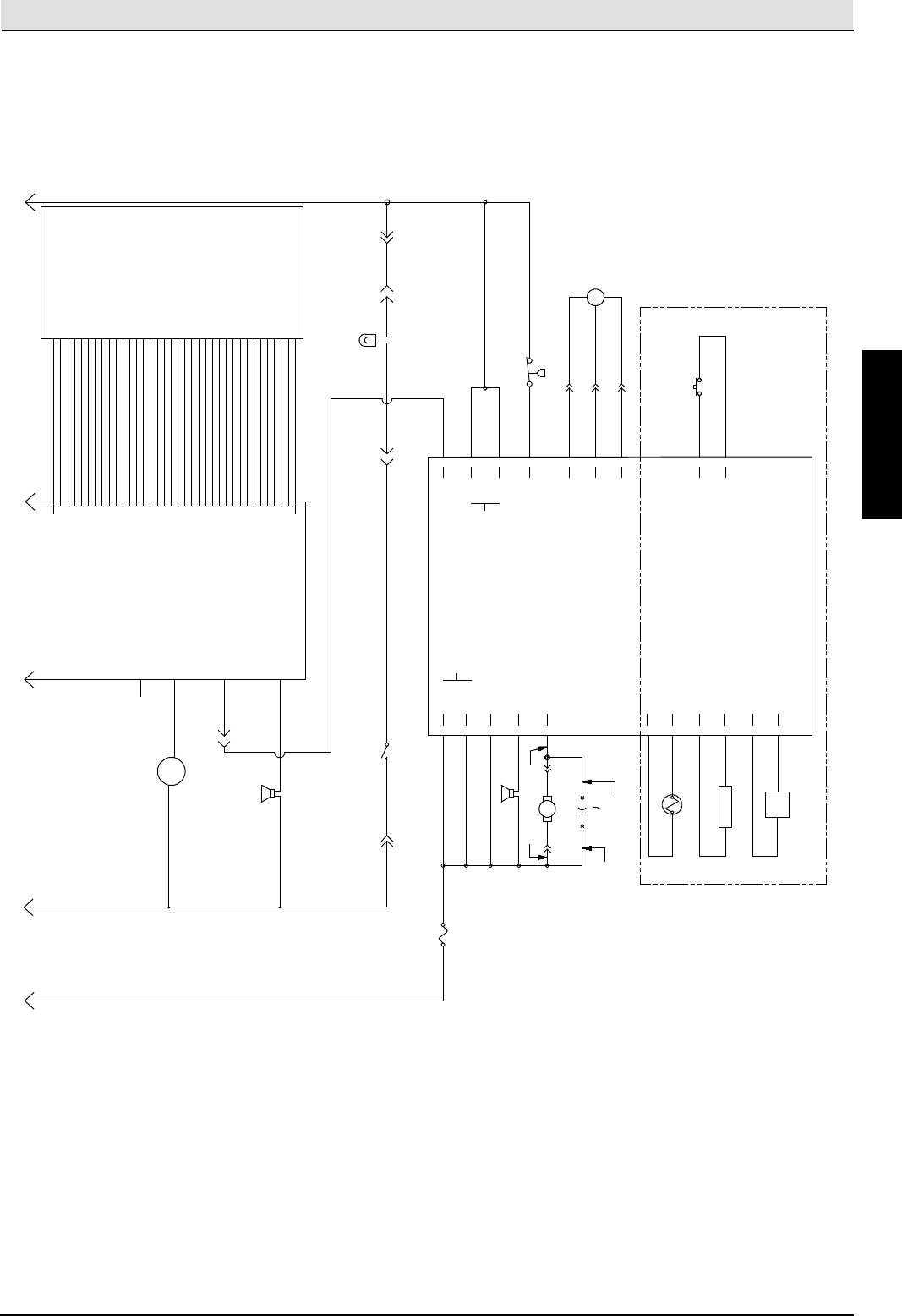

- Fig. 34 - Electrical Schematic, Standard, FaST & ec-H2O Models (S/N 12695- )
- Fig. 35 - Electrical Schematic, Standard, FaST & ec-H2O Models (S/N 11000- 12694)

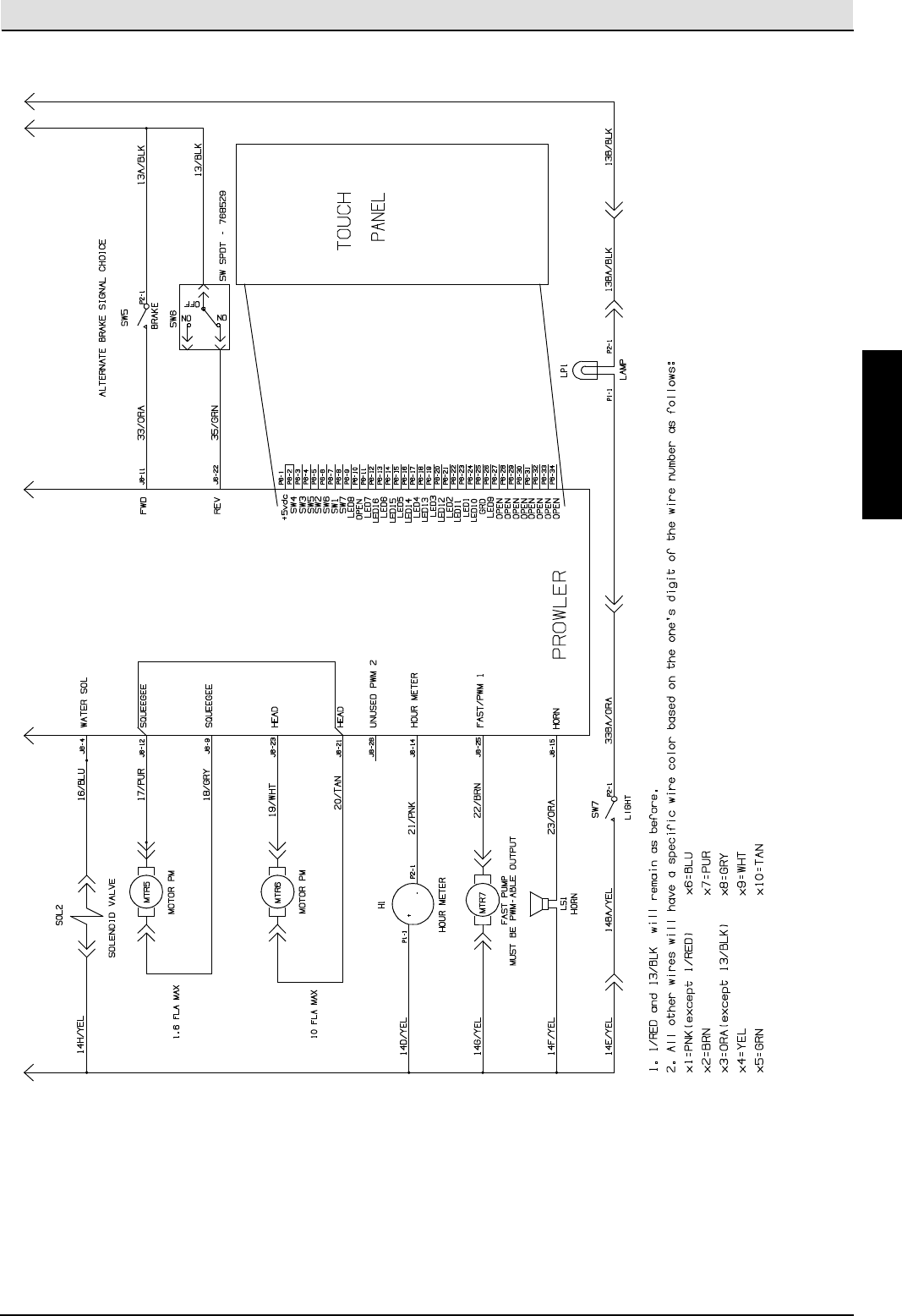

- Fig. 36 - Electrical Schematic, Standard & FaST Model (S/N 10000- 10999)

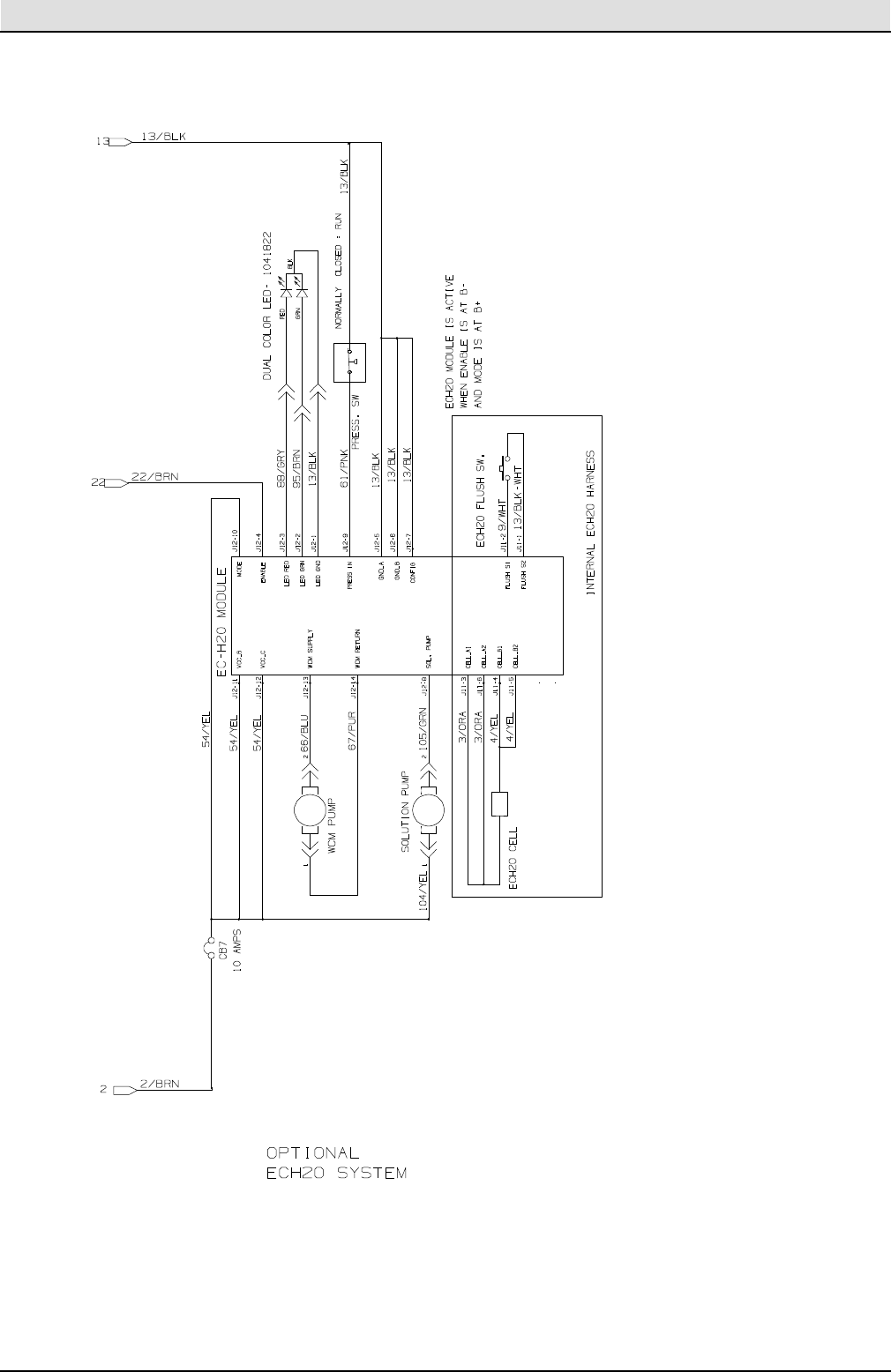

- Fig. 37 - Electrical Schematic, ec-H2O Model (S/N 10000- 10999)

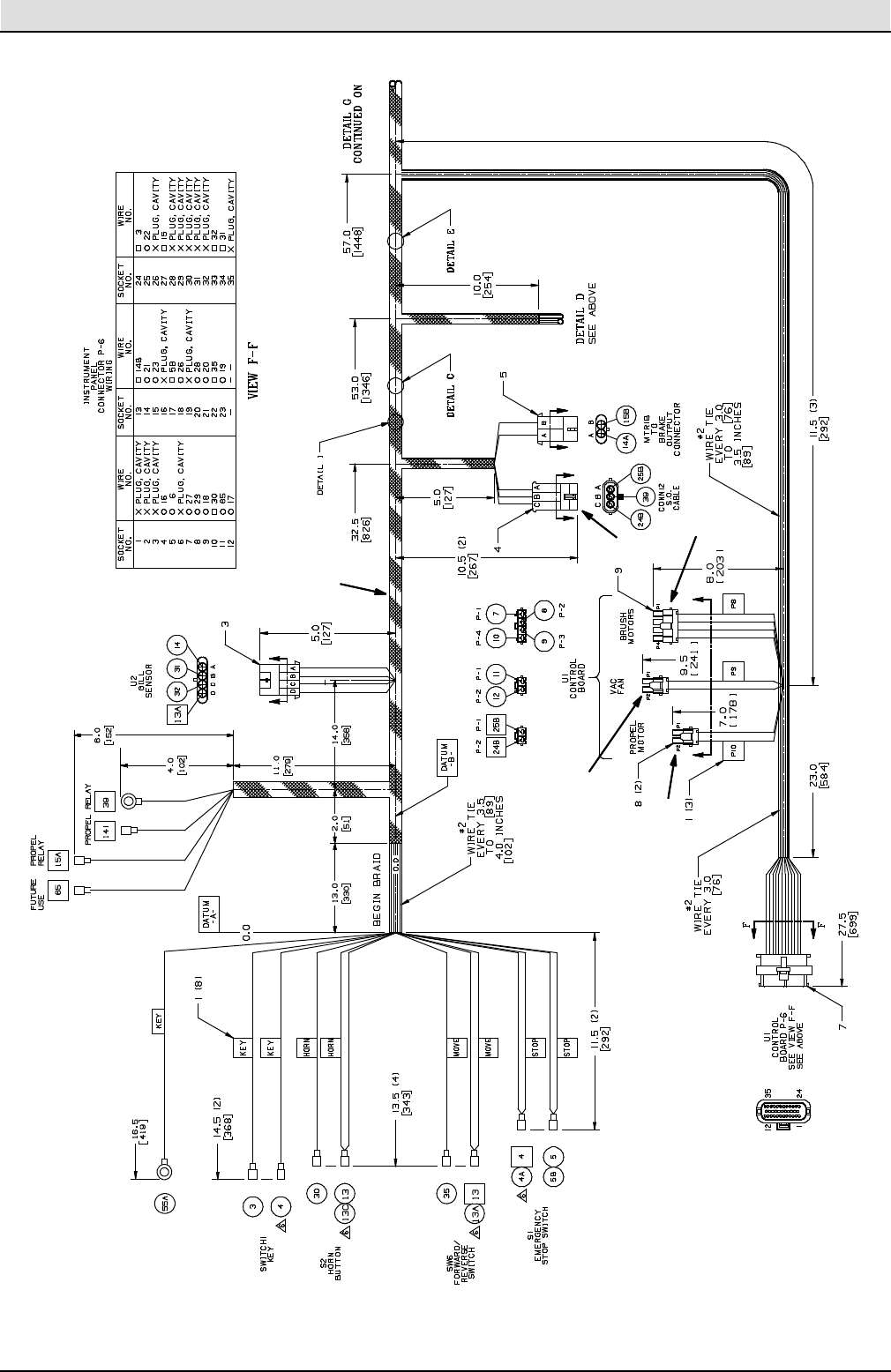

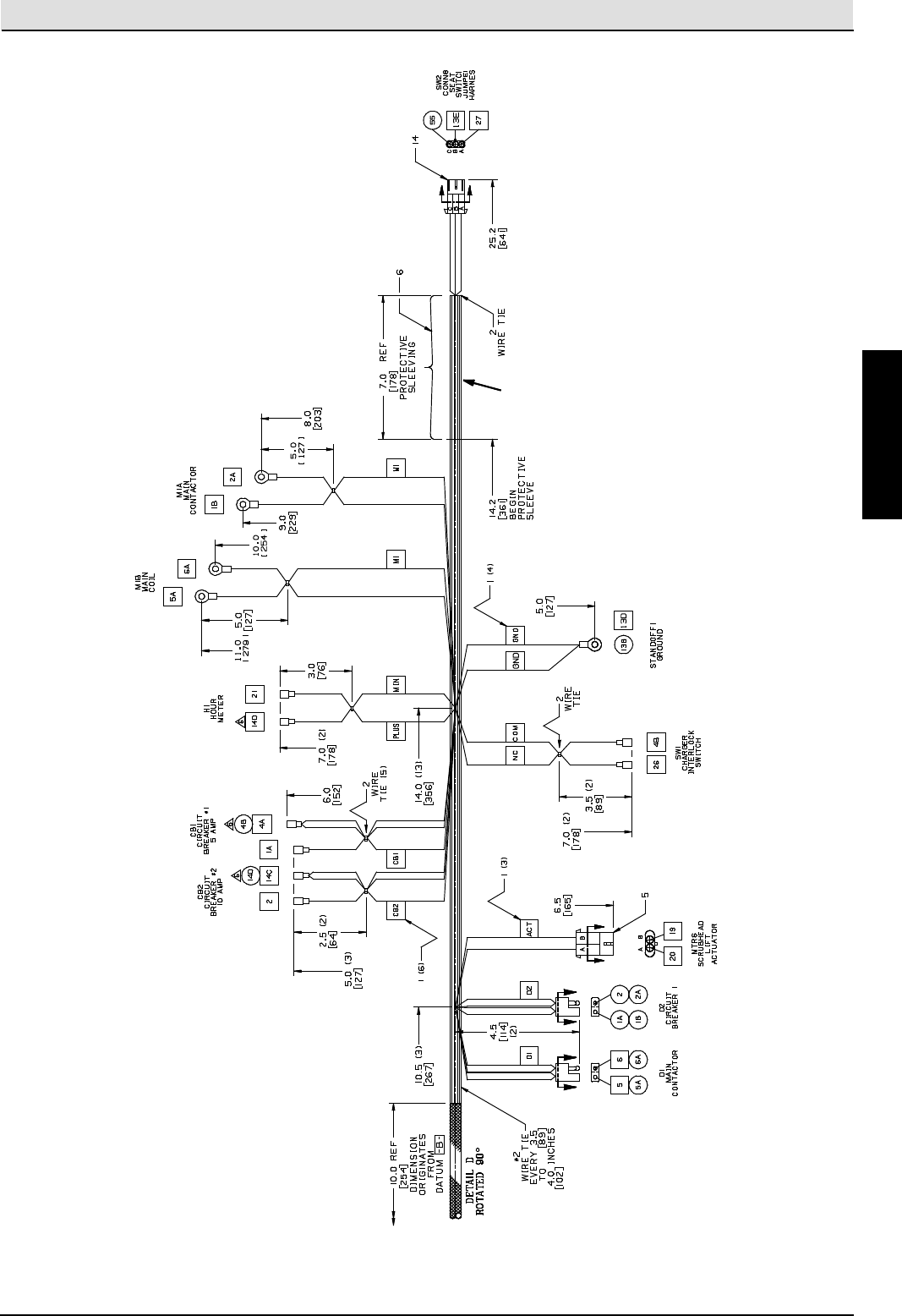

- Fig. 38 - Wire Harnesses Group, Main
- Fig. 39 - Wire Harnesses Group, Tank

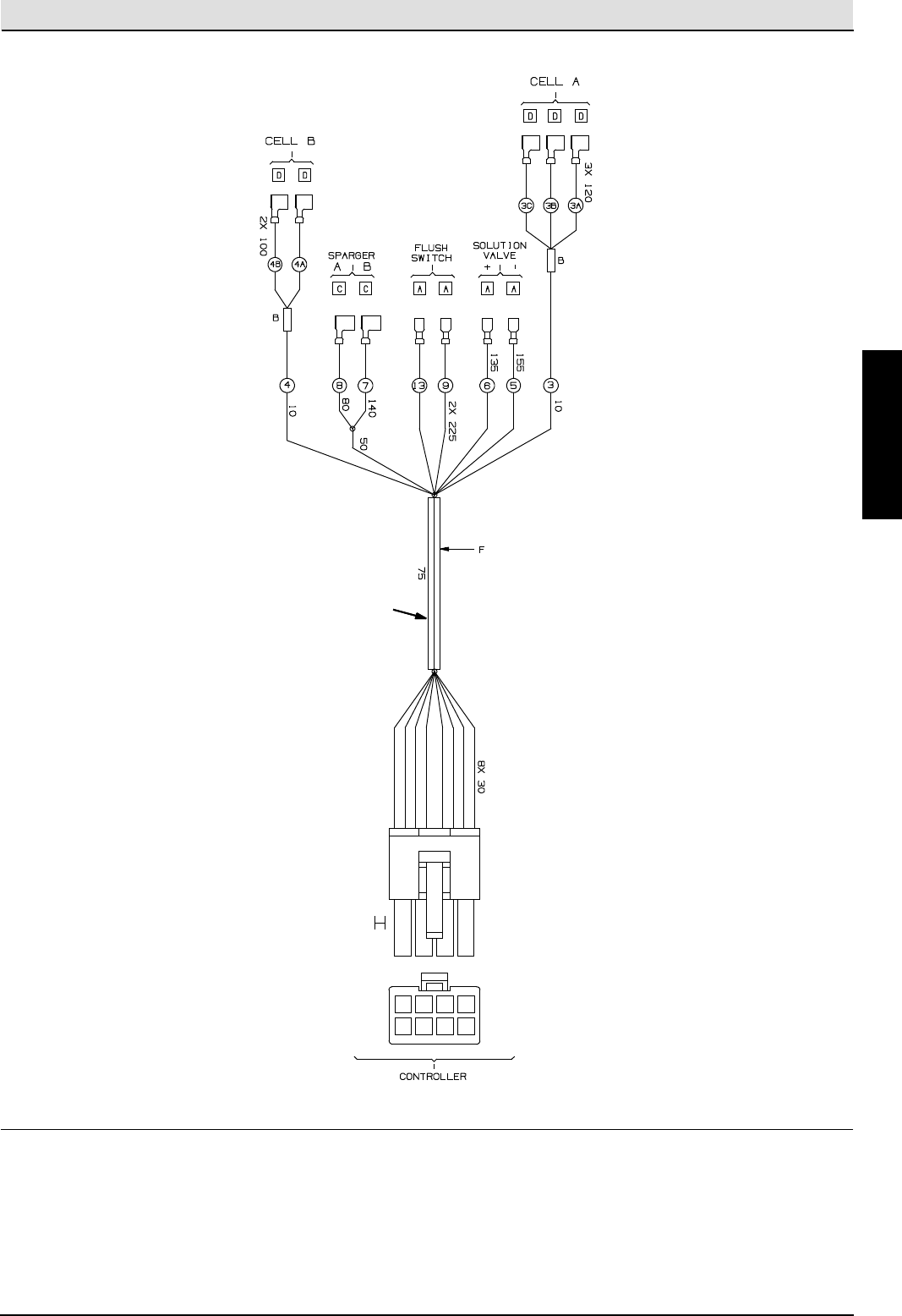

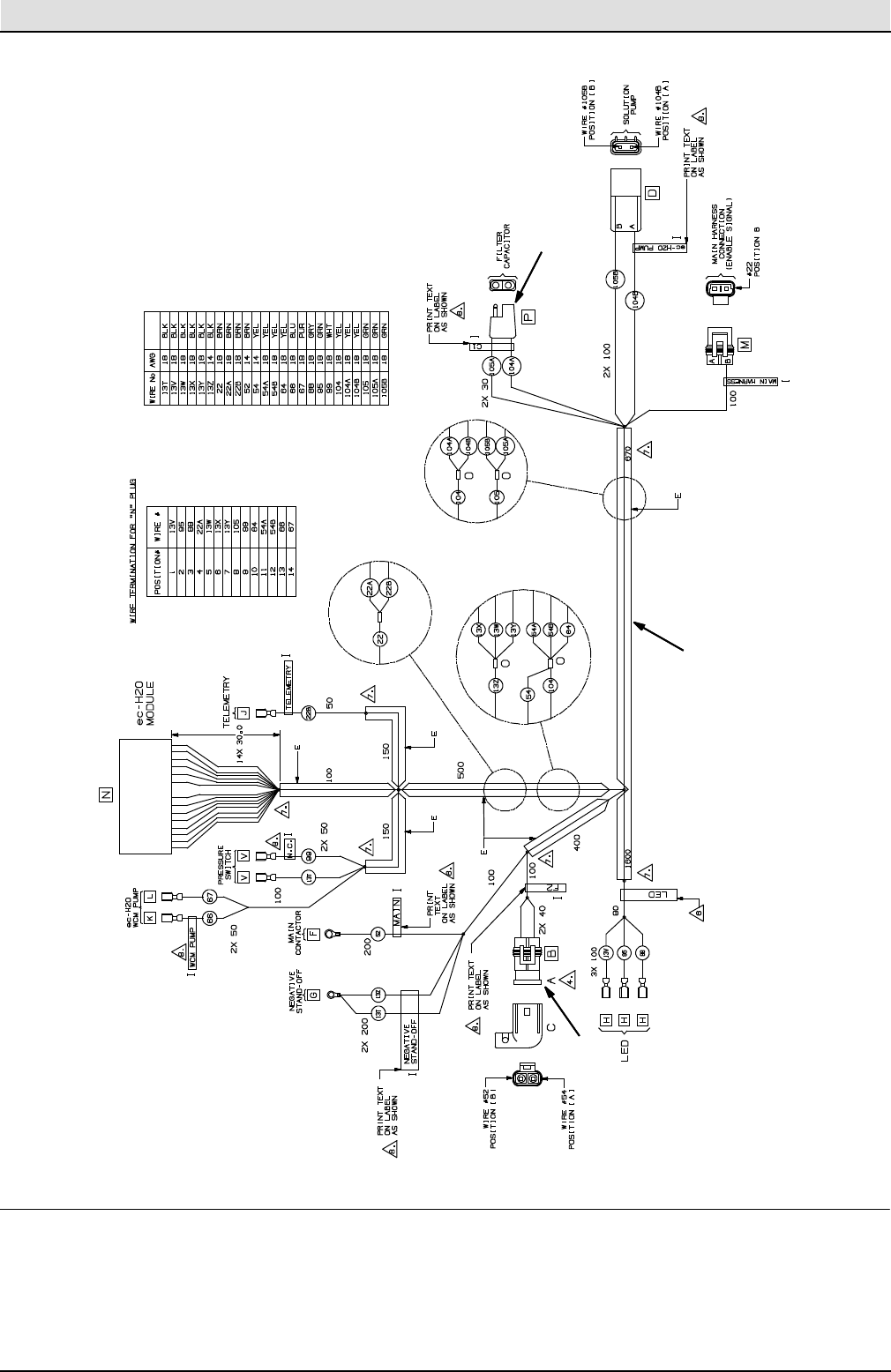

- Fig. 40 - Wire Harnesses Group, ec-H2O NanoClean (S/N 11000- )

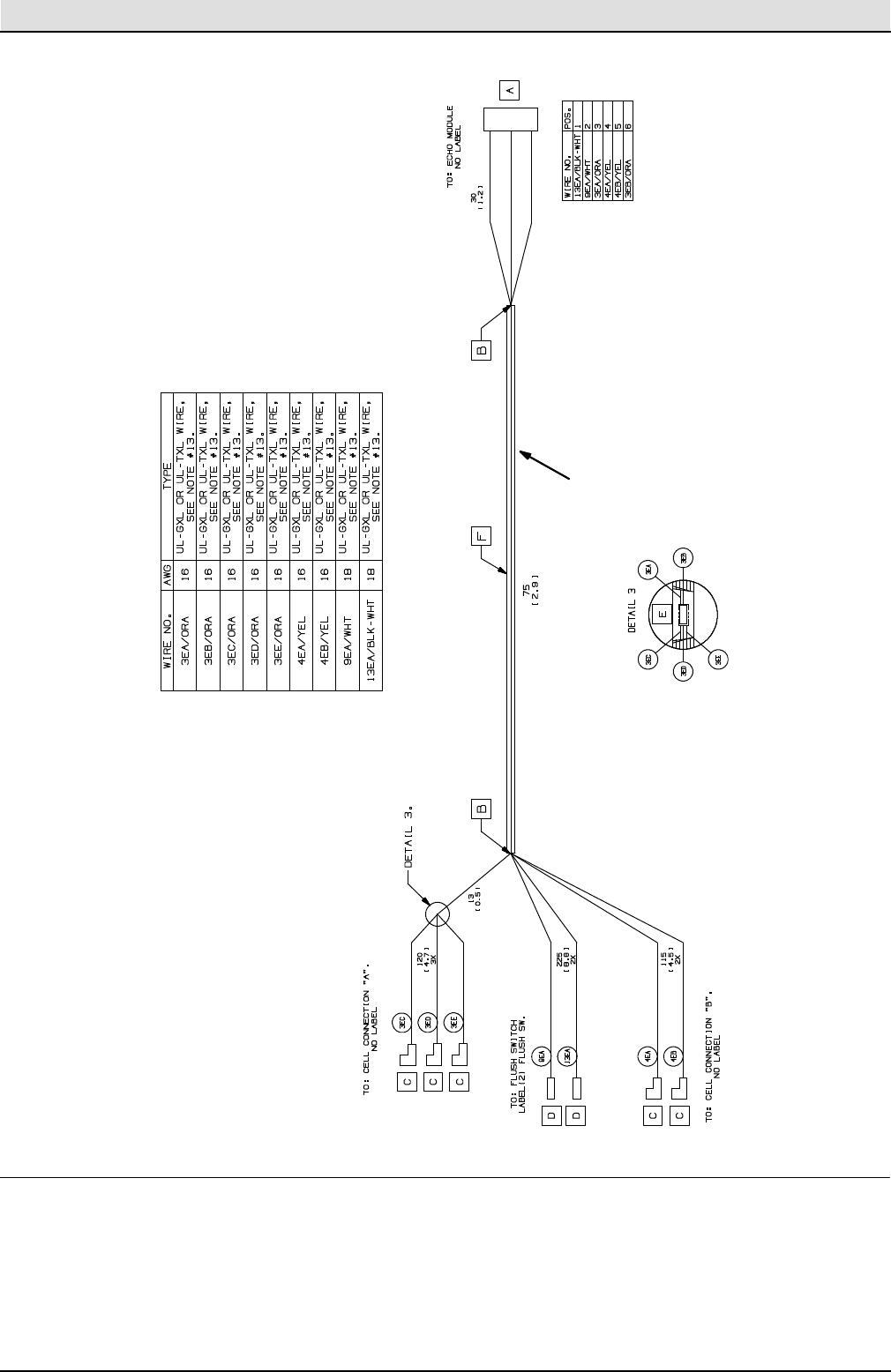

- Fig. 41 - Wire Harnesses Group, ec-H2O (S/N 10000- 11000)
- Fig. 42 - Wire Harnesses Group, ec-H2O NanoClean Main Control Board (S/N 11000- )
- Fig. 43 - Wire Harnesses Group, ec-H2O Main Control Board (S/N 10000- 10999)

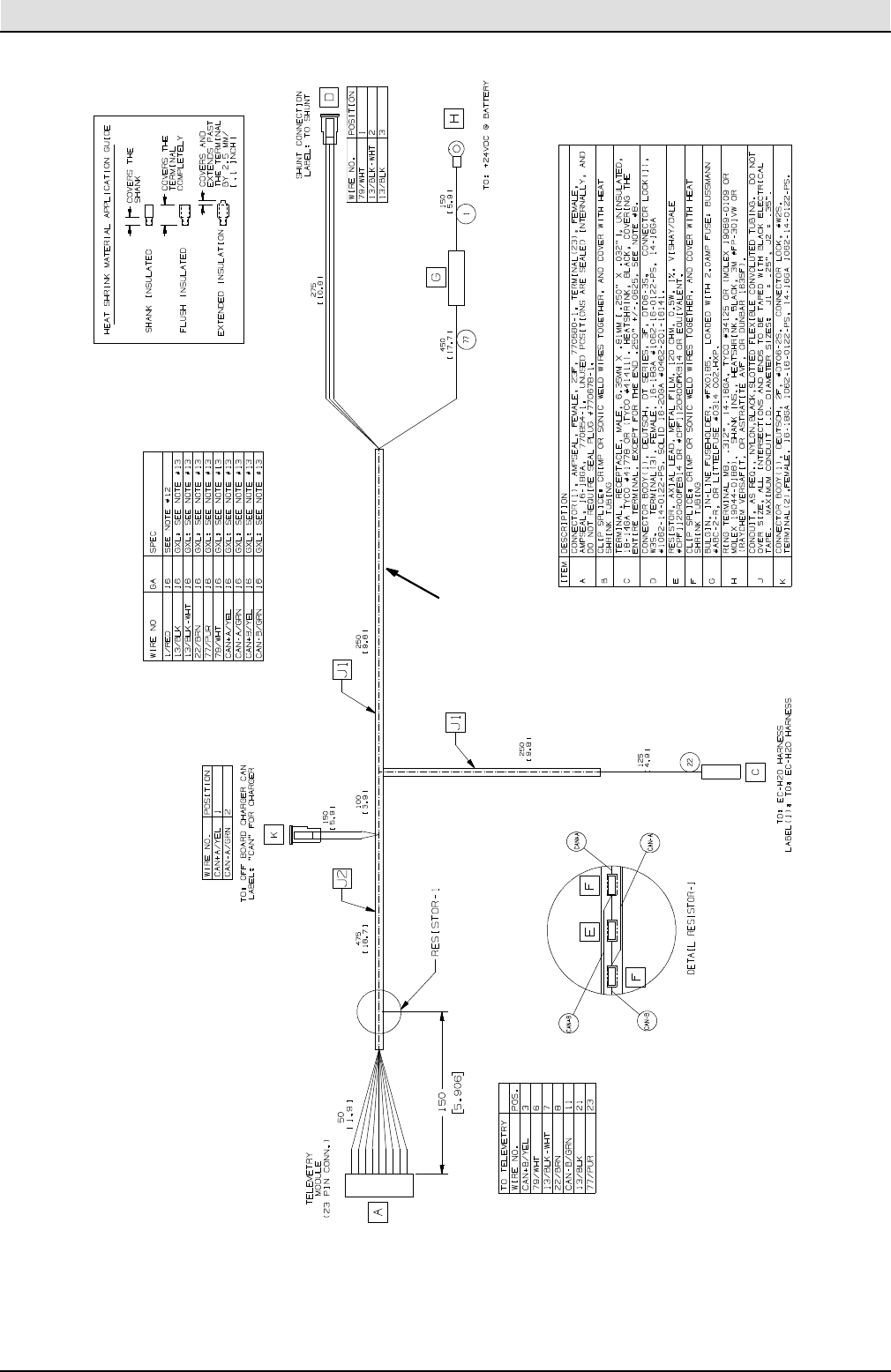

- Fig. 44 - Wire Harnesses Group, Iris Telemetry

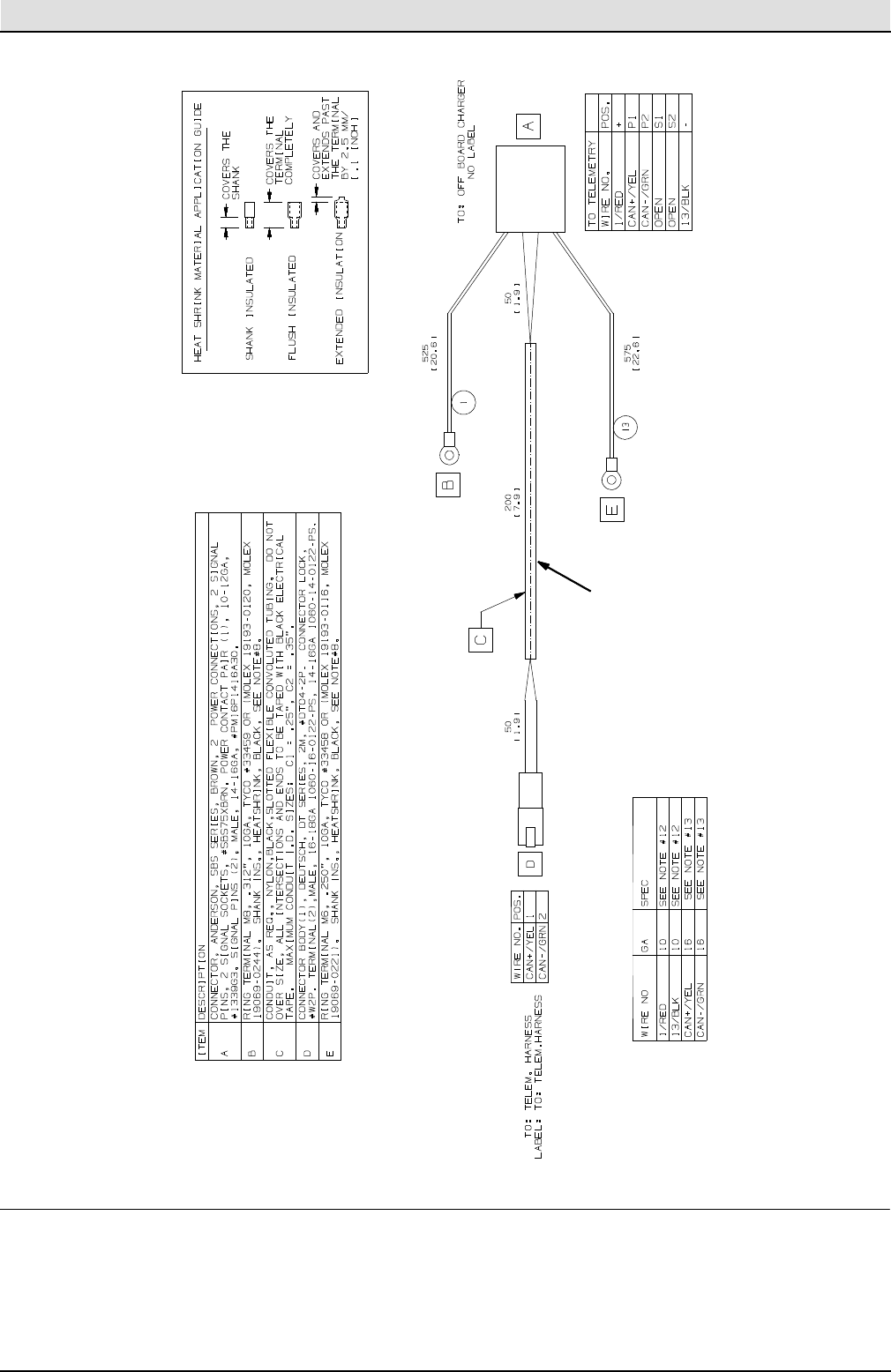

- Fig. 45 - Cable Assembly, Iris Telemetry

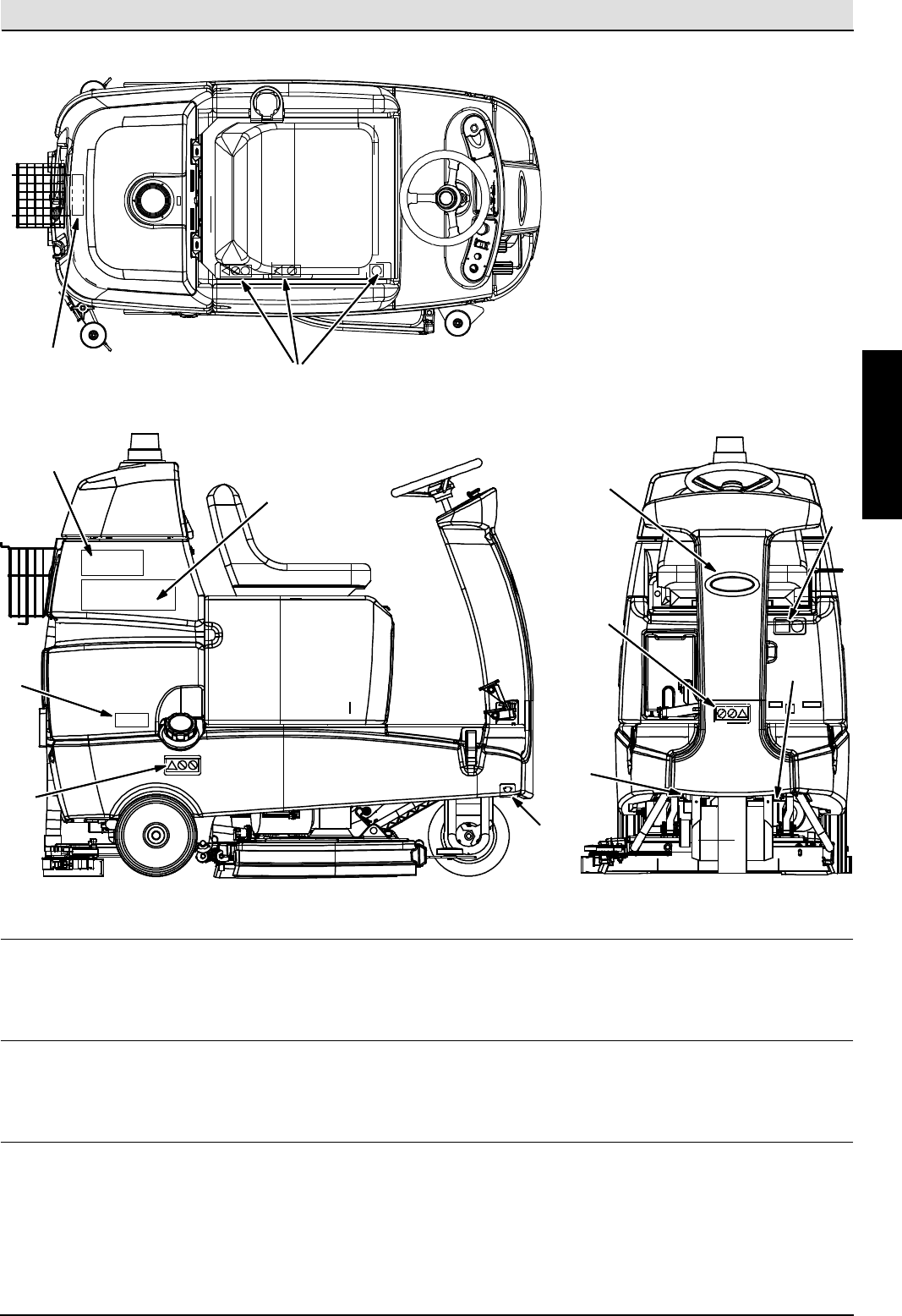

- Fig. 46 - Label Group
- OPTIONS

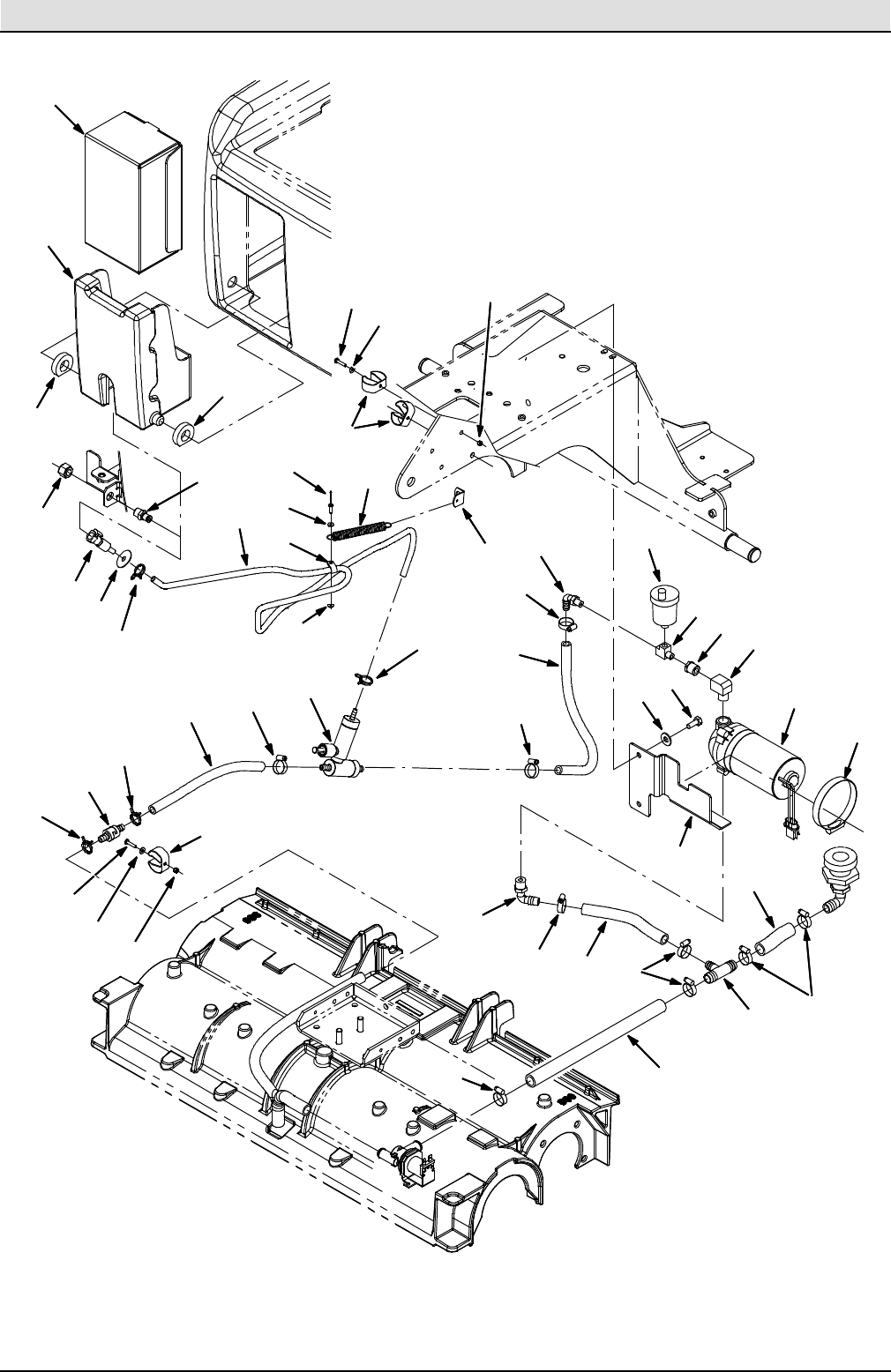

- Fig. 1 - FaST Group, Disk Scrub Head
- Fig. 2 - FaST Group, Cylindrical Scrub Head

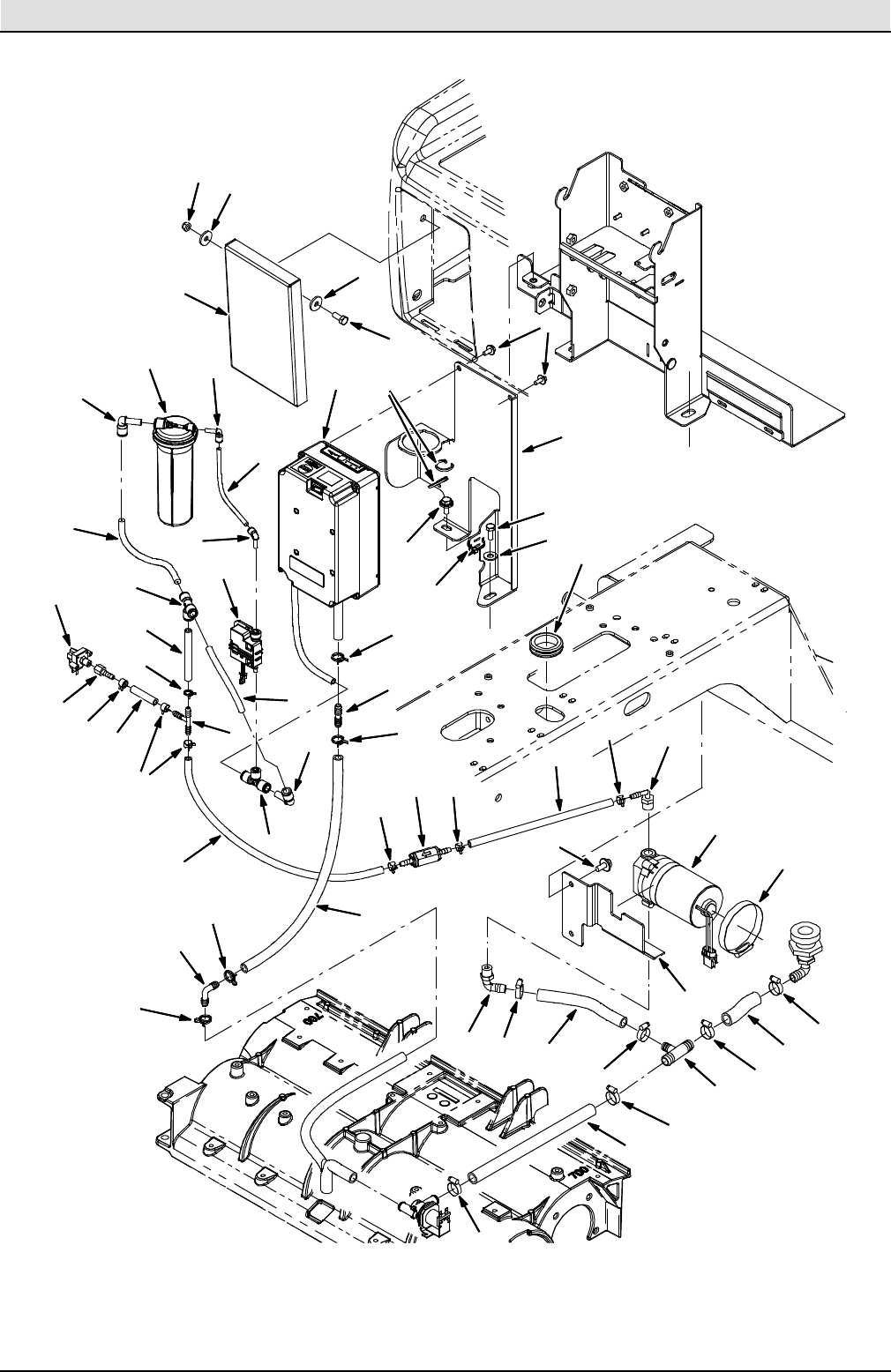

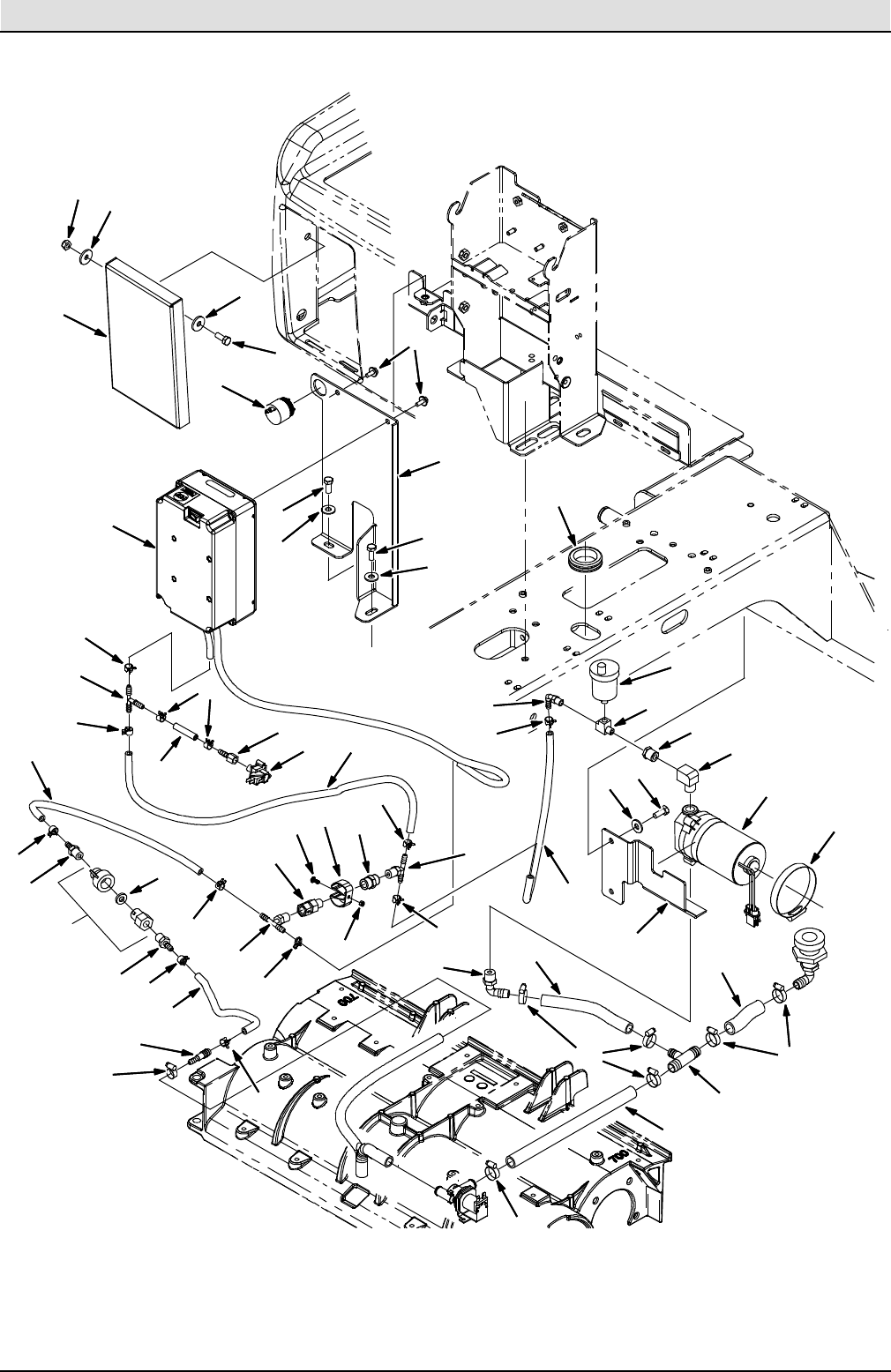

- Fig. 3 - ec-H2O NanoClean Group, Disc Scrub Head (S/N 11000- )
- Fig. 4 - ec-H2O Group, Disc Scrub Head (S/N 10000- 10999)

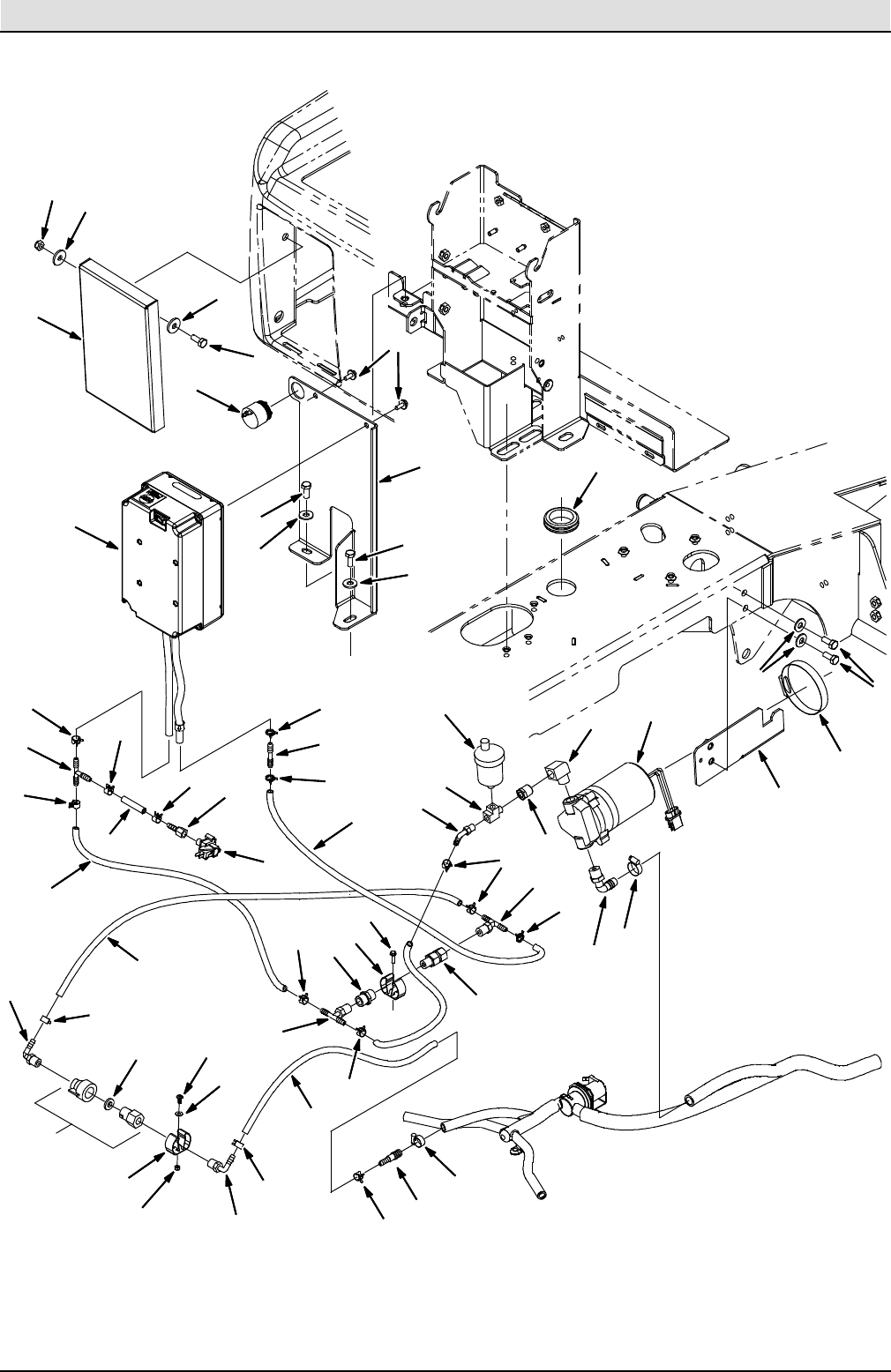

- Fig. 5 - ec-H2O NanoClean Group, Cylindrical Scrub Head (S/N 11000- )
- Fig. 6 - ec-H2O Group, Cylindrical Scrub Head (S/N 10000- 10999)
- Fig. 7 - Iris Telemetry Group (S/N 11000 - )
- Fig. 8 - Kit, Iris Telemetry Battery Manager

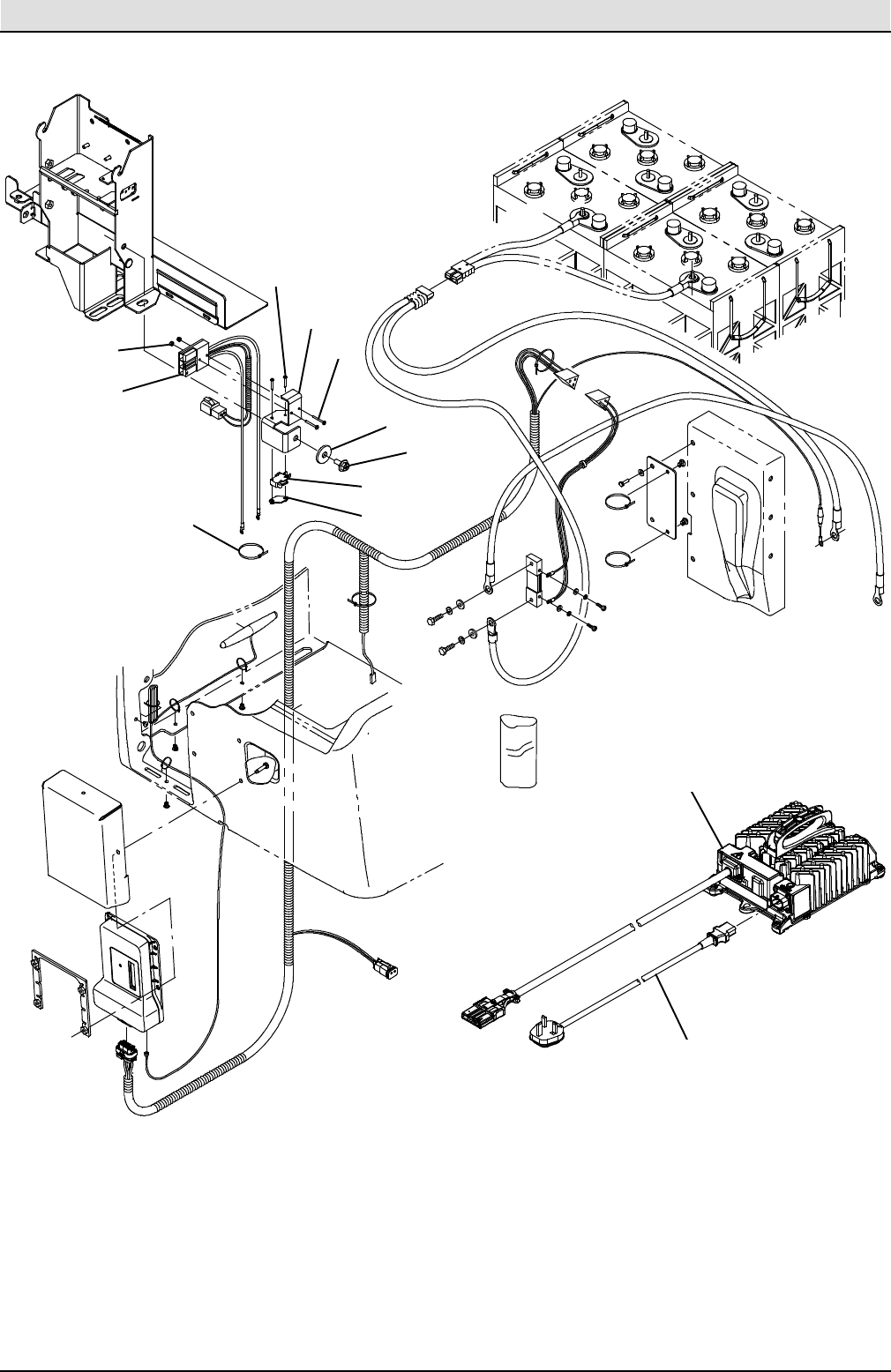

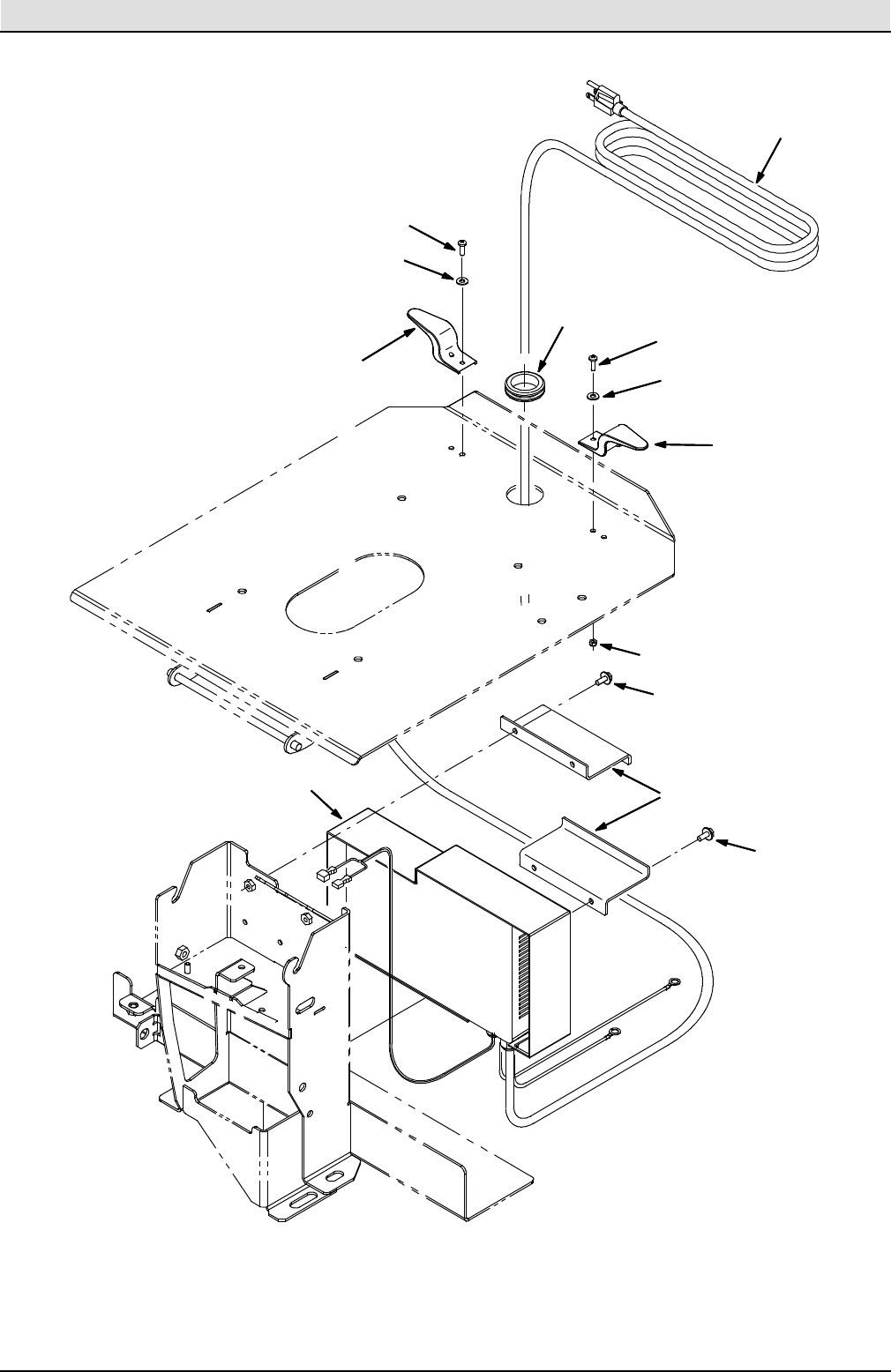

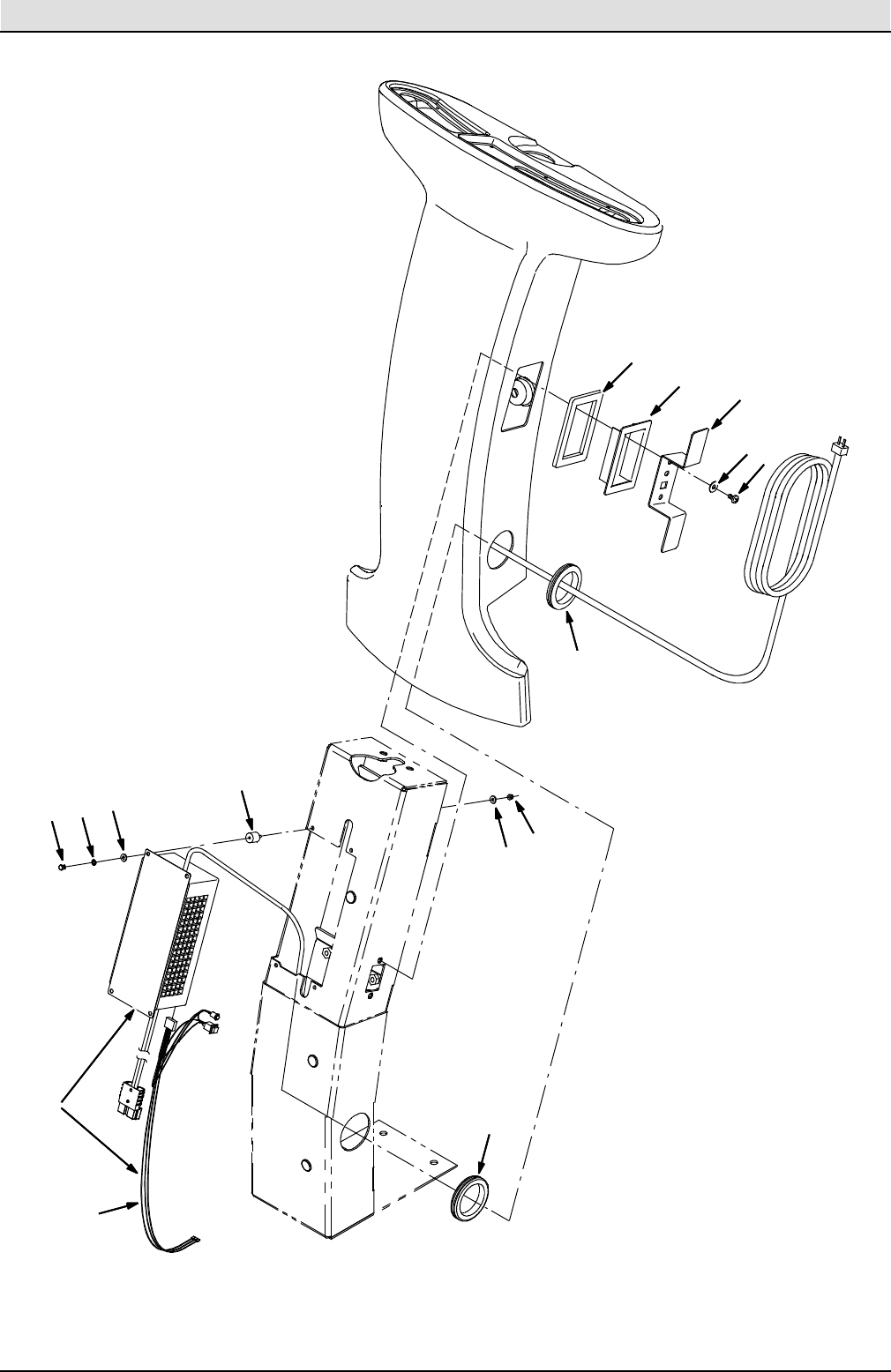

- Fig. 9 - Battery Charger, On-Board (S/N 11773- )
- Fig. 10 - Battery Charger, On-Board (S/N 10000 - 11772)

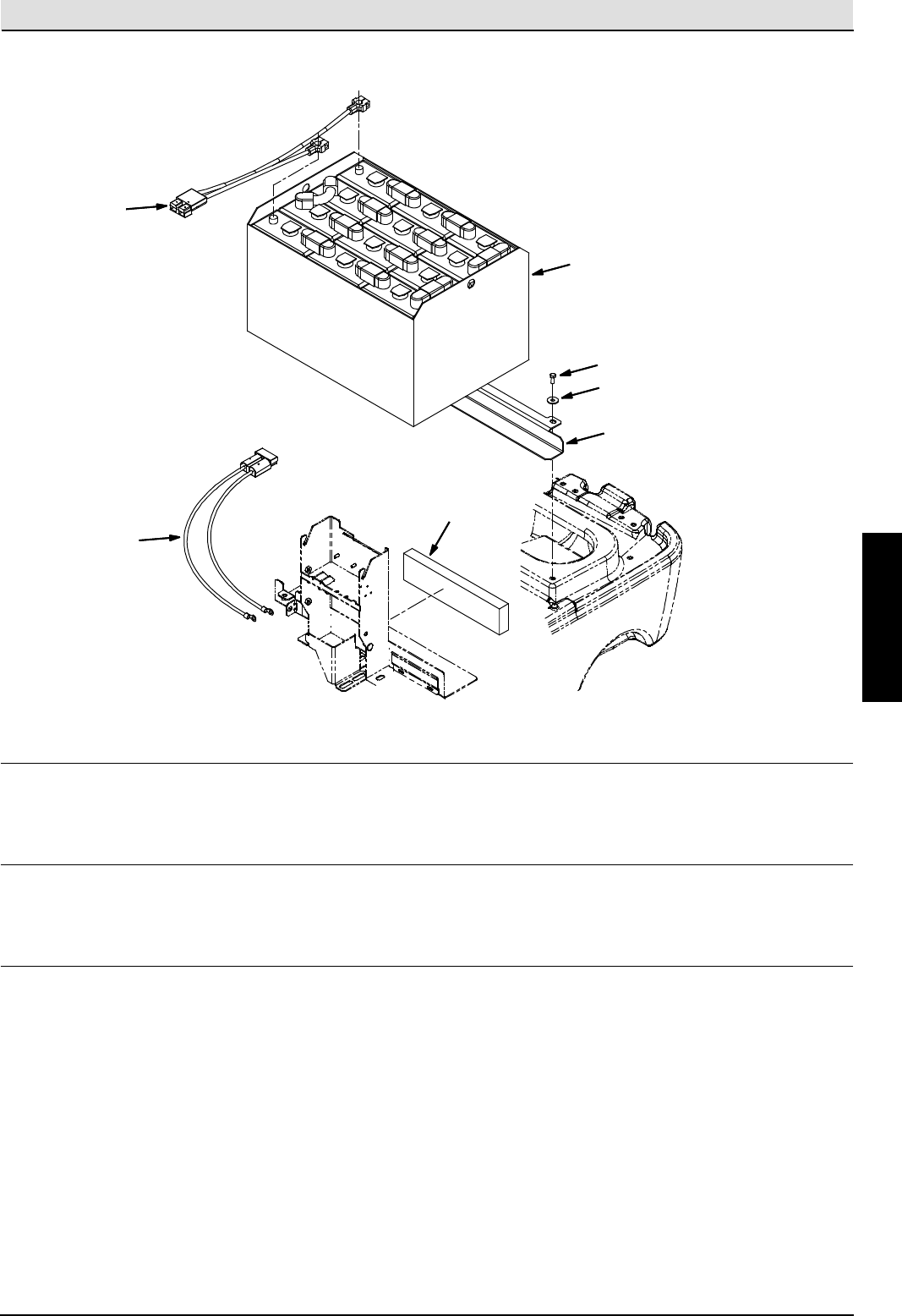

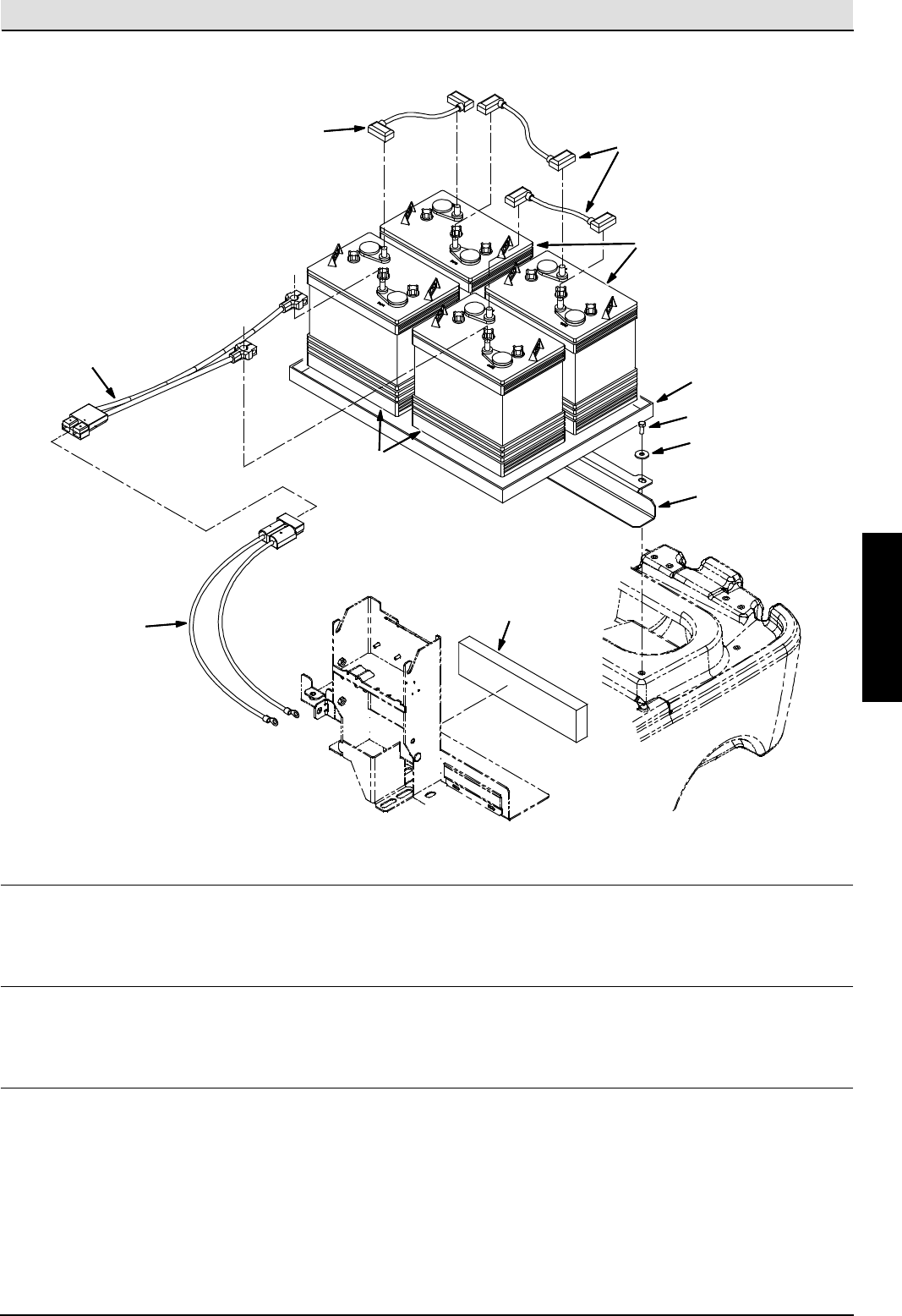

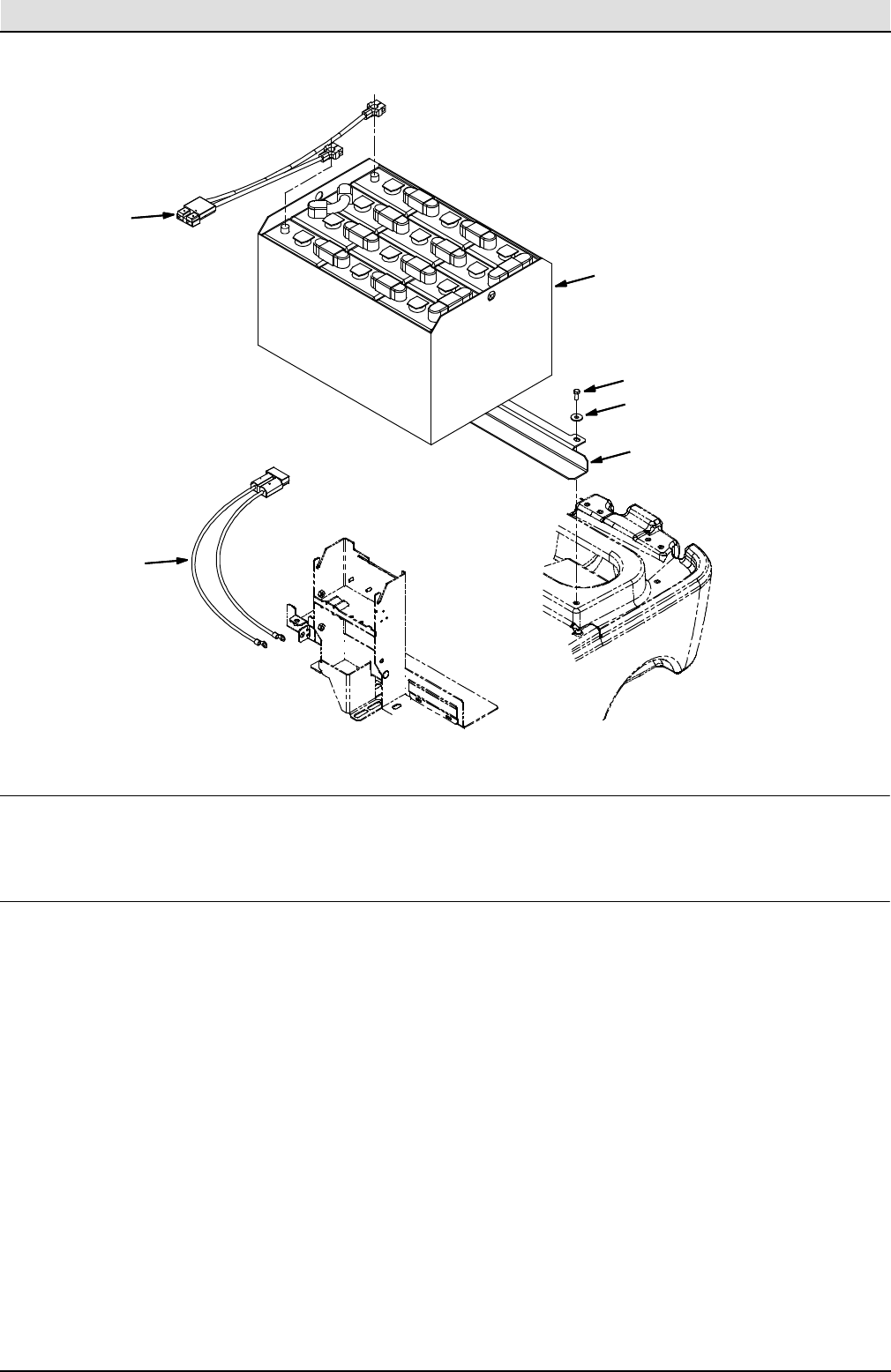

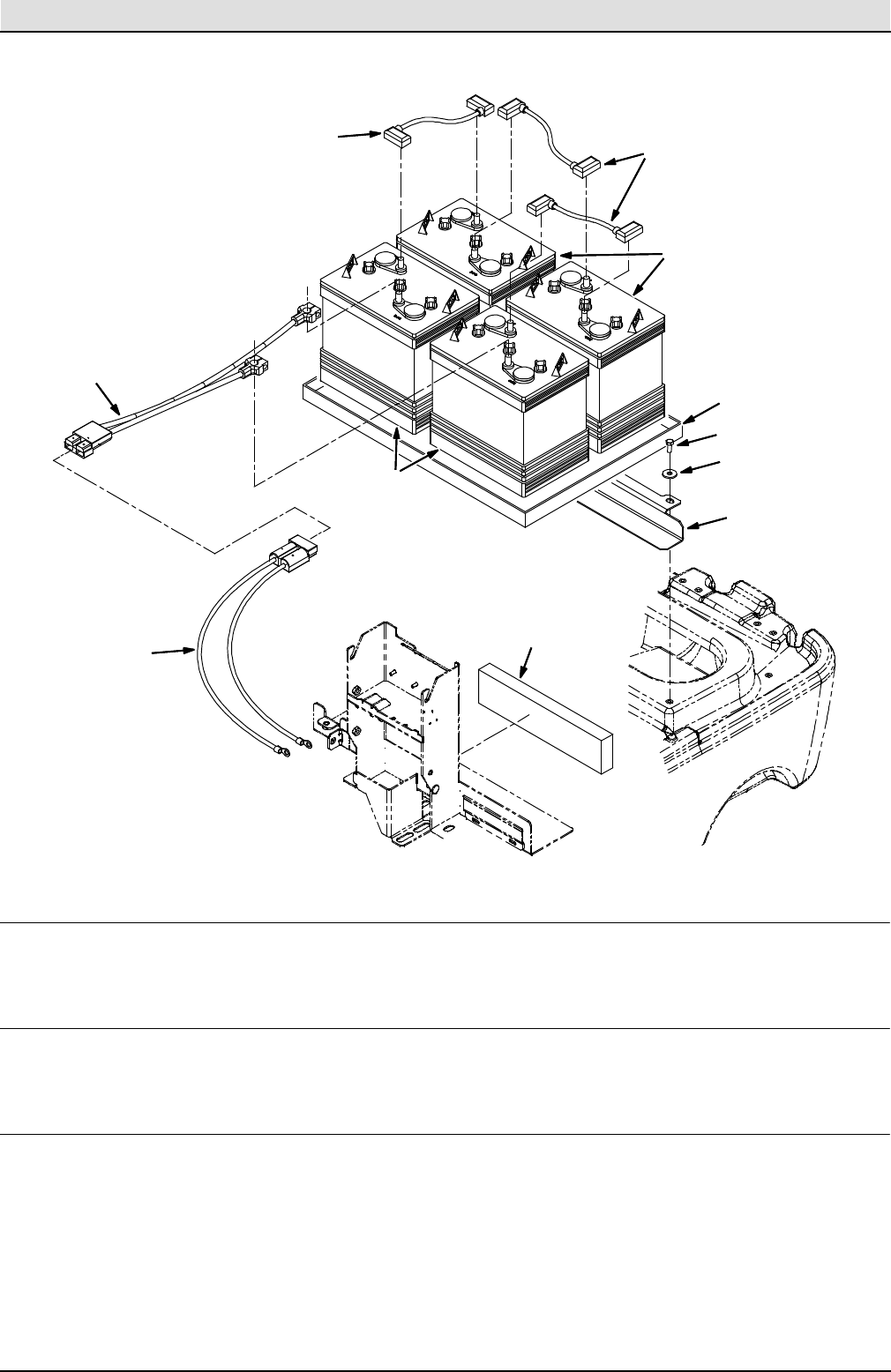

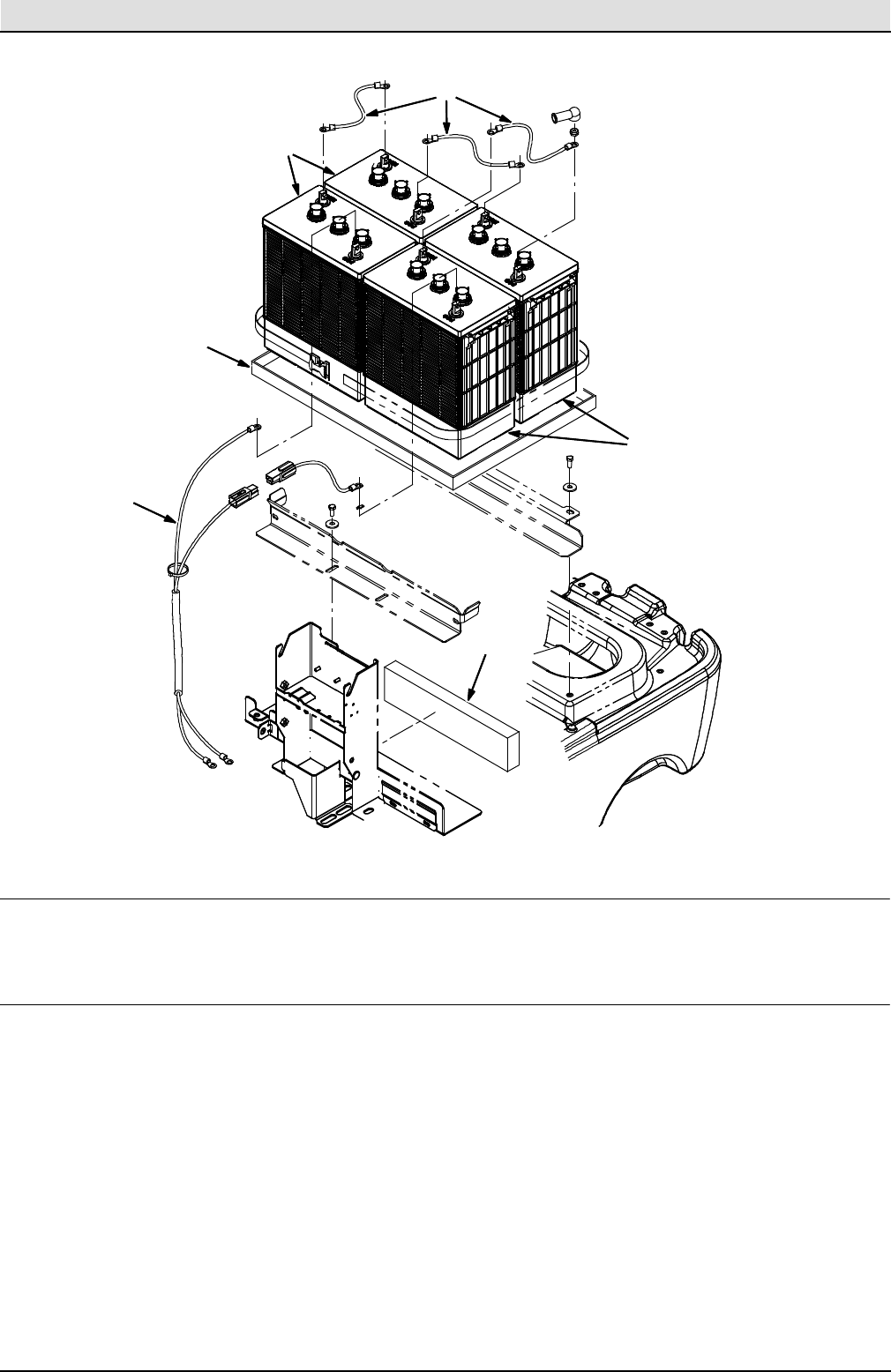

- Fig. 11 - Battery Group, 360Ah/5H
- Fig. 12 - Battery and Charger Group 255Ah/5H
- Fig. 13 - Battery and Charger Group 240Ah/5H
- Fig. 14 - Battery and Charger Group 180Ah/5H
- Fig. 15 - Battery and Charger Group 24V/275Ah/5H
- Fig. 16 - Battery and Charger Group 24V/240Ah/5H
- Fig. 17 - Battery and Charger Group 24V/300Ah/5H

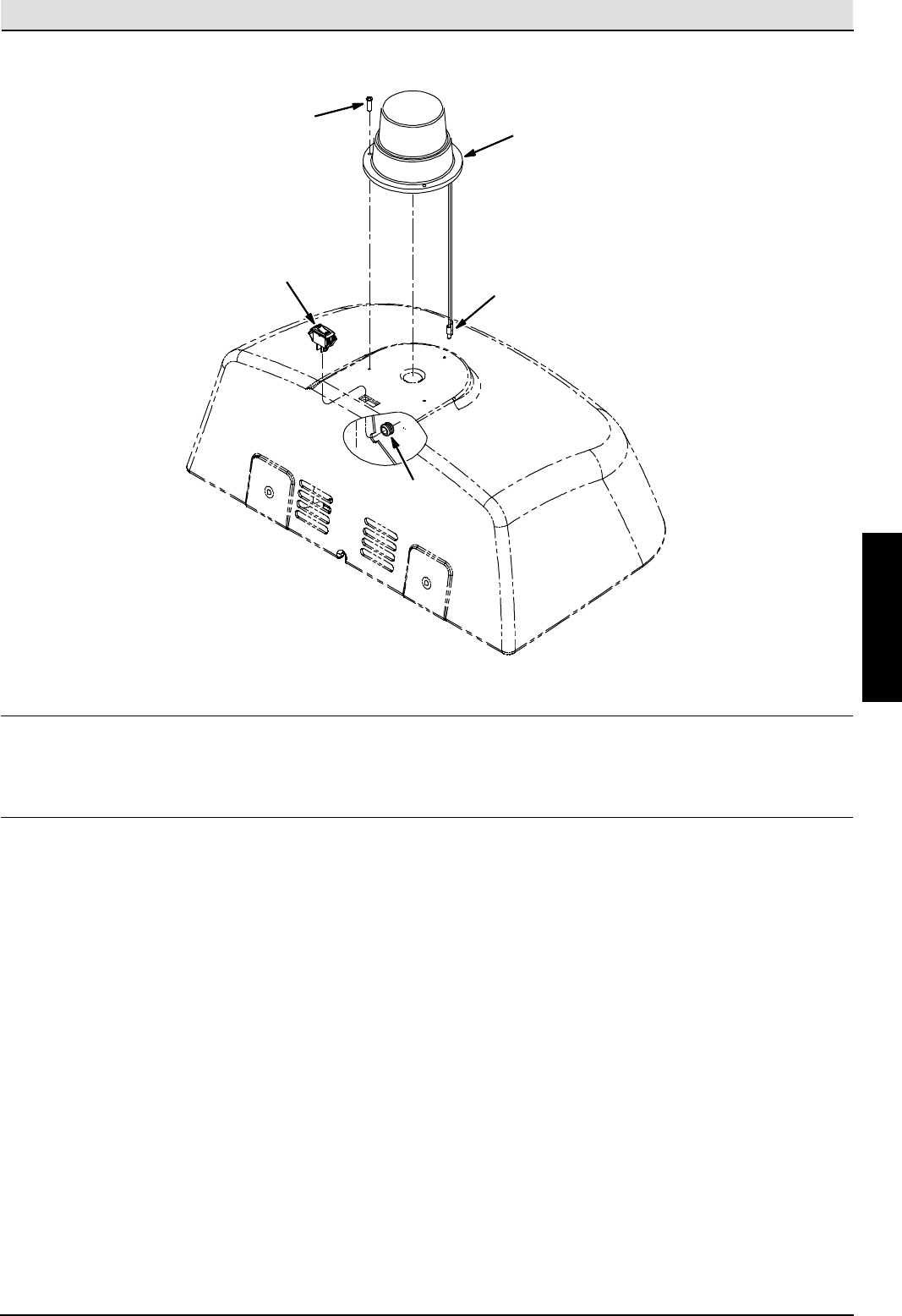

- Fig. 18 - Flashing Light Group
- Fig. 19 - Documentation Group
- BREAKDOWN

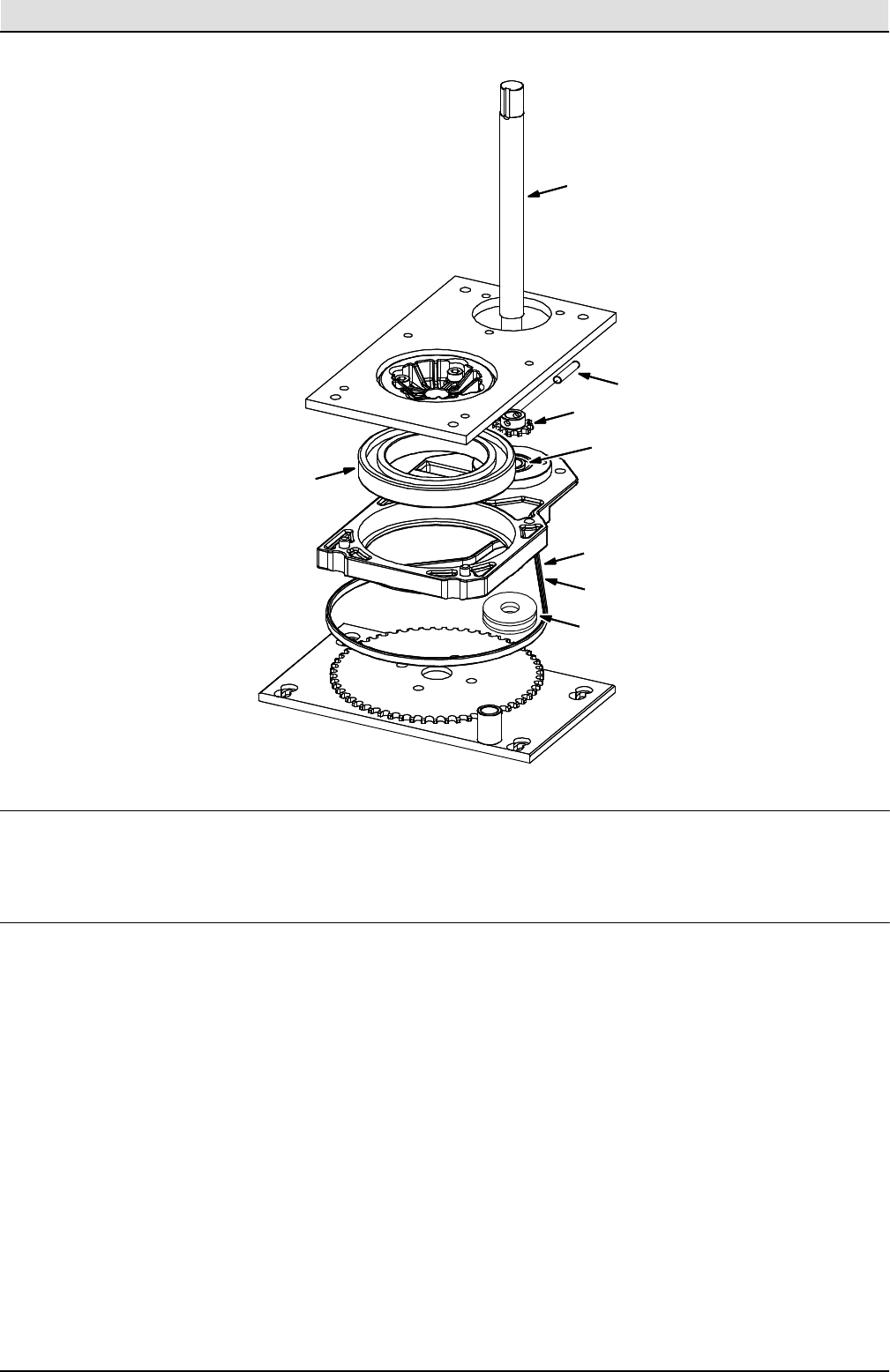

- Fig. 1 - Steering Control Breakdown, 1019724

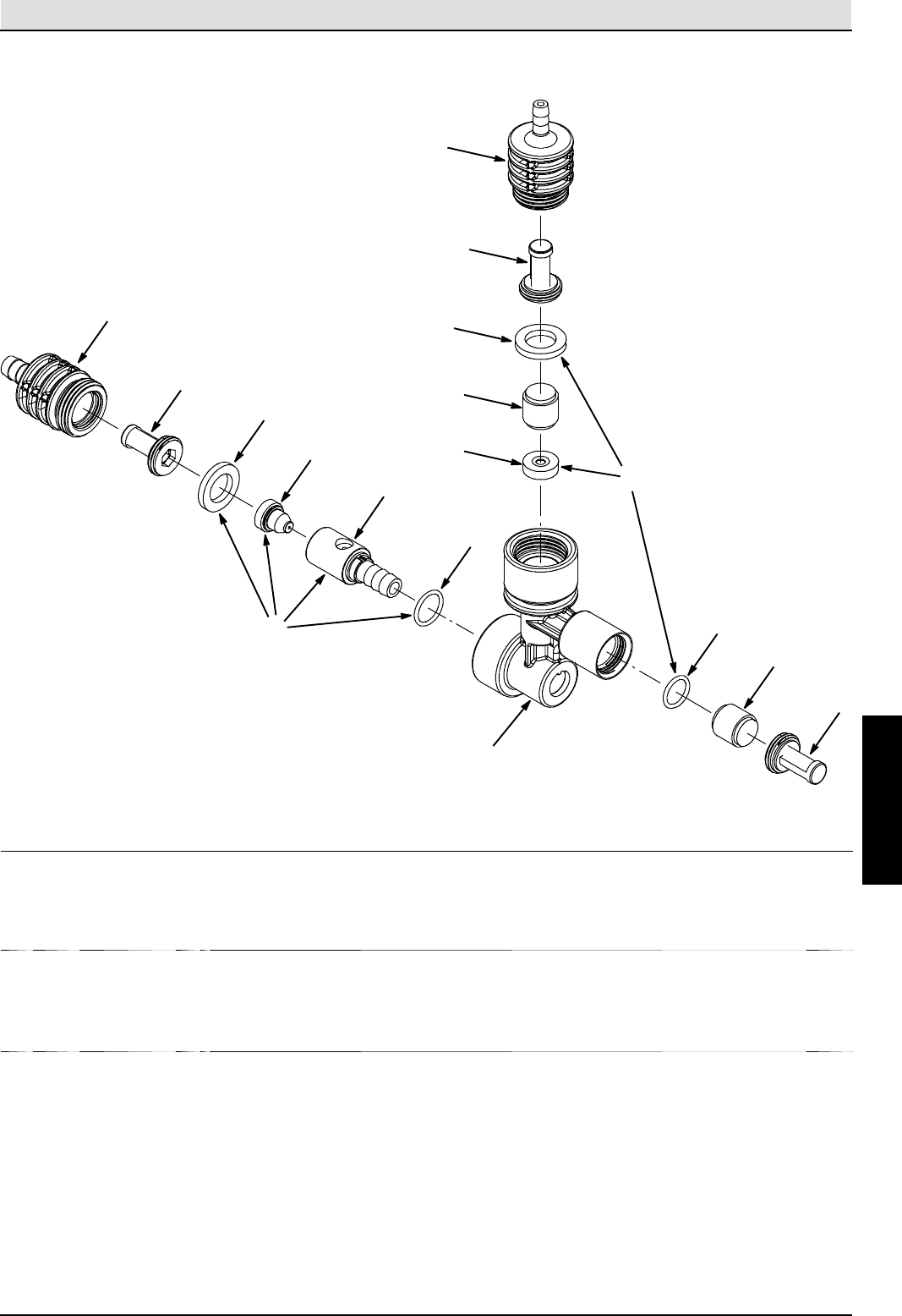

- Fig. 2 - FaST Injector Assembly Breakdown, 9008885

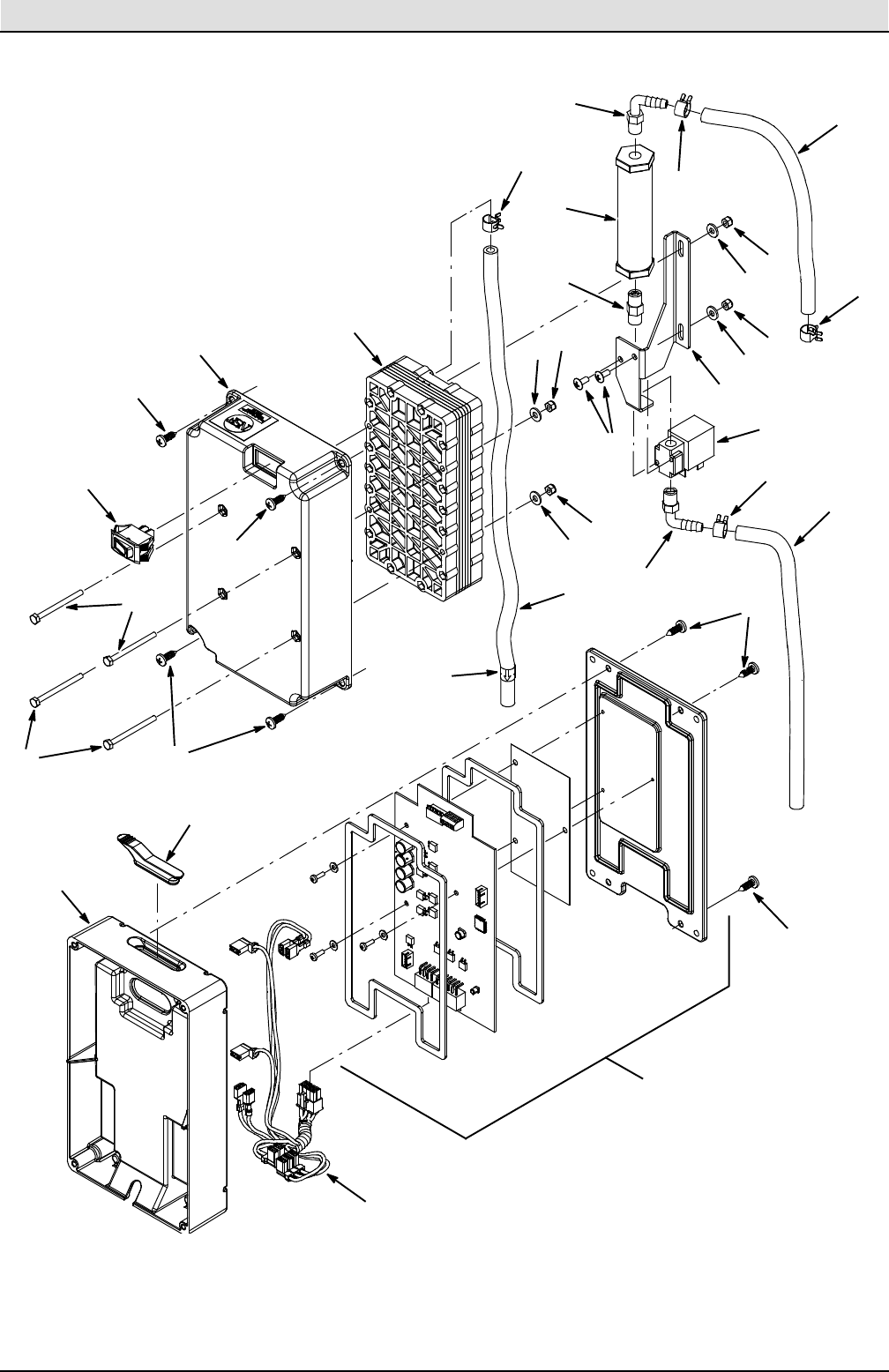

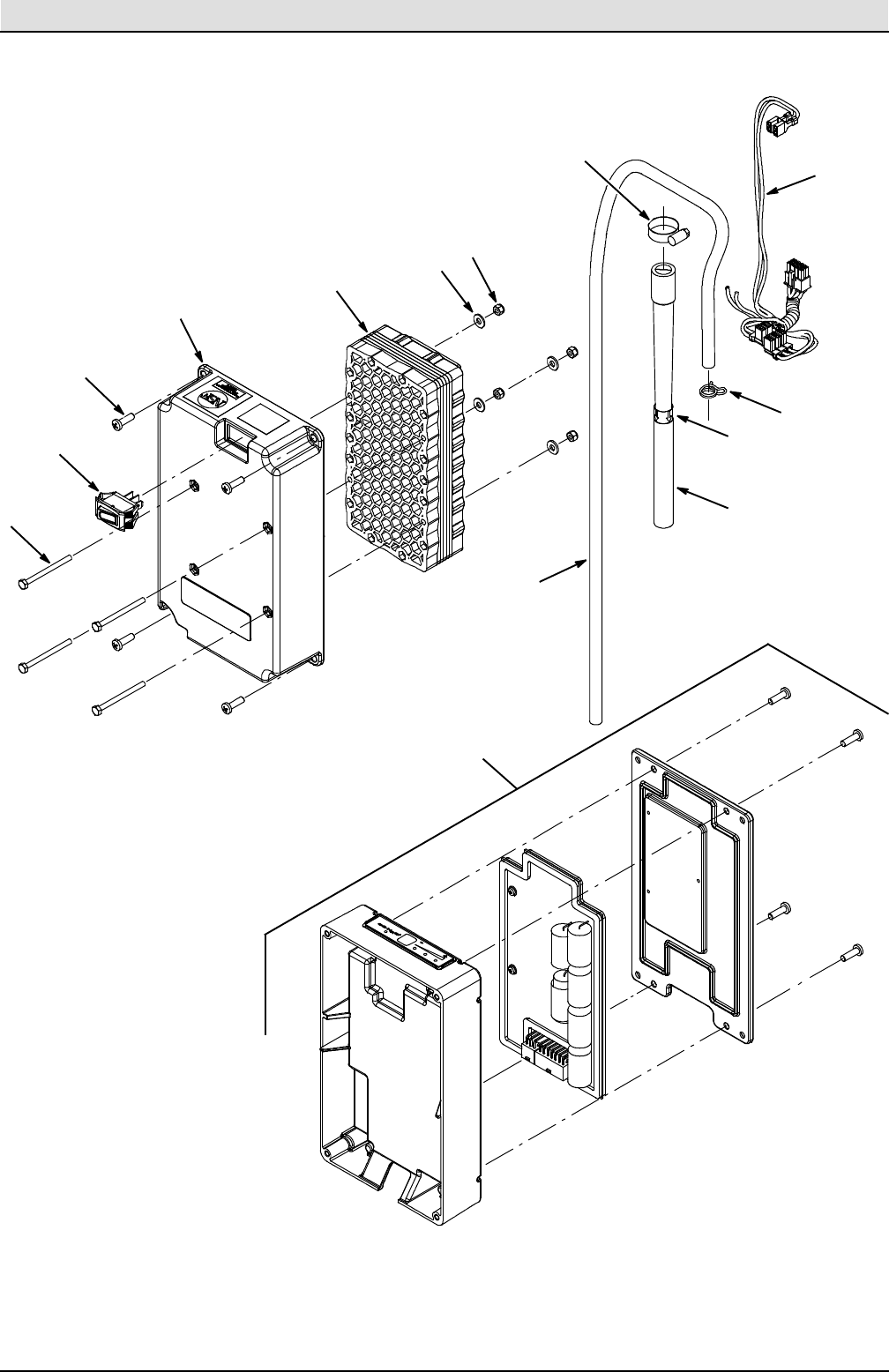

- Fig. 3 - ec-H2O NanoClean Module Breakdown, 9011810 (S/N 11000- )
- Fig. 4 - ec-H2O Module Assembly Breakdown, 9007970 (S/N 10000- 10999)
- Fig. 5 - Vacuum Fan Motor Breakdown, 1021064

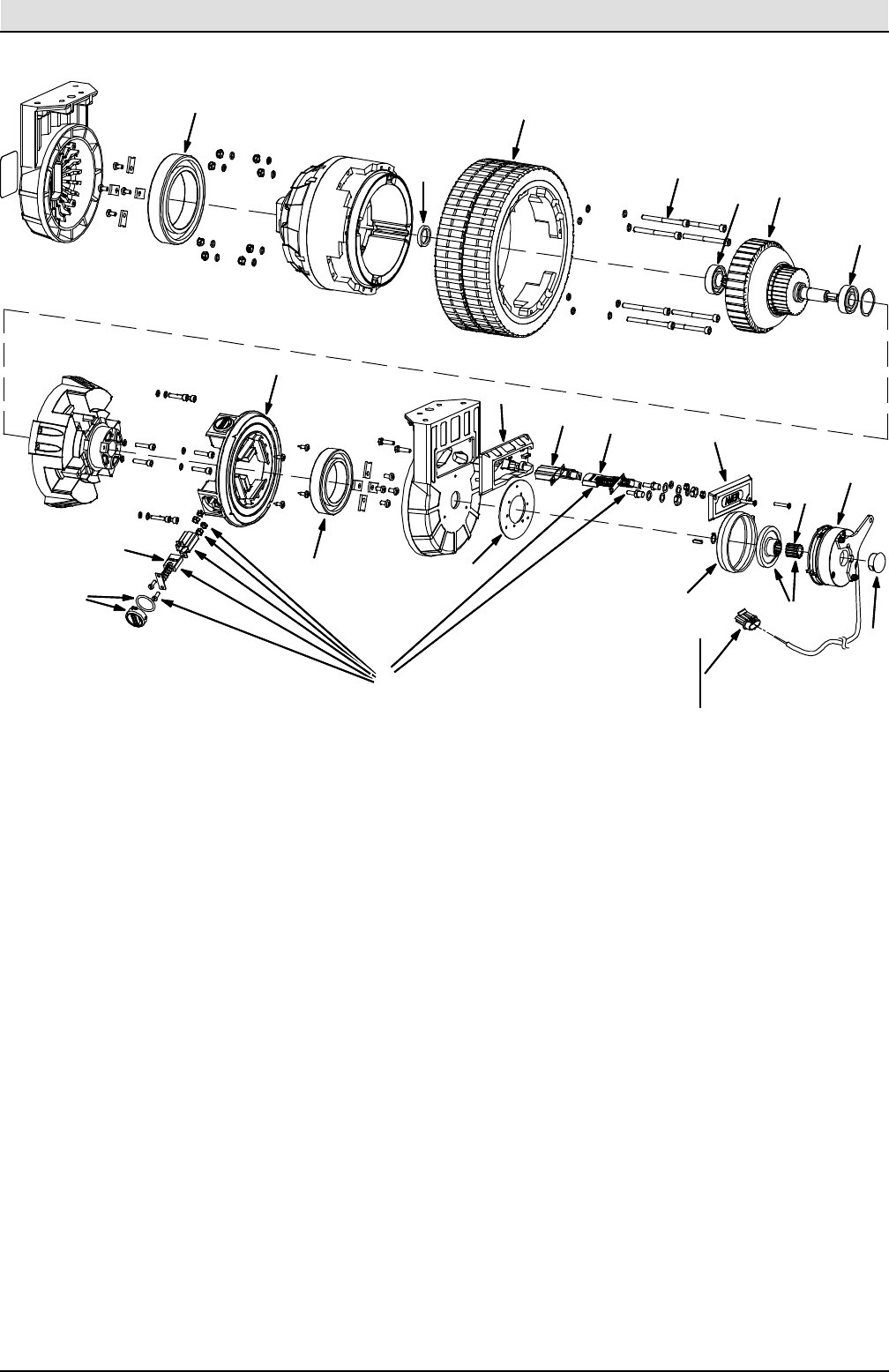

- Fig. 6 - Front Wheel Gearbox Breakdown, 9008999
HygenicRFully Cleanable Tanks
IRISa Tennant Technology
T7+
*9013336*
www.tennantco.com
Rider Scrubber
Parts Manual
9013336
Rev. 03 (04-2017)
For the latest Parts manuals and other
language Operator manuals, visit:
www.tennantco.com/manuals
(S/N 10000- )
TennantTrueRParts
Ref Part No. Serial Number Description Qty.

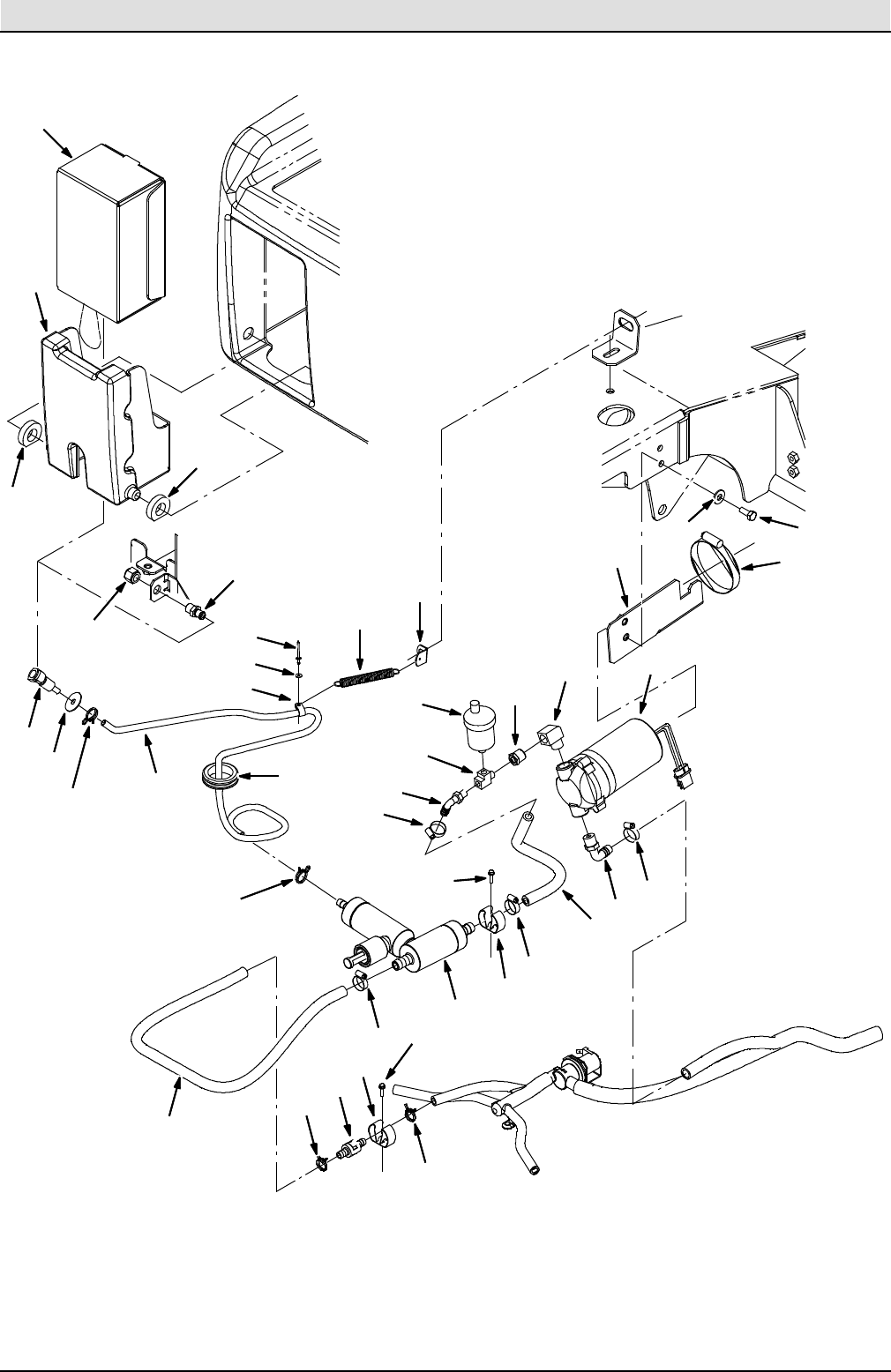

1 82681 (000000- ) Bracket Wldt, Lpg Mount 1
o2 63810 (000000- ) Latch Assy, Lpg Tank Mtg, W/Nut 4
Y3 51839 (000000- ) Nut Adjustable, Lpg Tank Mtg 2
4 49263 (000000- ) Tie, Cable 3
5 82556 (000000- 001039) Bracket, Vaporizer 1
6 54930 (000000- ) Vaporizer, LPG 1
B
C
D
A
HOW TO ORDER PARTS - See diagram above
Only use TENNANT Company supplied or equivalent parts. Parts and supplies may be ordered online,
by phone, by fax or by mail.
Follow the steps below to ensure prompt delivery.
1. (A) Identify the machine model.
2. (B) Identify the machine serial number from the data plate.
3. (C) Ensure the proper serial number is used from
the parts list.
4. Identify the part number and quantity.
Do not order by page or reference numbers.
5. Provide your name, company name, customer ID number,
billing and shipping address, phone number and
purchase order number.
6. Provide detail shipping instructions.
(D) o- identifies an assembly
Y- identifies parts included in assembly
EN
Please fill out at time of installation for
future reference.
Model No. -
Serial No. -
Machine Options -
Sales Rep. -
Sales Rep. phone no. -
Customer ID Number -
Installation Date -
Tennant N.V.
Industrielaan 6 5405 AB
P.O. Box 6 5400 AA Uden- The Netherlands
europe@tennantco.com
www.tennantco.com
Specifications and parts are subject to change without notice.
Copyright E2014- 2017 TENNANT Company. All Rights Reserved.
КАК ДА ПОРЪЧВАМЕ ЧАСТИ -Вижте схемата по-горе
Използвайте само части,доставени от TENNANT или техни еквиваленти.Частите и доставките могат да се поръчат онлайн,
по телефон,факс или по пощата.
Следвайте долупосочените стъпки,за да си осигурите бърза и точна доставка.
1. (A) Посочете модела на машината.
2. (B) Посочете серийния номер на машината от табелката с техническите данни.
3. (C) Уверете се,че сте използвали точния сериен номер от списъка с части.
4. Посочва номера на частта и количеството.Не поръчвайте части
според страницата или референтните номера.
5. Посочете своето име,наименованието на фирмата,клиентския
номер,адреса за получаване на сметката и доставката,тел.номер и номера на поръчката.
6. Посочете подробни инструкции за доставката.
(D) o-посочва начин на монтаж
Y-посочва частите,включени в монтажа
BG
Моля,попълнете по време на монтажа за бъдеща справка.
Модел Э -
Сериен Э -
Опции на машината -
Търговски представител -
Те л .Энатърг.представител -
Клиентски Э -
Дата на монтаж -

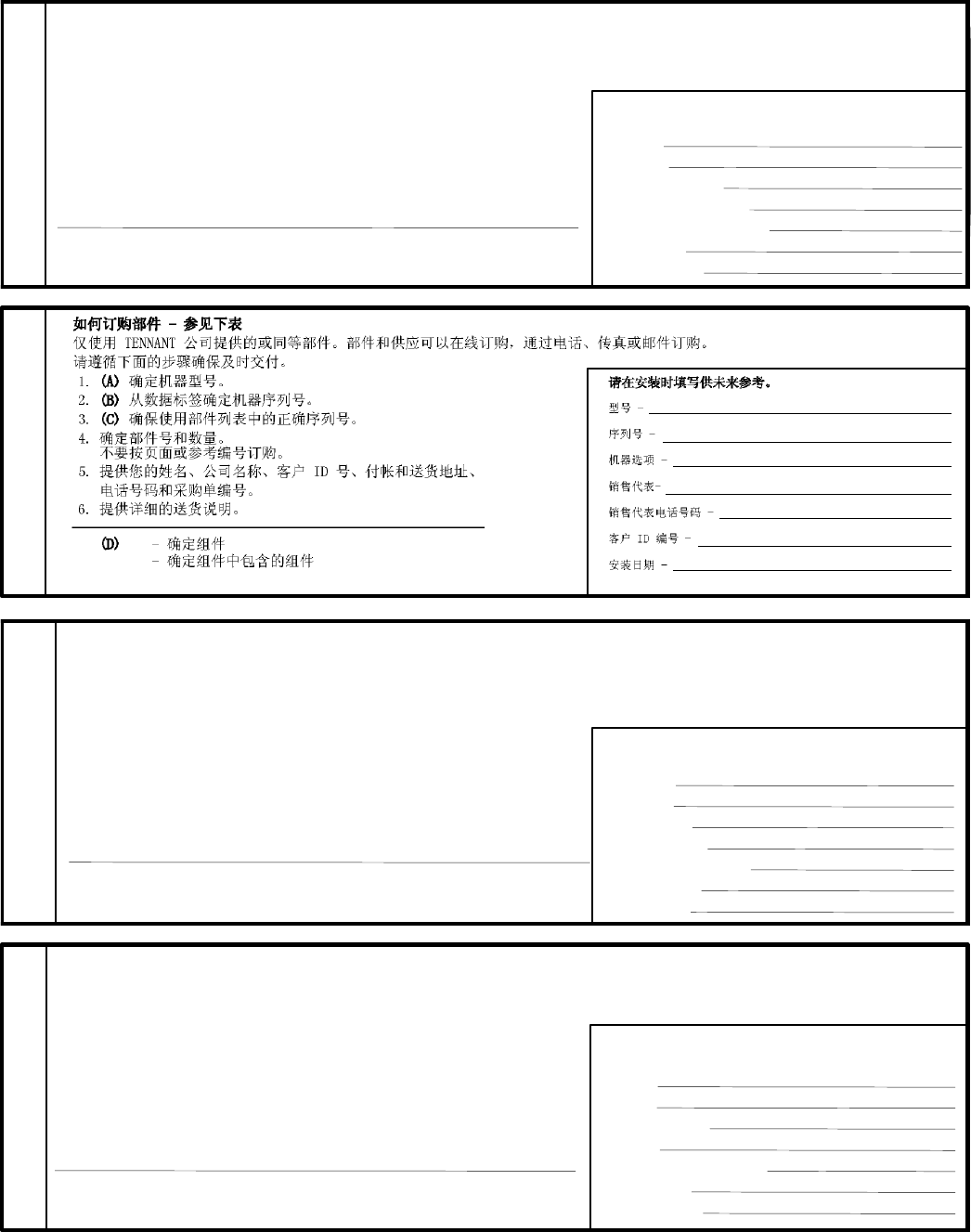

CN
o
Y
OBJEDNÁVÁNÍ DÍLŮ- Viz schéma výše.
Pou ívejte pouze díly dodané společností TENNANT Company nebo jim odpovídající. Díly a materiál lze objednat online,
telefonem, faxem nebo poštou.
Aby bylo zajištěno rychlé dodání, postupujte podle krokůuvedených ní e.
1. (A) Zjistěte model stroje.
2. (B) Zjistěte sériové číslo stroje z výrobního štítku.
3. (C) Pou ijte správné sériové číslo ze seznamu dílů.
4. Určete číslo a mno ství dílů.
Neobjednávejte podle stran nebo referenčních čísel.
5. Uveďte jméno, název společnosti, číslo ID zákazníka, fakturační a
dodací adresu, telefonní číslo a číslo objednávky.
6. Uveďte podrobné pokyny pro dodání.
(D) o-označuje sestavu
Y-označujedílyvsestavě
CZ
Vyplňte během sestavování pro budoucí potřebu.
Číslo modelu -
Sériové číslo -
Doplňky zařízení -
Obchodní zástupce -
Tel. č. obchodního zástupce -
Číslo ID zákazníka -
Datum instalace -
BESTELLEN VON ERSATZTEILEN - Siehe oben stehendes Diagramm.
Verwenden Sie nur von TENNANT gelieferte oder gleichwertige Ersatzteile. Ersatz- und Verschleißteile können online, telefonisch, per Fax oder per E- Mail bestellt werden.
Befolgen Sie für eine umgehende Lieferung die folgenden Schritte.
1. (A) Geben Sie das Modell der Maschine an.
2. (B) Geben Sie die Seriennummer der Maschine an (auf dem Datenaufkleber).
3. (C) Achten Sie darauf, dass die richtigen Seriennummer aus der Ersatzteilliste verwendet wird.
4. Geben Sie die Ersatzteilnummer und die Menge an.
Bestellen Sie nicht nach Seitenzahl oder Referenznummern.
5. Geben Sie Ihren Namen, den Firmennamen, die Kundennummer,
die Rechnungs- und Lieferadresse, die Telefonnummer und die Einkaufsauftragsnummer an.
6. Erteilen Sie genaue Versandanweisungen.
(D) o- steht für eine Einheit
Y- steht für Einzelteile einer Einheit
DE
Bitte bei der Inbetriebnahme als Referenzangabe ausfüllen.
Modellnr. -
Seriennr. -
Maschinenoptionen -
Verkäufer -
Telefonnummer des Verkäufers -
Kundennummer -
Installationsdatum -
BESTILLING AF RESERVEDELE - Se ovenstående tabel.
Brug kun reservedele, der er fremstillet af TENNANT, eller dele af tilsvarende kvalitet. Reservedele og tilbehør kan bestilles online, pr. telefon, pr. fax eller pr. brev.
Følg nedenstående trin for at sikre hurtig levering.
1. (A) Identificér maskinmodellen.
2. (B) Identificér maskinens serienummer på datamærkaten.
3. (C) Kontrollér, at det rigtige serienummer bruges i reservedelslisten.
4. Identificér reservedelsnummeret og antallet. Bestil ikke efter side- eller referencenumre.
5. Angiv dit navn, firmanavn, kunde- id- nummer, faktureringsadresse
og leveringsadresse, telefonnummer og indkøbsordrenummer.
6. Angiv detaljerede instruktioner til forsendelse.
(D) o- identificerer en enhed
Y- identificerer reservedele i en enhed
DK
Udfyld venligst på installationstidspunktet til fremtidig brug.
Modelnr. -
Serienr. -
Maskinekstraudstyr -
Salgskonsulent. -
Salgskonsulentens tlf. -
Kunde- id- nr. -
Installationsdato -
KUIDAS VARUOSI TELLIDA – vaadake alltoodud joonist
Kasutage ainult TENNANT Company poolt tarnitud või samaväärseid varuosi. Varuosi ja tarvikuid saab tellida Interneti, telefoni, faksi või posti teel.
Kiire kohaletoimetamise tagamiseks järgige alltoodud juhiseid.
1. (A) Märkige masina mudel.
2. (B) Märkige andmesildil olev masina seerianumber.
3. (C) Veenduge, et olete valinud varuosade loendist õige seerianumbri.
4. Märkige varuosa number ja kogus.
Ärge tellige lehekülje- või viitenumbri alusel.
5. Märkige oma nimi, ettevõtte nimi, kliendinumber, arveldus- ja saatmisaadress,
telefoninumber ja ostutellimuse number.
6. Lisage täpsed saatmisjuhised.
(D) -tähistabkomplekti
Y- tähistab komplektis olevaid osii
EE
Palun täitke paigaldamise ajal edaspidiseks viitamiseks.
Mudeli number -
Seerianumber -
Masina lisavarustus -
Müügiesindus -
Müügiesinduse telefoninumber -
Kliendinumber -
Paigaldamise kuupäev -
CÓMO SOLICITAR PIEZAS - Consulte el diagrama anterior.
Utilice sólo las piezas suministradas por TENNANT Company o piezas equivalentes. Puede solicitar las piezas a través de internet,
por teléfono, por fax o por correo.
Siga los siguientes pasos para que la entrega sea rápida.
1. (A) Indique el modelo de máquina.
2. (B) Indique el número de serie de la etiqueta de datos.
3. (C) Asegúrese de que indica el número de serie correcto de la lista de piezas.
4. Indique la cantidad y el número de la pieza.
No realice el pedidoindicando el número de página o el de referencia.
5. Incluya su nombre, el nombre de la empresa, el ID de cliente,
las direcciones de envío y facturación, el número de teléfono y el número del pedido de compra.
6. Facilite instrucciones de envío.
(D) o- identifica un conjunto
Y- identifica piezas de un conjunto
ES
Rellene estos datos cuando realice la instalación para utilizarlos
como referencia en el futuro.
Nº modelo -
Nº serie -
Opciones de la máquina -
Vendedor -
Nº teléfono vendedor -
Nº cliente -
Fechadeinstalación-
KUINKA VARAOSIA TILATAAN - katso kuvaa yllä.
Käytä ainoastaan TENNANTIN toimittamia tai niitä vastaavia varaosia. Voit tilata varaosia ja tarvikkeita internetistä,
puhelimitse, faksilla tai sähköpostilla.
Noudata seuraavia ohjeita täsmällisen toimituksen varmistamiseksi.
1. (A) Katso koneen malli.
2. (B) IKatso koneen sarjanumero sen tunnustarrasta.
3. (C) Varmista, että osaluettelosta, että käytät oikeaa sarjanumeroa.
4. Katso osanumero ja kappalemäärä. Älä tilaa ilmoittamalla sivu- tai viitenumeroita.
5. Ilmoita nimesi, yrityksesi nimi, asiakasnumero, laskutus- ja
toimitusosoite, puhelinnumero ja ostotilauksen numero.
6. Ilmoita yksityiskohtaiset toimitusosoitteet.
(D) o- tarkoittaa kokoonpanoa
Y- tarkoittaa kokoonpanoon sisältyviä osia
FI
Ole hyvä ja täytä ottaessasi koneen käyttöön
myöhempiä tarpeita varten.
Mallinumero -
Sarjanumero -
Koneen lisävarusteet -
Myyntiedustaja -
Myyntiedustajan puhelinnumero -
Asiakasnumero -
Asennuspäivä -
COMMENT COMMANDER DES PIÈCES DÉTACHÉES - Voir le schéma ci- dessus.
Utilisez uniquement des pièces fournies par la société TENNANT ou équivalentes. Les pièces et fournitures peuvent être commandées en ligne, par téléphone, fax, oupar
courrier.
Suivez les étapes ci- dessous pour assurer une livraison rapide.
1. (A) Identifiez le modèle de la machine.
2. (B) Identifiez le numéro de série de la machine, à partir de l’étiquette signalétique.
3. (C) Assurez- vous que le numéro de série correct est utilisé à partir de la liste de pièces détachées.
4. Identifiez le numéro de pièce et la quantité. Ne commandez pas par page ou numéros de référence.
5. Fournissez votre nom, le nom de votre société, votre numéro d’identification de client, l’adresse
de facturation et d’expédition, le numéro de téléphone et le numéro du bon de commande.
6. Fournissez des instructions d’expédition détaillées.
(D) o- identifie un assemblage
Y- identifie les pièces composant l’assemblage
FR
A remplir au moment de l’installation à titre de référence.
Nº du modèle -
Nº de série -
Options de la machine -
Agent commercial -
Nº tél. de l’agent commercial -
Numéro d’identification client -
Date d’installation -
ÚÔÌÓÌÒ ÓflÔfl··„ÈÁflÒflÎÚflÈÈflËÚÁ˘ΠJ ‡ÝK ס¹ˇ×˙ÞğŠÐ˙ł¹ˇýýˇ.
ı¹ž³Ðý−×−и³½š ýşÞ−ˇÞ½ˇÝݡð½Ðð˙ס¹š₣şýšÞˇˇ×ş½žÞ qbkk^kq `çãé~åó ¸ Ð³−ŠĆÞˇýˇKÚˇˇÞ½ˇÝݡð½Ðð˙ðˇÐˇÞˇÝć³Ðýˇý×−¹−ĆÞÞˇ×ˇ¹ˇłłšÝ¦−ĆÞ çåäáåÉI
½žÝš¾ğÞÐð˙Iýš¾ˇþ¸½ˇ₣¼Š¹−ýÐð˙K
flð−Ý−¼¦¸³½š ½ˇ×ˇ¹ˇð˙½ğŁ¸ýˇ½ˇłÐˇÞˇšþˇ³¾ˇÝ˝³š½š ½žÞ ˚łðˇÐ¹ž ˇ×−³½−ݸ ½−¼²K
1. (A) ‡¹š˝½š ½−ý−Þ½˚Ý−ýž₣ˇÞ¸ýˇ½−²K
2. (B) ‡¹š˝½š ½−Þˇ¹Ð¦ýş³šÐ¹˙²½−¼ýž₣ˇÞ¸ýˇ½−²ˇ×ş½žÞ š½Ðð˚½ˇ³½−Ð₣š˝ğÞK
3. (C) ‡šŁˇÐğ¦š˝½š ş½Ð ₣¹ž³Ðý−×−К˝½ˇÐ−³ğ³½ş²ˇ¹Ð¦ýş²³šÐ¹˙²ˇ×ş
½−Þðˇ½˙Ý−ł− ˇÞ½ˇÝݡð½ÐðćÞK
4. ‡¹š˝½š ðğŠÐðşˇÞ½ˇÝݡð½Ðð−Ć ðˇÐ×−³ş½ž½ˇK
ÍžÞ ×ˇ¹ˇłł˚ÝÞš½š Ł˙³šÐ ³šÝ˝Šˇ²¸ˇ¹Ð¦ýćÞˇÞˇ¾−¹˙²K
5. ‚ć³½š ½−şÞ−ýˇ³ˇ²I şÞ−ýˇš½ˇÐ¹š˝ˇ²I fa EðğŠÐðşFךÝ˙½žI ŠÐšĆ¦¼Þ³ž ½Ðý−Ýşłž³ž²
ðˇÐˇ×−³½−ݸ²I ˇ¹Ð¦ýş½žÝš¾ćÞ−¼ðˇÐˇ¹Ð¦ýşšÞ½−ݸ² ×¹−ý¸¦šÐˇ²K
6. ‚ć³½š Ýš×½−ýš¹š˝²×Ýž¹−¾−¹˝š² ˇ×−³½−ݸ²K
(D) o-¼×−ŠžÝćޚР¼×−³Ć³½žýˇ
Y-¼×−ŠžÝćޚР½ˇý˚¹ž ×−¼×š¹ÐݡýŁ˙Þ−Þ½ˇÐ³½−
¼×−³Ć³½žýˇ
GR
Óˇ¹ˇðˇÝ−Ćýš ³¼ý×Ýž¹ć³½š ðˇ½˙½žÞ ć¹ˇ½ž² šłðˇ½˙³½ˇ³ž² łÐˇ
ýšÝÝ−Þ½Ðð¸ ˇÞˇ¾−¹˙K
fl¹K Í−Þ½˚Ý−¼-
fl¹K ³šÐ¹˙²-
„×ÐÝ−ł˚²Íž₣ˇÞ¸ýˇ½−²-
„ð×K ×ğݸ³šğÞ-
ÚžÝK šð×¹−³ć×−¼×ğݸ³šğÞ-
fl¹Ð¦ýş²×šÝ˙½ž -
Âýš¹−ýžÞ˝ˇ šłðˇ½˙³½ˇ³ž² -
HOGYAN RENDELJÜNK ALKATRÉSZEKET - Lásd: fenti diagramm.
Kizárólag TENNANT vagy azzal egyenértékűcserealkatrészeket használjon. Az alkatrészeket és anyagokat meg lehet rendelni az Interneten keresztül, vagy telefonon, faxon és
e-mailben.
A pontos szállítás érdekében kövesse az alábbi lépéseket.
1. (A) Adja meg a gép típusát.
2. (B) Az adatcímke alapján adja meg a gép gyártási számát.
3. (C) Ügyeljen arra, hogy a megfelelőgyártási számot válassza ki az alkatrészlistáról.
4. Adja meg a rendelési számot és a mennyiséget. A rendeléshez ne az oldalszámot vagy a
hivatkozási számot használja.
5. Adja meg a nevét, a cége nevét, az ügyfélazonosító számát,
a számlázási és szállítási címét, a telefonszámát és a rendelési számot.
6. Adjon részletes szállítási utasításokat.
(D) o-a jel csomagra utal
Y-a jel a csomagban található alkatrészekre utal
HU
A későbbi visszakeresések érdekében kérjük,
hogy a rovatokat az elsőüzembehelyezéskor töltse ki.
Típusszám -
Gyártási szám. -
A gép felszereltsége -
Kereskedelmi képviselő-
Kereskedelmi képviselőtelefonszáma -
Ügyfél azonosító száma -
Üzembehelyezés dátuma -
COME ORDINARE LE PARTI - Vedere schema precedente.
Utilizzare solo ricambi forniti da TENNANT o equivalenti. Ricambi e forniture possono essere ordinati online, per telefono, via fax o per posta elettronica.
Per ottenere una consegna rapida, seguire i passaggi indicati di seguito.
1. (A) Identificare il modello della macchina.
2. (B) Identificare il numero di serie della macchina dall’etichetta dei dati.
3. (C) Utilizzare il numero di serie corretto presente nell’elenco delle parti di ricambio.
4. Identificare numero di parte e quantità. Non ordinare per numero di pagina o di riferimento.
5. Fornire nome del contatto, nome della società, numero di ID cliente, indirizzo di fatturazione e
di spedizione, numero di telefono e numero di ordine di acquisto.
6. Fornire istruzioni dettagliate per la spedizione.
(D) o- identifica un gruppo
Y- identifica parti comprese in un gruppo
IT
Compilare il modulo al momento dell’installazione
per poterlo consultare in futuro in caso di necessità.
N. Modello -
N. Serie -
Opzioni della macchina -
Venditore -
Tel. venditore -
Numero ID cliente -
Data di installazione -
JP
o
Y
KAIP UŽSISAKYTI DALIS - žr. diagramà viršuje
Naudokite tik ”Tennant” kompanijos tiekiamas arba lygiavertes joms dalis. Dalis galite užsisakyti internetu, telefonu, faksu bei elektroniniu paštu.
Kad užsakymas būtųgreitai įvykdytas, laikykitėsišvardytųtaisyklių.
1. (A) Nurodykite mašinos modelį.
2. (B) Norodykite mašinos serijos numerį,kurįrasite ant duomenųžymės.
3. (C) Įsitikinkite, kad nurodomas tikslus serijos numeris iš daliųsàrašo.
4. Nurodykite dalies numerįir reikiamà kiekį.
Neužsakinėkite pagal puslapius ar nuorodos numerius.
5. Nurodykite savo vardà, kompanijos pavadinimà, kliento ID numerį,
sàskaitos išrašymo ir vežimo adresà, telefono numerįir
pirkimoužsakymonumerį.
6. Nurodykite išsamias gabenimo instrukcijas.
(D) -žymisistemà
Y- nurodo sistemos dalis
LT
Prašome užpildyti montavimo metu,
siekiant gauti informacijà ateityje.
Modelio nr. -
Serijos nr. -
Mašinos parinktys -
Prekybos atstovas -
Komivojažieriaus tel. nr. -
Pirkėjo ID numeris -
Sumontavimo data -
KĀPASŪTĪT REZERVES DETAĻAS - Skat. diagrammu iepriekš
izmantojiet tikai TENNANT Company piegādātāsvaitāmlīdzvērtīgas rezerves detaļas. Daļas un piegādi var pasūtīt internetā,patālruni, pa faksu vai pastu.
Lai nodrošinātu savlaicīgu piegādi, sekojiet zemākaprakstītajiem soļiem.
1. (A) Nosakiet mašīnas modeli.
2. (B) Nosakiet mašīnas sērijas numuru uz tehnisko datu uzlīmes.
3. (C) Pārliecinieties, ka tiek uzrakstīts attiecīgais sērijas numurs no detaļu saraksta.
4. Nosakiet detaļas numuru un skaitu.
Veicot pasūtījumus neatsaucieties uz lappušu vai norādes numuriem.
5. Uzrakstiet savu vārdu, uzņēmuma nosaukumi, klienta identitātes numuru, adresi rēķina
piesūtīšanai un piegādei un pirkuma pasūtījuma numuru.
6. Sniedziet detalizētu informāciju par piegādi.
(D) -nosakaierīci i
Y-nosakadetaļas, kas ir komplektāar ierīci
LV
Veicot uzstādīšanu, lūdzam pierakstīst attiecīgo informāciju
izmantošanai turpmāk.
ModeļaNr.-
Sērijas Nr. -
Iekārtas papildaprīkojums-
Pārdošanas pārst. -
Pārdošanas pārst. tālr. Nr. -
Klienta identitātes numuru-
Uzstādīšanas datums-
HOE ONDERDELEN TE BESTELLEN - Zie schema hierboven.
Gebruik alleen onderdelen die door TENNANT Company zijn geleverd of soortgelijke onderdelen. Onderdelen en voorraden kunnen online, per telefoon, fax of schriftelijk besteld
worden.
Volg de stappen hieronder om een juiste levering te garanderen.
1. (A) Bepaal het machinemodel.
2. (B) Lees het serienummer van de machine af van het gegevenslabel.
3. (C) Zorg dat het juiste serienummer wordt gebruikt uit de onderdelenlijst.
4. Bepaal het artikelnummer en het aantal. Bestel niet aan de hand van pagina’s of referentienummers.
5. Geef uw naam, bedrijfsnaam, klantnummer, factuur- en leveringsadres,
telefoonnummer en bestelnummer op.
6. Geef gedetailleerde leveringsinstructies op.
(D) o- geeft een eenheid aan
Y- geeft de onderdelen van de eenheid aan
NL
Vul tijdens installatie de onderstaande gegevens in voor eventueel
toekomstig gebruik.
Modelnr. -
Serienr. -
Machine- opties -
Verkoopvert. -
Telnr. verkoopvert. -
Klantnummer -
Installatiedatum -
HVORDAN BESTILLE DELER - Se diagram over.
Bruk kun deler levert av TENNANT Company eller ekvivalente deler. Deler og forsyninger kan bestilles online, per telefon, per faks
eller per post.
Følg trinnene under for å sikre rask levering.
1. (A) Angi maskinmodellen.
2. (B) Angi maskinens serienummer fra typeskiltet.
3. (C) Forsikre deg om at korrekt serienummer brukes fra delelisten.
4. Angi delenummer og antall. Bestill ikke ut fra side- eller referansenumre.
5. Angi ditt navn, firmanavn, kunde- ID- nummer, fakturerings- og
forsendelsesadresse, telefonnummer og innkjøpsordrenummer.
6. Angi detaljerte forsendelsesinstruksjoner.
(D) o- angir en delegruppe
Y- angir deler inkludert i en delegruppe
NO
Fyll ut ved installasjonstidspunkt for fremtidig bruk.
Modellnr. -
Serienr.. -
Maskinens tillegg -
Salgsrep. -
Salgsrep. telefonnr. -
Kunde- ID- nummer -
Installasjonsdato -
JAK ZAMAWIAĆCZĘŒCI - patrz schemat powyżej.
Należyużywaćwyłącznie części dostarczanych przez firmęTENNANT Company lub równoważnych. Częściidostawymogąbyćzamawiane online, przez telefon, faksem lub
pocztą.
Aby zapewnićszybkądostawę,należyprzestrzegaćnastępujących wskazówek.
1. (A) Określićmodel maszyny.
2. (B) Określićnumer seryjny maszyny znajdujący sięna tabliczce znamionowej.
3. (C) Odszukaćten numer seryjny w wykazie części.
4. Określićnumer części i ilość. Nie zamawiaćna podstawie numeru strony lub liczby porządkowej
wykazu.
5. Podaćswoje nazwisko, nazwęfirmy, numer identyfikacyjny klienta, adres dostawy i
dostarczenia rachunku, numer telefonu i numer zamówienia zakupu.
6. Podaćdokładne instrukcje dotyczące dostawy.
(D) o-oznacza zespół
Y-oznacza część wzespole
PL
Prosimy wpisaćdatęinstalacji do póŸniejszego wykorzystania.
Nr modelu-
Nr seryjny -
Opcje maszyny -
Przedst. sprzedaży-
Nr tel. przedst. sprzed. -
Nr ident. klienta -
Data instalacji -
COMO ENCOMENDAR PEÇAS - Consulte o diagrama acima.
Utilize apenas peças fornecidas pela TENNANT Company ou equivalentes. As peças e consumíveis podem ser encomendados online,
por telefone, fax ou correio.
Siga os passos abaixo para garantir uma entrega rápida.
1. (A) Identifique o modelo da máquina.
2. (B) Identifique o número de série da máquina que se encontra na etiqueta de dados.
3. (C) Certifique- se de que usa o número de série correcto da lista de peças.
4. Identifique o número de produto e a quantidade. Não encomende através de números de
página ou de referência.
5. Forneça o seu nome, o nome da empresa, o número de ID do cliente,
os endereços de facturação e entrega, o número de telefone e
o número da nota de encomenda.
6. Forneça instruções de entrega detalhadas.
(D) o- identifica uma unidade
Y- identifica peças incluídas numa unidade
PT
G
Preencha na altura da instalação para futura referência.
Modelo nº -
Nº de série -
Opções da máquina -
Vendedor -
Telefone do vendedor -
Número de ID do cliente -
Data de instalação -
КАК ЗАКАЗАТЬ ЗАПЧАСТИ -См.схему ниже.
Используйте только запчасти,поставляемые компанией TENNANT или их аналоги.Запасные части и расходные материалы можно заказать в режиме онлайн,
телефоном,факсом или электронной почтой.
Для своевременной доставки следуйте описанным ниже инструкциям.
1. (A) Укажите модель машины.
2. (B) Укажите серийный номер машины,обозначенный на табличке технических данных.
3. (C) Удостоверьтесь,что надлежащий серийный номер перечислен в списке запчастей.
4. Укажите номер детали и нужное количество.Не используйте номера страниц или ссылок.
5. Укажите свое имя,название компании,идентификационный номер
покупателя,расчетный адрес и адрес доставки,телефонный номер
и номер заказа на покупку.
6. Укажите подробные сведения о доставке.
(D) o-означает узел
Y-обозначает деталь узла
RU
Во время установки заполните,пожалуйста,эти сведения для
того,чтобы ссылаться в дальнейшем.
Модель Э -
Серийный Э -
Опции машины -
Торговый представитель -
Телефон торгового представителя -
Идент.номер покупателя -
Дата установки -
BESTÄLLNING AV RESERVDELAR - Se ovanstående schema.
Använd endast delar från Tennant Company eller likvärdiga. Delar och material kan beställas online, telefoniskt, per fax eller post.
Följ nedanstående steg för en snabb leverans.
1. (A) Identifiera maskinens modell.
2. (B) Identifiera maskinens serienummer på typskylten.
3. (C) Kontrollera att rätt serienummer används från dellistan.
4. Identifiera artikelnumret och mängden. Beställ inte med hjälp av sido- eller referensnummer.
5. Uppge ditt namn, företagets namn, kundens ID- nummer, faktura- och leveransadress,
telefonnummer och ordernumret vid inköp.
6. Ge detaljerade transportanvisningar.
(D) o- identifierar en modul
Y- identifierar delar som ingår i en modul
SE
Fyll i vid installation och spar för framtida bruk.
Modellnr. -
Serienr. -
Tilvalsutrustning -
Försäljare -
Försäljarens tel.nr. -
Kundnummer -
Installationsdatum -
POSTUP PRI OBJEDNÁVANÍ ČASTÍ - Pozri vyššie uvedený diagram.
Vyu ívajte výhradne dielce dodané spoločnos ou TENNANT, alebo ich ekvivalenty. Dielce a polo ky je mo né objedna online,
telefonicky, faxom, alebo poštou.
Na zabezpečenie promptného doručenia sa riaďte nasledovnými krokmi.
1. (A) Identifikujte model stroja.
2. (B) Z etikety s údajmi identifikujte sériové číslo stroja.
3. (C) Ubezpečte sa, e ste zadali správne sériové číslo zo zoznamu dielcov.
4. Identifikujte číslo dielu a mno stvo. Neobjednávajte pomocou čísel strán, alebo referenčných čísel.
5. ZadajteVašemeno,menospoločnosti, ID číslo zákazníka, fakturačnú a
prepravnú adresu, telefónne číslo a objednávacie číslo dielu.
6. Uveďte podrobné prepravné pokyny.
(D) o-identifikuje sadu
Y-identifikuje časti sady
SK
Vyplňte prosím pri inštalácii pre prípad potreby v budúcnosti.
č.modelu-
Sériové č.-
Zvláštne príslušenstvo stroja -
Obchodné zastúpenie -
Obch. zastúpenie tel. č.-
ID č. zákazníka -
Dátum inštalácie -
NAROČANJE NADOMESTNIH DELOV - glejte zgornjo sliko.
Uporabljajte samo originalne nadomestne dele Tennant ali enakovredne dele. Dele in potrošni material lahko naročite prek spleta,
po telefonu, faksu ali pošti.
Za zagotovitev čimbolj hitre dostave sledite spodnjim navodilom.
1. (A) Ugotovite model stroja.
2. (B) Na ploščici s podatki poiščite serijsko številko stroja.
3. (C) Poskrbite, da na seznamu nadomestnih delov poiščete pravilno serijsko številko.
4. Poiščite številko dela in potrebno količino. Pri naročilih ne navajajte strani ali referenčne številke.
5. Navedite svoje ime, ime podjetja, ID številko stranke, naslova za dostavo
in izdajo računa, telefonsko številkoin številko naročila.
6. Navedite podrobna navodila za dostavo.
(D) o-označuje sklop
Y-označujedelesklopa
SL
Prosimo, da ob vgradnji izpolnite te podatke, da vam bodo v
prihodnje na voljo.
Št. modela -
Serijska številka -
Dodatna oprema stroja -
Prodajni predstavnik -
Telefonska št. prodajnega predstavnika -
Številka stranke -
Datum vgradnje -
PARÇALARIN SÝPARÝÞ EDÝLMESÝ - Yukarýdaki þemaya bakýn.
Yalnýzca TENNANT Company'den saðlanan veya eþdeðerde parçalar kullanýn. Parça veya sarf malzemeleri çevrimiçi olarak,
telefonla, faksla veya postayla sipariþ edilebilir.
Zamanýnda teslimatý saðlamak için aþaðýdaki adýmlarý izleyin.
1. (A) Makine modelini belirtin.
2. (B) Veri etiketinden makine seri numarasýný belirtin.
3. (C) Parça listesinden uygun seri numarasýnýn kullanýldýðýndan emin olun.
4. Parça numarasýný ve miktarýný belirtin. Sayfa veya referans numaralarýný kullanarak sipariþ vermeyin.
5. Adýnýzý, þirketinizin adýný, müþteri kimlik numaranýzý, faturalama ve sevkýyat adreslerini,
telefon numarasýný ve satýn alma sipariþi numarasýný belirtin.
6. Ayrýntýlý sevkýyat talimatlarýný belirtin.
(D) o-bir tertibatý belirtir
Y-tertibattaki parçalarý belirtir
TR
Ýleri tarihlerde baþvurmak için lütfen kurulum sýrasýnda doldurun.
Model No. -
Seri No. -
Makine Seçenekleri -
Satýþ Temsilcisi -
Satýþ Temsilcisi telefon no. -
Müþteri Kimlik Numarasý -
Kurulum Tarihi -
GENERAL RECOMMENDED MAINTENANCE
1-1
T7+ 9013336 (03- 2016)
General Recommended Maintenance Items
Ref. Part No. Description Qty.
390942 )Blade, Sqge, Rear, 37.50l Linatex[700mm] 1
390922 Blade, Sqge, Rear, 44.00l Linatex[800mm] 1
o391384 )Squeegee Kit, 700mm, Ure 1
Y391377 Blade, Sqge, Front, 35.00l Ure [700mm] 1
Y391378 Blade, Sqge, Rear, 37.50l Pyu [700mm] 1
o391386 Squeegee Kit, 700mm, Gum 1
Y390943 Blade, Sqge, Front, 35.00l [Linx, 700mm] 1
Y390936 Blade, Sqge, Rear, 37.50l Gum [700mm] 1
o391383 Squeegee Kit, 800mm, Ure 1
Y391379 Blade, Sqge, Front, 41.50l Ure [800mm] 1
Y391380 Blade, Sqge, Rear, 44.0l Pyu [800mm] 1
o391385 Squeegee Kit, 800mm, Gum 1
Y390923 Blade, Sqge, Front, 41.50l [Linx, 800mm] 1
Y390934 Blade, Sqge, Rear, 44.00l Gum [800mm] 1
86859 Squeegee Assy, Side [Linatex] (Disk Head - Standard) 2
1058731 Squeegee Assy, Side, Disc, Ure (Disk Head - Optional) 2
1058729 Squeegee Assy, Side, Disc, Gum (Disk Head - Optional) 2
391334 Squeegee Assy, Side [Linatex] (Cyld Head - Standard) 2
1058728 Squeegee Assy, Cylrcl, Ure [T7/Ssr] (Cyld Head - Optional) 2
1058715 Squeegee Assy, Cylrcl, Gum [T7/Ssr] (Cyld Head - Optional) 2
1073476 Caster, Swivel, 50mmd, M10 X 30, Clr Pl 2
1013531 Skirt, Spray, 650mm 1
1011376 Skirt, Spray, 800mm 1
1010560 Wheel, Bmpr, 80d X 25w, Non- Marking 1
1013611 Seal, Cover, Recvy 1
1020719 Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft 1
1020727 Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft 1
1020301 Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft 1
1207882 Hose, Vacuum, 1.50id X 057.1l, 2cuff, Pu 1
370114 Filter Kit, Vacfan 1
1016392 Gasket, Fltr, Tank 1
o1014274 )Hose Assy, Drain, 1.50id X 27.8l, Blk (Recovery Tank) 1
Yo1008639 Cap, Drain Assy 1
YY 1019563 Strap, Drain Cap 1
YY 1008637 O Ring, 1.48” Id, 1.76” Od 1
o1014268 Hose Assy, Drain, 1.50id X 27.0l, Blk (Solution Tank) 1
Yo1008639 Cap, Drain Assy 1
YY 1019563 Strap, Drain Cap 1
YY 1008637 O Ring, 1.48” Id, 1.76” Od 1
o1011402 Switch, Key 1
Y1017696 Key Set, Replmt [F/ Keyswitch 1011402] 1
GENERAL RECOMMENDED MAINTENANCE
T7+ 9013336 (06- 2015)
1-2
General Recommended Maintenance Items
Ref. Part No. Description Qty.
9007970 ¡)Module Kit, Replmt [Ec- H2o] 1
Y9006324 ¡Ec- H2o Kit, Module B, Plumbing 1
YY 1062006 ¡Electrode, Cylindrical 1
YY 1013236 ¡Valve, Shutoff, Ele, 24vdc 1
YY 1057637 ¡Electrode, 5 Plate, High Flow 1
YY 1044393 ¡Switch, Rocker, Spst, Mom 1
Y1054776 ¡Grommet, Blind 1
Y9007969 ¡Controller Kit, Replmt [Ec- H2o] 1
1030592 Seal, Afmkt, Bulb, 90, 0.75d F/11ga 03ft 1
1052726 ¡Alarm, 9- 48vdc, 95 Db(A) [Ec- H20] 1
9011810 ©)Module Kit, Replmt [Ec- H2o, B 02] 1
Y9014126 ©Ec- H2o Nc Kit [Module B, Plumbing] 1
YY 1044393 ©Switch, Rocker, Spst, Mom 1
YY 1208164 ©Electrode, 5 Plate, High Flow 1
YY 1073286 ©Harness, Ele, Module B2 [Ec- H2o] 1
Y9014127 ©Controller Kit, Replmt [Ec- H2o Nc] 1
9013646 ©Cartridge, Ec- H2o Nanoclean Wcm, 270ml 1
9010086 ©Control Box Assy Kit, Replmt, Telem[Intl] 1
1070659 ©Antenna, Telem, 70 In [Gprs] 1
¡Serial number (10000- 10999)
©Serial number (11000- )
STANDARD PARTS
2-1
T7+ 9013336 (04- 2017)
SECTION 2
Contents Page
Fig. 1 - Replacement Brushes, Cylindrical 2-2......
Fig. 2 - Replacement Brushes And Pad Drivers,
650 mm 2-4...........................
Fig. 3 - Replacement Brushes And Pad Drivers,
800 mm 2-6...........................
Fig. 4 - Main Frame Group, Disk Scrub Head 2-8...
Fig. 5 - Main Frame Group, Cylindrical Scrub
Head, 700 mm 2-10....................
Fig. 6 - Main Frame Group, Cylindrical Scrub
Head, 800 mm 2-12....................
Fig. 7 - Seat Group 2-14.........................
Fig. 8 - Steering Group 2-16.....................
Fig. 9 - Instrument Panel Group 2-18..............
Fig. 10 - Front Drive Wheel Group 2-20............
Fig. 11 - Brake Pedal and Accelerator Pedal
Group 2-22............................
Fig. 12 - Disk Scrub Head Lift Group 2-24.........
Fig. 13 - Disk Scrub Head Drive Motor Group,
650 mm 2-26..........................
Fig. 14 - Disk Scrub Head Drive Motor Group,
800 mm 2-28..........................
Fig. 15 - Disk Scrub Head Side Squeegee Group,
Right 2-30............................
Fig. 16 - Disk Scrub Head Side Squeegee Group,
Left 2-32..............................
Fig. 17 - Cylindrical Scrub Head Lift Group 2-34....
Fig. 18 - Cylindrical Scrub Head Group, 700 mm 2-36
Fig. 19 - Cylindrical Scrub Head Group, 800 mm 2-38
Fig. 20 - Cylindrical Scrub Head Drive Group,
Right Side 2-40........................
Fig. 21 - Cylindrical Scrub Head Drive Group,
Left Side 2-42.........................
Fig. 22 - Cylindrical Scrub Head Squeegee
Group 2-44............................
Fig. 23 - Recovery Tank Group 2-46..............
Fig. 24 - Vacuum Fan Group 2-48................
Contents Page
Fig. 25 - Solution Tank Group, Disk Scrub Head 2-50
Fig. 26 - Solution Tank Group, Cylindrical Scrub
Head 2-52............................
Fig. 27 - Tanks Drain Group 2-54.................
Fig. 28 - Rear Squeegee Lift Group, Disk Scrub
Head 2-56............................
Fig. 29 - Rear Squeegee Lift Group, Cylindrical
Scrub Head 2-58.......................
Fig. 30 - Rear Squeegee Group, 650 mm 2-60.....
Fig. 31 - Rear Squeegee Group, 800 mm 2-62.....
Fig. 32 - Circuit Board Group 2-64................
Fig. 33 - Electrical Group 2-66....................
Fig. 34 - Electrical Schematic, Standard, FaST &
ec- H2O Models (S/N 12695- ) 2-68..
Fig. 35 - Electrical Schematic, Standard, FaST &
ec- H2O Models (S/N 11000- 12694) 2-72.
Fig. 36 - Electrical Schematic, Standard & FaST
Model (S/N 10000- 10999) 2-76..........
Fig. 37 - Electrical Schematic, ec-H2O Model
(S/N 10000- 10999) 2-78................
Fig. 38 - Wire Harnesses Group, Main 2-80........
Fig. 39 - Wire Harnesses Group, Tank 2-83........
Fig. 40 - Wire Harnesses Group, ec-H2O NanoClean
(S/N 11000- ) 2-84.................
Fig. 41 - Wire Harnesses Group, ec-H2O
(S/N 10000- 11000) 2-85................
Fig. 42 - Wire Harnesses Group, ec-H2O NanoClean
Main Control Board (S/N 11000- ) 2-86
Fig. 43 - Wire Harnesses Group, ec-H2O Main
Control Board (S/N 10000- 10999) 2-87...
Fig. 44 - Wire Harnesses Group, Iris Telemetry 2-88
Fig. 45 - Cable Assembly, Iris Telemetry 2-90......
Fig. 46 - Label Group 2-91.......................
STANDARD PARTS
T7+ 9013336 (03- 2016)
2-2
Fig. 1 - Replacement Brushes, Cylindrical
1
STANDARD PARTS
2-3
T7+ 9013336 (03- 2016)
Fig. 1 - Replacement Brushes, Cylindrical
Ref. Part No. Description Qty.
1222305 )Brush, Scb, 28l, 18sr, Nyl, Spl 2
1222306 Brush, Scb, 28l, 18sr, Abr, Spl 2
1222304 Brush, Scb, 28l, 18sr, Pyp, Spl 2
1374041 Brush, Scb, 28l, 18sr, Hd Pyp, Spl 2
1222308 Brush, Scb, 32l, 18sr, Nyl, Spl 2
1222309 Brush, Scb, 32l, 18sr, Abr, Spl 2
1222307 Brush, Scb, 32l, 18sr, Pyp, Spl [Grout] 2
1374042 Brush, Scb, 32l, 18sr, Hd Pyp, Spl 2
STANDARD PARTS
T7+ 9013336 (03- 2016)
2-4
Fig. 2 - Replacement Brushes And Pad Drivers, 650 mm
2
1
3
4
5
6
7
8
Previous Brush & Pad Driver Parts
9
10
12
13
11 11
11
13
10
11
12 9
STANDARD PARTS
2-5
T7+ 9013336 (03- 2016)
Fig. 2 - Replacement Brushes And Pad Drivers, 650 mm
Ref. Part No. Description Qty.
o11220226 )Brush Assy, Disk, Scb, 13.0d, Nyl 2
Y29014664 Brush Kit, Hub Assy, Drive, Ci [Hdpe] 1
o11223608 )Brush Assy, Disk, Scb, 13.0d, Pyp [Tnv] 2
Y29014664 Brush Kit, Hub Assy, Drive, Ci [Hdpe] 1
o11223611 )Brush Assy, Disk, Scb, 13.0d, Sab [Tnv] 2
Y29014664 Brush Kit, Hub Assy, Drive, Ci [Hdpe] 1
o31223610 Driver Assy, Pad, 13.0d [Tnv] 2
Y49014664 Brush Kit, Hub Assy, Drive, Ci [Hdpe] 1
Y51016063 Disk, Driver, Pad, W/ Face, 13.0d 1
Y6370095 Device, Centering, Clip On, Tl [Gf Pp] 1
Y7360943 Screw, Pan, Phl, 10- 14 X 0.75, F/ Plstc 3
889046 Pad, Stripping, 13.0d, Brown[1pick=1pad] 2
889047 Pad, Scb, 13.0d, Blu 2
889048 Pad, Buff, 13.0d, Red [1pick=1pad] 2
889049 Pad, Polish, 13.0d, White [1pick=1pad] 2
81051024 Pad, Surf Prep, 13.0d [Mar, 1pick=1pad] 2
Previous Brush And Pad Driver Parts
9 24299 Bracket, Retainer, Spring 1
10 1017368 Hub, Drive, Brush, Disk, 3hole 5.8bc 1
11 32746 Screw, Pan, M6 X 1.0 X 35, Ss 3
12 01684 Washer, Flat, 0.25 Ss 1
13 1017957 Spring, Retaining, Brush 1
1018377 )Brush Assy, Disk, Scb, 13.0 D, Soft Nylon (Replaced By 1220226) 2
1014346 )Brush Assy, Disk, Scb, 13.0d, Pyp (Replaced By 1223608) 2
1018457 )Brush Assy, Disk, Scb, 13.0 D, Super Abrasive (Replaced By 1223611) 2
379013 Driver Assy, Pad, 13.0d (Replaced By 1223610) 2
STANDARD PARTS
T7+ 9013336 (03- 2016)
2-6
Fig. 3 - Replacement Brushes And Pad Drivers, 800 mm
2
1
3
4
5
6
7
8
Previous Brush & Pad Driver Parts
9
10
12
13
11 11
11
13
10
11
12 9
STANDARD PARTS
2-7
T7+ 9013336 (03- 2016)
Fig. 3 - Replacement Brushes And Pad Drivers, 800 mm
Ref. Part No. Description Qty.
o11223626 )Brush Assy, Disk, Scb, 16.0d, Nyl [Tnv] 2
Y29014664 Brush Kit, Hub Assy, Drive, Ci [Hdpe] 1
o11223624 )Brush Assy, Disk, Scb, 16.0d, Pyp [Tnv] 2
Y29014664 Brush Kit, Hub Assy, Drive, Ci [Hdpe] 1
o11223625 )Brush Assy, Disk, Scb, 16.0d, Sab [Tnv] 2
Y29014664 Brush Kit, Hub Assy, Drive, Ci [Hdpe] 1
o31220244 Driver Assy, Pad, 16.0d 2
Y49014664 Brush Kit, Hub Assy, Drive, Ci [Hdpe] 1
Y51016672 Disk, Driver, Pad, W/ Face, 16.0d 1
Y6370095 Device, Centering, Clip On, Tl [Gf Pp] 1
Y7360943 Screw, Pan, Phl, 10- 14 X 0.75, F/ Plstc 3
8370092 Pad, Stripping, 16.0d, Blk [Hi Prod] 2
863248- 1 Pad, Stripping, 16.0d, Brown[1pick=1pad] 2
863248- 2 Pad, Scb, 16.0d, Blu [1pick=1pad] 2
863248- 3 Pad, Buff, 16.0d, Red [1pick=1pad] 2
81051027 Pad, Surf Prep, 16.0d [Mar, 1pick=1pad] 2
863248- 4 Pad, Polish, 16.0d, White [1pick=1pad] 2
Previous Brush And Pad Driver Parts
9 24299 Bracket, Retainer, Spring 1
10 1017368 Hub, Drive, Brush, Disk, 3hole 5.8bc 1
11 32746 Screw, Pan, M6 X 1.0 X 35, Ss 3
12 01684 Washer, Flat, 0.25 Ss 1
13 1017957 Spring, Retaining, Brush 1
1016634 )Brush Assy, Disk, Scb, 16.0 D, Soft Nylon (Replaced By 1223626) 2
1016633 )Brush Assy, Disk, Scb, 16.0 D, Polypropylene (Replaced By 1223624) 2
1018455 )Brush Assy, Disk, Scb, 16.0 D, Super Abrasive (Replaced By 1223625) 2
379016 Driver Assy, Pad, 16.0d (Replaced By 1220244) 2
STANDARD PARTS
T7+ 9013336 (04- 2017)
2-8

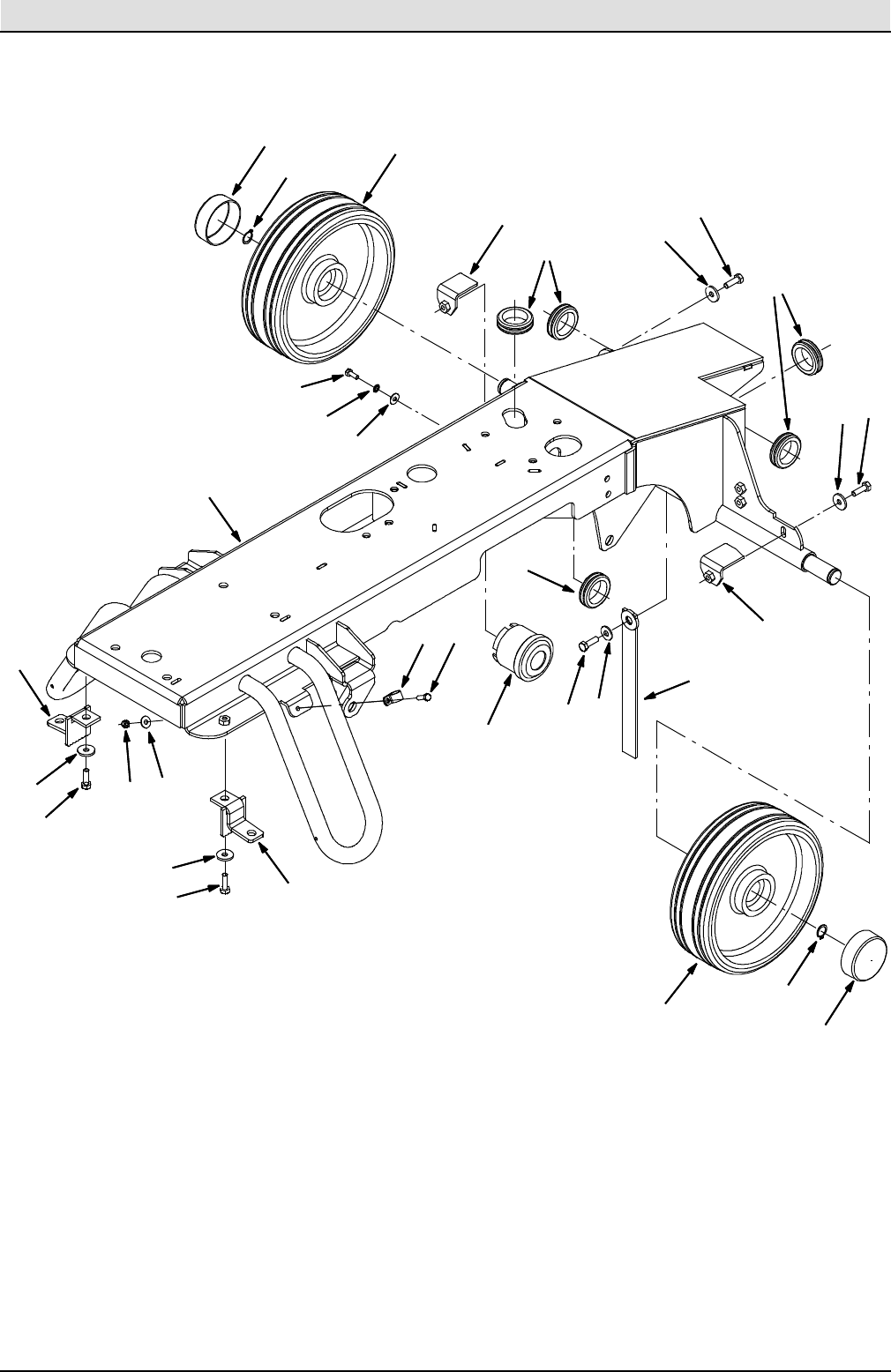

Fig. 4 - Main Frame Group, Disk Scrub Head
5
6
7
8
9
1
12 13
14
15
16
17
18 2
5
4
3
5
78
310
11
3
11
10
9
19 20
21
20 21
22
STANDARD PARTS
2-9
T7+ 9013336 (04- 2017)
Fig. 4 - Main Frame Group, Disk Scrub Head
Ref. Part No. Description Qty.
11075255 ©)Frame Wldt, Main, Disk [T7 Eu] 1
11054028 ¡)Frame Wldt, Main, Disk [T7] 1
201684 Washer, Flat, 0.25 Ss 2
309010 Screw, Hex, M8 X 1.25 X 25, Ss 3
401685 Washer, Flat, 0.31 Ss 1
510632- 13 Grommet, Rbr, 1.50id, F/ 1.8h, .19matl 5
61014318 Strap, Static 1
71038560 Tire Assy, Solid, 250mmx80mm, 25mm Id 2
71064376 Tire Assy, Solid, 250mm X 80, 25mmid,Pyu 2
809005 Ring, Retaining, Ext, 1.00D, Basic 2
91016957 Cap, Vyl, 70mm Id X 25mm L 2
10 1017688 Bracket Wldt, Stand, Jack 2
11 1017218 Washer, Flat, 0.321b 1.00d .12, Ss 2
12 140300 Clamp, Cable, Stl, 0.50d [Insulated] 1
13 08716 Screw, Hex, M6 X 1.0 X 20, Ss 1
14 01684 Washer, Flat, 0.25 Ss 1
15 08712 Nut, Hex, Lock, M6 X 1.0, Ss, Nl 1
16 1018505 Horn, 12- 48vdc 1
17 15678 Screw, Hex, M6 X 1.0 X 16, Ss 1
18 07515 Washer, Lock, Int, .25, Ss 1
19 1075252 ©Tank, Mount, Bracket 1
20 1017218 ©Washer, Flat, 0.32b 1.00d .12, Ss 2
21 12333 ©Screw, Hex, M8 X 1.25 X 25, Ss, Nl 2
22 1075258 ©Bracket, Mount, Tank [Disk] 1
¡Serial number (00001- 12260)
©Serial number (12261- )
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-10
Fig. 5 - Main Frame Group, Cylindrical Scrub Head, 700 mm
6
7
8
910
1
15
16
17
18
2
10
4
3
5
7
8
9
11 12
13
14
STANDARD PARTS
2-11
T7+ 9013336 (06- 2015)
Fig. 5 - Main Frame Group, Cylindrical Scrub Head, 700 mm
Ref. Part No. Description Qty.
11054035 )Frame Wldt, Main [R14, T7 Cyl] 1
21025354 Plate, Mtg, Horn 1
309740 Screw, Hex, M8 X 1.25 X 20, Ss 1
401685 Washer, Flat, 0.31 Ss 1
510632- 13 Grommet, Rbr, 1.50id, F/ 1.8h, .19matl 1
671579 Strap, Static, .19 1.1w 25.0l W/ Grommet 1
71038560 Tire Assy, Solid, 250mmx80mm, 25mm Id 2
71064376 Tire Assy, Solid, 250mm X 80, 25mmid,Pyu 2
809005 Ring, Retaining, Ext, 1.00D, Basic 2
9 1016957 Cap, Vyl, 70mm Id X 25mm L 2
10 49263 Tie, Cable, Nyl, 11.4l .19w 3.0 Max D 4
11 140300 Clamp, Cable, Stl, 0.50d [Insulated] 1
12 08716 Screw, Hex, M6 X 1.0 X 20, Ss 1
13 01684 Washer, Flat, 0.25 Ss 1
14 08712 Nut, Hex, Lock, M6 X 1.0, Ss, Nl 1
15 1018505 Horn, 12- 48vdc 1
16 15678 Screw, Hex, M6 X 1.0 X 16, Ss 1
17 07515 Washer, Lock, Int, .25, Ss 1
18 01684 Washer, Flat, 0.25 Ss 2
STANDARD PARTS
T7+ 9013336 (04- 2017)
2-12
Fig. 6 - Main Frame Group, Cylindrical Scrub Head, 800 mm
6
7
8
9
10
1
15
16
17
18
19
10
4
3
5
7
8
9
2
26
27
20
23
24
21
22
24
23
2
26
20 27
11 12
14 13
25 24
28
28 29 30
29 30
STANDARD PARTS
2-13
T7+ 9013336 (04- 2017)
Fig. 6 - Main Frame Group, Cylindrical Scrub Head, 800 mm
Ref. Part No. Description Qty.
11075250 ©)Frame Wldt, Main, Cyl, 80cm [T7 Eu] 1
11056133 ¡Frame Wldt, Main, 80cm [R14, T7 Cyl] 1
241619 Washer, Flat, 0.56b 1.38d .11, Ss 2
309740 Screw, Hex, M8 X 1.25 X 20, Ss 3
401685 Washer, Flat, 0.31 Ss 1
510632- 13 Grommet, Rbr, 1.50id, F/ 1.8h, .19matl 1
671579 Strap, Static, .19 1.1w 25.0l W/ Grommet 1
71038560 Tire Assy, Solid, 250mmx80mm, 25mm Id 2
71064376 Tire Assy, Solid, 250mm X 80, 25mmid,Pyu 2
809005 Ring, Retaining, Ext, 1.00D, Basic 2
91016957 Cap, Vyl, 70mm Id X 25mm L 2
10 49263 Tie, Cable, Nyl, 11.4l .19w 3.0 Max D 4
11 140300 Clamp, Cable, Stl, 0.50d [Insulated] 1
12 08716 Screw, Hex, M6 X 1.0 X 20, Ss 1
13 01684 Washer, Flat, 0.25 Ss 1
14 08712 Nut, Hex, Lock, M6 X 1.0, Ss, Nl 1
15 1018505 Horn, 12- 48vdc 1
16 15678 Screw, Hex, M6 X 1.0 X 16, Ss 1
17 07515 Washer, Lock, Int, .25, Ss 1
18 01684 Washer, Flat, 0.25 Ss 2
19 1025354 Plate, Mtg, Horn 1
20 08346 Pin, Cotter, .125 X 0.75 2
21 1033355 Bracket, Guard, Lh (800cyl. Scrubhead) 1
22 1032971 Bracket, Guard, Rh (800cyl. Scrubhead) 1
23 08716 Screw, Hex, M6 X 1.0 X 20, Ss 4
24 01684 Washer, Flat, 0.25, Ss 8
25 08712 Nut, Hex, Lock, M6 X 1.00, Ss, Nl 4
26 222178 Roller, Pyu, 1.88d 0.53b 3.05l (800cyl. Scrubhead) 2
27 51528 Pin, Clevis, 0.50d X 4.00l 2
28 1075252 ©Tank, Mount, Bracket 2
29 1017218 ©Washer, Flat, 0.32b 1.00d .12, Ss 2
30 12333 ©Screw, Hex, M8 X 1.25 X 25, Ss, Nl 2
¡Serial number (00001- 12260)
©Serial number (12261- )
STANDARD PARTS
T7+ 9013336 (03- 2016)
2-14
Fig. 7 - Seat Group
9
1
11
12
15 16
17
18
19
20
21
22 23
24
2
3
4
5
6
7
8
8
23
10
26
13
26
13
27
27
27
14
14
28 29
29 30
25
STANDARD PARTS
2-15
T7+ 9013336 (03- 2016)
Fig. 7 - Seat Group
Ref. Part No. Description Qty.
11017798 )Plate Wldt, Seat 1
2391951 Harness, Seat, [ T7/Ssr ] 1
31020170 Molding, Afmkt, Trim, Pvc, .08- .11, 2ft 1
41013871 Cover, Box, Battery [Europe] 1
509740 Screw, Hex, M8 X 1.25 X 20, Ss (Fast Models) 2
61017218 Washer, Flat, 0.321b 1.00d .12, Ss (Fast Models) 2
71012087 Housing, Holder, Trimmed [Fast, Teal] (Fast Models) 1
81016553 Seal, Rbr (Fast Models) 2
99005082 Seat Kit, Std, Replmt (Kit Includes Screw 76956 and Spacer 1051052) 1
10 1048955 Switch, Seat, No [Delta 6440- 04] 1
11 1074205 Rail,Adj,Slide,Seat,11.5l,W/Latch,Yellow 1
12 1017053 Rail, Adj, Slide, Seat, 11.5l 1
13 1051052 Spacer, Rnd, .38b .88d .38l 4
14 69461 Washer, Flat, 0.38b 0.88d .12, Stl, Pl 4
15 32491 Washer, Flat, 0.31 Std 4
16 01760 Nut, Hex, Lock, .31- 18, Nl, Thin 4
17 46236 Clamp, Cable, Stl, 0.25d X 0.56w, 1h 1
18 1074206 Plate, Stop, Seat, Yellow 1
19 1017699 Sleeve, P/M, 0.437d 0.318b 0.57l 430ss 1
20 10928 Spring, Tors, 0.49id .05wir 05.0coil 1
21 1018151 Washer, Flat, 0.44b 0.88d .06, Nyl 1
22 09023 Screw, Hex, M8 X 1.25 X 35, Ss, Fl 1
23 01685 Washer, Flat, 0.31 Ss 2
24 08713 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 1
25 1051138 Bracket, Cover, Fast Open [T7 Ec- H2o] (Standard & ec- H2O Models) 1
26 76956 Screw, Hex, .31- 18 X 1.25, G5 4
27 1046428 Seal, Afmkt, Rbr, Clsd, Adh, 02ft (ec-H2O Model) 1
28 08713 )Nut, Hex, Lock, M8 X 1.25, Nl, Ss (Standard & ec- H2O Models) 2
29 1017218 Washer, Flat, 0.32b 1.00d .12, Ss (Standard & ec- H2O Models) 4
30 09740 Screw, Hex, M8 X 1.25 X 20, Ss (Standard & ec- H2O Models) 2
STANDARD PARTS
T7+ 9013336 (06- 2015)
2-16
Fig. 8 - Steering Group
2
3
456
7
8
9
10
1
11
12
15
16
17
18
14
13
819
20
21
22
STANDARD PARTS
2-17
T7+ 9013336 (06- 2015)
Fig. 8 - Steering Group
Ref. Part No. Description Qty.
11033326 )Support Wldt, Steering 1
2 04417 Screw, Hex, M10 X 1.5 X 60, Ss 4
3 01686 Washer, Flat, 0.44b 1.00 .08, Ss 4
4 69234 Clamp, Cable, Stl, 1.00d X 0.62w, 1h 3
5 39349 Washer, Flat, 0.31 Sae 3
608709 Nut, Hex, Lock, M8 X 1.25, Nl 3
71047320 Joint, U, 19mm Id 1
8 1015578 Screw, Set, M8 X 1.25 X 8, Cuppt, Ss, Nl 4
9 00912 Key, Sq, 0.19 X 0.19, 1.00l 1
10 223065 Bearing, Flng, 2- Hole, 0.75b [Nyl] 1
11 09740 Screw, Hex, M8 X 1.25 X 20, Ss 2
12 1013164 Shaft, Steering, Wheel 1
13 1012002 Wheel, Steering, 300mm 1
14 1019706 Cap, Steering Wheel 1
15 1014328 Key, Sq, 05mm X 05mm, 25l 1
16 64154 Washer, Flat, 0.53b 1.12d .11, Stl, Pl 1
17 08711 Nut, Hex, Lock, M12 X 1.75,Nl 1
18 1012437 Bellows, Shaft, Steering 1
19 41142 Washer, Lock, Int- ext, 0.38 1
20 1066409 Relay, 24vdc, 150a, No [Trombetta] 1
21 01684 Washer, Flat, 0.27b 0.69d .05, Ss 2
22 08712 Nut, Hex, Lock, M6 X 1.00, Nl, Ss 2
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-18
Fig. 9 - Instrument Panel Group
2
3
4
5
6
7
8
9
10
1
11
12
13
14
15
7
16
STANDARD PARTS
2-19
T7+ 9013336 (08- 2014)
Fig. 9 - Instrument Panel Group
Ref. Part No. Description Qty.
11012068 )Panel, Instmt, Lh 1
11050592 Panel, Instmt, Lh [Ec- H2o] 1
21012197 Cover, Panl, Instmt 1
31011952 Block, Pivot, Cover 2
41052607 Gasket, Panl, Instmt, Lh, .13, Foam, Adh 1
51046313 Panel, Instmt, Rh 1
61014080 Gasket, Panl, Instmt, Rh 1
772969 Rivet, Plstc, .181d X 0.720 10
o81011402 Switch, Key 1
Y91017696 Key Set, Replmt [F/ Keyswitch 1011402] 1
10 1072040 Switch, Rocker, Spst, Paddle 1
11 1011735 Switch, Safety, Shutoff 1
12 1013873 Column, Cntrl, Ce 1
13 09010 Screw, Hex, M8 X 1.25 X 25, Ss 4
14 01685 Washer, Flat, 0.31 Ss 4
15 1014832 Switch, Horn 1
16 1041822 Light, Led, .312d, 2 Volt [Tri- Color] (ec-H2O Model) 1
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-20
Fig. 10 - Front Drive Wheel Group
12
35
6
8
10
1
11
2
4
9
8
9
13
14
15
16
17
17
7
18
19
20
19
21
21
STANDARD PARTS
2-21
T7+ 9013336 (06- 2015)
Fig. 10 - Front Drive Wheel Group
Ref. Part No. Description Qty.
11019724 )Steer- Control Assy, Wheel Drive (See Breakdown) 1
2 1019224 Strap, Nyl 1
3 09010 Screw, Hex, M8 X 1.25 X 25, Ss (Disk Brush) 4
3 09026 Screw, Hex, M8 X 1.25 X 40, Ss (Cylindrical Brush) 4
4 01685 Washer, Flat, 0.31 Ss 4
500912 Key, Sq, 0.19 X 0.19, 1.00l 1
o61073343 Harness, Motor, Brake [T7/Ssr] 1
Y71047186 Connector, Fem, 3 Recept [Mp630] 1
8140300 Clamp, Cable, Stl, 0.50d [Insulated] 2
9361339 Screw, Hex, M6 X 1.0 X 16, Fmg 2
10 19066 Washer, Flat, #10 2
11 130773 Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D 4
o12 9008999 Gearbox Kit, Wheel, 250mm, W/ Connector (See Breakdown) 1
Y13 78950 Connector, Fem, 2cav 2
Y14 78952 Lock, Secondary, M/F 2cav 2
Y15 25837 Terminal, Fem, 20/22ga 2
Y16 25830 Seal, Wire, 14ga 2
17 1028873 Plate, Spacer, Drive (Cylindrical Brush) 2
18 130161 Plug, Hole, Rnd, 0.88d, Blk 1
19 1064972 Bracket, Cord 2
20 33931 Screw, Pan, Phl, M4 X 0.70 X 30, Ss 2
21 02938 Washer, Lock, Int, 08, Ss 2
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-22
Fig. 11 - Brake Pedal and Accelerator Pedal Group
1
2
5
4
3
6
7
8
67
5
STANDARD PARTS
2-23
T7+ 9013336 (08- 2014)
Fig. 11 - Brake Pedal and Accelerator Pedal Group
Ref. Part No. Description Qty.
o11072477 )Pedal Assy, Accelerator, Brake 1
Y21058687 Vr, Sensor, Position [Hall] 1
Y31031716 Spring, Extn, 0.50od 0.07wir 03.0l 1
Y41061049 Vr, Spring, Extn, 0.35od 0.05wir 02.8l 2
Y51072478 Vr, Pedal, Foot, W/ Tread 2
609740 Screw, Hex, M8 X 1.25 X 20, Ss 2
701685 Washer, Flat, 0.38b 0.88d .08, Ss 2
841141 Washer, Lock, Int- Ext, 0.31 1
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-24

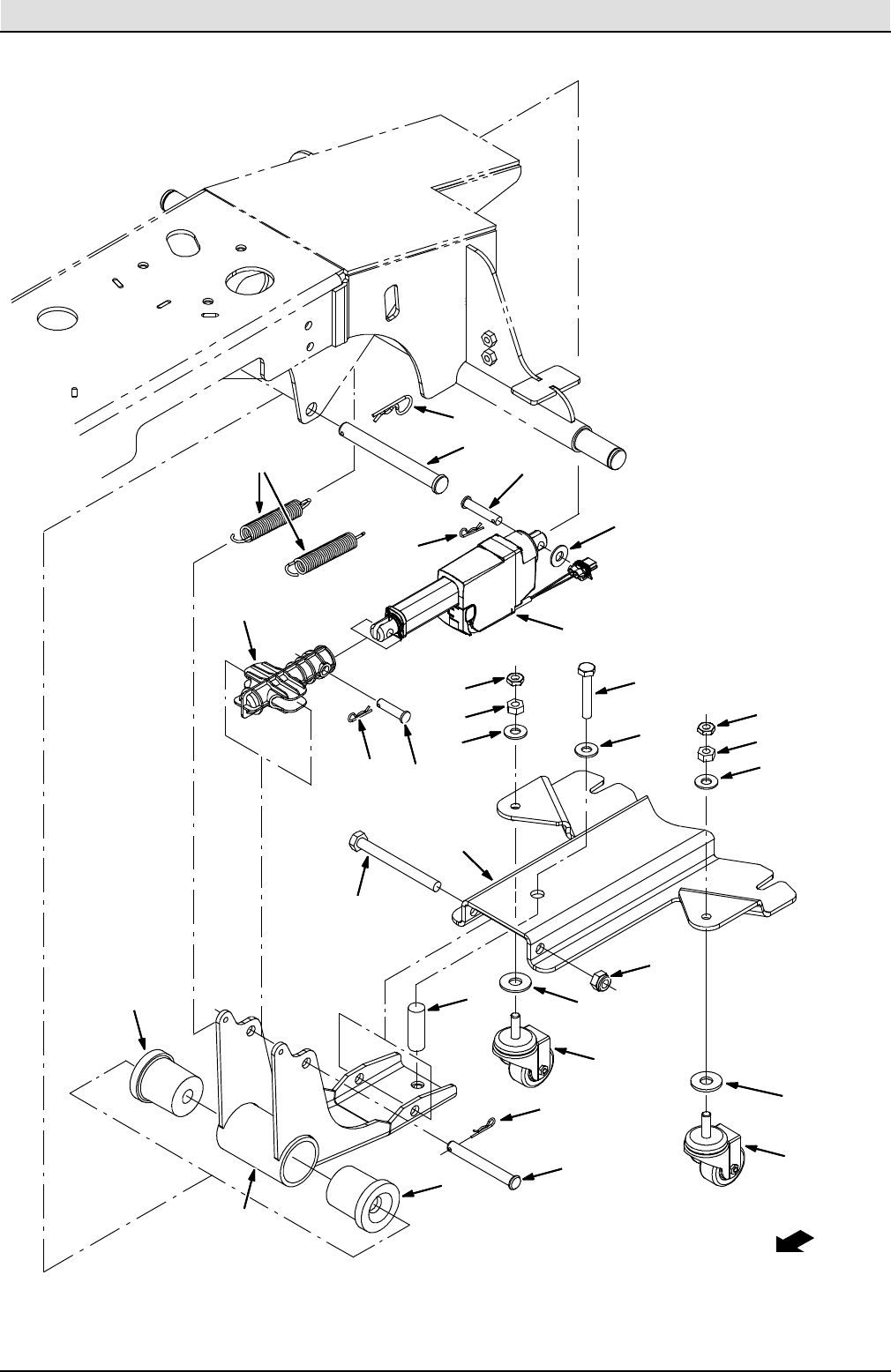

Fig. 12 - Disk Scrub Head Lift Group
2
3
4
5
3
7
8
9
10
1
11
12
13
14
15
16
17
18
19
4
8917
6
10
10 10
6
10
18
6
19
19
FRONT
STANDARD PARTS
2-25
T7+ 9013336 (08- 2014)
Fig. 12 - Disk Scrub Head Lift Group
Ref. Part No. Description Qty.
11056622 )Actuator, 24vdc, 04.5strk, 0600lb 1
21009356 Pin, Clevis , 10mm X 40l 1
386866 Pin, Hair Cotter, 0.38 D .072 Wir 2
4 1013278 Plate, Arm, Cntr, Lift, Scb Head 2
5 1010401 Pin, Clevis, 16d X 150l 1
602942 Pin, Hair Cotter, 0.62 D .120 Wir 5
7 1014076 Bracket, Lift 1
8 363087 Bushing, Flng, 0.44b 1.25d 0.25l 2
9 09770 Screw, Hex, M10 X 1.5 X 25, Ss, Nl 2
10 01686 Washer, Flat, 0.44b 1.00 .08, Ss 6
11 09028 Screw, Hex, M10 X 1.5 X 25, Ss 2
12 1015413 Spring, Lift, Head, Scb 1
13 1013281 Sleeve, P/M, 18.5d 10.5b 34l 430 Ss 2
14 09746 Screw, Hex, M10 X 1.5 X 90, Ss 1
15 08714 Nut, Hex, Lock, M10 X 1.5, Nl, Ss 1
16 1013356 Pin, Clevis, 12mm D X 90mm L 1
17 57048 Washer, Flat, 0.53b 2.13d .11, Stl, Pl 2
18 222027 Arm, Lift, Head 2
19 222210 Pin, Clevis, 0.62 D X 2.12l 4
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-26
Fig. 13 - Disk Scrub Head Drive Motor Group, 650 mm
31
32
1
12
14
15
17
18
20
16
23
22
9
10
11
2
10
20
24
16
12
14
15
16
31
32
19
2
4
13
3
6
30
30
21 25
26
27
28
29
29
13
6
4
5
7
8
5
7
8
3
STANDARD PARTS
2-27
T7+ 9013336 (06- 2015)
Fig. 13 - Disk Scrub Head Drive Motor Group, 650 mm
Ref. Part No. Description Qty.
11013560 )Head, Scb, 650mm 1
o21210864 Motor, Ele, 24vdc 0260rpm 2
Y372878 Brush Kit, Motor, Ele 1
Y372879 Hook, Safety 1
Y372880 Cover, Brush, Ele Motor 1
Y31212130 Shaft, Drive, Brush 1
Y41212132 Cap, Motor 1
Y5363503 Screw, Pan, Phl, M6 X 1.00 X 12, Ss 4
Y61212131 Key, Sq, 06mm X 06mm, 60mml 1
Y709740 Screw, Hex, M8 X 1.25 X 20, Ss 1
Y81017218 Washer, Flat, 0.32b 1.00d .12, Ss 1
91014776 Manifold, Soltn, 800mm 1
10 1016520 Screw, Hex, M4 X 0.7 16 Fmg, Ss 3
11 1214973 Valve, Water, Solenoid, 24vdc, Bm10/Bm10 1
12 1071636 Hub, Drive, Brush, Disk, 0.75b [6t] 2
13 00928 Key, Sq, 0.25 X 0.25, 1.00l 2
14 15675 Screw, Hex, M8 X 1.25 X 16, Ss 2
15 41186 Washer, Belleville, .31 2
16 01685 Washer, Flat, 0.31 Ss 7
17 1013531 Skirt, Rbr, .12, 03.07w 27.27l, 05/ Sl 1
18 1013532 Retainer, Skirt, .08, 1.2w X 24.6l, Blk 1
19 09011 Screw, Hex, M8 X 1.25 X 30, Ss 6
20 08713 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 6
21 1052198 Bracket, Wheel, Guiide 650mm 1
22 1010560 Wheel, Bumper, 80d X 25w, Non- Marking 1
23 222460 Sleeve, P/, 0.49D 0.318B 0.50L 430Ss 1
24 140027 Washer, Flat, 0.35b 0.75d .04, Ss 1
25 1014295 Clip, Grip, Hose, 0.75- 1.12, Stl,Blk Vyl (ec-H2O Model) 1
26 140011 Washer, Flat, 0.21b 0.45d .03, Ss (ec-H2O Model) 1
27 607006 Screw, Trs, M4 X 0.70 X 12, Phl, Pl (ec-H2O Model) 1
28 33932 Nut, Hex, Lock, M4 X 0.70, Nl, Ss (ec-H2O Model) 1
29 01684 Washer, Flat, 0.27b 0.69d .05, Ss (ec-H2O Model) 2
30 08712 Nut, Hex, Lock, M6 X 1.0, Ss, Nl 8
31 1013821 Plate, Sppt 2
32 1052298 Bracket, Support, Hose [T7] (ec-H2O Model) 2
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-28
Fig. 14 - Disk Scrub Head Drive Motor Group, 800 mm
31
1
12
14 15
17
18
19
20
21
23
24
9
10
11
22
16
16
31
32
12
14
15
16
20
10
30
32
25
26
27
28 29
29
30
2
2
4
13
3
6
13
6
4
5
7
8
5
7
8
3
STANDARD PARTS
2-29
T7+ 9013336 (06- 2015)
Fig. 14 - Disk Scrub Head Drive Motor Group, 800 mm
Ref. Part No. Description Qty.
11012630 )Head, Scb, 800mm 1
o21210864 Motor, Ele, 24vdc 0260rpm 2
Y372878 Brush Kit, Motor, Ele 1
Y372879 Hook, Safety 1
Y372880 Cover, Brush, Ele Motor 1
Y31212130 Shaft, Drive, Brush 1
Y41212132 Cap, Motor 1
Y5363503 Screw, Pan, Phl, M6 X 1.00 X 12, Ss 4
Y61212131 Key, Sq, 06mm X 06mm, 60mml 1
Y709740 Screw, Hex, M8 X 1.25 X 20, Ss 1
Y81017218 Washer, Flat, 0.32b 1.00d .12, Ss 1
91014776 Manifold, Soltn, 800mm 1
10 1016520 Screw, Hex, M4 X 0.7 16 Fmg, Ss 3
11 1214973 Valve, Water, Solenoid, 24vdc, Bm10/Bm10 1
12 1071636 Hub, Drive, Brush, Disk, 0.75b [6t] 2
13 00928 Key, Sq, 0.25 X 0.25, 1.00l 2
14 15675 Screw, Hex, M8 X 1.25 X 16, Ss 2
15 41186 Washer, Belleville, .31 2
16 01685 Washer, Flat, 0.31 Ss 7
17 1011376 Skirt, Spray, 800mm 1
18 1012359 Retainer, Skirt, 800mm 1
19 09011 Screw, Hex, M8 X 1.25 X 30, Ss 6
20 08713 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 6
21 1052393 Bracket, Wheel, Guide 1
22 1010560 Wheel, Bumper, 80d X 25w, Non- Marking 1
23 222460 Sleeve, P/, 0.49D 0.318B 0.50L 430Ss 1
24 140027 Washer, Flat, 0.35b 0.75d .04, Ss 1
25 1014295 Clip, Grip, Hose, 0.75- 1.12, Stl,Blk Vyl (ec-H2O Model) 1
26 140011 Washer, Flat, 0.21b 0.45d .03, Ss (ec-H2O Model) 1
27 607006 Screw, Trs, M4 X 0.70 X 12, Phl, Pl (ec-H2O Model) 1
28 33932 Nut, Hex, Lock, M4 X 0.70, Nl, Ss (ec-H2O Model) 1
29 01684 Washer, Flat, 0.27b 0.69d .05, Ss (ec-H2O Model) 2
30 08712 Nut, Hex, Lock, M6 X 1.0, Ss, Nl 8
31 1013821 Plate, Sppt 2
32 1052298 Bracket, Support, Hose [T7] (ec-H2O Model) 2
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-30
Fig. 15 - Disk Scrub Head Side Squeegee Group, Right
2
3
4
5
6
7
8
9
10
1
11
12
13
14
15
16
17
18
15
15
14
13
18 3
15
14 15
17
16
STANDARD PARTS
2-31
T7+ 9013336 (03- 2016)
Fig. 15 - Disk Scrub Head Side Squeegee Group, Right
Ref. Part No. Description Qty.
11017910 )Support Wldt, Sqge, Rh 1
2 1017832 Retainer, Sqge, Rh 1
3 1015989 Pin, Hitch, .312d X 1.62l 2
4 1017495 Sleeve, P/M, 0.496d 0.318b 1.375 Ss 1
51074201 Block, Guard, Yellow 1
6222504 Screw, Hex, M8 X 1.25 X 55, Ss 1
7 08713 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 1
886859 Squeegee Assy, Side [Linatex] (Standard) 1
81058731 Squeegee Assy, Side, Disc, Ure (Optional) 1
81058729 Squeegee Assy, Side, Disc, Gum (Optional) 1
91010876 Link, Sqge 1
10 1017785 Link, Sqge 1
11 1011344 Spring, Tors 1
12 1011334 Spring, Tors 1
13 1011317 Retainer, Spring 2
14 1011717 Sleeve, P/M, 0.625d 0.318b 1.00 L 430ss 4
15 1011719 Washer, Flat, 0.33b 1.38d .075, Ss 8
16 49694 Screw, Hex, M8 X 1.25 X 50, Ss 2
17 222505 Screw, Hex, M8 X 1.25 X 45, Ss 2
18 08713 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 2
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-32
Fig. 16 - Disk Scrub Head Side Squeegee Group, Left
2
3
4
6
7
8
9
10
12 13
14
15
16
17
18
5
15
15
14 15
15
14
15
17
14
15 3
15
18
16
1
13 11
STANDARD PARTS
2-33
T7+ 9013336 (03- 2016)
Fig. 16 - Disk Scrub Head Side Squeegee Group, Left
Ref. Part No. Description Qty.
11017534 )Support Wldt, Sqge, Lh 1
2 1017653 Retainer, Sqge, Lh 1
3 1015989 Pin, Hitch, .312d X 1.62l 2
4 1017495 Sleeve, P/M, 0.496d 0.318b 1.375 Ss 1
51074201 Block, Guard, Yellow 1
6222504 Screw, Hex, M8 X 1.25 X 55, Ss 1
7 08713 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 1
886859 Squeegee Assy, Side [Linatex] (Standard) 1
81058731 Squeegee Assy, Side, Disc, Ure (Optional) 1
81058729 Squeegee Assy, Side, Disc, Gum (Optional) 1
91010876 Link, Sqge 1
10 1017785 Link, Sqge 1
11 1011344 Spring, Tors 1
12 1011334 Spring, Tors 1
13 1011317 Retainer, Spring 2
14 1011717 Sleeve, P/M, 0.625d 0.318b 1.00 L 430ss 4
15 1011719 Washer, Flat, 0.33b 1.38d .075, Ss 8
16 49694 Screw, Hex, M8 X 1.25 X 50, Ss 2
17 222505 Screw, Hex, M8 X 1.25 X 45, Ss 2
18 08713 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 2
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-34
Fig. 17 - Cylindrical Scrub Head Lift Group
2
3
4
14
7
5
9
12
1
11
13
9
15
4
10
6
6
8
11
8
15
6
FRONT
STANDARD PARTS
2-35
T7+ 9013336 (08- 2014)
355013
Fig. 17 - Cylindrical Scrub Head Lift Group
Ref. Part No. Description Qty.
11056622 )Actuator, 24vdc, 04.5strk, 0600lb 1
21009356 Pin, Clevis , 10mm X 40l 1
386866 Pin, Hair Cotter, 0.38 D .072 Wir 1
41013278 Plate, Arm, Cntr, Lift, Scb Head 2
51010401 Pin, Clevis, 16d X 150l 1
602942 Pin, Hair Cotter, 0.62 D .120 Wir 4
7 222210 Pin, Clevis, 0.62 D X 2.12l 2
8 222027 Arm, Lift, Head 2
9 01686 Washer, Flat, 0.44b 1.00 .08, Ss 2
10 1015413 Spring, Lift, Head, Scb 1
11 1013281 Sleeve, P/M, 18.5d 10.5b 34l 430 Ss 2
12 09746 Screw, Hex, M10 X 1.5 X 90, Ss 1
13 08714 Nut, Hex, Lock, M10 X 1.5, Nl, Ss 1
14 1013356 Pin, Clevis, 12mm D X 90mm L 1
15 57048 Washer, Flat, 0.53b 2.13d .11, Stl, Pl 2
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-36

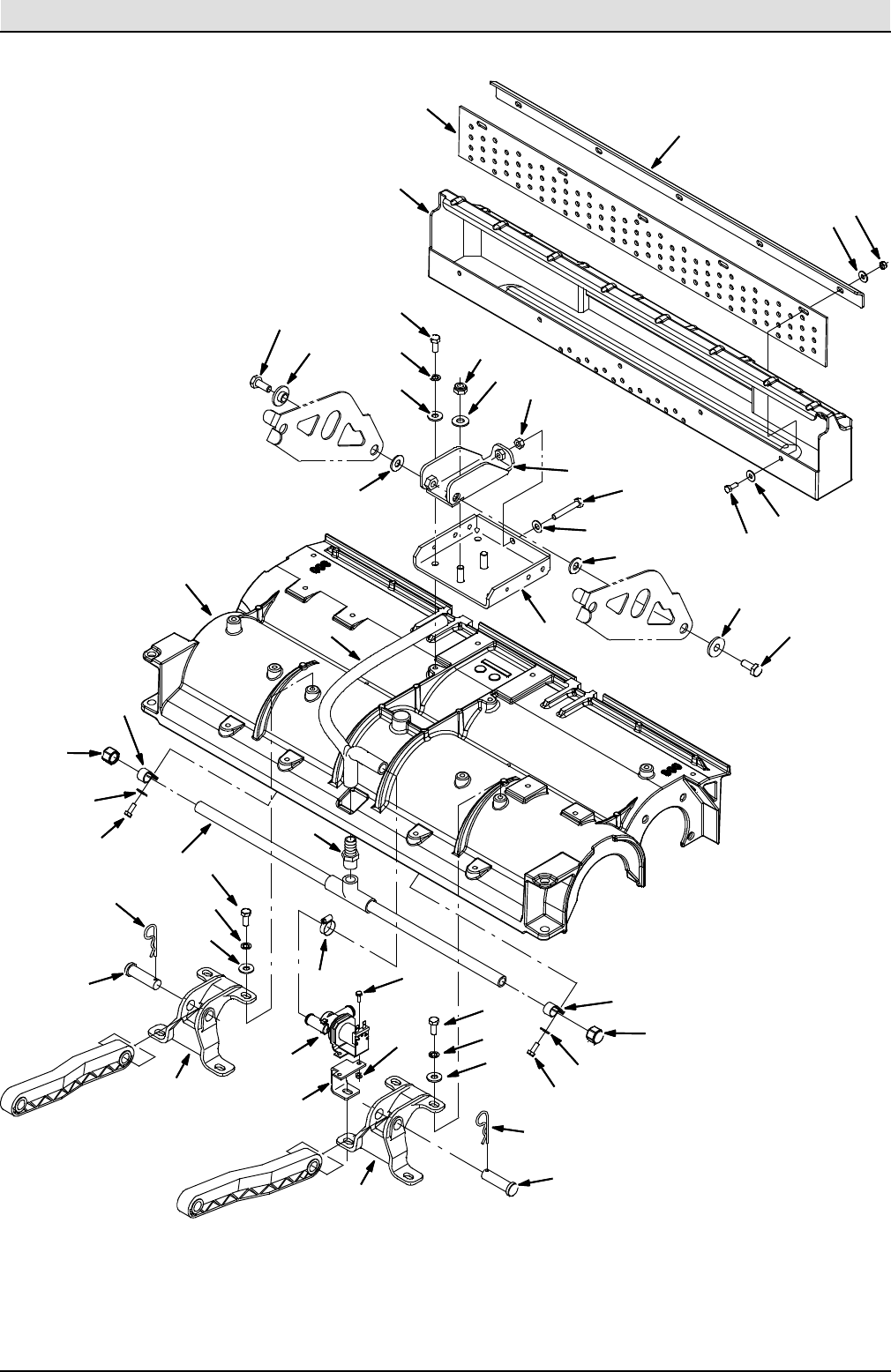

Fig. 18 - Cylindrical Scrub Head Group, 700 mm
2
3
14
30
9
17
19
13
29
15
4
10
3
16
7
11
15
6
21
22
17
17
16
32
31
9
12
9
8
5
1
14
17
16
30
29
4
28 25
27
24
26
23
18
2
3
4
31
32
20
6
6
STANDARD PARTS
2-37
T7+ 9013336 (08- 2014)
Fig. 18 - Cylindrical Scrub Head Group, 700 mm
Ref. Part No. Description Qty.
11029131 )Housing, Machining, Head, 70 Cm Cyl 1
21031416 Mount, Link, Mach 2
312273 Screw, Hex, M8 X 1.25 X 20, Ss, Nl 12
401685 Washer, Flat, 0.31, Ss 12
51029531 Channel, Lift 1
643952 Washer, Lock, Int, 0.31, Ss 12
71029538 Bracket, Lift, Upper 1
808714 Nut, Hex, Lock, M10 X 1.5, Nl, Ss 2
901686 Washer, Flat, 0.44b 1.00d .08, Ss 4
10 578717 Screw, Hex, M8 X 1.25 X 50, Ss, Fl 1
11 140027 Washer, Flat, 0.35b 0.75d .04, Ss 1
12 07786 Nut, Hex, Std, M8 X 1.25, Ss 1
13 1029215 Tube Assy, Bar, Spray [70cm] 1
14 1025580 Fitting, Pipe, Cap, P06, Nyl 2
15 33584 Clamp, Cable, Stl, 0.63d X 0.50w, 1h 2
16 11329 Screw, Hex, M6 X 1.0 X 16, Ss, Nl 7
17 01684 Washer, Flat, 0.25, Ss 12
18 41440 Fitting, Plstc, Str, Bm10/Pm08 1
19 9005805 Hopper, Debris, 70cm, Black, Afmkt 1
20 1029274 Skirt, Tray, Debris [70cm] 1
21 1029272 Bracket, Lip, Debris, 70cm 1
22 07785 Nut, Hex, Std, M6 X 1.00, A2, Ss 5
23 1031132 Hose, Molded 1
24 1031037 Bracket, Mtg, Valve 1
25 09738 Screw, Hex, M5 X 0.8 X 12, Ss 2
26 09739 Nut, Hex, Lock, M5 X 0.80, Nl, Ss 2
27 1013599 Valve, Water, Solenoid, 24vdc, 10bm/10bm 1
28 54333 Clamp, Hose, Wormdrive, 0.31- 0.88d, .31w 3
29 222210 Pin, Clevis, 0.62d X 2.12l 2
30 02942 Pin, Cotter, Hair, 0.62d .120 Wir 2
31 09028 Screw, Hex, M10 X 1.5 X 25, Ss 2
32 363087 Bushing, Flng, 0.44b 1.25d 0.25l 2
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-38

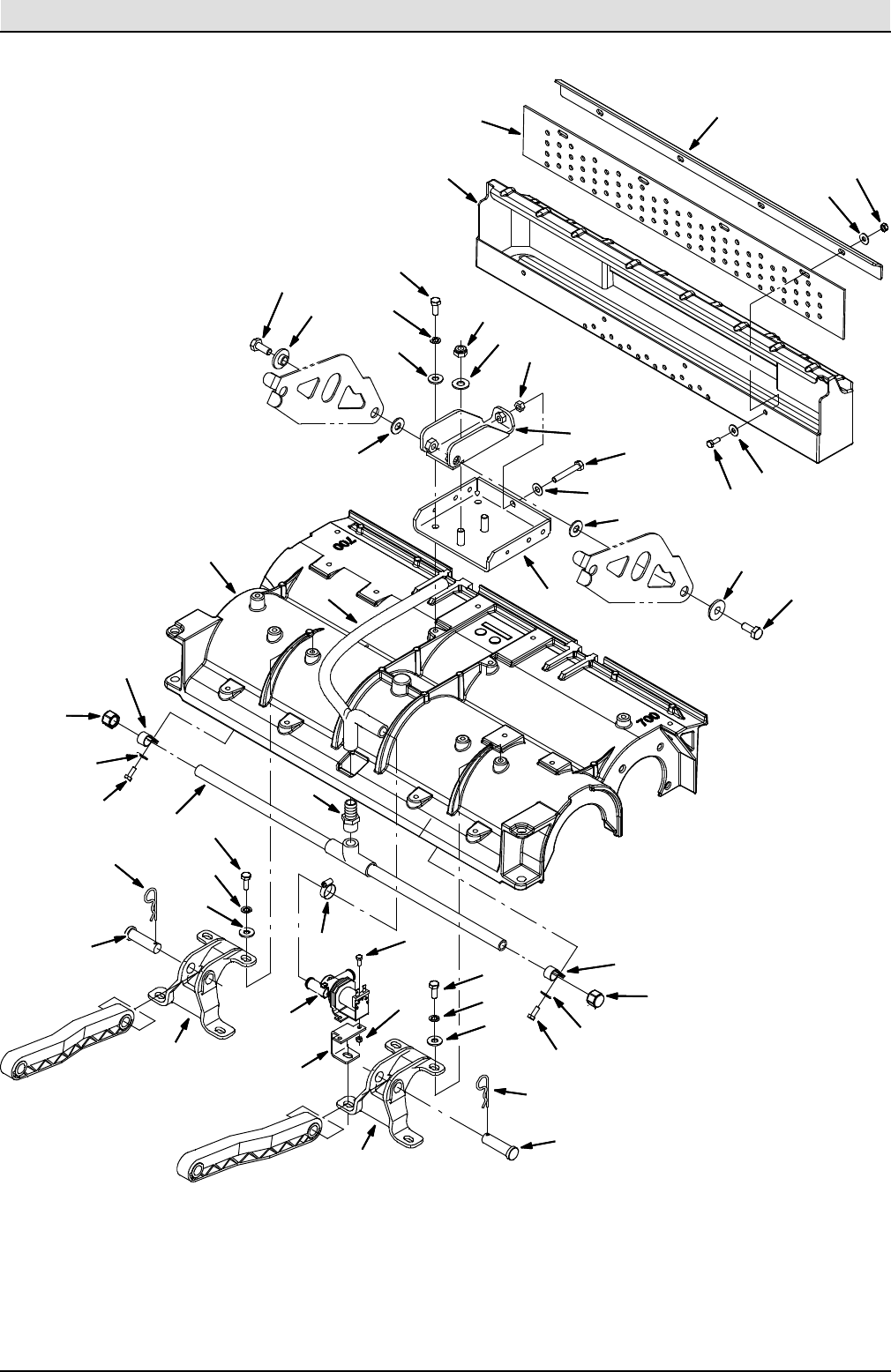

Fig. 19 - Cylindrical Scrub Head Group, 800 mm
2
3
14
30
9
17
19
13
29
15
6
10
3
16
7
11
15
20
21
22
17
17
16
32
31
9
12
9
8
5
1
14
17
16
30
29
6
28 25
27
24
26
23
18
2
3
6
31
32
4
4
4
STANDARD PARTS
2-39
T7+ 9013336 (08- 2014)
Fig. 19 - Cylindrical Scrub Head Group, 800 mm
Ref. Part No. Description Qty.
11030273 )80cm Scrubhead, Machining, T7/Cyl 1
21031416 Mount, Link, Mach 2
312273 Screw, Hex, M8 X 1.25 X 20, Ss, Nl 12
401685 Washer, Flat, 0.31, Ss 12
51029531 Channel, Lift 1
643952 Washer, Lock, Int, 0.31, Ss 12
71029538 Bracket, Lift, Upper 1
808714 Nut, Hex, Lock, M10 X 1.5, Nl, Ss 2
901686 Washer, Flat, 0.44b 1.00d .08, Ss 4
10 578717 Screw, Hex, M8 X 1.25 X 50, Ss, Fl 1
11 140027 Washer, Flat, 0.35b 0.75d .04, Ss 1
12 07786 Nut, Hex, Std, M8 X 1.25, Ss 1
13 1031029 Tube Assy, Bar, Spray [80cm] 1
14 1025580 Fitting, Pipe, Cap, P06, Nyl 2
15 33584 Clamp, Cable, Stl, 0.63d X 0.50w, 1h 2
16 11329 Screw, Hex, M6 X 1.0 X 16, Ss, Nl 7
17 01684 Washer, Flat, 0.25, Ss 12
18 41440 Fitting, Plstc, Str, Bm10/Pm08 1
19 9005806 Hopper, Debris, 80cm, Black, Afmkt 1
20 1025273 Skirt, Tray, Debris [80cm] 1
21 1025150 Lip, Tray, Debris, Scb Head, 80cm 1
22 07785 Nut, Hex, Std, M6 X 1.00, A2, Ss 5
23 1031132 Hose, Molded 1
24 1031037 Bracket, Mtg, Valve 1
25 09738 Screw, Hex, M5 X 0.8 X 12, Ss 2
26 09739 Nut, Hex, Lock, M5 X 0.80, Nl, Ss 2
27 1013599 Valve, Water, Solenoid, 24vdc, 10bm/10bm 1
28 54333 Clamp, Hose, Wormdrive, 0.31- 0.88d, .31w 3
29 222210 Pin, Clevis, 0.62d X 2.12l 2
30 02942 Pin, Cotter, Hair, 0.62d .120 Wir 2
31 09028 Screw, Hex, M10 X 1.5 X 25, Ss 2
32 363087 Bushing, Flng, 0.44b 1.25d 0.25l 2
STANDARD PARTS
T7+ 9013336 (06- 2015)
2-40
Fig. 20 - Cylindrical Scrub Head Drive Group, Right Side
12
29
16
28
1
8
13
10
10
3
11
37
15
17 11
17
30
31
18
26
37 319
21
20
32 33 34
35
14 10
8
11
9
7
8
711
4
5
11
23
11 10
22
20
27
24
6
25
2
36
STANDARD PARTS
2-41
T7+ 9013336 (06- 2015)
Fig. 20 - Cylindrical Scrub Head Drive Group, Right Side
Ref. Part No. Description Qty.
o1604980 )Motor, Ele, 24vdc 0.75hp 1500rpm 23.0a 1
Y2 00954 Key, Sq, 0.12 X 0.12, 1.00l 1
3 01684 Washer, Flat, 0.25, Ss 5
41032496 Harness, Adapter, Motor, Cylrcl 1
5608964 Boot, 90deg .27id 0.64id 1.79l, Blk 2
61034845 Strip, Pye, Hi- dns, 0.25 01.75w 05.6l 1
7140027 Washer, Flat, 0.35b 0.75d .04, Ss 2
843952 Washer, Lock, Int, 0.31, Ss 8
91044386 Bracket, Mtg, Motor 1
10 12273 Screw, Hex, M8 X 1.25 X 20, Ss, Nl 8
11 01685 Washer, Flat, 0.31, Ss 10
12 1025026 Screw, Hex, M8 X 1.25 X 180, Ss 1
13 08713 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 1
14 578717 Screw, Hex, M8 X 1.25 X 50, Ss 1
15 07786 Nut, Hex, Std, M8 X 1.25, Ss 1
16 1033528 Sheave, 06grv, 1.33pd 0.50b, Alm [Pj] 1
17 222818 Screw, Set, #08- 32 X 0.25, Nl 2
18 1035888 Belt, Drive, 6grv, 508 L X 14 W, [6pj] 1
19 1021036 Bracket, Motor [Machined] 1
20 41360 Bearing, Ball, 0.59b 1.26d 0.35w[2seal] 2
21 1002077 Tube, 0.81d 0.59b 00.5l 1
22 1021050 Shaft, Drive 1
23 378805 Plug, Drive, Brush, Mach 1
24 00911 Key, Sq, 0.19 X 0.19, 0.75l 1
25 79246 Screw, Flt, M8 X 1.25 X 20, Ss 18- 8 2
26 1035173 Sheave, 06grv, 2.96pd 0.59b, Alm [Pj] 1
27 00961 Key, Sq, 0.19 X 0.19, 0.50l 1
28 1022401 Gasket, Cover, Belt 1
29 1022807 Cover, Belt 1
o1057922 Door Assy, Cyl Head [7100] 1
Y30 390996 Screw, Flt, M10 X 1.5 X 20, 10.9, Nl 1
Y31 1044145 Door, Brush 1
Yo222752 Plug Assy, Idler, Brush 1
YY 32 222184 Pin, Roll, .094 D X 0.25l, .094/.097 1
YY 33 222177 Shaft, Idler Plug 1
YY 34 1057629 Plug, Idler, Brush [Sgl Brg] 1
YY 35 01516 Ring, Retaining, Ext, 0.59d, Basic 1
36 1029358 Deflector, Water, Cyl Head 2
37 11329 Screw, Hex, M6 X 1.0 X 16, Ss, Nl 5
STANDARD PARTS
T7+ 9013336 (06- 2015)
2-42
Fig. 21 - Cylindrical Scrub Head Drive Group, Left Side
38
3
4
14
5
35
12
1
11
13
9
15
8
18
6
17
16
19
11
7
11
10
8
7
8
34 33
32
30
31
28
23 20
24
27
11
8
10
25
11
21
22
38
3
29
10
26
11
20
36
37
2
STANDARD PARTS
2-43
T7+ 9013336 (06- 2015)
Fig. 21 - Cylindrical Scrub Head Drive Group, Left Side
Ref. Part No. Description Qty.
o1604980 )Motor, Ele, 24vdc 0.75hp 1500rpm 23.0a 1
Y2 00954 Key, Sq, 0.12 X 0.12, 1.00l 1
3 01684 Washer, Flat, 0.25, Ss 6
4 1032496 Harness, Adapter, Motor, Cylrcl 1
5 608964 Boot, 90deg .27id 0.64id 1.79l, Blk 1
6608963 Boot, 90deg .27id 0.64id 1.79l, Red 1
7 140027 Washer, Flat, 0.35b 0.75d .04, Ss 2
8 43952 Washer, Lock, Int, 0.31, Ss 8
91044386 Bracket, Mtg, Motor 1
10 12273 Screw, Hex, M8 X 1.25 X 20, Ss, Nl 7
11 01685 Washer, Flat, 0.31, Ss 10
12 1025026 Screw, Hex, M8 X 1.25 X 180, Ss 1
13 08713 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 1
14 578717 Screw, Hex, M8 X 1.25 X 50, Ss 1
15 07786 Nut, Hex, Std, M8 X 1.25, Ss 1
16 1033528 Sheave, 06grv, 1.33pd 0.50b, Alm [Pj] 1
17 222818 Screw, Set, #08- 32 X 0.25, Nl 2
18 1035888 Belt, Drive, 6grv, 508 L X 14 W, [6pj] 1
19 1021036 Bracket, Motor [Machined] 1
20 41360 Bearing, Ball, 0.59b 1.26d 0.35w[2seal] 2
21 1002077 Tube, 0.81d 0.59b 00.5l 1
22 1021050 Shaft, Drive 1
23 378805 Plug, Drive, Brush, Mach 1
24 00911 Key, Sq, 0.19 X 0.19, 0.75l 1
25 49826 Screw, Hex, M8 X 1.25 X 16, Ss, Nl 1
26 1035173 Sheave, 06grv, 2.96pd 0.59b, Alm [Pj] 1
27 00961 Key, Sq, 0.19 X 0.19, 0.50l 1
28 1022401 Gasket, Cover, Belt 1
29 1022807 Cover, Belt 1
o1057922 Door Assy, Cyl Head [7100] 1
Y30 390996 Screw, Flt, M10 X 1.5 X 20, 10.9, Nl 1
Y31 1044145 Door, Brush 1
Yo222752 Plug Assy, Idler, Brush 1
YY 32 222184 Pin, Roll, .094 D X 0.25l, .094/.097 1
YY 33 222177 Shaft, Idler Plug 1
YY 34 1057629 Plug, Idler, Brush [Sgl Brg] 1
YY 35 01516 Ring, Retaining, Ext, 0.59d, Basic 1
36 1034845 Strip, Pye, Hi- dns, 0.25 01.75w 05.6l 1
37 79246 Screw, Flt, M8 X 1.25 X 20, Ss 18- 8 2
38 11329 Screw, Hex, M6 X 1.0 X 16, Ss, Nl 7
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-44
Fig. 22 - Cylindrical Scrub Head Squeegee Group
21
14
13
25
24
12
1
25
9
15
4
25
6
3
17
5
15
6
2
26
27
25
19
17 18
13 14
17
22
23
22
20
2
4
5325
27
29 12
25
24
9
711
26
16
28
10
8
21
10
16
22
23
22
20
19
17
18
STANDARD PARTS
2-45
T7+ 9013336 (03- 2016)
Fig. 22 - Cylindrical Scrub Head Squeegee Group
Ref. Part No. Description Qty.
1391328 )Frame Wldt, Sqge, Side, Lh 1
2391334 Squeegee Assy, Side [Linatex] (Standard) 2
21058728 Squeegee Assy, Cylrcl, Ure [T7/Ssr] (Optional) 2
21058715 Squeegee Assy, Cylrcl, Gum [T7/Ssr] (Optional) 2
3 86759 Retainer, Sqge 2
469582 Pin, Clevis, 0.31d X 1.00l 2
5 44906 Pin, Cotter, Hair, 0.69d .092 Wir 2
6 1074203 Guide, Sqge, Side, Yellow 2
7 1029380 Angle Wldt, Stop, Lh 1
81029368 Angle Wldt, Stop, Rh 1
91020341 Screw, Hex, M8 X 1.25 X 20, Ss, Sems 2
10 44906 Pin, Cotter, Hair, 0.69d .092 Wir 2
11 1030365 Arm, Mtg, Link, Lh Sqge, Cylrcl Head 1
12 69582 Pin, Clevis, 0.31d X 1.00l 2
13 15047 Spring, Extn, 0.62od X 0.08wir, 3.0l 2
14 39019 Pin, Clevis, 0.37d X 0.75l 2
15 25709 Bellcrank, Lift, Sqge 2
16 380587 Screw, Flt, M10 X 1.5 X 20, Ss, 18- 8 2
17 64425 Washer, Thrust, 0.61b 1.25d .06, Fgl 4
18 71607 Bushing, Sleeve, 0.63b 0.72d 0.38l 2
19 391345 Nut, T, M10 X 1.50 X 0.62od X 0.5l 2
20 391346 Nut, T, M8 X 1.25 X 0.50od X 0.5l 2
21 79246 Screw, Flt, M8 X 1.25 X 20, Ss 18- 8 2
22 86860 Bearing, Thrust, 0.50b 0.87d 0.06w 4
23 64173 Bushing, Sleeve, 0.50b 0.59d 0.38l, Stl 2
24 45280 Screw, Hex, .50- 13 X 5.50, G5 2
25 33925 Washer, Flat, M12, Ss 6
26 1031077 Bushing, Sleeve, 0.51b 0.75d 0.16l 2
27 02931 Nut, Hex, Lock, .50- 13, Nl, Ss 2
28 391327 Frame Wldt, Sqge, Side, Rh 1
29 1030026 Arm, Mtg, Link, Rh Sqge, Cylrcl Head 1
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-46
Fig. 23 - Recovery Tank Group
3
4
5
1
12
13
14
15
16
17
18
19
20
21
24
25
26
27
28
29
30
22
19
20
18
18
18
17
16
12
13
5
11
3
4
2
67
67
6
7
6
7
8
9
6
710
8
9
10
23
11
STANDARD PARTS
2-47
T7+ 9013336 (04- 2017)
Fig. 23 - Recovery Tank Group
Ref. Part No. Description Qty.
11019913 )Tank, Recvy [Europe] 1
2 1013874 Cover, Tank, Recvy, Ce 1
3 1050554 Hinge, Leaf 2
4 222463 Screw, Flt, M8 X 1.25 X 20, Blk 2
5 1012055 Hinge Wldt, Cover 2
609740 Screw, Hex, M8 X 1.25 X 20, Ss 12
71017218 Washer, Flat, 0.321b 1.00d .12, Ss 12
81018304 Hinge, 10mm Pin, Crs, Blk [T7] 2
9393135 Screw, Btn, M8 X 1.25 X 20, Blk 4
10 1016435 Washer, Flat, 0.52b 0.75d .06, Stl, Blk 4
11 1020341 Screw, Hex, M8 X 1.25 X 20, Ss, Sems 4
12 82829 Clamp, Cable, Stl, 0.63d X 0.75w, 1hole 2
13 15675 Screw, Hex, M8 X 1.25 X 16, Ss 2
14 1016855 Plate Wldt, Seal, Tank 1
15 1020301 Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft 1
16 1016871 Spacer, Seal, Tank 2
17 397255 Spring, Cmpr, 0.85od .08wir 2.0l 2
18 605385 Washer, Flat, 0.69b 1.50d .05, Ss 4
19 1017218 Washer, Flat, 0.321b 1.00d .12, Ss 2
20 77270 Screw, Hex, M8 X 1.25 X 60, Ss 2
21 1017705 Pad, Rbr 1
22 385685 )Sensor, Level, Liquid, 14vdc 1
23 1014079 Clip, Grip, Hose, 1.50id, Dbl, Blk Pyp 1
24 1017000 Angle, Sppt, Tank 1
25 1017668 Bracket Wldt, Tank, Sppt 1
26 1037821 Filter, Panl, Dust, 2.3 X 4.5 X 6.4 1
27 1016392 Gasket, Fltr, Tank 1
28 1207882 Hose, Vacuum, 1.50id X 057.1l, 2cuff, Pu 1
29 1001992 Clip, Hose, Gripper, 1.75id, Blk Ny 2
30 391403 Screw, Pan, M4 X 0.7 X 8, Ss 4
STANDARD PARTS
T7+ 9013336 (03- 2016)
2-48

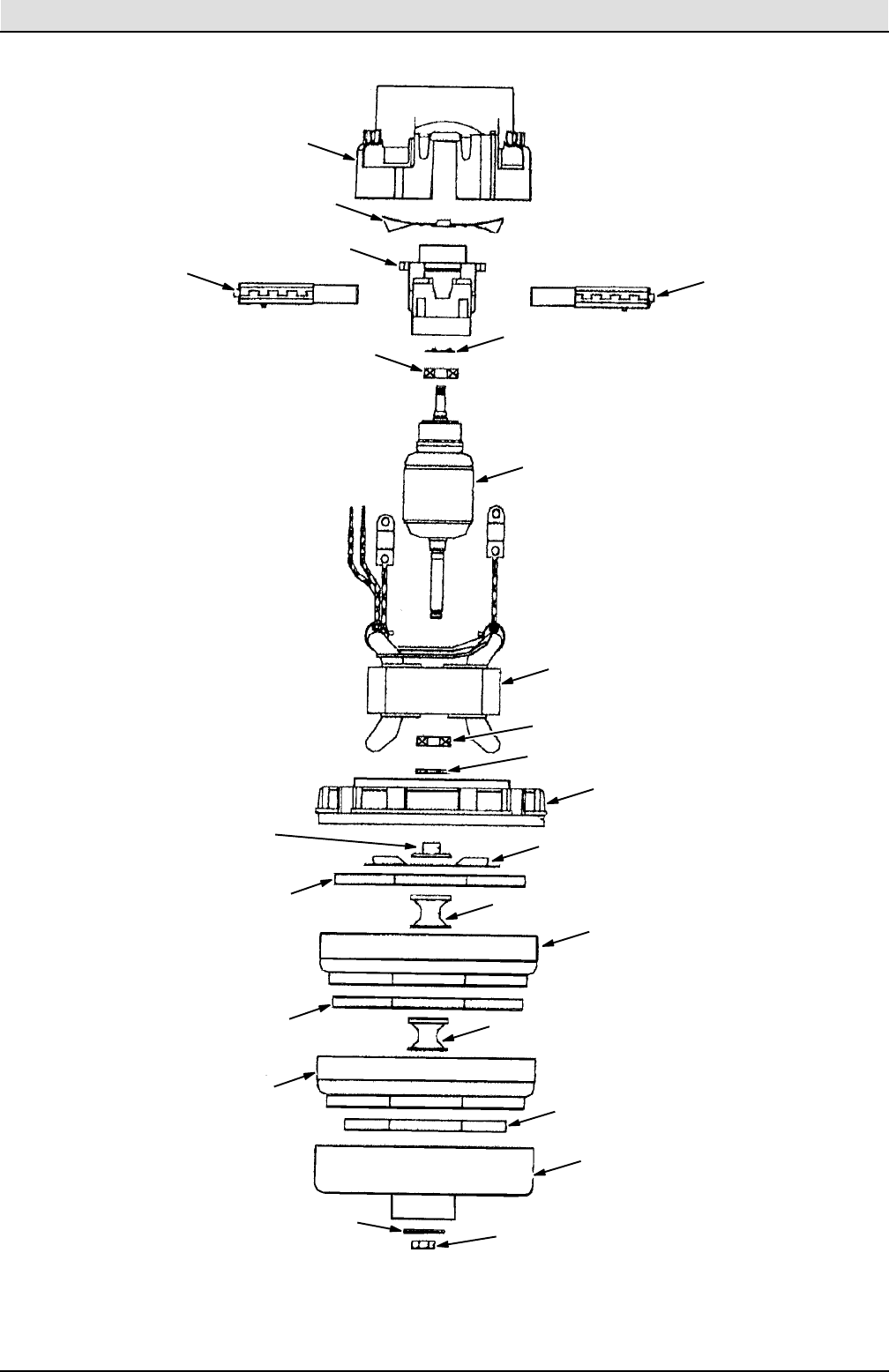

Fig. 24 - Vacuum Fan Group
2
3
5
7
8
9
10
1
11
12
13
10
16
18
19
19
6
4
9
16
9
28
27
23
24 25 30
20
28
29
21
26
27
14
15
10
22
17
STANDARD PARTS
2-49
T7+ 9013336 (03- 2016)
Fig. 24 - Vacuum Fan Group
Ref. Part No. Description Qty.
11021064 )Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] 1
21015506 Screw, Pan, M5 X 16, F/ Plstc 4
319066 Washer, Flat, #10 4
41011127 Plate, Mtg, Fan 1
51013611 Seal, Cover, Recvy 1
61014858 Gasket, Adapter 1
71014711 Adaptor, Hose 1
81034731 Screw, Hex, M6 X 1.00 X 16, Ss, Sems 2
901684 Washer, Flat, 0.25 Ss 9
10 07790 Nut, Hex, Flng, M6 X 1.00 9
11 1011140 Seal, Fan 1
12 1011103 Bracket Wldt, Mtg, Fan 1
13 1011093 Isolator, Vib, .75d, M6 Stud Both Ends 3
o9003365 Insulation Kit, Acstc, Vacfan 1
Y14 1028514 Insulation, Acstc, Vacfan 1
Y15 1028515 Insulation, Acstc, Hsng, Vacfan 1
16 1020341 Screw, Hex, M8 X 1.25 X 20, Ss, Sems 4
17 41169 ¡Nut, Hex, Lock, .25- 20, Nl, Ss 1
18 1011159 Hose, Vacuum, 1.5d X 8.3l, Clr, Blk Wire 1
19 79381 Clamp, Hose, Wormdrive, 1.25- 2.00d, .50w 2
20 08712 Nut, Hex, Lock, M6 X 1.00, Ss, Nl 1
21 1026270 Bracket, Arm, Prop 1
22 1026986 ¡Screw, Trs, .25- 20 X 3.00, Phl, Ss 1
23 578579 Spacer, 0.25b 0.88d 0.50l 1
24 140154 Sleeve, P/M, 0.25b 0.38d 0.3l, Pl 1
25 140053 Washer, Flat, 0.28b 0.88d .12, Ss 1
26 1026322 Bracket, Mtg, Stop 1
27 1034731 Screw, Hex, M6 X 1.00 X 16, Ss, Sems 2
28 01684 Washer, Flat, 0.25, Ss 2
29 80491 Sleeve, P/M, 0.25b 0.38d 0.2l [430ss] 1
30 06946 ©Screw, Hex, M6 X 1.00 X 35, 8.8 1
¡Serial number (10000- XXXXX)
©Serial number (XXXXX- )
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-50

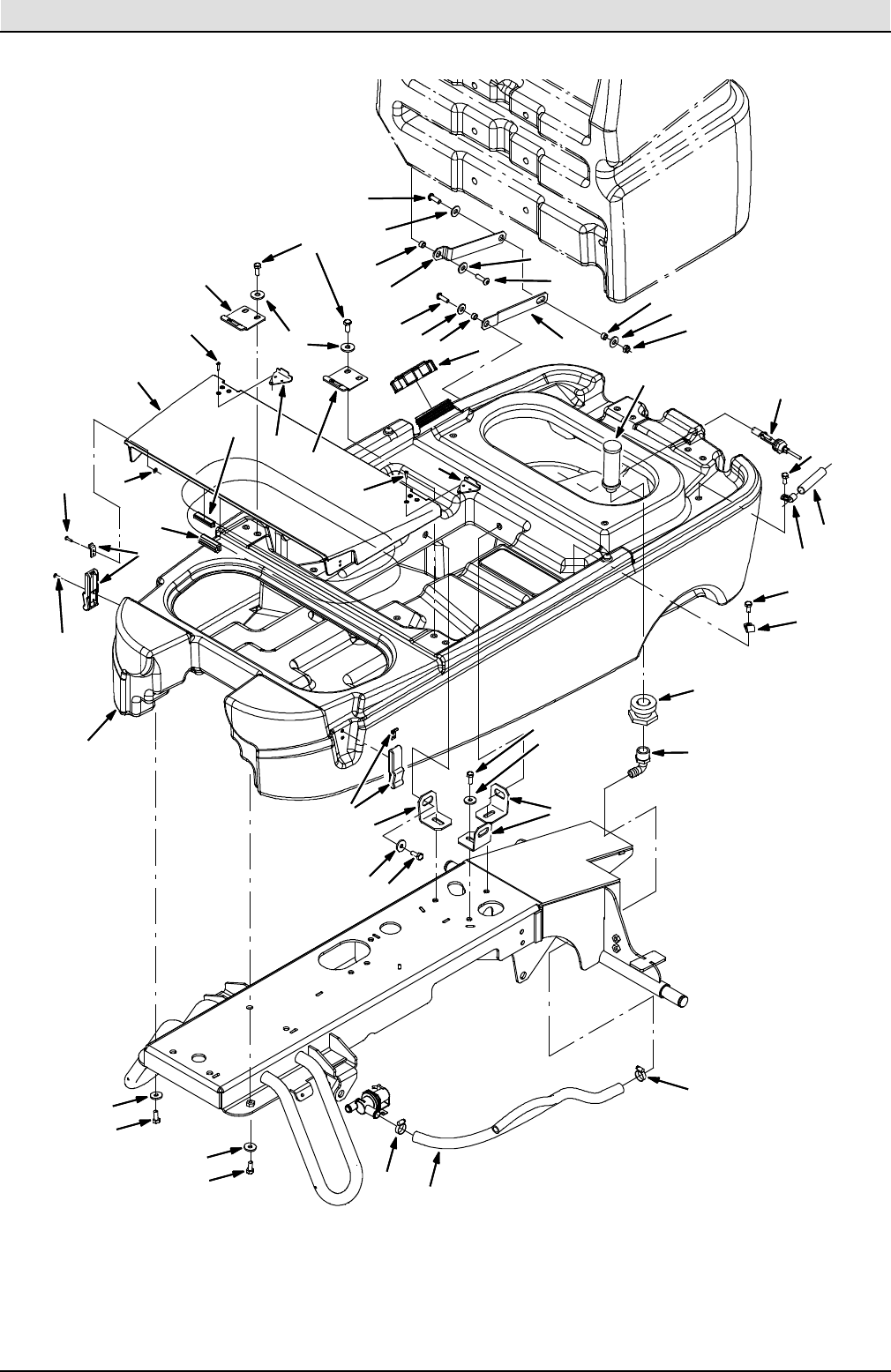

Fig. 25 - Solution Tank Group, Disk Scrub Head
2
3
5
64
8
9
10
1
11 12
13
1415
16
17
18
19
20
21
22
23
24
25
26
27
29
3
7
4
7
22
9
10
9
25
8
10
10 9
9
26
728
14
14
15
13
13
29
29
30
31
STANDARD PARTS
2-51
T7+ 9013336 (08- 2014)
Fig. 25 - Solution Tank Group, Disk Scrub Head
Ref. Part No. Description Qty.
19003147 )Tank,Soltn,Disk,Hg,Afmkt,Ce[T7] 1
2 1012505 Cover, Tank, Soltn [T7] 1
3 1014850 Catch, Cover 2
4 1020292 Plate, Cover, Tab [T7] 2
5 1020727 Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft 1
61020719 Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft 1
71021677 Rivet, Blind, .156dx0.55x.38d, Ss 10
81014072 Bracket, Mtg, Tank 3
909740 Screw, Hex, M8 X 1.25 X 20, Ss 12
10 1017218 Washer, Flat, 0.321b 1.00d .12, Ss 8
11 1011885 Cap, Tank 1
12 1019013 Arm, Tank, Retaining 1
13 222516 Sleeve, P/M, 0.496d 0.318b 0.31l 430ss 5
14 1016430 Screw, Btn, M8 X 1.25 X 25,10.9, Blk 4
15 1016435 Washer, Flat, 0.52b 0.75d .06, Stl, Blk 3
16 398770 Strainer, Soltn, 80mesh Cyl 1.3d 3.5l 1
17 377349 Fitting, Plstc, Pf12/Pf12, Bh 1
18 73468 Fitting, Plstc, E90, Bm10/Pm12 1
19 82829 Clamp, Cable, Stl, 0.63d X 0.75w, 1hole 2
20 67767 Clamp, Cable, Stl, 0.69d X 0.62w, 1h 1
21 1019879 Conduit, Nylon, .50d 3.0l 1
22 15675 Screw, Hex, M8 X 1.25 X 16, Ss 2
23 385685 Sensor, Level, Liquid, 14vdc 01a .62- 11 1
24 1014825 Hose, Mold 1
25 54333 Clamp, Hose, Wormdrive, 0.31- 0.88d, .31w 2
26 49800 Latch, Draw, Soft, Rbr W/ Keeper 2
27 607006 Screw, Trs, M4 X 0.70 X 12, Phl, Pl 4
28 1035394 Washer, Flat, 0.17b 0.38d .04, Ss 4
29 01685 Washer, Flat, 0.31 Ss 6
30 08713 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 1
31 1011853 Arm, Tank, Retaining 1
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-52
Fig. 26 - Solution Tank Group, Cylindrical Scrub Head
2
3
5
6
4
8
10
1
16
17
18
19
20
21
22
23
26
27
3
7
4
7
22
30 10
30
10
10
30
26
728
31
25
32 33 33
32 32
33
32 33 24
9
30
30
11 12
13
1415
29
14
14
15
13
13
29
29
34
35
STANDARD PARTS
2-53
T7+ 9013336 (08- 2014)
Fig. 26 - Solution Tank Group, Cylindrical Scrub Head
Ref. Part No. Description Qty.
19003148 )Tank,Soltn,Cylrcl,Hg,Afmkt,Ce[T7] 1
21012505 Cover, Tank, Soltn [T7] 1
31014850 Catch, Cover 2
41020292 Plate, Cover, Tab [T7] 2
51020727 Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft 1
61020719 Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft 1
71021677 Rivet, Blind, .156dx0.55x.38d, Ss 10
81014072 Bracket, Mtg, Tank 1
9130773 Tie, Cable, Nyl, 11.0L, .14W, 3.0 Max. D 1
10 1017218 Washer, Flat, 0.321b 1.00d .12, Ss 4
11 1011885 Cap, Tank 1
12 1019013 Arm, Tank, Retaining 1
13 222516 Sleeve, P/M, 0.496d 0.318b 0.31l 430ss 5
14 1016430 Screw, Btn, M8 X 1.25 X 25,10.9, Blk 4
15 1016435 Washer, Flat, 0.52b 0.75d .06, Stl, Blk 3
16 398770 Strainer, Soltn, 80mesh Cyl 1.3d 3.5l 1
17 377349 Fitting, Plstc, Pf12/Pf12, Bh 1
18 73468 Fitting, Plstc, E90, Bm10/Pm12 1
19 82829 Clamp, Cable, Stl, 0.63d X 0.75w, 1hole 2
20 67767 Clamp, Cable, Stl, 0.69d X 0.62w, 1h 1
21 1019879 Conduit, Nylon, .50d 3.0l 1
22 15675 Screw, Hex, M8 X 1.25 X 16, Ss 2
23 385685 Sensor, Level, Liquid, 14vdc 01a .62- 11 1
24 1035355 Hose, Afmkt, Pvc, Clr, 0.62Id, 02Ft 2
25 63810 Clamp, Hose, Wormdrive, 0.56- 1.06d, .56w 1
26 49800 Latch, Draw, Soft, Rbr W/ Keeper 2
27 607006 Screw, Trs, M4 X 0.70 X 12, Phl, Pl 4
28 1035394 Washer, Flat, 0.17b 0.38d .04, Ss 4
29 01685 Washer, Flat, 0.31 Ss 4
30 09740 Screw, Hex, M8 X 1.25 X 20, Ss 8
31 1015026 Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, Clr 1
32 41440 Fitting, Plstc, Str, Bm10/Pm08 4
33 54333 Clamp, Hose, Wormdrive, 0.31- 0.88D, .31W 4
34 08713 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 1
35 1011853 Arm, Tank, Retaining 1
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-54
Fig. 27 - Tanks Drain Group
2
10
11
1
12
5
11 12
3
4
68
9
7
STANDARD PARTS
2-55
T7+ 9013336 (06- 2015)
Fig. 27 - Tanks Drain Group
Ref. Part No. Description Qty.
o11014274 )Hose Assy, Drain, 1.50id X 27.8l, Blk (Recovery Tank) 1
Yo2 1008639 Cap, Drain Assembly 1
YY 3 1019563 Strap, Drain Cap 1
YY 4 1008637 O Ring, 1.48” Id, 1.76” Od 1
5 14432 Clamp, Hose, Wormdrive, 1.81- 2.75d, .56w 2
o61014268 Hose Assy, Drain, 1.50id X 27.0l, Blk (Solution Tank) 2
Yo7 1008639 Cap, Drain Assembly 5
YY 8 1019563 Strap, Drain Cap 1
YY 9 1008637 O Ring, 1.48” Id, 1.76” Od 1
10 79381 Clamp, Hose, Wormdrive, 1.25- 2.00d, .50w 1
11 222793 Clip, Hanger, Hose, .38d Hole, Ss 2
12 09740 Screw, Hex, M8 X 1.25 X 20, Ss 2
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-56
Fig. 28 - Rear Squeegee Lift Group, Disk Scrub Head
6
3
4
5
2
7
8
9
10
1
11
12
13
14
15
16
17
18
19
20
21
22
23
24
11
14
15
16
17
18
3
FRONT
STANDARD PARTS
2-57
T7+ 9013336 (08- 2014)
Fig. 28 - Rear Squeegee Lift Group,Disk Scrub Head
Ref. Part No. Description Qty.
o19010845 )Actuator Kit, Replmt [T7/Ssr] 1
Y21031028 Housing, Sqge, Spring, Actuator 1
386866 Pin, Hair Cotter, 0.38 D .072 Wir 2
494877 Pin, Clevis, 10d X 50l 1
501686 Washer, Flat, 0.44b 1.00 .08, Ss 1
61009356 Pin, Clevis , 10mm X 40l 2
71016639 Spring, Extn, 0.75od X 0.11wir, 4.5l 2
896184 Pin, Clevis, 12d X 100l, Pl 1
986866 Pin, Cotter, Hair, 0.38d .072 Wir 1
10 1031379 Arm Wldt, Sqge, Rear 1
11 1013515 Bushing, Flex, Ure 2
12 1010401 Pin, Clevis, 16d X 150l 1
13 02942 Pin, Hair Cotter, 0.62 D .120 Wir 1
14 1073476 Caster, Swivel, 50mmd, M10 X 30, Clr Pl 2
15 41619 Washer, Flat, 0.56b 1.38d .11, Ss 2
16 01686 Washer, Flat, 0.44b 1.00 .08, Ss 2
17 07787 Nut, Hex, Std, M10 X 1.5, Ss 2
18 32716 Nut, Hex, Jam, M10 X 1.5, Ss 2
19 1018725 Channel, Arm, Lower Sqge 1
20 12138 Screw, Hex, M12 X 1.75 X 120, 8.8 1
21 09741 Nut, Hex, Lock, M12 X 1.75, Nl, Ss 1
22 1020182 Spring, Cmpr, 20mm D X 44mm L 1
23 04417 Screw, Hex, M10 X 1.5 X 60, Ss 1
24 01686 Washer, Flat, 0.44b 1.00 .08, Ss 1
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-58
Fig. 29 - Rear Squeegee Lift Group, Cylindrical Scrub Head
2
3
4
5
6
7
9
10
1
11
12
13
14
15
19
21
22
23
24
28
29
30
31
32
33
15
25
16
25
16
20
18
26
17
27
27
17
26
8
35
34
4
3
4
4
3
33
FRONT
STANDARD PARTS
2-59
T7+ 9013336 (08- 2014)
Fig. 29 - Rear Squeegee Lift Group, Cylindrical Scrub Head
Ref. Part No. Description Qty.
11028997 )Support, Frame, Sqge 1
2 1028998 Support, Frame, Sqge 1
3 09291 Screw, Hex, M10 X 1.5 X 20, Ss 6
4 01686 Washer, Flat, 0.44b 1.00d .08, Ss 7
5 1029072 Bracket Wldt, Actuator 1
609740 Screw, Hex, M8 X 1.25 X 20, Ss 2
701685 Washer, Flat, 0.38b 0.88d .08, Ss 2
o89010845 Actuator Kit, Replmt [T7/Ssr] 1
Y91031028 Housing, Sqge, Spring, Actuator 1
10 1032539 Arm, Spring, Mtg 1
11 1016639 Spring, Extn, 0.75od 0.11wir 04.5l 2
12 1018483 Pin, Clevis, 12mmd X 100mml 1
13 08182 Pin, Cotter, .125 X 1.00 1
14 1032452 Arm Wldt, Sqge, Rear, Cylrcl 1
15 1013515 Bushing, Flex, Ure 2
16 1073476 Caster, Swivel, 50mmd, M10 X 30, Clr Pl 2
17 07787 Nut, Hex, Std, M10 X 1.50, Ss 2
18 1018725 Channel, Arm, Lower Sqge 1
19 12138 Screw, Hex, M12 X 1.75 X 120, 8.8 1
20 09741 Nut, Hex, Lock, M12 X 1.75, Nl, Ss 1
21 1020182 Spring, Cmpr, 0.70od, 01.7l 1
22 04417 Screw, Hex, M10 X 1.5 X 60, Ss 1
23 1010401 Pin, Clevis, 16mmd X 150mml 1
24 02942 Pin, Cotter, Hair, 0.62d .120 Wir 1
25 41619 Washer, Flat, 0.56b 1.38d .11, Ss 2
26 01686 Washer, Flat, 0.44b 1.00d .08, Ss 2
27 32716 Nut, Hex, Jam, M10 X 1.5, Ss 2
28 94877 Pin, Clevis, 10mmd X 050mml 1
29 1032733 Pin, Clevis, 10mmd X 070mml, Pl 1
30 1032732 Pin, Clevis, 12mmd X 070mml, Pl 1
31 41619 Washer, Flat, 0.56b 1.38d .11, Ss 1
32 01686 Washer, Flat, 0.44b 1.00d .08, Ss 2
33 08182 Pin, Cotter, .125 X 1.00 2
34 08713 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 2
35 86866 Pin, Cotter, Hair, 0.38d .072 Wir 1
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-60
Fig. 30 - Rear Squeegee Group, 650 mm
2
3
4
5
6
7
8
9
10
1
11
3
3
12
3
8
9
11
7
10
12
14
16
13
15
STANDARD PARTS
2-61
T7+ 9013336 (03- 2016)
Fig. 30 - Rear Squeegee Group, 650 mm
Ref. Part No. Description Qty.
o9000139 )Squeegee Assy Kit, 650mm, Ci [T7/Ssr] 1
Y1 1001468 Frame, Sqge, 700mm 1
Y2 1012934 Plate Wldt, Sqge, Retainer, 700mm 1
Y31074204 Knob,Star,2.75d 4ear 1.1l M8x1.25,Thru,Y 4
Y4390943 Blade, Sqge, Front, 35.00l [Linx, 700mm] 1
Y5390942 Blade, Sqge, Rear, 37.50l Linatex[700mm] 1
Y61074410 Strap Assy, Sqge, 700mm [T7+] 1
Y71010560 Wheel, Bmpr, 80d X 25w, Non- Marking 2
Y809011 Screw, Hex, M8 X 1.25 X 30, Ss 2
Y9140027 Washer, Flat, 0.35b 0.75d .04, Ss 2
Y10 222460 Sleeve, P/M, 0.496d 0.318b 0.50l 430ss 2
Y11 08713 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 2
Y12 01685 Washer, Flat, 0.38b 0.88d .08, Ss 2
o391384 Squeegee Kit, 700mm, Ure 1
Y13 391377 Blade, Sqge, Front, 35.00l Ure [700mm] 1
Y14 391378 Blade, Sqge, Rear, 37.50l Pyu [700mm] 1
o391386 Squeegee Kit, 700mm, Gum 1
Y15 390943 Blade, Sqge, Front, 35.00l [Linx, 700mm] 1
Y16 390936 Blade, Sqge, Rear, 37.50l Gum [700mm] 1
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-62
Fig. 31 - Rear Squeegee Group, 800 mm
2
3
4
5
6
7
8
9
10
111
3
3
3
8
9
11
7
10
13 15
14
16
12
12
STANDARD PARTS
2-63
T7+ 9013336 (06- 2015)
Fig. 31 - Rear Squeegee Group, 800 mm
Ref. Part No. Description Qty.
o9000145 )Squeegee Assy Kit, 800mm, Ci [T7/Ssr] 1
Y1 1012964 Frame, Sqge, 800mm 1
Y2 1013395 Plate Wldt, Sqge, Retainer, 800mm 1
Y31074204 Knob,Star,2.75d 4ear 1.1l M8x1.25,Thru,Y 4
Y4390923 Blade, Sqge, Front, 41.50l [Linx, 800mm] 1
Y5390922 Blade, Sqge, Rear, 44.00l Linatex[800mm] 1
Y61074207 Strap Assy, Sqge, 800 Mm, Latch Yellow 1
Y71010560 Wheel, Bmpr, 80d X 25w, Non- Marking 2
Y809011 Screw, Hex, M8 X 1.25 X 30, Ss 2
Y9140027 Washer, Flat, 0.35b 0.75d .04, Ss 2
Y10 222460 Sleeve, P/M, 0.496d 0.318b 0.50l 430ss 2
Y11 08713 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 2
Y12 01685 Washer, Flat, 0.38b 0.88d .08, Ss 2
o391383 )Squeegee Kit, 800mm, Ure 1
Y13 391379 Blade, Sqge, Front, 41.50l Ure [800mm] 1
Y14 391380 Blade, Sqge, Rear, 44.0l Pyu [800mm] 1
o391385 )Squeegee Kit, 800mm, Gum 1
Y15 390923 Blade, Sqge, Front, 41.50l [Linx, 800mm] 1
Y16 390934 Blade, Sqge, Rear, 44.00l Gum [800mm] 1
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-64
Fig. 32 - Circuit Board Group
5
6
2
3
4
17
16
18
21
1
22
15
12
10
11
19
6
5
8
8
7
789
8
7
8
9
8
7
20
13
14
STANDARD PARTS
2-65
T7+ 9013336 (06- 2015)
Fig. 32 - Circuit Board Group
Ref. Part No. Description Qty.
o19012711 )Controller Kit, Replmt, Ci [T7 Disk] 1
Y206922 Screw, Pan, M3 X 0.5 X 20, 4.8 4
Y31019218 Washer, Flat, 0.14b 0.31d, Nyl 3
Y4579211 Nut, Hex, Lock, M3 X .5, Ss 3
Y51016825 Support, Circuitboard 2
Y63701.6 Screw, Pan, #06- 32 X 0.38, Phl Ss Shtmtl 2
Y707785 Nut, Hex, Std, M6 X 1.0, A2, Ss 4
Y81057560 Washer, Flat, M6.4b, X 16d X 1 Ss 6
Y932982 Washer, Lock, Int, 0.25 2
Y10 55248 Mount, Cable Tie 1
Y11 1017754 Panel, Wldt, Cntrl 1
Y12 1020284 Seal, Afmkt, Rbr, Clsd, Adh, 03ft (C410217) 1
Y13 1016816 Pad, Thermal, Heat Sink 1
Y14 1030692 Vr, Fuse, 15a, Replmt 1
o19012712 )Controller Kit, Replmt, Ci [T7 Cyl] 1
Y206922 Screw, Pan, M3 X 0.5 X 20, 4.8 4
Y31019218 Washer, Flat, 0.14b 0.31d, Nyl 3
Y4579211 Nut, Hex, Lock, M3 X .5, Ss 3
Y51016825 Support, Circuitboard 2
Y63701.6 Screw, Pan, #06- 32 X 0.38, Phl Ss Shtmtl 2
Y707785 Nut, Hex, Std, M6 X 1.0, A2, Ss 4
Y81057560 Washer, Flat, M6.4b, X 16d X 1 Ss 6
Y932982 Washer, Lock, Int, 0.25 2
Y10 55248 Mount, Cable Tie 1
Y11 1017754 Panel, Wldt, Cntrl 1
Y12 1020284 Seal, Afmkt, Rbr, Clsd, Adh, 03ft (C410217) 1
Y13 1016816 Pad, Thermal, Heat Sink 1
Y14 1030692 Vr, Fuse, 15a, Replmt 1
15 01685 Washer, Flat, 0.31 Ss 1
16 76426 Washer, Sealing, 0.28b 0.75d Ss/Neo 6
17 1036368 Cover,Panl,Ele,Afmkt,Na,Ce,Tj 1
18 24199 Screw, Hex, M5 X 0.8 X 16, Ss 6
19 1016865 Cable, Ribbon 1
20 41141 Washer, Lock, Int- Ext, 0.31 1
21 1019083 Seal, Cut 1
22 09740 Screw, Hex, M8 X 1.25 X 20, Ss 1
STANDARD PARTS
T7+ 9013336 (04- 2017)
2-66
Fig. 33 - Electrical Group
2
3
4
56
7
8
9
10
1
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
33
34
35
36
37
38
39
40
44
12
13
14
15
15
21
23
21
15
22
19
43
32
42
41
15
21
20
5
40
6
6
40
5
5
6
45
46
STANDARD PARTS
2-67
T7+ 9013336 (04- 2017)
Fig. 33 - Electrical Group
Ref. Part No. Description Qty.
11231547 ©)Support Wldt, Actuator [T7] (For Disk Scrub Head) 1
11062850 ¡Support Wldt, Actuator (For Disk Scrub Head) (Note: For machines built
before S/N 04585 also order Grommet P/N 10632- 13)
(Replaced By 1231547)
1
11231548 ©Support Wldt, Actuator [T7 Cyl] (For Cylindrical Scrub Head) 1
11021531 ¡Support Wldt, Actuator (For Cylindrical Scrub Head) (Replaced By 1231548) 1
210632- 13 Grommet, Rbr, 1.50id, F/1.8h, .19 Matl 1
309023 Screw, Hex, M8 X 1.25 X 35, Ss, Fl 1
4 07786 Nut, Hex, Std, M8 X 1.25, Ss 1
5 09740 Screw, Hex, M8 X 1.25 X 20, Ss 5
61017218 Washer, Flat, 0.321b 1.00d .12, Ss 5
702424 Relay, 24vdc, 100a, Sp N/O [White] 1
801684 Washer, Flat, 0.25 Ss 2
908712 Nut, Hex, Lock, M6 X 1.0, Ss, Nl 2
10 07514 Washer, Lock, Int, #10, Ss 2
11 01689 Nut, Hex, Std, #10- 32, Ss 2
12 20170 Nut, Hex, Jam, .31- 24 2
13 32984 Washer, Lock, Int, .31 2
14 39349 Washer, Flat, 0.31 Sae 3
15 32490 Washer, Flat, 0.25 Std 5
16 86379 Fuse, .88 X 3.2l 100a 125vac 1
17 1018546 Bracket, Stand- Off (For Disk Scrub Head) 1
18 1034731 Screw, Hex, M6 X 1.00 X 16, Ss, Sems 1
19 76062 Insulator, Panel & Switchboard 2
20 58670 Screw, Hex, .25- 20 X 0.50, Nl 2
21 32982 Washer, Lock, Int, 0.25 4
22 1017807 Rod, Thrd, Full, .25- 20 01.0l 2
23 32520 Nut, Hex, Jam, .25- 20 2
24 383720 Circuitbreaker, 5.0a 1
25 383722 Circuitbreaker, 15.0a 1
26 377433 Gauge, Hourmeter, 12- 60vdc, Analog [10k] 1
27 222683 Gasket, Hourmeter 1
28 09146 Screw, Pan, M3 X 0.5 X 12, 4.8 2
29 39658 Washer, Lock, Int, #04 2
30 01754 Nut, Hex, Std, M3 X 0.5, 8 2
31 391915 Harness, Chrgr [T7] (Off- Board Charger Model w/out Iris Telemetry) 1
32 1020168 Molding, Afmkt, Trim, Pvc, .08- .11, 1ft 1
33 25005 Screw, Pan, #06- 32 X 1.00, 1 2
34 19064 Washer, Flat, #06 (Off- Board Charger Model w/out Iris Telemetry) 2
35 75939 Nut, Hex, Lock, #06- 32, Nl (Off- Board Charger Model w/out Iris Telemetry) 2
36 600437 Switch, Snap Actn, 250vac 16a
(Off- Board Charger Model w/out Iris Telemetry) 1
37 06922 Screw, Pan, M3 X 0.5 X 20, 4.8 2
38 39658 Washer, Lock, Int, #04 (Off- Board Charger Model w/out Iris Telemetry) 2
39 01754 Nut, Hex, Std, M3 X 0.5, 8 (Off- Board Charger Model w/out Iris Telemetry) 2
40 69234 Clamp, Cable, Stl, 1.00d X 0.62w, 1h 3
41 01685 Washer, Flat, 0.31 Ss 1
42 08713 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 1
43 391916 Harness, Power, [T7] 1
44 222290 Diode, Ele, Plug 2
45 601359 Plate, Backing, Switch (Off- Board Charger Model w/out Iris Telemetry) 1
46 41141 Washer, Lock, Int- Ext, 0.31 1
¡Serial number (00001- 12694)
©Serial number (12695- )
STANDARD PARTS
T7+ 9013336 (04- 2017)
2-68
Fig. 34 - Electrical Schematic, Standard, FaST & ec- H2O Models (S/N 12695- )
1
2
3
4
5
6
1074196_E
STANDARD PARTS
2-69
T7+ 9013336 (04- 2017)
Fig. 34 - Electrical Schematic, Standard, FaST & ec- H2O Models (S/N 12695- )
1
2
4
5
3
6
1074196_E
STANDARD PARTS
T7+ 9013336 (04- 2017)
2-70
Fig. 34 - Electrical Schematic, Standard, FaST & ec- H2O Models (S/N 12695- )
1074196_E
STANDARD PARTS
2-71
T7+ 9013336 (04- 2017)
Fig. 34 - Electrical Schematic, Standard, FaST & ec- H2O Models (S/N 12695- )
1074196_E
STANDARD PARTS
T7+ 9013336 (04- 2017)
2-72
Fig. 35 - Electrical Schematic, Standard, FaST & ec- H2O Models (S/N 11000- 12694)
1
2
3
4
5
6
1074196_D
STANDARD PARTS
2-73
T7+ 9013336 (04- 2017)
Fig. 35 - Electrical Schematic, Standard, FaST & ec- H2O Models (S/N 11000- 12694)
1
2
4
5
3
6
1074196_D
STANDARD PARTS
T7+ 9013336 (04- 2017)
2-74
Fig. 35 - Electrical Schematic, Standard, FaST & ec- H2O Models (S/N 11000- 12694)
1074196_D
STANDARD PARTS
2-75
T7+ 9013336 (04- 2017)
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-76
Fig. 36 - Electrical Schematic, Standard & FaST Model (S/N 10000- 10999)
1
2
3
4
5
1053088
STANDARD PARTS
2-77
T7+ 9013336 (08- 2014)
Fig. 36 - Electrical Schematic, Standard & FaST Model (S/N 10000- 10999)
1
2
3
4
5
1053088
STANDARD PARTS
T7+ 9013336 (08- 2014)
2-78
Fig. 37 - Electrical Schematic, ec-H2O Model (S/N 10000- 10999)
1
2
3
4
5
MTR3
MOTOR PM
P1-A P1-B
MTR1A
P1-1 P1-2
SOL2
P1-1 P2-1
6VDC
+--
CONN29
B
6VDC
+--
MTR5
MOTOR PM
P1-A
P1-B
SW1
CHARGER
P1-1 P2-1
A
6VDC
+--
S1
SW-EMERG
P1-1 P2-1
STANDOFF1
SW6
SW SPDT - 768529
P2-1
P1-1
P3-1 ON
ON
OFF
CONN1
A
CONN8A
A
SW3
SW SPST -MOM
P1-1 P2-1
6VDC
+--
MTR1B
P1-B P1-A
S2
HORN SW
P1-1 P2-1
SW2
SEAT SWITCH
P1-1 P2-1 CONN10B
B
U4
PROPEL1
J10-2
PROPEL2
J10-1
FLYBACK PATH
J6-13
+24VDC POWER
J11
MAIN CONT
J6-5
MAIN BRUSH
J8-1
MAIN BRUSH
J8-2
VAC A
J9-1
VAC B
J9-2
MAIN BRUSH
J8-3
MAIN BRUSH
J8-4
BRAKE OUTPUT
J6-27
WATER SOL
J6-4
SQUEEGEE
J6-12
SQUEEGEE
J6-9
HEAD
J6-23
HEAD
J6-21
PWR GND J7
SIGNAL J6-35
INTERLOCK J6-18
SOL LOW J6-8
REC FULL J6-20
THROTTLE SIG J6-34
REV J6-22
SEAT J6-7
HORN SW J6-10
BRAKE INPUT J6-33
LOGIC POWER
J6-24
1AMPLOWD
J6-17
CB2 P2-1
P1-1
SW4
SW SPST -MOM
P1-A P1-B
F1
FUSE 100A
MTR4
MOTOR PM
P1-A
P1-B
CONN11B
B
STANDOFF2
U2
GILL SENSOR
FWDP1-B
REV
P1-C
PWR
P1-A
GNDP1-D
MTR6
MOTOR PM
P1-A P1-B
D1 P1-M
P1-F+-
CB1
CRKT BRKR 5A
P2-1
P1-1
MTR2
MOTOR PM
P1-A
P1-B
M1A P6-1P5-1
M1B
P1-1
P2-1
P3-1 P4-1
SW5
SW SPST KEYSWITCH
P1-1 P2-1
27F/GRN 32D/ORA
42G/BRN
13C/BLK
4/YEL
42F/BRN
4B/YEL
1A/RED
1B/RED
30/TAN
3/ORA
28/GRY
17/PUR
42D/BRN
10/TAN
14C/YEL
32/BRN
27/PUR
24B/YEL
5A/GRN
42H/BRN
35/GRN
6A/BLU
19/WHT
6/BLU
14/YEL
8/GRY
5B/GRN
26/BLU
7/PUR
42C/BRN
5/GRN
14H/YEL
29/WHT
13A/BLK
20/TAN
16/BLU
42/BRN
31/PNK
18/GRY
42B/BRN
9/WHT
25/BLK
2/BRN
11/PNK
12/BRN
12BA/BRN
11BA/PNK
50/RED
13B/BLK
14B/YEL
14A/YEL 15/GRN
1/RED1/RED1/RED1/RED1/RED1/RED 13/BLK13/BLK13/BLK13/BLK13/BLK13/BLK13/BLK13/BLK13/BLK13/BLK
1.2 AMPS
30 AMP
1.6 FLA
10 FLA
30 AMP
CHARGER PLUG*
DIRECT
CONNECTION
FUSE TO
CONTACTOR
(+)STUDONBOARD
(-) STUD ON BOARD
+
120
P1-F
P1-M
D2
-
+
J6-11
FWD NOT USED
24/WHT
25B/GRN
PROPEL MOTOR
13S 13SS
NOTE: FRAME
GROUND, NOT
BATTERY GROUND
SEAT PLATE
GROUND
28BA/GRY 42BA/BRN
SOLENOID VALVE
CIRCUIT
BREAKER
15A
MAX.
MAX.
RETURN
INTERLOCK
PUSHBUTTON
AMP
LA
LB
RA
RB
SUPPLY
1054311
STANDARD PARTS
2-79
T7+ 9013336 (08- 2014)
Fig. 37 - Electrical Schematic, ec-H2O Model (S/N 10000- 10999)
1
2
3
4
5
LS1
HORN
P1-1 P2-1
H1
HOUR METER
+
P1-1
-
P2-1
HOUR METER
J6-14
ec-H2O/PWM 1
J6-25
+5vdc P6-1
SW4 P6-2
SW3 P6-3
SW5 P6-4
SW2 P6-5
SW6 P6-6
SW1 P6-7
SW7 P6-8
LED8 P6-9
OPEN P6-10
OPEN P6-11
LED16 P6-12
LED6 P6-13
LED15 P6-14
LED5 P6-15
LED14 P6-16
LED4 P6-17
LED13 P6-18
LED3 P6-19
LED12 P6-20
LED2 P6-21
LED11 P6-22
LED1 P6-23
LED10 P6-24
GND P6-25
LED9 P6-26
OPEN P6-27
LED17 P6-28
OPEN P6-29
LED18 P6-30
OPEN P6-31
OPEN P6-32
OPEN P6-33
OPEN P6-34
HORN
J6-15
UNUSED PWM 2
J6-26
LP1
FLASHING LAMP
P1-1 P2-1
SW7
LIGHT
P2-1
P1-1
23/ORG14F/YEL
21/PNK
22/BRN
14E/YEL 14BA/YEL
14D/YEL
13B/
TOUCH
PANEL
33BA/ORG 13BA/BLK
WATER HIGH
WATER DECREASE
ONESTEP
WATER DECREASE
ec-H2O
DOWN PRESSURE DECREASE
FAN
DOWN PRESSURE INCREASE
BATT4
DOWN PRESSURE LOW
BATT3
DOWN PRESSURE MEDIUM
BATT2
DOWN PRESSURE HIGH
BATT1
FAN LED
RECYCLE FULL
FaST LED
SOLUTION LOW
ONESTEPLED
WATER LOW
WATER MEDIUM
BATT5
ERROR
INDICATOR
F2
52 BRN
FUSE 10A
ec-H2O
CONTROL BOARD
ec-H2O FLUSH
SWITCH
ec-H2O MODULE
COMPONENTS
ec-H2O SYSTEM
PRESSURE SWITCH
ec-H2O ALARM
ec-H2O VALVE
SPARGER
CELL
SOLUTION PUMP
M7
LED
J6-1
J6-2
J6-3
J6-6
J6-5
J6-7
J6-4
J6-8
J5-11
J5-12
J5-10
J5-7
J5-6
J5-2
J5-1
J5-3
J5-9
J5-6
J5-5
J5-4
+24V
MODE
ALARM OUTPUT
PUMP OUTPUT
ENABLE
GND
PRESSURE
LED B
LED GND
LED A
SOL A
SOL B
SPA A
SPA B
CELL A
CELL B
54A/YEL
54B/YEL
64/YEL
74/YEL 101/PNK
104/YEL 105/GRN
105A/GRN
104A/YEL
C1
.01 uF
6/BLU
5/GRN
8/GRY
7/PUR
3/ORG
4/YEL
13/BLK
9/WHT
95/GRN
13V/BLK
88/GRY RED
BLK
GRN
99/WHT 13T/BLK
13X/BLK
13W/BLK
13Z/BLK
22/BRN
54/YEL
BLK
SWITCHES
1054311
STANDARD PARTS
T7+ 9013336 (06- 2015)
2-80
Fig. 38 - Wire Harnesses Group, Main
1
2
3
4
3
1073347
STANDARD PARTS
2-81
T7+ 9013336 (06- 2015)
Fig. 38 - Wire Harnesses Group, Main
1
1073347
STANDARD PARTS
T7+ 9013336 (06- 2015)
2-82
Fig. 38 - Wire Harnesses Group, Main
1
1073347
Ref. Part No. Description Qty.
o11073347 )Harness, Main [T7] 1
Y21047189 Connector, Mal, 3 Cav [Mp630] 1
Y31013835 Connector Body, Fem, 2 Recept.[Molex] 2
Y41051629 Connector, Fem, 4 Cav [Molex] 1
STANDARD PARTS
2-83
T7+ 9013336 (06- 2015)
Fig. 39 - Wire Harnesses Group, Tank
1
Ref. Part No. Description Qty.
11073338 )Harness, Tank [T7] 1
STANDARD PARTS
T7+ 9013336 (04- 2017)
2-84
Fig. 40 - Wire Harnesses Group, ec-H2O NanoClean (S/N 11000- )
1
2
3
Ref. Part No. Description Qty.
11074380 ©)Harness Assy, Wire [T7 Ec- H2o P3 Ce G2] 1
21047470 )Fuse, Blade, 010a, 32vdc, Red 1
31040868 )Capacitor, Plug [.01 Uf, 200v] 1
©Serial number (11000- )
STANDARD PARTS
2-85
T7+ 9013336 (03- 2016)
Fig. 41 - Wire Harnesses Group, ec-H2O (S/N 10000- 11000)
1
WIRE #54
WIRE #52
POSITION [B]
WIRE #105B
POSITION [B]
WIRE #104B
POSITION [A]
7.
7.
4.
7.
WIRE TERMINATION FOR ”N” PLUG
7.
POSITION# WIRE #
113V
295
388
422
513W
613X
7101
8105
999
10 64
11 54A
12 54B
7.
6
E
E
E
7.
E
E
101
74
01
01
AB
C
D
A
B
N
52
GF
2X 40
200
2X 100
150
2X 200
400
NEGATIVE
STAND-OFF
P
2X 30
105
104
105B
105A
104A
104B
O
O104A
105A
H
H
H
88
95
13V
54
13Z
54A
54B
64
13X
13W
80
3X 100
1600
O
O
13T
2X 50
500
300
K
VV
670
104
2X 50
74
100
#22
POSITION B
B
A
M
SOLUTIO
N
PUMP
FILTER
CAPACITOR
MAIN HARNESS
CONNECTION
(ENABLE SIGNAL)
LED
MAIN
CONTACTOR
PRESSURE
SWITCH
ALARM
ec-H2O
MODULE
N.C.
I
13T 13Z
100
100
101
74
100
99
104B
105B
CONNECTOR END VIEW
WITH WIRE LOCATION
(COMPONENT END OF CONNECTOR)
30.012X
POSITION [A]
2
3
1050394
Ref. Part No. Description Qty.
11051053 ¡)Harness Assy, Wire [T7 Ec- H2o, P3 Ce] 1
21047470 )Fuse, Blade, 010a, 32vdc, Red 1
31040868 )Capacitor, Plug [.01 Uf, 200v] 1
¡Serial number (10000- 10999)
STANDARD PARTS
T7+ 9013336 (06- 2015)
2-86
Fig. 42 - Wire Harnesses Group, ec-H2O NanoClean Main Control Board (S/N 11000- )
1
Ref. Part No. Description Qty.
11073286 ©)Harness, Ele, Module B2 [Ec- H2o] 1
©Serial number (11000- )
STANDARD PARTS
2-87
T7+ 9013336 (06- 2015)
Fig. 43 - Wire Harnesses Group, ec-H2O Main Control Board (S/N 10000- 10999)
1
Ref. Part No. Description Qty.
11049489 ¡)Harness, Main,Controlboard[Ec- H2o 5cell] 1
¡Serial number (10000- 10999)
STANDARD PARTS
T7+ 9013336 (04- 2017)
2-88

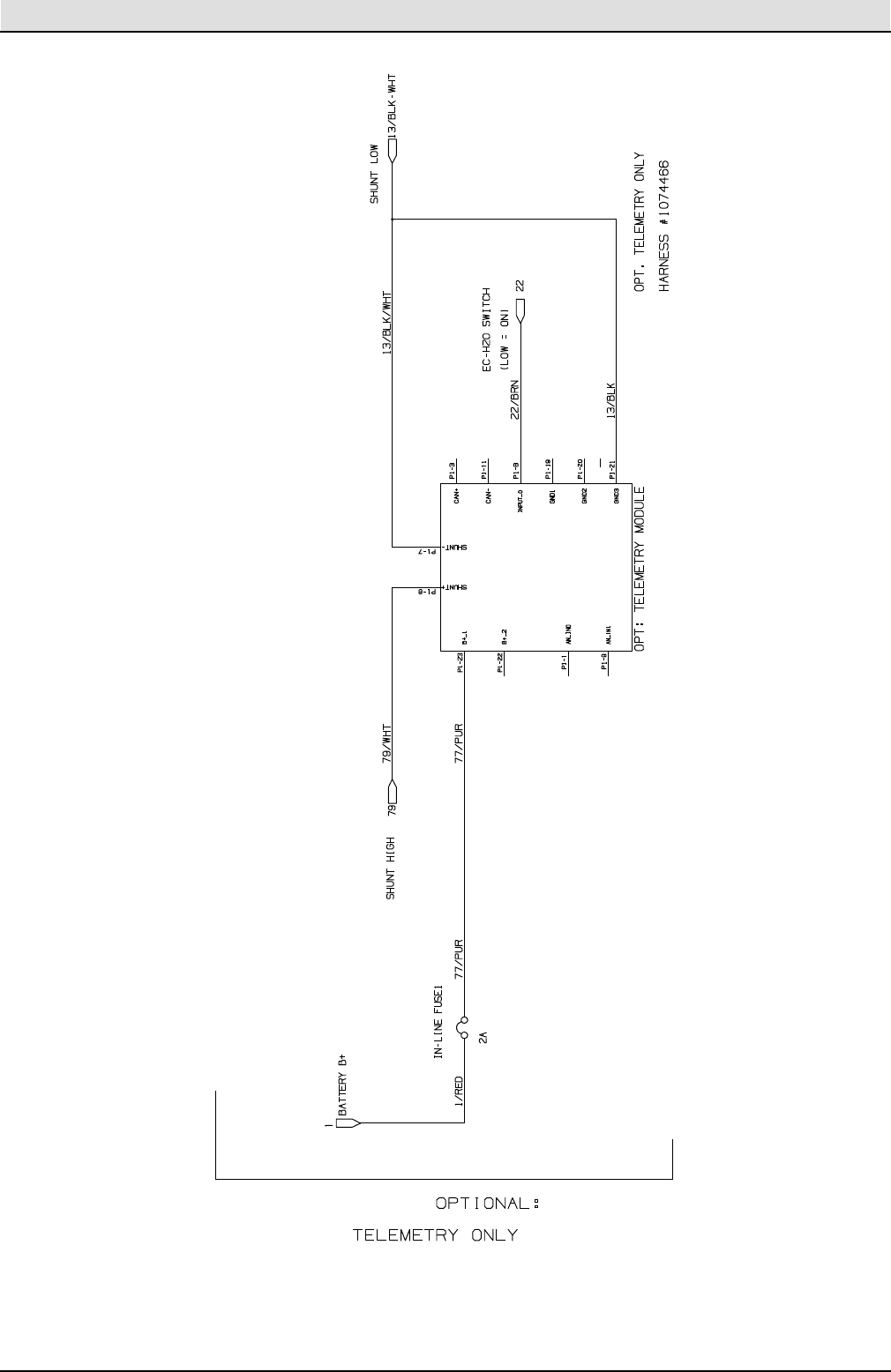

Fig. 44 - Wire Harnesses Group, Iris Telemetry
1
STANDARD PARTS
2-89
T7+ 9013336 (06- 2015)
Fig. 44 - Wire Harnesses Group, Iris Telemetry
Ref. Part No. Description Qty.
o11074466 ¡)Harness, Ele, Telem [T7] 1
Y9009990 ¡Vr, Fuse, 002a, 250vdc, Cartridge 1
¡Serial number (11000- )
STANDARD PARTS
T7+ 9013336 (04- 2017)
2-90
Fig. 45 - Cable Assembly, Iris Telemetry
1
Ref. Part No. Description Qty.
11075477 ¡)Cable, Assy, Telem [T7, Sbs- brn] 1
¡Serial number (12695- )
STANDARD PARTS
2-91
T7+ 9013336 (06- 2015)
Fig. 46 - Label Group
2
1
1
1
1
1
1
3
4
1
5
6
Ref. Part No. Description Qty.
11019559 )Label Set, Info/Hzrd, Ce 1
21074272 Label, Model [T7+] 2
21056545 Label, Model, Side [T7 Fast] 2
31213114 Label, Logo, 05.5l, Blk/Sil [Tennant] 1
41047747 Label, Logo, 06.9l, White, Hg, [Tennant] 1
51216520 ©Label, Logo [Ech2o Nano] 2
51062813 ¡Label, Logo, 12.3l 4color [Ec- H2o] 2
51062814 Label, Logo, 06.1l White / Tl [Fast] 2
61050003 Label [User, Attention, Ec- H2o] 1
6391451 Label [Attention Fast Users, 5400s] 1
¡Serial number (10000- 10999)
©Serial number (11000- )
STANDARD PARTS
T7+ 9013336 (04- 2017)
2-92
OPTIONS
3-1
T7+ 9013336 (04- 2017)
SECTION 3
Contents Page
Fig. 1 - FaST Group, Disk Scrub Head 3-2.........
Fig. 2 - FaST Group, Cylindrical Scrub Head 3-4...
Fig. 3 - ec-H2O NanoClean Group, Disc Scrub Head
(S/N 11000- ) 3-6.................
Fig. 4 - ec-H2O Group, Disc Scrub Head
(S/N 10000- 10999) 3-8.................
Fig. 5 - ec-H2O NanoClean Group, Cylindrical
Scrub Head (S/N 11000- ) 3-10.....
Fig. 6 - ec-H2O Group, Cylindrical Scrub Head
(S/N 10000- 10999) 3-12................
Fig. 7 - Iris Telemetry Group (S/N 11000 - )3-14
Fig. 8 - Kit, Iris Telemetry Battery Manager 3-16....
Fig. 9 - Battery Charger, On- Board
(S/N 11773- ) 3-18...............
Fig. 10 - Battery Charger, On- Board
(S/N 10000 - 11772) 3-20...............
Fig. 11 - Battery Group, 360Ah/5H 3-22...........
Fig. 12 - Battery and Charger Group 255Ah/5H 3-23
Fig. 13 - Battery and Charger Group 240Ah/5H 3-24
Fig. 14 - Battery and Charger Group 180Ah/5H 3-25
Fig. 15 - Battery and Charger Group
24V/275Ah/5H 3-26....................
Fig. 16 - Battery and Charger Group
24V/240Ah/5H 3-27....................
Fig. 17 - Battery and Charger Group
24V/300Ah/5H 3-28....................
Fig. 18 - Flashing Light Group 3-29...............
Fig. 19 - Documentation Group 3-30..............
OPTIONS
T7+ 9013336 (08- 2014)
3-2
Fig. 1 - FaST Group, Disk Scrub Head
2
3
4
6
7
8
9
10
1
11
12
13
14
15
16
17
18
20
33
34
22
23
24
25
26
27
3
5
32
31
28
30
33
33
33
18
19
29 19
20
21
21
OPTIONS
3-3
T7+ 9013336 (08- 2014)
Fig. 1 - FaST Group, Disk Scrub Head
Ref. Part No. Description Qty.
1999005 )Cleaner, Floor, Neutral [365 Fast 2x2l] 1
1995999 Detergent, Hd [Fast, 965, 2x2 L] 1
21014420 Box, Holder Ce [Fast] 1
31016553 Seal, Rbr 2
41002898 Fitting, Plstc, Str, Bm04, Cplg, Fem 1
530013 Washer, Flat, 0.31 Fender 1
o61014282 Pump, Soltn, Ele, 24vdc 1
Y9001240 Pump Kit, Head, Soltn 1
764778 Fitting, Plstc, E90, Bm08/Pm06 1
824584 Fitting, Brs, E90, Pm06/Pf06 Special 1
924698 Fitting, Brs, Str, Pf02/Pm06 1
10 26426 Fitting, Brs, Tee, Pf02/Pm02/Pm02 1
11 1005564 Fitting, Plstc, E90, Bm06/Pm02, Nyl 1
12 1017386 Valve, Air Vent, Float Type 1
13 43555 Clamp, Hose, Wormdrive, 1.62- 3.50d, .56w 1
14 1014617 Bracket, Pump, Soltn 1
15 09740 Screw, Hex, M8 X 1.25 X 20, Ss 2
16 01685 Washer, Flat, 0.31 Ss 2
17 1015455 Valve, Check, Bm06/Bm06, 5psi 1
18 607775 Clamp, Hose, Wire, .63 - .66, Blk 2
19 573073 Clip, Grip, Hose, 1.00- 1.38, Zn 1
20 1016520 Screw, Hex, M4 X 0.7 16 Fmg, Ss 2
21 613735 Clamp, Hose, Wir, .40 - .42, Yel 2
22 1006400 Hose, Afmkt, Pvc, Brd 0.38id 3ft 1
23 1006415 Hose, Afmkt, Pvc, Clr 0.25id 3ft 1
24 18188 Bracket, Spring 1
25 1018504 Spring, Extn, 0.50od X 0.04wir, 4.0l 1
26 26395- 2 Clamp, Cable, Stl, 0.38d X 0.38w, 1h 1
27 56799 Rivet, Blind, .125d X 0.38 X .25d, Alm 1
28 02892 Washer, Flat, 0.12b 0.38d .03, Stl, Pl 1
29 9008885 Fast Kit, Injector, Ci[T7/Ssr/T16 Fast3] (See Breakdown) 1
30 10632- 13 Grommet, Rbr, 1.50id, F/ 1.8h, .19matl 1
31 1002899 Fitting, Plstc, Str, Pm04, Cplg, Mal 1
32 1005435 Fitting, Plstc, Pipe, Cap, Pf04 1
33 54333 Clamp, Hose, Wormdrive, 0.31- 0.88d, .31w 4
34 1014974 Hose, Afmkt, Pvc, Brd 0.38id 2ft 1
OPTIONS
T7+ 9013336 (08- 2014)
3-4
Fig. 2 - FaST Group, Cylindrical Scrub Head
1
2
9
4
10
22
16
27
16
13
30
29
32
27
36
15
38
31
19
2
15
37
20
14
18
28 3
11
21
26 36
35
27
28
27
33 8
34
27
27
27
12
5
6
7
23 24
31 23
24
25
17 17
OPTIONS
3-5
T7+ 9013336 (08- 2014)
Fig. 2 - FaST Group, Cylindrical Scrub Head
Ref. Part No. Description Qty.
11014420 )Box, Holder Ce [Fast] 1
2 1016553 Seal, Rbr 2
o3 1014282 Pump, Soltn, Ele, 24vdc 1
Y9001240 Pump Kit, Head, Soltn 1
4 64778 Fitting, Plstc, E90, Bm08/Pm06 1
524584 Fitting, Brs, E90, Pm06/Pf06 Special 1
6 24698 Fitting, Brs, Str, Pf02/Pm06 1
7 26426 Fitting, Brs, Tee, Pf02/Pm02/Pm02 1
8 1005564 Fitting, Plstc, E90, Bm06/Pm02, Nyl 1
9 1017386 Valve, Air Vent, Float Type 1
10 43555 Clamp, Hose, Wormdrive, 1.62- 3.50d, .56w 1
11 1029095 Bracket, Pump, Solution 1
12 09740 Screw, Hex, M8 X 1.25 X 20, Ss 2
13 01685 Washer, Flat, 0.31, Ss 2
14 1015455 Valve, Check, Bm06/Bm06, 5psi 1
15 607775 Clamp, Hose, Wir, .63 - .66, Blk 2
16 573073 Clip, Grip, Hose, 1.00- 1.38, Zn 3
17 613735 Clamp, Hose, Wir, .40 - .42, Yel 2
18 1015486 Fitting, Plstc, Tee, Bm08/Bm10/Bm10, Br 1
19 30013 Washer, Flat, 0.31, Fendr 1
20 1002898 Fitting, Plstc, Str, Bm04, Cplg, Fem 1
21 1002899 Fitting, Plstc, Str, Pm04, Cplg, Mal 1
22 999005 Cleaner, Floor, Neutral [365 Fast 2x2l] 1
22 995999 Detergent, Hd [Fast, 965, 2x2 L] 1
23 140011 Washer, Flat, 0.21b 0.45d .03, Ss 3
24 33932 Nut, Hex, Lock, M4 X 0.70, Nl, Ss 3
25 9008885 Fast Kit, Injector, Ci[T7/Ssr/T16 Fast3] (See Breakdown) 1
26 1005435 Fitting, Plstc, Pipe, Cap, Pf04 1
27 54333 Clamp, Hose, Wormdrive, 0.31- 0.88d, .31w 9
28 1014971 Hose, Afmkt, Pvc, Brd, 0.38id, 01ft, Clr 3
29 1011403 Hose, Afmkt, Pvc, Brd, 0.50id, 01ft, Clr 1
30 1015033 Hose, Afmkt, Pvc, Brd 0.62id 01ft 1
31 607006 Screw, Trs, M4 X 0.70 X 12, Phl, Pl 3
32 1015026 Hose, Afmkt, Pvc, Brd 0.62id 03ft 1
33 18188 Bracket, Spring 1
34 1018504 Spring, Extn, 0.50od X 0.04wir, 4.0l 1
35 26395- 2 Clamp, Cable, Stl, 0.38d X 0.38w, 1h 1
36 02892 Washer, Flat, 0.12b 0.38d .03, Stl, Pl 2
37 1021677 Rivet, Blind, .154d X 0.55 X .38d, Ss 1
38 1014985 Hose, Afmkt, Pvc, Clr 0.25id 08ft 1
OPTIONS
T7+ 9013336 (04- 2017)
3-6
Fig. 3 - ec-H2O NanoClean Group, Disc Scrub Head (S/N 11000- )
32
33 34
35
36
37
12
2
4
3
7
8
37
9
4
10
14
10 12
38
10
28
29
10
6
10
29
11
13
29
29
28
5
30
31
22
18
18
15
16
17 23
21
20
19
24
24
25
26
39
39
27
OPTIONS
3-7
T7+ 9013336 (06- 2015)
Fig. 3 - ec-H2O NanoClean Group, Disc Scrub Head (S/N 11000- )
Ref. Part No. Description Qty.
108713 )Nut, Hex, Lock, M8 X 1.25, Nl, Ss 2
21017218 Washer, Flat, 0.32b 1.00d .12, Ss 4
31051138 Bracket, Cover, Fast Opng [T7 Ec- H2o] 1
409740 Screw, Hex, M8 X 1.25 X 20, Ss 3
59013646 ©Cartridge, Ec- H2o Nanoclean Wcm, 270ml 1
601685 Washer, Flat, 0.38b 0.88d .08, Ss 1
71034731 Screw, Hex, M6 X 1.00 X 16, Ss, Sems 2
81216192 ©Bracket, Module, Ec- H20 [T7] 1
99011810 ©Module Kit, Replmt [Ec- H2o, B 02] (See Breakdowns) 1
10 603654 ©Clamp, Hose, Ear, .44d [Ctb] 6
11 150713 Fitting, Plstc, Tee, Bm04/Bm04/Bm04 1
12 575523000 Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr 1
13 150520 Fitting, Brs, Str, Bm04/Pf02 1
14 1044415 Switch, Press, 20psi, Pm02 1
15 1215186 ©Fitting, Plstc, E90, Qf06/Qm06 1
16 9014146 ©Hose, Afmkt, Pvc, 0.06id .38od, 05ft 1
17 1212573 ©Fitting, Plstc, Tee, Qf06/Qf06/Qf06 1
18 1014987 ©Hose, Afmkt, Pvc, Clr, 0.25id, 01ft 1
19 1214339 ©Fitting, Plstc, E90, Qfo4/Qm04 1
20 9014147 ©Hose, Afmkt, Pvc, 0.06id .25od, 05ft 1
21 1214339 ©Fitting, Plstc, E90, Qfo4/Qm04 1
22 613735 Clamp, Hose, Wir, .40 - .42, Yel 1
23 1216973 ©Pump Assy, Dispenser 1
24 9014210 ©Hose, Afmkt, Pvc, Brd .25id .44od, 05ft 1
25 1212855 ©Fitting, Plstc, Tee, Qf04/Qf06/Qf06 1
26 1215186 ©Fitting, Plstc, E90, Qf06/Qm06 1
27 1006400 ©Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, Clr 1
28 20950 ©Fitting, Plstc, Str, Bm06/Bm06 2
29 607775 ©Clamp, Hose, Wir, .63 - .66, Blk 4
30 1216879 ©Valve, Check, 0005psi Bm04/Bm04 1
31 150417 ©Fitting, Plstc, E90, Bm04/Pm06 1
o32 1042592 Pump, Soltn, Ele, 24vdc, 35psi [Ce] 1
Y1020021 Connector, Cap, Superseal 1.5, Replmt 1
33 64778 Fitting, Plstc, E90, Bm08/Pm06 1
34 54333 Clamp, Hose, Wormdrive, 0.31- 0.88d, .31w 1
35 1014617 Bracket, Pump, Soltn 1
36 43555 Clamp, Hose, Wormdrive, 2.50- 3.50d, .50w 1
37 1020341 Screw, Hex, M8 X 1.25 X 20, Ss, Sems 3
38 10632- 13 Grommet, Rbr, 1.50id, F/1.8h, .19 Matl 1
39 130773 ©Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D 3
©Serial number (11000- )
OPTIONS
T7+ 9013336 (06- 2015)
3-8
Fig. 4 - ec-H2O Group, Disc Scrub Head (S/N 10000- 10999)
12
2
4
3
5
7
8
4
6
94
6
10
10
11 10
12
10 13
14
16
17
16
18
19
15
10
20
21
22
20
23
24
25
26
10
27
10 28
29
31
10
10
3225
30
33
16
31
10
34
35
36
37
38 39
40 41
42
43
4
6
44
OPTIONS
3-9
T7+ 9013336 (06- 2015)
Fig. 4 - ec-H2O Group, Disc Scrub Head (S/N 10000- 10999)
Ref. Part No. Description Qty.
108713 )Nut, Hex, Lock, M8 X 1.25, Nl, Ss 2
21017218 Washer, Flat, 0.32b 1.00d .12, Ss 4
31051138 Bracket, Cover, Fast Opng [T7 Ec- H2o] 1
409740 ¡Screw, Hex, M8 X 1.25 X 20, Ss 6
51052726 ¡Alarm, 9- 48vdc, 95 Db(A) [Ec- H20] 1
601685 ¡Washer, Flat, 0.38b 0.88d .08, Ss 4
71034731 Screw, Hex, M6 X 1.00 X 16, Ss, Sems 2
81050052 ¡Bracket, Module, Ec- H2o [T7] 1
99007970 ¡Module Kit, Replmt [Ec- H2o] (See Breakdown) 1
10 603654 ¡Clamp, Hose, Ear, .44d [Ctb] 11
11 150713 Fitting, Plstc, Tee, Bm04/Bm04/Bm04 1
12 575523000 Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr 1
13 150520 Fitting, Brs, Str, Bm04/Pf02 1
14 1044415 Switch, Press, 20psi, Pm02 1
15 575523000 Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr 1
16 613735 ¡Clamp, Hose, Wir, .40 - .42, Yel 3
17 1052705 ¡Fitting, Plstc, Str, Bm04/Bm04 1
18 1006415 ¡Hose, Afmkt, Pvc, Clr, 0.25id, 03ft 1
19 575523000 ¡Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr 1
20 1011170 ¡Fitting, Plstc, E90, Bm04/Pm04, Nyl 2
o21 1043866 ¡Fitting Assy, Qdc, Pf04 1
Y22 1047655 ¡Washer, Flat, 0.40b 0.75d .12 [Viton] 1
23 607006 ¡Screw, Trs, M4 X 0.70 X 12, Phl, Pl 1
24 140011 ¡Washer, Flat, 0.21b 0.45d .03, Ss 1
25 1014295 ¡Clip, Grip, Hose, 0.75- 1.12, Stl,Blk Vyl 3
26 33932 ¡Nut, Hex, Lock, M4 X 0.70, Nl, Ss 1
27 575523000 ¡Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr 1
28 1039557 ¡Fitting, Plstc, Str, Bm04/Bm06 1
29 43844 ¡Clamp, Hose, Wormdrive, 0.25- 0.62d, .31w 1
30 1016520 ¡Screw, Hex, M4 X 0.70 X 16, Fmg, Ss 2
31 607306 ¡Fitting, Plstc, Tee, Bm04/Bm04/Pm04, Br 2
32 150302 ¡Fitting, Brs, Str, Pf04/Pf04 1
33 1044790 ¡Valve, Check, 0025psi Pm04/Pf04 1
34 1037595 ¡Fitting, Plstc, E90, Bm04/Pm02, Nyl 1
35 26426 ¡Fitting, Brs, Tee, Pf02/Pf02/Pm02, Run 1
36 1017386 ¡Valve, Vent, Air, Float Type 1
37 24698 ¡Fitting, Brs, Str, Pf02/Pm06 1
38 24584 ¡Fitting, Brs, E90, Pf06/Pm06, Spcl 1
o39 1042592 Pump, Soltn, Ele, 24vdc, 35psi [Ce] 1
Y1020021 Connector, Cap, Superseal 1.5, Replmt 1
40 64778 Fitting, Plstc, E90, Bm08/Pm06 1
41 54333 Clamp, Hose, Wormdrive, 0.31- 0.88d, .31w 1
42 1014617 Bracket, Pump, Soltn 1
43 43555 Clamp, Hose, Wormdrive, 2.50- 3.50d, .50w 1
44 10632- 13 Grommet, Rbr, 1.50id, F/1.8h, .19 Matl 1
¡Serial number (10000- 10999)
OPTIONS
T7+ 9013336 (04- 2017)
3-10
Fig. 5 - ec-H2O NanoClean Group, Cylindrical Scrub Head (S/N 11000- )
12
2
4
3
7
8
39
9
4
10
14
10 12
42
10
44
29
30
30
31
32 30
35
33
34
36
37
39
38
10
6
30
30
30
10
29
11
13
29
29
28
5
40
41
22
18
18
15
16
17 23
21
20
19
24
24
25
26
43
43
27
OPTIONS
3-11
T7+ 9013336 (03- 2016)
Fig. 5 - ec-H2O NanoClean Group, Cylindrical Scrub Head (S/N 11000- )
Ref. Part No. Description Qty.
108713 )Nut, Hex, Lock, M8 X 1.25, Nl, Ss 2
21017218 Washer, Flat, 0.32b 1.00d .12, Ss 4
31051138 Bracket, Cover, Fast Opng [T7 Ec- H2o] 1
409740 ©Screw, Hex, M8 X 1.25 X 20, Ss 3
59013646 ©Cartridge, Ec- H2o Nanoclean Wcm, 270ml 1
601685 ©Washer, Flat, 0.38b 0.88d .08, Ss 1
71034731 Screw, Hex, M6 X 1.00 X 16, Ss, Sems 2
81216192 ©Bracket, Module, Ec- H20 [T7] 1
99011810 ©Module Kit, Replmt [Ec- H2o, B 02] (See Breakdowns) 1
10 603654 ©Clamp, Hose, Ear, .44d [Ctb] 5
11 150713 Fitting, Plstc, Tee, Bm04/Bm04/Bm04 1
12 575523000 Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr 1
13 150520 Fitting, Brs, Str, Bm04/Pf02 1
14 1044415 Switch, Press, 20psi, Pm02 1
15 1215186 ©Fitting, Plstc, E90, Qf06/Qm06 1
16 9014146 ©Hose, Afmkt, Pvc, 0.06id .38od, 05ft 1
17 1212573 ©Fitting, Plstc, Tee, Qf06/Qf06/Qf06 1
18 1014987 ©Hose, Afmkt, Pvc, Clr, 0.25id, 01ft 1
19 1214339 ©Fitting, Plstc, E90, Qfo4/Qm04 1
20 9014147 ©Hose, Afmkt, Pvc, 0.06id .25od, 05ft 1
21 1214339 ©Fitting, Plstc, E90, Qfo4/Qm04 1
22 613735 Clamp, Hose, Wir, .40 - .42, Yel 1
23 1216973 ©Pump Assy, Dispenser 1
24 9014210 ©Hose , Afmkt, Pvc, Brd .25id .44od, 05ft 1
25 1212855 ©Fitting, Plstc, Tee, Qf04/Qf06/Qf06 1
26 1215186 ©Fitting, Plstc, E90, Qf06/Qm06 1
27 1006400 ©Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, Clr 1
28 20950 ©Fitting, Plstc, Str, Bm06/Bm06 1
29 607775 ©Clamp, Hose, Wir, .63 - .66, Blk 4
30 54333 Clamp, Hose, Wormdrive, 0.31- 0.88d, .31w 6
31 1015026 Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, Clr 1
32 1015486 Fitting, Plstc, Tee, Bm08/Bm10/Bm10, Br 1
33 1031304 Hose, Pump (376716) 1
34 64778 Fitting, Plstc, E90, Bm08/Pm06 1
35 1031738 Hose, Pvc, Brd, 0.62id 0.88od [C460117] 1
36 43555 Clamp, Hose, Wormdrive, 2.50- 3.50d, .50w 1
o37 1042592 Pump, Soltn, Ele, 24vdc, 35psi [Ce] 1
Y1020021 Connector, Cap, Superseal 1.5, Replmt 1
38 1029095 Bracket, Pump, Soltn 1
39 1020341 Screw, Hex, M8 X 1.25 X 20, Ss, Sems 3
40 1216879 ©Valve, Check, 0005psi Bm04/Bm04 1
41 150417 ©Fitting, Plstc, E90, Bm04/Pm06 1
42 10632- 13 Grommet, Rbr, 1.50id, F/1.8h, .19 Matl 1
43 130773 ©Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D 3
44 20951 ©Fitting, Plstc, E90, Bm06/Bm06 1
©Serial number (11000- )
OPTIONS
T7+ 9013336 (06- 2015)
3-12
Fig. 6 - ec-H2O Group, Cylindrical Scrub Head (S/N 10000- 10999)
12
2
4
3
5
7
8
4
6
94
6
10
10
11 10
12
13 14 15
45
10
16
16
17
18
19
20 10
21
22
10
23
10
24
25
26
24 10
27
10
28
29
30
30
31
32
30
35
33
34
36
37
40
41
4
6
38
39
42
43
44
10
OPTIONS
3-13
T7+ 9013336 (06- 2015)
Fig. 6 - ec-H2O Group, Cylindrical Scrub Head (S/N 10000- 10999)
Ref. Part No. Description Qty.
108713 )Nut, Hex, Lock, M8 X 1.25, Nl, Ss 2
21017218 Washer, Flat, 0.32b 1.00d .12, Ss 4
31051138 Bracket, Cover, Fast Opng [T7 Ec- H2o] 1
409740 ¡Screw, Hex, M8 X 1.25 X 20, Ss 6
51052726 ¡Alarm, 9- 48vdc, 95 Db(A) [Ec- H20] 1
601685 ¡Washer, Flat, 0.38b 0.88d .08, Ss 4
71034731 Screw, Hex, M6 X 1.00 X 16, Ss, Sems 2
81050052 ¡Bracket, Module, Ec- H2o [T7] 1
99007970 ¡Module Kit, Replmt [Ec- H2o] (See Breakdown) 1
10 603654 ¡Clamp, Hose, Ear, .44d [Ctb] 11
11 150713 Fitting, Plstc, Tee, Bm04/Bm04/Bm04 1
12 575523000 Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr 1
13 150520 Fitting, Brs, Str, Bm04/Pf02 1
14 1044415 Switch, Press, 20psi, Pm02 1
15 575523000 Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr 1
16 607306 ¡Fitting, Plstc, Tee, Bm04/Bm04/Pm04, Br 2
17 150302 ¡Fitting, Brs, Str, Pf04/Pf04 1
18 1014295 ¡Clip, Grip, Hose, 0.75- 1.12, Stl,Blk Vyl 1
19 607006 ¡Screw, Trs, M4 X 0.70 X 12, Phl, Pl 1
20 33932 ¡Nut, Hex, Lock, M4 X 0.70, Nl, Ss 1
21 1044790 ¡Valve, Check, 0025psi Pm04/Pf04 1
22 613735 ¡Clamp, Hose, Wir, .40 - .42, Yel 1
23 575523000 ¡Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr 1
24 50901 ¡Fitting, Plstc, Str, Bm04/Pm04 1
o25 1043866 ¡Fitting Assy, Qdc, Pf04 1
Y26 1047655 ¡Washer, Flat, 0.40b 0.75d .12 [Viton] 1
27 575523000 ¡Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr 1
28 1039557 ¡Fitting, Plstc, Str, Bm04/Bm06 1
29 43844 ¡Clamp, Hose, Wormdrive, 0.25- 0.62d, .31w 1
30 54333 Clamp, Hose, Wormdrive, 0.31- 0.88d, .31w 6
31 1015026 Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, Clr 1
32 1015486 Fitting, Plstc, Tee, Bm08/Bm10/Bm10, Br 1
33 1031304 Hose, Pump (376716) 1
34 64778 Fitting, Plstc, E90, Bm08/Pm06 1
35 1031738 Hose, Pvc, Brd, 0.62id 0.88od [C460117] 1
36 43555 Clamp, Hose, Wormdrive, 2.50- 3.50d, .50w 1
o37 1042592 Pump, Soltn, Ele, 24vdc, 35psi [Ce] 1
Y1020021 Connector, Cap, Superseal 1.5, Replmt 1
38 1029095 Bracket, Pump, Soltn 1
39 575523000 ¡Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr 1
40 24584 ¡Fitting, Brs, E90, Pf06/Pm06, Spcl 1
41 24698 ¡Fitting, Brs, Str, Pf02/Pm06 1
42 26426 ¡Fitting, Brs, Tee, Pf02/Pf02/Pm02, Run 1
43 1017386 ¡Valve, Vent, Air, Float Type 1
44 1037595 ¡Fitting, Plstc, E90, Bm04/Pm02, Nyl 1
45 10632- 13 Grommet, Rbr, 1.50id, F/1.8h, .19 Matl 1
¡Serial number (10000- 10999)
OPTIONS
T7+ 9013336 (04- 2017)
3-14
Fig. 7 - Iris Telemetry Group (S/N 11000 - )
1
23
4
5
6
6
6
6
7
8
9
10
11
12
13
14
6
16
17
18
20
21
15
19
OPTIONS
3-15
T7+ 9013336 (04- 2017)
355345
Fig. 7 - Iris Telemetry Group (S/N 11000 - )
Ref. Part No. Description Qty.
11218315 ¡)Guard Wldt, Controlbox 1
21216835 ¡Cover, Guard 1
39010086 ¡Control Box Assy Kit, Replmt, Telem[Intl] 1
41036892 ¡Screw, Hex, M6 X 1.00 X 25, 9.8, Sems 4
51070659 ¡Antenna, Telem, 70 In [Gprs] 1
6130773 ¡Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D 15
71215943 ¡Bracket, Shunt 1
81217304 ¡Shunt [Empro, 250amp/50mv, Metric] 1
9391403 ¡Screw, Pan, Phl, M4 X 0.70 X 8, Ss 2
10 02938 ¡Washer, Lock, Int, 08, Ss 2
11 41578 ¡Washer, Flat, 06, Ss 2
12 15675 ¡Screw, Hex, M8 X 1.25 X 16, Ss 2
13 01685 ¡Washer, Flat, 0.38b 0.88d .08, Ss 2
14 43952 ¡Washer, Lock, Int, 0.31, Ss 2
15 1202868 ¡Clip, Tie, 0.25D, Plstc 2
o16 1074648 ¡Cable Assy, 04ga M8 Ring / M8 Ring, 175a 1
Y605387 ¡Connector, Anderson, 050a, Red [W/O Con] 1
17 1074649 ¡Cable, 04ga 13.8l Blk M6 Ring / M8 Ring 1
18 1074595 ¡Harness, Ele [Telem, Shunt] 1
19 1202868 ¡Clip, Tie, 0.25d, Plstc 4
20 1217818 ¡Heatshrink [1.5” Dia., 7.0” Sections] 1
o21 1074466 ¡Harness, Ele, [Telem, T7] 1
Y9009990 ¡Fuse, 002a, 250vdc, Cartridge 1
¡Serial number (11000- )
OPTIONS
T7+ 9013336 (04- 2017)
3-16
Fig. 8 - Kit, Iris Telemetry Battery Manager
1
2
3
4
5
6
7
8
9
10
11
12
OPTIONS
3-17
T7+ 9013336 (04- 2017)
355587
Fig. 8 - Kit, Iris Telemetry Battery Manager
Ref. Part No. Description Qty.
o9015933 ¡Harness Kit, Amii, Ci [T7 Emea] (Kit Needed to Add Battery Manager
Functionality to Iris Telemetry Models) 1
Y11075477 ©Cable, Assy, Telem [T7, Sbs- Brn] 1
Y2579211 ©Nut, Hex, Lock, M3 X 0.50, Nl, Ss 2
Y306922 ©Screw, Pan, Phl, M3 X 0.50 X 20, 4.8 2
Y41230748 ©Bracket, Switch, Charger [T7,Tnv] 1
Y506923 ©Screw, Pan, Phl, M3 X 0.50 X 25, 4.8 2
Y61017218 ©Washer, Flat, 0.32b 1.00d .12, Ss 1
Y71034731 ©Screw, Hex, M6 X 1.00 X 16, Sems, Ss 1
Y8611005 ©Switch, Rlr, 16a, Micro 1
Y9995585 ©Plate, Thread, Switch 1
Y10 130773 ©Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D 5
Y11 1230312 ©Charger, 24vdc, 650w,100- 240vac[Off Brd]
(Models With Iris Battery Manager Functionality Only) 1
12 1041716 ©Cable, Charger Uk, Bc5 Bc7 (Uk)
(Not Included In Kit - Use Cord From Current Off- Board Charger) 1
¡Serial number (11000- )
©Serial number (12695- )
OPTIONS
T7+ 9013336 (03- 2016)
3-18
Fig. 9 - Battery Charger, On- Board (S/N 11773- )
5
4
6
5
7
3
2
1
3
6
7
8
9
OPTIONS
3-19
T7+ 9013336 (03- 2016)
Fig. 9 - Battery Charger, On- Board (S/N 11773- )
Ref. Part No. Description Qty.
11075221 ©)Charger, 24vdc 25a 230vac [Wet/gel][Eu] 1
21031180 ©Bracket, Chrgr 2
31034731 ©Screw, Hex, M6 X 1.00 X 16, Ss, Sems 4
406549 ©Nut, Hex, Lock, M5 X 0.80, Nl 4
5230920.BK ©Hook, Cord, Blk [Boss] 2
606933 ©Screw, Pan, M5 X 0.80 X 16, 4.8 4
701684 ©Washer, Flat, 0.27b 0.69d .05, Ss 4
810632- 13 ©Grommet, Rbr, 1.50id, F/1.8h, .19 Matl 1
91032849 ©Cord, Power, Blk [4.5meter, Ce] 1
91032820 ©Cord, Power, Blk [4.5meter, Uk] 1
©Serial number (11773- )
OPTIONS
T7+ 9013336 (03- 2016)
3-20
Fig. 10 - Battery Charger, On- Board (S/N 10000 - 11772)
2
3
4
5
9
1
1
6
7
8
10 11 12
13
12
OPTIONS
3-21
T7+ 9013336 (03- 2016)
Fig. 10 - Battery Charger, On- Board (S/N 10000 - 11772)
Ref. Part No. Description Qty.
110632- 19 ¡)Grommet, Rbr, 2.13id, F/2.5h, .12 Matl 2
2 1037762 ¡Isolator, Vib, 15mmd, M4 H, M4 Stud 4
o3 1032388 ¡Charger, 24vdc, 20a 230vac 50/60hz 1
Y4 1033516 ¡Harness Assy, Light, Chrgr, Tnv [T7] 1
o3 1033793 ¡Charger, 24vdc 20a 230vac [Uk] 1
Y41033516 ¡Harness Assy, Light, Chrgr, Tnv [T7] 1
5 1033415 ¡Bracket, Cord, Chrgr, Tnv 1
6 1033417 ¡Bracket, Cord, Chrgr, Tnv [T7] 1
7 1033419 ¡Seal, Ure, 0.24, 03.3w 04.5l Adh, Tnv 1
8 01684 ¡Washer, Flat, 0.27b 0.69d .05, Ss 2
974027 ¡Screw, Pan, M6 X 1.0 X 12, Ss, Nl 2
10 21237 ¡Screw, Hex, M4 X 0.7 X 6, 8.8 4
11 32978 ¡Washer, Lock, Int, 08 4
12 19065 ¡Washer, Flat, 08 8
13 02850 ¡Nut, Hex, Lock, M4 X 0.70, Nl 4
¡Serial number (10000- 11772)
OPTIONS
T7+ 9013336 (03- 2016)
3-22
Fig. 11 - Battery Group, 360Ah/5H
1
1
2
3
5
4
Ref. Part No. Description Qty.
o9014959 )Battery Kit Wet Monoblocs 4x6v/295ah/5h 1
Y11070586 Battery, Wet, 06vdc 0360ah, W/o Carton 4
Y21075160 Cable, Battery, 19 Mm2 029l Blk, 2clamp 3
Y3994890 Cable Assy, Battery, 25mm2, 2clamp, 175a 1
Y4630375 Spacer, Battery, Foam, 1.25 X 3.3 X 13.7 3
Y51025155 Tray, Battery, 595l 362w 75h [T7/R14] 1
NOTE: Models equipped with SPE on- board charger,
located near battery compartment, are limited to a
specific battery dimension. Battery selection:
1070586 - 360Ah Wet & 994229 - 240Ah Gel.
OPTIONS
3-23
T7+ 9013336 (03- 2016)
Fig. 12 - Battery and Charger Group 255Ah/5H
2
2
6
7
8
9
1
1
3
4
5
Ref. Part No. Description Qty.
o994857 )Battery Kit A T7 255ah/5h 1
Y11041457 Battery, 6v/255ah5h [J305ghut] 4
Y21075160 Cable, Battery, 19 Mm2 029l Blk, 2clamp 3
Y3994890 Wire Assy Connector Batt Sb175r 1
Y4630375 Spacer, Battery Foam 3
Y5994209 Tray, Battery, 615x425x30 1
6994889 Wire Assy Connector Sb175r 1
71010771 Angle, Sppt, Battery 1
81017218 Washer, Flat, 0.321b 1.00d .12, Ss 2
909740 Screw, Hex, M8 X 1.25 X 20, Ss 2
1041702 Charger, Bc7 24v30a Wet Sb50r 1
1041716 Cable, Charger Uk, Bc5 Bc7 (Uk) 1
NOTE: Models equipped with SPE on- board charger,
located near battery compartment, are limited to a
specific battery dimension. Battery selection:
1070586 - 360Ah Wet & 994229 - 240Ah Gel.
OPTIONS
T7+ 9013336 (03- 2016)
3-24
Fig. 13 - Battery and Charger Group 240Ah/5H
2
2
5
6
7
8
1
1
3
4
9
Ref. Part No. Description Qty.
o994267 )Battery Kit Mf Monoblocs 4x6v/240ah/5h 1
Y1994229 Battery, 6v / 240ah5h[Mf][Gf06240v] 4
Y21075160 Cable, Battery, 19 Mm2 029l Blk, 2clamp 3
Y3994890 Wire Assy Connector Batt Sb175r 1
Y4630375 Spacer, Battery Foam 3
5994889 Wire Assy Connector Sb175r 1
61010771 Angle, Sppt, Battery 1
71017218 Washer, Flat, 0.321b 1.00d .12, Ss 2
809740 Screw, Hex, M8 X 1.25 X 20, Ss 2
9994209 Tray, Battery, 615x425x30 1
996275 Charger [On- Board, Eu] 1
NOTE: Models equipped with SPE on- board charger,
located near battery compartment, are limited to a
specific battery dimension. Battery selection:
1070586 - 360Ah Wet & 994229 - 240Ah Gel.
OPTIONS
3-25
T7+ 9013336 (03- 2016)
Fig. 14 - Battery and Charger Group 180Ah/5H
2
2
5
6
7
8
1
1
3
4
9
Ref. Part No. Description Qty.
o9011231 )Battery Kit, Mf [Monoblocs 4*6v/180ah/5h 1
Y1994203 Battery, 06vdc 0180ah [5h, Gf06180] 4
Y21075160 Cable, Battery, 19 Mm2 029l Blk, 2clamp 3
Y3994890 Wire Assy Connector Batt Sb175r 1
Y4630375 Spacer, Battery Foam 5
5994889 Wire Assy Connector Sb175r 1
61010771 Angle, Sppt, Battery 1
71017218 Washer, Flat, 0.321b 1.00d .12, Ss 2
809740 Screw, Hex, M8 X 1.25 X 20, Ss 2
9994209 Tray, Battery, 615x425x30 1
996275 Charger [On- Board, Eu] 1
996276 Charger [On- Board, Uk] 1
NOTE: Models equipped with SPE on- board charger,
located near battery compartment, are limited to a
specific battery dimension. Battery selection:
1070586 - 360Ah Wet & 994229 - 240Ah Gel.
OPTIONS
T7+ 9013336 (03- 2016)
3-26
Fig. 15 - Battery and Charger Group 24V/275Ah/5H
1
2
3
4
5
6
Ref. Part No. Description Qty.
o994858 )Battery Kit Gel 24v/275ah5h 1
Yo1 994321 Battery Mf 24v/275ah/5h (5pzv275) 1
YY 2 0606010 Connector Anderson S175 Red 1
3 994889 Wire Assy Connector Sb175r 1
4 1010771 Angle, Sppt, Battery 1
51017218 Washer, Flat, 0.321b 1.00d .12, Ss 2
6 09740 Screw, Hex, M8 X 1.25 X 20, Ss 2
1041692 Charger, Bc7 24v30a Mf Sb50r 1
1041716 Cable, Charger Uk, Bc5 Bc7 (Uk) 1
NOTE: Models equipped with SPE on- board charger,
located near battery compartment, are limited to a
specific battery dimension. Battery selection:
1070586 - 360Ah Wet & 994229 - 240Ah Gel.
OPTIONS
3-27
T7+ 9013336 (03- 2016)
Fig. 16 - Battery and Charger Group 24V/240Ah/5H
1
2
4
5
6
7
3
Ref. Part No. Description Qty.
o994859 )Battery Kit Traction 24v/240ah5h 1
Yo11041465 Battery, 24vdc 0240ah [5h, 4pzs240] 1
YY 20606010 Connector Anderson S175 Red 1
Y3630375 Spacer, Battery Foam 3
4994889 Wire Assy Connector Sb175r 1
51010771 Angle, Sppt, Battery 1
61017218 Washer, Flat, 0.321b 1.00d .12, Ss 2
709740 Screw, Hex, M8 X 1.25 X 20, Ss 2
1041702 Charger, Bc7 24v30a Wet Sb50r 1
1041716 Cable, Charger Uk, Bc5 Bc7 (Uk) 1
NOTE: Models equipped with SPE on- board charger,
located near battery compartment, are limited to a
specific battery dimension. Battery selection:
1070586 - 360Ah Wet & 994229 - 240Ah Gel.
OPTIONS
T7+ 9013336 (03- 2016)
3-28
Fig. 17 - Battery and Charger Group 24V/300Ah/5H
1
2
3
4
5
6
Ref. Part No. Description Qty.
o994860 )Battery Kit Traction 24v/300ah5h 1
Yo11041466 Battery 24v/300ah/5h (11cd300) 1
YY 20606010 Connector Anderson S175 Red 1
3994889 Wire Assy Connector Sb175r 1
41010771 Angle, Sppt, Battery 1
51017218 Washer, Flat, 0.321b 1.00d .12, Ss 2
609740 Screw, Hex, M8 X 1.25 X 20, Ss 2
1041703 Charger, Bc12 24v40a Wet Sb50r (Eu) 1
1041713 Charger, Bc12 Uk 24v40a Wet Sb50r (Uk) 1
NOTE: Models equipped with SPE on- board charger,
located near battery compartment, are limited to a
specific battery dimension. Battery selection:
1070586 - 360Ah Wet & 994229 - 240Ah Gel.
OPTIONS
3-29
T7+ 9013336 (08- 2014)
Fig. 18 - Flashing Light Group
4
3
1
5
2
Ref. Part No. Description Qty.
11018791 )Light, Flsh (Does Not Include Terminals - Need to Order Qty 2 of #55272) 1
255272 Terminal, Bullet, Mal, .157d, 12ga 2
310632- 12 Grommet, Rbr, 0.38id, F/ 0.5h, .12matl 1
4130717 Switch, Rocker, 250vac 15a Spst On/Off 1
5360943 Screw, Pan, #10- 14 X 0.75, F/Plstc 3
OPTIONS
T7+ 9013336 (08- 2014)
3-30
Fig. 19 - Documentation Group
2
1
Ref. Part No. Description Qty.
19013336 )Manual, Parts [T7+, En, Ce] 1
2 9013319 )Manual, Oprtr [T7+, Cz, Ce] 1
2 9013320 )Manual, Oprtr [T7+, De, Ce] 1
2 9013321 )Manual, Oprtr [T7+, Dk, Ce] 1
2 9013318 )Manual, Oprtr [T7+, En, Ce] 1
29013322 )Manual, Oprtr [T7+, Es, Ce] 1
2 9013323 )Manual, Oprtr [T7+, Fi, Ce] 1
2 9013324 )Manual, Oprtr [T7+, Fr, Ce] 1
2 9013325 )Manual, Oprtr [T7+, Gr, Ce] 1
2 9013326 )Manual, Oprtr [T7+, Hu, Ce] 1
29013327 )Manual, Oprtr [T7+, It, Ce] 1
2 9013328 )Manual, Oprtr [T7+, Nl, Ce] 1
2 9013329 )Manual, Oprtr [T7+, No, Ce] 1
2 9013330 )Manual, Oprtr [T7+, Pl, Ce] 1
2 9013331 )Manual, Oprtr [T7+, Pt, Ce] 1
29013332 )Manual, Oprtr [T7+, Ru, Ce] 1
2 9013333 )Manual, Oprtr [T7+, Se, Ce] 1
2 9013373 )Manual, Oprtr [T7+, Tr, Ce] 1
2 9013370 )Manual, Oprtr [T7+, Ro, Ce] 1
2 9013371 )Manual, Oprtr, Ce [T7+, Bg] 1
29013372 )Manual, Oprtr, Ce [T7+, Lt] 1
29013415 )Manual, Oprtr, Ce [T7+, Lv] 1
2 9013374 )Manual, Oprtr [T7+, Ee, Ce] 1
2 9013375 )Manual, Oprtr [T7+, Si, Ce] 1
2 9013334 )Manual, Oprtr [T7+, Sk, Ce] 1
29013335 )Manual, Oprtr [T7+, Hr, Ce] 1
To view, print, order, download the latest Parts manual, other language
Operator manuals, and Use and Care Guides (wall charts), visit:
www.tennantco.com/manual
BREAKDOWN
4-1
T7+ 9013336 (06- 2015)
SECTION 4
Contents Page
Fig. 1 - Steering Control Breakdown, 1019724 4-2..
Fig. 2 - FaST Injector Assembly Breakdown,
9008885 4-3..........................
Fig. 3 - ec-H2O NanoClean Module Breakdown,
9011810 (S/N 11000- ) 4-4..........
Fig. 4 - ec-H2O Module Assembly Breakdown,
9007970 (S/N 10000- 10999) 4-6.........
Fig. 5 - Vacuum Fan Motor Breakdown,
1021064 4-8..........................
Fig. 6 - Front Wheel Gearbox Breakdown,
9008999 4-10.........................
BREAKDOWN
4-2 T7+ 9013336 (04- 2017)
Fig. 1 - Steering Control Breakdown, 1019724
1
2
3
4
5
6
7
8
Ref. Part No. Description Qty.
o1019724 )Steer- Control Assy, Wheel Drive 1
Y1 372874 Bearing, Steering 1
Y2 372875 Chain, Steering 1
Y3 372876 Link, Master 1
Y4 372881 Sprocket 1
Y51029229 Shaft, Steering 1
Y61038313 Vr, Pin, Roll, 06mm X 28mml[T7/Ssrsteer] 1
Y71043371 Pulley, Tens [T7/R14 Steering Assy] 1
Y89008719 Vr, Bearing [6003 2rs] 2
BREAKDOWN
4-3
T7+ 9013336 (08- 2014)
Fig. 2 - FaST Injector Assembly Breakdown, 9008885
2
1
1
2
2
2
6
9
8
7
5
3
4
6
10
6
11
Ref. Part No. Description Qty.
o9008885 )Fast Kit, Injector, Ci[T7/Ssr/T16 Fast3] 1
Yo19008884 Fast Kit, Ci [Inj Rebld,T7/Ssr/T16, Iii] 1
YY 29008848 Fast Kit, Seal, Injector, Ci [Fast Iii] 1
YY 31039990 Plug, Orifice, 0.041, Ss [Fast Ii+] 1
YY 41059250 Insert, Venturi, Medium, [Fast Iii] 1
YY 51067473 Plate Assy, Orifice, 0.0090id, Natural 1
Y69003009 Fast Kit, Ci, Injector Filters[Fast Ii+] 1
Y71030444 Valve, Check, 0002psi [Fast Ii+] 1
Y81030441 Valve, Check, 0005psi [Fast Ii+] 1
Y91058126 Housing, Fltr, Upper [Fast Iii] 1
Y10 1057811 Housing, Fltr, Lower [Fast Iii] 1
Y11 1053564 Housing, Body, Injector [Fast Iii] 1
BREAKDOWN
4-4 T7+ 9013336 (06- 2015)
Fig. 3 - ec-H2O NanoClean Module Breakdown, 9011810 (S/N 11000- )
1
2
3
4
5
67
8
9
10
11
13
12
14
BREAKDOWN
4-5
T7+ 9013336 (06- 2015)
Fig. 3 - ec-H2O NanoClean Module Breakdown, 9011810 (S/N 11000- )
Ref. Part No. Description Qty.
9011810 ©)Module Kit, Replmt [Ec- H2o, B 02] 1
Y9014126 ©Ec- H2o Nc Kit [Module B, Plumbing] 1
YY 11208823 ©Housing, Module, Upper, Ec- H2o 1
YY 21015506 ©Screw, Pan, Phl, M5 X 16, Tcut [Plastic] 4
YY 31044393 ©Switch, Rocker, Spst, Mom 1
YY 432509 ©Screw, Hex, M4 X 0.70 X 50, Ss 4
YY 51208164 ©Electrode, 5 Plate, High Flow 1
YY 641579 ©Washer, Flat, 08, Ss 4
YY 733932 ©Nut, Hex, Lock, M4 X 0.70, Nl, Ss 4
YY 81006415 ©Hose, Afmkt, Pvc, Clr, 0.25id, 03ft 1
YY 91208526 ©Hose, Molded, Bm08/Bm06 1
YY 10 1049637 ©Label, Direction [Ec- H2o] 1
YY 11 613735 ©Clamp, Hose, Wir, .40 - .42, Yel 1
YY 12 54333 ©Clamp, Hose, Wormdrive, 0.31- 0.88d, .31w 1
YY 13 1073286 ©Harness, Ele, Module B2 [Ec- H2o] 1
Y14 9014127 ©Controller Kit, Replmt [Ec- H2o Nc] 1
©Serial number (11000- )
BREAKDOWN
4-6 T7+ 9013336 (06- 2015)
Fig. 4 - ec-H2O Module Assembly Breakdown, 9007970 (S/N 10000- 10999)
1
20
2
2
3
4
2
6
7
5
6
7
8
10
2
1
3
9
6
7
6
7
11
12
13
14
21
15
16
21
21
16
18
19
17
21
21
BREAKDOWN
4-7
T7+ 9013336 (06- 2015)
Fig. 4 - ec-H2O Module Assembly Breakdown, 9007970 (S/N 10000- 10999)
Ref. Part No. Description Qty.
9007970 ¡)Module Kit, Replmt [Ec- H2o] 1
Y9006324 ¡Ec- H2o Kit, Module B, Plumbing 1
YY 1578820000 ¡Hose, Pvc, Brd, 0.25id 0.44od 157.2l,Clr 1
YY 2603654 ¡Clamp, Hose, Ear, .44d [Ctb] 4
YY 31037595 ¡Fitting, Plstc, E90, Bm04/Pm02, Nyl 2
YY 41062006 ¡Electrode, Cylindrical 1
YY 51045030 ¡Fitting, Brs, Str, Pm02/Pm02 1
YY 633932 ¡Nut, Hex, Lock, M4 X 0.70, Nl, Ss 4
YY 741579 ¡Washer, Flat, 08, Ss 4
YY 81048490 ¡Bracket, Valve 1
YY 9140801 ¡Screw, Trs, Phl, 08- 32 X 0.38, Ss 2
YY 10 1013236 ¡Valve, Shutoff, Ele, 24vdc 1
YY 11 9006574 ¡Hose, Pvc, Brd, 0.25id 0.45od, 65l, Clr 1
YY 12 1049637 ¡Label, Direction [Ec- H2o] 1
YY 13 1057637 ¡Electrode, 5 Plate, High Flow 1
YY 14 1051519 ¡Housing, Upper, Module, High Flow 1
YY 15 1044393 ¡Switch, Rocker, Spst, Mom 1
YY 16 32509 ¡Screw, Hex, M4 X 0.70 X 50, Ss 4
YY 17 1049489 ¡Harness, Main,Controlboard[Ec- H2o 5cell] 1
Y18 1037032 ¡Housing, Bottom 1
Y19 1054776 ¡Grommet, Blind 1
Y20 9007969 ¡Controller Kit, Replmt [Ec- H2o] 1
Y21 1018155 ¡Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,Ss 8
¡Serial number (10000- 10999)
BREAKDOWN
4-8 T7+ 9013336 (08- 2014)
Fig. 5 - Vacuum Fan Motor Breakdown, 1021064
1
2
4
5
7
910
16
12
17
18
20
11
3
19
6
21
3
8
13
13
14
15
7
BREAKDOWN
4-9
T7+ 9013336 (08- 2014)
Fig. 5 - Vacuum Fan Motor Breakdown, 1021064
Ref. Part No. Description Qty.
o1021064 )Fan, Vacuum, 5.7, 3s 24v Bpt 1
Y1 398511 Housing 1
Y2 398512 Fan 1
Y3 372883 Brush Kit, Motor, Ele 1
Y4 398514 Bracket 1
Y501856 Spring, Brg, Motor, Vacfan 1
Y6 372885 Commutator 1
Y7 01837 Bearing, Motor, Vacfan 2
Y8 372886 Washer 1
Y9 398516 Spacer 1
Y10 01971 Impeller, Vacfan 1
Y11 372888 Impeller, Fan 1
Y12 60387 Fan 1
Y13 398517 Spacer 2
Y14 18628 Impeller, Vacfan 1
Y15 61297 Housing, Impeller, Vacfan 1
Y16 372889 Impeller, Fan 1
Y17 372890 Shell, Fan 1
Y18 37929 Nut, Impeller, Vacfan 1
Y19 372887 Bracket, End, Fan 1
Y20 372884 Armature 1
Y21 378983 Washer 1
Y223264 Seal, Rbr, Clsd, 0.25th, 5.8d 03.3h 1
Y10925 Connector, Fem, 2cav [Mp630 Sealed] 1
Y24537 Terminal, Fem, 10/12ga [Mp630 P2s] 2
BREAKDOWN
4-10 T7+ 9013336 (03- 2016)
Fig. 6 - Front Wheel Gearbox Breakdown, 9008999
23
7
24
13
812
9
6
2
5
4
10 22 311
14
20
21
15
16
17
18
1
25
26
19
BREAKDOWN
4-11
T7+ 9013336 (03- 2016)
Fig. 6 - Front Wheel Gearbox Breakdown, 9008999
Ref. Part No. Description Qty.
o9008999 )Gearbox Kit, Wheel, 250mm, W/ Connector 1
Y1391261 Brush Kit, Motor [Amer, 1pick=1bag] (1 Kit = 6 Brushes) 1
Yo1029225 Brush Kit, Carbon (1 Kit = 4 Brushes) 1
YY 21029224 Brush, Carbon (1 Brush) 4
Yo1029226 Brush Kit, Carbon, Curve (1 Kit = 2 Brushes) 1
YY 3398492 Brush, Motor, Ele [Amer] Curve (1 Brush) 2
Y41029227 Bearing, Ball, Brush Side 1
Y51029228 Ring, Brushholder 1
Y6391262 Brush Kit, Cover [Amer] 4
Y7391263 Seal, Ring [Amer] 1
Y8391264 Bearing, Gearbox Side [Amer] 1
Y9391265 Bearing, Motor Side [Amer] 1
Y10 391467 Box, Ele, Connection 1
Y11 391468 Cover, Ele, Connection 11
Y12 372867 Armature 1
Y13 1029218 Screw, Mount, Wheel 8
Yo14 9008896 Brake Kit, W/Connector 1
YY 15 78950 Connector, Fem, 02cav, Mp280 Sealed 2
YY 16 78952 Lock, Secondary, 2cav, Mp280 Sealed 2
YY 17 25837 Terminal, Fem, Mp280, Sealed, 22- 20ga 2
YY 18 25830 Seal, Wire, 14ga [Wp / Mp280 Sealed] 2
YY 19 372870 Vr, Disc, Brake (Set Includes Spline) 1
YY 20 372871 Adapter, Brake, Spl (NLA - Replaced By Set 372870) 1
Y21 372872 Sleeve, Rbr 1
Y22 372877 Guide, Brushholder, Slip Ring [Amer 1
Y23 372874 Bearing, Steering 1
Y24 391259 Tire, Solid, 250mm X 90mm Red 1
Y25 130161 Plug, Hole, Rnd, 0.88d, Blk 1
Y26 9010971 Vr, Flange, Brake, T7 1
