TC-32LX50

TC-26LX50

LH48 Chassis

LCD Television

Specifications

Power Source AC 120 V, 60 Hz

Power Consumption Average use : 121 W (TC-26LX50)

Average use : 147 W (TC-32LX50)

Maximum Current : 2.2 A (TC-26LX50)

Maximum Current : 2.6 A (TC-32LX50)

Stand-by condition : 0.1 W

LCD 1366 × 768 pixels widescreen LCD panel

Screen Size 22.7 “ × 12.8 “ × 26 “ (576 mm × 324 mm × 661 mm) (TC-26LX50)

(W × H × diagonal) 27.5 “ × 15.4 “ × 31.5 “ (698 mm × 392 mm × 800 mm) (TC-32LX50)

Channel Capability VHF-12 : UHF-56 : Cable-125

Sound

Speakers Ø8 cm × 2 pcs, Ø5 cm × 2 pcs

Audio Output 20 W [10 W + 10 W] (10%THD)

Headphones M3 (3.5 mm) Jack × 1

FEATURES 3D Y/C Digital Comb Filter, CLOSED CAPTION, V-Chip

Operating Conditions Temperature : 41 °F - 95 °F (5 °C - 35 °C)

Humidity : 5 % - 90 % RH (non-condensing)

Connection Terminals

INPUT VIDEO (RCA PIN Type ×1) ×3 1.0 Vp-p (75 W)

S-VIDEO (MINI DIN 4pin ×1) ×3 Y : 1.0 Vp-p (75 W),

C : 0.286 Vp-p (75 W)

AUDIO L-R (RCA PIN Type ×2) ×3 0.5 Vrms

COMPONENT Y×2 1.0 Vp-p

VIDEO INPUT (including synchronization)

PB/P

R×2 ±0.35 Vp-p

AUDIO L-R (RCA PIN Type ×2) ×1 0.5 Vrms

OUTPUT (PROGRAM OUT) AUDIO L-R (RCA PIN Type 2) ×1 0.5 Vrms, VIDEO (RCA PIN Type ×1) ×1

HDMI HDMI TYPE A Connector ×1

ORDER NO. ITD0503009CE

B05 Canada:B07

1 Safety Precautions 4

1.1. General Guidelines 4

2 Warning 4

2.1. Prevention of Electro Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices 4

2.2. About lead free solder (PbF) 5

3 Location of Controls and Components 6

4 Service Mode 7

4.1. How to enter into adjustment mode 7

4.2. Cancellation 7

4.3. Contents of adjustment mode 7

5 Troubleshooting Guide 9

5.1. Self-check function 9

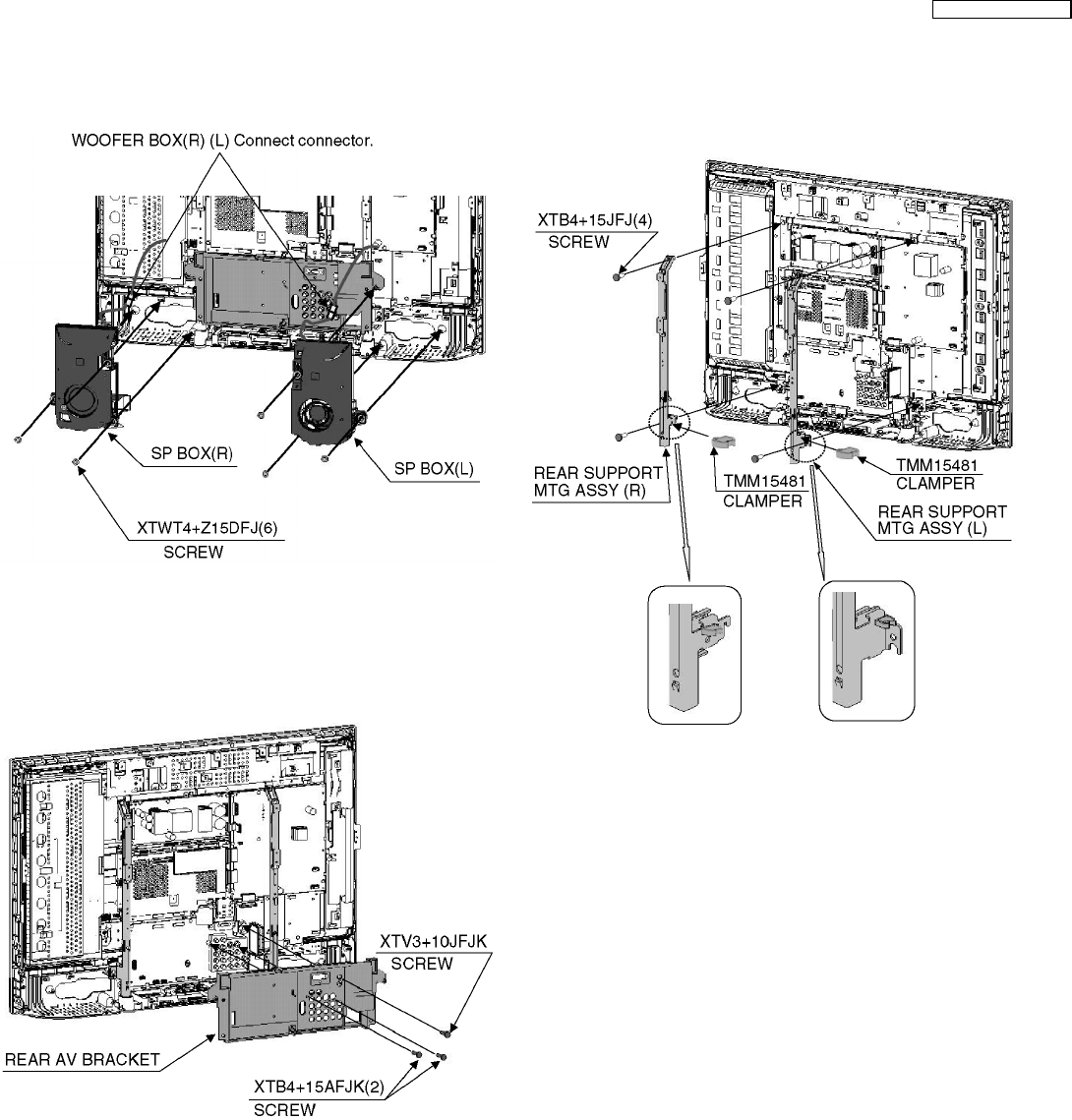

6 Disassembly and Assembly Instructions 10

6.1. Removing the cable cover 10

6.2. Removing the pedestal 10

6.3. Removing the back cover (TC-32LX50) 10

6.4. Removing the back cover (TC-26LX50) 10

6.5. Removing the sp box 11

6.6. Removing the rear AV bracket 11

6.7. Removing the rear support MTG 11

6.8. Removing the font bracket and G-Board 12

6.9. Removing the K-Board and V-Board 12

6.10. Removing the LVDS metal bracket and DV-DG shield 12

6.11. Removing the tuner cover, DV-Board, AP-Board, DG-

Board, and H-Board 13

6.12. Removing the power unit 13

6.13. Removing the chassis 13

6.14. Removing the LCD panel assｴy and LCD L/R MTG 13

6.15. Removing the LCD panel and LCD T/B MTG 14

6.16. Lead Wiring (1) 14

6.17. Lead Wiring (2) 14

6.18. Lead Wiring (3) 14

7 Measurements and Adjustments 15

7.1. Picture level adjustment 15

7.2. MTS Adjustment 18

8 Block Diagram 21

8.1. Block Diagram (1 of 4) 21

8.2. Block Diagram (2 of 4) 22

8.3. Block Diagram (3 of 4) 23

8.4. Block Diagram (4 of 4) 24

9 Wiring Connection Diagram 25

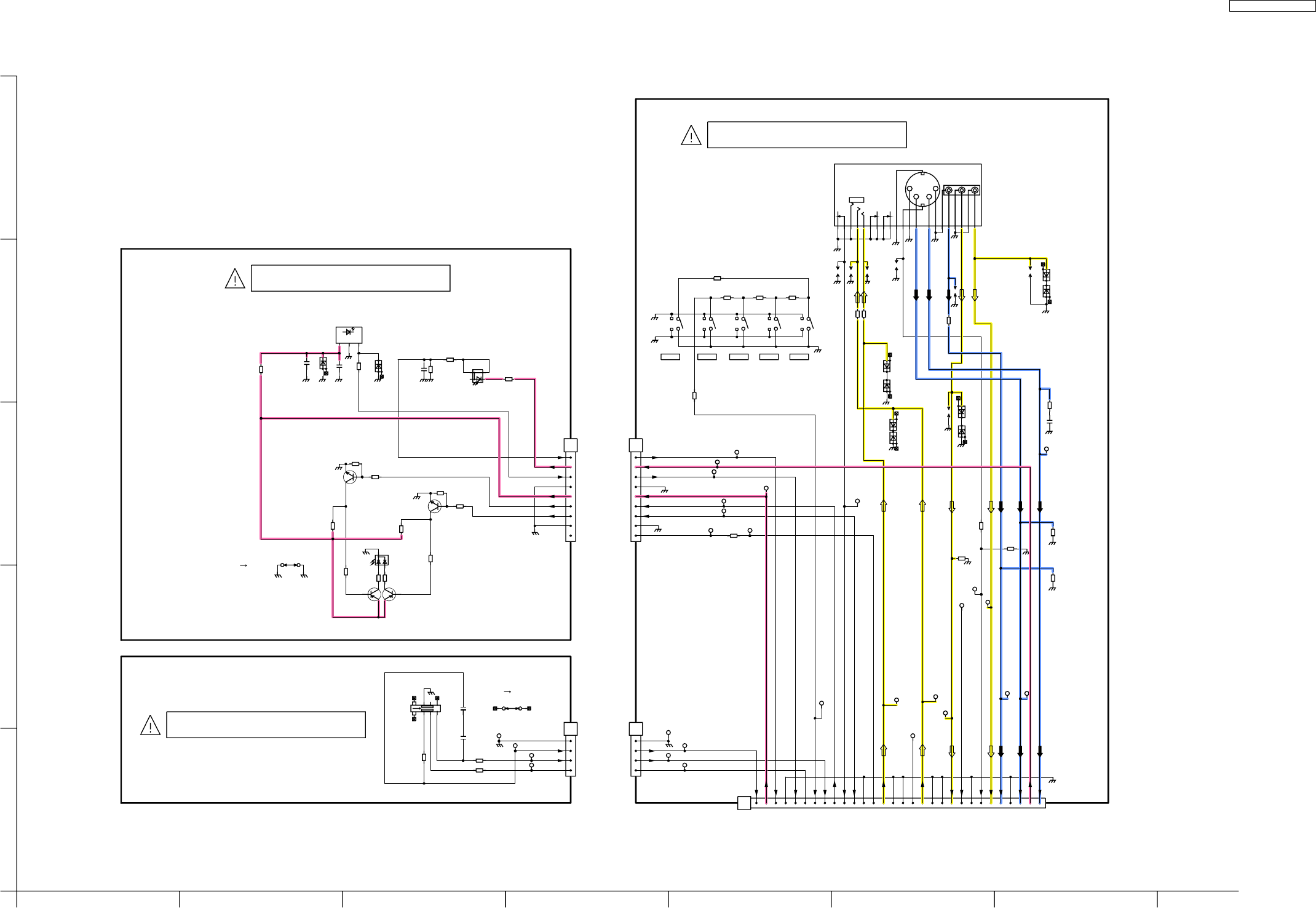

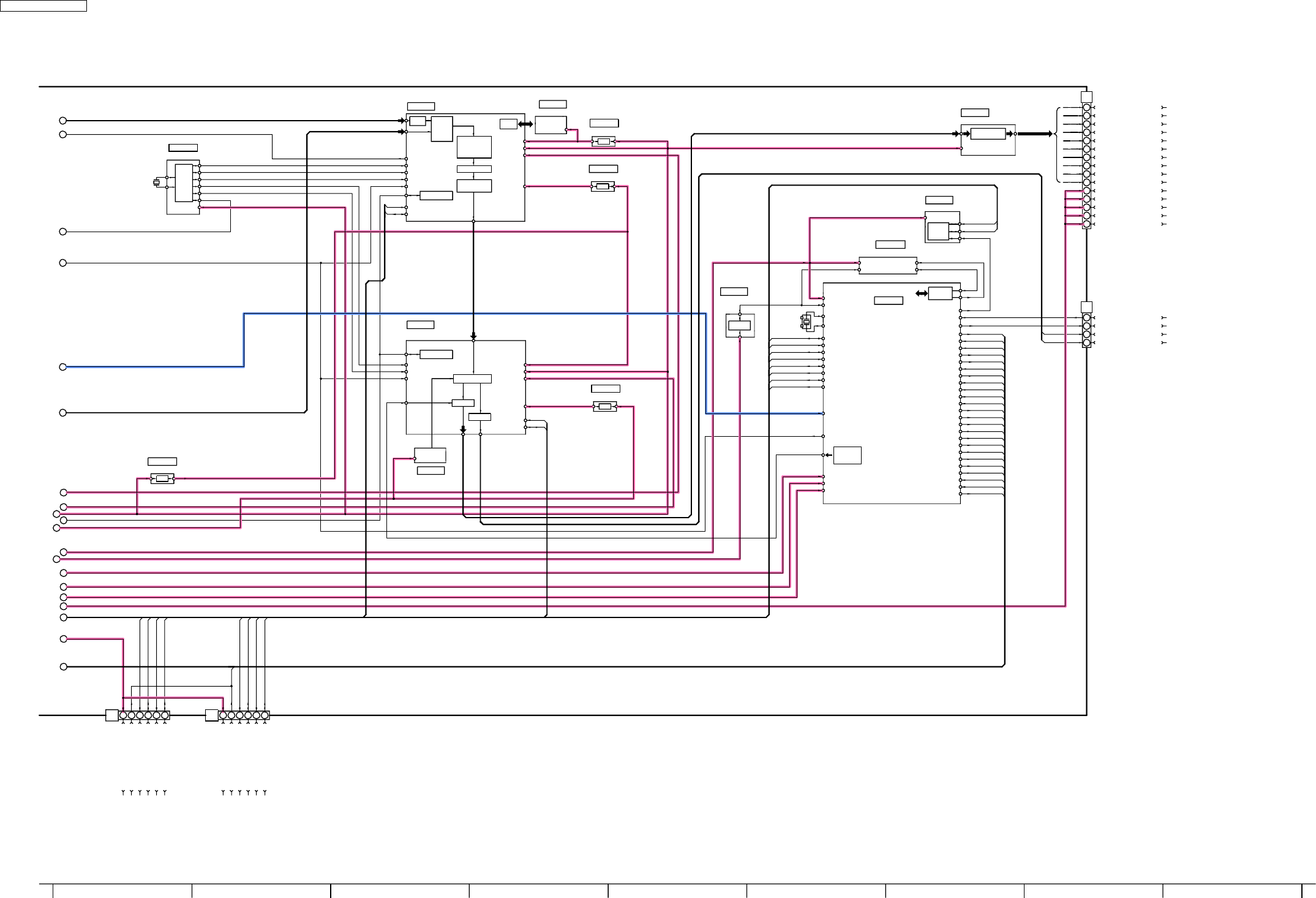

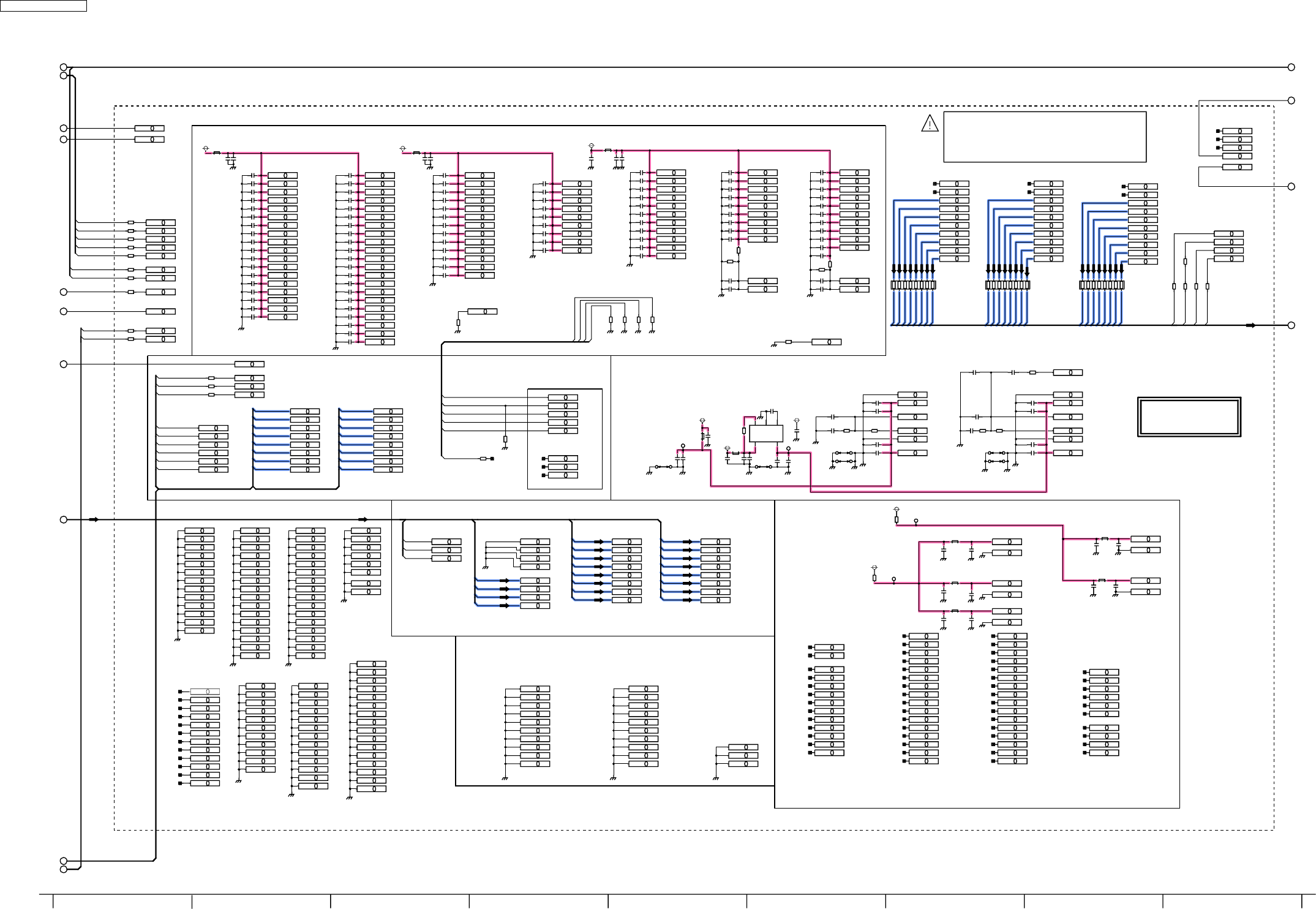

10 Schematic Diagrams 27

10.1. Schematic Diagram Notes 27

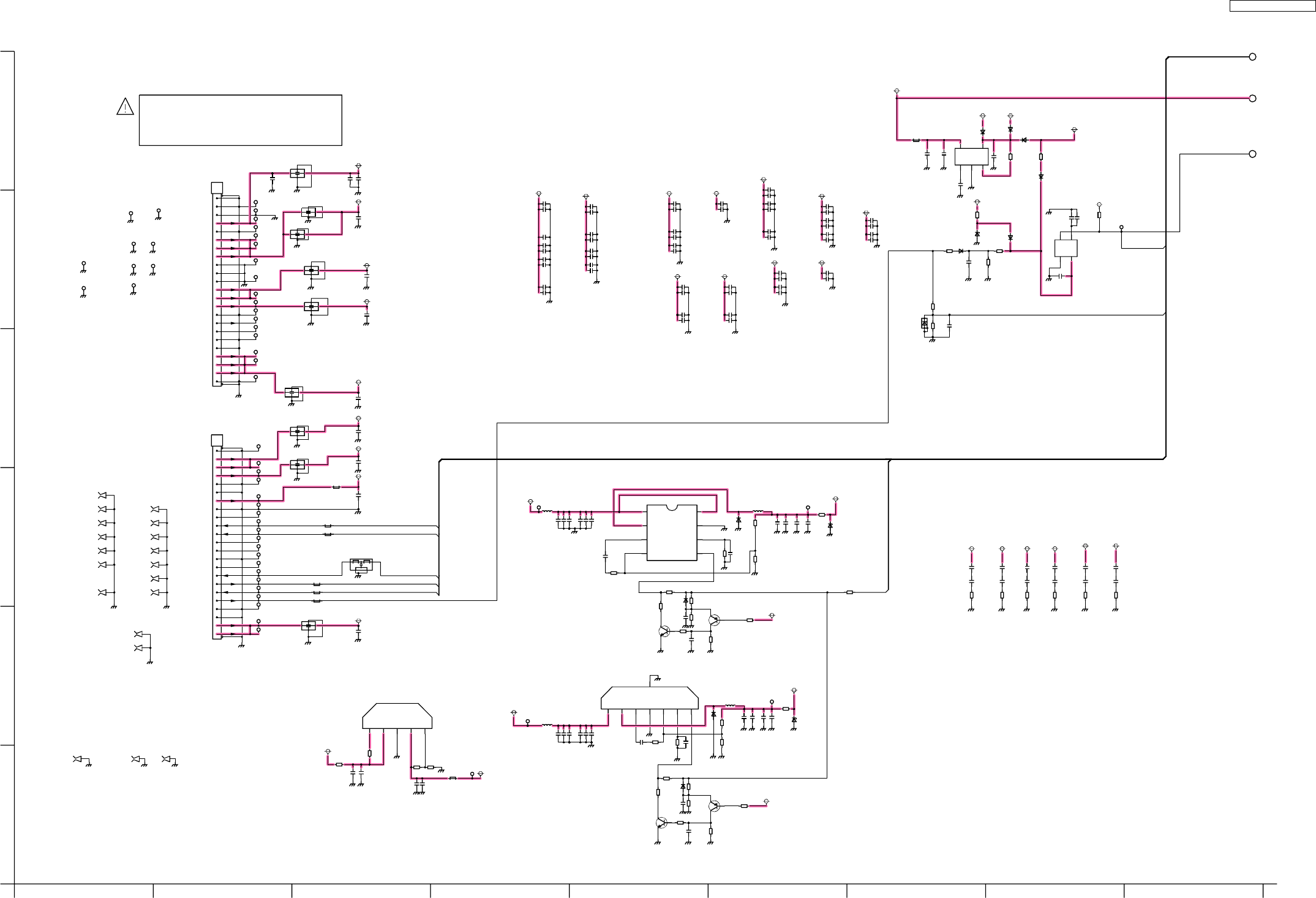

10.2. AP-Board (1 of 2) Schematic Diagram 28

10.3. AP-Board (2 of 2) Schematic Diagram 29

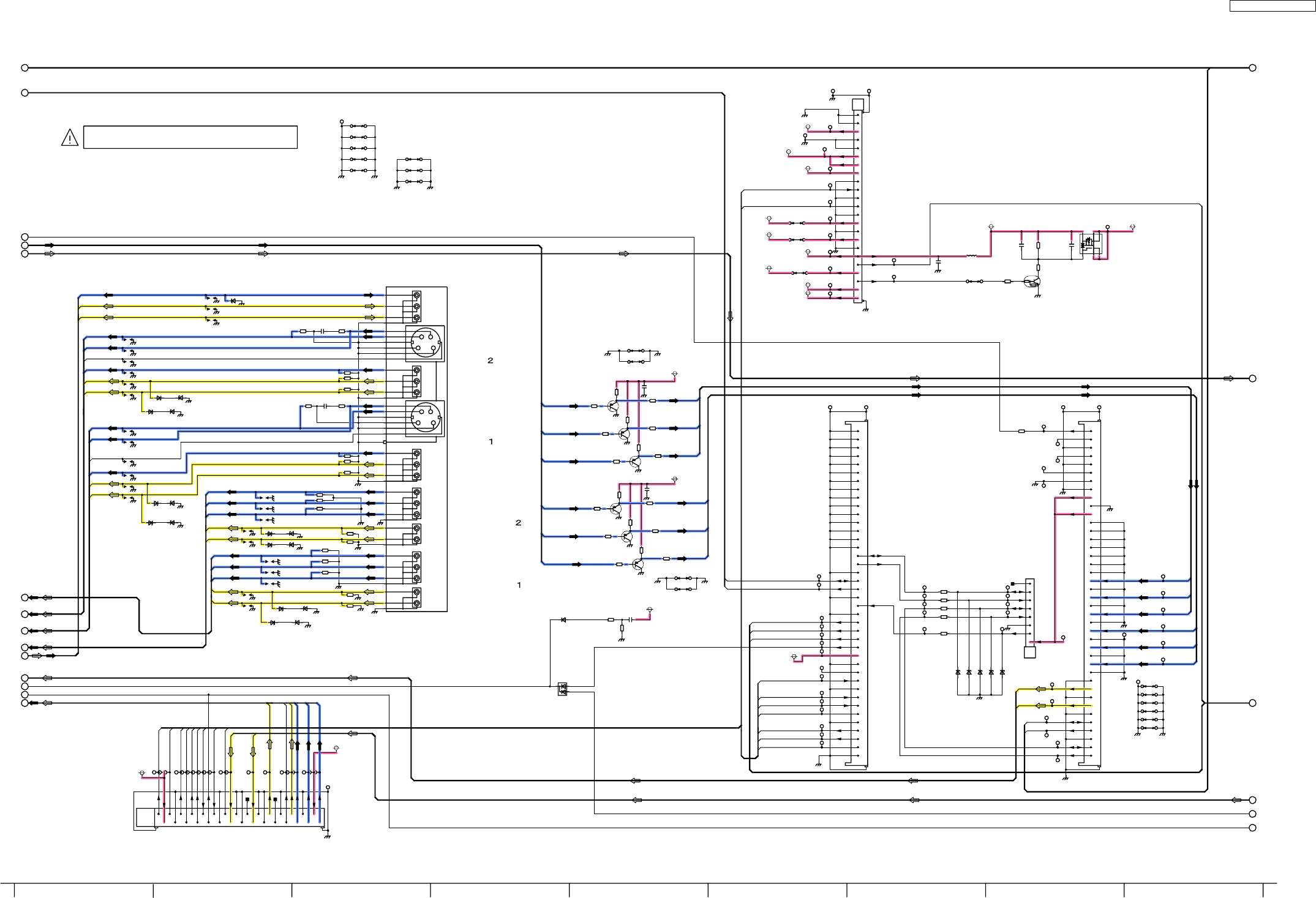

10.4. H-Board (1 of 3) Schematic Diagram 30

10.5. H-Board (2 of 3) Schematic Diagram 31

10.6. H-Board (3 of 3) Schematic Diagram 32

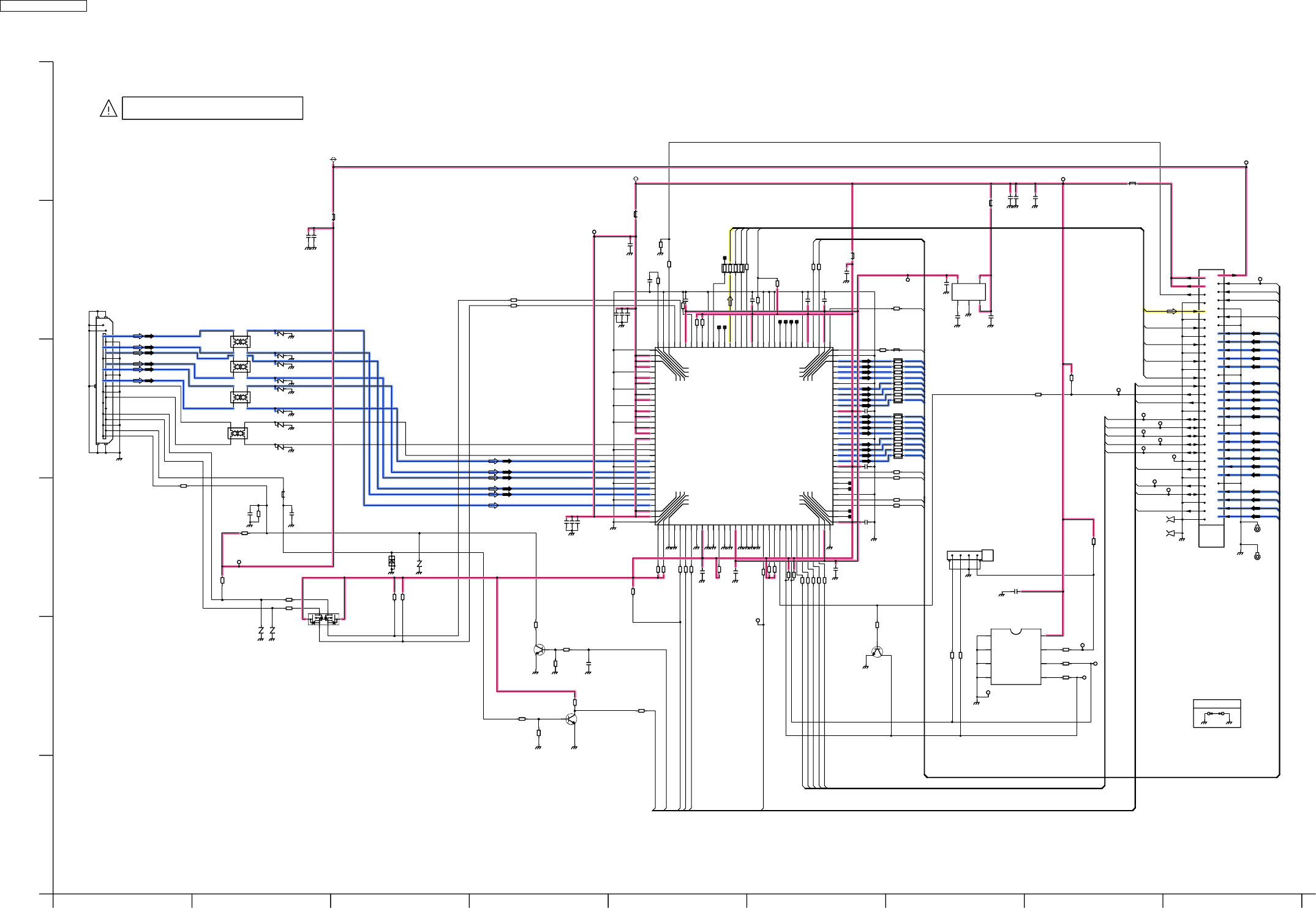

10.7. DG-Board (1 of 7) Schematic Diagram 33

10.8. DG-Board (2 of 7) Schematic Diagram 34

10.9. DG-Board (3 of 7) Schematic Diagram 35

10.10 . DG-Board (4 of 7) Schem atic Diagram 36

10.11 . DG-Board (5 of 7) Schem atic Diagram 37

10.12 . DG-Board (6 of 7) Schem atic Diagram 38

10.13 . DG-Board (7 of 7) Schem atic Diagram 39

10.14 . DV-Board Schem atic Diagram 40

10.15 . G, K, and V-Boa rd Schem atic Diagra m 41

11 Printed Circuit Board 43

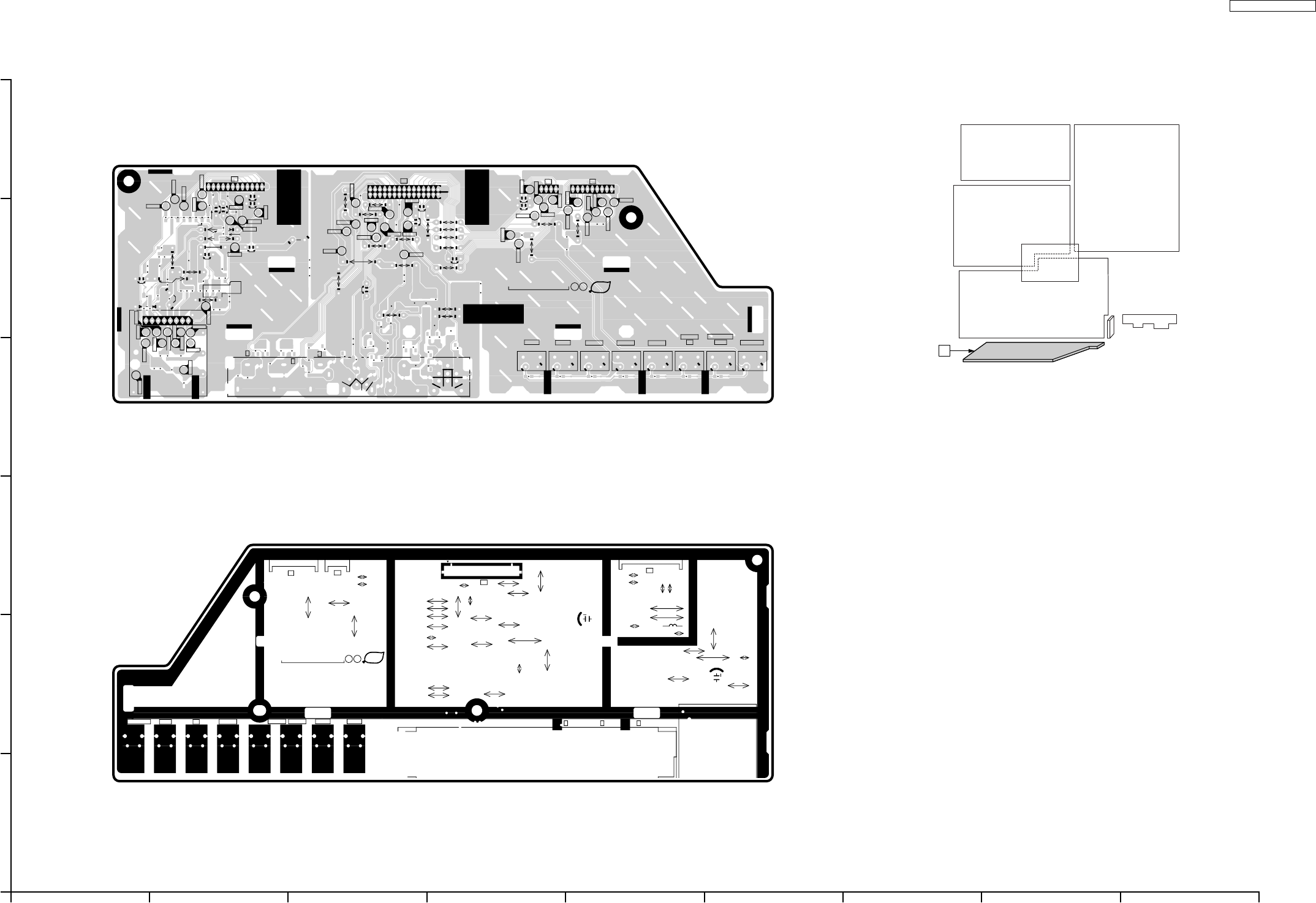

11.1. AP-Board 43

11.2. H-Board 45

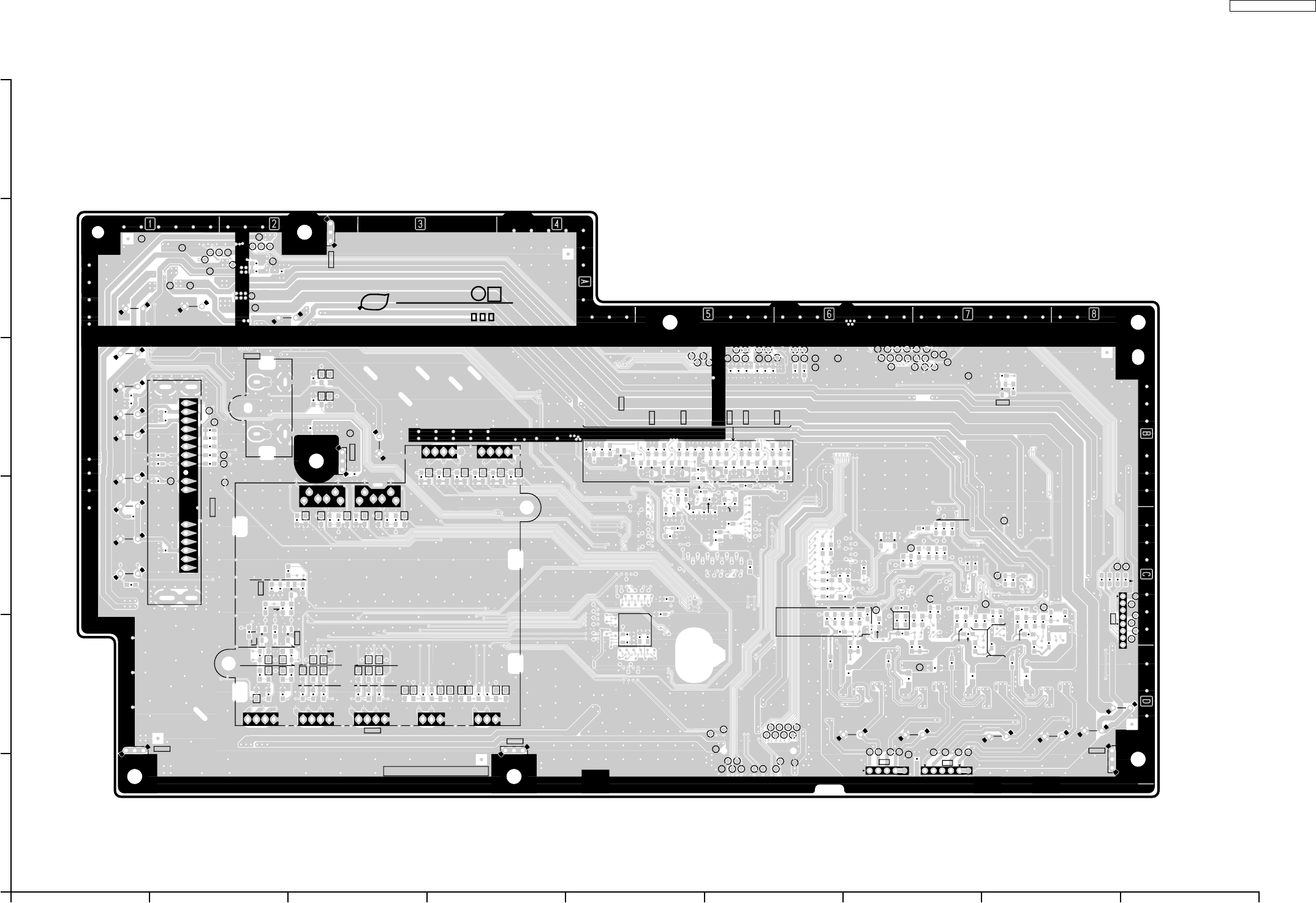

11.3. DG-Board 48

11.4. G-Board 51

11.5. DV, K, and V-Board 52

12 Exploded View and Replacement Parts List 53

12.1. Parts Layout 53

12.2. Front Chassis Layout 54

12.3. Packing Exploded Views 55

AUDIO L-R (RCA PIN Type ×2) ×1 0.5Vrms

Dimensions ( W × H × D )

Including TV Stand 26.1 “ × 21.9 “ × 11.8 “ (663 mm × 556 mm × 299.5 mm) (TC-26LX50)

31.3 “ × 25 “ ×11.8 “ (795 mm × 634.7 mm × 299.5 mm) (TC-32LX50)

TV Set Only 26.1 “ × 19.5 “ ×5.54 “ (663 mm × 494.3 mm × 140.7 mm) (TC-26LX50)

31.3 “ × 22.6 “ ×5.54 “ (795 mm × 573 mm × 140.7 mm) (TC-32LX50)

Mass (Weight) 18 kg (39.6 lb.) NET (TC-26LX50)

21 kg (46.2 lb.) NET (TC-32LX50)

Note:

Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.

CONTENTS

Page Page

TC-32LX50 / TC-26LX50

12.4. Mechanical Replacement Parts List 56

13 Electrical Parts List 57

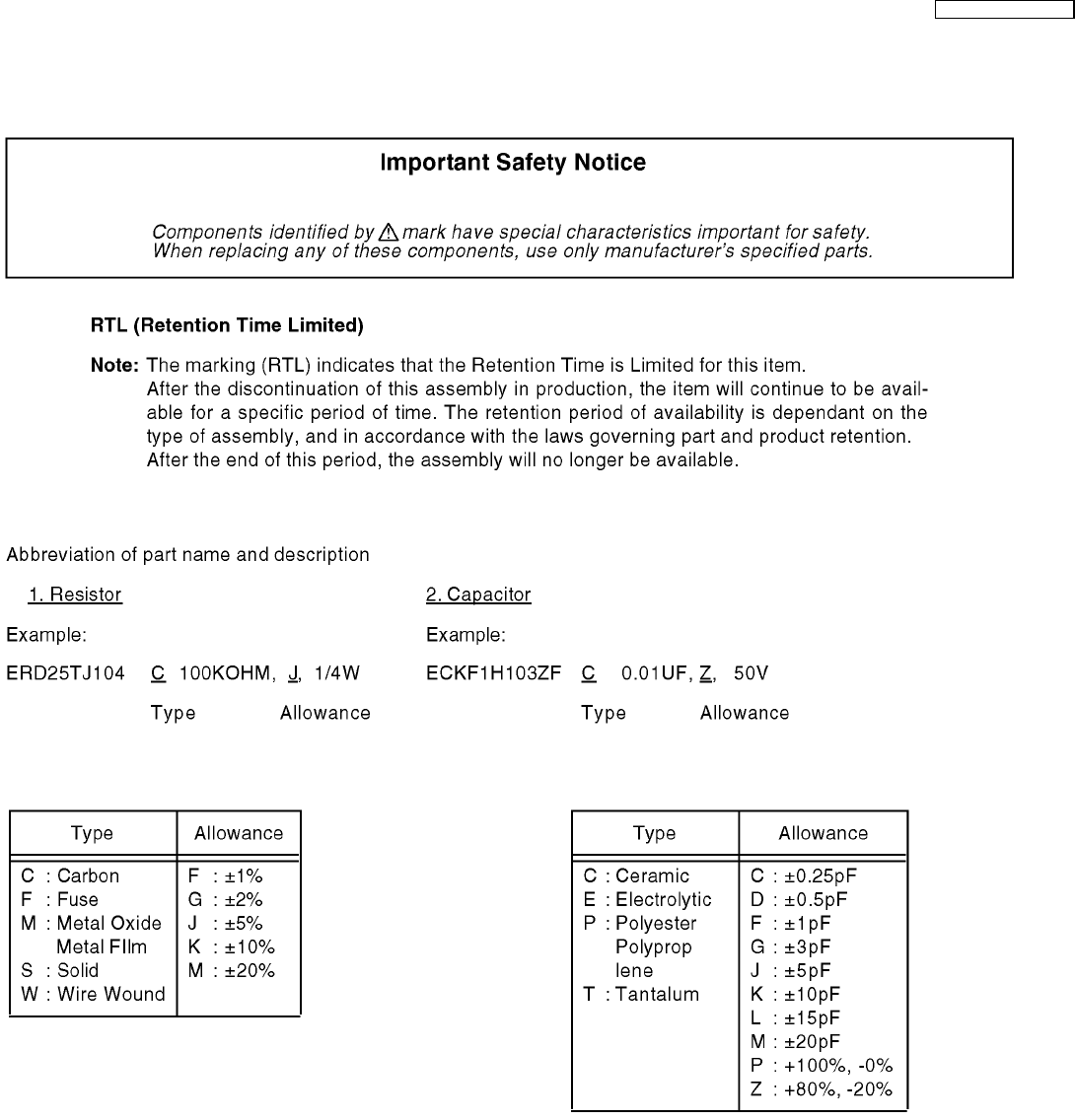

13.1. Electrical Parts List Notes 57

13.2. Electrical Replacement Parts List 58

TC-32LX50 / TC-26LX50

1.1.1. Leakage Current Cold Check

1. Unplug the AC cord and connect a jumper between the two

prongs on the plug.

2. Measure the resistance value, with an ohmmeter, between

the jumpered AC plug and each exposed metallic cabinet

part on the equipment such as screwheads, connectors,

control shafts, etc. When the exposed metallic part has a

return path to the chassis, the reading should be between

1MWand 5.2MW.

When the exposed metal does not have a return path to the

chassis, the reading must be .

Figure 1

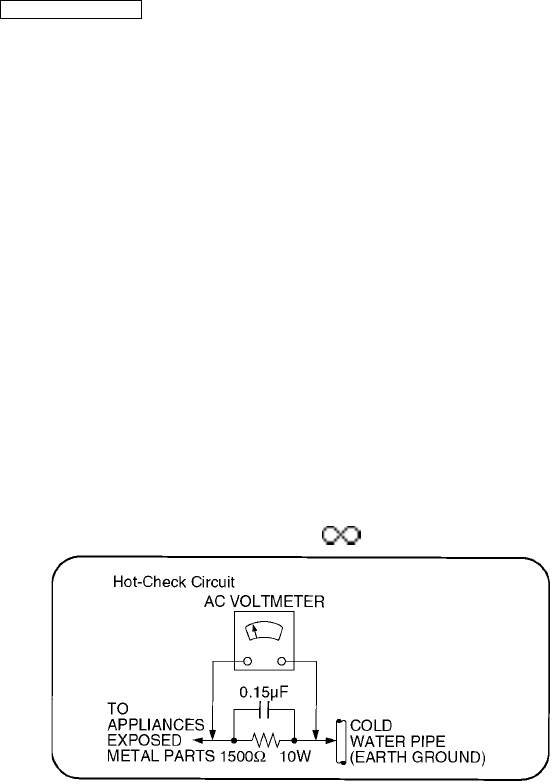

1.1.2. Leakage Current Hot Check (See

Figure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use an

isolation transformer for this check.

2. Connect a 1.5kW, 10 watts resistor, in parallel with a 0.15µF

capacitors, between each exposed metallic part on the set

and a good earth ground such as a water pipe, as shown in

Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more

sensitivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the

voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of the

above measurements.

6. The potential at any point should not exceed 0.75 volts

RMS. A leakage current tester (Simpson Model 229 or

equivalent) may be used to make the hot checks, leakage

current must not exceed 1/2 milliamp. In case a

measurement is outside of the limits specified, there is a

possibility of a shock hazard, and the equipment should be

repaired and rechecked before it is returned to the

customer.

1 Safety Precautions

1.1. General Guidelines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or

damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

2 Warning

2.1. Prevention of Electro Static Discharge (ESD) to Electrostatically

Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and

semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage

caused by electro static discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your

body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,

which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alminum

foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can

generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most

replacement ES devices are packaged with leads electrically shorted together by conductive foam, alminum foil or comparable

conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be installed.

TC-32LX50 / TC-26LX50

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise hamless motion such as the brushing

together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to

damage an ES device).

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.

In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.

The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).

That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d

suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol stamped on the back of PCB.

Caution

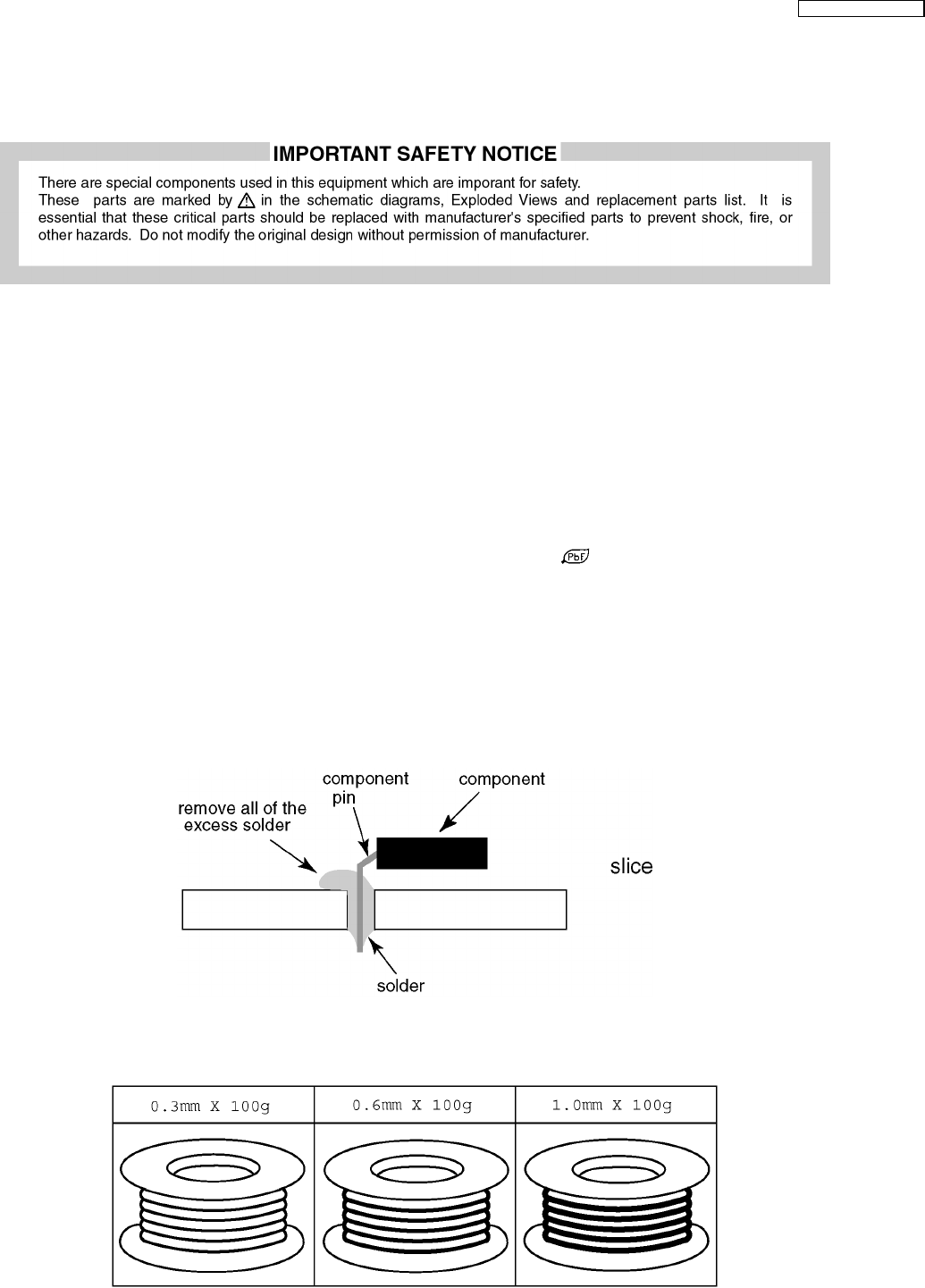

Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C) higher.

Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb

solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto

the opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.

However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

TC-32LX50 / TC-26LX50

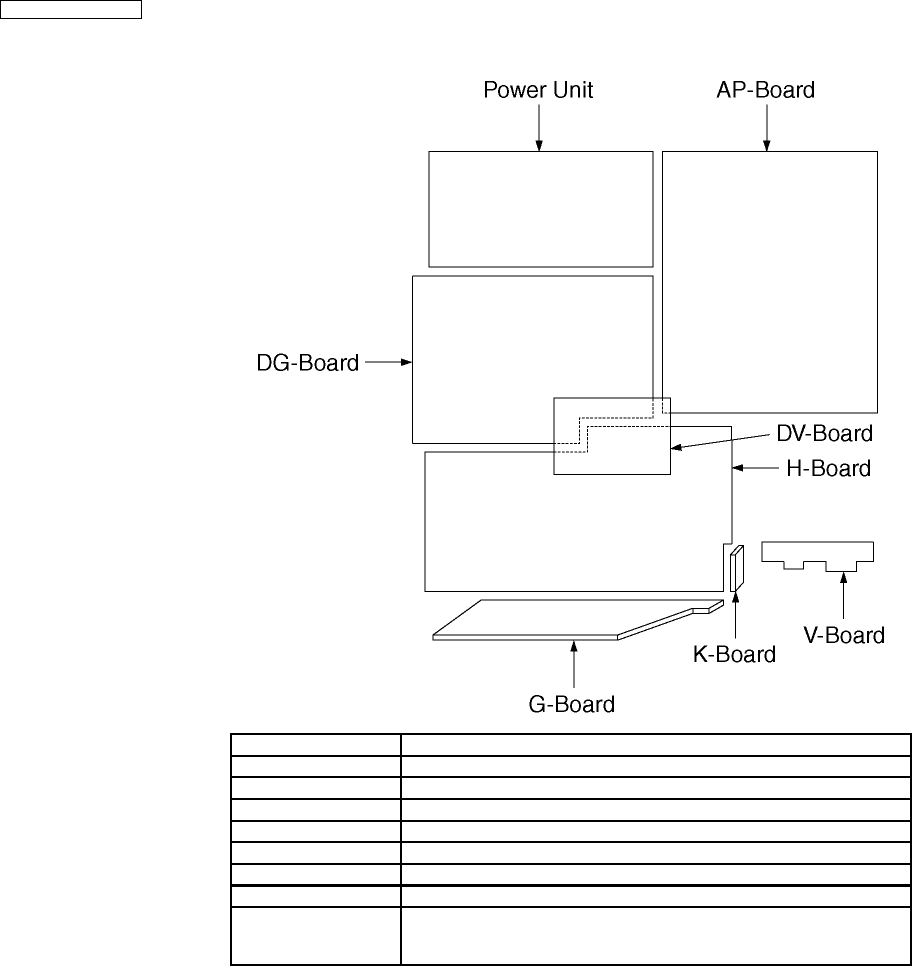

3 Location of Controls and Components

Board Name Function

H-Board AV Switch, Audio, AV connector

V-Board Remote Reciever, LED

K-Board Power switch

AP-Board DC-DC

G-Board Front Terminal

DG-Board MCU, Gobal Core, MEMORY

DV-Board HDMI I/F

Power Unit Power (AC/DC),

None serviceable.

Power Unit should be exchange for service.

TC-32LX50 / TC-26LX50

4 Service Mode

4.1. How to enter into adjustment mode

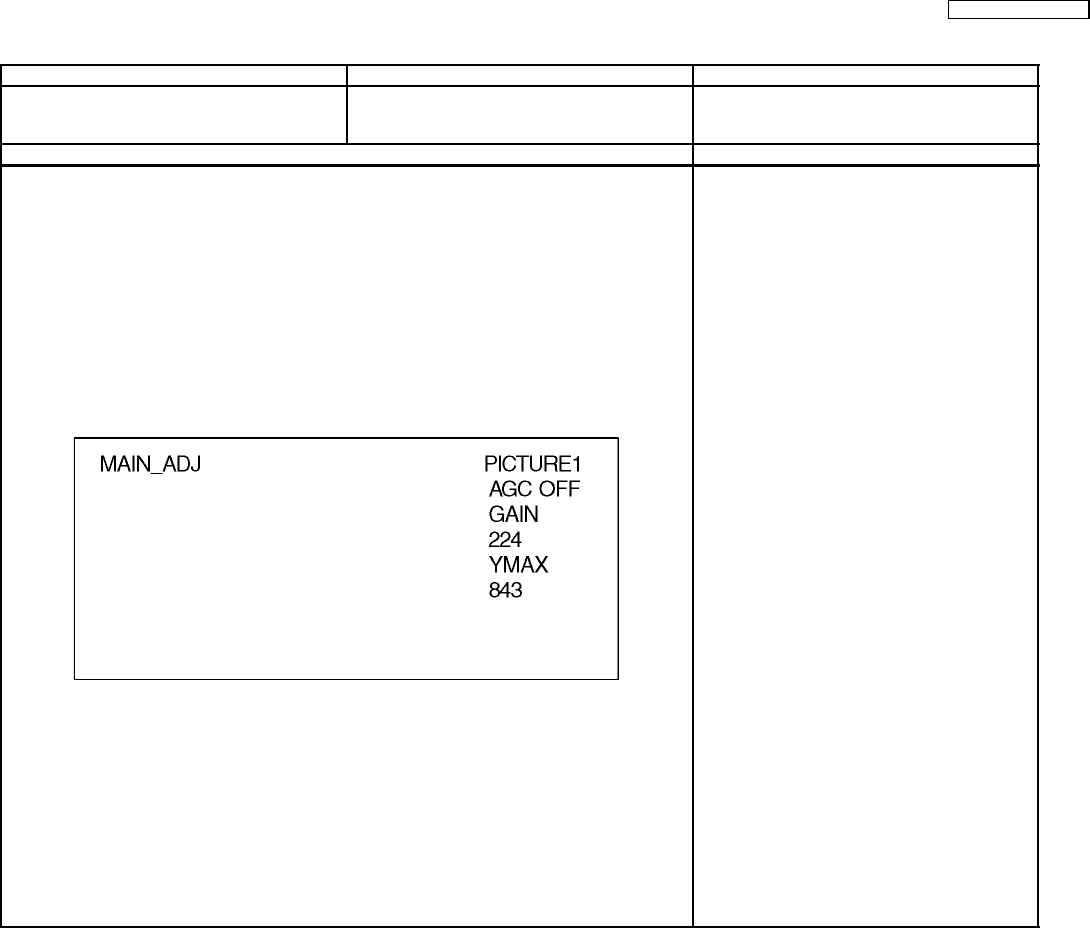

While pressing [VOLUME- ] button of the main unit, press [RECALL] button of the remote control three times in a row (within 2

seconds).

4.1.1. Adjustment method.....Use the remote control.

“1” button...Main items Selection in forward direction

“2” button...Main items Selection in reverse direction

“3” button...Sub items Selection in forward direction

“4” button...Sub items Selection in reverse direction

“VOL” button...Value of sub items change in forward direction ( ), in reverse direction ( )

4.2. Cancellation

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

4.3. Contents of adjustment mode

Value is shown as a hexadecimal number.

Preset value differs depending on models.

After entering the adjustment mode, take note of the value in each item before starting adjustment.

Main Item Sub item Remarks

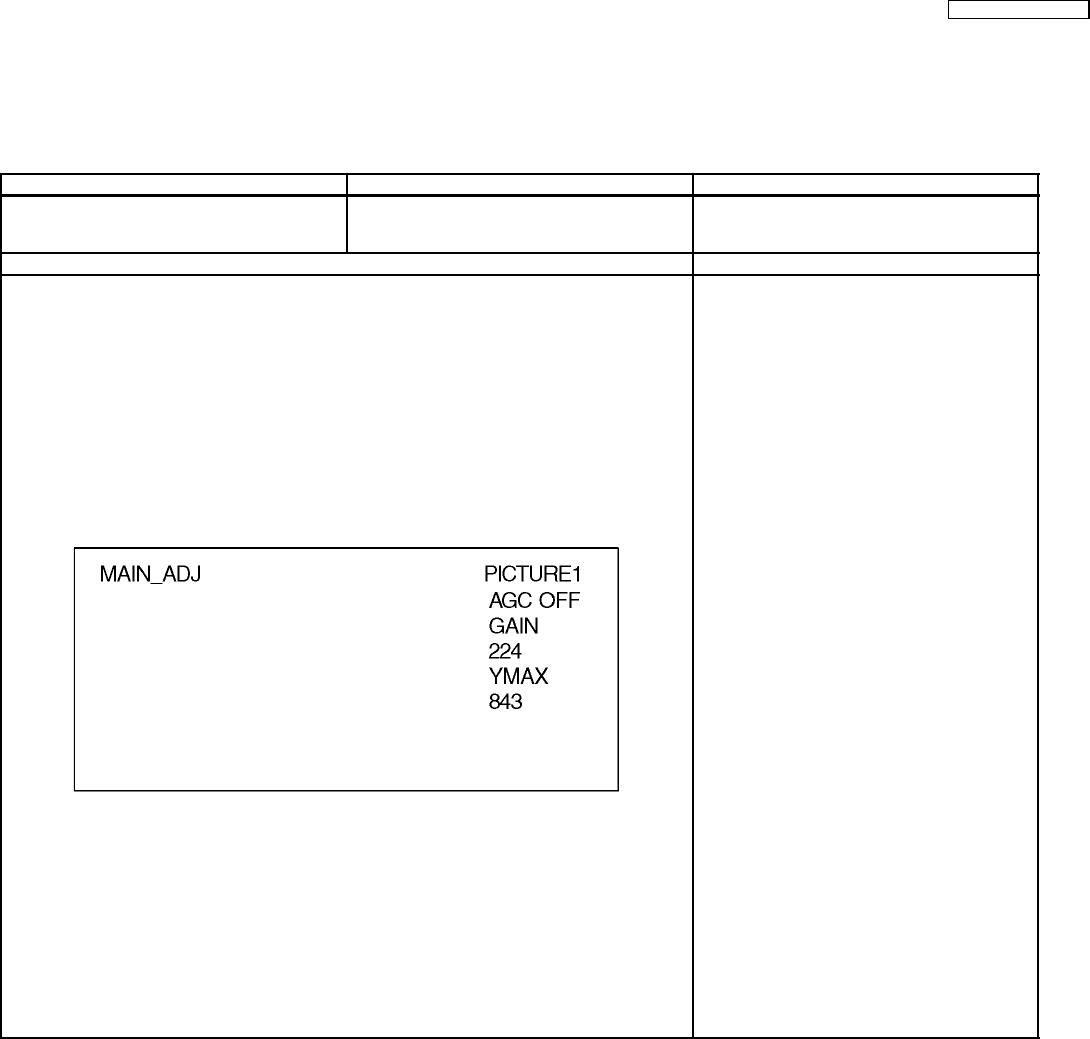

MAIN_ADJ PICTURE1

B-Y

R-Y

PCT_ADJ COLOR (Sub-COLOR)

TINT (Sub-TINT)

BRIGHT (Sub-BRT)

BACK-L (Sub-BACKLIGHT)

B-Y-G (B-Y Gain)

R-Y-A (R-Y Angle)

WB_ADJ WHITE WHITE 100% (Not ADJ)

RED RED 100% (Not ADJ)

GREEN GREEN 100% (Not ADJ)

BLUE BLUE 100% (Not ADJ)

H-GRAY WHITE 50% (ADJ)

L-GRAY WHITE 25% (ADJ)

CHECK WHITE 100% (ADJ)

R-GAIN WHITE 100% (ADJ)

G-GAIN WHITE 100% (ADJ)

B-GAIN WHITE 100% (ADJ)

R-CENT WHITE 50% (ADJ)

G-CENT WHITE 50% (ADJ)

B-CENT WHITE 50% (ADJ)

OPTION OPT00

EEPROM COPY ALL or ADJ

RM_SET CODE A or B (Remote Control Code)

TC-32LX50 / TC-26LX50

Main Item Sub item Remarks

MTS/HDMI_ADJ MTSIN/WP

SEPAL

SEPAH

TC-32LX50 / TC-26LX50

5 Troubleshooting Guide

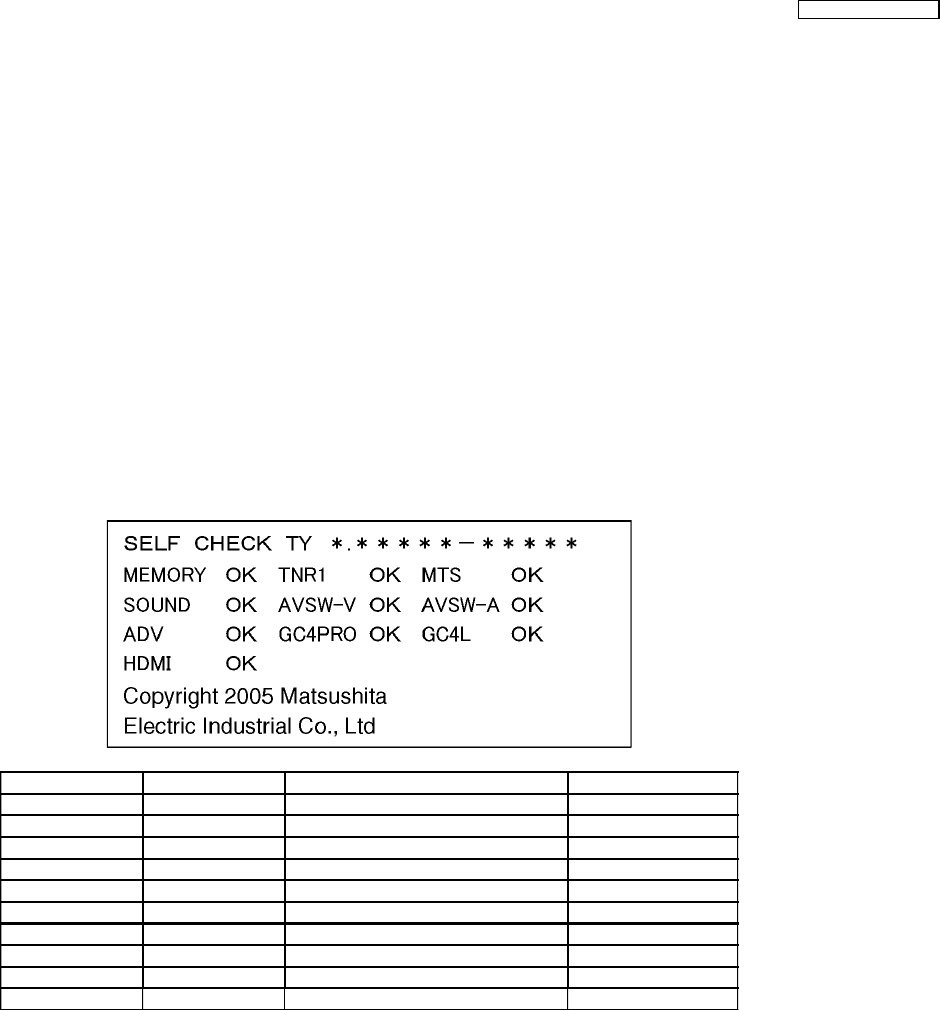

5.1. Self-check function

When phenomena like "the power fails from time to time" or "the video/audio fails from time to time" can not be confirmed at the

time of servicing, the self-check function can be used to confirm the occurrence and to limit the scope for the defective circuits.Also,

when "the power fails from time to time", display on the screen can be used to confirm the occurrence and to limit the scope for

the defective circuits.

Any programmed channels, channels caption data and some other user defined settings will be erased and return to factory setting.

5.1.1. How to access

5.1.1.1. Access

Produce TV reception screen and, while pressing [VOLUME-] button on the main unit, press [SLEEP] button on the remote

controller unit simultaneously.

5.1.1.2. Exit

When one of the buttons for channel selection etc. is pressed, the display returns to the normal screen.

5.1.2. Screen display

Display Ref No. Description P.C.B

MEMORY IC1106 EEPROM DG-Board

TNR1 TU3001 Tuner H-Board

MTS IC3002 TV sound multiplex decode H-Board

SOUND IC2001 Sound Control H-Board

AVSW-V IC3007 Audio input Switch H-Board

AVSW-A IC3001 Video input Switch H-Board

ADV IC4005 A/D Converter DG-Board

GC4PRO IC4054 Video Processor (GC4PRO) DG-Board

GC4L IC4057 Video Processor (GC4L) DG-Board

HDMI IC5003 HDMI I/F DV-Board

TC-32LX50 / TC-26LX50

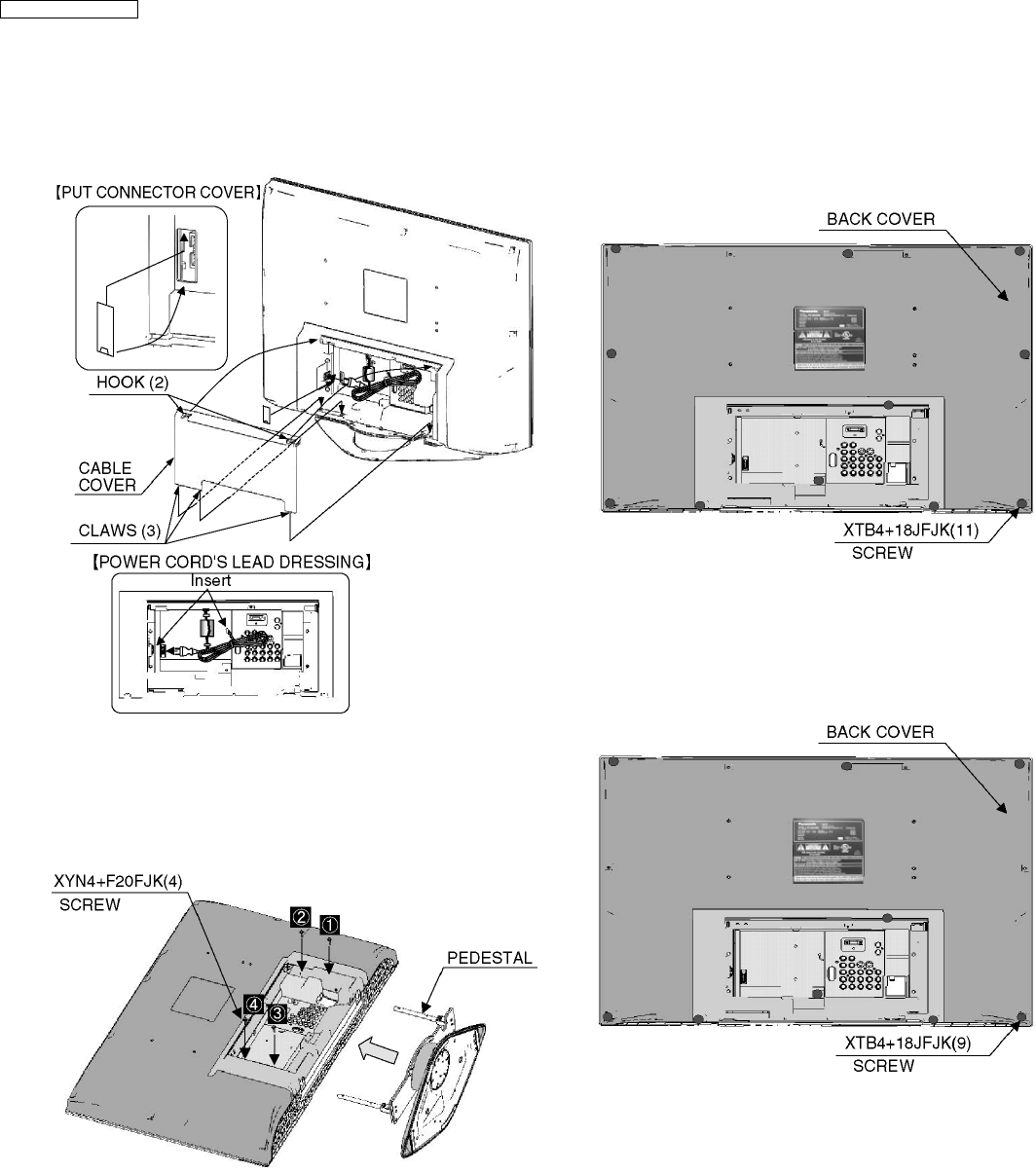

6.1. Removing the cable cover

1. 1. Remove the 2 hooks and 3 claws.

2. 2. Remove the cable cover.

6.2. Removing the pedestal

1. 1. Lay down the unit so that the rear cover faces upward.

2. 2. Remove the 4 screws.

3. 3. Remove the pedestal.

6.3. Removing the back cover (TC-

32LX50)

1. Remove the 11 screws.

2. Remove the back cover.

6.4. Removing the back cover (TC-

26LX50)

1. Remove the 9 screws.

2. Remove the back cover.

6 Disassembly and Assembly Instructions

TC-32LX50 / TC-26LX50

6.5. Removing the sp box

1. Remove the 6 screws.

2. Remove the sp box.

6.6. Removing the rear AV bracket

1. Remove the 2 screws.

2. 2. Remove the screw.

3. 3. Remove the rear AV bracket.

6.7. Removing the rear support

MTG

1. Remove the 4 screws.

2. Remove the rear support MTG.

TC-32LX50 / TC-26LX50

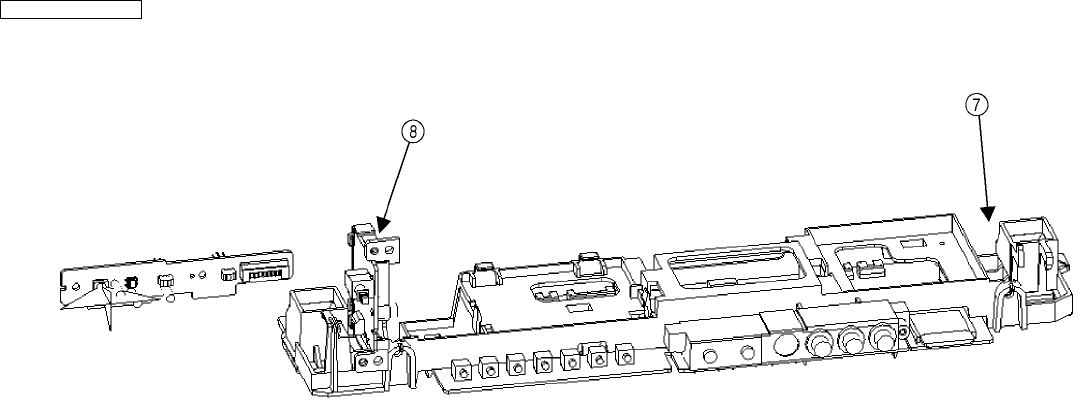

6.8. Removing the font bracket and

G-Board

1. Remove the 2 screws.

2. Disconnect the coupler(G1, G2, and G4).

3. 3. Remove the front bracket assembly.

4. Remove the front bracket and G-Board

6.9. Removing the K-Board and V-

Board

1. Remove the 4 screws.

2. Disconnect the coupler (K2 and V1).

3. Remove K-Board, V-Board.

6.10. Removing the LVDS metal

bracket and DV-DG shield

1. Remove the 3 screws.

2. Remove the LVDS metal bracket.

3. Remove the screw.

4. Remove the DV-DG shield.

TC-32LX50 / TC-26LX50

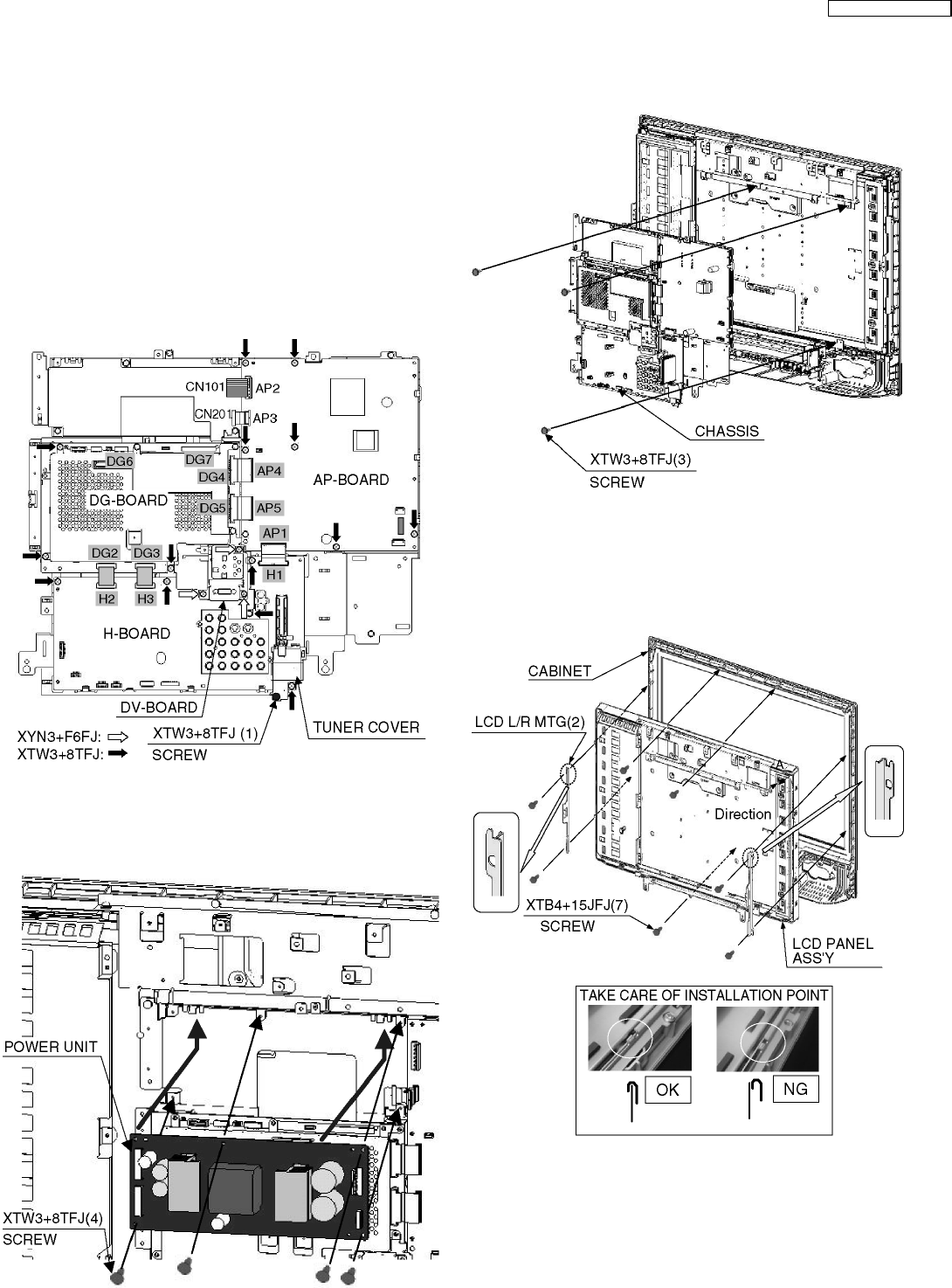

6.11. Removing the tuner cover, DV-

Board, AP-Board, DG-Board,

and H-Board

1. Remove the screw.

2. Remove the tuner cover.

3. Remove the 3 screws.

4. Remove the DV-Board.

5. Remove the 15 screws.

6. Disconnect the coupler (AP1-H1, AP2-CN101, AP3-CN201,

AP4-DG4, AP5-DG5, DG2-H2, DG3-H3, DG6-INV and

DG7-PANEL).

7. Remove the AP-Board, DG-Board, and H-Board.

6.12. Removing the power unit

1. Remove the 4 screws.

2. Remove the power unit.

6.13. Removing the chassis

1. Remove the 3 screws.

2. Remove the chassis.

6.14. Removing the LCD panel ass´y

and LCD L/R MTG

1. Remove the 4 screws.

2. Remove the LCD panel ass´y and LCD L/R MTG.

TC-32LX50 / TC-26LX50

6.15. Removing the LCD panel and

LCD T/B MTG

1. Remove the 4 screws.

2. Remove the LCD panel and LCD T/B MTG.

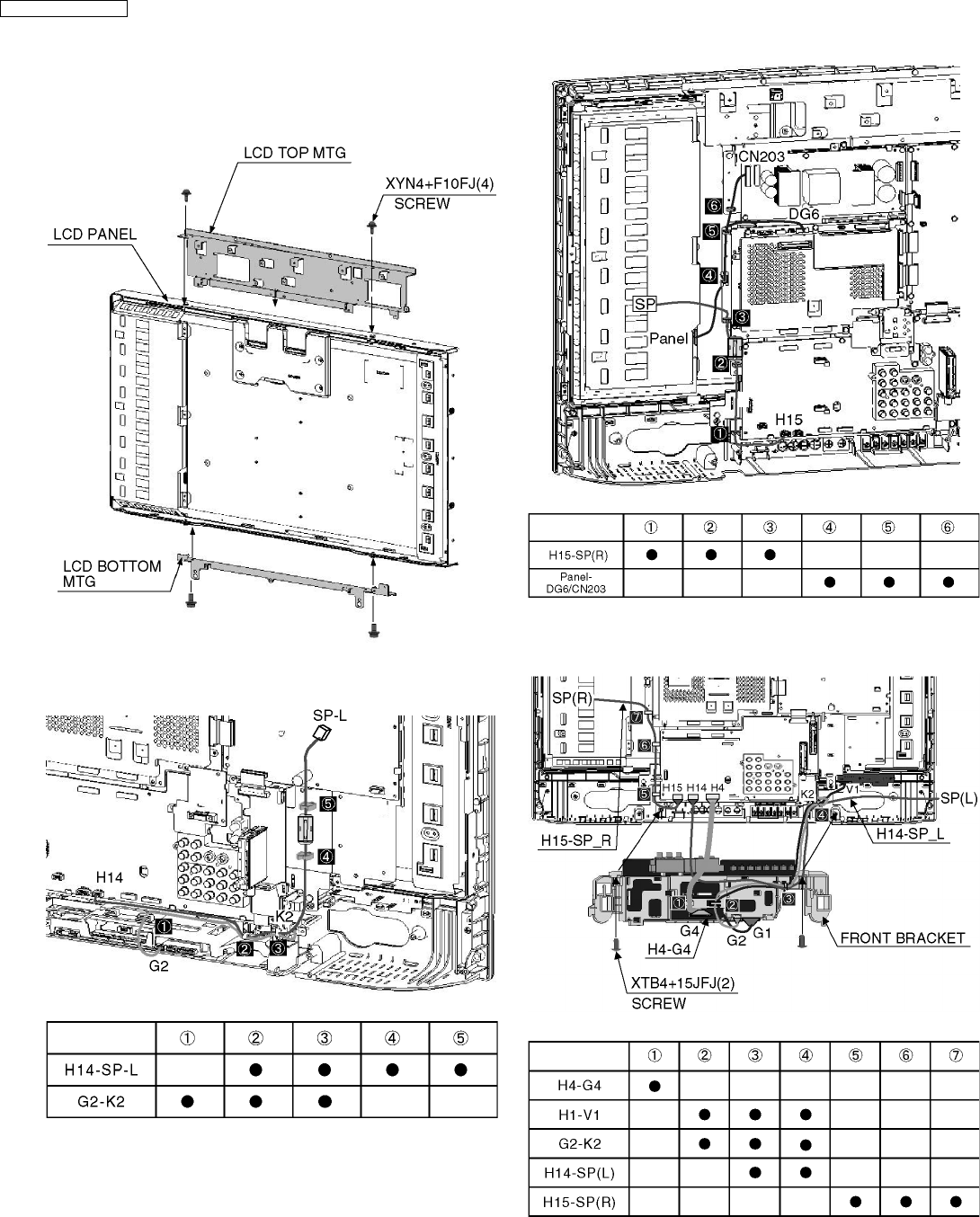

6.16. Lead Wiring (1)

6.17. Lead Wiring (2)

6.18. Lead Wiring (3)

TC-32LX50 / TC-26LX50

7 Measurements and Adjustments

7.1. Picture level adjustment

7.1.1. NTSC Picture RF

Instrument Name Connect to Remarks

Remote controller

Ex. Signal (Sprit color bar) RF input

Procedure Remarks

1. Receive the sprit color bar.

(Screen mode: ZOOM or FULL Picture mode: DINAMIC AI: OFF AI Picture:OFF)

*BACK LIGHT +30

2. Enter Factory adjustment mode, and select MAIN_ADJ PICTURE.

2-1 Y signal check

Volume UP/DOWN key makes GAIN displayed under PICTURE to set.

Pushing the remote controller “OK” key for about 3 seconds, GAIN is suited tothe adjustment

value automatically.

The Micon changes automatically to the mode

of the following in the adjustment mode.

At the factory trial purposes and pre-production,

the value of YMAX and GAIN are recorded.

TC-32LX50 / TC-26LX50

7.1.2. NTSC Picture VBS

Instrument Name Connect to Remarks

Remote controller

Video signal generator Video input

Procedure Remarks

1. Receive the 100% color bar.

(Screen mode: ZOOM or FULL Picture mode: DINAMIC AI: OFF AI Picture:OFF)

*BACK LIGHT +30

2. Enter Factory adjustment mode, and select MAIN_ADJ PICTURE.

2-1 Y signal check

Volume UP/DOWN key makes GAIN displayed under PICTURE to set.

Pushing the remote controller “OK” key for about 3 seconds, GAIN is suited to the

adjustment value automatically.

The Micon changes automatically to the mode

of the following in the adjustment mode.

At the factory trial purposes and pre-production,

the value of YMAX and GAIN are recorded.

TC-32LX50 / TC-26LX50

7.1.3. Component Picture 1125i input

Instrument Name Connect to Remarks

Remote controller

Video signal generator Y, Pb, Pr input

Procedure Remarks

1. Receive the 100% color bar.

(Screen mode: ZOOM or FULL Picture mode: DINAMIC AI: OFF AI Picture: OFF)

*BACK LIGHT +30

2. Enter Factory adjustment mode, and select MAIN_ADJ PICTURE.

2-1 Y signal check

Volume UP/DOWN key makes GAIN displayed under PICTURE to set.

Pushing the remote controller “OK” key for about 3 seconds, GAIN is suited to the

adjustment value automatically.

The Micon changes automatically to the mode

of the following in the adjustment mode.

At the factory trial purposes and pre-production,

the value of YMAX and GAIN are recorded.

TC-32LX50 / TC-26LX50

7.2. MTS Adjustment

7.2.1. Input level adjustment

Instrument Name Connect to Remarks

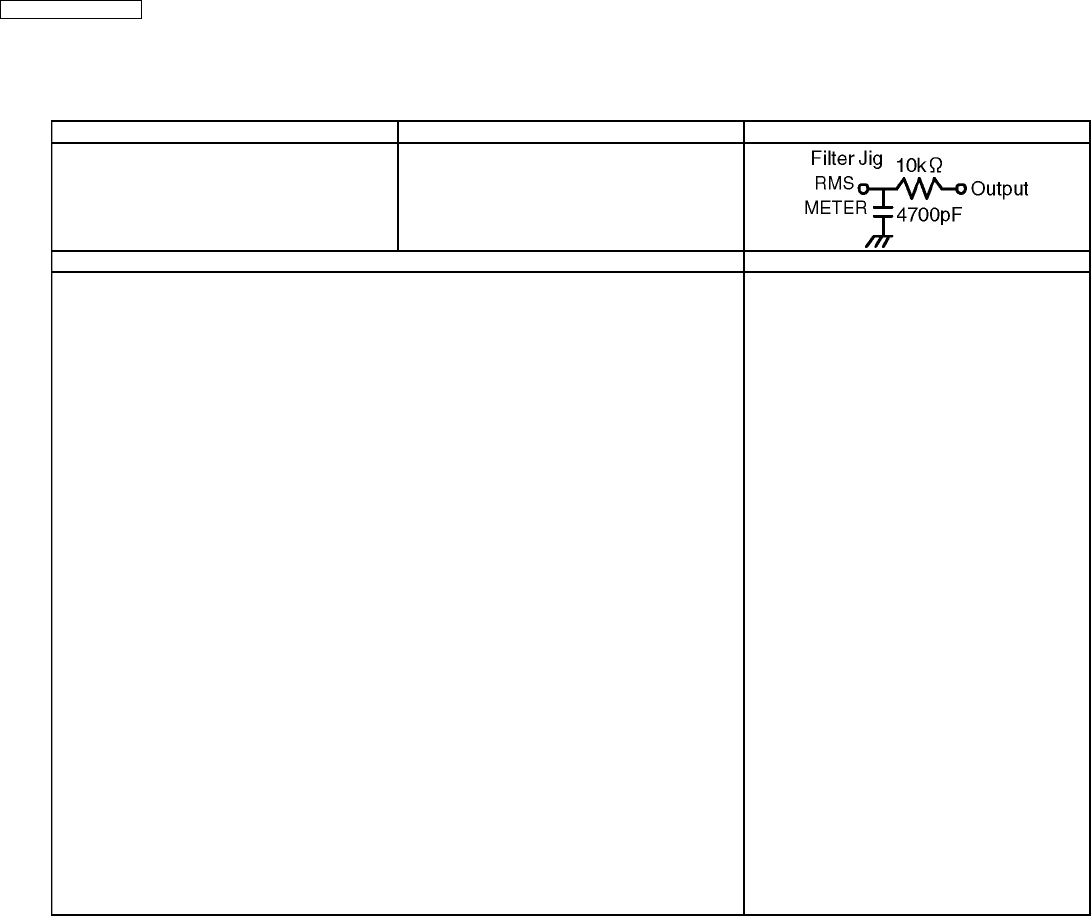

Filter Jig

RMS voltage meter

RF signal generator

Monitor out L

Filter Jig

RF ANT. Input

Procedure Remarks

1. Apply following RF at Antenna input.

Video: Flat field, 30% modulation

Audio: 300Hz, 100% modulation, monaural

(70dB ±5dB, 75WOPEN, P/S 10dB)

Note: Make sure 75us Pre -Emphasis is off.

2. Select MTSIN of MTS adjust in factory adjust mode

3. Adjust “MTSIN” data (input level) until RMS voltage meter indicates 106±6mVrms.

*Need to min 30 minutes aging.

TC-32LX50 / TC-26LX50

7.2.2. Stereo separation adjustment

Instrument Name Connect to Remarks

Oscilloscope

RF signal generator Monitor out R

RF ANT. Input

Procedure Remarks

1. Select stereo mode in the audio menu.

2. Apply following RF signal at Antenna input.

Video: Flat field, 30% modulation

Audio: 300Hz, 30% modulation, stereo (Left only)

(70dB ±5dB ,75WOPEN ,P/S 10dB)

Note: After setting 30% modulation with P.L. SW

And N.R. SW off, TURN P.L. SW and N.R. SW on.

3. Select SEPAL of MTS Adjust in factory Adjust mode

4. Adjust “SEPAL” data (Low-level separation) until the amplitude

5. Apply following RF signal at Antenna input.

Video: Flat field, 30% modulation

Audio: 3kHz, 30% modulation, stereo (Left only)

(70dB±5dB ,75WOPEN ,P/S 10dB)

Note: After setting 30% modulation with P.L. SW

And N.R. SW off, TURN P.L. SW and N.R. SW on.

6. Select SEPAH of MTS adjust in factory adjust mode

7. Adjust “SEPAH” data (High-level separation) until the the amplitude of the waveform on the

oscilloscope minimum.

8. Repeat steps 2. to 7. until Low-level separation and High-level separations satisfy above-

mentioned conditions.

*Need to min 30 minutes aging.

Need to more than 20dB separation at 300Hz

and 3kHz.

TC-32LX50 / TC-26LX50

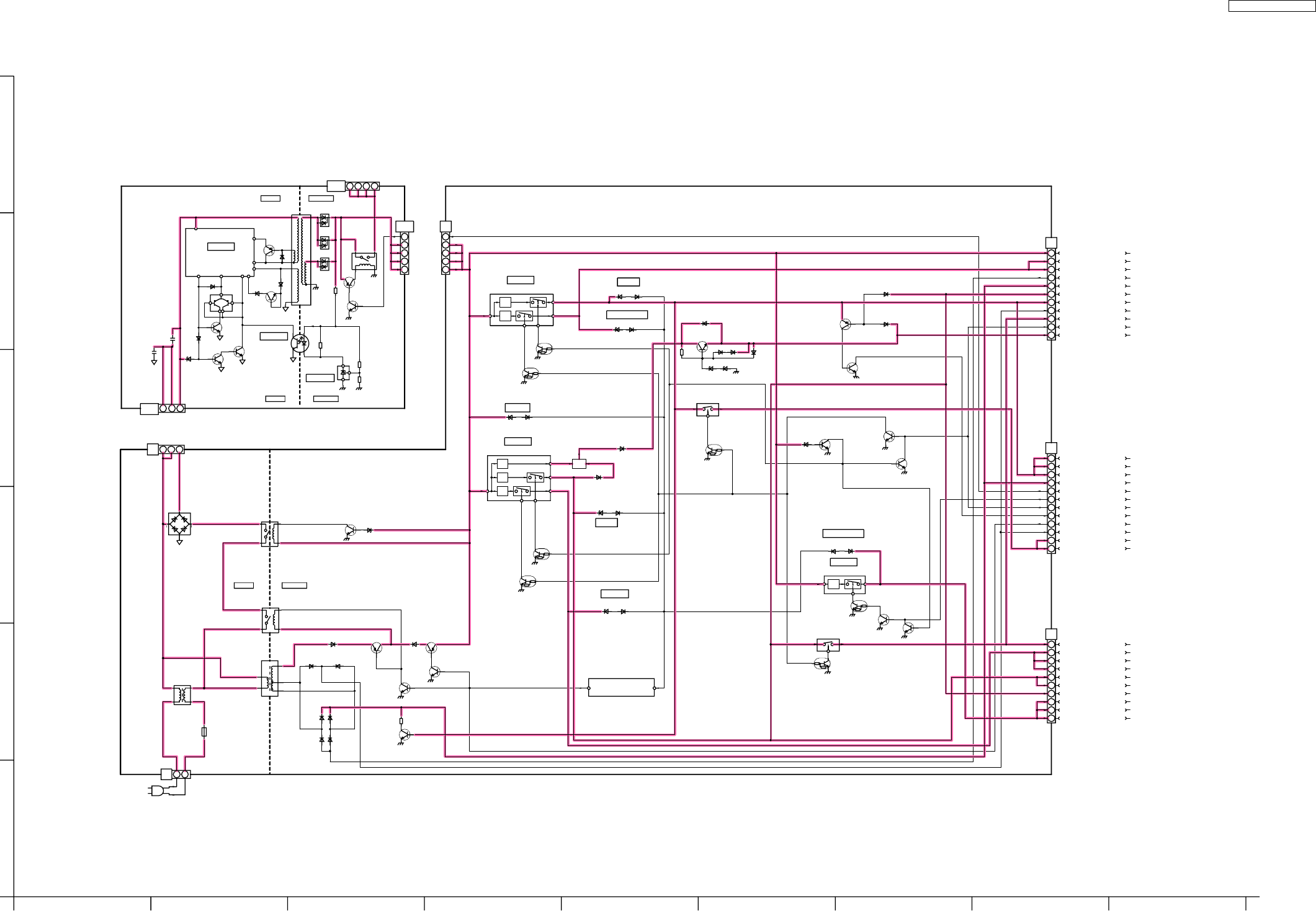

8 Block Diagram

8.1. Block Diagram (1 of 4)

L.F

Q7208

D7204

Q7211

Q7210

D7152

D7704

T7151

2P1

3P2 6

Q7702

D7154

Q7401

Q7217

Q7214

D7161

D7220

Q7218

Q7301

Q7302

D7404

Q7212

D7208

Q7501

D7304

D7155

Q7203

D7302

D7303

D7214

Q7504

D7151

D7401

PC101

D7203

D7153

D7601

Q7402

D7703

D7602

Q7219

D7403

Q7508

D7206

D7004

D7402

F7001

Q7701

D7156

D7301

Q7220

RL7002

RL7001

D7212

Q7220

D7603

D7607

Q7601

D7605

D7604

D7608 D7606

LF7004

ERROR DET

MAIN+9V ON/OFF

SUB+9V ON

Q7502

IC201

+9V

LINE FILTER

O.V.P, DET CIRCUIT

24V

CN101

FEED BACK

SHORT DET

3.3V OVP

AC RELAY

AP10

PANEL 5V ON/OFF

24V

+5V

IC7701

24V_ON

AP5

24V

SOUND+18V ON

REMOTE TRANS

AP2

SUB+5V ON

Q7503

CN3

HOT COLD

SOUND+18V/SUB+5V

CN203

DC+

IC7301

SUB+5V DET

Q104

SWITCHING TRANS

+24V

LF7002

MIX

LF7003

5V OVP

HOT

Q7204-Q7027

(INV)

CN201

SOUND_VCC OVP

MAIN+9V

RL201

MAIN+5V

AC RELAY

PANEL 5V

IC7401

Q201

Q202

DC DC ON/OFF

PANEL 5V ON

IC101

COLD

POWER CONTROL

24V OVP

AC CORD

PANEL_Vcc OVP

24V

DG5

MAIN+3.3V/SUB+9V

DET:AC RELAY OFF

AP1

MAIN+3.3V ON

AC RELAY

9V OVP

Q102

+5V

T101

SOS DET

+3.3V

TP_1

Q101

AP3

Q103

MAIN+5V ON/OFF

/+9V(S)

AP4

+30V(BT)

AC RELAY

POWER UNIT

PANEL 5V ON

AC RELAY

+18V

Q106

TP_2

Q105

DG4

AP-BOARD

RUSH RELAY

BT_30V

PANEL_5V

SUB_9V(PACK)

SUB_9V

MAIN_3.3V

PANEL_5V

MAIN_3.3V

MAIN_9V

PANEL_5V

STB_7V

AC_ON

MAIN_5V

ZERO_X_DET

24V_ON

PANEL5V_ON

MAIN_ON

SOS_1

SUB_5V

HOT COLD

ZERO_X_DET

MAIN_ON

UNREG_24V

STB_7V

SOUND_17.7V

MAIN_9V

SUB_9V

BT_30V

STB_PS

SUB_5V

DC DC ON/OFF

5897

2 6

134

RECTIFIER

TC-32/26LX50 Block Diagram (1 of 4) TC-32/26LX50 Block Diagram (1 of 4)

TC-32LX50 / TC-26LX50

8.2. Block Diagram (2 of 4)

PUSH

MONITOR OUT

COMPONENT2

COMPONENT1

V2-R

MAIN-ON

SDA0A

MON-L

TV(L)

KEY

AFT

D2-L

V3-R

LED-G

V1-S

V3-Y

SCL0A

LED-R

HDMI-L

MON-R

PB(M)

V2-V

SDA0B

V2-Y

SW-DET

D2-PB

V2-S

SRQ

V1-L

MON-L

HDMI_L

PB(M)

SCL0B

STB_RST

D1-R

SCL0A

V3-L

KEY

HDMI_R

V1-R

AMUTE

SW-DET

V1-V

Y(M)

V3-L

MAIN-SW

D2-R

MON-DEF

V2-L

D1-L

V2-L

LED-R

V2-C

PR(M)

HP-L

SDA0A

V1-C

SCL1

HDMI-R

LED-G

MON-V

V3-V

SCL0A

SDA0A

S_DET

PR(M)

V3-C

HP-R

D1-R

D2-R

SDA0A

HP-DET

D1-L

D2-Y

D1-PR

SCL0A

V1-L

V1-Y

V3-R

TV(R)

D1-PB

SDA1

V2-V

MON-R

SCL1

V3-S

D1-Y

SDA0B

D2-L

SCL0B

V1-R

D2-PR

V2-R

V2-Y

SDA1

Y(M)

V1-Y

AMUTE

MON-V

V1-S

MSDA0B

V1-V

MSCL0B

V2-S

S_DET

D2-PB

D2-PR

D2-Y

D1-Y

D1-PB

D1-PR

V3-S

V3-V

V3-Y

A-HDMI-L

A-HDMI-R

A-HDMI-L

A-HDMI-R

V1-C

V2-C

V3-C

TV(V)

SP_MUTE

AFT

TV(L)

TV(R)

HP-L

HP-R

HP-DET

Q1004

R3826

SN1001

4SW3807

R3823

SW3805

JK3801

R-G

L-G

V-G

C-G

Y-G

Q2004

SW3804

D1008

SW2801

R3822

Q1002

C2802

RM1001

VOUT

GND

3VCC

R3825

SW3806

Q2002

SW3803

Q2012

Q2014

Q3038

R2089

C2801

JK3002

Y-G

C-G

Y-G

C-G

JK3003

L-G

R-G

Q3029

OUT

ADJUST

(SP MUTE)

H-BOARD

133

IC3007

+9V(S)

MONITOR

MUTE(R)

MUTE(L)

VIDEO2

Q3027

401

R:STAND-BY

G:POWER ON

+9V(S)

S DET

HDMI

Q3039

SOUND CONTROL

HP MUTE

AMP

10 15 24

TU3001

IC3002

AMP

Q3034

Q3036

MONITOR

Q3032

S DET

M S CLOCK0B

HDMI R

S DATA 0B

VIDEO2

S DATA0A

Q3025

COMP2

S CLOCK0B

+5V(ADJ)

MAIN PR

K-BOARD

M S DATA0B

AI SOUND

AUDIO SW

17718

VOL+

VOL-

MAIN

AFT

HDMI L

MAIN PB

MUTE CONTROL

S CLOCK0A

S DATA 0A

MAIN+5V

MAIN+5V ON/OFF

COMP2

OUT

+5V(M)

MTS

DG3

DG2

235

AGC

HEADPHONE

TV/VTR

IC3001

SURROUND

TREBLE

VIDEO SW

HP DET

G-BOARD

VIDEO1

+5V(M)

S DATA0A

MUTE CONTROL

BASS

HP AMP

COMP1

C/PB

VIDEO3

MONITOR OUT

V/Y

S CLOCK0A

COMP1

VIDEO1

IC2004

FRONT TERMINAL

VIDEO3

REMOTE CONTROL SENSOR

POWER LED

IC2001

C.A.T.S. SENSOR

BUFFER

MONITOR OUT

MAIN Y

+5V(ADJ)

V-BOARD

POWER SW

BALANCE

S CLOCK0A

MAIN_SW_DET

STB_PS

R_LED

G_LED

STB_3.3V

SUB_5V

REMOTE

Video2

Component1

Monitor Out

Component2

Video1

S DET

VIDEO3

A-HDMI

HDMI analog

IIC

MATRIX

FILTER

DEMODU

OUT

MAIN

+9V(M)

SP_MUTE

STB_RST

A_MUTE

A_MON_DEF

STB_3.3V

SW_OFF_DET

MAIN_SW_DET

AI_SENSE

REMOTE

KEYSCAN

G_LED

R_LED

SRQ

SDA0A

SCL0A

SDA1

SCL1

G_LED

STB_PS

AI_SENSE

HP_ROUT

HP_LOUT

HP_DET

KEYSCAN

REMOTE

STB_3.3V

R_LED

S_DET

MAIN_SW_DET

SUB 5V

1615131210 18171411

TC-32/26LX50 Block Diagram (2 of 4) TC-32/26LX50 Block Diagram (2 of 4)

REAR TERMINAL

TC-32LX50 / TC-26LX50

8.3. Block Diagram (3 of 4)

AI_SENSE

STB_RST

KEY_SCAN

SW_OFF_DET

MSCL0B

MAIN_ON

ATF

MON-DET

SCL0B

SW-DET

SCL2

SCL1

SDA0B

SDA2

HPD

AMUTE

PANEL_VCC_ON

SDA1

SDA0A

M_SCL0B

HDMI_RBSTNSS

SDA0A

24V_ON

HDMI_INT

JTAG_TRST

MPB

JTAG_I_TDO

A_DAC_PD

MP-SRQ

HDMI_A_MUTE

TV_SOS

JTAG_TMS

HDMI_RST

A_MON_DEF

HDMI_5V_DET

JTAG_TDO

MAIN-ON

JTAG_TCK

M_SDA0B

STB_RST

SRQ

MSDA0B

R_LED_ON

SDA1

SCL1

G_LED_ON

MAIN_SW_DET

ZERO_X_DET

AC_ON

REMOTE

SCL0A

SP_MUTE

MPR

H12

Q2016

Q2007

Q2005

Q3058

Q5003

Q5002

Q2009

Q4080

Q2006

R2049

JK5001

R2024

D3018

Q4077

Q2013

DEFFET

MONITOR

AMP

+3.3V(M)

1216

AMP

Q4007,Q4008

H-BOARD

MAIN SW DET

27MHz

D/A

200Hz

DG10

IC2003

Q4038-Q4041

+3.3V

610

M S DATA0B

M S CLOCK0B

JTAG-TMS

A/D CONV

(10bit)

SCL0B

SOM

HDMI RESET

HPD

IC4069

MAIN+1.2V

Q4079

3.3V_SDA

MAIN+1.8V

3.3V_SCL

A/D

+5V(M)

+1.8V

CONV

DDC

Q5004

DG5

MCLK

VDD

1bit

IC2002

AUDIO

LPF

ESCL

ESDA

SCL

HPDT

IC2005

500Hz

HPF

MUTE

DV-BOARD

H15

500Hz

+3.3V(M)

MUTE

+1.8V(M)

CLK-

D0-

D2+

IC4041

D2-

DG3

JTAG-TCK

Q4057-Q4061

HP/VP/CLK

HDMI AUDIO

Q5001

IC5017

MUTE

IC5003

HMDI I/F

HP/VP/ENB

CLK

+3.3V

VIDEO

DECORD

M S DATA0B

S CLOCK0B

+5V(ADJ)

Y:10bit

HDMI 5V DET

+1.8V

BUFFER

HDMI INT

H14

SOM

STB+3.3V

1bit

DV15

HDMI R

S DATA0B

DG-BOARD

S CLOCK2

+1.8V

S DATA 2

BOARD TEST

FILTER (L)

HPF

HDMI INT

AMP

EXTCK

AMP

MAIN PR

AFT

HDMI L

SDA0B

SCL0B

Q4078

MUTE

IC2006

D1-

+9V(M)

D1+

VDD

HDMI IN

+5V

IC4068

IC2008

DDC RESET

IC4001

SDO

EXTCK

+9V(M)

IC4002

AD+3.3V

D0+

EEPROM

RESET

+1.8V(M)

STB RESET DET

ZERO X DET

5V<->3.3V

Hi : MUTE

Audio MUTE and 5Vdet

218

IC4005

DG4

HDMI HS

SDA0B

DG2

AP5

FACTORY USED

IC4049

AMP

+1.8V

JTAG-TD0

JTAG-TDI

VDD

AMP

HDMI DATA

DV15

SCK

+3.3V(M)

AMP

NIRQ

HDMI L

AP4

HDMI DATA

D/A

CABLE IN -> Hi : Norm

CABLE OUT -> Low : Mute

CLK

WOOFER(L)

Y:10bit

VDD

LPF

HDMI VIDEO

MUTE

SQUAWKER(R)

DDC DATA

HDMI VS

CLK+

HDMI R

HDMI RESET

UV:10bit

+3.3V(M)

JTAG-TRST

+9V(M)

IC4065

MAIN PB

MAIN Y

+5V(ADJ)

MUTE

+1.2V

200Hz

+1.8V

IC5015

AP1

SRQ

S DATA 0A

+5V(ADJ)

S CLOCK0A

UV:10bit

HDMI CLOCK

HDMI VIDEO

MAIN+1.8V

+5V(M)

NIRQ

M S CLOCK0B

SQUAWKER(L)

AMP

HDMI AUDIO

Low : Detect HPD5V

HOT PLIG DETEDT

A MUTE

+3.3V(AD)

FILTER(R)

ZERO X DET

IC2007

WOOFER(L)

SQUAWKER(L)

WOOFER(R)

SQUAWKER(R)

PROCESS

CONTROL

MUTE

SP MUTE

SRQ

SDA0A

SP_MUTE

STB_RST

A_MUTE

A_MON_DEF

STB_3.3V

SW_OFF_DET

MAIN_SW_DET

AI_SENSE

REMOTE

KEYSCAN

G_LED

R_LED

SCL0A

SDA1

SCL1

SOUND_17.7V

MAIN_9V

SUB_9V

BT_30V

STB_PS

SUB_5V

ZERO_X_DET

MAIN_ON

UNREG_24V

STB_7V

AC_ON

MAIN_5V

ZERO_X_DET

24V_ON

PANEL5V_ON

MAIN_ON

SOS_1

SUB_5V

SUB_9V(PACK)

SUB_9V

MAIN_3.3V

PANEL_5V

MAIN_3.3V

MAIN_9V

PANEL_5V

Q1114

Q1112

Q1109

2721 2320 2519 2622 24

TC-32/26LX50 Block Diagram (3 of 4) TC-32/26LX50 Block Diagram (3 of 4)

TC-32LX50 / TC-26LX50

8.4. Block Diagram (4 of 4)

SDA0A

AC_ON

M_SDA0B

AI_SENSE

SCL2

SDA0A

AFT

TV_SOS

SCL0A

A_MUTE

REMOTE

SDA1

G_LED_ON

R_LED_ON

SRQ

HPD

HDMI_INT

SCL1

SDA0A

SRQ

SCL0A

M_SCL0B

MAIN_ON

SW_OFF_DET

SDA1

KEY_SCAN

SCL2

A_DAC_PD

A_MON_DEF

PANEL_VCC_ON

HDMI_RBSTNSS

MAIN_SW_DET

SDA2

MSCL0B

HDMI_A_MUTE

MSDA0B

SCL0A

MP-24V_ON

ZERO_X_DET

SDA2

SCL1

SDA2

HDMI_RST

SP_MUTE

SCL2

SDA2

X1101

X4002

27MHz to ADV7403/GC3E

+3.3V(M)

PLL+1.2V

+5V(ADJ)

S CLOCK2

GEN

FLASH MEMORY

RX0(-)

74.25MHz

108MHz

MAIN+2.5V

DG6

IC4054

RX-CLOCK(+)

S DATA 0A

PANEL+5V

BOARD TEST

128M

+24V ON

G-LED

+2.5V

+2.6V(DDR)

108MHz to 4L(FRCLKIN)

PIXEL CONV.

PANEL+5V

LVDS DRIVER

IC4042

DG12

+1.2V(PLL)

SUB+9V SENSE

S CLOCK0A

AFT

RESET

REMOTE

IC1101

INPUT

IC4033

(16bit)

+2.6V(DDR)

DG-BOARD

M S CLOCK0B

IC4051

74.25MHz to 4L(EXCLKIN)

S DATA 1

MAIN ON

R-LED

RX2(-)

SW OFF DET

DDR

HDMI A MUTE

+3.3V(PLL)

RX-CLOCK(-)

ZERO X DET

+3.3V

RESET (HDMI)

PANEL 5V ON

+3.3V

I/F

RESET

SRQ

EEPROM(AI) MAIN+9V SENSE

IC1106

+1.8V(M)

DIGITAL

+3.3V(M)

BACKLIGHT AI

OSD MIX

S DATA2

FACTORY USED

HOT PLUG DET

PWM OUT

TO LCD PANEL

RX3(-)

A MON DET

M S DATA0B TV SOS

IC4055

PANEL+5V

STB+3.3V

+3.3V(M)

AI SENSE

FACTORY USED

MAIN SW DET

(GC4PRO)

+5V(ADJ)

RESET(GC4)

HDMI_RBSTNSS

RX0(+)

IC4047

S DATA 0A

S CLOCK2

S CLOCK1

PANEL+5V

+2.6V

PANEL I/F

S DATA 2

SRQ

PANEL+5V

INVERTER SOS

A D/A PD

(GC4L)

DDR

S DATA 1

ADDRESS

STB+3.3V

+1.2V(M)

95.5MHz to 4PRO(EXCLKIN)

VIDEO PROCESSOR

CLOCK GEN

S DATA 2

EEPROM

RESET

BOARD TEST

RX1(+)

RESET

A MUTE

27MHz

VIDEO PROCESSOR

RX3(+)

DDR+2.6V

81MHz to 4PRO(VCOIN)

DG13

CPU BUS

RESET

STB+3.3V

MEMORY

PLL+3.3V

DATA

IC1104

108MHz to 4PRO(FRCLKIN)

RX2(+)

SRQ

IC4044

M S DATA0B

KEY SCAN

RX1(-)

CLOCK

S CLOCK0A

+1.2V

INVERTER ON

IC4057

AC_ON

MICOM

HDMI INT

SUB+5V SENSE

IC4067

I/F

IC4052

M S CLOCK0B

IC4048

OSD

S CLOCK2

RESET

Y/C

I/P CONV.

MIX

RESIZE

GAMMA

SP_MUTE

OSD DATA

(16bit)

OSD OUT

H/V/CLK

INV_PWM

CURRENT

INV_ON

INV_SOS

TO LCD PANEL

(INVERTER)

CVBS0

+2.5V(M)

95.5MHz(EXCLKIN)

108MHz(FRCLKIN)

81MHz(VCOIN)

EXTCK

S DATA 2

S CLOCK2

34333230 31

28 3529 36

DG7

TC-32/26LX50 Block Diagram (4 of 4) TC-32/26LX50 Block Diagram (4 of 4)

TC-32LX50 / TC-26LX50

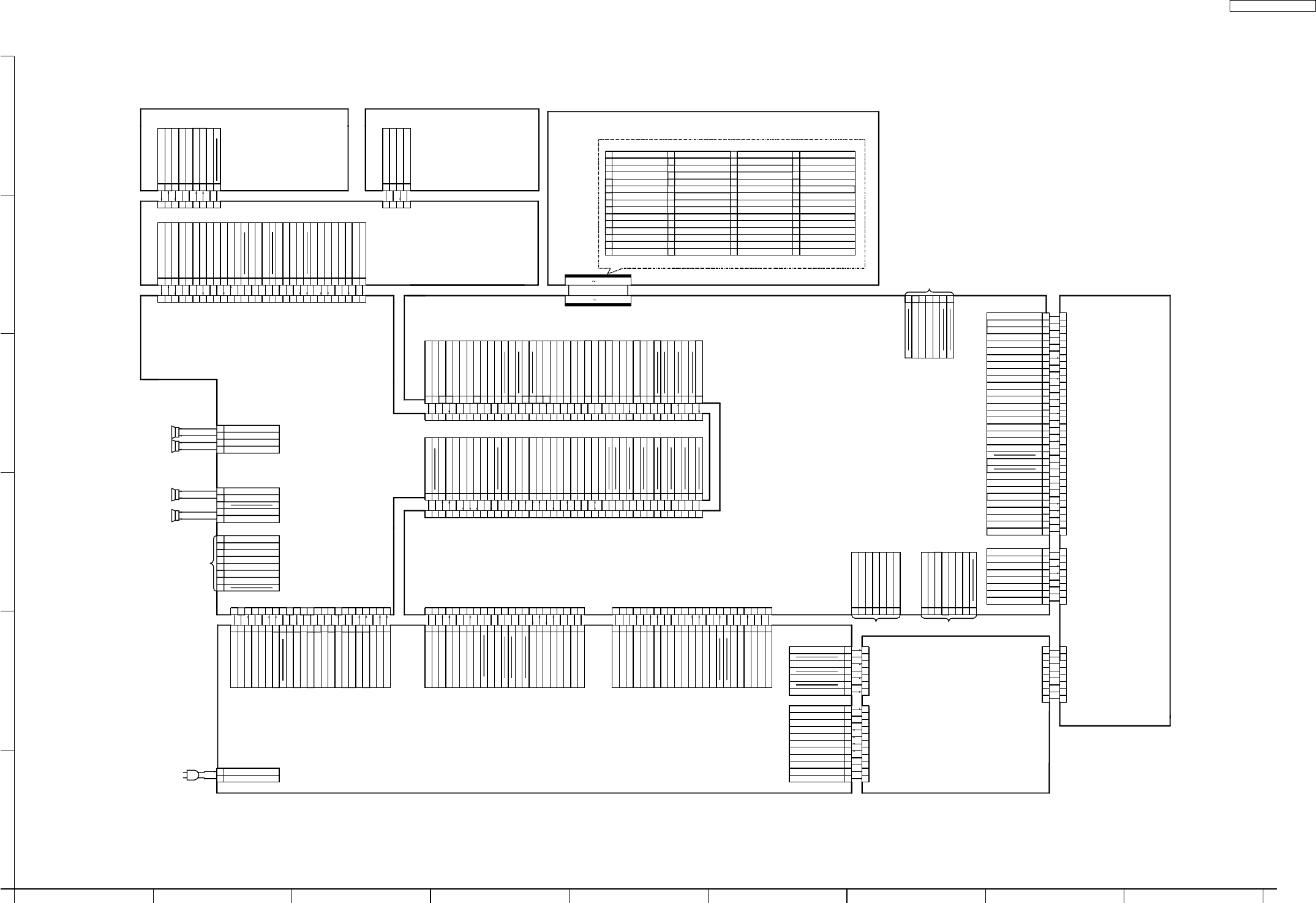

9 Wiring Connection Diagram

DG6

DG7

LCD PANEL

13 16

211817912 201911 14113642

DG5

57420

24V ON

217

AP4

AP5

323

DG4

616 222 515

2115

2318

120

419

322

617

587

19 221011211 14 18

TP 2

TP 1

DC+

CN101

DC-

AP2

+24V

GND

24V ON

+24V

CN201

+24V

POWER UNIT

AP-BOARD

AC COARD

AC120V

AP10

AC120V

143655

DG12

43216787

DG13

CN203

2831

510

27 3

15161734

313

16 34

3326

20 19

351

18 234 8 25 32 403930 3836282715

33 2635 137 29 1823 4825

232 6

912

40 7

38 24

37 30 17 1525 31834 33

625

219

DG2

521

234

358

10 12

292422

71012

29 24 22 20 1931 11

1413

321

36 4028

3927

3017

39 27

SRQ

25318 343326

H-BOARD

DG3

2722

1410

10 12

2418

3015

220

25398221713 19

19 21 2516429262

1811

312

V-BOARD

123

K-BOARD

G-BOARD

19917420

12 182

73 5 10 11

AP1

H12

WOOFER(L)

WOOFER(R)

SQUAWKER(R)

H14

FACTORY USED

H15

SQUAWKER(L)

DG-BOARD

28534 6179

634285971

YGIN9

VSIB

CLKINB2

UBIN5

UBIN9

RX SDO

UBIN8

YGIN0

YGIN1

AP DE

UBIN2

UBIN6

DG10-DV15

HPD

HDMIINT

+3.3V(M)

JTAG TCK

HDMI RST

YGIN6

UBIN0

YGIN7

UBIN1

5611

HDMI ROBA

HSIB

+5V(M)

UBIN4

YGIN2

DV-BOARD

YGIN5

JTAG TDO

YGIN3

2YGIN4

UBIN3

S CLOCK1

S DATA 1

NIRQ2

EXTCKIN

YGIN8

JTAG TMS

+3.3V(M)

JTAG TRST

UBIN7

RX WS

RX MCLK

JTAG I TDO

RX SCK

4227

HDMI 5V DET

DV15

DG10

160

MAIN_SW_DET

STB_PS_GND

GND

STB_PS

SUB_5V

GND

R_LED

G_LED

STB_3.3V

GND

REMOTE

STB_3.3V

R_LED

AI_SENSE

HP_ROUT

GND

HP_LOUT

GND

S_DET

MAIN_SW_DET

GND

G_LED

STB_PS_GND

STB_PS

SUB 5V

GND

HPDET

KEYSCAN

GND

BT_30V

ZERO_X_DET

MAIN_3.3V

STB_PS_GND

STB_7V

THUNDER_GND

GND

STB_PS

GND

MAIN_9V

THUNDER_GND

SOUND_VCC

SOUND_GND

UNREG_24V

MAIN_ON

GND

SUB_9V

SUB_5V

R_LED

G_LED

KEYSCAN

REMOTE

AI_SENSE

MAIN_SW_DET

STB_3.3V

A_MON_DEF

A_MUTE

STB_RST

SDA0A

SCL0A

SDA1

SCL1

GND

SP_MUTE

GND

M_SDA0B

SDA0B

SCL0B

HDMI_R

HDMI_L

MPR

MPB

GND

ADJ5V

AFT

M_SCL0B

GND

SDA0B

SCL0B

SDA0A

SCL0A

ADJ5V

SRQ

GND

Woo_L +

Woo_L -

SP_L -

SP_L +

Woo_R +

Woo_R -

SP_R +

SP_R -

SUB_9V

MAIN_3.3V

GND

MAIN_3.3V

GND

MAIN_3.3V

GND

MAIN_9V

GND

SUB_9V(PACK)

PANEL_VCC(5V/12V)

GND

MAIN5V

PANEL_VCC_ON

MAIN5V

ZERO_X_DET

AC_ON

SOS_1

MAIN_ON

GND

SUB5V

SUB5V(PACK)

GND

STB_7V

SUB5V

GND

FACTORY USED FACTORY USED

SRQ

GND

SDA0B

SDA0A

SCL0B

SCL0A

ADJ5V

SCL1

SCL2

GND

SDA2

SDA1

SRQ

INV_PWM

CURRENT

INV_ON

INV_SOS

GND

Rx2-

Rx0-

RxCLK-

GND

Rx3-

GND

FV_SEL

Rx0+

Rx3+

RxCLK+

PANEL-5V

GND

Rx1-

FORMAT

Rx1+

Rx2+

GND

TEST1

TEST2

PANEL-5V

GND

GND GND

GND

143

FACTORY USED

657

DG15

SCL

SDA

GND

5897

2 6

134

TC-32/26LX50

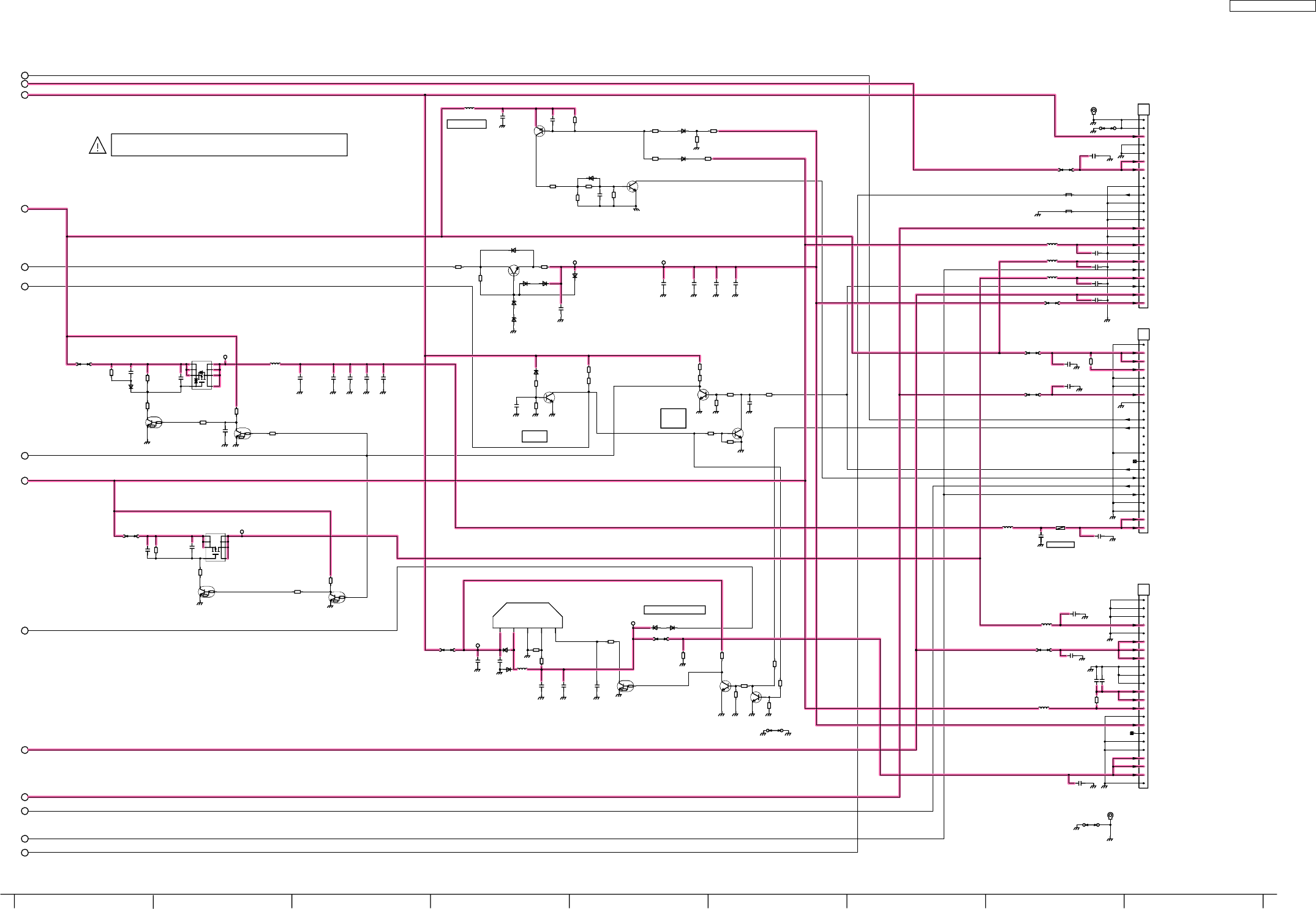

Wiring Connection Diagram TC-32/26LX50

Wiring Connection Diagram

TC-32LX50 / TC-26LX50

10 Schematic Diagrams

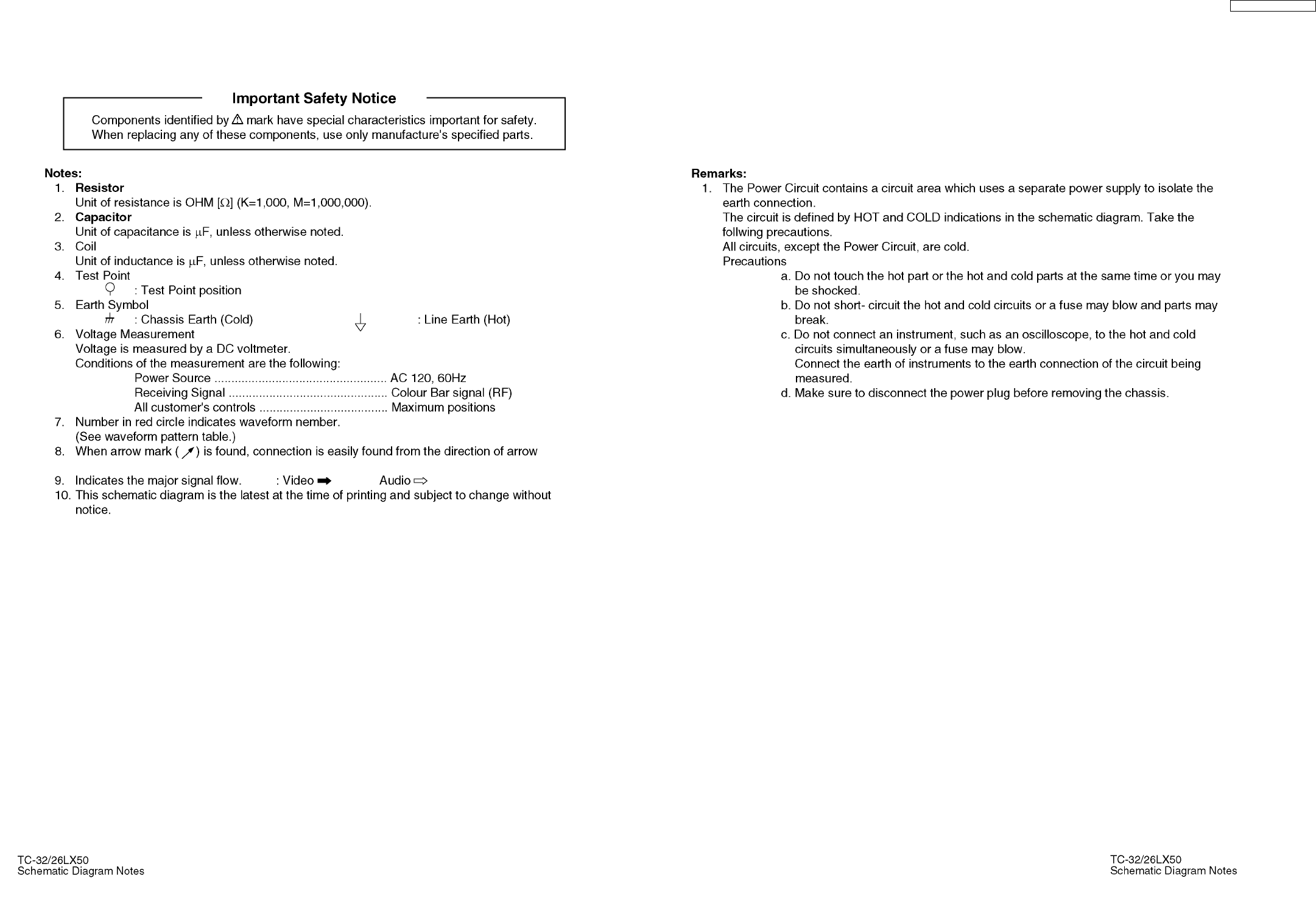

10.1. Schematic Diagram Notes

TC-32LX50 / TC-26LX50

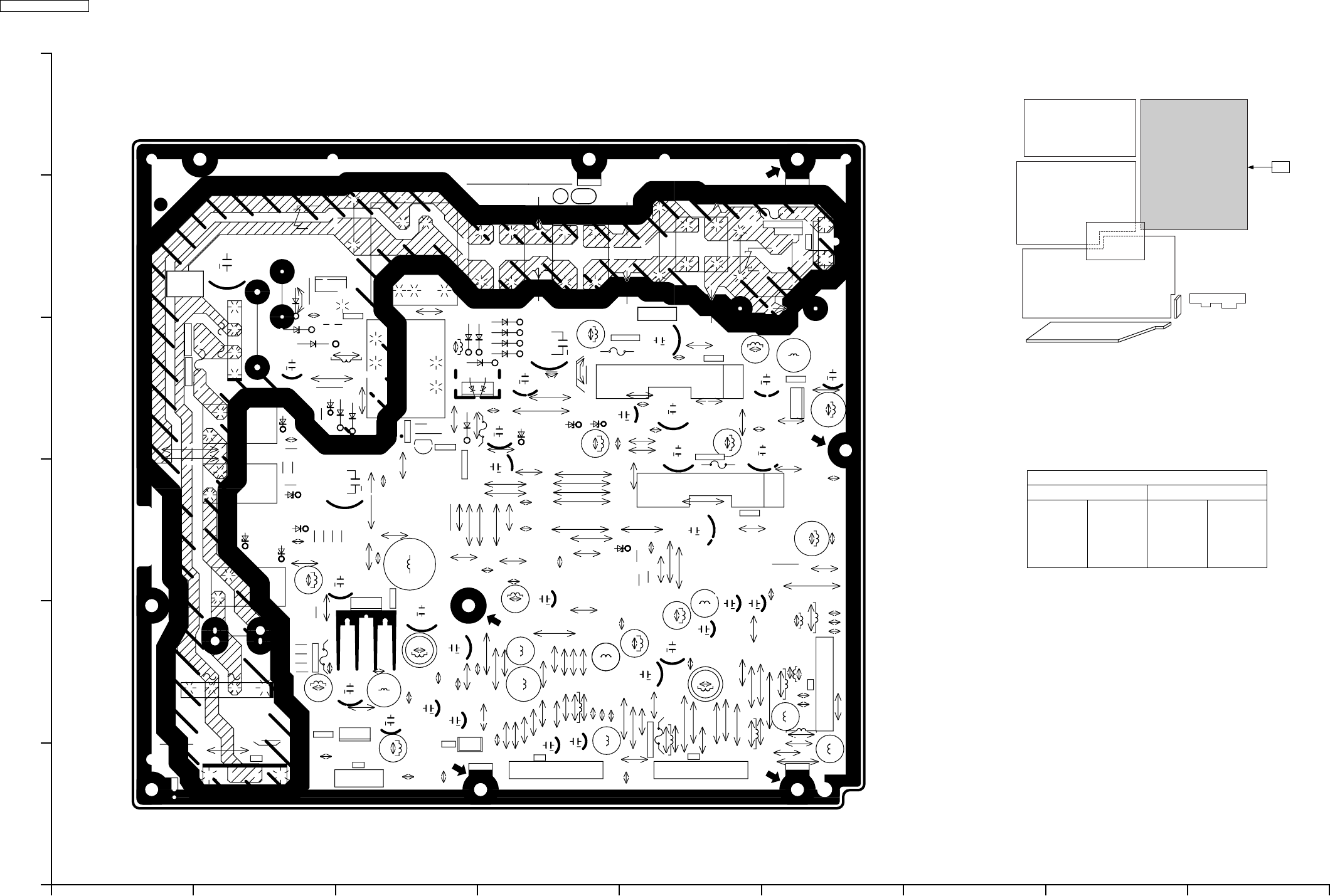

10.2. AP-Board (1 of 2) Schematic Diagram

L.F

120V_AC

0.8V

5.4V

SOUND_17.7V_2

R7275

180

D7151

B0JAME000083

D7201

MAZ41500MF

C7206

10V

D7403

MAZ81300ML

R7259

4.7k

R7212

10k

C7401

50V

470u

Q7205

2SB0709ASL

Q7218

2SB0709ASL

R7214

4.7k

R7261

22k

D7153

B0JAME000083

Q7402

UNR221400L

D7302

MA2J11100L

D7204

MA2J11100L

R7216

4.7k

C7404

10V

C7408

50V

0.01u

*R7288

JS7302

D7152

B0JAME000083

R7207

47k

RL7001

K6B1AGA00043

R7258

4.7k

AP2

TP7002

R7215

4.7k

D7156

B0JAME000083

TP7001

F7400

K5G402A00028

TP7904

R7260

47k

D7154

B0JAME000083

C7012

1500p

C7002

1000p

R7209

10k

TP7008

C7304

10V

D7303

MAZ82000ML

LF7004

G0B650H00002

C7151

4700u

16V

L7402

0.56u

Q7206

2SB0709ASL

R7302

100k

Q7217

2SB0709ASL

C7213

16V

0.1u

C7159

2200u

35V

R7403

Q7204

2SD0601ASL

D7404

MA2J11100L

C7100 50V

0.1u

JS7402

C7308

50V

0.01u

D7214

B0AACK000004

C7410

0.1u

50V

R7303

C7403

16V

1000u

R7272

2.2k

AP10

2SD0602ASL

Q7220

ZA7005

K9ZZ00000424

D7211

MAZ41500MF

Q7301

UNR221400L

R7208

4.7k

*R7263

240

*R7264

240

TP7006

*C7601

0.22u

25V

TP7401

LF7002

ELF18N025A

Q7302

UNR221400L

JS7304

R7213

4.7k

C7301

50V

470u

JS7152

D7401

MAZ80560ML

C7405

0.1u

50V

JS7301

D7003

ERZV10V621T2

C7302

0.1u

50V

R7405

C7205

10V

R7304

100k

TP7004

TP7302

D7161

B0EAKR000032

D7304

MA2J11100L

TP7402

C7204

10V

4.7

R7004

** **

R7160

C7306

0.1u

50V

TP7003

D7203

MAZ83300ML

AP3

C7409

0.1u

50V

D7004

B0FBAT000008

C7010

0.47u

TP7905

Q7401

UNR221400L

TP7007

R7406

3.9k

C7406

0.1u

50V

C7009

0.33u

ECQU2A334BN9

R7267

33 R7274

180

C7303

16V

1000u

*JS7200

R7273

2.2k

C7402

0.1u

50V

R7257

47k

R7271

10k

F7300

K5G402A00028

*C7604

0.22u

25V

*R7285

D7155

B0JAME000083 R7210

47k

R7217

R7152

*R7290

JS7401

4700p

1kV

C7007

JS7303

C7407

16V

680u

*D7602

B0HCMM000014

JS7404

TP7301

C7307

35V

1000u

R7404

100k

D7402

MA2J11100L

C7003

1000p

Q7219

2SD0601ASL

C7305

0.1u

50V

D7212

MAZ41400MF

R7003

8.2M

TP7151

RL7002

K6B1AGA00043

R7211

47k

R7402

100k

ZA7002

K9ZZ00000424

Q7203

2SD0601ASL

Q7207

2SD0601ASL

C7203

0.01u

50V

*D7601

B0HCMM000014

D7301

MAZ81000ML

LF7003

ELF18N020A

R7266

180

C7207

10V

*R7262

240

*C7602

0.1u

50V

R7256

47k

R7305

*R7286

T7151

ETP28KBZA17G

2P1

3P2

6S1

7S2

9S3

C5HAAKG00002

IC7401

MPD7S001

VOUT2

VAR2

GND

ON/OFF2

GND

N.C.

GND

VIN

N.C.

GND

SW-Node

ON/OFF1

GND

VAR1

VOUT1

VIN

C5HAAKG00002

IC7301

MPD7S001

VOUT2

VAR2

GND

ON/OFF2

GND

N.C.

GND

VIN

N.C.

GND

SW-Node

ON/OFF1

GND

VAR1

VOUT1

VIN

K5D632AD0002

F7001

R7301

2.05k

24V

GND

24V

24V_ON

TO POWER UNIT

24V

GND

SOUND_17.7V OVP

5V OVP

9V OVP

3.3V OVP

DC+

TP_1

TP_2

DC-

SUB_9V/MAIN_3.3V

SUUND_16V/SUB_5V

NEUTRAL

F4A 125V

COLDHOT

TO POWER UNIT

TO AC CORD

COLD HOT

COLDHOT

AP-BOARD TNPA3509AB (1/2)

53 786

17.5

0.4

22.1

23.9

22.7

5.0

4.9

3.2

23.0

7.5

23.9

22.3

8.9

23.9

2.3

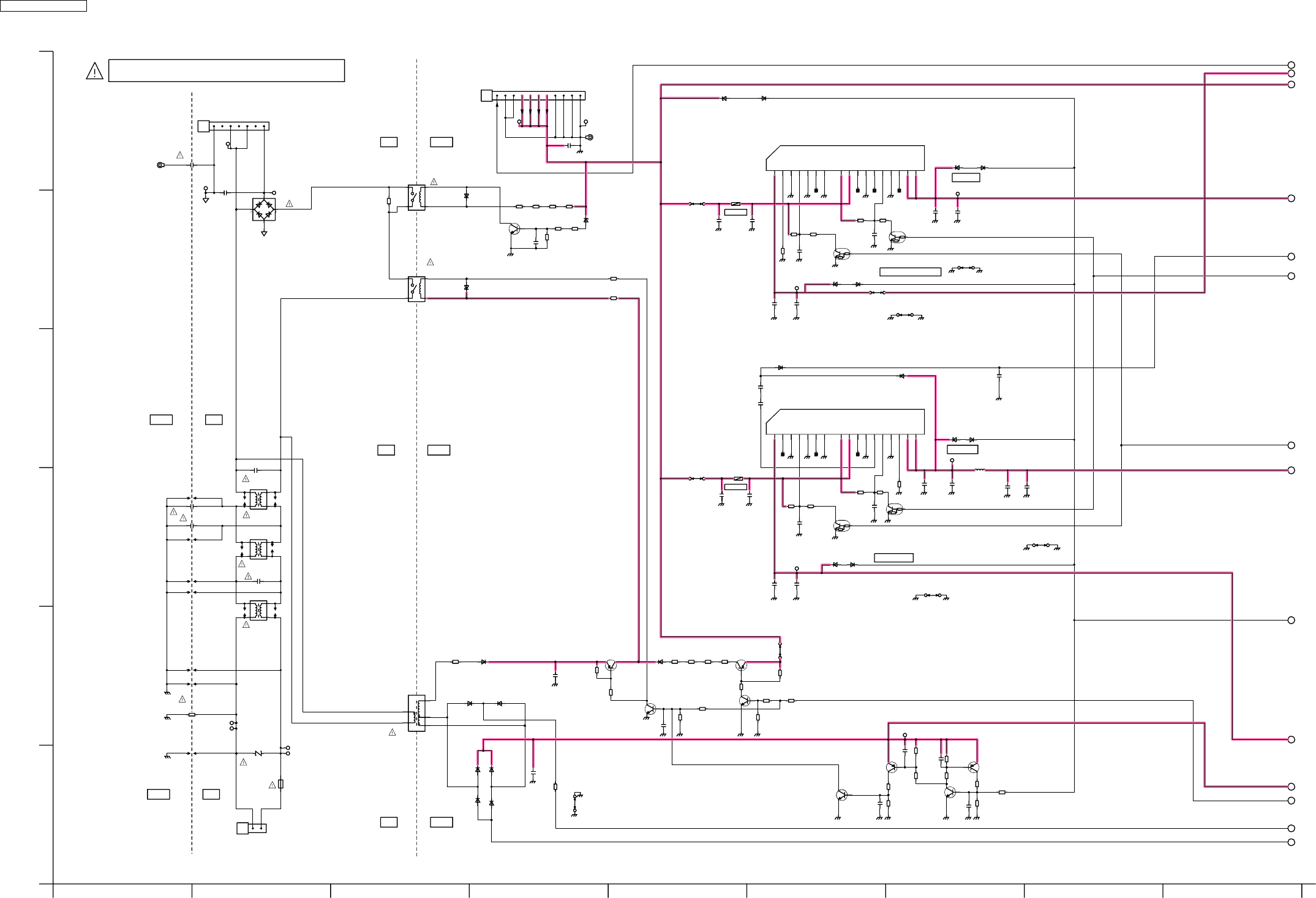

TC-32/26LX50 AP-Board (1 of 2) Schematic Diagram TC-32/26LX50 AP-Board (1 of 2) Schematic Diagram

TC-32LX50 / TC-26LX50

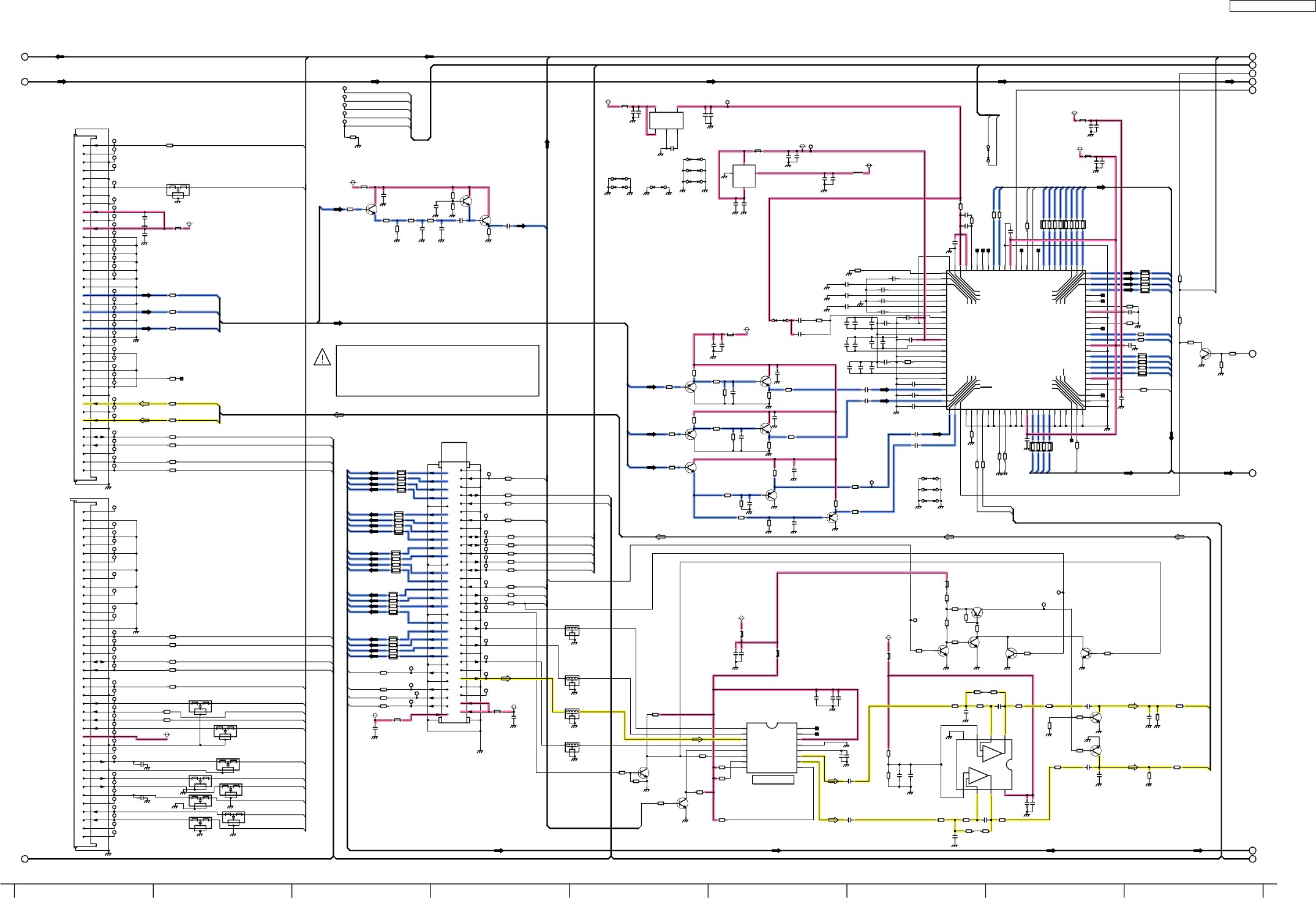

10.3. AP-Board (2 of 2) Schematic Diagram

STB7V

C7508

0.1u

50V

JS7703

R7712

22k

D7701

B0JCPG000005

C7510

0.1u

50V

R7710

47k

C7706

0.1u

50V

C7503

50V

0.01u

R7506

2.2k

L7962 10u

C7506

470u

35V

L7966

10u

MA2J11100L

D7607

D7704

MA2J11100L

C7965

50V

0.1u

Q7601

2SD0602ASL

JS7962

R7702

Q7212

2SC584500L

JS7701

R7505

TP7601

JS7953

JS7958

C7211

50V

33u

C7951

470u

35V

C7959

50V 0.1u

*R7906

TP7501

JS7966

D7603

B0BA01600007

R7224

1.5k

L7969

EXCELDR35V

TP7701

R7241

4.7k

L7970

EXCELDR35V

C7502

50V

10u

*R7907

R7243

10k

C0DAAZH00020

IC7701

1INPUT_(_VIN_)

2OUTPUT_(_V_OUT_)

3COM

4OADJ

5ON_/_OFF_(_VC)

C7955

50V

0.1u

AP4

F7900

K5G252A00022

Q7208

2SC584500L

R7225

2.2k

Q7506

UNR221400L

C7701

50V

0.01u

TP7502

R7242

47k

R7219

10k

D7208

MA2J11100L

L7951

10u

R7229

47k

R7703

3.24k

R7237

22k

Q7214

2SD0601ASL

D7604

B0BA01600007

Q7210

2SA207700L

R7311

D7605

B0HCMM000014

C7209

16V

100u

R7707

18k

R7250

4.7k

R7220

47k

C7212

0.01u

50V

Q7504

UNR221400L

L7702

G0C101K00041

JS7502

C7964

50V 0.1u

D7501

MA2J11100L

C7703

16V

1000u R7708

22k

R7709

4.7k

R7507

10k

AP1

D7220

MA2J11100L

Q7505

UNR221400L

Q7508

2SD0601ASL

R7603

100k

R7234

R7508

C7705

50V

0.01u

R7238

22k

C7208

6.3V

2.2u

R7503

2.2k

ZA7003

K9ZZ00000424

C7702

50V

220u

TP7602

C7501

50V

10u

C7952

50V

0.1u

JS7501

AP5

C7961

50V

0.1u

C7957

50V 0.1u

Q7502

B1DHED000013

JS7702

R7228

47k

L7959

10u

C7605

0.1u

50V

TP7702

C7606

0.1u

50V

R7510

10k

R7233

1.5k

MA2J11100L

D7606

C7607

0.1u

50V

R7509

R7704

JS7968

R7227

22k

R7247

27k

JS7963

Q7501

UNR221400L

R7232

1.5k

L7504

10u

LHL08TB100K

R7711

4.7k

D7206

MAZ81500ML

D7703

MAZ81000ML

C7608

0.1u

50V

R7502

22k

Q7211

2SD0602ASL

L7201

68u

ZA7004

K9ZZ00000424

C7504

50V

0.01u

JS7967

L7967

10u

C7603

0.1u

50V

D7702

B0HCMM000014

C7966

16V

100u

R7705

470

1/2W

C7210

0.22u

16V

C7953

50V 0.1u

L7955

10u

R7221

2.2k

R7604

Q7702

2SC584500L

D7207

MA2J72900L

R7602

C7960

50V 0.1u

R7501

22k C7507

0.1u

50V

C7509

0.1u

50V

R7309

C7958

50V 0.1u

MA2J11100L

D7608

C7956

50V 0.1u

C7954

50V

0.1u

C7505

6.3V

2.2u

R7223

2.2k

Q7701

UNR221400L

R7504

22k

Q7503

B1DHDD000033

MAIN_5V

(MAIN_ON)

MAIN_9V

BT_30V

SOS DET

SHORT SOS

DC-DC ON/OFF CONTROL

MAIN_3.3

MAIN_9V

SUB_5V

SUB_9V

SOUND_16V

GND

MAIN_3.3V

GND

PC_5V

DGND

ODU_15V

GND

PANEL5V_ON

MAIN_ON

SOS_1

GND

ATSC_ON(Hi:ON)

GND

MAIN_9V

FAN_SOS

24V_ON

GND

STB_7V

SUB_5V

STB_PS_GND

AC_ON

ZERO_X_DET

GND

THUNDER_GND

GND

ZERO_X_DET

THUNDER_GND

SUB_9V

BT_30V

SOUND_GND

GND

SUB_5V

STB_PS

GND

PANEL_5V/12V

PANEL_Vcc OVP

PANEL_Vcc

PANEL_5V/12V

BT_30V

SUB_9V

ATSC9V

MAIN_3.3V

GND

MAIN_5V

GND

SUB_ON

GND

SUB_5V

SOUND_17.7V

MAIN_9V

GND

MAIN_3.3V

MAIN_ON

FAN_MAX

SOUND_GND

UNREG_24V

STB_PS_GND

STB_7V

SOUND_17.7V

MAIN_5V

DGND

GND

ATSC9V

ATSC5V

F2.5A 125V

DC-DC ON/OFF CONTROL

AP-BOARD TNPA3509AB (2/2)

DG-BOARD

(DG5)

(DG4)

DG-BOARD

(H1)

H-BOARD

14 161311 15 1810 1712

8.9

4.8

2.7

30.6

3.4

8.9

4.9

17.5

23.9

3.2

17.5

5.0

3.0

5.0

2.3

5.0

3.3

2.7

2.3

3.2

4.8

9.0

5.0

3.3

5.0

3.3

9.0

5.0

30.0

9.0

3.3

9.0

24.0

5.0

1.2

TC-32/26LX50 AP-Board (2 of 2) Schematic Diagram TC-32/26LX50 AP-Board (2 of 2) Schematic Diagram

TC-32LX50 / TC-26LX50

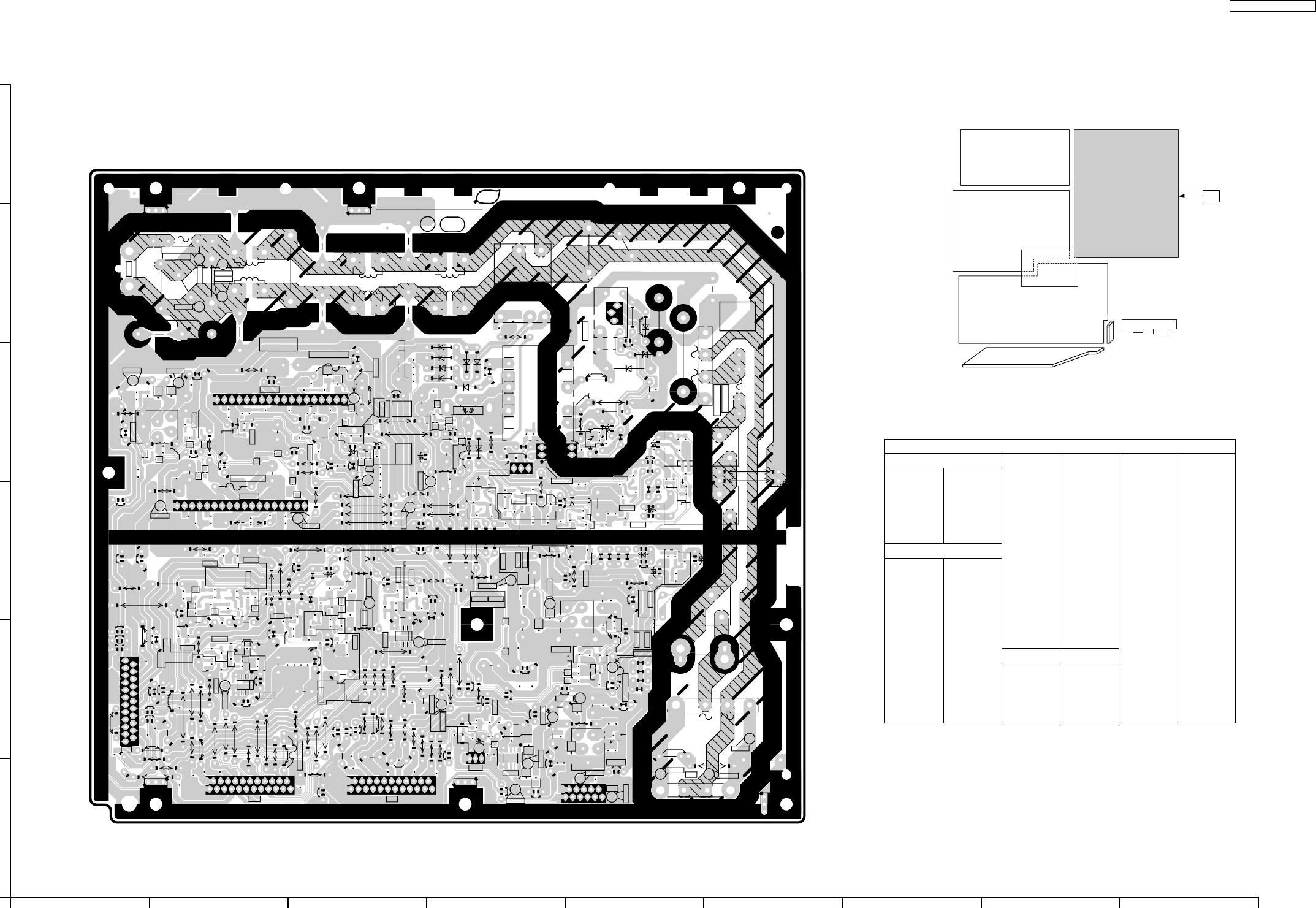

10.4. H-Board (1 of 3) Schematic Diagram

B8_0_SPB

SCL0B

B7_0_MPR

AV1_C

AV2_C

AV2_S_DET

AV2_Y

SDA0B

B7_0_MPB

AV3_L

AV3_R

MON_L

MON_R AV1_Y

D1_Y

AV2_V

AV3_Y

D2_Y

D2_PB

D2_PR

AV3_S_DET

AV3_V

AV3_C

AAM_L

B7_0_MY

B8_0_SY

B8_0_SPR

D1_PB

AAM_R

SP_R

AV1_V

SDA0B

SCL0B

HDMI_R

HDMI_L

A_HDMI_R

A_HDMI_L

SCL0B

SCL1

SDA0B

SDA1

TV1_R

A_HDMI_R

AMM_VMON_V

AMM_V

AV2_L

AV2_R

AV1_L

AV1_R

D2_L

D2_R

D1_L

D1_R

A_HDMI_L

AV1_S_DET

TV1_R

TV1_L

AAM_R

AAM_L

D1_PR

SP_L

TV1_L

R3027 220

C3169

16V

0.1u

*C3040

6.3V 2.2u

C3189

16V

0.1u

ZA3002

K4CD01000011

R3230 220

C3007

16V

10u

C3165

16V 0.1u

C3154 10V

*C3035

50V

2.2u

R3203 1k

C3151 16V

0.1u

JS3104

R3204 220

R3252

180k

*C3041

16V 0.047u

R3149

100k

C3175

16V

0.1u

C3148

10V

*C3023

50V

10u

C3171

16V 0.1u

R3242 220

*R3042

C3162

16V 0.1u

R3243 220

SUB9V

*R3035

R3188

1.8k

C3163

10V 100u

R3200 220

R3241 220

C3195 10V

R3173

100

C3231

50V

15p

TP3005

C3183

16V 0.1u

R3049

C3174

16V

0.1u

C3200 10V

*C3222

10V

C3053

25V

470u

C3020

10V

TP3008

R3232 220

*C3225

10V

JK3003

K2HA204A0041

L-G

R-G

ZA3003

K9ZZ00000424

R3186

100

*C3049

10V 1u

*R3034

*L3002

27u

R3217

Q3025

2SC584500L

C3145

10V

R3191

47k

R3225

10k

R3201 220

R3205 220

C3186

10V 1u

C3181

10V

D3027

MAZ81400ML

*C3024

50V

0.1u

R3172

180k

JS3038

C3018 10V

*R3039

R3245 22

*C3220 16V

0.1u

R3023

C3172

16V

0.1u

*C3221

10V

D3019

MAZ81400ML

C3193 10V

*C3226

10V

*C3042

10u

6.3V

R3024 220

C3188

10V

C3190

10V

100u

TP3003

Q3029

2SA207700L

R3215 220

R3236 220

*C3045

50V

0.01u

C3156

16V

0.1u

*C3047

16V

10u

R3247 22

R3222 220

*C3037

16V 0.1u

C3217

16V

0.1u

TP3006

R3223 220

R3306

150

TP3004

*C3038

16V

0.1u

R3211 220

C3019

50V

22u

MAIN5V

C3179

16V

0.1u

R3168

180k

C3168

10V

R3218

220

AN15861A-VT

IC3001

2R1

3L2

4R2

5VCC1

6VCC2

7L3

8R3

9L4

10 R4

13 R5

14 L6

15 R6

16 L7

17 R7

18 L8

19 R8

20 MUTE

21 NC

LOUT4

ROUT4

LOUT3

ROUT3

GND1

GND2

LOUT2

ROUT2

ADR

SCL

SDA

LOUT1

ROUT1

BIAS

L10

R10

L11

R11

L12

R12

*R3036

C3155 10V

*C3034

16V

0.1u

*C3048

4.7u

10V

*C3022

16V

470u

*C3219 16V

0.1u

D3026

MAZ81400ML

TP3007

R3209 220

*C3051

10V

470u

*C3223

10V

C3201 10V

*R3043

2.2k

ZA3006

K9ZZ00000424

C3194

10V

BT30V

C3232

50V

15p

C3014 10V

*C3027

6.3V

100u

R3182

1.8k

C3009

10V 1u

C3166

10V 1u

*C3215

16V

0.1u

R3026 220

C3192

10V

R3239 220

AN5849S-E1V

*IC3002

4 OFFCAN1

5 OFFCAN2

6WB TIME

7 VCC

8 WB DET

9 SPEC FILTR

10 SPEC TIME

11 SPEC DET

12 NOISE DET 13

SAP DET

MPX IN

PILOT DET

PLL

GND

SCL

SDA

L OUT

R OUT

L3001

J0JHC0000078

L3007

J0JHC0000078

C1AB00002123

IC3007

S-3

4S2-4

5Y4

6S-4

7C4

8VCC

9V5

10 S2-5

11 Y5

12 S-5

13 C5

14 ADR

15 V6

16 BIAS

17 V7

18 GND

19 V8

20 L11

21 CY1

L21

PB1

L31

PR1

L12

CY2

L22

PB2

L32

PR2

L13

CY3

L23

PB3

L33

PR3

SW1

CY4

SW2

PB4

SW3

PR4

GND

SDA

SCL

VCC

VOUT4

DCOUT

COUT3

VOUT3

YOUT3

VCC

PROUT2

PBOUT2/COUT2

CYOUT2/YOUT2/VOUT2

VCC

PROUT1

PBOUT1/COUT1

CYOUT1/YOUT1/VOUT1

VOUT

GND

VIN

68 S2-1

69 C1

70 S-1

71 V2

72 O3

73 Y2

74 S2-2

75 C2

76 S-2

77 V3

S2-3

R3175

100

R3213 220

R3233 220

C3158 10V

C3013 10V

R3198 100k

C3016

16V

0.1u

C3010

16V 0.1u

C3199 10V

R3221 220

R3219

220

R3189

270k

R3202 220

R3212 1k

R3228 220

*TU3001

ENG36A16GF

AGC_ADJ

+B_(5V)

(BT)

(RF-AGC)

(IF_OUT)

SCL

SDA

AFT

AUDIO-OUT

NC_(SIF-OUT)

BTL_(30V)

AGC_CONT

VIDEO_OUT

R3216

C3184

16V 0.1u

C3011

16V 0.1u

R3237 220

C3015

16V 0.1u

*JS3002

C3157 10V

*R3294

10k

R3224

220

C3204 10V

C3147

10V

R3192

JS3103

C3008

10V 1u

R3308

150

R3229 220

*R3041

*C3224

10V

D3028

MAZ81400ML

*R3040

R3025 220

*C3036

3.3u

10V

C3177 10V

R3226

100k

C3176

16V

22u

C3187

10V 1u

C3164

16V 0.1u

R3256

180k

C3202 10V

R3028 82k

TUNER5V_1

ZA3001

K4CD01000011

C3191

10V

*C3033

25V

0.22u

*C3052

10V

0.47u

*C3218

16V

0.1u

*R3031

C3182

16V 0.1u

*JS3004

JS3037

R3240 220

C3017

10V

R3208 220

C3216

16V

0.1u

ZA3007

K9ZZ00000424

*C3046

25V 0.022u

R3238 220

R3231 220

C3185

10V 1u

C3180

10V

R3185

100

R3227

Q3027

2SC584500L

C3012

16V 0.1u

C3196

10V

C3021

10V

C3173

16V

0.1u

*JS3003

C3167

10V

R3207 220

R3187

SUB9V

*C3039

16V 0.1u

C3203 10V

R3196 100k

HDMI analog

sound in

***MN15861A***

6:PC/TV

2:AV2

4:AV Comp2

5:AV Comp1

7:-

OUT

3:AV1

OUT1:SD

OUT2:Monitor

1:ATSC

8:HDMI_Digital

9:SD

10:AV3

11:HDMI_Analog

OUT3:SP/ATSC

8:-

Comp1:Comp1

OUT3:Monitor

***MM1630***

6:-

1:V-SD

3:AV1 Back

4:AV2 Back

5:-

7:TV

OUT

2:AV3 Front

OUT1:DG main

OUT2:DG Sub

Comp2:Comp2

Comp3:-

OUT4:SD module

AUDIO_SW

Comp4:-

OUT:- OUT4:-

VIDEO_SW

MTS

TUNER

H-BOARD TNPH0622AB(1/3)

9214

2.2

2.1

0.2

4.9

2.4

2.2

3.2

3.4

3.3

2.1

3.3

3.2

2.1

4.4

8.9

4.4

3.9

4.4

4.9

4.4

4.8

4.4

5.4

8.7

5.4

8.7

8.9

5.4

3.7

5.4

3.8

4.8

3.5

3.7

3.8

3.7

5.4

3.8

4.8

3.8

8.9

3.7

5.4

8.9

5.4

3.7

8.9

5.4

8.7

5.4

TC-32/26LX50 H-Board (1 of 3) Schematic Diagram TC-32/26LX50 H-Board (1 of 3) Schematic Diagram

TC-32LX50 / TC-26LX50

10.5. H-Board (2 of 3) Schematic Diagram

TERM

SIDE

MONITOR OUT

COMPONENT2

COMPONENT1

TERM

SIDE

AC_SY

B7_0_MY

B7_0_MPB

B7_0_MPR

B8_0_SY

B8_0_SPB

B8_0_SPR

AB_MPR

AC_SPB

AB_MPB

AB_MY

D1_R

AC_SPR

ZERO_X_DET

STB_PS_GND

STB_PS

AV1_Y

AV1_C

AV1_R

AV1_L

D2_Y

D2_PB

D1_PB

D1_PR

D2_L

D1_L

AV2_R

STB_RST

MAIN_SW_DET

KEYSCAN

R_LED

G_LED

AB_MPR

AB_MPB

AB_MY

AC_SPR

AC_SPB

AC_SY

HDMI_L

HDMI_R

SDA0B

SCL0B

AV2_C

AV2_Y

A_MUTE

SP_MUTE

SCL1

SDA1

AV2_S_DET

AV1_S_DET

D2_R

MAIN_SW_DET

REMOTE

MODEM_LED

REMOTE

STB_PS_GND

KEYSCAN

STB_PS

G_LED

R_LED

MODEM_LED

HP_L

HP_R

AV3_L

AV3_S_DET

AV3_V

AV3_Y

AV3_C

AV2_L

D2_PR

D1_Y

AV1_V

AV2_V

AV3_R

MON_V

MON_L

MON_R

TP3043

JS3077

R3261

JS3047

TP3055

TP3132

TP3077

D3037

MAZ81400ML

TP3089

R3251

180k

C3211

16V

TP3068

TP3094

R3282

750

TP3073

R3287

750

R3300 0

R3288

150

TP3113

BT30V

TP3063

TP3108

D3033

MAZ81400ML

TP3071

D3032

MAZ81400ML

TP3021

R3264

D3050

MAZ81400ML

JS3042

TP3101

TP3126

TP3111

SUB5V

TP3036

TP3058

SUB9V

PC5V

D3018

MA3X152E0L

STB3.3V

R3272

180

JS3040

JS3021

TP3040

TP3069

R2013

47k TP3060

TP3059

TP3109

R3259

D3049

MAZ81400ML

JS3043

TP3057

TP3048

R3290

150

TP3103

D3036

MAZ81400ML

STB3.3V

R3275

180

TP3106

R3273

180

UNREG_24V

TP3064

C3210

10V

TP3098

JS3064

R3279

470

JS3033

R3253 180k

D3021 MAZ80620ML

R3286

750

R3257 180k

D3046

MAZ81400ML

MAIN9V

TP3079

Q3038

UNR521T00L

Q3036

2SA207700L

TP3130

R3302

2.2k

R3301

22k

TP3076

R3291

150

TP3136

C2012

50V 4.7u

TP3107

C3207

10V

TP3056

TP3112

R3268 75

TP3041

R3260 180k

TP3097

R3249

180k

R3303

R3296 0

TUNER5V_1

TP3052

TP3028

L3006

33u

R3277

180

D3044

MAZ81400ML

TP3019

TP3137

TP3143

Q3032

2SA207700L

TP3049

TP3070

TP3066

JS3054

R3298 0

MAIN9V

R3258 180k

D3045

MAZ81400ML

D3007

MAZ81000ML

TP3072

D3022 MAZ80620ML

JS3076

R3271

180

C3209

10V

TP3116

JS3041

D3020 MAZ80620ML

R3262 75

R3267 75

*R3045

R3270

180

MAIN3.3V

R3293

150

TP3016

TP3115

R3263 75

D3030

MAZ81400ML

TP3105

R3250

180k

JS3065

TP3029

MAIN5V

TP3095

TP3026

TP3131

C3208

10V 1u

TP3093

R3248

180k

D3048

MAZ81400ML

TP3017

TP3025

JS3044

TP3024

D3023 MAZ80620ML

JS3039

JK3002

K1U939A00001

Y-G

C-G

Y-G

C-G

GTP3078

TP3090

STB7V

TP3134

R2011

TP3022

TP3067

R3266

R3299 0

TP3047

JS3020

TP3042

D3038

MAZ81400ML

JS3045

TP3050

TP3140

Q3034

2SA207700L

TP3091

D3047

MAZ81400ML

R3292

150

R3269 75

TP3104

TP3074

Q3033

2SA207700L

Q3035

2SA207700L

JS3048

SUB5V

SUB9V

TP3062

TP3061

TP3100

TP3023

R3297 0

TP3080

H12

D3057

MA2J11100L

SOUND_VCC

D3024 MAZ80620ML

TP3065

TP3046

JS3046

TP3110

R3254

TP3133

Q3037

2SA207700L

TP3020

D3035

MAZ81400ML

R3289

JS3019

R3278

470

TP3045

Q3039

B1DHDC000028

C3212

50V

0.01u

TP3099

JS3066

D3043

MAZ81400ML

TP3027

R3283

750

JS3075

TP3039

TP3018

JS3063

TP3051

R3265

C3160

10V

470u

TP3044

D3031

MAZ81400ML

R3255

MAIN9V

Component

GND

Video

Monitor Out

MAIN_ON

MAIN_5V

THUNDER_GND

MAIN_9V

GND

STB_PS

GND

THUNDER_GND

STB_7V

STB_PS_GND

MAIN_3.3V

ZERO_X_DET

BT_30V

SUB_5V

SUB_9V

BUFFER

GND

HP_LOUT

GND

HP_ROUT

AI_SENSE

R_LED

MODEM_LED

STB_3.3V

REMOTE

AV3_LIN

GND

KEYSCAN

HPDET

GND

SUB 5V

STB_PS

STB_PS_GND

(SW_OFF)

G_LED

GND

MAIN_SW_DET

AV3_RIN

S_DET

V4_DET(V2)

SUB_HP

RF_AGC1_ADJ AFT

RF_AGC2_ADJ AFT

GND

IRSYS

GND

SOS2

TV_GUIDE

GND

MPB_GND

MY_GND

MPB

MPR

MPR_GND

SPB_GND

SPR_GND

SPR

SPB

SY_GND

HDMI_L

HDMI_R

SCL0B

SDA0B

M_SDA0B

M_SCL0B

GND

MAIN_L

MAIN_R

GND

DY_GND

DC_GND

DR_GND

DL_GND

VIDEO_OUT

GND

SP_MUTE

GND

SCL1

SDA1

SCL0A

SDA0A

SRQ

STB_RST

A_MUTE

A_MON_DEF

STB_3.3V

SW_OFF_DET

MAIN_SW_DET

AI_SENSE

REMOTE

KEYSCAN

G_LED

R_LED

MODEM_LED

PC_5V

UNREG_24V

SOUND_GND

SOUND_VCC

GND

VIDEO_IN

SCL0A

SDA0A

SCL0B

SDA0B

GND

17.7V

ADJ5V

GND

BUFFER

MAIN_ON

GND

SRQ

ADJ5V

H-BOARD TNPH0622AB(2/3)

12 15 1614 1817131110

(G4)

G-BOARD

1.1

1.2

0.8

2.9

3.2

2.4

4.9

8.7

2.6

5.0 5.0

5.00.4

(AP1)

AP-BOARD

DG-BOARD

(DG2) DG-BOARD

(DG3)

FOR

USED

FACTORY

23.9

17.5

4.8

3.4

8.9

4.9

8.9

2.7

30.6

3.2

2.9

2.1

0.7

3.2

3.1

3.2

4.8

0.3

4.8

3.2

4.4

4.8

4.4

4.9

0.3

4.4

0.3

4.8

3.2

4.8

3.2

TC-32/26LX50 H-Board (2 of 3) Schematic Diagram TC-32/26LX50 H-Board (2 of 3) Schematic Diagram

TC-32LX50 / TC-26LX50

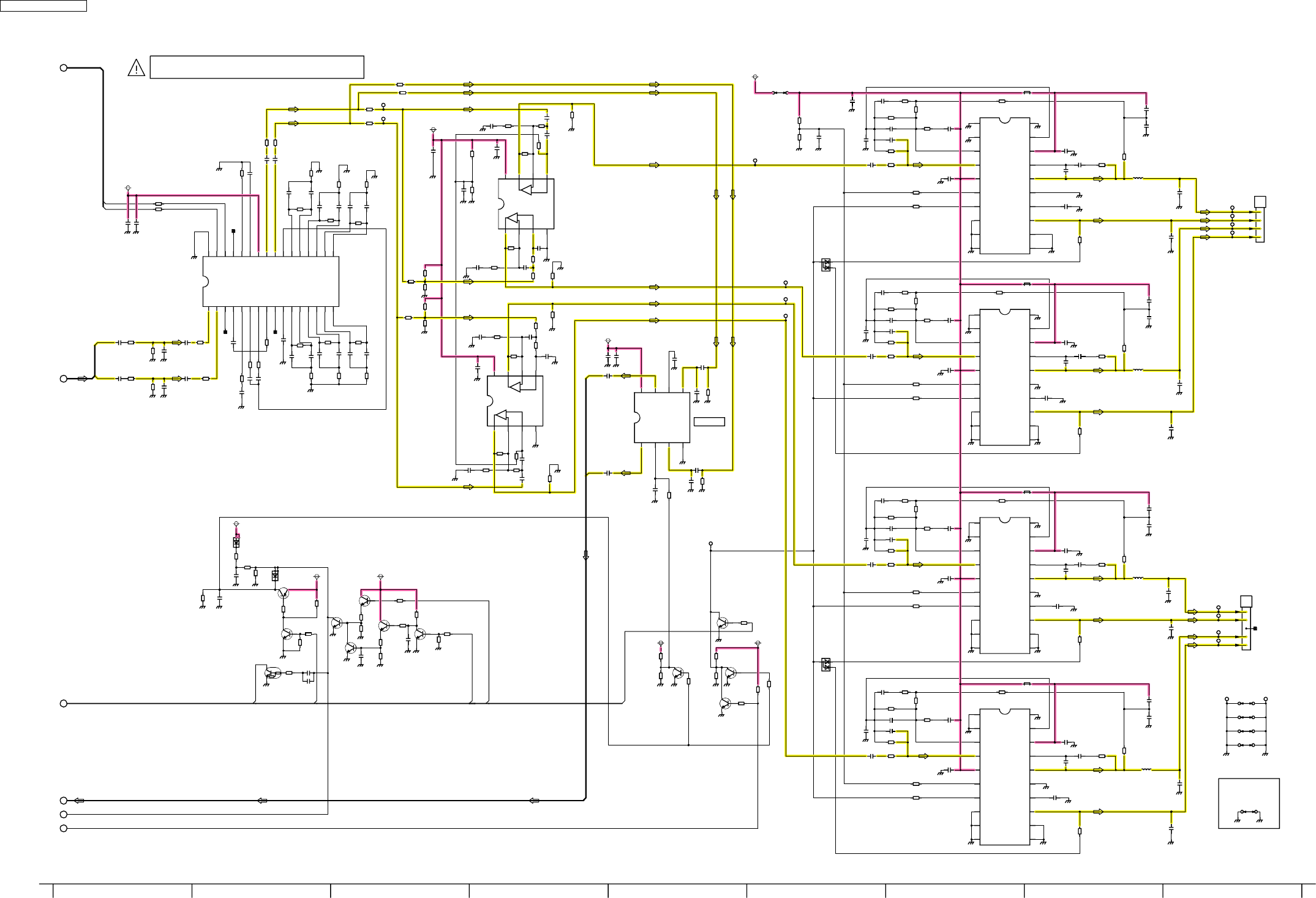

10.6. H-Board (3 of 3) Schematic Diagram

HP_R

SCL0B

ZERO_X_DET

HP_L

SP_R

STB_RST

A_MUTE

SDA0B

SP_L

SP_MUTE

STB_RST

R2047

C2021

16V

0.1u

C2128

25V

1000u

R2070

4.7k

R2003

22k

TP2009

JS2004

R2079

100k

C2117

50V

0.1u

C2129

0.22u 25V

R2033

47k

R2053

C2070

35V

470u

R2043

68k

L2004

G1C330K00024

IC2004

C1BB00000947

1 OUT1

2 MUTE

3 IN1

4GND 5

IN2

BIAS

OUT2

VCC

TP2001

R2037

82k

R2088

47k

C2057

6.3V

100u

C2156

220p

50V

R2019 10k

R2030

82k

R2133

2.2k

C2159

25V

R2045

5.6k

C2077

50V

0.1u

R2046

100k

C2004

50V

0.01u

UNREG_24V

Q2005

2SD0601ASL

C2115

220p

50V

R2156

10k

R2084

22k

R2123

C2024

1500p

50V

C2130

50V

0.015u

R2163

C2048

0.022u

50V

TP2003

R2111

L2001

G1C330K00024

TP2011

R2202

2.2k

R2002

4.7k

C2151

50V

2.2u

C2062

50V

0.01u

C2071

50V

0.1u

D2003

MA3X152K0L

R2148

100

D2101

MA3X704D0L

R2151

C2149

0.22u 25V

R2145 47k

L2008

J0JJC0000011

C1BB00000998

IC2007

1 VSSD

2 VSSA

3 IN-

4 IN+

5VDDA

6 POWERUP

7 ENABLE

8 DIAG

9CGND

10 VSSD 11

VSSD

OVP

HVP

STABI

VSSP

OUT

BOOT

VDDP

HVPI

VSSD

C2018

22u

35V

R2136

15k

C2001

10V

R2173

2.2k

R2171

R2211

R2022 10k

C2040

50V

1000p

R2089 10k

Q2007

2SC584500L

C2093 2200p

50V

R2032

330

C2027

8200p

50V

R2063

100k

STB7V

R2140

15k

R2036

47k

R2034

100k

Q2009

2SC584500L

R2048

C2002

10V

C2143 2200p

50V

C2053

0.1u

25V

R2051 0

C2055

6.3V

100u C2111

50V

2.2u

C2125

25V

47u

C2127

50V

0.1u

C2003

22u

35V

L2003

G1C330K00024

R2104 1k

Q2014

2SC584500L

R2054

C2145

25V

47u

R2143

R2139

10k

C2047

0.022u

50V

C2114

25V

C2046

50V

0.01u

R2049

20k

Q2016

2SC584500L

C2022

1500p

50V

C2072 2200p

50V

STB3.3V

R2044

68k

C2126

0.22u

25V

C2025

8200p

50V

C2146

0.22u

25V

R2144 1k

C2043

10V

100u

H14

R2071

22k

R2102

3.9k

MAIN5V

C2016

50V

0.01u

L2002

G1C330K00024

C2032

3900p

50V

C2144 2200p

50V

R2038

47k

C2116

220p

50V

C2015

4.7u

25V

L2011

J0JJC0000011

C2118

0.015u

50V

R2050

10k

R2201

2.2k

C2079

0.22u 25V

C2135

220p

50V

TP3138

C2123 2200p

50V

IC2003

C0ABBA000168

C2100

50V

0.015u

JS2006

C2122 2200p

50V

R2128

100

C2036

4.7u

10V

R2161

470k

R2028

47k

R2085

18k

C2023

8200p

50V

C2019

35V

220u

C2049

0.1u

25V

C2134

25V

R2212

R2112

6.8k

C2050

0.1u

25V

C2060

47u

6.3V

R2131

C2026

1500p

50V

C2028

16V 1u

R2200

2.2k

C2087

50V

0.1u

R2082

15k

R2004

22k

C2078

25V

1000u

C2014

4.7u

25V

R2055

10k

R2122

3.9k

R2060

10k

TP2015

C2051

0.022u

50V

C2157

50V

0.1u

C2029

16V 1u

R2018

5.6k

C2092 2200p

50V

R2081

15k

TP2008

C2061

6.3V

C2096

0.22u

25V

C2085

220p

50V

R2069

4.7k

R2067

C2154

25V

R2052 0

JS2005

R2075

4.7k

C1BB00000800

IC2001

1Lin

2Rin

3 ADDout

4 Bout

5 Sout

6 ADDin

7 DIFin

8SWin

9 HPout

10 HPin

11 PeqL11

12 PeqL12

13 PeqR11

14 PeqR12

15 PeqL21

16 PeqL22 17

PeqR21

PeqR22

PeqL31

PeqL32

PeqR31

PeqR32

SWout

Rout

Lout

Vcc

Vref

ADJ

PORT

SCL

SDA

GND

R2203

2.2k

C2109

0.015u

50V

SUB9V

R2023

Q2012

2SC584500L

R2020 10k

C2052

0.022u

50V

C2034

3900p

50V

R2100

10k

TP2005

R2066

C2110

0.015u 50V

R2214

C2008

10V

R2213

Q2002

2SA207700L

R2009

100

C2031

8200p

50V

C2095

25V

47u

MAIN9V

R2039

47k

R2062

100k

R2124 1k

L2009

J0JJC0000011

R2172 6.8k

C2074 2200p

50V

R2099

22k

TP2012

C2073 2200p

50V

R2164 1k

R2162

3.9k

C2058

6.3V

100u

C2086

220p

50V

R2017

100k

R2167

100

MAIN5V

R2056

22k

C2030

1500p

50V

TP2010

R2064

100k

C2136

220p

50V

R2121

470k

R2090 10k

R2087

4.7k

C2150

50V

0.015u

R2021

0R2138

15k

R2107

100

D2102

MA3X704D0L

C2045

50V

0.01u

R2141

470k

R2068

4.7k

R2026

180k

C2142 2200p

50V

TP2002

C2137

50V

0.1u

C2035

3900p

50V

R2103

R2152 6.8k

TP2004

R2155

15k

R2137

10k

R2166

2.2k C2147

50V

0.1u

TP2014

R2041

39k

C2160

0.1u

25V

C2064

50V

0.01u

C2044

6.3V

100u

R2127

100

C2063

6.3V

R2005 22

C2010

10V

Q2008

2SC584500L

R2101

470k

R2001

4.7k

C2075

25V

47u

H15

R2106

2.2k

R2042

39k

R2132 6.8k

JS2007

R2153

2.2k

JS2003

C2081

50V

2.2u

R2083

10k

Q2013

2SC584500L

C2033

3900p

50V

C2119

0.015u 50V

R2108

100

R2080

10k

R2146

2.2k

R2125 47k

C2162

25V

C2155

220p

50V

R2113

2.2k

R2142

3.9k

C1BB00000998

IC2005

1 VSSD

2 VSSA

3 IN-

4 IN+

5VDDA

6 POWERUP

7 ENABLE

8 DIAG

9CGND

10 VSSD 11

VSSD

OVP

HVP

STABI

VSSP

OUT

BOOT

VDDP

HVPI

VSSD

C1BB00000998

IC2006

1 VSSD

2 VSSA

3 IN-

4 IN+

5VDDA

6 POWERUP

7 ENABLE

8 DIAG

9CGND

10 VSSD 11

VSSD

OVP

HVP

STABI

VSSP

OUT

BOOT

VDDP

HVPI

VSSD

R2057

22k

C2076

0.22u

25V

C2097

50V

0.1u

C1BB00000998

IC2008

1 VSSD

2 VSSA

3 IN-

4 IN+

5VDDA

6 POWERUP

7 ENABLE

8 DIAG

9CGND

10 VSSD 11

VSSD

OVP

HVP

STABI

VSSP

OUT

BOOT

VDDP

HVPI

VSSD

Q2004

2SC584500L

C2059

6.3V

R2014

39k

C2013

5600p

50V

R2126

2.2k

C2131

50V

2.2u

R2024

6.8k

C2007

10V

C2161

0.1u

25V

C2056

50V

0.01u

C2124 2200p

50V

R2027

47k

TP2006

TP2013

C2005

50V

1800p

R2072

22k

R2025

*JS3049

R2073

22k

C2084

25V

Q2003

UNR221300L

R2035

47k

C2054

0.1u

25V

C2098

25V

1000u

Q2006

2SD0601AQL

R2105 47k

R2061

10k

R2065

100k

R2029

47k

C2017

4.7u

25V

TP2007

C2080

50V

0.015u

C2094 2200p

50V

IC2002

C0ABBA000168

R2154

10k

R2147

100

R2008

100

R2031

22k

C2148

25V

1000u

R2165 47k

D2004

MA3X152K0L

MAIN9V

R2078

100k

R2074

22k

SOUND_VCC

L2010

J0JJC0000011

C2099

0.22u 25V

C2006

50V

1800p

TP3139

C2020

22u

35V

R2006

R2168

100

SUFFIX JW

AB:LX50

MUTE TR.

SOUND CTRL

MONITOR DEFEAT

STB3.3V

RESET

Lch_IN

RcH_IN

GND

VCC

Lin

Rin

HP AMP

MUTE

HP_DET

VCC

GND

200Hz LPF

200Hz HPF

200Hz LPF

Woo_L +

Woo_L -

SP_L -

SP_L +

SP_R +

MUTE

SP_R -

Woo_R -

Woo_R +

WOOFER L

SPEAKER L

SPEAKER R

WOOFER R

High:Operate

Low:Mute

High:Operate

Low:Mute

High:Mute

17.7V

H-BOARD TNPH0622AB(3/3)

24 2619 20 2522 272321

4.4

4.8

4.4

4.8

4.4

0.6

4.4

8.9

0.3

4.4

8.9

2.9

4.4

8.9

2.0

2.6

1.9

8.9

1.9

2.0

1.9

8.7

8.2

17.5

4.9

3.2

20.1

8.6

17.5

8.4

12.4

8.7

8.2

4.9

8.6

12.4

20.1

8.4

17.58.7

3.2

17.5

8.7

8.2

4.9

8.6

12.4

20.1

8.4

17.5

8.7

3.2

17.5

8.7

8.2

4.9

8.6

12.4

20.1

8.4

17.58.7

3.2

17.5

8.7

4.8

3.1 0

4.8

0.6

0.1

2.5

3.3

3.1

0.4

0.5

3.3

0.4

0.5

2.8

3.2

SPEAKER L

SPEAKER R

8.7

8.4

8.7

8.4

8.7

8.4

8.7

8.4

TC-32/26LX50 H-Board (3 of 3) Schematic Diagram TC-32/26LX50 H-Board (3 of 3) Schematic Diagram

TC-32LX50 / TC-26LX50

10.7. DG-Board (1 of 7) Schematic Diagram

+ +

MP-PANEL_VCC_ON

MP-24V_ON

ZERO_X_DET

TV_SOS

MP-AC_ON

STB_RST

MP-MAIN_ON

C4966

16V

0.1u

C4188

16V

0.1u

ZA4006

TESA169

C4976

16V

0.1u

C4526

16V

0.1u

TP4079

PNL12V-5V

MAIN3.3V

TP4133

L4121 J0JDC0000054

MAIN1.8V

C0DBAMH00014

IC4068

1VIN

2SW

3FB

4GND

5INV

GND

6RT

7EN

C4990

16V

0.1u

C4371

16V

R4726

100

C4472

6.3V

C4187

16V

0.1u

C4940

16V

0.1u

C4503

16V

0.1u

C4448

16V

4.7u

TP4131

TP4142

C4922

16V

0.1u

MAIN3.3V

C4504

16V

0.1u

C4958

16V

0.1u

MAIN2.5V

TP4091

TP4068

STB7V

C4973

50V

1000p

R4440

R4486 150k

C4947

50V

1000p

TP4071

STB3.3V

D4025

B0HCMM000014

PACK5V

MAIN3.3V

C4364

47u

16V

C4967

50V

1000p

C4999

16V

0.1u

R4432

30k

D4009

B0JCDD000002

TP4250

R4154

R4188

C4931

50V

1000p

C4970

16V

0.1u

C4423

100u

10V C4489

470u

C4488

470u

MAIN5V

C4928

16V

0.1u

ZA4014

TESA169

C4971

50V

1000p

TP4081

TP4070

C4953

50V

1000p

R4241

C4455

16V

0.1u

FL4064

J0HABH000012

123

R4115

22k

R4442

C4524

47u

6.3V

TP4066

TP4082

C4977

50V

1000p

C4360

220u

C4195

16V

0.1u

C4445

16V

4.7u

TP4093

C4142

16V

TP4095

L4118 J0JDC0000054

R4444

R4164

100k

D4027

MA2J72800L

L4095

33u

R4185

56k

TP4103

R4443

10 R4446

SUB9V

TP4087

R4174

47k

D4001

B0JCDD000002

TP4086

MAIN9V

ZA4007

TESA169

ZA4020

TESA169

C4466

16V

0.1u

Q4074

2SC584500L

L4094

33u

D4011

B0JCPD000026

C4956

16V

0.1u

SUB5V

TP4065

R4165

22k

D4017

MAZ80390LL

L4091

J0JHC0000078

DG4

TP4089

PACK5V

C4988

16V

0.1u

SUB9V

TP4073

TP4106

C4975

50V

1000p

ZA4010

TESA169

C4952

16V

0.1u

R4163

TP4102

PACK9V

TP4097

MAIN1.2V

R4183

68k

ZA4033

TESA169

ZA4013

TESA169

ZA4018

TESA169

R4538

150k

C4994

16V

0.1u

C4979

50V

1000p

TP4083

R4173

TP4098

C4923

50V

1000p

R4433

30k

C4951

50V

1000p

TP4128

R4178

100k

C4941

50V

1000p

C4424

16V

4.7u

R4170

10k

R4176

47k

MAIN3.3V

TP4104

TP4140

C4467

25V 0.022u

D4016

MAZ80390LL

C4991

50V

1000p

FL4057

J0HABH000012

123

R4187

C4974

16V

0.1u

C4285

25V

0.022u

C4964

16V

0.1u

R4649

10k

C4435

16V

4.7u

R4537

56k

C4474

50V

0.01u

C4373

50V

0.01u

D4008

B0JCDD000002

C4204

16V

0.1u

C4930

16V

0.1u

TP4090

C4473

6.3V

TP4220

C4346

50V

1000p

STB3.3V

C4434

100u

10V

C4444

16V

4.7u

L4119 J0JDC0000054

C4196

16V

0.1u

MAIN1.8V

TP4212

MAIN1.2V

TP4076

L4120 J0JDC0000054

R4181

10k

D4029

B0HCMM000014

C4475

50V

0.01u

C4374

50V

0.01u

C4366

50V

0.1u

C4945

50V

1000p

DG5

C4432

16V

4.7u

C0CBCBD00043

IC4065

GND

ON/OFF

Vin

ZA4011

TESA169

TP4078

C0EBF0000354

IC4067

OUT

1VSS

2VDD

C4493

4.7u

16V

TP4077

D4010

B0JCPD000026

C4963

50V

1000p

R4186

68k

C4525

16V

0.1u

ADJ5V

MAIN2.5V

C4345

16V

0.1u

R4179

100k

TP4105

R4171

10k

C4950

16V

0.1u

C4414

100u

10V

TP4184

ZA4021

TESA169

FL4059

J0HABH000012

123

Q4075

2SA207700L

SUB9V

Q4076

2SA207700L

C4921

50V

1000p

C4413

0.47u

16V

ZA4027

TESA169

TP4075

STB7V

TP4144

MAIN9V

D4015

MAZ30510ML

PACK9V

D4026

MAZ80270HL

C4197

16V

0.1u

C4978

16V

0.1u C4989

50V

1000p

FL4037

J0HABH000012

123

R4169

47k

C4194

16V

0.1u

C4925

50V

1000p

C4845

16V 0.1u

C4363

47u

16V

TP4092

PACK5V

R4180

10k

D4003

B0HCMM000014

ZA4028

TESA169

R4747

C4972

16V

0.1u

ZA4016

TESA169

C4208

16V

0.1u

FL4060

J0HABH000012

123

C4934

16V

0.1u

MAIN3.3V

C4843

16V

0.1u

FL4061

J0HABH000012

123

TP4096

D4028

MA2J11100L

C4957

50V

1000p

FL4062

J0HABH000012

123

L4090

J0JHC0000078

STB7V

TP4067

FL4063

J0HABH000012

123

C4527

16V

10u

R4155

10k

TP4084

MAIN1.8V

TP4080

L4112

J0JHC0000078

TP4099

C4359

47u

16V

C4935

50V

1000p

MAIN5V

C4370

47u

16V

C4962

16V

0.1u

ZA4019

TESA169

ZA4015

TESA169

R4177

47k

TP4072

R4175

36k

C4198

16V

0.1u

C4959

50V

1000p

R4743

TP4069

C4355

50V

1000p

C4189

16V

0.1u

FL4065

J0HAAB000036

ZA4009

TESA169

R4172

C4492

4.7u

16V

TP4088

C4981

50V

1000p

MAIN3.3V

C4425

16V

4.7u

ZA4022

TESA169

C4431

16V

4.7u

C4946

16V

0.1u

Q4073

2SC584500L

C4965

50V

1000p

C4490

68u

MAIN1.8V

C4128

50V

1000p

R4117

R4441

TP4074

C4983

50V

1000p

SUB5V

R4445

TP4101

TP4100

L4117 J0JDC0000054

C4186

16V

0.1u

C4368

47u

16V

TP4094

C4924

16V

0.1u

ZA4008

TESA169

R4182

15k

C4995

50V

1000p

C4433

100u

10V

C4344

50V

0.01u

C4980

16V

0.1u

C4447

16V

0.47u

FL4058

J0HABH000012

123

C0DBEJG00001

IC4042

1CTL

2Vcc

3GND

4OUT

L4092

G1C220MA0077

TP4085

C4367

47u

16V

SUB9V

C4211

16V

0.1u

C4944

16V

0.1u

IC4069

C0DBAMH00013

1VIN

2SW

3FB

4INV 5

GND

VIN

MAIN3.3V

R4487

56k

ZA4012

TESA169

C4365

47u

16V

C43724V

100u

C4491

68u

C4929

50V

1000p

L4093

G1C220MA0077

#A915AY-220M=P3

C4982

16V

0.1u

MAIN1.2V

MAIN1.8V

GND

DGND

GND

MAIN_9V

STB_7V

MAIN_3.3V

FAN_MAX

GND

SUB5V(PACK)

SUB5V

GND

ODU_15V

PANEL_VCC(5V/12V)

GND

POD_ON

GND

PANEL_VCC(5V/12V)

ODU_OFF

MAIN_ON

SOS_1

AC_ON

PANEL_VCC_ON

ZERO_X_DET

MAIN5V

FAN_SOS

MAIN5V

GND

SUB5V

BT_30V

GND

STB_PS_GND

GND

24V_ON

GND

MAIN_3.3V

SUB_9V

DGND

SUB_9V(PACK)

STB_3.3V

RESET

MAIN_2.5V

MAIN_1.2V

MAIN_1.8V

6897

(AP4)

AP-BOARD

(AP5)

AP-BOARD

5.0

3.0

5.0

3.3

2.7

2.3

3.2

4.8

5.0

2.3

9.0

30.7

5.0

3.3

5.0

9.0

DG-BOARD (1/7)

TXNDG10LCM(TC-32LX50)

TXNDG10LDM(TC-26LX50)

3.2 4.2

4.2

1.2

8.9

1.8

1.2

0.9

8.9

2.6

8.9

1.2

1.1

0.9

2.6

0.9

TC-32/26LX50 DG-Board (1 of 7) Schematic Diagram TC-32/26LX50 DG-Board (1 of 7) Schematic Diagram

TC-32LX50 / TC-26LX50

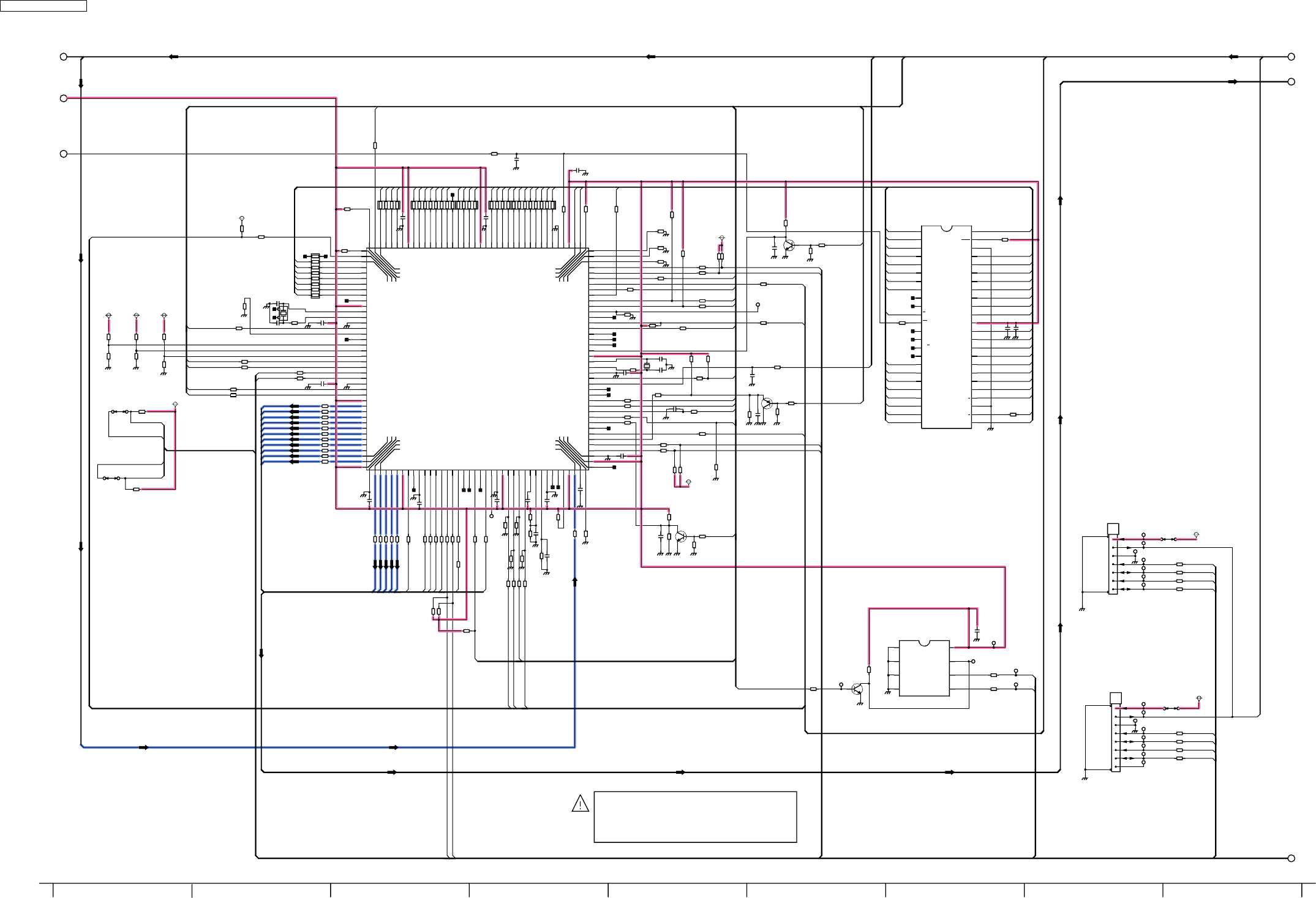

10.8. DG-Board (2 of 7) Schematic Diagram

SDA1

SDA0A

A17

D03

ZERO_X_DET

D08

D12

D14

M_SDA0B

DOSD_B03

HDMI_5V_DET

HDMI_INT

MP-SRQ

D02

DOSD_B01

D12

M_SCL0B

D06

D11

SDA2

A12

A_MUTE

D03

HPD

MP-24V_ON

TV_SOS

D07

A15

A10

HDMI_A_MUTE

SCL0A

SCL2

D10

DOSD_G04

D08

D15

D13

D04

D02

H2-MAIN_SW_DET

INV_SOS

SDA0A

R_LED_ON

MP-SP_MUTE

G_LED_ON

HDMI_RST

A15

A18

MP-GC4_RST

DOSD_G01

D09

DOSD_B02

DOSD_R00

A12

D01

D15

AI_SENSE

DOSD_R01

D04

D13

D00

H90M_HS

MP-AC_ON

A13

A11

H90M_YM

MP-MAIN_ON

A_DAC_PD

D01

H90M_YS

A14

REMOTE

DOSD_G00

SCL1

DOSD_B00

D07

DOSD_R03

A14

H90M_OSDCLKI

D06

DOSD_G02

KEY_SCAN

D11

A16

A11

D09

RF_AGC1_ADJ A18

A10

A16

A13

DOSD_G03

A17

D05

D14

DOSD_R02

SCL0A

A_MON_DEF

D05

DOSD_G05

DOSD_B04

DOSD_R04

CC_MAIN

H90M_VS

SDA0A

M_SCL0B

M_SDA0B

SDA1

SCL1

SDA2

MP-SRQ

D00

MP-INV_ON

VMUTE

MP-PANEL_VCC_ON

HOUT

HDMI_RBSTNSS

SCL0B

SDA0B

VCLKOUT

SCL2

SCL0A

M_SDA0B

M_SCL0B

C1106

16V 0.1u

R1131 1k

C3FBKD000273

IC1104

1 A15

2 A14

3 A13

4 A12

5 A11

6 A10

7A9

8A8

9 N.C.

10 N.C.

11 W

12 RP

13 N.C.

14 N.C.

15 R/B

16 N.C.

17 A17

18 A7

19 A6

20 A5

21 A4

22 A3

23 A2

24 A1 25

VSS

DQ0

DQ8

DQ1

DQ9

DQ2

DQ10

DQ3

DQ11

VCC

DQ4

DQ12

DQ5

DQ13

DQ6

DQ14

DQ7

DQ15A-1

VSS

BYTE

A16

R1285 1k

TP1117

R1293 22

R1188 0

R1313

4.7k

R1253

C1128

50V

1000p

TP1121

R1184 22

R1269

1.8k

R1229

33k

C1133

16V

0.1u

R1192

1.8k

R1267

100k

R1203 0

R4765

R1156 56

R1138

220

C1109

16V

0.1u

TP1120

R1266

22k

R1159 56

R1144 56

R1226

R1291

10k

R1140 1k

R1174 56

JS1102

R1242 100k

R1204

R1286 1k

R1301

56k

PACK9V

R1232

Q1104

2SA207700L

JS1101

R1272

1.8k

R1241

R1307

100k

DG13

TP1102

C1121

16V 0.1u

R1343 0

R1104

12k

C1116

16V 0.1u

R1235 1k

TP4209

R1165 56

DG12

R1236 1k

PACK5V

TP1110

R1200

EXB38VR000V

TP1118

Q1103

2SC584500L

R1114

12k

R1195 22

C1112

16V

TP1107

R1191 56

C1125

50V

100p

R1101

27k

R4647

10k

R1158 56

C1113

10V

TP1103

TP1101

TP1108

MAIN3.3V

C1107

16V

0.1u

R1160 56

R1297

R1185

EXB2HVR000V

R1223

6.8k

R1111

2.7k

TP1114

R1175 56

C1103

50V

22p

C1110

16V

0.1u

R1155 56

TP1115

C1126

50V

0.01u

R1149

270k

R1115

15k

R1123

4.7k

R1182

EXB38VR000V

R1295

1.8k

R1302

R1255 0

C1118

16V

0.1u

R1237 1k

C1115

16V

0.1u

C1108

16V

0.1u

ADJ5V

R1347 0

TP1112

R1162 22

R1217 1k

C1124

50V 15p

R1218

6.8k

C1104

50V

18p

X1102

H0J400400025

R1282

R1308

10k

Q1106

2SC584500L

R1292 22

R1154 56

TP1109

R1209

EXB38VR000V

R1208

180

TP1104

R1179 56

R1277

10k

R1170

10k

R1238 1k

R1112

2.7k

R1221

1.8k

R1219 3.9k

R1279

10k

R1216

180

TP1116

R1143 56

Q1105

2SC584500L

R1256

R1157 56

MAIN3.3V

R1345 0

C1105

16V 0.1u

C1127

50V

0.01u

X1101

H0J327200114

C1122

16V 0.1u

R1350 0

R1296

100k

ADJ5V

TP1119

TP1105

TP1106

C1111

16V

0.1u

JS1103

R1212

EXB2HVR000V

MAIN9V

R1128

R1183 56

R1210 0

R1261

R1224

R1130 1k

R1137

47k

R1316

R1312

R1194 22

PACK5V

R1310

TP1113

R1294

1.8k

R1201 1k

C1120

6.3V

R1268

10k

R1349 0

R1288

7.15k

R1148

EXB2HVR000V

R1213 0

R1103

27k

R13

10k

R1264

R1153 56

R1193 0

C1134 6.3V

10u

R1228

10k

R1214 180

*IC1106

C3EBLC000031

1E0

2E1

3E2

4 Vss 5

SDA

SCL

/WP

Vcc

R1321

C1117

50V

0.01u

R1306

56k

R1265

R1215 0

R1230

R1196

R1280

C1130

50V

100p

MN102H90MTY

IC1101

TSTMD1

P83/A20

P66/A07

4P65/A06

5P64/A05

6P63/A04

7P62/A03

8P61/A02

9P60/A01

10 TEST

11 VDD

12 RTCXI

13 RTCX0

14 VSS

15 P45/HI0

16 P44/HI1

17 P43/VI0

18 P42/VI1

19 P16/TM3IO

20 P15/TM2IO

21 P14/TM1IO

22 P13/TM0IO

23 PC3/SDA0B

24 PC2/SCL0B

25 VSS

26 P41/HCCLK0

27 P40/HCCLK1

28 VDD

29 P37/B04

30 P36/B03

31 P35/B02

32 P34/B01

33 P33/B00

34 P32/G05

35 P31/G04

36 P30/G03

37 P27/G02

P26/G01

P25/G00

VDD

VSS

P24/R04

P23/R03

44 P22/R02

45 P21/R01

46 P20/R00

47 VDD

48 OSDKXI

49 OSDKX0

50 VSS

51 P12/VSYNC/IRQ1

52 P11/YS

53 P10/YM

54 P07/HSYNC

55 PC1/SDA0A

56 PC0/SCLA0

57 P06/VCLKOUT

58 P05/AL3

59 P04/AL2

60 P03/AL1

61 P02/AL0

62 P01/HOUT

63 P00/SYSCLK

64 AVSS

65 AVdd2

66 DAALOUT/DACOUT3

67 DABOUT/DACOUT2

68 DAGOUT/DACOUT1

69 DAROUT/DACOUT0

70 COMP

71 VREF

72 IREF

73 AVss

74 CVBS1

75 VREFHS1

76 CLL

77 AVdd1

CVBS0

VREFHS0

CLH

PLLTST

AVdd1

AVss

PC7/SCL2

PC6/SDA2

PF3/ADIN11/IRQ5

PF2/ADIN10/IRQ4

PF1/ADIN9/IRQ03

PF0/ADIN8/IRQ02

PE7/ADIN7

PE6/ADIN6

PE5/ADIN5

PE4/ADIN4

PE3/ADIN3

PE2/ADIN2

PE1/ADIN1

PE0/ADIN0

VSS

OSC2

100

OSC1

101

VDD

102

P57/RMIN/IRQ0

103

P95/SBO1

104

P94/SBI1

105

P93/SBT1

106

P92/SBO0

107

P91/SBI0

108

P90/SBT0

109

P56/PWM3/CS3

110

P55/PWM2/CS2

111

P54/PWM1/CS1

112

P53/PWM0/CS0

113

PD2/SBO2

114

PD1/STOP/SBI2

115

PD0/WDOUT/SBT2

116

PC5/SCL1

117

PC4/SDA1

118

CPUMD2

119

CPUMD1

120

CPUMD0

121

TSTMD0

122

P52/WE

123

P51/OE

124

VDD

125

P50/RST

126

VSS

127

PB7/D15

128

PB6/D14

129

PB5/D13

130

PB4/D12

131

PB3/D11

132

PB2/D10

133

BP1/D09

134

PB0/D08

135

PA7/D07

136

PA6/D06

137

PA5/D05

138

PA4/D04

139

VSS

140

VDD

141

PA3/D03

142

PA2/D02

143

PA1/D01

144

PA0/D00

145

P82/A19

146

P81/A18

147

P80/A17

148

P77/A16

149

P76/A15

150

P75/A14

151

P74/A13

152

P73/A12

153

VDD

154

VSS

155

P72/A11

156

P71/A10

157

P70/A09

158

P67/A08

159

P84/A21

160

OSCMD0

R1166

10k

R1240

R1190

1.8k

R1271

R1102

12k

R1348 0

R1289

R1189 56

MAIN3.3V

R1254

R1141 1k

R1273

10k

R1299

100

R1346 0

R1249

10k

R1199

47k

TP1111

C1123

50V

15p

R1320

R1305

47k

R1180 56

R1344 0

R1211

180

JS1104

R1163 22

C1132

16V

OSD_YS

MAIN_SW_DET

RF_AFT1

TV_SOS

G_LED_ON

SUB5V_SENSE

EEPROM1

AC_ON

R_LED_ON

INVERTER_SOS

HDMI_INT

MAIN9V_SENSE

HDMI_RST

BS_SBO

BS_SBI

KEY_SCAN

MAIN_ON

HDMI_RBSTNSS

A_MUTE

ZERO_X_DET

SP_MUTE

P_MUTE

A_MON_DET

24V_ON

PANEL5V_ON (LCD_MUTE)

VCLKOUT

BS_VOUTENB

BS_RST

BS9V_SENSE

SRQ

SD_BOOT

CS0

AUDIO_MUTE

A_DAC_PD

HPD

FORMAT_EDGE

HOUT

MAIN_SW(ATSC_DASW)

256Kbit

SCL0B

SDA0B

Peaks_bus_connect

HDMI_DET

OSD_VS

OSD_YM

OSD_HS

SDA0A

SCL0A

STB7V

SCL0B

SDA0A

SDA0B

STB7V

SCL1

SCL2

FOR FACTORY USED

SDA2

SDA1

KURO_OFF

FAN_SOS

32.768KHZ

4MHz

MICOM

FLASH ROM

FOR FACTORY USED

11 151413 17 181210 16

SRQ

GND

SRQ

TXNDG10LCM(TC-32LX50)

TXNDG10LDM(TC-26LX50)

DG-BOARD (2/7)

3.2

2.5

1.6

3.2

1.7

2.7

3.1

1.7

3.2

2.7

3.1

3.0

2.5

4.9

2.7

3.2

4.9

3.2

1.6

3.1

3.2

1.6

0.6

2.0

3.2

1.8

0.4

3.2

0.3

3.2

1.6

3.2

1.3

1.6

2.5

3.2

1.5

0.4

2.2

3.2

2.3

3.2

1.1

0.4

1.2

3.2

1.5

0.9

3.2

2.4

3.2

1.6

1.2

1.9

3.1

1.1

3.2

1.2

1.3

1.4

2.4

1.9

2.0

1.6

1.2

0.6

1.7

1.4

1.8

1.5

0.9

1.7

1.9

3.2

1.5

3.2

2.7

1.6

0.4

0.5

0.2

3.2

4.9

3.2

0.2

3.2

2.7

TC-32/26LX50 DG-Board (2 of 7) Schematic Diagram TC-32/26LX50 DG-Board (2 of 7) Schematic Diagram

TC-32LX50 / TC-26LX50

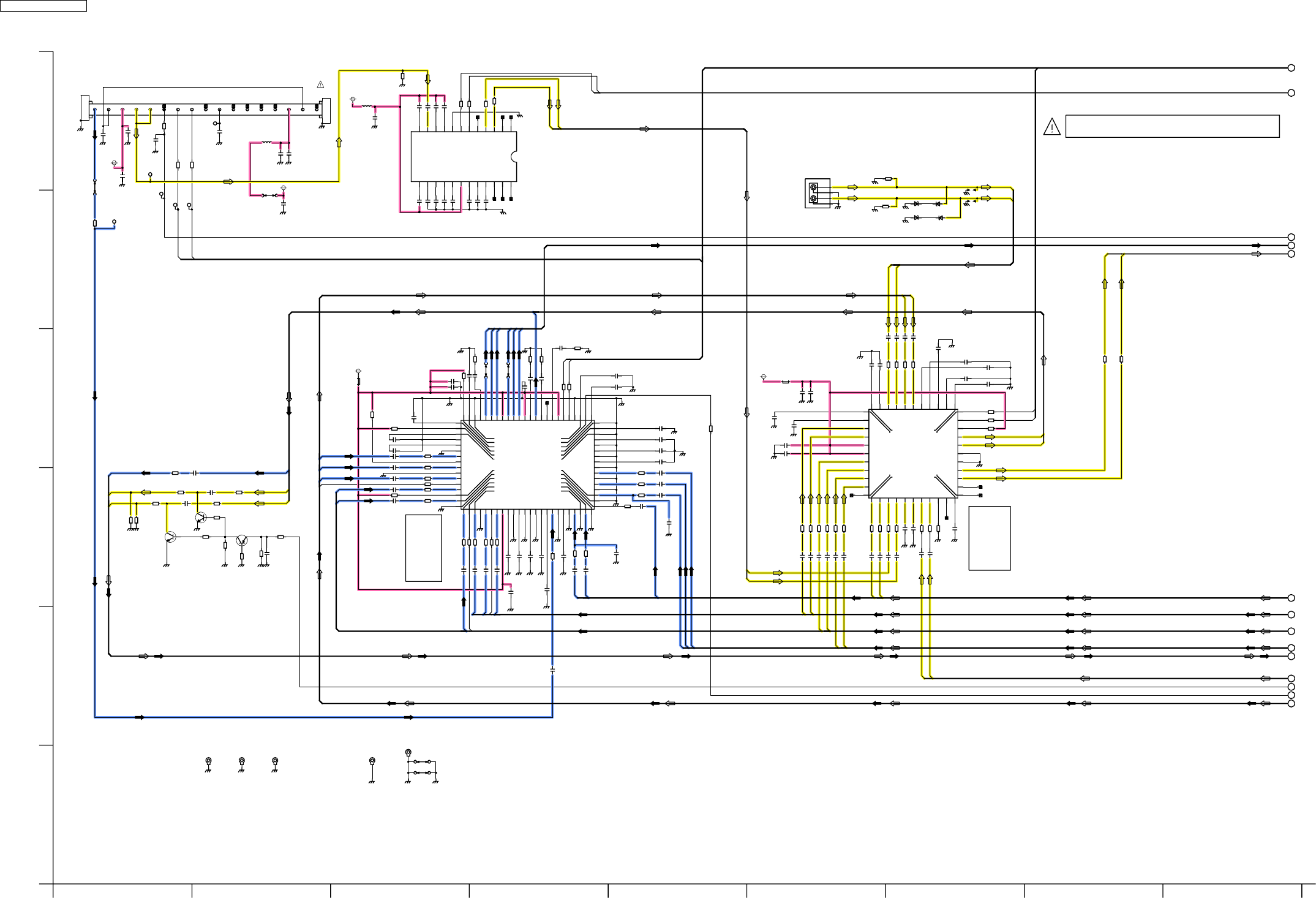

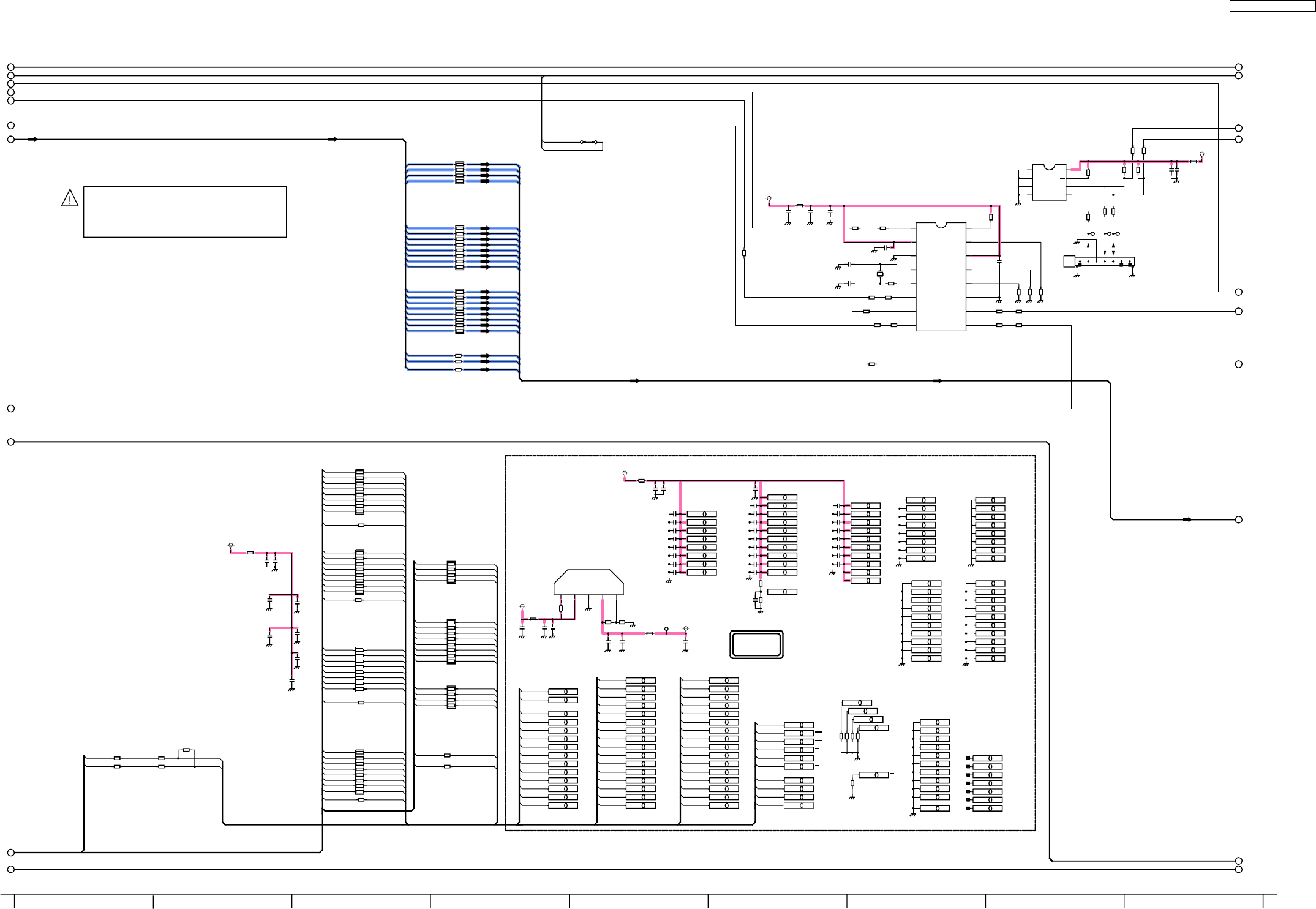

10.9. DG-Board (3 of 7) Schematic Diagram

TERM

SIDE

TERM

SIDE

RF_AGC1_ADJ

M_SDA0B

M_SCL0B

SCL0B

SDA0B

SDA0A

SDA1

SCL1

H3-MPR

H3-MPB

HDMI_L

HDMI_R

SCL0A

MP-SP_MUTE

A_MUTE

JTAG_TCK

JTAG_TMS

JTAG_TRST

VSIB

JTAG_TMS

CLKINB2

JTAG_TCK

JTAG_TRST

SDA1

AP_DE

SCL1

RIN1

UVIN1

UVIN7

UVIN6

UVIN4

UVIN5

CLKOA

H3-MY

CLKIA

YIN0

H3-MPB

YIN1

RIN0

YIN5

HSIA

YIN6

YIN7

H3-MPR

YIN8

VSIA

YIN9

YIN4

YIN3

YIN2

UVIN9

UVIN2

UVIN8

UVIN0

UVIN3

RIN3

RIN2

SCL2

SDA2

HDMI_L

HDMI_R

MP-SRQ

H3-MY

CC_MAIN

TDO-FS_TDI

3E_TDO-TDI

4PRO_TDO-HDMI_TDI

HDMI_TDO-4L_TDI

FS_TDO-4PRO_TDI

STB_RST

H2-MAIN_SW_DET

AI_SENSE

REMOTE

KEY_SCAN

R_LED_ON

G_LED_ON

A_DAC_PD

MP-GC4_RST

HDMI_INT

HDMI_RST

HPD

HDMI_RBSTNSS

YGIN9

YGIN8

YGIN7

YGIN6

YGIN5

YGIN4

YGIN3

YGIN2

UBIN9

UBIN8

UBIN7

UBIN6

UBIN5

UBIN4

UBIN3

UBIN2

UBIN0

UBIN1

YGIN1

YGIN0

HSIB

TV_SOS

A_MON_DEF

TDO-FS_TDI

HDMI_A_MUTE

HDMI_5V_DET

R4746

EXB38VR000V

TP4116

MAIN3.3V

TP4152

TP4112

C4228

6.3V 10u

C4579

16V

0.1u

MAIN5V

TP4196

MAIN9V

R4335

TP4182

R4079

EXB38V220JV

R4593

470

L4034

J0JHC0000045

R4467

47k

R1322

TP4115

C4051

47u

6.3V

R4594

470

TP4169

C4199

16V

0.1u

TP4204

C4207

50V

33p

C4017

6.3V

10u

Q4061

2SC584500L

JS4003

TP4225

MAIN5V

R4310

33k

TP4053

R4749

EXB38VR000V

TP4114

JS4009

TP4199

C4042

16V

0.1u

J0HABC000011

FL4014

C4215 16V

0.1u

R4292 0

R4203

820

DG10

R4279 0

TP4109

C4036

16V

0.1u

TP4130

C4200

16V

0.1u

C4217 16V

0.1u

R4282 0

TP4205

C1142

50V

470p

C4231

50V

2700p

Q4080

2SC584500L

TP4198

C4023

16V

0.1u

R4655 0

MAIN5V

R4345

47k

R1359

220

R4126

47k

R4348

470

TP4117

TP4154

C4053

16V 0.1u

TP4153

R4086 22

R4068

R4334

MAIN9V

Q4103

2SC584500L

JS4006

TP4170

Q4079

2SC584500L

R4303 56

R4271 0

TP4175

C4223

50V

2700p

R4313 22k

TP4188

C4582

50V

12p

FL4048

J0HAAB000036 1

R4255 0

R1365

12k

R1353

JS4005

C4035

16V

0.1u

TP4148

C4040

16V

0.1u

TP4235

C1152

6.3V

47u

TP4226

R4742

TP4124

TP4125

R4067

JS4111

R4283 0

C4029

16V 0.1u

R4750 0

R4332

C1150

16V

TP4201

R4596

680

R4338

C4225

16V

10u

L4029

J0JHC0000078

C4224

16V

0.1u

R4741

C4016

25V

33u

Q4039

2SC584500L

Q4008

2SA207700L

C4006

16V

10u

R4306 22

C4581

50V

TP4164

C4214 16V

0.1u

C4033 16V

0.1u

R4295

C4004

16V

0.1u

TP4113

R4341

330

C4008

16V

0.68u

C4203

50V

180p

TP4119

TP4202

C1139

16V

C4048

16V

0.1u

C1144

6.3V

3.3u

R4598

820

R4613

R4324

47k

JS4104

TP4228

Q4041

2SC584500L

R4300

R4451

10k

C4019

10u

16V

JS4007

R4329

10k

C4005

16V

0.1u

TP4193

C4222

16V

10u

L4007

J0JHC0000078

TP4200

R4290 0

C4205

50V

180p

TP4111

R4085

EXB38V220JV

Q4059

2SA207700L

R4314

61.9k

FL4047

J0HAAB000036 1

Q4104

2SC584500L

R4320

C4021

16V

0.1u

AD3.3V

L4006

J0JHC0000078

Q4040

2SA207700L

R4349

470

R4281 0

TP4178

R4319 0

R4610

510

FL4054

J0HAAB000036

R4609

1.8k

TP4192

L4001

J0JHC0000078

R4122

TP4174

C4209

50V

0.01u

FL4052

J0HAAB000036

J0HABC000011

FL4015

TP4108

R4616

TP4122

L4030

J0JHC0000045

C4201

16V

47u

R4105

10k

R4054

1.37k

R1356

R4071

C4031

16V 0.1u

MAIN3.3V

C4015

16V

0.1u

IC4002

C0FBBK000038

AK4384VT-E2

1 MCLK

2 BICK

3 SDTI

4 LRCK

5 PDN

6 SMUTE/CSN

7 ACKS/CCLK

8 DIF0/CDTI 9

P/S

AOUTR

AOUTL

VCOM

VSS

VDD

DZFR

DZFL

R4316

TP4052

Q4058

2SC584500L

C4043

16V

0.1u

C4221

16V

10u

TP4179

TP4195

R4312

22k

C4531

0.1u

16V

TP4206

R4270 0

MAIN9V

C4026

50V

0.01u

JS4109

C4018

6.3V

10u

Q1109

2SC584500L

JS4068

J0HABC000011

FL4013

R4088

Q1112

2SC584500L

C4645

0.01u

50V

R4084

EXB38V220JV

C4054

16V

0.1u

R4298 56

C4055

16V

0.1u

R4744

EXB38VR000V

TP4107

R4333

10k

C4014

16V

0.1u

TP4197

R4042

160

R4611

1.5k

TP4224

TP4222

TP4191

L4002

G1C100KA0008

R4309

10k

ADJ5V

R4450

100

L4028

J0JHC0000078

TP4208

R4325

R4318

C4233

16V

47u

TP4189

R4268 0

R4064

TP4155

C4027 16V

0.1u

R4617

R4315

61.9k

TP4194

R4256

TP4207

R1323

470

TP4227

R4100

TP4161

Q4057

2SA207700L

C4047

16V

0.1u

TP4167

R4066

R4723

TP4162

C4001

100u

TP4163

R4301

R4336

R4452

47k

C4038 16V

0.1u

R4469

10k

R4748

EXB38VR000V

DG2

R4075

EXB38V220JV

C4034

16V

0.1u

C4662

0.01u

50V

C4253 16V

0.1u

Q4078

2SC584500L

R4305 22

TP4190

FL4053

J0HAAB000036

TP4176

TP4236

C0CBABF00020

IC4049

OUT

ADJUST

VOUT

TP4183

R4308

10k

R4317

TP4151

IC4001

C0ABBB000289

11OUT

21IN-

31IN+

4Vcc-5

2IN+

62IN-

2OUT

8Vcc+

TP4173

Q4060

2SC584500L

R4274 0

Q4038

2SC584500L

TP4149

R4340

330

C4028

16V

0.1u

TP4233

L4126

J0JHC0000078

J0HABC000011

FL4012

C4002

16V

0.1u

TP4232

TP4229

C4584

50V

100p

R4344

47k

TP4118

TP4217

C4254

16V

0.1u

C4045

50V

0.01u

FL4051

J0HAAB000036

TP4230

TP4186

R4595

680

R4342

22k

C4577

16V

0.1u

MAIN1.8V

TP4166

R1369

C4024

50V

0.01u

TP4156 C4052

16V

0.1u

R1366

10k

R4062

1.69k

C4030

50V

1000p

R4604

390

TP4157

R4606

TP4177

Q4007

2SA207700L

C4039

50V

0.01u

C4049

47u

6.3V

C4009

16V

0.039u

R4326

47k

C4220

16V

0.1u

R4614 0

R4327

TP4211

C4232

16V

0.1u

R4322

TP4187

C4041

6.3V

R4389 56

TP4180

C4020

16V 0.1u

L4004

J0JHC0000078

C4230

16V

0.1u

R4350

R4605

150

TP4147

TP4234

TP4231

TP4223

TP4139

C4044

16V

0.082u

C0CBCAC00096

IC4041

Cont

GND

Noise

Vin

TP4158

TP4159

C1147

50V

560p

R4330

10k

R4299

R4727

R1362

240

FL4045

J0HAAB000036

TP4110

R4468

10k

R4602

470

MAIN3.3V

R4311

33k

JS4008

TP4210

STB3.3V

R4619

150

R4607

910

R4328

10k

C4050

16V

0.1u

TP4181

FL4044

J0HAAB000036

C4216 16V

0.1u

R4104

10k

C4219

16V

R4608

910

C4022

16V 0.1u

L4037

J0JHC0000045

C4025

47u

6.3V

R4740

C4226

6.3V 10u

R4077

TP4203

C4003

56u

JS4110

TP4121

R4291 0

TP4049

Q1114

2SC584500L

C4202

50V

0.01u

C4210

16V

47u

Q4077

B1ABCF000138

R4597

TP4165

R4280 0

R4087 22

R4650

L4003

J0JHC0000078

R4275 0

R4293 0

L1102

J0JHC0000078

R4721 0

R4073

EXB38V220JV

TP4123

R4730

L4038

J0JHC0000045

C4032 16V

0.1u

C4013

47u

6.3V

TP4185

R4601

470

TP4120

C4578

16V

0.1u

R4745

EXB38VR000V

R4294

C4206

50V

33p

R4339

C4530

0.1u

16V

FL4049

J0HAAB000036 1

DG3

R4331

C1AB00002204

IC4005

P32

P31

INT

CS/HS

DGND

DVDDIO

P15

P14

P13

P12

DGND

DVDD

P29

P28

SFL/SYNC_OUT

SCLK2

DGND

DVDDIO

SDA2

P11

P10

P27

P26

R_ACTIVE/P25

SRLIN/P24

SRLUP/P23

TRGIN/P22

P21

MEI_CK/DCLK_IN

BLC/LLC1

XTAL1

XTAL

DVDD

DGND

P20

ELPF

PVDD

AGND

SOG

AIN7

54 AIN1

55 AIN8

56 AIN2

57 AIN9

58 AIN3

59 ELPF2

60 AGND

61 CAPY1

62 CAPY2

63 AVDD

64 REFOUT

65 CML

66 AGND

67 BIAS

68 CAPC1

69 CAPC2

70 TEST0

71 AIN10

72 AIN4

AIN11

AIN5

AIN12

AIN6

SOY

RESET

79 DE_IN

80 ALSB

81 SDA

82 SCLK

83 P40

84 P39

85 VS_IN

86 HS_IN

87 P38

88 P37

89 DGND

90 DVDD

91 P19

92 P18

93 P17

94 P16

95 P36

96 P35

97 P34

FIELD/DE

100

P33

C4583

50V

GND

IRSYS

GND

SOS2

GND

PC_B_GND

PC_R

PC_R_GND

PC_H

GND

PC_V

GND

MPR

MPR_GND

MPB

MPB_GND

MY_GND

SPR

SPR_GND

SPB

SPB_GND

SY_GND

GND

HDMI_L

GND

HDMI_R

GND

SDA0B

SCL0B

GND

M_SDA0B

M_SCL0B

MAIN_R

GND

MAIN_L

GND

DC_GND

DY_GND

DR_GND

DL_GND

VIDEO_OUT

AGND

SDA0A

SCL0A

GND

SDA1

SDL1

GND

SRQ

GND

STB_RST

SP_MUTE

A_MUTE

A_MON_DEF

STB_3.3V

GND

SW_OFF_DET

MAIN_SW_DET

GND

AI_SENSE

REMOTE

KEY_SCAN

GND

G_LED

R_LED

MODEM_LED

GND

VIL < 0.8V

RX_SD0#

VIH > 2.2V

HIGH:MUTE

RX_SCK

HPD for MUTE

20.25MHz

Hi=>MUTE

NIRQ2

RX_SCK

RX_MCLK

RX_WS

CEC

HDMI AUDIO MUTE

EXTCKIN

RX_MCLK

RX_WS

Hi=> MUTE

RX_SD0#

High => MUTE

Audio DAC

YIN

1.8V

GND

AFT2

AFT1

KEYSCAN3

KEYSCAN1

KEYSCAN2

VCC

GND

SD-HDMI_SEL

AMP

A/D CONV.

AD3.3V

22 272019 2521 2623 24

2.1

3.2

0.7

2.9

3.2

3.1

4.9

0.3

4.8

3.2

0.3

4.4

4.8

TXNDG10LCM(TC-32LX50)

TXNDG10LDM(TC-26LX50)

DG-BOARD (3/7)

H-BOARD

(H3)

H-BOARD

(H2)

DV-BOARD

(DV15)

4.9

2.3

4.9

4.4

04.4

4.4

4.9

1.6

3.2

1.5

0.3

1.5

1.7

0.3

1.6

3.2

1.0

0.6

0.2

0.1

0.2

0.1

0.6

1.6

0.2

1.2

0.1

0.8

1.9

1.6

0.1

1.5

3.2

0.2

1.8

1.2

0.7

2.6

0.9

1.9

1.8

2.9

2.8

0.6

0.7

0.6

1.7

0.1

0.7

1.5

0.4

0.1

1.2

1.6

1.7

1.5

1.8

3.2 1.7

3.2

1.2

3.2

4.9

2.1

2.7

2.1

2.7

2.2

2.8

9.0

2.8

2.2

9.0

4.4

3.8

9.0

0.7

TC-32/26LX50 DG-Board (3 of 7) Schematic Diagram TC-32/26LX50 DG-Board (3 of 7) Schematic Diagram

TC-32LX50 / TC-26LX50

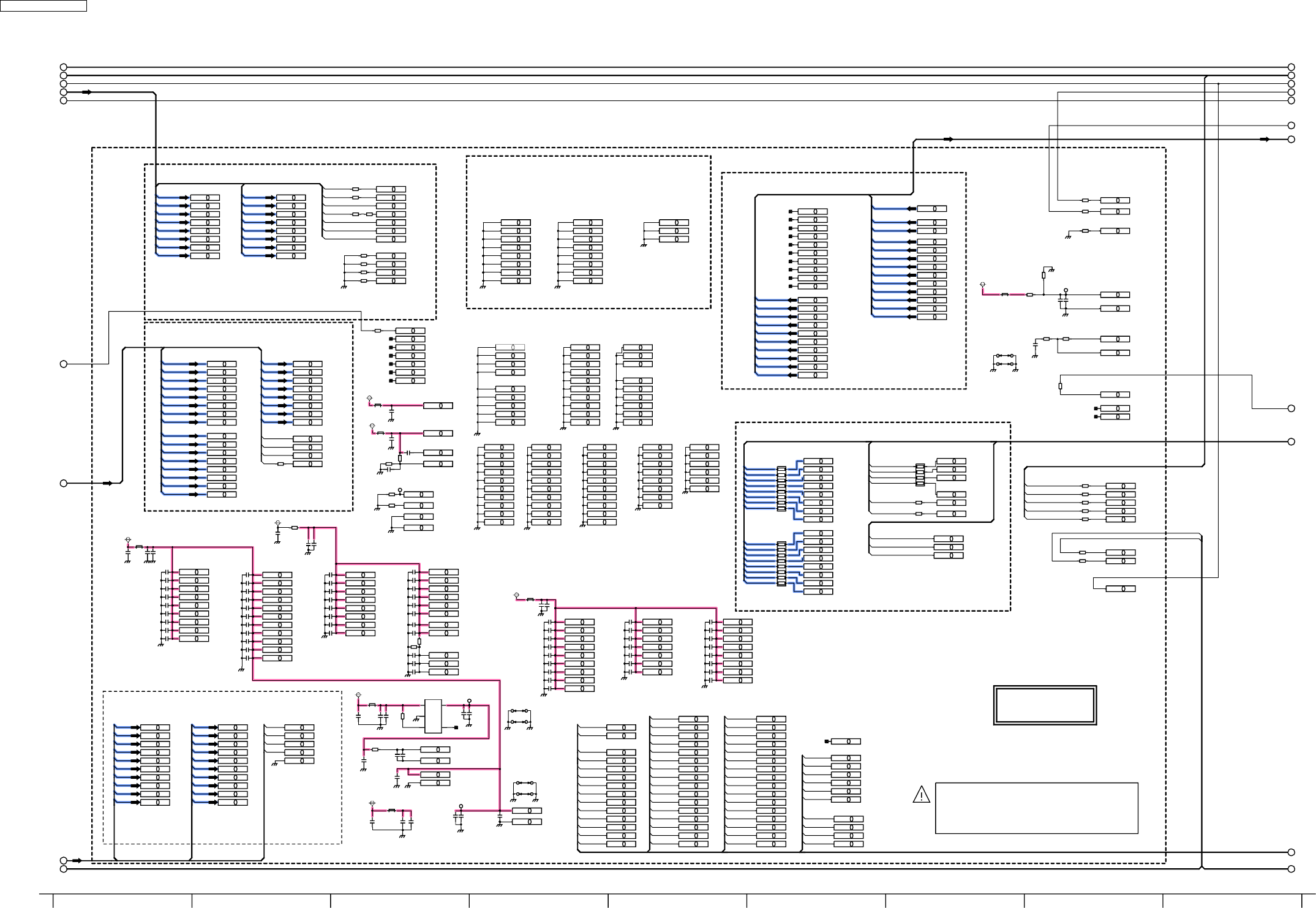

10.10. DG-Board (4 of 7) Schematic Diagram

A_DDR_A0

A_DDR_DQ25

DOSD_R01

GC4PRO-OSD_YMO

UVIN2

YGIN8

A_DDR_A2

A_DDR_WE

A_DDR_A1

A_DDR_DQ26

DOSD_R00

UVIN9

YGIN9

A_DDR_A3

A_DDR_DQ27

DOSD_G05

UVIN0

UVIN7

A_DDR_A4

DOSD_G04

UVIN1

UVIN8

JTAG_TCK

A_DDR_A5

UBIN9

DOSD_G03

YIN0

UVIN6

JTAG_TRST

A_DDR_A6

YIN1

YIN5

DOSD_B00

A_DDR_A7

YIN3

DOSD_B01

A_DDR_A8

YGIN0

YIN4

DOSD_B02

A_DDR_DQ2

A_DDR_A9

YGIN1

DOSD_B03

A_DDR_DQ3

A_DDR_A10

GC4PRO-ALPHAO0

A_DDR_NCLK

YGIN2

DOSD_B04

A_DDR_DQ4

YGIN3

A_DDR_CLK

DOSD_G00

UBIN0

GC4PRO-CLKOF

A_DDR_DQ5

YGIN4

UVIN5

DOSD_G01

UBIN1 A_DDR_DQ6

YGIN5 A_DDR_DQ10

YIN2

UBIN2

A_DDR_DQ11

YIN6

H90M_YS

UBIN3

A_DDR_DQ7

CLKOA

AP_DE A_DDR_DQ12

YIN7

UBIN4

CLKIA

YIN8

A_DDR_DQ13

A_DDR_DQ8

CLKINB2

UBIN5

A_DDR_DQS3

VSIA

YIN9

A_DDR_DQ14

A_DDR_DQ9

HSIB

UBIN6

B_OSDVSI2

HSIA

A_DDR_DQ15

A_DDR_DQS2

UBIN7 A_DDR_DQ28

A_DDR_DQ16

RIN0

A_DDR_DQ29UBIN8

A_DDR_DQ17

RIN1

B_OSDHSI2

A_DDR_DQS1

VSIB

A_DDR_DQ30

A_DDR_DQ18

A_DDR_DQ21

A_DDR_SDCKE

RIN2

4PRO_TDO-HDMI_TDI

A_DDR_DQ31

A_DDR_DQ19

A_DDR_DQ22

A_DDR_RAS

RIN3

FS_TDO-4PRO_TDI

A_DDR_DQS0

B_CLKID2

A_DDR_BA1

DOSD_G02

A_DDR_DQ20

JTAG_TMS

A_DDR_CAS

A_DDR_BA0

A_DDR_DQ23

DOSD_R04

A_DDR_A11

GC4PRO-OSDHSO

DOSD_R03

A_DDR_DQ0

UVIN3

YGIN6

A_DDR_DQ24

GC4PRO-OSD_YSO

DOSD_R02

A_DDR_DQ1

UVIN4

YGIN7

SDA2

GC4PRO-OSDO15

GC4PRO-OSDO14

GC4PRO-OSDO13

GC4PRO-OSDO12

GC4PRO-OSDO11

GC4PRO-OSDO10

GC4PRO-OSDO9

GC4PRO-OSDO8

GC4PRO-OSDO7

GC4PRO-OSDO6

GC4PRO-OSDO5

GC4PRO-OSDO4

GC4PRO-OSDO3

GC4PRO-OSDO2

GC4PRO-OSDO1

GC4PRO-OSDO0

GC4PRO-ALPHAO1

H90M_VS

H90M_YM

H90M_HS

HOUT

VCLKOUT

GC4PRO_E-GOE9

GC4PRO_E-GOE8

GC4PRO_E-GOE7

GC4PRO_E-GOE6

GC4PRO_E-GOE5

GC4PRO_E-GOE4

GC4PRO_E-GOE3

GC4PRO_E-GOE2

GC4PRO_E-GOE1

GC4PRO_E-GOE0

GC4PRO_E-BOE0

GC4PRO_E-BOE1

GC4PRO_E-BOE2

GC4PRO_E-BOE3

GC4PRO_E-BOE4

GC4PRO_E-BOE5

GC4PRO_E-BOE6

GC4PRO_E-BOE7

GC4PRO_E-BOE8

GC4PRO_E-BOE9

GC4PRO_E-VSOE

GC4PRO_E-HSOE

GC4PRO_E-CLKOE

SCL2

H90M_OSDCLKI

IC4054 C20 CLKIC

IC4054 AD2 A10

IC4054 C18 UVIC4

IC4054 B14 MOSDHSO

IC4054 R13 GND

IC4054 B15 YIC2

IC4054 L13 GND

C4276

16V 0.1u

IC4054 AE10 DQ17

IC4054 M25 ROE6

IC4054 AD26 VDDW

IC4054 AB1 LPF_PLL_main_matsu30

IC4054 G2 BUIA1

IC4054 AA2 HSIB

IC4054 J25 GOE5

IC4054 G23 BOE1

C4562

50V1000p

IC4054 AB3 VSS_DLL1

R4365 0

IC4054 J23 VDDW

IC4054 P4 GYIA4

IC4054 B17 UVIC0

IC4054 AD15 NSDCLKO

R4393

IC4054 AF25 VDD25

IC4054 A9 OSDYMI

IC4054 P26 ROE2

R4410 100

IC4054 P2 GYIA6

C4234

47u

6.3V

IC4054 J3 RVIA2

IC4054 Y24 OSDO3

C0CBCAC00136

IC4044

VIN

VSS

VOUT

C4269

6.3V

IC4054 D13 VDD

C4257

16V

0.1u

R4370

1.74k

IC4054 AC2 A4

IC4054 T1 UVIB3

IC4054 AC20 VDD

IC4054 V2 YIB0

IC4054 AE23 VDD25

JS4077

C4555

50V1000p

IC4054 AE14 SDCLKO

IC4054 AC10 VDD

IC4054

C1AB00002234

D6 NRST

IC4054 A13 MOSDVSO

IC4054 Y25 OSDO4

IC4054 D23 GND

R4364 0

IC4054 R16 GND

C4243

6.3V 1u

IC4054 AF9 DQ19

R4395

C4294

50V

0.01u

IC4054 AE13 VREFSSTL2V_1

C4278

16V 0.1u

C4669

6.3V

IC4054 A3 OSDI14

IC4054 AD20 VDD

C4250

16V 0.1u

IC4054 B6 OSDI6

IC4054 T15 GND

IC4054 D22 GND

IC4054 D26 VSOE

IC4054 A14 CLKOD

TP4238

IC4054 T11 GND

R4755

IC4054 W2 YIB4

C4575

50V 1000p

IC4054 B22 SDA

IC4054 T12 GND

IC4054 AD11 DQ7

C4273

16V 0.1u

C4572

50V1000p

IC4054 AE6 RAS

IC4054 L25 GOE0

IC4054 AE11 DQ6

C4279

16V 0.1u

IC4054 A2 GND

IC4054 B23 VSIB_IBTDV

IC4054 AE19 DQS1

IC4054 T14 GND

IC4054 AC13 VDD

IC4054 D12 FSADJ

IC4054 L2 BUIA6

L4039

J0JHC0000078

R4400

IC4054 AC19 VDD25

IC4054 M26 ROE7

IC4054 C11 PADAVDD

R4357

C4553

50V1000p

IC4054 C21 TMS

IC4054 Y2 YIB8

IC4054 AF17 DQ26

C4259

50V

0.01u

IC4054 AF26 GND

IC4054 B11 PADAGND

IC4054 D7 TPOUT4 IC4054 AC24 GND

IC4054 L23 ROE8

IC4054 AF16 DQ28

IC4054 C6 OSDI7

MAIN3.3V

IC4054 AE12 DQS0

IC4054 AD1 A3

IC4054 C8 OSDI1

C4568

50V 1000p

IC4054 K23 VDDW

IC4054 L16 GND

C4558

50V 1000p

C4255

16V

0.1u

IC4054 D21 VDD

IC4054 J26 GOE6

IC4054 N16 GND

IC4054 D8 TPOUT5

IC4054 L14 GND

IC4054 AE15 DQ30

IC4054 T25 OSDO15

IC4054 G3 BUIA0

JS4076

C4663

6.3V

IC4054 B8 OSDI0

R4354 0

IC4054 M23 VDDW

IC4054 AF14 SDCKE

C4570

50V1000p

IC4054 P13 GND

IC4054 B5 OSDI9

IC4054 D17 VDDW

R4786

IC4054 C19 UVIC7

IC4054 T4 VDDW

C4551

50V 1000p

IC4054 D14 VDD

R4360

C4240

16V 0.1u

IC4054 L15 GND

IC4054 B24 GND

IC4054 V3 UVIB9

R4367

D1HG1018A002

100

IC4054 AD6 BA0

IC4054 B10 ALPHAI0

IC4054 N4 GYIA2

C4236

16V 0.1u

C4563

50V1000p

R4353 0

IC4054 P16 GND

IC4054 A7 OSDI2

IC4054 AB26 OSDHSI2

IC4054 AD10 DQ18

IC4054 G1 CLKIA

IC4054 T2 UVIB2

IC4054 T23 OSDHSO

IC4054 E3 GND

IC4054 AF7 CAS

L4041

J0JHC0000078

IC4054 C15 YIC3

IC4054 C9 CLKID

IC4054 AA4 VDD

IC4054 L3 RVIA5

R4362 0

IC4054 A16 YIC4

IC4054 D19 TDO

IC4054 A22 TCK

C4241

6.3V 1u

IC4054 AC16 VDD

C4552

50V 1000p

IC4054 C17 UVIC1

IC4054 G4 GND

IC4054 T16 GND

C4256

16V

0.1u

IC4054 N23 VDDW

IC4054 C10 ALPHAI1

IC4054 V25 OSDO11

IC4054 C26 VDDW

IC4054 AC17 DQ27

IC4054 R1 UVIB1

IC4054 A15 YIC1

IC4054 P25 ROE1

IC4054 AE9 DQS2

IC4054 AB2 VDD_DLL1

MAIN2.5V

C4286

6.3V

C4249

6.3V 1u

C4574

50V 1000p

IC4054 C25 VDDW

IC4054 C12 VREF

IC4054 U1 UVIB7

IC4054 AE22 A7

IC4054 A1 GND

IC4054 N12 GND

C4564

6.3V 1u

IC4054 A17 YIC7

IC4054 AF20 DQ11

IC4054 A26 GND

IC4054 D11 ENBID

IC4054 AE3 SOVDD25

L4042

J0JHC0000078

R4661

IC4054 T13 GND

IC4054 AD9 DQ20

TP4221

C4296

33u

6.3V

C4560

50V 1000p

IC4054 P14 GND

IC4054 D9 TPOUT6

L4081

J0JCC0000241

TP4216

IC4054 D3 VDDP

IC4054 B12 PADDVDD

IC4054 H4 TPOUT3

IC4054 V1 YIB1

IC4054 AF4 A1

IC4054 A24 EXCLKIN

IC4054 R24 OSDYMO

R4764

IC4054 AD8 DQ23

IC4054 J24 VDDW

R4686

910

IC4054 AC12 DQ2

R4363 0

IC4054 K3 BUIA3

IC4054 AC21 VDD

IC4054 R3 CLKIB2

IC4054 H1 RVIA1

IC4054 F24 BOE5

IC4054 AE17 DQ25

IC4054 AA1 FRCLKIN_IBTV

IC4054 AC6 VDD

R4366

D1HG1018A002

100

C4247

47u

6.3V

C4270

47u

6.3V

IC4054 B21 TDI

JS4027

C4258

6.3V

R4756

IC4054 B7 OSDI3

C4297

16V

0.1u

IC4054 C24 GND

IC4054 L24 ROE9

IC4054 D4 GND

IC4054 H26 BOE0

IC4054 H24 GOE8

IC4054 P1 GYIA7

IC4054 G26 BOE4

IC4054 AA3 VDDP

C4684

6.3V 1u

IC4054 B1 GND

IC4054 M13 GND

IC4054 A5 OSDI8

IC4054 AE25 GND

IC4054 AD17 DQ24

C4245

6.3V 1u

IC4054 AF10 DQ16

IC4054 AF1 GND

IC4054 D10 OSDVSI

IC4054 AE4 SOVDD25

IC4054 N26 ROE4

IC4054 E25 BOE9

DDR2.6V_PRO IC4054 B13 PADAGND

IC4054 AE5 A0

IC4054 J4 VDDW

C4668

6.3V

IC4054 AD12 DQ4

C4252

16V 0.1u

IC4054 N3 GYIA3

IC4054 A21 TRST

IC4054 AF24 VDD25

IC4054 AE1 VDDW

IC4054 AC7 VDD

C4248

16V

0.1u

IC4054 AD7 VDD

IC4054 C5 OSDI10

C4651

6.3V

IC4054 J1 RVIA4

IC4054 AF19 DQ12

IC4054 R25 OSDYSO

IC4054 P23 VDD

IC4054 AD13 DQ1

C4559

50V 1000p

IC4054 M3 RVIA7

IC4054 L11 GND

IC4054 A20 VSIC

IC4054 B18 UVIC3

MAIN3.3V

IC4054 C1 VCOINV1

IC4054 N24 VDDW

IC4054 A19 UVIC5

C4265

16V

0.1u

IC4054 AB25 OSDVSI2

MAIN3.3V

IC4054 AD3 GND

IC4054 U24 VDDW

IC4054 AD24 GND

IC4054 F23 VDD

R4449

IC4054 AA26 OSDO1

IC4054 D15 VDDW

IC4054 N2 HSIA

IC4054 AE20 DQ10

L4043

J0JCC0000241

IC4054 F4 VDD

IC4054 E4 GND

R4361 0

IC4054 M2 GYIA0

R4724 0

C4295

6.3V

IC4054 M15 GND

R4397

39k

IC4054 Y1 YIB9

IC4054 R12 GND

IC4054 AA25 OSDO0

R4355

12k

IC4054 D25 HSOE

IC4054 V24 OSDO10

C4281

16V 0.1u

IC4054 AF12 DQ3

C4653

50V

0.01u

IC4054 U3 UVIB5

R4416

100

R4377

100

EXB38V101JV

C4242

16V 0.1u

IC4054 H23 GOE7

IC4054 M11 GND

IC4054 P15 GND

R4728 0

IC4054 W26 OSDO9

C4550

50V1000p

IC4054 F3 NC

C4237

6.3V 1u

IC4054 AF23 A6

IC4054 M14 GND

IC4054 AB4 GND

IC4054 P12 GND

C4251

6.3V 1u

R4401

IC4054 AC22 GND

IC4054 A18 UVIC2

IC4054 AF13 DQ0

IC4054 E24 BOE8

IC4054 D18 TEST

IC4054 K2 BUIA4

C4293

50V

0.01u

IC4054 R23 ALPHAO1

JS4078

IC4054 AC4 GND

IC4054 D5 GND

IC4054 K4 BUIA2

IC4054 E1 VCOIN

MAIN2.5V

IC4054 B19 UVIC6

JS4026

IC4054 A6 OSDI5

IC4054 D1 TPOUT0

C4283

16V 0.1u

IC4054 N13 GND

IC4054 C2 GNDP

IC4054 M12 GND

IC4054 C14 YIC0

IC4054 AE24 VDD25

IC4054 AF8 DQ21

IC4054 L26 GOE1

IC4054 AC23 GND

IC4054 C22 GND

IC4054 G25 BOE3

C4557

50V 1000p

IC4054 C4 OSDI13

IC4054 T24 CLKOF

C4235

16V

0.1u

C4566

50V 1000p

IC4054 AF5 BA1

C4565

50V 1000p

IC4054 AD19 VDD25

IC4054 AF3 VDD25

IC4054 R2 UVIB0

IC4054 V23 VDDW

C4549

50V 1000p

C4263

16V 0.1u

IC4054 V26 OSDO12

C4667

6.3V

C4238

16V 0.1u

C4268

50V

0.01u

IC4054 AF6 WE

IC4054 A23 SCL

C4275

16V 0.1u

IC4054 N15 GND

IC4054 Y3 YIB7

IC4054 AB24 GND

C4277

16V 0.1u

IC4054 AF15 DQ31

IC4054 F26 BOE7

IC4054 B20 HSIC

R4376

IC4054 AE2 GND

C4288

16V 0.1u

C4567

50V 1000p

IC4054 AD23 VDD25

IC4054 R4 ENBIB

C4271

16V

0.1u

IC4054 M24 ROE5

IC4054 R11 GND

IC4054 W23 OSDO6

IC4054 AD21 DQ8

IC4054 D24 GND

IC4054 T3 CLKIB1

C4284

16V 0.1u

C4264

16V 0.1u

IC4054 Y23 OSDO2

IC4054 C3 GND

C4282

16V 0.1u

IC4054 AE21 VREFSSTL2V_2

MAIN1.2V

IC4054 K25 GOE3

R4358

43k

IC4054 AC1 A9

IC4054 A11 IOUT

IC4054 G24 BOE2

IC4054 L1 BUIA7

C4287

6.3V 1u

IC4054 AC15 NC

IC4054 F2 REFO_PLL

IC4054 C23 GND

IC4054 AA23 VDD

IC4054 AA24 CLKID2

IC4054 AE8 DQ22

IC4054 H3 CLKOA

IC4054 B26 VDDW

IC4054 AC26 VSS_DLL0

IC4054 L12 GND

IC4054 E2 NC

IC4054 F25 BOE6

IC4054 AF22 A8

IC4054 AE26 VDDW

MAIN2.5V

C4244

16V 0.1u

C4266

16V

0.1u

R4359

IC4054 F1 FBO_PLL

IC4054 AC25 VDD_DLL0

IC4054 N1 VSIA

IC4054 U2 UVIB6

IC4054 AD16 DQ29

IC4054 H25 GOE9

IC4054 W25 OSDO8

IC4054 AE16 DQS3

IC4054 V4 UVIB8

IC4054 B25 GND

IC4054 P11 GND

IC4054 U23 VDDW

IC4054 AD18 DQ13

IC4054 L4 GND

IC4054 N11 GND

IC4054 P24 VDD

IC4054 AC8 VDD25

C4571

50V 1000p

R4399

IC4054 AC11 VDD

IC4054 AF18 DQ15

C4556

50V1000p

C4289

6.3V 1u

IC4054 W1 YIB5

IC4054 M16 GND

L4046

J0JHC0000078

IC4054 K24 GOE2

IC4054 N25 ROE3

IC4054 AB23 GND

IC4054 A8 OSDHSI

IC4054 B9 OSDYSI

IC4054 W4 YIB2

IC4054 D20 VDDW

IC4054 M4 RVIA6

IC4054 AF11 DQ5

R4757

C4561

50V1000p

IC4054 B3 OSDI15

IC4054 K26 GOE4

C4262

6.3V 1u

IC4054 U25 OSDO13

IC4054 M1 GYIA1

IC4054 Y4 YIB6

C4246

16V 0.1u

C4650

6.3V

IC4054 R26 ROE0

C4554

50V1000p

C4685

6.3V 1u

IC4054 P3 GYIA5

C4569

50V1000p

TP4213 IC4054 AD22 A5

IC4054 B2 GND

IC4054 AC3 A11

IC4054 R14 GND

IC4054 AF21 DQ9

IC4054 W3 YIB3

IC4054 AC9 VDD25

IC4054 AE7 VRFEFSSTL2V_0

C4239

6.3V 1u

IC4054 AD14 VDD25

IC4054 T26 ALPHAO0

C4280

16V 0.1u

IC4054 C16 YIC6

C4272

16V 0.1u

IC4054 C13 VG

C4573

50V 1000p

IC4054 C7 OSDI4

IC4054 A10 VDDW

IC4054 H2 RVIA0

IC4054 W24 OSDO7

R4371

1.74k

JS4028

R4356

180

R4394

100

IC4054 AC5 GND

IC4054 E23 GND

IC4054 A12 VDDW

IC4054 D16 VDDW

IC4054 AD5 A2

L4079

J0JCC0000241

IC4054 Y26 OSDO5

C4267

16V

0.1u

IC4054 B4 OSDI12

IC4054 A25 GND

IC4054 AF2 VDD25

IC4054 J2 RVIA3

IC4054 U4 UVIB4

IC4054 K1 BUIA5

IC4054 B16 YIC5

IC4054 AD25 VDDW

IC4054 E26 CLKOE

IC4054 AE18 DQ14

IC4054 A4 OSDI11

IC4054 U26 OSDO14

R4685

IC4054 N14 GND

IC4054 D2 CPOUT1

IC4054 AC18 VDD

IC4054 AD4 VDD25

IC4054 AC14 VDD25

IC4054 R15 GND

C4274

16V 0.1u

C4652

50V

0.01u

PORT-B(FS&HDMI)

1.2V

PORT-A(ADV7403)

2ND_OSD(B)

RGBAD,PEAKS_OSD

2ND_OSD(R)

1.2V VDD FOR CORE

1.2V

2ND_OSD(YS)

94.5MHz

2.5V VDD FOR STTL_2

3.3V VDD FOR IO

GC4PRO-PLL

2ND_OSD(G)

108M

GC4PRO

1.2V

DAC

PORT-F(OSD-OUT)

PORT-E(RGBOUT)

PORT-C(PEAKS)

PORT-D(OSD INPUT)

IC4054

34 3529 30 31 32 36

28 33

TXNDG10LCM(TC-32LX50)

TXNDG10LDM(TC-26LX50)

DG-BOARD (4/7)

TC-32/26LX50 DG-Board (4 of 7) Schematic Diagram TC-32/26LX50 DG-Board (4 of 7) Schematic Diagram

TC-32LX50 / TC-26LX50

10.11. DG-Board (5 of 7) Schematic Diagram

GC4PRO_E-GOE4

GC4PRO_E-GOE8

GC4PRO_E-GOE9

GC4PRO_E-CLKOE

GC4PRO_E-BOE3

GC4PRO_E-BOE7

GC4PRO_E-BOE2

GC4PRO_E-BOE6

GC4PRO_E-BOE5

GC4PRO_E-VSOE

GC4PRO_E-BOE4

GC4PRO_E-BOE8

GC4PRO_E-BOE9

GC4PRO_E-HSOE

GC4PRO_E-GOE3

GC4PRO_E-GOE7

GC4PRO_E-GOE2

GC4PRO_E-GOE6

GC4PRO_E-GOE5

4L_TDO-3E_TDI

B_DDR_BA1

B_DDR_DQ24

B_DDR_DQ27

B_DDR_A1

B_DDR_DQ11

B_DDR_DQ25

B_DDR_A0

B_DDR_DQ14

B_DDR_A2

B_DDR_DQ10

B_DDR_A3

B_DDR_DQ9

B_DDR_DQS3

B_DDR_A5

B_DDR_DQ12

B_DDR_WE

B_DDR_A4

B_DDR_DQ15

B_DDR_CAS

B_DDR_A6

B_DDR_DQ13

B_DDR_RAS

B_DDR_A7

B_DDR_A8 B_DDR_DQ8

B_DDR_DQ3

B_DDR_SDCKE

B_DDR_DQS0

B_DDR_DQS1

B_DDR_DQ6

B_DDR_DQ2 B_DDR_DQS2

B_DDR_DQ1

B_DDR_CLK

B_DDR_DQ4

B_DDR_NCLK

B_DDR_DQ17

B_DDR_DQ7

B_DDR_DQ20

B_DDR_DQ28

B_DDR_DQ5

B_DDR_DQ29

B_DDR_DQ0

B_DDR_DQ23

B_DDR_DQ30

B_DDR_A9

B_DDR_DQ19

B_DDR_DQ21

B_DDR_DQ31

B_DDR_A10

B_DDR_DQ22

B_DDR_DQ16

B_DDR_A11

B_DDR_DQ18

B_DDR_DQ26

B_DDR_BA0

B_DDR_A10

B_DDR_DQ0

A_DDR_DQ5

B_DDR_DQ1

A_DDR_DQ6

B_DDR_DQS1

B_DDR_DQ2

A_DDR_DQ14

A_DDR_DQ7

A_DDR_DQS1

B_DDR_DQ3

A_DDR_DQ15

A_DDR_DQ8

B_DDR_DQS3

B_DDR_DQ28

A_DDR_DQ24

A_DDR_DQ9

A_DDR_DQS3

B_DDR_DQ29

A_DDR_DQ25

A_DDR_DQ10

B_DDR_DQS0

A_DDR_DQ26

B_DDR_DQ30

A_DDR_DQ11

A_DDR_DQS0

A_DDR_DQ27

B_DDR_DQ31

A_DDR_DQ12

B_DDR_DQS2

A_DDR_DQ28

B_DDR_DQ24

A_DDR_DQ13

A_DDR_DQS2

A_DDR_DQ29

B_DDR_DQ25

A_DDR_A8

A_DDR_DQ30

B_DDR_DQ26

A_DDR_A7

A_DDR_DQ31

B_DDR_DQ27

A_DDR_A5

A_DDR_NCLK

A_DDR_DQ0

B_DDR_DQ12

A_DDR_A6

A_DDR_CLK

B_DDR_SDCKE

A_DDR_DQ1

B_DDR_DQ20

B_DDR_DQ13

A_DDR_A9

B_DDR_RAS

B_DDR_BA0

A_DDR_DQ2

B_DDR_DQ21

B_DDR_DQ14

A_DDR_A4

B_DDR_CAS

A_DDR_DQ3

B_DDR_DQ15

A_DDR_A11

B_DDR_WE

B_DDR_A1

A_DDR_DQ16

B_DDR_DQ8

B_DDR_A2

A_DDR_A3

A_DDR_SDCKE

A_DDR_DQ17

B_DDR_DQ22

B_DDR_A0

A_DDR_A10

A_DDR_RAS

A_DDR_DQ18

B_DDR_DQ23

B_DDR_A9

A_DDR_A2

A_DDR_CAS

A_DDR_DQ19

B_DDR_DQ16

A_DDR_A0

B_DDR_A4

A_DDR_WE

A_DDR_DQ20

B_DDR_DQ17

B_DDR_A11

A_DDR_DQ21

B_DDR_DQ18

B_DDR_A3

A_DDR_DQ22

B_DDR_DQ19

B_DDR_A8

B_DDR_BA1

A_DDR_DQ23

B_DDR_DQ4

B_DDR_A7

A_DDR_BA1

A_DDR_A1

B_DDR_DQ9

B_DDR_DQ5

B_DDR_A5

A_DDR_BA0

B_DDR_DQ10

B_DDR_DQ6

B_DDR_A6

B_DDR_DQ11

B_DDR_DQ7

A_DDR_DQ4

D_ROE9

D_ROE8

D_ROE7

D_ROE6

D_GOE9

D_GOE8

D_GOE7

D_GOE6

D_GOE5

D_GOE4

D_GOE3

D_GOE2

D_BOE9

D_BOE8

D_BOE7

D_BOE6

D_BOE5

D_BOE4

D_BOE3

D_BOE2

D_HSOE

D_VSOE

GC4PRO_E-BOE0

GC4PRO_E-BOE1

GC4PRO_E-GOE1

GC4PRO_E-GOE0

3.3V_MAIN

B_DDR_CLK

B_DDR_NCLK

3E_TDO-TDI

IC4055 L13 NC

IC4055 K13 DQ8

IC4055 K2 DQ22

R4722

R4414

30k

IC4055 J4 VDDQ

C4315

50V 0.01u

L4102

J0JHC0000078

IC4055

C3ABQJ000040

B2 DQS0

C4176

50V

1000p

R4628

10k

C4324

16V 0.1u

C4317

50V 0.01u

R4429 0

R4392

EXB2HV680JV

IC4055 M10 RFU2

C4654

56u

C4310

16V 0.1u

R4407 22

IC4055 J10 VSSQ

IC4055 E5 VSS

C4322

16V

0.1u

R4426 0

IC4055 C7 VDDQ

MAIN3.3V

R4540

IC4055 M4 NC

IC4055 B3 DM0

C4175

50V

0.01u

IC4055 G6 VSS_Thermal

R4430 0

R4439

R4406

L4051

J0JHC0000078

IC4055 H10 VSSQ

C4332

50V

15p

R4145 0

IC4055 J11 VDDQ

IC4055 J3 DQ20

R4502

IC4055 F6 VSS_Thermal

C4334

16V

0.1u

IC4055 L4 VDD

IC4055 K12 DQ9

C4313

50V 0.01u

IC4055 H13 DQS1

IC4055 D5 VSSQ

C4337

16V 0.1u

IC4055 H8 VSS_Thermal

IC4055 F3 DQ16

IC4055 M6 A2

C4331

50V 0.01u

IC4055 E9 VSSQ

C1ZBZ0002790

IC4051

1 CLKC

2 VDD

3AGND

4 XTALIN

5 XTALOUT

6XBUF

7 CLKD

8 CLKE 9

CLKB

CLKA

GND

AVDD

PD/OE

IC4055 K10 VSSQ

C4166

6.3V

10u

R4478 100

R4424

IC4055 J9 VSS_Thermal

IC4055 L5 VSS

IC4055 F8 VSS_Thermal

IC4055 H2 DQS2

IC4055 H7 VSS_Thermal

R4375

IC4055 C10 VDDQ

IC4055 J12 DQ11

IC4055 E4 VDD

R4132

R4421

C4183

50V

0.01u

C4342

50V 0.01u

IC4055 M13 MCL

IC4055 G8 VSS_Thermal

C4339

16V 0.1u

IC4055 L8 VDD

IC4055 K4 VDDQ

R4498

R4384

IC4055 G4 VDDQ

R4383

IC4055 N12 CKE

C4298

16V

0.1u

C4327

50V 0.01u

IC4055 N11 A8/AP

IC4055 E11 VDD

IC4055 L12 NC

IC4055 E13 DQ24

IC4055 N3 NC

IC4055 L10 VSS

IC4055 N8 A4

IC4055 F11 VDDQ IC4055 J8 VSS_Thermal

IC4055 C2 DQ4

IC4055 D10 VSSQ

C4529

16V

0.1u

C4300

16V

0.1u

R4474 EXB2HV101JV

100

IC4055 H4 NC

IC4055 E2 DQ7

C4336

50V 0.01u

C4343

16V

4.7u

IC4055 C12 VDDQ

C4330

16V 0.1u

L4052

J0JCC0000241

TP4168

IC4055 K11 VDDQ

IC4055 B7 DQ0

IC4055 J2 DQ21

IC4055 H12 DM1

IC4055 F12 DQ15

C4320

220u

R4479 100

C4311

50V 0.01u

IC4055 J13 DQ10

IC4055 D6 VSSQ

IC4055 N6 A1

IC4055 F13 DQ14

IC4055 E3 VDDQ

R4423

1.74k

R4386

EXB2HV680JV

IC4055 B8 DQ31

R4697

100

IC4055 N4 BA0

R4759

C4335

16V 0.1u

IC4055 B13 DQS3

IC4055 K7 VSS

IC4055 D12 DQ26

C4323

16V

0.1u

IC4055 N2 CS

IC4055 H9 VSS_Thermal

C0DBEJG00001

IC4048

1CTL

2Vcc

3GND

4OUT

R4405

L4062

J0JHC0000078

IC4055 E7 VSS

MAIN3.3V

R4629

C4301

100u

IC4055 H3 DM2

IC4055 F5 VSSQ

IC4055 B6 DQ2

TP4062

R4495

100

C4174

50V

1000p

IC4055 C13 DQ27

IC4055 N13 VREF

IC4055 K3 DQ23

IC4055 B5 DQ3

IC4055 B9 DQ29

R4687

330

R4584

100

C4328

16V 0.1u

X4002

H0J270500087

IC4055 M12 CK

R4396

C4333

50V15p

C4329

50V 0.01u

R4437

IC4055 H5 VSSQ

IC4055 F10 VSSQ

IC4055 J6 VSS_Thermal

IC4055 G9 VSS_Thermal

IC4055 C9 DQ30

R4412

EXB38V680JV

IC4055 D7 VDD

IC4055 N10 A7

R4435

IC4055 G12 DQ13

IC4055 G5 VSSQ

IC4055 M3 NC

IC4055 G10 VSSQ

R4760

C4340

50V 0.01u

IC4055 K5 VSSQ

IC4055 J5 VSSQ

IC4055 D9 VSSQ

R4388

EXB2HV680JV

IC4055 G7 VSS_Thermal

IC4055 E12 VDDQ

C4319

16V

0.1u

IC4055 M7 A11

IC4055 G13 DQ12

IC4055 H6 VSS_Thermal

R4425

C4421

47u

6.3V

IC4055 E6 VSSQ

IC4055 C11 NC

R4411

EXB2HV680JV

R4390

EXB2HV680JV

C4299

6.3V

22u

IC4055 B12 DM3

IC4055 J7 VSS_Thermal

C4312

16V 0.1u

R4402

EXB38V680JV

IC4055 M8 A9

IC4055 H11 NC

C4325

50V 0.01u

C4318

16V

0.1u

C4316

16V 0.1u

MAIN3.3V

IC4055 G11 VDDQ

R4494

10k

R4485 100

DDR2.6V_PRO

JS4090

R4543 100

EXB38V101JV

R4382

IC4055 F9 VSS_Thermal

C4180

50V

0.01u

IC4055 D13 DQ25

IC4055 E10 VSS

TP4064

C4326

16V 0.1u

IC4055 L6 A10

IC4055 L2 CAS

IC4055 G3 DQ18

IC4055 L9 RFU1

IC4055 D2 DQ6

L4083

J0JHC0000078

IC4055 M11 CK

R4413

30k

IC4055 M5 BA1

IC4055 E8 VSS

IC4055 B10 DQ28

IC4055 C3 VDDQ

R4662

100

C4181

50V

0.01u

IC4055 F4 VDDQ

IC4055 K8 VSS

IC4055 N5 A0

C4547

16V 0.1u

IC4055 D4 VSSQ

C3EBJC000055

IC4052

1E0

2E1

3E2

4 VSS 5

SDA

SCL

VCC

R4761

DG15

IC4055 B4 VSSQ

R4754

DDR2.6V_PRO

C4172

16V

0.1u

C4422

16V

0.1u

DDR2.6V_PRO

IC4055 B11 VSSQ

R4470 EXB2HV101JV

100

C4341

16V 0.1u

IC4055 G2 DQ19

IC4055 L7 VDD

IC4055 C6 DQ1

IC4055 K6 VSS

IC4055 C8 VDDQ

IC4055 C4 NC

C4309

16V

0.1u

R4428 0

R4542

R4381

C4314

16V 0.1u

R4403

IC4055 D11 VSSQ

IC4055 K9 VSS

IC4055 F2 DQ17

IC4055 M2 RAS

IC4055 F7 VSS_Thermal

IC4055 C5 VDDQ

IC4055 N7 A3

IC4055 D8 VDD

C4338

50V 0.01u

R4630

R4422

1.74k

R4374

C4308

47u

6.3V

R4427 0

IC4055 M9 A5

IC4055 L3 WE

IC4055 D3 DQ5

IC4055 L11 VDD

R4501

4.7k

R4497

4.7k

IC4055 N9 A6

TP4063

Must Connect Low

DDR

FOR GC4PRO

27MHz

74.25MHz 108MHz to 4L(FRCLKIN)

27MHz

27MHz to ADV7403

81MHz

CLK-Gen.

108MHz 81MHz to 4PRO(VCOIN)

108MHz

95.5MHz to 4PRO(EXCLKIN)

74.25MHz to 4L(EXCLKIN)

95.5MHz

108MHz to 4PRO(FRCLKIN)

SCL

EEPROM

SDA

GND

DDR(4PRO)2.6V

(GC3E)

IC4055

39 40 41 4537 42 43 4438

FOR FACTORY USED

TXNDG10LCM(TC-32LX50)

TXNDG10LDM(TC-26LX50)

DG-BOARD (5/7)

1.6

3.2

1.4

1.6

3.2

3.1

TC-32/26LX50 DG-Board (5 of 7) Schematic Diagram TC-32/26LX50 DG-Board (5 of 7) Schematic Diagram

TC-32LX50 / TC-26LX50

10.12. DG-Board (6 of 7) Schematic Diagram

D_BOE6

D_GOE4

AC_LCD_R1

D_BOE3

AC_LCD_HS

D_BOE7

AC_LCD_R0

GC4PRO-OSDO13

AC_LCD_B3

GC4PRO-OSDO8

D_GOE2

D_GOE9

D_GOE8

GC4PRO-OSDO0

GC4PRO-OSD_YMO

D_BOE4

GC4PRO-OSDO12

GC4PRO-OSDO15

D_VSOE

D_GOE6

AC_LCD_R7

AC_LCD_R4

AC_LCD_R6

AC_LCD_G3

AC_LCD_B7

GC4PRO-OSDO10

GC4PRO-OSDO7

GC4PRO-OSDO5

AC_LCD_R5

AC_LCD_VS

AC_LCD_G0

JTAG_TRST

GC4PRO-OSDO4

AC_LCD_R2

JTAG_TMS

D_BOE9

AC_LCD_G6

JTAG_TCK

D_ROE6

GC4PRO-OSD_YSO

D_ROE7

GC4PRO-OSDO14

AC_LCD_B1

GC4PRO-OSDHSO

D_ROE8

D_BOE2

D_ROE9

AC_LCD_B2

GC4PRO-ALPHAO0

HDMI_TDO-4L_TDI

AC_LCD_B6

D_BOE8

AC_LCD_B5

GC4PRO-ALPHAO1

AC_LCD_G5

GC4PRO-OSDO3

GC4PRO-CLKOF

AC_LCD_B4

D_CLKOE

B_OSDVSI2

AC_LCD_G1

GC4PRO-OSDO11

GC4PRO-OSDO6

D_GOE3

B_OSDHSI2

D_BOE5

AC_LCD_R3

GC4PRO-OSDO2

D_GOE7

AC_LCD_ENB

GC4PRO-OSDO1

AC_LCD_G7

B_CLKID2

D_HSOE

AC_LCD_G4

D_GOE5

AC_LCD_G2

GC4PRO-OSDO9

AC_LCD_B0

MP-OSD2_YS

VMUTE

MP-PANEL_VCC_ON

SDA2

SCL2

4L_TDO-3E_TDI

MP-OSD2_B

MP-OSD2_G

MP-OSD2_R

MP-OSD2_YS

MP-OSD2_R

MP-OSD2_B

MP-OSD2_G

MP-OSD2_HS

4L-OSD2CLKO

AC_LCD_CLK

IC4057 L3 OSDIN3

L4070

J0JCC0000241

C4897

0.1u 16V

IC4057 AE12 VDDI

IC4057 M1 SCL_MC

IC4057 N12 VSS

IC4057 AE2 VSS

IC4057 N1 OSD2CLKO

IC4057 U2 DQS3

IC4057 L26 BOE6

R4508

220

C4616

50V1000p

IC4057 D15 VDDI

IC4057 AF15 A2

IC4057 M16 VDDE1

IC4057 L25 BOE7

IC4057 N15 VSS

IC4057 Y23 VSS

IC4057 N16 VSS

IC4057 R17 VSS

C4405

16V 0.1u

C4428

16V 0.1u

C4598

50V 1000p

IC4057 J2 OSDIN9

IC4057 M12 VDDI

IC4057 H26 GOE5

IC4057 AC7 DLLVS2

IC4057 K14 VDDI

IC4057 C17 YINC7

C4619

50V 1000p

C4617

50V 1000p

IC4057 AD20 VSS

IC4057 AE21 DQ21

IC4057 AF14 A10

IC4057 AC18 VDDE2

IC4057 AD4 VSS

IC4057 AF11 A7

C4457

16V

0.1u

IC4057 C12 SDA

IC4057 AD6 VDDI

IC4057 AE1 NC

L4065

J0JCC0000241

IC4057 AF2 NC

IC4057 G24 GOE4

IC4057 AF25 NC

IC4057 U25 DQS0

C4601

50V 1000p

IC4057 C25 OSD2GI

IC4057 Y25 DQ17

IC4057 L24 BOE8

C4629

50V 1000p

IC4057 P10 VSS

IC4057 N4 VSS

IC4057 P25 GOE1

IC4057 V3 VSS

C4407

16V 0.1u

MAIN3.3V

IC4057 V26 DQ4

C4459

1u 6.3V

IC4057 E3 VRINA1

IC4057 AE23 VSS

IC4057 D3 VRINA5

IC4057 R23 VDDI

IC4057 G26 ROE3

IC4057 J24 GOE8

IC4057 AD10 VDDE2

R4767

C4687

6.3V

IC4057 L15 VDDI

C4638

50V 1000p IC4057 U10 VDDE2

C4686

6.3V

IC4057 AE22 DQS2

IC4057 V4 DLLVS1

IC4057 N26 ENABLE

IC4057 F23 ROE8

R4645 10k

L4059

J0JHC0000078

MAIN5V

IC4057 B4 YGINA5

IC4057 R14 VSS

IC4057 AC12 VDDI

C4436

16V 0.1u

IC4057 B26 NC

IC4057 C2 VRINA7

IC4057 D13 VSS

R1178

IC4057 C3 YGINA0

IC4057 M2 SDA_MC

R4643 0

TP4218

C4379

16V 0.1u

IC4057 B20 UVINC9

IC4057 F26 ROE5

IC4057 AA4 VDDE2

IC4057 Y2 DQ14

C4606

50V 1000p

IC4057 C21 UVINC5

IC4057 T16 VDDE2

C4388

6.3V 1u

IC4057 P2 OSDHSO

R4509

4.7k

IC4057 R10 VSS

IC4057 R16 VSS

R1171

IC4057 B15 PLL2_AVS2

IC4057 D26 PWMA

C4458

16V

0.1u

C4470

16V

0.1u

IC4057 K23 BOE5

IC4057 C1 VRINA6

IC4057 C13 TRST

IC4057 N23 GOE0

IC4057 J3 OSDIN10

IC4057 A18 YINC6

IC4057 B23 UVINC0

C4605

50V 1000p

IC4057 L12 VDDI

IC4057 AC1 VSS

R4691

IC4057

C1AB00002217

A1 NC

IC4057 AF9 NSDCLKO

IC4057 U13 VSS

IC4057 A2 NC

C4419

16V 0.1u

IC4057 H2 OSDIN13

C4612

50V 1000p

IC4057 T3 VDDI

IC4057 AF1 NC

IC4057 B6 UBINA4

R4644 0

C4633

50V 1000p

C4635

50V 1000p

IC4057 AD9 VDDE2

IC4057 AC6 VDDI

IC4057 E1 FRCLKIN

IC4057 K17 VDDE1

IC4057 M13 VDDI

IC4057 T4 VDDI

IC4057 U11 VDDE2

C4398

16V

0.1u

IC4057 AC16 VDDI

IC4057 T1 DQ29

IC4057 U16 VDDE2

C4377

16V 0.1u

IC4057 D23 VDDI

IC4057 B21 UVINC6

IC4057 C8 NRST

C4418

6.3V 1u

C4630

50V 1000p

IC4057 L4 VDDE1

L4068

J0JCC0000241

IC4057 AD26 VSS

C4640

50V1000p

IC4057 T17 VDDE2

IC4057 U14 VSS

TP4172

IC4057 AE24 VSS

IC4057 AE6 DQ10

C4461

0.01u

50V

IC4057 R2 DQ30

IC4057 T11 VDDE2

C4395

16V 0.1u

R4642 0

IC4057 T10 VDDE2

IC4057 AE11 A6

IC4057 AF12 A5

IC4057 G23 VSS

IC4057 AD5 REF2

R4763

IC4057 M11 VDDE1

C4456

50V

1000p

C4403

16V 0.1u

IC4057 A3 YGINA3

IC4057 M24 VSOE

IC4057 AF8 VSS

IC4057 V25 DQ5

IC4057 AB4 VDDE2

IC4057 AC26 VSS

IC4057 U17 VDDE2

IC4057 M14 VDDI

C4441

6.3V 1u

C4628

50V1000p

IC4057 J26 GOE3

IC4057 AD14 VSS

IC4057 AA24 VDDE2

IC4057 AA23 VDDE2

IC4057 V23 DLLVS4

IC4057 E2 VRINA0

IC4057 P14 VSS

IC4057 AC13 VDDI

IC4057 W23 DLLVD4

C4393

16V 0.1u

IC4057 D21 VSS

IC4057 T23 VDDI

C4404

6.3V 1u

C4889

50V

0.01u

L4060

J0JHC0000078

IC4057 E23 ROE4

C4637

50V1000p

R4516

IC4057 AE15 A1

IC4057 H3 OSDIN14

IC4057 AA26 DQ18

IC4057 P13 VSS

IC4057 P11 VSS

IC4057 C11 SCL

R4513

560k

C4615

50V 1000p

IC4057 E26 PWMD

IC4057 AD12 VDDI

R4640 0

IC4057 AF23 VSS

IC4057 D11 VDDE1

IC4057 AC4 VDDE2

IC4057 AE7 DQ8

C4631

50V 1000p

C4896

0.01u

50V

C4885

50V

0.01u

IC4057 Y1 DQ15

C4383

16V 0.1u

C4468

16V

0.1u

IC4057 D17 VDDE1

IC4057 A25 NC

IC4057 M3 OSDIN0

C4613

50V 1000p

C4400

6.3V 1u

C4609

50V 1000p

IC4057 D7 UBINA7

IC4057 A20 YINC0

JS4100

IC4057 H25 GOE6

C4437

6.3V 1u

IC4057 D10 VDDE1

IC4057 C23 OEMUTE

IC4057 C18 YINC4

IC4057 AF5 VSS

C4460

0.1u 16V

IC4057 U1 VSS

IC4057 B18 YINC5

IC4057 AC11 PLLVS

IC4057 A11 PLL1_VCI

IC4057 F24 ROE7

IC4057 G4 VSS

R4484

IC4057 N3 OSD2VSO

IC4057 T14 VSS

IC4057 B8 TEST

IC4057 AE25 VSS

IC4057 L17 VDDE1

IC4057 AC25 VSS

IC4057 AD15 VDDI

IC4057 AF24 VSS

IC4057 AE5 DQS1

L4063

J0JCC0000241

C4680

6.3V

C4894

6.3V

C4381

16V 0.1u

IC4057 P15 VSS

IC4057 AC22 VSS

IC4057 AC9 VDDE2

IC4057 AB2 VSS

IC4057 U26 VSS

C4420

6.3V 1u

IC4057 E25 PWMK

IC4057 K11 VDDE1

IC4057 C26 OSD2RI

MAIN3.3V

IC4057 R13 VSS

IC4057 D2 VRINA4

IC4057 AC3 VDDE2

IC4057 H24 GOE2

IC4057 E4 VRINA2

C4411

47u

6.3V

C4408

6.3V 1u

IC4057 AD19 VSS

IC4057 AF10 SDCLKO

C4386

6.3V 1u

IC4057 AF13 A9

IC4057 A9 EXCLKIN

IC4057 AE3 VSS

IC4057 AE10 A8

IC4057 AF19 VSS

IC4057 AE8 VSS

IC4057 W24 VSS

IC4057 M17 VDDE1

C4464

16V

0.1u

IC4057 A14 PLL2_VCI

IC4057 L10 VDDE1

IC4057 AD16 VDDI

IC4057 K10 VDDE1

IC4057 B24 OSD2HSI

C4626

50V 1000p

C4399

16V 0.1u

C4426

16V 0.1u

C4453

16V

IC4057 W26 DQ6

C4603

50V 1000p

MAIN3.3V

C4427

6.3V 1u

IC4057 AC5 VSS

C4892

0.33u

6.3V

R4639

IC4057 F25 ROE6

IC4057 L23 VDDE1

IC4057 T24 VDDI

IC4057 A4 YGINA4

IC4057 H1 OSDIN12

IC4057 L16 VDDE1

R4694

1.74k

C4689

6.3V

IC4057 D24 PWMC

C4639

50V 1000p

IC4057 B14 PLL2_AVS1

IC4057 AE19 VSS

C4688

6.3V

C4887

16V

IC4057 AD21 VDDI

R4692

IC4057 P4 VSS

C4402

6.3V 1u

IC4057 AF17 RAS

C4430

6.3V 1u

IC4057 V24 VSS

IC4057 L1 OSDIN1

IC4057 R15 VSS

IC4057 Y26 DQ16

R4482 100

IC4057 B16 HSIC

C4384

6.3V 1u

C4440

16V 0.1u

IC4057 AF21 DQ20

IC4057 N25 ROE0

IC4057 AA2 DQ12

IC4057 B2 YGINA1

C4599

50V 1000p

IC4057 T15 VSS

IC4057 C16 VSIC

C4438

16V 0.1u

IC4057 G1 OSDCLKI

C4614

50V 1000p

IC4057 N13 VSS

IC4057 P24 BOE0

IC4057 M25 HSOE

C4376

16V

0.1u

C4604

50V 1000p

IC4057 AB26 VSS

IC4057 B5 UBINA0

IC4057 AF7 DQ9

C4390

6.3V 1u

C4409

16V 0.1u

IC4057 K16 VDDE1

IC4057 AF4 VSS

IC4057 T13 VSS

C4600

50V 1000p

IC4057 P3 OSDVSO

IC4057 AC23 VDDE2

C4632

50V 1000p

IC4057 AC21 VDDI

IC4057 D4 VDDI

R4690

2.2k

IC4057 T26 DQ2

TP4214

C4623

50V 1000p

IC4057 AD7 VSS

IC4057 AE4 VSS

IC4057 T25 DQ3

IC4057 G3 OSDIN15

IC4057 Y4 VSS

IC4057 B17 YINC8

IC4057 A16 CLKIC

IC4057 B25 OSD2BI

IC4057 AC24 VDDE2

L4104

J0JCC0000241

JS4043

IC4057 L14 VDDI

IC4057 D22 VDDI

IC4057 A12 PLL1_CPO

IC4057 D5 UBINA2

R4638

IC4057 AD17 VDDE2

R4659

L4066

J0JCC0000241

IC4057 R11 VSS

IC4057 AB3 VDDE2

IC4057 AD1 VSS

IC4057 D19 VDDE1

C4610

50V 1000p

R4657

620

IC4057 B19 YINC2

IC4057 F4 OSDYS

IC4057 N24 ROE1

IC4057 Y3 VSS

IC4057 AB24 VDDE2

IC4057 R1 DQ31

IC4057 A8 VPD

C4636

50V 1000p

IC4057 B7 HSIA

IC4057 A24 OEBLK

R4646 0

IC4057 AB23 VDDE2

IC4057 AC14 VSS

IC4057 AD8 VSS

L4069

J0JCC0000241

IC4057 B13 PLL2_AVD1

C4429

16V 0.1u

IC4057 C9 TMS

C4397

47u

6.3V

C4681

6.3V

IC4057 A19 YINC3

C4392

6.3V 1u

IC4057 N10 VSS

JS4036

R1172

IC4047

C0CBCBC00062

Cont

GND

Noise

Vin

L4058

J0JHC0000078

IC4057 B3 YGINA2

IC4057 AF22 VSS

IC4057 B22 UVINC3

IC4057 W2 DQ24

C4439

6.3V 1u

R4404

IC4057 A23 UVINC1

IC4057 U12 VSS

IC4057 U3 REF1

TP4219

IC4057 B12 PLL1_AVD1

IC4057 L11 VDDE1

IC4057 P23 BOE1

IC4057 AE17 BA0

IC4057 K12 VDDI

IC4057 G2 OSDHSI

C4696

6.3V

R4511

1.74k

IC4057 D20 VSS

IC4057 C7 VSIA

C4387

16V 0.1u

IC4057 AE26 NC

C4888

50V

0.01u

R4658

IC4057 J23 GOE9

IC4057 D9 VDDE1

C4401

16V 0.1u

IC4057 D25 PWMB

R4507

EXB2HV820JV

IC4057 AD11 VDDE2

IC4057 AF16 BA1

IC4057 AC2 VSS

R4481 100

IC4057 Y24 VSS

IC4057 P17 VSS

C4406

6.3V 1u

R4515

IC4057 AF26 NC

IC4057 AD24 VSS

IC4057 AD3 VSS

R4656

C4389

16V 0.1u

R4641 0

IC4057 K2 OSDIN5

IC4057 T2 DQ28

IC4057 AF6 DQ11

C4621

50V 1000p

C4380

6.3V 1u

IC4057 P16 VSS

IC4057 C19 YINC1

IC4057 V1 DQ27

C4675

16V

IC4057 AA25 DQ19

IC4057 AC10 PLLVD

C4890

50V

0.01u

R4510

EXB2HV820JV

IC4057 D8 VDDI

IC4057 AE14 A3

IC4057 K24 BOE3

IC4057 A22 UVINC4

IC4057 A13 PLL2_CPO

IC4057 N2 OSD2HSO

C4385

16V 0.1u

C4462

0.1u

16V

IC4057 C4 YGINA6

C4625

50V 1000p

C4412

16V

0.1u

IC4057 AB25 VSS

C4891

6.3V

IC4057 K26 BOE4

IC4057 B1 NC

IC4057 W1 DQ25

IC4057 R4 VDDI

R4637 0

IC4057 AB1 VSS

IC4057 A26 NC

IC4057 D18 VDDE1

IC4057 V2 DQ26

JS4035

IC4057 AF3 VSS

IC4057 R3 VDDI

C4622

50V 1000p

C4683

6.3V

IC4057 A7 CLKIA

IC4057 M26 BOE9

IC4057 AA3 VDDE2

IC4057 AC20 DLLVS3

IC4057 AE20 DQ23

IC4057 C20 UVINC8

IC4057 AE18 WE

R4651

C4415

16V

0.1u

C4678

6.3V

C4695

6.3V

IC4057 M23 VDDE1

IC4057 A15 PLL2_AVD2

C4620

50V 1000p

IC4057 AD13 VDDI

C4886

6.3V

IC4057 AA1 DQ13

IC4057 G25 ROE9

C4618

50V 1000p

R4512

1.74k

IC4057

C1AB00002217

C15 SS

IC4057 C14 TDO

JS4042

JS4037

IC4057 C10 TDI

IC4057 N11 VSS

C4624

50V 1000p

IC4057 W3 VSS

IC4057 M4 VDDE1

IC4057 A6 UBINA3

IC4057 AD23 VSS

IC4057 K1 OSDIN4

MAIN2.5V

C4417

16V 0.1u

C4391

16V 0.1u

IC4057 A10 PLL1_AVD2

IC4057 C5 UBINA1

IC4057 D12 VSS

IC4057 P1 OSDCLKO

C4608

50V 1000p

IC4057 P26 CLKOEIC4057 J25 GOE7

IC4057 AC15 VDDI

IC4057 AE16 A0

IC4057 H23 VSS

IC4057 C24 OSD2YS

IC4057 P12 VSS

MAIN1.8V

IC4057 B10 PLL1_AVS2

R4514

EXB2HV820JV

C4378

6.3V 1u

IC4057 E24 ROE2

IC4057 F2 OSDALPH1

IC4057 K4 OSDIN7

IC4057 C6 UBINA5

IC4057 J4 OSDIN11IC4057 F3 OSDYM

IC4057 AE9 CKE

IC4057 AD22 REF3

IC4057 D1 VRINA3

IC4057 W4 DLLVD1

C4375

47u

6.3V

IC4057 D16 VDDI

IC4057 AF20 DQ22

IC4057 AD18 VDDE2

IC4057 K15 VDDI

IC4057 R24 VDDI

IC4057 F1 OSDALPH0

C4416

6.3V 1u

IC4057 C22 UVINC2

C4127

50V

0.01u

C4602

50V 1000p

IC4057 J1 OSDIN8

MAIN1.8V

IC4057 D6 UBINA6

C4627

50V 1000p

IC4057 U15 VSS

C4611

50V 1000p

IC4057 D14 VSS

IC4057 R26 DQ0

IC4057 L2 OSDIN2

IC4057 B9 TCK

IC4057 W25 DQ7

IC4057 T12 VSS

IC4057 K3 OSDIN6

IC4057 R25 DQ1

R4693

1.74k

IC4057 AD2 VSS

IC4057 AC19 DLLVD3

C4634

6.3V 1u

R4480 100

IC4057 K25 BOE2

IC4057 A21 UVINC7

MAIN1.8V

C4465

82p

50V

IC4057 M10 VDDE1

IC4057 AE13 A4

IC4057 R12 VSS

C4895

0.1u

16V

IC4057 A5 YGINA7

IC4057 AC8 DLLVD2

IC4057 N14 VSS

IC4057 A17 YINC9

IC4057 K13 VDDI

IC4057 U4 VDDE2

IC4057 U24 REF4

IC4057 AC17 VDDE2

C4382

6.3V 1u

C4394

6.3V 1u

IC4057 U23 VDDE2

IC4057 N17 VSSIC4057 H4 VSS

C4471

16V

0.1u

IC4057 AF18 CAS

C4679

6.3V

IC4057 L13 VDDI

C4607

50V 1000p

C4893

50V

6800p

C4396

6.3V 1u

IC4057 AD25 VSS

IC4057 M15 VDDI

R1181

IC4057 B11 PLL1_AVS1

C4410

6.3V 1u

PORT-A(from GC4pro)

74.25MHz

PORT-E(to LVDS)

PORT-D(OSD)

GC4PRO PORT-B

DLL1.8V

2nd OSD

PORT-C(from GC3E)

DDR I/F

DDIF/OUT PLL 3.3V

GC4L

108MHz

DLL1.8V

IC4057

46 49 5448 51 5347 50 52

TXNDG10LCM(TC-32LX50)

TXNDG10LDM(TC-26LX50)

DG-BOARD (6/7)

TC-32/26LX50 DG-Board (6 of 7) Schematic Diagram TC-32/26LX50 DG-Board (6 of 7) Schematic Diagram

TC-32LX50 / TC-26LX50

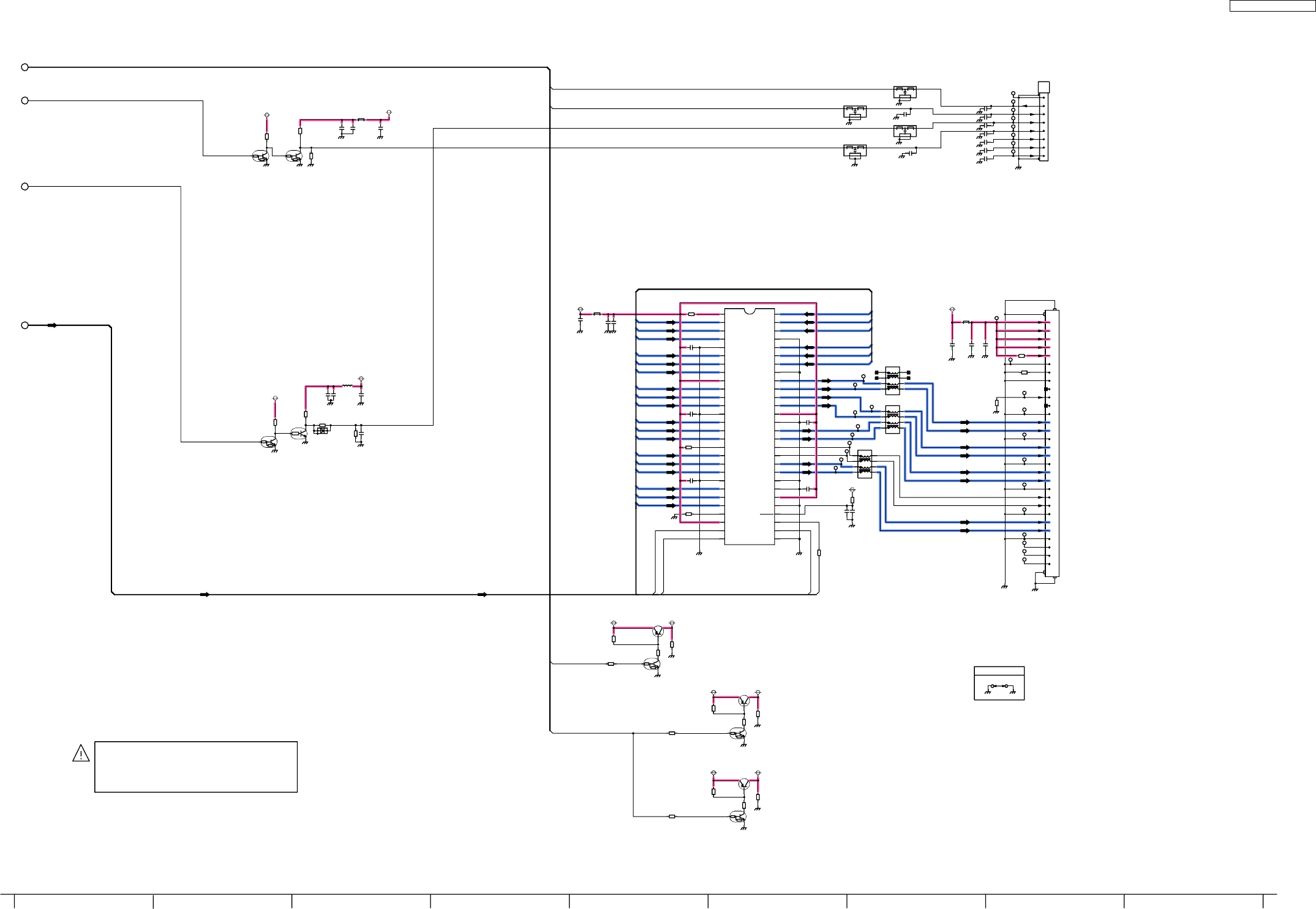

10.13. DG-Board (7 of 7) Schematic Diagram

321

AC_LCD_R1

AC_LCD_G1

AC_LCD_R6

AC_LCD_B5

AC_LCD_G5

AC_LCD_B2

AC_LCD_R3

AC_LCD_B4

AC_LCD_R2

AC_LCD_R0

AC_LCD_B3

AC_LCD_VS

AC_LCD_B1

AC_LCD_R4

AC_LCD_B0

AC_LCD_ENB

AC_LCD_G2

AC_LCD_CLK

AC_LCD_G7

AC_LCD_G6

AC_LCD_G0

AC_LCD_G4

AC_LCD_B7

AC_LCD_R7

AC_LCD_B6

AC_LCD_HS

AC_LCD_R5

AC_LCD_G3

MP-24V_ON

INV_SOS

MP-INV_ON

MP-PANEL_VCC_ON

L4107

J0JHC0000078

TP4276

L4109

J0JHC0000078

R4099 0

ICTRL9V

R4735

10k

TP4248

PCTRL3.3V

FL4031

J0HAAB000036

R4734

C4910

50V

0.01u

FL4022

J0JBD0000043

TP4260

TP4270

TP4268

TP4249

TP4242

R4715

FL4027

J0HAAB000036

C4901

50V

0.01u

R4737

C4904

50V

0.01u

MAIN3.3V

PCTRL3.3V

Q4087

UNR521100L

C4915

6.3V

0.47u

TP4243

Q4092

UNR521100L

C4916

6.3V

Q4096

2SA207700L

TP4277

ICTRL5V

MAIN5V

MAIN9V

L4106

G1C100KA0008

DG6

K1KA08BA0047

Q4091

UNR221500L

R4695

TP4245

C4919 50V

0.01u

R4713

3.9k

Q4095

UNR521100L

R4559

R4729

FL4032

J0HAAB000036

C4723

50V

0.01u

R4708

5.1k

TP4278

Q4082

UNR521100L

C4920

16V

47u

TP4267

TP4271

C4732

50V

0.01u

TP4247

TP4263

TP4275

R4714

C4900

6.3V

22u

ICTRL5V

R4782

10k

TP4257

R4560 0

C4733

50V

0.01u

FL4026

J0HAAB000036

TP4264

R4712

MAIN3.3V

TP4246

R4732

Q4101

UNR521100L

C4907

50V

0.01u

C4908

50V

0.01u

C4903

0.1u

16V

C4899

0.1u

16V

R4703

R4739

R4568

TP4273

R4561

C4905

50V

0.01u

C4913

16V

0.1u

TP4244

Q4102

2SA207700L

C4729

50V

0.01u

C4902

16V

47u

C4722

50V

0.01u

TP4127

FL4021

J0JBD0000043

FL4056

J0JBD0000043

TP4240

C4906

16V

47u

Q4093

2SA207700L

Q4086

UNR521100L

C4727

50V

0.01u

IC4033

C0ZBZ0000967

1 Vcc

2 TxIN5

3 TxIN6

4 TxIN7

5GND

6 TxIN8

7 TxIN9

8 TxIN10

9 Vcc

10 TxIN11

11 TxIN12

12 TxIN13

13 GND

14 TxIN14

15 TxIN15

16 TxIN16

17 R_FB

18 TxIN17

19 TxIN18

20 TxIN19

21 GND

22 TxIN20

23 TxIN21

24 TxIN22

25 TxIN23

26 Vcc

27 TxIN24

28 TxIN25 29

GND

TxIN26

TxCLKIN

PWRDWN

PLLGND

PLLVcc

PLLGND

LVDSGND

TxOUT3+

TxOUT3-

TxCLKOUT+

TxCLKOUT-

TxOUT2+

TxOUT2-

LVDSGND

LVDSVcc

TxOUT1+

TxOUT1-

TxOUT0+

TxOUT0-

LVDSGND

TxIN27

TxIN0

TxIN1

GND

TxIN2

TxIN3

TxIN4

C4728

50V

0.01u

TP4269

C4731

50V

0.01u

TP4266

TP4259

MAIN3.3V

R4524

R4672

10k

DG7

TP4261

R4098 0

TP4262

MAIN3.3V

PNL12V-5V

ICTRL9V

R4736

C4912

50V

0.01u

R4707

4.7k

C4909

50V

0.01u

D4014

MA3X152K0L

R4716

10k

TP4241

*JS4131

R4780

L4108

J0JHC0000078

C4898

47u

16V

TP4272

C4918

50V

0.01u

C4730

50V

0.01u

R4781

SUFFIX JW

AB:TC-26LX50

GND

INV_SOS

INV_ON

CURRENT

INV_PWM_A

GND/INV_PWM_B

GND/INV_PWM_C

GND/INV_PWM_D

FV_SEL

TEST1

TEST2

PNL12V-5V

GND

Rx3-

GND

Rx2-

GND

Rx0+

Rx3+

RxCLK+

GND

Rx1-

FORMAT

Rx1+

Rx2+

Rx0-

RxCLK-

PNL12V-5V

LVDS TX

55 58 6357 60 6256 59 61

(INVERTER)

LCD PANEL

TXNDG10LCM(TC-32LX50)

TXNDG10LDM(TC-26LX50)

DG-BOARD (7/7)

3.2

1.3

1.2

1.3

0.9

1.3

3.2

0.5

3.2

1.0

0.9

1.0

3.1

2.9

1.1

1.0

1.2

5.1

TC-32/26LX50 DG-Board (7 of 7) Schematic Diagram TC-32/26LX50 DG-Board (7 of 7) Schematic Diagram

TC-32LX50 / TC-26LX50

10.14. DV-Board Schematic Diagram

RX_SD0#

HDMI_5V_DET

JTAG_TRST

HDMIINT

HPD

JTAG_TMS

SCL0B

SDA0B

NIRQ2

RX_WS

AP_DE

YGIN1

YGIN0

VSIB

HDMIINT

RX_SCK

RX_MCLK

YGIN0

YGIN1

AP_DE

HSIB

VSIB

UBIN0

CLKINB2

UBIN2

UBIN1

YGIN9

UBIN3

YGIN8

UBIN4

YGIN7

UBIN5

YGIN6

UBIN6

YGIN5

UBIN7

YGIN4

UBIN8

YGIN3

UBIN9

YGIN2

JTAG_TCK

JTAG_I_TDO

JTAG_TDO

SCL0B

HDMI_RST

JTAG_TRST

JTAG_TDO

JTAG_I_TDO

JTAG_TCK

JTAG_TMS

HPD

HDMI_5V_DET

RX_SD0#

RX_WS

YGIN9

YGIN8

YGIN7

YGIN6

YGIN5

YGIN4

YGIN3

YGIN2

UBIN9

UBIN8

UBIN7

UBIN6

UBIN5

UBIN4

UBIN3

UBIN2

UBIN1

UBIN0

HSIB

RX_SCK

RX_MCLK

5V_MAIN

SDA0B

DDC_SCL

DDC_SDA

NIRQ2

1.5V_MAIN

HDMI_RST

CLKINB2

R5013

47k

R5337

4.7k

C5049

16V

0.1u TP5011

*R5021

10k

C5019

50V

1000p

*JS5003

R5040

EXB38V330JV R5354

R5395

D5025

MAZ30560ML

C5034

16V

0.1u

L5017

J0MAB0000176

*ZA5005

K4CD01000011

R5393

4.7k

*DV1

ZA5003

TESA169

*ZA5002

TESA169

R5011

R5356

C5017

10V

R5041

R5014

4.7k

R5018

10k

R5353 0

TP5022

ZA5001

K4CD01000011

C5044

16V

0.1u

L5015

J0MAB0000176

R5338

4.7k

TP5024

C5137

50V

1000p

TP5008

R5019

R5023

*IC5017

C3EBFC000037

1A0

2A1

3A2

4VSS 5

SDA

SCL

VCC

R5391

47k

R5025 22

TP5001

R5020

100k

C5018

16V

0.1u

C5134

16V

0.1u

*Q5003

2SD0601A0L

TP5013

TP5018

R5034

R5374

L5012

J0JHC0000045

JK5001

K1FA119D0001

R5334

D1HG5608A002

C5136

10V

R5015

4.7k

R5036

C5144

16V 0.1u

R5196

10k

*R5336

C5133

16V

4.7u

*R5002 22

L5002

J0JHC0000045

MN864721

IC5003

LPSA5

LPSA6

LPSA7

4PDWN

5NIRQ

6HSCL

7HSDA

8VSS

9VDD33

10 PSEL

11 NPRIME

12 NTEST

13 SCANTEST

14 VSS

15 VDD15

16 TESTM0

17 TESTM1

18 TESTM2

19 MINTEST

20 NRESET

21 SOM0

22 SOM1

23 SOM2

24 ESDA

25 ESCL

26 TMS

27 TCK

28 TDI

29 TDO

TRST

VDD15

VSS

VDD33

VSS

VDD33

Q10

Q11

VSS

Q12

Q13

Q14

Q15

VDD33

Q16

Q17

Q18

Q19

VSS

Q20

Q21

Q22

Q23

VSS

RCLK

VDD15

HSYNC

VSYNC

VDD33

VSS

CTL0

CTL1

CTL2

CTL3

TD4

TD5

TD6

NIRQ2

VDD33

AMDAM

AMDACL

AMDAWS

AMSDO1

AMSDO2

AMSDO3

AMTX

VSS

P1SCL

P1SDA

EXTCKEN

VDD15

P0SCL

P0SDA

EXTCKIN

VSS

FLT

AVSS

AVDD

100 P1RXCM

101 AVSS

102 P1RXCP

103 P1RX0M

104 AVSS

105 P1RX0P

106 P1RX1M

107 AVSS

108 P1RX1P

109 P1RX2M

110 AVSS

111 P1RX2P

112 AVDD

113 AVDD

114 P0RXCM

115 AVSS

116 P0RXCP

117 P0RX0M

118 AVSS

119 P0RX0P

120 P0RX1M

121 AVSS

122 P0RX1P

123 P0RX2M

124 AVSS

125 P0RX2P

126

AVDD

127

AVDD

128

AVSS

R5077 22

R5024 22

R5392

4.7k

C5005

16V

0.1u

C5141

10V

D5019

D4ED13900001

Q5004

2SC584500L

MAIN5V

C5036

16V

0.1u

R5394

TP5007

D5015 D4ED13900001

TP5012

R5371 56

*L5022

J0JCC0000166

C5039

16V

0.1u

R5370 56

L5018

J0MAB0000176

TP5006

R5039

10k

C5016

16V

0.1u R5033

TP5025

D5016 D4ED13900001

C5047

16V

0.1u

D5022

D4ED13900001

R5042 33

D5021

D4ED13900001

R5030

10k

R5022

L5003

J0JHC0000045

*Q5001

B1MBACA00008

R5038

10k

D5013

D4ED13900001

C5001

4.7u

16V

R5007

D5018 D4ED13900001

TP5014

*DV15

R5035

R5045

R5347 0

TP5000

C5004

10V

R5349 0

C5057

50V

100p

C5020

16V

0.1u

C5056

16V

0.1u

C5014

16V

0.1u

R5359

R5176 0

TP5017

D5017

D4ED13900001

C5040

16V

0.1u

R5350 0

TP5010

C5143

50V

1000p

C5140

10V

TP5023

D5020

D4ED13900001

L5016

J0MAB0000176

R5078 22

L5007

J0JHC0000045

R5037

10k

TP5020

R5396

100

L5021

J0JHC0000045

1.8k

R5399

L5001

J0JHC0000045

D5023

D4ED13900001

D5014

D4ED13900001

*R5017

39k

R5006

TP5009

R5044

C5030

16V

0.1u

C5135

10V

R5366

4.7k

MAIN3.3V

C5046

50V

470p

TP5002

R5372 56

R5043

10k

R5376 100

R5335

C5054

4.7u

16V

R5369 56

C0CBCAD00016

IC5015

Vcont

GND

Vin

Vout

C5013

16V

4.7u

*Q5002

2SD0601A0L

*R5003 22

R5348 0

R5367

D1HG5608A002

TP5015

HOTPLUG

3.3V_SDA

CABLE IN -> Hi : Norm

CABLE OUT -> Low : Mute

for Audio MUTE and 5Vdet

Hi : MUTE

FOR DDC RESET

RXC-

RXC+

RX0-

RX0+

RX1-

RX1+

RX2-

RX2+

CLKG

+5V

D0G

SCL

D2G

HPDT

DDC DATA

CLK+

CEC

DDCG

D2+

D2-

D1-

D1+

CLK-

D1G

D0-

D0+

3.3V_SDA

3.3V_SCL

Low : Detect HPD5V

from H90 DAC

JAE

High level = 1V

SUFFIX JW

HDMI I/F

DDC EEPROM

AVR+1.5V

964 87

DV-BOARD TXNDV10LCM

(DG10)

DG-BOARD

3.2

3.1

3.2

3.20

3.21.5

1.2 0 3.2

3.2

3.7

3.2

1.5

3.2

0.3

3.2

0.1

2.3

1.4

3.2

0.2

3.2

1.4

3.2

1.4

3.2

2.3

3.2

0 3.2

0.3

TC-32/26LX50 DV-Board Schematic Diagram TC-32/26LX50 DV-Board Schematic Diagram

TC-32LX50 / TC-26LX50

10.15. G, K, and V-Board Schematic Diagram

PUSH

*D3805

MAZ31400ML

R3811

TP3818

*D3812

MAZ31400ML

*R3807

TP3815

TP3812

*D3806

MAZ31400ML

TP3809

*JK3801A

TJBA187

R-G

L-G

V-G

C-G

Y-G

*D3810

MAZ31400ML

TP3801

*R3825

1.62k

1/2W

R3800

*R3823

1.74k

SW3806

EVQPB105K

R3822

3.16k

SW3805

EVQPB105K

*R3865

R3820

10k

TP3804

TP3810

TP3820

*R3826

2.32k

TP3851

TP3816

C3800

16V

*D3809

MAZ31400ML

*R3864

TP3806

*D3814

MAZ31400ML

*D3811

MAZ31400ML

R3817

180k

R3813

TP3817

TP3814

SW3804

EVQPB105K

TP3800

TP3819

SW3803

EVQPB105K

TP3808

1/2W

R3801

TP3802

TP3813

SW3807

EVQPB105K

TP3852

TP3807

R3812

*D3813

MAZ31400ML

R3818

180k

C2801

47u

16V

TP2801

SW2801

K0F162B00002

TP2803

TP2802

R2804

JS2801

TP2804

R2806

R2803

C2802

47u

16V

Q1008

2SD0601ASL

R1007

D1008

B3CKE0000007

R1023

10k

Q1004

2SB0709A0L

R1025

10k R1021

10k

R1028

6.2k

Q1007

2SD0601ASL

JS1001

R1013

47k

R1003

R1011

47k

R1008

220

R1026

10k

R1002

47k

SN1001

B3L000000020

Q1002

2SB0709A0L

R1031

18k

R1030

D1013

MAZ30430ML

C1003

0.01u

50V

R1005

C1004

6.3V

47u

RM1001

PNA4701M05TV

VOUT

GND

3VCC

D1014

MAZ30430ML

TP3825

TP3811

TP3827

TP3805

C1005

6.3V

22u R1032

56k

TV/VTR VOL.UP

MAIN_SW_DET

STB_PS_GND

STB_PS

GND

VOL.DN

STB_PS_GND

CH.DN

SW_OFF(GND)

CH.UP

STB_PS

V4_DET(V2)

AV3_ROUT

SUB_HP

KEYSCAN

R_LED

REMOTE

HP_DET

KEYSCAN

SUB_5V

AV3_LOUT

AV4_V

S_DET

G_LED

STB_3.3V

MODEM_LED

HP_LOUT

HP_ROUT

MAIN_SW_DET

AB LX50

POWER SW

SUB_5V

GND

MODEM_LED

R_LED

G_LED

STB_3.3V

GND

REMOTE

SUFFIX

AB LX50

C.A.T.S.

SENSOR

G:POWER ON

POWER LED

R:STAND-BY

REMOTE CONTROL SENSOR

V-BOARD TNPA3569AB

G-BOARD TNPA3639AD

K-BOARD TNPA3514AB

SUFFIX

56 81423

4.9

2.5

0.7

3.2

2.9

0.7

2.5

3.2

2.9

4.9

2.4

3.13.1

2.4

3.23.2

3.2

0.6

3.2

2.4

0.8

2.9

1.1

1.2

4.9

8.7

(H4)

H-BOARD

TC-32/26LX50 G, K, and V-Board Schematic Diagram TC-32/26LX50 G, K, and V-Board Schematic Diagram

TC-32LX50 / TC-26LX50

11 Printed Circuit Board

11.1. AP-Board

C E GIBDFH

L7951

L7953

JS7200

L7954

JS7201

L7955

L7956

L7957

L7959

L7960

TP7751

JS7401

L7961

JS7402

TP7752

L7962

JS7403

JS7404

L7965

L7966

L7967

L7969

JS7601

L7970

JS7801

JS7802

JS7803

AP10

C7100

C7101

AP11

C7102

C7103

C7104

C7109

ZA7001

C7301

C7302

ZA7002

ZA7003

C7303

C7304

ZA7004

Q7301

C7305

ZA7005

Q7302

C7306

C7112

C7307

C7308

C7114

C7501

C7502

C7503

C7504

Q7501

C7505

C7506

Q7502

C7507

Q7503

C7508

Q7504

C7509

Q7505

Q7506

Q7508

D7101

C7701

D7102

C7702

D7103

C7703

C7510

D7104

C7704

R7101

Q7701

C7705

R7102

C7706

Q7702

R7103

C7707

R7104

C7708

R7105

R7106

R7107

D7301

IC7101

C7901

D7302

C7902

D7303

C7903

D7304

D7110

IC7104

C7904

R7301

C7905

Q7901

R7302

D7112

C7906

Q7902

R7303

R7304

R7305

R7306

R7307

R7308

R7114

D7501

IC7301

R7309

R7501

R7502

R7503

R7504

R7310 R7311

R7505

R7506

R7507

R7508

R7120

R7509

D7701

D7702

D7703

D7704

R7701

R7702

R7703

R7510

R7704

C7151

L7201

R7705

C7152

R7706

PC7102

C7153

R7707

R7708

IC7701

D7901

R7709

D7902

D7903

D7904

C7159

D7905

R7901

R7902

R7903

R7710

R7904

L7401

R7905

R7711

L7402

R7712

R7906

R7907

C7160

C7161

TP7001

TP7002

TP7003

C7163

TP7004

TP7006

TP7007

TP7008

T7101

C7751

D7151

L7801

C7752

D7152

L7802

C7753

D7153

L7803

C7754

F7300

D7154

R7151

TP7401

Q7751

C7755

D7155

TP7402

C7756

R7152

D7156

C7757

D7157

R7153

C7758

C7759

R7155

R7156

R7157

R7158

R7159

C7951

LF7002

C7952

LF7003

C7953

LF7004

C7954

TP7601

D7161

C7955

C7956

D7162

TP7602

D7163

C7957

C7958

R7160

D7164

C7959

R7162

R7163

R7164

R7165

R7166

R7167

R7168

C7960

C7961

TP7801

TP7802

C7962

C7964

C7965 C7966

C7967

C7968

D7751

C7969

D7752

D7753

D7754

F7900

R7751

R7752 R7753

IC7751

F7150

F7154

T7151

JS7301

JS7302

JS7303

JS7304

JS7501

JS7502

JS7503

JS7504

JS7701

JS7702

JS7703

C7002

C7003

C7004

C7005

C7006

C7007

C7009

C7203

C7010

C7204

C7011

C7205

C7206

C7012

Q7203

C7207

C7208

Q7204

C7209

Q7205

Q7206 Q7207

Q7208

C7401

C7402

C7403

C7404

C7210

Q7401

C7211

C7405

Q7402

C7212

C7406

C7407

C7213

C7408

Q7210

C7214

Q7211

C7409

C7215

Q7212

C7216

C7217

C7218

Q7214

C7601

JS7151

C7602

JS7152

D7002

C7603

D7003

Q7217

JS7153

C7410

C7604

JS7154

Q7218

D7004

R7001

C7605

Q7601

Q7219

JS7155

C7606

R7002

R7003

C7607

C7608

R7004

Q7220

Q7221

D7201

C7801

Q7222

C7802

D7203

Q7223

C7803

D7204

Q7224

C7804

C7805

D7206

C7806

D7207

C7807

D7208

C7808

D7209

RL7001

C7809

RL7002

R7207

RL7003

R7208

D7401

R7209

D7402

D7403

D7404

R7401

D7211

R7402

D7212

R7403

R7404

D7214

R7210

R7405

R7211

D7215

R7406

R7212

D7216

D7217

R7213

R7214

D7218

D7601

JS7751

IC7401

R7215

D7219

D7602

JS7752

R7216

D7603

JS7753

R7217

D7604

D7605

R7219

D7606

R7602 R7603

D7607

D7608

D7220

R7604

R7605

D7221

L7101

D7222

R7220

JS7951

R7221

D7801

L7106

D7802

R7223

D7803

JS7953

R7224

D7804

R7225

R7801

R7802

R7227

JS7958

R7228

R7229

L7301

L7302

IC7801

R7232

JS7962

R7233

JS7963

R7234

JS7964

R7235

L7501

L7502

JS7966

R7237

JS7967

L7503

L7504

R7238

F7000

JS7968

F7001

JS7969

JS7970

R7241

L7701

R7242

L7702

R7243

L7703

R7244

L7704

TP7301

TP7302

R7247

R7248

R7250

F7400

TP7501

TP7502

R7256

R7257

R7258

R7259

TP7701

TP7702

R7260

R7261

R7262

R7263

R7264

R7266

R7267

TP7901

TP7902

TP7903

TP7904

TP7905

R7271

R7272

R7273

R7274

R7275

R7276

R7277

R7278

R7279

AP1

AP2

AP3

AP4

AP5

R7280

R7281

R7282

R7283

R7284

R7285

R7286

R7287

R7288

TP7151

R7289

TP7152

TP7153

R7290

L7751

R7291

L7752

L7753

HOT

CAUTION

F2A 125V

TNPA3509

COLD

CAUTION

F6.3A 125V

LIVE

CIRCUIT

PbF

F4A 125V

F2.5A 125V

KRA

SEE REVERSE FOR ORDER NO.

P2 P1 V2

S2A

S3B

S1 S2B S3A

S3 S2 S1

P1 P2

210

222

AP-BOARD (FOIL SIDE)

TNPA3509AB

TC-32/26LX50

AP-BOARD TNPA3509AB TC-32/26LX50

AP-BOARD TNPA3509AB

AP-BOARD (FOIL SIDE)

IC7101 E-5

IC7104 D-4

IC7301 B-3

IC7401 B-4

IC7701 D-2

IC7751 A-4

IC7801 E-1

Q7223 E-4

Q7224 B-3

Q7301 B-3

Q7302 B-3

Q7401 B-4

Q7402 C-4

Q7501 B-2

Q7502 B-2

Q7503 C-2

Q7504 C-3

Q7505 B-2

Q7506 C-3

Q7508 E-2

Q7601 C-4

Q7701 E-2

Q7702 E-2

Q7751 B-4

Q7901 D-2

Q7902 D-1

TP7001 F-2

TP7002 F-1

TP7003 B-5

TP7004 B-5

TP7006 E-1

Q7203 E-3

Q7204 D-3

Q7205 D-3

Q7206 D-3

Q7207 D-3

Q7208 C-2

Q7210 B-3

Q7211 B-2

Q7212 C-2

Q7214 C-2

Q7217 E-4

Q7219 D-3

Q7219 E-3

Q7220 E-3

Q7221 D-3

Q7222 E-3

TP7007 B-5

TP7008 B-5

TP7151 C-3

TP7152 C-3

TP7301 C-3

TP7302 B-3

TP7302 D-2

TP7401 C-3

TP7402 C-4

TP7501 B-2

TP7502 D-2

TP7601 C-3

TP7602 D-2

TP7701 D-3

TP7702 D-3

TP7751 B-4

TP7752 A-4

TP7801 E-2

TP7901 D-1

TP7902 D-1

TP7906 E-1

TRANSISTOR

TC-32LX50 / TC-26LX50

C E GIBDFH

L7951

L7953

JS7200

L7954

JS7201

L7955

L7956

L7957

L7959

L7960

JS7401

L7961

JS7402

L7962

JS7403

JS7404

L7965

L7966

L7967

L7969

JS7601

L7970

JS7801

JS7802

JS7803

AP10

C7101

AP11

C7109

ZA7001

C7301

ZA7002

ZA7003

C7303

ZA7004

ZA7005

C7112

C7307

C7114

C7501

C7502

C7506

D7101

D7102

C7702 D7103

C7703

D7104

R7101

R7102

R7103

R7104

C7708

R7105

IC7101

C7901

D7110

IC7104

C7904

D7112

R7114

IC7301

R7120

C7151

L7201

PC7102

R7707

IC7701

C7159

L7401

L7402

C7160

C7161

T7101

D7151

L7801

C7752

D7152

L7802

C7753

D7153

L7803

F7300

D7154

R7151

D7155

D7156

D7157

R7155

R7156

R7157

C7951

LF7002

LF7003

LF7004

D7161

D7162

D7163

D7164

R7163

R7164

C7966

C7967

F7900

IC7751

J201

J202

J203

J204

J206

J207

J208

J209

J401

J402

J405

J212

J213

J407

F7150

J214

F7154

J218

T7151

J219

J602

J603

J604

J410

J220

J414

J222

J417

J223

J418

J419

J226

J227

J228

J611

J229

J420

J615

JS7301

J421

JS7302

J616

J422

JS7303

JS7304

J618

J424

J230

J619

J425

J426

J427

J233

J428

J429

J235

J237

J238

J620

J10

J11

J621

JS7501

JS7502

J622

JS7503

JS7504

J430

J15

J431

J432

J433

J17

J240

J18

J434

J241

J242

J244

JS7701

JS7702

JS7703

J248

J249

J21

J23

J24

J25

C7002

J27

C7003

C7004

J28

J29

C7005

J251

C7006

J252

C7007

C7009

J258

J32

J33

C7010

C7011

J35

J36

C7012

J260

C7209

J261

J262

J264

C7401

J265

J266

C7403

J267

J268

J41

C7211

J269

J42

C7407

J45

J46

J47

J48

JS7151

J271

JS7152

D7002

J272 J273

D7003

JS7153

JS7154

D7004

R7001

J275

JS7155

R7002

J276

R7003

J277

R7004

J50

J278

J279

J53

J54

D7201

J55

C7802

J56

J57

C7803

J58

J280

J281

J282

J283

J284

RL7001 RL7002 RL7003

D7211

D7212

D7214

JS7751

IC7401

JS7752

D7603

JS7753

R7217

D7604

R7602

D7221

L7101

D7222

JS7951

L7106

JS7953

JS7958

L7301

L7302

IC7801

JS7962

JS7963

JS7964

L7501

L7502

JS7966

JS7967

L7503

L7504

F7000

JS7968

F7001

JS7969

JS7970

L7701

L7702

L7703

L7704

R7248

F7400

R7262

R7263

R7264

R7266

R7267

R7274

R7275

R7277

R7278

R7279

AP1

AP2

AP3

AP4 AP5

R7290

L7751

R7291

L7752

L7753

LIVE

CIRCUIT

F2A 125V

CAUTION

679

TNPA3509

COLD

CAUTION

F6.3A 125V

HOT

F4A 125V

F2.5A 125V

ARK

P2P1

V1 PT

S4 S2A

S3B S1

S2B

S3A

ORDER NO.

P2 P1

S3S2

210

23 1

AP-BOARD (COMPONENT SIDE)

TNPA3509AB

TC-32/26LX50

AP-BOARD TNPA3509AB TC-32/26LX50

AP-BOARD TNPA3509AB

Parts Location

AP-BOARD (COMPONENT SIDE)

IC7101 C-5

IC7104 C-4

IC7301 E-3

IC7401 E-4

IC7701 C-3

IC7801 B-2

TC-32LX50 / TC-26LX50

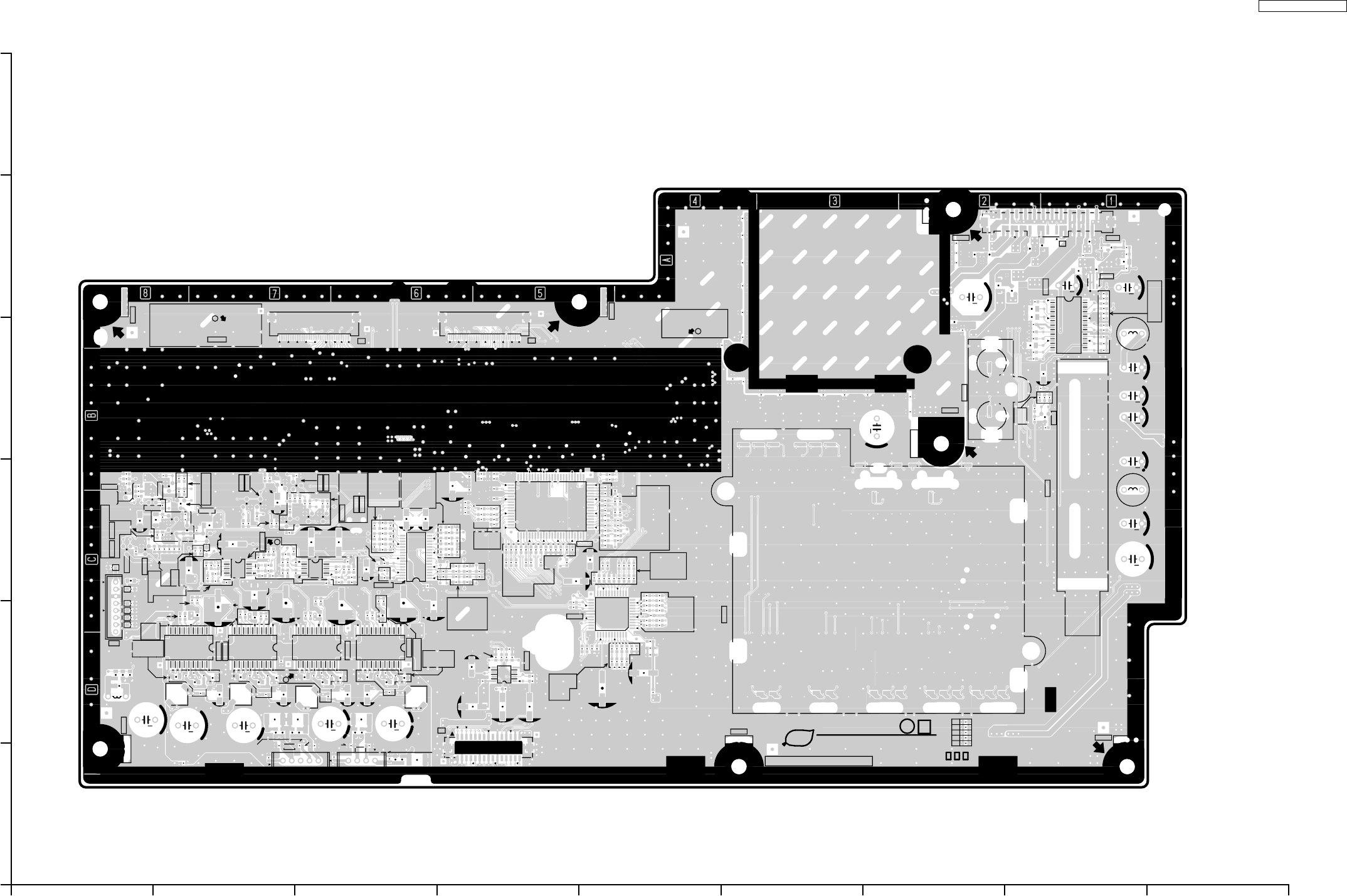

11.2. H-Board

C E GIBDFH

D034

R030

D035

R226

D036

R227

D037

Q058

R034

D038

D039

R035

R036

C061

D040

D041

D042

D043

D044

D045

D046

D047

D048

R045

D049

JS2006

JS2007

R049

D050

D051

D052

D053

D054

D055

D056

R248

R249

R250

R251

R252

R253

R254

R255

R256

R257

R258

R259

R260

R261

R262

R263

R264

R265

R266

R267

R268

R269

R270

R271

R272

R273

R274

C2109

R275

R276

R277

R278

R279

C2110

R280

R281

R282

R283

C2118

R284

C2119

R285

R286

R287

R288

R289

C2122

R290

R291

R292

C2126

R293

C2128

R294

R2101

R2102

R296

JS003

R297

R2103

R298

R2104

R299

R2105

R2106

R2112

C2142

C2146

C2148

R2121

R2122

L2007

R2123

R2124

L2008

R2125

L2009

R2126

L2010

L2011

C2159

R2132

JS033

JS034

JS037

JS038

JS039

C2162

JS040

JS041

R2141

JS042

R2142

JS043

R2143

JS044

R2144

JS045

R2145

JS046

R2146

ZA003

JS047

ZA004

JS048

ZA005

ZA006

ZA007

R2152

R2161

R2162

R2163

R2164

R2165

R2166

R2172

R306

R308

C145

L002

C147

C148

L006

C160

H12

H14 H15

C170

R149

C171

C173

C178

C182

C183

R168

R172

R173

R175

JK002

JK003

C2010

C2013

R182

C2019

R185

R186

R187

R188

R189

R380

R381

C2021

R191

D2001

R192

D2002

R196

R198

R2200

R2201

R2202

R2203

JS103

C2038

JS104

C2039

R2014

R2015

R2016

R2018

C2041

R2019

C2042

R2020

R2021

R2022

R2025

R2047

C2070

R2048

C2072

C207

C208

C209

C2076

C2078

R2051

R2052

R2053

C210

R2054

C213

C214

TU001

C215

C022

C216

C217

C023

C024

C026

C027

C028

C029

Q025

Q027

D007

Q029

C221

C222

C030

C225

C031

C226

C032

C2092

C033

C034

C035

Q032

D012

C2096

D013

Q033

C2098

D014

Q034

R011

Q035

D015

D016

Q036

D017

Q037

D019

C235

D026

D027

D028

D029

C050

C051

C053

D030

D031

D032

D033

TNPH0622

CR NO.3

PbF

SEE REVERSE FOR ORDER NO.

14 15

COMPONENT1

COMPONENT2

MONOUT

SDA

SIF-OUT

IFOUT

SCL

BTL

VIDEO

AGCCONT

RF-AGF

AFT

AGCADJ

AUDIO

H-BOARD (FOIL SIDE)

TNPH0622AB

TC-32/26LX50

H-BOARD TNPH0622AB TC-32/26LX50

H-BOARD TNPH0622AB

TC-32LX50 / TC-26LX50

TC32/26LX50

H-BOARD PARTS LOCATION TC32/26LX50

H-BOARD PARTS LOCATION

Parts Location

H-BOARD (FOIL SIDE)

TRANSISTOR

Q3025 C-2

Q3027 B-2

Q3029 B-3

Q3032 F-4

Q3033 E-4

Q3034 F-4

Q3035 E-4

Q3036 F-4

Q3037 E-4

Q3058 H-4

TRANSISTOR

Parts Location

H-BOARD (COMPONENT SIDE)

IC2001 C-3

IC2002 B-3

IC2003 B-5

IC2004 D-2

IC2005 C-2

IC2006 C-2

IC2007 B-2

IC2008 B-2

IC3001 D-2

IC3002 H-5

IC3007 D-3

Q3034 F-4

Q3035 E-4

Q3036 F-4

Q3037 E-4

Q3058 H-4

Q2002 B-3

Q2003 A-3

Q2004 B-3

Q2005 A-3

Q2006 A-3

Q2007 A-3

Q2008 A-3

Q2009 A-3

Q2012 C-3

Q2013 B-3

Q2014 B-3

Q2016 C-3

Q2017 C-3

Q2018 C-3

Q2019 C-3

Q3002 H-4

Q3038 H-5

Q3039 H-5

TRANSISTOR

TC-32LX50 / TC-26LX50

C E GIBDFH

R224

R2090

R031

R225

R032

R033

R2093

R228

R2094

R229

R2095

R2096

R037

R2097

R038

R2098

R039

R2099

C062

C063

R230

R231

R232

R233

R040

R041

R042

R236

JS2003

R043

R237

JS2004

R238

JS2005

R239

JS2008

R240

R241

R242

R243

R245

R247

D057

C2100

C2101

C2102

C2103

C2111

C2113C2114

C2115

C2116

C2117

C2123

C2124

C2125

C2127

C2128

R2100

C2129

JS002

JS004

R2107

C2130

R2108

C2131

C2133

C2134

C2135

C2136

C2137

R2110

C2138

R2111

C2139

R2113

C2140

JS019

C2141

C2143

C2144

L2001

C2145

L2002

L2003

C2147

JS020

C2148

L2004

JS021

C2149

L2007

R2127

C2150

R2128

C2151

C2153

C2154

C2155

C2156

C2157

C2158

R2130

JS031

R2131

R2133

R2136

R2137

R2138

C2160

C2161

R2139

C2166

R2140

ZA001

ZA002

ZA003

R2147

ZA004

R2148

JS049

ZA005

C305

ZA006

C306

C307

ZA007

C308

R2150

JS050

R2151

JS051

JS052

R2153

JS053

JS054

R2154

C311

R2155

R2156

H2 H3

JS060

JS061

JS062

JS063

JS064

JS065

JS066

R2167

JS067

R2168

JS068

JS069

R300

R301

R302

R303

R2170

JS070

R2171

JS071

JS072

R2173

JS073

JS074

JS075

JS076

JS077

JS078

L001

L002

L006

L007

L009

C151

L010

C154

L011

C155

C156

C157

C158

C160

C162

H12

C163

H14

C164

H15

C165

C166

C167

C168

C169

C172

C174

C175

C176

C177

C179

C180

C181

C184

C185C186

C187

C188

C189

C190

C191

C192

C193

C194

C2001

C195

C2002

C196

C2003

C2004

C2005

C199

C2006

Q2002

C2007

Q2003

C2008

Q2004

Q2005

JK002

Q2006

JK003

Q2007

Q2008

Q2009

C2011

C2012

C2014

C2015

C2016

Q2012

Q2013

C2017

C2018

Q2014

C2019

Q2016

Q2017

Q2018

Q2019

C2020

C2022 C2023

C2024 C2025

C2026

D2003

C2027

R193

R194

D2004

C2028

R2001

R195

C2029

R2002

R2003

R2004

R2005

R2006

R2008

C2030

R2009

C2031

IC2001

C2032

IC2002

C2033

IC2003

IC2004

C2034

IC2005

C2035

IC2006

C2036

IC2007

C2037

IC2008

R2011

R2013

R2017

C2040

C2043

C2044

C2045

C2046

C2047

C2048

C2049

R2023

R2024

R2026

R2027

R2028

C2050

C2051

R2029

C2052 C2053C2054

C2055

C2056

C2057

C2058

R2030

C2059

R2031

R2032

R2033

R2034

R2035

R2036

R2037

C2060

R2038

C2061

R2039

C2062

C2063

C2064

C2065

Q002

C2066

C007

C2067

C008

R2040

C2068

C009

C2069

R2041

R2042

R2043

R2044

C200

C201

R2045

C202

R2046

C203

C2070

C204

C010

C2071

C011

R2049

C012

C013

C2073

C014

C2074

C015

C2075

C016

C017

C2077

C2078

C018

R2050

C2079

C019

C211

R2055

C212

R2056

R2057

C2080

C020

C2081

TU001

C021

C022

C2083

C023

C2084

C218

C2085

C219

C025

C2086

C2087

C027

R2060

R2061

R2062

R2063

C220

R2064

R2065

R2066

C223

R2067

C224

R2068

IC001

R2069

IC002

C2093

R200

C2094

R201

C035

C2095

C036

R202

C037

R203 IC007

C2097

C038

C2098

R204

R2070

C2099

R205

C039

R2071

R2072

R207

R2073

Q038

R208

R2074

D018

Q039

C231

R209

R2075

R2076

C232

R2077

C040

R2078

C235

C041

R2079

C042

C043

C044

D020

C045

R211

D021

C046

R212

D022

R213

C047

D023

C048

R2080

D024

C049

R215

D025

R2081

R216

R2082

R023

R217

R2083

R024

R218

R2084

R025

R219

R2085

R026

R027

R2087

C050

R028

R2088

R029

C051

R2089

C052

C053

R221R222

R223

TNPH0622 1H

CR NO.3

PbF

ORDER NO.

22 2

40 1

230

129

COMPONENT1 COMPONENT2

MONOUT

VIDEO

AGCCONT

SCL

IFOUT

SIF-OUT

SDA

BTL

RF-AGF

AFT

AGCADJ

AUDIO

12 13

124

H-BOARD (COMPONENT SIDE)

TNPH0622AB

TC-32/26LX50

H-BOARD TNPH0622AB TC-32/26LX50

H-BOARD TNPH0622AB

TC-32LX50 / TC-26LX50

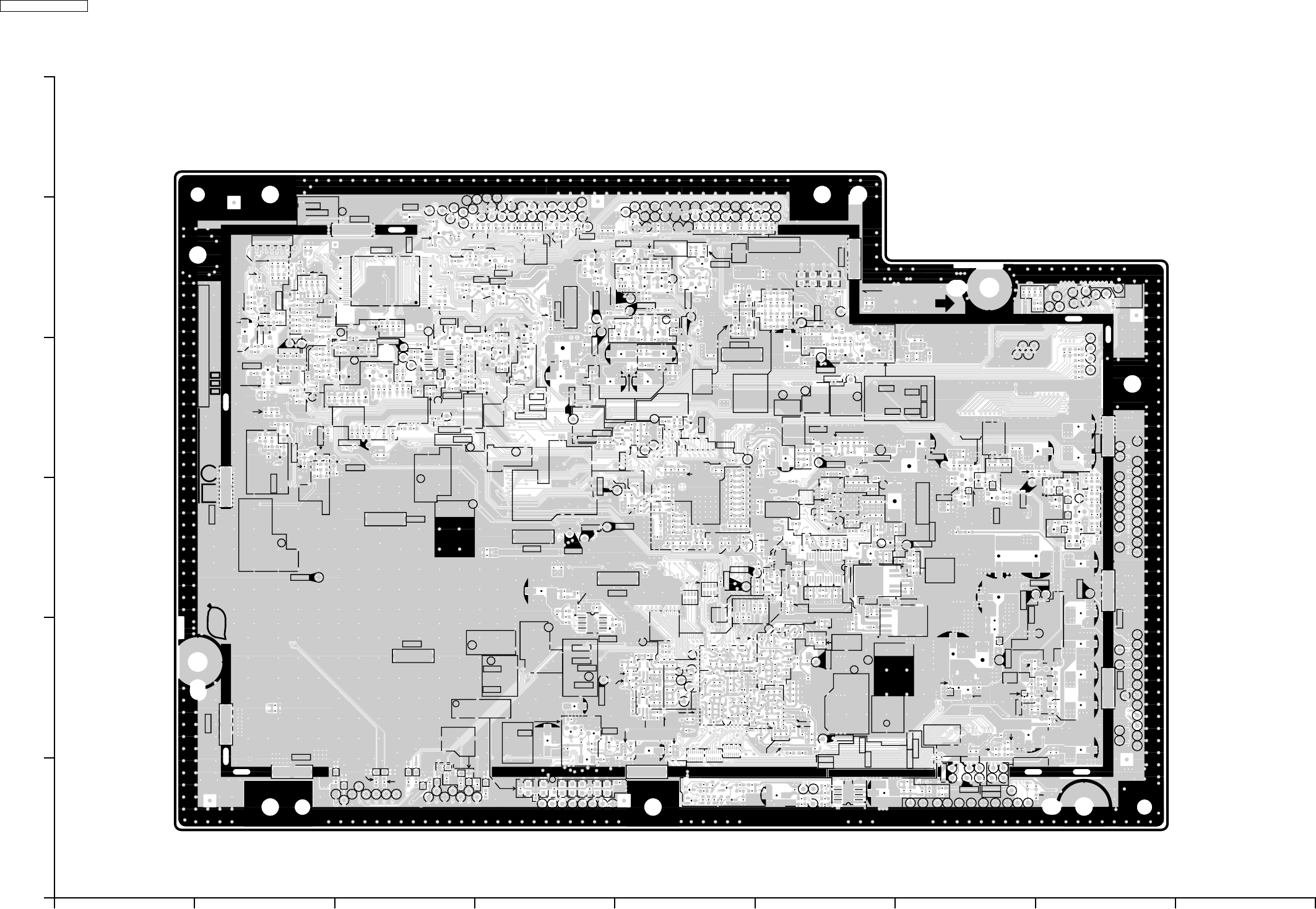

11.3. DG-Board

C E GIBDFH

Q1114

Q1115

C001

C002

C003

C005

D1101

D1102

C1126

D1103

C1127

C008

C1128

D1104

R1101

D1105

C009

C1129

D1106

R1102

D1107

D1108

D1109

R1105

C203

C1130

R1108

C205

C1132

C206

C207

IC1104

D1110

R1300

D1111

R1301

R1302

IC1106

D1112

C1137

C017

D1113

R1303

C400

D1114

R1304

C018

R1110

C401

R1305

C019

C1139

D1115

R1111

C402

R1306

R1112

D1116

C403

R1307

D1117

R1113

C404

D1118

R1114

C210

R1308

C405

D1119

R1309

R1115

C406

R1116

C407

R1117

C408

C214

C1140

C020

C409

C021

C215

C1142

C022

C1143

D1120

C024

R1310

C601

D001

C025

R1311

C219

C602

R1312

C026

C603

C1147

R1313

C604

C410

R1120

R1314

C1148

R1315

R1121

R1122

C413

R1317

R1123

C608

C414

D008

C220

R1318

R1124

C609

C415

D009

R1125 R1319

C416

R1126

C417

C223

R1127

C418

C1150

C419

C1151

C226

C610

C034

C228

R1320

C611

C229

C035

R1321

C612

C036

C613

R1323

C420

C614

D014

R1324

C421

C615

D015

R1325

C422

C616

D016

R1326

C617

R1327

R1133

C618

R1328

Q038 Q039

C231

R1329

C426

C427

C428

R400

C429

R401

C236

C237

R404

C620

R1330

C238

Q040

C621

Q041

C239

R1331

R1332

C623

R1333

C430

C624

R1334

C625

C049

C626

D026

C433

D027

D028

C434

C240

R600

C241

R1145

C436

C242

R602

C437

R1147

C243

C438

C050

R604

R410

C244

C439

C051

C245

R605

L102

C246

C052

R606

C247

C053

R413

R607

L104

R414

C054

C248

R608

L105

D031

R609

R415

C249

C055

IC026

C632

L106

R416

C633

R1343

C440

R418

L108

R1344

L109

C441

R1345

C636

D036

R1346

R1152

C637

R1347

Q057

C638

C444

R610

R1348

C250

C639

C251

Q059

R1349

R611

R612

C252

C447

R613

C448

R614

R421

R615

C255

R422

C256

L113

R423

C257

R617

C640

R618

R1350

C258

C641

R619

C259

C642

R426

C837

C643

R1353

R427

L118

C644

R1354

R428

C839

L119

C645

R429

R042

R1162

R1356

C646

R1357

R1163

C260

R1164

C455

C261

R621

R1359

TP102

C262

R1166

C457

TP103

R1167

C263

C458

TP104

R430

C264

C459

TP105

L121

R431

R1169

C265

IC042

R432

TP106

L122

C266

R433

C267

TP107

C650

R434

C844

L124

TP108

C268

R1360

IC044

C651

L125

C269

IC045

TP109

C652

R1362

C653

IC047

Q073

R1363

IC048

C460

Q074

C654

C461

Q075

R1365

R1171

C462

Q076

R1366

Q077

R1367

TP110

R054

R1368

C271

R1369

TP111

C466

C272

C273

IC050

C468

R440

C274

R1178

C275

IC052

R442

C276

L133

C277

R638

R1370

Q080

R444 C278

R639

R1371

C279

C661

L136

C662

Q083

R447

Q084

C470

R448

C471

R1181

L139

C665

R449

C666

Q086

C472

C473

C667

Q088

C474

C280

R1184

R258

C668

Q089

C669

C475

C281

C282

R1186

C283

C284

L140

C286

R452

C287

TP128

C670

C288

Q091

R455

R649

C289

C096

Q092

C097

IC067

C673

Q093

C674

R1190

C675

C099

Q095 Q096

R1192

R1193

Q097

C678

C290

R1194

Q098

C679

R651

TP131

R1195

C291

R652

R653

R1197

TP133

R654

IC070

R1198

C294

C489

R655

C295

R1199

FL012

C296

C297

FL013

C680

C298

FL014

C681

FL015 C683

R467

R468

C684

C491

C685

R469

C686

C687

C493

JS1103

C688

R660

TP140

JS1104

C689

R661

TP142

R664

TP144

IC080

R665

C881

R471

C882

R472

C883

TP147

R473

R668

C884

TP148

R669

C885

R475

C886

FL026

C887

FL027

C888

FL028

C889

C695

C696

C698

R671

R673 R674

R098

C890

R480

R481

C891

FL031

R099

R482

FL032

FL033

C894

FL034

C895

C896

R292

C897

R293

C898

R294

C899

R295

JS003

R299

JS006

JS007

R685

R686

R494

TP168

R495

R496

R497

R691

TP172

R692

R693

R694

R695

R697

R699

JS024

JS025

JS026

TP184

JS028

JS035

JS036

C101

Q101

Q102

Q103

Q104

R1201

JS042

R1203

R1204

C300

R1205

C304

C305

C306

C307

C309

R1210

R1213

C504

C310

C311

R1215

C312

ZA013

R1217

C313

ZA014

R1218

C314

ZA015

R1219

C315

ZA016

C316

C317

ZA017

C318

ZA018

C319

L1101

ZA019

L1102

R1220

R100

R1221

C320

ZA020

R1224

ZA021

R1225

C322

C323

C900

JS068

ZA024

C324

R1228

JS069

R1229

C325

C326

C903

ZA027

C327

R300

ZA028

C328

C905

R301

C329

C906

C907

R305

R306

R1233

ZA030

C330

C525

R115

C331

ZA031

C526

ZA032

JS076

ZA033

R117

JS078

R501

C141

TP1101

C335

C912

TP1102

C336

C913

C337

TP1103

C338

TP1104

R310

C915

C339

TP1105

R311

L001

C916

R312

TP1106

R507

R313

C918

C530

R314

C919

R315

R1241

C531

R122

R316

L006

R1242

C727

L007

R317

R1243

R700

R1244

R318

C340

C729

R125

R1245

C535

C341

R702

C342

R1246

C536

C537

R1247

R510

R704

C920

C538

R705

C921

R511

R1249

C345

C539

R512

C346

R707

C347

R514

R320

C924

C348

C154

R709

C731

C925

R321

R516

C732

C926

R322

C733

C927

R323

C928

C158

C540

C929

C541

R325

R132

R326

C542

R1252

R1253

R327

R133

C543

R710

R1254

C544

R328

R1255

R135

C545

R329

R712

R136

C546

R713

C547

C930

R714

R1258

C931

JS099

C549

R715

R1259

R716

R717

C163

R718

R330

C359

R719

C936

C166

C938

R140

C550

R1261

C551

R1262

C552 C553

C360

R144

C554

R338

R721

R339

C555

C556

C363

C557

C364

C558

C365

C559

R726

C172

R727

C367

C174

C368

R729

C175

C176

C946

C177

C947

C560

L034

R344

R1271

R345

C561

R346

C562

L037

C563

R1273

R347

R730

R154

C370

C564

L038

R348

R155

R731

C371

R349

R732

C372

TP212

C566

R1277

C567

TP213

TP214

C374

C568

R734

R1278

C950

C180

C181

C951

C569

R735

TP216

R736

C182

C377

C183

R543

R737

TP218

C378

C954

L040

R738

TP219

L041

C185

R351

R739

C955

L042

R353

L043

C188

R354

C958

C570

R1280

C959

L045

C571

R161

R355

C189

R1282

C572

R1283

R357

C573

TP220

C380

R740

R164

R1284

R358

C574

C381

R741

R165

C575

TP221

C382

R742

C383

R743

C384

R168

C960

R1288

C385

C961

R169

C386

C962

C387

R747

C963

C388

C389

L052

C196

R557

C197

R170

R1290

R171

C581

R365

R172

R1292

C582

R173

R1293

C583

R368

C390

R174

C584

R1294

L059

C391

R369

R175

R1295

C392

R176

R1296

C393

R177

C394

R178

C970

C395

R179

R1299

C971

C396

TP236

C397

C398

TP238

R370

L061

C399

R371

L062

C976

R566

R372

R567

L063

C977

R373

C978

R568

R180

R374

L065

R569

C979

R181

R375

TP049

L066

R376

C592

R377

C593

L068

TP240

C594

R378

L069

TP241

C595

TP242

C596

R763

TP243

C597

C598

R188

TP244

C599

TP245

C982

TP246

TP052

R767

TP247

C983

TP053

L070

TP248

TP249

R381

R382

R383

R384

TP250

L079

C990

R581

C991

TP062

TP063

TP064

C994

L081

C995

L082

C996

C997

R393

L083

JS100

C998

R394

JS101

JS103

R398

R780

R781

R782

R783

R784

JS109

R786

R593

L091

R595

R596

R597

R598

JS110

JS111

R599

Q1101

Q1104

Q1105

Q1106

Q1107

Q1108

Q1109

C1112

C1113

Q1110

C1114

C1115

Q1112

Q1113

C1117

20 20

1DG

TNPA3511

13 11

CR NO.4

51 24

ORDER NO.

PbF

25 48

SEE REVERSE FOR ORDER NO.

DG-BOARD (FOIL SIDE)

TXNDG10LCM (TC-32LX50)

TXNDG10LDM (TC-26LX50)

TC-32LX50

DG-BOARD TXNDG10LCM TC-26LX50

DG-BOARD TXNDG10LDM TC-32LX50

DG-BOARD TXNDG10LCM TC-26LX50

DG-BOARD TXNDG10LDM

TC-32LX50 / TC-26LX50

TC32/26LX50

DG-BOARD PARTS LOCATION TC32/26LX50

DG-BOARD PARTS LOCATION

Parts Location

DG-BOARD (FOIL SIDE)

IC1104 C-5

IC1106 C-3

IC4026 D-2

IC4042 G-3

IC4044 F-4

IC4045 E-4

IC4047 D-2

IC4048 F-3

IC4050 D-2

IC4052 F-2

IC4067 G-3

IC4070 F-3

IC4080 F-3

Q1101 D-5

Q1104 B-4

Q1105 C-4

Q1106 C-4

Q1107 B-4

Q1108 B-5

Q1109 E-5

Q1110 E-5

Q1112 B-4

Q1113 B-4

Q1114 B-3

Q1115 C-4

Q4038 F-4

Q4039 G-4

Q4040 F-4

Q4041 G-4

Q4057 E-5

Q4059 D-5

Q4073 G-3

Q4074 H-2

Q4075 G-3

Q4076 G-2

Q4077 F-5

Q4080 G-4

Q4083 F-1

Q4084 F-2

Q4086 D-2

Q4088 F-1

Q4089 F-1

Q4091 D-2

Q4092 C-5

Q4093 C-5

Q4095 D-5

Q4096 D-5

Q4097 C-5

Q4098 C-5

Q4101 D-4

Q4102 D-4

Q4103 G-4

Q4104 E-4

TRANSISTOR

TP4148 E-5

TP4168 G-3

TP4172 F-2

TP4184 F-4

TP4212 D-4

TP4213 E-3

TP4214 F-2

TP4216 D-4

TP4218 D-2

TP4219 D-2

TP4220 E-3

TP4221 D-3

TP4236 E-5

TP4238 F-4

TP4240 G-1

TP4241 G-1

TP4242 G-1

TP4243 G-1

TP4244 G-1

TP4245 G-1

TP4246 G-1

TP4247 G-1

TP4248 G-1

TP4249 G-1

TP4250 H-3

TP1101 C-4

TP1102 C-4

TP1103 B-5

TP1104 B-4

TP1106 B-5

TP1106 G-2

TP4049 F-4

TP4052 F-4

TP4053 F-5

TP4062 G-1

TP4063 G-2

TP4064 G-2

TP4103 G-3

TP4104 G-3

TP4105 G-4

TP4107 D-3

TP4108 D-4

TP4109 E-3

TP4110 D-2

TP4111 D-3

TP4128 B-3

TP4131 E-4

TP4133 E-5

TP4140 D-4

TP4142 D-2

TP4144 D-2

TP4147 D-5

Parts Location

DG-BOARD (COMPONENT SIDE)

IC1101 G-5

IC1102 H-5

IC1103 G-5

IC4001 D-4

IC4002 D-4

IC4005 E-4

IC4010 C-4

IC4033 C-2

IC4041 F-5

IC4049 F-4

IC4051 E-2

IC4054 E-3

IC4055 D-3

IC4057 D-2

IC4063 C-4

IC4065 C-4

IC4068 B-3

IC4069 C-3

IC4081 C-3

Q1103 H-4

Q1116 G-5

Q1117 G-5

Q4007 D-4

Q4008 D-4

Q4058 D-5

Q4060 D-5

Q4061 D-4

Q4078 E-5

Q4079 E-4

Q4082 D-1

Q4085 D-2

Q4087 D-1

Q4090 D-1

TRANSISTOR

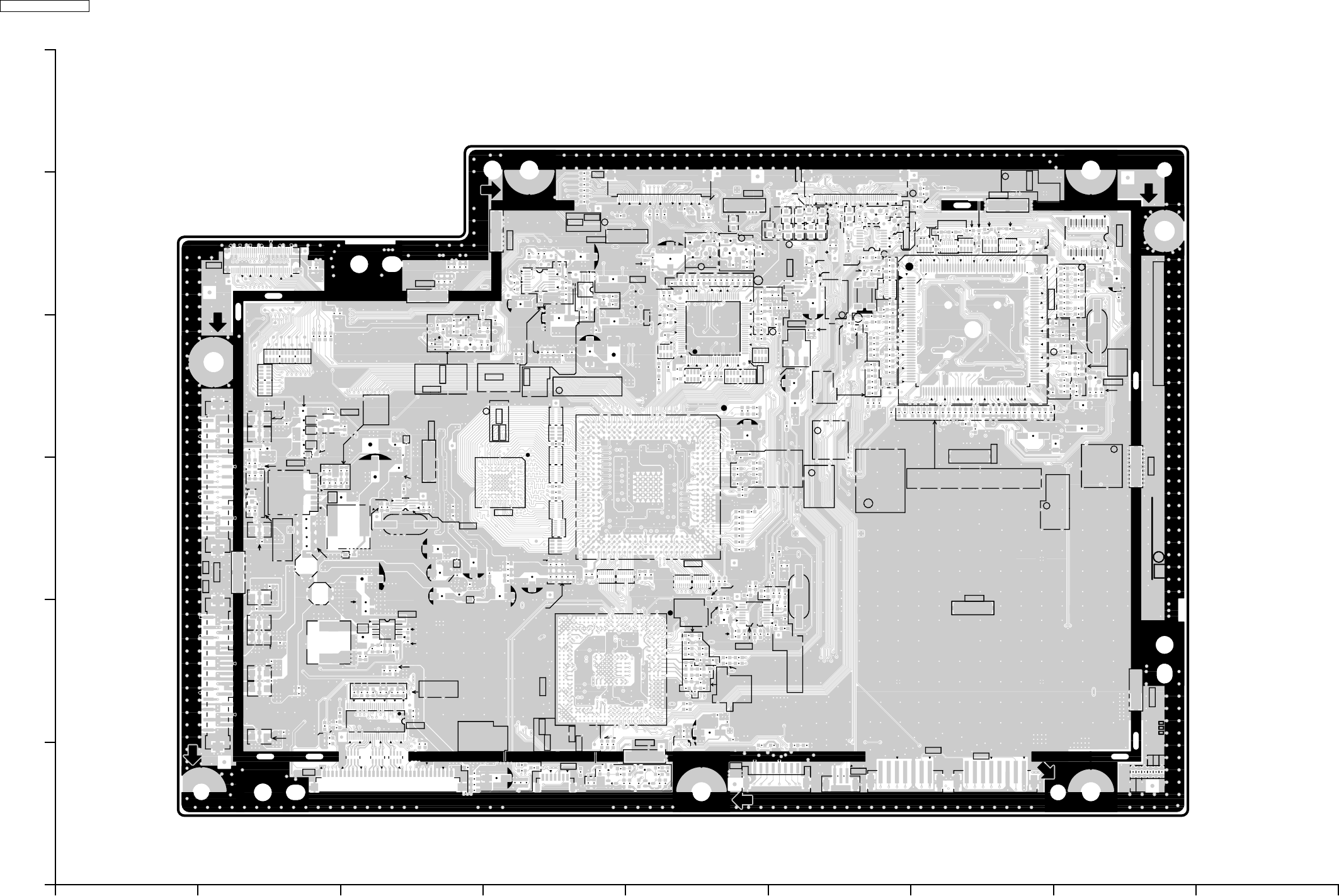

TC-32LX50 / TC-26LX50

C E GIBDFH

C1118

C1119

Q1116

Q1117

C1120

C1121

C1122

C1123

C004

C1124

C1125

C006

Q007

R1103

C200

Q008

R1104

C201

C202

R1106

R1107

C204

IC1101

R1109

IC1102

C1133

IC1103

C013

C208

C014

C1134

C015

C209

C016

C1138

DG10

C211

C212

DG12

DG13

DG14

DG15

C216

C217

C023

C600

C218

C1144

C1145

D003

C027

C028

C605

C411

C029

C606

C412

R1316

C607

C221

C222

C224

C030

R1128

IC001

C225

C031

C1152

IC002

C032

C227

C1153

C033

D010

D011

IC005

R1322

R203

D013

C038

R1130

C039

R1131

R1132

D017

C423

C424

R1134

C230

C619

C425

R1135

C232

R1136

R1137

C233

C040

C234

IC010

R1138

C041

C235

R1139

C042

R402

C043

R403

C044

C045

R405

C622

R406

C047

R407

R1140

C048

D025

C431

R1335

R1141

C432

R1142

R1336

C627

R1143

C628

R1144

C629

D029

C435

R601

R603

R1148

R411

R1149

R412

C630

D030

C631

D032

DG2

L107

D033

DG3

C634

DG4

D034

R1150

C635

R419

DG5

DG6

DG7

R1153

Q058

R1154

C445

R1155

R1156

C253

R1157

C254

R1158

R1159

L112

R616

IC033

R424

Q060

R425

L115

Q061

C836

L117

R1160

R1161

C453

R620

R1165

C456

L120

R1168

C840

C841

IC041

C842

C843

L123

R628

R629

R435

R241

C845

R436

L126

R437

L127

L128

R438

R1170

R439

IC049

L129

R1172

R1173

R630

C270

R1174

Q078

C464

C465

R631

R1175

Q079

R1176

C467

R1177

L130

L131

IC051

R441

C469

R1179

L132

R637

R443

IC054

L134

L135

IC055

R445

Q082

R446

IC057

C663

C664

R1374

R1180

Q085

R1375

R255

R062

R1376

R256

R1182

Q087

R1183

R640

R064

R641

R1185

R642

C476

R066

R643

R067

R644

C478

R068

R1188

R450

R645

C285

R1189

R451

R646

R647

IC063

Q090

R648

R260

IC065

C671

R456

C672

R457

IC068

R458

IC069

R1191

R071

R073

R268

R650

R075

R1196

C292

C293

R077

C488

R079

R656

R657

R658

R270

R659

C299

R271

C682

C490

R274

R275

JS1101

C492

JS1102

R084

R279

R085

R662

R086

R663

R087

R470

R088

IC081

FL021

R666

FL022

R667

R474

R280

R281

R282

R476

R477

R283

R478

R479

C697

R670

R672

R675

C892

C893

R483 R484

R290

R485

R291

R486

FL037

R487

R488

R298

JS004

JS005

JS008

JS009

R687

R688

FL044

FL045

R689

FL046

FL047

R498

FL048

FL049

R690

X1101

FL051

FL052

X1102

FL053

R698

FL054

FL055

FL056

FL057

FL058

FL059

JS027

FL060

FL061

FL062

FL063

FL064

FL065

JS037

C100

X002

X004

R1200

R1202

JS043

C301

C302

R1206

R1207

R1208

R1209

ZA006

ZA007

C113

C308

ZA008

ZA009

C116

R1211

R1212

C503

R1214

ZA010

ZA011

R1216

ZA012

C126

C127

C128

R1222

R1223

R104

R105

ZA022

R1226

R1227

C517

ZA023

C518

C901

ZA025

C519

C902

ZA026

C904

ZA029

R303

C908

R1230

C909

R1231

R1232

C524

R1234

R308

R1235

R309

C332

R1236

C333

C527

JS077

R1237

C334

C910

R1238

C529

C911

R1239

R502

C142

C914 C722

L002

C723

C917

L003

R508

L004

R1240

R509

C728

R701

R319

R126

R703

C343

C344

R1248

R706

C922

R513

C923

R708

C730

R515

JS090

R324

R1250

R1251

R711

C351

C352

R1256

C353

R1257

C354

C355

C356

C357

C358

R524

C934

L020

C935

R331

R332

C937

R333

R334

C939

R335

R336

R143

R1263

R337

L028

R720

R1264

L029

R1265

R145

R1266

R722

R1267

R723

C940

R1268

R724

R725

R1269

C941

C366

C944

R728

R340

L030

C945

C369

R341

R342

R537

R343

R538

R1270

C948

C949

R1272

L039

R1275

C565

R1276

R733

C373

R540

C375

R1279

C376

R542

C952

C953

R350

C379

C186

C956

C187

C957

R1281

L046

R356

R163

R1285

R359

R1286

C577

R744

C578

R745

R1289

C579

R746

R748

R360

C964

C194

R749

L051

C195

R361

C965

C966

R362

C967

R363

C198

R364

C199

R559

R1291

R366R367

L058

R750

R751

R752

R753

R1297

R754

R560

R1298

R561

R755

R562

R756

C972

R563

R757

C973

L060

C974

C975

R759

R182 R183

R760

R184

R761

R185

R186

R187

C980

R764

C981

R765

C988

C989

R386

R193

R388

R389

R584

R390

R779

R392

C999

R395

R396

R397

JS104

R399

R785

L090

R594

C1101

L092

C1102

L093

C1103

L094

C1104

L095

C1105

C1106

Q1103

C1107

C1108

JS115

R791

C1109

JS116

JS117

C1110

C1111

C1116

CR NO.4

TNPA3511 1 DG

130

125

100

123

132

29 56

ORDER NO.

16 1

CAB

UWAAACAE D

PTVYABADAF

13 12

16 18

120

121

160

DG-BOARD (COMPONENT SIDE)

TXNDG10LCM (TC-32LX50)

TXNDG10LDM (TC-26LX50)

TC-32LX50

DG-BOARD TXNDG10LCM TC-26LX50

DG-BOARD TXNDG10LDM TC-32LX50

DG-BOARD TXNDG10LCM TC-26LX50

DG-BOARD TXNDG10LDM

TC-32LX50 / TC-26LX50

11.4. G-Board

C E GIBDFH

G1 G2

J201

J202

J203

J204

J10

J11

J12

J13

L3802

JK3801

JK3802

C3801

J101

J102

J103

J104

J105

J106

J107

J108

J109

C3813

J110

J111

J112

J113

J114

J115

J116

J117

J118

SW3800

J119

SW3801

SW3802

SW3803

SW3804

SW3805

SW3806

SW3807

J120

J121

J122

J123

TNPA3639 1G

TV GUIDE MENU OK TV/VTR VOL.DN VOL.UP CH.DN CH.UP

PbF

RLV

ORDER NO.

914 2

129

30 112

RLV

R3800

D3804

R3801

D3805

R3802

D3806

R3803

D3807

R3804

D3808

R3805

D3809

R3806

R3807

R3808

R3809

D3810

D3811

D3812

D3813

D3814

R3811

D3815

R3812

D3816

R3813

D3817

R3814

R3815R3816

R3817

R3818

R3819

R3820

JA1

R3822

JA2

JA3

R3823

JA4

JA5

R3825

JA6

R3826

JA7

R3827

JA8

R3828

JA9

R3829

R3830

R3831

R3832

R3833

R3834 R3835

R3836

R3837

R3838

R3839

R3840

R3841

R3842

R3843

R3844

R3845

R3846

R3847

R3848

R3849

JA10

JA11

JA12

JA13

R3850

JA14

R3851

JA15

JA16

R3852

R3853

R3854

R3855

R3856

R3858

R3859

R3860

R3861

R3862

R3863

R3864

R3865

R3866

R3867

R3868

L3800

L3802

TP3800

TP3801

TP3802

TP3804

TP3805

TP3806

TP3807

TP3808

TP3809

TP3810

TP3811

TP3812

TP3813

TP3814

TP3815

TP3816

TP3817

TP3818

TP3819

TP3820

TP3825

TP3827

TP3828

TP3829

TP3830

TP3831

TP3832

TP3833

TP3834

TP3835

TP3836

TP3837

TP3838

TP3839

JK3801

JK3802

TP3840

TP3841

TP3842

TP3843

TP3844

TP3845

TP3846

TP3847

TP3848

TP3849 TP3850

TP3851

TP3852

C3800

C3801

C3802

C3803

C3804

C3805

C3806

C3807

C3808

C3809

C3810

C3811

C3812

C3813

SW3800SW3801SW3802SW3803SW3804SW3805SW3806SW3807

D3800

D3801

D3802

D3803

TNPA3639 1G

CH.UP CH.DN VOL.UP VOL.DN TV/VTR

ASPECT

プリセット

MENU TV GUIDE

PbF

SEE REVERSE FOR ORDER NO.

191 4

112

G-BOARD (COMPONENT SIDE)

TNPA3699AD

G-BOARD (FOIL SIDE)

TNPA3699AD

TC-32/26LX50

G-BOARD TNPA3639AD TC-32/26LX50

G-BOARD TNPA3639AD

TC-32LX50 / TC-26LX50

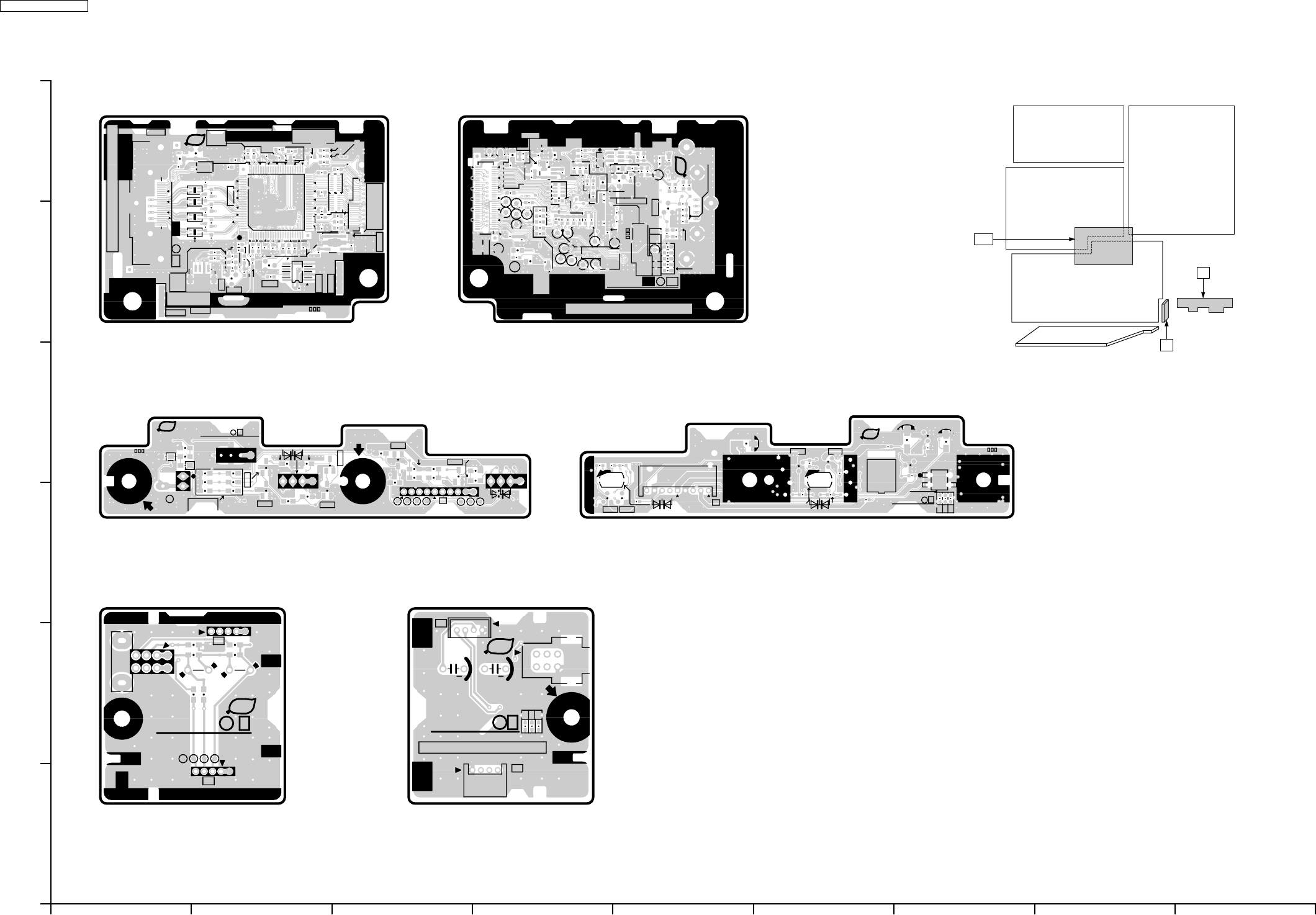

11.5. DV, K, and V-Board

C E GIBDFH

C2801

C2802

TNPA3514 1K

SW2801

JS2801

JS2804

JS2805

PbF

ORDER NO.

TNPA3569

CR NO.1

1 V

R006

Q002

D014

R029

SN001

R030

C001

D013

R007

Q003

RM001

R005

Q001

R008

Q004 R015

R004

C004

C003

R009

C005

R028 R001

D009

D008 ORDER NO.

JS003

JS002

JS001

PbF

R2806

R2801

R2804

R2803

R2802

R2805

C2801

C2802

TNPA3514 1K

SW2801

TNPA3569

CR NO.1

R019

R026

R012

R002

R024

D011

Q007

R023

D010

Q006

R013

R003

R025

Q008

R020

R027

R010

Q010

R017

R021

R032

R031

R014

R022

Q005

R016

R011

SN001

RM001

D009

D008

SEE REVERSE

FOR ORDER No.

Q009

PbF

SEE REVERSE FOR ORDER NO.

R359

R366

R367

R369

JK001

R370 R371 R372

R375

R376

R391

R394

R395

R396

R397

R398

R399

C001

Q004

C014

C015

C020

Q020

R002

R003

C030

IC003

C034

C036

D013

D014

D015

C039

D016

D017

D018

D019

C040

D020

C044

IC016

C046

C047

IC017

C049

D025

D026

R024

R025

R035

R043

R077

R078

R079

JS006

DV1

ZA001

ZA002

ZA003

ZA005

C144

L002

R324

L015

L016

L017

L018

L022

R334

R335

R336

R354

R356

TNPA3626

CRNO.5

PbF

SEE REVERSE FOR ORDER NO.

97 128

R176

R374

R196

R392

R393

C004

C005

Q001

Q002

Q003

C012

C013

C016

C017

C018

C019

R006

R007

R011

R013

R014

R015

R017

R018 R019

IC015

D021

D022

D023

R020

D024

R021

R022

R023

C054

C056

C057

R030

R033

R034

R036

R037

R038

R039

R040

R041

R042

R044

R045

R065

JS001

JS002

JS003

JS004

JS005

DV15

C133

C134

C135

C136

C137

C140

C141

C143

L001

L003

L004

L007

L012

R325

L021

R337

R338

R347

R348

R349

R350

R353

TNPA3626 DV1

CRNO.5

PbF

ORDER NO.

130

V-BOARD (FOIL SIDE)

TNPA3569AB V-BOARD (COMPONENT SIDE)

TNPA3569AB

K-BOARD (FOIL SIDE)

TNPA3514AB K-BOARD (COMPONENT SIDE)

TNPA3514AB

DV-BOARD (FOIL SIDE)

TXNDV10LCM DV-BOARD (COMPONENT SIDE)

TXNDV10LCM

TC-32/26LX50

DV-BOARD TXNDV10LCM

V-BOARD TNPA3569AB

K-BOARD TNPA3514AB

TC-32/26LX50

DV-BOARD TXNDV10LCM

V-BOARD TNPA3569AB

K-BOARD TNPA3514AB

TC-32LX50 / TC-26LX50

12 Exploded View and Replacement Parts List

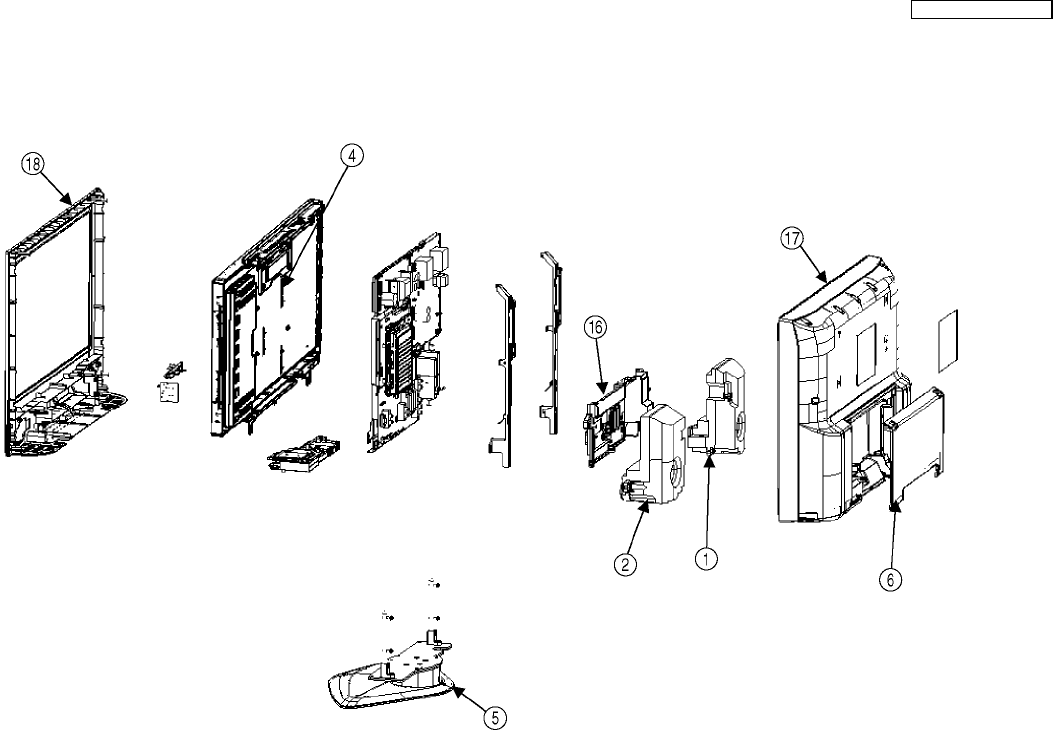

12.1. Parts Layout

TC-32LX50 / TC-26LX50

12.2. Front Chassis Layout

TC-32LX50 / TC-26LX50

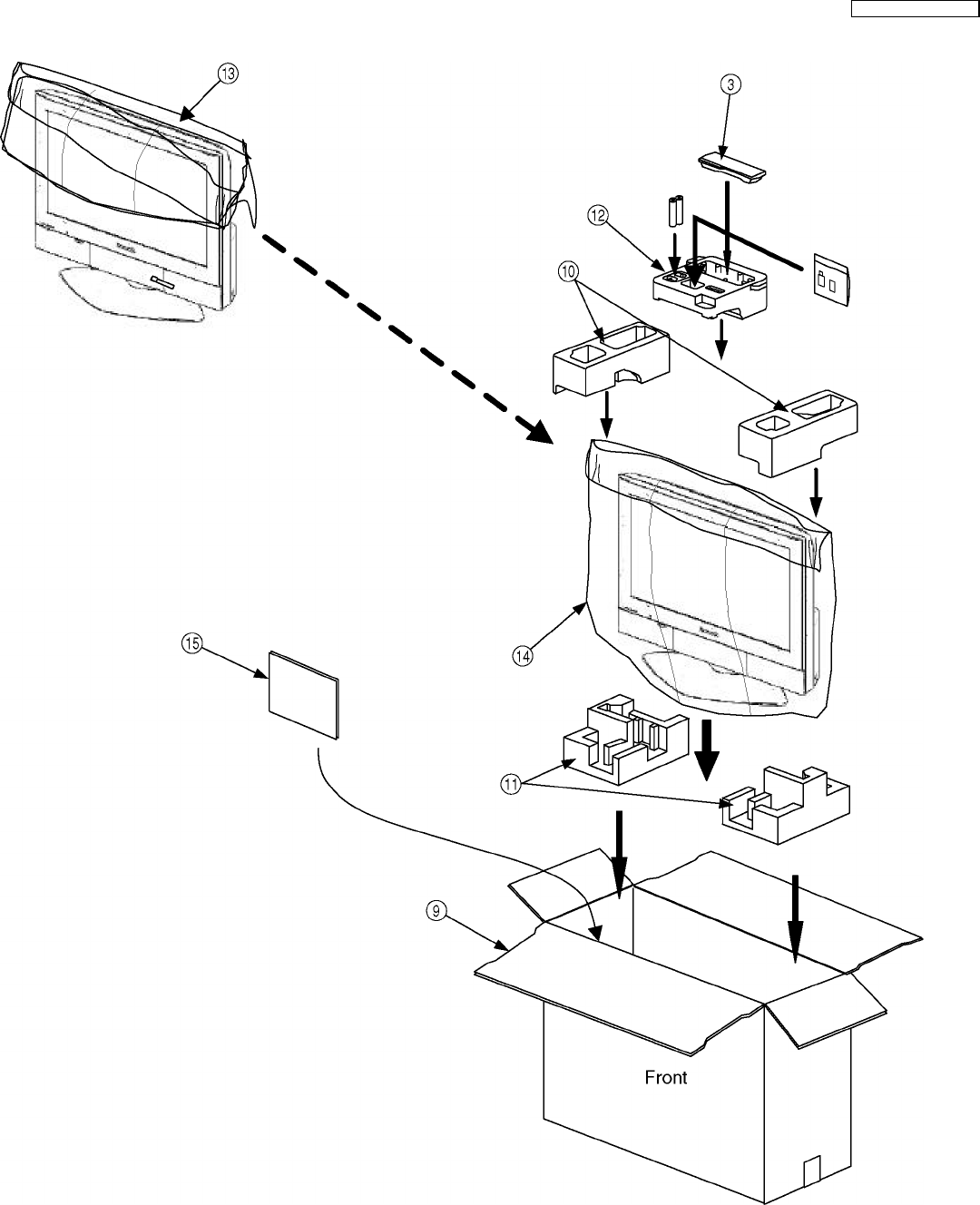

12.3. Packing Exploded Views

TC-32LX50 / TC-26LX50

Ref.

No. Part No. Part Name &

Description Pcs Remarks

1EAB834BL SPEAKER BOX(LEFT) 1

2EAB834BR SPEAKER BOX(RIGHT) 1

3EUR7613Z90R TRANSMITTER 1

J0KG00000011 FLAT CORE 1

J0KG00000100 FILTER 2

K2CB2DZ00013 AC CORD 1

4L5EDD6Q00004 LCD PANEL 1TC-26LX50

4L5EDD8Q00006 LCD PANEL 1TC-32LX50

5TBLA0145 STAND ASSY 1

TBLA0146 SUPPORTING FRAME

ASSY 1

TBLA3258 CAPSUPPORT PLATE 1

TBLA3262 ADDITIONAL

MOUNTING BRAC 2

TBLA3263 INSERT FOR

SUPPORTING FR 2

TBLA3323 MAIN CHASSIS FOR

SUPPORT 1

TBLA3324 BOTTOM PLATE FOR

SUPPORT 1

TBLA3325 BOTTOM PANEL 1

TBLA3326 HOLDER PLATE(TOP) 1

TBLA3327 HOLDER

PLATE(BOTTOM) 1

TBLA3342 STUD 3

TBLB3124-1 BUCHING FIXING CAP 1

TBLB3126 LOWER BUSHING

PLATE 1

TBLB3138 UPPER BUSHING

PLATE 1

TBLG3071 RUBBER

FOOT(FRONT/REAR) 2

TBLG3073 RUBBER FOOT(L/R) 2

TBMA163 PANASONIC BADGE 1

TBXA45901 POWER BUTTON 1

TESA254 SPRING FOR DOOR 1

TJSD00901 F TERMINAL (4C

TYPE) 1

TKKC5211 PANEL LIGHT(LED) 1

TKKL5290 C0NNECTOR COVER 1

TKPA93102 DOOR 1

TKPA93204 PANEL SPEAKER LEFT 1

TKPA93304 PANEL SPEAKER

RIGHT 1

TKRA45501 STAND COVER 1

6TKXA18301-1 CABLE COVER 1

TKXA18401 TUNER COVER 1

TMKG555 SPONGE(SP) 2

TMM15481 CLAMPER 7

TMM15481 CLAMPER 3

TMME061 CLAMPER 2

TMME075 EADG SADOLE 1

TMME110 CLAMPER 1

TMME190 CLAMPER 2

TMMJ044 RUBBER BUSH 6

7TMWA043 FRONT BRACKET 1

8TMWA044 K PRINT BRACKET 1

9TPCB79901 PACKING CASE 1TC-32LX50

9TPCB80001 PACKING CASE 1TC-26LX50

10 TPD2AA03001 CUSHION(TOP) 1TC-26LX50

11 TPD2AA03101 CUSHION(BOTTOM) 1TC-26LX50

12 TPD2AA03201 CUSHION(CENTER) 1TC-26LX50

10 TPD2AA03301 CUSHION(TOP) 1TC-32LX50

11 TPD2AA03401 CUSHION(BOTTOM) 1TC-32LX50

12 TPD2AA03501 CUSHION(CENTER) 1TC-32LX50

13 TPE114125 PROTECT COVER 1TC-26LX50

13 TPEH033 PROTECT COVER 1TC-32LX50

14 TPEH229 SET COVER 1TC-32LX50

14 TPEH230 SET COVER 1TC-26LX50

15 TQBC2010 INSTRUCTION

BOOK(ENG/SPA) 1

15 TQBC2011 INSTRUCTION

BOOK(FRENCH) 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

TSXL431 CABLE (H2-DG2 H3-

DG3) 2

16 TTPA0412 REAR AV BRACLET

ASSY 1

17 TTUA1146 REAR COVER 1TC-32LX50

17 TTUA1147 REAR COVER 1TC-26LX50

18 TTYA0715 CABINET ASSY 1TC-32LX50

18 TTYA0716 CABINET ASSY 1TC-26LX50

TXFBL010Q49 PEDESTAL ASSY 1

TXJH140LCM SPEAKER LEAD H14-

SP(LEFT) 1

TXJH150LCM SPEAKER LEAD H15-

SP(RIGHT) 1

XSS4+14FJK SCREW(POLE SUPPORT

METAL) 4

XSS4+6FJK SCREW(SUPPORT

METAL) 5

XSS6+16FJK SCREW(STAND

SUPPORT METAL) 4

XTB4+12JFJ SCREW 2

XTB4+15AFJK SCREW 2

XTB4+15JFJ SCREW 13

XTB4+18JFJK SCREW(BACK

COVERX11) 11 TC-32LX50

XTB4+18JFJK SCREW(BACK

COVERX9) 9TC-26LX50

XTS4+12JFJ SCREW 6

XTV3+10JFJK SCREW(HDMI) 1

XTV3+12GFJ SCREW(PANELx4/SPRI

NGx1) 5

XTV3+6GFJ SCREW 1

XTV3+8JFJ SCREW 4

XTW3+12TFJ SCREW 4

XTW3+8TFJ SCREW 27

XTWT4+Z15DFJ SCREW(SP BOX) 6

XYM5+E35FJ SCREW 3

XYN3+F6FJ SCREW(LCD PANEL

FIX METAL) 3

XYN3+J8FJ SCREW ROHS 1

XYN3+J8FJ SCREW ROHS 2

XYN4+C12FJ SCREW 2

XYN4+E12FJ SCREW 8

XYN4+F10FJ SCREW(LCD FIXED

METAL) 4

XYN4+F20FJK SCREW(STANDj 4

XZBT6506 POLY BAG 1

12.4. Mechanical Replacement Parts List

TC-32LX50 / TC-26LX50

13 Electrical Parts List

13.1. Electrical Parts List Notes

TC-32LX50 / TC-26LX50

Ref.

No. Part No. Part Name &

Description Pcs Remarks

F7001 XBA1C63NU100 FUSE 125V 6.3A 1

AP1 K1KA23A00005 23P CONNECTOR 1

AP2 K1KA04A00576 4P CONNECTOR 1

AP3 K1KA11A00124 11P CONNECTOR 1

AP4,P5 K1KA23A00003 23P CONNECTOR 2

AP10 K1KA02A00169 2P CONNECTOR 1

C1003 ECJ1VB1H103K C 0.01UF, K, 50V 1

C1004 EEEHB0J470R C 47PF, J, 6.3V 1

C1005 EEEHB0J220R C 22PF, J, 6.3V 1

C1103 ECJ1XC1H220J C 22PF, J, 50V 1

C1104 ECJ1XC1H180J C 18PF, J, 50V 1

C1105-

11 ECJ1XB1C104K C 0.1UF, Z, 16V 7

C1112 ECJ1VB1C105K C 0.01UF, K, 16V 1

C1113 ECJ2FB1A105K C 1UF, K, 10V 1

C1115,1

6ECJ1XB1C104K C 0.1UF, Z, 16V 2

C1117 ECJ1VB1H103K C 0.01UF, K, 50V 1

C1118 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C1120 ECJ1XB0J105K C 1UF, K, 16V 1

C1121,2

2ECJ1XB1C104K C 0.1UF, Z, 16V 2

C1123 ECJ2XC1H150J C 15PF, J, 50V 1

C1124 ECJ1XC1H150J C 15PF, J, 50V 1

C1125 ECJ1XC1H101J C 100PF, J, 50V 1

C1126,2

7ECJ1VB1H103K C 0.01UF, K, 50V 2

C1128 ECJ1XC1H102J C 1000PF, J, 50V 1

C1130 ECJ1XC1H101J C 100PF, J, 50V 1

C1132 ECJ1VB1C105K C 0.01UF, K, 16V 1

C1133 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C1134 F1J0J106A013 C 0.010UF, K, 16V 1

C1139 ECJ1VB1C105K C 0.01UF, K, 16V 1

C1142 ECJ1XC1H471J C 470PF, J, 50V 1

C1144 ECJ3YB0J335K C 33UF, J, 25V 1

C1147 ECJ1XC1H561J C 560PF, J, 50V 1

C1150 ECJ1VB1C105K C 0.01UF, K, 16V 1

C1152 EEEHP0J470P C 47PF, J,6.3V 1

C2001,0

2ECJ1VB1A105K C 0.01UF, Z, 50V 2

C2003 EEEHB1V220P E 22UF, 35V 1

C2004 ECJ1VB1H103K C 0.01UF, K, 50V 1

C2005,0

6ECJ1VB1H182K C 1800PF, K, 50V 2

C2007,0

8ECJ1VB1A105K C 0.01UF, Z, 50V 2

C2010 F1J1A1050002 C 1UF, Z, 50V 1

C2012 EEEHB1H4R7R C 4.7PF, J, 50V 1

C2013 ECJ2XB1H562K C 5600PF, K, 50V 1

C2014,1

5EEEHB1E4R7R C 4.7PF, J, 25V 2

C2016 ECJ1VB1H103K C 0.01UF, K, 50V 1

C2017 EEEHB1E4R7R C 4.7PF, J, 25V 1

C2018 EEEHB1V220P E 22UF, 35V 1

C2019 ECA1VM221 E 220UF, 35V 1

C2020 EEEHB1V220P E 22UF, 35V 1

C2021 ECJ2VB1C104K C 0.1UF, K, 16V 1

C2022 ECJ1VB1H152K C 1500PF, K, 50V 1

C2023 ECJ1VB1H822K C 8200PF, K, 50V 1

C2024 ECJ1VB1H152K C 1500PF, K, 50V 1

C2025 ECJ1VB1H822K C 8200PF, K, 50V 1

C2026 ECJ1VB1H152K C 1500PF, K, 50V 1

C2027 ECJ1VB1H822K C 8200PF, K, 50V 1

C2028,2

9ECJ1VB1C105K C 0.01UF, K, 16V 2

C2030 ECJ1VB1H152K C 1500PF, K, 50V 1

C2031 ECJ1VB1H822K C 8200PF, K, 50V 1

C2032-

35 ECJ1VB1H392K C 3900PF, K, 50V 4

C2036 ECJ3YB1A475K C 0.047UF, K, 10V 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C2040 ECJ1XB1H102K C 1000UF, Z, 50V 1

C2043 EEVHB1C101P E100UF,16V 1

C2044 EEEHB0J101P C100PF,J,6.3V 1

C2045,4

6ECJ1VB1H103K C 0.01UF, K, 50V 2

C2047,4

8ECJ1VB1H223K C 0.22UF, K, 50V 2

C2049,5

0ECJ1VB1E104K C0.1UF,K,25V 2

C2051,5

2ECJ1VB1H223K C 0.22UF, K, 50V 2

C2053,5

4ECJ1VB1E104K C0.1UF,K,25V 2

C2055 EEEHB0J101P C100PF,J,6.3V 1

C2056 ECJ1VB1H103K C 0.01UF, K, 50V 1

C2057,5

8EEEHB0J101P C100PF,J,6.3V 2

C2059 F1H0J1050012 C1UF,K,16V 1

C2060 EEEHB0J470R C 47PF, J, 6.3V 1

C2061 F1H0J1050012 C1UF,K,16V 1

C2062 ECJ1VB1H103K C 0.01UF, K, 50V 1

C2063 F1H0J1050012 C1UF,K,16V 1

C2064 ECJ1VB1H103K C 0.01UF, K, 50V 1

C2070 ECA1VM471 E470UF,35V 1

C2071 ECJ2FB1H104K C0.1UF,K,50V 1

C2072 ECJ2XB1H222K C 2200PF, K, 50V 1

C2073,7

4ECJ1VB1H222K C 2200PF, K, 50V 2

C2075 F2H1E470A007 E 47UF, 25V 1

C2076 ECJ2YB1E224K C 0.22UF, K, 25V 1

C2077 ECJ2FB1H104K C0.1UF,K,50V 1

C2078 ECA1EHG102 E 1000UF, 25V 1

C2079 ECJ2YB1E224K C 0.22UF, K, 25V 1

C2080 ECJ1VB1H153K C 0.15UF, K, 50V 1

C2081 EEEHB1H2R2R C2.2PF,J,50V 1

C2084 ECJ2FB1E105K C1UF,K,16V 1

C2085,8

6ECJ1VB1H221K C220UF,K,50V 2

C2087 ECJ2FB1H104K C0.1UF,K,50V 1

C2092 ECJ2XB1H222K C 2200PF, K, 50V 1

C2093,9

4ECJ1VB1H222K C 2200PF, K, 50V 2

C2095 F2H1E470A007 E 47UF, 25V 1

C2096 ECJ2YB1E224K C 0.22UF, K, 25V 1

C2097 ECJ2FB1H104K C0.1UF,K,50V 1

C2098 ECA1EHG102 E 1000UF, 25V 1

C2099 ECJ2YB1E224K C 0.22UF, K, 25V 1

C2100 ECJ1VB1H153K C 0.15UF, K, 50V 1

C2109,1

0ECJ2XB1H153K C 0.015UF, K, 50V 2

C2111 EEEHB1H2R2R C2.2PF,J,50V 1

C2114 ECJ2FB1E105K C1UF,K,16V 1

C2115,1

6ECJ1VB1H221K C220UF,K,50V 2

C2117 ECJ2FB1H104K C0.1UF,K,50V 1

C2118,1

9ECJ2XB1H153K C 0.015UF, K, 50V 2

C2122 ECJ2XB1H222K C 2200PF, K, 50V 1

C2123,2

4ECJ1VB1H222K C 2200PF, K, 50V 2

C2125 F2H1E470A007 E 47UF, 25V 1

C2126 ECJ2YB1E224K C 0.22UF, K, 25V 1

C2127 ECJ2FB1H104K C0.1UF,K,50V 1

C2128 ECA1EHG102 E 1000UF, 25V 1

C2129 ECJ2YB1E224K C 0.22UF, K, 25V 1

C2130 ECJ1VB1H153K C 0.15UF, K, 50V 1

C2131 EEEHB1H2R2R C2.2PF,J,50V 1

C2134 ECJ2FB1E105K C1UF,K,16V 1

C2135,3

6ECJ1VB1H221K C220UF,K,50V 2

C2137 ECJ2FB1H104K C0.1UF,K,50V 1

C2142 ECJ2XB1H222K C 2200PF, K, 50V 1

C2143,4

4ECJ1VB1H222K C 2200PF, K, 50V 2

13.2. Electrical Replacement Parts List

TC-32LX50 / TC-26LX50

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C2145 F2H1E470A007 E 47UF, 25V 1

C2146 ECJ2YB1E224K C 0.22UF, K, 25V 1

C2147 ECJ2FB1H104K C 0.1UF, K, 50V 1

C2148 ECA1EHG102 E 1000UF, 25V 1

C2149 ECJ2YB1E224K C 0.22UF, K, 25V 1

C2150 ECJ1VB1H153K C 0.15UF, K, 50V 1

C2151 EEEHB1H2R2R C 2.2PF, J, 50V 1

C2154 ECJ2FB1E105K C 1UF, K, 16V 1

C2155,5

6ECJ1VB1H221K C 220UF, K, 50V 2

C2157 ECJ2FB1H104K C 0.1UF, K, 50V 1

C2159 ECJ2FB1E105K C 1UF, K, 16V 1

C2160,6

1ECJ1VB1E104K C 0.1UF, K, 25V 2

C2162 ECJ2FB1E105K C 1UF, K, 16V 1

C2801,0

2ECA1CHG470 E 47UF, 16V 2

C3007 EEEHB1C100R C 10PF, J, 16V 1

C3008,0

9ECJ1VB1A105K C 0.01UF, Z, 50V 2

C3010-

12 ECJ1XB1C104K C 0.1UF, Z, 16V 3

C3013,1

4ECJ1VB1A105K C 0.01UF, Z, 50V 2

C3015,1

6ECJ1XB1C104K C 0.1UF, Z, 16V 2

C3017,1

8ECJ1VB1A105K C 0.01UF, Z, 50V 2

C3019 EEEHB1H220P C 22PF, J, 50V 1

C3020,2

1ECJ1VB1A105K C 0.01UF, Z, 50V 2

C3022 ECA1CM471 E 470UF, 16V 1

C3023 ECA1HHG100 E 10UF, 50V 1

C3024 ECJ2FB1H104K C 0.1UF, K, 50V 1

C3027 ECA0JM101 E 100UF, 6.3V 1

C3033 ECJ2YB1E224K C 0.22UF, K, 25V 1

C3034 ECJ2VB1C104K C 0.1UF, K, 16V 1

C3035 ECA1HM2R2 E 2.2UF, 50V 1

C3036 ECJ3YB1A335K C 0.033UF, K, 10V 1

C3037-

39 ECJ1XB1C104K C 0.1UF, Z, 16V 3

C3040 ECJ1VB0J225K C 2.2UF, K, 6.3V 1

C3041 ECJ1VB1C473K C 0.047UF, K, 16V 1

C3042 ECJ3XB0J106M C 10UF, M,6.3V 1

C3045 ECJ1VB1H103K C 0.01UF, K, 50V 1

C3046 ECJ1VB1E223K C 0.22UF, K, 25V 1

C3047 EEVHB1C100R E 10UF, 16V 1

C3048 ECJ3YB1A475K C 0.047UF, K, 10V 1

C3049 ECJ1VB1A105K C 0.01UF, Z, 50V 1

C3051 EEUFC1A471 E 470UF, 10V 1

C3052 ECJ1VB1A474K C 0.47UF, Z, 50V 1

C3053 ECA1EHG471 E 470UF, 25V 1

C3145 F1J1A1050002 C 1UF, Z, 50V 1

C3147,4

8F1J1A1050002 C 1UF, Z, 50V 2

C3151 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C3154,5

5F1H1A1050028 E 1UF, 50V 2

C3156 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C3157,5

8F1H1A1050028 E 1UF, 50V 2

C3160 EEUFC1A471 E 470UF, 10V 1

C3162 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C3163 EEVHB1C101P E 100UF, 16V 1

C3164,6

5ECJ1XB1C104K C 0.1UF, Z, 16V 2

C3166 ECJ1VB1A105K C 0.01UF, Z, 50V 1

C3167,6

8F1H1A1050028 E 1UF, 50V 2

C3169 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C3171 ECJ2VB1C104K C 0.1UF, K, 16V 1

C3172 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C3173 ECJ2VB1C104K C 0.1UF, K, 16V 1

C3174,7

5ECJ1XB1C104K C 0.1UF, Z, 16V 2

C3176 EEVHB1C220R E 22UF, 16V 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C3177 F1H1A1050028 E 1UF, 50V 1

C3179 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C3180,8

1F1H1A1050028 E 1UF, 50V 2

C3182,8

3ECJ2VB1C104K C 0.1UF, K, 16V 2

C3184 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C3185-

88 F1H1A1050028 E 1UF, 50V 4

C3189 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C3190 EEVHB1C101P E 100UF, 16V 1

C3191-

96 ECJ1VB1A105K C 0.01UF, Z, 50V 6

C3199-

04 ECJ1VB1A105K C 0.01UF, Z, 50V 6

C3207,0

8ECJ2XB1A105K C 1UF, K, 10V 2

C3209,1

0F1J1A1050002 C 1UF, Z, 50V 2

C3211 ECJ3XB1C105K C 1UF, K, 16V 1

C3212 ECJ1VB1H103K C 0.01UF, K, 50V 1

C3215-

17 ECJ2VB1C104K C 0.1UF, K, 16V 3

C3218-

20 ECJ1XB1C104K C 0.1UF, Z, 16V 3

C3221,2

2ECJ2XB1A105K C 1UF, K, 10V 2

C3223,2

4ECJ1VB1A105K C 0.01UF, Z, 50V 2

C3225,2

6ECJ2XB1A105K C 1UF, K, 10V 2

C3231,3

2ECJ1XC1H150J C15PF,J,50V 2

C3800 ECJ2VF1C105Z C 1UF, Z, 16V 1

C4001 EEVHB0G101R E100UF4V 1

C4002 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4003 EEFCD0G560R 56UF, 1

C4004,0

5ECJ1XB1C104K C 0.1UF, Z, 16V 2

C4006 EEEHB1C100R C10PF,J,16V 1

C4008 ECJ2FB1C684K C68UF,Z,16V 1

C4009 ECJ1XB1C393K C 0.039UF, K, 16V 1

C4013 EEVHB0J470R E 47UF, 6.3V 1

C4014,1

5ECJ1XB1C104K C 0.1UF, Z, 16V 2

C4016 EEVHB1E330 E 33UF, 25V 1

C4017,1

8ECJ3XB0J106M C 10UF, M,6.3V 2

C4019 EEVHB1C100R E 10UF, 16V 1

C4020-

23 ECJ1XB1C104K C 0.1UF, Z, 16V 4

C4024 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4025 EEVHB0J470R E 47UF, 6.3V 1

C4026 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4027-

29 ECJ1XB1C104K C 0.1UF, Z, 16V 3

C4030 ECJ1XC1H102J C 1000PF, J, 50V 1

C4031-

36 ECJ1XB1C104K C 0.1UF, Z, 16V 6

C4038 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4039 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4040 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4041 ECJ1XB0J105K C 1UF, K, 16V 1

C4042,4

3ECJ1XB1C104K C 0.1UF, Z, 16V 2

C4044 ECJ1VB1C823K C 0.082UF, K, 16V 1

C4045 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4047,4

8ECJ1XB1C104K C 0.1UF, Z, 16V 2

C4049 EEVHB0J470R E 47UF, 6.3V 1

C4050 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4051 EEVHB0J470R E 47UF, 6.3V 1

C4052-

55 ECJ1XB1C104K C 0.1UF, Z, 16V 4

C4127 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4128 ECJ1XC1H102J C 1000PF, J, 50V 1

C4142 ECJ3XB1C105K C 1UF, K, 16V 1

TC-32LX50 / TC-26LX50

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C4166 ECJ3XB0J106M C 10UF, M,6.3V 1

C4172 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4174 ECJ1XC1H102J C 1000PF, J, 50V 1

C4175 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4176 ECJ1XC1H102J C 1000PF, J, 50V 1

C4180,8

1ECJ1VB1H103K C 0.01UF, K, 50V 2

C4183 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4186-

89 ECJ1XB1C104K C 0.1UF, Z, 16V 4

C4194-

00 ECJ1XB1C104K C 0.1UF, Z, 16V 7

C4201 EEEHB1C470P C 47PF, J, 16V 1

C4202 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4203 ECJ1XC1H181J C 180PF, J, 50V 1

C4204 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4205 ECJ1XC1H181J C 180PF, J, 50V 1

C4206,0

7ECJ1XC1H330J C 33PF, J, 50V 2

C4208 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4209 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4210 EEEHB1C470P C 47PF, J, 16V 1

C4211 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4214-

17 ECJ1XB1C104K C 0.1UF, Z, 16V 4

C4219 ECJ1VB1C105K C 0.01UF, K, 16V 1

C4220 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4221,2

2EEEHP1C100R C 10PF, J, 16V 2

C4223 ECJ1VB1H272K C 2700PF, K, 50V 1

C4224 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4225 EEEHB1C100R C 10PF, J, 16V 1

C4226 F1J0J106A013 C 0.010UF, K, 16V 1

C4228 F1J0J106A013 C 0.010UF, K, 16V 1

C4230 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4231 ECJ1VB1H272K C 2700PF, K, 50V 1

C4232 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4233 EEEHB1C470P C 47PF, J, 16V 1

C4234 EEVHB0J470R E 47UF, 6.3V 1

C4235,3

6ECJ1XB1C104K C 0.1UF, Z, 16V 2

C4237 ECJ1XB0J105K C 1UF, K, 16V 1

C4238 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4239 ECJ1XB0J105K C 1UF, K, 16V 1

C4240 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4241 ECJ1XB0J105K C 1UF, K, 16V 1

C4242 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4243 ECJ1XB0J105K C 1UF, K, 16V 1

C4244 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4245 ECJ1XB0J105K C 1UF, K, 16V 1

C4246 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4247 EEVHB0J470R E 47UF, 6.3V 1

C4248 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4249 ECJ1XB0J105K C 1UF, K, 16V 1

C4250 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4251 ECJ1XB0J105K C 1UF, K, 16V 1

C4252-

57 ECJ1XB1C104K C 0.1UF, Z, 16V 6

C4258 ECJ1XB0J105K C 1UF, K, 16V 1

C4259 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4262 ECJ1XB0J105K C 1UF, K, 16V 1

C4263-

67 ECJ1XB1C104K C 0.1UF, Z, 16V 5

C4268 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4269 ECJ1XB0J105K C 1UF, K, 16V 1

C4270 EEVHB0J470R E 47UF, 6.3V 1

C4271-

84 ECJ1XB1C104K C 0.1UF, Z, 16V 14

C4285 ECJ1VB1E223K C 0.22UF, K, 25V 1

C4286,8

7ECJ1XB0J105K C 1UF, K, 16V 2

C4288 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4289 ECJ1XB0J105K C 1UF, K, 16V 1

C4293,9

4ECJ1VB1H103K C 0.01UF, K, 50V 2

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C4295 ECJ1XB0J105K C1UF,K,16V 1

C4296 EEEHB0J330R C 33PF, J, 6.3V 1

C4297,9

8ECJ1XB1C104K C0.1UF,Z,16V 2

C4299 EEEHB0J220R C 22PF, J, 6.3V 1

C4300 ECJ1XB1C104K C0.1UF,Z,16V 1

C4301 EEEHB0G101R C100PF,J,4V 1

C4308 EEVHB0J470R E 47UF, 6.3V 1

C4309,1

0ECJ1XB1C104K C0.1UF,Z,16V 2

C4311 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4312 ECJ1XB1C104K C0.1UF,Z,16V 1

C4313 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4314 ECJ1XB1C104K C0.1UF,Z,16V 1

C4315 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4316 ECJ1XB1C104K C0.1UF,Z,16V 1

C4317 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4318,1

9ECJ1XB1C104K C0.1UF,Z,16V 2

C4320 EEVHB0G221P E220UF,4V 1

C4322-

24 ECJ1XB1C104K C0.1UF,Z,16V 3

C4325 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4326 ECJ1XB1C104K C0.1UF,Z,16V 1

C4327 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4328 ECJ1XB1C104K C0.1UF,Z,16V 1

C4329 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4330 ECJ1XB1C104K C0.1UF,Z,16V 1

C4331 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4332,3

3ECJ1XC1H150J C 15PF, J, 50V 2

C4334,3

5ECJ1XB1C104K C0.1UF,Z,16V 2

C4336 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4337 ECJ1XB1C104K C0.1UF,Z,16V 1

C4338 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4339 ECJ1XB1C104K C0.1UF,Z,16V 1

C4340 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4341 ECJ1XB1C104K C0.1UF,Z,16V 1

C4342 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4343 ECJ3YB1C475K C 0.047UF, K, 16V 1

C4344 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4345 ECJ1XB1C104K C0.1UF,Z,16V 1

C4346 ECJ1XC1H102J C 1000PF, J, 50V 1

C4355 ECJ1XC1H102J C 1000PF, J, 50V 1

C4359 EEEHB1C470P C 47PF, J, 16V 1

C4360 EEEHB0G221P C220PF,J,4V 1

C4363-

65 EEEHB1C470P C 47PF, J, 16V 3

C4366 ECJ2FB1H104K C0.1UF,K,50V 1

C4367,6

8EEEHB1C470P C 47PF, J, 16V 2

C4370 EEEHB1C470P C 47PF, J, 16V 1

C4371 ECJ1VB1C105K C 0.01UF, K, 16V 1

C4372 EEEHB0G101R C100PF,J,4V 1

C4373,7

4ECJ1VB1H103K C 0.01UF, K, 50V 2

C4375 EEVHB0J470R E 47UF, 6.3V 1

C4376,7

7ECJ1XB1C104K C0.1UF,Z,16V 2

C4378 ECJ1XB0J105K C1UF,K,16V 1

C4379 ECJ1XB1C104K C0.1UF,Z,16V 1

C4380 ECJ1XB0J105K C1UF,K,16V 1

C4381 ECJ1XB1C104K C0.1UF,Z,16V 1

C4382 ECJ1XB0J105K C1UF,K,16V 1

C4383 ECJ1XB1C104K C0.1UF,Z,16V 1

C4384 ECJ1XB0J105K C1UF,K,16V 1

C4385 ECJ1XB1C104K C0.1UF,Z,16V 1

C4386 ECJ1XB0J105K C1UF,K,16V 1

C4387 ECJ1XB1C104K C0.1UF,Z,16V 1

C4388 ECJ1XB0J105K C1UF,K,16V 1

C4389 ECJ1XB1C104K C0.1UF,Z,16V 1

C4390 ECJ1XB0J105K C1UF,K,16V 1

C4391 ECJ1XB1C104K C0.1UF,Z,16V 1

C4392 ECJ1XB0J105K C1UF,K,16V 1

TC-32LX50 / TC-26LX50

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C4393 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4394 ECJ1XB0J105K C 1UF, K, 16V 1

C4395 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4396 ECJ1XB0J105K C 1UF, K, 16V 1

C4397 EEVHB0J470R E 47UF, 6.3V 1

C4398,9

9ECJ1XB1C104K C 0.1UF, Z, 16V 2

C4400 ECJ1XB0J105K C 1UF, K, 16V 1

C4401 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4402 ECJ1XB0J105K C 1UF, K, 16V 1

C4403 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4404 ECJ1XB0J105K C 1UF, K, 16V 1

C4405 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4406 ECJ1XB0J105K C 1UF, K, 16V 1

C4407 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4408 ECJ1XB0J105K C 1UF, K, 16V 1

C4409 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4410 ECJ1XB0J105K C 1UF, K, 16V 1

C4411 EEVHB0J470R E 47UF, 6.3V 1

C4412 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4413 ECJ2FB1C474K C 0.47UF, Z, 16V 1

C4414 EEEHB1A101P C 100PF, J, 10V 1

C4415 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4416 ECJ1XB0J105K C 1UF, K, 16V 1

C4417 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4418 ECJ1XB0J105K C 1UF, K, 16V 1

C4419 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4420 ECJ1XB0J105K C 1UF, K, 16V 1

C4421 EEVHB0J470R E 47UF, 6.3V 1

C4422 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4423 EEEHB1A101P C 100PF, J, 10V 1

C4424,2

5ECJ3YB1C475K C 0.047UF, K, 16V 2

C4426 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4427 ECJ1XB0J105K C 1UF, K, 16V 1

C4428,2

9ECJ1XB1C104K C 0.1UF, Z, 16V 2

C4430 ECJ1XB0J105K C 1UF, K, 16V 1

C4431,3

2ECJ3YB1C475K C 0.047UF, K, 16V 2

C4433,3

4EEEHB1A101P C 100PF, J, 10V 2

C4435 ECJ3YB1C475K C 0.047UF, K, 16V 1

C4436 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4437 ECJ1XB0J105K C 1UF, K, 16V 1

C4438 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4439 ECJ1XB0J105K C 1UF, K, 16V 1

C4440 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4441 ECJ1XB0J105K C 1UF, K, 16V 1

C4444,4

5ECJ3YB1C475K C 0.047UF, K, 16V 2

C4447 ECJ2FB1C474K C 0.47UF, Z, 16V 1

C4448 ECJ3YB1C475K C 0.047UF, K, 16V 1

C4453 ECJ1VB1C105K C 0.01UF, K, 16V 1

C4455 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4456 ECJ1XB1H102K C 1000UF, Z, 50V 1

C4457,5

8ECJ1XB1C104K C 0.1UF, Z, 16V 2

C4459 ECJ1XB0J105K C 1UF, K, 16V 1

C4460 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4461 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4462 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4464 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4465 ECJ1XC1H820J C 82PF, J, 50V 1

C4466 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4467 ECJ1VB1E223K C 0.22UF, K, 25V 1

C4468 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4470,7

1ECJ1XB1C104K C 0.1UF, Z, 16V 2

C4472,7

3ECJ1XB0J105K C 1UF, K, 16V 2

C4474,7

5ECJ1VB1H103K C 0.01UF, K, 50V 2

C4488,8

9EEEHB0G471P C 470PF, J, 4V 2

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C4490,9

1EEFCD0G560R 56UF, 2

C4492,9

3ECJ3YB1C475K C 0.047UF, K, 16V 2

C4503,0

4ECJ1XB1C104K C 0.1UF, Z, 16V 2

C4524 EEVHB0J470R E 47UF, 6.3V 1

C4525,2

6ECJ1XB1C104K C 0.1UF, Z, 16V 2

C4527 EEEHB1C100R C10PF,J,16V 1

C4529-

31 ECJ1XB1C104K C 0.1UF, Z, 16V 3

C4547 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4549-

63 ECJ1XC1H102J C 1000PF, J, 50V 15

C4564 ECJ1XB0J105K C 1UF, K, 16V 1

C4565-

75 ECJ1XC1H102J C 1000PF, J, 50V 11

C4577-

79 ECJ1XB1C104K C 0.1UF, Z, 16V 3

C4581 ECJ1VC1H070D C 7PF, C, 50V 1

C4582 ECJ1VC1H120J C12PF,J,50V 1

C4583 ECJ1VC1H070D C 7PF, C, 50V 1

C4584 ECJ1XC1H101J C 100PF, J, 50V 1

C4598-

33 ECJ1XC1H102J C 1000PF, J, 50V 36

C4634 ECJ1XB0J105K C 1UF, K, 16V 1

C4635-

40 ECJ1XC1H102J C 1000PF, J, 50V 6

C4645 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4650,5

1ECJ1XB0J105K C 1UF, K, 16V 2

C4652,5

3ECJ1VB1H103K C 0.01UF, K, 50V 2

C4654 EEFCD0G560R 56UF, 1

C4662 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4663 ECJ1XB0J105K C 1UF, K, 16V 1

C4667-

69 ECJ1XB0J105K C 1UF, K, 16V 3

C4675 ECJ1VB1C105K C 0.01UF, K, 16V 1

C4678-

81 ECJ1XB0J105K C 1UF, K, 16V 4

C4683-

89 ECJ1XB0J105K C 1UF, K, 16V 7

C4695,9

6ECJ1XB0J105K C 1UF, K, 16V 2

C4722,2

3ECJ1VB1H103K C 0.01UF, K, 50V 2

C4727-

33 ECJ1VB1H103K C 0.01UF, K, 50V 7

C4843 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4845 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4885 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4886 ECJ1XB0J105K C 1UF, K, 16V 1

C4887 ECJ1VB1C105K C 0.01UF, K, 16V 1

C4888-

90 ECJ1VB1H103K C 0.01UF, K, 50V 3

C4891 ECJ1XB0J105K C 1UF, K, 16V 1

C4892 ECJ1VB0J334K C 0.33UF, K, 16V 1

C4893 ECJ1VB1H682K C 6800PF, K, 50V 1

C4894 ECJ1XB0J105K C 1UF, K, 16V 1

C4895 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4896 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4897 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4898 EEEHB1C470P C47PF,J,16V 1

C4899 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4900 EEVHB0J220 E 22UF 6.3V 1

C4901 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4902 EEEHB1C470P C47PF,J,16V 1

C4903 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4904,0

5ECJ1VB1H103K C 0.01UF, K, 50V 2

C4906 EEEHB1C470P C47PF,J,16V 1

C4907-

10 ECJ1VB1H103K C 0.01UF, K, 50V 4

C4912 ECJ1VB1H103K C 0.01UF, K, 50V 1

C4913 ECJ1XB1C104K C 0.1UF, Z, 16V 1

TC-32LX50 / TC-26LX50

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C4915 ECJ1VB0J474K C 0.47UF, K, 6.3V 1

C4916 ECJ1XB0J105K C 1UF, K, 16V 1

C4918,1

9ECJ1VB1H103K C 0.01UF, K, 50V 2

C4920 EEEHB1C470P C 47PF, J, 16V 1

C4921 ECJ1XC1H102J C 1000PF, J, 50V 1

C4922 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4923 ECJ1XC1H102J C 1000PF, J, 50V 1

C4924 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4925 ECJ1XC1H102J C 1000PF, J, 50V 1

C4928 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4929 ECJ1XC1H102J C 1000PF, J, 50V 1

C4930 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4931 ECJ1XC1H102J C 1000PF, J, 50V 1

C4934 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4935 ECJ1XC1H102J C 1000PF, J, 50V 1

C4940 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4941 ECJ1XC1H102J C 1000PF, J, 50V 1

C4944 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4945 ECJ1XC1H102J C 1000PF, J, 50V 1

C4946 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4947 ECJ1XC1H102J C 1000PF, J, 50V 1

C4950 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4951 ECJ1XC1H102J C 1000PF, J, 50V 1

C4952 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4953 ECJ1XC1H102J C 1000PF, J, 50V 1

C4956 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4957 ECJ1XC1H102J C 1000PF, J, 50V 1

C4958 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4959 ECJ1XC1H102J C 1000PF, J, 50V 1

C4962 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4963 ECJ1XC1H102J C 1000PF, J, 50V 1

C4964 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4965 ECJ1XC1H102J C 1000PF, J, 50V 1

C4966 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4967 ECJ1XC1H102J C 1000PF, J, 50V 1

C4970 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4971 ECJ1XC1H102J C 1000PF, J, 50V 1

C4972 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4973 ECJ1XC1H102J C 1000PF, J, 50V 1

C4974 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4975 ECJ1XC1H102J C 1000PF, J, 50V 1

C4976 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4977 ECJ1XC1H102J C 1000PF, J, 50V 1

C4978 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4979 ECJ1XC1H102J C 1000PF, J, 50V 1

C4980 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4981 ECJ1XC1H102J C 1000PF, J, 50V 1

C4982 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4983 ECJ1XC1H102J C 1000PF, J, 50V 1

C4988 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4989 ECJ1XC1H102J C 1000PF, J, 50V 1

C4990 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4991 ECJ1XC1H102J C 1000PF, J, 50V 1

C4994 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4995 ECJ1XC1H102J C 1000PF, J, 50V 1

C4999 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C5001 ECJ2FF1C475Z C 0.047UF, Z, 16V 1

C5004 ECJ1VF1A105Z C 1UF, Z, 10V 1

C5005 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C5013 ECJ2FF1C475Z C 0.047UF, Z, 16V 1

C5014 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C5016 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C5017 ECJ1VF1A105Z C 1UF, Z, 10V 1

C5018 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C5019 ECJ1VB1H102K C 1000PF, K, 50V 1

C5020 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C5030 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C5034 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C5036 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C5039,4

0ECJ1XB1C104K C 0.1UF, Z, 16V 2

C5044 ECJ1XB1C104K C 0.1UF, Z, 16V 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C5046 ECJ1XC1H471J C470PF,J,50V 1

C5047 ECJ1XB1C104K C0.1UF,Z,16V 1

C5049 ECJ1XB1C104K C0.1UF,Z,16V 1

C5054 ECJ2FF1C475Z C 0.047UF, Z, 16V 1

C5056 ECJ1XB1C104K C0.1UF,Z,16V 1

C5057 ECJ1XC1H101J C100PF,J,50V 1

C5133 ECJ2FF1C475Z C 0.047UF, Z, 16V 1

C5134 ECJ1XB1C104K C0.1UF,Z,16V 1

C5135,3

6ECJ1VF1A105Z C1UF,Z,10V 2

C5137 ECJ1VB1H102K C 1000PF, K, 50V 1

C5140,4

1ECJ1VF1A105Z C1UF,Z,10V 2

C5143 ECJ1VB1H102K C 1000PF, K, 50V 1

C5144 ECJ1XB1C104K C0.1UF,Z,16V 1

C7002,0

3ECKDNA102MB C 1000PF, Z, 2

C7007 ECKD3A472KBP C 4700PF, K, 1KV 1

C7009 ECQU2A334BN9 P 0.33UF, M,250V 1

C7010 ECQU2A474BN9 P 0.47UF, 250V 1

C7012 ECKDNA152ME C 4700PF, Z, 1

C7100 ECJ2FB1H104K C0.1UF,K,50V 1

C7151 ECA1CHG472 E 4700UF, 16V 1

C7159 ECA1VHG222 E 2200UF, 35V 1

C7203 ECJ2XB1H103K C 0.01UF, K, 50V 1

C7204-

07 ECJ2FB1A105K C1UF,K,10V 4

C7208 ECJ2FB0J225K C2.2UF,Z,16V 1

C7209 F2A1C101A121 E100UF,16V 1

C7210 ECJ2VB1C224K C 0.22UF, K, 16V 1

C7211 ECA1HM330 E 33UF, 50V 1

C7212 ECJ2XB1H103K C 0.01UF, K, 50V 1

C7213 ECJ2VB1C104K C0.1UF,K,16V 1

C7301 F2A1H471A531 E470UF,50V 1

C7302 ECJ2FB1H104K C0.1UF,K,50V 1

C7303 F2A1C1020027 E 1000UF, 16V 1

C7304 ECJ2FB1A105K C1UF,K,10V 1

C7305,0

6ECJ2FB1H104K C0.1UF,K,50V 2

C7307 ECA1VM102 E 1000UF, 35V 1

C7308 ECJ2XB1H103K C 0.01UF, K, 50V 1

C7401 F2A1H471A531 E470UF,50V 1

C7402 ECJ2FB1H104K C0.1UF,K,50V 1

C7403 F2A1C1020027 E 1000UF, 16V 1

C7404 ECJ2FB1A105K C1UF,K,10V 1

C7405,0

6ECJ2FB1H104K C0.1UF,K,50V 2

C7407 F2A1C681A117 E680UF,16V 1

C7408 ECJ2XB1H103K C 0.01UF, K, 50V 1

C7409,1

0ECJ2FB1H104K C0.1UF,K,50V 2

C7501,0

2ECA1HM100 E 10UF, 50V 2

C7503,0

4ECJ2XB1H103K C 0.01UF, K, 50V 2

C7505 ECJ2FB0J225K C2.2UF,Z,16V 1

C7506 ECA1VHG471 E470UF,35V 1

C7507-

10 ECJ2FB1H104K C0.1UF,K,50V 4

C7601 ECJ2FB1E224K C 22UF, K, 16V 1

C7602,0

3ECJ2FB1H104K C0.1UF,K,50V 2

C7604 ECJ2FB1E224K C 22UF, K, 16V 1

C7605-

08 ECJ2FB1H104K C0.1UF,K,50V 4

C7701 ECJ2XB1H103K C 0.01UF, K, 50V 1

C7702 ECA1HM221 E220UF,50V 1

C7703 F2A1C1020027 E 1000UF, 16V 1

C7705 ECJ2XB1H103K C 0.01UF, K, 50V 1

C7706 ECJ2FB1H104K C0.1UF,K,50V 1

C7951 ECA1VHG471 E470UF,35V 1

C7952-

61 ECJ2FB1H104K C0.1UF,K,50V 10

C7964,6

5ECJ2FB1H104K C0.1UF,K,50V 2

C7966 F2A1C101A121 E100UF,16V 1

TC-32LX50 / TC-26LX50

Ref.

No. Part No. Part Name &

Description Pcs Remarks

D1008 B3CKE0000007 DIODE 1

D1013,1

4MA3043M ZENER DIODE 2

D2003,0

4MA152K DIODE 2

D3007 MA8100MTX ZENER DIODE 1

D3018 MA152 DIODE 1

D3019 MA8140M ZENER DIODE 1

D3020-

24 MA8062MTX ZENER DIODE 5

D3026-

28 MA8140M ZENER DIODE 3

D3030-

33 MA8140M ZENER DIODE 4

D3035-

38 MA8140M ZENER DIODE 4

D3043-

50 MA8140M ZENER DIODE 8

D3057 MA111 DIODE 1

D3805,0

6MA3140M ZENER DIODE 2

D3809-

14 MA3140M ZENER DIODE 6

D4001 B0JCDD000002 DIODE 1

D4003 B0HCMM000014 DIODE 1

D4008,0

9B0JCDD000002 DIODE 2

D4010,1

1B0JCPD000026 DIODE 2

D4014 MA152K DIODE 1

D4015 MA3051M ZENER DIODE 1

D4016,1

7MA8039L ZENER DIODE 2

D4025 B0HCMM000014 DIODE 1

D4026 MA8027H ZENER DIODE 1

D4027 MA728 DIODE 1

D4028 MA111 DIODE 1

D4029 B0HCMM000014 DIODE 1

D5013-

23 D4ED13900001 DIODE 11

D5025 MA3056M ZENER DIODE 1

D7003 ERZV10V621T2 VARISTOR 1

D7004 RBV-608 DIODE 1

D7151-

56 B0JAME000083 DIODE 6

D7161 B0EAKR000032 DIODE 1

D7201 MA4150M ZENER DIODE 1

D7203 MA8330M ZENER DIODE 1

D7204 MA111 DIODE 1

D7206 MAZ81500ML ZENER DIODE 1

D7207 MA729 DIODE 1

D7208 MA111 DIODE 1

D7211 MA4150M ZENER DIODE 1

D7212 MA4140M ZENER DIODE 1

D7214 1SS133 DIODE 1

D7220 MA111 DIODE 1

D7301 MA8100MTX ZENER DIODE 1

D7302 MA111 DIODE 1

D7303 MA8200M ZENER DIODE 1

D7304 MA111 DIODE 1

D7401 MA8056-M DIODE 1

D7402 MA111 DIODE 1

D7403 MA8130M ZENER DIODE 1

D7404 MA111 DIODE 1

D7501 MA111 DIODE 1

D7601,0

2B0HCMM000014 DIODE 2

D7603,0

4MTZJ16C DIODE 2

D7605 B0HCMM000014 DIODE 1

D7606-

08 MA111 DIODE 3

D7701 B0JCPG000005 DIODE 1

D7702 B0HCMM000014 DIODE 1

D7703 MA8100MTX ZENER DIODE 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

D7704 MA111 DIODE 1

DG2,G3 K1MN40B00044 40P CONNECTOR 2

DG4,G5 K1KB23A00003 23P CONNECTOR 2

DG6 K1KA08B00005 8P CONNECTOR 1

DG7 K1KB30B00032 30P CONNECTOR 1

DG10 K1KA60A00156 60P CONNECTOR 1

DG12 K1KA08A00293 8P CONNECTOR 1

DG13 K1KA07A00189 7P CONNECTOR 1

DG15 K1KA07A00132 7P CONNECTOR 1

DV15 K1KA60A00162 60P CONNECTOR 1

F7001-

1,-2 K3GE1ZA00010 FUSE HOLDER 2

F7300 K5G402A00028 FUSE 1

F7400 K5G402A00028 FUSE 1

F7900 K5G252A00022 FUSE 1

FL4012-

15 J0HABC000011 LC FILTER 4

FL4021,

22 J0JBD0000043 CHIP INDUCTOR 2

FL4026,

27 J0HAAB000036 LC FILTER 2

FL4031,

32 J0HAAB000036 LC FILTER 2

FL4037 J0HABH000012 LC FILTER 1

FL4044,

45 J0HAAB000036 LC FILTER 2

FL4047-

49 J0HAAB000036 LC FILTER 3

FL4051-

54 J0HAAB000036 LC FILTER 4

FL4056 J0JBD0000043 CHIP INDUCTOR 1

FL4057-

64 J0HABH000012 LC FILTER 8

FL4065 J0HAAB000036 LC FILTER 1

G1 TJS6A8490 9P CONNECTOR 1

G2 TJS1A9170 4P CONNECTOR 1

G4 K1KA30A00122 30P CONNECTOR 1

H1 K1KB23A00003 23P CONNECTOR 1

H2,H3 K1MN40B00044 40P CONNECTOR 2

H4 K1KA30AA0250 30P CONNECTOR 1

H12 TJS1A8840 8P CONNECTOR 1

H14 K1KA04A00195 4P CONNECTOR 1

H15 K1KA05A00139 5P CONNECTOR 1

IC1101 MN102H90MTG1 IC 1

IC1104 TVRN435 IC 1

IC1106 TVRN556-1 IC 1TC-26LX50

IC1106 TVRN434-1 IC 1TC-32LX50

IC2001 C1BB00000800 IC 1

IC2002,

03 NJM2904M LINEAR IC 2

IC2004 C1BB00000947 IC 1

IC2005-

08 C1BB00000998 IC 4

IC3001 AN15861A-VT IC 1

IC3002 AN5849SV IC 1

IC3007 C1AB00002123 IC 1

IC4001 C0ABBB000289 IC 1

IC4002 C0FBBK000038 IC 1

IC4005 C1AB00002204 IC 1

IC4033 C0ZBZ0000967 IC 1

IC4041 C0CBCAC00096 IC 1

IC4042 C0DBEJG00001 IC 1

IC4044 C0CBCAC00136 IC 1

IC4047 C0CBCBD00008 IC 1

IC4048 C0DBEJG00001 IC 1

IC4049 C0CBABF00009 IC 1

IC4051 C1ZBZ0002790 IC 1

IC4052 TVRN436-1 IC 1

TC-32LX50 / TC-26LX50

Ref.

No. Part No. Part Name &

Description Pcs Remarks

IC4054 C1AB00002234 IC 1

IC4055 C3ABQJ000040 IC 1

IC4057 C1AB00002217 IC 1

IC4065 C0CBCBD00043 IC 1

IC4067 C0EBF0000354 IC 1

IC4068 C0DBAMH00014 IC 1

IC4069 C0DBAMH00013 IC 1

IC5003 MN864721 IC 1

IC5015 C0CBCAD00016 IC 1

IC5017 C3EBFC000037 IC 1

IC7301 C5HAAKG00002 IC 1

IC7401 C5HAAKG00002 IC 1

IC7701 C0DAAZH00020 FUSE 1

JA4-A7 ERJ6GEY0R00 M 0 OHM, 1/10W 4

JA9-14 ERJ6GEY0R00 M 0 OHM, 1/10W 6

JK3002 K1U939A00001 CONNECTOR 1

JK3003 K2HA204A0041 JACK 1

JK3801A TJBA187 TERMINAL BOARD 1

JK5001 K1FA119D0001 CONNECTOR 1

JS1001 ERJ3GEY0R00 M 0 OHM, 1/16W 1

JS1101-

04 ERJ3GEY0R00 M 0 OHM, 1/16W 4

JS2003,

04 ERJ3GEY0R00 M 0 OHM, 1/16W 2

JS2005-

07 ERJ6GEY0R00 M 0 OHM, 1/10W 3

JS2801 ERJ3GEY0R00 M 0 OHM, 1/16W 1

JS3002 ERJ3GEY0R00 M 0 OHM, 1/16W 1

JS3003 ERJ6GEY0R00 M 0 OHM, 1/10W 1

JS3004 ERJ8GEY0R00 M 0 OHM, 1/8W 1

JS3019-

21 ERJ6GEY0R00 M 0 OHM, 1/10W 3

JS3033 ERJ6GEY0R00 M 0 OHM, 1/10W 1

JS3037-

48 ERJ6GEY0R00 M 0 OHM, 1/10W 12

JS3049 ERJ3GEY0R00 M 0 OHM, 1/16W 1

JS3054 ERJ3GEY0R00 M 0 OHM, 1/16W 1

JS3063-

66 ERJ3GEY0R00 M 0 OHM, 1/16W 4

JS3075-

77 ERJ3GEY0R00 M 0 OHM, 1/16W 3

JS3103,

04 ERJ6GEY0R00 M 0 OHM, 1/10W 2

JS4003 ERJ3GEY0R00 M 0 OHM, 1/16W 1

JS4005-

09 ERJ3GEY0R00 M 0 OHM, 1/16W 5

JS4026-

28 ERJ3GEY0R00 M 0 OHM, 1/16W 3

JS4035-

37 ERJ3GEY0R00 M 0 OHM, 1/16W 3

JS4042,

43 ERJ3GEY0R00 M 0 OHM, 1/16W 2

JS4068 ERJ3GEY0R00 M 0 OHM, 1/16W 1

JS4076-

78 ERJ3GEY0R00 M 0 OHM, 1/16W 3

JS4090 ERJ3GEY0R00 M 0 OHM, 1/16W 1

JS4100 ERJ3GEY0R00 M 0 OHM, 1/16W 1

JS4104 ERJ3GEY0R00 M 0 OHM, 1/16W 1

JS4109-

11 ERJ3GEY0R00 M 0 OHM, 1/16W 3

JS4131 ERJ3GEY0R00 M 0 OHM, 1/16W 1TC-26LX50

JS5003 ERJ3GEY0R00 M 0 OHM, 1/16W 1

K2 TJS1A9170 4P CONNECTOR 1

L1102 J0JHC0000078 CHIP INDUCTOR 1

L2001-

04 G1C330K00024 INDUCTION COIL 4

L2008-

11 J0JJC0000011 CHIP INDUCTOR 4

L3001 J0JHC0000078 CHIP INDUCTOR 1

L3002 TALL08N270KA INDUCTION COIL 1

L3006 TALL08N330KA INDUCTION COIL 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

L3007 J0JHC0000078 CHIP INDUCTOR 1

L4001 J0JHC0000078 CHIP INDUCTOR 1

L4002 G1C100KA0008 INDUCTOR COIL 1

L4003,0

4J0JHC0000078 CHIP INDUCTOR 2

L4006,0

7J0JHC0000078 CHIP INDUCTOR 2

L4028,2

9J0JHC0000078 CHIP INDUCTOR 2

L4030 J0JHC0000045 CHIP INDUCTOR 1

L4034 J0JHC0000045 CHIP INDUCTOR 1

L4037,3

8J0JHC0000045 CHIP INDUCTOR 2

L4039 J0JHC0000078 CHIP INDUCTOR 1

L4041,4

2J0JHC0000078 CHIP INDUCTOR 2

L4043 J0JCC0000241 CHIP INDUCTOR 1

L4046 J0JHC0000078 CHIP INDUCTOR 1

L4051 J0JHC0000078 CHIP INDUCTOR 1

L4052 J0JCC0000241 CHIP INDUCTOR 1

L4058-

60 J0JHC0000078 CHIP INDUCTOR 3

L4062 J0JHC0000078 CHIP INDUCTOR 1

L4063 J0JCC0000241 CHIP INDUCTOR 1

L4065,6

6J0JCC0000241 CHIP INDUCTOR 2

L4068-

70 J0JCC0000241 CHIP INDUCTOR 3

L4079 J0JCC0000241 CHIP INDUCTOR 1

L4081 J0JCC0000241 CHIP INDUCTOR 1

L4083 J0JHC0000078 CHIP INDUCTOR 1

L4090,9

1J0JHC0000078 CHIP INDUCTOR 2

L4092,9

3G1C220MA0077 INDUCTOR COIL 2

L4094,9

5G1A330ZA0007 CHOKE COIL 2

L4102 J0JHC0000078 CHIP INDUCTOR 1

L4104 J0JCC0000241 CHIP INDUCTOR 1

L4106 G1C100KA0008 INDUCTOR COIL 1

L4107-

09 J0JHC0000078 CHIP INDUCTOR 3

L4112 J0JHC0000078 CHIP INDUCTOR 1

L4117-

21 J0JDC0000054 CHIP INDUCTOR 5

L4126 J0JHC0000078 CHIP INDUCTOR 1

L5001-

03 J0JHC0000045 CHIP INDUCTOR 3

L5007 J0JHC0000045 CHIP INDUCTOR 1

L5012 J0JHC0000045 CHIP INDUCTOR 1

L5015-

18 J0MAB0000176 LC FILTER 4

L5021 J0JHC0000045 CHIP INDUCTOR 1

L5022 J0JCC0000166 CHIP INDUCTOR 1

L7201 G0A680GA0002 INDUCTION COIL 1

L7402 TALL08NR56MA INDUCTION COIL 1

L7504 G0A100GA0013 CHOKE COIL 1

L7702 VLQSH02R101K PEAKING COIL 1

L7951 G0A100GA0013 CHOKE COIL 1

L7955 G0A100GA0013 CHOKE COIL 1

L7959 G0A100GA0013 CHOKE COIL 1

L7962 G0A100GA0013 CHOKE COIL 1

L7966,6

7G0A100GA0013 CHOKE COIL 2

L7969,7

0EXCELDR35C BEAD CHOKE 2

LF7002 ELF18N025A LINE FILTER 1

LF7003 ELF18N020A LINE FILTER 1

LF7004 G0B650H00002 CHOKE COIL 1

Q1002 2SB709A TRANSISTOR 1

Q1004 2SB709A TRANSISTOR 1

Q1007,0

82SD601A TRANSISTOR 2

Q1103 2SC584500L TRANSISTOR 1

TC-32LX50 / TC-26LX50

Ref.

No. Part No. Part Name &

Description Pcs Remarks

Q1104 2SA207700L TRANSISTOR 1

Q1105,0

62SC584500L TRANSISTOR 2

Q1109 2SC584500L TRANSISTOR 1

Q1112 2SC584500L TRANSISTOR 1

Q1114 2SC584500L TRANSISTOR 1

Q2002 2SA207700L TRANSISTOR 1

Q2003 UN2213 TRANSISTOR 1

Q2004 2SC584500L TRANSISTOR 1

Q2005 2SD601A TRANSISTOR 1

Q2006 2SD0601A TRANSISTOR 1

Q2007-

09 2SC584500L TRANSISTOR 3

Q2012-

14 2SC584500L TRANSISTOR 3

Q2016 2SC584500L TRANSISTOR 1

Q3025 2SC584500L TRANSISTOR 1

Q3027 2SC584500L TRANSISTOR 1

Q3029 2SA207700L TRANSISTOR 1

Q3032-

37 2SA207700L TRANSISTOR 6

Q3038 UN521L TRANSISTOR 1

Q3039 B1DHDC000028 TRANSISTOR 1

Q4007,0

82SA207700L TRANSISTOR 2

Q4038,3

92SC584500L TRANSISTOR 2

Q4040 2SA207700L TRANSISTOR 1

Q4041 2SC584500L TRANSISTOR 1

Q4057 2SA207700L TRANSISTOR 1

Q4058 2SC584500L TRANSISTOR 1

Q4059 2SA207700L TRANSISTOR 1

Q4060,6

12SC584500L TRANSISTOR 2

Q4073,7

42SC584500L TRANSISTOR 2

Q4075,7

62SA207700L TRANSISTOR 2

Q4077 2SD601A TRANSISTOR 1

Q4078-

80 2SC584500L TRANSISTOR 3

Q4082 UN5211 TRANSISTOR 1

Q4086,8

7UN5211 TRANSISTOR 2

Q4091 UN2215 TRANSISTOR 1

Q4092 UN5211 TRANSISTOR 1

Q4093 2SA207700L TRANSISTOR 1

Q4095 UN5211 TRANSISTOR 1

Q4096 2SA207700L TRANSISTOR 1

Q4101 UN5211 TRANSISTOR 1

Q4102 2SA207700L TRANSISTOR 1

Q4103,0

42SC584500L TRANSISTOR 2

Q5001 B1MBACA00008 TRANSISTOR 1

Q5002,0

32SD601A TRANSISTOR 2

Q5004 2SC584500L TRANSISTOR 1

Q7203,0

42SD601A TRANSISTOR 2

Q7205,0

62SB709A TRANSISTOR 2

Q7207 2SD601A TRANSISTOR 1

Q7208 2SC584500L TRANSISTOR 1

Q7210 2SA207700L TRANSISTOR 1

Q7211 2SD602 TRANSISTOR 1

Q7212 2SC584500L TRANSISTOR 1

Q7214 2SD601A TRANSISTOR 1

Q7217,1

82SB709A TRANSISTOR 2

Q7219 2SD601A TRANSISTOR 1

Q7220 2SD602 TRANSISTOR 1

Q7301,0

2UN2214 TRANSISTOR 2

Q7401,0

2UN2214 TRANSISTOR 2

Q7501 UN2214 TRANSISTOR 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

Q7502 B1DHED000013 TRANSISTOR 1

Q7503 B1DHDD000033 TRANSISTOR 1

Q7504-

06 UN2214 TRANSISTOR 3

Q7508 2SD601A TRANSISTOR 1

Q7601 2SD602 TRANSISTOR 1

Q7701 UN2214 TRANSISTOR 1

Q7702 2SC584500L TRANSISTOR 1

R1002 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R1003 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R1005 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R1007 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R1008 ERJ3GEYJ511 M 511 OHM,J,1/16W 1

R1011 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R1013 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R1021 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R1023 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R1025,2

6ERJ6GEYJ103 M 10KOHM,J,1/10W 2

R1028 ERJ3GEYJ622 M 6.2KOHM,J,1/16W 1

R1030 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1031 ERJ6GEYJ183 M 18KOHM,J,1/10W 1

R1032 ERJ6GEYJ563 M 56KOHM,J,1/10W 1

R1101 ERJ3GEYJ273 M 27KOHM,J,1/16W 1

R1102 ERJ3GEYJ123 M 12KOHM,J,1/16W 1

R1103 ERJ3GEYJ273 M 27KOHM,J,1/16W 1

R1104 ERJ3GEYJ123 M 12KOHM,J,1/16W 1

R1111,1

2ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2

R1114 ERJ3GEYJ123 M 12KOHM,J,1/16W 1

R1115 ERJ3GEYJ153 M 15KOHM,J,1/16W 1

R1123 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R1128 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R1130,3

1ERJ3GEYJ102 M 1KOHM,J,1/16W 2

R1137 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R1138 ERJ3GEYJ221 M 220 OHM,J,1/16W 1

R1140,4

1ERJ3GEYJ102 M 1KOHM,J,1/16W 2

R1143,4

4ERJ3GEYJ560 M 56 OHM,J,1/16W 2

R1148 EXB2HVR000 RESISTOR ARRAY 1

R1149 ERJ3GEYJ274 M 270KOHM,J,1/16W 1

R1153-

60 ERJ3GEYJ560 M 56 OHM,J,1/16W 8

R1162,6

3ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R1165 ERJ3GEYJ560 M 56 OHM,J,1/16W 1

R1166 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R1170 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R1171,7

2ERJ3GEY0R00 M 0 OHM, 1/16W 2

R1174,7

5ERJ3GEYJ560 M 56 OHM,J,1/16W 2

R1178 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1179,8

0ERJ3GEYJ560 M 56 OHM,J,1/16W 2

R1181 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1182 EXB38VR000 RESISTOR ARRAY 1

R1183 ERJ3GEYJ560 M 56 OHM,J,1/16W 1

R1184 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R1185 EXB2HVR000 RESISTOR ARRAY 1

R1188 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1189 ERJ3GEYJ560 M 56 OHM,J,1/16W 1

R1190 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1

R1191 ERJ3GEYJ560 M 56 OHM,J,1/16W 1

R1192 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1

R1193 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1194,9

5ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R1196 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R1199 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R1200 EXB38VR000 RESISTOR ARRAY 1

R1201 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

TC-32LX50 / TC-26LX50

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R1203 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1204 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R1208 ERJ3EKF1800 M 180 OHM, 1/16W 1

R1209 EXB38VR000 RESISTOR ARRAY 1

R1210 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1211 ERJ3EKF1800 M 180 OHM, 1/16W 1

R1212 EXB2HVR000 RESISTOR ARRAY 1

R1213 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1214 ERJ3EKF1800 M 180 OHM, 1/16W 1

R1215 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1216 ERJ3EKF1800 M 180 OHM, 1/16W 1

R1217 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R1218 ERJ3EKF6801 M 6.8KOHM, 1/16W 1

R1219 ERJ3EKF3901 M 3.9KOHM, 1/16W 1

R1221 ERJ3EKF1801 M 1.8KOHM, 1/16W 1

R1223 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1

R1224 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1226 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1228 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R1229 ERJ3GEYJ333 M 33KOHM,J,1/16W 1

R1230 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1232 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1235-

38 ERJ3GEYJ102 M 1KOHM,J,1/16W 4

R1240,4

1ERJ3GEYJ102 M 1KOHM,J,1/16W 2

R1242 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R1249 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R1253-

55 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R1256 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R1261 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1264,6

5ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R1266 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R1267 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R1268 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R1269 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1

R1271 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R1272 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1

R1273 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R1277 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R1279 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R1280 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R1282 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R1285,8

6ERJ3GEYJ102 M 1KOHM,J,1/16W 2

R1288 ERJ3EKF7151 M7.15KOHM, 1/16W 1

R1289 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R1291 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R1292,9

3ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R1294,9

5ERJ3GEYJ182 M 1.8KOHM,J,1/16W 2

R1296 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R1297 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R1299 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R1301 ERJ3GEYJ563 M 56KOHM,J,1/16W 1

R1302 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R1305 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R1306 ERJ3GEYJ563 M 56KOHM,J,1/16W 1

R1307 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R1308 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R1310 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R1312 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1313 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R1314 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R1316 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1320,2

1ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R1322 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R1323 ERJ3GEYJ471 M 470 OHM,J,1/16W 1

R1343-

50 ERJ3GEY0R00 M 0 OHM, 1/16W 8

R1353 ERJ3GEY0R00 M 0 OHM, 1/16W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R1356 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R1359 ERJ3GEYJ221 M 220 OHM,J,1/16W 1

R1362 ERJ3GEYJ241 M 240 OHM,J,1/16W 1

R1365 ERJ3GEYJ123 M 12KOHM,J,1/16W 1

R1366 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R1369 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R2001,0

2ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2

R2003,0

4ERJ3GEYJ223 M 22KOHM,J,1/16W 2

R2005,0

6ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R2008,0

9ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R2011 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R2013 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R2014 ERJ6GEYJ393 M 39KOHM,J,1/10W 1

R2017 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R2018 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1

R2019,2

0ERJ6GEYJ103 M 10KOHM,J,1/10W 2

R2021 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R2022 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R2023 ERJ8GEYJ560V M 56 OHM, J,1/8W 1

R2024 ERJ8GEYJ682 M 6.8KOHM, J,1/8W 1

R2025 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R2026 ERJ3GEYJ184 M 180KOHM,J,1/16W 1

R2027-

29 ERJ3GEYJ473 M 47KOHM,J,1/16W 3

R2030 ERJ3GEYJ823 M 82KOHM,J,1/16W 1

R2031 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R2032 ERJ3GEYJ331 M 330 OHM,J,1/16W 1

R2033 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R2034 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R2035,3

6ERJ3GEYJ473 M 47KOHM,J,1/16W 2

R2037 ERJ3GEYJ823 M 82KOHM,J,1/16W 1

R2038,3

9ERJ3GEYJ473 M 47KOHM,J,1/16W 2

R2041,4

2ERJ3GEYJ393 M 39KOHM,J,1/16W 2

R2043,4

4ERJ3GEYJ683 M 68KOHM,J,1/16W 2

R2045 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1

R2046 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R2047,4

8ERJ6GEY0R00 M 0 OHM, 1/10W 2

R2049 ERJ3EKF2002 M 20KOHM, 1/16W 1

R2050 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R2051-

54 ERJ6GEY0R00 M 0 OHM, 1/10W 4

R2055 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R2056,5

7ERJ3GEYJ223 M 22KOHM,J,1/16W 2

R2060,6

1ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R2062-

65 ERJ3GEYJ104 M 100KOHM,J,1/16W 4

R2066,6

7ERJ3GEYJ102 M 1KOHM,J,1/16W 2

R2068-

70 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3

R2071-

74 ERJ3GEYJ223 M 22KOHM,J,1/16W 4

R2075 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R2078,7

9ERJ3GEYJ104 M 100KOHM,J,1/16W 2

R2080 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R2081,8

2ERJ3GEYJ153 M 15KOHM,J,1/16W 2

R2083 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R2084 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R2085 ERJ3GEYJ183 M 18KOHM,J,1/16W 1

R2087 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R2088 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R2089,9

0ERJ3GEYJ103 M 10KOHM,J,1/16W 2

TC-32LX50 / TC-26LX50

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R2099 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R2100 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R2101 ERJ6GEYJ474 M 470KOHM,J,1/10W 1

R2102 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1

R2103 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R2104 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R2105 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R2106 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R2107,0

8ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R2111 ERJ6GEYJ100 M 10 OHM,J,1/10W 1

R2112 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1

R2113 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1

R2121 ERJ6GEYJ474 M 470KOHM,J,1/10W 1

R2122 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1

R2123 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R2124 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R2125 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R2126 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R2127,2

8ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R2131 ERJ6GEYJ100 M 10 OHM,J,1/10W 1

R2132 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1

R2133 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1

R2136 ERJ3GEYJ153 M 15KOHM,J,1/16W 1

R2137 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R2138 ERJ3GEYJ153 M 15KOHM,J,1/16W 1

R2139 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R2140 ERJ3GEYJ153 M 15KOHM,J,1/16W 1

R2141 ERJ6GEYJ474 M 470KOHM,J,1/10W 1

R2142 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1

R2143 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R2144 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R2145 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R2146 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R2147,4

8ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R2151 ERJ6GEYJ100 M 10 OHM,J,1/10W 1

R2152 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1

R2153 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1

R2154 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R2155 ERJ3GEYJ153 M 15KOHM,J,1/16W 1

R2156 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R2161 ERJ6GEYJ474 M 470KOHM,J,1/10W 1

R2162 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1

R2163 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R2164 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R2165 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R2166 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R2167,6

8ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R2171 ERJ6GEYJ100 M 10 OHM,J,1/10W 1

R2172 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1

R2173 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1

R2200-

03 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 4

R2803,0

4ERJ6GEY0R00 M 0 OHM, 1/10W 2

R2806 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R3023 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R3024-

27 ERJ3GEYJ221 M 220 OHM,J,1/16W 4

R3028 ERJ3GEYJ823 M 82KOHM,J,1/16W 1

R3031 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R3034 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R3035,3

6ERJ6GEYJ220 M 22 OHM,J,1/10W 2

R3039,4

0ERJ3GEYJ102 M 1KOHM,J,1/16W 2

R3041,4

2ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R3043 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1

R3045 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R3049 ERJ6ENF75R0 M 75 OHM, 1/10W 1

R3149 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R3168 ERJ6GEYJ184 M 180KOHM,J,1/10W 1

R3172 ERJ6GEYJ184 M 180KOHM,J,1/10W 1

R3173 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R3175 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R3182 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1

R3185,8

6ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R3187 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R3188 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1

R3189 ERJ6GEYJ274 M 270KOHM,J,1/10W 1

R3191 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R3192 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R3196 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R3198 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R3200-

02 ERJ3GEYJ221 M 220 OHM,J,1/16W 3

R3203 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R3204,0

5ERJ3GEYJ221 M 220 OHM,J,1/16W 2

R3207-

09 ERJ3GEYJ221 M 220 OHM,J,1/16W 3

R3211 ERJ3GEYJ221 M 220 OHM,J,1/16W 1

R3212 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R3213 ERJ3GEYJ221 M 220 OHM,J,1/16W 1

R3215 ERJ3GEYJ221 M 220 OHM,J,1/16W 1

R3216,1

7ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R3218,1

9ERJ3GEYJ221 M 220 OHM,J,1/16W 2

R3221-

24 ERJ3GEYJ221 M 220 OHM,J,1/16W 4

R3225 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R3226 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R3227 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R3228-

33 ERJ3GEYJ221 M 220 OHM,J,1/16W 6

R3236-

43 ERJ3GEYJ221 M 220 OHM,J,1/16W 8

R3245 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R3247 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R3248-

53 ERJ6GEYJ184 M 180KOHM,J,1/10W 6

R3254,5

5ERJ6ENF75R0 M 75 OHM, 1/10W 2

R3256-

58 ERJ6GEYJ184 M 180KOHM,J,1/10W 3

R3259 ERJ6ENF75R0 M 75 OHM, 1/10W 1

R3260 ERJ6GEYJ184 M 180KOHM,J,1/10W 1

R3261-

69 ERJ6ENF75R0 M 75 OHM, 1/10W 9

R3270-

73 ERJ6GEYJ181 M 180 OHM,J,1/10W 4

R3275 ERJ6GEYJ181 M 180 OHM,J,1/10W 1

R3277 ERJ6GEYJ181 M 180 OHM,J,1/10W 1

R3278,7

9ERJ6GEYJ471 M 470 OHM,J,1/10W 2

R3282,8

3ERJ6GEYJ751 M 750 OHM,J,1/10W 2

R3286,8

7ERJ6GEYJ751 M 750 OHM,J,1/10W 2

R3288 ERJ6GEYJ151 M 150 OHM,J,1/10W 1

R3289 ERJ6GEYJ560 M 56 OHM,J,1/10W 1

R3290-

93 ERJ6GEYJ151 M 150 OHM,J,1/10W 4

R3294 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R3296-

00 ERJ6GEY0R00 M 0 OHM, 1/10W 5

R3301 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R3302 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1

R3303 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R3306 ERJ6GEYJ151 M 150 OHM,J,1/10W 1

R3308 ERJ6GEYJ151 M 150 OHM,J,1/10W 1

R3800,0

1ERJ12YJ560 M 56 OHM,J, 1/2W 2

R3807 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R3811-

13 ERJ6ENF75R0 M 75 OHM, 1/10W 3

TC-32LX50 / TC-26LX50

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R3817,1

8ERJ6GEYJ184 M 180KOHM,J,1/10W 2

R3820 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R3822 ERJ6ENF3161 M3.16KOHM, 1/10W 1

R3823 ERJ6ENF1741 M1.74KOHM, 1/10W 1

R3825 ERJ6ENF1621 M1.62KOHM, 1/10W 1

R3826 ERJ6ENF2321 M2.32KOHM, 1/10W 1

R3864,6

5ERJ6GEY0R00 M 0 OHM, 1/10W 2

R4042 ERJ3EKF1600 M 160 OHM, 1/16W 1

R4054 ERJ3EKF1371 M 13.7 OHM, 1/16W 1

R4062 ERJ3EKF1691 M1.69KOHM, 1/16W 1

R4064 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4066-

68 ERJ3GEYJ220 M 22 OHM,J,1/16W 3

R4071 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4073 EXB38V220J RESISTOR ARRAY 1

R4075 EXB38V220J RESISTOR ARRAY 1

R4077 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4079 EXB38V220J RESISTOR ARRAY 1

R4084,8

5EXB38V220J RESISTOR ARRAY 2

R4086-

88 ERJ3GEYJ220 M 22 OHM,J,1/16W 3

R4098-

00 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4104,0

5ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4115 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R4117 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4122 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4126 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R4132 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4145 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4154 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R4155 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R4163 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4164 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R4165 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R4169 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R4170,7

1ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4172,7

3ERJ6GEY0R00 M 0 OHM, 1/10W 2

R4174 ERJ3EKF4702 M 47KOHM, 1/16W 1

R4175 ERJ3EKF3602 M 36KOHM, 1/16W 1

R4176,7

7ERJ3EKF4702 M 47KOHM, 1/16W 2

R4178,7

9ERJ3GEYJ104 M 100KOHM,J,1/16W 2

R4180,8

1ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4182 ERJ3EKF1502 M 15KOHM, 1/16W 1

R4183 ERJ3EKF6802 M 68KOHM, 1/16W 1

R4185 ERJ3EKF5602 M 56KOHM, 1/16W 1

R4186 ERJ3EKF6802 M 68KOHM, 1/16W 1

R4187,8

8ERJ6GEY0R00 M 0 OHM, 1/10W 2

R4203 ERJ3EKF8200 M 820 OHM, 1/16W 1

R4241 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4255,5

6ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4268 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4270,7

1ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4274,7

5ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4279-

83 ERJ3GEY0R00 M 0 OHM, 1/16W 5

R4290-

95 ERJ3GEY0R00 M 0 OHM, 1/16W 6

R4298 ERJ3GEYJ560 M 56 OHM,J,1/16W 1

R4299-

01 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4303 ERJ3GEYJ560 M 56 OHM,J,1/16W 1

R4305,0

6ERJ3GEYJ220 M 22 OHM,J,1/16W 2

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R4308,0

9ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4310,1

1ERJ3EKF3302 M 33KOHM, 1/16W 2

R4312 ERJ3EKF2202 M 22KOHM, 1/16W 1

R4313 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R4314,1

5ERJ3EKF6192 M61.9KOHM, 1/16W 2

R4316-

20 ERJ3GEY0R00 M 0 OHM, 1/16W 5

R4322 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4324 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R4325 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4326 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R4327 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4328-

30 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R4331 ERJ3GEYJ330 M 33 OHM,J,1/16W 1

R4332 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4333 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4334,3

5ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4336 ERJ3GEYJ105 M 1MOHM,J,1/16W 1

R4338,3

9ERJ6GEYJ102 M 1KOHM,J,1/10W 2

R4340,4

1ERJ3GEYJ331 M 330 OHM,J,1/16W 2

R4342 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R4344,4

5ERJ3GEYJ473 M 47KOHM,J,1/16W 2

R4348,4

9ERJ6GEYJ471 M 470 OHM,J,1/10W 2

R4350 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4353,5

4ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4355 ERJ3EKF1202 M 12KOHM, 1/16W 1

R4356 ERJ3EKF1800 M 180 OHM, 1/16W 1

R4357 ERJ3EKF2001 M 2KOHM, 1/16W 1

R4358 ERJ3EKF4302 M 43KOHM, 1/16W 1

R4359,6

0ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R4361-

65 ERJ3GEY0R00 M 0 OHM, 1/16W 5

R4366,6

7D1HG1018A002 NETWORK RESISTER 2

R4370,7

1ERJ3EKF1741 M 17.4 OHM, 1/16W 2

R4374-

76 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4377 EXB38V101J RESISTOR ARRAY 1

R4381-

84 ERJ3GEYJ680 M 68 OHM,J,1/16W 4

R4386 EXB2HV680J RESISTOR ARRAY 1

R4388 EXB2HV680J RESISTOR ARRAY 1

R4389 ERJ3GEYJ560 M 56 OHM,J,1/16W 1

R4390 EXB2HV680J RESISTOR ARRAY 1

R4392 EXB2HV680J RESISTOR ARRAY 1

R4393 ERJ3GEYJ680 M 68 OHM,J,1/16W 1

R4394 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4395 ERJ3GEYJ750 M 75 OHM,J,1/16W 1

R4396 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4397 ERJ3GEYJ393 M 39KOHM,J,1/16W 1

R4399-

01 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4402 EXB38V680J RESISTOR ARRAY 1

R4403 ERJ3GEYJ680 M 68 OHM,J,1/16W 1

R4404 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4405 ERJ3GEYJ680 M 68 OHM,J,1/16W 1

R4406,0

7ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R4410 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4411 EXB2HV680J RESISTOR ARRAY 1

R4412 EXB38V680J RESISTOR ARRAY 1

R4413,1

4ERJ3EKF3002 M 30KOHM, 1/16W 2

R4416 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4421 ERJ3GEY0R00 M 0 OHM, 1/16W 1

TC-32LX50 / TC-26LX50

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R4422,2

3ERJ3EKF1741 M 17.4 OHM, 1/16W 2

R4424 ERJ3GEYJ820 M 82 OHM,J,1/16W 1

R4425 ERJ3GEYJ680 M 68 OHM,J,1/16W 1

R4426-

30 ERJ3GEY0R00 M 0 OHM, 1/16W 5

R4432,3

3ERJ3EKF3002 M 30KOHM, 1/16W 2

R4435 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4437 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4439,4

0ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4441-

46 ERJ3GEYJ100 M 10 OHM,J,1/16W 6

R4449 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4450 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4451 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4452 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R4467 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R4468,6

9ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4470 EXB2HV101J RESISTOR ARRAY 1

R4474 EXB2HV101J RESISTOR ARRAY 1

R4478-

82 ERJ3GEYJ101 M 100 OHM,J,1/16W 5

R4484 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4485 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4486 ERJ3GEYJ154 M 150KOHM,J,1/16W 1

R4487 ERJ3GEYJ563 M 56KOHM,J,1/16W 1

R4494 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4495 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4497 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R4498 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4501 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R4502 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4507 D1HG8208A002 NETWORK RESISTER 1

R4508 ERJ3EKF2200 M 220 OHM, 1/16W 1

R4509 ERJ3EKF4701 M 4.7KOHM, 1/16W 1

R4510 D1HG8208A002 NETWORK RESISTER 1

R4511,1

2ERJ3EKF1741 M 17.4 OHM, 1/16W 2

R4513 ERJ3GEYJ564 M 560KOHM,J,1/16W 1

R4514 D1HG8208A002 NETWORK RESISTER 1

R4515,1

6ERJ3GEYJ820 M 82 OHM,J,1/16W 2

R4524 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4537 ERJ3GEYJ563 M 56KOHM,J,1/16W 1

R4538 ERJ3GEYJ154 M 150KOHM,J,1/16W 1

R4540 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4542 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4543 EXB38V101J RESISTOR ARRAY 1

R4559-

61 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4568 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4584 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4593,9

4ERJ6GEYJ471 M 470 OHM,J,1/10W 2

R4595,9

6ERJ3EKF6800 M 680 OHM, 1/16W 2

R4597 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R4598 ERJ6GEYJ821 M 820 OHM,J,1/10W 1

R4601,0

2ERJ6GEYJ471 M 470 OHM,J,1/10W 2

R4604 ERJ3EKF3900 M 390 0HM, 1/16W 1

R4605 ERJ3EKF1500 M 150 OHM, 1/16W 1

R4606 ERJ3EKF56R0V M 56 OHM, 1/16W 1

R4607,0

8ERJ3EKF9100 M 910 OHM, 1/16W 2

R4609 ERJ3EKF1801 M 1.8KOHM, 1/16W 1

R4610 ERJ3GEYF5100 M 510 OHM, 1/16W 1

R4611 ERJ3EKF1501 M 1.5KOHM, 1/16W 1

R4613,1

4ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4616,1

7ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4619 ERJ3EKF1500 M 150 OHM, 1/16W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R4628 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4629 ERJ3GEYJ820 M 82 OHM,J,1/16W 1

R4630 ERJ3GEYJ680 M 68 OHM,J,1/16W 1

R4637 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4638,3

9ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R4640-

44 ERJ3GEY0R00 M 0 OHM, 1/16W 5

R4645 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4646 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4647 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4649 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R4650,5

1ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4655,5

6ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4657 ERJ3EKF6200 M 620 OHM, 1/16W 1

R4658,5

9ERJ3GEYJ820 M 82 OHM,J,1/16W 2

R4661 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4662 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4672 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4685 ERJ3EKF1001 M 1KOHM, 1/16W 1

R4686 ERJ3EKF9100 M 910 OHM, 1/16W 1

R4687 ERJ3GEYJ331 M 330 OHM,J,1/16W 1

R4690 ERJ3EKF2201 M 2.2KOHM, 1/16W 1

R4691,9

2ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4693,9

4ERJ3EKF1741 M 17.4 OHM, 1/16W 2

R4695 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4697 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4703 ERJ3EKF3001 M 3KOHM, 1/16W 1

R4707 ERJ3EKF4701 M 4.7KOHM, 1/16W 1

R4708 ERJ3EKF5101 M 5.1KOHM, 1/16W 1

R4712 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4713 ERJ3EKF3901 M 3.9KOHM, 1/16W 1

R4714,1

5ERJ3GEYJ102 M 1KOHM,J,1/16W 2

R4716 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4721-

24 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R4726 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R4727,2

8ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4729 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4730 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4732 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4734 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4735 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4736,3

7ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4739-

43 ERJ3GEY0R00 M 0 OHM, 1/16W 5

R4744-

46 EXB38VR000 RESISTOR ARRAY 3

R4747 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4748,4

9EXB38VR000 RESISTOR ARRAY 2

R4750 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4754 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4755-

57 ERJ3GEYJ560 M 56 OHM,J,1/16W 3

R4759-

61 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4763-

65 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4767 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4780,8

1ERJ3GEYJ102 M 1KOHM,J,1/16W 2

R4782 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4786 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R5002,0

3ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R5006 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R5007 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R5011 ERJ3GEY0R00 M 0 OHM, 1/16W 1

TC-32LX50 / TC-26LX50

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R5013 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R5014,1

5ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2

R5017 ERJ3GEYJ393 M 39KOHM,J,1/16W 1

R5018 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R5019 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R5020 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R5021 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R5022 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R5023 ERJ3GEYJ680 M 68 OHM,J,1/16W 1

R5024,2

5ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R5030 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R5033-

35 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R5036 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R5037-

39 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R5040 EXB38V330J RESISTOR ARRAY 1

R5041,4

2ERJ3GEYJ330 M 33 OHM,J,1/16W 2

R5043 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R5044,4

5ERJ3GEY0R00 M 0 OHM, 1/16W 2

R5077,7

8ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R5176 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R5196 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R5334 D1HG5608A002 NETWORK RESISTER 1

R5335 ERJ3GEYJ330 M 33 OHM,J,1/16W 1

R5336 ERJ3GEYJ560 M 56 OHM,J,1/16W 1

R5337,3

8ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2

R5347-

50 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R5353 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R5354 ERJ3GEYJ330 M 33 OHM,J,1/16W 1

R5356 ERJ3GEYJ330 M 33 OHM,J,1/16W 1

R5359 ERJ3GEYJ330 M 33 OHM,J,1/16W 1

R5366 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R5367 D1HG5608A002 NETWORK RESISTER 1

R5369-

72 ERJ3GEYJ560 M 56 OHM,J,1/16W 4

R5374 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R5375 ERJ3GEYJ330 M 33 OHM,J,1/16W 1

R5376 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R5391 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R5392,9

3ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2

R5394,9

5ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R5396 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R5399 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1

R7003 ERD75TAJ825 C 8.2MOHM, J,3/4W 1

R7004 ERF5ZK4R7 W 4.7 OHM, K, 5W 1

R7152 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R7160 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R7207 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R7208 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R7209 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R7210,1

1ERJ6GEYJ473 M 47KOHM,J,1/10W 2

R7212 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R7213-

16 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 4

R7217 ERDS2TJ102 C 1KOHM, J,1/4W 1

R7219 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R7220 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R7221 ERJ14YJ222 M 22KOHM, J,1/4W 1

R7223 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R7224 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 1

R7225 ERJ14YJ222 M 22KOHM, J,1/4W 1

R7227 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R7228,2

9ERJ6GEYJ473 M 47KOHM,J,1/10W 2

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R7232,3

3ERJ14YJ152U M 15KOHM, J,1/4W 2

R7234 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R7237,3

8ERJ6GEYJ223 M 22KOHM,J,1/10W 2

R7241 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R7242 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R7243 ERJ6ENF1002 M 10KOHM, 1/10W 1

R7247 ERJ6ENF2702 M 27KOHM, 1/10W 1

R7250 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R7256,5

7ERJ6GEYJ473 M 47KOHM,J,1/10W 2

R7258,5

9ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2

R7260 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R7261 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R7262-

64 ERDS2TJ241 C 240 OHM, J,1/4W 3

R7266 ERDS2TJ181 C 180 OHM, J,1/4W 1

R7267 ERDS2TJ330 C 33 OHM, J,1/4W 1

R7271 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R7272,7

3ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2

R7274,7

5ERDS2TJ181 C 180 OHM, J,1/4W 2

R7285,8

6ERJ6GEY0R00 M 0 OHM, 1/10W 2

R7288 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R7290 ERDS2TC0 C0OHM,1/4W 1

R7301 ERJ6ENF2051 M2.05KOHM, 1/10W 1

R7302 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R7303 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R7304 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R7305 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R7309 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R7311 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R7402 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R7403 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R7404 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R7405 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R7406 ERJ6ENF3901 M 3.9KOHM, 1/10W 1

R7501,0

2ERJ6GEYJ223 M 22KOHM,J,1/10W 2

R7503 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R7504 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R7505 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R7506 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R7507 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R7508 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R7509 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R7510 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R7602 ERG1SJ330P M 33 OHM, J, 1W 1

R7603 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R7604 ERJ6GEYJ220 M 22 OHM,J,1/10W 1

R7702 ERJ6ENF1001 M 1KOHM, 1/10W 1

R7703 ERJ6ENF3241 M3.24KOHM, 1/10W 1

R7704 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R7705 ERJ12YJ471 M 470OHM,J, 1/2W 1

R7707 ERDS2TJ183 C 18KOHM, J,1/4W 1

R7708 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R7709 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R7710 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R7711 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R7712 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R7906,0

7ERJ6GEY0R00 M 0 OHM, 1/10W 2

RL7001,

02 TSEH8011 RELAY 2

RM1001 PNA4701M05TV REMOCO RECEIVER 1

RTL ETXMM565ABB POWER UNIT 1

RTL TNPA3509AB CIRCUIT BOARD AP 1

RTL TNPA3514AB CIRCUIT BOARD K 1

TC-32LX50 / TC-26LX50

Ref.

No. Part No. Part Name &

Description Pcs Remarks

RTL TNPA3569AB CIRCUIT BOARD V 1

RTL TNPA3639AD CIRCUIT BOARD G 1

RTL TNPH0622AB CIRCUIT BOARD H 1

RTL TXNDG10LCM CIRCUIT BOARD DG 1TC-32LX50

RTL TXNDG10LDM CIRCUIT BOARD DG 1TC-26LX50

RTL TXNDV10LCM CIRCUIT BOARD DV 1

SN1001 B3L000000020 IC 1

SW2801 K0F162B00002 SWITCH 1

SW3803-

07 EVQPB105K SWITCH 5

T7151 ETP28KBZA17G TRANS 1

TU3001 ENG36A16GF TUNER 1

V1 TJS6A8490 9P CONNECTOR 1

X1101 H0J327200114 CRYSTAL 1

X1102 H0J400400017 CRYSTAL 1

X4002 H0J270500087 CRYSTAL 1

ZA3001,

02 K4CD01000011 TERMINAL 2

ZA3003 K9ZZ00000424 CONNECTOR 1

ZA3006,

07 K9ZZ00000424 CONNECTOR 2

ZA4006-

16 TESA169 SHIELD CLIP 11

ZA4018-

22 TESA169 SHIELD CLIP 5

ZA4027,

28 TESA169 SHIELD CLIP 2

ZA4033 TESA169 SHIELD CLIP 1

ZA5001 K4CD01000011 TERMINAL 1

ZA5002,

03 TESA169 SHIELD CLIP 2

ZA5005 K4CD01000011 TERMINAL 1

ZA7002-

05 K9ZZ00000424 CONNECTOR 4

TC-32LX50 / TC-26LX50

TC26LX50

Navigation menu

Versions of this User Manual:

Views

Navigation
