Visit us at eriks-techdirect.co.uk

to find your local Service Centre

57

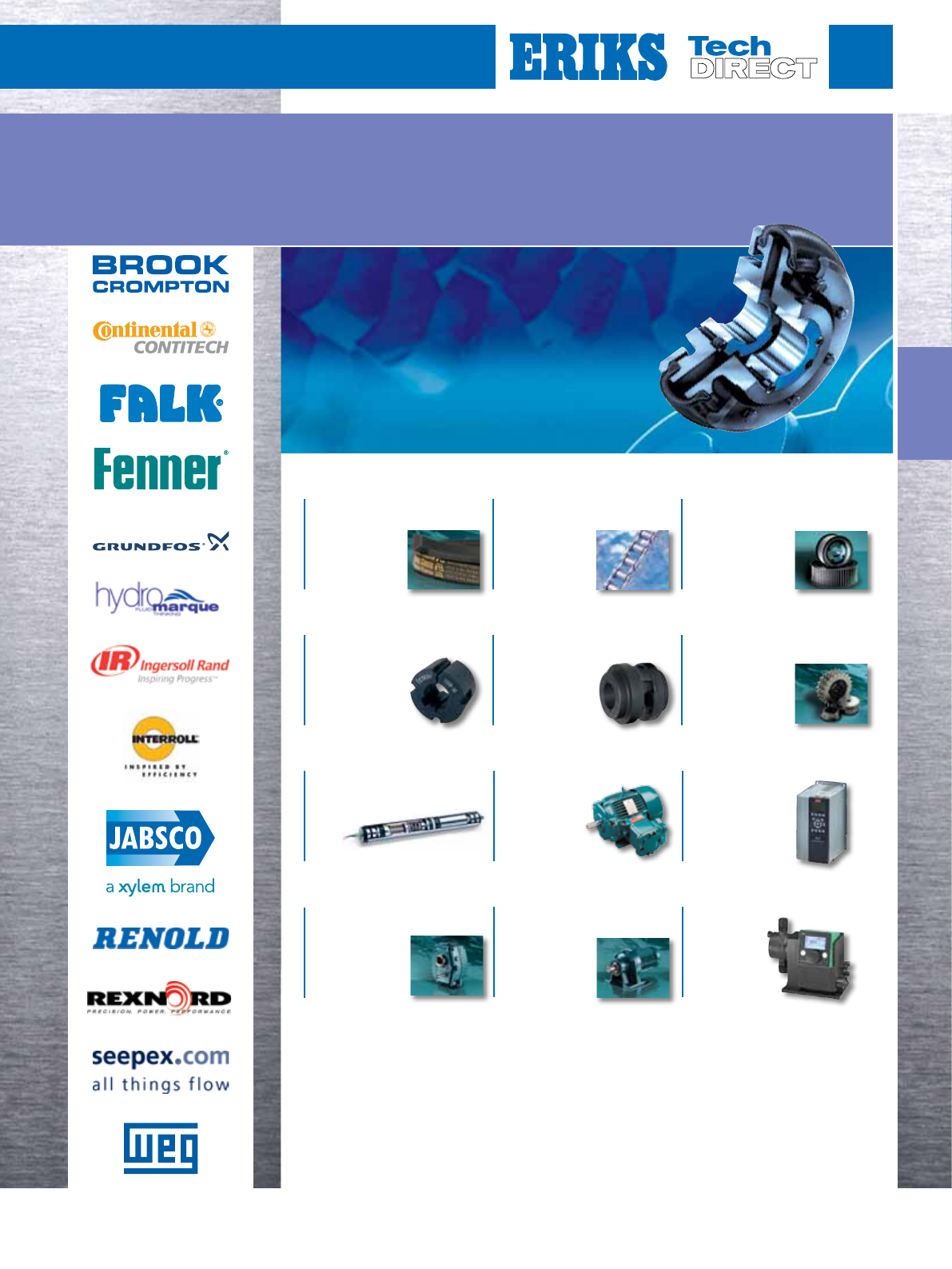

DRIVES & POWER TRANSMISSION

QUICK

REFERENCE

Motors Inverters

Pumps

Speed Reducers

Belts

Bushes

Chains

Couplings

Pulleys

Sprockets

POWER

TRANSMISSION

Gearboxes

106-118100-102

99

92,

95-97

88-91,

94

8072-74

68-69, 71

67, 78

66,

79-84

60-66,

70, 76-77

See page 114

See pages 90-92

See page 118

See pages 81-85

See pages 106-107

See pages 60-65, 67-73,

76-80, 94, 96-97, 99-103

See page 66

See pages 88-89

See page 74

See page 75

See page 108-109

See pages 86-87

See page 111

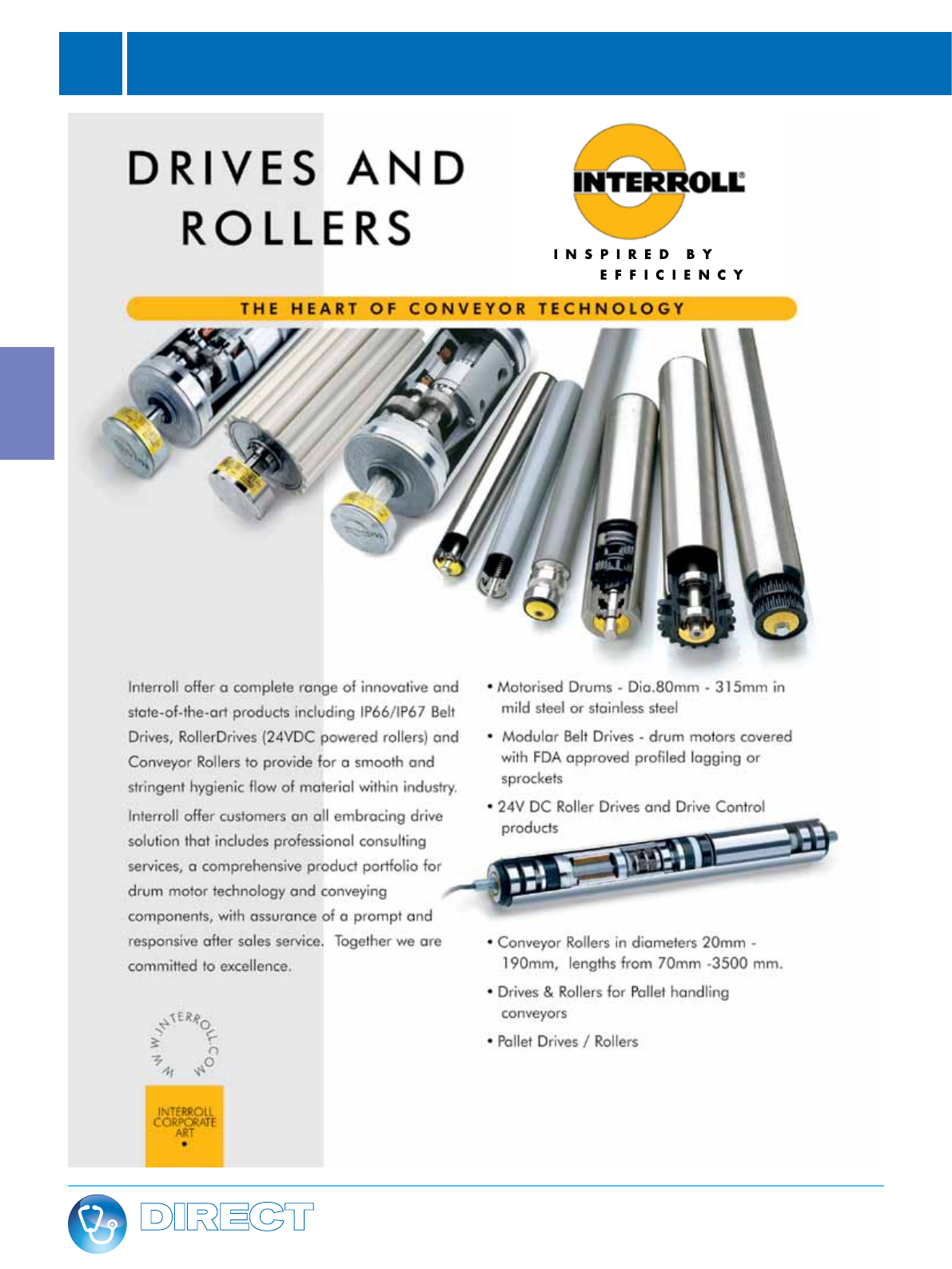

Drives and

Rollers

86-87

Power Transmission

TechKNOWLEDGEy

58

POWER

TRANSMISSION

Power Transmission

True reliability is more than simply continuous operation. It means a continuous

level of performance, minimal energy consumption and a predictable lifespan

– enabling you to be confident in your business planning. ERIKS

Core Competence for Drives and Power Transmissions is

the only credible choice for a sustainable solutions.

ERIKS has

the resources

and know-how

to repair and

maintain your

existing drives

and pumps.

Customised Solutions:

n In-house belt cutting service

n In-house sprocket reworking

n Coupling modifications

n Gearbox and motor modifications to suit design

n In-house gearbox assembly for fast turnaround

n Product customisation, assembly and testing

Product Range:

Power Transmissions

n Friction belts and pulleys

n Synchronous belts and pulleys

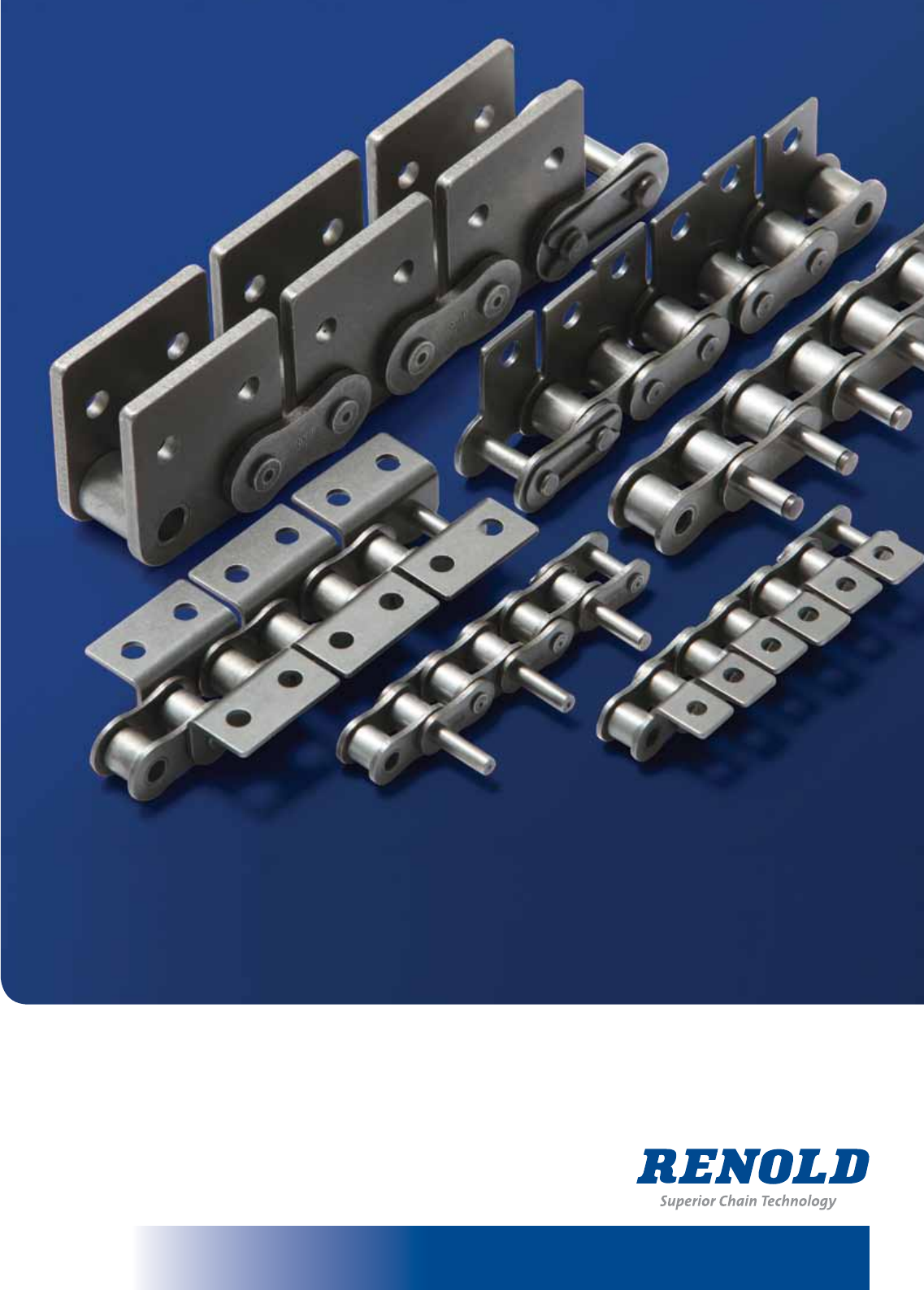

n Chain and sprockets

n Conveyor chain

n Couplings

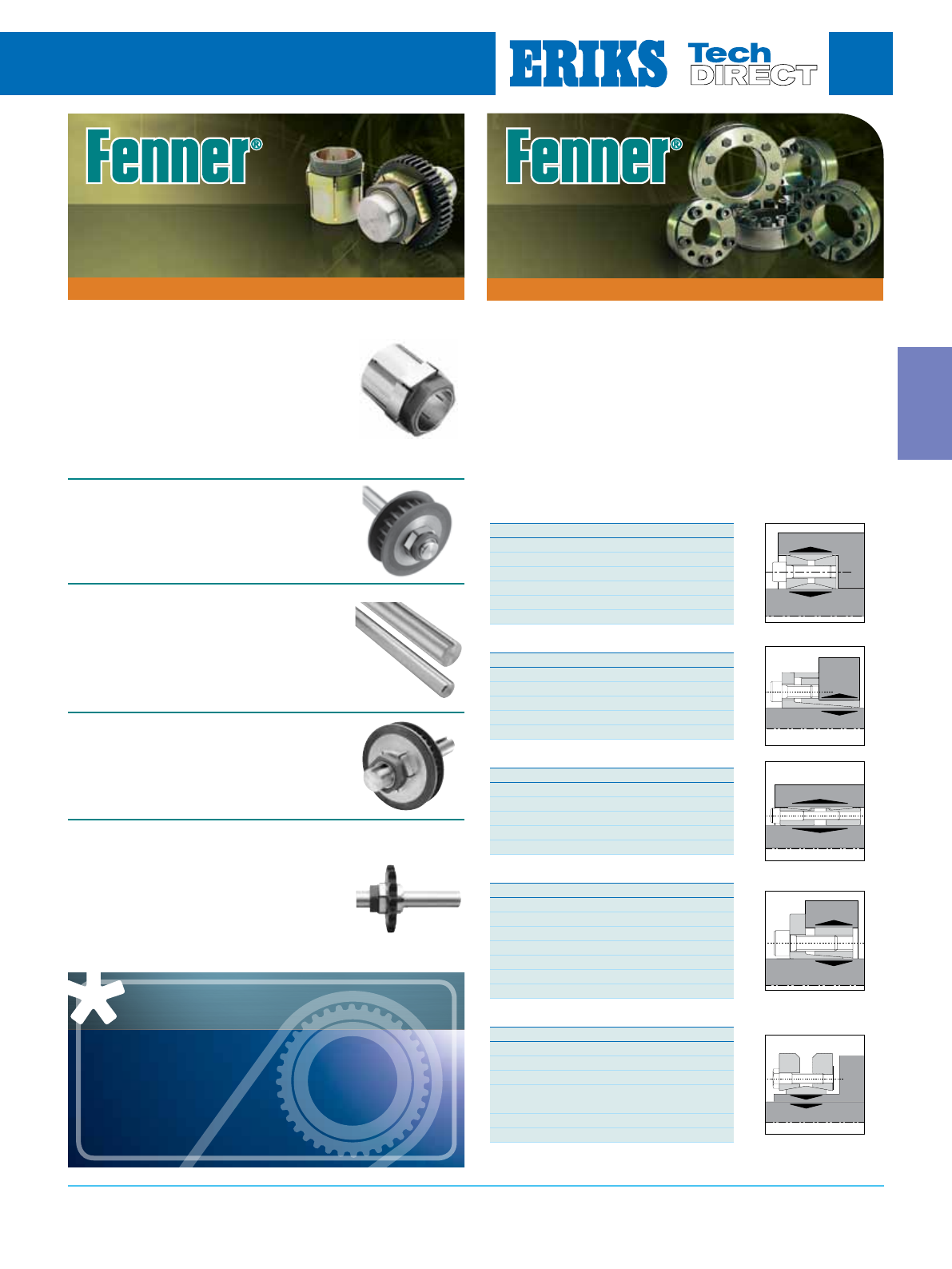

n Shaft fixings

Drives

n Gearboxes

n Geared motors

n Electric motors

n Frequency inverters

n Starters and controllers

n Automation

Reducing your

Total Cost of Ownership:

n Online repair/replace selectors

n Online product selectors

n Energy saving upgrades

n Energy monitoring and audits

n Funding advice and savings

n Application payback calculations

n Online installation videos

Your Complete Drives Solution:

n Unrivalled in-house application and technical support

n Unbiased brand and product solutions

n Improved plant/application efficiency

n Reduce energy consumption

Specialist Technical Centres

Know-How

59

Visit us at eriks-techdirect.co.uk

to find your local Service Centre

POWER

TRANSMISSION

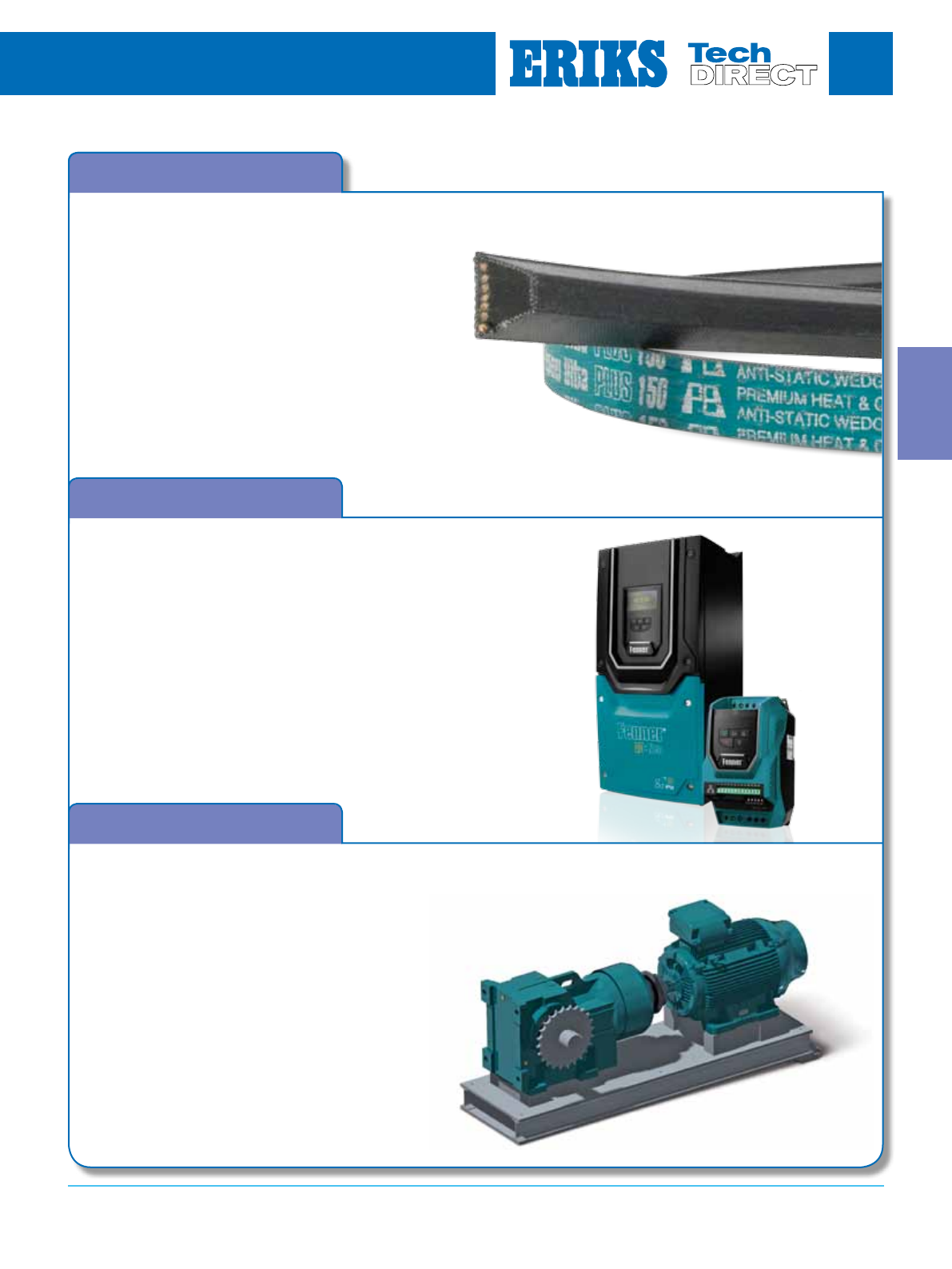

ULTRA PLUS 150

Fenner Ultra PLUS 150 drive belts are specifically

designed for applications where rugged durability

is paramount, combining the highest level of

performance with the longest service life possible.

The Fenner QD:Neo offers the perfect combination of high performance

and ease of use, providing a solid solution for even the most demanding

of applications. The Fenner QD:Neo is suitable for use with both

standard induction and permanent magnet motors.

n Sensorless vector control: Up to 200% torque from 0 speed

ensures reliable starting and accurate speed control

n PM motor control future proof: Can be upgraded to the latest

high efficiency permanent magnet motors

n I/O & Communications: The Fenner QD:Neo supports a wide

range of machine control system interfaces

n Greater reliability and working life

n Increased power rating potentially reducing the

number of belts required and grooves on a pulley

n Length stability, minimal stretch and elongation

NEO

DESIGN CAPABILITY

The vast range of ERIKS drive components gives our

drive design engineers the freedom to design and build

complete solutions for our customers no matter what

the driver is. Using standard components from the range

allied with specially designed and produced components,

ERIKS can design, draw and produce the ideal package

depending on your specific cost, longevity or total cost of

ownership requirement.

60

POWER

TRANSMISSION

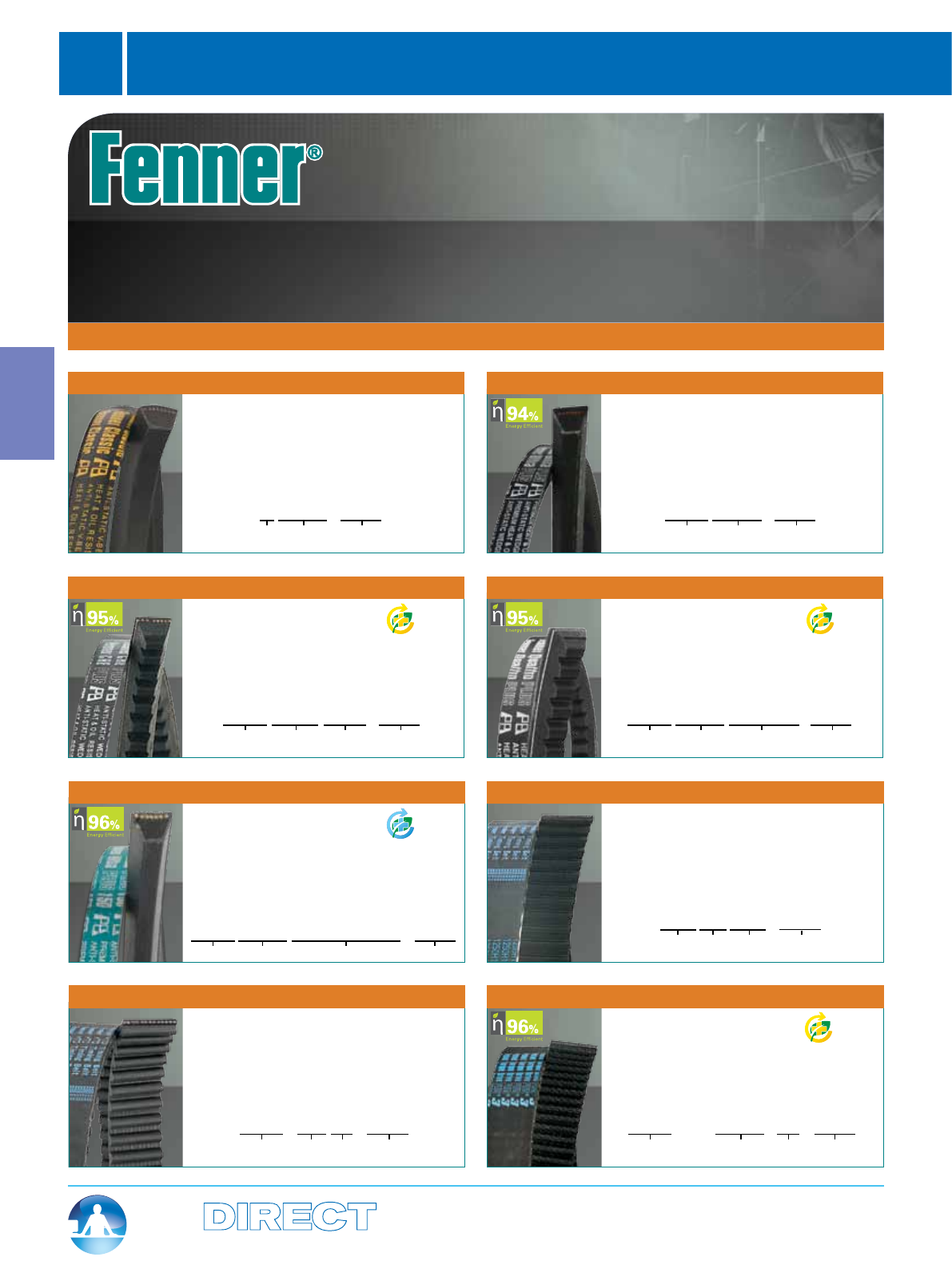

Belt Selector and High Strength Wedge Belts

The Performance Standard

Fenner belt drives have an enviable worldwide reputation achieved by

performing in the harshest of environments. From high power drives in

quarries through critical pumps in chemical processing plants, to the

smallest heating and ventilation fans, Fenner belt drives have continued

to provide exceptional service over the past 150 years.

Belt

Section

Pitch Length

(mm)

Fenner

Brand

B2000-FEN

Sections: Z, A, B, C and D

Length: 370–13700mm

The first precision built vee belt product.

Relative power 75%

Belt

Section

Pitch Length

(mm)

Belt Type Fenner

Brand

SPA1400CRE-FEN

Sections: XPZ, XPA, XPB, XPC,

Length: 630–5000mm

Cogged construction using fibre

re-inforced polychloroprene rubber, giving

increased power transmission capacity.

Relative power 110%

Sections: USPB, USPC

Length: 1600–12500mm

Asymmetric weave outer jacket,

polychloroprene rubber core with high

tensile aramid cords provide excellent length stability,

tensile strength and increased power transmission.

Relative power 150%

Length

(mm)

Pitch

(mm)

Width

(mm)

Fenner

Brand

1040-8M30-FEN

Widths: 9–170mm

Pitches: 5, 8, 14mm

Next generation of synchronous belt with polyester

cords and a curvilinear tooth form.

Relative power 100%

Belt

Section

Pitch Length

(mm)

Fenner

Brand

SPB2240-FEN

Sections: SPZ, SPA, SPB, SPC, 8V

Length: 487–12500mm

Increased section depth, upgraded materials and

precision built for superior length matching.

Relative power 100%

Belt

Section

Pitch Length

(mm)

Belt Type Fenner

Brand

SPA1400FOZ-Q-FEN

Sections: QXPZ, QXPA, QXPB, QXPC

Length: 630–5000mm

Premium CRE construction using fibre

re-inforced polychloroprene rubber giving

increased power transmission and efficiency.

Relative power 130%

Length

(inch)

Pitch Width

(inch)

Fenner

Brand

240XL037-FEN

Widths: ¼"–4"

Pitches: XL, L, H, XH, XXH

The original rubber timing belt with trapezoidal tooth form.

Relative power 65%

Pitch

(mm)

Length

(mm)

Width

(mm)

Fenner

Brand

14MXP-3150-55-FEN

Widths: 20–170mm

Pitches: 8, 14mm

State-of-the art belt with glass

fibre cords, curvilinear tooth form

and chloroprene rubber material.

Relative power 150%

POSITIVE

RISK

REDUCTION

POSITIVE

WASTE

REDUCTION

POSITIVE

POLLUTION

REDUCTION

POSITIVE

ENERGY

REDUCTION

POSITIVE

RISK

REDUCTION

POSITIVE

WASTE

REDUCTION

POSITIVE

POLLUTION

REDUCTION

POSITIVE

ENERGY

REDUCTION

POSITIVE

RISK

REDUCTION

POSITIVE

WASTE

REDUCTION

POSITIVE

POLLUTION

REDUCTION

POSITIVE

ENERGY

REDUCTION

POSITIVE

RISK

REDUCTION

POSITIVE

WASTE

REDUCTION

POSITIVE

POLLUTION

REDUCTION

POSITIVE

ENERGY

REDUCTION

www.fptgroup.com

Belt Section Pitch Length (mm) Belt Type Fenner Brand

SPC7500ULTRA150-FEN

Classical Vee Belts Ultra PLUS Wedge Belts

Quattro PLUS CRE BeltsCRE PLUS Wedge Belts

Ultra PLUS 150 Wedge Belts Classical Timing Belts

Torque Drive PLUS 3 (TDP3)High Torque Drive (HTD) Belts

To your Local Service Centre

Go

State of the art, high efficiency drive belt engineering

Fenner is a registered trade mark of J. H. Fenner & Co.

Fenner® Ultra Plus 150

The new generation of heavy duty drive belt

for the harshest of environments...

THE MARK OF ENGINEERING EXCELLENCE

Fenner’s Ultra Plus 150 drive belts

are specifically designed for applications

where rugged durability is paramount,

combining the highest level of performance

with the longest service life possible. Energy Efficient

www.fptgroup.com

Unsurpassed strength

Fibre reinforced polychloroprene

rubber supports the cords and

ensures unsurpassed rigidity

when installed.

50% more power

High Tensile Aramid Cords transmit

50% more power than standard

wrapped wedge belts.

96% energy efficiency

A-symmetrical weave outer jacket

produces belt length stability

second to none, guaranteeing

unbeatable efficiency.

Ideal for heavy duty applications :

> Waste compactors

> Shredders

> Crushers

> Heavy duty conveyors

> Bucket elevators

> Woodworking machinery

> Quarry plant

> Saw mills

> Calendars

> Compressors

62

POWER

TRANSMISSION

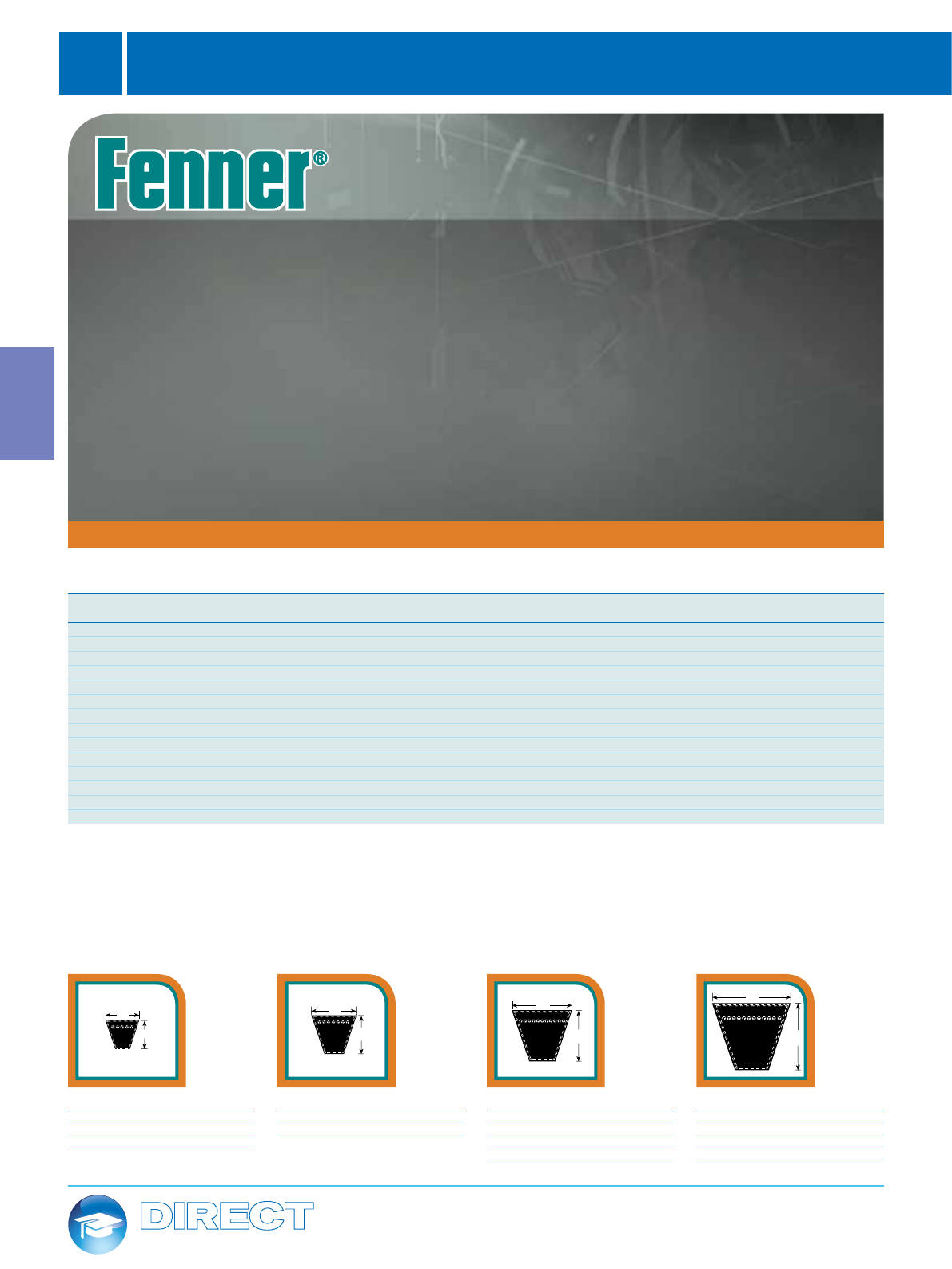

Vee Belts and Wedge Belts

Part No Description

POWERTWIST-Z Z Section Link Belting

POWERTWIST-A A Section Link Belting

POWERTWIST-B B Section Link Belting

POWERTWIST-C C Section Link Belting

POWERTWIST-AA A Section Double-sided Link Belting

POWERTWIST-BB B Section Double-sided Link Belting

PowerTwist PLUS®

Fenner PowerTwist PLUS®

n Available in 1m and 2m lengths or 10m boxed lengths

n Available with special backings for use in conveying applications

n Water, chemical and oil resistance

n Operates in a wide temperature range (–40°C to 110°C)

n Available ex-stock

n Specials also available, Double V sections and ground round sections

Vee Belts offer a versatile and economical low maintenance

drive which is standardised throughout the world.

Fenner Classic Vee Belts are fully approved to all international

standards allowing for optimised drives for compact size and economy.

However, the Fenner range of Power PLUS wrapped wedge belts

transmit significantly more power than the classical vee product

and run in the same pulleys!

State-of-the-art solution for emergency

replacement and fitment into inaccessible areas.

Classic Vee Belts...

Ever Considered Trading Up?

Increase performance and reduce costs by

upgrading your belts.

A well known aggregate production plant was encountering

problems with a fan on their site. The maintenance team

were replacing drive belts on a basis which was becoming

more and more frequent and the situation couldn’t continue.

After a site visit, the problems with this drive were

self-evident to the ERIKS Drives Core Competence Centre.

Not only were the pulley grooves severely worn, the

customer was using classic vee belts C4450 because he

thought he could not get direct wedge belt replacements.

He was offered a drive solution comprising of new pulleys,

SPC4500 wedge belts and it was explained to him that

50mm difference in belt length actually meant a difference

of only 12mm on his centre distance which he could more

than cope with.

Due to the upgrade to wedge belts the customer was also

able to reduce the number of drive belts from 12 to 8 which

also gave the added benefit of less over hung load on the

fan and motor bearings.

He used the S.C.I.E.N.C.E. and upgraded

to new technology, why don’t you?

Belt

Section

Pitch Length

(mm)

Fenner

Brand

B2000-FEN

Available in Z, A, B, C, D Sections

From 370–13700mm

www.fptgroup.com

Workshops offering repair or replacement

Attention

63

Visit us at eriks-techdirect.co.uk

to find your local Service Centre

POWER

TRANSMISSION

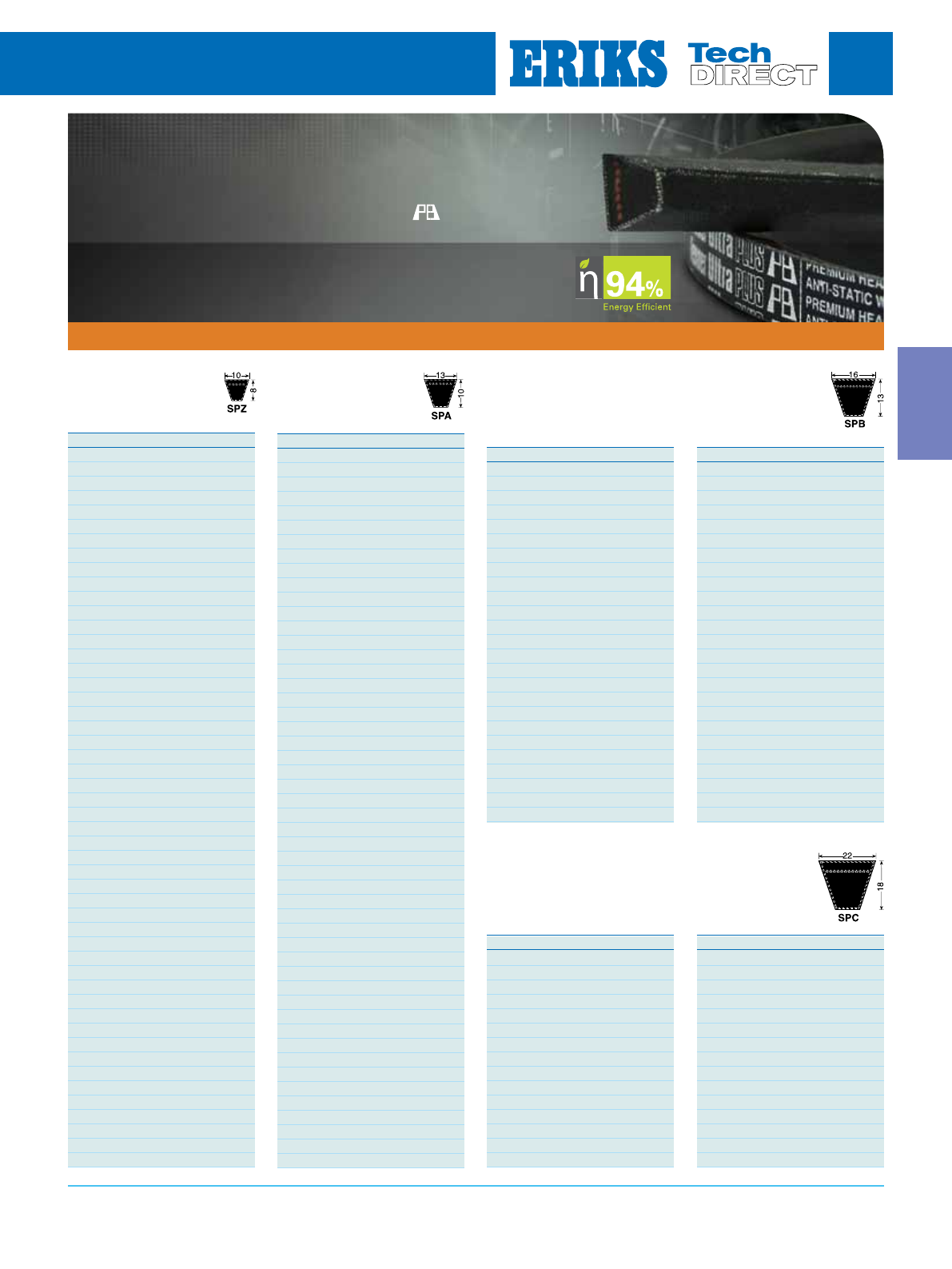

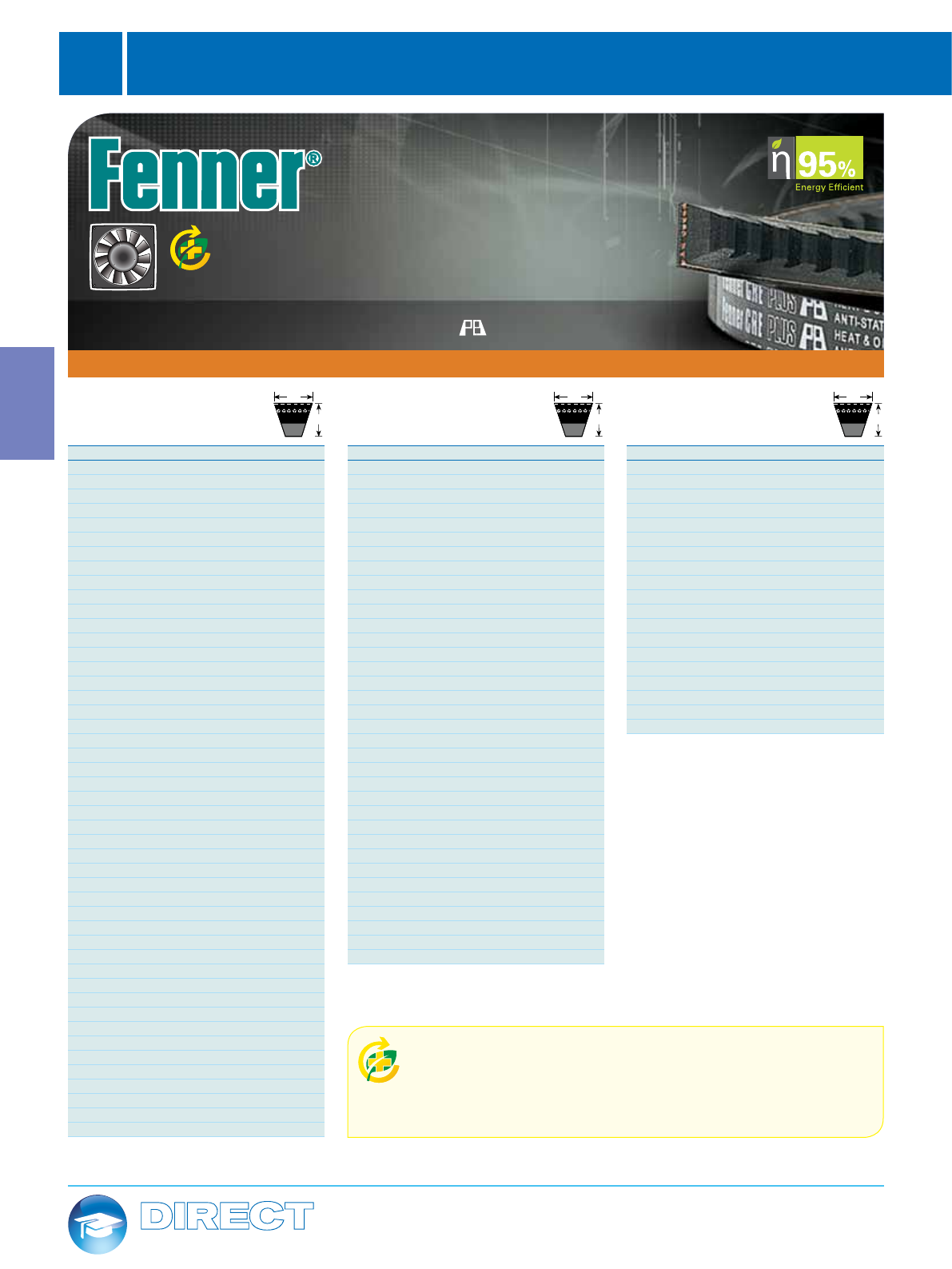

Fenner Ultra PLUS Wedge Belts –

Wrapped SPC Section

Part No Pitch Length (mm)

SPA850-FEN 850

SPA900-FEN 900

SPA950-FEN 950

SPA1000-FEN 1000

SPA1060-FEN 1060

SPA1090-FEN 1090

SPA1120-FEN 1120

SPA1150-FEN 1150

SPA1180-FEN 1180

SPA1207-FEN 1207

SPA1220-FEN 1220

SPA1250-FEN 1250

SPA1280-FEN 1280

SPA1320-FEN 1320

SPA1357-FEN 1357

SPA1360-FEN 1360

SPA1400-FEN 1400

SPA1450-FEN 1450

SPA1500-FEN 1500

SPA1550-FEN 1550

SPA1582-FEN 1582

SPA1600-FEN 1600

SPA1632-FEN 1632

SPA1650-FEN 1650

SPA1700-FEN 1700

SPA1750-FEN 1750

SPA1757-FEN 1757

SPA1800-FEN 1800

SPA1850-FEN 1850

SPA1900-FEN 1900

SPA1950-FEN 1950

SPA2000-FEN 2000

SPA2060-FEN 2060

SPA2120-FEN 2120

SPA2180-FEN 2180

SPA2240-FEN 2240

SPA2300-FEN 2300

SPA2360-FEN 2360

SPA2430-FEN 2430

SPA2500-FEN 2500

SPA2580-FEN 2580

SPA2650-FEN 2650

SPA2720-FEN 2720

SPA2800-FEN 2800

SPA3000-FEN 3000

SPA3150-FEN 3150

SPA3350-FEN 3350

SPA3550-FEN 3550

SPA3750-FEN 3750

SPA4000-FEN 4000

Fenner Ultra PLUS

Wedge Belts –

Wrapped SPZ Section

Part No Pitch Length (mm)

SPZ630-FEN 630

SPZ670-FEN 670

SPZ710-FEN 710

SPZ750-FEN 750

SPZ800-FEN 800

SPZ850-FEN 850

SPZ900-FEN 900

SPZ940-FEN 940

SPZ950-FEN 950

SPZ1000-FEN 1000

SPZ1010-FEN 1010

SPZ1060-FEN 1060

SPZ1080-FEN 1080

SPZ1120-FEN 1120

SPZ1140-FEN 1140

SPZ1162-FEN 1162

SPZ1180-FEN 1180

SPZ1200-FEN 1200

SPZ1212-FEN 1212

SPZ1250-FEN 1250

SPZ1270-FEN 1270

SPZ1320-FEN 1320

SPZ1340-FEN 1340

SPZ1362-FEN 1362

SPZ1400-FEN 1400

SPZ630-FEN 630

SPZ670-FEN 670

SPZ710-FEN 710

SPZ750-FEN 750

SPZ800-FEN 800

SPZ850-FEN 850

SPZ900-FEN 900

SPZ940-FEN 940

SPZ950-FEN 950

SPZ1000-FEN 1000

SPZ1010-FEN 1010

SPZ1060-FEN 1060

SPZ1080-FEN 1080

SPZ1120-FEN 1120

SPZ1140-FEN 1140

SPZ1162-FEN 1162

SPZ1180-FEN 1180

SPZ1200-FEN 1200

SPZ1212-FEN 1212

SPZ1250-FEN 1250

SPZ1270-FEN 1270

SPZ1320-FEN 1320

SPZ1340-FEN 1340

SPZ1362-FEN 1362

SPZ1400-FEN 1400

Part No Pitch Length (mm)

Part No Pitch Length (mm)

Part No Pitch Length (mm)

Part No Pitch Length (mm)

SPB1400-FEN 1400

SPB1500-FEN 1500

SPB1600-FEN 1600

SPB1700-FEN 1700

SPB1750-FEN 1750

SPB1800-FEN 1800

SPB1900-FEN 1900

SPB1950-FEN 1950

SPB2000-FEN 2000

SPB2020-FEN 2020

SPB2120-FEN 2120

SPB2150-FEN 2150

SPB2240-FEN 2240

SPB2280-FEN 2280

SPB2360-FEN 2360

SPB2410-FEN 2410

SPB2500-FEN 2500

SPB2530-FEN 2530

SPB2650-FEN 2650

SPB2680-FEN 2680

SPB2800-FEN 2800

SPB2840-FEN 2840

SPB2900-FEN 2900

SPB3000-FEN 3000

SPB3150-FEN 3150

SPB3170-FEN 3170

SPB3250-FEN 3250

SPB3350-FEN 3350

SPB3550-FEN 3550

SPB3750-FEN 3750

SPB3800-FEN 3800

SPB4000-FEN 4000

SPB4060-FEN 4060

SPB4250-FEN 4250

SPB4310-FEN 4310

SPB4500-FEN 4500

SPB4560-FEN 4560

SPB4750-FEN 4750

SPB4820-FEN 4820

SPB5000-FEN 5000

SPB5070-FEN 5070

SPB5300-FEN 5300

SPB5380-FEN 5380

SPB5600-FEN 5600

SPB5680-FEN 5680

SPB5900-FEN 5900

SPB6000-FEN 6000

SPB6300-FEN 6300

SPB6700-FEN 6700

SPB7100-FEN 7100

SPC2000-FEN 2000

SPC2120-FEN 2120

SPC2240-FEN 2240

SPC2360-FEN 2360

SPC2500-FEN 2500

SPC2650-FEN 2650

SPC2800-FEN 2800

SPC3000-FEN 3000

SPC3150-FEN 3150

SPC3350-FEN 3350

SPC3550-FEN 3550

SPC3750-FEN 3750

SPC4000-FEN 4000

SPC4250-FEN 4250

SPC4500-FEN 4500

SPC4750-FEN 4750

SPC5000-FEN 5000

SPC5300-FEN 5300

SPC5600-FEN 5600

SPC6000-FEN 6000

SPC6300-FEN 6300

SPC6700-FEN 6700

SPC7100-FEN 7100

SPC7500-FEN 7500

SPC8000-FEN 8000

SPC8500-FEN 8500

SPC9000-FEN 9000

SPC9500-FEN 9500

SPC10000-FEN 10000

SPC10600-FEN 10600

Fenner Ultra PLUS Wedge Belts –

Wrapped SPB Section

Ultra PLUS Wedge Belts

Fenner Ultra PLUS

Wedge Belts –

Wrapped SPA Section

n Ideal for use in single or multi-belt drives

n One shot tensioning for fit and forget applications

n Will not self-ignite under severe slip/stall conditions

Fenner Ultra PLUS Wedge belts are precision built ( ) allowing extended

life, offering superior anti-static, heat and oil resistant properties.

www.fptgroup.com

64

POWER

TRANSMISSION

Wedge Belts

Part No Pitch Length (mm)

SPZ630CRE-FEN 630

SPZ670CRE-FEN 670

SPZ710CRE-FEN 710

SPZ750CRE-FEN 750

SPZ760CRE-FEN 760

SPZ800CRE-FEN 800

SPZ850CRE-FEN 850

SPZ900CRE-FEN 900

SPZ937CRE-FEN 937

SPZ940CRE-FEN 940

SPZ950CRE-FEN 950

SPZ1000CRE-FEN 1000

SPZ1010CRE-FEN 1010

SPZ1060CRE-FEN 1060

SPZ1077CRE-FEN 1077

SPZ1080CRE-FEN 1080

SPZ1120CRE-FEN 1120

SPZ1137CRE-FEN 1137

SPZ1140CRE-FEN 1140

SPZ1180CRE-FEN 1180

SPZ1200CRE-FEN 1200

SPZ1250CRE-FEN 1250

SPZ1270CRE-FEN 1270

SPZ1320CRE-FEN 1320

SPZ1337CRE-FEN 1337

SPZ1340CRE-FEN 1340

SPZ1400CRE-FEN 1400

SPZ1420CRE-FEN 1420

SPZ1462CRE-FEN 1462

SPZ1470CRE-FEN 1470

SPZ1500CRE-FEN 1500

SPZ1520CRE-FEN 1520

SPZ1560CRE-FEN 1560

SPZ1587CRE-FEN 1587

SPZ1600CRE-FEN 1600

SPZ1650CRE-FEN 1650

SPZ1700CRE-FEN 1700

SPZ1800CRE-FEN 1800

SPZ1850CRE-FEN 1850

SPZ1900CRE-FEN 1900

SPZ2000CRE-FEN 2000

SPZ2040CRE-FEN 2040

SPZ2120CRE-FEN 2120

SPZ2160CRE-FEN 2160

SPZ2240CRE-FEN 2240

SPZ2280CRE-FEN 2280

SPZ2360CRE-FEN 2360

Fenner CRE Wedge Belts –

XPZ Section

10

8

Part No Pitch Length (mm)

SPA780CRE-FEN 780

SPA800CRE-FEN 800

SPA850CRE-FEN 850

SPA900CRE-FEN 900

SPA925CRE-FEN 925

SPA930CRE-FEN 930

SPA950CRE-FEN 950

SPA1000CRE-FEN 1000

SPA1060CRE-FEN 1060

SPA1090CRE-FEN 1090

SPA1120CRE-FEN 1120

SPA1150CRE-FEN 1150

SPA1180CRE-FEN 1180

SPA1207CRE-FEN 1207

SPA1250CRE-FEN 1250

SPA1320CRE-FEN 1320

SPA1400CRE-FEN 1400

SPA1450CRE-FEN 1450

SPA1500CRE-FEN 1500

SPA1532CRE-FEN 1532

SPA1550CRE-FEN 1550

SPA1600CRE-FEN 1600

SPA1650CRE-FEN 1650

SPA1700CRE-FEN 1700

SPA1750CRE-FEN 1750

SPA1800CRE-FEN 1800

SPA1850CRE-FEN 1850

SPA1900CRE-FEN 1900

SPA1950CRE-FEN 1950

SPA2000CRE-FEN 2000

SPA2060CRE-FEN 2060

SPA2120CRE-FEN 2120

SPA2240CRE-FEN 2240

SPA2360CRE-FEN 2360

SPA2430CRE-FEN 2430

Fenner CRE Wedge Belts –

XPA Section

13

10

Part No Pitch Length (mm)

SPB1250CRE-FEN 1250

SPB1260CRE-FEN 1260

SPB1320CRE-FEN 1320

SPB1340CRE-FEN 1340

SPB1400CRE-FEN 1400

SPB1410CRE-FEN 1410

SPB1500CRE-FEN 1500

SPB1600CRE-FEN 1600

SPB1700CRE-FEN 1700

SPB1800CRE-FEN 1800

SPB1900CRE-FEN 1900

SPB2000CRE-FEN 2000

SPB2020CRE-FEN 2020

SPB2120CRE-FEN 2120

SPB2150CRE-FEN 2150

SPB2240CRE-FEN 2240

SPB2280CRE-FEN 2280

SPB2360CRE-FEN 2360

SPB2410CRE-FEN 2410

Fenner CRE Wedge Belts –

XPB Section

16

13

CRE Wedge Belts

Fenner Cogged Raw Edge (CRE) Wedge Belts excel

in high ratio compact applications by combining

flexibility with structural stability. They offer all the

advantages of Fenner Power PLUS including:

n Special compounds improve flexibility and strength

n Higher running efficiency than wrapped belts

n Precision built ( ) allowing excellent length matching

POSITIVE

RISK

REDUCTION

POSITIVE

WASTE

REDUCTION

POSITIVE

POLLUTION

REDUCTION

POSITIVE

ENERGY

REDUCTION

Due to enhanced material quality and superior fit in the pulley groove

form, CRE belts offer a higher level of drive efficiency than wrapped

construction belts. Sometimes by as much as 2%. By utilising these

belts on variable torque drives such as centrifugal fans in conjunction

with a variable speed drive, the same air volume can be achieved at

a slower motor speed which can show considerable energy savings.

POSITIVE

RISK

REDUCTION

POSITIVE

WASTE

REDUCTION

POSITIVE

POLLUTION

REDUCTION

POSITIVE

ENERGY

REDUCTION

www.fptgroup.com

Specialist Technical Centres

Know-How

65

Visit us at eriks-techdirect.co.uk

to find your local Service Centre

POWER

TRANSMISSION

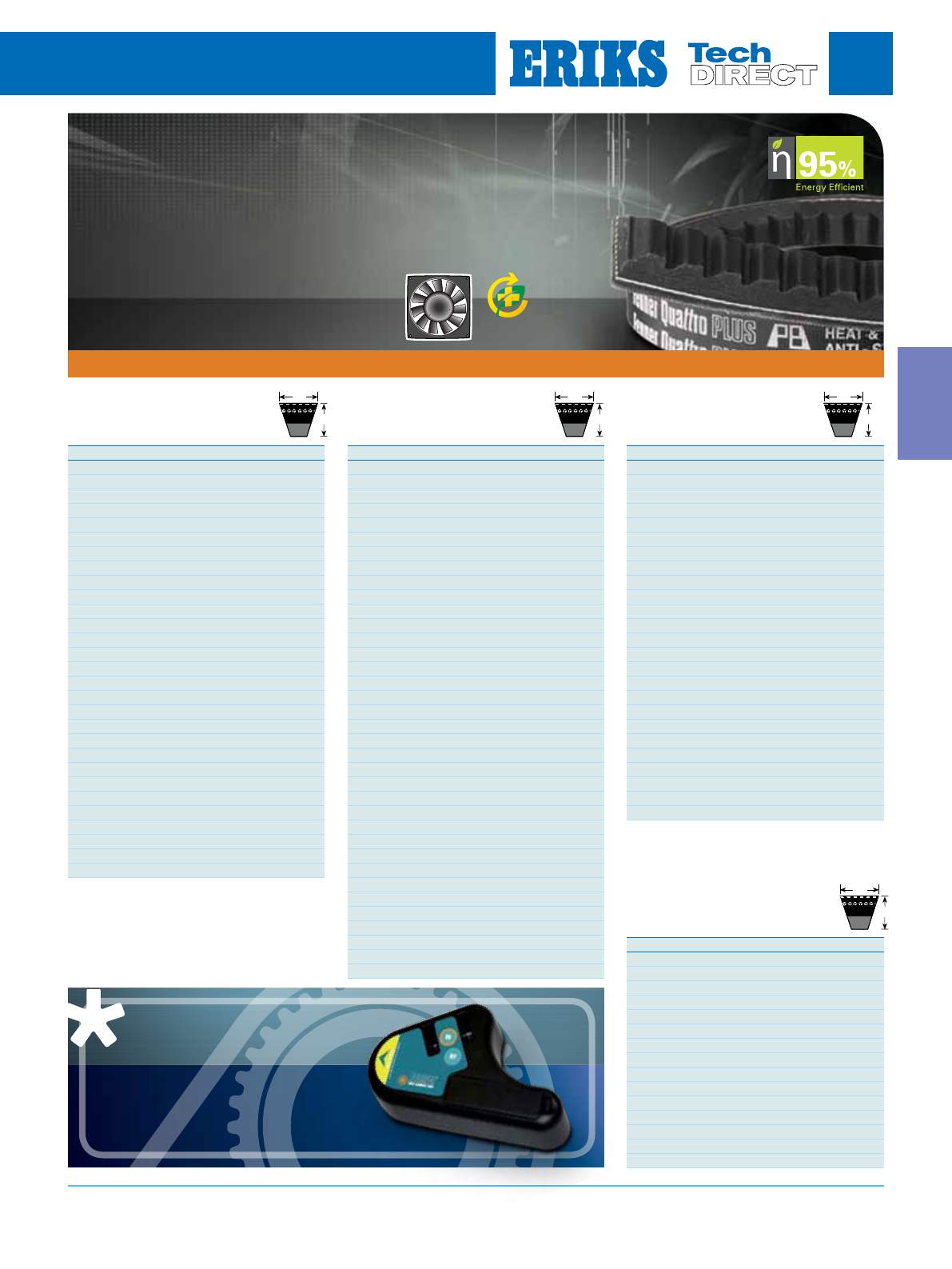

Quattro PLUS CRE Wedge belts transmit up to four times the

power of conventional V belts.

n ‘One Shot’ tensioning with no matching

n Meets industry standards for static conductivity

and non-ignition properties

n Highest efficiency drive for low running costs

n Working temperature range –40°C to 80°C

Fenner Quattro PLUS CRE

Wedge Belt – QXPB Section

Part No Pitch Length (mm)

SPB1250FOZ-Q-FEN 1250

SPB1320FOZ-Q-FEN 1320

SPB1400FOZ-Q-FEN 1400

SPB1500FOZ-Q-FEN 1500

SPB1600FOZ-Q-FEN 1600

SPB1700FOZ-Q-FEN 1700

SPB1800FOZ-Q-FEN 1800

SPB1900FOZ-Q-FEN 1900

SPB2000FOZ-Q-FEN 2000

SPB2120FOZ-Q-FEN 2120

SPB2240FOZ-Q-FEN 2240

SPB2360FOZ-Q-FEN 2360

SPB2500FOZ-Q-FEN 2500

SPB2650FOZ-Q-FEN 2650

SPB2800FOZ-Q-FEN 2800

SPB3000FOZ-Q-FEN 3000

SPB3150FOZ-Q-FEN 3150

SPB3350FOZ-Q-FEN 3350

SPB3550FOZ-Q-FEN 3550

SPB3750FOZ-Q-FEN 3750

SPB4000FOZ-Q-FEN 4000

SPB4060FOZ-Q-FEN 4060

SPB4250FOZ-Q-FEN 4250

SPB4310FOZ-Q-FEN 4310

SPB4500FOZ-Q-FEN 4500

Fenner Quattro PLUS CRE

Wedge Belt – QXPC Section

Part No Pitch Length (mm)

SPC2120FOZ-Q-FEN 2120

SPC2240FOZ-Q-FEN 2240

SPC2360FOZ-Q-FEN 2360

SPC2500FOZ-Q-FEN 2500

SPC2650FOZ-Q-FEN 2650

SPC2800FOZ-Q-FEN 2800

SPC3000FOZ-Q-FEN 3000

SPC3150FOZ-Q-FEN 3150

SPC3350FOZ-Q-FEN 3350

SPC3550FOZ-Q-FEN 3550

SPC3750FOZ-Q-FEN 3750

SPC4000FOZ-Q-FEN 4000

SPC4250FOZ-Q-FEN 4250

SPC4750FOZ-Q-FEN 4750

SPC5000FOZ-Q-FEN 5000

Fenner Quattro PLUS CRE

Wedge Belt – QXPA Section

Part No Pitch Length (mm)

SPA800FOZ-Q-FEN 800

SPA850FOZ-Q-FEN 850

SPA857FOZ-Q-FEN 857

SPA900FOZ-Q-FEN 900

SPA950FOZ-Q-FEN 950

SPA1000FOZ-Q-FEN 1000

SPA1030FOZ-Q-FEN 1030

SPA1060FOZ-Q-FEN 1060

SPA1120FOZ-Q-FEN 1120

SPA1180FOZ-Q-FEN 1180

SPA1250FOZ-Q-FEN 1250

SPA1320FOZ-Q-FEN 1320

SPA1400FOZ-Q-FEN 1400

SPA1450FOZ-Q-FEN 1450

SPA1500FOZ-Q-FEN 1500

SPA1550FOZ-Q-FEN 1550

SPA1600FOZ-Q-FEN 1600

SPA1650FOZ-Q-FEN 1650

SPA1700FOZ-Q-FEN 1700

SPA1750FOZ-Q-FEN 1750

SPA1800FOZ-Q-FEN 1800

SPA1850FOZ-Q-FEN 1850

SPA1900FOZ-Q-FEN 1900

SPA1950FOZ-Q-FEN 1950

SPA2000FOZ-Q-FEN 2000

SPA2060FOZ-Q-FEN 2060

SPA2120FOZ-Q-FEN 2120

SPA2240FOZ-Q-FEN 2240

SPA2360FOZ-Q-FEN 2360

SPA2500FOZ-Q-FEN 2500

SPA2650FOZ-Q-FEN 2650

SPA2800FOZ-Q-FEN 2800

SPA3000FOZ-Q-FEN 3000

SPA3150FOZ-Q-FEN 3150

SPA3550FOZ-Q-FEN 3550

SPA4000FOZ-Q-FEN 4000

Fenner Quattro PLUS CRE

Wedge Belt – QXPZ Section

Part No Pitch Length (mm)

SPZ630FOZ-Q-FEN 630

SPZ670FOZ-Q-FEN 670

SPZ710FOZ-Q-FEN 710

SPZ750FOZ-Q-FEN 750

SPZ800FOZ-Q-FEN 800

SPZ850FOZ-Q-FEN 850

SPZ900FOZ-Q-FEN 900

SPZ950FOZ-Q-FEN 950

SPZ1000FOZ-Q-FEN 1000

SPZ1060FOZ-Q-FEN 1060

SPZ1120FOZ-Q-FEN 1120

SPZ1150FOZ-Q-FEN 1150

SPZ1220FOZ-Q-FEN 1220

SPZ1250FOZ-Q-FEN 1250

SPZ1287FOZ-Q-FEN 1287

SPZ1320FOZ-Q-FEN 1320

SPZ1360FOZ-Q-FEN 1360

SPZ1400FOZ-Q-FEN 1400

SPZ1450FOZ-Q-FEN 1450

SPZ1500FOZ-Q-FEN 1500

SPZ1537FOZ-Q-FEN 1537

SPZ1550FOZ-Q-FEN 1550

SPZ1600FOZ-Q-FEN 1600

SPZ1700FOZ-Q-FEN 1700

SPZ1800FOZ-Q-FEN 1800

SPZ1900FOZ-Q-FEN 1900

SPZ2120FOZ-Q-FEN 2120

SPZ2240FOZ-Q-FEN 2240

SPZ2500FOZ-Q-FEN 2500

10

8

13

10

22

18

16

13

Quattro PLUS Wedge Belts

Fenner Laser Aligner

Ensure you are getting the optimum

performance from your belt drives.

Have you

seen…

POSITIVE

RISK

REDUCTION

POSITIVE

WASTE

REDUCTION

POSITIVE

POLLUTION

REDUCTION

POSITIVE

ENERGY

REDUCTION

Product Ref: FEN/A/230L0000

www.fptgroup.com

66

POWER

TRANSMISSION

CTD and Multi-ribbed Belts, Vee and Wedge Dual Duty Taper Lock Pulleys

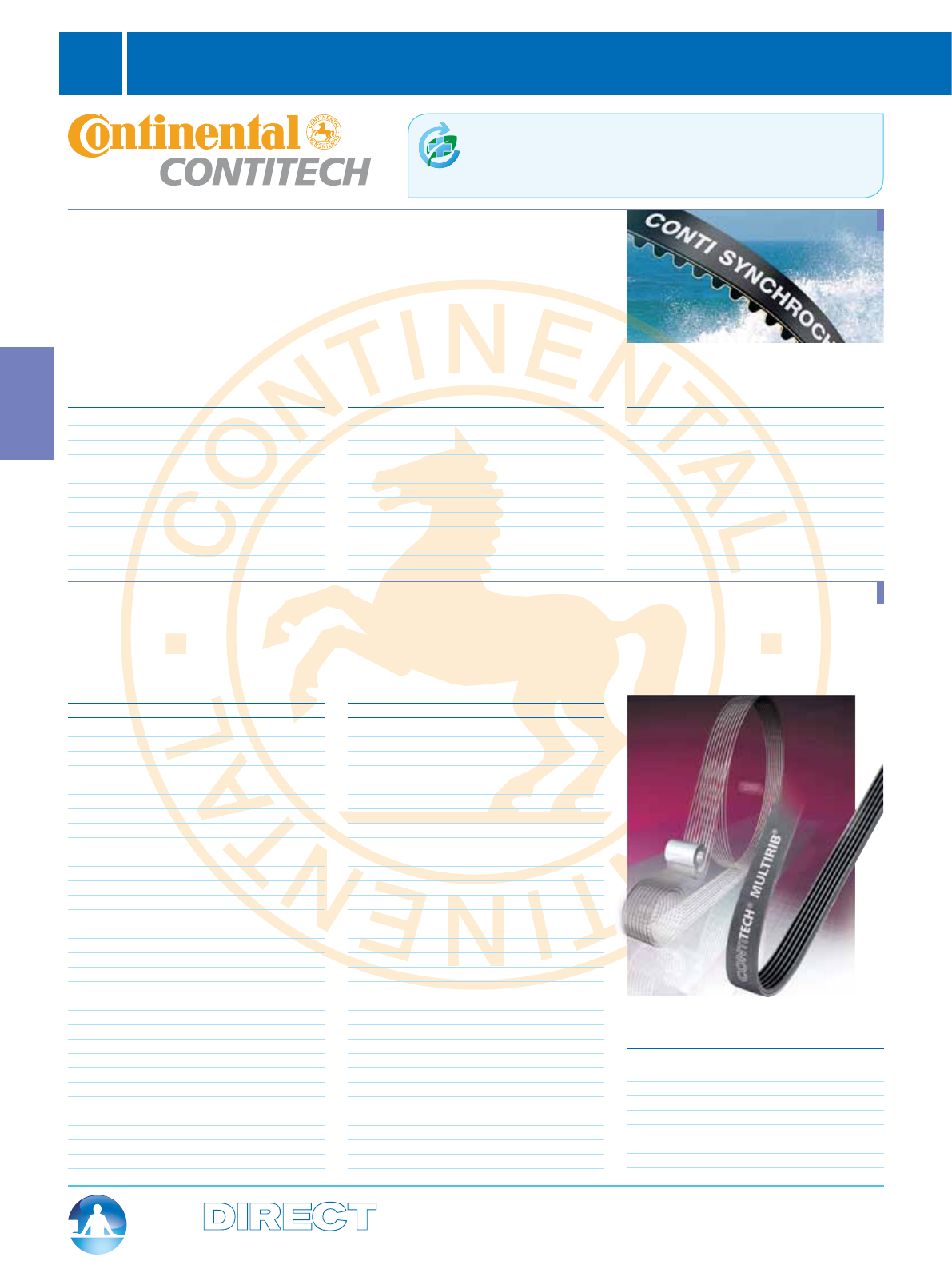

Conti Synchrochain®

The newly developed CTD profile ensures faultless meshing and hence smooth running

at high speeds. At the same time it prevents a jump-over at high torques. So the Conti

Synchrochain is well able to cope with a wide range of requirements. It is suitable for new

drive designs and at the same time also compatible for use in existing systems. Available

in pitch CTD C8M. Details of pitch, lengths and widths can be obtained on request.

Below are some fast moving examples, we offer a full range.

14mm Pitch Length Width

14M-1120-20-CONTI 1120mm 20mm

14M-1190-37-CONTI 1190mm 37mm

14M-1260-20-CONTI 1260mm 20mm

14M-1400-37-CONTI 1400mm 37mm

14M-1568-37-CONTI 1568mm 37mm

14M-1568-68-CONTI 1568mm 68mm

14M-1750-37-CONTI 1750mm 37mm

14M-2520-20-CONTI 2520mm 20mm

14M-2800-37-CONTI 2800mm 37mm

14M-3136-68-CONTI 3136mm 68mm

14M-4410-90-CONTI 4410mm 90mm

8mm Pitch Length Width

8M-640-12-CONTI 640mm 12mm

8M-640-21-CONTI 640mm 21mm

8M-720-12-CONTI 720mm 12mm

8M-720-21-CONTI 720mm 21mm

8M-800-12-CONTI 800mm 12mm

8M-800-21-CONTI 800mm 21mm

8M-800-36-CONTI 800mm 36mm

8M-896-12-CONTI 896mm 12mm

8M-896-21-CONTI 896mm 21mm

8M-896-36-CONTI 896mm 36mm

8M-1000-12-CONTI 1000mm 12mm

8mm Pitch Length Width

8M-1000-21-CONTI 1000mm 21mm

8M-1120-21-CONTI 1120mm 21mm

8M-1200-21-CONTI 1200mm 21mm

8M-1200-36-CONTI 1200mm 36mm

8M-1280-21-CONTI 1280mm 21mm

8M-1440-12-CONTI 1440mm 12mm

8M-1440-21-CONTI 1440mm 21mm

8M-1440-36-CONTI 1440mm 36mm

8M-1600-12-CONTI 1600mm 12mm

8M-1600-21-CONTI 1600mm 21mm

8M-1792-12-CONTI 1792mm 12mm

Conti Multi-

Ribbed Belt

n Resistant to temperatures from

–30°C to +80°C

n Electrically conductive

(anti-static) to ISO 1813

n Oil resistant

n Very flexible

n Suitable for tropical climates

Part No Length Pitch Height

460L 46" 4.7mm 9mm

480L 48" 4.7mm 9mm

500L 50" 4.7mm 9mm

510L 51" 4.7mm 9mm

525L 52.5" 4.7mm 9mm

540L 54" 4.7mm 9mm

550L 55" 4.7mm 9mm

560L 56" 4.7mm 9mm

590L 59" 4.7mm 9mm

615L 61.5" 4.7mm 9mm

635L 63.5" 4.7mm 9mm

650L 65" 4.7mm 9mm

675L 67.5" 4.7mm 9mm

695L 69.5" 4.7mm 9mm

710L 71" 4.7mm 9mm

725L 72.5" 4.7mm 9mm

780L 78" 4.7mm 9mm

840L 84" 4.7mm 9mm

865L 86.5" 4.7mm 9mm

880L 88" 4.7mm 9mm

915L 91.5" 4.7mm 9mm

930L 93" 4.7mm 9mm

975L 97.5" 4.7mm 9mm

990L 99" 4.7mm 9mm

1065L 106.5" 4.7mm 9mm

1080L 108" 4.7mm 9mm

1120L 112" 4.7mm 9mm

1140L 114" 4.7mm 9mm

1150L 115" 4.7mm 9mm

1295L 129.5" 4.7mm 9mm

1980L 198" 4.7mm 9mm

L-SECTION

Part No Length Pitch Height

160J 16" 2.34mm 3.8mm

170J 17" 2.34mm 3.8mm

180J 18" 2.34mm 3.8mm

190J 19" 2.34mm 3.8mm

200J 20" 2.34mm 3.8mm

220J 22" 2.34mm 3.8mm

230J 23" 2.34mm 3.8mm

240J 24" 2.34mm 3.8mm

260J 26" 2.34mm 3.8mm

270J 27" 2.34mm 3.8mm

290J 29" 2.34mm 3.8mm

300J 30" 2.34mm 3.8mm

320J 32" 2.34mm 3.8mm

330J 33" 2.34mm 3.8mm

350J 35" 2.34mm 3.8mm

360J 36" 2.34mm 3.8mm

380J 38" 2.34mm 3.8mm

400J 40" 2.34mm 3.8mm

415J 41.5" 2.34mm 3.8mm

430J 43" 2.34mm 3.8mm

450J 45" 2.34mm 3.8mm

460J 46" 2.34mm 3.8mm

470J 47" 2.34mm 3.8mm

490J 49" 2.34mm 3.8mm

500J 50" 2.34mm 3.8mm

510J 51" 2.34mm 3.8mm

520J 52" 2.34mm 3.8mm

550J 55" 2.34mm 3.8mm

580J 58" 2.34mm 3.8mm

630J 63" 2.34mm 3.8mm

650J 65" 2.34mm 3.8mm

J-SECTION

Part No Length Pitch Height

690J 69" 2.34mm 3.8mm

730J 73" 2.34mm 3.8mm

770J 77" 2.34mm 3.8mm

780J 78" 2.34mm 3.8mm

820J 82" 2.34mm 3.8mm

870J 87" 2.34mm 3.8mm

920J 92" 2.34mm 3.8mm

The aramid cord and high specification polyurethane

materials in this product make this belt the pound for pound

leader in the market with respect to power transmission.

This means belts and pulleys of reduced width can be

supplied reducing waste at the end of the drives life span.

POSITIVE

RISK

REDUCTION

POSITIVE

WASTE

REDUCTION

POSITIVE

POLLUTION

REDUCTION

POSITIVE

ENERGY

REDUCTION

To your Local Service Centre

Go

67

Visit us at eriks-techdirect.co.uk

to find your local Service Centre

POWER

TRANSMISSION

Superior material specification and design allows guaranteed

performance at rim speeds up to 40m/sec. Designed for use

with both Vee and Wedge section belts.

Belt

Section

Pitch Dia.

(mm)

No. of

Grooves

Fenner

Brand

SPA500X5-FEN

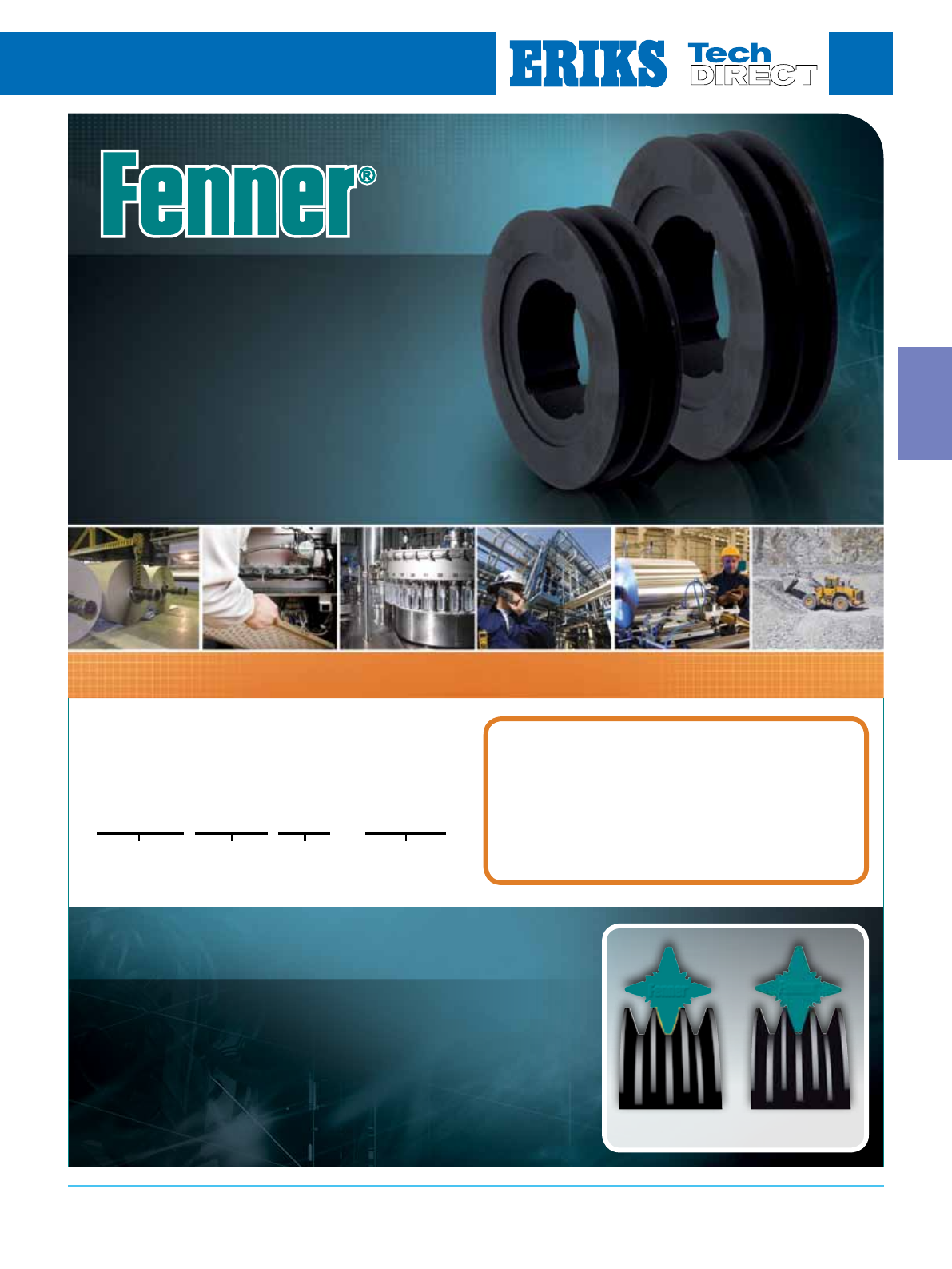

Vee and Wedge

Taper Lock® Pulleys

(Dual Duty)

Guaranteed performance

Statically balanced to grade

G6.3 for high accuracy

Available in:

Z, SPZ, XPZ, QXPZ from 56–630mm pitch dia.

A, SPA, XPA, QXPA from 80–800mm pitch dia.

B, SPB, XPB, QXPB, USPB from 112–1000mm dia.

C, SPC, XPC, QXPC, USPC from 200–1250mm pitch dia.

Worn Pulley New Pulley

www.fptgroup.com

Worn

Pulley

New

Pulley

n Worn pulleys waste up to 10% of energy input

n Check yours now with the Fenner pulley groove gauge

Order your belt efficiency kit today

Save Energy

The drive stands or falls by the accuracy of its installation,

so don’t forget to check the condition of your pulleys

– 50% of new belts are fitted to worn pulleys, which

can waste up to 10% of your energy input.

68

POWER

TRANSMISSION

Taper Bushes, Keyless Bushing and Cone Clamping Elements

Metric Taper Lock Bushes

Range: 1008–5050 Bore Diameter 16mm–125mm

Imperial Taper Lock Bushes

Range: 1008–5050 Bore Diameter 3/8"–5"

Part No

1008X16-FEN

1008X19-FEN

1008X20-FEN

1008X24-FEN

1008X25-FEN

1108X19-FEN

1108X20-FEN

1108X24-FEN

1108X25-FEN

1108X28-FEN

1210X14-FEN

1210X16-FEN

1210X19-FEN

1210X20-FEN

1210X22-FEN

1210X24-FEN

1210X25-FEN

1210X28-FEN

1210X30-FEN

1210X32-FEN

1215X25-FEN

1215X28-FEN

1610X19-FEN

1610X20-FEN

1610X24-FEN

1610X25-FEN

1610X28-FEN

1610X30-FEN

1610X32-FEN

1610X35-FEN

1610X38-FEN

1610X42-FEN

1615X25-FEN

1615X35-FEN

1615X38-FEN

Part No

1615X40-FEN

1615X42-FEN

2012X19-FEN

2012X20-FEN

2012X22-FEN

2012X24-FEN

2012X25-FEN

2012X28-FEN

2012X30-FEN

2012X32-FEN

2012X35-FEN

2012X38-FEN

2012X40-FEN

2012X42-FEN

2012X45-FEN

2012X48-FEN

2012X50-FEN

2517X20-FEN

2517X24-FEN

2517X25-FEN

2517X28-FEN

2517X30-FEN

2517X32-FEN

2517X35-FEN

2517X38-FEN

2517X40-FEN

2517X42-FEN

2517X45-FEN

2517X48-FEN

2517X50-FEN

2517X55-FEN

2517X60-FEN

2525X42-FEN

2525X55-FEN

3020X40-FEN

Part No

3020X42-FEN

3020X45-FEN

3020X48-FEN

3020X50-FEN

3020X55-FEN

3020X60-FEN

3020X65-FEN

3020X70-FEN

3020X75-FEN

3030X60-FEN

3030X65-FEN

3525X48-FEN

3525X48-FEN

3525X55-FEN

3525X60-FEN

3525X65-FEN

3525X70-FEN

3525X80-FEN

3525X85-FEN

3525X90-FEN

3525X100-FEN

3535X60-FEN

3535X70-FEN

4030X70-FEN

4030X100-FEN

4040X80-FEN

4040X90-FEN

4535X80-FEN

4535X100-FEN

4545X80-FEN

4545X90-FEN

5040X110-FEN

5040X125-FEN

5050X90-FEN

5050X100-FEN

Part No

1008X1/2-FEN

1008X5/8-FEN

1008X3/4-FEN

1008X7/8-FEN

1008X1-FEN

1108X1/2-FEN

1108X5/8-FEN

1108X3/4-FEN

1108X7/8-FEN

1108X1-FEN

1210X3/4-FEN

1210X7/8-FEN

1210X1-FEN

1210X1.1/4-FEN

1210X1.1/8-FEN

1215X1.1/4-FEN

1215X1-FEN

1610X1/2-FEN

1610X5/8-FEN

1610X3/4-FEN

1610X7/8-FEN

1610X1-FEN

1610X1.1/8-FEN

1610X1.1/4-FEN

1610X1.3/8-FEN

1610X1.1/2-FEN

1610X1.5/8-FEN

1615X1-FEN

1615X1.1/8-FEN

1615X1.1/4-FEN

1615X1.1/2-FEN

1615X1.5/8-FEN

2012X3/4-FEN

2012X7/8-FEN

2012X1-FEN

Part No

2012X1.1/8-FEN

2012X1.1/4-FEN

2012X1.3/8-FEN

2012X1.1/2-FEN

2012X1.3/4-FEN

2012X1.7/8-FEN

2012X2-FEN

2517X1-FEN

2517X1.1/4-FEN

2517X1.3/8-FEN

2517X1.1/2-FEN

2517X1.5/8-FEN

2517X1.3/4-FEN

2517X1.7/8-FEN

2517X2-FEN

2517X2.1/4-FEN

2517X2.1/2-FEN

3020X1.3/8-FEN

3020X1.1/2-FEN

3020X1.3/4-FEN

3020X1.7/8-FEN

3020X2-FEN

3020X2.1/4-FEN

3020X2.3/8-FEN

3020X2.1/2-FEN

3020X2.7/8-FEN

3020X3-FEN

3030X2-FEN

3030X2.1/4-FEN

3030X2.1/2-FEN

3030X2.3/4-FEN

3030X3-FEN

3525X1.7/8-FEN

3525X2-FEN

3525X2.1/4-FEN

Part No

3525X2.1/2-FEN

3525X2.7/8-FEN

3525X3-FEN

3525X3.3/8-FEN

3525X3.1/2-FEN

3525X4-FEN

3535X2.1/4-FEN

3535X1.3/4-FEN

3535X2-FEN

3535X2.1/2-FEN

3535X2.3/4-FEN

3535X2.7/8-FEN

3535X3-FEN

3535X3.1/4-FEN

3535X3.3/8-FEN

3535X3.1/2-FEN

4030X2.1/2-FEN

4030X3.1/2-FEN

4040X3-FEN

4040X3.1/2-FEN

4535X3-FEN

4535X4-FEN

4545X4-FEN

4545X4.1/2-FEN

5040X4.1/4-FEN

5040X5-FEN

5050X4-FEN

5050X4.1/4-FEN

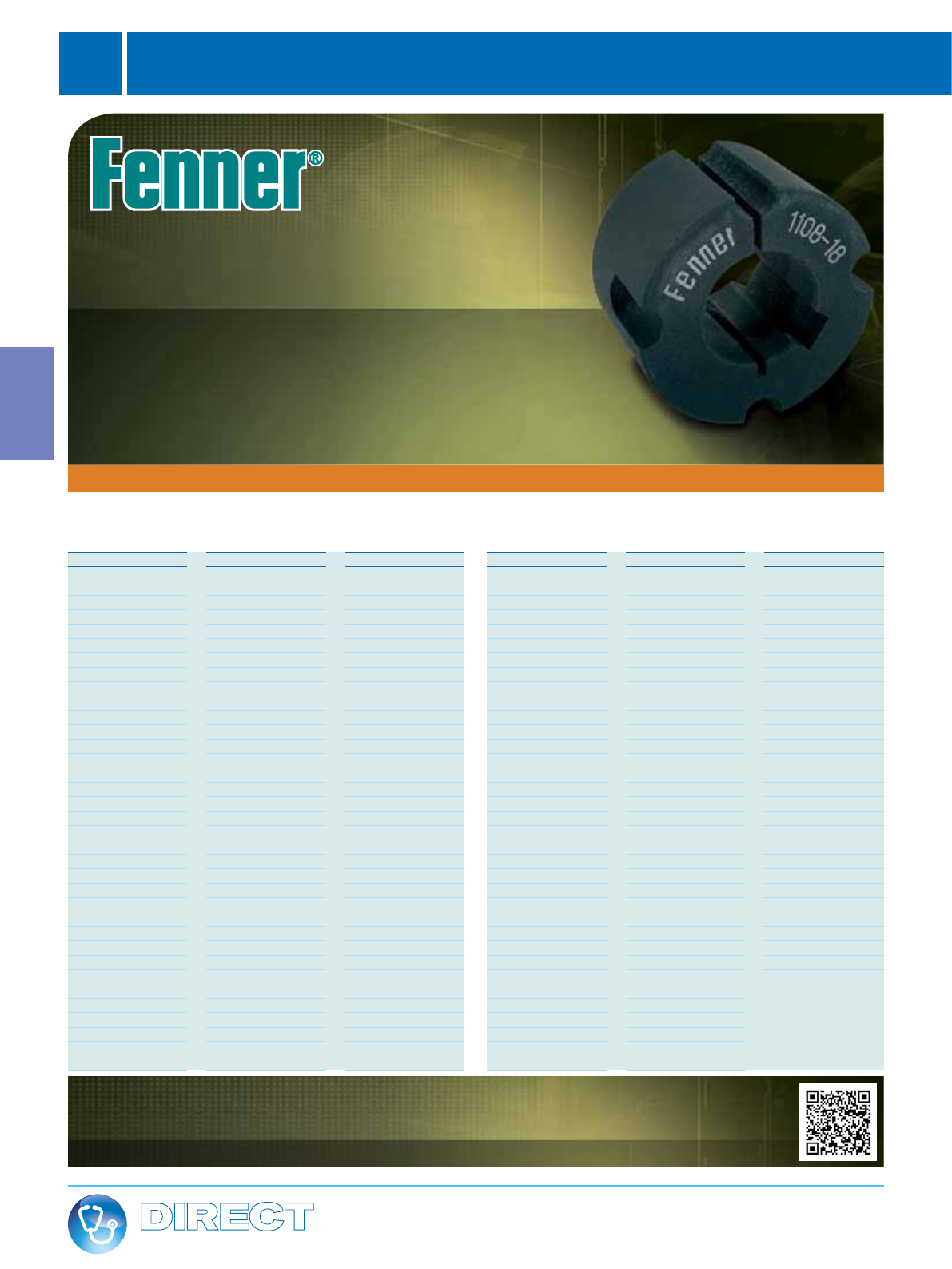

Taper Lock® Bushes

n No costly re-boring

n High grade, close grain grey iron (GG25) material

n Tolerates shock loading

n Accommodates wide shaft diameter limits +0.05mm (0.002") to 0.125mm (0.005")

n Perfect for use with V-pulleys, timing and HTD pulleys, sprockets, shaft couplings, hubs and adaptors

Easy on, easy off – the simplest and quickest shaft fixings

www.fptgroup.com

Taper Lock Installation Video available to view on-line

Scan here to view:

Workshops offering repair or replacement

Attention

69

Visit us at eriks-techdirect.co.uk

to find your local Service Centre

POWER

TRANSMISSION

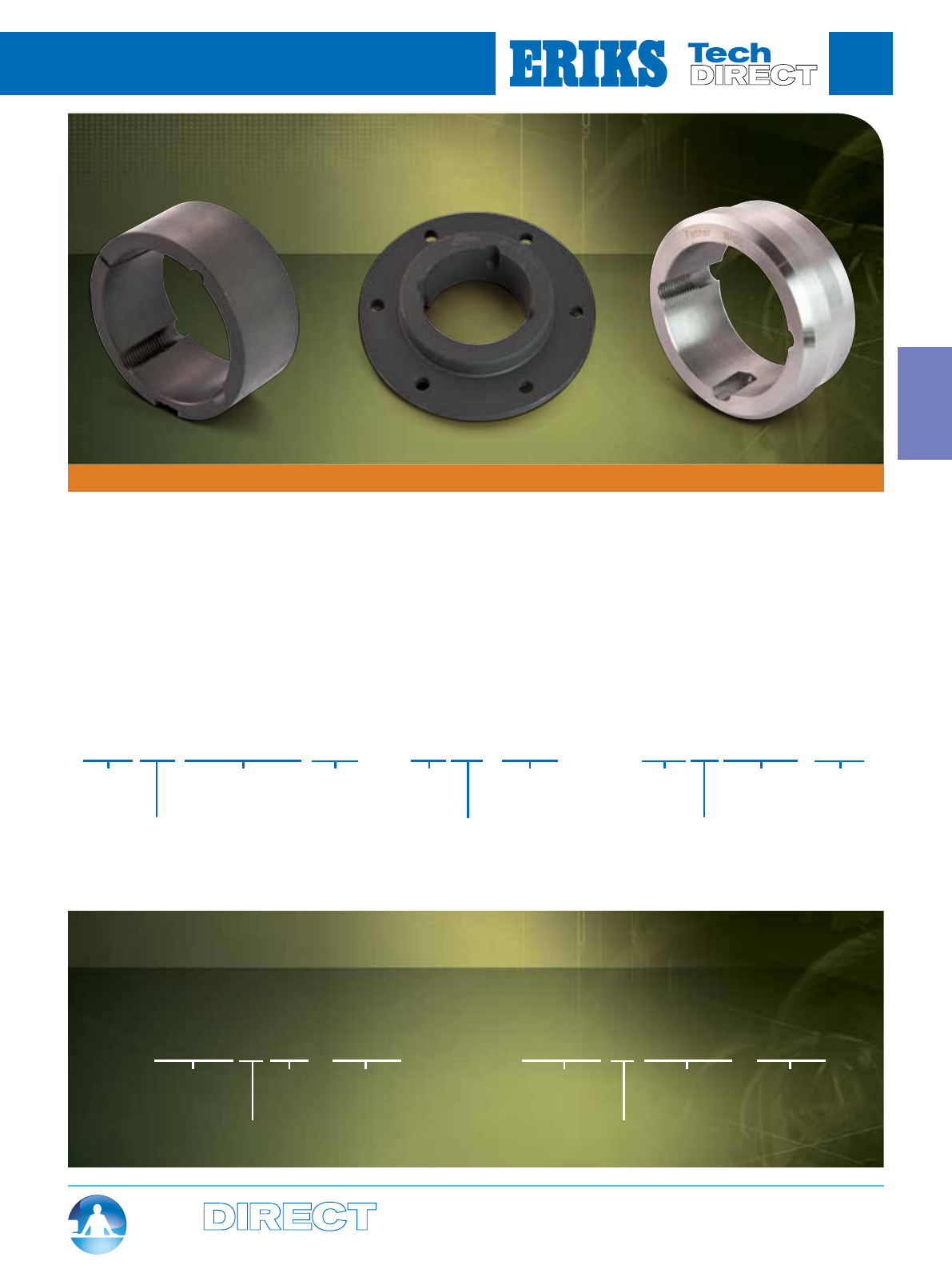

Weld-on hubs

n Manufactured from steel to provide

convenient means to secure fan rotors,

steel pulleys, plate sprockets, impellers

etc to a shaft

n Shouldered outer diameter allows for

easy location

n Taper bored to receive 4-hole Taper

Lock® bush sizes 1210 to 5040

Adaptors

n For use with parallel bore

eliminating the cost of drilling,

tapping and taper boring

n Keyed version also available for

heavy duty applications

n Taper bored to receive 4-hole Taper

Lock® bush sizes 1008 to 4040

Adaptors Bolt-on hubs Weld-on hubs

Bush

Size

Bush

Size

Bore

Size

Bore

Size

Constant Constant

Fenner

Brand

Fenner

Brand

1610X38-FEN 2517X1.5/8-FEN

Metric Imperial

Bolt-on

Hub

Bush Size

(1st and 2nd

digits of bush size)

Fenner

Brand

BF25-FEN

Bolt-on hubs

n A convenient means to secure

fan rotors, steel pulleys, plate

sprockets, impellers etc to

a shaft

n Welding not necessary

n Taper bored to receive 4-hole

Taper Lock® bush sizes 1210

to 3040

Bush Size

(1st and 2nd

digits of bush size)

Keyway

KM for Metric

PM for Plain

Fenner

Brand

Constant

2517KM-ADAPTOR-FEN

Weld-on

Hub

Bush Size

(1st and 2nd

digits of bush size)

Fenner

Brand

Constant

WH25HUBS-FEN

Ordering your Taper Lock® bush

To your Local Service Centre

Go

www.fptgroup.com

70

POWER

TRANSMISSION

Wedge Belts. Bushes and Shaft/hub Assemblies

Wedge Belts

Size Matters?

www.fptgroup.com

Installation and Take Up Allowances

The length guide per section information above offers a simple and easy route to solving the customer’s problem.

If you have any doubts, please contact the Drives Core Comptence Centre on 01384 246100.

By taking into acount the combined installation and take up allowances above the customer must have 40mm total

adjustment available. Therefore using an SPZ1200 belt rather than an SPZ1207 makes no difference whatsoever.

How many times have you been asked for an “odd” sized belt that we just don’t have in stock?

How many of you know that there IS a suitable solution just sitting on the shelf?

And remember - customers should NEVER replace just one belt on multiple belt drives. It is bad

engineering practice and WILL lead to premature belt failure and accelerated pulley wear.

SPZ

SPZ<1000 +/- 10mm

SPZ1000-1600 +/- 15mm

SPZ1600-4000 +/- 20mm

8

13

A/13Z/10

10

6

B/17

11

17

C/22

22

14

D/32

20

32

SPC

22

18

SPB

13

16

13

10

SPA

8

10

SPZ 8V

23

25

QXPB

13

16

13

10

QXPA

8

10

QXPZ QXPC

18

22

SPC

SPC<4000 +/- 30mm

SPC4000-6300 +/- 35mm

SPC6300-10000 +/- 40mm

SPC>10000 +/- 50mm

8

13

A/13Z/10

10

6

B/17

11

17

C/22

22

14

D/32

20

32

SPC

22

18

SPB

13

16

13

10

SPA

8

10

SPZ 8V

23

25

QXPB

13

16

13

10

QXPA

8

10

QXPZ QXPC

18

22

SPB

SPB<1600 +/- 20mm

SPB1600-4000 +/- 25mm

SPB4000-6300 +/- 30mm

SPB>6300 +/- 35mm

8

13

A/13Z/10

10

6

B/17

11

17

C/22

22

14

D/32

20

32

SPC

22

18

SPB

13

16

13

10

SPA

8

10

SPZ 8V

23

25

QXPB

13

16

13

10

QXPA

8

10

QXPZ QXPC

18

22

SPA

SPA<1600 +/- 15mm

SPA1600-4000 +/- 20mm

8

13

A/13Z/10

10

6

B/17

11

17

C/22

22

14

D/32

20

32

SPC

22

18

SPB

13

16

13

10

SPA

8

10

SPZ 8V

23

25

QXPB

13

16

13

10

QXPA

8

10

QXPZ QXPC

18

22

Wedge belt Manufacturing Sections available Installation Installation Installation Installation Take up

lengths (mm) tolerance allowance SPZ allowance SPA allowance SPB allowance SPC allowance

Up to 630 +/- 6mm SPZ 20mm 5mm

630 - 800 +/- 8mm SPZ/SPA 20mm 25mm 10mm

800 - 1000 +/- 10mm SPZ/SPA 20mm 25mm 15mm

1000 - 1250 +/- 13mm SPZ/SPA 20mm 25mm 20mm

1250 - 1600 +/- 16mm SPZ/SPA/SPB 20mm 25mm 30mm 25mm

1600 - 2000 +/- 20mm SPZ/SPA/SPB 20mm 25mm 30mm 30mm

2000 - 2500 +/- 25mm SPZ/SPA/SPB/SPC 20mm 25mm 30mm 50mm 40mm

2500 - 3150 +/- 32mm SPZ/SPA/SPB/SPC 20mm 25mm 30mm 50mm 50mm

3150 - 4000 +/- 40mm SPZ/SPA/SPB/SPC 20mm 25mm 30mm 50mm 60mm

4000 - 5000 +/- 50mm SPA/SPB/SPC 25mm 30mm 50mm 70mm

5000 - 6300 +/- 63mm SPB/SPC 30mm 50mm 85mm

6300 - 8000 +/- 80mm SPB/SPC 30mm 50mm 105mm

8000 - 10000 +/- 100mm SPB/SPC 30mm 50mm 140mm

10000 - 12500 +/- 125mm SPC 50mm 175mm

Specialist Technical Centres

Know-How

71

Visit us at eriks-techdirect.co.uk

to find your local Service Centre

POWER

TRANSMISSION

Trantorque Bushes FenLock

n Eliminate Keys, Keyways, Setscrews

Eliminate costly matching with inexpensive

Trantorque GT mounts.

They grip like a shrink-fit on shaft and bore,

and resist shocks and torque reversals better

than keyways.

Single-nut design, self-centres accurately,

locks or unlocks with the twist of a wrench.

n Infinite, Precise Radial Adjustment

The positive lock and release action

permits exact initial positioning with easy

readjustment at a later date. Which may

not be possible with fixed keyed connections.

n Use Smaller Shafts

Eliminate the weak spot in shafts and hubs

caused by machining keyways.

This, plus the rigidising effect, permits

smaller and less expensive shafts and

bearings with equal strength and stiffness.

n Retrofit and Repair

Can be used directly over empty keyways to

repair a worn or damaged connection. Both

metric and imperial units are available making

it easy to quickly return machinery to service.

n Mount Hubless Devices

Trantorque GT mounts are unique in their

ability to mount thin hubless devices. They

need not be completely within the bore.

This permits mounting plate sprockets,

hubless gears, disc brakes, etc. – often at

substantial savings to the user or OEM.

FLK 200

Medium/high torque

Non self-centring

Available for shafts 20–900mm diameter

Max allowable surface finish Rt max 16μm

Tolerances h11 shaft – H11 hub

No axial movement

FLK 110

Few screws – quicker installation

Medium/high torque self-centring

Max allowable surface finish Rt max 16μm

Available for shafts 6–130mm diameter

Tolerances h8 shaft – H8 hub

FLK 450

Very high torque

Self-centring

Available for shafts 45–400mm diameter

Max allowable surface finish Rt max 16μm

Tolerances h8 shaft – H8 hub

FLK 133

As FLK 132 with larger diameter location collar

Less screws – quicker installation

Medium/high torque self-centring

No axial movement hub/shaft

Available for shafts 20–200mm diameter

Max allowable surface finish Rt max 16μm

Tolerances h8 shaft – H8 hub

FLK 603

‘Shrink disc’ device for hub clamping

Quick installation

Medium/high torque self-centring

Available for hubs 14–280mm diameter

(larger sizes to order)

Max allowable surface finish Rt max 16μm

Tolerances h8 shaft

FenLock™ cone clamping elements provide a wide

and versatile range of keyless shaft/hub assemblies.

n Simple installation/dissembly

n Resistance to alternating torques

n Increased shaft strength

n High torque transmission capacity

n No backlash

n Axial and angular adjustment capability

n No fretting corrosion

…when ordering shaft fixings,

consider the following:

n Shaft dimensions (diameter, length)

n Keyway details

n Transmitted torque

n Hub details (diameter, length, material)

To help…

www.fptgroup.comwww.fptgroup.com

72

POWER

TRANSMISSION

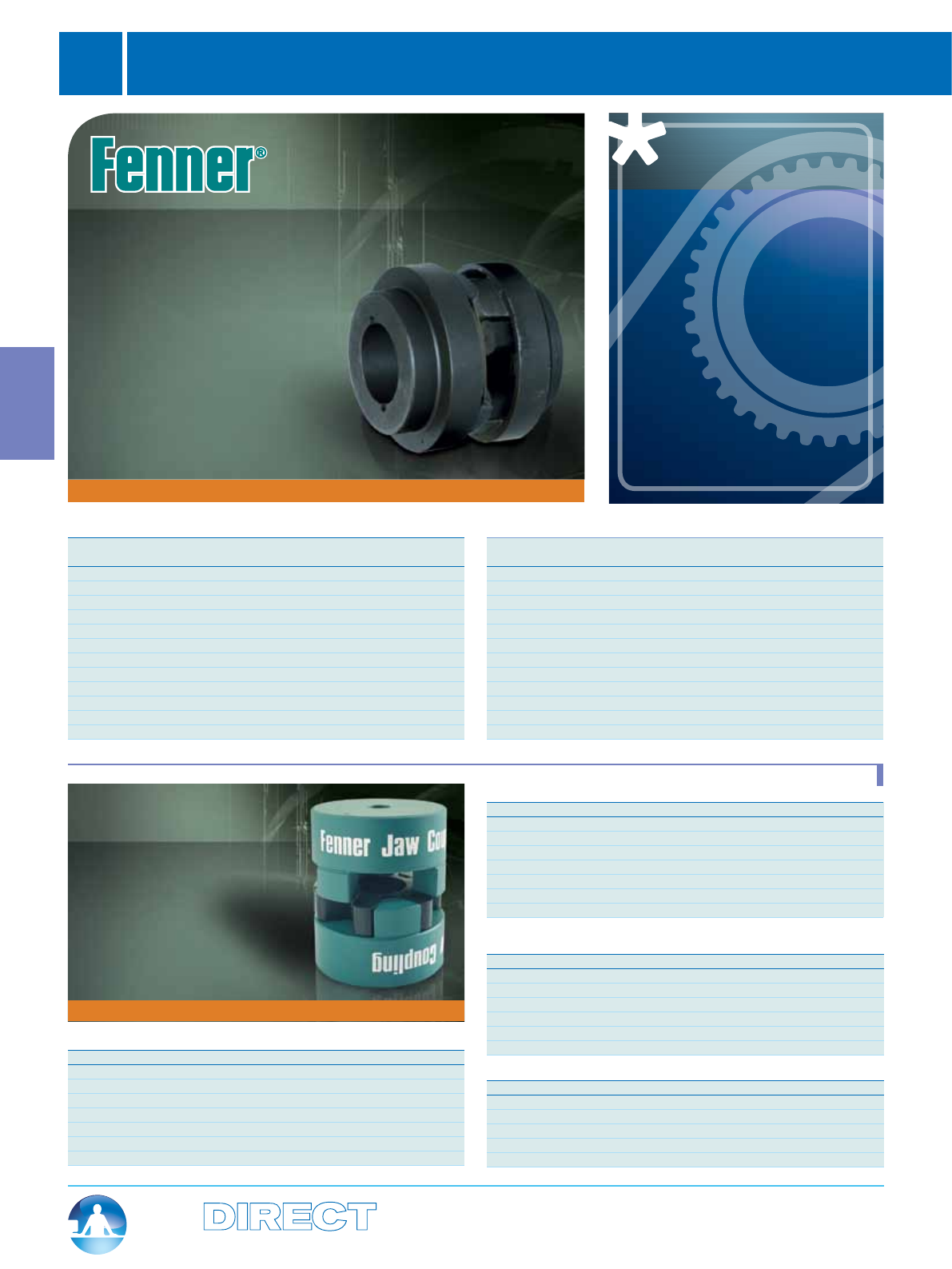

Jaw Couplings and Tyre Couplings

Why Choose

HRC?

When looking for a value for

money coupling, OEMs have

specified the HRC since its launch

in the 1970s. Much copied, the

original Fenner HRC product

outlasts its competitors due to

subtle design differences such as,

higher levels of surface finish on

the drive dogs and having flexible

elements manufactured in the UK

to extremely high specifications.

Its high grade rugged cast iron

construction is a must for heavy

duty industries such as mining and

quarrying so it’s no surprise this

coupling is the crusher and screen

manufacturers choice every time.

HRC Couplings

Fenner Jaw and HRC Coupling Hubs

Part No Size (mm) Pilot Bore (mm) Max Bore (mm)

L070HUB/PB-FEN 70 9 19

L075HUB/PB-FEN 75 9 24

L095HUB/PB-FEN 95 9 28

L100HUB/PB-FEN 100 12 35

L110HUB/PB-FEN 110 15 42

L150HUB/PB-FEN 150 15 48

L225HUB/PB-FEN 225 19 60

Fenner Jaw Type Shaft Coupling Elements

Part No Description Size (mm)

L035EL-FEN Nitrile Elements 35

L070EL-FEN Nitrile Elements 70

L075EL-FEN Nitrile Elements 75

L090/L095EL-FEN Nitrile Elements 90

L100EL-FEN Nitrile Elements 100

L110EL-FEN Nitrile Elements 110

L150EL-FEN Nitrile Elements 150

Hytrel and urethane elements also available on request

Fenner Retaining Ring Kits

Fenner HRC Spider Type Shaft Coupling Taper Bore Hub

Part No Taper Lock Size Half Body

Ref (mm) Type

HRC70 (1108) 70 F, H or B

HRC90 (1108) 90 F, H or B

HEC110 (1610) 110 F, H or B

HRC130 (1610) 130 F, H or B

HRC150 (2012) 150 F, H or B

HRC180 (2517) 180 F, H or B

HRC230 (3020) 230 F, H or B

HRC280 (3525) 280 F, H or B

HRC70ELEMENT-FEN – 70 –

HRC90ELEMENT-FEN – 90 –

HRC110ELEMENT-FEN – 110 –

HRC130ELEMENT-FEN – 130 –

Part No Taper Lock Size Half Body

Ref (mm) Type

HRC150ELEMENT-FEN – 150 –

HRC180ELEMENT-FEN – 180 –

HRC230ELEMENT-FEN – 230 –

HRC280ELEMENT-FEN – 280 –

HRC70ELEMENT-FRAS-FEN – 70 –

HRC90ELEMENT-FRAS-FEN – 90 –

HRC110ELEMENT-FRAS-FEN – 110 –

HRC130ELEMENT-FRAS-FEN - 130 –

HRC150ELEMENT-FRAS-FEN – 150 –

HRC180ELEMENT-FRAS-FEN – 180 –

HRC230ELEMENT-FRAS-FEN – 230 –

HRC280ELEMENT-FRAS-FEN – 280 –

Part No Description Size (mm)

L095RETAINER-FEN Retaining Ring Kit 95

L100RETAINER-FEN Retaining Ring Kit 100

L110RETAINER-FEN Retaining Ring Kit 110

L150RETAINER-FEN Retaining Ring Kit 150

L190RETAINER-FEN Retaining Ring Kit 190

L225RETAINER-FEN Retaining Ring Kit 225

Fenner Jaw Type Shaft Coupling Spacer Kit

Part No Description Size (mm)

L095SPACERKIT/100MM-FEN 100mm DBSE 95

L110SPACERKIT/100MM-FEN 100mm DBSE 110

L095SPACERKIT/140MM-FEN 140mm DBSE 95

L110SPACERKIT/140MM-FEN 140mm DBSE 110

L225SPACERKIT/140MM-FEN 140mm DBSE 225

These semi-elastic couplings use

Taper Lock® bushes for quick assembly.

n Quick and simple alignment with a

straight edge

n Accommodates minor misalignment

n Fail-safe operation

n FRAS element available

For a complete coupling please order

two hubs and one element.

A low-cost general purpose

solution to absorb incidental

misalignment, shockloads and

small amplitude vibrations.

For a complete coupling

please order two hubs

and one element.

Jaw Couplings

www.fptgroup.com

www.fptgroup.com

To your Local Service Centre

Go

73

Visit us at eriks-techdirect.co.uk

to find your local Service Centre

POWER

TRANSMISSION

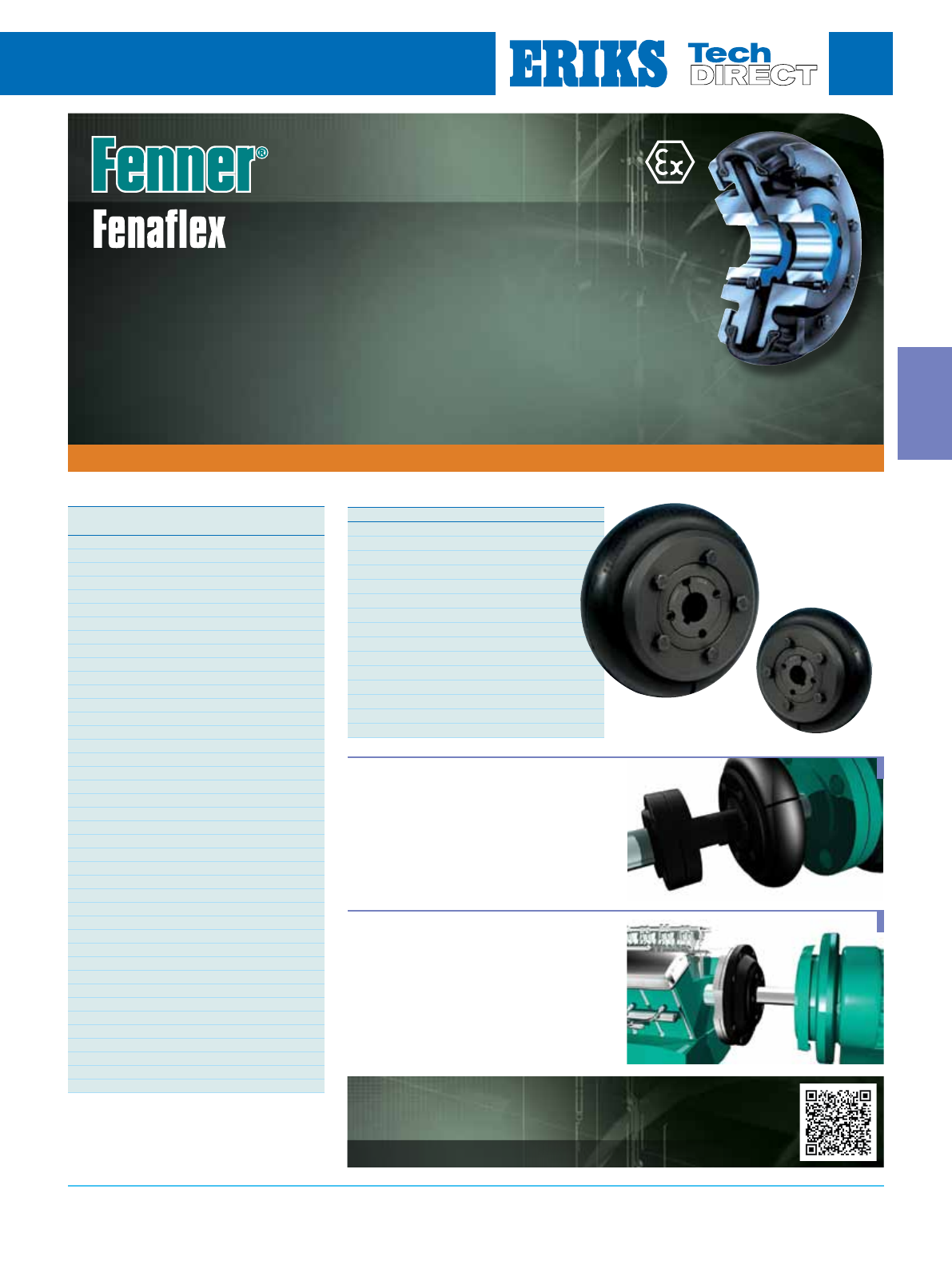

n Accepts misalignment simultaneously in all planes

n Highly resilient to absorb shock loads

n Lubrication-free

n Sample visual inspection to aid maintenance

n ATEX approved variant

n Simple installation without moving coupled machines

n Taper Lock and pilot bore flanges

n Pump spacer and flywheel fixing variants

Fenaflex Tyre Type Shaft Coupling Hub

Part No Size Half Body Bore

(mm) Type Type

F40B-FEN 40 B Pilot

F40H-FEN 40 H Taper

F40F-FEN 40 F Taper

F50B-FEN 50 B Pilot

F50H-FEN 50 H Taper

F50F-FEN 50 F Taper

F60B-FEN 60 B Pilot

F60H-FEN 60 H Taper

F70H-FEN 70 H Taper

F60F-FEN 60 F Taper

F80B-FEN 80 B Pilot

F80F-FEN 80 F Taper

F80H-FEN 80 H Taper

F70B-FEN 70 B Pilot

F70F-FEN 70 F Taper

F90B-FEN 90 B Pilot

F90F-FEN 90 F Taper

F90H-FEN 90 H Taper

F100B-FEN 100 B Pilot

F100H-FEN 100 H Taper

F100F-FEN 100 F Taper

F110B-FEN 110 B Pilot

F110F-FEN 110 F Taper

F110H-FEN 110 H Taper

F120B-FEN 120 B Pilot

F120H-FEN 120 H Taper

F120F-FEN 120 F Taper

F140B-FEN 140 B Pilot

F140F-FEN 140 F Taper

F140H-FEN 140 H Taper

F160B-FEN 160 B Pilot

F160F-FEN 160 F Taper

F160H-FEN 160 H Taper

F180B-FEN 180 B Pilot

F180F-FEN 180 F Taper

F180H-FEN 180 H Taper

F200F-FEN 200 F Taper

F200H-FEN 200 H Taper

F220B-FEN 220 B Pilot

F220F-FEN 220 F Taper

F250B-FEN 250 B Pilot

Fenaflex Tyre Type Shaft Coupling Tyre

Part No Size (mm)

F40TYRE-FEN 40

F50TYRE-FEN 50

F60TYRE-FEN 60

F70TYRE-FEN 70

F80TYRE-FEN 80

F90TYRE-FEN 90

F100TYRE-FEN 100

F110TYRE-FEN 110

F120TYRE-FEN 120

F140TYRE-FEN 140

F160TYRE-FEN 160

F180TYRE-FEN 180

F200TYRE-FEN 200

F220TYRE-FEN 220

F250TYRE-FEN 250

Tyre Couplings

These highly elastic lubrication-free couplings

tolerate large amounts of misalignment in all

planes as well as offering simple installation

and inspection without disrupting the drive.

The Fenaflex® coupling also has excellent

shock absorbing properties while reducing

vibration and torsional oscillations.

www.fptgroup.com

Fenaflex Pump Spacer Variant

Spacer variant available for pump

drives to allow disassembly of pump

shaft without disturbing the prime

mover, minimising downtime.

Fenaflex Flywheel Variant

Flywheel coupling version available

for standard SAE flywheel fixings and

elements available in different dynamic

stiffness’s to accommodate a wide range

of engine and driven machine parameters.

NEW Fenaflex Installation Videos

Now available on-line – scan here to view:

74

POWER

TRANSMISSION

Tyre Couplings

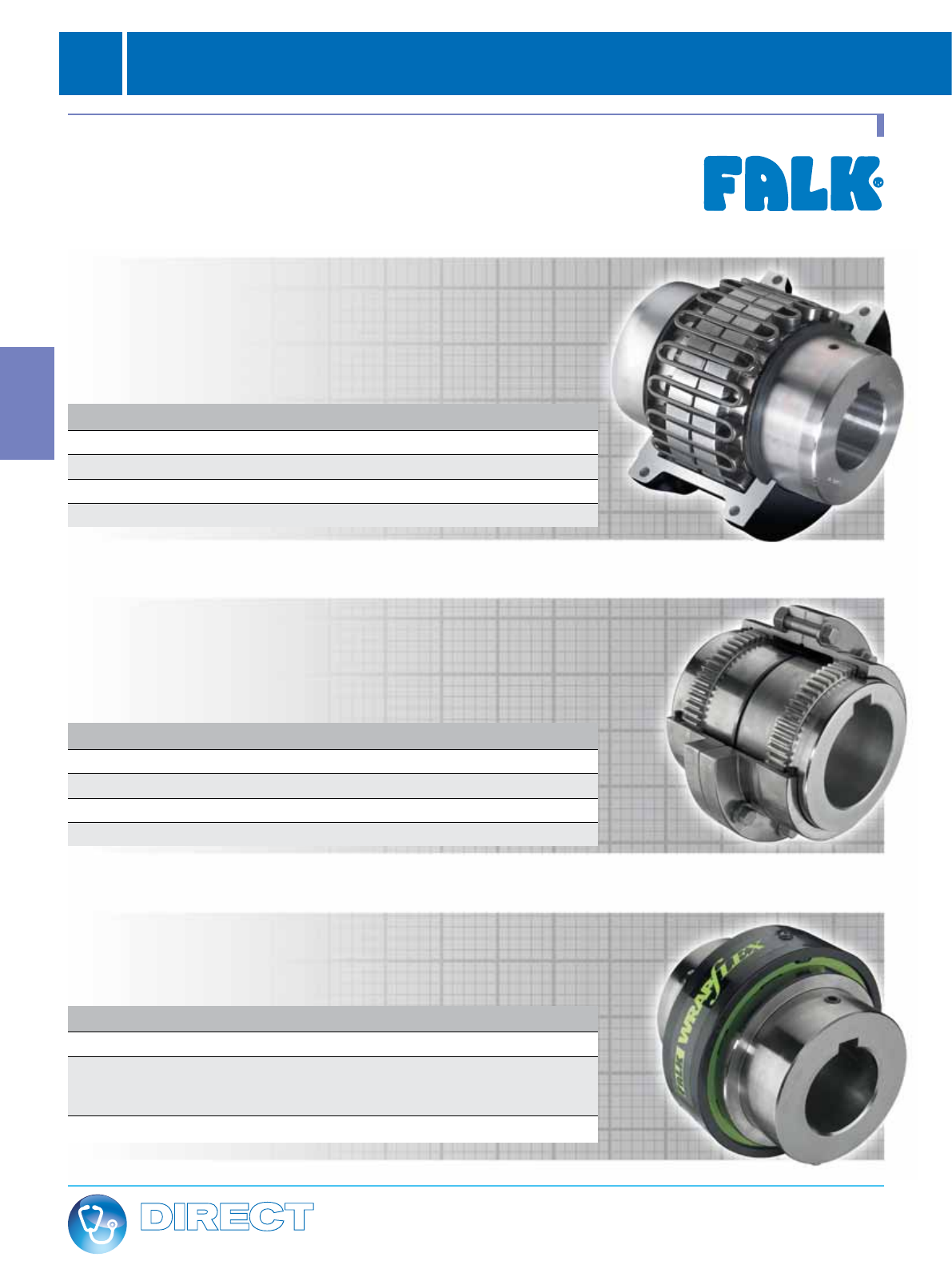

Rexnord Falk Lifelign® Gear Coupling

The Rexnord Falk Lifelign gear coupling provides an economical coupling solution. The

Lifelign has a large bore capacity with superior torque ratings. Available in both single

and double engagement designs. Spacer, floating shaft and brake wheel designs are

also available.

Rexnord Falk Steelflex® Grid Coupling

The Rexnord Falk Steelflex is a close coupled grid with replace-in-place shot peened,

tapered grid for long life. Rexnord offers a five-year warranty when installed with long

term LTG® grease. The Steelflex is an economical alternative for applications where

vibration damping is critical. The replace-in-place design eliminates the need to move

hubs or realign shafts when servicing is required.

Rexnord Falk Wrapflex® Elastomer Coupling

Wrapflex is a low cost elastomer in shear with replace-in-place element. Easy

installation and service without the need to move hubs or connected equipment.

Features Benefits

Alloy steel tapered grids Long life

Long Term Grease (LTG) Extended maintenance periods

Replace-in-place Easy maintenance

Torsionally flexible Cushions shock loads and vibrations

Features Benefits

4-point seal Improves lubrication retention during misalignment

Full depth tooth triple crowning Eliminated tip loading and reduces backlash

Massive flex hub Provides large bore capacity for economic selection

Non-turning prevailing torque locknut Reliable hold with fewer parts

Features Benefits

Torsionally soft Vibration damping

Patented design Replace-in-place element

CRR – Increased flexibility

Low lifetime costs

Shear design Protects connected equipment

Workshops offering repair or replacement

Attention

©2013 Rexnord

www.rexnord.eu

Rexnord. The complete connection.

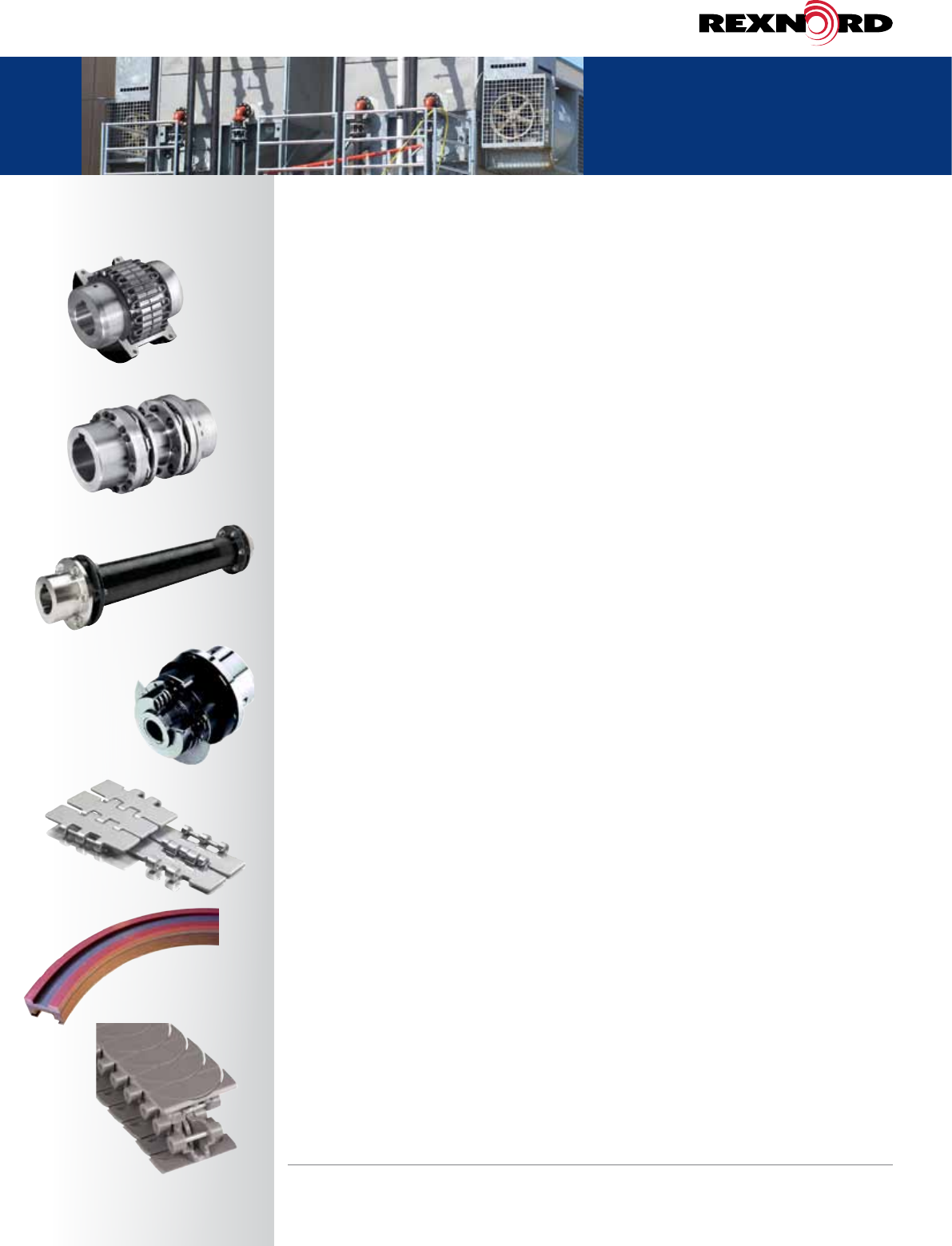

Reducing your total cost of ownership

Falk Steelflex T10 Grid Couplings

Falk® Steelflex® uses a close coupled grid with replace-in-place shot peened,

tapered grid for long life. Five year warranty when installed with long term

LTG® grease.

Thomas Disc Couplings SR71-8

Thomas® spacer style flexible metallic disc coupling designed for your pump

and compressor applications. The simple three piece design and piloted

center member provide fast installation and repeatable balance significantly

reducing your installation and service time.

Addax Cooling Tower Couplings

With more than 50.000 Addax® couplings installed around the world,

Rexnord has the most experience of any composite cooling tower coupling

manufacturer. The Rexnord® Addax coupling provides the best value with

corrosion resistance, high misalignment, fatigue resistance, low weight and

ease of installation.

Rexnord 661 Series TableTop Chain

The 661 Series TableTop® chain combines a lightweight stainless steel

1-inch pitch with reduced side-flexing gaps to provide smooth and efficient

conveying throughout beverage fill lines.

Rexnord Magnetflex Combi-X Corner tracks

From the inventors of the Magnetflex® Combi Curves. Rexnord introduces

the new Combi X curves with ULF (Ultra Low Friction) integrated wearstrips

for minimum friction and long wear life. RAM extruded 6 million “density”

UHMWPE combined with special lubricants results in lower friction and longer

guide wear life, which means lower maintenance cost.

Rexnord ZeroGap 1775 Series TableTop Chain

The ZeroGap™ 1775 Series TableTop® Chain is designed with a short 1-inch

(25 mm) pitch, 2.76-inch wide (70 mm). The chain is based on the successful

ZeroGap design, the 1775 chain allows a tight sideflex radius with no gap

opening on its surface. This enhances product conveyability resulting in less

tippage, reduced debris trapping and improved safety.

Autogard 400 Series Torque Limiters

Autogard® torque limiters act as a mechanical fuse that will completely

disengage equipment at a preset torque level resulting in protection of

expensive equipment and cost savings by minimizing or eliminating downtime.

The Autogard 400 Series is designed to operate at both high and low speeds

with standard models that can accommodate large torque ranges.

76

POWER

TRANSMISSION

Synchronous Belts

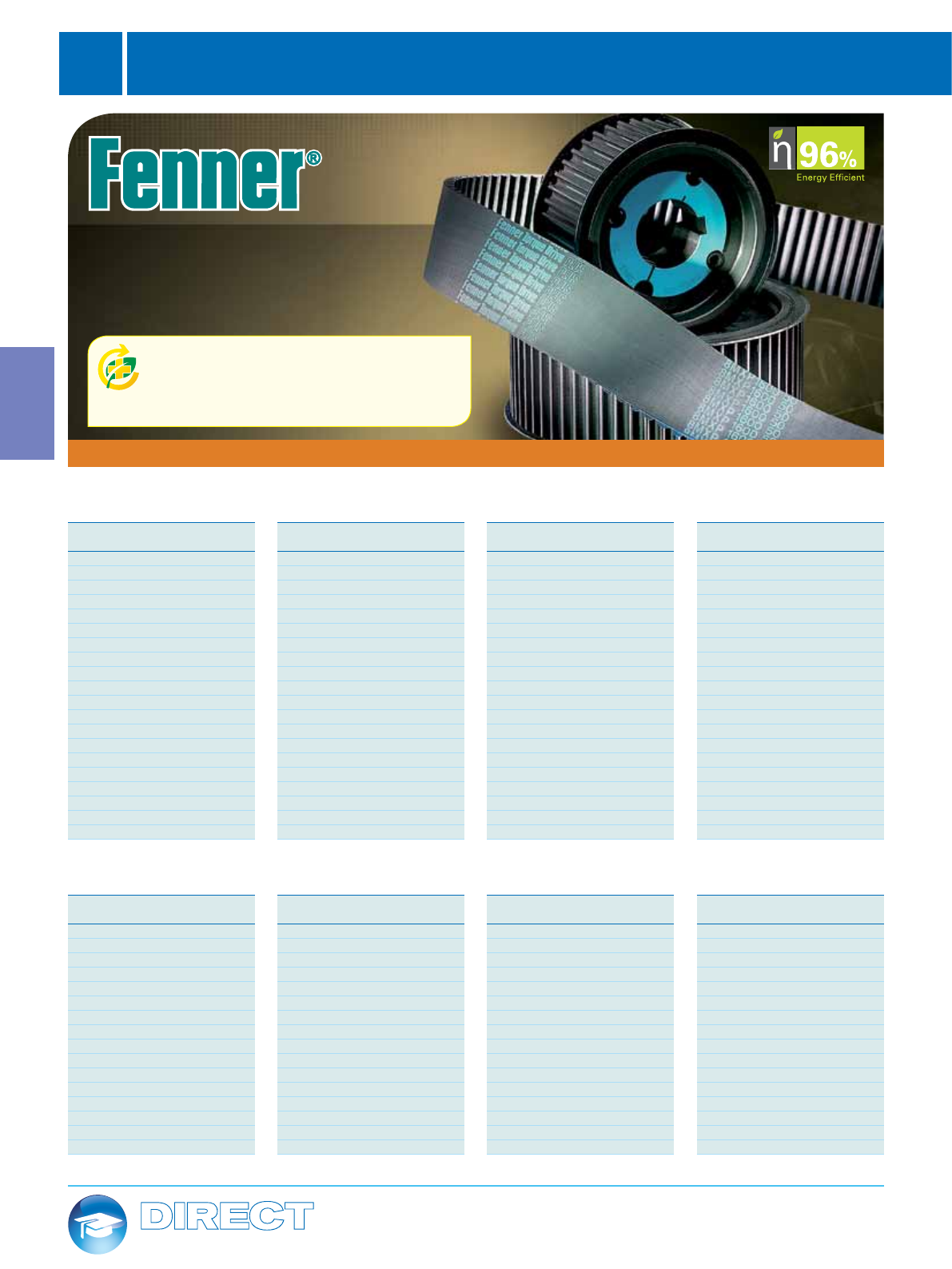

Torque Drive PLUS 3

Manufactured using the latest raw materials

and production technology, Fenner Torque Drive

PLUS 3 continues to push the boundaries of possibility.

Torque Drive PLUS 3 8mm Pitch (8MXP) Belts

170mm width also available.

Torque Drive PLUS 3 14mm Pitch (14MXP) Belts

20mm width

40mm width

Part No Pitch Length

(mm)

8MXP-480-20-GT3-FEN 480

8MXP-560-20-GT3-FEN 560

8MXP-600-20-GT3-FEN 600

8MXP-640-20-GT3-FEN 640

8MXP-720-20-GT3-FEN 720

8MXP-800-20-GT3-FEN 800

8MXP-880-20-GT3-FEN 880

8MXP-960-20-GT3-FEN 960

8MXP-1040-20-GT3-FEN 1040

8MXP-1120-20-GT3-FEN 1120

8MXP-1200-20-GT3-FEN 1200

8MXP-1280-20-GT3-FEN 1280

8MXP-1440-20-GT3-FEN 1440

8MXP-1600-20-GT3-FEN 1600

8MXP-1760-20-GT3-FEN 1760

8MXP-1800-20-GT3-FEN 1800

8MXP-2000-20-GT3-FEN 2000

8MXP-2400-20-GT3-FEN 2400

8MXP-2600-20-GT3-FEN 2600

8MXP-2800-20-GT3-FEN 2800

Part No Pitch Length

(mm)

14MXP-966-40-GT3-FEN 996

14MXP-1190-40-GT3-FEN 1190

14MXP-1400-40-GT3-FEN 1400

14MXP-1610-40-GT3-FEN 1610

14MXP-1778-40-GT3-FEN 1778

14MXP-1890-40-GT3-FEN 1890

14MXP-2100-40-GT3-FEN 2100

14MXP-2310-40-GT3-FEN 2310

14MXP-2450-40-GT3-FEN 2450

14MXP-2590-40-GT3-FEN 2590

14MXP-2800-40-GT3-FEN 2800

14MXP-3150-40-GT3-FEN 3150

14MXP-3500-40-GT3-FEN 3500

14MXP-3850-40-GT3-FEN 3850

14MXP-4326-40-GT3-FEN 4326

14MXP-4578-40-GT3-FEN 4578

30mm width

55mm width

Part No Pitch Length

(mm)

8MXP-480-30-GT3-FEN 480

8MXP-560-30-GT3-FEN 560

8MXP-600-30-GT3-FEN 600

8MXP-640-30-GT3-FEN 640

8MXP-720-30-GT3-FEN 720

8MXP-800-30-GT3-FEN 800

8MXP-880-30-GT3-FEN 880

8MXP-960-30-GT3-FEN 960

8MXP-1040-30-GT3-FEN 1040

8MXP-1120-30-GT3-FEN 1120

8MXP-1200-30-GT3-FEN 1200

8MXP-1280-30-GT3-FEN 1280

8MXP-1440-30-GT3-FEN 1440

8MXP-1600-30-GT3-FEN 1600

8MXP-1760-30-GT3-FEN 1760

8MXP-1800-30-GT3-FEN 1800

8MXP-2000-30-GT3-FEN 2000

8MXP-2400-30-GT3-FEN 2400

8MXP-2600-30-GT3-FEN 2600

8MXP-2800-30-GT3-FEN 2800

Part No Pitch Length

(mm)

14MXP-966-55-GT3-FEN 996

14MXP-1190-55-GT3-FEN 1190

14MXP-1400-55-GT3-FEN 1400

14MXP-1610-55-GT3-FEN 1610

14MXP-1778-55-GT3-FEN 1778

14MXP-1890-55-GT3-FEN 1890

14MXP-2100-55-GT3-FEN 2100

14MXP-2310-55-GT3-FEN 2310

14MXP-2450-55-GT3-FEN 2450

14MXP-2590-55-GT3-FEN 2590

14MXP-2800-55-GT3-FEN 2800

14MXP-3150-55-GT3-FEN 3150

14MXP-3500-55-GT3-FEN 3500

14MXP-3850-55-GT3-FEN 3850

14MXP-4326-55-GT3-FEN 4326

14MXP-4578-55-GT3-FEN 4578

50mm width

85mm width

Part No Pitch Length

(mm)

8MXP-480-50-GT3-FEN 480

8MXP-560-50-GT3-FEN 560

8MXP-600-50-GT3-FEN 600

8MXP-640-50-GT3-FEN 640

8MXP-720-50-GT3-FEN 720

8MXP-800-50-GT3-FEN 800

8MXP-880-50-GT3-FEN 880

8MXP-960-50-GT3-FEN 960

8MXP-1040-50-GT3-FEN 1040

8MXP-1120-50-GT3-FEN 1120

8MXP-1200-50-GT3-FEN 1200

8MXP-1280-50-GT3-FEN 1280

8MXP-1440-50-GT3-FEN 1440

8MXP-1600-50-GT3-FEN 1600

8MXP-1760-50-GT3-FEN 1760

8MXP-1800-50-GT3-FEN 1800

8MXP-2000-50-GT3-FEN 2000

8MXP-2400-50-GT3-FEN 2400

8MXP-2600-50-GT3-FEN 2600

8MXP-2800-50-GT3-FEN 2800

Part No Pitch Length

(mm)

14MXP-966-85-GT3-FEN 996

14MXP-1190-85-GT3-FEN 1190

14MXP-1400-85-GT3-FEN 1400

14MXP-1610-85-GT3-FEN 1610

14MXP-1778-85-GT3-FEN 1778

14MXP-1890-85-GT3-FEN 1890

14MXP-2100-85-GT3-FEN 2100

14MXP-2310-85-GT3-FEN 2310

14MXP-2450-85-GT3-FEN 2450

14MXP-2590-85-GT3-FEN 2590

14MXP-2800-85-GT3-FEN 2800

14MXP-3150-85-GT3-FEN 3150

14MXP-3500-85-GT3-FEN 3500

14MXP-3850-85-GT3-FEN 3850

14MXP-4326-85-GT3-FEN 4326

14MXP-4578-85-GT3-FEN 4578

85mm width

115mm width

Part No Pitch Length

(mm)

8MXP-480-85-GT3-FEN 480

8MXP-560-85-GT3-FEN 560

8MXP-600-85-GT3-FEN 600

8MXP-640-85-GT3-FEN 640

8MXP-720-85-GT3-FEN 720

8MXP-800-85-GT3-FEN 800

8MXP-880-85-GT3-FEN 880

8MXP-960-85-GT3-FEN 960

8MXP-1040-85-GT3-FEN 1040

8MXP-1120-85-GT3-FEN 1120

8MXP-1200-85-GT3-FEN 1200

8MXP-1280-85-GT3-FEN 1280

8MXP-1440-85-GT3-FEN 1440

8MXP-1600-85-GT3-FEN 1600

8MXP-1760-85-GT3-FEN 1760

8MXP-1800-85-GT3-FEN 1800

8MXP-2000-85-GT3-FEN 2000

8MXP-2400-85-GT3-FEN 2400

8MXP-2600-85-GT3-FEN 2600

8MXP-2800-85-GT3-FEN 2800

Part No Pitch Length

(mm)

14MXP-966-115-GT3-FEN 996

14MXP-1190-115-GT3-FEN 1190

14MXP-1400-115-GT3-FEN 1400

14MXP-1610-115-GT3-FEN 1610

14MXP-1778-115-GT3-FEN 1778

14MXP-1890-115-GT3-FEN 1890

14MXP-2100-115-GT3-FEN 2100

14MXP-2310-115-GT3-FEN 2310

14MXP-2450-115-GT3-FEN 2450

14MXP-2590-115-GT3-FEN 2590

14MXP-2800-115-GT3-FEN 2800

14MXP-3150-115-GT3-FEN 3150

14MXP-3500-115-GT3-FEN 3500

14MXP-3850-115-GT3-FEN 3850

14MXP-4326-115-GT3-FEN 4326

14MXP-4578-115-GT3-FEN 4578

TDP3 delivers synchronous driven speeds

at efficiencies of 97% and upwards and

when used on constant torque applications,

can save significant amounts of energy,

money and carbon emissions.

POSITIVE

RISK

REDUCTION

POSITIVE

WASTE

REDUCTION

POSITIVE

POLLUTION

REDUCTION

POSITIVE

ENERGY

REDUCTION

www.fptgroup.com

Specialist Technical Centres

Know-How

77

Visit us at eriks-techdirect.co.uk

to find your local Service Centre

POWER

TRANSMISSION

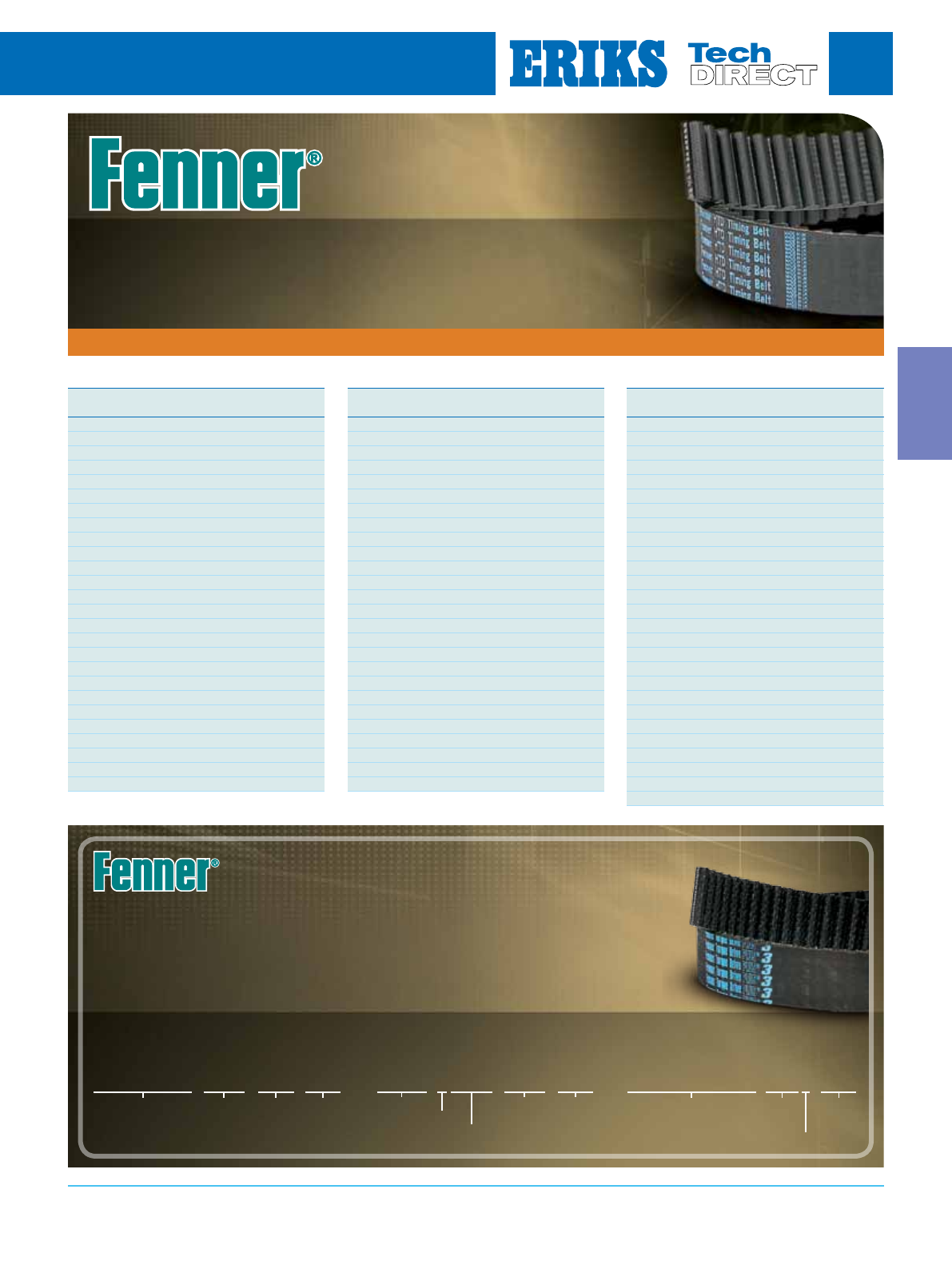

HTD

Synchronous Belts

Fenner HTD belts have a curvilinear tooth form

giving a more uniform distribution of shear

stresses within the teeth. This also provides a

more uniform transition of tooth loads to the

tensile members in the belt which significantly

improves upon classical timing belts.

n Ultra compact and cost-effective drives

n Runs optimally on standard HTD pulleys

n Minimum backlash for precise positioning

Fenner HTD Timing Belt

Part No Pitch Length Width

(mm) (mm) (mm)

1610-14M55-FEN 14 1610 55

1778-14M40-FEN 14 1778 40

1778-14M55-FEN 14 1778 55

1890-14M40-FEN 14 1890 40

1890-14M55-FEN 14 1890 55

2100-14M40-FEN 14 2100 40

2100-14M55-FEN 14 2100 55

2100-14M85-FEN 14 2100 85

2310-14M40-FEN 14 2310 40

2310-14M55-FEN 14 2310 55

2310-14M85-FEN 14 2310 85

3150-14M55-FEN 14 3150 55

3850-14M85-FEN 14 3850 85

1200-8M30-FEN 8 1200 30

1200-8M50-FEN 8 1200 50

1200-8M85-FEN 8 1200 85

1280-8M20-FEN 8 1280 20

1280-8M30-FEN 8 1280 30

1280-8M50-FEN 8 1280 50

1440-8M20-FEN 8 1440 20

1440-8M30-FEN 8 1440 30

1600-8M20-FEN 8 1600 20

1600-8M30-FEN 8 1600 30

1760-8M20-FEN 8 1760 20

1760-8M30-FEN 8 1760 30

1800-8M20-FEN 8 1800 20

1800-8M30-FEN 8 1800 30

Part No Pitch Length Width

(mm) (mm) (mm)

305-5M15-FEN 5 305 15

325-5M15-FEN 5 325 15

350-5M15-FEN 5 350 15

400-5M15-FEN 5 400 15

450-5M15-FEN 5 450 15

500-5M15-FEN 5 500 15

575-5M15-FEN 5 575 15

640-5M15-FEN 5 640 15

700-5M15-FEN 5 700 15

800-5M15-FEN 5 800 15

890-5M15-FEN 5 890 15

980-5M15-FEN 5 980 15

1100-5M15-FEN 5 1100 15

1200-5M15-FEN 5 1200 15

1270-5M15-FEN 5 1270 15

1420-5M15-FEN 5 1420 15

1595-5M15-FEN 5 1595 15

1800-5M15-FEN 5 1800 15

480-8M20-FEN 8 480 20

560-8M20-FEN 8 560 20

600-8M20-FEN 8 600 20

640-8M20-FEN 8 640 20

640-8M50-FEN 8 640 50

720-8M20-FEN 8 720 20

720-8M30-FEN 8 720 30

720-8M50-FEN 8 720 50

Part No Pitch Length Width

(mm) (mm) (mm)

800-8M20-FEN 8 800 30

800-8M30-FEN 8 800 30

800-8M50-FEN 8 800 50

880-8M20-FEN 8 880 20

880-8M30-FEN 8 880 30

960-8M20-FEN 8 960 20

960-8M30-FEN 8 960 30

1040-8M20-FEN 8 1040 20

1040-8M30-FEN 8 1040 30

1120-8M20-FEN 8 1120 20

1120-8M30-FEN 8 1120 30

1120-8M50-FEN 8 1120 50

1200-8M20-FEN 8 1200 20

2000-8M20-FEN 8 2000 20

2000-8M30-FEN 8 2000 30

2400-8M50-FEN 8 2400 50

2600-8M30-FEN 8 2600 30

1190-14M85-FEN 14 1190 85

966-14M40-FEN 14 966 40

966-14M55-FEN 14 966 55

1190-14M40-FEN 14 1190 40

1190-14M55-FEN 14 1190 55

1400-14M40-FEN 14 1400 40

1400-14M55-FEN 14 1400 55

1400-14M85-FEN 14 1400 85

1610-14M40-FEN 14 1610 40

No Stock – Can’t Find What You’re Looking For?

Then call ERIKS. Our in-house belt cutting service can help.

Most Fenner HTD and all TDP3 belts are stocked as sleeves (slab) and can

be cut-to-width on demand. To order see below:

Cutting Service

Constant Belt

Length

Pitch Fenner

Brand

SLAB-HTD-1610-14M-FEN

HTD Belts

Constant

Constant

Pitch Belt

Length

Fenner

Brand

SLAB-8MXP-1280-FEN

Torque Drive PLUS 3

Constant Belt

Length

Pitch Letter

Fenner

Brand

SLAB-T/BELT-510L-FEN

Classical Timing Belts

www.fptgroup.com

78

POWER

TRANSMISSION

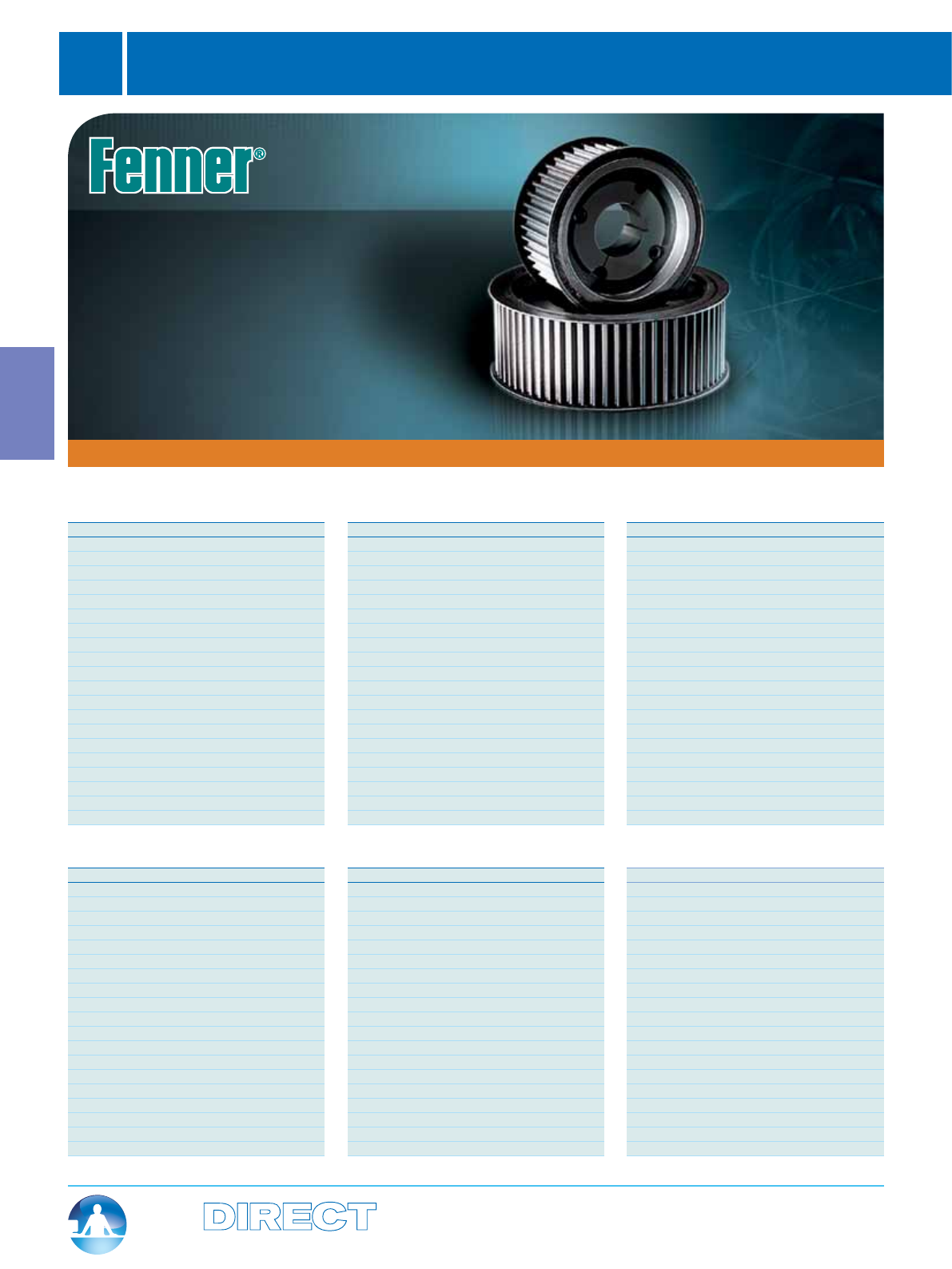

Synchronous Pulleys and Chains

Part No No. of teeth Pitch (mm)

34-5M15-FEN 34 5

36-5M15-FEN 36 5

40-5M15-FEN 40 5

44-5M15-FEN 44 5

48-5M15-FEN 48 5

56-5M15-FEN 56 5

64-5M15-FEN 64 5

72-5M15-FEN 72 5

80-5M15-FEN 80 5

90-5M15-FEN 90 5

24-8M20-FEN 24 8

26-8M20-FEN 26 8

30-8M20-FEN 30 8

30-8M30-FEN 30 8

30-8M50-FEN 30 8

32-8M20-FEN 32 8

32-8M30-FEN 32 8

36-8M20-FEN 36 8

36-8M30-FEN 36 8

38-8M30-FEN 38 8

Part No No. of teeth Pitch (mm)

40-8M20-FEN 40 8

40-8M30-FEN 40 8

44-8M30-FEN 44 8

48-8M20-FEN 48 8

48-8M30-FEN 48 8

56-8M20-FEN 56 8

56-8M30-FEN 56 8

56-8M50-FEN 56 8

72-8M20-FEN 72 8

72-8M30-FEN 72 8

80-8M50-FEN 80 8

112-8M30-FEN 112 8

112-8M50-FEN 112 8

144-8M50-FEN 144 8

192-8M50-FEN 192 8

28-14M40-FEN 28 14

28-14M55-FEN 28 14

28-14M85-FEN 28 14

29-14M85-FEN 29 14

30-14M85-FEN 30 14

Part No No. of teeth Pitch (mm)

32-14M85-FEN 32 14

34-14M55-FEN 34 14

36-14M40-FEN 36 14

36-14M55-FEN 36 14

38-14M85-FEN 38 14

40-14M55-FEN 40 14

40-14M85-FEN 40 14

44-14M55-FEN 44 14

48-14M55-FEN 48 14

56-14M40-FEN 56 14

56-14M55-FEN 56 14

56-14M85-FEN 56 14

64-14M85-FEN 64 14

72-14M40-FEN 72 14

72-14M55-FEN 72 14

72-14M85-FEN 72 14

90-14M55-FEN 90 14

144-14M55-FEN 144 14

144-14M85-FEN 144 14

192-14M85-FEN 192 14

Fenner Taper Bore HTD Synchronous Pulley

Part No No. of Teeth Width (mm)

28-14M40-FEN 28 40

29-14M40-FEN 29 40

30-14M40-FEN 30 40

32-14M40-FEN 32 40

34-14M40-FEN 34 40

36-14M40-FEN 36 40

38-14M40-FEN 38 40

40-14M40-FEN 40 40

44-14M40-FEN 44 40

48-14M40-FEN 48 40

56-14M40-FEN 56 40

64-14M40-FEN 64 40

72-14M40-FEN 72 40

80-14M40-FEN 80 40

90-14M40-FEN 90 40

112-14M40-FEN 112 40

144-14M40-FEN 144 40

168-14M40-FEN 168 40

192-14M40-FEN 192 40

Part No No. of Teeth Width (mm)

28-14M55-FEN 28 55

29-14M55-FEN 29 55

30-14M55-FEN 30 55

32-14M55-FEN 32 55

34-14M55-FEN 34 55

36-14M55-FEN 36 55

38-14M55-FEN 38 55

40-14M55-FEN 40 55

44-14M55-FEN 44 55

48-14M55-FEN 48 55

56-14M55-FEN 56 55

64-14M55-FEN 64 55

72-14M55-FEN 72 55

80-14M55-FEN 80 55

90-14M55-FEN 90 55

112-14M55-FEN 112 55

144-14M55-FEN 144 55

168-14M55-FEN 168 55

192-14M55-FEN 192 55

Fenner Taper Lock HTD Pulleys – 14M

Part No No. of Teeth Width (mm)

28-14M85-FEN 28 85

29-14M85-FEN 29 85

30-14M85-FEN 30 85

32-14M85-FEN 32 85

34-14M85-FEN 34 85

36-14M85-FEN 36 85

38-14M85-FEN 38 85

40-14M85-FEN 40 85

44-14M85-FEN 44 85

48-14M85-FEN 48 85

56-14M85-FEN 56 85

64-14M85-FEN 64 85

72-14M85-FEN 72 85

80-14M85-FEN 80 85

90-14M85-FEN 90 85

112-14M85-FEN 112 85

144-14M85-FEN 144 85

168-14M85-FEN 168 85

192-14M85-FEN 192 85

Fenner pulleys are designed for use with

Fenner timing belts for ease of fitment and use.

n Available in both Classical Timing and HTD

n Precision machined grooves maximise

belt-life while reducing noise emissions

n Special designs and sizes are available

n Maximum rim speed up to 40m/s

Synchronous Pulleys

www.fptgroup.com

To your Local Service Centre

Go

79

Visit us at eriks-techdirect.co.uk

to find your local Service Centre

POWER

TRANSMISSION

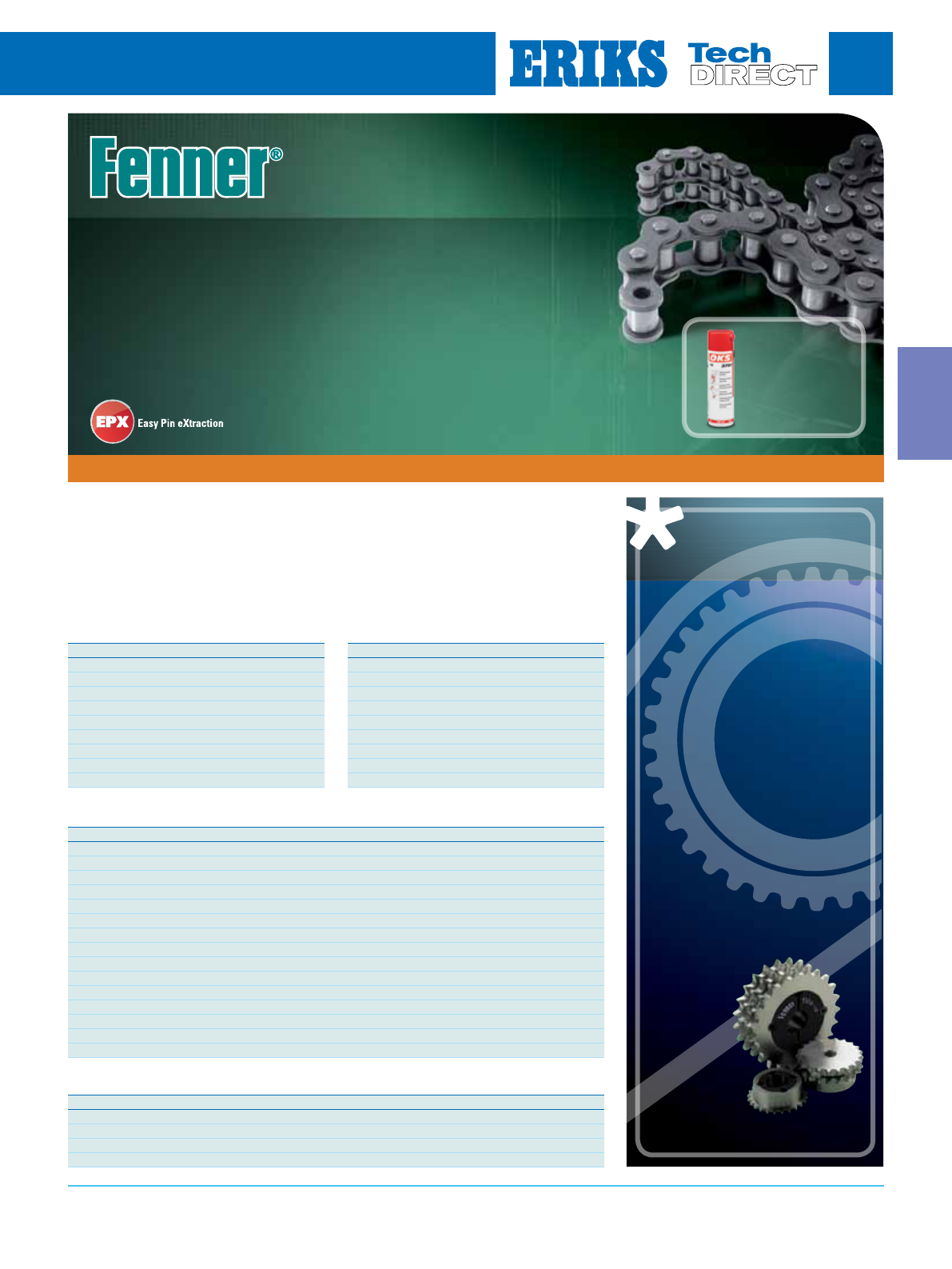

PLUS Chain

Increased fatigue resistance

n Shot peening of roller and side plates gives increased fatigue resistance

n Ball swaged side plate holes improve finish and combat fatigue failure

n Deep waisted side plates increase effective cross section lowering fatigue

Fit and forget reliability

n Preloaded to bed in all component parts

n Final 100% quality check enabling you to simply fit and forget

Comprehensive range

n Extensive range of BS and ANSI chains with attachments available from stock

n Hollow Pin, Agricultural and Double Pitch chains all available to order

n Can be supplied ‘cut to length’ or in ‘boxed’ Lengths

n Full range of Taper Lock and Pilot Bored sprockets available from stock

Part No ISO Ref. Pitch (inch)

114056/26-FENNER+ 10B-2 5/8

114066/26-FENNER+ 12B-2 3/4

114088/26-FENNER+ 16B-2 1

116066/26-FENNER+ 12B-3 3/4

116088/26-FENNER+ 16B-3 1

119047/26-FENNER+ ASA 40 1/2

119057/26-FENNER+ ASA 50 5/8

119067/26-FENNER+ ASA 60 3/4

119087/26-FENNER+ ASA 80 1

Part No ISO Ref. Pitch (inch)

110038/12-FENNER+ 06B-1 3/8

110046/12-FENNER+ 08B-1 1/2

110056/12-FENNER+ 10B-1 5/8

110066/12-FENNER+ 12B-1 3/4

110088/12-FENNER+ 16B-1 1

110106/12-FENNER+ 20B-1 1.1/4

110127/12-FENNER+ 24B-1 1.1/2

114038/12-FENNER+ 06B-2 3/8

114046/12-FENNER+ 08B-2 1/2

Part No Description ISO Ref. Pitch (inch) Box Qty (ft)

110038-25FT-FENNER+ 06B-1 25ft Box 06B-1 3/8 25

110046-25FT-FENNER+ 08B-1 25ft Box 08B-1 1/2 25

110056-25FT-FENNER+ 10B-1 25ft Box 10B-1 5/8 25

110066-25FT-FENNER+ 12B-1 25ft Box 12B-1 3/4 25

110088-10FT-FENNER+ 16B-1 10ft Box 16B-1 1 10

110106-10FT-FENNER+ 20B-1 10ft Box 20B-1 1.1/4 10

110127-10FT-FENNER+ 24B-1 10ft Box 24B-1 1.1/2 10

114038-25FT-FENNER+ 06B-2 25ft Box 06B-2 3/8 25

114046-25FT-FENNER+ 08B-2 25ft Box 08B-2 1/2 25

114056-25FT-FENNER+ 10B-2 25ft Box 10B-2 5/8 25

114066-25FT-FENNER+ 12B-2 25ft Box 12B-2 3/4 25

114088-10FT-FENNER+ 16B-2 10ft Box 16B-2 1 10

116038-25FT-FENNER+ 06B-3 25ft Box 06B-3 3/8 25

116066-25FT-FENNER+ 12B-3 25ft Box 12B-3 3/4 25

116088-10FT-FENNER+ 16B-3 10ft Box 16B-3 1 10

Part No Description ISO Ref. Pitch (inch) Box Qty (ft)

119047-25FT-FENNER+ ASA40-1 25ft Box ASA 40 1/2 25

119057-25FT-FENNER+ ASA50-1 25ft Box ASA 50 5/8 25

119067-25FT-FENNER+ ASA60-1 25ft Box ASA 60 3/4 25

119087-10FT-FENNER+ ASA80-1 10ft Box ASA 80 1 10

BS Fenner PLUS Chain

ANSI Fenner PLUS Chain

Fenner PLUS Chain Single Crank Link Fenner PLUS Chain Spring Clip Conn Link

Also

available:

Sprocket

Reworking

Service

The ERIKS Core Competence Centre

for Drives and Power Transmission is

pleased to offer you a new in-house

sprocket reworking service.

See page 80 for more information

on our range of sprockets

Also available

OKS Chain and

Drive Spray

Product Ref:

OKS3751-500ML

n Stocking 3/8" to 3/4" pitch simplex

in preferred tooth numbers**

n Standard product will be bored

to H7 tolerance with grubscrew

over keyway*

n References on the system

as follows: 1/2S-17T-BK-FEN

n Pricing can be located on system

* Parallel key only

** Duplex/triplex sprockets and

platewheels coming soon

www.fptgroup.com

80

POWER

TRANSMISSION

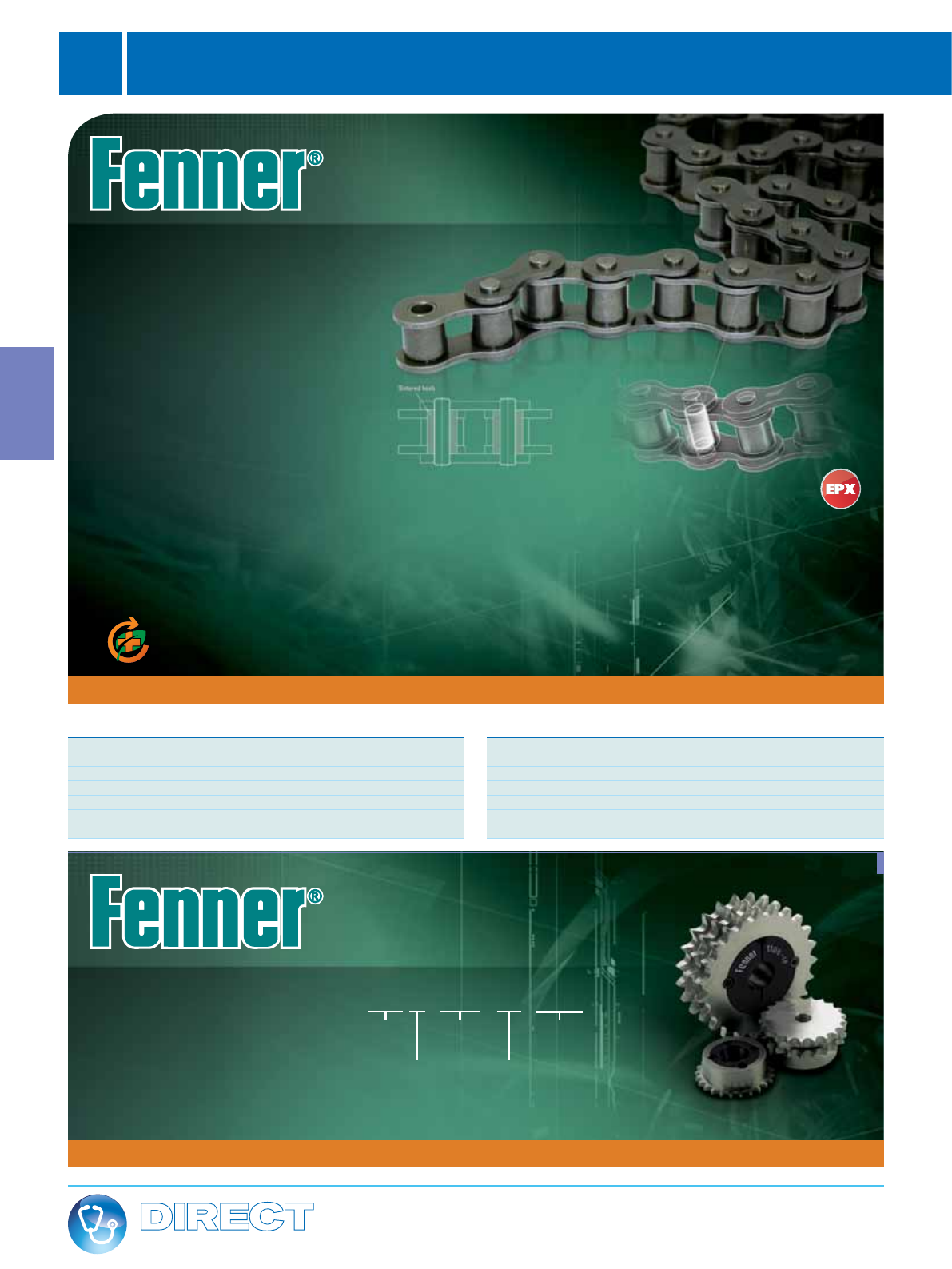

Sprockets and Chains

Sprockets

PLUS

Lubrication-Free Chain

Fenner sprockets are available

with either Taper Lock® or Pilot

Bored fixings and are precision

manufactured from fine grade steel.

Sprockets are available in simplex,

duplex and triplex forms for sizes

05B to 20B.

Fenner PLUS lubrication-free chain is

an ideal solution for situations where

lubrication is difficult or contamination

and fire are serious potential problems.

n Built-in lubrication – Fenner

PLUS lubrication-free

chain has been specially

manufactured to exacting

standards and features its

own built-in lubrication

n Using sintered bushes

impregnated with oil, Fenner

lubrication-free chain can

operate at up to 2.5m/sec,

which is more than twice that

of composite bush chains

Fenner PLUS Lubrication-Free Chain

Product No ISO Ref Pitch (in) Box Qty (Ft)

BS08B-1LF-25FT-FENNER+ 08B-1 1/2 25

BS10B-1LF-25FT-FENNER+ 10B-1 5/8 25

BS12B-1LF-25FT-FENNER+ 12B-1 3/4 25

BS16B-1LF-25FT-FENNER+ 16B-1 1 25

BS08B-2LF-25FT-FENNER+ 08B-2 1/2 25

BS10B-2LF-25FT-FENNER+ 10B-2 5/8 25

Product No ISO Ref Pitch (in) Box Qty (Ft)

BS12B-2LF-25FT-FENNER+ 12B-2 3/4 25

BS16B-2LF-25FT-FENNER+ 16B-2 1 25

BS08B-3LF-25FT-FENNER+ 08B-3 1/2 25

BS10B-3LF-25FT-FENNER+ 10B-3 5/8 25

BS12B-3LF-25FT-FENNER+ 12B-3 3/4 25

BS16B-3LF-25FT-FENNER+ 16B-3 1 25

Number

of teeth

Pitch

(Inches)

Fixing

TL for Taper Lock

PB for Pilot Bore

Form

S for Simplex

D for Duplex

T for Triplex

Manufacturer

5/8D-27T-TL-FEN

POSITIVE

RISK

REDUCTION

POSITIVE

WASTE

REDUCTION

POSITIVE

POLLUTION

REDUCTION

POSITIVE

ENERGY

REDUCTION

www.fptgroup.com

www.fptgroup.com

The Greener, Cleaner Option

Fenner PLUS Lubrication Free chain utilises sintered bush chain

technology which negates the need to pre- lubricate the chain for storage

or running. The porous bush is lightly impregnated with oil which gives the

same performance characteristics as lubricated chain without the need for

periodical applications of lubricant whilst the chain is in use.

This reduces risk to personnel as they don’t have to climb into machines

to lubricate product and reduces waste oil products having to be recycled

safely and legally.

Workshops offering repair or replacement

Attention

81

Visit us at eriks-techdirect.co.uk

to find your local Service Centre

POWER

TRANSMISSION

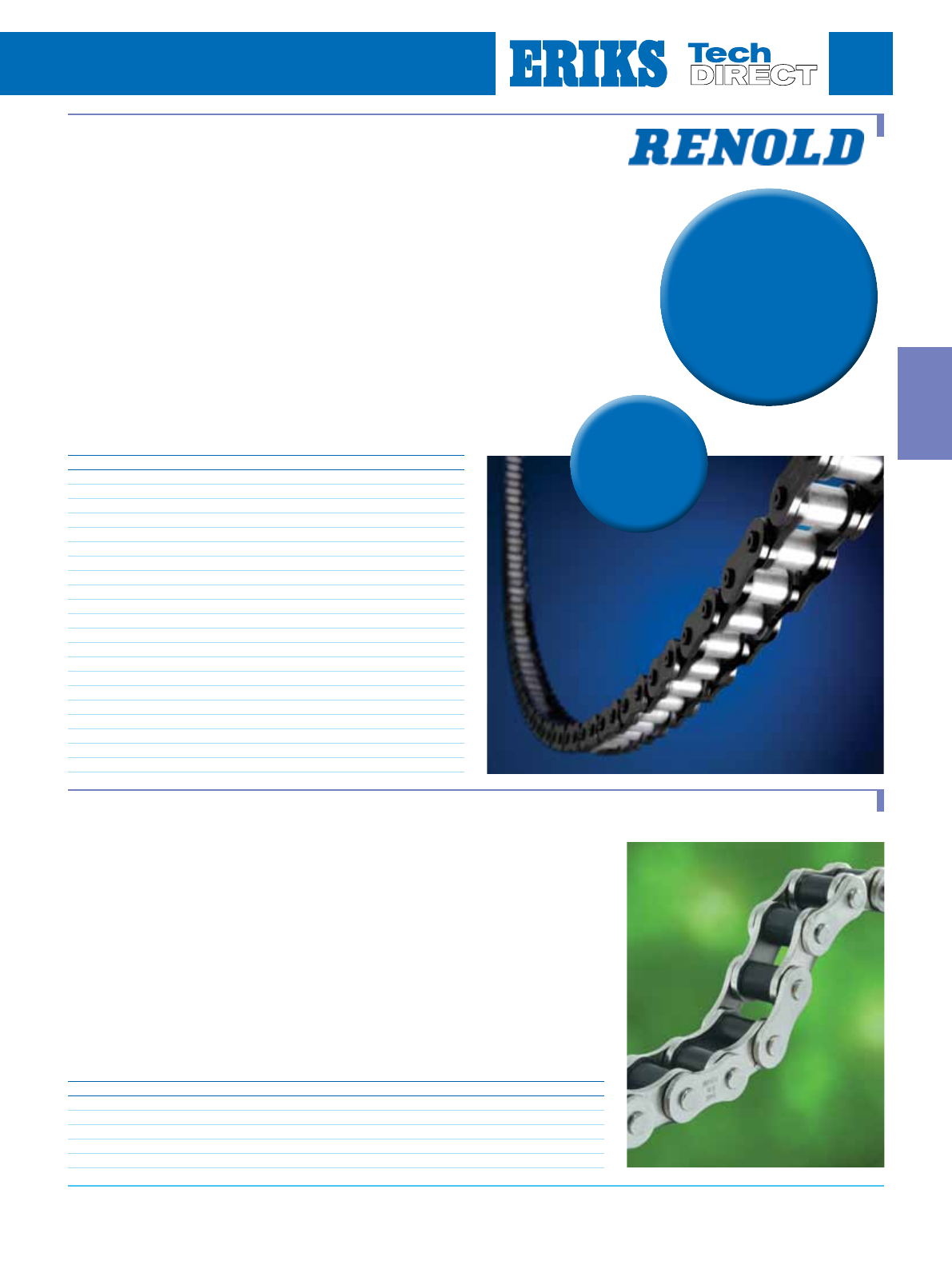

Synergy Chain

If lubrication’s a problem – here’s the solution! Designed around unique Renold

technology, these chains set a new benchmark for chain performance with little or no

lubrication. Offering real improvements in working life, thanks to outstanding wear and

fatigue resistance, the range covers both small and large pitch sizes and is dimensionally

interchangeable with standard chains. Using food industry-approved lubricant within

the sintered bush, they have an ISO standard pin diameter, and therefore standard

attachments on the outer links.

n Large and small pitch sizes

n No lubrication normally required

n Totally dry to the touch

n Nickel-plated plates

n Excellent corrosion resistance

n Unique food industry-approved

roller coating

n Dimensionally interchangeable

with standard chain

n ISO standard pin diameter

Part No ISO Ref Pitch (inch) Box Qty (ft)

110438-10FT-REN 06B-1 3/8 10

110446-10FT-REN 08B-1 1/2 10

110456-10FT-REN 10B-1 5/8 10

110466-10FT-REN 12B-1 3/4 10

110488-10FT-REN 16B-1 1 10

Syno Chain

The only true high performance roller chain on the market! This isn’t our verdict,

but that of engineers around the world, who consistently report that these superb

products offer excellent wear and fatigue resistance, and exceptional working life.

Its performance which results from years of research and development to deliver

a product which is quite simply the most reliable of its kind.

Outstanding features include:

Fit it and forget it

n Backed by the Synergy Wear Life Guarantee

n Unbeatable wear resistance delivers maximum productivity

n Special platinum-coloured connecting link for easy

identification and fast disconnect

n Unique end-softened pins for quick and easy cutting

to length – without damaging the rest of the chain

n Higher resistance to shock loading

Part No ISO Ref Pitch (inch) Box Qty (ft)

110038-25FT-REN 06B-1 3/8 25

110046-25FT-REN 08B-1 1/2 25

110056-25FT-REN 10B-1 5/8 25

110066-25FT-REN 12B-1 3/4 25

110088-10FT-REN 16B-1 1 10

110106-10FT-REN 20B-1 1.1/4 10

110127-10FT-REN 24B-1 1.1/2 10

114038-25FT-REN 06B-2 3/8 25

114046-25FT-REN 08B-2 1/2 25

114056-25FT-REN 10B-2 5/8 25

114066-25FT-REN 12B-2 3/4 25

114088-10FT-REN 16B-2 1 10

114106-10FT-REN 20B-2 1.1/4 10

114127-10FT-REN 24B-2 1.1/2 10

116038-25FT-REN 06B-3 3/8 25

116046-25FT-REN 08B-3 1/2 25

116056-25FT-REN 10B-3 5/8 25

116066-25FT-REN 12B-3 3/4 25

116088-10FT-REN 16B-3 1 10

116106-10FT-REN 20B-3 1.1/4 10

116127-10FT-REN 24B-3 1.1/2 10

The biggest

single innovation in

power transmission

technology since

Renold invented

the bush roller

chain

Wear

resistance and

performance

without

equal

82

POWER

TRANSMISSION

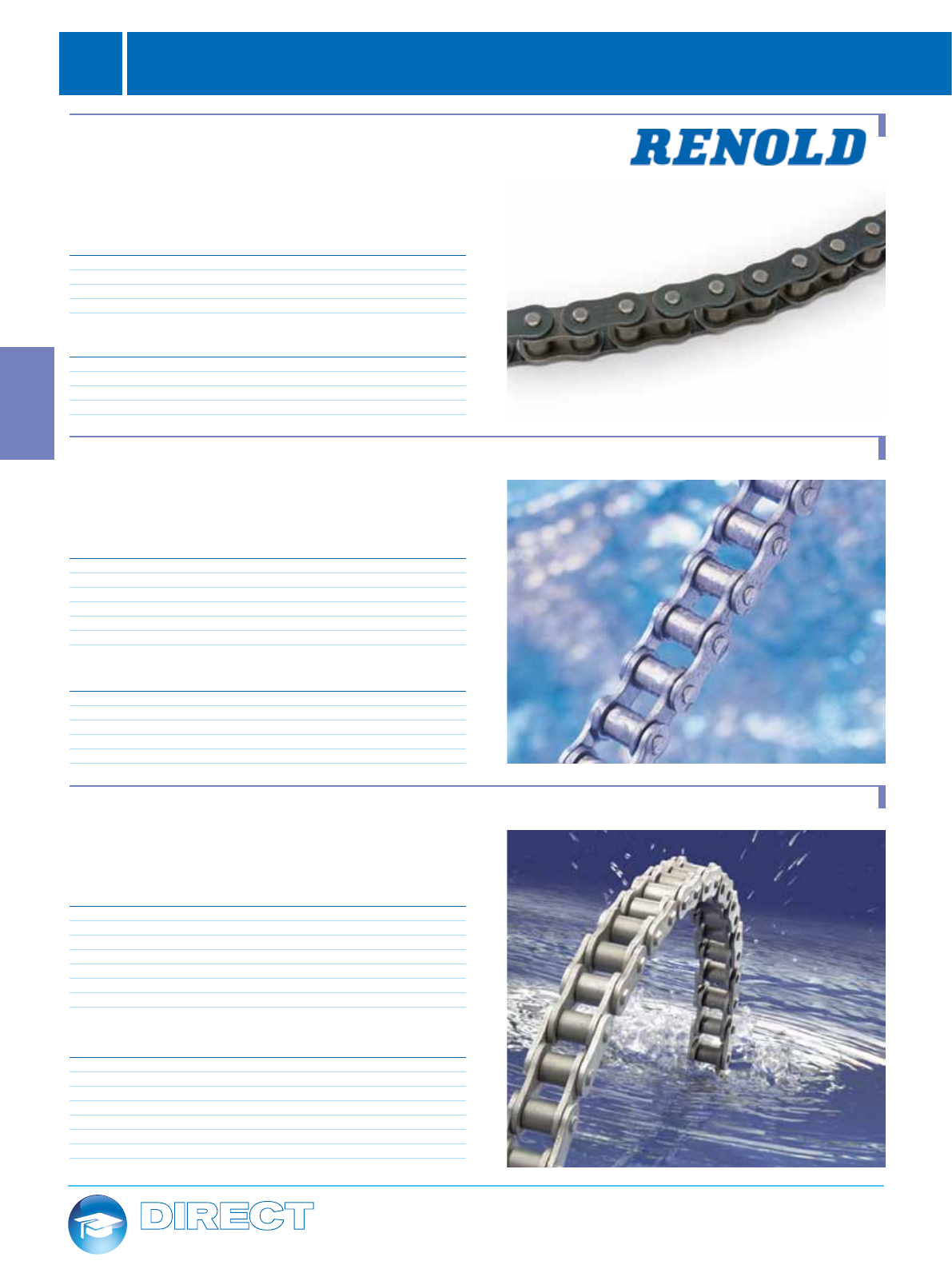

Chains

Renold Sovereign

Renold Stainless Steel

Renold Hydro-Service

British Standard

British Standard

British Standard

Simplex

Simplex

Simplex

Duplex

Duplex

Duplex

Part No ISO Ref Pitch (inch) Box Qty (ft)

110846-25FT-REN 08B-1 1/2 25

110856-25FT-REN 10B-1 5/8 25

110866-25FT-REN 12B-1 3/4 25

110888-10FT-REN 16B-1 1 10

Part No ISO Ref Pitch (inch) Box Qty (ft)

185118-10FT-REN 05B-1 5/16 10

185302-10FT-REN 06B-1 3/8 10

181707-10FT-REN 08B-1 1/2 10

180280-10FT-REN 10B-1 5/8 10

185634-10FT-REN 12B-1 3/4 10

187900-10FT-REN 16B-1 1 10

Part No ISO Ref Pitch (inch) Box Qty (ft)

530038-10FT-REN 06B-1 3/8 10

530046-10FT-REN 08B-1 1/2 10

530056-10FT-REN 10B-1 5/8 10

530066-10FT-REN 12B-1 3/4 10

530088-10FT-REN 16B-1 1 10

530106-10FT-REN 20B-1 1.1/4 10

530127-10FT-REN 24B-1 1.1/2 10

Part No ISO Ref Pitch (inch) Box Qty (ft)

114846-25FT-REN 08B-2 1/2 25

114856-25FT-REN 10B-2 5/8 25

114866-25FT-REN 12B-2 3/4 25

114888-10FT-REN 16B-2 1 10

Part No ISO Ref Pitch (inch) Box Qty (ft)

185122-10FT-REN 06B-2 3/8 10

185125-10FT-REN 08B-2 1/2 10

185126-10FT-REN 10B-2 5/8 10

185127-10FT-REN 12B-2 3/4 10

185128-10FT-REN 16B-2 1 10

Part No ISO Ref Pitch (inch) Box Qty (ft)

534038-10FT-REN 06B-2 3/8 10

534046-10FT-REN 08B-2 1/2 10

534056-10FT-REN 10B-2 5/8 10

534066-10FT-REN 12B-2 3/4 10

534088-10FT-REN 16B-2 1 10

534106-10FT-REN 20B-2 1.1/4 10

534127-10FT-REN 24B-2 1.1/2 10

Specialist Technical Centres

Know-How

new renold advert

www.renold.com/synergy

To find out how Renold Synergy can

enhance your productivity, call us on;

Tel: +44 (0)161 498 4600

Email: synergy@renold.com

• Unbeatable wear

and fatigue resistance

• Withstands shock

loadings better than any

other standard chain

• Reduced initial wear

• Productivity improves

with Renold Synergy

Renold Synergy is the only high performance transmission chain on the market

LASTS 3 TIMES

LONGER IN WEAR THAN

YOUR CURRENT CHAIN OR

YOUR NEXT CHAIN IS FREE

3XXXX Renold Synergy Ad 210x280 v1_Layout 1 25/07/2012 10:43 Page 1

84

POWER

TRANSMISSION

Chains

www.renold.com/attachmentchain

Contact us now for all your

standard chain attachment needs.

Call today on +44 (0) 161 498 4600

Attachment Chain from Renold.

Attachment chain requires excellent

service; prompt quoting, rapid

availability and quick delivery.

39269 Renold ERIKS A4 ATTACHMENT Advert.indd 1 30/04/2013 09:56

www.renold.com/attachmentchain

Contact us now for all your

standard chain attachment needs.

Call today on +44 (0) 161 498 4600

Attachment Chain from Renold.

Attachment chain requires excellent

service; prompt quoting, rapid

availability and quick delivery.

39269 Renold ERIKS A4 ATTACHMENT Advert.indd 1 30/04/2013 09:56

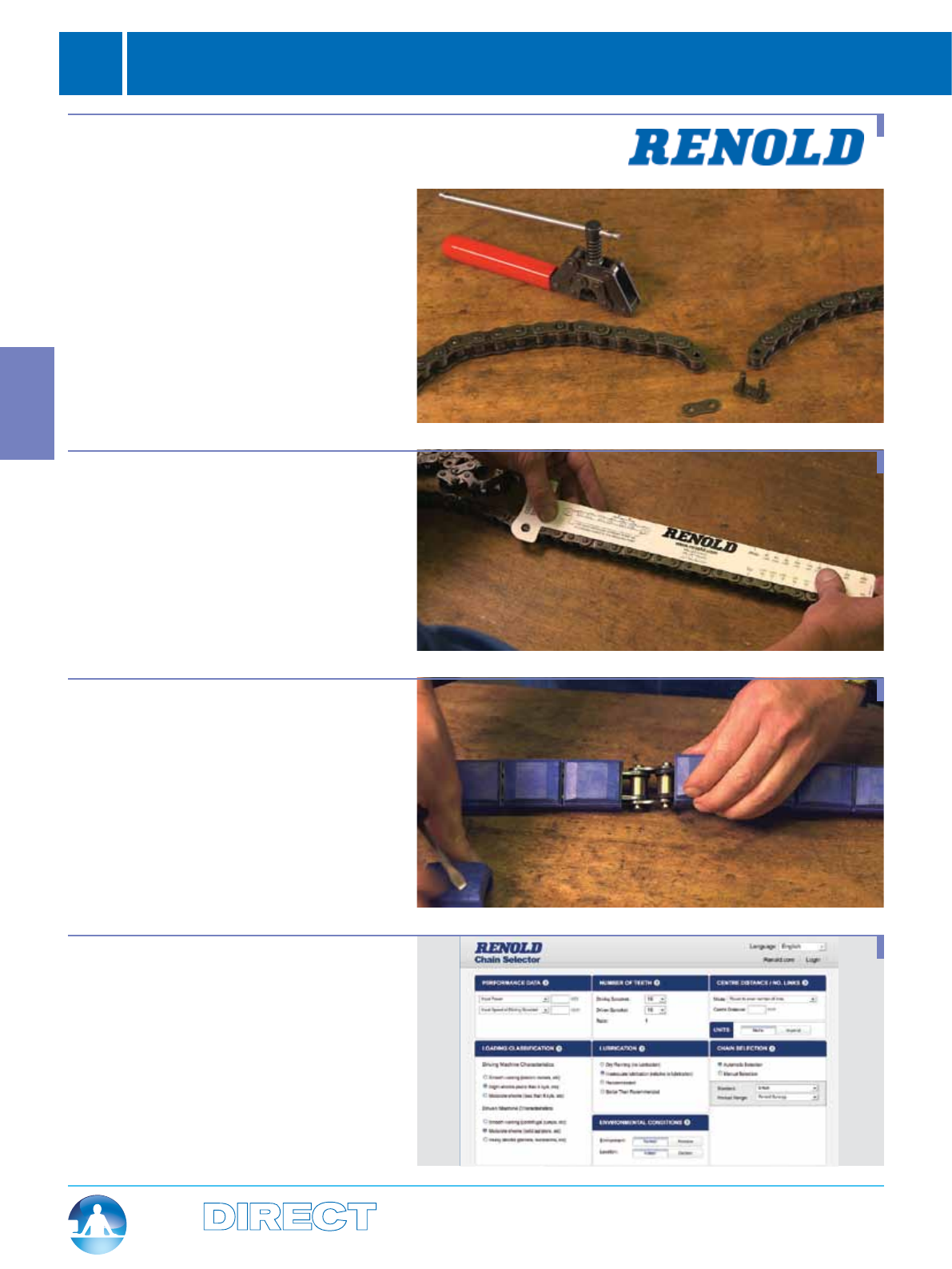

Chain Pin Extractor

Do you have to grind chain to cut it? Renold

makes cutting chain easy. Using the Renold

Chain Pin Extractor cutting chain is effortless,

it takes just seconds and there’s no mess.

www.renoldpinextractor.com

Chain Wear Guide

You can use a simple wear guide to identify when your chain

has reached the point when it needs to be replaced. Running

a worn chain will reduce efficiency, accelerate the wearing

of sprocket teeth and increase operational noise. The Renold

Chain Wear Guide helps you to measure chain extension and

improve maintenance.

www.chainwearguide.com

Chain Pin Extractor

Do you have to grind chain to cut it? Renold makes cutting chain easy. Using the Renold Chain Pin Extractor cutting chain is effortless,

it takes just seconds and there’s no mess.

www.renoldpinextractor.com

Renold Chain Selector

The new Chain Selector from Renold has been launched, making it even easier

to specify the right transmission chain for the job. You can quickly and easily

generate a selection, alter parameters to include environmental factors like

corrosion or lubrication and even allow for applications with shock loads.

www.renoldchainselector.com

Renold Klik-Top polymer

block chain

Renold Klik-Top polymer block chain is a modern alternative

to conventional polymer block chain. If you need to remove

a Klik-Top block it’s easy, no need to disassemble the chain.

Renold: making life easier!

www.kliktopchain.com

39249 Renold ERIKS Advertorial F.indd 1 30/04/2013 09:53

Chain Wear Guide

You can use a simple wear guide to identify when

your chain has reached the point when it needs

to be replaced. Running a worn chain will reduce

efficiency, accelerate the wearing of sprocket teeth

and increase operational noise. The Renold Chain

Wear Guide helps you to measure chain extension

and improve maintenance.

www.chainwearguide.com

Chain Wear Guide

You can use a simple wear guide to identify when your chain

has reached the point when it needs to be replaced. Running

a worn chain will reduce efficiency, accelerate the wearing

of sprocket teeth and increase operational noise. The Renold

Chain Wear Guide helps you to measure chain extension and

improve maintenance.

www.chainwearguide.com

Chain Pin Extractor

Do you have to grind chain to cut it? Renold makes cutting chain easy. Using the Renold Chain Pin Extractor cutting chain is effortless,

it takes just seconds and there’s no mess.

www.renoldpinextractor.com

Renold Chain Selector

The new Chain Selector from Renold has been launched, making it even easier

to specify the right transmission chain for the job. You can quickly and easily

generate a selection, alter parameters to include environmental factors like

corrosion or lubrication and even allow for applications with shock loads.

www.renoldchainselector.com

Renold Klik-Top polymer

block chain

Renold Klik-Top polymer block chain is a modern alternative

to conventional polymer block chain. If you need to remove

a Klik-Top block it’s easy, no need to disassemble the chain.

Renold: making life easier!

www.kliktopchain.com

39249 Renold ERIKS Advertorial F.indd 1 30/04/2013 09:53

Renold Chain Selector

The new Chain Selector from Renold has been

launched, making it even easier to specify the

right transmission chain for the job. You can

quickly and easily generate a selection, alter

parameters to include environmental factors

like corrosion or lubrication and even allow

for applications with shock loads.

www.renoldchainselector.com

Chain Wear Guide

You can use a simple wear guide to identify when your chain

has reached the point when it needs to be replaced. Running

a worn chain will reduce efficiency, accelerate the wearing

of sprocket teeth and increase operational noise. The Renold

Chain Wear Guide helps you to measure chain extension and

improve maintenance.

www.chainwearguide.com

Chain Pin Extractor

Do you have to grind chain to cut it? Renold makes cutting chain easy. Using the Renold Chain Pin Extractor cutting chain is effortless,

it takes just seconds and there’s no mess.

www.renoldpinextractor.com

Renold Chain Selector

The new Chain Selector from Renold has been launched, making it even easier

to specify the right transmission chain for the job. You can quickly and easily

generate a selection, alter parameters to include environmental factors like

corrosion or lubrication and even allow for applications with shock loads.

www.renoldchainselector.com

Renold Klik-Top polymer

block chain

Renold Klik-Top polymer block chain is a modern alternative

to conventional polymer block chain. If you need to remove

a Klik-Top block it’s easy, no need to disassemble the chain.

Renold: making life easier!

www.kliktopchain.com

39249 Renold ERIKS Advertorial F.indd 1 30/04/2013 09:53

Renold Klik-Top

Polymer Block Chain

You can use a simple wear guide to identify when

your chain has reached the point when it needs

to be replaced. Running a worn chain will reduce

efficiency, accelerate the wearing of sprocket teeth

and increase operational noise. The Renold Chain

Wear Guide helps you to measure chain extension

and improve maintenance.

www.kliktopchain.com

To your Local Service Centre

Go

www.renold.com/attachmentchain

Contact us now for all your

standard chain attachment needs.

Call today on +44 (0) 161 498 4600

Attachment Chain from Renold.

Attachment chain requires excellent

service; prompt quoting, rapid

availability and quick delivery.

39269 Renold ERIKS A4 ATTACHMENT Advert.indd 1 30/04/2013 09:56

www.renold.com/attachmentchain

Contact us now for all your

standard chain attachment needs.

Call today on +44 (0) 161 498 4600

Attachment Chain from Renold.

Attachment chain requires excellent

service; prompt quoting, rapid

availability and quick delivery.

39269 Renold ERIKS A4 ATTACHMENT Advert.indd 1 30/04/2013 09:56

86

POWER

TRANSMISSION

Drives and Rollers

Workshops offering repair or replacement

Attention

87

Visit us at eriks-techdirect.co.uk

to find your local Service Centre

POWER

TRANSMISSION
