500 MHz, 300 MHz, and 100 MHz
Bandwidths
Sample Rates up to 5 GS/s
2 or 4 Channels
Full VGA Color LCD on all Models
Built-in Floppy Disk Drive For Easy
Storage and Documentation
21 Automatic Measurements
Centronics Port Standard on all Models
for Quick, Convenient Hardcopies
9-bit Vertical Resolution
Multi-Language User Interface
QuickMenu User Interface Mode for
Quick, Easy Operation
Advanced Triggers, such as, Glitch,
Width, and Logic
Telecommunications Mask Testing (TMT)
Fast Fourier Transform (FFT) for
Frequency and Harmonic Analysis
Extended Video Application Module
Support for Active Probes, Differential
Probes, and Current Probes that Provide
Automatic Scaling and Units
Telecommunications Manufacturing
(Telecom Mask Test Application Module
for Pass/Fail Compliance of ITU-T G.703
and ANSI T1.102 (Up to STS-1 Rates)
Standards)
Digital Design and Debug
Video Design and Service (Video
Application Modules Offer Line Count,
HDTV and Custom Video Trigger, Video
Display Graticules, SDI to Analog Video
Conversion with Composite and
Component Outputs, Video Picture
Identification and Vectorscope)
Industrial Electronic Design
Power Supply Design
Connected Instrumentation (10Base-T
LAN, GPIB and VGA Modules with RS-
232)
Highly Mobile Environments (Optional
Battery Pack for Convenient Use in the
Field or Away from the Bench)
The TDS 3000 Series of Digital
Phosphor Oscilloscopes
The TDS 3000 oscilloscopes are the lowest priced,
most portable Digital Phosphor Oscilloscopes (DPOs).
Now every design engineer and technician can take
advantage of the tremendous benefits of DPOs. DPOs
deliver a new level of insight that makes dealing with
complex signals simple. DPOs display, store, and
analyze, in real-time three dimensions of signal infor-
mation: amplitude, time, and distribution of
amplitude over time.
BENEFITS OF DPO
DPOs have an intensity graded color display that
provides information about the frequency of occur-
rence of signal amplitudes and widths. This helps
the user locate and characterize waveform anomalies
that can be elusive on traditional Digital Storage
Oscilloscopes. The fast update rate of DPOs also
makes it easier to capture and display infrequent
waveforms or waveform variations.
Features and Benefits Applications
Digital Phosphor Oscilloscopes
TDS 3012 • TDS 3014 • TDS 3032 • TDS 3034 • TDS 3052 • TDS 3054
®
TDS 3000 SERIES DIGITAL PHOSPHPOR OSCILLOSCOPES
2
QUICK TO LEARN AND QUICK TO USE
The TDS 3000 Series graphical user inter-
face offers a new operating mode called
QuickMenu. This quick access user inter-
face makes the main oscilloscope controls
accessible with a push of a single button.
Included with every scope is an On-Line
Tour disk that runs in the oscilloscope.
This disk gives an overview of the prod-
uct’s operation and capabilities.
FLEXIBLE FEATURES FOR EVERY
APPLICATION
The portable form factor allows the
instrument to go wherever it is needed.
The Communication and Application
Modules enable the instrument to be con-
figured for specific applications or
upgraded without returning it to the man-
ufacturer. The TekProbe®Level II
interface provides power to a range of
application specific accessories.

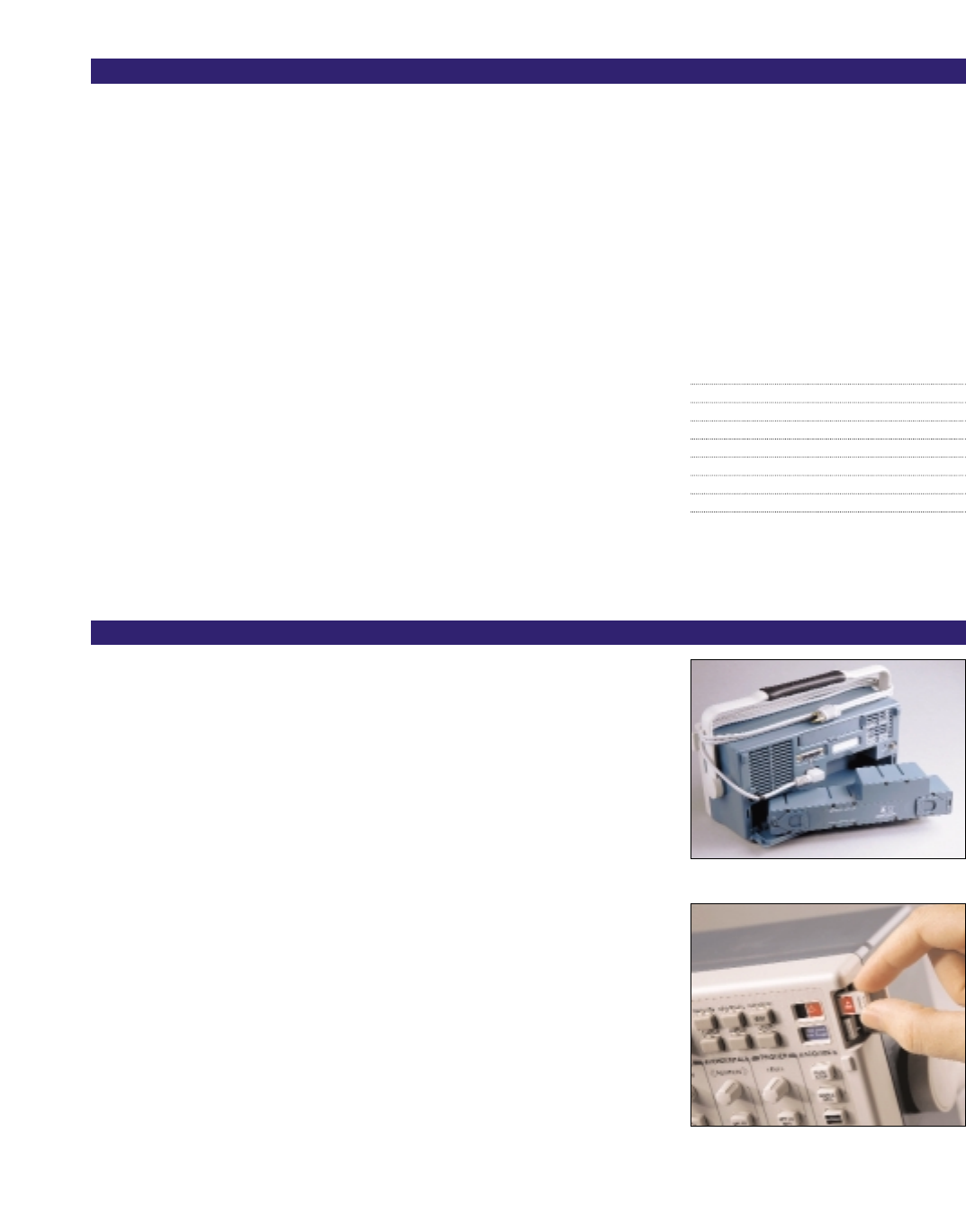

APPLICATION MODULES
With the application module concept, the
TDS 3000 Series can be easily adapted to
the needs of the user. These modules are
easily installed by the user. At power on
the scope indicates which modules are
installed. Currently, there are five applica-
tion modules available for the TDS 3000
Series – a telecommunications mask test
module, an FFT module, an advanced
trigger module, a 601 digital video module
and an extended video module. In addi-
tion, there are three communication
modules available – a 10Base-T LAN/RS-
232 module, a GPIB/RS-232 module and a
VGA/RS-232 module. Centronics port is
standard.
ACQUISITION MODES
Peak Detect – High frequency and random
glitch capture. Captures glitches as narrow as
1 ns.
Sample – Sample data only.
Envelope – Max/Min values acquired over one
or more acquisitions.
Average – Waveform data from 2 to 572
(selectable) acquisitions is averaged.
Single Sequence – Use SINGLE SEQUENCE
button to capture a single triggered acquisition
sequence at a time.
TRIGGER SYSTEM
Main Trigger Modes – Auto (supports Roll
Mode for 40 ms/div and slower), Normal.
B Trigger – Trigger after time or events.
Trigger After Time Range – 13.2 ns to 50 s.
Trigger After Events Range – 1 to 9,999,999
events.
External Trigger Input (available on TDS 30X2
only) – >1 MΩin parallel with 17 pF; Max input
voltage is 150 V RMS.
TRIGGER TYPES
Edge – Conventional level-driven trigger. Positive
or negative slope on any channel. Coupling selec-
tions: DC, noise reject, HF reject, LF reject.
Video – Trigger on all lines or individual line,
odd/even or all fields, or analog HDTV formats
(1080i, 1080p, 720p, 480p). See optional
TDS 3VID and TDS 3SDI application modules for
extended video triggering and measurement
features.
Logic (Standard on TDS 30X4, must purchase
TDS 3TRG for TDS 30X2) –
PATTERN: Specifies AND, OR, NAND, NOR when
true or false for a specific time.
STATE: Any logic state. Triggerable on rising or
falling edge, of a clock.
Note: Logic triggers can only be used on combi-
nations of 2 inputs.
Pulse (Standard on TDS 30X4, must purchase
TDS 3TRG for TDS 30X2) –
WIDTH (or GLITCH): Trigger on pulse width less
than, greater than, equal to, or not equal to a
selectable time limit ranging from 39.6 ns to 50s.
RUNT: Trigger on a pulse that crosses one thresh-
old but fails to cross a second threshold before
crossing the first again.
SLEW RATE: Trigger on pulse edge rates that are
either faster or slower than a set rate. Edges can
be rising, falling, or either.
Comm (must purchase TDS 3TMT) –provides
isolated pulse triggering required to perform
DS1/DS3 telecommunications mask testing per
ANSI T1.102 standard.
MEASUREMENT SYSTEM
Automatic Waveform Measurements –
Period, Frequency, +Width, –Width, Rise Time,
Fall Time, +Duty Cycle, –Duty Cycle,
+Overshoot, –Overshoot, High, Low, Max, Min,
Pk-Pk, Amplitude, Mean, Cycle Mean, RMS, Cycle
RMS, Burst Width.
Display any four measurements from any combi-
nation of waveforms.
Thresholds – Settable in percentage or voltage.
Gating – Measurements can be gated using the
screen or vertical cursors.
Characteristics
TDS 3000 Series Electrical Characteristics
TDS 3012 TDS 3032 TDS 3052 TDS 3014 TDS 3034 TDS 3054
Bandwidth 100 MHz 300 MHz 500 MHz 100 MHz 300 MHz 500 MHz
Channels 222444
Sample Rate on Each Channel 1.25 GS/s 2.5 GS/s 5 GS/s 1.25 GS/s 2.5 GS/s 5 GS/s
Maximum Record Length 10K points on all models
Vertical Resolution 9-bits on all models
Vertical Sensitivity (/div) 1 mV-10 V on all models
Vertical Accuracy ±2% on all models*
Max Input Voltage (1 MΩ) 150V RMS CAT I on all models
Position Range ± 5 div on all models
BW Limit 20 MHz 20, 150 MHz 20, 150 MHz 20 MHz 20, 150 MHz 20, 150 MHz
Input Coupling AC, DC, GND on all models
Input Impedance Selections 1 MΩin parallel with 13 pF, or 50 Ω
Time Base:Range (/div) 4 ns – 10 s/div 2 ns – 10 s/div 1 ns – 10 s/div 4 ns – 10 s/div 2 ns – 10 s/div 1 ns – 10 s/div
Accuracy 200 ppm 200 ppm 200 ppm 200 ppm 200 ppm 200 ppm
Display Monitor Color LCD
* Derated at 0.07%/°C for temperatures above +28°C and below +18°C.
TDS 3000 SERIES DIGITAL PHOSPHPOR OSCILLOSCOPES 3
WAVEFORM PROCESSING
Deskew – Channel to channel deskew ±10 ns
may be manually entered for better timing mea-
surements and more accurate math waveforms.
Arithmetic Operators – Add, Subtract,
Multiply, Divide.
Autoset – Single-button, automatic setup on
selected input signal for vertical, horizontal, and
trigger systems.
DISPLAY CHARACTERISTICS
Graticules – Full, grid, cross-hair, frame, NTSC,
PAL, SECAM, vectorscope 100% and 75% color
bars (with optional TDS 3VID and TDS 3SDI video
application modules).
Format – YT, XY and Gated XYZ (XY with Z-axis
blanking available on TDS 30X4 only).
I/O INTERFACE
Hardcopy Port (standard) – Centronics-type
parallel.
TDS 3GM Communications Module –
GPIB (IEEE –488.2) Programmability: Full talk/lis-
ten modes; Control of all modes, settings, and
measurements.
RS-232-C Interface Programmability: Full talk/lis-
ten modes; Control of all modes, settings, and
measurements. Baud Rate up to 38,400. DB-9
male connector.
Programmer Manual: (071-0381-00).
TDS 3VM Communications Module –
VGA: Monitor output for direct display on large
VGA-equipped monitors. DB-15 female connector,
31.6 kHz sync rate, EIA RS-343A compliant.
RS-232-C Interface Programmability: same as
TDS 3GM.
Programmer Manual: same as TDS 3GM.
TDS 3EM Communications Module –
Ethernet Port: 10Base-T with RJ-45 connector.
Provides local area network printing and pro-
gramming interface.
RS-232-C Interface programmability: same as
TDS 3GM.
Programmer Manual: same as TDS 3GM.
Note: Only one Communication Module may be
installed at a time.
All Communication Modules include WaveStar™
Software for oscilloscopes 30-day, full-functioning
product demo.
HARD COPY CAPABILITY
Graphics File Formats – Interleaf (.img), TIF,
PCX (PC Paintbrush), BMP (Microsoft Windows),
and Encapsulated Postscript (EPS).
Printer Formats – Bubblejet, DPU-3445,
Thinkjet, Deskjet, Laserjet, Epson (9 and 24-pin).
ENVIRONMENTAL AND SAFETY
Temperature – +5 to +50°C (operating), –20 to
+60°C (nonoperating).
Humidity – 20% to 80% RH below 32°C, derate to
30% RH at 45°C (operating), 5% to 90% RH below
41°C, derate to 30% RH at 60°C (nonoperating).
Altitude – to 3,000 m (operating), 15,000 m
(nonoperating).
Electromagnetic Compatibility – Meets or
exceeds EN55011 Class A Radiated and
Conducted Emissions; EN50082-1; FCC 47 CFR,
Part 15, Subpart B, Class A; Australian EMC
Framework; Russian GOST EMC regulations.
Safety – UL3111-1, CSA1010.1, EN61010-1,
IEC61010-1.
Physical Characteristics
Instrument
Dimensions mm in.
Width 375.0 14.8
Height 176.0 6.9
Depth 149.0 5.9
Weight kg lb.
Instrument only 3.2 7.0
w/battery 5.2 11.5
Characteristics (Continued)
TDS 3012, TDS 3014, TDS 3032, TDS 3034,
TDS 3052, TDS 3054
STANDARD ACCESSORIES
Probes: 2 each P3010 10X passive probes (TDS 3012), 4
each P3010 10X passive probes (TDS 3014), 2 each
P6139A 10X passive probes (TDS 3032, TDS 3052), 4
each P6139A 10X passive probes (TDS 3034, TDS 3054).
Documentation: Quick Reference Manual, User Manual,
On-line Tour Disk, Front panel overlay for non-English
languages.
Application Modules (TDS 3014, TDS 3034, TDS 3054
only): TDS 3FFT, TDS 3TRG.
Power Cord.
Accessory Tray.
Protective Front Cover: has holder for reference manual
and/or 3.5 in. floppy disks.
NIST-Traceable Certificate of Calibration.
WARRANTY INFORMATION
Three year warranty covering all labor and parts,
excluding probes.
INTERNATIONAL POWER PLUGS
Standard – US (161-0104-00).
Opt. A1 – Universal Euro 220 V, 50 Hz (161-0104-06).
Opt. A2 – United Kingdom 240 V, 50 Hz (161-0104-07).
Opt. A3 – Australia 240 V, 50 Hz (161-0104-05).
Opt. A5 – Switzerland 220 V, 50 Hz (161-0167-00).
Opt. A6 – Japan 3 to 2 wire adapter (013-0310-00).
INTERNATIONAL USER MANUALS (TDS 3000
SERIES, TDS 3FFT, TDS 3TRG, TDS 3VID,
TDS 3TMT)
Standard – English.
Opt. L1 – French.
Opt. L2 – Italian.
Opt. L3 – German.
Opt. L4 – Spanish.
Opt. L5 – Japanese.
Opt. L6 – Portuguese.
Opt. L7 – Simplified Chinese.
Opt. L8 – Traditional Chinese.
Opt. L9 – Korean.
Opt. LR – Russian. (TDS 3000 products only)
INSTRUMENT ACCESSORIES
TDS 3SDI – 601 Digital Video Module.
Converts ITU-R BT.601 format serial digital video to ana-
log video. Automatically detects and displays 525/60
and 625/50 formats. Provides composite and compo-
nent (RGB, YPbPr, or YC) outputs. Provides auto equal-
ization for cable lengths up to 250 m and EDH and
counting for incoming SDI signal. Adds video picture
mode with on-screen line select and vectorscope mode
with 100% and 75% color bars. Adds triggering and
vectorscope graticules for analog HDTV. Includes full
functionality of TDS 3VID Extended Video Applications
module. Includes special output cable and four 75 Ω
terminators. Ships with Quick Reference and User
Manuals in 10 languages. (Russian not available.)
Ordering Information
TDS 3BAT – Battery Pack being installed.
Application Module being installed.
4/00 HB/XBS 3GW-12482-4
Copyright © 2000, Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending.
Information in this publication supersedes that in all previously published material. Specification and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks,
trademarks or registered trademarks of their respective companies.
For further information, contact Tektronix:
Worldwide Web: for the most up-to-date product information visit our web site at: www.tektronix.com/Measurement/scopes/
ASEAN Countries (65) 356-3900; Australia & New Zealand 61 (2) 9888-0100; Austria, Central Eastern Europe, Greece, Turkey, Malta,& Cyprus +43 2236 8092 0;
Belgium +32 (2) 715 89 70; Brazil and South America 55 (11) 3741-8360; Canada 1 (800) 661-5625; Denmark +45 (44) 850 700; Finland +358 (9) 4783 400;
France & North Africa +33 1 69 86 81 81; Germany + 49 (221) 94 77 400; Hong Kong (852) 2585-6688; India (91) 80-2275577; Italy +39 (2) 25086 501;
Japan (Sony/Tektronix Corporation) 81 (3) 3448-3111; Mexico, Central America, & Caribbean 52 (5) 666-6333; The Netherlands +31 23 56 95555; Norway +47 22 07 07 00;
People’s Republic of China 86 (10) 6235 1230; Republic of Korea 82 (2) 528-5299; South Africa (27 11)651-5222; Spain & Portugal +34 91 372 6000;
Sweden +46 8 477 65 00; Switzerland +41 (41) 729 36 40; Taiwan 886 (2) 2722-9622; United Kingdom & Eire +44 (0)1344 392000; USA 1 (800) 426-2200.
From other areas, contact: Tektronix, Inc. Export Sales, P.O. Box 500, M/S 50-255, Beaverton, Oregon 97077-0001, USA 1 (503) 627-6877.
TDS 3TMT – Telecom Mask Testing Application
Module. Adds Pass/Fail mask testing for compliance to
telecommunications standards:
• ITU-T G.703 (DS0, DS1, E1, Clk Interface, DS2, E2, E3,
and DS3 rates)
• ANSI T1.102 (DS1, DS1A, DS1C, DS2, DS3, STS-1 rates)
• Customize (edit) masks using WaveStar™ software for
oscilloscopes (Version 2.3) mask editing tool
TDS 3FFT – FFT Application Module (standard on
TDS 30X4). Adds FFT measurement capabilities in dB
or linear RMS scales. A selection of four FFT windows
(Rectangular, Hamming, Hanning, and Blackman-Harris)
are provided.
TDS 3TRG – Advanced Trigger Application Module
(standard on TDS 30X4). Adds Logic and Pulse trigger-
ing described under Trigger Types (page 2).
TDS 3VID – Extended Video Application Module. Adds
line count triggering, custom video scan and field rates,
readout in mV or IRE units, and includes 75 Ωterminator.
TDS 3EM – 10Base-T Ethernet (LAN) and RS-232
interfaces.
TDS 3GM – GPIB and RS232 interfaces.
TDS 3VM – VGA port and RS232 interface.
TDS 3BAT – Battery pack for up to 2 hours continuous
operation without line power. Note: the instrument
must be grounded at all times.
TDS 3CHG – Fast charger for battery pack.
AC3000 – Soft case for carrying instrument.
HCTDS32 – Hard plastic case for carrying instrument.
RM3000 – Rackmount kit.
Service Manual (TDS 3000 Series) – English Only
(071-0382-00).
TDS 3GM, TDS 3VM and TDS 3EM Programmers
Manual – English Only (071-0381-00).
WSTRO – WaveStar™Software for Oscilloscopes,
Windows 95/98/NT 4.0 Application.
PROBES
ADA400A – 100X, 10X, 1X, 0.1X High gain differential
amplifier.
P6243 – 1 GHz, ≤1pF input C 10X active probe.
P6246 – 400 MHz differential probe.
P5205 – 1.3 kV, 100 MHz high voltage differential
probe.
P5210 – 5.6 kV, 50 MHz high voltage differential probe.
P5100 – 2.5 kV, 100X high voltage passive probe.
TCP202 – 15 A, DC + Peak AC 50 MHz AC/DC current
probe.
Ordering Information (Continued)
