TRENDware International Inc.
LVD REPORT
Applicant : TRENDware International Inc.
Model No : TEW-230APB
Report No: C51LV287
Lily Technology Co., Ltd.
No. 3, Alley 5, Lane 217, Chung Hsiao E. Rd., Sec 3
Taipei, Taiwan
TEL : 886-2-8773-6799
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
1/34
Report No C51LV287
Applicant TRENDware International Inc.
3135 Kashiwa Street
Torrance, CA 90505, USA.
Test item Low Voltage Directive
Items tested 802.11b 11Mbps Wireless Access Point
Model No. TEW-230APB
Sample No. # C51287
Rating TNV and SELV
Sample received date 11/07/2003
Specifications EN60950, 2000 / IEC 60950, 3rd Ed, 1999
Results As detailed within this report
Prepared by project engineer
Authorized by Laboratory Manager
Issue date Nov. / 17 / 2003 (month / day / year)
Modifications None
Tested by Lily Technology Co., Ltd.
Office at No. 3, Alley 5, Lane 217, Chung Hsiao E. Road, Sec.3, Taipei
Taiwan
Conditions of issue:
This test report shall not be reproduced except in full, without written
approval of LTC. And the test result contained within this report only relate
to the sample submitted for testing.
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
2/34
Trade Name Model Name
TRENDware TEW-230AP
TRENDware TEW-230APB
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
3/34
SAFETY TEST RESULTS
The results appear in the following order:
EN60950, 2000 / IEC 60950, 3rd Ed, 1999
Safety of information technology equipment –
The results contained herein apply only to the particular samples tested and to the
specific tests carried out, as detailed in this Test Report. The issuing of this Test Report
does not indicate any measure of Approval, Certification, Supervision, Control or
Surveillance by Lily Technology Co., Ltd. of any product. No extract, abridgement or
abstraction from a Test Report may be published or used to advertise a product without the
written consent of the Director, Lily Technology Co., Ltd. who reserves the absolute right
to agree or reject all or any of the details of any items of publicity for which consent may
be sought.
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
4/34
Test Report EN 60950, 2000 / IEC 60950, 3rd Ed, 1999
Equipment mobility…………………………….: Movable
Operating condition…………………………….: Continuous
Tested for IT power systems…………………...: No
IT testing, phase-phase voltage (V)…………….: N/A
Class of equipment……………………………..: Class III
Mass of equipment (kg)………………………...: <18kg
Protection against ingress of water……………..: N/A
Possible test case verdicts:
- test case does not apply to the test object………………………..: N
- test object does meet the requirement……………………………: P
- test object does not meet the requirements………………………: F
General remarks
“(see appended table)”refers to a table appended the report.
Throughout this report a point is used as the decimal separator.
1. Safety Strategy
- The equipment is powered from SELV by an UL certified AC/DC Adaptor.
2. Testing Environment:
All testing was conducted at:
- An ambient temperature in the range 25 °C to 35 °C.
- A relative humidity in the range 25% to 75%
- An air pressure in the range 86KPa to 106Kpa
RESULTS
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
5/34
Clause Requirement – Test Result - Remark Verdict
1. GENERAL
1.1 SCOPE
1.1.1
Equipment covered by this standard. The product is within the scope of IEC
60950 --
1.1.2 Additional requirements:
Exposure to extreme temperatures,
excessive dust, moisture or
vibration; to flammable gases; to
corrosive or explosive atmospheres.
This equipment is not intended to operate in
a “ normal” environment.
(Offices and homes). --
Electro medical equipment
connected to the patient.
This equipment is not an electromedical
equipment intended to be physically
connected to a patient. --
Equipment used in vehicles, ships or
aircrafts, in tropical countries, or at
elevations > 2000m.
This equipment is intended to operate in a
“normal ” environment.
(Office and homes) --
Equipment intended for use where
ingress of water is possible.
This equipment is intended to be used in
applications where ingress of water is not
regarded possible. The equipment is
non- protected according to IEC 60529
--
IP-classification (IEC 60529) (IP) IP X0. --
1.2.2 OPERATING CONDITIONS
1.2.2.1
Normal load as described in Annex
L or as close as possible to the most
severe normal use.
The unit is running to communicate and
transmit data. --
1.2.2.2 Rated operating time as assigned by
the Manufacturer.
The manufacturer has not declared a rated
operating time. --
1.2.2.3
-1.2.2.5 Continuous operation /
Shot-time operation / Inter mitten
operation.
The equipment is regarded to be for
continuous operation. --
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
6/34
Clause Requirement – Test Result - Remark Verdict
1.5. COMPONENTS
1.5.1
General
Components which were found to affect
safety aspects comply with the requirements
of this standard or within the safety aspects
of the relevant IEC component standards.
(see appended tables)
P
1.5.2 Evaluation and testing components
Components which are certified to IEC and
/ or national standards are used correctly
within their ratings. components not
covered by IEC standards are tested under
the conditions present in the equipment.
P
Dimensions (mm) of mains plug for
direct plug-in equipment Not direct plug-in equipment. N
Torque and pull test of mains plug
for direct plug-in; torque (Nm); pull
(N)
--
1.5.3 Thermal controls N
1.5.4 Transformers
Transformers used are suitable for their
intended application and comply with the
relevant requirements of the standard.
N
1.5.5 Interconnecting cables No interconnection cables. N
1.5.6 Capacitors in primary circuits No X-capacitor. N
1.5.7.1 -1.5.7.3 Double or reinforced
insulation bridged by components. N
1.5.8 Components in equipment for IT
power system N
1.6. POWER INTERFACE Class III equipment N
1.6.1 AC power distribution systems N
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
7/34
Clause Requirement – Test Result - Remark Verdict
1.6.2 Input current N
Test voltage (at each rated voltage or
at each end of a rated voltage range) --
Measured current --
Deviation --
1.6.3 Voltage limit of hand – held
equipments (max. 250V)N
1.6.4 Neutral conductor N
1.7. MARKING AND
INSTRUCTIONS P
1.7.1 Power rating The equipment marking is located on
outside surface of the equipment. P
Rated voltage (s) or voltage range(s) 5VDC --
Symbol of nature of supply for
d.c. ………. --
Rated frequency or frequency range --
Rated current (A) ………. --
Manufacturer ………. --
Trademark ………. --
Type/model ……….TEW-230APB --
Symbol of Class II ………. Class III --
Certification marks ………. CE mark --
1.7.2 Safety instructions
The user's manual contains information for
operation, installation, servicing, transport,
storage and technical data. Continuous
operation.
P
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
8/34
Clause Requirement – Test Result - Remark Verdict
1.7.3 Short duty cycles N
1.7.4 Supply voltage adjustment Class III equipment. N
1.7.5 Power outlets on the equipment Class III equipment. N
1.7.6 Fuse identification No primary fuse. N
1.7.7 Wiring terminals N
1.7.7.1 Protective earthing and bonding
terminals Class III equipment N
1.7.7.2 Terminal for ac. mains supply
conductors Class III equipment N
1.7.8 Controls and indicators N
1.7.8.1 Identification, location and marking N
1.7.8.2 Colours For functional indication LED lights when
the equipment is operating. P
1.7.8.3 Symbols There are no mains switches in the
equipment. N
1.7.8.4 Markings using figures No indicators for different positions. N
1.7.9 Isolation of multiple power sources N
1.7.10 IT power system N
1.7.11 Thermostats and other regulating
devices N
1.7.12 Language
User's manual and marking were provided
in English Versions in other language will
be provided when the equipment will be
applied for other national certificated.
P
Language ………. English --
1.7.13 Durability The marking withstands required tests. N
1.7.14 Removable parts N
1.7.15 Replaceable batteries No lithium batteries N
1.7.16 Operator access with a tool No operator access area with tool. N
1.7.17 Equipment for restricted access
location
Equipment not intended for installation in
RAL. N
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
9/34
Clause Requirement – Test Result - Remark Verdict
2.. PROTECTION FORM HAZARDS P
2.1.
PROTECTION AGAINST
ELECTRIC SHOCK AND
ENERGY HAZARDS
P
2.1.1 Protection in operator access areas N
2.1.1.1 Access to energized parts Class III equipment. N
2.1.1.2 Battery compartments N
2.1.1.3 Access to ELV wiring N
2.1.1.4 Access to hazardous voltage circuit
wiring N
2.1.1.5 Energy hazards Class III equipment. N
2.1.1.6 Manual controls N
2.1.1.7 Discharge of capacitors in the
primary circuit N
Time-constant (s)
2.1.2 Protection in service access areas N
2.1.3 Protection in restricted access
locations N
2.2. SELV CIRCUITS N
2.2.1 General requirement SELV limits are not exceeded under normal
condition and after a single fault. P
2.2.2 Voltage under normal conditions Within SELV limits P
2.2.3 Voltage under fault condition Moreover a limit of 71 V peak, or 120 V dc.
shall not be exceeded. P
2.2.3.1 -2.2.3.3 Method used for separation Class III equipment. N
2.2.4 Connection of SELV circuits to other
circuits
SELV circuits are only connected to other
SELV circuits. P
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
10/34
Clause Requirement – Test Result - Remark Verdict
2.3 TNV CIRCUITS --
2.3.1 Limits N
Type of TNV circuits No TNV circuits. N
2.3.2 Separation from other circuits and
from accessible parts Class III equipment. N
2.3.3 Separation from hazardous voltage No hazardous voltage. N
2.3.4 Connection of TNV circuits to other
circuits No TNV circuits. N
2.3.5 Test for operating voltage generated
externally Test is conducted. N
2.4. LIMITED CURRENT CIRCUIT: 2.4.1-2.4.3;No limited current circuits. N
ʳ
2.5 LIMITED POWER SOURCE No Limited power source. N
2.6. PROVISIONS FOR EARTHING
AND BONDING 2.6.1-2.6.5.8; Class III equipment. N
2.7.
OVERCURRENT AND EARTH
FAULT PROTECTION IN
PRIMARY CIRCUITS
Class III equipment N
2.8. SAFETY INTERLOCKS 2.8.1-2.8.8; No safety interlocks. N
2.9 ELECTRICAL INSULATION
2.9.1 Properties of insulating materials
The insulating materials are inside the
approved transformer. No driving belts or
couplings used.
N
2.9.2 Humidity conditioning Humidity treatment performed at 25 ℃ for
48hrs at 91-95% N
2.9.3 Requirements for insulation Please refer to 4.5.1, 5.2 and 2.10 P
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
11/34
Clause Requirement – Test Result - Remark Verdict
2.9.4 Insulation parameters Application complies with sub-clauses
4.5.1, 5.2 and 2.10 P
2.9.5 Categories of insulation Insulation is consider to be supplementary
insulation. P
2.10
CLEARANCES, CREEPAGE
DISTANCES AND DISTANCE
THOUGH INSULATION
Normal voltage 120V --
Pollution degree Gr. II --
CTI rating PCB:> 100, Other parts :>100 --
2.10.1 General Considered. see the following clauses: --
2.10.2 Determination of working voltages P
2.10.3 Clearances See table 2.10 P
2.10.3.1 General Refer below: --
10mm air gap between hazardous
voltage and accessible conductive
parts of enclosure.
N
2mm air gap between hazardous
voltage and earthed accessible
conductive parts of enclosure.
N
2.10.3.2 Clearances in primary circuits Not applicable. N
2.10.3.3 Clearances in secondary circuits See table 2.10 P
2.10.3.4 Measurement of transient levels Measurement not relevant P
2.10.4 Creepage distances Considered P
2.10.5 Solid insulation Refer below: --
2.10.5.1 Minimum distances through
insulation Considered when transformer approval. P
2.10.5.2 Thin sheet material Thin sheet insulation used in approval
transformer. N
2.10.5.3 Printed boards PCB does not serve as insulation barrier. N
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
12/34
Clause Requirement – Test Result - Remark Verdict
2.10.5.4 Wound components No wound components without interleaved
insulation. N
Two wires in contact inside
component No wound components used. --
2.10.6 Coated printed boards No special coating in order to reduce
distances. N
2.10.6.1 General
2.10.6.2 Sample preparation and preliminary
inspection --
2.10.6.3 Thermal cycling --
2.10.6.4 Thermal ageing --
2.10.6.5 Electric strength test --
2.10.6.6 Abrasion resistance test --
2.10.7 Enclose and sealed parts No enclosed hermetically sealed
components. N
2.10.8 Spacing filled by insulating
compound N
2.10.9 Components external terminations P
2.10.10 Insulation with varying dimensions No such transformer used. N
3.. WIRING, CONNECTIONS AND
SUPPLY
3.1. GENERAL
3.1.1 Current rating and overcurrent
protection No internal wiring/ interconnection cables. N
3.1.2 Protection against mechanical
damage No internal wiring. N
3.1.3 Securing of internal wiring No internal wiring. N
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
13/34
Clause Requirement – Test Result - Remark Verdict
3.1.4 Insulation of conductors No internal wiring. N
3.1.5 Beads and ceramic insulators Not used. N
3.1.6 Screws for electrical contact
pressure No electric screw connection. N
3.1.7 Non-metallic materials in electrical
connections
No contact pressure through insulation
material. N
3.1.8 Self-tapping and spaced thread
screws
Thread-cutting or space thread screws are
not used for electrical connections. N
3.1.9 Termination of conductors
Termination can not become displaced so
that clearances and creepage distances can
be reduced.
P
10 N force test P
3.1.10 Sleeving on wring No internal wiring. N
3.2. CONNECTION TO A.C. MAINS
SUPPLIES
Class III equipment. No direct connection
to mains. N
3.3.
WIRING TERMINALS FOR
CONNECTION OF EXTERNAL
CONDUCTORS
3.3.1-3.3.8;Class III equipment. No direct
connection to mains. N
3.4. DISCONNECTION FROM THE
A.C. MAINS SUPPLY
Class III equipment. No direct connection
to mains. N
ʳ
3.5 INTERCONNECTION OF
EQUIPMENT
3.5.1 General requirements See below --
3.5.2 Type of interconnection circuits No TNV circuit. --
3.5.3 ELV circuits as interconnection
circuits No ELV interconnection N
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
14/34
Clause Requirement – Test Result - Remark Verdict
ʳ
4.. PHYSICAL REOUIAEMENTS
4.1. Stability Refer below: --
ʳAngle of 10° Unit does not overbalance at 10° P
ʳTest: force (20%of the weight of the
unit, max. 250N) Not floor standing. N
ʳTest: force (800N) Not floor standing. N
ʳ
4.2. MECHANICAL STRENGTH P
4.2.2 Steady force test, 10 N No hazard, ref. Comment in table 2.10. P
4.2.3 Internal enclosures 30N 3 ; 5 No internal enclosure. N
4.2.4 External enclosures 250N 10 ; 5 No hazard. The test is performed at 250N. P
4.2.5 Impact test Refer below: N
Fall test No hazard as result form the steel sphere
fall test. N
Swing test No hazard as result form the steel sphere
swing test. N
4.2.6 Drop test Drop test not applicable. N
4.2.7 Stress relief
Test is carried out at 70 ℃ / 7h.
No risk of shrink age or distortion on
enclosures due to release of internal
stresses.
P
4.2.8 Cathode ray tubes CRT is not used in the equipment. N
4.2.9 High pressure lamps No high pressure lamps in the equipment. N
4.2.10 Well or ceiling mounted equipment Not intended to be mounted on a wall or
ceiling. N
4.3. DESIGN AND CONSTRUCTION
4 3 1 Edges and corners All edges and corners are rounded and/or
smoothed. P
4.3.2 Handles and manual controls No knobs, grips, handles, lever etc. N
4.3.3 Adjustable controls No hazardous adjustable controls. N
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
15/34
Clause Requireme nt – Test Result - Remark Verdict
4.3.4 Securing of parts No loosening of parts impairing creepage
distances or clearances is likely to occur. P
4.3.5 Connection of plugs and sockets SELV and TNV connectors do not comply
with IEC 60320 or IEC 60083. P
4.3.6 Direct plug-in equipment Not intended to plug directly into a wall
socket-outlet. N
Torque (Nm) Nm
4.3.7 Heating elements in earthed
equipment No heating elements provided. N
4.3.8 Batteries No lithium batteries. N
4.3.9 Oil and grease Insulation not in contact with oil or grease. N
4.3.10 Dust, powders, liquids or gases
The equipment does not generate ionising
radiation or use a leaser, and does not
contain flammable liquids or gases.
N
4.3.11 Containers for liquids or gases No containers for liquids or gases in the
equipment. N
4.3.12 Flammable liquids. The equipment dose not contain flammable
liquid. N
Quantity of liquid L
Flash point ℃
4.3.13 Radiation Diffusion LED only. N
4.4 PROTECTION AGAINST
HAZARDOUS MOVING PARTS
4.4.1 General Adequate protection against risk of personal
injury. P
4.4.2 Protection in operator access areas No moving parts. N
4.4.3 Protection in restricted access areas
location. Not intended for installation in RAL. N
4.4.4 Protection in service access areas Unintentional contact is not likely in service
access areas. P
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
16/34
Clause Requirement – Test Result - Remark Verdict
4.5 THERMAL REQUIREMENTS
4.5.1 Temper rises (see appended table) N
4.5.2 Resistance to abnormal heat N
4.6 OPENING IN ENCLOSURE
4.6.1 Top and side openings Refer below:
Top openings Openings in top are not located above bare
parts at hazardous voltage. P
Dimensions (mm) ………. --
Front, side and rear openings No front, side or rear openings. --
Dimensions (mm) ………. --
4. 6.2 Bottom of fire enclosures
Protection against emission of flame,
molten metal, flaming or glowing particles
or drops by the fire enclosure with no
bottom opening.
P
4.6.3 Doors and covers in fire enclosure No door or cover. N
4.6.4 Opening in transportable equipment N
ʳ4.6.5ʳAdhesives for constructional
purposes
No barrier secured by adhesive inside
enclosure. N
Conditioning temperature/time ℃/week(s). --
4.7. RESISTANCE TO FIRE
4.7.1 Reducing the risk of ignition and
spread of flame Method 1 is used. N
4.7.2 Condition for a fire enclosure Refer below: P
4.7.2.1 Parts requiring a fire enclosure The fire enclosure is required to cover all
parts. P
4.7.2.2 Parts not requiring a fire enclosure The fire enclosure is required to cover all
parts. N
4.7.3 Materials
Components and materials have adequate
flammability classification, Refer to “List
of Critical Components”.
N
4.7.3.1 General Considered. P
4.7.3.2 Materials for fire enclosure Plastic enclosure rating 94HB or better. N
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
17/34
Clause Requirement – Test Result - Remark Verdict
4.7.3.3 Material for components and other
parts outside fire enclosure No parts outside the fire enclosure. N
4.7.3.4 Materials for components and other
parts inside fire enclosure
Other materials inside fire enclosure are
minimum 94V-2 material. P
4.7.3.5 Materials for air filter assemblies No air filter assemblies N
4.7.3.6 Materials used in high-voltage
components No used high-voltage components. N
5.
ELECTRICAL
REQUIREMENTS AND
SIMULATED ABNORMAL
CONDITIONS
5.1 Touch current and simulated
abnormal conductions Class III equipment. N
5.1.1 General No applicable. N
5.1.2 Equipment under test (EUT) N
5.1.3 Test circuit
Tested for connection to IT power
distribution system.
(also relevant for TN or TT power
distribution system)
--
5.1.4 Application of measuring instrument N
5.1.5 Test procedure N
5.1.6 Test measurements N
Test voltage --
Measured current mA --
Max. allowed current mA --
5.1.7 Equipment with earth leakage
current exceeding 3.5 A N
5.1.8 Touch currents to and form
telecommunication network. N
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
18/34
Clause Requirement – Test Result - Remark Verdict
5.1.8.1 Limitation of the touch current to a
telecommunication network
None of the values measured
shall exceed 0.25 mA r.m.s N
Test voltage --
Measured current --
Max. allowed current ≦0.25 mA --
5.1.8.2 Summation of touch currents form
telecommunication networks N
5.2. ELECTRIC STRENGTH
5.2.1 -5.2.2 General. Test procedure N
5.3. ABNORMAL OPERATING AND
FAULT CONDITIONS N
5.3.1 Protection against overload and
abnormal operation N
5.3.2 Motors No motors. N
5.3.3 Transformers N
5.3.4 Functional insulation Refer to 5.3.8 N
5.3.5 Electromechanical components Refer to 5.3.8 N
5.3.6 Simulation of faults See the enclosure fault condition tests. N
5.3.7 Unattended equipment N
5.3.8 Compliance criteria for abnormal
operating and fault conditions Refer below: --
5.3.8.1 During the tests No fire or molten metal occurred and no
deformation of enclosure during the tests. P
5.3.8.2 After the tests
No reduction of clearance and creepage
distances, Electric strength test is made on
basic and supplementary insulation.
P
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
19/34
Clause Requirement – Test Result - Remark Verdict
6.
CONNECTION TO
TELECOMMUNICATION
NETWORKS
--
6.1.
PROTECTION OF
TELECOMMUNICATION
NETWORK SERVICE
PERSONNEL, AND USERS OF
OTHER EQUIPMENT
CONNECTED TO THE
NETWORK, FROM HAZARDS
IN THE EQUIPMENT.
6.1.1 Protection from hazardous voltages N
6.1.2
Separation of the
telecommunication network form
earth
Refer below: --
6.1.2.1 Requirements There are no connections to protective earth. N
Test voltage V --
Current in the test circuit mA --
6.1.2.2 Exclusions No exclusions are applicable. N
6.2
PROTECTION OF THE
EQUIPMENT USERS FROM
VOLTAGES ON THE
TELECOMMUNICATION
NETWORKS.
6.2.1 Separation requirement N
6.2.2 Electric strength test procedure 6.2.2.2 applied. N
6.2.2.1 Impulse test N
6.2.2.2 Steady-state test N
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
20/34
Clause Requirement – Test Result - Remark Verdict
6.2.2.3 Compliance criteria No breakdown of insulation during above
tests. N
6.3.
PROTECTION OF
TELECOMMUNICATION
WIRING SYSTEM FROM
OVERHEATING
N
Maximum output current A --
Current limiting method --
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
21/34
Clause Requirement - Test Result – Remark Verdict
Annex A TESTS FOR RESISTANCE TO
HEAT ND FIRE
All materials have suitable flame class, no
testing required. N
A.1 Flammability test for fire enclosures of moveable equipment having a total mass
exceeding 18kg, and of stationary equipment. N
A.2 Flammability test for fire enclosures of moveable equipment having a total mass
not exceeding 18kg, and for materials located within fire enclosure. N
A Tested material N
ʳMounting of samples during test;, --
ʳWall thickness --
ʳSample 1 burning time N
ʳSample 2 burning time N
ʳSample 3 burning time N
ʳMaterial: compliance with the
requirements N
ʳManufacturer of tested material --
ʳType of tested material --
ʳAdditional information --
ʳ
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
22/34
Clause Requirement - Test Result – Remark Verdict
Annex B MOTOR TESTS UNDER
ABNORMAL CONDITIONS No motors in the equipment. N
Position --
Manufacturer --
Type --
ʳRated voltage (V) or current (A) --
B.2 Max. Temperatures N
B.4 Running overload test ʳN
B.5 Locked-rotor overload test ʳN
Test duration (days) ʳ--
Electric strength test:
test voltage (V) ʳ--
B.6 Running overload test for DC motor
in secondary circuits N
B.7 Locked-rotor overload test for DC
motor in secondary circuits N
B.7.2 Alternative test procedure;
test time (h) N
B.7.3 Electric strength test N
B.8 Test for motors with capacitors N
B.9 Test for three-phase motor N
B.10 Test for series motors operating
voltage (V) N
ʳ
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
23/34
Clause Requirement - Test Result – Remark Verdict
Annex C TRANSFORMERS N
Position --
ʳManufacturer
ʳType --
ʳRated values --
ʳMethod of protection N
C.1 Overload test Approved transformer used. N
ʳLinear transformer ʳ--
ʳFerro-resonant transformer ʳ--
ʳTransform for switch mode power
supply ʳ--
ʳType of thermal cut-out ʳ--
C.2 Insulation The insulation fulfil the requirements in
2.10 and relevant tests of 5.2.2 N
ʳPrecautions taken See the attached specification for the
transformer. N
Retaining of end turns of all
windings
Secured to the soldering pins with
wrapping. N
Earthed screen for protective
purposes No earthed screen for protective purposes. N
ʳ
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
24/34
APPENDED TABLES
1.5 List of critical components P
Object/part No
Manufacture
r/
Trademark
Type / model Technical
Data
Mark(s) of
Conformity
Plastic enclosure Applicant’ s
Spec. --- 94V-HB or better UL R/C
AC/DC Adaptor Applicant’ s
Spec. RH41-0501200DG I/P: 230VAC 50Hz
O/P: 5VDC 1.2A TUV/ CE
Alternate
AC/DC Adaptor
Applicant’ s
Spec. RH41-0501200DU
I/P: 120VAC 60Hz
O/P: 5.0 VDC
1200mA
CE / UL
Switch power
supply DVE DSA-0151A05A (U)
I/P: 200-240VAC
50-60Hz
O/P: 5VDC 2.4A
TUV/ CE
Alternate Switch
power supply DVE DSA-0151A05A
I/P: 100-120VAC
50/60Hz
O/P: 5VDC 2.4A
CE / UL
Main PCB Recognized --- 94V-0 UL R/C
1.6 Input Test P
Input Condition Input Current (A)
Operating Condition Volts Rated Measured
Average
Power Watts
Max. Normal Load 5 1.2 0.535 2.99
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
25/34
4.5 Temperature measurements P
Test voltage (V)…………………..: 5 VDC -
t1 ( °C)……………………...: -
Temperature rise dT of part/at: TEST POINT Dt (K) Required dT (K)
T1 body CH01 16.6 60
U7 body CH02 37.9 60
U10 body CH03 29.0 60
U9 body CH04 24.0 60
U2 body CH05 22.9 60
CE2 body CH06 28.4 60
RF module CH07 18.2 60
Outside enclosure near U7 CH08 10.0 60
Ambient CH09 25.2 /
4.7 Resistance to Fire P
Item Declared Rating
PCB
UL Recognized
V-0
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
26/34
APPENDIX –TEST INSTRUMENTS
Inst. ID Instrument No. Range Used Instruments Type
LTC01 THS-ML1 Temperature : 70 °C
R. Humidity :. 60% Temperature Humidity Chambers
LTC02 GPI-615 Cutoff Current:10mA:
Voltage:1500VAC Withstand Voltage Tester
LTC03 GDM-8039 VAC Digital Multimeter
LTC04 HP OSCILLO
SCOPE
DC/AC
0-500 V 54600A
LTC05 CHITAI
2402A Auto Digital Power Meter
(DC/AC)
LTC06 CHENHWA
DC Electronic Load 60V/60A 2600
LTC07 IMADA
FB-50
50 KG
Resolution: 0.5N Portable Force Indicator
LTC08 N/A Ball Impact Test
H.: 1.30 m Steel Sphere
LTC09 OVEN 50-300 Thermal Oven
LTC10 YOKOGAWA
HR1300 CH1-CH20 HYBRID Recorder
LTC11 ED&D
LT-952HC 20 Ma, 2 mA Leakage Current Tester
LTC12 GW
GFG-813 100 Hz – 10 KHz 13 MHz Function Generator
LTC13 APC
AFC-3KB
90V-260V
47-63Hz, 3KVA AC Power Source
LTC14 GDM 8055 200 Ma (DC A) Digital Multimeter
LTC15 GDM 8055 20 VAC Digital Multimeter
LTC16 B&K 4155 12.5 mV/Pa Microphone
LTC17 B&K
ZC0020 Gain: 0dB Pre-Amplifier
LTC18 B&K
TYPE 2230 70-140 dBspl Precision Sound Level Meter
LTC19 1036-AF ANSI S3.7-1973 Acoustic Coupling
LTC20 TRC 1102 Press T1 V1 Surge Testor
LTC21 OTS All Overvoltage Test Simulator
LTC22 GDM-8039 VAC Digital Multimeter
LTC23 Lufkin
5m/16’
1 Meter
1.3 Meter Roll Ruler
LTC24 GW
GCT-630 Ohm.& A. Ground Continuty Tester
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
27/34

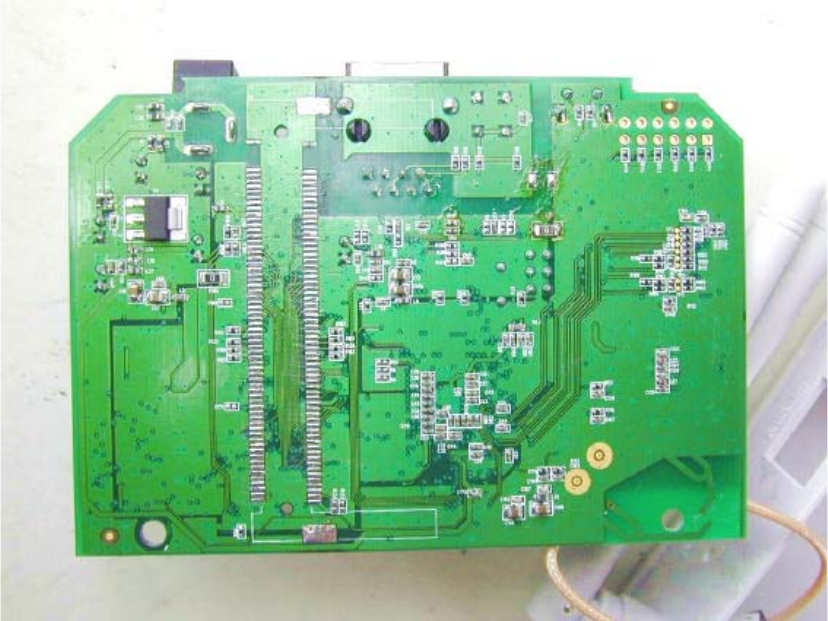

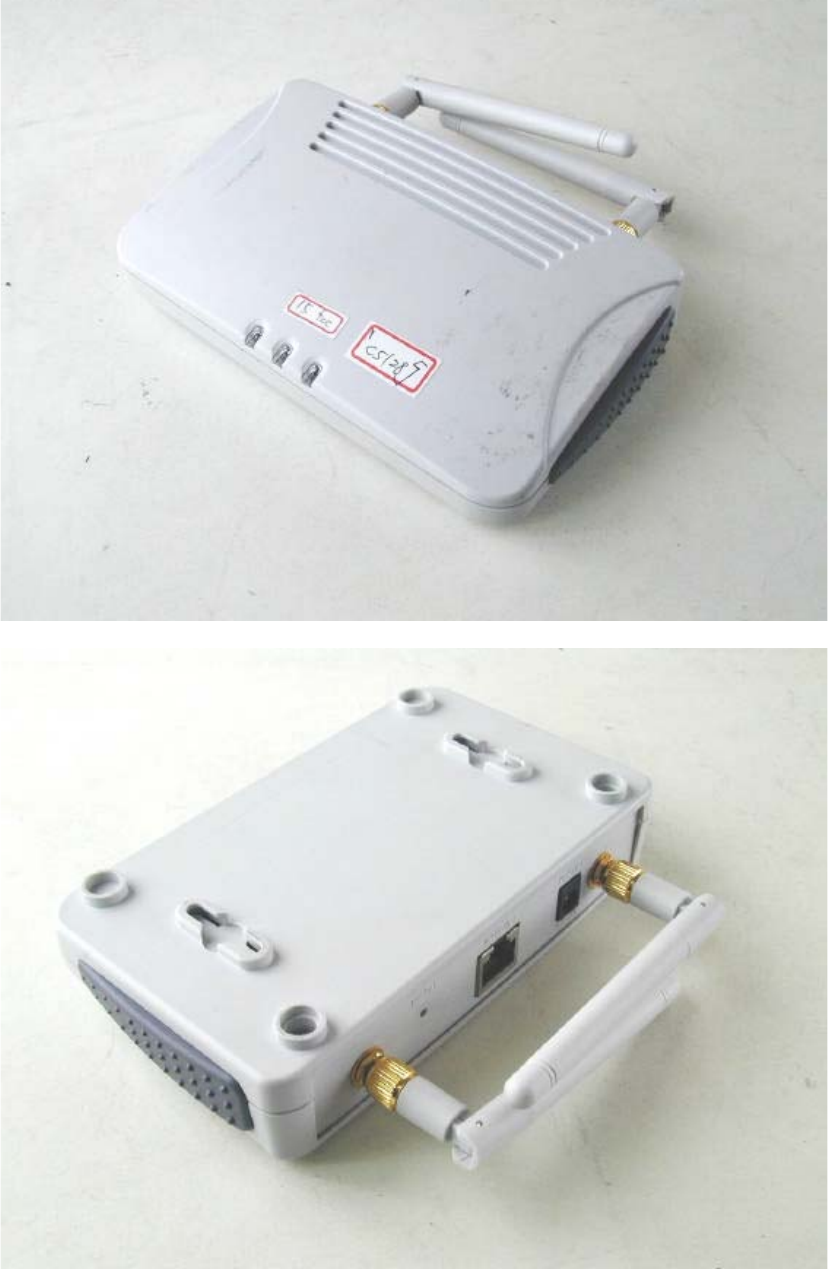

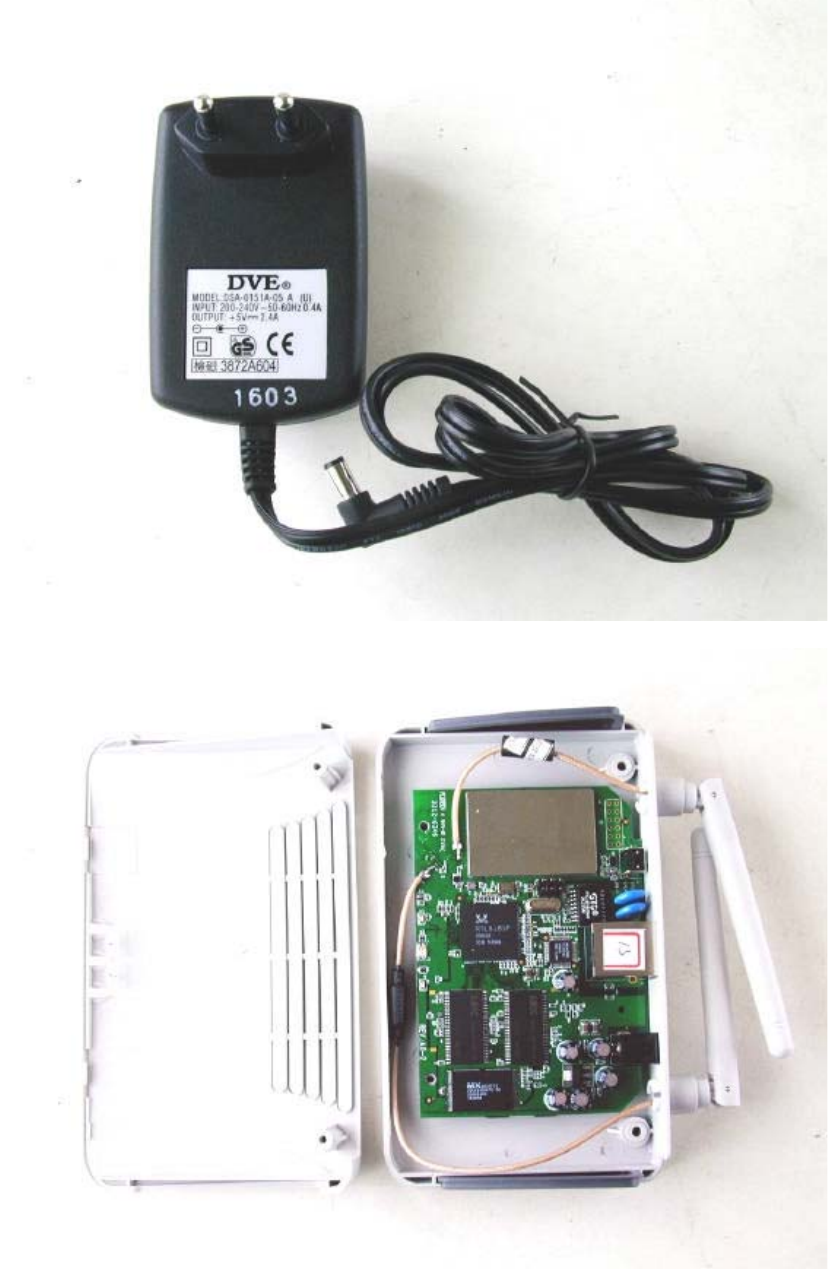

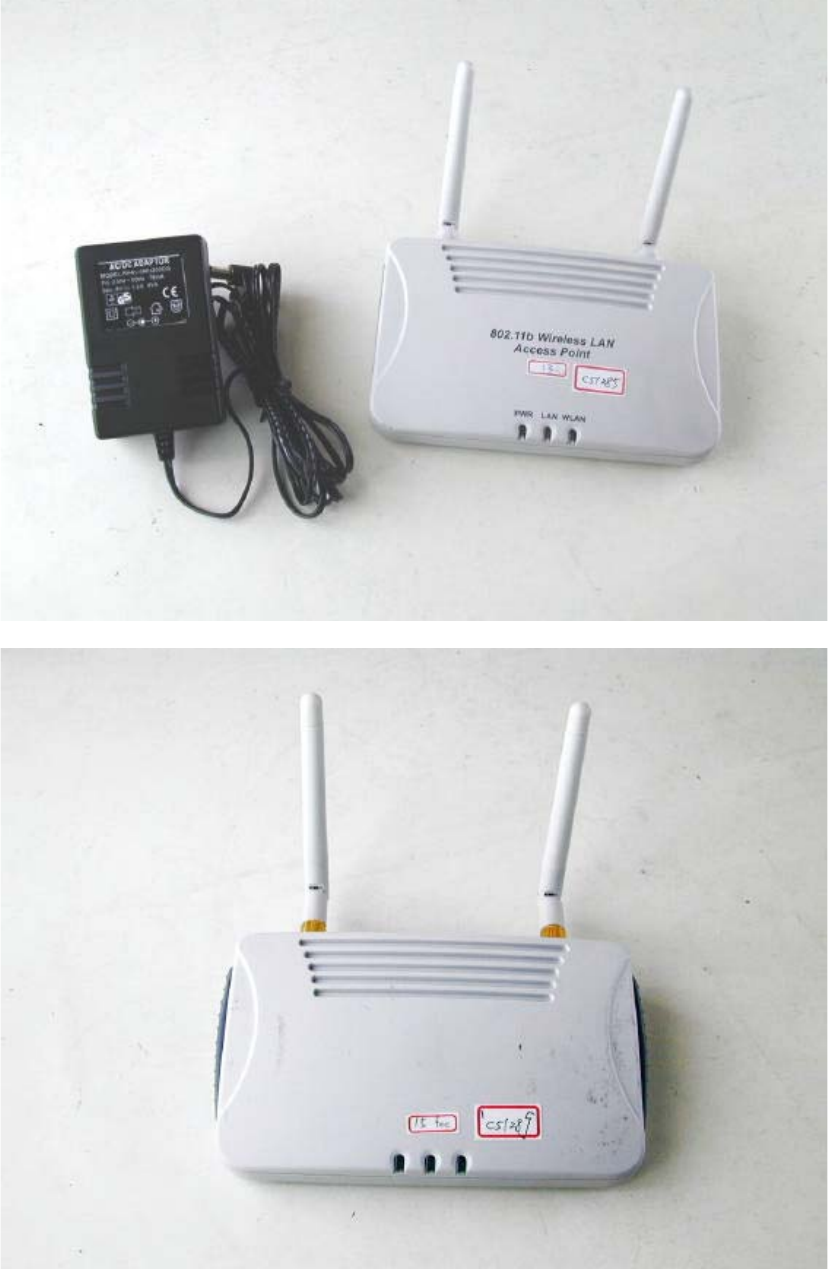

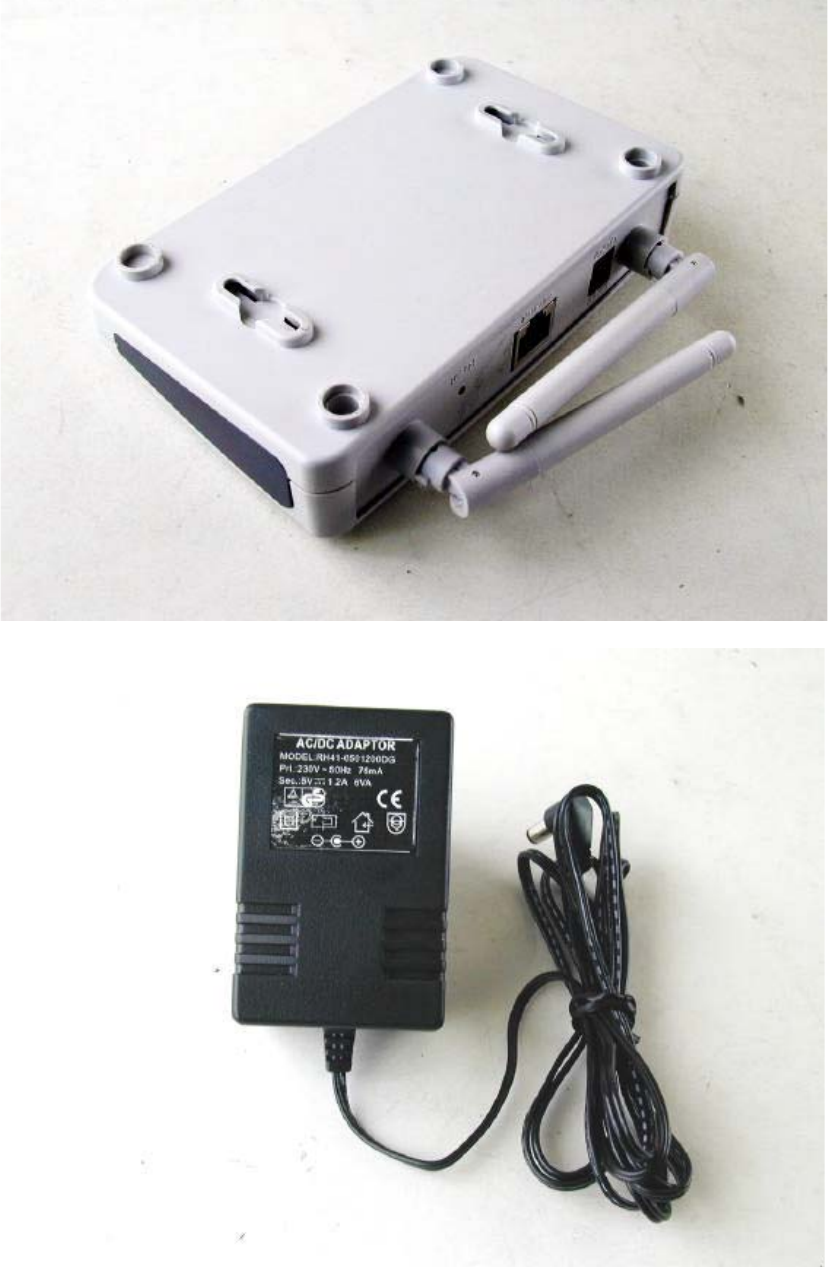

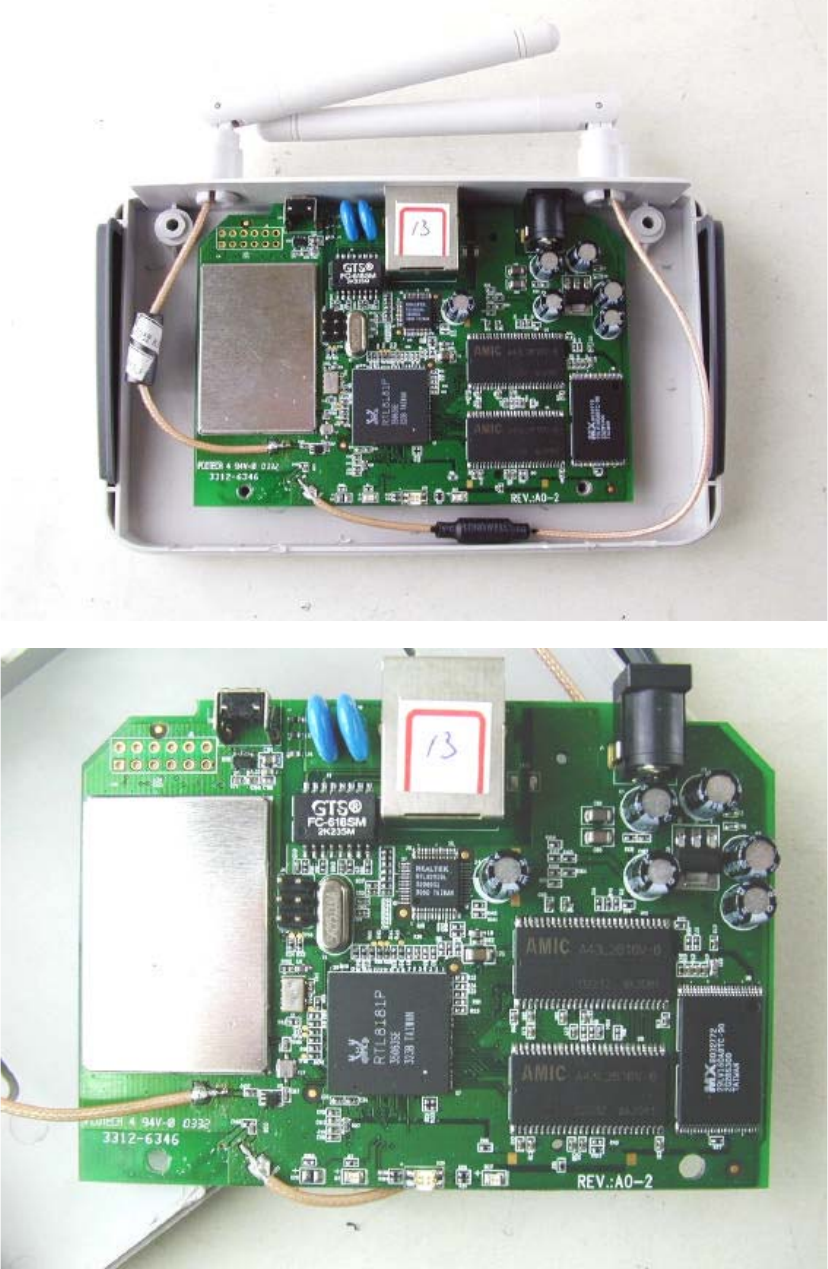

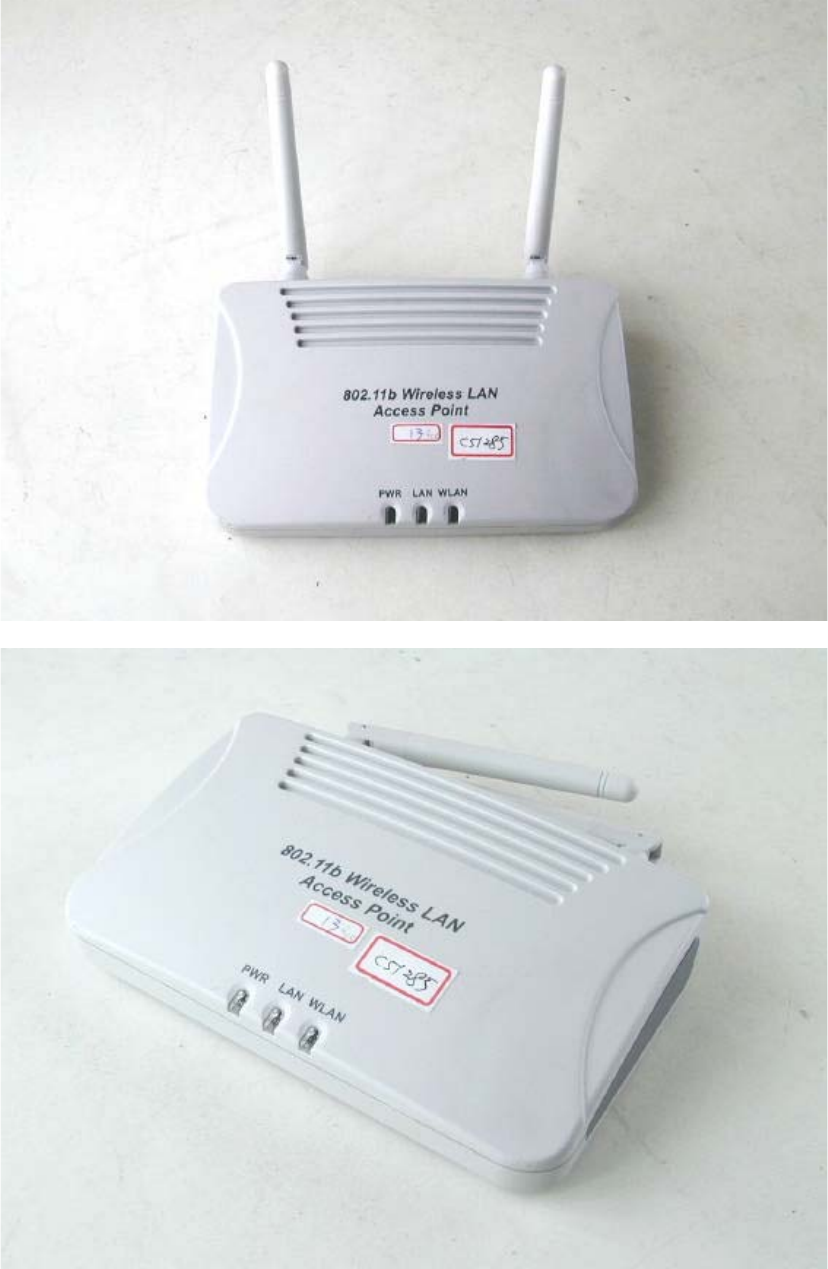

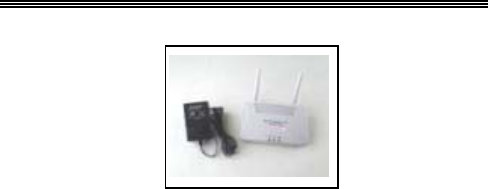

PHOTO OF EUT
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
28/34
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
29/34
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
30/34
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
31/34
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
32/34
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
33/34
Test Report-----------------Low Voltage Directive---------------------------
Report No. : C51LV287
Test date : 11/07/2003, Lily Technology Co ., Ltd., TEL : 886-2-8773-6799 , Fax : 886-2-8773-6794
34/34

Navigation menu
