TFM
series

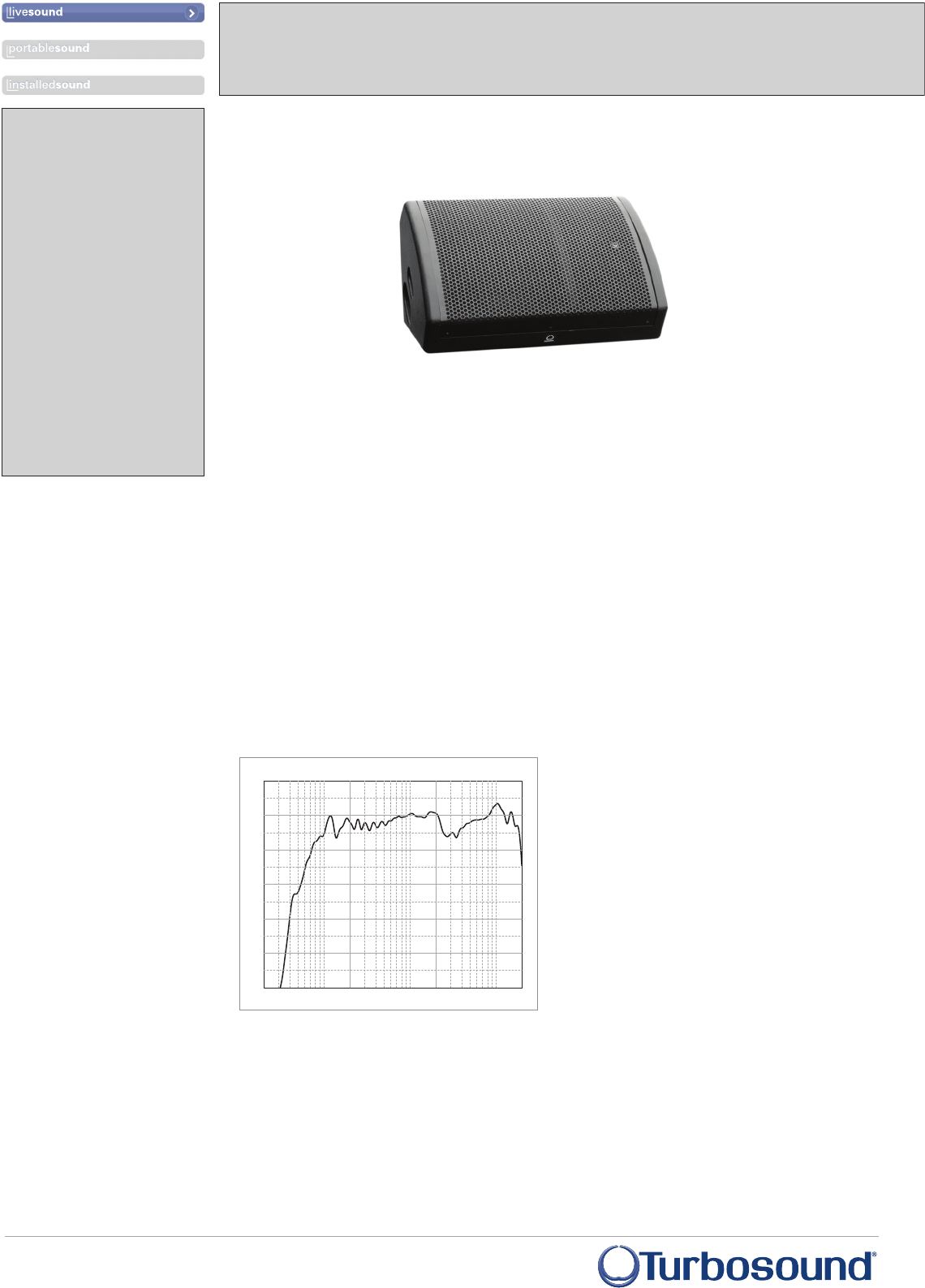

TFM-420 bi-amped floor monitor
The TFM-420 is a high performance professional bi-amped floor monitor consisting of a custom designed 4”
voice coil neodymium 12” low frequency driver, and a high power 1.4” diaphragm neodymium high
frequency compression driver on a custom 40° x 60° waveguide in a compact vented enclosure.
The drive units are mounted side by side on a 37° baffle, producing a small footprint which
results in a highly efficient wedge monitor package, ideal for use wherever high SPL and
exceptional intelligibility is required. A low box profile is maintained, thereby improving
sightlines, by mounting the HF horn alongside, rather than on top of, the low frequency driver.
The HF horn pattern is designed to give very even coverage both close to, and standing back
from, the monitor while at the same time minimising sound spillage into adjacent microphones.
As a result the TFM-420 offers impressive feedback rejection, developing high sound pressure
levels without the need for excessive equalisation. The TFM-420 has been designed as a
symmetrical mirror-image monitor, allowing multiple units to be used with one monitor inverted
to form left and right pairs. The included pole mount socket also allows the TFM-420 to be used
vertically as a front of house loudspeaker.
Features
• Neodymium components
• Symmetrical enclosure
• High spec components
• Controlled dispersion
• Pole mount socket
• Speakon connectors
Applications
• Vocal monitoring
• Horn sections
• Drum fills
• Front of house
Frequency Response
TFM-420 (dB) Sound Pressure Level
Frequency (Hz)
100 1 kHz 10 2050 200 500 2 5
20 Hz
110
100
90
80
70
60
50
Limited Warranty
Every Turbosound loudspeaker product is warranted to the original end-user purchaser and all subsequent owners for a period of two (2) years for loudspeaker products, or one (1) year for
electronics products, from the original date of purchase. Warranty coverage includes defects in materials and workmanship. It does not include:
• damage caused by accident, misuse, abuse, neglect or modification by any other person other than an authorised Turbosound representative,
• damage caused by overdriving, use with unsuitable amplifiers or amplifier failure,
• damage caused by failure to operate the product in accordance with the instructions contained in the user’s manual,
• damage occurring during shipment in transit,
• claims based upon any misrepresentations by the seller,
• products which do not have the original components as specified in the product engineering information,
• products on which the serial number has been removed or defaced.
Should any fault develop with a component of your Turbosound system, please return the product, freight pre-paid, in its original packing carton, along with proof of purchase such as the
original bill of sale, and a description of the suspected fault, to your local authorised Turbosound representative. The product serial number must be quoted in all correspondence relating to the
claim. Insurance is recommended as Turbosound or its representatives are not liable for loss or damage in transit.

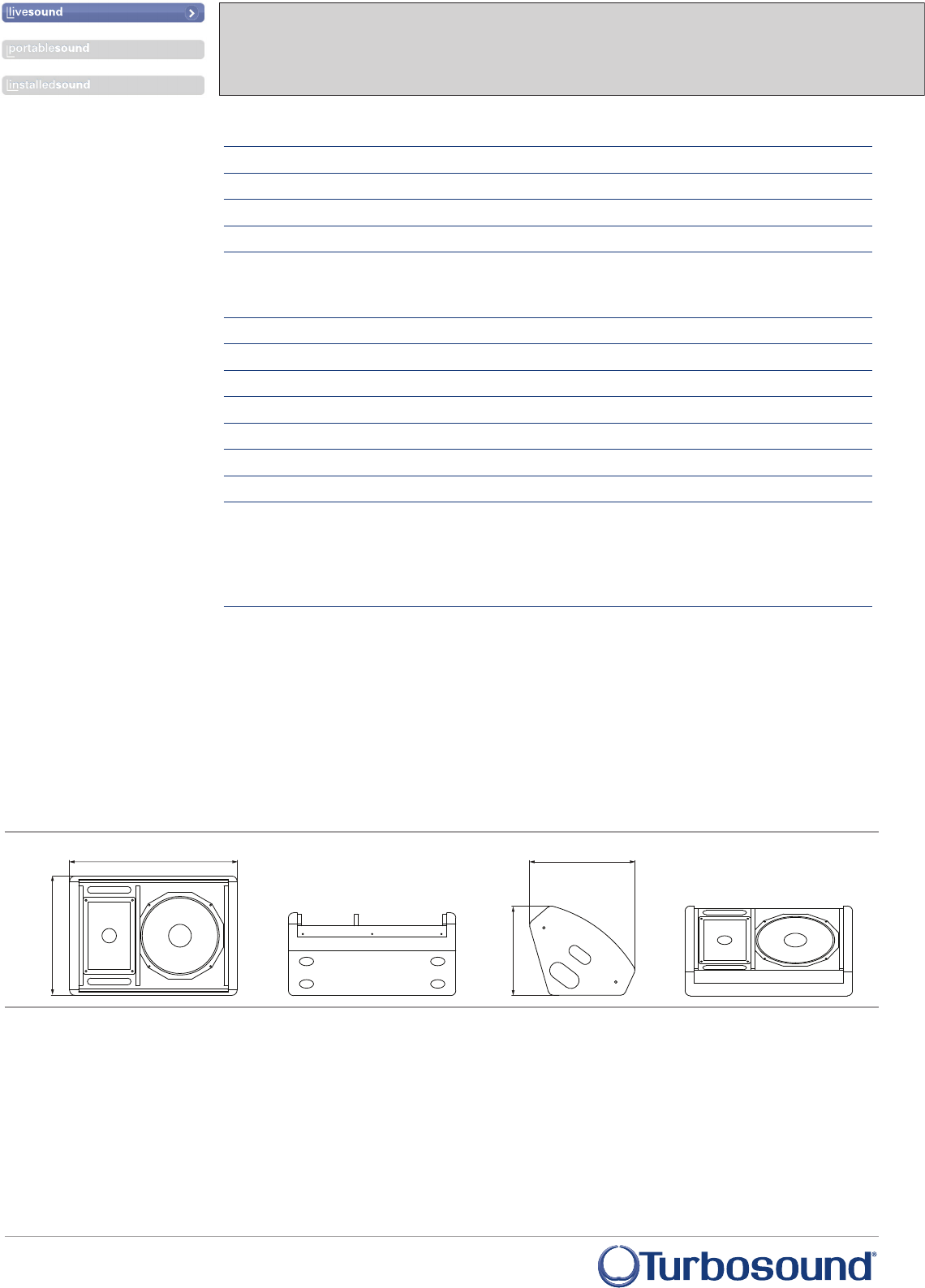

TFM-420 bi-amped floor monitor
329mm x 614mm x 386mm (13” x 24.2” x 15.2”)
25.2kg (55.4lbs)
1 x custom 12” (305mm) LF driver, 1 x 1.4” (35mm) diaphragm HF driver on a custom flare
90Hz - 16kHz ±4dB
40°H x 60°V @-6db points
LF: 300 watts r.m.s., 600 watts program
HF: 100 watts r.m.s., 200 watts program
Recommended amplifier power: LF: 600 watts @ 8 ohms; HF: 200 watts @ 8ohms
LF: 99dB; HF: 103dB, 1 watt @ 1 metre
130dB continuous, 136dB peak
Active only: recommended point 1k3Hz, 24dB/octave slope, Linkwitz Riley
LF: 8 ohms; HF: 8 ohms
15mm (5/8”) birch plywood, finished in black semi-matt textured paint. Two recessed carrying handles
Black powder coated perforated steel
(2) Speakon NL4MP wired: pin 1+: LF positive, pin1-: LF negative, pin2+: HF positive, pin 2-: HF negative
LS-1218 12” (305mm) LF loudspeaker
RC-1218 Recone kit
CD-214 3” (75mm) diaphragm HF compression driver
RD-214 Replacement diaphragm
MG-420 Replacement grille
More information can be found on our website: www.turbosound.com
DIMENSIONS (HxWxD)
NET WEIGHT
COMPONENTS
FREQUENCY RESPONSE
NOMINAL DISPERSION
POWER HANDLING
SENSITIVITY
MAXIMUM SPL
CROSSOVER
IMPEDANCE
CONSTRUCTION
GRILLE
CONNECTORS
SPARES AND ACCESSORIES
MORE INFO
TFM-420 datasheet v1.5 05/2011
437mm [17.2”]
614mm [24.2”] 386mm [15.2”]
329mm [13”]
