rights reserved. Unauthorized copying and

distribution is a violation of law.

TH-37PG9W

TH-42PG9W

GP9D Chassis

Progressive Wide Hospitality Plasma Display

Specifications

Power Source 220-240 V

C, 50/60Hz

Power Consumption

Power on 250 W (37 inch) 280 W (42 inch)

Stand-b

condition Save OFF 0.8 W, Save ON 0.6 W (37 inch) Save OFF 0.8 W, Save ON 0.6 W (42 inch)

Power off condition 0.2 W (37 inch) 0.2 W (42 inch)

Plasma Displa

panel Drive method:

C type 37-inch, Drive method:

C type 42-inch,

16:9 aspect ratio (37 inch) 16:9 aspect ratio (42 inch)

Contrast Ratio Ma

10000:1

Screen size 818 mm (W) × 461 mm (H) × 939 mm (diagonal) (37 inch)

920 mm (W) × 518 mm (H) × 1,056 mm (diagonal) (42 inch)

(No. of pixels) 408,960 (852 (W) × 480(H))

[2,556 × 480 dots]

Operating condition

Temperature 0 °C - 40 °C

Humidit

20% - 80%

Applicabl

signals

Scanning format 525 (480) / 60i 60p, 625 (575)

50i 50p, 750 (720)

60p 50p, 1125 (1080) / 60i 50i 24p 25p

30p 24sF.... SMPTE274M, 1250 (1080) / 50i

PC signals VG

SVGA, XGA, SXGA, UXGA..... (compressed)

Horizontal scanning frequency 15 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

Connection terminals

COMPONENT Y/G(BNC)

PB/B(BNC),PR/R(BNC)

AUDIO IN (RCA PIN JACK × 2)

or G with

syn

1.0 Vp-p (75-ohm)

0.7 Vp-p (75-ohm)

0.5 Vrms

PC (HIGH-DENSIT

Mini-D-SUB 15PIN)

or G with

syn

1.0 Vp-p (75-ohm)

or G without / syn

0.7 Vp-p (75-ohm)

CB:0.7 Vp-p (75-ohm)

ORDER NO. ITD0609073CE

1 Applicable signals 4

2 Safety Precautions 5

2.1. General Guidelines 5

3 Prevention of Electro Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices 6

4 About lead free solder (PbF) 7

5 Service Hint 8

6 Disassembly 9

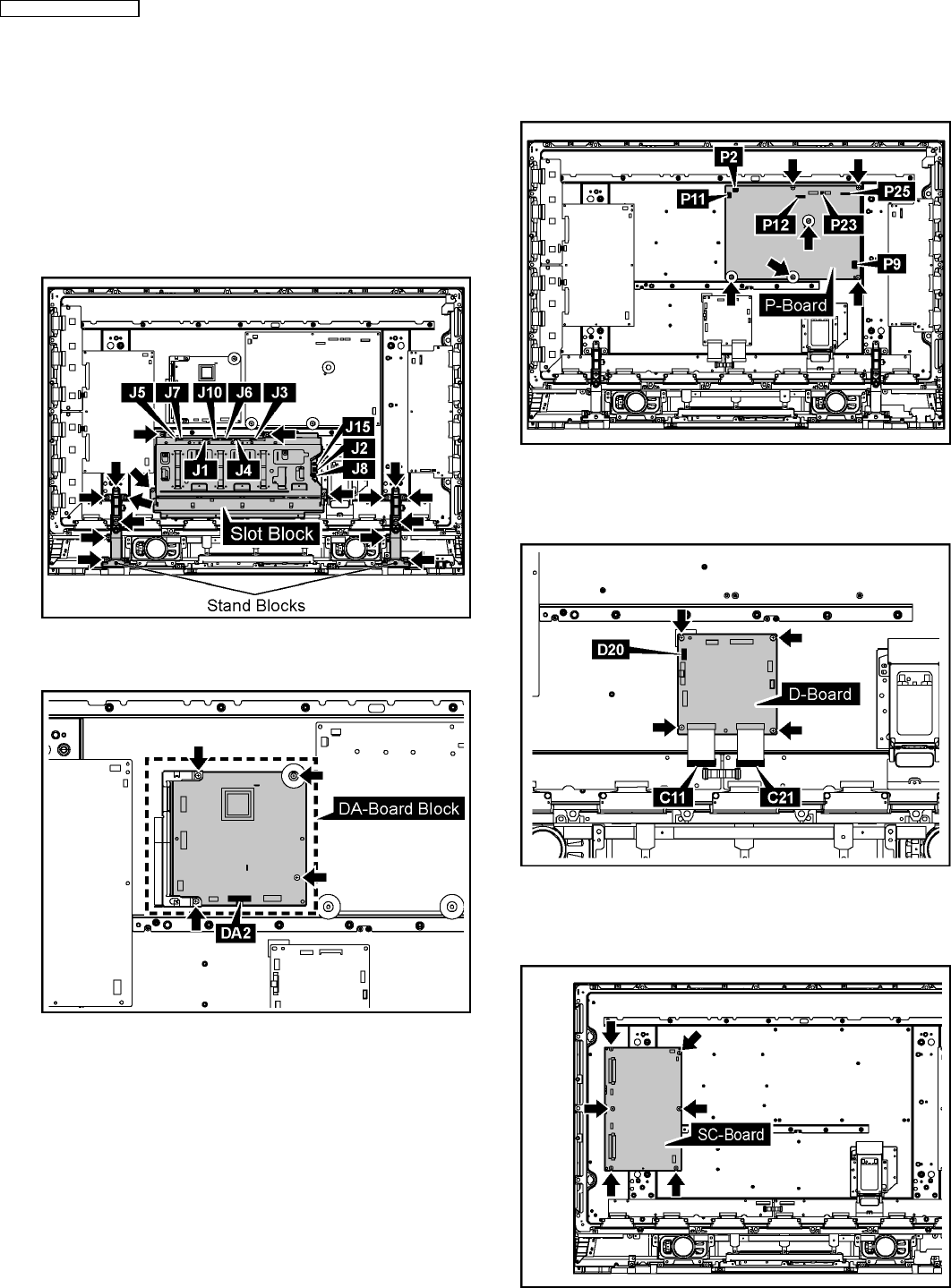

6.1. Removal of the Back Cover 9

6.2. Removal of the HA-Board 9

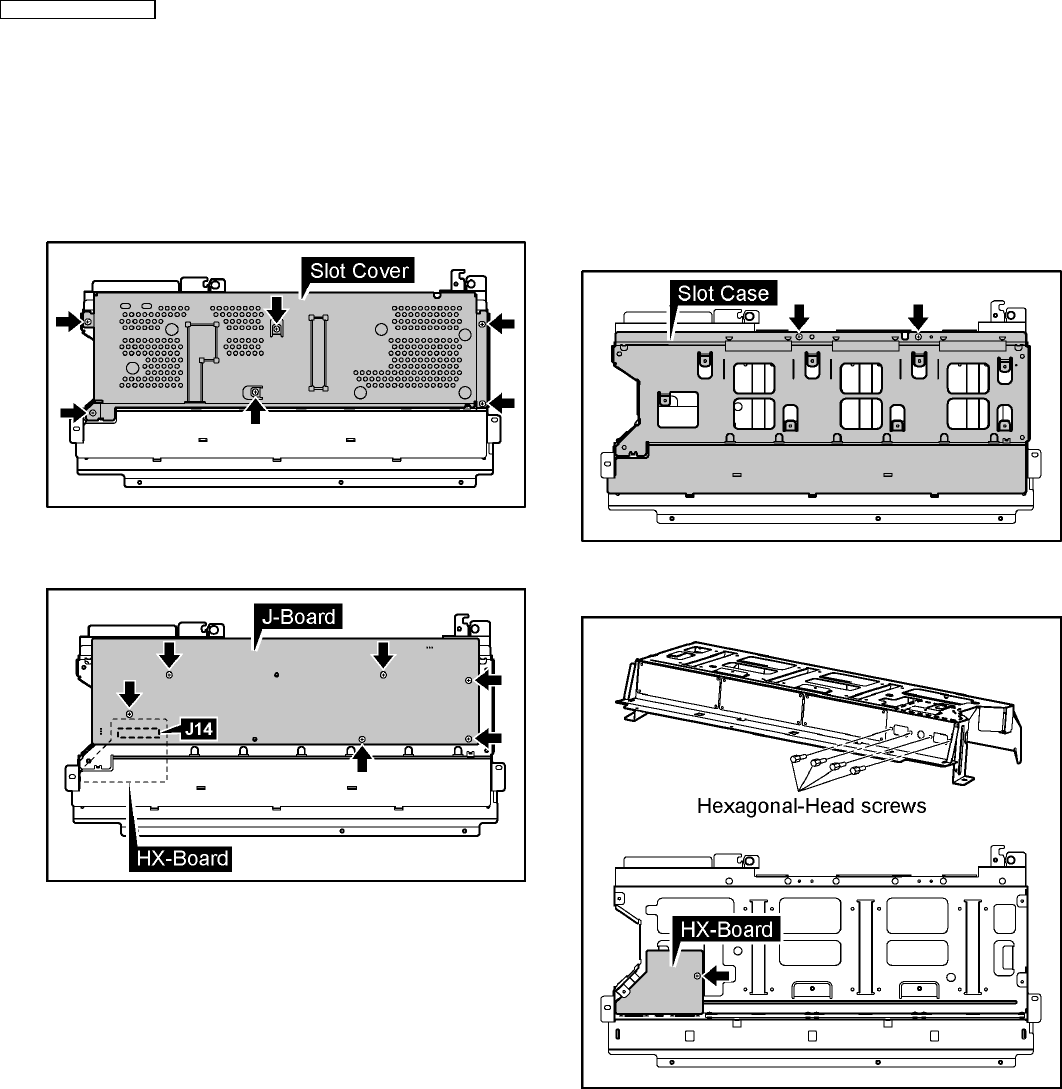

6.3. Removal of the Slot Block 9

6.4. Removal of the J-Board 10

6.5. Removal of the HX-Board 10

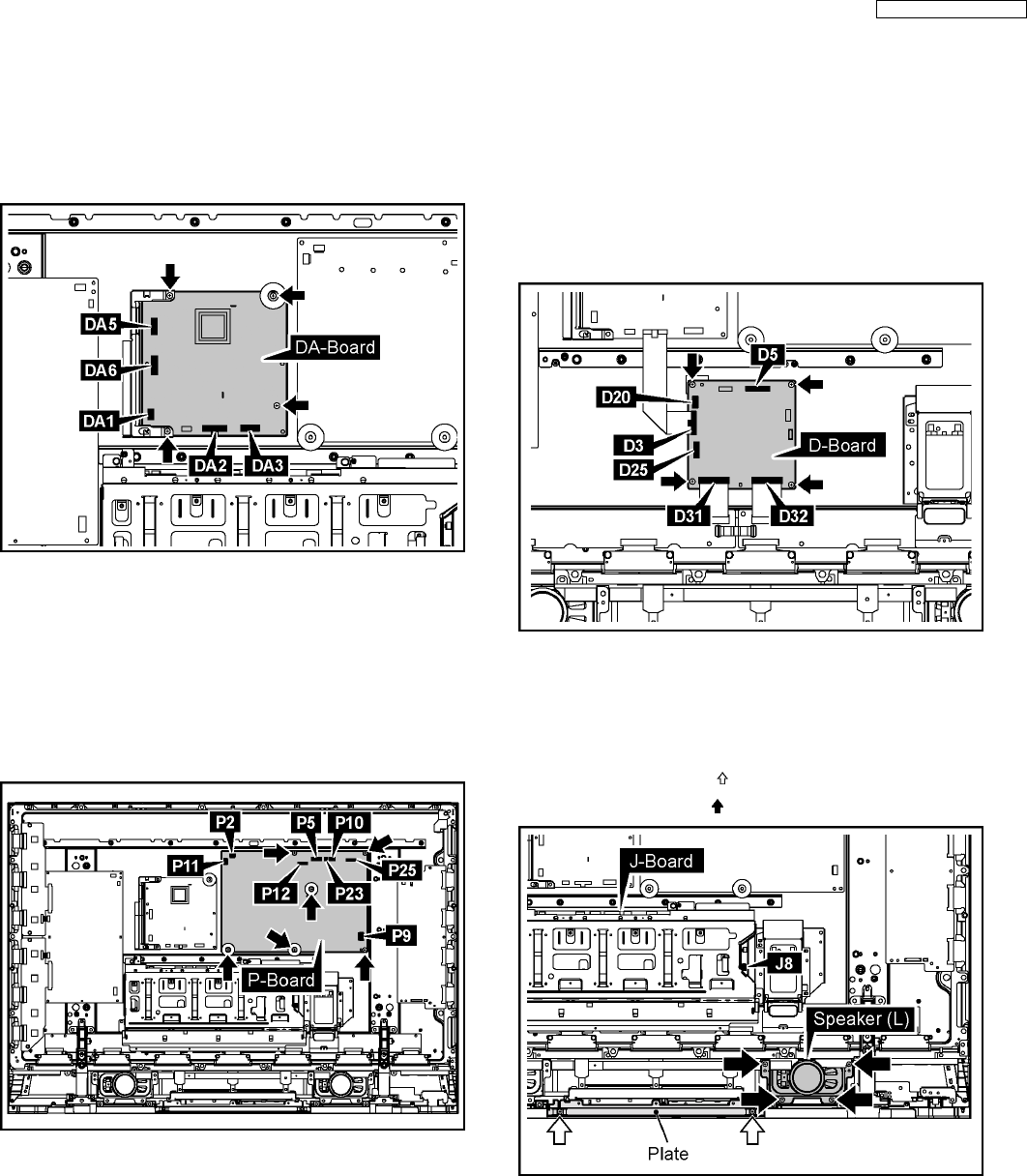

6.6. Removal of the DA-Board 11

6.7. Removal of the P-Board 11

6.8. Removal of the D-Board 11

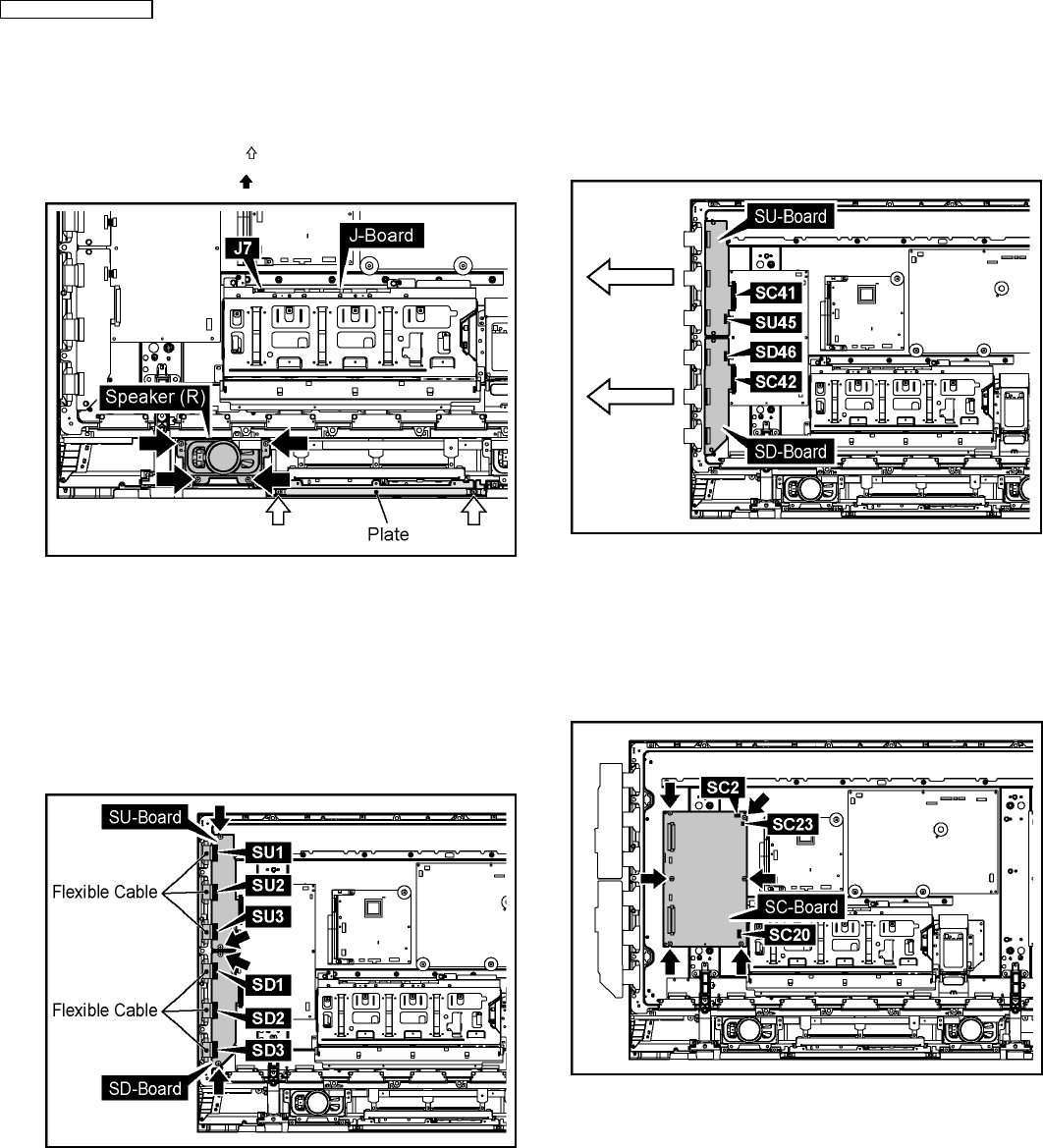

6.9. Removal of the Speaker (L, R) 11

6.10. Removal of the SU-Board and the SD-Board 12

6.11. Removal of the SC-Board 12

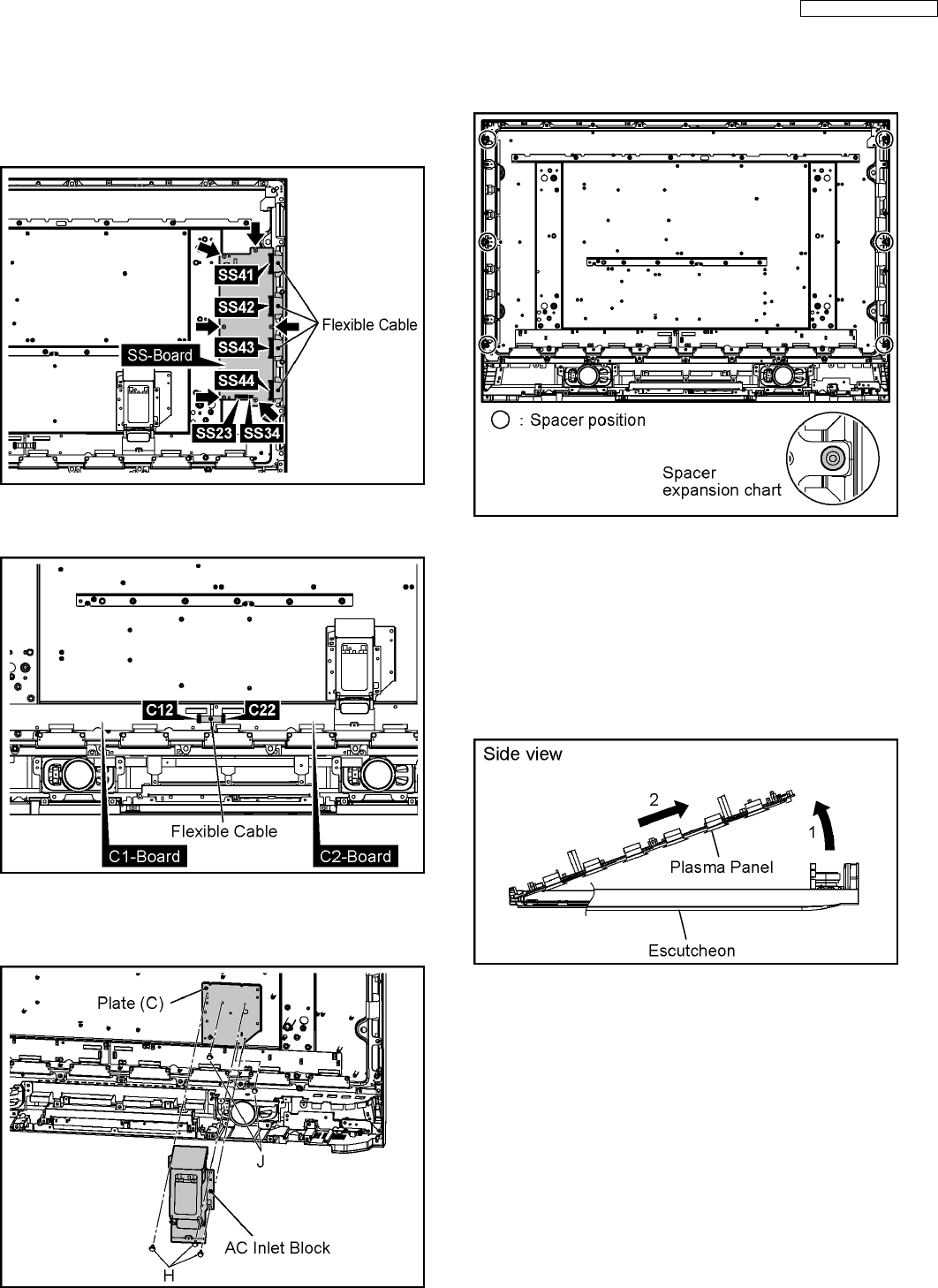

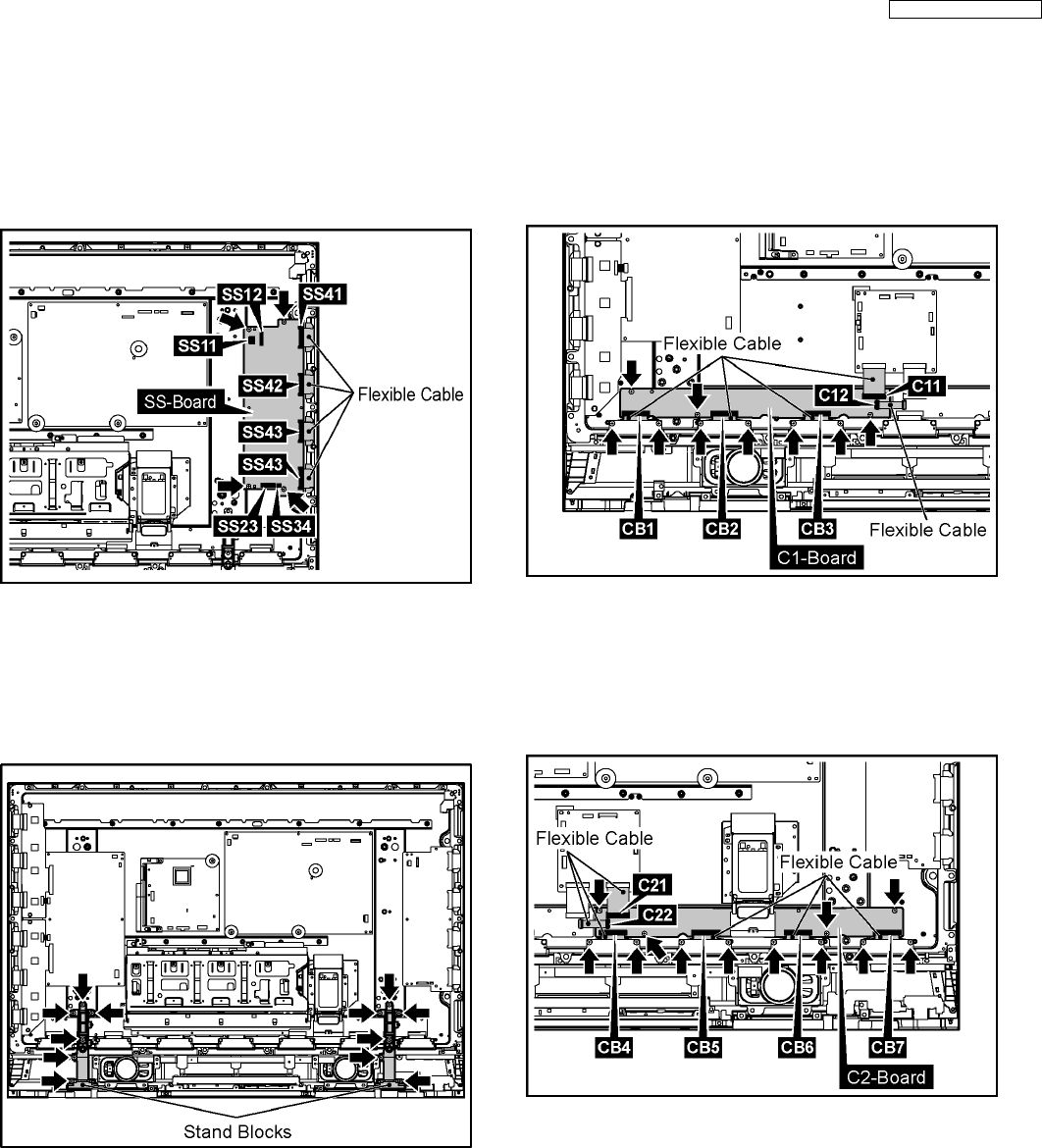

6.12. Removal of the SS-Board 13

6.13. Removal of the C1, C2-Board 13

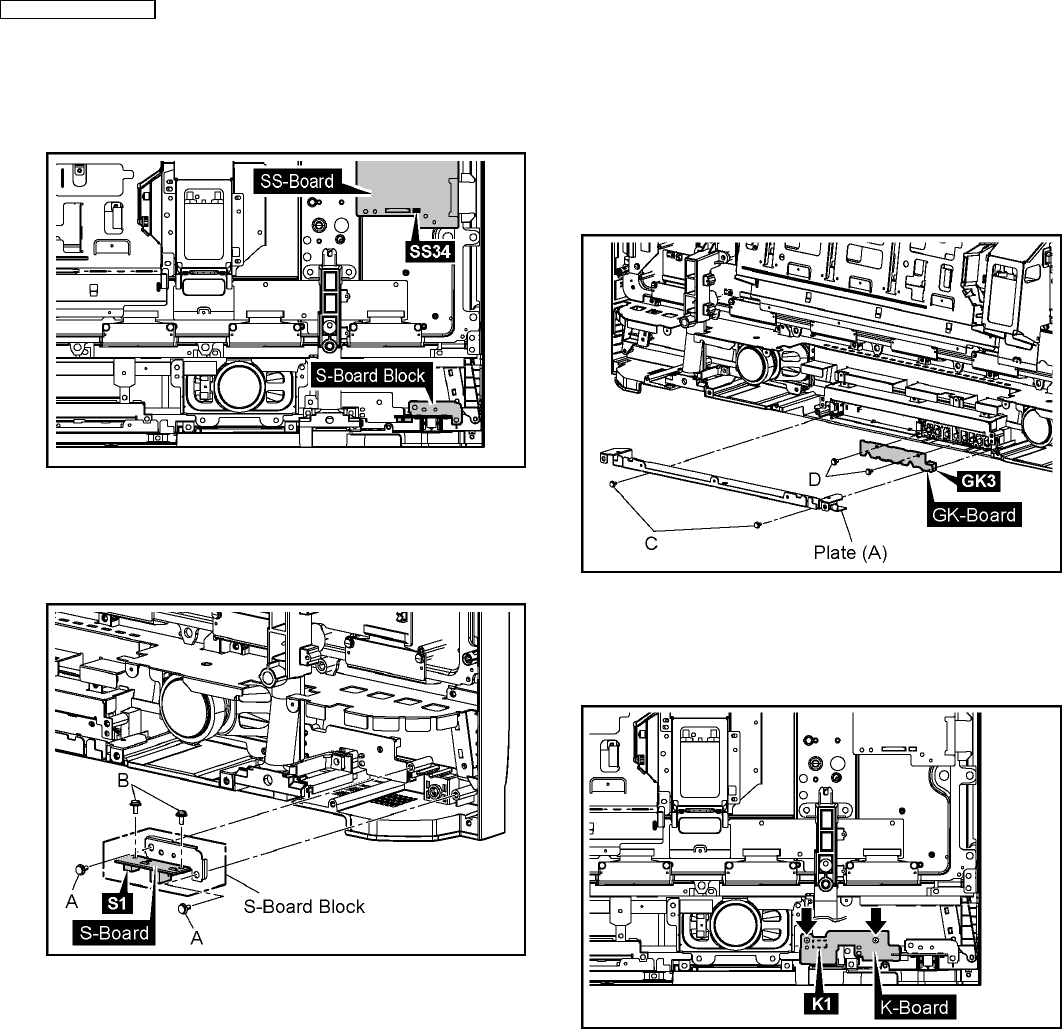

6.14. Removal of the S-Board 14

6.15. Removal of the GK-Board 14

6.16. Removal of the K-Board 14

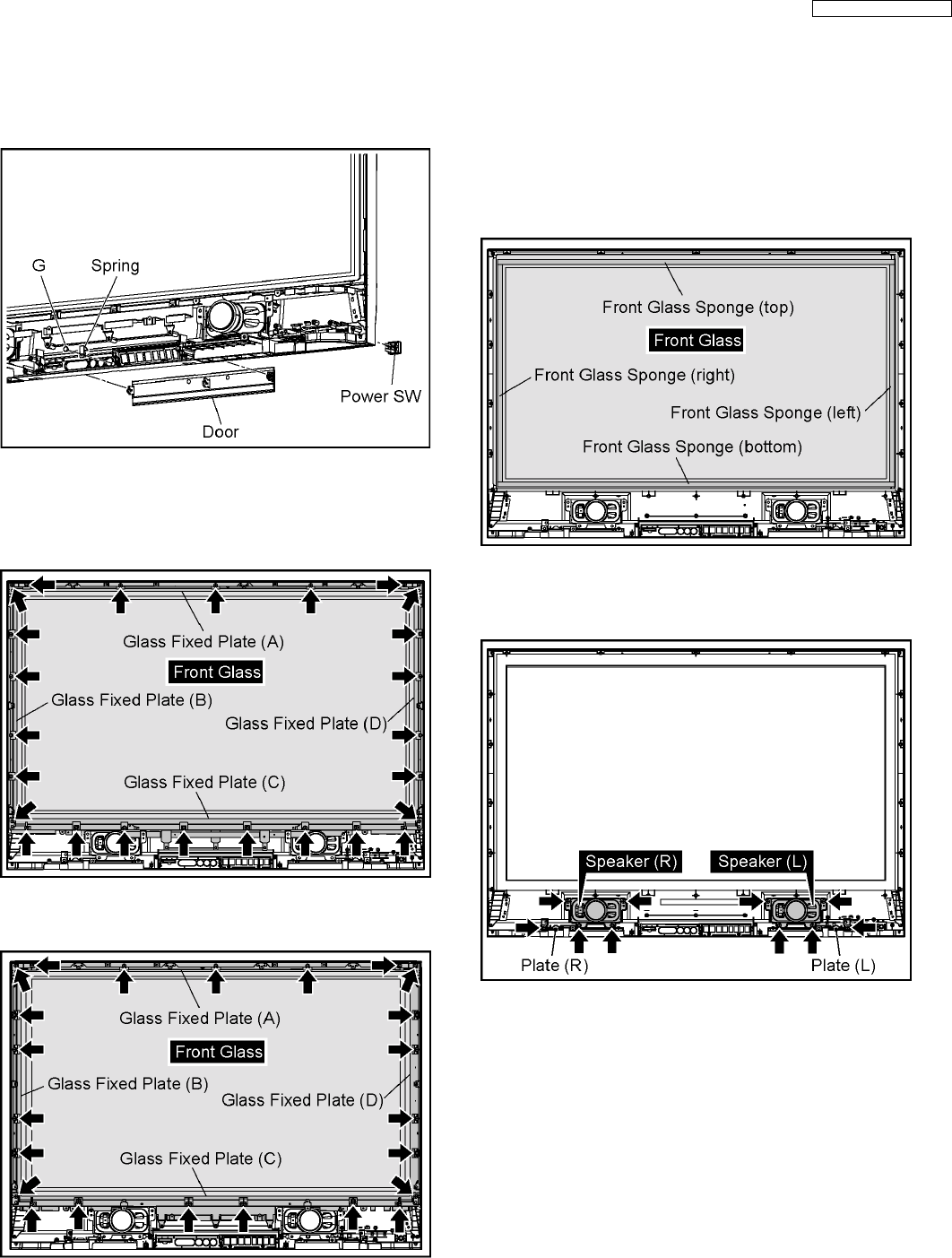

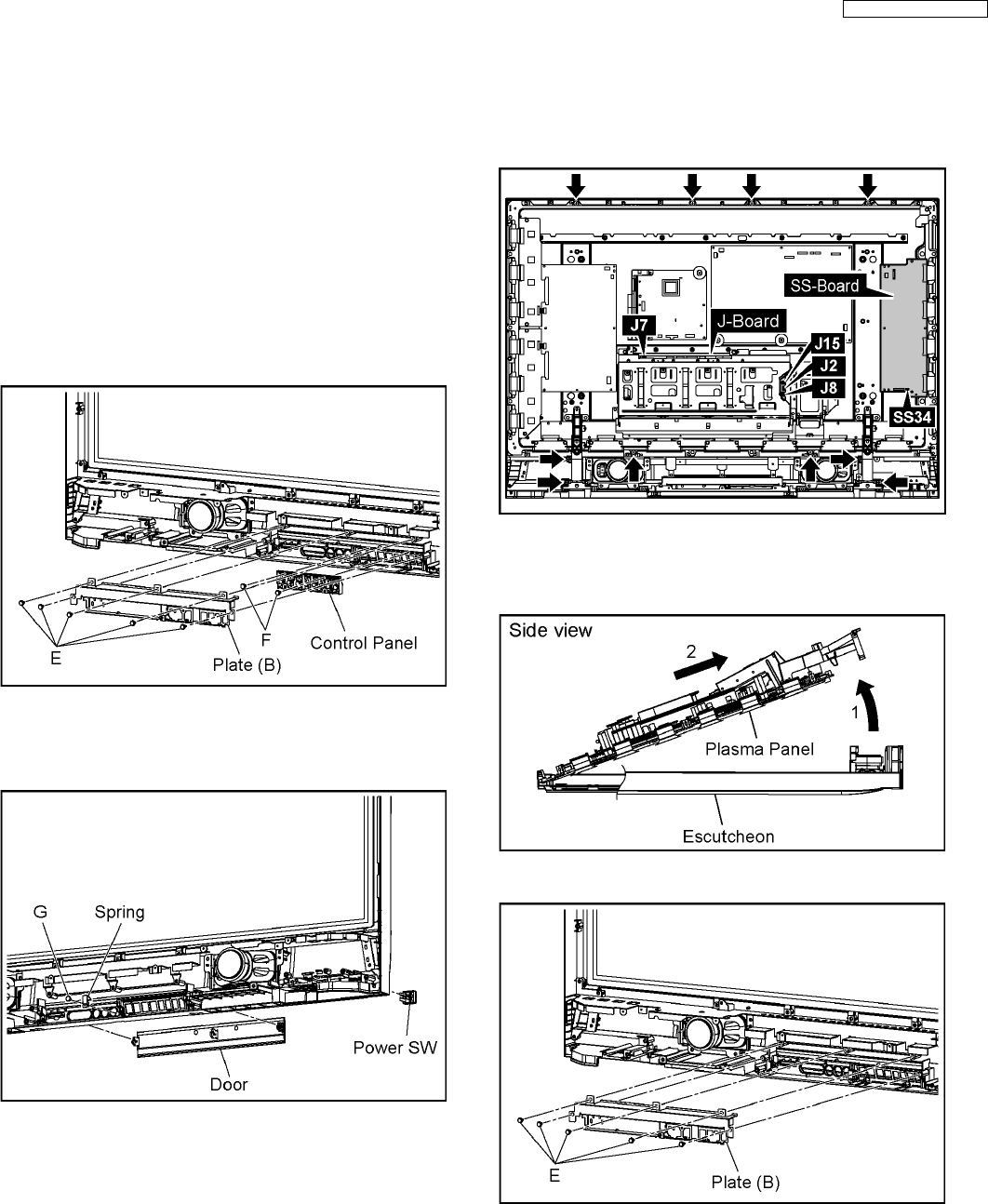

6.17. Removal of the Control Panel, the Power SW and the

Door 15

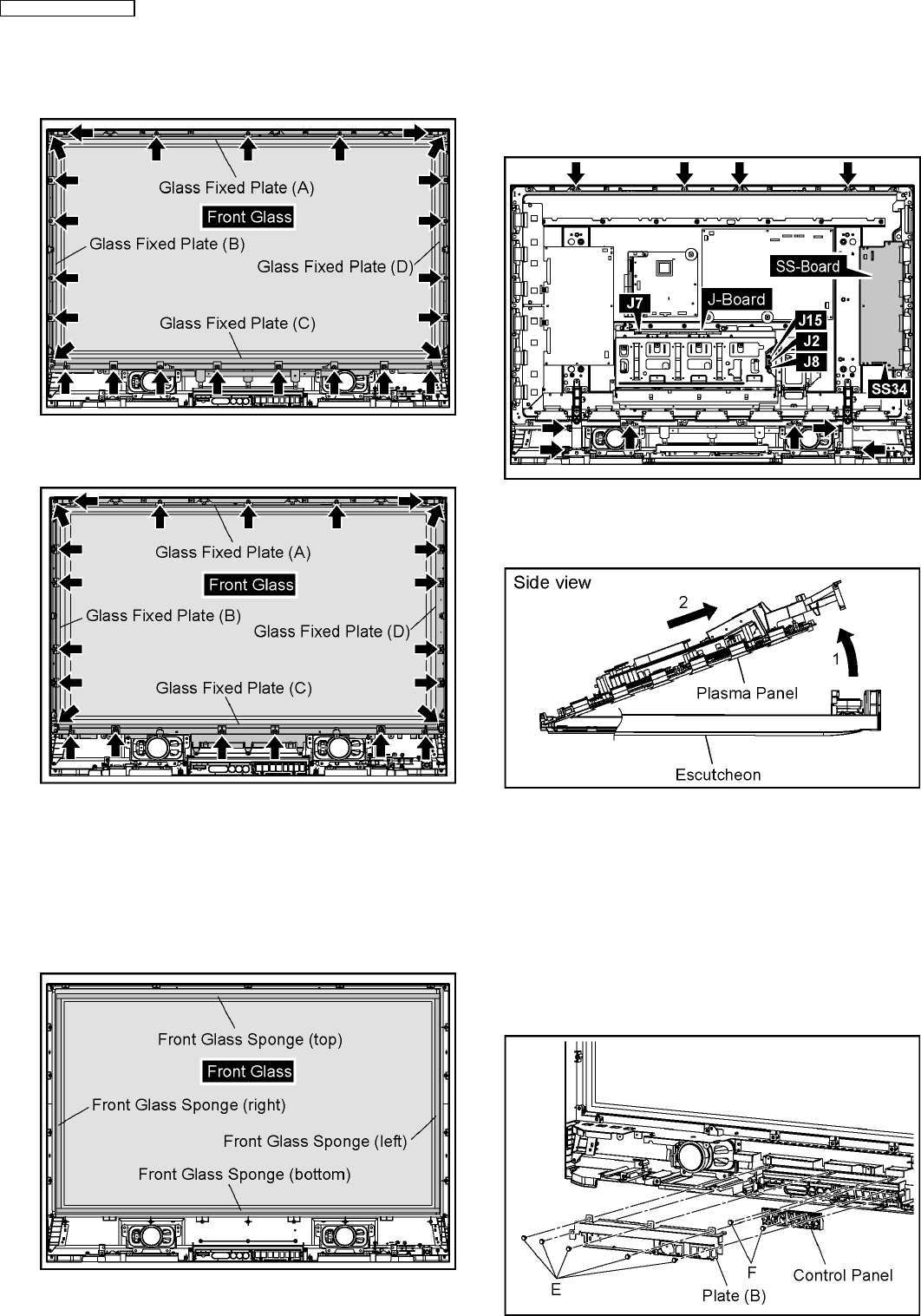

6.18. Removal of the Front Glass 15

6.19. Removal of the Escutcheon 16

6.20. Removal of the Plasma Panel 18

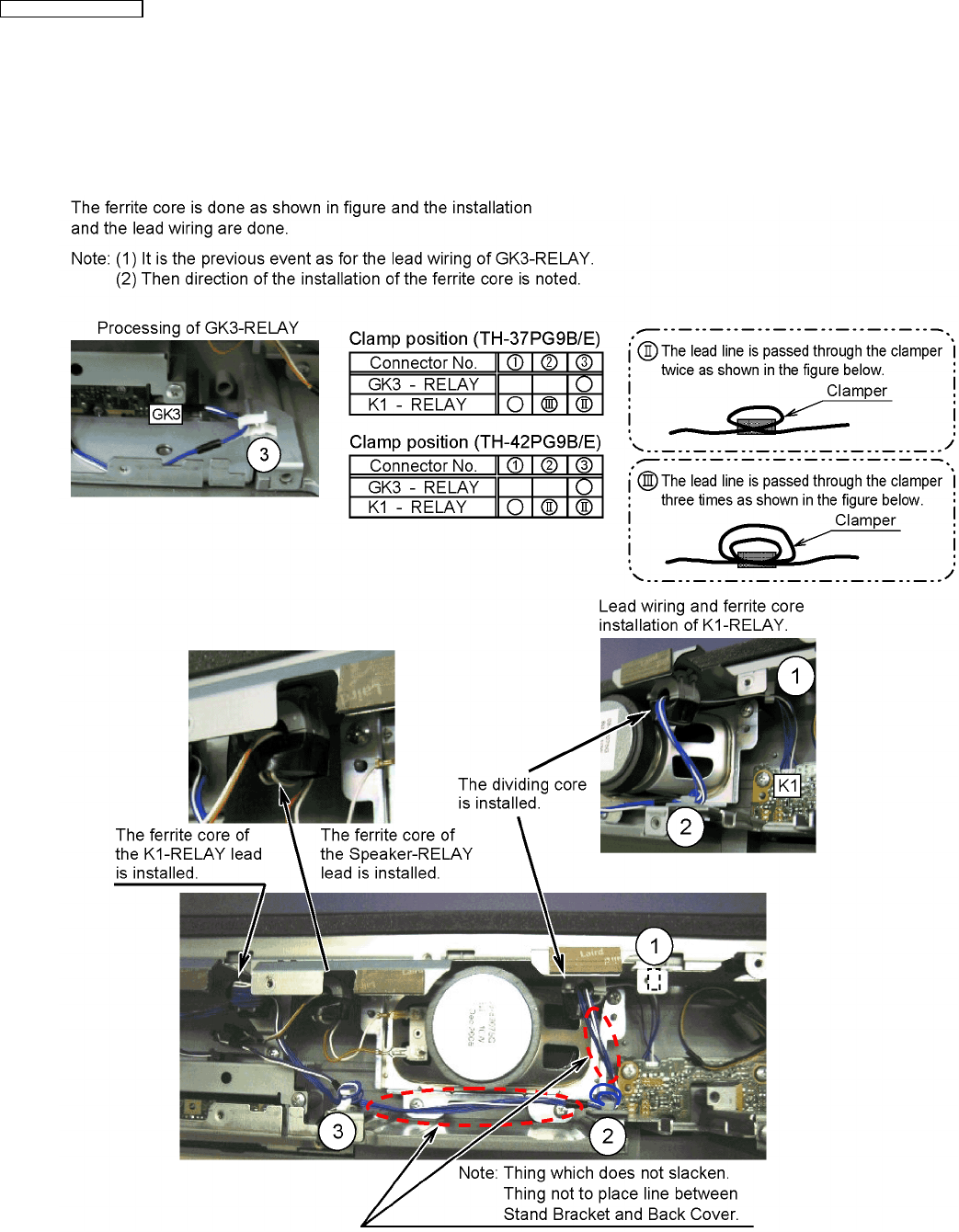

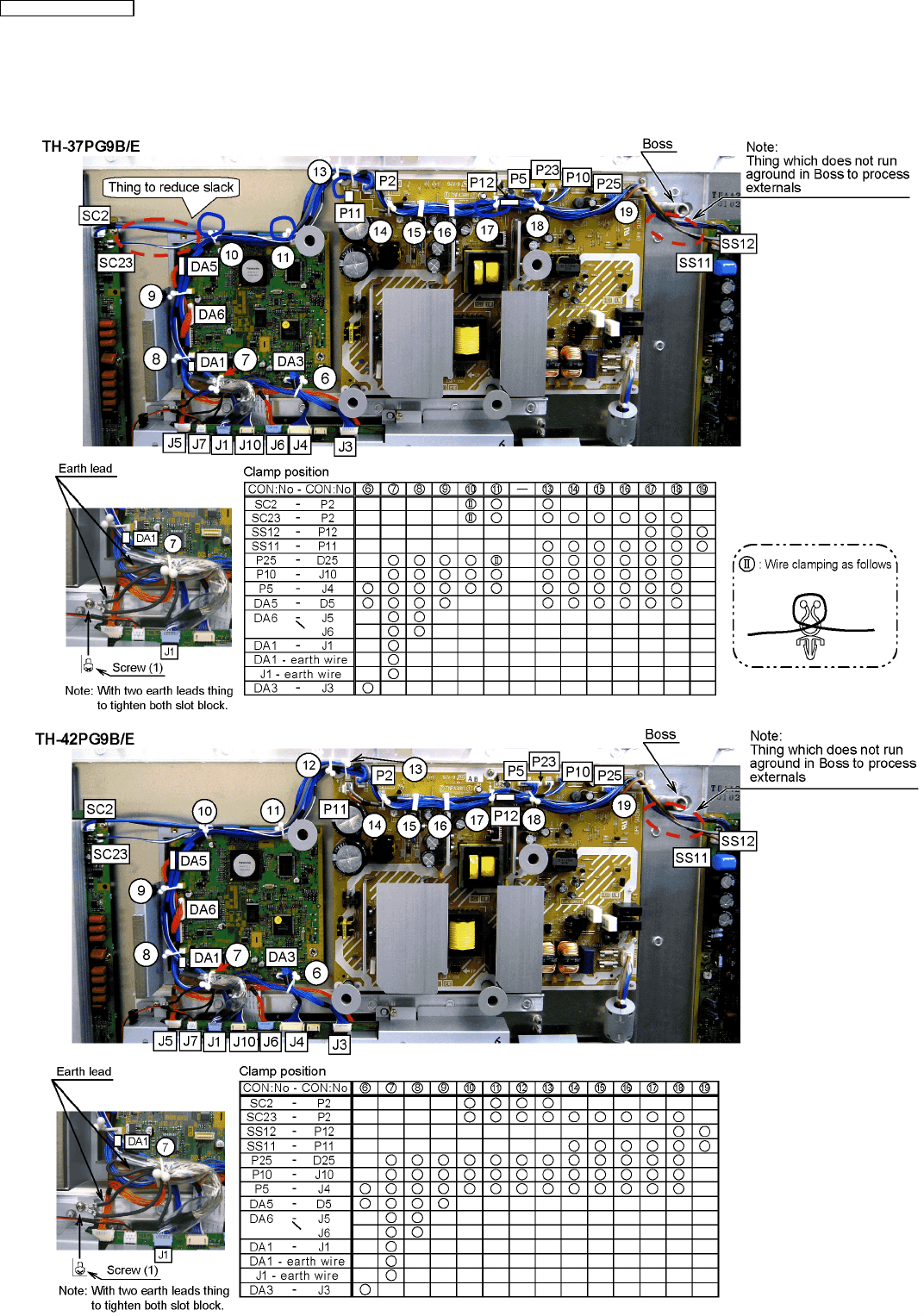

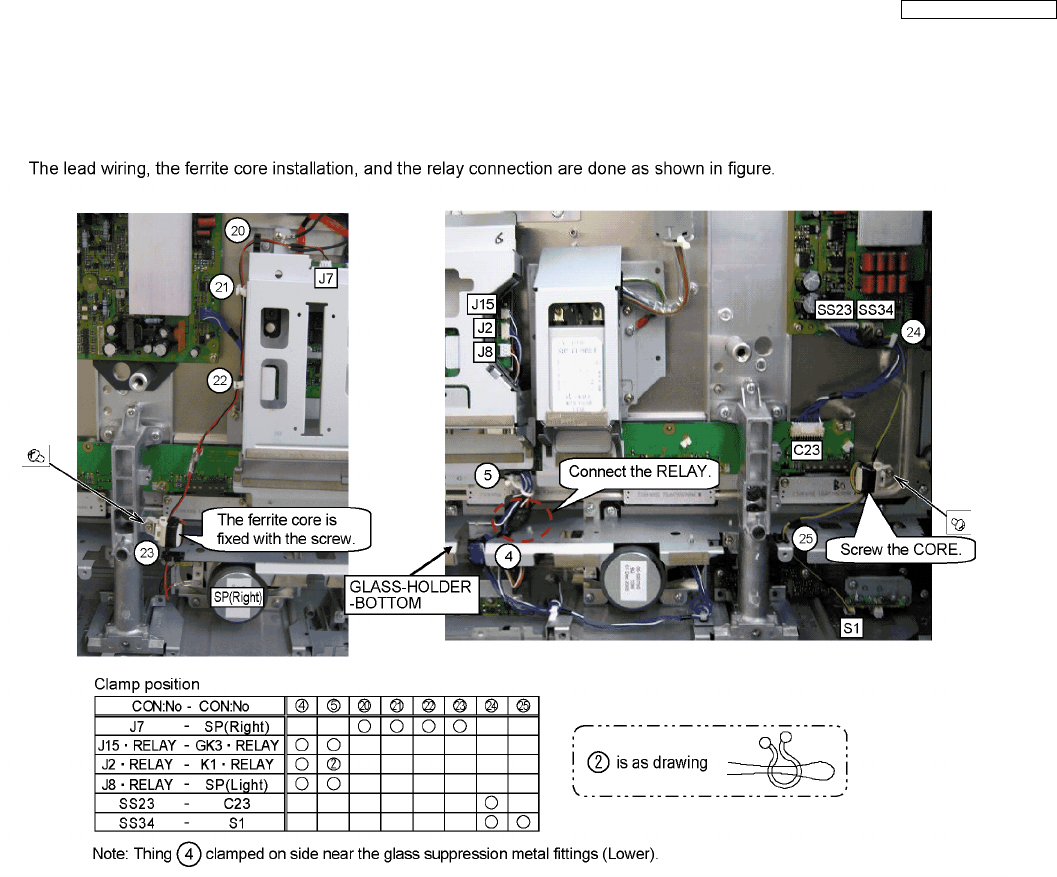

7 Location of Lead Wiring 20

7.1. Location of Lead Wiring (1) 20

7.2. Location of Lead wiring (2) 21

7.3. Location of Lead wiring (3) 22

7.4. Location of Lead Wiring (4) 23

8 Adjustment Procedure 24

8.1. Driver Set-up 24

8.2. Initialization Pulse Adjust 25

8.3. P.C.B. (Printed Circuit Board) exchange 25

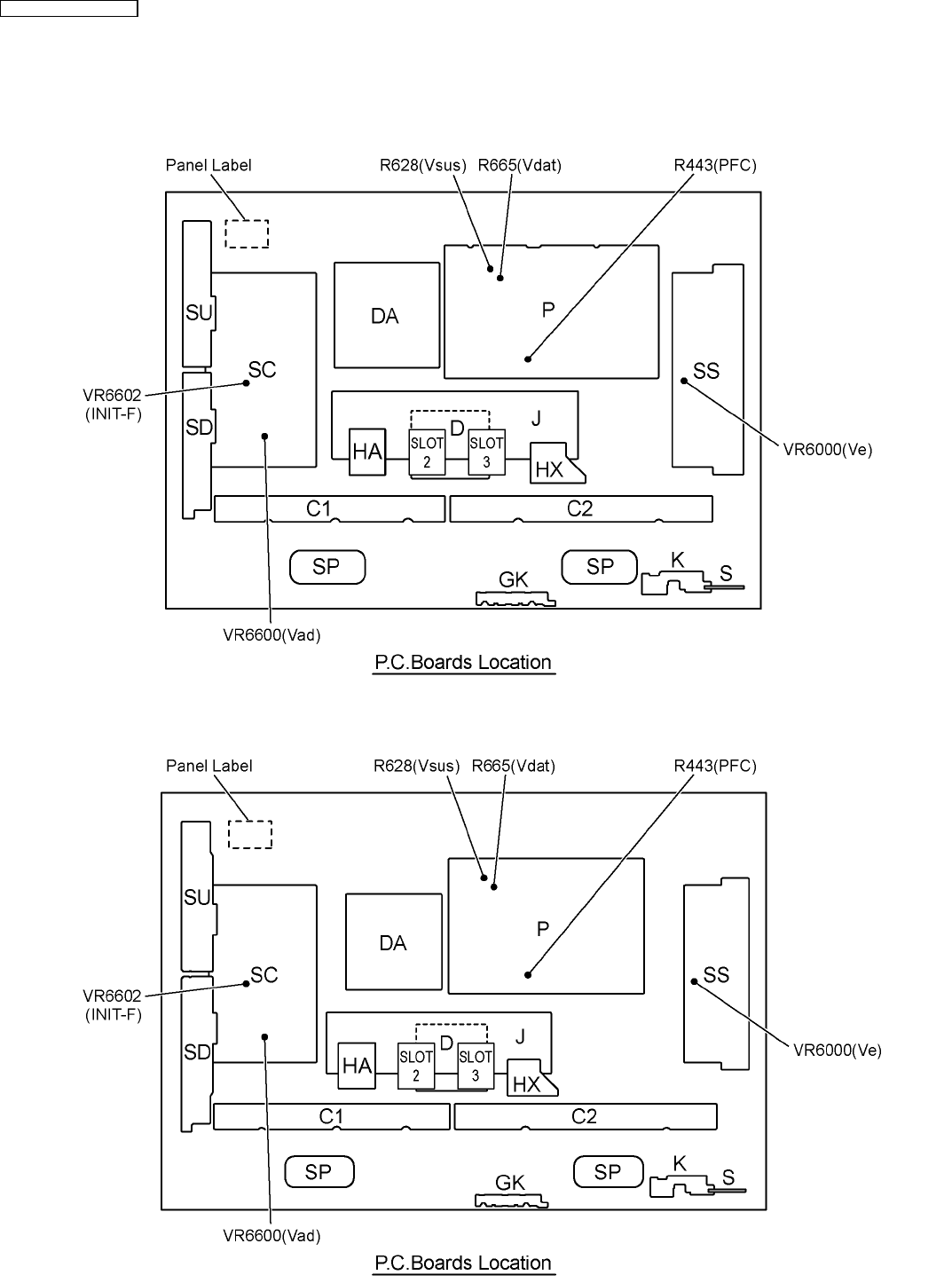

8.4. Adjustment Volume Location 26

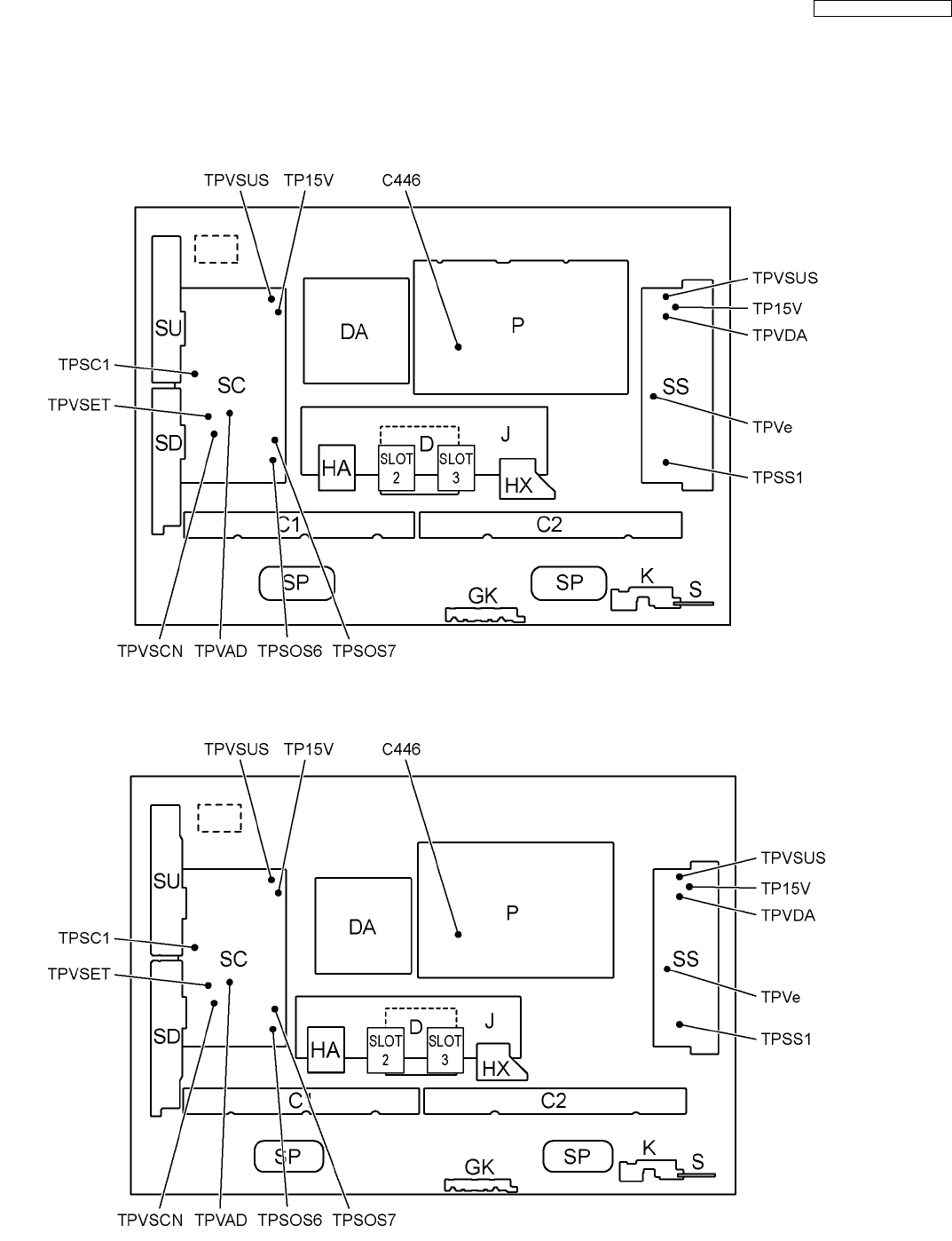

8.5. Test Point Location 27

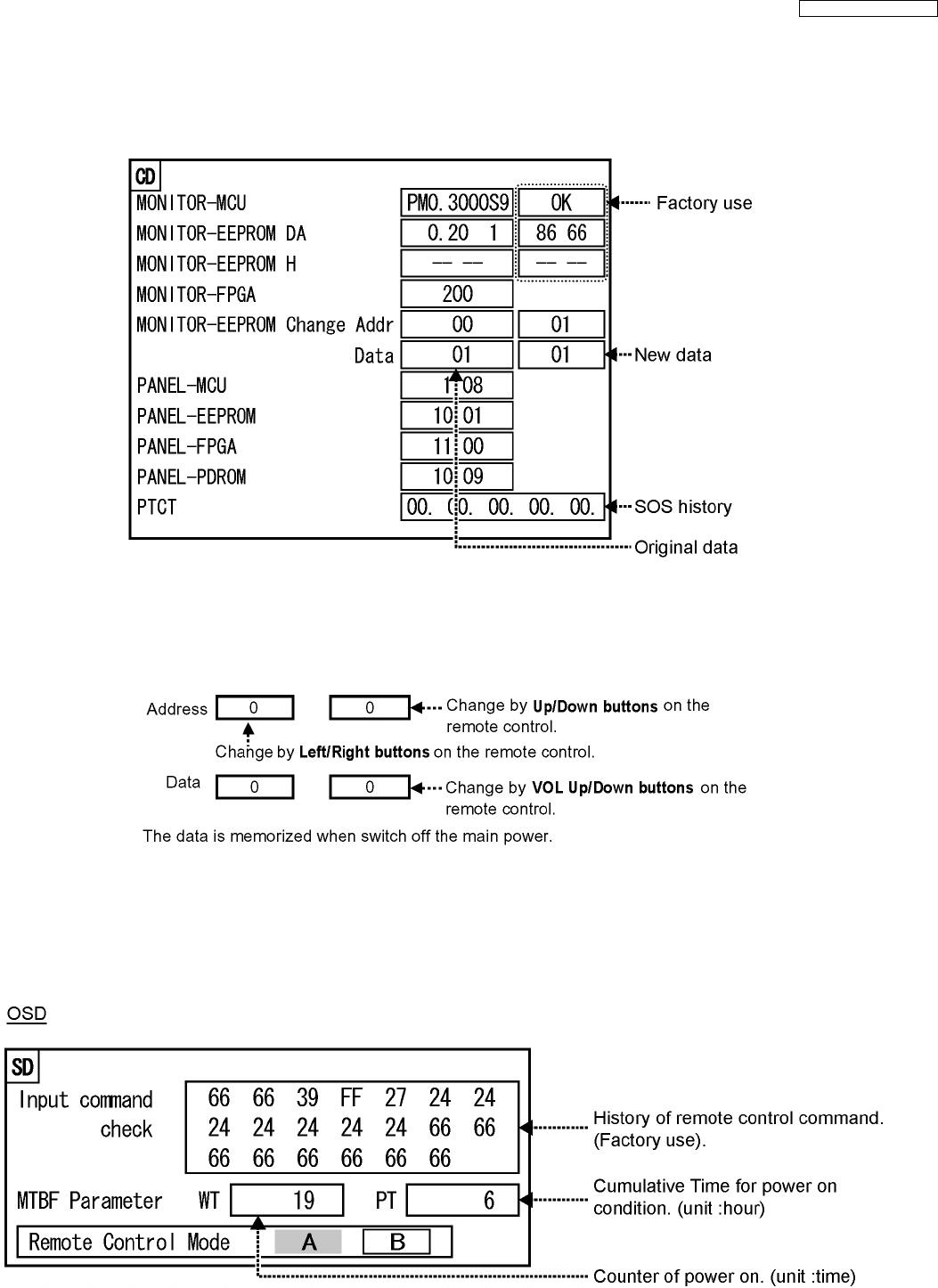

9 Service mode 28

9.1. CAT (computer Aided Test) mode 28

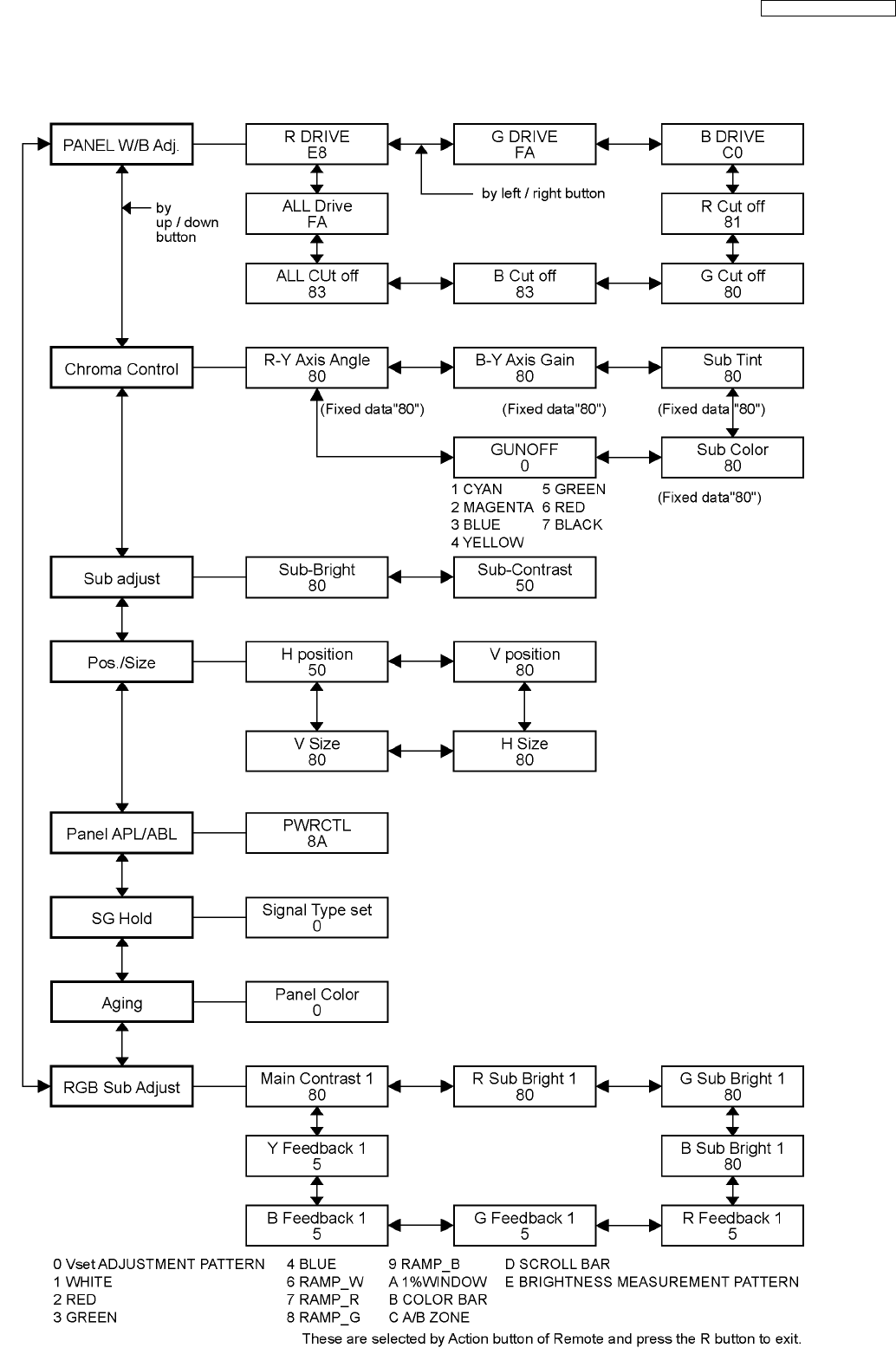

9.2. IIC mode structure (following items value is sample data.)

10 Adjustment 32

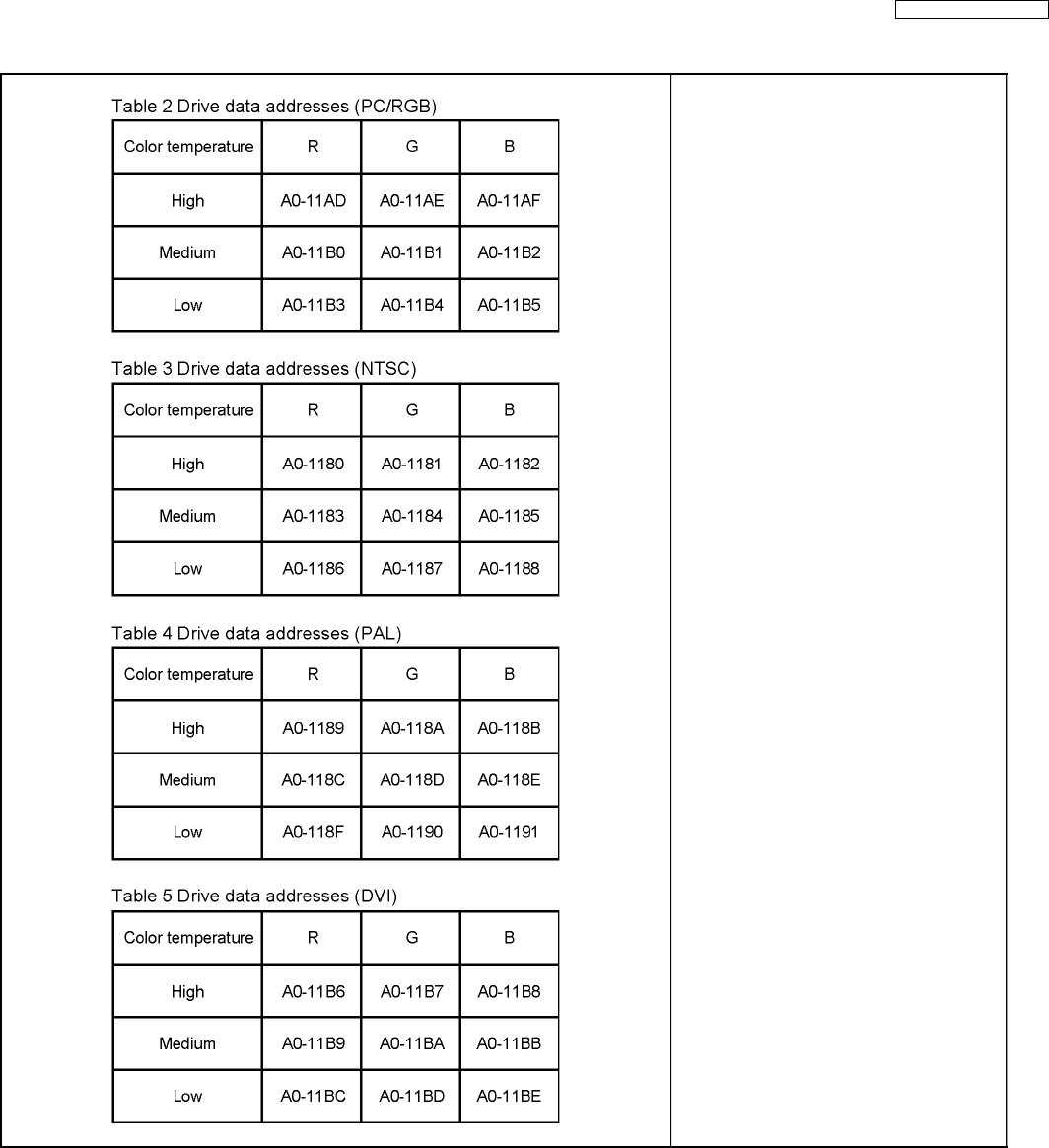

10.1. RGB white balance adjustment 32

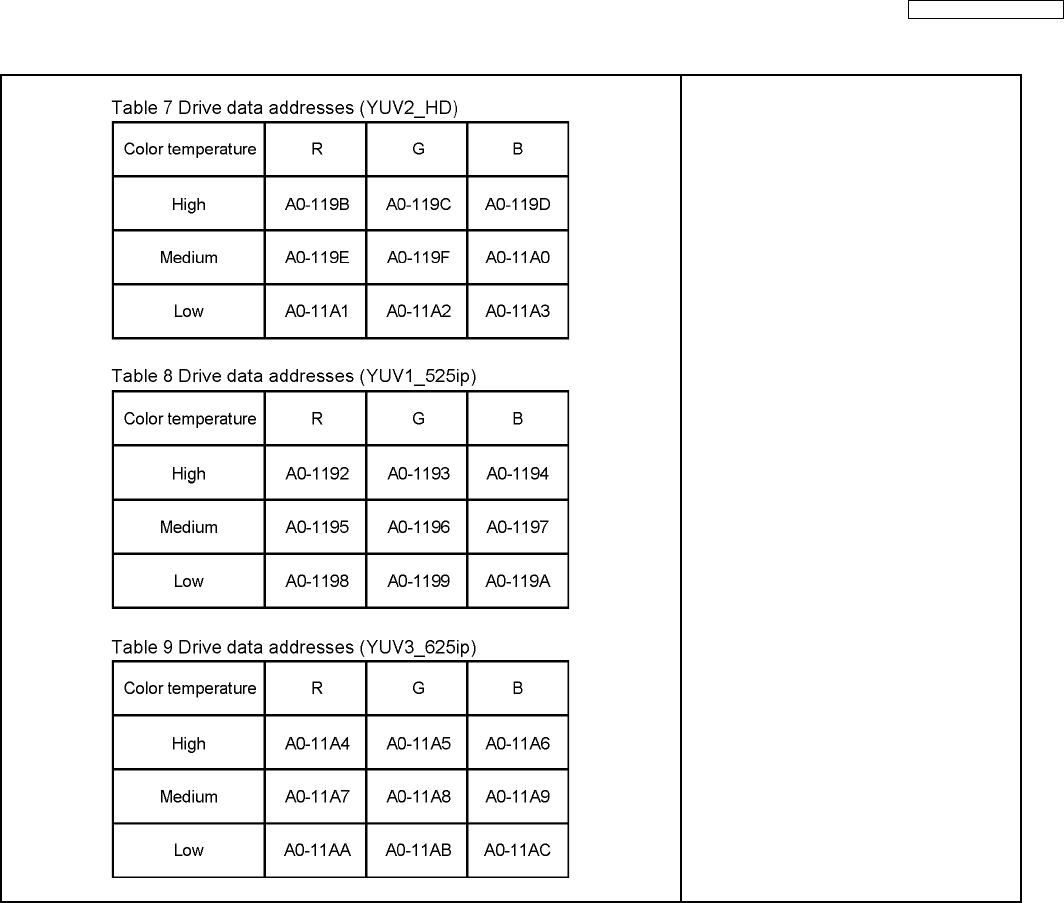

10.2. HD white balance adjustment 34

10.3. Power control adjustment 36

11 Troubleshooting guide 37

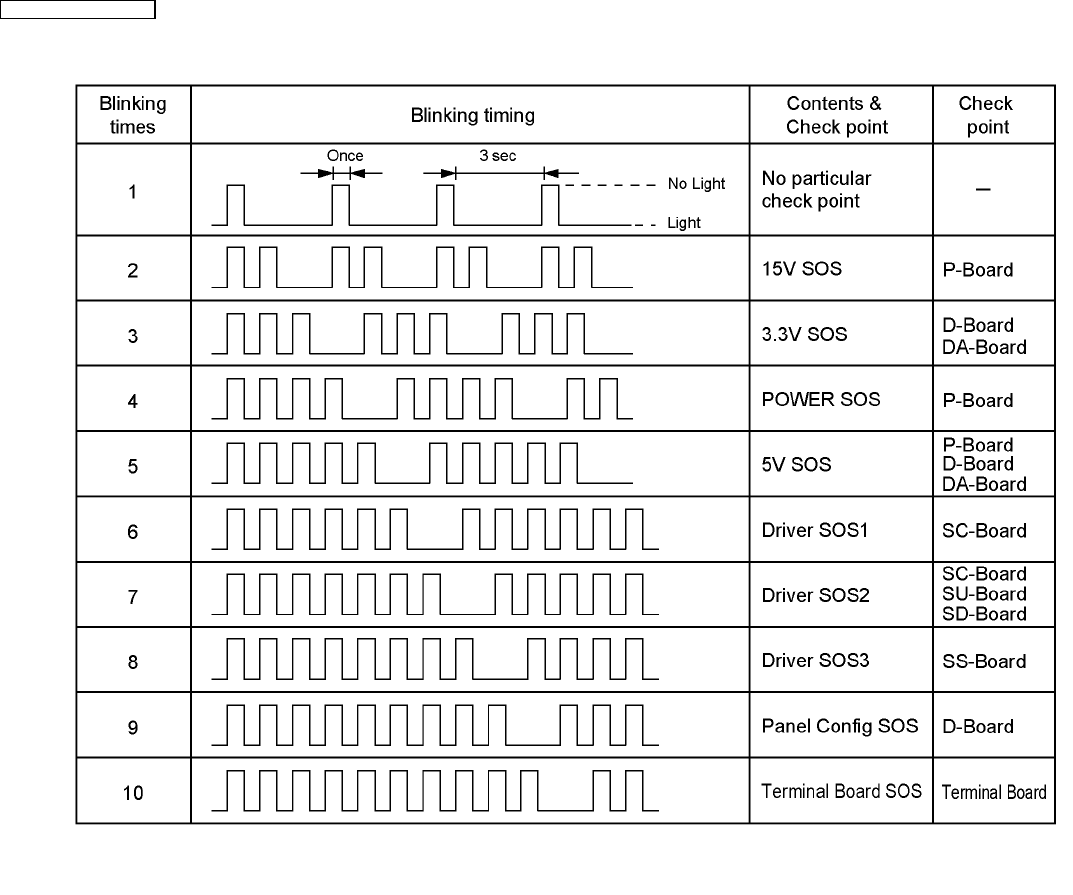

11.1. Self Check 37

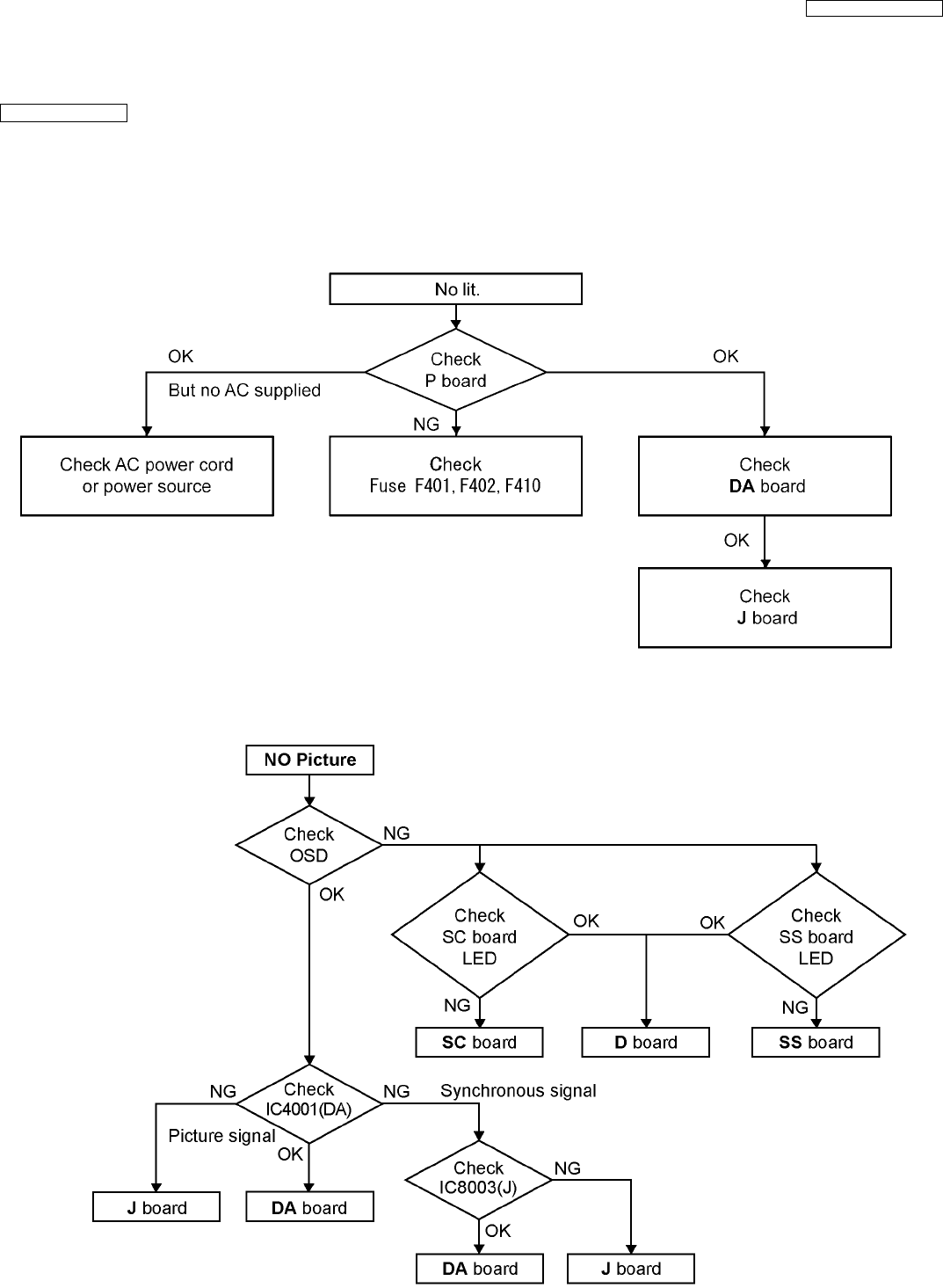

11.2. No Power 39

11.3. No Picture 39

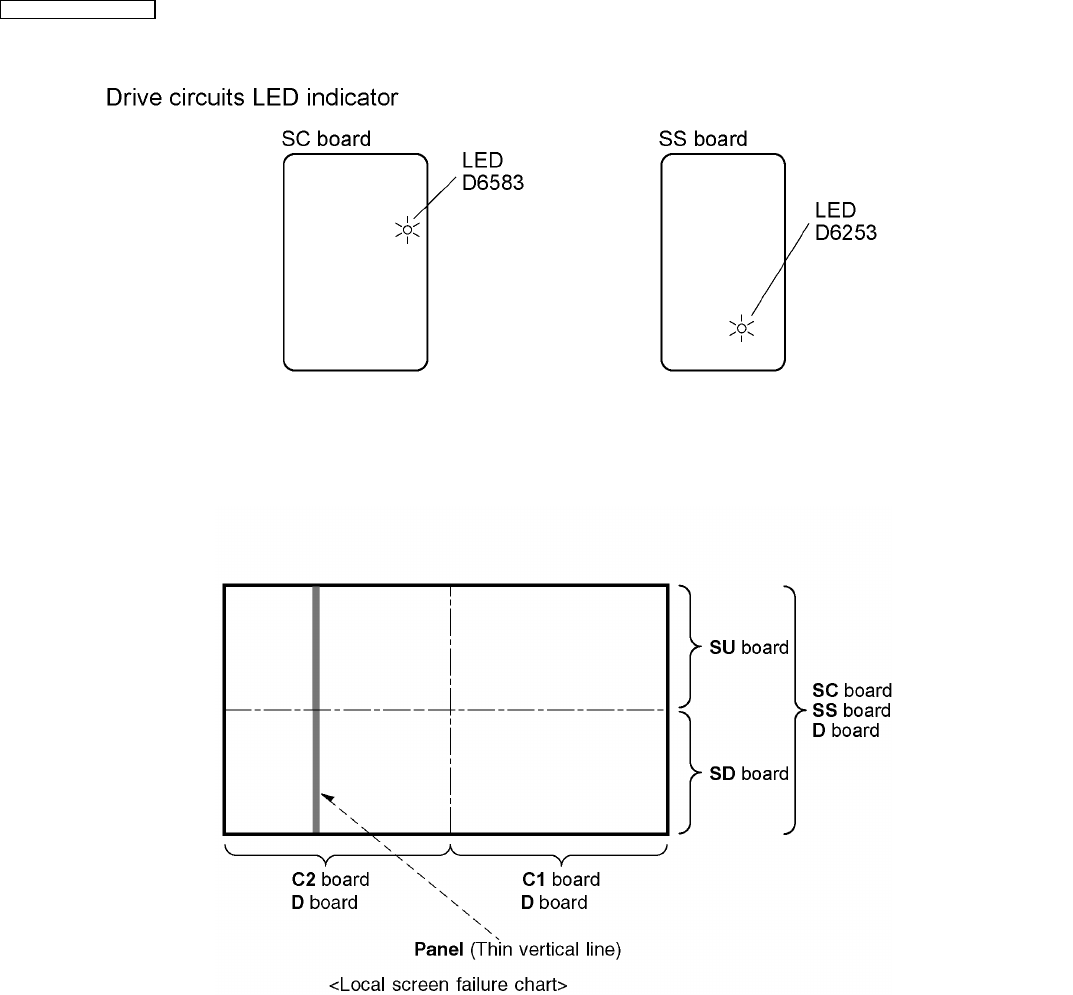

11.4. Local screen failure 40

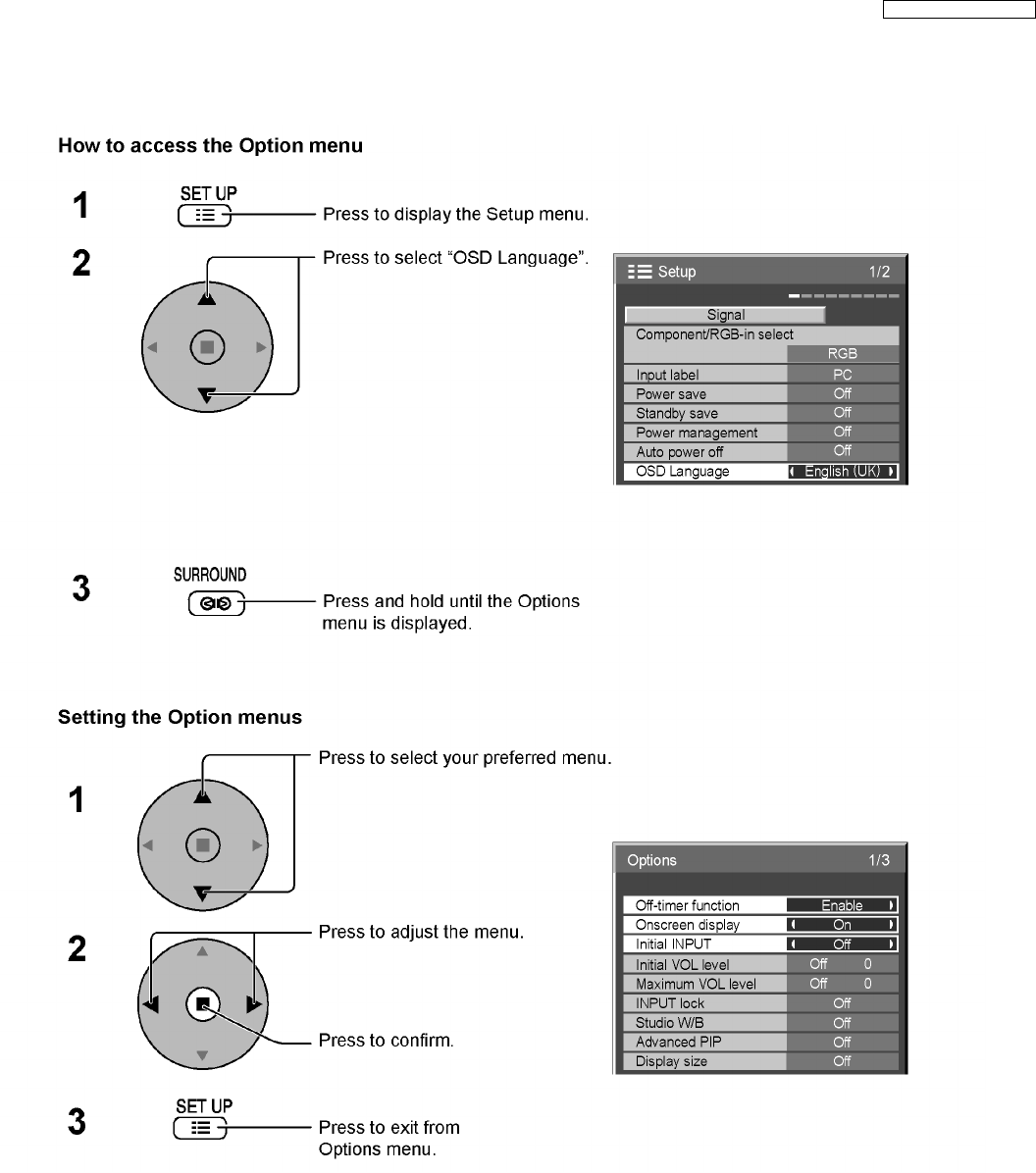

12 Option Setting 41

CR:0.7 Vp-p (75-ohm)

VD:1.0 - 5.0 Vp-p (high impedance)

VBS (use HD port) with

picture 1.0 Vp-p (high impedance)

without

picture 0.3 Vp-p (high impedance)

UDIO IN (M3 JACK) 0.5 Vrms

SERIAL EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE

Accessories Supplied

Fixing bands TMME187 × 2

Dimensions (

×H×D) 917 mm × 644 mm × 95 mm 1,020 mm ×705 mm × 95 mm

(109 mm when including protruding portion of slots)

(37 inch)

(109 mm when including protruding portion of slots)

(42 inch)

Mass (weight) approx. 26.0 kg net (37 inch) approx. 30.0 kg net (42 inch)

Sound

Speaker 120 mm × 60 mm × 2 pcs, 8-ohm

udio output 20W〔10W + 10W〕（10％THD）

Notes:

Design and specifications are subject to change without notice. Mass and dimensions shown are approximate.

CONTENTS

Page Page

TH-37PG9W / TH-42PG9W

13 Conduct Views 43

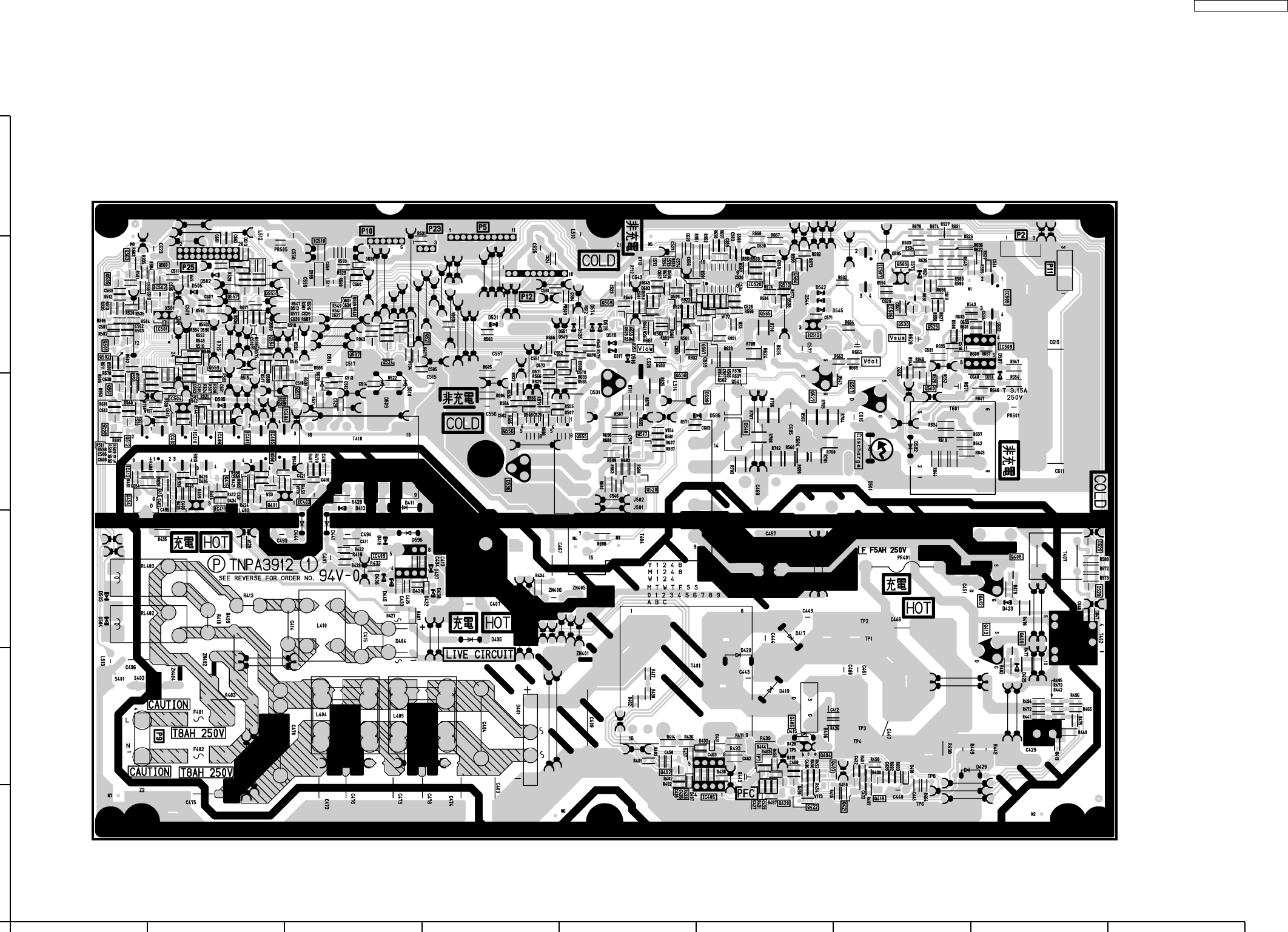

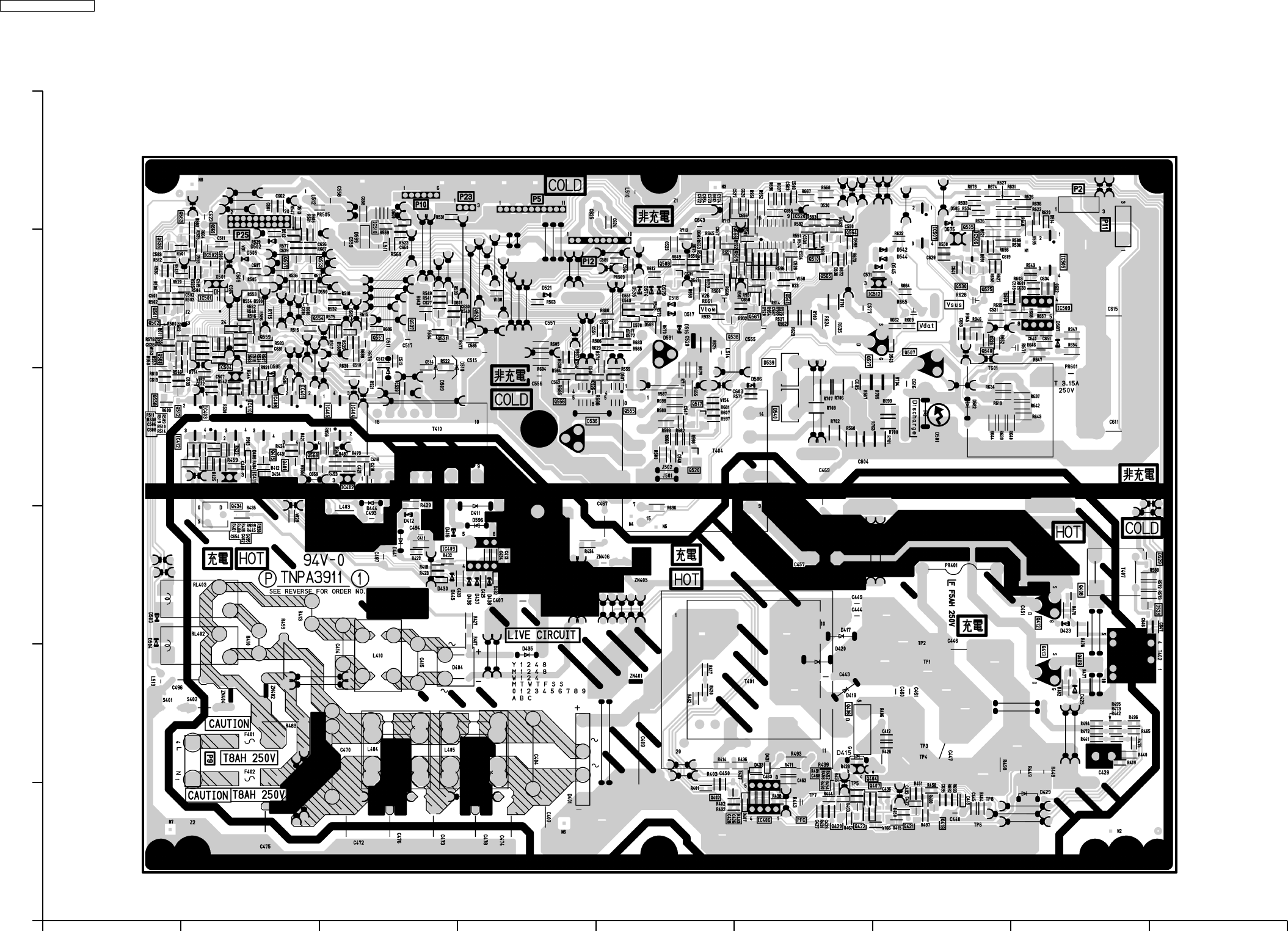

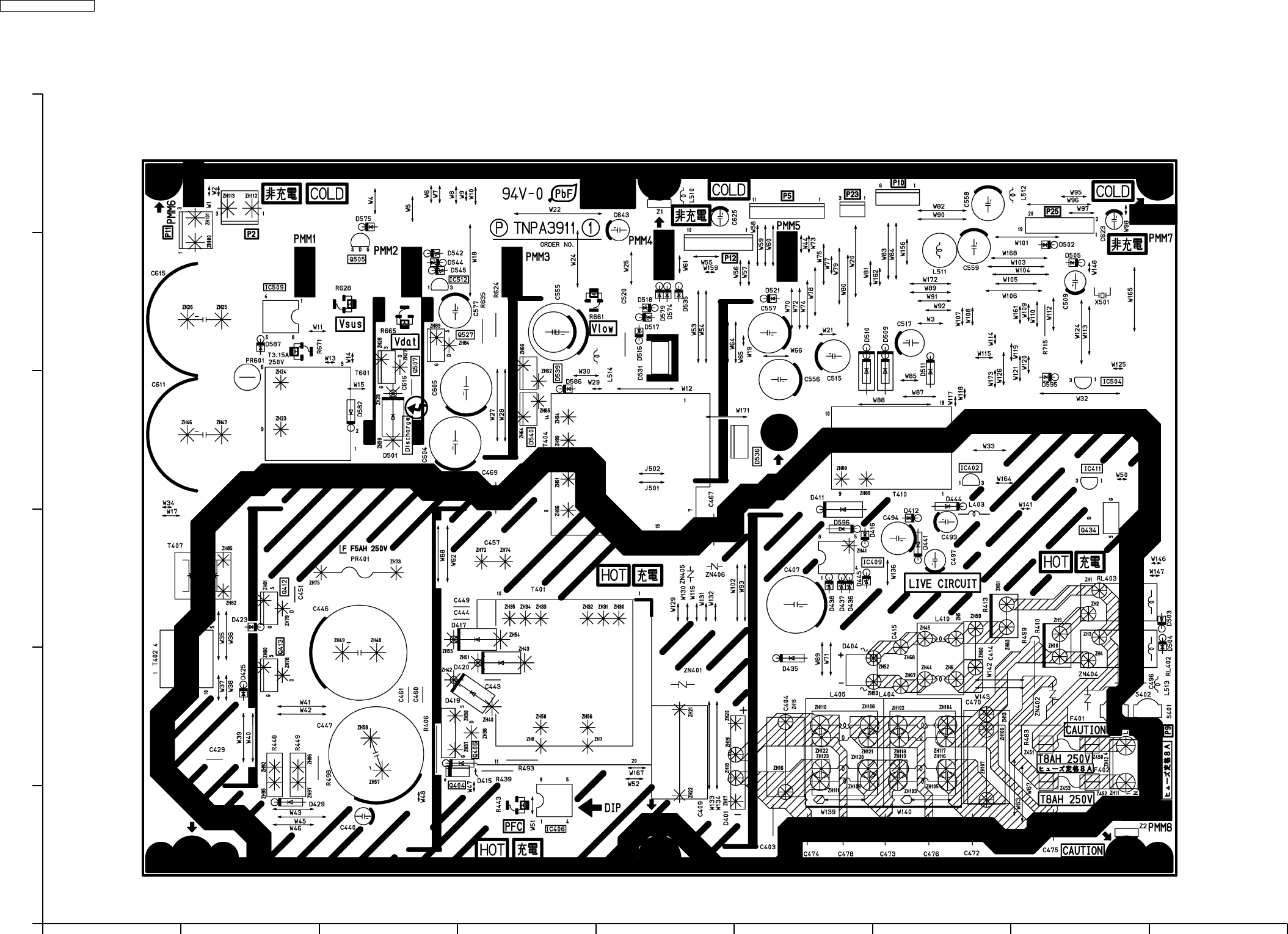

13.1. P-Board (37inch) 43

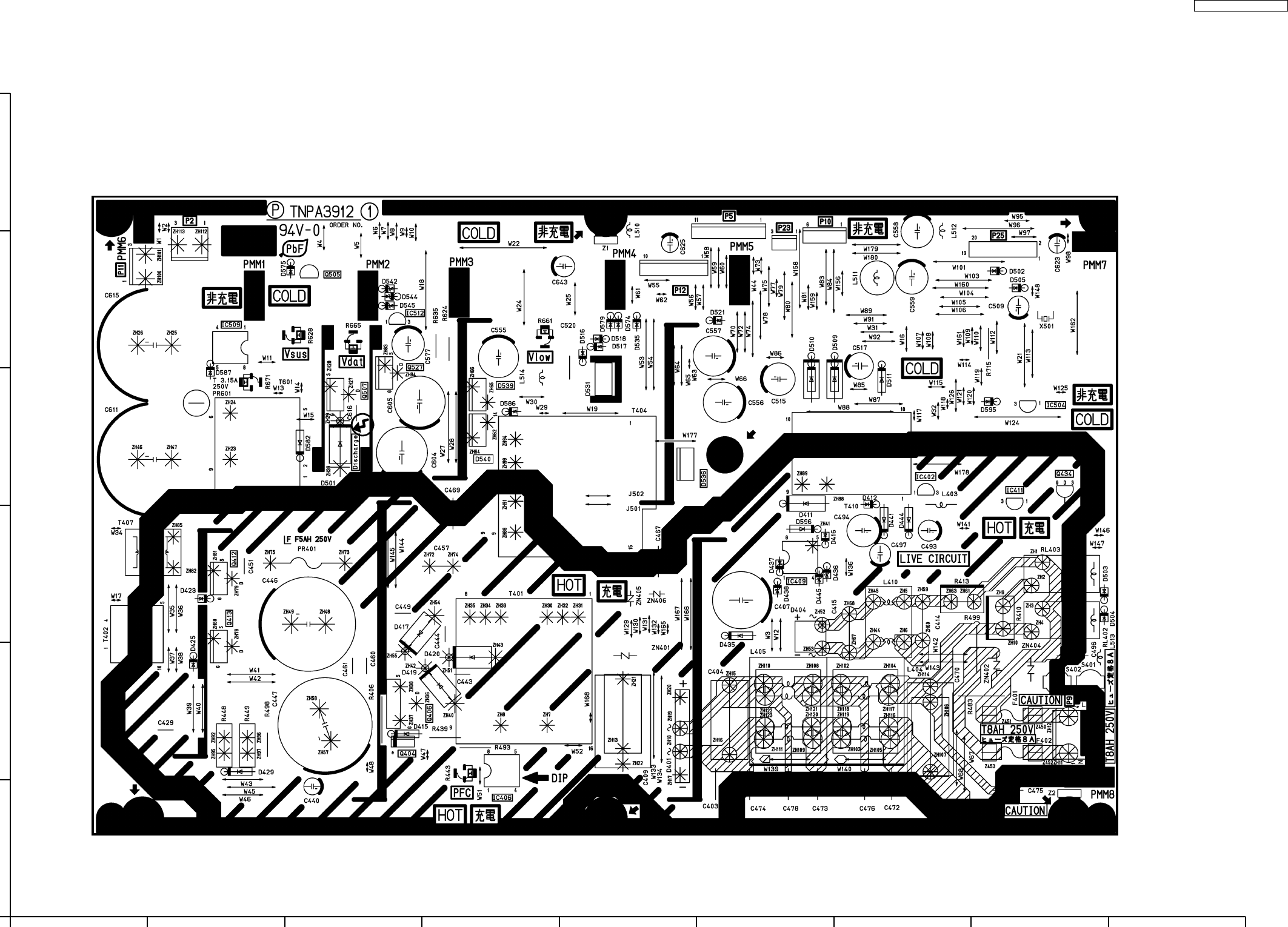

13.2. P-Board (42inch) 46

13.3. HA-Board 49

13.4. HX-Board 50

13.5. GK, K and S-Board 51

13.6. J-Board 52

13.7. DA-Board 54

13.8. D-Board 56

13.9. C1-Board (37inch) 58

13.10. C1-Board (42inch) 59

13.11. C2-Board (37inch) 60

13.12. C2-Board (42inch) 61

13.13. SC-Board 62

13.14. SU-Board (37inch) 65

13.15. SU-Board (42inch) 66

13.16. SD-Board (37inch) 67

13.17. SD-Board (42inch) 68

13.18. SS-Board 69

14 Block and Schematic Diagram 71

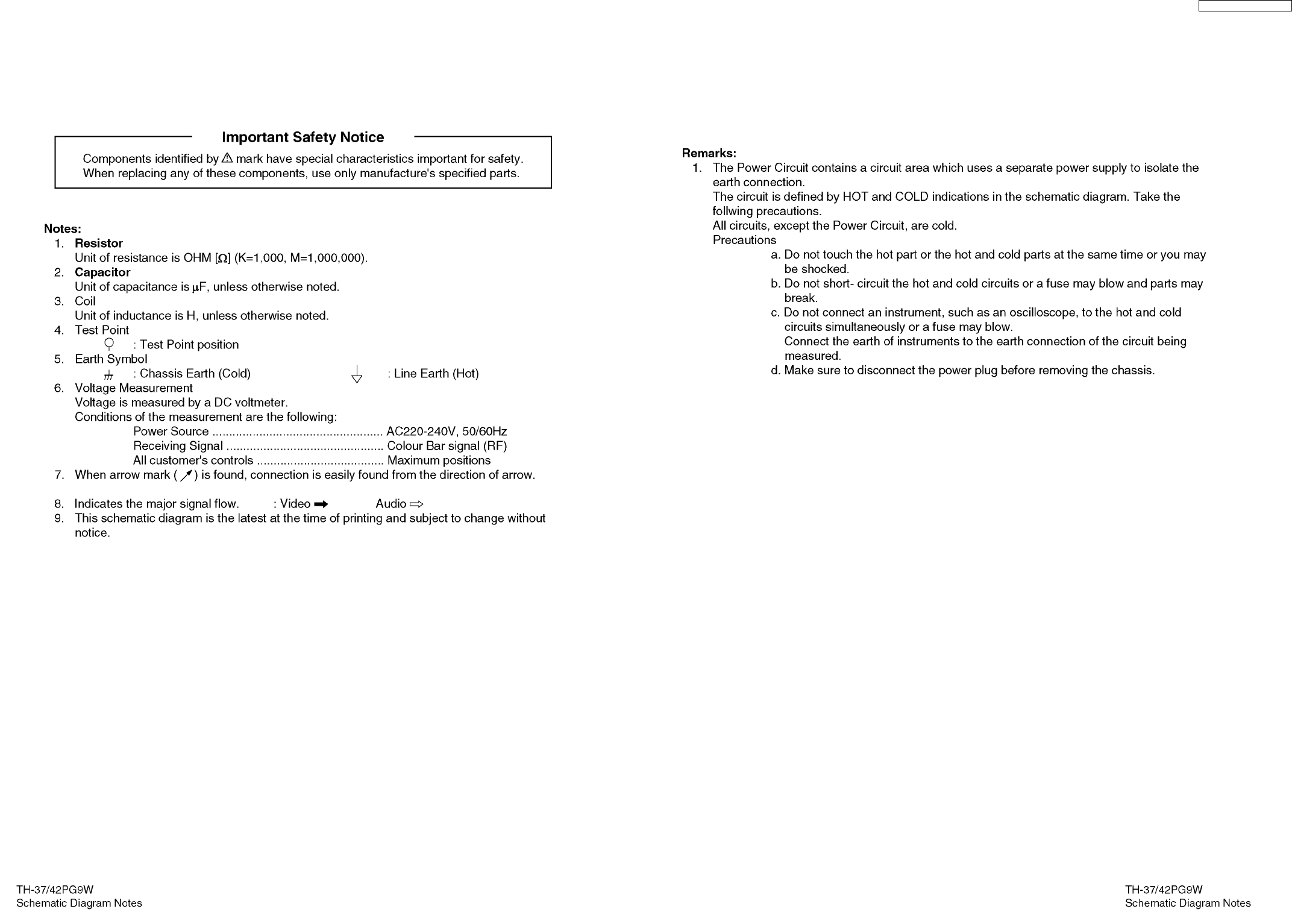

14.1. Schematic Diagram Notes 71

14.2. Main Block Diagram 72

14.3. P-Board Block Diagram (37inch) 73

14.4. P-Board (1 of 6) Schematic Diagram (37inch) 74

14.5. P-Board (2 of 6) Schematic Diagram (37inch) 75

14.6. P-Board (3 of 6) Schematic Diagram (37inch) 76

14.7. P-Board (4 of 6) Schematic Diagram (37inch) 77

14.8. P-Board (5 of 6) Schematic Diagram (37inch) 78

14.9. P-Board (6 of 6) Schematic Diagram (37inch) 79

14.10. P-Board Block Diagram (42inch) 80

14.11. P-Board (1 of 6) Schematic Diagram (42inch) 81

14.12. P-Board (2 of 6) Schematic Diagram (42inch) 82

14.13. P-Board (3 of 6) Schematic Diagram (42inch) 83

14.14. P-Board (4 of 6) Schematic Diagram (42inch) 84

14.15. P-Board (5 of 6) Schematic Diagram (42inch) 85

14.16. P-Board (6 of 6) Schematic Diagram (42inch) 86

14.17. HA-Board Block and Schematic Diagram 87

14.18. HX-Board Block and Schematic Diagram 88

14.19. GK and K-Board Block and Schematic Diagram 89

14.20. J-Board (1 of 2) Block Diagram 90

14.21. J-Board (2 of 2) Block Diagram 91

14.22. J-Board (1 of 5) Schematic Diagram 92

14.23. J-Board (2 of 5) Schematic Diagram 93

14.24. J-Board (3 of 5) Schematic Diagram 94

14.25. J-Board (4 of 5) Schematic Diagram 95

14.26. J-Board (5 of 5) Schematic Diagram 96

14.27. DA-Board (1 of 2) Block Diagram 97

14.28. DA-Board (2 of 2) Block Diagram 98

14.29. DA-Board (1 of 6) Schematic Diagram 99

14.30. DA-Board (2 of 6) Schematic Diagram 100

14.31. DA-Board (3 of 6) Schematic Diagram 101

14.32. DA-Board (4 of 6) Schematic Diagram 102

14.33. DA-Board (5 of 6) Schematic Diagram 103

14.34. DA-Board (6 of 6) Schematic Diagram 104

14.35. D-Board Block Diagram 105

14.36. D-Board (1 of 6) Schematic Diagram 106

14.37. D-Board (2 of 6) Schematic Diagram 107

14.38. D-Board (3 of 6) Schematic Diagram 108

14.39. D-Board (4 of 6) Schematic Diagram 109

14.40. D-Board (5 of 6) Schematic Diagram 110

14.41. D-Board (6 of 6) Schematic Diagram 111

14.42. C1 and C2-Board Block Diagram 112

14.43. C1-Board (1 of 2) Schematic Diagram (37inch) 113

14.44. C1-Board (2 of 2) Schematic Diagram (37inch) 114

14.45. C1-Board (1 of 2) Schematic Diagram (42inch) 115

14.46. C1-Board (2 of 2) Schematic Diagram (42inch) 116

14.47. C2-Board (1 of 2) Schematic Diagram (37inch) 117

14.48. C2-Board (2 of 2) Schematic Diagram (37inch) 118

14.49. C2-Board (1 of 2) Schematic Diagram (42inch) 119

14.50. C2-Board (2 of 2) Schematic Diagram (42inch) 120

14.51. SC, SU and SD-Board Block Diagram 121

14.52. SC-Board (1 of 2) Schematic Diagram 122

14.53. SC-Board (2 of 2) Schematic Diagram 123

14.54. SU-Board Schematic Diagram (37inch) 124

14.55. SU-Board Schematic Diagram (42inch) 125

14.56. SD-Board Schematic Diagram (37inch) 126

14.57. SD-Board Schematic Diagram (42inch) 127

14.58. SS and S-Board Block Diagram 128

14.59. SS and S-Board Schematic Diagram 129

15 Parts Location 131

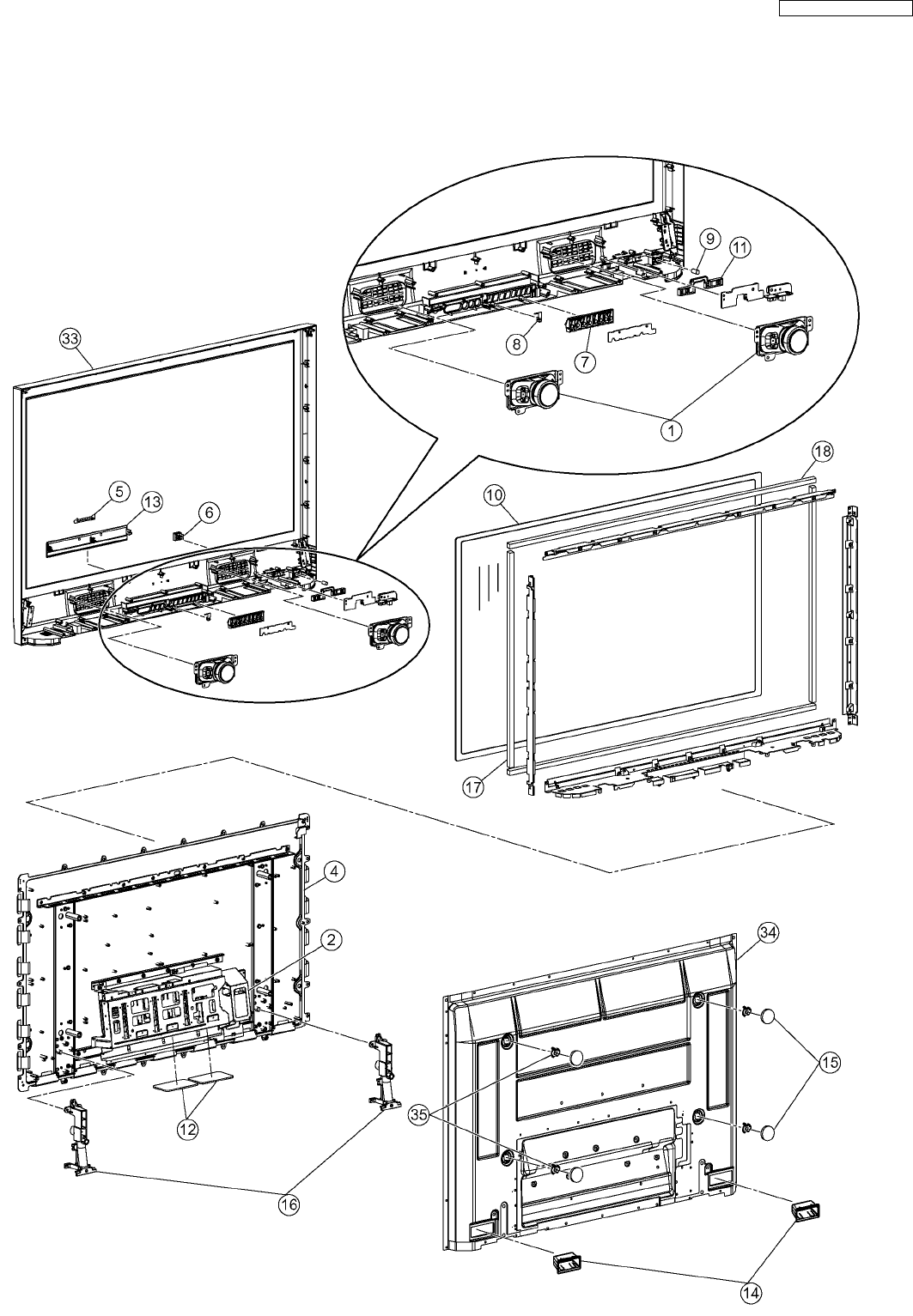

15.1. Exploded View 131

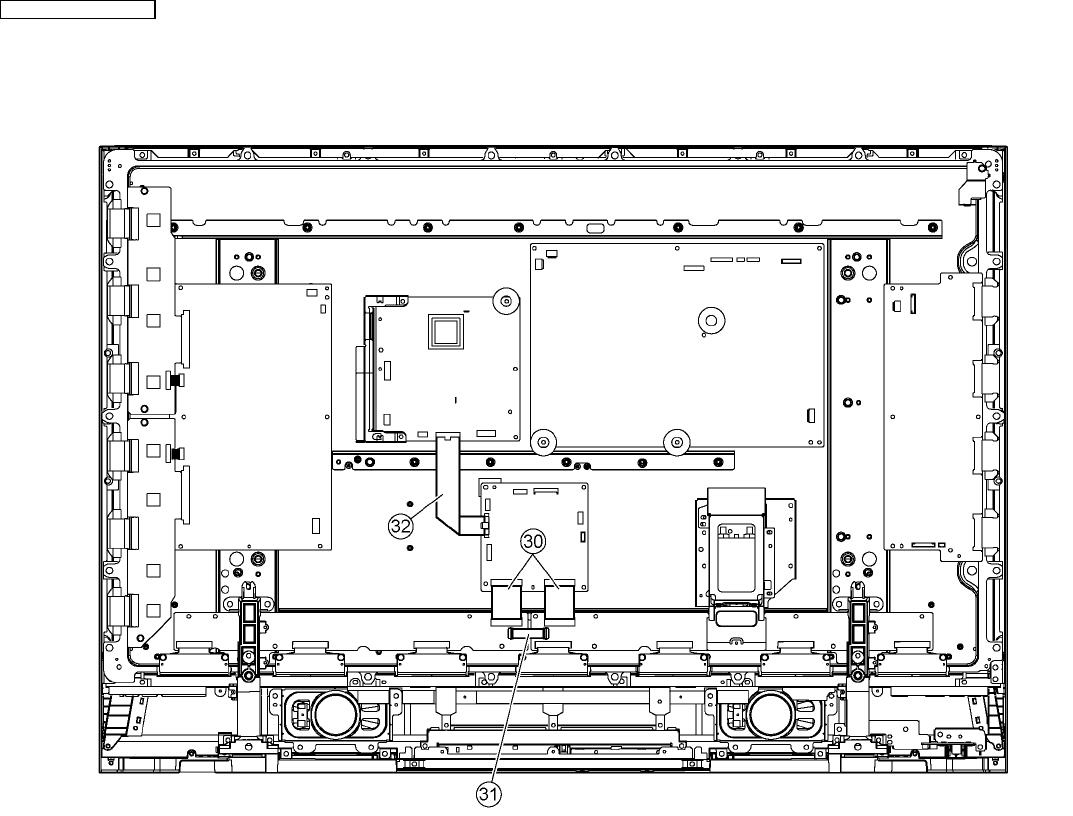

15.2. Cable relation 132

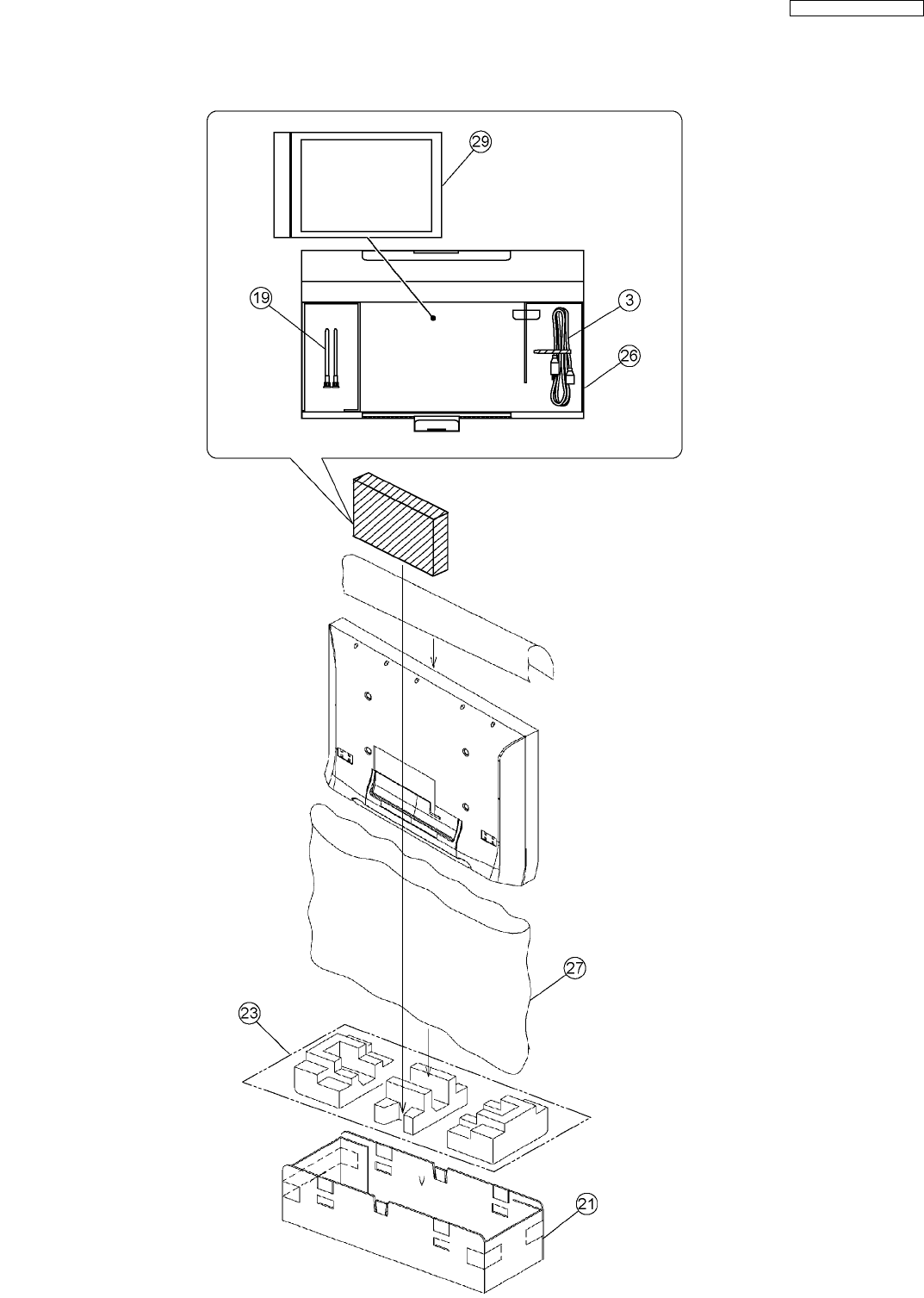

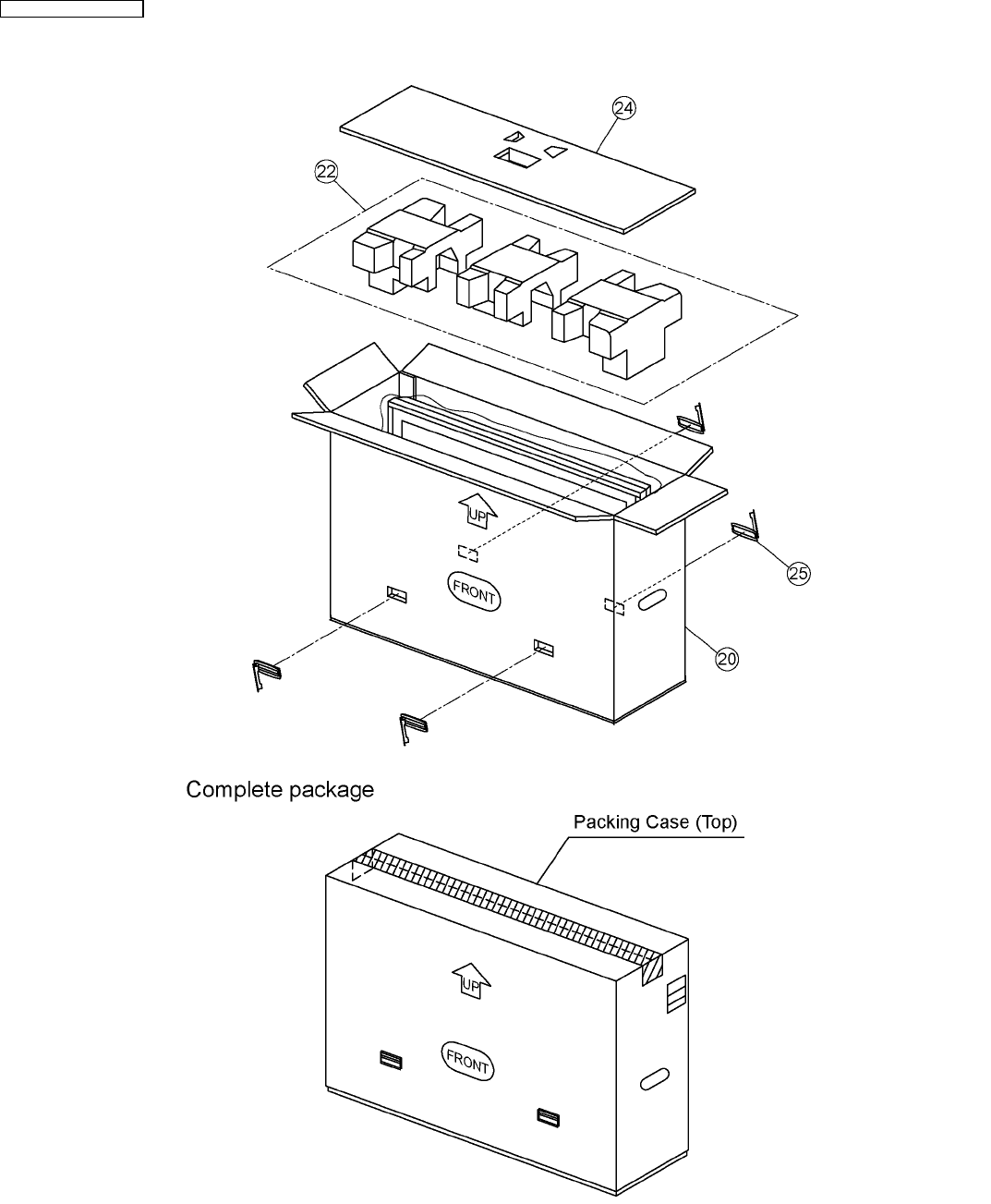

15.3. Packing summary 133

16 Mechanical Replacement Parts List 135

17 Replacement Parts List 136

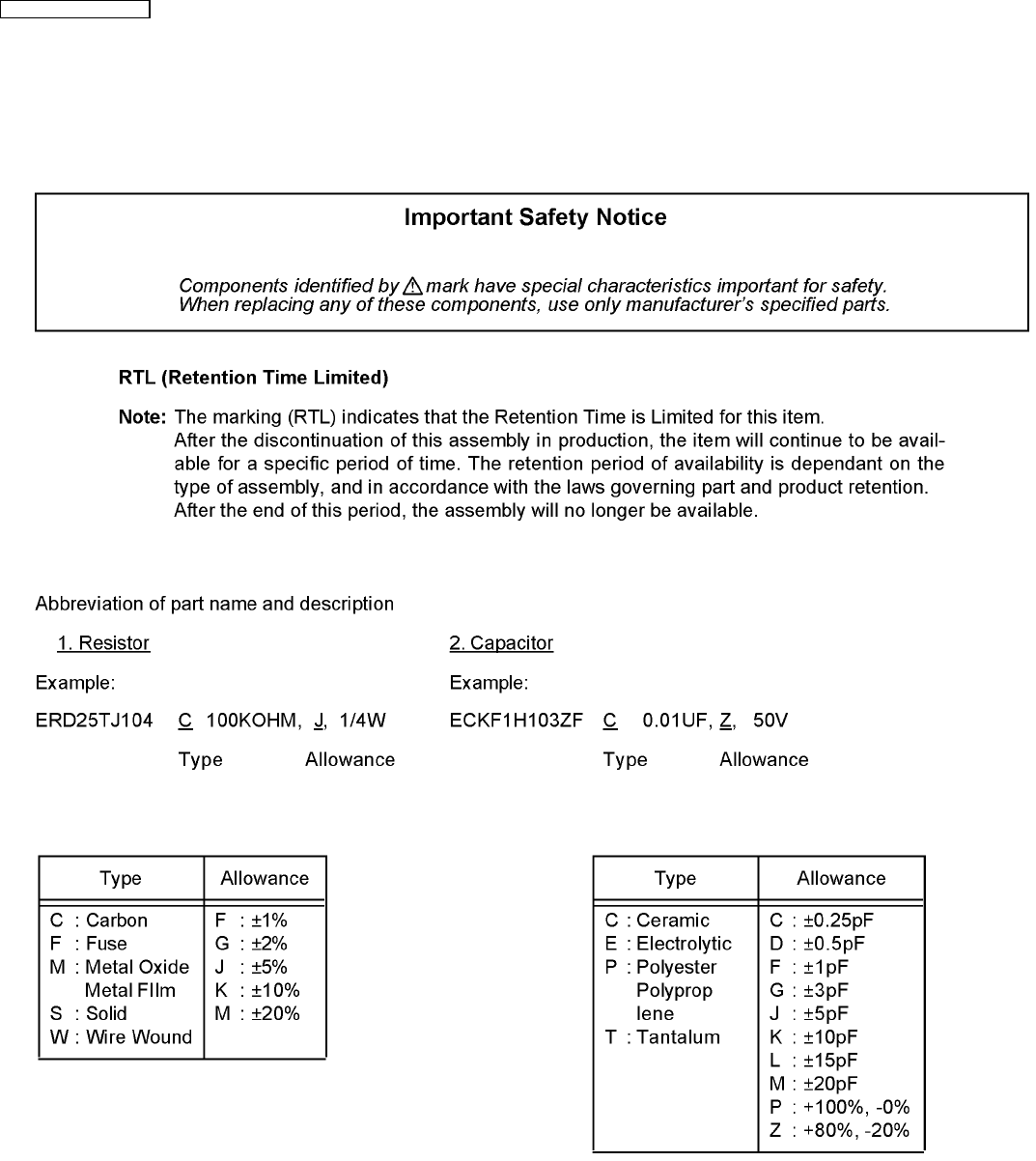

17.1. Replacement Parts List Notes 136

17.2. TH-37PG9W Electrical Replacement Parts List 137

17.3. TH-42PG9W Electrical Replacement Parts List 158

18 Schematic Diagram for printing with A4 179

TH-37PG9W / TH-42PG9W

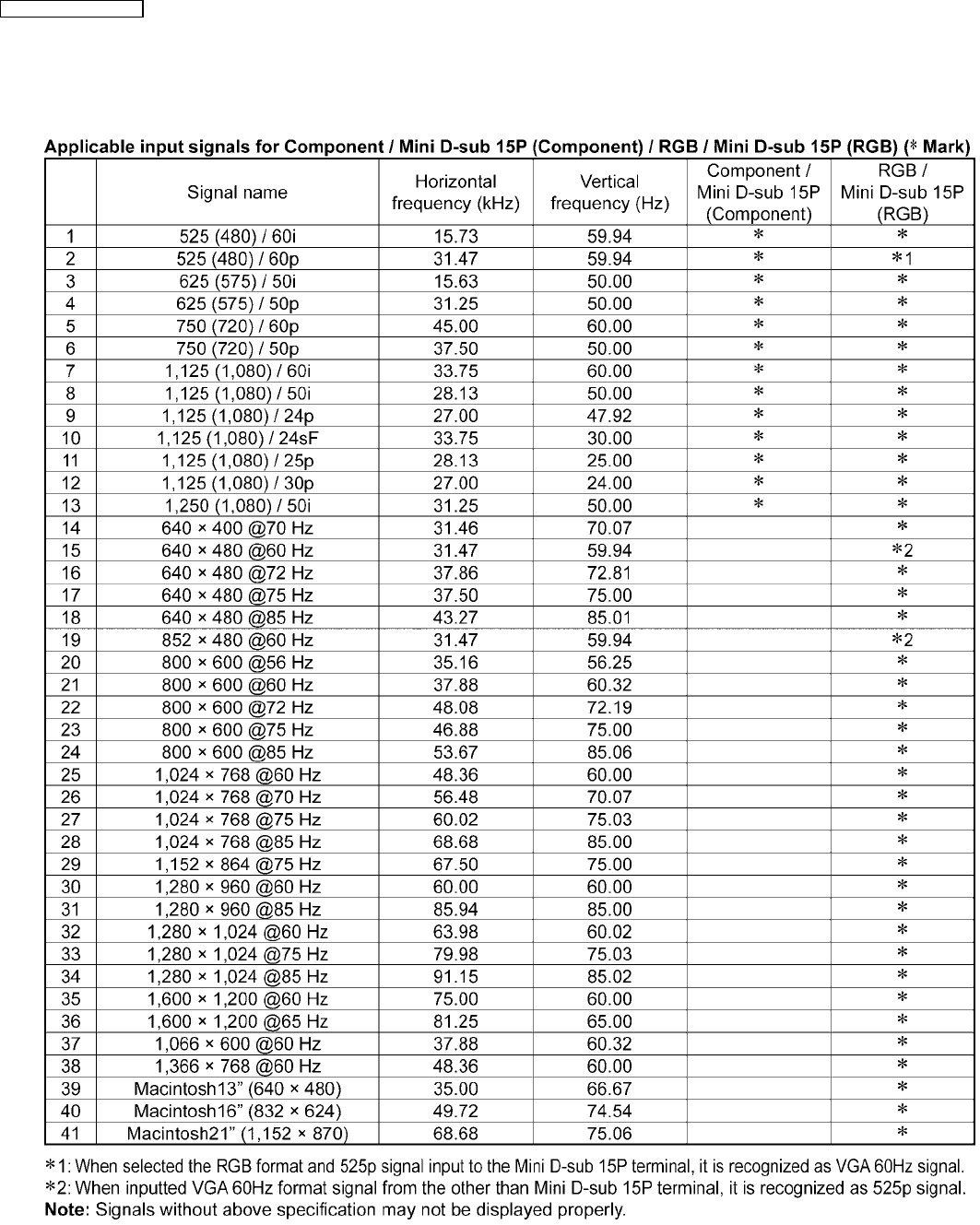

1 Applicable signals

TH-37PG9W / TH-42PG9W

2.1.1. Leakage Current Cold Check

1. Unplug the AC cord and connect a jumper between the two

prongs on the plug.

2. Measure the resistance value, with an ohmmeter, between

the jumpered AC plug and each exposed metallic cabinet

part on the equipment such as screw heads, connectors,

control shafts, etc. When the exposed metallic part has a

return path to the chassis, the reading should be between

1MΩand 5.2MΩ.

When the exposed metal does not have a return path to

the chassis, the reading must be .

Figure 1

2.1.2. Leakage Current Hot Check (See

Figure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use an

isolation transformer for this check.

2. Connect a 1.5kΩ, 10 watts resistor, in parallel with a 0.15µF

capacitors, between each exposed metallic part on the set

and a good earth ground such as a water pipe, as shown in

Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more

sensitivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the

voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of the

above measurements.

6. The potential at any point should not exceed 0.75 volts

RMS. A leakage current tester (Simpson Model 229 or

equivalent) may be used to make the hot checks, leakage

current must not exceed 1/2 milliamp. In case a

measurement is outside of the limits specified, there is a

possibility of a shock hazard, and the equipment should be

repaired and rechecked before it is returned to the

customer.

2 Safety Precautions

2.1. General Guidelines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or

damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

TH-37PG9W / TH-42PG9W

3 Prevention of Electro Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and

semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage

caused by electro static discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your

body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,

which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as

aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can

generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most

replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable

conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise hamless motion such as the brushing

together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to

damage an ES device).

TH-37PG9W / TH-42PG9W

4 About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.

In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.

The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).

That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d

suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol stamped on the back of PCB.

Caution

Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher.

Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb

solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto

the opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.

However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

TH-37PG9W / TH-42PG9W

5 Service Hint

Note:

The remote control transmitter is not included with this set.

Execute by the following remote control transmitter when repairing.

product number : EUR7636070R

Board Name Function

DA Digital Signal Processor, Micon

D Format Converter, Plasma AI Processor

Sub-Field Processor

J Slot Interface (Audio / Video / Sync input

Switch),

SYNC processor, Sound processor,

SS Sustain drive

SC Scan drive

SU Scan out (Upper)

SD Scan out (Lower)

C1 Data Drive (Right)

C2 Data Drive (Left)

SP Speaker

S Power switch

K Remote receiver, LED_G,R

GK Key switch

P Power supply

HX PC / RS-232C_Input terminal

HA BNC Component Video

Note:

Extension cable kit Slot Board is supplied as service fixtures and tools.

(Parts No. TZCS07040)

TH-37PG9W / TH-42PG9W

6 Disassembly

To disassemble P.C.B., wait for 1 minute after power was

off for discharge from electrolysis capacitors.

and marks indicate screw positions.

6.1. Removal of the Back Cover

1. Remove the screws (×6 ,×6 , ×14 ,×8 ) and then

remove the Back Cover.

6.2. Removal of the HA-Board

1. Remove the 4 screws(D) and then remove the HA Terminal

Block.

2. Remove the 4 screws(E).

3. Remove the 2 screws(F) and then remove the HA-Board.

6.3. Removal of the Slot Block

1. Disconnect the couplers (J1, J2, J3, J4, J5, J6, J7, J8, J10,

J15).

2. Remove the 4 screws and then remove the Slot Block.

TH-37PG9W / TH-42PG9W

6.4. Removal of the J-Board

1. Remove the Slot Block.

(Reference to Removal of the Slot Block)

2. The slot block is turned inside out.

3. Remove the 6 screws and then remove the Slot cover.

4. Remove the 6 screws, release the coupler(J14) from HX-

Board and then remove the J-Board.

6.5. Removal of the HX-Board

1. Remove the Slot Block.

(Reference to Removal of the Slot Block)

2. Remove the J-Board.

(Reference to Removal of the J-Board)

3. Remove the 2 screws and then remove the Slot Case.

4. Remove the 4 Hexagonal-Head screws and the 1 screw

and then remove the HX-Board.

TH-37PG9W / TH-42PG9W

6.6. Removal of the DA-Board

1. Disconnect the couplers(DA1, DA3, DA5, DA6).

2. Remove the Flexible Cable from the coupler(DA2).

3. Remove the 4 screws and then remove the DA-Board.

Note:

A re-setup of the destination is performed by MS mode

after DA-Board exchange.

6.7. Removal of the P-Board

1. Disconnect the couplers(P2, P5, P9, P10, P11, P12, P23,

P25)

2. Remove the 6 screws and then remove the P-Board.

6.8. Removal of the D-Board

1. Remove the Slot Block.

(Reference to Removal of the Slot Block)

2. Disconnect the couplers(D5, D20, D25)

3. Remove the Flexible Cable from the couplers (D3, D31,

D32).

4. Remove the 4 screws and then remove the D-Board.

6.9. Removal of the Speaker (L, R)

6.9.1. Removal of the Speaker (L)

1. Disconnect the coupler (J8).

2. Remove the 2 screws ( ) and then remove the Plate.

3. Remove the 4 screws ( ) and then remove the Speaker (L).

TH-37PG9W / TH-42PG9W

6.9.2. Removal of the Speaker (R)

1. Disconnect the coupler (J7).

2. Remove the 2 screws ( ) and then remove the Plate.

3. Remove the 4 screws ( ) and then remove the Speaker (R).

6.10. Removal of the SU-Board and

the SD-Board

1. Remove the each 2 screws.

2. Remove the Flexible Cable from the couplers(SU1, SU2,

SU3).

3. Remove the Flexible Cable from the couplers(SD1, SD2,

SD3).

4. Disconnect the couplers(SU45, SD46).

5. Slide the SU-Board and the SD-Board to the left, remove

the SU-Board and the SD-Board from the couplers(SC41,

SC42).

6.11. Removal of the SC-Board

1. Slide the SU-Board and the SD-Board to the left.

(Reference to Removal of the SU-Board and the SD-Board)

2. Disconnect the couplers(SC2, SC20, SC23).

3. Remove the 6 screws and then remove the SC-Board.

TH-37PG9W / TH-42PG9W

6.12. Removal of the SS-Board

1. Disconnect the couplers(SS11, SS12, SS23, SS34).

2. Remove the Flexible Cable from the couplers(SS41, SS42,

SS43, SS44)

3. Remove the 6 screws and then remove the SS-Board.

6.13. Removal of the C1, C2-Board

1. Remove the Slot Block.

(Reference to Removal of the Slot Block)

2. Remove the each 6 screws and then remove the Stand

Blocks.

6.13.1. Removal of the C1-Board

1. Disconnect the couplers(C11, C12).

2. Remove the 6 screws and then remove the Flexible Cable

from the couplers(CB1, CB2, CB3).

3. Remove the 3 screws and then remove the C1-Board.

6.13.2. Removal of the C2-Board

1. Disconnect the coupler(C21, C22).

2. Remove the 8 screws and then remove the Flexible Cable

from the couplers(CB4, CB5 CB6, CB7).

3. Remove the 4 screws and then remove the C2-Board.

TH-37PG9W / TH-42PG9W

6.14. Removal of the S-Board

1. Disconnect the coupler(SS34).

2. Remove the 2 screws(A) and then remove the S-Board

Block.

3. Disconnect the coupler(S1).

4. Remove the 2 screw(B) and then remove the S-Board.

6.15. Removal of the GK-Board

1. Remove the 2 screws(C) and then remove the Plate(A).

2. Remove the 2 screws(D).

3. Disconnect the coupler(GK3) and then remove the GK-

Board.

6.16. Removal of the K-Board

1. Remove the 2 screws.

2. Disconnect the coupler(K1) and then remove the K-Board.

TH-37PG9W / TH-42PG9W

6.17. Removal of the Control Panel,

the Power SW and the Door

1. Remove the S-Board Block.

(Remove to the Removal of the S-Board)

2. Remove the K-Board.

(Remove to the Removal of the K-Board)

3. Remove the GK-Board.

(Remove to the Removal of the GK-Board)

4. Remove the 5 screws(E) and then remove the Plate(B).

5. Remove the 2 screws(F) and then remove the Control

Panel.

6. Remove the 1 screw(G) and then remove the Spring.

7. Remove the 3 hooks and then remove the Door.

8. Remove the 4 hooks and then remove the Power SW.

6.18. Removal of the Front Glass

1. Disconnect the couplers(J2, J7, J8, J15, SS34).

2. Remove the 10 screws.

3. Pull the bottom of the Plasma Panel forward (arrow1).

4. Slide the Plasma Panel and then remove the Plasma Panel

(arrow2).

5. Remove the 5 screws (E) and then remove the Plate (B).

6. Remove the each screws and then remove the Glass Fixed

Plate (A, B, C, D).

7. Remove the Front Glass.

TH-37PG9W / TH-42PG9W

TH-42PG9W

Removed number of screws: 25

TH-37PG9W

Removed number of screws: 23

Note: when Front Glass is exchanged

Each Front Glass Sponge must be stuck along the

edge of Fixed Angle.

Note

The sponges are parts which cannot be recycled.

Please use the new article when you exchange the

Front Glass.

6.19. Removal of the Escutcheon

1. Disconnect the couplers(J2, J7, J8, J15, SS34).

2. Remove the 10 screws.

3. Lift up the bottom of the Plasma Panel in the direction of the

arrow1 and pull the Plasma Panel in the direction of the

arrow2 and then remove the Plasma Panel.

4. Remove the S-Board Block.

(Remove to the Removal of the S-Board)

5. Remove the K-Board.

(Remove to the Removal of the K-Board)

6. Remove the GK-Board.

(Remove to the Removal of the GK-Board)

7. Remove the 5 screws(E) and then remove the Plate(B).

8. Remove the 2 screws(F) and then remove the Control

Panel.

TH-37PG9W / TH-42PG9W

9. Remove the 1 screw(G) and then remove the Spring.

10. Remove the 3 hooks and then remove the Door.

11. Remove the 4 hooks and then remove the Power SW.

12. Remove the each screws and then remove the Glass Fixed

Plate (A, B, C, D).

TH-42PG9W

Removed number of screws: 25

TH-37PG9W

Removed number of screws: 23

Note: when Front Glass is removed

Each Front Glass Sponge must be stuck along the

edge of Fixed Angle.

Note

The sponges are parts which cannot be recycled.

Please use the new article when you exchange the

Front Glass.

13. Remove the each 1 screw and then remove the Plate(L, R).

14. Remove the each 4 screws and then remove the Speaker

(L, R).

15. Remove the Escutcheon.

TH-37PG9W / TH-42PG9W

6.20. Removal of the Plasma Panel

The C1,C2 module is connected with the plasma panel

for the repair.

1. Remove the each 6 screws and then remove the Stand

Blocks.

2. Disconnect the couplers(J1, J2, J3, J4, J5, J6, J7, J8, J10,

J15).

3. Remove the 4 screws and then remove the Slot Block.

4. Remove the Flexible Cable from the couplers(DA2).

5. Remove the 4 screws and then remove the D-Board Block.

6. Disconnect the couplers(P2, P9, P11, P12, P23, P25).

7. Remove the 6 screws and then remove the P-Board.

8. Disconnect the coupler(D20).

9. Remove the Flexible Cable from the couplers(C11, C21).

10. Remove the 4 screws and then remove the D-Board.

11. Remove the SU-Board and the SD-Board.

(Reference to Removal of the SU-Board and the SD-Board)

12. Remove the 6 screws and then remove the SC-Board.

TH-37PG9W / TH-42PG9W

13. Disconnect the couplers(SS23, SS34).

14. Remove the Flexible Cable from the couplers(SS41, SS42,

SS43, SS44).

15. Remove the 6 screws and then remove the SS-Board.

16. Remove the Flexible Cable from the couplers(C12, C22).

17. Remove the 3 screws and then remove the C1-Board.

18. Remove the 3 screws(H) and then remove the AC Inlet

Block.

19. Remove the 2 screws(J) and then remove the plate(C).

20. Remove the 6 Spacers and Spacer Rings from the Plasma

Panel.

Caution

Please confirm the installation place of Spacer and

Spacer Ring when you exchange the Plasma Panel,

and install Spacer and Spacer Ring in an original

installation place after exchanging the Plasma

Panel.

21. Lift up the bottom of the Plasma Panel in the direction of the

arrow1 and pull the Plasma Panel in the direction of the

arrow2 and then remove the Plasma Panel.

TH-37PG9W / TH-42PG9W

7 Location of Lead Wiring

7.1. Location of Lead Wiring (1)

The lead wiring is dressed as shown in figure.

TH-37PG9W / TH-42PG9W

7.2. Location of Lead wiring (2)

The lead wiring is dressed as shown in figure.

TH-37PG9W / TH-42PG9W

7.3. Location of Lead wiring (3)

The lead wiring is dressed as shown in figure.

TH-37PG9W / TH-42PG9W

7.4. Location of Lead Wiring (4)

The lead wiring is dressed as shown in figure.

TH-37PG9W / TH-42PG9W

8.1. Driver Set-up

8.1.1. Item / Preparation

1. Input a white signal to plasma video input.

2. Set the picture controls as follows.

Picture menu: Standard

Picture: +25

Aspect: Full

Caution

1. First perform Vsus adjustment.

2. Confirmation of Vscn voltage should be performed after

confirmation of Vad adjustment.

When Vad=-90V, Voltage of Vscn is 35V ±4V.

8.1.2. Adjustments

Adjust driver section voltages referring the panel data on the

panel data label.

Check or adjust the following voltages with the multimeter.

Name Test Point Voltage Volume Remarks

Vsus TPVSUS

(SS)

Vsus ± 1V R628 (P) *

Ve TPVE (SS) Ve ± 1V VR6000 (SS) *

Vset TPVSET

(SC)

232V ± 7V Fixed

Vad TPVAD (SC) -90V ± 1V VR6600

(SC)

Vscn TPVSCN

(SC)

Vad+125V ±

Fixed

Vda TPVDA (SS) 70V ± 1V Fixed

Vdat P12-1, 5 (P) 70.2V ± 0.1V R665 (P)

PFC C446 (+)(-) 396V ± 0.5V R443 (P)

*See the Panel label.

8 Adjustment Procedure

TH-37PG9W / TH-42PG9W

8.2. Initialization Pulse Adjust

1. Input the White signal to plasma video input.

2. Set the picture controls as follows.

Picture menu: Standard

Picture: +25

Aspect: Full

3. Connect Oscilloscope to TPSC1 (T2) and adjust VR6602 for 170±5µ Sec.

Test point Volume Level

T2 TPSC1 (SC) VR6602 (SC) 170 ± 5µ Sec.

8.3. P.C.B. (Printed Circuit Board) exchange

8.3.1. Caution

1. To remove P.C.B., wait 1 minute after power was off for discharge from electrolysis capacitors.

8.3.2. Quick adjustment after P.C.B. exchange

Adjust the following voltages with the multimeter.

P.C.B. Name Test Point Voltage Volume Remarks

P Board Vsus TPVSUS (SS) Vsus ± 1V R628 (P) *

Vdat P12-1, 5 (P) 70.2V ± 0.1V R665 (P)

PFC C446 (+) (-) (P) 396V ± 0.5V R443 (P)

SC Board Vad TPVAD (SC) -90V ± 1V VR6600 (SC)

SS Board Ve TPVE (SS) Ve ± 2V VR6000 (SS) *

D, J, DA Board White balance, Pedestal and Sub brightness for NTSC, PAL, HD, PC and 625i signals

DA Board Set Market Select Number to correct destination by MS mode. (See chap. 9.1.4)

*See the Panel label.

Caution:

Absolutely do not reduce Vsus below Ve not to damage the P.C.B.

TH-37PG9W / TH-42PG9W

8.4. Adjustment Volume Location

8.4.1. TH-37PG9W

8.4.2. TH-42PG9W

TH-37PG9W / TH-42PG9W

8.5. Test Point Location

8.5.1. TH-37PG9W

8.5.2. TH-42PG9W

TH-37PG9W / TH-42PG9W

9 Service mode

9.1. CAT (computer Aided Test) mode

To exit the CAT mode, access the ID mode and switch off the main power.

9.1.1. IIC mode

Select the IIC mode by Up/Down button on the remote control at the front page of CAT mode and then press the Action button

on the remote control.

Subject and item are mentioned on “IIC mode structure”.

To exit the IIC mode, press the R button on the remote control.

TH-37PG9W / TH-42PG9W

9.1.2. CD mode

Select the CD mode by Up/Down button on the remote control at the front page of CAT mode and then press the Mute button

on the remote control more than 5 seconds.

Micom software version (IC9702), this version can be upgrade by

1. replace of new version IC

2. Loading the new version software from loader tool, TZSC07036.

Memory data change

To exit the CD mode, press the R button on the remote control.

9.1.3. SD mode

Select the SD mode by Up/Down button on the remote control at the front page of CAT mode and then press the Action button

on the remote control.

To exit the SD mode, press the R button on the remote control.

TH-37PG9W / TH-42PG9W

9.1.4. MS mode

Select the MS mode by Up/Down button on the remote control at the front page of CAT mode and then press the Mute button

on the remote control more than 5 seconds.

To exit the MS mode, press the R button on the remote control.

Caution:

Market Select should be set after exchange of DA-Board.

Destination number

Number Destination Number Destination

0 Japan 14 Thailand (Hotel)

1 North America 15 --

2 Europe 16 Mexico

3 Others 17 Mexico (Hotel)

4 Britain 18 China

5 Taiwan 19 China (Hotel)

6 Thailand 20 --

7-- 21 --

8 Japan (Hotel) 22 --

9 North America (Hotel) 23 --

10 Europe (Hotel) 24 --

11 Others (Hotel) 25 --

12 Britain (Hotel) 26 --

Default setting

Number Destination

1 North America

9.1.5. ID mode

Select the ID mode by Up/Down button on the remote control at the front page of CAT mode and then press the Mute button on

the remote control more than 5 seconds.

To exit the ID mode, press the R button on the remote control.

TH-37PG9W / TH-42PG9W

9.2. IIC mode structure (following items value is sample data.)

TH-37PG9W / TH-42PG9W

10 Adjustment

10.1. RGB white balance adjustment

Instrument Name Connection Remarks

RGB VGA W/B pattern

Color analyzer

(Minolta CA-100 or equivalent)

PC input

Panel surface

User setting: Normal

(Picture menu: Standard)

Procedure Remarks

Ensure aging is adequate.

Make sure the front panel to be used on the final set is fitted.

Make sure a color signal is not being shown before adjustment.

Put the color analyzer where there is little color variation.

1. Set COMPONET/RGB-IN SELECT to RGB.

2. Select the IIC mode “PANEL W/B Adj.” item.

3. Check that the color temperature is “COOL (High)”.

4. Output a white balance pattern.

5. Touch the signal receiver of color analyzer to the highlight window’s center.

6. Fix G drive at E0h and adjust B drive and R drive so x, y become the “Color temperature

High” in the below table.

7. Increase R/G/B together so the maximum drive value in R/G/B becomes FCh.

8. Set color temperature to “NORMAL (Medium)”.

9. Fix G drive at E0h and adjust B drive and R drive so the highlight window’s x, y becomes

the “Color temperature Medium” in the below table.

10. Increase R/G/B together so the maximum drive value in R/G/B becomes FCh.

11. Set color temperature to “WARM(Low)”.

12. Set G drive to E0h and adjust B drive and R drive so the highlight window’s x, y become

the “Color temperature Low” shown in the below table.

13. Increase R/G/B together so the maximum drive value in R/G/B becomes FCh.

14. Copy the R drive, G drive and B drive data in NTSC, PAL DVI region.

Adjustment target

Hi-light: x ± 0.003 y ± 0.003

Hi-light is target of the number at drive adjustment in the hi-light windows.

Therefore, it is not target of the hi-light number at after adjustment white balance.

Picture Menu: Standard

Picture: 25

Aspect: Full

Position and size: Normal

Highlight section Signal amplitude 75%

Cutoff standard G: 80h

Drive standard G: E0h

TH-37PG9W / TH-42PG9W

10.2. HD white balance adjustment

Instrument Name Connection Remarks

HD W/B pattern (COMPONENT Output)

Color analyzer

(Minolta CA-100 or equivalent)

PC input

Panel surface

User setting: Normal

(Picture menu: Standard)

Procedure Remarks

Ensure aging is adequate.

Make sure the front panel to be used on the final set is fitted.

Make sure a color signal is not being shown before adjustment.

Put the color analyzer where there is little color variation.

1. Set COMPONENT/RGB-IN SELECT to COMPONENT

2. Select the IIC mode "PANEL W/B Adj.” item.

3. Check that the color temperature is “COOL (High)”.

4. Output a white balance pattern.

5. Touch the signal receiver of color analyzer to the highlight window’s center.

6. Fix G drive at E0h and adjust B drive and R drive so x, y become the "Color temperature

High" in the below table.

7. Increase R/G/B together so the maximum drive value in R/G/B becomes FCh.

8. Set color temperature to “NORMAL (Medium)”.

9. Fix G drive at E0h and adjust B drive and R drive so the highlight window´s x, y becomes

the "Color temperature Medium" in the below table.

10. Increase R/G/B together so the maximum drive value in R/G/B becomes FCh.

11. Set color temperature to "WARM (Low)".

12. Set G drive to E0h and adjust B drive and R drive so the highlight window´s x, y become

the “Color temperature Low” shown in the below table.

13. Increase R/G/B together so the maximum drive value in R/G/B becomes FCh.

14. Copy the R drive, G drive and B drive data in YUV1_525ip, YUV3_625ip region.

Adjustment target

Hi-light: x ± 0.003 y ± 0.003

Hi-light is target of the number at drive adjustment in the hi-light windows.

Therefore, it is not target of the hi-light number at after adjustment white balance.

Picture Menu: Standard

Picture: 25

Aspect: Full

Position and size: Normal

Highlight section Signal amplitude 75%

Cutoff standard G: 80h

Drive standard G: E0h

TH-37PG9W / TH-42PG9W

10.3. Power control adjustment

Instrument Name Connection Remarks

PC (RGB) signal generator

(Leader: VGA/No.9 signal)

Wattmeter

PC input

Connect the AC power of the

adjustment set to the wattmeter.

Set “RGB” at ‘COMPONENT/RGB-IN

SELECT’ in Setup Menu.

Procedure Remarks

[condition]

Make sure the set is aged for 30 minutes or more before adjustment.

Voltage 120V 50/60Hz (variation within 1%)

Volume at minimum and screen size at full

PC input and picture menu at normalized Dynamic

1. Connect the set’s AC power to the wattmeter.

2. Receive the VGA No.9 signal from Leader.

3. Select the PWRCTL item in Panel APL/ABL in the IIC mode.

4. Adjust PWRCTL so the set´s power consumption is description below.

Adjust to shift large to small for DAC.

Factory adjustment with OSD

42” 240+3/-8W

37” 210+3/-8W

BUSCON without OSD

42” 238+3/-8W

37” 208+3/-8W

No.9 Signal

Top half: Full color bar

Bottom half: Horizontal 10 steps bar

Notes:

1. When passing through factory

adjustment mode, the power few

watts which goes down is the

consideration being completed.

2. Adjust the large number for DAC

when they have 2 adjustment

points.

TH-37PG9W / TH-42PG9W

11.1.1. Display Indication

1. Self-check is used to automatically check the bus line

controlled circuit of the Plasma display.

2. To get into the Self-check mode, press the volume down

button on the customer controls at the bottom of the set, at

the same time pressing the OFF-TIMER button on the

remote control, and the screen will show:-

If the CCU ports have been checked and found to be incorrect

Or not located then " - - " will appear in place of " OK "

“ 01 “ in the line of the “ PTCT ” means the number of blinks of

the Power LED is 1. (Reference to 12.1.2)

“ H09 “ in the line of the “ PTCT ” is the error code.

Note:

The line of the “ PTCT ” displays when you get into the Self-

check mode for the first time only after the Power LED

blinks.

11 Troubleshooting guide

11.1. Self Check

11.1.2. Power LED Blinking timing chart

1. Subject

Information of LED Blinking timing chart.

2. Contents

When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the

defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

TH-37PG9W / TH-42PG9W

11.2. No Power

First check point

There are following 3 states of No Power indication by power LED.

1. No lit.

2. Green is lit then turns red blinking a few seconds later.

3. Only red is lit.

11.3. No Picture

TH-37PG9W / TH-42PG9W

11.4. Local screen failure

Plasma display may have local area failure on the screen. Fig - 1 is the possible defect P.C.B. for each local area.

Fig - 1

TH-37PG9W / TH-42PG9W

12 Option Setting

TH-37PG9W / TH-42PG9W

Option Menu for GP9D series

GP9D chassis series have special function and operation setting facility called Option Menu. This Option Menu is useful for

special function required customers. This should be set at the installation stage.

Option menus default setting Contents

Off-timer function Enable Off-timer operation Enable/Disable.

Onscreen display On Enable/Disable to display input mode indication after power on and no signal

indication.

Initial INPUT Off Sets the initial input mode when the power is turned on. Allow input mode

selection while power is on.

Initial VOL level Off Sets the initial volume level when the power is turned on. Allow Volume

control while power is on.

Maximum VOL Level Off Sets the maximum volume to desired level. Volume cannot exceed this level.

INPUT lock Off Fixes the input mode to AV, Component/RGB or PC. Can not change input

mode by input selection key.

Studio W/B Off Set warm mode color temperature to 3,200 Kelvin.

Advanced PIP Off Off: Sets normal two screen display mode.

On: Sets Advanced PIP mode.

Display size Off Adjusts the image display size on screen.

On: Sets the image display size approximately 95% of the normal image

display.

Button lock Off Enable/Disable bottom operation buttons (Input, Menu, Enter and/or volume

up/down)

Remocon User Level Off Remote key invalidation.

Off: Valid key is all key of remote.

User1: Valid key are only Stand-by (ON/OFF), Input, Direct input, Status,

Surround, Sound mute On/Off, and volume adjustment.

User2: Valid key is only Stand-by (ON/OFF).

User3: All keys are null and void

ID select 0 Set ID number from 0 to 100.

Remote ID Off Remote ID function On/Off.

(While the Remote ID on, standard remote function can not control the unit.)

Serial ID Off Serial ID function On/Off

Slot power Off Sets the slot power mode while the power is turned on.

Allow Optional Terminal Board insert Slots while power is on.

V. Installation Off V. Installation function On/Off (Not used)

Rotate Off The image rotates 180 degrees (up-down)

Serial Slot Select Slot1 Selects the slot which communicates serial.

Note: The setting of an external command can be set only from the fixed

serial terminal.

Note:

When both main unit buttons and remote control are disabled due to the “Button lock”, “Remocon User level” or “RemoteID”

adjustments, set all the values “Off” so that all the buttons are enabled again.

Press the “Volume down” button on main unit together with “R“ button on the remote control and hold for more than 5 seconds.

The “SHIPPING” menu is displayed and the lock is released when it disappears.

TH-37PG9W / TH-42PG9W

13 Conduct Views

13.1. P-Board (37inch)

ABCDEFGH I

6P-BOARD (FOIL SIDE)

TNPA3912AL

TH-37PG9W

P-BOARD TNPA3912AL TH-37PG9W

P-BOARD TNPA3912AL

TH-37PG9W / TH-42PG9W

TH-37PG9W

P-BOARD PARTS LOCATION

TH-37PG9W

P-BOARD PARTS LOCATION

Parts LocationParts Location

P-BOARD (COMPONENT SIDE)

IC402 G-4

IC406 D-1

IC409 F-3

IC411 H-4

IC504 H-4

IC509 B-5

IC512 C-5

Q404 C-2

Q406 D-2

Q412 B-3

Q413 B-3

Q434 H-4

Q505 C-5

Q507 C-4

Q527 C-5

TRANSITOR

R443 D-2

R628 C-5

R661 D-5

R665 C-5

R671 B-4

VOLUME

P-BOARD (FOIL SIDE)

IC401 B-4

IC402 C-4

IC403 B-4

IC404 C-4

IC405 B-4

IC406 F-1

IC408 B-4

IC409 C-3

IC410 B-4

IC411 B-4

IC412 A-4

IC501 B-5

IC502 B-5

IC504 B-4

IC505 H-5

IC506 G-5

IC507 G-5

IC509 H-5

IC510 C-5

IC512 F-5

IC520 F-5

Q401 B-4

Q402 E-2

Q404 F-1

Q406 F-2

Q407 F-1

Q408 H-3

Q409 H-3

Q412 H-3

Q413 H-3

Q415 B-4

Q418 G-1

Q420 F-1

Q421 G-1

Q422 F-1

Q434 A-4

Q501 A-5

Q502 A-5

Q505 G-5

Q507 G-4

Q508 E-5

Q509 E-5

Q510 F-5

Q512 A-4

Q517 E-4

Q520 E-4

Q521 D-5

Q524 C-5

Q525 G-5

Q527 F-4

Q530 G-5

TRANSISTOR

R443 F-2

R628 G-5

R661 E-5

R665 G-5

R671 G-4

Q535 A-5

Q537 C-5

Q538 E-4

Q540 G-4

Q541 F-5

Q551 C-4

Q553 B-5

Q554 B-5

Q555 E-4

Q556 D-4

Q557 B-5

Q558 A-4

Q559 B-5

Q561 A-4

Q563 A-5

Q564 F-5

Q565 F-5

Q566 E-5

Q567 F-5

Q568 B-4

Q569 B-5

VOLUME

TH-37PG9W / TH-42PG9W

ABCDEFGH I

6P-BOARD (COMPONENT SIDE)

TNPA3912AL

TH-37PG9W

P-BOARD TNPA3912AL TH-37PG9W

P-BOARD TNPA3912AL

TH-37PG9W / TH-42PG9W

13.2. P-Board (42inch)

ABCDEFGH I

P-BOARD (FOIL SIDE)

TNPA3911AL

TH-42PG9W

P-BOARD TNPA3911AL TH-42PG9W

P-BOARD TNPA3911AL

TH-37PG9W / TH-42PG9W

TH-42PG9W

P-BOARD PARTS LOCATION

TH-42PG9W

P-BOARD PARTS LOCATION

Parts LocationParts Location

P-BOARD (COMPONENT SIDE)

IC402 G-4

IC406 D-1

IC409 F-3

IC411 H-4

IC504 H-4

IC509 B-5

IC512 C-5

Q404 C-2

Q406 D-2

Q412 B-3

Q413 B-2

Q434 H-3

Q505 C-5

Q507 C-5

Q527 C-5

TRANSITOR

R443 D-1

R628 C-5

R661 D-5

R665 C-5

R671 B-5

VOLUME

P-BOARD (FOIL SIDE)

IC401 B-4

IC402 C-4

IC403 B-4

IC404 C-4

IC405 C-4

IC406 F-1

IC408 B-4

IC409 C-3

IC410 B-4

IC411 B-4

IC412 A-4

IC501 B-5

IC502 B-5

IC504 B-4

IC505 H-5

IC506 G-5

IC507 G-6

IC509 H-5

IC510 C-6

IC512 F-5

IC520 F-6

Q401 B-4

Q402 E-1

Q404 F-1

Q406 F-2

Q407 F-1

Q408 H-3

Q409 H-2

Q412 H-3

Q413 H-2

Q415 B-4

Q418 G-1

Q420 F-1

Q421 G-1

Q422 F-1

Q434 B-4

Q501 A-5

Q502 A-5

Q505 G-6

Q507 G-5

Q508 E-5

Q509 E-5

Q510 F-5

Q512 A-4

Q517 E-4

Q520 E-4

Q521 C-5

Q524 D-5

Q525 G-5

Q527 F-5

Q530 G-5

TRANSISTOR

R443 F-1

R628 G-5

R661 E-5

R665 G-5

R671 H-4

Q535 A-5

Q537 C-5

Q538 E-5

Q540 G-5

Q541 F-5

Q551 C-5

Q553 B-5

Q554 B-5

Q555 E-4

Q556 D-4

Q557 B-5

Q558 A-4

Q559 B-5

Q561 A-5

Q563 A-6

Q564 F-6

Q565 F-5

Q566 E-6

Q567 F-5

Q568 B-4

Q569 B-6

VOLUME

TH-37PG9W / TH-42PG9W

ABCDEFGH I

P-BOARD (COMPONENT SIDE)

TNPA3911AL

TH-42PG9W

P-BOARD TNPA3911AL TH-42PG9W

P-BOARD TNPA3911AL

TH-37PG9W / TH-42PG9W

13.3. HA-Board

ABCDEFGH I

TH-37/42PG9W

HA-BOARD TXNHA10RBS TH-37/42PG9W

HA-BOARD TXNHA10RBS

HA-BOARD(FOIL SIDE)

TXNHA10RBS HA-BOARD(COMPONENT SIDE)

TXNHA10RBS

JK001

JK002

IC002

CR NO.3

TNPA2845

Pr Pb Y

12 3SLOT

PbF

ORDER NO.

A2 A40

A39

B39

B40

R030

R031

R032

R033

R034

R035

R036

R037

R038

R039

R040 R041 R042

R043

R044

R045

R046 R047

R048

JS001

JS002

JS003

JS004

JS005

JS006

JS007

JS008

JS009

JS010

JS011 JS012 JS013

JS014

JS015

JS016

L001

L002

L003

L004

L005

L006

L007

JK001 JK002

TP032

TP033

TP034

TP035

TP036

C001

C002 C003

C004

C005

Q001

C006

Q002

C007

C008

C009

C010

C011

C012

C013

C014

C015

C016

C017

C018

C019

C020

C021

C022

C023

C024

D001

C025

D002

C026

D003D004

R001

R002

R003

R004

R005

R006

R007

R008

R009

IC001

IC002

R010 R011 R012

R013

R014

R015

R016

R017

R018

R019

R020

R021

R022

R023

R024

R025

R026

R027 R028

R029

TNPA2845

CR NO.3

Pb Pr

YPb

PbF

SEE REVERSE FOR ORDERNO.

A39

A40

B39

B40

NP NP

Parts Location

HA-BOARD

IC3001 E-3

IC3002 F-4

TP3032 E-4

TP3033 E-4

TP3034 E-4

TP3035 E-4

TP3036 E-4

Q3001 F-2

Q3002 F-2

TRANSISTOR

TH-37PG9W / TH-42PG9W

13.4. HX-Board

ABCDEFGH I

HX-BOARD(FOIL SIDE)

TZTNP02ZQTU (37inch)

TZTNP03ZQTU (42inch)

HX-BOARD(COMPONENT SIDE)

TZTNP02ZQTU (37inch)

TZTNP03ZQTU (42inch)

TH-37PG9W

HX-BOARD TZTNP02ZQTU TH-42PG9W

HX-BOARD TZTNP03ZQTU TH-37PG9W

HX-BOARD TZTNP02ZQTU TH-42PG9W

HX-BOARD TZTNP03ZQTU

JK509

JK511

JK513

CR NO.3

TNPA2842

PbF

610

11 15

SEE REVERSE FOR ORDER NO.

L507

L508

L509

L510

L511

L512

L513

L514

L515

L516

L517

L526

R653

R654

R655

R656

R663

R664

R668

L555

R672

JK509

JK511

JK513

C523

C524

D501

D502

D503

D504

D505

D506

D507

D508

D509

R508

R509

IC502

D510

Q531

Q532

Q533

R510

Q534

R511

Q535

Q536

Q537

R526R527R528

C550

R529

C551

R530

R537

R538

C561

C562

C563

C564

C565

C566

C567

R547

R548

R776 R777

R778

R585

R586

R589

R780

R781

R782

R783

R590

R784

R591

R785

R592

R786

R593

R787

R788

R789

R790

HX1

R791

R792

R794

C404

C405

C409

R400

TNPA2842

CR NO.3

PbF

ORDER NO.

111

Parts Location

HX-BOARD

IC3502 E-4 Q3531 D-4

Q3532 D-4

Q3533 E-4

Q3534 E-4

Q3535 E-4

Q3536 E-4

Q3537 F-4

TRANSISTOR

TH-37PG9W / TH-42PG9W

13.5. GK, K and S-Board

ABCDEFGH I

C2510

Q2511

D2510

R2512

IC2511

D2520

D2525

R2524

RM2501

R2557

R2572

R2573

PbF

TNPA3762 K1

ORDER NO.

C2511

C2512

Q2510

C2515

C2516

C2517 Q2513

Q2518

Q2519

C2520

C2521

Q2520

Q2521

Q2522

D2511

D2512

R2516

R2517

R2519

IC2511

D2524

R2520

R2521

D2526

D2528

R2525

D2530

R2530

R2531

RM2501

R2537

R2538

R2539

R2540

R2542

R2554

R2556

R2558

R2559

R2560

R2561

R2562

R2563

R2564

R2565

R2566

R2567

R2568

R2569

R2570

R2571

PbF

TNPA3762

SEE REVERSE FOR ORDER NO.

SW2500

S1 S2

TNPA3763 1

ORDER NO.

1312

C2500

SW2500

R2504

PbF

TNPA3763

SEE REVERSE FOR ORDER NO.

C3750

C3751

SW3751

SW3752

SW3753

SW3754

SW3755

SW3756

SW3757

SW3758

D3750

D3751

R3750

R3751

R3752

R3753

R3754

R3755

R3756

R3757

R3758

R3759

R3760

R3761

R3762

R3763

R3764

R3765 R3766

R3767

R3768

R3769

GK3

PbF

TNPA3848 GK 1

SEE REVERSE FOR ORDER NO.

SW3751

SW3752 SW3753 SW3754 SW3755 SW3756 SW3757 SW3758

GK3

PbF

ASPECT TV/VTR

MENU VOL.DN

TNPA3848

1GK

PRESET

VOL.UP CH.DN CH.UP

TV/AV

VOL.UP CH.DN CH.UP

ORDER NO.

PbF

STR

VOL.DN

TNPA3848

TV GUIDE

TV/VTR

K-BOARD (COMPONENT SIDE)

TNPA3762AH

S-BOARD (FOIL SIDE)

TNPA3763AE

GK-BOARD (FOIL SIDE)

TNPA3848AE

GK-BOARD (COMPONENT SIDE)

TNPA3848AE

S-BOARD (COMPONENT SIDE)

TNPA3763AE

K-BOARD (FOIL SIDE)

TNPA3762AH

TH-37/42PG9W

GK-BOARD TNPA3848AE

K-BOARD TNPA3762AH

S-BOARD TNPA3763AE

TH-37/42PG9W

GK-BOARD TNPA3848AE

K-BOARD TNPA3762AH

S-BOARD TNPA3763AE

GK K S

TH-37PG9W / TH-42PG9W

13.6. J-Board

ABCDEFGH I

C2364

C2365

C2368

C2369

R2355

R2356

R2357

R2358

R2359

R2360

J13

J14

C8185

L2330L2331

TNPA3896 1

J11

J12

IC8003

C8072

C8073

C8074

C8075

R3230

R3231

R802

R803

R804

R805

R806

R807

R3050

R8069

R810

R811

R3059

R812

R813

R814

R815

R3061

R825

R826

R3070

R3071

R3072

R8088

R3078

R3079

R836

R3080

C803

C804

C805

C806

C808

C809

R3090

R3091

R3092

C810

C813

C814

C815

C818

C819

C820

R2301

R2302

C8108

C8109

C8112

C3101

C855

C856

C3103

D802

C3110

C864

C2366

C2367

C3114

C2378

R8112

R8113

R8117

R3104

R8118

R3105

IC801

R3106

IC802

R3110

R3111

R2367

R2368

C2392

C2393

R3118

JS8096

R3135

R3136

R3137

R2392

R2393

R2394

R2395

R2396

R3144

C8183

R3163

D8181

D8183

D8184

R8181

D8185 R3172

R8189

R8190

R3188

R3189

C2409

R3190

R3197

R3198

C2414

C2415

C2416

C2419

R2401

R2402

R2403

R2408

R2409

C8005

C8007

C8009

R2420

R2421

C8016

R2422

R2423

C3201

C3202

C3203

C8025

D8001

D8003

C3015

D8205

R8202

D8206

R8203

D8207

R8204

D8208

D3001

D3003

C3028

D3004

C3029

R3004

C3030

C3035

R8021

R8023

R8025

R8026

R8033

D3024

R3025

R3026

R3027

PbF

SEE REVERSE FOR ORDER NO.

A40

A39

B39

B40

12 22

A40

A39

B39

B40

A40

A39

B39

B40

110

TH-37/42PG9W

J-BOARD TNPA3896AB TH-37/42PG9W

J-BOARD TNPA3896AB

J-BOARD (FOIL SIDE)

TNPA3896AB

Parts Location

J-BOARD (FOIL SIDE)

IC801 E-2

IC802 E-2

IC8003 I-1

TH-37PG9W / TH-42PG9W

ABCDEFGH I

J13

J14

J30

J34

TNPA3896

THERMAL PAD

J1 J4J5

J7 J10

J11

J12

J15

C3058

R3030

C3059

R8045

R3031

R3032

R3033

R8047

R3034

R8048

C8070

R3035

C8071

R3036

R3037

C3060

R3038

R3039

R8050

R8051 R8054

R3040

R8055

R3041

R8056

R3042

R3043

R8057

R3044

C8080

C8081

R3045

R3046

C8082

R3047

C8083

R3048

C8084

R3049

R8060

R8065

R3051

X8181

R8067

R3053

R3054

FL8000

R3057

R3058

D3061

R8072

R818

R3060

R819

R3062

R8077

R3063

R3064

R3065

R3066

R3067

FL3000

R820

R3068

L3140

R3069

FL3001

R821

R822

FL3002

R823

FL3003

FL3004

R8081

FL3006

R827

FL3007

FL3008

R828

R829

R3073

R3074

R3075

R8089

R3076

R3077

R830

FL3010

TPJV1

R831

R832

R833

R834

R835

R8093

R837

R838

R3081

R839

R3082

R3083

R8097

R8098

R3084

R3085

C801

R3086

C802

R3087

R840

R3088

Q2300

R841

R3089

C807

R3093

R3094

R3095

C811

R3096

C812

L8182

L8183

L8184

L8185

C816

L8186

C817 L8187

L8188

L8189

C821

C822

C823

C824

C825

D2301

D2302

C827

D2303

C828

C829

R2303

R2304

C830

C831

IC2301

C832

IC2302

C833

IC2303

C834

IC2305

C835

Q2331

C837

C838

C839

C8100

C840

C8101

C841

C8102

C843

C8103

C844

C845

C8105

C846

C8106

C8107

C847

C848

C2350

C8111

C2351

C2352

C8113

C2353

C8114

C2354

C8115

C2355

C8116

C2356

C857

C2357

C858

C2358

C3105

C859

C2359

C3106

C3107

C3108

C8120

C2360

C860

ZA3001

C8121

D801

C2361

C861

ZA3002

C8122

C862

C2362

D803

ZA3003

C863

C8123

C2363

ZA3004

C2364

D804

D805

C3111

ZA3005

C865

C2365

C3112 D806

C866

ZA3006

C3113

C867

D807

ZA3007

D808

R8100

C2368

C868

ZA3008

D809

C3115

C2369

C869

D810

IC8100

C2370

C2371

C2372

C2373

C2374

C2375

C2376

Q2372

C2377

C2379

R2351

R2352

R2353

R2354

R3101

R2355

R3102

R2356

R3103

R2357

C2380

R2358

R8119

C2381

R2359

C2382

IC803

R3107

C2383

IC804

C2384

R3108

IC3101

L8001

IC805

C2385

C2386

L8003

C2387

R8120

C3134

C2388 R2360

C3135

R8121

L8005

R2361

C2389

C3136

R8122

R2362

R8123

R2363

R8124

R2364

R8125

R2365

R8126

R2366

R8127

R8128

R3114

C2390

R8129

C2391

R3116

R3117

C2394

R3119

C2395 C2396

C3143

C2397

C3144

C2398

C3145

C2399

C3146

L3002

R3120

JS8094

L3005

R3121

L3006

R3125

R3126

C3150

C3151

C3152

R2383

R2384

R2385

R2386

R2387

R3134

R2388

R2389

R2390

R2391

R3140

R3141

R3143

R2397

R2398

R2399

C8181

C8182

C8185

Q8181

Q8182

Q8183

C8187

Q8184

R3150

R3151

IC3150

IC3151

IC3152

R3160

R3161

D8180

R8180

L3050

R8182

R8183

R3170

R8184

R8185

R8186

R8187

R8188

IC8181

C2400

C2401

X2301

C2402

C2403

C2404

C2405C2406

C2407

C2408

TPJH1

ZA2300

R3191

ZA2301

R3192

C2410

R3195

C2411

R3196

C2412 C2413

C2417

C2418

C2420

C2421

C2425

C2426

R2400

R2404

R2405

R2406

R2407

C8001

C8003

R2410

R2411

Q8002

R2412

R2413

R2414

R2415

R2416

R2417

C8200

R2418

C8201

R2419

Q8200

Q8201

Q8202

Q8203

C8013

Q8010

Q8204

C8015

Q8011

C3001

Q8012

Q8013

R2424

C3004

Q3001

C8019

R2425

R2426

R2427

Q3004

Q8019

C3009

C3200

C8021

C8023 C3010

C3011

C3012

C8027

C3013 C3014

C8029

R8001

R8002

C3016

C3017

R8003

C3018

R8004

R8005

C3019

R8006

D8200

C8030

R8009

IC8001

D8201

IC8003 D8203

C8033

C3020

D8010

R8200

D8204

D8011

IC8005

C8035

C3021

R8201

C8036

C3022

C3023

IC8007

R8010

C3024

C8038

D8209

R8011

R8205

C3025

IC8009

L801

C3026

R8012

R8206

L802

R8207

C3027

L803

R8208

L804

R3001

D3005

R8209

L805

R3002

D3007

R3003

R8017

L807

D3008

R8018

L808

L2330

L809

L2331

R3007

IC8014

R3008

C3031

C8045

IC3001

IC3002

C3032

IC8016

C3033

IC3003

C3034

L810

IC3004

C8049

IC3005

L811

IC3006

L812

IC3007

R8024

IC3008

R8029

C8051

L8101

L8102

L8103

C3040

L8104

C3041

L8105

C3042

L8106

L8107

C3043

R3210

L8108

R8031

R3211

R3212

R3213

R3214

R8035

R3215

R8036

R3216

R3217

R8037

R3023 R3024

R3218

R8039

R3219

R3028

C3051

R3029

C3052

C3053

C3054

C3055

R8041

C3056

C3057

PbF

ORDER NO.

129

302

A39

A40

B39

B40

111

119

121 121

131

A39

A40

B39

B40

A1 A2

A39

A40

B39

B40

B1 B2

916

10 1

8 1

14 15

822

14 15

TH-37/42PG9W

J-BOARD TNPA3896AB TH-37/42PG9W

J-BOARD TNPA3896AB

J-BOARD (COMPONENT SIDE)

TNPA3896AB

Parts Location

J-BOARD (COMPONENT SIDE)

IC803 E-2

IC804 D-2

IC805 F-2

IC2301 H-2

IC2302 H-2

IC2303 G-2

IC2305 H-1

IC3001 F-1

IC3002 C-2

IC3003 C-1

IC3004 C-2

IC3005 B-2

IC3006 C-2

IC3007 C-2

IC3008 G-2

IC3101 A-2

IC3150 C-3

IC3151 C-3

IC3152 G-2

IC8001 B-1

IC8003 B-1

IC8005 A-1

IC8007 B-1

IC8009 B-1

IC8014 D-1

IC8016 D-1

IC8100 D-2

IC8181 G-3

Q2300 H-2

Q2331 H-2

Q2372 G-2

Q3001 C-3

Q3004 A-3

Q8002 B-2

Q8010 D-1

Q8011 D-1

Q8012 D-1

Q8013 D-1

Q8019 B-2

Q8181 G-3

Q8182 G-2

Q8183 C-2

Q8184 C-2

Q8200 B-3

Q8201 B-3

Q8202 B-3

Q8203 A-3

Q8204 A-3

TRANSISTOR

TPJH1 A-2

TPJV1 A-2

TRANSISTORTP

TH-37PG9W / TH-42PG9W

13.7. DA-Board

ABCDEFGH I

R994

R995

C006

C202

C203

C010

C204

C205

C012

C206

C013

C207

C014

C208

C015

C209

C018

C210

C211

C021

C215

C216

C217

C218

C025

C219

C026

C027

R001

C605

R002

R003

C607

C220

C609

C221

C222

R007

C031

R009

C032

C226

C227

IC003

C803

C610

Q801

C611

C613

R011

R017

R018

C041

R019

C042

C043

R021

R022

R023

R024

R025

R026

R027

R028

R029

D801

R223

R800

R225

IC605

R801

R802

R227

R804

R035

R229

L301

R036

L302

R037

L303

R808

R039

IC031

R809

IC032

R618R619

R041

L501

R042

R812

L502

R043

R813

L503

R044

L504

R620

R045

R815

R621

L505

R622

R627

L702

L704

R820

R822

R825

R256

TP701

C673

R845

TP901

R846

TP902

TP710

TP713

R271R272R273 R277R278

R854

R279

R855

R859

TP721 TP722

C887

R285

R861

C696

R671

R672

R673 R674

TP731

R675

TP732

R676

TP733

R677

IC671

R292

R293

R294

R871

R295

R296

R297

R880

R691

R887

R888

R890

R891

R894

R895

C302

C303

C309

C501

C502

C311

C312

C313

C507

C508

C701

C703

C709

C901

C903

C904

C711

C905

C712

C906

C713

C908

C909

Q712

C911 C912

R313

C918

R314

C919

R315

D701

D702

R316

D703

D704

R319

R702

R704

C920

D709

R511

L202

L203

C923

R513

R708

C924

R514

R320

L205

C925

R515

L206

C732

D902

C926

R516

C927

D903

C733

C928

C929

D905

D714

R710

R711

C545

R136

C546

C547

R138

C548

R139

R909

IC901

C931

C549

R716

C932

C933

C740

R718

C934

C741

R719

C935

R525

C936

R526

C743

C937

R910

C938

C550

D721

R911

C939

C551

R142

R912

D722

C552

D723

R913

C553

R144

R914

D724

R720

C554

R915

D725

C749

C555

R916

D726

R146

C556

R722

D727

R917

C557

R723

R918

D728

R148

C558

D729

R919

R725

C559

C942

C943

C750

R728

C944

C945

C753

R920

D730

C754

C948

C560

R921

C949

C561

D732

C562

C563

D734

R924

C564

C565

R926

C566

R733

C567

R734

C950

C568

C569

R736

C570

Q955

C571

Q956

R932

C572

R933

C573

R934

C574

R935

C575

R936

C576

R937

C577

R938

C578

R745

R939

C579

Q961

Q962

R940

C580

R941

C581

R942

C582

R943

C583

R944

C584

R945

FL301

C585

C586

C587

R754

C588

C589

R756 R758

R950

R568

C590

R951

FL501

C591

R569

R952

C592

FL502

FL503

C593

R953

R760

C594

R954

R761

C595

R955

R956

C596

R763

R957

C597

R764

R958

C981

R765

R959

IC951

C982

R766

IC952

C983

R767

C984

IC954

R769

IC955

FL703

IC957

R960

R962

R963

R964

R771

R965

R966

R773

R967

R968

R775

R969

R777

R587

R970

R588

R971

R589

R972

R973

R974

R783

R784

R590

R591

R592

R788

R595

R983

R984

R790

R985

R791

R792

R793

R795

R798

R799

R991

R992

R993

TNPA3901

CR NO.4

PbF

SEE REVERSE FOR ORDER NO.

TH-37PG9W

DA-BOARD TZTNP01ZPTU

DA-BOARD (FOIL SIDE)

TZTNP01ZPTU (37inch)

TZTNP04ZQTU (42inch)

TH-42PG9W

DA-BOARD TZTNP04ZQTU TH-37PG9W

DA-BOARD TZTNP01ZPTU TH-42PG9W

DA-BOARD TZTNP04ZQTU

Parts Location

DA-BOARD (FOIL SIDE)

IC4003 D-2

IC4031 E-2

IC4032 E-2

IC4605 E-3

IC4671 C-3

IC4901 E-4

IC4951 E-4

IC4952 A-4

IC4954 E-2

IC4955 A-5

IC4957 B-5

Q4712 B-4

Q4801 C-1

Q4955 B-2

Q4956 B-2

Q4961 E-4

Q4962 E-4

TRANSISTOR

TP4701 B-1

TP4710 B-1

TP4713 B-1

TP4721 C-1

TP4722 C-1

TP4731 D-1

TP4732 C-1

TP4733 C-1

TP4901 A-3

TP4902 C-2

TRANSISTORTP

TH-37PG9W / TH-42PG9W

ABCDEFGH I

DA4

DA10

DA11

DA5

DA6

DA7

C001

C002

C003

C004

C005

C007

C008

C009

C201

C011

C016

C017

C019

C212

C213

C020

C214

C022

C023

C024

C600

X501

C601

C602

C603

C028

C604

DA41

DA42

C606

R004

C608

R005

R006

R008

C225

IC001

X701

C801

IC002

C802

C804

C228

R201

C229

Q802

C612

Q803

R010

R204

C614

R205

R012

R206

R013

R207

R014

R208

C230

C231

R015

R209

IC201

R016

IC202

IC203

C235

C236

R211

R212

R213

R020

R214

R215

R216

R217

R218

C241

R219

C629

R220

R221

R222

R224

R226

R803

R228

R805

R806

R038

IC801

IC802

IC803

R230

R231

R232

R233

R040

R234

R810

R235

R811

R236

R237

R238

R814

R239

R046

R816

R817

R818

R819

R626

R240

L701

R241

R242

R243

L703

R244

R245 R821

R246

R823

R824

R249

R631

R826

R827

R828

L901

R829

L902

L903

R250

R251

R252

R830

R831

R832

R257

R833

R834

R640

R835

R836

R837

R838

FL001

R839

C861

C862

C863

C864

R260

R261

C865

C671

C866

C672

R263

R264

R840

R841

R265

R842

R843

R844

R847

R848

C871

R849

C872

C873

R657

R658

R850

R274

R851

R275

R852

R276

R853

R856

R857

R858

C881

C882

C884

R280

C885

R281

C886

R282

R283

R284

R860

R862

R863

R864

R865

R866

R867

R868

R869

R870

R872

R873

R874

R875

R876

R877

R878

R879

R881

R883

R884

R886

R892

R893

C107

C108

ZA001

C301

ZA002

C304

C305

C306

C307

C308

C503

C310

C504

C505

C506

FL671

C702

C704

C705

Q701

Q702

C706

Q703

C707

C708

Q704

R105

Q705

Q706

R106

Q707

R107

Q708

Q709

IC102

C902

IC103

C710

Q901

Q902

C907

Q903

C714

Q710

PA901

C715

C716

R113

C717

Q713

Q714

C718

C719

IC301

C910

R501

R502

C913

R503

C914

R504

C915

R505

C916

R506

R312

C917

R507

IC500

R508

IC501

R509

IC502

R317

R318

R701

R703

R510

L201

C921

R706

C922

R512

R707

IC701

D901

R321

R709

IC702

R322

R323

IC703

R517

R900

IC704

R324

D904

R518

D711

R325

C541

R519

R902

D712

C736

R326

D906

C542

R133

R903

C737

D713

R327

C543

R134

C738

R904

C544

R135

C739

R906

R712

R907

R137

R713

R908

C930

R520

R714

R521

R715

R522

R717

R523

R524

IC711

C742

IC713

R527

C744

IC714

R528

IC715

R529

R721

R147

R724

C940

R530

R149

C941

R531

R726

R532

R727

R533

R534

R729

C751

R535

C752

C946

R536

R537

C947

R538

C755

R539

C756

R922

R923

D733

R730

R925

D735

R731

R732

R927

R928

R540

R735

R929

R541

R542

R737

R543

R738

R544

R739

R545

R546

R547

R930

R548

R931

R549

R740R741

R742

R743

R550

R551

R746

R552

R747

R553

R748

R554

R749

R555

R556

R557

R558

R171

R559

R750

R751

R752

R946

R753

R947

R948

R560

R755

R949

R561

R562

R757

R563

R564

R759

R565

R566

R567

FL504

R762

C598

R570

C599

R571

R572

IC953

R573

R768

R574

R575

IC956

R576

R577

R578

FL705

R579

R961

FL706

FL707

FL708

R770

FL709

R772

C990

R774

R580

C991

R581

C992

R776

R582

C993

R583

C994

R778

R584

C995

R779

R585

C996

R586

C997

C998

C999

R780

R781

R975

R786

R596

R981

L671

R986

R987

R796

R797

DA1

DA2

DA3

DAMM3

DAMM4

DAMM5

TNPA3901

DAMM1

CR NO.4

DAMM2

PbF

112

61 80

110

ORDER NO.

11 20

ABCD EFGHJKLMNPRTUVW

YAA

ABAC

13 14

19 20

21 22

100

132

133

176

124

48 25

11 20

140

DA-BOARD (COMPONENT SIDE)

TZTNP01ZPTU (37inch)

TZTNP04ZQTU (42inch)

TH-37PG9W

DA-BOARD TZTNP01ZPTU TH-42PG9W

DA-BOARD TZTNP04ZQTU TH-37PG9W

DA-BOARD TZTNP01ZPTU TH-42PG9W

DA-BOARD TZTNP04ZQTU

Parts Location

DA-BOARD (COMPONENT SIDE)

IC4001 B-1

IC4002 A-2

IC4102 B-2

IC4103 B-2

IC4201 B-3

IC4202 A-3

IC4203 B-2

IC4301 B-5

IC4500 D-4

IC4501 C-5

IC4502 E-5

IC4701 D-3

IC4702 C-3

IC4703 D-4

IC4704 D-2

IC4711 E-1

IC4713 D-2

IC4714 C-2

IC4715 D-1

IC4801 D-1

IC4802 D-2

IC4803 D-1

IC4953 E-2

IC4956 E-2

Q4701 D-3

Q4702 E-4

Q4703 E-4

Q4704 E-4

Q4705 E-4

Q4706 E-1

Q4707 E-1

Q4708 D-2

Q4709 C-2

Q4710 C-2

Q4713 E-2

Q4714 E-2

Q4802 E-4

Q4803 E-4

Q4901 E-5

Q4902 B-4

Q4903 E-5

TRANSISTOR

TH-37PG9W / TH-42PG9W

13.8. D-Board

C E GIBDFH

D-BOARD (FOIL SIDE)

TZTNP01ZQTJ

TH-37/42PG9W

D-BOARD TZTNP01ZQTJ TH-37/42PG9W

D-BOARD TZTNP01ZQTJ

Q010

C028

C029

C800

C801

IC002

C802

C032

C033

C803

C034

C804

C035

C805

C036

C037

C807

C038

C039

C809

Q805

Q806

D017

D018

D019

IC011

D020

C817

Q044

Q045

Q046

Q047

Q048

Q049

R028

C822

C824

C054

D801

C056

R223

C827

R800

R225

Q055

R801

Q056

R802

D806

R226

D807

R227

Q057

R803

D808

Q058

R804

R229

R805

D809

R806

R807

R808

IC800

C830

R809

C831

IC801

C832

R230

Q060

D810

R231

IC806

R232

IC807

D813

R810

R811

L501

IC809

D815

C839

L502

R237

R813

R238

R814

R239

R815

R816

C840

R819

R240

C846

C847

C848

R821

R824

C467

R828

C468

C850

C469

C853

C855

C857

R830

C858

C859

R834

R835

C860

R070

R841

R842

R843

R846

R847

R848

R849

R850

R854

R859

C882

C883

C884

C885

C886

C887

R861

R862

R863

R094

R095

R096 R097

R098

R868

R869

C891

FL806

C896

C897

R870

C898

R871

C899

R872

R873

R876

R877

R878

R879

R880

R883

R884

R887

R891

R892

R893

R896

R897

C100

Q300

Q301

Q302

Q500

D100

R100

D105

R101

D106

C512

C513

C515

C516

C517

C900

C518

D300

C901

C519

D301

C902

C903

C904

C905

C906

C907

C908

R110

C520

C909

C521

C522 C523

C524 C525

C526

C527

C910

R500

C528

C911

R501

C529

C912

C913

R503

C914

R504

C915

R505

C916

R506

C917

R507

C918

R508

C530

C919

R121

R509

C532

IC502

R317

C536

R127

C537

C920

R128

C538

C921

R511

R129

C539

C922

C923

R513

C924

C925

R516

C926

C927

C928

C540

R900

C929

R901

R131

R902

R132

R903

R133

R904

R134

R135

R906

R136

R907

R137

C930

R908 R138

R520

C931

R139

R521

C932

C933

R523

C934

R524

C935

R525

C936

C937

R527

C938

R910

R528

C939

R911

R141

R529

R142

R915

C940

R918

C941

R919

C942

C943

C944

C945

C946

C947

R150

C949

R151

R152

R153

R154

R925

R155

R926

R927

R157

C950

R928

R158

R929

R541

C952

R542

R543

C954

R544

C955

R545

C956

C957

C958

R548

C959

R355

R549

R162

R356

R163

R164

R936

R937

R168

R550

R551

R552

R553

R554

R556

C966

C967

R364

C968

R941

R365

C969

R366

R943

R173

R367

FL300

R368

R945

R369

FL301

R946

R176

R177

R178

C970

R949

R179

C971

R370

R371

R950

R180

R957 R959

R382

R383

R196

R197

FL900

R390 R391

R394

R395

CR NO.9

TNPA3932 D

213

PbF

112

SEE REVERSE FOR ORDER NO.

Parts Location

D-BOARD (FOIL SIDE)

IC9002 E-4

IC9011 E-3

IC9502 A-3

IC9800 A-2

IC9801 B-1

IC9806 A-5

IC9807 B-5

IC9809 A-4

Q9010 D-5

Q9044 E-3

Q9045 E-3

Q9046 E-3

Q9047 E-3

Q9048 D-2

Q9049 C-3

Q9055 D-4

Q9056 D-4

Q9057 D-4

Q9058 E-4

Q9060 D-5

Q9300 C-1

Q9301 E-2

Q9302 E-2

Q9500 C-4

Q9805 B-5

Q9806 B-5

TRANSISTOR

TH-37PG9W / TH-42PG9W

C E GIBDFH

D-BOARD (COMPONENT SIDE)

TZTNP01ZQTJ

TH-37/42PG9W

D-BOARD TZTNP01ZQTJ TH-37/42PG9W

D-BOARD TZTNP01ZQTJ

IC001

IC003

Q800

Q801

C806

R203

IC007

Q803

PA800

C808

R205

R206 R207

IC200

C040

C041

C042

C043

C044

C045

C815

C816

C046

C047

C048

C818

C049

R215

R216

R217

R218

R219 C050

C051

C052

C053

C823

D800

Q050

R220

C825

C055

R221

Q051

D802

C826

Q052

R222

C057

D803

Q053

D804

C058

Q054

D805

C060

IC802

IC803

C833

C834

C835

D811

C836

D812

C837

L500

C838

D814

R236

R812

R818

C841

C842

C843

C844

C845

R244

C849

R823

R825

R826

R827

R829

C851

C852

C854

C856

R060

R061

R831

R062

R063

R064

R065

R066

R067

R838

R839

R840

R844

R074

R845

R076

C880

C881

R864

R865

FL800

R099

FL801

FL803

FL804

FL805

FL807

X9000

D20

X200

ZA001

D25

C500

C501

C502

C503

C504

C505

D31

C506

D32

C507

C508

C509

D101

D102

D103

C510

C511

R102

R103

R104

C514

R105

R106

R107

R108

R109

D110

R111

R112

R113

IC303 R502

IC500

R120

C531

IC503

C533

IC504

C534

R510

R512

R514

R515

R517

R518

R519

R905

IC900

IC901

R909

R522

R526

R140

R912

R143

R144

R145

R916

R917

R147

R148

R530

R531

R149

R532

R533

L800

R534

L801

R535

L802

R536

R537

C948

R920

R538

R921

R539

R922

R923

R348

R349

R156

R540

C951

R159

C953

R350

L810

R351

R352

R353

R160

R354

R161

R357

R358

R165

R359

R166

R167

C960

R938

C961

R939

R169

C962

C963

C964

R360

R555

C965

R361

R362

R363

R940

R170

R171

R942

R172

R944

R174

R175

R947

R948

FL500

R951

R181

R952

R182

R953

R183

R954

R184

R955

R185

R379

R956

R186

R187

R958

R188

R189

R380

R381

R960

R190

R191

R192

R193

R194

FL901

R199

FL902

FL903

FL904

R392

R393

CR NO.9

TP_HD

TP_VD

TNPA3932

DCK

ACEGJ

RBD

FHKM

61 80

15 28

11 20

ORDER NO.

11 19

55 155

10 11

AA D

DFHK

MN LJGEC

Parts Location

D-BOARD (COMPONENT SIDE)

IC9001 B-5

IC9003 B-3

IC9007 C-5

IC9200 D-3

IC9303 E-2

IC9500 C-5

IC9503 C-4

IC9504 C-3

IC9802 B-5

IC9803 B-5

IC9900 D-3

IC9901 C-3 TP_HD C-3

TP_VD C-3

Q9050 B-5

Q9051 B-3

Q9052 B-3

Q9053 A-4

Q9054 A-5

Q9800 E-2

Q9801 E-4

Q9803 D-5

TRANSISTOR

TH-37PG9W / TH-42PG9W

13.9. C1-Board (37inch)

C E GIBDFH

C1-BOARD (COMPONENT SIDE)

TNPA3792AB

C1-BOARD (FOIL SIDE)

TNPA3792AB

TH-37PG9W

C1-BOARD TNPA3792AB TH-37PG9W

C1-BOARD TNPA3792AB

TNPA3792

C1MM1 C1MM2 C1MM3 C1MM4

C111

C112

C113

C114

C115

C116

C117

C118

C119

C120

C121

C122

C125

D101

C126

D102

C127

D103

C128

D104

C129

D105

D106

C130

C131

IC101

C132 IC102

C133

IC103

C134

IC104

C135

C136

C137

C138

R111

C139

R112

R113

R114

R115

R116

R117

C140

R118

C141

C142

R120

R121

R122

R123

R124

R125

R127

R128 R129

R130

R131

R132

R133

R134

R135

R136

R137

R138

R139

R140 R141

R142

R143

R144

R146

R147

R148

R149

R150

R151

R152

R153

R154

R155

R156

R157

R158

R159

R160

R161

R163

R164

R165

R166

R167

R168

R169

FL101

CB1 CB2 CB3

ZA101

ZA102

ZA103

C11

C12

PbF

CRNO.7

ORDER NO.

168 168 168

TNPA3792

123

C11

SEE REVERSE FOR ORDER NO.

Parts Location

C1-BOARD

IC7101 H-2

IC7102 I-1

IC7103 G-2

IC7104 F-2

TH-37PG9W / TH-42PG9W

13.10. C1-Board (42inch)

C E GIBDFH

C1-BOARD (COMPONENT SIDE)

TNPA3799AB

C1-BOARD (FOIL SIDE)

TNPA3799AB

TH-42PG9W

C1-BOARD TNPA3799AB TH-42PG9W

C1-BOARD TNPA3799AB

TNPA3799 1C1

C1MM1 C1MM2

C1MM3

C1MM4

C1MM5

C111

C112

C113

C114

C115

C116

C117

C118

C119

C120

C121

C122

C125

D101

C126

D102

C127

D103

C128

D104

C129

D105 D106

C130

C131

IC101

C132

IC102

C133

IC103

C134

IC104

C135

C136

C137

C138

R111

C139

R112

R113

R114

R115

R116

R117

C140

R118

C141

C142

R120

R121

R122

R123

R124

R125

R127

R128

R129

R130

R131 R132

R133

R134

R135

R136

R137

R138

R139

R140 R141

R142

R143

R144

R146

R147

R148

R149

R150

R151

R152

R153

R154

R155

R156R157

R158 R159

R160

R161

R163

R164

R165

R166 R167 R168

R169

FL101

CB1 CB2 CB3

ZA101

ZA102

ZA103

C11

C12

PbF

CRNO.7

110

ORDER NO.

168 168 168

120

123

1TNPA3799

SEE REVERSE FOR ORDER NO.

Parts Location

C1-BOARD

IC7101 H-2

IC7102 I-1

IC7103 G-2

IC7104 F-2

TH-37PG9W / TH-42PG9W

13.11. C2-Board (37inch)

C E GIBDFH

C2-BOARD (COMPONENT SIDE)

TNPA3793AB

C2-BOARD (FOIL SIDE)

TNPA3793AB

TH-37PG9W

C2-BOARD TNPA3793AB TH-37PG9W

C2-BOARD TNPA3793AB

TNPA3793 1 C2

C2MM1

C2MM2 C2MM3

C2MM4

C21

C22

C23

ZA201

ZA202

ZA203

ZA204

CB4

CB5

CB6

CB7

C201

C202

C203

C204

C205

C206

C207

C208

C209

C210

C211

C212

C213

C214

C215

C216

C217

C218

C219

C220

C221

C222

C223 C224

D201

C225

D202

C226

D203

C227

C228

D204

R201

C229

D205

R202

D206

R203

D207

R204

D208

R205

R206

R207

R208

C230

R209

IC201

C231

IC202

C232

IC203

C233

IC204

C234

IC205

C235

C236

C237 R210

C238

R211

C239

R212

R213

R214

R215

R216

R217

R218

R219

R220

R221

R222

R223

R224

R225

R226

R227

R228

R229

R230

R231

R232

R233

R234 R235

R236

R237

R238

R239R240

R241

R242

R243

R244

R245

R246

R247

R248

R249

R250

R251

R252

R253 R254

R255

R256

R257

R258

R259

R260

R261

R262

R263

R264

R265

R266

R267

R268

FL201

R269

FL202

R270

R271

PbF

CRNO.7

112

ORDER NO.

168 168 168 1

10 11

123

TNPA3793 1 C2

SEE REVERSE FOR ORDER NO.

Parts Location

C2-BOARD

IC7201 C-2

IC7202 A-2

IC7203 D-2

IC7204 E-2

IC7205 C-2

TH-37PG9W / TH-42PG9W

13.12. C2-Board (42inch)

C E GIBDFH

C2-BOARD (COMPONENT SIDE)

TNPA3800AB

C2-BOARD (FOIL SIDE)

TNPA3800AB

TH-42PG9W

C2-BOARD TNPA3800AB TH-42PG9W

C2-BOARD TNPA3800AB

C2MM1

C2MM2

C2MM3 C2MM4

TNPA3800 1C2

C2MM5

C21

C22

C23

ZA201

ZA202

ZA203

ZA204

CB4

CB5

CB6

CB7

C201

C202

C203

C204

C205

C206

C207

C208

C209

C210

C211

C212

C213

C214

C215

C216

C217

C218

C219 C220

C221

C222

C223

C224

C225

D201

C226

D202

C227

D203 D204

C228

D205

C229

R201

D206

R202

R203

D207

R204

D208

R205

R206

R207

C230

R208

C231

IC201

R209

C232

IC202

IC203

C233

IC204

C234

C235

IC205

C236

C237

R210

C238

R211

C239

R212

R213

R214 R215

R216

R217

R218

R219

R220

R221

R222

R223R224

R225R226

R227

R228

R229

R230

R231

R232

R233

R234 R235

R236

R237

R238

R239

R240

R241

R242

R243

R244

R245

R246

R247

R248

R249 R250

R251

R252 R253 R254

R255

R256

R257

R258

R259

R260

R261

R262

R263

R264

R265 R266

R267

R268

R269

FL201

FL202

R270

R271

PbF

CRNO.7

112

ORDER NO.

168 168 168 16

10 11

20 1

C21TNPA3800

123

SEE REVERSE FOR ORDER NO.

Parts Location

C2-BOARD

IC7201 B-2

IC7202 A-2

IC7203 C-2

IC7204 D-2

IC7205 C-2

TH-37PG9W / TH-42PG9W

13.13. SC-Board

C E GIBDFH

TH-37PG9W

SC-BOARD TNPA3794AE TH-42PG9W

SC-BOARD TNPA3794AB TH-37PG9W

SC-BOARD TNPA3794AE TH-42PG9W

SC-BOARD TNPA3794AB

SC-BOARD (FOIL SIDE)

TNPA3794AE (37inch)

TNPA3794AB (42inch)

C514

SC41

C515

SC42

C516

C517

C518

SC45 SC46

C526

C721

L401 L402 L403

L601L602

L411L412L413

C754

C561

C563

C592

C791

C795

L461

L462

D583

L463

L464

L472

L481

L482

L483

L484

IC791

C400

Q401

Q402

Q403

C604

C410

C411

C412

C413

C802

C804

Q801

C806

C807

C420

D401

Q421

Q422

Q423

C431

C822

Q821

Q822

Q441

Q442

R808

C641

R620

D431

Q451

VR600

C841

C842

VR602

Q841

Q842

R821

TP1 TP2

TP4 TP5

Q661

TP6

TP7

TP8

TP9

T602

R844

D461

R658

SC2

D471

TP10

TP11

TP12

TP13

TP14 TP15

C691

TP16

TP17

TP18

R860

TP19

D481

TP20

TP21

TP22

TP23

TP24

TP25

TP26

TP27

TP28TP29

D491

TP30TP31TP32

TP33

TP34TP35 TP38TP39

TP40

TP41

TP42

R696

TP43

R697

TP44TP45

TP46

TP47

TP48

TP49 TP50 TP51

TP52

TP53

TP54 TP55 TP56 TP57 TP58 TP59

L591

L592

TP60 TP61 TP62 TP63

TP64

SC23

SC30

C511

C512

C513

TNPA3794 1SC

123

456

CRNo.6

PbF

B40

B39

A40

A39 A1

B40

B39

A40

A39

SEE REVERSE FOR ORDER NO.

112

S5 S4 S2 S1

P2P1B2

TH-37PG9W / TH-42PG9W

TH-37/42PG9W

SC-BOARD PARTS LOCATION TH-37/42PG9W

SC-BOARD PARTS LOCATION

Parts Location

SC-BOARD (FOIL SIDE)

Q6401 B-3

Q6402 B-3

Q6403 C-3

Q6421 C-2

Q6422 D-2

Q6423 D-2

Q6441 G-3

Q6442 F-3

Q6451 F-3

Q6661 G-3

Q6801 H-2

Q6821 F-4

Q6822 G-4

Q6841 G-3

Q6842 G-4

TRANSISTOR

TP1 B-2

TP2 B-2

TP4 B-1

TP5 B-1

TP6 B-2

TP7 B-2

TP8 B-1

TP9 C-1

TP10 G-1

TP11 G-1

TP12 I-1

TP13 G-2

TP14 G-1

TP15 G-1

TP16 H-1

TP17 H-1

TP18 H-2

TP19 H-1

TP20 G-1

TP21 H-2

TP22 H-1

TP23 G-1

TP24 G-1

TP25 H-2

TP26 G-2

TP26 H-2

TP27 G-1

TP28 G-2

TP29 F-2

TP30 F-1

TP31 E-2

TP32 D-1

TP33 D-1

TP34 C-1

TP35 C-1

TP38 H-1

TP39 G-1

IC6791 H-2

VOLUME

Parts Location

SC-BOARD (COMPONENT SIDE)

IC6471 B-4

IC6472 B-4

IC6501 G-1

IC6521 D-1

IC6561 B-1

IC6562 C-2

IC6581 F-2

IC6601 D-4

IC6602 B-4

IC6610 B-5

IC6671 E-3

IC6681 C-5

IC6682 B-4

IC6721 A-4

IC6722 B-5

IC6724 B-5

IC6725 B-5

IC6751 H-4

IC6752 H-4

IC6753 H-5

IC6771 D-3

IC6772 E-4

IC6773 C-3

IC6774 C-3

IC6791 A-2

IC6801 B-3

IC6802 C-4

IC6821 C-3

IC6841 C-4

IC6861 B-4

IC6871 C-3

PC6480 B-4

PC6701 A-3

PC6702 A-3

PC6703 A-3

PC6704 H-5

PC6705 C-3

PC6760 H-4

PC6801 B-3

PC6861 B-4

PC6871 C-3

Q6401 H-3

Q6402 H-3

Q6403 G-3

Q6421 G-3

Q6422 F-3

Q6423 F-3

Q6441 C-2

Q6442 D-2

Q6451 D-2

Q6471 B-3

Q6511 G-2

Q6512 H-2

Q6516 G-1

Q6517 G-1

Q6531 C-1

Q6532 C-1

Q6581 F-1

Q6601 D-5

Q6602 D-5

Q6621 H-3

Q6622 G-3

Q6642 F-5

Q6643 F-5

Q6644 F-5

Q6645 G-5

PHOTO COUPLER

TRANSISTOR

TP15V H-1

TPSC1 F-5

TPSOS6 B-1

TPSOS7 C-1

TPVAD D-3

TPVSCN D-4

TPVSET D-4

TPVSUS H-1

VR6600 C-2

VR6602 D-5

VOLUME

TP40 D-5

TP41 D-5

TP42 D-5

TP43 D-5

TP44 B-5

TP45 B-5

TP46 F-5

TP47 F-5

TP48 F-5

TP49 F-5

TP50 H-5

TP51 H-5

TP52 H-1

TP53 H-4

TP54 C-5

TP55 C-5

TP56 C-5

TP57 C-5

TP58 C-5

TP59 G-5

TP60 G-5

TP61 G-5

TP62 G-5

TP63 G-5

TP64 F-4

VR6600 G-3

VR6602 E-4

Q6646 G-5

Q6647 G-5

Q6648 H-5

Q6661 C-2

Q6662 E-4

Q6663 E-4

Q6671 E-3

Q6680 E-3

Q6681 D-4

Q6682 D-4

Q6691 C-5

Q6742 C-4

Q6743 C-4

Q6744 B-4

Q6762 H-4

Q6781 E-4

Q6782 E-4

Q6791 D-3

Q6801 B-3

Q6802 B-2

Q6803 B-3

Q6821 D-4

Q6822 D-4

Q6824 C-3

Q6841 C-4

Q6842 C-4

TH-37PG9W / TH-42PG9W

C E GIBDFH

TH-37PG9W

SC-BOARD TNPA3794AE TH-42PG9W

SC-BOARD TNPA3794AB TH-37PG9W

SC-BOARD TNPA3794AE TH-42PG9W

SC-BOARD TNPA3794AB

SC-BOARD (COMPONENT SIDE)

TNPA3794AE (37inch)

TNPA3794AB (42inch)

C708

C514

SC41

Q511

C515

SC42

Q512

C516 C517 C518

SC45

Q516

SC46

Q517

C522

C524

D501

C525

D502

C526

R501

R502

R503

R504

R505

C721

R506

C723

R507

C724

R508

IC501

D701

C725

D702

C726

C727

C728

R700

Q531

R701

Q532

R702 R703 R704

R511

R705

R512

R706

R707

R708

R516

R517

R710

R711

L401

D521

R712

L402

D522

R713

L403

D523

R714

D524

R521

R715

R716

R522

R717

R523

R718

R524

R525 R526

D721

L601 IC521

L602

Q742

Q743

D723

D724

Q744

L411

R721

D725

L412

R722

D726

R723

L413

D727

D728

R531

D729

R532

R533 R534

IC721 PC701

IC722

PC702

C752

C753

PC703

PC704

C754

IC724

D730

IC725

C561

D731

PC705

C755

C562

D732

C563

D733

C564

D734

C565

C566

Q762

R742

R743

R744

R745

R746

R747

C771

C772

C773

C775

C581

D752

C582

C776

D753

C777

Q581

D758

R755

R561

R756

R562

R757

R563R564

R758

IC751

R565

R759

IC752

R566 R567

IC753

D760

R568

IC561

D761

Q781

IC562

C592

D762

Q782

C593

R760

R761 R762

C791

Q791

D771

C795

D773

L461

D581

L462

D582

D583

L463

L464

D584

R775

D585

R581

R582

R776

R583

R777

R584

IC771

R585

IC772

R586

R587

IC773

R588

IC774

IC581

R589

R781

L472

R782

R590

R591

R592

PC760

D791

R791

L481

R792

L482

R793

L483

L484

IC791

C400

C401

C402

C403

Q401Q402Q403

C601

C602

C603

C604

C410

C411

Q601

C605

C412

Q602

C606

C413

C801

C802

C803

C610

C804

C611

C805

Q801

C612

Q802

C806

C807

Q803

C420

C421

C422

C423

D401

Q421

Q422

Q423

R401

C811

R402

C812

R403

R404

C620

R405

R406

Q621

D601

C431

D602

Q622

D603

D604

D605

D606

D413

D607

R603

R604

R605

C439

C822

R606

C823

R608

R609

IC601

D801

Q821

D802

Q822

IC602

D803

D610

D804

Q824

C440

D611

D805

D612

D806

D613

D614

R610

D615

C445

D421

Q441

R611

C446

D422

Q442

R612

R806

R807

R613

R614

R808

R615

D619

R421

IC801

R809

R616

R422

IC802

R617

R423

R618

IC610

R424

R619

R425

C641

R426

R810

D620

R811

D621

Q642

R812

D622

Q643

R813

D623

Q644

R814

R620

D624

D431

Q451

R621

Q645

R815

R622

Q646

R816

Q647

R817

Q648

VR600

C841

C842

VR602

D820

D821

Q841

C845

Q842

D822

D823

C461

D825

R821

D826

R822

R823

C463

R824

R825

D441

R826R827

R828

R441

PC801

IC821

R829

R442

R443R444

C661 C662 C663

R830

Q661

D641

C471

R831

C472

D642

Q662

Q663

R833

D643

D644

R834

Q471

R835

D451

R642

R836

R837

R643

R838

R644

R839

R645

R451

C861

R646

R452

C862

R647

C863

R648

C671

D841

D842

T602

D843

C480

C481

R841

Q671

R842

R843

C483

R844

D461

R845

R846

R847

R848

IC841

R849

C871

C872

C873

R658

C681

R659

R465

C682

C683

Q680

R850

C491

D661

R851

Q681

D662

R852

Q682

SC2

D663

R853

D664

R660

D471

D665

R661

D859

D472

D666

R662

D667

R663

R664

R665

R471 R472

R666

D477

R667

R473

D478

D860

R668

R474

C691

D861

R475

R476

D862

R477

R478

R860

R479

D671

R861 Q691

IC471

IC472

R862R863

D480

R864

D481

R671

R865

R672

R866

R673

R867

R868 R869

IC861

IC671

D871

D872

D681

R871

D682

R872

D683

R873

D684

R874

R681

D491

D685

R875

R682

D686

R876

D687

R683

R877

R684

R878

R879

R685

IC871

R686

D497

R687

R688

IC681

R689

IC682

R690

R691

R886 R887 R888

PC861

R696

R697

PC480

PC871

L591

L592

SC20

SC23

C502

C504

SC30

C505

ZA401

C701

ZA402

C702

ZA403

C703

C704 C705

C511

C706

C512

C707

C513

TP15V

TPSC1

Discharge

TPVSUS

TPVSET

CRNo.6

TPSOS6 TPSOS7

TPVSCN

SCMM1

TPVAD

TNPA3794

PbF

A40

A39

B40

B39

A39

B39

A40

B40

916

10 11

ORDER NO.

P1 B2 B1

S3 S4 S5

TH-37PG9W / TH-42PG9W

13.14. SU-Board (37inch)

C E GIBDFH

SU-BOARD (COMPONENT SIDE)

TNPA3796AB

SU-BOARD (FOIL SIDE)

TNPA3796AB

TH-37PG9W

SU-BOARD TNPA3796AB TH-37PG9W

SU-BOARD TNPA3796AB

A41

A80

TNPA3796 1

31 2

PbF

SEE REVERSE FOR ORDER NO.

C6901

C6902

C6903

C6904

C6905

C6906

C6907

C6908

C6909

A40

C6914

C6915

C6916

C6921

Q6921

D6901

D6902

D6903

D6904

R6901

R6902

R6903

R6904

R6908

R6909

C6931

IC6901

C6932

IC6902

C6933

IC6903

C6934

IC6904

C6935

C6936

C6937

C6938

R6916

D6921

D6922

R6921

R6922

R6923

R6931

R6932

R6933

R6934

R6935

R6936

SU45

SU1SU2

SU3 TPSU1

TPSU2

TNPA3796

PbF

SU 1

125

100

125

100

125

100

A40

B40

A40

B40

A40

B40 ORDER NO.

Parts Location

SU-BOARD

IC6901 F-2

IC6902 E-2

IC6903 D-2

IC6904 C-2

TPSU1 D-2

TPSU2 C-2

Q6921 E-2

TRANSISTOR

TH-37PG9W / TH-42PG9W

13.15. SU-Board (42inch)

C E GIBDFH

SU-BOARD (COMPONENT SIDE)

TNPA3874AB

SU-BOARD (FOIL SIDE)

TNPA3874AB

TH-42PG9W

SU-BOARD TNPA3874AB TH-42PG9W

SU-BOARD TNPA3874AB

C6901

C6902

C6903

C6904

C6905

C6906

C6907

C6908

C6909

A40

C6914

C6915

C6916

C6921

D6901

Q6921

D6902

D6903

D6904

R6901

R6902

R6903

R6904

R6908

IC6901

C6931

R6909

IC6902

C6932

IC6903

C6933

IC6904

C6934

C6935

C6936

C6937

C6938

R6916

D6921

D6922

R6921

R6922

R6923

R6931

R6932

R6933

R6934

R6935

R6936

SU45

SU1

SU2SU3

TPSU1

TPSU2

PbF

TNPA3874 SU

76 100

ORDER NO.

A40

B40

A40

B40

A40

B40

A41A80

TNPA3874

31 2

PbF

SEE REVERSE FOR ORDER NO.

Parts Location

SU-BOARD

IC6901 G-2

IC6902 E-2

IC6903 C-2

IC6904 B-2

TPSU1 E-2

TPSU2 C-2

Q6921 F-1

TRANSISTOR

TH-37PG9W / TH-42PG9W

13.16. SD-Board (37inch)

C E GIBDFH

SD-BOARD (COMPONENT SIDE)

TNPA3797AB

SD-BOARD (FOIL SIDE)

TNPA3797AB

TH-37PG9W

SD-BOARD TNPA3797AB TH-37PG9W

SD-BOARD TNPA3797AB

C6955

C6956

C6957

C6958

C6959

D6953

D6954

R6959

C6982

C6983

IC6953

C6984

IC6954

C6985

R6966

R6981 R6982

R6983

R6985

R6986

TPSD2

SD3 SD2

C6966

C6965

C6951

C6952

C6953

C6954

TPSD1

C6964

D6951

D6952

R6951 R6952

R6953

R6954

R6958

IC6951

C6981

IC6952

C6986

C6987

C6988

R6984 SD46

B40

SD1

TNPA3797

PbF

SD 1

125

100

A40

B40

A40

B40

125

100

125

100 19

ORDER NO.

A40

B40

B41

B80

TNPA3797

31 2

PbF

SEE REVERSE FOR ORDER NO.

Parts Location

SD-BOARD

IC6951 E-2

IC6952 E-2

IC6953 D-2

IC6954 B-2

TPSD1 D-2

TPSD2 D-2

TH-37PG9W / TH-42PG9W

13.17. SD-Board (42inch)

C E GIBDFH

SD-BOARD (COMPONENT SIDE)

TNPA3875AB

SD-BOARD (FOIL SIDE)

TNPA3875AB

TH-42PG9W

SD-BOARD TNPA3875AB TH-42PG9W

SD-BOARD TNPA3875AB

TNPA3875

C6951

C6952

C6953

C6954

C6955

C6956

C6957

C6958

C6959

D6951

D6952

D6953

D6954

R6951

R6952

R6953

R6954

R6958

C6981

IC6951

R6959

C6982

IC6952

C6983

IC6953

C6984

IC6954

C6985

R6966

R6981

R6982

R6983

R6984

R6985

R6986

SD46

TPSD1

TPSD2

B1 B40

C6986 C6987

C6988

C6964

C6965

C6966

SD1

SD3 SD2

PbF

ORDER NO.

125

100

125

100

125

5175

100

51 75

100

A40

B40

A40

B40

A40

B40

TNPA3875 SD

B41

B80

PbF

SEE REVERSE FOR ORDER NO.

Parts Location

SD-BOARD

IC6951 F-2

IC6952 F-2

IC6953 D-2

IC6954 B-2

TPSD1 E-2

TPSD2 D-2

TH-37PG9W / TH-42PG9W

13.18. SS-Board

C E GIBDFH

TH-37PG9W

SS-BOARD TNPA3795AE TH-42PG9W

SS-BOARD TNPA3795AB TH-37PG9W

SS-BOARD TNPA3795AE TH-42PG9W

SS-BOARD TNPA3795AB

SS-BOARD (FOIL SIDE)

TNPA3795AE (37inch)

TNPA3795AB (42inch)

L001L002

L003 L011

L012

C156

L013

SS11

SS12

SS23

L221

SS34

SS41SS42SS43SS44

L241

SS41A

L061

L062

L063

L064

SS42A

L262

SS43A

L271

L272

L081

L082

L083

L084

SS44A

Q001Q002Q003

C201

C202

C203

C204

C011

C205

C012

C206

C013

C207

C208

C213

C214

C215

D001

Q021Q022

Q023

Q221

C031

Q222

Q041

D021

Q042

R020

R022

VR000

C241

L103

Q051

R222R223

C261

C262

C272

C273

D253

TP1

D061

TP2

TP3

TP4 TP5

TP6

TP7TP8TP9

D071

D081

TP10

TP11

TP12

TP13

TP14

TP15

D091

TP16

TP17

TP18

TP19

TP20

TP21

TP22

TP23

TP24

TP25

TP26

TP27

TP28

TP29

TP30

TP31

TP32

C111 C112

1SS

12 3

TNPA3795

654

CRNo.6

PbF

11 311 311 311 3 11 3

SEE REVERSE FOR ORDER NO.

11 311 311 3

EBC

Parts Location

SS-BOARD (FOIL SIDE)

TRANSISTOR

Q6001 H-2

Q6002 H-2

Q6003 H-2

Q6021 G-2

Q6022 F-2

Q6023 F-2

Q6041 D-2

Q6042 D-2

Q6051 C-2

Q6221 E-1

Q6222 D-1

TP16 B-2

TP17 B-2

TP18 B-2

TP19 B-2

TP20 B-2

TP21 B-2

TP22 B-2

TP23 B-2

TP24 H-3

TP25 H-3

TP26 G-3

TP27 F-3

TP28 D-3

TP29 D-3

TP30 C-3

TP31 A-3

TP32 C-1

TP1 H-1

TP2 H-1

TP3 H-1

TP4 H-1

TP5 H-1

TP6 H-1

TP7 H-2

TP8 H-2

TP9 H-2

TP10 H-2

TP11 H-2

TP12 B-3

TP13 B-2

TP14 B-2

TP15 B-1

TRANSISTORTP

VR6000 E-1

VOLUME

TH-37PG9W / TH-42PG9W

C E GIBDFH

R104

C132

C134

C135

D111

R111

R112

R113

Q141

L001 L002

Q142

L003

Q146

Q147

C152

C153

C154

L011

D131 L012

D132

C156

L013

R131

R132

R133

R134

R135

SS11

R136

SS12

IC131

R141

R142

R146

SS23

R147

L221

D151

Q171

D152

Q172

D153 D154

R151

R152

R153

R154

R155

R157

SS34

R158

IC151

R160

SS41 SS42

R166

SS43

SS44

L241

C192

C193

C194

C195

R171

R172

R173

R174

SS41A

L061

L062

L063

L064

SS42A

L262 D191

D192

D193

R191

R192

R193

R194

R195 R196

R197

SS43A

L271

IC191

L272

L081

L082

L083

L084

SS44A

C001

C002

C003

Q001 Q002 Q003

C201 C202 C203

C204

C011

C205

C012

C206

C013

C207 C208

C211

C212

C213 C214

C021

C215

C022

Q212

C023

D001

Q021 Q022 Q023

R001

R002

R003

R004

R005

C221

R006

Q221

C031

Q222

D010

C039

C040

C041

D211

C042

D212

C043

D213

C044

D214

C045

Q041

D021

D215

C046

Q042

R213

R214

R020

R021

R215

R022

R216

R023

R217

R024

VR000

R218

IC211

R025

C241

R026

C242

C243

R027

D221

L101

D222

L102

D223

L103

D224

Q051

R222 R223

R224

R225

R031

R226

R227

R229

IC221

C251

Q251

C061

C063

R231

D041

R232

R233 R234

R041

R235

R042

R236

R043

R044

C261

C262

C071

R241

D051

R242

R243

R244

R245

R051

R246

R052

IC241

C272

C273

D251

C081

D252

D253

C083

D254

R251

D061

D255

R252 R253

R254

R255

R061

R256

R062

R257

R258

IC251

C281 C282

C091

R261

D071

D072

D271

D272

D081

D091

D092

C101

C102

Q101

Q102

ZA001

ZA002

ZA003

C111C112

Q111

Q112

D101

D102

R101

R102

R103

TPVe

discharge

TPVDA

TP15V

TPVSUS

CRNo.6

TNPA3795

TPSS1

SSMM1

37 42

PbF

13 1

13 113 1

ORDER NO.

13 113 1

11 20

Parts Location

SS-BOARD (COMPONENT SIDE)

IC6131 C-2

IC6151 F-2

IC6191 H-2

IC6211 G-1

IC6221 F-1

IC6241 H-2

IC6251 H-3

Q6001 B-2

Q6002 B-2

Q6003 C-2

Q6021 C-3

Q6022 D-3

Q6023 D-3

Q6041 F-2

Q6042 F-2

Q6051 G-2

Q6101 H-2

Q6102 G-2

Q6111 G-1

Q6112 H-1

Q6141 C-2

Q6142 C-2

Q6146 C-2

Q6147 C-2

Q6171 F-2

Q6172 F-2

Q6212 F-1

Q6221 E-1

Q6222 F-2

Q6251 H-3

TRANSISTOR

TP15V B-2

TPSS1 H-2

TPVDA B-2

TPVe E-1

TPVSUS B-2

TRANSISTORTP

VR6000 E-1

VOLUME

TH-37PG9W

SS-BOARD TNPA3795AE TH-42PG9W

SS-BOARD TNPA3795AB TH-37PG9W

SS-BOARD TNPA3795AE TH-42PG9W

SS-BOARD TNPA3795AB

SS-BOARD (COMPONENT SIDE)

TNPA3795AE (37inch)

TNPA3795AB (42inch)

TH-37PG9W / TH-42PG9W

14 Block and Schematic Diagram

14.1. Schematic Diagram Notes

TH-37PG9W / TH-42PG9W

14.2. Main Block Diagram

LED_G/LED_R/REMOCON

POWER

PLASMA AI

STANDBY

AC CORD

CONTROL

15V

D32

12V

+15V

ADDRESS

CONTROL

DC/DC CONVERTER

P12

DATA DRIVER(RIGHT)

FACTOR

CONTROL

SOS7

DISCHARGE

IIC

VSUS

SUSTAIN

STBY5V_M

SUSTAIN

VOLTAGE

RELAY

DATA

P2.5V

+15VC

CONVERTER

P10

VOLTAGE

SUB-FIELD

EEPROM

P25

MEMORY

P3.3V

S.R.

RGB

FPGA

VOLTAGE

Vda-75V

SS_SOS8

15V

VOLTAGE

SCAN

RECEIVER

PULSE

SS11

GENERATOR

PULSE

CONTROL

SOS6/

VIDEO

RECTIFIER

VOLTAGE

D25

C21

POWER SUPPLY

(VE)

SUSTAIN DRIVE

PULSE

SDRAM

PROCESSOR

CONTROL

PULSE

FLASH

DATA DRIVE

PROCESSOR

IIC

P1.2V

SUSTAIN

SS12

PULSE

VSUS

ERASE

SOS7

SS23

STB12V

RECTIFIER

VOLTAGE

Vda

VDA

D20

SC2

SOS8

VOLTAGE


CONTROL

VOLTAGE

SUSTAIN

S.R.

P_ON/OFF

SCAN CONTROL

P11

S.R.

LVDS

RECTIFIER

F_STBY-15V

STANDBY

PLASMA AI PROCESSOR

+5V

C22

VDA

SOS6

D31

FORMAT CONVERTER

MICOM

PROCESS

RECTIFIER

OUTPUT

SUSTAIN CONTROL

PROCESS

C23

STB5V

RECTIFIER CONTROL

S.R.

PROTECTION(SOS)

+15V

FORMAT

SC23

FILTER

LINE

PS_SOS

HX1

PCRS-232C PC AUDIO IN

POWER SW

+15V VSUS

LINE

FILTER

SC20

+15V

VSUS

P23

+15VS

STB_12V

STB_PS

POWER LED_G

STAND_BY LED_R

REMOTE SENSOR

REMOTE RECEIVER

/LED_G,R

KEY SCAN

GK3

GK KEY SW

IIC

STB_PS

STB_PS_ON

SS34

DA DIGITAL SIGNAL PROCESSOR

DA1

DA6

A/D

8bit

RECEIVER

LVDS RGB


OUTPUT

SIGNAL

SYNC

CONTROL

FLASH

CPG

(CLK)

MCU

OSD

MIX

PROCESS

DIGITAL

SIGNAL D/A

OSD INPUT

DA3

DA2

SCAN DRIVE

J11

COMPONENT

SELECT

J12 J14J13

SYNC

SELECT

J10

J15

SERIAL

SELECT

SOUND

CONTROL

SOUND SP_AMP-L

SP_AMP-R

IIC

R,G,B

HD,VD

TXD,RXD

L,R

TXD,RXD

R,G,B

L,R

HD,VD

R,G,B

TXD,RXD

L,R

HD,VD

R,G,B

TXD,RXD

L,R

HD,VD

SYNC

SEPA/

SYNC

LVDS_SUB

LVDS_MAIN

IIC

KEY_SW

+15V

SOUND+15V

AVR

SOUND+12V

LAN+15V

IIC

TXD_PC,RXD_PC

TXD_TU,RXD_TU

SLOT2 SLOT3

GREEN

CABLE DET

KEY_SW

HD,VD

SPEAKER

HD,VD

LVDS

MAIN

SUB

KEY-SW,CABLE DET

IIC

RGB

MAIN

SUB

IIC R,G,B MAIN

HD,VD,CLK

TRANS-

MITTER

LVDS

DA5

HD,VD,CLK

OSD

IIC

ALARM,STB-ON

TXD,RXD

IIC

TXD-PC,RXD-PC

TXD-TU,RXD-TU

RESET

LED/REMOCON

/FAN_SOS

SDRAM

DDR

128M

VDA

/SYNC PROCESSOR

SLOT INTERFACE

/SOUND PROCESSOR

C11

S.R. S.R. S.R.

DATA DRIVER(LEFT)

C12

S.R

SCAN OUT

S.R

SCAN OUT

S.R

TH-37/42PG9W

Main Block Diagram TH-37/42PG9W

Main Block Diagram

COMPONENT COMPONENT

AUDIO IN

VIDEO IN

TH-37PG9W / TH-42PG9W

14.3. P-Board Block Diagram (37inch)

- +

R628

D520

D511

Q409

Q408

D529

D435

D535

D416

R661

Q412

Q527

C469

D430

D521

D505

D563

D528

Q413

C555

D417

R671

D404

X501

4NHz

D530

D420

D509

D596

D419

D401

R665

R443 1

D25

STB_PS(12V)

Vdat OVER VOLTAGE

INV.

ON:L

C447

+5Vc

INV.

Q434

R410

H:ON

Q402

ECO ON

IC409

L403

Q421

IC404


(IPD)

SS12

+15Vc

CIRCUIT

Vda

Q401

IC403

POWER MCU

+15Vs(S)

Q510

RESET

73V

D407

COLD

+15Vs(W)

Q564

+15Vs(W)

Q565

T601

D569

R455

COLD

Q568


F STB 14V

D570

HOT

R534

D571

1D585

STB_PS

R674

R670

OVER

R676

D539

Q422

Q541

R626

Q524

R656

AC GOOD

AC POWER

Vda70V

R650

OUT

R627

F STB ON

2Q540

R649


COUPLER

F 5A 250V

V LOW DET

STB12V

OUT

T402

5V OUT

OSC

AC P DET

DETECTION

VOLTAGE

Q538

OSC

Q509

DETECTION

(60V 40V)

R631

Vcc

TV ON/OFF

DETECTION

COUPLER

PR505

VSUS DET

(490V 80V)


NEUTRAL

F_STB ON/OFF

DETECTION

IC405

15V OVER

Q555

D586

VCC

F STB 14V

VOLTAGE

MOS

T404

+15Vc

(16V 2V)

DRIVE

ERROR DET

IC505

PFC ON/OFF

PROTECTION

(Vda)

CURR

DETECTION(100V 25V)

COUPLER

Q520

DET

Q517

HOT

CURR

LIVE

+15Vc

POWER SUPPLY

COMP

IC401

COUPLER

IC501

D531

Vda


Q508


DC POWER CONTROL

15V

RL402

COUPLER

GND

SC2

RL403

DC-DC

POWER SOS

Q407

IC512

LED BLINKING : 4TIMES

POWER

PS SOS

CONVERTER

D542

Q420

PR601

VSUS DET

GND

COLD

Q556

INV.

Q404

D544

DC/DC CONV. S

INV.

COUPLER

P10

12V DET

D545

Q406

VSUS ON/OFF


Csus

R406

R622

T407

Source

CONTROL

R533

R648

12V ON/OFF

D415

Source

+15Vc

R636

INV.

D579

(3V 1.0V)

Q521

IC406

BUFF

Q569

HOT

178V

ERROR DET

POWER

BUFF

IC411

AC CORD

INV.

(1.7A)

F402

Q537

ZCD

FACTOR

Vdd

ECO ON/OFF

Q512

CORRECTOR

Vsus

SWITCHING

PFC DET

IC510

Q535

P11

R579

STB5V DET

Vsus

VlOW DET

VCC

Vsus

IC504

Drain

SS11

PR401

REGULATOR

PFC

IC502

D513

R444

RESET

VFF

RECTIFIER

R475

DC/DC CONV.

STANDBY POWER SAVE

Q558

R441

Q563

(Vlow)

VlOW DET

R526

R442

Vsus 175V

R527

ERROR DET

D572

PFC DET

IC402

POWER

Vlow

H:ON

J10

INV

ERROR DET

Vlow

OVER

IC509

BUFF

D441

Vsus POWER CURCUIT

BUFF

STB5V ON/OFF

VSUS DET

Vcs

OSC 1

STB5V

D602

VOLTAGE

R620

395V

(15V)

Q507

Q561

VOLTAGE

R589

R496

D549

Vda

AC_GOOD

PROTECTION

R590

R495

P12

D531

MAIN RELAY

V LOW ON/OFF

D536

R621

+15V

R494

RUSH RELAY

RUSH

+15Vc

VDD

VSUS

ON/OFF

R666

R472

VSS

ALL OFF

D551

R473

XIN

XOUT

COUPLER

Q559

IC412

RESET

D574

STB PS

F_STBY_ON

IC507

PFC DET

ALL_OFF

D514

STB 5

ON/OFF

R545

1PS_SOS

LOW 15

F401

PANEL_MAIN_ON

D512

ECO_ON

Q418

OSC

Q566

F STB 14V

R497

L405

+15V

R465

(350V 40V)

PFC OUT

RECTIFIER

+15V

IC408

Q501

P23

L:ON

T410

Q502

Q557

Q525,Q530

SC23

L404

(Vsus)

(490V 80V)

R413 3

Q551

COUPLER

+5Vc

L410

Q505

IC410


R407

R458

ERROR DET

COUPLER

STBY5V

MAIN

R427

ECO

R464

IC506


Q553

R435

12V

D418

Q554

P25

IC520

PR509

C446,

(F STB 14V)

623 8

T401

TH-37PG9W

P-Board Block Diagram TH-37PG9W

P-Board Block Diagram

TH-37PG9W / TH-42PG9W

14.4. P-Board (1 of 6) Schematic Diagram (37inch)

Q402

RTR040N03

Q404

2SB1443

TP6

ZH117

ZH1

C443

1000p

R433

12K

R496

560K

R497

12K

C421

1.0

C635

0.01

ZH55

C476

100P

R401

10K

D419

S3K60

2.5mm

R406

ERX12SJ2R2V

ZH36

C446

390uF/450V

C440

R442

680K

ZH34

R439

R467

1000

L404

TF3524V-123Y5R0

R495

560K

2.5mm

C429

0.047

ZH104

ZH119

ZH3

R493

ZH19

ZH111

C423

4700P

R471

3.3K

R464

33K

R451

33K

ZH22

ZN404

ERZVGAD681

ZH118

ZH32

C461

330p

ZH114

L403

EXCELSA35T

D503

MA165

R403

ZH110

TP2

ZH37

C474

100P

ZH15

D415

D1NS4

R473

560K

Q401

SSM3J14T

R499

390K

IC406

L6561

1234

5678

R491

47K

ZH54

ZH120

R448

0.1

R692

4700

C404

1.0uF

1.0

C427

Q418

2SD1819A

C436

1.0

T401

G4D4A0000120

12345678

111213

141516 910

TP7

R415

10K

TP8

R419

100K

RL403

DG12D1-O(M)-2

ZH97

ZN401

ERZVGED621

ZH116

ZH11

R490

47K

R498

damy

ZH21

ZH96

ZH122

R454

10K

C470

1.0uF

ZH10

C445

1.0

ZH40

C460

330p

ZH33

ZH31

R430

430K

F402 T8AH 250V

R452

10K

R410

10/5W

TP1

D418

02DZ8.2

R492

ZH9

C468

0.01

R494

560K

ZH92

ZH95

ZH109

R414

15K

R453

R465

560K

L513

EXCELDR25V

C428

220P

L405

TF3524V-123Y5R0

R472

560K

ZH48

ZH123

ZH102

R426

10K

LIVE 4

NC 3

-2

NEUTRAL 1

ZH49

D417

S3K60

IC402

TL431A1LPM5

123

R424

22K

D504

MA165

R421

33K

R402

820

ZH8

C426

470P

Z453

EYF52BCY

F401

T8AH 250V

C462

1.0

ZH13

ZH2

ZH105

Z452

EYF52BCY

ZH17

C444

1000p

S402

RA-362MS-V7-Y

R480

47K

D401

B0FBAT000006

D433

02DZ15

C450

0.01[KB]

ZH16

ZH108

Z450

EYF52BCY

ZH30

Z451

EYF52BCY

ZN402

D4EAD7510001

ZH20

Q420

2SD1819A

C473

100P

ZH12

2.5mm

R443

R437

18K

R440

470K

Q406

B1DEHQ000007

R438

330

ZH42

C410

0.01

R449

0.1

S401

RA-362MS-V7-Y

R463

33K

R456

33K

R444

12K

D431

RB520

ZH103

2.5mm

C409

2.2uF

R475

680K

RL402

DG12D1-O(M)-2

R436

15K

D407

MA111

C432

1.0

ZH7

C431

1000P

C463

22P

R455

12K

R450

1000

Q407

HN1B01F

TP5

R458

4700

ZH18

ZH106

R693

10K

Q422

2SD1819A

ZH35

ZH4

R417

430K

D429

ERA15-10

C478

100P

ZH121

R441

680K

C422

0.01

R428

10K

Q421

2SD1819A

R462

430K

TP4

TP3

ZH107

R431

10K

ZH38

CURR

Vcc GND

CURR

DRIVE

COMP

MOS

DET

1587

CAUTION

AC CORD

COLD

HOT

COLD

HOT

COLD

HOT

COLD

HOT

COLD

HOT

CORRECTOR

FACTOR

POWER

PFC

P-BOARD TNPA3912AL (1/6)

CDFBE IAHG J K

P-BOARD

(3/6)

ERROR DET

PFC DET

TH-37PG9W

P-Board (1 of 6) Schematic Diagram TH-37PG9W

P-Board (1 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

14.5. P-Board (2 of 6) Schematic Diagram (37inch)

GNDs(W)

GNDs(S)

+15Vs(W)

+15Vs(S)

GND

+15Vc

GND

+15Vc

D586

1SR153

C620

0.01

R641

47K

R566

D538

02DZ5.1

ZH64

D521

D1NS4

Q510

RSR015P03

P23

GND

+15V

R922

100

R712

D602

02DZ8.2

Q538

2SK3018

C550

330P

R932

100K

C643

47/50V

Q556

RSS130N03

1234

5678

R632

220

ZH91

D579

MA165

D507

02DZ7.5

R607

22K

R551

330K

R659

30K

T404

G4D4A0000118

R713

4700

ZH66

R664

9100

C469

220P

D574

MA165

D520

MA111

D528

MA3X15300L

R582

10K

C508

470P

R585

33K

R614

3300

R598

33K

IC512

TL431A1LPM5

123

R635

WA5001

ZH99

Q517

HN1C01F

C451

100P

ZH83

R631

33K

C584

0.022

C551

0.1[KB]

D539

SF8L60

Q564

2SB1218AR

R711

0.22

D551

02DZ13

R706 1M

D545

MA4200-M

D508

02DZ7.5

R564

100K

ZH79

R633

ZH65

R612

2200

Q566

2SD1819A-RTX

R563

2.2

ZH74

R651

10K

Q413

B1DEGQ000070

C527

4.7

R574

330

C657

1000P

R953

2.2K

Q409

RSR025P03

R476

180

R700 1M

ZH81

C562

0.022

R537

100K

ZH94

R545

10K

R937

R649

22K

C554

1.0

R674

33K

L514

10uH

R556

R572

390

D544

MA4200-M

C624

0.01

C603

1.0

D517

MA4330-M

D572

02DZ24Z

IC520

LSSK0062

12345678

111213141516 910

C625

R588

390

R666

1000

ZH62

D423

MA188

C574

0.1

C552

0.1[KB]

R638

R565

C605

150u/200V

ZH84

J502

LSJW0001

C457

0.033u

PR509

Q408

RSR025P03

R704 1M

R680 0.22

T402

MT180

ZH75

R645

100

C530

0.033

R600

390

Q508

HN1C01F

Q527

2SK2882

C581

0.022

C656

2.2

R701 1M

C547

1000P

C546

1000P

R679

0.22

C555

1000u/16V

D530

02DZ10

R562

4.7K

D542

MA4200-M

R676

33K

D535

MA188

R653

33K

C604

150u/200V

R629

R705 1M

R663

***

C601

0.01

R662

150K

C556

1500u/25V

T407

ETQ11K5AZ

R670

1000

D540

SF8L60

R665

2000

D549

02DZ24Z

ZH82

R587 0.22

P10

F_STBY

GND

ZH85

Q541

2SK3018

R708 1M

ZH73

D518

MA4330-M

D571

02DZ24Z

C526

0.022

C534

470P

C655

2.2

R707 1M

ZH86

R478

R613

24K

C571

33P

C650

0.1

R573

390

R561

5.1K

R697

4.7

R655 0.22

R699 1M

Q520

HN1C01F

D569

02DZ24Z

R568

R592

3000

PR401

F 5A 250V

R482

R669

130K

R682

20K

R567

D570

02DZ24Z

C577

33/100V

D531

RF2001T3D

Q555

RSS130N03

1234

5678

C587

3300P

R571

R579

10K

R685

Q565

2SB1218AR

R477

180

R951

Q509

HN1A01F

R703 1M

R672

R931

33K

R660

12K

R597

33K

C557

1500u/25V

D536

SF20JC6

R576

12K

L510

EXCELDR25V

R596

100

R560

9.1K

D516

MA4330-M

R702 1M

D425

MA188

C523

1.0

R668

J501

LSJW0001

R933

R661

R599

390

ZH78

R696

R673

R584

10K

ZH80

Q412

B1DEGQ000070

R698 0.22

R688

R667

R650

10K

R593

5600

R690

4.7

C528

1.0

P12

STB_PS

STB_12V

GND

+15V

Vda

R952

R675

22K

D598

02DZ5.1

ZH72

R624

0.22 D543

02DZ15

C503

470P

R591

R555

D529

MA3X15300L

R570

100K

18161211 13 1514 1710

(SS12)

SS-BOARD

(SC23)

SC-BOARD

J-BOARD

(J4)

COLD

HOT

COLD

HOT

Vlow

Vda

AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR

P-BOARD

(4/6)

ERROR DET(Vda)

DC/DC CONV. DC/DC CONV.

VLOW DET

POWER CONTROL

(J10)

J-BOARD

P-BOARD TNPA3912AL (2/6)

70.0

12.0

15.0

12.0

70.0

15.0

14.0

TH-37PG9W

P-Board (2 of 6) Schematic Diagram TH-37PG9W

P-Board (2 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

14.6. P-Board (3 of 6) Schematic Diagram (37inch)

R429

4.7

ZH59

D430

MA111

D595

WA5001=5

R459

680K

C630

0.01

C513

50V

470P

IC411

TL431A1LPM5

123

R677

470K

ZH63

ZH67

C512

50V

470P

ZH5

C585

0.1

C408

1000P

D444

D1NL20U

D601

02DZ5.1

R404

D435

ERA15-10

D432

RB520

R521

IC504

TL431A1LPM5

123

C494

1u/250V

R413

10/5W

Q521

2SK3018

R435

430K

IC408

ON3171

ZH88

D563

02DZ6.2

R539

10K

C529

1.0

ZN405

510V

C402

1.0

ZH68

Q434

2SK3302

D436

MA4200-M

R412

ZH89

C467

220P

C627

1000P

R544

330

IC409

MIP2G4

Vdd

Vcc

DRAIN

SOURCE

ZH6

D404

S1WB(A)80

C413

0.1

ZH44

R422

330K

C497

47/50V

D437

MA4200-M

R461

10K

R423

D438

MA4200-M

C507

0.01

D509

D2S6M

ZH41

C407

22u/450V

R418

R594

150

R530

33K

R524

C517

220u

IC410

ON3171

1mm

ZN406

510V

R488

100K

R416

C654

1.0

L410

40mH

R921

33K

R541

R507

220

ZH45

1mm

ZH60

R434

ZH61

D511

D1NJ10

D411

ST02D-170

D596

ERA15-10

C414

0.047u

R432

C433

0.1

T410

ETS25AF115AH

C514

50V

470P

Q524

2SK2090

C515

1200

D416

1SR153

C425

0.01

R943

R540

D412

D1NL20U

R483

4.7M

C434

1.0

R420 0

C516

0.47

R938

4.7K

ZH52

R542

R407

430K

R522

C493

47/50V

D441

D1NL20U

D445

MA4360-H

R425

39K

R427

430K

ZH53

R549

10K

Q537

RTR040N03

1258

COLD

HOT

COLD

HOT

COLD

HOT

COLD

HOT

P-BOARD TNPA3912AL (3/6)

FBE IA JCD HG K

BG BKBEBDBB BIBHBA BJBFBC BL BM BN BO BP

P-BOARD

(1/6)

P-BOARD

(5/6)

DC POWER

CONTROL

COUPLER


COUPLER


ERROR DET

TH-37PG9W

P-Board (3 of 6) Schematic Diagram TH-37PG9W

P-Board (3 of 6) Schematic Diagram

F410

1A / 250V

TH-37PG9W / TH-42PG9W

14.7. P-Board (4 of 6) Schematic Diagram (37inch)

C634

1000P

R527

220K

IC509

L6565N

INV

COMP

VFF

ZCD

GND

Vcc

R526

220K

ZH24

R634

0.68

R626

150K

D587

MA188

ZH25

R550

47K

IC506

HA17431

R652

9.1K

R533

16K

R646

22K

R947

330

ZH100

Vsus

R658

C640

0.1

R647

22K

D585

02DZ7.5

D575

MA188

R528

4.7

ZH101

GND

ZH113

GND

R643

0.68

R644

0.68

C641

1000P

C616

1000P

R656

47K

R671

10K

R636

150K

R619

0.68

C629

0.01

IC505

ON3171

R695

16K

R945

22K

PR601

T 3.15A 250V

D582

MA7056

ZH27

R628

R637

0.68

D501

S3K60

R691

100K

C531

1.0

Q505

2SK2998

R621

12K

ZH112

Vsus

ZH23

R603

33K

R534

47K

R627

8.2K

D514

02DZ6.2

Q530

2SD1819A-RTX

P11

R654

T601

45H-5034A

ZH47

C619

0.1

ZH46

R622

150K

ZH26

R543

15K

R648

150K

ZH39

R608

3300

R590

12K

R601

47K

Q540

RSR025P03

ZH29

C611

1700u/200V

R620

10K

Q507

2SK3568

C632

330P

R589

12K

R946

33K

C518

0.1

R642

0.68 C615

1700u/200V

IC507

ON3171

D506

02DZ5.1

C653

1000P

R657

1000

Q525

2SK3018

R595

2200

ZH28

12 1710 181611 13 1514

(SC2)

SC-BOARD

(SS11)

SC-BOARD

Vsus

ERROR DET(Vsus)

Csus

AA AB AG AHAC AD AE AF AI AJ AK AL AM AN AO AP AQ AR

CA CB CC CD CE CF CG CH CI CJ CK

P-BOARD

(2/6)

P-BOARD

(6/6)

COUPLER


COUPLER


DC-DC CONVERTER

P-BOARD TNPA3912AL (4/6)

175.0

TH-37PG9W

P-Board (4 of 6) Schematic Diagram TH-37PG9W

P-Board (4 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

14.8. P-Board (5 of 6) Schematic Diagram (37inch)

R575

1000

R936

10K

C506

0.01

Q551

2SK3018

Q512

2SK3018

C626

0.01

R955

47K

C638

0.01

R577

47K

R516

1000

R939

D515

02DZ3.3

C612

0.01

C511

1000P

R511

100K

R520

100K

C610

1.0

D555

02DZ7.5

IC502

R3111N401C

R505

R583

47K

C583

1000P

R538

100K

R508

1000

R525

47K

C613

0.01

R950

R553

100

R687

10K

R678

R487

4.7K

R586

47K

X501

4MHz

R515

1000

D505

D1NS4

C519

1.0

R506

1000

R578

47K

D590

02DZ3.3

Q568

2SJ463A

R504

1000

IC404

ON3171

Q561

2SD1819A-RTX

R630

4.7K

R686

1000

R546

1000

R514

100K

R554

1000

R684

10K

R548

1000

R535

1000

C607

1.0

R532

R509

100K

C504

1.0 R513

100K

Q558

2SD1819A-RTX

R683

33K

R501

22K

IC401

ON3171

C505

1000P

C631

0.01

Q569

2SK3018

R581

47K

R715

100

R580

47K

C502

0.01

C501

0.01

R606

1200

C510

0.1

R935

100K

R689

1000

Q501

2SD1820A

R617

10K

IC412

ON3171

IC501

M34509G4FP

VDD

VSS

XIN

XOUT

CNVSS

Reset

P21

P20

P01

P00

P13

P12

P11

P10

P03

P02

P31

P30

R714

100

R502

100K

C509

100/25V

R940

Q553

2SD1819A-RTX D513

MA111

R503

100K

D588

02DZ3.3

R615

10K

Q535

2SD1819A

R609

1000

R552

10K

R611

47K

R512

22K

R518

R956

100K

R602

3300

C639

0.01

IC405

ON3171

R519

100K

R618

100K

Q559

2SD1819A-RTX

R557

100K

R536

1000

Q563

2SK2090

C608

0.01

D559

02DZ7.5

Q557

2SD1819A-RTX

R510

100K

C659

0.01

R517

10K

D512

MA111

C533

0.01

R610

47K

R558

470K

Q502

2SD1820A

Q554

RSR025P03

R616

10K

IC403

ON3171

91258

COLD

HOT

COLD

HOT COLD

HOT

POWER MCU

RESET

P-BOARD TNPA3912AL (5/6)

BM BNBC BLBJ BOBBBA BF BKBIBD BE BH BPBG

P-BOARD

(3/6)

COUPLER


COUPLER COUPLER


COUPLER


COUPLER


TH-37PG9W

P-Board (5 of 6) Schematic Diagram TH-37PG9W

P-Board (5 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

14.9. P-Board (6 of 6) Schematic Diagram (37inch)

L511

47uH

C623

L512

4.7uH

PR505

TF16N5.00

R529

100

R569

33K

IC510

BD9703FP

12345

C660

2.2

D599

D1FP3

C661

0.01

R523

47K

C658

1.0

D502

WA5001=5

P25

ALL_OFF

Panel_Main_ON

PS_SOS

ECO_ON

FAN_SOS

F_STBY_ON

GND(STBY)

GND

STBY5V

+5Vc

GND

+5Vc

GND

+15Vc

AC_GOOD

KILL_SOS

R547 100

D600

02DZ7.5

C662

0.01

C558

470u/25V

R559

8.2K

C559

1200

1512 1710 181611 13 14

D-BOARD

(D25)

P-BOARD TNPA3912AL (6/6)

CGCF CHCA CKCD CE CJCCCB CI

(4/6)

P-BOARD

3.2

15.0

5.0

2.6

5.0

REGULATOR

SWITCHING

TH-37PG9W

P-Board (6 of 6) Schematic Diagram TH-37PG9W

P-Board (6 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

14.10. P-Board Block Diagram (42inch)

- +

D509

X501

4NHz

R661

R665

Q408

Q412

D417

D420

D419

C469

R671

C555

R443 1

D529

D528

D404

D596

D416

D435

D401

D430

D563

D511

D505

R628

Q527

D530

Q413

Q409

D520

D521

D535

IC408

IC404

IC403

923

810

T401

5876

VCC

MOS

DRIVE

CURR

DET

CURR

COMP

2134

Q407

Q420

Q404

Q406

R406

D415

IC406

POWER

FACTOR

CORRECTOR

Q535

VDD

VSS

XIN

XOUT

RESET

STB PS

PFC DET

STB 5

ON/OFF

LOW 15

AC GOOD

F STB ON

V LOW DET

AC P DET

TV ON/OFF

VSUS DET

F_STB ON/OFF

PS SOS

PFC ON/OFF

V LOW ON/OFF

IC501

IC502

RESET

Vda

P12

+15V

+15Vc

+15V

P23

SC23

9+5Vc

STBY5V

P25

D25

+5Vc

Q421

POWER MCU

COLD

HOT

10 STB_PS

Q422

Vda70V

8STB12V

Q509

+15Vc

HOT

POWER SUPPLY

Vda

Q508

PR601

543

ZCD

VCC

VFF

CSINV

IC509

MAIN RELAY

RUSH RELAY

VSUS

ON/OFF

ALL OFF

Q559

13 F_STBY_ON

ALL_OFF

PS_SOS

PANEL_MAIN_ON

ECO_ON

F STB 14V

P10

J10

IC520

PR401

F401

F402

NEUTRAL

RL402

RL403

IC412

SS12

T601

T410

T404

D539

LIVE

POWER

COLD

HOT

AC CORD

PFC DET

STB5V DET

VlOW DET

Vsus 175V

Vlow

Vsus POWER CURCUIT

OSC

395V

R496 R495 R494

Q418 R497

(350V 40V)

PFC OUT

Q501

Q502

Q551

Q505

ERROR DET

IC506

ON:L

H:ON

2Vda

73V

D569

D570

D571

R670

Q541

R650

R649

5V OUT

DETECTION

COUPLER


IC405

COUPLER


CONTROL

D579

R579

D549

R666

D551

R545

IC505

IC401

COUPLER


COUPLER

DC-DC

CONVERTER

Csus

R533

(3V 1.0V)

178V

(1.7A)

R526

R527

H:ON

OVER

VOLTAGE

PROTECTION

(490V 80V)

COUPLER


COUPLER


OVER

VOLTAGE

DETECTION

(490V 80V)

DETECTION

15V OVER

VOLTAGE

(16V 2V)

PROTECTION

COUPLER


SC2

GND

1Vsus

P11

Vsus

SS11

PFC

R444

R475

R441

R442

D441

R620

R589

R590

R621

D574

OSC

L405L404

R413

L410

R407

R427

R435

Q434

IC409 (IPD)

DC POWER CONTROL

8Source

Source

Vdd

Drain

Vcs

14 12

16 R472

R473

R465

R464

D418

C446,

C447

Q402

L403

Q401

D407

R455

PFC DET

AC POWER

RESET

Q568

ECO

STB_PS(12V)

R410


IC410

COUPLER

IC504

Q563Q521

Q569

Q537

Q512 Q561

AC_GOOD

8756

DDDD

DDD

Q555 Q556

DC/DC CONV. DC/DC CONV.

Q558

Q557

Q525,Q530

R534

D585

Q524

OUT

Vcc

PR505

ERROR DET

(Vda)

IC512

D542 D544 D545

SWITCHING

IC510

REGULATOR

D513

D512

Q566

15 4

16 2


COUPLER

IC507

D514

(Vsus)

Vsus

R622

R648

R636

R626

R656

R627

OUT

DETECTION

(60V 40V)

VOLTAGE

Q507

243

59106

T402

Q538

R631

R674

R676

D572

POWER

CIRCUIT

Q510

Q564

Q565

Q540

F 5A 250V

OSC

D531

7D586

D531

D536

RUSH

Q553

Q554

PR509

Vdat OVER VOLTAGE

DETECTION(100V 25V)

Q520 Q517

+15Vc

+15Vs(S)

+15Vs(W)

+15Vc

ERROR DET

IC411

ERROR DET

IC402

ERROR DET

RECTIFIER

L:ON

RECTIFIER

STANDBY POWER SAVE

(Vlow)

R458

MAIN

12V

BUFF

INV.

ECO ON/OFF

BUFF

STB5V ON/OFF

STB5V

(15V) (F STB 14V)

INV.

INV. ECO ON

VSUS DET

INV.

VSUS ON/OFF 12V ON/OFF

INV.

BUFF

VSUS DET

D602

12V DET

T407

15V

GND

POWER SOS

LED BLINKING : 4TIMES

TH-42PG9W

P-Board Block Diagram TH-42PG9W

P-Board Block Diagram

TH-37PG9W / TH-42PG9W

14.11. P-Board (1 of 6) Schematic Diagram (42inch)

R472

560K

R419

100K

R497

12K

ZH42

R426

10K

C443

1000p

R473

560K

TP5

ZH105 R428

10K

TP6

S402

RA-362MS-V7-Y

ZH18

RL403

DG12D1-O(M)-2

ZN402

D4EAD7510001

R463

33K

C423

4700P

ZH33

ZH122

R439

R417

430K

C431

1000P

T401

G4D4A0000119

12345678910

1112

1314151617

181920

R433

12K

ZH109

D503

MA165

ZH96

R475

680K

D418

02DZ8.2

L405

TF3524V-123Y5R0

ZH21

R414

15K

D420

S3K60

Z450

EYF52BCY

ZH51

R492

TP4

C409

2.2uF

R450

1000

R437

18K

ZH34

R442

680K

ZH9

C404

1.0uF

ZH120

IC402

TL431A1LPM5

123

D433

02DZ15

ZN401

ERZVGED621

ZH19

Q422

2SD1819A

R471

3.3K

C476

100P

R451

33K

TP8

ZN404

ERZVGAD681

L404

TF3524V-123Y5R0

ZH36

C421

1.0

ZH10

ZH32

ZH117

R430

430K

D431

RB520

R465

560K

ZH20

ZH40

C429

0.047

C478

100P

ZH111

D415

D1NS4

R480

47K

Z451

EYF52BCY

ZH107

C446

390uF/450V

D419

S3K60

C470

1uF

ZH123

R449

0.1

ZH35

C635

0.01

ZH106

R443

D429

ERA15-10

R495

560K

ZH103

R444

12K

R403

C472

***

TP2

2.5mm

R455

12K

ZH8

ZH48

R453

C463

22P

R438

330

R421

33K

2.5mm

R431

10K

C422

0.01

ZH1

2.5mm

D417

S3K60

S401

RA-362MS-V7-Y

C468

0.01

R436

15K

R410

10/5W

ZH38

C436

1.0

R456

33K

ZH102

TP3

C462

1.0

C461

330p

ZH31

C474

100P

C475

***

Q421

2SD1819A

C450

0.01

ZH118

ZH49

R452

10K

ZH95

R406

ERX12SJ2R2V

R493

ZH55

R464

33K

ZH50

ZH110

R401

10K

TP7

R441

680K

R494

560K

D504

MA165

F401

T8AH 250V

ZH16

R692

4700

ZH43

ZH119

ZH92

ZH17

ZH54

ZH2

ZH12

Z453

EYF52BCY ZH7

R402

820

R491

47K

C460

330p

Q407

HN1B01F

C445

1.0

L513

EXCELDR25V

R498

0.08

2.5mm

R454

10K

ZH15

C432

1.0

ZH22

R499

390K

R448

0.1

RL402

DG12D1-O(M)-2

C410

0.01

TP1

Q418

2SD1819A

D401

B0FBAT000006

R458

4700

Q401

SSM3J14T

R440

470K

C444

1000p

ZH30

Q404

2SB1443

R467

1000

F402

T8AH 250V

ZH121

Q402

RTR040N03

C426

470P

LIVE 4

NC 3

-2

NEUTRAL 1

R490

47K

ZH108

L403

EXCELSA35T

R424

22K

C440

K4ZZ01000206

ZH37

ZH116

Z452

EYF52BCY

R693

10K

R415

10K

ZH56

C473

100P

ZH104

IC406

L6561

1234

5678

ZH11

R462

430K

ZH3

C427

1.0

R496

560K

D407

MA111

C428

220P

Q420

2SD1819A

ZH13

ZH97

ZH4

Q406

B1DEHQ000007

CURR

Vcc GND

CURR

DRIVE

COMP

MOS

DET

CAUTION

61 87

CAUTION

AC CORD

P-BOARD TNPA3911AL (1/6)

HOT

COLD

HOT

COLD

HOT

POWER

FACTOR

CORRECTOR

PFC

COLD

HOT

COLD

ABC D F G H I JKE

P-BOARD

(3/6)

ERROR DET

PFC DET

TH-42PG9W

P-Board (1 of 6) Schematic Diagram TH-42PG9W

P-Board (1 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

14.12. P-Board (2 of 6) Schematic Diagram (42inch)

ZH72

ZH65

R600

390

C530

0.033

D531

RF2001T3D

P10

F_STBY

GND

R685

C546

1000P

PR509

P23

GND

+15V

R563

2.2

R551

330K

R713

4700

R673

ZH81

R932

100K

Q565

2SB1218AR

R697

4.7

ZH83

R649

22K

ZH79

Q508

HN1C01F

D544

MA4200-M

D517

MA4330-M

R587 0.22

R596

100

R537

100K

R672

D529

MA3X15300L

R669

130K

R705 1M

R688

R682

20K

D579

MA165

R698 0.22

R676

33K

R653

33K

R574

330

T402

MT180

C571 33P

C457

0.033u

Q517

HN1C01F

R478

D528

MA3X15300L

R477

180

C527

4.7

R476

180

R662

150K

C577

33/100V

R555

R571

IC520

LSSK0062

12345678

111213141516 910

Q527

2SK2882

R708 1M

C624

0.01

D516

MA4330-M

R667

R707 1M

Q541

2SK3018

C620

0.01

R675

22K

PR401

F 5A 250V

C469

220P

Q555

RSS130N03

1234

5678

Q409

RSR025P03

C523

1.0

R570

100K

ZH99

L510

EXCELDR25V

T407

ETQ11K5AZ

R593

5600

R700 1M

R702 1M

R607

22K

D425

MA188 R679 0.22

R562

4.7K[F]

C587

3300P

R568

T404

G4D4A0000118

GNDs(W)

GNDs(S)

+15Vs(W)

+15Vs(S)

GND

+15Vc

GND

+15Vc

C528

1.0

R629

D551

02DZ13

C552

0.1

C604

150u/200V

R560

9.1K

R680 0.22

C556

1500u/25V

R582

10K

Q412

B1DEGQ000070

R706 1M

C451

100P

R632

220

C656

2.2

D598

02DZ5.1

R660

12K

C625

ZH80

R598

33K

C526

0.022[KB]

C574

0.1

R573

390

R641

47K

ZH86

C643

47/50V

R703 1M

L514

10uH

C657

1000P

R645

100

R655 0.22

C605

150u/200V

ZH64

R701 1M

R922

100

R668

C655

1.0

C584

0.022

D574

MA165

R482

D542

MA4200-M

P12

STB_PS

STB_12V

GND

+15V

Vda

C503

470P

R567

R592

3000

R670

1000

R665

2000

R674

33K

R614

3300

R696

D536

SF20JC6

D507

02DZ7.5

R699 1M

R561

5.1K

R588

390

R564

100K

C650

0.1

ZH74

D572

02DZ24Z

ZH94

R576

12K R651

10K

C562

0.022

R952

R579

10K

R572

390

D535

MA188

IC512

TL431A1LPM5

123

D549

02DZ24Z

ZH84

D602

02DZ8.2

R585

33K

C551

0.1

ZH62

D545

MA4200-M

D569

02DZ24Z

ZH85

J502

LSJW0001

D521

D1NS4

R704 1M

C547

1000P

R591

D530

02DZ10

R933

ZH66

C603

1.0

R664

9100

R613

24K

R951

Q566

2SD1819A-RTX

R584

10K

D508

02DZ7.5

D571

02DZ24Z

ZH75

D423

MA188

R566

Q564

2SB1218AR

D543

02DZ15

ZH78

R545

10K

D540

SF8L60

R565

R597

33K

C534

470P

R659

30K

C550

330P

R631

33K

R650

10K

R666

1000

R711 0.22

R624

0.22/2W

R953

2.2K

Q413

B1DEGQ000070

R633

D539

SF8L60

ZH82

R937

Q408

RSR025P03

C557

1500u/25V

C601

0.01

R661

C555

1000u/16V

R556

R635

WA5001

ZH73

D570

02DZ24Z

Q520

HN1C01F

ZH91

R599

390

C581

0.022

Q510

RSR015P03

Q509

HN1A01F

C508

470P

R690

4.7

Q556

RSS130N03

1234

5678

R712

4.7

R638

J501

LSJW0001

D538

02DZ5.1

D520

MA111

D518

MA4330-M

D586

1SR153

Q538

2SK3018

C554

1.0

R931

33K

15 16 1810 12 171411 13

SS-BOARD

(SS12)

(SC23)

SC-BOARD

HOT

COLD

POWER CONTROL

Vda

ERROR DET(Vda)

COLD

HOT

COLD

Vlow

J-BOARD

(J4)

AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR

P-BOARD

(4/6)

AS AT

VLOW DET

DC/DC CONV. DC/DC CONV.

J-BOARD

(J10)

P-BOARD TNPA3911AL (2/6)

12.0

15.0

12.0

70.0

15.0

14.0

TH-42PG9W

P-Board (2 of 6) Schematic Diagram TH-42PG9W

P-Board (2 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

14.13. P-Board (3 of 6) Schematic Diagram (42inch)

ZH6

C630

0.01

C514

470P

R921

33K

C507

0.01

C414

0.047u

D430

MA111

R530

33K

D436

MA4200-M

ZH59

R427

430K

R423

R483

4.7M

R425

39K

ZH5

ZH89

ZH67

ZH44

C585

0.022

Q521

2SK3018

R407

430K

R938

4.7K

C517

220u

C433

0.1

C654

1.0

D437

MA4200-M

ZH53

IC408

ON3171

R549

10K

C512

50V

470P

ZH41

R413

10/5W

R521

2.5mm

R404

ZH68

D601

02DZ5.1

R432

R412

R594

150

2.5mm

R943

D411

ST02D-170

C408

1000P

R435

430K

R539

10K

R461

10K

C515

1200

D438

MA4200-M

IC504

TL431A1LPM5

123

T410

ETS25AF115AH

R418

ZH88

R544

330

ZH61

D412

D1NL20U

C627

1000P

Q537

RTR040N03

C493

47/50V

C413

0.1

IC410

ON3171

R488

100K

IC409

MIP2G4

Vdd

Vcc

DRAIN

SOURCE

D432

RB520

C402

1.0

IC411

TL431A1LPM5

123

R459

680K

C513

50V

470P

D445

MA4360-H

R541

D596

ERA15-10

ZH45

ZH63

C516

0.47

ZN406

ERZV07D511

D511

D1NJ10

C529

1.0

Q434

2SK3302

R429

4.7

ZN405

ERZV07D511

D441

D1NL20U

Q524

2SK2090

R507

220

R422

330K

D404

S1WB(A)80

R416

R542

R522

D435

ERA15-10

C434

1.0

L410

40mH

R434

D563

02DZ6.2

R420

D416

1SR153

D444

D1NL20U

ZH60

C467

220P

C494

1/250V

D509

D2S6M

R677

470K

ZH52

R540

D595

WA5001=5

R524

C497

47/50V

C407

22u/450V

C425

0.01

1587

COLD

HOT

COLD

HOT

COLD

HOT

COLD

HOT

P-BOARD TNPA3911AL (3/6)

ERROR DET

C JDF KBE IA HG

BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO

P-BOARD

(1/6)

(5/6)

P-BOARD

ERROR DET


COUPLER

CONTROL

DC POWER

COUPLER


TH-42PG9W

P-Board (3 of 6) Schematic Diagram TH-42PG9W

P-Board (3 of 6) Schematic Diagram

F410

1A / 250V

TH-37PG9W / TH-42PG9W

14.14. P-Board (4 of 6) Schematic Diagram (42inch)

C632

330P

R526

220K

R528

4.7

R622

150K

R534

47K

C629

0.01

R640

0.68

ZH24

D587

MA188

D575

MA188

C653

1000P

ZH27

R543

15K

ZH100

Vsus

R590

12K

R691

100K

R647

22K

R550

47K

Q505

2SK2998

R652

9.1K

ZH112

Vsus

R627

8.2K

Q540

RSR025P03

ZH39

R595

2200

R589

12K

ZH29

ZH23

ZH28

ZH26

T601

45H-5034A

IC509

L6565N

INV

COMP

VFF

ZCD

GND

Vcc

P11

C615

1700u/200V

C641

1000P

R620

10K

C611

1700u/200V

R671

10K

C640

0.1

R643

0.68

PR601

T 3.15A 250V

D501

S3K60

R634

0.68

R946

33K

R644

0.68

R626

150K

R657

1000

IC507

ON3171

R656

R947

330

R648

150K

R621

12K

R646

22K

R527

220K

C518

0.1

R612

2200

R619

0.68

IC506

HA17431

ZH25

C619

0.1

R628

R636

150K

D514

02DZ6.2

R945

22K

Q507

2SK3568

R639

0.68

R603

33K

ZH113

GND

C634

1000P

Q530

2SD1819A-RTX

D506

02DZ5.1

R601

47K

D582

MA7056

R533

16K

R654

ZH47

R637

0.68

ZH46

R658

Q525

2SK3018

R642

0.68

C531

1.0

D585

02DZ7.5

IC505

ON3171

R608

3300

R695

16K

C616

1000P

ZH101

GND

1512 1710 181611 13 14

(SS11)

SC-BOARD

(SC2)

SC-BOARD

Csus

ERROR DET(Vsus)

Vsus

AC AFADAA AGAB AE

CA CB CC CD CE CF CG CH CI CJ CK CL

P-BOARD

(2/6)

P-BOARD

(6/6)

AK ALAJ AO AQ ARAM ANAI ASAH AP AT

DC-DC CONVERTER


COUPLER


P-BOARD TNPA3911AL (4/6)

175.0

TH-42PG9W

P-Board (4 of 6) Schematic Diagram TH-42PG9W

P-Board (4 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

14.15. P-Board (5 of 6) Schematic Diagram (42inch)

Q558

2SD1819A-RTX

R616

10K

C511

1000P

R501

22K

R615

10K

D588

02DZ3.3

Q557

2SD1819A-RTX

R940

R512

22K

C505

1000P

R518

R509

100K

R504

1000

C613

0.01

R936

10K

Q568

2SJ463A

R684

10K

R525

47K

C583

1000P

R935

100K

IC501

M34509G4FP

VDD

VSS

XIN

XOUT

CNVSS

Reset

P21

P20

P01

P00

P13

P12

P11

P10

P03

P02

P31

P30

C506

0.01

R520

100K

R487

4.7K

C659

0.01

R678

R532

Q535

2SD1819A

Q554

RSR025P03

Q563

2SK2090

R535

1000

Q561

2SD1819A-RTX

C639

0.01

R955

47K

R502

100K

R558

470K

R548

1000 R586

47K

Q551

2SK3018

X501

4MHz

IC502

R3111N401C

R939

R519

100K

C608

0.01

C510

0.1

R606

1200

C533

0.01

C607

1.0

R950

C509

100/25V

R538

100K

R617

10K

C501

0.01

IC405

ON3171

R689

1000

D555

02DZ7.5

IC403

ON3171

R511

100K

R956

100K

C519

1.0

R575

1000

R516

1000

R618

100K

IC401

ON3171

R536

1000

R503

100K

R505

IC412

ON3171

R580

47K

R578

47K

IC404

ON3171

R557

100K

R517

10K

R510

100K

C502

0.01

R686

1000

R611

47K

R554

1000

C638

0.01

Q559

2SD1819A-RTX

C610

1.0

R514

100K

R581

47K

R687

10K

R515

1000

Q512

2SK3018

D505

D1NS4

R714

100

C504

1.0

R610

47K

D512

MA111

R583

47K

Q553

2SD1819A-RTX

R552

10K

C626

0.01

Q502

2SD1820A

R602

3300

D513

MA111

D559

02DZ7.5

R715

100

R546

1000

C612

0.01

R508

1000

Q569

2SK3018

Q501

2SD1820A

C631

0.01

R683

33K

R577

47K

R609

1000

D590

02DZ3.3

R630

4.7K

D515

02DZ3.3

R513

100K

R506

1000

2587

COLD

HOT

COLD

HOT

COLD

POWER MCU

RESET

P-BOARD TNPA3911AL (5/6)

BG BKBEBD BNBMBL

BB BIBHBA BJBFBC

P-BOARD

(3/6)

COUPLER


COUPLER

PHOTO COUPLER


COUPLER

PHOTO PHOTO

COUPLER

TH-42PG9W

P-Board (5 of 6) Schematic Diagram TH-42PG9W

P-Board (5 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

14.16. P-Board (6 of 6) Schematic Diagram (42inch)

P25

ALL_OFF

Panel_Main_ON

PS_SOS

ECO_ON

FAN_SOS

F_STBY_ON

GND(STBY)

GND

STBY5V

+5Vc

GND

+5Vc

GND

+15Vc

AC_GOOD

KILL_SOS

R553

100

L512

4.7uH

C658

1.0

R569

33K

R547

100

D599

D1FP3

C661

0.01

R529

100 C558

470u/25V

L511

47uH

D502

WA5001=5

R523

47K

C559

1200

C623

10 C660

2.2

IC510

BD9703FP

12345

D600

02DZ7.5

R559

8.2K

PR505

TF16N5.00

C662

0.01

1512 1710 1613 1811 14

P-BOARD TNPA3911AL (6/6)

(D25)

D-BOARD

CG CK CLCBCA CE CF CICC CD CJCH

(4/6)

P-BOARD

5.0

2.6

5.0

15.0

3.2

15.0

REGULATOR

SWITCHING

TH-42PG9W

P-Board (6 of 6) Schematic Diagram TH-42PG9W

P-Board (6 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

14.17. HA-Board Block and Schematic Diagram

AA_SDA2

AA_SCL2

AB_AUD_R

AB_AUD_L

AB_AUD_R

AA_SCL2

AA_SDA2

STB5V

AB_AUD_L

C3012

16V

0.1u

R3026

100

R3007

100

JS3015

L3006

10u

JK3001

K1QBB3BB0002

R3016

10k

JS3001

L3003

J0HABB000004

C3007

16V

R3018

100

JS3012

TP032

C3011

16V

47u

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

R3014

10k

JS3006

JS3004

JS3013

JS3008

R3036

10k JS3007

R3041

R3042

R3023

JS3016

Q3002

2SD0601A0L

JS3005

L3001

J0HABB000004

R3025

100

TP036

R3015

10k

IC3002

C3EAGC000010

1A0

2A1

3A2

4GND 5

SDA

SCL

VCC

C3008

16V

R3037

10k

R3017

10k

TP033

R3019

100

JS3003

JS3014

Q3001

2SD0601A0L

C3021

10V

R3006

100

R3005

180k

JS3011

L3002

J0HABB000004

L3004

J0HABB000003

JS3002

C3022

0.1u

16V

TP034

JK3002

K2HA204B0097

R3004

180k R3022

L3005

J0HABB000003

TP035

Q3001

R3022

JK3002

JK3001

R3023

IC3002

Q3002

PLUG_DET

3.3V

RSVD

LAN15V

AUD_R

AUD_L

EEPROM

TERMINAL BOARD

INFORMATION

HA-BOARD TXNHA10RBS

COMPONENT

VIDEO IN

AUDIO IN

J-BOARD

(J11)

5.0

4.9

0.4

1.6

9.0

0.4

1.6

1.3

1.6

0.3

0.4

0.5

5.0

1.6

3.3

1.6

9.0

2.3

0.5

1.6

-0.8

1.6

3.3

0.7

5.0

1.6

0.4

1.6

5.0

0.5

0.7

542 813 7

VIDEO IN

COMPONENT

A22

B25

COMPONENT VIDEO

B24

L AMP

A36

AUDIO IN R

Y/G

AUDIO IN

COMPONENT

A38

S_CLOCK1

A28

SDA

A26

TO J11

SLOT+9V

HA BNC

EEPROM

PB/B

TERMINAL BOARD

AUDIO IN L

INFORMATION

PR/R

S_DATA1

SCL

A34

A21

R AMP

TH-37/42PG9W

HA-Board Block and Schematic Diagram TH-37/42PG9W

HA-Board Block and Schematic Diagram

TH-37PG9W / TH-42PG9W

14.18. HX-Board Block and Schematic Diagram

AC_HD

AC_VD

AB_RXD

AB_TXD

AC_HD

AB_RXD

AB_TXD

JK3513

L3512

J0HAAB000012

R3672

100

Q3532

2SD0601A0L

R3777

100

C3550

50V

0.01u

C3409

16V

0.1u

L3513

J0HAAB000012

R3585

D3507

MAZ81600HL

R3654

33k R3663

HX1

C3523

16V

47u

R3529

180k

C3405

16V

47u

R3664

IC3502

C3EBCC000020

1NC

2NC

3NC

4VSS 5

SDA

SCL

VCLK

VCC

C3562

16V

R3778

47k

L3510

J0HAAB000012

L3555

ELJPA100KF

Q3531

2SD0601A0L

L3508

J0HABB000004

R3776

100

D3510

MAZ81600HL

L3526

ELJPA100KF

R3590

R3510

100

R3400

10k

JK3513

K2HC103B0105

R3530

180k

L3511

J0HAAB000012

R3591

C3561

16V

R3592

D3502

MAZ30560ML

JK3509

7L3515

J0HAAB000012

C3551

16V

47u

R3547

100

C3524

50V

0.01u

D3504

MAZ30560ML

R3655

15k

R3653

15k

R3508

4.7k

L3509

J0HABB000004

JK3511

R3586

R3593

R3791

100

D3503

MAZ30560ML

R3668

100

L3514

J0HAAB000012

R3548

100 R3656

33k

R3511

100

L3507

J0HABB000004

R3589

47k

R3509

4.7k R3790

100

L3517

J0HAAB000012

D3508

MAZ81600HL

D3509

MAZ81600HL

C3404

16V

0.1u

L3516

J0HAAB000012

D3501

MAZ30560ML

813 7

VCLK

SDA

SCL

L AMP

DDC EEPROM

Q3532

IC3502

R IN

PC R

L IN

PC B

PC HD 13

PC VD

SCL

SDA

PC IN

JK3511

PC R

PC B

PC HD

R AMP

PC VD

PC G

PC Ls

PC Rs

Q3531

TXD

RXD

TXD

JK3509

RS-232C

PC/RS-232C Terminal

PC G 1

HX1

Q3535

Q3533

Q3536

Q3534

TO J14

TXD

DTR

TJS8A9880

PC IN

DSR

PC AUDIO IN

TXD

GND

PC Ls

PC Rs

PC R

PC G

EEPROM

PC B

DDC

STB5

RXD

(J14)

J-BOARD

HX-BOARD TZTNP02ZQTU (37inch)

TZTNP03ZQTU (42inch)

RS-232C

RXD

CTS

RTS

PCis

5.2

5.0

0.4

9.0

5.2

0.4

5.0

0.4

TH-37/42PG9W

HX-Board Block and Schematic Diagram TH-37/42PG9W

HX-Board Block and Schematic Diagram

TH-37PG9W / TH-42PG9W

14.19. GK and K-Board Block and Schematic Diagram

STB3.3V

C2521

0.01u

50V

R2557

5.6k

R2517

Q2511

B1ABCF000138

R2525

910

R2516

22k R2542

47k

Q2510

B1ABCF000138

D2524

MA8056MTX

R2524

22k

D2512

MAZ80430LL

R2520

220k

RM2501

B3RAD0000127

1VOUT

2GND

3VCC

C2512

6.3V

10u

C2515

50V

0.01u

R2558

D2520

LNJ107W5PRW

R2531

270

R2556

5.6k

R2530

22k

Q2513

B1ABCF000138

D2520

C3750

1000p

50V

R3764

SW3756

EVQ11G05R

R3766

R3767

R3756

R3761

R3752

2.2k

SW3753

EVQ11G05R

R3763

R3762

R3754

SW3757

EVQ11G05R

GK3

R3760

SW3754

EVQ11G05R

R3758

4.7k R3753

R3751

8.2k

R3759

SW3755

EVQ11G05R

342 8

K-BOARD TNPA3762AH

REMOTE RECEIVER

POWER LED

GND

AI_SENSOR

GND

REMOCON

GND

SUB5V

R_LED_ON/STBY_LED

GND

(J2)

J-BOARD

STBY3.3V

G_LED_ON

STANDBY LED

Q2511

ON/OFF

REMOTE RECEIVER/LED

VCC

Q2510

REMOCON RECEIVER

VOUT

REMOCON

KEY SWITCH

SW3755

GK3

KEY

R_LED_ON

TO J15

TO J2

SW3754

G_LED_ON

SW3756

SW3757

ON/OFF

Q2513

SW3753

POWER LED

STAND_BY LED

STB3.3V

RM2501

VOL.UP MENU VOL.DN ENTER

INPUT

J-BOARD

GK-BOARD TNPA3848AE

(J15)

KEYSCAN

GND

KEY

VOL.UP

ENTER

INPUT

VOL.DN

TH-37/42PG9W

GK and K-Board Block and Schematic Diagram TH-37/42PG9W

GK and K-Board Block and Schematic Diagram

TH-37PG9W / TH-42PG9W

14.20. J-Board (1 of 2) Block Diagram

9V_2

5V_M

A_3.3V

12V

A_1.8V

9V_2

SLOT9V

A_5V SLOT5V FAN5V

SLOT3.3VD_3.3V

D_1.8V

STB3.3V

D_3.3V

P5V

A_3.3V

D_3.3V

A_5VA_1.8V

D_1.8V

SOUND+15V

+R OUT

IC2301

-R OUT

BTL AMP R

10W MONO

IC2303

AVR 5V

TO P5

+L OUT

AVR 1.8V

AUDIO L

AMP_STB_SW

-L OUT

SP_R+

SP_R-

SP_L-

L OUT

TONE

S_CLOCK3

IC2302

VCC

AUDIO R

AVR 9V

SOUND MUTE

IC802

AMP_STB_SW

J SLOT INTERFACE/SYNC PROCESSOR/SOUND PROCESSOR

S_DATA3

IC8100

SP_L+

AMP

PHASE

VOL

IC801

AVR 12V

IC2305

EQUALIZER

IC804

BAL

IC803

LPF

+15V

SHIFT

RESET

AVR 3.3V

R OUT

SOUND CONTROL

BTL AMP L

10W MONO

VCC OUT

SOUND+15V

+15V

SOUND+15V

VIN

VIN SW

VIN

VIN SW

VIN

VIN SW

VDD

CE VOUT

IIC ON/OFF

IC3008

D2303

RSTB

Q2372

MUTE SW

SDA

SCL

SDA3

SCL3

1617 15

SW_E SW_BSW_OUT

PRE_

VCC

STBY

AMP_

OUT-

OUT+

OUT-

SW_B

SW_E

VCC

SW_OUT

AMP_

VCCSTBY PRE_

OUT+

Q2300

Q2331

SPEAKER

TH-37/42PG9W

J-Board (1 of 2) Block Diagram TH-37/42PG9W

J-Board (1 of 2) Block Diagram

TH-37PG9W / TH-42PG9W

14.21. J-Board (2 of 2) Block Diagram

IIC_SW

VD_2

HD_1

SLOT3_DET

SLOT2_DET

SCL3

RESET

VD_1

HD_3

LED_G

REMOCON_IN

HD_2

LED_R

SLOT1_DET

VD_3

REMOCON_IN

LED_G

LED_R

SDA3

SOS_ALL

DAC1

DAC0

L_4

R_4

FAN_SOS

TXD11

TXD12

TXD13

RXD11

RXD12

RXD13

HD_4

VD_4

SOS_ALL

SLOT5V

9V_2

SLOT3.3V

LAN15V

SLOT5V

P5V

9V_2

LAN15V

SLOT3.3V

12V

SLOT9V

9V_2

P5V

SLOT5V

STB5V_S

SLOT3.3V

STB5V_S

STB3.3V

STB5V_S

5V_M

STB5V_S

SLOT9V

STB5V_S

5V_M

STB3.3V

SLOT9V

9V_2

LAN15V

STB5V_S

9V_2

LAN15V

STB5V_S

9V_2

STB3.3V

STB5V_S

STBY5V_S STBY5V_S

STB3.3V

STB5V_S

P5V

SLOT9V

3.3V<=>5V

COMPONENT SELECT

VFC

HD_1

SLOT9V

3.3V<=>5V

HD_M

Q8183

B26

IIC_DATA

SYNC_INH(M)

Q8019

S2_2

Y_4

3.3V<=>5V

A26

VD_2

Q8184

IC3003

SLOT5V

TXD_PC

A17

TXG+(S)

TX1-(S)

B15

SOS_ALL

IC3004

TXC-(M)

STB_ON

TX0-(S)

IC3001

B23

IC8181

SDA_S1

J10

A28

REMOTE

A32

B29

L_2

HD_2

SDA_S1

TIME CLOCK

SDA3

RTC INT

B14

LED_G

IIC_SCL

A21

B24

SW0

SDA_S3

SRQ

A40

TX3+

TX1+(S)

SCL_S3

S2DETECT

J11

TX1+(M)

PR_M

G/Y(M)

TX1+

SRQ

IIC_CLOCK

SYNC SELECT

A34

IIC ON/OFF

TXC+(M)

514

RESET

Y/G

CABLE_DET

R_1

RESET

STB5V

A17

A30

RXD_11

RXD1

A19

VIDEO BUFFER

B35

STB3.3V

STB+3.3V

SRQ

IC8003

TX2-(M)

IC8009

TO DA6

B11 B14

TXC-(S)

PR/R

TX1-

A32

TO P10

LAN+15V

TX0+(M)

B24

TXD4

VD_M

SCL3

B25

PR_1

Y_2

SDA3

A38

A32

B21

TXD_11

B21

TX2+(M)

B19

A17

Green

REMOCON OUT

RTC INT

SOS

B25

LPF

TX0+(S)

HD in

REMOTE

PB_1

SRQ

B19

B28

TXC-

TX0-

P_STATUS

SW1

EX I/O(VIDEO/AUDIO SELECT)

SOS

PB_2

RESET

TXG+

J12

B31

DETECT

CS(M)

TX3+(M)

TXG-(S)

B23

SCL_S1

FAN_CONT

B9 B15

SLOT3.3V

TXC-

TO DA1

SLOT5V

IC8014

IC8005

PR_M

IIC_SCL

SLOT9V

AC_CS(M)

RXD4

SDA3

IC3101

TXD1

SOS OUT

B19

Y_1

IIC CONT.

A22

A28

A40

S2_1

Q8200-Q8202

B40

B12

PB_3

LAN+15V

A36

614

PR_3

PB_4

PROCESSOR

S_CLOCK3

R/PR(M)

DPMS_VD

AUDIO R

CS(M)

AUDIO SELECT

HD_M

A38

LAN+15V

S_DATA3

TXD_TU(SBI)

TX3-(M)

VD(M)

LAN+15V

PRout1

AUDIO IN L

SOUND MUTE

POWER_STATUS

SDA3

V Sync

AUDIO L

B11

PR_2

TXC+

Y_2

IC3002

A36

B40

TX3+(S)

B8 B32

SLOT1

B36

SCL3

Q8181

VD_1

HD SWITCH

SOS

LPF(M)

B27

Y_M

A22

A26

PB_3

SDA3

SCL3

B31

TXC+(S)

Y_3

HD/Green

S2_3

IIC

SDA3

SEPA

PR_3

TX0+

SCL3

S2 DETECT

DPMS_VD

PB_1

EX.I/O(IIC SW)

A34

TX3+

IIC_SDA

SLOT3

IC3005

3.3V<=>5V

SCL3

IIC_DATA

A30

A26

Q8182

PR_4

PR/R

A30

RXD_TU(SBO)

LED_R

B36

SEPA

PR_1

PLUG DET

SOS

SLOT3.3V

FAN SOS

PB/B

A28

Y_1

RXD_PC

REMOCON

SW0

TX1+

IIC_DATA

B30

J13

B35

A36

VD_M

LED_G

MAIN

A22

LED_R

B21

PB/B

B17

Yout1

A21

L_3

A19

B24

PB_2

PB_M

IC3007

B17

DPMS_HD

LAN15V(F_STBY)

R_3

SYNC SWITCH

TO DA3

SDA3

A21

B12

TXG-

VD_3

A34

SCL

Y_M

A40

REMOCON

RXD

HD_3

X8181

LPF

Y_3

S2_3

IIC_CLOCK

SRQ

SLOT1_DET

SCL_S1

S2_1

TO DA6

B/PB(M)

SDA_S3

IIC CONT

SOUND MUTE

L_1

TXC+

TX0-

SCL_S3

SDA3

TX1-(M)

SCL3

B25

PR_2

Q3004

SDA3

HD(M)

CABLE DET

B17

SDA

PLUG DET

IC8001

LEVEL SHIFT

IIC_CLOCK

PBout1

TX3-

Y/G

D3005

TX3-(S)

TX0-(M)

INVERTER

DPMS_HD

LPF

R_2

AUDIO IN R

RESET

SLOT3_DET

STB5V

TX1-

IIC_DAT

SOS

A38

B23

SRQ

LPF(M)

TX0+

RESET

LAN+15V

B40

SRQ

PB_M

H Sync LAN+15V

SCL3

IC8007

TXD

A19

TX3-

SW1

SYNC_INH(M)

SCL3

SLOT3.3V

SLOT9V

STB5V

SLOT5V

SLOT3.3V

PB/B

PR/R

Y/G

AUDIO IN R

AUDIO IN L

SLOT9V

STB5V

SLOT5V

SLOT3.3V

AUDIO IN R

AUDIO IN L

LEVEL SHIFT

SYNC SIGNAL

EX.I/O(SLOT DET IIC CONTROL)

ASPECT DET

CUT-OFF

FQ CONT

OUTPUT PORT(SW3)

8bit ADC(SYNC INH(M))

8bit DAC(CS(M))

8bit DAC(LPF(M))

OUTPUT PORT(SW2)

8bit DAC(FAN CONT)

OUTPUT PORT(SW0)

OUTPUT PORT(SW1)

CONT.

OUTPUT PORT

8bit DAC4

8bit DAC3

OUTPUT PORT

CONT.

IIC

SYNC SIGNAL

J SLOT INTERFACE/SYNC PROCESSOR/SOUND PROCESSOR

TDETECT

SUB

PBout2

Yout2

PRout2

RESET

STB_ON

POWER STATUS

KEY_SW

CABLE DET

SLOT2

SCL1

SDA1

REMOCON OUT

RESET

STB_ON

CABLE DET

AA_POWER

KEY_SW

J15

KEY_SW

VCC

OUT1

OUT2

SDA SCL

SLOT1

SLOT2

SLOT3

S1 S0

VCC 16

S0/S1

8bit DAC1

8bit DAC0 7

SDA3

SCL3

109

DAC1 DAC2

Q8010,Q8011

HD_4

VD_4

Q8012,Q8013

HD_HX

IC8016

PC SYNC INVERTER

DPMS_HD

DPMS_VD

VD_HX

15 16

TXD1

RXD1

LEVEL SHIFT

5V<=>3.3V

REMOTE

SERIAL SELECT

IC3006

OUT

Q3001

3.3V<=>5V

HLSLOT2

LEVEL SHIFT

SLOT3

LSLOT1

REMOTE OUT

B36

RESET

B31

SOS

REMOTE

SOS

B35

S2_2

PLUG DET

RESET

S2 DETECT

REMOTE

B28B27

RXD_12

B26

RXD

TXD_12

TXD

AA POWER

B30

SLOT2_DET

LAN15V(F_STBY)

IC3152

REMOTE OUT

LEVEL SHIFT

3.3V<=>5V

IC3151

Q8002

CS(M)

RXD

RXD13

B26

TXD13

B27

TXD

PC-B

PC-AUDIO_IN_L

PC-TXD

PC-VD_HX

PC_AUDIO_IN_R

STB+5V

+9V

PC-R

+5V

PC-HD_HX

PC-G

PC-RXD

TO HX1

J14

TXD4

RXD4

DRIVER

RS232C

R_4

L_4

PB_4

Y_4

PR_4

B30

REMOTE

KEY_SW

REMOTE

SDA1

SCL1

SDA3

SCL3

TXG-

TXG+

IC3150

BUFFER

TO K1

TO GK3

TH-37/42PG9W

J-Board (2 of 2) Block Diagram TH-37/42PG9W

J-Board (2 of 2) Block Diagram

J-BOARD SOS

LED BLINKING : 10TIMES

TH-37PG9W / TH-42PG9W

14.22. J-Board (1 of 5) Schematic Diagram

Thermal Pad

LED_R

REMOCON

LED_G

KEY_SW

KEY_DET

A_1.8V

C855

0.01u

50V

C2383

10V

100u

L8106

J0JHC0000078

C839

10u

6.3V

R2399 22

IC803

C0DBAMH00013

VIN

INV

GND

VIN

R2392

10k

C8112

16V

0.1u

C8111

16V

0.1u

C835

16V

47u

C1AB00002534

IC2302

1HP_IN

2HP_RippleFilter

3HP_Standby

4IN

5IN_VREF

6PRE_GND

7ON_TIME

8DIAGNOSIS

_OUT

9NC

10 AMP_Standby

11 AMP_Ripple

Fileter

12 Tj_Monitor

13 phase comp. 2

14 phase comp. 1 15

SW_OUT

SW_E

SW_B

SW_GND

Vcc

PRE_Vcc

OUT+

OUT-

POWER

_GND

HP_OUT

C2361

50V

1000p

A_3.3V

C2396

25V

0.1u

C812

25V

470u

R821

24.3k

C2397

10V

100u

R2358

2.2

C2395 25V 0.1u

C2365

50V 0.1u

D_1.8V

D_3.3V

SLOT3.3V

C841

10u

6.3V

SOUND15V

R2424

A_3.3V

D808

B0JCPE000004

D_3.3V

C856

0.01u

50V

A_5V

C8113

16V

0.1u

R814

10.5k

R2414

1.2k

L8103 J0JHC0000078

D8184

MAZ80560ML

R2387

C2382

25V

0.1u

C2369

50V

0.1u

15V

C2351

2.2u

16V

F1J1E1040022

FL3001

A_1.8V

R822

10.5k

D809

B0JCPE000004

R2362

10k

C823

50V

47p

D_1.8V

C2376

50V 15p

C807

2.2u

25V

R2391 10k

Q2331

B1BBCF000028

C2378

25V

0.1u

C2386

50V

C2354

35V

47u

C2402

25V

0.1u

C2390 50V 10u

R2357

2.2

C0CBCAC00275

IC804

VDD

GND

VOUT

R2356 2.2

R2409

C867

25V

0.1u

C2404

50V

0.01u

R2396 10k

C845

10u

25V

C825

16V

C837

10u

6.3V

C832

25V

0.1u

C1AB00002534

IC2301

1HP_IN

2HP_RippleFilter

3HP_Standby

4IN

5IN_VREF

6PRE_GND

7ON_TIME

8DIAGNOSIS

_OUT

9NC

10 AMP_Standby

11 AMP_Ripple

Fileter

12 Tj_Monitor

13 phase comp. 2

14 phase comp. 1 15

SW_OUT

SW_E

SW_B

SW_GND

Vcc

PRE_Vcc

OUT+

OUT-

POWER

_GND

HP_OUT

C831

47u

16V

C2350

2.2u

16V

C2357

50V

1000p

C2408

6.3V

10u

SLOT9V

C824

50V

0.01u

C2370

50V

10u

R819

68k

IC802

C0DBAMH00013

VIN

INV

GND

VIN

R2398

4.7k

L803

G1C220MA0167

R2407 10k

R2393

R826

8.2k

R2384

47k

C2405

6.3V

2.2u

R805

84.5k

F1J1E1040022

FL3004

L801

100u

R813

42.2k

12V

P5V

C2398

25V 0.1u

C2355

35V 47u

L8102 J0JHC0000078

C816

25V

0.1u

D805

B0JCPE000004

C2385

10V 100u

C8100

16V

47u

C2360

50V

1000p

C2387

50V

L8104 J0JHC0000078

SOUND15V

C833

50V

0.01u

L8108 J0JHC0000078

F1J1E1040022

FL3006

D2301

B0JCME000037

L8101 J0JHC0000078

C827

25V

2.2u

15V

C2399

25V 0.1u

R827

8.2k

R840

3.3k

R818

33k

L807

J0JHC0000078

D8181

MAZ80560ML

R811

68k

C8101

50V

0.01u

R838

C2356

50V

1000p

R2386

100k

R2421

27k

R2411

C804

50V

4700p

C821

16V

470u

R2404 10k

C2409

50V

180p

R2383

4.7k

L802

G1C101MA0167

C2381

25V

0.1u

C2391 25V 0.1u

C2366

25V

2.2u

R2427

10k

C808

25V

0.1u

C848

16V

2.2u

C809

16V

2.2u

C828

25V

0.1u

D802

B0JCME000037

R2389 10k

C8120

25V

470u

15V

C2412

25V

0.1u

C2392

16V

C811

16V

470u

C8116

50V

0.01u

R2368

C806

25V

0.1u

C2410

50V

180p

D806

B0JCPE000004

C8121

25V

2.2u

R804

82k

C2407

6.3V

10u

R2394

10k

C2411

10u

25V

C8107

16V

470u

R2412

1.2k

L8105 J0JHC0000078

R2361

10k

R2388

C1BB00001006

IC2303

PLLPWRR

PLLGNDR

PLLAVDD

4PLLAVSS

5PLLDVDD

6PLLDVSS

7TEST2

8TEST3

9DVSS4

10 DVDD4

11 XVSS

12 XOUT

13 XIN

14 XVDD

15 CVDD4

16 CVSS4

17 TEST0

TEST1

TEST4

TEST5

BVSS1

BVDD1

AVSS4

24 AVDD4

25 AVDD3

26 AVSS3

27 AOUT1

28 EVRINL

29 DAOUTL

30 DAOUTR

31 EVRINR

32 AOUT2

33 AVSS2

34 AVDD2

35 VREF2

36 VREF1

37 INL

INR

AVSS1

AVDD1

TEST6

XSEL0

XSEL1

XSEL2

CVSS1

CVDD1

LRCKI

BCKI

DATA I

SCKI

DVSS1

DVDD1

SCK0

TEST7

DATA O2

DATA O1

DATA O0

BCKO

LRCKO

CVSS2

CVDD2

XPDESC

PDEN

DVSS2

DVDD2

PWDB

RSTB

INTB

MCUIFSEL

SCL/CL

I2CBUSY/DI

SDA/DO

DVSS3

DVDD3

MRREQ

GPFLAG

EMPF

CVSS3

CVDD3

C818

25V

0.1u

C844

16V

2.2u

R829

C843

10u

25V

C829

10u

25V

D807

B0JCPE000004

R2354

10k

R2355

2.2

C8114

50V

0.01u

C0DBEJG00001

IC8100

1CTL

2Vcc

3GND

4OUT

R812

68k

C2394 50V 10u

C2371

50V

10u

FAN5V

R2397 5.1k

Q2372

2SD0601A0L

C2379

25V 0.1u

R2408

R802

33k

R2413

R806

10.5k

J15

C2403

25V

0.1u

C8115

16V

47u

R810

33k

LAN15V

C2364

50V 0.1u

D810

B0JCPE000004

D803

B0JCME000037

A_5V

R803

68k

R2420

15k

R2405 10k

R825

8.2k C2358

2.2u

35V

D2303

B0JCME000037

R2416

C802

25V

470u

D2302

B0JCME000037

F1J1E1040022

FL3007

123

C2406

6.3V

2.2u

R828

R2395

10k

C2401

25V

0.1u

C2362

25V

470u

R2410

9V_2

Q2300

B1BBCF000028

F1J1E1040022

FL3008

R2406 10k

R2359

2.2

X2301

H0J184500026

C857

0.01u

50V

R2352 10k

J10

C840

16V

2.2u

C2413

25V

0.1u

L3140

J0JHC0000078

L2330

220u

R2423

15k

C838

16V

2.2u

C2393

16V

C817

25V

2.2u

R2353

10k

C869

16V

2.2u

15V

C2389

10V 100u

R2422

27k

L805

J0JHC0000078

C846

16V

2.2u

C2367

25V

2.2u

R830

8.45k

L808

J0JHC0000078

L810

J0JHC0000078

C805

16V

5V_M

R2390 10k

C2420

25V

0.1u

C2359

2.2u

35V

R2351

10k

C2353

50V

10u

C2374

25V

0.1u

9V_2

C2400

25V

0.1u

IC801

C0DBAMH00013

VIN

INV

GND

VIN

C2377

50V

15p

C2363

25V

470u

R2360 2.2

L2331

220u

C2373

25V

0.1u

L809

J0JHC0000078

C2352

50V

10u

D8185

MAZ80560ML

C819

16V

2.2u

D801

B0JCPD000026

C8106

16V

47u

C2388

25V 0.1u

L8107 J0JHC0000078

R2419

10k

C2368

50V

0.1u

C814

50V

4700p

L811

J0JHC0000078

R820

33k

R2418

10k

R2425

R2415

1.2k

SLOT5V

R2367

C2375

25V

0.1u

C847

10u

6.3V

R2400 22

C815

16V

C822

25V

470u

L804

J0JHC0000078

D_3.3V

C2380

25V 0.1u

A_3.3V

C0ABBA000168

IC2305

C3146

16V

2.2u

F1J1E1040022

FL3000

R2417

1.2k

C834

16V

47u

C2384

25V 0.1u

R2364

*R2366

15V

SOUND15V

C801

35V

220u

AOUT

AIN-

AIN+

GND

VCC

BOUT

BIN-

BIN+

LAN15V

GND

AVR 9V

-L OUT

+R OUT

+L OUT

-R OUT

OUT-L

OUT-R

KEY-SW

LED_G

GND

REMOCON

LED_R

OPT

STB3.3V

GND

LAN15V

AVR 5V

AVR 3.3V

AVR 1.8V

AVR 12V

10W MONO

SOUND CONTROL

7425831

EQUALIZER

BTL AMP R

10W MONO

BTL AMP L

(K1)

K-BOARD

(GK3)

GK-BOARD

(P10)

P-BOARD

GND

15V

GND

15V

GND

15V

P-BOARD

15V

GND

(P5)

15V

GND

SPEAKER

15.0

0.8

4.5

3.3

3.2

1.7

TH-37/42PG9W J-Board (1 of 5) Schematic Diagram

TH-37/42PG9W

J-Board (1 of 5) Schematic Diagram

J-BOARD TNPA3896AB (1/5)

TH-37PG9W / TH-42PG9W

14.23. J-Board (2 of 5) Schematic Diagram

AK_VD_3

AI_VD_1

AD_VD_4

AL_VD_2

AD_HD_4

AI_HD_1

AE_SW1

AE_SW0

AG_HD_M

AC_CS((M))

AG_VD_M

AL_HD_2

AK_HD_3

AA_SDA3

AA_SCL3

AB_SDA3

AB_SCL3

AC_SCL3

AC_SDA3

STB_ON

POWER_STATUS

AA_POWER

FAN_SOS

FAN_CONT

AB_SDA3

AB_SCL3

AK_L_3

AK_R_3

AL_L_2

AL_R_2

AI_L_1

AI_R_1

AD_L_4

AD_R_4

AA_SDA3

AA_SCL3

AG_PR_M

AG_HD_M

AG_Y_M

AG_VD_M

AG_PB_M

STB_ON

CABLE_DET

AA_POWER

RESET

KEY_SW

AF_DPMS_HD

AF_DPMS_VD

AJ_TXD4

AJ_TXD1

AJ_RXD1

LED_G

LED_R

REMOCON

FAN_SOS

KEY_DET

AJ_RXD4

RESET

JS8094

C2425

25V

0.1u

C3043

16V 10u

L8003

G1C100K00020

R3003

47k

C8033

50V

1000p

R3160 0

R8018

5.6k

R3051 33

L8005

G1C100K00020

R8181

100

C8051

16V

0.1u

FAN5V

R8098

10k

STB5V_S

ZA3005

K4CD01000013

R8120

R8026

330

R8051

10k

C8015

10V

10u

R8050 2.2k

C8183

16V

0.1u

C8182

50V

15p

D3061

MA2J72800L

ZA3008

K4CD01000013

R8010 270

IC8001

C0JBAR000241

1Y0

2Y2

4Y3

5Y1

6INH

7VEE

8VSS 9

VDD

IC8007

C0JBAR000419

R8033

100k

R8187

R8183

R8002 0

R8065

910

C8103

16V

47u

C8108

16V

0.1u

R3001

10k

STB5V_S

C3004

16V

47u

STB3.3V

R8011 270 C8030

16V

47u

Q8182

B1CBHD000002

R8031

2.2k

R8207

R3163

R3150

100

D8003

MA2J11100L

C8122

16V

47u

C8185

5.5V

1.5

R3063

100

R8072

R8189 0

R3002

C3001

50V

0.01u

R8097

10k

R8186

2.7k

C8007

50V

100p

Q8183

B1CBHD000002

C8102

16V

47u

R8036

150

STB5V_S

C8005

50V

0.01u

F1J1E1040022

FL3003

ZA3003

K4CD01000013

C8036

50V

100p

5V_M

L8001

G1C100K00020

C8016

16V

4.7u

J30

F1J1E1040022

FL3010

R8003 0

R8004 0

ZA3002

K4CD01000013

STB3.3V

R3125

10k

ZA3001

K4CD01000013

ZA3006

K4CD01000013

STB3.3V

C8181

50V

15p

IC8003

C1AA00000706

H.State

2V.State

3Green Sep Filter

4Green IN

5GND

6Comp/H IN

7Comp/H Det

8Vert IN

9Vert Det

10 Vert S/S Adj 11

Vert S/S IN

Digital GND

VD+OUT

HD+OUT

HD-OUT

Vcc

Clamp OUT

H.Pol.

V.Po l.

Clamp Timing

STB3.3V

C8123

16V

0.1u

C8038

50V

1000p

F1J1E1040022

FL3002

123

R3061

R8039

4.7k

R8129

IC3007

C0JBAS000215

11A

21B

32C

4GND 5

Vcc

C3040

16V

0.1u

R8100

10k

IC3008

C0JBAS000215

11A

21B

32C

4GND 5

Vcc

R3049

10k

C8109

16V

0.1u

P5V

R8048 2.2k

R8041

18k

FL8000

F1J1E1040022

123

D8001

MA2J11100L

C8009

6.3V

10u

R8119

R3161 0

C3041

16V

0.1u

TPJH1

C8019

50V

0.01u

R8190 0

R3141

47k

C1AB00002530

IC3001

Front1

Front2

Tuner1

Tuner2

EXT11

EXT12

EXT21

EXT22

EXT31

EXT32

DGND

SDA

SCL

AGND

FILTER

VRR

VCC

OUT2

OUT1

SELECT

R8037

4.7k

R8067

910

IC8009

C0JBAS000215

GND

Vcc

R3107

R8184

R8093

100

12V

R8121

2.7k

C8003

16V

0.1u

R8188

R8025

R8185

2.7k

IC8181

C1DB00001208

ZA3004

K4CD01000013

C8023

50V

0.01u

R8122

2.7k

R8029

R8047

270

R8056

100

C8045

16V

ZA3007

K4CD01000013

C8025

50V

0.01u

C8013

16V

0.1u

C3042

16V 10u

C8027

16V

2.2u

D8180

MA2J11100L

R8055

100

TPJV1

C8021

16V

0.47u

R8012 270

R8017

5.6k

R8001 0

STB5V_S

IC8005

C0JBAB000646

R3108

R8021

2.2k

15V

P5V

C8035

16V

0.1u

Q8181

B1CBHD000002

R8182

100

R3134

100k

9V_2

R8035

330

R3140

47k

R8009 270

Q3001

2SB0709A0L

R8045 2.2k

L3002

G1C100K00020

Q8002

2SD0601A0L

C8049

50V

0.01u

R8180

C8029

50V

0.01u

STB5V_S

X8181

H0J327200114

Q8184

B1CBHD000002

R8054

D_3.3V

R8005

10k

R8060

C3058

16V

C3055

16V

C3052

16V

C3056

16V

C3053

16V

C3057

16V

C3054

16V

C3051

16V

VCCCOM

INH

SEL

VEE

GND

SCL

SDA

SDA3

SCL3

32.768K

TIME CLOCK

HD SWITCH

SLOT1

SLOT2

SLOT3

LOLO

VD O5

O4GND

I5O2

VCC

RTC INT

TXD_PC

SCL1

TXD_TU

SOUND MUTE

FAN SOS

RXD_PC

LED_R

SDA2

GND

STB3.3V

GND

IIC_INT/BOOT

SCL3

LED_G

GND

REMOCON

GND

REMOCON OUT

SCL2

SDA1

GND

RXD_TU

IIC_CONT

GND

SDA3

STB5V

GND

B/PB_M

GND

G/Y_M

GND

DPMS_HD

GND

R/PR_M

GND

VD_M

STB_ON

CABLE DET

GND

KEY_SW

HD_M

GND

RESET

GND

POWER STATUS

DPMS_VD

GND

FAN CONT

FAN SOS

15V

AUDIO SELECT

SYNC SWITCH

SYNC SELECT

IIC ON/OFF

10 12 1711 181514 1613

SYNC SIGNAL PROCESSOR SYNC SIGNAL INVERTER

(DA3)

DA-BOARD

(DA1)

DA-BOARD

USE

0.4

4.4

0.4

3.0

5.0

0.6

2.7

3.3

2.3

4.5

0.8

5.0

3.2

5.0

6.6

15.0

3.2

0.5

4.9

3.2

J-BOARD TNPA3896AB (2/5)

TH-37/42PG9W

J-Board (2 of 5) Schematic Diagram TH-37/42PG9W

J-Board (2 of 5) Schematic Diagram

TH-37PG9W / TH-42PG9W

14.24. J-Board (3 of 5) Schematic Diagram

AC_SCL3

AC_SDA3

AH_SLOT3_DET

AM_SDA_S3

AM_SCL_S3

AH_SLOT2_DET

AC_SDA3

AC_SCL3

AN_SCL_S1

AL_PB_2

AH_SLOT1_DET

AA_SCL3

AA_SDA3

AE_SW1

AH_SOS_ALL

AE_SW0

AN_SDA_S1

AL_PR_2

AK_S2_3

AL_S2_2

AI_S2_1AD_PR_4

AD_PB_4

AD_Y_4

AA_SDA3

AA_SCL3

AK_PB_3

AI_Y_1

AK_PR_3

AI_PB_1

AI_PR_1

AL_Y_2

AK_Y_3

AJ_DAC0

AJ_DAC1

AC_CS((M))

FAN_CONT

STB5V

AUDIO_SOS

R3044

10k

R8089

180

C3028

2.2u

16V

C3016

50V

0.01u

C3020

2.2u

16V

L3005

G1C100K00020

C3023

2.2u

16V

R3093

R3048

330k

R3034 330

C3012

50V

0.01u

R3106

180

R3027

10k

R3058

R3092

C1AB00002529

IC3005

V+

Pb_IN2

3GND

4Pr_IN2

5GND

6Y_IN1

7V+

8Pb_IN1

9V+

10 Pr_IN1

11 GND

12 PORT3

PORT2

ADR

SCL

SDA

GND

DGND

VREF

V+

Pr_OUT2

PORT1

PORT0

Pb_OUT2

AUX0

AUX1

Y_OUT2

AUX2

AUX3

Pr_OUT1

GND

Pb_OUT1

GND

Y_OUT1

V+

Y_IN4

V+

Pb_IN4

GND

Pr_IN4

41 V+

42 Y_IN3

43 GND

44 Pb_IN3

45 V+

46 Pr_IN3

GND

Y_IN2

R3105

180

R3046

10k

IC3002

C0JBBR000002

11OE

2S1

31B4

41B3

51B2

61B1

71A

8GND 9

2B1

2B2

2B3

2B4

2OE

VCC

R3062 100

C3022

2.2u

16V

C3011

25V

0.1u

R3075 75

C3029

2.2u

16V

R3073 75

C3027

2.2u

16V

R3089

C3025

2.2u

16V

R3029

10k

C3032

16V 1u

R3031 0

R3030 0

C3018

16V

47u

R3057

R3082 100

C3010

25V 0.1u

R8057

R3041 330

R3072 75

R3067 56

R3036 330

R3197

12k

Q8019

2SD0601A0L

C3030

2.2u

16V

R3037 0

R3050

R3090

C3014

50V

0.01u

R3043 0

R3080

L3006

G1C100K00020

R3074 75

R3064 56

R3076

C3019

16V

0.1u

R3081 56

R3088

C3024

2.2u

16V

R3028

10k

R3070 75

R3103

180

C3013

50V

0.01u

C3026

2.2u

16V

R3033 0

R3065 56

R3038 0

R3039 330

R3102

180

R3040 330

R3077

R3079

R3054

R3104

180

R3069 56

R3091

R3053

C3017

50V

0.01u

R3035 330

R3101

180

5V_M

C3021

2.2u

16V

C3015

50V

0.01u

IC3004

C1AB00000454

SW1

SW0

DAC4

DAC3

DAC2

DAC1

DAC0

GND

SW2

SW3

SAD0

SAD1

SAD2

SDA

SCL

VCC

R3078

R3071 75

R3042 0

R3026

10k

R8069

2.2k

R3196 10k

R3066 56

R3068 56

C3009

25V 0.1u R3032 0

C3031

2.2u

16V

R3198

12k

R3195 10k

R3045

10k

R3047

10k

IC3003

C1AB00000441

1SW1

2SW0

3DAC4

4DAC3

5DAC2

6DAC1

7DAC0

8GND 9

SW2

SW3

SAD0

SAD1

SAD2

SDA

SCL

Vcc

C3033

0.1u

16V C3034

0.1u

16V

C3035

0.1u

16V

:FAN_CONT

=75ohm

:LPF(M)

:CS(M)

:SYNC_INH(M)

SL3_DET=

=SL2_DET

=SL1_DET

=IICSW

S1 S0

LOLO

SLOT3

SLOT2

SLOT1

EX.I/O(IIC SW)

EX.I/O

SDA

SCL

COMPONENT SELECT

21 2619 20 22 25 272423

(VIDEO/AUDIO

SELECT)

SLOT DET IIC CONTROL

J-BOARD TNPA3896AB (3/5)

TH-37/42PG9W

J-Board (3 of 5) Schematic Diagram TH-37/42PG9W

J-Board (3 of 5) Schematic Diagram

TH-37PG9W / TH-42PG9W

14.25. J-Board (4 of 5) Schematic Diagram

AG_PR_M

AG_PB_M

AD_Y_4

AD_PR_4

AD_R_4

AD_PB_4

AD_VD_4

AD_HD_4

AF_HD_HX

AF_DPMS_HD

AF_HD_HX

AG_Y_M

AJ_TXD_4

AJ_RXD_4

AJ_RXD4

AJ_TXD4

AF_VD_HX

AD_L_4

AJ_RXD_4 AJ_TXD_4

AI_L_1

AI_R_1

AI_HD_1

AI_PR_1

AI_PB_1

AI_Y_1

AN_SCL_S1

AN_SDA_S1

AH_SLOT1_DET

AH_SOS

CABLE_DET

AF_VD_HX

AI_VD_1

AF_DPMS_VD

AJ_TXD1

AJ_TXD11

AJ_TXD12

AJ_TXD13

AJ_RXD1

AJ_RXD11

AJ_RXD12

AJ_RXD13

AJ_DAC0

AJ_DAC1

AF_HD_HX

AF_VD_HX

AI_S2_1

AJ_RXD11

POWER_STATUS

R3188

C8070

0.1u

25V

D3007

MA2J11100L

R8127 100

C3143

16V

2.2u

R8112 0

C3107

16V 0.1u

C8075

1000p

50V

R3004

100

R3110

4.7k

R3095 5.6k

C3144

16V

2.2u

5V_M

LAN15V R3023

100

C8074

1000p

50V

C3200

16V

C3108

16V 0.1u

C3115

16V 0.1u

R3151

100

C0JBAA000419

IC3150

GND

Vcc

C8073

10V

10u

C3101

16V

2.2u

R8117 0

R3219

3.3

Q3004

2SD0601A0L

R3118

820

C3114

16V 4.7u

C3150

16V

0.1u

Q8012

2SD0601A0L

5V_M

R8126 100

D3005

LNJ206R5ARA

L3050

G1C100K00020

D3001

MA2J11100L

R8118 0

C3135

6.3V

1000u

C8081

16V

0.1u

C8072

10V

10u

R3217

3.3

C3103

16V

2.2u

R8124 100

R3230 100

R3096 5.6k

R3214

4.7k

C3105

16V 0.1u

P5V

R8125 100

STB5V_S

Q8011

2SB0709A0L

C8084

16V

STB3.3V

R3126

R3210

100

C3106

16V 0.1u

R3083 0

STB5V_S

R3190

SLOT3.3V

R3060

R3211

100

Q8013

2SB0709A0L

C0ZBZ0000911

IC8014

2C1+

3V+

4C1-

5C2+

6C2-

7V-

8T2_OUT

9R2_IN

10 R2_OUT 11

STATUS

T2_IN

T1_IN

ONLINE

R1_OUT

R1_IN

T1_OUT

GND

VCC

SHUTDOWN

R3084 0

C3113

16V

47u

Q8010

2SD0601A0L

IC3006

C0JBAR000241

1Y0

2Y2

4Y3

5Y1

6INH

7VEE

8VSS 9

VDD

C8082

16V

0.1u

4.7k

R3213

R3117

4.7k

R3215

SLOT9V

C2426

25V

0.1u

R3085 0

SLOT5V

D8010

MA3X15300L

C3110

16V

2.2u

JS8096

5V_M

R3007

10k

R3094 0

C1AB00002238

IC3101

1GINA/UINA

2GSG1

3GINB/UINB

4NC

5BINA/VINA

6GSB1

7BINB/VINB

8NC

9DISABLE

10 GND3

11 BOUT/VOUT

12 VCC3

13 GND2

14 GOUT/UOUT 15

VCC2

GND1

ROUT/YOUT

VCC1

GND4

RFC

VFC

MUXSEL

VCC4

RINA/YINA

GSR1

RINB/YINB

R3189

R3086 0

J11J11

STB3.3V

R3218

3.3

C8080

16V

0.1u

J11

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

D8011

MA3X15300L

R3216

3.3

SLOT9V

STB5V_S

R3111

1.5k

R3087 0

R3231 100

C3134

6.3V

1000u

C3136

6.3V

1000u

C3111

16V 0.1u

R3116

10k

R3212

4.7k

STB5V_S

C3201

10u

6.3V

C3112

16V 0.1u

IC8016

C0JBAZ001934

11A

21Y

32A

42Y

53A

63Y

7GND 8

VCC

C8083

16V

0.1u

SLOT1

SLOT2

SLOT3

LOLO

GND

GND GND

GND

PB/B

TXD

75ohm

GND

STB5V_S

GND

PR/R

GND

RXD

GND

Y/G

GND

SLOT9V

GND

STB5V

SRQ

RSVD

TDETECT

TX0-

TX3-

TX3G

TXC+

TXC-

TXCG

SOS

TXG+

TX1-

SYNC GND

TX1G

TX0+

PWR_STATUS

PR/R GND

RESET2

PR/R

GND

RESET1

PB/B GND

S2DETECT

PB/B

Y/G GND

Y/G

LAN15V

CABLE DET

SYNC GND

REMOTE

SLOT5V

IIC DAT

RSVD

IIC SCL

AUDIO GND

RXD

AUDIO IN L

TXD

AUDIO GND

PLUG DET

AUDIO IN R

SLOT3.3V

GND

TXG-

TX2G

TXG-

TX1+

TXG+

TX3+

TX3G

TXCG

TXC-

TXC+

TX3-

TX3+

GND

TX1+

TX0G

TX0-

TX0+

TX1G

TX1-

SERIAL SELECT

LAN15V

GND

Y/G

GND

SLOT5V

GND

BUFFER

VIDEO BUFFER

PC SYNC INVERTER

RS232C DRIVER

3431 3530 36

28 29 32 33

(DA6)

D-BOARD

SLOT1

(HX1)

HX-BOARD

J-BOARD TNPA3896AB (4/5)

5.2

5.0

0.4

0.4 9.0

0.4

5.0

5.2

0.4

1.6

9.0

1.6

016

1.6

0.7

3.3

1.6

5.0

0.4

1.3

15.0

3.3

-0.8

1.6

5.0

21 9.0

0.5

2.3

15.0

018

1.6 0

1.6

4.8

1.6

0.7

4.8

5.0

4.9

J14

TH-37/42PG9W

J-Board (4 of 5) Schematic Diagram TH-37/42PG9W

J-Board (4 of 5) Schematic Diagram

TH-37PG9W / TH-42PG9W

14.26. J-Board (5 of 5) Schematic Diagram

AH_SOS_ALL

AK_Y_3

AK_HD_3

AH_SLOT3_DET

AH_SOS

AM_SDA_S3

AM_SCL_S3

AL_PB_2

AL_PR_2

AL_L_2

AL_R_2

AL_HD_2

AH_SLOT2_DET

AH_SOS

AJ_TXD12

AJ_RXD12

AJ_TXD13

AJ_RXD13

AL_Y_2

AK_PB_3

AK_PR_3

AK_L_3

STB_ON

AH_SOS

AK_R_3

AK_VD_3

AK_S2_3

AL_VD_2

AL_S2_2

STB5V_S

STB5V_S SLOT9V

SLOT9V

D3008

MA2J11100L

LAN15V

Q8202

2SD0601A0L

R3143

100

R8200

56k

STB5V_S

SLOT5V

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

C8200

16V

47u

5V_M

SLOT3.3V

C0JBAA000419

IC3152

GND

Vcc

R8202

22k

SLOT3.3V

R3025

100

D8201

MA2J11100L

D3003

MA2J11100L

D3004

MA2J11100L

Q8200

2SD0601A0L LAN15V

STB5V_S

R8205

75k

C3152

16V

0.1u

R3024

100

C3151

16V

0.1u

D8209

MA2J11100L

R8203

10k

R8204

100k

R8201

47k

R8206

39k

STB5V_S

LAN15V SLOT5V

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

R3059

100

D8203

MAZ31000ML

D8204

MA2J11100L

R3144

100

D8200

MAZ31600ML

R3008

10k

Q8201

2SD0601A0L

LAN15V

C0JBAA000419

IC3151

GND

Vcc

C3202

10u

6.3V

C3203

10u

6.3V

TX3-

TX3+

TX1+

TX0G

TX0-

TX0+

GND

LAN15V

AUDIO GND

TXD

AUDIO IN R

Y/G

Y/G GND

PB/B

S2DETECT

PB/B GND

RESET1

PR/R

RESET2

PR/R GND

PWR_STATUS

SYNC GND

SOS

REMOTE

SYNC GND

CABLE DET

PLUG DET

GND

SLOT5V

GND

SLOT9V

SLOT3.3V

GND

AUDIO IN L

RXD

AUDIO GND

IIC SCL

RSVD

IIC DAT

RSVD

SRQ

STB5V

GND

TX1G

TX1-

TX2G

TXG-

TXG+

TX3G

TXCG

TXC-

TXC+

TXC-

TXG-

TX2G

TX1-

TXC-

TX1G

TX0+

TX0-

TX0G

LAN15V

TX0-

PLUG DET

CABLE DET

SYNC GND

REMOTE

SOS

SYNC GND

TXCG

TX3G

TXG+

PWR_STATUS

PR/R GND

RESET2

TXG+

PR/R

RESET1

PB/B GND

S2DETECT

PB/B

TXC+

Y/G GND

Y/G

DETECT

GND

STB5V

SRQ

RSVD

IIC DAT

RSVD

IIC SCL

AUDIO GND

RXD

AUDIO IN L

TX1G

TXG-

TXD

TX2G

AUDIO GND

TX1+

AUDIO IN R

GND

SLOT3.3V

SLOT9V

TXCG

TX0+

GND

TX1-

TX3+

SLOT5V

TX1+

GND

TX3-

TX3+

TX3-

TX3G

TXC+

LAN15V

GND

SLOT9V

GND

SLOT5V

GND

LAN15V

GND

SLOT9V

GND

SLOT5V

GND

TX3+

TX3-

TX3G

TXC+

TXC-

TXCG

TXG+

TXG-

TX2G

TX1+

TX1-

TX1G

TX0+

TX0-

TX0G

BUFFER BUFFER

40 4339 4237 38 44 4541

SLOT2

(DA6)

D-BOARD

SLOT3

SLOT3.3V

J-BOARD TNPA3896AB (5/5)

4.9

5.0

0.7

5.0

1.6

0.5

15.040

9.0

1.6

4.8

5.0

19 5.0

4.8

1.3

1.6

3.3

0.7

-0.8

9.0

1.6

3.3

2.3

1.6

0.4

15.0

1.6

1.1

5.0

15.0

5.0

4.9

9.0

3.3

5.0

15.0

0.8

17 3.3

1.2

2.3

1.6

0.7

0.8

1.6

J12

J13

J12

TH-37/42PG9W

J-Board (5 of 5) Schematic Diagram TH-37/42PG9W

J-Board (5 of 5) Schematic Diagram

TH-37PG9W / TH-42PG9W

14.27. DA-Board (1 of 2) Block Diagram

P3V_SCL2

3VRXD_TU

READY

P3V_SDA2

RTC_INT

IIC_CONT

NRST

3VTXD_TU

5VTXD_TU

SOUND_MUTE

5VRXD_TU

LED_G

LED_R

AC_GOOD

REMOCON_OUT

NRST

CLP

P3V_SCL2

P3V_SDA2

CLK

HD-M

VD-M

IIC_CONT

3V_SCL1

3V_SDA1

P3V_SCL2

P3V_SDA2

3V_SCL3

3V_SDA3

TXD_PC

RXD_PC

IIC_INT

P3V_SCL2

3V_SDA1

3V_SCL3

P3V_SDA2

3V_SDA3

3V_SCL1

OSD-HDIN

OSD-CLKIN

OSD0-15

OSD-VDO

OSD-HDO

OSD_YS

OSD_YM 3V_SDA1

3V_SCL1

DPMS_VD

DPMS_HD

KEY_INPUT

POWER_STATUS

CABLE_DET

STB_ON

CABLE_DET

STB_ON

KEY_INPUT

DPMS_VD

DPMS_HD

NRST

TXD_PC

RXD_PC

SOUND_MUTE

IIC_CONT

5VTXD_TU

5VRXD_TU

REMOCON_OUT

RTC_INT

LED_G

LED_R

3V_SCL1

REMOCON

3V_SDA1

3V_SCL3

3V_SDA3

RXD_PC

3V_SDA3

3V_SCL3

TXD_PC

3V_SDA1

3V_SCL1

5VRXD_TU

5VTXD_TU

IIC_CONT

SCL1

SDA1

SCL2

SDA2

TXD

RXD

IIC_INT

PSTB

PBUSY

PDB0

PBLCT

PDB1

LED_G

LED_R

REMOCON

SCL1

SDA1

PDB1

PSLCT

PDB0

PBUSY

PSTB

LED_G

LED_R

REMOCON

AC_GOOD

IIC_INT

SDA2

SCL2

IIC_CONT

STB_ON

ALARM

READY

ALARM

SDA1

SCL1

LED_R

LED_G

IIC_CONT

REMOCON

TXD_PC

RXD_PC

RXD

TXD

UART_SW

POWER_STATUS

ALL_OFF

ALLOFF

TXD_PC

RXD_PC

UART_SW

IIC_INT

+3.3V

Q4707

Q4706

Q4705

+2.5V

STB+3.3V

STB5V

+3.3V+1.2V

STB+3.3V

STB3.3V

+3.3V

P+5V

+3.3V

STB+3.3V

STB+5V

STB+3.3V

STB+1.5V

P+5V

STB+3.3V

STB+5V

Q4702

Q4704

+1.5V

D4712

+3.3V

P+5V

Q4703

D4711

+2.5V

D4713

Q4713

Q4714

P+15V STB+3.3V

P+15V

D_STB+3.3V

STB+5V

D_STB+3.3V

P+15V

P+5V

STB+5V

Q4803

Q4802

Q4710

Q4709

STB+5V

MN-CLK-

SB-RX2-

SB-RX0-

P+3.3V SOS

A18

IC4701

IC4201

IC4711

IC4715

VCC

SB-CLK-

IC4702

MN-CLK+

SB-RX1-

R,G,B

2.5V 3.3V

CLKM_IN

VCC

MN-RX3-

MN-RX0+

SB-RX2+

SB_RXC+

MN-RX1-

SB_RXC-

158

SB_RX0-3-

132

SB_RX0-3+

MN-RX2-

MAIN VIDEO

MN-RX2+

SB-RX3+

CLK1

HD,VD,DCK

DA6

R,G,B MAIN VIDEO 24bit

1.2V

OSD

P+5V SOS

SB-RX0+

IICBUS

MN-RX0-

CONT

D15

MN_RXC-

SB-RX3-

D00

MN_RX0-3-

IIC

MN-RX1+

MN_RXC+

SB-RX1+

24bit

MN_RX0-3+

SB-CLK+

NRST

165

HD,VD,DCK

139

IC4714

CLK3

24bit

R,G,B

SUB VIDEO

122

8M FLASH MEMORY

MAIN VIDEO

MN-RX3+

FOR

FACTORY USE

TO J1

S-XCLK+

M-X2-

M-X2+

M-X3-

M-X0+

TO J5/J6

S-X3+

S-XCLK-

M-XCLK+

S-X0-

S-X1+

M-X1-

M-X3+

S-X2+

S-X0+

M-X0-

S-X3-

S-X1-

M-XCLK-

M-X1+

S-X2-

OR GATE


TTL

Voltage

HD,VD

OUTPUT

VD CLK

LVDS

RGB

PARALLEL

CLK

CLP

RECEIVER

Low

HD,VD

HD,VD,DCK

DATA

Signaling

Differential

CONTROL

SYNC SIGNAL

G0-G7

B0-B7

R0-R7

G0-G7

R0-R7

B0-B7

R,G,B SUB VIDEO 24bit

P+5V SOS / LED BLINKING : 5TIMES

+3.3V SOS / LED BLINKING : 3TIMES

DA-BOARD SOS

LED BLINKING : 13TIMES

SOS BLINKING TIMES

RMIN

REMOCON OUT

TV_ON/OFF

RTC_INT

SOUND_MUTE

RXD_TU

DRV_MUTE

TXD_TU

NRST

READY

LED_G

REMOCON INH

LED_R

AC_GOOD

IIC_CONT

LVDS RECEIVER

SYNC SIGNAL CONTROL

TTL S/P

LEVEL CONVERTER

MICOM

DIGITAL SIGNAL PROCESSOR

MICON

SDA

R(8Bit)

A/D CONVERTER(MAIN)

IIC_BUS

CLP

CLAMP

HD-M

VD-M

IC4001

B/PB-M

G(8Bit)

VSYNC

110M

ADC

17 Pr/R IN

8BIT

LEVEL CONVERTER

B(8Bit)

IC4031,IC4032

HSYNC

CLP

SYNC

SEPA

R/PR-M

Pb/B IN

Y/G IN

DA1

CLP

SCL

G/Y-M

AVR 3.3V

IC4002

VCCOUT

TXD

SDA3

IIC_CONT

SDA2

STB5V

SDA1

STB3.3V

IIC_INT/BOOT

RXD

SCL1

SCL3

SCL2

DA4

IIC_BUS

FOR

FACTORY

USE

SDA1

SDA2

121

120

SCL0A

SDA0A

SCL1

SCL2

IIC_BUS

P_ON/OFF

162

LVDS_PD

VDD

YSOUT

YMOUT

B04

109

VSYNC

OSD

104

G05

115

G00

HOUTA

R00

HSYNC

R04

101

110

B00

VCLKOUTA

OSDKXI

NRST

EEPROM_WP

Q4712

7WC

VCC

8SDA

SCL

IIC_BUS

IC4703

EEPROM

RESET

IC4704

RESET

VOUT VDD

170

DPMS_HD

DPMS_VD

169

POWER STATUS

131

KEY_INPUT

140

CABEL_DET

STB_ON

129

DPMS_VD

KEY_INPUT 3

CABEL_DET

STB_ON

DPMS_HD

RESET

NRST-FP NRST

MCLD

MCCLK

MCDATA

MICOM

COMMU

MCLD

MCDATA

MCCLK

VDD

Q4701

FPGA/ASIC

RESETN

NRST

RTC INT

LED_G

SDA3

SDA1

STB3.3V

TXD_TU

SOUND MUTE

SCL3

SCL1

TXD_PC

RXD_PC

STB5V

IIC_CONT

REMOCON OUT

REMOCON

RXD_TU

LED_R

DA3

IIC_BUS

+3.3V SOS

+1.5V SOS

+2.5V SOS

P+15V SOS / LED BLINKING : 2TIMES

134

P+15V SOS

P15V

REMOCON

STBY5V

STBY3.3V

IIC_CONT

SCL1

SDA1

SCL2

SDA2

TXD

RXD

IIC_INT

LED_G

PSTB

LED_R

PDB0

PBLCT

PDB1

PBUSY

245678910111213141516171819211

IIC_DATA1

IIC_CONT

IIC_CLK2

TXD

RXD

IIC/INT

PANEL_STBY_ON

PSTB

PBUSY

PDB0

PSLCT

PDB1

REMOCON

LED_G

DISPEN

ALARM

READY

STB5V

TUNER_SUB_ON

ACGOOD

LED_R

P15V

P5V

IIC_DATA2

STBY3.3V

IIC_CLK1

123456 8 9 101113141516171920 21 2225 2729 3533 3430

DA2

TO D3

166

ALARM

SCL0B

SDA0B

119

118

NRST-FP

SERIAL SWICTH

IC4803

Q4801

5V<-3.3V

TO J3

5V 3.3V

POWER STATUS 5

ALL_OFF

171

ALLOFF

ECO ON

TXD_PC

RXD_PC

161

UART_SW

HD-M/VD-M

DTCLK

LEVEL CONVERTER

5V 3.3V

HD-M/VD-M

VD-ADM,HD-ADM,CLP-M

VDO-M,HDO-M,DCK-M

VDO-S,HDO-S,DCK-S

36 IIC_INT

TH-37/42PG9W

DA-Board (1 of 2) Block Diagram TH-37/42PG9W

DA-Board (1 of 2) Block Diagram

TH-37PG9W / TH-42PG9W

14.28. DA-Board (2 of 2) Block Diagram

P3V_SDA2

P3V_SCL2

OSD_CKIN

OSD_HDIN

OSD_HDO

OSD_YS

OSD_YM

OSD0-15

OSD_VDO

+3.3V

STB+5V

+2.5V

STB+3.3V

+1.5V

Q4962

P+15V

Q4961

P5V_DC

+2.5V

STB+1.5V

CLK

DCK

SCKREF

MCKREF

IIC BUS

NRST

REFCK

CLK1

CLK3

CONTROL

HD,VD

X4501

HD,VD,DCK

CLK1

20MHz

CLK6

CLK7

CLK5

1.5V

CLK8

2.5V 3.3V

IC4956

CLK3

IC4500

OSD

STB 3.3V

R,G,B SUB VIDEO 24bit

R,G,B MAIN VIDEO 24bit

XRST/XSYNCRST

CONT

IIC

PROCESSING


SIGNAL

DIGITAL

IMPROVER CONVERTER

I/P,FORMAT

FORMAT CONVERTER

IC4501

SIGNAL PROCESSOR

DIGITAL SIGNAL PROCESSOR

MICON

LX 18

VCC

VIN

18 LX G1

VDD

G2 18

13 9

IC4951

P+15V

OUT1

IC4952

G1S2

VCC

OUT2 17

Q4901

+1.5V

P+15V

DC-DC CONVERTER

+2.5V

Q4902

-INC 9

Q4903

CTL

OUT1

CTL

+3.3V

DC-DC CONVERTER

VIN

IC4955

OUT1

OUT2

VIN

CTL

-INC

VDD

P+15V

DC-DC CONVERTER

-INC

VDD

D2 LX

VCC

D2 D2

OUT2

HOUT

GOE0-GOE9

110MHz 3

TE+

TB-

D/A 8bit

(RGB OUT)

BOE0-BOE9

(SERIAL)

TB+

TC-

OSD INPUT

TC4

TCLK-

TA-

10Bit LVDS

D/A 10bit

TE- 19

TD-

TC+

D/A OSD

TD+

CLKIN

IC4301

TC5

DATA

OSD MIX

TA+

VOUT

PARALLEL

LVDS

TCLK+

TTL

CLK

ROE0-ROE9

LVDS TRANSMITTER(10bit)

/PDWN

CONT

AVR 5V

IC4957

VOUTVDD

IC4901

AVR 5V

VOUT

5VDD

DQ31 VDD

INTERFACE

DDR-SDRAM

ADDRESS

A11

DATA

128M DDR SDRAM

DQ0

IC4502

DA5

TX_TE-

TX_TD+

TX_TCLK-

TX_TB-

TX_TA+

TX_TA-

TX_TE+

TX_TC-

TO D5

TX_TD-

TX_TC+

TX_TCLK+

TX_TB+

OCKREF

IC4953

STB 1.5V

VDD VOUT

VIN VOUT

15V 3.3V 15V 1.5V15V 2.5V

CLOCK GENE.

ROUT

GOUT

BOUT

HSOE

VSOE

CLKOE

TH-37/42PG9W

DA-Board (2 of 2) Block Diagram TH-37/42PG9W

DA-Board (2 of 2) Block Diagram

TH-37PG9W / TH-42PG9W

14.29. DA-Board (1 of 6) Schematic Diagram

MN_RX1-

MN_RX1+

MN_RX0-

MN_RX0+

MN_CLK-

MN_CLK+

MN_RX3-

MN_RX3+

MN_RX2-

MN_RX2+

STB_ON

ANF_R_M

ANF_G_M

ANF_B_M

SB_CLK+

SB_CLK-

SB_RX0+

SB_RX0-

SB_RX1+

SB_RX1-

SB_RX2+

SB_RX2-

SB_RX3+

SB_RX3-

HD_M

VD_M

AA_CABLE_DET

POWER_STAT

AA_NRST

KEY_INPUT

DPMS_VD

DPMS_HD

P_ON/OFF

R4938

13k

C4998

16V

0.1u

R4955

C4923

0.1u

25V

C4926

0.1u

16V

C4903

0.1u

25V

C4935

0.1u

16V

R4036

100

C4999

50V

1000p

C4924

0.1u

16V

R4218

100

R4215

100

R4213

100

R4963

47k

C0CBCAD00016

IC4953

Vcont

GND

Vin

Vout

C0CBCBC00190

IC4956

VDD

GND

VOUT

R4975

R4936

R4214

100

R4951

C4996

16V

0.1u

C4929

0.1u

25V

R4909

R4217

100

C4909

0.1u

25V

C4919

4.7u

6.3V

C4945

0.1u

16V

R4966 0

C0DBAYY00054

IC4955

1GND

2REFIN

3VREF

4CS

5VCC

6COVP

7CUVP

8PGOOD

9CTL

10 LSAT

11 ILIM

12 +INC 13

-INC

N.C.

PGND

OUT-2

VDD

OUT-1

VIN

R4959

22k

R4941

10k

C4925

0.022u

25V

FL4001

J0MAB0000175

C4920

0.1u

16V

C4904

0.1u

16V

D4904

B0JCME000037

L4901

G1C3R3MA0175

R4953

47k

C4934

8200p

50V

C0DBAHD00011

IC4957

VOUT

GND

VDD

R4038 100

2.5V

C4938

0.1u

25V

P15V

3.3V

C4933

0.1u

16V

R4911 100

R4042

Q4901

B1MBEDA00015

S1G1S2G2

D2 D2 D1 D1

R4940 0

C4944

4.7u

6.3V

C4032

16V

0.1u

R4981

C4943

10p50V

C4908

1000p50V

R4960

R4987

R4994

10k

C4942

0.1u

16V

R4965 100k

R4216

100

R4995

10k

R4933

3.9k

R4992

10k

R4037 100

D4905

B0JCDD000002

Q4902

B1MBEDA00015

S1G1S2G2

D2 D2 D1 D1

R4219

100

IC4031

C0JBAE000354

GND

VCC

C4993

16V

0.1u

R4962

C0DBAYY00054

IC4952

1GND

2REFIN

3VREF

4CS

5VCC

6COVP

7CUVP

8PGOOD

9CTL

10 LSAT

11 ILIM

12 +INC 13

-INC

N.C.

PGND

OUT-2

VDD

OUT-1

VIN

D4906

B0JCME000037

DA1

Q4961

B1ABCF000138

R4211

100

D4901

B0JCME000037

3.3V

1.5V

R4991

10k

R4931

C0DBAHD00011

IC4901

VOUT

GND

VDD

C0DBAYY00054

IC4951

1GND

2REFIN

3VREF

4CS

5VCC

6COVP

7CUVP

8PGOOD

9CTL

10 LSAT

11 ILIM

12 +INC 13

-INC

N.C.

PGND

OUT-2

VDD

OUT-1

VIN

C4939

4.7u

6.3V

R4952 0

D4902

B0JCDD000002

R4935 100k

DA6

D4903

B0JCDD000002

C4990

10V

IC4032

C0JBAE000354

GND

VCC

C4031

16V

0.1u

C4906

0.1u16V

C4937

1000p

50V

R4041

C4905

8200p

50V

STB5V

R4967

R4220

100

P15V

Q4962

B1ABCF000138

R4212

100

R4950 100k

R4986

18k

R4970

68k

R4035

100

STB1.5V

C4992

16V

0.1u

R4961

P5V_DC

C4928

4700p

50V

P15V

STB3.3V

R4910

62k

C4932

0.1u

25V

P15V

Q4903

B1MBEDA00015

S1G1S2G2

D2 D2 D1 D1

C4901

10u

25V

C4902

10u

25V

C4910

10u

25V

C4918

10u

25V

C4930

10u

25V

C4931

10u

25V

C4936

10p

50V

C4927

47p

50V

L4902

G1C3R0MA0248

L4903

G1C2R2MA0248

C4991

6.3V

10u

C4994

6.3V

10u

C4995

6.3V

10u

C4997

6.3V

10u

R4954

7.5k

R4958

82k

R4964

7.5k

R4925 0

R4932

39k

R4934

R4939

24k

R4957

36k

R4969

36k

R4973

24k

R4974

2.4k

C4921

68u

C4940

68u

C4946

68u

P5V_DC

STB5V->STB3.3V

STB5V->STB1.5V

GND

RESET

GND

R/PR_M

GND

DPMS_VD

GND

STB_ON

POWER STATUS

VD_M

GND

B/PB_M

HD_M

KEY_SW

DPMS_HD

GND

G/Y_M

GND

CABLE DET

S_XCLK+

M_X1+

GND

M_X3-

S_X2+

S_X2-

S_X0+

GND

S_X0-

S_X3-

S_XCLK-

S_X3+

M_XCLK+

M_XCLK-

S_X1+

GND

M_X1-

S_X1-

GND

M_X0-

GND

M_X3+

GND

M_X2+

M_X2-

GND

M_X0+

GND

P15V->1.5V

CTL

P15V-> P5V

CTL

P15V->3.3V

P15V-> P5V

CTL

P15V->2.5V

P15V-> P5V

94 87

DC-DC CONVERTER

STB 1.5V STB 3.3V

15V 2.5V

DC-DC CONVERTER

(J1)

J-BOARD

(J5,J6)

J-BOARD

15V 3.3V

15V 1.5V

AVR 5V

3.2

0.5

0.4

0.5

4.4

0.4

4.9

0.4

3.2

1.6

5V 3.3V

LEVEL CONVERTER

5V 3.3V

LEVEL CONVERTER

TZTNP01ZPTU (37inch)

TZTNP04ZQTU (42inch)

DA-BOARD (1/6)

TH-37/42PG9W

DA-Board (1 of 6) Schematic Diagram TH-37/42PG9W

DA-Board (1 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

14.30. DA-Board (2 of 6) Schematic Diagram

MA_R6

MAIN_G3

MA_R1

MAIN_G6

MA_B2 MA_R2

MAIN_R5

MA_G3

MAIN_R6

MAIN_R7

MA_B1

MA_B3

MAIN_R0

MAIN_R1

MAIN_B6

MAIN_B1

MA_B6

MA_B5

MAIN_G7

MA_G0 MA_R0

MA_R7

MAIN_R3

MA_R4MA_G4

MA_G7

MAIN_B0

MAIN_G1

MAIN_B4

MAIN_G2

MAIN_G0

MA_B4

MAIN_B3

MA_B7

MA_G6

MAIN_B5 MAIN_G5

MA_R3

MAIN_R2

MA_R5

MAIN_R4

MA_G5

MAIN_B2 MA_G2

MAIN_G4

MA_G1

MA_B0

3VRXD_TU

NRST

MA_B2

MA_B5

MA_B6

MA_B7

MA_B0

MA_B3

MA_B1

P3V_SCL2

P3V_SDA2

MA_B4

HD_ADM

ANF_G_M

ANF_R_M

AM_VD

AM_HD

AA_NRST

AA_REMOCON

AR_IIC_CONT

AH_REM_OUT

AA_REMOCON

AC_GOOD

ANF_B_M

5VRXD_TU

3VTXD_TU

A_AM_CLK

AA_REMOCON_OUT

REM_IN

5V_SOS

5VTXD_TU

RXD

TXD

AA_DISPEN

READY

AA_PANEL_STBY_ON

STB_ON

D_IIC_CONT

D_IIC_CLK2

D_IIC_DATA2

D_IIC_INT

D_REMOCON

D_LED_R

D_LED_G

D_PSTB

D_PBUSY

D_PDB0

D_PSLCT

D_PDB1

TXD

D_IIC_CONT

D_IIC_CLK1

D_IIC_DATA1

D_IIC_CLK2

D_IIC_DATA2

TXD

RXD

D_IIC_INT

D_PSTB

D_PBUSY

D_PDB0

D_PSLCT

D_PDB1

D_LED_G

D_LED_R

15V_SOS

RXD

TXD_PC

ALARM

D_REMOCON

RXD_PC

3V_SCL4

3V_SDA4

MA_G7

MA_G6

MA_G5

MA_G4

MA_G3

MA_G2

MA_G1

MA_G0

A_AM_CLK

MA_R7

MA_R6

MA_R5

MA_R4

MA_R3

MA_R2

MA_R1

MA_R0

AM_CLK

DCK_M

UART_SW

AR_IIC_CONT

AR_IIC_INT

RXD_PC

TXD_PC

3V_SDA3

3V_SCL3

P3V_SDA2

P3V_SCL2

3V_SDA1

3V_SCL1

D_IIC_CLK1

D_IIC_DATA1

LED_G

LED_R

AA_RTC_INT

AA_REMOCON_OUT

5VRXD_TU

5VTXD_TU

SOUND_MUTE

RXD_PC

KEY_DET

TXD_PC

3V_SDA3

3V_SCL3

3V_SDA1

3V_SCL1

AR_IIC_CONT

VD_ADM

CLP_M

AA_ALL_OFF1

3.3V_MAIN

AH_LED_R

AH_LED_G

AR_IIC_CONT

3.3V_SOS

AH_REM_INH

NRST

MAIN_B7

P5V

C4881

16V

0.1u

P15V

R4880

R4877

R4841

5.6k

R4942 22

C4917

16V

47u

C4019

16V

0.1u

C4907

16V

0.1u

R4892

100

R4027

TP4706

IC4715

C0JBAE000354

GND

VCC

STB5V R4887

10k

R4837

10k

R4908

5.6k

R4001

EXB2HV100JV

R4879

100

Q4702

B1ABCF000138

STB5V

C4915

16V

0.1u

TP4704

R4876

10k

R4020

C4002

16V

0.1u

R4825

10k

D4733

B0ACCE000005

R4838

R4836

47k

FL4703

F1J1E1040022

C4010

50V 1000p

TP4713

TP4701

STB5V

R4919 100

C4013

16V

0.1u

D4713

B0ACCE000005

D4734

B0ACCE000005

Q4801

B1CBHD000002

Q4710

B1ABCF000138

C4001

16V

0.1u

Q4713

B1ABCF000138

R4924

10k

R4850

R4902 0

C0DBEGE00002

IC4002

1CTL

2Vcc

3GND

4OUT

5ADJ

TP4705

R4859

5.6k

3.3V

STB5V

R4921 100

R4831

Q4707

B1ABCF000138

TP4707

DA3

R4920 100

R4914 100

C4011

16V 0.1u

C4882

16V

0.1u

STB3.3V

C0JBAZ000856

IC4714

G1 1

GND

Vcc

C4016

16V

0.1u

FL4706

F1J1E1040022

STB5V

FL4707

F1J1E1040022

R4913 100

R4012

R4886

3.3k

Q4706

B1ABCF000138

PA4901

K5H4022A0023

R4843

330

2.5V

R4894

100

R4017

D4711

B0ACCE000005

R4171

STB3.3V

C4803

50V

100p

R4893

R4881

10k

P5V

R4912 100

D_STB3.3V

TP4710

R4930

R4827

C4004

16V

0.082u

R4004

C4913

16V

0.1u

R4026

51k

R4916 100

FL4705

F1J1E1040022

D4735

B0ACCE000005

STB3.3V

Q4704

B1ABCF000138

TP4703

C4012

16V

0.1u

C4887

25V

0.1u

R4883

3.3k

R4943 22

R4835

D4709

MA2J72800L

R4872

TP4712

P15V

R4833

47k

R4927

R4846

6.8k

TP4708 R4917 100

P15V

R4849

12k

R4025

15k

DA11

R4873

22k

D4721

MAZ30360HL

STB3.3V

R4874

22k

C4871

16V

0.1u

R4016

STB3.3V

IC4711

C0JBAE000354

GND

VCC

P5V

R4013

STB5V

Q4714

B1ABCF000138

P5V

R4891

R4852

10k

FL4708

F1J1E1040022

R4008

Q4705

B1ABCF000138

R4900 0

R4832

10k

R4021

C4911

50V

0.01u

R4019

C4006

16V

0.1u

Q4703

B1ABCF000138

C4804

16V

0.1u

R4918 100

R4888

100

TP4711

R4024

D4712

B0ACCE000005

1.5V

R4944

R4853

10k

STB3.3V

3.3V

R4018

C4884

16V

0.1u

IC4803

C0JBAS000215

11A

21B

32C

4GND 5

Vcc

TP4702

R4840

10k

C4886

50V

100p

R4926

C4017

16V

47u

R4005

2.7k

D4732

B0ACCE000005

R4915 100

R4851

10k

STB3.3V

R4842

5.6k

R4023

TP4709

STB5V

Q4709

B1ABCF000138

R4904

10k

R4884

10k

STB5V

R4844

C4885

16V

0.1u

R4903

100

R4834

10k

C4022

16V

0.1u

R4014

R4858

100

R4906

100

STB5V

R4003

EXB2HV100JV

C4914

16V

47u

R4002

EXB2HV100JV

FL4709

F1J1E1040022

C4018

16V

0.1u

R4839

47k

D_STB3.3V

R4010

C4912

10u

25V

DA4

STB3.3V

STB5V

IC4001

C0FBAY000012

GOUT6

GOUT5

GOUT4

GOUT3 5

GOUT2

GOUT1

GOUT0

DVSS

DVDD

BOUT7

BOUT6

BOUT5

BOUT4

BOUT3

BOUT2

BOUT1

BOUT0

DVSS

DVDD

CLAMP

AVSS

TEST2

PVDD

AVSS

COAST

HSYNC

VSYNC

AVSS

FLT

PVDD

AVSS

BIAS

TEST

AVDD

AVSS

AVDD

BIN

44 AVSS

45 AVDD

46 AVDD

47 AVSS

48 GIN

49 SOGIN

50 AVSS

51 AVDD

52 AVDD

53 AVSS

54 RIN

55 A0

56 SCL

57 SDA

BYPASS

AVDD

AVSS

RESETN

VSYNCO

SOGOUT

64 HSYNCO

65 DTCLK

66 DVSS

67 DVDD

68 ROUT7

69 ROUT6

70 ROUT5

71 ROUT4

72 ROUT3

73 ROUT2

74 ROUT1

75 ROUT0

76 NC

77 NC

DVDD

DVSS

GOUT7

R4028

10k

C4007

25V 0.1u

C4008

25V 0.1u

C4009

25V

0.1u

C4020

6.3V

10u

C4021

6.3V

10u

C4024

6.3V 10u

DA2

R4845

3.9k

R4922 0

R4006

6.8k

TP4722

TP4721

TP4733

TP4732

TP4731

C4003

50V 8200p

R4007

R4009

R4011

LED_G

KEY_DET

GND

SDA3

GND

SDA1

STB3.3V

N.C.

TXD_TU

RXD_TU

LED_R

GND

RTC INT

GND

SOUND MUTE

GND

SCL3

FAN_SOS

SCL1

TXD_PC

RXD_PC

N.C.

GND

STB5V

IIC_CONT

GND

REMOCON OUT

REMOCON

PANEL_STBY_ON

PSTB

PBUSY

PDB0

PSLCT

PDB1

FAN_CONT

PANASONIC_MODE

FAN_SOS

ECO_ON

GND

REMOCON

LED_G

GND

DISPEN

INEXCH

ALARM

READY

STB5V

TUNER_SUB_ON

ALL_OFF

IIC_DATA1

IIC_CONT

IIC_CLK2

TXD

RXD

IIC/INT

ACGOOD

LED_R

P15V

P5V

IIC_DATA2

STBY3.3V

IIC_CLK1

GND

P15V

REMOCON

STBY5V

STBY3.3V

IIC_CONT

GND

SCL1

SDA1

SCL2

SDA2

TXD

RXD

IIC_INT

LED_G

PSTB

LED_R

PDB0

PSLCT

PDB1

PBUSY

AVR 3.3V

TXD

SDA3

IIC_CONT

SDA2

STB5V

SDA1

GND

STB3.3V

IIC_INT/BOOT

GND

RXD

SCL1

SCL3

SCL2

141210 1713 1611 15 18

(D3)

D-BOARD

(J3)

J-BOARD

SERIAL SW OR GATE

A/D CONVERTER(MAIN)

0.5

3.0

0.6

3.0

0.8

5.0

3.0

5.0

3.2

2.7

3.0

0.6

2.7

2.3

3.3

4.5

FOR

FACTORY

USE

FOR

USE

FACTORY

LEVEL CONVERTER

5V 3.3V

LEVEL CONVERTER

5V 3.3V

DA-BOARD (2/6)

TH-37/42PG9W

DA-Board (2 of 6) Schematic Diagram TH-37/42PG9W

DA-Board (2 of 6) Schematic Diagram

TZTNP01ZPTU (37inch)

TZTNP04ZQTU (42inch)

TH-37PG9W / TH-42PG9W

100

14.31. DA-Board (3 of 6) Schematic Diagram

AQ_D13

AP_OE

AQ_D14

P3V_SCL2

AO_A18

AO_A11

AO_A6

P3V_SDA2

AQ_D4

AO_A18

AQ_D11

3V_SCL1

RXD_PC

OSD_YM

AO_A10

AO_A14

OSD14

OSD12

AQ_D9

AQ_D10

AR_IIC_CONT

AO_A4

NRST

AO_A1

OSD1

AO_A15

3VTXD_TU

AP_CE

AO_A7

OSD_CKIN

AQ_D6

AP_CE

NRST_FP

AO_A14

AQ_D0

AO_A9

AO_A5

AQ_D5

AQ_D1

OSD_HDO

AQ_D3

REM_IN

AA_RTC_INT

3V_SDA1

AH_REM_INH

OSD2

3V_SCL1

AO_A9

AQ_D15

AO_A0

AO_A7

OSD7

AQ_D7

AQ_D13

AA_CABLE_DET

AO_A17

3V_SCL3

TXD_PC

AQ_D5

AQ_D12

AQ_D7

AQ_D15

AO_A13

OSD4

AAE_MCLD

AAE_MCCLK

AQ_D1

AO_A3

AO_A6

AO_A0

AO_A16

OSD3

AQ_D9

AO_A1

OSD_VDO

AP_WE AQ_D4

AA_ALL_OFF1

AQ_D10

OSD0

3V_SDA3

AO_A4

AO_A2

OSD11

OSD5

OSD9

AQ_D14

3.3V_SOS

OSD10

AQ_D2

AQ_D6

AO_A12

A_TV_ON/OFF

AO_A3

AO_A11

3V_SDA1

AP_WE

AQ_D8

AO_A12

AQ_D0

OSD6

3VRXD_TU

AH_REM_OUT

OSD15

AAE_MCDATA_O

AQ_D11

AO_A8

OSD_YS

AR_IIC_INT

AP_OE

OSD8

AO_A2

AQ_D3

AQ_D8

STB_ON

AO_A5

AQ_D12

AO_A17

AO_A16

OSD_HDIN

AC_GOOD

AO_A8

AQ_D2

AO_A19

AO_A10

AO_A13

OSD13

DPMS_HD

TRCD3

TRCD2

TRCD1

TRCD0

TRCST

SOUND_MUTE

EXTRG0

5V_SOS

POWER_STAT

AA_DISPEN

AA_PANEL_STBY_ON

DRVMUTE

ALARM

15V_SOS

KEY_INPUT

3V_SCL4

3V_SDA4

READY

GENX_RST

DRVMUTE

A_TV_ON/OFF

UART_SW

LVDS_PD

P_ON/OFF

AO_A15

EXTRG0

KEY_DET

AH_LED_G

AH_LED_R

DPMS_VD

R4764

R4820

10k

STB3.3V

R4777

39k

R4732 100

R4763

R4823

10k

R4701

EXB38V103JV

C4861

16V

R4804

3.3k

C4754

16V 0.1u

R4812

10k

C4744

16V

0.1u

C4750

16V 0.1u

R4723

100

R4821

R4718 10k

C4733

50V

1000p

R4790 100

C4718

16V 0.1u

C4714

16V

0.1u

R4781 100

R4895 100

R4709 100

R4735

100

R4726

10k

C4704

16V 0.1u

R4870

10k

C4705

16V

0.1u

R4868

6.8k

C4710

16V

0.1u

R4864

5.6k

R4711

10k

C4716

16V 0.1u

R4860

10k

R4748 0

L4701

J0JHC0000096

R4773

R4715 100

C4862

16V

0.1u

R4766

EXB2HV470JV

R4829

C4707

16V

0.1u

R4719 10k

R4716 10k

R4772

100

R4727

100

R4738

100

R4866

10k

R4704

2.7k

L4704

J0JHC0000096

C0EBE0000447

IC4704

Vout

VDD

GND

N.C.

R4749 0

R4765

TP4901

R4819 100

R4760 2.7k

C4708

16V 0.1u

R4806

100

R4746

10k

R4759 22

C4715

16V 0.1u

3.3V

R4743 22

C4752

50V 15p

R4814

100

R4818 100

R4741

EXB2HV100JV

TP4902

IC4702

1A15

2A14

3A13

4A12

5A11

6A10

7A9

8A8

9NC

10 NC

11 WE#

12 RESET#

13 NC

14 NC

15 RY/BY#

16 A18

17 A17

18 A7

19 A6

20 A5

21 A4

22 A3

23 A2

24 A1 25

CE#

VSS

OE#

DQ0

DQ8

DQ1

DQ9

DQ2

DQ10

DQ3

DQ11

VCC

DQ4

DQ12

DQ5

DQ13

DQ6

DQ14

DQ7

DQ15/A-1

VSS

BYTE#

A16

R4792 1k

Q4701

B1CBHD000002

C4709

16V

0.1u

C4753

50V 1000p

R4826 100k

R4822

10k

R4780 100

R4710

10k

R4830

10k

R4717 100

R4848 1k

C4866

16V

0.1u

C4749

16V 0.1u

C4865

16V

4.7u

R4702

2.7k

R4775

10k

R4754 5.6k

R4729

100

R4722

2.7k

R4824 100k

C4706

16V

0.1u

R4751 0

R4734

10k

R4757 22

R4815

10k

Q4802

B1ABCF000138

R4791 100

R4755 22

R4779 10k

L4702

J0JHC0000096

R4855

C4711

16V

0.1u

R4707 100

R4728

10k

IC4703

C3EBJC000059

1E0

2E1

3E3

4Vss 5

SDA

SCL

Vcc

STB3.3V

R4769 2.7k

R4750 0

C4863

16V

0.1u

R4808

3.3k

R4767

EXB2HV470JV

R4865

10k

MN103SB30RGL

IC4701

P235

P234

P233

4P232

5P231

6P230

7P120/D16

8P121/D17

9P122/D18

10 P123/D19

11 P124/D20

12 P125/D21

13 P126/D22

14 P127/D23

15 IVSS

16 IVDD

17 P137/D31

18 P136/D30

19 P135/D29

20 P134/D28

21 P133/D27

22 P132/D26

23 P131/D25

24 P130/D24

25 P213

26 P212

27 P211

28 P210

29 P207

30 P206

31 VSS

32 VDD

33 P205

34 P204

35 P203

36 P202

37 P201

38 P187/SBT2

39 P186/SBI2

40 P185/SBT1/TM910A

41 P184/SBI1

P183/SBO1

P182/SBT0/TM810A

P181/SBI0

P180/SBO0

P061/A17

P060/A16

P057/A15

P056/A14

P055/A13

P053/A12

P052/A11

P051/A10

P050/A9

IVDD

IVSS

P064/A20

P065/A21

P0C0/NWE0

P066/A22

P063/A19

P062/A18

P047/A8

P046/A7

P045/A6

VDD

IVSS

P145/HOUTA

P142/VCLKOUTA

IVDD

PWROUTR

RTCXI

RTCX0

PSCNT

NTEST

P044/A5

P043/A4

P042/A3

P041/A2

P0C1/NRE

P0C2/NCS0

P200/ZA1

VSS

NRST

VDD

P172/SDA2

P173/SCL2

P170/SDA1

P171/SCL1

P025/HSYNC

IVSS

OSDXI

IVDD

P024/VSYNC/IRQ1

P021/YMOUT0/TM810B

P020/YSOUT

P000/R04

P001/R03

P002/R02

100

P003/R01

101

P004/R00

102

IVDD

103

IVSS

104

P005/G05

105

P006/G04

106

P007/G03

107

P010/G02

108

P011/G01

109

P023/G00

110

P012/B04

111

P013/B03

112

P014/B02

113

P015/B01

114

IVSS

115

P022/B00/TM910B

116

VDD

117

IVDD

118

P177/SDA0B

119

P176/SCL0B

120

P175/SDA0A

121

P174/SCL0A

122

P030/RMIN/IRQ0

123

PVDD

124

PLLTST

125

PVSS

126

AVDD2

127

AVSS2

128

IVSS

129

AD1N6

130

ADIN7

131

ADIN8

132

ADIN9

133

ADIN10

134

ADIN11

135

P160/ADIN0/TM0IO

136 P161/ADIN1/TM1IO

137 P162/ADIN2/TM2IO

138 P163/ADIN3/TM3IO

139 P240/ADIN4

140 P241/ADIN5

141 P242/CECINA

142 P243/CECINB

143 IVSS

144 OSCXO

145 OSCXI

146 IVDD

147 TRCD3

148 TRCD2

149 TRCD1

150 TRCD0

151 TRCST

152 TRCCLK

153 EXTRG1

154 EXTRG0

155 SDATA

156 SCLOCK

157 P100/NCS2A

158 P101/IRQ2A

159 VDD

160 VSS

161 P102/IRQ3A

162 P103/IRQ4A

163 P104/IRQ5A

164 P105/IRQ6A

165 P106/IRQ7A

166 P107/IRQ8A

167 P117/DPHI0

168 P116/DPVI0

169 P115/DPHI1

170 P114/DPVI1

171 P113

172 P112

173 P111

174

P110

175

P237

176

P236

R4724

10k

R4869

100

L4703

J0JHC0000096

R4740

EXB2HV100JV

R4774

C4719

16V 0.1u

R4762

R4770 47

R4768 47

STB3.3V

R4813

10k

R4828

100

Q4803

B1ABCF000138

STB3.3V

R4847 1k

X4701

H0J100500030

Q4712

B1ABCF000138

R4752

R4756 5.6k

R4863

C4751

50V 15p

C4864

100p

50V

C4713

16V

0.1u

R4947

10k

3.3V

R4761

R4786

EXB38V103JV

3.3V

R4703 100

C4717

16V 0.1u

R4793

12k

R4771 2.7k

C4701

16V

0.1u

R4753 22

R4758 2.7k

R4730 100

C4712

16V 0.1u

R4745

R4737

10k

R4817

R4713

EXB2HV100JV

STB1.5V

R4706

3.3k

R4742 22

R4712

EXB2HV100JV

R4795

10k

D4701

MA2J72800L

R4783 10k

R4788

100

C4703

6.3V

10u

R4747

EXB38VR000V

R4796

1.8k

R4708

10k

8M FLASH MEMORY

EEPROM_WP

SOS8_SS

15V_SOS

SOS7_SC2

SOS6_SC1

SOS4_PS

3.3V_SOS

FAN_SOS

5V_SOS

262319 22 24 252120 27

MICOM

RESET

EEPROM

DA-BOARD (3/6)

TVRN927-4

TH-37/42PG9W

DA-Board (3 of 6) Schematic Diagram TH-37/42PG9W

DA-Board (3 of 6) Schematic Diagram

TZTNP01ZPTU (37inch)

TZTNP04ZQTU (42inch)

TH-37PG9W / TH-42PG9W

101

14.32. DA-Board (4 of 6) Schematic Diagram

AAE_MCCLK

AAE_MCDATA_O

AAE_MCLD

P3V_SDA2

P3V_SCL2

HD_M

VD_M

MAIN_R5

MAIN_G0

MAIN_B7

MAIN_G4

MAIN_G3

MAIN_G1

DCK_M

VDO_M

MAIN_R0

MAIN_R2

MAIN_B6

MAIN_G2

MAIN_B5

HDO_M

MAIN_G6

MAIN_R7

MAIN_R3

MAIN_R4

MAIN_B2

MAIN_B0

MAIN_R6

MAIN_B4

MAIN_G5

MAIN_B3

MAIN_G7

MAIN_R1

MAIN_B1

SUB_R7

SUB_R6

SUB_R5

SUB_R4

SUB_R3

SUB_R2

SUB_R1

SUB_R0

SUB_B7

SUB_B6

SUB_B1

SUB_B5

SUB_G7

SUB_B0

SUB_B4

SUB_B3

SUB_B2

SUB_G6

SUB_G5

SUB_G4

SUB_G3

SUB_G2

SUB_G1

SUB_G0

VDO_S

HDO_S

DCK_S

AM_CLK

AM_HD

AM_VD

L7_REFCK

MN_RX3+

MN_RX3-

MN_RX0-

MN_RX0+

MN_RX1-

MN_CLK-

MN_CLK+

MN_RX2+

MN_RX2-

MN_RX1+

L7_MCK

P_CLK

P_DATA

P_INT

P_CE

SB_RX3-

SB_RX3+

SB_RX2-

SB_RX2+

SB_RX1-

SB_RX1+

SB_RX0-

SB_RX0+

SB_CLK-

SB_CLK+

VD_ADM

HD_ADM

CLP_M

NRST_FP

P_PROG

TDO_PROM

TDO_2V

TMS_2V

TCK_2V

CPG_7

TDI_57

TRST_BS

L7_SCK

L7_OCK

TCK_BS

TMS_BS

16V

0.1u

C4203

R4271

EXB2HV820JV

C4504

16V

0.1u

R4264 0

R4281 47

R4263 0

R4503

10k

C4506

50V

C4208

16V

0.1u

C1ZBZ0002769

IC4500

X1/ICLK

2S0

3S1

4CLK9

5VDD

6GND

7CLK1

8CLK2

9CLK3

10 CLK4 11

CLK8

CLK7

CLK6

CLK5

GND

VDD

PDTS

VDD

R4514 47

R4250 0

R4241 10k

R4256 0

C4503

16V

0.1u

R4506

10k

C4205

16V

0.1u

R4592

R4226

10k

R4276 22

R4242 0

R4244 22

R4275 47

C4502

6.3V

10u

C4204

16V

0.1u

R4274 47

C4213

16V

0.1u

L4206

J0JHC0000096

R4277

EXB2HV121JV

C4211

16V

0.1u

R4243 0

FPGA3.3V

C4207

16V

0.1u

C4206

16V

0.1u

R4245 1k

R4279

EXB2HV121JV

L4501

G1C150KA0038

3.3V

R4282 22

R4257 0

R4278

EXB2HV121JV

R4251 0

R4228

10k

R4272

EXB2HV820JV

C4202

16V

0.1u

3.3V

R4273

EXB2HV820JV

C4505

50V

15p

C4201

16V

47u

R4261

FPGA2.5V

R4502

2.5V

R4260

R4280 47

R4221 47

R4222 47

R4515 47

R4224

10k

R4201

R4249 1k

R4240 10k

R4511 47

R4510

C4212

16V

0.1u

3.3V

R4252 0

C4209

16V

0.1u

X4501

H0J200500038

C4210

16V

0.1u

R4148

4.7k

R4507

10k

C4219

6.3V

10u

C4220

6.3V

10u

C4221

6.3V

10u

C4222

6.3V

10u

C4225

6.3V

10u

C4227

6.3V

10u

R4671

R4144

4.7k

R4142

4.7k

3.3V

R4139

IC4201 F5 DSHL

IC4201 P14 BOA[5]

IC4201 P5 GOB[6]

IC4201 K11 VDD3

IC4201 R13 GOA[7]

IC4201 L7 VDD3

IC4201 G12 AC_TEST

IC4201 M16 SDA

IC4201 P7 VDO[B]

IC4201 E13 SID

IC4201 E14 CL

IC4201 D6 DMLR

IC4201 J4 UMH

IC4201 P11 ROA[6]

IC4201 C15 DRVRST IC4201 C7 NC

IC4201 A5 NC

IC4201 R14 NC

IC4201 E7 DSHR

IC4201 D4 NC

IC4201 N10 ROA[3]

IC4201 H7 GND

IC4201 L10 VDD3

IC4201 D1 LVDSB_RXDN

IC4201 N12 GOA[3]

IC4201 N1 CLRD

IC4201 K16 FPCLK

IC4201 B16 LVDSA_RXAN

IC4201 D5 MODEL[0]

IC4201 A2 NC

IC4201 K4 USH

IC4201 R16 DCKAO

IC4201 F6 GND

IC4201 F12 SCSU

IC4201 L8 VDD3

IC4201 C4 NC

IC4201 B15 GND

IC4201 M14 BOA[7]

IC4201 F11 GND

IC4201 L12 GOA[4]

IC4201 K6 VDD3

IC4201 H16 MCCLK

IC4201 G10 GND

IC4201 J2 VDIAA

IC4201 P6 BOB[3]

IC4201 H10 GND

IC4201 N11 ROA[7]

IC4201 M10 ROA[4]

IC4201 M5 NC

IC4201 T6 VDD

IC4201 H15 MCLD

IC4201 L11 GND

IC4201 H6 VDD3

IC4201 E15 CSH

IC4201 J13 LATCH

IC4201 L4 GOB[3]

IC4201 R6 BOB[2]

IC4201 E9 VDD3

IC4201 D8 LVDS_TEST

IC4201 T5 GOB[4]

IC4201 N5 GOB[7]

IC4201 M7 BOB[7]

IC4201 C1 LVDSB_RXCN

IC4201 J16 MCDATA

IC4201 N14 BOA[6]

IC4201 T12 GOA[0]

IC4201 A16 GND

IC4201 N15 XNVD

IC4201 D2 LVDSB_RXDP

IC4201 P8 DCKA

IC4201 T14 BOA[4]

IC4201 D11 ROM57AD[1]

IC4201 D14 CML

IC4201 C8 NC

IC4201 M13 BOA[1]

IC4201 R11 ROA[5]

IC4201 N16 XNHD

IC4201 T4 GOB[0]

IC4201 J14 LEL

IC4201 B6 NC

IC4201 D7 DSLR

IC4201 T16 GND

IC4201 B13 LVDSA_RXCP

IC4201 P13 BOA[0]

IC4201 P4 NC

IC4201 G2 HDIAB

IC4201 T7 DCKBO

IC4201 G1 VDA

IC4201 B1 LVDSB_RXCP

IC4201 P15 VDOA

IC4201 M8 VDD3

IC4201 M11 NC

IC4201 J8 GND

IC4201 A7 NC

IC4201 P10 ROA[2]

IC4201 F16 VDD

IC4201 H1 HDA

IC4201 P2 ROB[2]

IC4201 E10 NRST

IC4201 B10 NC

IC4201 G14 PCU2

IC4201 R9 NC

IC4201 F1 VDD

IC4201 D13 NC

IC4201 K9 GND

IC4201 F2 HD_ADB

IC4201 G9 GND

IC4201 A10 NC

IC4201 A12 NC

IC4201 R2 GND

IC4201 A8 LVDSB_CLKP

IC4201 J6 VDD3

IC4201 A4 LVDSB_RXBP

IC4201 M15 SCL

IC4201 T11 VDD

IC4201 G3 VDIAB

IC4201 D3 MODEL[1]

IC4201 L9 VDD3

IC4201 N13 NC

IC4201 F4 DSLL

IC4201 E4 DMLL

IC4201 J10 GND

IC4201 H9 GND

IC4201 B5 LVDSB_RXAP

IC4201 R4 GOB[1]

IC4201 F15 CLK_D

IC4201 N6 BOB[4]

IC4201 M4 GOB[2]

IC4201 A11 VDD

IC4201 E3 CLPB

IC4201 E5 NC

IC4201 G4 VD_ADA

IC4201 E6 DMHL

IC4201 R10 ROA[1]

IC4201 R5 GOB[5]

IC4201 C2 NC

IC4201 G15 CEL2

IC4201 D12 ROM57AD[0]

IC4201 L5 BOB[0]

IC4201 F9 VDD3

IC4201 H4 CLPA

IC4201 C10 NC

IC4201 M9 VDD3

IC4201 E12 NC

IC4201 M6 BOB[5]

IC4201 R1 ROB[0]

IC4201 C6 SLAV

IC4201 J5 VDD3

IC4201 K14 SFVRST

IC4201 M3 ROB[7]

IC4201 B14 LVDSA_RXBP

IC4201 A13 LVDSA_RXCN

IC4201 L1 VDD

IC4201 C12 KME_TEST

IC4201 T2 NC

IC4201 G7 GND

IC4201 E2 VDB

IC4201 J7 GND

IC4201 G13 ODEU

IC4201 T8 NAND_TEST

IC4201 J12 VDD3

IC4201 T3 ROB[4]

IC4201 H13 CLRU

IC4201 N3 ROB[6]

IC4201 N2 ROB[3]

IC4201 K12 GOA[5]

IC4201 J3 UML

IC4201 D16 DRVMUTE

IC4201 A3 NC

IC4201 D9 LVDSA_CLKP

IC4201 P1 ROB[1]

IC4201 L6 GND

IC4201 T1 GND

IC4201 T9 CLKM_IN

IC4201 J11 VDD3

IC4201 E1 HDB

IC4201 T10 ROA[0]

IC4201 L2 ODED

IC4201 L13 BOA[2]

IC4201 C5 LVDSB_RXAN

IC4201 H3 HD_ADA

IC4201 G5 DMHR

IC4201 C9 LVDSA_CLKN

IC4201 L3 PCD2

IC4201 A9 NC

IC4201 F13 CBK

IC4201 N9 NC

IC4201 T15 NC

IC4201 L15 FPDATA[0]

IC4201 L16 VDD

IC4201 K3 USL

IC4201 A15 NC

IC4201 J9 GND

IC4201 G16 CPH

IC4201 B9 GND

IC4201 C3 MODEL[2]

IC4201 N7 BOB[6]

IC4201 N4 NC

IC4201 F3 VD_ADB

IC4201 E11 CSL

IC4201 E16 SIU

IC4201 M1 LER

IC4201 K2 UEH

IC4201 A6 VDD

IC4201 K15 FPDATA[1]

IC4201 K1 NUEL

IC4201 G6 VDD3

IC4201 F14 CEL

IC4201 M2 PCD

IC4201 G11 VDD3

IC4201 A1 GND

IC4201 B2 GND

IC4201 F10 VDD3

IC4201 B7 NC

IC4201 C14 NC

IC4201 N8 DCKB

IC4201 R15 GND

IC4201 L14 SFRST

IC4201 J15 GND

IC4201 R12 GOA[1]

IC4201 H5 VDD3

IC4201 K8 GND

IC4201 B11 LVDSA_RXDN

IC4201 B8 LVDSB_CLKN

IC4201 F7 VDD3

IC4201 P16 HDOA

IC4201 H11 VDD3

IC4201 H2 GND

IC4201 D10 ROM57AD[2]

IC4201 G8 GND

IC4201 C13 NC

IC4201 K5 BOB[1]

IC4201 R8 GND

IC4201 M12 NCIC4201 C11 LVDSA_RXDP

IC4201 R7 HDOB

IC4201 B3 NC

IC4201 T13 GOA[6]

IC4201 H12 VDD3

IC4201 K10 GND

IC4201 C16 LVDSA_RXAP

IC4201 R3 ROB[5]

IC4201 P9 NC

IC4201 J1 HDIAA

IC4201 P3 NC

IC4201 H8 GND

IC4201 A14 LVDSA_RXBN

IC4201 H14 PCU

IC4201 E8 VDD3

IC4201 B12 NC

IC4201 B4 LVDSB_RXBN

IC4201 K7 GND

IC4201 P12 GOA[2]

IC4201 K13 BOA[3]

IC4201 D15 CMH

IC4201 F8 VDD3

R4512

CSL

FPGA MODE

FPDATA0

TEST PIN

M_BOUT1

RESET

VD_ADB

SS_PULSE

M_GOUT7

CMH

M_ROUT7

CEL

FPDATA1

M_GOUT2

CLPA

M_BOUT7

HDB

M_ROUT6

DCKAO

M_BOUT0

HDA

GND

LVDS_INPUT

LATCH

HD_ADB

CLK_D

VDOA

M_GOUT4

HD_ADA

CLPB

CBK

M_GOUT5

SID

M_ROUT5

VCCI(3.3V) OUTPUT_MAIN

SFVRST

HDOA

M_GOUT1

CLK_INPUT

M_BOUT2

M_GOUT3

SFRST

SCSU

M_ROUT0

OUTPUT_SUB

MICOM

FPCLK

SYNCHRONIZE

M_BOUT5

CEL2

M_BOUT3

M_GOUT6

M_ROUT2

DATA DRIVER

VDA

PRCKI

LSI58

M_BOUT4

IIC

M_GOUT0

CSH

SIU

CLKM

M_ROUT1

MODEL SELECTION

M_ROUT4

CPH

VDB

M_BOUT6

CML

SC PULSE

M_ROUT3

VD_ADA

JTAG

20SS

OFF/39.5/20.75

50/60/64/39.5/20.75

OFF/60/50

84/36/90/50

CPG

39.5/20.75

31.6/OFF

20/72/70

63/50/60/64

HDIAA

DCKA

XNHD

XNVD

HDIAB

DCKB

VDIAA

VDIAB

LVDS-TEST

SDA

SCL

MCCLK

MCLD

MCD ATA

DSHL

DMHR

DSLR

DMHL

DSHR

DMLR

DSLL

DMLL

NRST

DRVMUTE

DRVRST

ROM57AD[1]

ROM57AD[2]

ROM57AD[0]

PCU

PCU2

CLRU

ODEU

LEL

PCD2

ODED

PCD

LER

CLRD

UEH

USH

UML

USL

UMH

NUEL

S_ROUT3

S_GOUT1

HDOB

S_ROUT7

S_GOUT0

S_ROUT6

S_ROUT1

VDOB

DCKBO

S_ROUT2

S_BOUT4

S_BOUT2

S_GOUT5

S_GOUT2

S_BOUT5

S_BOUT1

S_ROUT4

S_GOUT3

S_GOUT6

S_BOUT0

S_BOUT6

S_ROUT0

S_ROUT5

S_BOUT3

S_GOUT4

S_BOUT7

S_GOUT7

KME-TEST

MODEL2

MODEL1

MODEL0

LVDSB_RXAP

LVDSB_RXBN

LVDSB_RXCN

LVDSB_RXBP

LVDSB_RXCP

LVDSB_CLKP

LVDSB_CLKN

LVDSB_RXDN

LVDSB_RXDP

LVDSB_RXAN

LVDSA_RXBN

LVDSA_RXAN

LVDSA_CLKP

LVDSA_RXDN

LVDSA_RXDP

LVDSA_RXCP

LVDSA_RXAP

LVDSA_RXBP

LVDSA_RXCN

LVDSA_CLKN

VCCAUX(2.5V)

3633

28 30 353129 3432

(NO USE)

CONTROL

FREE-RUN CLK

DATA POWER

FEEDBACK

(NO USE)

Flash_Control

IC4201

C1ZBZ0003233

CLOCK GENE.

FPGA/ASIC

IC4201

TTL S/P

SYNC SIGNAL CONTROL

LVDS RECEIVER

C1ZBZ0003233

DA-BOARD (4/6)

TH-37/42PG9W

DA-Board (4 of 6) Schematic Diagram TH-37/42PG9W

DA-Board (4 of 6) Schematic Diagram

TZTNP01ZPTU (37inch)

TZTNP04ZQTU (42inch)

TH-37PG9W / TH-42PG9W

102

14.33. DA-Board (5 of 6) Schematic Diagram

L7_DQ31

L7_DQ30

L7_DQ29

L7_DQ28

L7_DQ27

L7_DQ25

L7_DQ24

L7_DQ23

L7_DQ21

L7_DQ20

L7_DQ19

L7_DQ18

L7_DQ17

L7_DQ16

L7_DQ15

L7_DQ14

L7_DQ13

L7_DQ12

L7_DQ11

L7_DQ10

L7_DQ9

L7_DQ8

L7_DQ6

L7_DQ5

L7_DQ4

L7_DQ3

L7_DQ2

L7_DQ1

L7_DQ0

L7_DQ7

L7_DQ26 L7_ADRS6

L7_ADRS3

L7_ADRS10

L7_ADRS11

L7_ADRS9

L7_ADRS8

L7_ADRS7

L7_ADRS4

L7_ADRS2

L7_ADRS1

L7_ADRS0

L7_NRAS

L7_NCAS

L7_NCS

L7_SDCKON

L7_SDCKO

L7_NWE

L7_CKE

L7_BANK1

L7_DQS0

L7_BANK0

MAIN_R7

MAIN_R6

MAIN_R5

MAIN_R4

MAIN_R3

MAIN_R2

MAIN_R1

MAIN_R0

MAIN_B0

MAIN_B3

MAIN_B7

MAIN_B2

MAIN_B1

MAIN_B5

MAIN_B6

MAIN_B4

MAIN_G3

MAIN_G7

MAIN_G2

MAIN_G1

MAIN_G5

MAIN_G6

MAIN_G4

SUB_R0

SUB_R3

SUB_R7

SUB_R2

SUB_R1

SUB_R5

SUB_R6

SUB_R4

SUB_B0

SUB_B3

SUB_B2

SUB_B1

SUB_B5

SUB_B4

SUB_G3

SUB_G7

SUB_G2

SUB_G1

SUB_G5

SUB_G6

SUB_G4

OSD15

OSD14

OSD12

OSD13

OSD10

OSD9

OSD11

OSD6

OSD4

OSD5

OSD2

OSD1

OSD0

OSD3

OSD_YS

OSD_HDIN

OSD_CKIN

L7_OCK

OSD7

TMS_BS

TCK_BS

TRST_BS

MAIN_G0 SUB_G0

SUB_B7

SUB_B6

L7_HOUT

L7_VOUT

OSD8

L7_DQ22

L7_ADRS5

TDI_57

L7_ROUT9

L7_ROUT8

L7_ROUT7

L7_ROUT6

L7_ROUT5

L7_ROUT4

L7_ROUT3

L7_ROUT2

L7_ROUT1

L7_ROUT0

L7_GOUT9

L7_GOUT8

L7_GOUT7

L7_GOUT6

L7_GOUT5

L7_GOUT4

L7_GOUT3

L7_GOUT2

L7_GOUT1

L7_GOUT0

L7_BOUT8

L7_BOUT7

L7_BOUT6

L7_BOUT5

L7_BOUT4

L7_BOUT3

L7_BOUT2

L7_BOUT1

L7_BOUT9

L7_CLKOE

DCK_M

HDO_M

VDO_M VDO_S

HDO_S

DCK_S

OSD_VDO

OSD_HDO

L7_SCK

L7_MCK

L7_REFCK

OSD_YM

NRST

P3V_SCL2

P3V_SDA2

L7_BOUT0

C4578

16V 0.1u

IC4501 W8 VSS

IC4501 D12 I2CSLV0

FL4504

F1J1E1040022

IC4501 C9 ALPHA3

IC4501 AB8 VSS

IC4501 N23 OCKO

IC4501 T2 BUIA2 IC4501 K13 VSS

IC4501 J23 GOUT1

IC4501 K9 VSS

IC4501 AA11 DQ27

IC4501 R16 VSS

IC4501 U5 VDD15

IC4501 D3 GYIB5

IC4501 V22 S4UDSEL0

C4592

16V 0.1u

IC4501 E1 GYIB0

L4503

J0JHC0000096

IC4501 AA18 ADRS9

IC4501 AA15 VSS

IC4501 AC19 VSS

IC4501 K11 VSS

IC4501 A14 OMASK

R4572 0

IC4501 W19 VSS

C4566

16V 0.1u

IC4501 D17 XMPLLPDN

IC4501 F4 BUIB5

IC4501 B17 WDLLON

IC4501 R10 VSS

IC4501 Y17 ADRS11

IC4501 Y10 DQ28

IC4501 C8 ALPHA0

IC4501 K19 VDD15

IC4501 E21 PWMOUT

IC4501 B6 OSD12

IC4501 D2 GYIB3

IC4501 P2 GYIA2

C4589

16V 0.1u

IC4501 B21 ROMD1

IC4501 L9 VSS

IC4501 M9 VSS

IC4501 M16 VSS

IC4501 AC1 VSS

IC4501 B2 VSS

L4504

J0JHC0000096

1.5V_L7

L4502

J0JHC0000096

IC4501 B19 MDIV2

IC4501 K22 GOUT6

IC4501 N1 GYIA7

IC4501 H2 RVIB3

IC4501 A9 OSDCKI

C4547

16V 0.1u

IC4501 H11 VSS

IC4501 E16 VDD15

IC4501 N2 GYIA6

IC4501 V2 RVIA2

IC4501 AA1 TRSTZ

R4557

IC4501 AC15 NWE

IC4501 B11 XSYNCRST

2.5V_L7

IC4501 N4 RHA

IC4501 A20 MDIV0

IC4501 K21 GOUT7

C4570

16V 0.1u

IC4501 A19 VSS

IC4501 A15 TEST0

IC4501 AB12 DQ8

IC4501 T5 VDD15

IC4501 C1 GYIB4

R4565 0

R4578

IC4501 W2 DDRIOCTR0

C4569

16V 0.1u

IC4501 M12 VSS

IC4501 N22 BOUT7

IC4501 G22 ROUT4

IC4501 K8 VSS

IC4501 E9 VDD15

IC4501 E7 VDD33

R4556

IC4501 H22 ROUT8

IC4501 A2 OSD0

IC4501 L20 BOUT2

IC4501 W22 DCPOUT

IC4501 T20 S1UDSEL1

IC4501 W21 SDIV0

R4523 0

IC4501 J1 DCKB

C4565

16V 0.1u

R4520

IC4501 AC18 CKE

IC4501 M4 VMASKA

3.3V_L78

R4566

IC4501 Y21 SCPOUT

R4581

3.16k

IC4501 T16 VSS

IC4501 AB18 VSS

IC4501 AC10 DQ13

IC4501 W20 SDIV1

C4572

16V 0.1u

IC4501 AC12 DQ9

IC4501 AC6 DQS0

IC4501 P20 SRL

IC4501 F22 ROUT0

IC4501 AA19 ADRS4

IC4501 H23 ROUT7

IC4501 A16 TEST4 IC4501 A23 VSS

IC4501 D18 MDIV1

IC4501 H20 GOUT0

2.5V

IC4501 E10 VDD15

IC4501 M22 BOUT4

IC4501 AA13 DQS3

IC4501 J20 GOUT4

IC4501 M8 VSS

IC4501 Y9 DQ31

IC4501 M2 DVA

IC4501 F21 ROUT1

IC4501 AC2 DQ7

IC4501 H5 VDD15

IC4501 K16 VSS

IC4501 P15 VSS

IC4501 H4 RVIB5 IC4501 J11 VSS

IC4501 D9 OSDHO

IC4501 L13 VSS

IC4501 D8 ALPHA1

IC4501 M21 BOUT5

IC4501 L19 VDD15

IC4501 K3 RHB

IC4501 E17 VSS

IC4501 T4 BUIA4

IC4501 J9 VSS

IC4501 AA8 VSS

IC4501 D20 ROMD8

C4600

16V

0.1u

IC4501 AB16 NCS

IC4501 AB13 DQS1

IC4501 N8 VSS

C4550

16V 0.1u

IC4501 L12 VSS

IC4501 AA14 AVSS

IC4501 A3 OSD4

C4557

16V 0.1u

IC4501 AC13 VDD25

IC4501 C7 OSD15

IC4501 D11 XRST

IC4501 D21 ROMD12

IC4501 Y14 AVDD25

IC4501 E22 ROMCE

L4505

J0JHC0000096

IC4501 AC7 DQS2

IC4501 M5 VDD15

IC4501 Y18 ADRS8

R4555

IC4501 C2 GYIB6

IC4501 R14 VSS

R4531

2.5V_L7

IC4501 AB11 DQ10

R4564 0

IC4501 B1 GYIB7

IC4501 P12 VSS IC4501 AC5 DQ1

IC4501 F1 BUIB4

IC4501 W15 VSS

C4591

16V 0.1u

IC4501 M14 VSS

IC4501 C15 TEST2

IC4501 AA12 DQ25

IC4501 L2 CLAMPA

IC4501 N15 VSS

IC4501 AA2 TMS

C4561

16V 0.1u

R4579

IC4501 V19 VDD15

IC4501 U21 S2UDSEL1

IC4501 U4 BUIA0

IC4501 V21 S4UDSEL1

1kR4560

IC4501 E3 BUIB6

IC4501 C16 TEST6

IC4501 V23 VSS

IC4501 Y12 DQ24

IC4501 C4 OSD2

C4582

16V 0.1u

R4518

IC4501 P9 VSS

IC4501 P4 GYIA4

C4577

16V 0.1u

R4570 0

IC4501 U2 RVIA6

IC4501 R13 VSS

IC4501 G21 ROUT5

C4564

16V 0.1u

IC4501 W6 VDD25

IC4501 L5 VDD15

C4554

16V 0.1u

C4543

16V

0.1u

IC4501 N12 VSS

IC4501 K5 VDD33

2.5V_L7

IC4501 Y1 AHARDPWN

IC4501 F19 VDD33

R4546 0

C4575

16V 0.1u

IC4501 N10 VSS

IC4501 R4 GYIA0

IC4501 Y22 SDIV2

IC4501 B14 MINTEST

IC4501 H12 VSS

R4569

EXB2HV103JV

IC4501 K2 CLAMPB

IC4501 W11 VDD25

IC4501 C20 ROMD2

R4525 0

IC4501 J16 VSS

IC4501 AA17 VSS

IC4501 E2 BUIB7

IC4501 M3 DHA

IC4501 AA9 DQ14

C4574

16V 0.1u

IC4501 K4 DHB

IC4501 P16 VSS

IC4501 K1 HMASKB

C4563

16V 0.1u

IC4501 L3 ICKW

IC4501 R9 VSS

C4560

16V 0.1u

IC4501 J8 VSS

IC4501 AA5 DQ17

IC4501 AA21 VSS

IC4501 C10 REFCK

IC4501 C5 OSD6

R4539 0

IC4501 P10 VSS

IC4501 AB5 DQ2

R4573

10k

IC4501 U22 S2UDSEL0

IC4501 AB10 DQ12

IC4501 M13 VSS

IC4501 N5 VDD15

IC4501 G2 RVIB7

IC4501 Y6 DQ20

IC4501 L15 VSS

IC4501 R12 VSS

IC4501 AC9 VDD25

R4537

R4558

IC4501 AC8 VSS

C4581

16V 0.1u

IC4501 J3 RVIB0

IC4501 P11 VSS

IC4501 D7 YM

C4571

16V 0.1u

IC4501 AC3 DQ5

IC4501 U20 S4NCOPY

IC4501 B8 YS

IC4501 M19 VDD33

R4533 0

IC4501 A12 ZTSEL

IC4501 AB22 VSS

IC4501 C23 ROMD10

IC4501 U3 RVIA5

R4536

IC4501 R21 MFJIO

3.3V_L78

1kR4559

IC4501 P14 VSS

2.5V_L7

C4567

16V 0.1u

IC4501 AC14 VSS

IC4501 Y16 VSS

IC4501 P1 GYIA3

C4568

16V 0.1u

IC4501 C12 ZLPFON

IC4501 R3 BUIA5

IC4501 T14 VSS

1.5V

IC4501 T19 VDD15

IC4501 AB2 VSS

IC4501 L16 VSS

IC4501 W9 DQ30

IC4501 AB23 AVSSS

IC4501 AC22 BANK0

3.3V_L78

C4546

16V 0.1u

FL4502

F1J1E1040022

IC4501 A6 OSD11

IC4501 D13 I2CSDA

IC4501 J13 VSS

IC4501 T3 BUIA1

IC4501 P19 VDD33

IC4501 E19 ROMD4

IC4501 B12 ZTILD

IC4501 H15 VSS

IC4501 V3 RVIA1

IC4501 B7 VSS

IC4501 F5 VDD15

IC4501 Y2 TCK

IC4501 AA10 DQ29

IC4501 K15 VSS

IC4501 T10 VSS

IC4501 J19 VDD15

IC4501 N13 VSS

IC4501 U19 VDD15

IC4501 R11 VSS

IC4501 A10 OSDVO

IC4501 B20 AVDD33M

IC4501 T12 VSS

IC4501 W5 VSS

C4593

16V 0.1u

IC4501 N9 VSS

C4562

16V 0.1u

IC4501 H1 RVIB4

IC4501 U1 RVIA7

IC4501 B5 OSD9

IC4501 Y3 TDI

IC4501 H21 ROUT9

IC4501 T11 VSS

IC4501 D14 SCANTEST

C4583

16V 0.1u

IC4501 B10 BFJ

IC4501 W10 VDD25

IC4501 R19 VDD33

IC4501 D5 OSD3

IC4501 A22 ROMD5

C4594

16V 0.1u

IC4501 H10 VSS

IC4501 A8 OSDHI

IC4501 C14 SCANEN

IC4501 U23 S2NCOPY

IC4501 AB9 DQ15

IC4501 AB20 ADRS2

IC4501 M15 VSS

IC4501 K20 GOUT8

IC4501 D6 OSD14

IC4501 J10 VSS

IC4501 AB1 TDO

IC4501 W13 AVDD25

IC4501 B3 OSD1

IC4501 T15 VSS

4.7kR4554

IC4501 E8 VDD33

IC4501 M10 VSS

C4596

16V 0.1u

IC4501 N14 VSS

IC4501 H3 RVIB2

IC4501 Y23 VSS

IC4501 AA7 DQ23

IC4501 W12 VDD25

IC4501 AB14 BIAS

IC4501 M23 BOUT3

IC4501 R20 MVDIO

C4576

16V 0.1u

IC4501 C18 MDIV3

IC4501 R8 VSS

FL4503

F1J1E1040022

IC4501 T22 S1NCOPY

IC4501 J21 GOUT3

IC4501 R15 VSS

C4573

16V 0.1u

C4588

16V 0.1u

IC4501 AB3 DQ6

IC4501 AC21 ADRS0

IC4501 L11 VSS

IC4501 AC11 DQ11

IC4501 C21 ROMD7

IC4501 D10 AFJ

IC4501 B16 TEST5

IC4501 G1 BUIB0

IC4501 H9 VSS

IC4501 A21 AVSSM

IC4501 R2 BUIA6

IC4501 AC23 VSS

IC4501 K12 VSS

IC4501 V1 RVIA3

IC4501 D16 SDCLSEL

IC4501 N11 VSS

IC4501 A4 OSD8

IC4501 G20 ROUT6

IC4501 H16 VSS

IC4501 D15 TEST3

IC4501 W7 VDD15

IC4501 A17 VSS IC4501 G19 VDD33

IC4501 J14 VSS

IC4501 C22 ROMD11

IC4501 W17 VDD25

IC4501 Y20 VSS

IC4501 E4 GYIB2

IC4501 A18 MCKREF

IC4501 W4 DLLON

IC4501 AC20 ADRS3

IC4501 AA6 DQ19

IC4501 L21 BOUT1

IC4501 H8 VSS

C4597

16V 0.1u

IC4501 AB19 ADRS5

IC4501 V20 XSPLLPDN

C4585

16V 0.1u

IC4501 N21 BOUT8

IC4501 C13 I2CSCL

IC4501 E12 VDD33

3.3V_L78

IC4501 AA4 DQ16

C4541

50V

C4579

16V 0.1u

IC4501 H14 VSS

R4549 0

IC4501 AA23 SDIV3

IC4501 Y13 AVSS

IC4501 L14 VSS

IC4501 K23 GOUT5

IC4501 N16 VSS

IC4501 N20 BOUT9

1.5V_L7

IC4501 V5 VDD15

3.3V_L78

IC4501 Y19 ADRS6

IC4501 Y15 VSS

IC4501 L1 HMASKA

2.5V_L7

IC4501 Y5 DQ18

R4528 0

IC4501 G5 VDD15

IC4501 E23 C78EN

IC4501 M20 BOUT6

IC4501 J22 GOUT2

R4567

3.3V

IC4501 G4 BUIB1

IC4501 T1 BUIA3

IC4501 V4 RVIA4

IC4501 A13 I2CSLV1

IC4501 P23 VP

IC4501 T8 VSS

IC4501 E6 OSD7

IC4501 B23 ROMD9

C4558

16V 0.1u

C4553

16V 0.1u

IC4501 N19 VDD33

IC4501 R23 MCKO

IC4501 R5 VDD33

IC4501 W23 SCKREF

IC4501 K10 VSS

C4599

16V

0.1u

IC4501 W1 RVIA0

IC4501 R1 BUIA7

IC4501 L23 GOUT9

IC4501 P5 VDD33

IC4501 W3 DDRIOCTR1

R4540

R4545 0

IC4501 A7 OCKREF

IC4501 B18 XPLLRST

R4526 0

IC4501 AA3 VSS

IC4501 C3 VSS

IC4501 AA16 NCAS

C4580

16V 0.1u

IC4501 AB17 SDCKO

IC4501 W14 VDD15

C4542

50V

C4590

16V 0.1u

IC4501 Y7 DQ21

IC4501 C19 MCPOUT

IC4501 AB21 BANK1

IC4501 T13 VSS

IC4501 W18 ADRS7

IC4501 AA20 ADRS1

IC4501 E5 VSS

IC4501 M11 VSS

IC4501 F23 VIAREA

R4541

IC4501 K14 VSS

IC4501 J4 RVIB1

C4584

16V 0.1u

IC4501 A1 VSS

IC4501 B4 OSD5

IC4501 D22 ROMD15

IC4501 G23 ROUT3

IC4501 B13 I2CSLV2

IC4501 E13 VDD33

IC4501 W16 ADRS10

IC4501 Y11 DQ26

IC4501 P3 GYIA1

IC4501 AB6 DQ0

IC4501 B9 ALPHA2

C4595

16V 0.1u

IC4501 B22 ROMD6

IC4501 D4 VSS

IC4501 AC17 SDCKON

IC4501 F3 BUIB2

IC4501 AB7 DQ22

IC4501 E15 VDD15

IC4501 D23 ROMD14

IC4501 AB15 NRAS

IC4501 C17 NPLLSEL

IC4501 Y4 VSS

IC4501 B15 TEST1

IC4501 P22 HP

IC4501 C6 OSD13

IC4501 L22 BOUT0

IC4501 L8 VSS

C4555

16V 0.1u

IC4501 G3 RVIB6

3.3V_L78

IC4501 P13 VSS

IC4501 F2 BUIB3

IC4501 J12 VSS

IC4501 Y8 VSS

IC4501 M1 DCKA

IC4501 E18 ROMD0

IC4501 F20 ROUT2

R4530 0

IC4501 P8 VSS

IC4501 H13 VSS

IC4501 E14 VDD33

IC4501 J2 DVB

IC4501 AC16 VREF

IC4501 R22 ZLDENIO

IC4501 J5 VDD33

IC4501 T21 S1UDSEL0

IC4501 A11 OSDCKO

IC4501 E11 VDD15

R4568

EXB2HV103JV

R4544 0

C4551

16V 0.1u

IC4501 P21 SRLF

IC4501 D1 GYIB1

C4559

16V 0.1u

R4547 0

IC4501 AB4 DQ4

IC4501 T9 VSS

IC4501 H19 VDD15

C4587

16V 0.1u

IC4501 T23 OVDIO

IC4501 L4 VMASKB

IC4501 L10 VSS

R4571 0

IC4501 AA22 AVDD33S

R4522 0

IC4501 D19 ROMD3

C4556

16V 0.1u

IC4501 C11 SLVSET

IC4501 AC4 DQ3

IC4501 A5 OSD10

IC4501 E20 ROMD13

IC4501 J15 VSS

IC4501 N3 GYIA5

C4586

16V 0.1u

C4544

220u

4V C4598

220u

C4545

6.3V 10u

C4548

6.3V 10u

C4549

6.3V 10u

C4552

6.3V 10u

R4580

1.1k

3.3V_L78

R4596

10k

POWER DDR I/F

OSD

IIC

RESET

(R4)

(R3)

(R2)

(R1)

(R0)

(G5)

(G4)

(G3)

(G2)

(G1)

(G0)

(B4)

(B3)

(B2)

(B1)

(B0)

38 41 4437 43 454039 42

SIGNAL PROCESSOR

IC4501

FORMAT CONVERTER

MN845111-A

DA-BOARD (5/6)

TH-37/42PG9W

DA-Board (5 of 6) Schematic Diagram TH-37/42PG9W

DA-Board (5 of 6) Schematic Diagram

TZTNP01ZPTU (37inch)

TZTNP04ZQTU (42inch)

TH-37PG9W / TH-42PG9W

103

14.34. DA-Board (6 of 6) Schematic Diagram

L7DR_DQ23

L7DR_DQ21

L7DR_DQ4

L7DR_DQ5

L7DR_DQ8

L7DR_DQ29

L7DR_DQ15

L7DR_DQS0

L7DR_DQ10

L7DR_DQ17

L7DR_DM3

L7DR_DM0

L7DR_DQ19

L7DR_DM1

L7DR_DQ9

L7DR_DQ13

L7DR_DQ30

L7DR_DQ25

L7DR_DQ27

L7DR_DQ6

L7DR_DQ20

L7DR_DQ31

L7DR_DQ22

L7DR_DQ11

L7DR_DQ24

L7DR_DQ14

L7DR_DQ0

L7DR_DQ16

L7DR_DM2

L7DR_DQ3 L7DR_DQ28

L7DR_DQ12

L7DR_DQ7

L7DR_DQ1

L7DR_DQ18

L7DR_DQ26

L7_ADRS11

L7_ADRS6

L7DR_DQ2

L7_DQ24

L7_NWE

L7_NCAS

L7_NRAS

L7_ADRS10

L7_NCS L7DR_NCS

L7DR_AD10

L7DR_NRAS

L7DR_NCAS

L7DR_NWE

L7DR_DQ24

L7_ADRS5

L7_ADRS1

L7_ADRS3

L7_ADRS0

L7_ADRS2

L7_BANK0

L7_BANK1 L7DR_BA1

L7DR_BA0

L7DR_AD2

L7DR_AD0

L7DR_AD3

L7DR_AD1

L7DR_AD5

L7DR_AD6

L7_SDCKON

L7_ADRS8

L7_SDCKO

L7_ADRS7 L7DR_AD7

L7DR_CK

L7DR_NCK

L7DR_AD11

L7_DQ7

L7_DQ6

L7_DQ16

L7_DQ5

L7_DQ4

L7_DQ18

L7_DQ17

L7_DQ3 L7DR_DQ3

L7DR_DQ17

L7DR_DQ18

L7DR_DQ4

L7DR_DQ5

L7DR_DQ16

L7DR_DQ6

L7DR_DQ7

L7_DQ29

L7_DQ13

L7_DQ28

L7_DQ10

L7_DQ27

L7_DQ11

L7_DQ26

L7_DQ8 L7DR_DQ8

L7DR_DQ26

L7DR_DQ11

L7DR_DQ27

L7DR_DQ10

L7DR_DQ28

L7DR_DQ13

L7DR_DQ29

L7_DQ20

L7_DQ2

L7_DQ19

L7_DQ1

L7_DQ21

L7_DQ0 L7DR_DQ0

L7DR_DQ21

L7DR_DQ1

L7DR_DQ19

L7DR_DQ2

L7DR_DQ20

L7_DQ23

L7_DQS0

L7_DQ30

L7_DQ22

L7_DQ14

L7_DQ15

L7_DQ31

L7_DQ12 L7DR_DQ12

L7DR_DQ31

L7DR_DQ15

L7DR_DQ14

L7DR_DQ22

L7DR_DQ30

L7DR_DQS0

L7DR_DQ23L7_DQ25

L7_DQ9 L7DR_DQ9

L7DR_AD8

L7_CKE

L7_ADRS4

L7_ADRS9

L7DR_CKE

L7DR_AD4

L7DR_AD9

L7DR_CKE

L7DR_AD8

L7DR_NWE

L7DR_NCAS

L7DR_NRAS

L7DR_NCS

L7DR_BA0

L7DR_BA1

L7DR_AD7

L7DR_AD6

L7DR_AD5

L7DR_AD4

L7DR_AD9

L7DR_AD11

L7DR_AD10

L7DR_AD3

L7DR_AD2

L7DR_AD1

L7DR_AD0

BOE8

ROE4

GOE8

ROE9

GOE9

BOE9

VSOE

BOE6

BOE7

GOE7

BOE1

ROE7

ROE5

GOE1

ROE8

GOE5

HSOE

ROE0

GOE2

GOE6

BOE0

GOE0

ROE3

BOE5

ROE6

ROE1

ROE2

GOE4

BOE4

GOE4

BOE4

GOE3

GOE1

BOE6

GOE6

GOE2

BOE1

BOE5

BOE2

GOE8

BOE3

GOE9

BOE9

GOE5

BOE0

BOE7

BOE8

GOE0

GOE7

ROE4

ROE9

ROE3

ROE7

ROE5

ROE8

ROE2

ROE0

ROE1

ROE6

L7_BOUT9

L7_BOUT8

L7_BOUT7

L7_BOUT6

L7_BOUT5

L7_BOUT4

L7_BOUT3

L7_BOUT2

L7_BOUT1

L7_BOUT0

L7_GOUT9

L7_GOUT8

L7_GOUT7

L7_GOUT6

L7_GOUT5

L7_GOUT4

L7_GOUT3

L7_GOUT2

L7_GOUT1

L7_GOUT0

L7_ROUT9

L7_ROUT8

L7_ROUT7

L7_ROUT6

L7_ROUT5

L7_ROUT4

L7_ROUT3

L7_ROUT2

L7_ROUT1

L7_ROUT0

VSOE

HSOE

L7_VOUT

L7_HOUT

L7_CLKOE

L7DR_DQ25

CLKOE

L7DR_NCK

BOE2

LVDS_PD

BOE3

GOE3

R4631

R4620

EXB2HV330JV

IC4301

C0JBAP000020

TD5

GND

TD6

4TE0

5TE1

6TE2

7VCC

8TE3

9TE4

10 GND

11 TE5

12 CLKIN

13 /PDWN

PLL_GND

PLL_VCC

TE6

LVDS_GND

TE+

TE-

TD+

TD-

TCLK+

TCLK-

TC+

TC-

LVDS_GND

LVDS_VCC

TB+

TB-

TA+

TA-

LVDS_GND

TA0

TA1

TA2

TA3

TA4

TA5

GND

TA6

TB0

TB1

TB2

TB3

TB4

GND

TB5

TB6

TC0

VCC

52 TC1

53 TC2

54 TC3

55 TC4

56 GND

57 TC5

58 TC6

59 TD0

60 R/F

61 TD1

TD2

TD3

TD4

C4308

16V

0.1u

R4318

22k

L4301

J0JHC0000078

R4589

EXB2HV330JV

C4611

16V

0.1u

C4601

16V

0.1u

R4618

EXB2HV330JV

R4319

22k

C4304

50V 1000p

ZA4002

K4CD01000011

C4305

16V 0.1u

R4312

3.3V

C4609

16V

0.1u

C4307

50V 1000p

R4657

C3ABQJ000042

IC4502

DQ3

VDDQ

DQ4

4DQ5

5VSSQ

6DQ6

7DQ7

8VDDQ

9DQ16

10 DQ17

11 VSSQ

12 DQ18

13 DQ19

14 VDDQ

15 VDD

16 VSS

17 DQ20

18 DQ21

19 VSSQ

20 DQ22

21 DQ23

22 VDDQ

23 DM0

24 DM2

25 /WE

26 /CAS

27 /RAS

/CS

BA0

BA1

VDD

A10

A11

VSS

A8(AP)

MCL

CKE

/CK

DM1

DM3

VREF

VDDQ

DQ8

DQ9

VSSQ

DQ10

DQ11

VDD

VSS

VDDQ

DQ12

DQ13

VSSQ

DQ14

DQ15

VDDQ

DQ24

DQ25

VSSQ

DQ26

DQ27

VDDQ

DQ28

DQ29

VSSQ

DQ30

84 DQ31

85 VSS

86 VDDQ

87 NC

88 NC

89 NC

90 NC

91 NC

92 VSSQ

93 NC

94 DQS

95 VDDQ

96 VDD

97 DQ0

DQ1

VSSQ

100

DQ2

L4302

J0JHC0000078

C4612

16V

0.1u

C4603

16V

0.1u

L4303

J0JHC0000078

R4313

C4629

16V

0.1u

C4613

16V

0.1u

C4312

10V

R4574

EXB2HV680JV

C4313

50V 1000p

R4640

120

R4314

10k

C4309

10V

C4301

47u

6.3V

2.5V_L7

R4626

R4658

C4605

16V

0.1u

R4587

EXB2HV330JV

R4316

10k

C4604

16V

0.1u

C4303

50V

1000p

C4302

16V

0.1u

R4622

C4614

16V

0.1u

C4610

16V

0.1u

C4311

16V 0.1u

ZA4001

K4CD01000011

C4608

16V

0.1u

R4324

10k

R4627

R4321

22k

R4588

EXB2HV330JV

R4577

EXB2HV680JV

R4584

EXB2HV680JV

R4621

EXB2HV330JV

C4602

16V

0.1u

C4606

16V

0.1u

R4619

EXB2HV330JV

C4607

16V

0.1u

C4306

16V 0.1u

DA5

R4575

R4576

R4582

R4583

R4585

R4586

R4590

R4591

R4595

R4325

EXB38VR000V

R4326

EXB38VR000V

R4327

EXB38VR000V

DDR-SDRAM

DDR-Terminate

10bit LVDS

48 54534947 5046 51 52

DDR SDRAM(128M)

LVDS TRANSMITTER

(10bit)

TX_TA-

TX_TA+

TX_TB+

TX_TB-

TX_TC+

TX_TC-

TX_TCCK-

TX_TCJK+

TX_TD+

TX_TD-

TX_TE+

TX_TE-

1.2

D-BOARD

(D5)

DA-BOARD (6/6)

TH-37/42PG9W

DA-Board (6 of 6) Schematic Diagram TH-37/42PG9W

DA-Board (6 of 6) Schematic Diagram

TZTNP01ZPTU (37inch)

TZTNP04ZQTU (42inch)

TH-37PG9W / TH-42PG9W

104

14.35. D-Board Block Diagram

CLKD0

CLKD1

TXD_PC

RXD_PC

PANEL_MAIN_ON

ALARM

READY

ECO_ON

TUNER_SUB_ON

CLKM_IN

FREE_RUN

DRVMUTE

RXD_PC

IIC_INT

TXD_PC

RXD_PC

IIC_CONT

IIC_INT

STB_SDA01

STB_SCL01

SOS8_SS

CLKD3

READY

ALARM

LED_R

REMOCON

IIC_CONT

TXD_PC

SOS6_SC1

SOS7_SC2

SOS6_SC1

CLKD2

SOS4_PS

REMOCON

LED_R

LED_G

LED_R

LED_G

REMOCON

LED_G

SOS4-PS

STB_SCL02

STB_SDA02

CLRD

PCD1

LED

PCD2

CLRD

LED

ALL_OFF

AC_GOOD

IIC_INT

ALL_OFF

ECO_ON

AC_GOOD

PANEL_MAIN_ON

IIC_CONT

X9200

TP9372

TP9304

R 10bit

Scan Control DATA 13bit

IIC/INT

G 10bit

B 10bit

(D)PDB1

(D)PBUSY

B 10bit

(D)PDB0

R 10bit

(D)PSTB

(D)PSLCT

Sustain Control DATA 6bit

G 10bit

IC9503

PROCESSOR DRIVER

TO C11

TO C21

TXD1

RXD1

IIC_CONT

IIC_INT

LVDS INPUT

DISCHARGE

CONTROL

IIC1_SDA

LEVEL CONVERTER

IIC2_SCL

29 12

Voltage

IIC2_SDA

IC9500

FPGA,ASIC

LSI_RST

XRST

SUB-FIELD

PLASMA AI/SUB FIELD PROCESSOR/DATA DRIVER

IC9003

IC9303

MICOM

XIN

XOUT

X9000

9.216MHz

IC9802,03

IIC1_SCL

Video DATA 48bit(DA0-DC14)

3.3V 5V

Low

3.3V 5V

ROMDATA04-15(ROMADDRESS00-20)

D32

D31

5VDET

TO DA2

SOS7_SC2 76

SOS8_SS

5READY

ALARM

DRVMUTE

IC9011

IIC_DATA1

IIC_CLK1 22

TUNER_SUB_ON

ALARM 33

DISPEN

READY

PANEL_STBY_ON

ECO_ON

RXD

TXD

E+LVDSCLK

(RX_TCLK+)

E-LVDS2

(RX_TC-)

TO DA5

E-LVDS3

(RX_TD-)

E-LVDS1

(RX_TB-)

E-LVDS4

(RX_TE-)

E-LVDS0

(RX_TA-) 2

E-LVDSCLK

(RX_TCLK-)

E+LVDS2

(RX_TC+)

E+LVDS1

(RX_TB+)

E+LVDS4

(RX_TE+)

E+LVDS3

(RX_TD+)

LVDS_DET

STBY5V

+5V

D25

PANEL_MAIN_ON

ECO_ON

+5V 7

+15V

TO P25

F_STBY_ON

RXD

TXD

SDA1

PDB0

PSTB

IIC_INT

PSLCT

PBUSY

SCL1

LED_R

PDB1

LED_G

st-r

IC9900

CONVERTER

XRST

CTI/TINT

WB-ADJ

I/P COLOR

FORMAT CONVERTER/RGB PROCESSOR

CONVERTER CONTRAST

FORMAT

Differential

Signaling

RECEIVER

FPGA

SOS4-PS

PANEL_MAIN_ON

P_ON/OFF

Q9057

Q9058

Q9055

Q9056

P3V_SCL02

P3V_SDA02

TO SC20

D20

SCAN

DATA

DRV_SOS7

P5V

DRV_SOS2

5VDET

SOS6_SC1

SUSTAIN

DATA

SS_SOS8

P3V_SCL1

P3V_SDA1

P15V

P5V

STB5V_M

NRST

DRV_RST

DATA DRIVER

16M FLASH MEMORY

RESET

45 VOUTVCC

IC9502

RESET

P3.3V

SS PULSE

SCAN OUT

SC PULSE

3.3V 5V

IC9504

UMH,UML,USH,USL,UEH,NUEL,ODED1,ODED2

CL,CLK,SIU,SID,SCSU,CEL2,CPH,CEL,CBK,CSL,CSH,CML,CMH

IC9901

DDR SDRAM(128M)

Q9302

Q9301

CLK4

CLK8

CLK1

7CLK7

X1 1

IC9200

PCK OCK

P3V_SCL1

P3V_SDA1

P5V

CONTROL

STBY5V

P15V 21

NCS

ASDIO

DATA 0

DCLK

ODED1

P5V

Control DATA

SOS3_3V

SOS2_15V

SOS5_5V

Q9054 Q9053

Q9052 Q9051

P5V

P15V

3.3V

STB 5V_M

STBY 5V 29

LEVEL CONVERTER

CLOCK GENE.

DIGITAL SIGNAL PROCESSOR

PLASMA AI

SUB-FIELD PROCESSOR

FOR

FACTORY

USE

P5V

DRVCLKD0-D3

20bit

(DA8-DC14)

(DA0-DC7)

24bit

CLRD,LED,PCD1,PCD2

AVR P1.5V

VOUT

P2.5V P1.5V

IC9801

VDD

(LSI58 COMM)

TDO,TDI

TMS,TCK

JTAGDCK

JTAG

PD1-MS

FPCLK

FPDAT0

FPDAT1

SFVRST

LATCH

SFRST

R0-R9

G0-G9

B0-B9

DCK


OUTPUT

LVDS

SYNC PROCESSING

WB ADJ

DISCHARGE CONTROL

FLASH CONTROL

FPGA CONTROL

CONTROL

RESET

CONTROL

FLASH

CLKM PRCKI

-IN

STB 3.3V

Q9044

IIC_CLK2

IIC_DATA2

IC9001

EEPROM

SDA

SCL

WP 25 EEP_WR_CTL

P15V

STB5V_M

REMOCON 18

15V 2.5V

OUT2

OUT1

D1D2

VO 23

VCC VIN

VDD

18 G1

IC9809

DC-DC CONVERTER

-INC

9CTL

P15V

P2.5V

Q9805

Q9806

NCS

DATA

ADSI

DCLK

IIC_CONT

STBY3.3V

STB3.3V

SDA2

SCL2

(D)P15V 6

NCS

37 ASDIO

38 DATA 0

DCLK

LED_G

REMOCON

LED_R

VOUT

RESET

34 VDD

STB5V_M

Q9046

STB3.3V

9RESET

Q9050

XRST

SOS9_CONF 34

DRVRST

Q9300

ODED1

ODED2

PLASMA AI

NEW

DATA

ROMDATA00-03

DQ4-DQ15

A0-A19

DQ0-DQ3

ROMDATA00-03

ROMDATA04-15/ROMADDRESS00-20

3bit

SOS4_PS 16

XRST

65 LED_R

REM_IN

LED_G

Q9010

STBY 3.3V

RA_E ,RB_E ,RC_E ,RD_E ,RE_E

RCLK_E

E+LVDS0

(RX_TA+)

STB_SCL02

STB_SDA02

STB_SCL02

DPCLK1

TSET

TERMINAL

(SC_SOS6)

(SC_SOS7)

P3.3V

STB_SDA02

STB_SCL02

P3V_SCL1

P3V_SDA1

D9802

Q9801

AVR 5V

VDD

P15V

VOUT

IC9806

LDO_5V

VIN

VDD

-INC

CTL

P15V

P3.3V

VO 23

LDO_5V

Q9803

OUT1

IC9807

DC-DC CONVERTER

15V 3.3V

VCC

OUT2

VO 23

LDO_5V

Q9800

OUT1

IC9800

DC-DC CONVERTER

15V 1.2V

VCC

OUT2

VIN

VDD

-INC

CTL

P15V

P1.2V

DOUTDC15

DOUTDA8

CLK2

CLRD

CLK3

ODED1

LED

PCD1

(DA15-DC15)

P5V

CLK0

CLK1

DOUTDA0

DOUTDC7

38 CLRD

LED

PCD2

ODED2

(DA15-DC15)

ODED2

ALL OFF 23

ALL OFF

FORMAT CONVERTER

STB 3.3V

RESET

P+3.3V SOS / LED BLINKING : 3TIMES

P+5V SOS / LED BLINKING : 5TIMES

P+15V SOS / LED BLINKING : 2TIMES

25P5V

P5V

11AC_GOOD

DC_DC_ON

D9811

AC_GOOD

PROM(FPGA)

IC9007

IIC_CONT 19

TH-37/42PG9W

D-Board Block Diagram TH-37/42PG9W

D-Board Block Diagram

TH-37PG9W / TH-42PG9W

105

14.36. D-Board (1 of 6) Schematic Diagram

FP_CSL

SC_CL

SC_CSL

SC_CBK

SC_SID

SC_SCSU

SC_CLK

FP_SCSU

SC_CEL

FP_CEL

SC_CPH

SC_CEL2

SC_SIU

FP_CSH

FP_CLK

FP_CEL2

SC_CML

SC_CSH

SC_CL

SC_CMH

SC_CSH

FP_CML

SC_CMH

SC_CLK

FP_CBK

SC_SIU

SC_CEL2

FP_SID

SC_CML

SC_SID

SC_CEL

FP_CPH

FP_CL

SC_CSL

SC_CBK

SC_CPH

FP_SIU

SC_SCSU

PANEL_MAIN_ON

ALL_OFF

FAN_SOS

PSTB

PBUSY

PDB0

ASDIO

DCLK

ECO_ON

TUNER_SUB_ON

P_ON/OFF

SOS7_SC2

SOS6_SC1

PANASONIC_MODE

DRVMUTE

READY

ALARM

INEXCH

AR_IIC_INT

SOS9_CONF

AC_GOOD

AR_IIC_CONTSTB_SCL02

STB_SDA02

TXD_PC

RXD_PC

STBY3.3V_ON

DCDC_ON

SOS4_PS

PSTB_2

PBUSY_2

PDB1_2

PDB0_2

LED_R

REM_IN

PSLCT_2

PSLCT

PDB1

AR_IIC_CONT_D4

P3V_SCL1

LED_G

P3V_SDA1

REMOCON

DCDC_ON

PANEL_STBY_ON

TUNER_SUB_ON

ALL_OFF

P3V_SCL1

P3V_SDA1

AR_IIC_CONT_D4

STB_SCL02_D4

STB_SDA02_D4

TXD_PC_D4

RXD_PC_D4

AR_IIC_INT_D2

FAN_CONT

FAN_SOS

ECO_ON

LED_R

LED_G

REMOCON

AC_GOOD

PBUSY_2

PDB0_2

PSLCT_2

PDB1_2

RXD_PC_D4

TXD_PC_D4

STB_SDA02_D4

STB_SCL02_D4

AR_IIC_INT_D2

VDATA_DET

FAN_CONT

PSTB_2

DATA 0

NCS

FP_CMH

R9883

D9802

MA2J72800L

P1.5V

R9869

10k

C9805

4.7u

6.3V

P15V

R9810

C0JBAZ002692

IC9803

G1 1

GND

Vcc

R9893

36k

C9029

6.3V

10u

L9810

J0JHC0000045

C0DBAYY00054

IC9800

1GND

2REFIN

3VREF

4CS

5VCC

6COVP

7CUVP

8PGOOD

9CTL

10 LSAT

11 ILIM

12 +INC 13

-INC

N.C.

PGND

OUT-2

VDD

OUT-1

VIN

R9813

2.4k

FL9803

J0HABH000012

R9826 100

C0DBAYY00054

IC9807

1GND

2REFIN

3VREF

4CS

5VCC

6COVP

7CUVP

8PGOOD

9CTL

10 LSAT

11 ILIM

12 +INC 13

-INC

N.C.

PGND

OUT-2

VDD

OUT-1

VIN

C9881

50V

1000p

C9824

10u

25V

R9806

39k

C9809

0.1u

16V

C9815

68u

C9848

0.1u

25V

R9824 100

STB3.3V

C9837

10u

16V

STB5V_M

R9878

39k

R9802

62k

R9805

30k

R9892

15k

C9884

10p

50V

R9814

68k

R9846

EXB2HV272JV

R9830

10k

R9880

36k

R9872

R9823

100

C9842

16V

C9971

0.1u

16V

C9823

10u

25V

P15V_MOTO

L9801

G1C2R2MA0241

D9800

B0JCME000037

R9850

47k

R9133

4.7k

R9841

D9812

B0JCME000037

P15V

D25

L9802

G1C2R2MA0241

C9886

0.1u

16V

FL9804

J0HABH000012

Q9806

B1ABCF000138

C9839

10u

25V

LDO_5V

R9801

24k

D20

Q9801

B1MBEDA00015

S1G1S2G2

D2 D2 D1 D1

FL9801

J0HABH000013

C9967

4.7u

6.3V

C9832

10u

16V

L9800

G1C3R0MA0248

LDO_5V

C9844

50V

0.01u

R9840 22

R9847

EXB2HV272JV

C9843

16V

0.1u

C0JBAZ002692

IC9802

G1 1

GND

Vcc

STB3.3V

LDO_5V

R9808

100k

C9804

0.1u

16V

R9816

82k

P5V

R9897

100k

STB3.3V

LDO_5V

D9811

MA2J72800L

C9806

68u

C9830

10u

16V

P2.5V

C9807

10u

25V

C9841

16V

P5V_MOTO

C9833

10u

25V

C0DBAYY00054

IC9809

1GND

2REFIN

3VREF

4CS

5VCC

6COVP

7CUVP

8PGOOD

9CTL

10 LSAT

11 ILIM

12 +INC 13

-INC

N.C.

PGND

OUT-2

VDD

OUT-1

VIN

IC9007

TVRN941-1

1NCS

2DATA

3VCC

4GND 5

ASDI

DCLK

VCC

C9808

10u

25V

R9804

24k

D9815

B0JCDD000002

R9870

10k

R9827 100

D9808

MA3X152K0L

C9880

50V

1000p

R9879

20k

C9826

16V

0.1u

P3.3V

C9897

8200p

50V

C9887

4.7u

6.3V

J0HABH000013

FL9805

C9802

47p

50V

R9839 100

R9815

22k

P1.2V

C9846

16V

0.1u

R9848

EXB2HV470JV

P15V

R9807

R9845

5.6k

C9801

4700p

50V

R9803

C9896

0.1u

16V

C9840

16V

0.1u C9822

6.3V

10u

C9845

16V

0.1u

R9842 100

Q9803

B1MBEDA00015

S1G1

S2G2

D2 D2 D1 D1

R9838 100

P15V

FL9807

J0HABH000013

STB5V_M

P15V

D9807

MA3X152K0L

R9131

4.7k

R9854

100

D9804

MA3X152K0L

P15V

D9813

B0JCDD000002

P15V

C9028

6.3V

10u

R9871

10k

C9838

16V

0.1u

C9816

68u

P5V

C0DBAHD00011

IC9806

VOUT

GND

VDD

P5V

C9891

0.1u

16V

C9899

1000p

50V

P15V

C9800

0.1u

16V

R9800

13k

R9859

EXB38V101JV

R9844

100

Q9800

B1MBEDA00015

S1G1S2G2

D2 D2 D1 D1

STB3.3V

P15V_MOTO

C9882

0.1u

16V

P5V_MOTO

C9818

10u

25V

P5V

R9868

100k

PA9800

K5H4022A0023

C9885

1000p

50V

R9831

10k

C9831

10u

16V

J0HABH000013

FL9806

R9821

10k

P15V

R9896

C9847

0.1u

25V

Q9010

B1ABCF000138

C9898

10p

50V

D9814

B0JCME000037

D9801

B0JCDD000002

R9884

100k

C9926

0.1u

16V

C9883

8200p

50V

C9803

4700p

50V

IC9801

C0DBZFG00066

VOUT

2GND

3CE 4

GND

VDD

R9099

100

Q9805

B1ABCF000138

C9825

50V

100p

STB3.3V

C9827

6.3V

10u

C9817

10u

25V

STB5V_M

R9825 100

R9891

47k

P5V P2.5V

R9843 100

R9132

4.7k

J0HABH000013

FL9800

R9849

EXB2HV470JV

P3.3V

STBY5V

CSL

CEL

CBK

GND

CEL2

FAN_SOS

SID

SIU

SCSU

CPH

CLK

GND

P5V

SOS7_SC2

SOS6_SC1

CMH

FAN_CONT

CML

CSH

(AC_GOOD)

ALL_OFF

GND

+15V

GND

+5V

F_STBY_ON

GND

ECO_ON

PANEL_MAIN_ON

FAN_CONT

PANASONIC_MODE

FAN_SOS

ECO_ON

GND

REMOCON

LED_G

GND

DISPEN

INEXCH

ALARM

READY

STBY5V

TUNER_SUB_ON

ALL_OFF

IIC_DATA1

STBY3.3V

IIC_CLK1

IIC_CONT

IIC_CLK2

IIC_DATA2

TXD

RXD

IIC/INT

ACGOOD

LED_R

P15V

PSTB

PBUSY

PDB0

PSLCT

PDB1

PANEL_STBY_ON

SOS4_PS

STBY3.3V

IIC_CONT

GND

SCL1

SDA1

SCL2

SDA2

TXD

RXD

IIC_INT

LED_G

PSTB

LED_R

PDB0

PSLCT

PDB1

PBUSY

REMOCON

STBY5V

GND

P15V

VDATA_DET

P5V

47689

LEVEL CONVERTERLEVEL CONVERTER

15V->3.3V

DC-DC CONVERTER

(P25)

P-BOARD

DA-BOARD

(DA2)

SC-BOARD

(SC20)

AVR P1.5V

PROM(FPGA)

D-BOARD TZTNP01ZQTJ (1/6)

FOR

FACTORY

USE

AVR 5V

DC-DC CONVERTER

15V->1.2V

DC-DC CONVERTER

15V->2.5V

TH-37/42PG9W

D-Board (1 of 6) Schematic Diagram

TH-37/42PG9W D-Board (1 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

106

14.37. D-Board (2 of 6) Schematic Diagram

XRST

P3V_SCL02

P3V_SDA02

STB_SDA02

P3V_SDA1

P3V_SCL1

LVDS_MODE

DRVRST

READY

REM_IN

INEXCH

STB_SDA02

DATA 0

M_SEL2

LED_R

LED_G

M_SEL2

SOS9_CONF

M_SEL1

SOS7_SC2

RXD_PC

M_SEL3

NCS

XRST

AR_IIC_INT

M_SEL4

PANASONIC_MODE

NRST

C_SEL

M_SEL4

ALARM

ASDIO

TXD_PC

PANEL_MAIN_ON

DCLK

LVDSBIT

M_SEL3

SOS4_PS

EEP_WR_CTL

SOS6_SC1

XRST

STB_SDA01

STB_SCL01

EEP_WR_CTL

STB_SCL02

STB_SDA02

RE_E+

RE_E-

RD_E+

RD_E-

RC_E+

RC_E-

RB_E+

RB_E-

RA_E+

RA_E-

RCLK_E+

RCLK_E-

LVDS_DET

RE_0+

RD_0+

RD_0-

RC_0+

RC_0-

RB_0-

RA_0+

RA_0-

P_ON/OFF

D5_DETO

FVSEL

AR_IIC_CONT

STB_SCL02

STBY3.3V_ON

PANEL_STBY_ON

SOS9_CONF

SOS8_SS

M_SEL1

RE_0-

RB_0+

VDATA_DET

STB_SCL02

R9111

22k

R9100

10k

R9165

10k

R9173

10k

C9048

16V

0.1u

Q9050

B1ABCF000138

C9045

16V

0.1u

D9105

B0JCGD000002

R9076

100

R9225

4.7k

C9039

6.3V

10u

R9219

10k

Q9052

B1ABCF000138

R9177 22k

Q9056

B1CBHD000002

R9181 1k

C9033

16V

0.1u

R9156

10k

C9040

16V

0.1u

Q9051

B1ABCF000138

R9199

2.7k

R9113

D9106

B0JCGD000002

R9110

100

R9171

39k

R9150

R9194

R9183 1k

R9222

10k

R9206

C9053

16V

0.1u

R9157

10k

R9188

5.6k

R9158

10k

R9098

10k

STB5V

R9074

100

R9105

4.7k

R9220

10k

D9017

MAZ303300L

R9164

10k

R9161

Q9044

B1ABCF000138

R9143

100

STB3.3V

R9223

4.7k

R9144

100

R9180

10k

C9060

16V

0.1u

R9203

STB3.3V

R9142

100

P3.3V

C9049

16V

0.1u

STB3.3V

D9101

B0JCGD000002

C2CBJG000730

IC9003

6CNVss

9RESET

10 XOUT

11 VSS

12 XIN

13 VCC

Avcc

R9169

10k

R9148

10k

R9155

5.6k

R9121

100k

R9179

Q9054

B1ABCF000138

R9221

10k

C9055

16V

0.1u

R9236

C9058

6.3V

10u

Q9055

B1CBHD000002

STB3.3V

R9065

100

RESET

VOUT

VDD

GND

R9127

68k

C9047

16V

0.1u

R9192 0

R9240

C9044

16V

0.1u

Q9049

B1ADCE000011

R9066

100

D9102

B0JCGD000002

C9035

6.3V

10u

R9172

39k

R9159

10k

R9152

4.7k

R9064

100

R9196

10k

P5V

R9167 100

C9057

16V

0.1u

R9182 1k

STB3.3V

R9187

5.6k

Q9053

B1ABCF000138

R9184 1k

R9170

39k

IC9001

TVRP006-1

1A0

2A1

3A2

4GND 5

SDA

SCL

Vcc

Q9058

B1CBHD000002

P3.3V

R9145

100

C9050

16V

0.1u

X9000

H2D200500011

C9037

0.01u

50V

C9034

16V

0.1u

R9174

10k

R9237

10k

R9828

100k

R9140

R9185

R9166

10k

D9100

B0JCGD000002

R9151

R9154

5.6k

D9019

MAZ303300L

C9036

6.3V

10u

C9051

16V

0.1u

STB3.3V

R9109

10k

R9106

10k

R9190

10k

R9101 10k

R9189

10k

R9120

100

R9129

68k

P3.3V

STB5V_M

R9186

R9097

10k

R9217

10k

R9062

100

R9160

R9175 10k

Q9046

B1ABCF000138

R9063

100

P15V

R9178

10k

R9205

4.7k

TP9000

R9141

100

D9110

B0JCGD000002

R9218

10k

D9020

MA2J72800L

STB3.3V

D9018

MAZ303300L

R9193

10k

R9215

12k

R9134

33k

R9153

4.7k

D9103

B0JCGD000002

R9107 3.3k

C9046

16V

0.1u

R9108

10k

R9061

100

R9168

100

C9052

16V

0.1u

R9060

100

R9067

100

R9102

100

R9207

Q9057

B1CBHD000002

STB3.3V

R9149

4.7k

E- LVDS4

GND

E+ LVDS4

E- LVDS3

E+ LVDS3

E- LVDS2

GND

E+ LVDS2

E- LVDS1

O+ LVDS4

GND

E+ LVDS0

E+ LVDS1

GND

O+ LVDS3

O- LVDS4

E- LVDS0

O- LVDS2

O+ LVDS2

O- LVDS1

O+ LVDS1

O- LVDS3

GND

O+ LVDS0

O- LVDS0

O- LVDSCLK

O+ LVDSCLK

E- LVDSCLK

E+ LVDSCLK

LVDS_DET

INEXCH

SIN(FPGA)

PLL_RST

VREF

SOUT(FPGA)

XOUT

SOS7_SC2

FPGA_CE

NC AVSS

BUSY(for Loader)

RESET

SOS4_PS

CE(Loader)

SOS8_SS

SCLK(for Loader)

SOS6_SC1

MAIN_CONF

SOS2_15V

LED_RED

INT_CONF

RXD(Loader)

READY

SOS3_3V

LVDS_BIT

TXD(Loader)

LVDS_MODE

IIC2_SDA

SOS5_5V

SOS_INH

IIC2_SCL

NC(ALL_OFF)

M_SEL4

EEP_WR_CTL

SOS9_CONF

PANEL_MAIN_ON

VDATA_DET

P_ON/OFF

AC_GOOD

ALARM

M_SEL3

LSI_RST

M_SEL2

FVSEL

D5_DETO

REM_IN

IIC1_SDA

XRST

IIC1_SCL

DRIVER_RESET

IIC_CONT

M_SEL1

VCC

PANASONIC_MODE

NC(C_SEL)

XIN

IIC_INT

LED_GRN

SCLK(FPGA)

VSS

13 1614 181510 1211 17

STB 3.3V

RESET

MICOM

EEPROM

DA-BOARD

(DA5)

D-BOARD TZTNP01ZQTJ (2/6)

C0EBF0000431

IC9011

TH-37/42PG9W

D-Board (2 of 6) Schematic Diagram

TH-37/42PG9W

D-Board (2 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

107

14.38. D-Board (3 of 6) Schematic Diagram

SOS9_CONF

AA_BYTE

L8DO_UA19

L8DO_UB16

L8DO_UC21

L8DO_UA18

L8DO_UA11

FVSEL

FP_UEH

FP_CSL

FP_CSH

L8DO_UA9

RD_0-

RE_0-

FPDAT1

FP_SID

RE_E+

L8DO_UC12

L8DO_UA10

RB_0+

RCLK_E-

FP_UMH

L8DO_UA16

FP_CPH

DD_CLRD

L8DO_UA20

L8_HIN

FP_CBK

L8DO_UC11

RD_E+

L8DO_UA17

RC_E-

L8DO_UB11

RE_0+

FP_UML

NRST

L8DO_UC18

L8DO_UA21

FP_CEL

FP_NUEL

RA_E-

L8DO_UC15

RE_E-

RC_0-

RC_0+

RC_E+

L8DO_UB21

FP_USL

DD_ODED1

RD_E-

RB_E-

L8DO_UC10

RD_0+

L8_VIN

SFRST

FPCLK

FP_USH

FP_SIU

RA_E+

L8DO_UB17

LVDSBIT

L8DO_UA14

L8DO_UB18

FPDAT0

FP_CL

DD_PCD2

L8DO_UC17

L8DO_UB19

SFVRST

LATCH

FP_CEL2

DD_PCD1

L8DO_UB20

L8DO_UA15

RA_0-

L8DO_UB15

RB_0-

RB_E+

L8DO_UB10

RA_0+

FP_CML

FP_SCSU

FP_CMH

LVDS_MODE

L8DO_UC16

L8DO_UC19

DD_LED

RCLK_E+

FP_CLK

PSLCT

PBUSY

NCS

DATA 0

ENHMASK

ASDIO

INEXCH

LVDS_DET

PSTB

PDB1

PDB0

DRVRST

TDI_TO_68

TMS

TDO_TO_FPGA

L8_B9

L8_B8

L8_B7

L8_B6

L8_B5

L8_B4

L8_B3

L8_B2

L8_B1

L8_B0

L8_G9

L8_G8

L8_G7

L8_G6

L8_G5

L8_G4

L8_G3

L8_G2

L8_G1

L8_G0

L8_R9

L8_R8

L8_R7

L8_R6

L8_R5

L8_R4

L8_R3

L8_R2

L8_R1

L8_R0

DRVMUTE

L8_DCK

L8DO_UC20

DD_ODED2

D5_DETO

TCK

AA_XCE

AA_XOE

AA_XWE

DCLK

IC9500 J1 PLL1_OUTp

IC9500 G7 GND

C9528

16V 0.1u

R9537

10k

IC9500 D8 LVDS24p

IC9500 T6 LVDS65p

IC9500 H16 LVDSCLK2n

C9521

16V 0.1u

IC9500 D6 LVDS19n

IC9500 B13 LVDS32n

IC9500 G8 VCCINT

IC9500 E5 DPCLK2

IC9500 R6 LVDS66n

IC9500 H5 VREF1B1

IC9500 K3 ASDO

IC9500 H4 nCEO

IC9500 P11 LVDS57n

IC9500 M4 LVDS2p

IC9500 H3 nCONFIG

IC9500 L5 DPCLK0

R9529

10k

IC9500 A1 GND

IC9500 E8 IO

IC9500 C1 VCCIO1

IC9500 C10 LVDS27n

IC9500 E2 LVDS10p

IC9500 L3 IO

IC9500 B15 LVDS34n

IC9500 L14 LVDS45n

IC9500 L12 DPCLK5

IC9500 R16 LVDS50p

R9544

10k

IC9500 B8 LVDS23p

IC9500 M11 VREF0B4

IC9500 A6 LVDS21p

IC9500 P5 LVDS68n

IC9500 D15 LVDS38n

IC9500 L11 GND

IC9500 N8 LVDS62p

IC9500 D4 LVDS14p(INIT_DONE)

IC9500 R13 LVDS54n

IC9500 D10 LVDS27p

IC9500 J11 GNDA_PLL2

IC9500 L9 GND

IC9500 C6 LVDS20p

IC9500 G3 LVDS9n

IC9500 P4 LVDS70n

IC9500 J13 nSTATUS

IC9500 D11 LVDS30p

IC9500 H15 TDO

IC9500 T10 VCCINT

IC9500 D16 LVDS39p

R9506 22

IC9500 K2 PLL1_OUTn

R9533 47

IC9500 R9 LVDS61p

C9531

6.3V

10u

IC9500 B7 LVDS21n

IC9500 B6 LVDS20n

IC9500 G4 nCSO

IC9500 N4 LVDS0n

IC9500 K16 LVDS44p

IC9500 E12 DPCLK3

IC9500 T12 GND

IC9500 B14 LVDS33n

L9501

J0JHC0000078

IC9500 K8 GND

IC9500 G9 GND

IC9500 L16 LVDS44n

R9532 47

IC9500 T13 LVDS54p

IC9500 N14 LVDS48n

IC9500 G16 LVDSCLK2p

R9543

10k

IC9500 C5 LVDS18n

IC9500 M7 IO

L9502

J0JHC0000078

IC9500 H8 GND

IC9500 P6 LVDS66p

IC9500 J9 GND

IC9500 E11 VREF0B2

IC9500 T7 VCCINT

IC9500 B4 LVDS17p

IC9500 M2 LVDS4n

C9526

6.3V

10u

IC9500 H2 DATA0

IC9500 J10 VCCINT

IC9500 A12 GND

IC9500 T8 LVDS63n

IC9500 N3 LVDS2n IC9500 E3 LVDS11p

IC9500 R15 LVDS52n

R9548

10k

IC9500 K15 PLL2_OUTn

IC9500 R1 LVDS1p

IC9500 F8 GND

C9522

16V 0.1u

IC9500 H11 VCCA_PLL2

R9531 47

C9523

16V 0.1u

IC9500 M14 LVDS47n

IC9500 C7 LVDS22p

IC9500 D14 LVDS37p

IC9500 P7 LVDS64p

IC9500 R14 LVDS53p

IC9500 R11 LVDS57p

C9527

16V 0.1u

IC9500 D1 LVDS10n

IC9500 G13 LVDS43p

IC9500 L4 IO

IC9500 P12 LVDS55p

IC9500 C13 LVDS33p

IC9500 C2 LVDS13p(CLKUSR)

C9530

16V 0.1u

IC9500 F5 DPCLK1

IC9500 N12 LVDS56n

IC9500 J4 nCE

C9525

16V 0.1u

IC9500 H14 TDI

C9517

16V 0.1u

R9525

10k

IC9500 C8 LVDS24n

IC9500 F13 LVDS41p

R9552

10k

IC9500 P15 LVDS50n

IC9500 E13 LVDS37n

IC9500 N6 LVDS67n

R9863

10k

IC9500 C11 LVDS29n

IC9500 L6 GND

IC9500 R12 LVDS55n

IC9500 K10 GND

IC9500 M16 LVDS46p

IC9500 A7 VCCINT

IC9500 E9 IO

IC9500 T14 VCCIO4

IC9500 R2 LVDS71p

IC9500 R8 LVDS63p

IC9500 L1 LVDS6n

IC9500 J15 TMS

IC9500 A4 LVDS17n

IC9500 J5 GNDG_PLL1

IC9500 P10 LVDS58n

IC9500 H1 LVDSCLK1n

IC9500 H10 GND

IC9500 B9 LVDS26p

IC9500 C3 LVDS14n

IC9500 K12 VREF2B3

IC9500 L2 LVDS5p

IC9500 B16 LVDS36n

R9540

10k

IC9500 F12 DPCLK4

IC9500 P9 LVDS60p

IC9500 B5 LVDS18p

IC9500 L8 GND

IC9500 C14 LVDS35n

IC9500 B1 LVDS13n

R9507

IC9500 G15 LVDS42n

C9529

16V 0.1u

IC9500 N5 LVDS67p

IC9500 N1 LVDS4p

C9516

16V 0.1u

IC9500 A2 LVDS15n

R9526

IC9500 N10 LVDS58p

IC9500 M9 IO

IC9500 C12 LVDS31p

IC9500 E14 LVDS38p

IC9500 M12 DPCLK6

IC9500 K5 VREF2B1

IC9500 D9 LVDS25n

IC9500 F15 LVDS40n

IC9500 F7 VCCIO2

IC9500 D12 LVDS30n

IC9500 R5 LVDS68p

IC9500 J14 TCK

IC9500 M15 LVDS46n

IC9500 T4 LVDS69n

IC9500 E10 VREF1B2

C9519

16V 0.1u

IC9500 R4 LVDS69p

IC9500 F2 LVDS8p

IC9500 D7 LVDS22n

IC9500 A11 LVDS28n

IC9500 A14 VCCIO2

R9523

10k

IC9500 T3 VCCIO4

IC9500 R7 LVDS65n

IC9500 A15 LVDS34p

P3.3V

IC9500 N7 LVDS64n

IC9500 E15 LVDS39n

IC9500 K6 GND

IC9500 A5 GND

IC9500 K11 VCCIO3

IC9500 H13 IO

R9534

EXB38V470JV

IC9500 M3 LVDS3n

IC9500 P3 LVDS0p

C9520

16V 0.1u

IC9500 F11 GND

IC9500 G11 GND

IC9500 H7 VCCINT

IC9500 E1 LVDS8n

R9549

10k

IC9500 N16 LVDS49p

IC9500 K7 VCCINT

IC9500 T9 LVDS61n

R9862

10k

IC9500 N15 LVDS49n

IC9500 B3 LVDS16p

P3.3V

R9550

10k

IC9500 D2 LVDS11n

IC9500 F10 VCCIO2

IC9500 D5 LVDS19p

IC9500 E6 VREF2B2

IC9500 L13 LVDS47p

IC9500 N9 LVDS60n

IC9500 H12 VREF1B3

IC9500 G14 LVDS43n

R9530

10k

IC9500 M13 LVDS48p

IC9500 R10 LVDS59p

IC9500 B11 LVDS29p

IC9500 F14 LVDS41n

IC9500 F6 GND

IC9500 N2 LVDS3p

IC9500 K1 LVDS6p

IC9500 T11 LVDS59n

IC9500 L15 LVDS45p

IC9500 D3 LVDS12p

C9524

16V 0.1u

P3.3V

IC9500 P16 VCCIO3

IC9500 J7 GND

IC9500 N13 LVDS51n

IC9500 T1 GND

IC9500 A16 GND

IC9500 F4 LVDS_DET

IC9500 T15 LVDS52p

IC9500 G10 VCCINT

IC9500 P14 LVDS51p

IC9500 A10 VCCINT

IC9500 H6 VCCA_PLL1

IC9500 A13 LVDS32p

IC9500 F9 GND

IC9500 C16 VCCIO3

IC9500 C15 LVDS36p

IC9500 N11 LVDS56p

IC9500 J8 VCCINT

IC9500 G6 VCCIO1

R9956

10k

IC9500 F1 LVDS7n

IC9500 T2 LVDS71n

IC9500 M10 VREF1B4

IC9500 L10 VCCIO4

IC9500 P8 LVDS62n

IC9500 B2 LVDS15p

IC9500 B12 LVDS31n

IC9500 G5 VREF0B1

P3.3V

IC9500 E4 LVDS12n

IC9500 E16 LVDS40p

P3.3V

IC9500 T5 GND

IC9500 B10 LVDS28p

IC9500 P2 LVDS1n

IC9500 G12 VREF0B3

IC9500 A9 LVDS26n

R9861

10k

IC9500 K4 DCLK

C9518

16V 0.1u

IC9500 J12 GNDG_PLL2

IC9500 A3 VCCIO2

IC9500 H9 VCCINT

IC9500 M1 LVDS5n

IC9500 M6 VREF2B4

IC9500 G1 LVDSCLK1p

R9535

IC9500 F3 LVDS9p

IC9500 P1 VCCIO1

IC9500 L7 VCCIO4

IC9500 J3 MSEL0

IC9500 K14 IO

IC9500 M8 IO

IC9500 R3 LVDS70p

P3.3V

IC9500 C9 LVDS25p

R9536

IC9500 K9 VCCINT

IC9500 K13 CONF_DONE

IC9500 C4 LVDS16n

IC9500 F16 LVDS42p

IC9500 T16 GND

IC9500 M5 DPCLK7

IC9500 J16 PLL2_OUTp

IC9500 J2 MSEL1

IC9500 G2 LVDS7p

IC9500 A8 LVDS23n

IC9500 D13 LVDS35p

IC9500 E7 IO

IC9500 J6 GNDA_PLL1

IC9500 P13 LVDS53n

R9070

R9545

300k

P3.3V

P1.5V

D5_DETO

/ROMADRS[19]

DMHL

DSLR

M_GOUT9

M_GOUT5

M_BOUT0

NRST

CLK

M_ROUT9

FPCLK

PCD2

DSLL

DRVRST

M_ROUT7

CEL

/ROMADRS[03]

ODED1

FPDATA0

M_BOUT1

/ROMADRS[02]

M_GOUT4

/ROMADRS[11]

DRVMUTE

/ROMADRS[07]

/ROMADRS[04]

CBK

FPDATA1

OSDCK

CLRD

/ROMADRS[18]

/ROM_BYTE

M_GOUT3

/ROMADRS[10]

SFRST

SCSU

DSHL

OSDG

/ROMADRS[08]

LATCH

PCU2

MODEL[1]

/ROMDATA[06]

M_ROUT3

CPH

/ROMADRS[20]

CEL2

MODEL[0]

CBK2

DMLR

M_ROUT6

/ROMADRS[17]

SDA

SID2

M_GOUT1

CLK_INPUT

OSD

SCL

DMHR

/ROMDATA[07]

OTHER

CSH

NUEL

RESET

USL

SIU

ODEU

Flash_Control

CLRU

SIU2

M_ROUT2

LSI58

CLKM_IN

M_ROUT1

M_ROUT5

DATA POWER SAVING(NC)

LVDSmode

SFVRST

/ROMDATA[01]

/ROMADRS[16]

/ROMDATA[05]

LVDS_INPUT

/ROMADRS[13]

/ROMDATA[00]

/ROMADRS[05]

M_GOUT6

DATA_DRIVER

/ROMDATA[04]

/ROM_OE

PICTURE_OUTPUT

/ROMDATA[03]

/ROM_CE

IIC

/ROMDATA[02]

/ROMADRS[00]

CONTROL

CML

SS_PULSE

UML

CMH

DMLL

UMH

SC_PULSE

M_ROUT4

Nosync

GND

LVDSbit

M_ROUT8

M_ROUT0

M_GOUT2

LEU

FVSEL

PCU

M_BOUT3

M_BOUT4

VCCINT

M_GOUT8

VCCI

OSDHD

/ROMADRS[01]

M_BOUT5

JTAG

OSDVD

/ROMADRS[09]

M_BOUT6

OSDB

M_GOUT0

M_DCKO

/ROMADRS[14]

M_HDO

M_BOUT7

OSDR

/ROM_WE

M_VDO

M_BOUT8

M_GOUT7

M_BOUT9

USH

SID

UEL

LED

MODEL SELECT

CSL

PCD1

/ROMADRS[06]

M_BOUT2

/ROMADRS[12]

MASK

INEXCH

p_db1

p_db0

p_stb

p_slct

p_busy

PRCKI

FREE RUN CLK

PRCK_OUT

CLKM_OUT

TEST PIN

/ROMADRS[-1]

/ROMADRS[15]

ODED2

WHITE SIGNAL

2419 2720 25232221 26

D-BOARD (3/6)

TZTNP01ZQTJ

FLASH CONTROL

SYNC PROCESSING

FPGA CONTROL

LVDS

IC9500

WB ADJ

C1ZBZ0002599

DISCHARGE CONTROL

TH-37/42PG9W

D-Board (3 of 6) Schematic Diagram

TH-37/42PG9W

D-Board (3 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

108

14.39. D-Board (4 of 6) Schematic Diagram

DD_LED

FP_UMH

USH

UML

DD_ODED1

UMH

USL DD_CLRD

DD_PCD2

NUEL

FP_UEH

FP_NUEL D-ODED1

FP_USH

FP_USL

FP_UML DD_PCD1

UEH

L8DO_UB20

L8DO_UB18

L8DO_UA18

L8DO_UC17

L8DO_UC19

L8DO_UB15

L8DO_UC20

L8DO_UB21

L8DO_UC11

L8DO_UC12

LBDO_UA12

L8DO_UB10

LBDO_UA13

L8DO_UA11

LBDO_UB12

L8DO_UA16

LBDO_UB14

L8DO_UB16

L8DO_UA21

L8DO_UA17

AA_XCE

L8DO_UC16

L8DO_UB17

LBDO_UC13

LBDO_UC14

L8DO_UA10

L8DO_UB11

L8DO_UA14

L8DO_UA19

LBDO_UB13

L8DO_UA20

L8DO_UA15

L8DO_UC18

L8DO_UB19

L8DO_UC21

L8DO_UC15

L8DO_UC10

L8DO_UA9

AA_XWE

AA_XOE

AA_BYTE

L8_PCK

L8_OCK

DD_ODED2

D-ODED2

D-CLRD

D-LED

D-PCD2

D-PCD1

P3.3V

C9515

16V

TVRN940

IC9303

1A15

2A14

3A13

4A12

5A11

6A10

7A9

8A8

9A19

10 NC

11 WE#

12 RESET#

13 NC

14 NC

15 RY/BY#

16 A18

17 A17

18 A7

19 A6

20 A5

21 A4

22 A3

23 A2

24 A1 25

CE#

VSS

OE#

DQ0

DQ8

DQ1

DQ9

DQ2

DQ10

DQ3

DQ11

VCC

DQ4

DQ12

DQ5

DQ13

DQ6

DQ14

DQ7

DQ15/A-1

VSS

BYTE#

A16

C9501

16V

0.1u

P5V

C9505

16V

0.1u

P5V

X9200

H0J200500038

C9511

6.3V

10u

P3.3V

R9511

L9500

G1C150KA0038

R9502

10k

R9501

10k

C9506

16V

0.1u

R9394 0

C9514

16V

R9518

560

C9500

16V

0.1u

C9509

50V

20p

R9513

R9355 4.7k

R9516

10k

R9512

C9508

16V

0.1u

P3.3V

C9510

50V

15p

C0JBAZ002692

IC9503

2A1

3A2

4A3

5A4

6A5

7A6

8A7

9A8

10 GND 11

Vcc

C1ZBZ0003185

IC9200

VDD

CLK2

VDD

CLK7

GND

CLK5

VDD

GND

CLK6

VDD

CLK3

GND

VDD

CLK4

GND

CLK9

VDD

CLK8

GND

VDD

CLK1

STBY

GND

C9469

TH-37/42PG9W

D-Board (4 of 6) Schematic Diagram

TH-37/42PG9W

D-Board (4 of 6) Schematic Diagram

16V

0.1u

R9503

R9527

EXB2HV272JV

R9356 4.7k

R9528

EXB2HV272JV

C9512

16V

0.1u

C9502

16V

0.1u

IC9502

C0EBE0000066

SUB

GND

Vcc

Vout

C0JBAZ002692

IC9504

2A1

3A2

4A3

5A4

6A5

7A6

8A7

9A8

10 GND 11

Vcc

C9503

16V

0.1u

C9504

16V

0.1u

(SS20)

(84/36)

(63)

(SS50/60/75)

(20)

(OFF)

(39.5)

(31.6)

(36.6)

34 3531 3329

28 30 32 36

RESET

CLOCK GENE.

16M FLASH MEMORY

LEVEL CONVERTER

D-BOARD TZTNP01ZQTJ (4/6)

TH-37PG9W / TH-42PG9W

109

14.40. D-Board (5 of 6) Schematic Diagram

TERM

SIDE

TERM

SIDE

ENHMASK

L8_VIN

L8_HIN

L8_G0

L8_G1

L8_G2

L8_G3

L8_G4

L8_G5

L8_G6

L8_G7

L8_G8

L8_G9

L8_B0

L8_B1

L8_B2

L8_B3

L8_B4

L8_B5

L8_B6

L8_B7

L8_B8

L8_B9

L8_R0

L8_R1

L8_R2

L8_R3

L8_R4

L8_R5

L8_R6

L8_R7

L8_R8

L8_R9

L8DO_UA14

L8DO_UA19

L8DO_UA21

L8DO_UA11

L8DO_UA20

L8DO_UA18

LBDO_UA13

LBDO_UA12

L8DO_UA15

L8DO_UA16

L8DO_UA17

L8R_DA03

L8R_DA11

L8DO_UA9

L8R_DA12

L8R_DA06

L8R_DA02

L8R_DA13

L8R_DA07

L8R_DA04

L8R_DA08

L8R_DA09

L8R_DA00

L8R_DA01

L8DO_UA10

L8R_DA05

L8R_DA10

L8DO_UB11

LBDO_UB13

LBDO_UB14

L8DO_UB20

L8DO_UB17

LBDO_UB12

L8DO_UB21

L8DO_UB15

L8DO_UB19

L8DO_UB18

L8DO_UB16

L8R_DB02

L8R_DB12

L8R_DB04

L8R_DB07

AA_XCE

L8R_DB08

L8R_DB01

L8DO_UC10

L8R_DB13

L8R_DB09

L8R_DB05

L8R_DB10

L8R_DB00

L8R_DB14

L8R_DB03

L8R_DB06

L8R_DB11

LBDO_UC13

L8R_DC01

L8DO_UC15

L8DO_UC18

L8DO_UC16

L8DO_UC21

L8R_DC05

L8R_DC00

L8DO_UC11

L8R_DC09

LBDO_UC14

L8DO_UC17

L8R_DC06

L8R_DC10

L8DO_UC19

L8DO_UC20

L8DO_UC12

L8R_DC11

L8R_DC13

L8R_DC03

L8R_DC07

L8R_DC14

L8R_DC12

L8R_DC02

L8R_DC04

L8R_DC08

L8DO_UB10

L8R_MONOUT1

FPDAT1

FPCLK

FPDAT0

SFRST

SFVRST

LATCH

L8R_DRVCLKD0

L8R_DRVCLKD3

L8R_DRVCLKD2

L8R_DRVCLKD1

L8R_DA03

D42_DOUTDA9

D42_DOUTDB9

L8R_DB10

L8R_DC00

D42_DOUTDC5

UMH

L8R_DC02

L8R_DRVCLKD0

CLRD

L8DO_UA10

L8R_DA01

L8R_DB07

L8R_DA04

L8DO_UC10

L8R_DA13

UEH

ODED1

L8R_DRVCLKD1

L8R_DA11

D42_DOUTDC15

C_UEH

D42_DOUTDC13

L8R_DC07

D42_DOUTDC4

L8R_DC03

L8R_DC12

L8R_DC10

D42_DOUTDB15

L8R_DA12

L8R_DRVCLKD2

D42_CLKD3

USH

L8R_DA00

L8R_DC08

L8R_DC11

D42_DOUTDB12

D42_DOUTDC14

L8R_DB14

L8R_DB01

USL

D-CLRD

D42_DOUTDB10

D42_DOUTDA11

C_UML

L8R_DA02

L8R_DA06

L8R_DB00

L8R_DC14

L8R_DC01

L8R_DA07

D42_DOUTDC12

D42_DOUTDB14

L8R_DA10

D42_DOUTDB8

D-PCD1

D-PCD2

L8R_DC05

D42_DOUTDC10

L8R_DB09

L8R_DB08

D42_DOUTDC11

L8R_DC09

L8R_DB02

D42_DOUTDA8

L8R_DB03

D42_DOUTDA15

L8R_DB11

L8R_DB06

D42_DOUTDA13

L8R_DB12

NUEL

L8R_DB04

D42_DOUTDB7

D42_DOUTDA12

D42_DOUTDA10

D42_CLKD2

D-ODED1

C_NUEL

L8R_DB13

L8R_DA05

C_USL

L8R_DA08

L8R_DC04

D-LED

C_USH

D42_DOUTDB13

C_UMH

L8R_DC06

D-ODED2

L8R_DRVCLKD3

D42_DOUTDB4

L8R_DC13

UML

D42_DOUTDA7

D42_DOUTDA14

D-CLRD

D42_DOUTDB11

D42_DOUTDA4

LED

D42_DOUTDC9

D-LED

L8R_DA09

D42_DOUTDC8

L8R_DB05

PCD1

L8DO_UA9

L8DO_UB10

5V_SENSE

5V_DET3

5V_SENSE

5V_DET4

C_SOS8_SS SOS8_SS

DRVRST

TCK

TMS

TDI_TO_68

TDO_TO_FPGA

XRST

5V_DET4

MODEL1

MODEL1 M_SEL1

D42_DOUTDC14

D42_DOUTDB14

D42_DOUTDA14

D42_DOUTDC15

D42_DOUTDB15

D42_DOUTDA15

LED

PCD1

CLRD

ODED1

D42_CLKD3

D42_CLKD2

D42_DOUTDC12

D42_DOUTDB12

D42_DOUTDA12

D42_DOUTDC13

D42_DOUTDB13

D42_DOUTDA13

D42_DOUTDC10

D42_DOUTDB10

D42_DOUTDA10

D42_DOUTDC11

D42_DOUTDB11

D42_DOUTDA11

D42_DOUTDC8

D42_DOUTDB8

D42_DOUTDA8

D42_DOUTDC9

D42_DOUTDB9

D42_DOUTDA9

D42_DOUTDC4

D42_DOUTDB4

D42_DOUTDA4

D42_DOUTDC5

D42_DOUTDB5

D42_DOUTDA5

D42_DOUTDC2

D42_DOUTDB2

D42_DOUTDA2

D42_DOUTDC3

D42_DOUTDB3

D42_DOUTDA3

D42_DOUTDC0

D42_DOUTDB0

D42_DOUTDA0

D42_DOUTDC1

D42_DOUTDB1

D42_DOUTDA1

ODED2

CLRD

PCD2

LED

D42_CLKD1

D42_CLKD0

C_SOS8_SS

C_NUEL

C_UMH

C_UML

C_USH

C_USL

C_UEH

5V_DET3

D42_DOUTDC6

D42_DOUTDB6

D42_DOUTDA6

D42_DOUTDC7

D42_DOUTDB5

D42_DOUTDA5

D42_DOUTDC2

D42_DOUTDB2

D42_DOUTDA2

D42_DOUTDC3

D42_DOUTDA3

D42_DOUTDC0

D42_DOUTDB0

D42_DOUTDA0

D42_DOUTDC1

D42_DOUTDB1

D42_DOUTDA1

D42_DOUTDB3

ODED2

CLRD

PCD2

LED

D42_CLKD1

D42_CLKD0

D42_DOUTDC6

D42_DOUTDB6

D42_DOUTDA6

D42_DOUTDC7

D42_DOUTDB7

D42_DOUTDA7

L8R_DQ9

L8R_DQ23

L8R_A6

L8R_A5

L8R_A4

L8R_DQ13

L8R_DQ24

L8R_BA0

L8R_DQS2

L8R_BA1

L8R_DQ4

L8R_DQ2

L8R_RAS

L8R_DQ18

L8R_A1

L8R_A10

L8R_A0

L8R_DQ31

L8R_DQ8

L8R_A3

L8R_DQ14

L8R_DQS3

L8R_WE

L8R_DQ3

L8R_DQ10

L8R_DQ26

L8R_DQ1

L8R_SDCKE

L8R_DQ21

L8R_SDCLKO

L8R_DQ12

L8R_DQ28

L8R_DQ30

L8R_DQ6

L8R_A9

L8R_DQS1

L8R_DQ22

L8R_A7

L8R_DQ17L8R_NSDCLKO

L8R_DQ5

L8R_DQ15

L8R_DQ11

L8R_DQ25

L8R_DQ29

L8R_A8

L8_OCK

L8R_DQ27

L8R_A11

L8_PCK

L8R_CS L8R_DQ20

L8R_DQS0

L8_DCK

L8R_DQ19

L8R_DQ16

L8R_A2

L8R_CAS

L8R_DQ0

L8R_DQ7

TRST

5V_SENSE

C9955

0.1u

16V

IC9900 R5 VDD25

IC9900 V14 VDD12

IC9900 AA16 AVSS2

TP9303

L8R3.3V

C9957

0.1u

16V

TP9345

IC9900 AB18 DOUTDC00

IC9900 E19 DOUTUC03

L8R2.5V

R9350 22

L8R3.3V

IC9900 G5 VDD12

IC9900 P13 VSS

IC9900 AB11 DQ28

IC9900 V13 VDD12

IC9900 K4 HDI

IC9900 B14 DOUTUB11

IC9900 D15 DOUTUB08

IC9900 K12 VSS

R9360

EXB38V820JV

IC9900 D2 GI4

IC9900 A6 OCKOUT

IC9900 C20 VSS

IC9900 V7 VDD25

C9914

0.1u

16V

IC9900 D3 VDD12

IC9900 F21 DRVCLKU2

IC9900 W15 TCPOUT

IC9900 U2 AVSS_1

IC9900 H2 BI9

IC9900 Y22 VDD33

IC9900 C18 DOUTUB05

IC9900 K5 VDD33

R9348

EXB2HV820JV

IC9900 W20 VDD33

IC9900 W16 SDIV1

TP9388 IC9900 G19 DOUTUC00

IC9900 J2 MONOUT1

IC9900 R18 VDD33

IC9900 A21 VSS

C9904

0.1u

16V

IC9900 R21 DOUTDA06

IC9900 D5 GI2

IC9900 U5 VDD25

FL9301

F1J1E1040022

TP9350

IC9900 D19 VSS

FL9300

F1J1E1040022

C9903

0.1u

16V

IC9900 N20 DOUTDC09

IC9900 AB7 A6

IC9900 T18 VDD33

P5V

IC9900 D20 DOUTUB03

C9912

0.1u

16V

TP9317

TP9342

C9921 0.1u

16V

IC9900 U22 DOUTDC05

IC9900 P20 DOUTDA07

IC9900 B17 DOUTUA07

IC9900 N2 TCK

IC9900 M3 FULL1

TP9323

TP9365

IC9900 T4 DQ7

IC9900 K19 DOUTDC14

IC9900 B20 DOUTUA03

IC9900 G1 BI6

IC9900 Y9 A3

IC9900 R4 DQ16

R9937

TP9364

IC9900 E10 VDD33

IC9900 A15 DOUTUA10

IC9900 W3 VDD25

IC9900 W9 A10

IC9900 V20 DOUTDB02

IC9900 AB21 VSS

IC9900 N21 DOUTDA08 IC9900 P22 DOUTDB08

TP9326

IC9900 E2 GI8

IC9900 AA9 A8

IC9900 M10 VSS

TP9359

IC9900 F20 DOUTUB00

IC9900 Y14 DQ12

IC9900 D16 DOUTUC07

P1.2V

IC9900 H21 DOUTDB15

IC9900 M11 VSS

IC9900 J13 VSS

IC9900 A7 K_TEST

TP9355

IC9900 N19 DOUTDB09

IC9900 P4 DQ18

IC9900 V6 AVSS_3

IC9900 AB6 A4

IC9900 E17 VSS

IC9900 M12 VSS

IC9900 C14 DOUTUC11

IC9900 AA11 DQ30

IC9900 M18 VDD12

IC9900 L21 DOUTDA11

IC9900 D1 GI6

IC9900 A5 RI2

IC9900 C17 DOUTUA06

IC9900 L11 VSS

IC9900 AA21 VSS

IC9900 AB1 VSS

P5V

C9917

0.1u 16V

IC9900 G22 DRVCLKD0

IC9900 A3 GI0

IC9900 P12 VSS

TP9347

IC9900 V17 VDD33

TP9316

P3.3V

R9349

EXB38V820JV

C9965

56u

IC9900 T19 DOUTDC04

IC9900 U20 DOUTDB03

R9922

IC9900 H1 MUTE

IC9900 Y16 SDSEL

IC9900 F19 DOUTUA01

IC9900 A20 DOUTUC04

Q9301

B1ABCF000138

TP9333

IC9900 AB13 DQ10

IC9900 M21 DOUTDB10

IC9900 AA12 DQS3

D9301

MA3X152K0L

IC9900 AB4 BA0

IC9900 J21 DOUTDB14

IC9900 L2 ID0

IC9900 A8 TCKSEL0

TP9331

IC9900 L3 ID1

TP9372

IC9900 C10 SFVRST

IC9900 M20 DOUTDA10

IC9900 P19 DOUTDB07

IC9900 B7 TEST1

IC9900 Y6 NRAS

IC9900 F1 BI3

TP9312

IC9900 W12 AVDD25_4

IC9900 A19 DOUTUA05

R9936

IC9900 L9 VSS

IC9900 N13 VSS

IC9900 E13 VDD33

IC9900 AA14 DQ9

IC9900 K10 VSS

IC9900 L12 VSS

R9317

390

IC9900 V9 VSS

IC9900 K9 VSS

FL9901

F1J1E1040022

123

TP9322

IC9900 J18 VDD33

D32

R9369

4.7k

C9900

0.1u

16V

TP9321

C9966

16V

0.1u

TP9341

IC9900 B9 FPCLK

TP9387

C9959

0.1u

16V

IC9900 V4 VDD25

IC9900 V19 VDD33

IC9900 AA6 A11

IC9900 AA10 DQ31

IC9900 J10 VSS

IC9900 V16 VDD33

IC9900 R19 DOUTDA05

IC9900 F22 DRVCLKD3

L8R1.2V

C9963

6.3V

10u

IC9900 W21 VDD33

IC9900 B19 DOUTUA04

IC9900 H22 DOUTDA14

TP9353

ZA9001

K4CD01000011

TP9344

IC9900 P1 TDO

IC9900 C15 DOUTUB09

C9954

56u

IC9900 V18 VSS

IC9900 D22 DOUTUC01

IC9900 B5 RI5

IC9900 A11 DOUTUA14

IC9900 U18 VDD33

IC9900 J22 DOUTDA13

IC9900 E8 VDD12

IC9900 V8 VDD25

IC9900 A18 DOUTUB07

IC9900 Y3 VSS

IC9900 E15 VDD12

IC9900 Y10 DQ26

IC9900 K20 DOUTDB13

IC9900 A12 DOUTUB14 IC9900 AA1 VDD25

C9910

0.1u

16V

IC9900 R22 DOUTDC07

TP9305

L8R2.5V

IC9900 M22 DOUTDC10

C9909

0.1u

16V

IC9900 K2 VDI

IC9900 Y1 DQ0

IC9900 AB3 NCK

IC9900 AA22 VSS

IC9900 E4 VDD12

C9958

0.1u

16V

IC9900 D14 DOUTUC10

IC9900 K21 DOUTDC13

TP9370

IC9900 B16 DOUTUC09

IC9900 G20 DRVCLKU1

IC9900 AA18 DOUTDB00

TP9346

IC9900 C13 DOUTUB12 IC9900 AA5 CKE

IC9900 V21 DOUTDC03

IC9900 V5 VSS

IC9900 P2 XRST

IC9900 M19 DOUTDC11

C9908

0.1u

16V

IC9900 M9 VSS

IC9900 N5 VDD33

IC9900 D13 DOUTUC12

TP9338

TP9304

C9906

0.1u

16V

IC9900 B11 DOUTUC15

C9905

0.1u

16V

IC9900 P21 DOUTDC08

IC9900 E9 VDD33

C9962

6.3V

10u

IC9900 G3 BI4

R9367

10k

R9918

IC9900 P3 DQ19

IC9900 J4 ENHMASK

IC9900 V11 VDD25

IC9900 C16 DOUTUC08

IC9900 E22 DRVCLKU3

IC9900 L5 VDD33

IC9900 P11 VSS

IC9900 K18 VDD33

IC9900 E11 VDD33

IC9900 F3 GI9

IC9900 B1 VSS

IC9900 H3 BI8

IC9900 Y13 DQ14

C9911

0.1u

16V

C9923 0.1u

16V

Q9300

B1ABCF000138

IC9900 G2 BI5 IC9900 Y15 VSS

TP9377

TP9369

IC9900 J11 VSS

IC9900 C22 DOUTUB01

IC9900 K14 VSS

R9368

100k

IC9900 AA20 DOUTDA01

IC9900 AB22 VSS

C9922 0.1u

16V

IC9900 B10 SFRST

C9467

50V

0.01u

TP9315

IC9900 Y12 AVSS_4

IC9900 AA3 CK

FL9902

F1J1E1040022

123

C9918

0.1u

16V

TP9334

IC9900 T21 DOUTDB05

IC9900 AB5 BA1

IC9900 B15 DOUTUB10

IC9900 T22 DOUTDC06

TP9311

TP9325

IC9900 N11 VSS

IC9900 D12 DOUTUA13

C9953

56u

IC9900 J3 MONOUT0

IC9900 T2 DQ20

R9555

IC9900 J12 VSS

C9919

0.1u

16V

IC9900 F2 BI1

R9363

EXB2HV470JV

IC9900 N14 VSS

IC9900 B12 DOUTUC14

IC9900 L18 VDD12

TP9380

IC9900 E7 VDD12

IC9900 J19 DOUTDA15

R9917

IC9900 J5 VDD12

TP9352

R9361

IC9900 F5 VDD12

IC9900 K13 VSS

TP9384

IC9900 B21 VSS

IC9900 AB20 DOUTDB01

IC9900 C7 RI0

TP9319

IC9900 E18 VSS

TP9360

IC9900 D4 VSS

IC9900 C3 VSS

IC9900 A4 RI6

IC9900 U19 DOUTDA02

TP9367

IC9900 Y7 A0

IC9900 K1 DCK

IC9900 C8 TEST0

IC9900 L13 VSS

IC9900 AB16 AVDD33_2

R9382

10k

R9354

EXB2HV820JV

IC9900 L1 SCL

IC9900 AB2 VSS

D31

IC9900 D8 OCK

IC9900 AB19 DOUTDA00

IC9900 G4 BI2

IC9900 A9 FPDAT1

L8R2.5V

IC9900 AB8 A7

R9379

IC9900 H20 DRVCLKD1

R9395

TP9332

Q9302

B1ABCF000138

TP9337

IC9900 R3 DQ17

IC9900 C5 RI9

R9359

EXB2HV820JV

IC9900 N22 DOUTDA09

IC9900 Y2 VDD25

IC9900 M14 VSS

IC9900 F4 GI7

L8R3.3V

IC9900 U4 DQ5

TP9348

C9468

50V

0.01u

TP9340

C9924

0.1u

16V

IC9900 M1 TILD

IC9900 M13 VSS

L8R3.3V

IC9900 W2 DQ1

IC9900 N3 TDI

TP9356

IC9900 B4 RI8

TP9358

IC9900 AA15 AVSS1

FL9900

F1J1E1040022

123

IC9900 L22 DOUTDB11

IC9900 M2 FULL0

IC9900 T3 AVDD25_1

TP9327

IC9900 W19 VSS IC9900 R2 DQ23

TP9314

IC9900 L14 VSS

IC9900 A14 DOUTUA11

TP9371

IC9900 K22 DOUTDA12

TP9339

R9351 22

TP9324

IC9900 J1 MONOUT2

IC9900 C4 GI3

IC9900 W7 NCS

IC9900 K3 SDA

IC9900 AB15 AVDD33_1

IC9900 U3 DQ6

IC9900 N1 TRST

IC9900 L10 VSS

TP9349

IC9900 AA19 DOUTDC01

R9380

IC9900 AB9 VDD25

TP9389

C9913

0.1u

16V

IC9900 K11 VSS

IC9900 A10 SFLATCH

TP9343

IC9900 V10 VDD25

C9925

0.1u

16V

IC9900 E16 VDD12

IC9900 D21 DOUTUB02

IC9900 V2 DQ3

IC9900 L4 TIIC

TP9328

IC9900 B13 DOUTUA12

IC9900 P5 VDD33

IC9900 V15 VDD12

IC9900 B18 DOUTUB06

IC9900 W11 DQ25

TP9318

IC9900 AB12 DQS1

IC9900 P18 VDD33

IC9900 Y18 VSS

IC9900 Y8 A1

R9919

10k

C9902

0.1u

16V

R9390

100

IC9900 T20 DOUTDA04

IC9900 Y21 VDD33

IC9900 C21 DOUTUA02

IC9900 AA13 DQ11

IC9900 Y19 VSS

IC9900 C9 ROMCE

IC9900 J20 DOUTDC15

IC9900 E6 VSS

TP9306

R9352

EXB38V820JV

TP9366

IC9900 AB10 DQ29

IC9900 H19 DRVCLKU0

L8R2.5V

IC9900 V22 DOUTDA03

IC9900 B22 VSS

TP9362

R9358

EXB2HV820JV

D9300

MA3X152K0L

P2.5V

IC9900 N4 TMS

IC9900 W10 DQ27

C9956

0.1u

16V

IC9900 W8 A2

IC9900 D11 DOUTUA15 C9915

0.1u

16V

IC9900 AA8 A5

TP9307

P3.3V

IC9900 E21 DOUTUA00

IC9900 J9 VSS

IC9900 W14 DQ13

IC9900 AA17 SDIV0

IC9900 P10 VSS

TP9354

IC9900 E3 GI5

IC9900 M4 PCK

IC9900 A22 VSS

R9370

10k

IC9900 E1 BI0

IC9900 AA4 VREF

IC9900 Y4 AVDD25_2

IC9900 N10 VSS

C9920

0.1u

16V

IC9900 B2 VSS

IC9900 R1 DQ22

IC9900 P14 VSS

IC9900 D7 RI3

IC9900 G21 DRVCLKD2

C9901

0.1u

16V

IC9900 W4 VSS

IC9900 T5 AVSS_2

IC9900 M5 VDD33

IC9900 C11 DOUTUB15

IC9900 AA2 VSS

IC9900 C1 VDD12

IC9900 D9 TCKSEL1

IC9900 D10 FPDAT0

IC9900 Y17 VSS

IC9900 F6 VSS

IC9900 U1 DQS2

L8R1.2V

IC9900 E14 VDD33

IC9900 D6 RI7

TP9382

TP9368

IC9900 P9 VSS

IC9900 W5 AVDD25_3

C9916

0.1u

16V

TP9308

J0HABH000013

FL9904

TP9309

IC9900 E12 VDD33

TP9361

R9362

IC9900 Y5 NCAS

J0HABH000013

FL9903

IC9900 A17 DOUTUA08

IC9900 B6 RI1

IC9900 E20 DOUTUC02

IC9900 V3 DQ4

IC9900 A2 VSS

IC9900 L19 DOUTDB12

IC9900 V12 VDD25

TP9313

TP9329

IC9900 H4 BI7

C9907

0.1u

16V IC9900 C2 VDD12

P3.3V

IC9900 W18 VSS

IC9900 R20 DOUTDB06

C9960

6.3V

10u

IC9900 C6 RI4

IC9900 B8 TCKSEL2

IC9900 C12 DOUTUB13

IC9900 W13 DQ15

R9391

100k

IC9900 L20 DOUTDC12

TP9310

IC9900 B3 GI1

TP9357

IC9900 F18 VSS

C9961

6.3V

10u

IC9900 V1 DQS0

TP9351

IC9900 A16 DOUTUA09

C9964

6.3V

10u

IC9900 Y11 DQ24

IC9900 T1 DQ21IC9900 W17 VSS

R9371

100k

R9366

4.7k

IC9900 Y20 VSS

IC9900 C19 DOUTUB04

TP9363

IC9900 N12 VSS

IC9900 J14 VSS

IC9900 AB17 VSS

IC9900 AA7 A9

IC9900 H18 VDD33

IC9900 G18 VSS

TP9320

IC9900 D17 DOUTUC06

IC9900 H5 VDD12

R9357

EXB2HV820JV

TP9335

IC9900 U21 DOUTDB04

IC9900 E5 VSS

IC9900 N9 VSS

R9353

EXB2HV820JV

IC9900 W22 DOUTDC02

IC9900 D18 DOUTUC05

R9929

IC9900 A13 DOUTUC13

L8R3.3V

TP9330

IC9900

MN84521-A

A1 VSS

IC9900 AB14 DQ8

IC9900 W1 DQ2

TP9336

IC9900 W6 NWE

IC9900 N18 VDD12

L8R3.3V

R9920

10k

L8R3.3V

IIC

DOUTDA[5]

DOUTDB[3]

DOUTDC[2]

NUEL

LED

P5V

DOUTDA[15]

GND

DOUTDC[9]

CLK[0](+)

P5V

UMH

P5V

DOUTDB[15]

DOUTDB[4]

DOUTDC[14]

DOUTDA[4]

GND

P5V

DOUTDB[1]

UML

DOUTDA[9]

DOUTDC[1]

GND

DOUTDB[9]

GND

DOUTDA[14]

GND

P5V

DOUTDC[8]

DOUTDA[2]

GND

DOUTDC[5]

5V_DET

DOUTDB[14]

PCD1

DOUTDA[0]

DOWN_LEFT

DOUTDA[8]

GND

ODED1

CLRD

DOUTDB[8]

PCD2

CLRD

DOUTDC[11]

DOUTDC[12]

DOUTDB[2]

GND

DOUTDA[11]

MODEL1

P5V

5V_DET

DOUTDB[11]

GND

DOUTDC[15]

DOUTDC[10]

DOUTDA[3]

USH

GND

SOS8_SS

DOUTDA[10]

DOUTDB[10]

GND

DOUTDA[1]

DOUTDC[13]

DOUTDA[12]

ODED2

DOUTDC[0]

DOUTDA[13]

USL

GND

DOUTDB[12]

UEH

DOUTDB[13]

CLK[1](-)

GND

CLK[3](-)

CLK[2](+)

DOUTDC[3]

DOUTDC[4]

GND

DOUTDB[0]

DOUTDB[5]

LED

DOWN_RIGHT

GND

DOUTDB[6]

DOUTDA[6]

DOUTDC[6]

GND

DOUTDC[7]

DOUTDB[7]

DOUTDA[7]

GND

rromdata[14]

rromadrs[00]

rromdata[06]

rromdata[09]

rromdata[12]

rromadrs[11]

rromadrs[14]

rromdata[15]

rromadrs[01]

rromadrs[04]

rromadrs[17]

rromadrs[20]

rromadrs[07]

rromadrs[10]

rromadrs[13]

rromadrs[16]

rromdata[00] rromdata[01] rromdata[02]

rromadrs[19]

rromadrs[03]

rromdata[03]

rromdata[04]

rromdata[07]

rromdata[10]

to DDR

rromadrs[06]

rromadrs[09]

rromdata[13]

rromadrs[12]

rromdata[05]

rromadrs[15]

rromadrs[18]

rromadrs[02]

rromadrs[05]

rromadrs[08]

rromdata[08]

rromdata[11]

4237 41 4539 40 43 4438

FORMAT CONVERTER

RGB PROCESSOR

IC9900

C1-BOARD

(C11)

TO C2-BOARD

(C21)

D-BOARD TZTNP01ZQTJ (5/6)

TH-37/42PG9W

D-Board (5 of 6) Schematic Diagram

TH-37/42PG9W D-Board (5 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

110

14.41. D-Board (6 of 6) Schematic Diagram

L8DR_DQ28

L8R_A0

L8DR_DQS0

L8DR_DQ31

L8DR_NCS

L8R_DQ15

L8DR_A5

L8DR_A1

L8DR_NCAS

L8R_A3

L8DR_A11

L8R_DQ17

L8DR_DQ21

L8DR_DQ23

L8DR_DQ22

L8DR_DQ25

L8R_DQ16

L8DR_BA1

L8DR_A11

L8DR_DQ10

L8DR_DQ3

L8R_DQ14

L8R_DQ24

L8DR_BA0

L8DR_DQ1

L8DR_DQ9

L8R_DQ10

L8DR_A7

L8DR_DQ4

L8R_SDCLKO

L8DR_DQ31

L8DR_A2

L8R_BA0

L8DR_NRAS

L8DR_DQ11

L8R_DQ31

L8DR_DQ2

L8DR_DQ26

L8DR_DQ0

L8DR_BA1

L8DR_DQ5

L8DR_DQ11

L8R_DQ0

L8R_DQ26

L8R_A4

L8R_BA1

L8R_DQ19

L8R_DQ13

L8DR_A6

L8DR_DQS3

L8R_DQ9

L8DR_NCLK

L8DR_DQ20

L8R_A2

L8DR_DQ18

L8DR_A2

L8DR_A3

L8DR_A9

L8R_DQ22

L8DR_NRAS

L8R_A8

L8R_A10

L8R_A1

L8DR_A3

L8R_WE

L8R_DQS2

L8DR_DQ7

L8DR_NCLK

L8DR_DQ24

L8R_SDCKE

L8DR_DQ8

L8DR_DQ16

L8R_DQ3

L8R_DQ4

L8R_RAS

L8DR_DQ20

L8DR_DQ6

L8R_DQ11

L8DR_DQ19

L8DR_DQ24

L8DR_A4

L8DR_A0

L8R_DQ1

L8DR_DQ25

L8DR_DQ12

L8R_A6

L8DR_A6

L8DR_DQ8

L8R_DQ23

L8DR_DQ12

L8DR_DQ2

L8R_DQ8

L8DR_DQ18

L8DR_DQ4

L8DR_DQ0

2.5V

L8R_DQ21

L8DR_DQS2

L8DR_A1

L8DR_A0

L8DR_DQ22

L8R_A9

L8DR_DQ6

L8DR_DQ29

L8DR_DQS0

L8DR_DQS2

L8DR_DQ7

L8DR_DQ19

L8DR_DQ14

L8DR_DQ5

L8DR_DQ23

L8DR_DQ14

L8DR_CKE

L8DR_DQ13

L8DR_DQS1

L8DR_DQ30

L8DR_A8

L8DR_NCS

L8DR_DQ16

L8DR_DQ17

L8R_DQ7

L8DR_DQ28

L8DR_DQ17

L8DR_DQ15

L8R_DQ30

L8R_DQ27

L8R_DQS3

L8DR_A5

L8DR_DQS1

L8R_DQS0

L8R_DQ6

L8DR_NCAS

L8DR_DQ9

L8DR_DQS3

L8DR_NWE

L8R_CS

L8R_NSDCLKO

L8R_A7

L8DR_DQ26

L8R_DQ29

L8DR_A9

L8DR_A8

L8DR_DQ21

L8R_DQ12

L8DR_BA0

L8R_DQ20

L8DR_DQ27

L8DR_A10

L8DR_A4

L8R_DQS1

L8R_CAS

L8DR_NWE

L8DR_DQ13

L8DR_CLK

L8R_A5

L8R_DQ2

L8DR_DQ10

L8R_DQ28

L8DR_A7

L8DR_DQ30

L8R_DQ18

L8R_A11

L8DR_DQ1

L8DR_DQ29

L8DR_DQ27

L8DR_CKE

L8DR_DQ3

L8R_DQ25

L8R_DQ5

L8DR_A10

L8DR_CLK

R9904 47

C9932

16V 0.1u

L8R2.5V

C9931

16V 0.1u

C9944

16V 0.1u

R9951

EXB38V470JV

R9938

R9947

EXB38V470JV C9935

16V 0.1u

R9950

EXB38V470JV

C9933

16V 0.1u

R9907

150

R9941 47

R9948

EXB38V470JV

C9930

16V 0.1u

L8R2.5V

C9951

16V

0.1u

R9953

C9940

16V 0.1u

C9943

16V 0.1u

R9942 47

C9934

16V 0.1u

C9946

16V 0.1u

C9936

16V 0.1u

C9945

16V 0.1u

R9946

EXB38V470JV

C9929

16V 0.1u

R9954

C9952

56u

R9905

R9940

C9939

16V 0.1u

R9949

EXB38V470JV

C9948

16V 0.1u

C9949

16V 0.1u

C9938

16V 0.1u

R9945

EXB38V470JV

R9903

EXB2HV470JV

L8R2.5V

C9941

16V 0.1u

C9947

16V 0.1u

C9937

16V 0.1u

C9942

16V 0.1u

C9928

16V 0.1u

C9927

16V 0.1u

R9943

EXB38V470JV

R9944

EXB38V470JV

R9906

EXB38V470JV

C9950

16V

0.1u

R9955

R9952

R9939

IC9901 L7 VDD

IC9901 E4 VDD

IC9901 H10 VSSQ

IC9901 M12 CK

IC9901 B4 VSSQ

IC9901 C12 VDDQ

IC9901 J4 VDDQ

IC9901 F13 DQ14

IC9901 B9 DQ29

IC9901 G2 DQ19

IC9901 K7 VSS

IC9901 H8 VSS_Thermal

IC9901 M8 A9

IC9901

C3ABQJ000051

B2 DQS0

IC9901 E13 DQ24

IC9901 D6 VSSQ

IC9901 M11 CK

IC9901 C5 VDDQ

IC9901 N13 VREF

IC9901 N6 A1

IC9901 K4 VDDQ

IC9901 M3 NC

IC9901 D5 VSSQ

IC9901 H6 VSS_Thermal

IC9901 E6 VSSQ

IC9901 C9 DQ30

IC9901 C3 VDDQ

IC9901 J7 VSS_Thermal

IC9901 D4 VSSQ

IC9901 J13 DQ10

IC9901 K8 VSS

IC9901 J2 DQ21

IC9901 H9 VSS_Thermal

IC9901 K6 VSS

IC9901 D7 VDD

IC9901 D3 DQ5

IC9901 N3 NC

IC9901 J8 VSS_Thermal

IC9901 B3 DM0

IC9901 K12 DQ9

IC9901 D12 DQ26

IC9901 F2 DQ17

IC9901 M10 NC

IC9901 G7 VSS_Thermal

IC9901 G13 DQ12

IC9901 G12 DQ13

IC9901 K10 VSSQ

IC9901 L2 CAS

IC9901 K9 VSS

IC9901 E9 VSSQ

IC9901 J11 VDDQ

IC9901 H5 VSSQ

IC9901 F6 VSS_Thermal

IC9901 L8 VDD

IC9901 B7 DQ0

IC9901 N9 A6

IC9901 C2 DQ4

IC9901 H2 DQS2

IC9901 F10 VSSQ IC9901 C10 VDDQ

IC9901 D9 VSSQ

IC9901 L11 VDD

IC9901 G3 DQ18

IC9901 H12 DM1

IC9901 L9 NC

IC9901 M2 RAS

IC9901 H3 DM2

IC9901 C6 DQ1

IC9901 B6 DQ2

IC9901 J10 VSSQ

IC9901 N8 A4

IC9901 B13 DQS3

IC9901 D2 DQ6

IC9901 G4 VDDQ

IC9901 D13 DQ25

IC9901 G11 VDDQ

IC9901 H7 VSS_Thermal

IC9901 N4 BA0

IC9901 B8 DQ31

IC9901 N11 A8/AP

IC9901 E7 VSS

IC9901 F3 DQ16

IC9901 L5 VSS

IC9901 E3 VDDQ

IC9901 K3 DQ23

IC9901 E10 VSS

IC9901 D11 VSSQ

IC9901 K5 VSSQ

IC9901 H4 NC

IC9901 L4 VDD

IC9901 E8 VSS

IC9901 N5 A0

IC9901 F12 DQ15

IC9901 M9 A5

IC9901 K13 DQ8

IC9901 M6 A2

IC9901 M4 NC

IC9901 D8 VDD

IC9901 E12 VDDQ

IC9901 F7 VSS_Thermal

IC9901 J5 VSSQ

IC9901 F11 VDDQ

IC9901 H13 DQS1

IC9901 F9 VSS_Thermal

IC9901 L10 VSS

IC9901 G8 VSS_Thermal

IC9901 N10 A7

IC9901 G5 VSSQ

IC9901 B11 VSSQ

IC9901 F4 VDDQ

IC9901 J12 DQ11

IC9901 J3 DQ20

IC9901 E5 VSS

IC9901 N7 A3

IC9901 G10 VSSQ

IC9901 E2 DQ7

IC9901 M13 NC

IC9901 L6 A10

IC9901 F5 VSSQ

IC9901 C11 NC

IC9901 J6 VSS_Thermal

IC9901 L13 NC

IC9901 N2 CS

IC9901 G9 VSS_Thermal

IC9901 L3 WE

IC9901 N12 CKE

IC9901 B5 DQ3

IC9901 B10 DQ28

IC9901 H11 NC

IC9901 J9 VSS_Thermal

IC9901 C8 VDDQ

IC9901 D10 VSSQ

IC9901 K11 VDDQ

IC9901 K2 DQ22

IC9901 C4 NC

IC9901 L12 NC

IC9901 C13 DQ27

IC9901 F8 VSS_Thermal

IC9901 C7 VDDQ

IC9901 B12 DM3

IC9901 M5 BA1

IC9901 M7 A11

IC9901 G6 VSS_Thermal

IC9901 E11 VDD

DDR-Terminate

5246 5048 49 54535147

IC9901

DDR-SDRAM

DDR SDRAM(128M)

D-BOARD TZTNP01ZQTJ (6/6)

TH-37/42PG9W

D-Board (6 of 6) Schematic Diagram

TH-37/42PG9W

D-Board (6 of 6) Schematic Diagram

TH-37PG9W / TH-42PG9W

111

14.42. C1 and C2-Board Block Diagram

CLK0

LED

CLK0

USL

CLK2

UEH

UMH

ODED2

UML

USH

SS_SOS8

CLRD

CLK1

NUEL

CLK3

CLK1

PCD2

LED

CLRD

ODED2

PCD2

LED

PCD1

ODED1

CLRD

ODED1

CLRD

LED

PCD1

R7115

R7318

VCC

112

VCC

6bit

4A-5C

6bit

VCC

52 8

C12

2bit

4bit

6A-7C

VCC

VCC 7

8bit

12A-13C

21 51

C23

8bit 8bit

39 10

IC7104

BUFFER

CB1 CB2

IC7103

6bit

BUFFER

CB7

IC7102

C21

BUFFER

2A-3C

IC7101

CLK BUFFER

2bit

IC7202

0A-1C

4bit

BUFFER

IC7203

BUFFER BUFFER

IC7204

CLK BUFFER

IC7201

CB5

Vda

C11

CB4

6bit

DATA

24bit

D0A-D7C

VCC

18bit

VCC

D8A-D13C

DATA

TO D31

VCC

CB3

CB6

DOUTD13C

DOUTD8A

CLK2

CLK3

C22

LED

41 42

PCD1

IC7205

VCC

BUFFER

53 55

18 19

DRV_RST

5VDET

CLRD

CLK0

DRV_RST

ODED2

CLK1

PCD2

LED

5VDET

UEH

UML

NUEL

USH

USL

SS_SOS8

UMH

DOUTD7C

DOUTD0A

6bit 6bit 6bit

6bit 6bit

6bit 6bit 6bit 6bit 6bit

NUEL

USH

USL

UML

UMH

UEH

SS_SOS8

Vda

DATA DRIVE

DOWN RIGHT(FRONT VIEW)

C1 C2

DATA DRIVE

DOWN LEFT

(FRONT VIEW)

PANEL DATA DRIVER PANEL DATA DRIVER

TO D32

TO SS23

10A-11C

6bit 6bit

8A-9C

4443

CLRD

ODED1

6bit 6bit

TH-37/42PG9W

C1 and C2-Board Block Diagram TH-37/42PG9W

C1 and C2-Board Block Diagram

TH-37PG9W / TH-42PG9W

112

14.43. C1-Board (1 of 2) Schematic Diagram (37inch)

TERM

SIDE

TERM

SIDE

TERM

SIDE

AB_CLK_P2

AB_CLK_N2

AB_CLK_P1

AB_CLK_N1

AB_LED2

AB_DDC10

AB_DDB10

AB_DDA10

AB_DDC11

AB_DDB11

AB_DDA11

AB_LED2

AB_DDC10

AB_DDB10

AB_DDA10

AB_DDC11

AB_DDB11

AB_DDA11

AB_LED1

AB_DDC12

AB_DDB12

AB_DDA12

AB_DDC13

AB_DDB13

AB_DDA13

AB_LED1

AB_DDC12

AB_DDB12

AB_DDA12

AB_DDC13

AB_DDB13

AB_DDA13

AB_DDC11

AB_DDA10

AB_CLRD

AB_ODED1

AB_CLRD

AB_ODED1

AB_CLRD

AB_ODED1

AB_DDB11

AB_DDA11

AB_DDB10

AB_DDC10

AB_ODED1

AB_CLRD

AA_DDC10

AA_DDB10

AA_DDA10

AA_DDC11

AA_DDB11

AA_DDA11

AA_ODED1

AA_CLRD

AB_ODED1

AB_CLRD

AB_DDB12

AB_DDC12

AB_DDA12

AB_DDC13

AA_DDA13

AA_DDA12

AA_DDC13

AA_DDB12

AA_DDB13

AB_DDB13

AB_DDA13

AA_DDC12

AA_DDC11

AA_DDB11

AA_DDA10

AA_CLK_N

AA_DDB8

AA_CLK_P

AA_DDA11

AA_DDC8

AA_DDA8

AA_CLRD

AA_ODED1

AA_DDA13

AA_DDB12

AA_DDC13

AA_DDB13

AA_DDA12

AA_DDA9

AA_DDB9

AA_DDC9

AA_LED

AA_DDC10

AA_PCD1

AA_DDB10

C7116

100V

0.47u

C1_5V

R7149

EXB38V102JV

C1_5V

R7133

C0JBAZ002692

IC7103

G1 1

GND

Vcc

R7129

6.8

C7120

16V

C7113

100V

0.47u

R7143

C7112

16V

R7138

6.8

R7127

R7132

6.8

CB1

R7140

6.8

R7151

EXB38V102JV

R7139

6.8

R7131

6.8

R7123

EXB38V470JV

C7115

16V

C7118

50V

100p

R7130

6.8

CB2

R7141

6.8

R7136

C7117

16V

C1_5V

C7114

100V

0.47u

C7111

100V

0.47u

C7121

50V

100p

C7130

16V

0.1u

R7121

EXB38V470JV

R7111

R7169

EXB38V470JV

R7147

EXB38V102JV

C1_5V

R7148

EXB38V102JV

C7126

16V

0.1u

R7120

EXB38V470JV

C0JBAZ002692

IC7104

G1 1

GND

Vcc

J0HABH000013

FL7101

R7115

100k

R7114

22k

R7163

C1_5V

C11

GND

VDD1

VDD2

GND

VDD1

GND

VDD2

FDET

VDD2

GND

VDD1

LEN

CLR

VDD2

GND

VDD2

GND

BLK

VDD2

GND

ODE

CLR

VDD1

GND

VDD2

GND

BLK

LEN

VDD2

FDET1

GND

VDD2

GND

ODE

VDD2

GND

VDD1

VDD2

GND

VDD1

GND

VDD2

FDET

VDD2

GND

VDD1

LEN

CLR

VDD2

GND

VDD2

GND

BLK

VDD2

GND

ODE

CLR

VDD1

GND

VDD2

GND

BLK

LEN

VDD2

FDET1

GND

VDD2

GND

ODE

VDD2

GND

CB2

PANEL DATA

DRIVER

PANEL DATA

DRIVER

CB1

BUFFER

C1-BOARD TNPA3792AB (1/2)

BUFFER

DOUTDC[9]

CLK[2](+)

DOUTDA[8]

GND

P5V

CLK[3](-)

DOUTDB[12]

N.C.

ODED1

DOUTDC[13]

DOUTDA[14]

GND

DOUTDB[11]

GND

DOUTDC[10]

DOUTDB[10]

(D31)

N.C.

DOUTDC[11]

GND

N.C.

DOUTDB[15]

DOUTDA[11]

GND

DOUTDA[10]

DOUTDA[12]

GND

5V_DET

DOUTDC[12]

DOUTDA[9]

MODEL1

GND

N.C.(DRV_RST)

DOUTDC[14]

N.C.

DOUTDA[15]

GND

DOUTDB[14]

D-BOARD

GND

P5V

DOUTDC[8]

PCD1

DOUTDB[8]

LED

P5V

N.C.

DOUTDB[13]

GND

DOUTDA[13]

CLRD

DOUTDC[15]

DOUTDB[9]

871

342

TH-37PG9W

C1-Board (1 of 2) Schematic Diagram TH-37PG9W

C1-Board (1 of 2) Schematic Diagram

TH-37PG9W / TH-42PG9W

113

14.44. C1-Board (2 of 2) Schematic Diagram (37inch)

TERM

SIDE

TERM

AB_LED3

AB_CLRD

AB_ODED1

AB_CLRD

AB_ODED1

AB_DDA9

AB_DDB9

AB_DDC9

AB_CLK_N2

AB_DDA9

AB_DDA8

AB_DDB9

AB_DDB8

AB_CLK_P2

AB_DDC8

AB_DDC9

AB_DDC8

AB_LED3

AB_DDA8

AB_DDC9

AB_DDA9

AB_DDB9

AB_CLK_N2

AB_CLK_N1

AB_CLK_P1

AA_DDC8

AB_LED3

AB_LED2

AB_LED1

AB_CLK_P2

AB_DDC8

AB_DDB8

AA_CLK_N

AA_DDA8

AA_DDC9

AA_DDB9

AA_DDA9

AA_PCD1

AA_DDB8

AA_CLK_P

AA_LED

AB_PCD1_1

AB_PCD1_2

R7150

EXB38V102JV

R7165

R7158

6.8

R7159

6.8

CB3

C12

R7122

EXB38V470JV R7146

EXB38V470JV

R7124

EXB38V470JV

R7117 22

C7129

16V

0.1u

R7154

C1_5V

ZA7103

K4CD01000013

R7118

220k

C7136

16V

ZA7102

K4CD01000013

R7157

6.8

R7116 22

C1_5V

C7135

100V

0.47u

R7142

EXB38V102JV

C0JBAZ002692

IC7102

G1 1

GND

Vcc

C1_5V

R7113 22

R7152

EXB38V102JV

R7160

R7164

C7139

16V

0.1u

ZA7101

K4CD01000013

C7137

100V

0.47u

C0JBAZ002692

IC7101

G1 1

GND

Vcc

R7156

6.8

C7132

16V

C7133

50V

100p

R7112 22

GND

FDET

LEN

GND

VDD2

VDD1

VDD2

GND

VDD2

GND

CLR

BLK

VDD1

BLK

GND

VDD2

GND

VDD2

GND

VDD2

CLR

GND

VDD2

VDD1

GND

ODE

VDD2

GND

VDD2

GND

VDD2

GND

ODE

LEN

VDD2

Vda75V

GND

Vda 75V

FDET1

DRIVER

PANEL DATA

CB3

BUFFER BUFFER

C2-BOARD

(C22)

149 13 15121110

C1-BOARD TNPA3792AB (2/2)

TH-37PG9W

C1-Board (2 of 2) Schematic Diagram TH-37PG9W

C1-Board (2 of 2) Schematic Diagram

TH-37PG9W / TH-42PG9W

114

14.45. C1-Board (1 of 2) Schematic Diagram (42inch)

TERM

SIDE

TERM

SIDE

TERM

SIDE

AB_CLK_P2

AB_CLK_N2

AB_CLK_P1

AB_CLK_N1

AB_LED2

AB_DDC10

AB_DDB10

AB_DDA10

AB_DDC11

AB_DDB11

AB_DDA11

AB_LED2

AB_DDC10

AB_DDB10

AB_DDA10

AB_DDC11

AB_DDB11

AB_DDA11

AB_LED1

AB_DDC12

AB_DDB12

AB_DDA12

AB_DDC13

AB_DDB13

AB_DDA13

AB_LED1

AB_DDC12

AB_DDB12

AB_DDA12

AB_DDC13

AB_DDB13

AB_DDA13

AB_DDC12

AB_DDB12

AB_DDB13

AB_DDA13

AB_DDC11

AB_DDA10

AB_CLRD

AB_ODED1

AB_CLRD

AB_ODED1

AB_CLRD

AB_ODED1

AA_ODED1

AA_CLRD

AA_DDC8

AA_DDB8

AA_DDC9

AA_DDB9

AA_DDB13

AA_DDC13

AA_DDA12

AA_DDB12

AA_DDC12

AB_DDA8

AB_DDC9

AB_DDA9

AB_DDB9

AA_DDA9

AA_DDA8

AA_CLK_P

AA_CLK_N

AA_DDA10

AA_DDB11

AA_DDC11

AA_DDB10

AA_DDC10

AA_DDA12

AA_DDB13

AA_DDC13

AA_DDB12

AA_DDA13

AA_DDC12

AA_PCD1

AA_LED

AA_DDA11

AB_DDB11

AB_DDA11

AA_DDC8

AA_DDA13

AB_DDC13

AB_DDA12

AB_DDC8

AB_DDB8

AB_DDB10

AB_DDC10

AB_ODED1

AB_CLRD

AA_DDC10

AA_DDB10

AA_DDA10

AA_DDC11

AA_DDB11

AA_DDA11

AA_ODED1

AA_CLRD

AA_DDA8

AA_DDC9

AA_DDB9

AA_DDA9

AA_PCD1

AA_DDB8

R7143

C7130

16V

0.1u R7122

EXB38V470JV

C7126

16V

0.1u

C1_5V

R7152

EXB38V102JV

C11

R7141

6.8

R7114

22k

C1_5V

C7116

100V

0.47u

C7113

100V

0.47u

C0JBAZ002692

IC7103

G1 1

2A1

3A2

4A3

5A4

6A5

7A6

8A7

9A8

10GND11 Y8

12 Y7

13 Y6

14 Y5

15 Y4

16 Y3

17 Y2

18 Y1

19 G2

20 Vcc

R7129

6.8

R7151

EXB38V102JV

C7114

100V

0.47u

R7111

C7111

100V

0.47u

C0JBAZ002692

IC7104

G1 1

2A1

3A2

4A3

5A4

6A5

7A6

8A7

9A8

10GND11 Y8

12 Y7

13 Y6

14 Y5

15 Y4

16 Y3

17 Y2

18 Y1

19 G2

20 Vcc

C1_5V

J0HABH000013

FL7101

C0JBAZ002692

IC7102

G1 1

2A1

3A2

4A3

5A4

6A5

7A6

8A7

9A8

10GND11 Y8

12 Y7

13 Y6

14 Y5

15 Y4

16 Y3

17 Y2

18 Y1

19 G2

20 Vcc

C7112

16V

CB2

R7139

6.8

C1_5V

CB1

R7169

EXB38V470JV

R7130

6.8

R7136

C7120

16V

R7150

EXB38V102JV

R7133

R7131

6.8

C1_5V

C7129

16V

0.1u

C1_5V

R7138

6.8

R7123

EXB38V470JV

R7115

100k

R7149

EXB38V102JV

C7118

50V

100p

C7121

50V

100p

R7132

6.8

R7165

C7117

16V

R7148

EXB38V102JV

R7164

C7115

16V

R7124

EXB38V470JV

R7147

EXB38V102JV

R7140

6.8

R7121

EXB38V470JV

R7120

EXB38V470JV

R7127

GND

VDD1

VDD2

GND

VDD1

GND

VDD2

FDET

VDD2

GND

VDD1

LEN

CLR

VDD2

GND

VDD2

GND

BLK

VDD2

GND

ODE

CLR

VDD1

GND

VDD2

GND

BLK

LEN

VDD2

FDET1

GND

VDD2

GND

ODE

VDD2

GND

VDD1

VDD2

GND

VDD1

GND

VDD2

FDET

VDD2

GND

VDD1

LEN

CLR

VDD2

GND

VDD2

GND

BLK

VDD2

GND

ODE

CLR

VDD1

GND

VDD2

GND

BLK

LEN

VDD2

FDET1

GND

VDD2

GND

ODE

VDD2

GND

DOUTDB[8]

GND

DOUTDC[10]

5V_DET

P5V

DOUTDC[9]

DOUTDB[11]

GND

CLRD

DOUTDC[13]

DOUTDA[11]

N.C.

GND

DOUTDB[12]

GND

P5V

N.C.

DOUTDA[9]

PCD1

DOUTDA[8]

GND

DOUTDB[9]

GND

DOUTDA[10]

DOUTDA[15]

DOUTDA[13]

ODED1

DOUTDB[15]

DOUTDC[14]

DOUTDB[13]

CLK[3](-)

DOUTDC[11]

MODEL1

LED

GND

DOUTDB[10]

DOUTDC[12]

DOUTDC[8]

CLK[2](+)

GND

DOUTDA[12]

DOUTDB[14]

DOUTDC[15]

DOUTDA[14]

GND

N.C.

GND

N.C.

N.C.(DRV_RST)

N.C.

CB1

CB2

BUFFER

D-BOARD

(D31)

DRIVER

PANEL DATA

DRIVER

PANEL DATA

C1-BOARD TNPA3799AB (1/2)

357681

TH-42PG9W C1-Board (1 of 2) Schematic Diagram

TH-42PG9W

C1-Board (1 of 2) Schematic Diagram

TH-37PG9W / TH-42PG9W

115

14.46. C1-Board (2 of 2) Schematic Diagram (42inch)

SIDE

TERM

SIDE

AB_LED3

AB_CLRD

AB_ODED1

AB_CLRD

AB_ODED1

AB_DDA9

AB_DDB9

AB_DDC9

AB_CLK_N2

AB_DDA9

AB_DDA8

AB_DDB9

AB_DDB8

AB_CLK_P2

AB_DDC8

AB_DDC9

AB_DDC8

AB_LED3

AB_CLK_N2

AB_CLK_N1

AB_CLK_P1

AB_LED3

AB_LED2

AB_LED1

AB_CLK_P2

AA_CLK_P

AA_CLK_N

AA_LED

R7117 22

R7142

EXB38V102JV

R7146

EXB38V470JV

ZA7102

K4CD01000013

R7159

6.8

C1_5V

R7158

6.8

ZA7101

K4CD01000013

C7133

50V

100p

C7137

100V

0.47u

C7139

16V

0.1u

R7113 22

C7132

16V

R7118

220k

R7157

6.8

R7154

C0JBAZ002692

IC7101

G1 1

2A1

3A2

4A3

5A4

6A5

7A6

8A7

9A8

10GND11 Y8

12 Y7

13 Y6

14 Y5

15 Y4

16 Y3

17 Y2

18 Y1

19 G2

20 Vcc

R7112 22

ZA7103

K4CD01000013

C12

R7160

CB3

C7136

16V

R7116 22

C7135

100V

0.47u

R7156

6.8

C1_5V

GND

FDET

LEN

GND

VDD2

VDD1

VDD2

GND

VDD2

GND

CLR

BLK

VDD1

BLK

GND

VDD2

GND

VDD2

GND

VDD2

CLR

GND

VDD2

VDD1

GND

ODE

VDD2

GND

VDD2

GND

VDD2

GND

ODE

LEN

VDD2

Vda75V

GND

Vda75V

FDET1

CB3

BUFFER

C2-BOARD

(C22)

DRIVER

PANEL DATA

C1-BOARD TNPA3799AB (2/2)

14911 1510 1312

TH-42PG9W C1-Board (2 of 2) Schematic Diagram TH-42PG9W

C1-Board (2 of 2) Schematic Diagram

TH-37PG9W / TH-42PG9W

116

14.47. C2-Board (1 of 2) Schematic Diagram (37inch)

TERM

SIDE

TERM

SIDE

TERM

SIDE

AB_CLK_P2

AB_LED5

AB_DDC4

AB_DDB4

AB_DDA4

AB_DDC5

AB_DDB5

AB_DDA5

AB_LED5

AB_DDC4

AB_DDB4

AB_DDA4

AB_DDC5

AB_DDB5

AB_DDA5

AB_CLRD

AB_ODED2

AB_CLRD

AA_DDB5

AA_DDA5

AA_DDC4

AA_DDB4

AA_DDA4

AA_DDA3

AA_DDC2

AA_DDB2

AA_DDA2

AA_DDC3

AA_DDB3

AA_DDC0

AA_DDB0

AA_DDA0

AA_DDC1

AA_DDB1

AA_DDA1

AA_PCD2

AA_LED

AA_DDC5

BA_SOS8_SS

BA_NUEL

BA_UMH

BA_UML

BA_USH

BA_USL

AA_ODED2

AA_CLRD

AB_LED5

AB_LED6

BA_UEH

AA_CLK_P

AA_CLK_N

AB_CLK_N2

AB_DDB6

AB_LED4

AB_DDB7

AB_DDA7

AB_ODED2

AB_CLRD

AB_DDC6

AB_DDC7

AB_DDC6

AB_DDA6

AB_DDA7

AB_CLK_N2

AB_ODED2

AB_DDC7

AB_DDB7

AB_CLRD

AB_CLK_P2

AB_LED4

AA_DDA6

AA_DDB6

AA_DDC6

AA_DDA7

AA_DDB7

AA_DDC7

AB_CLK_P2

AB_CLK_N2

AB_CLK_P1

AB_CLK_N1

AB_LED4

AB_LED7

AA_LED

AB_ODED2

AB_CLRD

AA_CLRD

AA_ODED2

AA_CLK_N

AB_PCD2_1

AB_PCD2_2

AA_CLK_P

AA_PCD2

R7217

R7215

6.8

C7231

16V

R7263

6.8

C7226

16V

0.1u

R7247 22

R7251

EXB38V470JV

R7248 22

R7249 22

R7212

6.8

C2_5V

CB4

R7257

EXB38V102JV

C7235

16V

C22

R7270

100k

C7208

50V

100p

R7269

22k

CB5

C7234

100V

0.47u

C7239

16V

0.1u

R7209 47

C2_5V

FL7201

J0HABH000013

R7264

6.8

R7255

C7207

16V

R7250

EXB38V470JV

C7201

100V

0.47u

C2_5V

C21

R7208 47

R7213

6.8

R7245

EXB38V102JV

R7210

C2_5V

R7256

C7202

16V

R7246 22

C0JBAZ002692

IC7201

G1 1

GND

Vcc

C7203

100V

0.47u

R7265

R7259

C7232

50V

100p

R7262

6.8

R7214

6.8

R7261

6.8 C7236

100V

0.47u

C0JBAZ002692

IC7205

G1 1

GND

Vcc

GND

VDD1

VDD2

GND

VDD1

GND

VDD2

FDET

VDD2

GND

VDD1

LEN

CLR

VDD2

GND

VDD2

GND

BLK

VDD2

GND

ODE

CLR

VDD1

GND

VDD2

GND

BLK

LEN

VDD2

FDET1

GND

VDD2

GND

ODE

VDD2

GND

DOUTDA[4]

DOUTDB[2]

UMH

PCD2

GND

DOUTDA[0]

GND

DOUTDA[3]

DOUTDB[0]

P5V

DOUTDC[0]

DOUTDC[6]

DOUTDC[2]

GND

DOUTDB[7]

GND

DOUTDC[3]

GND

DOUTDB[3]

DOUTDB[1]

DOUTDB[4]

NUEL

N.C.(DRV_RST)

DOUTDC[5]

DOUTDB[6]

DOUTDC[1]

DOUTDA[6]

P5V

DOUTDC[4]

P5V

5V_DET

LED

DOUTDC[7]

DRV_SOS8

UEH

DOUTDA[2]

DOUTDA[1]

GND

DOUTDA[7]

DOUTDB[5]

DOUTDA[5]

GND

ODED2

GND

CLRD

CLK[1](-)

GND

CLK[0](+)

USL

UML

USH

GND

Vda 75V

GND

Vda 75V

VDD2

FDET1

GND

VDD2

FDET

GND

VDD2

LEN

GND

CLR

GND

VDD1

GND

VDD2

GND

VDD2

GND

ODE

VDD2

VDD1

LEN

VDD2

GND

VDD1

VDD2

CLR

GND

VDD2

GND

VDD2

GND

ODE

GND

BLK

GND

VDD2

BLK

DRIVER

CB4

PANEL DATA

CB5

PANEL DATA

DRIVER

BUFFER BUFFER

C1-BOARD

(C12)

D-BOARD

(D32)

C2-BOARD TNPA3793AB (1/2)

TH-37PG9W

C2-Board (1 of 2) Schematic Diagram TH-37PG9W

C2-Board (1 of 2) Schematic Diagram

TH-37PG9W / TH-42PG9W

117

14.48. C2-Board (2 of 2) Schematic Diagram (37inch)

TERM

SIDE

TERM

SIDE

AB_CLK_N1

AB_CLK_P1

AB_CLK_N1

AB_CLK_P1

AB_LED7

AB_DDC0

AB_DDB0

AB_DDA0

AB_DDC1

AB_DDB1

AB_DDA1

AB_LED7

AB_DDC0

AB_DDB0

AB_DDA0

AB_DDC1

AB_DDB1

AB_DDA1

AB_LED6

AB_DDC2

AB_DDB2

AB_DDA2

AB_DDC3

AB_DDB3

AB_DDA3

AB_LED6

AB_DDC2

AB_DDB2

AB_DDA2

AB_DDC3

AB_DDB3

AB_DDA3

AB_DDC1

AB_DDB1

AB_DDA1

AB_CLRD

AB_ODED2

AB_CLRD

AB_ODED2

AB_CLRD

AB_ODED2

AB_CLRD

BA_SOS8_SS

BA_USL

BA_NUEL

BA_UML

AA_DDA6

AA_DDA7

AA_DDC7

AA_DDB7

AB_DDA4

AB_DDB4

AB_DDC6

AB_DDA6

AB_DDB6

AB_DDC7

AB_DDA7

AB_DDB7

AB_DDA2

AB_DDB2

AB_DDC2

AB_DDB5

AB_DDA5

AB_DDC4

AB_DDC5

AB_DDC3

AB_DDC0

AB_DDB0

AB_DDA0

AB_DDB3

AB_DDA3

AA_DDC3

AA_DDA2

AA_DDB2

AA_DDC2

AA_DDA5

AA_DDB5

AA_DDC5

AA_DDA4

AA_DDC6

AA_DDB6

AA_DDC4

AA_DDB4

AA_DDB3

AA_DDA3

AA_DDC0

AA_DDB0

AA_DDA0

AA_DDC1

AA_DDB1

AA_DDA1

BA_UMH

BA_USH

BA_UEH

C7222

16V

0.1u

C7210

100V

0.47u

R7238

EXB38V102JV

C0JBAZ002692

IC7202

G1 1

10GND

Vcc

R7236

R7226

6.8

C23

C7217

50V

100p

R7224

6.8

R7241

EXB38V102JV

C7224

16V

0.1u

ZA7203

K4CD01000013

R7225

6.8

R7221

C7216

16V

C2_5V

C7212

100V

0.47u

R7240

EXB38V102JV

R7205

EXB38V470JV

R7237

EXB38V102JV

R7233

6.8

R7216

EXB38V470JV

R7234

6.8

C7206

100V

0.47u

R7202

EXB38V470JV

C7214

50V

100p

R7231

C7205

16V

C7220

16V

0.1u

C0JBAZ002692

IC7204

G1 1

GND

Vcc

R7239

EXB38V102JV

R7227

C2_5V

R7203

EXB38V470JV

CB7

R7235

6.8

C7204

100V

0.47u

R7268

C0JBAZ002692

IC7203

G1 1

GND

Vcc

R7223

6.8

R7206

EXB38V470JV

R7201

EXB38V470JV

R7229

C2_5V

C7213

16V

CB6

R7232

6.8

R7207

EXB38V470JV

R7242

EXB38V102JV

ZA7204

K4CD01000013

C2_5V

R7204

EXB38V470JV

R7219

220k

ZA7202

K4CD01000013

C2_5V

ZA7201

K4CD01000013

C7211

16V

GND

VDD1

VDD2

GND

VDD1

GND

VDD2

FDET

VDD2

GND

VDD1

LEN

CLR

VDD2

GND

VDD2

GND

BLK

VDD2

GND

ODE

CLR

VDD1

GND

VDD2

GND

BLK

LEN

VDD2

FDET1

GND

VDD2

GND

ODE

VDD2

GND

VDD1

VDD2

GND

VDD1

GND

VDD2

FDET

VDD2

GND

VDD1

LEN

CLR

VDD2

GND

VDD2

GND

BLK

VDD2

GND

ODE

CLR

VDD1

GND

VDD2

GND

BLK

LEN

VDD2

FDET1

GND

VDD2

GND

ODE

VDD2

GND

UML

Vda75V

NUEL

SOS8_SS

USH

GND

USL

UEH

UMH

Vda75V

CB6

DRIVER

PANEL DATA

CB7

PANEL DATA

DRIVER

BUFFER BUFFER BUFFER

SS-BOARD

(SS23)

C2-BOARD TNPA3793AB (2/2)

812 15141110 139

TH-37PG9W

C2-Board (2 of 2) Schematic Diagram TH-37PG9W C2-Board (2 of 2) Schematic Diagram

0.5

5.0

70.0

1.7

0.6

0.9

0.4

70.0

3.7

TH-37PG9W / TH-42PG9W

118

14.49. C2-Board (1 of 2) Schematic Diagram (42inch)

TERM

SIDE

TERM

SIDE

TERM

SIDE

AB_CLK_P2

AB_LED5

AB_DDC4

AB_DDB4

AB_DDA4

AB_DDC5

AB_DDB5

AB_DDA5

AB_LED5

AB_DDC4

AB_DDB4

AB_DDA4

AB_DDC5

AB_DDB5

AB_DDA5

AB_CLRD

AB_ODED2

AB_CLRD

AA_DDB5

AA_DDA5

AA_DDC4

AA_DDB4

AA_DDA4

AA_DDA3

AA_DDC2

AA_DDB2

AA_DDA2

AA_DDC3

AA_DDB3

AA_DDC0

AA_DDB0

AA_DDA0

AA_DDC1

AA_DDB1

AA_DDA1

AA_PCD2

AA_LED

AA_DDC5

BA_SOS8_SS

BA_NUEL

BA_UMH

BA_UML

BA_USH

BA_USL

AA_ODED2

AA_CLRD

AB_LED5

AB_LED6

BA_UEH

AA_CLK_P

AA_CLK_N

BA_SOS8_SS

BA_UEH

BA_USL

BA_NUEL

BA_UMH

BA_USH

BA_UML

AB_CLK_N2

AB_DDB6

AB_LED4

AB_DDB7

AB_DDA7

AB_ODED2

AB_CLRD

AB_DDC6

AB_DDC7

AB_DDC6

AB_DDA6

AB_DDA7

AB_CLK_N2

AB_ODED2

AB_DDC7

AB_DDB7

AB_CLRD

AB_CLK_P2

AB_LED4

AA_DDA6

AA_DDB6

AA_DDC6

AA_DDA7

AA_DDB7

AA_DDC7

AB_CLK_P2

AB_CLK_N2

AB_CLK_P1

AB_CLK_N1

AB_LED4

AB_LED7

AA_LED

AA_PCD2

AB_ODED2

AB_CLRD

AA_CLRD

AA_ODED2

AA_CLK_P

AA_CLK_N

AB_PCD2_1

AB_PCD2_2

C7208

50V

100p

CB5

C7226

16V

0.1u

R7210

R7245

EXB38V102JV

R7219

220k

R7261

6.8

R7262

6.8

C7202

16V

C7235

16V

C2_5V

C7239

16V

0.1u

R7217

R7208 47

R7212

6.8

R7209 47

R7269

22k

R7264

6.8

C7207

16V

R7250

EXB38V470JV

R7214

6.8

R7248 22

R7229

R7246 22

C0JBAZ002692

IC7205

G1 1

GND

Vcc

C7201

100V

0.47u

C7231

16V

R7259

R7263

6.8

R7251

EXB38V470JV

C7203

100V

0.47u

R7257

EXB38V102JV

C2_5V

R7249 22

C2_5V

R7265

C7234

100V

0.47u

C2_5V

C7236

100V

0.47u

R7256

R7247 22

R7255

R7213

6.8

C0JBAZ002692

IC7201

G1 1

GND

Vcc

CB4

R7270

100k

C2_5V

C22

C21

R7215

6.8

C23

J0HABH000013

FL7201

C7232

50V

100p

GND

VDD1

VDD2

GND

VDD1

GND

VDD2

FDET

VDD2

GND

VDD1

LEN

CLR

VDD2

GND

VDD2

GND

BLK

VDD2

GND

ODE

CLR

VDD1

GND

VDD2

GND

BLK

LEN

VDD2

FDET1

GND

VDD2

GND

ODE

VDD2

GND

UML

Vda70V

NUEL

SOS8_SS

USH

GND

USL

UEH

UMH

DOUTDA[4]

DOUTDB[2]

UMH

PCD2

GND

DOUTDA[0]

GND

DOUTDA[3]

DOUTDB[0]

P5V

DOUTDC[0]

DOUTDC[6]

DOUTDC[2]

GND

DOUTDB[7]

GND

DOUTDC[3]

GND

DOUTDB[3]

DOUTDB[1]

DOUTDB[4]

NUEL

N.C.(DRV_RST)

DOUTDC[5]

DOUTDB[6]

DOUTDC[1]

DOUTDA[6]

P5V

DOUTDC[4]

P5V

5V_DET

LED

DOUTDC[7]

DRV_SOS8

UEH

DOUTDA[2]

DOUTDA[1]

GND

DOUTDA[7]

DOUTDB[5]

DOUTDA[5]

GND

ODED2

GND

CLRD

CLK[1](-)

GND

CLK[0](+)

USL

UML

USH

GND

Vda 75V

GND

Vda70V

Vda 75V

VDD2

FDET1

GND

VDD2

FDET

GND

VDD2

LEN

GND

CLR

GND

VDD1

GND

VDD2

GND

VDD2

GND

ODE

VDD2

VDD1

LEN

VDD2

GND

VDD1

VDD2

CLR

GND

VDD2

GND

VDD2

GND

ODE

GND

BLK

GND

VDD2

BLK

CB4

CB5

C2-BOARD TNPA3800AB (1/2)

PANEL DATA

DRIVER

PANEL DATA

DRIVER

SS-BOARD

(SS23)

D-BOARD

(D32)

BUFFER

651 83

BUFFER

TH-42PG9W

C2-Board (1 of 2) Schematic Diagram TH-42PG9W

C2-Board (1 of 2) Schematic Diagram

0.5

5.0

70.0

1.7

0.6

0.9

0.4

70.0

3.7

C1-BOARD

(C12)

TH-37PG9W / TH-42PG9W

119

14.50. C2-Board (2 of 2) Schematic Diagram (42inch)

TERM

SIDE

TERM

SIDE

AB_CLK_N1

AB_CLK_P1

AB_CLK_N1

AB_CLK_P1

AB_LED7

AB_DDC0

AB_DDB0

AB_DDA0

AB_DDC1

AB_DDB1

AB_DDA1

AB_LED7

AB_DDC0

AB_DDB0

AB_DDA0

AB_DDC1

AB_DDB1

AB_DDA1

AB_LED6

AB_DDC2

AB_DDB2

AB_DDA2

AB_DDC3

AB_DDB3

AB_DDA3

AB_LED6

AB_DDC2

AB_DDB2

AB_DDA2

AB_DDC3

AB_DDB3

AB_DDA3

AB_DDC1

AB_DDB1

AB_DDA1

AB_CLRD

AB_ODED2

AB_CLRD

AB_ODED2

AB_CLRD

AB_ODED2

AB_CLRD

AA_DDC4

AA_DDB4

AA_DDA6

AA_DDA7

AA_DDC7

AA_DDB7

AA_DDC0

AA_DDB0

AA_DDA3

AA_DDA0

AA_DDC1

AA_DDB1

AA_DDB3

AA_DDA1

AB_DDA4

AB_DDB4

AB_DDC6

AB_DDA6

AB_DDB6

AB_DDC7

AB_DDA7

AB_DDB7

AB_DDA2

AB_DDB2

AB_DDC2

AB_DDB5

AB_DDA5

AB_DDC4

AB_DDC5

AB_DDC3

AB_DDC0

AB_DDB0

AB_DDA0

AB_DDB3

AB_DDA3

AA_DDC3

AA_DDA2

AA_DDB2

AA_DDC2

AA_DDA5

AA_DDB5

AA_DDC5

AA_DDA4

AA_DDB6

AA_DDC6

C2_5V

C7211

16V

C7213

16V

R7231

C7210

100V

0.47u

R7237

EXB38V102JV

R7216

EXB38V470JV

R7203

EXB38V470JV

C2_5V

ZA7203

K4CD01000013

ZA7201

K4CD01000013

C7222

16V

0.1u

C0JBAZ002692

IC7204

G1 1

GND

Vcc

R7201

EXB38V470JV

R7234

6.8

C7204

100V

0.47u

R7225

6.8

C2_5V

R7223

6.8

C7214

50V

100p

C7220

16V

0.1u

C0JBAZ002692

IC7203

G1 1

GND

Vcc

R7240

EXB38V102JV

R7202

EXB38V470JV

C7217

50V

100p

C7212

100V

0.47u

R7206

EXB38V470JV

R7204

EXB38V470JV

C7206

100V

0.47u

ZA7202

K4CD01000013

R7221

R7233

6.8

C0JBAZ002692

IC7202

G1 1

GND

Vcc

R7207

EXB38V470JV

R7226

6.8

R7235

6.8

C7216

16V

R7227

C2_5V

R7236

CB7

ZA7204

K4CD01000013

R7232

6.8

R7268

CB6

R7238

EXB38V102JV

C7224

16V

0.1u

R7241

EXB38V102JV

R7239

EXB38V102JV

R7224

6.8

R7205

EXB38V470JV

C2_5V

R7242

EXB38V102JV

C7205

16V

GND

VDD1

VDD2

GND

VDD1

GND

VDD2

FDET

VDD2

GND

VDD1

LEN

CLR

VDD2

GND

VDD2

GND

BLK

VDD2

GND

ODE

CLR

VDD1

GND

VDD2

GND

BLK

LEN

VDD2

FDET1

GND

VDD2

GND

ODE

VDD2

GND

VDD1

VDD2

GND

VDD1

GND

VDD2

FDET

VDD2

GND

VDD1

LEN

CLR

VDD2

GND

VDD2

GND

BLK

VDD2

GND

ODE

CLR

VDD1

GND

VDD2

GND

BLK

LEN

VDD2

FDET1

GND

VDD2

GND

ODE

VDD2

GND

CB7

CB6

C2-BOARD TNPA3800AB (2/2)

PANEL DATA

DRIVER

PANEL DATA

DRIVER

BUFFER BUFFER BUFFER

1210

89 14 151311

TH-42PG9W

C2-Board (2 of 2) Schematic Diagram TH-42PG9W

C2-Board (2 of 2) Schematic Diagram

TH-37PG9W / TH-42PG9W

120

14.51. SC, SU and SD-Board Block Diagram

CLK

FSIU

SCSU

CEL2

FCLD

CEL2

CEL

CLK

CPH1

CEL

FSID

CPH1

SCSU

SID

PROD

PROU

SIU

CPH2

SIU

FCLKD

FCLU

SID

CPH2

FCLKU

D6620

D6806

D6804

R6838

D6583

Q6743

Q6742

T6602

TP15V

VSET

15V

R6839

16V_F

VSUS

TPVSUS

16V_F

D6862

VSET

D6860

15V_F

VSUS

D6841

Q6824

R6837

D6872

15V

D6760

15V

D6585

D6825

D6859

D6421

D6480

D6826

B34

Q6681

CML

Q6401-Q6403

BUFFER

B40

VCC

Q6691

GND

Q6762

A11

BUFFER

VCC

CLK

(Vscn)

OUTFET

Q6642-Q6644

IC6521

Q6601,Q6602

PROU

ENERGY RECOVERY

AVR

DRIVER

VCC

BUFFER

(SC3)

VSUS

AVR

A33

HIN

+5V

GND

POWER OSC

Vsus

FET

(Vf+5V)

+5V(SC3)

TO P2

B31

IC6751

(+232V)

Vad( 90V)

PROD

FCLD

+15V

CMH

IC6724

+5V

PC6702

Vfo

AVR

COUPLER

SID

VSETSOS DET


VSCN SUPERIMPOSED

GND

CSL

IC6802

A33

Adj.

FCLKD

VSCN Gen.

TPSC1 SIGNAL WAVE

HIN

IC6841

IC6561,6562

Q6841,Q6842

COM

Q6821,Q6822

SC2

Vf+5V

VIN

Vf+5V

B36

VOUT

GND

(Vad 90V)

A40

IC6791

PC6861

Vscn

GND

A35

Vscn

SC41

PC6480

DRIVEB

COUPLER

(SC3)

PC6703


Q6802

Vscn

GND

CMH

(+125V)

IC6752

IC6821

+5V(SC3)

CML

OUTFET

VSET SEPARATE

IC6753

CSH

Q6616,Q6617

L6401

CLK

CPH

Vsus

CSL

Vf+5V

L6403

(SC2)

Vf+5V

B32

TPSCI

Vfo

L6412

A36

SC SCAN DRIVE

R6833

B35

GND

L6411

VCC

R6834

FCLU

A34

Vfo

A39

IC6681

Q6661-Q6663

R6835

FSID

Q6671

B11

IC6725

R6836

VCC

IC6501

+5V(SC1),+5V(SC3)

COMPARATOR

VSET

GND

Vscn,VAD( 90V)

IC6871

(SC1)

TO P23

TPVSCN

IC6671

IC6721

DRIVER

PROU

SCSU

TPVAD

Q6801

SIU

VCC

VSET

PC6760

A32

Q6421-Q6423

FET

+5V

IC6581

VDD

VAD SLOPE

Vfo

CSH

IC6601

B30

VAD CONST

Q6511,Q6512

VR6600

(Vfo)

PROD

Q6803

LED(G)

(+8V)

TPVSET

VSET Gen.

B33

IC6801

FSIU

SC_SOS7

CEL

VAD Gen.( 90V)

Q6680

SID

DRIVER

SIU

VSET2 Gen.

FET

VDD

+5V(SC2)

VCC

FCLKD


BUFFER

VSET2

VAD

COUPLER

FCLD

A30

Vsus Gen.

Vscn(VAD+125V)

PC6801

VSET SLOPE

Q6581

IC6771

IC6861

DRIVER

COMPA-

FET

Vf+5V

B39

+15V

FET

IC6722

+5V

Vf+5V

FCLKU

OUTFET

IC6773

DC/DC CONV.

VDD

Vscn

FSID

COUPLER

OUTFET

IC6774

LIN

PC6701


Vad 90V

Q6441,Q6442

DRIVER

SC30

COUPLER

P+5V

+5V(SC3)

RATOR

VSCN


PC6871

FACTORY

RATOR

FSIU

COUPLER

Vf+5V

USE

COMPA-

SC42

COUPLER

CEL2

B33

A31

16V_F

VCC


GND

PC6705

FOR

IC6682

+5V(SC1)


LIN

B10

FCLU

+5V(SC1)


FET

COUPLER

Q6646-Q6648

COUPLER

VCC

SC_SOS6

BUFFER


AVR

COUPLER

A10


CEL2

PC6704

Vf+5V

Q6682

TO D20

VCC

FCLKU

TPSOS6

TPSOS7

Q6621,D6622

OUT

FET

OUT

FET

OUT

FET

OUT

FET OUT

VCC

FET

GND

FET

VAD SEPARATE

DRIVER

OUT

Q6781

IC6772

Q6782

Q6451

S/P

A47

LINE

VDD

C36

C48

A40

GND

240LINE

CLK

IC6903

A48

48bit

SU2

A72

SU1

GND

VDDH

C41

VDD

A31 A71

S/P

C39

C76

C50

A80

C51

64bit

IC6902

PRO

A45

S/P

C35

C11

VDDH

C49

A33

A32

SCAN

C75

64bit

SU3

LINE

C74

SU41

VDD

VDDH

SD42

PRO

IC6904

GND

64bit

S/P

(UPPER)

VDD

CLK

LINE

A46

A73

CLK

PANEL

C33

PRO

C34

SCAN

C73

IC6901

PRO

A42

VDDH

ELECTRODES

GND

ELECTRODES

CLK

(LOWER)

240LINE

A70

C79

A30

C10

PANEL

VDD

64bit

SD3

LINE

VDD

VDDH

PRO

CLK

IC6954

PRO

GND

64bit

S/P

IC6951

VDD

PRO

VDDH

CLK

LINE

GND

CLK

S/P

LINE

VDD 32

S/P

64bit

GND

IC6952

PRO

CLK

IC6953

S/P

48bit

SD2

VDDH

SD1

GND

VDDH

D6953

D6954

D6904

D6903

SU SCAN OUT (UPPER)

SD SCAN OUT (LOWER)

FLOATING GND

COLD

ENERGY RECOVERY SOS DET

LED BLINKING : 6 TIMES

SC FLOATING PART SOS DET

LED BLINKING : 7 TIMES

FLOATING GND

COLD

TH-37/42PG9W

SC, SU and SD-Board Block Diagram TH-37/42PG9W

SC, SU and SD-Board Block Diagram

TH-37PG9W / TH-42PG9W

121

14.52. SC-Board (1 of 2) Schematic Diagram

AA_CLK

AA_SIU

AA_SID

AA_SCSU AA_CL

AA_CEL

CEL2

CPH

CML

CMH

CSH

CBK

CEL

CSL

AA_CEL2

200V

AC_CPH1

AC_CPH2

SOS6_SC1

15V

SOS7_SC2

175V

C6524

25V

4.7u

R6875

3.3k

TP31

R6876

1.2k

TP28

TP23

TP26

C0JBAA000377

IC6472

IN_B

IN_A

GND

VCC

OUT_Y

TP39

L6592

G0ZZ00002183

C6563

10V

100u

R6563

EXB38V470JV

R6465

200k

D6585

MA2J11100L

Q6423

2PG0020000RP

C6565

50V

0.01u

R6582

39k

TP30

R6405

C6513

250V

C6431

250V

R6425

R6863

47k

L6403

0.6u

R6511

10k

L6481

G0ZZ00002183

C6518

250V

R6616

15k

SC2

R6567

EXB38V472JV

15V_F

R6441

C6612

25V

Q6517

B1ADNF000006

TP38

C6517

250V

TP32

R6588

10k

C0ZBZ0000895

IC6501

GND

VCC

HIN

LIN

GND

C6511

250V

TP29

D6481

MA3DF30000LZ

Q6581

2SD0601A0L

R6587

2.2k

R6581

10k

D6480

MA2J11100L

R6517

10k

R6507

R6512

10k

SOS7_SC2

C6514

250V

R6403

R6476

4.7k

D6871

MAZ80510LL

L6482

G0ZZ00002183

R6478

4.7k

R6402

PC6871

B3PBA0000223

R6878

22k

L6463

G0ZZ00002183

Q6512

B1ADNF000006

L6412

TP13

R6586

1.5k

D6431

MA3DF40000LZ

15V

C6861

16V

D6523

MA2J11100L

R6477

R6452

D6501

B0ECHP000003

R6619

1.5k

D6582

MAZ83300ML

TP33

VSCN_F

VF_GND

R6516

10k

D6872

MA2J11100L

D6820

MA2J11100L

150

R6504

D6614

MA2J11100L

D6461

MA3DF30000LZ

D6862

MA2J11100L

R6568

EXB38V472JV

C0JBAZ000005

IC6562

1G~

21A1

32Y4

41A2

52Y3

61A3

72Y2

81A4

92Y1

10 GND 11

2A1

1Y4

2A2

1Y3

2A3

1Y2

2A4

1Y1

2G~

VCC

TP11

R6861

39k

IC6861

C0BBBA000022

R6426

R6561

EXB38V470JV

IC6871

C0BBBA000022

D6401

MA3DF30000LZ

C6564

16V

R6521

100

TP7

C6566

50V

0.01u

150

R6524

R6865

1.8k

R6566

EXB38V472JV

IC6610

C0BBBA000022

16V_F

D6610

MAZ81500ML

R6583

39k

R6404

D6583

LNJ301MPUJA

C6526

250V

0.22u

D6613

MA2J11100L

TP24

L6402

0.6u

R6564

EXB38V470JV

Q6401

2PG0010000RP

R6508

TP21

TP16

R6442

150

R6523

C6422

630V

5600p

R6866

1.5k

R6584

7.5k

D6581

MAZ83300ML

15V

SOS7_SC2

TP34

R6562

EXB38V470JV

TP18

C6525

25V

4.7u

L6401

0.6u

R6406

Q6471

B1CHGD000006

C6412

200V

220u

C6863

50V

0.01u

R6503

TP4

IC6581

C0BBBA000022

C6522

25V

4.7u

C6505

25V 4.7u

R6591

EXB38V472JV

Q6422

2PG0020000RP

C6862

25V

R6421

L6591

G0ZZ00002183

TP9

D6502

B0ECHP000003

C6421

630V

5600p

TP10

D6522

D1FL40

D6491

MA3DF40000LZ

C6581

25V

VSUS

R6522

100

Q6516

B1ABNF000006

D6821

MA2J11100L

Q6402

2PG0010000RP

C6872

25V

TP17

C6582

16V

Q6441

2PG0010000RP

TP8

MAIN_STOP

TP52

R6422

R6502

100

D6471

MA3DF30000LZ

C6472

50V

0.1u

TP27

C6561

10V

100u

C6611

50V

0.01u

TP15

R6617

MAIN_STOP

R6869

4.7k

C0ZBZ0000895

IC6521

GND

VCC

HIN

LIN

GND

TP6

TP35

C6515

250V

TP5

D6584

MAZ80510LL

150

R6505

TP22

Q6403

2PG0010000RP

15V

R6592

4.7k

R6444

C6610

25V

D6451

D1FL40

R6534

L6602

G0ZZ00002183

R6479

100k

L6461

G0ZZ00002183

TP14

R6879

4.7k

R6443

R6501

100

C6593

50V

1000p

*C6420

630V 1000p

C6516

250V

L6483

G0ZZ00002183

C6592

25V

470u

C6512

250V

R6864

9.1k

Q6511

B1ABNF000006

R6867

3.9k

D6861

MAZ80510LL

C6402

5600p

630V

R6525

100k

R6526

100

R6423

C6873

50V

0.01u

R6615

24k

R6565

EXB38V472JV

R6618

12k

R6614

24k

R6877

3.9k

D6524

MAZ80330LL

L6462

G0ZZ00002183

L6411

TP1

R6585

1.5k

R6401

C6401

630V 5600p

PC6861

B3PBA0000223

D6441

D1FL40

D6612

MA2J11100L

TP19

*C6400

630V

1000p

15V

C6562

16V

Q6421

2PG0020000RP

C6411

200V

220u

C6504

25V

4.7u

TP2

R6424

TP20

Q6451

2PG0020000RP

C6480

50V

0.1u

R6868

22k

Q6442

2PG0010000RP

L6484

G0ZZ00002183

R6475

4.7k

R6590

220

L6464

G0ZZ00002183

*C6410

630V 1000p

R6862

47k

B0ECHP000003

D6472

TP25

R6451

VSUS

R6506

C6413

200V

220u

R6533

10k

C0JBAZ000005

IC6561

1G~

21A1

32Y4

41A2

52Y3

61A3

72Y2

81A4

92Y1

10 GND 11

2A1

1Y4

2A2

1Y3

2A3

1Y2

2A4

1Y1

2G~

VCC

D6521

D1FL40

C6502

25V

4.7u

TP12

D6611

MA2J11100L

VF_GND

15V_F

+15V

GND

TP15V

+15V

GND

Vsus

GND

TPVSUS

TPSOS7

TPSOS6

52 687

FET DRIVER

BUFFER

FET DRIVER

SC-BOARD (1/2)

TNPA3794AB (42inch)

TNPA3794AE (37inch)

COMPARATOR

P5V

CLK

SIU

SCSU

SID

(P2)

P-BOARD

(P23)

D-BOARD

(D20)

COMPARATOR

(GREEN LED)

FLOATING GND

COLD

FLOATING GNDCOLD

TH-37/42PG9W

SC-Board (1 of 2) Schematic Diagram TH-37/42PG9W SC-Board (1 of 2) Schematic Diagram

5.3

4.3

2.2

0.7

0.8

2.9

3.9

0.1

0.9

5.0

2.8

0.5

15.0

175.0

TH-37PG9W / TH-42PG9W

122

14.53. SC-Board (2 of 2) Schematic Diagram

REF

AA_CEL

AB_FCLD

AB_FCLU

AC_CPH1

AA_CEL2

AA_SID

AA_SIU

AA_CLK

AA_CL

AA_SCSU

AB_FCLKU

AB_FCLKD

AB_PROD

AB_PROU

AB_FSID

AB_FSIU

AC_CPH2

260V

443V

260-443V

15V

-75V

-90V

60V

-74V

-80V

-90V

AB_FSIU

AB_FCLU

AB_FCLKU

AB_PROD

AB_FCLKD

AB_FCLD

AB_FSID

460V

+340V

-90V

AB_PROU

-85V

R6848

4.7k

R6690

150

R6781

D6859

B0ECHP000003

D6603

MAZ82400ML

R6689

C6841

160V

100u

D6823

MA2J11100L

R6850

62k

R6808

C0JBAA000377

IC6774

IN_B

IN_A

GND

VCC

OUT_Y

D6702

MAZ80560HL

D6644

B0HCKS000002

C0DBEKA00003

IC6471

REF

ZA6401

K4CD01000011

Q6662

2SD0601A0L

R6852

2.49k

Q6742

2SD0601A0L

R6845

56k

D6730

MAZ80560HL

R6686

10k

PC6702

B3PBA0000397

D6801

M1FS4

C6701

50V

0.1u

R6643

R6776

100

R6746

10k

16V_F

R6822

100k

D6733

MAZ80560HL

R6836

51k

D6725

B0ECHP000003

IC6681

C0ZBZ0001325

1 Vcc

2IN

3GND

4LO 5

R6806

5.6k

IC6802

C0DBEMB00005

C6753

25V

4.7u

R6691

10k

Q6643

2SK399500L

D6825

MAZ8330

D6701

MAZ80560HL

R6708

470

Q6691

2SK062000L

D6664

MAZ83300ML

N0BF1FB00001

IC6791

1GND

2GND

3N.C.

4VIN

5VIN

6N.C.

9COM

10 COM

11 VOUT

12 VOUT

C6662

630V

1000p

R6745

4.7k

TP62

C0JBAA000377

IC6682

IN_B

IN_A

GND

VCC

OUT_Y

R6758

100

C6661

630V

1000p

C6804

250V

10u

T6602

ETS22AE2G9AD

7P2

10 B1

9B2

8P1

R6647

R6659

220k

R6829

150k

D6687

MA2J11100L

Q6681

2SK389500L

D6671

MA2J11100L

SC42

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

A26

A27

A28

A29

A30B31

B32

B33

B34

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B35

B36

B37

B38

B39

B40

D6734

MA2J11100L

D6727

MAZ80560HL

R6812

274k

R6747

10k

D6623

B0HDSM000005

R6759

4.7k

D6758

B0ECHP000003

D6806

B0ECHP000003

D6761

MA2J11100L

R6843

56k

R6658

100

R6611

TP42

C6803

50V

0.1u

C6691

160V

100u

IC6752

C0ZBZ0001325

1Vcc

2IN

3GND

4LO 5

R6817

4.7k

Q6824

2SD0601A0L

R6782

10k

VSET

R6661

100k

R6757

100

C0JBAA000377

IC6773

IN_B

IN_A

GND

VCC

OUT_Y

R6664

2.2k

R6702

470

D6642

B0HCKS000002

R6660

220k

R6860

8.2

Q6648

2SK399500L

IC6841

C0DBEMB00005

R6473

560

Q6647

2SK399500L

VSCN_F

16V_F

R6663

10k

C6728

50V

1000p

C6773

25V

4.7u

C6682

25V

4.7u

D6721

B0HCKS000002

IC6772

C0ZBZ0001325

1Vcc

2IN

3GND

4LO 5

ZA6403

K4CD01000011

C6708

50V

0.1u

D6723

B0JCME000037

R6853

100

R6642

D6661

MA2J11100L

IC6722

C0JBAZ000994

11A

21Y

32A

42Y

53A

63Y

7GND 8

VCC

D6841

B0ECHP000003

D6791

MAZ82000ML

C6775

25V

4.7u

R6775

100

IC6725

C0CBADC00089

INPUT 3

COMMON

OUTPUT

IC6771

C0CBADC00089

INPUT 3

COMMON

OUTPUT

TP51

D6643

B0JCME000037

VSUS

R6793

100

R6874

9.1k

IC6601

C0ZBZ0001325

1Vcc

2IN

3GND

4LO 5

R6700

470

Q6841

2SD1263AP0LB

C6845

50V

0.01u

C6601

25V

4.7u

TP46

Q6762

B1ADNF000006

R6715

2.2k

R6622

220

R6705

470

R6849

59k

R6606

2.74k

R6662

1.2k

D6683

MA2J11100L

R6620

8.2

R6665

R6603

100

C6777

50V

0.1u

R6821

220

C6707

50V

0.1u

15V_F

IC6671

C0ZBZ0001325

1Vcc

2IN

3GND

4LO 5

R6844

100

R6842

10k

D6771

B0JCME000037

C6606

630V

1000p

D6605

MAZ80510LL

R6744

10k

VF_GND

R6851

1.5k

R6834

51k

C6771

16V 1u

R6760

1.2k

SOS7_SC2

Q6622

2SK399500L

TP56

R6743

C6723

25V

4.7u

C6805

16V

C6724

25V

4.7u

PC6703

B3PBA0000397

SC41

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

A26

A27

A28

A29

A30B31

B32

B33

B34

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B35

B36

B37

B38

B39

B40

D6602

B0ECHP000003

R6472

2.2k

R6713

2.2k

D6666

MA2J11100L

Q6842

2SC1473AEA

R6792

10k

C6605

50V

0.1u

TP40

C6802

25V

220u

R6711

2.2k

R6777

150

R6612

C6807

160V

100u

C6806

160V

100u

R6813

R6646

TP48

Q6821

2SD1263AP0LB

R6846

56k

R6809

10k

R6682

100

R6683

150

R6673

5.6

C6671

25V

4.7u

R6826

270k

Q6791

2SD0601A0L

Q6822

2SC3063000RL

R6672

10k

R6648

D6842

MA2J11100L

C6603

630V

1000p

D6604

MA2J11100L

IC6821

C0DBEMB00005

Q6682

2SK389500L

R6814

6.98k

TP43

Q6642

2SK399500L

TP50

R6873

39k

TP54

Q6803

2SD0814ARL

Q6781

B1ABNF000006

TP63

C6721

100u

50V

Q6801

B1BAEJ000014

R6837

47k

C6754

35V

47u

D6477

MA2J11100L

VSET

PC6480

B3PBA0000223

R6714

2.2k

R6701

470

D6822

MA2J11100L

R6697

2.2

R6718

2.2k

R6717

2.2k

R6742

10k

D6619

D1FK70-7063

R6703

470

R6666

100k

R6830

150k

C6681

25V

4.7u

R6761

R6839

4.7k

SOS7_SC2

R6723

2.2k

R6688

4.7k

R6755

100

D6621

B0HDSM000005

TP45

R6841

10k

C6727

16V

TP44

D6726

MAZ80560HL

TP47

R6811

43k

C6755

50V

0.1u

R6710

2.2k

C6705

50V

0.1u

C6683

50V 0.1u

ZA6402

K4CD01000011

D6773

B0HCKS000002

D6731

MAZ80560HL

15V

R6687

2.2k

TP59

C0JBAB000715

IC6602

IN_A

GND

VCC

OUT_Y

L6472

G0ZZ00002183

R6609

D6662

MAZ83300ML

R6696

2.2

Q6621

2SK399500L

R6887

220k

C6706

50V

0.1u

Q6601

B1DFES000003

D6667

MA2J11100L

C6702

50V

0.1u

R6716

2.2k

R6668

4.7k

TP58

PC6705

B3PBA0000397

15V

D6860

B0HCKS000002

R6835

56k

R6825

200k

IC6801

C0DBEMB00005

R6831

10k

PC6704

K7GBZEE00007

R6684

R6608

Q6744

2SK062000L

R6667

4.7k

D6752

B0JCME000037

TP41

D6620

D1FK70-7063

D6724

B0JCME000037

PC6801

B3PBA0000223

VSCN_F

R6762

10k

C6726

16V 1u

R6816

14.3k

D6607

MA2J11100L

R6807

3.3k

R6756

100

R6604

150

R6471

3.9k

C6602

25V

4.7u

D6843

MA2J11100L

C6752

16V

D6497

MA111

C6776

50V

0.1u

R6791

PC6760

B3PBA0000223

IC6751

C0CBADC00089

INPUT 3

COMMON

OUTPUT

15V

R6888

220k

Q6644

2SK399500L

VR6602

10k

TP53

D6732

MAZ80560HL

R6613

D6804

B0ECHP000003

R6827

14.3k

Q6661

B1DEET000002

D6601

MAZ8240

C6791

25V

220u

Q6602

2SD0601A0L

PC6701

B3PBA0000397

C6704

50V

0.1u

R6847

56k

C0JBAB000715

IC6753

IN_A

GND

VCC

OUT_Y

C6703

50V

0.1u

R6685

470

Q6743

2SD0601A0L

C6795

25V

470u

C6604

350V

47u

R6824

5.6k

IC6721

C0JBAZ000994

11A

21Y

32A

42Y

53A

63Y

7GND 8

VCC

D6478

B0HCKS000002

D6728

MAZ80560HL

R6704

470

R6810

43k

D6826

MA111

C6725

25V

4.7u

C6641

0.22u

250V

D6606

B0HCMM000014

Q6663

2SD21850RL

R6833

56k

R6621

220

Q6782

B1ADNF000006

R6815

2.2k

Q6802

2SB0709ARL

R6644

D6805

MA2J11100L

R6823

100k

D6684

MA2J11100L

R6474

R6605

100k

R6721

EXB38V220JV

D6729

MAZ80560HL

IC6724

C0CBADC00089

INPUT 3

COMMON

OUTPUT

R6706

470

R6707

470

SOS7_SC2

C6772

25V

4.7u

TP55

C6871

16V

R6681

100

R6671

D6760

MA2J11100L

D6803

MA2J11100L

R6828

5.23k

R6886

220k

R6712

2.2k

D6663

MAZ83300ML

D6641

B0HCKS000002

D6665

MAZ80510LL

C6811

50V

0.01u

Q6680

B1ADNF000006

Q6671

B1DFES000003

C6823

50V

0.01u

D6682

B0HCMM000014

R6722

EXB38V220JV

TP60

R6610

100k

TP57

VR6600

TP49

D6686

MA2J11100L

TP61

Q6646

2SK399500L

VF_GND

C6620

630V

2200p

R6872

39k

R6871

39k

TP64

(D1FK70)

VAD

TPVAD

TPVSCN

INIT-F

VSET

TPVSET

TPSC1

AB_FSIU

AB_FCLU

AB_FCLKU

AB_PROU

AB_FSID

AB_FCLD

AB_FCLKD

INIT-R

AB_PROD

12 1811 1310 16 171514

FET DRIVER

BUFFERBUFFER

FET DRIVER

DC/DC CONV.

+5V(SC3)

SU-BOARD

(SU45)

Vf(High Voltage Floting GND) Vfo(Vscn Out)Vscn

volatage

Vf(High Voltage

Floting GND)

VF5V

SD-BOARD

(SD46)

Vscn Vf(High Voltage Floting GND)Vfo(Vscn Out) volatage VF5V

Vf(High Voltage

Floting GND)

VAD Gen.

VSET2 Gen.

VSCN Gen.

+5V(SC1)

SU-BOARD

(SU41)

SD-BOARD

(SD42)

+5V(SC1)

+5V(SC2)

VSET SEPARATE

FET DRIVER

VAD SEPARATE

VSET SLOPE

VAD CONT

SUPERIMPOSED

VSCN

FLOATING GND

COLD

COLD FLOATING GND

FLOATING GND

COLD

TH-37/42PG9W

SC-Board (2 of 2) Schematic Diagram TH-37/42PG9W

SC-Board (2 of 2) Schematic Diagram

SC-BOARD (2/2)

TNPA3794AB (42inch)

TNPA3794AE (37inch)

TH-37PG9W / TH-42PG9W

123

14.54. SU-Board Schematic Diagram (37inch)

TERM

SIDE

TERM

SIDE

TERM

SIDE

AA_17

AA_18

AA_19

AA_20

AA_21

AA_22

AA_23

AA_24

AA_25

AA_26

AA_27

AA_28

AA_29

AA_30

AA_36

AA_37

AA_47

AA_46

AA_45

AA_44

AA_43

AA_42

AA_41

AA_40

AA_39

AA_38

AB_49

AB_50

AB_51

AB_52

AB_53

AB_54

AB_55

AB_56

AB_57

AB_58

AB_59

AB_60

AB_61

AB_62

AB_63

AB_64

AB_65

AB_66

AB_67

AB_68

AB_69

AB_70

AB_71

AB_72

AB_73

AB_74

AB_75

AB_110

AB_109

AB_108

AB_107

AB_106

AB_105

AB_104

AB_103

AB_102

AB_101

AB_100

AB_99

AB_98

AB_97

AB_96

AB_95

AB_94

AB_93

AB_92

AB_91

AB_90

AB_89

AB_88

AB_87

AB_86

AC_113

AC_114

AC_115

AC_116

AC_117

AC_118

AC_119

AC_120

AC_121

AC_122

AC_123

AC_124

AC_125

AC_126

AC_127

AC_128

AC_129

AC_130

AC_131

AC_132

AC_133

AC_134

AC_135

AC_136

AC_137

AC_138

AC_139

AC_140

AC_141

AC_142

AC_148

AC_149

AC_174

AC_173

AC_172

AC_171

AC_170

AC_169

AC_168

AC_167

AC_166

AC_165

AC_164

AC_163

AC_162

AC_161

AC_160

AC_159

AC_158

AC_157

AC_156

AC_155

AC_154

AC_153

AC_152

AC_151

AC_150

AD_177

AD_179

AD_180

AD_181

AD_182

AD_183

AD_184

AD_185

AD_186

AD_187

AD_188

AD_189

AD_190

AD_191

AD_192

AD_193

AD_194

AD_195

AD_196

AD_197

AD_198

AD_199

AD_200

AD_201

AD_202

AD_203

AD_204

AD_205

AD_206

AD_211

AD_212

AD_213

AD_222

AD_221

AD_220

AD_219

AD_218

AD_217

AD_216

AD_215

AD_214

AD_178

AB_81

AA_1

AA_3

AA_5

AA_7

AA_9

AA_11

AA_13

AA_15

AA_17

AA_19

AA_21

AA_23

AA_25

AA_27

AA_29

AA_31

AA_33

AA_35

AA_37

AA_39

AA_41

AA_43

AA_47

AA_45

AA_2

AA_4

AA_6

AA_8

AA_10

AA_12

AA_14

AA_16

AA_18

AA_20

AA_22

AA_24

AA_26

AA_28

AA_30

AA_32

AA_34

AA_36

AA_38

AA_40

AA_42

AA_44

AA_48

AA_46

AB_62

AB_54

AB_52

AB_50

AB_58

AB_60

AB_56

AB_53

AB_51

AB_49

AB_57

AB_59

AB_55

AB_64

AB_66

AB_68

AB_70

AB_72

AB_74

AB_76

AB_78

AB_80

AB_67

AB_63

AB_65

AB_71

AB_73

AB_75

AB_77

AB_79

AB_69

AB_61

AB_83

AB_85

AB_87

AB_89

AB_91

AB_93

AB_95

AB_97

AB_99

AB_101

AB_103

AB_105

AB_107

AB_111

AB_109

AB_82

AB_84

AB_86

AB_88

AB_90

AB_92

AB_94

AB_96

AB_98

AB_100

AB_102

AB_104

AB_106

AB_108

AB_112

AB_110

AC_113

AC_115

AC_117

AC_119

AC_121

AC_123

AC_125

AC_127

AC_129

AC_131

AC_133

AC_135

AC_137

AC_139

AC_141

AC_143

AC_145

AC_147

AC_149

AC_151

AC_153

AC_155

AC_159

AC_157

AC_114

AC_116

AC_118

AC_120

AC_122

AC_124

AC_126

AC_128

AC_130

AC_132

AC_134

AC_136

AC_138

AC_140

AC_142

AC_144

AC_146

AC_148

AC_150

AC_152

AC_154

AC_156

AC_160

AC_158

AC_161

AC_163

AC_165

AC_167

AC_169

AC_171

AC_175

AC_173

AC_162

AC_164

AC_166

AC_168

AC_170

AC_172

AC_174

AC_176

AD_194

AD_196

AD_198

AD_200

AD_202

AD_204

AD_206

AD_208

AD_210

AD_212

AD_214

AD_216

AD_218

AD_220

AD_222

AD_224

AD_226

AD_228

AD_230

AD_232

AD_234

AD_236

AD_238

AD_240

AD_177

AD_179

AD_181

AD_183

AD_185

AD_187

AD_189

AD_191

AD_193

AD_195

AD_197

AD_199

AD_201

AD_203

AD_205

AD_207

AD_209

AD_211

AD_213

AD_215

AD_217

AD_219

AD_221

AD_223

AD_225

AD_227

AD_229

AD_231

AD_233

AD_235

AD_239

AD_237

AE_FSO2

AE_FSO3

AE_FSI

AC_147

AD_210

AD_209

AD_208

AD_207

AC_176

AC_175

AC_146

AC_145

AC_144

AC_143

AB_112

AB_111

AA_6

AA_5

AA_4

AA_3

AA_34

AA_33

AA_35

AA_32

AA_31

AA_7

AA_15

AA_14

AA_13

AA_12

AA_16

AA_11

AA_10

AA_9

AA_8

AA_2

AA_1

AE_FSO2

AE_FSO3

AD_223

AD_224

AD_238

AD_237

AD_228

AD_235

AD_226

AD_231

AD_227

AD_232

AD_234

AD_236

AD_229

AD_225

AD_233

AD_230

AD_186

AD_184

AD_182

AD_180

AD_178

AD_192

AD_190

AD_188

AD_240

AA_48

AE_FCLK

AE_FCL

AE_PRO

AE_FCLK

AE_FCL

AE_PRO

AE_FCLK

AE_FCL

AE_PRO

AE_FCLK

AE_FCL

AE_PRO

AE_FCLK

AE_FCL

AE_FSI

AE_PRO

AE_FCLK

AE_FCL

AD_239

AB_80

AB_79

AB_78

AB_77

AB_76

AB_85

AB_84

AB_83

AB_82

AB_81

A61

SU3

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

SU1

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

A71

A25

A33

A18

A74

A65

A51

A44

C6932

250V

AN16071A-VT

IC6902

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

A31

A79

A67

D6922

MAZ80560HL

D6921

B0ECHP000003

D6904

B0ECHP000003

A72

A32

A60

A23

C6921

50V

220p

R6923

4.7k

A46

D6903

B0ECHP000003

A13

A64

A55

C6915

50V

220p

R6909

220

R6936

220k

C6901

50V

1000p

R6921

100k

A75

R6932

10k

C6931

50V

1000p

A20

A66

R6935

220k

A70

A28

A41

A34

A57

A53

D6902

MAZ80560HL

A21

A80

A36

A16

C6908

16V 1u

A11

A63

A48

R6922

100k

R6908

220

A42

C6934

250V

R6901

100

A35

A19

A49

C6916

50V

220p

A68

C6906

16V 1u

A62

A37

A26

A27

A76

A52

D6901

MAZ80560HL

A39

A24

A17

A45

A43

R6931

10k

A14

A15

A69

Q6921

2SK062000L

C6904

16V 1u

R6933

10k

A47

A22

AN16071A-VT

IC6901

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

R6916

220

R6934

10k

A30

A54

A73

A12

A10

A77

SU2

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

C6902

16V 1u

A58

A78

A29

A38

AN16071A-VT

IC6904

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

A50

AN16071A-VT

IC6903

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

A59

A40

A56

R6903

R6902

R6904

Vfo

FCL

FCLK

FSI

VF5V

PRO

VF5V

Vscn

PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER

Vfo(Vscn Out)

(SC41)

SC-BOARD

SU41(Card Edge 80Pin)

Vscn voltage

TH-37PG9W

SU-Board Schematic Diagram TH-37PG9W

SU-Board Schematic Diagram

Vf(High Voltage Floting GND)

FOIL SIDE (UPPER)

COMPONENT SIDE (LOWER)

12 65

4 8

SU-BOARD TNPA3796AB

SCAN ELECTRODES

To 3rd 96pins of

SCAN ELECTRODES

To 2nd 96pins of

SCAN ELECTRODES

To 1st 96pins of

(SC45)

SC-BOARD

S/P

64bit

S/P

64bit

S/P

64bit

S/P

48bit

Vf5

Vfo

Vscn

Vf(High Voltage Floting GND)

TH-37PG9W / TH-42PG9W

124

14.55. SU-Board Schematic Diagram (42inch)

TERM

SIDE

TERM

SIDE

TERM

SIDE

AA_17

AA_18

AA_19

AA_20

AA_21

AA_22

AA_23

AA_24

AA_25

AA_26

AA_27

AA_28

AA_29

AA_30

AA_36

AA_37

AA_47

AA_46

AA_45

AA_44

AA_43

AA_42

AA_41

AA_40

AA_39

AA_38

AB_49

AB_50

AB_51

AB_52

AB_53

AB_54

AB_55

AB_56

AB_57

AB_58

AB_59

AB_60

AB_61

AB_62

AB_63

AB_64

AB_65

AB_66

AB_67

AB_68

AB_69

AB_70

AB_71

AB_72

AB_73

AB_74

AB_75

AB_76

AB_77

AB_78

AB_83

AB_84

AB_85

AB_110

AB_109

AB_108

AB_107

AB_106

AB_105

AB_104

AB_103

AB_102

AB_101

AB_100

AB_99

AB_98

AB_97

AB_96

AB_95

AB_94

AB_93

AB_92

AB_91

AB_90

AB_89

AB_88

AB_87

AB_86

AC_113

AC_114

AC_115

AC_116

AC_117

AC_118

AC_119

AC_120

AC_121

AC_122

AC_123

AC_124

AC_125

AC_126

AC_127

AC_128

AC_129

AC_130

AC_131

AC_132

AC_133

AC_134

AC_135

AC_136

AC_137

AC_138

AC_139

AC_140

AC_141

AC_142

AC_148

AC_149

AC_174

AC_173

AC_172

AC_171

AC_170

AC_169

AC_168

AC_167

AC_166

AC_165

AC_164

AC_163

AC_162

AC_161

AC_160

AC_159

AC_158

AC_157

AC_156

AC_155

AC_154

AC_153

AC_152

AC_151

AC_150

AD_177

AD_179

AD_180

AD_181

AD_182

AD_183

AD_184

AD_185

AD_186

AD_187

AD_188

AD_189

AD_190

AD_191

AD_192

AD_193

AD_194

AD_195

AD_196

AD_197

AD_198

AD_199

AD_200

AD_201

AD_202

AD_203

AD_204

AD_205

AD_206

AD_211

AD_212

AD_213

AD_222

AD_221

AD_220

AD_219

AD_218

AD_217

AD_216

AD_215

AD_214

AD_178

AB_81

AA_1

AA_3

AA_5

AA_7

AA_9

AA_11

AA_13

AA_15

AA_17

AA_19

AA_21

AA_23

AA_25

AA_27

AA_29

AA_31

AA_33

AA_35

AA_37

AA_39

AA_41

AA_43

AA_47

AA_45

AA_2

AA_4

AA_6

AA_8

AA_10

AA_12

AA_14

AA_16

AA_18

AA_20

AA_22

AA_24

AA_26

AA_28

AA_30

AA_32

AA_34

AA_36

AA_38

AA_40

AA_42

AA_44

AA_48

AA_46

AB_62

AB_54

AB_52

AB_50

AB_58

AB_60

AB_56

AB_53

AB_51

AB_49

AB_57

AB_59

AB_55

AB_64

AB_66

AB_68

AB_70

AB_72

AB_74

AB_76

AB_78

AB_80

AB_67

AB_63

AB_65

AB_71

AB_73

AB_75

AB_77

AB_79

AB_69

AB_61

AB_83

AB_85

AB_87

AB_89

AB_91

AB_93

AB_95

AB_97

AB_99

AB_101

AB_103

AB_105

AB_107

AB_111

AB_109

AB_82

AB_84

AB_86

AB_88

AB_90

AB_92

AB_94

AB_96

AB_98

AB_100

AB_102

AB_104

AB_106

AB_108

AB_112

AB_110

AC_113

AC_115

AC_117

AC_119

AC_121

AC_123

AC_125

AC_127

AC_129

AC_131

AC_133

AC_135

AC_137

AC_139

AC_141

AC_143

AC_145

AC_147

AC_149

AC_151

AC_153

AC_155

AC_159

AC_157

AC_114

AC_116

AC_118

AC_120

AC_122

AC_124

AC_126

AC_128

AC_130

AC_132

AC_134

AC_136

AC_138

AC_140

AC_142

AC_144

AC_146

AC_148

AC_150

AC_152

AC_154

AC_156

AC_160

AC_158

AC_161

AC_163

AC_165

AC_167

AC_169

AC_171

AC_175

AC_173

AC_162

AC_164

AC_166

AC_168

AC_170

AC_172

AC_174

AC_176

AD_194

AD_196

AD_198

AD_200

AD_202

AD_204

AD_206

AD_208

AD_210

AD_212

AD_214

AD_216

AD_218

AD_220

AD_222

AD_224

AD_226

AD_228

AD_230

AD_232

AD_234

AD_236

AD_238

AD_240

AD_177

AD_179

AD_181

AD_183

AD_185

AD_187

AD_189

AD_191

AD_193

AD_195

AD_197

AD_199

AD_201

AD_203

AD_205

AD_207

AD_209

AD_211

AD_213

AD_215

AD_217

AD_219

AD_221

AD_223

AD_225

AD_227

AD_229

AD_231

AD_233

AD_235

AD_239

AD_237

AE_FSO2

AE_FSO3

AE_FSI

AC_147

AD_210

AD_209

AD_208

AD_207

AC_176

AC_146

AC_145

AC_144

AC_143

AB_112

AB_82

AB_81

AB_80

AB_79

AA_6

AA_5

AA_4

AA_3

AA_34

AA_33

AA_35

AA_32

AA_31

AA_7

AA_15

AA_14

AA_13

AA_12

AA_16

AA_11

AA_10

AA_9

AA_8

AA_2

AA_1

AE_FSO2

AE_FSO3

AD_223

AD_224

AD_238

AD_237

AD_228

AD_235

AD_226

AD_231

AD_227

AD_232

AD_234

AD_236

AD_229

AD_225

AD_233

AD_230

AD_186

AD_184

AD_182

AD_180

AD_178

AD_192

AD_190

AD_188

AD_240

AA_48

AE_FCLK

AE_FCL

AE_PRO

AE_FCLK

AE_FCL

AE_PRO

AE_FCLK

AE_FCL

AE_PRO

AE_FCLK

AE_FCL

AE_PRO

AE_FCLKAE_FCL

AE_FSI

AE_FCLK

AE_FCL

AE_PRO

AE_FSI

AC_175AD_239 AB_111

A20

A17

C6934

250V

R6923

4.7k

A15

A49

A57

A44

A30

A39

R6931 10k

A76

A54

C6931

50V

1000p

A21

A19

A12

SU2

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

A74

A69

A31

AN16071A-VT

IC6902

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

A29

D6902

MAZ80560HL

A50

A22

R6922

100k

C6901

50V 1000p

AN16071A-VT

IC6903

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

A72

A18

A73

D6921

B0ECHP000003

A66

A37

A24

A70

R6932 10k

C6908

16V 1u

A42

C6902

16V 1u

A55

R6934

10k

A48

A40

A77

SU3

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

A61

A53

A45

A36

R6933 10k

A58

A78

AN16071A-VT

IC6901

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

A68

A10

A65

D6922

MAZ80560HL

C6904

16V 1u

A79

A25

A62

A27

Q6921

2SK062000L

A46

R6901

100

SU1

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

R6921

100k

A59

A80

A34

A47

A52

A14

A67

A16

A71

A33

A64

D6903

B0ECHP000003

A11

A51

R6935

220k

D6901

MAZ80560HL

A75

A43

C6906

16V

A13

R6916

220

D6904

B0ECHP000003

A41

A32

A35

AN16071A-VT

IC6904

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

A63

A56

C6921

50V

220p

R6909

220

A23

A26

R6908

220

C6933

250V

A60

A28

A38

R6936

220k

C6915

50V

220p

C6916

50V

220p

R6904

R6902

R6903

Vf5

Vfo

FCL

FCLK

FSI

VF5V

PRO

VF5V

Vscn

COMPONENT SIDE

FOIL SIDE

Vf(High Voltage Floting GND)

Vf(High Voltage Floting GND)Vfo(Vscn Out) Vscn volatage

42 81

SC-BOARD

(SC45)

SC-BOARD

(SC41)

SU41(Card Edge 80Pin)

S/P

PDP SCAN DRIVER

48bit

S/P

PDP SCAN DRIVER

64bit

S/P

PDP SCAN DRIVER

64bit

S/P

PDP SCAN DRIVER

64bit

SCAN ELECTRODES

To 3rd 80pins of To 2nd 80pins of

SCAN ELECTRODES

To 1st 80pins of

SCAN ELECTRODES

SU-BOARD TNPA3874AB

Vfo

TH-42PG9W

SU-Board Schematic Diagram TH-42PG9W

SU-Board Schematic Diagram

TH-37PG9W / TH-42PG9W

125

14.56. SD-Board Schematic Diagram (37inch)

TERM

SIDE

TERM

SIDE

TERM

SIDE

AA_241

AA_242

AA_243

AA_244

AA_245

AA_246

AA_247

AA_248

AA_249

AA_250

AA_251

AA_252

AA_253

AA_254

AA_255

AA_256

AA_257

AA_258

AA_259

AA_260

AA_261

AA_262

AA_263

AA_264

AA_265

AA_266

AA_267

AA_268

AA_269

AA_270

AA_275

AA_276

AA_277

AA_302

AA_301

AA_300

AA_299

AA_298

AA_297

AA_296

AA_295

AA_294

AA_293

AA_292

AA_291

AA_290

AA_289

AA_288

AA_287

AA_286

AA_285

AA_284

AA_283

AA_282

AA_281

AA_280

AA_279

AA_278

AB_305

AB_306

AB_307

AB_308

AB_309

AB_310

AB_311

AB_312

AB_313

AB_314

AB_315

AB_316

AB_317

AB_318

AB_319

AB_320

AB_321

AB_322

AB_323

AB_324

AB_325

AB_326

AB_327

AB_328

AB_329

AB_330

AB_331

AB_332

AB_333

AB_334

AB_339

AB_340

AB_341

AB_366

AB_365

AB_364

AB_363

AB_362

AB_361

AB_360

AB_359

AB_358

AB_357

AB_356

AB_355

AB_354

AB_353

AB_352

AB_351

AB_350

AB_349

AB_348

AB_347

AB_346

AB_345

AB_344

AB_343

AB_342

AC_369

AC_371

AC_372

AC_373

AC_374

AC_375

AC_376

AC_377

AC_378

AC_379

AC_380

AC_381

AC_382

AC_383

AC_384

AC_385

AC_386

AC_387

AC_388

AC_389

AC_390

AC_391

AC_392

AC_393

AC_394

AC_395

AC_405

AC_396

AC_397

AC_398

AC_403

AC_404

AC_430

AC_429

AC_428

AC_427

AC_426

AC_425

AC_424

AC_423

AC_422

AC_421

AC_420

AC_419

AC_418

AC_417

AC_416

AC_415

AC_414

AC_413

AC_412

AC_411

AC_410

AC_409

AC_408

AC_407

AC_406

AD_449

AD_450

AD_451

AD_452

AD_453

AD_454

AD_455

AD_456

AD_457

AD_459

AD_458

AD_460

AD_461

AD_462

AD_467

AD_469

AD_468

AD_480

AD_479

AD_478

AD_477

AD_476

AD_475

AD_474

AD_473

AD_472

AD_470

AD_471

AA_241

AA_243

AA_245

AA_247

AA_249

AA_251

AA_253

AA_255

AA_257

AA_259

AA_261

AA_263

AA_265

AA_267

AA_269

AA_271

AA_273

AA_275

AA_277

AA_279

AA_281

AA_283

AA_285

AA_287

AA_289

AA_291

AA_293

AA_295

AA_297

AA_299

AA_303

AA_301

AA_242

AA_244

AA_246

AA_248

AA_250

AA_252

AA_254

AA_256

AA_258

AA_260

AA_262

AA_264

AA_266

AA_268

AA_270

AA_272

AA_274

AA_276

AA_278

AA_280

AA_282

AA_284

AA_286

AA_288

AA_290

AA_292

AA_294

AA_296

AA_298

AA_300

AA_304

AA_302

AB_306

AB_308

AB_310

AB_312

AB_314

AB_316

AB_320

AB_318

AB_305

AB_307

AB_309

AB_311

AB_313

AB_315

AB_319

AB_317

AB_321

AB_323

AB_325

AB_327

AB_329

AB_331

AB_333

AB_335

AB_337

AB_339

AB_341

AB_343

AB_345

AB_347

AB_349

AB_351

AB_353

AB_355

AB_357

AB_359

AB_361

AB_363

AB_367

AB_365

AB_322

AB_324

AB_326

AB_328

AB_330

AB_332

AB_334

AB_336

AB_338

AB_340

AB_342

AB_344

AB_346

AB_348

AB_350

AB_352

AB_354

AB_356

AB_358

AB_360

AB_362

AB_364

AB_368

AB_366

AC_400

AC_369

AC_371

AC_373

AC_375

AC_377

AC_379

AC_381

AC_383

AC_385

AC_387

AC_389

AC_391

AC_393

AC_395

AC_399

AC_397

AC_370

AC_372

AC_374

AC_376

AC_378

AC_380

AC_382

AC_384

AC_386

AC_388

AC_390

AC_392

AC_394

AC_396

AC_398

AC_401

AC_403

AC_405

AC_407

AC_409

AC_411

AC_413

AC_415

AC_417

AC_419

AC_421

AC_423

AC_425

AC_427

AC_429

AC_431

AC_402

AC_404

AC_406

AC_408

AC_410

AC_412

AC_414

AC_416

AC_418

AC_420

AC_422

AC_424

AC_426

AC_428

AC_430

AC_432

AD_433

AD_435

AD_437

AD_439

AD_441

AD_443

AD_445

AD_447

AD_449

AD_451

AD_453

AD_455

AD_457

AD_459

AD_461

AD_463

AD_465

AD_467

AD_469

AD_471

AD_473

AD_475

AD_477

AD_479

AD_434

AD_436

AD_438

AD_440

AD_442

AD_444

AD_446

AD_448

AD_450

AD_452

AD_454

AD_456

AD_458

AD_460

AD_462

AD_464

AD_466

AD_468

AD_470

AD_472

AD_474

AD_476

AD_478

AD_480

AC_370

AD_466

AD_465

AD_464

AD_463

AC_432

AC_402

AC_401

AC_400

AC_399

AB_368

AB_367

AB_338

AB_337

AB_336

AB_335

AA_304

AA_274

AA_273

AA_272

AA_271

AE_FSO1

AE_FSO2

AE_FSO3

AD_444

AD_443

AD_448

AD_447

AD_445

AD_446

AD_438

AD_437

AD_442

AD_441

AD_439

AD_440

AD_435

AD_436

AD_433

AE_FCLK

AE_FCL

AE_PRO

AE_FCLK

AE_FCL

AE_PRO

AE_FCLK

AE_FCL

AE_PRO

AE_FCLK

AE_FCL

AE_PRO

AE_FSI

AE_FCLK

AE_FCL

AE_PRO

AE_FSI

AA_303AC_431

AD_434

AE_FCL

125V

AE_PRO

AE_FCLK

R6966

220

SD3

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

C6958

16V 1u

C6981

50V

1000p

AN16071A-VT

IC6951

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

R6951

100

R6959

220

AN16071A-VT

IC6952

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

AN16071A-VT

IC6953

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

R6958

220

C6951

50V

1000p

R6984

10k

SD2

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

C6956

16V 1u

SD1

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

C6954

16V 1u

C6952

16V 1u

AN16071A-VT

IC6954

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

C6965

50V

220p

C6966

50V

220p

C6964

50V

220p R6986

220k

D6951

MAZ80560HL

R6953

R6952

R6954

B17

B28

D6952

MAZ80560HL

B42

R6983

10k

B48

B10

B29

R6981

10k

B40

B52

B43

B26

B51

B50

B16

B72

B13

B37

B75

B38

D6954

B0ECHP000003

B19

B45

C6982

250V

B36

B46

B64

B32

B55

B18

B70

B41

B67

B25

R6985

220k

B49

B53

C6985

250V

B58

B73

B47

B15

B54

B20

B39

B24

B66

B60

B44

B56

B14

B33

B68

B62

B71

B22

B34

B80

B77

B76

B59

B21

B35

B11

B61

B79

B74

B63

R6982

10k

B27

B30

B65

B12

B31

B69

B78

D6953

B0ECHP000003

B57

B23

FSI

FCL

PRO

FCLK

Vfo

SCAN ELECTRODES

To 3rd 96pins of

SCAN ELECTRODES

To 2nd 96pins of

SCAN ELECTRODES

To 1st 96pins of

3647

SD-BOARD TNPA3797AB

PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER

Vfo(Vscn Out)

VF5V

Vf5

Vscn voltage

Vscn

SD42(Card Edge 80Pin)

VF5V

(SC42)

SC-BOARD

FOIL SIDE (UPPER)

COMPONENT SIDE (LOWER)

Vf(High Voltage Floting GND)

(SC46)

SC-BOARD

S/P

48bit

S/P

64bit

S/P

64bit S/P

64bit

DOWN

TH-37PG9W

SD-Board Schematic Diagram TH-37PG9W

SD-Board Schematic Diagram

TH-37PG9W / TH-42PG9W

126

14.57. SD-Board Schematic Diagram (42inch)

TERM

SIDE

TERM

SIDE

TERM

SIDE

AA_241

AA_242

AA_243

AA_244

AA_245

AA_246

AA_247

AA_248

AA_249

AA_250

AA_251

AA_252

AA_253

AA_254

AA_255

AA_256

AA_257

AA_258

AA_259

AA_260

AA_261

AA_262

AA_263

AA_264

AA_265

AA_266

AA_267

AA_268

AA_269

AA_270

AA_275

AA_276

AA_277

AA_302

AA_301

AA_300

AA_299

AA_298

AA_297

AA_296

AA_295

AA_294

AA_293

AA_292

AA_291

AA_290

AA_289

AA_288

AA_287

AA_286

AA_285

AA_284

AA_283

AA_282

AA_281

AA_280

AA_279

AA_278

AB_305

AB_306

AB_307

AB_308

AB_309

AB_310

AB_311

AB_312

AB_313

AB_314

AB_315

AB_316

AB_317

AB_318

AB_319

AB_320

AB_321

AB_322

AB_323

AB_324

AB_325

AB_326

AB_327

AB_328

AB_329

AB_330

AB_331

AB_332

AB_333

AB_334

AB_339

AB_340

AB_341

AB_366

AB_365

AB_364

AB_363

AB_362

AB_361

AB_360

AB_359

AB_358

AB_357

AB_356

AB_355

AB_354

AB_353

AB_352

AB_351

AB_350

AB_349

AB_348

AB_347

AB_346

AB_345

AB_344

AB_343

AB_342

AC_369

AC_371

AC_372

AC_373

AC_374

AC_375

AC_376

AC_377

AC_378

AC_379

AC_380

AC_381

AC_382

AC_383

AC_384

AC_385

AC_386

AC_387

AC_388

AC_389

AC_390

AC_391

AC_392

AC_393

AC_394

AC_395

AC_405

AC_396

AC_397

AC_398

AC_403

AC_404

AC_430

AC_429

AC_428

AC_427

AC_426

AC_425

AC_424

AC_423

AC_422

AC_421

AC_420

AC_419

AC_418

AC_417

AC_416

AC_415

AC_414

AC_413

AC_412

AC_411

AC_410

AC_409

AC_408

AC_407

AC_406

AD_449

AD_450

AD_451

AD_452

AD_453

AD_454

AD_455

AD_456

AD_457

AD_459

AD_458

AD_460

AD_461

AD_462

AD_467

AD_469

AD_468

AD_480

AD_479

AD_478

AD_477

AD_476

AD_475

AD_474

AD_473

AD_472

AD_470

AD_471

AA_241

AA_243

AA_245

AA_247

AA_249

AA_251

AA_253

AA_255

AA_257

AA_259

AA_261

AA_263

AA_265

AA_267

AA_269

AA_271

AA_273

AA_275

AA_277

AA_279

AA_281

AA_283

AA_285

AA_287

AA_289

AA_291

AA_293

AA_295

AA_297

AA_299

AA_303

AA_301

AA_242

AA_244

AA_246

AA_248

AA_250

AA_252

AA_254

AA_256

AA_258

AA_260

AA_262

AA_264

AA_266

AA_268

AA_270

AA_272

AA_274

AA_276

AA_278

AA_280

AA_282

AA_284

AA_286

AA_288

AA_290

AA_292

AA_294

AA_296

AA_298

AA_300

AA_304

AA_302

AB_306

AB_308

AB_310

AB_312

AB_314

AB_316

AB_320

AB_318

AB_305

AB_307

AB_309

AB_311

AB_313

AB_315

AB_319

AB_317

AB_321

AB_323

AB_325

AB_327

AB_329

AB_331

AB_333

AB_335

AB_337

AB_339

AB_341

AB_343

AB_345

AB_347

AB_349

AB_351

AB_353

AB_355

AB_357

AB_359

AB_361

AB_363

AB_367

AB_365

AB_322

AB_324

AB_326

AB_328

AB_330

AB_332

AB_334

AB_336

AB_338

AB_340

AB_342

AB_344

AB_346

AB_348

AB_350

AB_352

AB_354

AB_356

AB_358

AB_360

AB_362

AB_364

AB_368

AB_366

AC_400

AC_369

AC_371

AC_373

AC_375

AC_377

AC_379

AC_381

AC_383

AC_385

AC_387

AC_389

AC_391

AC_393

AC_395

AC_399

AC_397

AC_370

AC_372

AC_374

AC_376

AC_378

AC_380

AC_382

AC_384

AC_386

AC_388

AC_390

AC_392

AC_394

AC_396

AC_398

AC_401

AC_403

AC_405

AC_407

AC_409

AC_411

AC_413

AC_415

AC_417

AC_419

AC_421

AC_423

AC_425

AC_427

AC_429

AC_431

AC_402

AC_404

AC_406

AC_408

AC_410

AC_412

AC_414

AC_416

AC_418

AC_420

AC_422

AC_424

AC_426

AC_428

AC_430

AC_432

AD_433

AD_435

AD_437

AD_439

AD_441

AD_443

AD_445

AD_447

AD_449

AD_451

AD_453

AD_455

AD_457

AD_459

AD_461

AD_463

AD_465

AD_467

AD_469

AD_471

AD_473

AD_475

AD_477

AD_479

AD_434

AD_436

AD_438

AD_440

AD_442

AD_444

AD_446

AD_448

AD_450

AD_452

AD_454

AD_456

AD_458

AD_460

AD_462

AD_464

AD_466

AD_468

AD_470

AD_472

AD_474

AD_476

AD_478

AD_480

AC_370

AE_FSI

AD_466

AD_465

AD_464

AD_463

AC_432

AC_431

AC_402

AC_401

AC_400

AC_399

AB_368

AB_367

AB_338

AB_337

AB_336

AB_335

AA_304

AA_303

AA_274

AA_273

AA_272

AA_271

AE_FSO1

AE_FSO2

AE_FSO3

AD_444

AD_443

AD_448

AD_447

AD_445

AD_446

AD_438

AD_437

AD_442

AD_441

AD_439

AD_440

AD_435

AD_436

AD_433

AE_FCLK

AE_FCL

AE_PRO

AE_FCLK

AE_FCL

AE_PRO

AE_FCLK

AE_FCL

AE_PRO

AE_FCLK

AE_FCL

AE_PRO

AE_FSI

AE_FCLK

AE_PRO

AE_FCL

AE_FCLK

AE_FCL

AE_PRO

120V

AE_FSI

AD_434

R6982

10k

B70

B45

B64

B48

B57

R6966

220

C6951

50V

1000p

AN16071A-VT

IC6951

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

B58

B53

B39

B26

B12

B52

B31

D6951

MAZ80560HL

R6958

220

B75

B73

C6982

250V

B71

B79

B14

B78

B23

B61

B47

C6958

16V 1u

B29

R6983

10k

AN16071A-VT

IC6953

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

R6981 10k

B27

D6952

MAZ80560HL

B65

B80

B21

B10

B40

B54

B44

SD3

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

R6985

220k

B51

B38

B15

B24

B62

B37

R6959

220

B25

SD1

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

R6951

100

C6956

16V

C6952

16V 1u

B46

AN16071A-VT

IC6954

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

R6984

10k

B66

B67

B59

B49

B36

B55

B19

B76

B56

B22

B18

SD2

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

B60

C6985

250V

C6981

50V

1000p

C6954

16V

B63

B41

B74

B68

B11

B33

B42

B34

B72

AN16071A-VT

IC6952

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

OUT17

OUT18

OUT19

OUT20

OUT21

OUT22

OUT23

OUT24

OUT25

OUT26

OUT27

OUT28

OUT29

OUT30

OUT31

OUT32

N.C.

VDDH

N.C.

GND

TEST

GND

N.C.

VDDH

N.C.

OUT33

OUT34

OUT35

OUT36

OUT37

OUT38

OUT39

OUT40

54 OUT41

55 OUT42

56 OUT43

57 OUT44

58 OUT45

59 OUT46

60 OUT47

61 OUT48

62 OUT49

63 OUT50

64 OUT51

65 OUT52

66 OUT53

67 OUT54

68 OUT55

69 OUT56

70 OUT57

71 OUT58

72 OUT59

OUT60

OUT61

OUT62

OUT63

OUT64

N.C.

79 VDDH

80 VDDH

81 N.C.

82 GND

83 GND

84 DIR

85 SO

86 CLK

87 LAT

88 VDD

89 OC1

90 OC2

91 SI

92 CLR

93 GND

94 GND

95 N.C.

96 VDDH

97 VDDH

N.C.

OUT1

100

OUT2

B28

B77

B30

B16

B20

B43

B35

B50

D6954

B0ECHP000003

B17

B13

B32

B69

D6953

B0ECHP000003

R6986

220k

C6965

50V

220p

C6964

50V

220p

C6966

50V

220p

R6954

R6952

R6953

FSI

VF5V

FCL

PRO

FCLK

VF5V

DOWN

PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER

S/P

48bit

S/P

64bit

S/P

64bit S/P

64bit

COMPONENT SIDE

FOIL SIDE

(SC42)

SD42(Card Edge 80Pin)

SC-BOARD

(SC46)

42 81

Vfo(Vscn Out)

Vscn voltageVf(High Voltage Floting GND)Vf(High Voltage Floting GND)

To 1st 80pins of

SCAN ELECTRODES

To 2nd 80pins of

SCAN ELECTRODES

To 3rd 80pins of

SCAN ELECTRODES

SD-BOARD TNPA3875AB

Vfo

Vf5

Vscn

TH-42PG9W

SD-Board Schematic Diagram TH-42PG9W

SD-Board Schematic Diagram

TH-37PG9W / TH-42PG9W

127

14.58. SS and S-Board Block Diagram

D6221

TPVSUS

D6253

TP15V

TPSS1

TPVE

TPVDA

D6255

R6113

Q6051

Q6141-Q6142

+15V

DRIVER

LED(G)

FET DRIVER

VCC

FET

IC6191

TPSS1 SIGNAL WAVE

Q6101,Q6102

Vsus Gen.

Q6021-Q6023

VCC

Vda

Q6001-Q6003

SS_SOS8

OUTPUT

VSUS

TPSS1

STB12V

VCC

Vda

DRIVER

TO C23

Ve Gen.

VCC

IC6251

STB PS

IC6131

Ve2

BUFFER

FET

IC6241

TO P12

1246

Adj.

(+151V)

VE Gen.

TPVE

IC6221

Q6221,Q6222

VR6000

ENERGY RECOVERY

FET

OUTPUT

FET

COMPARATOR

OUTPUT

FET

SUSTAIN DRIVE

Vsus

TO P11

UMH

UEH

SS_SOS8

Vda

NUEL

USH

USL

UML

Q6146-Q6147

IC6151

Q6041,Q6042

L6011,L6013

L6001-L6003

VCC

FET

OUTPUT

IC6211

(+5V)

Q6111,Q6112

Ve2 Gen.

FET DRIVER

SUSTAIN

ELECTRODE

PANEL

SS43A

SS41A

SS44A

SS42A

SUSTAIN

ELECTRODE

PANEL

SS43

SS41

SS44

SS42

37INCH

42INCH

LED BLINKING : 8 TIMES

ENERGY RECOVERY SOS DET

TH-37/42PG9W

SS and S-Board Block Diagram TH-37/42PG9W

SS and S-Board Block Diagram

PUSH

SW2500

STB PS

POWER SWITCH

STB12V

S POWER SWITCH

TH-37PG9W / TH-42PG9W

128

14.59. SS and S-Board Schematic Diagram

TERM

SIDE

TERM

SIDE

TERM

SIDE

TERM

SIDE

TERM

SIDE

TERM

SIDE

TERM

SIDE

TERM

SIDE

REF

0-183V

67V

183V

183V175V

15V

0-183V

C6221

50V

0.1u

TP11

100k

R6196

D6255

MA2J11100L

R6252

39k

R6026

C6021

630V

5600p

D6051

D1FL40

D6131

B0ECHP000003

C6011

200V

220u

R6225

16.9k

TP18

C0ZBZ0000895

IC6131

GND

VCC

HIN

LIN

GND

C6013

200V

220u

C6041

16V

L6061

G0ZZ00002183

D6191

B0ECHP000003

ZA6001

K4CD01000011

C6213

25V

330u

C6211

25V

4.7u

J0JJC0000011

L6102

R6256

1.5k

L6082

G0ZZ00002183

R6062

220k

TP31

R6146

10k

TP24

L6063

G0ZZ00002183

ZA6002

K4CD01000011

TP22

R6254

7.5k

TP23

L6002

0.6u

R6006

100k

R6195

SS41A

L6103

G0ZZ00002183

R6104

100

R6258

2.2k

R6051

R6020

100

D6001

MA3DF30000LZ

R6041

TP16

D6154

MAZ80330LL

C6156

250V

0.22u

IC6251

C0BBBA000022

R6136

D6223

MA2J11100L

R6192

100

R6246

4.7k

R6024

D6152

B0ECHP000003

C6243

50V

0.01u

R6251

10k

R6236

5.6k

Q6051

2PG0010000RP

TP28

L6003

0.6u

R6241

EXB38V470JV

R6044

TP1

C6251

16V

C6044

16V

TP2

C6208

250V

R6031

200k

R6111

L6083

G0ZZ00002183

R6027

C6203

250V

R6042

SS44A

C6112

200V

150u

SS41

R6174

C6205

250V

C0ZBZ0000895

IC6151

GND

VCC

HIN

LIN

GND

Q6042

2PG0010000RP

TP25

R6222

10k

L6062

G0ZZ00002183

R6152

100

R6023

TP20

R6157

C6192

25V

Q6022

2PG0010000RP

R6022

100

D6251

MAZ83300ML

R6003

IC6211

C0ZBZ0001325

1Vcc

2IN

3GND

4LO 5

Q6111

2SK326800L

R6191

100

R6261

100k

TP5

R6131

100

B0ECHP000003

D6092

C6261

160V

100u

SS44

Q6023

2PG0010000RP

ZA6003

K4CD01000011

TP3

R6132

100

Q6147

B1ADNF000006

Q6021

2PG0010000RP

Q6002

2PG0010000RP

D6102

B0JCME000037

R6102

100

C6134

25V 4.7u

Q6112

B1DFKM000002

D6081

MA3DF30000LZ

D6252

MAZ83300ML

D6254

MAZ80510LL

C6043

16V

R6166

100

TP8

C6204

250V

R6147

10k

150

R6153

C6135

25V 4.7u

TP27

C6201

250V

R6151

100

D6061

MA3DF30000LZ

TP9

R6103

100

L6262

G0ZZ00002183

150

R6214

R6244

4.7k

R6158

Q6041

2PG0010000RP

L6272

G0ZZ00002183

D6193

B0ECHP000003

R6242

EXB38V472JV

R6004

TP6

D6214

MA2J11100L

J0JJC0000011

L6101

L6012

Q6212

2SD0601A0L

SS43A

D6151

B0ECHP000003

L6084

G0ZZ00002183

R6233

27k

C6241

25V

330u

SS42A

R6141

10k

D6071

MA3DF30000LZ

TP10

R6226

16.9k

TP12

TP7

Q6141

B1ABNF000006

C6273

25V

220u

R6113

220k

TP19

L6081

G0ZZ00002183

R6257

10k

R6215

180

L6271

G0ZZ00002183

C0JBAZ000005

IC6241

1G~

21A1

32Y4

41A2

52Y3

61A3

72Y2

81A4

92Y1

10 GND 11

2A1

1Y4

2A2

1Y3

2A3

1Y2

2A4

1Y1

2G~

VCC

TP29

R6155

100k

D6222

MA2J11100L

Q6142

B1ADNF000006

SS42

D6072

B0ECHP000003

D6041

D1FL40

C6194

25V

4.7u

C6214

25V

330u

Q6251

2SD0601A0L

D6192

B0ECHP000003

R6255

1.5k

R6223

12k

Q6146

B1ABNF000006

C6202

250V

TP26

Q6003

2PG0010000RP

C6206

250V

R6025

R6234

27k

R6229

16.9k

Q6102

B1DFKM000002

L6001

0.6u

150

R6133

R6101

100

TP14

D6221

B0ECHP000003

R6160

C6042

16V

D6153

MA2J11100L

L6221

G0ZZ00002183

C6272

25V

220u

R6112

C6154

25V

4.7u

150

R6134

D6213

MA2J11100L

R6173

10k

R6217

180

R6213

100

TP13

TP15

R6227

16.9k

VR6000

10k

L6241

G0ZZ00002183

100

R6193

SS43

R6021

C6012

200V

220u

R6135

R6216

C6111

200V

150u

Q6001

2PG0010000RP

R6245

C6132

25V

4.7u

D6253

LNJ301MPUJA

L6013

150

R6154

R6218

C0DBEMB00005

IC6221

R6061

220k

TP21

Q6101

B1DFKM000002

R6043

Q6222

2SC1473AEA

TP30

C0ZBZ0000895

IC6191

GND

VCC

HIN

LIN

GND

C6001

630V

5600p

TP32

C6207

250V

L6011

C6195

25V

4.7u

C6152

25V

4.7u

D6215

MAZ80820ML

D6021

MA3DF30000LZ

C6031

250V

Q6221

2SD1263AP0LB

C6153

25V

4.7u

D6101

B0JCME000037

C6262

160V

100u

C6212

25V

4.7u

R6253

39k

R6142

10k

R6001

TP17

R6002

R6052

D6091

MA3DF30000LZ

D6132

B0ECHP000003

R6243

R6005

100

R6194

R6235

27k

L6064

G0ZZ00002183

R6232

1.2k

C6242

16V

D6211

B0JCME000037

C6193

25V

4.7u

C6091

630V

5600p

F2A2D1510070

RUBICON

TP15V

TPVDA

(GREEN LED)

TPSS1

TPVe

TPVSUS

VSUS

(P11)

P-BOARD

(P12)

P-BOARD

(C23)

C2-BOARD

SS-BOARD

TNPA3795AB (42inch)

TNPA3795AE (37inch)

ELECTRODE

SUSTAINSUSTAIN

ELECTRODE

PANE L PAN EL

TOTO

GND

12V

STB_PS

VE GEN.

FET DRIVER FET DRIVER FET DRIVER

475

FET DRIVER

COMPARATOR

BUFFER

GND

Vda

+15V

STB PS

STB12V

GND

Vda

42inch ONLY

37inch ONLY

42inch ONLY

37inch ONLY

37inch42inch

TH-37/42PG9W

SS and S-Board Schematic Diagram TH-37/42PG9W

SS and S-Board Schematic Diagram

3.7

0.5

5.0

0.6

0.9

0.4

70.0

1.7

NUEL

USL

USH

UEH

UMH

UML

SS_SOS8

GND

Vda

12.0

15.0

70.0

12.0

70.0

175.0

PUSH

SW2500

K0F162B00002

TXN/S1ZQTU

POWER SW

S-BOARD

12.0

TH-37PG9W / TH-42PG9W

129

NOTE

TH-37PG9W / TH-42PG9W

130

15 Parts Location

15.1. Exploded View

131

TH-37PG9W / TH-42PG9W

15.2. Cable relation

132

TH-37PG9W / TH-42PG9W

15.3. Packing summary

133

TH-37PG9W / TH-42PG9W

134

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

1EAS12S10A SPEAKER 1

J0KF00000038 CORE 1(TH-42PG9W)

2K2AHYH000003 AC INLET 1

3K2CK3DH00029 AC CORD(OBLIQUE

FLAT BLADE) 1

3K2CN3DH00006 AC CORD(ROUND PIN) 1

3K2CT3DH00018 AC

CORD(RECTANGULAR

BLADE)

4MD37S09A1J PLASMA DISPLAY

PANEL 1(TH-37PG9W)

4MD42S09A1J PLASMA DISPLAY

PANEL 1(TH-42PG9W)

5TBMA185 PANASONIC BADGE 1

6TBXA48702 POWER BUTTON 1

7TBXA48803 CONTROL BOTTON 1

8TESA274 LEAF SPRING 1

9TESD078 BUTTON SPRING 1

THEA068N SCREW 4

THEL0239 SCREW 2

THEL0239 SCREW 12

THEL027N SCREW 4

THEL0429 SCREW 14

THTD0179 STEP SCREW(P-

SPACER) 4

THTF011N SCREW 3

THTF011N SCREW 16

THTF011N SCREW 22

10 TKGA5275 FRONT GLASS 1(TH-42PG9W)

10 TKGA5277 FRONT GLASS 1(TH-37PG9W)

11 TKKC5246 LED PANEL 1

12 TKKL5266 COVER 2

13 TKPB01102 DOOR 1

14 TKRA51701 REAR COVER HANDLE 2

15 TKKL5231 M8 SPACER CAP 4

16 TMZX5058 STAND BRACKET 2

17 TMKG658 SPONGE(TKG/LEFT/RI

GHT) 2(TH-37PG9W)

17 TMKG660 SPONGE(FRONT GLASS

V) 2(TH-42PG9W)

18 TMKG657-1 SPONGE(UPPER/B

OTTOM) 2(TH-37PG9W)

18 TMKG659-1 SPONGE(UPPER/B

OTTOM) 2(TH-42PG9W)

TMM14490 CLAMPER 2

TMM14490 CLAMPER 1

TMM15414-2 CLAMPER 1

TMM16473-1 CLAMPER 1

TMM17434-2 CLAMPER 1

TMM17499 CLAMPER 1

TMM25401 CLAMPER 1

TMM25401 CLAMPER 3

TMM6496-1 CLAMPER 1(TH-42PG9W)

TMM7464-2 CLAMPER 4

TMM7468-1 CLAMPER 1

TMMD010 CLAMPER 1

TMME061 CLAMPER 2

TMME061 CLAMPER 1

TMME185 CLAMPER 2

19 TMME187 CLAMPER 2

TMME190 CLAMPER 1

TMME217 CLAMPER 1

TMME226 AC CORD CLAMPER 2

TMME228 CLAMPER 2

TMMX037 CLAMPER 1

20 TPCB97501 CARTON BOX TOP 1(TH-37PG9W)

20 TPCB92505 CARTON BOX TOP 1(TH-42PG9W)

Ref.

No. Part No. Part Name &

Description Pcs Remarks

21 TPCB97601 CARTON BOX BOTTOM 1(TH-37PG9W)

21 TPCB92601 CARTON BOX BOTTOM 1(TH-42PG9W)

22 TPDA1379 CUSHION TOP 1

23 TPDA1360 CUSHION BOTTOM 1

24 TPDF1671 TOP PAD 1(TH-37PG9W)

24 TPDF1582 TOP PAD 1(TH-42PG9W)

25 TPD169487 JOINT 4

26 TPDF0737 PAPER BOX 1

27 TPEH210 PROTECT COVER 1

29 TQBC2112 INSTRUCTION

BOOK(ENGLISH) 1

29 TQBC2119 INSTRUCTION

BOOK(ARABIAN) 1

30 TSXL513 CABLE(D31-C11/D32-

C21) 2

31 TSXL519 CABLE(C12-C22) 1

32 TSXL543 CABLE(DA2-D3) 1

33 TXFKE01ZPTW ESCUTCHEON ASSY 1(TH-37PG9W)

33 TXFKE01ZQTW ESCUTCHEON ASSY 1(TH-42PG9W)

34 TTUA1406 REAR COVER 1(TH-37PG9W)

34 TTUA1405 REAR COVER 1(TH-42PG9W)

35 TMMX133 M8-SPACER 4

TXJ/J7ZQTU SPEAKER REED 1

TXJ/SPZQTU SPEAKER LEAD 1

XTB4+12GFJ SCREW 6

XTB4+12GFJ SCREW 45

XTB4+12GFJK SCREW 8

XTB4+16GFJ SCREW 2

XTV3+10JFJ SCREW 2

XTW3+10TFJ SCREW 3

XYN3+F8FJ SCREW 13

XYN3+F8FJ SCREW 2

XYN3+J12FJ SCREW 13

XYN3+J12FJ SCREW 12

XYN4+E8FJ SCREW 1

XYN4+F10FJ SCREW 6

XYN4+F10FJK SCREW 6

XYN4+F30FJK SCREW (BC TOP6

SIDE6: AL 6

XYN5+C15FJ SCREW 8

XZBT6506 POLY BAG 1

16 Mechanical Replacement Parts List

135

TH-37PG9W / TH-42PG9W

17 Replacement Parts List

17.1. Replacement Parts List Notes

136

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

F401.40

2K5D802BNA005 TIME LAG FUSE HIGH 2

F410 K5G102B00020 FUSE 1

C11 K1MN55BA0076 55P CONNECTOR 1

C12 K1MN20BA0231 20P CONNECTOR 1

C21 K1MN55BA0076 55P CONNECTOR 1

C22 K1MN20BA0231 20P CONNECTOR 1

C23 K1KA12BA0107 12P CONNECTOR 1

C402 F1J1C1050011 C 1UF, Z, 50V 1

C404 F0CAF105A021 C 1UF, 250V 1

C407 EEUEB2W220B E 22UF, 450V 1

C408 ECJ2XB1H102K C 1000PF, K, 50V 1

C409 F0CAF105A021 C 1UF, 250V 1

C410 ECJ2XB1H103K C 0.01UF, K, 50V 1

C413 ECJ2XB1H104K C 0.1UF, K, 50V 1

C414 ECQU2A473ML P 0.047UF, M,250V 1

C421 F1J1C1050011 C 1UF, Z, 50V 1

C422 ECJ2XB1H103K C 0.01UF, K, 50V 1

C423 ECJ2XB1H472K C 4700PF, K, 50V 1

C425 ECJ2XB1H103K C 0.01UF, K, 50V 1

C426 ECJ2XC1H471J C 470PF, J, 50V 1

C427 F1J1C1050011 C 1UF, Z, 50V 1

C428 ECJ2XC1H221J C 220PF, J, 50V 1

C429 F1E2J4730001 C 0.047PF, , 600V 1

C431 ECJ2XB1H102K C 1000PF, K, 50V 1

C432 F1J1C1050011 C 1UF, Z, 50V 1

C433 ECJ3XB1E104K C 0.1UF, K, 25V 1

C434 F1J1C1050011 C 1UF, Z, 50V 1

C436 F1J1C1050011 C 1UF, Z, 50V 1

C440 ECA1HM100 E 10UF, 50V 1

C440 1 ECA1HM100 E 10UF, 50V 1

C443,44 F1A3A102A040 C 1000PF, J, 1KV 2

C445 F1J1C1050011 C 1UF, Z, 50V 1

C446 F2B2W3910005 C 200UF, 450V 1

C450 ECJ2XB1H103K C 0.01UF, K, 50V 1

C451 F1A3A101A040 C 100PF, J, 1KV 1

C457 ECWH12333RHV P 0.013UF,J,1.2KV 1

C460,61 F1A3A331A039 E 330UF, 1KV 2

C462 ECJ3YB1E105K C 1UF, K, 25V 1

C463 ECJ2XC1H220J C 22UF, J, 50V 1

C467 ECKCNA221KB7 C 220PF, M, 1

C468 ECJ2XB1H103K C 0.01UF, K, 50V 1

C469 ECKCNA221KB7 C 220PF, M, 1

C470 F0CAF105A021 C 1UF, 250V 1

C473,74 ECKCNA101KB7 C 100PF 2

C476 ECKCNA101KB7 C 100PF 1

C478 ECKCNA101KB7 C 100PF 1

C493 ECA1HM470 E 47UF, 50V 1

C494 F2A2E1R00008 E 1.0UF, 250V 1

C497 ECA1HM470 E 47UF, 50V 1

C501,02 ECJ2XB1H103K C 0.01UF, K, 50V 2

C503 ECJ2XC1H471J C 470PF, J, 50V 1

C504 F1J1C1050011 C 1UF, Z, 50V 1

C505 ECJ2XB1H102K C 1000PF, K, 50V 1

C506,07 ECJ2XB1H103K C 0.01UF, K, 50V 2

C508 ECJ2XC1H471J C 470PF, J, 50V 1

C509 ECA1EHG101 E 100UF, 25V 1

C510 ECJ2XB1H104K C 0.1UF, K, 50V 1

C511 ECJ2XB1H102K C 1000PF, K, 50V 1

C512-14 ECJ2XC1H471J C 470PF, J, 50V 3

C515 F2A1A1220011 E 1200UF, 10V 1

C516 ECJ2XB1C474K C 0.47UF, Z, 16V 1

C517 F2A1E221A096 E 220UF, 25V 1

C518 ECJ2XB1H104K C 0.1UF, K, 50V 1

C519 F1J1C1050011 C 1UF, Z, 50V 1

C523 ECJ3YB1E105K C 1UF, K, 25V 1

C526 ECJ2XB1H223K C 0.022UF, K, 50V 1

C527 ECJ3YB1E475K C 4.7UF, K, 25V 1

C528,29 F1J1C1050011 C 1UF, Z, 50V 2

C530 ECJ2VB1H333K C 0.033UF, K, 50V 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C531 ECJ3YB1E105K C 1UF, K, 25V 1

C533 ECJ2XB1H103K C 0.01UF, K, 50V 1

C534 ECJ2XC1H471J C 470PF, J, 50V 1

C546,47 ECJ2XB1H102K C 1000PF, K, 50V 2

C550 ECJ2XC1H331J C 330PF, J, 50V 1

C551,52 ECJ2XB1H104K C 0.1UF, K, 50V 2

C554 F1J1C1050011 C 1UF, Z, 50V 1

C555 F2A2C101A120 E 1000UF, 160V 1

C556,57 EEUFC1E152 E 1500UF, 25V 2

C558 F2A1E471A096 E 470UF, 25V 1

C559 F2A1A1220011 E 1200UF, 10V 1

C562 ECJ2XB1H223K C 0.022UF, K, 50V 1

C571 ECJ2XC1H330J C 33PF, J, 50V 1

C574 ECJ2XB1H104K C 0.1UF, K, 50V 1

C577 F2A2A330A022 E 33UF, 100V 1

C581 ECJ2XB1H223K C 0.022UF, K, 50V 1

C583 ECJ2XB1H102K C 1000PF, K, 50V 1

C584,85 ECJ2XB1H223K C 0.022UF, K, 50V 2

C587 ECJ2XB1H332K C 3300PF, K, 50V 1

C601 ECJ2XB1H103K C 0.01UF, K, 50V 1

C603 ECJ2FB1E105K C 1UF, K, 25V 1

C604,05 F2A2D1510008 E 150UF, 200V 2

C607 F1J1C1050011 C 1UF, Z, 50V 1

C608 ECJ2XB1H103K C 0.01UF, K, 50V 1

C610 F1J1C1050011 C 1UF, Z, 50V 1

C611 F2B2D1720006 E 1700UF,Å@ 200V 1

C612,13 ECJ2XB1H103K C 0.01UF, K, 50V 2

C615 F2B2D1720006 E 1700UF,Å@ 200V 1

C616 F1A3A102A040 C 1000PF, J, 1KV 1

C619 ECJ2XB1H104K C 0.1UF, K, 50V 1

C620 ECJ2XB1H103K C 0.01UF, K, 50V 1

C623 ECA1HM100 E 10UF, 50V 1

C624 ECJ2XB1H103K C 0.01UF, K, 50V 1

C625 ECA1HM100 E 10UF, 50V 1

C626 ECJ2XB1H103K C 0.01UF, K, 50V 1

C627 ECJ2XB1H102K C 1000PF, K, 50V 1

C629-31 ECJ2XB1H103K C 0.01UF, K, 50V 3

C632 ECJ2XC1H331J C 330PF, J, 50V 1

C634 ECJ2XB1H102K C 1000PF, K, 50V 1

C635 ECJ2XB1H103K C 0.01UF, K, 50V 1

C638,39 ECJ2XB1H103K C 0.01UF, K, 50V 2

C640 ECJ2XB1H104K C 0.1UF, K, 50V 1

C641 ECJ2XB1H102K C 1000PF, K, 50V 1

C643 ECA1HM470 E 47UF, 50V 1

C650 ECJ2XB1H104K C 0.1UF, K, 50V 1

C653 ECJ2XB1H102K C 1000PF, K, 50V 1

C654 ECJ3YB1E105K C 1UF, K, 25V 1

C655,56 ECJ3YB1E225K C 2.2UF, K, 25V 2

C657 ECJ2XB1H102K C 1000PF, K, 50V 1

C658 ECJ3YB1E105K C 1UF, K, 25V 1

C659 ECJ2XB1H103K C 0.01UF, K, 50V 1

C660 ECJ2FB1C225K C 22UF, K, 16V 1

C661,62 ECJ2XB1H103K C 0.01UF, K, 50V 2

C801 F2H1V221A004 E 220UF, 35V 1

C802 F2H1E471A010 E 470UF, 25V 1

C804 ECJ1VB1H472K C 4700PF, K, 50V 1

C805 ECJ1VB1C105K C 0.01UF, K, 16V 1

C806 ECJ1VB1E104K C 0.10UF, K, 25V 1

C807 ECJ3YF1E225Z C 2.2UF, Z, 25V 1

C808 ECJ1VB1E104K C 0.10UF, K, 25V 1

C809 ECJ3YB1C225K C 0.022UF, K, 16V 1

C811 EEVHB1C471 E 470UF, 16V 1

C812 F2H1E471A010 E 470UF, 25V 1

C814 ECJ1VB1H472K C 4700PF, K, 50V 1

C815 ECJ1VB1C105K C 0.01UF, K, 16V 1

C816 ECJ1VB1E104K C 0.10UF, K, 25V 1

C817 ECJ3YF1E225Z C 2.2UF, Z, 25V 1

C818 ECJ1VB1E104K C 0.10UF, K, 25V 1

C819 ECJ3YB1C225K C 0.022UF, K, 16V 1

C821 EEVHB1C471 E 470UF, 16V 1

C822 F2H1E471A010 E 470UF, 25V 1

17.2. TH-37PG9W Electrical Replacement Parts List

137

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C823 ECJ1XC1H470J C 47PF, J, 50V 1

C824 ECJ1VB1H103K C 0.001UF, K, 50V 1

C825 ECJ1VB1C105K C 0.01UF, K, 16V 1

C827 ECJ3YF1E225Z C 2.2UF, Z, 25V 1

C828 ECJ1VB1E104K C 0.10UF, K, 25V 1

C829 ECJ3YB1E106M C 10 UF, K, 25V 1

C831 EEEHB1C470P C 47PF, J, 16V 1

C832 ECJ1VB1E104K C 0.10UF, K, 25V 1

C833 ECJ1VB1H103K C 0.001UF, K, 50V 1

C834,35 EEEHB1C470P C 47PF, J, 16V 2

C837 F1J0J1060004 C 0.010UF, K, 16V 1

C838 ECJ3YB1C225K C 0.022UF, K, 16V 1

C839 F1J0J1060004 C 0.010UF, K, 16V 1

C840 ECJ3YB1C225K C 0.022UF, K, 16V 1

C841 F1J0J1060004 C 0.010UF, K, 16V 1

C843 ECJ3YB1E106M C 10 UF, K, 25V 1

C844 ECJ3YB1C225K C 0.022UF, K, 16V 1

C845 ECJ3YB1E106M C 10 UF, K, 25V 1

C846 ECJ3YB1C225K C 0.022UF, K, 16V 1

C847 F1J0J1060004 C 0.010UF, K, 16V 1

C848 ECJ3YB1C225K C 0.022UF, K, 16V 1

C855-57 ECJ1VB1H103K C 0.001UF, K, 50V 3

C867 ECJ1VB1E104K C 0.10UF, K, 25V 1

C869 ECJ3YB1C225K C 0.022UF, K, 16V 1

C2350,5

1ECJ3YB1C225K C 0.022UF, K, 16V 2

C2352,5

3EEEHB1H100P C 10PF, J, 50V 2

C2354,5

5EEEHB1V470P E 47UF, 35V 2

C2356,5

7ECJ1XB1H102K C 1000UF, Z, 50V 2

C2358,5

9EEEHP1V2R2R E 2.2UF, 35V 2

C2360,6

1ECJ1XC1H102J C 1000PF, J, 50V 2

C2362,6

3EEEHB1E471UP C 470PF, J, 25V 2

C2364,6

5ECQV1H104JM P 0.1UF, J, 50V 2

C2366,6

7ECJ3YB1E225K C 2.2UF, K, 25V 2

C2368,6

9ECQV1H104JM P 0.1UF, J, 50V 2

C2370,7

1EEEHB1H100P C 10PF, J, 50V 2

C2373-

75 ECJ1VB1E104K C 0.10UF, K, 25V 3

C2376,7

7ECJ1XC1H150J C 15PF, J, 50V 2

C2378-

82 ECJ1VB1E104K C 0.10UF, K, 25V 5

C2383 EEEHB1A101P C 100PF, J, 10V 1

C2384 ECJ1VB1E104K C 0.10UF, K, 25V 1

C2385 EEEHB1A101P C 100PF, J, 10V 1

C2386,8

7EEEHP1H1R0R C 1.0PF, J, 50V 2

C2388 ECJ1VB1E104K C 0.10UF, K, 25V 1

C2389 EEEHB1A101P C 100PF, J, 10V 1

C2390 EEEHB1H100P C 10PF, J, 50V 1

C2391 ECJ1VB1E104K C 0.10UF, K, 25V 1

C2392,9

3ECJ2VF1C105Z C 1UF, Z, 16V 2

C2394 EEEHB1H100P C 10PF, J, 50V 1

C2395,9

6ECJ1VB1E104K C 0.10UF, K, 25V 2

C2397 EEEHB1A101P C 100PF, J, 10V 1

C2398-

03 ECJ1VB1E104K C 0.10UF, K, 25V 6

C2404 ECJ1VB1H103K C 0.001UF, K, 50V 1

C2405,0

6ECJ1VB0J225K C 2.2UF, K, 6.3V 2

C2407,0

8F1J0J1060004 C 0.010UF, K, 16V 2

C2409,1

0ECJ1XC1H181J C 180PF, J, 50V 2

C2411 ECJ3YB1E106M C 10 UF, K, 25V 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C2412,1

3ECJ1VB1E104K C 0.10UF, K, 25V 2

C2420 ECJ1VB1E104K C 0.10UF, K, 25V 1

C2425,2

6ECJ1VB1E104K C 0.10UF, K, 25V 2

C2512 ECJ3XB0J106M C 10UF, M,6.3V 1

C2515 ECJ1VB1H103K C 0.001UF, K, 50V 1

C2521 ECJ1VB1H103K C 0.001UF, K, 50V 1

C3001 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C3004 EEEHB1C470P C 47PF, J, 16V 1

C3007,0

8ECJ2VF1C105Z C1UF,Z,16V 2

C3009,1

0ECJ1VB1E104K C 0.10UF, K, 25V 2

C3011 ECJ1VB1E104K C 0.10UF, K, 25V 1(J)

C3011 EEEHB1C470P C 47PF, J, 16V 1(HA)

C3012 ECJ1VF1H103Z C 0.010UF, Z, 50V 1(J)

C3012 ECJ2VF1C104Z C 0.1UF, Z, 16V 1(HA)

C3013-

17 ECJ1VF1H103Z C 0.010UF, Z, 50V 5

C3018 EEEHB1C470P C 47PF, J, 16V 1

C3019 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C3020 ECJ3YB1C225K C 0.022UF, K, 16V 1

C3021 ECJ3YB1C225K C 0.022UF, K, 16V 1(J)

C3021 ECJ1VF1A105Z C1UF,Z,10V 1(HA)

C3022 ECJ2VF1C104Z C 0.1UF, Z, 16V 1(HA)

C3022 ECJ3YB1C225K C 0.022UF, K, 16V 1(J)

C3023-

31 ECJ3YB1C225K C 0.022UF, K, 16V 9

C3032 ECJ1VB1C105K C 0.01UF, K, 16V 1

C3033-

35 ECJ1XF1C104Z C 0.1UF, Z, 16V 3

C3040,4

1ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C3042,4

3EEEHB1C100R C 10PF, J, 16V 2

C3051-

58 ECJ1VF1C105Z C1UF,Z,16V 8

C3101 ECJ3YB1C225K C 0.022UF, K, 16V 1

C3103 ECJ3YB1C225K C 0.022UF, K, 16V 1

C3105-

08 ECJ1XF1C104Z C 0.1UF, Z, 16V 4

C3110 ECJ3YB1C225K C 0.022UF, K, 16V 1

C3111,1

2ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C3113 EEEHB1C470P C 47PF, J, 16V 1

C3114 ECJ3XF1C475Z C 4.7UF, Z, 16V 1

C3115 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C3134-

36 F2H0J102A010 C 1000UF, 6.3V 3

C3143,4

4ECJ3YB1C225K C 0.022UF, K, 16V 2

C3146 ECJ3YB1C225K C 0.022UF, K, 16V 1

C3150-

52 ECJ1XF1C104Z C 0.1UF, Z, 16V 3

C3200 ECJ2VF1C105Z C1UF,Z,16V 1

C3201-

03 F1J0J1060004 C 0.010UF, K, 16V 3

C3404 ECJ2VF1C104Z C 0.1UF, Z, 16V 1

C3405 EEEHB1C470P C 47PF, J, 16V 1

C3409 ECJ2VF1C104Z C 0.1UF, Z, 16V 1

C3523 EEEHB1C470P C 47PF, J, 16V 1

C3524 ECJ2VF1H103Z C 0.010UF, Z, 50V 1

C3550 ECJ2VF1H103Z C 0.010UF, Z, 50V 1

C3551 EEEHB1C470P C 47PF, J, 16V 1

C3561,6

2ECJ2VF1C105Z C1UF,Z,16V 2

C3750 ECJ2XC1H102K C 1000PF, K, 50V 1

C4001,0

2ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4003 ECJ1VB1H822K C 8200PF, K, 50V 1

C4004 ECJ1VB1C823K C 0.082UF, K, 16V 1

C4006 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4007-

09 ECJ2XB1E104K C 0.1UF, K, 25V 3

C4010 ECJ1XB1H102K C 1000UF, Z, 50V 1

138

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C4011-

13 ECJ1XF1C104Z C 0.1UF, Z, 16V 3

C4016 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4017 EEEHB1C470P C 47PF, J, 16V 1

C4018,1

9ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4020,2

1F1J0J106A013 C 0.010UF, K, 16V 2

C4022 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4024 F1J0J106A013 C 0.010UF, K, 16V 1

C4031,3

2ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4201 EEEHB1C470P C 47PF, J, 16V 1

C4202-

13 ECJ1XB1C104K C 0.1UF, Z, 16V 12

C4219-

22 F1J0J106A013 C 0.010UF, K, 16V 4

C4225 F1J0J106A013 C 0.010UF, K, 16V 1

C4227 F1J0J106A013 C 0.010UF, K, 16V 1

C4301 F2G0J470A019 E 47UF 6.3V 1

C4302 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4303,0

4ECJ1XB1H102K C 1000UF, Z, 50V 2

C4305,0

6ECJ1XB1C104K C 0.1UF, Z, 16V 2

C4307 ECJ1XB1H102K C 1000UF, Z, 50V 1

C4308 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4309 ECJ1VB1A105K C 0.01UF, Z, 50V 1

C4310 ECJ3YB0J226M C 22 UF, K, 25V 1

C4311 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4312 ECJ1VB1A105K C 0.01UF, Z, 50V 1

C4313 ECJ1XB1H102K C 1000UF, Z, 50V 1

C4502 F1J0J1060004 C 0.010UF, K, 16V 1

C4503,0

4ECJ1XB1C104K C 0.1UF, Z, 16V 2

C4505 ECJ1XC1H150J C 15PF, J, 50V 1

C4506 ECJ1VC1H080C C 8PF, C, 50V 1

C4541,4

2ECJ1XC1H080D C 8PF, D, 50V 2

C4543 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4544 EEEHB0G221P C 220PF, J, 4V 1

C4545 F1J0J106A013 C 0.010UF, K, 16V 1

C4546,4

7ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4548,4

9F1J0J106A013 C 0.010UF, K, 16V 2

C4550,5

1ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4552 F1J0J106A013 C 0.010UF, K, 16V 1

C4553-

97 ECJ1XF1C104Z C 0.1UF, Z, 16V 45

C4598 EEEHB0G221P C 220PF, J, 4V 1

C4599-

14 ECJ1XB1C104K C 0.1UF, Z, 16V 16

C4629 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4701 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4703 F1J0J106A013 C 0.010UF, K, 16V 1

C4704-

19 ECJ1XB1C104K C 0.1UF, Z, 16V 16

C4733 ECJ1XF1H102Z C 1000PF, Z, 50V 1

C4744 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4749,5

0ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4751,5

2ECJ1XC1H150J C 15PF, J, 50V 2

C4753 ECJ1XF1H102Z C 1000PF, Z, 50V 1

C4754 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4803 ECJ1XC1H101J C 100PF, J, 50V 1

C4804 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4861 TCUY1C105ZFN C 1UF, 16V 1

C4862 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4863 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4864 ECJ1XC1H101J C 100PF, J, 50V 1

C4865 ECJ2FF1C475Z C 0.047UF, Z, 16V 1

C4866 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4871 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C4881,8

2ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4884,8

5ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4886 ECJ1XC1H101J C 100PF, J, 50V 1

C4887 ECJ1VB1E104K C 0.10UF, K, 25V 1

C4901,0

2ECJ3YB1E106M C 10 UF, K, 25V 2

C4903 ECJ1VB1E104K C 0.10UF, K, 25V 1

C4904 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4905 ECJ1VB1H822K C 8200PF, K, 50V 1

C4906 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4907 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4908 ECJ1XB1H102K C 1000UF, Z, 50V 1

C4909 ECJ1VB1E104K C 0.10UF, K, 25V 1

C4910 ECJ3YB1E106M C 10 UF, K, 25V 1

C4911 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C4912 ECJ3YB1E106M C 10 UF, K, 25V 1

C4913 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4914 EEEHB1C470P C 47PF, J, 16V 1

C4915 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4917 EEEHB1C470P C 47PF, J, 16V 1

C4918 ECJ3YB1E106M C 10 UF, K, 25V 1

C4919 ECJ1VB0J475K C 4.7UF, K, 6.3V 1

C4920 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4921 ECGRL0G680ER C 68PF, J, 4V 1

C4923 ECJ1VB1E104K C 0.10UF, K, 25V 1

C4924 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4925 ECJ1VB1E272K C 2700PF, K, 25V 1

C4926 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4927 ECJ1XC1H470J C 47PF, J, 50V 1

C4928 ECJ1VB1H472K C 4700PF, K, 50V 1

C4929 ECJ1VB1E104K C 0.10UF, K, 25V 1

C4930,3

1ECJ3YB1E106M C 10 UF, K, 25V 2

C4932 ECJ1VB1E104K C 0.10UF, K, 25V 1

C4933 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4934 ECJ1VB1H822K C 8200PF, K, 50V 1

C4935 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4936 ECJ1VC1H100C C 10PF, C, 50V 1

C4937 ECJ1XB1H102K C 1000UF, Z, 50V 1

C4938 ECJ1VB1E104K C 0.10UF, K, 25V 1

C4939 ECJ1VB0J475K C 4.7UF, K, 6.3V 1

C4940 ECGRL0G680ER C 68PF, J, 4V 1

C4942 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4943 ECJ1VC1H100C C 10PF, C, 50V 1

C4944 ECJ1VB0J475K C 4.7UF, K, 6.3V 1

C4945 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4946 ECGRL0G680ER C 68PF, J, 4V 1

C4990 ECJ1VB1A105K C 0.01UF, Z, 50V 1

C4991 F1J0J106A013 C 0.010UF, K, 16V 1

C4992,9

3ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4994,9

5F1J0J106A013 C 0.010UF, K, 16V 2

C4996 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4997 F1J0J106A013 C 0.010UF, K, 16V 1

C4998 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4999 ECJ1XB1H102K C 1000UF, Z, 50V 1

C6001 F1L2J562A022 C 5600UF, K,6.3V 1

C6011-

13 F2A2D221A022 E 220UF, 200V 3

C6021 F1L2J562A022 C 5600UF, K,6.3V 1

C6031 F0C2E405A176 E 0.040UF, 250V 1

C6041-

44 TCUY1C105ZFN C 1UF, 16V 4

C6111,1

2F2A2D151A070 E 150UF, 200V 2

C6132 F1L1E4750004 C 4.7UF, 25V 1

C6134,3

5F1L1E4750004 C 4.7UF, 25V 2

C6152-

54 F1L1E4750004 C 4.7UF, 25V 3

C6156 ECQE2224KF P 2.2UF, K,250V 1

C6192 ECJ3YB1E105K C 1UF, K, 25V 1

139

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C6194,9

5F1L1E4750004 C 4.7UF, 25V 2

C6201-

08 ECQE2105B667 P 1UF, 250V 8

C6211,1

2F1L1E4750004 C 4.7UF, 25V 2

C6213,1

4F2A1E331A089 E 330UF, 25V 2

C6221 ECJ2XB1H104K C 0.1UF, K, 50V 1

C6241 F2A1E331A089 E 330UF, 25V 1

C6242 TCUY1C105ZFN C 1UF, 16V 1

C6243 ECJ2XB1H103K C 0.01UF, K, 50V 1

C6251 TCUY1C105ZFN C 1UF, 16V 1

C6261,6

2ECA2CM101 E 100UF, 160V 2

C6272,7

3EEUFC1E221 E 220UF, 25V 2

C6400 F1E2J102A002 C 1000PF, 600V 1

C6401,0

2F1L2J562A022 C 5600UF, K,6.3V 2

C6410 F1E2J102A002 C 1000PF, 600V 1

C6411-

13 F2A2D221A022 E 220UF, 200V 3

C6420 F1E2J102A002 C 1000PF, 600V 1

C6421,2

2F1L2J562A022 C 5600UF, K,6.3V 2

C6431 F0C2E405A176 E 0.040UF, 250V 1

C6472 ECJ2XB1H104K C 0.1UF, K, 50V 1

C6480 ECJ2XB1H104K C 0.1UF, K, 50V 1

C6502 F1L1E4750004 C 4.7UF, 25V 1

C6504,0

5F1L1E4750004 C 4.7UF, 25V 2

C6511-

18 ECQE2105B667 P 1UF, 250V 8

C6522 F1L1E4750004 C 4.7UF, 25V 1

C6524,2

5F1L1E4750004 C 4.7UF, 25V 2

C6526 ECQE2224KF P 2.2UF, K,250V 1

C6561 F2A1A1010074 E 100UF, 10V 1

C6562 TCUY1C105ZFN C 1UF, 16V 1

C6563 F2A1A1010074 E 100UF, 10V 1

C6564 TCUY1C105ZFN C 1UF, 16V 1

C6565,6

6ECJ2XB1H103K C 0.01UF, K, 50V 2

C6581 ECJ3YB1E105K C 1UF, K, 25V 1

C6582 TCUY1C105ZFN C 1UF, 16V 1

C6592 ECA1EM471 E 470UF, 25V 1

C6593 ECJ2XC1H102J C 1000PF, J, 50V 1

C6601,0

2F1L1E4750004 C 4.7UF, 25V 2

C6603 F1K2J102A014 C 1000UF, K,6.3V 1

C6604 F2A2V470A020 E 47UF, 350V 1

C6605 ECJ2XB1H104K C 0.1UF, K, 50V 1

C6606 F1K2J102A014 C 1000UF, K,6.3V 1

C6610 ECJ3YB1E105K C 1UF, K, 25V 1

C6611 ECJ2XB1H103K C 0.01UF, K, 50V 1

C6612 ECJ3YB1E105K C 1UF, K, 25V 1

C6620 ECJ3XB2J222K C 2200PF, K,630V 1

C6641 ECQE2224KF P 2.2UF, K,250V 1

C6661,6

2F1K2J102A014 C 1000UF, K,6.3V 2

C6671 F1L1E4750004 C 4.7UF, 25V 1

C6681,8

2F1L1E4750004 C 4.7UF, 25V 2

C6683 ECJ2XB1H104K C 0.1UF, K, 50V 1

C6691 ECA2CM101 E 100UF, 160V 1

C6701-

08 ECJ2XB1H104K C 0.1UF, K, 50V 8

C6721 ECA1HM101 E 100UF, 50V 1

C6723-

25 F1L1E4750004 C 4.7UF, 25V 3

C6726,2

7TCUY1C105ZFN C 1UF, 16V 2

C6728 ECJ2XC1H102J C 1000PF, J, 50V 1

C6752 TCUY1C105ZFN C 1UF, 16V 1

C6753 F1L1E4750004 C 4.7UF, 25V 1

C6754 ECA1VM470 E 47UF, 35V 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C6755 ECJ2XB1H104K C 0.1UF, K, 50V 1

C6771 TCUY1C105ZFN C1UF,16V 1

C6772,7

3F1L1E4750004 C 4.7UF, 25V 2

C6775 F1L1E4750004 C 4.7UF, 25V 1

C6776,7

7ECJ2XB1H104K C 0.1UF, K, 50V 2

C6791 EEUFC1E221 E 220UF, 25V 1

C6795 ECA1EM471 E 470UF, 25V 1

C6802 EEUFC1E221 E 220UF, 25V 1

C6803 ECJ2XB1H104K C 0.1UF, K, 50V 1

C6804 F2A2E100A022 E 10UF, 250V 1

C6805 TCUY1C105ZFN C1UF,16V 1

C6806,0

7ECA2CM101 E 100UF, 160V 2

C6811 ECJ2XB1H103K C 0.01UF, K, 50V 1

C6823 ECJ2XB1H103K C 0.01UF, K, 50V 1

C6841 ECA2CM101 E 100UF, 160V 1

C6845 ECJ2XB1H103K C 0.01UF, K, 50V 1

C6861 TCUY1C105ZFN C1UF,16V 1

C6862 ECJ3YB1E105K C1UF,K,25V 1

C6863 ECJ2XB1H103K C 0.01UF, K, 50V 1

C6871 TCUY1C105ZFN C1UF,16V 1

C6872 ECJ3YB1E105K C1UF,K,25V 1

C6873 ECJ2XB1H103K C 0.01UF, K, 50V 1

C6901 ECJ2XB1H102K C 1000PF, K, 50V 1

C6902 TCUY1C105ZFN C1UF,16V 1

C6904 TCUY1C105ZFN C1UF,16V 1

C6906 TCUY1C105ZFN C1UF,16V 1

C6908 TCUY1C105ZFN C1UF,16V 1

C6915,1

6ECJ2XB1H221K C 220PF, K, 50V 2

C6921 ECJ2XB1H221K C 220PF, K, 50V 1

C6931 ECJ2XB1H102K C 1000PF, K, 50V 1

C6932 F1L2E105A013 E 0.10UF, 25V 1

C6934 F1L2E105A013 E 0.10UF, 25V 1

C6951 ECJ2XB1H102K C 1000PF, K, 50V 1

C6952 TCUY1C105ZFN C1UF,16V 1

C6954 TCUY1C105ZFN C1UF,16V 1

C6956 TCUY1C105ZFN C1UF,16V 1

C6958 TCUY1C105ZFN C1UF,16V 1

C6964-

66 ECJ2XB1H221K C 220PF, K, 50V 3

C6981 ECJ2XB1H102K C 1000PF, K, 50V 1

C6982 F1L2E105A013 E 0.10UF, 25V 1

C6985 F1L2E105A013 E 0.10UF, 25V 1

C7111 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7112 TCUY1C105ZFN C1UF,16V 1

C7113,1

4ECJ3XB2A474K C 0.47UF, 6.3V 2

C7115 TCUY1C105ZFN C1UF,16V 1

C7116 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7117 TCUY1C105ZFN C1UF,16V 1

C7118 ECJ1XC1H101J C 100PF, J, 50V 1

C7120 TCUY1C105ZFN C1UF,16V 1

C7121 ECJ1XC1H101J C 100PF, J, 50V 1

C7126 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C7129,3

0ECJ1XB1C104K C 0.1UF, Z, 16V 2

C7132 TCUY1C105ZFN C1UF,16V 1

C7133 ECJ1XC1H101J C 100PF, J, 50V 1

C7135 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7136 TCUY1C105ZFN C1UF,16V 1

C7137 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7139 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C7201 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7202 TCUY1C105ZFN C1UF,16V 1

C7203,0

4ECJ3XB2A474K C 0.47UF, 6.3V 2

C7205 TCUY1C105ZFN C1UF,16V 1

C7206 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7207 TCUY1C105ZFN C1UF,16V 1

C7208 ECJ1XC1H101J C 100PF, J, 50V 1

C7210 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7211 TCUY1C105ZFN C1UF,16V 1

140

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C7212 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7213 TCUY1C105ZFN C 1UF, 16V 1

C7214 ECJ1XC1H101J C 100PF, J, 50V 1

C7216 TCUY1C105ZFN C 1UF, 16V 1

C7217 ECJ1XC1H101J C 100PF, J, 50V 1

C7220 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C7222 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C7224 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C7226 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C7231 TCUY1C105ZFN C 1UF, 16V 1

C7232 ECJ1XC1H101J C 100PF, J, 50V 1

C7234 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7235 TCUY1C105ZFN C 1UF, 16V 1

C7236 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7239 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C8003 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C8005 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C8007 ECJ1XC1H101J C 100PF, J, 50V 1

C8009 ECJ3XB0J106M C 10UF, M,6.3V 1

C8013 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C8015 ECJ3YF1A106Z C 10UF, Z, 10V 1

C8016 ECJ3YB1A475K C 0.047UF, K, 10V 1

C8019 ECJ1VB1H103K C 0.001UF, K, 50V 1

C8021 ECJ3VB1C474K C 0.47UF, K, 16V 1

C8023 ECJ1VB1H103K C 0.001UF, K, 50V 1

C8025 ECJ1VB1H103K C 0.001UF, K, 50V 1

C8027 ECJ3YB1C225K C 0.022UF, K, 16V 1

C8029 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C8030 EEEHB1C470P C 47PF, J, 16V 1

C8033 ECJ1XC1H102J C 1000PF, J, 50V 1

C8035 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C8036 ECJ1XC1H101J C 100PF, J, 50V 1

C8038 ECJ1XC1H102J C 1000PF, J, 50V 1

C8045 ECJ2VF1C105Z C 1UF, Z, 16V 1

C8049 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C8051 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C8070 ECJ1VB1E104K C 0.10UF, K, 25V 1

C8072,7

3ECJ3YF1A106Z C 10UF, Z, 10V 2

C8074,7

5ECJ1XC1H102J C 1000PF, J, 50V 2

C8080-

83 ECJ1XF1C104Z C 0.1UF, Z, 16V 4

C8084 TCUY1C105ZFN C 1UF, 16V 1

C8100 EEEHB1C470P C 47PF, J, 16V 1

C8101 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C8102,0

3EEEHB1C470P C 47PF, J, 16V 2

C8106 EEEHB1C470P C 47PF, J, 16V 1

C8107 EEVHB1C471 E 470UF, 16V 1

C8108,0

9ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C8111-

13 ECJ1XF1C104Z C 0.1UF, Z, 16V 3

C8114 ECJ1VB1H103K C 0.001UF, K, 50V 1

C8115 EEEHB1C470P C 47PF, J, 16V 1

C8116 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C8120 F2H1E471A010 E 470UF, 25V 1

C8121 ECJ3YF1E225Z C 2.2UF, Z, 25V 1

C8122 EEEHB1C470P C 47PF, J, 16V 1

C8123 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C8181,8

2ECJ1XC1H150J C 15PF, J, 50V 2

C8183 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C8185 EECS5R5H155 E 1.5UF, 5.5V 1

C8200 EEEHB1C470P C 47PF, J, 16V 1

C9028,2

9F1J0J1060004 C 0.010UF, K, 16V 2

C9033,3

4ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C9035,3

6F1J0J1060004 C 0.010UF, K, 16V 2

C9037 ECJ1VB1H103K C 0.001UF, K, 50V 1

C9039 F1J0J1060004 C 0.010UF, K, 16V 1

C9040 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C9044-

53 ECJ1XF1C104Z C 0.1UF, Z, 16V 10

C9055 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9057 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9058 F1J0J1060004 C 0.010UF, K, 16V 1

C9060 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9467,6

8ECJ1VF1H103Z C 0.010UF, Z, 50V 2

C9469 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9500-

06 ECJ1XB1C104K C 0.1UF, Z, 16V 7

C9508 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9509 ECJ1VC1H200J C 20PF, C, 50V 1

C9510 ECJ1XC1H150J C 15PF, J, 50V 1

C9511 F1J0J1060004 C 0.010UF, K, 16V 1

C9512 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9514,1

5ECJ2VF1C105Z C 1UF, Z, 16V 2

C9516-

25 ECJ1XB1C104K C 0.1UF, Z, 16V 10

C9526 F1J0J1060004 C 0.010UF, K, 16V 1

C9527-

30 ECJ1XB1C104K C 0.1UF, Z, 16V 4

C9531 F1J0J1060004 C 0.010UF, K, 16V 1

C9800 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9801 ECJ1VB1H472K C 4700PF, K, 50V 1

C9802 ECJ1XC1H470J C 47PF, J, 50V 1

C9803 ECJ1VB1H472K C 4700PF, K, 50V 1

C9804 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9805 ECJ1VB0J475K C 4.7UF, K, 6.3V 1

C9806 ECGRL0G680ER C 68PF, J, 4V 1

C9807,0

8ECJ3YB1E106M C 10 UF, K, 25V 2

C9809 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9815,1

6ECGRL0G680ER C 68PF, J, 4V 2

C9817,1

8ECJ3YB1E106M C 10 UF, K, 25V 2

C9822 F1J0J1060004 C 0.010UF, K, 16V 1

C9823,2

4ECJ3YB1E106M C 10 UF, K, 25V 2

C9825 ECJ1XC1H101K C 100PF, K, 50V 1

C9826 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9827 F1J0J1060004 C 0.010UF, K, 16V 1

C9830-

32 ECJ3XB1C106M C 1.0UF, K, 16V 3

C9833 ECJ3YB1E106M C 10 UF, K, 25V 1

C9837 ECJ3XB1C106M C 1.0UF, K, 16V 1

C9838 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9839 ECJ3YB1E106M C 10 UF, K, 25V 1

C9840 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9841,4

2ECJ2VF1C105Z C 1UF, Z, 16V 2

C9843 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9844 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C9845,4

6ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C9847,4

8ECJ1VB1E104K C 0.10UF, K, 25V 2

C9880,8

1ECJ1XB1H102K C 1000UF, Z, 50V 2

C9882 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9883 ECJ1VB1H822K C 8200PF, K, 50V 1

C9884 ECJ1VC1H100C C 10PF, C, 50V 1

C9885 ECJ1XB1H102K C 1000UF, Z, 50V 1

C9886 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9887 ECJ1VB0J475K C 4.7UF, K, 6.3V 1

C9891 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9896 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9897 ECJ1VB1H822K C 8200PF, K, 50V 1

C9898 ECJ1VC1H100C C 10PF, C, 50V 1

C9899 ECJ1XB1H102K C 1000UF, Z, 50V 1

C9900-

51 ECJ1XB1C104K C 0.1UF, Z, 16V 52

C9952-

54 EEFCD0G560ER 56UF, 3

141

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C9955-

59 ECJ1XB1C104K C 0.1UF, Z, 16V 5

C9960-

64 ECJ3XB0J106M C 10UF, M,6.3V 5

C9965 EEFCD0G560ER 56UF, 1

C9966 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9967 ECJ1VB0J475K C 4.7UF, K, 6.3V 1

C9971 ECJ1XB1C104K C 0.1UF, Z, 16V 1

CB1-B7 K1MN68BA0002 68P CONNECTOR 7

D3 K1KY40B00003 40P CONNECTOR 1

D5 K1KB31BA0064 31P CONNECTOR 1

D6 K1KA21A00011 21P CONNECTOR 1

D20 K1KA20BA0296 20P CONNECTOR 1

D25 K1KA20B00155 20P CONNECTOR 1

D31,32 K1MN55BA0094 55P CONNECTOR 2

D401 B0FBAT000006 DIODE 1

D404 B0EBKT000007 DIODE 1

D407 MA111 DIODE 1

D411 B0BB17000009 DIODE 1

D412 B0HAMM000122 DIODE 1

D415 B0JAME000099 DIODE 1

D416 B0HAMP000067 DIODE 1

D417 B0HAPR000013 DIODE 1

D418 B0BC8R100013 DIODE 1

D419 B0HAPR000013 DIODE 1

D423 MA188 DIODE 1

D425 MA188 DIODE 1

D429 ERA15-10 DIODE 1

D430 MA111 DIODE 1

D431,32 B0JCDD000002 DIODE 2

D433 B0BC01400033 DIODE 1

D435 ERA15-10 DIODE 1

D436-38 MA4200M ZENER DIODE 3

D441 B0HAMM000122 DIODE 1

D444 B0HAMM000122 DIODE 1

D445 MA4360H ZENER DIODE 1

D501 B0HAPR000012 DIODE 1

D503,04 MA165 DIODE 2

D507,08 B0BC7R400023 DIODE 2

D505 B0JAME000099 DIODE 1

D506 MAZ80470LL ZENER DIODE 1

D509 B0JANG000018 DIODE 1

D511 B0JAML000011 DIODE 1

D512,13 MA111 DIODE 2

D514 B0BC6R100025 DIODE 1

D515 B0BC3R200008 DIODE 1

D516-18 MA4330M ZENER DIODE 3

D520 MA111 DIODE 1

D521 B0JAME000099 DIODE 1

D528,29 MA153 DIODE 2

D530 B0BC9R900013 DIODE 1

D531 B0HBSN000013 DIODE 1

D535 MA188 DIODE 1

D536 B0JBSG000026 DIODE 1

D538 B0BC5R100039 DIODE 1

D539,40 B0AARR000010 DIODE 2

D542 MA4200M ZENER DIODE 1

D543 B0BC01400033 DIODE 1

D544,45 MA4200M ZENER DIODE 2

D549 B0BC02500008 DIODE 1

D551 B0BC01300033 DIODE 1

D555 B0BC7R400023 DIODE 1

D559 B0BC7R400023 DIODE 1

D563 B0BC6R100025 DIODE 1

D569-72 B0BC02500008 DIODE 4

D574 MA165 DIODE 1

D575 MA188 DIODE 1

D579 MA165 DIODE 1

D582 MAZ705600F ZENER DIODE 1

D585 B0BC7R400023 DIODE 1

D586 B0HAMP000067 DIODE 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

D587 MA188 DIODE 1

D588 B0BC3R200008 DIODE 1

D590 B0BC3R200008 DIODE 1

D596 ERA15-10 DIODE 1

D598 B0BC5R100039 DIODE 1

D599 B0JCND000009 DIODE 1

D600 B0BC7R400023 DIODE 1

D601 B0BC5R100039 DIODE 1

D602 B0BC8R100013 DIODE 1

D801 B0JCPD000026 DIODE 1

D802,03 B0JCME000037 DIODE 2

D805-10 B0JCPE000004 DIODE 6

D2301-

03 B0JCME000037 DIODE 3

D2512 MA8043LTX ZENER DIODE 1

D2520 LNJ107W5PRW LED 1

D2524 MA8056-M ZENER DIODE 1

D3001 MA111 DIODE 1

D3003,0

4MA111 DIODE 2

D3005 LNJ206R5ARA LED 1

D3007,0

8MA111 DIODE 2

D3061 MA728 DIODE 1

D3501-

04 MA3056M ZENER DIODE 4

D3507-

10 MA8160H ZENER DIODE 4

D4701 MA728 DIODE 1

D4709 MA728 DIODE 1

D4711-

13 MA152K DIODE 3

D4721 MA3036H ZENER DIODE 1

D4732-

35 MA152K DIODE 4

D4901 B0JCME000037 DIODE 1

D4902,0

3B0JCDD000002 DIODE 2

D4904 B0JCME000037 DIODE 1

D4905 B0JCDD000002 DIODE 1

D4906 B0JCME000037 DIODE 1

D6001 B0HBSN000008 DIODE 1

D6021 B0HBSN000008 DIODE 1

D6041 B0ECHP000003 DIODE 1

D6051 B0ECHP000003 DIODE 1

D6061 B0HBSN000008 DIODE 1

D6071 B0HBSN000008 DIODE 1

D6072 B0ECHP000003 DIODE 1

D6081 B0HBSN000008 DIODE 1

D6091 B0HBSN000008 DIODE 1

D6092 B0ECHP000003 DIODE 1

D6101,0

2B0JCME000037 DIODE 2

D6131,3

2B0ECHP000003 DIODE 2

D6151,5

2B0ECHP000003 DIODE 2

D6153 MA111 DIODE 1

D6154 MA8033L ZENER DIODE 1

D6191-

93 B0ECHP000003 DIODE 3

D6211 B0JCME000037 DIODE 1

D6221 B0ECHP000003 DIODE 1

D6222,2

3MA111 DIODE 2

D6251,5

2MA8330M ZENER DIODE 2

D6253 LNJ301MPUJA LED 1

D6254 MA8051L ZENER DIODE 1

D6255 MA111 DIODE 1

D6401 B0HBSN000008 DIODE 1

D6431 MA3DF40000LZ DIODE 1

D6441 B0ECHP000003 DIODE 1

D6451 B0ECHP000003 DIODE 1

D6461 B0HBSN000008 DIODE 1

D6471 B0HBSN000008 DIODE 1

142

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

D6472 B0ECHP000003 DIODE 1

D6477 MA111 DIODE 1

D6478 B0HCKS000002 DIODE 1

D6480 MA111 DIODE 1

D6481 B0HBSN000008 DIODE 1

D6491 MA3DF40000LZ DIODE 1

D6497 MA111 DIODE 1

D6501,0

2B0ECHP000003 DIODE 2

D6521,2

2B0ECHP000003 DIODE 2

D6523 MA111 DIODE 1

D6524 MA8033L ZENER DIODE 1

D6581,8

2MA8330M ZENER DIODE 2

D6583 LNJ301MPUJA LED 1

D6584 MA8051L ZENER DIODE 1

D6585 MA111 DIODE 1

D6601 MA8240M ZENER DIODE 1

D6602 B0ECHP000003 DIODE 1

D6603 MA8240M ZENER DIODE 1

D6604 MA111 DIODE 1

D6605 MA8051L ZENER DIODE 1

D6606 B0HCMM000014 DIODE 1

D6607 MA111 DIODE 1

D6610 MAZ81500ML ZENER DIODE 1

D6611-

14 MA111 DIODE 4

D6619,2

0B0HCKS000002 DIODE 2

D6621 B0HDSM000005 DIODE 1

D6623 B0HDSM000005 DIODE 1

D6641,4

2B0HCKS000002 DIODE 2

D6643 B0JCME000037 DIODE 1

D6644 B0HCKS000002 DIODE 1

D6661 MA111 DIODE 1

D6662-

64 MA8330M ZENER DIODE 3

D6665 MA8051L ZENER DIODE 1

D6666,6

7MA111 DIODE 2

D6671 MA111 DIODE 1

D6682 B0HCMM000014 DIODE 1

D6683,8

4MA111 DIODE 2

D6686,8

7MA111 DIODE 2

D6701,0

2MA8056H ZENER DIODE 2

D6721 B0HCKS000002 DIODE 1

D6723,2

4B0JCME000037 DIODE 2

D6725 B0ECHP000003 DIODE 1

D6726-

33 MA8056H ZENER DIODE 8

D6734 MA111 DIODE 1

D6752 B0JCME000037 DIODE 1

D6758 B0ECHP000003 DIODE 1

D6760,6

1MA111 DIODE 2

D6771 B0JCME000037 DIODE 1

D6773 B0HCKS000002 DIODE 1

D6791 MA8200M ZENER DIODE 1

D6801 B0JCME000037 DIODE 1

D6803 MA111 DIODE 1

D6804 B0ECHP000003 DIODE 1

D6805 MA111 DIODE 1

D6806 B0ECHP000003 DIODE 1

D6820-

23 MA111 DIODE 4

D6825 MA8330M ZENER DIODE 1

D6826 MA111 DIODE 1

D6841 B0ECHP000003 DIODE 1

D6842,4

3MA111 DIODE 2

Ref.

No. Part No. Part Name &

Description Pcs Remarks

D6859 B0ECHP000003 DIODE 1

D6860 B0HCKS000002 DIODE 1

D6861 MA8051L ZENER DIODE 1

D6862 MA111 DIODE 1

D6871 MA8051L ZENER DIODE 1

D6872 MA111 DIODE 1

D6901,0

2MA8056H ZENER DIODE 2

D6903,0

4B0ECHP000003 DIODE 2

D6921 B0ECHP000003 DIODE 1

D6922 MA8056H ZENER DIODE 1

D6951,5

2MA8056H ZENER DIODE 2

D6953,5

4B0ECHP000003 DIODE 2

D8001 MA111 DIODE 1

D8003 MA111 DIODE 1

D8010,1

1MA153 DIODE 2

D8180 MA111 DIODE 1

D8181 MA8056-M ZENER DIODE 1

D8184,8

5MA8056-M ZENER DIODE 2

D8200 MAZ31600ML ZENER DIODE 1

D8201 MA111 DIODE 1

D8203 MA3100M ZENER DIODE 1

D8204 MA111 DIODE 1

D8209 MA111 DIODE 1

D9017-

19 MA3033 ZENER DIODE 3

D9020 MA728 DIODE 1

D9100-

03 B0JCGD000002 DIODE 4

D9105,0

6B0JCGD000002 DIODE 2

D9110 B0JCGD000002 DIODE 1

D9300,0

1MA152K DIODE 2

D9800 B0JCME000037 DIODE 1

D9801 B0JCDD000002 DIODE 1

D9802 MA728 DIODE 1

D9804 MA152K DIODE 1

D9807,0

8MA152K DIODE 2

D9811 MA728 DIODE 1

D9812 B0JCME000037 DIODE 1

D9813 B0JCDD000002 DIODE 1

D9814 B0JCME000037 DIODE 1

D9815 B0JCDD000002 DIODE 1

DA1 K1KA20AA0335 20P CONNECTOR 1

DA2 K1KY40B00003 40P CONNECTOR 1

DA3 K1KA30AA0009 30P CONNECTOR 1

DA4 K1KA14A00248 14P CONNECTOR 1

DA5 K1KB21BA0063 21P CONNECTOR 1

DA6 K1KA31A00007 31P CONNECTOR 1

DA11 K1KA21A00011 21P CONNECTOR 1

FL3000-

04 F1J1E1040022 C 0.10UF, Z, 25V 5

FL3006-

08 F1J1E1040022 C 0.10UF, Z, 25V 3

FL3010 F1J1E1040022 C 0.10UF, Z, 25V 1

FL4001 J0MAB0000175 LC FILTER 1

FL4502-

04 F1J1E1040022 C 0.10UF, Z, 25V 3

FL4703 F1J1E1040022 C 0.10UF, Z, 25V 1

FL4705-

09 F1J1E1040022 C 0.10UF, Z, 25V 5

FL7101 J0HABH000013 LC FILTER 1

FL7201 J0HABH000013 LC FILTER 1

FL8000 F1J1E1040022 C 0.10UF, Z, 25V 1

FL9300,

01 F1J1E1040022 C 0.10UF, Z, 25V 2

143

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

FL9800,

01 J0HABH000013 LC FILTER 2

FL9803,

04 J0HABH000012 LC FILTER 2

FL9805-

07 J0HABH000013 LC FILTER 3

FL9900-

02 F1J1E1040022 C 0.10UF, Z, 25V 3

FL9903,

04 J0HABH000013 LC FILTER 2

GK3 K1KA03BA0061 3P CONNECTOR 1

H1 K1KA80B00037 80P CONNECTOR 1

HX1 K1KB22A00036 22P CONNECTOR 1

IC401 CNC1S171R IC 1

IC402 C0DAEMB00004 IC 1

IC403-

05 CNC1S171R IC 3

IC406 C0DAZZZ00021 IC 1

IC408 CNC1S171R IC 1

IC409 MIP2G40MPSCF IC 1

IC410 CNC1S171R IC 1

IC411 C0DAEMB00004 IC 1

IC412 CNC1S171R IC 1

IC501 C2ABDB000110 IC 1

IC502 C0EBH0000210 IC 1

IC504 C0DAEMB00004 IC 1

IC505 CNC1S171R IC 1

IC506 C0ZBZ0000878 IC 1

IC507 CNC1S171R IC 1

IC509 C0DABZZ00010 IC 1

IC510 C0DBAZG00034 IC 1

IC512 C0DAEMB00004 IC 1

IC520 LSSK0062 IC 1

IC801-

03 C0DBAMH00013 IC 3

IC804 C0CBCAC00275 IC 1

IC2301,

02 C1AB00002534 IC 2

IC2303 C1BB00001006 IC 1

IC2305 C0ABBA000168 IC 1

IC3001 C1AB00002530 IC 1

IC3002 C0JBBR000002 IC 1(J)

IC3002 C3EAGC000027 IC 1(HA)

IC3003 CXA1315M LINEAR IC 1

IC3004 CXA1875AM LINEAR IC 1

IC3005 C1AB00002529 IC 1

IC3006 MC14052BF MOS IC (CMOS GATE

ARRLY) 1

IC3007,

08 C0JBAS000215 IC 2

IC3101 C1AB00002238 IC 1

IC3150-

52 C0JBAA000419 IC 3

IC3502 TVRP003 IC 1

IC4001 C0FBAY000012 IC 1

IC4002 C0DBEGE00002 IC 1

IC4031,

32 C0JBAE000354 IC 2

IC4201 C1ZBZ0003233 IC 1

IC4301 C0JBAP000020 IC 1

IC4500 C1ZBZ0002769 IC 1

IC4501 MN845111-A IC 1

IC4502 C3ABQJ000031 IC 1

IC4701 MN103SB30RGL IC 1

IC4702 TVRN927-4 IC 1

IC4703 TVRN997 IC 1

IC4704 C0EBE0000447 IC 1

IC4711 C0JBAE000354 IC 1

IC4714 C0JBAZ000856 IC 1

IC4715 C0JBAE000354 IC 1

IC4803 C0JBAS000215 IC 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

IC4901 C0DBAHD00011 IC 1

IC4951,

52 C0DBAYY00054 IC 2

IC4953 C0CBCAD00016 IC 1

IC4955 C0DBAYY00054 IC 1

IC4956 C0CBCBC00190 IC 1

IC4957 C0DBAHD00011 IC 1

IC6131 C0ZBZ0000895 IC 1

IC6151 C0ZBZ0000895 IC 1

IC6191 C0ZBZ0000895 IC 1

IC6211 C0ZBZ0001325 IC 1

IC6221 C0DBEMB00005 IC 1

IC6241 C0JBAZ000005 IC 1

IC6251 NJM2903M INTEGRATED CIRCUIT 1

IC6471 C0DBEKA00003 IC 1

IC6472 C0JBAA000377 IC 1

IC6501 C0ZBZ0000895 IC 1

IC6521 C0ZBZ0000895 IC 1

IC6561,

62 C0JBAZ000005 IC 2

IC6581 NJM2903M INTEGRATED CIRCUIT 1

IC6601 C0ZBZ0001325 IC 1

IC6602 C0JBAB000715 IC 1

IC6610 NJM2903M INTEGRATED CIRCUIT 1

IC6671 C0ZBZ0001325 IC 1

IC6681 C0ZBZ0001325 IC 1

IC6682 C0JBAA000377 IC 1

IC6721,

22 C0JBAZ000994 IC 2

IC6724,

25 C0CBADC00089 IC 2

IC6751 C0CBADC00089 IC 1

IC6752 C0ZBZ0001325 IC 1

IC6753 C0JBAB000715 IC 1

IC6771 C0CBADC00089 IC 1

IC6772 C0ZBZ0001325 IC 1

IC6773,

74 C0JBAA000377 IC 2

IC6791 N0BF1FB00001 IC 1

IC6801,

02 C0DBEMB00005 IC 2

IC6821 C0DBEMB00005 IC 1

IC6841 C0DBEMB00005 IC 1

IC6861 NJM2903M INTEGRATED CIRCUIT 1

IC6871 NJM2903M INTEGRATED CIRCUIT 1

IC6901-

04 AN16071A-VT IC 4

IC6951-

54 AN16071A-VT IC 4

IC7101-

04 C0JBAZ001120 IC 4

IC7201-

05 C0JBAZ001120 IC 5

IC8001 MC14052BF MOS IC (CMOS GATE

ARRLY) 1

IC8003 C1AA00000706 IC 1

IC8005 C0JBAB000646 IC 1

IC8007 C0JBAR000419 IC 1

IC8009 C0JBAS000215 IC 1

IC8014 C0ZBZ0000911 IC 1

IC8016 C0JBAZ001934 IC 1

IC8100 C0DBEJG00001 IC 1

IC8181 C1DB00001208 IC 1

IC9001 TVRP006-1 IC 1

IC9003 C2CBJG000730 IC 1

IC9007 TVRN941-1 IC 1

IC9011 C0EBF0000431 IC 1

IC9200 C1ZBZ0003185 IC 1

IC9303 TVRN940 IC 1

IC9500 C1ZBZ0002599 IC 1

IC9502 PST9128NR IC (LOGIC) 1

IC9503,

04 C0JBAZ001120 IC 2

IC9800 C0DBAYY00054 IC 1

IC9801 C0DBZFG00066 IC 1

144

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

IC9802,

03 C0JBAZ001120 IC 2

IC9806 C0DBAHD00011 IC 1

IC9807 C0DBAYY00054 IC 1

IC9809 C0DBAYY00054 IC 1

IC9900 MN84521-A IC 1

IC9901 C3ABQJ000051 IC 1

J1 K1KA20B00163 20P CONNECTOR 1

J2 K1KA06BA0047 6P CONNECTOR 1

J3 K1KA30B00078 30P CONNECTOR 1

J4 K1KA11BA0051 11P CONNECTOR 1

J5 K1KA21B00008 21P CONNECTOR 1

J6 K1KA21B00009 21P CONNECTOR 1

J7,J8 K1KA03BA0055 3P CONNECTOR 2

J10 K1KA06BA0050 6P CONNECTOR 1

J11-13 K1KB80B00024 80P CONNECTOR 3

J14 K1KA22A00067 22P CONNECTOR 1

J15 K1KA03BA0047 3P CONNECTOR 1

J30 K1KA05BA0050 5P CONNECTOR 1

JK3001 K1QBB3BB0002 CONNECTOR 1

JK3002 K2HA204B0097 JACK 1

JK3509 K1FB109BA018 CONNECTOR 1

JK3511 K1FB115BA020 CONNECTOR 1

JK3513 K2HC103B0105 JACK 1

JS3001-

08 ERJ3GEY0R00 M 0 OHM, 1/16W 8

JS3011-

16 ERJ3GEY0R00 M 0 OHM, 1/16W 6

JS8094 ERJ3GEY0R00 M 0 OHM, 1/16W 1

JS8096 ERJ3GEY0R00 M 0 OHM, 1/16W 1

K1 K1KY12B00001 12P CONNECTOR 1

L403 EXCELSA35 BEAD CHOKE 1

L404,05 G0B123K00004 CHOKE COIL 2

L410 ELF17N004A LINE FILTER 1

L510 EXCELDR25C BEAD CHOKE 1

L511 G0A470ZA0033 CHOKE COIL 1

L512 ELESE4R7JA PEAKING COIL 1

L513 EXCELDR25C BEAD CHOKE 1

L801 G1A101ZA0007 CHOKE COIL 1

L802 G1C101MA0167 INDUCTION COIL 1

L803 G1C220MA0167 INDUCTION COIL 1

L804,05 J0JHC0000078 CHIP INDUCTOR 2

L807-11 J0JHC0000078 CHIP INDUCTOR 5

L2330,3

1G0A221ZA0041 CHOKE COIL 2

L3001 J0HABB000004 LC FILTER 1

L3002 G1C100K00020 INDUCTION COIL 1

L3003 J0HABB000004 LC FILTER 1

L3004 J0HABB000003 LC FILTER 1

L3005 G1C100K00020 INDUCTION COIL 1(J)

L3005 J0HABB000003 LC FILTER 1(HA)

L3006 G1C100K00020 INDUCTION COIL 1(J)

L3006 ELJPA100KFB CHIP INDUCTOR 1(HA)

L3050 G1C100K00020 INDUCTION COIL 1

L3140 J0JHC0000078 CHIP INDUCTOR 1

L3507-

09 J0HABB000004 LC FILTER 3

L3510-

17 TLK212T256AL EMI FILTER 8

L3526 ELJPA100KFB CHIP INDUCTOR 1

L3555 ELJPA100KFB CHIP INDUCTOR 1

L4206 J0JHC0000096 CHIP INDUCTOR 1

L4301-

03 J0JHC0000078 CHIP INDUCTOR 3

L4501 G1C150KA0038 INDUCTION COIL 1

L4502-

05 J0JHC0000096 CHIP INDUCTOR 4

L4701-

04 J0JHC0000096 CHIP INDUCTOR 4

L4901 G1C3R3MA0175 INDUCTION COIL 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

L4902 G1C3R0MA0248 INDUCTION COIL 1

L4903 G1C2R2MA0248 INDUCTION COIL 1

L6001-

03 ELC11P0R6 CHOKE COIL 3

L6011,1

2ELC11P1R0 CHOKE COIL 2

L6061-

64 G0ZZ00002183 PEAKING COIL 4

L6081-

84 G0ZZ00002183 PEAKING COIL 4

L6101,0

2J0JJC0000011 CHIP INDUCTOR 2

L6103 G0ZZ00002183 PEAKING COIL 1

L6221 G0ZZ00002183 PEAKING COIL 1

L6241 G0ZZ00002183 PEAKING COIL 1

L6262 G0ZZ00002183 PEAKING COIL 1

L6271 G0ZZ00002183 PEAKING COIL 1

L6401-

03 ELC11P0R6 CHOKE COIL 3

L6411,1

2ELC11P1R0 CHOKE COIL 2

L6461-

64 G0ZZ00002183 PEAKING COIL 4

L6472 G0ZZ00002183 PEAKING COIL 1

L6481-

84 G0ZZ00002183 PEAKING COIL 4

L6591,9

2G0ZZ00002183 PEAKING COIL 2

L6602 G0ZZ00002183 PEAKING COIL 1

L8001 G1C100K00020 INDUCTION COIL 1

L8003 G1C100K00020 INDUCTION COIL 1

L8005 G1C100K00020 INDUCTION COIL 1

L8101-

08 J0JHC0000078 CHIP INDUCTOR 8

L9500 G1C150KA0038 INDUCTION COIL 1

L9501,0

2J0JHC0000078 CHIP INDUCTOR 2

L9800 G1C3R0MA0248 INDUCTION COIL 1

L9801,0

2G1C2R2MA0241 INDUCTION COIL 2

L9810 J0JHC0000045 CHIP INDUCTOR 1

P2 K1KA02A00626 2P CONNECTOR 1

P5 K1KA11AA0194 11P CONNECTOR 1

P9 K1KA03A00537 3P CONNECTOR 1

P10 K1KA06A00452 6P CONNECTOR 1

P11 K1KA02A00626 2P CONNECTOR 1

P12 K1KA10AA0194 10P CONNECTOR 1

P23 K1KA03AA0193 3P CONNECTOR 1

P25 K1KA20AA0178 20P CONNECTOR 1

PA4901 K5H4022A0023 FUSE 1

PA9800 K5H4022A0023 FUSE 1

PC6480 B3PBA0000223 IC 1

PC6701-

03 B3PBA0000397 IC 3

PC6704 K7GBZEE00007 PHOTO COUPLER 1

PC6705 B3PBA0000397 IC 1

PC6760 B3PBA0000223 IC 1

PC6801 B3PBA0000223 IC 1

PC6861 B3PBA0000223 IC 1

PC6871 B3PBA0000223 IC 1

PMM1 TMM7464-2 CLAMPER 1

PMM2,M3 TMME088 CLAMPER 2

PMM4-M6 TMM7464-2 CLAMPER 3

PMM7 TMME047 CLAMPER 1

PR401 K5Y502BA0001 FUSE 1

PR505 K5H5022A0023 FUSE 1

PR509 ERBSE0R50U FUSE 1

PR601 K5G312B00012 FUSE 1

Q401 B1CHND000004 TRANSISTOR 1

Q402 B1DFDD000019 TRANSISTOR 1

145

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

Q404 B1BCCF000022 TRANSISTOR 1

Q406 B1DEHQ000007 TRANSISTOR 1

Q407 B1HFCFA00021 TRANSISTOR 1

Q408,09 B1DHCD000034 TRANSISTOR 2

Q412,13 B1DEGQ000070 TRANSISTOR 2

Q418 2SD1819A TRANSISTOR 1

Q420-22 2SD1819A TRANSISTOR 3

Q434 B1CEJQ000003 ÇeÇdÇs 1

Q501,02 2SD1820A TRANSISTOR 2

Q505 B1CEJQ000002 ÇeÇdÇs 1

Q507 B1DAGQ000013 TRANSISTOR 1

Q508 B1HBCFA00033 TRANSISTOR 1

Q509 B1HDCEA00001 TRANSISTOR 1

Q510 B1DHBD000005 TRANSISTOR 1

Q512 B1CBGD000001 FET 1

Q517 B1HBCFA00033 TRANSISTOR 1

Q520 B1HBCFA00033 TRANSISTOR 1

Q521 B1CBGD000001 FET 1

Q524 B1CFGF000008 TRANSISTOR 1

Q525 B1CBGD000001 FET 1

Q527 B1CERL000005 TRANSISTOR 1

Q530 2SD1819A TRANSISTOR 1

Q535 2SD1819A TRANSISTOR 1

Q537 B1DFDD000019 TRANSISTOR 1

Q538 B1CBGD000001 FET 1

Q540 B1DHCD000034 TRANSISTOR 1

Q541 B1CBGD000001 FET 1

Q551 B1CBGD000001 FET 1

Q553 2SD1819A TRANSISTOR 1

Q554 B1DHCD000034 TRANSISTOR 1

Q555,56 B1DFGD000045 TRANSISTOR 2

Q557-59 2SD1819A TRANSISTOR 3

Q561 2SD1819A TRANSISTOR 1

Q563 B1CFGF000008 TRANSISTOR 1

Q564,65 2SB1218ARL TRANSISTOR 2

Q566 2SD1819A TRANSISTOR 1

Q568 B1CHGD000006 TRANSISTOR 1

Q569 B1CBGD000001 FET 1

Q2300 B1BBCF000028 TRANSISTOR 1

Q2331 B1BBCF000028 TRANSISTOR 1

Q2372 2SD601A TRANSISTOR 1

Q2510,1

12SD601A TRANSISTOR 2

Q2513 2SD601A TRANSISTOR 1

Q3001 2SB709A TRANSISTOR 1

Q3002 2SD601A TRANSISTOR 1

Q3004 2SD601A TRANSISTOR 1

Q3531,3

22SD601A TRANSISTOR 2

Q4701 B1CBHD000002 FET 1

Q4702-

07 2SD601A TRANSISTOR 6

Q4709,1

02SD601A TRANSISTOR 2

Q4712-

14 2SD601A TRANSISTOR 3

Q4801 B1CBHD000002 FET 1

Q4802,0

32SD601A TRANSISTOR 2

Q4901-

03 B1MBEDA00015 TRANSISTOR 3

Q4961,6

22SD601A TRANSISTOR 2

Q6001-

03 2PG0010000RP TRANSISTOR 3

Q6021-

23 2PG0010000RP TRANSISTOR 3

Q6041,4

22PG0010000RP TRANSISTOR 2

Q6051 2PG0010000RP TRANSISTOR 1

Q6101,0

2B1DFKM000002 TRANSISTOR 2

Q6111 2SK326800L FET 1

Q6112 B1DFKM000002 TRANSISTOR 1

Q6141 B1ABNF000006 TRANSISTOR 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

Q6142 B1ADNF000006 TRANSISTOR 1

Q6146 B1ABNF000006 TRANSISTOR 1

Q6147 B1ADNF000006 TRANSISTOR 1

Q6221 2SD1263A TRANSISTOR 1

Q6222 2SC1473A TRANSISTOR 1

Q6251 2SD601A TRANSISTOR 1

Q6401-

03 2PG0010000RP TRANSISTOR 3

Q6421-

23 2PG0020000RP TRANSISTOR 3

Q6441,4

22PG0010000RP TRANSISTOR 2

Q6451 2PG0020000RP TRANSISTOR 1

Q6471 B1CHGD000006 TRANSISTOR 1

Q6511 B1ABNF000006 TRANSISTOR 1

Q6512 B1ADNF000006 TRANSISTOR 1

Q6516 B1ABNF000006 TRANSISTOR 1

Q6517 B1ADNF000006 TRANSISTOR 1

Q6581 2SD601A TRANSISTOR 1

Q6601 B1DFES000003 TRANSISTOR 1

Q6602 2SD601A TRANSISTOR 1

Q6621,2

22SK399500L FET 2

Q6642-

44 2SK399500L FET 3

Q6646-

48 2SK399500L FET 3

Q6661 B1DEET000002 TRANSISTOR 1

Q6662 2SD601A TRANSISTOR 1

Q6663 2SD2185 TRANSISTOR 1

Q6671 B1DFES000003 TRANSISTOR 1

Q6680 B1ADNF000006 TRANSISTOR 1

Q6681,8

22SK389500L FET 2

Q6691 2SK620 FET 1

Q6742,4

32SD601A TRANSISTOR 2

Q6744 2SK620 FET 1

Q6762 B1ADNF000006 TRANSISTOR 1

Q6781 B1ABNF000006 TRANSISTOR 1

Q6782 B1ADNF000006 TRANSISTOR 1

Q6791 2SD601A TRANSISTOR 1

Q6801 B1BAEJ000014 TRANSISTOR 1

Q6802 2SB0709A TRANSISTOR 1

Q6803 2SD814A TRANSISTOR 1

Q6821 2SD1263A TRANSISTOR 1

Q6822 2SC3063 TRANSISTOR 1

Q6824 2SD601A TRANSISTOR 1

Q6841 2SD1263A TRANSISTOR 1

Q6842 2SC1473A TRANSISTOR 1

Q6921 2SK620 FET 1

Q8002 2SD601A TRANSISTOR 1

Q8010 2SD601A TRANSISTOR 1

Q8011 2SB709A TRANSISTOR 1

Q8012 2SD601A TRANSISTOR 1

Q8013 2SB709A TRANSISTOR 1

Q8019 2SD601A TRANSISTOR 1

Q8181-

84 B1CBHD000002 FET 4

Q8200-

02 2SD601A TRANSISTOR 3

Q9010 2SD601A TRANSISTOR 1

Q9044 2SD601A TRANSISTOR 1

Q9046 2SD601A TRANSISTOR 1

Q9050-

54 2SD601A TRANSISTOR 5

Q9055-

58 B1CBHD000002 FET 4

Q9300-

02 2SD601A TRANSISTOR 3

Q9800,0

1B1MBEDA00015 TRANSISTOR 2

Q9803 B1MBEDA00015 TRANSISTOR 1

Q9805,0

62SD601A TRANSISTOR 2

146

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R401 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R402 ERJ6GEYJ821 M 820 OHM,J,1/10W 1

R403 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R404 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R406 ERX12SJ2R2V M 2.2 OHM, J,1/2W 1

R407 ERJ8ENF4303 M 43KOHM, 1/8W 1

R410 D1F5100E0003 CHIP RESISTOR 1

R412 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R413 D1F5100E0003 CHIP RESISTOR 1

R414 ERJ8GEYJ153 M 15KOHM, J,1/8W 1

R415 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R416 ERJ6GEYJ305 M 3MOHM,J,1/10W 1

R417 ERJ6ENF4303 M 430KOHM, 1/10W 1

R418 ERJ6GEYJ220 M 22 OHM,J,1/10W 1

R419 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R420 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R421 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R422 ERJ6GEYJ334 M 330KOHM,J,1/10W 1

R423 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R424 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R425 ERJ6ENF3902 M 39KOHM, 1/10W 1

R426 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R427 ERJ8ENF4303 M 43KOHM, 1/8W 1

R428 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R429 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1

R430 ERJ6ENF4303 M 430KOHM, 1/10W 1

R431 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R432 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R433 ERJ6ENF1202 M 12KOHM, 1/10W 1

R434 ERJ8GEY0R00 M 0 OHM, 1/8W 1

R435 ERJ8ENF4303 M 43KOHM, 1/8W 1

R436 ERJ8GEYJ153 M 15KOHM, J,1/8W 1

R437 ERJ6GEYJ183 M 18KOHM,J,1/10W 1

R438 ERJ6GEYJ331 M 330 OHM,J,1/10W 1

R439 ERG12SJ120 M 12 OHM, J,1/2W 1

R440 ERJ8GEYJ474 M 470KOHM, J,1/8W 1

R441,42 ERJ6EKF6803 M 680KOHM, 1/10W 2

R443 EVMAASA00B23 CONTROL 2KOHMB 1

R444 ERJ6GEYJ123 M 12KOHM,J,1/10W 1

R448,49 D0XGR10J0003 M 0.1OHM,J, 5W 2

R450 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R451 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R452 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R453 ERJ6GEYJ305 M 3MOHM,J,1/10W 1

R454 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R455 ERJ6GEYJ123 M 12KOHM,J,1/10W 1

R456 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R458 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R459 ERJ6EKF6803 M 680KOHM, 1/10W 1

R461 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R462 ERJ6ENF4303 M 430KOHM, 1/10W 1

R463 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R464 ERJ6ENF3302 M 33KOHM, 1/10W 1

R465 ERJ6ENF5603 M 560KOHM, 1/10W 1

R467 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R471 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1

R472,73 ERJ6ENF5603 M 560KOHM, 1/10W 2

R475 ERJ6EKF6803 M 680KOHM, 1/10W 1

R476,77 ERJ14YJ181U M 181 OHM, J,1/4W 2

R478 ERJ8GEYJ220 M 22 OHM, J,1/8W 1

R480 ERJ6ENF4702 M 47KOHM, 1/10W 1

R482 ERJ8GEYJ220 M 22 OHM, J,1/8W 1

R483 D0BF225JA030 M 22MOHM,J,0.05W 1

R487 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R488 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R490,91 ERJ6GEYJ473 M 47KOHM,J,1/10W 2

R492 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R493 ERG12SJ120 M 12 OHM, J,1/2W 1

R494-96 ERJ6ENF5603 M 560KOHM, 1/10W 3

R497 ERJ6ENF1202 M 12KOHM, 1/10W 1

R498 ERG3SJ101 M 100 OHM, J, 3W 1

R499 D0BF394JA029 M 390KOHM,J,0.05W 1

R501 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R502,03 ERJ6GEYJ104 M 100KOHM,J,1/10W 2

R504 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R505 ERJ8GEYJ330 M 33 OHM, J,1/8W 1

R506 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R507 ERJ6GEYJ221 M 220 OHM,J,1/10W 1

R508 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R509-11 ERJ6GEYJ104 M 100KOHM,J,1/10W 3

R512 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R513,14 ERJ6GEYJ104 M 100KOHM,J,1/10W 2

R515,16 ERJ6GEYJ102 M 1KOHM,J,1/10W 2

R517 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R518 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R519,20 ERJ6GEYJ104 M 100KOHM,J,1/10W 2

R521,22 ERJ8GEYJ100 M 10 OHM, J,1/8W 2

R523 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R524 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R525 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R526,27 ERJ8GEYJ224 M 220KOHM, J,1/8W 2

R528 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1

R529 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R530 ERJ6RBD3302 M 33KOHM,F,1/10W 1

R532 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R533 ERJ6GEYJ163 M 16KOHM,J,1/10W 1

R534 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R535,36 ERJ6GEYJ102 M 1KOHM,J,1/10W 2

R537 ERJ6ENF1003 M 100KOHM, 1/10W 1

R538 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R539 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R540,41 ERJ6GEYJ105 M 1MOHM,J,1/10W 2

R542 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R543 ERJ6GEYJ153 M 15KOHM,J,1/10W 1

R544 ERJ6GEYJ331 M 330 OHM,J,1/10W 1

R545 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R546 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R547 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R548 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R549 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R550 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R551 ERJ6GEYJ334 M 330KOHM,J,1/10W 1

R552 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R553 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R554 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R555,56 ERJ6GEYJ105 M 1MOHM,J,1/10W 2

R557 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R558 ERJ6GEYJ474 M 470KOHM,J,1/10W 1

R559 ERJ6ENF8201 M 8.2KOHM, 1/10W 1

R560 ERJ6ENF9101 M 9.1KOHM, 1/10W 1

R561 ERJ6ENF5101 M 5.1KOHM, 1/10W 1

R562 ERJ6ENF4701 M 4.7KOHM, 1/10W 1

R563 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 1

R564 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R565,66 ERJ6GEYJ105 M 1MOHM,J,1/10W 2

R567,68 ERJ8ENF1004 M 100KOHM, 1/8W 2

R569 ERJ6ENF3302 M 33KOHM, 1/10W 1

R570 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R571 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R572,73 ERJ8ENF3900 M 390 OHM, 1/8W 2

R574 ERJ6GEYJ331 M 330 OHM,J,1/10W 1

R575 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R576 ERJ6ENF1202 M 12KOHM, 1/10W 1

R577,78 ERJ6GEYJ473 M 47KOHM,J,1/10W 2

R579 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R580,81 ERJ6GEYJ473 M 47KOHM,J,1/10W 2

R582 ERJ6ENF1002 M 10KOHM, 1/10W 1

R583 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R584 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R585 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R586 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R587 ERJ8RQJR22V M0.22 OHM, 1/8W 1

R588 ERJ8ENF3900 M 390 OHM, 1/8W 1

R589,90 ERJ8GEYJ123 M 12KOHM, J,1/8W 2

R591 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R592 ERJ6ENF3001 M 3KOHM, 1/10W 1

147

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R593 ERJ6ENF5601 M 5.6KOHM, 1/10W 1

R594 ERJ6GEYJ151 M 150 OHM,J,1/10W 1

R595 ERJ8GEYJ222 M 2.2KOHM, J,1/8W 1

R596 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R597,98 ERJ6ENF3302 M 33KOHM, 1/10W 2

R599,00 ERJ8ENF3900 M 390 OHM, 1/8W 2

R601 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R602 ERJ6ENF3301 M 3.3KOHM, 1/10W 1

R603 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R606 ERJ6ENF1201 M 1.2KOHM, 1/10W 1

R607 ERJ6ENF2202 M 2.2KOHM, 1/10W 1

R608 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1

R609 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R610,11 ERJ6GEYJ473 M 47KOHM,J,1/10W 2

R612 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R613 ERJ6ENF2402 M 24KOHM, 1/10W 1

R614 ERJ6ENF3301 M 3.3KOHM, 1/10W 1

R615 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R616,17 ERJ6GEYJ103 M 10KOHM,J,1/10W 2

R618 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R619 ERJ8RQFR68 M 0.68OHM, J,1/8W 1

R620 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R621 ERJ8GEYJ123 M 12KOHM, J,1/8W 1

R622 ERJ8ENF1503 M 15KOHM, 1/8W 1

R624 ERX2SJR22 M0.22 OHM, J, 2W 1

R626 ERJ8ENF1503 M 15KOHM, 1/8W 1

R627 ERJ6GEYJ822 M 8.2KOHM,J,1/10W 1

R628 EVMAASA00B33 CONTROL 3KOHMB 1

R629 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R630 ERJ8GEYJ472 M 4.7KOHM, J,1/8W 1

R631 ERJ8GEYJ333 M 33KOHM, J,1/8W 1

R632 ERJ6GEYJ221 M 220 OHM,J,1/10W 1

R633 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R634 ERJ8RQFR68 M 0.68OHM, J,1/8W 1

R636 ERJ8ENF1503 M 15KOHM, 1/8W 1

R637 ERJ8RQFR68 M 0.68OHM, J,1/8W 1

R638 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R639,40 ERJ8RQFR68 M 0.68OHM, J,1/8W 2

R641 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R642-44 ERJ8RQFR68 M 0.68OHM, J,1/8W 3

R645 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R646,47 ERJ8GEYJ223 M 22KOHM, J,1/8W 2

R648 ERJ8ENF1503 M 15KOHM, 1/8W 1

R649 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R650 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R651,52 ERJ6ENF1002 M 10KOHM, 1/10W 2

R653 ERJ6ENF3302 M 33KOHM, 1/10W 1

R654 ERJ8GEYJ220 M 22 OHM, J,1/8W 1

R655 ERJ8RQJR22V M0.22 OHM, 1/8W 1

R656 ERJ6ENF4702 M 47KOHM, 1/10W 1

R657 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R658 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R659 ERJ6ENF3002 M 30KOHM, 1/10W 1

R660 ERJ6ENF1202 M 12KOHM, 1/10W 1

R661 EVMEASA00B53 CONTROL 5KOHMB

0.3W 1

R662 ERJ6ENF1503 M 150KOHM, 1/10W 1

R664 ERJ6ENF9101 M 9.1KOHM, 1/10W 1

R665 EVMEASA00B23 CONTROL 2KOHMB

0.3W 1

R666 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R667,68 ERJ8GEY0R00 M 0 OHM, 1/8W 2

R669 ERJ6ENF1303 M 130KOHM, 1/10W 1

R670 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R671 EVMEASA00B14 CONTROL 10KOHMB

0.3W 1

R672,73 ERJ6GEYJ102 M 1KOHM,J,1/10W 2

R674 ERJ8GEYJ333 M 33KOHM, J,1/8W 1

R675 ERJ6ENF2202 M 2.2KOHM, 1/10W 1

R676 ERJ8GEYJ333 M 33KOHM, J,1/8W 1

R677 ERJ6GEYJ474 M 470KOHM,J,1/10W 1

R678 ERJ8GEY0R00 M 0 OHM, 1/8W 1

R679,80 ERJ8RQJR22V M0.22 OHM, 1/8W 2

R682 ERJ6ENF2002 M 20KOHM, 1/10W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R683 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R684 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R685,86 ERJ6GEYJ102 M 1KOHM,J,1/10W 2

R687 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R688,89 ERJ6GEYJ102 M 1KOHM,J,1/10W 2

R690 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1

R691 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R692 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R693 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R695 ERJ6ENF1602 M 16KOHM, 1/10W 1

R696 ERJ8GEYJ100 M 10 OHM, J,1/8W 1

R697 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1

R698 ERJ8RQJR22V M0.22 OHM, 1/8W 1

R699-08 ERJ8GEYJ105 M 1MOHM, J,1/8W 10

R711 ERJ8RQJR22V M0.22 OHM, 1/8W 1

R712 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1

R713 ERJ8GEYJ472 M 4.7KOHM, J,1/8W 1

R714 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R715 ERDS2TJ101 C 100 OHM, J,1/4W 1

R802 ERJ3GEYJ333 M 33KOHM,J,1/16W 1

R803 ERJ3EKF6802 M 68KOHM, 1/16W 1

R804 ERJ3GEYJ823 M 82KOHM,J,1/16W 1

R805 ERJ3EKF8452 M84.5KOHM, 1/16W 1

R806 ERJ3EKF1052 M10.5KOHM, 1/16W 1

R810 ERJ3GEYJ333 M 33KOHM,J,1/16W 1

R811 ERJ3EKF6802 M 68KOHM, 1/16W 1

R812 ERJ3GEYJ683 M 68KOHM,J,1/16W 1

R813 ERJ3EKF4222 M42.2KOHM, 1/16W 1

R814 ERJ3EKF1052 M10.5KOHM, 1/16W 1

R818 ERJ3GEYJ333 M 33KOHM,J,1/16W 1

R819 ERJ3EKF6802 M 68KOHM, 1/16W 1

R820 ERJ3GEYJ333 M 33KOHM,J,1/16W 1

R821 ERJ3EKF2432 M24.3KOHM, 1/16W 1

R822 ERJ3EKF1052 M10.5KOHM, 1/16W 1

R825-27 ERJ3GEYJ822 M 8.2KOHM,J,1/16W 3

R828 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R829 ERJ6ENF1001 M 1KOHM, 1/10W 1

R830 ERJ6ENF8451 M8.45KOHM, 1/10W 1

R838 ERJ12YJ330 M 33 OHM,J, 1/2W 1

R840 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1

R921 ERJ6RBD3302 M 33KOHM,F,1/10W 1

R922 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R931 ERJ6ENF3302 M 33KOHM, 1/10W 1

R932 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R933 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R935 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R936 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R937 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R938 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R939,40 ERJ6GEYJ102 M 1KOHM,J,1/10W 2

R943 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R945 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R946 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R947 ERJ8GEYJ331 M 330 OHM, J,1/8W 1

R950 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R951,52 ERJ8GEYJ100 M 10 OHM, J,1/8W 2

R953 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R955 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R956 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R2351-

54 ERJ6GEYJ103 M 10KOHM,J,1/10W 4

R2355-

60 ERDS1FJ2R2 C 2.2 OHM, J,1/2W 6

R2361,6

2ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R2364 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R2366 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R2367,6

8ERJ3GEYJ560 M 56 OHM,J,1/16W 2

R2383 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R2384 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R2385 ERJ6GEYJ153 M 15KOHM,J,1/10W 1

R2386 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

148

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R2387,8

8ERJ6GEY0R00 M 0 OHM, 1/10W 2

R2389-

92 ERJ6GEYJ103 M 10KOHM,J,1/10W 4

R2393 ERJ6GEYJ220 M 22 OHM,J,1/10W 1

R2394-

96 ERJ6GEYJ103 M 10KOHM,J,1/10W 3

R2397 ERJ6GEYJ512 M 5.1KOHM,J,1/10W 1

R2398 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R2399,0

0ERJ6GEYJ220 M 22 OHM,J,1/10W 2

R2404-

07 ERJ6GEYJ103 M 10KOHM,J,1/10W 4

R2408-

11 ERJ6GEY0R00 M 0 OHM, 1/10W 4

R2412 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1

R2413 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R2414,1

5ERJ3GEYJ122 M 1.2KOHM,J,1/16W 2

R2416 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R2417 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1

R2418,1

9ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R2420 ERJ3GEYJ153 M 15KOHM,J,1/16W 1

R2421,2

2ERJ3GEYJ273 M 27KOHM,J,1/16W 2

R2423 ERJ3GEYJ153 M 15KOHM,J,1/16W 1

R2424,2

5ERJ3GEY0R00 M 0 OHM, 1/16W 2

R2426 ERJ3GEYJ471 M 470 OHM,J,1/16W 1

R2516 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 1

R2517 ERJ6GEYJ470 M 47 OHM,J,1/10W 1

R2520 ERJ3GEYJ224 M 220KOHM,J,1/16W 1

R2524 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R2525 ERJ3EKF9100 M 910 OHM, 1/16W 1

R2530 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R2531 ERJ3EKF2700 M 270 OHM, 1/16W 1

R2542 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R2556,5

7ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2

R2558 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R3001 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R3002 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R3003 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R3004 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R3005 ERJ6GEYJ184 M 180KOHM,J,1/10W 1

R3006,0

2ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R3007,0

8ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R3014-

17 ERJ3GEYJ103 M 10KOHM,J,1/16W 4

R3018,1

9ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R3022 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R3023 ERJ3GEYJ101 M 100 OHM,J,1/16W 1(J)

R3023 ERJ3GEYJ102 M 1KOHM,J,1/16W 1(HA)

R3024,2

5ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R3026 ERJ3GEYJ101 M 100 OHM,J,1/16W 1(HA)

R3026 ERJ3GEYJ103 M 10KOHM,J,1/16W 1(J)

R3027-

29 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R3030-

33 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R3034,3

5ERJ3GEYJ331 M 330 OHM,J,1/16W 2

R3036 ERJ3GEYJ331 M 330 OHM,J,1/16W 1(J)

R3036 ERJ3GEYJ103 M 10KOHM,J,1/16W 1(HA)

R3037 ERJ3GEY0R00 M 0 OHM, 1/16W 1(J)

R3037 ERJ3GEYJ103 M 10KOHM,J,1/16W 1(HA)

R3038 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R3039,4

0ERJ3GEYJ331 M 330 OHM,J,1/16W 2

R3041 ERJ3GEYJ331 M 330 OHM,J,1/16W 1(J)

R3041 ERJ6GEY0R00 M 0 OHM, 1/10W 1(HA)

R3042 ERJ3GEY0R00 M 0 OHM, 1/16W 1(J)

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R3042 ERJ6GEY0R00 M 0 OHM, 1/10W 1(HA)

R3043 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R3044-

47 ERJ3GEYJ103 M 10KOHM,J,1/16W 4

R3048 ERJ3GEYJ334 M 330KOHM,J,1/16W 1

R3049 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R3050 ERJ3GEYJ560 M 56 OHM,J,1/16W 1

R3051 ERJ3GEYJ330 M 33 OHM,J,1/16W 1

R3053,5

4ERJ3GEYJ560 M 56 OHM,J,1/16W 2

R3057,5

8ERJ3GEYJ560 M 56 OHM,J,1/16W 2

R3059 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R3060 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R3061 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R3062 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R3063 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R3064-

69 ERJ6GEYJ560 M 56 OHM,J,1/10W 6

R3070-

75 ERJ6ENF75R0 M 75 OHM, 1/10W 6

R3076-

81 ERJ6GEYJ560 M 56 OHM,J,1/10W 6

R3082 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R3083-

87 ERJ3GEY0R00 M 0 OHM, 1/16W 5

R3088-

93 ERJ6ENF75R0 M 75 OHM, 1/10W 6

R3094 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R3095,9

6ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2

R3101-

06 ERJ6ENF1800 M 180 OHM, 1/10W 6

R3107,0

8ERJ6GEYJ560 M 56 OHM,J,1/10W 2

R3110 ERJ6ENF4701 M 4.7KOHM, 1/10W 1

R3111 ERJ6ENF1501 M 1.5KOHM, 1/10W 1

R3116 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R3117 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R3118 ERJ6ENF8200 M 820 OHM, 1/10W 1

R3125 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R3126 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R3134 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R3140,4

1ERJ3GEYJ473 M 47KOHM,J,1/16W 2

R3143,4

4ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R3150,5

1ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R3160,6

1ERJ3GEY0R00 M 0 OHM, 1/16W 2

R3163 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R3188-

90 ERJ6ENF39R0 M 39 OHM, 1/10W 3

R3195,9

6ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R3197,9

8ERJ3GEYJ123 M 12KOHM,J,1/16W 2

R3210,1

1ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R3212-

15 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 4

R3216-

19 ERJ6GEYJ3R3 M 3.3KOHM,J,1/10W 4

R3230,3

1ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R3400 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R3508,0

9ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2

R3510,1

1ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R3529,3

0ERJ6GEYJ184 M 180KOHM,J,1/10W 2

R3547,4

8ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R3585,8

6ERJ6GEYJ560 M 56 OHM,J,1/10W 2

R3589 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

149

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R3590 ERJ6GEYJ560 M 56 OHM,J,1/10W 1

R3591-

93 ERJ6GEY0R00 M 0 OHM, 1/10W 3

R3653 ERJ6GEYJ153 M 15KOHM,J,1/10W 1

R3654 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R3655 ERJ6GEYJ153 M 15KOHM,J,1/10W 1

R3656 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R3663,6

4ERJ6GEYJ102 M 1KOHM,J,1/10W 2

R3668 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R3672 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R3751 ERJ6GEYF822 M 8.2KOHM,F,1/10W 1

R3752 ERJ6GEYF222 M 2.2KOHM,F,1/10W 1

R3753 ERJ6GEYF302 M 3.0KOHM,F,1/10W 1

R3754 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R3756 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R3758 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1

R3759-

64 ERJ6GEY0R00 M 0 OHM, 1/10W 6

R3766,6

7ERJ6GEY0R00 M 0 OHM, 1/10W 2

R3776,7

7ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R3778 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R3790,9

1ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R4001-

03 D1HG1008A002 NETWORK RESISTER 3

R4004 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4005 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4006 ERJ3EKF6801 M 6.8KOHM, 1/16W 1

R4007 ERJ6ENF39R0 M 39 OHM, 1/10W 1

R4008 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4009 ERJ6ENF39R0 M 39 OHM, 1/10W 1

R4010 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4011 ERJ6ENF39R0 M 39 OHM, 1/10W 1

R4012-

14 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4016-

19 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R4020 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4021 ERJ3GEYJ100 M 10 OHM,J,1/16W 1

R4023 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4024 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4025 ERJ6ENF1502 M 15KOHM, 1/10W 1

R4026 ERJ6ENF5102 M 51KOHM, 1/10W 1

R4027 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4028 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4035-

38 ERJ3GEYJ101 M 100 OHM,J,1/16W 4

R4041,4

2ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4139 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4142 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R4144 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R4148 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R4171 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R4201 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4211-

20 ERJ3GEYJ101 M 100 OHM,J,1/16W 10

R4221,2

2ERJ3GEYJ470 M 47 OHM,J,1/16W 2

R4224 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4226 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4228 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4240,4

1ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4242,4

3ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4244 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4245 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4249 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4250-

52 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4256,5

7ERJ3GEY0R00 M 0 OHM, 1/16W 2

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R4260,6

1ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4263,6

4ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4271-

73 D1HG8208A002 NETWORK RESISTER 3

R4274,7

5ERJ3GEYJ470 M 47 OHM,J,1/16W 2

R4276 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4277-

79 D1HG1218A002 NETWORK RESISTER 3

R4280,8

1ERJ3GEYJ470 M 47 OHM,J,1/16W 2

R4282 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4312,1

3ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4314 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4316 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4318,1

9ERJ3GEYJ223 M 22KOHM,J,1/16W 2

R4321 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R4324 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4325-

27 EXB38VR000 RESISTOR ARRAY 3

R4502 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4503 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4506,0

7ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4510-

12 ERJ3GEYJ470 M 47 OHM,J,1/16W 3

R4514,1

5ERJ3GEYJ470 M 47 OHM,J,1/16W 2

R4518 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4520 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4522,2

3ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4525,2

6ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4528 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4530,3

1ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4533 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4536,3

7ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4539-

41 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4544-

47 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R4549 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4554 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R4555-

58 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R4559,6

0ERJ3GEYJ102 M 1KOHM,J,1/16W 2

R4564-

67 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R4568,6

9D1HG1038A002 NETWORK RESISTER 2

R4570-

72 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4573 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4574 EXB2HV680J RESISTOR ARRAY 1

R4575,7

6ERJ3GEYJ680 M 68 OHM,J,1/16W 2

R4577 EXB2HV680J RESISTOR ARRAY 1

R4578,7

9ERJ6ENF1001 M 1KOHM, 1/10W 2

R4580 ERJ6ENF1101 M 1.1KOHM, 1/10W 1

R4581 ERJ6ENF3161 M3.16KOHM, 1/10W 1

R4582,8

3ERJ3GEYJ680 M 68 OHM,J,1/16W 2

R4584 EXB2HV680J RESISTOR ARRAY 1

R4585,8

6ERJ3GEYJ680 M 68 OHM,J,1/16W 2

R4587-

89 D1HG33080001 NETWORK RESISTER 3

R4590,9

1ERJ3GEYJ680 M 68 OHM,J,1/16W 2

R4592 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

150

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R4595 ERJ3GEYJ680 M 68 OHM,J,1/16W 1

R4596 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4618-

21 D1HG33080001 NETWORK RESISTER 4

R4622 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4626,2

7ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4631 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4640 ERJ3GEYJ121 M 120 OHM,J,1/16W 1

R4657,5

8ERJ6ENF1001 M 1KOHM, 1/10W 2

R4671 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4701 EXB38V103J RESISTOR ARRAY 1

R4702 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4703 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4704 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4706 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1

R4707 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4708 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4709 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4710,1

1ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4712,1

3D1HG1008A002 NETWORK RESISTER 2

R4715 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4716 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4717 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4718,1

9ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4722 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4723 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4724 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4726 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4727 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4728 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4729,3

0ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R4732 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4734 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4735 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4737 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4738 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4740,4

1D1HG1008A002 NETWORK RESISTER 2

R4742,4

3ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R4745 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4746 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4747 EXB38VR000 RESISTOR ARRAY 1

R4748-

52 ERJ3GEY0R00 M 0 OHM, 1/16W 5

R4753 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4754 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1

R4755 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4756 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1

R4757 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4758 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4759 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4760 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4761-

63 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4764,6

5ERJ3GEYJ470 M 47 OHM,J,1/16W 2

R4766,6

7EXB2HV470JV RESISTOR ARRAY 2

R4768 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R4769 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4770 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R4771 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4772 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4773 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4774 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4775 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4777 ERJ3GEYJ393 M 39KOHM,J,1/16W 1

R4779 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R4780,8

1ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R4783 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4786 EXB38V103J RESISTOR ARRAY 1

R4788 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4790,9

1ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R4792 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4793 ERJ3GEYJ123 M 12KOHM,J,1/16W 1

R4795 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4796 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1

R4804 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1

R4806 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4808 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1

R4812,1

3ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4814 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4815 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4817 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4818,1

9ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R4820 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4821 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4822,2

3ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4824 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R4825 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4826 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R4827 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4828 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4829 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4830 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4831 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4832 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4833 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R4834 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4835 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4836 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R4837 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4838 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4839 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R4840 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4841,4

2ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2

R4843 ERJ3GEYJ331 M 330 OHM,J,1/16W 1

R4844 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4845 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1

R4846 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1

R4847,4

8ERJ3GEYJ102 M 1KOHM,J,1/16W 2

R4849 ERJ3GEYJ123 M 12KOHM,J,1/16W 1

R4850 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4851-

53 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R4855 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4858 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4859 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1

R4860 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4863 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4864 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1

R4865,6

6ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4868 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1

R4869 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4870 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4872 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4873,7

4ERJ3GEYJ223 M 22KOHM,J,1/16W 2

R4876 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4877 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4879 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4880 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4881 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4883 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1

R4884 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

151

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R4886 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1

R4887 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4888 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4891 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4892 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4893 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4894,9

5ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R4900 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4902 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4903 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4904 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4906 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4908 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1

R4909 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4910 ERJ3EKF6202 M 62KOHM, 1/16W 1

R4911-

21 ERJ3GEYJ101 M 100 OHM,J,1/16W 11

R4922 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4924 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4925-

27 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4930 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4931 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4932 ERJ3EKF3902 M 39KOHM, 1/16W 1

R4933 ERJ3EKF3901 M 3.9KOHM, 1/16W 1

R4934 ERJ3EKF3002 M 30KOHM, 1/16W 1

R4935 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R4936 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4938 ERJ3EKF1302 M 13KOHM, 1/16W 1

R4939 ERJ3EKF2402 M 24KOHM, 1/16W 1

R4940 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4941 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4942,4

3ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R4944 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4947 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4950 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R4951 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4952 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4953 ERJ3EKF4702 M 47KOHM, 1/16W 1

R4954 ERJ3EKF7501 M 7.5KOHM, 1/16W 1

R4955 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4957 ERJ3EKF3602 M 36KOHM, 1/16W 1

R4958 ERJ3EKF8202 M 82KOHM, 1/16W 1

R4959 ERJ3EKF2202 M 22KOHM, 1/16W 1

R4960 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4961,6

2ERJ6GEY0R00 M 0 OHM, 1/10W 2

R4963 ERJ3EKF4702 M 47KOHM, 1/16W 1

R4964 ERJ3EKF7501 M 7.5KOHM, 1/16W 1

R4965 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R4966,6

7ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4969 ERJ3EKF3602 M 36KOHM, 1/16W 1

R4970 ERJ3EKF6802 M 68KOHM, 1/16W 1

R4973 ERJ3EKF2402 M 24KOHM, 1/16W 1

R4974 ERJ3EKF2401 M 2.4KOHM, 1/16W 1

R4975 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4981 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4986 ERJ3GEYJ183 M 18KOHM,J,1/16W 1

R4987 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4991,9

2ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4994,9

5ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R6001-

06 ERJ14YJ150U M 15 OHM, J,1/4W 6

R6020 ERG2FJS101D M 100 OHM, J, 2W 1

R6021 ERJ14YJ150U M 15 OHM, J,1/4W 1

R6022 ERG2FJS101D M 100 OHM, J, 2W 1

R6023-

27 ERJ14YJ150U M 15 OHM, J,1/4W 5

R6031 ERJ14YJ204 M 200KOHM, J,1/4W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R6041-

44 ERJ14YJ150U M 15 OHM, J,1/4W 4

R6051,5

2ERJ14YJ150U M 15 OHM, J,1/4W 2

R6061,6

2ERJ6GEYJ224 M 220KOHM,J,1/10W 2

R6101-

04 ERJ6GEYJ101 M 100 OHM,J,1/10W 4

R6111,1

2D0GD470JA036 M 47 OHM,J,0.25W 2

R6113 ERJ14YJ224 M 220KOHM, J,1/4W 1

R6131,3

2ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R6133,3

4ERJ6GEYJ151 M 150 OHM,J,1/10W 2

R6135,3

6D0GD100JA036 M 10 OHM,J,0.25W 2

R6141,4

2ERJ6GEYJ103 M 10KOHM,J,1/10W 2

R6146,4

7ERJ6GEYJ103 M 10KOHM,J,1/10W 2

R6151,5

2ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R6153,5

4ERJ6GEYJ151 M 150 OHM,J,1/10W 2

R6155 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6157,5

8D0GF1R0JA047 M 1.0 OHM,J, 0.33W 2

R6160 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 1

R6166 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6173 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6174 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R6191-

94 ERJ6GEYJ101 M 100 OHM,J,1/10W 4

R6195 D0GD104JA036 M 100KOHM,J,0.25W 1

R6196 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6213 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6214 D0GD151JA036 M 150 OHM,J,0.25W 1

R6218 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R6222 ERG1FJS103D M 10KOHM, J, 1W 1

R6223 ERG2FJS123D M 12KOHM, J, 2W 1

R6225-

27 ERJ6ENF1692 M16.9KOHM, 1/10W 3

R6229 ERJ6ENF1692 M16.9KOHM, 1/10W 1

R6232 ERJ6ENF1201 M 1.2KOHM, 1/10W 1

R6233-

35 ERJ6GEYJ273 M 27KOHM,J,1/10W 3

R6236 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1

R6241 EXB38V470J RESISTOR ARRAY 1

R6242 EXB38V472J RESISTOR ARRAY 1

R6243 ERJ6GEYJ470 M 47 OHM,J,1/10W 1

R6244 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6245 ERJ6GEYJ470 M 47 OHM,J,1/10W 1

R6246 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6251 D0GD103JA036 M 10KOHM,J,0.25W 1

R6252,5

3ERJ6ENF3902 M 39KOHM, 1/10W 2

R6254 ERJ6ENF7501 M 7.5KOHM, 1/10W 1

R6255,5

6ERJ6GEYJ152 M 1.5KOHM,J,1/10W 2

R6257 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6258 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R6261 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6401-

06 ERJ14YJ150U M 15 OHM, J,1/4W 6

R6421-

26 ERJ14YJ150U M 15 OHM, J,1/4W 6

R6441-

44 ERJ14YJ150U M 15 OHM, J,1/4W 4

R6451,5

2ERJ14YJ150U M 15 OHM, J,1/4W 2

R6465 ERJ14YJ204 M 200KOHM, J,1/4W 1

R6471 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1

R6472 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R6473 ERJ6GEYJ561 M 560 OHM,J,1/10W 1

R6474 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

152

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R6475,7

6ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2

R6477 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R6478 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6479 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6501,0

2ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R6503 D0GD100JA036 M 10 OHM,J,0.25W 1

R6504,0

5ERJ6GEYJ151 M 150 OHM,J,1/10W 2

R6506 D0GD100JA036 M 10 OHM,J,0.25W 1

R6507,0

8D0GF1R0JA047 M 1.0 OHM,J, 0.33W 2

R6511,1

2ERJ6GEYJ103 M 10KOHM,J,1/10W 2

R6516,1

7ERJ6GEYJ103 M 10KOHM,J,1/10W 2

R6521,2

2ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R6523,2

4ERJ6GEYJ151 M 150 OHM,J,1/10W 2

R6525 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6526 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6533 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6534 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R6561-

64 EXB38V470J RESISTOR ARRAY 4

R6565-

68 EXB38V472J RESISTOR ARRAY 4

R6581 D0GD103JA036 M 10KOHM,J,0.25W 1

R6582,8

3ERJ6ENF3902 M 39KOHM, 1/10W 2

R6584 ERJ6ENF7501 M 7.5KOHM, 1/10W 1

R6585,8

6ERJ6GEYJ152 M 1.5KOHM,J,1/10W 2

R6587 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R6588 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6590 ERJ6GEYJ221 M 220 OHM,J,1/10W 1

R6591 EXB38V472J RESISTOR ARRAY 1

R6592 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6603 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6604 D0GD151JA036 M 150 OHM,J,0.25W 1

R6605 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6606 ERJ6ENF2741 M2.74KOHM, 1/10W 1

R6608,0

9D0GF102JA047 M 1.0 KOHM,J,0.33W 2

R6610 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6611 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R6612 ERJ6GEYJ470 M 47 OHM,J,1/10W 1

R6613 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R6614,1

5D0GF243JA047 M 24 KOHM,J,0.33W 2

R6616 ERJ6ENF1502 M 15KOHM, 1/10W 1

R6617 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R6618 ERJ6ENF1202 M 12KOHM, 1/10W 1

R6619 ERJ6ENF1501 M 1.5KOHM, 1/10W 1

R6620 D0D28R2JA021 M 8.2 OHM,J,2W 1

R6621,2

2ERJ6GEYJ221 M 220 OHM,J,1/10W 2

R6642-

44 ERJ6GEYJ100 M 10 OHM,J,1/10W 3

R6646-

48 ERJ6GEYJ100 M 10 OHM,J,1/10W 3

R6658 D0D1101JA009 M 100 OHM,J,1W 1

R6659,6

0ERJ6GEYJ224 M 220KOHM,J,1/10W 2

R6661 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6662 ERJ6ENF1201 M 1.2KOHM, 1/10W 1

R6663 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6664 D0GF222JA047 M 2.2 KOHM,J,0.33W 1

R6665 ERJ14YJ470 M 47 OHM,J, 1/2W 1

R6666 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6667,6

8ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2

R6671 ERJ6GEYJ470 M 47 OHM,J,1/10W 1

R6672 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6673 D0GD5R6JA059 M 5.6 OHM,J,0.25W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R6681,8

2ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R6683 D0GD151JA036 M 150 OHM,J,0.25W 1

R6684 ERJ6GEYJ100 M 10 OHM,J,1/10W 1

R6685 ERJ6GEYJ471 M 470 OHM,J,1/10W 1

R6686 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6687 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R6688 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6689 ERJ6GEYJ100 M 10 OHM,J,1/10W 1

R6690 ERJ6GEYJ151 M 150 OHM,J,1/10W 1

R6691 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6696,9

7D0D32R2JA020 M 2.2 OHM,J,3W 2

R6700-

08 ERJ6GEYJ471 M 470 OHM,J,1/10W 9

R6710-

18 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 9

R6721,2

2EXB38V220J RESISTOR ARRAY 2

R6723 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R6742 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6743 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R6744 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6745 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6746,4

7D0GD103JA036 M 10KOHM,J,0.25W 2

R6755 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6756-

58 D0GD101JA059 M 100 OHM,J,0.25W 3

R6759 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6760 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1

R6761 ERJ6GEYJ100 M 10 OHM,J,1/10W 1

R6762 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6775,7

6ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R6777 D0GD151JA036 M 150 OHM,J,0.25W 1

R6781 ERJ6GEYJ470 M 47 OHM,J,1/10W 1

R6782 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6791 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R6792 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6793 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6806 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1

R6807 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1

R6808 ERG2FJS330D M33OHM,J,2W 1

R6809 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6810,1

1ERJ6GEYJ433 M 43KOHM,J,1/10W 2

R6812 ERJ6ENF2743 M 274KOHM, 1/10W 1

R6813 ERJ6ENF1001 M 1KOHM, 1/10W 1

R6814 ERJ6ENF6981 M6.98KOHM, 1/10W 1

R6815 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R6816 ERJ6ENF1432 M14.3KOHM, 1/10W 1

R6817 ERJ6ENF4701 M 4.7KOHM, 1/10W 1

R6821 D0D2221JA021 M 220 OHM,J,2W 1

R6822,2

3ERJ12YJ104U M 100KOHM, 1/2W 2

R6824 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1

R6825 ERJ6ENF2003 M 200KOHM, 1/10W 1

R6826 ERJ6ENF2703 M 270KOHM, 1/10W 1

R6827 ERJ6ENF1432 M14.3KOHM, 1/10W 1

R6828 ERJ6ENF5231 M5.23KOHM, 1/10W 1

R6829,3

0ERJ6GEYJ154 M 150KOHM,J,1/10W 2

R6831 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6833 ERJ6ENF5602 M 56KOHM, 1/10W 1

R6834 ERJ6ENF5102 M 51KOHM, 1/10W 1

R6835 ERJ6ENF5602 M 56KOHM, 1/10W 1

R6836 ERJ6ENF5102 M 51KOHM, 1/10W 1

R6837 ERJ6ENF4702 M 47KOHM, 1/10W 1

R6839 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6841 ERJ12YJ103 M 10KOHM,J, 1/2W 1

R6842 ERJ14YJ103 M 10KOHM, J,1/4W 1

R6843 ERJ6GEYJ563 M 56KOHM,J,1/10W 1

R6844 D0D2101JA021 M 100 OHM,J,2W 1

153

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R6845-

47 ERJ6GEYJ563 M 56KOHM,J,1/10W 3

R6848 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6849 D1BD5902A028 M 59KOHM, 1/10W 1

R6850 ERJ6ENF6202 M 62KOHM, 1/10W 1

R6851 ERJ6ENF1501 M 1.5KOHM, 1/10W 1

R6852 ERJ6ENF2491 M2.49KOHM, 1/10W 1

R6853 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6860 D0D28R2JA021 M 8.2 OHM,J,2W 1

R6861 ERJ6ENF3902 M 39KOHM, 1/10W 1

R6862,6

3ERJ6ENF4702 M 47KOHM, 1/10W 2

R6864 ERJ6ENF9101 M 9.1KOHM, 1/10W 1

R6865 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1

R6866 ERJ6ENF1501 M 1.5KOHM, 1/10W 1

R6867 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1

R6868 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R6869 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6871-

73 ERJ6ENF3902 M 39KOHM, 1/10W 3

R6874 ERJ6ENF9101 M 9.1KOHM, 1/10W 1

R6875 ERJ6ENF3301 M 3.3KOHM, 1/10W 1

R6876 ERJ6ENF1201 M 1.2KOHM, 1/10W 1

R6877 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1

R6878 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R6879 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6886-

88 ERJ6GEYJ224 M 220KOHM,J,1/10W 3

R6901 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6902-

04 ERJ3GEYJ220 M 22 OHM,J,1/16W 3

R6908,0

9ERJ6GEYJ221 M 220 OHM,J,1/10W 2

R6916 ERJ6GEYJ221 M 220 OHM,J,1/10W 1

R6921,2

2ERJ6GEYJ104 M 100KOHM,J,1/10W 2

R6923 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6931-

34 ERJ6GEYJ103 M 10KOHM,J,1/10W 4

R6935,3

6ERJ8GEYJ224 M 220KOHM, J,1/8W 2

R6951 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6952-

54 ERJ3GEYJ220 M 22 OHM,J,1/16W 3

R6958,5

9ERJ6GEYJ221 M 220 OHM,J,1/10W 2

R6966 ERJ6GEYJ221 M 220 OHM,J,1/10W 1

R6981-

84 ERJ6GEYJ103 M 10KOHM,J,1/10W 4

R6985,8

6ERJ8GEYJ224 M 220KOHM, J,1/8W 2

R7111 D0GD472JA059 M 4.7KOHM,J,0.25W 1

R7112,1

3ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R7114 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R7115 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R7116,1

7ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R7118 ERJ6GEYJ224 M 220KOHM,J,1/10W 1

R7120-

24 EXB38V470J RESISTOR ARRAY 5

R7127 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7129-

32 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4

R7133 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7136 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7138-

41 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4

R7142 EXB38V102J RESISTOR ARRAY 1

R7143 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7146 EXB38V470J RESISTOR ARRAY 1

R7147-

52 EXB38V102J RESISTOR ARRAY 6

R7154 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7156-

59 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4

R7160 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R7163-

65 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R7169 EXB38V470J RESISTOR ARRAY 1

R7201-

07 EXB38V470J RESISTOR ARRAY 7

R7208-

10 ERJ3GEYJ470 M 47 OHM,J,1/16W 3

R7212-

15 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4

R7216 EXB38V470J RESISTOR ARRAY 1

R7217 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7219 ERJ6GEYJ224 M 220KOHM,J,1/10W 1

R7221 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7223-

26 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4

R7227 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7229 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R7231 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7232-

35 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4

R7236 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7237-

42 EXB38V102J RESISTOR ARRAY 6

R7245 EXB38V102J RESISTOR ARRAY 1

R7246-

49 ERJ3GEYJ220 M 22 OHM,J,1/16W 4

R7250,5

1EXB38V470J RESISTOR ARRAY 2

R7255,5

6ERJ3GEY0R00 M 0 OHM, 1/16W 2

R7257 EXB38V102J RESISTOR ARRAY 1

R7259 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7261-

64 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4

R7265 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7268 D0GD472JA059 M 4.7KOHM,J,0.25W 1

R7269 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R7270 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R8001-

04 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R8005 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R8009-

12 ERJ3GEYJ271 M 270 OHM,J,1/16W 4

R8017,1

8ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2

R8021 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1

R8025 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R8026 ERJ3GEYJ331 M 330 OHM,J,1/16W 1

R8029 ERJ6ENF3001 M 3KOHM, 1/10W 1

R8031 ERJ6ENF2201 M 2.2KOHM, 1/10W 1

R8033 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R8035 ERJ6ENF3300 M 330 OHM, 1/10W 1

R8036 ERJ6ENF1500 M 150 OHM, 1/10W 1

R8037 ERJ6ENF4701 M 4.7KOHM, 1/10W 1

R8039 ERJ6ENF4701 M 4.7KOHM, 1/10W 1

R8041 ERJ3GEYJ183 M 18KOHM,J,1/16W 1

R8045 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1

R8047 ERJ3GEYJ271 M 270 OHM,J,1/16W 1

R8048 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1

R8050 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1

R8051 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R8054 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R8055,5

6ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R8057 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R8060 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R8065 D0GB911JA002 M 910 OHM,J,1/16W 1

R8067 D0GB911JA002 M 910 OHM,J,1/16W 1

R8069 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R8072 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R8089 ERJ3GEYJ181 M 180 OHM,J,1/16W 1

R8093 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R8097,9

8ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R8100 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R8112 ERJ3GEY0R00 M 0 OHM, 1/16W 1

154

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R8117-

20 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R8121,2

2ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2

R8124-

27 ERJ6GEYJ101 M 100 OHM,J,1/10W 4

R8129 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R8180 ERJ8GEYJ820V M 82 OHM, J,1/8W 1

R8181 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R8182 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R8183,8

4ERJ3GEY0R00 M 0 OHM, 1/16W 2

R8185,8

6ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2

R8187,8

8ERJ6GEYJ560 M 56 OHM,J,1/10W 2

R8189,9

0ERJ6GEY0R00 M 0 OHM, 1/10W 2

R8200 ERJ3GEYJ563 M 56KOHM,J,1/16W 1

R8201 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R8202 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R8203 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R8204 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R8205 ERJ3GEYJ753 M 75KOHM,J,1/16W 1

R8206 ERJ3GEYJ393 M 39KOHM,J,1/16W 1

R8207 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9060-

67 ERJ3GEYJ101 M 100 OHM,J,1/16W 8

R9070 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R9074 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9076 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9097,9

8ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9099 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9100,0

1ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9102 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9105 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R9106 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9107 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1

R9108,0

9ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9110 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9111 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R9113 ERJ3GEYJ100 M 10 OHM,J,1/16W 1

R9120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9127 ERJ3GEYJ683 M 68KOHM,J,1/16W 1

R9129 ERJ3GEYJ683 M 68KOHM,J,1/16W 1

R9131-

33 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3

R9134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1

R9140 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R9141-

45 ERJ3GEYJ101 M 100 OHM,J,1/16W 5

R9148 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R9150,5

1ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R9152,5

3ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2

R9154,5

5ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2

R9156-

59 ERJ3GEYJ103 M 10KOHM,J,1/16W 4

R9160,6

1ERJ3GEY0R00 M 0 OHM, 1/16W 2

R9164-

66 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R9167,6

8ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R9169 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9170-

72 ERJ3GEYJ393 M 39KOHM,J,1/16W 3

R9173-

75 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R9177 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R9178 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9180 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9181-

84 ERJ3GEYJ102 M 1KOHM,J,1/16W 4

R9185,8

6ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R9187,8

8ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2

R9189,9

0ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9192 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9193 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9194 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9196 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9199 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R9203 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R9205 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R9206,0

7ERJ3GEYJ102 M 1KOHM,J,1/16W 2

R9215 ERJ3GEYJ123 M 12KOHM,J,1/16W 1

R9217-

22 ERJ3GEYJ103 M 10KOHM,J,1/16W 6

R9223 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R9225 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R9236 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9237 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9240 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9317 ERJ3GEYJ391 M 390 OHM,J,1/16W 1

R9348 D1HG8208A002 NETWORK RESISTER 1

R9349 EXB38V820J RESISTOR ARRAY 1

R9350,5

1ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R9352 EXB38V820J RESISTOR ARRAY 1

R9353,5

4D1HG8208A002 NETWORK RESISTER 2

R9355,5

6ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2

R9357-

59 D1HG8208A002 NETWORK RESISTER 3

R9360 EXB38V820J RESISTOR ARRAY 1

R9361,6

2ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R9363 EXB2HV470JV RESISTOR ARRAY 1

R9366 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R9367 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9368 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9369 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R9370 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9371 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9379 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9380 ERJ3GEYJ560 M 56 OHM,J,1/16W 1

R9382 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9390 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9391 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9394 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9395 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R9501,0

2ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9503 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R9506 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R9507 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9511-

13 ERJ3GEYJ470 M 47 OHM,J,1/16W 3

R9516 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9518 ERJ3GEYJ561 M 560 OHM,J,1/16W 1

R9523 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9525 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9526 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9527,2

8EXB2HV272JV RESISTOR ARRAY 2

R9529,3

0ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9531-

33 ERJ3GEYJ470 M 47 OHM,J,1/16W 3

R9534 EXB38V470J RESISTOR ARRAY 1

155

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R9535,3

6ERJ3GEYJ470 M 47 OHM,J,1/16W 2

R9537 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9540 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9543,4

4ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9545 ERJ3GEYJ304V M 300KOHM,J,1/16W 1

R9548-

50 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R9552 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9555 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9800 ERJ3EKF1302 M 13KOHM, 1/16W 1

R9801 ERJ3EKF2402 M 24KOHM, 1/16W 1

R9802 ERJ3EKF6202 M 62KOHM, 1/16W 1

R9803 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9804 ERJ3EKF2402 M 24KOHM, 1/16W 1

R9805 ERJ3EKF3002 M 30KOHM, 1/16W 1

R9806 ERJ3EKF3902 M 39KOHM, 1/16W 1

R9807 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9808 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9810 ERJ3EKF3001 M 3KOHM, 1/16W 1

R9813 ERJ3EKF2401 M 2.4KOHM, 1/16W 1

R9814 ERJ3EKF6802 M 68KOHM, 1/16W 1

R9815 ERJ3EKF2202 M 22KOHM, 1/16W 1

R9816 ERJ3EKF8202 M 82KOHM, 1/16W 1

R9821 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9823-

27 ERJ3GEYJ101 M 100 OHM,J,1/16W 5

R9828 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9830,3

1ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9838,3

9ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R9840 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R9841 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9842-

44 ERJ3GEYJ101 M 100 OHM,J,1/16W 3

R9845 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1

R9846,4

7EXB2HV272JV RESISTOR ARRAY 2

R9848,4

9EXB2HV470JV RESISTOR ARRAY 2

R9850 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R9854 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9859 EXB38V101J RESISTOR ARRAY 1

R9861-

63 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R9868 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9869-

71 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R9872 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9878 ERJ3EKF3902 M 39KOHM, 1/16W 1

R9879 ERJ3EKF2002 M 20KOHM, 1/16W 1

R9880 ERJ3EKF3602 M 36KOHM, 1/16W 1

R9883 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9884 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9891 ERJ3EKF4702 M 47KOHM, 1/16W 1

R9892 ERJ3EKF1502 M 15KOHM, 1/16W 1

R9893 ERJ3EKF3602 M 36KOHM, 1/16W 1

R9896 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9897 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9903 EXB2HV470JV RESISTOR ARRAY 1

R9904 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R9905 ERJ3GEYJ330 M 33 OHM,J,1/16W 1

R9906 EXB38V470J RESISTOR ARRAY 1

R9907 ERJ3GEYJ151 M 150 OHM,J,1/16W 1

R9917,1

8ERJ3GEY0R00 M 0 OHM, 1/16W 2

R9919,2

0ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2

R9922 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9929 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9936-

39 ERJ3EKF1001 M 1KOHM, 1/16W 4

R9940 ERJ3GEYJ330 M 33 OHM,J,1/16W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R9941,4

2ERJ3GEYJ470 M 47 OHM,J,1/16W 2

R9943-

51 EXB38V470J RESISTOR ARRAY 9

R9952-

55 ERJ3GEYJ470 M 47 OHM,J,1/16W 4

R9956 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

RL402,0

3TSEH8011 RELAY 2

RM2501 PNA4701M05TV REMOCO RECEIVER 1

RTL TNPA3762AH CIRCUIT BOARD K 1

RTL TNPA3763AE CIRCUIT BOARD S 1

RTL TNPA3792AB CIRCUIT BOARD C1 1

RTL TNPA3793AB CIRCUIT BOARD C2 1

RTL TNPA3794AE CIRCUIT BOARD SC 1

RTL TNPA3797AB CIRCUIT BOARD SD 1

RTL TNPA3795AE CIRCUIT BOARD SS 1

RTL TNPA3796AB CIRCUIT BOARD SU 1

RTL TNPA3848AE CIRCUIT BOARD GK 1

RTL TNPA3896AB CIRCUIT BOARD J 1

RTL TNPA3912AL CIRCUIT BOARD P 1

RTL TXNHA10RBS CIRCUIT BOARD HA 1

RTL TZTNP01ZPTU CIRCUIT BOARD DA 1

RTL TZTNP01ZQTJ CIRCUIT BOARD D 1

RTL TZTNP02ZQTU CIRCUIT BOARD HX 1

S1 K1KA03BA0061 3P CONNECTOR 1

S401,02 J0LT00000009 SWITCH 2

SC2 K1KA02A00626 2P CONNECTOR 1

SC20 K1KA20AA0008 20P CONNECTOR 1

SC23 K1KA03AA0193 3P CONNECTOR 1

SC30 K1KA08AA0192 8P CONNECTOR 1

SC41,42 K1ML80B00001 80P CONNECTOR 2

SC45,46 K1KA09A00239 9P CONNECTOR 2

SD1-D3 K1MN80B00012 80P CONNECTOR 3

SD46 K1KB09A00045 9P CONNECTOR 1

SS11 K1KA02A00626 2P CONNECTOR 1

SS12 K1KA10AA0194 10P CONNECTOR 1

SS23 K1KA12AA0194 12P CONNECTOR 1

SS34 K1KA03AA0193 3P CONNECTOR 1

SS41A-

4A K1MN13B00020 13P CONNECTOR 4

SSMM1 TMME260 CLAMPER 1

SU1-U3 K1MN80B00012 80P CONNECTOR 3

SU45 K1KB09A00045 9P CONNECTOR 1

SW2500 K0F162B00002 SWITCH 1

SW3753-

57 EVQ11G05R SWITCH 5

T401 G4D4A0000120 SWITCHING

TRANSFORMER 1

T402 G4D1A0000098 SWITCHING

TRANSFORMER 1

T404 G4D4A0000118 SWITCHING

TRANSFORMER 1

T407 ETQ11K5AZ CHOKE TRANS 1

T410 ETS25AF115AH SWITCHING TRANS 1

T601 G4D2A0000264 SWITCHING TRANS 1

T6602 ETS22AE2G9AD SWITCHING TRANS 1

VR6000 EVMEASA00B14 CONTROL 10KOHMB

0.3W 1

VR6600 EVMEASA00B23 CONTROL 2KOHMB

0.3W 1

VR6602 EVMEASA00B14 CONTROL 10KOHMB

0.3W 1

156

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

W9,10 J0JKB0000037 FLAT CORE 2

X501 H2B400400021 CRYSTAL 1

X2301 H0J184500026 CRYSTAL 1

X4501 H0J200500038 CRYSTAL 1

X4701 H0J100500030 CRYSTAL 1

X8181 H0J327200114 CRYSTAL 1

X9000 H2D200500011 CRYSTAL 1

X9200 H0J200500038 CRYSTAL 1

Z1,Z2 K4ZZ01000206 TERMINAL 2

Z420 TMM23417 CLAMPER 1

Z450-53 EYF52BCY FUSE HOLDER 4

ZA3001-

08 K4CD01000013 TERMINAL 8

ZA4001,

02 K4CD01000011 TERMINAL 2

ZA6001-

03 K4CD01000011 TERMINAL 3

ZA6401-

03 K4CD01000011 TERMINAL 3

ZA7101-

03 K4CD01000013 TERMINAL 3

ZA7201-

04 K4CD01000013 TERMINAL 4

ZA9001 K4CD01000011 TERMINAL 1

ZN401 ERZVGED621T2 VARISTOR 1

ZN402 D4EAD7510001 VARISTOR 1

ZN404 ERZVGAD681T2 VARISTOR 1

ZN405,0

6ERZVA7D511 VARISTOR 2

157

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

F401.40

2K5D802BNA005 TIME LAG FUSE HIGH 2

F410 K5G102B00020 FUSE 1

C11 K1MN55BA0076 55P CONNECTOR 1

C12 K1MN20BA0231 20P CONNECTOR 1

C21 K1MN55BA0076 55P CONNECTOR 1

C22 K1MN20BA0231 20P CONNECTOR 1

C23 K1KA12BA0107 12P CONNECTOR 1

C402 F1J1C1050011 C 1UF, Z, 50V 1

C404 F0CAF105A021 C 1UF, 250V 1

C407 EEUEB2W220B E 22UF, 450V 1

C408 ECJ2XB1H102K C 1000PF, K, 50V 1

C409 F0CAF225A021 C 22UF, 250V 1

C410 ECJ2XB1H103K C 0.01UF, K, 50V 1

C413 ECJ2XB1H104K C 0.1UF, K, 50V 1

C414 ECQU2A473ML P 0.047UF, M,250V 1

C421 F1J1C1050011 C 1UF, Z, 50V 1

C422 ECJ2XB1H103K C 0.01UF, K, 50V 1

C423 ECJ2XB1H472K C 4700PF, K, 50V 1

C425 ECJ2XB1H103K C 0.01UF, K, 50V 1

C426 ECJ2XC1H471J C 470PF, J, 50V 1

C427 F1J1C1050011 C 1UF, Z, 50V 1

C428 ECJ2XC1H221J C 220PF, J, 50V 1

C429 F1E2J4730001 C 0.047PF, , 600V 1

C431 ECJ2XB1H102K C 1000PF, K, 50V 1

C432 F1J1C1050011 C 1UF, Z, 50V 1

C433 ECJ3XB1E104K C 0.1UF, K, 25V 1

C434 F1J1C1050011 C 1UF, Z, 50V 1

C436 F1J1C1050011 C 1UF, Z, 50V 1

C440 ECA1HM100 E 10UF, 50V 1

C443,44 F1A3A102A040 C 1000PF, J, 1KV 2

C445 F1J1C1050011 C 1UF, Z, 50V 1

C446 F2B2W3910005 C 390UF, 450V 1

C450 ECJ2XB1H103K C 0.01UF, K, 50V 1

C451 F1A3A101A040 C 100PF, J, 1KV 1

C457 ECWH12333RHV P 0.013UF,J,1.2KV 1

C460,61 F1A3A331A039 E 330UF, 1KV 2

C462 ECJ3YB1E105K C 1UF, K, 25V 1

C463 ECJ2XC1H220J C 22UF, J, 50V 1

C467 ECKCNA221KB7 C 220PF, M, 1

C468 ECJ2XB1H103K C 0.01UF, K, 50V 1

C469 ECKCNA221KB7 C 220PF, M, 1

C470 F0CAF105A021 C 1UF, 250V 1

C473,74 ECKCNA101KB7 C 100PF 2

C476 ECKCNA101KB7 C 100PF 1

C478 ECKCNA101KB7 C 100PF 1

C493 ECA1HM470 E 47UF, 50V 1

C494 F2A2E1R00008 E 1.0UF, 250V 1

C497 ECA1HM470 E 47UF, 50V 1

C501,02 ECJ2XB1H103K C 0.01UF, K, 50V 2

C503 ECJ2XC1H471J C 470PF, J, 50V 1

C504 F1J1C1050011 C 1UF, Z, 50V 1

C505 ECJ2XB1H102K C 1000PF, K, 50V 1

C506,07 ECJ2XB1H103K C 0.01UF, K, 50V 2

C508 ECJ2XC1H471J C 470PF, J, 50V 1

C509 ECA1EHG101 E 100UF, 25V 1

C510 ECJ2XB1H104K C 0.1UF, K, 50V 1

C511 ECJ2XB1H102K C 1000PF, K, 50V 1

C512-14 ECJ2XC1H471J C 470PF, J, 50V 3

C515 F2A1A1220011 E 1200UF, 10V 1

C516 ECJ2XB1C474K C 0.47UF, Z, 16V 1

C517 F2A1E221A096 E 220UF, 25V 1

C518 ECJ2XB1H104K C 0.1UF, K, 50V 1

C519 F1J1C1050011 C 1UF, Z, 50V 1

C523 ECJ3YB1E105K C 1UF, K, 25V 1

C526 ECJ2XB1H223K C 0.022UF, K, 50V 1

C527 ECJ3YB1E475K C 4.7UF, K, 25V 1

C528,29 F1J1C1050011 C 1UF, Z, 50V 2

C530 ECJ2VB1H333K C 0.033UF, K, 50V 1

C531 ECJ3YB1E105K C 1UF, K, 25V 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C533 ECJ2XB1H103K C 0.01UF, K, 50V 1

C534 ECJ2XC1H471J C 470PF, J, 50V 1

C546,47 ECJ2XB1H102K C 1000PF, K, 50V 2

C550 ECJ2XC1H331J C 330PF, J, 50V 1

C551,52 ECJ2XB1H104K C 0.1UF, K, 50V 2

C554 F1J1C1050011 C1UF,Z,50V 1

C555 F2A2C101A120 E 1000UF, 160V 1

C556,57 EEUFC1E152 E 1500UF, 25V 2

C558 F2A1E4710065 E 470UF, 25V 1

C559 F2A1A1220011 E 1200UF, 10V 1

C562 ECJ2XB1H223K C 0.022UF, K, 50V 1

C571 ECJ2XC1H330J C 33PF, J, 50V 1

C574 ECJ2XB1H104K C 0.1UF, K, 50V 1

C577 F2A2A330A022 E 33UF, 100V 1

C581 ECJ2XB1H223K C 0.022UF, K, 50V 1

C583 ECJ2XB1H102K C 1000PF, K, 50V 1

C584,85 ECJ2XB1H223K C 0.022UF, K, 50V 2

C587 ECJ2XB1H332K C 3300PF, K, 50V 1

C601 ECJ2XB1H103K C 0.01UF, K, 50V 1

C603 ECJ2FB1E105K C1UF,K,25V 1

C604,05 F2A2D1510008 E 150UF, 200V 2

C607 F1J1C1050011 C1UF,Z,50V 1

C608 ECJ2XB1H103K C 0.01UF, K, 50V 1

C610 F1J1C1050011 C1UF,Z,50V 1

C611 F2B2D1720005 E 1700UF,Å@ 200V 1

C612,13 ECJ2XB1H103K C 0.01UF, K, 50V 2

C615 F2B2D1720005 E 1700UF,Å@ 200V 1

C616 F1A3A102A040 C 1000PF, J, 1KV 1

C619 ECJ2XB1H104K C 0.1UF, K, 50V 1

C620 ECJ2XB1H103K C 0.01UF, K, 50V 1

C623 ECA1HM100 E 10UF, 50V 1

C624 ECJ2XB1H103K C 0.01UF, K, 50V 1

C625 ECA1HM100 E 10UF, 50V 1

C626 ECJ2XB1H103K C 0.01UF, K, 50V 1

C627 ECJ2XB1H102K C 1000PF, K, 50V 1

C629-31 ECJ2XB1H103K C 0.01UF, K, 50V 3

C632 ECJ2XC1H331J C 330PF, J, 50V 1

C634 ECJ2XB1H102K C 1000PF, K, 50V 1

C635 ECJ2XB1H103K C 0.01UF, K, 50V 1

C638,39 ECJ2XB1H103K C 0.01UF, K, 50V 2

C640 ECJ2XB1H104K C 0.1UF, K, 50V 1

C641 ECJ2XB1H102K C 1000PF, K, 50V 1

C643 ECA1HM470 E 47UF, 50V 1

C650 ECJ2XB1H104K C 0.1UF, K, 50V 1

C653 ECJ2XB1H102K C 1000PF, K, 50V 1

C654 ECJ3YB1E105K C1UF,K,25V 1

C655,56 ECJ3YB1E225K C 2.2UF, K, 25V 2

C657 ECJ2XB1H102K C 1000PF, K, 50V 1

C658 ECJ3YB1E105K C1UF,K,25V 1

C659 ECJ2XB1H103K C 0.01UF, K, 50V 1

C660 ECJ2FB1C225K C 22UF, K, 16V 1

C661,62 ECJ2XB1H103K C 0.01UF, K, 50V 2

C801 F2H1V221A004 E 220UF, 35V 1

C802 F2H1E471A010 E 470UF, 25V 1

C804 ECJ1VB1H472K C 4700PF, K, 50V 1

C805 ECJ1VB1C105K C 0.01UF, K, 16V 1

C806 ECJ1VB1E104K C 0.10UF, K, 25V 1

C807 ECJ3YF1E225Z C 2.2UF, Z, 25V 1

C808 ECJ1VB1E104K C 0.10UF, K, 25V 1

C809 ECJ3YB1C225K C 0.022UF, K, 16V 1

C811 EEVHB1C471 E 470UF, 16V 1

C812 F2H1E471A010 E 470UF, 25V 1

C814 ECJ1VB1H472K C 4700PF, K, 50V 1

C815 ECJ1VB1C105K C 0.01UF, K, 16V 1

C816 ECJ1VB1E104K C 0.10UF, K, 25V 1

C817 ECJ3YF1E225Z C 2.2UF, Z, 25V 1

C818 ECJ1VB1E104K C 0.10UF, K, 25V 1

C819 ECJ3YB1C225K C 0.022UF, K, 16V 1

C821 EEVHB1C471 E 470UF, 16V 1

C822 F2H1E471A010 E 470UF, 25V 1

C823 ECJ1XC1H470J C 47PF, J, 50V 1

17.3. TH-42PG9W Electrical Replacement Parts List

158

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C824 ECJ1VB1H103K C 0.001UF, K, 50V 1

C825 ECJ1VB1C105K C 0.01UF, K, 16V 1

C827 ECJ3YF1E225Z C 2.2UF, Z, 25V 1

C828 ECJ1VB1E104K C 0.10UF, K, 25V 1

C829 ECJ3YB1E106M C 10 UF, K, 25V 1

C831 EEEHB1C470P C 47PF, J, 16V 1

C832 ECJ1VB1E104K C 0.10UF, K, 25V 1

C833 ECJ1VB1H103K C 0.001UF, K, 50V 1

C834,35 EEEHB1C470P C 47PF, J, 16V 2

C837 F1J0J1060004 C 0.010UF, K, 16V 1

C838 ECJ3YB1C225K C 0.022UF, K, 16V 1

C839 F1J0J1060004 C 0.010UF, K, 16V 1

C840 ECJ3YB1C225K C 0.022UF, K, 16V 1

C841 F1J0J1060004 C 0.010UF, K, 16V 1

C843 ECJ3YB1E106M C 10 UF, K, 25V 1

C844 ECJ3YB1C225K C 0.022UF, K, 16V 1

C845 ECJ3YB1E106M C 10 UF, K, 25V 1

C846 ECJ3YB1C225K C 0.022UF, K, 16V 1

C847 F1J0J1060004 C 0.010UF, K, 16V 1

C848 ECJ3YB1C225K C 0.022UF, K, 16V 1

C855-57 ECJ1VB1H103K C 0.001UF, K, 50V 3

C867 ECJ1VB1E104K C 0.10UF, K, 25V 1

C869 ECJ3YB1C225K C 0.022UF, K, 16V 1

C2350,5

1ECJ3YB1C225K C 0.022UF, K, 16V 2

C2352,5

3EEEHB1H100P C 10PF, J, 50V 2

C2354,5

5EEEHB1V470P E 47UF, 35V 2

C2356,5

7ECJ1XB1H102K C 1000UF, Z, 50V 2

C2358,5

9EEEHP1V2R2R E 2.2UF, 35V 2

C2360,6

1ECJ1XC1H102J C 1000PF, J, 50V 2

C2362,6

3EEEHB1E471UP C 470PF, J, 25V 2

C2364,6

5ECQV1H104JM P 0.1UF, J, 50V 2

C2366,6

7ECJ3YB1E225K C 2.2UF, K, 25V 2

C2368,6

9ECQV1H104JM P 0.1UF, J, 50V 2

C2370,7

1EEEHB1H100P C 10PF, J, 50V 2

C2373-

75 ECJ1VB1E104K C 0.10UF, K, 25V 3

C2376,7

7ECJ1XC1H150J C 15PF, J, 50V 2

C2378-

82 ECJ1VB1E104K C 0.10UF, K, 25V 5

C2383 EEEHB1A101P C 100PF, J, 10V 1

C2384 ECJ1VB1E104K C 0.10UF, K, 25V 1

C2385 EEEHB1A101P C 100PF, J, 10V 1

C2386,8

7EEEHP1H1R0R C 1.0PF, J, 50V 2

C2388 ECJ1VB1E104K C 0.10UF, K, 25V 1

C2389 EEEHB1A101P C 100PF, J, 10V 1

C2390 EEEHB1H100P C 10PF, J, 50V 1

C2391 ECJ1VB1E104K C 0.10UF, K, 25V 1

C2392,9

3ECJ2VF1C105Z C 1UF, Z, 16V 2

C2394 EEEHB1H100P C 10PF, J, 50V 1

C2395,9

6ECJ1VB1E104K C 0.10UF, K, 25V 2

C2397 EEEHB1A101P C 100PF, J, 10V 1

C2398-

03 ECJ1VB1E104K C 0.10UF, K, 25V 6

C2404 ECJ1VB1H103K C 0.001UF, K, 50V 1

C2405,0

6ECJ1VB0J225K C 2.2UF, K, 6.3V 2

C2407,0

8F1J0J1060004 C 0.010UF, K, 16V 2

C2409,1

0ECJ1XC1H181J C 180PF, J, 50V 2

C2411 ECJ3YB1E106M C 10 UF, K, 25V 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C2412,1

3ECJ1VB1E104K C 0.10UF, K, 25V 2

C2420 ECJ1VB1E104K C 0.10UF, K, 25V 1

C2425,2

6ECJ1VB1E104K C 0.10UF, K, 25V 2

C2512 ECJ3XB0J106M C 10UF, M,6.3V 1

C2515 ECJ1VB1H103K C 0.001UF, K, 50V 1

C2521 ECJ1VB1H103K C 0.001UF, K, 50V 1

C3001 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C3004 EEEHB1C470P C 47PF, J, 16V 1

C3007,0

8ECJ2VF1C105Z C 1UF, Z, 16V 2

C3009,1

0ECJ1VB1E104K C 0.10UF, K, 25V 2

C3011 ECJ1VB1E104K C 0.10UF, K, 25V 1(J)

C3011 EEEHB1C470P C 47PF, J, 16V 1(HA)

C3012 ECJ1VF1H103Z C 0.010UF, Z, 50V 1(J)

C3012 ECJ2VF1C104Z C 0.1UF, Z, 16V 1(HA)

C3013-

17 ECJ1VF1H103Z C 0.010UF, Z, 50V 5

C3018 EEEHB1C470P C 47PF, J, 16V 1

C3019 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C3020 ECJ3YB1C225K C 0.022UF, K, 16V 1

C3021 ECJ3YB1C225K C 0.022UF, K, 16V 1(J)

C3021 ECJ1VF1A105Z C 1UF, Z, 10V 1(HA)

C3022 ECJ2VF1C104Z C 0.1UF, Z, 16V 1(HA)

C3022 ECJ3YB1C225K C 0.022UF, K, 16V 1(J)

C3023-

31 ECJ3YB1C225K C 0.022UF, K, 16V 9

C3032 ECJ1VB1C105K C 0.01UF, K, 16V 1

C3033-

35 ECJ1XF1C104Z C 0.1UF, Z, 16V 3

C3040,4

1ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C3042,4

3EEEHB1C100R C 10PF, J, 16V 2

C3051-

58 ECJ1VF1C105Z C 1UF, Z, 16V 8

C3101 ECJ3YB1C225K C 0.022UF, K, 16V 1

C3103 ECJ3YB1C225K C 0.022UF, K, 16V 1

C3105-

08 ECJ1XF1C104Z C 0.1UF, Z, 16V 4

C3110 ECJ3YB1C225K C 0.022UF, K, 16V 1

C3111,1

2ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C3113 EEEHB1C470P C 47PF, J, 16V 1

C3114 ECJ3XF1C475Z C 4.7UF, Z, 16V 1

C3115 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C3134-

36 F2H0J102A010 C 1000UF, 6.3V 3

C3143,4

4ECJ3YB1C225K C 0.022UF, K, 16V 2

C3146 ECJ3YB1C225K C 0.022UF, K, 16V 1

C3150-

52 ECJ1XF1C104Z C 0.1UF, Z, 16V 3

C3200 ECJ2VF1C105Z C 1UF, Z, 16V 1

C3201-

03 F1J0J1060004 C 0.010UF, K, 16V 3

C3404 ECJ2VF1C104Z C 0.1UF, Z, 16V 1

C3405 EEEHB1C470P C 47PF, J, 16V 1

C3409 ECJ2VF1C104Z C 0.1UF, Z, 16V 1

C3523 EEEHB1C470P C 47PF, J, 16V 1

C3524 ECJ2VF1H103Z C 0.010UF, Z, 50V 1

C3550 ECJ2VF1H103Z C 0.010UF, Z, 50V 1

C3551 EEEHB1C470P C 47PF, J, 16V 1

C3561,6

2ECJ2VF1C105Z C 1UF, Z, 16V 2

C3750 ECJ2XC1H102K C 1000PF, K, 50V 1

C4001,0

2ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4003 ECJ1VB1H822K C 8200PF, K, 50V 1

C4004 ECJ1VB1C823K C 0.082UF, K, 16V 1

C4006 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4007-

09 ECJ2XB1E104K C 0.1UF, K, 25V 3

C4010 ECJ1XB1H102K C 1000UF, Z, 50V 1

159

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C4011-

13 ECJ1XF1C104Z C 0.1UF, Z, 16V 3

C4016 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4017 EEEHB1C470P C 47PF, J, 16V 1

C4018,1

9ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4020,2

1F1J0J106A013 C 0.010UF, K, 16V 2

C4022 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4024 F1J0J106A013 C 0.010UF, K, 16V 1

C4031,3

2ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4201 EEEHB1C470P C 47PF, J, 16V 1

C4202-

13 ECJ1XB1C104K C 0.1UF, Z, 16V 12

C4219-

22 F1J0J106A013 C 0.010UF, K, 16V 4

C4225 F1J0J106A013 C 0.010UF, K, 16V 1

C4227 F1J0J106A013 C 0.010UF, K, 16V 1

C4301 F2G0J470A019 E 47UF 6.3V 1

C4302 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4303,0

4ECJ1XB1H102K C 1000UF, Z, 50V 2

C4305,0

6ECJ1XB1C104K C 0.1UF, Z, 16V 2

C4307 ECJ1XB1H102K C 1000UF, Z, 50V 1

C4308 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4309 ECJ1VB1A105K C 0.01UF, Z, 50V 1

C4310 ECJ3YB0J226M C 22 UF, K, 25V 1

C4311 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4312 ECJ1VB1A105K C 0.01UF, Z, 50V 1

C4313 ECJ1XB1H102K C 1000UF, Z, 50V 1

C4502 F1J0J1060004 C 0.010UF, K, 16V 1

C4503,0

4ECJ1XB1C104K C 0.1UF, Z, 16V 2

C4505 ECJ1XC1H150J C 15PF, J, 50V 1

C4506 ECJ1VC1H080C C 8PF, C, 50V 1

C4541,4

2ECJ1XC1H080D C 8PF, D, 50V 2

C4543 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4544 EEEHB0G221P C 220PF, J, 4V 1

C4545 F1J0J106A013 C 0.010UF, K, 16V 1

C4546,4

7ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4548,4

9F1J0J106A013 C 0.010UF, K, 16V 2

C4550,5

1ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4552 F1J0J106A013 C 0.010UF, K, 16V 1

C4553-

97 ECJ1XF1C104Z C 0.1UF, Z, 16V 45

C4598 EEEHB0G221P C 220PF, J, 4V 1

C4599-

14 ECJ1XB1C104K C 0.1UF, Z, 16V 16

C4629 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4701 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4703 F1J0J106A013 C 0.010UF, K, 16V 1

C4704-

19 ECJ1XB1C104K C 0.1UF, Z, 16V 16

C4733 ECJ1XF1H102Z C 1000PF, Z, 50V 1

C4744 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4749,5

0ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4751,5

2ECJ1XC1H150J C 15PF, J, 50V 2

C4753 ECJ1XF1H102Z C 1000PF, Z, 50V 1

C4754 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4803 ECJ1XC1H101J C 100PF, J, 50V 1

C4804 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4861 TCUY1C105ZFN C 1UF, 16V 1

C4862 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4863 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4864 ECJ1XC1H101J C 100PF, J, 50V 1

C4865 ECJ2FF1C475Z C 0.047UF, Z, 16V 1

C4866 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4871 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C4881,8

2ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4884,8

5ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4886 ECJ1XC1H101J C 100PF, J, 50V 1

C4887 ECJ1VB1E104K C 0.10UF, K, 25V 1

C4901,0

2ECJ3YB1E106M C 10 UF, K, 25V 2

C4903 ECJ1VB1E104K C 0.10UF, K, 25V 1

C4904 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4905 ECJ1VB1H822K C 8200PF, K, 50V 1

C4906 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4907 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4908 ECJ1XB1H102K C 1000UF, Z, 50V 1

C4909 ECJ1VB1E104K C 0.10UF, K, 25V 1

C4910 ECJ3YB1E106M C 10 UF, K, 25V 1

C4911 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C4912 ECJ3YB1E106M C 10 UF, K, 25V 1

C4913 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4914 EEEHB1C470P C 47PF, J, 16V 1

C4915 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4917 EEEHB1C470P C 47PF, J, 16V 1

C4918 ECJ3YB1E106M C 10 UF, K, 25V 1

C4919 ECJ1VB0J475K C 4.7UF, K, 6.3V 1

C4920 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4921 ECGRL0G680ER C 68PF, J, 4V 1

C4923 ECJ1VB1E104K C 0.10UF, K, 25V 1

C4924 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4925 ECJ1VB1E272K C 2700PF, K, 25V 1

C4926 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4927 ECJ1XC1H470J C 47PF, J, 50V 1

C4928 ECJ1VB1H472K C 4700PF, K, 50V 1

C4929 ECJ1VB1E104K C 0.10UF, K, 25V 1

C4930,3

1ECJ3YB1E106M C 10 UF, K, 25V 2

C4932 ECJ1VB1E104K C 0.10UF, K, 25V 1

C4933 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4934 ECJ1VB1H822K C 8200PF, K, 50V 1

C4935 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4936 ECJ1VC1H100C C 10PF, C, 50V 1

C4937 ECJ1XB1H102K C 1000UF, Z, 50V 1

C4938 ECJ1VB1E104K C 0.10UF, K, 25V 1

C4939 ECJ1VB0J475K C 4.7UF, K, 6.3V 1

C4940 ECGRL0G680ER C 68PF, J, 4V 1

C4942 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4943 ECJ1VC1H100C C 10PF, C, 50V 1

C4944 ECJ1VB0J475K C 4.7UF, K, 6.3V 1

C4945 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C4946 ECGRL0G680ER C 68PF, J, 4V 1

C4990 ECJ1VB1A105K C 0.01UF, Z, 50V 1

C4991 F1J0J106A013 C 0.010UF, K, 16V 1

C4992,9

3ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C4994,9

5F1J0J106A013 C 0.010UF, K, 16V 2

C4996 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4997 F1J0J106A013 C 0.010UF, K, 16V 1

C4998 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C4999 ECJ1XB1H102K C 1000UF, Z, 50V 1

C6001 F1L2J562A022 C 5600UF, K,6.3V 1

C6011-

13 F2A2D221A022 E 220UF, 200V 3

C6021 F1L2J562A022 C 5600UF, K,6.3V 1

C6031 F0C2E405A176 E 0.040UF, 250V 1

C6041-

44 TCUY1C105ZFN C1UF,16V 4

C6111,1

2F2A2D151A070 E 150UF, 200V 2

C6132 F1L1E4750004 C 4.7UF, 25V 1

C6134,3

5F1L1E4750004 C 4.7UF, 25V 2

C6152-

54 F1L1E4750004 C 4.7UF, 25V 3

C6156 ECQE2224KF P 2.2UF, K,250V 1

C6192 ECJ3YB1E105K C1UF,K,25V 1

160

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C6194,9

5F1L1E4750004 C 4.7UF, 25V 2

C6201-

08 ECQE2105B667 P 1UF, 250V 8

C6211,1

2F1L1E4750004 C 4.7UF, 25V 2

C6213,1

4F2A1E331A089 E 330UF, 25V 2

C6221 ECJ2XB1H104K C 0.1UF, K, 50V 1

C6241 F2A1E331A089 E 330UF, 25V 1

C6242 TCUY1C105ZFN C 1UF, 16V 1

C6243 ECJ2XB1H103K C 0.01UF, K, 50V 1

C6251 TCUY1C105ZFN C 1UF, 16V 1

C6261,6

2ECA2CM101 E 100UF, 160V 2

C6272,7

3EEUFC1E221 E 220UF, 25V 2

C6400 F1E2J102A002 C 1000PF, 600V 1

C6401,0

2F1L2J562A022 C 5600UF, K,6.3V 2

C6410 F1E2J102A002 C 1000PF, 600V 1

C6411-

13 F2A2D221A022 E 220UF, 200V 3

C6420 F1E2J102A002 C 1000PF, 600V 1

C6421,2

2F1L2J562A022 C 5600UF, K,6.3V 2

C6431 F0C2E405A176 E 0.040UF, 250V 1

C6472 ECJ2XB1H104K C 0.1UF, K, 50V 1

C6480 ECJ2XB1H104K C 0.1UF, K, 50V 1

C6502 F1L1E4750004 C 4.7UF, 25V 1

C6504,0

5F1L1E4750004 C 4.7UF, 25V 2

C6511-

18 ECQE2105B667 P 1UF, 250V 8

C6522 F1L1E4750004 C 4.7UF, 25V 1

C6524,2

5F1L1E4750004 C 4.7UF, 25V 2

C6526 ECQE2224KF P 2.2UF, K,250V 1

C6561 F2A1A1010074 E 100UF, 10V 1

C6562 TCUY1C105ZFN C 1UF, 16V 1

C6563 F2A1A1010074 E 100UF, 10V 1

C6564 TCUY1C105ZFN C 1UF, 16V 1

C6565,6

6ECJ2XB1H103K C 0.01UF, K, 50V 2

C6581 ECJ3YB1E105K C 1UF, K, 25V 1

C6582 TCUY1C105ZFN C 1UF, 16V 1

C6592 ECA1EM471 E 470UF, 25V 1

C6593 ECJ2XC1H102J C 1000PF, J, 50V 1

C6601,0

2F1L1E4750004 C 4.7UF, 25V 2

C6603 F1K2J102A014 C 1000UF, K,6.3V 1

C6604 F2A2V470A020 E 47UF, 350V 1

C6605 ECJ2XB1H104K C 0.1UF, K, 50V 1

C6606 F1K2J102A014 C 1000UF, K,6.3V 1

C6610 ECJ3YB1E105K C 1UF, K, 25V 1

C6611 ECJ2XB1H103K C 0.01UF, K, 50V 1

C6612 ECJ3YB1E105K C 1UF, K, 25V 1

C6620 ECJ3XB2J222K C 2200PF, K,630V 1

C6641 ECQE2224KF P 2.2UF, K,250V 1

C6661,6

2F1K2J102A014 C 1000UF, K,6.3V 2

C6671 F1L1E4750004 C 4.7UF, 25V 1

C6681,8

2F1L1E4750004 C 4.7UF, 25V 2

C6683 ECJ2XB1H104K C 0.1UF, K, 50V 1

C6691 ECA2CM101 E 100UF, 160V 1

C6701-

08 ECJ2XB1H104K C 0.1UF, K, 50V 8

C6721 ECA1HM101 E 100UF, 50V 1

C6723-

25 F1L1E4750004 C 4.7UF, 25V 3

C6726,2

7TCUY1C105ZFN C 1UF, 16V 2

C6728 ECJ2XC1H102J C 1000PF, J, 50V 1

C6752 TCUY1C105ZFN C 1UF, 16V 1

C6753 F1L1E4750004 C 4.7UF, 25V 1

C6754 ECA1VM470 E 47UF, 35V 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C6755 ECJ2XB1H104K C 0.1UF, K, 50V 1

C6771 TCUY1C105ZFN C 1UF, 16V 1

C6772,7

3F1L1E4750004 C 4.7UF, 25V 2

C6775 F1L1E4750004 C 4.7UF, 25V 1

C6776,7

7ECJ2XB1H104K C 0.1UF, K, 50V 2

C6791 EEUFC1E221 E 220UF, 25V 1

C6795 ECA1EM471 E 470UF, 25V 1

C6802 EEUFC1E221 E 220UF, 25V 1

C6803 ECJ2XB1H104K C 0.1UF, K, 50V 1

C6804 F2A2E100A022 E 10UF, 250V 1

C6805 TCUY1C105ZFN C 1UF, 16V 1

C6806,0

7ECA2CM101 E 100UF, 160V 2

C6811 ECJ2XB1H103K C 0.01UF, K, 50V 1

C6823 ECJ2XB1H103K C 0.01UF, K, 50V 1

C6841 ECA2CM101 E 100UF, 160V 1

C6845 ECJ2XB1H103K C 0.01UF, K, 50V 1

C6861 TCUY1C105ZFN C 1UF, 16V 1

C6862 ECJ3YB1E105K C 1UF, K, 25V 1

C6863 ECJ2XB1H103K C 0.01UF, K, 50V 1

C6871 TCUY1C105ZFN C 1UF, 16V 1

C6872 ECJ3YB1E105K C 1UF, K, 25V 1

C6873 ECJ2XB1H103K C 0.01UF, K, 50V 1

C6901 ECJ2XB1H102K C 1000PF, K, 50V 1

C6902 TCUY1C105ZFN C 1UF, 16V 1

C6904 TCUY1C105ZFN C 1UF, 16V 1

C6906 TCUY1C105ZFN C 1UF, 16V 1

C6908 TCUY1C105ZFN C 1UF, 16V 1

C6915,1

6ECJ2XB1H221K C 220PF, K, 50V 2

C6921 ECJ2XB1H221K C 220PF, K, 50V 1

C6931 ECJ2XB1H102K C 1000PF, K, 50V 1

C6933,3

4F1L2E105A013 E 0.10UF, 25V 2

C6951 ECJ2XB1H102K C 1000PF, K, 50V 1

C6952 TCUY1C105ZFN C 1UF, 16V 1

C6954 TCUY1C105ZFN C 1UF, 16V 1

C6956 TCUY1C105ZFN C 1UF, 16V 1

C6958 TCUY1C105ZFN C 1UF, 16V 1

C6964-

66 ECJ2XB1H221K C 220PF, K, 50V 3

C6981 ECJ2XB1H102K C 1000PF, K, 50V 1

C6982 F1L2E105A013 E 0.10UF, 25V 1

C6985 F1L2E105A013 E 0.10UF, 25V 1

C7111 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7112 TCUY1C105ZFN C 1UF, 16V 1

C7113,1

4ECJ3XB2A474K C 0.47UF, 6.3V 2

C7115 TCUY1C105ZFN C 1UF, 16V 1

C7116 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7117 TCUY1C105ZFN C 1UF, 16V 1

C7118 ECJ1XC1H101J C 100PF, J, 50V 1

C7120 TCUY1C105ZFN C 1UF, 16V 1

C7121 ECJ1XC1H101J C 100PF, J, 50V 1

C7126 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C7129,3

0ECJ1XB1C104K C 0.1UF, Z, 16V 2

C7132 TCUY1C105ZFN C 1UF, 16V 1

C7133 ECJ1XC1H101J C 100PF, J, 50V 1

C7135 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7136 TCUY1C105ZFN C 1UF, 16V 1

C7137 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7139 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C7201 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7202 TCUY1C105ZFN C 1UF, 16V 1

C7203,0

4ECJ3XB2A474K C 0.47UF, 6.3V 2

C7205 TCUY1C105ZFN C 1UF, 16V 1

C7206 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7207 TCUY1C105ZFN C 1UF, 16V 1

C7208 ECJ1XC1H101J C 100PF, J, 50V 1

C7210 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7211 TCUY1C105ZFN C 1UF, 16V 1

161

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C7212 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7213 TCUY1C105ZFN C 1UF, 16V 1

C7214 ECJ1XC1H101J C 100PF, J, 50V 1

C7216 TCUY1C105ZFN C 1UF, 16V 1

C7217 ECJ1XC1H101J C 100PF, J, 50V 1

C7220 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C7222 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C7224 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C7226 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C7231 TCUY1C105ZFN C 1UF, 16V 1

C7232 ECJ1XC1H101J C 100PF, J, 50V 1

C7234 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7235 TCUY1C105ZFN C 1UF, 16V 1

C7236 ECJ3XB2A474K C 0.47UF, 6.3V 1

C7239 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C8003 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C8005 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C8007 ECJ1XC1H101J C 100PF, J, 50V 1

C8009 ECJ3XB0J106M C 10UF, M,6.3V 1

C8013 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C8015 ECJ3YF1A106Z C 10UF, Z, 10V 1

C8016 ECJ3YB1A475K C 0.047UF, K, 10V 1

C8019 ECJ1VB1H103K C 0.001UF, K, 50V 1

C8021 ECJ3VB1C474K C 0.47UF, K, 16V 1

C8023 ECJ1VB1H103K C 0.001UF, K, 50V 1

C8025 ECJ1VB1H103K C 0.001UF, K, 50V 1

C8027 ECJ3YB1C225K C 0.022UF, K, 16V 1

C8029 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C8030 EEEHB1C470P C 47PF, J, 16V 1

C8033 ECJ1XC1H102J C 1000PF, J, 50V 1

C8035 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C8036 ECJ1XC1H101J C 100PF, J, 50V 1

C8038 ECJ1XC1H102J C 1000PF, J, 50V 1

C8045 ECJ2VF1C105Z C 1UF, Z, 16V 1

C8049 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C8051 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C8070 ECJ1VB1E104K C 0.10UF, K, 25V 1

C8072,7

3ECJ3YF1A106Z C 10UF, Z, 10V 2

C8074,7

5ECJ1XC1H102J C 1000PF, J, 50V 2

C8080-

83 ECJ1XF1C104Z C 0.1UF, Z, 16V 4

C8084 TCUY1C105ZFN C 1UF, 16V 1

C8100 EEEHB1C470P C 47PF, J, 16V 1

C8101 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C8102,0

3EEEHB1C470P C 47PF, J, 16V 2

C8106 EEEHB1C470P C 47PF, J, 16V 1

C8107 EEVHB1C471 E 470UF, 16V 1

C8108,0

9ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C8111-

13 ECJ1XF1C104Z C 0.1UF, Z, 16V 3

C8114 ECJ1VB1H103K C 0.001UF, K, 50V 1

C8115 EEEHB1C470P C 47PF, J, 16V 1

C8116 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C8120 F2H1E471A010 E 470UF, 25V 1

C8121 ECJ3YF1E225Z C 2.2UF, Z, 25V 1

C8122 EEEHB1C470P C 47PF, J, 16V 1

C8123 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C8181,8

2ECJ1XC1H150J C 15PF, J, 50V 2

C8183 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C8185 EECS5R5H155 E 1.5UF, 5.5V 1

C8200 EEEHB1C470P C 47PF, J, 16V 1

C9028,2

9F1J0J1060004 C 0.010UF, K, 16V 2

C9033,3

4ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C9035,3

6F1J0J1060004 C 0.010UF, K, 16V 2

C9037 ECJ1VB1H103K C 0.001UF, K, 50V 1

C9039 F1J0J1060004 C 0.010UF, K, 16V 1

C9040 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C9044-

53 ECJ1XF1C104Z C 0.1UF, Z, 16V 10

C9055 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9057 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9058 F1J0J1060004 C 0.010UF, K, 16V 1

C9060 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9467,6

8ECJ1VF1H103Z C 0.010UF, Z, 50V 2

C9469 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9500-

06 ECJ1XB1C104K C 0.1UF, Z, 16V 7

C9508 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9509 ECJ1VC1H200J C 20PF, C, 50V 1

C9510 ECJ1XC1H150J C 15PF, J, 50V 1

C9511 F1J0J1060004 C 0.010UF, K, 16V 1

C9512 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9514,1

5ECJ2VF1C105Z C1UF,Z,16V 2

C9516-

25 ECJ1XB1C104K C 0.1UF, Z, 16V 10

C9526 F1J0J1060004 C 0.010UF, K, 16V 1

C9527-

30 ECJ1XB1C104K C 0.1UF, Z, 16V 4

C9531 F1J0J1060004 C 0.010UF, K, 16V 1

C9800 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9801 ECJ1VB1H472K C 4700PF, K, 50V 1

C9802 ECJ1XC1H470J C 47PF, J, 50V 1

C9803 ECJ1VB1H472K C 4700PF, K, 50V 1

C9804 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9805 ECJ1VB0J475K C 4.7UF, K, 6.3V 1

C9806 ECGRL0G680ER C 68PF, J, 4V 1

C9807,0

8ECJ3YB1E106M C 10 UF, K, 25V 2

C9809 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9815,1

6ECGRL0G680ER C 68PF, J, 4V 2

C9817,1

8ECJ3YB1E106M C 10 UF, K, 25V 2

C9822 F1J0J1060004 C 0.010UF, K, 16V 1

C9823,2

4ECJ3YB1E106M C 10 UF, K, 25V 2

C9825 ECJ1XC1H101K C 100PF, K, 50V 1

C9826 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9827 F1J0J1060004 C 0.010UF, K, 16V 1

C9830-

32 ECJ3XB1C106M C 1.0UF, K, 16V 3

C9833 ECJ3YB1E106M C 10 UF, K, 25V 1

C9837 ECJ3XB1C106M C 1.0UF, K, 16V 1

C9838 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9839 ECJ3YB1E106M C 10 UF, K, 25V 1

C9840 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9841,4

2ECJ2VF1C105Z C1UF,Z,16V 2

C9843 ECJ1XF1C104Z C 0.1UF, Z, 16V 1

C9844 ECJ1VF1H103Z C 0.010UF, Z, 50V 1

C9845,4

6ECJ1XF1C104Z C 0.1UF, Z, 16V 2

C9847,4

8ECJ1VB1E104K C 0.10UF, K, 25V 2

C9880,8

1ECJ1XB1H102K C 1000UF, Z, 50V 2

C9882 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9883 ECJ1VB1H822K C 8200PF, K, 50V 1

C9884 ECJ1VC1H100C C 10PF, C, 50V 1

C9885 ECJ1XB1H102K C 1000UF, Z, 50V 1

C9886 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9887 ECJ1VB0J475K C 4.7UF, K, 6.3V 1

C9891 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9896 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9897 ECJ1VB1H822K C 8200PF, K, 50V 1

C9898 ECJ1VC1H100C C 10PF, C, 50V 1

C9899 ECJ1XB1H102K C 1000UF, Z, 50V 1

C9900-

51 ECJ1XB1C104K C 0.1UF, Z, 16V 52

C9952-

54 EEFCD0G560ER 56UF, 3

162

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C9955-

59 ECJ1XB1C104K C 0.1UF, Z, 16V 5

C9960-

64 ECJ3XB0J106M C 10UF, M,6.3V 5

C9965 EEFCD0G560ER 56UF, 1

C9966 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C9967 ECJ1VB0J475K C 4.7UF, K, 6.3V 1

C9971 ECJ1XB1C104K C 0.1UF, Z, 16V 1

CB1-B7 K1MN68BA0002 68P CONNECTOR 7

D3 K1KY40B00003 40P CONNECTOR 1

D5 K1KB31BA0064 31P CONNECTOR 1

D6 K1KA21A00011 21P CONNECTOR 1

D20 K1KA20BA0296 20P CONNECTOR 1

D25 K1KA20B00155 20P CONNECTOR 1

D31,32 K1MN55BA0094 55P CONNECTOR 2

D401 B0FBAT000006 DIODE 1

D404 B0EBKT000007 DIODE 1

D407 MA111 DIODE 1

D411 B0BB17000009 DIODE 1

D412 B0HAMM000122 DIODE 1

D415 B0JAME000099 DIODE 1

D416 B0HAMP000067 DIODE 1

D417 B0HAPR000013 DIODE 1

D418 B0BC8R100013 DIODE 1

D419,20 B0HAPR000013 DIODE 2

D423 MA188 DIODE 1

D425 MA188 DIODE 1

D429 ERA15-10 DIODE 1

D430 MA111 DIODE 1

D431,32 B0JCDD000002 DIODE 2

D433 B0BC01400033 DIODE 1

D435 ERA15-10 DIODE 1

D436-38 MA4200M ZENER DIODE 3

D441 B0HAMM000122 DIODE 1

D444 B0HAMM000122 DIODE 1

D445 MA4360H ZENER DIODE 1

D501 B0HAPR000012 DIODE 1

D503,04 MA165 DIODE 2

D505 B0JAME000099 DIODE 1

D506 MAZ80470LL ZENER DIODE 1

D507,08 B0BC7R400023 DIODE 2

D509 B0JANG000018 DIODE 1

D511 B0JAML000011 DIODE 1

D512,13 MA111 DIODE 2

D514 B0BC6R100025 DIODE 1

D515 B0BC3R200008 DIODE 1

D516-18 MA4330M ZENER DIODE 3

D520 MA111 DIODE 1

D521 B0JAME000099 DIODE 1

D528,29 MA153 DIODE 2

D530 B0BC9R900013 DIODE 1

D531 B0HBSN000013 DIODE 1

D535 MA188 DIODE 1

D536 B0JBSG000026 DIODE 1

D538 B0BC5R100039 DIODE 1

D539,40 B0AARR000010 DIODE 2

D542 MA4200M ZENER DIODE 1

D543 B0BC01400033 DIODE 1

D544,45 MA4200M ZENER DIODE 2

D549 B0BC02500008 DIODE 1

D551 B0BC01300033 DIODE 1

D555 B0BC7R400023 DIODE 1

D559 B0BC7R400023 DIODE 1

D563 B0BC6R100025 DIODE 1

D569-72 B0BC02500008 DIODE 4

D574 MA165 DIODE 1

D575 MA188 DIODE 1

D579 MA165 DIODE 1

D582 MAZ705600F ZENER DIODE 1

D585 B0BC7R400023 DIODE 1

D586 B0HAMP000067 DIODE 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

D587 MA188 DIODE 1

D588 B0BC3R200008 DIODE 1

D590 B0BC3R200008 DIODE 1

D596 ERA15-10 DIODE 1

D598 B0BC5R100039 DIODE 1

D599 B0JCND000009 DIODE 1

D600 B0BC7R400023 DIODE 1

D601 B0BC5R100039 DIODE 1

D602 B0BC8R100013 DIODE 1

D801 B0JCPD000026 DIODE 1

D802,03 B0JCME000037 DIODE 2

D805-10 B0JCPE000004 DIODE 6

D2301-

03 B0JCME000037 DIODE 3

D2512 MA8043LTX ZENER DIODE 1

D2520 LNJ107W5PRW LED 1

D2524 MA8056-M ZENER DIODE 1

D3001 MA111 DIODE 1

D3003,0

4MA111 DIODE 2

D3005 LNJ206R5ARA LED 1

D3007,0

8MA111 DIODE 2

D3061 MA728 DIODE 1

D3501-

04 MA3056M ZENER DIODE 4

D3507-

10 MA8160H ZENER DIODE 4

D4701 MA728 DIODE 1

D4709 MA728 DIODE 1

D4711-

13 MA152K DIODE 3

D4721 MA3036H ZENER DIODE 1

D4732-

35 MA152K DIODE 4

D4901 B0JCME000037 DIODE 1

D4902,0

3B0JCDD000002 DIODE 2

D4904 B0JCME000037 DIODE 1

D4905 B0JCDD000002 DIODE 1

D4906 B0JCME000037 DIODE 1

D6001 B0HBSN000008 DIODE 1

D6021 B0HBSN000008 DIODE 1

D6041 B0ECHP000003 DIODE 1

D6051 B0ECHP000003 DIODE 1

D6061 B0HBSN000008 DIODE 1

D6071 B0HBSN000008 DIODE 1

D6072 B0ECHP000003 DIODE 1

D6081 B0HBSN000008 DIODE 1

D6091 B0HBSN000008 DIODE 1

D6092 B0ECHP000003 DIODE 1

D6101,0

2B0JCME000037 DIODE 2

D6131,3

2B0ECHP000003 DIODE 2

D6151,5

2B0ECHP000003 DIODE 2

D6153 MA111 DIODE 1

D6154 MA8033L ZENER DIODE 1

D6191-

93 B0ECHP000003 DIODE 3

D6211 B0JCME000037 DIODE 1

D6213,1

4MA111 DIODE 2

D6215 MA8082MTX ZENER DIODE 1

D6221 B0ECHP000003 DIODE 1

D6222,2

3MA111 DIODE 2

D6251,5

2MA8330M ZENER DIODE 2

D6253 LNJ301MPUJA LED 1

D6254 MA8051L ZENER DIODE 1

D6255 MA111 DIODE 1

D6401 B0HBSN000008 DIODE 1

D6431 MA3DF40000LZ DIODE 1

D6441 B0ECHP000003 DIODE 1

163

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

D6451 B0ECHP000003 DIODE 1

D6461 B0HBSN000008 DIODE 1

D6471 B0HBSN000008 DIODE 1

D6472 B0ECHP000003 DIODE 1

D6477 MA111 DIODE 1

D6478 B0HCKS000002 DIODE 1

D6480 MA111 DIODE 1

D6481 B0HBSN000008 DIODE 1

D6491 MA3DF40000LZ DIODE 1

D6497 MA111 DIODE 1

D6501,0

2B0ECHP000003 DIODE 2

D6521,2

2B0ECHP000003 DIODE 2

D6523 MA111 DIODE 1

D6524 MA8033L ZENER DIODE 1

D6581,8

2MA8330M ZENER DIODE 2

D6583 LNJ301MPUJA LED 1

D6584 MA8051L ZENER DIODE 1

D6585 MA111 DIODE 1

D6601 MA8240M ZENER DIODE 1

D6602 B0ECHP000003 DIODE 1

D6603 MA8240M ZENER DIODE 1

D6604 MA111 DIODE 1

D6605 MA8051L ZENER DIODE 1

D6606 B0HCMM000014 DIODE 1

D6607 MA111 DIODE 1

D6610 MAZ81500ML ZENER DIODE 1

D6611-

14 MA111 DIODE 4

D6619,2

0B0HCKS000002 DIODE 2

D6621 B0HDSM000005 DIODE 1

D6623 B0HDSM000005 DIODE 1

D6641,4

2B0HCKS000002 DIODE 2

D6643 B0JCME000037 DIODE 1

D6644 B0HCKS000002 DIODE 1

D6661 MA111 DIODE 1

D6662-

64 MA8330M ZENER DIODE 3

D6665 MA8051L ZENER DIODE 1

D6666,6

7MA111 DIODE 2

D6671 MA111 DIODE 1

D6682 B0HCMM000014 DIODE 1

D6683,8

4MA111 DIODE 2

D6686,8

7MA111 DIODE 2

D6701,0

2MA8056H ZENER DIODE 2

D6721 B0HCKS000002 DIODE 1

D6723,2

4B0JCME000037 DIODE 2

D6725 B0ECHP000003 DIODE 1

D6726-

33 MA8056H ZENER DIODE 8

D6734 MA111 DIODE 1

D6752 B0JCME000037 DIODE 1

D6758 B0ECHP000003 DIODE 1

D6760,6

1MA111 DIODE 2

D6771 B0JCME000037 DIODE 1

D6773 B0HCKS000002 DIODE 1

D6791 MA8200M ZENER DIODE 1

D6801 B0JCME000037 DIODE 1

D6803 MA111 DIODE 1

D6804 B0ECHP000003 DIODE 1

D6805 MA111 DIODE 1

D6806 B0ECHP000003 DIODE 1

D6820-

23 MA111 DIODE 4

D6825 MA8330M ZENER DIODE 1

D6826 MA111 DIODE 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

D6841 B0ECHP000003 DIODE 1

D6842,4

3MA111 DIODE 2

D6859 B0ECHP000003 DIODE 1

D6860 B0HCKS000002 DIODE 1

D6861 MA8051L ZENER DIODE 1

D6862 MA111 DIODE 1

D6871 MA8051L ZENER DIODE 1

D6872 MA111 DIODE 1

D6901,0

2MA8056H ZENER DIODE 2

D6903,0

4B0ECHP000003 DIODE 2

D6921 B0ECHP000003 DIODE 1

D6922 MA8056H ZENER DIODE 1

D6951,5

2MA8056H ZENER DIODE 2

D6953,5

4B0ECHP000003 DIODE 2

D8001 MA111 DIODE 1

D8003 MA111 DIODE 1

D8010,1

1MA153 DIODE 2

D8180 MA111 DIODE 1

D8181 MA8056-M ZENER DIODE 1

D8184,8

5MA8056-M ZENER DIODE 2

D8200 MAZ31600ML ZENER DIODE 1

D8201 MA111 DIODE 1

D8203 MA3100M ZENER DIODE 1

D8204 MA111 DIODE 1

D8209 MA111 DIODE 1

D9017-

19 MA3033 ZENER DIODE 3

D9020 MA728 DIODE 1

D9100-

03 B0JCGD000002 DIODE 4

D9105,0

6B0JCGD000002 DIODE 2

D9110 B0JCGD000002 DIODE 1

D9300,0

1MA152K DIODE 2

D9800 B0JCME000037 DIODE 1

D9801 B0JCDD000002 DIODE 1

D9802 MA728 DIODE 1

D9804 MA152K DIODE 1

D9807,0

8MA152K DIODE 2

D9811 MA728 DIODE 1

D9812 B0JCME000037 DIODE 1

D9813 B0JCDD000002 DIODE 1

D9814 B0JCME000037 DIODE 1

D9815 B0JCDD000002 DIODE 1

DA1 K1KA20AA0335 20P CONNECTOR 1

DA2 K1KY40B00003 40P CONNECTOR 1

DA3 K1KA30AA0009 30P CONNECTOR 1

DA4 K1KA14A00248 14P CONNECTOR 1

DA5 K1KB21BA0063 21P CONNECTOR 1

DA6 K1KA31A00007 31P CONNECTOR 1

DA11 K1KA21A00011 21P CONNECTOR 1

FL3000-

04 F1J1E1040022 C 0.10UF, Z, 25V 5

FL3006-

08 F1J1E1040022 C 0.10UF, Z, 25V 3

FL3010 F1J1E1040022 C 0.10UF, Z, 25V 1

FL4001 J0MAB0000175 LC FILTER 1

FL4502-

04 F1J1E1040022 C 0.10UF, Z, 25V 3

FL4703 F1J1E1040022 C 0.10UF, Z, 25V 1

FL4705-

09 F1J1E1040022 C 0.10UF, Z, 25V 5

FL7101 J0HABH000013 LC FILTER 1

FL7201 J0HABH000013 LC FILTER 1

FL8000 F1J1E1040022 C 0.10UF, Z, 25V 1

164

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

FL9300,

01 F1J1E1040022 C 0.10UF, Z, 25V 2

FL9800,

01 J0HABH000013 LC FILTER 2

FL9803,

04 J0HABH000012 LC FILTER 2

FL9805-

07 J0HABH000013 LC FILTER 3

FL9900-

02 F1J1E1040022 C 0.10UF, Z, 25V 3

FL9903,

04 J0HABH000013 LC FILTER 2

GK3 K1KA03BA0061 3P CONNECTOR 1

H1 K1KA80B00037 80P CONNECTOR 1

HX1 K1KB22A00036 22P CONNECTOR 1

IC401 CNC1S171R IC 1

IC402 C0DAEMB00004 IC 1

IC403-

05 CNC1S171R IC 3

IC406 C0DAZZZ00021 IC 1

IC408 CNC1S171R IC 1

IC409 MIP2G40MPSCF IC 1

IC410 CNC1S171R IC 1

IC411 C0DAEMB00004 IC 1

IC412 CNC1S171R IC 1

IC501 C2ABDB000110 IC 1

IC502 C0EBH0000210 IC 1

IC504 C0DAEMB00004 IC 1

IC505 CNC1S171R IC 1

IC506 C0ZBZ0000878 IC 1

IC507 CNC1S171R IC 1

IC509 C0DABZZ00010 IC 1

IC510 C0DBAZG00034 IC 1

IC512 C0DAEMB00004 IC 1

IC520 LSSK0062 IC 1

IC801-

03 C0DBAMH00013 IC 3

IC804 C0CBCAC00275 IC 1

IC2301,

02 C1AB00002534 IC 2

IC2303 C1BB00001006 IC 1

IC2305 C0ABBA000168 IC 1

IC3001 C1AB00002530 IC 1

IC3002 C0JBBR000002 IC 1(J)

IC3002 C3EAGC000027 IC 1(HA)

IC3003 CXA1315M LINEAR IC 1

IC3004 CXA1875AM LINEAR IC 1

IC3005 C1AB00002529 IC 1

IC3006 MC14052BF MOS IC (CMOS GATE

ARRLY) 1

IC3007,

08 C0JBAS000215 IC 2

IC3101 C1AB00002238 IC 1

IC3150-

52 C0JBAA000419 IC 3

IC3502 TVRP004 IC 1

IC4001 C0FBAY000012 IC 1

IC4002 C0DBEGE00002 IC 1

IC4031,

32 C0JBAE000354 IC 2

IC4201 C1ZBZ0003233 IC 1

IC4301 C0JBAP000020 IC 1

IC4500 C1ZBZ0002769 IC 1

IC4501 MN845111-A IC 1

IC4502 C3ABQJ000031 IC 1

IC4701 MN103SB30RGL IC 1

IC4702 TVRN927-4 IC 1

IC4703 TVRN998 IC 1

IC4704 C0EBE0000447 IC 1

IC4711 C0JBAE000354 IC 1

IC4714 C0JBAZ000856 IC 1

IC4715 C0JBAE000354 IC 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

IC4803 C0JBAS000215 IC 1

IC4901 C0DBAHD00011 IC 1

IC4951,

52 C0DBAYY00054 IC 2

IC4953 C0CBCAD00016 IC 1

IC4955 C0DBAYY00054 IC 1

IC4956 C0CBCBC00190 IC 1

IC4957 C0DBAHD00011 IC 1

IC6131 C0ZBZ0000895 IC 1

IC6151 C0ZBZ0000895 IC 1

IC6191 C0ZBZ0000895 IC 1

IC6211 C0ZBZ0001325 IC 1

IC6221 C0DBEMB00005 IC 1

IC6241 C0JBAZ000005 IC 1

IC6251 NJM2903M INTEGRATED CIRCUIT 1

IC6471 C0DBEKA00003 IC 1

IC6472 C0JBAA000377 IC 1

IC6501 C0ZBZ0000895 IC 1

IC6521 C0ZBZ0000895 IC 1

IC6561,

62 C0JBAZ000005 IC 2

IC6581 NJM2903M INTEGRATED CIRCUIT 1

IC6601 C0ZBZ0001325 IC 1

IC6602 C0JBAB000715 IC 1

IC6610 NJM2903M INTEGRATED CIRCUIT 1

IC6671 C0ZBZ0001325 IC 1

IC6681 C0ZBZ0001325 IC 1

IC6682 C0JBAA000377 IC 1

IC6721,

22 C0JBAZ000994 IC 2

IC6724,

25 C0CBADC00089 IC 2

IC6751 C0CBADC00089 IC 1

IC6752 C0ZBZ0001325 IC 1

IC6753 C0JBAB000715 IC 1

IC6771 C0CBADC00089 IC 1

IC6772 C0ZBZ0001325 IC 1

IC6773,

74 C0JBAA000377 IC 2

IC6791 N0BF1FB00001 IC 1

IC6801,

02 C0DBEMB00005 IC 2

IC6821 C0DBEMB00005 IC 1

IC6841 C0DBEMB00005 IC 1

IC6861 NJM2903M INTEGRATED CIRCUIT 1

IC6871 NJM2903M INTEGRATED CIRCUIT 1

IC6901-

04 AN16071A-VT IC 4

IC6951-

54 AN16071A-VT IC 4

IC7101-

04 C0JBAZ001120 IC 4

IC7201-

05 C0JBAZ001120 IC 5

IC8001 MC14052BF MOS IC (CMOS GATE

ARRLY) 1

IC8003 C1AA00000706 IC 1

IC8005 C0JBAB000646 IC 1

IC8007 C0JBAR000419 IC 1

IC8009 C0JBAS000215 IC 1

IC8014 C0ZBZ0000911 IC 1

IC8016 C0JBAZ001934 IC 1

IC8100 C0DBEJG00001 IC 1

IC8181 C1DB00001208 IC 1

IC9001 TVRP006-1 IC 1

IC9003 C2CBJG000730 IC 1

IC9007 TVRN941-1 IC 1

IC9011 C0EBF0000431 IC 1

IC9200 C1ZBZ0003185 IC 1

IC9303 TVRN940 IC 1

IC9500 C1ZBZ0002599 IC 1

IC9502 PST9128NR IC (LOGIC) 1

IC9503,

04 C0JBAZ001120 IC 2

IC9800 C0DBAYY00054 IC 1

165

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

IC9801 C0DBZFG00066 IC 1

IC9802,

03 C0JBAZ001120 IC 2

IC9806 C0DBAHD00011 IC 1

IC9807 C0DBAYY00054 IC 1

IC9809 C0DBAYY00054 IC 1

IC9900 MN84521-A IC 1

IC9901 C3ABQJ000051 IC 1

J1 K1KA20B00163 20P CONNECTOR 1

J2 K1KA06BA0047 6P CONNECTOR 1

J3 K1KA30B00078 30P CONNECTOR 1

J4 K1KA11BA0051 11P CONNECTOR 1

J5 K1KA21B00008 21P CONNECTOR 1

J6 K1KA21B00009 21P CONNECTOR 1

J7,J8 K1KA03BA0055 3P CONNECTOR 2

J10 K1KA06BA0050 6P CONNECTOR 1

J11-13 K1KB80B00024 80P CONNECTOR 3

J14 K1KA22A00067 22P CONNECTOR 1

J15 K1KA03BA0047 3P CONNECTOR 1

J30 K1KA05BA0050 5P CONNECTOR 1

JS3001-

08 ERJ3GEY0R00 M 0 OHM, 1/16W 8

JS3011-

16 ERJ3GEY0R00 M 0 OHM, 1/16W 6

JS8094 ERJ3GEY0R00 M 0 OHM, 1/16W 1

JS8096 ERJ3GEY0R00 M 0 OHM, 1/16W 1

JK3001 K1QBB3BB0002 CONNECTOR 1

JK3002 K2HA204B0097 JACK 1

JK3509 K1FB109BA018 CONNECTOR 1

JK3511 K1FB115BA020 CONNECTOR 1

JK3513 K2HC103B0105 JACK 1

K1 K1KY12B00001 12P CONNECTOR 1

L403 EXCELSA35 BEAD CHOKE 1

L404,05 G0B123K00004 CHOKE COIL 2

L410 ELF17N004A LINE FILTER 1

L510 EXCELDR25C BEAD CHOKE 1

L511 G0A470ZA0033 CHOKE COIL 1

L512 ELESE4R7JA PEAKING COIL 1

L513 EXCELDR25C BEAD CHOKE 1

L801 G1A101ZA0007 CHOKE COIL 1

L802 G1C101MA0167 INDUCTION COIL 1

L803 G1C220MA0167 INDUCTION COIL 1

L804,05 J0JHC0000078 CHIP INDUCTOR 2

L807-11 J0JHC0000078 CHIP INDUCTOR 5

L2330,3

1G0A221ZA0041 CHOKE COIL 2

L3001 J0HABB000004 LC FILTER 1

L3002 G1C100K00020 INDUCTION COIL 1

L3003 J0HABB000004 LC FILTER 1

L3004 J0HABB000003 LC FILTER 1

L3005 G1C100K00020 INDUCTION COIL 1(J)

L3005 J0HABB000003 LC FILTER 1(HA)

L3006 G1C100K00020 INDUCTION COIL 1(J)

L3006 ELJPA100KFB CHIP INDUCTOR 1(HA)

L3050 G1C100K00020 INDUCTION COIL 1

L3140 J0JHC0000078 CHIP INDUCTOR 1

L3507-

09 J0HABB000004 LC FILTER 3

L3510-

17 TLK212T256AL EMI FILTER 8

L3526 ELJPA100KFB CHIP INDUCTOR 1

L3555 ELJPA100KFB CHIP INDUCTOR 1

L4206 J0JHC0000096 CHIP INDUCTOR 1

L4301-

03 J0JHC0000078 CHIP INDUCTOR 3

L4501 G1C150KA0038 INDUCTION COIL 1

L4502-

05 J0JHC0000096 CHIP INDUCTOR 4

L4701-

04 J0JHC0000096 CHIP INDUCTOR 4

Ref.

No. Part No. Part Name &

Description Pcs Remarks

L4901 G1C3R3MA0175 INDUCTION COIL 1

L4902 G1C3R0MA0248 INDUCTION COIL 1

L4903 G1C2R2MA0248 INDUCTION COIL 1

L6001-

03 ELC11P0R6 CHOKE COIL 3

L6011 ELC11P1R0 CHOKE COIL 1

L6013 ELC11P1R0 CHOKE COIL 1

L6061-

64 G0ZZ00002183 PEAKING COIL 4

L6081-

84 G0ZZ00002183 PEAKING COIL 4

L6101,0

2J0JJC0000011 CHIP INDUCTOR 2

L6103 G0ZZ00002183 PEAKING COIL 1

L6221 G0ZZ00002183 PEAKING COIL 1

L6241 G0ZZ00002183 PEAKING COIL 1

L6262 G0ZZ00002183 PEAKING COIL 1

L6271 G0ZZ00002183 PEAKING COIL 1

L6401-

03 ELC11P0R6 CHOKE COIL 3

L6411,1

2ELC11P1R0 CHOKE COIL 2

L6461-

64 G0ZZ00002183 PEAKING COIL 4

L6472 G0ZZ00002183 PEAKING COIL 1

L6481-

84 G0ZZ00002183 PEAKING COIL 4

L6591,9

2G0ZZ00002183 PEAKING COIL 2

L6602 G0ZZ00002183 PEAKING COIL 1

L8001 G1C100K00020 INDUCTION COIL 1

L8003 G1C100K00020 INDUCTION COIL 1

L8005 G1C100K00020 INDUCTION COIL 1

L8101-

08 J0JHC0000078 CHIP INDUCTOR 8

L9500 G1C150KA0038 INDUCTION COIL 1

L9501,0

2J0JHC0000078 CHIP INDUCTOR 2

L9800 G1C3R0MA0248 INDUCTION COIL 1

L9801,0

2G1C2R2MA0241 INDUCTION COIL 2

L9810 J0JHC0000045 CHIP INDUCTOR 1

P2 K1KA02A00626 2P CONNECTOR 1

P5 K1KA11AA0194 11P CONNECTOR 1

P9 K1KA03A00537 3P CONNECTOR 1

P10 K1KA06A00452 6P CONNECTOR 1

P11 K1KA02A00626 2P CONNECTOR 1

P12 K1KA10AA0194 10P CONNECTOR 1

P23 K1KA03AA0193 3P CONNECTOR 1

P25 K1KA20AA0178 20P CONNECTOR 1

PA4901 K5H4022A0023 FUSE 1

PA9800 K5H4022A0023 FUSE 1

PC6480 B3PBA0000223 IC 1

PC6701-

03 B3PBA0000233 IC 3

PC6704 K7GBZEE00007 PHOTO COUPLER 1

PC6705 B3PBA0000233 IC 1

PC6760 B3PBA0000223 IC 1

PC6801 B3PBA0000223 IC 1

PC6861 B3PBA0000223 IC 1

PC6871 B3PBA0000223 IC 1

PMM1 TMM7464-2 CLAMPER 1

PMM2,M3 TMME088 CLAMPER 2

PMM4-M6 TMM7464-2 CLAMPER 3

PMM7 TMME047 CLAMPER 1

PR401 K5Y502BA0001 FUSE 1

PR505 K5H5022A0023 FUSE 1

PR509 ERBSE0R50U FUSE 1

PR601 K5G312B00012 FUSE 1

Q401 B1CHND000004 TRANSISTOR 1

166

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

Q402 B1DFDD000019 TRANSISTOR 1

Q404 B1BCCF000022 TRANSISTOR 1

Q406 B1DEHQ000007 TRANSISTOR 1

Q407 B1HFCFA00021 TRANSISTOR 1

Q408,09 B1DHCD000034 TRANSISTOR 2

Q412,13 B1DEGQ000070 TRANSISTOR 2

Q418 2SD1819A TRANSISTOR 1

Q420-22 2SD1819A TRANSISTOR 3

Q434 B1CEJQ000003 TRANSISTOR 1

Q501,02 2SD1820A TRANSISTOR 2

Q505 B1CEJQ000002 TRANSISTOR 1

Q507 B1DAGQ000013 TRANSISTOR 1

Q508 B1HBCFA00033 TRANSISTOR 1

Q509 B1HDCEA00001 TRANSISTOR 1

Q510 B1DHBD000005 TRANSISTOR 1

Q512 B1CBGD000001 FET 1

Q517 B1HBCFA00033 TRANSISTOR 1

Q520 B1HBCFA00033 TRANSISTOR 1

Q521 B1CBGD000001 FET 1

Q524 B1CFGF000008 TRANSISTOR 1

Q525 B1CBGD000001 FET 1

Q527 B1CERL000005 TRANSISTOR 1

Q530 2SD1819A TRANSISTOR 1

Q535 2SD1819A TRANSISTOR 1

Q537 B1DFDD000019 TRANSISTOR 1

Q538 B1CBGD000001 FET 1

Q540 B1DHCD000034 TRANSISTOR 1

Q541 B1CBGD000001 FET 1

Q551 B1CBGD000001 FET 1

Q553 2SD1819A TRANSISTOR 1

Q554 B1DHCD000034 TRANSISTOR 1

Q555,56 B1DFGD000045 TRANSISTOR 2

Q557-59 2SD1819A TRANSISTOR 3

Q561 2SD1819A TRANSISTOR 1

Q563 B1CFGF000008 TRANSISTOR 1

Q564,65 2SB1218ARL TRANSISTOR 2

Q566 2SD1819A TRANSISTOR 1

Q568 B1CHGD000006 TRANSISTOR 1

Q569 B1CBGD000001 FET 1

Q2300 B1BBCF000028 TRANSISTOR 1

Q2331 B1BBCF000028 TRANSISTOR 1

Q2372 2SD601A TRANSISTOR 1

Q2510,1

12SD601A TRANSISTOR 2

Q2513 2SD601A TRANSISTOR 1

Q3001 2SB709A TRANSISTOR 1

Q3002 2SD601A TRANSISTOR 1

Q3004 2SD601A TRANSISTOR 1

Q3531,3

22SD601A TRANSISTOR 2

Q4701 B1CBHD000002 FET 1

Q4702-

07 2SD601A TRANSISTOR 6

Q4709,1

02SD601A TRANSISTOR 2

Q4712-

14 2SD601A TRANSISTOR 3

Q4801 B1CBHD000002 FET 1

Q4802,0

32SD601A TRANSISTOR 2

Q4901-

03 B1MBEDA00015 TRANSISTOR 3

Q4961,6

22SD601A TRANSISTOR 2

Q6001-

03 2PG0010000RP TRANSISTOR 3

Q6021-

23 2PG0010000RP TRANSISTOR 3

Q6041,4

22PG0010000RP TRANSISTOR 2

Q6051 2PG0010000RP TRANSISTOR 1

Q6101,0

2B1DFKM000002 TRANSISTOR 2

Q6111 2SK326800L FET 1

Q6112 B1DFKM000002 TRANSISTOR 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

Q6141 B1ABNF000006 TRANSISTOR 1

Q6142 B1ADNF000006 TRANSISTOR 1

Q6146 B1ABNF000006 TRANSISTOR 1

Q6147 B1ADNF000006 TRANSISTOR 1

Q6212 2SD601A TRANSISTOR 1

Q6221 2SD1263A TRANSISTOR 1

Q6222 2SC1473A TRANSISTOR 1

Q6251 2SD601A TRANSISTOR 1

Q6401-

03 2PG0010000RP TRANSISTOR 3

Q6421-

23 2PG0020000RP TRANSISTOR 3

Q6441,4

22PG0010000RP TRANSISTOR 2

Q6451 2PG0020000RP TRANSISTOR 1

Q6471 B1CHGD000006 TRANSISTOR 1

Q6511 B1ABNF000006 TRANSISTOR 1

Q6512 B1ADNF000006 TRANSISTOR 1

Q6516 B1ABNF000006 TRANSISTOR 1

Q6517 B1ADNF000006 TRANSISTOR 1

Q6581 2SD601A TRANSISTOR 1

Q6601 B1DFES000003 TRANSISTOR 1

Q6602 2SD601A TRANSISTOR 1

Q6621,2

22SK399500L FET 2

Q6642-

44 2SK399500L FET 3

Q6646-

48 2SK399500L FET 3

Q6661 B1DEET000002 TRANSISTOR 1

Q6662 2SD601A TRANSISTOR 1

Q6663 2SD2185 TRANSISTOR 1

Q6671 B1DFES000003 TRANSISTOR 1

Q6680 B1ADNF000006 TRANSISTOR 1

Q6681,8

22SK389500L FET 2

Q6691 2SK620 FET 1

Q6742,4

32SD601A TRANSISTOR 2

Q6744 2SK620 FET 1

Q6762 B1ADNF000006 TRANSISTOR 1

Q6781 B1ABNF000006 TRANSISTOR 1

Q6782 B1ADNF000006 TRANSISTOR 1

Q6791 2SD601A TRANSISTOR 1

Q6801 B1BAEJ000014 TRANSISTOR 1

Q6802 2SB0709A TRANSISTOR 1

Q6803 2SD814A TRANSISTOR 1

Q6821 2SD1263A TRANSISTOR 1

Q6822 2SC3063 TRANSISTOR 1

Q6824 2SD601A TRANSISTOR 1

Q6841 2SD1263A TRANSISTOR 1

Q6842 2SC1473A TRANSISTOR 1

Q6921 2SK620 FET 1

Q8002 2SD601A TRANSISTOR 1

Q8010 2SD601A TRANSISTOR 1

Q8011 2SB709A TRANSISTOR 1

Q8012 2SD601A TRANSISTOR 1

Q8013 2SB709A TRANSISTOR 1

Q8019 2SD601A TRANSISTOR 1

Q8181-

84 B1CBHD000002 FET 4

Q8200-

02 2SD601A TRANSISTOR 3

Q9010 2SD601A TRANSISTOR 1

Q9044 2SD601A TRANSISTOR 1

Q9046 2SD601A TRANSISTOR 1

Q9050-

54 2SD601A TRANSISTOR 5

Q9055-

58 B1CBHD000002 FET 4

Q9300-

02 2SD601A TRANSISTOR 3

Q9800,0

1B1MBEDA00015 TRANSISTOR 2

Q9803 B1MBEDA00015 TRANSISTOR 1

167

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

Q9805,0

62SD601A TRANSISTOR 2

R401 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R402 ERJ6GEYJ821 M 820 OHM,J,1/10W 1

R403 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R404 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R406 ERX12SJ2R2V M 2.2 OHM, J,1/2W 1

R407 ERJ8ENF4303 M 43KOHM, 1/8W 1

R410 D1F5100E0003 CHIP RESISTOR 1

R412 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R413 D1F5100E0003 CHIP RESISTOR 1

R414 ERJ8GEYJ153 M 15KOHM, J,1/8W 1

R415 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R416 ERJ6GEYJ305 M 3MOHM,J,1/10W 1

R417 ERJ6ENF4303 M 430KOHM, 1/10W 1

R418 ERJ6GEYJ220 M 22 OHM,J,1/10W 1

R419 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R420 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R421 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R422 ERJ6GEYJ334 M 330KOHM,J,1/10W 1

R423 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R424 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R425 ERJ6ENF3902 M 39KOHM, 1/10W 1

R426 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R427 ERJ8ENF4303 M 43KOHM, 1/8W 1

R428 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R429 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1

R430 ERJ6ENF4303 M 430KOHM, 1/10W 1

R431 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R432 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R433 ERJ6ENF1202 M 12KOHM, 1/10W 1

R434 ERJ8GEY0R00 M 0 OHM, 1/8W 1

R435 ERJ8ENF4303 M 43KOHM, 1/8W 1

R436 ERJ8GEYJ153 M 15KOHM, J,1/8W 1

R437 ERJ6GEYJ183 M 18KOHM,J,1/10W 1

R438 ERJ6GEYJ331 M 330 OHM,J,1/10W 1

R439 ERG12SJ120 M 12 OHM, J,1/2W 1

R440 ERJ8GEYJ474 M 470KOHM, J,1/8W 1

R441,42 ERJ6EKF6803 M 680KOHM, 1/10W 2

R443 EVMAASA00B23 CONTROL 2KOHMB 1

R444 ERJ6GEYJ123 M 12KOHM,J,1/10W 1

R448,49 D0XGR10J0003 M 0.1OHM,J, 5W 2

R450 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R451 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R452 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R453 ERJ6GEYJ305 M 3MOHM,J,1/10W 1

R454 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R455 ERJ6GEYJ123 M 12KOHM,J,1/10W 1

R456 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R458 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R459 ERJ6EKF6803 M 680KOHM, 1/10W 1

R461 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R462 ERJ6ENF4303 M 430KOHM, 1/10W 1

R463 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R464 ERJ6ENF3302 M 33KOHM, 1/10W 1

R465 ERJ6ENF5603 M 560KOHM, 1/10W 1

R467 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R471 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1

R472,73 ERJ6ENF5603 M 560KOHM, 1/10W 2

R475 ERJ6EKF6803 M 680KOHM, 1/10W 1

R476,77 ERJ14YJ181U M 181 OHM, J,1/4W 2

R478 ERJ8GEYJ220 M 22 OHM, J,1/8W 1

R480 ERJ6ENF4702 M 47KOHM, 1/10W 1

R482 ERJ8GEYJ220 M 22 OHM, J,1/8W 1

R483 D0BF225JA030 M 22MOHM,J,0.05W 1

R487 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R488 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R490,91 ERJ6GEYJ473 M 47KOHM,J,1/10W 2

R492 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R493 ERG12SJ120 M 12 OHM, J,1/2W 1

R494-96 ERJ6ENF5603 M 560KOHM, 1/10W 3

R497 ERJ6ENF1202 M 12KOHM, 1/10W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R498 ERG3SJ101 M 100 OHM, J, 3W 1

R499 D0BF394JA029 M 390KOHM,J,0.05W 1

R501 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R502,03 ERJ6GEYJ104 M 100KOHM,J,1/10W 2

R504 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R505 ERJ8GEYJ330 M 33 OHM, J,1/8W 1

R506 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R507 ERJ6GEYJ221 M 220 OHM,J,1/10W 1

R508 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R509-11 ERJ6GEYJ104 M 100KOHM,J,1/10W 3

R512 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R513,14 ERJ6GEYJ104 M 100KOHM,J,1/10W 2

R515,16 ERJ6GEYJ102 M 1KOHM,J,1/10W 2

R517 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R518 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R519,20 ERJ6GEYJ104 M 100KOHM,J,1/10W 2

R521,22 ERJ8GEYJ100 M 10 OHM, J,1/8W 2

R523 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R524 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R525 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R526,27 ERJ8GEYJ224 M 220KOHM, J,1/8W 2

R528 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1

R529 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R530 ERJ6RBD3302 M 33KOHM,F,1/10W 1

R532 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R533 ERJ6GEYJ163 M 16KOHM,J,1/10W 1

R534 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R535,36 ERJ6GEYJ102 M 1KOHM,J,1/10W 2

R537 ERJ6ENF1003 M 100KOHM, 1/10W 1

R538 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R539 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R540,41 ERJ6GEYJ105 M 1MOHM,J,1/10W 2

R542 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R543 ERJ6GEYJ153 M 15KOHM,J,1/10W 1

R544 ERJ6GEYJ331 M 330 OHM,J,1/10W 1

R545 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R546 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R547 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R548 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R549 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R550 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R551 ERJ6GEYJ334 M 330KOHM,J,1/10W 1

R552 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R553 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R554 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R555,56 ERJ6GEYJ105 M 1MOHM,J,1/10W 2

R557 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R558 ERJ6GEYJ474 M 470KOHM,J,1/10W 1

R559 ERJ6ENF8201 M 8.2KOHM, 1/10W 1

R560 ERJ6ENF9101 M 9.1KOHM, 1/10W 1

R561 ERJ6ENF5101 M 5.1KOHM, 1/10W 1

R562 ERJ6ENF4701 M 4.7KOHM, 1/10W 1

R563 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 1

R564 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R565,66 ERJ6GEYJ105 M 1MOHM,J,1/10W 2

R567,68 ERJ8ENF1004 M 100KOHM, 1/8W 2

R569 ERJ6ENF3302 M 33KOHM, 1/10W 1

R570 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R571 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R572,73 ERJ8ENF3900 M 390 OHM, 1/8W 2

R574 ERJ6GEYJ331 M 330 OHM,J,1/10W 1

R575 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R576 ERJ6ENF1202 M 12KOHM, 1/10W 1

R577,78 ERJ6GEYJ473 M 47KOHM,J,1/10W 2

R579 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R580,81 ERJ6GEYJ473 M 47KOHM,J,1/10W 2

R582 ERJ6ENF1002 M 10KOHM, 1/10W 1

R583 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R584 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R585 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R586 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R587 ERJ8RQJR22V M0.22 OHM, 1/8W 1

R588 ERJ8ENF3900 M 390 OHM, 1/8W 1

168

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R589,90 ERJ8GEYJ123 M 12KOHM, J,1/8W 2

R591 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R592 ERJ6ENF3001 M 3KOHM, 1/10W 1

R593 ERJ6ENF5601 M 5.6KOHM, 1/10W 1

R594 ERJ6GEYJ151 M 150 OHM,J,1/10W 1

R595 ERJ8GEYJ222 M 2.2KOHM, J,1/8W 1

R596 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R597,98 ERJ6ENF3302 M 33KOHM, 1/10W 2

R599,00 ERJ8ENF3900 M 390 OHM, 1/8W 2

R601 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R602 ERJ6ENF3301 M 3.3KOHM, 1/10W 1

R603 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R606 ERJ6ENF1201 M 1.2KOHM, 1/10W 1

R607 ERJ6ENF2202 M 2.2KOHM, 1/10W 1

R608 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1

R609 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R610,11 ERJ6GEYJ473 M 47KOHM,J,1/10W 2

R612 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R613 ERJ6ENF2402 M 24KOHM, 1/10W 1

R614 ERJ6ENF3301 M 3.3KOHM, 1/10W 1

R615 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R616,17 ERJ6GEYJ103 M 10KOHM,J,1/10W 2

R618 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R619 ERJ8RQFR68 M 0.68OHM, J,1/8W 1

R620 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R621 ERJ8GEYJ123 M 12KOHM, J,1/8W 1

R622 ERJ8ENF1503 M 15KOHM, 1/8W 1

R624 ERX2SJR22 M0.22 OHM, J, 2W 1

R626 ERJ8ENF1503 M 15KOHM, 1/8W 1

R627 ERJ6GEYJ822 M 8.2KOHM,J,1/10W 1

R628 EVMAASA00B33 CONTROL 3KOHMB 1

R629 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R630 ERJ8GEYJ472 M 4.7KOHM, J,1/8W 1

R631 ERJ8GEYJ333 M 33KOHM, J,1/8W 1

R632 ERJ6GEYJ221 M 220 OHM,J,1/10W 1

R633 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R634 ERJ8RQFR68 M 0.68OHM, J,1/8W 1

R636 ERJ8ENF1503 M 15KOHM, 1/8W 1

R637 ERJ8RQFR68 M 0.68OHM, J,1/8W 1

R638 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R639,40 ERJ8RQFR68 M 0.68OHM, J,1/8W 2

R641 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R642-44 ERJ8RQFR68 M 0.68OHM, J,1/8W 3

R645 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R646,47 ERJ8GEYJ223 M 22KOHM, J,1/8W 2

R648 ERJ8ENF1503 M 15KOHM, 1/8W 1

R649 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R650 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R651,52 ERJ6ENF1002 M 10KOHM, 1/10W 2

R653 ERJ6ENF3302 M 33KOHM, 1/10W 1

R654 ERJ8GEYJ220 M 22 OHM, J,1/8W 1

R655 ERJ8RQJR22V M0.22 OHM, 1/8W 1

R656 ERJ6ENF4702 M 47KOHM, 1/10W 1

R657 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R658 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R659 ERJ6ENF3002 M 30KOHM, 1/10W 1

R660 ERJ6ENF1202 M 12KOHM, 1/10W 1

R661 EVMEASA00B53 CONTROL 5KOHMB

0.3W 1

R662 ERJ6ENF1503 M 150KOHM, 1/10W 1

R664 ERJ6ENF9101 M 9.1KOHM, 1/10W 1

R665 EVMEASA00B23 CONTROL 2KOHMB

0.3W 1

R666 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R667,68 ERJ8GEY0R00 M 0 OHM, 1/8W 2

R669 ERJ6ENF1303 M 130KOHM, 1/10W 1

R670 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R671 EVMEASA00B14 CONTROL 10KOHMB

0.3W 1

R672,73 ERJ6GEYJ102 M 1KOHM,J,1/10W 2

R674 ERJ8GEYJ333 M 33KOHM, J,1/8W 1

R675 ERJ6ENF2202 M 2.2KOHM, 1/10W 1

R676 ERJ8GEYJ333 M 33KOHM, J,1/8W 1

R677 ERJ6GEYJ474 M 470KOHM,J,1/10W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R678 ERJ8GEY0R00 M 0 OHM, 1/8W 1

R679,80 ERJ8RQJR22V M0.22 OHM, 1/8W 2

R682 ERJ6ENF2002 M 20KOHM, 1/10W 1

R683 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R684 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R685,86 ERJ6GEYJ102 M 1KOHM,J,1/10W 2

R687 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R688,89 ERJ6GEYJ102 M 1KOHM,J,1/10W 2

R690 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1

R691 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R692 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R693 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R695 ERJ6ENF1602 M 16KOHM, 1/10W 1

R696 ERJ8GEYJ100 M 10 OHM, J,1/8W 1

R697 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1

R698 ERJ8RQJR22V M0.22 OHM, 1/8W 1

R700-08 ERJ8GEYJ105 M 1MOHM, J,1/8W 9

R711 ERJ8RQJR22V M0.22 OHM, 1/8W 1

R712 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1

R713 ERJ8GEYJ472 M 4.7KOHM, J,1/8W 1

R714 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R715 ERDS2TJ101 C 100 OHM, J,1/4W 1

R802 ERJ3GEYJ333 M 33KOHM,J,1/16W 1

R803 ERJ3EKF6802 M 68KOHM, 1/16W 1

R804 ERJ3GEYJ823 M 82KOHM,J,1/16W 1

R805 ERJ3EKF8452 M84.5KOHM, 1/16W 1

R806 ERJ3EKF1052 M10.5KOHM, 1/16W 1

R810 ERJ3GEYJ333 M 33KOHM,J,1/16W 1

R811 ERJ3EKF6802 M 68KOHM, 1/16W 1

R812 ERJ3GEYJ683 M 68KOHM,J,1/16W 1

R813 ERJ3EKF4222 M42.2KOHM, 1/16W 1

R814 ERJ3EKF1052 M10.5KOHM, 1/16W 1

R818 ERJ3GEYJ333 M 33KOHM,J,1/16W 1

R819 ERJ3EKF6802 M 68KOHM, 1/16W 1

R820 ERJ3GEYJ333 M 33KOHM,J,1/16W 1

R821 ERJ3EKF2432 M24.3KOHM, 1/16W 1

R822 ERJ3EKF1052 M10.5KOHM, 1/16W 1

R825-27 ERJ3GEYJ822 M 8.2KOHM,J,1/16W 3

R828 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R829 ERJ6ENF1001 M 1KOHM, 1/10W 1

R830 ERJ6ENF8451 M8.45KOHM, 1/10W 1

R838 ERJ12YJ330 M 33 OHM,J, 1/2W 1

R840 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1

R921 ERJ6RBD3302 M 33KOHM,F,1/10W 1

R922 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R931 ERJ6ENF3302 M 33KOHM, 1/10W 1

R932 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R933 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R935 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R936 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R937 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R938 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R939,40 ERJ6GEYJ102 M 1KOHM,J,1/10W 2

R943 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R945 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R946 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R947 ERJ8GEYJ331 M 330 OHM, J,1/8W 1

R950 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R951,52 ERJ8GEYJ100 M 10 OHM, J,1/8W 2

R953 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R955 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R956 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R2351-

54 ERJ6GEYJ103 M 10KOHM,J,1/10W 4

R2355-

60 ERDS1FJ2R2 C 2.2 OHM, J,1/2W 6

R2361,6

2ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R2364 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R2366 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R2367,6

8ERJ3GEYJ560 M 56 OHM,J,1/16W 2

R2383 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R2384 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

169

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R2385 ERJ6GEYJ153 M 15KOHM,J,1/10W 1

R2386 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R2387,8

8ERJ6GEY0R00 M 0 OHM, 1/10W 2

R2389-

92 ERJ6GEYJ103 M 10KOHM,J,1/10W 4

R2393 ERJ6GEYJ220 M 22 OHM,J,1/10W 1

R2394-

96 ERJ6GEYJ103 M 10KOHM,J,1/10W 3

R2397 ERJ6GEYJ512 M 5.1KOHM,J,1/10W 1

R2398 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R2399,0

0ERJ6GEYJ220 M 22 OHM,J,1/10W 2

R2404-

07 ERJ6GEYJ103 M 10KOHM,J,1/10W 4

R2408-

11 ERJ6GEY0R00 M 0 OHM, 1/10W 4

R2412 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1

R2413 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R2414,1

5ERJ3GEYJ122 M 1.2KOHM,J,1/16W 2

R2416 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R2417 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1

R2418,1

9ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R2420 ERJ3GEYJ153 M 15KOHM,J,1/16W 1

R2421,2

2ERJ3GEYJ273 M 27KOHM,J,1/16W 2

R2423 ERJ3GEYJ153 M 15KOHM,J,1/16W 1

R2424,2

5ERJ3GEY0R00 M 0 OHM, 1/16W 2

R2426 ERJ3GEYJ471 M 470 OHM,J,1/16W 1

R2516 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 1

R2517 ERJ6GEYJ470 M 47 OHM,J,1/10W 1

R2520 ERJ3GEYJ224 M 220KOHM,J,1/16W 1

R2524 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R2525 ERJ3EKF9100 M 910 OHM, 1/16W 1

R2530 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R2531 ERJ3EKF2700 M 270 OHM, 1/16W 1

R2542 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R2556,5

7ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2

R2558 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R3001 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R3002 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R3003 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R3004 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R3005 ERJ6GEYJ184 M 180KOHM,J,1/10W 1

R3006,0

2ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R3007,0

8ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R3014-

17 ERJ3GEYJ103 M 10KOHM,J,1/16W 4

R3018,1

9ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R3022 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R3023 ERJ3GEYJ101 M 100 OHM,J,1/16W 1(J)

R3023 ERJ3GEYJ102 M 1KOHM,J,1/16W 1(HA)

R3024,2

5ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R3026 ERJ3GEYJ101 M 100 OHM,J,1/16W 1(HA)

R3026 ERJ3GEYJ103 M 10KOHM,J,1/16W 1(J)

R3027-

29 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R3030-

33 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R3034,3

5ERJ3GEYJ331 M 330 OHM,J,1/16W 2

R3036 ERJ3GEYJ331 M 330 OHM,J,1/16W 1(J)

R3036 ERJ3GEYJ103 M 10KOHM,J,1/16W 1(HA)

R3037 ERJ3GEY0R00 M 0 OHM, 1/16W 1(J)

R3037 ERJ3GEYJ103 M 10KOHM,J,1/16W 1(HA)

R3038 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R3039,4

0ERJ3GEYJ331 M 330 OHM,J,1/16W 2

R3041 ERJ3GEYJ331 M 330 OHM,J,1/16W 1(J)

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R3041 ERJ6GEY0R00 M 0 OHM, 1/10W 1(HA)

R3042 ERJ3GEY0R00 M 0 OHM, 1/16W 1(J)

R3042 ERJ6GEY0R00 M 0 OHM, 1/10W 1(HA)

R3043 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R3044-

47 ERJ3GEYJ103 M 10KOHM,J,1/16W 4

R3048 ERJ3GEYJ334 M 330KOHM,J,1/16W 1

R3049 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R3050 ERJ3GEYJ560 M 56 OHM,J,1/16W 1

R3051 ERJ3GEYJ330 M 33 OHM,J,1/16W 1

R3053,5

4ERJ3GEYJ560 M 56 OHM,J,1/16W 2

R3057,5

8ERJ3GEYJ560 M 56 OHM,J,1/16W 2

R3059 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R3060 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R3061 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R3062 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R3063 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R3064-

69 ERJ6GEYJ560 M 56 OHM,J,1/10W 6

R3070-

75 ERJ6ENF75R0 M 75 OHM, 1/10W 6

R3076-

81 ERJ6GEYJ560 M 56 OHM,J,1/10W 6

R3082 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R3083-

87 ERJ3GEY0R00 M 0 OHM, 1/16W 5

R3088-

93 ERJ6ENF75R0 M 75 OHM, 1/10W 6

R3094 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R3095,9

6ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2

R3101-

06 ERJ6ENF1800 M 180 OHM, 1/10W 6

R3107,0

8ERJ6GEYJ560 M 56 OHM,J,1/10W 2

R3110 ERJ6ENF4701 M 4.7KOHM, 1/10W 1

R3111 ERJ6ENF1501 M 1.5KOHM, 1/10W 1

R3116 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R3117 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R3118 ERJ6ENF8200 M 820 OHM, 1/10W 1

R3125 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R3126 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R3134 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R3140,4

1ERJ3GEYJ473 M 47KOHM,J,1/16W 2

R3143,4

4ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R3150,5

1ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R3160,6

1ERJ3GEY0R00 M 0 OHM, 1/16W 2

R3163 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R3188-

90 ERJ6ENF39R0 M 39 OHM, 1/10W 3

R3195,9

6ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R3197,9

8ERJ3GEYJ123 M 12KOHM,J,1/16W 2

R3210,1

1ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R3212-

15 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 4

R3216-

19 ERJ6GEYJ3R3 M 3.3KOHM,J,1/10W 4

R3230,3

1ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R3400 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R3508,0

9ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2

R3510,1

1ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R3529,3

0ERJ6GEYJ184 M 180KOHM,J,1/10W 2

R3547,4

8ERJ6GEYJ101 M 100 OHM,J,1/10W 2

170

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R3585,8

6ERJ6GEYJ560 M 56 OHM,J,1/10W 2

R3589 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R3590 ERJ6GEYJ560 M 56 OHM,J,1/10W 1

R3591-

93 ERJ6GEY0R00 M 0 OHM, 1/10W 3

R3653 ERJ6GEYJ153 M 15KOHM,J,1/10W 1

R3654 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R3655 ERJ6GEYJ153 M 15KOHM,J,1/10W 1

R3656 ERJ6GEYJ333 M 33KOHM,J,1/10W 1

R3663,6

4ERJ6GEYJ102 M 1KOHM,J,1/10W 2

R3668 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R3672 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R3751 ERJ6GEYF822 M 8.2KOHM,F,1/10W 1

R3752 ERJ6GEYF222 M 2.2KOHM,F,1/10W 1

R3753 ERJ6GEYF302 M 3.0KOHM,F,1/10W 1

R3754 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R3756 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R3758 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1

R3759-

64 ERJ6GEY0R00 M 0 OHM, 1/10W 6

R3766,6

7ERJ6GEY0R00 M 0 OHM, 1/10W 2

R3776,7

7ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R3778 ERJ6GEYJ473 M 47KOHM,J,1/10W 1

R3790,9

1ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R4001-

03 D1HG1008A002 NETWORK RESISTER 3

R4004 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4005 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4006 ERJ3EKF6801 M 6.8KOHM, 1/16W 1

R4007 ERJ6ENF39R0 M 39 OHM, 1/10W 1

R4008 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4009 ERJ6ENF39R0 M 39 OHM, 1/10W 1

R4010 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4011 ERJ6ENF39R0 M 39 OHM, 1/10W 1

R4012-

14 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4016-

19 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R4020 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4021 ERJ3GEYJ100 M 10 OHM,J,1/16W 1

R4023 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4024 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4025 ERJ6ENF1502 M 15KOHM, 1/10W 1

R4026 ERJ6ENF5102 M 51KOHM, 1/10W 1

R4027 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4028 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4035-

38 ERJ3GEYJ101 M 100 OHM,J,1/16W 4

R4041,4

2ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4139 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4142 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R4144 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R4148 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R4171 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R4201 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4211-

20 ERJ3GEYJ101 M 100 OHM,J,1/16W 10

R4221,2

2ERJ3GEYJ470 M 47 OHM,J,1/16W 2

R4224 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4226 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4228 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4240,4

1ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4242,4

3ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4244 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4245 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4249 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R4250-

52 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4256,5

7ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4260,6

1ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4263,6

4ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4271-

73 D1HG8208A002 NETWORK RESISTER 3

R4274,7

5ERJ3GEYJ470 M 47 OHM,J,1/16W 2

R4276 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4277-

79 D1HG1218A002 NETWORK RESISTER 3

R4280,8

1ERJ3GEYJ470 M 47 OHM,J,1/16W 2

R4282 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4312,1

3ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4314 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4316 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4318,1

9ERJ3GEYJ223 M 22KOHM,J,1/16W 2

R4321 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R4324 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4325-

27 EXB38VR000 RESISTOR ARRAY 3

R4502 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4503 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4506,0

7ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4510-

12 ERJ3GEYJ470 M 47 OHM,J,1/16W 3

R4514,1

5ERJ3GEYJ470 M 47 OHM,J,1/16W 2

R4518 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4520 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4522,2

3ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4525,2

6ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4528 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4530,3

1ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4533 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4536,3

7ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4539-

41 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4544-

47 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R4549 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4554 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R4555-

58 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R4559,6

0ERJ3GEYJ102 M 1KOHM,J,1/16W 2

R4564-

67 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R4568,6

9D1HG1038A002 NETWORK RESISTER 2

R4570-

72 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4573 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4574 EXB2HV680J RESISTOR ARRAY 1

R4575,7

6ERJ3GEYJ680 M 68 OHM,J,1/16W 2

R4577 EXB2HV680J RESISTOR ARRAY 1

R4578,7

9ERJ6ENF1001 M 1KOHM, 1/10W 2

R4580 ERJ6ENF1101 M 1.1KOHM, 1/10W 1

R4581 ERJ6ENF3161 M3.16KOHM, 1/10W 1

R4582,8

3ERJ3GEYJ680 M 68 OHM,J,1/16W 2

R4584 EXB2HV680J RESISTOR ARRAY 1

R4585,8

6ERJ3GEYJ680 M 68 OHM,J,1/16W 2

171

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R4587-

89 D1HG33080001 NETWORK RESISTER 3

R4590,9

1ERJ3GEYJ680 M 68 OHM,J,1/16W 2

R4592 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R4595 ERJ3GEYJ680 M 68 OHM,J,1/16W 1

R4596 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4618-

21 D1HG33080001 NETWORK RESISTER 4

R4622 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4626,2

7ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4631 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4640 ERJ3GEYJ121 M 120 OHM,J,1/16W 1

R4657,5

8ERJ6ENF1001 M 1KOHM, 1/10W 2

R4671 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4701 EXB38V103J RESISTOR ARRAY 1

R4702 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4703 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4704 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4706 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1

R4707 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4708 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4709 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4710,1

1ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4712,1

3D1HG1008A002 NETWORK RESISTER 2

R4715 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4716 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4717 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4718,1

9ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4722 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4723 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4724 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4726 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4727 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4728 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4729,3

0ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R4732 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4734 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4735 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4737 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4738 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4740,4

1D1HG1008A002 NETWORK RESISTER 2

R4742,4

3ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R4745 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4746 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4747 EXB38VR000 RESISTOR ARRAY 1

R4748-

52 ERJ3GEY0R00 M 0 OHM, 1/16W 5

R4753 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4754 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1

R4755 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4756 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1

R4757 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4758 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4759 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R4760 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4761-

63 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4764,6

5ERJ3GEYJ470 M 47 OHM,J,1/16W 2

R4766,6

7EXB2HV470JV RESISTOR ARRAY 2

R4768 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R4769 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4770 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R4771 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R4772 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4773 ERJ3GEY0R00 M 0 OHM, 1/16W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R4774 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4775 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4777 ERJ3GEYJ393 M 39KOHM,J,1/16W 1

R4779 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4780,8

1ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R4783 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4786 EXB38V103J RESISTOR ARRAY 1

R4788 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4790,9

1ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R4792 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4793 ERJ3GEYJ123 M 12KOHM,J,1/16W 1

R4795 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4796 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1

R4804 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1

R4806 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4808 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1

R4812,1

3ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4814 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4815 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4817 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4818,1

9ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R4820 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4821 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4822,2

3ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4824 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R4825 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4826 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R4827 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4828 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4829 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4830 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4831 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4832 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4833 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R4834 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4835 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4836 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R4837 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4838 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4839 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R4840 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4841,4

2ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2

R4843 ERJ3GEYJ331 M 330 OHM,J,1/16W 1

R4844 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4845 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1

R4846 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1

R4847,4

8ERJ3GEYJ102 M 1KOHM,J,1/16W 2

R4849 ERJ3GEYJ123 M 12KOHM,J,1/16W 1

R4850 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4851-

53 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R4855 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4858 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4859 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1

R4860 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4863 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4864 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1

R4865,6

6ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4868 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1

R4869 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4870 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4872 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4873,7

4ERJ3GEYJ223 M 22KOHM,J,1/16W 2

R4876 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4877 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R4879 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

172

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R4880 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4881 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4883 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1

R4884 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4886 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1

R4887 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4888 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4891 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4892 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4893 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4894,9

5ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R4900 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4902 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4903 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4904 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4906 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R4908 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1

R4909 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4910 ERJ3EKF6202 M 62KOHM, 1/16W 1

R4911-

21 ERJ3GEYJ101 M 100 OHM,J,1/16W 11

R4922 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4924 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4925-

27 ERJ3GEY0R00 M 0 OHM, 1/16W 3

R4930 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4931 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4932 ERJ3EKF3902 M 39KOHM, 1/16W 1

R4933 ERJ3EKF3901 M 3.9KOHM, 1/16W 1

R4934 ERJ3EKF3002 M 30KOHM, 1/16W 1

R4935 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R4936 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4938 ERJ3EKF1302 M 13KOHM, 1/16W 1

R4939 ERJ3EKF2402 M 24KOHM, 1/16W 1

R4940 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4941 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4942,4

3ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R4944 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4947 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R4950 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R4951 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4952 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4953 ERJ3EKF4702 M 47KOHM, 1/16W 1

R4954 ERJ3EKF7501 M 7.5KOHM, 1/16W 1

R4955 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4957 ERJ3EKF3602 M 36KOHM, 1/16W 1

R4958 ERJ3EKF8202 M 82KOHM, 1/16W 1

R4959 ERJ3EKF2202 M 22KOHM, 1/16W 1

R4960 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R4961,6

2ERJ6GEY0R00 M 0 OHM, 1/10W 2

R4963 ERJ3EKF4702 M 47KOHM, 1/16W 1

R4964 ERJ3EKF7501 M 7.5KOHM, 1/16W 1

R4965 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R4966,6

7ERJ3GEY0R00 M 0 OHM, 1/16W 2

R4969 ERJ3EKF3602 M 36KOHM, 1/16W 1

R4970 ERJ3EKF6802 M 68KOHM, 1/16W 1

R4973 ERJ3EKF2402 M 24KOHM, 1/16W 1

R4974 ERJ3EKF2401 M 2.4KOHM, 1/16W 1

R4975 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4981 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4986 ERJ3GEYJ183 M 18KOHM,J,1/16W 1

R4987 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R4991,9

2ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R4994,9

5ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R6001-

06 ERJ14YJ150U M 15 OHM, J,1/4W 6

R6020 ERG2FJS101D M 100 OHM, J, 2W 1

R6021 ERJ14YJ150U M 15 OHM, J,1/4W 1

R6022 ERG2FJS101D M 100 OHM, J, 2W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R6023-

27 ERJ14YJ150U M 15 OHM, J,1/4W 5

R6031 ERJ14YJ204 M 200KOHM, J,1/4W 1

R6041-

44 ERJ14YJ150U M 15 OHM, J,1/4W 4

R6051,5

2ERJ14YJ150U M 15 OHM, J,1/4W 2

R6061,6

2ERJ6GEYJ224 M 220KOHM,J,1/10W 2

R6101-

04 ERJ6GEYJ101 M 100 OHM,J,1/10W 4

R6111,1

2D0GD470JA036 M 47 OHM,J,0.25W 2

R6113 ERJ14YJ224 M 220KOHM, J,1/4W 1

R6131,3

2ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R6133,3

4ERJ6GEYJ151 M 150 OHM,J,1/10W 2

R6135,3

6D0GD100JA036 M 10 OHM,J,0.25W 2

R6141,4

2ERJ6GEYJ103 M 10KOHM,J,1/10W 2

R6146,4

7ERJ6GEYJ103 M 10KOHM,J,1/10W 2

R6151,5

2ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R6153,5

4ERJ6GEYJ151 M 150 OHM,J,1/10W 2

R6155 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6157,5

8D0GF1R0JA047 M 1.0 OHM,J, 0.33W 2

R6160 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 1

R6166 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6173 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6174 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R6191-

94 ERJ6GEYJ101 M 100 OHM,J,1/10W 4

R6195 D0GD104JA036 M 100KOHM,J,0.25W 1

R6196 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6213 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6214 D0GD151JA036 M 150 OHM,J,0.25W 1

R6215 D0GF910JA047 M 91 OHM,J, 0.33W 1

R6216 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R6217 D0GF910JA047 M 91 OHM,J, 0.33W 1

R6222 ERG1FJS103D M 10KOHM, J, 1W 1

R6223 ERG2FJS123D M 12KOHM, J, 2W 1

R6225-

27 ERJ6ENF1692 M16.9KOHM, 1/10W 3

R6229 ERJ6ENF1692 M16.9KOHM, 1/10W 1

R6232 ERJ6ENF1201 M 1.2KOHM, 1/10W 1

R6233-

35 ERJ6GEYJ273 M 27KOHM,J,1/10W 3

R6236 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1

R6241 EXB38V470J RESISTOR ARRAY 1

R6242 EXB38V472J RESISTOR ARRAY 1

R6243 ERJ6GEYJ470 M 47 OHM,J,1/10W 1

R6244 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6245 ERJ6GEYJ470 M 47 OHM,J,1/10W 1

R6246 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6251 D0GD103JA036 M 10KOHM,J,0.25W 1

R6252,5

3ERJ6ENF3902 M 39KOHM, 1/10W 2

R6254 ERJ6ENF7501 M 7.5KOHM, 1/10W 1

R6255,5

6ERJ6GEYJ152 M 1.5KOHM,J,1/10W 2

R6257 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6258 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R6261 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6401-

06 ERJ14YJ150U M 15 OHM, J,1/4W 6

R6421-

26 ERJ14YJ150U M 15 OHM, J,1/4W 6

R6441-

44 ERJ14YJ150U M 15 OHM, J,1/4W 4

R6451,5

2ERJ14YJ150U M 15 OHM, J,1/4W 2

R6465 ERJ14YJ204 M 200KOHM, J,1/4W 1

173

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R6471 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1

R6472 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R6473 ERJ6GEYJ561 M 560 OHM,J,1/10W 1

R6474 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R6475,7

6ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2

R6477 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R6478 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6479 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6501,0

2ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R6503 D0GD100JA036 M 10 OHM,J,0.25W 1

R6504,0

5ERJ6GEYJ151 M 150 OHM,J,1/10W 2

R6506 D0GD100JA036 M 10 OHM,J,0.25W 1

R6507,0

8D0GF1R0JA047 M 1.0 OHM,J, 0.33W 2

R6511,1

2ERJ6GEYJ103 M 10KOHM,J,1/10W 2

R6516,1

7ERJ6GEYJ103 M 10KOHM,J,1/10W 2

R6521,2

2ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R6523,2

4ERJ6GEYJ151 M 150 OHM,J,1/10W 2

R6525 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6526 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6533 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6534 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R6561-

64 EXB38V470J RESISTOR ARRAY 4

R6565-

68 EXB38V472J RESISTOR ARRAY 4

R6581 D0GD103JA036 M 10KOHM,J,0.25W 1

R6582,8

3ERJ6ENF3902 M 39KOHM, 1/10W 2

R6584 ERJ6ENF7501 M 7.5KOHM, 1/10W 1

R6585,8

6ERJ6GEYJ152 M 1.5KOHM,J,1/10W 2

R6587 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R6588 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6590 ERJ6GEYJ221 M 220 OHM,J,1/10W 1

R6591 EXB38V472J RESISTOR ARRAY 1

R6592 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6603 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6604 D0GD151JA036 M 150 OHM,J,0.25W 1

R6605 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6606 ERJ6ENF2741 M2.74KOHM, 1/10W 1

R6608,0

9D0GF102JA047 M 1.0 KOHM,J,0.33W 2

R6610 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6611 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R6612 ERJ6GEYJ470 M 47 OHM,J,1/10W 1

R6613 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R6614,1

5D0GF243JA047 M 24 KOHM,J,0.33W 2

R6616 ERJ6ENF1502 M 15KOHM, 1/10W 1

R6617 ERJ6GEYJ105 M 1MOHM,J,1/10W 1

R6618 ERJ6ENF1202 M 12KOHM, 1/10W 1

R6619 ERJ6ENF1501 M 1.5KOHM, 1/10W 1

R6620 D0D28R2JA021 M 8.2 OHM,J,2W 1

R6621,2

2ERJ6GEYJ221 M 220 OHM,J,1/10W 2

R6642-

44 ERJ6GEYJ100 M 10 OHM,J,1/10W 3

R6646-

48 ERJ6GEYJ100 M 10 OHM,J,1/10W 3

R6658 D0D1101JA009 M 100 OHM,J,1W 1

R6659,6

0ERJ6GEYJ224 M 220KOHM,J,1/10W 2

R6661 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

R6662 ERJ6ENF1201 M 1.2KOHM, 1/10W 1

R6663 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6664 D0GF222JA047 M 2.2 KOHM,J,0.33W 1

R6665 ERJ14YJ470 M 47 OHM,J, 1/2W 1

R6666 ERJ6GEYJ104 M 100KOHM,J,1/10W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R6667,6

8ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2

R6671 ERJ6GEYJ470 M 47 OHM,J,1/10W 1

R6672 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6673 D0GD5R6JA059 M 5.6 OHM,J,0.25W 1

R6681,8

2ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R6683 D0GD151JA036 M 150 OHM,J,0.25W 1

R6684 ERJ6GEYJ100 M 10 OHM,J,1/10W 1

R6685 ERJ6GEYJ471 M 470 OHM,J,1/10W 1

R6686 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6687 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R6688 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6689 ERJ6GEYJ100 M 10 OHM,J,1/10W 1

R6690 ERJ6GEYJ151 M 150 OHM,J,1/10W 1

R6691 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6696,9

7D0D32R2JA020 M 2.2 OHM,J,3W 2

R6700-

08 ERJ6GEYJ471 M 470 OHM,J,1/10W 9

R6710-

18 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 9

R6721,2

2EXB38V220J RESISTOR ARRAY 2

R6723 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R6742 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6743 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R6744 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6745 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6746,4

7D0GD103JA036 M 10KOHM,J,0.25W 2

R6755 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6756-

58 D0GD101JA059 M 100 OHM,J,0.25W 3

R6759 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6760 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1

R6761 ERJ6GEYJ100 M 10 OHM,J,1/10W 1

R6762 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6775,7

6ERJ6GEYJ101 M 100 OHM,J,1/10W 2

R6777 D0GD151JA036 M 150 OHM,J,0.25W 1

R6781 ERJ6GEYJ470 M 47 OHM,J,1/10W 1

R6782 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6791 ERJ6GEYJ102 M 1KOHM,J,1/10W 1

R6792 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6793 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6806 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1

R6807 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1

R6808 ERG2FJS330D M 33 OHM, J, 2W 1

R6809 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6810,1

1ERJ6GEYJ433 M 43KOHM,J,1/10W 2

R6812 ERJ6ENF2743 M 274KOHM, 1/10W 1

R6813 ERJ6ENF1001 M 1KOHM, 1/10W 1

R6814 ERJ6ENF6981 M6.98KOHM, 1/10W 1

R6815 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R6816 ERJ6ENF1432 M14.3KOHM, 1/10W 1

R6817 ERJ6ENF4701 M 4.7KOHM, 1/10W 1

R6821 D0D2221JA021 M 220 OHM,J,2W 1

R6822,2

3ERJ12YJ104U M 100KOHM, 1/2W 2

R6824 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1

R6825 ERJ6ENF2003 M 200KOHM, 1/10W 1

R6826 ERJ6ENF2703 M 270KOHM, 1/10W 1

R6827 ERJ6ENF1432 M14.3KOHM, 1/10W 1

R6828 ERJ6ENF5231 M5.23KOHM, 1/10W 1

R6829,3

0ERJ6GEYJ154 M 150KOHM,J,1/10W 2

R6831 ERJ6GEYJ103 M 10KOHM,J,1/10W 1

R6833 ERJ6ENF5602 M 56KOHM, 1/10W 1

R6834 ERJ6ENF5102 M 51KOHM, 1/10W 1

R6835 ERJ6ENF5602 M 56KOHM, 1/10W 1

R6836 ERJ6ENF5102 M 51KOHM, 1/10W 1

R6837 ERJ6ENF4702 M 47KOHM, 1/10W 1

R6839 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

174

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R6841 ERJ12YJ103 M 10KOHM,J, 1/2W 1

R6842 ERJ14YJ103 M 10KOHM, J,1/4W 1

R6843 ERJ6GEYJ563 M 56KOHM,J,1/10W 1

R6844 D0D2101JA021 M 100 OHM,J,2W 1

R6845-

47 ERJ6GEYJ563 M 56KOHM,J,1/10W 3

R6848 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6849 D1BD5902A028 M 59KOHM, 1/10W 1

R6850 ERJ6ENF6202 M 62KOHM, 1/10W 1

R6851 ERJ6ENF1501 M 1.5KOHM, 1/10W 1

R6852 ERJ6ENF2491 M2.49KOHM, 1/10W 1

R6853 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6860 D0D28R2JA021 M 8.2 OHM,J,2W 1

R6861 ERJ6ENF3902 M 39KOHM, 1/10W 1

R6862,6

3ERJ6ENF4702 M 47KOHM, 1/10W 2

R6864 ERJ6ENF9101 M 9.1KOHM, 1/10W 1

R6865 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1

R6866 ERJ6ENF1501 M 1.5KOHM, 1/10W 1

R6867 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1

R6868 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R6869 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6871-

73 ERJ6ENF3902 M 39KOHM, 1/10W 3

R6874 ERJ6ENF9101 M 9.1KOHM, 1/10W 1

R6875 ERJ6ENF3301 M 3.3KOHM, 1/10W 1

R6876 ERJ6ENF1201 M 1.2KOHM, 1/10W 1

R6877 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1

R6878 ERJ6GEYJ223 M 22KOHM,J,1/10W 1

R6879 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6886-

88 ERJ6GEYJ224 M 220KOHM,J,1/10W 3

R6901 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6902-

04 ERJ3GEYJ220 M 22 OHM,J,1/16W 3

R6908,0

9ERJ6GEYJ221 M 220 OHM,J,1/10W 2

R6916 ERJ6GEYJ221 M 220 OHM,J,1/10W 1

R6921,2

2ERJ6GEYJ104 M 100KOHM,J,1/10W 2

R6923 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1

R6931-

34 ERJ6GEYJ103 M 10KOHM,J,1/10W 4

R6935,3

6ERJ8GEYJ224 M 220KOHM, J,1/8W 2

R6951 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R6952-

54 ERJ3GEYJ220 M 22 OHM,J,1/16W 3

R6958,5

9ERJ6GEYJ221 M 220 OHM,J,1/10W 2

R6966 ERJ6GEYJ221 M 220 OHM,J,1/10W 1

R6981-

84 ERJ6GEYJ103 M 10KOHM,J,1/10W 4

R6985,8

6ERJ8GEYJ224 M 220KOHM, J,1/8W 2

R7111 D0GD472JA059 M 4.7KOHM,J,0.25W 1

R7112,1

3ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R7114 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R7115 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R7116,1

7ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R7118 ERJ6GEYJ224 M 220KOHM,J,1/10W 1

R7120-

24 EXB38V470J RESISTOR ARRAY 5

R7127 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7129-

32 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4

R7133 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7136 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7138-

41 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4

R7142 EXB38V102J RESISTOR ARRAY 1

R7143 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7146 EXB38V470J RESISTOR ARRAY 1

R7147-

52 EXB38V102J RESISTOR ARRAY 6

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R7154 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7156-

59 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4

R7160 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7164,6

5ERJ3GEY0R00 M 0 OHM, 1/16W 2

R7169 EXB38V470J RESISTOR ARRAY 1

R7201-

07 EXB38V470J RESISTOR ARRAY 7

R7208-

10 ERJ3GEYJ470 M 47 OHM,J,1/16W 3

R7212-

15 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4

R7216 EXB38V470J RESISTOR ARRAY 1

R7217 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7219 ERJ6GEYJ224 M 220KOHM,J,1/10W 1

R7221 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7223-

26 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4

R7227 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7229 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R7231 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7232-

35 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4

R7236 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7237-

42 EXB38V102J RESISTOR ARRAY 6

R7245 EXB38V102J RESISTOR ARRAY 1

R7246-

49 ERJ3GEYJ220 M 22 OHM,J,1/16W 4

R7250,5

1EXB38V470J RESISTOR ARRAY 2

R7255,5

6ERJ3GEY0R00 M 0 OHM, 1/16W 2

R7257 EXB38V102J RESISTOR ARRAY 1

R7259 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7261-

64 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4

R7265 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R7268 D0GD472JA059 M 4.7KOHM,J,0.25W 1

R7269 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R7270 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R8001-

04 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R8005 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R8009-

12 ERJ3GEYJ271 M 270 OHM,J,1/16W 4

R8017,1

8ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2

R8021 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1

R8025 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R8026 ERJ3GEYJ331 M 330 OHM,J,1/16W 1

R8029 ERJ6ENF3001 M 3KOHM, 1/10W 1

R8031 ERJ6ENF2201 M 2.2KOHM, 1/10W 1

R8033 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R8035 ERJ6ENF3300 M 330 OHM, 1/10W 1

R8036 ERJ6ENF1500 M 150 OHM, 1/10W 1

R8037 ERJ6ENF4701 M 4.7KOHM, 1/10W 1

R8039 ERJ6ENF4701 M 4.7KOHM, 1/10W 1

R8041 ERJ3GEYJ183 M 18KOHM,J,1/16W 1

R8045 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1

R8047 ERJ3GEYJ271 M 270 OHM,J,1/16W 1

R8048 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1

R8050 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1

R8051 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R8054 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R8055,5

6ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R8057 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R8060 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R8065 D0GB911JA002 M 910 OHM,J,1/16W 1

R8067 D0GB911JA002 M 910 OHM,J,1/16W 1

R8069 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1

R8072 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R8089 ERJ3GEYJ181 M 180 OHM,J,1/16W 1

R8093 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

175

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R8097,9

8ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R8100 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R8112 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R8117-

20 ERJ3GEY0R00 M 0 OHM, 1/16W 4

R8121,2

2ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2

R8124-

27 ERJ6GEYJ101 M 100 OHM,J,1/10W 4

R8129 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R8180 ERJ8GEYJ820V M 82 OHM, J,1/8W 1

R8181 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R8182 ERJ6GEYJ101 M 100 OHM,J,1/10W 1

R8183,8

4ERJ3GEY0R00 M 0 OHM, 1/16W 2

R8185,8

6ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2

R8187,8

8ERJ6GEYJ560 M 56 OHM,J,1/10W 2

R8189,9

0ERJ6GEY0R00 M 0 OHM, 1/10W 2

R8200 ERJ3GEYJ563 M 56KOHM,J,1/16W 1

R8201 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R8202 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R8203 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R8204 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R8205 ERJ3GEYJ753 M 75KOHM,J,1/16W 1

R8206 ERJ3GEYJ393 M 39KOHM,J,1/16W 1

R8207 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9060-

67 ERJ3GEYJ101 M 100 OHM,J,1/16W 8

R9070 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R9074 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9076 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9097,9

8ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9099 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9100,0

1ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9102 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9105 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R9106 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9107 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1

R9108,0

9ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9110 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9111 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R9113 ERJ3GEYJ100 M 10 OHM,J,1/16W 1

R9120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9127 ERJ3GEYJ683 M 68KOHM,J,1/16W 1

R9129 ERJ3GEYJ683 M 68KOHM,J,1/16W 1

R9131-

33 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3

R9134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1

R9140 ERJ6GEY0R00 M 0 OHM, 1/10W 1

R9141-

45 ERJ3GEYJ101 M 100 OHM,J,1/16W 5

R9148 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R9150,5

1ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R9152,5

3ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2

R9154,5

5ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2

R9156-

59 ERJ3GEYJ103 M 10KOHM,J,1/16W 4

R9160,6

1ERJ3GEY0R00 M 0 OHM, 1/16W 2

R9164-

66 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R9167,6

8ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R9169 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R9170-

72 ERJ3GEYJ393 M 39KOHM,J,1/16W 3

R9173-

75 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R9177 ERJ3GEYJ223 M 22KOHM,J,1/16W 1

R9178 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9180 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9181-

84 ERJ3GEYJ102 M 1KOHM,J,1/16W 4

R9185,8

6ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R9187,8

8ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2

R9189,9

0ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9192 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9193 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9194 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9196 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9199 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1

R9203 ERJ3GEYJ102 M 1KOHM,J,1/16W 1

R9205 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R9206,0

7ERJ3GEYJ102 M 1KOHM,J,1/16W 2

R9215 ERJ3GEYJ123 M 12KOHM,J,1/16W 1

R9217-

22 ERJ3GEYJ103 M 10KOHM,J,1/16W 6

R9223 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R9225 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R9236 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9237 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9240 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9317 ERJ3GEYJ391 M 390 OHM,J,1/16W 1

R9348 D1HG8208A002 NETWORK RESISTER 1

R9349 EXB38V820J RESISTOR ARRAY 1

R9350,5

1ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R9352 EXB38V820J RESISTOR ARRAY 1

R9353,5

4D1HG8208A002 NETWORK RESISTER 2

R9355,5

6ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2

R9357-

59 D1HG8208A002 NETWORK RESISTER 3

R9360 EXB38V820J RESISTOR ARRAY 1

R9361,6

2ERJ3GEYJ220 M 22 OHM,J,1/16W 2

R9363 EXB2HV470JV RESISTOR ARRAY 1

R9366 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R9367 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9368 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9369 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1

R9370 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9371 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9379 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9380 ERJ3GEYJ560 M 56 OHM,J,1/16W 1

R9382 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9390 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9391 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9394 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9395 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R9501,0

2ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9503 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R9506 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R9507 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9511-

13 ERJ3GEYJ470 M 47 OHM,J,1/16W 3

R9516 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9518 ERJ3GEYJ561 M 560 OHM,J,1/16W 1

R9523 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9525 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9526 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9527,2

8EXB2HV272JV RESISTOR ARRAY 2

176

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R9529,3

0ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9531-

33 ERJ3GEYJ470 M 47 OHM,J,1/16W 3

R9534 EXB38V470J RESISTOR ARRAY 1

R9535,3

6ERJ3GEYJ470 M 47 OHM,J,1/16W 2

R9537 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9540 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9543,4

4ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9545 ERJ3GEYJ304V M 300KOHM,J,1/16W 1

R9548-

50 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R9552 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9555 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9800 ERJ3EKF1302 M 13KOHM, 1/16W 1

R9801 ERJ3EKF2402 M 24KOHM, 1/16W 1

R9802 ERJ3EKF6202 M 62KOHM, 1/16W 1

R9803 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9804 ERJ3EKF2402 M 24KOHM, 1/16W 1

R9805 ERJ3EKF3002 M 30KOHM, 1/16W 1

R9806 ERJ3EKF3902 M 39KOHM, 1/16W 1

R9807 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9808 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9810 ERJ3EKF3001 M 3KOHM, 1/16W 1

R9813 ERJ3EKF2401 M 2.4KOHM, 1/16W 1

R9814 ERJ3EKF6802 M 68KOHM, 1/16W 1

R9815 ERJ3EKF2202 M 22KOHM, 1/16W 1

R9816 ERJ3EKF8202 M 82KOHM, 1/16W 1

R9821 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

R9823-

27 ERJ3GEYJ101 M 100 OHM,J,1/16W 5

R9828 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9830,3

1ERJ3GEYJ103 M 10KOHM,J,1/16W 2

R9838,3

9ERJ3GEYJ101 M 100 OHM,J,1/16W 2

R9840 ERJ3GEYJ220 M 22 OHM,J,1/16W 1

R9841 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9842-

44 ERJ3GEYJ101 M 100 OHM,J,1/16W 3

R9845 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1

R9846,4

7EXB2HV272JV RESISTOR ARRAY 2

R9848,4

9EXB2HV470JV RESISTOR ARRAY 2

R9850 ERJ3GEYJ473 M 47KOHM,J,1/16W 1

R9854 ERJ3GEYJ101 M 100 OHM,J,1/16W 1

R9859 EXB38V101J RESISTOR ARRAY 1

R9861-

63 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R9868 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9869-

71 ERJ3GEYJ103 M 10KOHM,J,1/16W 3

R9872 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9878 ERJ3EKF3902 M 39KOHM, 1/16W 1

R9879 ERJ3EKF2002 M 20KOHM, 1/16W 1

R9880 ERJ3EKF3602 M 36KOHM, 1/16W 1

R9883 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9884 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9891 ERJ3EKF4702 M 47KOHM, 1/16W 1

R9892 ERJ3EKF1502 M 15KOHM, 1/16W 1

R9893 ERJ3EKF3602 M 36KOHM, 1/16W 1

R9896 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9897 ERJ3GEYJ104 M 100KOHM,J,1/16W 1

R9903 EXB2HV470JV RESISTOR ARRAY 1

R9904 ERJ3GEYJ470 M 47 OHM,J,1/16W 1

R9905 ERJ3GEYJ330 M 33 OHM,J,1/16W 1

R9906 EXB38V470J RESISTOR ARRAY 1

R9907 ERJ3GEYJ151 M 150 OHM,J,1/16W 1

R9917,1

8ERJ3GEY0R00 M 0 OHM, 1/16W 2

R9919,2

0ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2

R9922 ERJ3GEY0R00 M 0 OHM, 1/16W 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R9929 ERJ3GEY0R00 M 0 OHM, 1/16W 1

R9936-

39 ERJ3EKF1001 M 1KOHM, 1/16W 4

R9940 ERJ3GEYJ330 M 33 OHM,J,1/16W 1

R9941,4

2ERJ3GEYJ470 M 47 OHM,J,1/16W 2

R9943-

51 EXB38V470J RESISTOR ARRAY 9

R9952-

55 ERJ3GEYJ470 M 47 OHM,J,1/16W 4

R9956 ERJ3GEYJ103 M 10KOHM,J,1/16W 1

RL402,0

3TSEH8011 RELAY 2

RM2501 PNA4701M05TV REMOCO RECEIVER 1

RTL TNPA3762AH CIRCUIT BOARD K 1

RTL TNPA3763AE CIRCUIT BOARD S 1

RTL TNPA3794AB CIRCUIT BOARD SC 1

RTL TNPA3795AB CIRCUIT BOARD SS 1

RTL TNPA3799AB CIRCUIT BOARD C1 1

RTL TNPA3800AB CIRCUIT BOARD C2 1

RTL TNPA3848AE CIRCUIT BOARD GK 1

RTL TNPA3874AB CIRCUIT BOARD SU 1

RTL TNPA3875AB CIRCUIT BOARD SD 1

RTL TNPA3896AB CIRCUIT BOARD J 1

RTL TNPA3911AL CIRCUIT BOARD P 1

RTL TXNHA10RBS CIRCUIT BOARD HA 1

RTL TZTNP01ZQTJ CIRCUIT BOARD D 1

RTL TZTNP03ZQTU CIRCUIT BOARD HX 1

RTL TZTNP04ZQTU CIRCUIT BOARD DA 1

S1 K1KA03BA0061 3P CONNECTOR 1

S401,02 J0LT00000009 SWITCH 2

SC2 K1KA02A00626 2P CONNECTOR 1

SC20 K1KA20AA0008 20P CONNECTOR 1

SC23 K1KA03AA0193 3P CONNECTOR 1

SC30 K1KA08AA0192 8P CONNECTOR 1

SC41,42 K1ML80B00001 80P CONNECTOR 2

SC45,46 K1KA09A00239 9P CONNECTOR 2

SD1-D3 K1MN80B00012 80P CONNECTOR 3

SD46 K1KB09A00045 9P CONNECTOR 1

SS11 K1KA02A00626 2P CONNECTOR 1

SS12 K1KA10AA0194 10P CONNECTOR 1

SS23 K1KA12AA0194 12P CONNECTOR 1

SS34 K1KA03AA0193 3P CONNECTOR 1

SS41-44 K1MN13B00020 13P CONNECTOR 4

SSMM1 TMME260 CLAMPER 1

SU1-U3 K1MN80B00012 80P CONNECTOR 3

SU45 K1KB09A00045 9P CONNECTOR 1

SW2500 K0F162B00002 SWITCH 1

SW3753-

57 EVQ11G05R SWITCH 5

T401 G4D4A0000119 SWITCHING

TRANSFORMER 1

T402 G4D1A0000098 SWITCHING

TRANSFORMER 1

T404 G4D4A0000118 SWITCHING

TRANSFORMER 1

T407 ETQ11K5AZ CHOKE TRANS 1

T410 ETS25AF115AH SWITCHING TRANS 1

T601 G4D2A0000264 SWITCHING TRANS 1

T6602 ETS22AE2G9AD SWITCHING TRANS 1

VR6000 EVMEASA00B14 CONTROL 10KOHMB

0.3W 1

177

TH-37PG9W / TH-42PG9W

Ref.

No. Part No. Part Name &

Description Pcs Remarks

VR6600 EVMEASA00B23 CONTROL 2KOHMB

0.3W 1

VR6602 EVMEASA00B14 CONTROL 10KOHMB

0.3W 1

W9,10 J0JKB0000037 FLAT CORE 2

X501 H2B400400021 CRYSTAL 1

X2301 H0J184500026 CRYSTAL 1

X4501 H0J200500038 CRYSTAL 1

X4701 H0J100500030 CRYSTAL 1

X8181 H0J327200114 CRYSTAL 1

X9000 H2D200500011 CRYSTAL 1

X9200 H0J200500038 CRYSTAL 1

Z1,Z2 K4ZZ01000206 TERMINAL 2

Z420 TMM23417 CLAMPER 2

Z450-53 EYF52BCY FUSE HOLDER 4

ZA3001-

08 K4CD01000013 TERMINAL 8

ZA4001,

02 K4CD01000011 TERMINAL 2

ZA6001-

03 K4CD01000011 TERMINAL 3

ZA6401-

03 K4CD01000011 TERMINAL 3

ZA7101-

03 K4CD01000013 TERMINAL 3

ZA7201-

04 K4CD01000013 TERMINAL 4

ZA9001 K4CD01000011 TERMINAL 1

ZN401 ERZVGED621T2 VARISTOR 1

ZN402 D4EAD7510001 VARISTOR 1

ZN404 ERZVGAD681T2 VARISTOR 1

ZN405,0

6ERZVA7D511 VARISTOR 2

178

TH-37PG9W / TH-42PG9W

TH42PG9W

Navigation menu

Versions of this User Manual:

Views

Navigation
