Operating Instructions
LCD TV
BFE
TQB4GC0667-1
Thank you for purchasing this Panasonic product.
Please read these instructions before operating your set and retain
them for future reference.
The images shown in this manual are for illustrative purposes only.
Model No.
TH-L32C30K
TH-L32C30M
TH-L32C30T
TH-L32C30X
English
TH-L32C30KMTX_EN.indd 1TH-L32C30KMTX_EN.indd 1 6/16/2011 2:52:45 PM6/16/2011 2:52:45 PM
2
Enjoy rich multimedia
Camcorder
Amplifier with
Speaker system
VCR
DVD Player
Blu-ray Disc Player
DVD Recorder
Set top box
SD Card
Personal computer
Experience an amazing level of
multimedia excitement
Sharp pictures with HDMI terminal
Create home theatre and DVD recorder link-ups with “VIERA Link” without
complicated settings!
This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a
consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video
that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from
a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use.
Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.
TH_L32C30KMTX_EN.indd 2TH_L32C30KMTX_EN.indd 2 3/18/2011 4:25:49 PM3/18/2011 4:25:49 PM
Contents
Be Sure to Read
Safety Precautions ······························ 4
(Warning / Caution)
Notes ················································ 5
Quick Start Guide
Accessories / Options ·························· 6
Basic Connection ································ 9
Identifying Controls ·····························10
Auto Tuning·······································12
Basic Features
Watching TV······································15
Viewing Teletext ·································18
Watching External Inputs ·····················20
How to Use VIERA TOOLS ··················21
How to Use the Menu Functions ············22
Advanced Features
Tuning and Editing Channels ················30
Child Lock·········································32
Input Labels ······································33
Shipping Condition (Reset settings) ·······34
Using Media Player·····························35
Using Network Services ·······················44
VIERA Link Functions ·························53
External Equipment ····························58
Technical
Technical Information ··························61
FAQs ···············································68
Maintenance ·····································70
Specifications ····································71
3
DLNA®, the DLNA Logo and
DLNA CERTIFIED™ are
trademarks, service marks,
or certification marks of the
Digital Living Network Alliance.
HDMI, the HDMI Logo and
High-Definition Multimedia
Interface are trademarks or
registered trademarks of HDMI
Licensing LLC in the United
States and other countries.
“AVCHD” and the “AVCHD”
logo are trademarks of
Panasonic Corporation and
Sony Corporation.
Manufactured under license
from Dolby Laboratories.
Dolby and the double-D
symbol are trademarks of
Dolby Laboratories.
DivX®, DivX Certified®
and associated logos are
trademarks of DivX, Inc. and
are used under license.
QuickTime and the QuickTime
logo are trademarks or
registered trademarks of
Apple Inc., used under license
therefrom.
SDXC Logo is a trademark of
SD-3C, LLC.
VGA is a trademark of International Business
Machines Corporation.
S-VGA is a registered trademark of the Video
Electronics Standard Association.
HDAVI Control™ is a trademark of Panasonic
Corporation.
Macintosh is a trademark of Apple Inc.
Windows is a registered trademark of Microsoft
Corporation in the United States and/or other
countries.
License
Even if no special notation has been made of
company or product trademarks, these trademarks
have been fully respected.
TH_L32C30KMTX_EN.indd 3TH_L32C30KMTX_EN.indd 3 3/18/2011 4:25:49 PM3/18/2011 4:25:49 PM
C
Safety Precautions
4
Safety Precautions
Handling the mains plug and lead
●Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat
and cause fire.)
●Ensure that the mains plug is easily accessible.
●Do not touch the mains plug with a wet hand. (This may cause electrical shock.)
●Do not damage the mains lead. (A damaged lead may cause fire or electrical shock.)
●Do not move the TV with the lead plugged in the socket outlet.
●Do not place a heavy object on the lead or place the lead near a high-temperature object.
●Do not twist the lead, bend it excessively, or stretch it.
●Do not pull on the lead. Hold onto the mains plug body when disconnecting the lead.
●Do not use a damaged mains plug or socket outlet.
If you find any
abnormality, remove
the mains plug
immediately!
●Mains plug types vary between countries.
AC Auto
110-240 V,
50 / 60 Hz
Warning T
h
W
●
C
W
●
T
c
Al
Mi
1
0
D
o
●
B
s
D
o
●
T
D
o
●I
r
N
A
u
●
T
●
●
●
K
e
●
E
I
n
i
m
●
E
T
T
r
Power source / Installation
●This TV is designed for:
●AC Auto 110 - 240 V, 50 / 60 Hz
●Table top use
Do not insert foreign objects into the TV
●Do not allow any objects to drop into the TV
through the air vents. (Fire or electrical shock
may result.)
Do not remove covers and NEVER
modify the TV yourself
●Do not remove the rear cover as live parts are
accessible when it is removed. There are no
user serviceable parts inside. (High-voltage
components may cause serious electrical
shock.)
●Have the TV checked, adjusted, or repaired at
your local Panasonic dealer.
Do not place the TV on sloped or
unstable surfaces
●The TV may fall off or tip over.
Do not expose to rain or excessive
moisture
●To prevent damage which might result in
electric shock or fire, do not expose this TV to
rain or excessive moisture. This TV must not
be exposed to dripping or splashing water and
objects filled with liquid, such as vases, must
not be placed on top of or above the TV.
Use only the dedicated pedestals /
mounting equipment
●Using an unapproved pedestal or other fixtures
may make the TV unstable, risking injury. Be
sure to ask your local Panasonic dealer to
perform setup.
●Use approved pedestals (p. 6) / wall-hanging
brackets (p. 6).
Do not expose to direct sunlight and
other sources of heat
●Avoid exposing the TV to direct sunlight and
other sources of heat.
Do not allow children to handle SD Card
●As with any small object, SD Cards can be
swallowed by young children. Please remove
SD Card immediately after use and store out of
reach of children.
To prevent the spread
of fire, keep candles
or other open flames
away from this
product at all times
TH_L32C30KMTX_EN.indd 4TH_L32C30KMTX_EN.indd 4 3/18/2011 4:25:50 PM3/18/2011 4:25:50 PM
Caution
Safety Precautions | Notes
5
This appliance is intended for use in tropical climates
When cleaning the TV, remove the mains plug
●Cleaning an energised TV may cause electrical shock.
When the TV is not going to be used for a long period of time, remove the mains plug
●This TV will still consume some power even in the Off mode, as long as the mains plug is still
connected to a live socket outlet.
Allow sufficient space around the TV for radiated heat
Minimum distance
10
10
10 10
(cm)
●When using the pedestal, keep the space between the bottom of the
TV and the surface where the TV is set.
●If using a Wall-hanging bracket, refer to its manual.
Do not block the rear air vents
●Blocked ventilation by newspapers, table cloths, curtains, etc. may cause overheating, fire or electrical
shock.
Do not apply strong force or impact to the display panel
●This may cause damage resulting in injury.
Do not expose your ears to excessive volume from the headphones
●Irreversible damage can be caused.
Notes
Auto power standby function
●The TV will automatically go to Standby mode in the following conditions:
●no signal is received and no operation is performed for 30 minutes in TV mode
●[Off Timer] is active in the Setup Menu (p. 15)
●no operation is performed for the period selected in [Auto Standby] (p. 29)
Keep the TV away from these types of equipment
●Electronic equipment
In particular, do not place video equipment near the TV. Electromagnetic interference may distort
images / sound.
●Equipment with an infrared sensor
This TV also emits infrared rays. This may affect operation of other equipment.
Transport only in upright position
TH_L32C30KMTX_EN.indd 5TH_L32C30KMTX_EN.indd 5 3/18/2011 4:25:50 PM3/18/2011 4:25:50 PM
Accessories / Options
6
Accessories / Options

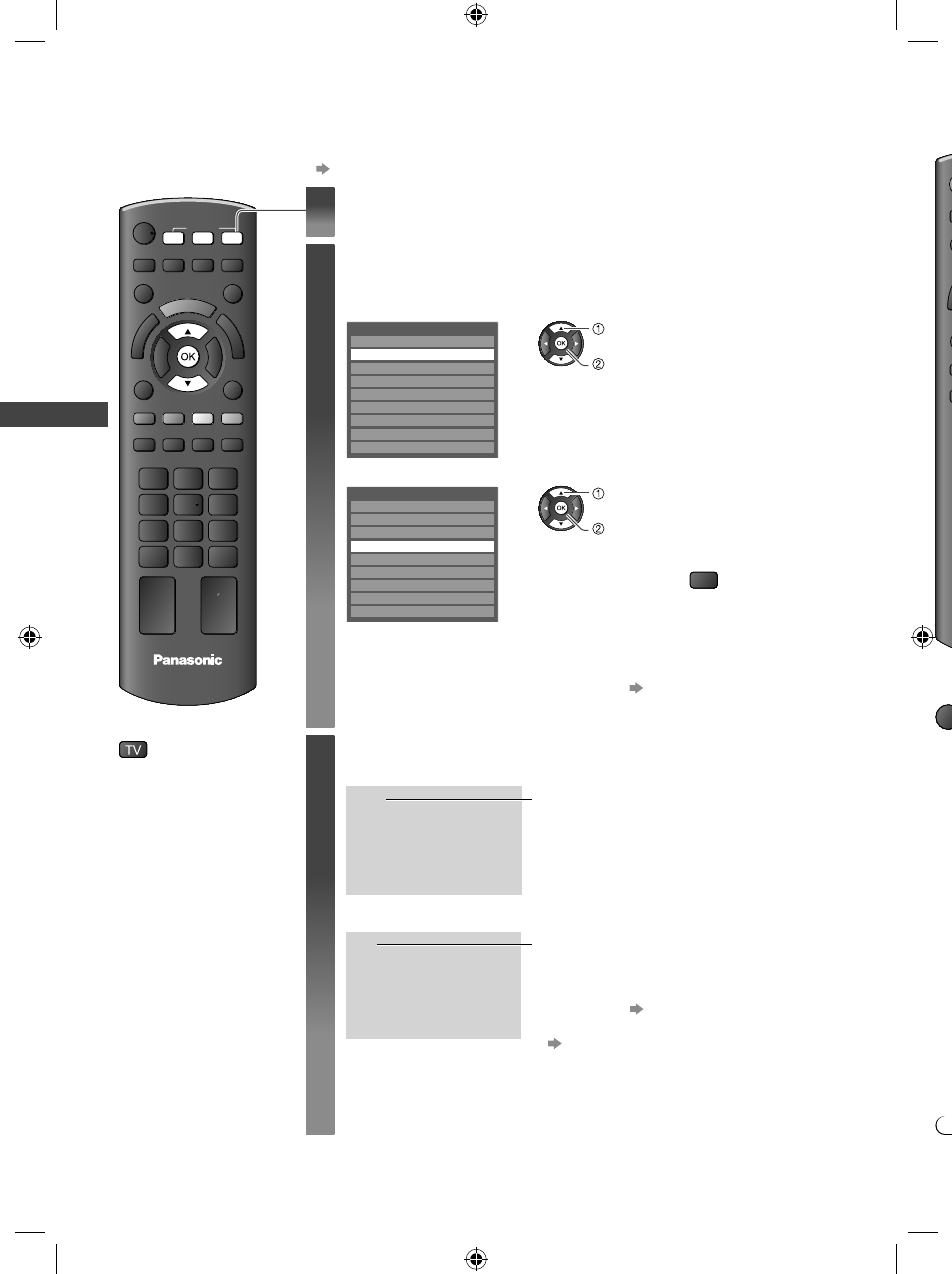

Remote Control
●N2QAYB000603
EXITINFO
OPTION
TEXT F.P.
INDEX HOLD
RETURN
MENU
SURROUND
INPUT
MUTE
LAST VIEW
S
D
C
A
R
D
V
I
E
R
A
T
O
O
L
S
V
I
E
R
A
L
i
n
k
AVTVPC
abc def
jk l
ghi
mno
tuvpqrs
wxyz
ASPECT
RGYB
POWER
CH
VOL
TV
EXITINFO
OPTION
TEXT F.P.
INDEX HOLD
RETURN
MENU
SURROUND
INPUT
MUTE
LAST VIEW
TV
S
D
C
A
R
D
V
I
E
R
A
T
O
O
L
S
V
I
E
R
A
L
i
n
k
AVTVPC
abc def
jk l
ghi
mno
tuvpqrs
wxyz
ASPECT
RGYB
POWER
CH
VOL
Batteries for the
Remote Control (2)
●R6 (AA)
Pedestal
(p. 7)
Pedestal hole cover sheet
(Not applicable for
TH-L32C30M)
Operating Instructions
●This product contains possibly dangerous parts (such as plastic bags), which can be breathed in or
swallowed by young children accidentally. Keep these parts out of reach of young children.
Standard accessories
Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For
additional details, please refer to the manual of the optional accessories.
Wireless LAN
Adaptor and
Extension cable
Please refer to the following web site for usable Wireless LAN Adaptor.
(English only)
http://panasonic.jp/support/global/cs/tv/
●Additional information for Wireless LAN Adaptor and access point may also be
found on this web site.
Caution
●To use the Wireless LAN Adaptor, an Access Point is needed.
●It is recommended to use the Wireless LAN Adaptor with the extension cable.
●To avoid radio wave interference, keep the TV away from other wireless LAN
devices, microwaves and devices that operate on 2.4 GHz or 5 GHz signals when
using the Wireless LAN Adaptor. Otherwise a malfunction may occur.
●Depending on the area, this optional accessory may not be available.
Wall-hanging
bracket
●TY-WK3L2RW
The angle of
wall-hanging
bracket can be
adjusted in “zero
tilting (vertical)”
and “5 or
10-degree tilting”
for this TV. (View from the side)
Holes for wall-hanging
bracket installation
Depth of screw:
minimum 7 mm
maximum 13 mm
Screw Thread Type: M4
Screw for fixing the TV onto the wall-hanging
bracket (not supplied with the TV)
200 mm
200 mm
Rear of the TV
Warning
●Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself
pose the risk of personal injury and product damage. In order to maintain the
unit’s performance and safety, be absolutely sure to ask your dealer or a licensed
contractor to secure the wall-hanging brackets. Any damage caused by installing
without a qualified installer will void your warranty.
●Do not mount the unit directly below ceiling lights (such as spotlights, floodlights
or halogen lights) which typically give off high heat. Doing so may warp or damage
plastic cabinet parts.
●Take care when fixing wall brackets to the wall. Always ensure that there are no
electrical cables or pipes in the wall before hanging bracket.
●To prevent fall and injury, remove the TV from its fixed wall position when it is no
longer in use.
Optional accessories
I
Y
o
1
S
u
s
2
T
F
A
D
o
●
O
D
o
●
O
D
o
●I
f
P
D
u
●I
f
n
i
n
E
n
●I
f
p
T
w
●I
f
A
s
U
s
th
e
●
M
s
●
F
w
TH_L32C30KMTX_EN.indd 6TH_L32C30KMTX_EN.indd 6 3/18/2011 4:25:50 PM3/18/2011 4:25:50 PM
Accessories / Options
7
e
t
o
r
n
lf
d
g
e
Installing the pedestal hole cover sheet (Not applicable for TH-L32C30M)
You need to install the pedestal hole cover sheet only if you opt to mount your TV on the wall.
1 Slide the cover sheet into the pedestal hole area
until it locks into place (follow the arrows as
shown in Figure A).
2 The final condition after installation is shown in
Figure B.
Pedestal hole cover sheet
Make sure the cover sheet has covered all area
of the pedestal hole.
Installation area
Figure A Figure B
Attaching the pedestal
Warning
Do not disassemble or modify the pedestal.
●Otherwise the TV may fall over and become damaged, and personal injury may result.
Caution
Do not use any pedestal other than that provided with this TV.
●Otherwise the TV or the display may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
●If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest
Panasonic dealer immediately.
During set-up, make sure that all screws are securely tightened.
●If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will
not be strong enough to support the TV, and it might fall over and become damaged, and personal
injury may result.
Ensure that the TV does not fall over.
●If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and
personal injury may result.
Two or more people are required to install and remove the TV.
●If two or more people are not present, the TV may be dropped, and personal injury may result.
Assembly screw (4)
(black)
Assembly screw (4)
(black)
Bracket Base
Assembling the pedestal
Use the assembly screws to fasten
the bracket to the base securely.
●Make sure that the screws are
securely tightened.
●Forcing the assembly screws the
wrong way will strip the threads.
Securing the TV
Insert the bracket into the TV, and then fasten securely
with the assembly screws .
●Tighten the four assembly screws loosely at first, then
tighten them firmly to fix securely.
B
B
Foam mat or thick soft cloth
D
A
C
Front
TH_L32C30KMTX_EN.indd 7TH_L32C30KMTX_EN.indd 7 3/18/2011 4:25:51 PM3/18/2011 4:25:51 PM
Accessories / Options
8
B
E
x
Pl
e
le
a
●
K
●
D
●
D
●
T
t
e
●I
f
w
●
Y
s
●
A
t
h
●
V
●
O
●
R
Open
Hook
Note the correct polarity (+ or −)
1
2
Close
Caution
●Incorrect installation may cause battery leakage
and corrosion, resulting in damage to the remote
control.
●Do not mix old and new batteries.
●Do not mix different battery types (such as alkaline
and manganese batteries).
●Do not use rechargeable (Ni-Cd) batteries.
●Do not burn or breakup batteries.
●Batteries must not be exposed to excessive heat
such as sunshine, fire or the like.
●Do not disassemble or modify the remote control.
Inserting and removing remote’s batteries
A
C
11
5
0
TH_L32C30KMTX_EN.indd 8TH_L32C30KMTX_EN.indd 8 3/18/2011 4:25:51 PM3/18/2011 4:25:51 PM
Basic Connection
9
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any
leads.
Note
●Keep some space between the TV and RF cable to prevent distorted image.
●Do not put the RF cable close to the mains lead to avoid noise.
●Do not place the RF cable under the TV.
●To obtain optimum picture and sound quality, an aerial, the correct cable (75 coaxial) and the correct
terminating plug are required.
●If a communal aerial system is used, you may need the correct connection cable and plug between the
wall aerial socket and the TV.
●Your local Television Service Centre or dealer may be able to assist you in obtaining the correct aerial
system for your area and the accessories required.
●Any matters regarding aerial installation, upgrading of existing systems or accessories required, and
the costs incurred, are the responsibility of you, the Customer.
●VIERA Link connection (p. 53)
●Other equipment connection (p. 58 - 60)
●Read the manual of the equipment, too.
n
e
AV IN
HDMI 1
AV1 IN AV2 IN
AUDIO
OUT
Rear of the TV
Mains lead
RF cable
AC Auto
110-240 V,
50 / 60 Hz
Satellite dish
Satellite cable
Aerial
Fully wired HDMI
compliant cable
Set top box
TH_L32C30KMTX_EN.indd 9TH_L32C30KMTX_EN.indd 9 3/18/2011 4:25:52 PM3/18/2011 4:25:52 PM
Identifying Controls
10
R
Identifying Controls
1USB port
2SD Card slot
3HDMI3 terminal
4AV3 terminals
5Headphones jack
6Remote control signal receiver
●Do not place any objects between the
TV remote control signal receiver and
remote control.
7C.A.T.S. (Contrast Automatic Tracking
System) sensor
●Senses brightness to adjust picture
quality when [Eco Mode] in the Picture
Menu is set to [On] (p. 24)
8Power LED
●Red: Standby
Green: On
When using the remote control,
indicates the TV has received a
command.
9Function select
●[Volume] / [Backlight] / [Contrast] /
[Brightness] / [Colour] / [Sharpness] /
[Tint] (NTSC signal) / [Bass] /
[Treble]/ [Balance] / [Auto Tuning]
[Bass] / [Treble] is displayed only when
[Mode] in the Sound Menu is set to
[Music] or [Speech]
(p. 26)
10 Channel Up / Down, adjusts settings
(when using the F button), switches the
TV On (press either button for about
1 second when in Standby mode)
11 Changes the input mode
12 Mains power On / Off switch
●Use to switch the TV mains power
On / Off. If you turn your TV to Standby
mode with the remote control (p. 11), and
then turn off the TV mains power, the
TV will be in Standby mode when you
next turn on the mains power.
About the Operation Guide - On-screen Displays
The Operation Guide is displayed at the bottom of the On-screen Display.
The buttons for operations and the manner of operations are displayed.
TV
4
1
3
5
1
0
2
4
6
7
8
9
1
1
1
2
1
3
Example: [Sound Menu]
Operation
Guide
Select EXIT
Change
RETURN
Page up
Page down
Sound Menu 1/2
Mode Music
Bass
Treble
Balance
Headphone Volume
Surround
Volume Correction
Speaker Distance to Wall Over 30cm
MPX
0
11
0
0
0
Off
Stereo
EXIT
RETURN
TV
CH
1
2
3
5
4
9
12
11
10
678
TH_L32C30KMTX_EN.indd 10TH_L32C30KMTX_EN.indd 10 3/21/2011 11:33:45 AM3/21/2011 11:33:45 AM
Identifying Controls
11
Remote Control
e
n
e
b
y
nd
u
1 On / Standby switch
●Switches TV On or sets it to standby
2 Sound Selection
●Selects sound output mode during multiplex
broadcast (p. 64)
3 [Main Menu] (p. 22)
●Press to access Picture, Sound and Setup
Menus
4 Information (p. 16)
●Displays channel and programme
information
5 VIERA TOOLS (p. 21)
●Displays special feature icons for easy
access
6 [VIERA Link Menu] (p. 55)
●Accesses VIERA Link Menu
7OK
●Confirms selections and choices
●Press after selecting channel positions to
quickly change programme
8 [Option Menu] (p. 16)
●
Quick access to optional settings for picture,
sound, etc.
9 Teletext (p. 18)
●Switches to teletext mode
10 Favourite page
●Displays your favourite teletext page (p. 18)
11 Numeric buttons
●Changes channel and teletext pages
●When in Standby mode, switches TV On
12 Sound Mute
●Switches sound mute On or Off
13 Volume Up / Down
14 Input mode selection
●PC - switches to PC input mode
●TV - switches to TV mode (p. 15)
●AV - switches to AV input mode from Input
Selection list (p. 20)
15 Aspect (p. 17)
●Changes aspect ratio
16 Surround (p. 26)
●Switches surround sound setting
17 Exit
●Returns to the normal viewing screen
18 [Media Player] (p. 35)
●Switches to SD Card and USB device
viewing / listening mode
19 Cursor buttons
●Makes selections and adjustments
20 Return
●Returns to the previous menu / page
21 Coloured buttons
●Used for selection, navigation and operation
of various functions
22 Hold
●Freeze / unfreeze picture (p. 15)
●Holds the current teletext page (teletext
mode) (p. 18)
23 Index (p. 18)
●Returns to the teletext index page (teletext
mode)
24 Last View (p. 16)
●Switches to previously viewed channel or
input mode
25 Channel Up / Down
●Selects channel in sequence
EXITINFO
OPTION
TEXT F.P.
INDEX HOLD
RETURN
MENU
SURROUND
INPUT
MUTE
LAST VIEW
S
D
C
A
R
D
V
I
E
R
A
T
O
O
L
S
V
I
E
R
A
L
i
n
k
AVTVPC
abc def
jk l
ghi
mno
tuvpqrs
wxyz
ASPECT
RGYB
POWER
CH
VOL
TV
EXITINFO
OPTION
TEXT F.P.
INDEX HOLD
RETURN
MENU
SURROUND
INPUT
MUTE
LAST VIEW
TV
S
D
C
A
R
D
V
I
E
R
A
T
O
O
L
S
V
I
E
R
A
L
i
n
k
AVTVPC
abc def
jk l
ghi
mno
tuvpqrs
wxyz
ASPECT
RGYB
POWER
CH
VOL
114
15
17
18
19
20
21
22
24
25
16
23
3
5
10
2
4
6
7
8
9
11
12
13
TH_L32C30KMTX_EN.indd 11TH_L32C30KMTX_EN.indd 11 3/18/2011 4:25:52 PM3/18/2011 4:25:52 PM
Auto Tuning
12
Auto Tuning
INFO
RETURN
TV
abc def
jk l
ghi
mno
tuvpqrs
wxyz
Y
POWER
Search and store TV channels automatically.
●These steps are not necessary if the setup has been completed by your local dealer.
1Plug the TV into mains socket and switch On
●
You can now use the remote control to turn On the TV or switch
the TV to Standby mode. (Power LED: On)
2Select your language
English
OSD Language
set
select
3Select your area
Channel Plan
Asia/W.Europe
CIS/E.Europe
China
Hong Kong
NZ/Indonesia
CATV/Other
select
When selecting [CATV/Other],
press the OK button, and then
select the Channel Plan from
[Indian CATV], [South Africa],
[American System], [American
CATV] or [Japan].
Auto Tuning starts
Auto Tuning
1 CH2
Scan 1 120
EXIT
RETURN
●Auto Tuning will start to search for TV channels and store them.
The sorted channel order depends upon the TV signal, the
broadcasting system and reception conditions.
4Set up the wireless LAN connection
Start wireless LAN connection setup?
Yes No
confirm
select
●You can setup the wireless LAN connection later. (p. 48)
●If you want to select [Yes] in this step (p. 14)
T
o
S
h
●
T
V
[H
o
[S
h
5
TH_L32C30KMTX_EN.indd 12TH_L32C30KMTX_EN.indd 12 3/18/2011 4:25:53 PM3/18/2011 4:25:53 PM
Auto Tuning
13
c
h
To return to viewing environment selection mode if you have selected [Shop]
Shop
You have selected shop mode
RETURN
Please select your viewing environment.
Home Shop
Automatic Demo
Off On
RETURN
●To change viewing environment mode later on, reset all settings by accessing Shipping Condition.
[Shipping Condition] (p. 34)
Viewing environment mode
[Home] : Recommended mode for viewing at home. Select [Home] for optimal picture / power
consumption. [Viewing Mode] is set as [Normal] (p. 24).
[Shop] : Demonstration mode to explain the main features of this TV (for in-store display).
[Viewing Mode] is set as [Dynamic] (p. 24).
5Select [Home]
Please select your viewing environment.
Home Shop
confirm
select
Auto Tuning is completed
TH_L32C30KMTX_EN.indd 13TH_L32C30KMTX_EN.indd 13 3/18/2011 4:25:53 PM3/18/2011 4:25:53 PM
Auto Tuning
14
OP
T
P
O
I
Setup the wireless LAN connection
Setup the wireless LAN connection to enable the network service functions.
●To setup the wireless LAN connection, a wireless LAN Adaptor is required.
●Confirm the encryption key, settings and positions of your access point before starting setup. For
details, read the manual of the access point.
●Please note that this TV does not support wireless public access points.
1Connect the Wireless LAN Adaptor to the USB 1 or 2 port
Wireless LAN Adaptor
Access point
Internet environment
2Select [Yes].
Start wireless LAN connection setup?
Yes No
Please connect the wireless LAN adaptor to a USB terminal.
confirm
select
3Select the connection type
Connection Type
Please select network connection type.
Search for access point
WPS(Push button) confirm
select ●If your access point supports WPS
(Push button), then select this option.
If not, select [Search for access point].
■ [WPS(Push button)]
1) Please press the ‘WPS’ button on the access
point until its light ashes.
2) When the light is ashing select ‘Connect’ on
TV.
If you are unsure, please check the instruction
manual of the access point.
WPS(Push button)
1) Please press the ‘WPS’ button on the access
point until its light flashes.
2) When the light is flashing select ‘Connect’ on
TV.
If you are unsure, please check the instruction
manual of the access point.
Connect
Press the WPS button on the access point until the light flashes.
And then, press the OK button to connect the Wireless LAN
Adaptor and the access point.
●Ensure that your access point supports WPS for this method.
●WPS: Wi-Fi Protected Setup™
■ [Search for access point]
Access points found automatically are listed.
Available Access Points
No.
1 Access Point A 11n(2.4GHz)
2 Access Point B 11n(5GHz)
3 Access Point C 11n(5GHz)
SSID Wireless type Encrypt
Reception
1 Select your desired access point
access
select ●To search access points again Y
●For the information of the
highlighted access point
INFO
Encryption Key Setting
Connection will be made with the following settings:-
SSID : Access Point A
Authentication type : WPA-PSK
Encryption type : TKIP
Please input the encryption key.
Encryption key
2 Access the encryption key input mode
●If the selected access point is not encrypted, the confirmation
screen will be displayed. It is recommended to select the
encrypted access point.
A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _
O P Q R S T
7 8 9 ! : #
o p q r s t
Access Point Settings
Encryption key 3 Enter the encryption key of the access point
(Set characters one by one)
select
set
Store
RETURN
●You can also set the characters by using the numeric buttons.
Access Point Settings
Encryption key is set to:-
XXXXXXXX
Select ‘Yes’ to confirm.
Select ‘No’ to change.
Yes No
4 Select [Yes]
set
select
●To re-enter the encryption key, select [No].
Wireless LAN connection setup is completed
●If failed, check the encryption key, settings or positions of your access point.
Read the manual of the access point.
●If connection to the access point is successful, we recommend you perform the
[Connection Test] (p. 47).
W
H
Fr
e
HO
O
t
O
T
u
1
D
t
M
TH_L32C30KMTX_EN.indd 14TH_L32C30KMTX_EN.indd 14 3/18/2011 4:25:53 PM3/18/2011 4:25:53 PM
Watching TV
15
OPTION
HOLD
MENU
LAST VIEW
TV
TV
abc def
jk l
ghi
mno
tuvpqrs
wxyz
ASPECT
POWER
CH
INPUT
INFO
e
s.
.
n
s
.
Watching TV
Hold
Freeze / unfreeze picture
HOLD
Note
●When the TV is switched to standby, there will be a clicking sound after a
short delay. This is normal.
1Turn on the TV
●Mains power On / Off switch should be On (p. 10).
2Select TV mode
3Select a channel
CH
up
down
or
abc def
jkl
ghi
mno
tuvpqrs
wxyz
●If one or two-digit channel number, e.g. 39
def
wxyz
(quickly changes the channel)
Other useful functions
Off Timer
Turn the TV off automatically after a fixed period of time [Off / 15 / 30 / 45 / 60 / 75 / 90 minutes]
1 Display
the menu
MENU
2 Select [Setup] 3 Select [Off Timer] and set the time
Main Menu
Sound
Setup
access
select
Setup Menu 1/2
Off Timer
Eco Navigation
Child Lock
Tuning Menu
OSD Language
Display Settings
VIERA Link Settings
Network Setup
DivX® VOD
Off change
●To cancel
Set to off or turn the TV off.
●To display the remaining time
“Display Information banner”
(p. 16)
●When the remaining time is within
3 minutes, the remaining time will
flash on screen.
TH_L32C30KMTX_EN.indd 15TH_L32C30KMTX_EN.indd 15 3/18/2011 4:25:54 PM3/18/2011 4:25:54 PM
Watching TV
16
Display Information banner
Display Information banner
INFO
●Also appears when changing channel
Display the selectable settings for the current programme
1 Check or change the current
programme status instantly
OPTION
2 Change
change
select
[Channel Colour Set]
Sets colour density [Picture Menu] (p. 24)
[Teletext Character Set]
Sets the teletext language [Setup Menu] (p. 29)
[MPX]
Selects multiplex sound (if available) [Sound Menu] (p. 27)
[Volume Correction]
Adjusts the volume of an individual channel or input mode [Sound Menu] (p. 26)
Last view
Switch to the previously viewed channel or input mode
LAST VIEW
●Press again to return to the present view.
Note
●Channel switching is not available while Direct TV Recording is in progress.
●Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.
TV
1
CH07
5.5MHz
PAL
16:9
TV
1
CH07
5.5MHz
PAL
16:9
15
Note
●Colour system will not be displayed if it is set to [Auto].
Input mode
Channel number
Sound system
Colour system
Channel position
Aspect ratio
Audio mode (p. 64)
Sound mute On
15
Off Timer remaining time
●For settings (p. 15)
Teletext prompt is displayed
if Teletext is available
C
E
n
P
r
AS
P
■
[
●
O
●
A
●
N
●
A
s
C
Y
o
1
D
ME
3
S
O
f
E
c
C
h
T
u
O
S
Di
s
VI
N
e
Di
v
TH_L32C30KMTX_EN.indd 16TH_L32C30KMTX_EN.indd 16 3/18/2011 4:25:55 PM3/18/2011 4:25:55 PM
Watching TV
17
Change aspect ratio
Enjoy viewing the image at its optimum size and aspect.
Press repeatedly until you reach the desired mode
ASPECT
■If Aspect Selection list is displayed after you press
ASPECT
Aspect Selection
16:9
14:9
Just
4:3
4:3 Full
Zoom1
Zoom2
Zoom3
Select EXIT
RETURN
Change
Aspect Selection
16:9
14:9
Just
4:3
4:3 Full
Zoom1
Zoom2
Zoom3
While the list is displayed, select the mode
change
select
[16:9] [14:9] [Just]
Directly displays
the image at 16:9
without distortion
(anamorphic).
Displays the image
at the standard 14:9
without distortion.
Displays a 4:3 image
full-screen. Stretching
is only noticeable at the
left and right edges.
[4:3] [4:3 Full] [Zoom1]
Displays the image
at the standard 4:3
without distortion.
Displays a 4:3 image
enlarged horizontally
to fit the screen.
●HD signal only
Displays a 16:9
letterbox or 4:3 image
without distortion.
[Zoom2] [Zoom3]
Displays a 16:9
letterbox (anamorphic)
image full-screen
without distortion.
Displays a 2.35:1 letterbox (anamorphic) image
full-screen without distortion. At 16:9, displays the
image at its maximum (with slight enlargement).
Note
●Only [16:9] and [4:3] are available in PC input mode.
●Aspect is fixed to [16:9] when [Viewing Mode] is set to [Game] in the Picture Menu.
●Not available in teletext service.
●Aspect mode can be memorised separately for each SD (Standard definition) and HD (High definition)
signals.
Change OSD language
You can change language for on-screen displays.
1 Display the menu
MENU
2 Select [Setup]
Main Menu
Sound
Setup
access
select
3 Select [OSD Language] 4 Select the language and set
Setup Menu 1/2
Off Timer
Eco Navigation
Child Lock
Tuning Menu
OSD Language
Display Settings
VIERA Link Settings
Network Setup
DivX® VOD
Access
Off
access
select
English
OSD Language
set
select
TH_L32C30KMTX_EN.indd 17TH_L32C30KMTX_EN.indd 17 3/18/2011 4:25:55 PM3/18/2011 4:25:55 PM
Viewing Teletext
18
Viewing Teletext
V
W
a
ME
●
O
F
ME
S
St
o
C
o
bu
di
s
■
C
o
yo
V
Vi
e
■
ME
●
S
T
I
t
W
W
a
Te
ME
●
T
Teletext services are the text information provided by the broadcasters.
The features may vary depending on the broadcasters.
What is FASTEXT mode?
In FASTEXT mode, four differently coloured subjects are displayed at the bottom of the screen. To
access more information about one of these subjects, press the corresponding coloured button. This
facility enables fast access to information on the subjects shown.
What is List mode?
In List mode, four differently coloured page numbers are displayed at the bottom of the screen. Each of
these numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages” p. 19)
■To change mode [Teletext] in the Setup Menu (p. 29)
EXIT
TEXT F.P.
INDEX HOLD
MENU
TV
abc def
jk l
ghi
mno
tuvpqrs
wxyz
RGYB
CH
Functions (Teletext mode)
HOLD Reveal hidden data
HOLD
Stop automatic updating
(If you wish to hold the current page without
updating)
MENU
RReveal hidden words e.g. quiz
page answers
■To resume
HOLD
■To hide
R
INDEX Call up a favourite page
INDEX
Return to the main index page
F.P.
View a favourite page stored
●Call up the page stored in the blue button
(List mode).
●Factory setting is “P103”.
1Switch to Teletext
<< 01 02 03 04 05 06 07 >>
17:51 28 Feb
●Displays the index page
(content varies depending on
the broadcasters)
2Select the page
abc def
jkl
ghi
mno
tuvpqrs
wxyz
or
up
down or CH or
R
G
Y
B
(Corresponds to the colour bar)
■To adjust contrast
MENU
(press three times) As the blue bar is displayed
■To return to TV
TEXT
or
EXIT
Time /
date
Sub page number
Colour
bar
Current page number
TELETEXT
INFORMATION
TH_L32C30KMTX_EN.indd 18TH_L32C30KMTX_EN.indd 18 3/18/2011 4:25:56 PM3/18/2011 4:25:56 PM
Viewing Teletext
19
View in multi window
Watch TV and Teletext in two windows at once
MENU
(press twice)
●Operations can be made only on the Teletext screen.
FULL / TOP / BOTTOM
(TOP) (BOTTOM) Normal (FULL)
MENU
G
(Expand the TOP half) (Expand the BOTTOM half)
Store frequently viewed pages
Store frequently viewed pages in the colour bar (List mode only)
Corresponding colour
button (As page is
displayed) press and hold
The number changes to white.
■To change stored pages
Coloured button
you want to change
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Enter
new page
number
press and hold
View sub page
View sub page (Only when teletext content is more than one page)
■To view specific sub page
MENU
BEnter the 4-digit number
example: P6
mno
●Sub pages:
The number of sub pages varies depending on the broadcasters.
It may take some time for searching, during which time you can watch TV.
Watch TV while waiting for update
Watch the TV programme while searching for a teletext page
Teletext automatically updates itself when new information is available.
MENU
YP108 Appears when
updating is
completed
Y View the updated page
Changes to TV screen temporarily
(You cannot change the programme.)
●The news page has a function which indicates the arrival of the latest news (“News Flash”).
o
f
9)
n
Broadcast
Broadcast
Broadcast
Broadcast
Appears at the top of the screen
Select Picture and text
On or Off
r
TH_L32C30KMTX_EN.indd 19TH_L32C30KMTX_EN.indd 19 3/18/2011 4:25:57 PM3/18/2011 4:25:57 PM
Watching External Inputs
20
Watching External Inputs
H
●I
f
d
Connect the external equipment (VCRs, DVD equipment, PC, etc.) to watch the input from the
equipment.
●To connect the equipment (p. 9, 58 - 60)
TV
AVTVPC
INPUT
■To return to TV
1Display the Input Selection menu
2Select the input mode of the connected
equipment
Example (AV2)
Input Selection
AV1
AV2
AV3
PC
HDMI1
HDMI2
HDMI3
TV
SD Card/USB
select
watch
Example (PC)
Input Selection
AV1
AV2
AV3
PC
HDMI1
HDMI2
HDMI3
TV
SD Card/USB
select
watch
●You can also switch to the PC input mode
directly by pressing PC .
●You can also select the input by pressing the AV button on the remote
control or the side panel of the TV (p. 10) repeatedly until the desired
input is selected.
●You can label or skip each input mode [Input Labels] (p. 33)
Skipped inputs will not be displayed when the AV button is pressed.
3View
Example (AV2)
AV2
PAL
16:9
Displays the selected mode
●If the external equipment has an aspect
adjustment function, set to [16:9].
Example (PC)
PC
640X480 / 60Hz
16:9
Displays the selected mode
●You can also listen to the PC sound by
connecting an audio cable.
To connect p. 60
●You can setup some functions
[PC Setup] (p. 28) in the Setup Menu.
●For HDMI-compatible PC, it is possible
to connect to an HDMI terminal (HDMI1 /
HDMI2 / HDMI3) using an HDMI cable
(p. 59 - 60).
Y
o
■
EX
I
TH-L32C30KMTX_EN.indd 20TH-L32C30KMTX_EN.indd 20 6/20/2011 8:41:40 AM6/20/2011 8:41:40 AM
How to Use VIERA TOOLS
21
How to Use VIERA TOOLS
Note
●If the selected feature is not available, a demonstration to explain how the feature works can be
displayed. Press the OK button to view the demonstration after selecting the unavailable feature.
e
e
d
EXIT
TV
V
I
E
R
A
T
O
O
L
S
You can access some special features easily using the VIERA TOOLS function.
■To return to TV
EXIT
or
V
I
E
R
A
T
O
O
L
S
1Display the icon of the features
2Select a feature
VIERA Link Control
Internet contents
(example)
access
select
3Follow the operations of each feature
[VIERA Link Control] “VIERA Link Control” (p. 56)
When two or more compatible equipment are
connected, a selection screen will be displayed.
Please select the equipment you want and access.
[Photo] “Photo mode” (p. 37)
[Video] “Video mode” (p. 40)
[Music] “Music mode” (p. 43)
[Media Server] “Using DLNA® features” (p. 49)
When two or more available devices are connected, a selection
screen will be displayed.
Please select the device you want and access.
Internet contents “Accessing the Internet contents” (p. 52)
Some of the icons on the VIERA TOOLS screen above
allow you to access the Internet contents.
TH-L32C30KMTX_EN.indd 21TH-L32C30KMTX_EN.indd 21 6/16/2011 2:52:52 PM6/16/2011 2:52:52 PM
How to Use the Menu Functions
22
How to Use the Menu Functions
Various menus allow you to make settings for the picture, sound, and other functions.
■To return to TV at
any time
EXIT
■To return to the
previous screen
RETURN
■To change menu
pages
CH
up
down
■
Y
o
A
U
a
u
Us
e
N
a
●
Y
ghi
pqrs
E
v
ot
h
C
o
EXIT
RETURN
MENU
TV
CH
abc def
jk l
ghi
mno
tuvpqrs
wxyz
RB
1Display the menu
●Displays the functions that can be set (varies according to the input
signal)
2Select the menu
Main Menu
Sound
Setup
access
select
For details (p. 24)
For details (p. 26)
For details (p. 28)
3Select the item
select
4Adjust or select
store or access (Required by some functions)
change
■Choose from among alternatives
Number and positions of alternatives
Changed
Colour Balance Normal
■Adjust using the slide bar
Moved
Sharpness 50
■Go to the next screen
Displays the next screen
Child Lock Access
■To reset the settings
●To reset the picture settings only
[Reset to Defaults] in the Picture Menu (p. 25)
●To reset the sound settings only
[Reset to Defaults] in the Sound Menu (p. 27)
●To initialise all settings
[Shipping Condition] in the Setup Menu (p. 29)
TH_L32C30KMTX_EN.indd 22TH_L32C30KMTX_EN.indd 22 3/18/2011 4:25:59 PM3/18/2011 4:25:59 PM
How to Use the Menu Functions
23
■ Enter characters by free input menu
You can enter names or numbers freely for some items.
A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _
O P Q R S T
7 8 9 ! : #
o p q r s t
User input
Name Set characters one by one
select
set
Store
RETURN
●To delete a character R
●To delete all characters B
●You can also set the characters by using the numeric buttons.
RETURN
Store
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Every press changes the character by one. Wait for a second to set the character, or press OK or any
other numeric button within a second.
Corresponding characters for each numeric button:
Numeric buttons Characters Numeric buttons Characters
. 1 ! : # + - * _ ( )
mno
m n o 6 M N O
abc
a b c 2 A B C
pqrs
p q r s 7 P Q R S
def
d e f 3 D E F
tuv
t u v 8 T U V
ghi
g h i 4 G H I
wxyz
w x y z 9 W X Y Z
jkl j k l 5 J K L Space 0
TH_L32C30KMTX_EN.indd 23TH_L32C30KMTX_EN.indd 23 3/18/2011 4:26:00 PM3/18/2011 4:26:00 PM
How to Use the Menu Functions
24
S
Advanced Settings
R
1
Item Adjustments / Configurations (alternatives)
Viewing Mode
• Dynamic
• Normal
• Cinema
• True Cinema
• Game
Basic picture mode
[Dynamic]: Provides enhanced picture contrast and sharpness when
viewing in a bright room.
[Normal]: Recommended for viewing under normal ambient room
lighting conditions.
[Cinema]: For watching movies in a darkened room with improved
performance of contrast, black and colour reproduction.
[True Cinema]: Precisely reproduces the original quality of the image
without any adjustment.
[Game]: Fast response signal, specifically to provide suitable images for
playing games
●Not valid on TV mode
●A record of accumulated time spent using Game mode can be
displayed on the top right of the screen.
[Playing Time Display] (p. 29)
Backlight
Increase or decrease the levels of these options according to your
personal preference
Contrast
Brightness
Colour
Sharpness
Tint The picture hue can be adjusted to suit your taste
●For NTSC signal, Component or HDMI input
Colour Balance
• Cool
• Normal
• Warm
Allows you to set the overall colour tone of the picture
●Not valid when [Viewing Mode] is set to [True Cinema].
Channel Colour Set
Colour density variation among broadcast channels can be adjusted to
three levels for each reception channel
●Select the channel you want to adjust and set this function.
Vivid Colour
• Off
• On
Changes the colour appearence to vivid ones
●Not valid on PC signal.
Eco Mode
• Off
• On
Automatically adjusts the screen brightness appropriately as the
surrounding light level lowers to reduce the power consumption
●Not available in Shop mode (Dynamic picture mode)
P-NR
• Off
• Min
• Mid
• Max
Picture Noise Reduction
Automatically reduces unwanted picture noise and flicker noise in the
contoured parts of a picture
●Not valid on PC signal.
3D-COMB
• Off
• On
Makes still or slow moving pictures look more vivid
●Occasionally, while viewing still or slow moving pictures, colour
patterning may be seen. Set to [On] to display sharper and more
accurate colours.
●For PAL or NTSC signal reception only
●Not valid on Component, PC, HDMI and Media Player
Note
●You can customise the settings of [Backlight], [Contrast],
[Brightness], [Colour], [Sharpness], [Tint], [Colour Balance],
[Vivid Colour], [Eco Mode], [P-NR] and [3D-COMB] for each
[Viewing mode] and input to suit your viewing preference.
●Set for each input signal.
Main Menu
Sound
Setup
TH_L32C30KMTX_EN.indd 24TH_L32C30KMTX_EN.indd 24 3/18/2011 4:26:00 PM3/18/2011 4:26:00 PM
How to Use the Menu Functions
25
Screen Display
• Off
• On
Turns the screen off when you select [Off]
●The sound is active even if the screen turns off.
●Press any buttons (except Standby) to turn the screen on.
●This function is useful in reducing power consumption when listening to
the sound without watching the image on the TV.
Advanced Settings
White Balance1
R-Gain Adjusts the white balance of bright red area
G-Gain Adjusts the white balance of bright green area
B-Gain Adjusts the white balance of bright blue area
R-Cutoff Adjusts the white balance of dark red area
G-Cutoff Adjusts the white balance of dark green area
B-Cutoff Adjusts the white balance of dark blue area
Reset to
Defaults Press the OK button to reset to the default White Balance
Gamma1
Gamma
• 1.8 / 2.0 /
2.2 / 2.4 / 2.6
Switches the gamma curve
●Please note that the numerical values are only reference for
adjustment.
Reset to
Defaults Press the OK button to reset to the default Gamma
16:9 Overscan
• Off
• On
[On]: Default - Image is overscanned by ~5% beyond the edge of the
screen to hide edge video noise
[Off]: Displays image in its original size including edge video noise such
as lines, dashes, dots, etc.
●Applicable for video signals when the TV aspect is set to [16:9]
●Memorised separately for SD and HD channels / signals
AV Colour System
• Auto
• PAL
• SECAM
• M.NTSC
• NTSC
Selects optimum colour system based on video signals in AV mode
Colour Matrix
• SD
• HD
Available only with 480p or 576p input on video signals in a natural
colour from digital equipment connected to AV1 component or HDMI1 /
HDMI2 / HDMI3 terminals. Select [SD] or [HD] to adjust suitable colour
parameters for [SD] (standard definition) or [HD] (high definition)
●[SD]: Input signal is a normal TV system
●[HD]: Input signal is a high definition system
DVI Input Setting
• Normal
• Full
Changes the black level in the image for HDMI input mode with DVI input
signal manually
●When the DVI input signal from the external equipment, especially from
PC, is displayed, the black level may not be suitable. In this case, select
[Full].
●The black level for HDMI input signal will be adjusted automatically.
●For HDMI input mode with DVI input signal only
Reset to Defaults Press the OK button to reset the present Picture Viewing Mode of the
selected input to the default settings
1 : PC input mode only
r
TH_L32C30KMTX_EN.indd 25TH_L32C30KMTX_EN.indd 25 3/18/2011 4:26:01 PM3/18/2011 4:26:01 PM
How to Use the Menu Functions
26
S
W
M
H
R
Item Adjustments / Configurations (alternatives)
Mode
• Music
• Speech
• User
Basic sound mode
●The selected mode affects all input signals.
[Music]: Improves sound quality for watching music videos, etc.
[Speech]: Improves sound quality for watching news, drama, etc.
●In Music and Speech modes, you can adjust [Bass] and [Treble]
settings, and those settings will be stored for each mode.
[User]: Adjusts the sounds manually by using the equaliser to suit your
favourite sound quality.
●For the User mode, [Equaliser] will appear on the Sound Menu instead
of [Bass] and [Treble]. Select [Equaliser] and adjust the frequency.
[Equaliser] (below)
Bass Increase or decrease the level to enhance or minimise lower, deeper
sound output
Treble Increase or decrease the level to enhance or minimise sharper, higher
sound output
Equaliser
Adjust the frequency level to suit your favourite sound quality
●This function is available when [Mode] is set to [User].
●Select the frequency band with the left / right cursor button and change
the frequency level with the up / down cursor button.
●If you want to enhance the bass sound, raise the level of the lower
frequency. If you want to enhance the treble sound, raise the level of
the higher frequency.
●To reset the levels of each frequency to the default settings, select
[Reset to Defaults] using the left / right cursor button, and then press
the OK button.
Balance Adjusts the volume level of the right and left speakers
Headphone Volume Adjusts the volume of the headphones
Surround
• Off
• V-Audio
Surround sound settings
[V-Audio]: Provides a dynamic enhancer of width to simulate improved
spatial effects
●Switching is also possible by the Surround button on the remote control
(p. 11).
Volume Control (VAO)
• TV
• Audio Out (TV Off)
• TV and Audio Out
Select to adjust the volume of the audio output
[TV]: Only the volume of TV speakers is adjustable.
[Audio Out (TV Off)]: Only the volume of Audio Out is adjustable and
mute the TV speaker’s volume.
[TV and Audio Out]: The volume of TV speakers and Audio Out is
adjustable.
Auto Gain Control
• Off
• On
Adjusts the current volume level if it is extremely different from the
previous viewed channel or input mode
Volume Correction Adjust the volume of individual channel or input mode
Main Menu
Sound
Setup
TH_L32C30KMTX_EN.indd 26TH_L32C30KMTX_EN.indd 26 3/18/2011 4:26:01 PM3/18/2011 4:26:01 PM
How to Use the Menu Functions
27
Speaker Distance to
Wall
• Over 30cm
• Up to 30cm
Adjust the low frequency sound
●If the space between the back of TV and wall is over 30 cm, [Over
30cm] is recommended.
●If the space between the back of TV and wall is within 30 cm, [Up to
30cm] is recommended.
MPX
• Stereo
• Mono
• M1
• M2
Select multiplex sound mode (if available)
●[Stereo]: Use this normally
●[Mono]: When stereo signal cannot be received
●[M1] / [M2]: Available while mono signal is transmitted
SPDIF Selection
• Auto
• PCM
SPDIF: A standard audio transfer file format
Selects the initial setting for digital audio output signal from HDMI2
terminal
[Auto]: Dolby Digital is output as Dolby Digital Bitstream. HE-AAC and
MPEG are output as PCM.
[PCM]: Digital output signal is fixed to PCM.
●
Video mode (p. 40) or Network video contents (p. 51)
●
Amplifier with ARC (Audio Return Channel) only
HDMI1 / 2 / 3 Input
• Digital
• Analogue
Select to fit the input signal (p. 62)
[Digital]: HDMI cable connection
[Analogue]: HDMI-DVI adaptor cable connection
●HDMI input mode only
Reset to Defaults Press the OK button to reset settings of the present [Mode], [Balance],
[Headphone Volume] and [Surround] in the Sound Menu to the default
d
e
o
l
TH-L32C30KMTX_EN.indd 27TH-L32C30KMTX_EN.indd 27 6/16/2011 2:52:45 PM6/16/2011 2:52:45 PM
How to Use the Menu Functions
28
Display SettingsVIERA Link Settings
N
D
System MenuOther Settings
●
A
(
p
●
O
Item Adjustments / Configurations (alternatives)
PC Setup
Input Resolution
Switches to a wide view
●
VGA (640 × 480 pixels), WVGA (852 × 480 pixels),
XGA (1,024 × 768 pixels), WXGA (1,280 × 768 pixels, 1,366 × 768 pixels)
●Options change depending on signals
Clock Set to the minimum level if noise occurs.
H-pos
Adjust horizontal position
V-pos
Adjust vertical position
Clock Phase
Eliminates flicker and distortion
●
Adjust after Clock adjustment
●
Set to the minimum level if noise occurs
Sync
• H & V
• On Green
PC sync signal type
[H & V]: By the horizontal and vertical signals from your PC
[On Green]: Sync on Green sync from your PC
Reset to Defaults Press the OK button to reset the PC Setup settings to the default
Off Timer
• Off
• 15 / 30 / 45 / 60 / 75 / 90
minutes
Set the time the TV automatically goes to Standby mode
Eco Navigation
Automatically sets the TV to the most suitable energy-saving mode
●If you press the OK button, the following items are set as below:
[Eco Mode], [VIERA Link], [Power off Link], [Standby Power Save],
[Power Save] [On]
[Intelligent Auto Standby] [On (No reminder)]
[Auto Standby] [2 hours]
Child Lock Locks a channel / AV input to prevent access to it (p. 32)
Tuning Menu
Channel List Edit Skip the unwanted channels or edit channels (p. 31)
Auto Tuning Set all TV channels automatically (p. 31)
Manual Tuning Set the TV channels manually (p. 31)
OSD Language
• English
•
•
•
•
• Indonesia
•
•
•
Changes language for on-screen displays
Main Menu
Sound
Setup
TH_L32C30KMTX_EN.indd 28TH_L32C30KMTX_EN.indd 28 3/18/2011 4:26:01 PM3/18/2011 4:26:01 PM
How to Use the Menu Functions
29
Display Settings
Teletext
• FASTEXT
• List
Teletext display mode (p. 18)
Teletext Character Set
• English
• CIS
• E.Europe
• Persian
Select teletext language
Input Labels Label or skip each input terminal (p. 33)
Banner Display
Timeout
• 0 (No display)
•
1 / 2 / 3 / 4 / 5 / 6 / 7 /
8 / 9 / 10 seconds
Set how long the information banner stays on screen (p. 16)
Playing Time Display
• Off
• On
Set to [On] to display a record of accumulated time spent using Game
mode every 30 minutes
●This function is available when [Game] is selected in [Viewing Mode]
(p. 24).
VIERA Link Settings
VIERA Link
• Off
• On
Set to use VIERA Link functions
●VIERA Link functions become available when [VIERA Link] is set to
[On] (p. 54).
Power on Link
• Off
• On
Set to use Power on Link functions (p. 54)
Power off Link
• Off
• On
Set to use Power off Link functions (p. 54)
Standby Power Save
• Off
• On
Controls the power consumption in Standby mode of the connected
equipment to reduce the power consumption (p. 54)
●This function is available when [VIERA Link] is set to [On] and
[Power off Link] is set to [On].
Intelligent Auto
Standby
• Off
•
On (With reminder)
• On (No reminder)
Makes non-watched or non-used connected equipment go into
Standby mode to reduce the power consumption (p. 54)
●This function is available when [VIERA Link] is set to [On].
Network Setup Set the network settings to use in your network environment (p. 46)
DivX® VOD Displays DivX VOD registration code (p. 66)
System Menu
Shipping Condition Resets all settings to the original condition (p. 34)
Software Licence Displays the software licence information
System Information Displays the system information of this TV
Other Settings
Auto Standby
• Off
• 2 / 4 hours
Set the time the TV automatically goes to Standby mode when no
operation is performed in the selected period
●Automatic input switching with the connected equipment affects this
function and time-count will be reset.
●The notification message will appear 3 minutes before going to
Standby mode.
Power Save
• Off
• On
Reduces brightness of the picture to economise on power
consumption
●A different menu will be displayed in the mode of Media Player / Network service operations.
(p. 35 - 52)
●Only available items can be selected.
s
)
TH_L32C30KMTX_EN.indd 29TH_L32C30KMTX_EN.indd 29 3/21/2011 11:33:46 AM3/21/2011 11:33:46 AM
Tuning and Editing Channels
30
Tuning and Editing Channels
You can make Auto Tuning, listing your favourite channels, skipping unwanted channels, etc.
EXIT
RETURN
TV
abc def
jk l
ghi
mno
tuvpqrs
wxyz
RGYB
CH
INPUT
AVTVPC
INPUT
TV
■To return to TV
EXIT
Preparations:
1 Select TV mode 2 Display the menu 3 Select [Setup]
MENU
access
select
●The selected mode is
displayed on the screen
(p. 16)
1Select [Tuning Menu]
Setup Menu 1/2
Off Timer
Eco Navigation
Child Lock
Tuning Menu
OSD Language
Display Settings
VIERA Link Settings
Network Setup
DivX® VOD
Access
Off
access
select
2Select a function
Tuning Menu
Channel List Edit
Auto Tuning
Manual Tuning Access
Access
Access access
select
●For details (p. 31)
For Auto Tuning, using the buttons on the side panel of the TV (p. 10)
1 Press repeatedly until [Auto Tuning] appears
2 Access [Auto Tuning]
3 Start [Auto Tuning]
●To return to TV
[
Y
o
U
s
S
e
99
1
2
3
4
5
6
Cha
n
■
Y
o
●
T
●
T
●I
f
[
1
S
A
u
St
a
●
A
●
W
●
S
●I
f
[
S
e
0
Fin
e
Ma
So
u
Col
Ma
n
1
S
TH_L32C30KMTX_EN.indd 30TH_L32C30KMTX_EN.indd 30 3/18/2011 4:26:01 PM3/18/2011 4:26:01 PM
Tuning and Editing Channels
31
[Channel List Edit] - Skip unwanted channels / Edit channels (Change name, move)
You can hide unwanted channels. The hidden channels cannot be displayed except in this function.
Use this function to skip unwanted channels.
Select a channel and reveal / hide
99 *****
1 BBC1
2 ITV 2
3 S4C
4 *****
5 *****
6 *****
Channel List Editor
[reveal] / [hide]
: [reveal]
: [hide] (skip)
select ●To reveal all channels
Y
●To retune each channel (Manual Tuning)
R
(see below)
■To edit channels
You can also edit each channel in the Channel List.
or CH Select the channel to edit, then:
●To move the channel position
GSelect the new position Store G
●To rename the channel
B
A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _
O P Q R S T
7 8 9 ! : #
o p q r s t
Edit channel name
Name
(maximum: five characters)
select
set
Set characters
RETURN
Store
●You can also set the
characters by using the
numeric buttons (p. 23).
Note
●If a VCR is connected only with the RF cable, edit [VCR].
[Auto Tuning] - Set all TV channels automatically
1 Start Auto Tuning 2 Settings are made automatically
Auto Tuning
All tuning data will be erased
Start Auto Tuning EXIT
RETURN
Auto Tuning
1
EXIT
CH2
Scan 1 120
Automatically retune all TV
channels received in the area.
●All the previous tuning settings are erased.
●When the operation is completed, the channel at channel position [1] will be displayed.
●Search begins in the order from the lower channels to the higher channels.
●If tuning has not been done completely [Manual Tuning] (see below)
[Manual Tuning] - Set TV channel manually
Set TV channel manually after Auto Tuning.
0
Fine Tuning
Manual Tuning
Sound System
Colour System
CH57
Auto
5.5MHz
Manual Tuning
1120
Fine Tuning
●Use to make small adjustments to the tuning of an individual
channel (affected by weather conditions, etc.)
Manual Tuning
Set channel manually after Auto Tuning.
●Set Sound System and Colour System, and then perform this
function. Set Colour System [Auto] normally.
●If a VCR is connected only with the RF cable, select channel
position [0].
1 Select a channel position 2 Select a channel 3 Search and store
abc def
jkl
ghi
mno
tuvpqrs
wxyz
CH
store
search
TH_L32C30KMTX_EN.indd 31TH_L32C30KMTX_EN.indd 31 3/18/2011 4:26:02 PM3/18/2011 4:26:02 PM
Child Lock
32
Child Lock
EXIT
MENU
TV
abc def
jk l
ghi
mno
tuvpqrs
wxyz
BGY
You can lock specific channels / AV input terminals to control who could watch them.
When the locked channel / input is selected, a message appears; by entering the PIN number, you can watch it.
[Child Lock] - Control channel audience
1 Enter the PIN number (4 digits) 2 Select [Child Lock List]
* * * *
Child Lock-PIN Entry
Please enter new PIN
PIN
●Enter the PIN number twice at
first setting.
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Child Lock
Change PIN
Child Lock List Access access
select
3 Select the channel / input to be locked
1
2Lock
3Lock
4Lock
5Lock
6Lock
7Lock
8Lock
Lock
Name Input
TV TV
TV TV
TV TV
TV TV
TV TV
TV TV
TV TV
TV TV
Type
Child Lock List - TV and AV
lock
select ●
To cancel Select the locked channel / input
●To lock all G
●To cancel all locks Y
●To jump to the top of the next input B
■To change the PIN number
Select [Change PIN] in [Child Lock] and enter a new PIN number twice.
Note
●Make a note of the PIN number in case you forget it.
●Performing [Shipping Condition] (p. 34) erases the PIN number and all settings.
■To return to TV
EXIT
Preparations:
1 Display the menu 2 Select [Setup]
MENU
access
select
1Select [Child Lock]
Setup Menu 1/2
Off Timer
Eco Navigation
Child Lock
Tuning Menu
OSD Language
Display Settings
VIERA Link Settings
Network Setup
DivX® VOD
Off
Access access
select
I
n
■
EX
I
F
o
th
a
●
T
■
Y
o
1
S
: Appears when the channel / input is locked
TH_L32C30KMTX_EN.indd 32TH_L32C30KMTX_EN.indd 32 3/18/2011 4:26:03 PM3/18/2011 4:26:03 PM
Input Labels
33
it.
s
Input Labels
■To return to TV
EXIT
EXIT
RETURN
MENU
TV
abc def
jk l
ghi
mno
tuvpqrs
wxyz
For easier identification and selection of the input mode, you can label each input mode or skip terminal
that is not connected to any equipment.
●To select the input mode (p. 20)
■User input
You can name each input mode freely.
1 Select [User input] 2 Set characters one by one 3 Store
access
select A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _
O P Q R S T
7 8 9 ! : #
o p q r s t
User input
Name
(maximum: ten characters)
select
set
RETURN
●You can also set the characters by using the numeric
buttons.
( p. 23)
Preparations:
1 Display the menu 2 Select [Setup]
MENU
access
select
1Select [Display Settings]
Off Timer
Setup Menu
Child Lock
Tuning Menu
Off
1/2
Access
OSD Language
Display Settings
VIERA Link Settings
Network Setup
DivX® VOD
Eco Navigation
access
select
2Select [Input Labels]
Teletext LIst
Display Settings
Input Labels Access
Banner Display Timeout
Playing Time Display
3 seconds
On
Teletext Character Set English
access
select
3Select an input terminal and set
Display Settings
Input Labels
AV1
AV2
AV3
PC
HDMI1
HDMI2
HDMI3
DVD
AV2
AV3
PC
HDMI1
HDMI2
HDMI3
set
select
The labels you set will be displayed in [Input Selection] menu (p. 20) or
banner.
●If [Skip] is selected, you cannot select the mode.
TH_L32C30KMTX_EN.indd 33TH_L32C30KMTX_EN.indd 33 3/18/2011 4:26:04 PM3/18/2011 4:26:04 PM
Shipping Condition (Reset settings)
34
Shipping Condition (Reset settings)
Resets the TV to its original condition, i.e. no channels tuned in.
All settings are reset (channels, picture, sound settings, etc.).
EXIT
MENU
TV
■To return to TV
EXIT
[Shipping Condition] - Restore settings
1 Check the message and reset 2 Follow the on-screen instructions
Shipping Condition
All tuning data will be erased
Are you sure?
Are you sure?
Confirm EXIT
RETURN
(confirm)
(confirm)
(start
[Shipping Condition])
Reset to Factory Shipping Condition
Completed.
Please switch off TV.
●[Auto Tuning] will automatically start when
Mains power On/Off switch is next turned on
(p. 12).
■To retune TV channels only, e.g. after moving house
[Auto Tuning] in “Tuning and Editing Channels” (p. 31)
Preparations:
1 Display the menu 2 Select [Setup]
MENU
access
select
1Select [System Menu]
System Menu
Setup Menu
Access
2/2
Other Settings
access
select
2Select [Shipping Condition]
Shipping Condition
System Menu
System Information
Access
Software Licence
access
select
U
M
e
M
e
VI
E
C
a
P
h
Vi
d
M
u
W
h
●[
D
r
e
●
T
●
D
M
●
P
●
T
T
o
●
F
■
■
T
o
S
G
t
h
l
a
f
a
TH_L32C30KMTX_EN.indd 34TH_L32C30KMTX_EN.indd 34 3/18/2011 4:26:04 PM3/18/2011 4:26:04 PM
Using Media Player
35
o
n
Using Media Player
Media Player allows you to enjoy photo, video or music recorded on an SD Card or a USB Flash
Memory.
VIERA IMAGE VIEWER is a function that enables easy-viewing of photos or videos recorded on an SD
Card on the TV screen by simply inserting the SD Card into the SD Card slot.
Photo mode : Still pictures recorded by digital cameras will be displayed.
Video mode : Moving pictures recorded by digital video cameras will be played back.
Music mode : Digital music data will be played back.
When these functions are used, the audio signal is output from audio output terminals.
●[Date] shows the date on which the recording was made by the recording equipment. The file without
record of the date is shown as [****/**/**].
●The picture may not appear correctly on this TV depending on the recording equipment used.
●Display may take some time when there are many files and folders in the SD card or USB Flash
Memory.
●Partly degraded files might be displayed at a reduced resolution.
●
The folder and file names may be different depending on the digital camera or digital video camera used.
To insert or remove the SD Card / USB Flash Memory
●For more information on the SD Card, USB Flash Memory and supported file formats (p. 64 - 66)
■USB Flash Memory
●Insert or remove straightly and completely.
■SD Card
To insert the
SD Card
Gently insert
the SD Card
label surface
facing front.
Label
surface
Cutout
Push until a
click is heard
To remove the
SD Card
Push the
centre of
the card
TH-L32C30KMTX_EN.indd 35TH-L32C30KMTX_EN.indd 35 6/16/2011 2:52:52 PM6/16/2011 2:52:52 PM
Using Media Player
36
Change the device
You can change to the other device input directly in the same mode if two or more devices are
connected.
1 Display the menu 2 Select the icon you want to access
YMedia Player
Drive Select
SD Card
EXIT
Select
RETURN
Access
selected device name
access
select
■To return to TV
EXIT
or
■To return to the
previous screen
RETURN
S
D
C
A
R
D
EXIT
RETURN
TV
Y
INFO
OPTION
MENU
ASPECT
RG B
Starting Media Player
1Insert the SD Card or USB Flash Memory
(p. 35)
When the SD Card is inserted, the input mode automatically switches to
Media Player.
2Switch to Media Player
3Select the icon you want to access
Media Player
Drive Select
SD Card
EXIT
Select
RETURN
Access
selected device name
access
select
●If only one device is connected, this
step will be skipped.
4Select the content
Media Player
Photo Video Music
Contents Select
SD Card
EXIT
Select
RETURN
Access
access
select
[Photo] “Photo mode” (p. 37)
[Video] “Video mode” (p. 40)
[Music] “Music mode” (p. 43)
●You can also access each mode directly by using VIERA TOOLS.
“How to Use VIERA TOOLS” (p. 21)
P
S
u
T
h
E
x
M
e
●
T
●
T
I
N
■
1
D
2
S
3
S
●
TH-L32C30KMTX_EN.indd 36TH-L32C30KMTX_EN.indd 36 6/16/2011 2:52:47 PM6/16/2011 2:52:47 PM
Using Media Player
37
to
Photo mode
Supported file format (p. 65)
The thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed.
Example : Thumbnail - [All photos]
OPTION
SD Card
EXIT
Select RETURN
Media Player Photo All photos
Slideshow View Select Drive Select Contents Select
Info
View
Option Menu
selected device name
● To change the number of photos on a thumbnail
screen at a time ( 7 × 4 ↔ 10 × 6 )
OPTION
Option Menu
Slideshow Settings
Change size
select
[Change size]
Set
: Error display
●To change the background music “Photo Setup” (p. 38)
●To display the information of the highlighted photo
INFO
1/48
File name
Date
Pixel
2010/10/23
1600X1200
File number / Total file number
■ To sort by folder, recorded date or recorded month
1 Display the viewing mode selection screen
G
2 Select the sort type
Folder view
Sort by Date
Sort by Month
access
select
[Folder view] :
Displays the thumbnails grouped by folders
●The files which are not in a folder will be collected into the folder named “/”.
[Sort by Date] :
Displays the thumbnails grouped by the same date
●The group of the photos without recorded date is shown as [Unknown].
[Sort by Month] :
Displays the thumbnails grouped by the same month
●The group of the photos without recorded date is shown as [Unknown].
3 Select one of the sorted groups to display the thumbnails of the selected group
OPTION
2010/10/23
2010/11/24
2010/10/25
2010/12/01
2010/11/01
2010/12/03
2010/11/05
2010/12/20
2010/11/10
2010/12/22
2010/11/22 2010/11/23
Media Player Photo Sort by Date
SD Card
EXIT
Select RETURN
Slideshow View Select Contents Select
Info
Access
Option Menu
Drive Select
select
display thumbnails of the selected group
● To return to the thumbnail of all photos
G
access
select
[All photos]
● To display the information of the highlighted group
INFO
1/12
2010/10/23
Folder name
Number of files
3 Folder name, date or month
Group number /
Total group number
TH_L32C30KMTX_EN.indd 37TH_L32C30KMTX_EN.indd 37 3/18/2011 4:26:08 PM3/18/2011 4:26:08 PM
Using Media Player
38
[Single view] - Photos are displayed one at a time.
Select the file from the thumbnail of photos to be viewed
select
access
Example :
Single view
Single view
Stop
EXIT
Select
RETURN
Rotate
Operation guide
● To display / hide the
operation guide
INFO
● To return to thumbnail
RETURN
● To operate Single view
To the previous photo
Slideshow
To the next photo
Stop
(return to thumbnail)
● To rotate 90°
B
[Slideshow] - Slideshow will complete when all photos have been viewed within the present thumbnail.
1 Select the file from the thumbnail of photos
for the first view
2 Start Slideshow
R
select
● To display / hide the operation guide ● To pause (return to Single view) ● To return to thumbnail
INFO
RETURN
Photo Setup
Setup the settings for Photo mode.
1 Display the option menu 2 Select [Slideshow Settings] 3 Select the items and set
OPTION
Option Menu
Slideshow Settings
Slideshow Settings
Frame
Colour Effect
Transition Effect
Screen Mode
Interval
Repeat
Back Ground Music
5 seconds
On
Off
Fade
Normal
Off
Burst Playback Off
access
set
or
select
access
[Back Ground Music]
Note
● Picture quality may become lower depending on the slideshow settings.
● Picture setting may not work depending on the slideshow settings.
F
C
E
T
E
S
M
B
P
I
n
R
B
G
M
TH_L32C30KMTX_EN.indd 38TH_L32C30KMTX_EN.indd 38 3/18/2011 4:26:09 PM3/18/2011 4:26:09 PM
Using Media Player
39
a
il.
Item Adjustments / Configurations (alternatives)
Frame
Selects the indication frame of the slideshow
[Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] /
[Gallery] / [Cinema]
[Multi]: 9 division display like tiled design.
[Collage]: A photo is displayed at random position and scale.
[Drift (+ calendar) / Drift]: Photos are displayed like flow images.
•
You can select to display the calendar or not. To change the month of the calendar,
press the left or right cursor button while viewing the slideshow.
[Gallery (+ calendar) / Gallery]: Various sizes of photos in the frame are displayed.
•
You can select to display the calendar or not. To change the month of the calendar,
press the left or right cursor button while viewing the slideshow.
[Cinema]: Photos are displayed like old films (sepia tone).
Colour
Effect
Selects the colour effect of photos on Single view and Slideshow
[Off] / [Sepia] / [Gray scale]
●This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].
Transition
Effect
Selects the transition effect for photo switching during slideshow
[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random]
[Fade]: The next photo fades in gradually.
[Slide]: The next photo slides and appears from the left side.
[Dissolve]: The photo is replaced by an indefinite block unit.
[Motion]: The photo is replaced with enlarged, reduced, moved up or moved down.
[Random]: Each transition mode is performed randomly.
•
This function is available when [Frame] is set to [Off].
Screen
Mode
Selects enlarged or normal viewing mode on Single view and Slideshow
[Normal] / [Zoom]
●This function is not available when [Frame] is set to [Collage], [Drift], [Gallery] or
[Cinema].
●This function is not available when [Transition Effect] is set to [Motion].
●Depending on the photo size, the photo may not be enlarged.
Burst
Playback
Selects whether the continuous shots are displayed in rapid interval during the slideshow
[Off] / [On]
●This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].
●This function is not available when [Transition Effect] is set to [Motion].
Interval Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)
● This function is not available when [Transition Effect] is set to [Motion].
Repeat Slideshow repeat [Off] / [On]
Back
Ground
Music
Selects the background music during Photo mode
[Off] / [Type1] / [Type2] / [Type3] / [User] / [Auto]
● [Type1], [Type2] and [Type3] are the fixed music each installed in this TV.
[User]: Music data in the current device registered by yourself will be played back.
To register the music
1 Select the music file 2 Select [File] or [Folder]
Depending on the conditions of the
current device, select folders until
you reach the desired music file.
Register Slideshow BGM?
File
Folder
DCIM
MISC
001photo
002photo
003music
01 song.mp3
PRIVATE
Back Ground Music
Type1
set
select
[File]: The selected music file will be registered as
background music.
[Folder]: All the music in the folder which contains
the selected music file will be registered as
background music.
select
access
●If no music has been registered or the registered music device is removed, no sound
will be produced.
[Auto]: Music data stored in the root folder of the current device will be played back
randomly.
● If there is no available music data, no sound will be produced.
TH_L32C30KMTX_EN.indd 39TH_L32C30KMTX_EN.indd 39 3/18/2011 4:26:10 PM3/18/2011 4:26:10 PM
Using Media Player
40
Change the contents
You can switch to the other mode of Media Player from the thumbnail view.
1 While the thumbnail is
displayed, display the
contents selection
B
2 Select the contents
OPTION
SD Card
EXIT
Select RETURN
Media Player Photo All photos
Slideshow View Select Contents Select
Info
View Photo Video Music
Contents Select
SD Card
EXIT
Select
RETURN
Access
access
select
[Photo] “Photo mode” (p. 37)
[Video] “Video mode” (below)
[Music] “Music mode” (p. 43)
Video mode
Supported file format (p. 65)
The thumbnail of video titles in the SD Card or USB Flash Memory will be displayed.
Example : Thumbnail - [Title view]
OPTION
Title view
Media Player Video
Trip1
Nature2
2010_9
Trip2
Nature3
Trip3
Nature4
Trip4
Nature5
Trip5
Nature6
Room
2010_4
Nature1
2010_7
SD Card
EXIT
Select RETURN
Play Contents Select
Info
Access
Option Menu
Drive Select
The preview will start when the title is highlighted if it supports
a preview.
● To turn off the preview “Video Setup” (p. 41)
● To display the information of the highlighted title
INFO
1/15
Trip1
8
Title
Number of scenes
Date & Time
Duration
2010/02/19 11:21
00h15m39s
Title number /
Total title number
File format
: Error display
: The file does not support thumbnail view.
● To view the scenes of the title
Select the title
Example : Thumbnail - [Scene view]
OPTION
Trip1_1
Trip1_8
Trip1_2 Trip1_3 Trip1_4 Trip1_5 Trip1_6 Trip1_7
Media Player Video Title view > Trip1
SD Card
EXIT
Select RETURN
Contents Select
Info
Play
Play
Option Menu
Drive Select
The preview will start when the scene is highlighted if it
supports a preview.
● To turn off the preview
“Video Setup” (p. 41)
● To display the information of the highlighted scene
INFO
1/8
Trip1_1
00h04m12s
Scene
Duration
Date & Time
2010/02/19 11:21
Scene number /
Total scene
number
File format
select
access
■ Playback from Title view
Playback of the selected title will start.
● To repeat playback “Video Setup” (p. 41)
1 Select the title 2 Start playback
select
R
■
Pl
a
●
T
1
S
●
T
■
E
x
SD
O
p
■
V
S
e
1
D
i
OPT
V
R
TH-L32C30KMTX_EN.indd 40TH-L32C30KMTX_EN.indd 40 6/16/2011 2:52:49 PM6/16/2011 2:52:49 PM
Using Media Player
41
7
)
w
)
2
)
t
s
■ Playback from the selected scene in the title
Playback will start from the selected scene to the end of the title.
● To repeat playback “Video Setup” (p. 41)
1 Select the title 2 Select the scene 3 Start playback
select
access
select
R
Note
●The structure of titles and scenes may vary depending on the digital video camera used.
■ How to operate playback
Example : Playback
SD
EXIT
RETURN
2010/10/02 00:15:39
00:02:05
11:21
Operation guide Information banner
● To display / hide the operation
guide and information banner
INFO
● To operate playback
Rewind
Pause / Playback
Fast forward
Stop
●To change aspect
ASPECT
● To the previous title /
scene
R
● To the next title / scene
G
● To return to thumbnail
RETURN
■ To change the content “Change the contents” (p. 40)
Video Setup
Setup the settings for Video mode.
1 Display the option menu
in the thumbnail view
2 Select [Video Setup] 3 Select the items and set
OPTION
Option Menu
Video Setup
Video Setup Menu
Video Preview
Repeat Off
On
access
set
select
Item Adjustments / Configurations (alternatives)
Video Preview
Sets to start the preview of the title or scene in the thumbnail view [Off] / [On]
● Image may not be displayed for an instant in the thumbnail view. Set the
preview [Off] to resolve this.
Repeat Playback repeat within the title [Off] / [On]
Only the selected file will be repeated.
TH_L32C30KMTX_EN.indd 41TH_L32C30KMTX_EN.indd 41 3/18/2011 4:26:14 PM3/18/2011 4:26:14 PM
Using Media Player
42
Confirm or change the current status
You can confirm or change the current status of the content.
● Menu items and selectable options vary depending on the content.
1 Display the option menu
during playback
2 Select [Video Setup] 3 Select the items and set
OPTION
Option Menu
Video Setup
Aspect1
Off
Video Setup Menu
Multi Audio
Subtitle
Subtitle text
Aspect Change
Repeat
Off
Latin1
Stereo
access
set
select
Item Adjustments / Configurations (alternatives)
Multi Audio Allows you to select between selectable sound tracks (if available)
● It may take several seconds to change the sound.
Subtitle Turn the subtitle on/off and select the subtitle file (if available)
[Off] / [Subtitle1] (/ [Subtitle2] ...)
Subtitle text
Selects the font type, if the subtitles text are not displayed correctly.
[Latin1] / [Latin2] / [Cyrillic] / [Turkish] / [Unicode] / [Chinese1] / [Chinese2]
●Some subtitles text may not be displayed correctly.
Aspect Change
[Aspect1]: Displays the content full-screen
[Aspect2]: Displays the content square
[Original]: Displays the content original size
● You can also change the aspect using the ASPECT button.
● Aspect change may not work depending on the content.
M
S
u
T
h
E
x
My
M
M
e
■
All
1
S
■
S
e
1
S
■
O
p
M
S
e
1
D
t
m
O
Audio output settings
You can enjoy the multi-channel sound via an amplifier connected to the HDMI2 terminal.
● To confirm or change the current sound status “Confirm or change the current status” (p. 42)
1 Display the menu 2 Select [Sound] 3 Select [SPDIF Selection] and set
MENU
Main Menu
Sound
Setup
Sound Menu 2/2
SPDIF Selection
Reset to Defaults
Auto
Reset
access
select
set
select
Item Adjustments / Configurations (alternatives)
SPDIF Selection
SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from the HDMI2
terminal [Auto] / [PCM]
[Auto] : Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as
PCM.
[PCM] : Digital output signal is fixed to PCM.
TH-L32C30KMTX_EN.indd 42TH-L32C30KMTX_EN.indd 42 6/20/2011 8:41:40 AM6/20/2011 8:41:40 AM
Using Media Player
43
]
Music mode
Supported file format (p. 66)
The thumbnail of music folders in the SD Card or USB Flash Memory will be displayed.
Example : Thumbnail - [Folder view]
OPTION
My Music_1 My Music_2 My Music_3
Media Player Music Folder view
SD Card
EXIT
Select RETURN
Play Folder Contents Select
Info
Access
Option Menu
Drive Select
●To display the information of the highlighted folder
INFO
1/3
My Music_1
Folder name
Number of files
11
Folder number / Total folder
number
■ Playback from Folder view
All the files in the selected folder will be played back.
1 Select the folder 2 Start playback
select
R
■Playback from File view
Selected file will be played back.
1 Select the folder 2 Select the file 3 Start playback
select
access
EXIT
Select RETURN
SD Card
Info
Contents SelectDrive Select
Media Player Music Folder view > My Music_1
Play
My Song_1
My Song_8
My Song_2
My Song_9
My Song_3
My Song_10
My Song_4
My Song_11
My Song_5 My Song_6 My Song_7
select
R
To display the information
of the highlighted title
INFO
1/11
My Song_1
My Favorite
Title
Artist
Album
Track No.
Duration
My Music_1
1
00h03m29s
File number /
total file number
■How to operate playback
EXIT
RETURN
My Song_9
My Favourite
My Music_1
00:02.43 / 00:05.44
Operation guide
●To display / hide the operation guide
INFO
●To operate playback
●To the previous track
R
●To the next track
G
●To return to thumbnail
RETURN
Rewind
Pause / Playback
Fast forward
Stop
Music Setup
Setup the setting for Music mode.
1 Display
the option
menu
OPTION
2 Select [Music Setup] 3 Set
Option Menu
Music Setup
access
Music Setup Menu
Repeat One set
[Folder]: Playback repeat within the selected
folder
[One]: Playback repeat on the selected one file
s
et
s
TH-L32C30KMTX_EN.indd 43TH-L32C30KMTX_EN.indd 43 6/16/2011 2:52:46 PM6/16/2011 2:52:46 PM
Using Network Services
44
Using Network Services
DLNA®
This TV is a DLNA Certified™ product.
DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier
and more convenient to use on a home network. To learn more, visit www.dlna.org.
It allows you to share photos, videos and music stored in a DLNA Certified media server (for example,
PC with Windows 7 installed (with suitable CODEC pack plug-in), DIGA Recorder, etc.) connected to
your home network, and enjoy them on the TV.
Supported file format (p. 65 - 66)
Media server
Ensure the connected equipment is a DLNA Certified media server.
To use a PC, install the server software on the PC for obtaining a media server.
Store photos, videos or music into the media server, and then you can watch them on the TV.
“TwonkyMedia server 6” and “Windows 7” are the server software that has been tested to work with this
TV (current as of January, 2011).
For installing, read the manual of the server software.
●The DLNA control function of Windows 7 is not supported with this TV.
●When a server software for the media server is installed on the PC, the data may be at risk of being
accessed by other people. Please take care of the settings and connections under the network
circumstances at the office, hotel or even at home when not using a router.
By connecting a DLNA compatible DIGA Recorder to your home network, you can enjoy and control it
as one of the media servers.
●For details, read the manual of the DIGA Recorder.
Network connection
“Example 1” or “Example 2” in “Network connections” (p. 45)
Network setup
(p. 46 - 48)
DLNA operations
(p. 49 - 51)
Internet contents
You can access the Internet contents.
Network connection
“Example 1” or “Example 3” in “Network connections” (p. 45)
Network setup
(p. 46 - 48)
Accessing the Internet contents
(p. 52)
N
To
To
●I
f
●
C
t
e
●
S
●
R
t
h
●
R
E
x
●
E
●I
f
●I
f
●
E
●I
f
E
x
Y
o
●
E
E
x
Y
o
●
D
c
I
S
●
Y
o
●
D
a
●
P
t
h
TH_L32C30KMTX_EN.indd 44TH_L32C30KMTX_EN.indd 44 3/18/2011 4:26:16 PM3/18/2011 4:26:16 PM
Using Network Services
45
er
is
Network connections
To use only DLNA features, you can operate the features without Broadband network environment.
To enjoy the Internet contents, you need a Broadband network environment.
●If you do not have any Broadband network services, please consult your retailer for assistance.
●Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or
telecommunications company.
●Set up and connect all the equipment required for the network environment.
●Required speed (effective): at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If
the transfer speed is lower than these, contents may not be played back properly.
●Read the manual of the network equipment, too.
Example 1
LAN cable (Shielded)
Modem
Hub, Router
or
Access point
You can connect to the network by using a
Wireless LAN Adaptor and an access point.
Internet
Wireless LAN connection
DLNA Certified
media server
(for example, PC,
DIGA Recorder, etc.)
●Ensure to use a LAN straight cable for this connection.
●If your modem has no broadband router functions, use a broadband router.
●If your modem has broadband router functions but there are no vacant ports, use a hub.
●Ensure that the Broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.
●If you use an equipment compatible only with 100BASE-TX, category 5 LAN cables are required.
Example 2
You can connect the TV and the equipment directly to use DLNA features.
LAN cable
(Shielded)
DLNA Certified
media server
(for example, PC,
DIGA Recorder, etc.)
●Ensure to use a LAN cross cable for this connection.
Example 3
You can connect the TV and the telecommunication equipment directly to enjoy the Internet contents.
LAN cable
(Shielded)
Modem
Internet
If you cannot access the Internet contents, use
Example 1 connection.
Note
●Depending on the ISP or telecommunications company, the required equipment and the Internet
connection procedures are different. Ensure that you use network equipment that is authorised by your
ISP and telecommunications company.
●You cannot make settings for the network equipment on this TV. You may be required to make settings
on your computer.
●Depending on the terms and conditions of the contracts with your ISP or telecommunications company,
additional fees may be charged or multiple connections to the Internet may be impossible.
●Please contact your ISP or telecommunications company if you require further assistance regarding
the network equipment.
TH_L32C30KMTX_EN.indd 45TH_L32C30KMTX_EN.indd 45 3/18/2011 4:26:17 PM3/18/2011 4:26:17 PM
Using Network Services
46
[Network Setup]
●Ensure the connections are completed before starting Network Setup.
“Network connections” (p. 45)
EXIT
RETURN
MENU
abc def
jk l
ghi
mno
tuvpqrs
wxyz
■To return to TV
EXIT
Preparations:
1 Display the menu 2 Select [Setup]
MENU
access
select
1Select [Network Setup]
Eco Navigation
Off
Child Lock
Tuning Menu
OSD Language
Display Settings
VIERA Link Settings
Network Setup Access
DivX® VOD Auto
Setup Menu
Off Timer
1/2
access
select
Network settings for the LAN Cable connection
This setting is for the network connection using the LAN cable.
1Select [Network Type] and set to [Wired]
Network Type
Connection Test
Access Point Settings
IP/DNS Settings
MAC Address
Network Setup
Wired
12-34-56-78-9a-bc
Software Update
set
select
If you make the network connection as shown is Example 2 (p. 45),
you do not have to set [DNS Address], [Proxy] and [Proxy Port].
2Select [IP/DNS Settings] and set the items
Network Type
Connection Test
Access Point Settings
IP/DNS Settings
MAC Address
Network Setup
Wired
12-34-56-78-9a-bc
Software Update
Access
access
select
After settings, return to [Network Setup] screen
RETURN
■[Acquire IP Address]
■[Acquire DNS Address]
Sets [IP Address], [Subnet Mask], [Gateway] and [DNS Address].
For most users, the recommended method of connection to your network is by using [Auto] feature.
Select [Acquire IP Address] and then set to [Auto]
Select [Acquire DNS Address] and then set to [Auto]
IP Address
Acquire IP Address
Subnet Mask
Gateway
DNS Address
Proxy Settings
IP/DNS Settings
Auto
Auto
Access
192.168.11.1
192.168.11.1
255.255.255.0
192.168.11.5
Acquire DNS Address
set
select
●The available settings are displayed automatically.
2
3
TH_L32C30KMTX_EN.indd 46TH_L32C30KMTX_EN.indd 46 3/18/2011 4:26:17 PM3/18/2011 4:26:17 PM
Using Network Services
47
5
),
r
e.
2 ■[Proxy Settings]
Select [Proxy Settings] and set the items
IP Address
Acquire IP Address
Subnet Mask
Gateway
DNS Address
Proxy Settings
IP/DNS Settings
Auto
Auto
Access
192.168.11.1
192.168.11.1
255.255.255.0
192.168.11.5
Acquire DNS Address
access
select
After settings, return to [Network Setup] screen
RETURN
[Proxy]
Sets Proxy address.
●
This is the address of the relay server that is connected to the target server instead of the browser
and sends data to the browser. Setting is required if specified by the provider.
1. Select [Proxy]
Proxy Port 0
Proxy
Proxy Settings
access
select
2. Enter the address
Set characters one by one
A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _
O P Q R S T
7 8 9 ! : #
o p q r s t
Proxy
Host
select
set
●You can also set the characters by using the numeric buttons.
3. Store
RETURN
[Proxy Port]
Sets Proxy port number.
●This number is also specified by the provider with the Proxy address.
1. Select [Proxy Port]
Proxy Port 0
Proxy
Proxy Settings select
2. Move the cursor and enter
the number move
abc def
jkl
ghi
mno
tuvpqrs
wxyz
3 Select [Connection Test] and access to test
Network Type
Connection Test
Access Point Settings
IP/DNS Settings
MAC Address
Network Setup
Wired
12-34-56-78-9a-bc
Software Update
Access
access
select
●Performs automatic testing of the network connection for the TV.
(It takes a while to test.)
Check network cable connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.
Connection Test : succeeded
The test is successful and the TV is connected to the network.
: failed
Check the settings and connections, and then perform this
function again.
TH_L32C30KMTX_EN.indd 47TH_L32C30KMTX_EN.indd 47 3/18/2011 4:26:17 PM3/18/2011 4:26:17 PM
Using Network Services
48
Network settings for the Wireless LAN connection
This setting is for the network connection using Wireless LAN Adaptor.
●Confirm the encryption key, settings and positions of your access point before starting setup.
For details, read the manual of the access point.
1Select [Network Type] and set to [Wireless]
Network Type
Connection Test
Access Point Settings
IP/DNS Settings
MAC Address
Network Setup
Wireless
12-34-56-78-9a-bc
Software Update
set
select
2Select [Access Point Settings]
Network Type
Connection Test
Access Point Settings
IP/DNS Settings
MAC Address
Network Setup
Wireless
12-34-56-78-9a-bc
Software Update
Access access
select
3Select the connection type and set
Please select network connection type.
WPS(Push button)
WPS(PIN)
Manual
Connection Type
Search for access point
access
select
[WPS(Push button)] (p. 14)
[WPS(PIN)]: Sets by entering the PIN code to the access point
[Search for access point] (p. 14)
[Manual]: Sets manually by entering the SSID of access point
Follow the on-screen instructions
4Select [Connection Test] and access to test
Network Type
Connection Test
Access Point Settings
IP/DNS Settings
MAC Address
Network Setup
Wireless
12-34-56-78-9a-bc
Software Update
Access
access
select
Performs automatic testing of the network connection for the TV.
(It takes a while to test.)
Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.
Connection Test : succeeded
The test is successful and the TV is connected to the network.
: failed
Check the settings and connections, and then perform this
function again.
If you continue to have difficulty, please contact your internet
service provider.
Update TV’s software
Accesses the specific web site to update TV’s software and search if any software updates are available.
Network Type
Connection Test
Access Point Settings
IP/DNS Settings
MAC Address
Access
Network Setup
Wired
12-34-56-78-9a-bc
Software Update
access
select [Software Update]
●Follow the on-screen instructions
Note
Network Type
Connection Test
Access Point Settings
IP/DNS Settings
MAC Address
Network Setup
Wired
12-34-56-78-9a-bc
Software Update
[MAC Address]
●MAC address is a unique address that identifies hardware in the
network.
(for information only)
I
OP
T
U
●
E
■
EX
I
■
RE
T
TH_L32C30KMTX_EN.indd 48TH_L32C30KMTX_EN.indd 48 3/18/2011 4:26:18 PM3/18/2011 4:26:18 PM
Using Network Services
49
k
.
e
.
EXITINFO
OPTION
RETURN
MENU
TV
ASPECT
RG B
V
I
E
R
A
T
O
O
L
S
Using DLNA® features
●Ensure the preparation of the media server, network connections and network settings are completed.
“Media server” (p. 44), “Network connections” (p. 45), “Network Setup” (p. 46 - 48)
■To return to TV
EXIT
■To return to the
previous screen
RETURN
1Display the icon of the features
2Select [Media Server]
Media Server
access
select
3Select one of the media servers you want to
access
Media server list
OPTION
SERVER1
A
SERVER2
5
SERVER3
g
Select EXIT
RETURN
Access
Media Server
Info
Option Menu 3
Available media
servers
Total listed number
access
select
●To display the information of the
highlighted media server
INFO
4Select the file (photo or video) to be viewed
File list
OPTION
P000102
SERVER1
2009-10-05 09:54
P000135 2009-11-20 13:18
P000180 2009-12-07 11:31
P000214 2009-12-10 15:20
P000251 2009-12-19 12:39
P000276 2009-12-25 14:06
P000293 2010-01-06 13:52
M10025 2010-01-12 15:56
M10042 2010-01-20 10:08
M10054 2010-01-28 14:48
M10078 2010-02-09 19:58
28
Select
Pixel
Media Server
3648x2736
JPEG
Format
EXIT
RETURN
View
Slideshow
Info
Option Menu
access
select
●Depending on the conditions of the
media server, you may need to select
the folder before selecting the file.
●Slideshow (p. 50)
●To display the information of the
highlighted file
INFO
Note
●You may select and play back the music file.
●Non-playable files are also listed but cannot be selected.
●Turn the TV off, and then on again when changing or reconnecting
the network connection.
TH_L32C30KMTX_EN.indd 49TH_L32C30KMTX_EN.indd 49 3/18/2011 4:26:19 PM3/18/2011 4:26:19 PM
Using Network Services
50
For photo file
[Single view] - Displayed one at a time
Operation guide
Single view
Single view
Rotate
Stop
EXIT
Select
RETURN
●To display / hide the operation guide
INFO
●To operate Single view
To the previous photo
To the next photo
Slideshow
Stop (return to list)
●To rotate 90° B
●To return to the list
RETURN
[Slideshow] - Slideshow will be started from the selected photo file and completed within the list.
Start Slideshow R ●To display / hide the operation guide
INFO
●To pause (return to Single view)
●To return to the list
RETURN
For video file
Playback - Playback will start.
EXIT
Manual Skip
RETURN
2010/02/19MEDIA SERVER 00:15:39
00:02:05
Operation guide
●To display / hide the operation guide and information banner
INFO
●To operate playback
Rewind
[Manual skip]
(Skip to a fixed period forward manually
for MPEG-2 (PS format and TS format) only)
Pause / Playback
Fast forward
Stop
●To the previous content R
●To the next content G
●To change aspect
ASPECT
●To return to the list
RETURN
For music file
Playback - Playback will start.
EXIT
RETURN
My Song_9
My Favourite
My Music_1
00:02.43 / 00:05.44
Operation guide
●To display / hide the operation guide
INFO
●To operate playback
Rewind
Pause / Playback
Fast forward
Stop
●To the previous track
R
●To the next track
G
●To return to thumbnail
RETURN
P
S
e
1
D
t
m
O
T
E
I
n
R
B
M
A
■
1
D
O
V
1
D
t
m
O
D
S
l
a
M
S
e
1
D
t
m
O
TH_L32C30KMTX_EN.indd 50TH_L32C30KMTX_EN.indd 50 3/18/2011 4:26:20 PM3/18/2011 4:26:20 PM
Using Network Services
51
Photo Setup (for photo contents)
Setup the settings for Photo.
1 Display
the option
menu
OPTION
2 Select [Slideshow Settings] 3 Select the items and set
Option Menu
Slideshow Settings
Video Setup
Music Setup access
select Slideshow Settings
Transition Effect
Interval
Repeat
Back Ground Music
Fade
5 seconds
On
change
access
[Back
Ground
Music]
select
or
Item Adjustments / Configurations (alternatives)
Transition
Effect
Selects the transition effect for photo switching during the slideshow
[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random]
[Fade]: The next photo fades in gradually.
[Slide]: The next photo slides and appears from the left side.
[Dissolve]: The photo is replaced by an indefinite block unit.
[Motion]: The photo is replaced with enlarged, reduced, moved up or moved down.
[Random]: Each transition mode is performed randomly.
Interval Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)
Repeat Slideshow repeat [Off] / [On]
Back Ground
Music
Selects the background music for photo viewing [Off] / [Type1] / [Type2] / [Type3]
●[Type1], [Type2] and [Type3] are the fixed music each installed in this TV.
Audio Output Settings (for video contents)
You can enjoy the multi-channel sound via an amplifier connected to HDMI2 terminal.
1 Display the
menu
MENU
2 Select [Sound] 3 Select [SPDIF Selection] and set
Main Menu
Sound
Setup
access
select Sound Menu 2/2
SPDIF Selection
Reset to Defaults
Auto
Reset set
select
●For details
(p. 42)
Video Setup (for video contents)
1 Display
the option
menu
OPTION
2 Select [Video Setup] 3 Select the items and set
Option Menu
Slideshow Settings
Video Setup
Music Setup access
select Video Setup Menu
Multi Audio
Dual Audio Stereo
Dolby D 5.1 ch
Subtitle Language
Aspect Change
Video Preview
Repeat
eng
Aspect1
On
Off
set
select
●For details
(p. 42)
Item Adjustments / Configurations (alternatives)
Dual Audio Selects multiplex sound (if available)
Subtitle
language Allows you to select the language in which subtitles should appear (if available)
Music Setup
Setup the setting for Music mode.
1 Display
the option
menu
OPTION
2 Select [Music Setup] 3 Set
Option Menu
Slideshow Settings
Video Setup
Music Setup access
select Music Setup Menu
Repeat One set
[Folder]: Playback repeat within the selected
folder
[One]: Playback repeat on the selected one file
TH-L32C30KMTX_EN.indd 51TH-L32C30KMTX_EN.indd 51 6/20/2011 8:41:41 AM6/20/2011 8:41:41 AM
Using Network Services
52
Accessing the Internet contents
This function allows you to access the Internet contents.
●You need a broadband Internet connection to use these functions. Dial-up Internet connections cannot
be used.
●Ensure that the network connections and network settings are completed.
“Network connections” (p. 45), “Network Setup” (p. 46 - 48)
EXIT
TV
V
I
E
R
A
T
O
O
L
S
USB Keyboard
You can input characters by using a USB Keyboard connected to the USB port.
●You cannot use two or more keyboards simultaneously.
●A USB Keyboard which requires a driver is not supported.
●Characters may not be displayed correctly on the TV screen depending on the connected keyboard.
Note
●Be sure to update the software when a software update notice is displayed on the TV screen. If the
software is not updated, you will not be able to enjoy this function.
You can update the software later manually [Software Update] in the Network Setup Menu (p. 48)
●The Internet contents are operated by their respective service providers, and service may be
discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no
warranty for the content or the continuity of the services.
●All features of websites or content of the service may not be available.
●Available contents are subject to change without notice.
●Some content may be inappropriate for some viewers.
●
Some content may only be available for specific countries and may be presented in specific languages.
●
Depending on the connection environment, the Internet connection may be slow or may not be
successful.
●Turn the TV off, and then on again when changing or reconnecting the network connection.
●Registration is required to access certain Internet contents. Refer registration steps shown on the
screen when accessing Internet contents feature.
1Display the icon of the features
2Select the icon
Facebook
(example)
access
select
■To return to TV
EXIT
V
E
n
Th
C
o
th
e
Th
●
S
c
●
V
s
d
C
●
P
c
S
u
F
e
C
E
a
P
o
P
o
R
c
o
A
u
u
n
P
a
D
C
o
e
q
S
p
1:
2:
3:
4:
C
o
●
T
9:
V
TH_L32C30KMTX_EN.indd 52TH_L32C30KMTX_EN.indd 52 3/18/2011 4:26:22 PM3/18/2011 4:26:22 PM
VIERA Link Functions
53
o
t
s.
VIERA Link “HDAVI Control™”
Enjoy additional HDMI interoperability with Panasonic products which have “HDAVI Control” function.
This TV supports “HDAVI Control 5” function.
Connections to equipment with HDMI cable such as a DIGA Recorder, HD Video Camera, Player
theatre, Amplifier, etc., allow you to interface to them automatically.
These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.
●Some functions are not available depending on the equipment’s version of HDAVI Control. Please
confirm the connected equipment’s version of HDAVI Control.
●VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry
standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have
developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI
CEC cannot be guaranteed.
●Please refer to individual manuals for the external equipment. About applicable Panasonic equipment,
consult your local Panasonic dealer.
Summary of features
Connected equipment with
VIERA Link function
Features
DIGA
Recorder1
DVD Player /
Blu-ray Disc
Player
1
HD Video Camera /
LUMIX Camera
1
Player
theatre2
Blu-ray Disc
theatre2Amplifier2
Channel download 4–– –––
Easy playback 77–
Power on link –
Power off link
Reduce unnecessary power
consumption in standby 55––
5–
Auto standby for
unnecessary equipment 33–38383
Pause Live TV programme 4 6–– –––
Direct TV Recording 4–– –––
Control the menu of the connected
equipment by VIERA remote control
33333–
Speaker control – – –
1: HDMI connection only
2: HDMI and Audio out connections
3: available with equipment which has “HDAVI Control 2 or later”
function
4: available with equipment which has “HDAVI Control 3 or later”
function
5: available with equipment which has
“HDAVI Control 4 or later” function
6: available with DIGA Recorder which has HDD
7: while playing a disc
8: except for watching a disc
Connection
●To use DIGA Recorder / DVD Player / Blu-ray Disc Player / HD Video Camera / LUMIX Camera:
HDMI cable
DIGA Recorder / DVD Player / Blu-ray Disc
Player / HD Video Camera / LUMIX Camera
with VIERA Link function
HDMI cable
HDMI cable
RCA cable9
HDMI
cable
Player theatre /
Blu-ray Disc theatre with
VIERA Link function
Amplifier with
VIERA Link function
DIGA Recorder with
VIERA Link function
HD Video Camera / LUMIX Camera
with VIERA Link function
Speaker system
Speaker system
●To use Player theatre / Blu-ray Disc theatre:
●To use Amplifier:
9: If the connected equipment has “HDAVI Control 5” function, you do not have to use RCA cable.
In this case, connect the equipment to the TV’s HDMI2 terminal via an HDMI cable.
VIERA Link Functions
TH_L32C30KMTX_EN.indd 53TH_L32C30KMTX_EN.indd 53 3/18/2011 4:26:23 PM3/18/2011 4:26:23 PM
VIERA Link Functions
54
Note
●For a DIGA Recorder / DVD Player / Blu-ray Disc Player / HD Video Camera / LUMIX Camera with
VIERA Link function, connect to HDMI1, HDMI2 or HDMI3 terminal via an HDMI cable.
●For a Player theatre / Blu-ray Disc theatre / Amplifier, connect to HDMI1, HDMI2 or HDMI3 terminal via
an HDMI cable, and also connect an RCA cable for audio output from the TV.
●Use a fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilised.
●Recommended Panasonic’s HDMI cable part number:
●RP-CDHS15 (1.5 m) ●RP-CDHS30 (3.0 m) ●RP-CDHS50 (5.0 m)
Preparations
●Connect the equipment supporting VIERA Link.
●Set up the connected equipment. Read the manual of the equipment.
●For optimal recording, the settings of the recorder may need to be changed. For details, read the
manual of the recorder.
● Set [VIERA Link] to [On] in the Setup Menu [VIERA Link] (p. 29)
●Set up the TV
After connection, turn the equipment on and then switch the TV on. Select the input mode to
HDMI1, HDMI2 or HDMI3 (p. 20), and make sure that an image is displayed correctly.
This setup should be done each time when the following conditions occur:
●for the first time ●when adding or reconnecting equipment ●when changing setup
Features available
Channel download
Channel settings can be downloaded to the recorder.
Easy playback
Automatic input switching - When connected equipment is operated,the input mode is switched
automatically.
[Power on link]
Set [Power on Link] to [On] in the Setup Menu to use this function [Power on Link] (p. 29)
When the connected equipment starts playback or direct navigator / function menu for the equipment
are activated, the TV is automatically turned on. (Only when the TV is in Standby mode.)
[ Power off link]
Set [Power off Link] to [On] in the Setup Menu to use this function [Power off Link] (p. 29)
When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.
●
This function will work even if the TV enters Standby mode automatically by auto power standby function.
[Standby Power Save] - Reduce unnecessary power consumption in standby
Set [Standby Power Save] to [On] in the Setup Menu to use this function [Standby Power Save] (p. 29)
The power consumption in Standby mode of the connected equipment is controlled higher or lower in
synchronisation with the TV On / Off state to reduce the consumption.
When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the
power consumption in Standby mode of the connected equipment is automatically minimised.
When the TV is turned on, the connected equipment is still in Standby mode, but the power
consumption is increased to make startup time early.
●This function is effective if the connected equipment can change the power consumption in Standby
mode and is set to higher consumption.
●This function will work when [Power off Link] is set to [On].
[Intelligent Auto Standby] - Auto standby for unnecessary equipment
Set [Intelligent Auto Standby] to [On (With reminder)] or [On (No reminder)] in the Setup Menu to
use this function [Intelligent Auto Standby] (p. 29)
When the TV is On, non-watched or non-used connected equipment goes into Standby mode
automatically to reduce the power consumption. For example, when the input mode is switched from
HDMI or when [Speaker Selection] is changed to [TV] (except for watching a disc).
●If you select [On (With reminder)], an on-screen message will be displayed before turning on this
function.
●This function may not work properly depending on the connected equipment. If required, set to [Off].
[
Y
o
Li
v
●
T
●
I
f
t
h
a
●I
f
A
c
OP
T
■
(s
t
[
R
e
●I
f
c
a
●I
f
F
e
TH_L32C30KMTX_EN.indd 54TH_L32C30KMTX_EN.indd 54 3/18/2011 4:26:24 PM3/18/2011 4:26:24 PM
VIERA Link Functions
55
v
ia
o
n
.
2
9)
e
t
o
[Pause Live TV]
You can pause the live TV programme and resume later.
Live TV programmes will be recorded on HDD of the connected DIGA Recorder.
●This function is available with a DIGA Recorder which has HDD.
●
If you connect a variety of recorders including other manufacturers’ recorders at the same time, please connect
the DIGA Recorder which has a HDD to the TV’s lower HDMI terminal number. For example, if you use HDMI1
and HDMI2 for two recorders, in this case connect the DIGA Recorder which has HDD to HDMI1.
●If you cannot operate, check the settings and the equipment
“Summary of features”, “Connection”, “Preparations” (p. 53 - 54)
Access and pause the live TV programme
OPTION
INPUT
TV
1Display [VIERA Link Menu]
2Select [Pause Live TV] and pause
The TV picture will be paused.
Direct TV Rec Start
Pause Live TV Start
VIERA Link Control Recorder
Speaker Selection Home Cinema
VIERA Link Menu
pause
select
●The live TV programme is recorded on HDD from where it was paused
●If the paused TV picture disappears after a few minutes
OPTION
(the paused picture will be restored)
■To operate Pause Live TV
search backward
pause
search forward
playback
stop
●Operations may be different depending on
the recorder. In this case, follow the operation
guide or read the manual of the recorder.
■To return to Live TV
(stop playback of Pause Live TV / cancel pause)
Stop Pause Live TV?
Yes No
Pause Live TV
stop
select [Yes]
●If you stop playback or cancel pause,
the recorded programme will be
deleted from HDD.
[Direct TV Rec] - What you see is What you record
Recording the current programme in DIGA Recorder immediately.
●If you connect a variety of recorders including other manufacturers’ recorders at the same time, please
connect the DIGA Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1
and HDMI2 for two recorders, in this case connect the DIGA Recorder to HDMI1.
●If you cannot operate, check the settings and the equipment
“Summary of features”, “Connection”, “Preparations” (p. 53 - 54)
1Display [VIERA Link Menu]
2Select [Direct TV Rec] and start recording
Direct TV Rec Start
Pause Live TV Start
VIERA Link Control Recorder
Speaker Selection Home Cinema
VIERA Link Menu
start
select
■To stop recording
Select [Stop] in [Direct TV Rec] and stop recording
Direct TV Rec Stop
Pause Live TV Start
VIERA Link Control Recorder
Speaker Selection Home Cinema
VIERA Link Menu
stop
select
Features available (Using VIERA Link Menu)
TH_L32C30KMTX_EN.indd 55TH_L32C30KMTX_EN.indd 55 3/18/2011 4:26:24 PM3/18/2011 4:26:24 PM
VIERA Link Functions
56
EXIT
OPTION
RETURN
RGYB
[VIERA Link Control] - Operate the connected equipment with VIERA remote control
You can control some functions of the connected equipment with this TV remote control by pointing at
the TV’s signal receiver.
●If you cannot operate, check the settings and the equipment
“Summary of features”, “Connection”, “Preparations” (p. 53 - 54)
●For details of the operations for the connected equipment, read the manual of the equipment.
Access and operate the menu of the equipment
[
Y
o
●I
f
A
c
1Display [VIERA Link Menu]
2Select [VIERA Link Control]
Direct TV Rec Start
Pause Live TV Start
VIERA Link Control Recorder
Speaker Selection Home Cinema
VIERA Link Menu select
3Select the equipment you want to access
The type of the connected equipment is displayed.
Select the type of the equipment and access.
Direct TV Rec Start
Pause Live TV Start
VIERA Link Control Recorder
Speaker Selection Home Cinema
VIERA Link Menu
access
select
[Recorder] / [Player] / [Home Cinema] / [Video Camera] / [LUMIX] /
[Digital Camera] / [Other]
●You can also access directly by using VIERA TOOLS (p. 21)
●The displayed item may vary depending on the connected equipment.
●
[Home Cinema] means Player theatre, Blu-ray Disc theatre or Recorder theatre.
●[Other] means Tuner set top box.
The menu of the accessed equipment is displayed
(Input mode will be changed automatically)
4Operate the connected equipment
●To display the operation guide
OPTION
●Store / set / access
●Move the cursor / select the menu ●Return to the previous menu
RETURN
●Move
the
cursor / access / adjust ●Exit the menu
EXIT
●When the keywords are displayed on colour bar R G Y B
Note
●
Some operations may not be available depending on the equipment. If so, use its own remote control.
■
If multiple recorders or players are connected
■If you access non-VIERA Link equipment
Direct TV Rec Start
Pause Live TV Start
VIERA Link Control Recorder2
Speaker Selection Home Cinema
VIERA Link Menu
[Recorder1-3 /
Player1-3]
Direct TV Rec Start
Pause Live TV Start
VIERA Link Control Recorder
Speaker Selection Home Cinema
VIERA Link Menu
Type of the
connected
equipment is
displayed.
You can access the menu of the equipment, but
you cannot operate it. Use its own remote control to
operate the equipment.
The number is given from the TV’s lower HDMI
terminal number connected to the same type of
equipment. For example, two recorders connected
to HDMI2 and HDMI3, in this case the recorder
connected to HDMI2 is displayed as [Recorder1],
and the recorder connected to HDMI3 is displayed
as [Recorder2].
●
T
●I
m
●
E
A
●“
H
c
●
T
TH_L32C30KMTX_EN.indd 56TH_L32C30KMTX_EN.indd 56 3/18/2011 4:26:25 PM3/18/2011 4:26:25 PM
VIERA Link Functions
57
MUTE
TV
VOL
[Speaker Selection] - Speaker control
You can control the theatre speaker with this TV remote control by pointing at the TV’s signal receiver.
●If you cannot operate, check the settings and the equipment
“Summary of features”, “Connection”, “Preparations” (p. 53 - 54)
Access and control the speaker volume
e
.
o
l.
to
1Display [VIERA Link Menu]
2Select [Speaker Selection]
Direct TV Rec Start
Pause Live TV Start
VIERA Link Control Recorder
Speaker Selection Home Cinema
VIERA Link Menu select
3Set to [Home Cinema] or [TV]
set
[Home Cinema]
Player theatre, Blu-ray Disc theatre or Amplifier will be automatically
turned on if it is in Standby mode and the sound is from theatre speakers
connected to the equipment.
●Volume up / down VOL
●Mute
●The sound of TV speakers is mute.
●When the equipment is turned off, TV speakers will be active.
[TV]
TV speakers are active.
Multi-channel sound
●If you wish to enjoy multi-channel sound (e.g. Dolby Digital 5.1ch) via an
Amplifier, connect with HDMI cable and RCA cables (p. 53), and then select
[Home Cinema]. If your Amplifier has “HDAVI Control 5” function, you can
connect only with HDMI cable. In this case, connect your Amplifier to the
TV’s HDMI2 terminal.
To enjoy the sound from the DIGA Recorder in multi-channel sound,
connect an HDMI cable from the DIGA Recorder to the Amplifier (p. 53).
Note
●These functions may not work properly depending on the connected equipment.
●Image or sound may not be available for the first few seconds when the Input mode is switched.
●Easy playback may be available by using the remote control for Player theatre, Blu-ray Disc theatre or
Amplifier. Read the manual of the equipment.
●“HDAVI Control 5” is the newest standard (current as of December, 2010) for HDAVI Control
compatible equipment. This standard is compatible with conventional HDAVI equipment.
●To confirm this TV’s version of HDAVI Control [System Information] (p. 29)
TH_L32C30KMTX_EN.indd 57TH_L32C30KMTX_EN.indd 57 3/18/2011 4:26:26 PM3/18/2011 4:26:26 PM
External Equipment
58
External Equipment
These diagrams show our recommendations for connecting your TV to various equipment.
For other connections, consult the instructions for each equipment, the table below, and the
specifications (p. 71).
Types of connectable equipment to each terminal
Equipment
Terminal
AV1 IN AV2 IN AV3 IN
(
Side panel
of the TV
)
AUDIO
OUT
HDMI 1 - 3
To play back videocassettes /
DVDs (VCR / DVD Recorder)
1
To watch DVDs (DVD Player)
To watch satellite broadcasts
(Set top box)
To watch camcorder images
(Video camera)
To play games (Game equipment)
To use amplifier with speaker
system
2
VIERA Link
Equipment
Terminal : Recommended Connection
1 : Only for DVD Recorder
2 : Use HDMI2 for connecting
an amplifier. This connection
is applicable when using an
amplifier that has ARC (Audio
Return Channel) function.
ETHERNET USB 1 - 2
To use Network services
Hot Plug Detect 19
DDC/CEC Ground 17
SCL 15
CEC 13
TMDS Clock Shield
11
TMDS Data0− 9
TMDS Data0+ 7
TMDS Data1 Shield 5
TMDS Data2− 3
TMDS Data2+ 1
18 +5V Power
16 SDA
14 HDMI 1 / 3: Reserved
HDMI 2: ARC
12 TMDS Clock−
10 TMDS Clock+
8 TMDS Data0 Shield
6 TMDS Data1−
4 TMDS Data1+
2 TMDS Data2 Shield
HDMI terminal
R
e
TH_L32C30KMTX_EN.indd 58TH_L32C30KMTX_EN.indd 58 3/18/2011 4:26:26 PM3/18/2011 4:26:26 PM
External Equipment
59
3
To play back
DVD Recorder
or
VCR
Aerial
RF cable
or
Fully wired HDMI
compliant cable1
1 : Only for DVD Recorder
HDMI equipment
Fully wired HDMI compliant
cable
Recorder / Player
●HDMI connection (p. 53, 62)
To watch DVDs
To listen with Home Theater
DVD Player
(Listening)
(Viewing)
RCA cable2
Fully wired HDMI
compliant cable
Amplifier with
speaker system
or
2 : If the connected equipment has “HDAVI Control 5”
function, you do not have to use the RCA cable. In
this case, connect the equipment to the TV’s HDMI2
terminal via an HDMI cable.
AV1 IN AV2 IN
AUDIO
OUT
AV IN
HDMI 1
AV1 IN AV2 IN
AUDIO
OUT
AV IN
HDMI 1
AV1 IN AV2 IN
AUDIO
OUT
Rear of the TV
TH_L32C30KMTX_EN.indd 59TH_L32C30KMTX_EN.indd 59 3/18/2011 4:26:27 PM3/18/2011 4:26:27 PM
External Equipment
60
T
C
C
D
USB devices
Camcorder / HDMI equipment
Camcorder / Game equipment
Headphones
Network
PC
USB cable
Fully wired HDMI compliant
cable
Camcorder, etc.
Camcorder, etc.
(Viewing)
(Listening)
(M3 stereo mini plug)
LAN cable (Shielded)
To adjust volume
[Headphone Volume] in the Sound Menu (p. 26)
Modem
Hub or Router
Internet
(Listening)
(Viewing)
Computer
Conversion adaptor
(if necessary)
Rear of the TV
Side panel
of the TV
AV IN
HDMI 1
AV1 IN AV2 IN
AUDIO
OUT
TH_L32C30KMTX_EN.indd 60TH_L32C30KMTX_EN.indd 60 3/18/2011 4:26:27 PM3/18/2011 4:26:27 PM
Technical Information
61
Technical Information
Channel Allocation
Channel
Plan
Asia/W.
Europe
CIS/E.
Europe China Hong Kong NZ/
Indonesia
Indian
CATV
South
Africa
American
System
American
CATV Japan
CH
DISPLAY Receive channel
0
1
2
3
4
5
6
7
11
12
13
14
15
16
19
20
–
–
2
11
12
–
–
–
–
–
–
–
–
1
2
11
12
–
–
–
–
–
–
–
–
1
2
12
13
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
2
11
–
–
–
–
–
–
–
–
–
1
2
3
4
S’1
S’2
S’3
S1
S2
S3
S4
S10
5
–
1
2
11
12
13
–
–
–
–
–
–
–
–
2
13
14
–
1
2
–
1
2
12
13
21
22
23
24
28
57
58
59
62
63
69
21
62
63
69
21
62
63
69
57
–
–
–
–
–
–
–
21
62
63
69
21
62
63
69
6
12
S11
S40
S41
21
24
25
31
21
62
63
69
62
63
69
62
63
62
C13
70
73
74
75
76
77
78
79
–
–
–
S’1
S’2
S’3
–
–
–
–
–
–
S’1
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
S’1
S’2
S’3
–
–
–
–
–
–
S’1
S’2
S’3
–
–
–
32
41
–
–
–
S’1
S’2
S’3
–
–
–
–
–
–
–
–
–
–
–
–
80
81
89
S1
S2
S10
S1
S2
S10
–
Z1
Z9
S1
S2
S10
S1
S2
S10
42
51
S1
S2
S10
–
–
–
–
90
91
92
93
94
95
96
97
98
99
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
Z10
Z11
Z12
Z13
Z14
Z15
Z16
Z17
Z18
Z19
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
52
61
-
-
-
S14
S15
S16
S17
S18
S19
S20
–
–
–
–
–
–
–
–
–
–99 C49
100
107
117
118
120
125
S21
S41
–
–
S21
S41
–
–
Z20
Z37
–
–
–
–
–
S21
S41
–
–
S21
S41
–
–
62
69
70
–
–
–
–
–
–
S21
S41
–
–
–
–
–
–
–
–
–
–
–
–
100
125
–
–
–
–
–
–
–
–
–
–
c
.
c
.
TH_L32C30KMTX_EN.indd 61TH_L32C30KMTX_EN.indd 61 3/18/2011 4:26:28 PM3/18/2011 4:26:28 PM
Technical Information
62
HDMI connection
HDMI (High-Definition Multimedia Interface) is the world’s first complete digital consumer AV interface
complying with a non-compression standard.
HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV
and the equipment.
HDMI-compatible equipment
1
with an HDMI or DVI output terminal, such as a DVD player, a set top box or
a game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
About connections, see “External Equipment” (p. 58 - 60).
Applicable HDMI features
●Input audio signal : 2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)
●Input video signal : 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
“Input signal that can be displayed” (p. 63)
Match the output setting of the digital equipment.
●Input PC signal : “Input signal that can be displayed” (p. 63)
Match the output setting of the PC.
●VIERA Link (HDAVI Control 5) : [VIERA Link] (p. 53)
●Audio Return Channel2 (HDMI2 terminal only)
DVI connection
If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI
adaptor cable3.When the DVI to HDMI adaptor cable is used, connect the audio cable to the audio
input terminal (HDMI1 / 2: use AV2 audio terminals / HDMI3: use AV3 audio terminals).
Note
●Audio settings can be made on the [HDMI1 / 2 / 3 Input] in the Sound Menu. (p. 27)
●If the connected equipment has an aspect adjustment function, set the aspect ratio to [16:9].
●These HDMI connectors are “type A”.
●These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection)
copyright protection.
●An equipment having no digital output terminal may be connected to the input terminal of
“COMPONENT” or “VIDEO” to receive analogue signals.
●This TV incorporates HDMI™ technology.
1: The HDMI logo is displayed on HDMI-compliant equipment.
2:
Audio Return Channel (ARC) is a function that enables the transmission of digital sound signals via an
HDMI cable.
3: Enquire at your local digital equipment retailer shop.
I
C
O
5
2
5
2
6
2
6
2
7
5
7
5
1
,
1
,
1
,
1
,
1
,
P
C
A
p
6
4
6
4
6
4
8
0
8
0
8
0
8
5
1,
1,
1,
1,
1,
1,
1,
M
M
M
P
C
A
p
6
4
7
5
1
,
●
S
●
T
●
P
s
PC connection
A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.
●PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning
frequency 59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image).
●A PC adaptor is not necessary for the DOS/V-compliant D-sub 15-pin connector.
Note
●Some PC models cannot be connected to this TV.
●When using PC, set the colour display quality of PC to the highest position.
●For details of the applicable PC signals, see p. 63.
●Max. display resolution
Aspect 4:3 1,024 × 768 pixels
16:9 1,366 × 768 pixels
●D-sub 15-pin connector signal
Pin No.
Signal Name
Pin No.
Signal Name
Pin No.
Signal Name
R GND (Ground) NC (not connected)
G GND (Ground) NC (not connected)
B GND (Ground) HD
NC (not connected) NC (not connected) VD
GND (Ground) GND (Ground) NC (not connected)
TH_L32C30KMTX_EN.indd 62TH_L32C30KMTX_EN.indd 62 3/18/2011 4:26:28 PM3/18/2011 4:26:28 PM
Technical Information
63
or
n
Input signal that can be displayed
COMPONENT (Y, PB/CB, PR/CR), HDMI
Mark: Applicable input signal
Signal name COMPONENT HDMI
525 (480) / 60i
525 (480) / 60p
625 (576) / 50i
625 (576) / 50p
750 (720) / 60p
750 (720) / 50p
1,125 (1,080) / 60i
1,125 (1,080) / 50i
1,125 (1,080) / 60p
1,125 (1,080) / 50p
1,125 (1,080) / 24p
PC (from D-sub 15P)
Applicable input signal for PC is basically compatible to VESA standard timing.
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 400 @70 Hz 31.47 70.07
640 × 480 @60 Hz 31.47 59.94
640 × 480 @75 Hz 37.50 75.00
800 × 600 @60 Hz 37.88 60.32
800 × 600 @75 Hz 46.88 75.00
800 × 600 @85 Hz 53.67 85.06
852 × 480 @60 Hz 31.44 59.89
1,024 × 768 @60 Hz 48.36 60.00
1,024 × 768 @70 Hz 56.48 70.07
1,024 × 768 @75 Hz 60.02 75.03
1,024 × 768 @85 Hz 68.68 85.00
1,280 × 1,024 @60 Hz 63.98 60.02
1,280 × 768 @60 Hz 47.70 60.00
1,366 × 768 @60 Hz 48.39 60.04
Macintosh13” (640 × 480) 35.00 66.67
Macintosh16” (832 × 624) 49.73 74.55
Macintosh21” (1,152 × 870) 68.68 75.06
PC (from HDMI terminal)
Applicable input signal for PC is basically compatible to HDMI standard timing.
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 480 @60 Hz 31.47 60.00
750 (720) / 60p 45.00 60.00
1,125 (1,080) / 60p 67.50 60.00
Note
●Signals other than the above may not be displayed properly.
●The above signals are reformatted for optimal viewing on your display.
●PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with
sufficient clarity.
d
)
d
)
d
)
TH_L32C30KMTX_EN.indd 63TH_L32C30KMTX_EN.indd 63 3/18/2011 4:26:28 PM3/18/2011 4:26:28 PM
Technical Information
64
On-screen messages
Message Meaning / Action
Cannot read file ●The file is broken or unreadable.
●The TV does not support the format.
No Device Inserted ●Confirm SD Card or USB device is inserted correctly.
No valid file to play ●The card has no data.
This operation is not possible ●Your operation is not available.
Stereo / Bilingual Sound Selection
When you receive the stereo / bilingual sound system, sound output modes can be selected by
pressing the Sound Selection button.
Audio Signal STEREO MAIN I SUB II MONO
Mode Indicator
NICAM .......Used in New Zealand, Singapore, Hong Kong, etc.
Type of
broadcast
Regular broadcast
(Standard Audio)
Regular +
NICAM MONO I
(MAIN I )
NICAM
STEREO
NICAM DUAL MONO
(MAIN I / SUB II )
Mode Indicator No Indicator
I II
A2 (German) .......Used in Australia, Malaysia, etc.
Type of
broadcast
Regular broadcast
(Standard Audio)
BILINGUAL or DUAL MONO:
MAIN I / SUB II STEREO
Mode Indicator No Indicator
●If the stereo signal is poor or the receiving conditions are not optimum or if STEREO:MONO automatic
switching occurs, it is recommended you switch from STEREO to MONO.
●Even when the contents of the receiving signal undergo changes, selection mode is kept intact.
●When the receiving conditions deteriorate, listening will be easier if the mode is set to the MONO
position, using the Sound Selection button.
●DUAL, also known as DUAL MONO or as BILINGUAL is not currently transmitted in some countries.
Media Player
SD Card
Card format : SDXC Card - exFAT
SDHC Card / SD Card - FAT16 or FAT32
Compliant card type (maximum capacity) : SDXC Card (64 GB), SDHC Card (32 GB), SD Card (2 GB),
miniSD Card (2 GB) (requiring miniSD adaptor)
●If miniSD Card is used, insert / remove it together with the adapter.
●Check the latest information on the card type at the following website.
(English only)
http://panasonic.jp/support/global/cs/tv/
●Use an SD Card which meets SD standards. If not, it may cause the TV
to malfunction.
●Do not remove the card while the TV is accessing data (this can damage
the card or TV).
●Do not touch the pins on the back of the card.
●Do not subject the card to high pressure or impact.
●Insert the card in the correct direction (otherwise, card may be damaged).
●Electrical interference, static electricity, or erroneous operation may
damage the data or card.
●Back up the recorded data at regular intervals in case of deteriorated or
damaged data or erratic operation of the TV. (Panasonic is not liable for
any deterioration or damage of recorded data.)
24 mm
32 mm
2.1 mm
USB Flash Memory
Format : FAT16, FAT32 or exFAT
S
u
■
J
1:
2:
■
V
C
S
A
A
M
A
M
M
T
TH_L32C30KMTX_EN.indd 64TH_L32C30KMTX_EN.indd 64 3/21/2011 11:33:46 AM3/21/2011 11:33:46 AM
Technical Information
65
O
t
ic
)
,
m
Supported file format in Media Player / DLNA
■Photo
Format File extension Image resolution
(pixel) Details / Restrictions
JPEG .jpg 8 × 8
to
30,719 × 17,279
DCF1 and EXIF2 standards
Sub-sampling: 4:4:4, 4:2:2, 4:2:0
●Progressive JPEG is not supported.
1: Design rule for Camera File system - unified standard established by Japan Electronics and
Information Technology Industries Association (JEITA)
2: Exchangeable Image File - image file format used by digital cameras
■Video
Container File extension Video codec Audio codec Details / Restrictions
SD-Video .mod MPEG1
MPEG2
MPEG
Dolby Digital
SD-Video Standard Ver. 1.3
(Entertainment Video Profile)
●The data may not be
available if a folder structure
on the current device is
modified.
AVCHD .mts H.264 Dolby Digital AVCHD Standard
●The data may not be
available if a folder structure
on the current device is
modified.
AVI .avi
.divx
DIV3
DIV4
DIVX
DX50
DIV6
XviD
MPEG4 SP/ASP
MP3
Dolby Digital
MPEG
DivX video file “DivX” (p. 66)
DivX Certified® to play
DivX® video up to HD 1080p,
including premium content.
MKV .mkv H.264 BP/MP/HP MP3
Dolby Digital
MPEG
AAC
●MKV’s with DTS sound is not
supported.
ASF .asf
.wmv
Windows Media
Video v9
VC-1
WMA ●Copy-protected files cannot
be played back.
●WMA Pro and WMA Lossless
are not supported.
MP4 .mp4 H.264 BP/MP/HP MP3
Dolby Digital
AAC
–
MOV .mov MotionJPEG
H.264 BP/MP/HP
RAW
TWOS
SOWT
MP3
Dolby Digital
LPCM
AAC
●This TV supports Motion
JPEG recorded by Panasonic
LUMIX Camera.
●Some files may not be played
back depending on these
recording condition.
●Motion JPEG can be played
back only in Media Player.
TS .ts
.tp
MPEG2
H.264
Dolby Digital
AAC
MP3
●This container can be played
back only in DLNA feature.
TH_L32C30KMTX_EN.indd 65TH_L32C30KMTX_EN.indd 65 3/18/2011 4:26:29 PM3/18/2011 4:26:29 PM
Technical Information
66
R
e
S
o
W
h
w
h
●
W
c
●
●
●
DivX
DivX Certified® to play DivX® video up to HD 1080p, including premium content.
ABOUT DIVX VIDEO:
DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays
DivX video.
Visit www.divx.com for more information and software tools to convert your files into DivX video.
Subtitle text file of DivX
Subtitles format - MicroDVD, SubRip, TMPlayer
●The DivX video file and subtitles text file are inside the same folder, and the file names are the same
except for the file extensions.
●If there are more than one subtitles text files inside the same folder, they are displayed in the following
order of priority: “.srt”, “.sub”, “.txt”.
●To confirm or change the current subtitle status while playing DivX content, press the OPTION button
to display Option Menu.
●Depending on the methods used to create the file or the state of recording, only parts of the subtitles
may be displayed, or the subtitles may not be displayed at all.
●Some subtitles text may not be displayed correctly.
Note
●Depending on how you save into the SD Card or USB Flash Memory, files and folders may not be
displayed in the order you numbered.
●Depending on how you create the files and the structure of folders, the files and folders may not be
displayed.
●When there are many files and folders, operation may take time to complete or some files may not be
displayed or playable.
N
O
n
A
C
C
f
a
C
S
T
c
U
●I
t
●
S
●
Y
T
h
C
o
●
●
●
●
A
h
■ Music
Codec File extension Restrictions
MP3 .mp3 –
AAC .m4a ●Copy-protected files cannot be played back.
WMA .wma ●Copy-protected files cannot be played back.
●WMA Pro and WMA Lossless are not supported.
Note
●The above table is generalised in nature. Due to file encoding variances, some media files that play on
other devices, may not play on the TV even though they fulfill the generalised conditions.
●Do not use two-byte characters or other special codes for data.
●The card may become unusable with this TV if the file or folder names are changed.
A
B
T
h
(V
O
m
e
T
o
●I
f
A
V
c
p
Y
●I
f
n
d
TH_L32C30KMTX_EN.indd 66TH_L32C30KMTX_EN.indd 66 3/18/2011 4:26:29 PM3/18/2011 4:26:29 PM
Technical Information
67
Regarding DivX content that can only be played a set number of times
Some DivX VOD content can only be played a set number of times.
When you play this content, the remaining number of plays is displayed. You cannot play this content
when the number of remaining plays is zero. ([This DivX rental has expired.] is displayed.)
●When playing this content, the number of remaining plays is reduced by one in the following
conditions:
●If you exit the current application.
●If you play the other content.
●If you go to the next or previous content.
n
g
n
e
Network
On-screen messages
Message Meaning / Action
An internal error occurred. ●Check the settings. (p. 46 - 48)
Cannot read file ●The file is broken or unreadable. Check applicable data
format. (p. 65 - 66)
Communication with the server
failed.
●This might be a problem of the media server. Read the
manual of the server software.
Connection to the server failed. ●Check the connections and settings. (p. 46 - 48)
Server not found ●There is no available media server on your home network.
Check the connections and settings. (p. 46 - 48)
The software update is not
completed.
●Network download failed. Check the connections and
settings. (p. 46 - 48)
USB connection
●It is recommended to connect the USB Flash Memory directly to the TV’s USB ports.
●Some USB devices or USB HUB may not be used with this TV.
●You cannot connect any devices by using USB card reader.
The combination of USB devices that have been tested for each TV’s USB port
Combination of USB port 1 + port 2 (and vice versa):
●USB Flash Memory + Wireless LAN Adaptor
●USB Flash Memory + USB Keyboard
●Wireless LAN Adaptor + USB Keyboard
Note
●Additional information on USB devices may be found on the following web site. (English only)
http://panasonic.jp/support/global/cs/tv/
o
n
ABOUT DIVX VIDEO-ON-DEMAND:
This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand
(VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup
menu. Go to vod.divx.com for more information on how to complete your registration.
To show DivX VOD registration code
[DivX® VOD] in the Setup Menu (p. 29)
●If you want to generate the new registration code, you have to deregister the present registration code.
After playing DivX VOD content once, the confirmation screen to deregister will be displayed in [DivX®
VOD] in the Setup Menu. If you press the OK button on the confirmation screen, the deregistration
code will be generated and you will not be able to play any contents that you purchased using the
present registration code.
You will obtain the new registration code by pressing the OK button on the deregistration code screen.
●If you purchase DivX VOD content using a registration code different from this TV’s code, you will
not be able to play this content. ([Your device is not authorised to play this DivX protected video.] is
displayed.)
TH_L32C30KMTX_EN.indd 67TH_L32C30KMTX_EN.indd 67 3/18/2011 4:26:29 PM3/18/2011 4:26:29 PM
Frequently Asked Questions
An error message appears
●Follow the message’s instructions.
●If the problem persists, contact your local
Panasonic dealer.
The LCD panel moves slightly when it is pushed
with a finger. Clattered sound might be heard
●There are some looseness around the panel to
prevent the damage to the panel.
The panel might move slightly when it is pushed
with a finger, and clattered sound might be heard.
This is not a malfunction.
There may be red spots, blue spots, green spots
and black spots on the screen
●This is a characteristic of liquid crystal panels and
is not a problem. The liquid crystal panel is built
with very high precision technology giving you
fine picture details. Occasionally, a few non-active
pixels may appear on the screen as a fixed point
of red, green, blue or black. Please note this does
not affect the performance of your LCD, and it is
not a quality problem.
68
FAQs
Before requesting service or assistance, please follow these simple guides to resolve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
ScreenSoundHDMINetworkOther
White spots or shadow images (noise)
●Check the position, direction, and connection
of the aerial.
●Keep the space between the TV and RF
cable.
Neither image nor sound is produced
●Is the TV in “AV mode”?
●Is the mains lead plugged into the socket
outlet?
●Is the TV turned On?
●Check the Picture Menu (p. 24 - 25) and
volume.
●Check all required cables and connections
are firmly in place.
TH_L32C30KMTX_EN.indd 68TH_L32C30KMTX_EN.indd 68 3/18/2011 4:26:30 PM3/18/2011 4:26:30 PM
Frequently Asked Questions
d
s
69
Problem Actions
Screen
Chaotic image, noisy
●Change the setting of [P-NR] in the Picture Menu (to remove noise).
(p. 24)
●Check nearby electrical products (car, motorcycle, fluorescent lamp).
No image can be
displayed
●Is [Colour] or [Contrast] in the Picture Menu set to the minimum?
(p. 24)
Blurry or distorted
(no sound or low
volume)
●Reset channels (p. 31)
Unusual image is
displayed
●Turn the TV Off with Mains power On / Off switch, then turn it On
again.
Sound
No sound is produced ●Is “Sound Mute” active? (p. 11)
●Is the volume set to the minimum?
Sound level is low or
sound is distorted
●Sound signal reception may be deteriorated.
●Set [MPX] in the Sound Menu to [Mono] (p. 27)
HDMI
Sound is unusual
●Set the sound setting of the connected equipment to “2ch L.PCM”.
●Check the [HDMI1 / 2 / 3 Input] setting in the Sound Menu. (p. 27)
●If digital sound connection has a problem, select analogue sound
connection. (p. 62)
Pictures from external
equipment are unusual
when the equipment is
connected via HDMI
●Check that the HDMI cable is connected properly. (p. 53, 58 - 60)
●Turn the TV and equipment Off, then turn them On again.
●Check the input signal from the equipment. (p. 63)
●Use an equipment compliant with EIA/CEA-861/861B.
Network
Cannot connect to the
network
●Check that the LAN cable or Wireless LAN Adaptor is connected
properly. (p. 45)
●Check the connections and settings. (p. 46 - 48)
●Check the network equipment and network environment.
●If the problem persists, consult your Internet Service Provider or
telecommunications company.
Cannot select the
file during DLNA
operations
●Is media server prepared? (p. 44)
●Check applicable data format. (p. 65 - 66)
Cannot access the
Internet contents
●Check the connections and settings. (p. 46 - 48)
●The server or connection line might be busy now.
Other
The TV goes into
Standby mode
●Auto power standby function is activated.
●The TV enters Standby mode about 30 minutes after analogue
broadcasting ends.
The remote control
does not work or is
intermittent
●Are the batteries installed correctly? (p. 8)
●Has the TV been switched On?
●Point the remote control directly at the front of the TV
(within about 7 m and a 30 degree angle from the front of the TV).
●Place the TV away from sunshine and do not let other sources of
bright light to shine on the TV’s remote control signal receiver.
TH_L32C30KMTX_EN.indd 69TH_L32C30KMTX_EN.indd 69 3/18/2011 4:26:30 PM3/18/2011 4:26:30 PM
Maintenance
70
Maintenance
First, remove the mains plug from the socket outlet.
Display panel, Cabinet, Pedestal
For regular care:
Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to clean the dirt
or fingerprints.
For stubborn dirt:
Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water).
Then wring the cloth and wipe the surface. Finally, wipe away all the moisture.
Caution
●Do not use a coarse cloth or rub the surface too hard. This may cause scratches on the surface.
●Take care not to subject the TV’s surfaces to water or detergent. Liquid inside the TV could lead to
product failure.
●Take care not to subject the surfaces to insect repellent, solvent, thinner, or other volatile substances.
This may degrade surface quality or cause peeling of the paint.
●The surface of the display panel is specially treated and may be easily damaged. Take care not to tap
or scratch the surface with your fingernail or other hard objects.
●Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long
time. This may degrade surface quality.
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical
shock.
Information on Disposal in other
Countries outside the European Union
This symbol is only valid in the
European Union.
If you wish to discard this
product, please contact your local
authorities or dealer and ask for
the correct method of disposal.
S
P
o
Power
Dis
p
la
y
Sound
P
C
R
e
n
a
R
e
A
e
O
Connection Terminals
D
M
●
D
a
TH_L32C30KMTX_EN.indd 70TH_L32C30KMTX_EN.indd 70 3/18/2011 4:26:30 PM3/18/2011 4:26:30 PM
Specifications
71
.
.
p
a
l
n
l
Specifications
Power Source AC Auto 110 - 240 V, 50 / 60 Hz
Power
Consumption
Power Rating 99 W
Standby condition 0.25 W
Display
panel
Aspect Ratio 16:9
Visible screen size 80 cm (diagonal)
698 mm (W) × 393 mm (H)
Number of pixels 1,049,088 (1,366 (W) × 768 (H))
Sound
Speaker (115 mm × 42 mm) × 2 pcs, 8
Audio Output 20 W (10 W + 10 W)
Headphones M3 (3.5 mm) stereo mini Jack × 1
PC signals
VGA, SVGA, WVGA, XGA
SXGA, WXGA ······ (compressed)
Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz
Receiving Systems / Band
name
17 Systems Function
1 PAL B, G, H
Reception
of broadcast
transmissions and
Playback from
Video Cassette
Tape Recorders
2 PAL I
3 PAL D, K
4 SECAM B, G
5 SECAM D, K
6 SECAM K1
7NTSC M (NTSC
3.58/4.5 MHz)
17 Systems Function
8 NTSC 4.43/5.5 MHz
Playback from
Special VCR’s or
DVD
9 NTSC 4.43/6.0 MHz
10 NTSC 4.43/6.5 MHz
11 NTSC 3.58/5.5 MHz
12 NTSC 3.58/6.0 MHz
13 NTSC 3.58/6.5 MHz
14 SECAM I
15 PAL 60 Hz/5.5 MHz Playback from
Special Disc
Players and Special
VCR’s or DVD
16 PAL 60 Hz/6.0 MHz
17 PAL 60 Hz/6.5 MHz
Receiving Channels
VHF BAND
2-12 (PAL/SECAM B, K1)
0-12 (PAL B AUST.)
1-9 (PAL B N.Z.)
1-12 (PAL/SECAM D)
1-12 (NTSC M Japan)
2-13 (NTSC M USA)
UHF BAND
21-69 (PAL G, H, I/SECAM G, K, K1)
28-69 (PAL B AUST.)
13-57 (PAL D, K)
13-62 (NTSC M Japan)
14-69 (NTSC M USA)
CATV
S1-S20 (OSCAR)
1-125 (USA CATV)
C13-C49 (JAPAN)
S21-S41 (HYPER)
Z1-Z37 (CHINA)
5A, 9A (AUST.)
Aerial - Rear VHF / UHF
Operating Conditions Temperature : 0 °C - 40 °C
Humidity : 20 % - 80 % RH (non-condensing)
Connection Terminals
AV1
Input
AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 )
COMPONENT
Y
PB/CB, PR/CR
1.0 V[p-p] (including synchronization)
±0.35 V[p-p]
AV2
Input
AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 )
AV3
Input
AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 )
Audio
Output
AUDIO L - R RCA PIN Type × 2 0.5 V[rms] (high impedance)
Others
HDMI1 - 3
Input TYPE A Connectors ●This TV supports “HDAVI control 5” function.
PC Input HIGH-DENSITY D-SUB 15PIN R / G / B: 0.7 V[p-p] (75 )
HD / VD: TTL Level 2.0 - 5.0 V[p-p] (high impedance)
Card slot SD Card slot × 1
USB 1 / 2 USB 2.0 TYPE A Connectors DC 5 V, Max. 500 mA
ETHERNET 10BASE-T / 100BASE-TX
Dimensions (W × H × D) 779 mm × 531 mm × 207 mm (With Pedestal)
779 mm × 497 mm × 84 mm (TV only)
Mass 10.0 k Net (With Pedestal)
9.0 k Net (TV only)
Note
●Design and Specifications are subject to change without notice. Mass and Dimensions shown are
approximate.
TH_L32C30KMTX_EN.indd 71TH_L32C30KMTX_EN.indd 71 3/18/2011 4:26:30 PM3/18/2011 4:26:30 PM
F1210-0311-0611-2
Printed in Malaysia
Web Site : http://panasonic.net
© Panasonic Corporation 2011
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should
note the model number and the serial number in the space provided below and retain this book, plus
your purchase receipt, as a permanent record of your purchase to aid in identification in the event of
theft or loss, and for Warranty Service purposes.
Model Number Serial Number
TH-L32C30KMTX_EN.indd 72TH-L32C30KMTX_EN.indd 72 6/16/2011 2:52:47 PM6/16/2011 2:52:47 PM
