Intro to the TI-RTOS Kernel Workshop - Student Installation Guide - Rev 2.40 00 - 1
Student Installation Guide - Rev 2.40
Introduction
The objective of this guide is to walk you, the student, through all of the necessary steps to
download and install all of the tools for the TI-RTOS Kernel Workshop as well as the C6000
Embedded Design Workshop. Please RTFM – Read the Fine Manual – and EVERY step whether
you think it pertains to you or not. Having a clean install of all of these tools is CRITICAL for
everyone to keep time/pace as the workshop begins. If you don’t prepare properly, the instructor
must take time to help you install tools which takes time away from other students. SO DO YOUR
PART.
Details about HOW to configure and use the TI-RTOS kernel (SYS/BIOS), as well as Code
Composer Studio (CCS) will be taught live and all students will have plenty of opportunities to
practice these skills during the lab exercises. Trust the author – getting all these tools in the right
place and working together to create projects is 80% of the battle – and a skill you need to
acquire. The “getting started” “hello world” “out of box” experience is crucial and sometimes the
most difficult challenge you will face in your application. ;-) So, that’s where we start…
Note: This installation guide covers all installation details for BOTH the TI-RTOS Kernel
Workshop (2 days) as well as the C6000 Embedded Design Workshop (2 days).
Note: Total download and install time of all tools is 2-3 hours – so plan accordingly.
For future reference, the main Wiki for the TI-RTOS Kernel Workshop is here:
http://processors.wiki.ti.com/index.php/TI-RTOS_Workshop
The C6000 Embedded Design Workshop wiki is here:
http://processors.wiki.ti.com/index.php/C6000_Embedded_Design_Workshop
Topics
Student Installation Guide.......................................................................................................... 0-1
Topics .................................................................................................................................... 0-1
Workshop Equipment & Requirements ..................................................................................... 0-2
You must provide: ................................................................................................................. 0-2
Provided at the workshop (Take Home) ............................................................................... 0-2
Provided at the workshop (For in-class use only) ................................................................. 0-2
Download Checklist ................................................................................................................... 0-3
Installation ................................................................................................................................. 0-6
Code Composer Studio ......................................................................................................... 0-6
Increase Java Memory For TI-RTOS Config ........................................................................ 0-9
Install the Workshop Lab and Solution Files ....................................................................... 0-10
Install TI-RTOS SDK ........................................................................................................... 0-11
Install xWare For Your Target – C6000 and C28x .............................................................. 0-11
Make Sure All Tools (Min) are Installed Properly................................................................ 0-12
![](asset-2.png)
Workshop Equipment & Requirements
00 - 2 Intro to the TI-RTOS Kernel Workshop - Student Installation Guide - Rev 2.40
Workshop Equipment & Requirements
You must provide:
• Windows computer using Windows XP or greater.
You are required to provide your own Windows laptop computer. It should have an available
USB port. You will also need at least 1.5 GB of space available on your disc drive to hold the
necessary software.
If you have a Mac or Linux notebook computer, we have seen students be successful running the
development tools in a virtual machine, such as VMware or VM Fusion. That said, we cannot guarantee
that our instructors will be able to help you with managing these types of environments.
• Audio headphones (to watch videos pertaining to YOUR target when waiting for others to
finish labs, if time allows)
• A means of watching .mp4 videos (media player)
• Pen or pencil and notepad to take notes
• Before coming to the workshop, you should install ALL the software outlined in this document
– please be considerate and follow ALL instructions carefully. If not, precious class time will
have to be taken to help solve your specific installation problems. If the install is
unsuccessful, you will be asked to team up with another student during the labs.
Provided at the workshop (Take Home)
If you are paying to attend the 2-day TI-RTOS Workshop, the following items (as well as lunch) will be
provided. You will be able to take ONE of the following items home with you at the end of the day.
If you are doing this workshop on your own, then you will need to purchase ONE of these items
from the TI eStore or one of TI’s authorized distributors.
• MSP-EXP430F5529 LaunchPad
• Tiva-C LaunchPad
• F28069 Control Stick
• Printed Lab Manual (if you want the full student manual with the slides, you can download and print it
yourself or just use the PDF to follow along with the instructor). The key manual to have PRINTED is
just the lab procedures which will be provided for you in class.
Provided at the workshop (For in-class use only)
For C6000 users, you will be loaned a C6748 LCDK (Low Cost Dev Kit) along with an XDS510 emulator –
sorry, you can’t take those home with you.
• C6748 LCDK (~$200)
https://estore.ti.com/TMDXLCDK6748-TMS320C6748-DSP-Development-Kit-LCDK-P2998.aspx
• Spectrum Digital XDS510 USB Emulator (~$990)
http://www.spectrumdigital.com/product_info.php?cPath=22&products_id=29
• 1/8” stereo patch cord (male to male) for C6000 2-day attendees
![](asset-3.png)
Download Checklist
Intro to the TI-RTOS Kernel Workshop - Student Installation Guide - Rev 2.40 00 - 3
Download Checklist
Integrated Development Environments (IDE)

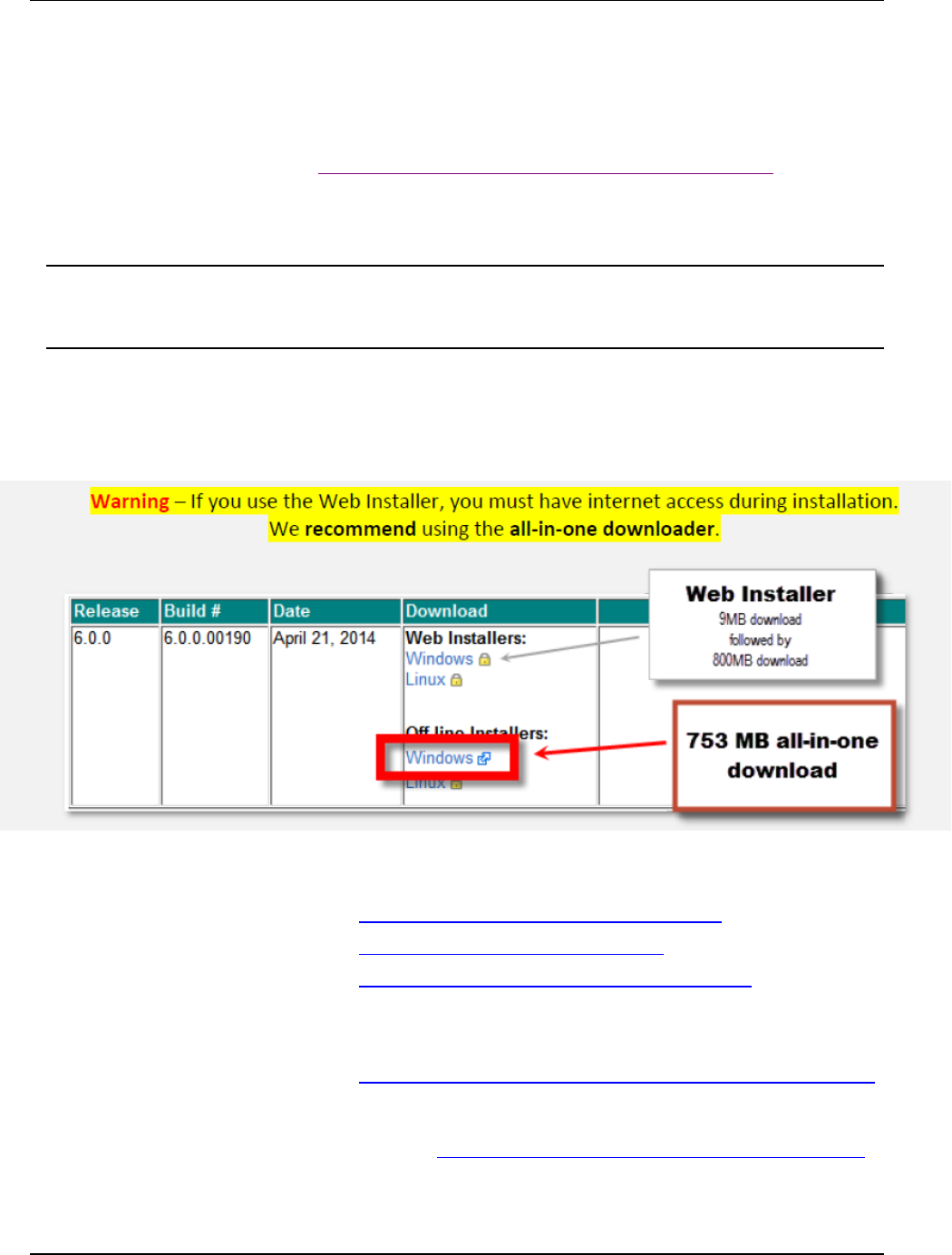

Code Composer Studio v6.0+ http://processors.wiki.ti.com/index.php/Download_CCS
You can download either the web installer or offline installer. The web installer is smaller, but the off-line
installer is more flexible. If you have a fast internet access, we suggest the off-line installer.
Note: If you already have CCSv6.0 or newer on your laptop, there is no need to download or install
CCS unless you want to add new components. However, if you only have CCSv5.5 or older,
you must download and install CCSv6 or none of the labs will work.
Clicking the link for either installer, you will be directed to log in (or create a free) my.TI account. Then,
once you agree to the export conditions you will either be e-mailed a link or be directed to a web page with
the link. Workshop labs will NOT work with CCSv5.5 or older (that workshop has been archived) – we have
made the jump to CCSv6 and so must you to run any labs in this workshop.
Workshop Course Materials
TI-RTOS Workshop Manual (PDF) TI_RTOS_Workshop_Student_Guide.pdf
Workshop Lab Files (ZIP) TI_RTOS_Workshop_Lab_Files.zip
Installation Document (PDF) TI_RTOS_Workshop_Installation_Guide.pdf
For 4-day C6000 students only:
C6000 Workshop Manual (PDF) C6000_Embedded_Design Workshop_Student_Guide.pdf
These files are all found at the workshop’s wiki page: http://processors.wiki.ti.com/index.php/TI-RTOS_Workshop
![](asset-4.png)
Download Checklist
00 - 4 Intro to the TI-RTOS Kernel Workshop - Student Installation Guide - Rev 2.40
Download Latest TI-RTOS SDK and BIOS tools
As of the CCSv6.0 release, no RTOS tools are installed other than XDC. So, after installing CCS later in this
document, you will also need to install the tools listed below. This workshop now takes advantage of all of the
new TI-RTOS SDK releases available as of April 2014 along with CCSv6. So, make sure you download the
following tools carefully and then install them when told to later in this document.

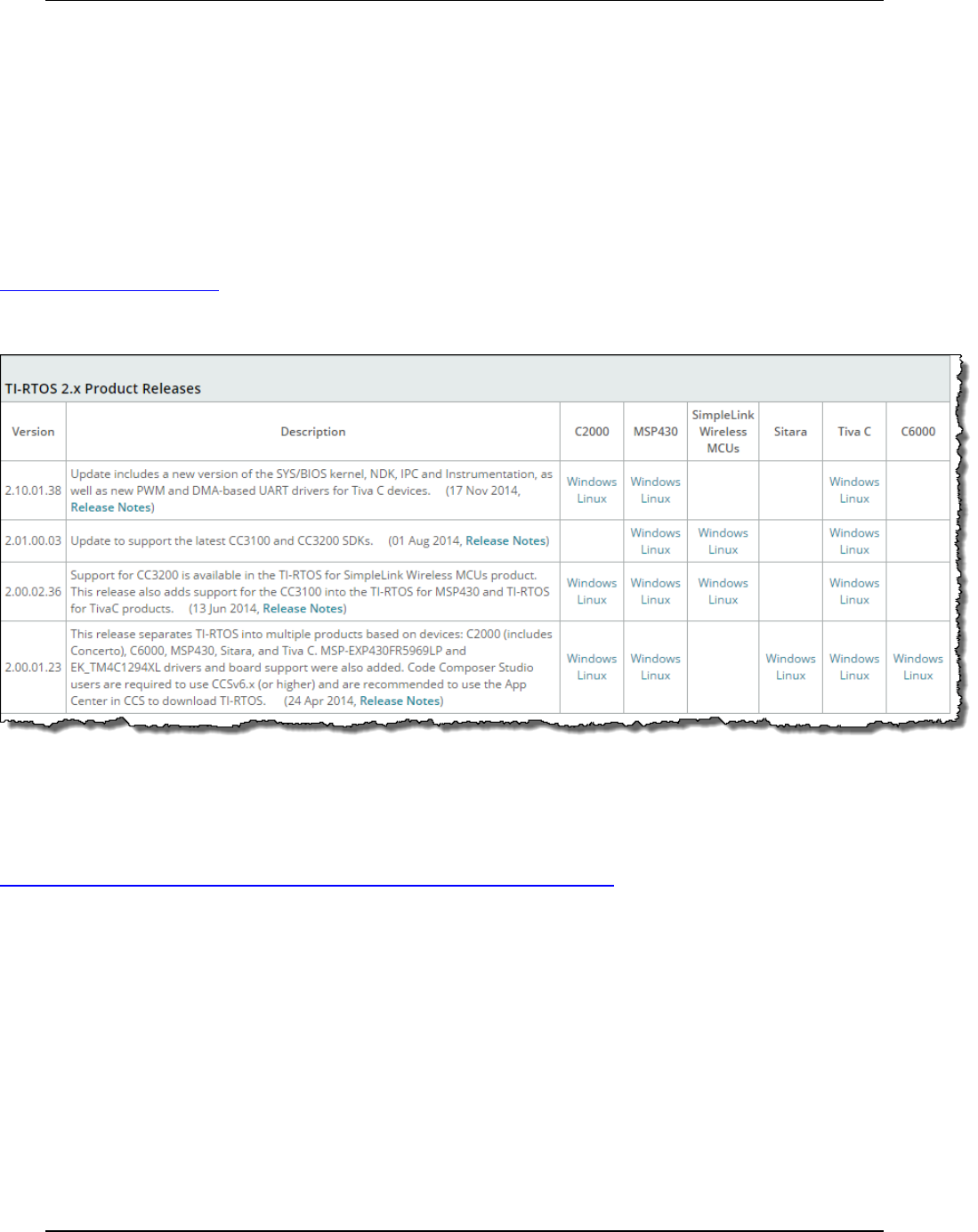

Download latest TI-RTOS for YOUR architecture (Windows Version):
First, you must download the TI-RTOS SDK for YOUR architecture provided at this link:
http://www.ti.com/tool/ti-rtos
Click the Get Software button and this will take you to the download page:
Click on the “Windows” link of the latest release for YOUR architecture as shown in the table above. Notice that
C6000 users are “back” a few releases (2.00.01.23) – at the time of this screen shot.
For your information, all of the TI-RTOS related tools can be found on this page:
http://software-dl.ti.com/dsps/dsps_public_sw/sdo_sb/targetcontent/index.html
You can see the huge, long list of tools. Keep in mind that tools are MATCHED together. You can’t use an old
BIOS release with a new UIA or new XDC, etc. This is actually one of the most common errors new users make
(even the author, supposedly experienced, makes this mistake too !).
With CCSv6.0, you will automatically get XDC ver 3.30.01.25 (or later). This is paired with:
• BIOS ver 6.40.01.15 (or later)
• UIA ver 1.04.00.06 (or later)
C6000 users have the same tools but usually they are a rev or two back. The point here is that the tools
matching is handled FOR YOU by creating these SDKs with matched tools.
When you install the TI-RTOS SDK package, the installer will attempt to ALSO install the proper version of XDC
if you don’t already have it. In effect, the TI-RTOS SDK package installer is forcing this MATCHING of all the
tools which is fantastic (in the author’s opinion) because it helps all users make fewer mistakes in this critical
area of getting the right SET of tools.
![](asset-5.png)
Download Checklist
Intro to the TI-RTOS Kernel Workshop - Student Installation Guide - Rev 2.40 00 - 5
Download Latest Driver Libraries for Your Target
Once again, MSP430 and Tiva-C users are in luck – you get the driver libraries WITH the TI-RTOS SDK
download. However, C28x and C6000 users will need to download driver libraries and install them. We plan to
simply blink an LED in this workshop (sounds simple, but we decided to keep the application simple so we
could focus on the TI-RTOS kernel concepts).
A driver library, specific to your target, is necessary to enable us to write code to blink the LED, set up hardware
timers and perform delay functions.
MSP430 and Tiva-C USERS ONLY – SKIP THIS SECTION (no need to download driver libraries)
C28x and C6000 USERS ONLY – follow the steps in this section to download your driver libraries…
C6000 or C28x USERS – download the latest driver library
Only download the libraries (xWare) for YOUR specific target:
C28x Users – Control Suite http://www.ti.com/tool/controlsuite
C6000 Users – MCSDK OMAPL-138-MCSDK

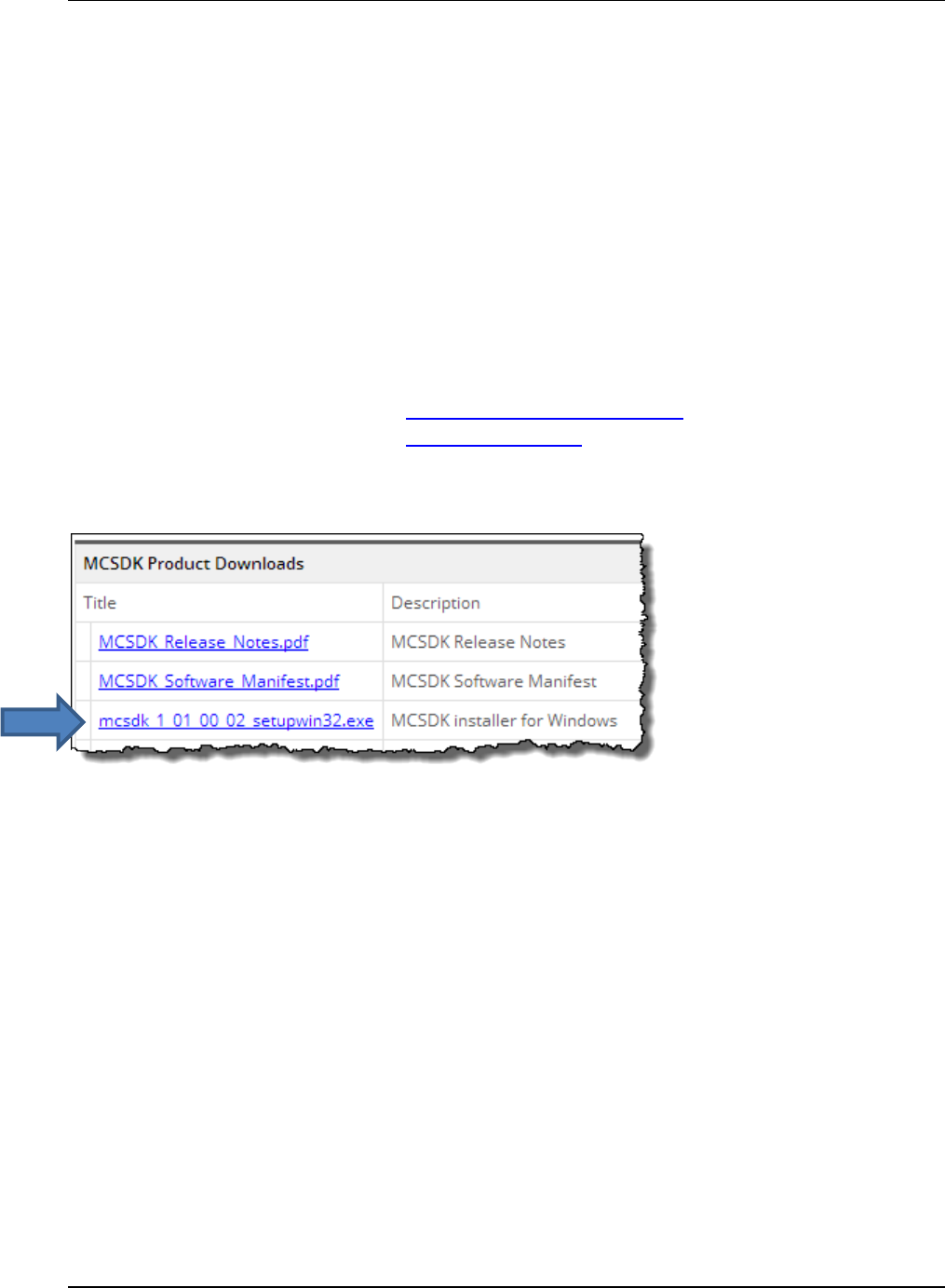

C6000 Users – once you get to the MCSDK download page, download the following:
C6000 Users – Yes, it says OMAP-L138 MCSDK (Multi-core SDK). Even though we use the C6748 LCDK in
the workshop, this SDK covers the C6748 (single core DSP) as well as the OMAP-L138 (ARM9 + C674x CPU).
So this IS the correct SDK for C6000 users in the TI-RTOS workshop.
![](asset-6.png)
Installation
00 - 6 Intro to the TI-RTOS Kernel Workshop - Student Installation Guide - Rev 2.40
Installation
Code Composer Studio
Note: If you already have CCSv6.0 or higher installed on your machine, you can skip the CCS
installation procedure. If you want to ADD a target or two to your CURRENT installation,
simply run the installation again and install these new components.
Install Code Composer Studio 6.0 or newer
1. If you haven’t already done so, download CCS.
(Refer to the Download Checklist for details.)
2. Disable anti-virus (e.g. McAfee) and spyware protection, firewall, etc. if possible.
3. If you downloaded the full, all-in-one installer you must unzip it first.
Windows makes zip files look like folders, but trying to run an installer from a zipped file does
not work well. PLEASE UNZIP THE INSTALLER BEFORE INSTALLATION.
4. Run the CCS Installer AFTER you have UNZIPPED IT.
ccs_setup_6.0.1.00040.exe (this version was available when this document was printed)
5. When the installation program runs, accept the license agreement and click Next.
6. Note about CCS installations:

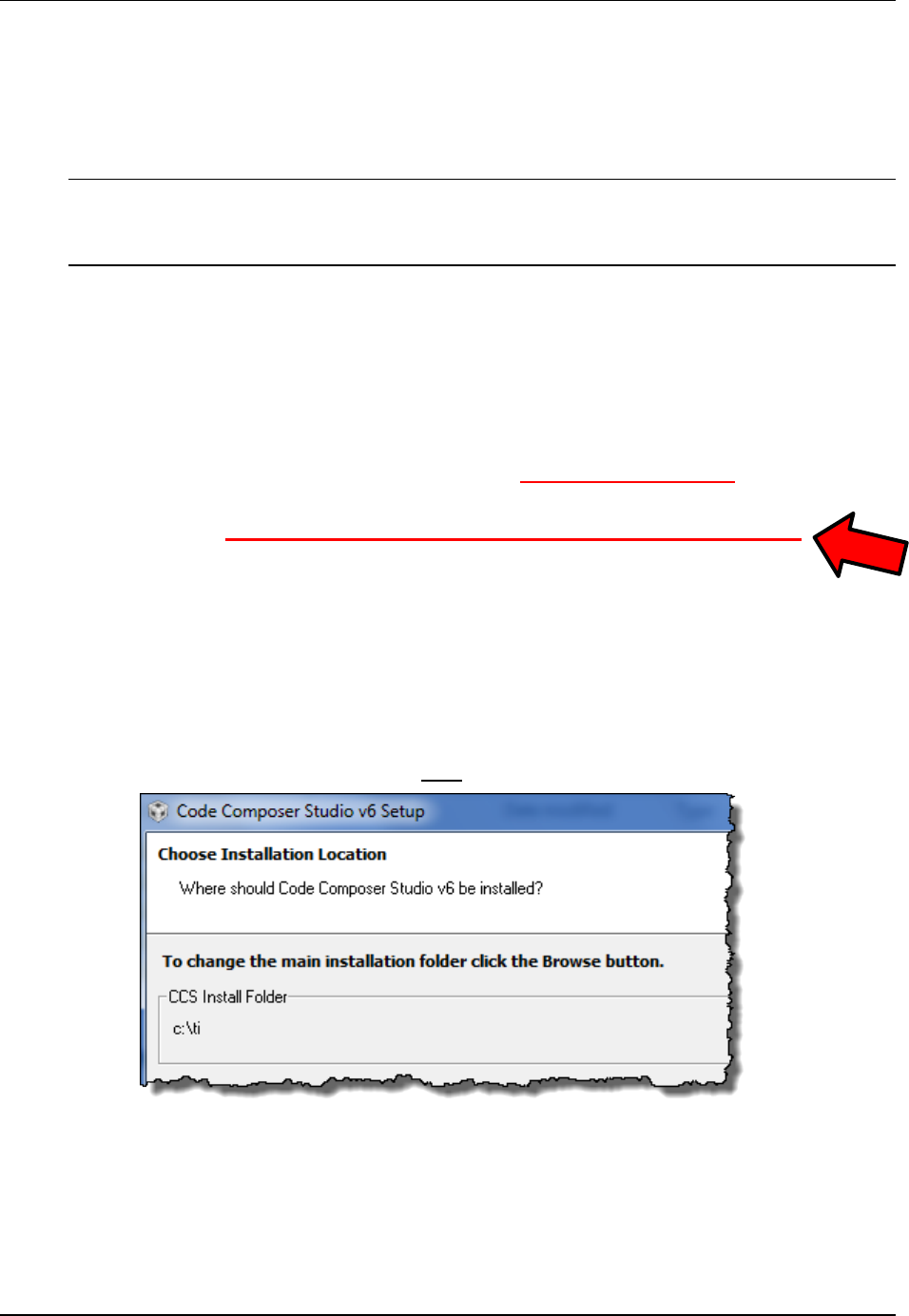

When the “Choose Installation Location” dialog appears, we suggest that you install Code
Composer in the default C:/TI folder. If the install program ever asks you if you want to
install CCS as a plugin to Eclipse, do NOT say yes. Click Next.
![](asset-7.png)
Installation
Intro to the TI-RTOS Kernel Workshop - Student Installation Guide - Rev 2.40 00 - 7

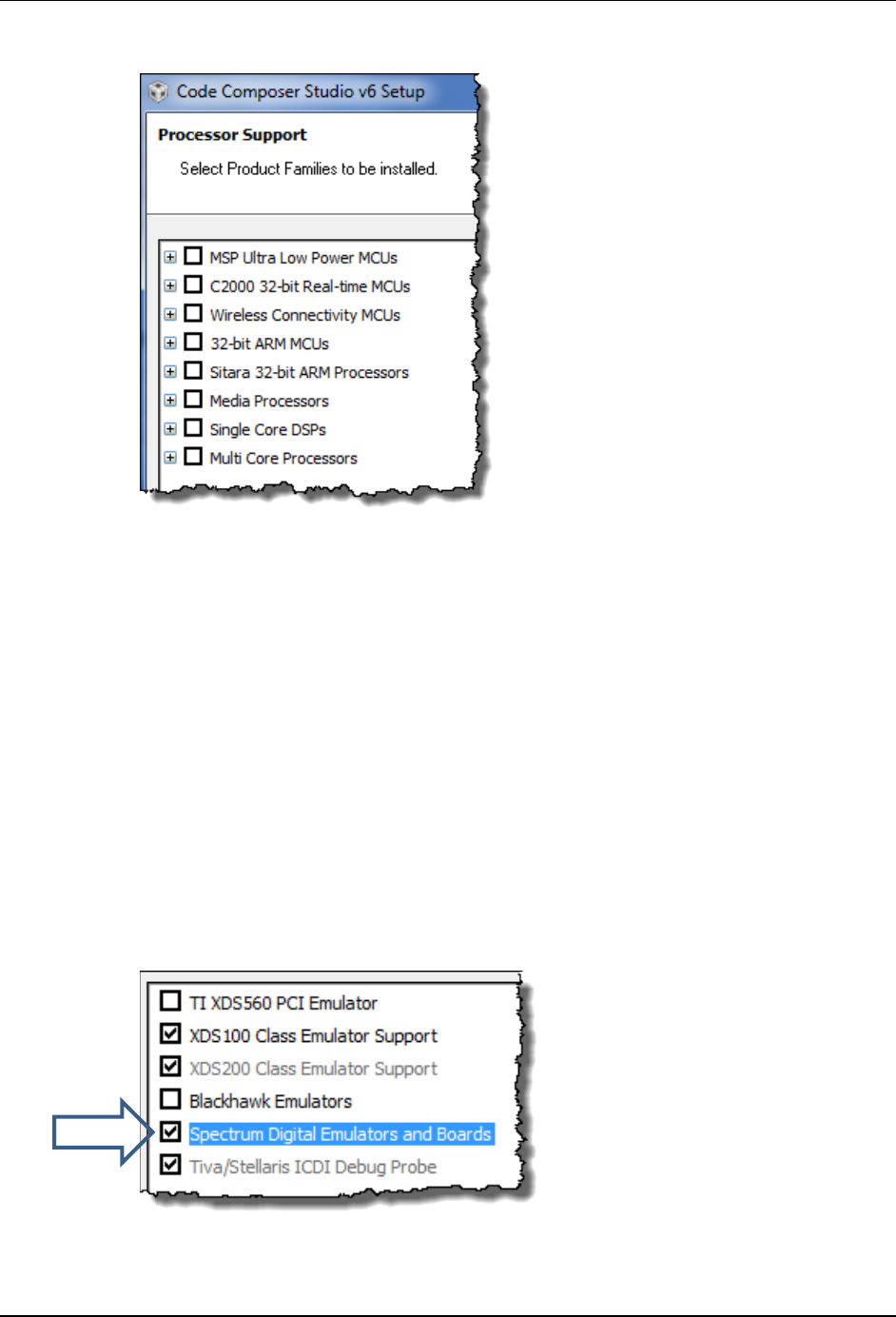

7. Choose the devices you plan to use in the Processor Support dialogue.
Choose the following for your target:
• C28x users choose C2000
• C6000 users choose Single Core DSPs (however, if you want OMAP-L138 support which
is NOT required for the workshop, choose Media Processors
Integra Device Support)
• MSP430 users choose MSP
• Tiva-C users choose 32-bit ARM MCUs
The more devices you choose means a longer installation time. If you have a slower
computer, we recommend choosing as few as possible. (It’s not really about CPU
performance; installations are all about copying a lot of files.)
When done selecting processors, click Next.
8. Choose the emulation drivers (C6000 USERS – PAY CLOSE ATTENTION HERE).
The next screen checks the boxes for the emulator drivers based on your target selections in
previous dialogues. They are probably already correct. However, C6000 users must check
the box for “Spectrum Digital Emulators and Boards” because the Spectrum Digital XDS510
will be used in class. If you are NOT a C6000 user, don’t worry about this.
Make sure the selections are correct and then click Next…
![](asset-8.png)
Installation
00 - 8 Intro to the TI-RTOS Kernel Workshop - Student Installation Guide - Rev 2.40
9. AFTER INSTALLATION – Install updates, manage license.
After installation of CCSv6.0 (or higher), open CCS and allow it to install any new tools and
then select Help
Check for Updates. Update all of the tools related to your architecture or
emulator and the TI Emulators. Check each one that applies and then click Next and follow
the instructions. After the updates have been completed, close CCS and re-open it to allow
the changes to take effect.
Also, click Help
Code Composer Studio Licensing Info and select the proper license. Most
users should choose the 90-day evaluation license unless you have already purchased a
license.
C6000 USERS – do NOT select the “FREE” License option. This will NOT support the
XDS510 emulator we use in the workshop. Please make sure you select the “EVAL” license
which gives you 90 days use of CCS with ANY emulator you choose.
![](asset-9.png)
Installation
Intro to the TI-RTOS Kernel Workshop - Student Installation Guide - Rev 2.40 00 - 9
Increase Java Memory For TI-RTOS Config
If you don’t follow these steps, you may encounter a “JVM heap low error”. This is common
because the TI-RTOS Kernel and CCS assume a very minimal memory footprint on the host PC.
The author has experienced this more times than not, so that’s why the following step is here.
10. Modify ccstudio.ini to increase java memory footprint.
The INI file for TI’s version of Eclipse is named ccstudio.ini. It is located here (assuming
you installed CCS at the default location of C:\TI):
C:\TI\ccsv6\eclipse\ccstudio.ini
Open this file (via WordPad – not Notepad due to the line returns) and you’ll see two settings
that need to be modified. Near the bottom of the file, you will see these settings – and modify
them to reflect the new settings shown:
• Xms40m Xms256m
• Xmx384m Xmx1024m
Save your ccstudio.ini file.
Note – this setting will only apply to the CURRENT install of CCS. If you install a later
version, you’ll need to modify the new ccstudio.ini file just as above.
If you do NOT make these changes, CCS still works fine, the labs will work fine…but you may
get annoyed at the constant reminder when working in CCS with TI-RTOS that the JVM heap
is low. The author increased these two settings to 128m and 512m respectively and STILL
continued to get JVM heap low errors – however, they have gone away with the settings
above.
![](asset-a.png)
Installation
00 - 10 Intro to the TI-RTOS Kernel Workshop - Student Installation Guide - Rev 2.40
Install the Workshop Lab and Solution Files
11. Unzip the labs_sols.zip file and place at your root folder.
You should have downloaded a file named (version might be same or higher):
TI_RTOS_labs_sols_rev2.40.zip

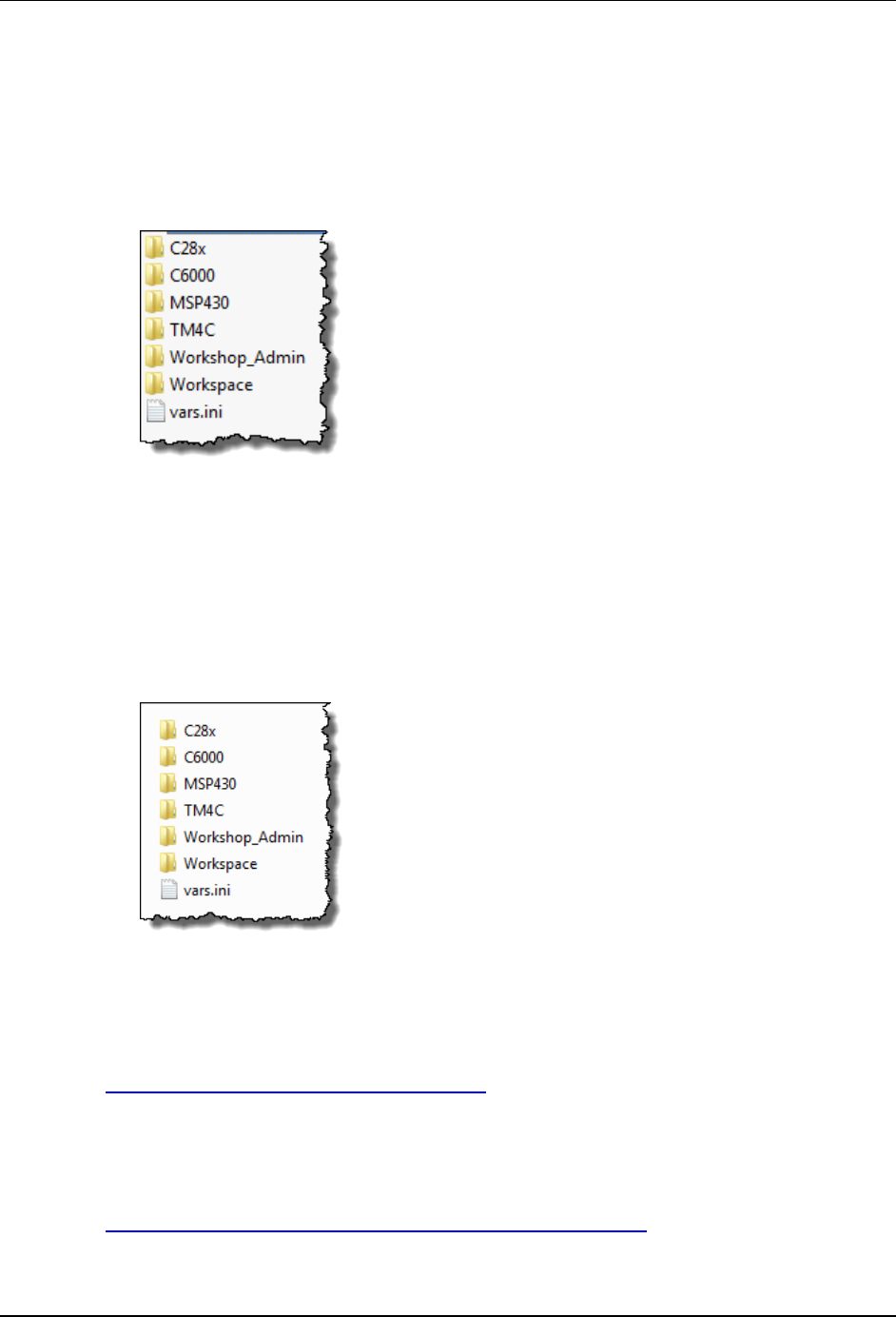

Unzip the contents of this folder and you will see the following list of files and folders:
Create a new folder named C:\TI_RTOS (or choose your default root drive) and copy ALL of
these files and folders to this new folder::
C:\TI_RTOS
This folder now contains all of the labs and solution files for all architectures supported by this
workshop. This is NOT the TI-RTOS SDK that you downloaded earlier. This is the author’s
set of lab/solution files and all supporting documentation needed for the workshop.
Once unzipped and located at your root directory, expand the list of files/folders and double-
check you see this at C:\TI_RTOS:
12. Download the latest student guides.
Verify you have downloaded the latest Workshop PDF file (it was on the list of required
downloads earlier), as you will be referring to this throughout the workshop. If you are only
taking the first two days of the workshop (TI-RTOS Kernel), your PDF is located here:
TI_RTOS_Workshop_Student_Guide.pdf
If you are a 4-day C6000 student, the first two days are covered by the PDF listed above.
However, days 3 and 4 are located in a separate PDF document here:
C6000_Embedded_Design Workshop_Student_Guide.pdf
![](asset-b.png)
Installation
Intro to the TI-RTOS Kernel Workshop - Student Installation Guide - Rev 2.40 00 - 11
Install TI-RTOS SDK
13. Install your new TI-RTOS SDK.
In a previous step, you downloaded the TI-RTOS SDK for your architecture. It is now time to
install this package.
Double-click on the .exe file and install the TI-RTOS SDK to:
C:\TI
The SDK installer will attempt to also install XDC tools if you don’t already have the proper
version. If it wants to install it, let it. If it says “you already have the latest”, then say “ok”.
Again, these package installs are doing their best to MATCH the proper tools sets together
which is a huge benefit.
Warning – some users decide to place these tools in another folder besides C:\TI. Yes,
you can make CCS “discover” the right path, but it doesn’t often find it correctly which causes
all sorts of problems in the labs. They are fixable – just a waste of precious in-class time. So,
PLEASE do yourself and others a favor and install these tools in C:\TI.
After installation, use Windows Explorer to make sure it installed properly.
Install xWare For Your Target – C6000 and C28x
MSP430 and Tiva-C users can skip the next two steps…
This class requires driver libraries to set up clocks, interrupts, timers and peripherals like GPIO to
blink LEDs on the board. You were asked previously to download your specific target’s driver
library – it is now time to install it.
14. C6000 and C28x USERS ONLY – install your driver library now.
MSP430 and Tiva-C users have their driver libraries contained inside the TI-RTOS SDK
download. However, C6000 and C28x users need to install their driver libraries because they
are NOT contained (yet) in the TI-RTOS SDK download.
In a previous step, you downloaded the installer for your xWare:
• C28x users downloaded the latest ControlSuite
• C6000 users downloaded the latest MCSDK
Please install this library at C:\TI if you haven’t already done so. If you already have this
library on your laptop – and it is the LATEST version, just leave it alone.
![](asset-c.png)
Installation
00 - 12 Intro to the TI-RTOS Kernel Workshop - Student Installation Guide - Rev 2.40
Make Sure All Tools (Min) are Installed Properly
15. Comment regarding CCSv6.0 vs. CCSv5.5 (or older).
As stated earlier, CCSv6.0 or newer is a REQUIREMENT for this workshop. All labs have
been tested against CCSv6.0.0/6.0.1 and the stock tools they use plus the TI-RTOS SDK
tools for each architecture along with the other mentioned tools.
If you are still using CCSv5.5 or earlier, you will have problems in the labs.
The MIN configuration is CCSv6.0 with the following BIOS tools installed:
• XDC 3.30.01.25
• BIOS 6.40.01.15
• UIA 1.04.00.06
First, XDC is installed along with CCSv6.0+. All TI-RTOS SDKs include BIOS and UIA as sub
products in the packages. The later TI-RTOS packages (ver 2.00.02.36 and later) include
newer versions of BIOS and UIA – that’s fine. Just let the SDK install along with possibly
XDC and you’ll be ready for the labs.
As of December, 2014, the workshop was upgraded to use the following versions of tools:
• CCSv6.0.1
• TI-RTOS ver 2.10.01.38 (for MSP, Tiva and C2000), ver 2.00.01.23 for C6000
• XDC ver 3.30.5.60_core
• all of the latest compilers as of 12/01/14 for every architecture
16. Open CCS and allow auto-discovery of all new tools installs.
After installing all of the new tools, you need to open CCS (again) and allow the auto
discovery tool to FIND these new tools and install them into CCS. CCS auto discovery paths
are typically set for CCS_INSTALL_PATH plus C:\TI. The author has witnessed CCS NOT
auto discover every new tool the FIRST time CCS is invoked. Simply run CCS, allow auto
discovery to run, then close CCS and re-open it again to see if it discovers any new tools the
second time.
At this time, you can also check to make sure your license is working properly via Help
Code Composer Studio Licensing Info.
FYI – at the beginning of the workshop, you will be given a USB key that has some videos on
it related to your architecture. If you get done with a lab and the optional lab before others
(you’re one of those fast people), you can take some time to watch some selected
architecture videos. If you think you’re one of those people, double make sure you bring
headphones with you to class.
Having optional labs and videos available helps the faster users get more out of the lab time
vs. twiddling their thumbs waiting for others – of course, you could also just check email or
call your boss to tell him/her how wonderful and valuable this workshop has been !
That’s it. You’re done.
