User Manual: TK-8180 (K) B51-8692-00

Open the PDF directly: View PDF .
Page Count: 85

COVER/CONTENTS
GENERAL
- INTRODUCTION
- ORDERING REPLACEMENT PARTS
- PERSONAL SAFETY
- PRE-INSTALLATION CONSIDERATIONS
- SERVICE
- NOTE
SYSTEM SET-UP
REALIGNMENT
- 1. Modes
- 2. How to Enter Each Mode
- 3. Panel Test Mode
- 4. Panel Tuning Mode
- 5. PC Mode
- 6. Firmware Programming Mode
- 7. Clone Mode
- 8. Firmware Version Information
- 9. Clock Adjustment Mode
INSTALLATION
- 1. Ignition Sense Cable (KCT-46 : Option)
- 2. Radio Interface Cable (KCT-40 : Option)
- 3. Horn Alert/P.A. Relay Unit (KAP-2 : Option)
- 4. Control Head Remote Kit (KRK-10 : Option)
- 5. Voice Guide & Storage Unit (VGS-1 : Option)
- 6. Voice Scrambler Board Connection
- 7. ANI Board Connection
- 8. GPS Receiver Connection

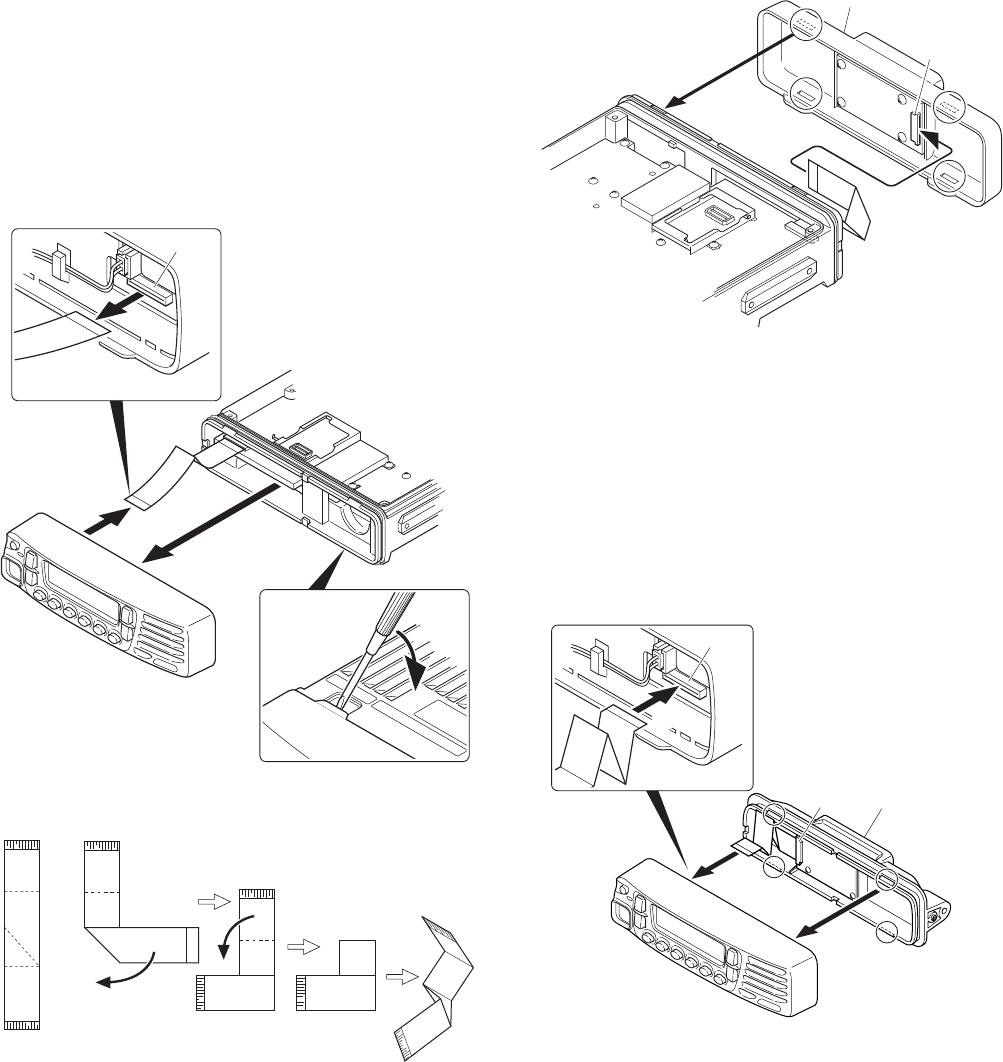

DISASSEMBLY FOR REPAIR
- 1. Precautions on Disassembly
- 2. Precautions on Reassembly
CIRCUIT DESCRIPTION
- 1. Outline
- 2. Receiver Circuit
- 3. Transmitter Circuit
- 4. Frequency Synthesizer Unit
- 5. Control Circuit
- 6. Power Supply Circuit
- 7. Display Circuit
SEMICONDUCTOR DATA
- Microprocessor : 30625MGP-169GP (TX-RX unit IC404)
- Microprocessor : 30302M8-8Z7GP (Display unit IC902)
- Shift Register : BU4094BCFV (TX-RX unit IC403)
COMPONENTS DESCRIPTION
- Display unit (X54-3480-10)
- TX-RX unit (X57-6990-10)
PARTS LIST
- TK-8180
- DISPLAY UNIT (X54-3480-10)
- TX-RX UNIT (X57-6990-10)

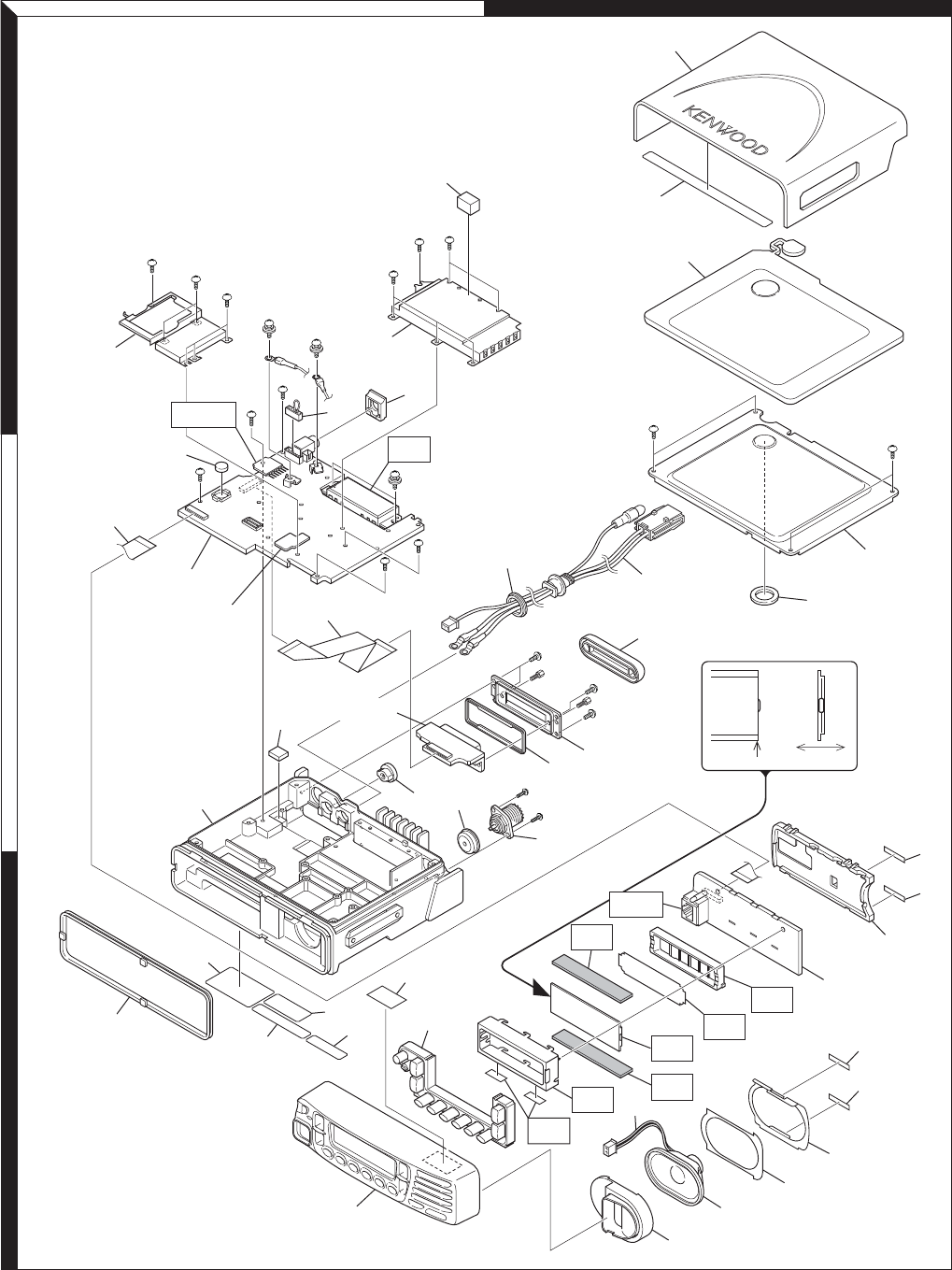

EXPLODED VIEW

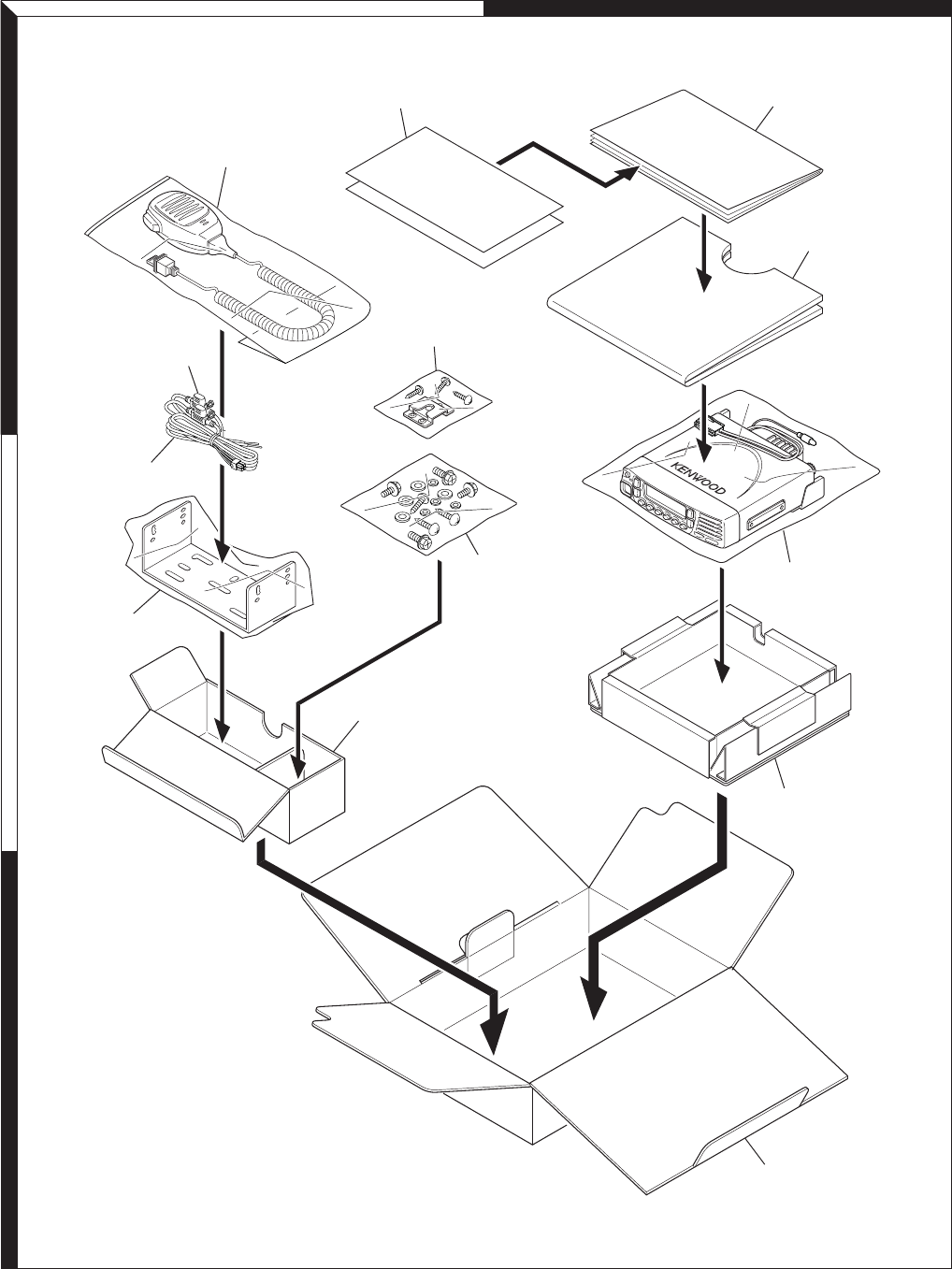

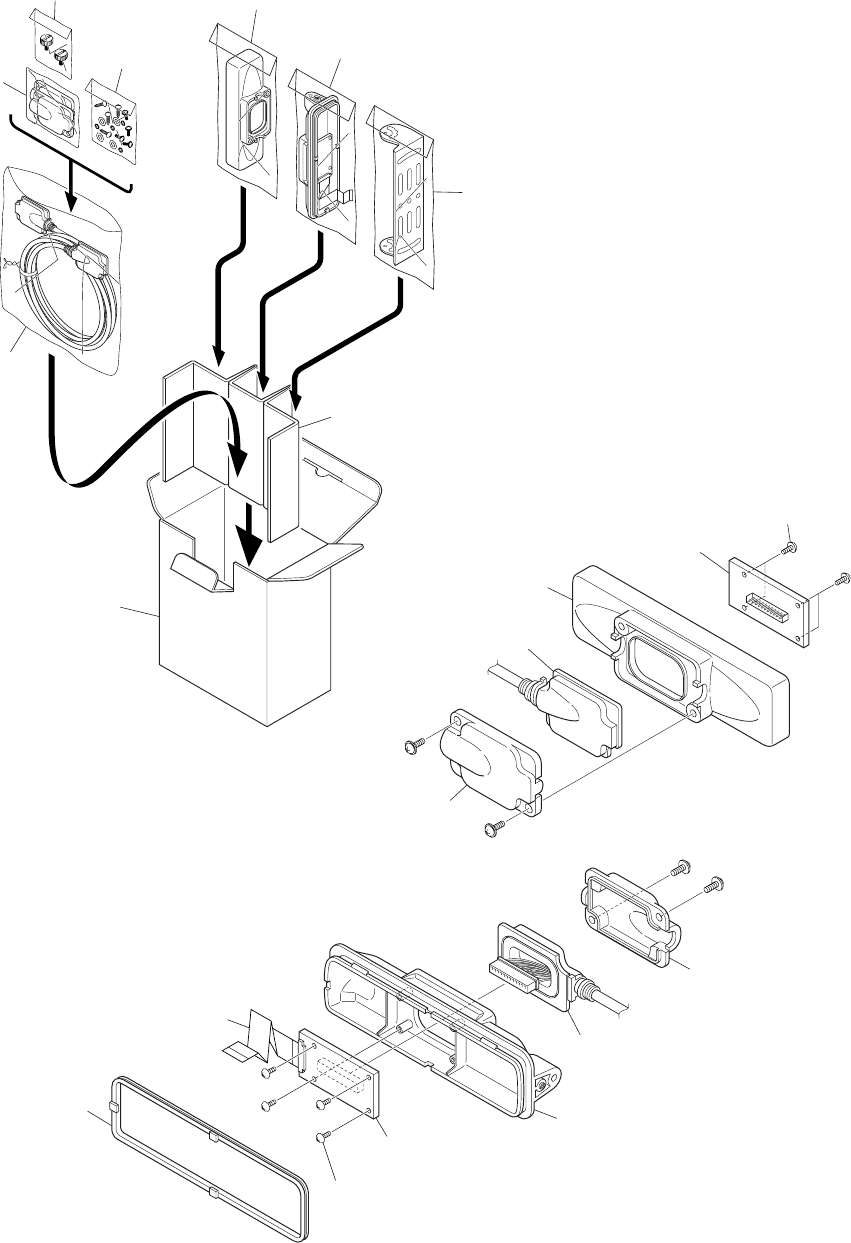

PACKING
ADJUSTMENT
- Controls
- Panel Test Mode
- Panel Tuning Mode
- Test Equipment Required for Alignment
- Common Section
- Transmitter Section
- Receiver Section
- Adjustment Points
TERMINAL FUNCTION
- Display unit (X54-3480-10)
- TX-RX unit (X57-6990-10) (A/3)
- TX-RX unit (X57-6990-10) (B/3)
- Solder Land
PC BOARD
- DISPLAY UNIT (X54-3480-10)

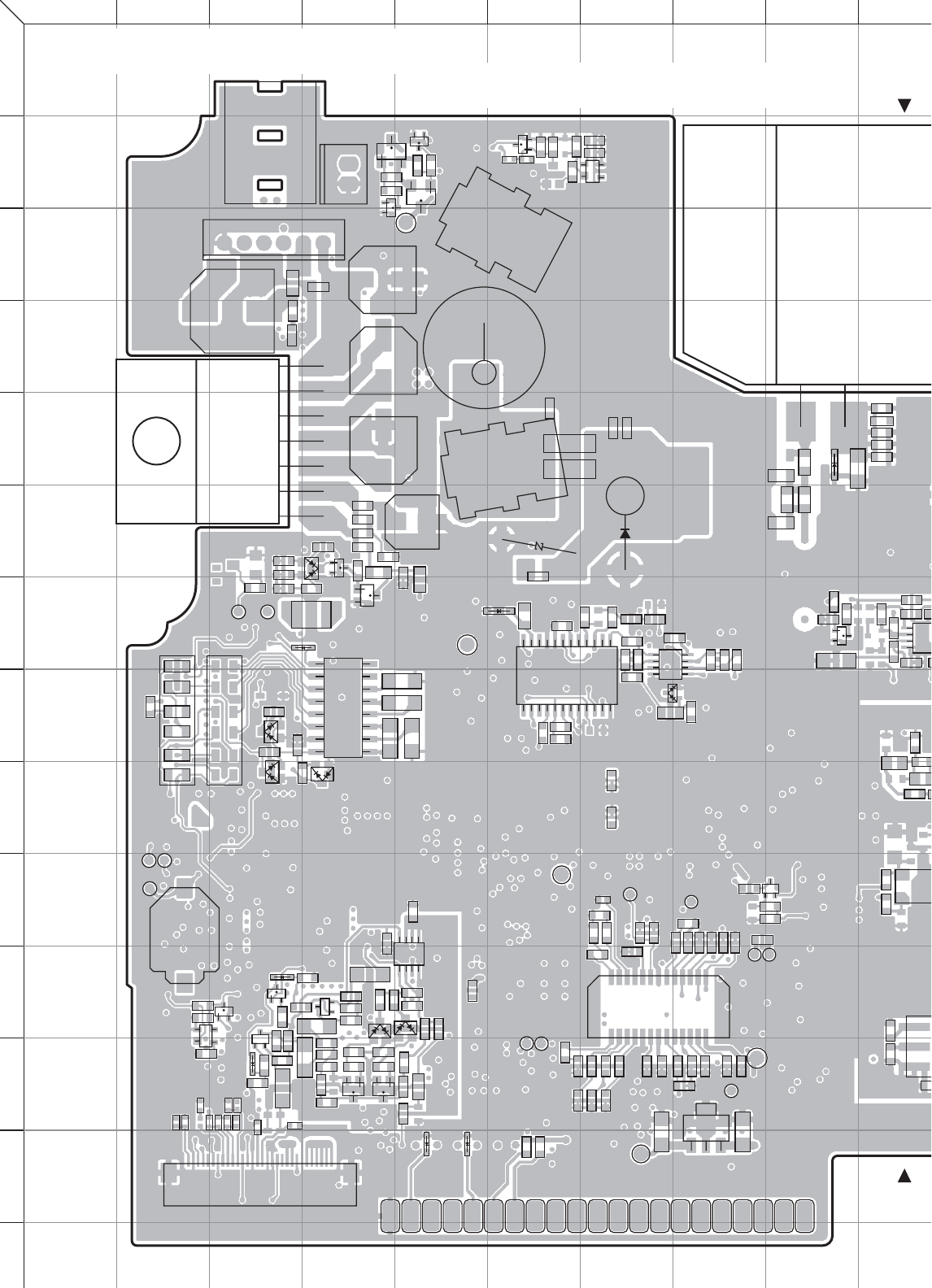

- TX-RX UNIT (X57-6990-10) (A/3)
  - Component side view
  - Foil side view
- TX-RX UNIT (X57-6990-10) (C/3)
  - Component side view
  - Foil side view
- TX-RX UNIT (X57-6990-10) (B/3)
SCHEMATIC DIAGRAM
- DISPLAY UNIT (X54-3480-10)
- TX-RX UNIT (X57-6990-10)
  - 1/9
  - 2/9
  - 3/9
  - 4/9
  - 5/9
  - 6/9
  - 7/9
  - 8/9
  - 9/9
  - Complete view
INTERCONNECTION DIAGRAM
BLOCK DIAGRAM
- 1/2
- 2/2
LEVEL DIAGRAM
- 1/2
- 2/2
OPTIONAL ACCESSORIES
- KRK-10 (Control Head Remote Kit: 23ft/7m)
- KAP-2 (Horn Alert/P.A. Relay Unit)
- KCT-40 (Radio Interface Cable)
- KCT-46 (Ignition Sense Cable)
- KMC-35 (Microphone)
- KMC-36 (Keypad Microphone)
SPECIFICATIONS

B51-8692-00 (N) 1007

UHF FM TRANSCEIVER

TK-8180

SERVICE MANUAL

Panel assy

(A62-1094-23)

Key top

(K29-9312-21)

Cabinet

(A01-2194-11)

Microphone

(T91-0639-05)

GENERAL .................................................................. 2

SYSTEM SET-UP ...................................................... 3

REALIGNMENT ......................................................... 4

INSTALLATION ......................................................... 7

DISASSEMBLY FOR REPAIR ................................. 13

CIRCUIT DESCRIPTION .......................................... 16

SEMICONDUCTOR DATA ...................................... 20

COMPONENTS DESCRIPTION .............................. 22

PARTS LIST ............................................................. 24

EXPLODED VIEW.................................................... 33

PACKING ................................................................. 34

ADJUSTMENT ........................................................ 35

TERMINAL FUNCTION ........................................... 46

PC BOARD

DISPLAY UNIT (X54-3480-10) ............................ 50

TX-RX UNIT (X57-6990-10) (A/3, C/3) ............... 52

TX-RX UNIT (X57-6990-10) (B/3) ....................... 54

SCHEMATIC DIAGRAM

DISPLAY UNIT (X54-3480-10) ............................ 58

TX-RX UNIT (X57-6990-10) ................................ 60

INTERCONNECTION DIAGRAM ............................ 69

BLOCK DIAGRAM ................................................... 70

LEVEL DIAGRAM .................................................... 72

OPTIONAL ACCESSORIES

KRK-10

(Control Head Remote Kit: 23ft/7m) ......

KAP-2 (Horn Alert/P.A. Relay unit) ................... 79

KCT-40 (Radio Interface Cable).......................... 79

KCT-46 (Ignition Sense Cable) ........................... 79

KMC-35 (Microphone) ........................................ 79

KMC-36 (Keypad Microphone) .......................... 79

SPECIFICATIONS ................................. BACK COVER

CONTENTS

TK-8180

INTRODUCTION

SCOPE OF THIS MANUAL

This manual is intended for use by experienced techni-

cians familiar with similar types of commercial grade commu-

nications equipment. It contains all required service informa-

tion for the equipment and is current as of this publication

date. Changes which may occur after publication are covered

by either Service Bulletins or Manual Revisions, which are

issued as required.

ORDERING REPLACEMENT PARTS

When ordering replacement parts or equipment informa-

tion, the full part identification number should be included.

This applies to all parts : components, kits, and chassis. If the

part number is not known, include the chassis or kit number

of which it is a part and a sufficient description of the required

component for proper identification.

PERSONAL SAFETY

The following precautions are recommended for personal

safety :

•DONOT transmit if someone is within two feet (0.6

meter) of the antenna.

•DONOT transmit until all RF connectors are secure and

any open connectors are properly terminated.

•SHUT OFF this equipment when near electrical blasting

caps or while in an explosive atmosphere.

•All equipment should be properly grounded before power-

up for safe operation.

•This equipment should be serviced by only qualified tech-

nicians.

PRE-INSTALLATION CONSIDERATIONS

1. UNPACKING

Unpack the radio from its shipping container and check for

accessory items. If any item is missing, please contact

KENWOOD immediately.

2. LICENSING REQUIREMENTS

Federal regulations require a station license for each radio

installation (mobile or base) be obtained by the equipment

owner. The licensee is responsible for ensuring transmitter

power, frequency, and deviation are within the limits permit-

ted by the station license.

Transmitter adjustments may be performed only by a li-

censed technician holding an FCC first, second or general

class commercial radiotelephone operator’s license. There is

no license required to install or operate the radio.

3. PRE-INSTALLATION CHECKOUT

3-1. Introduction

Each radio is adjusted and tested before shipment. How-

ever, it is recommended that receiver and transmitter opera-

tion be checked for proper operation before installation.

3-2. Testing

The radio should be tested complete with all cabling and

accessories as they will be connected in the final installation.

Transmitter frequency, deviation, and power output should

be checked, as should receiver sensitivity, squelch operation,

and audio output. Signalling equipment operation should be

verified.

4. PLANNING THE INSTALLATION

4-1. General

Inspect the vehicle and determine how and where the ra-

dio antenna and accessories will be mounted.

Plan cable runs for protection against pinching or crushing

wiring, and radio installation to prevent overheating.

4-2. Antenna

The favored location for an antenna is in the center of a

large, flat conductive area, usually at the roof center. The

trunk lid is preferred, bond the trunk lid and vehicle chassis

using ground straps to ensure the lid is at chassis ground.

4-3. Radio

The universal mount bracket allows the radio to be

mounted in a variety of ways. Be sure the mounting surface

is adequate to support the radio’s weight. Allow sufficient

space around the radio for air cooling. Position the radio close

enough to the vehicle operator to permit easy access to the

controls when driving.

4-4. DC Power and wiring

1. This radio may be installed in negative ground electrical

systems only. Reverse polarity will cause the cable fuse to

blow. Check the vehicle ground polarity before installation

to prevent wasted time and effort.

2. Connect the positive power lead directly to the vehicle

battery positive terminal. Connecting the Positive lead to

any other positive voltage source in the vehicle is not rec-

ommended.

3. Connect the ground lead directly to the battery negative

terminal.

4. The cable provided with the radio is sufficient to handle

the maximum radio current demand. If the cable must be

extended, be sure the additional wire is sufficient for the

current to be carried and length of the added lead.

5. INSTALLATION PLANNING – CONTROL STATIONS

5-1. Antenna system

Control station. The antenna system selection depends on

many factors and is beyond the scope of this manual. Your

KENWOOD dealer can help you select an antenna system

that will best serve your particular needs.

5-2. Radio location

Select a convenient location for your control station radio

which is as close as practical to the antenna cable entry point.

Secondly, use your system’s power supply (which supplies

the voltage and current required for your system). Make sure

sufficient air can flow around the radio and power supply to

allow adequate cooling.

GENERAL

TK-8180

SERVICE

This radio is designed for easy servicing. Refer to the

schematic diagrams, printed circuit board views, and align-

ment procedures contained in this manual.

NOTE

•If you do not intend to use the speaker 3.5-mm jack and

the D-sub 25-pin connector, fit the supplied speaker-jack

cap and D-sub cap to stop dust and sand from getting in.

•If the transceiver is turned ON or OFF when the power-on/

off status message is enabled, the transceiver sends the

status.

GENERAL / SYSTEM SET-UP

Speaker

jack cap

D-sub

cap

Power input

connector

Ignition

sense cable

Antenna

connector

Merchandise received

License and frequency allocated by FCC

Choose the type of transceiver

Transceiver programming

See page 4.

A personal computer (IBM PC or compatible), programming

interface (KPG-46), and programming software (KPG-89D)

are required for programming.

Are you using

the remote kit?

Are you using

the ignition sense cable?

Are you using

the radio interface cable?

Are you using

the public address?

Are you using

the voice guide & storage

unit?

KRK-10

KCT-46

KCT-40

KCT-36 Extension cable

KGP-2A

Modem GPS receiver

KGP-2B

Modem GPS controller

or KDS-100

Mobile data terminal

KAP-2

VGS-1

YES

Supplied microphone

Delivery

Are you using

the external speaker?

Are you using

the keypad microphone?

KES-3 or KES-5 External speaker

KMC-32 or KMC-36

YES

Desk top microphone KMC-9C

See page 9.

See page 7.

See page 8.

See page 10.

(Option)

Frequency range RF power Type

450~520MHz 30W

(490~520MHz : 25W) K

SYSTEM SET-UP

TK-8180

1. Modes

Mode Function

User mode For normal use.

Panel test mode Used by the dealer to check the funda-

mental characteristics.

Panel tuning mode Used by the dealer to tune the radio.

PC mode Used for communication between the

radio and PC (IBM compatible).

Data programming Used to read and write frequency data

mode and other features to and from the radio.

PC test mode Used to check the radio using the PC.

This feature is included in the FPU.

See panel test.

PC tuning mode Used to tune the radio using the PC.

This feature is included in the FPU.

See panel tuning.

Firmware Used when changing the main program

programming mode of the flash memory.

Clone mode Used to transfer programming data from

one radio to another.

Firmware version Used to confirm the internal firmware

information version.

Clock adjustment mode

Used to adjust date and time.

2. How to Enter Each Mode

Mode Operation

User mode Power ON

Panel test mode [A] + Power ON

PC mode Received commands from PC

Panel tuning mode [Panel test mode] + [S]

Firmware programming mode [S] + Power ON

Clone mode [B] + Power ON

Firmware version information [ ] + Power ON

Clock adjustment mode [C] + Power ON

3. Panel Test Mode

Setting method refer to ADJUSTMENT.

4. Panel Tuning Mode

Setting method refer to ADJUSTMENT.

5. PC Mode

5-1. Preface

The transceiver is programmed by using a personal com-

puter, programming interface (KPG-46) and programming

software (KPG-89D).

The programming software can be used with an IBM PC

or compatible. Figure 1 shows the setup of an IBM PC for

programming.

User mode

Panel test mode

Firmware version information

Panel tuning mode

Data programming mode

PC test mode PC tuning mode

PC mode

Clone mode

Firmware

programming mode

Clock adjustment mode

KPG-89D

IBM PC

KPG-46 or

KPG-46 +

Tuning cable

(E30-3383-05)

Fig. 1

REALIGNMENT

TK-8180

5-2. Connection procedure

1. Connect the transceiver to the personal computer with

the interface cable.

2. When the POWER switch on, user mode can be entered

immediately. When PC sends command the radio enter

PC mode, and “PROGRAM” is displayed on the LCD.

When data transmitting from transceiver, the red LED is

lights.

When data receiving to transceiver, the green LED is

lights.

Note:

•The data stored in the personal computer must match

model type, when it is written into the flash memory.

5-3. KPG-46 description

(PC programming interface cable: Option)

The KPG-46 is required to interface the transceiver to the

computer. It has a circuit in its D-subconnector (25-pin) case

that converts the RS-232C logic level to the TTL level.

The KPG-46 connects the modular microphone jack of the

transceiver to the computers RS-232C serial port.

5-4. Programming software KPG-89D description

The KPG-89D is the programming software for the trans-

ceiver supplied on a CD-ROM. This software runs under MS-

Windows 98, ME, Windows 2000 or XP on an IBM-PC or

compatible machine.

The data can be input to or read from the transceiver and

edited on the screen. The programmed or edited data can be

printed out. It is also possible to tune the transceiver.

6. Firmware Programming Mode

6-1. Preface

Flash memory is mounted on the transceiver. This allows

the transceiver to be upgraded when new features are re-

leased in the future. (For details on how to obtain the firm-

ware, contact Customer Service.)

6-2. Connection procedure

Connect the transceiver to the personal computer (IBM

PC or compatible) with the interface cable (KPG-46). (Con-

nection is the same as in the PC Mode.)

Note :

You can only program firmware from the 8-pin micro-

phone connector on the front panel. Using the 25-pin logic

interface on the rear panel will not work.

6-3. Programming

1. Start up the firmware programming software (Fpro.exe).

2. Set the communications speed (normally, 115200 bps)

and communications port in the configuration item.

3. Set the firmware to be updated by File name item.

4. Turn the transceiver power ON with the [S] key held

down. Then, the orange LED on the transceiver lights and

“PROG 115200” is displayed.

5. Check the connection between the transceiver and the

personal computer, and make sure that the transceiver is

in the Program mode.

6. Press write button in the window. When the transceiver

starts to receive data, the [PG] display is blinking.

7. If writing ends successfully, the checksum is calculated

and a result is displayed.

8. If you want to continue programming other transceivers,

repeat steps 4 to 7.

Notes:

•This mode cannot be entered if the Firmware Program-

ming mode is set to Disable in the Programming software.

•When programming the firmware, it is recommend to

copy the data from the floppy disk to your hard disk before

update the radio firmware.

Directly copying from the floppy disk to the radio may not

work because the access speed is too slow.

6-4. Function

1. If you press the [■] key while “PROG 115200” is dis-

played, the display changes to “PROG 19200” (The LED

blinks green) to indicate that the write speed is low speed

(19200 bps). If you press the [■] key again while “PROG

19200” is displayed, the display changes to “PROG

38400” (The LED lights red and orange alternatively). If

you press the [■] key again while “PROG 38400” is dis-

played, the display changes to “PROG 57600” (The LED

blinks orange). If you press the [■] key again while

“PROG 57600” is displayed, the display returns to “PROG

115200” (The LED lights orange).

2. If you press the [ ] key while “PROG 115200” is dis-

played, the checksum is calculated, and a result is dis-

played. If you press the [ ] key again while the

checksum is displayed, “PROG 115200” is redisplayed.

Note:

Normally, write in the high-speed mode.

7. Clone Mode

Programming data can be transferred from one radio to

another by connecting them via their 8-pin microphone con-

nectors. The operation is as follows (the transmit radio is the

master and the receive radio is a slave).

1. Turn the master transceiver power ON with the [B] key

held down. If the read authorization password is set to the

transceiver, the transceiver displays “CLONE LOCK”. If

the password is not set, the transceiver displays “CLONE

MODE”.

2. When you enter the correct password, and “CLONE

MODE” is displayed, the transceiver can be used as the

cloning master. The following describes how to enter the

password.

REALIGNMENT

TK-8180

3. How to enter the password with the microphone keypad;

If you press a key while “CLONE LOCK” is displayed, the

number that was pressed is displayed on the transceiver.

Each press of the key shifts the display in order to the left.

When you enter the password and press the [✳] key,

“CLONE MODE” is displayed if the entered password is

correct. If the password is incorrect, “CLONE LOCK” is

redisplayed.

How to enter the password with the [ ] and [ ] keys;

If the [ ] and [ ] keys is pressed while “CLONE LOCK” is

displayed, numbers (0 to 9) are displayed flashing. When

you press the [C] key, the currently selected number is

determined. If you press the [S] key after entering the

password in this procedure, “CLONE MODE” is displayed

if the entered password is correct. If the password is in-

correct, “CLONE LOCK” is redisplayed.

4. Power on the slave transceiver.

5. Connect the cloning cable (Part No. E30-3382-05) to the

modular microphone jacks on the master and slave.

6. Press the [S] key on the master while the master displays

“CLONE MODE”. The data of the master is sent to the

slave. While the slave is receiving the data, “PROGRAM”

is displayed. When cloning of data is completed, the mas-

ter displays “END”, and the slave automatically operates

in the User mode. The slave can then be operated by the

same program as the master.

7. The other slave can be continuously cloned. When the [S]

key on the master is pressed while the master displays

“END”, the master displays “CLONE MODE”. Carry out

the operation in step 4 to 6. Can not be cloned if the over-

write password is programmed to the slave.

Note:

Only the same models can be cloned together.

8. Firmware Version Information

Turn the transceiver ON with the [ ] key held down.

Then, the version is displayed during holding the [ ] key.

9. Clock Adjustment Mode

9-1. Flow chart of operation

Cloning cable

(E30-3382-05)

Fig. 2

[C] + Power ON

MINUTE

HOUR

DAY

MONTH

YEAR

[S]

[ ] and [ ] keys

Completion

REALIGNMENT

TK-8180

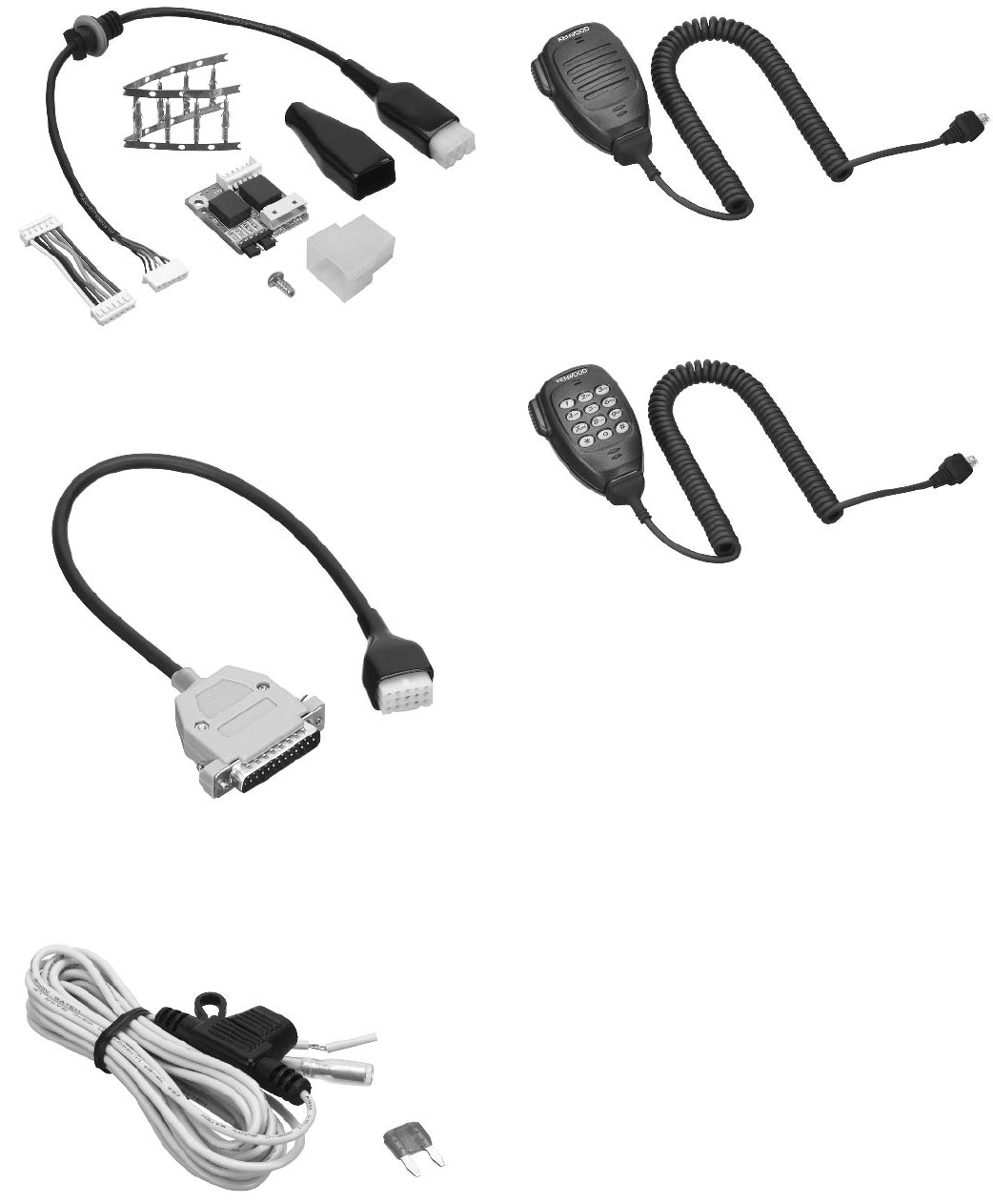

2. Radio Interface Cable (KCT-40 : Option)

The KCT-40 connection cable kit is used to connect the

TK-8180 transceiver to the KDS-100 (Mobile data terminal),

KGP-2A (Modem GPS receiver), KGP-2B (Modem GPS con-

troller) or through the KCT-36 extension cable.

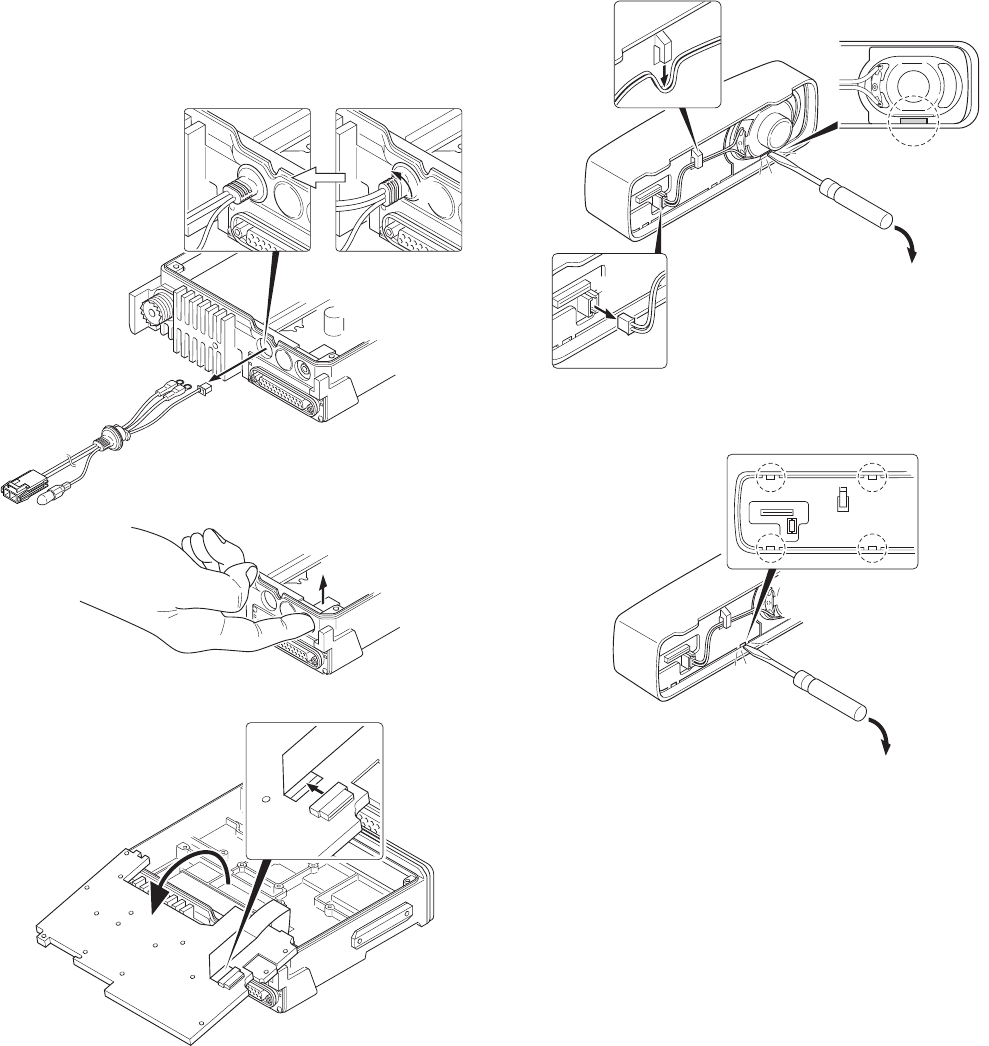

2-1. Connecting the KCT-40 cable to the transceiver

1. Remove the D-sub cap on the rear of the transceiver. ( q)

2. Connect the D-sub connector of the KCT-40 to the D-sub

25-pin terminal of the transceiver. ( w)

3. Connect the 15-pin connector of the KCT-40 to a KDS-100,

KGP-2A, KGP-2B or through a KCT-36 extension cable.

(e)

Note : You must setup using the KPG-89D.

KDS-100, KGP-2A,

KGP-2B or through

KCT-36 extension cable

2-2. Terminal function

D-sub 25-pin

TK-7180

Molex 15-pin

KDS-100 KGP-2A/2B

Pin No. Function Pin No. Function Function

1- ---

2- ---

3- ---

4- ---

5DI5DO DO

6- ---

7GND 3 GND GND

8AIO8 9 TXS/LOK TXS/LOK

9TXD2 15 RXD RXD

10 RXD2 14 TXD TXD

11 - ---

12 AIO7 11 MM MM

13 AIO6 6 PTT PTT

14 SB 1 SB SB

15 - ---

16 - ---

17 - ---

18 - ---

19 DEO 4 DI DI

20 AIO5 8 SQ SQ

21 AIO4 10 AM AM

22 AIO3 13 - DISP OFF

23 AIO2 12 - -

24 AIO1 7 DTC DTC

25 - ---

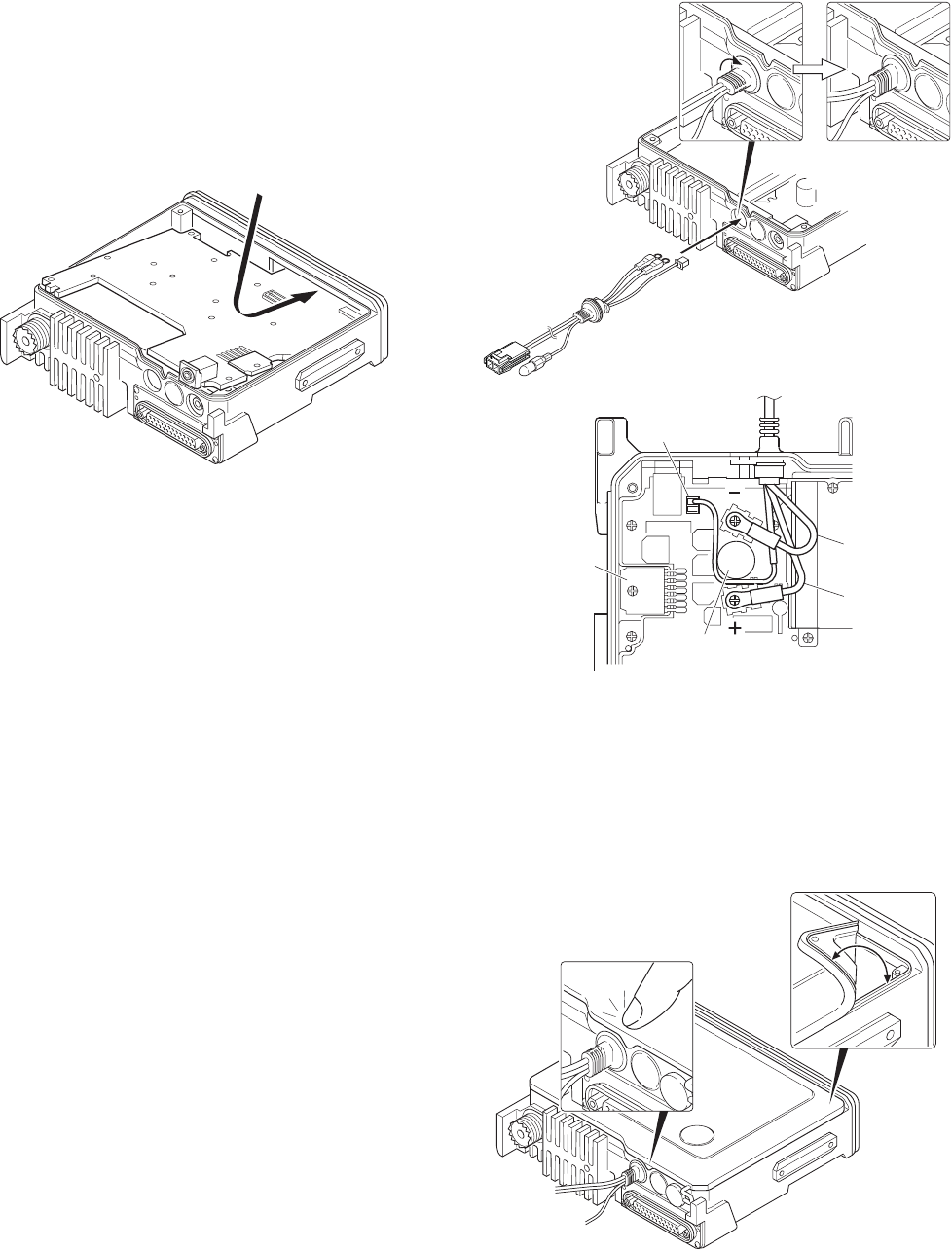

1. Ignition Sense Cable (KCT-46 : Option)

The KCT-46 is an optional cable for enabling the ignition

function. The ignition function lets you turn the power to the

transceiver on and off with the car ignition key.

1-1. Connecting the KCT-46 cable to the transceiver

1. Open the KCT-46 fuse holder and insert a mini blade fuse

(3A). ( q)

2. While holding a clear protective cover, remove the black

cap at the end of the yellow cable (ignition sense cable) of

the transceiver. ( w)

3. Connect the plug of the KCT-46 to the yellow cable termi-

nal of the transceiver. ( e)

4. Connect the other end of the KCT-46 to the ignition line of

the car. ( r)

Note : You must setup using the KPG-89D.

Iginition line

of the car

F52-0019-05

Fig. 1

Fig. 2

INSTALLATION

TK-8180

CN2 u

E37-1113-05

3. Horn Alert/P.A. Relay Unit (KAP-2 : Option)

The Horn alert (max. 2A drive), Public address and External

speaker function are enabled by installing the KAP-2 in the

TK-8180 transceiver.

3-1. Installing the KAP-2 unit in the transceiver

1. Remove the cabinet, top packing and shielding plate of the

transceiver.

2. Set the KAP-2 relay unit jumper pins according to the pur-

pose of use.

3. Remove the 6-pin jumper connector inserted in the TX-RX

unit (B/3) connector (CN428). ( q)

4. Insert one side of the lead wire with connector (E37-1114-

05) into the relay unit connector (CN3) ( w) and the other

side into the TX-RX unit (B/3) connector (CN428) ( e).

CN428

CN3

E37-1114-05

5. Place the relay unit at the position shown in Figure 3-2 and

secure it to the chassis with a screw.

6. Remove the cap on the rear of the chassis by pushing it

from the inside with your finger. ( r)

7. Pass the 6-pin connector of the cable (E37-1113-05)

through the chassis hole ( t) and insert the bush into the

chassis hole.

8. Rotate the bush of the cable 90 degrees counterclockwise

as viewed from the rear of the chassis. ( y)

9. Insert the 6-pin connector of the cable into the connector

(CN2) of the KAP-2 relay unit. ( u)

Note : You must setup using the KPG-89D.

Fig. 3-1 Fig. 3-2 Fig. 3-3

Fig. 3-4

INSTALLATION

TK-8180

■ Install the KRK-10 rear panel onto the front panel

6. Insert the flat cable attached to the interface unit (B/2) of

the KRK-10 rear panel (A82-0056-01) into the connector

(CN902) of the display unit of the panel ( o). (The flat

cable has been pre-inserted in the connector (CN2) of the

rear panel at the time of shipping.)

Note : The terminal side of the flat cable must face down

when inserting the flat cable into the connector.

7. Fit the four tabs of the rear panel into the front panel. ( !0 )

CN902

CN2 KRK-10 rear panel

■

Install the KRK-10 main panel onto the transceiver

4. Insert the flat cable that was removed in step 2 above into

the connector (CN1) of the interface unit (A/2) of the KRK-

10 main panel (A62-1101-01). ( u)

Note : The terminal side of the flat cable must face down

when inserting the flat cable into the connector.

5. Fit the main panel with four tabs onto the front of the

chassis. ( i)

Note : When installing the main panel onto the front of the

chassis, hold down the flat cable with your fingers to pre-

vent it from being caught.

CN1

KRK-10 main panel

CN902

4. Control Head Remote Kit (KRK-10 : Option)

The KRK-10 remote kit is used to remotely operate a TK-

8180 transceiver.

4-1. Installing the KRK-10 kit to the transceiver

1. Remove the front panel from the transceiver.

2. Install the KRK-10 main panel onto the transceiver.

3. Install the KRK-10 rear panel onto the front panel.

4. Connect the KRK-10 main panel to the rear panel with the

cable.

■ Remove the front panel from the transceiver

1. Lift the two tabs of the panel on the bottom of the trans-

ceiver with a flat-head screwdriver ( q) and remove the

panel from the chassis ( w).

Note : Confirm that the tabs of the speaker hardware fix-

ture and holder is securely fitted in the front panel.

2. Remove the flat cable from the connector (CN902) of the

display unit of the panel. ( e)

3. Fold the black line of the flat cable (in three parts) as

shown in Figure 4-2. ( r, t, y)

Chassis

side

Panel

side

Fig. 4-1

Fig. 4-2

Fig. 4-3

Fig. 4-4

INSTALLATION

TK-8180

Voice Guide & Storage Unit (VGS-1 : Option)

5-1. Installing the VGS-1 unit in the transceiver

1. Remove the cabinet, top packing and shielding plate of the

transceiver.

2. Attach two cushions to VGS-1 as shown in Figure 5. ( q)

Note : Be sure not to cover the connector with the bottom

cushion.

3. Insert the VGS-1 connector (CN1) into the TX-RX unit (B/3)

connector (CN403). ( w)

Note : You must setup using the KPG-89D.

CN1

CN403

Cushion

(G13-1994-04)

20 x 30 x 12 mm

Cushion

(G13-1992-04)

21 x 21 x 2.5 mm

VGS-1

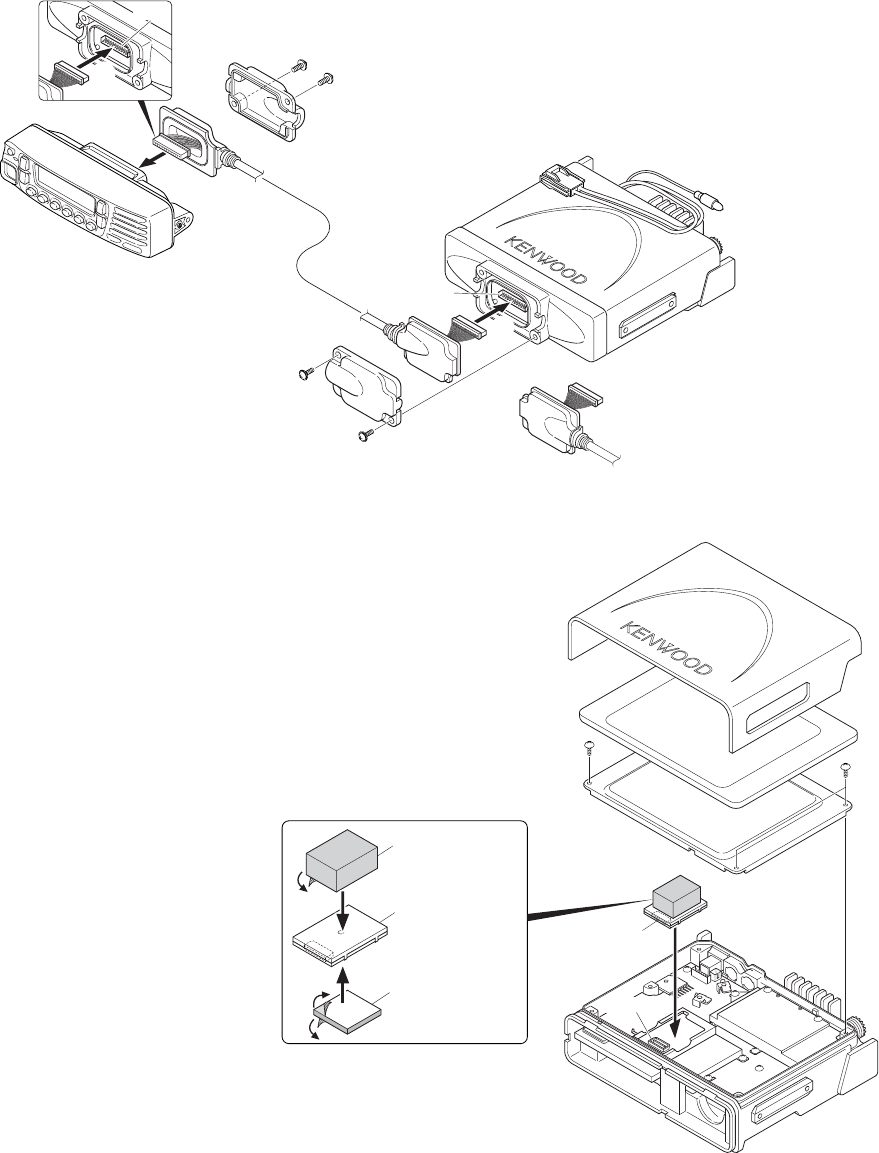

■ Connect the KRK-10 main panel to the rear panel

with the cable

8. Insert one 14-pin connector of the cable (E30-7514-05)

into the connector (CN3) of the interface unit (A/2) of the

main panel. ( !1 )

9. Secure the cable bush on the main panel and fit the water-

proof packing (orange) ( !2 ) securely over top.

CN4

CN3

!8 !8

(Right side)

10. Install the molded cover ( !3 ) over the connector on the

main panel and secure it with two screws ( !4 ).

11. Insert the other 14-pin connector of the cable into the

connector (CN4) of the interface unit (B/2) of the rear

panel. ( !5 )

12. Secure the cable bush on the rear panel and fit the water-

proof packing (orange) ( !6 ) securely over top.

13. Install the molded cover ( !7 ) over the connector on the

rear panel and secure it with two screws ( !8 ).

Note : A cable can be connected from the left side as shown

in the Figure 4-5 or from right side.

However, the 14-pin connector must be connected to correct

direction.

Fig. 4-5

Fig. 5

INSTALLATION

TK-8180

8. GPS Receiver Connection

8-1. Installing the GPS receiver

1. Remove the cabinet, top packing and shielding plate of the

transceiver.

2. Remove the front panel from the transceiver.

3. Attach two cushions to the top of the GPS receiver.

4. Attach the GPS receiver to the shield case with two cush-

ions as shown in Figure 8-2.

5. Solder each lead of the GPS receiver to a necessary loca-

tion of each landing on the component side of the TX-RX

unit (B/3).

6. Place the GPS antenna cable in the hollow at the rear of

the chassis. (Fig. 8-2 q )

Note : If the GPS receiver is installed, cut the base of the

convex tab of the top packing with a pair of nippers, or

similar tool. (Fig. 8-3 w )

If the convex tab of the top packing is cut off, the water

proofing property is no longer guaranteed.

Note : You must setup using the KPG-89D.

ANI board

Voice scrambler board

3M double coated cushion

No. 4008 (or No.4408)

25 x 110 mm

7. ANI Board Connection

1. Remove the front panel from the transceiver.

2. Solder each lead of the scrambler board to a necessary

location of each landing on the component side of the TX-

RX unit (B/3).

3. Wrap the scrambler board in a cushion and install it on the

front of the chassis as shown in Figure 7-2.

Note : You must setup using the KPG-89D.

TX-RX unit (B/3)

Solder land

GND (A–)

RXD1

TXD1

TXD2

RXD2

OPT1 (CH BUSY)

OPT3 (KEY)

OPT4 (PTT)

OPT5 (EMERGENCY)

5E (A+)

DTI (DATA OUT)

TCTL (TONE CTRL)

TXO

AUDIH (AUDIO INHIB)

OPT2 (AUX I/O)

STON (SIDE TONE)

RXEO

TXI

RXEI

OPT6

ANI board

TX-RX unit (B/3)

Solder land

GND (GND)

RXD1

TXD1 (PTT)

TXD2

RXD2

OPT1 (CODE SELECT1)

OPT3 (CODE SELECT2)

OPT4 (ECHO PTT)

OPT5 (CODE SELECT8)

DTI

TCTL

TXO (TX OUT)

AUDIH

OPT2 (SCRAMBLE)

STON

RXEO (RX OUT)

TXI (TX IN)

RXEI (RX IN)

OPT6 (CODE SELECT4)

8C (+V)

Voice scrambler

6. Voice Scrambler Board Connection

1. Remove the front panel from the transceiver.

2. Solder each lead of the scrambler board to a necessary

location of each landing on the component side of the TX-

RX unit (B/3).

3. Wrap the scrambler board in a cushion and install it on the

front of the chassis as shown in Figure 7-2.

Note : You must setup using the KPG-89D.

TX-RX unit (B/3)

Solder land

GND (GND)

RXD1 (DATA OUT1)*1

TXD1

TXD2

RXD2 (DATA OUT1)*1

OPT1

OPT3

OPT4

OPT5

5E (+5V)

DTI

TCTL

TXO

AUDIH

OPT2

STON

RXEO

TXI

RXEI

OPT6

GPS receiver

*1 : Depending on the connected optional accessory, the

DATA OUT1 may connect to either RXD1 or RXD2.

Fig. 6

Fig. 7-1

Fig. 7-2

Fig. 8-1

INSTALLATION

TK-8180

CN1

CN403

GPS receiver

VGS-1

8-2.

Installing the GPS receiver together with the VGS-1

1. Remove the cabinet, top packing and shielding plate of the

transceiver.

2. Remove the front panel from the transceiver.

3. Attach a cushion to the bottom of the VGS-1 as shown in

Figure 8-5.

Note : Be sure not to cover the connector with the cush-

ion.

TX-RX unit (B/3)

Solder land

GND (GND)

RXD1

TXD1

TXD2

RXD2 (DATA OUT1)

OPT1

OPT3

OPT4

OPT5

5E (+5V)

DTI

TCTL

TXO

AUDIH

OPT2

STON

RXEO

TXI

RXEI

OPT6

GPS receiver

3M Double coated cushion

No. 4016 (or No. 4416)

30 x 25 mm

3M Double coated cushion

No. 4016 (or No. 4416)

30 x 25 mm

GPS receiver

Fig. 8-2

Fig. 8-3

Fig. 8-4

Fig. 8-5

4. Insert the VGS-1 connector (CN1) into the TX-RX unit (B/3)

connector (CN403).

5. Perform step 3 to 6 of “8-1. Installing the GPS receiver”

described on page 11.

Note : You must setup using the KPG-89D.

INSTALLATION

TK-8180

■ Removing the speaker hardware fixture

(J21-8481-03) and holder (J19-5468-03)

1. Remove the speaker lead from the holder hook. ( q)

2. Remove the speaker connector from the display unit con-

nector (CN901). ( w)

3. When removing the speaker hardware fixture, insert a flat-

head screwdriver at the position shown in Figure 2-1 and

tilt it in the direction shown by the arrow. ( e)

4. To remove the holder, insert a flat-head screwdriver into

tab of the holder and tilt it in the direction shown by the

arrow. ( r)

CN901

1. Precautions on Disassembly

■ TX-RX PCB (TX-RX unit B/3) Disassembly

1. Remove all screws and antenna terminals on the TX-RX

PCB.

2. Rotate the bush of the power supply cable 90 degrees

counterclockwise as viewed from the rear of the chassis

(q) and remove the power supply cable from the chassis

(w).

3. When the speaker phone jack is pushed up, using your

finger, from the rear of the chassis ( e), the TX-RX PCB is

removed from the chassis.

Note : The TX-RX PCB and D-sub PCB (TX-RX unit A/3) are

connected with a flat cable. Remove them carefully.

4. Turn the TX-RX PCB over and remove the flat cable from

the connector (CN427). ( r)

5. Remove the TX-RX PCB from the chassis.

CN427

Fig. 1-1

Fig. 1-3

Fig. 1-2

Fig. 2-1

Fig. 2-2

DISASSEMBLY FOR REPAIR

TK-8180

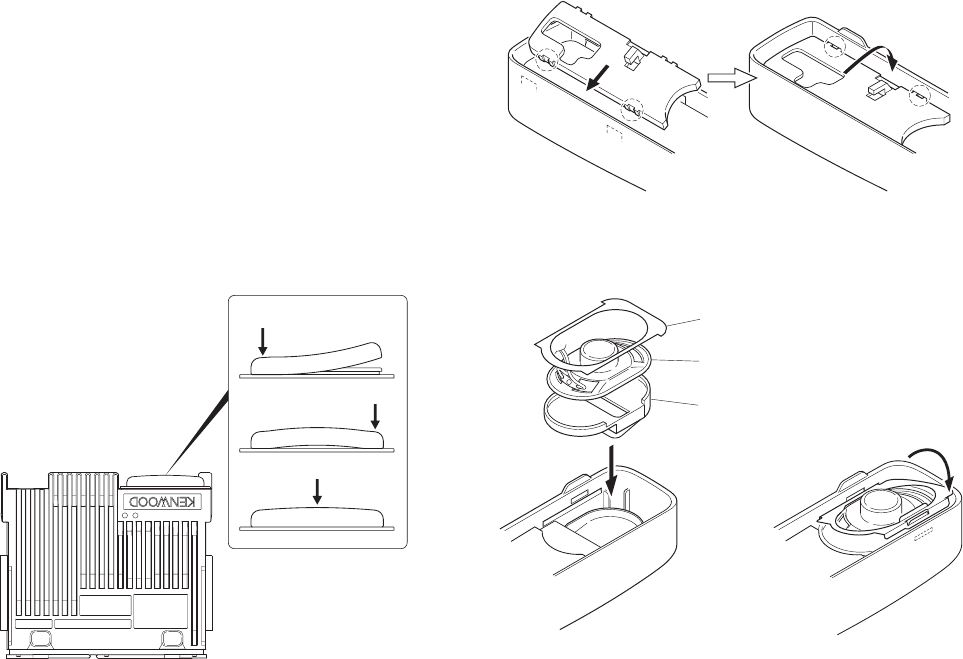

■ Top packing installation procedure

1. Place the top packing over the shielding plate.

2. Fit the convex tab of the top packing into the hollow of the

chassis. ( q)

3. Fit the chassis into the groove of the top packing. ( w)

Verify that the top packing is in close contact with the

chassis.

■ Securing the Audio IC (IC417) with screws

The screws for the audio IC are 8mm screws. These are

longer than the other screws, so take care not to confuse

them.

■ FINAL shield case (F10-2489-03) installation

procedure

1. Place the shield case on the final section of the TX-RX unit

(B/3).

2. The shield case is installed on the positioning boss of the

chassis by pushing down on “PUSH2” (on the shield case)

while pushing “PUSH1” (stamped on two parts on the

shield case) to the right.

■ Power supply cable installation procedure

1. Pass the power supply cable through the chassis hole

(q) as shown in Figure 4-1 and insert the bush into the

chassis hole.

2. Rotate the bush of the power supply cable 90 degrees

clockwise as viewed from the rear of the chassis. ( w)

3. Align the ignition sense connector (yellow) of the power

supply cable around the chemical capacitor (C801) and

connect it to the TX-RX unit (B/3) connector (CN804).

4. Align the + (positive) terminal of the power supply cable

(red) as shown in Figure 4-2 and fix it to the terminal strip

with a screw.

5. Align the – (negative) terminal of the power supply cable

(black) as shown in Figure 4-2 and fix it to the terminal strip

with a screw.

IC417

CN804

Black

Red

C801

2. Precautions on Reassembly

■ TX-RX PCB (TX-RX unit B/3) Reassembly

1. With the TX-RX PCB turned over, insert the flat cable from

the D-sub PCB (TX-RX unit A/3) into the connector

(CN427) on the TX-RX PCB.

2. Place the TX-RX PCB at its original position, tilt the TX-RX

PCB and install the chassis as shown in Figure 3.

Fig. 3

Fig. 4-1

Fig. 4-2

Fig. 5

DISASSEMBLY FOR REPAIR

TK-8180

■ Installing the holder (J19-5468-03) and speaker

hardware fixture (J21-8481-03)

1. Insert two tabs of the holder (J19-5468-03) into the hol-

lows in the top of the panel. ( q)

2. Push the two tabs of the holder in on the opposite side of

those in step 1 above and fit them into the hollow in the

bottom of the panel. ( w)

Note : Push in the holder until it snaps in place.

3. Install the speaker holder onto the panel. ( e)

Note : To improve water resistance, fit the panel into the

groove of the holder.

4. Place the speaker into the speaker holder.

Note : The speaker must not ride on the holder rib.

5. Place the spacer on the speaker.

6. Insert the hardware fixture (J21-8481-03) into the hollow

of the panel as shown in Figure 7-3, then push two parts

of the hardware fixture and fit it into the hollow of the top

of the panel. (Fig. 7-3 r)

Note : Push in the hardware fixture until it snaps in place.

7. Insert the speaker connector into the display unit connec-

tor (CN901).

8. Place the speaker lead on the holder hook.

■ D-sub cap installation procedure

To improve water resistance, fit the D-sub cap into the D-

sub terminal hardware fixture of the transceiver in the follow-

ing order:

1. Fit the left side ( q) of the D-sub cap into the hardware

fixture.

2. Fit the right side ( w) of the D-sub cap into the hardware

fixture.

3. Fit the center ( e) of the D-sub cap into the hardware fix-

ture.

Verify that the D-sub cap is in close contact with the hard-

ware fixture.

Fig. 6

Fig. 7-1

DISASSEMBLY FOR REPAIR

Spacer

Speaker

Speaker holder

Fig. 7-2 Fig. 7-3

TK-8180

1. Outline

The TK-8180 is a UHF/FM transceiver designed to operate

in the frequency range of 450 to 520MHz. Transmission out-

put power is 30 watts (490~520MHz : 25W). The maximum

channel capacity is 512.

The unit consists of receiver, transmitter, phase-locked

loop (PLL) frequency synthesizer, and control circuits.

2. Receiver Circuit

The receiver is double conversion superheterodyne, de-

signed to operate in the frequency range of 450MHz to

520MHz.

The receiver circuit consists of the following : 2-1 front-

end circuit, 2-2 first mixer, 2-3 IF amplifier circuit, 2-4 audio

amplifier circuit, and 2-5 squelch circuit.

2-1. Front-end Circuit

The front-end circuit consists of former HPF (D107, D108,

D109 and D110), RF amplifier Q103, and latter BPF (D103,

D104, D105 and D106). The BPF covers frequency ranges

450 to 520MHz.

The latter BPF (D103, D104, D105 and D106) attenuates

the unwanted signals, and sends only the necessary signal to

the first mixer.

2-2. First Mixer

The signal from the BPF is heterodyned with the first local

oscillator signal from the PLL frequency synthesizer circuit at

the first mixer DBM (IC171) to become a 44.85MHz first in-

termediate frequency (IF) signal. The first IF signal is fed

through a monolithic crystal filter (XF171) to further remove

spurious signals.

2-3. IF Amplifier

The first IF signal is amplified by Q171 and Q172, and then

enters IC172 (FM system IC). The signal is heterodyned

again with a second local oscillator signal (44.395MHz) with

in IC172 to become a 455kHz second IF signal. The second

IF signal is fed through a 455kHz ceramic filters (CF172;

Wide, CF171; Narrow) to further eliminate unwanted signal,

and the quadrature detection circuit FM-detects the signal to

produce a base-band signal and output it from pin 9.

2-4. Audio Amplifier

The demodulated audio signal from IC172 goes to IC415

through the AF amplifier (IC412) and IC413. The audio signal

goes to an electronic volume (IC410) and is amplified to drive

a loudspeaker by an audio power amplifier (IC417). The audio

output can be provided to external 4Ω speaker through the

speaker jack output (J401) on the rear panel. Q419 is a mute

switch.

IF AMP

Q172

IF AMP

Q171

CFSW

CF171

(Narrow)

CF172

(Wide)

D171

D172

455kHz

DET

NOISE DET

D173

W/N

Q178

CFSW

44.85MHz

1st MIX DBM

IC171

BPF

D103~D106

RF AMP

Q103 HPF

D107~D110

NOISE

AMP

Q175

QUD

FM SYSTEM IC : IC172

RSSI

DET

SQL

X171

44.395MHz

Q306

Buff AMP

Q311

Buff AMP

Q313

LPF

–44.85MHz

RX VCO

AMP

IC412 (B/2)

AQUA

-L

IC415

CPU

IC404

IC407

DEO

MUTE

Q419

AMP

IC417

AFO

DAC

IC410

IC413

DAC

IC410

ASQ

RSSI

INT. SP

450~520MHz

RX ANT

TX-RX UNIT (X57-699)

MCF MCF

XF171

(2/2)

XF171

(1/2)

405.15~475.15MHz

CIRCUIT DESCRIPTION

Fig. 1 Receiver circuit

TK-8180

2-5. Squelch Circuit

The output signal from IC172 enters FM IC again, then

passed through a band-pass filter.

The noise component output from IC172 is amplified by

Q175 and rectified by D173 to produce a DC Voltage corre-

sponding to the noise level. The DC voltage is sent to the

analog port of the CPU (IC404).

IC172 outputs a DC voltage (RSSI) corresponding to the

input of the IF amplifier.

3. Transmitter Circuit

The transmitter circuit consists of the following circuits : 3-

1 microphone circuit, 3-2 modulation level adjustment circuit,

3-3 driver and final power amplifier circuit, and 3-4 automatic

power control circuit.

3-1. Microphone Circuit

The audio signal from the microphone goes into TX-RX

unit (X57-699) from the display unit (X54-348) and passes

through the mute switch (Q416). The audio signal is ampli-

fied by the microphone amplifier (IC414) and is input into the

TXIN terminal of the audio processor (IC415) after passing

through the multiplexer (IC413).

The input audio signal is output from the MOD terminal of

the audio processor (IC415) and is amplified by the audio fre-

quency amplifier (IC412) after passing through the electric

volume (IC410).

3-2. Modulation Level Adjustment Circuit

The audio signal amplified by the audio frequency ampli-

fier (IC412) is added to the low speed data LSD passed

through the low pass filter (IC409). The combined signals is

supplied to the VCO (voltage controlled oscillator) and the

VCXO (voltage controlled crystal oscillator) X301, respec-

tively.

3-3. Driver and Final Power Amplifier Circuit

The transmit signal obtained from the TX VCO buffer am-

plifier Q311, is amplified to approximately +17dBm by the

driver amplifiers Q313, Q1 and Q2. This amplified signal is

passed to the power amplifier module (power module) IC1,

which consists of a MOS-FET amplifier and is capable of

transmission output power.

3-4. Automatic Power Control Circuit

The automatic transmission power control (APC) circuit

stabilizes the transmitter output power at a predetermined

level by detecting the power module output with a diodes

D6, D7 and D8. Diodes D6, D7 and D8 apply a voltage to DC

amplifier IC72 (A/2). IC72 (B/2) compares the APC control

voltage (PC) generated by microprocessor IC404 and DC am-

plifier IC71 (A/2, B/2) with the detection output voltage

from IC72 (A/2) to control the Vgg pin of IC1, and stabilizes

transmission output.

The APC circuit is configured to protect over-current of the

power module due to fluctuations of the load at the antenna

end and to stabilize transmission output at voltage and tem-

perature variations.

AMP

IC414Q416

Q417

AMP

IC408

LPF

IC409

IC410 IC412IC415

D-SUB

MI2

AQUA-L

MOD

D-SUB

DAC

(for VCXO)

MOD

(for VCO)

MIC

J901

Mojular

jack

DISPLAY UNIT

(X54-348) TX-RX UNIT (X57-699)

IC413

Multi-

plexer TXIN

LSDO

TX VCO

VCXO

16.8MHz

Q307

Q313

Drive

AMP

Q311

Buff

AMP

Drive

AMP

Drive

AMP

IC1

Final

AMP

X301

MOD

MB DC

AMP

D2,D3,

D11

DET DET

D6 D7

DET

ANT

Gate

bias

IC71 IC72

CIRCUIT DESCRIPTION

Fig. 2 Microphone and modultion level adjustment circuit

Fig. 3 Drive and Final power amplifier and automatic power control circuit

TK-8180

4. Frequency Synthesizer Unit

4-1. Frequency Synthesizer

The frequency synthesizer consists of the TCXO (X301),

VCO, PLL IC (IC301) and buffer amplifiers.

The TCXO generates 16.8MHz. The frequency stability is

2.5ppm within the temperature range of –30 to +60°C. The

frequency tuning and modulation of the TCXO are done to

apply a voltage to pin 1 of the TCXO. The output of the TCXO

is applied to pin 8 of the PLL IC.

The VCO consists of 2VCO and covers a dual range of the

405.15~475.15MHz and the 450~520MHz. The VCO gener-

ates 405.15~475.15MHz for providing to the first local signal

in receive. The operating frequency is generated by Q307 in

transmit mode and Q306 in receive mode. The oscillator fre-

quency is controlled by applying the VCO control voltage, ob-

tained from the phase comparator (IC301) to the variable ca-

pacitor diodes (D308 and D311 in transmit mode and D309

and D313 in receive mode).

The T/R pin of IC404 goes “high” in receive mode causing

Q307 and Q309 to turn off, and Q306, Q308 and Q310 turn

on. The T/R pin goes “low” in transmit mode.

The outputs from Q306 and Q307 are amplified by buffer

amplifier (Q311) and doubled by Q301 and then sent to PLL

IC.

The PLL IC consists of a prescaler, reference divider,

phase comparator, charge pump (The frequency step of the

PLL circuit is 20 or 25kHz). The input signal from the pins 8

and 5 of the PLL IC is divided down to the 20 or 25kHz and

compared at phase comparator. The phase comparator out-

put signal is fed into a low-pass filter (Q302 and Q303) before

being applied to the VCO as a frequency control voltage. This

low-pass filter’s power is supplied by the DC/DC converter

(IC251 and Q251). The DC signal is applied to the CV of the

VCO and locked to keep the VCO frequency constant.

PLL data is output from DT (pin 112), PCK (pin 82) and PLE

(pin 81) of the microprocessor (IC404). The data are input to

the PLL IC when the channel is changed or when transmis-

sion is changed to reception and vice versa. A PLL lock con-

dition is always monitored by the pin 80 (UL) of the micropro-

cessor. When the PLL is unlocked, the UL goes low.

5. Control Circuit

The block diagram of the control circuit is shown in Figure

The CPU (IC404) is a 16-bit microcomputer that contains a

256k-byte Mask ROM and a 20k-byte RAM. This CPU is con-

nected with an external 512k-byte Flash ROM (IC405) and

operates in memory expansion mode.

The Firmware Program is stored in the Flash ROM and the

user data and adjustment data are stored in the EEPROM

(IC401). The CPU and Flash ROM are connected with an 8 bit

bus and the EEPROM and RTC IC (IC402) are connected with

a I2C bus (*1). The RTC IC (IC402) has a clock function and is

controlled by the CPU (IC404).

Serial communication with a PC is performed through two

paths: through the 232C Level converter IC (IC416) and

through the Display Unit Panel CPU (IC902). The 8 bit Shift

IC410 is an 8 bit-8ch D/A converter. The channels are set as

follows:

Ch1 : Modulation balance

Ch2 : Deviation Factor

Ch3 : Max Power Level

Ch4 : Reception tuning circuit

Ch5 : Deviation Factor

Ch6 : Speaker volume

Ch7 : VCXO control voltage

Ch8 : DEO output level

*1: I2C bus is a registered trademark of PHILIPS of the Neth-

erlands.

LPF

BPF

BUFFVCO

PLL

CPU

Doubler

Q313

BUFF

Q311

TCXO

X301

D316

SW D315

drive

amp

Q301

To mixer

BAL

IC408

T/R

(TX : Low)

IC301

IC404

DT,PCK,PLE

Q302

Q303

CIRCUIT DESCRIPTION

Fig. 4 PLL block diagram

IC405

Flash

ROM

IC403

8bit Shift

IC410

D/A

converter

IC416

232C

Level

converter

IC902

CPU

IC903

LCD

driver

IC401

EEPROM

IC402

RTC IC

Display unit

IC415

AQUA-L

IC413

Multi-

plexer

Signal block

IC301

PLL IC

RF block

Mask

ROM

IC404

CPU

Fig. 5 Control circuit block diagram

TK-8180

6. Power Supply Circuit

The block diagram of the power supply circuit is shown in

Figure 6.

Power is always supplied from +B to the circuit (5M, +B)

that is always started and the circuits (SB, 8C, 5E, 8T, 8R, 5C,

5R) controlled by the CPU (IC404). When +B is supplied to

the transceiver, Q801, D805 and IC805, regulate the voltage

(5M) which is supplied to the circuit around the CPU. The

CPU starts.

When the CPU detects that the +B voltage is higher than

the voltage prescribed by IC802, the transceiver power (SB)

is turned ON by controlling the SBC signal (Low: transceiver

power OFF, High: transceiver power ON).

The CPU controls the TXC signal (Low: Transmission sys-

tem power OFF, High: Transmission system power ON) dur-

ing transmission to supply power (8T) to the transmission cir-

cuit. The CPU controls the RXC signal (Low: Reception sys-

tem power OFF, High: Reception system power ON) during

reception to supply power (8R, 5R) to the reception circuit.

When the CPU detects the PSW (Power Switch) signal,

IGN (Ignition Sense) signal or INT signal, it controls the SBC

signal and turns the transceiver power (SB) OFF.

If +B is not provided to the transceiver, power is supplied

to only the RTC IC (IC402) through the secondary battery con-

nected with CN401 to back up the clock.

7. Display Circuit

The display unit consists of the Panel CPU (IC902), the

LCD driver (IC903), the TX/BUSY LED, the KEY detection, the

Backlight and the Microphone jack circuits.

The Panel CPU is a 16-bit microcomputer that contains a

64k-byte Mask ROM and a 2k-byte RAM.

The Panel CPU performs serial communication with the

Main CPU (IC404) on the TX-RX unit (B/3) and the Panel CPU

detects keys and sends data communication contents

through the MIC Jack to the Main CPU. The Panel CPU re-

ceives commands from the Main CPU and controls the dis-

play system.

The LCD operates with 1/9 duty under the LCD driver

(IC903) control. The LCD and KEY Backlights are controlled

by Q909. The display brightness of the LCD Backlight can be

changed.

D804

DET

Q802

Q807

IC803

AVR

IC807

AVR

Q803

Q806

Q804

Q808

IC804

AVR

Q805

Q809

Q810

Q812

IC805

AVR

IC802

DET

IC801

DET

Q801,D805

REG

SBC

CN401

CPU

Flash memory

EEPROM

Ext-I/O

CPU #17

: RST1

RTC IC

CPU #24

: INT

Power supply : 10.8~15.7V +B

TXC

RXC

Final amp.

Audio amp, PA connector

Panel block, D-sub block

Internal option

Panel block

Internal option

TX-drive

APC block

ANT SW

IF block

VCXO, VCO, PLL IC

IF detection IC

DC/DC converter

D/A converter

MIC amp, AQUA

AF block

IF block

F801

IC901

AVR

TX/Busy

LED

RED

GRN

POWER

PSW

Q910

Q909

RST2

SHIFT

PSENS

SPO

GND

RXD, TXD

MIC, ME

HK, PTT, DM, BLC2

IC903

LCD

driver

Function

KEY

FKEY [1~10]

BLCI LCD

back

light

KEY

back

light

DIMM

LCD

MIC

jack

IC902

CPU

Mask

ROM

Fig. 6 Power supply circuit

Fig. 7 Display circuit

CIRCUIT DESCRIPTION

TK-8180

Pin No. Port Name I/O Function

1VREF-+5V

2AVCC - +5V

3 SBC O Switched B control

4RXC O RX control

5TXC O TX control

6PCOTX APC adjust

7HSDO O High speed data output

8STSW O Side tone switch

9RTCL/EEPCL O RTC/EEPROM clock

10 HSDIN I High speed data input

11 NC - Non-connection

12 RTDT/EEPDAT I/O RTC/EEPROM data

13 BYTE - +5V

14 CNVSS - DGND (Vss)

15 DMUTE O Det mute

16 AM2 O Audio mute 2

17 RST I Reset

18 Xout O 11.0592MHz clock output

19 DGND - DGND (Vss)

20 Xin I 11.0592MHz clock input

21 VCC1 - +5V

22 NMI - +5V

23 PSW I Power switch input

24 INT I BATT voltage INT

25 INTRA I RTC INT

26 SHIFT/MODEL I/O Beat shift/Model select

27 BEEP O Beep output

28 SPSTB O Shift register strobe

29 SOE O Shift register output enable

30 AIO5 I/O AUX I/O 5

31 AIO9 I/O AUX I/O 9

32 DSTB O D/A converter LD

33 LSDO O Low speed data output

34 RXD2 I RXD2

35 TXD2 O TXD2

36 TXD1 O TXD1/PTT (Scrambler board)

37 Vcc1 - +5V

38 RXD1 I RXD1

39 DGND - DGND (Vss)

40 MM1 O MIC mute 1

41 PSENS I Panel sense

42 TXD O TXD

43 RXD I RXD

44 AFDAT O BB TDATA and DTRCLK

45 AFDIO I/O BB DI/O

46 AFDIR O BB DIR

47 DTRLOAD O BB DTMF enable

48 AFSTD I BB STD

Pin No. Port Name I/O Function

49 LSW O BB LIM switch

50 RDY - +5V

51 NC - Non-connection

52 HOLD - +5V

53 NC - Non-connection

54~57 AIO4~AIO1 I/O AUX I/O 4~1

58 NC - Non-connection

59 RD O Read (RD)

60 NC - Non-connection

61 WR O Write (WR)

62~64 AIO8~AIO6 I/O AUX I/O 8~6

65,66 NC - Non-connection

67 RST2 O Display µ-com reset

68 CS0 O Chip select 0

69 NC - Non-connection

70~79 A18~A9 O Address bus 18~9

80 UL I PLL unlock

81 PLE O PLL enable

82 PCK O PLL clock

83 NC - Non-connection

84 OPT6 I/O Option boad I/F 6

85 VCC2 - +5V

86 A8 O Address bus 8

87 DGND - DGND (Vss)

88~95 A7~A0 O Address bus 7~0

96 IGN I Ignition sense

97 AFRTM I BB RDF/FD

98 TCLK/DTRDO I BB TCLK and DTRDO

99 MM2 O MIC mute2

100 T/R O TX/RX switch

101 AM1 O Audio mute 1

102 EMTON O EM tone switch

103 NC - Non-connection

104~111 D7~D0 I/O Data bus7~0

112 DT O Serial data

113 CK O Serial clock

114 W/N O Wide/Narrow switch

115~117 OPT 1~OPT 3 I/O Option boad I/F 1~3

118,119 OPT 4, OPT 5 O Option boad I/F 4, 5

120 H/L O High/Low power switch

121 THP I TX thermal input

122,123 NC - Non-connection

124 ASQ I RX analog SQ. input

125 RSSI I RX RSSI input

126 NC - Non-connection

127 AGND - AGND (Vss)

128 LSDIN I Low speed data input

SEMICONDUCTOR DATA

Microprocesser : 30625MGP-169GP (TX-RX unit IC404)

TK-8180

Pin No. Port Name I/O Function

1~4 NC - Non-connection

5SHIFT O Beat shift

6BYTE-+5V

7CNVSS - GND

8,9 NC - Non-connection

10 RST I Reset

11 Xout O 14.7456MHz clock output

12 GND - GND

13 Xin I 14.7456MHz clock input

14 VCC - +5V

15 NMI - +5V

16 BLC2 O MIC backlight control

17 BLC1 O Key & LCD backlight control

18 DIMM O Dimmer control

19 LEDG O LED green

20 LEDR O LED red

21 NC - Non-connection

22 LCDCK O LCD serial clock

23 LCDDT O LCD serial data

24 LCDCS O LCD chip select

25 LCDRST O LCD reset

26 NC - Non-connection

27 RXD2 I RXD2 (Main µ-com)

28 TXD2 O TXD2 (Main µ-com)

29 PTT/TXD I/O PTT/TXD (COM0)

30 NC - Non-connection

31 DM O MIC DM

32,33 NC - Non-connection

34 HK/RXD I HOOK/RXD (COM0)

35~44 NC - Non-connection

45 TP1 I LCD check

46~59 NC - Non-connection

60 VCC - +5V

61 NC - Non-connection

62 VSS - GND

63~70 NC - Non-connection

71~82 S22~S11 I Non-connection

Pin No. Port Name I/O Function

83 S10 I Front panel key (R down [ ])

84 S9 I Front panel key (R up [ ])

85 S8 I Front panel key (■)

86 S7 I Front panel key (C)

87 S6 I Front panel key (B)

88 S5 I Front panel key (A)

89 S4 I Front panel key (S)

90 S3 I Front panel key ( )

91 S2 I Front panel key (L down [ ])

92 S1 I Front panel key (L up [ ])

93 NC - Non-connection

94 AVSS - GND

95 NC - Non-connection

96 VREF - +5V

97 AVCC - +5V

98~100 NC - Non-connection

Shift Register : BU4094BCFV (TX-RX unit IC403)

Pin No. Port Name I/O Function

1STRB I Storage enable input

2DATA I Serial data input

3CLK I Serial clock input

4Q1OAUX output 1

5Q2OPublic address

6Q3OHorn alert

7Q4OScrambler switch

8Vss -

9Qs O

10 Q’s O

11 Q8 O Ceramic filter switch

12 Q7 O Non-connection

13 Q6 O AUX output 2

14 Q5 O Gate switch

15 OE I Output enable

16 VDD -

SEMICONDUCTOR DATA

Microprocesser : 30302M8-8Z7GP (Display unit IC902)

TK-8180

Display unit (X54-3480-10)

Ref. No. Part Name Description

IC901 IC Voltage regulator/ 5V

IC902 IC Microprocessor

IC903 IC LCD driver

Q901,902 Transistor HOOK switch

Q904 Transistor TX indication LED switch

Q905 Transistor BUSY indication LED switch

Q906 Transistor Dimmer switch control

Q907 Transistor Dimmer switch

Q909 Transistor Backlight control switch

Q910 Transistor 8C switch

Q911 Transistor 8C switch control

Q913 Transistor Backlight control

D901,902 Zener diode Voltage protection

D903 Varistor Current limitter

D904~906

Diode Surge protection

D907 LED TX/Busy indication

D909~920

LED LCD backlight

D921~930

LED KEY backlight

TX-RX unit (X57-6990-10)

Ref. No. Part Name Description

IC1 IC Power module

IC71,72 IC DC amp for TX APC

IC171 IC RX 1st mixer

IC172 IC FM IF system IC

IC251 IC DC-DC converter

IC301 IC PLL system IC

IC302 IC PLL CP switch

IC401 IC EEPROM

IC402 IC RTC processor

IC403 IC Shift register

IC404 IC Microprocessor

IC405 IC Flash memory

IC406 IC HSD BPF/HSD compalator

IC407 IC DET amp/Data LPF (DB-25)

IC408 IC LSD buffer amp/VCXO bias amp

IC409 IC LSD LPF/Voltage DC-reference

IC410 IC D/A converter

Ref. No. Part Name Description

IC411 IC RF BPF tuning voltage DC amp

IC412 IC Modulation LPF/DET amp

IC413 IC AF switch IC

IC414 IC MIC amp

IC415 IC AQUA-L

IC416 IC Level converter IC (RS-232C)

IC417 IC Audio IC

IC801 IC Voltage detector (CPU Reset)

IC802 IC Voltage detector (INT)

IC803 IC Voltage regulator/ 8V

IC804,805

IC Voltage regulator/ 5V

IC807 IC Voltage regulator/ 5V

Q1 Transistor TX pre-driver

Q2 Transistor TX driver

Q3 Transistor TX gate switch

Q70 Transistor High/Low power switch

Q72 FET High/Low power switch

Q103 Transistor Front-end LNA

Q171,172 Transistor IF amp

Q173,174 Transistor W/N CF switch control

Q175 Transistor Noise Amp

Q176 FET DET mute switch

Q177 Transistor W/N CF switch control

Q178 Transistor W/N discrete switch

Q179 Transistor W/N CF switch control

Q251 Transistor Ripple filter

Q301 Transistor PLL f-in doubler amp

Q302,303 Transistor PLL LPF

Q306,307 FET TX/RX VCO

Q308~310

Transistor TX/RX VCO switch

Q311 Transistor VCO buffer amp

Q312 Transistor Ripple filter

Q313 Transistor VCO buffer amp

Q402 Transistor Beat shift switch

Q403 FET AF switch (Voice)

Q405 Transistor AQUA control switch

Q406 FET AF switch (LSD)

Q409 Transistor AF mute switch

Q410,411 Transistor MIC AGC

Q412 FET AF mute switch

COMPONENTS DESCRIPTION

TK-8180

Ref. No. Part Name Description

Q413,414 FET AF Switch

Q415 FET AF Switch (Voice)

Q416,417 FET MIC mute switch

Q418 Transistor AF mute control switch

Q419 Transistor AF mute switch

Q600 Transistor MIC mute switch

Q701,702 Transistor Inverter switch

Q801 Transistor Voltage regulator/ 8.5V

Q802 Transistor SB control switch

Q803 Transistor 8T switch

Q804 Transistor 8R switch

Q805 Transistor 5R switch

Q806 Transistor 8T control switch

Q807 Transistor SB control switch

Q808 Transistor 8R control switch

Q809 Transistor 5R control switch

Q810 FET SB switch

Q811 Transistor Ignition sense control switch

Q812 Transistor CPU reset switch

D1 Zener diode Voltage protection

D2,3 Diode ANT switch

D6~8 Diode RF detector

D103~110

Variable RF BPF tuning

capacitance diode

D111 Diode ANT switch

D171,172 Diode W/N CF switch

D173 Diode SQ noise-amp detector

D174 Diode DET mute switch control

COMPONENTS DESCRIPTION

Ref. No. Part Name Description

D251 Diode Reverse voltage protection

D308,309 Variable

Frequency control for TX/RX VCO

capacitance diode

D311 Variable Frequency control for TX/RX VCO

capacitance diode

D313 Variable Frequency control for TX/RX VCO

capacitance diode

D314 Variable Modulation control for TX VCO

capacitance diode

D315,316 Diode TX/RX band switch

D402~404

Diode RTC battery control

D405,406 Zener diode Voltage protection

D407 Diode DC detector

D408,409 Diode MIC-amp AGC detector

D412~414

Diode Surge protect

D416 Diode AF mute control

D417,418 Diode Isolator

D421~423

Diode Voltage protection

D600,601 Diode MIC mute control

D701 Zener diode Voltage protection

D702,703 Diode Voltage protection

D704~708

Diode Surge protect

D709,710 Zener diode Voltage protection

D711~713

Diode Surge protect

D714 Zener diode Voltage protection

D801 Surge absorber Voltage protection

D802 Diode DC reverse connection protect

D804,805 Zener diode Voltage protection

TK-8180

PARTS LIST

✽ New Parts. indicates safety critical components.

Parts without Parts No. are not supplied.

Les articles non mentionnes dans le Parts No. ne sont pas fournis.

Teile ohne Parts No. werden nicht geliefert.

L: Scandinavia K:USA P:Canada

Y: PX (Far East, Hawaii) T:England E:Europe

Y:AAFES (Europe) X:Australia M:Other Areas

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

11B✽A01-2194-11 CABINET

23A✽A62-1094-23 PANEL ASSY

42A✽B09-0681-03 CAP (KAP-2)

51D✽B62-1766-10 INSTRUCTION MANUAL

72BE04-0167-05 RF COAXIAL PECEPTACLE (M)

82B✽E30-7520-05 DC CORD (PIG TAIL)

92C✽E30-7523-05 DC CORD ASSY (WATER-PROOF)

10 2A ✽E37-1110-05 FLAT CABLE (30P/D-SUB)

11 1A ✽E37-1118-05

LEAD WIRE WITH CONNECTOR (SHORT CABLE)

12 2A ✽E37-1120-05 FLAT CABLE (30P/TX-RX)

13 3B ✽E37-1124-05

LEAD WIRE WITH CONNECTOR (2P/SP)

15 2B ✽F10-2488-02 SHIELDING PLATE (CHASSIS)

16 1A ✽F10-2489-03 SHIELDING CASE (FINAL)

17 1A ✽F10-2490-03 SHIELDING CASE (VCO)

18 1C F52-0024-05 FUSE (BLADE) 15A/32V

20 3B ✽G10-1342-04 FIBROUS SHEET (BIRITSUKI)

21 2A ✽G11-4290-04 RUBBER SHEET (CHASSIS)

22 1B ✽G11-4343-04 SHEET

23 1A G13-2018-04 CUSHION

24 2B ✽G13-2047-04 CUSHION (DC SCREW)

25 1B ✽G53-1613-01 PACKING (SHIELD PLATE)

26 3A ✽G53-1614-23 PACKING (CHASSIS)

27 1A ✽G53-1616-03 PACKING (PHONE JACK)

28 2B ✽G53-1626-03 PACKING (D-SUB OUTER)

29 3B ✽G53-1643-04 PACKING (DC CORD)

30 3B ✽G53-1645-03 PACKING (D-SUB INNER)

31 2A ✽G53-1662-04 PACKING (O RING)

32 2C ✽H02-0624-03 INNER PACKING CASE

33 2D ✽H12-3170-01 PACKING FIXTURE (LOWER)

34 1D ✽H12-3171-03 PACKING FIXTURE (UPPER)

36 2D H25-2352-04 PROTECTION BAG (250/350/0.07)

37 3D ✽H52-2069-02 ITEM CARTON CASE

39 1C J19-1584-05 HOLDER (ACCESSORY)

40 3B ✽J19-5464-13 HOLDER (SP)

41 3B ✽J19-5468-02 HOLDER (PANEL)

42 2B ✽J21-8479-02 HARDWARE FIXTURE (D-SUB)

43 3B ✽J21-8481-03 HARDWARE FIXTURE (SP)

44 2C J29-0662-03 BRACKET (ACCESSORY)

45 3B ✽J30-1289-04 SPACER (SP)

47 3A ✽K29-9312-21 KEY TOP

A2BN09-2409-05 HEXAGON HEAD SCREW (D-SUB)

B 1A,2A ✽N67-3008-48

PAN HEAD SEMS SCREW W (FINAL IC)

1A,2A,2B

✽N87-2606-48

BRAZIER HEAD TAPTITE SCREW (ANT,PCB)

D1AN87-2608-46

BRAZIER HEAD TAPTITE SCREW (AUDIO IC)

49 2C ✽N99-2039-05 SCREW SET (ACCESSORY)

51 3B ✽T07-0750-05 SPEAKER

52 1C ✽T91-0639-05 MICROPHONE (ACCESSORY)

54 2A W09-0971-05 LITHIUM CELL

101 3B ✽B11-1825-04 FILTER (LCD)

102 3B ✽B38-0888-05 LCD

D907 B30-2151-05 LED (R/G)

D909-920 ✽B30-2281-05 LED (Y)

D921-930 ✽B30-2282-05 LED (Y)

C904 CC73GCH1H101J CHIP C 100PF J

C906 CK73GB1H103K CHIP C 0.010UF K

C907,908 CK73HB1H102K CHIP C 1000PF K

C909-911 CC73GCH1H101J CHIP C 100PF J

C912,913 CK73GB1H102K CHIP C 1000PF K

C914 CC73GCH1H101J CHIP C 100PF J

C915 CK73GB1H102K CHIP C 1000PF K

C916,917 CK73GB1C104K CHIP C 0.10UF K

C918 C92-0628-05 CHIP-TAN 10UF 10WV

C920 CC73GCH1H101J CHIP C 100PF J

C921 CK73GB1H102K CHIP C 1000PF K

C922 CK73GB1H103K CHIP C 0.010UF K

C924,925 CC73GCH1H100D CHIP C 10PF D

C926-928 CK73GB1H102K CHIP C 1000PF K

C930 CK73GB1H103K CHIP C 0.010UF K

C931 C92-0784-05 CHIP-TAN 4.7UF 10WV

C932-934 CK73GB1H103K CHIP C 0.010UF K

C935 CK73GB1H471K CHIP C 470PF K

C936 CK73GB1C104K CHIP C 0.10UF K

C937 CK73GB1H103K CHIP C 0.010UF K

C938 CK73GB1H102K CHIP C 1000PF K

103 3B ✽E29-1202-04 INTER CONNECTOR (LCD)

CN901 E40-5704-05 PIN ASSY

CN902 ✽E40-6372-05 FLAT CABLE CONNECTOR

J901 3B E08-0877-05 MODULAR JACK

104 3B ✽G11-4342-04 SHEET

105 3B ✽J19-5467-03 HOLDER (LCD)

106 3B ✽J21-8470-03 HARDWARE FIXTURE (LCD)

-✽J31-0551-05 COLLAR

L901,902 L40-1095-85 SMALL FIXED INDUCTOR (1.0UH)

L903-907 L92-0140-05 FERRITE CHIP

L908,909 L92-0163-05 BEADS CORE

X901 ✽L77-1956-05 CRYSTAL RESONATOR (14.7456MHZ)

CP901-911 RK75HA1J101J CHIP-COM 100 J 1/16W

R901 RK73GB1J102J CHIP R 1.0K J 1/16W

R903 RK73GB1J471J CHIP R 470 J 1/16W

R904 RK73GB1J102J CHIP R 1.0K J 1/16W

R905 RK73GB1J472J CHIP R 4.7K J 1/16W

R907 RK73GB1J333J CHIP R 33K J 1/16W

R909-911 RK73GB1J473J CHIP R 47K J 1/16W

R913-916 RK73HB1J474J CHIP R 470K J 1/16W

R917 RK73FB2A471J CHIP R 470 J 1/10W

R918 RK73FB2A271J CHIP R 270 J 1/10W

R919 RK73HB1J102J CHIP R 1.0K J 1/16W

R920 R92-1368-05 CHIP R 0 OHM

R925 RK73HB1J471J CHIP R 470 J 1/16W

R926 RK73HB1J473J CHIP R 47K J 1/16W

TK-8180 DISPLAY UNIT (X54-3480-10)

TK-8180 (Y51-5030-10)

DISPLAY UNIT (X54-3480-10)

TK-8180

PARTS LIST

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

R927-935 RK73HB1J102J CHIP R 1.0K J 1/16W

R936 RK73HB1J103J CHIP R 10K J 1/16W

R939 RK73GB1J472J CHIP R 4.7K J 1/16W

R940 RK73HB1J101J CHIP R 100 J 1/16W

R941 RK73HB1J102J CHIP R 1.0K J 1/16W

R942 RK73EB2B470J CHIP R 47 J 1/8W

R943 RK73EB2B101J CHIP R 100 J 1/8W

R944 R92-1368-05 CHIP R 0 OHM

R945 RK73GB1J103J CHIP R 10K J 1/16W

R947-950 RK73FB2A101J CHIP R 100 J 1/10W

R951,952 RK73FB2A391J CHIP R 390 J 1/10W

R953,954 RK73FB2A821J CHIP R 820 J 1/10W

R955-958 RK73HB1J472J CHIP R 4.7K J 1/16W

R959 RK73HB1J103J CHIP R 10K J 1/16W

R962,963 RK73GB1J103J CHIP R 10K J 1/16W

R967 RK73HB1J271J CHIP R 270 J 1/16W

R969 R92-1368-05 CHIP R 0 OHM

R970 RK73GB1J103J CHIP R 10K J 1/16W

R971 RK73HB1J102J CHIP R 1.0K J 1/16W

D901,902 02DZ18(X,Y) ZENER DIODE

D903 MINISMDC020 VARISTOR

D904-906 DA204U DIODE

IC901 TA78L05F MOS IC

IC902 ✽30302M8-8Z7GP MCU

IC903 ✽LC75810T-8726 MOS IC

Q901,902 DTC144EE DIGITAL TRANSISTOR

Q904-906 DTC114EE DIGITAL TRANSISTOR

Q907 2SC2873(Y) TRANSISTOR

Q909,910 ✽12A02CH TRANSISTOR

Q911 DTC114EE DIGITAL TRANSISTOR

Q913 DTC114EE DIGITAL TRANSISTOR

TH901 ✽S1R103J440H THERMISTOR

C1 CK73GB1H102K CHIP C 1000PF K

C2-5 CC73GCH1H101J CHIP C 100PF J

C6 C92-0585-05 CHIP-TAN 4.7UF 16WV

C7,8 CC73GCH1H101J CHIP C 100PF J

C9 CC73GCH1H060D CHIP C 6.0PF D

C10 CC73GCH1H101J CHIP C 100PF J

C13-15 CC73GCH1H101J CHIP C 100PF J

C16 CC73GCH1H060D CHIP C 6.0PF D

C17 CC73GCH1H220J CHIP C 22PF J

C18 CK73GB1H471K CHIP C 470PF K

C19 CC73GCH1H470J CHIP C 47PF J

C20 CC73GCH1H101J CHIP C 100PF J

C21 CK73FB1H471K CHIP C 470PF K

C22 CK73GB1H471K CHIP C 470PF K

C24 C92-0606-05 CHIP-TAN 4.7UF 10WV

C25 C93-0550-05 CHIP C 1.0PF C

C26 CC73GCH1H220J CHIP C 22PF J

C27 CC73GCH1H470J CHIP C 47PF J

C28 CC73GCH1H101J CHIP C 100PF J

C29-31 CK73GB1H471K CHIP C 470PF K

C32 ✽C92-0834-05 ELECTRO 47UF 25WV

C33-35 CC73GCH1H101J CHIP C 100PF J

C38-40 CC73GCH1H220J CHIP C 22PF J

C42 C93-0555-05 CHIP C 5.0PF C

C43 CC73FCH1H030C CHIP C 3.0PF C

C44 C93-0573-05 CHIP C 120PF J

C45 C93-0553-05 CHIP C 3.0PF C

C47 CC73GCH1H0R5B CHIP C 0.5PF B

C48 CC73GCH1H030B CHIP C 3.0PF B

C49 CC73GCH1H101J CHIP C 100PF J

C50 C93-0558-05 CHIP C 8.0PF D

C51 CC73GCH1H101J CHIP C 100PF J

C52 CC73GCH1H0R5B CHIP C 0.5PF B

C53 C93-0560-05 CHIP C 10PF D

C55 CC73GCH1H020B CHIP C 2.0PF B

C56 CC73GCH1H101J CHIP C 100PF J

C57 CC73GCH1H0R5B CHIP C 0.5PF B

C58 CC73GCH1H020B CHIP C 2.0PF B

C59 CC73GCH1H101J CHIP C 100PF J

C60 C93-0556-05 CHIP C 6.0PF D

C61,62 CC73GCH1H101J CHIP C 100PF J

C74 CC73GCH1H101J CHIP C 100PF J

C76,77 CK73GB1H471K CHIP C 470PF K

C79,80 CK73GB1H471K CHIP C 470PF K

C119 CC73GCH1H050B CHIP C 5.0PF B

C121 CK73GB1H471K CHIP C 470PF K

C124 CC73GCH1H100D CHIP C 10PF D

C125 CK73GB1H471K CHIP C 470PF K

C127 CC73GCH1H220J CHIP C 22PF J

C128 CC73GCH1H090B CHIP C 9.0PF B

C129 CK73GB1H471K CHIP C 470PF K

C130 CC73GCH1H050B CHIP C 5.0PF B

C131 CK73GB1H471K CHIP C 470PF K

C132 CC73GCH1H220J CHIP C 22PF J

C133 CC73GCH1H060B CHIP C 6.0PF B

C134 CC73GCH1H030B CHIP C 3.0PF B

C135 CC73GCH1H220J CHIP C 22PF J

C136 CC73GCH1H040B CHIP C 4.0PF B

C137 CK73GB1H471K CHIP C 470PF K

C138 CC73GCH1H050B CHIP C 5.0PF B

C139 CK73GB1H471K CHIP C 470PF K

C140 CC73GCH1H220J CHIP C 22PF J

C141 CC73GCH1H090B CHIP C 9.0PF B

C142 CK73GB1H471K CHIP C 470PF K

C143 CK73GB1H103K CHIP C 0.010UF K

C144 CC73GCH1H070B CHIP C 7.0PF B

C145 CC73GCH1H1R5B CHIP C 1.5PF B

C146 CK73GB1H471K CHIP C 470PF K

C147 CC73GCH1H050B CHIP C 5.0PF B

C148 CC73GCH1H010B CHIP C 1.0PF B

C149 CK73GB1H471K CHIP C 470PF K

C150 CC73GCH1H050B CHIP C 5.0PF B

C151 CC73GCH1H010B CHIP C 1.0PF B

C152 CK73GB1H471K CHIP C 470PF K

C153 CC73GCH1H050B CHIP C 5.0PF B

C154 CC73GCH1H1R5B CHIP C 1.5PF B

C155,156 CK73GB1H471K CHIP C 470PF K

C171 CC73GCH1H060B CHIP C 6.0PF B

C173 CC73GCH1H120J CHIP C 12PF J

C175 CC73GCH1H060B CHIP C 6.0PF B

C176-178 CK73GB1H471K CHIP C 470PF K

C181 CK73GB1H471K CHIP C 470PF K

C182,183 CK73GB1H103K CHIP C 0.010UF K

C184 CK73GB1H471K CHIP C 470PF K

C185 CK73GB1H103K CHIP C 0.010UF K

TX-RX UNIT (X57-6990-10)

DISPLAY UNIT (X54-3480-10)

TX-RX UNIT (X57-6990-10)

TK-8180

PARTS LIST

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

C186 CC73GCH1H330J CHIP C 33PF J

C187 CC73GCH1H390J CHIP C 39PF J

C188,189 CC73GCH1H040B CHIP C 4.0PF B

C190 CC73GCH1H390J CHIP C 39PF J

C192-194 CK73GB1H103K CHIP C 0.010UF K

C195 CK73GB1H471K CHIP C 470PF K

C196,197 CK73GB1H103K CHIP C 0.010UF K

C198 CC73GCH1H680J CHIP C 68PF J

C199 CC73GCH1H390J CHIP C 39PF J

C200,201 CC73GCH1H040B CHIP C 4.0PF B

C202 CC73GCH1H390J CHIP C 39PF J

C204-206 CK73GB1H103K CHIP C 0.010UF K

C207 CK73GB1H471K CHIP C 470PF K

C208,209 CK73GB1H103K CHIP C 0.010UF K

C210 CC73GCH1H680J CHIP C 68PF J

C211 CC73GCH1H100D CHIP C 10PF D

C212 CK73GB1H471K CHIP C 470PF K

C213 CK73GB1H103K CHIP C 0.010UF K

C214 CK73GB1C104K CHIP C 0.10UF K

C215 CC73GCH1H180J CHIP C 18PF J

C216 CC73GCH1H150J CHIP C 15PF J

C217 CK73GB1H102K CHIP C 1000PF K

C218 CK73GB1H103K CHIP C 0.010UF K

C219 CK73FB1C105K CHIP C 1.0UF K

C220,221 CK73GB1C104K CHIP C 0.10UF K

C222 CK73GB1H102K CHIP C 1000PF K

C223 CK73GB1C104K CHIP C 0.10UF K

C224,225 CC73GCH1H271J CHIP C 270PF J

C226,227 CK73GB1H102K CHIP C 1000PF K

C228 CK73GB1C104K CHIP C 0.10UF K

C229 CK73GB1C333K CHIP C 0.033UF K

C230 CK73GB1H103K CHIP C 0.010UF K

C231 CC73GCH1H820J CHIP C 82PF J

C232,233 CK73GB1H102K CHIP C 1000PF K

C234 CK73FB1C224K CHIP C 0.22UF K

C235 CK73GB1C104K CHIP C 0.10UF K

C236 CK73GB1H103K CHIP C 0.010UF K

C237 C92-0712-05 CHIP-TAN 22UF 6.3WV

C238 CK73GB1H103K CHIP C 0.010UF K

C239,240 CK73GB1C104K CHIP C 0.10UF K

C241 CK73GB1H102K CHIP C 1000PF K

C251,252 CK73GB1H471K CHIP C 470PF K

C253 CK73GB1H103K CHIP C 0.010UF K

C255 C92-0694-05 CHIP-TAN 10UF 16WV

C256 CK73GB1H103K CHIP C 0.010UF K

C257 C92-0519-05 CHIP-TAN 1.0UF 25WV

C258 C92-0516-05 CHIP-TAN 4.7UF 16WV

C259 C92-0628-05 CHIP-TAN 10UF 10WV

C260-262 CC73GCH1H101J CHIP C 100PF J

C299 CC73GCH1H0R5B CHIP C 0.5PF B

C302 CC73GCH1H0R5B CHIP C 0.5PF B

C306 CC73GCH1H100D CHIP C 10PF D

C307 CK73GB1H471K CHIP C 470PF K

C308 CC73GCH1H100D CHIP C 10PF D

C309 CC73GCH1H101J CHIP C 100PF J

C311 CC73GCH1H390J CHIP C 39PF J

C312 C92-0555-05 CHIP-TAN 0.047UF 35WV

C314 CK73FB1E104K CHIP C 0.10UF K

C316 CC73GCH1H080D CHIP C 8.0PF D

C317 CC73GCH1H101J CHIP C 100PF J

C318 C92-0657-05 CHIP-TAN 2.2UF 20WV

C320 C92-0657-05 CHIP-TAN 2.2UF 20WV

C322 CK73GB1E473J CHIP C 0.047UF J

C323 CK73GB1H471K CHIP C 470PF K

C324 CK73GB1C104K CHIP C 0.10UF K

C325 CK73GB1H102K CHIP C 1000PF K

C327 CK73FB1E224K CHIP C 0.22UF K

C331 CK73GB1H103K CHIP C 0.010UF K

C333 CC73GCH1H050B CHIP C 5.0PF B

C334 CK73GB1H102K CHIP C 1000PF K

C335 CK73GB1C223K CHIP C 0.022UF K

C338 C92-0502-05 CHIP-TAN 0.33UF 35WV

C339 CK73GB1H471K CHIP C 470PF K

C342 CK73GB1H102K CHIP C 1000PF K

C343 C92-0628-05 CHIP-TAN 10UF 10WV

C346,347 CC73GCH1H220G CHIP C 22PF G

C350 CC73GCH1H080D CHIP C 8.0PF D

C351 CC73GCH1H0R5B CHIP C 0.5PF B

C352 CC73GCH1H120J CHIP C 12PF J

C353 CC73GCH1H471J CHIP C 470PF J

C354 CC73GCH1H040B CHIP C 4.0PF B

C355 CC73GCH1H050B CHIP C 5.0PF B

C356 CC73GCH1H0R5B CHIP C 0.5PF B

C357 CC73GCH1H060B CHIP C 6.0PF B

C358 CC73GCH1H050B CHIP C 5.0PF B

C359,360 CC73GCH1H070B CHIP C 7.0PF B

C361-363 CC73GCH1H471J CHIP C 470PF J

C364 CC73GCH1H0R5B CHIP C 0.5PF B

C365 CC73GCH1H0R3B CHIP C 0.3PF B

C367 CK73GB1H102K CHIP C 1000PF K

C368 CC73GCH1H471J CHIP C 470PF J

C369,370 CK73GB1H471K CHIP C 470PF K

C371 C92-0560-05 CHIP-TAN 10UF 6.3WV

C372 CC73GCH1H220J CHIP C 22PF J

C373 CC73GCH1H471J CHIP C 470PF J

C374 CK73GB1H102K CHIP C 1000PF K

C375 CC73GCH1H270J CHIP C 27PF J

C376-378 CK73GB1H471K CHIP C 470PF K

C379 CC73GCH1H060D CHIP C 6.0PF D

C380,381 CK73GB1H471K CHIP C 470PF K

C382 CK73GB1H103K CHIP C 0.010UF K

C383 CK73GB1H102K CHIP C 1000PF K

C384 CK73GB1H103K CHIP C 0.010UF K

C385 CK73GB1H471K CHIP C 470PF K

C386 C92-0713-05 CHIP-TAN 10UF 6.3WV

C387,388 CC73GCH1H050C CHIP C 5.0PF C

C389 CC73GCH1H060B CHIP C 6.0PF B

C390 CC73GCH1H120J CHIP C 12PF J

C391 CC73GCH1H020B CHIP C 2.0PF B

C392 CC73GCH1H120J CHIP C 12PF J

C393 CC73GCH1H060B CHIP C 6.0PF B

C394 CC73GCH1H040B CHIP C 4.0PF B

C395 CC73GCH1H020B CHIP C 2.0PF B

C396 CK73GB1H103K CHIP C 0.010UF K

C397 CC73GCH1H120J CHIP C 12PF J

C398 CC73GCH1H010B CHIP C 1.0PF B

C400 CK73FB1A105K CHIP C 1.0UF K

C403 CK73HB1A104K CHIP C 0.10UF K

C404 CC73HCH1H050C CHIP C 5.0PF C

C406 CC73GCH1H0R3B CHIP C 0.3PF B

TX-RX UNIT (X57-6990-10)

TK-8180

PARTS LIST

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

C407 CK73GB1H103K CHIP C 0.010UF K

C408,409 CC73HCH1H150G CHIP C 15PF G

C410-412 CK73GB1C104K CHIP C 0.10UF K

C420,421 CC73GCH1H101J CHIP C 100PF J

C422 CK73GB1H102K CHIP C 1000PF K

C423 CK73FF1C105Z CHIP C 1.0UF Z

C424 CK73GB1H102K CHIP C 1000PF K

C425-428 CC73GCH1H101J CHIP C 100PF J

C429 CK73GB1A105K CHIP C 1.0UF K

C430,431 CC73GCH1H101J CHIP C 100PF J

C432 CK73GB1H102K CHIP C 1000PF K

C433 CK73GB1C104K CHIP C 0.10UF K

C434 CK73GB1H561K CHIP C 560PF K

C435 CK73GB1H102K CHIP C 1000PF K

C436,437 CC73GCH1H101J CHIP C 100PF J

C438 CK73GB1E103K CHIP C 0.010UF K

C439 CK73GB1H102K CHIP C 1000PF K

C440 CK73GB1C104K CHIP C 0.10UF K

C441 CK73FB0J106K CHIP C 10UF K

C442 CK73GB1C104K CHIP C 0.10UF K

C443 CK73GB1H103K CHIP C 0.010UF K

C444 CC73GCH1H390J CHIP C 39PF J

C445 CC73GCH1H150J CHIP C 15PF J

C446 CK73GB1H103K CHIP C 0.010UF K

C447 CK73HB1A333K CHIP C 0.033UF K

C448 CC73GCH1H101J CHIP C 100PF J

C450 CK73FB0J106K CHIP C 10UF K

C451 CK73GB1H103K CHIP C 0.010UF K

C452 CC73GCH1H101J CHIP C 100PF J

C453 CK73GB1C104K CHIP C 0.10UF K

C454 CK73GB1H103K CHIP C 0.010UF K

C455 C92-0589-05 CHIP-TAN 47UF 6.3WV

C457 CK73GB1H471K CHIP C 470PF K

C459 C92-0628-05 CHIP-TAN 10UF 10WV

C460-463 CK73GB1H103K CHIP C 0.010UF K

C464 CK73HB1A333K CHIP C 0.033UF K

C465 CC73GCH1H220J CHIP C 22PF J

C467,468 CK73GB1H103K CHIP C 0.010UF K

C469 CK73GB1C104K CHIP C 0.10UF K

C470 CK73GB1H103K CHIP C 0.010UF K

C472 CK73GB1C104K CHIP C 0.10UF K

C475 CC73GCH1H101J CHIP C 100PF J

C476 CK73GB1C104K CHIP C 0.10UF K

C477 CK73GB1H102K CHIP C 1000PF K

C478 CC73HCH1H101J CHIP C 100PF J

C479,480 CK73GB1H102K CHIP C 1000PF K

C481 CK73HB1H102K CHIP C 1000PF K

C482 CK73FB1A475K CHIP C 4.7UF K

C483 CK73GB1H103K CHIP C 0.010UF K

C484 CK73FB1A475K CHIP C 4.7UF K

C485 CK73FB1A105K CHIP C 1.0UF K

C487 CK73HB1H102K CHIP C 1000PF K

C488 CC73GCH1H120J CHIP C 12PF J

C489 CK73GB1C104K CHIP C 0.10UF K

C490 CK73HB1H102K CHIP C 1000PF K

C491,492 CK73GB1C104K CHIP C 0.10UF K

C493 CK73FB1A475K CHIP C 4.7UF K

C495 CC73GCH1H181J CHIP C 180PF J

C496 CK73GB1C104K CHIP C 0.10UF K

C497 CK73GB1H102K CHIP C 1000PF K

C498 CC73HCH1H101J CHIP C 100PF J

C499 CK73GB1H821K CHIP C 820PF K

C500 CC73HCH1H101J CHIP C 100PF J

C501 CC73GCH1H220J CHIP C 22PF J

C502 CK73HB1H102K CHIP C 1000PF K

C503 CC73GCH1H680J CHIP C 68PF J

C504 CK73HB1H102K CHIP C 1000PF K

C505,506 CK73GB1A105K CHIP C 1.0UF K

C507 CK73GB1C104K CHIP C 0.10UF K

C511 CK73GB1C104K CHIP C 0.10UF K

C512,513 CK73GB1H102K CHIP C 1000PF K

C514 CC73GCH1H820J CHIP C 82PF J

C515,516 CK73HB1H102K CHIP C 1000PF K

C517 CK73GB1H103K CHIP C 0.010UF K

C518 CK73GB1C104K CHIP C 0.10UF K

C519,520 CK73GB1H102K CHIP C 1000PF K

C524 CK73GB1H102K CHIP C 1000PF K

C525,526 CK73GB1C104K CHIP C 0.10UF K

C528 CK73GB1H222K CHIP C 2200PF K

C529 CC73GCH1H470J CHIP C 47PF J

C530 CK73FB0J106K CHIP C 10UF K

C531 CK73GB1H102K CHIP C 1000PF K

C532 CK73GB1E123K CHIP C 0.012UF K

C533 CK73GB1E153K CHIP C 0.015UF K

C534 CK73GB1H102K CHIP C 1000PF K

C535 CK73GB1C683K CHIP C 0.068UF K

C536,537 CK73GB1C104K CHIP C 0.10UF K

C538 CK73GB1H102K CHIP C 1000PF K

C539,540 C92-0628-05 CHIP-TAN 10UF 10WV

C541 CK73GB1C104K CHIP C 0.10UF K

C542 CK73GB1H102K CHIP C 1000PF K

C543,544 C92-0628-05 CHIP-TAN 10UF 10WV

C545 CK73HB1H102K CHIP C 1000PF K

C546 CK73GB1H103K CHIP C 0.010UF K

C547-549 CK73HB1H102K CHIP C 1000PF K

C550 CC73HCH1H101J CHIP C 100PF J

C551-553 CK73HB1H102K CHIP C 1000PF K

C554 CC73HCH1H101J CHIP C 100PF J

C555-557 CK73HB1H102K CHIP C 1000PF K

C558 CC73HCH1H101J CHIP C 100PF J

C559 CK73HB1H102K CHIP C 1000PF K

C560,561 CK73GB1C104K CHIP C 0.10UF K

C562-565 C92-0519-05 CHIP-TAN 1.0UF 25WV

C566 CK73FB1C105K CHIP C 1.0UF K

C567 CC73HCH1H101J CHIP C 100PF J

C568 CK73HB1H102K CHIP C 1000PF K

C570 CK73FB1C105K CHIP C 1.0UF K

C572,573 CK73GB1H102K CHIP C 1000PF K

C574 C92-0672-05 ELECTRO 22UF 16WV

C575 ✽C92-0834-05 ELECTRO 47UF 25WV

C576 ✽C92-0836-05 ELECTRO 330UF 16WV

C577 CK73GB1C104K CHIP C 0.10UF K

C578 ✽C92-0834-05 ELECTRO 47UF 25WV

C579 CK73GB1H102K CHIP C 1000PF K

C580 ✽C92-0834-05 ELECTRO 47UF 25WV

C581,582 CK73GB1H102K CHIP C 1000PF K

C583 CK73GB1H471K CHIP C 470PF K

C584 CC73GCH1H220J CHIP C 22PF J

C585-587 CC73GCH1H101J CHIP C 100PF J

C588 CK73GB1H102K CHIP C 1000PF K

TX-RX UNIT (X57-6990-10)

TK-8180

PARTS LIST

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

C591 CK73GB1C104K CHIP C 0.10UF K

C592,593 CC73GCH1H070D CHIP C 7.0PF D

C594 CK73GB1H471K CHIP C 470PF K

C595 CC73GCH1H101J CHIP C 100PF J

C701 CK73GB1H102K CHIP C 1000PF K

C702-704 CC73GCH1H101J CHIP C 100PF J

C705-711 CK73GB1H102K CHIP C 1000PF K

C712 CC73GCH1H101J CHIP C 100PF J

C713 CK73GB1H102K CHIP C 1000PF K

C714,715 CC73GCH1H101J CHIP C 100PF J

C716,717 CK73GB1H102K CHIP C 1000PF K

C718-720 CC73GCH1H101J CHIP C 100PF J

C721 CK73GB1H102K CHIP C 1000PF K

C722,723 CC73GCH1H101J CHIP C 100PF J

C801 C92-0777-05 ELECTRO 1000UF 25WV

C802 CK73GB1H102K CHIP C 1000PF K

C803 CK73GB1E473J CHIP C 0.047UF J

C804 CC73GCH1H471J CHIP C 470PF J

C805 CK73GB1H102K CHIP C 1000PF K

C806 CC73GCH1H101J CHIP C 100PF J

C807 CK73GB1E473J CHIP C 0.047UF J

C808 CK73GB1C104K CHIP C 0.10UF K

C809 CC73GCH1H471J CHIP C 470PF J

C810 CK73GB1E473J CHIP C 0.047UF J

C811,812 CK73GB1C104K CHIP C 0.10UF K

C813,814 CC73GCH1H471J CHIP C 470PF J

C815 C92-0585-05 CHIP-TAN 4.7UF 16WV

C816 C92-0628-05 CHIP-TAN 10UF 10WV

C817 CC73GCH1H471J CHIP C 470PF J

C818 CK73GB1H472K CHIP C 4700PF K

C819,820 CK73GB1C104K CHIP C 0.10UF K

C821 C92-0585-05 CHIP-TAN 4.7UF 16WV

C822 CC73GCH1H471J CHIP C 470PF J

C823 CK73GB1H102K CHIP C 1000PF K

C824 CK73GB1H103K CHIP C 0.010UF K

C825 CK73HB1H102K CHIP C 1000PF K

C826 CK73GB1H471K CHIP C 470PF K

C831,832 C92-0585-05 CHIP-TAN 4.7UF 16WV

TC301,302 C05-0396-05 CERAMIC TRIMMER CAP (8PF)

CN1-3 E23-1081-05 TERMINAL

CN13 E23-1081-05 TERMINAL

CN100-102 E23-1081-05 TERMINAL

CN202,203 E23-1081-05 TERMINAL

CN301,302 ✽E40-6404-05 PIN ASSY

CN322,323 E23-1081-05 TERMINAL

CN326 E23-1081-05 TERMINAL

CN329 E23-1081-05 TERMINAL

CN403 ✽E40-6361-05 PIN ASSY

CN427 ✽E40-6371-05 FLAT CABLE CONNECTOR

CN428 ✽E40-6373-05 PIN ASSY

CN429 ✽E40-6412-05 FLAT CABLE CONNECTOR

CN701 ✽E40-6371-05 FLAT CABLE CONNECTOR

CN802,803 ✽E23-1260-04 TERMINAL

CN804 E40-3246-05 PIN ASSY

CN815 E23-1081-05 TERMINAL

J401 E11-0425-05 3.5D PHONE JACK (3P)

J701 E58-0494-05 SUB SOCKET (D)

F401 ✽F53-0352-05 FUSE (2A)

F801 F53-0278-05 FUSE (5A)

CN401 J19-5386-05 HOLDER

CD171 L79-1701-05 TUNING COIL

CF171 L72-0986-05 CERAMIC FILTER

CF172 L72-0998-05 CERAMIC FILTER

L1 L40-1875-92 SMALL FIXED INDUCTOR (18NH)

L2 L92-0140-05 FERRITE CHIP

L3 L40-2275-92 SMALL FIXED INDUCTOR (22NH)

L4 L92-0140-05 FERRITE CHIP

L5,6 L92-0179-05 FERRITE CHIP

L7 L34-4638-05 AIR-CORE COIL

L8 ✽L34-4758-05 AIR-CORE COIL

L9,10 ✽L34-4743-05 AIR-CORE COIL

L12 ✽L34-4743-05 AIR-CORE COIL

L13 L34-4482-05 AIR-CORE COIL

L101 L41-8268-14 SMALL FIXED INDUCTOR

L108 L92-0140-05 FERRITE CHIP

L109 L41-1878-14 SMALL FIXED INDUCTOR

L110-113 L34-4565-05 AIR-CORE COIL

L114-117 L41-8268-14 SMALL FIXED INDUCTOR

L119 L41-3378-14 SMALL FIXED INDUCTOR

L171,172 L41-1578-14 SMALL FIXED INDUCTOR

L173,174 L39-1421-05 TOROIDAL COIL

L175 L92-0140-05 FERRITE CHIP

L176 L39-1421-05 TOROIDAL COIL

L177 ✽L41-2785-14 SMALL FIXED INDUCTOR

L178,179 ✽L41-3988-14 SMALL FIXED INDUCTOR

L180 L40-6875-92 SMALL FIXED INDUCTOR (68NH)

L181 L40-1001-86 SMALL FIXED INDUCTOR (10UH)

L182 L40-1085-92 SMALL FIXED INDUCTOR (100NH)

L183,184 ✽L41-3988-14 SMALL FIXED INDUCTOR

L185 L40-6875-92 SMALL FIXED INDUCTOR (68NH)

L186 L40-1001-86 SMALL FIXED INDUCTOR (10UH)

L187 L40-1085-92 SMALL FIXED INDUCTOR (100NH)

L188 L40-8281-86 SMALL FIXED INDUCTOR (0.82UH)

L189 L40-1091-86 SMALL FIXED INDUCTOR (1.0UH)

L251 ✽L33-1468-05 SMALL FIXED INDUCTOR

L301 L40-2295-85 SMALL FIXED INDUCTOR (2.2UH)

L302 L92-0140-05 FERRITE CHIP

L304-306 L92-0140-05 FERRITE CHIP

L309,310 L40-1095-85 SMALL FIXED INDUCTOR (1.0UH)

L311,312 L41-1098-08 SMALL FIXED INDUCTOR

L314 L34-4607-05 AIR-CORE COIL

L315-317 L41-1098-08 SMALL FIXED INDUCTOR

L318,319 L40-2275-92 SMALL FIXED INDUCTOR (22NH)

L320 L40-1075-92 SMALL FIXED INDUCTOR (10NH)

L321 L40-8265-92 SMALL FIXED INDUCTOR (8.2NH)

L322 ✽L41-5668-14 SMALL FIXED INDUCTOR

L323 L41-4763-14 SMALL FIXED INDUCTOR

L324 ✽L41-2263-14 SMALL FIXED INDUCTOR

L325 L34-4605-05 AIR-CORE COIL

L326 L41-1098-08 SMALL FIXED INDUCTOR

L327 L40-3375-92 SMALL FIXED INDUCTOR (33NH)

L328 L40-2275-92 SMALL FIXED INDUCTOR (22NH)

L401,402 L92-0138-05 FERRITE CHIP

L403-407 L92-0140-05 FERRITE CHIP

L408 L92-0138-05 FERRITE CHIP

L409 L92-0140-05 FERRITE CHIP

L410,411 L92-0179-05 FERRITE CHIP

L701,702 L92-0140-05 FERRITE CHIP

TX-RX UNIT (X57-6990-10)

TK-8180

PARTS LIST

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

X171 L77-1762-05 CRYSTAL RESONATOR (44.395MHZ)

X301 L77-1952-05 TCXO (16.8MHZ)

X401 L77-1802-05 CRYSTAL RESONATOR (32768HZ)

X403 L77-1965-05 CRYSTAL RESONATOR (3.6864MHZ)

X404 L77-1950-05 CRYSTAL RESONATOR (11.0592MHZ)

XF171 ✽L71-0618-05 MCF (44.85M)

CP401 R90-0740-05 MULTIPLE RESISTOR

CP402-417 RK75HA1J102J CHIP-COM 1.0K J 1/16W

R1 RK73GB1J821J CHIP R 820 J 1/16W

R2 RK73GB1J5R6J CHIP R 5.6 J 1/16W

R3 RK73GB1J821J CHIP R 820 J 1/16W

R4 RK73GB1J333J CHIP R 33K J 1/16W

R5 RK73GB1J682J CHIP R 6.8K J 1/16W

R6 RK73GB1J221J CHIP R 220 J 1/16W

R7 RK73GB1J100J CHIP R 10 J 1/16W

R8 RK73GB1J471J CHIP R 470 J 1/16W

R9 RK73GB1J220J CHIP R 22 J 1/16W

R10 RK73GB1J561J CHIP R 560 J 1/16W

R11 RK73GB1J272J CHIP R 2.7K J 1/16W

R12 RK73GB1J100J CHIP R 10 J 1/16W

R13 RK73GB1J331J CHIP R 330 J 1/16W

R14 R92-1252-05 CHIP R 0 OHM J 1/16W

R15 RK73FB2A221J CHIP R 220 J 1/10W

R16,17 RK73FB2A470J CHIP R 47 J 1/10W

R18 RK73FB2A221J CHIP R 220 J 1/10W

R19 RK73GB1J151J CHIP R 150 J 1/16W

R21 RK73GB1J331J CHIP R 330 J 1/16W

R22 RK73GB1J102J CHIP R 1.0K J 1/16W

R23 RK73GB1J682J CHIP R 6.8K J 1/16W

R24 RK73GB1J104J CHIP R 100K J 1/16W

R25 R92-1261-05 CHIP R 150 J 1/2W

R26 RK73GB1J103J CHIP R 10K J 1/16W

R27 RK73GB1J104J CHIP R 100K J 1/16W

R28 R92-1252-05 CHIP R 0 OHM J 1/16W

R29 RK73GB1J823J CHIP R 82K J 1/16W

R30 R92-1061-05

JUMPER REST

0 OHM

R31 RK73GB1J332J CHIP R 3.3K J 1/16W

R33 R92-1252-05 CHIP R 0 OHM J 1/16W

R38 R92-1252-05 CHIP R 0 OHM J 1/16W

R71 RK73GB1J563J CHIP R 56K J 1/16W

R72 RK73GB1J333J CHIP R 33K J 1/16W

R75 RK73GB1J473J CHIP R 47K J 1/16W

R76-78 RK73GB1J104J CHIP R 100K J 1/16W

R79 RK73GB1J224J CHIP R 220K J 1/16W

R81,82 RK73GB1J104J CHIP R 100K J 1/16W

R84 RK73GB1J124J CHIP R 120K J 1/16W

R85 RK73GB1J104J CHIP R 100K J 1/16W

R86 RK73GB1J824J CHIP R 820K J 1/16W

R87 RK73GB1J823J CHIP R 82K J 1/16W

R88,89 RK73GB1J104J CHIP R 100K J 1/16W

R90 RK73GB1J334J CHIP R 330K J 1/16W

R108 R92-1252-05 CHIP R 0 OHM J 1/16W

R109 RK73GB1J102J CHIP R 1.0K J 1/16W

R115,116 RK73GB1J183J CHIP R 18K J 1/16W

R119 R92-1252-05 CHIP R 0 OHM J 1/16W

R120 RK73GB1J221J CHIP R 220 J 1/16W

R121-124 RK73GB1J104J CHIP R 100K J 1/16W

R126 R92-1252-05 CHIP R 0 OHM J 1/16W

R129-133 RK73GB1J104J CHIP R 100K J 1/16W

R134 R92-1252-05 CHIP R 0 OHM J 1/16W

R171 RK73GB1J271J CHIP R 270 J 1/16W

R172 RK73GB1J180J CHIP R 18 J 1/16W

R173 RK73GB1J271J CHIP R 270 J 1/16W

R174 RK73GB1J680J CHIP R 68 J 1/16W

R175 RK73GB1J222J CHIP R 2.2K J 1/16W

R176 RK73GB1J470J CHIP R 47 J 1/16W

R177 RK73GB1J102J CHIP R 1.0K J 1/16W

R178 R92-1252-05 CHIP R 0 OHM J 1/16W

R179 RK73GB1J102J CHIP R 1.0K J 1/16W

R180 RK73GB1J821J CHIP R 820 J 1/16W

R181 RK73GB1J331J CHIP R 330 J 1/16W

R182 RK73GB1J332J CHIP R 3.3K J 1/16W

R183 RK73GB1J680J CHIP R 68 J 1/16W

R184 RK73GB1J100J CHIP R 10 J 1/16W

R185 RK73GB1J821J CHIP R 820 J 1/16W

R186 RK73GB1J331J CHIP R 330 J 1/16W

R187 RK73GB1J332J CHIP R 3.3K J 1/16W

R188 RK73GB1J680J CHIP R 68 J 1/16W

R189 RK73GB1J100J CHIP R 10 J 1/16W

R190 RK73GB1J153J CHIP R 15K J 1/16W

R191,192 RK73GB1J223J CHIP R 22K J 1/16W

R193 RK73GB1J473J CHIP R 47K J 1/16W

R194,195 RK73GB1J223J CHIP R 22K J 1/16W

R196 RK73GB1J153J CHIP R 15K J 1/16W

R197,198 RK73GB1J334J CHIP R 330K J 1/16W

R199 RK73GB1J560J CHIP R 56 J 1/16W

R200 RK73GB1J332J CHIP R 3.3K J 1/16W

R202 RK73GB1J472J CHIP R 4.7K J 1/16W

R203 RK73GB1J332J CHIP R 3.3K J 1/16W

R204 RK73GB1J222J CHIP R 2.2K J 1/16W

R205 RK73GB1J332J CHIP R 3.3K J 1/16W

R206 RK73GB1J102J CHIP R 1.0K J 1/16W

R207 RK73GB1J473J CHIP R 47K J 1/16W

R208 RK73GB1J392J CHIP R 3.9K J 1/16W

R209 RK73GB1J100J CHIP R 10 J 1/16W

R210 RK73GB1J272J CHIP R 2.7K J 1/16W

R212 RK73GB1J104J CHIP R 100K J 1/16W

R217 R92-1252-05 CHIP R 0 OHM J 1/16W

R221 RK73GB1J473J CHIP R 47K J 1/16W

R251 RK73GB1J102J CHIP R 1.0K J 1/16W

R252 RK73GB1J472J CHIP R 4.7K J 1/16W

R253 RK73GB1J103J CHIP R 10K J 1/16W

R254,255 R92-1252-05 CHIP R 0 OHM J 1/16W

R256 RK73GB1J124J CHIP R 120K J 1/16W

R257 RK73GB1J153J CHIP R 15K J 1/16W

R258 RK73GB1J220J CHIP R 22 J 1/16W

R295 R92-1252-05 CHIP R 0 OHM J 1/16W

R298 R92-1368-05 CHIP R 0 OHM

R301 R92-1252-05 CHIP R 0 OHM J 1/16W

R302 RK73GB1J100J CHIP R 10 J 1/16W

R303 RK73GB1J561J CHIP R 560 J 1/16W

R305 RK73GB1J560J CHIP R 56 J 1/16W

R306 RK73GB1J183J CHIP R 18K J 1/16W

R307 R92-1252-05 CHIP R 0 OHM J 1/16W

R308 RK73GB1J392J CHIP R 3.9K J 1/16W

R309,310 RK73GB1J101J CHIP R 100 J 1/16W

R311 RK73GB1J182J CHIP R 1.8K J 1/16W

R312 RK73GB1J102J CHIP R 1.0K J 1/16W

R315 RK73GB1J102J CHIP R 1.0K J 1/16W

TX-RX UNIT (X57-6990-10)

TK-8180

PARTS LIST

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

R316 RK73GB1J104J CHIP R 100K J 1/16W

R317 R92-1252-05 CHIP R 0 OHM J 1/16W

R318 R92-2577-05 METAL-R 1.8K J 1/4W

R319 RK73GB1J100J CHIP R 10 J 1/16W

R320 RK73GB1J180J CHIP R 18 J 1/16W

R321 RK73GB1J103J CHIP R 10K J 1/16W

R322 R92-1252-05 CHIP R 0 OHM J 1/16W

R323 RK73GB1J102J CHIP R 1.0K J 1/16W

R325 RK73GB1J154J CHIP R 150K J 1/16W

R326 RK73GB1J271J CHIP R 270 J 1/16W

R327 RK73GB1J100J CHIP R 10 J 1/16W

R330 RK73GB1J100J CHIP R 10 J 1/16W

R332 RK73GB1J100J CHIP R 10 J 1/16W

R333-335 R92-1252-05 CHIP R 0 OHM J 1/16W

R336 RK73GB1J102J CHIP R 1.0K J 1/16W

R337 RK73GB1J103J CHIP R 10K J 1/16W

R339 RK73GB1J104J CHIP R 100K J 1/16W

R340 RK73GB1J101J CHIP R 100 J 1/16W

R341,342 RK73GB1J181J CHIP R 180 J 1/16W

R343 RK73GB1J472J CHIP R 4.7K J 1/16W

R344 RK73GB1J470J CHIP R 47 J 1/16W

R345,346 R92-1252-05 CHIP R 0 OHM J 1/16W

R347 RK73GB1J472J CHIP R 4.7K J 1/16W

R348 RK73GB1J103J CHIP R 10K J 1/16W

R349,350 RK73GB1J333J CHIP R 33K J 1/16W

R351 RK73GB1J472J CHIP R 4.7K J 1/16W

R352 RK73GB1J100J CHIP R 10 J 1/16W

R353 RK73GB1J472J CHIP R 4.7K J 1/16W

R355 RK73GB1J560J CHIP R 56 J 1/16W

R356,357 RK73GB1J103J CHIP R 10K J 1/16W

R358 RK73GB1J822J CHIP R 8.2K J 1/16W

R359 RK73GB1J101J CHIP R 100 J 1/16W

R360 RK73GB1J121J CHIP R 120 J 1/16W

R361 RK73GB1J221J CHIP R 220 J 1/16W

R362 R92-1252-05 CHIP R 0 OHM J 1/16W

R365,366 RK73GB1J222J CHIP R 2.2K J 1/16W

R367 RK73GB1J332J CHIP R 3.3K J 1/16W

R369 R92-1252-05 CHIP R 0 OHM J 1/16W

R370 RK73GB1J103J CHIP R 10K J 1/16W

R371 R92-1252-05 CHIP R 0 OHM J 1/16W

R373 RK73GB1J100J CHIP R 10 J 1/16W

R375 RK73GB1J331J CHIP R 330 J 1/16W

R376,377 R92-1252-05 CHIP R 0 OHM J 1/16W

R378 RK73GB1J103J CHIP R 10K J 1/16W

R400 RK73HH1J105D CHIP R 1.0M D 1/16W

R401 ✽RK73HH1J362D CHIP R 3.6K D 1/16W

R402 RK73HH1J512D CHIP R 5.1K D 1/16W

R403 RK73HH1J105D CHIP R 1.0M D 1/16W

R405,406 RK73HB1J474J CHIP R 470K J 1/16W

R407 RK73HB1J103J CHIP R 10K J 1/16W

R410 RK73HB1J103J CHIP R 10K J 1/16W

R411,412 RK73HB1J474J CHIP R 470K J 1/16W

R414 RK73HB1J103J CHIP R 10K J 1/16W

R415 RK73HB1J474J CHIP R 470K J 1/16W

R416 R92-1368-05 CHIP R 0 OHM

R418,419 RK73HB1J473J CHIP R 47K J 1/16W

R420 RK73HB1J334J CHIP R 330K J 1/16W

R421,422 RK73HB1J473J CHIP R 47K J 1/16W

R423 R92-1368-05 CHIP R 0 OHM

R424-427 RK73HB1J102J CHIP R 1.0K J 1/16W

R428 R92-1368-05 CHIP R 0 OHM

R429,430 RK73HB1J471J CHIP R 470 J 1/16W

R431 R92-1368-05 CHIP R 0 OHM

R432 RK73HB1J102J CHIP R 1.0K J 1/16W

R434 RK73HB1J473J CHIP R 47K J 1/16W

R435 RK73HB1J102J CHIP R 1.0K J 1/16W

R437 R92-1368-05 CHIP R 0 OHM

R439 R92-1368-05 CHIP R 0 OHM

R440-444 RK73HB1J102J CHIP R 1.0K J 1/16W

R445,446 RK73GB1J103J CHIP R 10K J 1/16W

R447 RK73HB1J474J CHIP R 470K J 1/16W

R448 RK73HB1J102J CHIP R 1.0K J 1/16W

R449 RK73HB1J474J CHIP R 470K J 1/16W

R450 RK73HB1J102J CHIP R 1.0K J 1/16W

R451 RK73HB1J474J CHIP R 470K J 1/16W

R452 RK73HB1J102J CHIP R 1.0K J 1/16W

R453 RK73HB1J474J CHIP R 470K J 1/16W

R454 RK73HB1J102J CHIP R 1.0K J 1/16W

R455,456 RK73HB1J471J CHIP R 470 J 1/16W

R457 RK73HB1J473J CHIP R 47K J 1/16W

R458,459 RK73HB1J474J CHIP R 470K J 1/16W

R461 RK73HB1J474J CHIP R 470K J 1/16W

R465 RK73GB1J473J CHIP R 47K J 1/16W

R466 RK73HB1J473J CHIP R 47K J 1/16W

R467 R92-1368-05 CHIP R 0 OHM

R468 RK73HB1J473J CHIP R 47K J 1/16W

R469 RK73HB1J102J CHIP R 1.0K J 1/16W

R470 RK73GB1J102J CHIP R 1.0K J 1/16W

R471,472 RK73HB1J102J CHIP R 1.0K J 1/16W

R473,474 R92-1252-05 CHIP R 0 OHM J 1/16W

R475 RK73GB1J101J CHIP R 100 J 1/16W

R476 RK73HB1J473J CHIP R 47K J 1/16W

R477,478 RK73HB1J474J CHIP R 470K J 1/16W

R481 RK73HB1J474J CHIP R 470K J 1/16W

R482 RK73HB1J473J CHIP R 47K J 1/16W

R483-486 R92-1252-05 CHIP R 0 OHM J 1/16W

R487 RK73GB1J185J CHIP R 1.8M J 1/16W

R488,489 R92-1252-05 CHIP R 0 OHM J 1/16W

R490 RK73GB1J184J CHIP R 180K J 1/16W

R491 R92-1252-05 CHIP R 0 OHM J 1/16W

R492 RK73GB1J684J CHIP R 680K J 1/16W

R493 RK73GB1J105J CHIP R 1.0M J 1/16W

R494,495 RK73GB1J472J CHIP R 4.7K J 1/16W

R496 RK73GB1J104J CHIP R 100K J 1/16W

R497 RK73GB1J332J CHIP R 3.3K J 1/16W

R498 RK73GB1J274J CHIP R 270K J 1/16W

R499 RK73GB1J104J CHIP R 100K J 1/16W

R500 R92-1252-05 CHIP R 0 OHM J 1/16W

R501 RK73GB1J472J CHIP R 4.7K J 1/16W

R502 RK73GB1J103J CHIP R 10K J 1/16W

R503 RK73GB1J104J CHIP R 100K J 1/16W

R504 RK73GB1J103J CHIP R 10K J 1/16W

R505 RK73GB1J683J CHIP R 68K J 1/16W

R506,507 RK73GB1J224J CHIP R 220K J 1/16W

R508 RK73GB1J102J CHIP R 1.0K J 1/16W

R509 RK73GB1J333J CHIP R 33K J 1/16W

R511 RK73HB1J152J CHIP R 1.5K J 1/16W

R512 RK73GB1J153J CHIP R 15K J 1/16W

R513 RK73GB1J564J CHIP R 560K J 1/16W

R514 RK73GB1J183J CHIP R 18K J 1/16W

TX-RX UNIT (X57-6990-10)

TK-8180

PARTS LIST

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

R515 RK73GB1J104J CHIP R 100K J 1/16W

R517 RK73GB1J223J CHIP R 22K J 1/16W

R519 RK73GB1J104J CHIP R 100K J 1/16W

R520 R92-1252-05 CHIP R 0 OHM J 1/16W

R521 RK73GB1J473J CHIP R 47K J 1/16W

R522 RK73GB1J104J CHIP R 100K J 1/16W

R523 RK73GB1J564J CHIP R 560K J 1/16W

R524 RK73GB1J103J CHIP R 10K J 1/16W

R525 RK73HB1J152J CHIP R 1.5K J 1/16W

R526 RK73GB1J274J CHIP R 270K J 1/16W

R527 RK73GB1J392J CHIP R 3.9K J 1/16W

R528 RK73GB1J473J CHIP R 47K J 1/16W

R529 RK73GB1J684J CHIP R 680K J 1/16W

R530 RK73GB1J334J CHIP R 330K J 1/16W

R531 RK73GB1J103J CHIP R 10K J 1/16W

R532 RK73GB1J102J CHIP R 1.0K J 1/16W

R533 RK73GB1J104J CHIP R 100K J 1/16W

R534 RK73GB1J273J CHIP R 27K J 1/16W

R535 RK73GB1J394J CHIP R 390K J 1/16W

R536 RK73GB1J153J CHIP R 15K J 1/16W

R539 RK73GB1J393J CHIP R 39K J 1/16W

R540 RK73GB1J473J CHIP R 47K J 1/16W

R541,542 R92-1252-05 CHIP R 0 OHM J 1/16W

R545 RK73GB1J103J CHIP R 10K J 1/16W

R546 R92-1252-05 CHIP R 0 OHM J 1/16W

R548 RK73GB1J823J CHIP R 82K J 1/16W

R549 RK73GB1J473J CHIP R 47K J 1/16W

R550 RK73GB1J472J CHIP R 4.7K J 1/16W

R552 RK73GB1J103J CHIP R 10K J 1/16W

R553 RK73GB1J472J CHIP R 4.7K J 1/16W

R554 RK73GB1J563J CHIP R 56K J 1/16W

R555 RK73GB1J123J CHIP R 12K J 1/16W

R556 RK73GB1J563J CHIP R 56K J 1/16W

R557 RK73GB1J472J CHIP R 4.7K J 1/16W

R558 RK73GB1J394J CHIP R 390K J 1/16W

R559 RK73GB1J124J CHIP R 120K J 1/16W

R560 RK73GB1J394J CHIP R 390K J 1/16W

R563 RK73GB1J394J CHIP R 390K J 1/16W

R565 R92-1252-05 CHIP R 0 OHM J 1/16W

R566 RK73GB1J105J CHIP R 1.0M J 1/16W

R567 RK73GB1J394J CHIP R 390K J 1/16W

R568 RK73GB1J124J CHIP R 120K J 1/16W

R569 RK73GB1J104J CHIP R 100K J 1/16W

R570 RK73GB1J154J CHIP R 150K J 1/16W

R571 RK73GB1J124J CHIP R 120K J 1/16W

R572 R92-1368-05 CHIP R 0 OHM

R573 RK73GB1J682J CHIP R 6.8K J 1/16W

R574,575 R92-1368-05 CHIP R 0 OHM

R576 RK73GB1J224J CHIP R 220K J 1/16W

R578 R92-1368-05 CHIP R 0 OHM

R579 RK73GB1J223J CHIP R 22K J 1/16W

R580,581 RK73GB1J151J CHIP R 150 J 1/16W

R582 RK73GB1J105J CHIP R 1.0M J 1/16W

R583,584 R92-1252-05 CHIP R 0 OHM J 1/16W

R585 RK73GB1J184J CHIP R 180K J 1/16W

R586 RK73GB1J102J CHIP R 1.0K J 1/16W

R587 RK73GB1J154J CHIP R 150K J 1/16W

R588 RK73GB1J472J CHIP R 4.7K J 1/16W

R589,590 R92-1252-05 CHIP R 0 OHM J 1/16W

R591 R92-1368-05 CHIP R 0 OHM

R592 R92-1252-05 CHIP R 0 OHM J 1/16W

R594 RK73GB1J681J CHIP R 680 J 1/16W

R595 RK73GB1J274J CHIP R 270K J 1/16W

R596 R92-1252-05 CHIP R 0 OHM J 1/16W

R597 RK73GB1J105J CHIP R 1.0M J 1/16W

R598 RK73GB1J472J CHIP R 4.7K J 1/16W

R599 RK73GB1J184J CHIP R 180K J 1/16W

R600 RK73GB1J472J CHIP R 4.7K J 1/16W

R601 RK73GB1J474J CHIP R 470K J 1/16W

R602 RK73GB1J105J CHIP R 1.0M J 1/16W

R603,604 R92-1252-05 CHIP R 0 OHM J 1/16W

R606 R92-1252-05 CHIP R 0 OHM J 1/16W

R607 RK73GB1J274J CHIP R 270K J 1/16W

R608 RK73GB1J184J CHIP R 180K J 1/16W

R609 RK73GB1J223J CHIP R 22K J 1/16W

R610 RK73GB1J154J CHIP R 150K J 1/16W

R611 RK73GB1J103J CHIP R 10K J 1/16W

R612,613 RK73GB1J104J CHIP R 100K J 1/16W

R614 R92-1368-05 CHIP R 0 OHM

R615,616 RK73GB1J472J CHIP R 4.7K J 1/16W

R617 RK73GB1J104J CHIP R 100K J 1/16W

R618 RK73GB1J224J CHIP R 220K J 1/16W

R619 RK73GB1J104J CHIP R 100K J 1/16W

R620 RK73GB1J224J CHIP R 220K J 1/16W

R621,622 R92-0670-05 CHIP R 0 OHM

R623,624 RK73GB1J473J CHIP R 47K J 1/16W

R625 RK73GB1J472J CHIP R 4.7K J 1/16W

R629,630 R92-0670-05 CHIP R 0 OHM

R632 RK73GB1J473J CHIP R 47K J 1/16W

R633 R92-0670-05 CHIP R 0 OHM

R636 R92-0670-05 CHIP R 0 OHM

R641,642 RK73GB1J472J CHIP R 4.7K J 1/16W

R643 RK73GB1J471J CHIP R 470 J 1/16W

R644 RK73GB1J102J CHIP R 1.0K J 1/16W

R645 RK73GB1J562J CHIP R 5.6K J 1/16W

R646 RK73GB1J472J CHIP R 4.7K J 1/16W

R647 RK73GB1J104J CHIP R 100K J 1/16W

R648 RK73GB1J222J CHIP R 2.2K J 1/16W

R651 R92-1252-05 CHIP R 0 OHM J 1/16W

R652 RK73GB1J561J CHIP R 560 J 1/16W

R653 RK73GB1J2R2J CHIP R 2.2 J 1/16W

R654 R92-0670-05 CHIP R 0 OHM

R655 R92-1252-05 CHIP R 0 OHM J 1/16W

R657 RK73HB1J472J CHIP R 4.7K J 1/16W

R658 R92-1368-05 CHIP R 0 OHM

R659 RK73GB1J333J CHIP R 33K J 1/16W

R661 RK73GB1J472J CHIP R 4.7K J 1/16W

R663,664 RK73GB1J472J CHIP R 4.7K J 1/16W

R701-705 RK73GB1J473J CHIP R 47K J 1/16W

R706-710 RK73GB1J471J CHIP R 470 J 1/16W

R711-713 RK73GB1J473J CHIP R 47K J 1/16W

R714-720 RK73GB1J471J CHIP R 470 J 1/16W

R800 RK73HH1J105D CHIP R 1.0M D 1/16W

R801 RK73GB1J224J CHIP R 220K J 1/16W

R802 RK73GB1J334J CHIP R 330K J 1/16W

R803 RK73GB1J103J CHIP R 10K J 1/16W

R804 RK73HH1J104D CHIP R 100K D 1/16W

R805 RK73GB1J471J CHIP R 470 J 1/16W

R806,807 RK73GB1J103J CHIP R 10K J 1/16W

R808,809 RK73GB1J473J CHIP R 47K J 1/16W

TX-RX UNIT (X57-6990-10)

TK-8180

PARTS LIST

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

Ref. No.

Address

Parts No. Description Desti-

nation

New

parts

R811,812 RK73GB1J103J CHIP R 10K J 1/16W

R813 RK73GB1J472J CHIP R 4.7K J 1/16W

R814 RK73GB1J473J CHIP R 47K J 1/16W

R815 RK73GB1J683J CHIP R 68K J 1/16W

R818 RK73GB1J473J CHIP R 47K J 1/16W

R900-903 R92-1368-05 CHIP R 0 OHM

D1 02DZ5.6(X,Y) ZENER DIODE

D2 XB15A709 DIODE

D3 XB15A407A2GB DIODE

D6-8 HSM88AS DIODE

D103-106 1SV286 VARIABLE CAPACITANCE DIODE

D107-110 ✽1SV291 VARIABLE CAPACITANCE DIODE

D111 HVC131 DIODE

D171,172 DAN235E DIODE

D173 RB706F-40 DIODE

D174 MA2S111 DIODE

D251 1SS388 DIODE

D308,309 ✽BB664 VARIABLE CAPACITANCE DIODE

D311 ✽BB664 VARIABLE CAPACITANCE DIODE

D313 ✽BB664 VARIABLE CAPACITANCE DIODE

D314 1SV278 VARIABLE CAPACITANCE DIODE

D315,316 HVC131 DIODE

D402-404 1SS388 DIODE

D405 EMZ6.8N ZENER DIODE

D406 02DZ5.1(Y) ZENER DIODE

D407 RB706F-40 DIODE

D408,409 MA742 DIODE

D412-414 DA204U DIODE

D416 DAN202U DIODE

D417,418 1SS388 DIODE

D421-423 1SS388 DIODE

D600,601 1SS388 DIODE

D701 02DZ18(X,Y) ZENER DIODE

D702,703 1SS355 DIODE

D704-708 DA204U DIODE

D709,710 02DZ18(X,Y) ZENER DIODE

D711-713 DA204U DIODE

D714 02DZ18(X,Y) ZENER DIODE

D801 22ZR-10D SURGE ABSORBER

D802 DSA3A1 DIODE

D804 02DZ18(X,Y) ZENER DIODE

D805 02CZ9.1(X,Y) ZENER DIODE

IC1 2A ✽RA30H4452M-23 MOS IC

IC71,72 TA75W01FU MOS IC

IC171 ✽SPM5001 MOS IC

IC172 TA31136FN MOS IC

IC251 ✽MAX5026EUT+T MOS IC

IC301 ADF4111BCP7 MOS IC

IC302 TC7S66FU MOS IC

IC401 AT24256N10SI27 ROM IC

IC402 RV5C386A MOS IC

IC403 BU4094BCFV MOS IC

IC404 30625MGP-169GP MPU

IC405 AT29C040A-90TI ROM IC

IC406-409 TC75W51FU MOS IC

IC410 M62364FP MOS IC

IC411 LMC7101BIM5 MOS IC

IC412 TC75W51FU MOS IC

IC413 ✽TC7MZ4053FK MOS IC

IC414 TC75W51FU MOS IC

IC415 ✽AQUA-L MOS IC

IC416 ADM202EARN MOS IC

IC417 2A ✽TA7252AP ANALOG IC

IC801 S-80942CNNBG9C MOS IC

IC802 XC61CN5002NR MOS IC

IC803 TA7808F ANALOG IC

IC804 TA7805F MOS IC

IC805 NJM78L05UA BI-POLAR IC

IC807 ✽XC6201P502PR MOS IC

Q1 2SC5108(Y) TRANSISTOR

Q2 2SC5192 TRANSISTOR

Q3 DTC114EE DIGITAL TRANSISTOR

Q70 DTC114EE DIGITAL TRANSISTOR

Q72 2SK1824 FET

Q103 2SC3357 TRANSISTOR

Q171,172 2SC5108(Y) TRANSISTOR

Q173 DTA114EE DIGITAL TRANSISTOR

Q174 DTC144EE DIGITAL TRANSISTOR

Q175 2SC4617(Q) TRANSISTOR

Q176 2SK1824 FET

Q177 DTC144EE DIGITAL TRANSISTOR

Q178 DTA144EE DIGITAL TRANSISTOR

Q179 DTC144EE DIGITAL TRANSISTOR

Q251 2SC4617(S) TRANSISTOR

Q301 2SC5108(Y) TRANSISTOR

Q302,303 2SC4116(BL) TRANSISTOR

Q306,307 2SK508NV(K52) FET

Q308,309 2SC4116(GR) TRANSISTOR

Q310 DTC114EE DIGITAL TRANSISTOR

Q311 2SC5108(Y) TRANSISTOR

Q312 2SC4617(S) TRANSISTOR

Q313 2SC5108(Y) TRANSISTOR

Q402 DTC114YE DIGITAL TRANSISTOR

Q405 DTA114EE DIGITAL TRANSISTOR

Q406 HN1J02FU FET

Q409 DTC363EU DIGITAL TRANSISTOR

Q410 2SC4116(Y) TRANSISTOR

Q411 2SA1586(Y,GR) TRANSISTOR

Q412 2SK1824 FET

Q413,414 2SJ243 FET

Q415 HN1L02FU FET

Q416,417 2SJ243 FET

Q418 DTC114EE DIGITAL TRANSISTOR

Q419 DTC363EU DIGITAL TRANSISTOR

Q600 DTA144EE DIGITAL TRANSISTOR

Q701,702 2SD2114K(W) TRANSISTOR

Q801 2SC2873(Y) TRANSISTOR

Q802 DTC114EE DIGITAL TRANSISTOR

Q803-805 ✽12A02CH TRANSISTOR

Q806-809 DTC114EE DIGITAL TRANSISTOR

Q810 ✽2SJ645 FET

Q811 DTC114TE DIGITAL TRANSISTOR

Q812 DTC114EE DIGITAL TRANSISTOR

TH1 S1R104J475H THERMISTOR

TH171 ✽S1R473J475H THERMISTOR

TX-RX UNIT (X57-6990-10)

TK-8180

EXPLODED VIEW

Right Side

Front

Rear

431

105

101

103

102

106

IC1

Cx2

Cx2 Cx3

Cx3

Bx2

TX-RX unit

(B/3) TX-RX unit

(C/3) Cx2

Display unit

701

702

703

704

705

706

103

104 x2

IC417

J901

TX-RX

unit (A/3)

A: N09-2409-05

B M3 x 8 : N67-3008-48

C M2.6 x 6 (Br-Tap) : N87-2606-48

D M2.6 x 8 (Br-Tap) : N87-2608-46

Parts with the exploded numbers larger than 700 are not supplied.

TK-8180

PACKING

Parts with the exploded numbers larger than 700 are not supplied.

5 Instruction manual

(B62-1766-10)

9 DC cord assy

(Water-proof)

(E30-7523-05)

18 Fuse (Blade)

15A/32V

(F52-0024-05) x 2

32 Inner packing case

(H02-0624-03)

33 Packing fixture (Lower)

(H12-3170-01)

34 Packing fixture (Upper)

(H12-3171-03)

36 Protection bag

(H25-2352-04)

37 Item carton case

(H52-2069-02)

39 Holder

(J19-1584-05)

44 Bracket

(J29-0662-03)

49 Screw set

(N99-2039-05)

52 Microphone

(T91-0639-05)

707 Pamphlet x 2

TK-8180

Controls

Panel Test Mode

■ Test mode operation features

This transceiver has a test mode.

To enter test mode,

press [A] key and turn power on. Hold [A] key until fre-

quency version appears on LCD.

Test mode can be inhib-

ited by programming. To exit test mode, switch the power

on again. The following functions are available in test mode.

■ Key operation

Key “FNC” not appears

Function Display

[S]

Shifts to Panel tuning mode

[A] Function on “FNC” appears

[B]

MSK 1200bps and 2400bps 2400bps : icon appears

[C] Test signaling CH up Signaling No.

[]/[ ]

Test frequency CH up/down

Channel No.

[]/[ ]Volume up/down -

[ ] Squelch on/off

[■]Narrow/Wide 4k/Wide 5k Narrow : “n”,

Wide 4k : “s”,

Wide 5k : “w”

Microphone key

[PTT] Transmit -

[0] to [9] Use as the DTMF keypad. -

and [A], If a key is pressed during

[B], [C], transmission, the DTMF

[D], [#], corresponding to the key

[✳]that was presses is sent.

Key “FNC” appears

Function Display

[S] High power / Low power Low : icon appears

[A] Function off -

[B] Compander on/off On : icon appears

[C] Beat shift on/off On : icon appears

[]/[ ]Function off -

[ ] Squelch level 0 On : icon appears

[■]LCD all lights LCD all point appears

Microphone key

[PTT] Transmit -

[0] to [9] and

Function off -

[A], [B], [C],

[D], [#], [✳]

Notes :

•If a [S], [A], [B], [C] key is pressed during transmission, the

DTMF corresponding to the key that was pressed is sent.

•The “Wide 4k” can not use, please skip it.

• LED indicator

Red LED Lights during transmission.

Green LED Lights when there is carrier.

• Sub LCD indicator

“FNC” Appears at function on.

• LCD display in panel test mode

Power

switch

Modular

MIC jack

Programmable

function keys

Volume

Up/Down key

Channel

Up/Down key

LCD

n1 1

–

Channel No.

n : Narrow

s : Wide 4k

w : Wide 5k

Signaling No.

■ Frequency and Signaling

The set has been adjusted for the frequencies shown in

the following table. When required, readjust them following

the adjustment procedure to obtain the frequencies you want

in actual operation.

• Test frequency

CH RX (MHz) TX (MHz)

1 485.05000 485.10000

2 450.05000 450.10000

3 519.95000 519.90000

4 485.00000 485.00000

5 485.20000 485.20000

6 485.40000 485.40000

7~16 - -

ADJUSTMENT

TK-8180

• Test signaling

No. RX TX

1None None

2None 100Hz Square Wave

3LTR Data : LTR Data :

AREA=0, GOTO=12 AREA=0, GOTO=12

HOME=12 HOME=12

ID=47, FREE=25 ID=47, FREE=25

4QT : 67.0Hz QT : 67.0Hz

5QT : 151.4Hz QT : 151.4Hz

6QT : 210.7Hz QT : 210.7Hz

7QT : 254.1Hz QT : 254.1Hz

8DQT : D023N DQT : D023N

9DQT : D754I DQT : D754I

10 DTMF : 159D DTMF : 159D

11 None DTMF Code 9

12 2-tone : 2-tone :

A : 304.7Hz A : 304.7Hz

B : 3106.0Hz B : 3106.0Hz

13 Single Tone : 979.9Hz Single Tone : 979.9Hz

14 None Single Tone : 1000Hz

15 5-tone (CCIR 12345) 5-tone (CCIR 12345)

16 None MSK

17 MSK : MSK :

Preamble : 0xAAAA Preamble : 0xAAAA

Sync : 0x23EB Sync : 0x23EB

Data : 0x230960C6AAAA Data : 0x230960C6AAAA

CRC : 0xC4D7 CRC : 0xC4D7

Note : The “5-tone signaling” can not use, please skip it.

Panel Tuning Mode

■ Preparations for tuning the transceiver

Before attempting to tune the transceiver, connect the

unit to a suitable power supply.

Whenever the transmitter is turned, the unit must be con-

nected to a suitable dummy load (i.e. power meter).

The speaker output connector must be terminated with a

4Ω dummy load and connected to an AC voltmeter and an

audio distortion meter or a SINAD measurement meter at all

times during tuning.

■ Transceiver tuning

(To place transceiver in tuning mode)

Press [S] key, now in tuning mode. Use [B] key to write

tuning data through tuning modes, and [ ]/[ ] to adjust tun-

ing requirements (1 to 256 appeares on LCD).

Use [C] key to select the adjustment item through tuning

modes. Use [A] key to adjust 3 or 5 reference level adjust-

ments, and use [■] key to switch between Wide 5k/Wide 4k/

Narrow.

Channel appears on LCD. Set channel according to tuning

requirements.

• LCD display in panel tuning mode

nBAL 256

Adjustment item

n : Narrow

s : Wide 4k

w : Wide 5k

Adjustment value (1~256)

■ Key operation

Key Function

Push Hold (1 second)

[S]

End of panel tuning mode

[A] To enter 3 or 5 reference -

level adjustments

[B]

Writes the adjustment value

[C]

Go to next adjustment item

Back to last adjustment item

[]/[ ]

Adjustment value up/down

Continuation up/down

[]/[ ]Volume level up/down Continuation up/down

[ ] Squelch on/off -

[■]Selects Narrow, -

Wide 4k, Wide 5k

■ 3 or 5 reference level adjustments frequency

Tuning point RX (MHz) TX (MHz)

Low 450.05000 450.10000

Low’ 467.55000 467.60000

Center 485.05000 485.10000

High’ 502.55000 502.60000

High 519.95000 519.90000

■ Adjustment item and Display (✳✳✳ : 1~256)

Order Adjustment item Display

1Frequency FREQ ✳✳✳

2Shift 1 SHFT1 ✳✳✳

3Shift 2 SHFT2 ✳✳✳

4Max high power M HPWR ✳✳✳

5Max low power M LPWR ✳✳✳

6High power HPWR ✳✳✳

7Low power LPWR ✳✳✳

8Balance B A L ✳✳✳

9Max deviation DEV ✳✳✳

10 QT Q T ✳✳✳

11 DQT D Q T ✳✳✳

12 LTR L T R ✳✳✳

13 DTMF DTMF ✳✳✳

14 MSK M S K ✳✳✳

15 Tone TONE ✳✳✳

16 Sensitivity 1 SENS1 ✳✳✳

17 Squelch S Q L ✳✳✳

18 Low RSSI LRSSI ✳✳✳

19 Squelch tight SQLT ✳✳✳

20 High RSSI HRSSI ✳✳✳

ADJUSTMENT

TK-8180

■ Flow chart

Note : The “Wide 4k” can not use, please skip it.

Frequency

[C]

Shift 1

[C]

Shift 2

[C]

High power

[C]

Low power

[C]

Balance Narrow

[C] [C]

[C][A]

Balance Wide 4k Balance Wide 5k

Max deviation Narrow

[C] [A]

Max deviation Wide 4k Max deviation Wide 5k

QT Narrow

[C] [C]

[C][A]

QT Wide 4k QT Wide 5k

DTMF Narrow

[C] [C] [C]

DTMF Wide 4k DTMF Wide 5k

MSK Narrow

[C] [C] [C]

MSK Wide 4k MSK Wide 5k

Tone Narrow

[C] [C] [C]

Tone Wide 4k Tone Wide 5k

LTRNarrow

[C] [C][A]

LTRWide 5k

DQT Narrow

Low RSSI Narrow

[C] [C] [C][A]

Low RSSI Wide 4k

[C] [A] [A]

[A] [A]

Squelch Wide 4k

Low RSSI Wide 5k

Squelch tight Narrow

[C] [C] [C][A]

Squelch tight Wide 4k Squelch tight Wide 5k

High RSSI Narrow

[C] [C] [C][A]

High RSSI Wide 4k High RSSI Wide 5k

Squelch Narrow

[C] [C][A]

Squelch Wide 5k

[C] [A]

DQT Wide 4k DQT Wide 5k

[A]

Sensitivity 1

[C]

[A]

3 reference level

adjustments

3 reference level

adjustments

5 reference level

adjustments

5 reference level

adjustments

[C]

Max high power

[C]

Max low power

[A]

5 reference level

adjustments

5 reference level

adjustments

3 reference level

adjustments

3 reference level

adjustments

3 reference level

adjustments

3 reference level

adjustments

3 reference level

adjustments

5 reference level

adjustments

3 reference level

adjustments

3 reference level

adjustments

3 reference level

adjustments

3 reference level

adjustments

[ ] [ ] [ ]

[ ] [ ]

[ ] [ ] [ ]

3 reference level

adjustments

3 reference level

adjustments exit

[C]

Low

[C]

Center

[C]

High

[A]

5 reference level

adjustments

5 reference level

adjustments exit

[C]

Low

[C]

Low’

[C]

Center

[C]

High’

[C]

High

[A]

ADJUSTMENT

TK-8180

Test Equipment Required for Alignment

Test Equipment Major Specifications

1. Standard Signal Generator Frequency Range 400 to 520MHz

(SSG) Modulation Frequency modulation and external modulation

Output 0.1µV to greater than 1mV

2. Power Meter Input Impedance 50Ω

Operation Frequency 400 to 520MHz or more

Measurement Capability Vicinity of 50W

3. Deviation Meter Frequency Range 400 to 520MHz

4. Digital Volt Meter Measuring Range 1 to 20V DC

(DVM) Accuracy High input impedance for minimum circuit loading

5. Oscilloscope DC through 30MHz

6. High Sensitivity Frequency Range 10Hz to 600MHz

Frequency Counter Frequency Stability 0.2ppm or less

7. Ammeter 13A or more

8. AF Volt Meter Frequency Range 50Hz to 10kHz

(AF VTVM) Voltage Range 3mV to 3V

9. Audio Generator (AG) Frequency Range 50Hz to 5kHz

Output 0 to 1V

10. Distortion Meter Capability 3% or less at 1kHz

Input Level 50mV to 10Vrms

11. Voltmeter Measuring Range 10 to 1.5V DC or less

Input Impedance 50kΩ/V or greater

12. 4Ω Dummy Load Approx. 4Ω, 20W

13. Regulated Power Supply 13.6V, approx. 20A (adjustable from 9 to 20V)

Useful if ammeter requipped

1 : BLC

2 : +B

3 : GND

4 : PTT/TXD

(PC serial data

from radio)

MIC connector (Front panel view)

5 : MICE

6 : MIC

7 : HOOK/RXD

(PC serial data

to radio)

8 : DM

Test cable for microphone input (E30-3360-08)

1GREEN

RED

BLACK

BLUE

SHIELD

WHITE

GRAY

YELLOW

PTT

MIC-E

MIC

Tuning cable (E30-3383-05)

Adapter cable (E30-3383-05) is

required for injecting an audio if

PC tuning is used.

See “PC Mode” section fot the

connection.

Lead wire +

MIC

Shield wire –

ADJUSTMENT

to transceiver

to VGS-1

Check Jig for the VGS-1

KENWOOD part : W05-1127-00

TK-8180

Item Condition

Measurement Adjustment

Specifications/Remarks

Test-

equipment Unit Terminal PartsUnit Method

ADJUSTMENT

1. Setting 1) Power supply voltage

DC power supply terminal : 13.6V

2) SSG standard modulation

[Wide 5k] MOD : 1kHz, DEV : 3kHz

[Wide 4k] MOD : 1kHz, DEV : 2.4kHz

[Narrow] MOD : 1kHz, DEV : 1.5kHz

2. VCO lock [Panel test mode]

Power meter

Rear ANT TX-RX TC301 8.1V ±0.1V

voltage 1) CH-Sig : 3-1 panel (B/3)

• RX

2) CH-Sig : 2-1 DVM TX-RX CV Check 1.5V±0.5V

(B/3)

• TX [Panel tuning mode] LPWR* TX-RX TC302 8.1V ±0.1V

3) CH-Sig : 3-1 (B/3)

PTT : ON

4) CH-Sig : 2-1 Check 1.5V±0.5V

PTT : ON

* TX can be continued on unlock condition in panel tuning mode.

1. Frequency 1) Adj item : [FREQ] f. counter Rear ANT Front [ ],[ ]Center frequency Note : After replacing the

adjust Adjust : [✳✳✳]panel panel ±100Hz VCXO (X301) align frequency.

PTT : ON

2. Frequency 1) Adj item : [SHFT1] [L SHFT1] ±100Hz

shift 1 Adjust : [✳✳✳]

Low frequency+5.00kHz

adjust 2) Adj item : [L SHFT1] → [C SHFT1]

[C SHFT1] → [H SHFT1]

Center frequency+5.00kHz

Adjust : [✳✳✳][H SHFT1]

PTT : ON

High frequency+5.00kHz

3. Frequency 1) Adj item : [SHFT2] [L SHFT2] ±100Hz

shift 2 Adjust : [✳✳✳]

Low frequency+6.25kHz

adjust 2) Adj item : [L SHFT2] → [C SHFT2]

[C SHFT2] → [H SHFT2]

Center frequency+6.25kHz

Adjust : [✳✳✳][H SHFT2]

PTT : ON

High frequency+6.25kHz

4. Max high 1) Adj item : [MHPWR]

Power meter

[L MHPWR], ±3W

power Adjust : [✳✳✳][L’ MHPWR],

adjust 2) Adj item : [L MHPWR] → [C MHPWR]

[L’ MHPWR] → [C MHPWR]→

: 33W

[H’ MHPWR] → [H MHPWR]

[H’ MHPWR],

Adjust : [✳✳✳][H MHPWR]

PTT : ON : 28W

Common Section

Item Condition

Measurement Adjustment

Specifications/Remarks

Test-

equipment Unit Terminal PartsUnit Method

Transmitter Section (K market model skips adjustment of Wide 4k)

TK-8180

Item Condition

Measurement Adjustment

Specifications/Remarks

Test-

equipment Unit Terminal PartsUnit Method

ADJUSTMENT

5. Max low 1) Adj item : [MLPWR]

Power meter

Rear ANT Front [ ],[ ]15W ±1W

power Adjust : [✳✳✳]panel panel

adjust 2) Adj item : [L MLPWR] →

[L’ MLPWR] → [C MLPWR]→

[H’ MLPWR] → [H MLPWR]

Adjust : [✳✳✳]

PTT : ON

6. High power 1) Adj item : [HPWR]

Power meter

[L HPWR], ±1W

adjust Adjust : [✳✳✳]Ammeter [L’ HPWR], 9A or less

2) Adj item : [L HPWR] → [C HPWR]

[L’ HPWR] → [C HPWR] → : 30W

[H’ HPWR] → [H HPWR] [H’ HPWR],

Adjust : [✳✳✳][H HPWR]

PTT : ON : 25W

7. High power [Panel test mode] Check 25~35W

check 1) CH-Sig : 1-1 9A or less

PTT : ON

2) CH-Sig : 2-1

PTT : ON

3) CH-Sig : 3-1 21~29W

PTT : ON 9A or less

8. Low power 1) Adj item : [LPWR] Front [ ],[ ]5.0W ±0.5W

adjust Adjust : [✳✳✳]panel 5A or less

2) Adj item : [L LPWR] →

[L’ LPWR] → [C LPWR] →

[H’ LPWR] → [H LPWR]

Adjust : [✳✳✳]

PTT : ON

9. Low power [Panel test mode] Check 3.5~6.5W

check 1) CH-Sig : 1-1 5A or less

Set low power (Push [S])

PTT : ON

2) CH-Sig : 2-1

PTT : ON

3) CH-Sig : 3-1

PTT : ON

10. DQT 1) Adj item : [n BAL]

Power meter

Rear ANT Front [ ],[ ]Make the demodu-

balance Adjust : [✳✳✳]panel panel lation waves into

adjust Deviation meter filter square waves.

LPF : 3kHz Deviation Front Modular

HPF : OFF meter panel MIC jack

• Narrow 2) Adj item : [nL BAL] →

Oscilloscope

[nC BAL] → [nH BAL] AG

Adjust : [✳✳✳]AF VTVM

PTT : ON

• Wide 4k 3) Adj item : [s BAL]

Adjust : [✳✳✳]

PTT : ON

• Wide 5k 4) Adj item : [w BAL]

Adjust : [✳✳✳]

PTT : ON

TK-8180

Item Condition

Measurement Adjustment

Specifications/Remarks

Test-

equipment Unit Terminal PartsUnit Method

ADJUSTMENT

11. Max DEV 1) Adj item : [n DEV]

Power meter

Rear ANT Front [ ],[ ]2.10kHz ±0.10kHz

adjust Adjust : [✳✳✳]panel panel (According to the

AG : 1kHz/50mV at MIC terminal

larger +, –)

Deviation meter filter Deviation Front Modular

LPF : 15kHz meter panel MIC jack

HPF : OFF

Oscilloscope

• Narrow 2) Adj item : [nL DEV] → AG

[nC DEV] → [nH DEV] AF VTVM

Adjust : [✳✳✳]

PTT : ON

• Wide 4k 3) Adj item : [s DEV] 3.30kHz ±0.10kHz

Adjust : [✳✳✳](According to the

PTT : ON larger +, –)

• Wide 5k 4) Adj item : [w DEV] 4.20kHz ±0.10kHz

Adjust : [✳✳✳](According to the

PTT : ON larger +, –)

12. MIC [Panel test mode] Check 2.5~3.5kHz

sensitivity 1) CH-Sig : 1-1

check

AG : 1kHz/5mV at MIC terminal

(Wide 5k only) PTT : ON

13.

QT deviation

1) Adj item : [n QT] Front [ ],[ ]0.35kHz ±0.05kHz

adjust Adjust : [✳✳✳]panel

Deviation meter filter

LPF : 3kHz

HPF : OFF

• Narrow 2) Adj item : [nL QT] →

[nC QT] → [nH QT]

Adjust : [✳✳✳]

PTT : ON

• Wide 4k 3) Adj item : [s QT] 0.60kHz ±0.10kHz

Adjust : [✳✳✳]

PTT : ON

• Wide 5k 4) Adj item : [w QT] 0.75kHz ±0.10kHz

Adjust : [✳✳✳]

PTT : ON

14. DQT 1) Adj item : [n DQT] 0.35kHz ±0.05kHz

deviation Adjust : [✳✳✳]

adjust Deviation meter filter

LPF : 3kHz

HPF : OFF

• Narrow 2) Adj item : [nL DQT] →

[nC DQT] → [nH DQT]

Adjust : [✳✳✳]

PTT : ON

• Wide 4k 3) Adj item : [s DQT] 0.60kHz ±0.10kHz

Adjust : [✳✳✳]

PTT : ON

• Wide 5k 4) Adj item : [w DQT] 0.75kHz ±0.10kHz

Adjust : [✳✳✳]

PTT : ON

TK-8180

Item Condition

Measurement Adjustment

Specifications/Remarks

Test-

equipment Unit Terminal PartsUnit Method

ADJUSTMENT

15. LTR 1) Adj item : [n LTR]

Power meter

Rear ANT Front [ ],[ ]0.75kHz ±0.10kHz

deviation Adjust : [✳✳✳]panel panel

adjust Deviation meter filter

LPF : 3kHz Deviation Front Modular

HPF : OFF meter panel MIC jack

• Narrow 2) Adj item : [nL LTR] →

Oscilloscope

[nC LTR] → [nH LTR] AG

Adjust : [✳✳✳]AF VTVM

PTT : ON

• Wide 3) Adj item : [w LTR] 1.00kHz ±0.10kHz

Adjust : [✳✳✳]

PTT : ON

16. DTMF 1) Adj item : [n DTMF] 1.5kHz ±0.1kHz

deviation Adjust : [✳✳✳]

adjust Deviation meter filter

• Narrow LPF : 15kHz

HPF : OFF

PTT : ON

• Wide 4k 2) Adj item : [s DTMF] 2.4kHz ±0.1kHz

Adjust : [✳✳✳]

PTT : ON

• Wide 5k 3) Adj item : [w DTMF] 3.0kHz ±0.1kHz

Adjust : [✳✳✳]

PTT : ON

17. MSK 1) Adj item : [n MSK] 1.5kHz ±0.1kHz

deviation Adjust : [✳✳✳]

adjust Deviation meter filter

• Narrow LPF : 15kHz

HPF : OFF

PTT : ON

• Wide 4k 2) Adj item : [s MSK] 2.4kHz ±0.1kHz

Adjust : [✳✳✳]

PTT : ON

• Wide 5k 3) Adj item : [w MSK] 3.0kHz ±0.1kHz

Adjust : [✳✳✳]

PTT : ON

18. TONE 1) Adj item : [n TONE] 1.5kHz ±0.1kHz

deviation Adjust : [✳✳✳]

adjust Deviation meter filter

• Narrow LPF : 15kHz

HPF : OFF

PTT : ON

• Wide 4k 2) Adj item : [s TONE] 2.4kHz ±0.1kHz

Adjust : [✳✳✳]

PTT : ON

• Wide 5k 3) Adj item : [w TONE] 3.0kHz ±0.1kHz

Adjust : [✳✳✳]

PTT : ON

TK-8180

Item Condition

Measurement Adjustment

Specifications/Remarks

Test-

equipment Unit Terminal PartsUnit Method

ADJUSTMENT

1. Sensitivity 1) Adj item : [SENS1] SSG Rear ANT Front [ ],[ ]Enter the following Note : After replacing the

adjust Adjust : [✳✳✳]panel panel adjustment values EEPROM (IC401) aline

2) Adj item : [L SENS1] → AF VTVM EXT. SP to the transceiver sensitivity.

[L’ SENS1] → [C SENS1] →

Oscilloscope

by pressing [ ] and

[H’ SENS1] → [H SENS1] [ ] keys.

Adjust : [✳✳✳][L SENS1] : 70

[L’ SENS1] : 90

[C SENS1] : 115

[H’ SENS1] : 138

[H SENS1] : 164

After setting the

adjustment value,

press [B] key.

The adjustment

value will be stored

in memory.

2. Sensitivity [Panel test mode] Check 12dB SINAD or more

check 1) CH-Sig : 1-1

SSG output

Wide 5k : –116dBm (0.35µV)

(MOD : 1kHz/±3kHz)

Narrow : –116dBm (0.35µV)

(MOD : 1kHz/±1.5kHz)

3. Squelch 1) Adj item : [n SQL] After input signal After adjusting SQL, check

(Preset) Adjust : [✳✳✳]from SSG, press [B] SQL open/close.

adjust SSG output :

12dB SINAD level

key. That numeric SSG 12dB SINAD level + 4dB

• Narrow (MOD : 1kHz/±1.5kHz) will be stored in : Open

memory. SSG 12dB SINAD level – 6dB

2) Adj item : [nL SQL] → : Close

[nC SQL] → [nH SQL] [nC SQL] MOD 1kHz/±1.5kHz

Adjust : [✳✳✳][sC SQL] MOD 1kHz/±2.4kHz

[wC SQL] MOD 1kHz/±3.0kHz

• Wide 4k 3) Adj item : [s SQL]

Adjust : [✳✳✳]

SSG output :

12dB SINAD level

(MOD : 1kHz/±2.4kHz)

4) Adj item : [sL SQL] →

[sC SQL] → [sH SQL]

Adjust : [✳✳✳]

• Wide 5k 5) Adj item : [w SQL]

Adjust : [✳✳✳]

SSG output :

12dB SINAD level

(MOD : 1kHz/±3.0kHz)

6) Adj item : [wL SQL] →

[wC SQL] → [wH SQL]

Adjust : [✳✳✳]

Receiver Section (K market model skips adjustment of Wide 4k)

TK-8180

Item Condition

Measurement Adjustment

Specifications/Remarks

Test-

equipment Unit Terminal PartsUnit Method

ADJUSTMENT

4. Low RSSI 1) Adj item : [n LRSSI] SSG Rear ANT After input signal The following erroneous

adjust Adjust : [✳✳✳] panel from SSG, press [B] performance may occur if any

• Narrow SSG output :

12dB SINAD level

AF VTVM EXT. SP key. That numeric irregular RSSI adjustment,

(MOD : 1kHz/±1.5kHz)

Oscilloscope

will be stored in such as pressing the [B] key

memory. assigned for determination

2) Adj item : [nL LRSSI] → when it is the ANT OPEN

[nC LRSSI] → [nH LRSSI] state, is performed.

Adjust : [✳✳✳] • The antenna bar ( ) cannot

appear correctly.

• Wide 4k 3) Adj item : [s LRSSI] • Scan does not stop.

Adjust : [✳✳✳]

SSG output :

12dB SINAD level

(MOD : 1kHz/±2.4kHz)

4) Adj item : [sL LRSSI] →

[sC LRSSI] → [sH LRSSI]

Adjust : [✳✳✳]

• Wide 5k 5) Adj item : [w LRSSI]

Adjust : [✳✳✳]

SSG output :

12dB SINAD level

(MOD : 1kHz/±3.0kHz)

6) Adj item : [wL LRSSI] →

[wC LRSSI] → [wH LRSSI]

Adjust : [✳✳✳]

5. Squelch 1) Adj item : [n SQLT] After input signal After adjusting SQL, check

(Tight) Adjust : [✳✳✳]from SSG, press [B] SQL open/close.

adjust SSG output key. That numeric SSG 12dB SINAD level +10dB

• Narrow : 12dB SINAD+5dB level will be stored in : Open

(MOD : 1kHz/±1.5kHz) memory. SSG 12dB SINAD level

: Close

2) Adj item : [nL SQLT] →

[nC SQLT] MOD 1kHz/±1.5kHz

[nC SQLT] → [nH SQLT]

[sC SQLT] MOD 1kHz/±2.4kHz

Adjust : [✳✳✳]

[wC SQLT] MOD 1kHz/±3.0kHz

• Wide 4k 3) Adj item : [s SQLT]

Adjust : [✳✳✳]

SSG output

: 12dB SINAD+5dB level

(MOD : 1kHz/±2.4kHz)

4) Adj item : [sL SQLT] →

[sC SQLT] → [sH SQLT]

Adjust : [✳✳✳]

• Wide 5k 5) Adj item : [w SQLT]

Adjust : [✳✳✳]

SSG output

: 12dB SINAD+5dB level

(MOD : 1kHz/±3.0kHz)

6) Adj item : [wL SQLT] →

[wC SQLT] → [wH SQLT]

Adjust : [✳✳✳]

TK-8180

Item Condition

Measurement Adjustment

Specifications/Remarks

Test-

equipment Unit Terminal PartsUnit Method

ADJUSTMENT

6. High RSSI 1) Adj item : [n HRSSI] SSG Rear ANT After input signal The following erroneous

adjust Adjust : [✳✳✳] panel from SSG, press [B] performance may occur if any

• Narrow SSG output : –70dBm AF VTVM EXT. SP key. That numeric irregular RSSI adjustment,

(MOD : 1kHz/±1.5kHz)

Oscilloscope

will be stored in such as pressing the [B] key

memory. assigned for determination

2) Adj item : [nL HRSSI] → when it is the ANT OPEN

[nC HRSSI] → [nH HRSSI] state, is performed.

Adjust : [✳✳✳] • The antenna bar ( ) cannot

appear correctly.

• Wide 4k 3) Adj item : [s HRSSI] • Scan does not stop.

Adjust : [✳✳✳]

SSG output : –70dBm

(MOD : 1kHz/±2.4kHz)

4) Adj item : [sL HRSSI] →

[sC HRSSI] → [sH HRSSI]

Adjust : [✳✳✳]

• Wide 5k 5) Adj item : [w HRSSI]

Adjust : [✳✳✳]

SSG output : –70dBm

(MOD : 1kHz/±3.0kHz)

6) Adj item : [wL HRSSI] →

[wC HRSSI] → [wH HRSSI]

Adjust : [✳✳✳]

Adjustment Points

TC301

TC302

ANT

RXD

TXD

RST2

PSW

PSENS

TX-RX UNIT (B/3)

Foil side view

TX-RX UNIT (B/3)

Component side view

TK-8180

Display unit (X54-3480-10)

Pin No.

Name Description

CN901 (to internal speaker)

1GND Ground.

2 SPO Speaker output.

CN902 (to TX-RX unit B/3 CN429)

1SPO Speaker input.

2SPO Speaker input.

3SPO Speaker input.

4SPO Speaker input.

5SPO Speaker input.

6SPO Speaker input.

7GND Ground.

88C 8V input.

9SB Power input of switched power supply.

10 SB Power input of switched power supply.

11 NC Non-connenction.

12 PSW Detection signal output of power switch.

13 GND Ground.

14 GND Ground.

15 MIC MIC signal output.

16 ME MIC ground.

17 GND Ground.

18 PSENS Detection signal output of display unit.

19 RST2 Reset signal input.

20 GND Ground.

21 GND Ground.

22 GND Ground.

23 NC Non-connenction.

SHIFT/MODEL

Control signal input of beat-shift function.

25 NC Non-connenction.

26 5C 5V output.

27 TXD Serial data signal input.

28 RXD Serial data signal output.

29 GND Ground.

30 GND Ground.

J901 (MIC jack)

1BLC MIC backlight control.

2SB DC 13.6V±15%, 200mA typ.

3E Ground.

Pin No.

Name Description

4 PTT/TXD PTT : PTT input, TXD : Serial data output.

5ME MIC ground.

6MIC MIC signal input.

HOOK/RXD

HOOK : Hook detection, RXD : Serial data input.

8DM MIC data detection.

TX-RX unit (X57-6990-10) (A/3)

Pin No.

Name Description

CN701 (to TX-RX unit B/3 CN427)

1AUXIO6 AUX input/output 6.

2AUXIO7 AUX input/output 7.

3AUXIO1 AUX input/output 1.

4AUXIO2 AUX input/output 2.

5RXD2 Serial data output 2.

6AUXIO3 AUX input/output 3.

7TXD2 Serial data input 2.

8AUXIO4 AUX input/output 4.

9AUXIO8 AUX input/output 8.

10 AUXIO5 AUX input/output 5.

11 AUXIO9 AUX input/output 9.

12 AUXO1 AUX input 1.

13 TXD1 Serial data input 1.

14 AUXO2 AUX input 2.

15 RXD1 Serial data output 1.

16 GND Ground.

17 ME MIC ground.

18 MI2 External MIC output.

19 DEO Detected signal input.

20 GND Ground.

21 5C 5V.

22 DI Data signal output.

23 AFO RX filtered audio input.

24 SB Power input after power switch.

25 SB Power input after power switch.

26 SB Power input after power switch.

27 SB Power input after power switch.

28 SB Power input after power switch.

29 SB Power input after power switch.

30 NC Non-connenction.

TERMINAL FUNCTION

TK-8180

Pin No.

Name Description

J701 (ACC 25-pin)

1NC Non-connenction.

2RXD1 Serial data input 1. RS-232C level.

Input voltage range : ±30V max.

L≤0.4V, H≥2.4V, Zi≥5kΩ

3TXD1 Serial data output 1. RS-232C level.

L≤–5V, H≥5V/3kΩ load, Zo≤2kΩ

4AUXI/O9 AUX input/output 9.

Active low with 47kΩ pull-up to 5V

5DI Data signal input.

Data input level adjustable (2.0Vp-p typ.)

6MI2 External MIC input. DC-coupled

7GND Ground.

8AUXI/O8 AUX input/output 8. Same as AUXI/O9

9TXD2 Serial data output 2. TTL level.

L≤0.7V, H≥4.2V/25kΩ load, Zo≤1kΩ

10 RXD2 Serial data input 2. TTL level.

Input voltage range : +5/0V max.

L≤0.8V, H≥4.2V

11 GND Ground.

12 AUXI/O7 AUX input/output 7. Same as AUXI/O9

13 AUXI/O6 AUX input/output 6. Same as AUXI/O9

14 SB Power output after power switch.

DC13.6V±15%, 2.0A max.

15 AUXO2 AUX output 2. Open collector (500mA max.)

(Default none) L≤0.3V

16 AUXO1 AUX Output 1. Same as AUXO2

17 AFO RX filtered audio output (DC-coupled).

AF low level output.

Wide : 700mVp-p typ.

Narrow : 700mVp-p typ.

(Standard modulation)

18 GND Ground.

19 DEO Detected signal output (DC-coupled).

AF output level adjustable (740mVp-p typ.)

20 AUXI/O5 AUX input/output 5. Same as AUXI/O9

21 AUXI/O4 AUX input/output 4. Same as AUXI/O9

22 AUXI/O3 AUX input/output 3. Same as AUXI/O9

23 AUXI/O2 AUX input/output 2. Same as AUXI/O9

24 AUXI/O1 AUX input/output 1. Same as AUXI/O9

25 ME MIC ground.

TX-RX unit (X57-6990-10) (B/3)

Pin No.

Name Description

CN301 (to TX-RX unit C/3)

1REF Reference signal otput to the PLL IC.

2Fin Complementary signal output to the PLL IC.

3 CPGND Ground.

45C 5V output.

5GND Ground

6CP

Signal input from charge pump block in the PLL IC.

CN302 (to TX-RX unit C/3)

1UL Control signal input form the PLL IC.

2PLE Control signal output to the PLL IC.

3DT Control signal output to the PLL IC.

4 PCK Control signal output to the PLL IC.

5GND Ground.

6 DGND Ground.

CN403 (to VGS-1)

1OPT1 VGS busy signal input. Option boad I/F 1.

Output : L≤0.45V, H≥4.7V/25kΩ load

Input : L≤1.0V, H≥4.0V, Input voltage : 0V~5.0V

2OPT3 VGS playback signal input. Option boad I/F 3.

Output : L≤0.45V, H≥4.7V/25kΩ load

Input : L≤1.0V, H≥4.0V, Input voltage : 0V~5.0V

3RXD1 Serial data input.

Input : L≤1.0V, H≥4.0V, Input voltage : 0V~5.0V

4TXD1

Serial data output / PTT singanl output (SC20-460).

Output : L≤0.45V, H≥4.7V/25kΩ load

5CLK Serial clock output.

6OPT4 VGS enable output. Option boad I/F 4.

Output : L≤0.45V, H≥4.7V/25kΩ load

7USEL

UART speed select output. L : 19200bps fixed

8OPT5 VGS reset signal output. Option boad I/F 5.

Output : L≤0.45V, H≥4.7V/25kΩ load

9 DGND Ground.

10 AGND Ground.

11 AO VGS audio input. Zin≥10kΩ, 1Vp-p max,

Input Voltage : 0V~5.0V

12 AI VGS audio output. Zo≥10kΩ

13 AGND Ground.

14 5E 5V power supply output. 78mA max

15 STON Side tone input. 1kHz, 5Vp-p

TERMINAL FUNCTION

TK-8180

Pin No.

Name Description

16 DTI Data signal input.

Zin≥22kΩ, 600±200mVp-p

17 TCTL Speaker mute signal input.

Input : L≤1.0V, H≥4.0V, Input voltage : 0V~5.0V

18 NC Non-connection.

19 AUDIH MIC mute signal input.

20 OPT2 Option boad I/F 2.

Output : L≤0.45V, H≥4.7V/25kΩ load

Input : L≤1.0V, H≥4.0V, Input voltage : 0V~5.0V

21 TXO MIC signal output (AC coupled) before pre-

emphasis. Zo>2.2kΩ, 130±50mVp-p typ.

22 RXEO Audio signal output (DC coupled) after de-

emphasis. Zo>30kΩ, 1±0.3Vp-p typ.

23 RXEI Audio signal input (DC coupled) after de-

emphasis. Zin>15kΩ, 1±0.3Vp-p typ.

24 TXI MIC signal input (AC coupled) before pre-

emphasis. Zin>22kΩ, 500±50mVp-p typ.

25 OPT6 Option boad I/F 6.

Output : L≤0.45V, H≥4.7V/25kΩ load

26 8C Power input after power switch.

8.0V typ, 100mA max

CN427 (to TX-RX unit A/3 CN701)

1NC Non-connenction.

2SB Power output after power switch.

3SB Power output after power switch.

4SB Power output after power switch.

5SB Power output after power switch.

6SB Power output after power switch.

7SB Power output after power switch.

8AFO RX filtered audio output.

9DI Data signal input.

10 5C 5V.

11 GND Ground.

12 DEO Detected signal output.

13 MI2 External MIC input.

14 ME MIC ground.

15 GND Ground.

16 RXD1 Serial data input 1.

17 AUXO2 AUX output 2.

18 TXD1 Serial data output 1.

Pin No.

Name Description

19 AUXO1 AUX output 1.

20 AUXIO9 AUX input/output 9.

21 AUXIO5 AUX input/output 5.

22 AUXIO8 AUX input/output 8.

23 AUXIO4 AUX input/output 4.

24 TXD2 Serial data output 2.

25 AUXIO3 AUX input/output 3.

26 RXD2 Serial data input 2.

27 AUXIO2 AUX input/output 2.

28 AUXIO1 AUX input/output 1.

29 AUXIO7 AUX input/output 7.

30 AUXIO6 AUX input/output 6.

CN428

1SB Power output of switched power supply.

2 SPI Speaker output.

3SPO Speaker input.

4PA Control signal output of PA function.

5HOR Control signal output of Horn alert function.

6GND Ground.

CN429 (to Display unit CN902)

1(DM) Reserve.

2GND Ground.

3RXD Serial data signal input.

4TXD Serial data signal output.

5NC Non-connenction.

65C 5V output.

SHIFT/MODEL

Control signal output of beat-shift function.

8(CLK) Reserve.

9(LCDDO) Reserve.

10 (LCDDI) Reserve.

11 (LCDRST) Reserve.

12 RST2 Reset signal output.

13 PSENS Detection signal input of display unit.

14 GND Ground.

15 ME MIC ground.

16 MIC MIC signal input.

17 GND Ground.

18 GND Ground.

19 PSW Detection signal input of power switch.

20 NC Non-connenction.

TERMINAL FUNCTION

TK-8180

Pin No.

Name Description

21 SB Power output of switched power supply.

22 SB Power output of switched power supply.

23 8C 8V output.

24 GND Ground.

25 SPO Speaker output.

26 SPO Speaker output.

27 SPO Speaker output.

28 SPO Speaker output.

29 SPO Speaker output.

30 SPO Speaker output.

CN804

1IGN Ignition sense input.

2GND Ground.

Solder Land

Name Description

to ANI board

GND (A–) Ground.

OPT1 TX sens signal output. Conv. L : TX, H : Not TX

(CH BUSY) LTR L : Link complete, H : Not link complete

L≤0.45V, H≥4.7V/25kΩ load

OPT3 TX control signal input. Active low.

(KEY) L≤1.0V, H≥ : 4.0V, Input voltage 0V~5.0V

OPT4 PTT signal output. L : TX, H : Not TX

(PTT) L≤0.45V, H≥4.7V/25kΩ load

OPT5 Emergency signal output.

(EMERGENCY)

L : Emergency function is operated,

H : Emergency function is not operated

L≤0.45V, H≥4.7V/25kΩ load

5E (A+) 5V power supply (78mA max.).

DTI Data signal input. Zin>22kΩ, 600±200mVp-p

(DATA OUT) (Standard modulation)

TCTL Speaker mute signal input. H : Unmute

(TONE CTRL) L≤0.8V, H≥4.2V, Input voltage : 0V~5.0V

AUDIH MIC mute signal input. L : Mute

(AUDIO INHIB)

OPT2 Emergency signal input. Active low.

(AUX I/O) L≤1.0V, H≥ : 4.0V, Input voltage 0V~5.0V

STON Side tone input. 1kHz, 5Vp-p

(SIDE TONE)

Name Description

to Scrambler board

GND (GND) Ground.

TXD1 PTT signal output. L : TX, H : Not TX

(PTT) L≤0.45V, H≥4.7V/25kΩ load

(PTT signal input) Actiive low.

L≤1.0V, H≥4.0V, Inut voltage : 0V~5.0V

OPT1 (DODE Scramble code signal output 1.

SELECT1) L≤0.45V, H≥4.7V/25kΩ load

OPT3 (CODE Scramble code signal output 2.

SELECT2) L≤0.45V, H≥4.7V/25kΩ load

OPT4 Echo PTT signal output. L : TX, H : Not TX

(ECHO PTT) L≤0.45V, H≥4.7V/25kΩ load

OPT5 (CODE Scramble code signal output 4.

SELECT8) L≤0.45V, H≥4.7V/25kΩ load

TXO MIC signal output (AC coupled) before

(TX OUT) pre-enphasis. Zo>2.2kΩ, 130±50mVp-p typ.

(Standard modulation)

OPT2 Scrambler control signal output.

(SCRAMBLE) L : ON, H : OFF. L≤0.45V, H≥4.7V/25kΩ load

RXEO Audio signal output (DC coupled) after

(RX OUT) de-enphasis. Zo>30kΩ, 1±0.3Vp-p typ.

(Standard modulation)

TXI MIC signal input (AC coupled) before

(TX IN) pre-enphasis. Zin>2.2kΩ, 130±50mVp-p typ.

(Standard modulation)

RXEI Audio signal input (DC coupled) after

(RX IN) de-enphasis. Zin>15kΩ, 1±0.3Vp-p typ.

(Standard modulation)

OPT6 (CODE Scramble code signal output 3.

SELECT4) L≤0.45V, H≥4.7V/25kΩ load

8C (+V) 8V AVR output. 8.0V typ, 100mA max.

to GPS receiver

GND (GND) Ground.

RXD1*1Data output.

(DATA OUT1)

RXD2*1Data output.

(DATA OUT1)

5E (+5V) 5V

*1 : Depending on the connected optional accessory, the DATA

OUT1 may connect to either RXD1 or RXD2.

TERMINAL FUNCTION

JIHGFEDCBA

CP909

CP910

CP911

Q901

Q902

Q904 Q905

Q906

Q907

Q909

Q910

29 30

GND

RXD

GND

PSENS

GND

PSW

SPO

GND

TXD

GND

RST2

GND

MIC

GND

SPO

Q911

Q913

L901

L902

L903

L904

L908

L909

R901

R903

R904

R905

R907

R909

R910

R911

R913

R914

R915

R916

R917 R918

R919

CN901

CN902

R920

R925

R926R927

R928

R929

R930

R931

R932

R933 R934

R935

R936

R939

C904

R940

R941

C906

R942

C907

R943

R944

C908

C909

R945

C910

X901

C911

C912

C913 1GND

SPO

C914

C915

SP2

C916

C917

C918

R955

R956

R957

R958

R959

C920

C921

C922

C924 C925

C926

R962

C927

R963

C928

C932

C933

C934

R970

C935

C936

C938

D901

D902

D903

D904

D905

D906

IC901

IC902

CP901

CP902

CP903

CP904

CP905

CP906

CP907

ED1

CP908

J901

D907

D909

D910

D911

D915

COM8_1

COM9_1

COM1_1

COM2_1

COM3_1

COM4_1

COM5_1

COM6_1

COM7_1

COM8_2

COM9_2

SEG16

SEG17

SEG18

SEG19

SEG20

SEG21

SEG22

SEG23

SEG24

SEG25

SEG31

SEG32

SEG33

COM7_2

COM6_2

COM5_2

COM4_2

COM3_2

COM2_2

SEG1

SEG2

SEG3

SEG4

SEG5

SEG6

SEG7

SEG8

SEG9

SEG10

SEG11

SEG12

SEG13

SEG14

SEG15

SEG26

SEG27

SEG28

D916

D917

D921

D922

D923

D927

D928

BLC

PSW

LEFT UP

LEFT DOWN

TP1

MIC

PTT

SB 2

1100

100

SHIFT/MODEL

TK-8180 PC BOARD

DISPLAY UNIT (X54-3480-10) Component side view (J72-0932-09)

DISPLAY UNIT (X54-3480-10) Foil side view (J72-0932-09)

JKLMNOPQRS

CP910

L905

L906

L907

TH901

R943

R947

R948

R949

R950

R951

R952

R953

R954

R955

R956

R957

R958

R959

R967

R969

C930

C931

R971

IC903

ED1

C937

D912

D913

D914

SEG31

SEG32

SEG33

SEG34

SEG35

SEG41

SEG42

SEG43

SEG44

SEG45

SEG51

SEG52

SEG53

SEG54

SEG55

SEG61

SEG62

SEG63

SEG64

SEG65

SEG71

SEG72

SEG73

SEG74

SEG75

SEG26

SEG27

SEG28

SEG29

SEG30

SEG36

SEG37

SEG38

SEG39

SEG40

SEG46

SEG47

SEG48

SEG49

SEG50

SEG56

SEG57

SEG58

SEG59

SEG60

SEG66

SEG67

SEG68

SEG69

SEG70

D918

D919

D920

D924

D925

D926

D929

D930

<BC

RIGHT UP

RIGHT DOWN

100

25 26

7576

J72-0932-09

DISPLAY UNIT (X54-3480-10) Component side view (J72-0932-09)

DISPLAY UNIT (X54-3480-10) Foil side view (J72-0932-09)

PC BOARD TK-8180

Component side

Foil side

Layer 1

Layer 2

Layer 3

Layer 4

Component side

Foil side

Layer 1

Layer 2

Layer 3

Layer 4

Ref. No.

Address

D907 3C

D909 3G

D910 3H

D911 3I

D912 3K

D913 3L

D914 3N

D915 4G

D916 4H

D917 4I

D918 4K

D919 4L

Ref. No.

Address

D920 4N

D921 6F

D922 6G

D923 6I

D924 6O

D925 6M

D926 6K

D927 3D

D928 5D

D929 3P

D930 5P

Ref. No.

Address

IC901 10C

IC902 12H

IC903 12K

Q901 10D

Q902 10D

Q904 12B

Q905 12C

Q906 10I

Q907 9I

Q909 9H

Ref. No.

Address

Q910 10D

Q911 9D

Q913 9H

D901 10C

D902 12D

D903 9F

D904 9C

D905 10C

D906 10C

JKLMNOPQRSIHGFEDCBA

CP909

CP910

CP911

Q901

Q902

Q904 Q905

Q906

Q907

Q909

Q910

29 30

GND

RXD

GND

PSENS

GND

PSW

SPO

GND

TXD

GND

RST2

GND

MIC

GND

SPO

Q911

Q913

L901

L902

L903

L904

L905

L906

L907

L908

L909

R901

R903

R904

R905

R907

R909

R910

R911

R913

R914

R915

R916

R917 R918

R919

CN901

CN902

R920

R925

R926R927

R928

R929

R930

R931

R932

R933 R934

R935

R936

R939

C904

R940

R941

TH901

C906

R942

C907

R943

R944

C908

C909

R945

R947

R948

R949

C910

X901

C911

C912

C913 1GND

SPO

C914

R950

C915

SP2

R951

C916

R952

C917

R953

C918

R954

R955

R956

R957

R958

R959

C920

C921

C922

C924 C925

C926

R962

C927

R963

C928

R967

R969

C930

C931

C932

C933

C934

R970

C935

R971

C936

C938

D901

D902

D903

D904

D905

D906

IC901

IC902 IC903

CP901

CP902

CP903

CP904

CP905

CP906

CP907

ED1

CP908

J901

C937

D907

D909

D910

D911

D912

D913

D914

D915

COM8_1

COM9_1

COM1_1

COM2_1

COM3_1

COM4_1

COM5_1

COM6_1

COM7_1

COM8_2

COM9_2

SEG16

SEG17

SEG18

SEG19

SEG20

SEG21

SEG22

SEG23

SEG24

SEG25

SEG31

SEG32

SEG33

SEG34

SEG35

SEG41

SEG42

SEG43

SEG44

SEG45

SEG51

SEG52

SEG53

SEG54

SEG55

SEG61

SEG62

SEG63

SEG64

SEG65

SEG71

SEG72

SEG73

SEG74

SEG75

COM7_2

COM6_2

COM5_2

COM4_2

COM3_2

COM2_2

SEG1

SEG2

SEG3

SEG4

SEG5

SEG6

SEG7

SEG8

SEG9

SEG10

SEG11

SEG12

SEG13

SEG14

SEG15

SEG26

SEG27

SEG28

SEG29

SEG30

SEG36

SEG37

SEG38

SEG39

SEG40

SEG46

SEG47

SEG48

SEG49

SEG50

SEG56

SEG57

SEG58

SEG59

SEG60

SEG66

SEG67

SEG68

SEG69

SEG70

D916

D917

D918

D919

D920

D921

D922

D923

D924

D925

D926

D927

D928

BLC

D929

D930

PSW

LEFT UP

LEFT DOWN

<BC

RIGHT UP

RIGHT DOWN

TP1

MIC

PTT

SB 2

1100

100

25 26

7576

J72-0932-09

SHIFT/MODEL

TK-8180 PC BOARD

DISPLAY UNIT (X54-3480-10) Component side view (J72-0932-09) DISPLAY UNIT (X54-3480-10) Component side view (J72-0932-09)

DISPLAY UNIT (X54-3480-10) Foil side view (J72-0932-09) DISPLAY UNIT (X54-3480-10) Foil side view (J72-0932-09)

PC BOARD TK-8180

Component side

Foil side

Layer 1

Layer 2

Layer 3

Layer 4

Component side

Foil side

Layer 1

Layer 2

Layer 3

Layer 4

Ref. No.

Address

D907 3C

D909 3G

D910 3H

D911 3I

D912 3K

D913 3L

D914 3N

D915 4G

D916 4H

D917 4I

D918 4K

D919 4L

Ref. No.

Address

D920 4N

D921 6F

D922 6G

D923 6I

D924 6O

D925 6M

D926 6K

D927 3D

D928 5D

D929 3P

D930 5P

Ref. No.

Address

IC901 10C

IC902 12H

IC903 12K

Q901 10D

Q902 10D

Q904 12B

Q905 12C

Q906 10I

Q907 9I

Q909 9H

Ref. No.

Address

Q910 10D

Q911 9D

Q913 9H

D901 10C

D902 12D

D903 9F

D904 9C

D905 10C

D906 10C

JIHGFEDCBA

R706

R707

R708

R709

R710

R717

R718

R719

CN701

C705

C706

C707

C708

C709

C710

C711

C712

C713

C714

C715

C716

C717

C718

C719

C720

C721

C722

C723

D709

D710

D714

Fin

GND

CPGND

REF

PLE

PCK

DGND

GND

J72-0931-19 A/3

J72-0931-19 C/3

AFO

GND

DEO

MI2

GND

RXD1

AUXO2

TXD1

AUXO1

AUXIO9

AUXIO5

AUXIO8

AUXIO4

TXD2

AUXIO3

RXD2

AUXIO2

AUXIO1

AUXIO7

AUXIO6

5610

1620

L304

L305

R301

R319

R320

R321

R323

R325

R327

R330

R332

C309

C322

C335

R373

IC301

C396

C397

Component side

Foil side

Layer 1

Layer 2

Layer 3

Layer 4

Component side

Foil side

Layer 1

Layer 2

Layer 3

Layer 4

TX-RX UNIT (X57-6990-10) (A/3) Component side view (J72-0931-19 A/3)

TX-RX UNIT (X57-6990-10) (C/3)

Component side view (J72-0931-19 C/3)

Ref. No. Address

D709 6G

D710 6G

D714 6F

Ref. No. Address

IC301 12E

TK-8180 PC BOARD

ABCDE FGH I J

J701

Q701 Q702

L701

L702

R701R702

R703R704R705 R711R712R713

R714

R715

R716

R720

C701

C702 C703C704

D701

D702

D703

D704D705

D706D707D708 D711D712D713

J72-0931-19 A/3

J72-0931-19 C/3

GND

AUX

I/O6

AUX

I/O1

AUX

I/O2

AUX

I/O3

AUX

I/O4

AUX

I/O5

AUX

I/O7

AUX

I/O8

AUX

I/O9 GND

MEDEOGNDAFOSB AUXO1AUXO2

GND RXD2TXD2MI2DITXD1RXD1NC

R308

R377

R378

IC302

C386

Component side

Foil side

Layer 1

Layer 2

Layer 3

Layer 4

Component side

Foil side

Layer 1

Layer 2

Layer 3

Layer 4

TX-RX UNIT (X57-6990-10) (C/3)

Foil side view (J72-0931-19 C/3)

TX-RX UNIT (X57-6990-10) (A/3) Foil side view (J72-0931-19 A/3)

PC BOARD TK-8180

Ref. No. Address

Q701 6C

Q702 6D

D701 7D

D702 6D

D703 6C

Ref. No. Address

D704 7G

D705 7F

D706 6G

D707 6G

D708 6E

Ref. No. Address

D711 6H

D712 6H

D713 6F

Ref. No. Address

IC302 11E

JIHGFEDCBA

C20

R400

C21

C22

R403

C24

R600

R603

R604

R606

R800

R801 R802

R804

R612

R806

R613

CN403

R807

R615

R809 R616

R617

R618

R619

R811

R812

R620

R621

R622

R623

R624

R625R629

R630

R632

R633

R636

R445

R446

R641

R642

R643

R644

R645

R646

R648

C801

C802

C803

IC7

C420

C421

R651

C422

R652

R653

C424

R654

C425

R655

C426

C427

C428

R465

C813

C814

C430

C818

C431

C819

C432

C435

C436

C437

R473

R474

C439

R475

C823

C824

C826

C441

C444

C445

C446

R483

R484

R485

C831

R486

C832

R487

R488

R489

C450

C454

C260

R491

C261

R496

R498

R499

D405

D406

C467

D408

D409

D600

D601

D412

C472

D413

D414

D416

D418

D801

D802

D421

D422

C483

L32

L324

IC414

C498

IC801

IC802

R302

R503

R508

R900

R901

R902

R903

C30

C500

C501

C505

X301

C506

R542

R545

R546

R14

R549

R15

R16

R17

R18

C511

R19

C512C513

R552

R21

R362

F401

R569

C339

C530

C534

R572

R573

R574

C538

R575

C539

F801

C540

C542

C543

R580

C544

R581

C546

R586

R589

R590

R591

R592

R594

R595

R596

R597

C560

C561

C562

C563

C564

Q600

C565 C566

Q410

Q411

R71

R72

Q413

R75

Q416

R76

Q417

R77

Q418

C570

Q419

C572

Q803

C573

Q804

C574

C575

Q806

C576

C577

Q808

C578

C579

L410

L411

C580

Q811

Q812

C585

C586

C587

C588

C398

C592 C593

C595

C17

C18

C19

J401

EXT. SP

CN804

IGN

GND

CN428

6GND

HOR

SPO

SPI

CN803

GND

IC417

CN802

PA HOR

IC416

TTL

RS-232C

CN401

BATT

CLKC

32K

CHAE

GND

RXD

TXD

SHIFT/MODEL

CLK

LCDDO

LCDDI

LCDRST

RST2

PSENS

GND

MIC

GND

SPO

CN429

J72-0931-19 B/3

GND

RXD1

TXD1

TXD2

RXD2

OPT1

OPT3

OPT4

OPT5

DTI

TCTL

AD-0 AD-1

IC410

12 13

IC407

AO EXTLIM

OPT1

RXD1

CLK

USEL

DGND

AGND

STON

TCTL

AUDIH

TXO

RXEI

OPT6

OPT3

TXD1

OPT4

OPT5

AGND

DTI

OPT2

RXEO

TXI

26 25

IC807

TXO

AUDIH

OPT2

STON

RXEO

TXI

RXEI

OPT6

RXO RXI

GND

TK-8180 PC BOARD TX-RX UNIT (X57-6990-10) (B/3)

Component side view (J72-0931-19 B/3)

JKLMNOPQRS

D173

D174

C25

R212

C26

C27

C28

C29

R217

C31

C32

R221

C42

C44

C45

C50

C53

C60

C211

C212

C214

C220

C221

C222

C223

C224

C74

C225

C226

C76

C227

C77

C228

C229

IC71

IC72

C231

C233

C234

C235

C236

C237

C241

R295

R298

C260C261

C262

Q301

Q302Q303

Q70

Q72

L301

L302

L110

L111

L112

L306

L113

L320

L321

L322

L323

L324

TH1

L327

R109

R302

R303

Q171

R305

R306

R307

Q175

R115

R309

Q176

Q177

Q179

R310

R311

R312

R121

R315

R122

R316

R123

R317

R124

R318

R126

R322

R326

R133

R134

L181

L182

L188

R333

C302

C306

C307

C308

C311

X301

C312

C314

C316

C317

C318

C127

C128

C129

C320

C323

C130

C324

C131

R21

C132

R362

C133

C327

C134

C135

C136

R26

C137

C138

R369

C139

R177

C331

C333

C140

R30

R370

R31

C141

R371

C142

R180

C338

R181

XF171

C339

R376

R182

R183

R184

R197

R198

R199

D103

D104

D105

D106

TH171

CD171

X171

R71

R72

R75

R76

R77

R78

R79

R81

C192

R82

C193

C194

R84

C195

R85

C389

C196

R86

C197

R87

C198

R88

R89

C390

C391

C392

C393

R90

C394

C395

C398

R200

R202 R203

R204

R205

R206

R207

IC1

CN301

2Fin

REF

CPGND

GND

CN302

GND

2PLE

PCK

DGND

GND

BPF

GND

GND 5R

IC172

CF172

WIDE +

CF171

NARROW

TX-RX UNIT (X57-6990-10) (B/3)

Component side view (J72-0931-19 B/3)

PC BOARD TK-8180

Component side

Foil side

Layer 1

Layer 2

Layer 3

Layer 4

Ref. No.

Address

IC1 3K

IC71 7J

IC72 7L

IC172 9P

IC407 7G

IC410 8F

IC414 11E

IC416 8D

IC417 5C

IC801 11B

IC802 2G

IC807 12H

Q3 7I

Q70 7K

Q72 7L

Q171 11P

Q175 10O

Q176 9P

Q177 9O

Q179 10O

Q301 8L

Q302 10L

Q303 11L

Q410 12D

Q411 12D

Q413 10I

Q416 12C

Q417 11D

Q418 6D

Q419 7D

Ref. No.

Address

Q600 11C

Q803 2E

Q804 2D

Q806 2E

Q808 3D

Q811 2F

Q812 11C

D1 5I

D103 8M

D104 9M

D105 10M

D106 10M

D173 10O

D174 10P

D405 8G

D406 7F

D408 11E

D409 11D

D412 9D

D413 9C

D414 8C

D416 6D

D418 7D

D421 13E

D422 13E

D600 12C

D601 11C

D801 6F

D802 6G

JKLMNOPQRSIHGFEDCBA

C20

R400

C21

C22

D173

R403

D174

C24

C25

R212

C26

C27

C28

C29

R217

R600

R603

R604

C31

R606

C32

R221

R800

R801 R802

R804

R612

R806

R613

CN403

R807

R615

R809 R616

C42

R617

R618

C44

R619

C45

R811

R812

R620

R621

R622

R623

R624

C50

R625

C53

R629

R630

R632

R633

C60

C211

C212

R636

C214

R445

R446

R641

R642

R643

C220

R644

C221

R645

C222

R646

C223

C224

C74

R648

C225

C801

C226

C802

C76

C227

C77

C803

C228

C229

IC71

IC72

C420

C421

R651

C422

R652

R653

C424

R654

C231

C425

R655

C426

C233

C427

C234

C428

C235

R465

C236

C237

C813

C814

C430

C818

C431

C819

C432

C435

C241

C436

C437

R473

R474

C439

R475

C823

C824

C826

C441

C444

C445

C446

R483

R484

R485

C831

R486

C832

R487

R488

R489

R295

C450

R298

C454

C260

R491

C261

C262

Q301

R496

Q302Q303

R498

R499

D405

D406

C467

Q70

D408

D409

Q72

D600

L301

D601

L302

L110

L111

L112

D412

C472

L306

L113

D413

D414

D416

D418

D801

D802

D421

D422

C483

L320

L321

L322

L323

L324

TH1

L327

IC414

C498

IC801

IC802

R109

R302

R303

Q171

R305

R306

R307

Q175

R115

R309

Q176

Q177

Q179

R503

R310

R311

R312

R508

R121

R315

R122

R316

R123

R317

R124

R318

R126

R322

R900

R901

R902

R326

R903

R133

R134

L181

L182

L188

R333

C302

C306

C307

C308

C500

C501

C505

C311

X301

C506

R542

C312

C314

R545

R546

C316

C317

R14

C318

R549

R15

R16

C127

R17

C128

R18

C129

C511

R19

C512C513

C320

R552

C323

C130

C324

C131

R21

C132

R362

C133

C327

C134

C135

C136

R26

C137

C138

R369

C139

F401

R177

C331

C333

C140

R30

R370

R31

C141

R371

C142

R180

C338

R181

XF171

R569

C339

R376

R182

R183

R184

C530

C534

R572

R573

R574

C538

R575

C539

F801

C540

C542

R197

C543

R198

R580

C544

R199

R581

C546

R586

D103

D104

D105

R589

D106

R590

R591

R592

R594

R595

R596

R597

TH171

C560

CD171

C561

C562

C563

C564

Q600

C565 C566

Q410

X171

Q411

R71

R72

Q413

R75

Q416

R76

Q417

R77

Q418

R78

C570

Q419

R79

C572

Q803

C573

Q804

C574

C575

Q806

C576

C577

Q808

C578

R81

C579

C192

R82

C193

C194

R84

L410

C195

R85

L411

C389

C196

R86

C197

R87

C198

C580

R88

Q811

R89

Q812

C390

C585

C391

C586

C392

C587

C393

C588

R90

C394

C395

C398

C592 C593

C595

R200

R202 R203

C17

R204

C18

R205

C19

R206

R207

J401

EXT. SP

CN804

IGN

GND

CN428

6GND

HOR

SPO

SPI

CN803

GND

IC417

CN802

PA HOR

IC416

TTL

RS-232C

CN401

BATT

CLKC

32K

CHAE

GND

RXD

TXD

SHIFT/MODEL

CLK

LCDDO

LCDDI

LCDRST

RST2

PSENS

GND

MIC

GND

SPO

CN429

J72-0931-19 B/3

GND

RXD1

TXD1

TXD2

RXD2

OPT1

OPT3

OPT4

OPT5

DTI

TCTL

AD-0 AD-1

IC410

12 13

IC407

AO EXTLIM

OPT1

RXD1

CLK

USEL

DGND

AGND

STON

TCTL

AUDIH

TXO

RXEI

OPT6

OPT3

TXD1

OPT4

OPT5

AGND

DTI

OPT2

RXEO

TXI

26 25

IC807

TXO

AUDIH

OPT2

STON

RXEO

TXI

RXEI

OPT6

RXO RXI

IC1

CN301

2Fin

REF

CPGND

GND

CN302

GND

2PLE

PCK

DGND

GND

BPF

GND

GND 5R

IC172

CF172

WIDE +

CF171

NARROW

TK-8180 PC BOARD TX-RX UNIT (X57-6990-10) (B/3)

Component side view (J72-0931-19 B/3)

TX-RX UNIT (X57-6990-10) (B/3)

Component side view (J72-0931-19 B/3)

PC BOARD TK-8180

Component side

Foil side

Layer 1

Layer 2

Layer 3

Layer 4

Ref. No.

Address

IC1 3K

IC71 7J

IC72 7L

IC172 9P

IC407 7G

IC410 8F

IC414 11E

IC416 8D

IC417 5C

IC801 11B

IC802 2G

IC807 12H

Q3 7I

Q70 7K

Q72 7L

Q171 11P

Q175 10O

Q176 9P

Q177 9O

Q179 10O

Q301 8L

Q302 10L

Q303 11L

Q410 12D

Q411 12D

Q413 10I

Q416 12C

Q417 11D

Q418 6D

Q419 7D

Ref. No.

Address

Q600 11C

Q803 2E

Q804 2D

Q806 2E

Q808 3D

Q811 2F

Q812 11C

D1 5I

D103 8M

D104 9M

D105 10M

D106 10M

D173 10O

D174 10P

D405 8G

D406 7F

D408 11E

D409 11D

D412 9D

D413 9C

D414 8C

D416 6D

D418 7D

D421 13E

D422 13E

D600 12C

D601 11C

D801 6F

D802 6G

JIHGFEDCBA

D171

D172

R210

R601

C30

CN202

CN203

R608

C34

R609

C35

C38

C39

R610

R611

IC171

C43

C47

C48

C49

C200

C201

C51

C202

C52

C204

C205

C55

C206

C56

C207

C57

C208

C58

C209

C59

C400

C210

C61

C62

C213

C215

R251

C216

R252

C217

R253

C218

R254

C219

R255

R256R257

R258

R647

C79

C230

C80

C232

C238

C239

R661

R663

C240

R664

C251

C252

C253

C255

C256

C257

C258

C259

Q103

C459

Q306

Q307

Q308

L101

Q309

Q310

L108

L109

C469

Q311

Q312

Q313

L114

L115

L309

L116

L117

C477

C479

L119

L310

L311

L312

C480

L314

L315

C482

L316

L317

L318

L319

L325

C492

L326

L328

C499

D251

CN13

R108

Q172

Q173

Q174

R116

Q178

R119

IC251

CN100 CN101 CN102

R507

R120

L171

L172

L173 L7

L174

R129

L175

L176

L177

L178

L179

R130 R131 R132

L180

L183

L184

L10

L185

R521

L186

L12

L187

R523

L13

L189

R334

R335

R336

R337R339

R530

CN322 CN323

R340

R341

CN326

R342

R343

R344

CN329

R345

R346

R347

R348

C119

R349

C503

C507

R10

R350

C121

R11

R351

R12

R352

R13

R353

C124

C125

R355

TC301

TC302

R356

R357

R358

R359

C514

R553

C517

C518

R360

C519

R555

R361

C325

R55

R22

R557

R23

R558

R24

R171

R25

R365

R366

R172

R173

R367

R27

R28

R174

C520

R175

R29

R176

R178

C524

R179

C525

C526

C334

R567

R33

C143

C144

R568

C145

R375

C146 R2

C147

R38

C148

C149

R185

C531

R186

R187

R188

R570

R189

R571

C535

C342

C537

C343 +

C150

C151

C152

R576

C346

C153

C347

R190

C154

C155

R191

R579

R192

C156

R193

R194

R195

R196

C350

C351

C352

R583

C353

C354

R584

R585

C355

C356

R587

C357

R588

C358

C359

D107

D108

D109

C360

C361

C362

C363

D110

C364

D111

C171

C365

C173

C367

R598

C368

D308

C175

D309

C369

C176

C177

C178

Q409

C370 C371

D311

C372

C373

D313

D314

C374

C181

D315

C375

C182

Q412

D316

C376

C183

C377

C184

Q414

C378

C185

Q415

C379

C186

C187

C188

C189

C380

C381

C382

C383

C190

C384

C385

C387

C388

C199

C584

CN1 CN2

CN3

C591

C594

Q251

C10

C13

C14

C15

C16

L251

R208 R209

ANT

+++

Q406

IC412

J72-0931-19 B

TK-8180 PC BOARD TX-RX UNIT (X57-6990-10) (B/3)

Foil side view (J72-0931-19 B/3)

JKLMNOPQRS

R401R402

R405 R406

R407

R601

R602

R410

R411

R412

R607

C33

R414

R608

R415

R416

R418

R419

R803

R610

R611

R805

R420

R808

C40

R614

R421

R422

R423

R424

R425

R426

R427

R428

R429

R813

R814

R815

R818

R430

R431

R432

R434R435

R437

R439

C403

R440

C404

R441

R442

C406

R443

C407

R444

C408 C409

R447

R448

R449

CN815

C410

C411

X401

C412

X403

X404

R450

R451R452

R453R454

R455

R456

R457

R458

C804

R459

C805

C806

C807

C808

C809

C423

R461

R657

R658

C810

C429

C811

R659

C812

R466

R467

R468

R469

C815

C816

C817

R661

C433

R470

C434

R471

R472

C820

C438

C821

C822

R476

R477

R478

C825

C440

C442

C443

R481

R482

C447

C448

C451

C452

C453

R490

C455

R492

C457

R493

R494

C459

R495

R497

C460

C461

D402

C462

C463

D403

C464

D404

C465

D407

C468

C469

C470

C475

C476

D417

C478

D804

D805

C481

C482

D423

C484

C485

C487

C488

C489

C490

C491

IC411

C492

C493

C495

C496

C497

C499

IC803

IC804

R500

R501

R502

R504

R505 R506

R507

R509

R511

R512

R513

R514

R515

R517

R519

R520

R522

R523

R524

R525

R526

R527

R528

R529

R530

R531

R532

R533

R534

R535

R536

R539

C502

C503

R540

C504

R541

C507

R548

R550

C514

C515

C516

C517

C518

R554

R555

R556

R559

C520

R560

C524

C526

R563

C528

R565

C529

R566

R567

R568

C531

C532

C533

R570

R571

C535

C536

C537

R576

R578

C541

C545

R582

R583

C547

C548

R584

R585

C549

R587

R588

C550

C551

C552

C553

C554

C555

C556

C557

C558

C559

Q402

R598

R599

Q405

C567

C568

Q412

Q414

L401

L402

L403

L404

L405

L406

Q802

L407

L408

L409

Q805

Q807

Q809

Q810

C581

C582

C583

C584

C591

Q406

IC409

IC415

IC412

IC413

IC405

1617

IC403

IC406

IC805

Q801

IC408

IC404

3964

102

103 128

CP412

CP413

CP414 CP415

CP416 CP417

CP408

CP409

CP410

CP411

CP407

CP402

CP403

CP404

CP405

CP406

RXDTXDRST2PSW

PSENS

IC401

CP401

IC402

CN427

AFO

GND

DEO

MI2

GND

RXD1

AUXO2

TXD1

AUXO1

AUXIO9

AUXIO5

AUXIO8

AUXIO4

TXD2

AUXIO3

RXD2

AUXIO2

AUXIO1

AUXIO7

AUXIO6

931-19 B/3

TX-RX UNIT (X57-6990-10) (B/3)

Foil side view (J72-0931-19 B/3)

PC BOARD TK-8180

Component side

Foil side

Layer 1

Layer 2

Layer 3

Layer 4

Ref. No.

Address

IC171 11D

IC251 12H

IC401 10P

IC402 10Q

IC403 9M

IC404 11N

IC405 11M

IC406 8M

IC408 7M

IC409 8J

IC411 8L

IC412 11J

IC413 12K

IC415 9K

IC803 4P

IC804 2L

IC805 6O

Q1 7G

Q2 7H

Q103 7E

Q172 9B

Q173 9D

Q174 9D

Q178 10C

Q251 12G

Q306 9G

Q307 10H

Q308 9G

Q309 10H

Q310 9I

Q311 9H

Q312 11H

Q313 9G

Q402 11P

Q405 11K

Q406 11J

Q409 9J

Ref. No.

Address

Q412 11J

Q414 12J

Q415 12J

Q801 6N

Q802 3N

Q805 2M

Q807 3M

Q809 2N

Q810 4N

D2 6B

D3 6D

D6 6B

D7 5B

D8 4B

D107 7C

D108 7C

D109 7D

D110 7D

D111 7B

D171 9D

D172 10D

D251 12H

D308 11H

D309 11F

D311 11I

D313 11F

D314 9H

D315 9F

D316 8F

D402 9P

D403 10P

D404 9P

D407 12J

D417 9P

D423 9P

D804 3N

D805 6N

JKLMNOPQRSIHGFEDCBA

D171

R401

D172

R402

R210

R405 R406

R407

R601

R602

R410

C30

R411

R412

CN202

R607

C33

CN203

R414

R608

C34

R609

C35

R415

R416

R418

C38

R419

C39

R803

R610

R611

R805

R420

R808

C40

R614

IC171

R421

R422

R423

C43

R424

R425

R426

R427

C47

R428

C48

R429

C49

R813

R814

R815

R818

C200

R430

C201

R431

C51

C202

R432

C52

C204

R434

C205

R435

C55

C206

C56

C207

R437

C57

C208

C58

C209

R439

C59

C400

C403

C210

R440

C404

R441

C61

R442

C406

C62

C213

R443

C407

R444

C408

C215

C409

R251

C216

R252

C217

R447

R253

C218

R448

R254

C219

R449

CN815

R255

R256R257

C410

R258 C411

X401

C412

X403

X404

R450

R451R452

R453

R647

R454

R455

R456

R457

R458

C804

R459

C805

C79

C806

C807

C808

C809

C423

C230

C80

R461

C232

R657

R658

C810

C429

C811

R659

C812

R466

R467

C238

R468

C239

R469

C815

C816

C817

R661

C433

R663

C240

R470

C434

R664

R471

R472

C820

C438

C821

C822

R476

R477

R478

C825

C440

C442

C443

R481

C251

R482

C252

C447

C253

C448

C255

C256

C257

C258

C259

Q103

C451

C452

C453

R490

C455

R492

C457

R493

R494

C459

R495

R497

Q306

Q307

C460

Q308

L101

C461

Q309

D402

C462

C463

D403

C464

D404

C465

D407

C468

Q310

L108

L109

C469

Q311

Q312

Q313

C470

L114

L115

C475

L309

L116

C476

L117

C477

D417

C478

C479

L119

D804

L310

D805

L311

L312

C480

L314

C481

L315

C482

L316

L317

D423

C484

L318

C485

L319

C487

C488

C489

C490

C491

IC411

L325

C492

L326

C493

L328

C495

C496

C497

C499

IC803

IC804

D251

CN13

R108

Q172

Q173

Q174

R116

Q178

R500

R119

R501

IC251

R502

R504

CN100

R505

CN101

R506

CN102

R507

R120

R509

L171

L172

L173 L7

L174

R129

L175

R511

L176

R512

L177

R513

L178

R514

L179

R515

R517

R130 R131

R519

R132

L180

L183

L184

R520

L10

L185

R521

L186

R522

L12

L187

R523

L13

R524

L189

R525

R526

R527

R528

R334

R529

R335

R336

R337R339

R530

R531

R532

CN322

R533

CN323

R534

R340

R535

R341

R536

CN326

R342

R343

R344

CN329

R539

R345

R346

R347

R348

C119

R349

C502

C503

R540

C504

R541

C507

R10

R350

C121

R11

R351

R12

R352

R13

R353

C124

R548

C125

R355

TC301

TC302

R356

R357

R358

R359

R550

C514

C515

C516

R553

C517

C518

R554

R360

C519

R555

R361

C325

R556

R22

R557

R23

R558

R24

R171

R559

R25

R365

R366

R172

R173

R367

R27

R28

R174

C520

R175

R29

R176

R178

R560

C524

R179

C525

C526

R563

C528

C334

R565

C529

R566

R567

R33

C143

C144

R568

C145

R375

C146 R2

C147

R38

C148

C149

R185

C531

R186

C532

R187

C533

R188

R570

R189

R571

C535

C536

C342

C537

C343 +

C150

C151

C152

R576

C346

C153

C347

R190

C154

R578

C155

R191

R579

R192

C156

R193

R194

R195

C541

R196

C350

C545

C351

R582

C352

R583

C547

C353

C548

C354

R584

R585

C549

C355

C356

R587

C357

R588

C358

C359

D107

D108

C550

D109

C551

C552

C553

C554

C360

C555

C361

C556

C362

C557

C363

D110

C558

C364

D111

C171

C559

C365

Q402

C173

C367

R598

C368

D308

C175

R599

Q405

D309

C369

C176

C177

C178

Q409

C370 C371

D311

C372

C567

C373

D313

C568

D314

C374

C181

D315

C375

C182

Q412

D316

C376

C183

C377

C184

Q414

C378

C185

Q415

L401

C379

C186

L402

C187

L403

C188

L404

C189

L405

L406

Q802

L407

C380

L408

L409

Q805

C381

C382

C383

Q807

C190

C384

Q809

C385

C387

C388

Q810

C199

C581

C582

C583

C584

CN1 CN2

CN3

C591

C594

Q251

C10

C13

C14

C15

C16

L251

R208 R209

ANT

+++

Q406

IC409

IC415

IC412

IC413

IC405

1617

IC403

IC406

IC805

Q801

IC408

IC404

3964

102

103 128

CP412

CP413

CP414 CP415

CP416 CP417

CP408

CP409

CP410

CP411

CP407

CP402

CP403

CP404

CP405

CP406

RXDTXDRST2PSW

PSENS

IC401

CP401

IC402

CN427

AFO

GND

DEO

MI2

GND

RXD1

AUXO2

TXD1

AUXO1

AUXIO9

AUXIO5

AUXIO8

AUXIO4

TXD2

AUXIO3

RXD2

AUXIO2

AUXIO1

AUXIO7

AUXIO6

J72-0931-19 B/3

TK-8180 PC BOARD TX-RX UNIT (X57-6990-10) (B/3)

Foil side view (J72-0931-19 B/3)

TX-RX UNIT (X57-6990-10) (B/3)

Foil side view (J72-0931-19 B/3)

PC BOARD TK-8180

Component side

Foil side

Layer 1

Layer 2

Layer 3

Layer 4

Ref. No.

Address

IC171 11D

IC251 12H

IC401 10P

IC402 10Q

IC403 9M

IC404 11N

IC405 11M

IC406 8M

IC408 7M

IC409 8J

IC411 8L

IC412 11J

IC413 12K

IC415 9K

IC803 4P

IC804 2L

IC805 6O

Q1 7G

Q2 7H

Q103 7E

Q172 9B

Q173 9D

Q174 9D

Q178 10C

Q251 12G

Q306 9G

Q307 10H

Q308 9G

Q309 10H

Q310 9I

Q311 9H

Q312 11H

Q313 9G

Q402 11P

Q405 11K

Q406 11J

Q409 9J

Ref. No.

Address

Q412 11J

Q414 12J

Q415 12J

Q801 6N

Q802 3N

Q805 2M

Q807 3M

Q809 2N

Q810 4N

D2 6B

D3 6D

D6 6B

D7 5B

D8 4B

D107 7C

D108 7C

D109 7D

D110 7D

D111 7B

D171 9D

D172 10D

D251 12H

D308 11H

D309 11F

D311 11I

D313 11F

D314 9H

D315 9F

D316 8F

D402 9P

D403 10P

D404 9P

D407 12J

D417 9P

D423 9P

D804 3N

D805 6N

TK-8180 SCHEMATIC DIAGRAM

ABCDE

X54-348 1/2

C906 0.01u

C917

0.1u

C918

10u10

C912 1000p

C909 100p

D901

02DZ18(X,Y)

R904

R903

470

C904 100p

J901

C916

0.1u

C915 1000p

R901

D906

DA204U

D904

DA204U

IC901

TA78L05F

COM

OUT

C927

1000p

R943

100

R939

4.7k

D905

DA204U

R905

4.7k

R909

47k

R911

47k

R907

33k

Q913

DTC114EE

Q906

DTC114EE

C928

1000p

Q901

DTC144EE

Q902

DTC144EE

C925

10p

R919 1k

R936 10k

L903

R926 47k

L904

R932 1k

R933 1k

R934 1k

R935 1k

R927 1k

R928 1k

R914 470k

R915 470k

R944

Q905

DTC114EE

C921

1000p

R918

270

C926

1000p

R917

470

Q904

DTC114EE

D926

D920

D917

D913 D912

D925

D911

D916

D919

D923

D915

D922

D910

D921

R950

100

R949

100

R948

100

R947

100

D909

D918

D914

L902

C910

100p

C911

100p

C914

100p

C913

1000p

L901

R929 1k

R930 1k

R931 1k

R916 470k

CP901

100*2

CP902

100*2

CP903

100*2

CP904

100*2

CP905

100*2

CP906

100*2

CP907

100*2

CP908

100*2

CP909

100*2

CP910

100*2

CP911

100*2

D924

R953

820

D927

D928

R954

820

D929

D930

12A02CH

Q910

Q911

DTC114EE

R962

10k

R963

10k

C936 0.1u

R970

10k

R910

47k

D907

B30-2151-05

R913 470k

R920

R942

12A02CH

Q909

R945

10k

R952

390

R951

390

R925 470

C938 1000p

R941

R940

100

L909

L908

C924

10p

C922

0.01u

C920

100p

FKEY[1]

FKEY[2]

FKEY[3]

FKEY[4]

FKEY[6]

FKEY[5]

FKEY[7]

FKEY[8] FKEY[10]

FKEY[9]

FKEY[10]

FKEY[9]

FKEY[8]

FKEY[7]

FKEY[6]

FKEY[5]

FKEY[4]

FKEY[3]

FKEY[2]

FKEY[1]

MIC

PTT

BLC

SP2

TX BUSY

LCD Key

DISPLAY UNIT (X54-3480-10)

VOLTAGE

REGULATOR/5V

INDICATION

LED SW

BUSY

INDICATION

LED SW

DIMMER SW

CONTROL

BACKLIGHT

CONTROL

BACKLIGHT CONTROL SW

8C SW

CONTROL

HOOK SW

Q901,902

VOLTAGE

PROTECTION

VOLTAGE

PROTECTION

TX/BUSY

INDICATION

POWER

SW_8C

LCDCS

LCDRST

LCDDT

LCDCK

PSW

RST

X901

L77-1956-05

SURGE PROTECTION

D904-906

LCD BACKLIGHT

D909-920

KEY BACKLIGHT

D921-930

2SC2873(Y)

Q907

DIMMER SW

RXD2

TXD2

PTT/TXD

HK/RXD

TP1

VCC

VSS

S22

S21

S20

S19

S18

S17

S16

S15

S14

S13

S12

S11

S10

AVSS

VREF

AVCC

D903

MINISMDC020

CURRENT

LIMITER

B30-2281-05

B30-2282-05

B30-2281-05

B30-2282-05

B30-2281-05

B30-2282-05

D902

02DZ18(X,Y)

SHIFT

BYTE

CNVSS

RST

Xout

VSS

Xin

VCC

NMI

BLC2

BLC1

DIMM

LEDG

LEDR

LCDCK

LCDDT

LCDCS

LCDRST

100

IC902

30302M8-8Z7GP

MICROPROCESSOR

4.97V

5.05V

7.84V

7.10V

7.84V

5.02V

4.61V

13.3V

T:0.01V

R:5.02V

5.03V

T:4.80V

R:0.01V

BUSY:4.83V

0.66V

4.62V

7.10V

7.84V

7.79V

5.04V

0.01V

SCHEMATIC DIAGRAM TK-8180

JIHGF

X54-348 2/2

-t

C908 1000p

C907 1000p

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S22

S23

S24

S25

S26

S27

S28

S29

S30

S31

S32

S33

S34

S35

S36

S37

S38

S39

S40

S41

S42

S43

S44

S45

S46

S47

S48

S49

S50

R957

4.7k

R956

4.7k

C935 470p

R955

4.7k

R958

4.7k

R959 10k

C931

4.7u10

CN902

R971

R967

270

R969

CN901

C933

0.01u

C934

0.01u

C932

0.01u

C937

0.01u

C930

0.01u

TH901

S1R103J440H

100k

L907

COM8_1

COM9_1

COM1_1

COM2_1

COM3_1

COM4_1

COM5_1

COM6_1

COM7_1

COM8_2

COM9_2

SEG16

SEG17

SEG18

SEG19

SEG20

SEG21

SEG22

SEG23

SEG24

SEG25

SEG31

SEG32

SEG33

SEG34

SEG35

SEG41

SEG42

SGE43

SEG44

SEG45

SEG51

SEG52

SEG53

SEG54

SEG55

SEG61

SEG62

SEG63

SEG64

SEG65

SEG71

SEG72

SEG73

SGE74

SEG75 47

S[1]

S[2]

S[3]

S[4]

S[5]

S[6]

S[7]

S[8]

S[9]

S[10]

S[11]

S[12]

S[13]

S[14]

S[15]

S[26]

S[27]

S[28]

S[29]

S[30]

S[36]

S[37]

S[38]

S[39]

S[40]

S[46]

S[47]

S[48]

S[49]

S[50]

S[56]

S[57]

S[58]

S[59]

S[60]

S[66]

S[67]

S[68]

S[69]

S[70]

COM[2]

COM[3]

COM[4]

COM[5]

COM[6]

COM[7]COM[8]

COM[9]

COM[1]

COM[2]

COM[3]

COM[4]

COM[5]

COM[6]

COM[7]

COM[8]

COM[9]

S[16]

S[17]

S[18]

S[19]

S[20]

S[22]

S[21]

S[23]

S[24]

S[31]

S[25]

S[32]

S[33]

S[35]

S[34]

S[41]

S[42]

S[44]

S[43]

S[45]

S[51]

S[53]

S[52]

S[54]

S[55]

S[62]

S[61]

S[63]

S[64]

S[71]

S[65]

S[72]

S[73]

S[75]

S[74]

S[75]

S[74]

S[73]

S[72]

S[71]

S[70]

S[69]

S[67]

S[66]

S[68]

S[65]

S[62]

S[61]

S[64]

S[63]

S[56]

S[57]

S[60]

S[59]

S[58]

S[55]

S[54]

S[52]

S[53]

S[51]

S[46]

S[47]

S[48]

S[49]

S[50]

S[45]

S[41]

S[43]

S[44]

S[42]

S[36]

S[39]

S[40]

S[38]

S[37]

S[35]

S[33]

S[34]

S[32]

S[31]

S[26]

S[30]

S[28]

S[29]

S[27]

L905

L906

COM[2]

COM[9]

COM[8]

COM[3]

COM[4]

COM[1]

COM[5]

COM[6]

COM[7]

SP CONNECTOR

SPO

GND

PSW

GND

MIC

GND

PSENS

RST2

SHIFT/MODEL

TXD

RXD

GND

LCDRST

SW_8C

LCDCK

LCDCS

LCDDT

PSW

RST

LCD

B38-0888-05

IC903

LC75810T-8726

LCD DRIVER

S[5]

S[2]

S[4]

S[3]

S[1]

S[10]

S[12]

S[11]

S[8]

S[14]

S[13]

S[9]

S[7]

S[6]

S[15]

S[16]

S[21]

S[22]

S[24]

S[18]

S[17]

S[19]

S[23]

S[20]

S[25]

SEG70

SEG69

SEG68

SEG67

SEG66

SEG60

SEG59

SEG58

SEG57

SEG56

SEG50

SEG49

SEG48

SEG47

SEG46

SEG40

SEG39

SEG38

SEG37

SEG36

SEG30

SEG29

SEG28

SEG27

SEG26

SEG15

SEG14

SEG13

SEG12

SEG11

SEG10

SEG9

SEG8

SEG7

SEG6

SEG5

SEG4

SEG3

SEG2

SEG1

COM2_2

COM3_2

COM4_2

COM5_2

COM6_2

COM7_2

100

S76

S77

S78

CoM10/S79

CoM9/S80

CoM8

CoM7

CoM6

CoM5

CoM4

CoM3

CoM2

CoM1

VDD

VLCD

VLCD0

VLCD1

VLCD2

VLCD3

VSS

oSC

RES

S51

S52

S53

S54

S55

S56

S57

S58

S59

S60

S61

S62

S63

S64

S65

S66

S67

S68

S69

S70

S71

S72

S73

S74

S75

TO TX-RX UNIT (B/3) CN429

5.05V

7.43V

DISPLAY UNIT (X54-3480-10)

Note : The components marked with a dot (•) are parts of layer 1.

-t

C906 0.01u

C917

0.1u

C918

10u10

C912 1000p

C909 100p

D901

02DZ18(X,Y)

R904

R903

470

C904 100p

J901

C916

0.1u

C915 1000p

R901

D906

DA204U

D904

DA204U

IC901

TA 78L05F

COM

OUT

C927

1000p

R943

100

R939

4.7k

D905

DA204U

R905

4.7k

R909

47k

R911

47k

R907

33k

C908 1000p

C907 1000p

Q913

DTC114EE

Q906

DTC114EE

C928

1000p

Q901

DTC144EE

Q902

DTC144EE

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S22

S23

S24

S25

S26

S27

S28

S29

S30

S31

S32

S33

S34

S35

S36

S37

S38

S39

S40

S41

S42

S43

S44

S45

S46

S47

S48

S49

S50

R957

4.7k

R956

4.7k

C935 470p

R955

4.7k

R958

4.7k

R959 10k

C931

4.7u10

C925

10p

R919 1k

R936 10k

L903

R926 47k

L904

R932 1k

R933 1k

R934 1k

R935 1k

R927 1k

R928 1k

R914 470k

R915 470k

R944

Q905

DTC114EE

C921

1000p

R918

270

C926

1000p

R917

470

Q904

DTC114EE

D926

D920

D917

D913 D912

D925

D911

D916

D919

D923

D915

D922

D910

D921

R950

100

R949

100

R948

100

R947

100

D909

D918

D914

L902

C910

100p

C911

100p

C914

100p

C913

1000p

L901

R929 1k

R930 1k

R931 1k

R916 470k

CP901

100*2

CP902

100*2

CP903

100*2

CP904

100*2

CP905

100*2

CP906

100*2

CP907

100*2

CP908

100*2

CP909

100*2

CP910

100*2

CP911

100*2

D924

R953

820

D927

D928

R954

820

D929

D930

CN902

12A02CH

Q910

Q911

DTC114EE

R962

10k

R963

10k

R971

R967

270

C936 0.1u

R969

R970

10k

R910

47k

CN901

D907

B30-2151-05

C933

0.01u

C934

0.01u

C932

0.01u

C937

0.01u

R913 470k

C930

0.01u

R920

TH901

S1R103J440H

100k

R942

12A02CH

Q909

R945

10k

R952

390

R951

390

R925 470

C938 1000p

R941

R940

100

L909

L908

C924

10p

C922

0.01u

C920

100p

L907

COM8_1

COM9_1

COM1_1

COM2_1

COM3_1

COM4_1

COM5_1

COM6_1

COM7_1

COM8_2

COM9_2

SEG16

SEG17

SEG18

SEG19

SEG20

SEG21

SEG22

SEG23

SEG24

SEG25

SEG31

SEG32

SEG33

SEG34

SEG35

SEG41

SEG42

SGE43

SEG44

SEG45

SEG51

SEG52

SEG53

SEG54

SEG55

SEG61

SEG62

SEG63

SEG64

SEG65

SEG71

SEG72

SEG73

SGE74

SEG75 47

S[1]

S[2]

S[3]

S[4]

S[5]

S[6]

S[7]

S[8]

S[9]

S[10]

S[11]

S[12]

S[13]

S[14]

S[15]

S[26]

S[27]

S[28]

S[29]

S[30]

S[36]

S[37]

S[38]

S[39]

S[40]

S[46]

S[47]

S[48]

S[49]

S[50]

S[56]

S[57]

S[58]

S[59]

S[60]

S[66]

S[67]

S[68]

S[69]

S[70]

COM[2]

COM[3]

COM[4]

COM[5]

COM[6]

COM[7]COM[8]

COM[9]

COM[1]

COM[2]

COM[3]

COM[4]

COM[5]

COM[6]

COM[7]

COM[8]

COM[9]

S[16]

S[17]

S[18]

S[19]

S[20]

S[22]

S[21]

S[23]

S[24]

S[31]

S[25]

S[32]

S[33]

S[35]

S[34]

S[41]

S[42]

S[44]

S[43]

S[45]

S[51]

S[53]

S[52]

S[54]

S[55]

S[62]

S[61]

S[63]

S[64]

S[71]

S[65]

S[72]

S[73]

S[75]

S[74]

S[75]

S[74]

S[73]

S[72]

S[71]

S[70]

S[69]

S[67]

S[66]

S[68]

S[65]

S[62]

S[61]

S[64]

S[63]

S[56]

S[57]

S[60]

S[59]

S[58]

S[55]

S[54]

S[52]

S[53]

S[51]

S[46]

S[47]

S[48]

S[49]

S[50]

S[45]

S[41]

S[43]

S[44]

S[42]

S[36]

S[39]

S[40]

S[38]

S[37]

S[35]

S[33]

S[34]

S[32]

S[31]

S[26]

S[30]

S[28]

S[29]

S[27]

L905

L906

COM[2]

COM[9]

COM[8]

COM[3]

COM[4]

COM[1]

COM[5]

COM[6]

COM[7]

FKEY[1]

FKEY[2]

FKEY[3]

FKEY[4]

FKEY[6]

FKEY[5]

FKEY[7]

FKEY[8] FKEY[10]

FKEY[9]

FKEY[10]

FKEY[9]

FKEY[8]

FKEY[7]

FKEY[6]

FKEY[5]

FKEY[4]

FKEY[3]

FKEY[2]

FKEY[1]

MIC

PTT

BLC

SP2

TX BUSY

LCD Key

SP CONNECTOR

SPO

GND

PSW

GND

MIC

GND

PSENS

RST2

SHIFT/MODEL

TXD

RXD

GND

DISPLAY UNIT (X54-3480-10)

LCDRST

SW_8C

LCDCK

LCDCS

LCDDT

VOLTAGE

REGULATOR/5V

INDICATION

LED SW

BUSY

INDICATION

LED SW

DIMMER SW

CONTROL

BACKLIGHT

CONTROL

BACKLIGHT CONTROL SW

8C SW

CONTROL

HOOK SW

Q901,902

VOLTAGE

PROTECTION

VOLTAGE

PROTECTION

TX/BUSY

INDICATION

PSW

RST

LCD

B38-0888-05

POWER

IC903

LC75810T-8726

LCD DRIVER

S[5]

S[2]

S[4]

S[3]

S[1]

S[10]

S[12]

S[11]

S[8]

S[14]

S[13]

S[9]

S[7]

S[6]

S[15]

S[16]

S[21]

S[22]

S[24]

S[18]

S[17]

S[19]

S[23]

S[20]

S[25]

SW_8C

LCDCS

LCDRST

LCDDT

LCDCK

PSW

RST

X901

L77-1956-05

SURGE PROTECTION

D904-906

LCD BACKLIGHT

D909-920

KEY BACKLIGHT

D921-930

2SC2873(Y)

Q907

DIMMER SW

RXD2

TXD2

PTT/TXD

HK/RXD

TP1

VCC

VSS

S22

S21

S20

S19

S18

S17

S16

S15

S14

S13

S12

S11

S10

AVSS

VREF

AVCC

SEG70

SEG69

SEG68

SEG67

SEG66

SEG60

SEG59

SEG58

SEG57

SEG56

SEG50

SEG49

SEG48

SEG47

SEG46

SEG40

SEG39

SEG38

SEG37

SEG36

SEG30

SEG29

SEG28

SEG27

SEG26

SEG15

SEG14

SEG13

SEG12

SEG11

SEG10

SEG9

SEG8

SEG7

SEG6

SEG5

SEG4

SEG3

SEG2

SEG1

COM2_2

COM3_2

COM4_2

COM5_2

COM6_2

COM7_2

D903

MINISMDC020

CURRENT

LIMITER

B30-2281-05

B30-2282-05

B30-2281-05

B30-2282-05

B30-2281-05

B30-2282-05

D902

02DZ18(X,Y)

100

S76

S77

S78

CoM10/S79

CoM9/S80

CoM8

CoM7

CoM6

CoM5

CoM4

CoM3

CoM2

CoM1

VDD

VLCD

VLCD0

VLCD1

VLCD2

VLCD3

VSS

oSC

RES

S51

S52

S53

S54

S55

S56

S57

S58

S59

S60

S61

S62

S63

S64

S65

S66

S67

S68

S69

S70

S71

S72

S73

S74

S75

SHIFT

BYTE

CNVSS

RST

Xout

VSS

Xin

VCC

NMI

BLC2

BLC1

DIMM

LEDG

LEDR

LCDCK

LCDDT

LCDCS

LCDRST

100

IC902

30302M8-8Z7GP

MICROPROCESSOR

TO TX-RX UNIT (B/3) CN429

4.97V

5.05V

7.84V

7.10V

7.84V

5.02V

4.61V

13.3V

T:0.01V

R:5.02V

5.03V

T:4.80V

R:0.01V

BUSY:4.83V

0.66V

4.62V

7.10V

7.84V

7.79V

5.04V

5.05V

7.43V

0.01V

TK-8180 SCHEMATIC DIAGRAM

ABCDE

X57-699 1/9

C815

4.7u16

R815

68k

C804

470p

COM

3IN 1

OUT

C812

0.1u

C817

470p

C802

1000p

R805

470

R813

4.7k

R802

330k

R807

10k

C806

100p

C810

0.047u

Q806

DTC114EE

Q808

DTC114EE

R812

10k

R814

47k

R806

10k

R808

47k

C808

0.1u

C819 0.1u

GND

1IN 2

OUT

C813

470p

C811

0.1u

C816

10u10

C821

4.7u16

Q802

DTC114EE

C820

0.1u

C807

0.047u

C822 470p

C809

470p

Q809

DTC114EE

R809

47k

C805

1000p

Q807

DTC114EE

R811

10k

R801

220k

D805

02CZ9.1(X,Y)

C803

0.047u

C814 470p

R803

10k

C801

1000u25

IC803

TA7808F

GND

1IN 2

OUT

D801

22ZR-10D

D802

DSA3A1

2SC2873(Y)

Q801

12A02CH

Q803

12A02CH

Q804

2SJ645

Q810

1VSS

2VDD

4VSS

3NC

C406

0.3p

D403

1SS388

D402

1SS388

C410

0.1u

CP401

100

D404

1SS388

1STRB

2DATA

3CLK

4Q1

5Q2

6Q3

7Q4

8VSS 9

C407 0.01u

C824

0.01u

C823

1000p

CN802

CN803

CN804

L410

L411

R800

R818

47k

C826

470p

Q811

DTC114TE

R804

100k

C818

4700p

Q402

DTC114YE

C408

15p

Q812

DTC114EE

C832

4.7u16

VSS

3VIN 1

VOUT

C831

4.7u16

TCTL

DATAO U T

R485 0

C424 1000p

RXEMAO

SIDETONE

OPT2

C587 100p

C427 100p

C595 100p

TXAO

C436 100p

RXEMAI

C588 1000p

C431 100p

C439 1000p

OPT4

C435 1000p

R491 0

C425 100p

C430 100p

AUDIH

R403 1M

R483 0

R473 0

R488 0

R486 0

C422 1000p

C432

1000p

C420 100p

R484 0

C421 100p

OPT3

TXD1

C428 100p

C585 100p

OPT5

RXD1INT

C437 100p

R489 0

R487 1.8M

CN403

2OPT3

1OPT1

4TXD1

3RXD1

6OPT4

5CLK

8OPT5

7USEL

10 AGND

9DGND

12 AI

11 AO

14 5E

13 AGND

16 DTI

15 STON

18 NC

17 TCTL

20 OPT2

19 AUDIH

22 RXEO

21 TXO

24 TXI

23 RXEI

26 8C

25 OPT6

C586 100p

C426 100p

R474 0

R574

C502 1000p

C490 1000p

C481 1000p

C487 1000p

R572

R902 0

R901 0

C500 100p

C498 100p

C515 1000p

CN429

R575

R900 0

C478 100p

C516 1000p

C504 1000p

R903 0

R400 1M

LCDRST

R591

RXAI

OPT1

OPT3

OPT4

OPT5

OPT2

RXD1INT

TXD1

TXD2

RXD2

DATAO U T

TCTL

TXAO

TXAI

RXEMAO

AUDIH

SIDETONE

RXEMAI

PSENS

LCDDO

LCDDI

RST2

RXD

TXD

PSW

SPO

OPT1

D421

1SS388

D422

1SS388

R446

10k

R445

10k

RXAO

TXAI

SB CONTROL SW

VOLTAGE

PROTECTION

VOLTAGE

DETECTOR(INT)

IGNITION SENS

CONTROL SW

CPU RESET SW

VOLTAGE

REGULATOR

/8.5V

VOLTAGE

PROTECTION

RTC PROCESSOR

BEAT SHIFT SW

VOLTAGE

REGULATOR/8V

8T CONTROL SW

8T SW

8R SW

VOLTAGE

REGULATOR/5V

5R CONTROL SW

SHIFT

DC REVERSE

CONNECTION

PROTECT

D801

VOLTAGE

PROTECTION

D802

SB SW

IC803

8R CONTROL SW

TX-RX UNIT (X57-6990-10)(B/3)

SBC

IGN

SPO

GND

(LCDDO)

SPO

(DM)

(LCDDI)

MIC

SPO

(LCDRST)

RXD

SHIFT/MODEL

GND

SPO

RST2

SPO

GND

TXD

(CLK)

PSW

PSENS

VOUT

VIN

D804

02DZ18(X,Y)

IC802

XC61CN5002NR

oUT

F801

F53-0278-05 RTC BATTERY

CONTROL

D402-404

R402

5.1k(D)

R401

3.6k(D)

C404

C403

0.1u

CN401

J19-5386-05

IC402

RV5C386A

32KOUT

SCL

SDA

INTRB

VSSINTRA

CLKC

OSCOUT

OSCIN

VDD

INT

INTRA

RST

IC401

AT24256N10SI27

EEPROM

SDA

SCL

VCC

GND

IC804

TA7805F

12A02CH

Q805

5R SW

MIC

RXC

SPSTB

OPT6

SOE

RTCL/EEPCL

XIN

SBC

XOUT

RTDT/EEPDAT

INT

INTRA

SPSTB

TXC

RST

SHIFT/MODEL

OPT6

TXD2

OPT2

RXD1

GND

AUDIH

TXD1

STON

TCTL

RXEO

DTI

OPT3

TXI

RXD2

TXO

OPT4

OPT5

RXEI

OPT1

RXO

RXI

Q’S

VDD

IC403

BU4094BCFV

CFSW

GSW

HOR

AO1

AO2

GND

IGN

VOLTAGE

DETECTOR

(CPU RESET)

IC801

S-80942CNNBG9C

VOLTAGE

PROTECTION

D421,422

X404

L77-1950-05

C409

15p

C411

0.1u

VOLTAGE

REGULATOR/5V

IC807

XC6201P502PR

IC805

NJM78L05UA

VOLTAGE

REGULATOR/5V

X401

L77-1802-05

TO DISPLAY UNIT CN902

4.99V8.21V

T:12.7V

R:13.5V

7.96V

T:7.83V

T:7.96V

R:7.97V

T:7.2V

R:7.95V T:4.95V

R:0.003V

R:7.95V

T:7.94V

R:7.25V T:0.005V

R:4.93V

R:4.98V

4.28V

T:7.91V

R:7.46V

4.99V

T:7.60V

R:8.09V

8.83V

SCHEMATIC DIAGRAM TK-8180

JIHGF

X57-699 2/9

D D

R434 47k

R451 470k

C423

R418 47k

L401

R420 330k

R461 470k

R431 0

R458 470k

L406

R453 470k

R482

47k

R432 1k

R419 47k

R405 470k

C412

0.1u

R424 1k

R428 0

R469

L402

R467 0

R447 470k

R411 470k R427 1k

R430 470

R422 47k

R481 470k

R421 47k

R426 1k

R406 470k

R449 470k

R470 1k

R429 470 R471 1k

R425 1k

R414 10k

R465 47k

R457 47k

R410

10k

R459 470k

R415 470k

R468 47k

R472 1k

L407

R657 4.7k

R658 0

R511

1.5k

R525

1.5k

C464

0.033u

C447

0.033u

R412 470k

R477 470k

R478 470k

R416 0

D417

1SS388

D418

1SS388

IC404

30625MGP-169GP

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

CP402 1k

CP403 1k

CP404 1k

CP405 1k

CP406 1k

CP407

CP408

CP409

CP410

CP411

CP412

CP413

CP414

CP415

CP416

CP417

AIO9

AIO5

PSW

RXD1INT

L405

L404

L403

OPT5

OPT4

OPT3

OPT2

OPT1

RSSI

W/N

ASQ

THP

H/L

TCLK/DTRDO

A11

A12

A13

A14

A15

A16

A17

A18

CSO

AM2

T/R

PCK

PLE

RST2

TXD

RXD

PSENS

AFDAT

AFDIO

AFDIR

AFSTD

DTRLOAD

AI04

AI03

AI02

AI01

AI07

AI08

TXD2

TXD1

RXD2

D423

1SS388

R407 10k

AFRTM

RXD1EXT

AI06

DMUTE

SPSTB

RXC

MIC

OPT6

SOE

SPSTB

RST

XOUT

INT

INTRA

SHIFT/MODEL

TXC

SBC

RTDT/EEPDAT

RTCL/EEPCL

XIN

MICROPROCESSOR

ISOLATOR

D417,418

BEEP

IGN

HSDIN

HSDO

DSTB

LSDIN

D423

VOLTAGE

PROTECTION

STSW

MM1

LSDIN

OPT6

RXC

SCSW

LSW

LSDO

MIC

BEEP

EMTON

HSDIN

HSDO

DSTB

MM2

AM1

R452

R439

R450

R437

R456

R443

R435

R444

R455

R442

R440

R448

R454

R441

R423

R466

R476

470

47k

DGND

MM1

PSENS

TXD

RXD

AFDAT

AFDIO

AFDIR

DTRLOAD

AFSTD

LSW

RDY

HOLD

AI04

AIO3

AIO2

AIO1

AIO8

AIO7

AIO6

RST2

CS0

A18

A17

A16

A15

A14

A13

A12

A11

A10

PLE

PCK

OPT6

VCC2

DGND

IGN

AFRTM

TCLK/DTRDO

MM2

T/R

AM1

EMTON

W/N

OPT1

OPT2

OPT3

OPT4

OPT5

H/L

THP

ASQ

RSSI

AGND

LSDIN

VREF

AVCC

SBC

RXC

TXC

HSDO

STSW

RTCL/EEPCL

HSDIN

RTDT/EEPDAT

BYTE

CNVSS

DMUTE

AM2

RST

XOUT

DGND

XIN

VCC1

NMI

PSW

INT

INTRA

SHIFT/MODEL

BEEP

SPSTB

SOE

AIO5

AIO9

DSTB

LSDO

RXD2

TXD2

TXD1

VCC1

RXD1

100

101

102

4.987V 4.989V

TX-RX UNIT (X57-6990-10) (B/3)

TK-8180 SCHEMATIC DIAGRAM

KLMNO

X57-699 3/9

IC405

AT29C040A-90TI

16 17

IC410

M62364FP

C429 1u

C454 0.01u

R553

4.7k

C463

0.01u

R540 47k

R532

C475

100p

C477

1000p

R536

15k

C479

1000p

R545

10k

R541 0

R550

4.7k

R548

82k

C470

0.01u

R557

4.7k

C472

0.1u

R542

Q405

DTA114EE

R527

3.9k

R528

47k

R494 4.7k

R501

4.7k

C443

0.01u

C433

0.1u

R495 4.7k

C438 0.01u

R493

C440 0.1u

C452

100p

R500

R519

100k

C448

100p

R514

18k

C459

10u10

C453

0.1u

R520

R505

68k

R515

100k

R512

15k

R506

220k

C457

470p

R504

10k

R513

560k

C451

0.01u

R517

22k

4VSS 5

VDD

4VSS 5

VDD

IC408

TC75W51FU

4VSS 5

VDD

R522

100k

R526 270k

R533

100k

C462 0.01u

OUTPUT

V+

INPUT+ 4

IC412

TC75W51FU

4VSS 5

VDD

R530

330k

R521

47k

R523

560k

C460

0.01u

C465

22p

C469

0.1u

D407

RB706F-40 R539

39k

R535

390k

R529

680k

IC407

TC75W51FU

VSS

8VDD

R496

100k

R498

270k

C444

39p

D406

02DZ5.1(Y)

C446

0.01u

C445

15p

R503

100k

R499

100k

R534

27k

C441

10u

C450 10u

R508

R565

R554

56k

R556

56k

R555

12k

C467 0.01u

C455 47u6.3 R546

C584

22p

C400

R509

33k

R549

47k

R475

100

R663

4.7k

R664

4.7k

D405

EMZ6.8N

A12

A15

A16

A18

A17

A14

A13

A11

A10

CSO

L408

10CL

DEO

SIDETONE

DATAOUT

RXDET

MOD

LSD BUFFER AMP/

VCXO BIAS AMP

LSDO

–

MODULATION

LPF/DEF AMP

–

DET AMP/

DATA LPF (DB-25)

VOLTAGE

PROTECTION

VOLTAGE

PROTECTION

FLASH MEMORY

D/A CONVERTER

OPT6

MIC

SCSW

RXC

STSW

BEEP

LSW

MM1

DC DETECTOR

MM2

DSTB

HSDIN

HSDO

AQUA

CONTROL

LSDIN

EMTON

AM1

LSD LPF/VOLTAGE

DC-REFERENCE

RF BPF TUNING

VOLTAGE DC AMP

LSW

BEEP

MM1

LSDO

EMTON

A11

A13

A14

A17

VCC

A18

A16

A15

A12

A4 A3

Io0

Io1

Io2

GND

Io3

Io4

Io5

Io6

Io7

A10

VIN1

VOUT1

VOUT2

VIN2

VDD

CLK

VIN3

VOUT3

VOUT4

VIN4

VIN5

VOUT5

VOUT6

VIN6

VDAref

RESET

GND

VIN7

VOUT7

VOUT8

VIN8

AM1

V_REF

MM2

STSW

SCSW

RXC

OPT6

LSDIN

MIC

MM1

BEEP

LIMLV

AGND

IC409

TC75W51FU

IC406

TC75W51FU

INPUT-

V-

IC411

LMC7101BIM5

HSD BPF/HSD

COMPALATOR

C434

560p

R492

680k

R490

180k

R497

3.3k

R507

220k

C442

0.1u

R502

10k

Q406

HN1J02FU

AF SW

(LSD)

–

–+

–

1.53V

0.87V

4.99V

2.49V

2.50V

4.98V

2.50V

2.49V

2.50V

4.92V

4.98V

2.48V

TX-RX UNIT (X57-6990-10) (B/3)

SCHEMATIC DIAGRAM TK-8180

TSRQP

X57-699 4/9

C517

0.01u

C506

R585

180k

R570

150k

C480

1000p

C518

0.1u

C528

2200p

R552

10k

C520

1000p

C489 0.1u

R599

180k

C535

0.068u

R610

150k

R586

R597

C491

0.1u

C485

R576

220k

R568

120k

R606

C538

1000p

R559

120k

C488

12p

R581

150

C484 4.7u

R563

390k

R571

120k

R608

180k

C505

C482 4.7u

R587

150k

C495

180p

R566

R609

22k

C531

1000p

IC415

AQUA-L

TCLK/DTRDO

TDATA/DTRCLK

DI/O

RDF/FD

SCLK

DIR

XOUT

C524

1000p

R616

4.7k

C533

0.015u

2SJ243

Q413

R600

4.7k

C537

0.1u

R596

R580

150

R583

2SJ243

Q417

R578

R560

390k

R567

390k

C525

0.1u

C532

0.012u

R588

4.7k

C503

68p

C534

1000p

C499

820p

C526

0.1u

C514

82p

C493 4.7u

R558

390k

C507

0.1u

C529

47p

R603

R602

R607

270k

R601

470k

C492

0.1u

R598

4.7k

C476

0.1u

C536

0.1u

C497

1000p

R524

10k

VSS

8VDD

R594

680

R589

C511

0.1u

R573

6.8k

C501

22p

R569

100k

C496

0.1u

C483

0.01u

R592

R604

2SJ243

Q416

C540

10u10

C539

10u10

C544

10u10

C543

10u10

R613

100k

R619

100k

R612

100k

R617

100k

R615

4.7k

R618

220k

R620

220k

C542

1000p

C530

10u

R614

C541

0.1u

C519

1000p

C591

0.1u

2SK1824

Q412

C592

C593

R595

270k

D601

1SS388

Q600

DTA144EE

R647

100k

R584

R659

33k

R661

4.7k

C513

1000p

C512

1000p

R590

Q409

DTC363EU

T/R

R579

22k

AM2

RXEMAI

RXEMAO

RXAO

AUDIH

TCLK/DTRDO

DTRLOAD

AFSTD

AFDAT

AFDIO

AFRTM

AFDIR

RXAI

R646

4.7k

AF SW

V_REF

AM1

AF MUTE SW

MM2

AM1

MIC-AMP

AGC DETECTOR

D408,409

MIC AGC

MIC MUTE SW

Q416,417

MUTE

MIC MUTE

CONTROL

LSDIN

OPT6

RXC

SCSW

STSW

MIC

MM1

BEEP

OPT6

STSW

RXC

LSDIN

LIMLV

AGND

AM1

IC413

TC7MZ4053FK

AF SW IC

IC414

TC75W51FU

MIC AMP

D408

MA742

D409

MA742

2SC4116(Y)

Q410

2SA1586(Y,GR)

Q411

AF SW

RXAF

RXAFIN

EXPOUT

FILTERO

RXINO

RXIN

AGND

XIN

VSS

AMP3P

AMP3N

AMP3O

AMP4P

AMP4N

AMP4O

DTRAIN

AGNDIN

TXIN

TXINO

LIMLV

EXTLIMIN

MOD

VDD

DTRLOADN

STD

XCoM

YCoM

VCC

ZCoM

INH

VEE

GND

TXAI

TXAO

X403

3.6864MHz

L77-1965-05

R582

Q415

HN1L02FU

AF SW

(VOICE)

2SJ243

Q414

R611

10k

MI2

AFO

D600

1SS388

MIC MUTE

CONTROL

C468

0.01u

C461

0.01u

R531

10k

–

4.98V

2.50V

4.93V

2.49V

2.81V

R:4.90V

T:0V

R:4.92V

T:0V

R:4.98V

T:0V

2.49V

4.83V

4.88V

4.98V

TX-RX UNIT (X57-6990-10) (B/3)

TK-8180 SCHEMATIC DIAGRAM

UVWXY

X57-699 5/9

GND

2SC4116(BL)

Q303

2SC4116(BL)

Q302

C327

0.22u

R303

560 R333

R317

R302

R305

L301

2.2u

L302

R131

100k

C148

C152

470p

C150

L114

8.2n

C155

470p

L117

8.2n

C154

1.5p

C146

470p

C149

470p

C151

R129

100k

C144

R130

100k

L115

8.2n

L116

8.2n

R132

100k

C145

1.5p

C153

C124

10p

R122

100k C133

C121 470p

D103

1SV286

R116

18k

C142

470p

C134

C137

470p

R120 220

D104

1SV286

R121

100k

L111

L34-4565-05

C131

470p

R124

100k

C132

22p

C136

R123

100k

C140

22p

C141

D105

1SV286

C125

470p

L109

18n

C135

22p

R119

2SC3357

Q103

L110

L34-4565-05

C127

22p

C139

470p

C138

R115

18k

C129

470p

C119

C130

D106

1SV286

R311

1.8k

C318

2.2u20

C320

2.2u20

R322

R316

100k

R326

270

C338

0.33u35

R307

C333

R371

C391

L327

33n

C302

0.5p

L320

10n

C393

L322

5.6n

L321

8.2n

C395

C389

L324

2.2n

2SC5108(Y)

Q301

C390

12p

L323

4.7n

R306

10k

C392

12p

C311

39p

C339

470p

C308

10p

R309

100

C398

1p(B)

C394

C317

100p

R310

100

C312

0.047u35

R318

1.8k

C147

C316

C156

470p

R133

100k

R134

C323

470p

C324

0.1u

C331 0.01u

R332 10

R325

150k

R321

10k

R330 10

C335

0.022u

CN302

R320

CN301

C397

12p

C309

100p

C396

0.01u

R323 1k

R327 10

R373

R319

R108

L305

C306

10p

C128

L304

R370

10k

L101

8.2n

D111

HVC131

R376

R369

C262

100p

C260

100p

C261

100p

R308

3.9k

R377

1IN/OUT

2OUT/IN

3GND 4

R378

10k

C322

0.047u

R362

C386

10u6.3

R301

L108

L306

PCK

PLE

C307 470p

AM1

Fin

GND

DGND

GND

PCK

PLE

CPGND

REF

TX-RX UNIT (X57-6990-10)(C/3)

PLL SYSTEM IC

PLL F_IN

DOUBLER AMP

PLL LPF

ANT SW

FRONT-END LNA

RF BPF

TUNING

RF BPF

TUNING

RF BPF

TUNING

RF BPF

TUNING

PLL LPF

MI2

AFO

D108

1SV291

RF BPF

TUNING

D107

1SV291

RF BPF

TUNING

D109

1SV291

RF BPF

TUNING

D110

1SV291

RF BPF

TUNING

MI2

AFO

L113

L34-4565-05

L112

L34-4565-05

oUTPUT

VCC

X301

16.8MHz

L77-1952-05

AM1

11CL

IC301

ADF4111BCP7

CLK

DATA

MUXOUT

DVDD

Rset

CPGND

AGND

RFinB

RFinA

AVDD

RFEin

DGND

PLL CP SW

IC302

TC7S66FU

CONT

VCC

CPGND

REF

Fin

GND

C314

0.1u

R312

4.99V

0.31V

10.36V

7.90V

2.46V

3.22V

FL:2.5V

FC:4.0V

FH:5.8V

4.75V

TX-RX UNIT (X57-6990-10) (B/3)

SCHEMATIC DIAGRAM TK-8180

ADACABAAZ

X57-699 6/9

C384

0.01u

C382

0.01u

C185

0.01u

D315

HVC131

D316

HVC131

C385

470p R367

3.3k

C380

470p

C186 33p

C383

1000p

R365

2.2k

C374

1000p

R254

R255

R253

10k

R356

10k

R352 10

C255

10u16

C257

1u25

C370

470p

C253

0.01u

C256

0.01u

C381

470p

R251

R252

4.7k

R257

15k

C258

4.7u16

D251 1SS388

R256

120k

R258

C371

10u6.3

R366

2.2k

R126

C176

470p

R172

C175

L172

15n

R173

270

L171

15n C181

470p

R171

270

C173

12p

R175

2.2k

C178

470p

C171

4S2

5S1

6G2

C177

470p

C182

0.01u

R174

L175 R176

C184

470p

C183

0.01u

C376

470p

R359

100

C375

27p

R358

8.2k

R360

120

C378

470p

2SC5108(Y)

Q313

R357

10k

L319

22n

C377

470p

R361

220

C379

C252

470p

C251

470p

C369 470p

C360

C343

10u10

C342

1000p

C364

0.5p

C355

R351

4.7k

L312

1.0u

C351

0.5p(B)

L326

1.0u

C357 6p

L311

1.0u

R344

R345

D314

1SV278

C346

22p

R337

10k

D309

BB664

R341

180

C353

470p

C350

L316

1.0u

D313

BB664

L317

1.0u

C365

0.3p

C362

470p

R335

C352

12p

R336

R342

180

R343

4.7k

TC301

C363

470p

C347

22p

C361

470p

D308

BB664

D311

BB664

R347

4.7k

C356

0.5p

R340

100

R339

100k

C354

TC302

R334

C368

470p

C372

22p

R349

33k

L318

22n

R350

33k

R355

Q310

DTC114EE

C367

1000p

C373

470p

R353

4.7k

C388

C387

L328

22n

R375

330

C594

470p

C325

1000p

C334

1000p

R180

820

C187

39p

C196

0.01u

R178

C193

0.01u

L182

100n

C198

68p

L180

68n

C201 4p

C192

0.01u

C204

0.01u

C194

0.01u

R184

C199

39p

L181

10u

C190

39p

L185

68n

R182

3.3k

R183

C188 4p

C195

470p

R181

330

C189 4p

C202

39p

C200 4p

C197

0.01u

L178 390n

L179 390n

L183 390n

L184 390n

L177

270n

R179

R177

R315

L119

33n

C358

5p(B)

L310

C359

7p(B)

1PGND

2GND

3FB 4

L251

10u

L309

T/R

R348

10k

MOD

10CL

C299

0.5p

DC-DC CONVERTER

REVERSE

VOLTAGE

PROTECTION

D315,316

VCO BUFFER

AMP

VCO

BUFFER

AMP

MODULATION

CONTROL

FOR TX VCO

TX/RX

BAND SW

TX/RX

VCO SW

D309,313

FREQUENCY

CONTROL FOR

TX/RX VCO

AM1

MI2

AFO

AM1

11CL

FREQUENCY

CONTROL FOR

TX/RX VCO

D308,311

2SK508NV(K52)

Q307

TX/RX VCO

L325

L34-4605-05

12.5n

2SC4116(GR)

Q309

TX/RX

VCO SW

2SC4617(S)

Q312

RIPPLE FILTER

2SC4116(GR)

Q308

TX/RX

VCO SW

2SK508NV(K52)

Q306

TX/RX VCO

IC251

MAX5026EUT+T

SHDN

VCC

2SC4617(S)

Q251

RIPPLE

FILTER

L173

L39-1421-05

L176

L39-1421-05 XF171

L71-0618-05

XF171

L71-0618-05

MI2

AFO

L174

L39-1421-05

L314

L34-4607-05

17.5n

L315 1.0u

2SC5108(Y)

Q311

RX 1ST MIXER

IC171

SPM5001

2SC5108(Y)

Q171

IF AMP

1.02V

T:2.84V

R:2.13V

T:0V

R:2.83V

4.3V

T:3.55V

R:0V

3.86V

3.69V

R:4.88V

T:0V

R:0V

T:2.3V

4.99V

4.97V

4.35V

0.87V

0.07V

4.41V

4.96V

0.84V

3.94V

3.93V

4.50V

0.39V

TX-RX UNIT (X57-6990-10) (B/3)

TK-8180 SCHEMATIC DIAGRAM

AE AF AG AH AI

X57-699 7/9

-t

R199

R210

2.7k

Q178

DTA144EE

C215

18p

C222

1000p R197

330k

C213

0.01u

C217

1000p

X171

L77-1762-05

R203

3.3k

C216

15p

C225

270p

C218

0.01u

R205

3.3k

R200

3.3k

C232 1000p

R190

15k

C220

0.1u

R198

330k

C224

270p

R209

R193

47k

C234

0.22u

C238

0.01u

R202

4.7k

R212

100k

C214

0.1u

R207

47k

C231

82p

C221

0.1u

C223

0.1u

C228

0.1u

L189

C233

1000p

R208 3.9k

C230 0.01u

C226

1000p

R206

C229

0.033u

D173

RB706F-40

C236

0.01u

C42

R17

R16

C27 47p

R15

220

C21

470p

R86

820k

R18

220

R77 100k

R14

4.7u16

R21

330

C44

120p

C18

470p

R89

100k

C32 47u25

R75

47k

C19 47p

10T

R84

120k

R79

220k

C20 100p

2SK1824

Q72

DTC114EE

C28 100p

C29 470p

R71

56k

R76

100k

02DZ5.6(X,Y)

R19

150

R85 100k

C33

100p

R87

82k

R88

100k

C22 470p

R72

33k

C34 100p

C24

4.7u10

R25

150

1/2

R82

100k

IC71

TA75W01FU

C35 100p

R78

100k

R81

100k

C17 22p

1000p

C26 22p

D171

DAN235E

R196

15k

R191

22k

R194

22k

R192

22k

R195

22k

Q174

DTC144EE

Q173

DTA114EE

2SK1824

Q176

D174

MA2S111

C235

0.1u

TH171

47k

C237

22u6.3

C239

0.1u

C240

0.1u

5.6

R10 560

C15

100p

33k

820

R13

330

22n

100p

470

2SC5108(Y)

820

220

C14

100p

6.8k

100p

18n

C10

100p

R12

R11

2.7k

100p

C16

IC1

RA30H4452M

1RF_IN

2VGG

3VDD

4RF_oUT

C74

100p

C38 22p

C39 22p

C40

22p

XB15A709

C43

C25

C13

100p

C259 10u10

C219

C76 470p C77 470p

R188

C206

0.01u

C210

68p

C211

10p

R189

C209

0.01u

C212

470p

L188

820n

C205

0.01u

R187

3.3k

L186

10u

R186

330

L187

100n

R217

R185

820

C207

470p

C208

0.01u

C143

0.01u

R109

R204

2.2k

C227

1000p

C241

1000p

R221

47k

2SC5192

R90

330k

Q70

DTC114EE

Q177

DTC144EE

Q179

DTC144EE

R38

R28

2.5T

CFSW

GSW

H/L

RXDET

RSSI

ASQ

W/N

DMUTE

DC AMP

FOR TX APC

DC AMP

FOR TX APC

W/N CF SW

CONTROL

TX PRE-DRIVER

DET MUTE SW

CONTROL

DET MUTE SW

W/N DISCRETE SW

SQ NOISE-AMP

DETECTOR

Q177,179

W/N CF SW

CONTROL

TX DRIVER

TX GATE SW

HIGH/LOW

POWER SW

ANT SW

VOLTAGE

PROTECTION

HIGH/LOW

POWER SW

W/N CF SW

CONTROL

MI2

AFO

AM1 AM1

POWER MODULE

2SC5108(Y)

Q172

IF AMP

XB15A407A2GB

ANT SW

IN2+

IN2-

OUT-B

VCC

OUT1

IN1-

IN1+

VEE

IC72

TA75W01FU

OUT1

IN1-

IN1+

VEE IN2+

IN2-

OUT-B

VCC

CF172

L72-0998-05

CF171

L72-0986-05

D172

DAN235E

W/N CF SW

AFOUT

QUAD

IFOUT

RSSI

N-DET

N-REC

GND

MIXIN

OSCIN

OSCOUT

MIXOUT

VCC

IFIN

DEC

FILOUT

FILIN

IC172

TA31136FN

FM IF SYSTEM IC

CD171

L79-1701-05

2SC4617(Q)

Q175

NOISE AMP

MI2

AFO

1.6V

0.84V

0.12V

1.12V

0.61V

H:3.44V

L:3.03V

H:13.02V

L:13.39V

H:3.21V

L:1.19V

N:4.85V

4.99V

4.94V

4.99V

4.96V

4.37V

0.07V

0.84V

W:4.96V

T:7.81V

R:0V

TX-RX UNIT (X57-6990-10) (B/3)

SCHEMATIC DIAGRAM TK-8180

ANAMALAKAJ

X57-699 8/9

-t

J401

R654

C581

1000p

C583

470p

R655

HSM88AS

ANT

HSM88AS

CN428

C57

L10

1.5T

C48

L13

9.5T

C53

10p

C58

1.5T

C60

C50

C45

C47

L12

1.5T

R26

10k

C51

100p

R27

100k

C49

100p

C59

100p

R29

82k

C61

100p

C52

C55

C56

100p

R24

100k

HSM88AS

C62

100p

R33

C79

470p

TH1

100k

C30

470p

C31

470p

R23

6.8k

C80

470p

R22

R31

3.3k

R625 4.7k

R624 47k

C565 1u25

R630

D414

DA204U

1000p

R622

C546

0.01u

C559

1000p

R623 47k

R621

F401

F53-0352-05

R633

R629

R643

470

C563 1u25

D413

DA204U

1000p

D412

DA204U

C567

100p

R636

C564 1u25

C562 1u25

CN427

Q418

DTC114EE

C570

C574 22u16

R642

4.7k

C560

0.1u

R648

2.2k

R653

2.2

C576

330u16

C577

0.1u

R641

4.7k

R632

47k

Q419

DTC363EU

R651 0

R645

5.6k

C561

0.1u

D416

DAN202U

C566

R644

R30

TCTL

HOR

SPO

AIO6

AIO7

AIO1

AIO2

AIO3

AIO4

AIO8

AIO5

AO1

AO2

DEO

AIO9

TXD2

TXD1

RXD2

THP

INPUT

D.C

GND

OUT PUT

BOOTSTRAP

VCC

RXD1EXT

EXT.SP

SPI

GND

HOR

SPO

AUXIO4

AUXIO6

RXD2

AUXO1

GND

TXD2

AUXIO2

RXD1

DEO

AUXIO9

AFO

AUXIO1

AUXIO5

AUXO2

MI2

AUXIO7

AUXIO3

AUXIO8

TXD1

LEVEL

CONVERTER

IC (RS-232C)

AF MUTE

CONTROL

AF MUTE

CONTROL SW

AF MUTE SW

RF DETECTOR

MI2

AFO

AM1

RF DETECTOR RF DETECTOR

0.5p(B)

3p(B)

2p(B)

0.5p(B)

2p(B)

1000p

47u25

1000p

47u25

560

1000p

C582

C572

C575

C579

C578

R652

C580

C573

C555

1000p

C545

1000p

C551

1000p

C548

1000p

C547

1000p

C549

1000p

C552

1000p

C556

1000p

C557

1000p

C553

1000p

C558

100p

C550

100p

C554

100p

SURGE PROTECT

D412-414

C1+

V+

C1-

C2+

C2-

V-

T2OUT

R2IN

R2OUT

T2IN

T1IN

R1OUT

R1IN

T1OUT

GND

VCC

IC416

ADM202EARN

C825

C568

IC417

TA7 2 52AP

AUDIO IC

4.99V

1.44V

13.61V

4.41V

6.76V

TX-RX UNIT (X57-6990-10) (B/3)

TK-8180 SCHEMATIC DIAGRAM

AO AP AQ AR AS

X57-699 9/9

Note : The components marked with a dot (•) are parts of layer 1.

E E

L409

CN322 CN323 CN326 CN329CN100 CN102CN101

CN2 CN3CN1CN203CN202 CN13 CN815

C702

100p

R709

470

D709

02DZ18(X,Y)

D707

DA204U

C703

100p

D713

DA204U

R706

470

C720

100p

C715

100p

C707

1000p

C712

100p

D702

1SS355

C719

100p

C713

1000p

2SD2114K(W)

Q702

C711

1000p

R708

470

C721

1000p

R712 47k

C714

100p

R719

470

L701

R716

470

R717

470

D704

DA204U

CN701

C716

1000p

R713 47k

R707

470

R714

470

R720

470

D712

DA204U

R710

470

R718

470

R715

470

2SD2114K(W)

Q701

C701

1000p

L702

D714

02DZ18(X,Y)

D705

DA204U

R711 47k

D706

DA204U

C718

100p

C723 100p

C708

1000p

C722 100p

C709

1000p

C705

1000p

D708

DA204U

D711

DA204U

C710

1000p

C706

1000p

C704

100p

D710

02DZ18(X,Y)

D703

1SS355

C717

1000p

J701

R295

R298

VCO

(E23-1081-05)

RX-FRONT

(E23-1081-05)

TX-MODULE

(E23-1081-05)

TX-DRIVE

(E23-1081-05)

AVR

(E23-1081-05)

RX-IF GND

TXD1

RXD2

AUXI/O1

AUXO1

AUXI/O5

AUXI/O9

TXD2

AUXI/O3

AFO

MI2

RXD1

AUXI/O4

AUXI/O6

GND

(DEFAULT)

AUXI/O8

GND

AUXI/O2

DEO

AUXO2

AUXI/O7

VOLTAGE

PROTECTION

VOLTAGE

PROTECTION

INVERTER SW

VOLTAGE

PROTECTION

VOLTAGE

PROTECTION

TX-RX UNIT (X57-6990-10)(A/3)

TTL SPECIFICATION

VOLTAGE

PROTECTION

INVERTER SW

RX-IF

(E23-1081-05)

VOLTAGE

PROTECTION

RXD1

DEO

AFO

AUXIO4

MI2

AUXO1

AUXIO6

TXD1

RXD2

AUXIO8

AUXIO2

GND

AUXIO3

GND

AUXIO7

AUXO2

AUXIO5

AUXIO9

TXD2

AUXIO1

R702

R701

R705

R704

R703

47k

SURGE PROTECT

D704-708,711-713

D701

02DZ18(X,Y)

-t

D D

-t

E E

R199

R210

2.7k

C384

0.01u

Q178

DTA144EE

C215

18p

C222

1000p R197

330k

C213

0.01u

C217

1000p

X171

L77-1762-05

R203

3.3k

C216

15p

C225

270p

C218

0.01u

R205

3.3k

R200

3.3k

C232 1000p

R190

15k

C220

0.1u

R198

330k

C382

0.01u

C224

270p

R209

R193

47k

C185

0.01u

C234

0.22u

C238

0.01u

R202

4.7k

R212

100k

C214

0.1u

R207

47k

C231

82p

C221

0.1u

D315

HVC131

C223

0.1u

C228

0.1u

D316

HVC131

C385

470p

L189

C233

1000p

R208 3.9k

R367

3.3k

C230 0.01u

C380

470p

C226

1000p

R206

C186 33p

C383

1000p

C229

0.033u

R365

2.2k

D173

RB706F-40

C236

0.01u

C374

1000p

GND

R254

R255

R253

10k

2SC4116(BL)

Q303

2SC4116(BL)

Q302

C327

0.22u

R356

10k

R352 10

R303

560

C255

10u16

R333

C257

1u25

C370

470p

C253

0.01u

C256

0.01u

R317

C381

470p

C815

4.7u16

R815

68k

C804

470p

COM

3IN 1

OUT

C812

0.1u

C817

470p

C802

1000p

R805

470

R813

4.7k

R802

330k

R807

10k

C806

100p

C810

0.047u

Q806

DTC114EE

Q808

DTC114EE

R812

10k

R814

47k

R806

10k

R808

47k

C808

0.1u

C819 0.1u

GND

1IN 2

OUT

C813

470p

C811

0.1u

C816

10u10

C821

4.7u16

Q802

DTC114EE

C820

0.1u

C807

0.047u

C822 470p

C809

470p

Q809

DTC114EE

R809

47k

C805

1000p

Q807

DTC114EE

R811

10k

R801

220k

D805

02CZ9.1(X,Y)

C803

0.047u

C814 470p

R803

10k

C801

1000u25

IC803

TA7808F

GND

1IN 2

OUT

R302

R251

R252

4.7k

D801

22ZR-10D

D802

DSA3A1

J401

R654

C581

1000p

C583

470p

R655

2SC2873(Y)

Q801

12A02CH

Q803

12A02CH

Q804

C42

R17

R16

C27 47p

R15

220

C21

470p

R86

820k

R18

220

R77 100k

R14

4.7u16

R21

330

C44

120p

C18

470p

R89

100k

C32 47u25

R75

47k

C19 47p

10T

R84

120k

R79

220k

C20 100p

2SK1824

Q72

DTC114EE

C28 100p

C29 470p

R71

56k

R76

100k

02DZ5.6(X,Y)

R19

150

R85 100k

C33

100p

R87

82k

R88

100k

C22 470p

R72

33k

C34 100p

HSM88AS

C24

4.7u10

R25

150

1/2

R82

100k

IC71

TA 7 5 W01FU

C35 100p

R78

100k

ANT

R81

100k

C17 22p

1000p

HSM88AS

C26 22p

D171

DAN235E

R196

15k

R191

22k

R194

22k

R192

22k

R195

22k

Q174

DTC144EE

Q173

DTA114EE

R257

15k

C258

4.7u16

D251 1SS388

R256

120k

R258

R305

2SK1824

Q176

D174

MA2S111

C235

0.1u

TH171

47k

2SJ645

Q810

1VSS

2VDD

4VSS

3NC

IC405

AT29C040A-90TI

16 17

C406

0.3p

R434 47k

R451 470k

C423

R418 47k

L401

R420 330k

R461 470k

R431 0

R458 470k

L406

R453 470k

R482

47k

R432 1k

R419 47k

R405 470k

C412

0.1u

R424 1k

R428 0

R469

L402

R467 0

R447 470k

R411 470k R427 1k

R430 470

R422 47k

R481 470k

R421 47k

R426 1k

R406 470k

R449 470k

R470 1k

R429 470 R471 1k

R425 1k

R414 10k

R465 47k

R457 47k

R410

10k

R459 470k

R415 470k

R468 47k

D403

1SS388

D402

1SS388

C410

0.1u

CP401

100

D404

1SS388

1STRB

2DATA

3CLK

4Q1

5Q2

6Q3

7Q4

8VSS 9

IC410

M62364FP

C429 1u

C454 0.01u

C407 0.01u

C517

0.01u

C506

R585

180k

R570

150k

C480

1000p

R553

4.7k

C518

0.1u

C463

0.01u

C528

2200p

R552

10k

C520

1000p

C489 0.1u

R540 47k

R532

R599

180k

C535

0.068u

R610

150k

R586

C475

100p

R597

C491

0.1u

C485

R576

220k

C477

1000p

R568

120k

R606

C538

1000p

R559

120k

C488

12p

R536

15k

C479

1000p

R581

150

C484 4.7u

R563

390k

R571

120k

R545

10k

R608

180k

C505

C482 4.7u

R587

150k

C495

180p

R541 0

R566

R609

22k

C531

1000p

IC415

AQUA-L

TCLK/DTRDO

TDATA/DTRCLK

DI/O

RDF/FD

SCLK

DIR

XOUT

C524

1000p

R616

4.7k

C533

0.015u

2SJ243

Q413

R600

4.7k

R550

4.7k

C537

0.1u

R548

82k

R596

R580

150

C470

0.01u

R583

2SJ243

Q417

R578

R560

390k

R567

390k

C525

0.1u

C532

0.012u

R588

4.7k

C503

68p

R557

4.7k

C534

1000p

C472

0.1u

C499

820p

R542

C526

0.1u

C514

82p

C493 4.7u

R558

390k

C507

0.1u

C529

47p

R603

R602

R607

270k

R601

470k

Q405

DTA114EE

C492

0.1u

R527

3.9k

R528

47k

R598

4.7k

C476

0.1u

C536

0.1u

R494 4.7k

R501

4.7k

C443

0.01u

C433

0.1u

R495 4.7k

C438 0.01u

R493

C440 0.1u

C497

1000p

C452

100p

R500

R519

100k

C448

100p

R514

18k

C459

10u10

C453

0.1u

R520

R505

68k

R515

100k

R512

15k

R506

220k

C457

470p

R504

10k

R513

560k

C451

0.01u

R517

22k

R524

10k

4VSS 5

VDD

4VSS 5

VDD

IC408

TC75W51FU

4VSS 5

VDD

R522

100k

R526 270k

R533

100k

C462 0.01u

OUTPUT

V+

INPUT+ 4

IC412

TC75W51FU

4VSS 5

VDD

R530

330k

R521

47k

R523

560k

C460

0.01u

C465

22p

C469

0.1u

D407

RB706F-40 R539

39k

R535

390k

R529

680k

VSS

8VDD

R594

680

R589

C511

0.1u

R573

6.8k

C501

22p

R569

100k

C496

0.1u

C483

0.01u

IC407

TC75W51FU

VSS

VDD

R496

100k

R498

270k

C444

39p

D406

02DZ5.1(Y)

C446

0.01u

C445

15p

R503

100k

R499

100k

R592

C824

0.01u

C823

1000p

CN428

R604

2SJ243

Q416

R534

27k

C540

10u10

C539

10u10

C544

10u10

C543

10u10

R613

100k

R619

100k

R612

100k

R617

100k

R615

4.7k

R618

220k

R620

220k

C542

1000p

R472 1k

L407

C441

10u

C450 10u

C530

10u

R508

R614

C541

0.1u

L301

2.2u

C371

10u6.3

C237

22u6.3

L409

C519

1000p

R565

R366

2.2k

L302

C239

0.1u

C240

0.1u

R657 4.7k

R658 0

R131

100k

C148

C152

470p

C150

L114

8.2n

C155

470p

L117

8.2n

C154

1.5p

C146

470p

C149

470p

C151

R129

100k

C144

R130

100k

L115

8.2n

L116

8.2n

R132

100k

C145

1.5p

C153

C124

10p

R122

100k C133

R126

C176

470p

C121 470p

D103

1SV286

R116

18k

C142

470p

C134

C137

470p

R120 220

D104

1SV286

R121

100k

L111

L34-4565-05

C131

470p

R124

100k

C132

22p

C136

R123

100k

C140

22p

C141

D105

1SV286

C125

470p

L109

18n

C135

22p

R119

2SC3357

Q103

L110

L34-4565-05

C127

22p

C139

470p

C138

R115

18k

C129

470p

C119

C130

D106

1SV286

R172

C175

L172

15n

R173

270

L171

15n C181

470p

R171

270

C173

12p

R175

2.2k

C178

470p

C171

4S2

5S1

6G2

C177

470p

C182

0.01u

R174

L175 R176

C184

470p

C183

0.01u

C376

470p

R359

100

C375

27p

R358

8.2k

R360

120

C378

470p

2SC5108(Y)

Q313

R357

10k

L319

22n

C377

470p

R361

220

C379

5.6

R10 560

C15

100p

33k

820

R13

330

22n

100p

470

2SC5108(Y)

820

220

C14

100p

6.8k

100p

18n

C10

100p

R12

R11

2.7k

100p

C16

IC1

RA30H4452M

RF_IN

VGG

VDD

RF_oUT

C74

100p

C38 22p

C39 22p

C40

22p

XB15A709

C43

C57

L10

1.5T

C48

L13

9.5T

C53

10p

C58

1.5T

C60

C50

C45

C47

L12

1.5T

R26

10k

C51

100p

R27

100k

C49

100p

C59

100p

R29

82k

C61

100p

R311

1.8k

C318

2.2u20

C320

2.2u20

R322

R316

100k

R326

270

C338

0.33u35

R307

C333

R371

C391

L327

33n

C302

0.5p

L320

10n

C393

L322

5.6n

L321

8.2n

C395

C389

L324

2.2n

2SC5108(Y)

Q301

C390

12p

L323

4.7n

R306

10k

C392

12p

C311

39p

C339

470p

C308

10p

R309

100

C398

1p(B)

C394

C317

100p

R310

100

C252

470p

C251

470p

C369 470p

C360

C343

10u10

C342

1000p

C364

0.5p

C355

R351

4.7k

L312

1.0u

C351

0.5p(B)

L326

1.0u

C357 6p

L311

1.0u

R344

R345

D314

1SV278

C346

22p

R337

10k

D309

BB664

R341

180

C353

470p

C350

L316

1.0u

D313

BB664

L317

1.0u

C365

0.3p

C362

470p

R335

C352

12p

R336

R342

180

R343

4.7k

TC301

C363

470p

C347

22p

C361

470p

D308

BB664

D311

BB664

R347

4.7k

C356

0.5p

R340

100

R339

100k

C354

TC302

R334

C368

470p

C372

22p

R349

33k

L318

22n

R350

33k

R355

Q310

DTC114EE

C367

1000p

C373

470p

R353

4.7k

C312

0.047u35

C25

R318

1.8k

C147

C316

C156

470p

C13

100p

R554

56k

R556

56k

R555

12k

R133

100k

C259 10u10

C219

C76 470p C77 470p

C467 0.01u

R134

C591

0.1u

C388

C387

L328

22n

R375

330

C594

470p

C325

1000p

C334

1000p

R511

1.5k

R525

1.5k

C464

0.033u

C447

0.033u

R188

R180

820

C187

39p

C196

0.01u

C206

0.01u

C210

68p

R178

C193

0.01u

L182

100n

C198

68p

C211

10p

L180

68n

R189

C201 4p

C192

0.01u

C209

0.01u

C204

0.01u

C194

0.01u

R184

C212

470p

L188

820n

C199

39p

L181

10u

C205

0.01u

C190

39p

R187

3.3k

L185

68n

R182

3.3k

L186

10u

R186

330

R183

C188 4p

C195

470p

R181

330

L187

100n

C189 4p

R217

R185

820

C202

39p

C200 4p

C207

470p

C197

0.01u

C208

0.01u

L178 390n

L179 390n

L183 390n

L184 390n

2SK1824

Q412

C323

470p

C324

0.1u

L177

270n

CN802

CN803

CN804

C455 47u6.3

R179

R177

C52

C55

C56

100p

R24

100k

HSM88AS

C62

100p

R33

C79

470p

TH1

100k

C30

470p

C31

470p

R23

6.8k

C80

470p

R22

C331 0.01u

R332 10

R325

150k

R321

10k

R330 10

C335

0.022u

CN302

R320

CN301

C397

12p

C309

100p

C396

0.01u

R323 1k

R327 10

R373

R319

C143

0.01u

R315

R546

C584

22p

R108

L305

C400

R509

33k

C306

10p

R109

R204

2.2k

C227

1000p

C241

1000p

R221

47k

L410

L411

R800

CN322 CN323 CN326 CN329CN100 CN102CN101

CN2 CN3CN1CN203CN202 CN13 CN815

C128

R818

47k

C826

470p

L304

Q811

DTC114TE

R804

100k

R549

47k

R412 470k

R477 470k

R478 470k

2SC5192

R416 0

D417

1SS388

D418

1SS388

C818

4700p

Q402

DTC114YE

C408

15p

R90

330k

Q70

DTC114EE

Q177

DTC144EE

Q179

DTC144EE

R370

10k

Q812

DTC114EE

C592

C593

R31

3.3k

L101

8.2n

L119

33n

R595

270k

D601

1SS388

Q600

DTA144EE

R647

100k

D111

HVC131

R38

C358

5p(B)

R376

R369

R28

R584

R659

33k

L310

C359

7p(B)

R475

100

1PGND

2GND

3FB 4

IC404

30625MGP-169GP

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

2.5T

L251

10u

R661

4.7k

R663

4.7k

R664

4.7k

C513

1000p

C512

1000p

C262

100p

C260

100p

C261

100p

R308

3.9k

R377

1IN/OUT

2OUT/IN

3GND 4

R378

10k

C832

4.7u16

VSS

3VIN 1

VOUT

C831

4.7u16

C322

0.047u

R362

C386

10u6.3

R301

D405

EMZ6.8N

CP402 1k

CP403 1k

CP404 1k

CP405 1k

CP406 1k

CP407

CP408

CP409

CP410

CP411

CP412

CP413

CP414

CP415

CP416

CP417

C702

100p

R709

470

D709

02DZ18(X,Y)

D707

DA204U

C703

100p

D713

DA204U

R706

470

C720

100p

C715

100p

C707

1000p

C712

100p

D702

1SS355

C719

100p

C713

1000p

2SD2114K(W)

Q702

C711

1000p

R708

470

C721

1000p

R712 47k

C714

100p

R719

470

L701

R716

470

R717

470

D704

DA204U

CN701

C716

1000p

R713 47k

R707

470

R714

470

R720

470

D712

DA204U

R710

470

R718

470

R715

470

2SD2114K(W)

Q701

C701

1000p

L702

D714

02DZ18(X,Y)

D705

DA204U

R711 47k

D706

DA204U

C718

100p

C723 100p

C708

1000p

C722 100p

C709

1000p

C705

1000p

D708

DA204U

D711

DA204U

C710

1000p

C706

1000p

C704

100p

D710

02DZ18(X,Y)

D703

1SS355

C717

1000p

J701

TCTL

DATAO U T

R485 0

C424 1000p

RXEMAO

SIDETONE

OPT2

C587 100p

C427 100p

C595 100p

TXAO

C436 100p

RXEMAI

C588 1000p

C431 100p

C439 1000p

OPT4

C435 1000p

R491 0

C425 100p

C430 100p

AUDIH

R403 1M

R483 0

R473 0

R488 0

R486 0

C422 1000p

C432

1000p

C420 100p

R484 0

C421 100p

OPT3

TXD1

C428 100p

C585 100p

OPT5

RXD1INT

C437 100p

R489 0

R487 1.8M

CN403

2OPT3

1OPT1

4TXD1

3RXD1

6OPT4

5CLK

8OPT5

7USEL

10 AGND

9DGND

12 AI

11 AO

14 5E

13 AGND

16 DTI

15 STON

18 NC

17 TCTL

20 OPT2

19 AUDIH

22 RXEO

21 TXO

24 TXI

23 RXEI

26 8C

25 OPT6

C586 100p

C426 100p

R474 0

R574

C502 1000p

C490 1000p

C481 1000p

C487 1000p

R572

R902 0

R901 0

C500 100p

C498 100p

C515 1000p

CN429

R575

R900 0

C478 100p

C516 1000p

C504 1000p

R903 0

R400 1M

LCDRST

R591

RXAI

AIO9

AIO5

PSW

RXD1INT

A12

A15

A16

A18

A17

A14

A13

A11

A10

CSO

L405

L404

L403

OPT5

OPT4

OPT3

OPT2

OPT1

RSSI

W/N

ASQ

THP

H/L

TCLK/DTRDO

A11

A12

A13

A14

A15

A16

A17

A18

CSO

L408

R625 4.7k

R624 47k

C565 1u25

R630

D414

DA204U

1000p

R622

C546

0.01u

C559

1000p

R623 47k

R621

F401

F53-0352-05

R633

R629

R643

470

C563 1u25

D413

DA204U

1000p

D412

DA204U

C567

100p

R636

C564 1u25

C562 1u25

CN427

R590

Q409

DTC363EU

T/R

Q418

DTC114EE

C570

C574 22u16

R642

4.7k

C560

0.1u

R648

2.2k

R653

2.2

C576

330u16

C577

0.1u

R641

4.7k

R632

47k

Q419

DTC363EU

R651 0

R645

5.6k

C561

0.1u

D416

DAN202U

C566

R644

R30

OPT1

OPT3

OPT4

OPT5

OPT2

RXD1INT

TXD1

TXD2

RXD2

DATAO U T

TCTL

TXAO

TXAI

RXEMAO

AUDIH

SIDETONE

RXEMAI

AM2

PSENS

LCDDO

LCDDI

RST2

RXD

TXD

PSW

SPO

T/R

PCK

PLE

RST2

TXD

RXD

PSENS

AFDAT

AFDIO

AFDIR

AFSTD

DTRLOAD

AI04

AI03

AI02

AI01

AI07

AI08

10CL

DEO

OPT1

L108

L309

D421

1SS388

D422

1SS388

R446

10k

R445

10k

TXD2

TXD1

RXD2

D423

1SS388

R407 10k

R579

22k

R295

R298

SIDETONE

DATAO U T

AM2

RXEMAI

RXEMAO

RXAO

AUDIH

RXDET

T/R

R348

10k

MOD

10CL

CFSW

GSW

H/L

RXDET

RSSI

ASQ

W/N

TCTL

HOR

SPO

AIO6

AIO7

AIO1

AIO2

AIO3

AIO4

AIO8

AIO5

AO1

AO2

DEO

AIO9

TXD2

TXD1

RXD2

TCLK/DTRDO

AFRTM

DTRLOAD

AFSTD

AFDAT

AFDIO

AFRTM

AFDIR

RXAI

RXAO

RXD1EXT

TXAI

AI06

MOD

THP

INPUT

D.C

GND

OUT PUT

BOOTSTRAP

VCC

R646

4.7k

L306

PCK

PLE

C307 470p

C299

0.5p

DMUTE

RXD1EXT

EXT.SP

LSD BUFFER AMP/

VCXO BIAS AMP

LSDO

–

MODULATION

LPF/DEF AMP

–

SPI

GND

HOR

SPO

AM1

Fin

GND

DGND

GND

PCK

PLE

VCO

(E23-1081-05)

RX-FRONT

(E23-1081-05)

TX-MODULE

(E23-1081-05)

TX-DRIVE

(E23-1081-05)

AVR

(E23-1081-05)

CPGND

REF

TX-RX UNIT (X57-6990-10)(C/3)

RX-IF GND

TXD1

RXD2

AUXI/O1

AUXO1

AUXI/O5

AUXI/O9

TXD2

AUXI/O3

AFO

MI2

RXD1

AUXI/O4

AUXI/O6

GND

(DEFAULT)

AUXI/O8

GND

AUXI/O2

DEO

AUXO2

AUXI/O7

SB CONTROL SW

VOLTAGE

PROTECTION

VOLTAGE

DETECTOR(INT)

IGNITION SENS

CONTROL SW

CPU RESET SW

VOLTAGE

REGULATOR

/8.5V

VOLTAGE

PROTECTION

RTC PROCESSOR

BEAT SHIFT SW

VOLTAGE

REGULATOR/8V

8T CONTROL SW

8T SW

8R SW

VOLTAGE

REGULATOR/5V

5R CONTROL SW

SPSTB

RXC

MIC

OPT6

DET AMP/

DATA LPF (DB-25)

VOLTAGE

PROTECTION

VOLTAGE

PROTECTION

FLASH MEMORY

D/A CONVERTER

SHIFT

OPT6

MIC

SCSW

RXC

STSW

BEEP

LSW

MM1

AUXIO4

AUXIO6

RXD2

AUXO1

GND

TXD2

AUXIO2

RXD1

DEO

AUXIO9

AFO

AUXIO1

AUXIO5

AUXO2

MI2

AUXIO7

AUXIO3

AUXIO8

TXD1

DC DETECTOR

MM2

DSTB

HSDIN

HSDO

AQUA

CONTROL

LSDIN

AF SW

EMTON

AM1

V_REF

AM1

AF MUTE SW

SOE

SPSTB

RST

XOUT

INT

INTRA

SHIFT/MODEL

TXC

SBC

RTDT/EEPDAT

RTCL/EEPCL

XIN

LSD LPF/VOLTAGE

DC-REFERENCE

PLL SYSTEM IC

LEVEL

CONVERTER

IC (RS-232C)

RF BPF TUNING

VOLTAGE DC AMP

DC-DC CONVERTER

REVERSE

VOLTAGE

PROTECTION

DC AMP

FOR TX APC

DC AMP

FOR TX APC

MICROPROCESSOR

MM2

DTDT

AM1

AF MUTE

CONTROL

AF MUTE

CONTROL SW

AF MUTE SW

W/N CF SW

CONTROL

PLL F_IN

DOUBLER AMP

PLL LPF

DC REVERSE

CONNECTION

PROTECT

D801

VOLTAGE

PROTECTION

D802

RF DETECTOR

ANT SW

FRONT-END LNA

RF BPF

TUNING

RF BPF

TUNING

RF BPF

TUNING

RF BPF

TUNING

PLL LPF

D315,316

VCO BUFFER

AMP

VCO

BUFFER

AMP

MODULATION

CONTROL

FOR TX VCO

TX/RX

BAND SW

TX/RX

VCO SW

D309,313

FREQUENCY

CONTROL FOR

TX/RX VCO

TX PRE-DRIVER

DET MUTE SW

CONTROL

DET MUTE SW

W/N DISCRETE SW

MIC-AMP

AGC DETECTOR

D408,409

MIC AGC

SQ NOISE-AMP

DETECTOR

Q177,179

W/N CF SW

CONTROL

TX DRIVER

TX GATE SW

MIC MUTE SW

Q416,417

SB SW

HIGH/LOW

POWER SW

MUTE

ANT SW

VOLTAGE

PROTECTION

VOLTAGE

PROTECTION

INVERTER SW

ISOLATOR

D417,418

MIC MUTE

CONTROL

VOLTAGE

PROTECTION

VOLTAGE

PROTECTION

LSW

BEEP

MM1

LSDO

EMTON

LSDIN

OPT6

RXC

SCSW

STSW

MIC

MM1

BEEP

OPT6

STSW

RXC

LSDIN

LIMLV

AGND

IC803

8R CONTROL SW

VOLTAGE

PROTECTION

HIGH/LOW

POWER SW

W/N CF SW

CONTROL

TX-RX UNIT (X57-6990-10)(B/3)

TX-RX UNIT (X57-6990-10)(A/3)

TTL SPECIFICATION

BEEP

ME ME ME

AM1

VOLTAGE

PROTECTION

INVERTER SW

RX-IF

(E23-1081-05)

AM1

5C5C

VOLTAGE

PROTECTION

SBC

IGNIGN

IGN

HSDIN

HSDO

DSTB

LSDIN

MI2

AFO

MI2

AFO

MI2

AFO

MI2

AFO

8T8T

AM1AM1 AM1 AM1

D423

VOLTAGE

PROTECTION

11CL

8T 8T

POWER MODULE

RF DETECTOR RF DETECTOR

IC413

TC7MZ4053FK

AF SW IC

SPO

GND

(LCDDO)

SPO

(DM)

(LCDDI)

MIC

SPO

(LCDRST)

RXD

SHIFT/MODEL

GND

SPO

RST2

SPO

GND

TXD

(CLK)

PSW

PSENS

VOUT

VIN

D804

02DZ18(X,Y)

IC802

XC61CN5002NR

oUT

F801

F53-0278-05 RTC BATTERY

CONTROL

D402-404

R402

5.1k(D)

R401

3.6k(D)

C404

C403

0.1u

CN401

J19-5386-05

IC402

RV5C386A

32KOUT

SCL

SDA

INTRB

VSS

INTRA

CLKC

OSCOUT

OSCIN

VDD

INT

INTRA

RST

IC401

AT24256N10SI27

EEPROM

SDA

SCL

VCC

GND

IC804

TA 7805F

12A02CH

Q805

5R SW

MIC

RXC

SPSTB

OPT6

SOE

RTCL/EEPCL

XIN

SBC

XOUT

RTDT/EEPDAT

INT

INTRA

SPSTB

TXC

RST

SHIFT/MODEL

OPT6

TXD2

OPT2

RXD1

GND

AUDIH

TXD1

STON

TCTL

RXEO

DTI

OPT3

TXI

RXD2

TXO

OPT4

OPT5

RXEI

OPT1

RXO

RXI

Q’S

VDD

IC403

BU4094BCFV

CFSW

GSW

HOR

AO1

AO2

STSW

MM1

LSDIN

OPT6

RXC

SCSW

LSW

LSDO

MIC

BEEP

EMTON

HSDIN

HSDO

DSTB

MM2

AM1

R452

R439

R450

R437

R456

R443

R435

R444

R455

R442

R440

R448

R454

R441

R423

R466

R476

470

47k

DGND

MM1

PSENS

TXD

RXD

AFDAT

AFDIO

AFDIR

DTRLOAD

AFSTD

LSW

RDY

HOLD

AI04

AIO3

AIO2

AIO1

AIO8

AIO7

AIO6

RST2

CS0

A18

A17

A16

A15

A14

A13

A12

A11

A10

PLE

PCK

OPT6

VCC2

DGND

IGN

AFRTM

TCLK/DTRDO

MM2

T/R

AM1

EMTON

W/N

OPT1

OPT2

OPT3

OPT4

OPT5

H/L

THP

ASQ

RSSI

AGND

LSDIN

VREF

AVCC

SBC

RXC

TXC

HSDO

STSW

RTCL/EEPCL

HSDIN

RTDT/EEPDAT

BYTE

CNVSS

DMUTE

AM2

RST

XOUT

DGND

XIN

VCC1

NMI

PSW

INT

INTRA

SHIFT/MODEL

BEEP

SPSTB

SOE

AIO5

AIO9

DSTB

LSDO

RXD2

TXD2

TXD1

VCC1

RXD1

100

101

102

A11

A13

A14

A17

VCC

A18

A16

A15

A12

A4 A3

Io0

Io1

Io2

GND

Io3

Io4

Io5

Io6

Io7

A10

VIN1

VOUT1

VOUT2

VIN2

VDD

CLK

VIN3

VOUT3

VOUT4

VIN4

VIN5

VOUT5

VOUT6

VIN6

VDAref

RESET

GND

VIN7

VOUT7

VOUT8

VIN8

AM1

V_REF

MM2

STSW

SCSW

RXC

OPT6

LSDIN

MIC

MM1

BEEP

LIMLV

AGND

IC409

TC75W51FU

IC406

TC75W51FU

INPUT-

V-

IC411

LMC7101BIM5

HSD BPF/HSD

COMPALATOR

IC414

TC75W51FU

MIC AMP

D408

MA742

D409

MA742

2SC4116(Y)

Q410

2SA1586(Y,GR)

Q411

AF SW

RXAF

RXAFIN

EXPOUT

FILTERO

RXINO

RXIN

AGND

XIN

VSS

AMP3P

AMP3N

AMP3O

AMP4P

AMP4N

AMP4O

DTRAIN

AGNDIN

TXIN

TXINO

LIMLV

EXTLIMIN

MOD

VDD

DTRLOADN

STD

XCoM

YCoM

VCC

ZCoM

INH

VEE

GND

TXAI

TXAO

X403

3.6864MHz

L77-1965-05

R582

Q415

HN1L02FU

AF SW

(VOICE)

2SJ243

Q414

R611

10k

MI2

AFO

D108

1SV291

RF BPF

TUNING

D107

1SV291

RF BPF

TUNING

D109

1SV291

RF BPF

TUNING

D110

1SV291

RF BPF

TUNING

MI2

AFO

L113

L34-4565-05

L112

L34-4565-05

oUTPUT

VCC

X301

16.8MHz

L77-1952-05

AM1

11CL

IC301

ADF4111BCP7

CLK

DATA

MUXOUT

DVDD

Rset

CPGND

AGND

RFinB

RFinA

AVDD

RFEin

DGND

PLL CP SW

IC302

TC7S66FU

CONT

VCC

FREQUENCY

CONTROL FOR

TX/RX VCO

D308,311

2SK508NV(K52)

Q307

TX/RX VCO

L325

L34-4605-05

12.5n

2SC4116(GR)

Q309

TX/RX

VCO SW

2SC4617(S)

Q312

RIPPLE FILTER

2SC4116(GR)

Q308

TX/RX

VCO SW

2SK508NV(K52)

Q306

TX/RX VCO

IC251

MAX5026EUT+T

SHDN

VCC

2SC4617(S)

Q251

RIPPLE

FILTER

L173

L39-1421-05

L176

L39-1421-05 XF171

L71-0618-05

XF171

L71-0618-05

2SC5108(Y)

Q172

IF AMP

MI2

AFO

L174

L39-1421-05

L314

L34-4607-05

17.5n

L315 1.0u

2SC5108(Y)

Q311

XB15A407A2GB

ANT SW

IN2+

IN2-

OUT-B

VCC

OUT1

IN1-

IN1+

VEE

IC72

TA 7 5 W01FU

OUT1

IN1-

IN1+

VEE IN2+

IN2-

OUT-B

VCC

CF172

L72-0998-05

CF171

L72-0986-05

D172

DAN235E

W/N CF SW

AFOUT

QUAD

IFOUT

RSSI

N-DET

N-REC

GND

MIXIN

OSCIN

OSCOUT

MIXOUT

VCC

IFIN

DEC

FILOUT

FILIN

IC172

TA31136FN

FM IF SYSTEM IC

CD171

L79-1701-05

2SC4617(Q)

Q175

NOISE AMP

MI2

AFO

0.5p(B)

3p(B)

2p(B)

0.5p(B)

2p(B)

1000p

47u25

1000p

47u25

560

1000p

C582

C572

C575

C579

C578

R652

C580

C573

C555

1000p

C545

1000p

C551

1000p

C548

1000p

C547

1000p

C549

1000p

C552

1000p

C556

1000p

C557

1000p

C553

1000p

C558

100p

C550

100p

C554

100p

SURGE PROTECT

D412-414

C1+

V+

C1-

C2+

C2-

V-

T2OUT

R2IN

R2OUT

T2IN

T1IN

R1OUT

R1IN

T1OUT

GND

VCC

IC416

ADM202EARN

RXD1

DEO

AFO

AUXIO4

MI2

AUXO1

AUXIO6

TXD1

RXD2

AUXIO8

AUXIO2

GND

AUXIO3

GND

AUXIO7

AUXO2

AUXIO5

AUXIO9

TXD2

AUXIO1

R702

R701

R705

R704

R703

47k

GND

IGN

VOLTAGE

DETECTOR

(CPU RESET)

IC801

S-80942CNNBG9C

VOLTAGE

PROTECTION

D421,422

X404

L77-1950-05

C409

15p

C411

0.1u

VOLTAGE

REGULATOR/5V

IC807

XC6201P502PR

IC805

NJM78L05UA

VOLTAGE

REGULATOR/5V

X401

L77-1802-05

C434

560p

R492

680k

R490

180k

R497

3.3k

R507

220k

C442

0.1u

R502

10k

Q406

HN1J02FU

AF SW

(LSD)

D600

1SS388

MIC MUTE

CONTROL

C468

0.01u

C461

0.01u

R531

10k

CPGND

REF

Fin

GND

C314

0.1u

R312

RX 1ST MIXER

IC171

SPM5001

2SC5108(Y)

Q171

IF AMP

C825

C568

SURGE PROTECT

D704-708,711-713

D701

02DZ18(X,Y)

TO DISPLAY UNIT CN902

IC417

TA 7 2 52AP

AUDIO IC

–

–+

–

1.53V

0.87V

4.99V

0.31V

10.36V

1.6V

1.02V

T:2.84V

R:2.13V

T:0V

R:2.83V

4.3V

T:3.55V

R:0V

3.86V

3.69V

R:4.88V

T:0V

R:0V

T:2.3V

4.99V

7.90V

4.97V

4.35V

0.87V

2.46V

3.22V

FL:2.5V

FC:4.0V

FH:5.8V

4.99V8.21V

T:12.7V

R:13.5V

7.96V

T:7.83V

T:7.96V

R:7.97V

T:7.2V

R:7.95V T:4.95V

R:0.003V

R:7.95V

T:7.94V

R:7.25V T:0.005V

R:4.93V

R:4.98V

4.28V

T:7.91V

R:7.46V

4.99V

0.84V

0.12V

1.12V

0.61V

H:3.44V

L:3.03V

H:13.02V

L:13.39V

H:3.21V

L:1.19V

N:4.85V

4.99V

4.94V

4.99V

4.96V

4.37V

0.07V

0.84V

0.07V

4.41V

4.96V

0.84V

4.99V

4.987V 4.989V

4.99V

2.49V

2.50V

4.98V

2.50V

2.49V

2.50V

4.98V

2.50V

4.93V

2.49V

4.92V

4.98V

2.48V

2.81V

R:4.90V

T:0V

R:4.92V

T:0V

R:4.98V

T:0V

2.49V

4.83V

4.88V

4.98V

4.99V

1.44V

13.61V

4.41V

W:4.96V

4.99V

4.75V

3.94V

3.93V

4.50V

T:7.81V

R:0V

T:7.60V

R:8.09V

8.83V

0.39V

6.76V

TK-8180

CN429

(DM)

GND

RXD

TXD

SHIFT/MODEL

(CLK)

(LCDDO)

(LCDDI)

(LCDRST)

RST2

PSENS

GND

MIC

GND

PSW

GND

SPO

CN701

AUXIO6

AUXIO7

AUXIO1

AUXIO2

RXD2

AUXIO3

TXD2

AUXIO4

AUXIO8

AUXIO5

AUXIO9

AUXO1

TXD1

AUXO2

RXD1

GND

MI2

DEO

GND

AFO

CN902

GND

RXD

TXD

SHIFT/MODEL

GND

RST2

PSENS

GND

MIC

GND

PSW

GND

SPO

CN427

AUXIO6

AUXIO7

AUXIO1

AUXIO2

RXD2

AUXIO3

TXD2

AUXIO4

AUXIO8

AUXIO5

AUXIO9

AUXO1

TXD1

AUXO2

RXD1

GND

MI2

DEO

GND

AFO

LCD

B38-0888-05

DISPLAY UNIT

(X54-3480-10)

ANT

26 PIN BOARD TO BOARD CONNECTOR

DGND

CN403

OPT6

OPT2

TXD1

AGND

OPT3

TXI

TXO

DTI

CLK

OPT4

AUDIH

RXEO

USEL

RXD1

STON

RXEI

OPT5

AGND

TCTL

OPT1

INT. SP

J701

SPI

SPO

HOR

GND

CN301 CN302

REF

Fin

CPGND

GND

PLE

PCK

GND

DGND

PTT

MIC

BLC

COM

1~9

SEG

1~75

CN901

J901

CN428

R30

SPO

GND

EXT. SP

SB RXD1

AUXO2 TXD1

AUXO1

AUXI/O9

AFO DI

GND MI2

DEO

GND

AUXI/O5 AUXI/O8

AUXI/O4 TXD2

AUXI/O3

RXD2

AUXI/O2

GND

AUXI/O1

AUXI/O7

AUXI/O6

IGN

CN804

GND

AUDIO IC

TA7252AP

IC417

POWER

MODULE

RA30H4452M

IC1

–

DC 13.6 V

TX-RX UNIT

(X57-6990-10) (B/3)

TX-RX UNIT

(X57-6990-10) (C/3)

TX-RX UNIT

(X57-6990-10) (A/3)

INTERCONNECTION DIAGRAM

AGC

MIC

AMP

MI2

IC414

TC75W51FU

MM2

MOD TX

VCO

IN V

VCXO

T/R

Q302,Q303

2SC4116(BL)*2

Q309

2SC4116

(GR)

DISPLAY UNIT

(X54-348)

AVR

BUSY

LED

RXD2

TXD2

X901

14.7456MHz

LED SW

POWER SW

PSW

RED

11CL

LCD

DRIVER

IC903

LC75810T

-8726

Q913,Q909

DTC114EE,12A02CH

Q904

DTC114EE

Q905

DTC114EE

5V, 8C

Q417

2SJ243

Q416

2SJ243

IC901

TA78L05F

VDD

INT. SP

BLC1

GR E

LDT

LCK

LRES

LCS

SCSW

TXD

RXD

BEAT

SHIFT 11.0592MHz

RST1

INT

IGN

SHIFT/MODEL

Q402

DTC114YE

D408,D409

MA742*2

Q410,Q411

2SC4116(Y)

2SA1586(Y,GR)

CF SW

DET

ASQ

Q175

2SC4617(Q)

D173

RB706F-40

Q310

DTC114EE

Q307: 2SK508NV(

D308,D311,D314:

Q306: 2SK508NV(

D309,D313: BB66

5R X171

44.395MHz

Q176

2SK1824

DC-DC

Converter

Q308

2SC4116(GR)

IC251

MAX5026EUT+T

5CUL

PLE

PCK

Ripple

Filter

Q251

2SC4617(S)

D802

DSA3A1

D801

22ZR-10D

D804,Q802

02DZ18(X,Y)

DTC114EE

13.6V

PROTECT

AVR

8V 8C

RST1

Voltage

DETECTOR INT

IGN

SENS

IC802

XC61CN5002NR

Q810

2SJ645

Q807

DTC114EE

IC803

TA7808F

Q803,Q806

12A02CH,DTC114EE

Q804,Q808

12A02CH,DTC114EE

Q805,Q809

12A02CH,DTC114EE

Q811

DTC114TE

IC801

S-80942CNNBG9C

IC804

TA7805F

Q801,D805

2SC2873(Y),02CZ9.1(X,Y)

IC805

NJM78L05UA

TXC

RXC

SBC

PSENS

PSW

DMUTE

Xout

Xin

RXDET

THP, UL, ASQ,

RSSI, HSDIN,

LSDIN

MM1

OPT1, OPT2,

OPT3, OPT4,

OPT5

10CL

DIMMER

DIMMER LCD BackLight*12

KEY BackLight*10

LCD

SEG*75

COM*9

VDD

VLCD

BLC

PTT

MIC

HOOK

MIC

AFO

DIMM

RST RST2

D904,D905,D906

DA204U

MUTE

AMP

FM IC

D171

DAN235E

TXIN

CF171

CF172

IC413

TC7MZ4053FK(2/3)

IC413

TC7MZ4053FK

(1/3)

IC413

TC7MZ4053

FK(3/3)

IC412

TC75W51FU(2/2)

IC407

TC75W

X301

16.8MHz

IC807

XC6201P502PR

IC415

Audio proce

AQUA-L

PTT

BLC

PTT/TXD1

10KEY

DIMMER

S [1:10]

Q906,Q907

DTC114EE, 2SC2873(Y)

DTRLOAD, AFSTD,

TCLK/DTRDO,

AFDAT, AFDIO

AFRTM, CK, AFDIR

HK/RXD

BLC2

Xin

Xout

Q901,Q902

DTC144EE

X404

LSDI LPF

TC75

HSDO

SW MUTE

AM2

Q409

DTC363EU BEEP

HSDO

T/R

VGS-1

REC SRC

Q415

HN1L02FU

STSW

Q413

2SJ243

Q414

2SJ243

Q406

HN1J02FU

RXAF

HSDO

EMTON

Q406

HN1J02FU

ANI Board

DATA

OUT

Scrambler Board

TXAI

TXAO

RXOUT

RXIN

PROTECT

AVR

8.5V

AVR

Voltge

DETECTOR

SW AVR

IC301

ADF4111BCP7

PLL

Active

Loop

Filter

TA3

AMP

SIDE

TONE

Noise AMP

µ-com

IC404

30625MGP-*

µ-com

IC902

30302M8-***GP

Protect

Surge

Protect

TK-8180 BLOCK DIAGRAM

BLOCK DIAGRAM TK-8180

DAC

IC410

M62364FP

AUX I/O1~

AUX I/O9

EEPROM

IC401

AT24256N10SI27

Flash ROM

IC405

AT29C040A-90TI

RTC

IC402

RV5C386A

ANT

TUNE

D3: XB15A407A2GB

D2: XB15A709

D111: HVC131

Q103

2SC3357

Mixer

IC171

SPM5001

IC1

RA30H4452M

IN V T/R

T/R

Q311

2SC5108(Y)

Q301

2SC5108(Y)

Q313

2SC5108(Y)

FC AM

IC417

TA7252AP

RSSI

5CL

D [0:7] RTCL/

EEPCL

RTDT/

EEPDAT

5M 5M

Q419

DTC363EU

DT,CK,DSTB

GND AFO SB

RXD2 TXD2 TXD1 RXD1AUX I/O6 AUX I/O7 AUX I/O8 AUX I/O9GND GND MI2 DI

ME AUX I/O1 AUX I/O2 AUX I/O3 AUX I/O4 AUX I/O5 DEO AUXO2AUXO1

Surge

Protect

AUXO1~

AUXO2

D702,D703,D709,D710

1SS355,02DZ18(X,Y)

D413,D414

DA204U

D704~D708

D711~D713,D412

DA204U

AUXI/O1~

AUXI/O9

D103,D104

D105,D106

1SV286*4

D107,D108

D109,D110

1SV291*4

CF SW

Q178

DTA144EE

Q310

DTC114EE

307: 2SK508NV(K52)

308,D311,D314: BB664*2,1SV278

306: 2SK508NV(K52)

309,D313: BB664*2

2SC5192

IC72

TA75W01FU(1/2)

IC72

TA75W01FU

(2/2)

GAIN

H/L

HiPo: 0V/LoPo: 5V

POW

AMP

AMP DC

AMP

PO DET

PO REF

ATT

TEMP

DET

THP

ATTLPF

HPF

BPF

RF AMP

X171

.395MHz

450~520MHz

RX Local

405.15~475.15MHz

BPF

Buff AMPBuff AMP

Q72

2SK1824

INTRA

Q312

2SC4617(S)

EXT.

SPO

SPI

Shift Register

IC403

BU4094BCFV

SPSTB1, SOE,

CK, DT

Xin

Xout

3.6864MHz

X401

32.768kHz

IC412

TC75W51FU(1/2)

IC409

TC75W51FU(1/2)

IC407

TC75W51FU(1/2)

IC411

LMC7101BIM5

10CL

LSDO BAL

MOD

MOD HOR

GND

PC MP

GSW

1234567

8910111213

15 14

17181920212223

AFO

DEO

MI2

GND

RS232

DRIVER

TXD1,RXD1

TXD2,RXD2

TXD1,RXD1

TXD2,RXD2

IC416

ADM202EARN

POW

DET

HSM88AS

LPF

APC

8T 8T

MCF

2Pole

MCF

2Pole

W/N

M IC

D172

DAN235E

XF171 XF171

Q171

2SC5108(Y)

CD171

CF171

CF172

MUTE

DEO

IC407

TC75W51FU(2/2)

DTC114EE

IC71

TA75W01FU(1/2)

IC71

TA75W01FU(2/2)

TH1

S1R104J475H

INV

Q418

DTC114EE

IC408

TC75W51FU(1/2)

IC408

TC75W51FU

(2/2)

IC415

Audio processor

AQUA-L

, AFSTD,

DO,

FDIO

K, AFDIR

AFO

X403

ILPF

COMP

HSDI

5C 5C

IC406

TC75W51FU

RXAF

2SC5108(Y)

D315,D316

HVC131*2

T/R

ATT

LPF

SIDE TONE

Ripple

Filter

GATE

SW POW

DET

POW

DET

IC172

TA31136FN

AMP

IF AMP

AF AMP

Q172

2SC5108(Y)

IF AMP

Surge

Protect

Surge

Protect

AUXO1

HOR

SCSW

CFSW

AUXO2

GSW

DT, CK,

PCK, PLE,

TXC, RXC, SBC

T/R, W/N,

DMUTE,

RECSRC/SELF,

AM, AM2

EMTON,

DSTB,

APC,

HSDO,

LSDO,

BEEP

MM1, MM2

H/L,

STSW

µ-com

IC404

30625MGP-***GP

A [0:18],

RD, WR,

CS0

ACC D-Sub 25pin

ACC 26pin

1 OPT1

3 RXD1

5 CLK

7 USEL

9 DGND

11 AO

13 AGND

15 STON

17 TCTL

19 AUDIH

21 TXO

23 RXEI

25 OPT6

OPT3 2

TXD1 4

OPT4 6

OPT5 8

AGND 10

AI 12

5E 14

DTI 16

NC 18

OPT2 20

RXEO 22

TXI 24

8C 26

TK-8180

W: 5.0mVrms

N: 6.3mVrms

W: 5.0mVrms

N: 6.3mVrms

IC414

W: 72.5mVrms

N: 91.3mVrms

12 14

IC413

W: 72.5mVrms

N: 91.3mVrms

IC415

W: 340mVrms

N: 180mVrms

IC410

W: 140mVrms

N: 70mVrms

IC412

W: 96mVrms

N: 48mVrms

MIC

VCO

–122.0dBm –112.0dBm –117.0dBm –118.5dBm –108.0dBm

–105.5dBm

–119.5dBm

HPF BPF

L173 L176

IC171

XF171

(1/2)

–109.5dBm

XF171

(2/2)

ANT

Q103 Q171 Q172

Radio Frequency 44.85MHz

SG input level for 12dB SINAD ar

connecting SG to each point via

Q307

TX-RX unit (B/3)

MIC input : 3kHz DEV. (Wide), 1.5kHz DEV. (Narrow) at 1kHz MOD.

Transmitting frequency : Center frequency

LEVEL DIAGRAM

Receiver Section

Transmitter Section

TK-8180

LEVEL DIAGRAM

IC412

526

IC415

315mVrms 190mVrms 88mVrms 4.00Vrms

115

IC413

16 15

IC410

IC417

IC1

6mVrms

8mVrms

W: –83.5dBm

N: –83.0dBm

W: –86.0dBm

N: –86.0dBm

–0.5dBm

+2.5dBm +8dBm +17dBm

450~490MHz : 30W

490~520MHz : 25W

dBm

5.5dBm

200mVrms

CF171/

CF172

IC172

4Ω

J401

455kHz Audio Frequency

INAD are obtained Measured by

oint via a 0.01µF capacitor. AF VTVM

AF level obtained when the AF output level is adjusted for 4.00V/4Ω

with the front panel AF VOL control. Measured with AF voltmeter

connected to the external speaker jack, receiving a –53dBm SSG

signal modulated at 1kHz, DEV. WIDE 3kHz (NARROW 1.5kHz).

Q313

307

Q1 Q2

ANT

TX-RX unit

(B/3)Power module

Wattmeter by 50Ω

TK-8180

■ External View

1 ✽ A62-1101-01 MAIN PANEL

2 ✽ A82-0056-11 REAR PANEL

4 ✽ E30-7514-05 TRUNK CABLE

5 ✽ E37-1121-05 FLAT CABLE

7 ✽ F07-1884-03 MOLDING COVER

9 ✽ G53-1614-23 PACKING

11 ✽ H12-3163-03 PACKING FIXTURE

12 H25-0029-04 PROTECTION BAG (60/110/0.07)

13 H25-2327-04 PROTECTION BAG (100/250/0.07)

14 H25-2352-04 PROTECTION BAG (250/350/0.07)

15 ✽ H52-2042-02 ITEM CARTON CASE

17 J29-0698-03 BRACKET

A N08-0550-04 DRESSED SCREW

B ✽ N80-2608-48 PAN HEAD TAPTITE SCREW

19 ✽ N99-2040-05 SCREW SET

C14 CK73GB1H102K CHIP C 1000PF K

C41 CK73GB1H102K CHIP C 1000PF K

CN1 E40-6371-05 FLAT CABLE CONNECTOR

CN2 E40-6412-05 FLAT CABLE CONNECTOR

CN3,4 E40-6377-05 PIN ASSY

L2,3 L40-1091-86 SMALL FIXED INDUCTOR (1.0UH)

L5,6 L40-1091-86 SMALL FIXED INDUCTOR (1.0UH)

R1 RK73GB1J473J CHIP R 47K J 1/16W

D2 MINISMDM075/24 VARISTOR

D3-6 DA204U DIODI

D9-11 DA204U DIODE

D12-20 ✽AVRM1608080MAA VARISTOR

IC1,2 TC7WT125FU MOS IC

OPTIONAL ACCESSORIES: KRK-10

(Control Head Remote Kit: 23ft/7m)

■ Parts List

Ref. No.

Address

Parts No. Description

New

parts

KRK-10

✽ : New Parts

INTERFACE UNIT (X46-3310-20)

■ Components Description

Ref. No. Part Name Description

IC1,2 IC Buffer amp

D2 Varistor Current limiter

D3~6 Diode Surge protect

D9~11 Diode Surge protect

D12~20 Varistor Surge protect

TK-8180

2 Rear panel

(A82-0056-11)

1 Main panel

(A62-1101-01)

4 Trunk cable

(E30-7514-05)

4 Trunk cable

(E30-7514-05)

7 Molding cover

(F07-1884-03)

7 Molding cover

(F07-1884-03)

9 Packing

(G53-1614-23)

Interface unit

(X46-3310-20) (A/2)

Interface unit

(X46-3310-20) (B/2)

5 Flat cable

(E37-1121-05)

B Pan head taptite screw

(N80-2608-48) x 4

B Pan head taptite screw

(N80-2608-48) x 4

■ Exploded View and Packing

OPTIONAL ACCESSORIES: KRK-10

(Control Head Remote Kit: 23ft/7m)

12 Protection bag

(H25-0029-04)

7 Molding cover

(F07-1884-03)

12 Protection bag (H25-0029-04)

A Dressed screw (N08-0550-04) x 2 13 Protection bag

(H25-2327-04)

13 Protection bag

(H25-2327-04)

13 Protection bag

(H25-2327-04)

17 Bracket

(J29-0698-03)

19 Screw set

(N99-2040-05)

14 Protection bag

(H25-2352-04)

4 Trunk cable

(E30-7514-05) 11 Packing fixture

(H12-3163-03)

15 Item carton case

(H52-2042-02)

TK-8180

C41

D10

D11

D12

D13

D14

D15

D16

D17

D18

D19

D20

IC1

IC2

R1 1

SPI

GND

PSW

GND

MIC

GND

PSENS

RST2

LCDRST

LCDDI

LCDDO

CLK

SHIFT

TXD

RXD

GND

SPI

GND

PSW

GND

MIC

GND

PSENS

RST2

LCDRST

LCDDI

LCDDO

CLK

SHIFT

TXD

RXD

GND

CN1

CN2

C14

CN3

CN4

RST2

GND

TXD RXD

SHIFT

PSENS

MIC

PSW 5C

SPI

J72-0934-09 B/2

J72-0934-09 A/2

J72-0934-09 B/2

J72-0934-09 A/2

SPI

PSW

MIC

TXD RXD

PSENS

GND

RST2

SHIFT

RST2

SHIFT

GND

TXD

RXD

PSENS

MIC

PSW

GND

SPI

GND

PSW

MIC

PSENS

RXD

TXD

GND

SHIFT

RST2 14

Component side

Foil side

Layer 1

Layer 2

Component side

Foil side

Layer 1

Layer 2

INTERFACE UNIT (X46-3310-20)

Component side view (J72-0934-09)

INTERFACE UNIT (X46-3310-20)

Foil side view (J72-0934-09)

■ PC Board

OPTIONAL ACCESSORIES: KRK-10

(Control Head Remote Kit: 23ft/7m)

TK-8180

■ Schematic Diagram

INTERFACE UNIT (X46-3310-20) (A/2)

OPTIONAL ACCESSORIES: KRK-10

(Control Head Remote Kit: 23ft/7m)

IC1

1G1

2A1

3Y2

4GND 5

VCC

IC2

1G1

2A1

3Y2

4GND 5

VCC

IC1 : TC7WT125FU

D2 : MINISMDM075/24

D3~6 : DA204U

D12~19 : AVRM1608080MAA

IC2 : TC7WT125FU

D9~11 : DA204U

D20 : AVRM1608080MAA

C14 1000p

C41 1000p

D11

D10

CN1

E40-6371-05

SPI

GND

PSW

GND

MIC

GND

PSENS

RST2

(LCDRST)

(LCDDI)

(LCDDO)

(CLK)

SHIFT

TXD

RXD

GND

(DM)

CN3

E40-6377-05

1SPI

2GND

38C

4SB

5GND

6PSW

7MIC

8ME

9PSENS

10 RXD

11 TXD

12 GND

13 SHIFT

14 RST2

L2 1u

L3 1u

L6 1u

L5 1u

R1 47k

CN4

E40-6377-05

RST2

SHIFT

GND

TXD

RXD

PSENS

MIC

PSW

GND

SPI

CN2

E40-6412-05

1(DM)

2GND

3RXD

4TXD

55C

6NC

7SHIFT

8(CLK)

9(LCDDO)

10 (LCDDI)

11 (LCDRST)

12 RST2

13 PSENS

14 GND

15 ME

16 MIC

17 GND

18 GND

19 PSW

20 NC

21 SB

22 SB

23 8C

24 GND

25 SPI

26 SPI

27 SPI

28 SPI

29 SPI

30 SPI

D12

D13

D14

D15

D16

D17

D18

D19

D20

Radio Side

Display Side

INTERFACE UNIT (X46-3310-20) (B/2)

TK-8180

■ Terminal Function

Pin No.

Name Description

CN1 (Radio side)

1SPI Speaker input.

2SPI Speaker input.

3SPI Speaker input.

4SPI Speaker input.

5SPI Speaker input.

6SPI Speaker input.

7GND Ground.

88C 8V input.

9SB Power input of switched power supply.

10 SB Power input of switched power supply.

11 NC -

12 PSW Detection signal output of Power switch.

13 GND Ground.

14 GND Ground.

15 MIC MIC signal output.

16 ME MIC ground.

17 GND Ground.

18 PSENS Detection signal output of Display unit.

19 RST2 Reset signal input.

(LCDRST)

Reserve.

21 (LCDDI) Reserve.

22 (LCDDO) Reserve.

23 (CLK) Reserve.

24 SHIFT Control signal input of Beat-Shift function.

25 5C 5V input.

26 NC -

27 TXD Serial data signal input.

28 RXD Serial data signal output.

29 GND Ground.

30 (DM) Reserve.

CN2 (Display side)

1(DM) Reserve.

2GND Ground.

3RXD Serial data signal input.

4TXD Serial data signal output.

55C 5V input.

6NC -

7SHIFT Control signal output of Beet-Shift function.

8(CLK) Reserve.

9(LCDDO) Reserve.

10 (LCDDI) Reserve.

(LCDRST)

Reserve.

12 RST2 Reset signal output.

13 PSENS Detection signal input of Display unit.

14 GND Ground.

Pin No.

Name Description

15 ME MIC ground.

16 MIC MIC signal input.

17 GND Ground.

18 GND Ground.

19 PSW Detection signal input of Power switch.

20 NC -

21 SB Power output of switched power supply.

22 SB Power output of switched power supply.

23 8C 8V output.

24 GND Ground.

25 SPI Speaker output.

26 SPI Speaker output.

27 SPI Speaker output.

28 SPI Speaker output.

29 SPI Speaker output.

30 SPI Speaker output.

CN3 (Radio side)

1 SPI Speaker output.

2GND Ground.

38C 8V output.

4SB Power output of switched power supply.

5GND Ground.

6PSW Detection signal input of Power switch.

7MIC MIC signal input.

8ME MIC ground.

9PSENS Detection signal input of Display unit.

10 RXD Serial data signal input.

11 TXD Serial data signal output.

12 GND Ground.

13 SHIFT Control signal output of Beat-Shift function.

14 RST2 Reset signal output.

CN4 (Display side)

1RST2 Reset signal input.

2SHIFT Control signal input of Beat-Shift function.

3GND Ground.

4TXD Serial data signal input.

5RXD Serial data signal output.

6PSENS Detection signal output of Display unit.

7ME MIC ground.

8MIC MIC signal output.

9PSW Detection signal output of Power switch.

10 GND Ground.

11 SB Power input of switched power supply.

12 8C 8V input.

13 GND Ground.

14 SPI Speaker input.

OPTIONAL ACCESSORIES: KRK-10

(Control Head Remote Kit: 23ft/7m)

TK-8180

OPTIONAL ACCESSORIES

KAP-2 (Horn Alert/P.A. Relay Unit)

■ External View

KCT-40 (Radio Interface Cable)

■ External View

KCT-46 (Ignition Sense Cable)

■ External View

KMC-35 (Microphone)

■ External View

KMC-36 (Keypad Microphone)

■ External View

TK-8180

KENWOOD CORPORATION

2967-3, Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525 Japan

KENWOOD U.S.A. CORPORATION

P. O. BOX 22745, 2201 East Dominguez Street, Long Beach, CA 90801-5745, U.S.A.

KENWOOD ELECTRONICS CANADA INC.

6070 Kestrel Road, Mississauga, Ontario, Canada L5T 1S8

KENWOOD ELECTRONICS DEUTSCHLAND GMBH

Rembrücker Str. 15, 63150 Heusenstamm, Germany

KENWOOD ELECTRONICS BELGIUM N.V.

Leuvensesteenweg 248 J, 1800 Vilvoorde, Belgium

KENWOOD ELECTRONICS FRANCE S.A.

13, Boulevard Ney, 75018 Paris, France

KENWOOD ELECTRONICS U.K. LIMITED

KENWOOD House, Dwight Road, Watford, Herts., WD18 9EB United Kingdom

KENWOOD ELECTRONICS EUROPE B.V.

Amsterdamseweg 37, 1422 AC Uithoorn, The Netherlands

KENWOOD ELECTRONICS ITALIA S.p.A.

Via G. Sirtori, 7/9 20129 Milano, Italy

KENWOOD IBERICA S.A.

Bolivia, 239-08020 Barcelona, Spain

KENWOOD ELECTRONICS AUSTRALIA PTY. LTD.

(A.C.N. 001 499 074)

16 Giffnock Avenue, Centrecourt Estate, North Ryde, N.S.W. 2113 Australia

KENWOOD ELECTRONICS (HONG KONG) LTD.

Unit 3712-3724, Level 37, Tower one Metroplaza, 223 Hing Fong Road, Kwai Fong, N.T., Hong Kong

KENWOOD ELECTRONICS SINGAPORE PTE LTD.

1 Genting Lane #07-00 Kenwood Building, Singapore 349544

GENERAL

Frequency range ....................................... 450~520MHz

Number of channels .................................. Zone : Max. 128 per radio Ch/GID : Max. 250 per zone

(Max. 512 [Conv. Ch’s + GID’s] total per radio)

Channel spacing ........................................ Wide : 25kHz Narrow : 12.5kHz

Operating voltage ...................................... 13.6V DC ±15%

Current drain

Standby.................................................. 0.4A

Receive .................................................. 1.0A

Transmit................................................. 9.0A

Duty cycle ................................................. Transmit : 20%

Operating temperature range.................... –22°F~+140°F (–30°C~+60°C)

Frequency stability .................................... ±0.00025% (–22°F~+140°F)

Antenna impedance .................................. 50Ω

Channel frequency spread ........................ 70MHz

Dimensions (W x H x D) ............................ 6-5/16 x 1-3/4 x 6-3/16 in. (160 x 45 x 157 mm)

(Projections not included)

Weight (net) .............................................. 3.31lbs. (1.5kg)

RECEIVER (Measurements made per EIA/TIA-603)

Sensitivity (12dB SINAD)........................... Wide : 0.25µVNarrow : 0.28µV

Selectivity .................................................. Wide : 80dB Narrow : 67dB

Intermodulation distortion ......................... W/N : 75dB (±50, 100kHz)

Spurious response .................................... 85dB

Audio output (4Ω impedance) ................... 4W with less than 5% distortion

TRANSMITTER (Measurements made per EIA/TIA-603)

RF power output ....................................... 30 to 1W (490~520MHz : 25 to 1W)

Spurious response .................................... 70dB

Type of emission ....................................... Wide : 16K0F3E Narrow : 11K0F3E

FM hum & noise ....................................... Wide : 50dB Narrow : 45dB

Audio distortion ......................................... W/N : 3%

Microphone impedance ............................ 600Ω

SPECIFICATIONS

TK 8180(K) 8180 (K) B51 8692 00

TK-8180 (K) B51-8692-00 TK-8180 (K) B51-8692-00

TK-8180 to the manual 63793751-d83c-47ad-b762-8ef203fa8d7c

Navigation menu

Versions of this User Manual:

Views

Navigation
