VHF FM REPEATER / VHF !"
TKR-750
SERVICE MANUAL /
!
VHF FM REPEATER TKR-750
Front panel
(A62-0934-03)
Knob (DC source)
(K29-9106-04)
Key top
(K29-5460-02)
Knob (Volume)
(K29-5389-03)
Modular jack
(E08-0877-05)
Antenna cable (N)
(E30-3419-05)
Antenna cable (BNC)
(E30-3418-05)
TEST/SPKR connector assy
(E37-0913-05)
D-sub cable assy
(E37-0904-05)
DC backup terminal
(E70-0402-05)
DC cord (Ext DC in)
(E30-3414-05)
Fuse (Blade, 15A/32V)
(F05-1537-05) x 2
GENERAL .......................................................................... 2
SYSTEM SET-UP .............................................................. 3
OPERATING FEATURES .................................................. 4
REALIGNMENT ................................................................ 5
INSTALLATION ................................................................ 8
MODIFICATION .............................................................. 13
DISASSEMBLY FOR REPAIR ......................................... 15
CIRCUIT DESCRIPTION ................................................. 16
SEMICONDUCTOR DATA ............................................. 26
COMPONENTS DESCRIPTION...................................... 31
PARTS LIST .................................................................... 34
EXPLODED VIEW ........................................................... 46
PACKING ......................................................................... 48
ADJUSTMENT ................................................................ 49
CONTENTS
TERMINAL FUNCTION .................................................. 67
BLOCK DIAGRAM .......................................................... 75
INTERCONNECTION DIAGRAM ................................... 78
PC BOARD
FINAL UNIT (X45-373X-XX) ..................................... 80
DISPLAY UNIT (X54-3330-21) .................................. 84
TX-RX UNIT (X57-695X-XX) (A/2) ........................... 88
TX-RX UNIT (X57-695X-XX) (B/2) ........................... 92
RX VCO UNIT (X58-4780-10) .................................... 96
TX VCO UNIT (X58-4790-10) .................................... 97
SCHEMATIC DIAGRAM ................................................. 98
KES-5 (EXTERNAL SPEAKER) .................................... 111
SPECIFICATIONS ......................................................... 112
REVISED /
This service manual applies to products with 60800001 or
subsequent serial numbers.
In terms of the products with the serial numbers earlier
than 60800001, refer to the TKR-750 service manual as
per part No. B51-8567-00.
!"#$%SMUMMMMN !"#$%&'
SMUMMMMN !"#$%&'()"*_RNJURSTJMM
qhoJTRM !"
TKR-750
2
GENERAL /
INTRODUCTION
SCOPE OF THIS MANUAL
This manual is intended for use by experienced techni-
cians familiar with similar types of commercial grade commu-
nications equipment. It contains all required service informa-
tion for the equipment and is current as of this publication
date. Changes which may occur after publication are covered
by either Service Bulletins or Manual Revisions, which are
issued as required.
ORDERING REPLACEMENT PARTS
When ordering replacement parts or equipment informa-
tion, the full part identification number should be included.
This applies to all parts : components, kits, and chassis. If the
part number is not known, include the chassis or kit number
of which it is a part and a sufficient description of the required
component, for proper identification.
PERSONAL SAFETY
The following precautions are recommended for personal
safety :
•DONOT transmit until all RF connectors are secure and
any open connectors are properly terminated.
•SHUT OFF this equipment when near electrical blasting
caps or while in an explosive atmosphere.
•This equipment should be serviced by only qualified tech-
nicians.
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK O
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK P
! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK Q
! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK R
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK U
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NP
!"#$ KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NR
! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NS
!" KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK OS
! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK PN
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK PQ
!" KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK QS
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK QU
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK RM
! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK ST
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK TR
! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK TU
m`
cfk^i=rkfqEuQRJPTPuJuuF KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK =UM
afpmi^v=rkfqEuRQJPPPMJONF KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK =UQ
quJou=rkfqEuRTJSVRuJuuFE^LOF KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK =UU
quJou=rkfqEuRTJSVRuJuuFE_LOF KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK =VO
ou=s`l=rkfqEuRUJQTUMJNMF KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK =VS
qu=s`l=rkfqEuRUJQTVMJNMF KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK =VT
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK VU
hbpJR=E !"F KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NNN
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NNP
Service Manual List
Title Parts number Remarks Destination Final unit number
TX-RX unit number
Display unit number
TKR-750 B51-8567-00 C, C2 X45-362X-XX X57-626X-XX X54-3330-20
TKR-750 B51-8661-00 SUPPLEMENT C, C2 X45-373X-XX - -
TKR-750 B51-8567-10 REVISED C, C2 X45-373X-XX X57-695X-XX X54-3330-21
(This service manual)
!"#
!"#$%&'()*+,-./01234567
!"#$%&'()*+,- ./01234567
!"#$%&'()*+,-.*$/01= !"#=
!"#$= !"
!"#$
!"#$%&'()*+,-./01#$23456
!"#$%&'()"*+",-./01234!"
!"#$%&'(!)*+,-./012345/
!"#$%&'()*+,
!
!"#$%&'()*+,-
!"#$% &'()*+, -./0123()
!"#$%&'()*+,-./01
!"#$%&'()*+,-./012-345
!"
!"#$%&'()*+,-./01
TKR-750
3
SERVICE
This radio is designed for easy servicing. Refer to the
schematic diagrams, printed circuit board views, and align-
ment procedures contained in this manual.
GENERAL /
Merchandise
received
Choose the type
of transceiver
Installation in the
optional space
Frequency range (MHz)
TX/RX 146~174
TX/RX 136~150
RF power
50W
50W
Type
C
C2
See page 5.
A personal computer (IBM PC or compatible), programming interface (KPG-46),
and programming software (KPG-91D(C)) are required for programming.
See page 56.
The RX RF BPF (L2,L3,L5,L6,L7 on TX-RX unit A/2) must be aligned to obtain
the maximum sensitivity at a programmed frequency.
YES
NO
DC power
supply or
duplexer?

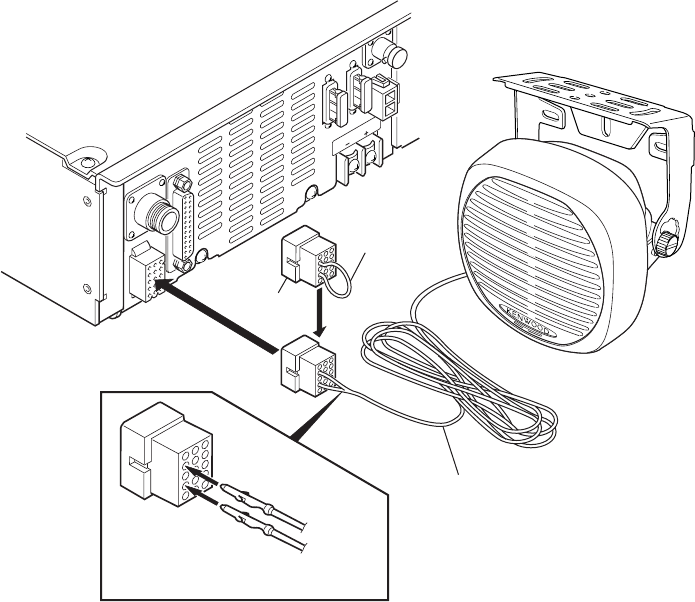

KES-4 or KES-5
installation
YES
NO
External speaker?
Repeater
programming & setup
Delivery
SYSTEM SET-UP /
!
!"#$%&'()*+,"#-./0'123
!"#$%&'!()*+,-./012345
参见第57页。
必须调整RX RF BPF (TX-RX单元A/2上的L2, L3, L5, L6, L7) 以在编程设定的
频率上获得最大灵敏度。
选择中继台的型号
安装到预留空间
频率范围(MHz)
发射/接收 146~174
发射/接收 136~150
射频功率
50W
50W
类型
C
C2
参见第5页。
编程时需要个人计算机(IBM PC或兼容机),
编程接口(KPG-46)以及编程软件(KPG-91D(C)) 。
是
否
直流电源或
双工器?
安装KES-4或KES-5
是
否
外部扬声器?
中继台编程或设定
交货
接收到的商品
TKR-750
4

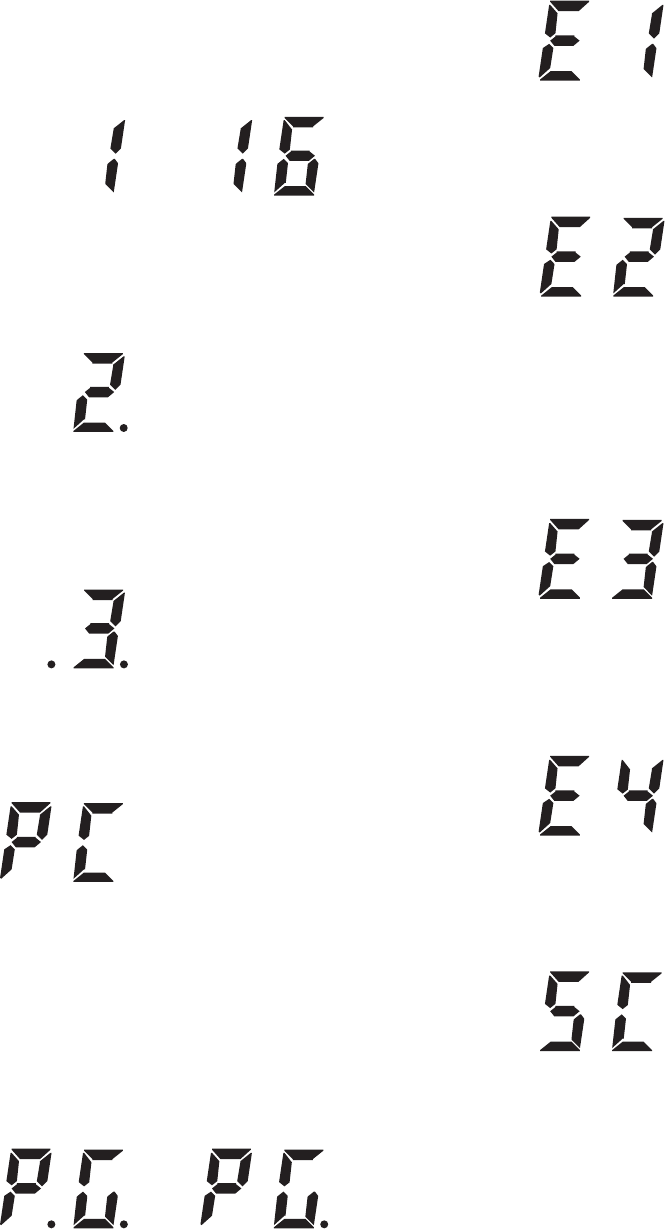

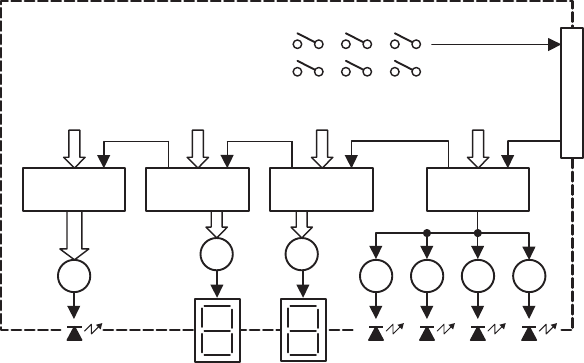

1. Two 7-segment LED displays
•When the displayed channel is contained in scan se-
quence, the right side decimal point is displayed.
•When the displayed channel is the priority channel, the left
side decimal point is displayed.
•“PC” is displayed while in PC mode.
• “PG” is displayed while in firmware programming mode.
2 decimal points displayed = 115,200bps
1 decimal point displayed = 57,600bps
No decimal = 38,400bps
• “E1” is displayed when FPU data is not written.
•“E2” is displayed when the channel data is not written.
•“E3” is displayed when PLL is unlocked.
Receiver PLL unlocked = BUSY LED blinks.
Transmitter PLL unlocked = TX LED blinks.
•“E4” is displayed when PTT is attempted on a channel
number that has no frequency data programmed.
•“SC” is displayed while in scan mode.
NK=Tiba
!"#$%&'()*+,-. /012
!"#$%!"&'() *+,-
m` !"#=m`
!"#$%&'(=md
O !"NNRIOMMÄéë
N !"RTISMMÄéë
!"PUIQMMÄéë
cmr !"#$%&=bN
!"#$%&'(=bO
mii !"=bP
mii _rpv=EF=iba
mii qu=EF=iba
!"#$%&'()*+,-.mqq =bQ
!"#$%=p`
OPERATING FEATURES / !
•Channel display (1~16) : While operating normally in user
mode.
!=ENNSF !"#$%&'()
TKR-750
5
1. Modes
User mode
PC mode
Firmware Programming mode
PC programming mode
PC test mode PC tuning mode
Mode Function
User mode Use this mode for normal operation.
PC mode Use this mode to make various settings by
means of the FPU through the RS-232C port.
PC programming Use to read and write frequency data and
mode other features to and from the repeater.
PC test mode Use to check the repeater using the PC.
This feature is included in the FPU.
Firmware pro- Use when changing the firmware program
gramming mode of the flash memory.
2. How to Enter Each Mode
Mode Operation
User mode Power on.
PC mode Received commands from PC.
Firmware Pro- [PF1] key + Power on (one second).
gramming mode
3. PC Mode
3-1. Preface

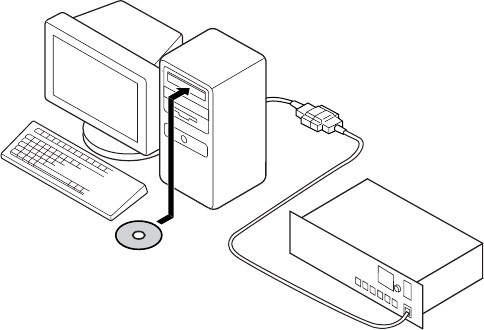

The TKR-750 repeater is programmed by using a personal
computer, programming interface and KPG-91D(C) software.
3-2. Connection Procedure
1. Connect the TKR-750 to the personal computer with the
interface cable.
2. When power is applied, the user mode is entered immedi-
ately. When the PC sends a command, the repeater en-
ters the PC mode and displays “PC” on the 7-segment
LED. When data is being transmitted to the PC from the
repeater, the TX LED flashes. The BUSY LED flashes
when data from the PC is being received by the repeater.
Note :
•The data stored in the personal computer must match the
model type, when it is written into the flash memory.
•Change the TKR-750 to PC mode, then attach the inter-
face cable.
NK=
用户模式
计算机模式 计算机编程模式
计算机测试模式 计算机调谐模式
固件编程模式
! !"
!" !"#$=E F=opJOPO`
!"#$%&'()*+,
!"#$ !"#$%&'()*+,-./
!"#$ !"#$%&
!"#cmr
!"# ci^pe=olj !"#$%&'
OK= !"#$%&
! !
!" !"#$%
!"# xmcNz !"=ENF
PK= !"
PJNK=
qhoJTRM !"#$%&'()*=EhmdJQSF= !"
EhmdJVNaE`FF= !"
PJOK= !
NK !"#$qhoJTRM !"#$
OK !"#$%&'()*+,-./012345"6
!"#$%&'()*+Tiba !=m`
!"#$%&'()*+,qu=iba !"#$%
!"#$%&'()*+_rpv=iba !"#
!"#$%&'()*+,-bbmolj !"
qhoJTRM !"#$%&'()*+,$%-./
REALIGNMENT / !
TKR-750
6
3-3. KPG-46 Description (PC Programming Inter-
face Cable : Option)
The KPG-46 is required to interface the TKR-750 to the
computer. It has a circuit in its D-sub connector (25-pin) case
that converts the RS-232C logic level to the TTL level.
The KPG-46 connects the microphone connector of the
TKR-750 to the computer’s RS-232C serial port.
3-4. Programming Software Description
The KPG-91D(C) is the programming software for TKR-
750 supplied on a CD-ROM. This software runs under Win-
dows 98, ME, Windows 2000 or XP on an IBM-PC or compat-
ible machine.
The data can be input to or read from TKR-750 and edited
on the screen. The programmed or edited data can be
printed out. It is also possible to tune the transceiver.
3-5. Programming With IBM PC
Data can be programmed into the flash memory in RS-
232C format via the microphone connector.
IBM-PC
KPG-46
KPG-91D(C)
TKR-750
IBM计算机
4. Firmware Programming Mode
4-1. Preface
The TKR-750 uses flash memory to allow it to be easily
upgraded when new features are released in the future.
4-2. Connection Procedure
Connect the TKR-750 to the personal computer (IBM PC
or compatible) with the interface cable (KPG-46). (Connection
is the same as in the PC mode.)
Notes :
You can only program firmware from the 8-pin micro-
phone connector on the front panel. Using the 25-pin logic
interface on the rear panel will not work.
PJPK=hmdJQS=E !"#$%&'(F
hmdJQS qhoJTRM !"#$%&a !=EOR
F= !"#$%"&'("&)*+opJOPO` !"
qqi
hmdJQSqhoJTRM !"#$%&opJOPO` !
PJQK= !"#
hmdJVNaE`F= !qhoJTRM !"#$!"%&
f_jJm` !"táåÇçïë=VUjbtáåÇçïë=OMMM
um=
!"#$%qhoJTRM !" #$%&'
!"#$%&'()*&+,&'-./01234
!"#$%&'()*
PJRK=f_j !"
opJOPO` !"#$%&'()*+,-. cä~ëÜ=oçã
REALIGNMENT / !
QK= !"#
QJNK=
cä~ëÜ=oçã !qhoJTRM !"#$%&'()*+
qhoJTRM
QJOK= !
!"#=EhmdJQSF=qhoJTRM !=Ef_j
!F= E !"#$%&'()*+,-.F
!"#$%&'U !"#$%&'()*+,-
!OR !"#
Fig. 1 / N
TKR-750
7
4-3. Programming
1. Start up the programming software (Fpro. exe).
2. Set the communications speed (normally, 115200 bps)
and communications port in the configuration item.
3. Set the firmware to be updated by file name item.
4. Turn the TKR-750 power on with the [PF1] key held down.
Hold the key down for one second until the 7-segment
display changes to “P.G.”. When “P.G.” appears, release
your finger from the key.
5. Check the connection between the TKR-750 and the per-
sonal computer, and make sure that the TKR-750 is in the
program mode.
6. Press write button in the window. A window opens on
the display to indicate progress of writing.
7. If writing ends successfully, the TX LED on the TKR-750
lights.
8. If you want to continue programming other TKR-750s, re-
peat steps 3 to 6.
Notes :
This mode cannot entered if the firmware program mode
is set to disable in the programming software (KPG-91D(C)).
4-4. Function
If you press the [PF1] key (front panel), both decimal point
on the 7-segment display will disappear. The writing speed is
38400 bps (low-speed mode). If you press the [PF1] key
again, the right hand decimal points will light. The writing
speed is 57600 bps (middle-speed mode).
Note :
Normally, write in the high-speed mode (115200 bps).
QJPK=
NK !"#=EcmolKÉñÉF
OK !"#$%&'(=E NNROMMÄéëF= !"#
PK !"#$%&'( )
QK =xmcNz= !"#qhoJTRM !"#$%N
T !" #$=mKdK =mKdK= !"
!
RK qhoJTRM !"#$%&'()*+qhoJTRM
!"
SK !"#$%&'()*+,-./ !01)$%
TK !"#$%&qhoJTRMqu=iba !"#
UK !"#$%&'()qhoJTRM !"PS
!"#$=EhmdJVNaE`FF= !"#$%&'()*
!"#$%&
QJQK=
!=xmcNz==E FT !"#$%&'()*+
!"PUQMMÄéë=E !F !"#=xmcNz= !"
!"#$%&RTSMMÄéë=E !F
!"#$%&'()*+,-=ENNROMMÄéëF
REALIGNMENT / !
TKR-750
8
1. External Power Supply Connection
(Rear Connectors)
This unit has two external power supply connectors : Main
DC and Backup.
If an external DC power supply is connected to the main
DC connector and a backup battery is connected to the
Backup connector at the same time, the DC power supply
switches to the battery automatically if power failure occurs.
Therefore, the operation of the repeater can be continued.
If the battery is used, but both the battery and power sup-
ply need not be connected (if an external switch is used or if
only a solar battery is used), connect it to the Backup connec-
tor, not the Main DC connector. Current consumption can be
reduced by approx. 120mA because the relay is not used.
If it is installed when the temperature at the repeater site
is below freezing, check whether the switch (relay) works
properly after installation.
2. Voice Scrambler
It operates only during base operation. The voice is not
scrambled when it is repeated.
2-1. Modification
1) Remove R742 and R653 on the TX-RX unit (B/2) : control
section.
2-2. Connection
1) The functions of pins of CN601 on the TX-RX unit (B/2) :
control section are shown in the figure.
2) Join the CN601 connector to the voice scrambler board via
the E37-0808-05 connector cable.
When the operation is checked in PC test mode after the
modification, and the maximum deviation is adjusted, the
voice from the local microphone is not modulated. In this
case, remove the CN601 12-pin (PTO) cable and connect it to
the land of the display unit (X54-333) from the voice scram-
bler. The voice from the local microphone can be modulated
in PC test mode.
CN601
CN603
CN604
CN605
CN606
R653
SB
SB
8C
R742
1
14
PTO
TX-RX unit (B/2)
Control section
Component side
Fig. 1 / N
INSTALLATION /
NK= !"#$=E !F
!"a` !"#$%&'()*+
a` !"#a` !"#$%&!"' ()*
!"#$%&'("a` !"#$%&'(
!"#$%!&$'
!"#"$%&'()*+,-./0123456
=E !"#$%&'()*+,-./012345
!F !"#$%&'()*+,#$%-a`
!"#$%&'()NOMã^ !"#$%"&'
!"#$%&'()*+,-./0"#1.2345
!"#=E !"#F= !"#$%&'()*+
OK= !"
!"#$%&'&()*+,-$./)*01234
!
OJNK=
NF quJou_LO=E !F=oTQOoSRP
OJOK=
NF quJou_LO=E !F=`kSMN !"#$%
OF bPTJMUMUJMR !"`kSMN !"#$% &
!"#$%&'()*+,-./012345%67
!"#$%&'()*+,"-./012345$67
`kSMN=NO=EmqlF= !"#$%&'()*+,-.
EuRQJPPPF= !"#$%&'()*+,-./01234
!"#$%&'()
TKR-750
9
TXO (MIC signal output)
TXI (MIC signal input)
RXO (RX audio signal output)
AC (Audio control signal output)
BC1 (Scramble code output 1)
BC2 (Scramble code output 2)
BC3 (Scramble code output 3)
BC4 (Scramble code output 4)
PTI (PTT signal input)
CLRC (Clear code for scrambler)
RXI (RX audio signal input)
PTO (PTT signal output)
NC
GND
CN601
1
14
Voice
scrambler
Display
unit
8C
PTO
Display unit (A/2)
Foil side
Fig. 3 / P
Fig. 2
3. External Speaker (KES-4 or KES-5)
The TKR-750 has a internal built-in speaker (5W/8Ω), and
the external speaker output from the TEST/SPKR connector
(15-pin) on the rear of the radio is 4W/4Ω. Use external
speaker KES-4 or KES-5.
3-1. Connection for the KES-4 or KES-5 With the TKR-750
■When taking the AF output from the TEST/
SPKR connector (15-pin) on the rear of the radio
The following tools are required for changing the connec-
tor.
O
INSTALLATION /
CN601
1
14
8C
声音扰频器
显示单元
TXO (麦克风信号输出)
TXI (麦克风信号输入)
RXO (音频信号输出)
AC (音频控制信号输出)
BC1 (扰频代码输出1)
BC2 (扰频代码输出2)
BC3 (扰频代码输出3)
BC4 (扰频代码输出4)
PTI (PTT信号输入)
CLRC (扰频器用清除代码)
RXI (音频信号输入)
PTO (PTT信号输出)
NC
GND
PK= !"=EhbpJQhbpJRF
qhoJTRM !"#$=ERtLUF= !"#$qbpqL
pmho =ENRF= !"#$%=EQtLQF !
hbpJQhbpJR !"#$%
PJNK=hbpJQhbpJRqhoJTRM
!"#qbpqLpmho =ENRF= !
!"#$%&'()*+,-
TKR-750
10
方形插头
(E31-3228-05)
(附件)
拆卸工具
(J5800-002)
压接端子
压接端子
跳接器导线
棘
压接端子
(E23-0613-05)
黑色导线
黑色/白色条纹导线

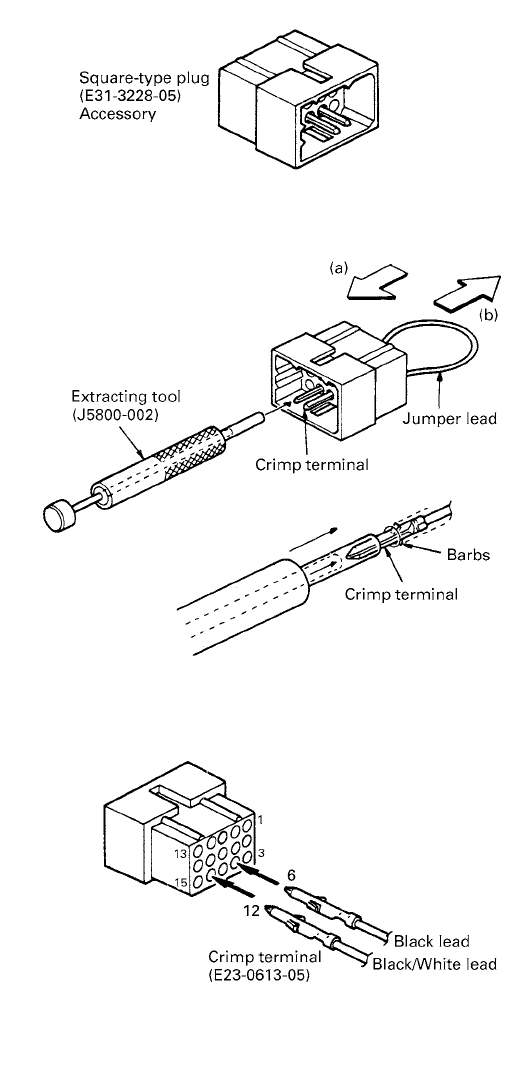

• Extracting tool
The following extracting tool is recommended :
Molex Inc. Order No. : J5800-002 (W05-0878-00)
1. Remove the connector with jumper from the external
speaker connector on the rear panel of the radio. (Fig. 4-1)
Note : Save the jumper, which is required when the radio
is used without the external speaker.
2. Remove the terminals with the jumper from the connec-
tor housing holes number 9 and 12 using the extracting
tool.
Removing the jumper lead (Fig. 4-2)
1) Insert the extracting tool (J5800-002) into the connec-
tor while pushing the jumper lead in the direction of
(a).
2) Push the extracting tool into collapse the barbs of the
crimp terminal.
3) Pull out the lead while continuing to push the extracting
tool in the direction (b).
3. Reinsert the terminal with the black and white stripe lead
into hole number 12, and the terminal with the black lead
into hole number 6. (Fig. 4-3)
4. Attach the connector to the external speaker connector on
the radio.
Note :
Relationship between TEST/SPKR connector (15-pin) con-
nection and speaker output.
When pins 9 and 12 are shorted : Built-in internal speaker
is used.
When pins 9 and 12 are open and output is from pins 6 and
12 : KES-4 or KES-5 is used.
Fig. 4-1 / QJN
Fig. 4-2 / QJO
Fig. 4-3 / QJP
!
!"#$%&'(
jçäÉñ=fåÅK= !"gRUMMJMMO=EtMRJMUTUJMMF
NK !"#$%&'()*+,*-./+,*01,*
EQJNF
!"#$%&'()*+,%-./0&1234
OK !"#$%&'()*VNO !"#$%
!"#$EQJOF
NF =E~F= !"#$%&'()*+=EgRUMMJMMOF=
OF !"#$%&#'()*+,-
PF !=EÄF= !"#$%&'()*+,
PK !"#$%&'()*+#NO !"#$%&'
S EQJPF
QK !"#$%&'()!*+ ,
qbpqLpmho =ENRF= !"#$%&'()
VNO !"#$%&'()
VNO !"#$%SNO !"#hbpJQ
hbpJR
INSTALLATION /
TKR-750
11
4. Accessory Cabinet
You can install optional accessories, such as a DC power
supply or duplexers in the accessory cabinet.

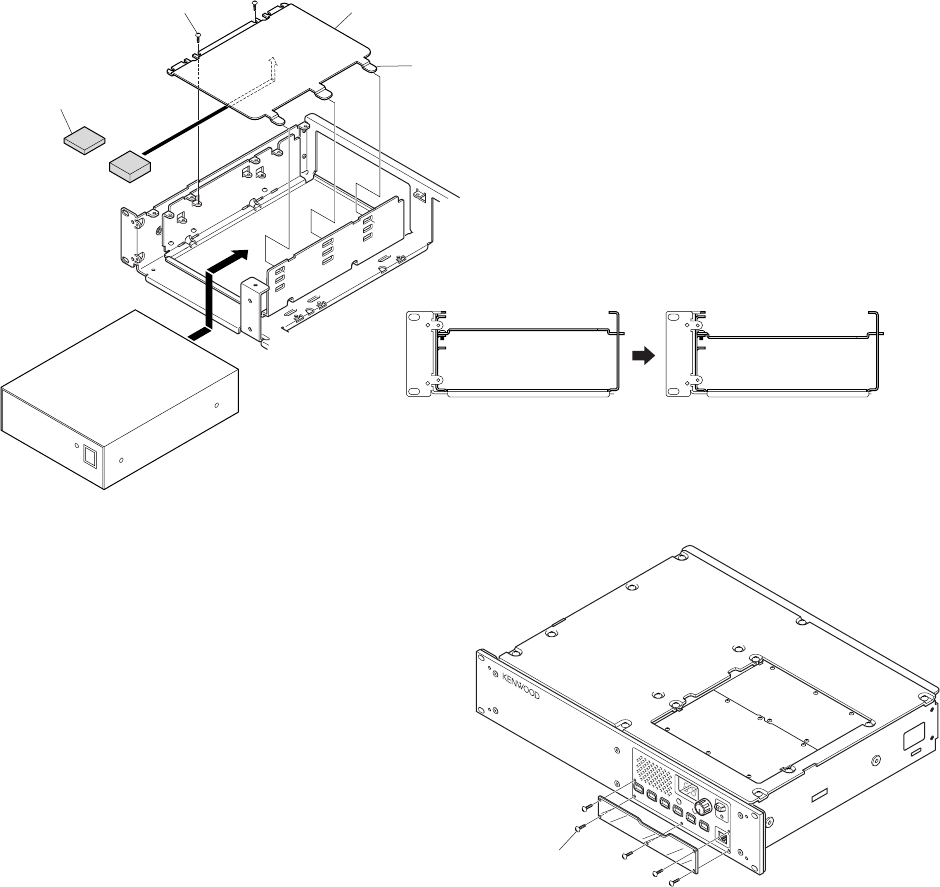

1. Place the optional accessory in the cabinet as shown be-
low.
2. If necessary, attach cushions (G13-1801-04 and/or G13-
1802-04) to the top plate (J21-8402-04) in order to adjust
the space between the cabinet and the top plate. Then,
insert the 3 tabs of the plate into the slots in the side of the
cabinet. High, middle, or low positions are available. To
afix the plate, inset and tighten 2 screws on the other side
of the plate.
You can also flip the top plate upside-down to adjust a
height of the cabinet space.
5. Key Cover
To avoid accidentally pressing the keys, you can install the
key cover.
1. Install and fix the key protector using the 5 supplied
screws (N35-3006-45).
Screws / 螺丝
(N35-3006-45) x 5
QK= !"#$%&'(
!"#$%!"&'a` !"#$%
NK !"#$%&'a` !"#$%
OK !"#$%&'()*+,-.',/,0123#$4
!"#$%&'()*+
!"#$%&'()*
INSTALLATION /
RK= !
!"#$%&'()*+,-./0%123456
NK !"#R !"#$%&'()*
or
The top plate can be inverted to adjust the height of the cabinet space.
固定支架可反转使高度改变
Cushions / 垫片
(G13-1801-04 or G13-1802-04)
Tighten screws
拧紧螺丝
Hardware fixture / 固定支架
(J21-8402-04)
Insert the plate tabs to set the height
position (high, middle, or low).
可插入到上，中，下三段固定孔
Fig. 5 / R
Fig. 6 / S
TKR-750
12

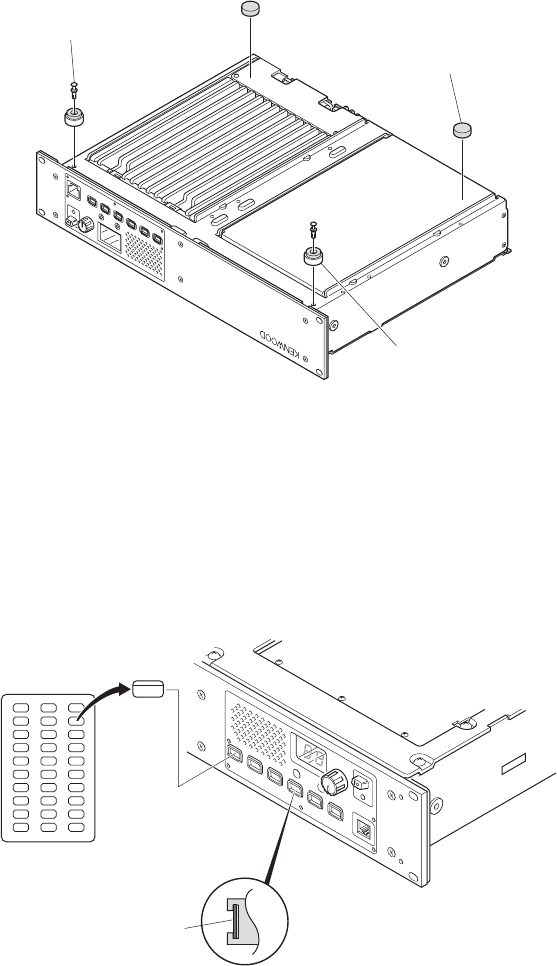

7. Installing Name Plates
Punch out the name plate card. Then insert the plates
onto the reltative function keys.
You can reconfigure the name plates at any time.
Side view of the key
Squeeze and
insert the plates.
Name plates for
the function keys
Name plates
Punch out the
name plate cards
键的断面
按入
功能键用表示贴片
取下
表示贴片
Pegs
Firmly press these pegs (J59-0302-05)
through the spacers to affix them to
the repeater.
Peel off the backing paper
to attach these spacers
(J02-0492-04).
Spacers / 垫片
(J02-0475-05)
螺钉
请用力按压螺钉 (J59-0302-05)
穿过垫片将其固定到中继台上。
撕下衬纸附上垫片 (J02-0492-04)。
6. Desktop Repeater
When you use the repeater on the desktop, attach the 4
spacers to the base of the repeater as shown in figure. With
these spacers attached, the front panel will not touch the
desk surface.
INSTALLATION /
SK= !"#$%
!"#$%&'()*+,-$./012 3
TK= !"#$%&'()
!"#$%&'()(*"+,-.
!"#$%&'()
Fig. 7 / T
Fig. 8 / U
TKR-750
13
1. DC Source Switch
To prevent the power supply from turning off due to
misoperation of the DC source switch on the front panel or
accidents (tampering) after installation, the main unit can be
kept on regardless of the on/off of the DC source switch on
the front panel.

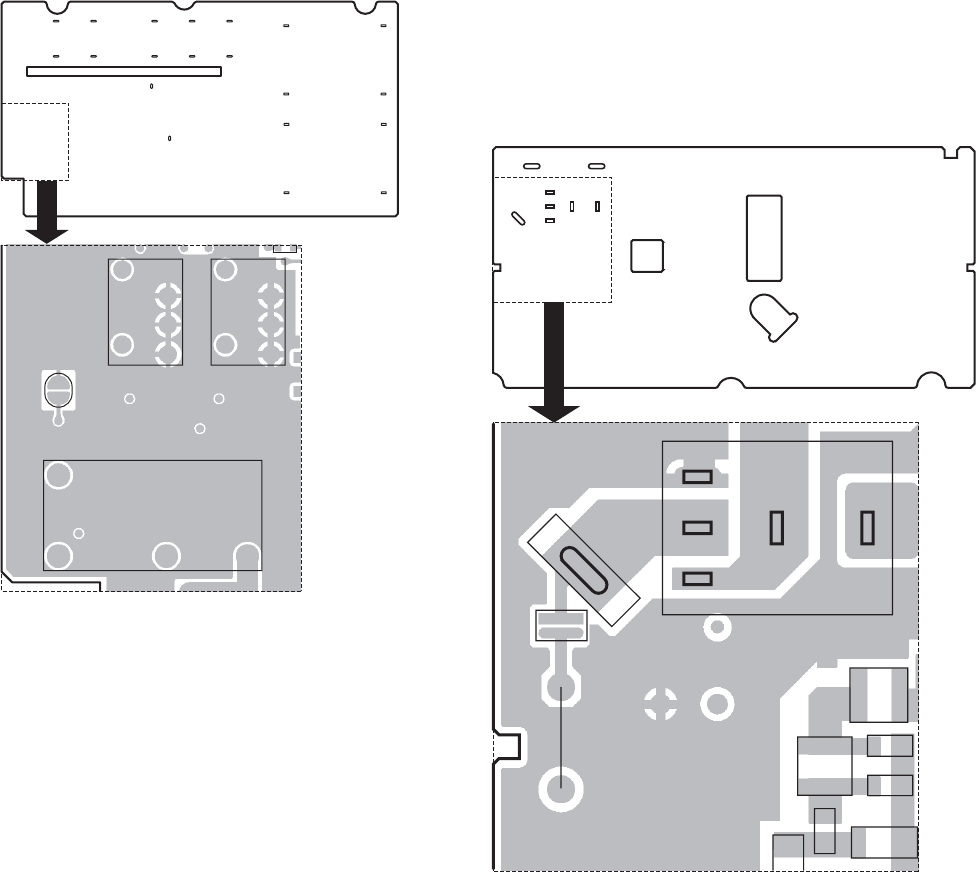

Short the PSW land near K1 relay by soldering.
TX-RX unit (A/2)
Component side
K1
CF1
WIDE
CF2
NARROW
PSW
2. Trickle Charge for Backup Battery
If the external DC power supply is connected to the Main
DC connector and a backup battery (12V rechargeable type) is
connected to the Backup connector at the same time, the
battery can be trickle-charged from the external DC power
supply with a maximum current of 0.5A.
Short the CHARGE land near R61.
Notes :
1. Make this modification after removing the DC power sup-
ply and battery for safety.
2. When the DC power supply is connected after the modifi-
cation, DC voltage is output to the Backup connector. Be
careful during setup.
3. When the backup battery is used for a long time, remove
the battery from the repeater and recharge it because the
trickle charge is not sufficient for recharging a completely
discharged battery.
MODIFICATION /
NK=a` !
!"#$%&'()*+,a` !"#$%&'(
=EF= !"#$%&'()*+,-./!"0
!"#$%&'()*a` !"lkLlcc
!"#$%mpt !"#$%&'
OK= !"#$%
a` !"#a` !"#$%&'(#$)=ENOs
F= !"#$a` !"#$%&MKR^
oSN !"#$%&'()*+
NK !"#$%&'(a` !"#$%&'()
OK !"#$%&a` a` !"#$%&'()
!"#$%&
PK !"#$%&'()%* +,-./"#0123
!"#$%&'()#*+,-.)#/0"123
!"#$#%
Fig. 1 / N
Fig. 2 / O
K1
R61
CN7 BACKUP
(ORANGE)
CHARGE
Final unit (A/2)
Component side
TKR-750
14
3. Single Antenna
The TKR-750 can be used as a base station by sharing an
external antenna connector for both transmitting and receiv-
ing data.
3-1. Modification
1. Change the installation position of C92 and C160 of the
final unit using a soldering iron.

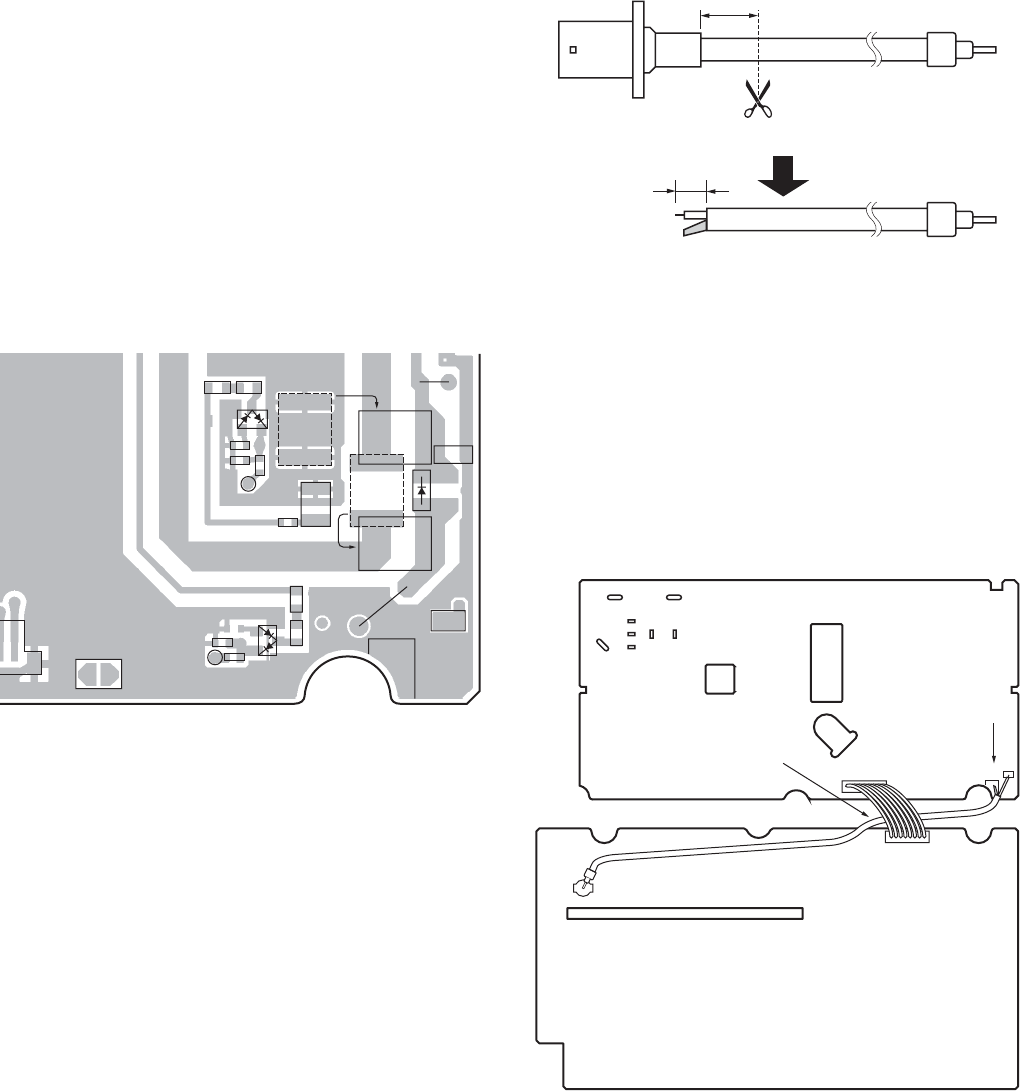

Strip off the insulation so that
the cable can be soldered.
Cut off the coaxial cable
at this point.
About / 大约
20mm
About / 大约
8~10mm
在该点切断同轴电缆。
剥去绝缘层使电缆可以被焊接。
2. Short-circuit the printed pattern of ANT SW near the CN3
connector by soldering.
3. Disconnect the pin connector from CN18 of the TX-RX
unit.
Remove the two screws used for securing the BNC con-
nector on the back panel of the unit. Detach the antenna
cable assy. (E30-3418-05)
4. Cut off the coaxial cable of the removed antenna cable
assy on the BNC connector side.
Strip off the insulation of the cut-off coaxial cable to pre-
pare it to be soldered.
MODIFICATION /
Fig. 3 / P
Fig. 4 / Q
C92
CN3 ANT SW
FWD
REV
C160
C160
C92
RX
ECN53
Final unit (A/2)
Component side
PK= !
!"#$%&'()*+,-.)/012qhoJTRM
!"#$
PJNK=
NK !"#$%&'`VO`NSM !"#
OK `kP ^kq=pt !"#$%&'
PK=quJou `kNU !"#$%
!"#$%&'()_k` !"#$%&'()
!"#EbPMJPQNUJMRF
QK= !"#$%&'(_k` !"#$%&'
!"#$%&"'()*+,-./01
CN16
CN18
TX-RX unit (A/2)
Component side
Route the coaxial cable
under the lead wire extend-
ing from CN3 and CN16.
Style the coaxial cable as illustrated in the figure.
Solder the coaxial
cable.
CN3 ERX
Final unit (A/2)
Component side
将同轴电缆布置在从CN3
和CN16引出的导线之下
焊接同轴电缆
按图示样式布置同轴电缆
3-2. Connection
1. Solder the prepared coaxial cable to the final unit.
2. Connect the pin connector of the coaxial cable to CN18 of
the TX-RX unit.
PJOK=
NK !"#$%&'()*+,-.
OK !"#$%&'(&')quJou `kNU
3-3. Setting the FPU
Set the channel to be used as “Simplex” using the FPU.
PJPK=cmr
cmr !"#$páãéäÉñ=EF
Fig. 5 / R
TKR-750
15
w
e
e
r
t
t
q
q
t
t

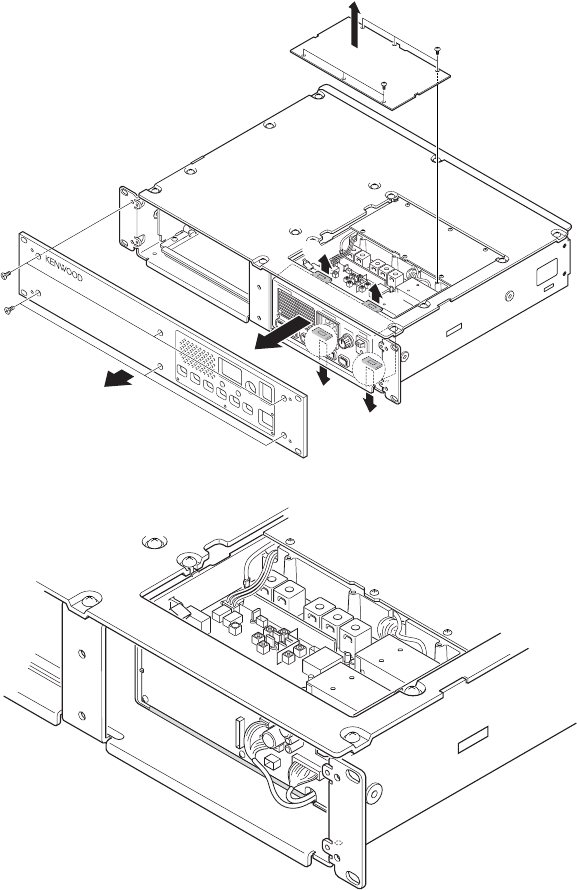

1. How to Remove the Panel Assy (ABS)
Note : You can remove the panel assembly (ABS) without
removing the top panel (A62-0840-03).
1. To remove panel (TX-RX, w), loose 6 screws ( q ).
2. To remove panel assembly (Front, r), loose 6 screws
(e).
3. The panel assembly (ABS) is security fastened by 4 tabs
(t) on top and bottom. You can remove the panel as-
sembly by pulling to front while you are pulling up the
tabs.
DISASSEMBLY FOR REPAIR / !"#$
NK= !"#$=E^_pF
!"#$%=E^_pF= !"#$%=E^SOJMUQMJ
MPF
NK !=EquJouIF S =EF
OK !"=E IF S =EF
PK !"#$%&$'(Q =EF !"#$%&'
!"
TKR-750
16
1. Outline
The TKR-750 is a VHF FM repeater designed to operate in
the frequency range of 136 to 174MHz.
The unit consists of receiver, transmitter, phase-locked
loop (PLL) frequency synthesizer, and control circuits.
2. Receiver Circuit
The receiver is double conversion super-heterodyne, de-
signed to operate in the frequency range of 146 to 174MHz
(C) or 136 to 150MHz (C2).
The receiver circuit located in TX-RX unit (X57-695 A/2)
consists of the following : 2-1 front-end circuit, 2-2 first mixer,
2-3 IF amplifier circuit, 2-4 audio amplifier circuit, and 2-5
squelch circuit.
2-1. Front-end Circuit
The front-end circuit consists of BPF L2/L3, RF amplifier
Q1, and BPF L5/L6/L7. The helical BPF covers frequency
ranges146 to 174MHz (C) or 136 to 150MHz (C2), with a
passband of 3.0MHz.
The BPF L5/L6/L7 attenuates the unwanted signals, and
sends only the necessary signal to the first mixer DBM A1.
W/N
SQL
DET
TX-RX unit (X57 A/2): TX-RX
SW
SW
W/N
W/N
MCF (Narrow)
XF1
MCF (Wide)
XF2
RSSI
QUD
W/N
SW
DET
VCO A
VCO B
RX VCO
A3 (X58-478)
RX ANT
BPF
L2,L3
RF AMP
Q1
BPF
L5,L6,L7
1st MIX
DBM A1
IF AMP
Q8
IF AMP
Q9
LPF
IF AMP
Q2
44.85MHz
D1
D2
IF AMP
Q3
FM SYSTEM IC
IC9
SWSW
NOISE DET
D5
NOISE AMP
Q7
D3
D4
X1
44.395MHz
CF1 (Wide)
CF2 (Narrow)
Q4
f
RX
+44.85MHz
DEI DEO
RD
CODEC
RA
RXI RXO
DAC
AMP
IC608
AMP
IC619 (B/2)
LPF
IC619 (A/2)
AINR AOUTR
CPU
IC614
IC604
IC615
SW
IC622
MUTE
Q606
AM
SPM
AF
AMP
INT SP
IC629
RSSI
ASQ
TX-RX unit (X57 B/2): Control
455kHz
44.850MHz
IC621 Q605
INV
CIRCUIT DESCRIPTION / !
NK=
qhoJTRMsec !"#$NPSNTQjeò !"#
!"#$%&'$%()*=EmiiF= !"#$%&'
OK= !"
!"#$%&'()*+ ,-.NQSNTQjeò=E`F
NPSNRMjeò=E`OF= !"#$%&'()*+,-
quJou=EuRTJSVR=^LOF= !"#$%&'OJN=
OJO= !"#OJP= !"#$OJQ= !"#$%
OJR= !"
OJNK= !
!"_mc=iOLiPoc nN_mc=iRLiSLiT
_mc !"#PKMjeò !"#$%&NQS
NTQjeò=E`FNPSNRMjeò=E`OF= !
_mc=iRLiSLiT !"#$%&'()*+,-./0
a_j=^N !"#$%

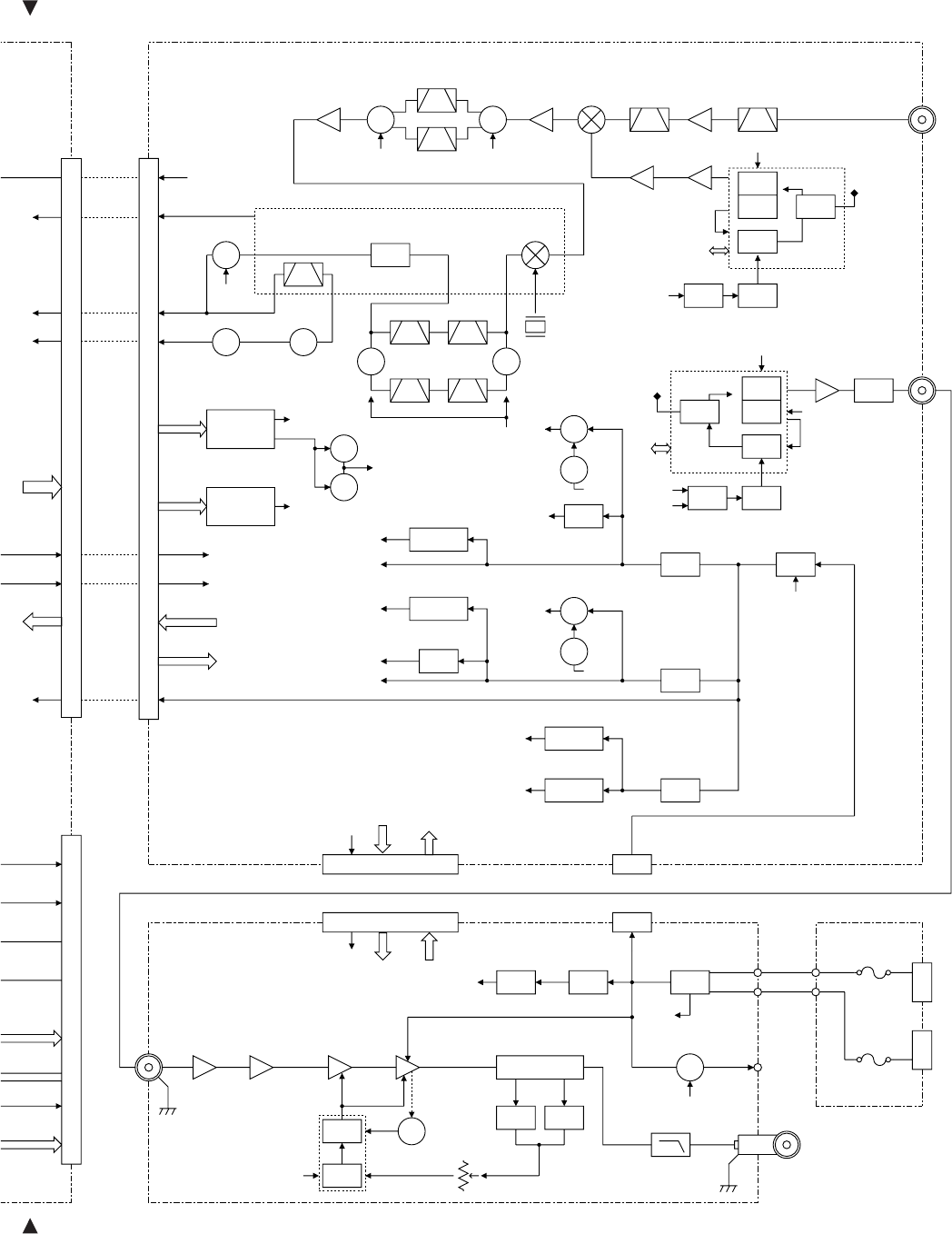

Fig. 1 Receiver circuit / N !"
TKR-750
17
CIRCUIT DESCRIPTION / !
2-2. First Mixer
The signal from the BPF is heterodyned with the first local
oscillator signal from the PLL frequency synthesizer circuit at
the first mixer DBM (A1) to become a 44.85MHz first inter-
mediate frequency (IF) signal. The first IF signal is fed
through two monolithic crystal filters (XF2; Wide, XF1; Nar-
row) to further remove spurious signals.
2-3. IF Amplifier
The first IF signal is amplified by Q2 and Q3, and then en-
ters IC9 (FM system IC). The signal is heterodyned again
with a second local oscillator signal (44.395MHz) with in IC9
to become a 455kHz second IF signal. The second IF signal is
fed through a 455kHz ceramic filter, CF1 (Wide), CF2 (Nar-
row) to further eliminate unwanted signal, and the quadrature
detection circuit FM-detects the signal to produce a base-
band signal and output it from pin 11.
2-4. Audio Amplifier
The audio amplifier circuit is located in control section of
TX-RX unit (X57-695 B/2). The recovered audio signal ob-
tained from IC9 is amplified by IC608, input to the AINR ter-
minal of CODEC IC (IC614), and audio processed by DSP
(IC618).
The processed audio signal from AOUTR terminal of
IC614 is amplified by IC619 (B/2) to a sufficient level, anti-
aliasing filtered by IC619 (A/2). The audio signal goes to an
electronic volume (IC615) V3/V4, to the input of multiplexer
IC (IC622), and is amplified to drive a loudspeaker by an audio
power amplifier (IC629). The 4W audio output can be pro-
vided to external 4 ohms speaker through the 15-pin test con-
nector “SPO, SPG” on the rear panel.
2-5. Squelch Circuit
The output signal from IC9 enters FM IC again, then
passed through a band-pass filter.
The noise component output from IC9 is amplified by Q7
and rectified by D5 to produce a DC Voltage corresponding to
the noise level. The DC voltage is sent to the analog port of
the CPU (IC604).
IC9 outputs a DC voltage (RSSI) corresponding to the in-
put of the IF amplifier.
3. Transmitter Circuit
The transmitter circuit consists of the following circuits : 3-
1 microphone circuit, 3-2 modulation level adjustment circuit,
3-3 driver and final power amplifier circuit, 3-4 automatic
power control circuit, 3-5 RF power down detect, and 3-6 fan
action control circuit.
3-1. Microphone Circuit
The signal from the microphone is passed through AGC
circuit located in display unit (X54-333), so that it does not
saturate. This circuit consists of IC501, D501, D502, Q501,
and Q502. The AGC is operated by controlling the + and –
side levels of amplitude using the current obtained by posi-
tive and negative detection of the amplified audio signal. The
audio signal goes to control section of TX-RX unit (X57-695 B/
2) from display unit (X54-333).
OJOK= !"
_mc !"#$%&a_j=E^NF= mii !
!"#$%&'()*+,-./QQKURjeò !"
EF= !"#$%&'()*+,-.=EucO
ucNF !"#$%&'(
OJPK= !"
!"#$nOnP !"#$f`V=Ecjf`F
!"#$%&'()=EQQKPVRjeòF=f`V !"
!"QRRâeò !"#$% !"#$&'QRRâeò
!"=E`cN `cOF !"#$%&'()*
!"#$%cj !"#$%&"'()*NN
OJQK= !"
!"#$%&'quJou=EuRTJSVR=_LOF= !
!f`V !"#$%&f`SMU !"#$%
`lab`=f`=Ef`SNQF=^f=ko !apm=Ef`SNUF= !"
f`SNQ^lrqo !"# $%&'(f`SNV=E_LOF
!"#$%&'f`SNV=E^LOF= !"#$%&'()
! "#=Ef`SNRF=sPLsQ !"#$f`=Ef`SOOF
!"#$%&=Ef`=SOVF= !"#$%Qt !
!"#$%&'NR !"#$=pmlpmd=Q
!"#$%&
OJRK= !
f`V !"#$%&cj=f` !"#!$%&'
f`V !"#$%&nT !"#$aR !"#
!"#$%!&'($%!&)*+`mr=Ef`SMQF=
!
!"#$%&'(f`V !"#=EoppfF
PK= !"
!"#$%!"&'(PJN= !"#PJO= !
!"PJP= !"#$%&'()*PJQ= !"#
!"#$PJR=oc !"#$%&PJS= !"#
PJNK= !"
!"#$%&'()*afpmi^v=EuRQJPPPF=
^d` !"#$%&'()*+f`RMNaRMNaRMO
nRMNnRMO !"#$%&'()*&+,-./01&
!"#$%&'()'*+,^d` !"#$%
afpmi^v=EuRQJPPPF=quJou=EuRTJSVR=_LOF=
!"
TKR-750
18
The transmit audio signal goes to the input of the multi-
plexer IC (IC605) for microphone muting. The audio signal is
amplified by IC610, input to the AINL terminal of CODEC IC
(IC614), and audio processed by DSP (IC618). The processed
audio signal from the AOUTL terminal of IC614 is amplified
by IC616 (A/2) to a sufficient level, anti-aliasing filtered by
IC616 (B/2), and amplified by the summing amplifier IC611
(A/2).

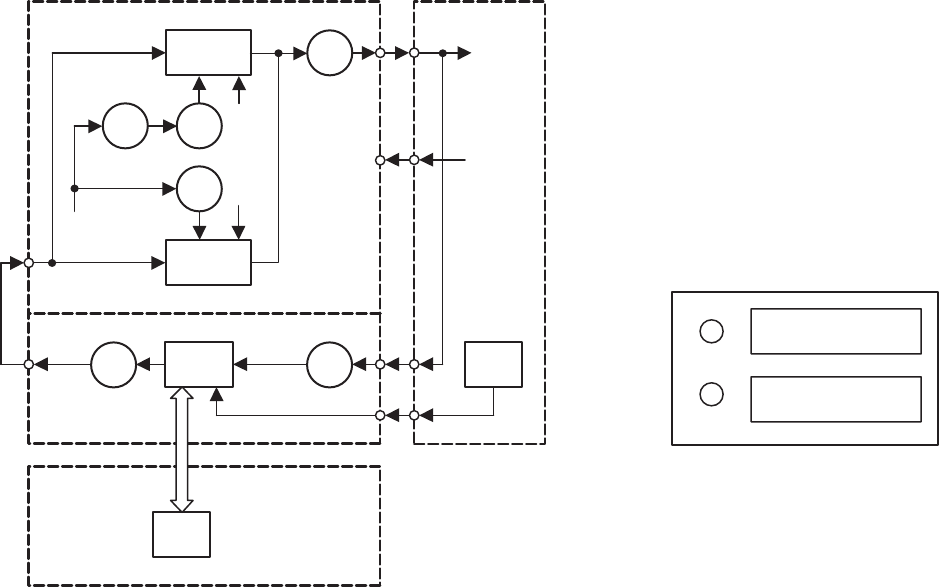

TXRX unit (X57 B/2): CONTROL
MIC CODEC IC MO
SW
MIS
TA
TXO TXI MB
D-SUB
TD
DAC
SW
TDS
TAS
AINL AOUTL
SW
MIC JACK
J601
Display unit
(X54 B/2)
AMP ATT
DET
MIC
Display unit (X54 A/2)
IC501(A/2) Q501,502
D501,502
VR501
IC605 (A/2) IC610 IC614 IC616
(B/2)
IC616
(A/2)
IC605 (B/2)
IC615
AMP AMP
IC611
(A/2)
AMPLPF

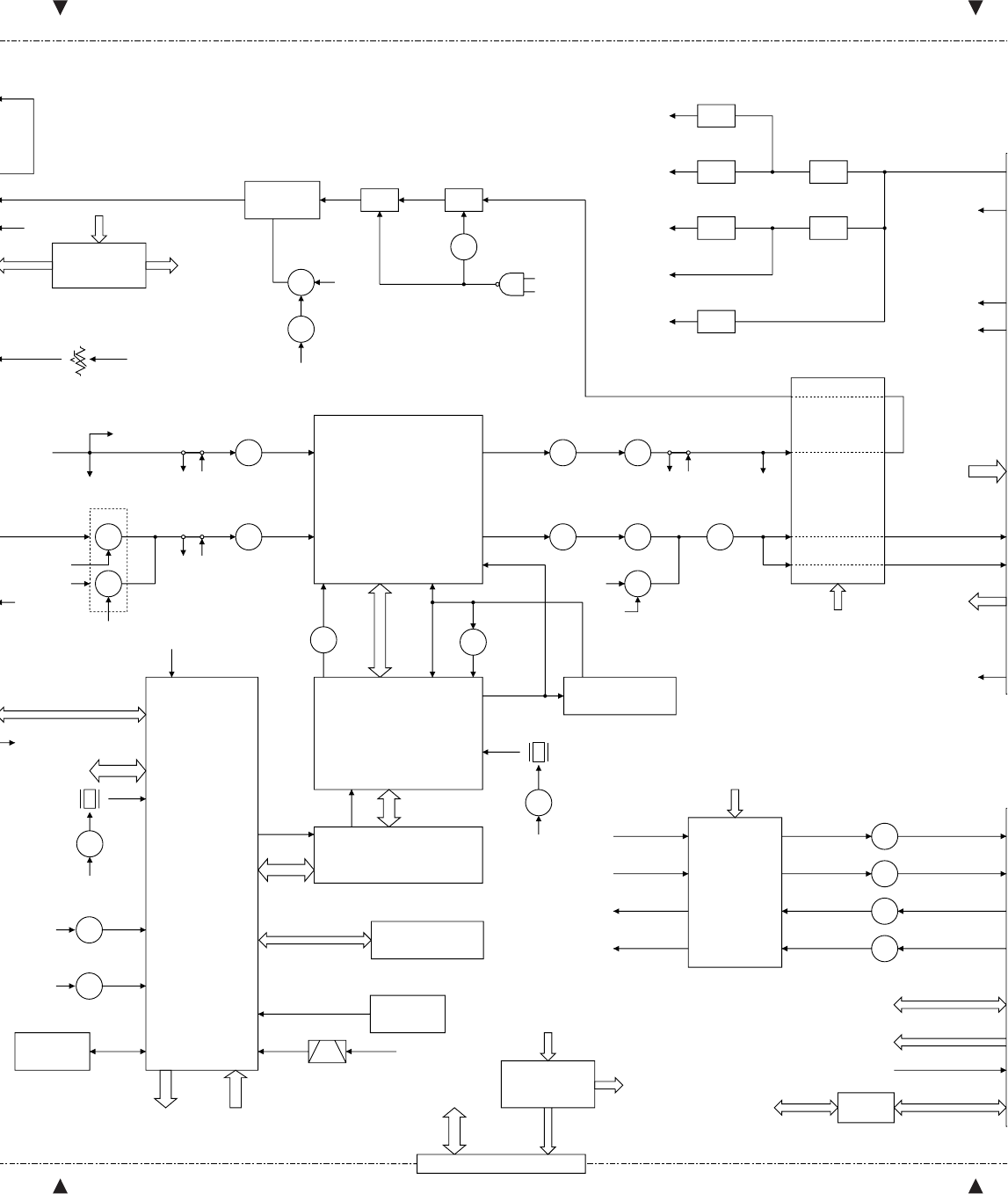

CIRCUIT DESCRIPTION / !
!"#$%&'()*f`=Ef`SMRF= !"#$%
!"f`SNM !"`lab`=f`=Ef`SNQF=^fki
!"apm=Ef`SNUF= !"f`SNQ^lrqi !
!"#$%f`SNS=E^LOF= !"#$%&'f`SNS=E_L
OF= !"#$%&'()*+,-f`SNN=E^LOF=
3-2. Modulation Level Adjustment Circuit
The output of the summing amplifier IC611 (A/2) is passed
to an electronic volume (IC615) for maximum deviation ad-
justment before being applied to a varactor diode in the volt-
age controlled oscillator (VCO) A2 located in TX-RX unit (X57-
695 A/2).
3-3. Driver and Final Power Amplifier Circuit
The transmit signal is generated by the TX VCO (A2), am-
plified by Q11, and sent to final unit (X45-373). This amplified
signal is amplified by Q2, Q3 and Q4, and is passed to the
FINAL stage. The RF power amplifier consists of MOS FET.
PJOK= !" #
!"f`SNN=E^LOF= !"#$%=Ef`SNRF !
!"quJou=EuRTJSVR=^LOF !"#=Es`lF=^O
!"#$%&'()*+,-./
PJPK= !"#$%&' ()
qu=s`l=E^OF= !"#$%&nNN !"#$%&'
EuQRJPTPF !"#$nOnPnQ !"#$cfk^i=E
F= oc !"#jlp=cbq
TEMP
Final unit (X45-373 A/2)
PC
POWER ADJ
Vcont
TX ANT
ATT
TCXO
FCT
X3
16.8MHz
BUFF
IC1
MB
MO
TX-RX unit (X57-695 A/2)
CM COUPLER
REF
AMP
DC
AMP
VR1
SW
STT
Q11
Q2
Drive AMP
Q4
Drive AMP
Q5
Final AMP
IC1
IC1
Q8
D4 D5
Q3
Drive AMP
TX VCO
A2
(X58-479)
FWD
DET
REV
DET
PDT
(to IC604 CPU)

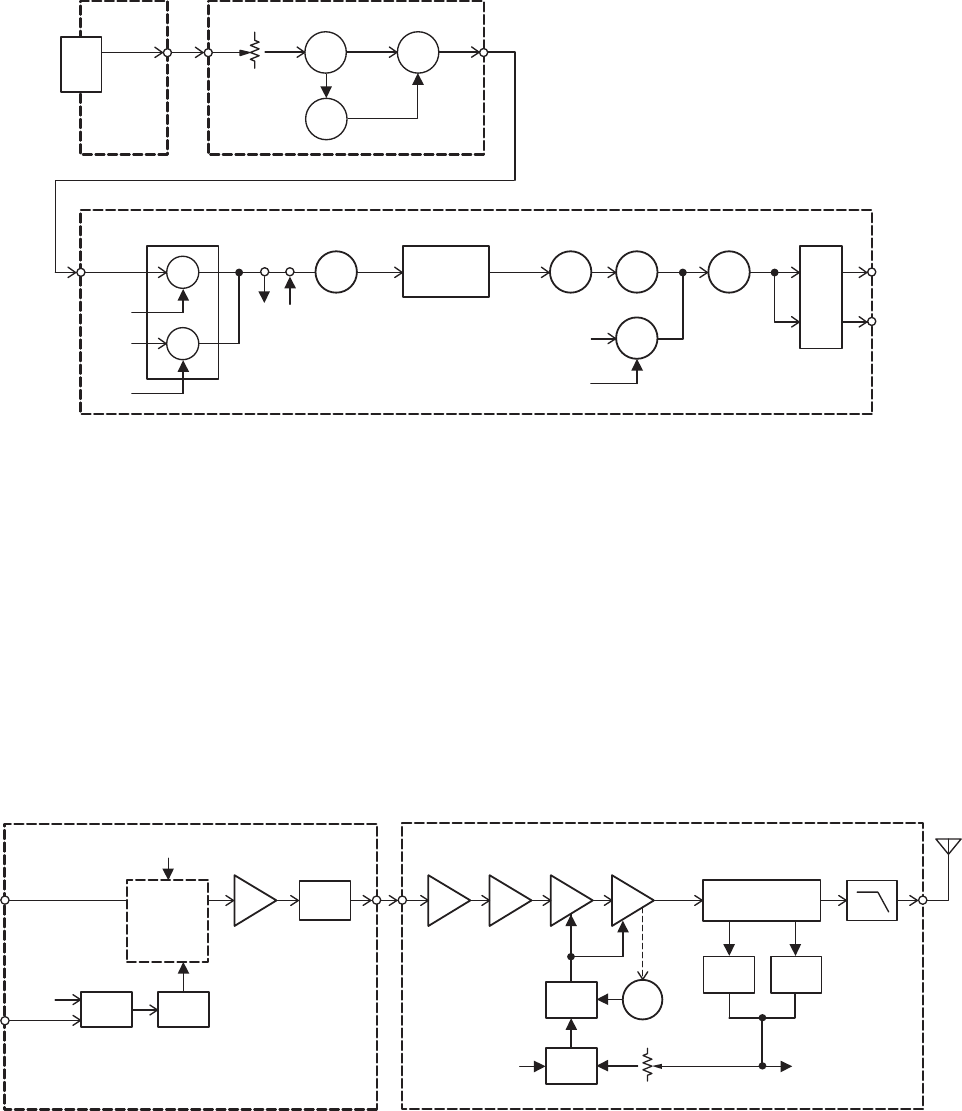

Fig. 3 Driver and final power amplifier circuit / P !"#$%&' ()
Fig. 2 Microphone circuit / O !"
TKR-750
19
3-4.
Automatic Power Control Circuit and Transmitter
The automatic power control (APC) circuit stabilizes the
transmitter output power at a pre-determined level, and con-
sists of forward/reverse power detector circuits, and switch-
ing transistor Q8. The forward/reverse power detector cir-
cuits detects forward RF power and reverse RF power to DC
voltage, and consists of a CM coupling type detection circuit
formed by a strip line, RF detector D4/D5, and DC amplifier
IC1 (A/2).
The voltage comparator (IC1 B/2) compares the above de-
tected voltage with a reference voltage, set using the micro-
processor and IC6 located in the TX-RX unit. An APC voltage
proportional to the difference between the sensed voltage
and the reference voltage appears at the output of IC1. This
output voltage controls the gate voltage for the drive ampli-
fier Q4 and final amplifier Q5, which keeps the transmitter
output power constant.
3-5. RF Power Down Detect
When the transmitter output power has dropped to or be-
low the preset values (High Power : about 20W, Low Power :
about 10W) in “RF Power Down Detect” adjustment, IC604
(CPU : X57-695) detects the drop in power and outputs a
Low-level (default) signal to the AUX out port.
3-6. Fan Action Control Circuit
If fan action is set to “Temperature”, the cooling fan is
turned ON or OFF according to temperature.
If the ambient temperature of the final unit exceeds
approx. 35°C, the output from the temperature detection IC2
changes from H to L. This signal is sent to the CPU (IC604)
by Q602 in the TX-RX unit B/2 (control section), and the out-
put from pin 13 (FAS) of IC7 in the TX-RX unit A/2 controlled
by the CPU goes H.
This signal turns Q9 in the final unit ON to run the cooling
fan. It has a hysteresis of approx. 2°C by IC1. If fan action is
set to “Continuous”, the fan operates continuously, but Q9
stays ON.
FAG
FAB
CN4
Q9
TMP
FAS
IC2
13 Q6
IC7
CK,
DT,
STB
CPU
IC604
TMP
17
Q602
+B
X45 A/2 X57 A/2 X57 B/2
FAN
OFF
ON
+20°C +30°C+35°C +40°C +50°C
[Fan operation / !]

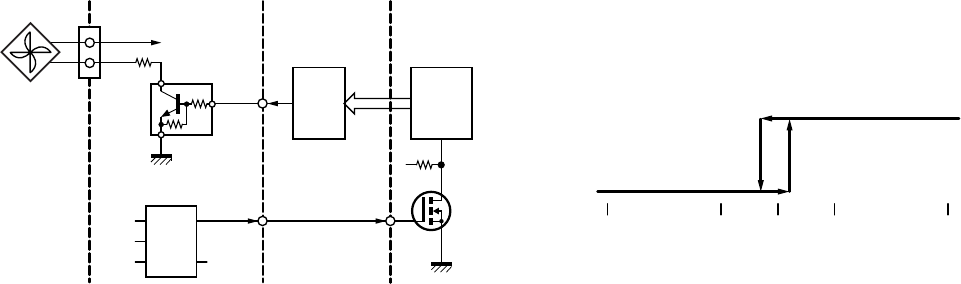

Fig. 4 Fan action control circuit / Q !"#$%
CIRCUIT DESCRIPTION / !
PJQK= !"#$%&'()
!"#=E^m`F= !"#$%&'()*+,*-
!"#$%L !"#$%&'()*+,nU
!L !"#$%&'oc !"#oc
!"#$%&'( )*`j !"#$%&'(
!"oc aQLaR !"#f`N=E^LOF
!"=Ef`N=_LOF= !"#$%&'#$()*+,
!"quLou !"#$%&f`S !"#$%
!"#$%&^m` f`N !"#$%
!"nQ !"#nR !"#$%&'()
PJR=oc !"#$%
!"#$%&'()*+=oc=mçïÉê=açïå=aÉíÉÅí
Eoc !"#F= !"#$=E !"#OMt
!NMtF=f`SMQ=E`mruRTJSVRF= !"#$%&
!"#$=EF= ^ru !"
PJSK= !"#$%
!"#$%&=qÉãéÉê~íìêÉ=EF !"#$%
!"#$%&
!"#$%&'()*+,PR !"#$f`O
e i !"quJou_LO=E !F=nSMO
`mr=Ef`SMQF !`mr quJou^LOf`T
NP=Ec^pF= !"#$e
!"#$%&'(nV !"#$%&'() f`N
!O !"#$%&'()*+,-./0&'=
= !"nV !"
TKR-750
20

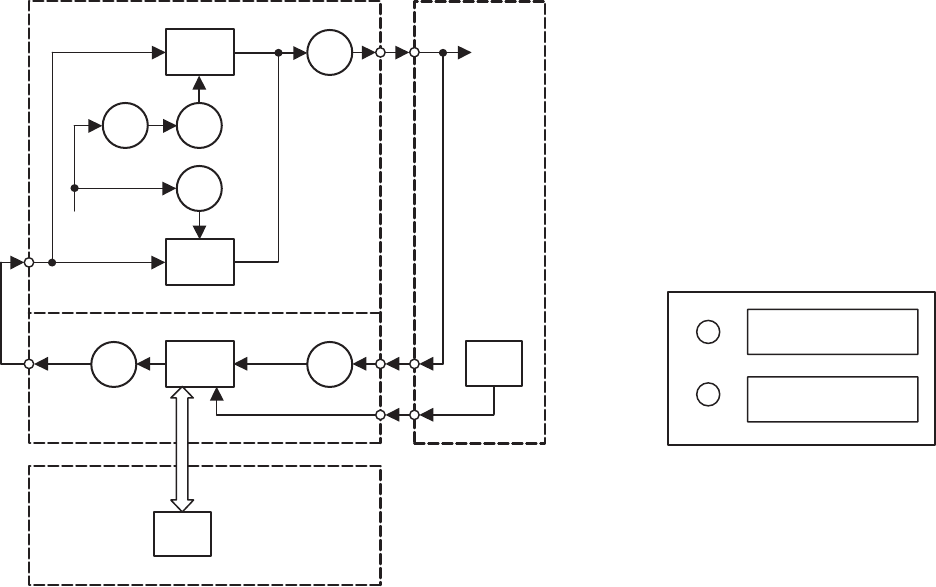

4. PLL Frequency Synthesizer
The PLL frequency synthesizer circuit consists of the fol-
lowing circuits : 4-1 receiver PLL circuit, 4-2 transmitter PLL
circuit, and 4-3 unlocked detector circuit.
4-1. Receiver PLL
The receiver PLL circuit is located in VCO unit A3 (X58-
478) on TX-RX unit (X57-695 A/2), and consists of VCXO X2,
VCO’s (Q350 and Q351), a single-chip PLL IC IC300, buffer
amplifier Q355, and high-frequency amplifier Q302.
The VCXO generates 16.8MHz. The frequency stability is
within ±1.5ppm (Temperature range of –30 to +60°C). The
frequency tuning of the VCXO is done to apply a voltage to
pin 1 of the VCXO. The output of the VCXO is applied to pin 8
of the PLL IC through the pin 7 of the VCO.
The first local oscillator is a lower heterodyne local oscilla-
tor, and the VCO oscillator frequency is 190.85 to 218.85MHz
(C), 180.85 to 194.85MHz (C2). Two VCOs cover the two
bands : Q350 covers the lower band and Q351 VCO covers
the upper band.
The oscillator frequency is controlled by applying the VCO
control voltage, obtained from the phase comparator to the
varactor diodes.
Q351
VCO unit (X58-478)
SRR
VCO A
IC300
VCO B
Q355
Q350
Q354
Q352
Q353
Q300 Q302
VCXO
X2
TX-RX unit
IC604
SW
SW
SW
AMP
AMPLPF PLL-IC
µ-com
CP,DP
EPR,LDR
VCO oscillation frequency
s`l !"#
CIRCUIT DESCRIPTION / !
QK=mii !"
mii !"#$%&'#$(!)QJN= mii
QJO= mii QJP= !"#$%
QJNK= mii
mii !"quJqo=EuRTJSVO=^LOF=s`l
^P=EuRUJQTUF= s`ul=uOs`l=EnPRMnPRNF mii
f`=f`PMM !"#nPRR !"#$nPMO
s`ulNSKUjeò !"#$%&'NKRééã
E !"#PMSMFs`ul !"#$s`ul
N !"#$%s`ul !"s`l Tmii
f` U
!"#$%& '!()*s`l !"#NVMKUR
ONUKURjeò=E`FNUMKURNVQKURjeò=E`OF s`l !
!nPRM !"#nPRN !"#
!"#$%s`l !"#$!"%&!"#$'(
!"#$%&'()*+,
Top view
VCO A : 136~152
VCO B : 152~174
RX VCO
(X58-478)
(MHz)
+44.850
+44.850
Fig. 5 Receiver PLL / R mii
TKR-750
21
CIRCUIT DESCRIPTION / !
4-2. Transmitter PLL
The transmitter PLL circuit is located in VCO unit A2 (X58-
479) on TX-RX unit (X57-695 A/2), and consists of VCXO X3,
VCO’s (Q350 and Q351), a single-chip PLL IC IC300, buffer
amplifier Q355, and high-frequency amplifier Q302.
The VCXO generates 16.8MHz. The frequency stability is
within ±2.0ppm (Temperature range of –30 to +60°C). The
frequency tuning and modulation of the VCXO are done to
apply a voltage to pin 1 of the VCXO. The output of the VCXO
is applied to pin 8 of the PLL IC through the pin 7 of the VCO.
The VCO oscillator frequency is 146.00 to 174.00MHz (C),
136.00 to 150.00MHz (C2). Two VCOs cover the two bands :
Q350 covers the lower band and Q351 VCO covers the upper
band.
The oscillator frequency is controlled by applying the VCO
control voltage, obtained from the phase comparator to the
varactor diodes.
4-3. Unlock Detector Circuit
If a pulse signal appears at the LD pin of IC300, an unlock
condition occurs, causing the voltage applied to the pin of the
microprocessor to go low. The names of this pin are LDT for
TX PLL and LDR for RX PLL. When the microprocessor de-
tects this condition, the transmitter is disabled.
QJOK= mii
mii !"quJqo=EuRTJSVR=^LOF=s`l
^O=EuRUJQTVF= s`ul=uPs`l=EnPRMnPRNF
mii=f`=f`PMM !"#nPRR !"#$nPMO
s`ulNSKUjeò !"#$%&'OKMééã
E !"#PMSMFs`ul !"#!$%&
s`ul N !"#$%s`ul !"s`l
Tmii=f` U
s`l !"#NQSKMMNTQKMMjeò=E`FNPSKMMNRMKMM
jeò=E`OF s`l !"#$%nPRM !"#nPRN
!"#
!"#$%s`l !"#$!"%&!"#$'(
!"#$%&'()*+,
QJPK= !"#$
f`PMMia !"#$%&'()*+,-&./0
!"#$%&'()*+,-./$%&0123qu
miiiaq ou=miiiao !"#$%&'()*+
!"#$%&'(
VCO unit (X58-479)
IC300
Q300 Q302
VCXO
X3
TX-RX unit
IC604
AMPLPF PLL-IC
µ-com
CP,DP
EPT,LDT
MOMO
Q351
STT
VCO A
VCO B
Q355
Q350
Q354
Q352
Q353
SW
SW
SW
AMP
MO
MO
Fig. 6 Transmitter PLL / S mii
VCO A : 136~152
VCO B : 152~174
Top view
TX VCO
(X58-479)
(MHz)
VCO oscillation frequency
s`l !"#
TKR-750
22
5. Control Circuit
The control circuit mainly located in the control section of
TX-RX unit (X57-695 B/2) consists of the following : 5-1 CPU,
5-2 memory circuit, 5-3 CPU clock shift, 5-4 shift register cir-
cuit, 5-5 display circuit, 5-6 DSP circuit, 5-7 base-band circuit,
5-8 RS-232C circuit, and 5-9 power supply circuit.
5-1. CPU
The CPU (IC604) is a 16bit single-chip microcomputer con-
taining a 32k ROM and 3k RAM. This CPU controls the flash
ROM, the DSP, the receiver circuit, the transmitter circuit,
the control circuit, and the display circuit and transfers data to
or from an external device.
5-2. Memory Circuit
IC609 has a flash ROM with a capacity of 2M bits that
contains the control program for the CPU, the signal process-
ing program for DSP and data such as channels and operating
features.
This program can be easily written from an external de-
vice. Data such as the operating status are programmed into
the EEPROM (IC600).
5-3. CPU Clock Shift
There are the 14.754MHz clock for the CPU (IC604) and
the 16.515MHz clock for the DSP (IC618) at the control sec-
tion of TX-RX unit (X57-695). When these clocks are multi-
plexed with the reception frequency, they become an inter-
nal beat signal. To prevent this, by tuning Q600 and Q604 on
the clock frequency is shifted. (Shift on/off can be set
through programming.)

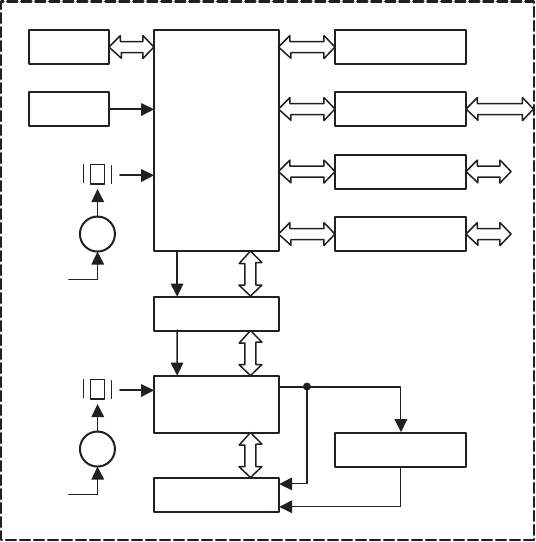

EEPROM
IC600
TX-RX unit (X57 B/2): CONTROL
IC601
SW
Q600
X600
BEAT
SHIFT
Reset IC
14.754
MHz
SW
Q600
X601
BEAT
SHIFT
16.515
MHz
FLASH ROM
CPU
IC609
IC620
232C DRIVER
IC615
D/A IC
IC602/623
Shift Register IC
INTERFACE IC
IC603/606
DSP
IC618
CODEC IC
IC614
DIVIDER
IC613
IC604
CIRCUIT DESCRIPTION / !
RK= !
!"#$%&quJou=EuRTJSVR=_LOF= !"#
!"#$%RJN=`mrRJO= !"#RJP=`mr
RJQ= !"#$%RJR= !"RJS=apm RJT=
!RJU=opJOPO` RJV= !"
RJNK=`mr
`mr= Ef`SMQF= NS !"#$%&'POâ= oljPâ
o^j`mrci^peoljapm !"#$%!"
!"#$%&"'()*+,-./01)*+,2
!
RJOK= !"
f`SMV !"Oj_ci^pe=olj `mr !"#
apm !"#$%&'()%*+,-./0
!"#$%&'()*+,-./01234567
bbmolj=Ef`SMMF=
RJPK=`mr !
quJou=EuRTJSVRF= !"#$%&`mr=Ef`SMQF=
NQKTRQjeò !"apm=Ef`SNUF=NSKRNRjeò !"
!"#$%&'()*+,-./01234-567
!"#$%nSMMnSMQ !"#$%&'E
L !"#$%&'F
Fig. 7 Control circuit / T !
TKR-750
23
5-4. Shift Register Circuit
Serial data is sent to the shift register (IC502 to IC505 lo-
cated in display unit, IC602, IC623, IC7 located in TX-RX unit)
from the CPU (IC604) to control various functions in the unit.
5-5. Display Circuit
The display circuit (X54-333) contains two 7-segment
LEDs D506, D507 (orange), D503 (red : transmission), two-
color D504 (green : busy, orange : selective called), two-color
LED D505 (red : backup, green : main DC), LEDs in switches
S501 to S506, IC502, IC503, IC504, and IC505 to display this
model channels and states.
IC502 to IC505 are shift registers which convert serial data
from the CPU to parallel data and light LEDs.
Q507, Q510, and Q511 are switching transistors which
control two-color LED D505.
IC506, and IC507 are three-pin power supply ICs which
produce power used for the display circuit.
RJQK= !"#$
!"`mr=Ef`SMQF= !"#$%=E !"#
f`RMOf`RMR !quJou f`SMOf`SMPF !
!"#$
RJRK= !
!=EuRQJPPPF= !TJiba=aRMSI=aRMT=EF
aRMP=E !"F aRMQ=E !"# $%&'F
iba=aRMR= E !"#$ %a`F pRMNpRMS
f`RMOf`RMPf`RMQf`RMR !"#$%&'()*&'
iba
f`RMOf`RMR !"#$%&'`mr !"#$%&
!"#iba
nRMTnRNMnRNN !"#$%&'()*iba=aRMR
f`RMSf`RMT !"#$f` !"#$%&'$()
CIRCUIT DESCRIPTION / !
CLK,SOE,
STB1
SOSOSO
KEY1~5
KEY LAMP
1~6
Display unit (X54-3330-21 A/2)
BUSY
CALL Main DC/
BACKUP
Shift Reg. 1
BU4094BCFV
SISISI DAT
Shift Reg. 2
BU4094BCFV
Shift Reg. 3
BU4094BCFV
Shift Reg. 4
BU4094BCFV
PF1~6
SWSWSWSW
SWSW
CLK,SOE,
STB1
CLK,SOE,
STB1
CLK,SOE,
STB1
TX
SW
5-6. DSP
The DSP circuit filters transmit/receive audio signal and
encode/decodes signaling (QT, DQT). This circuit consists of
IC618, IC612, IC613, IC614, IC603, IC606, IC608, IC610,
IC616, and IC619.
The receive signal DET is converted from analog to digital
by IC614 with a sampling frequency of 16.128kHz. The digi-
tized audio signal is sent to DSP IC618 to process the signal-
ing signal and audio signal. The processed digital audio signal
is fed to CODEC IC613, converted from digital to analog, and
the analog signal is output from pin 16 (AOUTR). Then, the
audio signal is amplified by IC619 (B/2), passes through the
IC619 (A/2) low-pass filter, and goes to an electronic volume
IC615.
The transmit audio signal coming from IC605 is amplified
by IC610, fed to pin 3 (AINL) of CODEC IC614, and converted
from analog to digital at a sampling frequency of 16.128kHz.
The digitized transmit audio signal is AGC-processed, pre-
emphasized and filtered at 300Hz to 3kHz by DSP IC618, and
RJSK=apm
apm !"L !"#$%&'()*+,-L
=EnqanqF !"f`SNUf`SNOf`SNPf`SNQf`SMP
f`SMS`SMUf`SNMf`SNSf`SNV
!abqNSKNOUâeò !"#$f`SNQ !"
!"#$%&'()*apm=f`SNU ! "#$%
!"#!"$%&'()*`lab`=f`SNQ !"
!"#$%&'(NS=E^lrqoF= !"#$%f`SNV
E_LOF= !"f`SNV= E^LOF= !"#$%&'&("
f`SNR
f`SMR !"#$%f`SNM !"`lab`=f`SNQ
P=E^fkiFNSKNOUâeò !"#$%&'()&*
!"#$%&'apm=f`SNUPMMeòPâeò^d`
Fig. 8 Display circuit / U !
TKR-750
24
the resulting signal is fed back to CODEC IC614, and con-
verted from digital to analog, and the analog signal is output
from pin 15 (AOUTL). The transmit signal from AOUTL is
amplified by IC616 (B/2), passes through the IC616 (A/2) low-
pass filter, and goes to the IC611 (A/2) summing amplifier.
IC613 is a counter IC and the clock required for the
CODEC and DSP is generated by dividing the 16.515MHz
clock signal produced by DSP IC618.
IC603 and IC606 are interface IC between the CPU oper-
ated at 5.0V and the DSP operated at 3.3V.
5-7. Base-Band Circuit
The base-band circuit switches between the modulation
signal to the transmitter circuit, and remote audio and adjusts
their levels. This circuit consists of IC605, IC607, IC611,
IC615, and IC617.
Modulation inputs include local microphone input, low-
speed data (LSD), high-speed data (HSD), external audio in-
put (TA), and external data input (TD), and demodulation out-
puts include receive audio output (RA), and receive data out-
put (RD).
The multiplexer (IC605) changes signals, the electronic
volume (IC615) adjusts the level, and the operational ampli-
fier (IC607, IC611, IC617) amplifiers and sums signals.
5-8. RS-232C Circuit
The RS-232C circuit connects the RS-232C serial port of a
personal computer directly to this model to perform FPU op-
eration. The FPU operation can also be performed by con-
necting a programming cable (KPG-46) to the local micro-
phone on the front panel. But, if the D-sub connector on the
rear panel is used, the programming cable is not required.
The 232C driver IC (IC620) changes the TTL-232C level. The
firmware can only be rewritten with the local microphone on
the front panel.

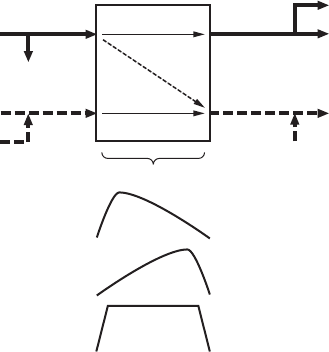

RX detected signal / RX检测信号
(AINR) (AOUTR)
15
(AOUTL)
(AINL)
RD
TX modulation signal / TX调制信号
Local Mic / 本地麦克风
TA
CODEC IC / 编解码器IC
IC614 : AK4550VT
RX
REPEAT
TX
RX audio amp. / RX音频放大器
TX VCO
(Modulation circuit / 调制电路)
RA
TD
16
2
3
300Hz 3kHz[Frequency response / 频率响应]
(De-emphasis / 去加重)RX
(Pre-emphasis / 预加重)TX
(300Hz~3kHz Flat / 平坦)
REPEAT / 中继
!"#$%&#'()*+,-./`lab`
f`SNQ !"#$%&'()"#*+(),-./NR
E^lrqiF !"^lrqi !"#f`SNS=E_LOF= !
f`SNSE^LOF= !"#$%&'f`SNN=E^LOF= !"#
f`SNP f``lab`apm !"#$%apm=f`SNU
NSKRNRjeò !"#$%&'(
f`SMPf`SMSRKMs `mrPKPs apm
f`
RJTK= !
!"#$%&'()* !+,-./0123456
!"#$!%&f`SMRf`SMTf`SNNf`SNRf`SNT
!"#$%&'( !)*+,-=EipaF !"
EepaF !"#$=Eq^F= !"#$%=EqaF !"
!"#$%=Eo^F= !"#$%=EoaF
!"=Ef`SMRF= !"#$#%&Ef`SNRF !"
!"=Ef`SMTf`SNNf`SNTF= !"#$%
RJUK=opJOPO`
opJOPO` !"#$opJOPO` !"#$%&'
!cmr cmr !"#$%&'()*+,-.
!"#=EhmdJQSF= !"#$%&'()*+aJëìÄ
!"#$%&'()*+OPO` f`=Ef`SOMF=qqiJ
OPO` !"#$%&'()*+,-./0123
Fig. 9 An audio signal course and the frequency characteristic / V
CIRCUIT DESCRIPTION / !
TKR-750
25
5-9. Power Supply Circuit
The power supply circuit generates power to operate the
CPU, DSP, flash ROM, bi-directional buffer, and base-band
circuit. This circuit consists of IC624, IC625, IC626, IC627,
IC628, and IC630.
6. DC Power Supply Circuit
6-1. DC Source Switching Relay Circuit
1. The final unit contains a relay (K1) for switching between
the Main DC and Backup Battery.
If an external power source is connected to the Main DC
terminal, the Backup terminal is isolated by the relay. If
the Main DC turns OFF due to power failure, it is switched
to the Backup terminal by the relay.
The CPU monitors which is used, Main DC or Backup Bat-
tery.
2. Trickle charge circuit
If both Main DC and Backup Battery are connected, trickle
charging of 0.5A max. can be performed from the Main
DC power supply to the Battery.
(The default is OFF. See the Modification section for infor-
mation on the modification method.)
The battery is charged from the Main DC with D8, D9 and
R61. If it exceeds 0.5A, the charging circuit is turned OFF
by D9.
6-2. SB Switching Relay Circuit
1. SB (Switched +B) is supplied through the relay (K1) in the
TX-RX unit A/2.
When S507 (DC source switch) in the display unit is
turned ON, the relay (K1) is turned ON to output SB.
2. If +B exceeds 18V, the relay is forcibly turned OFF by D12
and Q25 to interrupt the power and protect the main unit.

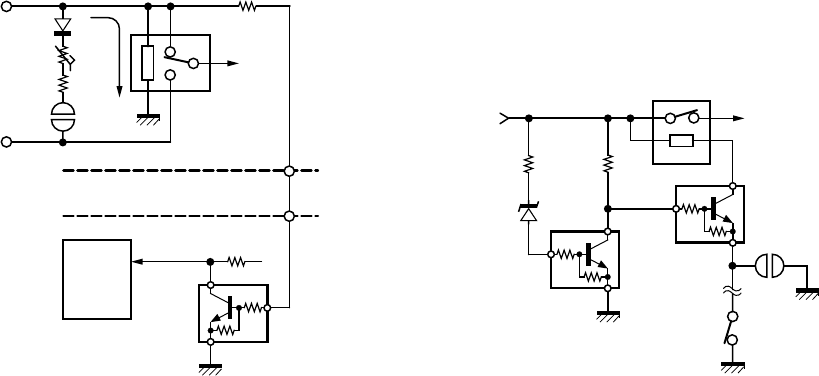

D8
D9
R61
Land
Main
DC
Backup
battery
120mA
+B
K1
(Relay)
Final unit (A/2)
TX-RX unit (A/2)
TX-RX unit (B/2)
R55
IC604
CPU
BUP 16
Q601
+B
R165 R166
D12
K1
Q24
Q25
SB
Land
(PSW)
Display unit
(Front panel)
S507
RJVK= !
!" `mrapmci^pe=olj !"#$%
!"#$%& 'f`SOQf`SORf`SOSf`SOTf`SOU
f`SPM
SK=a` !
SJNK=a` !"#$
NK !"#$%&a` !"#$%&!'=EhNF
!a` !"#$%&'()*%+,-./
!"a` !"#$%&'(#)*+,-
`mr !"a` !"#$
OK !!"
a` !"#$%&$'()*+a` !"#$
MKR^ !"#
E !"#$%&'()*+,-./01F
a`aUaVoSN !"#$%MKR^aV
!"
SJOK=p_ !"#
NK p_=E !_F=quJou^LO !hN
!"#$pRMT=Ea` !F= !"hN p_
OK _NUs aNOnOR !"#$%&'#()*+
CIRCUIT DESCRIPTION / !
Fig. 10 DC source switching relay circuit
NM a` !"#$
Fig. 11 SB switching relay circuit
NN p_ !"#
TKR-750
26
Main CPU : 30622M4A-487GP
(TX-RX unit IC604)
■ Pin Function
Pin No. Name I/O Function
1IO5 I/O Aux I/O No.5 (Acc D-sub 25 pin)
2IO4 I/O Aux I/O No.4 (Acc D-sub 25 pin)
35TN I Not used
4IO2 I/O Aux I/O No.2 (Acc D-sub 25 pin)
5IO1 I/O Aux I/O No.1 (Acc D-sub 25 pin)
6BYTE – 5V
7CNVss – GND
8ENT O TX PLL IC enable
9ENR O RX PLL IC enable
10 Reset I Microcomputer reset input
11 Xout – 14.7456MHz
12 Vss – GND
13 Xin – 14.7456MHz
14 Vcc – 5V
15 NMI – Not used
16 BUP I Backup battery detect
H : Backup, L : Main
17 TEMP I Temperature detect for fan action
H : Temp high, L : Temp low
18 INTy I INT request from DSP
19 CLK O Common clock
20 DAT O Common data
21 SFT O Beat shift H : On, L : Off
22 LD1 O Control D/A converter LD
23 IO3 I/O Aux I/O No.3 (Acc D-sub 25 pin)
24 BEEP O Beep output
25 LD2 O D/A converter 2LD
26 RS O DSP reset H : Off, L : On
27 EPTT O Acc PTT (Acc D-sub 25 pin)
H : Off, L : On
28 PTT I Mic PTT H : Off, L : On
29 TXD1 O Mic TXD
30 RXD1 I Mic HOOK/RXD
31 SCLK O EEPROM clock
32 SDAT I/O EEPROM data
33 TXD0 O Acc TXD (Acc D-sub 25 pin)
34 RXD0 I Acc RXD (Acc D-sub 25 pin)
35 CP O PLL IC clock
36 DP O PLL IC data
37 RDY I CPU ready input
SEMICONDUCTOR DATA / !"
`mrPMSOOjQ^JQUTdm
============EquJouf`SMQF
!
==
L
NflR
L
^ruLkçKR=E^ÅÅ=aJëìÄ=ORF
OflQ
L
^ruLkçKQ=E^ÅÅ=aJëìÄ=ORF
PRqk
QflO
L
^ruLkçKO=E^ÅÅ=aJëìÄ=ORF
RflN
L
^ruLkçKN=E^ÅÅ=aJëìÄ=ORF
S_vqb J Rs
T`ksëë J
Ubkq qu=mii !"#
V bko ou=mii !"#
NM oÉëÉí !"#
NN uçìí J NQKTQRSjeò
NO sëë J
NP uáå J NQKTQRSjeò
NQ sÅÅ J Rs
NR kjf J
NS _rm !"#
e !"#=i !
NT qbjm !"#$%
e !=i
NU fkqó apmfkq
NV `ih !
OM a^q !
ON pcq ! e !=i
OO iaN L !ia
OP flP
L
^ruLkçKP=E^ÅÅ=aJëìÄ=ORF
OQ _bbm !"
OR iaO L !Oia
OS op apm e !=i
OT bmqq ^ÅÅ=mqq=E^ÅÅ=aJëìÄ=ORF
e !=i
OU mqq
mqq e !=i
OV quaN qua
PM ouaN ellhLoua
PN p`ih bbmolj
PO pa^q
L
bbmolj
PP quaM ^ÅÅ=qua=E^ÅÅ=aJëìÄ=ORF
PQ ouaM ^ÅÅ=oua=E^ÅÅ=aJëìÄ=ORF
PR `m mii !"#
PS am mii !"#
PT oav `mr !
TKR-750
27
Pin No. Name I/O Function
38 ALE – Not used
39 HOLD – Not used
40 HLDA – Not used
41 BCLK O Not used
42 RD O Flash ROM WR/DSP HDS1
43 BHE – Not used
44 WR O Flash ROM WR/DSP HDS2
45 STB2 O Control shift register STB
46 INTx O DSP interrupt H : Off, L : On
47 HCS O DSP HCS
48 CS0 O Flash ROM CS
49 A19 O Not used
50~59 A18~A9 O Flash ROM address bus
60 Vcc – 5V
61 A8 O Flash ROM address bus
62 Vss – GND
63~70 A7~A0 O Flash ROM address bus
71 EMON I Acc monitor (Acc D-sub 25 pin)
H : Off, L : On
72 LDR I RX VCO lock detect
H : Lock, L : Unlock
73 LDT I TX VCO lock detect
H : Lock, L : Unlock
74,75
KEY5,KEY4
OKey matrix output
76~78
KEY3~KEY1
IKey matrix input
79~86 D7~D0 I/O Flash ROM data bus
87 FWD I RF power down level input
88 RSSI I RSSI level input
89 ASQ I Squelch level input
90 VLI I Volume level input
91 BATT I Power supply voltage level input
92 AI1 I Aux input No.1 (Acc D-sub 25 pin)
93 AI2 I Aux input No.2 (Acc D-sub 25 pin)
94 AVss – GND
95 AI3 I Aux input No.3 (Acc D-sub 25 pin)
96 Vref – 5V
97 AVcc – 5V
98 STB1 O Display shift register STB
99 SOE O Shift register common OE
100 IO6 I/O Aux I/O No.6 (Acc D-sub 25 pin)
==
L
PU ^ib J
PV elia J
QM eia^ J
QN _`ih
QO oa ci^pe=olj=toLapm=eapN
QP _eb J
QQ to ci^pe=olj=toLapm=eapO
QR pq_O !"#$pq_
QS fkqñ apm e !=i
QT e`p apm=e`p
QU `pM ci^pe=olj=`p
QV ^NV
RMRV ^NU^V ci^pe=olj !
SM sÅÅ J Rs
SN ^U ci^pe=olj !
SO sëë J
SPTM ^T^M ci^pe=olj !
TN bjlk ^ÅÅ =E^ÅÅ=aJëìÄ=ORF
e !=i
TO iao ou=s`l !
e
TP iaq qu=s`l !
e
TQTR
hbvRhbvQ
!"
TSTU
hbvPhhbvN
!"
TVUS aTaM
L
ci^pe=olj !
UT cta !"#$%&'
UU oppf oppf !
UV ^pn !"#
VM sif !"#
VN _^qq !"#
VO ^fN
^rukçKN=E^ÅÅ=aJëìÄ=ORF
VP ^fO
^rukçKO=E^ÅÅ=aJëìÄ=ORF
VQ ^sëë J
VR ^fP
^rukçKP=E^ÅÅ=aJëìÄ=ORF
VS sêÉÑ J Rs
VT ^sÅÅ J Rs
VU pq_N !"#$pq_
VV plb !"#$lb
NMM flS
L
^ruLkçKS=E^ÅÅ=aJëìÄ=ORF
SEMICONDUCTOR DATA / !"
TKR-750
28
DSP : 320VC5402PGE (TX-RX unit IC618)
■ Pin Function
Pin No. Name I/O Function
1,2 NC1,NC2 – Not used (No connection)
3Vss – GND
4DVDD – VDD for I/O pins (+3.3V)
5A0ONot used (No connection)
6HD0 I/O HPI data bus
7~11 A1~A5 O Not used (No connection)
12 NC3 – Not used (No connection)
13 HAS I HPI address strobe (Pull up)
14 Vss – GND
15 NC4 – Not used (No connection)
16 CVDD – VDD for core CPU (+1.8V)
17 HCS I HPI chip select
18 HR/W I HPI read/write
19 READY I Data ready (Pull up)
20 PS O Not used (No connection)
21 DS O Not used (No connection)
22 IS O Not used (No connection)
23 R/W O Not used (No connection)
24 MSTRB O Not used (No connection)
25 IOSTRB O Not used (No connection)
26 MSC O Not used (No connection)
27 XF O CODEC control
H : Power down, L : Active
28 HOLDA – Not used (No connection)
29 IAQ – Not used (No connection)
30 HOLD I Hold (Pull up)
31 BIO I Serial data syncronize input
32 MP/MC I Not used (Pull down)
33 DVDD – VDD for I/O pins (+3.3V)
34 Vss – GND
35~38
NC5~NC8
–Not used (No connection)
39 HCNTL0 I HPI control 0
40 Vss – GND
41 BCLKR0 I Receive clock input
(SCLK : 516.09375kHz)
42 BCLKR1 – Not used (No connection)
43 BFSR0 I Frame sync. for receiver input
(LRCK : 16.128kHz)
SEMICONDUCTOR DATA / !"
apmPOMs`RQMOmdb=EquJouf`SNUF
!
==
L
NOk`Nk`O J =E F
P sëë J
Q asaa J L !"saa=EHPKPsF
R^M =E F
SeaM
L
emf !
TNN ^N^R =E F
NO k`P J =E F
NP e^p emf !=EF
NQ sëë J
NR k`Q J =E F
NS `saa J `mrsaa=EHNKUsF
NT e`p emf
NU eoLt emfL
NV ob^av !=EF
OM mp =E F
ON ap =E F
OO fp =E F
OP oLt =E F
OQ jpqo_ =E F
OR flpqo_ =E F
OS jp` =E F
OT uc `lab`
e !"#=i
OU elia^ J =E F
OV f^n J =E F
PM elia =EF
PN _fl !"#$%
PO jmLj` =EF
PP asaa J L !"saa=EHPKPsF
PQ sëë J
PRPU k`Rk`U J =E F
PV e`kqiM kmfM
QM sëë J
QN _`ihoM !"#
Ep`ihRNSKMVPTRâeòF
QO _`ihoN J =E F
QP _cpoM !"#$%&
Eio`hNSKNOUâeòF
TKR-750
29
Pin No. Name I/O Function
44 BFSR1 I Frame sync. for receiver input
(LRCK : 16.128kHz)
45 BDR0 I Serial data receive input
46 HCNTL1 I HPI control 1
47 BDR1 – Not used (No connection)
48 BCLKX0 I Transmit clock input
(SCLK : 516.09375kHz)
49 BCLKX1 O Master clock output
(MCLK : 4.12875MHz)
50 Vss – GND
51
HINT/TOUT1
OBoot mode select (Pull up)
52 CVDD – VDD for core CPU (+1.8V)
53 BFSX0 I Frame sync. for transmitter input
(LRCK : 16.128kHz)
54 BFSX1 I Frame sync. for transmitter input
(LRCK : 16.128kHz)
55 HRDY – Not used (No connection)
56 DVDD – VDD for I/O pins (+3.3V)
57 Vss – GND
58 HD1 I/O HPI data bus
59 BDX0 O Serial data transmit output
60 BDX1 – Not used (No connection)
61 IACK – Not used (No connection)
62 HBIL I Byte identification (HPI)
63 NMI I Not used (Pull up)
64 INT0 I
Command interrupt from host CPU
65 INT1 I Not used (Pull up)
66 INT2 I Boot mode select (Pull up)
67 INT3 I Not used (Pull up)
68 CVDD – VDD for core CPU (+1.8V)
69 HD2 I/O HPI data bus
70 Vss – GND
71~74
NC9~NC12
–Not used (No connection)
75 DVDD – VDD for I/O pins (+3.3V)
76 Vss – GND
77 CLKMD1 I Clock mode select (Pull down)
78 CLKMD2 I Clock mode select (Pull up)
79 CLKMD3 I Clock mode select (Pull down)
80 NC13 – Not used (No connection)
81 HD3 I/O HPI data bus
SEMICONDUCTOR DATA / !"
==
L
QQ _cpoN !"#$%&
Eio`hNSKNOUâeòF
QR _aoM !"#$%
QS e`kqiN emfN
QT _aoN J =E F
QU _`ihuM !"#
Ep`ihRNSKMVPTRâeòF
QV _`ihuN !"
Ej`ihQKNOUTRjeòF
RM sëë J
RN
efkqLqlrqN
!"#=EF
RO `saa J `mrsaa=EHNKUsF
RP _cpuM !"#$%&
Eio`hNSKNOUâeòF
RQ _cpuN !"#$%&
Eio`hNSKNOUâeòF
RR eoav J =E F
RS asaa J L !"saa=EHPKPsF
RT sëë J
RU eaN
L
emf !
RV _auM !"#$%
SM _auN J =E F
SN f^`h J =E F
SO e_fi !=EemfF
SP kjf =EF
SQ fkqM `mr !"
SR fkqN =EF
SS fkqO !"#=EF
ST fkqP =EF
SU `saa J `mrsaa=EHNKUsF
SV eaO
L
emf !
TM sëë J
TNTQ
k`Vk`NO
J =E F
TR asaa J L !"saa=EHPKPsF
TS sëë J
TT `ihjaN !"#=EF
TU `ihjaO !"#=EF
TV `ihjaP !"#=EF
UM k`NP J =E F
UN eaP
L
emf !
TKR-750
30
Pin No. Name I/O Function
82 TOUT0 – Not used (No connection)
83 EMU0 I/O Emulator 0 (to JTAG connector)
84
EMU1/OFF
I/O Emulator 1 (to JTAG connector)
85 TDO O
Test data output (to JTAG connector)
86 TDI I
Test data input (to JTAG connector)
87 TRST I Test reset (to JTAG connector)
88 TCK I Test clock (to JTAG connector)
89 TMS I
Test mode select (to JTAG connector)
90 NC14 – Not used (No connection)
91 CVDD – VDD for core CPU (+1.8V)
92 HPIENA I Not used (Pull up)
93 Vss – GND
94 CLKOUT O Not used (No connection)
95 HD4 I/O HPI data bus
96 X1 – 16.515MHz (System clock)
97 X2/CLKIN – 16.515MHz (System clock)
98 RS I DSP reset input
99~104 D0~D5 – Not used (No connection)
105 A6 O Not used (No connection)
106 Vss – GND
107~109 A7~A9 O Not used (No connection)
110 NC15 – Not used (No connection)
111 Vss – GND
112 DVDD – VDD for I/O pins (+3.3V)
113~119 D6~D12 – Not used (No connection)
120 HD5 I/O HPI data bus
121~123
D13~D15
–Not used (No connection)
124 HD6 I/O HPI data bus
125 CVDD – VDD for core CPU (+1.8V)
126 NC16 – Not used (No connection)
127 HDS1 I HPI data strobe 1 (Pull up)
128 Vss – GND
129 HDS2 I HPI data strobe 2 (Pull down)
130 DVDD – VDD for I/O pins (+3.3V)
131~134 A10~A13 O Not used (No connection)
135 HD7 I/O HPI data bus
136~141 A14~A19 O Not used (No connection)
142 CVDD – VDD for core CPU (+1.8V)
143,144
NC17,NC18
–Not used (No connection)
SEMICONDUCTOR DATA / !"
==
L
UO qlrqM J =E F
UP bjrM
L
M=Egq^d F
UQ
bjrNLlcc
L
N=Egq^d F
UR qal !"#=Egq^d F
US qaf !"#=Egq^d F
UT qopq !=Egq^d F
UU q`h !=Egq^d F
UV qjp !"#=Egq^d F
VM k`NQ J =E F
VN `saa J `mrsaa=EHNKUsF
VO emfbk^ =EF
VP sëë J
VQ `ihlrq =E F
VR eaQ
L
emf !
VS uN J NSKRNRjeò=E !F
VT uOL`ihfk J NSKRNRjeò=E !F
VU op apm !
VVNMQ
aMaR J =E F
NMR ^S =E F
NMS sëë J
NMTNMV
^T^V =E F
NNM k`NR J =E F
NNN sëë J
NNO asaa J L !"saa=EHPKPsF
NNPNNV
aSaNO J =E F
NOM eaR
L
emf !
NONNOP
aNPaNR J =E F
NOQ eaS
L
emf !
NOR `saa J `mrsaa=EHNKUsF
NOS k`NS J =E F
NOT eapN emf !N=EF
NOU sëë J
NOV eapO emf !O=EF
NPM asaa J L !"saa=EHPKPsF
NPNNPQ
^NM^NP =E F
NPR eaT
L
emf !
NPSNQN
^NQ^NV =E F
NQO `saa J `mrsaa=EHNKUsF
NQPNQQ
`kNT`kNU
J =E F
TKR-750
31
Final Unit (X45-373X-XX)
Ref. No. Part name Description
IC1 IC DC amplifier
IC2 IC Thermostat
IC3 IC Voltage reguator
Q2,3 Transistor RF amplifier
Q4 FET TX drive amplifier
Q5 FET Final amplifier
Q8,9 Transistor DC switch
D1 Diode Thermal sense
D2 Zener diode Voltage reference
D4,5 Diode RF detector
D6 Diode Surge absorption
D7 Zener diode Surge protector
D8 Diode Reverse current protector
D9 Varistor Current protector
D51,52 Diode Reverse connection protection
D53,55,56 Diode RF swiwtch
Display Unit (X54-3330-21)
Ref. No. Part name Description
IC501 MOS IC MIC amplifier
IC502~505 IC Shift register
IC506,507 IC Voltage regulator
Q501,502 Transistor Level controller
Q503,504 FET DC switch
Q506 Transistor DC switch
Q507 FET DC switch
Q508~511 Transistor DC switch
Q512~514 FET DC switch
Q516~519 FET DC switch
Q521~525 FET DC switch
D501,502 Diode AF detector
D503~505 LED LED
D506,507 LED 7 segment
D508~514 Diode Surge absorption
D601,602 Diode Surge absorption
D603 Varistor Current protector
TX-RX Unit (X57-695X-XX)
Ref. No. Part name Description
IC1,2 IC Buffer amplifier
IC3~5 IC Voltage regulator
IC6 IC D/A converter
COMPONENTS DESCRIPTION / !
!=EuQRJPTPuJuuF
f`N ! a`
f`O ! !"
f`P !
nOP !"
nQ !"# qu !"
nR !"# !"
nUV a`
aN !
aO !" !
aQR !"
aS !
aT !" !
aU !"#
aV !"
aRNRO !"#
aRPRRRS oc
!=EuRQJPPPMJONF
f`RMN jlp ! !"#
f`RMORMR ! !"
f`RMSRMT !
nRMNRMO !"
nRMPRMQ !"# a`
nRMS a`
nRMT !"# a`
nRMURNN a`
nRNORNQ !"# a`
nRNSRNV !"# a`
nRONROR !"# a`
aRMNRMO !"
aRMPRMR iba iba
aRMSRMT iba T
aRMURNQ !
aSMNSMO !
aSMP !"
quJou=EuRTJSVRuJuuF
f`NO ! !"
f`PR !
f`S ! L !
TKR-750
32
Ref. No. Part name Description
IC7 IC Shift register
IC9 IC FM IF system
IC10,11 IC Voltage regulator
IC600 IC EEPROM
IC601 IC Voltage detector
IC602 IC Shift register
IC603 IC Bus transceiver
IC604 IC CPU
IC605 IC Multiplexer
IC606 IC Bus transceiver
IC607,608 IC AF amplifier
IC609 IC Flash ROM
IC610,611 IC AF amplifier
IC612 IC Inverter
IC613 IC Counter
IC614 IC CODEC
IC615 IC D/A converter
IC616,617 IC AF amplifier
IC618 IC DSP
IC619 IC AF amplifier
IC620 IC RS-232C tranceiver
IC621 IC NAND gate
IC622 IC Multiplexer
IC623 IC Shift register
IC624~628 IC Voltage regulator
IC629 IC AF power amplifier
IC630 IC Voltage regulator
IC631,632 IC AF amplifier
Q1~3 Transistor RF amplifier
Q4 Transistor Wide/Narrow switch
Q5,6 Transistor DC switch
Q7 Transistor Noise amplifier
Q8,9 Transistor RF amplifier
Q10 Transistor Current control
Q11 Transistor RF amplifier
Q12~15 Transistor Ripple filter
Q16~19 Transistor DC switch
Q23~26 Transistor DC switch
Q27 Transistor Wide/Narrow switch
Q600 FET DC switch
Q601 Transistor DC switch
Q602 FET DC switch
Q603 Transistor Inverter
COMPONENTS DESCRIPTION / !
f`T ! !"
f`V ! cj !
f`NMNN !
f`SMM ! bbmolj
f`SMN ! !"
f`SMO ! !"
f`SMP ! !"
f`SMQ ! `mr
f`SMR ! !"
f`SMS ! !"
f`SMTSMU ! !"
f`SMV ! ci^pe=olj
f`SNMSNN ! !"
f`SNO !
f`SNP !
f`SNQ ! !
f`SNR ! L !
f`SNSSNT ! !"
f`SNU ! apm
f`SNV ! !"
f`SOM ! opJOPO`
f`SON ! k^ka
f`SOO ! !"
f`SOP ! !"
f`SOQSOU !
f`SOV ! !"#$
f`SPM !
f`SPNSPO ! !"
nNP !"
nQ L
nRS a`
nT !"
nUV !"
nNM !
nNN !"
nNONR !
nNSNV a`
nOPOS a`
nOT L
nSMM !"# a`
nSMN a`
nSMO !"# a`
nSMP
TKR-750
33
Ref. No. Part name Description
Q604 FET DC switch
Q605 Transistor Inverter
Q606 Transistor AF mute switch
Q607~609 Transistor DC switch
Q610 FET DC switch
Q611,612 Transistor DC switch
Q613,614 Transistor Current control
Q615 Transistor DC switch
D1~4 Diode Wide/Narrow switch
D5 Diode Noise detection
D7 Diode DC switch
D8 Diode TX switch
D11 Zener diode Surge protector
D12 Diode DC switch
D13 Diode Noise detection
D600 Diode Surge protector
D606~612 Diode Surge protector
D614~616 Diode Surge protector
D618~623 Diode Surge protector
D626 Variistor Current protector
D627,628 Diode Reverse current protector
D629 Diode Surge protector
RX VCO Unit (X58-4780-10)
Ref. No. Part name Description
IC300 IC PLL
Q300~302 Transistor Buffer amplifier
Q350,351 FET VCO OSC
Q352~354 Transistor DC switch
Q355 Transistor Buffer amplifier
D350~353 Varicap Frequency control
TX VCO Unit (X58-4790-10)
Ref. No. Part name Description
IC300 IC PLL
Q300,301 Transistor Active filter
Q302 Transistor Buffer amplifier
Q350,351 FET VCO OSC
Q352~354 Transistor DC switch
Q355 Transistor Buffer amplifier
D350~353 Varicap Frequency control
D354,355 Varicap Modulation
COMPONENTS DESCRIPTION / !
nSMQ !"# a`
nSMR
nSMS !"
nSMTSMV a`
nSNM !"# a`
nSNNSNO a`
nSNPSNQ !
nSNR a`
aNQ L
aR !
aT a`
aU qu
aNN !" !
aNO a`
aNP !
aSMM !
aSMSSNO !
aSNQSNS !
aSNUSOP !
aSOS !"
aSOTSOU !"#$
aSOV !
ou=s`l=EuRUJQTUMJNMF
f`PMM ! mii
nPMMPMO !"
nPRMPRN !"# s`l
nPROPRQ a`
nPRR !"
aPRMPRP !" !
qu=s`l=EuRUJQTVMJNMF
f`PMM ! mii
nPMMPMN !"
nPMO !"
nPRMPRN !"# s`l
nPROPRQ a`
nPRR !"
aPRMPRP !" !
aPRQPRR !"
TKR-750
34
Chip capacitor
Code L W T
Empty 5.6±0.5 5.0±0.5 Less than 2.0
A4.5±0.5 3.2±0.4 Less than 2.0
B4.5±0.5 2.0±0.3 Less than 2.0
C4.5±0.5 1.25±0.2 Less than 1.25
D3.2±0.4 2.5±0.3 Less than 1.5
E3.2±0.2 1.6±0.2 Less than 1.25
F2.0±0.3 1.25±0.2 Less than 1.25
G1.6±0.2 0.8±0.2 Less than 1.0
H 1.0±0.05 0.5±0.05 0.5±0.05
Chip resistor
Code L W T
E3.2±0.2 1.6±0.2 1.0
F2.0±0.3 1.25±0.2 1.0
G1.6±0.2 0.8±0.2 0.5±0.1
H1.0±0.05 0.5±0.05 0.35±0.05
• Rating wattage
Code Wattage Code Wattage Code Wattage
1J 1/16W 2C 1/6W 3A 1W
2A 1/10W 2E 1/4W 3D 2W
2B 1/8W 2H 1/2W
(Less than 10pF)
Code B C D F G
(pF) ±0.1 ±0.25 ±0.5 ±1±2
CAPACITORS
C C 4 5 T H 1 H 2 2 0 J
1234 56
1 = Type ... ceramic, electrolytic, etc. 4 = Voltage rating
2 = Shape ... round, square, etc. 5 = Value
3 = Temp. coefficient 6 = Tolerance
• Temperature coefficient
1st Word C L P R S T U
Color* Black Red Orange Yellow Green Blue Violet
ppm/°C0 –80 –150 –220 –330 –470 –750
• Tolerance (More than 10pF)
Code C D G J K M X Z P No code
(%) ±0.25 ±0.5 ±2±5±10 ±20 +40 +80 +100 More than 10µF : –10~+50
–20 –20 –0 Less than 4.7µF : –10~+75
• Voltage rating
2nd word
ABCDEFGHJ KV
1st word
01.01.25 1.6 2.0 2.5 3.15 4.0 5.0 6.3 8.0 –
11012.5 16 20 25 31.540 50638035
2100 125 160 200 250 315 400 500 630 800 –
31000 1250 1600 2000 2500 2150 4000 5000 6300 8000 –
CHIP CAPACITORS
(EX) C C 7 3 F S L 1 H 0 0 0 J Refer to the table above.
12345 67 1 = Type
(Chip) (CH, RH, UJ, SL) 2 = Shape
3 = Dimension
(EX) C K 7 3 F F 1 H 0 0 0 Z 4 = Temp. coefficient
12345 67 5 = Voltage rating
(Chip) (B, F) 6 = Value
7 = Tolerance
RESISTORS
• Chip resistor (Carbon)
(EX) R D 7 3 E B 2 B 0 0 0 J
12345 67
(Chip) (B, F)
• Carbon resistor (Normal type)
(EX) R D 1 4 B B 2 C 0 0 0 J
12345 67
(Chip) (B, F)
1 = Type ... ceramic, electrolytic, etc. 5 = Voltage rating
2 = Shape ... round, square, etc. 6 = Value
3 = Dimension 7 = Tolerance
4 = Temp. coefficient
CC45 Color*
2nd Word G H J K L
ppm/°C±30 ±60 ±120 ±250 ±500
Example : CC45TH = –470±60ppm/°C
• Capacitor value
010 = 1pF 2 2 0 = 22pF
100 = 10pF
101 = 100pF Multiplier
102 = 1000pF = 0.001µF2nd number
103 = 0.01µF1st number
L
W
T
• Dimension
PARTS LIST /
TKR-750
35
PARTS LIST /
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts

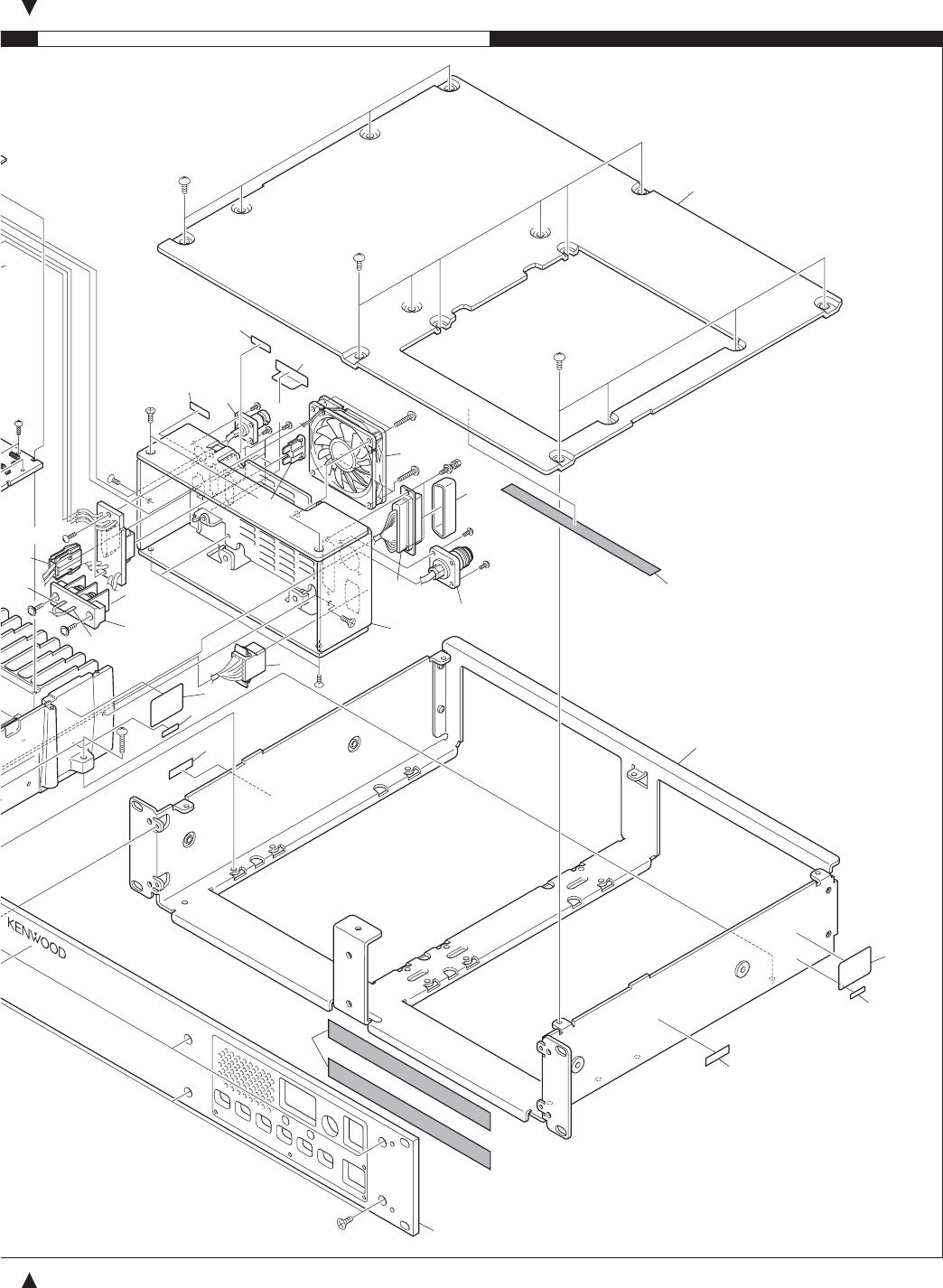

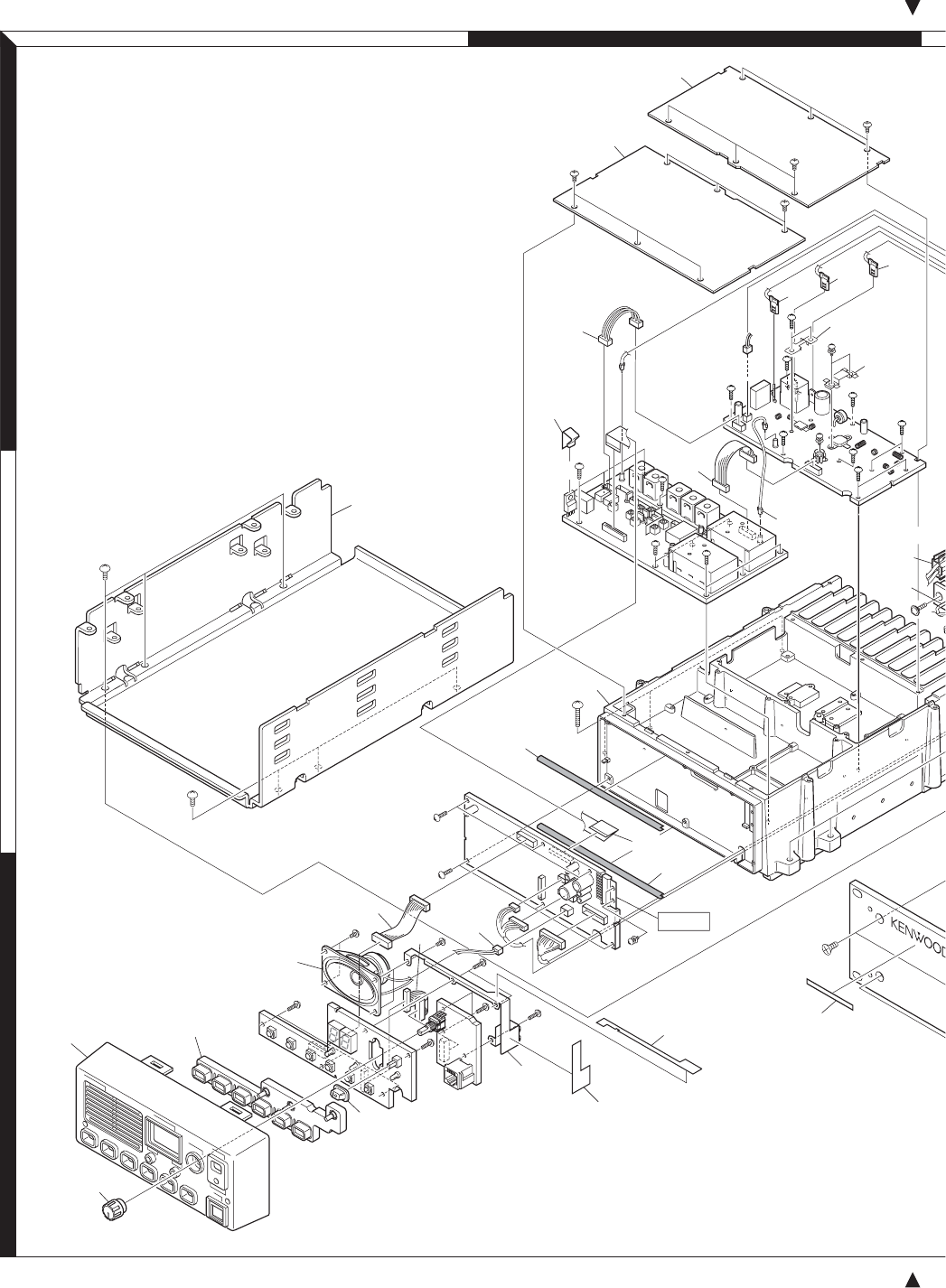

TKR-750 (Y54-318X-XX)
FINAL UNIT (X45-373X-XX)
✽ New Parts. indicates safety critical components.
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L: Scandinavia K:USA P:Canada
Y: PX (Far East, Hawaii) T:England E:Europe
Y:AAFES (Europe) X:Australia M:Other Areas
12B✽A10-4037-21 CHASSIS
21BA62-0836-04 PANEL (TX/RX)
31BA62-0837-04 PANEL (FINAL)
41DA62-0840-03 PANEL (OUTER)
53A✽A62-0933-13 PANEL ASSY (INNNER)
63CA62-0934-03 PANEL ASSY
81FB10-2635-04 FRONT GLASS ACCESSORY
91FB11-1259-04 FILTER ACCESSORY
10 3B ✽B42-7159-04 STICKER (MODEL NAME)
11 1F ✽B62-1836-00 INSTRUCTION MANUAL
12 2C,3D ✽B72-2299-04 MODEL NAME-PLATE C
12 2C,3D ✽B72-2300-04 MODEL NAME-PLATE C2
14 2C E30-3414-05 DC CORD (EXIT DC IN)
15 1C E30-3418-05 ANTENNA CABLE (BNC)
16 2C E30-3419-05 ANTENNA CABLE (N)
17 1E ✽E30-3427-15 DC CORD ACCESSORY
18 1E E31-3228-05 TEST/SPKR PLUG ACCESSORY
19 1B E37-0902-05 DC WIRE (RED)
20 1B E37-0903-05 DC WIRE (BLACK)
21 2C E37-0904-05 D-SUB CABLE ASSY
22 3B ✽E37-0905-15 SPEAKER CABLE
23 3A E37-0906-05
LEAD WIRE WITH CONNECTOR (CONT-DISP)
24 3A E37-0908-05 LEAD WIRE WITH CONNECTOR (11P)
25 2B E37-0909-05 LEAD WIRE WITH CONNECTOR (8P)
26 1B E37-0911-05 LEAD WIRE WITH CONNECTOR (3P)
27 2B E37-0912-05 COAXIAL CABLE
28 2C E37-0913-05 TEST/SPKR CONNECTOR ASSY
29 1B E37-0934-05 DC WIRE (ORANGE)
30 2C E37-0964-05 DC BACKUP WIRE (BLACK)
31 2C E37-0965-05 DC BACKUP WIRE (RED)
32 2B E37-0967-05 FLAT CABLE (36P)
33 2C E70-0402-05 DC BACKUP TERMINAL
35 1C,1E F05-1537-05 FUSE (BLADE TYPE) (15A/32V)
36 2C F09-0445-05 CAP (D-SUB) ACCESSORY
37 2C F09-0471-05 FAN MOTOR
-F10-2374-04 SHIELDING PLATE (TX/RX)
-F10-2379-04 SHIELDING CASE (TX/RX COMP)
-F10-2409-04 SHIELDING CASE (TX/RX FOIL)
41 1C F20-3322-04 INSULATING SHEET (BACKUP)
43 1B,2B G02-0576-14 FLAT SPRING
45 3B ✽G02-0885-13 EARTH SPRING
51 1B G02-0894-04 EARTH SPRING (FINAL FET)
46 2B,3B G10-1263-04 FIBROUS SHEET (CHASSIS)
47 3C,2D G10-1264-04 FIBROUS SHEET (PANEL)
56 3B ✽G10-1344-04 FIBROUS SHEET
58 3B ✽G10-1345-04 FIBROUS SHEET
48 1F G13-1801-04 CUSHION ACCESSORY
49 1F G13-1802-04 CUSHION ACCESSORY
52 1E H25-0029-04 PROTECTION BAG (60/110/0.07)
53 1F H25-0747-04 PROTECTION BAG (250X350)
54 1E H25-0762-04 PROTECTION BAG (120X300)
55 1F H25-2328-04 PROTECTION BAG (80/250/0.07)
TKR-750 57 3F H52-1621-02 ITEM CARTON CASE
59 1E J02-0475-05 FOOT ACCESSORY
60 1E J02-0492-04 FOOT ACCESSORY
61 1F J21-8402-04
MOUNTING HARDWARE ACCESSORY
64 1B J21-8467-04 MOUNTING HARDWARE (DRIVE FET)
62 1E J59-0302-05 GROMMET ACCESSORY
-J61-0307-05 BAND
65 1E ✽K01-0418-15 HANDLE ACCESSORY
66 3A K29-5389-03 KNOB (VOLUME)
67 3A K29-5460-02 KEY TOP
68 3A K29-9106-04 KNOB (DC SOUCE)
A2CN09-2292-05 HEXAGON HEAD SCREW
B1C,2C N30-2606-46 PAN HEAD MACHINE SCREW
C2A,1E N30-4006-46 PAN HEAD MACHINE SCREW
D2B,2C N30-4014-46 PAN HEAD MACHINE SCREW
E1CN30-4020-45 PAN HEAD MACHINE SCREW
F1C,2C N32-3006-46 FLAT HEAD MACHINE SCREW
G3B,3C N32-4008-45 FLAT HEAD MACHINE SCREW
H1BN33-3006-45 OVAL HEAD MACHINE SCREW
J1EN35-3006-45
BINDING HEAD MACHINE SCREW ACCESSORY
K1CN35-4006-45 BINDING HEAD MACHINE SCREW
L1B,3B N67-3008-46 PAN HEAD SEMS SCREW
M1C N80-2608-45 PAN HEAD TAPTITE SCREW
N2CN87-2606-46 BRAZIER HEAD TAPTITE SCREW
O3AN87-3005-45 BRAZIER HEAD TAPTITE SCREW
P2B,3B N87-3006-46 BRAZIER HEAD TAPTITE SCREW
R2CN90-3014-46 TP HEAD MACHINE SCREW
70 3A T07-0247-05 SPEAKER
-490-0174-05 ADHESIVE TAPE
C1,2 CK73GB1H102K CHIP C 1000PF K
C3 C90-2146-05 ELECTRO 100UF 25WV
C7 CK73GB1H102K CHIP C 1000PF K
C9,10 CK73GB1H102K CHIP C 1000PF K
C11 CC73GCH1H470J CHIP C 47PF J
C12 CK73GB1H102K CHIP C 1000PF K
C13 CK73FB1E104K CHIP C 0.10UF K
C14,15 CK73GB1H102K CHIP C 1000PF K
C16 CK73FB1H102K CHIP C 1000PF K
C19 C93-0603-05 CHIP C 1000PF K
C21 C93-0564-05 CHIP C 22PF J
C22 C93-0568-05 CHIP C 47PF J
C27 CK73FB1H102K CHIP C 1000PF K
C28 CK73GB1H102K CHIP C 1000PF K
C29 C93-0603-05 CHIP C 1000PF K
C30 C93-0573-05 CHIP C 120PF J
C31 C93-0565-05 CHIP C 27PF J
C32 C93-0603-05 CHIP C 1000PF K
C35 CK73GB1H102K CHIP C 1000PF K
C37 CK73FB1E474K CHIP C 0.47UF K
FINAL UNIT (X45-373X-XX) 0-10 : K,E 0-11 K2
TKR-750
36
PARTS LIST /
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
C39 CK73GB1H102K CHIP C 1000PF K
C42 CK73FB1H223K CHIP C 0.022UF K
C43,44 CK73GB1H102K CHIP C 1000PF K
C46 C93-0603-05 CHIP C 1000PF K
C47 CM73F2H360J CHIP C 36PF J C2
C49 C93-0564-05 CHIP C 22PF J
C53 CK73FB1H473K CHIP C 0.047UF K
C54 CM73F2H102J CHIP C 1000PF J
C55 CK73GB1H103K CHIP C 0.010UF K
C57 C90-2143-05 ELECTRO 47UF 25WV
C60 CK73GB1H102K CHIP C 1000PF K
C64 CK73GB1H102K CHIP C 1000PF K
C68 CK73GB1H102K CHIP C 1000PF K
C69,70 C93-0559-05 CHIP C 9.0PF D
C71,72 C93-0564-05 CHIP C 22PF J
C74 C93-0567-05 CHIP C 39PF J
C77 C93-0565-05 CHIP C 27PF J
C80-87 CK73GB1H102K CHIP C 1000PF K
C89 CC73GCH1H101J CHIP C 100PF J
C90 CK73GB1H102K CHIP C 1000PF K
C91 C92-0777-05 ELECTRO 1000UF 25WV
C92 CM73F2H102J CHIP C 1000PF J
C96 CC73FCH1H180J CHIP C 18PF J
C98 CK73GB1H102K CHIP C 1000PF K
C99 C90-4016-05 ELECTRO 47UF 16WV
C103 CC73GCH1H101J CHIP C 100PF J
C105 CC73GCH1H101J CHIP C 100PF J
C106-109 CK73GB1H102K CHIP C 1000PF K
C110 C92-0628-05 CHIP-TAN 10UF 10WV
C112 C93-0560-05 CHIP C 10PF D
C117 CM73F2H221J CHIP C 220PF J
C118 CK73FB1E474K CHIP C 0.47UF K
C136,137 CK73GB1H102K CHIP C 1000PF K
C143 CC73FCH1H330J CHIP C 33PF J
C145 CC73GCH1H220J CHIP C 22PF J
C146 CC73GCH1H101J CHIP C 100PF J
C160 CM73F2H102J CHIP C 1000PF J
C161,162 CM73F2H270J CHIP C 27PF J
C163 C93-0570-05 CHIP C 68PF J
C164 CM73F2H820J CHIP C 82PF J
C165 CK73FB1H102K CHIP C 1000PF K
C166 CC73GCH1H220J CHIP C 22PF J
C167 CC73GCH1H101J CHIP C 100PF J
C168-171 CC73GCH1H220J CHIP C 22PF J
C172 CC73GCH1H101J CHIP C 100PF J
C173 C93-0563-05 CHIP C 18PF J C
C173 C93-0565-05 CHIP C 27PF J C2
C174 CC73FCH1H270J CHIP C 27PF J
CN1 E04-0154-05 PIN SOCKET
CN3 E40-5632-05 PIN ASSY
CN4 E40-3246-05 PIN ASSY
CN5 E40-5703-05 PIN ASSY
CN6-8 E23-0462-05 TERMINAL
F1 F53-0217-05 FUSE
CN51,52 J13-0071-05 FUSE HOLDER
L2 L40-4775-34 SMALL FIXED INDUCTOR (47NH)
L3 L40-6875-34 SMALL FIXED INDUCTOR (68NH)
L4,5 L34-4518-05 AIR-CORE COIL
L6 L34-4520-05 AIR-CORE COIL
L7 L34-4523-05 AIR-CORE COIL
L8 L34-4517-05 AIR-CORE COIL C2
L8 L34-4518-05 AIR-CORE COIL C
L9-11 L34-4520-05 AIR-CORE COIL
L12 L34-4523-05 AIR-CORE COIL
L16 L40-1575-92 SMALL FIXED INDUCTOR (15NH)
L17 L40-1875-92 SMALL FIXED INDUCTOR (18NH)
L19 L34-4667-05 AIR-CORE COIL
L20 L34-4744-05 AIR-CORE COIL
R1 RK73FB2A100J CHIP R 10 J 1/10W
R6 RK73GB1J220J CHIP R 22 J 1/16W
R7 RK73GB1J822J CHIP R 8.2K J 1/16W
R8 RK73FB2A100J CHIP R 10 J 1/10W
R9 RK73FB2A560J CHIP R 56 J 1/10W
R10 RK73FB2A151J CHIP R 150 J 1/10W
R11 RK73GB1J472J CHIP R 4.7K J 1/16W
R13 RK73GB1J471J CHIP R 470 J 1/16W
R14 R92-0700-05 CHIP R 180 J 1/2W
R15 R92-0686-05 CHIP R 33 J 1/2W
R16 R92-0700-05 CHIP R 180 J 1/2W
R17 RK73FB2A154J CHIP R 150K J 1/10W
R18 RK73EB2B101J CHIP R 100 J 1/8W C
R18 RK73EB2B470J CHIP R 47 J 1/8W C2
R19 RK73FB2A104J CHIP R 100K J 1/10W
R20,21 R92-1252-05 CHIP R 0 OHM J 1/16W
R22 R92-1213-05 CHIP R 100 J 1/2W
R23,24 RK73FB2A104J CHIP R 100K J 1/10W
R25 RK73GB1J473J CHIP R 47K J 1/16W
R26 RK73GB1J101J CHIP R 100 J 1/16W
R27 RK73GB1J471J CHIP R 470 J 1/16W
R28 RK73GB1J474J CHIP R 470K J 1/16W
R29 R92-1252-05 CHIP R 0 OHM J 1/16W
R30 RK73GB1J683J CHIP R 68K J 1/16W
R31 RK73GB1J103J CHIP R 10K J 1/16W
R32 RK73GB1J104J CHIP R 100K J 1/16W
R34 R92-1252-05 CHIP R 0 OHM J 1/16W
R35 RK73GB1J104J CHIP R 100K J 1/16W
R36 R92-1252-05 CHIP R 0 OHM J 1/16W
R38 RK73GB1J333J CHIP R 33K J 1/16W
R40 R92-1204-05 CHIP R 100 J 1/4W
R41 R92-1252-05 CHIP R 0 OHM J 1/16W
R45 RK73GB1J101J CHIP R 100 J 1/16W
R48 RK73GB1J471J CHIP R 470 J 1/16W
R49 R92-1217-05 CHIP R 0 OHM
R50 RK73EB2B222J CHIP R 2.2K J 1/8W
R52,53 RK73GB1J102J CHIP R 1.0K J 1/16W
R55 RK73GB1J102J CHIP R 1.0K J 1/16W
R56 R92-1317-05 CHIP R 18 J 1W
R57 RK73GB1J224J CHIP R 220K J 1/16W
R60 R92-1252-05 CHIP R 0 OHM J 1/16W
R61 R92-2687-05 RESISTOR 5.6 J 5W
R62,63 R92-0670-05 CHIP R 0 OHM
R64 R92-1252-05 CHIP R 0 OHM J 1/16W
R70 R92-1205-05 CHIP R 120 J 1/4W
R71 R92-0670-05 CHIP R 0 OHM
R72 R92-1214-05 CHIP R 120 J 1/2W
R73 R92-1252-05 CHIP R 0 OHM J 1/16W
VR1 R12-6427-05 TRIMMING POT. (47K)
FINAL UNIT (X45-373X-XX)
TKR-750
37
PARTS LIST /
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
K1 S76-0426-05 RELAY
D1 1SS226 DIODE
D2 02DZ6.2(Y) ZENER DIODE
D4,5 HSM88AS DIODE
D6 1SS355 DIODE
D7 ZSA5A27 ZENER DIODE
D8 RB051L-40 DIODE
D9 MINISMDC050-02 VARISTOR
D51,52 DSA3A1 DIODE
D53 MA4PH633 DIODE
D55,56 XB15A709 DIODE
IC1 TA75W01FU MOS-IC
IC2 MAX6502UKP035 ANALOGUE IC
IC3 NJM78L05UA BI-POLAR IC
Q2 2SC3356(R24) TRANSISTOR
Q3 2SC3357 TRANSISTOR
Q4 PD55003S DRIVE FET
Q5 RD70HVF1-01 FINAL FET
Q8 2SC4116(Y) TRANSISTOR
Q9 DTD123EK DIGITAL TRANSISTOR
TH1 PTH9M04BE471TS THERMISTOR
D503-505 B30-2151-05 LED (RED/GREEN)
C501 C92-0628-05 CHIP-TAN 10UF 10WV
C502,503 C92-0501-05 CHIP-TAN 1.5UF 10WV
C504,505 CK73GB1C104K CHIP C 0.10UF K
C506 CC73GCH1H470J CHIP C 47PF J
C507,508 CK73GB1C104K CHIP C 0.10UF K
C509 CK73GB1H103K CHIP C 0.010UF K
C510 C92-0628-05 CHIP-TAN 10UF 10WV
C511,512 CK73GB1E103K CHIP C 0.010UF K
C513-518 CC73GCH1H101J CHIP C 100PF J
C519,520 CK73GB1E103K CHIP C 0.010UF K
C521 C92-0628-05 CHIP-TAN 10UF 10WV
C522 CK73GB1C104K CHIP C 0.10UF K
C523 ✽CK73FB1E334K CHIP C 0.33UF K
C524 C92-0628-05 CHIP-TAN 10UF 10WV
C525 CK73GB1C104K CHIP C 0.10UF K
C526 ✽CK73FB1E334K CHIP C 0.33UF K
C601 CC73GCH1H101J CHIP C 100PF J
C602 CK73GB1H102K CHIP C 1000PF K
C603 CC73GCH1H101J CHIP C 100PF J
C606 CC73GCH1H101J CHIP C 100PF J
C607 CK73GB1C104K CHIP C 0.10UF K
CN501 E40-6140-05 PIN ASSY
CN502 E40-6102-05 PIN ASSY
CN601 E40-6141-05 PIN ASSY
J601 E08-0877-05 MODULAR JACK
-J31-0543-05 COLLAR (LH-5-1.5)
CP501-504 RK75GB1J471J CHIP-COM 470 J 1/16W
R502,503 R92-1252-05 CHIP R 0 OHM J 1/16W
R505 RK73GB1J683J CHIP R 68K J 1/16W
R506 RK73GB1J103J CHIP R 10K J 1/16W
R507 RK73GB1J682J CHIP R 6.8K J 1/16W
R508 RK73GB1J102J CHIP R 1.0K J 1/16W
R509 RK73GB1J103J CHIP R 10K J 1/16W
R510 RK73GB1J224J CHIP R 220K J 1/16W
R511,512 RK73GB1J103J CHIP R 10K J 1/16W
R513 RK73GB1J104J CHIP R 100K J 1/16W
R514 RK73GB1J154J CHIP R 150K J 1/16W
R516 R92-2565-05 CHIP R 1.2K J 1/2W
R517 R92-2023-05 CHIP R 820 J 1/2W
R518,519 R92-2565-05 CHIP R 1.2K J 1/2W
R520-526 R92-2023-05 CHIP R 820 J 1/2W
R529-540 RK73GB1J102J CHIP R 1.0K J 1/16W
R541-544 RK73GB1J103J CHIP R 10K J 1/16W
R601 RK73GB1J681J CHIP R 680 J 1/16W
R604,605 RK73GB1J102J CHIP R 1.0K J 1/16W
R606 RK73GB1J473J CHIP R 47K J 1/16W
VR501 R32-0643-05 SEMI FIXED VARIABLE RESISTOR
VR601 R31-0630-05 VARIABLE RESISTOR
S501-506 S70-0410-15 TACT SWITCH
S507 S68-0410-05 PUSH SWITCH
D501,502 HSM88AS DIODE
D506,507 LA-501DD LED
D508-514 DA204U DIODE
D601,602 DA204U DIODE
D603 MINISMDC020 VARISTOR
IC501 NJM4558E MOS-IC
IC502-505 BU4094BCFV MOS-IC
IC506,507 TA78L05F MOS-IC
Q501 2SC4116(Y) TRANSISTOR
Q502 2SA1586(Y,GR) TRANSISTOR
Q503,504 UPA672T FET
Q506 DTA114EUA DIGITAL TRANSISTOR
Q507 UPA672T FET
Q508-511 DTA114EUA DIGITAL TRANSISTOR
Q512-514 UPA672T FET
Q516-519 UPA672T FET
Q521-524 UPA672T FET
Q525 2SK1824 FET
C1 CC73GCH1H060D CHIP C 6.0PF D
C2 CC73GCH1H390J CHIP C 39PF J
C3 CC73GCH1H020C CHIP C 2.0PF C
C4 CC73GCH1H0R5C CHIP C 0.5PF C
C5 CC73GCH1H060D CHIP C 6.0PF D C
C5 CC73GCH1H080D CHIP C 8.0PF D C2
C6 CC73GCH1H390J CHIP C 39PF J
C7 CK73GB1H103K CHIP C 0.010UF K
C8,9 CK73GB1H102K CHIP C 1000PF K
C10 CC73GCH1H101J CHIP C 100PF J
C11 CC73GCH1H060D CHIP C 6.0PF D C
C11 CC73GCH1H080D CHIP C 8.0PF D C2
C12 CC73GCH1H390J CHIP C 39PF J
C13 CC73GCH1H020C CHIP C 2.0PF C
C14 CC73GCH1H0R5C CHIP C 0.5PF C
C15 CC73GCH1H050C CHIP C 5.0PF C
C16 CC73GCH1H020C CHIP C 2.0PF C
DISPLAY UNIT (X54-3330-21)
TX-RX UNIT (X57-695X-XX) 0-11 : C 0-12 : C2
FINAL UNIT (X45-373X-XX)
DISPLAY UNIT (X54-3330-21)
TX-RX UNIT (X57-695X-XX)
TKR-750
38
PARTS LIST /
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
C17 CC73GCH1H010C CHIP C 1.0PF C
C18 CC73GCH1H060D CHIP C 6.0PF D C
C18 CC73GCH1H090D CHIP C 9.0PF D C2
C19 CC73GCH1H180J CHIP C 18PF J C
C19 CC73GCH1H220J CHIP C 22PF J C2
C20 CC73GCH1H101J CHIP C 100PF J
C22 CC73GCH1H100D CHIP C 10PF D
C23 CC73GCH1H180J CHIP C 18PF J
C24 C92-0695-05 CHIP-TAN 10UF 10WV
C25 C92-0628-05 CHIP-TAN 10UF 10WV
C30 CC73GCH1H680J CHIP C 68PF J
C31 CC73GCH1H331J CHIP C 330PF J
C32 CK73GB1H103K CHIP C 0.010UF K
C33 CC73GCH1H330J CHIP C 33PF J
C34 CK73GB1H103K CHIP C 0.010UF K
C36 CK73GB1H102K CHIP C 1000PF K
C37 CK73GB1H103K CHIP C 0.010UF K
C38,39 CC73GCH1H680J CHIP C 68PF J
C40,41 CK73GB1H103K CHIP C 0.010UF K
C42,43 CC73GCH1H030C CHIP C 3.0PF C
C44,45 CC73GCH1H040C CHIP C 4.0PF C
C46,47 CC73GCH1H030C CHIP C 3.0PF C
C48 CK73GB1H103K CHIP C 0.010UF K
C49,50 CC73GCH1H680J CHIP C 68PF J
C51 CK73GB1H103K CHIP C 0.010UF K
C52 CK73GB1H103J CHIP C 0.010UF J
C53 CK73GB1H102K CHIP C 1000PF K
C54 CK73GB1H103J CHIP C 0.010UF J
C55,56 CK73GB1H103K CHIP C 0.010UF K
C57 CK73GB1H103J CHIP C 0.010UF J
C58 CC73GCH1H180J CHIP C 18PF J
C59 CC73GCH1H150J CHIP C 15PF J
C60 CK73GB1H103J CHIP C 0.010UF J
C61 CC73GCH1H080D CHIP C 8.0PF D
C62,63 CK73GB1H103K CHIP C 0.010UF K
C64 CK73GB1C104K CHIP C 0.10UF K
C65 C92-0628-05 CHIP-TAN 10UF 10WV
C66,67 CC73GCH1H331J CHIP C 330PF J
C68-70 CK73GB1C104K CHIP C 0.10UF K
C71 CK73GB1H103K CHIP C 0.010UF K
C72 C92-0628-05 CHIP-TAN 10UF 10WV
C73 CK73GB1C104K CHIP C 0.10UF K
C74 CK73GB1H102K CHIP C 1000PF K
C75 CK73GB1C104K CHIP C 0.10UF K
C76 C92-0696-05 CHIP-TAN 47UF 10WV
C77 CK73GB1H102K CHIP C 1000PF K
C78 CK73GB1C104K CHIP C 0.10UF K
C79 CK73FB1C224K CHIP C 0.22UF K
C80,81 C92-0628-05 CHIP-TAN 10UF 10WV
C82-84 CK73GB1H103K CHIP C 0.010UF K
C86 CK73GB1H102K CHIP C 1000PF K
C87 C92-0628-05 CHIP-TAN 10UF 10WV
C88 CK73GB1H102K CHIP C 1000PF K
C89,90 CK73GB1H103J CHIP C 0.010UF J
C91 CC73GCH1H100D CHIP C 10PF D
C92,93 CK73GB1H102K CHIP C 1000PF K
C95 CC73GCH1H150J CHIP C 15PF J
C96-99 CK73GB1H102K CHIP C 1000PF K
C100 CC73GCH1H270J CHIP C 27PF J
C102-105 CC73GCH1H100D CHIP C 10PF D
C106 CK73GB1H102K CHIP C 1000PF K
C107 CC73GCH1H150J CHIP C 15PF J
C108 CC73GCH1H030C CHIP C 3.0PF C
C109 CC73GCH1H270J CHIP C 27PF J
C110 CC73GCH1H030C CHIP C 3.0PF C
C111 CC73GCH1H270J CHIP C 27PF J
C113 CC73GCH1H150J CHIP C 15PF J
C120,121 CK73GB1H102K CHIP C 1000PF K
C122,123 CK73GB1H103K CHIP C 0.010UF K
C124,125 C92-1341-05 ELECTRO 100UF 16WV
C126,127 C92-0633-05 CHIP-TAN 22UF 10WV
C128,129 CK73GB1H103K CHIP C 0.010UF K
C130-133 CK73GB1H102K CHIP C 1000PF K
C134,135 CK73GB1H103K CHIP C 0.010UF K
C136-139 C90-4016-05 ELECTRO 47UF 16WV
C140,141 CK73GB1H103K CHIP C 0.010UF K
C142-144 CK73GB1H102K CHIP C 1000PF K
C145 C92-0606-05 CHIP-TAN 4.7UF 10WV
C146 CK73GB1H102K CHIP C 1000PF K
C147 C92-0633-05 CHIP-TAN 22UF 10WV
C148 CK73GB1H102K CHIP C 1000PF K
C149 CK73GB1H103K CHIP C 0.010UF K
C150 C92-0633-05 CHIP-TAN 22UF 10WV
C151 C92-0008-05 CHIP-TAN 3.3UF 16WV
C152 CK73GB1H103K CHIP C 0.010UF K
C153 CK73GB1H102K CHIP C 1000PF K
C154 C92-0560-05 CHIP-TAN 10UF 6.3WV
C155 CK73GB1H103K CHIP C 0.010UF K
C156 CK73GB1H102K CHIP C 1000PF K
C157 CK73GB1H103K CHIP C 0.010UF K
C158 C92-0008-05 CHIP-TAN 3.3UF 16WV
C159,160 CK73GB1H102K CHIP C 1000PF K
C161-163 CK73GB1H103K CHIP C 0.010UF K
C164 CC73GCH1H471J CHIP C 470PF J
C166,167 CK73GB1H102K CHIP C 1000PF K
C171,172 CK73GB1H102K CHIP C 1000PF K
C173 CK73GB1H103K CHIP C 0.010UF K
C174 C92-0008-05 CHIP-TAN 3.3UF 16WV
C175 CK73GB1H102K CHIP C 1000PF K
C176 CK73GB1H103K CHIP C 0.010UF K
C177 CK73GB1H102K CHIP C 1000PF K
C178 C92-0606-05 CHIP-TAN 4.7UF 10WV
C179 CK73GB1H103K CHIP C 0.010UF K
C184,185 CK73GB1H102K CHIP C 1000PF K
C189,190 CK73GB1H102K CHIP C 1000PF K
C191-195 CK73GB1H103K CHIP C 0.010UF K
C197 CK73FB1H333K CHIP C 0.033UF K
C198 CK73GB1C104K CHIP C 0.10UF K
C199 CK73GB1H103K CHIP C 0.010UF K
C204-208 CC73GCH1H101J CHIP C 100PF J
C209-211 CK73GB1H103K CHIP C 0.010UF K
C212-214 CC73GCH1H050C CHIP C 5.0PF C C
C212,213 CC73GCH1H060D CHIP C 6.0PF D C2
C214 CC73GCH1H050C CHIP C 5.0PF C C2
C216 CK73GB1H471K CHIP C 470PF K
C217 CK73GB1H102K CHIP C 1000PF K
C218 CK73GB1H103K CHIP C 0.010UF K
C219 C92-0633-05 CHIP-TAN 22UF 10WV
C600 CK73GB1C104K CHIP C 0.10UF K
C602 CK73GB1C104K CHIP C 0.10UF K
TX-RX UNIT (X57-695X-XX)
TKR-750
39
PARTS LIST /
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
C605 CK73GB1C104K CHIP C 0.10UF K
C613,614 CK73GB1E103K CHIP C 0.010UF K
C616 CK73GB1E103K CHIP C 0.010UF K
C623 CK73GB1C104K CHIP C 0.10UF K
C629 CC73GCH1H101J CHIP C 100PF J
C634,635 CC73GCH1H220J CHIP C 22PF J
C638 CK73GB1C104K CHIP C 0.10UF K
C639 CK73GB1E103K CHIP C 0.010UF K
C640 C92-0628-05 CHIP-TAN 10UF 10WV
C641 CK73GB1C104K CHIP C 0.10UF K
C642 CK73GB1E103K CHIP C 0.010UF K
C643 C92-0628-05 CHIP-TAN 10UF 10WV
C644 CK73GB1E103K CHIP C 0.010UF K
C645,646 C92-0628-05 CHIP-TAN 10UF 10WV
C647 CC73GCH1H101J CHIP C 100PF J
C648 CK73GB1E103K CHIP C 0.010UF K
C649 CC73GCH1H330J CHIP C 33PF J
C652 CC73GCH1H101J CHIP C 100PF J
C657 CK73GB1E103K CHIP C 0.010UF K
C662 C92-0628-05 CHIP-TAN 10UF 10WV
C663 C92-0519-05 CHIP-TAN 1.0UF 25WV
C670 C92-0003-05 CHIP-TAN 0.47UF 25WV
C679 C92-0628-05 CHIP-TAN 10UF 10WV
C681 C92-0546-05 CHIP-TAN 68UF 6.3WV
C684 CC73GCH1H101J CHIP C 100PF J
C685 CK73GB1E103K CHIP C 0.010UF K
C690 CC73GCH1H101J CHIP C 100PF J
C691,692 CK73GB1E103K CHIP C 0.010UF K
C693,694 C92-0628-05 CHIP-TAN 10UF 10WV
C695,696 CK73GB1H471K CHIP C 470PF K
C697,698 C92-0628-05 CHIP-TAN 10UF 10WV
C700,701 C92-0628-05 CHIP-TAN 10UF 10WV
C703,704 CK73GB1C104K CHIP C 0.10UF K
C705 CK73GB1E103K CHIP C 0.010UF K
C706 C92-0628-05 CHIP-TAN 10UF 10WV
C707-709 CK73GB1E103K CHIP C 0.010UF K
C710 C92-0628-05 CHIP-TAN 10UF 10WV
C711 CK73GB1H471K CHIP C 470PF K
C712 CK73GB1E103K CHIP C 0.010UF K
C713,714 C92-0628-05 CHIP-TAN 10UF 10WV
C715 CK73GB1E103K CHIP C 0.010UF K
C716,717 CK73GB1H471K CHIP C 470PF K
C718,719 CK73GB1E103K CHIP C 0.010UF K
C720 C92-0532-05 CHIP-TAN 1.0UF 10WV
C721,722 C92-0628-05 CHIP-TAN 10UF 10WV
C723 CK73FB1C105K CHIP C 1.0UF K
C724 CK73GB1H182K CHIP C 1800PF K
C725 CC73GCH1H470J CHIP C 47PF J
C726 CC73GCH1H181J CHIP C 180PF J
C727,728 CK73GB1E103K CHIP C 0.010UF K
C729 C92-0628-05 CHIP-TAN 10UF 10WV
C730,731 CK73GB1E103K CHIP C 0.010UF K
C732 CK73GB1H471K CHIP C 470PF K
C733 C92-0628-05 CHIP-TAN 10UF 10WV
C734 CC73GCH1H270J CHIP C 27PF J
C735 CC73GCH1H150J CHIP C 15PF J
C736 CK73GB1H182K CHIP C 1800PF K
C737 CC73GCH1H270J CHIP C 27PF J
C738 CK73GB1E103K CHIP C 0.010UF K
C739 CC73GCH1H181J CHIP C 180PF J
C740 CC73GCH1H101J CHIP C 100PF J
C741 CK73GB1E103K CHIP C 0.010UF K
C742 CK73GB1H471K CHIP C 470PF K
C743 CK73GB1E103K CHIP C 0.010UF K
C744-746 C92-0628-05 CHIP-TAN 10UF 10WV
C747,748 CK73GB1E103K CHIP C 0.010UF K
C749 CK73GB1H471K CHIP C 470PF K
C750,751 CK73GB1E103K CHIP C 0.010UF K
C752 CK73GB1H471K CHIP C 470PF K
C753,754 C92-0628-05 CHIP-TAN 10UF 10WV
C755 CK73GB1H471K CHIP C 470PF K
C756,757 C92-0628-05 CHIP-TAN 10UF 10WV
C758 CK73FB1C105K CHIP C 1.0UF K
C759 CK73GB1H471K CHIP C 470PF K
C760 CK73GB1H102K CHIP C 1000PF K
C761 CK73GB1C104K CHIP C 0.10UF K
C762,763 CK73GB1H102K CHIP C 1000PF K
C764,765 CK73GB1E103K CHIP C 0.010UF K
C766-768 CC73GCH1H101J CHIP C 100PF J
C769-771 C92-0560-05 CHIP-TAN 10UF 6.3WV
C772 C92-0823-05 CHIP-TAN 100UF 10WV
C773 C92-0514-05 CHIP-TAN 2.2UF 10WV
C774 CK73FB1C105K CHIP C 1.0UF K
C775-779 C92-0519-05 CHIP-TAN 1.0UF 25WV
C780-782 CK73FB1C105K CHIP C 1.0UF K
C783 CK73GB1H471K CHIP C 470PF K
C784 CK73FB1C105K CHIP C 1.0UF K
C785,786 CK73GB1C104K CHIP C 0.10UF K
C787 CK73FB1C105K CHIP C 1.0UF K
C788 CC73GCH1H101J CHIP C 100PF J
C789 CE04EW1E331M ELECTRO 330UF 25WV
C790 CC73GCH1H101J CHIP C 100PF J
C791 CK73GB1H471K CHIP C 470PF K
C792-794 CK73GB1H102K CHIP C 1000PF K
C795 CC73GCH1H101J CHIP C 100PF J
C796,797 CK73GB1H102K CHIP C 1000PF K
C798 CE04EW1E470M ELECTRO 47UF 25WV
C799 CK73GB1H102K CHIP C 1000PF K
C800 CE04EW1E470M ELECTRO 47UF 25WV
C801 C92-0560-05 CHIP-TAN 10UF 6.3WV
C802-805 CK73GB1H102K CHIP C 1000PF K
C806 CE04EW1E470M ELECTRO 47UF 25WV
C807-810 CK73GB1H102K CHIP C 1000PF K
C811 CE04EW1E470M ELECTRO 47UF 25WV
C812,813 CK73GB1H102K CHIP C 1000PF K
C814 C92-0777-05 ELECTRO 1000UF 25WV
C815 CK73FB1E104K CHIP C 0.10UF K
C816 CK73GB1H102K CHIP C 1000PF K
C817 CE04EW1E470M ELECTRO 47UF 25WV
C818-820 CK73GB1H102K CHIP C 1000PF K
C821,822 CC73GCH1H101J CHIP C 100PF J
C823 C92-0619-05 CHIP-TAN 47UF 4WV
C824 CK73GB1H472K CHIP C 4700PF K
C825 CK73GB1C104K CHIP C 0.10UF K
C826 C92-0560-05 CHIP-TAN 10UF 6.3WV
C827 C92-0823-05 CHIP-TAN 100UF 10WV
C828 C92-0514-05 CHIP-TAN 2.2UF 10WV
C829 CK73GB1C104K CHIP C 0.10UF K
C830 CK73GB1E103K CHIP C 0.010UF K
C831 CK73GB1H102K CHIP C 1000PF K
TX-RX UNIT (X57-695X-XX)
TKR-750
40
PARTS LIST /
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
C832,833 CK73GB1E103K CHIP C 0.010UF K
C834,835 CK73GB1C104K CHIP C 0.10UF K
C836-838 CK73GB1E103K CHIP C 0.010UF K
C839 CK73GB1H271K CHIP C 270PF K
C840 CK73GB1H472K CHIP C 4700PF K
C841 CK73FB1C105K CHIP C 1.0UF K
C842 C92-0519-05 CHIP-TAN 1.0UF 25WV
C843,844 CK73GB1C104K CHIP C 0.10UF K
C851 CK73GB1C104K CHIP C 0.10UF K
C852 CK73GB1H102K CHIP C 1000PF K
CN1 E04-0154-05 PIN SOCKET
CN2 E40-5538-05 PIN ASSY
CN3 E04-0154-05 PIN SOCKET
CN4 E40-5538-05 PIN ASSY
CN14 E40-6009-05 FLAT CABLE CONNECTOR
CN15 E40-5703-05 PIN ASSY
CN16 E40-5632-05 PIN ASSY
CN18,19 E04-0154-05 PIN SOCKET
CN600 E40-6102-05 PIN ASSY
CN601 E40-5701-05 PIN ASSY
CN602 E40-6009-05 FLAT CABLE CONNECTOR
CN603 E40-5887-05 PIN ASSY
CN604 E40-5702-05 PIN ASSY
CN605 E40-5704-05 PIN ASSY
CN606 E40-5960-05 PIN ASSY
A4-8 F11-0844-05 SHIELDING CASE
F1 F53-0217-05 FUSE
CF1 L72-0366-05 CERAMIC FILTER
CF2 L72-0376-05 CERAMIC FILTER
L1 L34-4616-05 AIR-CORE COIL
L2,3 L34-4666-05 COIL
L4 L40-1295-34 SMALL FIXED INDUCTOR (1.2UH)
L5-7 L34-4666-05 COIL
L8 L40-2275-34 SMALL FIXED INDUCTOR (22NH)
L9 L40-5675-34 SMALL FIXED INDUCTOR (56NH)
L10 L40-1581-37 SMALL FIXED INDUCTOR (0.150UH)
L11 L40-1885-34 SMALL FIXED INDUCTOR (180NH)
L12 L40-3381-37 SMALL FIXED INDUCTOR (0.330UH)
L13 L40-1005-34 SMALL FIXED INDUCTOR (10UH)
L14 L34-4527-05 COIL
L15 L34-4526-05 COIL
L16 L34-4527-05 COIL
L17,18 L34-4526-05 COIL
L19 L34-4527-05 COIL
L20 L40-1095-34 SMALL FIXED INDUCTOR (1UH)
L21 L40-1005-34 SMALL FIXED INDUCTOR (10UH)
L22 L40-8271-34 SMALL FIXED INDUCTOR (82NH)
L23 L40-1095-34 SMALL FIXED INDUCTOR (1UH)
L24 L34-4459-05 COIL
L25 L40-5675-34 SMALL FIXED INDUCTOR (56NH)
L26 L40-4775-34 SMALL FIXED INDUCTOR (47NH)
L27 L40-3995-34 SMALL FIXED INDUCTOR (3.9UH) C
L27,28 L40-1005-34 SMALL FIXED INDUCTOR (10UH) C2
L28 L40-1005-34 SMALL FIXED INDUCTOR (10UH) C
L29-31 L40-3375-34 SMALL FIXED INDUCTOR (33NH)
L32 L40-1085-45 SMALL FIXED INDUCTOR (0.10UH)
L33 L40-1005-34 SMALL FIXED INDUCTOR (10UH)
L34-38 L92-0140-05 CHIP FERRITE
L39 L92-0158-05 CHIP FERRITE
L41 L40-1085-92 SMALL FIXED INDUCTOR (100NH)
L43 L92-0140-05 CHIP FERRITE
L600-608 L92-0140-05 CHIP FERRITE
L611-613 L92-0140-05 CHIP FERRITE
X1 L77-1762-05 CRYSTAL RESONATOR (44.395MHZ)
X2,3 L77-1848-05 VCXO (16.8MHZ/2.0PP)
X600 L78-0431-05 RESONATOR (14.7456MHZ)
X601 L77-1799-05 CRYSTAL RESONATOR (16.515MHZ)
XF1 L71-0513-05 MCF (44.85MHZ NARROW)
XF2 L71-0512-05 MCF (44.85MHZ WIDE)
CP600,601 R90-0725-05 MULTI-COMP 1K X2
CP603 R90-1019-05 MULTI-COMP 100 X2
CP604,605 R90-0725-05 MULTI-COMP 1K X2
CP606 R90-0719-05 MULTI-COMP 4.7K X2
CP607,608 R90-0725-05 MULTI-COMP 1K X2
CP609 R90-1019-05 MULTI-COMP 100 X2
CP610,611 R90-0750-05 CHIP COM 10 J 1/16W
CP612-614 R90-0725-05 MULTI-COMP 1K X2
CP615-619 R90-0750-05 CHIP COM 10 J 1/16W
CP620 R90-1019-05 MULTI-COMP 100 X2
R1 RK73GB1J272J CHIP R 2.7K J 1/16W
R3 RK73GB1J681J CHIP R 680 J 1/16W
R4 RK73GB1J100J CHIP R 10 J 1/16W
R5 RK73GB1J680J CHIP R 68 J 1/16W
R6 RK73GB1J102J CHIP R 1.0K J 1/16W
R7 RK73GB1J103J CHIP R 10K J 1/16W
R8 RK73GB1J333J CHIP R 33K J 1/16W
R9 RK73GB1J101J CHIP R 100 J 1/16W
R10 RK73GB1J473J CHIP R 47K J 1/16W
R11 RK73GB1J223J CHIP R 22K J 1/16W
R13 RK73GB1J470J CHIP R 47 J 1/16W
R14,15 RK73GB1J271J CHIP R 270 J 1/16W
R16 RK73GB1J180J CHIP R 18 J 1/16W
R17 R92-0670-05 CHIP R 0 OHM
R18 RK73GB1J474J CHIP R 470K J 1/16W
R19 RK73GB1J224J CHIP R 220K J 1/16W
R20 RK73GB1J824J CHIP R 820K J 1/16W
R21 RK73GB1J684J CHIP R 680K J 1/16W
R22 RK73GB1J471J CHIP R 470 J 1/16W
R30 RK73GB1J821J CHIP R 820 J 1/16W
R31 RK73GB1J5R6J CHIP R 5.6 J 1/16W
R32 RK73GB1J821J CHIP R 820 J 1/16W
R33 RK73GB1J470J CHIP R 47 J 1/16W
R34 RK73GB1J102J CHIP R 1.0K J 1/16W
R35 RK73GB1J182J CHIP R 1.8K J 1/16W
R36 RK73GB1J102J CHIP R 1.0K J 1/16W
R37 RK73GB1J682J CHIP R 6.8K J 1/16W
R38 R92-1252-05 CHIP R 0 OHM J 1/16W
R39 RK73GB1J560J CHIP R 56 J 1/16W
R40 RK73GB1J270J CHIP R 27 J 1/16W
R41 RK73GB1J222J CHIP R 2.2K J 1/16W
R42-45 RK73GB1J223J CHIP R 22K J 1/16W
R46 RK73GB1J222J CHIP R 2.2K J 1/16W
R47 RK73GB1J153J CHIP R 15K J 1/16W
R48 RK73GB1J473J CHIP R 47K J 1/16W
R49 RK73GB1J221J CHIP R 220 J 1/16W
R50 RK73GB1J153J CHIP R 15K J 1/16W
R51 R92-1252-05 CHIP R 0 OHM J 1/16W
R52 RK73GB1J223J CHIP R 22K J 1/16W
R53 RK73GB1J682J CHIP R 6.8K J 1/16W
TX-RX UNIT (X57-695X-XX)
TKR-750
41
PARTS LIST /
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
R54 RK73GB1J102J CHIP R 1.0K J 1/16W
R55 RK73GB1J223J CHIP R 22K J 1/16W
R56 RK73GB1J682J CHIP R 6.8K J 1/16W
R57 RK73GB1J332J CHIP R 3.3K J 1/16W
R58 RK73GB1J153J CHIP R 15K J 1/16W
R60 RK73GB1J103J CHIP R 10K J 1/16W
R61 RK73GB1J274J CHIP R 270K J 1/16W
R62 RK73GB1J222J CHIP R 2.2K J 1/16W
R63 RK73GB1J183J CHIP R 18K J 1/16W
R65 RK73GB1J472J CHIP R 4.7K J 1/16W
R66 RK73GB1J334J CHIP R 330K J 1/16W
R67 RK73GB1J560J CHIP R 56 J 1/16W
R68,69 RK73GB1J332J CHIP R 3.3K J 1/16W
R70 RK73GB1J102J CHIP R 1.0K J 1/16W
R71 RK73GB1J823J CHIP R 82K J 1/16W
R72 RK73GB1J334J CHIP R 330K J 1/16W
R73 RK73GB1J474J CHIP R 470K J 1/16W
R74,75 RK73GB1J220J CHIP R 22 J 1/16W
R76 RK73GB1J104J CHIP R 100K J 1/16W
R77,78 RK73GB1J473J CHIP R 47K J 1/16W
R79 RK73GB1J104J CHIP R 100K J 1/16W
R82 RK73GB1J474J CHIP R 470K J 1/16W
R83 R92-1252-05 CHIP R 0 OHM J 1/16W
R87,88 RK73GB1J102J CHIP R 1.0K J 1/16W
R90 R92-1252-05 CHIP R 0 OHM J 1/16W
R91 RK73GB1J472J CHIP R 4.7K J 1/16W
R92 RK73GB1J182J CHIP R 1.8K J 1/16W
R93 RK73GB1J101J CHIP R 100 J 1/16W
R94 RK73GB1J470J CHIP R 47 J 1/16W
R95 RK73GB1J472J CHIP R 4.7K J 1/16W
R96 RK73GB1J182J CHIP R 1.8K J 1/16W
R97 RK73GB1J472J CHIP R 4.7K J 1/16W
R98 RK73GB1J182J CHIP R 1.8K J 1/16W
R99 RK73GB1J101J CHIP R 100 J 1/16W
R100 RK73GB1J220J CHIP R 22 J 1/16W
R104 R92-0670-05 CHIP R 0 OHM
R106 R92-1252-05 CHIP R 0 OHM J 1/16W
R109 RK73GB1J101J CHIP R 100 J 1/16W
R110 RK73GB1J821J CHIP R 820 J 1/16W
R111 RK73GB1J5R6J CHIP R 5.6 J 1/16W
R112 RK73GB1J821J CHIP R 820 J 1/16W
R120,121 RK73GB1J152J CHIP R 1.5K J 1/16W
R122,123 RK73GB1J100J CHIP R 10 J 1/16W
R124,125 RK73GB1J152J CHIP R 1.5K J 1/16W
R126,127 RK73GB1J100J CHIP R 10 J 1/16W
R128 RK73GB1J472J CHIP R 4.7K J 1/16W
R129,130 RK73GB1J473J CHIP R 47K J 1/16W
R137,138 RK73GB1J102J CHIP R 1.0K J 1/16W
R139-142 R92-1252-05 CHIP R 0 OHM J 1/16W
R143 RK73GB1J102J CHIP R 1.0K J 1/16W
R144 RK73GB1J223J CHIP R 22K J 1/16W
R148 RK73GB1J223J CHIP R 22K J 1/16W
R150 RK73GB1J180J CHIP R 18 J 1/16W
R151-158 RK73GB1J102J CHIP R 1.0K J 1/16W
R159 RK73GB1J221J CHIP R 220 J 1/16W
R160 RK73GB1J271J CHIP R 270 J 1/16W
R161,162 RK73GB1J471J CHIP R 470 J 1/16W
R163,164 RK73GB1J271J CHIP R 270 J 1/16W
R165 RK73GB1J471J CHIP R 470 J 1/16W
R166 RK73GB1J223J CHIP R 22K J 1/16W
R176 RK73GB1J473J CHIP R 47K J 1/16W
R196 RK73GB1J392J CHIP R 3.9K J 1/16W
R197 RK73GB1J182J CHIP R 1.8K J 1/16W
R198 R92-1252-05 CHIP R 0 OHM J 1/16W
R600 RK73GB1J473J CHIP R 47K J 1/16W
R601 R92-0670-05 CHIP R 0 OHM
R602 RK73GB1J472J CHIP R 4.7K J 1/16W
R603 RK73GB1J102J CHIP R 1.0K J 1/16W
R604 RK73GB1J333J CHIP R 33K J 1/16W
R605 RK73GB1J104J CHIP R 100K J 1/16W
R606 RK73GB1J473J CHIP R 47K J 1/16W
R607-613 R92-1252-05 CHIP R 0 OHM J 1/16W
R614 RK73GB1J473J CHIP R 47K J 1/16W
R615 R92-1252-05 CHIP R 0 OHM J 1/16W
R616 RK73GB1J473J CHIP R 47K J 1/16W
R618 R92-1252-05 CHIP R 0 OHM J 1/16W
R619 RK73GB1J473J CHIP R 47K J 1/16W
R620-622 RK73GB1J102J CHIP R 1.0K J 1/16W
R623,624 R92-1252-05 CHIP R 0 OHM J 1/16W
R625-627 RK73GB1J102J CHIP R 1.0K J 1/16W
R629 R92-1252-05 CHIP R 0 OHM J 1/16W
R630,631 RK73GB1J473J CHIP R 47K J 1/16W
R633,634 RK73GB1J473J CHIP R 47K J 1/16W
R635 RK73GB1J102J CHIP R 1.0K J 1/16W
R637 R92-1252-05 CHIP R 0 OHM J 1/16W
R638 RK73GB1J102J CHIP R 1.0K J 1/16W
R639 R92-1252-05 CHIP R 0 OHM J 1/16W
R640 RK73GB1J102J CHIP R 1.0K J 1/16W
R641 R92-1252-05 CHIP R 0 OHM J 1/16W
R642 RK73GB1J102J CHIP R 1.0K J 1/16W
R643 RK73GB1J473J CHIP R 47K J 1/16W
R644 RK73GB1J102J CHIP R 1.0K J 1/16W
R645,646 RK73GB1J473J CHIP R 47K J 1/16W
R647,648 RK73GB1J101J CHIP R 100 J 1/16W
R649-651 RK73GB1J102J CHIP R 1.0K J 1/16W
R652 RK73GB1J101J CHIP R 100 J 1/16W
R653,654 R92-0670-05 CHIP R 0 OHM
R655 RK73GB1J473J CHIP R 47K J 1/16W
R656 RK73GB1J102J CHIP R 1.0K J 1/16W
R657-661 RK73GB1J473J CHIP R 47K J 1/16W
R662 RK73GB1J102J CHIP R 1.0K J 1/16W
R663-667 RK73GB1J473J CHIP R 47K J 1/16W
R668 RK73GB1J183J CHIP R 18K J 1/16W
R669-671 RK73GB1J223J CHIP R 22K J 1/16W
R672 RK73GB1J104J CHIP R 100K J 1/16W
R673 RK73GB1J224J CHIP R 220K J 1/16W
R674 RK73GB1J823J CHIP R 82K J 1/16W
R675 RK73GB1J104J CHIP R 100K J 1/16W
R676 RK73GB1J823J CHIP R 82K J 1/16W
R678 RK73GB1J104J CHIP R 100K J 1/16W
R679,680 RK73GB1J223J CHIP R 22K J 1/16W
R681 RK73GB1J183J CHIP R 18K J 1/16W
R682 RK73GB1J153J CHIP R 15K J 1/16W
R683 RK73GB1J124J CHIP R 120K J 1/16W
R684 RK73GB1J473J CHIP R 47K J 1/16W
R685,686 RK73GB1J104J CHIP R 100K J 1/16W
R687 RK73GB1J223J CHIP R 22K J 1/16W
R688-690 RK73GB1J473J CHIP R 47K J 1/16W
R691-693 R92-1252-05 CHIP R 0 OHM J 1/16W
R694,695 RK73GB1J101J CHIP R 100 J 1/16W
TX-RX UNIT (X57-695X-XX)
TKR-750
42
PARTS LIST /
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
R696 RK73GB1J103J CHIP R 10K J 1/16W
R697 RK73GB1J101J CHIP R 100 J 1/16W
R698 RK73GB1J103J CHIP R 10K J 1/16W
R699 R92-1252-05 CHIP R 0 OHM J 1/16W
R700 RK73GB1J101J CHIP R 100 J 1/16W
R701 R92-1252-05 CHIP R 0 OHM J 1/16W
R702 RK73GB1J473J CHIP R 47K J 1/16W
R703 R92-1252-05 CHIP R 0 OHM J 1/16W
R704,705 RK73GB1J473J CHIP R 47K J 1/16W
R707-709 RK73GB1J223J CHIP R 22K J 1/16W
R710 RK73GB1J473J CHIP R 47K J 1/16W
R712 RK73GB1J473J CHIP R 47K J 1/16W
R713 RK73GB1J273J CHIP R 27K J 1/16W
R714 RK73GB1J223J CHIP R 22K J 1/16W
R715 RK73GB1J103J CHIP R 10K J 1/16W
R717,718 RK73GB1J473J CHIP R 47K J 1/16W
R719 RK73GB1J154J CHIP R 150K J 1/16W
R720 RK73GB1J473J CHIP R 47K J 1/16W
R721 RK73GB1J223J CHIP R 22K J 1/16W
R722 RK73GB1J334J CHIP R 330K J 1/16W
R723,724 R92-1252-05 CHIP R 0 OHM J 1/16W
R726 RK73GB1J473J CHIP R 47K J 1/16W
R727 R92-1252-05 CHIP R 0 OHM J 1/16W
R728,729 RK73GB1J223J CHIP R 22K J 1/16W
R730 RK73GB1J101J CHIP R 100 J 1/16W
R731 RK73GB1J472J CHIP R 4.7K J 1/16W
R732 RK73GB1J473J CHIP R 47K J 1/16W
R733 R92-1252-05 CHIP R 0 OHM J 1/16W
R734 RK73GB1J473J CHIP R 47K J 1/16W
R735 RK73GB1J333J CHIP R 33K J 1/16W
R736,737 RK73GB1J473J CHIP R 47K J 1/16W
R738 RK73GB1J274J CHIP R 270K J 1/16W
R739 RK73GB1J103J CHIP R 10K J 1/16W
R740 RK73GB1J104J CHIP R 100K J 1/16W
R741 RK73GB1J154J CHIP R 150K J 1/16W
R742 R92-0670-05 CHIP R 0 OHM
R743 RK73GB1J473J CHIP R 47K J 1/16W
R744 RK73GB1J393J CHIP R 39K J 1/16W
R745 RK73GB1J473J CHIP R 47K J 1/16W
R747 RK73GB1J103J CHIP R 10K J 1/16W
R749-752 R92-1252-05 CHIP R 0 OHM J 1/16W
R753,754 RK73GB1J473J CHIP R 47K J 1/16W
R758 RK73GB1J103J CHIP R 10K J 1/16W
R760 RK73GB1J122J CHIP R 1.2K J 1/16W
R762 RK73GB1J472J CHIP R 4.7K J 1/16W
R763 RK73GB1J103J CHIP R 10K J 1/16W
R764,765 RK73GB1J102J CHIP R 1.0K J 1/16W
R766 RK73GB1J122J CHIP R 1.2K J 1/16W
R767 RK73GB1J473J CHIP R 47K J 1/16W
R768 RK73GB1J122J CHIP R 1.2K J 1/16W
R771 RK73GB1J122J CHIP R 1.2K J 1/16W
R772 RK73GB1J473J CHIP R 47K J 1/16W
R773 RK73GB1J102J CHIP R 1.0K J 1/16W
R774 RK73GB1J105J CHIP R 1.0M J 1/16W
R775 RK73GB1J473J CHIP R 47K J 1/16W
R776 RK73GB1J102J CHIP R 1.0K J 1/16W
R777 RK73GB1J473J CHIP R 47K J 1/16W
R778 RK73GB1J102J CHIP R 1.0K J 1/16W
R779 RK73GB1J473J CHIP R 47K J 1/16W
R780 RK73GB1J102J CHIP R 1.0K J 1/16W
R781 RK73GB1J471J CHIP R 470 J 1/16W
R782 RK73GB1J473J CHIP R 47K J 1/16W
R783 RK73GB1J102J CHIP R 1.0K J 1/16W
R785 RK73GB1J102J CHIP R 1.0K J 1/16W
R786 RK73GB1J473J CHIP R 47K J 1/16W
R787 RK73GB1J102J CHIP R 1.0K J 1/16W
R789 RK73GB1J102J CHIP R 1.0K J 1/16W
R790 RK73GB1J473J CHIP R 47K J 1/16W
R791 RK73GB1J102J CHIP R 1.0K J 1/16W
R793 RK73GB1J102J CHIP R 1.0K J 1/16W
R794 RK73GB1J473J CHIP R 47K J 1/16W
R795 RK73GB1J102J CHIP R 1.0K J 1/16W
R798 RK73GB1J473J CHIP R 47K J 1/16W
R799 RK73GB1J102J CHIP R 1.0K J 1/16W
R802 RK73FB2A2R2J CHIP R 2.2 J 1/10W
R803 RK73GB1J473J CHIP R 47K J 1/16W
R804 RK73GB1J102J CHIP R 1.0K J 1/16W
R805 RK73GB1J473J CHIP R 47K J 1/16W
R806 RK73GB1J102J CHIP R 1.0K J 1/16W
R807 RK73GB1J473J CHIP R 47K J 1/16W
R808 RK73GB1J102J CHIP R 1.0K J 1/16W
R809 RK73GB1J473J CHIP R 47K J 1/16W
R810 RK73GB1J102J CHIP R 1.0K J 1/16W
R811 RK73GB1J473J CHIP R 47K J 1/16W
R812 RK73GB1J223J CHIP R 22K J 1/16W
R813,814 RK73GB1J473J CHIP R 47K J 1/16W
R815 RK73GB1J104J CHIP R 100K J 1/16W
R817 RK73GB1J101J CHIP R 100 J 1/16W
R818 RK73GB1J102J CHIP R 1.0K J 1/16W
R819-822 RK73GB1J103J CHIP R 10K J 1/16W
R823 RK73GB1J474J CHIP R 470K J 1/16W
R824 RK73GB1J472J CHIP R 4.7K J 1/16W
R825,826 RK73GB1J824J CHIP R 820K J 1/16W
R827 RK73GB1J822J CHIP R 8.2K J 1/16W
R828 RK73GB1J273J CHIP R 27K J 1/16W
R829 RK73GB1J224J CHIP R 220K J 1/16W
R830 RK73GB1J563J CHIP R 56K J 1/16W
R831 RK73GB1J154J CHIP R 150K J 1/16W
R832 RK73GB1J822J CHIP R 8.2K J 1/16W
R833 RK73GB1J223J CHIP R 22K J 1/16W
R834 RK73GB1J332J CHIP R 3.3K J 1/16W
R836 RK73GB1J473J CHIP R 47K J 1/16W
R837 RK73GB1J332J CHIP R 3.3K J 1/16W
R839,840 RK73GB1J561J CHIP R 560 J 1/16W
R841,842 R92-0670-05 CHIP R 0 OHM
R843 RK73GB1J274J CHIP R 270K J 1/16W
R844 RK73GB1J334J CHIP R 330K J 1/16W
K1 S76-0401-05 RELAY
D1-4 DAN235K DIODE
D5 MA742 DIODE
D7 1SS355 DIODE
D8 DAN235K DIODE
D11 02DZ5.1(Y) ZENER DIODE
D12 02DZ18(X,Y) ZENER DIODE
D13 MA742 DIODE
D600 DA204U DIODE
D606-612 DA204U DIODE
D614-616 DA204U DIODE
TX-RX UNIT (X57-695X-XX)
TKR-750
43
PARTS LIST /
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
D618-623 DA204U DIODE
D626 MINISMDE190 VARISTOR
D627,628 1SS355 DIODE
D629 DA204U DIODE
IC1 NJM2904E MOS-IC
IC2 NJM4558E MOS-IC
IC3 NJM78L05UA BI-POLAR IC
IC4 NJM7808FA BI-POLAR IC
IC5 AN8009M MOS-IC
IC6 M62354GP MOS-IC
IC7 BU4094BCF MOS-IC
IC9 TK14489V BI-POLAR IC
IC10 TA7808F ANALOGUE IC
IC11 NJM78L05UA BI-POLAR IC
IC600 AT24C08A10SI18 ROM IC
IC601 RH5VL42C MOS-IC
IC602 BU4094BCFV MOS-IC
IC603 TC74LVX4245FS MOS-IC
IC604 30622M4A-487GP MICROPROCESSOR IC
IC605 BU4053BCF MOS-IC
IC606 TC74LVX4245FS MOS-IC
IC607 NJM4558E MOS-IC
IC608 TA75S01F MOS-IC
IC609 AT29C020-90TI ROM IC
IC610 TA75S01F MOS-IC
IC611 NJM4558E MOS-IC
IC612 TC7S04FU MOS-IC
IC613 TC74VHC4040FT MOS-IC
IC614 AK4550VT MOS-IC
IC615 M62364FP MOS-IC
IC616,617 NJM4558E MOS-IC
IC618 320VC5402PGE MICROPROCESSOR IC
IC619 TC75W51FU MOS-IC
IC620 ADM202EARN MOS-IC
IC621 TC7S00FU MOS-IC
IC622 TC7S66FU MOS-IC
IC623 BU4094BCFV MOS-IC
IC624 XC62FP1802P MOS-IC
IC625,626 XC62FP3302P MOS-IC
IC627,628 TA78L05F MOS-IC
IC629 3B LA4422 BI-POLAR IC
IC630 TA78L05F MOS-IC
IC631,632 TA75W01FU MOS-IC
Q1,2 2SC3357 TRANSISTOR
Q3 2SC3356(R24) TRANSISTOR
Q4 DTC144EUA DIGITAL TRANSISTOR
Q5 DTA144EUA DIGITAL TRANSISTOR
Q6 DTC144EUA DIGITAL TRANSISTOR
Q7 2SC4617(S) TRANSISTOR
Q8 2SC3120 TRANSISTOR
Q9 2SC3357 TRANSISTOR
Q10 2SA1586(Y,GR) TRANSISTOR
Q11 2SC3120 TRANSISTOR
Q12-15 2SC4116(GR) TRANSISTOR
Q16 2SB1132(Q,R) TRANSISTOR
Q17 DTC114EUA DIGITAL TRANSISTOR
Q18 2SB1386(R) TRANSISTOR
Q19 DTC114EUA DIGITAL TRANSISTOR
Q23 DTC114EUA DIGITAL TRANSISTOR
Q24 DTD114EK DIGITAL TRANSISTOR
Q25,26 DTC114EUA DIGITAL TRANSISTOR
Q27 DTC144EUA DIGITAL TRANSISTOR
Q600 2SK1824 FET
Q601 DTC114EUA DIGITAL TRANSISTOR
Q602 2SK1824 FET
Q603 DTC114EUA DIGITAL TRANSISTOR
Q604 2SK1824 FET
Q605 DTC114EUA DIGITAL TRANSISTOR
Q606 DTC363EU DIGITAL TRANSISTOR
Q607,608 DTC144EUA DIGITAL TRANSISTOR
Q609 DTC114EUA DIGITAL TRANSISTOR
Q610 2SJ506(S) FET
Q611 DTC114EUA DIGITAL TRANSISTOR
Q612 DTC144EUA DIGITAL TRANSISTOR
Q613,614 DTD123TK DIGITAL TRANSISTOR
Q615 DTC144EUA DIGITAL TRANSISTOR
TH1 157-503-53006 THERMISTOR
TH700,701 B57331V2103J THERMISTOR
A1 W02-1939-05 DBM
C304,305 CK73GB1H102K CHIP C 1000PF K
C306 CK73GB1H103K CHIP C 0.010UF K
C307 CK73GB1H102K CHIP C 1000PF K
C308-310 CK73FB1E104K CHIP C 0.10UF K
C311 C92-0001-05 CHIP-TAN 0.1UF 35WV
C312 CC73GCH1H150J CHIP C 15PF J
C313 CC73GCH1H030C CHIP C 3.0PF C
C314 CC73GCH1H270J CHIP C 27PF J
C315 CK73FB1H473K CHIP C 0.047UF K
C316 CC73GCH1H030C CHIP C 3.0PF C
C317 CC73GCH1H150J CHIP C 15PF J
C318 C92-0514-05 CHIP-TAN 2.2UF 10WV
C319 CK73GB1H102K CHIP C 1000PF K
C320 C92-0514-05 CHIP-TAN 2.2UF 10WV
C321 CC73GCH1H470J CHIP C 47PF J
C322 CK73GB1H102K CHIP C 1000PF K
C323 CK73FB1E224K CHIP C 0.22UF K
C324 C92-0003-05 CHIP-TAN 0.47UF 25WV
C325 CC73GCH1H050C CHIP C 5.0PF C
C327 C92-0514-05 CHIP-TAN 2.2UF 10WV
C354 CK73GB1H102K CHIP C 1000PF K
C355 CC73GCH1H390J CHIP C 39PF J
C356 CC73GCH1H330J CHIP C 33PF J
C357 CK73GB1H102K CHIP C 1000PF K
C358 CC73GCH1H040B CHIP C 4.0PF B
C359 CC73GCH1H080B CHIP C 8.0PF B
C360,361 CK73FB1C474K CHIP C 0.47UF K
C362,363 CC73GCH1H470J CHIP C 47PF J
C364,365 CK73GB1H102K CHIP C 1000PF K
C366 CC73GCH1H180G CHIP C 18PF G
C367 CC73GCH1H150G CHIP C 15PF G
C368 CC73GCH1H180G CHIP C 18PF G
C369 CC73GCH1H150G CHIP C 15PF G
C370 CC73GCH1H180G CHIP C 18PF G
C371 CC73GCH1H150G CHIP C 15PF G
RX VCO UNIT (X58-4780-10)
TX-RX UNIT (X57-695X-XX)
RX VCO UNIT (X58-4780-10)
TKR-750
44
PARTS LIST /
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
C372,373 CK73GB1H102K CHIP C 1000PF K
C374,375 CC73GCH1H010B CHIP C 1.0PF B
C376-378 CK73GB1H102K CHIP C 1000PF K
C379 CC73GCH1H100C CHIP C 10PF C
C383 CK73GB1H102K CHIP C 1000PF K
TC350,351 C05-0396-05 CERAMIC TRIMMER CAPACITOR (8PF)
CN300 E40-5699-05 PIN ASSY
CN350 E40-5755-05 PIN ASSY
CN351 E40-6098-05 PIN ASSY
-F10-2377-04 SHIELDING CASE
L300 L92-0148-05 CHIP FERRITE
L301,302 L40-3975-34 SMALL FIXED INDUCTOR (39NH)
L303 L40-1085-34 SMALL FIXED INDUCTOR (100NH)
L350-355 L33-1268-15 SMALL FIXED INDUCTOR
L356,357 L34-4612-05 AIR-CORE COIL
L358-361 L33-1268-15 SMALL FIXED INDUCTOR
L362 L40-8271-34 SMALL FIXED INDUCTOR (82NH)
R300 RK73GB1J100J CHIP R 10 J 1/16W
R301-304 RK73GB1J101J CHIP R 100 J 1/16W
R305 R92-1252-05 CHIP R 0 OHM J 1/16W
R306 RK73GB1J220J CHIP R 22 J 1/16W
R308 RK73GB1J560J CHIP R 56 J 1/16W
R309 RK73GB1J221J CHIP R 220 J 1/16W
R310 RK73GB1J682J CHIP R 6.8K J 1/16W
R311 RK73GB1J223J CHIP R 22K J 1/16W
R312 RK73GB1J221J CHIP R 220 J 1/16W
R313 RK73GB1J222J CHIP R 2.2K J 1/16W
R314 RK73GB1J474J CHIP R 470K J 1/16W
R315 RK73GB1J331J CHIP R 330 J 1/16W
R316 RK73FB2A152J CHIP R 1.5K J 1/10W
R317,318 R92-1252-05 CHIP R 0 OHM J 1/16W
R319 RK73GB1J330J CHIP R 33 J 1/16W
R320 RK73GB1J102J CHIP R 1.0K J 1/16W
R321 RK73GB1J223J CHIP R 22K J 1/16W
R322 RK73GB1J103J CHIP R 10K J 1/16W
R350-353 R92-1252-05 CHIP R 0 OHM J 1/16W
R354,355 RK73GB1J330J CHIP R 33 J 1/16W
R356,357 RK73GB1J271J CHIP R 270 J 1/16W
R358,359 RK73GB1J470J CHIP R 47 J 1/16W
R360-363 RK73GB1J472J CHIP R 4.7K J 1/16W
R364 RK73GB1J103J CHIP R 10K J 1/16W
R365 RK73GB1J473J CHIP R 47K J 1/16W
R366 RK73GB1J103J CHIP R 10K J 1/16W
R367 RK73GB1J221J CHIP R 220 J 1/16W
R368 RK73GB1J330J CHIP R 33 J 1/16W
D350-353 1SV282 VARIABLE CAPACITANCE DIODE
IC300 CD8468 MOS-IC
IC300 SA7025DK MOS-IC
Q300,301 2SC4116(GR) TRANSISTOR
Q302 2SC4215(Y) TRANSISTOR
Q350,351 2SK508NV(K52) FET
Q352,353 2SC4116(Y) TRANSISTOR
Q354 DTC114EUA DIGITAL TRANSISTOR
Q355 2SC4215(Y) TRANSISTOR
C304,305 CK73GB1H102K CHIP C 1000PF K
C306 CK73GB1H103K CHIP C 0.010UF K
C307 CK73GB1H102K CHIP C 1000PF K
C308-310 CK73FB1E104K CHIP C 0.10UF K
C311 C92-0001-05 CHIP-TAN 0.1UF 35WV
C312 CC73GCH1H220J CHIP C 22PF J
C313 CC73GCH1H040C CHIP C 4.0PF C
C314 CC73GCH1H390J CHIP C 39PF J
C315 CK73FB1H473K CHIP C 0.047UF K
C316 CC73GCH1H040C CHIP C 4.0PF C
C317 CC73GCH1H220J CHIP C 22PF J
C318 C92-0514-05 CHIP-TAN 2.2UF 10WV
C319 CK73GB1H102K CHIP C 1000PF K
C320 C92-0514-05 CHIP-TAN 2.2UF 10WV
C321 CC73GCH1H470J CHIP C 47PF J
C322 CK73GB1H102K CHIP C 1000PF K
C323 CK73FB1E224K CHIP C 0.22UF K
C324 C92-0003-05 CHIP-TAN 0.47UF 25WV
C325 CC73GCH1H050C CHIP C 5.0PF C
C329,330 CK73GB1H102K CHIP C 1000PF K
C354 CK73GB1H102K CHIP C 1000PF K
C355 CC73GCH1H180G CHIP C 18PF G
C356 CC73GCH1H270G CHIP C 27PF G
C357 CK73GB1H102K CHIP C 1000PF K
C360,361 CK73FB1C474K CHIP C 0.47UF K
C362 CC73GCH1H220G CHIP C 22PF G
C363 CC73GCH1H180G CHIP C 18PF G
C364,365 CK73GB1H102K CHIP C 1000PF K
C366 CC73GCH1H270G CHIP C 27PF G
C367 CC73GCH1H180G CHIP C 18PF G
C368 CC73GCH1H150G CHIP C 15PF G
C369 CC73GCH1H090B CHIP C 9.0PF B
C370 CC73GCH1H150G CHIP C 15PF G
C371 CC73GCH1H090B CHIP C 9.0PF B
C372,373 CK73GB1H102K CHIP C 1000PF K
C374,375 CC73GCH1H010B CHIP C 1.0PF B
C376-378 CK73GB1H102K CHIP C 1000PF K
C379 CC73GCH1H100C CHIP C 10PF C
C380,381 CC73GCH1HR75B CHIP C 0.75PF B
C382,383 CK73GB1H102K CHIP C 1000PF K
TC350,351 C05-0396-05 CERAMIC TRIMMER CAPACITOR (8PF)
CN300 E40-5699-05 PIN ASSY
CN350 E40-5755-05 PIN ASSY
CN351 E40-6098-05 PIN ASSY
-F10-2377-04 SHIELDING CASE
L300 L92-0148-05 CHIP FERRITE
L301,302 L40-3975-34 SMALL FIXED INDUCTOR (39NH)
L303 L40-1085-34 SMALL FIXED INDUCTOR (100NH)
L304-307 L92-0140-05 CHIP FERRITE
L350-355 L33-1268-15 SMALL FIXED INDUCTOR
L356,357 L34-4612-05 AIR-CORE COIL
L360,361 L33-1268-15 SMALL FIXED INDUCTOR
L362 L40-8271-34 SMALL FIXED INDUCTOR (82NH)
R300 RK73GB1J100J CHIP R 10 J 1/16W
R301-304 RK73GB1J101J CHIP R 100 J 1/16W
R305 R92-1252-05 CHIP R 0 OHM J 1/16W
TX VCO UNIT (X58-4790-10)
RX VCO UNIT (X58-4780-10)
TX VCO UNIT (X58-4790-10)
TKR-750
45
PARTS LIST /
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
Ref. No.
Address
Parts No. Description Desti-
nation
New
parts
R306 RK73GB1J220J CHIP R 22 J 1/16W
R308 RK73GB1J560J CHIP R 56 J 1/16W
R309 RK73GB1J221J CHIP R 220 J 1/16W
R310 RK73GB1J682J CHIP R 6.8K J 1/16W
R311 RK73GB1J223J CHIP R 22K J 1/16W
R312 RK73GB1J221J CHIP R 220 J 1/16W
R313 RK73GB1J222J CHIP R 2.2K J 1/16W
R314 RK73GB1J474J CHIP R 470K J 1/16W
R315 RK73GB1J331J CHIP R 330 J 1/16W
R316 RK73FB2A152J CHIP R 1.5K J 1/10W
R317,318 R92-1252-05 CHIP R 0 OHM J 1/16W
R319 RK73GB1J330J CHIP R 33 J 1/16W
R320 RK73GB1J102J CHIP R 1.0K J 1/16W
R321 RK73GB1J223J CHIP R 22K J 1/16W
R322 RK73GB1J103J CHIP R 10K J 1/16W
R350-353 R92-1252-05 CHIP R 0 OHM J 1/16W
R354,355 RK73GB1J330J CHIP R 33 J 1/16W
R356,357 RK73GB1J471J CHIP R 470 J 1/16W
R358,359 RK73GB1J470J CHIP R 47 J 1/16W
R360-363 RK73GB1J472J CHIP R 4.7K J 1/16W
R364 RK73GB1J103J CHIP R 10K J 1/16W
R365 RK73GB1J473J CHIP R 47K J 1/16W
R366 RK73GB1J103J CHIP R 10K J 1/16W
R367 RK73GB1J221J CHIP R 220 J 1/16W
R368 RK73GB1J330J CHIP R 33 J 1/16W
R370,371 RK73GB1J103J CHIP R 10K J 1/16W
R372 RK73GB1J223J CHIP R 22K J 1/16W
R373 RK73GB1J104J CHIP R 100K J 1/16W
R374 RK73GB1J223J CHIP R 22K J 1/16W
R375 RK73GB1J104J CHIP R 100K J 1/16W
D350-353 1SV282 VARIABLE CAPACITANCE DIODE
D354,355 1SV214 VARIABLE CAPACITANCE DIODE
IC300 CD8468 MOS-IC
IC300 SA7025DK MOS-IC
Q300,301 2SC4116(GR) TRANSISTOR
Q302 2SC4215(Y) TRANSISTOR
Q350,351 2SK508NV(K52) FET
Q352,353 2SC4116(Y) TRANSISTOR
Q354 DTC114EUA DIGITAL TRANSISTOR
Q355 2SC4215(Y) TRANSISTOR
TX VCO UNIT (X58-4790-10)
TKR-750
46
3
2
1
BA
66
567
68
70
45
46
IC629
10
31
14
43
29
64
51
20 19
3
2
27
25
26
46
1
32
24
23 22
Px3
Px5
Px6
Dx3
700
Cx3
Cx3
Lx2 Gx3
Nx2
Px10
Px11
L
Lx2
Hx6
Hx6
R
Final
(A/2)
TX-RX
(A/2)
TX-RX
(B/2)
Ox4
Display
(A/2)
Display
(B/2) 56
58
A: N09-2292-05
BM2.6 x 6 : N30-2606-46
CM4 x 6 : N30-4006-46
DM4 x 14 : N30-4014-46
EM4 x 20 BLK : N30-4020-45
FM3 x 6 (F) : N32-3006-46
GM4 x 8 (F) BLK : N32-4008-45
HM3 x 6 (OC) BLK : N33-3006-45
JM3 x 6 (Bi) BLK : N35-3006-45
KM4 x 6 (Bi) BLK : N35-4006-45
LM3 x 8 : N67-3008-46
MM2.6 x 8 BLK : N80-2608-45
NM2.6 x 6 (Br-Tap) : N87-2606-46
OM3 x 5 (Br-Tap) BLK : N87-3005-45
PM3 x 6 (Br-Tap) : N87-3006-46
RM3 x 14 (TP) : N90-3014-46
EXPLODED VIEW / !"
TKR-750
47
CD
6
12
12
28
33
30
31
14
19
47
4
41
37
35x2 36
16
21
15
47x2
Fx2
Kx14
Fx2
Nx2
H
x6
R
R
Bx2
Mx4
Ex4
Ax2
Bx2
F
F
702
701
Dx3
Gx3
706
706
704
Final
(B/2)
n
al
A
/2)
703
704
705
Parts with the exploded numbers larger than 700 are not supplied.
EXPLODED VIEW / !"
TKR-750
48

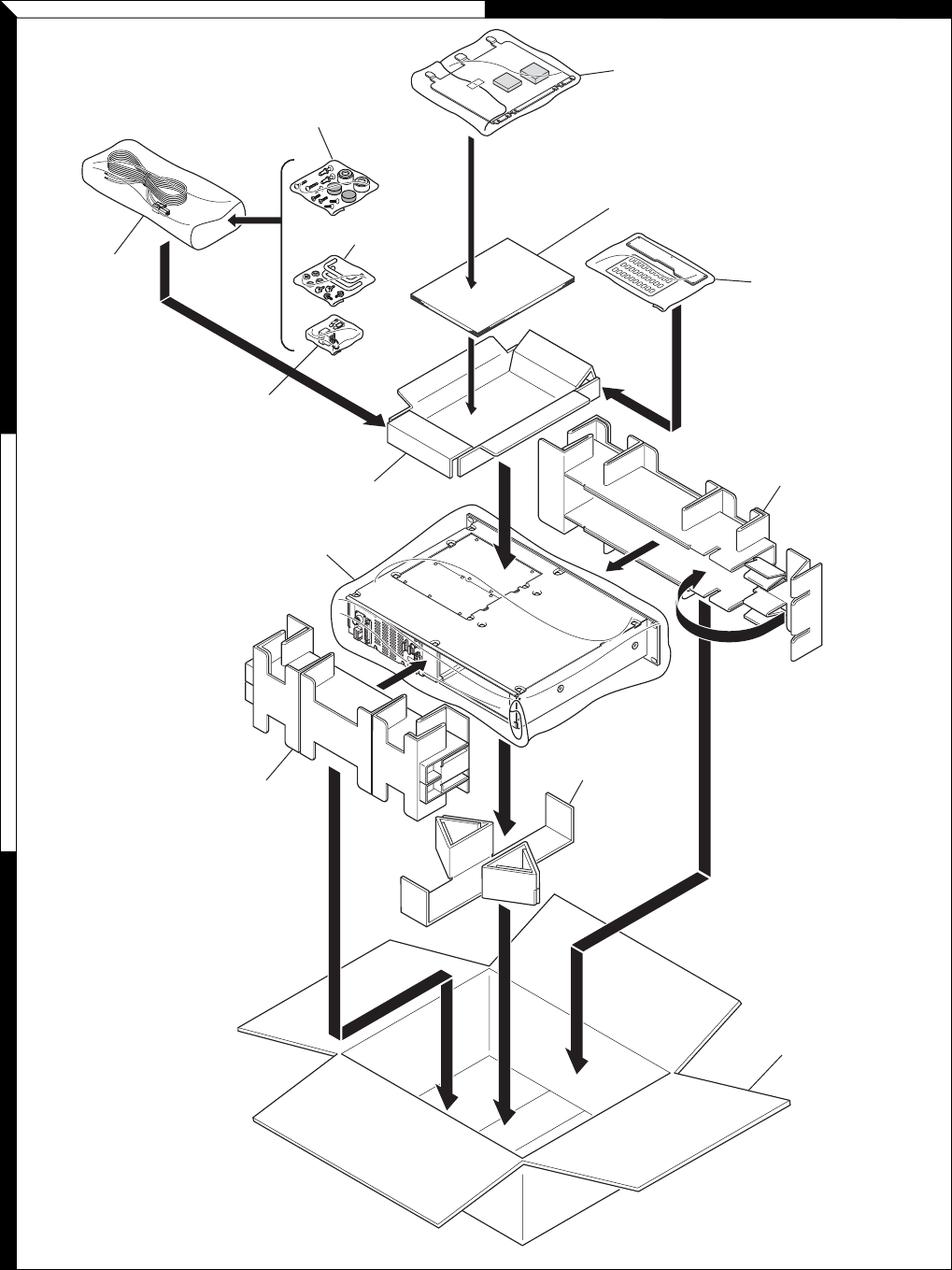

EF
1
2
3
BACK UP
48 Cushion (G13-1801-04)
49 Cushion (G13-1802-04)
53 Protetion bag (H25-0747-04)
61 Mounting hardware (J21-8402-04)
8 Front glass
(B10-2635-04)
9 Filter
(B11-1259-04)
55 Protection bag
(H25-2328-04)
710
Packing fixture
712
Packing fixture
711
Packing fixture
713
Protection bag
709
Carton board
57 Item carton case
(H52-1621-02)
17 DC cord
(E30-3427-15)
54 Protection bag
(H25-0762-04)
65 Handle
(K01-0418-05)
18 TEST/SPKR plug
(E31-3228-05)
35 Fuse (Blade, 15A/32V)
(F15-1537-05)
52 Protection bag
(H25-0029-04)
11 Instruction manual
(B62-1836-00)
52 Protection bag (H25-0029-04)
59 Foot (J02-0475-05) x 2
60 Foot (J02-0492-04) x 2
62 Grommet (J59-0302-05) x 2
C Pan head machine screw (N30-4006-46) x 2
J Binding head machine screw (N35-3006-45) x 5
Parts with the exploded numbers larger than 700 are not supplied.
PACKING /
TKR-750
49
ADJUSTMENT

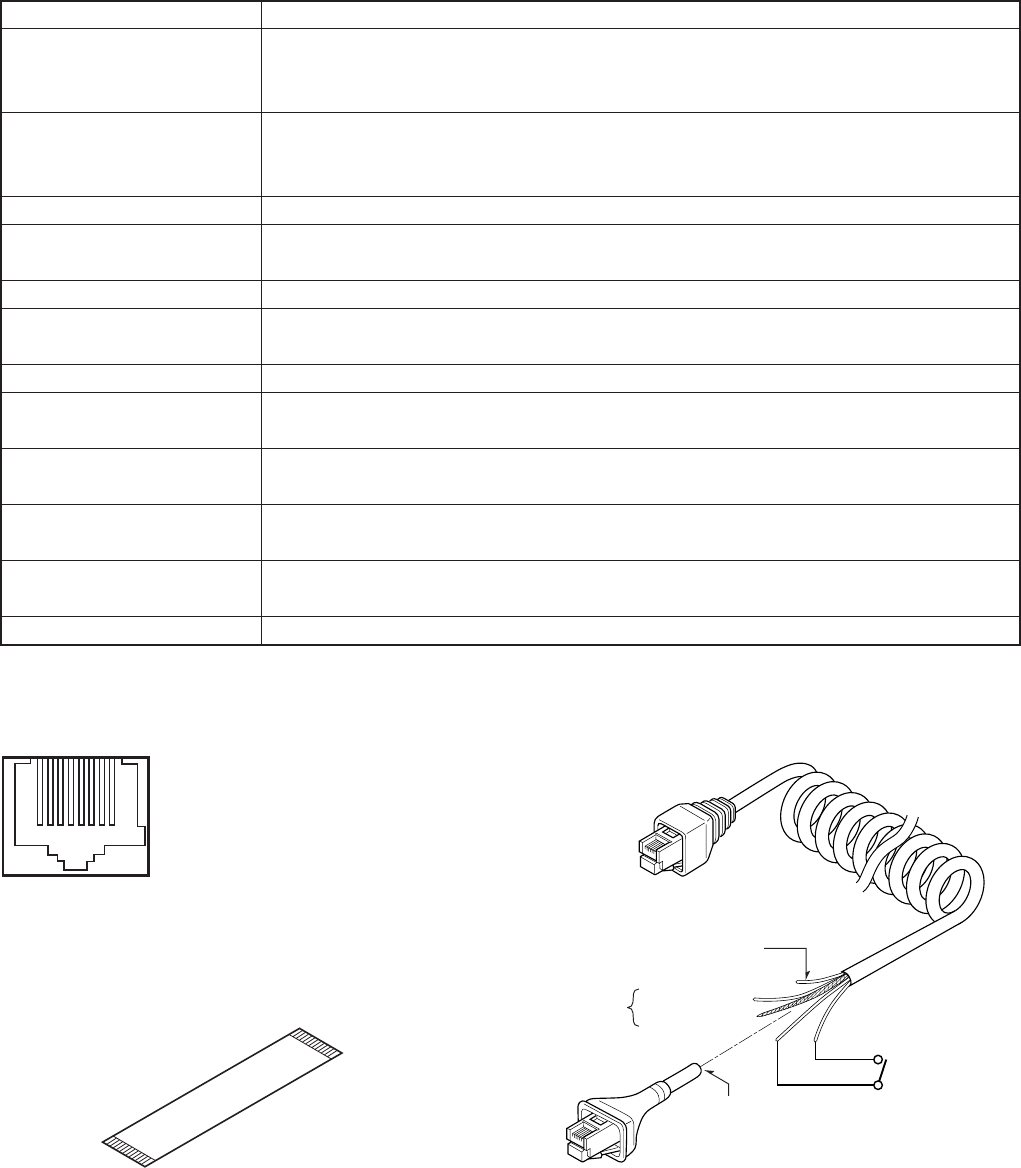

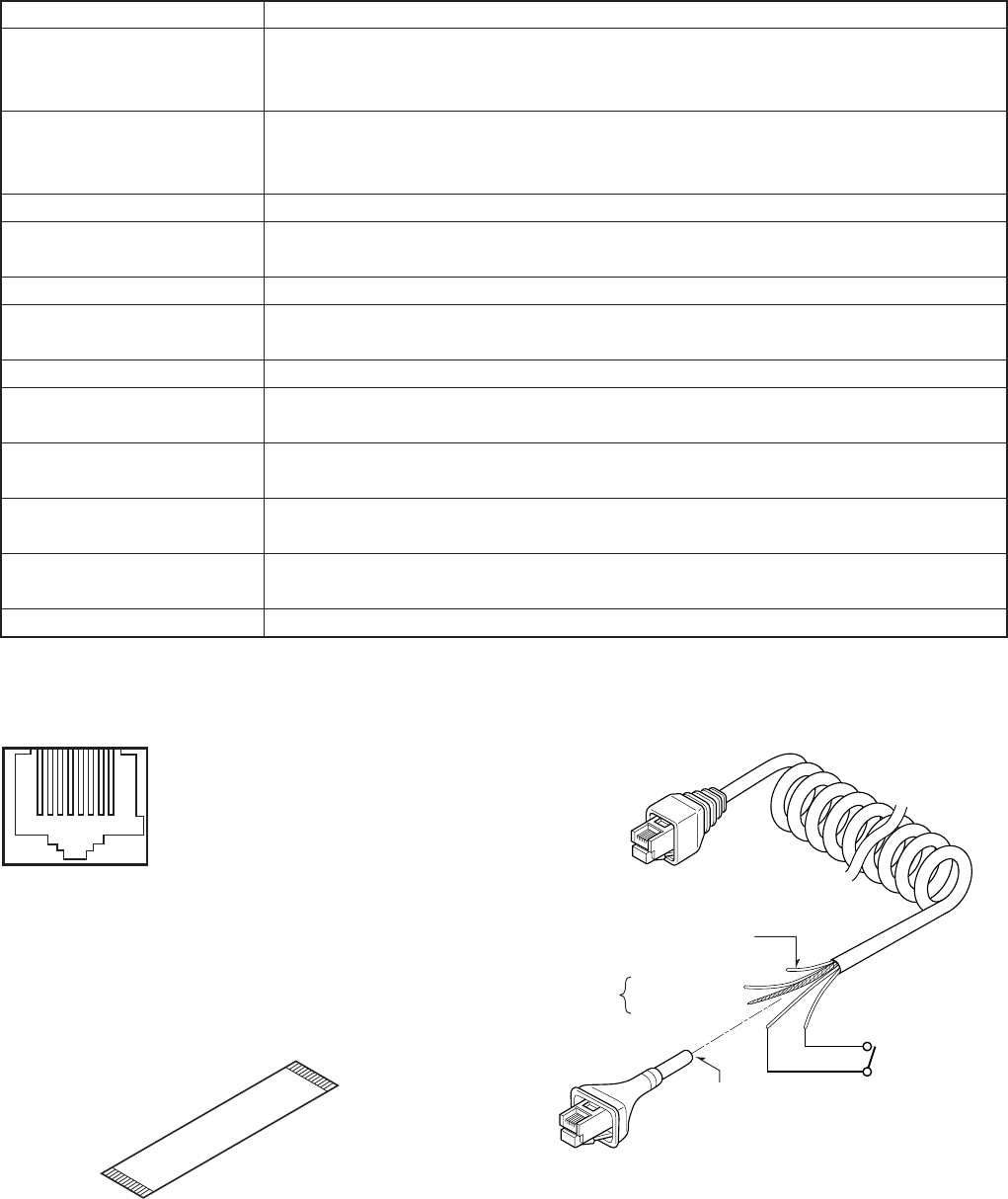

Test Equipment Required for Alignment
Test Equipment Major Specifications
1. Standard Signal Generator Frequency Range 136 to 174MHz
(SSG) Modulation Frequency modulation and external modulation
Output 0.1µV to greater than 1mV
2. Power Meter Input Impedance 50Ω
Operation Frequency 136 to 174MHz or more
Measurement Capability Vicinity of 100W
3. Deviation Meter Frequency Range 136 to 174MHz
4. Digital Volt Meter Measuring Range 1 to 20V DC
(DVM) Accuracy High input impedance for minimum circuit loading
5. Oscilloscope DC through 30MHz
6. High Sensitivity Frequency Range 10Hz to 600MHz
Frequency Counter Frequency Stability 0.2ppm or less
7. Ammeter 15A or more
8. AF Volt Meter Frequency Range 50Hz to 10kHz
(AF VTVM) Voltage Range 3mV to 3V
9. Audio Generator (AG) Frequency Range 50Hz to 5kHz
Output 0 to 1V
10. Distortion Meter Capability 3% or less at 1kHz
Input Level 50mV to 10Vrms
11. Voltmeter Measuring Range 10 to 1.5V DC or less
Input Impedance 50kΩ/V or greater
12. 4Ω Dummy Load Approx. 4Ω, 5W
MIC connector (Front panel view) Test cable for microphone input
1 : NC
2 : +B
3 : GND
4 : PTT/TXD1 (PC serial data from radio)
5 : MIC GND
6 : MIC
7 : HOOK/RXD1 (PC serial data to radio)
8 : NC
Flat cable (36-pin) about 256mm
To connect the TX-RX unit A/2 (CN14) to the TX-RX unit B/
2 (CN602) while in servicing, you can use the 36-pin flat
cable, E37-0979-05, which is available from the KENWOOD
parts center.
81
Cut
HOOK
(GRY)
MIC (WHT)
MICG (SHIELD)
To
AG
AF VTVM PTT
(BLU)
GND
(BLK)
PTT SW
Plug cord
Part No. E30-3360-18
8 pin
8 pin
TKR-750
50
!"#$ %&'(
NK !"#$=EppdF ! NPSNTQjeò
!"#
MKNµs Nãs
OK ! RMΩ
! NPSNTQjeò
! NMMt
PK ! NPSNTQjeò
QK !"=EasjF ! NsOMs
! !"#$%&'()*
RK PMjeò
SK !"#$%& ! NMeòSMMjeò
!" MKOééã
TK NR^
UK !"=E^c=sqsjF ! RMeòNMâeò
! PãsPs
VK !"=E^dF ! RMeòRâeò
MNs
NMK !" ! NâeòP !
! RMãsNMsêãë
NNK ! NMsNKRs
! RMâΩ/s
NOK QΩ QΩRt
1 : NC
2 : +B
3 : GND
4 : PTT/TXD1 (PC serial data from radio)
5 : MIC GND
6 : MIC
7 : HOOK/RXD1 (PC serial data to radio)
8 : NC
81
Cut
HOOK
(GRY)
MIC (WHT)
MICG (SHIELD)
To
AG
AF VTVM PTT
(BLU)
GND
(BLK)
PTT SW
Plug cord
Part No. E30-3360-18
8 pin
8 pin
!"#=E !"F !"#$%&'()
!=EPSF
!"quJou !"#$EbPTJMVTVJMRF
ORSãã
TKR-750
51

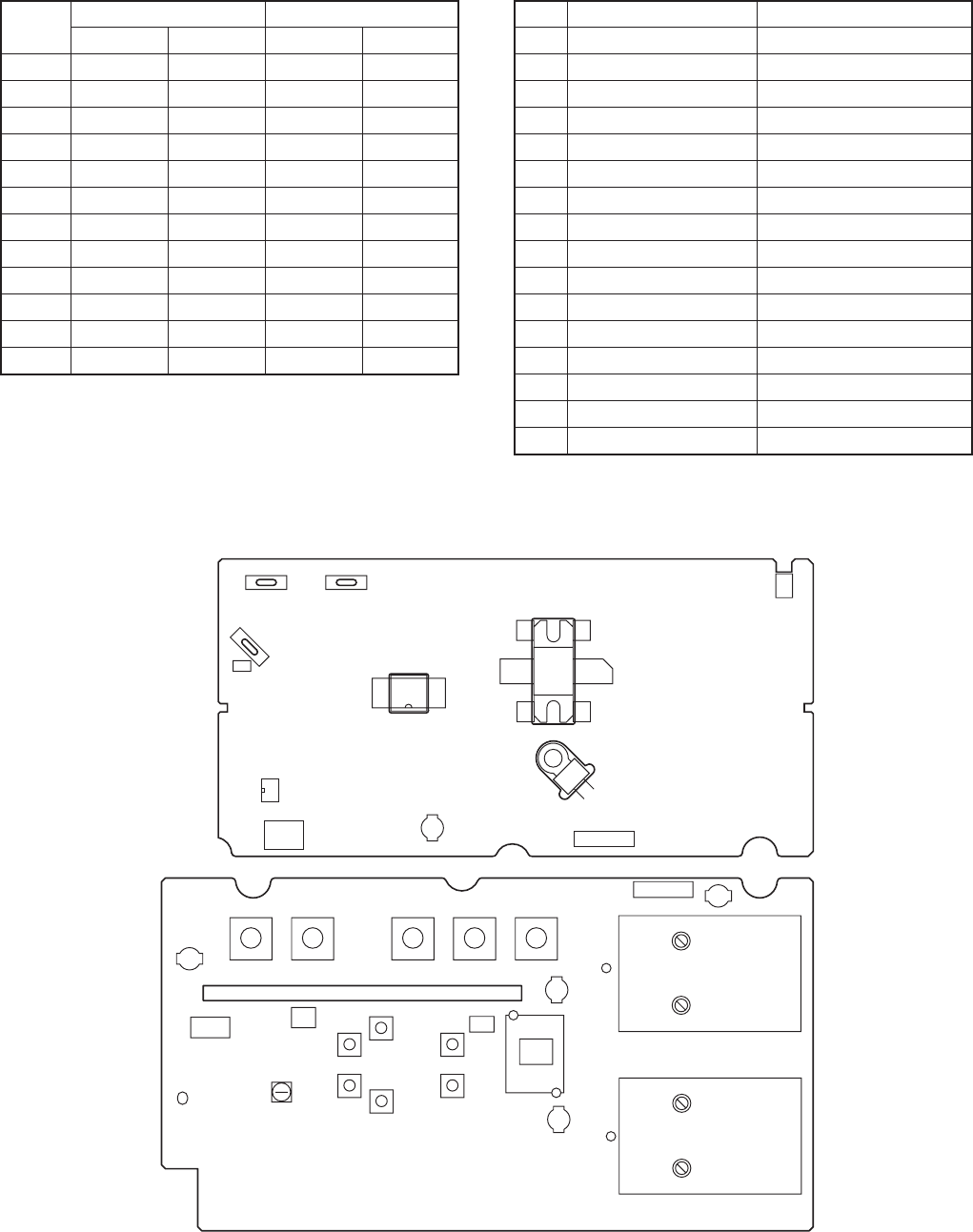

ADJUSTMENT /
Adjustment Points /
CN15
CN16
CN18
CN19
1
8
L14
L15
1
2
1
2
L16
L17
L18
L19
L3L2 L6L5 L7
1
3
L24
CN1
CN2
CN3
CN4
PSW
WIDE
NARROW
TP102
TX CV
TP101
RX CV
TC350 (VCO A)
TC351 (VCO B)
A2 : TX VCO (X58-479)
TC350 (VCO A)
TC351 (VCO B)
A3 : RX VCO (X58-478)
TX-RX UNIT (X57-695) (A/2)
Component side view
TH1
Q5
Q4
CN1
TX IN
CHARGE
CN8 GND
(BLACK)
CN6 MAIN DC
(RED)
CN7 BACKUP
(ORANGE)
1
3
CN4
CN5
2
1
ANT
CN3
1
8

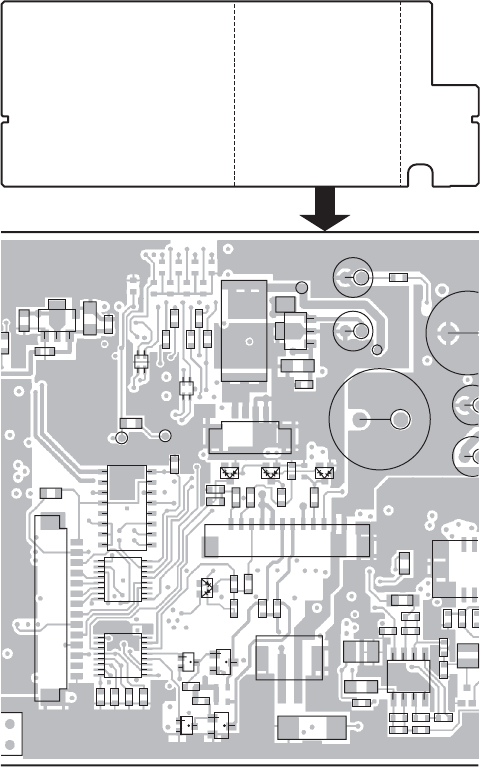

FINAL UNIT (X45-373) (A/2)
Component side view
Test Channel (Default) / !=E !F
No. C C2
RX / TX / RX / TX /
1146.10 146.00 136.10 136.00
2160.10 160.00 143.10 143.00
3173.90 174.00 149.90 150.00
4150.10 150.00 146.10 146.00
5155.10 155.00 155.90 156.00
6165.10 165.00 140.10 140.00
7170.10 170.00 148.10 148.00
8158.60 161.50 147.50 149.00
9161.60 158.50 149.00 147.50
10 136.10 136.00 151.10 151.95
11 151.90 151.95 152.10 152.00
12 152.10 152.00 173.90 174.00
Test Signaling / !
No. Decode / Encode /
1None None
2None 100Hz square wave
3QT 67.0Hz QT 67.0Hz
4QT 151.4Hz QT 151.4Hz
5QT 210.7Hz QT 210.7Hz
6QT 250.3Hz QT 250.3Hz
7DQT 023N DQT D023N
8 DQT 754I DQT D754I
9None CW ID Encode [ID=VVV]
10 None Single Tone [1000Hz]
11 DTMF 159D DTMF 159D
12 None DTMF Tone 9
13 None Courtesy Tone
14 None Battery Warning Tone
15 None Battery Operation Tone
16 5-Tone [12345] (CCIR) 5-Tone [12345] (CCIR)
TKR-750
52
Fine-Tuning the TKR-750
“ADJUSTMENT” items described in the Service Manual
for the TKR-750 give the factory-default adjustment proce-
dure covering all adjustment items.
However, it is not necessary to adjust all the items when
adjusting the power, deviation, receiver sensitivity, etc at the
frequency of the channel to be used by the TKR-750.
Adjustment procedure at the frequency of the
channel to be used
1. Program a channel frequency using the FPU (KPG-
91D(C)).
2. From the FPU menu, select in the order of “EDIT”, “Test
Frequency” and “CH paste” to rewrite the test frequency
from the factory-default to the one to be used for the
channel.
Erase all channel frequencies rewritten through this op-
eration and press the ENTER key to retrieve the factory-
default test frequency.
Refer to the explanation given under HELP for the FPU
(KPG-91D(C)) for details.
3. Check whether the frequency rewritten under the “Test
mode” of the FPU (KPG-91D(C)) is correct, then select the
item to be adjusted from the FPU (KPG-91D(C)) menu and
adjust the set value for the item to an optimum value with
the “TEST” tag.
Note :
After adjustment of the “Max. Deviation”, be sure to
check the “DQT balance”.
1. Setting 1) Connect the unit to a suitable DC power supply.
2. Write test 1) Turn the DC source switch on after connecting a PC and FPU cable to the radio. → “E1” appears on LED display
frequency 2) Write the test and shipping frequency to the radio. → Green (BUSY) LED lights up
3) End of test frequency writing.
3. Setting 1) Connect the unit to a suitable DC power supply.
2) Turn the power switch on after connecting a PC and FPU cable to the radio.
3) Start up the program for the adjustment.
Item Condition
Measurement Adjustment
Specifications/Remarks
Test-
equipment Unit Terminal PartsUnit Method
ADJUSTMENT
Alignment

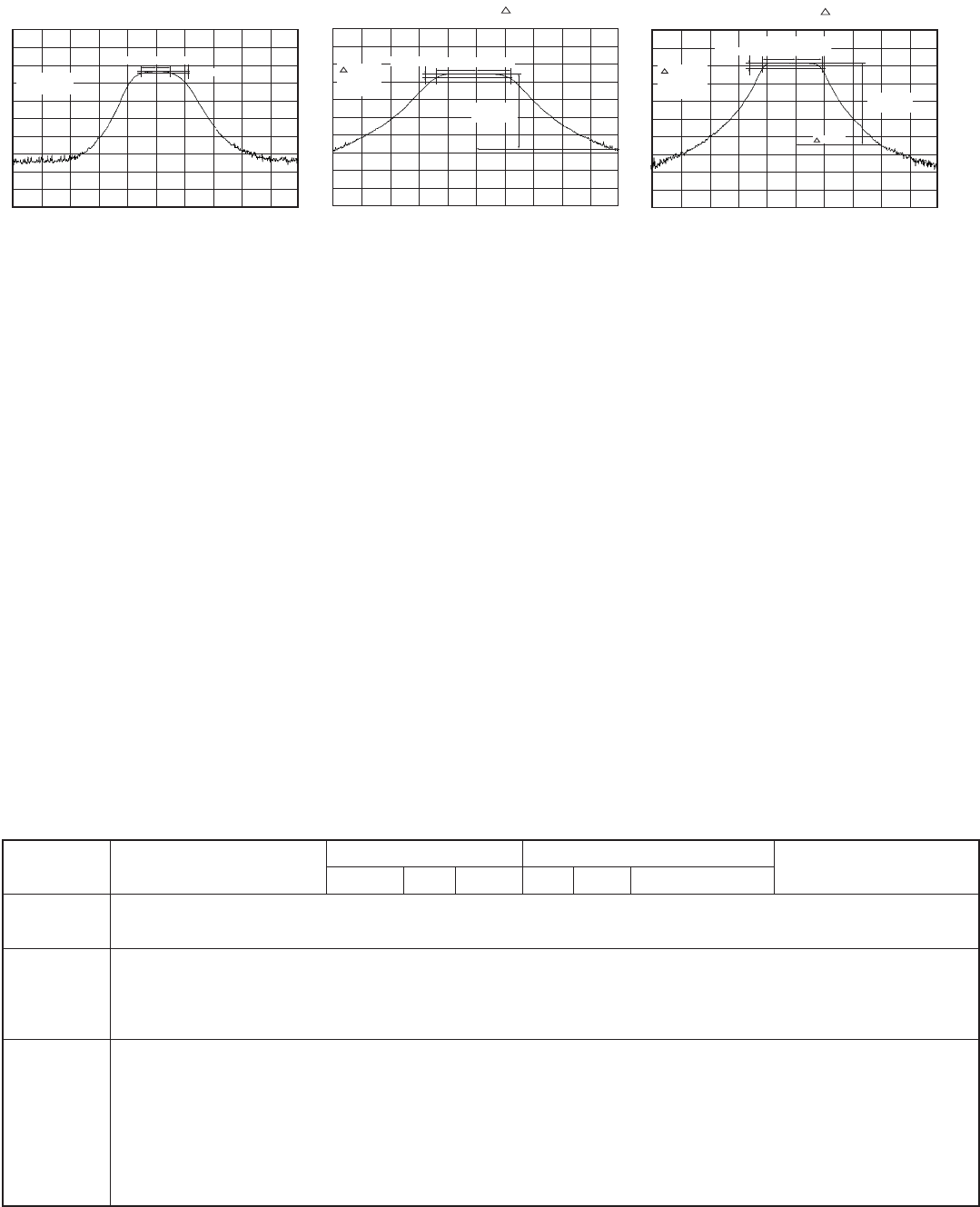

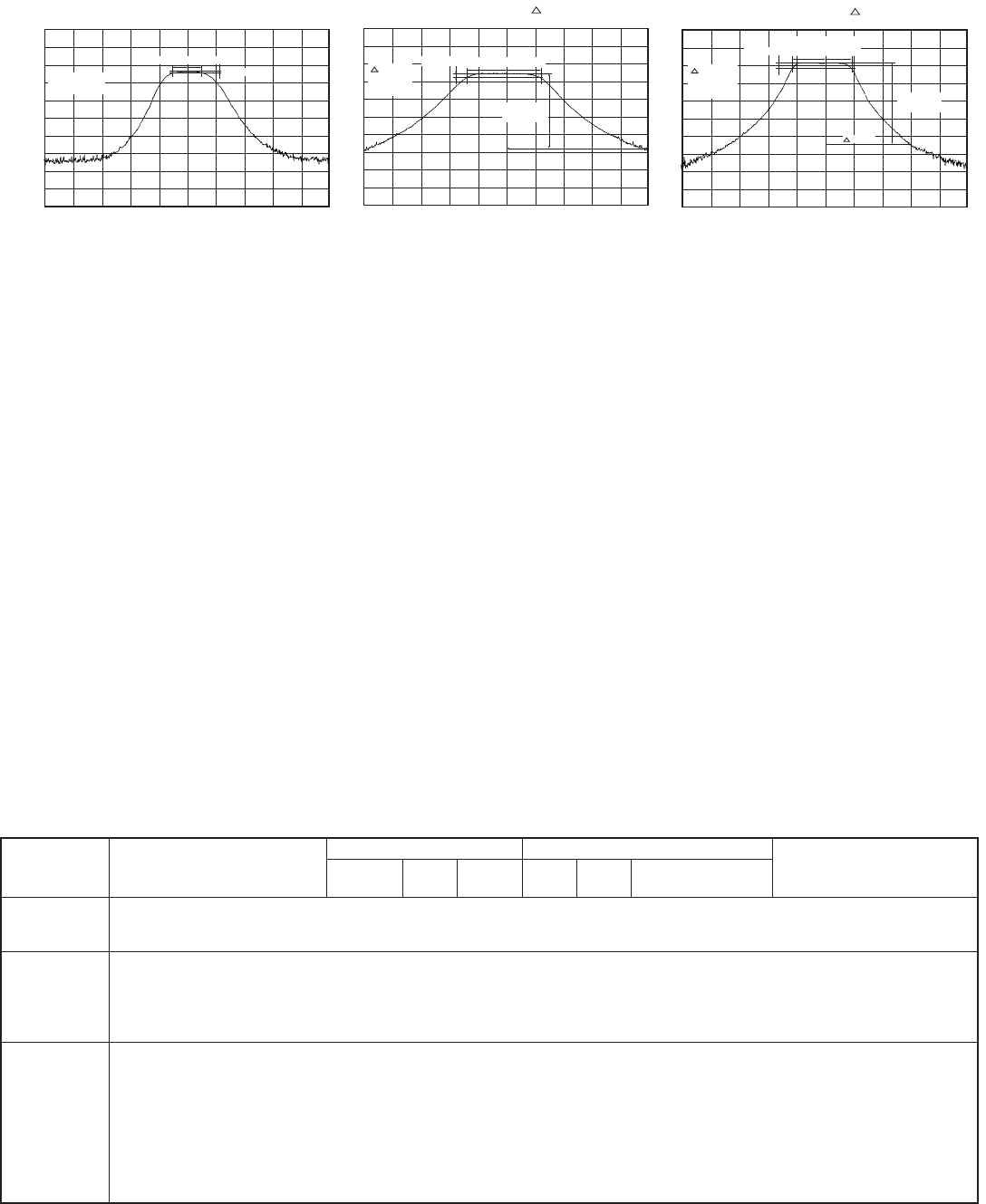

Fig. 1 Fig. 2 Fig. 3
BPF center frequency (Factory-default)
C : 160MHz, C2 : 143MHz
MCF : Wide MCF : Narrow
More than
3.75kHz
More than
3.75kHz
ATTEN 10dB
RL –32.0dBm 10dB/
MKR –46.000dB
15.00kHz
MKR
15.00kHz
–46.000dB
D
G
CENTER 44.85000MHz
RBW 300Hz *VBW 1.0kHz
SPAN 50.00kHz
SWP 2.0sec
3dB Max.
15kHz
More than
40dB
5.5~7.5kHz5.5~7.5kHz
ATTEN 10dB
RL –32.0dBm 10dB/
MKR –42.17dB
25.00kHz
MKR
25.00kHz
–42.17dB
D
G
CENTER 44.85000MHz
RBW 300Hz *VBW 1.0kHz
SPAN 50.00kHz
SWP 2.0sec
3dB Max.
25kHz
More than
40dB
1.5MHz 1.5MHz
ATTEN 20dB
RL 10.0dBm 10dB/
MKR –13.50dBm
MODULE
NOT FOUND
D
G
CENTER
RBW 300kHz *VBW 300kHz
SPAN 50.00MHz
SWP 50ms
3dB Max.
TKR-750
53
NK NF !"#$a` !"
OK !" NF !cmr !"#$#%&'() iba !"=bN
! OF !"#$%&'()* =E_rpvF=iba
PF !"#$
PK NF !"#$a` !"
OF !cmr !"#$#%&'()
PF !"#$
!
More than
3.75kHz
More than
3.75kHz
ATTEN 10dB
RL –32.0dBm 10dB/
MKR –46.000dB
15.00kHz
MKR
15.00kHz
–46.000dB
D
G
CENTER 44.85000MHz
RBW 300Hz *VBW 1.0kHz
SPAN 50.00kHz
SWP 2.0sec
3dB Max.
15kHz
More than
40dB
5.5~7.5kHz5.5~7.5kHz
ATTEN 10dB
RL –32.0dBm 10dB/
MKR –42.17dB
25.00kHz
MKR
25.00kHz
–42.17dB
D
G
CENTER 44.85000MHz
RBW 300Hz *VBW 1.0kHz
SPAN 50.00kHz
SWP 2.0sec
3dB Max.
25kHz
More than
40dB
NOP
1.5MHz 1.5MHz
ATTEN 20dB
RL 10.0dBm 10dB/
MKR –13.50dBm
MODULE
NOT FOUND
D
G
CENTER
RBW 300kHz *VBW 300kHz
SPAN 50.00MHz
SWP 50ms
3dB Max.
_mc !=E !F
`NSMjeòI=`ONQPjeò
j`c j`c
qhoJTRM
qhoJTRM !"#$%&=^agrpqjbkq=EF=
!"#$%&'()*+,%&-./01234
qhoJTRM !"#$%&'(%)$*)+,-./01
!"#$%&!'()*
!"#$%&'()*"+,
NK cmr=EhmdJVNaE`FF= !"#$%&
OK cmr !"#$%&'(bafq=EFqÉëí=cêÉèìÉåÅó
E !F=`e=é~ëíÉ=E !F= !"#$%&'
!"#$%&'()*+,
=== !"#$%&'()*+,-./012bkqbo
!"#$%&'(
=== !"cmr=EhmdJVNaE`FF=ebim !"#$%
PK cmr=EhmdJVNaE`FF==qÉëí=ãçÇÉ=E !F=
!"#$%&'()*+cmr=EhmdJVNaE`FF= !
!"#$%&'#$"()* !+,-./=qbpq
EF= !"#$
!=j~ñK=aÉîá~íáçå=E !F= !"#$%
=anq=Ä~ä~åÅÉ=EanqF= !"
TKR-750
54
Item Condition
Measurement Adjustment
Specifications/Remarks
Test-
equipment Unit Terminal PartsUnit Method
ADJUSTMENT
4. RX PLL lock 1) RX VCO A high DVM TX-RX RX-CV
RX VCO
TC350 1.50V ±0.1V
voltage CH : 11 C(A/2) (A3)
CH : 10 C2
2) RX VCO A low Check 8V or less
CH : 10 C
CH : 1 C2
3) RX VCO B high
RX VCO
TC351 1.50V ±0.1V
CH : 3 C(A3)
CH : 12 C2
4) RX VCO B low Check 8V or less
CH : 12 C
CH : 11 C2
5. TX PLL lock 1) TX VCO A high TX-CV
TX VCO
TC350 1.50V ±0.1V
voltage CH : 11 C(A2)
CH : 10 C2
2) TX VCO A low Check 8V or less
CH : 10 C
CH : 1 C2
3) TX VCO B high
TX VCO
TC351 1.50V ±0.1V
CH : 3 C(A2)
CH : 12 C2
4) TX VCO B low Check 8V or less
CH : 12 C
CH : 11 C2
6. RX 1) Connect the frequency f. counter CN3 PC adj. 50Hz or less
frequency counter to CN3, then Test CH+44.85MHz
measure the frequency
CH : 2
Note : RX frequency means the local frequency of the RX VCO. So its frequency is wanted frequency plus the IF frequency.
7. RX 1) High CH (Automatically) f. counter TX-RX CN3 PC adj. 50Hz or less
frequency (A/2) 218.8475MHz
(tune)
2) Low CH (Automatically) PC adj.
180.8525MHz
8. Setting 1) Remove 8 pin cable and the coaxial cable from CN16, and CN19 on TX-RX side.
9. TX 1) Connect the frequency f. counter TX-RX CN19 PC adj. 50Hz or less
frequency counter to CN19, then (A/2)
measure the frequency
CH : 2
10. TX 1) High CH (Automatically) PC adj. 50Hz or less
frequency 173.9975MHz
(tune)
2) Low CH (Automatically) PC adj.
136.0025MHz
11. Setting 1) Insert 8 pin cable and the coaxial cable to CN16, and CN19 on TX-RX side.
TKR-750
55
!
QK ou=mii NF ou=s`l=^asj
quJou
ouJ`s
ou=s`l
q`PRM NKRMs MKNs
`eNN `E^LOF E^PF
! `eNM `O
OF ou=s`l=^ Us
`eNM `
`eN`O
PF ou=s`l=_
ou=s`l
q`PRN NKRMs MKNs
`eP`E^PF
`eNO `O
QF ou=s`l=_ Us
`eNO `
`eNN `O
RK qu=mii NF qu=s`l=^quJ`s
qu=s`l
q`PRM NKRMs MKNs
`eNN `E^OF
! `eNM `O
OF qu=s`l=^ Us
`eNM `
`eN`O
PF ou=s`l=_
ou=s`l
q`PRN NKRMs MKNs
`eP`E^PF
`eNO `O
QF ou=s`l=_ Us
`eNO `
`eNN `O
SK ou NF !"`kP `kP m` RMeò
! !"#$
`eQQKURjeò
`eO
!ou=s`l !"#$%&!"'()!"*+!!"#
TK ou NF `e=EF
quJou
`kP m` RMeò
EFE^LOF ONUKUQTRjeò
OF `e=EFm`
NUMKURORjeò
UK NF quJou`kNS`kNVU !"#$ !%
VK qu NF !"`kNV
quJou
`kNV m` RMeò
! !"#$ E^LOF
`eO
NMK=qu NF `e=EFm` RMeò
EFNTPKVVTRjeò
OF `e=EFm`
NPSKMMORjeò
NNK= NF quJou`kNS`kNVU !"#$ !%
TKR-750
56
Item Condition
Measurement Adjustment
Specifications/Remarks
Test-
equipment Unit Terminal PartsUnit Method
ADJUSTMENT
12. Maximum 1) Measure the RF power at
Power meter
Rear TX ANT Final VR1 Adjust the RF power ±1W
power TX ANT. to 53W.
limitting High CH
13. TX RF 1) Measure the RF power at PC adj. ±1W
high power TX ANT. 50W
Low CH (Factory-default)
2) Center CH
3) High CH
14. TX RF 1) Measure the power level at PC adj. ±1W
low power TX ANT. 25W
Low CH (Factory-default)
2) Center CH
3) High CH
15. BPF 1) Connect the TG to RX ANT, Tracking Rear RX ANT TX-RX L2
Center the frequency
then connect CN1 to the generator (A/2) L3 you are using, then
spectrum analyzer input. L5 adjust it to look like
Spectrum analyzer setting Spectrum TX-RX CN1 L6 the wave Fig. 1.
Span : 50MHz analyzer (A/2) L7 (Page 52)
Scale : 10dB to 5dB div
Tracking generator setting
Output : –30dBm
16. MCF 1) Connect the TG to CN2, then CN2 L14 Adjust it to look like
(Wide) connect CN4 to the spectrum CN4 L17 the wave Fig. 2.
analyzer input. L18 (Page 52)
CH : 2 (Wide)
Spectrum analyzer setting
Span : 50kHz to 25kHz
Scale : 10dB to 2dB div
Center freq‘ : 44.850MHz
Tracking generator setting
Output : –30dBm
(Narrow) 2) CH : 2 (Narrow) L15 Adjust it to look like
L16 the wave Fig. 3.
L19 (Page 52)
17. Discrimi- 1) Connect the SSG to RX ANT. SSG Rear RX ANT L24 Adjust the distortion
nator CH : 2 (Wide) to minimum.
SSG output : –53dBm/501µVAF VM
TEST/SPKR
SSG MOD : 1kHz Distortion jack SPO
SSG DEV : 3kHz meter (pin 12)
AF : 2V/4Ω
18. Threshold 1) Connect SSG to RX ANT. SSG Rear RX ANT PC adj.
squelch CH : 2 (Wide) Adjust to point of
(Wide) SSG output : 4dB below to Audio
TEST/SPKR
closing squelch
12dB SINAD level analyzer jack SPO
SSG MOD : 1kHz VTVM (pin 12)
SSG DEV : 3kHz
Oscilloscope
AF : 2V/4Ω
2) SSG : OFF Check Squelch must be closed.
(Narrow) 3) CH : 2 (Narrow) PC adj.
SSG output : 4dB below to Adjust to point of
12dB SINAD level closing squelch
SSG MOD : 1kHz
SSG DEV : 1.5kHz
AF : 2V/4Ω
4) SSG : OFF Check Squelch must be closed.
TKR-750
57
!
NOK= ! NF qu !"#$%& qu cáå~ä soN !"#$% Nt
`e RPt
NPK=qu NF qu !"#$%& m` Nt
!" `e RMt=E !F
OF `e
PF `e
NQK=qu NF qu !"#$%& m` Nt
!" `e ORt=E !F
OF `e
PF `e
NRK=_mc NF
qdou !"#$%
!"
ou
quJou
iO !"#$%
`kN !"#$%&'()
E^LOF iP !"#$%
!"
!"
quJou
`kN iR
!"N !
RMjeò E^LOF iS E !RPF
NMÇ_RÇ_ iT
!"
!PMÇ_ã
NSK=j`c NF
qd`kO !"#`kQ
`kO iNQ !"#$
EF !"#$%&'() `kQ iNT O !
`eO=EFiNU E !RPF
!"
RMâeòORâeò
NMÇ_OÇ_
!"QQKURMjeò
!"
!PMÇ_ã
EFOF`eO=EFiNR !"#$
iNS P !
iNV E !RPF
NTK= NF ppdou !" ppd ou iOQ !"#$
`eO=EF
ppd
RPÇ_ãLRMNs
^c=sj L
ppd=jlaNâeò
ppd=absPâeò
pml
^cOsLQ ENOF
NUK= ! NF ppdou !" ppd ou m`
`eO=EF !"#$%
EFppd PÇ_ NOÇ_
!"
L
pfk^a sqsj
ppd=jlaNâeò
pml
ppd=absPâeò ENOF
^cOsLQ
OF ppd !"#
EFNF`eO=EFm`
ppd PÇ_ NOÇ_ !"#$%
pfk^a
ppd=jlaNâeò
ppd=absNKRâeò
^cOsLQ
OF ppd !"#
TKR-750
58
Item Condition
Measurement Adjustment
Specifications/Remarks
Test-
equipment Unit Terminal PartsUnit Method
ADJUSTMENT
19. Tight 1) Connect SSG to RX ANT. SSG Rear RX ANT PC adj.
squelch CH : 2 (Wide) Adjust to point of
(Wide) SSG output : 7dB over to Audio
TEST/SPKR
opening squelch
12dB SINAD level analyzer jack SPO
SSG MOD : 1kHz VTVM (pin 12)
SSG DEV : 3kHz
Oscilloscope
AF : 2V/4Ω
(Narrow) 2) CH : 2 (Narrow) PC adj.
SSG output : 7dB over to Adjust to point of
12dB SINAD level opening squelch
SSG MOD : 1kHz
SSG DEV : 1.5kHz
AF : 2V/4Ω
20. RD outut 1) Connect SSG to RX ANT. SSG Rear RX ANT PC adj. ±5mV
level CH : 2 (Wide) 80mV
(Wide) SSG output : –53dBm/501µVDVM
CONTROL
SSG MOD : 1kHz I/O jack
SSG DEV : 3.0kHz
RD (pin 10)
4.7kΩ load
(Narrow) 2) CH : 2 (Narrow)
SSG output : –53dBm/501µV
SSG MOD : 1kHz
SSG DEV : 1.5kHz
21. RA outut 1) Connect SSG to RX ANT. SSG Rear RX ANT PC adj. ±20mV
level CH : 2 (Wide) 400mV
(Wide) SSG output : –53dBm/501µVDVM
CONTROL
SSG MOD : 1kHz I/O jack
SSG DEV : 3.0kHz
RA (pin 11)
4.7kΩ load
(Narrow) 2) CH : 2 (Narrow)
SSG output : –53dBm/501µV
SSG MOD : 1kHz
SSG DEV : 1.5kHz
22. Maximum 1)
Connect AG to the MIC terminal.
MOD ANA
Rear TX OUT PC adj. ±0.1kHz
deviation A-low CH (TX VCO A low) or 4.1kHz
(Wide) A-center CH (VCO A center) Deviation
A-high CH (TX VCO A high) meter
B-low CH (TX VCO B low)
Oscilloscope
B-center CH (VCO B center)
B-high CH (TX VCO B high) AG Front MIC
Deviation meter filter AF VTVM
HPF : OFF
LPF : 15kHz
De-emphasis : OFF
AG : 1kHz/50mV (Terminal load)
Transmission
(Narrow) 2) A-low CH (TX VCO A low) PC adj. ±0.1kHz
A-center CH (VCO A center) 2.05kHz
A-high CH (TX VCO A high)
B-low CH (TX VCO B low)
B-center CH (VCO B center)
B-high CH (TX VCO B high)
Transmission
Note : After adjustment of the “Max. Deviation”, be sure to check the “DQT balance”.
TKR-750
59
!
NVK= ! NF ppdou !" ppd ou m`
`eO=EF !"#$%
EFppd TÇ_ NOÇ_
!"
L
==pfk^a sqsj
ppd=jlaNâeò
pml
ppd=absPâeò ENOF
^cOsLQ
EFNF`eO=EFm`
ppd TÇ_ NOÇ_ !"#$%
==pfk^a
ppd=jlaNâeò
ppd=absNKRâeò
^cOsLQ
OMK=oa NF ppdou !" ppd ou m` Rãs
! `eO=EFUMãs
EFppd
RPÇ_ãLRMNs
asj
!
ppd=jlaNâeò L
ppd=absPâeò oa
ENMF
EFOF`eO=EFQKTâ
ppd
RPÇ_ãLRMNs
ppd=jlaNâeò
ppd=absNKRâeò
ONK=o^ NF ppdou !" ppd ou m` OMãs
! `eO=EFQMMãs
EFppd
RPÇ_ãLRMNs
asj
!
ppd=jlaNâeò L
ppd=absPâeò o^
ENNF
EFOF`eO=EFQKTâ
ppd
RPÇ_ãLRMNs
ppd=jlaNâeò
ppd=absNKRâeò
OOK= ! NF ^d !"#$%
jla=^k^
qu=lrq m` MKNâeò
^`e=Equ=s`l=^F ! QKNâeò
EF^`e=Es`l=^F
^`e=Equ=s`l=^F
_`e=Equ=s`l=_F^d jf`
_`e=Es`l=_F
^c=sqsj
_`e=Equ=s`l=_F
!"#
emc
imcNRâeò
!"#
^d
NâeòLRMãs=E !F
EFOF^`e=Equ=s`l=^Fm` MKNâeò
^`e=Es`l=^FOKMRâeò
^`e=Equ=s`l=^F
_`e=Equ=s`l=_F
_`e=Es`l=_F
_`e=Equ=s`l=_F
!"#$%&'()*+,-.!anq !"#$
TKR-750
60
Item Condition
Measurement Adjustment
Specifications/Remarks
Test-
equipment Unit Terminal PartsUnit Method
ADJUSTMENT
23. DQT 1) Low CH (VCO-A center)
MOD ANA
Rear TX OUT PC adj. Oscilloscope DC range
balance High CH (VCO-B center) or Make the de- flat “A” part
(Wide) Deviation meter filter Deviation modulated waves
HPF : OFF meter into square waves.
LPF : 3kHz
Oscilloscope
De-emphasis : OFF
Transmission
(Narrow) 2) Low CH (VCO-A center)
High CH (VCO-B center)
Transmission
24. QT 1) VCO-A CH (TX VCO A center) TX ANT PC adj. ±0.05kHz
deviation VCO-B CH (TX VCO B center) 0.75kHz
(Wide) Deviation meter filter
HPF : OFF
LPF : 3kHz
De-emphasis : OFF
Detector : p-p/2
Transmission
(Narrow) 2) VCO-A CH (TX VCO A center) PC adj. ±0.05kHz
VCO-B CH (TX VCO B center) 0.35kHz
Transmission
25. DQT 1) VCO-A CH (TX VCO A center) PC adj. ±0.05kHz
deviation VCO-B CH (TX VCO B center) 0.75kHz
(Wide) Deviation meter filter
HPF : OFF
LPF : 3kHz
De-emphasis : OFF
Detector : Peak hold
Transmission
(Narrow) 2) VCO-A CH (TX VCO A center) PC adj. ±0.05kHz
VCO-B CH (TX VCO B center) 0.35kHz
Transmission
26. CW ID 1) VCO-A CH (TX VCO A center) PC adj. ±0.1kHz
deviation VCO-B CH (TX VCO B center) 2kHz
(Wide) Deviation meter filter
HPF : OFF
LPF : 15kHz
De-emphasis : OFF
Transmission
(Narrow) 2) VCO-A CH (TX VCO A center) PC adj. ±0.05kHz
VCO-B CH (TX VCO B center) 1kHz
Transmission
27. Test tone 1) VCO-A CH (TX VCO A center) PC adj. ±0.1kHz
deviation VCO-B CH (TX VCO B center) 3kHz
(Wide) Deviation meter filter
HPF : OFF
LPF : 15kHz
De-emphasis : OFF
Transmission
(Narrow) 2) VCO-A CH (TX VCO A center) PC adj. ±0.05kHz
VCO-B CH (TX VCO B center) 1.5kHz
Transmission
A
A
TKR-750
61
!
OPK=anq NF `e=Es`lJ^F
jla=^k^
qu=lrq m` a`
! `e=Es`lJ_F ! !"#$ !^ !
EF !"#
emc
imcPâeò
!"#
EFOF`e=Es`lJ^F
`e=Es`lJ_F
OQK=nq NF
s`lJ^=`e=Equ=s`l=^F
qu m` MKMRâeò
!
s`lJ_=`e=Equ=s`l=_F
MKTRâeò
EF !"#
emc
imcPâeò
!"#
!éJéLO
EFOF
s`lJ^=`e=Equ=s`l=^F
m` MKMRâeò
s`lJ_=`e=Equ=s`l=_F
MKPRâeò
ORK=anq NF
s`lJ^=`e=Equ=s`l=^F
m` MKMRâeò
!
s`lJ_=`e=Equ=s`l=_F
MKTRâeò
EF !"#
emc
imcPâeò
!"#
!"#$%
EFOF
s`lJ^=`e=Equ=s`l=^F
m` MKMRâeò
s`lJ_=`e=Equ=s`l=_F
MKPRâeò
OSK
=
`t=fa NF
s`lJ^=`e=Equ=s`l=^F
m` MKNâeò
!
s`lJ_=`e=Equ=s`l=_F
Oâeò
EF !"#
emc
imcNRâeò
!"#
EFOF
s`lJ^=`e=Equ=s`l=^F
m` MKMRâeò
s`lJ_=`e=Equ=s`l=_F
Nâeò
OTK= NF
s`lJ^=`e=Equ=s`l=^F
m` MKNâeò
!
s`lJ_=`e=Equ=s`l=_F
Pâeò
EF !"#
==emc
==imcNRâeò
== !"#
EFOF
s`lJ^=`e=Equ=s`l=^F
m` MKMRâeò
s`lJ_=`e=Equ=s`l=_F
NKRâeò
A
A
TKR-750
62
Item Condition
Measurement Adjustment
Specifications/Remarks
Test-
equipment Unit Terminal PartsUnit Method
ADJUSTMENT
28. TA (TX 1) Insert AG output into the
MOD ANA
Rear TX ANT PC adj. ±0.1kHz
audio input)
control I/O TA terminal (pin 9).
or 3.0kHz
deviation VCO-A CH (TX VCO A center) Deviation
(Wide) VCO-B CH (TX VCO B center) meter
Deviation meter filter
Oscilloscope
HPF : OFF
LPF : 15kHz AG
CONTROL
De-emphasis : OFF AF VTVM I/O jack
AG freq‘ : 1kHz (Sine wave)
TA (pin 9)
AG level : 280mV
Transmission
(Narrow) 2) VCO-A CH (TX VCO A center) PC adj. ±0.05kHz
VCO-B CH (TX VCO B center) 1.5kHz
Transmission
29. TD 1) Insert AG output into the
CONTROL
PC adj. ±0.1kHz
deviation
control I/O TD terminal (pin 8).
I/O jack 0.75kHz
(Wide) VCO-A CH (TX VCO A center)
TD (pin 8)
VCO-B CH (TX VCO B center)
Deviation meter filter
HPF : OFF
LPF : 3kHz
De-emphasis : OFF
AG freq‘ : 100Hz (Sine wave)
AG level : 0.5Vp-p (177mVrms)
Transmission
(Narrow) 2) VCO-A CH (TX VCO A center) PC adj. ±0.05kHz
VCO-B CH (TX VCO B center) 0.35kHz
Transmission
30. DTMF 1) VCO-A CH (TX VCO A center)
MOD ANA
Rear TX ANT PC adj. ±0.1kHz
deviation VCO-B CH (TX VCO B center) or 3.0kHz
(Wide) Deviation meter filter Deviation
HPF : OFF meter
LPF : 15kHz
Oscilloscope
De-emphasis : OFF
Transmission
(Narrow) 2) VCO-A CH (TX VCO A center) PC adj. ±0.05kHz
VCO-B CH (TX VCO B center) 1.5kHz
Transmission
31. Courtesy 1) VCO-A CH (TX VCO A center) PC adj. ±0.05kHz
tone VCO-B CH (TX VCO B center) 1.0kHz
deviation Deviation meter filter
(Wide) HPF : OFF
LPF : 15kHz
De-emphasis : OFF
Transmission
(Narrow) 2) VCO-A CH (TX VCO A center) PC adj. ±0.05kHz
VCO-B CH (TX VCO B center) 0.5kHz
Transmission
TKR-750
63
!
OUK=
q^
NF ^d !"#!L
jla=^k^
qu m` MKNâeò
Equ Fq^=EVF ! PKMâeò
!
s`lJ^=`e=Equ=s`l=^F
EF
s`lJ_=`e=Equ=s`l=_F
!"# ^d
!
emc
^c=sqsj
L
imcNRâeò q^
!"# EVF
^d Nâeò=E F
^d OUMãs
EFOF
s`lJ^=`e=Equ=s`l=^F
m` MKMRâeò
s`lJ_=`e=Equ=s`l=_F
NKRâeò
OVK=qa NF ^d !"#!L
!
m` MKNâeò
! qa=EUF L MKTRâeò
EF
s`lJ^=`e=Equ=s`l=^F
qa
s`lJ_=`e=Equ=s`l=_F
EUF
!"#
emc
imcPâeò
!"#
^d NMMeò=E F
^d
MKRséJé=ENTTãsêãëF
EFOF
s`lJ^=`e=Equ=s`l=^F
m` MKMRâeò
s`lJ_=`e=Equ=s`l=_F
MKPRâeò
PMK=aqjc NF
s`lJ^=`e=Equ=s`l=^F
jla=^k^
qu m` MKNâeò
!
s`lJ_=`e=Equ=s`l=_F
! PKMâeò
EF !"#
emc
imcNRâeò
!"#
EFOF
s`lJ^=`e=Equ=s`l=^F
m` MKMRâeò
s`lJ_=`e=Equ=s`l=_F
NKRâeò
PNK= ! NF
s`lJ^=`e=Equ=s`l=^F
m` MKMRâeò
!"
s`lJ_=`e=Equ=s`l=_F
NKMâeò
EF !"#
emc
imcNRâeò
!"#
EFOF
s`lJ^=`e=Equ=s`l=^F
m` MKMRâeò
s`lJ_=`e=Equ=s`l=_F
MKRâeò
TKR-750
64
Item Condition
Measurement Adjustment
Specifications/Remarks
Test-
equipment Unit Terminal PartsUnit Method
ADJUSTMENT
32. Battery 1) VCO-A CH (TX VCO A center)
MOD ANA
Rear TX ANT PC adj. ±0.1kHz
warning tone VCO-B CH (TX VCO B center) or 3.0kHz
deviation Deviation meter filter Deviation
(Wide) HPF : OFF meter
LPF : 15kHz
Oscilloscope
De-emphasis : OFF
Transmission
(Narrow) 2) VCO-A CH (TX VCO A center) PC adj. ±0.05kHz
VCO-B CH (TX VCO B center) 1.5kHz
Transmission
33. Battery 1) VCO-A CH (TX VCO A center) PC adj. ±0.05kHz
operation VCO-B CH (TX VCO B center) 1.0kHz
tone Deviation meter filter
deviation HPF : OFF
(Wide) LPF : 15kHz
De-emphasis : OFF
Transmission
(Narrow) 2) VCO-A CH (TX VCO A center) PC adj. ±0.05kHz
VCO-B CH (TX VCO B center) 0.5kHz
Transmission
34. Repeat 1) VCO-A CH (TX VCO A center) SSG Rear RX ANT PC adj. ±0.1kHz
gain level VCO-B CH (TX VCO B center) 1kHz
(Wide) SSG output : –53dBm
MOD ANA
TX ANT
SSG MOD : 1kHz or
SSG DEV : 1kHz Deviation
Deviation meter filter meter
HPF : OFF
Oscilloscope
LPF : 15kHz
De-emphasis : OFF
Transmission
(Narrow) 2) VCO-A CH (TX VCO A center)
VCO-B CH (TX VCO B center)
Transmission
When “RF Power Down Detect” is programmed in the AUXO function, threshold of transmission output is set with the following menu.
35. Power 1) CH : 2 (High power)
Power meter
Rear TX ANT PC adj.
down detect About 20W
(High) (Factory-default)
(Low) 2) CH : 2 (Low power) PC adj.
About 10W
(Factory-default)
TKR-750
65
!
POK= ! NF
s`lJ^=`e=Equ=s`l=^F
jla=^k^
qu m` MKNâeò
!"
s`lJ_=`e=Equ=s`l=_F
! PKMâeò
EF !"#
emc
imcNRâeò
!"#
EFOF
s`lJ^=`e=Equ=s`l=^F
m`KMKMRâeò
s`lJ_=`e=Equ=s`l=_F
NKRâeò
PPK= NF
s`lJ^=`e=Equ=s`l=^F
m` MKMRâeò
s`lJ_=`e=Equ=s`l=_F
NKMâeò
! !"#
EFemc
imcNRâeò
!"#
EFOF
s`lJ^=`e=Equ=s`l=^F
m` MKMRâeò
s`lJ_=`e=Equ=s`l=_F
MKRâeò
PQK= ! NF
s`lJ^=`e=Equ=s`l=^F
ppd ou m` MKNâeò
!
s`lJ_=`e=Equ=s`l=_F
Nâeò
EFppd !RPÇ_ã
jla=^k^
qu
ppd=jlaNâeò !
ppd=absNâeò
!"#
emc
imcNRâeò
!"#
EFOF
s`lJ^=`e=Equ=s`l=^F
s`lJ_=`e=Equ=s`l=_F
=oc=mçïÉê=açïå=aÉíÉÅí=Eoc !"#F= ^rul !"#$%&'()*+,-./01
PRK= ! NF `eO=E F qu m`
! OMt
EF E !F
EFOF`eO=E Fm`
NMt
E !F
TKR-750
66
Confirmation and Alignment of Set-up to
Prevent Receiver Desensitization
1. Confirmation of Duplexer alignment
The duplexer allows the Repeater to simultaneously trans-
mit and receive. To accomplish this, in the programmed re-
ceive frequency, the transmit frequency must be notched or
suppressed by 75dB or more. Additionally, on the pro-
grammed transmit frequency, the receive frequency must be
notched or suppressed by 75dB or more. The following fig-
ures are examples of Duplexer alignment using a spectrum
analyzer.
2. Confirmation of Repeater Desensitization
The following figure is a Test set-up for Repeater Desensi-
tization.
After this Test set-up is completed, confirm the Repeater
Desensitization as mentioned below.
1) Disable the repeater mode.
2) Adjust the level of the RF generator until 12dB SINAD is
reached.
3) Increase the output of the RF generator by 1dB. (This in-
creases the SINAD.)
4) Enable the repeater mode.
5) Read the SINAD level. It should not drop below 12dB
SINAD. If the SINAD is less then 12dB, check the tight-
ness of the connectors and the tuning of duplexer.

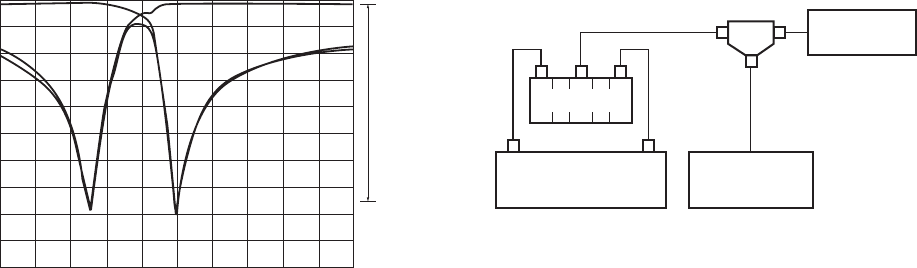

Ref –10dBm
# Peak
Log
10dB/
Atten 5dB
V1 V2
V3 FC
AA
#Res BW 30kHz VBW 30kHz
Span 20MHz
Sweep 50ms (401 pts)
RX
TX
75dB or more
50Ω dummy
RF signal
generator
RF信号发生器
Duplexer / 双工器
Repeater / 中继台
Attenuated port
衰减端口
50Ω假负载
ADJUSTMENT /
!"#$%&'()*+,-./0
NK= !"#$%
!"#$%&'()*+,-./012345678
!"#$%!"&'()TRÇ_ !"#$%&'()
!"#$ !%&'()TRÇ_ !"#$%&'(
!"#$%&'()*+,-./0
OK= !"#$%&'(
!"#$%&'()*+,-./0
!"#$%&'()*+,-./01234567
NF !"#$%
OF=oc !"#$%&'NOÇ_=pfk^a=E F
PF=oc !"#$%NÇ_E !"#$%&'(F
QF= !"#$%
RF=pfk^a=E F= !"#$%&'NOÇ_=pfk^a=E
F !pfk^a=E F= NOÇ_ !"#$%
!"#$%&'
TKR-750
67
Final Unit (X45-373X-XX)
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
CN1 DRV I TX driver input signal (Coaxial)
CN3 1 TMP O High temperature detector signal
output for fan action
To X57 2 BUP O Main DC/BACKUP status output
(A/2) 3 PDT O RF power down signal output
TX-RX 4 FAS I Fan control signal input
unit 5 PC I TX power control signal input
68TI8V input during transmission
7NC–Reserved
8GND – Ground
CN4 FAB O
Power supply output for cooling fan
FAG O Fan ground
CN5 1 E – Ground
2B OPower supply output
3B OPower supply output
CN6 1 Main DC I Power supply input (from Main DC
terminal)
CN7 1 BACKUP I Power supply input (from BACKUP
terminal)
CN8 1 GND – Ground
Display Unit (X54-3330-21) (A/2)
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
CN501 1 HK I Hook detection input/RXD input
2MIC I MIC signal input
To X54 3 MIG – MIC ground
(B/2) 4 PTT I/O PTT input/TXD output
display 5 GND – Ground
unit 6 NC – No connection
7SB O
Power supply output after power switch
8NC–No connection
9GND – Ground
10 5M O Common 5V output
11 VLI I Volume control input for AF signal
CN502 1 MIG – MIC ground
2MIC O MIC signal output
To X57 3 VLI O
Volume control output for AF signal
(B/2) 4 5C I Common 5V input
TX-RX 5 K4 I KEY input 4
unit 6 K5 I KEY input 5
control 7 K2 O KEY output 2
section 8 K3 O KEY output 3
9K1OKEY output 1
10 HK/RXD O Hook detection output/RXD output
11 SOE I Output enable for shift register
12 PTT/TXD I/O PTT output/TXD input
TERMINAL FUNCTION / !
!=EuQRJPTPuJuuF
L
`kN aos qu !"#$=EF
`kP N qjm !"#$%&'(
!
O_rm a`L !"#$%
uRT P maq !"#$%&'
E^LOF Q c^p !"#$%
quJou R m` qu !"#$%
SUq !Us
Tk` J
Udka J
`kQ c^_ !"#$%#&'
c^d !
`kR N b J
O_ !"
P_ !"
`kS N
j~áå=a`
!"E a`F
`kT N
_^`hrm
!"E !a`F
`kU N dka J
!=EuRQJPPPMJONFE^LOF
L
`kRMN N eh !"#Loua
Ojf` !"#$
uRQ P jfd J !"
E_LOF Q mqq
L
mqqLqua
Rdka J
Sk` J
Tp_ !"#$%&'
Uk` J
Vdka J
NM Rj Rs
NN sif !"#$%&
`kRMO N jfd J !"
Ojf` !"#$
uRT P sif !"#$%&
E_LOF Q R` Rs
quJou R hQ Q
ShR R
ThO O
UhP P
VhN N
NM
ehLoua
!"#Loua
NN plb !"#$%&'(
NO
mqqLqua
L
mqqLqua
TKR-750
68
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
13 STB1 I Strobe data for shift register
14 CLK I Clock data input
15 DAT I Serial data input
16 PSW O Power switch output
17 GND – Ground
18 NC – No connection
19 SB I
Power supply input after power switch
20 SB I
Power supply input after power switch
Display Unit (X54-3330-21) (B/2)
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
CN601 1 VLI O
Volume control output for AF signal
25MICommon 5V input
To X54 3 GND – Ground
(A/2) 4 NC – No connection
display 5 SB I
Power supply input after power switch
unit 6 NC – No connection
7GND – Ground
8PTT I/O PTT output/TXD input
9MIG – MIC ground
10 MIC O MIC signal output
11 HK O Hook detection output/RXD output
J601 1 NC – No connection
(Mic jack)
2SB O
Power supply output after power switch
3GND – Ground
4PTT/TXD I/O PTT input/TXD output
5MIG – MIC ground
6MIC I MIC signal input
7HK/RXD I Hook detection input/RXD input
8NC–No connection
TX-RX Unit (X57-695X-XX) (A/2) : TX-RX Section
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
CN1 – – O
Use for RX helical BPF tuning (Coaxial)
CN2 – – I Use for RX MCF tuning
CN3 – – O Use for RX frequency adjustment
(Coaxial)
CN4 – – O Use for RX MCF tuning
CN14 1 NC – No connection
2DET O Detection signal output
To X57 3 NC – No connection
(B/2) 4 GND – Ground
control 5 ASQ O Squelch signal output
section 6 RSSI O RSSI signal output
of TX-RX
7SCOSquelch control signal output
unit 8 DP I Data input for PLL
9CPIClock input for PLL
TERMINAL FUNCTION / !
L
NP pq_N !"#$%&'()
NQ `ih !"#
NR a^q !"#
NS mpt !"#
NT dka J
NU k` J
NV p_ !"#$%&'
OM p_ !"#$%&'
!=EuQRJPPPMJONFE_LOF
L
`kSMN N sif !"#$%&'
ORj Rs
uRQ P dka J
E^LOF Q k` J
Rp_ !"#$%&'
Sk` J
Tdka J
Umqq
L
mqqLqua
Vjfd J !"
NM jf` !"#$
NN eh !"#Loua
gSMN N k` J
E Op_ !"#$%&'
FPdka J
Q
mqqLqua
L
mqqLqua
Rjfd J !"
Sjf` !"#$
T
ehLoua
!"#Loua
Uk` J
quJou=EuRTJSVRuJuuFE^LOFquJou
L
`kN J J ou_mc=EF
`kO J J ou=j`c
`kP J J ou !=EF
`kQ J J ou=j`c
`kNQ N k` J
Oabq !"#
uRT P k` J
E_LOF Q dka J
quJou R ^pn !"#
Soppf oppf !
Tp` !"#$%
Uam mii !"
V`m mii !"
TKR-750
69
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
10 EPR I Enable input for RX PLL
11 EPT I Enable input for TX PLL
12 LDR O Lock detector for RX PLL
13 LDT O Lock detector for TX PLL
14 DT I Data input
15 CK I Clock input
16 STB I Strobe input for shift register
17 FWD O RF power down signal output
18 LD2 I Latch data input for DA converter
19 BUP O Backup signal output
20 PSW I Power switch input
21 TMP O High temperature detector signal
output for fan action
22 SOE I Output enable for shift register
23 GND – Ground
24 MB I Modulation signal input for VCXO
25 MO I Modulation signal input for VCO
26 GND – Ground
27 GND – Ground
28 QS I Data
29 NC – No connection
30 SB O
Power supply output after power switch
31 SB O
Power supply output after power switch
32 SB O
Power supply output after power switch
33 SB O
Power supply output after power switch
34 NC – No connection
35 8C O Common 8V output
36 8C O Common 8V output
CN15 1 E – Earth
2B IPower supply input
3B IPower supply input
CN16 1 GND – Ground
2NC–No connection
To X45 3 8T O 8V output during transmission
final 4 PC O TX power control signal output
unit 5 FAS O Fan control signal output
6PDT I RF power down signal input
7BUP I Main DC/BACKUP status input
8TMP I High temperature detector signal
input for fan action
CN18 1 RX IN I Receive signal input (Coaxial)
CN19 1 DO O
Transmission signal output (Coaxial)
TX-RX Unit (X57-695X-XX) (B/2) : Control Section
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
CN600 1 SB O
Power supply output after power switch
To X54 2 SB O
Power supply output after power switch
(B/2) 3 GND – Ground
TERMINAL FUNCTION / !
L
NM bmo ou=mii !"
NN bmq qu=mii !"
NO iao ou=mii !"#
NP iaq qu=mii !"#
NQ aq !
NR `h !
NS pq_ !"#$%&'
NT cta !"#$%&'
NU iaO L !"#$%&'(
NV _rm !"#
OM mpt !"#
ON qjm !"#$%&'(
!
OO plb !"#$%&'
OP dka J
OQ j_ s`ul !"#$
OR jl s`l !"#$
OS dka J
OT dka J
OU np
OV k` J
PM p_ !"#$%&'
PN p_ !"#$%&'
PO p_ !"#$%&'
PP p_ !"#$%&'
PQ k` J
PR U` Us
PS U` Us
`kNR N b J
O_ !"
P_ !"
`kNS N dka J
Ok` J
uQR P Uq !Us
Qm` qu !"#$%
Rc^p !"#$%
Smaq !"#$%&'
T_rm a`La` !
Uqjm !"#$%&'(
!
`kNU N ou=fk !"#=EF
`kNV N al !"#=EF
quJou=EuRTJSVRuJuuFE_LOF !"
L
`kSMM N p_ !"#$%&'
uRQ O p_ !"#$%&'
E_LOF P dka J
TKR-750
70
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
4NC–No Connection
display 5 DAT O Serial data output
unit 6 PSW I Power switch input
7STB1 O Strobe data for shift register
8CLK O Clock data output
9SOE O Output enable for shift register
10 TXD1 I/O PTT input/TXD output
11 K1 I KEY input 1
12 RXD1 I Hook detection input/RXD input
13 K2 I KEY input 2
14 K3 I KEY input 3
15 K4 O KEY output 4
16 K5 O KEY output 5
17 VLI I Volume control input for AF signal.
18 5C O Common 5V output
19 MIG – Mic ground
20 MIC I MIC signal input
CN601 1 TXO O MIC signal output to the board
2TXI I MIC signal input from the board
To 3 RXO O RX audio signal output to the board
optional 4 AC O Audio control signal output
board 5 BC1 O Scramble code output.
6BC2 O Scramble code output.
7BC3 O Scramble code output.
8BC4 O Scramble code output.
9PTI I PTT signal input
10 CLRC O Clear code for scramble
11 RXI I
RX audio signal input from the board
12 PTO O PTT signal output
13 NC O No connection
14 GND – Ground
CN602 1 8C I Common 8V input
28CICommon 8V input
To X57 3 NC – No connection
(A/2) 4 SB I
Power supply input after power switch
TX-RX 5 SB I
Power supply input after power switch
unit 6 SB I
Power supply input after power switch
7SB I
Power supply input after power switch
8NC–No connection
9QSOData
10 GND – Ground
11 GND – Ground
12 MO O Modulation signal output for VCO
13 MB O Modulation signal output for VCXO
14 GND – Ground
15 SOE O Output enable for shift register
16 TMP I
High temperature detector signal input
17 PSW O Power switch output
18 BUP I Backup signal input
TERMINAL FUNCTION / !
L
Qk` J
Ra^q !"#
Smpt !"#
Tpq_N !"#$%&'
U`ih !"#
Vplb !"#$%&'
NM quaN
L
mqqLqua
NN hN N
NO ouaN !"#Loua
NP hO O
NQ hP P
NR hQ Q
NS hR R
NT sif !"#$%&'(
NU R` Rs
NV jfd J !"
OM jf` !"#$
`kSMN N qul !"#$%&
Oquf !"#$%&'(
Poul ou !"#$%
Q^` !"#$%
R_`N !"#
S_`O !"#
T_`P !"#
U_`Q !"#
Vmqf mqq !
NM `io` !"#$
NN ouf !ou !"
NO mql mqq !
NP k`
NQ dka J
`kSMO N U` Us
OU` Us
uRT P k` J
E^LOF Q p_ !"#$%&'
quJou R p_ !"#$%&'
Sp_ !"#$%&'
Tp_ !"#$%&'
Uk` J
Vnp
NM dka J
NN dka J
NO jl s`l !"#$
NP j_ s`ul !"#$
NQ dka J
NR plb !"#$%&'
NS qjm !"#$%&
NT mpt !"#
NU _rm !"#
TKR-750
71
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
19 LD2 O Latch data output for DA converter
20 FWD I RF power down signal input
21 STB O Strobe output for shift register
22 CK O Clock output
23 DT O Data output
24 LDT I Lock detector for TX PLL
25 LDR I Lock detector for RX PLL
26 EPT O Enable output for TX PLL
27 EPR O Enable output for RX PLL
28 CP O Clock output for PLL
29 DP O Data output for PLL
30 SC I Squelch control signal input
31 RSSI I RSSI signal input
32 ASQ I Squelch signal input
33 GND – Ground
34 NC – No connection
35 DET I Detection signal input
36 NC – No connection
CN603 1 SB O
Power supply output after power switch
To ACC 2 SB O
Power supply output after power switch
15 pin 3 GND – Ground
connector
4GND – Ground
CN604 1 AO5 O Auxiliary output 5 (FPU selectable)
2AO4 O Auxiliary output 4 (FPU selectable)
To ACC 3 AO3 O Auxiliary output 3 (FPU selectable)
15 pin 4 SPO O External speaker output
connector
5SPO O External speaker output
6AO2 O Auxiliary output 2 (FPU selectable)
7AO1 O Auxiliary output 1 (FPU selectable)
8SPI I Internal speaker input
9RSSI O RSSI signal output
10 RD O RX data output
11 SPG – External speaker ground
12 SPG – External speaker ground
CN605 1 SPO O Internal speaker AF output
2SPG – Internal speaker ground
CN606 1 NC – No connection
2NC–No connection
To ACC 3 SPM I Speaker mute signal input
25 pin 4 IO6 I/O Programable I/O 6
D-sub 5 RXG – RX signal ground
connector
6IO5 I/O Programable I/O 5
7RAORX audio output (voice)
8IO4 I/O Programable I/O 4
9RDORX data output (voice & data)
10 IO3 I/O Programable I/O 3
11 TA I TX audio input (voice)
12 IO2 I/O Programable I/O 2
13 TD I TX data input (data or signaling)
TERMINAL FUNCTION / !
L
NV iaO L !"#$%&'(
OM cta !"#$%&'
ON pq_ !"#$%&'
OO `h !
OP aq !
OQ iaq qu=mii !"#
OR iao ou=mii !"#
OS bmq qu=mii !"
OT bmo ou=mii !"
OU `m mii !"
OV am mii !"
PM p` !"#$%
PN oppf oppf !
PO ^pn !"#
PP dka J
PQ k` J
PR abq !"#
PS k` J
`kSMP N p_ !"#$%&'
^`` O p_ !"#$%&'
NR Pdka J
Qdka J
`kSMQ N ^lR !R=EcmrF
O^lQ !Q=EcmrF
^`` P ^lP !P=EcmrF
NR Qpml !"#$
Rpml !"#$
S^lO !O=EcmrF
T^lN !N=EcmrF
Upmf !"#$
Voppf oppf !
NM oa ou !
NN pmd J !"#$
NO pmd J !"#$
`kSMR N pm !"#$%&
Opmd J !"#$
`kSMS N k` J
Ok` J
^`` P pmj !"#$%&
OR QflS
L
!"LS
aJëìÄ R oud J ou !
SflR
L
!"LR
To^ ou !=EF
UflQ
L
!"LQ
Voa ou !=E !"F
NM flP
L
!"LP
NN q^ qu !EF
NO flO
L
!"LO
NP qa qu !=E !"F
TKR-750
72
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
14 IO1 I/O Programable I/O 1
15 DG – Control line ground
16 TXG – TX signal ground
17 AI3 I Auxiliary input 3 (FPU selectable)
18 NC – No connection
19 AI2 I Auxiliary input 2 (FPU selectable)
20 SC O Squelch control output
21 AI1 I Auxiliary input 1 (FPU selectable)
22 EPTT I External press-to-talk switch input
23 TXD2 O RS-232C output signal (for FPU)
24 EMON I External monitor switch input
25 RXD2 I RS-232C input signal (for FPU)
26 NC – No connection
27 NC – No connection
28 NC – No connection
29 NC – No connection
30 NC – No connection
RX VCO Unit (X58-4780-10)
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
CN300 1 FIN I Prescaler RF signal input
25CICommon 5V input
3LDR O Lock detector for RX PLL
4 EPR I Enable input for RX PLL
5DPIData input for PLL
6CPIClock input for PLL
7REF I Reference frequency signal input
CN350 1 GND – Ground
2SRR I Switching signal input for RX VCO
38CL I 8V input through the ripple filter
4CVIRX PLL lock voltage
59CL I 9V input through the ripple filter
6NC–No connection
CN351 1 VO O RX VCO output
2GND – Ground
TX VCO Unit (X58-4790-10)
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
CN300 1 FIN I Prescaler RF signal input
25CICommon 5V input
3LDT O Lock detector for TX PLL
4EPT I Enable input for TX PLL
5DPIData input for PLL
6CPIClock input for PLL
7REF I Reference frequency signal input
CN350 1 GND – Ground
2STT I Switching signal input for TX VCO
TERMINAL FUNCTION / !
L
NQ flN
L
!"LN
NR ad J !"
NS qud J qu !
NT ^fP !P=EcmrF
NU k` J
NV ^fO !O=EcmrF
OM p` !"#
ON ^fN !N=EcmrF
OO bmqq mqq !
OP quaO opJOPO` !=EcmrF
OQ bjlk !"#$%
OR ouaO opJOPO` !=EcmrF
OS k` J
OT k` J
OU k` J
OV k` J
PM k` J
ou=s`l=EuRUJQTUMJNMF
L
`kPMM N cfk !"#$%&'
OR` Rs
Piao ou=mii !"#
Qbmo ou=mii !"
Ram mii !"
S`m mii !"
Tobc !"#$%
`kPRM N dka J
O poo ou=s`l !"#$
PU`i !"!#$Us
Q`s ou=mii !
RV`i !"!#$Vs
Sk` J
`kPRN N sl ou=s`l
Odka J
qu=s`l=EuRUJQTVMJNMF
L
`kPMM N cfk !"#$%&'
OR` Rs
Piaq qu=mii !"#
Qbmq qu=mii !"
Ram mii !"
S`m mii !"
Tobc !"#$%
`kPRM N dka J
Opqq qu=s`l !"#$
TKR-750
73
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
38CL I 8V input through the ripple filter
4CVIRX PLL lock voltage
59CL I 9V input through the ripple filter
6MOIModulation signal input
CN351 1 VO O TX VCO output
2GND – Ground
ACC 25 pin D-sub Connector
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
1NC–No connection
2RXD2 I Serial data to radio
3TXD2 O Serial data from radio
4AI1 I Programmable function input 1
5AI2 I Programmable function input 2
6AI3 I Programmable function input 3
7DG–Control line ground
8TDITX data input (data or signalling)
Input impedance: 600Ω
Coupling: AC coupling
Deviation: 0.75kHz (wide)/
0.35kHz (Narrow)
(100Hz 0.5Vp-p input)
9TAITX audio input (voice)
Input impedance: 600Ω
Coupling: AC coupling
Frequency response: Pre-
emphasis curve
Deviation: 60% deviation
(1kHz 280mVrms ±25mV input)
10 RD O RX data output (voice & data)
Output impedance: 1kΩ or less
Coupling: AC coupling
Non-squelched
Frequency response: ±2.5dB at
10~3000Hz
Output level: 70~90mVrms
(standard modulation)
11 RA O RX audio output (voice)
Output impedance: 1kΩ or less
Coupling: AC coupling
Squelched
Frequency response: De-
emphasis curve
Output level: 360~440mVrms
(standard modulation)
12 RXG – RX signal ground
(for RA,RD ground only)
TERMINAL FUNCTION / !
L
PU`i !"!#$Us
Q`s ou=mii !
RV`i !"!#$Vs
Sjl !"#
`kPRN N sl qu=s`l
Odka J
^``ORaJëìÄ
L
Nk` J
OouaO !"#$%
PquaO !"#$%&
Q^fN !"#$N
R^fO !"#$O
S^fP !"#$P
Tad J !"
Uqa qu !=E !"F
!"SMM
^`
MKTRâeò=EFL
MKPRâeò=EF
ENMMeò=MKRséJéF
Vq^ qu !=EF
!"SMM
^`
!"#$%&'
SMB
ENâeò=OUMãsãëORãsF
NM oa ou !=E !"F
!"Nâ !"
^`
!"#NMPMMMeò
OKRÇ_
!"TMVMãsãë
E !F
NN o^ ou !=EF
!"Nâ !"
^`
!
!"#$%&'
!"PSMQQMãsãë
E !F
NO oud J
ou !
E o^oaF
TKR-750
74
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
13 SPM I Speaker mute signal input
“L”: Mute on
14 NC - No connection
15 EMON I External monitor switch input
“L”: Monitor on, “H”: Monitor off
16 EPTT I External press-to-talk switch input
“L”: PTT on, “H”: PTT off
17 SC O Squelch control output
“L”: Busy, “H”: Not busy
18 NC - No connection
19 TXG - TX signal ground
(for TA,TD ground only)
20 AIO1 I/O
Programmable function input/output 1
21 AIO2 I/O
Programmable function input/output 2
22 AIO3 I/O
Programmable function input/output 3
23 AIO4 I/O
Programmable function input/output 4
24 AIO5 I/O
Programmable function input/output 5
25 AIO6 I/O
Programmable function input/output 6
ACC 15 pin Connector
Connector Terminal
Terminal
I/O Terminal function
No. No. Name
1SBOPower supply output after power
switch; 1A maximum
2SBOPower supply output after power
switch; 1A maximum
3NC–No connection
4GND – Ground
5GND – Ground
6SPG – Speaker ground
7RDORX data output (Equal to D-sub
connector terminal No. 10.)
8RSSI O RSSI output (Analog signal output)
9SPI I Internal speaker input
10 AO1 O Auxiliary output 1
Open collector. Low : 150mA max.
11 AO2 O Auxiliary output 2
Open collector. Low : 150mA max.
12 SPO O External speaker output
13 AO3 O Auxiliary output 3
14 AO4 O Auxiliary output 4
15 AO5 O Auxiliary output 5
13 12 11 10 9 8 7 6 5 4 3 2 1
20
19 18 17 16
25 24 23 22 21
15 14
13 10 741
14 11 852
15 12 963
TERMINAL FUNCTION / !
L
NP pmj !"#$%&
i !"#
NQ k` J
NR bjlk !"#$%
i !"#$%e !"
NS bmqq mqq !
imqq !emqq
NT p` !"#
i !"#e !"
NU k` J
NV qud J qu !=E q^qaF
OM ^flN
L
!"#$LN
ON ^flO
L
!"#$LO
OO ^flP
L
!"#$LP
OP ^flQ
L
!"#$LQ
OQ ^flR
L
!"#$LR
OR ^flS
L
!"#$LS
^``=NR !"
L
Np_ !"#$%&'(
N^
Op_ !"#$%&'(
N^
Pk` J
Qdka J
Rdka J
Spmd J !"
Toa ou !
Uoppf oppf=E !"#F
Vpmf !"#$
NM ^lN !N
!"#$%&'NRMã^
NN ^lO !O
!"#$%&'NRMã^
NO pml !"#$
NP ^lP !P
NQ ^lQ !Q
NR ^lR !R
13 12 11 10 9 8 7 6 5 4 3 2 1
20
19 18 17 16
25 24 23 22 21
15 14
13 10 741
14 11 852
15 12 963
TKR-750
75

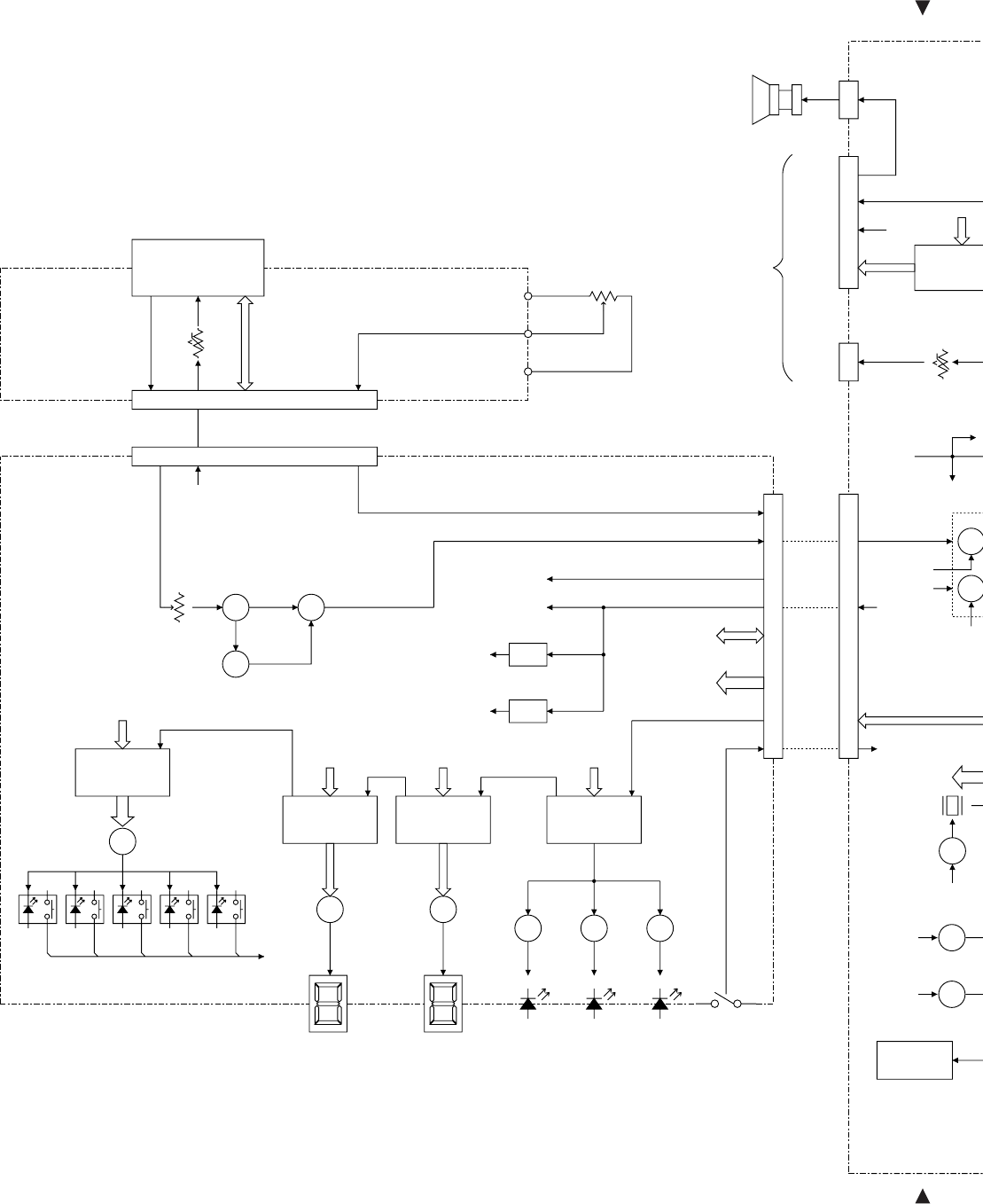

BLOCK DIAGRAM /
TA SW
TAS
SW
MIC
MIS
RD
DET
EEPROM
IC600
AT2408N10S12.5
SC
L
SD
A
SOE,STB1
CLK,DAT
KEY1~5,VLI
TXD1,RXD1,PTT
TXD0/RXD0
IO1~6
SFT
SW
Q600
2SK1824
X600
14.754M
DAT,CLK,SO
E
Shift Reg.
IC623
BU4094BC
F
RSSI
RD
A01~5
5C
SB
PTT/TXD
HK/RXD
KEY1~5
5V
AVR
5V
AVR
5V
5V
IC506
TA78L05F
IC507
TA78L05F
Shift Reg.4
IC502
BU4094BCFV
SPI
SP
CN605
CN604
CN603 D626
MINISMDE190
SPO
INT SP
TX-RX unit (CONTROL) X5
7
Shift Reg.3
IC505
BU4094BCFV
Shift Reg.2
IC504
BU4094BCFV
Shift Reg.1
IC503
BU4094BCFV
SW
SW
SW
Q510
Q511
DTA114EUA x 5
SW
SW
SW
Q508
AMP ATT
DET
D501/502
HSM88AS
VR501
IC501
NJM4558E
Q501
2SC4116(Y)
Q502
2SA1586(Y,GR)
MIC
Q516~519
UPA627T
Q521~524
UPA627T
KEY1~5
S501 S502 S503 S504 S505
PF1~5
Q512~514
UPA627T
D506 D507
S507
Power source
SW
Main DC
Back UP
BUSY
CALL
TX
D505D504D503
VLI
PSW
DAT
SOSISI SO
SO
SI
CLK,SOE,STB1
CLK,SOE,STB1 CLK,SOE,STB1CLK,SOE,STB1
CN502
CN600
CN601
CN501
VR601
AF VOL
MIC JACK
VLI
Display unit
X54-333 (A/2)
Display unit
X54-333 (B/2)
SB
SB
D603 PTT/TXD
HK/RXD
SB
SB
PSW
TEST/SPKR
CLK,SOE,STB1
INV
INV
BUP
TEMP
Q602
2SK1824
Q601
DTC114EUA
5
Q509
Q506
TKR-750
76
BLOCK DIAGRAM /
Shift Reg.6
IC602
BU4094BCFV
AMP
RS232
DRIVER
AMP
DAC
IC615 (A/2)
M62364FP
AI1~3
SPM,EMON,EPTT
AMP
RXD2/TXD2
IO1~6
AMP
LD1,DAT,CLK
SC
IC617
(B/2)
IC607
(A/2)
IC607
(B/2)
IC617
(A/2)
IC620
ADM202EARN
DAC
IC615 (B/2)
M62364FP
MO
MB
AMP
LPF
SW
TD
TDS
IC605 (B/2)
BU4053BCF
AMP
IC616 (B/2)
NJM4558E
IC616 (A/2)
NJM4558E
IC611 (A/2)
NJM4558E
IC619 (A/2)
NJM4558E
LPFAMP
IC619 (B/2)
NJM4558E
CODEC
IC614
AK4550VT
AOUTR
AOUTL
AINL
AINR
IC610
TA75S01F
AMP
AMP
IC608
TA75S01F
RXI RXODEODEI
TXI TXO
TA SW IC605 (A/2)
BU4053BCF
TAS
SW
MIC
MIS
DP,CP
EPR,EPT
DT,CK
STB4,SOE
LD2,PSW
RD
DET
IC630
TA78L05F
IC624
XC62FP1802P
1.8V
AVR
3.3V
AVR
5V
AVR
5V
AVR
3.3V
AVR
5V
AVR
IC625
XC62FP3302P
IC626
XC62FP3302P
IC627
TA78L05F
3.3D
1.8C
3.3A
5C
SB
DSP
IC618
TMS320VC5402PGE
INV
INV IC612
TC7S04FU
STDO
STDI
PWDA
PWAD
BDR0
BDX0
Q603
DTC114EUA
DIVIDER
IC613
TC74VHC4040FT
XF
SW
SFT
Q604
2SK1824
X601
16.515M
Interface
IC603/606
TC74LVX4245FS
LD1,DAT,CLK
CPU
IC604
M30622M4
FLASH ROM
IC609
AT29C020-90TI
Reset IC
IC601
RH5VL42C
A0~A18,
D0~D7,
WR,RD,CS0
WR,HCS,
D0~D7
A0~D3
EEPROM
IC600
AT2408N10S12.5
SCLK,
SDAT
SOE,STB1
CLK,DAT
KEY1~5,VLI
TXD1,RXD1,PTT
EPTT
EMON
AI1~3
TXD0/RXD0
IO1~6
SFT
SW
Q600
2SK1824
X600
14.754M
SCLK
LRCLK
ASQ,RSSI
FWD,BATT
CN601 Option board
BC1~4,
CLRC,AC
DAT,CLK,SOE,STB3
RXI/RXO
TXI/TXO
PTI/PTO
RA
RD
TA
TD
DAT,CLK,SOE,STB2
Shift Reg.5
IC623
BU4094BCFV
RSSI
RD
A01~5
AF AMP
IC629
LA4422
AF
SW
MUTE
INV Q605
DTC114EUA
Q606
DTC363EK
IC622
TC7S66FU
AM
SPM
IC621
TC7S00FU
SW
INV
AMPSW
Q610
2SJ506(S)
Q609
DTC114EUA
NJM4558E x 4
SB
S
PI
S
P
D626
MINISMDE190
S
PO
X
-RX unit (CONTROL) X57-695 (B/2)
SB
PSW
MCLK
RESET
RXD0/TXD0
IC628
TA78L05F
RA
DET
8C
5M
BUP,TEMP
LDT,LDR
FWD
SB
TDS
TAS
MIS
RSSI
ASQ
SOE,DAT,CLK
STB2,STB3,SFT
DP,CP,EPR,EPT
LD1,LD2,LDR,LDT
AM,AMPSW
BCLK
SCLK
INV
INV
BUP
TEMP
Q602
2SK1824
Q601
DTC114EUA
5-TONE
5-TONE
IC631
IC632
TA75W01FU
TKR-750
77
BLOCK DIAGRAM /
SW
SW
VCOA
VCOB
PLL
SRR
TCXO
LPF
9CLR
FCR
W/N
Fin
EPR
CP
DP
SW
PSW
SW
SW
5V
AVR
8V
AVR
DC
AMP
8R
8T
5CT
8CT
ATT
PLL
VCOB
9CLT VCOA
LPF
CVT
QUD
SW
DET AMP
CVR
DET
ASQ
RSSI
W/N
PC
8T
PC
8T
DAC
IC6
M62354GP
SOE
STB4
CK
DT
LD2
CK
DT
SRR,STT
8RC,8TC
FAS
FCT
FCR
PC
EPR,EPT
CP,DP,PSW
BUP,TEMP,
LDR,LDT
FWD
CN16
CN19
L2,3
A1
XF1
MCF(N)
D1
DAN235K
D2
DAN235K
IF AMP
Q3
2SC3356(R24)
Q9
2SC3357
Q8
2SC3120
A3
RX VCO
W/N
W/N
CN14
X2
16.8M
K1
TCXO
X3
16.8M
FCT
STT
Fin
IC4
NJM7808FA
A2
TX VCO
8V
AVR
9V
AVR
IC10
TA7808F
5V
AVR
IC3
NJM78L05UA
INV
8TC
Q18
2SB1386(R)
Q16
2SB1132(Q,R)
IC11
NJM78L05UA
8RC
INV
Q17
DTC114EUA
Q19
DTC114EUA
8CR
LIPPLE
Q12
2SC4116(GR)
5CR
8CLR
8CLT LIPPLE
Q13
2SC4116(GR)
IC5
AN8009M
LIPPLE
9CLR
9CLT LIPPLE
Q15
2SC4116(GR)
Q14
2SC4116(GR)
IC7
BU4094
BCFV
D5
MA742
Q7
2SC4617(S)
SW SW
D4
DAN235K
D3
DAN235K
Q4
DTC144EUA
FM IC
IC9 : TK14489V
2
/TXD2
CN602
MO
MB
P
,CP
E
PT
T
,CK
S
OE
P
SW
SB
CN606
SW
BUP
K1
SW
Final AMP
Q5
RD70HVF1-01
FAS
Q9
DTD123EK
CN6
CN7
CN4
TX ANT
FAB
BACKUP
DC
AMP
REF
AMP
PC
FWD
DET
REV
DET
IC1
TA75W01FU
15A
15A
Main DC
CN1
CN3
+B
Vcont TEMP
Final unit
X45-373 (A/2) X45-373 (B/2)
TX-RX unit X57-695 (A/2)
DET
8C
8C
E
MP
L
DR
F
WD
X1
44.395MHz
EPT
CP
DP
CN15
CN5
SB
RSSI
ASQ
MO
MB
CF1 (Wide)
CF2 (Narrow)
CM COUPLER
D5D4
VR1
HSM88AS x 2
Q8
2SC4116(Y)
IC2
TEMP
IC3
NJM78L05UA
TMP
SW
Drive AMP
Q2
2SC3356(R24)
Drive AMP
Q3
2SC3357
Drive AMP
Q4
RD55003S
Control I/O
(D-SUB)
455kHz
44.850MHz
XF2
MCF(W)
IF AMP
Q2
2SC3357
RF AMP
Q1
2SC357
Buff
Q11
2SC3120
DC
AMP
IC2
NJM4558E
IC1
NJM4558E
CN18
RX ANT
Q350,351:
2SK508NV(K52)
D350~353:
1SV282
IC300
SA7025DK
IC300
SA7025DK Q350,351:
2SK508NV(K52)
D350~353:
1SV282
MB
MO
SW
SW
Q5
DTA144EUA
Q6
DTC144EUA
W/N
5V
AVR
FAS
FAS
TMP
BUP
PDT
TMP
BUP
PDT
L5,6,7

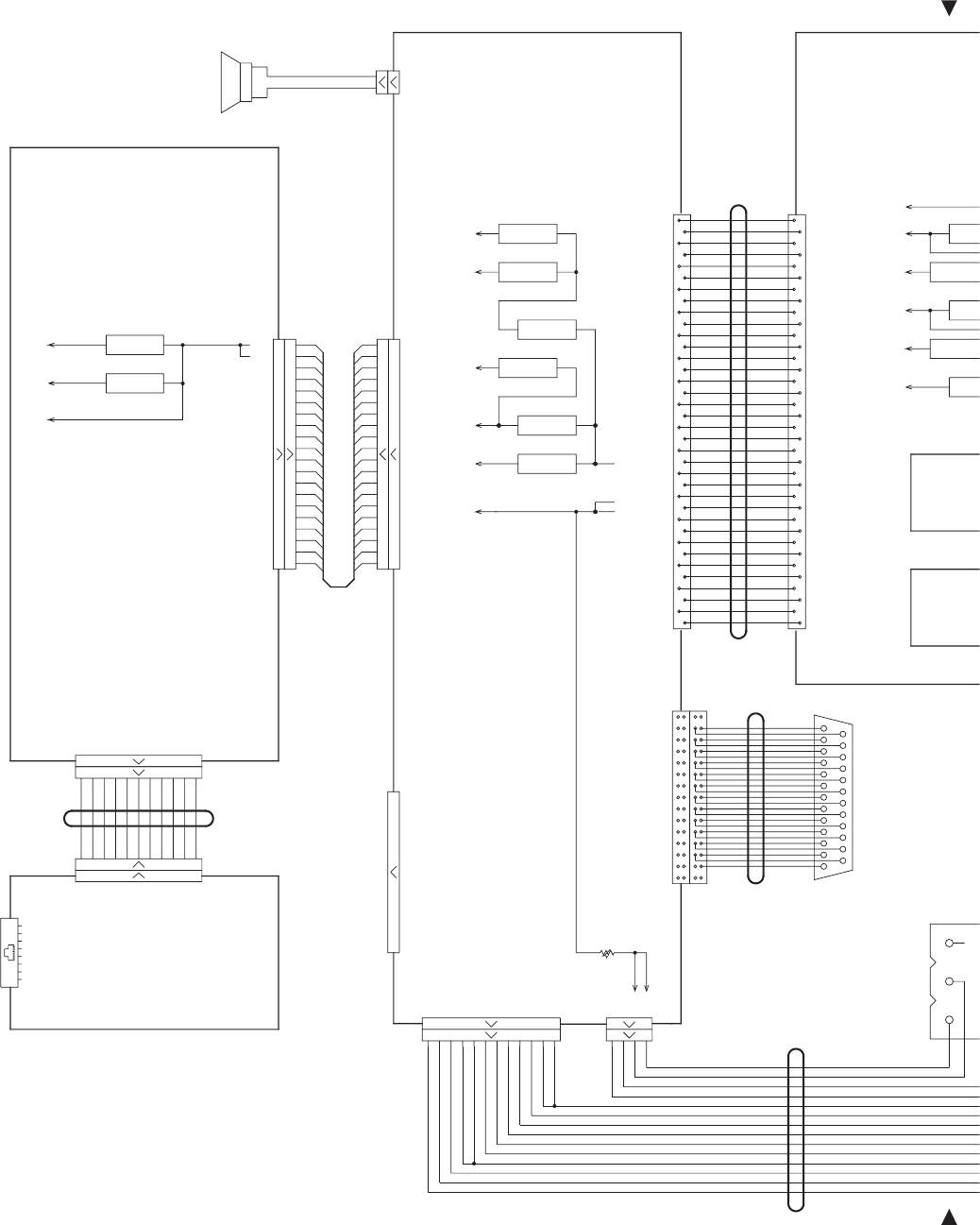

TKR-750
78

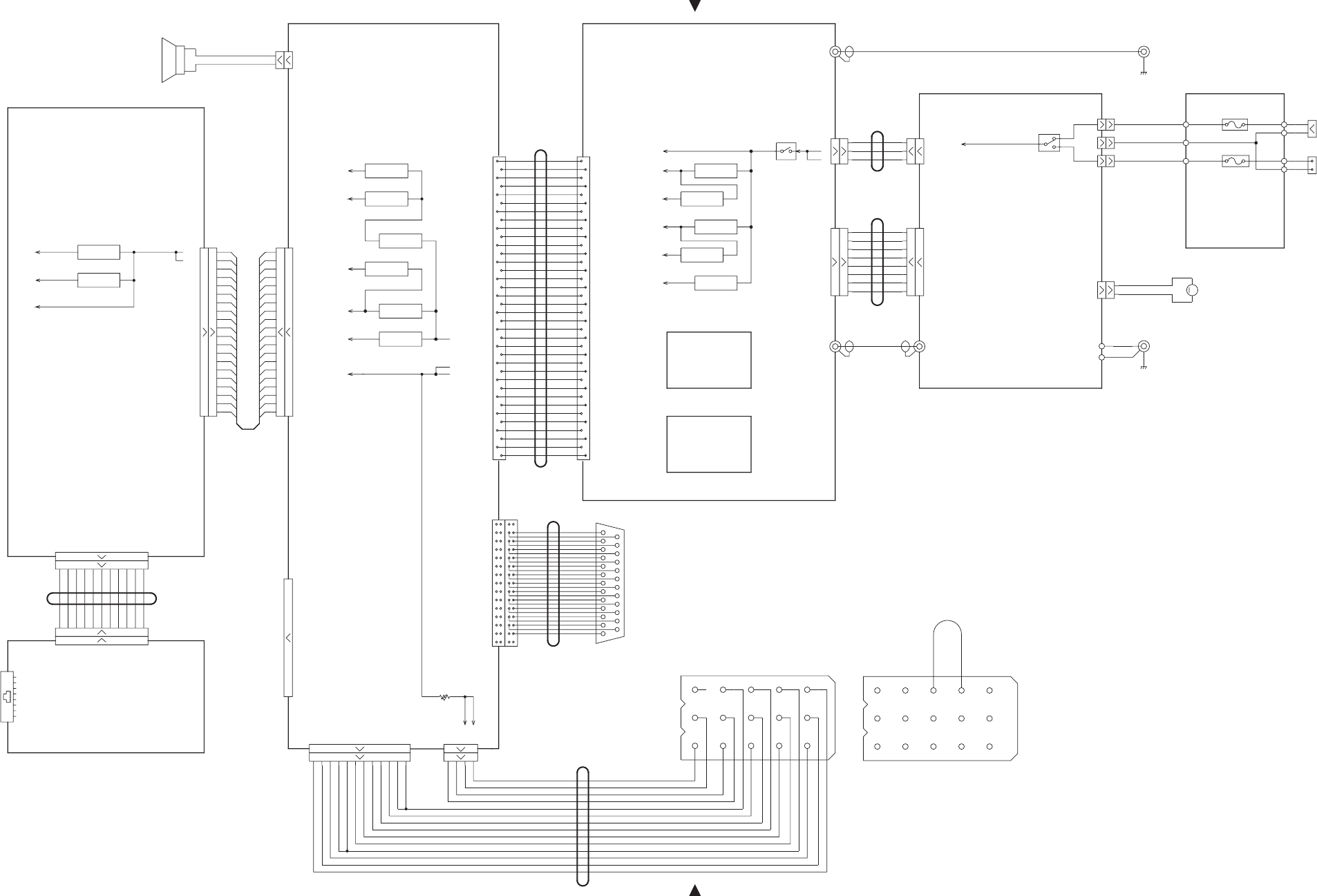

CN605
1
SPO
2
SPG
1
2
3
CN602
1
36
CN14
1
36
CN600
1
SB
SB
GND
NC
DAT
PSW
STB1
CLK
SOE
TXD1
K1
RXD1
K2
K3
K4
K5
VLI
5C
MIG
20
MIC
CN502
1
MIG
MIC
VLI
5C
K4
K5
K2
K3
K1
HK/RXD
SOE
PTT/TXD
STB1
CLK
DAT
PSW
GND
NC
SB
20
SB
CN601
HOOK
MIC
MIG
PTT
GND
NC
SB
NC
GND
5M
VLI
CN501
VLI
5M
GND
NC
SB
NC
GND
PTT
MIG
MIC
HOOK
J601
1
NC
5
HOOK
2
MIC
6
MIG
3
PTT
7
GND
4
SB
8
NC
CN604
NCNC
NCNC
NCRXD2
EMONTXD2
EPTTAI1
SCAI2
NCAI3
TXGDG
AIO1TD
AIO2TA
AIO3RD
AIO4RA
AIO5RXG
AIO6SPM
NCNC
TX-RX UNIT B/2
X57-695*-**
INT SP
TX-RX U
N
X57-69
5
DISPLAY UNIT A/2
X54-333*-**
TXO
TXI
RXO
AC
BC3
BC1
BC4
BC2
RXI
GND
PTI
NC
PTO
CLRC
14
1
RXD2
DG
AI3
TD
RD
NC
AI2
SPM
AI1
RXG
RA
TXD2
TA AIO2
NC
EMON
TXG
AIO1
AIO4
NC
SC
AIO6
AIO5
EPTT
AIO3
SPG
GND
SB
RD
GND
RSI
SB
AO1
SPO
AO5
SPI
AO3
AO2
AO4
DISPLAY UNIT B/2
X54-333*-**
MIC
SPG
SPO
CONTROL I/O
CN606
CN603
1
4
CN601
LDT
RSSI
EPR
PSW
GND
MO
SC
LD2
TMP
CK
GND
FWD
DET
SOE
SB
CP
BUP
NC
SB
EPT
ASQ
8C
DT
NC
LDR
STB
DP
MB
GND
NC
GND
QS
NC
SB
SB
8C
NC
NC
NC
MO
SOE
LDT
DP
SB
GND
SC
GND
GND
SB
LD2
RSSI
SB
SB
FWD
MB
8C
CP
STB
DT
8C
EPT
NC
ASQ
QS
TMP
PSW
LDR
BUP
GND
CK
DET
EPR
1
11
11
1
1
12
29 30
12
W9
W10
W11
8V
A
8V
A
9V
A
5CR
SB
8CT(8C)
9C
SUB U
N
(RX VCO
/
X58-4
7
SUB U
N
(TX VCO
/
X58-4
7
SB
SB
8C
1.8C
3.3A
1.8V AVR
3.3D 3.3V AVR
3.3V AVR
5C 5V AVR
5V AVR
5V AVR
5V AVR
5V AVR
5CT
8CR
5V AVR
5V AVR
5M
INTERCONNECTION DIAGRAM / !

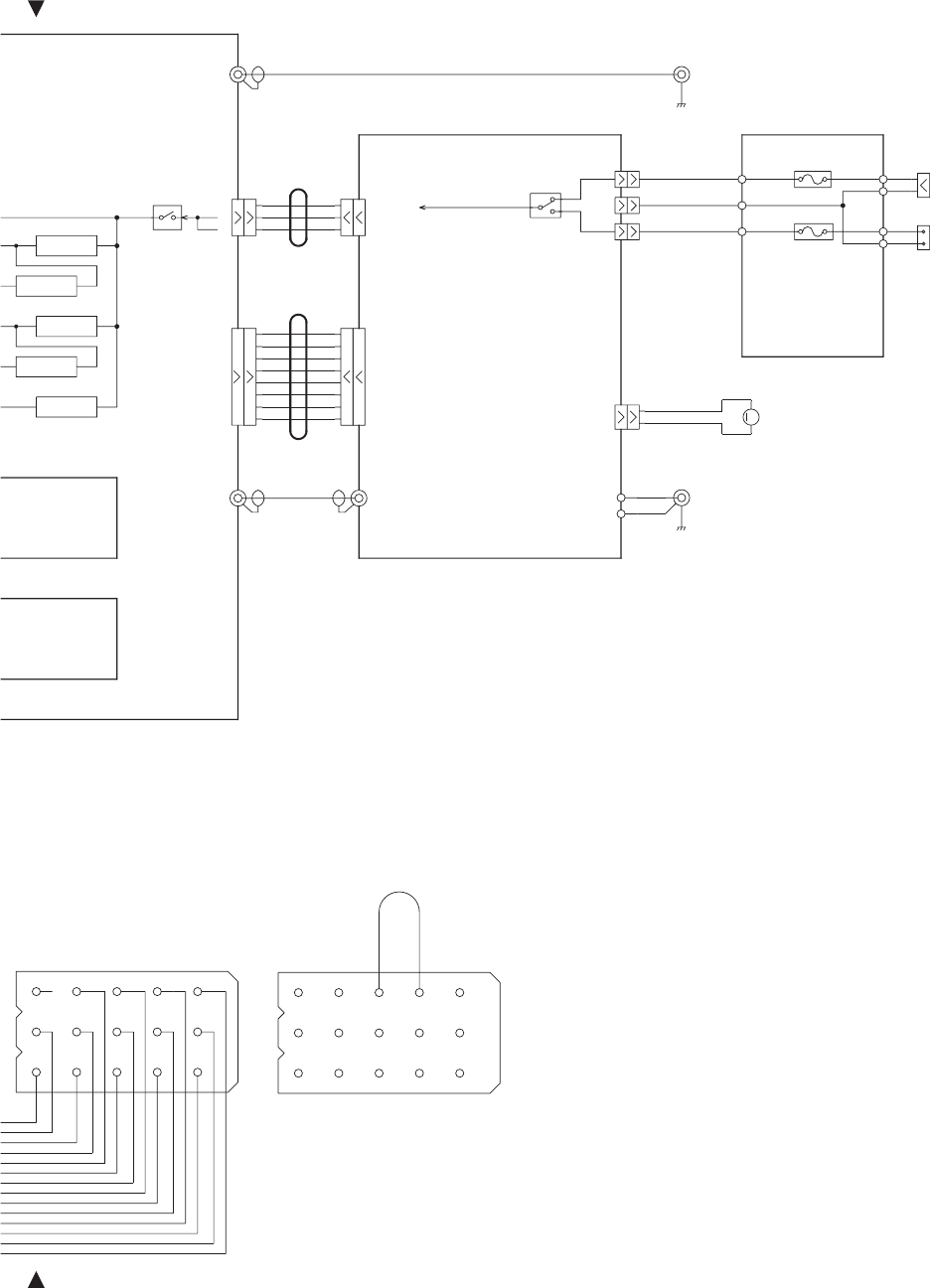

TKR-750
79
M
+
–
+
–
1
2
6
47
9
8
10
12
13
14115
3 15
T
X-RX UNIT A/2
X57-695*-**
FINAL UNIT A/2
X45-373*-**
FINAL UNIT B/2
X45-373*-**
8T
PDT
PC
TMP
NC
FAS
GND
BUP
B
E
B
RX ANT
TX ANT
GND
+B2
+B1
BACKUP BATTERY
2
O
N
1
4
6
5
T
3
GND
+B1
+B2
GND
1
FAB FAN
CN5
CN4
CN3
CN1
1
8
CN6
CN8
CN7
CN15
1
3
CN16
CN18
CN19
E
B
B
3
1
NC
BUP
8T
TMP
PC
GND
PDT
FAS
MAIN DC
MAIN DC
GND
BACKUP
1
8
TEST/SPKR
912
W3
W4
W5
W6
W7
W8
W2
W1
2
FAG
+B
8V AVR
8V AVR
9V AVR
SUB UNIT
(RX VCO/PLL)
X58-478
SUB UNIT
(TX VCO/PLL)
X58-479
5V AVR
5V AVR
INTERCONNECTION DIAGRAM / !
M
CN605
1
SPO
2
SPG
+
–
+
–
1
2
6
47
9
8
10
12
13
14115
3
CN602
1
36
CN14
1
36
CN600
1
SB
SB
GND
NC
DAT
PSW
STB1
CLK
SOE
TXD1
K1
RXD1
K2
K3
K4
K5
VLI
5C
MIG
20
MIC
CN502
1
MIG
MIC
VLI
5C
K4
K5
K2
K3
K1
HK/RXD
SOE
PTT/TXD
STB1
CLK
DAT
PSW
GND
NC
SB
20
SB
CN601
HOOK
MIC
MIG
PTT
GND
NC
SB
NC
GND
5M
VLI
CN501
VLI
5M
GND
NC
SB
NC
GND
PTT
MIG
MIC
HOOK
J601
1
NC
5
HOOK
2
MIC
6
MIG
3
PTT
7
GND
4
SB
8
NC
CN604
15
NCNC
NCNC
NCRXD2
EMONTXD2
EPTTAI1
SCAI2
NCAI3
TXGDG
AIO1TD
AIO2TA
AIO3RD
AIO4RA
AIO5RXG
AIO6SPM
NCNC
TX-RX UNIT B/2
X57-695*-**
INT SP
TX-RX UNIT A/2
X57-695*-**
FINAL UNIT A/2
X45-373*-**
FINAL UNIT B/2
X45-373*-**
DISPLAY UNIT A/2
X54-333*-**
TXO
TXI
RXO
AC
BC3
BC1
BC4
BC2
RXI
GND
PTI
NC
PTO
CLRC
14
1
8T
PDT
PC
TMP
NC
FAS
GND
BUP
B
E
B
RX ANT
TX ANT
GND
+B2
+B1
BACKUP BATTERY
RXD2
DG
AI3
TD
RD
NC
AI2
SPM
AI1
RXG
RA
TXD2
TA AIO2
NC
EMON
TXG
AIO1
AIO4
NC
SC
AIO6
AIO5
EPTT
AIO3
SPG
GND
SB
RD
GND
RSI
SB
AO1
SPO
AO5
SPI
AO3
AO2
AO4
GND
+B1
+B2
GND
DISPLAY UNIT B/2
X54-333*-**
1
FAB
MIC
FAN
SPG
SPO
CN5
CN4
CN3
CN1
1
8
CN6
CN8
CN7
CN15
1
3
CN16
CN18
CN19
CONTROL I/O
E
B
B
3
1
NC
BUP
8T
TMP
PC
GND
PDT
FAS
CN606
CN603
1
4
CN601
LDT
RSSI
EPR
PSW
GND
MO
SC
LD2
TMP
CK
GND
FWD
DET
SOE
SB
CP
BUP
NC
SB
EPT
ASQ
8C
DT
NC
LDR
STB
DP
MB
GND
NC
GND
QS
NC
SB
SB
8C
NC
NC
NC
MO
SOE
LDT
DP
SB
GND
SC
GND
GND
SB
LD2
RSSI
SB
SB
FWD
MB
8C
CP
STB
DT
8C
EPT
NC
ASQ
QS
TMP
PSW
LDR
BUP
GND
CK
DET
EPR
1
11
11
1
MAIN DC
MAIN DC
GND
BACKUP
1
8
1
12
TEST/SPKR
912
29 30
12
W3
W4
W5
W6
W7
W8
W9
W10
W11
W2
W1
2
FAG
+B
8V AVR
8V AVR
9V AVR
5CR
SB
8CT(8C)
9C
SUB UNIT
(RX VCO/PLL)
X58-478
SUB UNIT
(TX VCO/PLL)
X58-479
SB
SB
8C
1.8C
3.3A
1.8V AVR
3.3D 3.3V AVR
3.3V AVR
5C 5V AVR
5V AVR
5V AVR
5V AVR
5V AVR
5CT
8CR
5V AVR
5V AVR
5M
80
JIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C21
C22
C27
C28
C29
C37
C42
C91
C96
C1
C99
C2
C3
1
3B
B
E
C7
C9
D2
F1
K1
L2
L3
L4
L5
L6
CN51
C106
CN52
D51
D52
C112
C118
R10
R11
R13
R14
R15
R16 R17
R18
R19
R20
R21
Q2
R26
C136
C137
Q3
E
C
B
R28
C143
R1
R6
R7
R8
R9
R48
R49
R50
R52
R53
R61
R64
CN1
TX IN
CN4
CN5
CN6 MAIN DC
(RED)
CN7 BACKUP
(ORANGE)
GND
+B2
GND
+B1
CN8 GND
(BLACK)
C10
C11
C12
C13
C14
C15
C16 C19
J72-0910-19 (B/2)
CHARGE
Vg
+
+
FAB 1
2
FAG
+
Q4
GD
T
M
C30
Main DC Back up battery
+B1
GND
+B2
TKR-750 PC BOARD / PC板
FINAL UNIT (X45-373X-XX) 0-10 : C 0-11 : C2
Component side view (J72-0910-19)
Ref. No. Address
IC1 8K
Q2 9H
Q3 9F
Q4 6I
Ref. No. Address
Q5 5L
D2 8J
D4 7Q
D5 9Q
Ref. No. Address
D7 3J
D51 7B
D52 8B
D53 8R

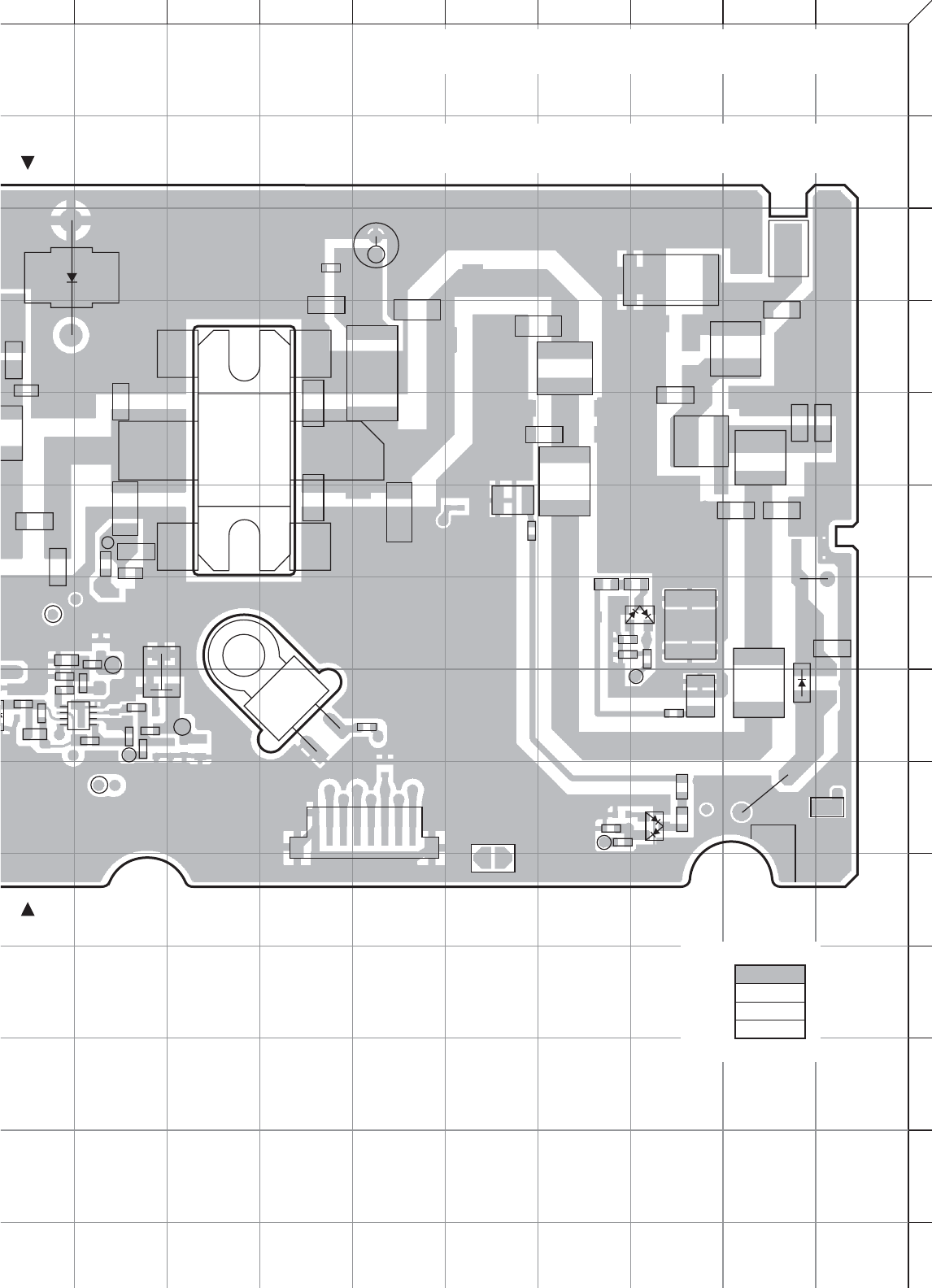

81
JKLMNOPQRS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C31
C32
C42
C53
C46
C49
C54
C55
C57
C64
L16
C68
C69 C70
C71
C72
C74
C77
C92
D4
D5
D7
F1
L7
L8
L9
L10
L11
L12
R71
IC1
C117
C118
R22
R23
R24
R25
R26
R27
R28
R29
R30
R31
R32
R34
R35
R36
C165
R38
L17
R40
R41
R70
R45
VR1
C161
C162
C163
C164
C47
R57
R62
R63
CN3 ANT SW
1
8GND
NC
8T
PC
FAS
PDT
BUP
TMP
J72-0910-19 (A/2)
Vg
TMP
C30
PC
1
45
8
PDT
8T
DET
Q5
GD
+
FWD
TH1
REV
ANT
C160
L20
C173
L19
RX
E
D53
CN53
PC BOARD / PC板 TKR-750
FINAL UNIT (X45-373X-XX) 0-10 : C 0-11 : C2
Component side view (J72-0910-19)

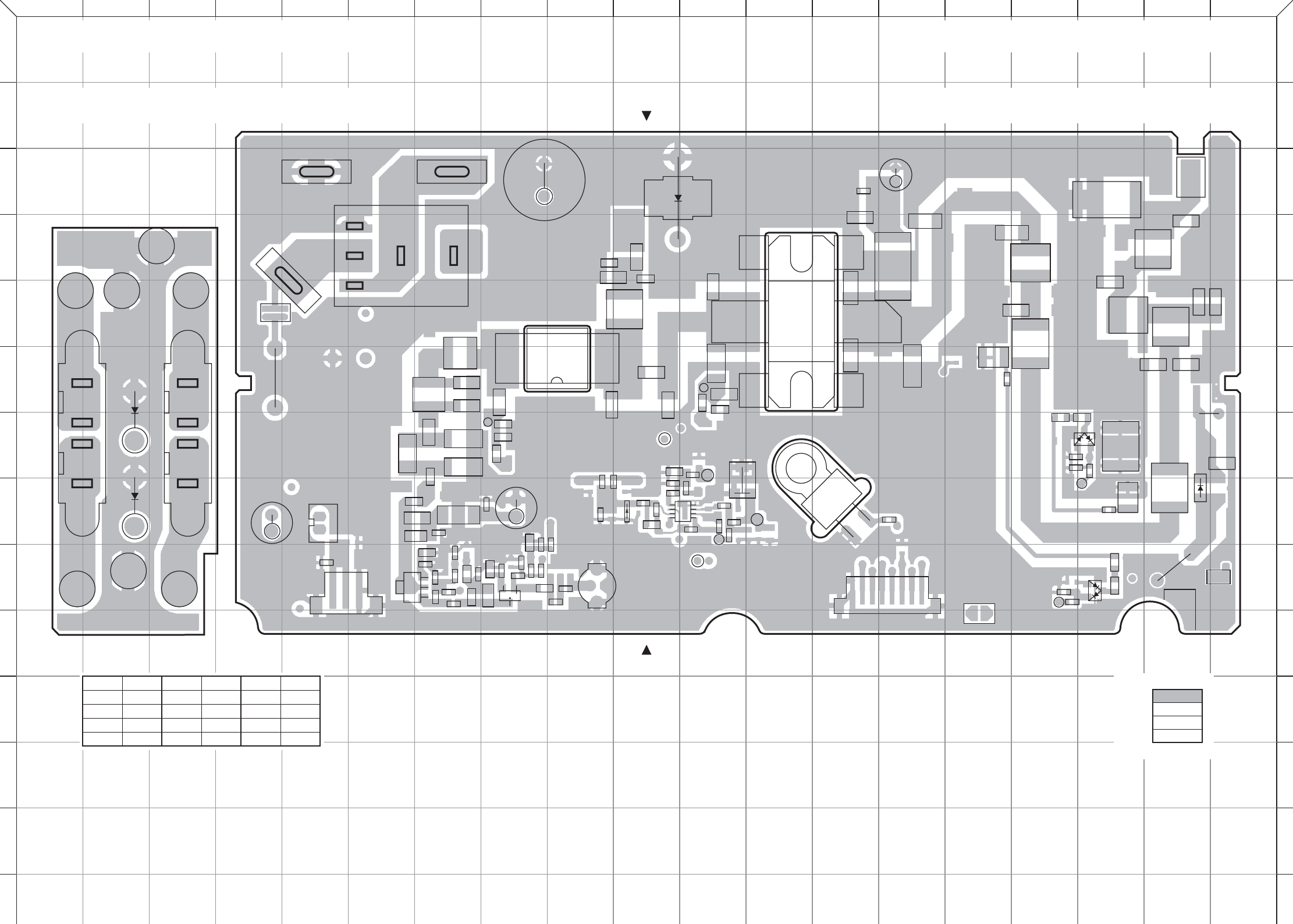

Component side
Foil side
Layer 1
Layer 2
Layer 3
Layer 4
JKLMNOPQRSIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C21
C22
C27
C28
C29
C31
C32
C37
C42
C53
C46
C49
C54
C55
C57
C64
L16
C68
C69 C70
C71
C72
C74
C77
C91
C92
C96
C1
C99
C2
C3
1
3B
B
E
C7
C9
D2
D4
D5
D7
F1
K1
L2
L3
L4
L5
L6
L7
L8
L9
L10
L11
L12
R71
CN51
C106
CN52
D51
D52
IC1
C112
C117
C118
R10
R11
R13
R14
R15
R16 R17
R18
R19
R20
R21
R22
R23
R24
R25
Q2
R26
C136
R27
C137
Q3
E
C
B
R28
R29
R30
R31
R32
C143
R34
R1
R35
R36
C165
R38
L17
R6
R7
R8
R9
R40
R41
R70
R45
VR1
R48
R49
R50
C161
C162
R52
C163
R53
C164
C47
R57
R61
R62
R63
R64
CN1
TX IN
CN3 ANT SW
1
8GND
NC
8T
PC
FAS
PDT
BUP
TMP
CN4
CN5
CN6 MAIN DC
(RED)
CN7 BACKUP
(ORANGE)
GND
+B2
GND
+B1
CN8 GND
(BLACK)
C10
C11
C12
C13
C14
C15
C16 C19
J72-0910-19 (B/2)
J72-0910-19 (A/2)
CHARGE
Vg
Vg
+
+
FAB 1
2
FAG
+
Q4
GD
TMP
C30
PC
1
45
8
PDT
8T
DET
Q5
GD
+
FWD
TH1
REV
ANT
Main DC Back up battery
+B1
GND
+B2
C160
L20
C173
L19
RX
E
D53
CN53
TKR-750 PC BOARD / PC板PC BOARD / PC板 TKR-750
FINAL UNIT (X45-373X-XX) 0-10 : C 0-11 : C2
Component side view (J72-0910-19)
FINAL UNIT (X45-373X-XX) 0-10 : C 0-11 : C2
Component side view (J72-0910-19)
Ref. No. Address
IC1 8K
Q2 9H
Q3 9F
Q4 6I
Ref. No. Address
Q5 5L
D2 8J
D4 7Q
D5 9Q
Ref. No. Address
D7 3J
D51 7B
D52 8B
D53 8R
Component side
Foil side
Layer 1
Layer 2
Layer 3
Layer 4

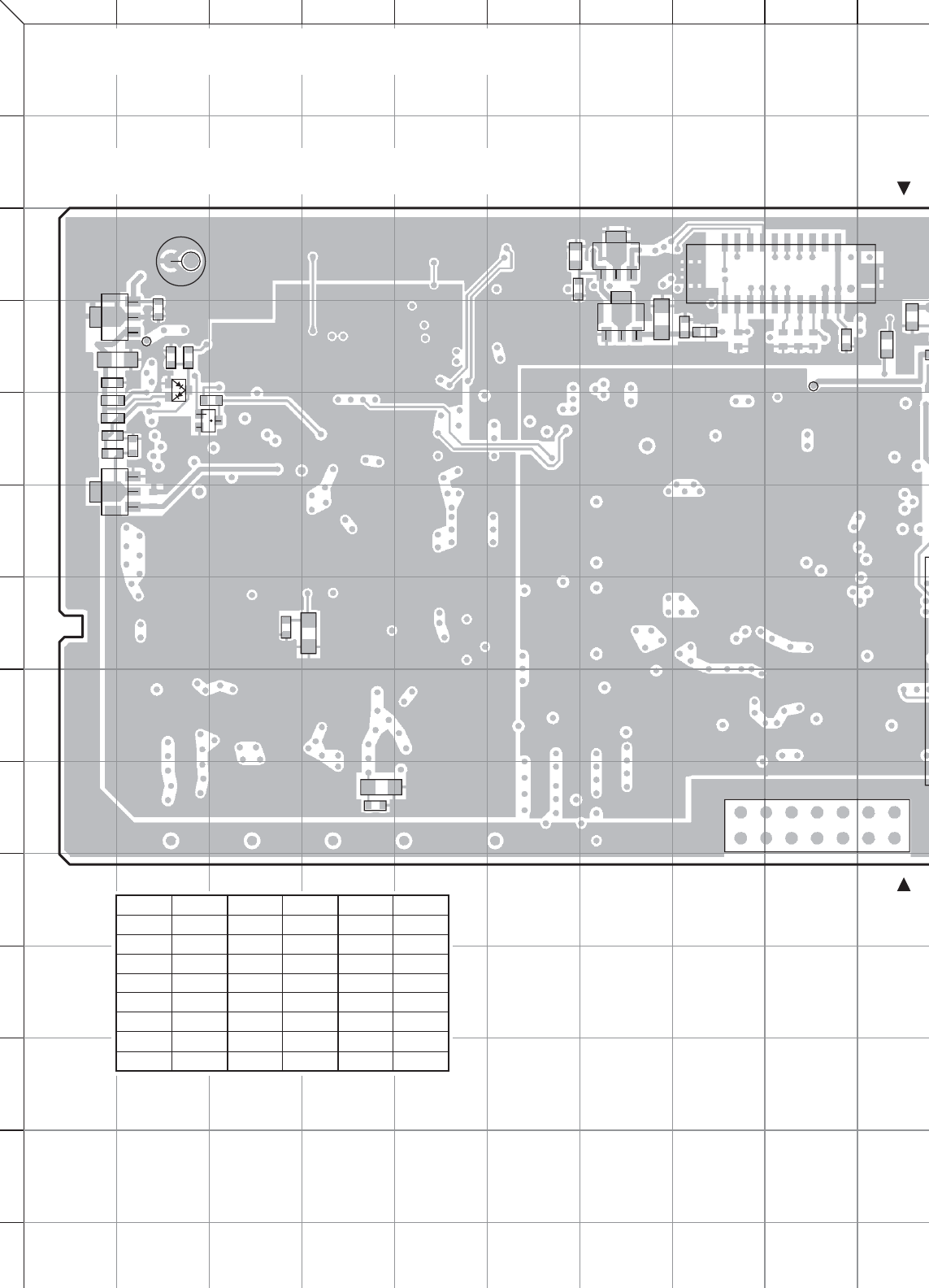

82

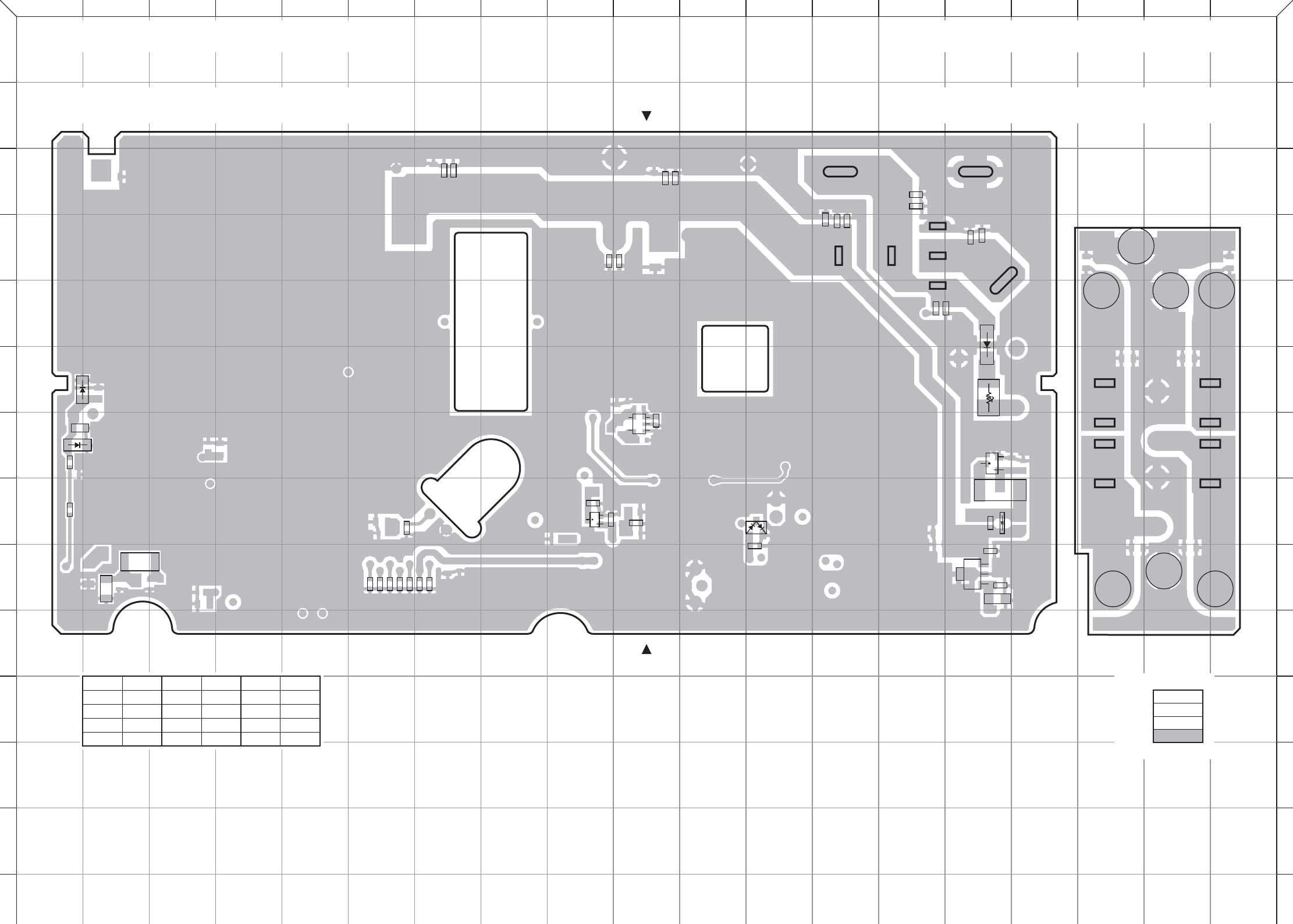

JIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
J72-0910-19 (A/2)
C35
C39
C43
C44
C80
C81
C82
C83
C84
C85
C86
IC2
Q8
1
34
5
D56
C174
D55
R73
C60
C155
R72
C145
C146
C171
C172
R60
C167
TKR-750 PC BOARD / PC板
FINAL UNIT (X45-373X-XX) 0-10 : C 0-11 : C2
Foil side view (J72-0910-19)
Ref. No. Address
IC2 7J
IC3 9O
Q8 8I
Q9 7O
Ref. No. Address
D1 8L
D6 8O
D8 5O
D9 6O
Ref. No. Address
D55 7A
D56 6B

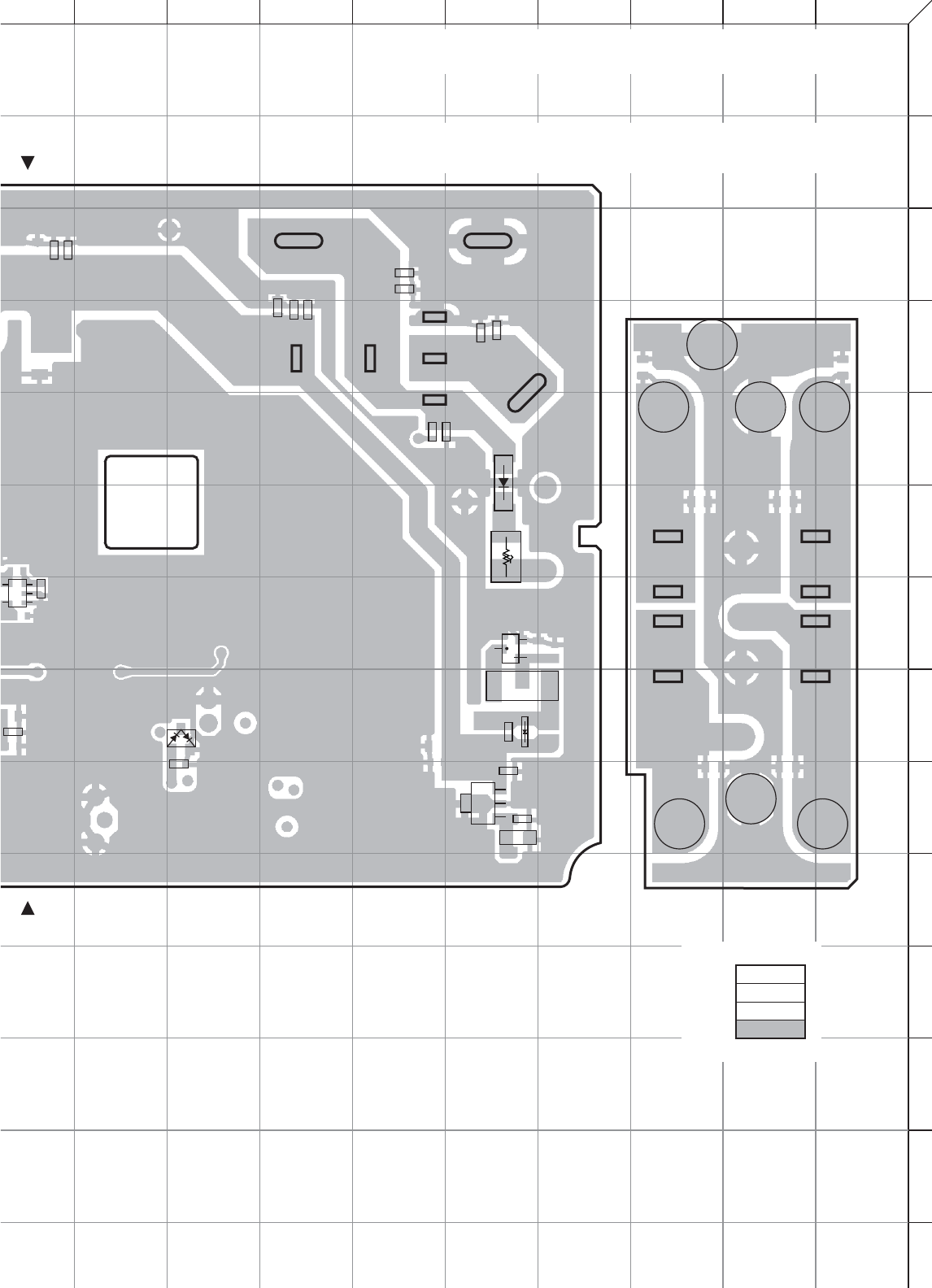

83
JKLMNOPQRS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
J72-0910-19 (B/2)
C44
C87
C90
C98
D1
D6
D8
D9
C107
C108
C109
C110
IC2
IC3
I
G
O
Q9
R55
R56
1
34
5
+
GND
+B2 GND +B1
Main DC
Back up battery
+B1
GND
+B2
R60
C166
C167
C89
C170
C103
C168
C105
C169
PC BOARD / PC板 TKR-750
FINAL UNIT (X45-373X-XX) 0-10 : C 0-11 : C2
Foil side view (J72-0910-19)
Component side
Foil side
Layer 1
Layer 2
Layer 3
Layer 4
JKLMNOPQRSIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
J72-0910-19 (B/2)
J72-0910-19 (A/2)
C35
C39
C43
C44
C80
C81
C82
C83
C84
C85
C86
C87
C90
C98
D1
D6
D8
D9
C107
C108
C109
C110
IC2
IC3
I
G
O
Q8
Q9
R55
R56
1
34
5
+
GND
+B2 GND +B1
Main DC
Back up battery
+B1
GND
+B2
D56
C174
D55
R73
C60
C155
R72
C145
C146
C171
C172
R60
C166
C167
C89
C170
C103
C168
C105
C169
TKR-750 PC BOARD / PC板PC BOARD / PC板 TKR-750
FINAL UNIT (X45-373X-XX) 0-10 : C 0-11 : C2
Foil side view (J72-0910-19)
FINAL UNIT (X45-373X-XX) 0-10 : C 0-11 : C2
Foil side view (J72-0910-19)
Ref. No. Address
IC2 7J
IC3 9O
Q8 8I
Q9 7O
Ref. No. Address
D1 8L
D6 8O
D8 5O
D9 6O
Ref. No. Address
D55 7A
D56 6B
Component side
Foil side
Layer 1
Layer 2
Layer 3
Layer 4

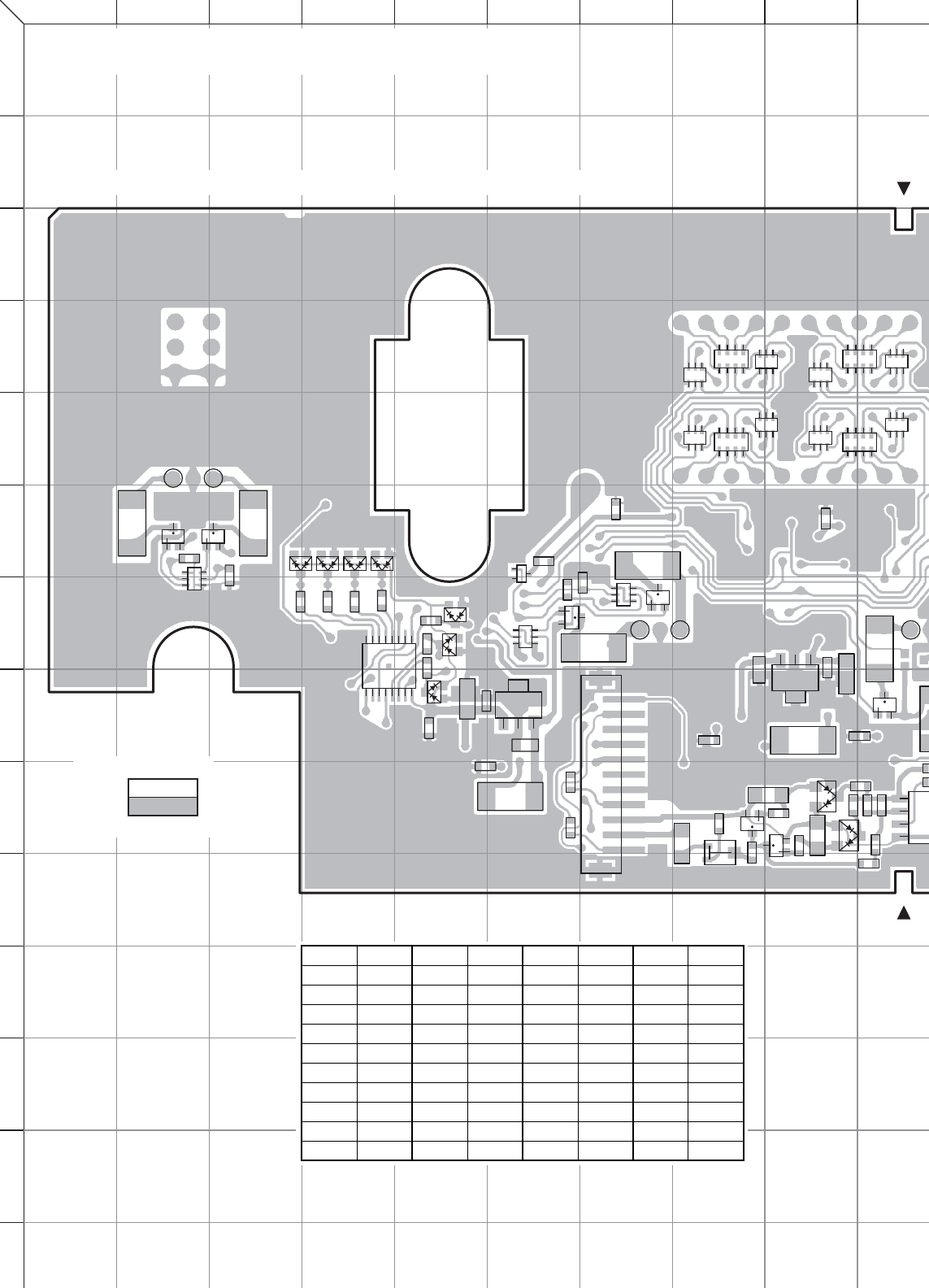

84
JIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
VR601
Q512
J601
S501
PF1
S502
PF2
S503
PF3
S504
PF4
D503
TX
IC504
J72-0756-12 B/2
NC
MIC
PTT
SB
NC
GND
MIG
HK
1
34
6
1
8
TKR-750 PC BOARD / PC板
DISPLAY UNIT (X54-3330-21) Component side view (J72-0756-12)

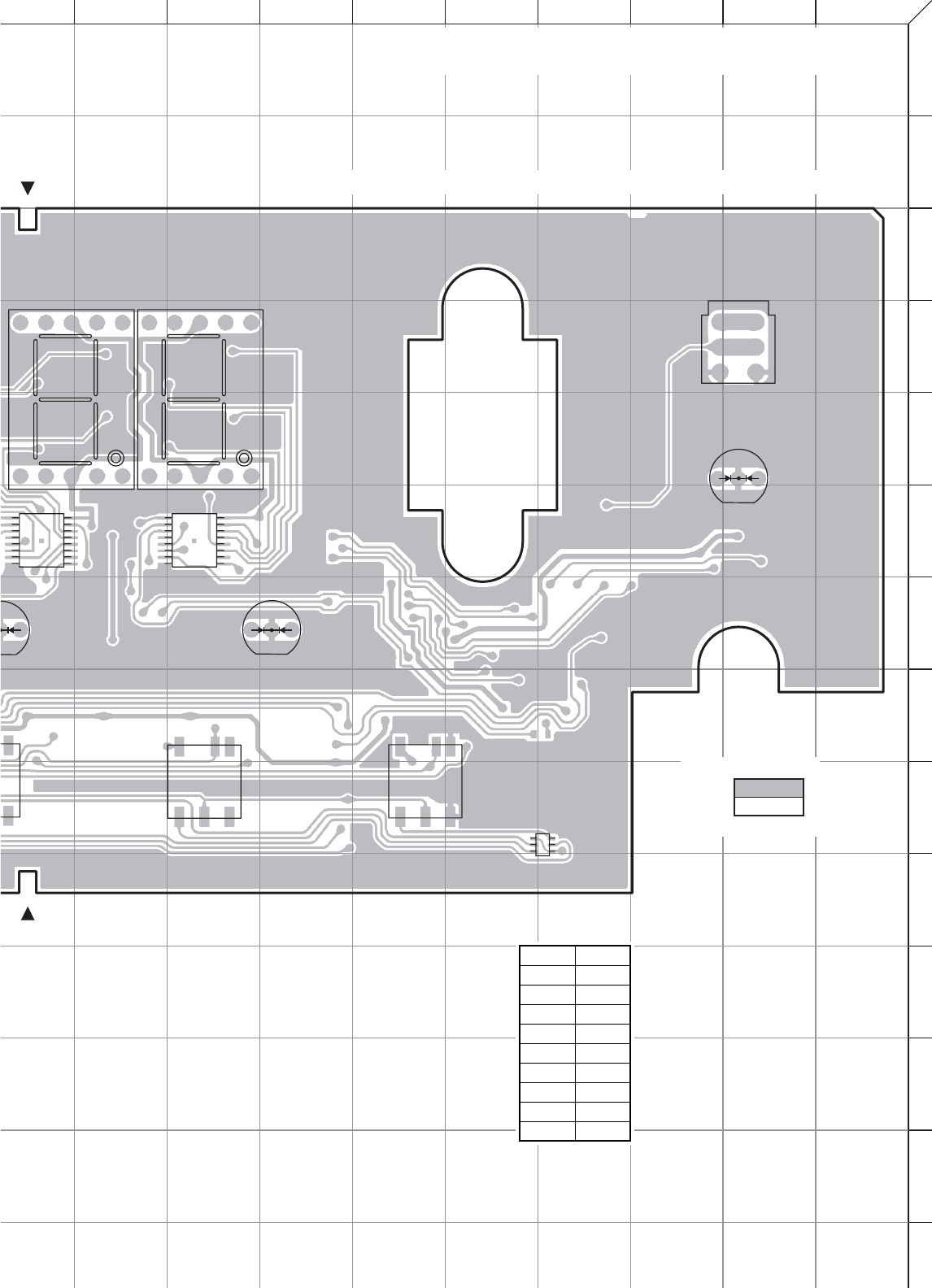

85
JKLMNOPQRS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Q514
S505
PF5
S506
PF6
S507
POWER
5
03
X
D504
BUSY
D505
D506 D507
IC504 IC505
J72-0756-12 A/2
16
43
MAIN
DC
BACK-
UP
GRN RED
1
89
16 1
89
16
DISPLAY UNIT (X54-3330-21) Component side view (J72-0756-12)
PC BOARD / PC板 TKR-750
Component side
Foil side
Layer 1
Layer 2
Ref. No. Address
IC504 6J
IC505 6L
Q512 10A
Q514 9P
D503 7J
D504 7M
D505 5R
D506 5J
D507 5L

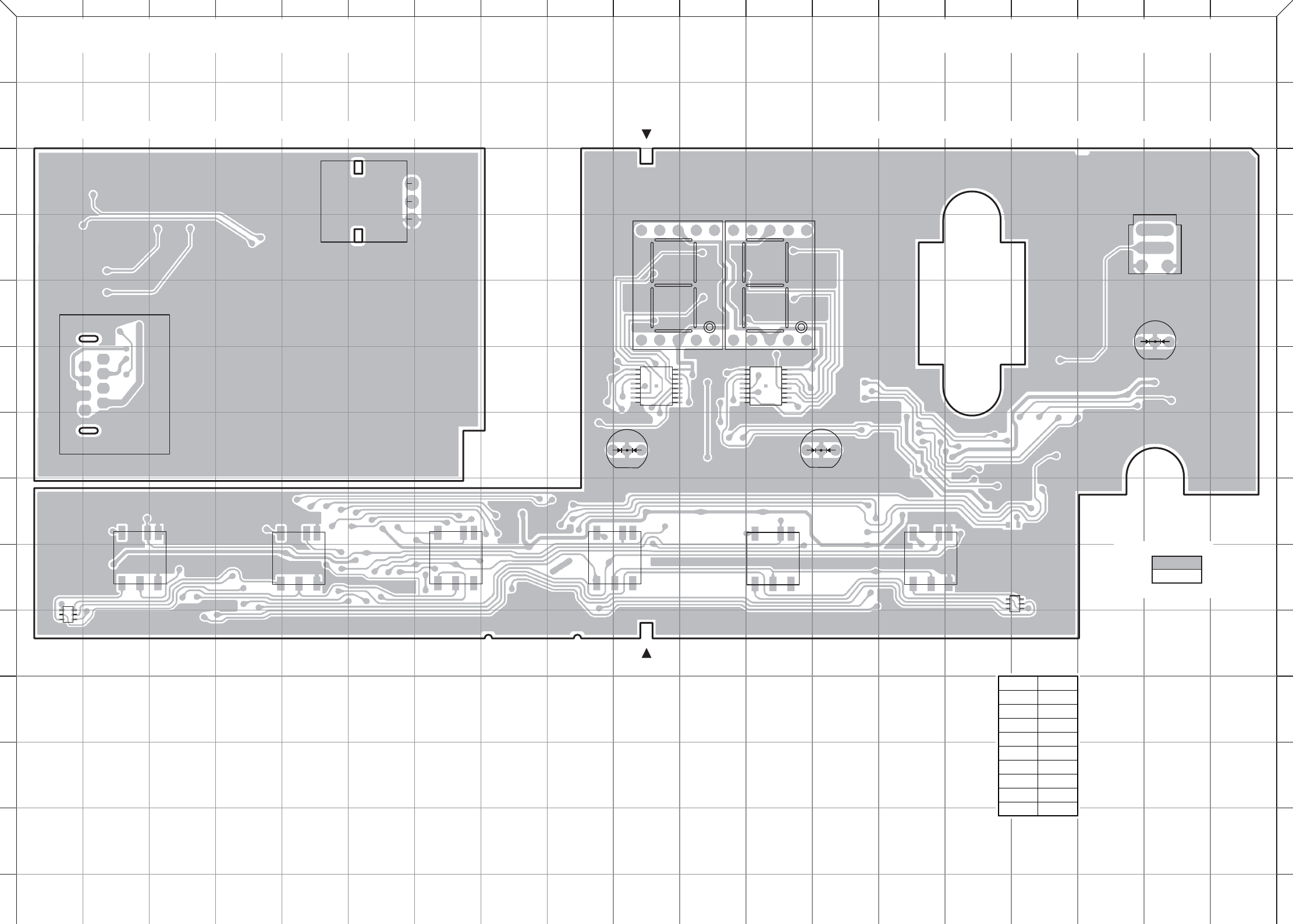

JKLMNOPQRSIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
VR601
Q512
Q514
J601
S501
PF1
S502
PF2
S503
PF3
S504
PF4
S505
PF5
S506
PF6
S507
POWER
D503
TX
D504
BUSY
D505
D506 D507
IC504 IC505
J72-0756-12 B/2
J72-0756-12 A/2
NC
MIC
PTT
SB
NC
GND
MIG
HK
1
34
6
16
43
MAIN
DC
BACK-
UP
GRN RED
1
89
16 1
89
16
TKR-750 PC BOARD / PC板
DISPLAY UNIT (X54-3330-21) Component side view (J72-0756-12) DISPLAY UNIT (X54-3330-21) Component side view (J72-0756-12)
PC BOARD / PC板 TKR-750
Component side
Foil side
Layer 1
Layer 2
Ref. No. Address
IC504 6J
IC505 6L
Q512 10A
Q514 9P
D503 7J
D504 7M
D505 5R
D506 5J
D507 5L

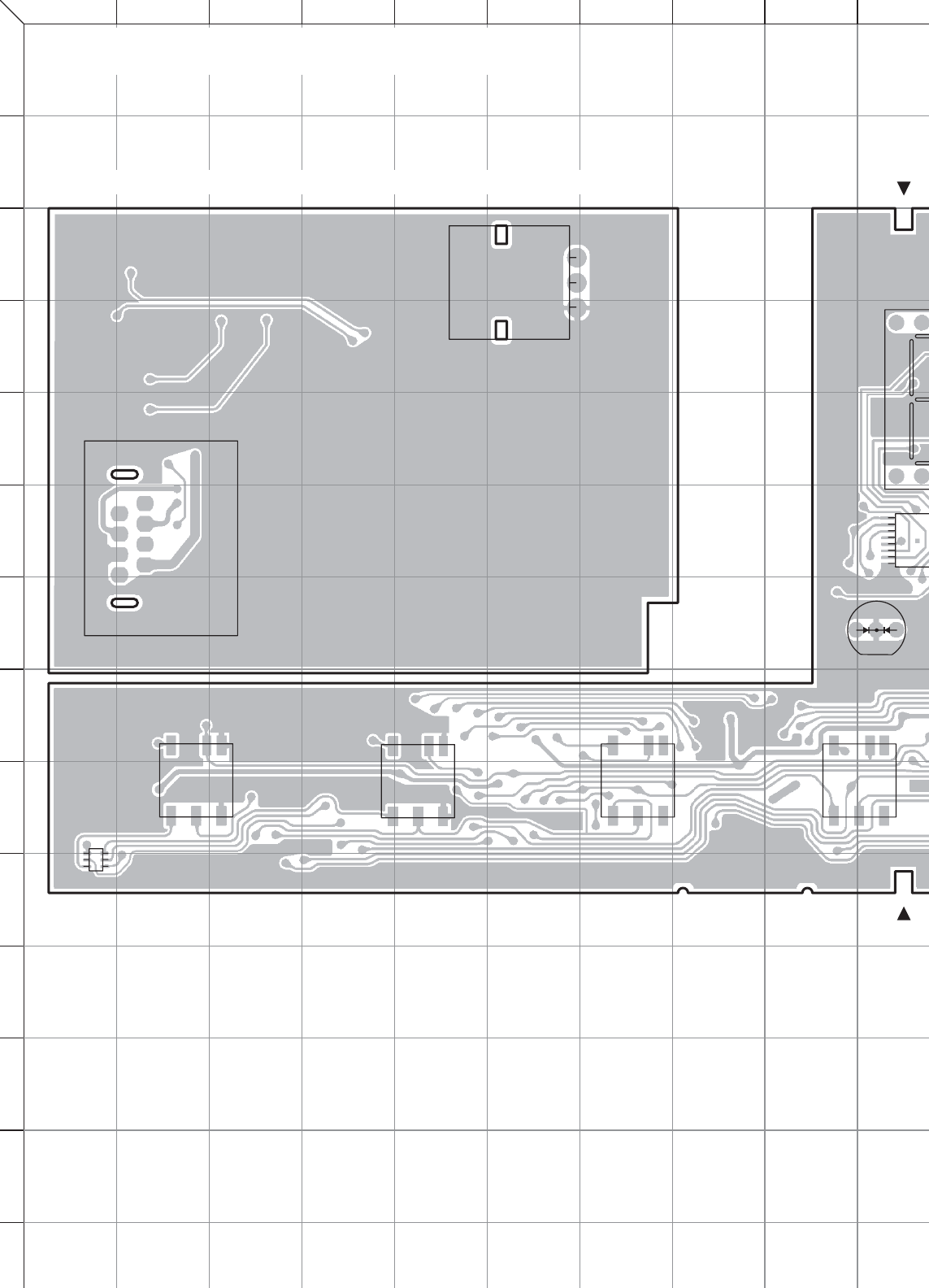

86
JIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
R606
Q501
Q502
Q503
Q504
Q506
Q507
Q508
Q509
Q510
Q511
Q516
Q517 Q518
Q519
Q521
Q522
Q523
Q524
Q525
R502R503
R505
R506
R507
R508
R509 R510
R
R516
R517
R518
R519
CN501
R520
R525
R526
R534
R535
R536
R537
R538
R539
C501
C502
C503
R540
C504
R541
C505
R542
C506
R543
C507
R544
C
C511
C516
C517
C518
C519
C520
C521
C522
C523
C524
C525
VR501
C526
D501
D502
D508
D509
D510
D511
D512
D513
D514
IC
5
IC502
1
89
16
IC506
O
G
I
IC507
O
G
I
CP501
CP502
CP503
CP504
RED GRN
BACKUP MAIN DC
1
34
6
1
1
3
3
4
4
6
6
+
D
S
G
1
1
3
3
4
4
6
1
34
61
34
6
61
3
4
6
1
3
4
6
1
3
4
6
1
34
6
RED GRN
BUSY
+
+
+
+
RED
T
1
4
VLI
5M
GND
NC
SB
NC
GND
PTT
MIG
MIC
HK
11
1
J72-0756-12 A/2
TKR-750 PC BOARD / PC板
Component side
Foil side
Layer 1
Layer 2
DISPLAY UNIT (X54-3330-21) Foil side view (J72-0756-12)
Ref. No. Address
IC501 9J
IC502 7D
IC503 9P
IC506 8I
IC507 8F
Q501 9I
Q502 9H
Q503 7F
Q504 7G
Q506 7G
Ref. No. Address
Q507 7B
Q508 8J
Q509 7F
Q510 6B
Q511 6C
Q513 9N
Q516 5J
Q517 5I
Q518 4I
Q519 4J
Ref. No. Address
Q521 5H
Q522 5I
Q523 4H
Q524 4I
Q525 6F
D501 9I
D502 9I
D508 7E
D509 8E
D510 6D
Ref. No. Address
D511 6D
D512 7E
D513 6C
D514 6D
D601 5R
D602 4R
D603 4R

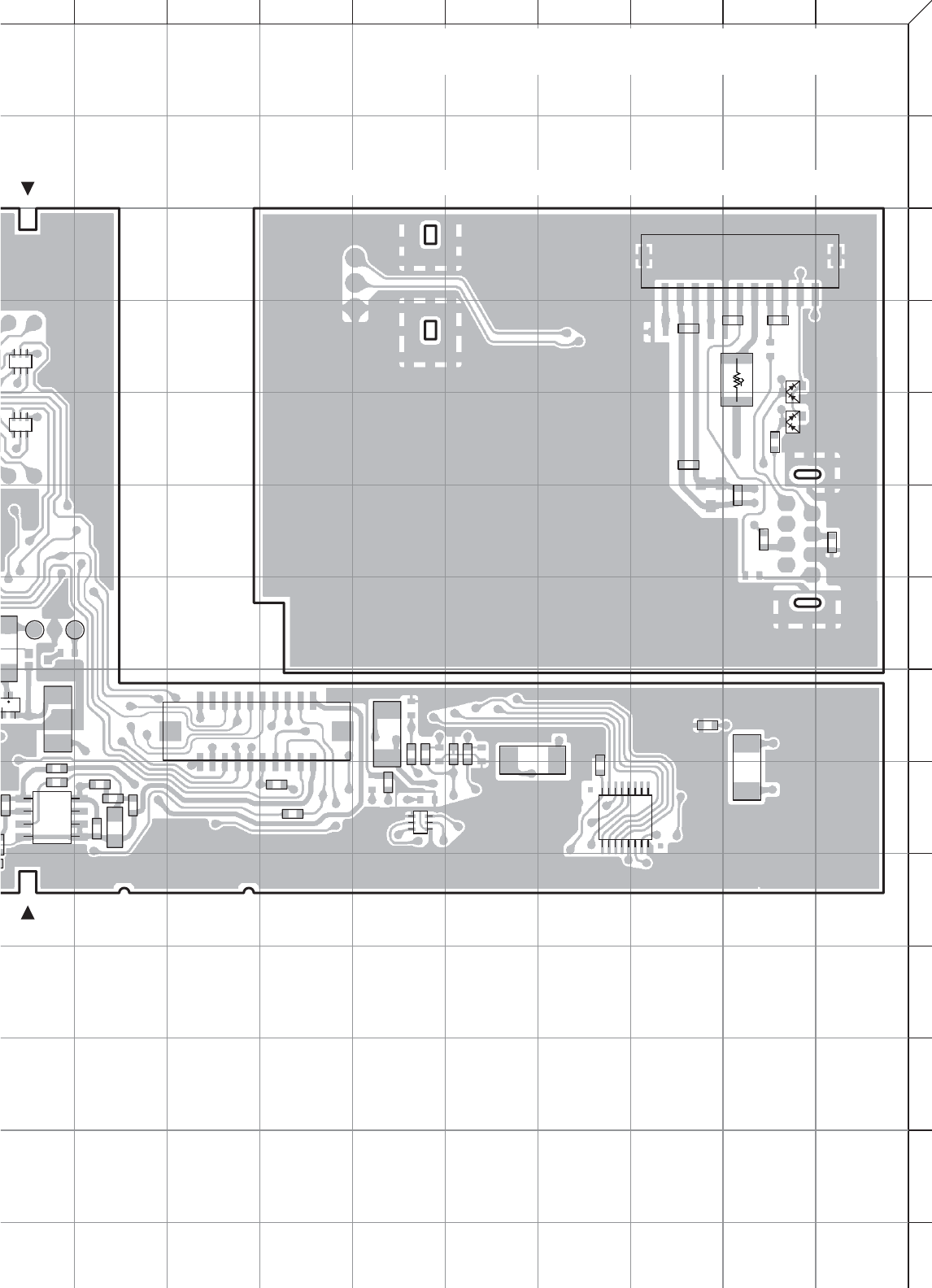

87
JKLMNOPQRS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
R601
R604
R605
11
1
HK
MIC
MIG
PTT
GND
NC
SB
NC
GND
5M
VLI
CN601
C601
C602
C603
C606
C607
D601
D602
NC
MIC
PTT
SB
NC
GND
MIG
HK
D603
Q513
Q516 Q519
R509
R510
R511 R512
R513
R514
R
516
CN502
R521
R522
R523
R524
R529
R530
R531
R532
R533
7
C508
C509
C510
C512
C513
C514
C515
12
20
SB
NC
PSW
CLK
PTT/TXD
HK/RXD
K3
K5
5C
MIC
SB
GND
DAT
STB1
SOE
K1
K2
K4
VLI
MIG
19
IC501
1
89
16
IC503
1
3
4
6
1
3
4
6
+
RED GRN
TX
1
45
8
1
34
6
J72-0756-12 B/2
PC BOARD / PC板 TKR-750
DISPLAY UNIT (X54-3330-21) Foil side view (J72-0756-12)

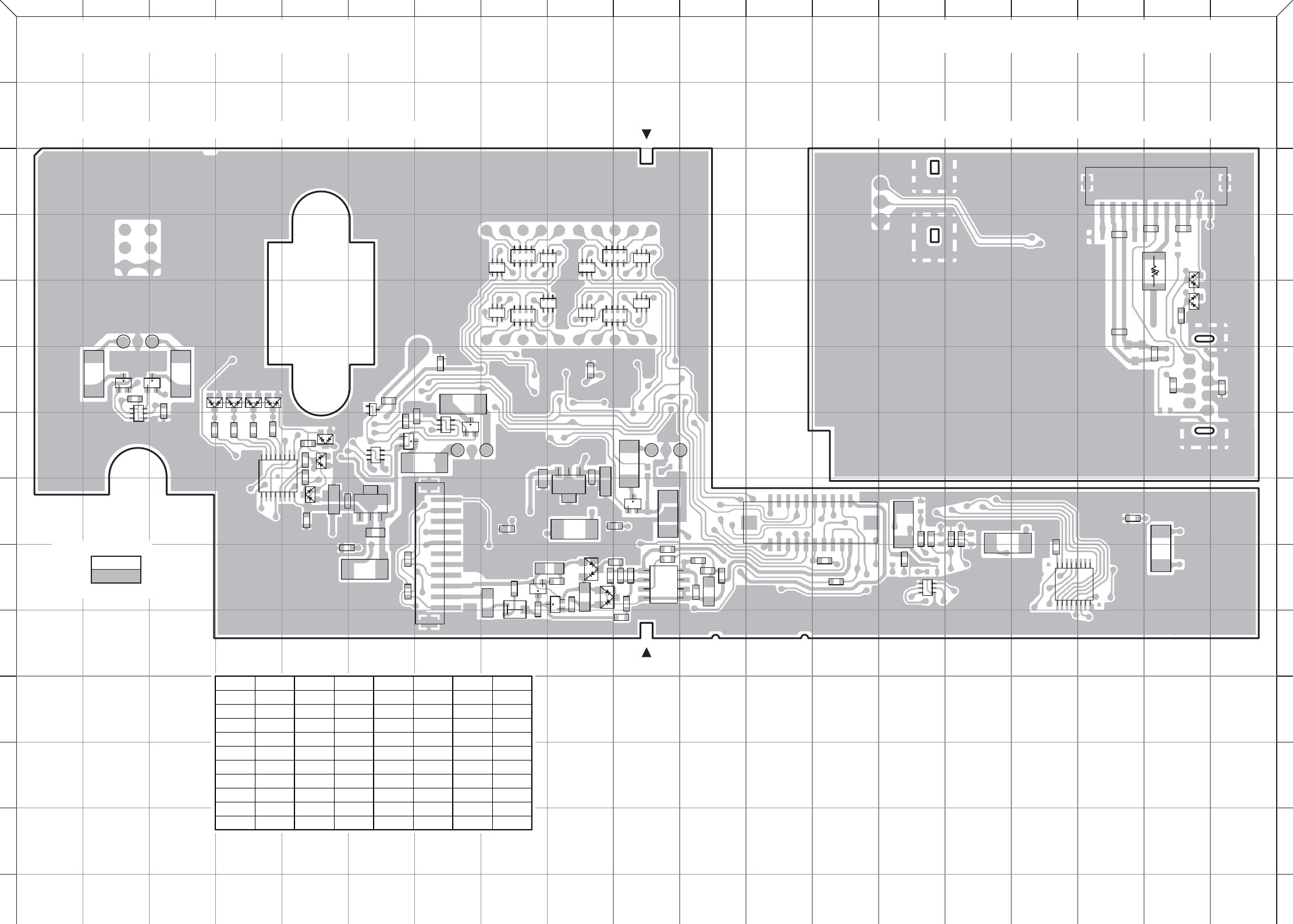

JKLMNOPQRSIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
R601
R604
R605
11
1
HK
MIC
MIG
PTT
GND
NC
SB
NC
GND
5M
VLI
R606
CN601
C601
C602
C603
C606
C607
Q501
Q502
Q503
Q504
Q506
Q507
Q508
Q509
D601
D602
NC
MIC
PTT
SB
NC
GND
MIG
HK
D603
Q510
Q511
Q513
Q516
Q517 Q518
Q519
Q521
Q522
Q523
Q524
Q525
R502R503
R505
R506
R507
R508
R509 R510
R511 R512
R513
R514
R516
R517
R518
R519
CN501
CN502
R520
R521
R522
R523
R524
R525
R526
R529
R530
R531
R532
R533
R534
R535
R536
R537
R538
R539
C501
C502
C503
R540
C504
R541
C505
R542
C506
R543
C507
R544
C508
C509
C510
C511
C512
C513
C514
C515
12
20
SB
NC
PSW
CLK
PTT/TXD
HK/RXD
K3
K5
5C
MIC
SB
GND
DAT
STB1
SOE
K1
K2
K4
VLI
MIG
19
C516
C517
C518
C519
C520
C521
C522
C523
C524
C525
VR501
C526
D501
D502
D508
D509
D510
D511
D512
D513
D514
IC501
IC502
1
89
16
1
89
16
IC503
IC506
O
G
I
IC507
O
G
I
CP501
CP502
CP503
CP504
RED GRN
BACKUP MAIN DC
1
34
6
1
1
3
3
4
4
6
6
+
D
S
G
1
1
3
3
4
4
6
1
34
61
34
6
61
3
4
6
1
3
4
6
1
3
4
6
1
34
6
RED GRN
BUSY
+
+
+
+
+
RED GRN
TX
1
45
8
1
34
6
VLI
5M
GND
NC
SB
NC
GND
PTT
MIG
MIC
HK
11
1
J72-0756-12 B/2
J72-0756-12 A/2
TKR-750 PC BOARD / PC板PC BOARD / PC板 TKR-750
Component side
Foil side
Layer 1
Layer 2
DISPLAY UNIT (X54-3330-21) Foil side view (J72-0756-12) DISPLAY UNIT (X54-3330-21) Foil side view (J72-0756-12)
Ref. No. Address
IC501 9J
IC502 7D
IC503 9P
IC506 8I
IC507 8F
Q501 9I
Q502 9H
Q503 7F
Q504 7G
Q506 7G
Ref. No. Address
Q507 7B
Q508 8J
Q509 7F
Q510 6B
Q511 6C
Q513 9N
Q516 5J
Q517 5I
Q518 4I
Q519 4J
Ref. No. Address
Q521 5H
Q522 5I
Q523 4H
Q524 4I
Q525 6F
D501 9I
D502 9I
D508 7E
D509 8E
D510 6D
Ref. No. Address
D511 6D
D512 7E
D513 6C
D514 6D
D601 5R
D602 4R
D603 4R

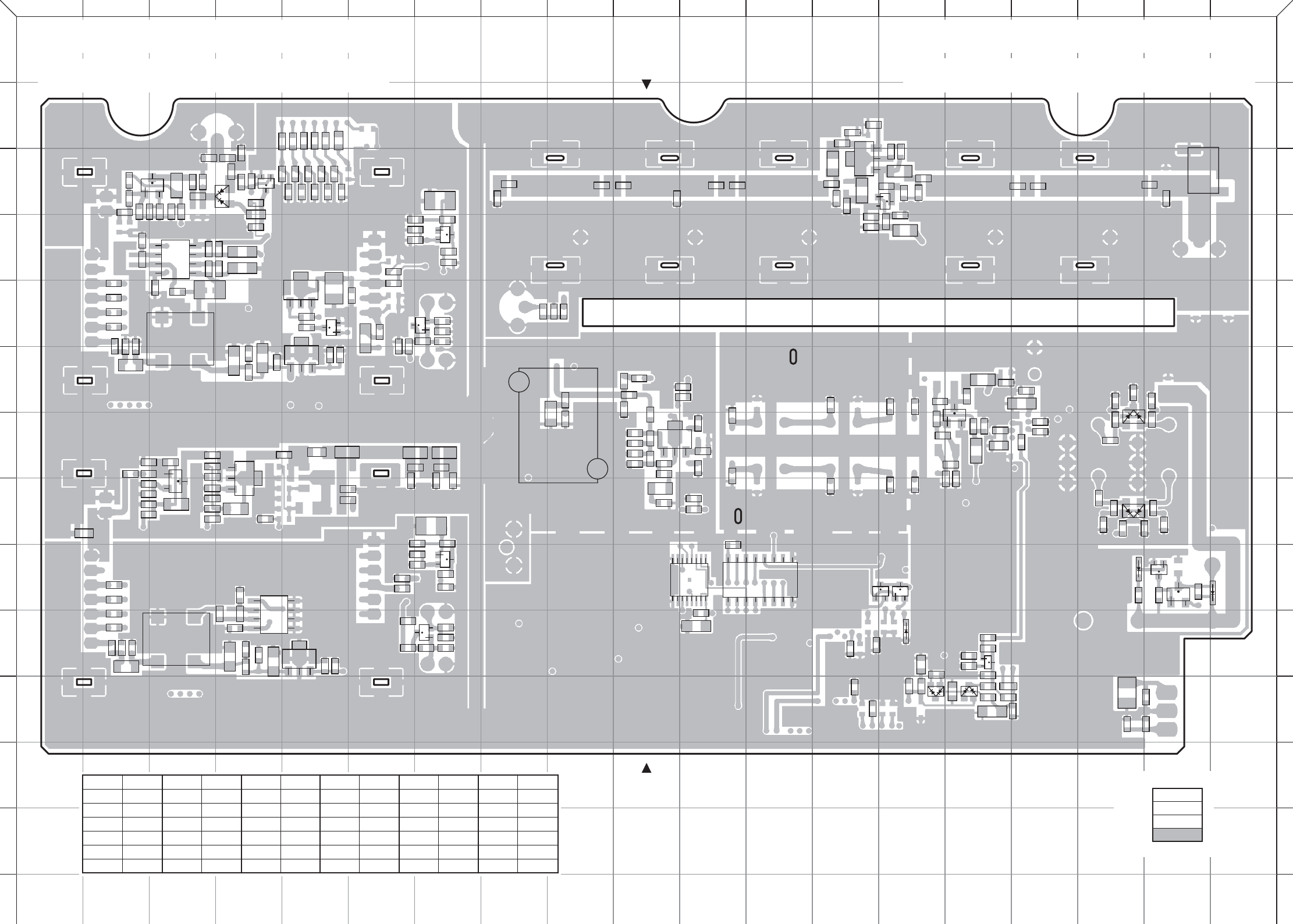

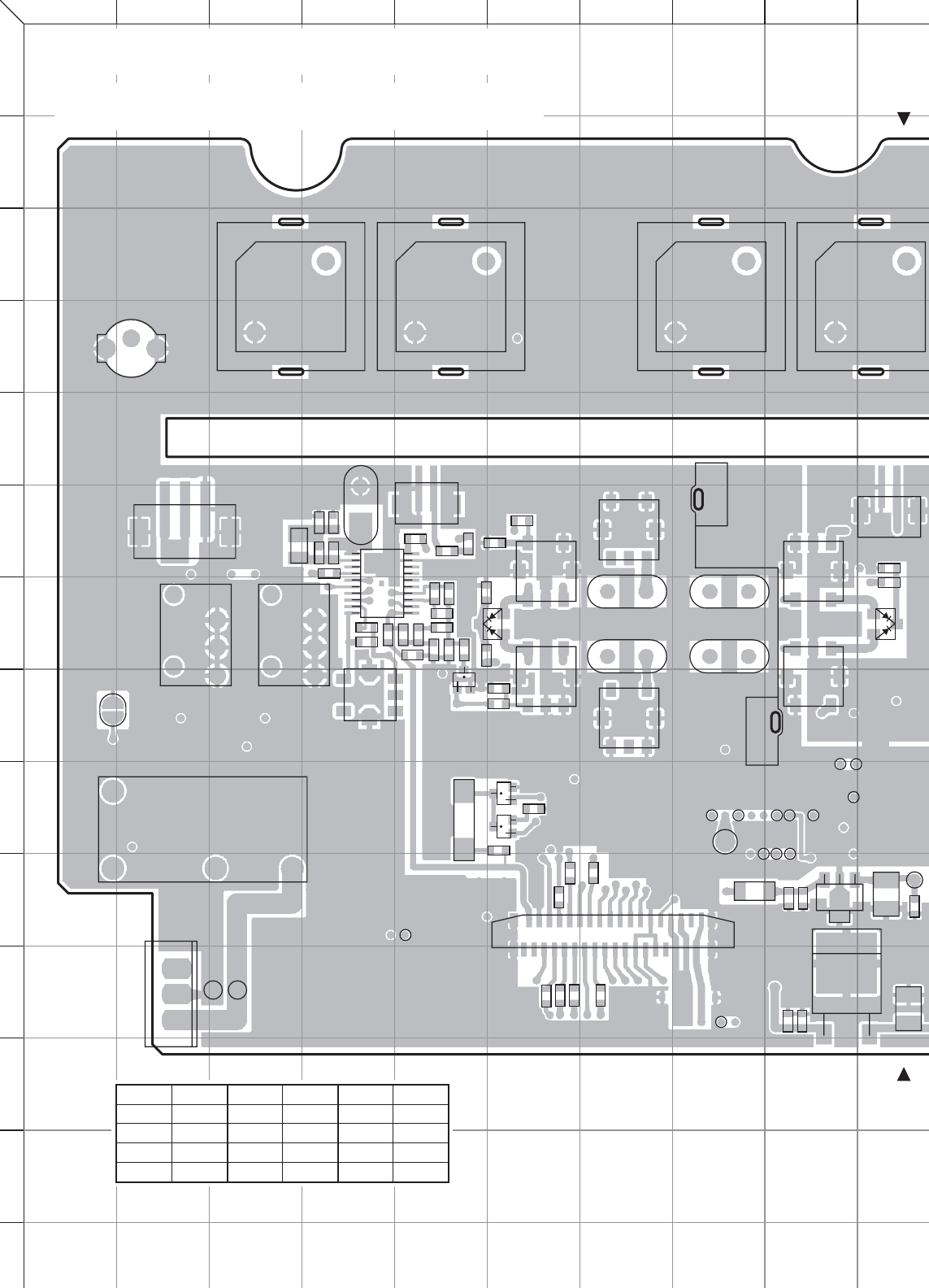

88

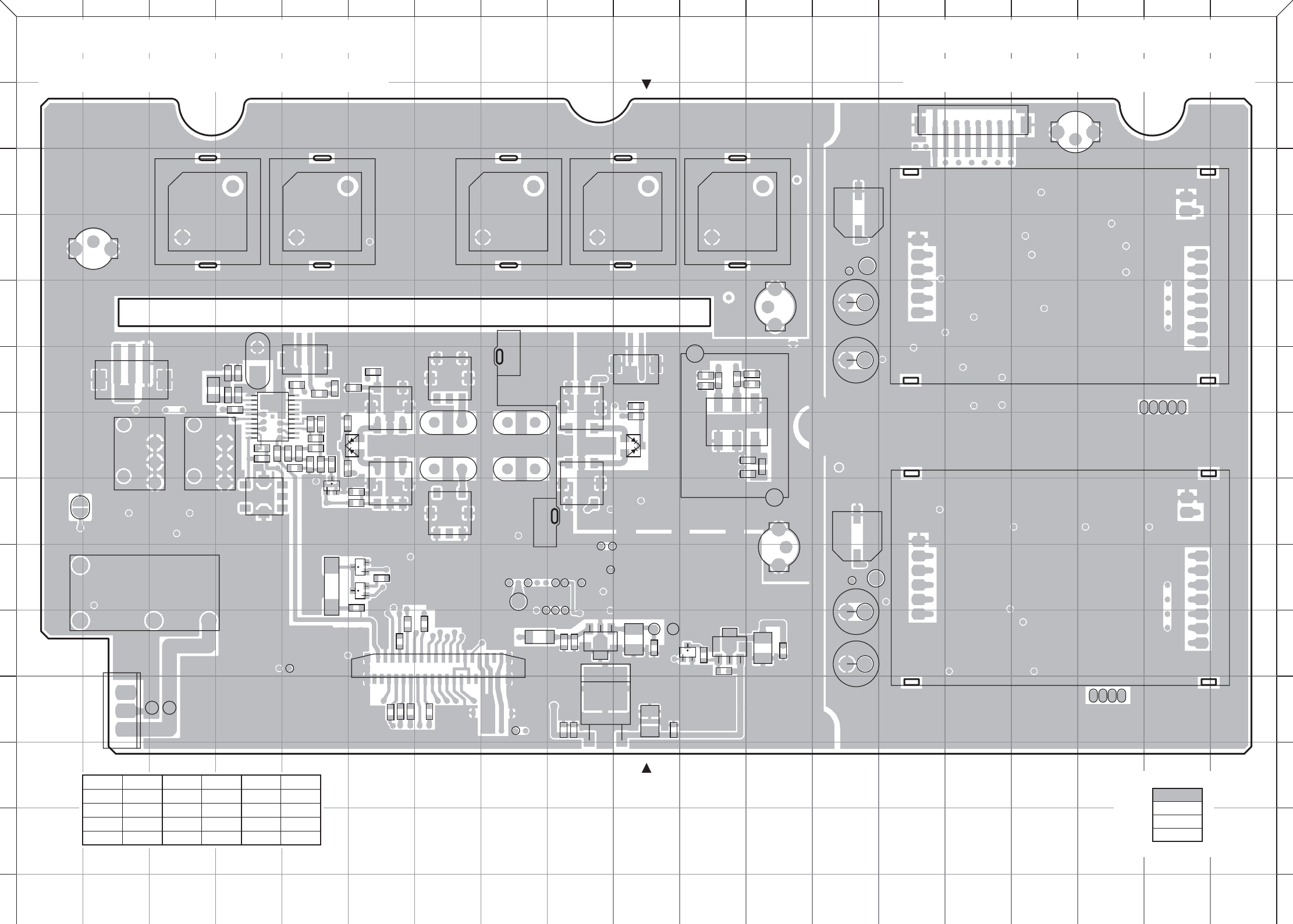

JIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C37
C48
C51
C53
C58
C59
C60
C210
C211
C64
C216
C66
C217
C67
C74
C76
Q26
Q27
D1
A9
D2
F1
TX
XF1
XF2
CN14
CN15
CN18
K1
L2 L3 L5 L6
R137 R138
R139
L14 L15
1
2
L16L17
SRR
STT
SOE
CK
QS
STB4 5CR
LD2
DT
FCR
R140
L18
R141
L19
R142
L20
1
3
E
B
B
L24
IC4
IGO
IC5
O
G
I
IC9
1
10 11
20
CF1
WIDE
CF2
NARROW
Q4
R41
R44
R45
R46
C158
C159
R196
R197
R198
R50
C160
C161
R54
R57
R60
R61
R62
C172
R63
C173
1
35
2
36
NC
NC
ASQ
SC
CP
EPT
LDT
CK
FWD
BUP
TMP
GND
MO
GND
NC
SB
SB
8C
DET
GND
RSSI
DP
EPR
LDR
DT
STB
LD2
PSW
SOE
MB
GND
QS
SB
SB
NC
8C
C174
R65
R69
R70
CN2
CN4
X1
1
2
IC10
I
O
G
PSW
SB
8CR
+
MO
WIDE
NARROW
A5 A6
A
A4
FCT
9V
+
+
TKR-750 PC BOARD / PC板
TX-RX UNIT (X57-695X-XX) (A/2) 0-11 : C 0-12 : C2
Component side view (J72-0923-19 A/2)
Ref. No. Address
IC4 11B
IC5 10I
IC9 7D
IC10 11I
Ref. No. Address
Q4 9F
Q16 10K
Q17 10K
Q26 8E
Ref. No. Address
Q27 9F
D1 7J
D2 7F
89
JKLMNOPQRS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C37
C212
C213
Q16
B
C
E
Q17
A1
D1
CN16
CN19
1GND
NC
8T
PC
FAS
PDT
BUP
TMP
8
R110
R111
R112
L7
R128
R129
1
2
C124 C125
L41
C136
C137
C138
C139
R30
R31
R32
C144
C147
R41
C158
C159
C171
C174
CN1
CN2
CN3
A7 A8
9V
+
+
+
A10
+
TP102
TX CV
8CT
+
+
+
+
+
TP101
RX CV
8CR
LDR
EPR
DP
CP
FCT
CP
CP
EPT
LDT
A2 : TX VCO (X58-479)
A3 : RX VCO (X58-478)
GND2
VO
FIN
5C
LDR
EPR
DP
CP
REF
GND1
SRR
8CL
CV
9CL
NC
GND2
VO
FIN
5C
LDT
EPT
DP
CP
REF
GND1
STT
8CL
CV
9CL
MO
J72-0923-19 A/2
TX-RX UNIT (X57-695X-XX) (A/2) 0-11 : C 0-12 : C2
Component side view (J72-0923-19 A/2)
PC BOARD / PC板 TKR-750
Component side
Foil side
Layer 1
Layer 2
Layer 3
Layer 4
JKLMNOPQRSIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C37
C48
C51
C53
C58
C59
C60
C210
C211
C212
C213
C64
C216
C66
C217
C67
Q16
B
C
E
Q17
C74
C76
A1
Q26
Q27
D1
A9
D2
F1
TX
XF1
XF2
CN14
CN15
CN16
CN18
CN19
1GND
NC
8T
PC
FAS
PDT
BUP
TMP
8
R110
R111
K1
R112
L2 L3 L5 L6 L7
R128
R129
R137 R138
R139
L14 L15
1
2
L16L17
SRR
STT
SOE
CK
QS
STB4 5CR
LD2
DT
FCR
R140
L18
R141
L19
R142
L20
1
3
E
B
B
L24
IC4
IGO
IC5
O
G
I
IC9
1
10 11
20
CF1
WIDE
CF2
NARROW
C124 C125
L41
C136
C137
Q4
C138
C139
R30
R31
R32
C144
C147
R41
R44
R45
R46
C158
C159
R196
R197
R198
R50
C160
C161
R54
R57
R60
R61
C171
R62
C172
R63
C173
1
35
2
36
NC
NC
ASQ
SC
CP
EPT
LDT
CK
FWD
BUP
TMP
GND
MO
GND
NC
SB
SB
8C
DET
GND
RSSI
DP
EPR
LDR
DT
STB
LD2
PSW
SOE
MB
GND
QS
SB
SB
NC
8C
C174
R65
R69
R70
CN1
CN2
CN3
CN4
X1
1
2
IC10
I
O
G
PSW
SB
8CR
+
MO
WIDE
NARROW
A5 A6 A7 A8A4
FCT
9V
+
+
+
A10
+
TP102
TX CV
8CT
+
+
+
+
+
TP101
RX CV
8CR
LDR
EPR
DP
CP
FCT
CP
CP
EPT
LDT
A2 : TX VCO (X58-479)
A3 : RX VCO (X58-478)
GND2
VO
FIN
5C
LDR
EPR
DP
CP
REF
GND1
SRR
8CL
CV
9CL
NC
GND2
VO
FIN
5C
LDT
EPT
DP
CP
REF
GND1
STT
8CL
CV
9CL
MO
J72-0923-19 A/2
TKR-750 PC BOARD / PC板
TX-RX UNIT (X57-695X-XX) (A/2) 0-11 : C 0-12 : C2
Component side view (J72-0923-19 A/2)
TX-RX UNIT (X57-695X-XX) (A/2) 0-11 : C 0-12 : C2
Component side view (J72-0923-19 A/2)
PC BOARD / PC板 TKR-750
Component side
Foil side
Layer 1
Layer 2
Layer 3
Layer 4
Ref. No. Address
IC4 11B
IC5 10I
IC9 7D
IC10 11I
Ref. No. Address
Q4 9F
Q16 10K
Q17 10K
Q26 8E
Ref. No. Address
Q27 9F
D1 7J
D2 7F
90
JIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C20
C22
C23
C24
C25
C30
C31
C32
C33
C34
C
3
C204
C205
C206
C207
C208
C209
Q11
Q12
Q13
Q14
C219 +
Q15
Q18
B
C
E
Q19
Q23
C80
C81
C82
C83
C84
C86
C87
C88
C89
C90
C91
C92
C93
C95
C96
C97
C98
C99
D8
R100
R104
R106
R109
R120
R121
R122
R123
R124
R125
R126
R127
R130
L10
L11
L12
L1
3
C100
C102
C103
C104
C105
C106
C107
R143
C108
R144
C109
R148
L22
C110
IC1
C111
L25
IC2
1
4
8
5
L26
L27
C113
IC3
O
G
I
L28
L29
A11
R151
R152
R153
R154
R155
R156
R157
L30
R158
R159
L31
L32
L34
R10
C120
L35
C121
L36
C122
L37
R13
C123
L38
R14
R160
L39
R15 R16
C126 +
R17
C127
R18
C128
R19
C129
R20
C130
R21
C131
R22
C132
C133
C134
C135
Q2
B
Q8
Q9
B
C
E
C140
C141
C142
R33
C143
R34
R35
C145
R36
C146
R37
R
3
C148
R
3
C149
R6
R9
C150
C152
C164
C166
C167
C175
C176
C177
C178
C179
R73
R74
R75 R76
R77
R78
R79
C191
R82
C192
C193
C194
C195
R87
R88
R90
R91
R92
R93
R94
R95
R96
X2
++
R97
X3
++
+
+
+
+
+
R98
R99
C16C17
C18
C19
IC11
O
G
I
GND2
VO
FIN
5C
LDT
EPT
DP
CP
REF
GND1
STT
8CL
CV
9CL
MO
1
45
8
GND2
VO
FIN
5C
LDR
EPR
DP
CP
REF
GND1
SRR
8CL
CV
9CL
NC
J72-0923-19 A/2
TKR-750 PC BOARD / PC板
TX-RX UNIT (X57-695X-XX) (A/2) 0-11 : C 0-12 : C2
Foil side view (J72-0923-19 A/2)
Ref. No. Address
IC1 4C
IC2 10D
IC3 10E
IC6 9K
IC7 9L
IC11 6E
Ref. No. Address
Q1 3M
Q2 7J
Q3 7O
Q5 9N
Q6 9N
Q7 10O
Ref. No. Address
Q8 8C
Q9 7D
Q10 3N
Q11 3C
Q12 9G
Q13 4G
Ref. No. Address
Q14 10G
Q15 5G
Q18 5E
Q19 5E
Q23 3D
Q24 9R
Ref. No. Address
Q25 9R
D3 7Q
D4 8Q
D5 11O
D7 9S
D8 3D
Ref. No. Address
D11 10N
D12 9Q
D13 11N
91
JKLMNOPQRS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C
31
C32
C33
C34
C36
C38 C39
C40
C41
C42
C43
C44 C45
C46 C47
C49 C50
C52
C54
C55
C56
C57
C61
C62
C63
Q10
C214
C65 +
C218
C68
C69
C70
C71
C72 +
+
C73
C75
C77
C78
Q24
C79
Q25
C1
C2
C3C4
C5
C6
C7
C8
C9
D3
D4
D5
D7
TH1
D11
D12
D13
L1
L4
L8
L9
L12
L13
L21
L23
R150
IC6
1
1
8
8
16
16
9
9
IC7
L33
R11
R161
R162
R163
R164
R165
R166
L43
Q1
E
C
B
Q2
B
C
E
Q3
Q5
R176
Q6
Q7
R34
R1
R35
R36
R3
R37
R4
R38
R5
R39
R7
R8
R40
C151
R42
R43
C153
C154 +
C155
C156
R47
C157
R48
R49
R51
R52
C162
R53
C163
R55
R56
R58
R66
R67
R68
R71
R72
C184
C185
C189 C190
R83
C197
C198
C199
C10
C11
C12
C13C14
C15
6
TX-RX UNIT (X57-695X-XX) (A/2) 0-11 : C 0-12 : C2
Foil side view (J72-0923-19 A/2)
PC BOARD / PC板 TKR-750
Component side
Foil side
Layer 1
Layer 2
Layer 3
Layer 4
JKLMNOPQRSIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C20
C22
C23
C24
C25
C30
C31
C32
C33
C34
C36
C38 C39
C40
C41
C42
C43
C44 C45
C46 C47
C49 C50
C52
C204
C54
C205
C55
C206
C56
C207
C57
C208
C209
C61
C62
C63
Q10
C214
Q11
C65 +
Q12
Q13
C218
Q14
C68
C219 +
Q15
C69
Q18
B
C
E
Q19
C70
C71
C72 +
+
C73
C75
Q23
C77
C78
Q24
C79
Q25
C80
C81
C82
C83
C84
C86
C87
C88
C89
C90
C91
C92
C93
C95
C96
C97
C98
C1
C99
C2
C3C4
C5
C6
C7
C8
C9
D3
D4
D5
D7
D8
TH1
R100
R104
R106
D11
R109
D12
D13
R120
R121
L1
R122
R123
R124
L4
R125
R126
R127
L8
L9
R130
L10
L11
L12
L13
C100
C102
C103
C104
C105
C106
C107
R143
C108
R144
C109
R148
L21
L22
L23
C110
IC1
C111
L25
IC2
1
4
8
5
L26
L27
C113
IC3
O
G
I
L28
R150
L29
A11
R151
IC6
1
1
8
8
16
16
9
9
R152
IC7
R153
R154
R155
R156
R157
L30
R158
R159
L31
L32
L33
L34
R10
C120
L35
R11
C121
L36
C122
L37
R13
C123
L38
R14
R160
L39
R15
R161
R16
C126 +
R162
R17
C127
R163
R18
C128
R164
R19
C129
R165
R166
L43
R20
C130
R21
C131
R22
C132
C133
C134
Q1
E
C
B
C135
Q2
B
C
E
Q3
Q5
R176
Q6
Q7
Q8
Q9
B
C
E
C140
C141
C142
R33
C143
R34
R1
R35
C145
R36
C146
R3
R37
R4
R38
C148
R5
R39
C149
R6
R7
R8
R9
R40
C150
C151
R42
C152
R43
C153
C154 +
C155
C156
R47
C157
R48
R49
R51
R52
C162
R53
C163
C164
R55
R56
C166
C167
R58
C175
R66
C176
R67
C177
R68
C178
C179
R71
R72
R73
R74
C184
R75
C185
R76
R77
R78
R79
C189 C190
C191
R82
C192
C193
R83
C194
C195
R87
C197
R88
C198
C199
R90
R91
R92
R93
R94
R95
R96
X2
++
R97
X3
++
+
+
+
+
+
R98
R99
C10
C11
C12
C13C14
C15
C16C17
C18
C19
IC11
O
G
I
GND2
VO
FIN
5C
LDT
EPT
DP
CP
REF
GND1
STT
8CL
CV
9CL
MO
1
45
8
GND2
VO
FIN
5C
LDR
EPR
DP
CP
REF
GND1
SRR
8CL
CV
9CL
NC
J72-0923-19 A/2
TKR-750 PC BOARD / PC板
TX-RX UNIT (X57-695X-XX) (A/2) 0-11 : C 0-12 : C2
Foil side view (J72-0923-19 A/2)
TX-RX UNIT (X57-695X-XX) (A/2) 0-11 : C 0-12 : C2
Foil side view (J72-0923-19 A/2)
PC BOARD / PC板 TKR-750
Component side
Foil side
Layer 1
Layer 2
Layer 3
Layer 4
Ref. No. Address
IC1 4C
IC2 10D
IC3 10E
IC6 9K
IC7 9L
IC11 6E
Ref. No. Address
Q1 3M
Q2 7J
Q3 7O
Q5 9N
Q6 9N
Q7 10O
Ref. No. Address
Q8 8C
Q9 7D
Q10 3N
Q11 3C
Q12 9G
Q13 4G
Ref. No. Address
Q14 10G
Q15 5G
Q18 5E
Q19 5E
Q23 3D
Q24 9R
Ref. No. Address
Q25 9R
D3 7Q
D4 8Q
D5 11O
D7 9S
D8 3D
Ref. No. Address
D11 10N
D12 9Q
D13 11N
92
JIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
R601
R603
R604
R605
CN600
+
C600
R836
C806
+
C613
C623
C825
C826
C644
C645
C646
+
+
D600
IC601
G
I
O
C691
IC624
IC627 O
G
I
IC628
O
I
G
O
G
I
C766
C769
20MIC
5C
K5
K3
HK/RXD1
PTT/TXD1
CLK
PSW
NC
SB
19 MIG
VLI
K4
K2
K1
SOE
STB1
DAT
GND
SB
12
Q612
L601
L604
L606
L
C780
C781
C785
C786
5-TONE
+
3.3D
TMS TD1 DVDD TD0 TCK TCK EMU0
TRST GND NC GND GND GND EMU1
1
J72-0923-19 B/2
TKR-750 PC BOARD / PC板
Ref. No. Address
IC601 6A
IC602 7K
IC605 6K
IC607 8O
IC623 8K
IC624 4G
IC625 4K
IC627 4A
Ref. No. Address
IC628 3G
IC629 4R
IC630 4N
Q607 8L
Q608 9L
Q612 5B
Q613 8M
Q614 9M
Ref. No. Address
D600 4B
D614 6M
D618 6M
D621 7M
D626 4M
D629 6N
TX-RX UNIT (X57-695X-XX) (B/2) 0-11 : C 0-12 : C2
Component side view (J72-0923-19 B/2)
93
JKLMNOPQRS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
R601
R607
R609
R611
R612
R613
CN601
R812
CN603
CN604
CN605
CN606
CN608
RSSI
CN609
8C
CN610
SB
R839
C800
C801
C802
C803
R840
C804
R841
C805
C807
C808
C809
R653
R654
R655
R657
R658
C810
C811
C812
C813
C814
C816
C817
SB
IC629
C818
C819
C820
R669
C823
C827
C828
R671
R672
R674
R675
R676
C642
C649
C652
C657
C663
D614
1
SB
SB
GND
GND
AO5
AO4
AO3
SPO
SPO
AO2
AO1
SPI
RSI
RD
SPG
SPG
4
D618
C681 +
+
+
++
++
D621
IC602
IC605
D626
IC607
1
45
8
30NC
NC
NC
EMON
EPTT
5C
NC
TXG
IO1
IO2
IO3
IO4
IO5
IO6
NC
29 NC
NC
RXD2
TXD2
AI1
AI2
AI3
DG
TD
TA
RD
RA
RXG
SPM
NC 21
D629
CP600
+
CP601
IC623
1
1
1
8
8
8
9
9
9
16
16
16
IC625 O
I
G
IC630
G
+
+
++
+
+
+
O
I
R742
R749
R750
R751
R752
R760
R764
R765
R766
R768
R771
R781
R785
R789
R793
1
1SPO
SPG
2
12
Q607
TXO
TXI
RXO
AC
BC1
BC2
BC3
BC4
PTI
CLRC
RXI
PTO
NC
GND
Q608
C760
C762
C765
C767
Q613
Q614
C770
C772
C773
L607
C774
L608
L611 L612
L613
C781
C788
C789
C790
C792
C794
C795
C796
C798
C799
K
EMU0
D
EMU1
1
14
DEI
DEO
ANI
10
1
PC BOARD / PC板 TKR-750
Component side
Foil side
Layer 1
Layer 2
Layer 3
Layer 4
TX-RX UNIT (X57-695X-XX) (B/2) 0-11 : C 0-12 : C2
Component side view (J72-0923-19 B/2)
JKLMNOPQRSIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
R601
R603
R604
R605
R607
R609
R611
R612
R613
CN600
+
CN601
R812
CN603
CN604
CN605
CN606
CN608
RSSI
CN609
8C
CN610
SB
C600
R836
R839
C800
C801
C802
C803
R840
C804
R841
C805
C806
+
C807
C613
C808
C809
R653
R654
R655
R657
R658
C810
C811
C812
C813
C814
C816
C817
SB
IC629
C623
C818
C819
C820
R669
C823
C825
C826
C827
C828
R671
R672
R674
R675
R676
C642
C644
C645
C646
+
+
C649
C652
C657
D600
C663
D614
1
SB
SB
GND
GND
AO5
AO4
AO3
SPO
SPO
AO2
AO1
SPI
RSI
RD
SPG
SPG
4
D618
C681 +
+
+
++
++
D621
IC601
G
I
O
IC602
IC605
D626
IC607
1
45
8
30NC
NC
NC
EMON
EPTT
5C
NC
TXG
IO1
IO2
IO3
IO4
IO5
IO6
NC
29 NC
NC
RXD2
TXD2
AI1
AI2
AI3
DG
TD
TA
RD
RA
RXG
SPM
NC 21
D629
C691
CP600
+
CP601
IC623
1
1
1
8
8
8
9
9
9
16
16
16
IC624
IC625 O
I
G
IC627 O
G
I
IC628
O
I
G
O
G
I
IC630
G
+
+
++
+
+
+
O
I
R742
R749
R750
R751
R752
R760
R764
R765
R766
R768
R771
R781
R785
R789
R793
1
1SPO
SPG
2
12
Q607
TXO
TXI
RXO
AC
BC1
BC2
BC3
BC4
PTI
CLRC
RXI
PTO
NC
GND
Q608
C760
C762
C765
C766
C767
C769
20MIC
5C
K5
K3
HK/RXD1
PTT/TXD1
CLK
PSW
NC
SB
19 MIG
VLI
K4
K2
K1
SOE
STB1
DAT
GND
SB
12
Q612
Q613
Q614
L601
C770
L604
C772
L606
C773
L607
C774
L608
L611 L612
L613
C780
C781
C785
C786
C788
C789
C790
C792
C794
C795
C796
C798
C799
5-TONE
+
3.3D
TMS TD1 DVDD TD0 TCK TCK EMU0
TRST GND NC GND GND GND EMU1
1
1
14
DEI
DEO
ANI
10
1
J72-0923-19 B/2
TKR-750 PC BOARD / PC板PC BOARD / PC板 TKR-750
Component side
Foil side
Layer 1
Layer 2
Layer 3
Layer 4
Ref. No. Address
IC601 6A
IC602 7K
IC605 6K
IC607 8O
IC623 8K
IC624 4G
IC625 4K
IC627 4A
Ref. No. Address
IC628 3G
IC629 4R
IC630 4N
Q607 8L
Q608 9L
Q612 5B
Q613 8M
Q614 9M
Ref. No. Address
D600 4B
D614 6M
D618 6M
D621 7M
D626 4M
D629 6N
TX-RX UNIT (X57-695X-XX) (B/2) 0-11 : C 0-12 : C2
Component side view (J72-0923-19 B/2)
TX-RX UNIT (X57-695X-XX) (B/2) 0-11 : C 0-12 : C2
Component side view (J72-0923-19 B/2)
94
JIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
R608
R802
R803
R804
R610
R805
R806
R807
R808
R809
R810
R811
CN602
R81
3
R815
C602
C605
R842
R843
R844
C815
R668
C821
C822
R670
R673
C639
R678
R679
C643
R680
R681R682
C647 R683
C648
R684
R685R686
C841
R689
R690
R69
R69
2
R693
R694
R695
R696
R69
7
R698
C662
D606
D607
D608
D609
C670
D610
D611
D612
D615
D616
C679
D619
D620
D622
D623
C684
C685
D627
D628
IC608
C690
IC610
IC611
1
45
8
C692
IC612
C693
IC613
1
89
16
C694
IC614
C695
IC615
C696
IC616
4
1
5
8
8
1
9
16
C697
IC617
1
45
8
C698
IC619
IC620
1
8
16
9
IC621 1
1
1
34
51
34
5
45
1
12 13
24
8
34
5
IC622
1
34
5
IC626
G
I
O
R707
R708
R709
R710
R712
R713
R714
R715
R717
R718
R719
R721
R722
R728
R729
R732
R735
R736
R737
R738
R739
C700
C701
C703
TH700
R740
C704
TH701
R741
C705
C706
R743
C707
R744
C708
R745
C709
R747
C710
C711
C712
C715
R753
R754
R758
C720
C721
C722
C723
C724
C725
R762
C726
C852
R763
C728
C729
R767
C730
R772
C736
R773
R774
R775
C739
R776
R777
R778
R779
C740
C743
R780
C744
R782
C746
R783
R786
R787
R790
R791
R794
C758
R795
Q
6
R798
R799
Q605
Q606
+
+
+
+++
+
+
+
+
+
+
+
+
+
++
C761
Q609
C763
C764
C768
Q610
18C
NC
SB
SB
QS
GND
MB
SOE
PSW
LD2
STB
DT
LDR
EPR
DP
RSSI
GND
DET
8C
SB
SB
NC
GND
MO
GND
TMP
BUP
FWD
CK
LDT
EPT
CP
SC
ASQ
NC
NC
35 36
2
G
S
D
Q611
Q615
C771
L605
C775
C776
C777
C778
C779
C782
C783
C784
C787
C791
C793
C797
+
+++
+
+
+
D
1
34
5
EMU0
EMU1
TKR-750 PC BOARD / PC板
TX-RX UNIT (X57-695X-XX) (B/2) 0-11 : C 0-12 : C2
Foil side view (J72-0923-19 B/2)
Ref. No. Address
IC600 4O
IC603 9N
IC604 6Q
IC606 4M
IC608 6G
IC609 9Q
IC610 6H
IC611 9F
Ref. No. Address
IC612 8J
IC613 8J
IC614 8H
IC615 8F
IC616 9H
IC617 8D
IC618 7L
IC619 6F
Ref. No. Address
IC620 8B
IC621 5C
IC622 5C
IC626 7H
IC631 3N
IC632 3M
Q600 4Q
Q601 3K
Ref. No. Address
Q602 3J
Q603 4K
Q604 8L
Q605 5C
Q606 4C
Q609 4E
Q610 3E
Q611 4D
Ref. No. Address
Q615 6I
D606 7C
D607 7C
D608 6C
D609 7D
D610 6B
D611 6E
D612 6B
Ref. No. Address
D615 6D
D616 7B
D619 6C
D620 7A
D622 7B
D623 6A
D627 4G
D628 4D
95
JKLMNOPQRS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
R600 R602
R606
R614
R615
R616
R618
R619
R813
R620
R814
R621
R622
R817
R623
R818
R624
R819
R625
R626
R627
R629
R820
R821
R822
R823
R824
R630
R825
R631
R826
R827
R633
R828
R634
R829
R635
R637
R638
R639
R830
R831
R832
R833
R834
R640
R641
R642 R837
R643
R644
R645
R646
R647
R648
R649
X600
X601
R650
C614
R651
R652
C616
R656
R659
R660
R661
R662
R663
R664
R665
C629
R666
R667
C824
C634
C829
C635
C638
C830
C831
C832
C833
C834
C640
+
C835
C641
C836
C837C838
C839
R687
C840
R688
C842
C843
C844
R691
R692
R693
R695
R697
C851
R699
IC600
1
1100
25
26
50
51 75
76
1
45
8
45
8
IC603
1
1213
24
IC604
IC606
IC609
C693
IC613
116
C694
C695
C696
IC618
1
144
CP603
CP604CP605
CP606
CP607
CP608
CP609
CP610
IC631
CP611
IC632
1
45
8
CP612
CP613
CP614
CP615
CP616
CP617
CP618
CP619
CP620
R700
R701 R702
R703
R704
R705
R720
R723
R724
R726
R727
R730
R731
R733
R734
C707
C708
C709
C710
C711
C712
C713
C714
C716
C717
C718
C719
C727
C731
C732
C733
C734
C735
C737
C738
C741
C742
C745
C747
C748
C749
C750
C751
C752
C753
C754
C755
C756
C757
Q600
DS
G
C759
Q601
Q602
Q603
Q604
G
S
D
+
+
+
+
L600
L602
L603
L605
J72-0923-19 B/2
G
S
D
++
+
+
+
+
+
+
36
37
72
73 108
109
1
1213
24
1
16 17
32
TMSTD1DVDDTD0TCKTCKEMU0
TRSTGNDNCGNDGNDGNDEMU1
TX-RX UNIT (X57-695X-XX) (B/2) 0-11 : C 0-12 : C2
Foil side view (J72-0923-19 B/2)
PC BOARD / PC板 TKR-750
Component side
Foil side
Layer 1
Layer 2
Layer 3
Layer 4
JKLMNOPQRSIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
R600 R602
R606
R608
R802
R803
R804
R610
R805
R806
R807
R614
R808
R615
R809
R616
R618
R619
R810
R811
CN602
R813
R620
R814
R621
R815
R622
R817
R623
R818
R624
R819
R625
R626
R627
R629
R820
R821
R822
R823
R824
R630
R825
R631
R826
R827
R633
R828
R634
R829
R635
R637
R638
R639
R830
R831
R832
C602
R833
R834
R640
R641
C605
R642 R837
R643
R644
R645
R646
R647
R648
R649
X600
X601
R842
R843
R844
R650
C614
R651
R652
C616
R656
R659
C815
R660
R661
R662
R663
R664
R665
C629
R666
R667
R668
C821
C822
C824
R670
C634
C829
C635
R673
C638
C639
C830
R678
C831
R679
C832
C833
C834
C640
+
C835
C641
C836
C837
C643
C838
R680
C839
R681R682
C647 R683
C648
R684
R685R686
R687
C840
R688
C841
R689
C842
C843
C844
R690
R691
R692
R693
R694
R695
R696
R697
R698
C851
R699
C662
D606
D607
D608
D609
C670
D610
D611
D612
D615
D616
C679
D619
D620
IC600
1
1100
25
26
50
51 75
76
1
45
8
45
8
D622
D623
IC603
1
1213
24
C684
IC604
C685
IC606
D627
D628
IC608
IC609
C690
IC610
IC611
1
45
8
C692
IC612
C693
IC613
1
89
16
C694
IC614
C695
IC615
C696
IC616
4
1
5
8
8
1
9
16
C697
IC617
1
45
8
C698
IC618
1
144
IC619
IC620
1
8
16
9
IC621 1
1
1
34
51
34
5
45
1
12 13
24
8
34
5
IC622
1
34
5
CP603
CP604CP605
IC626
G
I
O
CP606
CP607
CP608
CP609
CP610
IC631
CP611
IC632
1
45
8
CP612
CP613
CP614
CP615
CP616
CP617
CP618
CP619
CP620
R700
R701 R702
R703
R704
R705
R707
R708
R709
R710
R712
R713
R714
R715
R717
R718
R719
R720
R721
R722
R723
R724
R726
R727
R728
R729
R730
R731
R732
R733
R734
R735
R736
R737
R738
R739
C700
C701
C703
TH700
R740
C704
TH701
R741
C705
C706
R743
C707
R744
C708
R745
C709
R747
C710
C711
C712
C713
C714
C715
C716
R753
C717
R754
C718
C719
R758
C720
C721
C722
C723
C724
C725
R762
C726
C852
R763
C727
C728
C729
R767
C730
C731
C732
C733
C734
C735
R772
C736
R773
C737
R774
C738
R775
C739
R776
R777
R778
R779
C740
C741
C742
C743
R780
C744
C745
R782
C746
R783
C747
C748
C749
R786
R787
C750
C751
C752
C753
R790
C754
R791
C755
C756
C757
R794
C758
Q600
DS
G
R795
C759
Q601
Q602
Q603
R798
Q604
G
S
D
R799
Q605
Q606
+
+
+
+++
+
+
+
+
+
+
+
+
+
+
++
C761
Q609
C763
C764
C768
Q610
18C
NC
SB
SB
QS
GND
MB
SOE
PSW
LD2
STB
DT
LDR
EPR
DP
RSSI
GND
DET
8C
SB
SB
NC
GND
MO
GND
TMP
BUP
FWD
CK
LDT
EPT
CP
SC
ASQ
NC
NC
35 36
2
G
S
D
Q611
L600
Q615
L602
L603
C771
L605
C775
C776
C777
C778
C779
C782
C783
C784
C787
C791
C793
C797
J72-0923-19 B/2
+
+++
+
+
+
G
S
D
++
+
+
+
+
+
+
1
34
5
36
37
72
73 108
109
1
1213
24
1
16 17
32
TMSTD1DVDDTD0TCKTCKEMU0
TRSTGNDNCGNDGNDGNDEMU1
TKR-750 PC BOARD / PC板
TX-RX UNIT (X57-695X-XX) (B/2) 0-11 : C 0-12 : C2
Foil side view (J72-0923-19 B/2)
TX-RX UNIT (X57-695X-XX) (B/2) 0-11 : C 0-12 : C2
Foil side view (J72-0923-19 B/2)
PC BOARD / PC板 TKR-750
Component side
Foil side
Layer 1
Layer 2
Layer 3
Layer 4
Ref. No. Address
IC600 4O
IC603 9N
IC604 6Q
IC606 4M
IC608 6G
IC609 9Q
IC610 6H
IC611 9F
Ref. No. Address
IC612 8J
IC613 8J
IC614 8H
IC615 8F
IC616 9H
IC617 8D
IC618 7L
IC619 6F
Ref. No. Address
IC620 8B
IC621 5C
IC622 5C
IC626 7H
IC631 3N
IC632 3M
Q600 4Q
Q601 3K
Ref. No. Address
Q602 3J
Q603 4K
Q604 8L
Q605 5C
Q606 4C
Q609 4E
Q610 3E
Q611 4D
Ref. No. Address
Q615 6I
D606 7C
D607 7C
D608 6C
D609 7D
D610 6B
D611 6E
D612 6B
Ref. No. Address
D615 6D
D616 7B
D619 6C
D620 7A
D622 7B
D623 6A
D627 4G
D628 4D
96
JIHGFEDCBA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
L300
Q354
R300
R306
R308
R309
R310
R311
R312
R313
R319
R320
C306
C307
C308
C309
C310
C311
C315
C318
C320
C324
C325
R364
C376
CN351
GND
VO
2
1
VO
GND
1
2
Q300
Q301
Q302
L301
L302
L303
Q350
Q351
Q352
Q353
Q355
R301
R302
R303
R304
L350
R305
L351
L352
L353
L354 L355
L356
L357
L358 L359
R314
L360
R315
L361
R316
L362
R317
R318
R321
R322
C304
C305
C312
C313
C314
R350
R351
C316
R352
C317
R353
R354
C319
R355
R356 R357
R358R359
C321
C322
C323
R360
R361
R362
R363
C327
R365
R366
R367
R368
CN351
C354
C355
C356
C357
C358C359
C360 C361
C362
C363
C364 C365
C366 C367
C368
TC350
C369
TC351
C370 C371
C372
C373
C374
C375
C377
C378
C379
IC300
1
10 11
20
C383
D350 D351
D352
D353
G
S
DG
S
D
+
CN350
CN300
GND
SRR
8CL
CV
9CL
NC
FIN
5C
LDR
EPR
DT
CP
REF
1
7
6
1
CN350
CN300
NC
9CL
CV
8CL
SRR
GND
REF
CP
DT
EPR
LDR
5C
FIN
7
1
1
6
+
+
+
+
J72-0749-02 A/2 J72-0749-02 A/2
J72-0749-02 B/2 J72-0749-02 B/2
TKR-750 PC BOARD / PC板
RX VCO UNIT (X58-4780-10)
Component side view (J72-0749-02)
RX VCO UNIT (X58-4780-10)
Foil side view (J72-0749-02)
Component side
Foil side
Layer 1
Layer 2
Component side
Foil side
Layer 1
Layer 2
Ref. No. Address
IC300 10G
Q300 11H
Q301 11H
Q302 8G
Q350 4F
Ref. No. Address
Q354 3C
Ref. No. Address
Q351 4H
Q352 3F
Q353 3H
Q355 3G
D350 6F
Ref. No. Address
D351 6H
D352 6G
D353 6H
97
ABCDE FGH I J
1
2
3
4
5
6
7
8
9
10
11
12
13
14
L300
L305
Q354 R300
R306
R308
R309
R310
R311
R312
R313
R319
R320
C306
C307
C308
C309
C310
C311
C315
C318
C320 C324
C325
R364
C329
C330
R370
R371
R372
R373
R374
R375
C376
C380
C381
D354
D355
Q300
Q301
Q302
L301L302
L303
L304
L306
L307
Q350
Q351
Q352
Q353
Q355
R301
R302
R303
R304
L350
R305
L351
L352
L353
L354 L355
L356 L357
R314
L360
R315
L361
R316
L362
R317
R318
R321
R322
C304
C305
C312
C313
C314
R350
R351
C316
R352
C317
R353
R354
C319
R355
R356 R357
R358R359
C321
C322
C323
R360
R361
R362
R363
R365
R366
R367
R368
C354
C355
C356
C357
C360 C361
C362
C363
C364
C365
C366
C367
C368
TC350
C369
TC351
C370 C371
C372
C373
C374 C375
C377
C378
C379
C382
C383
D350 D351
D352
D353
CN351
GND
VO
2
1
CN350
CN300
GND
STT
8CL
CV
9CL
MO
FIN
5C
LDR
EPT
DT
CP
REF
1
7
6
1
+
+
++
VO
GND
1
2
CN351
G
S
D
G
S
D
CN350
CN300
MO
9CL
CV
8CL
STT
GND
REF
CP
DT
EPT
LDR
5C
FIN
7
1
1
6
IC300
1
10 11
20
J72-0750-12 A/2 J72-0750-12 A/2
J72-0750-12 B/2 J72-0750-12 B/2
PC BOARD / PC板 TKR-750
TX VCO UNIT (X58-4790-10)
Component side view (J72-0750-12)
TX VCO UNIT (X58-4790-10)
Foil side view (J72-0750-12)
Component side
Foil side
Layer 1
Layer 2
Component side
Foil side
Layer 1
Layer 2
Ref. No. Address
IC300 10G
Q300 11H
Q301 11H
Q302 8G
Q350 4F
Ref. No. Address
Q354 3C
D354 3C
D355 3B
Ref. No. Address
Q351 3H
Q352 3F
Q353 3H
Q355 3G
D350 6F
Ref. No. Address
D351 6H
D352 6G
D353 6H
TKR-750 SCHEMATIC DIAGRAM /
98
7
6
5
4
3
2
1
ABCDE
X45-373 1/2
C81 1000p
C82 1000p
R15
33
R10
150
CN4
1
2
C108 1000p C13
0.1u
C43
1000p
R49
0
C110 10u10 C136
1000p
R64
0
R25
47k
C86 1000p
C107 1000p
2SC4116(Y)
Q8
D6 1SS355
C3 100u25
CN1
C137
1000p
C11
47p
R48
470
C19
1000p
R13
470
R56
18
C27
1000p
CN3
1
2
3
4
5
6
7
8
R27
470
C83 1000p
C39
1000p
R18
*
L2
47n
R30
68k
C14
1000p
R1 10
C99
47u16
C22
47p
L3
68n
C7
1000p
R7
8.2k
C35
1000p
C109 1000p
D1
1SS226
2SC3357
Q3
C15
1000p
C9
1000p
2SC3356
(R24)
Q2
R11
4.7k
R50
2.2k
R6
22
R17
150k
R8
10
2
COM
3IN 1
OUT
C12
1000p
R9 56
C98
1000p
R53
1k
C16
1000p
C21
22p
C85 1000p
C2
1000p
C1
1000p
C10
1000p
C84 1000p R52
1k
C96
18p
C80 1000p
C143
33p
R14
180
R16
180
L4
22n
L5
22n
1
GND1
2
GND2
3
HYST
4VCC
5
ToVER
R60
0
R32
100k
C53
0.047u
FINAL UNIT (X45-373X-XX) (A/2)
X45-373X-XX
0-11
0-10
Q2,3
RF AMP
FAG
THERMAL
SENSE
FAB
DC SWITCH
146-173MHz
136-150MHz
R18
100
47
TX-RX UNIT
(X57-695X-XX)
(A/2)-CN19
TX-RX UNIT
(X57-695X-XX)
(A/2)-CN16
IC2
MAX6502UKP035
THERMOSTAT
IC3
NJM78L05UA
VOLTAGE
REGULATOR
SURGE
ABSORPTION
D6
Q9
DTD123EK
DC SWITCH
C
C2
TMP
8T
PC
FAS
PDT
BUP
GND
NC
T:13.02V
R:13.65V
350mW
T:0.73V
R:0V
T:1.15V
R:0V
T:7.84V
R:0V
T:8.04V
R:0V
SCHEMATIC DIAGRAM / TKR-750
99
7
6
5
4
3
2
1
JIHGF
X45-373 2/2
Note : The components marked with a dot (•) are parts of layer 1.
C112
10p
L12 110n
1
2
3
45
6
7
8
C54
1000p
R41
0
L8
*
R21
0
R62
0
L7
R20
0
C68
1000p
C87
1000p
C106
1000p
C37 0.47u
C74 39p
R57
220k D4
HSM88AS
R63
0
R31 10k
C92
1000p
CN52
D51
DSA3A1
R40
100
D9
MINISMDC050-02
R36
0
L9
47n
D7
ZSA5A27
C64
1000p
C42
0.022u
C161
27p
C29 1000p
C49
22p
R45
100k
VR1
47k
CN7
R29
0
R26
100
C117
220p
C77 27p
L10
47n
C28
1000p
R23
100k
C91
1000u25
C163
68p
F1
3.0A
R38
33k
CN6
C90
1000p
L6
47n
R22
100
D52
DSA3A1
C44
1000p
C30
120p
R24
100k
CN8
L11
47n
C118 0.47u
D5
HSM88AS
C71 22p
R19
100k
R55
1k
C46 1000p
R35
100k
C57 47u25
C69 9p
C55 0.01u
C32
1000p
CN51
R28
470k
C72 22p
R34
0
R61
5.6
C162
27p
PD55003S
Q4
C31
27p
C47
*C164
82p
C70 9p
CN5
1
E
2
B
3
B
C165
1000p
L16
15n
R70
120
R71
0
L17
18n
C166 22p
C167 100p
C146 100p
C145 22p
C160
1000p
L19
9.5T
D53
MA4PH633
L20
5T
C60
1000p
C173
*
R73
0
C174 27p
R72 120
C155 1000p
C89
100p
C170
22p
C172
100p
C171
22p
C103
100p
C168
22p
C169
22p
C105
100p
K1
+B1
SURGE
PROTECTOR +B2
CURRENT
PROTECTOR
GND
BACK UP
BATTERY
REVERSE
CURRENT
PROTECTION
TX
DRIVE
AMP
+B1
W3
W5
GND
CHARGE
MAIN DC
W4
GND
(X45-373X-XX) (B/2)
+B2
ANT SW
TX ANT
RX
D8
0-11
X45-373X-XX
146-173MHz
136-150MHz
0-10
C47
36p
NO
L8
27p
C173
18p L34-4518-05
L34-4517-05
D8
RB051L-40
OUT1
IN1-
IN1+
VEE
IN2+
IN2-
OUT-B
VCC
IC1
TA75W01FU
DC AMP
D4,5
RF DETECTOR
D2
VOLTAGE
REFERENCE
Q5
FINAL AMP
RD70HVF1-01
Q5
D2
02DZ6.2(Y)
D56
XB15A709
D55
XB15A709
D51,52
PROTECT OF REVERSE
CONNECTION
TX-RX UNIT
(X57-695X-XX)
(A/2)-CN15
D55,56
RF SWITCH
RF SWITCH
MAIN DC
GND
BACKUP
C2
C
T:13.03V
R:13.56V
T:5.18V
R:0V
FINAL UNIT (X45-373X-XX) (A/2)
C112
10p
L12 110n
C81 1000p
C82 1000p
1
2
3
45
6
7
8
C54
1000p
R15
33
R41
0
R10
150
CN4
1
2
C108 1000p C13
0.1u
L8
*
C43
1000p
R49
0
R21
0
C110 10u10
R62
0
C136
1000p
R64
0
R25
47k
L7
C86 1000p
R20
0
C68
1000p
C107 1000p
2SC4116(Y)
Q8
C87
1000p
C106
1000p
D6 1SS355
C37 0.47u
C74 39p
R57
220k D4
HSM88AS
R63
0
C3 100u25
R31 10k
CN1 C92
1000p
CN52
C137
1000p
C11
47p
R48
470
C19
1000p
R13
470
D51
DSA3A1
R56
18
R40
100
D9
MINISMDC050-02
C27
1000p
CN3
1
2
3
4
5
6
7
8
R36
0
L9
47n
D7
ZSA5A27
C64
1000p
R27
470
C83 1000p
C42
0.022u
C39
1000p
C161
27p
C29 1000p
R18
*
C49
22p
L2
47n
R45
100k
R30
68k
C14
1000p
R1 10
VR1
47k
CN7
C99
47u16
R29
0
R26
100
C117
220p
C22
47p
L3
68n
C7
1000p
R7
8.2k
C77 27p
L10
47n
C35
1000p
C28
1000p
C109 1000p
D1
1SS226
R23
100k
C91
1000u25
2SC3357
Q3
C15
1000p
C9
1000p
C163
68p
F1
3.0A
2SC3356
(R24)
Q2
R11
4.7k
R38
33k
R50
2.2k
R6
22
CN6
C90
1000p
L6
47n
R22
100
R17
150k
D52
DSA3A1
C44
1000p
R8
10
C30
120p
R24
100k
CN8
2
COM
3IN 1
OUT
L11
47n
C118 0.47u
C12
1000p
R9 56
C98
1000p
R53
1k
C16
1000p
C21
22p
D5
HSM88AS
C71 22p
R19
100k
C85 1000p
R55
1k
C46 1000p
R35
100k
C57 47u25
C69 9p
C55 0.01u
C2
1000p
C32
1000p
CN51
C1
1000p
R28
470k
C72 22p
R34
0
C10
1000p
C84 1000p
R61
5.6
C162
27p
R52
1k
C96
18p
C80 1000p
C143
33p
R14
180
R16
180
L4
22n
L5
22n
PD55003S
Q4
C31
27p
C47
*C164
82p
C70 9p
CN5
1
E
2
B
3
B
1
GND1
2
GND2
3
HYST
4
VCC
5
ToVER
R60
0
R32
100k
C53
0.047u
C165
1000p
L16
15n
R70
120
R71
0
L17
18n
C166 22p
C167 100p
C146 100p
C145 22p
C160
1000p
L19
9.5T
D53
MA4PH633
L20
5T
C60
1000p
C173
*
R73
0
C174 27p
R72 120
C155 1000p
C89
100p
C170
22p
C172
100p
C171
22p
C103
100p
C168
22p
C169
22p
C105
100p
K1
FINAL UNIT (X45-373X-XX) (A/2)
X45-373X-XX
+B1
SURGE
PROTECTOR +B2
0-11
CURRENT
PROTECTOR
GND
0-10
BACK UP
BATTERY
REVERSE
CURRENT
PROTECTION
Q2,3
RF AMP
FAG
THERMAL
SENSE
FAB
TX
DRIVE
AMP
+B1
W3
W5
GND
CHARGE
MAIN DC
W4
GND
(X45-373X-XX) (B/2)
+B2
DC SWITCH
146-173MHz
136-150MHz
ANT SW
TX ANT
RX
D8
0-11
X45-373X-XX
146-173MHz
136-150MHz
0-10
R18
100
47
TX-RX UNIT
(X57-695X-XX)
(A/2)-CN19
TX-RX UNIT
(X57-695X-XX)
(A/2)-CN16
IC2
MAX6502UKP035
THERMOSTAT
IC3
NJM78L05UA
VOLTAGE
REGULATOR
SURGE
ABSORPTION
D6
Q9
DTD123EK
DC SWITCH
C47
36p
NO
L8
27p
C173
18p L34-4518-05
L34-4517-05
D8
RB051L-40
OUT1
IN1-
IN1+
VEE
IN2+
IN2-
OUT-B
VCC
IC1
TA75W01FU
DC AMP
D4,5
RF DETECTOR
D2
VOLTAGE
REFERENCE
Q5
FINAL AMP
RD70HVF1-01
Q5
D2
02DZ6.2(Y)
D56
XB15A709
D55
XB15A709
D51,52
PROTECT OF REVERSE
CONNECTION
TX-RX UNIT
(X57-695X-XX)
(A/2)-CN15
D55,56
RF SWITCH
RF SWITCH
MAIN DC
GND
BACKUP
C
C2 C2
C
TMP
8T
PC
FAS
PDT
BUP
GND
NC
T:13.02V
R:13.65V
T:13.03V
R:13.56V
T:5.18V
R:0V
350mW
T:0.73V
R:0V
T:1.15V
R:0V
T:7.84V
R:0V
T:8.04V
R:0V
TKR-750 SCHEMATIC DIAGRAM /
100
7
6
5
4
3
2
1
ABCDE
X54-333 1/2
A A
A
A
S501 S502 S503 S504 S505 S506
IC503
BU4094BCFV
1
2
3
4
5
6
7
8
9QS
10 Q’S
11 Q8
12 Q7
13 Q6
14 Q5
15 OE
16 VDD
IC502
BU4094BCFV
1
2
3
4
5
6
7
8
9QS
10 Q’S
11 Q8
12 Q7
13 Q6
14 Q5
15 OE
16
VDD
J601
E08-0877-05
1NC
5 HOOK
2 MIC
6 MIG
3 PTT
7 GND
4SB
8NC
R605 1k
R604 1k
C602
1000p
R601
680
C603 100p
C606 100p
C601
100p
C513
100p
C514
100p
C515
100p
C516
100p
C517
100p
C518
100p
IC504
BU4094BCFV
1
2
3
4
5
6
7
8
9QS
10 Q’S
11 Q8
12 Q7
13 Q6
14 Q5
15 OE
16
VDD
R503
0
CP501
470*4
Q512
UPA672T
Q513
UPA672T
Q514
UPA672T
Q517
UPA672T
Q516
UPA672T
R524
820
1/2W
R525
820
1/2W
R522
820
1/2W
R526
820
1/2W
R521
820
1/2W
R523
820
1/2W
C519 0.01u
C511 0.01u
C512 0.01u
VR601
10k
CN601
1
2
3
4
5
6
7
8
9
10
11
CN501
1
2
3
4
5
6
7
8
9
10
11
D601
DA204U D602
DA204U
D506
LA-501DD
110
6
5
C501
10u10
R502
0
R534
1k
R535
1k
R536
1k
R537
1k
R538
1k
R539 1k
R540 1k
D512
DA204U
D513
DA204U
D514
DA204U
C607
0.1u
2SK1824
Q525
R606
47k
KEY5
KEY1
KEY3
KEY2
KEY2
KEY3
KEY1
KEY4
PF6PF5PF4PF3PF2PF1
DISPLAY UNIT (X54-3330-21) (A/2)
7SEGMENT
DC SW
DC SW
DC SW DC SW DC SW
SHIFT
REGISTER
SHIFT
REGISTER
SURGE
ABSORPTION
D512,513,514
SHIFT
REGISTER
D508-511
SURGE ABSORPTION
SOE
CLK
BUSYC
POWLEDC
DISPLAY UNIT (X54-3330-21) (B/2)
SURGE ABSORPTION
D601,602
STRB
DATA
CLK
Q1
Q2
Q3
Q4
VSS
STRB
DATA
CLK
Q1
Q2
Q3
Q4
VSS
MIG
MIC
VLI
5M
HK
PTT
SB
DAT
STRB
DATA
CLK
Q1
Q2
Q3
Q4
VSS
D603
MINISMDC020
CURRENT
PROTECTOR
HK
MIC
MIG
PTT
GND
NC
SB
NC
GND
5M
VLI
D509
DA204U DA204U
D510 D511
DA204U
D508
DA204U
SCHEMATIC DIAGRAM / TKR-750
101
7
6
5
4
3
2
1
JIHGF
X54-333 2/2
IC501
NJM4558E
1
AOUT
2
A-IN
3
A+IN
4
-V 5
6
7
8
D501
HSM88AS
C508
0.1u
R510
220k
C506
47p
R511
10k
C509
0.01u
R513
100k
R512
10k
R514
150k
C510
10u10
R529 1k
R530 1k
R532 1k
R531 1k
R533 1k
R509
10k
C507
0.1u
C504
0.1u
C505
0.1u
C502
1.5u10
R508
1k
C503
1.5u10
R507
6.8k
2SC4116(Y)
Q501
R506
10k
R517
820
1/2W
CP502
470*4
CP503
470*4
IC505
BU4094BCFV
1
2
3
4
5
6
7
8
9QS
10 Q’S
11 Q8
12 Q7
13 Q6
14 Q5
15 OE
16
VDD
CP504
470*4
Q518
UPA672T
Q519
UPA672T
Q522
UPA672T
Q521
UPA672T
Q523
UPA672T
Q524
UPA672T
R520
820
1/2W
C525
0.1u
C522
0.1u
C524
10u10 C521
10u10
D502
HSM88AS
Q507
UPA672T
C523
0.33u
C526
0.33u
2
COM
31
2
COM
3
IN
1OUT
C520 0.01u
Q510
DTA114EUA
R505
68k
VR501
10k
CN502
MIG
MIC
VLI
5C
K4
K5
K2
K3
K1
HK/RXD
SOE
PTT/TXD
STB1
CLK
DAT
PSW
GND
NC
SB
SB
D503
B30-2151-05
D504
B30-2151-05
2SA1586(Y,GR)
Q502
S507
R516
1.2k
1/2W
D507
LA-501DD
110
56
R541
10k
R542
10k
R543
10k
R544
10k
R518
1.2k
1/2W
KEY5
KEY1
KEY2
KEY4
KEY3
CALL
TX
BACKUP
MAIN DC
MIC AMP
LEVEL
CONTROLLER AF DETECTOR
7SEGMENT
DC SW
CLK
SOE
BUSYC
SHIFT
REGISTER
DC SW
DC SW
DC SW
VOLTAGE REGULATOR
VOLTAGE REGULATOR
DC SW
DC SW DC SW
DC SW
POWLEDC
HK
5M
PTT
MIC
VLI
MIG
SB
AF DETECTOR
LEVEL
CONTROLLER
DAT
BUSY
STRB
DATA
CLK
Q1
Q2
Q3
Q4
VSS
TX-RX UNIT
(X57-695X-XX)(B/2)-CN600
R519
1.2k
1/2W
B+IN
B-IN
BOUT
+V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Q504
UPA672T
Q503
UPA672T
Q506
DTA114EUA
Q508
DTA114EUA
DC SW
Q509
DTA114EUA
DC SW
DC SW
Q511
DTA114EUA
DC SW
LED
LED
LED
D505
B30-2151-05
IC507
TA78L05F
IC506
TA78L05F
INOUT
DC SW DC SW
13.10V
DISPLAY UNIT (X54-3330-21) (A/2)
Note : The components marked with a dot (•) are parts of layer 1.
A A
A
A
S501 S502 S503 S504 S505 S506
IC503
BU4094BCFV
1
2
3
4
5
6
7
8
9QS
10 Q’S
11 Q8
12 Q7
13 Q6
14 Q5
15 OE
16
VDD
IC502
BU4094BCFV
1
2
3
4
5
6
7
8
9QS
10 Q’S
11 Q8
12 Q7
13 Q6
14 Q5
15 OE
16
VDD
J601
E08-0877-05
1NC
5 HOOK
2 MIC
6 MIG
3 PTT
7 GND
4SB
8NC
R605 1k
R604 1k
C602
1000p
R601
680
C603 100p
C606 100p
C601
100p
IC501
NJM4558E
1
AOUT
2
A-IN
3
A+IN
4
-V 5
6
7
8
C513
100p
C514
100p
C515
100p
C516
100p
C517
100p
C518
100p
D501
HSM88AS
C508
0.1u
R510
220k
C506
47p
R511
10k
C509
0.01u
R513
100k
R512
10k
R514
150k
C510
10u10
R529 1k
R530 1k
R532 1k
R531 1k
R533 1k
R509
10k
C507
0.1u
C504
0.1u
C505
0.1u
C502
1.5u10
R508
1k
C503
1.5u10
R507
6.8k
2SC4116(Y)
Q501
R506
10k
IC504
BU4094BCFV
1
2
3
4
5
6
7
8
9QS
10 Q’S
11 Q8
12 Q7
13 Q6
14 Q5
15 OE
16
VDD
R517
820
1/2W
R503
0
CP502
470*4
CP501
470*4
CP503
470*4
IC505
BU4094BCFV
1
2
3
4
5
6
7
8
9QS
10 Q’S
11 Q8
12 Q7
13 Q6
14 Q5
15 OE
16
VDD
CP504
470*4
Q512
UPA672T
Q513
UPA672T
Q514
UPA672T
Q517
UPA672T
Q516
UPA672T
Q518
UPA672T
Q519
UPA672T
Q522
UPA672T
Q521
UPA672T
Q523
UPA672T
Q524
UPA672T
R520
820
1/2W
C525
0.1u
C522
0.1u
C524
10u10 C521
10u10
D502
HSM88AS
R524
820
1/2W
R525
820
1/2W
R522
820
1/2W
R526
820
1/2W
R521
820
1/2W
R523
820
1/2W
Q507
UPA672T
C523
0.33u
C526
0.33u
2
COM
31
2
COM
3
IN
1OUT
C520 0.01uC519 0.01u
C511 0.01u
C512 0.01u
Q510
DTA114EUA
R505
68k
VR501
10k
CN502
MIG
MIC
VLI
5C
K4
K5
K2
K3
K1
HK/RXD
SOE
PTT/TXD
STB1
CLK
DAT
PSW
GND
NC
SB
SB
VR601
10k
D503
B30-2151-05
D504
B30-2151-05
2SA1586(Y,GR)
Q502
CN601
1
2
3
4
5
6
7
8
9
10
11
CN501
1
2
3
4
5
6
7
8
9
10
11
S507
D601
DA204U D602
DA204U
R516
1.2k
1/2W
D506
LA-501DD
110
6
5
D507
LA-501DD
110
56
C501
10u10
R502
0
R534
1k
R535
1k
R536
1k
R537
1k
R538
1k
R539 1k
R540 1k
D512
DA204U
D513
DA204U
D514
DA204U
R541
10k
R542
10k
R543
10k
R544
10k
C607
0.1u
2SK1824
Q525
R606
47k
R518
1.2k
1/2W
KEY5
KEY1
KEY3
KEY2
KEY2
KEY3
KEY1
KEY4
KEY5
KEY1
KEY2
KEY4
KEY3
PF6PF5PF4PF3PF2PF1
DISPLAY UNIT (X54-3330-21) (A/2)
CALL
TX
BACKUP
MAIN DC
MIC AMP
LEVEL
CONTROLLER AF DETECTOR
7SEGMENT 7SEGMENT
DC SW
DC SW
DC SW DC SW DC SW
SHIFT
REGISTER
SHIFT
REGISTER
SURGE
ABSORPTION
D512,513,514
SHIFT
REGISTER
D508-511
SURGE ABSORPTION
DC SW
CLK
SOESOE
CLK
BUSYCBUSYC
SHIFT
REGISTER
DC SW
DC SW
DC SW
VOLTAGE REGULATOR
VOLTAGE REGULATOR
DC SW
DC SW DC SW
DC SW
POWLEDC POWLEDC
HK
5M
PTT
MIC
VLI
MIG
SB
DISPLAY UNIT (X54-3330-21) (B/2)
AF DETECTOR
LEVEL
CONTROLLER
SURGE ABSORPTION
D601,602
DAT
BUSY
STRB
DATA
CLK
Q1
Q2
Q3
Q4
VSS
STRB
DATA
CLK
Q1
Q2
Q3
Q4
VSS
TX-RX UNIT
(X57-695X-XX)(B/2)-CN600
R519
1.2k
1/2W
B+IN
B-IN
BOUT
+V
STRB
DATA
CLK
Q1
Q2
Q3
Q4
VSS
MIG
MIC
VLI
5M
HK
PTT
SB
DAT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
STRB
DATA
CLK
Q1
Q2
Q3
Q4
VSS
D603
MINISMDC020
CURRENT
PROTECTOR
HK
MIC
MIG
PTT
GND
NC
SB
NC
GND
5M
VLI
D509
DA204U DA204U
D510 D511
DA204U
D508
DA204U
Q504
UPA672T
Q503
UPA672T
Q506
DTA114EUA
Q508
DTA114EUA
DC SW
Q509
DTA114EUA
DC SW
DC SW
Q511
DTA114EUA
DC SW
LED
LED
LED
D505
B30-2151-05
IC507
TA 7 8 L05F
IC506
TA 7 8 L05F
INOUT
DC SW DC SW
13.10V
TKR-750 SCHEMATIC DIAGRAM /
102
7
6
5
4
3
2
1
ABCDE
X57-695 (A/2) 1/4
D354
1SV214
C324
0.47u25
C362
22p
R364
10k
R357
470
2SC4116(Y)
Q352
5CT
C360
0.47u
R151 1k
L300
R314
470k
EPT
R363
4.7k
D352
1SV282
L351
10u
R306
22
L362
82n
C320
2.2u10
L352
10u
1
2
3
4
5
6
C370
15p
C309
0.1u
R312
220
C377
1000p
R309
220
Q354
DTC114EUA
9CLT
L353
10u
C87
10u10
C374
1p
R311
22k
TC350
8p
R362
4.7k
R359
47
TC351
8p
C357
1000p
R374
22k
D350
1SV282
R152 1k
C365
1000p
C381
0.75p
C318
2.2u10
CN300
1
2
3
4
5
6
7
C372
1000p
L355
10u
C355
18p
D355
1SV214
C366
27p
FIN9
5C10
LDT11
EPT12
DP13
CP14
REF15
CN350
1
2
3
4
5
6
R87
1k
R153 1k
R300 10
R354
33
R355
33
C373
1000p
C378
1000p
R367
220
8CLT
C380
0.75p
R360
4.7k
L350
10u
R316
1.5k
R368
33
R310
6.8k
C375
1p
R370
10k
C369
9p
D353
1SV282
C323
0.22u
C308
0.1u
C306
0.01u
R317
0
L361
10u
R320
1k
C304
1000p
C356
27p
R351
0
C86
1000p
R375
100k
R366
10k
R154 1k
L354
10u
C364
1000p
C354
1000p
CP
C305
1000p
C379
10p
R356
470
R372
22k
D351
1SV282
R305
0
R353
0
R302 100
L356
50n
L360
10u
C361
0.47u
R90
0
C376
1000p
CN351
1
VO
2
GND
R361
4.7k
C367
18p
C310
0.1u
R373
100k
R301 100
C371
9p
C363
18p
R319 33
L357
50n
LDT
R352
0
C311
0.1u35
DP
R350
0
R371
10k
C383
1000p
STT
7
8
R318
0
C368
15p
R358
47
R365
47k
R304 100
C382
1000p
R303 100
C80
10u10
L27
*
C103
10p
C102
10p
C82
0.01u
C89
0.01u
X3
16.8MHz
1VC
2GND 3
OUT
4
+VDC
5CT R74 22
R21
680k
R79
100k
R18
470k
C25
10u10
R82
470k
R20
820k
IC1
NJM2904E
1AOUT
2A-IN
3A+IN
4-V 5
6
7
8
R78
47k
FCT
8CT
R19
220k
C179 0.01u
C24
10u10
L306
L301
39n
C307
1000p
C312
22p
R321
22k
C316
4p
C314
39p
L303
100n
L302
39n
C317
22p
R322
10k
C322
1000p
R315
330
2SC4215(Y)
Q302
C313
4p
C321
47p
C319
1000p
C325 5p
R308
56
IC300
SA7025DK
1
2
3
4
5
6
7
8
9
1011
PHA
12
VSSA
13
PHI
14
PHP
15
VDDA
16
RN
17
RF
18
LOCK
19
TEST
20
VDD
C315
0.047u
R313
2.2k
C330
1000p
C219
22u10
L305
C329
1000p
L304
L307
FREQUENCY
CONTROL
FREQUENCY
CONTROL
(TP102)
TX-VCOL
TX-VCOH
ACTIVE
FILTER
BUFFER
AMP
PLL
BUFFER
AMP
A2 SUB UNIT (TX VCO/PLL) (X58-4790-10)
TX-RX UNIT (X57-695X-XX) (A/2)
Q351
VCO OSC
MODULATION
D355
D354
MODULATION
Q350
VCO OSC
FREQUENCY
CONTROL
FREQUENCY
CONTROL
BUFFER AMP
MO
MB
VO
DC SW
DC SW
DC SW
TX-CV
TX-RX UNIT
0-11
0-12
X57-695X-XX
2SK508NV(K52)
Q350 2SC4215(Y)
Q355
2SK508NV(K52)
Q351
CLOCK
DATA
STROBE
VSS
RFIN
RFIN
VCCP
REFIN
RA
AUXIN
2SC4116(GR)
Q301
B+IN
B-IN
BOUT
+V
C2
C3.9u
10u
L27
2SC4116(Y)
Q353
ACTIVE
FILTER
2SC4116(GR)
Q300
GND
STT
8CL
CV
9CL
MO
VO
GND
GND
STT
8CL
CV
9CL
MO
FIN
5C
LDT
EPT
DP
CP
REF
-2.7dBm
SCHEMATIC DIAGRAM / TKR-750
103
JIHGF
X57-695 (A/2) 2/4
R365
47k
CN300
1
2
3
4
5
6
7
C90
0.01u
R300 10
R156 1k
9CLR
R364
10k
R357
270
L359
10u
R361
4.7k
7
8
DP
C306
0.01u
L355
10u
C370
18p
TC350
8p
EPR
L358
10u
5CR
L354
10u
C311
0.1u35
C375
1p
D351
1SV282
FIN9
5C10
LDR11
EPR12
DP13
CP14
REF15
C88
1000p
C308
0.1u
C377
1000p
R363
4.7k
R351
0
C383
1000p
R360
4.7k
C305
1000p
R303 100
R354 33
C354
1000p
R353
0
R309
220
1
2
3
4
5
6
R306
22
C360
0.47u
C310
0.1u
C374
1p
L357
50n
C376
1000p
L356
50n
R359
47
R160
270
TC351
8p
C304
1000p
C372
1000p
D350
1SV282
D352
1SV282
R155 1k
R366
10k
C367
15p
R301 100
R302 100
C361
0.47u
C362
47p
Q354
DTC114EUA
R356
270
CN350
1
2
3
4
5
6
C373
1000p
R355
33
R350
0
C356
33p
L362
82n
R158 1k
L361
10u
L300
C357
1000p
C368 18p
R311
22k
L32
0.1u
R157 1k
C378
1000p
L360
10u
L351
10u
R358
47
C365
1000p
R310
6.8k
L352
10u
C355
39p
C309
0.1u
R352
0
CN351
1
VO
2
GND
R304 100
CP
R368
33
C371
15p
LDR
C327
2.2u10
R362
4.7k
C358
4p
R367
220
R88
1k
C366
18p
L353
10u
8CLR
C379
10p
C363
47p
C364
1000p
R305
0
C359
8p
L350
10u
SRR
C369 15p
R75
22
C83
0.01u
C81
10u10
5CR
R76
100k
R73 470k
R77
47k
FCR
8CR
C84 0.01u
IC2
NJM4558E
1
AOUT
2
A-IN
3
A+IN
4
-V
5
6
7
8
X2
16.8MHz
1
VC
2
GND
3
OUT
4
+VDC
C105
10p
C104
10p
L28
10u
IC300
SA7025DK
1
2
3
4
5
6
7
8
9
1011
PHA
12
VSSA
13
PHI
14
PHP
15
VDDA
16
RN
17
RF
18
LOCK
19
TEST
20
VDD
L301
39n
R315
330
R321
22k
C321
47p
R322
10k
2SC4215(Y)
Q302
C319
1000p
R319 33
C322
1000p
L303
100n
C307
1000p
R308
56
C325 5p
L302
39n
C312
15p
C317
15p
C314
27p
C313
3p
C316
3p
R313
2.2k
C323
0.22u
C315
0.047u
C324
0.47u25
R312
220
R320
1k
R317
0
C318
2.2u10
C320
2.2u10
R314
470k
R318
0
R316
1.5k
BUFFER
AMP
VCO OSC
V-RXVCOL
V-RXVCOH
PLL
A3 SUB UNIT (RX VCO/PLL) (X58-4780-10)
DC SW
VCO OSC
FREQUENCY
CONTROL
FREQUENCY
CONTROL
FREQUENCY
CONTROL
FREQUENCY
CONTROL
BUFFER AMP
BUFFER
AMP
MO
MB MB
MO
VO VO
DC SW
DC SW
(TP101)
RX-CV
2SK508NV(K52)
Q350
2SC4116(Y)
Q352
2SC4215(Y)
Q355
2SK508NV(K52)
Q351
2SC4116(Y)
Q353D353
1SV282
CLOCK
DATA
STROBE
VSS
RFIN
RFIN
VCCP
REFIN
RA
AUXIN
B+IN
B-IN
BOUT
+V
BUFFER
AMP
2SC4116(GR)
Q300
2SC4116(GR)
Q301
BUFFER
AMP
GND
SRR
8CL
CV
9CL
NC
VO
GND
GND
SRR
8CL
CV
9CL
NC
FIN
5C
LDR
EPR
DP
CP
REF
-6.2dBm
TX-RX UNIT (X57-695X-XX) (A/2)
TKR-750 SCHEMATIC DIAGRAM /
104
KLMNO
X57-695 (A/2) 3/4
C142 1000p
C144 1000p
R130
47k
C134 0.01u
R4
10
C17
1p
XF2
L71-0512-05
44.85MHz
R30
820
R3
680
R125
1.5k
R106
0
C50
68p
L1
L34-4616-05
R16
18
L29
33n
C10
100p
R144 22k
C123 0.01u
C178 4.7u10
R38
0
C156 1000p
C2
39p
R122
10
R39
56
C211
0.01u
C43 3p
C150
22u10
R104 0
C158 3.3u16
2SC3357
Q1
C199
0.01u
C97 1000p
C122 0.01u
C111
27p
L4
1.2u
C7
0.01u
C138
47u16
R143
1k
C153 1000p
C131 1000p
C46 3p
C155
0.01u
L13
10u
2
GND
1
IN
3OUT
C173 0.01u
R44
22k
C175 1000p
C38 68p
L26
47n
C95
15p
C6
39p
R159
220
C164 470p
C4
0.5p
IC10
TA7808F
3
GND
1
IN
2OUT
R111
5.6
C145 4.7u10
R94 47
C157 0.01u
C15 5p
2
COM
3
IN
1OUT
R22
470
R1
2.7k
C91 10p
C110
3p
C12
39p
R97
4.7k
C3
2p
C93
1000p
CN1
R123
10
R163
270
C121 1000p
C132 1000p
L41
100n
R124
1.5k
R43
22k
2SC4116(GR)
Q14
C125 100u16
C8
1000p
L21
10u
L31
33n
C133 1000p
C48
0.01u
C143 1000p
C176 0.01u
C36
1000p
C108
3p
C109
27p
C44 4p
R42
22k
C148 1000p
C113
15p
C47 3p
C51
0.01u
R112
820
C120 1000p
5CT
R35
1.8k
R127
10
C136 47u16
C174 3.3u16
C1
6p
C166 1000p
C96
1000p
L10
150n
R17
0
C130 1000p
R10
47k
C129
0.01u
R96
1.8k
8CT
C20
100p
C92 1000p
C152
0.01u
C135 0.01u
C14
0.5p
R121
1.5k
L19
L34-4527-05
2SC3357
Q9
R110
820
C160 1000p
C32
0.01u
D1
DAN235K
CN2
R148
22k
CN3
8CR
R11
22k
C151 3.3u16
C137 47u16
R45
22k
D8
DAN235K
R98 1.8k
C139
47u16
Q17
DTC114EUA
C16
2p
R95
4.7k
R37
6.8k
C146 1000p
R6
1k
L11
180n
R92 1.8k
C13
2p
C49
68p
C37
0.01u
R126
10
C40
0.01u
R7
10k
2SC3120
Q8
C42 3p
C100
27p
C161 0.01u
C147 22u10
8CLT
2SC3120
Q11
L22
82n
C159 1000p
C33
33p
C41
0.01u
R14 270
D2
DAN235K
R9
100
C39 68p
R32
820 8CLR
Q19
DTC114EUA
C45 4p
C22
10p
R91
4.7k
C141
0.01u
L33
10u
L30
33n
C107
15p
R120
1.5k
L16
L34-4527-05
R129
47k
C177 1000p
C126
22u10
R109
100
2
COM
3
IN
1
OUT
R40
27
R99
100
R15 270
L25
56n
C167
1000p
C30
68p
L9
56n
C23
18p
C9
1000p
2
COM
3
IN
1OUT
L8
22n
R31
5.6
C154
10u6.3
F1
C127
22u10
C209
0.01u
C106
1000p
R41
2.2k
C31
330p
R34
1k
C140
0.01u
R46
2.2k
R100 22 C99
1000p
9CLR
C172 1000p
Q23
DTC114EUA
R5
68
C149 0.01u
R36
1k
C128
0.01u
C98
1000p R13
47
5CR
9CLT
C171 1000p
R128
4.7k
C124 100u16
C34
0.01u
R33
47
R93
100
C212
*
C213
*
C5
*
C214
5p
C11
*
C18
*
C19
*
L2
L3
L5
L6
L7
L12
330n
VOLTAGE
REGULATOR
VOLTAGE
REGULATOR
VOLTAGE
REGULATOR
VOLTAGE
REGULATOR
RF AMP
RF AMP
WIDE/NARROW
SWITCH
WIDE
WIDE/NARROW
SWITCH
RF AMP
RF AMP
CURRENT CONTROL
MO
MB
MB
MO
VO
5CR
8T
8TC
W/N
W/N
8C
TX SW
RF AMP
DC SW
DC SW
DC SW
DC SW
DC SW
8P
6P
C18
18P
C11
6P
C213
22P
5P
8P
C5
9P
C212
6P
6P
C19
5P
6P
C0-11
0-12 C2
X57-695X-XX
TX-RX UNIT
2SC4116(GR)
Q12
RIPPLE FILTER
2SC4116(GR)
Q15
Q12
RIPPLE FILTER
RIPPLE FILTER
2SC4116(GR)
Q13
Q14
RIPPLE FILTER
L18
L34-4526-05
L17
L34-4526-05
L14
L34-4527-05
L15
L34-4526-05
A1
W02-1939-05_8
2SC3357
Q2
IC4
NJM7808FA
IC5
AN8009M
2SB1386(R)
Q18
IC11
NJM78L05UA
IC3
NJM78L05UA
2SB1132(Q,R)
Q16
XF1
L71-0513-05
2SA1586(Y,GR)
Q10
VOLTAGE
REGULATOR
44.85MHz
NARROW
8.07V
13.10V
13.10V7.88V
7.87V 8.05V5.03V
Q14
B:8.95V
E:8.29V
C:8.98V
B:7.92V
E:7.23V
C:7.96V
B:8.95V
E:8.28V
C:8.98V
B:1.50V
E:0.72V
C:6.15V
B:1.05V
E:0.62V
C:4.81V
B:5.37V
E:5.97V
C:1.53V
-99.5dBm
-89.0dBm
B:1.05V
E:0.26V
C:5.94V
-3.5dBm
9.02V
5.06V
T:8.05V
R:0V
7.78V
Q11
B:1.51V
E:0.75V
C:6.35V
0.31V
T:0V
R:1.03V
T:8.05V
R:0V
Q12
B:7.77V
E:7.09V
C:7.80V
T:1.04V
R:0V
13.09V
B:1.28V
E:0.51V
C:6.69V
W:0V
N:1.04V
W:1.07V
N:0V
W:1.08V
N:0V
W:0V
N:1.05V
TX-RX UNIT (X57-695X-XX) (A/2)
SCHEMATIC DIAGRAM / TKR-750
105
7
6
5
4
3
2
1
TSRQP
X57-695 (A/2) 4/4
-t
C70 0.1u
R60
10k
C204 100p
C191 0.01u
R166
22k
C69 0.1u
Q4
DTC144EUA
C55
0.01u
L35
R140 0
R61
270k
C58
18p
R165
470
C75
0.1u
R63 18k
TH1
C163
0.01u
CN19
E04-0154-05
R52
22k
C162 0.01u
D4
DAN235K
R141 0
CN18
E04-0154-05
R53
6.8k
D7 1SS355
D5
MA742
L36
IC9
TK14489V
1
OSC(B)
2
OSC(E)
3
NC
4
MIXO
5
VCC
6
IFIN
7
DEC
8
DEC
9
10 11
12
13
14
15
16
17
18
19
20
C68 0.1u
LDT
C53
1000p
CN4
R51
0
C192 0.01u
R150
18
R69
3.3k
R47
15k
C194 0.01u
R65
4.7k
R142 0
C77
1000p
D12
02DZ18(X,Y)
R68
3.3k
C197
0.033u
C52
0.01u
C65 10u10
C63
0.01u
C190 1000p
Q5
DTA144EUA
K1
S76-0401-05
R8
33k
R55
22k
L39
1
2
3
4
5
6
7
89
VSS
10
NC2
11
AO3
12
AO4
13
AO5
14
AO6
15
VDD
16
VCC
R66
330k
SRR
L34
C205 100p
CN15
E40-5703-05
1E
2B
3B
C73
0.1u
R137 1k
C61
8p
STT
C62
0.01u
Q24
DTD114EK
C206 100p
L37
C60
0.01u
DP
C207 100p
C193 0.01u
R48
47k
C208 100p
R162
470
R138 1k
R50
15k
C184 1000p
LDR
C67
330p
C198 0.1u
L38
C74
1000p
R49 220
C56
0.01u
Q6
DTC144EUA
R83
0
C189 1000p
C72
10u10
2SC3356(R24)
Q3
C76
47u10
R62 2.2k
L20
1u
R58
15k
1
STRB
2
DATA
3
CLK
4
Q1
5
Q2
6
Q3
7
Q4
8
VSS
9
10
11
12
13
14
15
16
C185 1000p
R57
3.3k
FCR
C195 0.01u
CN16
E40-5632-05
1GND
2NC
38T
4PC
5FAS
6FDT
7BUP
8TMP
C64 0.1u
CP
FCT
C71
0.01u
C54 0.01u
R164
270
Q25
DTC114EUA
L23
1u
R161
470
R56
6.8k
C59
15p
D3
DAN235K
EPR
C210
0.01u
C66
330p
8CR
C57
0.01u
R54
1k
R67
56
EPT R139 0
L24
L34-4459-05 Q27
DTC144EUA
R197
1.8k
R198 0
CN14
E40-6009-05
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
R71
82k
R72
330k
C79
0.22u
D13
MA742
R176
47k
C218
0.01u
L43
C78
0.1u
Q26
DTC114EUA
R70
1k
C217
1000p
C216
470p
R196
3.9k
NOISE
DETECTION
D/A
CONVERTER
WIDE/NARROW
SWITCH
SURGE
PROTECTOR
RF AMP
NOISE AMP
DC SW
NARROW
WIDE
TX-RX UNIT (X57-695X-XX)(B/2)-CN602
WIDE/NARROW
SWITCH
D4
WIDE/NARROW
SWITCH
FM IF
SYSTEM
SHIFT
REGISTER
MO
MB
5CR
8T
8TC
W/N
W/N
8C
DC SW
Q4
W SW
DC SW
DC SW
DC SW
DC SW
NOISE
DETECTION
WIDE/
NARROW
SWITCH
DC SW
CF2
L72-0376-05
CF1
L72-0366-05
FLTI
FLTO
SQLI
SCAN
SCAN
HyS
GND
RFI
2SC4617(S)
Q7
NC
DET
NC
GND
ASQ
RSSI
SC
DP
CP
EPR
EPT
LDR
LDT
DT
CK
STB
FWD
LD2
BUP
PSW
TMP
SOE
GND
MB
MO
GND
GND
QS
NC
SB
SB
SB
SB
NC
8C
8C
D11
02DZ5.1(Y)
FINAL UNIT
(X45-373X-XX)
(A/2)-CN1
FINAL UNIT
(X45-373X-XX)
(A/2)-CN3
FINAL UNIT
(X45-373X-XX)
(A/2)-CN5
QS
Q’S
Q8
Q7
Q6
Q5
OE
VDDDO
LD
CLK
DI
AO1
AO2
NC1
GND
IC7
BU4094BCF
IC6
M62354GP
X1
44.395MHz
QUAD AFO
FHASE RSSI
-62.5dBm
B:0.77V
E:0V
C:4.91V
7.87V
-117.0dBm
B:0.67V
E:0.07V
C:4.00V
W:0V
N:4.71V
+0.8dBm
220mV
71mV
3.40V
W:4.97V
N:0V
W:4.99V
N:0V
Note : The components marked with a dot (•) are parts of layer 1.
TX-RX UNIT (X57-695X-XX) (A/2)
-t
C142 1000p
C144 1000p
R130
47k
D354
1SV214
C324
0.47u25
C134 0.01u
R4
10
C362
22p
C17
1p
R364
10k
C70 0.1u
R365
47k
R357
470
XF2
L71-0512-05
44.85MHz
CN300
1
2
3
4
5
6
7
C90
0.01u
R30
820
R3
680
R125
1.5k
R106
0
R300 10
2SC4116(Y)
Q352
5CT
C360
0.47u
C50
68p
L1
L34-4616-05
R151 1k
R16
18
L29
33n
R60
10k
C10
100p
R156 1k
R144 22k
C123 0.01u
L300
C178 4.7u10
9CLR
R364
10k
R38
0
R357
270
C156 1000p
C2
39p
L359
10u
R122
10
R361
4.7k
R39
56
C211
0.01u
7
8
C43 3p
C204 100p
C191 0.01u
R166
22k
C69 0.1u
C150
22u10
R104 0
C158 3.3u16
2SC3357
Q1
R314
470k
DP
Q4
DTC144EUA
C55
0.01u
C199
0.01u
L35
C97 1000p
EPT
R140 0
C306
0.01u
L355
10u
C370
18p
R363
4.7k
D352
1SV282
TC350
8p
L351
10u
R306
22
L362
82n
R61
270k
C58
18p
R165
470
C122 0.01u
C320
2.2u10
L352
10u
C111
27p
L4
1.2u
1
2
3
4
5
6
C370
15p
C75
0.1u
C7
0.01u
C309
0.1u
EPR
L358
10u
C138
47u16
5CR
R143
1k
R63 18k
TH1
C153 1000p
C131 1000p
C46 3p
C155
0.01u
L13
10u
C163
0.01u
CN19
E04-0154-05
R52
22k
L354
10u
R312
220
2
GND
1
IN
3OUT
C173 0.01u
C377
1000p
C311
0.1u35
R309
220
R44
22k
C175 1000p
C38 68p
L26
47n
C375
1p
C95
15p
C6
39p
Q354
DTC114EUA
C162 0.01u
D351
1SV282
R159
220
FIN9
5C10
LDR11
EPR12
DP13
CP14
REF15
9CLT
L353
10u
C87
10u10
D4
DAN235K
C164 470p
C4
0.5p
IC10
TA7808F
3
GND
1
IN
2OUT
C374
1p
R111
5.6
R311
22k
R141 0
TC350
8p
C145 4.7u10
R94 47
R362
4.7k
R359
47
TC351
8p
CN18
E04-0154-05
R53
6.8k
C357
1000p
D7 1SS355
C88
1000p
R374
22k
C157 0.01u
C308
0.1u
D5
MA742
C377
1000p
R363
4.7k
R351
0
C15 5p
2
COM
3
IN
1OUT
D350
1SV282
R152 1k
L36
C365
1000p
C383
1000p
C381
0.75p
IC9
TK14489V
1
OSC(B)
2
OSC(E)
3
NC
4
MIXO
5
VCC
6
IFIN
7
DEC
8
DEC
9
10 11
12
13
14
15
16
17
18
19
20
C318
2.2u10
CN300
1
2
3
4
5
6
7
C68 0.1u
R22
470
R360
4.7k
R1
2.7k
C91 10p
LDT
C53
1000p
C110
3p
CN4
C12
39p
R97
4.7k
C3
2p
C305
1000p
C93
1000p
R303 100
C372
1000p
R354 33
CN1
C354
1000p
L355
10u
R123
10
R163
270
R51
0
C121 1000p
C192 0.01u
R150
18
C132 1000p
R69
3.3k
C355
18p
R47
15k
R353
0
L41
100n
D355
1SV214
C366
27p
R309
220
1
2
3
4
5
6
R124
1.5k
FIN9
5C10
LDT11
EPT12
DP13
CP14
REF15
R43
22k
C194 0.01u
R65
4.7k
R306
22
2SC4116(GR)
Q14
CN350
1
2
3
4
5
6
C125 100u16
C360
0.47u
C310
0.1u
C8
1000p
L21
10u
L31
33n
C133 1000p
R87
1k
C48
0.01u
C143 1000p
C176 0.01u
R142 0
R153 1k
C36
1000p
R300 10
C374
1p
C108
3p
R354
33
C109
27p
C44 4p
C77
1000p
D12
02DZ18(X,Y)
R42
22k
C148 1000p
C113
15p
R68
3.3k
R355
33
C197
0.033u
L357
50n
C373
1000p
C52
0.01u
C65 10u10
C376
1000p
L356
50n
C47 3p
C51
0.01u
R112
820
C63
0.01u
C120 1000p
5CT
R35
1.8k
C190 1000p
R359
47
R160
270
R127
10
TC351
8p
Q5
DTA144EUA
C378
1000p
K1
S76-0401-05
R8
33k
C136 47u16
C174 3.3u16
R55
22k
R367
220
C1
6p
L39
C166 1000p
C304
1000p
C96
1000p
1
2
3
4
5
6
7
89
VSS
10
NC2
11
AO3
12
AO4
13
AO5
14
AO6
15
VDD
16
VCC
L10
150n
C372
1000p
R66
330k
D350
1SV282
8CLT
D352
1SV282
R17
0
SRR
C130 1000p
R10
47k
C129
0.01u
L34
C380
0.75p
R96
1.8k
R360
4.7k
8CT
C205 100p
R155 1k
C20
100p
CN15
E40-5703-05
1E
2B
3B
C92 1000p
C73
0.1u
R366
10k
C152
0.01u
L350
10u
C135 0.01u
R316
1.5k
R368
33
C367
15p
C14
0.5p
R137 1k
R301 100
C61
8p
R121
1.5k
L19
L34-4527-05
STT
2SC3357
Q9
R310
6.8k
R110
820
C375
1p
R370
10k
C160 1000p
C369
9p
C32
0.01u
D1
DAN235K
CN2
R302 100
C361
0.47u
R148
22k
C362
47p
CN3
C62
0.01u
8CR
D353
1SV282
C323
0.22u
R11
22k
C308
0.1u
C306
0.01u
R317
0
Q24
DTD114EK
C151 3.3u16
Q354
DTC114EUA
C206 100p
L361
10u
R320
1k
C137 47u16
R45
22k
C304
1000p
R356
270
CN350
1
2
3
4
5
6
D8
DAN235K
R98 1.8k
C356
27p
R351
0
L37
C60
0.01u
C373
1000p
DP
R355
33
C139
47u16
Q17
DTC114EUA
C207 100p
C86
1000p
R350
0
R375
100k
C193 0.01u
C16
2p
R95
4.7k
C356
33p
R48
47k
R366
10k
R154 1k
R37
6.8k
C146 1000p
L362
82n
R6
1k
L354
10u
R158 1k
L361
10u
C208 100p
L11
180n
R92 1.8k
R162
470
R138 1k
R50
15k
C364
1000p
L300
C357
1000p
C184 1000p
LDR
C13
2p
C354
1000p
C368 18p
C49
68p
C37
0.01u
R126
10
C40
0.01u
R7
10k
2SC3120
Q8
C67
330p
C198 0.1u
L38
R311
22k
C42 3p
C100
27p
C74
1000p
CP
C161 0.01u
C305
1000p
C379
10p
R356
470
C147 22u10
R372
22k
8CLT
R49 220
D351
1SV282
C56
0.01u
2SC3120
Q11
L22
82n
C159 1000p
L32
0.1u
R305
0
C33
33p
R353
0
C41
0.01u
R302 100
R14 270
R157 1k
Q6
DTC144EUA
L356
50n
R83
0
C189 1000p
C72
10u10
C378
1000p
L360
10u
D2
DAN235K
R9
100
L351
10u
R358
47
2SC3356(R24)
Q3
C39 68p
R32
820
C365
1000p
L360
10u
8CLR
R310
6.8k
Q19
DTC114EUA
C361
0.47u
L352
10u
C76
47u10
C45 4p
R90
0
C22
10p
R91
4.7k
C376
1000p
R62 2.2k
C141
0.01u
L20
1u
L33
10u
L30
33n
CN351
1
VO
2
GND
C355
39p
R361
4.7k
R58
15k
C367
18p
C107
15p
R120
1.5k
C310
0.1u
L16
L34-4527-05
R129
47k
C177 1000p
C126
22u10
1
STRB
2
DATA
3
CLK
4
Q1
5
Q2
6
Q3
7
Q4
8
VSS
9
10
11
12
13
14
15
16
C309
0.1u
R373
100k
R109
100
C185 1000p
R57
3.3k
2
COM
3
IN
1
OUT
R40
27
FCR
C195 0.01u
R99
100
R352
0
CN351
1
VO
2
GND
R304 100
R15 270
L25
56n
CP
C167
1000p
R301 100
CN16
E40-5632-05
1GND
2NC
38T
4PC
5FAS
6FDT
7BUP
8TMP
C30
68p
R368
33
C371
9p
C64 0.1u
L9
56n
C23
18p
C9
1000p
CP
2
COM
3
IN
1OUT
C363
18p
R319 33
L8
22n
L357
50n
LDT
R31
5.6
C371
15p
FCT
C154
10u6.3
C71
0.01u
F1
LDR
C54 0.01u
R164
270
C127
22u10
C209
0.01u
Q25
DTC114EUA
C327
2.2u10
R362
4.7k
L23
1u
R352
0
C106
1000p
R41
2.2k
C358
4p
C31
330p
R34
1k
C311
0.1u35
DP
R367
220
C140
0.01u
R88
1k
R46
2.2k
C366
18p
L353
10u
R161
470
R100 22
8CLR
R56
6.8k
C99
1000p
C59
15p
D3
DAN235K
R350
0
C379
10p
C363
47p
9CLR
C172 1000p
EPR
C210
0.01u
C66
330p
Q23
DTC114EUA
R5
68
R371
10k
C383
1000p
STT
8CR
C149 0.01u
C364
1000p
R36
1k
R305
0
C359
8p
7
8
C128
0.01u
R318
0
L350
10u
C57
0.01u
C98
1000p R13
47
C368
15p
5CR
R358
47
R54
1k
9CLT
C171 1000p
R365
47k
R128
4.7k
R67
56
C124 100u16
SRR
R304 100
EPT
C382
1000p
C34
0.01u
R139 0
R33
47
C369 15p
R303 100
R93
100
C80
10u10
L27
*
C103
10p
C102
10p
C82
0.01u
C89
0.01u
X3
16.8MHz
1VC
2GND 3
OUT
4
+VDC
5CT R74 22
R21
680k
R79
100k
R18
470k
C25
10u10
R82
470k
R20
820k
IC1
NJM2904E
1AOUT
2A-IN
3A+IN
4-V 5
6
7
8
R78
47k
FCT
8CT
R19
220k
C179 0.01u
C24
10u10
R75
22
C83
0.01u
C81
10u10
5CR
R76
100k
R73 470k
R77
47k
FCR
8CR
C84 0.01u
IC2
NJM4558E
1
AOUT
2
A-IN
3
A+IN
4
-V
5
6
7
8
X2
16.8MHz
1
VC
2
GND
3
OUT
4
+VDC
C105
10p
C104
10p
L28
10u
L306
L301
39n
C307
1000p
C312
22p
R321
22k
C316
4p
C314
39p
L303
100n
L302
39n
C317
22p
R322
10k
C322
1000p
R315
330
2SC4215(Y)
Q302
C313
4p
C321
47p
C319
1000p
C325 5p
R308
56
IC300
SA7025DK
1
2
3
4
5
6
7
8
9
1011
PHA
12
VSSA
13
PHI
14
PHP
15
VDDA
16
RN
17
RF
18
LOCK
19
TEST
20
VDD
C315
0.047u
R313
2.2k
C330
1000p
IC300
SA7025DK
1
2
3
4
5
6
7
8
9
1011
PHA
12
VSSA
13
PHI
14
PHP
15
VDDA
16
RN
17
RF
18
LOCK
19
TEST
20
VDD
L301
39n
R315
330
R321
22k
C321
47p
R322
10k
2SC4215(Y)
Q302
C319
1000p
R319 33
C322
1000p
L303
100n
C307
1000p
R308
56
C325 5p
L302
39n
C312
15p
C317
15p
C314
27p
C313
3p
C316
3p
R313
2.2k
C323
0.22u
C315
0.047u
C324
0.47u25
R312
220
R320
1k
R317
0
C318
2.2u10
C320
2.2u10
R314
470k
R318
0
R316
1.5k
C219
22u10
C212
*
C213
*C5
*
C214
5p
C11
*
C18
*
C19
*
L24
L34-4459-05 Q27
DTC144EUA
R197
1.8k
R198 0
CN14
E40-6009-05
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
R71
82k
R72
330k
C79
0.22u
D13
MA742
R176
47k
C218
0.01u
L43
C78
0.1u
Q26
DTC114EUA
R70
1k
C217
1000p
C216
470p
R196
3.9k
L305
C329
1000p
L2
L3
L5
L6
L7
L12
330n
L304
L307
FREQUENCY
CONTROL
FREQUENCY
CONTROL
BUFFER
AMP
VCO OSC
NOISE
DETECTION
D/A
CONVERTER
V-RXVCOL
VOLTAGE
REGULATOR
VOLTAGE
REGULATOR
VOLTAGE
REGULATOR
VOLTAGE
REGULATOR
WIDE/NARROW
SWITCH
SURGE
PROTECTOR
(TP102)
TX-VCOL
TX-VCOH
V-RXVCOH
PLL
ACTIVE
FILTER
BUFFER
AMP
PLL
A3 SUB UNIT (RX VCO/PLL) (X58-4780-10)
RF AMP
BUFFER
AMP
A2 SUB UNIT (TX VCO/PLL) (X58-4790-10)
RF AMP
RF AMP
NOISE AMP
TX-RX UNIT (X57-695X-XX) (A/2)
DC SW
Q351
WIDE/NARROW
SWITCH
VCO OSC
NARROW
WIDE
WIDE
TX-RX UNIT (X57-695X-XX)(B/2)-CN602
WIDE/NARROW
SWITCH
MODULATION
D4
D355
WIDE/NARROW
SWITCH
D354
MODULATION
WIDE/NARROW
SWITCH
RF AMP
DC SW
RF AMP
VCO OSC
FREQUENCY
CONTROL
FREQUENCY
CONTROL
FREQUENCY
CONTROL
FREQUENCY
CONTROL
CURRENT CONTROL
FM IF
SYSTEM
SHIFT
REGISTER
Q350
VCO OSC
FREQUENCY
CONTROL
FREQUENCY
CONTROL
BUFFER AMP
BUFFER AMP
BUFFER
AMP
MO MO
MB MB MB
MO MO
MB
MB
MO MO
MB
VO VO VO VO
5CR 5CR
8T8T
8TC 8TC
W/NW/N
W/N
W/N
8C
8C
DC SW
Q4
W SW
DC SW
DC SW
DC SW
DC SW
DC SW
DC SW
DC SW
DC SW
TX SW
DC SW
NOISE
DETECTION
WIDE/
NARROW
SWITCH
RF AMP
DC SW
DC SW
DC SW
DC SW
DC SW
DC SW
TX-CV
(TP101)
RX-CV
TX-RX UNIT
8P
6P
C18
18P
C11
6P
C213
22P
5P
8P
C5
9P
C212
6P
6P
C19
5P
6P
C0-11
0-12 C2
0-11
0-12
X57-695X-XX X57-695X-XX
TX-RX UNIT
2SK508NV(K52)
Q350 2SC4215(Y)
Q355
2SK508NV(K52)
Q351
CLOCK
DATA
STROBE
VSS
RFIN
RFIN
VCCP
REFIN
RA
AUXIN
2SC4116(GR)
Q301
B+IN
B-IN
BOUT
+V
C2
C 3.9u
10u
L27
2SK508NV(K52)
Q350
2SC4116(Y)
Q352
2SC4215(Y)
Q355
2SK508NV(K52)
Q351
2SC4116(Y)
Q353D353
1SV282
CLOCK
DATA
STROBE
VSS
RFIN
RFIN
VCCP
REFIN
RA
AUXIN
B+IN
B-IN
BOUT
+V
2SC4116(GR)
Q12
RIPPLE FILTER
2SC4116(GR)
Q15
Q12
RIPPLE FILTER
RIPPLE FILTER
2SC4116(GR)
Q13
Q14
RIPPLE FILTER
L18
L34-4526-05
L17
L34-4526-05
L14
L34-4527-05
L15
L34-4526-05
A1
W02-1939-05_8
2SC3357
Q2
CF2
L72-0376-05
CF1
L72-0366-05
FLTI
FLTO
SQLI
SCAN
SCAN
HyS
GND
RFI
2SC4617(S)
Q7
NC
DET
NC
GND
ASQ
RSSI
SC
DP
CP
EPR
EPT
LDR
LDT
DT
CK
STB
FWD
LD2
BUP
PSW
TMP
SOE
GND
MB
MO
GND
GND
QS
NC
SB
SB
SB
SB
NC
8C
8C
D11
02DZ5.1(Y)
FINAL UNIT
(X45-373X-XX)
(A/2)-CN1
FINAL UNIT
(X45-373X-XX)
(A/2)-CN3
FINAL UNIT
(X45-373X-XX)
(A/2)-CN5
QS
Q’S
Q8
Q7
Q6
Q5
OE
VDDDO
LD
CLK
DI
AO1
AO2
NC1
GND
IC7
BU4094BCF
IC6
M62354GP
X1
44.395MHz
IC4
NJM7808FA
IC5
AN8009M
2SB1386(R)
Q18
IC11
NJM78L05UA
IC3
NJM78L05UA
2SB1132(Q,R)
Q16
XF1
L71-0513-05
QUAD AFO
FHASE RSSI
2SC4116(Y)
Q353
ACTIVE
FILTER
2SC4116(GR)
Q300
BUFFER
AMP
2SC4116(GR)
Q300
2SC4116(GR)
Q301
BUFFER
AMP 2SA1586(Y,GR)
Q10
VOLTAGE
REGULATOR
44.85MHz
NARROW
GND
STT
8CL
CV
9CL
MO
GND
SRR
8CL
CV
9CL
NC
VO
GND
VO
GND
GND
STT
8CL
CV
9CL
MO
FIN
5C
LDT
EPT
DP
CP
REF
GND
SRR
8CL
CV
9CL
NC
FIN
5C
LDR
EPR
DP
CP
REF
8.07V
13.10V
13.10V7.88V
7.87V 8.05V5.03V
Q14
B:8.95V
E:8.29V
C:8.98V
B:7.92V
E:7.23V
C:7.96V
B:8.95V
E:8.28V
C:8.98V
B:1.50V
E:0.72V
C:6.15V
B:1.05V
E:0.62V
C:4.81V
B:5.37V
E:5.97V
C:1.53V
-99.5dBm
-89.0dBm
B:1.05V
E:0.26V
C:5.94V
-3.5dBm
-62.5dBm
B:0.77V
E:0V
C:4.91V
7.87V
-117.0dBm
B:0.67V
E:0.07V
C:4.00V
W:0V
N:4.71V
+0.8dBm
220mV
71mV
3.40V
9.02V
5.06V
T:8.05V
R:0V
7.78V
Q11
B:1.51V
E:0.75V
C:6.35V
-6.2dBm
0.31V
T:0V
R:1.03V
T:8.05V
R:0V
-2.7dBm
Q12
B:7.77V
E:7.09V
C:7.80V
T:1.04V
R:0V
13.09V
B:1.28V
E:0.51V
C:6.69V
W:0V
N:1.04V
W:1.07V
N:0V
W:1.08V
N:0V
W:0V
N:1.05V
W:4.97V
N:0V
W:4.99V
N:0V
TKR-750 SCHEMATIC DIAGRAM /
106
7
6
5
4
3
2
1
ABCDE
X57-695 (B/2) 1/5
KEY2
R633
47k
CLK
LDT
CP601 1k*2
1STRB
DATA
CLK
Q1
Q2
Q3
Q4
8
VSS
9
16
R604
33k
R615
0
C623
0.1u
C600
0.1u
LDR
C616
0.01u
R610 0
ENR
L600
C634
22p
C614
0.01u
R601
0
DAT
C635
22p
R612 0
CLK
CP600 1k*2
FWD
R608 0
R605
100k
R600
47k
SOE
LD2
STB1
PSW
RSSI
R606 47k
R609 0
R603
1k
SOE
ASQ
PSW
BATT
KEY3
C605
0.1u
R611 0
R616 47k
C629
100p
R602
4.7k
KEY4
C602
0.1u
C639
0.01u
R607 0
3
GND
2VDD 1
OUT
PTT
TXD1
ENT
VLI
X600
14.754M
R634
47k
Q601
DTC114EUA
DP
KEY5
KEY1
CP
RXD1
C613
0.01u
R613 0
DAT
CN600
E40-6102-05
1
20
CN602
E40-6009-05
1
36
CN601
E40-5701-05
1
14
1A0
2A1
3A2
4GND 5
6
7
8
STB
SC
STB
CLK
AM
SOE
AMPSW
BUP
TMP
SHIFT
REGISTER
TX-RX UNIT (X57-695X-XX) (B/2)
EEP ROM
VOLTAGE
DETECTOR
SURGE
PROTECTOR
DC SW
DC SW
D600
DA204U
DISPLAY UNIT
(X54-3330-21)(A/2)-CN502
SB
SB
GND
NC
DAT
PSW
STB1
CLK
SOE
PTT/TXD1
K1
HK/RXD1
K2
K3
K4
K5
VLI
5C
MIG
MIC
(X57-695X-XX)(A/2)-CN14
TX-RX UNIT
8C
8C
NC
SB
SB
SB
SB
NC
QS
GND
GND
MO
MB
GND
SOE
TMP
PSW
BUP
LD2
FWD
STB
CK
DT
LDT
LDR
EPT
EPR
CP
DP
SC
RSSI
ASQ
GND
NC
DET
NC
TXO
TXI
RXO
AC
BC1
BC2
BC3
BC4
PTI
CLRC
RXI
PTO
NC
GND
IC602
BU4094BCFV
QS
Q’S
Q8
Q7
Q6
Q5
OE
VDD
2SK1824
Q602
SDA
SCL
WP
VCC
IC600
AT24C08A10SI18
IC601
RH5VL42C
SFT
SCL
SDA
XIN
XOUT
RESET
CNVSS
GND
SB
8C
RXI
TXO
MB
5C
DEI
MIC
GND
MO
RXO
DATA
TXI
2SK1824
Q600
DC SW
5.00V
5.00V
SCHEMATIC DIAGRAM / TKR-750
107
JIHGF
X57-695 (B/2) 2/5
D4
R625 1k
A0
R663 47k
D4
A13
R647 100
CP612 1k*2
R631 47k
D3
IO2
A1
R619 47k
R651 1k
TXD0
A2
DL3
D6
A16
HCS
R661 47k
CS0
R814 47k
RXD1
DL7
R643 47k
D5
HCS
KEY2
HCS
L604
D2
A18
R665 47k
R650 1k
L601
TXD1
1VCCA
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND1
12
GND2
13
24
R645 47k
R621 1k
D7INTx
A5
D1
A6
D0
R664 47k
HBIL
A3
R629 0
C638
0.1u
CP603 100*2
WR
R630 47k
R620 1k
HCSL
LD2
R640 1k
A4
DP
L602
RD
1VCCA
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND1
12
GND2
13
24
A11
HCNTL1
SFT
R618 0
A3
CP608 1k*2
A9
R644 1k
DAT
A2
R638
1k
L603
A7
PTT
D7
R624 0
A8
KEY5
CP
R642 1k
LD1
A0
R662 1k
R637 0
KEY3
CP611 10*4
DL4
D6
ENR
HCNTL0
R623 0
R659 47k
A10
D1
ENT
HRW
CP610 10*4
R646 47k
A12
CP614 1k*2
A1
R641 0
R656 1k
C641
0.1u
R627 1k
LDR
DL2
A15
CLK
R649 1k
D2
R660 47k
RXD0
DL0
KEY4
KEY1
D5
BUP
R635 1k
D0
A14
DL6
EMON
R639 0
D3
R626 1k
R666 47k
CP605 1k*2
IO1
DL1
CP604
1k*2
R648 100
C640
10u10
A17
RS
LDT
DL5
IO4
R667 47k
R652 100
RD
R614 47k
116
17
A3
A2
A1
A0
IO0
IO1
IO2
GND
IO3
IO4
IO5
IO6
IO7
CE
A10
32
OE
C646
10u10
C691
0.01u
CP620
100*2
R817 100
R836
47k
Q612
DTC144EUA
R622 1k
R837 3.3k C851 0.1u
R834 3.3k
STB
1
IO5
IO4
5TONE
IO2
IO1
BYTE
CNVss
ENT
ENR
RESET
Xout
Vss
Xin
Vcc
NMI
BUP
TMP
INT0
CLK
DAT
SFT
LD1
IO3
BEEP
25
LD2
26
RS
EPTT
PTT
TXD1
RXD1
SCLK
SDAT
TXD0
RXD0
CP
DP
RDY
ALE
HOLD
HLDA
BCLK
RD
BHE
WR
STB
INTx
HCS
CS0
A19
50
A18
51
75
76
100
EPTT
C843 0.1u
C844 0.1u
TMP
IO3
DC SW
TXO
DATA
5C
MO
RXI
MIC
DEI
MB
GND
RXO
TXI
SDA
SFT
SCL
XIN
XOUT
RESET
CNVSS
SB
8C
SB
8C
IC604
30622M4A-487GP
CPU
KEY3
KEY2
KEY1
D7
D6
D5
D4
D3
D2
D1
D0
FWD
RSSI
ASQ
VLI
BATT
AI1
AI2
AVss
AI3
Vref
AVcc
STB1
SOE
IO6
A16
A15
A14
A13
A12
A11
A10
A9
Vcc
A8
Vss
A7
A6
A5
A4
A3
A2
A1
A0
EMON
LDR
LDT
KEY5
KEY4
A17
IC606
TC74LVX4245FS
GND3
B8
B7
B6
B5
B4
B3
B2
B1
G
VCCB1
VCCB2
GND3
B8
B7
B6
B5
B4
B3
B2
B1
G
VCCB1
VCCB2
IC609
AT29C020-90TI
FLASH ROM
A7
A16
A18
A14
A4
A12
A6
A15
A9
A17
A11
A13
A5
A8
WR
D7
D0
A10
A1
A0
D4
A2
RD
D3
A3
D2
D1
CS0
D6
D5
A11
A9
A8
A13
A14
A17
WE
VCC
A18
A16
A15
A12
A7
A6
A5
A4
C645
10u10
C644
0.01u
BUS TRANSCEIVER
IC603,606
IC603
TC74LVX4245FS
GND
GND
TXO
MB
DEI
MIC
5C
RXI
DATA
RXO
MO
TXI
BEEP
RSSI
BATT
STB1
FWD
ASQ
VLI
AI1
AI2
SOE
IO6
IO5
AI3
CP609
100*2
CP607
1k*2
CP606
4.7k*2
CP617
10*4
CP619
10*4
CP616
10*4
CP618
10*4
CP613
1k*2
CP615
10*4
3.20V
5.05V
TX-RX UNIT (X57-695X-XX) (B/2)
TKR-750 SCHEMATIC DIAGRAM /
108
KLMNO
X57-695 (B/2) 3/5
R702
47k
R689
47k
C708 0.01u
C709 0.01u
C714 10u10
DL5
DL4
BCLK
C710 10u10
HBIL
MCLK
L607
LRCK
R695 100
XF
R704 47k
C735 15p
C750 0.01u
C732 470p
SDTI
R693 0
LRCK
HCNTL0
1
NC
2
IN
3
GND
45
R726 47k
R700
100
C734 27p
R698 10k
MCLK
C753 10u10
C694 10u10
L606
R720 47k
C738
0.01u
C749 470p
R705 47k
R731
4.7k
C713
10u10
C727
0.01u
C696 470p
L605
C717
470p
HCNTL1
R813 47k
R730
100
R724 0
C747 0.01u
C718
0.01u
C742
470p
R734
47k
C712
0.01u
C756 10u10
C754 10u10
DL7
R723 0
R701 0
C695 470p
C733 10u10
BCLK
C755 470p
C759 470p
C737
27p
DL0
R733
0
R699 0
C716 470p
C757 10u10
C745
10u10
HCSL
DL3
R692 0
R687
22k
HRW
DL6
DL2
X601
16.515M
SDT0
18
916
R727
0
C751 0.01u
R697 100
C719 0.01u
R691
0
C711 470p
R703 0
C693 10u10
R688
47k
C748 0.01u
XF
C707 0.01u
R694 100
R696 10k
C752 470p
C731 0.01u
Q603
DTC114EUA
INTx
DL1
LRCK
C741
0.01u
BCLK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37 NC7
38 NC8
39 HCNTL0
40 VSS6
41 BCLKR0
42 BCLKR1
43 BFSR0
44 BFSR1
45 BDR0
46 HCNTL1
47 BDR1
48 BCLKX0
49 BCLKX1
50 VSS7
51 HINT/TOUT1
52 CVDD3
53 BFSX0
54 BFSX1
55 HRDY
56 DVDD3
57 VSS8
58 HD0
59 BDX0
60 BDX1
61 IACK
62 HBIL
63 NMI
64 INT0
65 INT1
66 INT2
67 INT3
68 CVDD4
69 HD1
70 VSS9
71 NC9
72 NC10
73
74
75 DVDD4
76 VSS12
77 CLKMD1
78 CLKMD2
79 CLKMD3
80 NC13
81 HD2
82 TOUT0
83 EMU0
84 EMU1/OFF
85 TDO
86 TDI
87 TRST
88 TCK
89 TMS
90 NC14
91 CVDD5
92 HPIENA
93 VSS13
94 CLKOUT
95 HD3
96 X1
97 X2/CLKIN
98 RS
99 D0
100 D1
101 D2
102 D3
103 D4
104 D5
105 A16
106 VSS14
107 A17
108 A18
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
SCLK
Q615
DTC144EUA
C824
4700p
SFT
RS
C832
0.01u
C837
0.01u
R827
8.2k
R832
8.2k
C833 0.01u
R828
27k
C839
270p
R829
220k
R821
10k
C835
0.1u
1
OUT1
2
IN1-
3
IN1+
4
VEE
5
6
7
8
R818
1k
C842
1u25
R820
10k
C831
1000p
R830
56k
R822
10k
C829
0.1u
C834
0.1u
R833
22k
C838
0.01u
R826
820k
C840
4700p
C830
0.01u
1
OUT1
2
IN1-
3
IN1+
4
VEE
5
6
7
8
R831
150k
R823
470k
C836
0.01u
R825
820k
R819
10k
COUNTERINVERTER
INVERTER
AF AMP
AF AMP
DC SW
8C
SB
8C
SB
GND
TXO
MB
DEI
MIC
5C
RXI
DATA
RXO
MO
TXI
BEEP
IC618
320VC5402PGE
DSP
NC1
NC2
VSS1
DVDD1
A10
HD7
A11
A12
A13
A14
A15
NC3
HAS
VSS3
NC4
CVDD2
HCS
HRW
READY
PS
DS
IS
R/W
MSTRB
IOSTRB
MSC
XF
HOLDA
IAQ
HOLD
BIO
MP/MC
DVDD2
VSS5
NC5
NC6
A19
NC15
VSS15
DVDD5
D6
D7
D8
D9
D10
D11
D12
HD4
D13
D14
D15
HD5
CVDD6
NC16
HDS1
VSS16
DVDD
A0
A1
A2
A3
HD6
A4
A5
A6
A7
A8
A9
CVDD7
NC17
NC18
HDS2
OUT
VCC
Q1
CK
CLR
Q9
Q8
Q10
Q11
VccQ12
Q6
Q5
Q7
Q4
Q3
Q2
GND
IC612
TC7S04FU
IC613
TC74VHC4040FT
IC631
TA75W01FU
IC632
TA75W01FU
IN2+
IN2-
OUT-B
VCC
R824
4.7k
GND
RXI
5C
MIC
TXI
TXO
DATA
BEEP
RXO
DEI
MO
MB
NC11
NC12
2SK1824
Q604
DC SW
IN2+
IN2-
OUT-B
VCC
TX-RX UNIT (X57-695X-XX) (B/2)
SCHEMATIC DIAGRAM / TKR-750
109
TSRQP
X57-695 (B/2) 4/5
-t
-t
R743 47k
1
2
CONT
5
VCC
1
VSS
2
VIN
3
VOUT
R718 47k
2
COM
3
IN
1
OUT
0.01u
R717 47k
C771
10u6.3
C782
1u
C704
0.1u
R657
47k
C764
0.01u
R668
18k
R738
270k
0.47u25
C720 10u10
C725
47p
C781
1u
R680
22k
R742
0
C715 0.01u
18k
R709
22k
C684 100p
C785
0.1u
R658
47k
C769
10u6.3
C743 0.01u
C776
1u25
C700
10u10
R674 82k
R740
100k
R678
100k
C643
10u10
C692 0.01u
R669 22k
R690
47k
TXD0
C726
180p
C770
10u6.3
R672
100k
C740
100p
R721
22k
TAS
C826
10u6.3
C705
0.01u
C706
10u10
22k
R653 0
IC608
TA75S01F
1
IN(+)
2
VEE
3
IN(-)
4
OUT
5
VCC
C767
100p
R735 33k
SPM
R712 47k
C761
0.1u
IC610
TA75S01F
1IN(+)
2VEE
3IN(-) 4
OUT
5
VCC
R744
39k
R670
22k
R729
22k
C729
10u10
C822
100p
LD1
1
2
3
45
B+IN
6
B-IN
7
BOUT
8
+V
Q605
DTC114EUA
CLK
1u25
1
12
13
24
R812
22k
R707
22k
C736
1800p
C795
100p
SDTO
C685 0.01u
C703
0.1u
MIS
R710
47k
2
COM
3
IN
1
OUT
C744
10u10
R654
0
SCLK
1
89
16
R683 120k
C778
1u 25
TDS
RXD0
AM
C768
100p
C821
100p
C766
100p
C758
1u
C801
10u6.3
C817
47u25
R815
100k
R739
10k
C701 10u10
C642
0.01u
1
INB
2
INA
3
GND
4
5
R747
10k
1
2
3
45
B+IN
6
B-IN
7
BOUT
8
+V
AMPSW
C825
0.1u
C739
180p
C746
10u10
R728 22k
C662
10u10
R708
22k
R715
10k
IC617
NJM4558E
1
2
3
45
B+IN
6
B-IN
7
BOUT
8
+V
C697
10u10
MCLK
R685 100k
IC619
TC75W51FU
1
2
3
45
IN(+)-B
6
IN(-)-B
7
OUT-B
8
VDD
1
VSS
2
VIN
3
VOUT
R655
47k
IC616
NJM4558E
1
2
3
45
B+IN
6
B-IN
7
BOUT
8
+V
R686
100k
C786
0.1u
C681
68u6.3
LRCK
R736 47k
C775
1u25
R741
150k
1
Y1
Y0
Z1
Z
Z0
INH
VEE
8
VSS
9
16
R732 47k
C728 0.01u
SDTI
R745
47k
C721 10u10
1
VSS
2
VIN
3
VOUT
C648 0.01u
C780
1u
C724
1800p
R684 47k
R682
15k
C649 33p
C723
1u
C652 100p
R671 22k
1VCOM
AINR
AINL
VSS
VDD
DEMO
DEM1
8
SDTO
9
16
C806
47u25
R714
22k
R676 82k
C698
10u10
C690
100p
2
COM
3
IN
1
OUT
C679
10u10
R737
47k
R722
330k
DAT
C763
1000p
C730 0.01u
C823
47u4
C779
1u25
C777
1u25
R841 0
R842 0
R843
270k
TH700
10k
R719
150k
C722
10u10
R713
27k
C841 1u
TH701
10k
R673 220k
R844
330k
C647 100p
R675
100k
C852
1000p
5V AVR
3.3V AVR
5V AVR
5V AVR
3.3V AVR
1.8V AVR
IC607
AF AMP
INVERTER
AF AMP
DEI
AF AMP
DEO
AF AMP
1.8C
3.3D
3.3A
AF AMP
AF AMP
AF AMP
DET
SB
8C
SB
GND
DEI
DATA
TXI
RXI
MO
BEEP
5C
MB
RXO
TXO
MIC
RA1
GND
RD1
RXD2
DXD2
AMPSW
IC624-628,630
VOLTAGE REGULATOR
IC625
XC62FP3302P
IC626
XC62FP3302P
IC624
XC62FP1802P
AOUT
A-IN
A+IN
-V
OUT-A
IN(-)-A
IN(+)-A
VSS
SDTI
LRCK
MCLK
SCLK
PWAD
PWDA
AOUTL
AOUTR
IC614
AK4550VT
CODEC
IN/OUT
OUT/IN
GND
OUTX
VCC
34
IC622
TC7S66FU
IC621
TC7S00FU
MULTIPLEXER
NAND GATE
IC620
ADM202EARN
RS232C
TRANSCEIVER
C1+
V+
C1-
C2+
C2-
V-
T2OUT
R2INR2OUT
T2IN
T1IN
R1OUT
R1IN
T1OUT
GND
VCC
AOUT
A-IN
A+IN
-V
IC605
BU4053BCF
MULTIPLEXER
C
B
A
X0
X1
X
Y
VDD
AOUT
A-IN
A+IN
-V
IC607
NJM4558E
C657
C670
R681
R679
C663
IC611
NJM4558E
AOUT
A-IN
A+IN
-V
VIN1
VOUT1
VOUT2
VIN2
VDD
LD
CLK
DI
VIN3
VOUT3
VOUT4
VIN4
RD
RA
VIN5
VOUT5
VOUT6
VIN6
DO
VDAref
RESET
GND
VIN7
VOUT7
VOUT8
VIN8
TA
TD
MO
MB
IC615
M62364FP
D/A CONVERTER
GND
TAI
DATA
5C
TD1
IC628
TA78L05F
IC630
TA78L05F
IC627
TA78L05F
5.06V
5.04V
3.34V
3.32V
1.82V
5.02V
8.00V
TX-RX UNIT (X57-695X-XX) (B/2)
TKR-750 SCHEMATIC DIAGRAM /
110
7
6
5
4
3
2
1
UVWXY
X57-695 (B/2) 5/5
C820 1000p
R779 47k
D623
DA204U
R767
47k
R750 0
R786 47k
R806 1k
TAS
C802 1000p
R785 1k
D614
DA204U
MIS
C809 1000p
R783 1k
R777 47k
IO2
R803 47k
C794 1000p
C803 1000p
D612
DA204U
TDS
R751
0
C797
1000p
L613
L611
R808 1k
IO3
C800
47u25
D620
DA204U
C792 1000p
C790 100p
C762
1000p
R766 1.2k
C814
1000u25
R787 1k
C828
2.2u10
R775 47k
L612
C811
47u25
C774
1u
R752
0
R810 1k
D618
DA204U
IO1
C760
1000p
Q609
DTC114EUA
R763
10k
R809 47k
C812 1000p
R772 47k
C789
330u25
D616
DA204U
CN604
E40-5702-05
1
AO5
AO4
AO3
SPO
SPO
AO2
AO1
SPI
RSSI
RD
SPG
12 SPG
AI3
R791 1k
R764 1k
C784
1u
C793
1000p
R811
47k
IO4
C787
1u
R754
47k
R798 47k
C807 1000p
D608
DA204U
IO5
Q611
DTC114EUA
D626
MINISMDE190
R795 1k
D627
1SS355
C818 1000p
C798
47u25
C796 1000p
C804 1000p
R765 1k
C810 1000p
IO6
R758
10k
CN605
E40-5704-05
1
SP
2
SPG
R782 47k
R794 47k
C813 1000p
EPTT
R802
2.2
R805 47k
PSW
C765 0.01u
R753
47k
D621
DA204U
R789 1k
R773 1k
1
8
9
QS
Q’S
Q8
Q7
Q6
Q5
OE
16
VDD
AI2
EMON
R807 47k
AI1
R768 1.2k
R781
470
R749 0
R799 1k
C799 1000p
C816 1000p
SC
C788 100p
D629
DA204U
R776 1k
CN603
E40-5887-05
1SB
SB
GND
4
GND
C819 1000p
C808 1000p
C791
470p
R804 1k
R762
4.7k
DAT
IC629 LA4422
1VCC
2IN
3NC1
4DC
5NFA
6NFB
7BS
8GND
9NC2
10 OUT
D628
1SS355
R790 47k
SPM
CLK
D610
DA204U
R771 1.2k
R778 1k
R793 1k
L608
C805 1000p
RSSI
R760 1.2k
C783 470p
C773
2.2u10
C815
0.1u
R774
1M
R780 1k
SOE
STB
Q614
DTD123TK
Q607
DTC144EUA
R840
560
Q613
DTD123TK
Q608
DTC144EUA
R839
560
E40-5960-05
1
NC
NC
SPM
IO6
RXG
IO5
RA
IO4
RD
IO3
TA
IO2
TD
IO1
DG
TXG
AI3
NC
AI2
SC
AI1
EPTT
TXD2
EMON
RXD2
NC
NC
NC
NC
30
NC
C772
100u10
C827
100u10
Q606
DTC363EU
SHIFT REGISTER
AUDIO AMP
SP
D627,628
ANI
REVERSE
CURRENT
PROTECTOR
CURRENT
PROTECTOR
AF MUTE SW
D606-612,615,616,
619,620,622,623
ACC
D-SUB
CONTROL I/O TEST/SPKR
SURGE PROTECTOR
DC SW
DC SW
DC SW
DC SW
CURRENT
CONTROL
CURRENT
CONTROL
SB
GND
TAI
DATA
5C
TD1
RA1
GND
RD1
RXD2
DXD2
AMPSW
CN606
2SJ506(S)
Q610
DC SW
STRB
DATA
CLK
Q1
Q2
Q3
Q4
VSS
IC623
BU4094BCFV
SURGE PROTECTOR
D614,618,621,629
D622
DA204U
D619
DA204U
D615
DA204U
D611
DA204U
D609
DA204U
D607
DA204U
D606
DA204U
1.20V
13.10V
13.10V
Note : The compo-
nents marked with a
dot (•) are parts of
layer 1.
TX-RX UNIT (X57-695X-XX) (B/2)
-t
-t
R743 47k
C820 1000p
1
2
CONT
5
VCC
1
VSS
2
VIN
3VOUT
R702
47k
D4
R718 47k
KEY2
R689
47k
R779 47k
2
COM
3
IN
1OUT
D623
DA204U
R767
47k
R625 1k
0.01u
A0
R750 0
R717 47k
C708 0.01u
C709 0.01u
R786 47k
R663 47k
C714 10u10
R806 1k
D4
DL5
A13
R647 100
TA S
CP612 1k*2
C771
10u6.3
R631 47k
C802 1000p
C782
1u
D3
IO2
R785 1k
C704
0.1u
DL4
R633
47k
A1
R657
47k
C764
0.01u
R668
18k
R738
270k
0.47u25
C720 10u10
R619 47k
BCLK
D614
DA204U
C710 10u10
C725
47p
CLK
HBIL
C781
1u
MCLK
R680
22k
MIS
R742
0
C715 0.01u
18k
R709
22k
C684 100p
R651 1k
C809 1000p
TXD0
C785
0.1u
R783 1k
LDT
R777 47k
L607
A2
DL3
IO2
R658
47k
R803 47k
C769
10u6.3
CP601 1k*2
C794 1000p
C743 0.01u
D6
LRCK
R695 100
C776
1u25
C803 1000p
A16
HCS
C700
10u10
R661 47k
D612
DA204U
R674 82k
TDS
R751
0
C797
1000p
XF
R740
100k
R678
100k
L613
C643
10u10
L611
CS0
C692 0.01u
1STRB
DATA
CLK
Q1
Q2
Q3
Q4
8
VSS
9
16
R814 47k
RXD1
R808 1k
R704 47k
R669 22k
DL7
IO3
C735 15p
R643 47k
D5
R690
47k
C750 0.01u
C800
47u25
C732 470p
D620
DA204U
HCS
TXD0
R604
33k
KEY2
HCS
SDTI
C792 1000p
R615
0
C726
180p
L604
C790 100p
C623
0.1u
C762
1000p
C770
10u6.3
D2
R693 0
LRCK
C600
0.1u
R672
100k
A18
R665 47k
HCNTL0
LDR
R650 1k
R766 1.2k
1
NC
2
IN
3
GND
45
C740
100p
R721
22k
C814
1000u25
TA S
R726 47k
R787 1k
C828
2.2u10
R775 47k
C826
10u6.3
C705
0.01u
C706
10u10
C616
0.01u
R610 0
L612
R700
100
22k
L601
C811
47u25
TXD1
1VCCA
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND1
12
GND2
13
24
R645 47k
R621 1k
C734 27p
C774
1u
D7INTx
R653 0
ENR
A5
R752
0
IC608
TA 75S01F
1
IN(+)
2
VEE
3
IN(-)
4
OUT
5
VCC
R810 1k
D618
DA204U
R698 10k
MCLK
C767
100p
IO1
D1
R735 33k
SPM
C760
1000p
Q609
DTC114EUA
C753 10u10
R712 47k
C761
0.1u
IC610
TA 75S01F
1IN(+)
2VEE
3IN(-) 4
OUT
5
VCC
R763
10k
L600
C634
22p
R744
39k
R809 47k
C694 10u10
C614
0.01u
C812 1000p
R772 47k
R670
22k
A6
C789
330u25
R729
22k
D616
DA204U
D0
R664 47k
L606
CN604
E40-5702-05
1
AO5
AO4
AO3
SPO
SPO
AO2
AO1
SPI
RSSI
RD
SPG
12 SPG
HBIL
R601
0
C729
10u10
AI3
A3
R791 1k
C822
100p
R629 0
C638
0.1u
R764 1k
CP603 100*2
WR
R630 47k
LD1
R720 47k
C738
0.01u
C784
1u
DAT
R620 1k
C749 470p
HCSL
C793
1000p
1
2
3
45
B+IN
6
B-IN
7
BOUT
8
+V
R705 47k
LD2
R640 1k
Q605
DTC114EUA
A4
CLK
R731
4.7k
R811
47k
IO4
C787
1u
1u25
C713
10u10
1
12
13
24
R754
47k
DP
L602
R812
22k
RD
1VCCA
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND1
12
GND2
13
24
R707
22k
A11
C736
1800p
C727
0.01u
C795
100p
R798 47k
HCNTL1
C635
22p
R612 0
SDTO
C807 1000p
C696 470p
L605
C685 0.01u
C703
0.1u
C717
470p
CLK
CP600 1k*2
D608
DA204U
FWD
HCNTL1
IO5
SFT
MIS
R618 0
R710
47k
A3
2
COM
3
IN
1OUT
R608 0
CP608 1k*2
Q611
DTC114EUA
R605
100k
A9
R600
47k
D626
MINISMDE190
R795 1k
D627
1SS355
C818 1000p
C744
10u10
R654
0
C798
47u25
C796 1000p
R644 1k
R813 47k
SCLK
R730
100
C804 1000p
R765 1k
C810 1000p
SOE
R724 0
1
89
16
LD2
IO6
R683 120k
C778
1u 25
C747 0.01u
DAT
A2
TDS
RXD0
AM
R758
10k
C718
0.01u
CN605
E40-5704-05
1
SP
2
SPG
R782 47k
R638
1k
C742
470p
L603
R734
47k
C768
100p
R794 47k
C821
100p
C712
0.01u
C756 10u10
C813 1000p
A7
C754 10u10
DL7
R723 0
STB1
R701 0
EPTT
R802
2.2
PSW
PTT
RSSI
C695 470p
C766
100p
D7
R624 0
C758
1u
R805 47k
R606 47k
PSW
R609 0
C765 0.01u
R753
47k
C801
10u6.3
C817
47u25
R815
100k
C733 10u10
R739
10k
D621
DA204U
C701 10u10
BCLK
R789 1k
R603
1k
C642
0.01u
A8
KEY5
1
INB
2
INA
3
GND
4
5
C755 470p
SOE
R747
10k
ASQ
1
2
3
45
B+IN
6
B-IN
7
BOUT
8
+V
PSW
CP
R642 1k
AMPSW
R773 1k
LD1
1
8
9
QS
Q’S
Q8
Q7
Q6
Q5
OE
16
VDD
C825
0.1u
C759 470p
A0
AI2
BATT
C737
27p
C739
180p
DL0
R662 1k
KEY3
R733
0
C746
10u10
R699 0
C716 470p
R637 0
R728 22k
EMON
C662
10u10
C757 10u10
R807 47k
C745
10u10
C605
0.1u
R708
22k
KEY3
CP611 10*4
R611 0
HCSL
DL4
AI1
D6
ENR
R768 1.2k
R715
10k
IC617
NJM4558E
1
2
3
45
B+IN
6
B-IN
7
BOUT
8
+V
HCNTL0
R623 0
R659 47k
R781
470
R616 47k
R749 0
C697
10u10
DL3
C629
100p
A10
R799 1k
R602
4.7k
KEY4
C602
0.1u
R692 0
MCLK
D1
C639
0.01u
R685 100k
C799 1000p
IC619
TC75W51FU
1
2
3
45
IN(+)-B
6
IN(-)-B
7
OUT-B
8
VDD
1
VSS
2
VIN
3VOUT
C816 1000p
R687
22k
SC
R655
47k
R607 0
HRW
ENT
C788 100p
D629
DA204U
HRW
IC616
NJM4558E
1
2
3
45
B+IN
6
B-IN
7
BOUT
8
+V
3
GND
2VDD 1
OUT
CP610 10*4
R686
100k
DL6
R776 1k
CN603
E40-5887-05
1SB
SB
GND
4
GND
DL2
R646 47k
C786
0.1u
A12
X601
16.515M
C681
68u6.3
CP614 1k*2
SDT0
LRCK
18
916
A1
C819 1000p
R641 0
R736 47k
PTT
C775
1u25
R741
150k
TXD1
R656 1k
R727
0
C641
0.1u
C808 1000p
R627 1k
ENT
LDR
C751 0.01u
1
Y1
Y0
Z1
Z
Z0
INH
VEE
8
VSS
9
16
C791
470p
DL2
A15
R804 1k
R762
4.7k
DAT
IC629 LA4422
1VCC
2IN
3NC1
4DC
5NFA
6NFB
7BS
8GND
9NC2
10 OUT
CLK
R732 47k
C728 0.01u
SDTI
R649 1k
R745
47k
C721 10u10
D628
1SS355
1
VSS
2
VIN
3VOUT
R697 100
C648 0.01u
D2
C719 0.01u
VLI
X600
14.754M
R660 47k
R790 47k
RXD0
R691
0
SPM
C780
1u
DL0
C724
1800p
C711 470p
R684 47k
KEY4
R682
15k
KEY1
CLK
D5
D610
DA204U
BUP
R634
47k
C649 33p
R771 1.2k
C723
1u
R635 1k
C652 100p
R778 1k
D0
Q601
DTC114EUA
R703 0
DP
C693 10u10
R671 22k
R793 1k
L608
A14
DL6
KEY5
1VCOM
AINR
AINL
VSS
VDD
DEMO
DEM1
8
SDTO
9
16
EMON
R639 0
D3
C806
47u25
R688
47k
R714
22k
R676 82k
C698
10u10
R626 1k
R666 47k
CP605 1k*2
C805 1000p
IO1
DL1
KEY1
CP604
1k*2
CP
RSSI
R648 100
C748 0.01u
C640
10u10
XF
A17
RS
R760 1.2k
C690
100p
C783 470p
C707 0.01u
LDT
2
COM
3
IN
1OUT
C679
10u10
R694 100
R696 10k
C752 470p
R737
47k
R722
330k
DL5
C773
2.2u10
IO4
DAT
RXD1
C731 0.01u
C613
0.01u
R613 0
Q603
DTC114EUA
R667 47k
INTx
C815
0.1u
C763
1000p
DAT
C730 0.01u
DL1
LRCK
R652 100
R774
1M
C741
0.01u
R780 1k
C823
47u4
BCLK
RD
SOE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37 NC7
38
NC8
39
HCNTL0
40 VSS6
41
BCLKR0
42 BCLKR1
43 BFSR0
44
BFSR1
45 BDR0
46
HCNTL1
47
BDR1
48 BCLKX0
49
BCLKX1
50 VSS7
51 HINT/TOUT1
52
CVDD3
53 BFSX0
54 BFSX1
55
HRDY
56 DVDD3
57 VSS8
58
HD0
59 BDX0
60
BDX1
61 IACK
62 HBIL
63
NMI
64
INT0
65 INT1
66 INT2
67
INT3
68 CVDD4
69 HD1
70
VSS9
71 NC9
72 NC10
73
74
75 DVDD4
76 VSS12
77 CLKMD1
78 CLKMD2
79 CLKMD3
80 NC13
81 HD2
82 TOUT0
83 EMU0
84 EMU1/OFF
85 TDO
86 TDI
87 TRST
88 TCK
89 TMS
90 NC14
91 CVDD5
92 HPIENA
93 VSS13
94 CLKOUT
95 HD3
96 X1
97 X2/CLKIN
98 RS
99 D0
100 D1
101 D2
102 D3
103 D4
104 D5
105 A16
106 VSS14
107 A17
108 A18
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
SCLK
R614 47k
116
17
A3
A2
A1
A0
IO0
IO1
IO2
GND
IO3
IO4
IO5
IO6
IO7
CE
A10
32
OE
C646
10u10
C691
0.01u
Q615
DTC144EUA
C824
4700p
SFT
RS
CN600
E40-6102-05
1
20
CN602
E40-6009-05
1
36
CN601
E40-5701-05
1
14
C832
0.01u
C837
0.01u
R827
8.2k
R832
8.2k
C833 0.01u
R828
27k
C839
270p
R829
220k
R821
10k
C835
0.1u
1
OUT1
2
IN1-
3
IN1+
4
VEE
5
6
7
8
R818
1k
C842
1u25
R820
10k
C831
1000p
R830
56k
R822
10k
C829
0.1u
C834
0.1u
R833
22k
C838
0.01u
R826
820k
C840
4700p
C830
0.01u
1
OUT1
2
IN1-
3
IN1+
4
VEE
5
6
7
8
R831
150k
R823
470k
C836
0.01u
R825
820k
R819
10k
CP620
100*2
R817 100
R836
47k
Q612
DTC144EUA
1A0
2A1
3A2
4GND 5
6
7
8
R622 1k
R837 3.3k C851 0.1u
R834 3.3k
STB
1
IO5
IO4
5TONE
IO2
IO1
BYTE
CNVss
ENT
ENR
RESET
Xout
Vss
Xin
Vcc
NMI
BUP
TMP
INT0
CLK
DAT
SFT
LD1
IO3
BEEP
25
LD2
26
RS
EPTT
PTT
TXD1
RXD1
SCLK
SDAT
TXD0
RXD0
CP
DP
RDY
ALE
HOLD
HLDA
BCLK
RD
BHE
WR
STB
INTx
HCS
CS0
A19
50
A18
51
75
76
100
EPTT
C843 0.1u
C844 0.1u
STB
STB
Q614
DTD123TK
Q607
DTC144EUA
R840
560
Q613
DTD123TK
Q608
DTC144EUA
R839
560
SC
E40-5960-05
1
NC
NC
SPM
IO6
RXG
IO5
RA
IO4
RD
IO3
TA
IO2
TD
IO1
DG
TXG
AI3
NC
AI2
SC
AI1
EPTT
TXD2
EMON
RXD2
NC
NC
NC
NC
30 NC
C779
1u25
C777
1u25
R841 0
R842 0
R843
270k
TH700
10k
R719
150k
C722
10u10
R713
27k
C841 1u
TH701
10k
R673 220k
R844
330k
C647 100p
R675
100k
STB
CLK
AM
SOE
AMPSW
BUP
TMP
IO3
C772
100u10
C827
100u10
TMP
C852
1000p
Q606
DTC363EU
SHIFT
REGISTER
SHIFT REGISTER
5V AVR
3.3V AVR
AUDIO AMP
5V AVR
5V AVR
SP
3.3V AVR
TX-RX UNIT (X57-695X-XX) (B/2)
1.8V AVR
COUNTER
EEP ROM
INVERTER
IC607
AF AMP
VOLTAGE
DETECTOR
D627,628
ANI
REVERSE
CURRENT
PROTECTOR
CURRENT
PROTECTOR
AF MUTE SW
INVERTER
D606-612,615,616,
619,620,622,623
INVERTER
SURGE
PROTECTOR
AF AMP
DEI
AF AMP
DEO
AF AMP
1.8C
3.3D
3.3A
AF AMP
AF AMP
AF AMP
ACC
D-SUB
DET
CONTROL I/O TEST/SPKR
SURGE PROTECTOR
AF AMP
AF AMP
DC SW
DC SW
DC SW
DC SW
DC SW
DC SW
DC SW
CURRENT
CONTROL
CURRENT
CONTROL
DC SW
TXO
DATA
5C
MO
RXI
MIC
DEI
MB
GND
RXO
TXI
SDA
SFT
SCL
XIN
XOUT
RESET
CNVSS
SB
8C 8C
SBSB
8C
SB
8C8C
SB SB SB
GND
TXO
MB
DEI
MIC
5C
RXI
DATA
RXO
MO
TXI
BEEP
GND
DEI
DATA
TXI
RXI
MO
BEEP
5C
MB
RXO
TXO
MIC
GND
TA I
DATA
5C
TD1
RA1 RA1
GNDGND
RD1RD1
RXD2
DXD2
RXD2
DXD2
AMPSWAMPSW
CN606
D600
DA204U
DISPLAY UNIT
(X54-3330-21)(A/2)-CN502
SB
SB
GND
NC
DAT
PSW
STB1
CLK
SOE
PTT/TXD1
K1
HK/RXD1
K2
K3
K4
K5
VLI
5C
MIG
MIC
(X57-695X-XX)(A/2)-CN14
TX-RX UNIT
8C
8C
NC
SB
SB
SB
SB
NC
QS
GND
GND
MO
MB
GND
SOE
TMP
PSW
BUP
LD2
FWD
STB
CK
DT
LDT
LDR
EPT
EPR
CP
DP
SC
RSSI
ASQ
GND
NC
DET
NC
TXO
TXI
RXO
AC
BC1
BC2
BC3
BC4
PTI
CLRC
RXI
PTO
NC
GND
IC602
BU4094BCFV
QS
Q’S
Q8
Q7
Q6
Q5
OE
VDD
2SK1824
Q602
SDA
SCL
WP
VCC
IC600
AT24C08A10SI18
IC601
RH5VL42C
IC604
30622M4A-487GP
CPU
KEY3
KEY2
KEY1
D7
D6
D5
D4
D3
D2
D1
D0
FWD
RSSI
ASQ
VLI
BATT
AI1
AI2
AVss
AI3
Vref
AVcc
STB1
SOE
IO6
A16
A15
A14
A13
A12
A11
A10
A9
Vcc
A8
Vss
A7
A6
A5
A4
A3
A2
A1
A0
EMON
LDR
LDT
KEY5
KEY4
A17
IC606
TC74LVX4245FS
GND3
B8
B7
B6
B5
B4
B3
B2
B1
G
VCCB1
VCCB2
GND3
B8
B7
B6
B5
B4
B3
B2
B1
G
VCCB1
VCCB2
IC609
AT29C020-90TI
FLASH ROM
A7
A16
A18
A14
A4
A12
A6
A15
A9
A17
A11
A13
A5
A8
WR
D7
D0
A10
A1
A0
D4
A2
RD
D3
A3
D2
D1
CS0
D6
D5
A11
A9
A8
A13
A14
A17
WE
VCC
A18
A16
A15
A12
A7
A6
A5
A4
C645
10u10
C644
0.01u
BUS TRANSCEIVER
IC603,606
IC603
TC74LVX4245FS
IC618
320VC5402PGE
DSP
NC1
NC2
VSS1
DVDD1
A10
HD7
A11
A12
A13
A14
A15
NC3
HAS
VSS3
NC4
CVDD2
HCS
HRW
READY
PS
DS
IS
R/W
MSTRB
IOSTRB
MSC
XF
HOLDA
IAQ
HOLD
BIO
MP/MC
DVDD2
VSS5
NC5
NC6
A19
NC15
VSS15
DVDD5
D6
D7
D8
D9
D10
D11
D12
HD4
D13
D14
D15
HD5
CVDD6
NC16
HDS1
VSS16
DVDD
A0
A1
A2
A3
HD6
A4
A5
A6
A7
A8
A9
CVDD7
NC17
NC18
HDS2
OUT
VCC
Q1
CK
CLR
Q9
Q8
Q10
Q11
VccQ12
Q6
Q5
Q7
Q4
Q3
Q2
GND
IC612
TC7S04FU
IC613
TC74VHC4040FT
IC624-628,630
VOLTAGE REGULATOR
IC625
XC62FP3302P
IC626
XC62FP3302P
IC624
XC62FP1802P
AOUT
A-IN
A+IN
-V
OUT-A
IN(-)-A
IN(+)-A
VSS
SDTI
LRCK
MCLK
SCLK
PWAD
PWDA
AOUTL
AOUTR
IC614
AK4550VT
CODEC
IN/OUT
OUT/IN
GND
OUTX
VCC
34
IC622
TC7S66FU
IC621
TC7S00FU
MULTIPLEXER
NAND GATE
IC620
ADM202EARN
RS232C
TRANSCEIVER
C1+
V+
C1-
C2+
C2-
V-
T2OUT
R2INR2OUT
T2IN
T1IN
R1OUT
R1IN
T1OUT
GND
VCC
AOUT
A-IN
A+IN
-V
IC605
BU4053BCF
MULTIPLEXER
C
B
A
X0
X1
X
Y
VDD
AOUT
A-IN
A+IN
-V
IC607
NJM4558E
C657
C670
R681
R679
C663
IC611
NJM4558E
AOUT
A-IN
A+IN
-V
VIN1
VOUT1
VOUT2
VIN2
VDD
LD
CLK
DI
VIN3
VOUT3
VOUT4
VIN4
RD
RA
VIN5
VOUT5
VOUT6
VIN6
DO
VDAref
RESET
GND
VIN7
VOUT7
VOUT8
VIN8
TA
TD
MO
MB
IC615
M62364FP
D/A CONVERTER
2SJ506(S)
Q610
DC SW
STRB
DATA
CLK
Q1
Q2
Q3
Q4
VSS
IC623
BU4094BCFV
SURGE PROTECTOR
D614,618,621,629
SFT
SCL
SDA
XIN
XOUT
RESET
CNVSS
GND GND
SB
8C
RXI
TXO
MB
5C
DEI
MIC
GND
MO
RXO
DATA
TXI
GND
TXO
MB
DEI
MIC
5C
RXI
DATA
RXO
MO
TXI
BEEP
RSSI
BATT
STB1
FWD
ASQ
VLI
AI1
AI2
SOE
IO6
IO5
AI3
IC631
TA75W01FU
IC632
TA75W01FU
IN2+
IN2-
OUT-B
VCC
R824
4.7k
GND
RXI
5C
MIC
TXI
TXO
DATA
BEEP
RXO
DEI
MO
MB
GND
TA I
DATA
5C
TD1
D622
DA204U
D619
DA204U
D615
DA204U
D611
DA204U
D609
DA204U
D607
DA204U
D606
DA204U
2SK1824
Q600
DC SW
CP609
100*2
CP607
1k*2
CP606
4.7k*2
CP617
10*4
CP619
10*4
CP616
10*4
CP618
10*4
CP613
1k*2
CP615
10*4
NC11
NC12
2SK1824
Q604
DC SW
IN2+
IN2-
OUT-B
VCC
IC628
TA78L05F
IC630
TA78L05F
IC627
TA78L05F
1.20V
13.10V
13.10V
5.06V
5.04V
3.34V
3.32V
1.82V
5.02V
3.20V
5.05V
5.00V
5.00V
8.00V
TKR-750
111
KES-5 (EXTERNAL SPEAKER / !")
12
6
3
15
1
13
Crimp terminal
(E23-0613-05)
Black lead
Speaker cable
Black/White lead
Jumper lead
Connector
BACK UP
KES-5
跳接导线
连接器
扬声器导线
黑色导线
压接端子
黑色/白色导线
When Using an External Speaker
1. Make sure the unit’s power is tuned off.
2. When using the external speaker, remove the jumper lead
from the connector, and attach the speaker cable.
3. When not using the external speaker, replace the jumper
lead and insert the connector into the speaker jack (pin9
and 12).
Specifications
Maximum input power ................ 40W
Impedance ................................... 4Ω
Dimensions (W x H x D) .............. 129 x 129 x 77 mm
projection not included 5-1/16 x 5-1/16 x 3 inches
Weight ......................................... 820g / 1.81 lbs
!"#$%
NK !"#$%&'(
OK !"#$%&'()$*+,-)./&()"#$.
PK !"#$%&'()*+,-'./01+%23#$
!EVNOF
==
!"# KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK OMt
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK Q
=E !F KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NOVNOVTT=ãã
!"#$ RJNLNS″RJNLNS″P″
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK UOMÖ=ENKUNF
TKR-750
112
SPECIFICATIONS
GENERAL
Frequency Range ................................ C : 146 to 174MHz C2 : 136 to 150MHz
Number of Channels ........................... 16 channel
Channel Spacing ................................. Wide : 25kHz Narrow : 12.5kHz
(PLL channel stepping 5kHz/6.25kHz)
Operating Voltage ............................... 13.6V DC±15%
Current Drain
Standby .......................................... 0.8A
Standby w/power save .................. 0.3A (Operating mode DC-IN : Backup, FAN : Temp, SAVE : ON, DISP : OFF)
Receive .......................................... 1.2A
Transmit/Receive ........................... Less than 13A
Duty Cycle
Receive .......................................... 100%
Transmit ......................................... 100% (100% @25W)
Frequency Stability ............................. Less than ±0.0002% –30°C to +60°C (–22°F to +140°F)
Antenna Impedance ........................... 50Ω
Operating Temperature Range ........... –30°C to +60°C (–22°F to +140°F)
Dimensions ......................................... 483 W x 88 H x 340 D mm
Weight ................................................ 9.7kg
RECEIVER (Measured by TIA/EIA-603)
Sensitivity
12dB SINAD ................................... 0.35µV
20dB Quieting ................................ 0.45µV
Selectivity ........................................... Wide : 85dB (±25kHz) Narrow : 77dB (12.5kHz)
Intermodulation................................... Wide : 80dB (±25kHz/±50kHz) Narrow : 75dB (±12.5kHz/±25kHz)
Hum and Noise ................................... Wide : 50dB Narrow : 45dB
Spurious & Image Rejection ............... 90dB
Audio Output (Ext. Speaker) ............... 4W at 4Ω less than 5% distortion
Audio Distortion (Ext. Speaker) .......... Less than 2.5% at 1000Hz
Band Spread ....................................... 3MHz
TRANSMITTER (Measured by TIA/EIA-603)
RF Power Output ................................ 50W adjustable to 25W (100% duty @25W)
Type of Emission ................................ Wide : 16K0F3E Narrow : 11K0F3E
Spurious Response ............................. Harmonics : 80dB Others : 75dB
FM Hum and Noise ............................ Wide : 50dB Narrow : 45dB
Audio Distortion .................................. Less than 3% at 1000Hz
Microphone Impedance...................... 600Ω
Band Spread ....................................... C : 28MHz C2 : 14MHz
TKR-750
113
! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK `NQSNTQjeò `ONPSNRMjeò
! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NS
! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK ORâeò NOKRâeò
E !"#$%&RâeòLSKORâeòF
! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NPKSs=a`NRB
!
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK MKU^
L KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK MKP^=E ! a`Jfk !=c^k != !"#= !"F
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NKO^
L KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NP^
!
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NMMB
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NMMB=ENMMBORtF
!" KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK MKMMMOB PM SM
! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK RM
!"# KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK PM SM
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK QUPUUPQM=
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK VKTâÖ
=Eqf^Lbf^JSMP !F
==
NOÇ_=pf_^a KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK MKPRs
OMÇ_=nìáÉíáåÖ KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK MKQRs
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK URÇ_=EORâeòF TTÇ_=ENOKRâeòF
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK UMÇ_=EORLRMâeòF TRÇ_=ENOKRLORâeòF
!"#$%&' KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK RMÇ_ QRÇ_
!" KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK VMÇ_
!"#=E !"F KKKKKKKKKKKKKKKKKKKKKKKK QQt !"R
!=E !"F KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NMMMeò OKR
!"# KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK Pjeò
=Eqf^Lbf^JSMP !F
!"# KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK RMtORt=E !ORtF
KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NShMcPb UhRMcPb
!" KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK UMÇ_ TRÇ_
!"# KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK RMÇ_ QRÇ_
! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NMMMeò PB
!" KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK SMM
!"# KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK `OUjeò `ONQjeò
TKR-750
KENWOOD CORPORATION
2967-3, Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525 Japan
KENWOOD U.S.A. CORPORATION
P. O. BOX 22745, 2201 East Dominguez Street, Long Beach, CA 90801-5745, U.S.A.
KENWOOD ELECTRONICS CANADA INC.
6070 Kestrel Road, Mississauga, Ontario, Canada L5T 1S8
KENWOOD ELECTRONICS DEUTSCHLAND GMBH
Rembrücker Str. 15, 63150 Heusenstamm, Germany
KENWOOD ELECTRONICS BELGIUM N.V.
Leuvensesteenweg 248 J, 1800 Vilvoorde, Belgium
KENWOOD ELECTRONICS FRANCE S.A.
13, Boulevard Ney, 75018 Paris, France
KENWOOD ELECTRONICS U.K. LIMITED
KENWOOD House, Dwight Road, Watford, Herts., WD18 9EB United Kingdom
KENWOOD ELECTRONICS EUROPE B.V.
Amsterdamseweg 37, 1422 AC Uithoorn, The Netherlands
KENWOOD ELECTRONICS ITALIA S.p.A.
Via G. Sirtori, 7/9 20129 Milano, Italy
KENWOOD IBERICA S.A.
Bolivia, 239-08020 Barcelona, Spain
KENWOOD ELECTRONICS AUSTRALIA PTY. LTD.
(A.C.N. 001 499 074)
16 Giffnock Avenue, Centrecourt Estate, North Ryde, N.S.W. 2113 Australia
KENWOOD ELECTRONICS (HONG KONG) LTD.
Unit 3712-3724, Level 37, Tower one Metroplaza, 223 Hing Fong Road, Kwai Fong, N.T., Hong Kong
KENWOOD ELECTRONICS SINGAPORE PTE LTD.
1 Ang Mo Kio Street 63, Singapore 569110
