*ARMY TM 9-61 15-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/109245A-24P/3

TECHNICAL MANUAL

UNIT, DIRECT SUPPORT AND

GENERAL SUPPORT MAINTENANCE

REPAIR PARTS AND SPECIAL TOOLS LIST

GENERATOR SET, TACTICAL QUIET

60KW, 50/60-400 HZ

6115-01-274-7390 (MEP-806A)

6115-01-274-7395 (MEP-816A)

*This manual supersedes TM 9-6115-645-24PITO 35C2-3 444-14/TM 09244A/09245A-24P/3, dated 30 July 1993,

including all changes.

Distribution Statement A. Approved for public release; distribution is unlimited.

HEADQUARTERS, DEPARTMENTS OF THE ARMY,

AIR FORCE, AND HEADQUARTERS U.S. MARINE CORPS

30 OCTOBER 1996

*ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

TECHNICAL MANUAL HEADQUARTERS DEPARTMENTS OF THE ARMY,

AIR FORCE, AND HEADQUARTERS U.S. MARINE CORPS

NO. 9-6115-645-24P WASHINGTON D.C., 30 OCTOBER 1996

UNIT, DIRECT SUPPORT AND

GENERAL SUPPORT MAINTENANCE

REPAIR PARTS AND SPECIAL TOOLS LIST

GENERATOR SET, TACTICAL QUIET

60KW, 50/60/400 HZ

6115-01-274-7390 (MEP-806A)

6115-01-274-7395 (MEP-816A)

Current as of 1 October 1996

REPORTING ERRORS AND RECOMMENDING IMPROVEMENTS

You can help improve this manual. If you find any mistakes or if you know of a way to improve these procedures, please

let us know.

(A) Mail your letter or DA Form 2028 (Recommended Changes to Publications and Blank Forms), or DA Form 2028-2

located in the back of this manual directly to: Commander, US Army Aviation and Troop Command, ATTN: AMSAT-I-

MP, 4300 Goodfellow Blvd. , St. Louis, MO 63120-1798. You may also submit your recommended changes by E-

mail directly to <mpmt%avma28@st-louisemh7. army. mil>. Instructions for sending an electronic 2028 may be found

at the back of this publication immediately preceding the hard copy 2028.

(F) Air Force AFTO Form 22 Directly to: Commander, Sacramento Air Logistics Center, ATTN: TILBA, McClellan AFB,

CA 95652-5990 (AFMC).

(MC) Marine Corps NAVMC Form 10772 Directly to: Commander, Marine Corps Logistics Bases (Code 850), Albany,

GA 31704-5000.

A reply will be furnished directly to you.

DISTRIBUTION STATEMENT A: Approved for public release; distribution is unlimited.

*This manual supersedes TM 9-6115-645-24P/TO 35C2-3 M44-14/TM 09244A/09245A-24P/3, dated

30 July 1993, including all changes. i

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

TABLE OF CONTENTS Page Illus/

Figure

Section I. INTRODUCTION . ............................................................................... 1

Section II. REPAIR PARTS LIST .........................................................................

Group 01 D.C. Electrical System.....................................................................

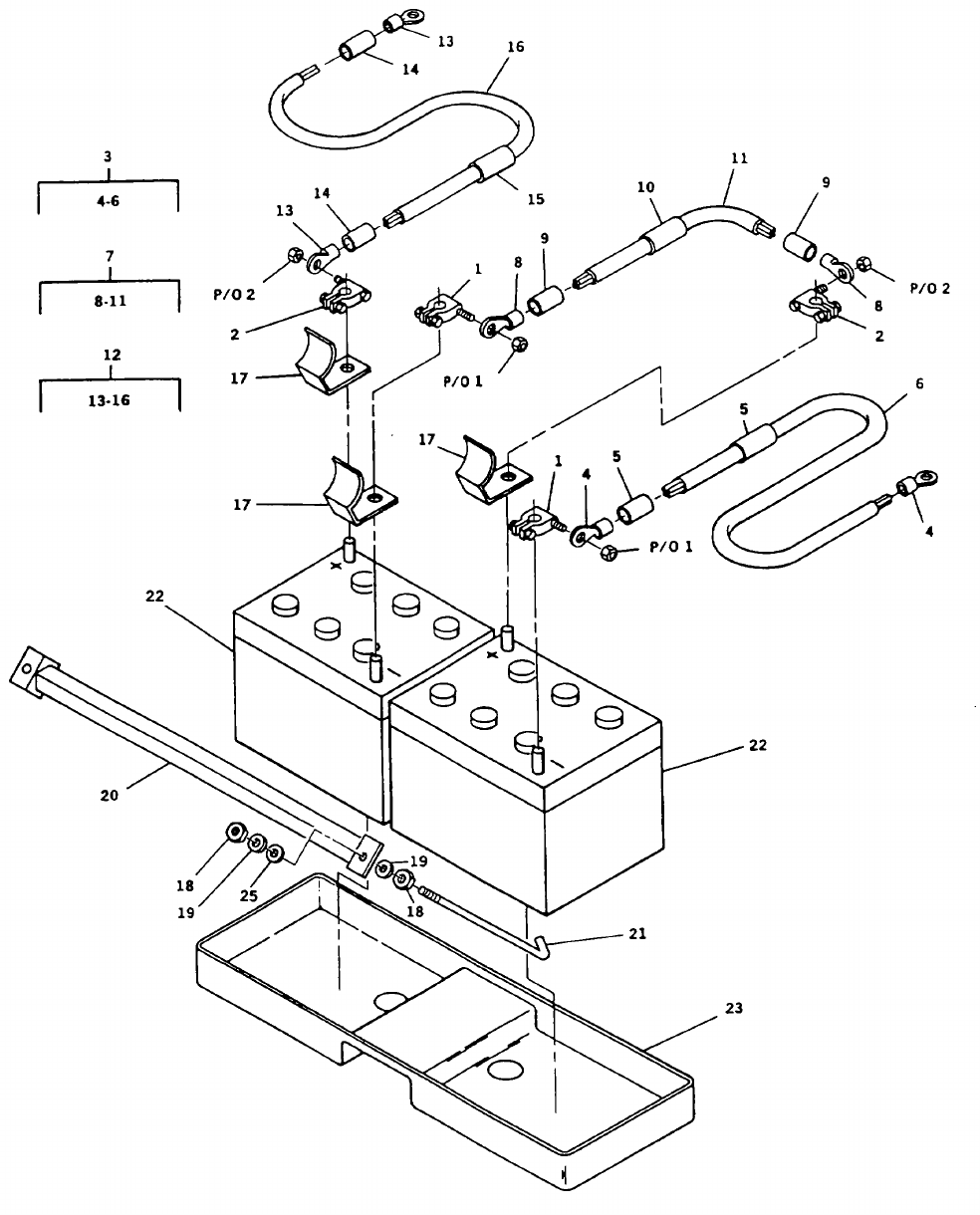

Batteries and Cables ........................................................................... 1-1 1

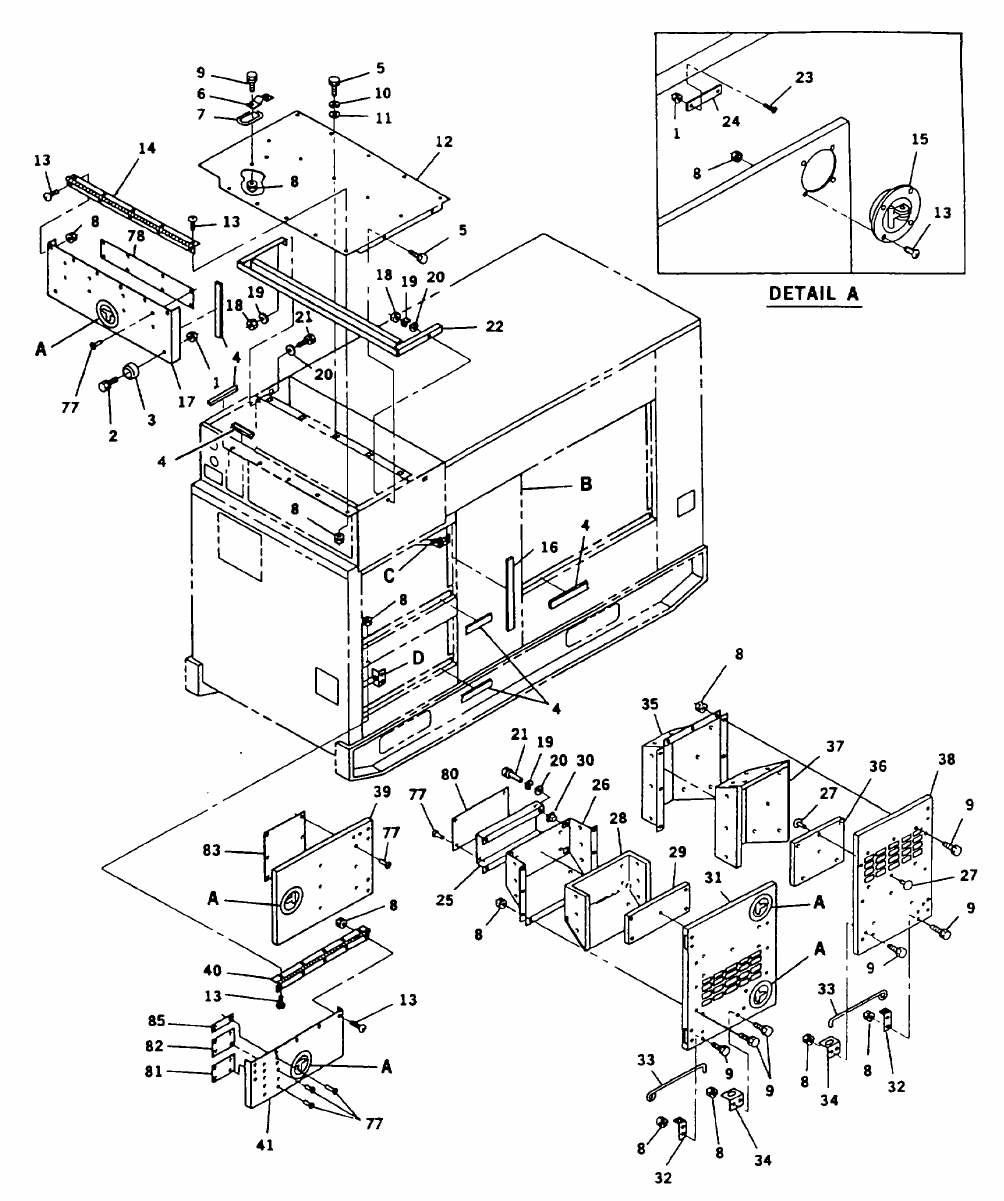

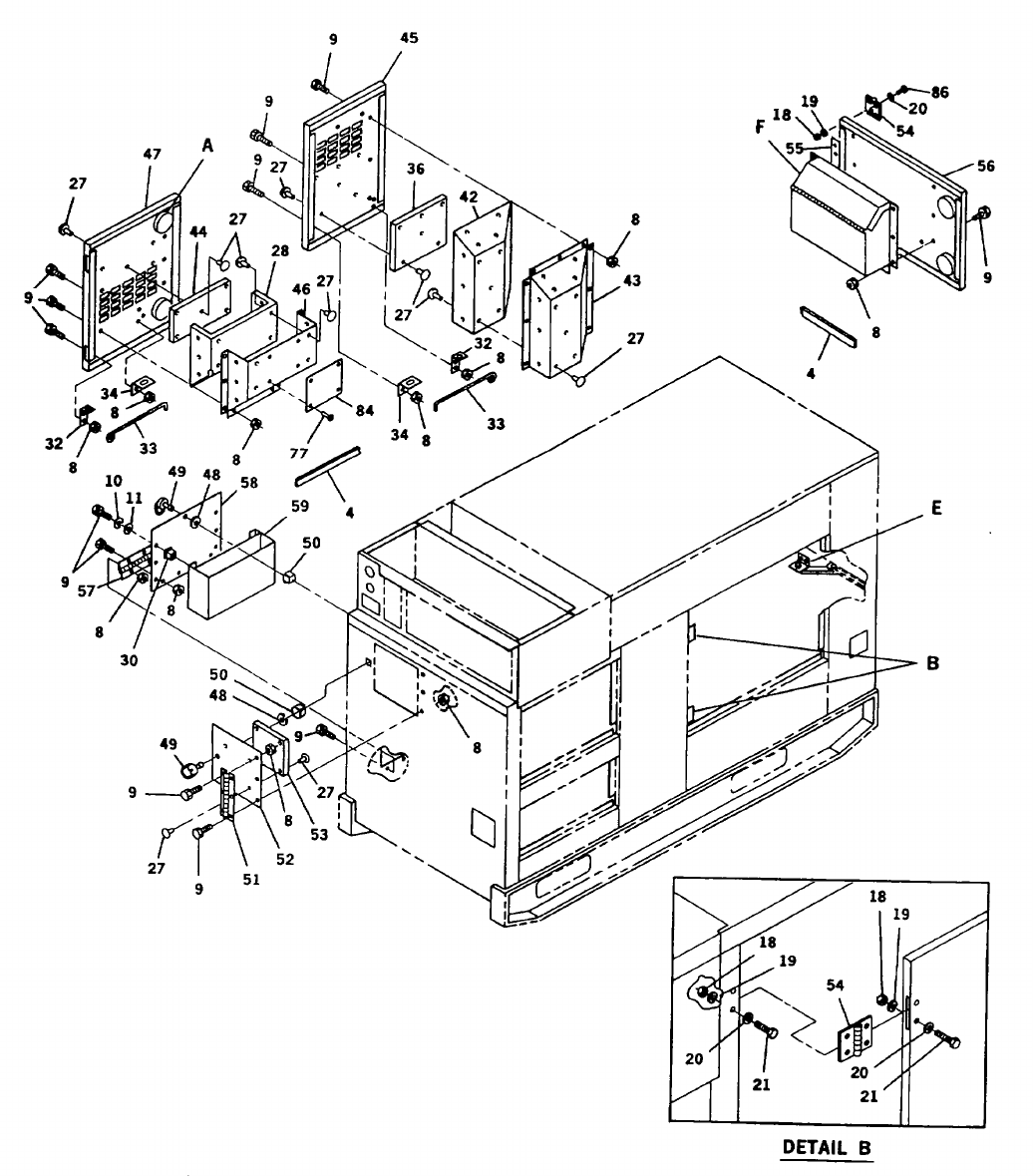

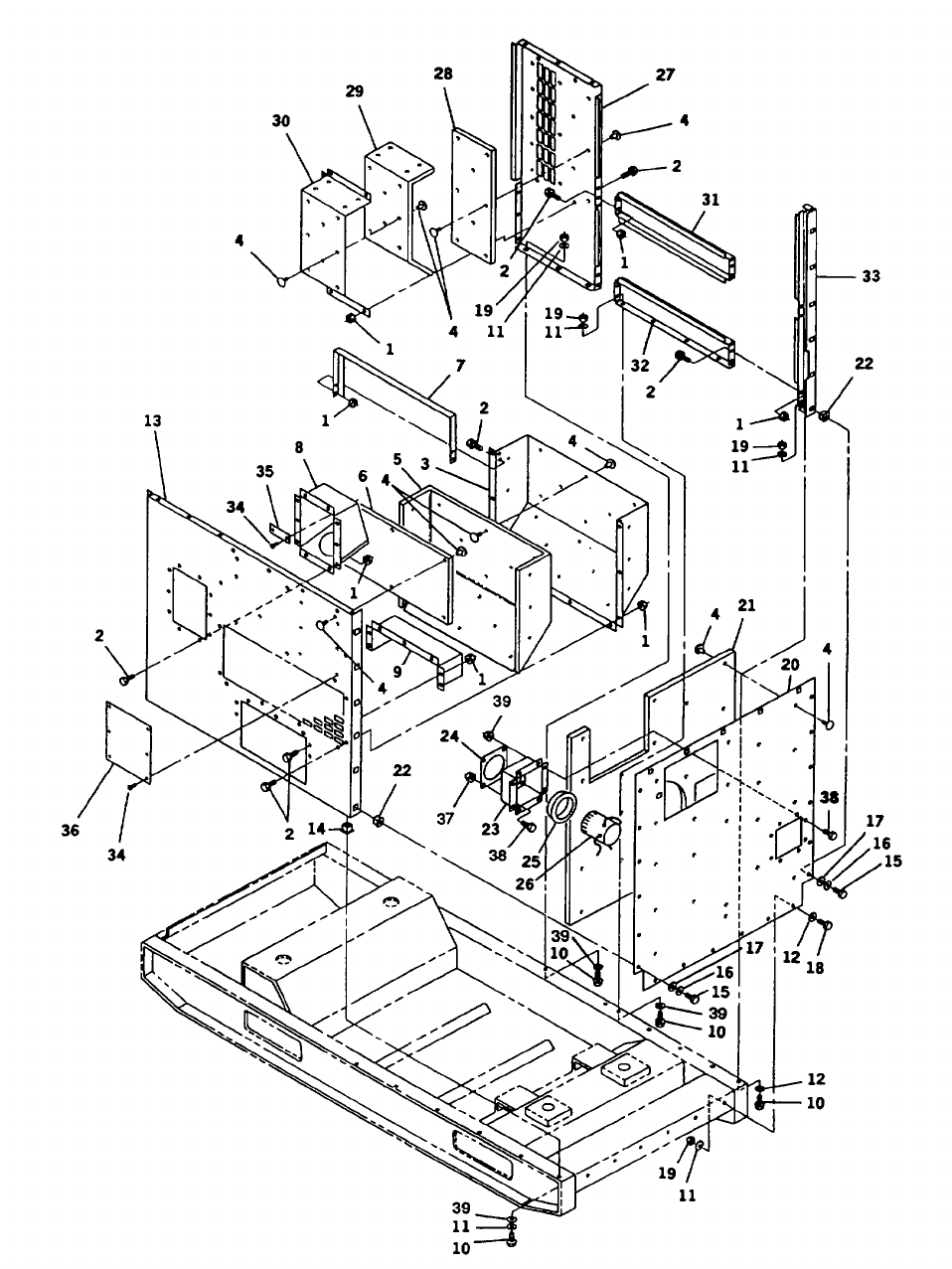

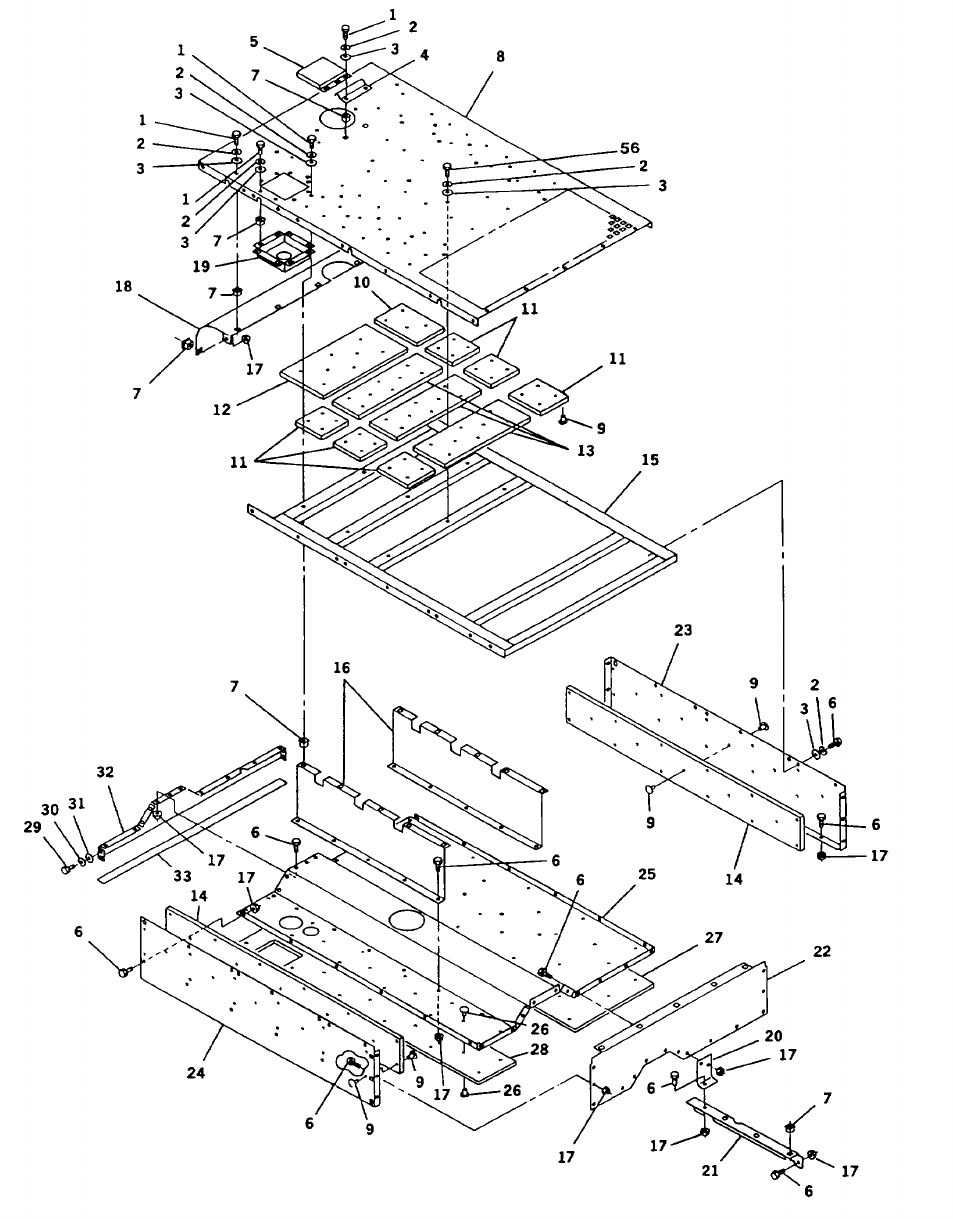

Group 02 Housing . .............................................................................................

Access Doors and Covers ................................................................... 2-1 2

Front Housing Panels .......................................................................... 3-1 3

Rear Housing Panels . ......................................................................... 4-1 4

Group 03 Control Box Assembly..........................................................................

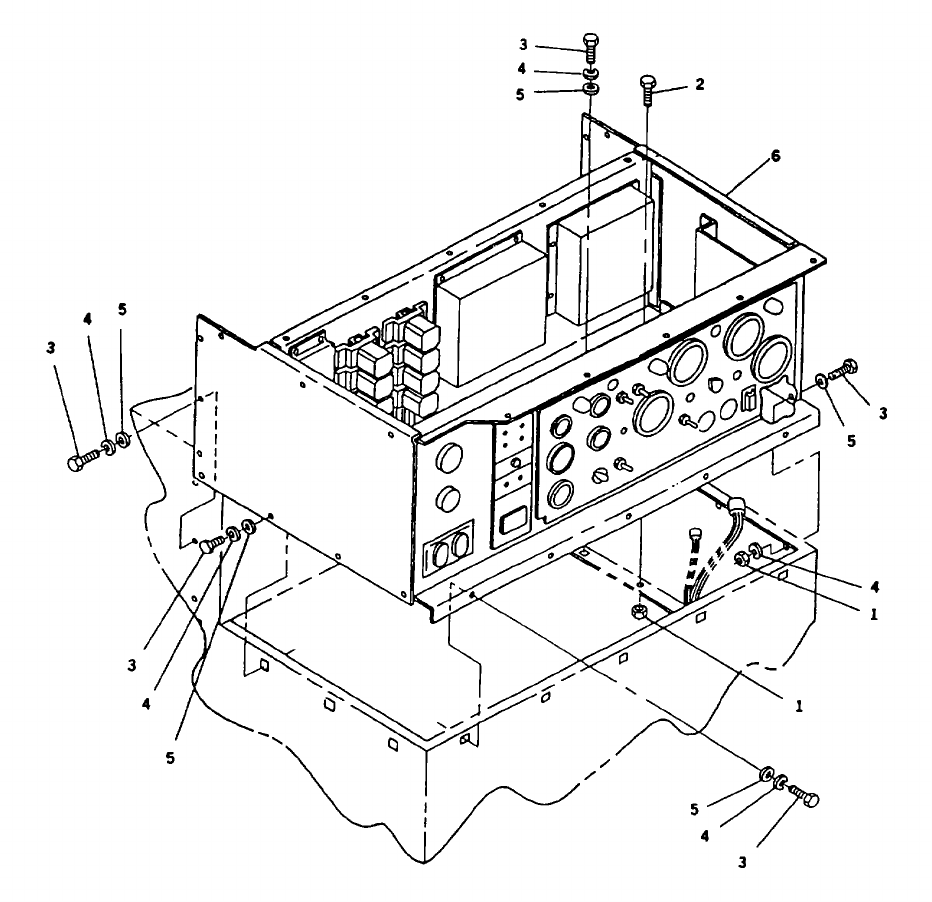

Control Box Installation ....................................................................... 5-1 5

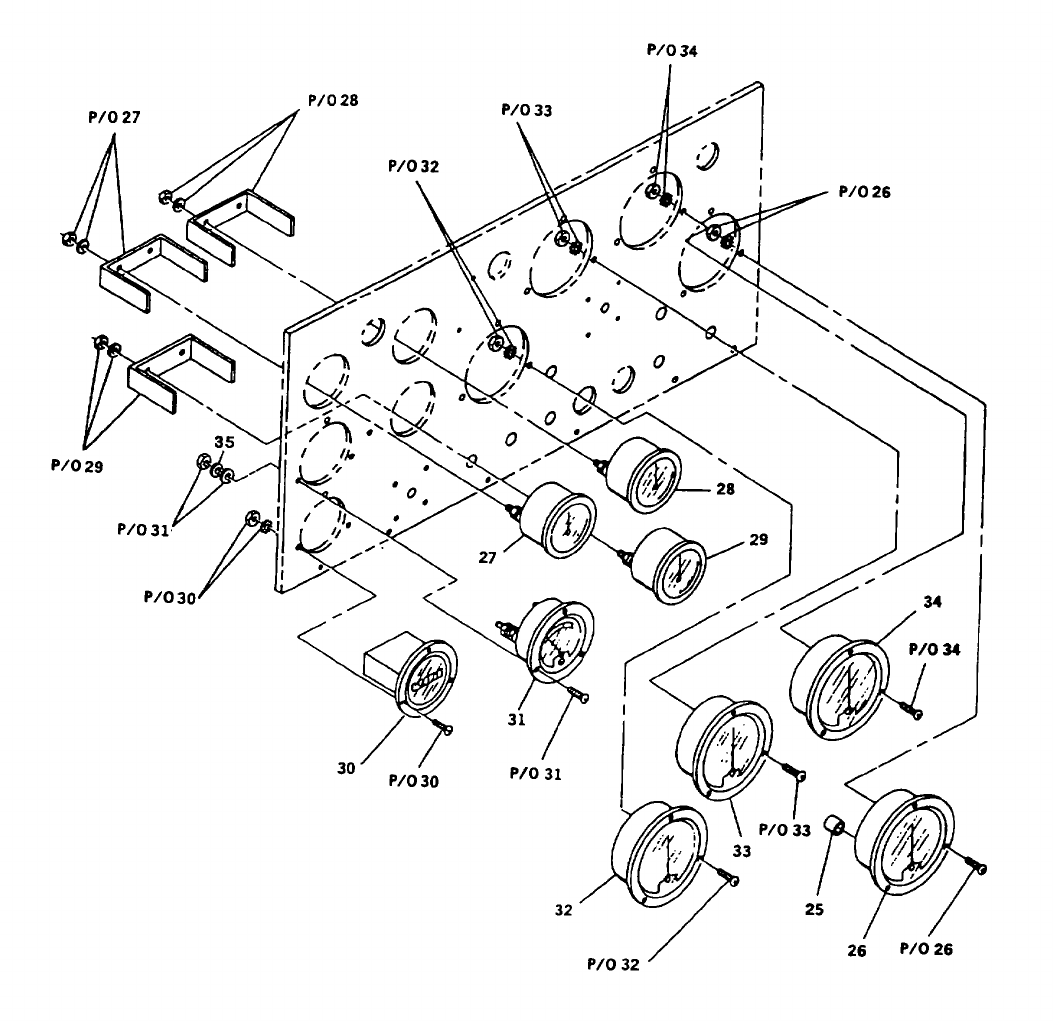

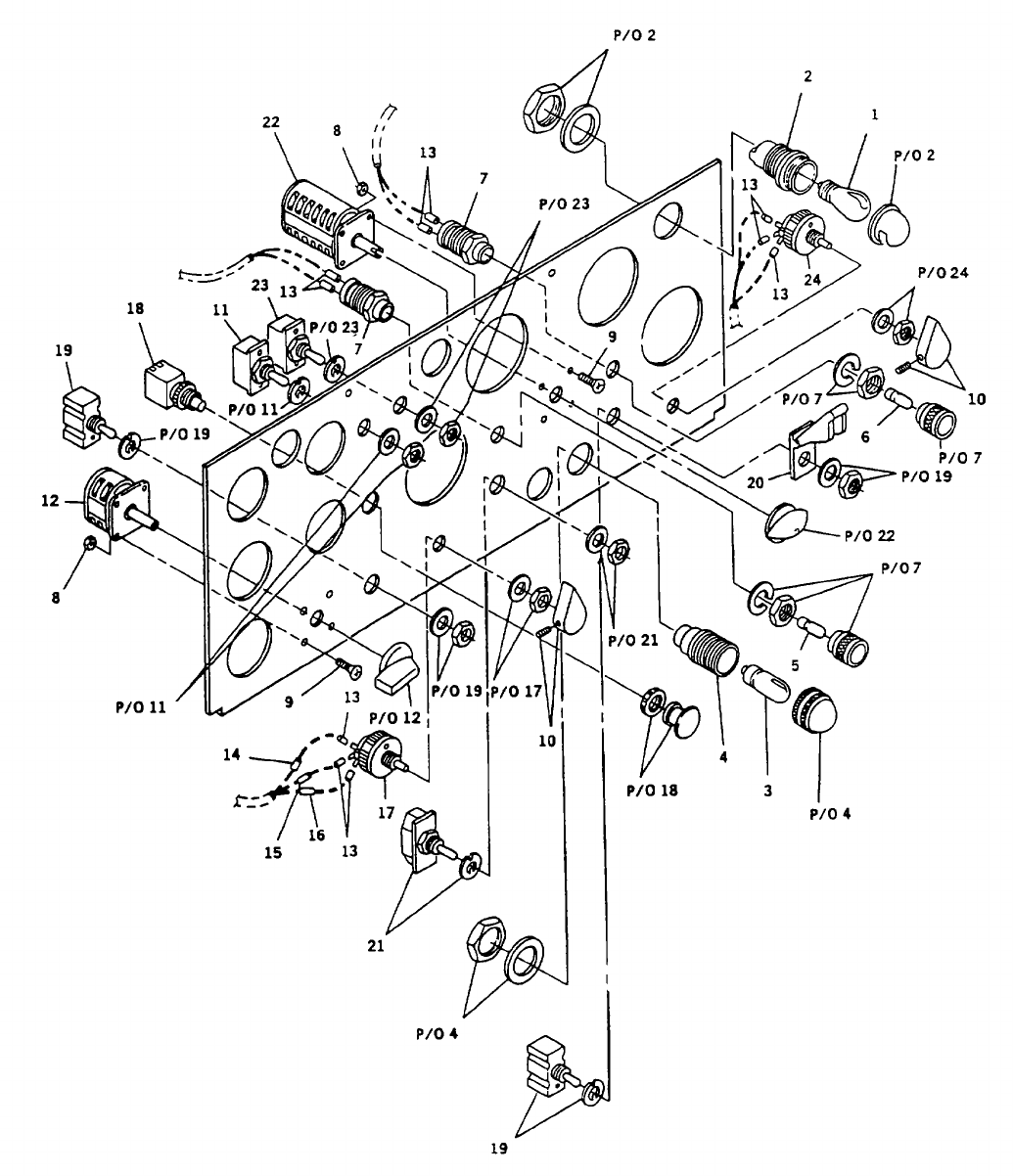

Control Panel Switches and

Indicators....................................................................................... 6-1 6

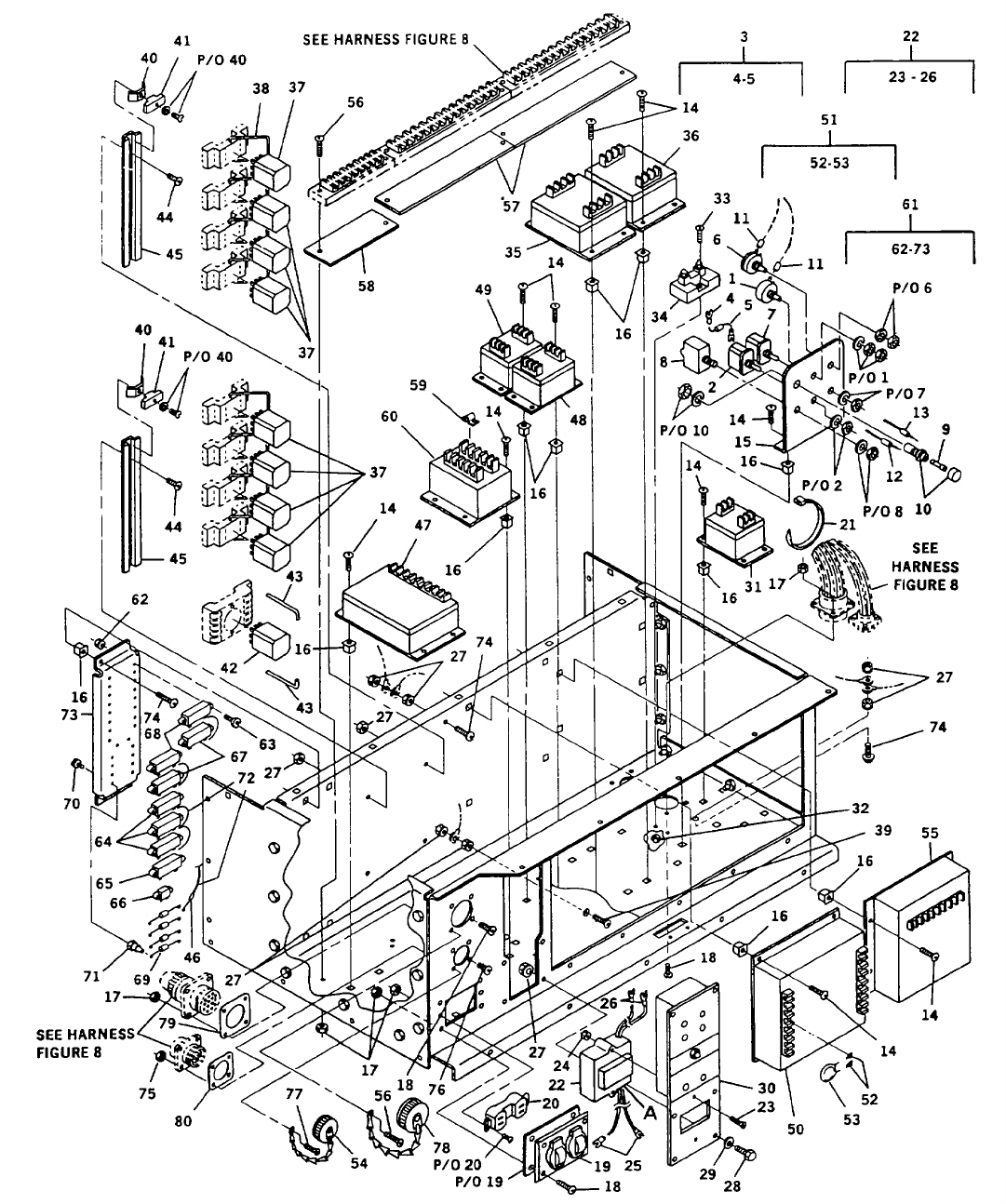

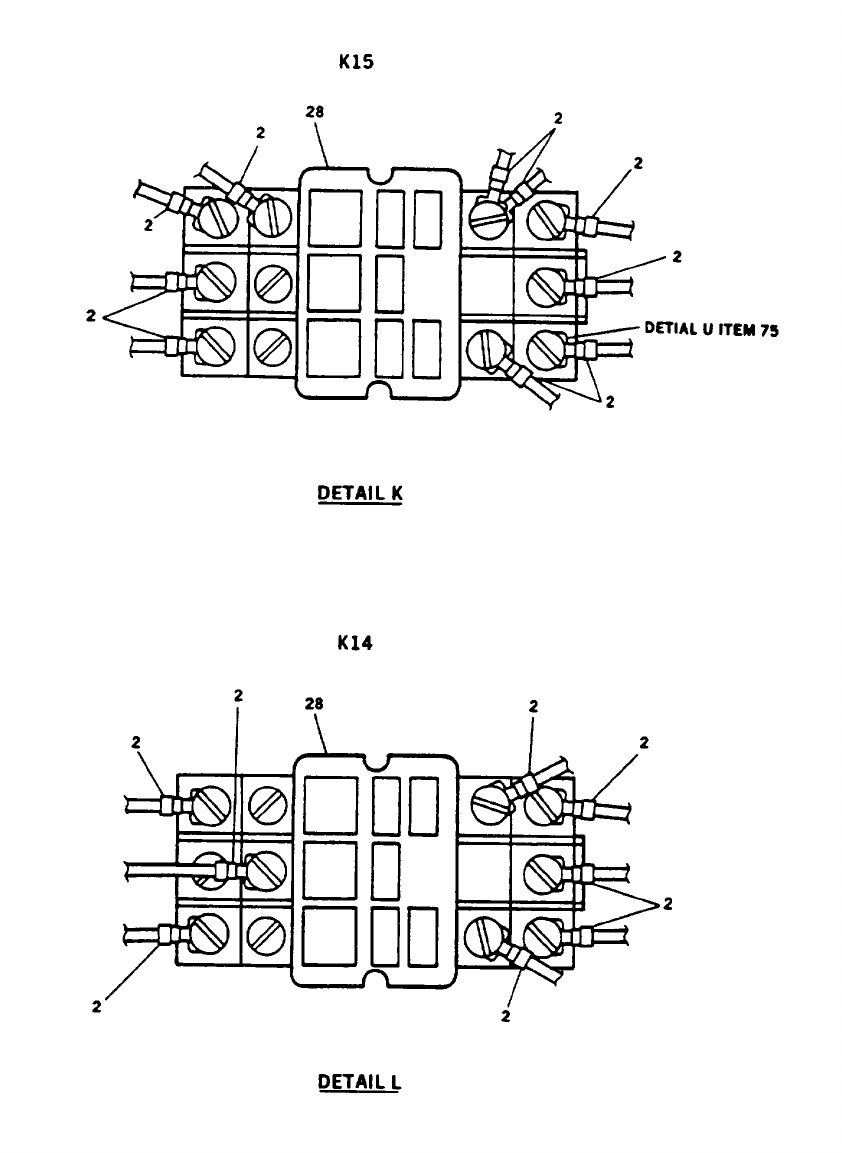

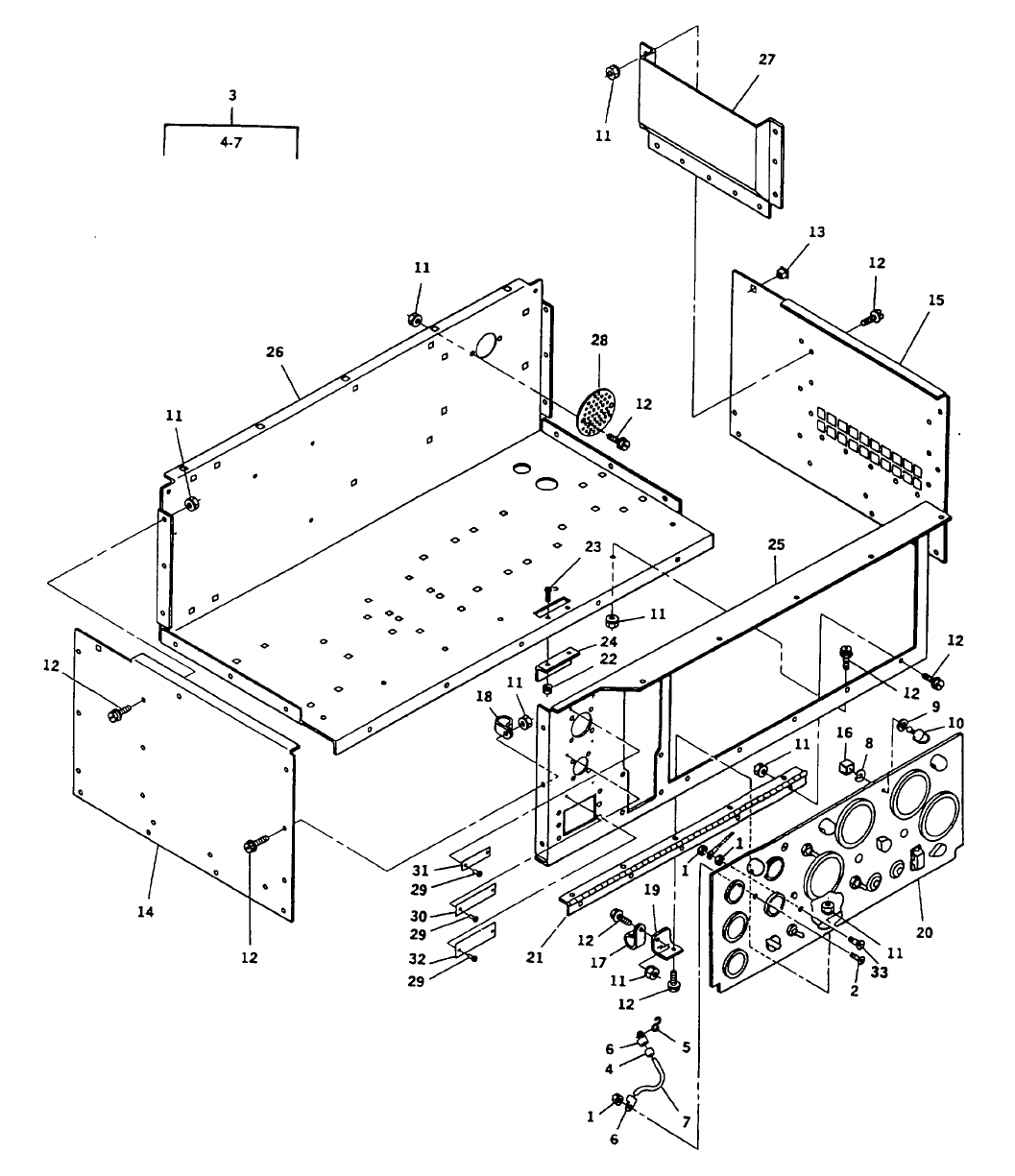

Control Box Assembly ......................................................................... 7-1 7

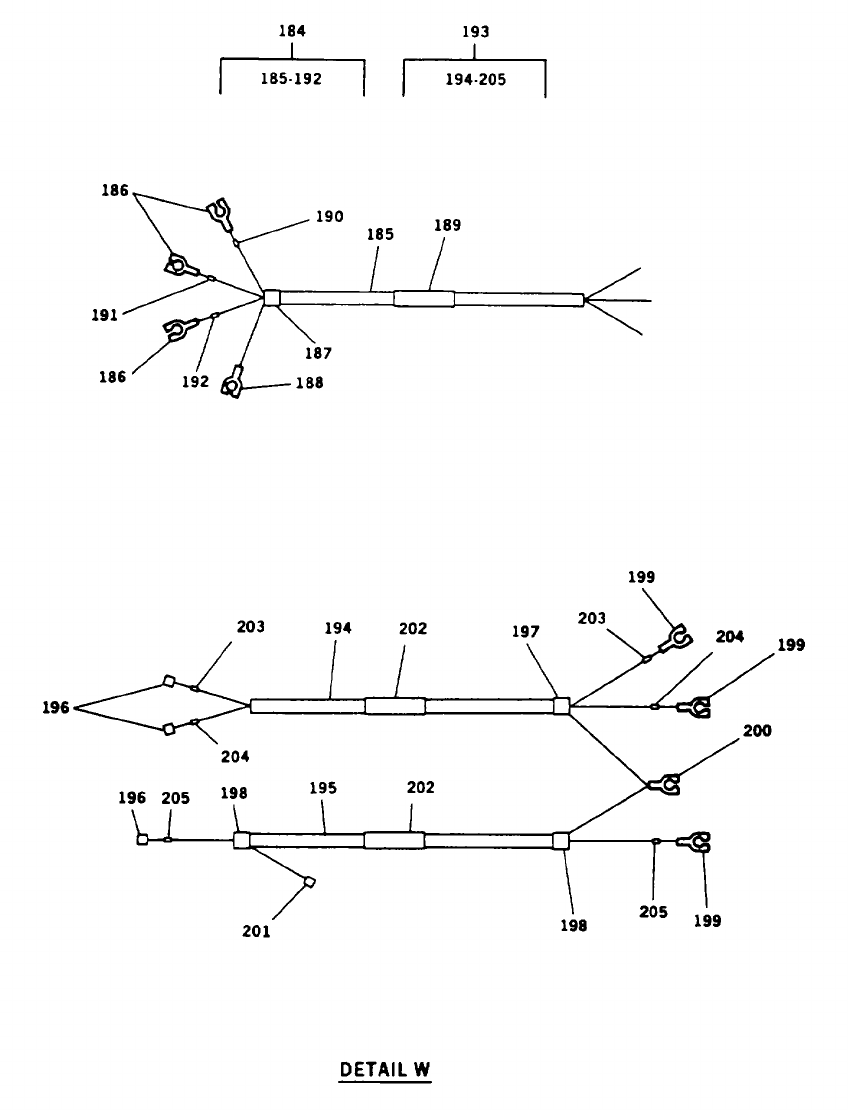

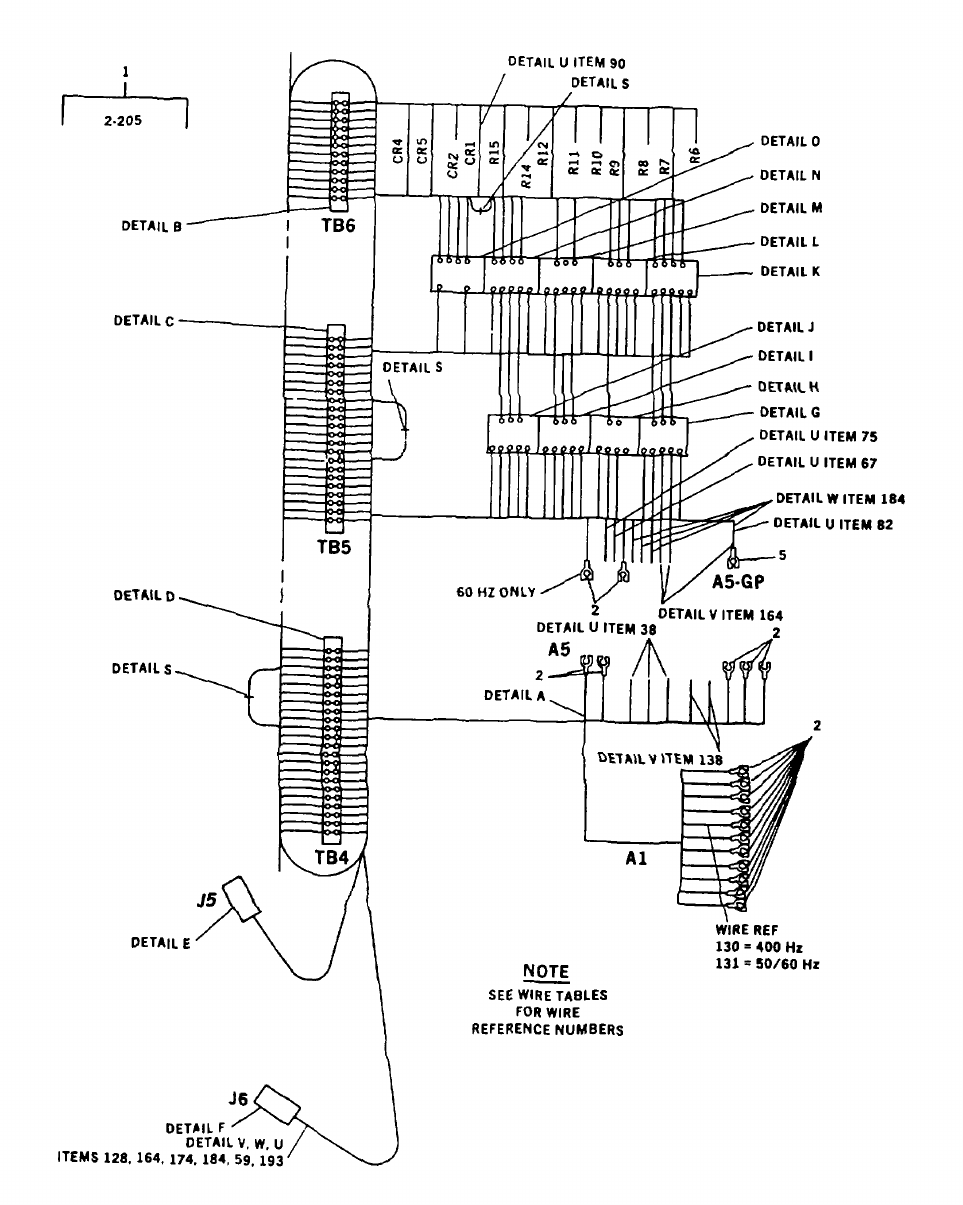

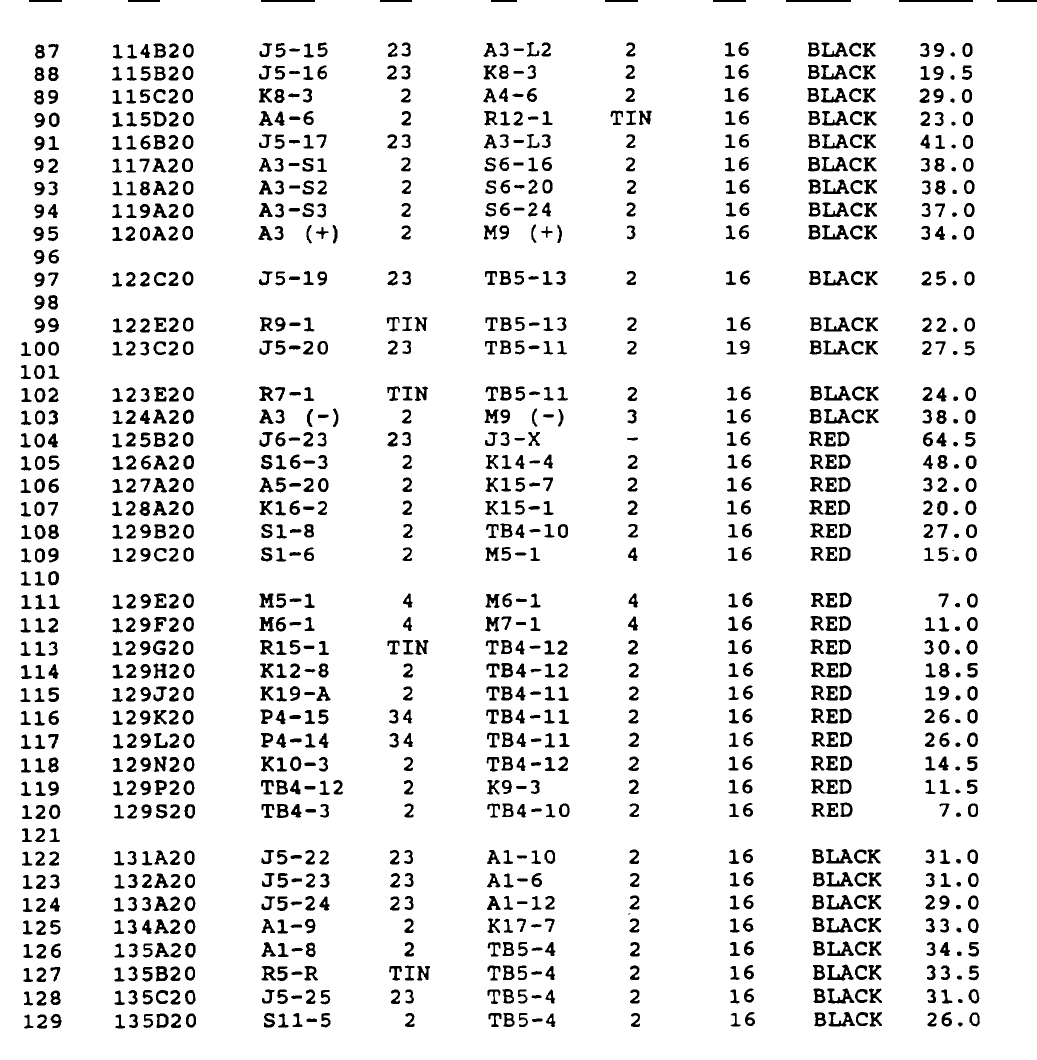

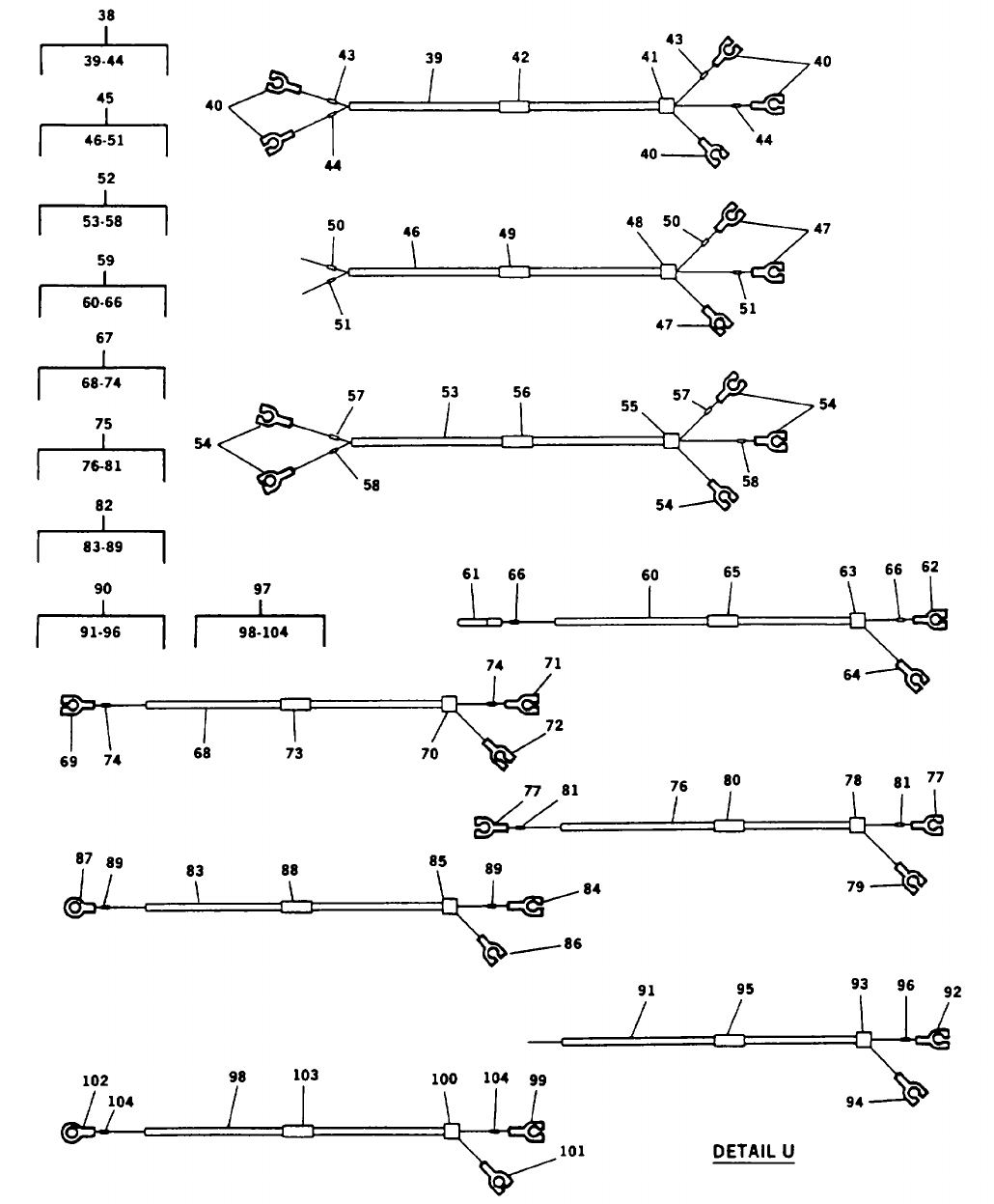

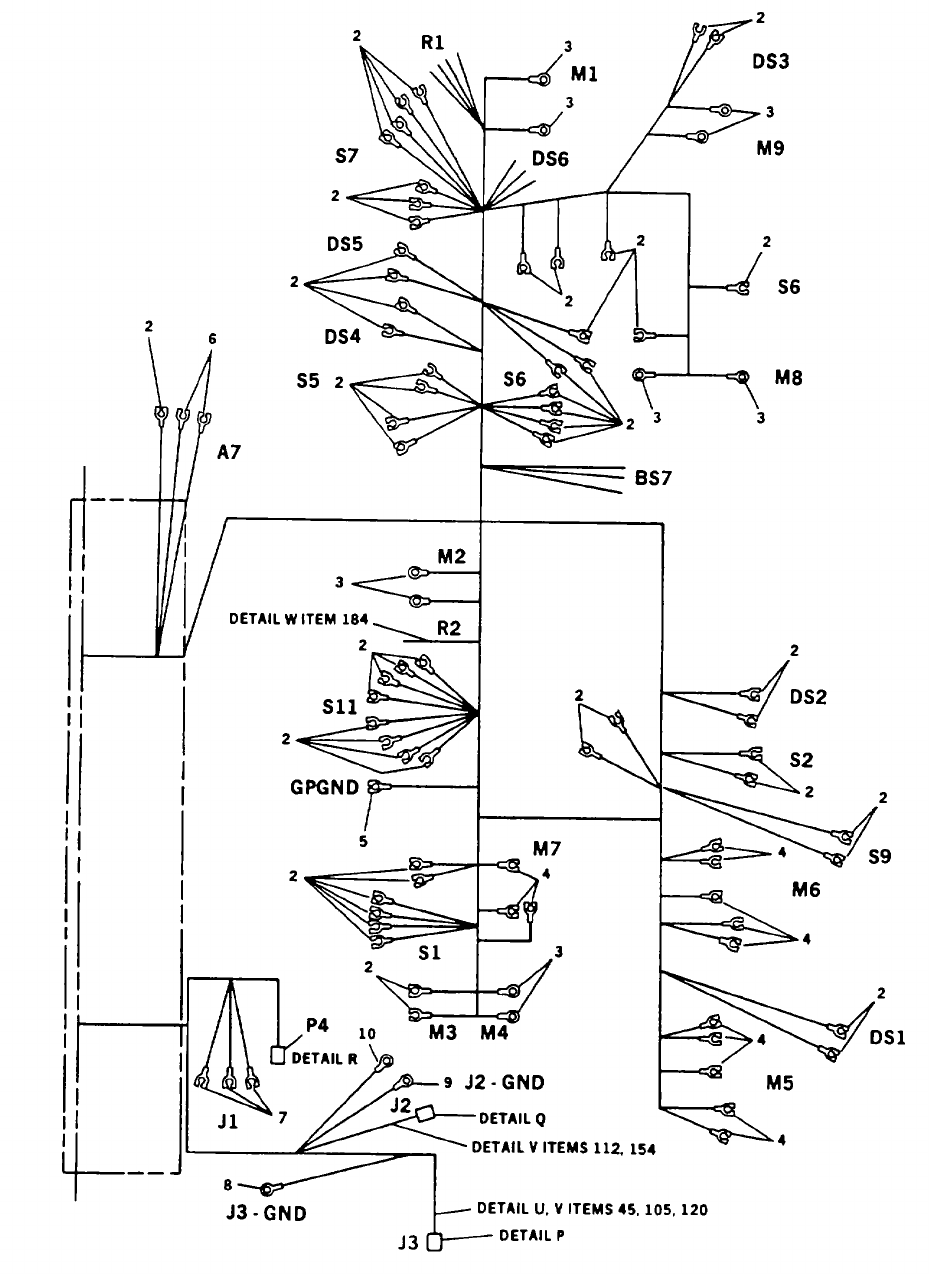

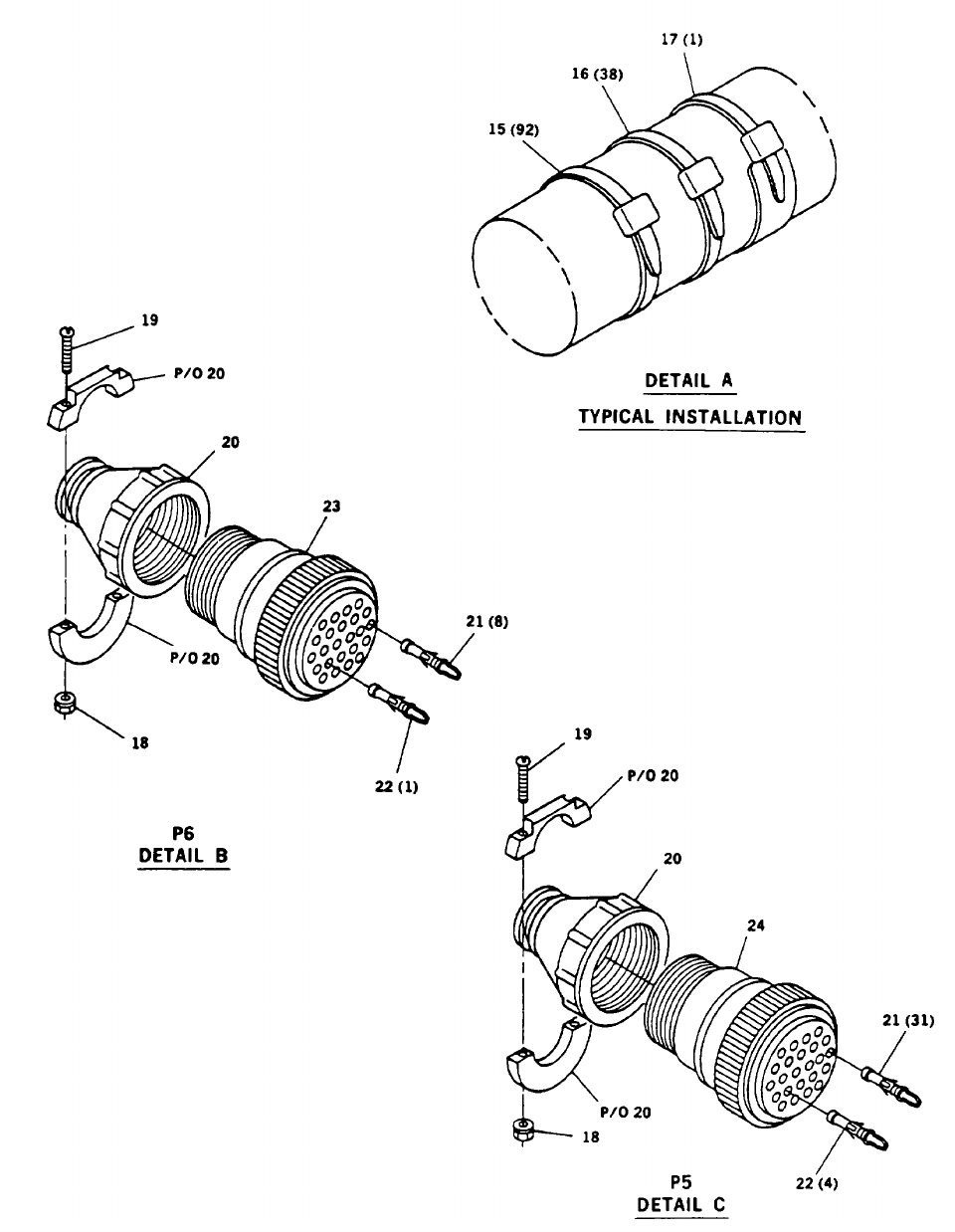

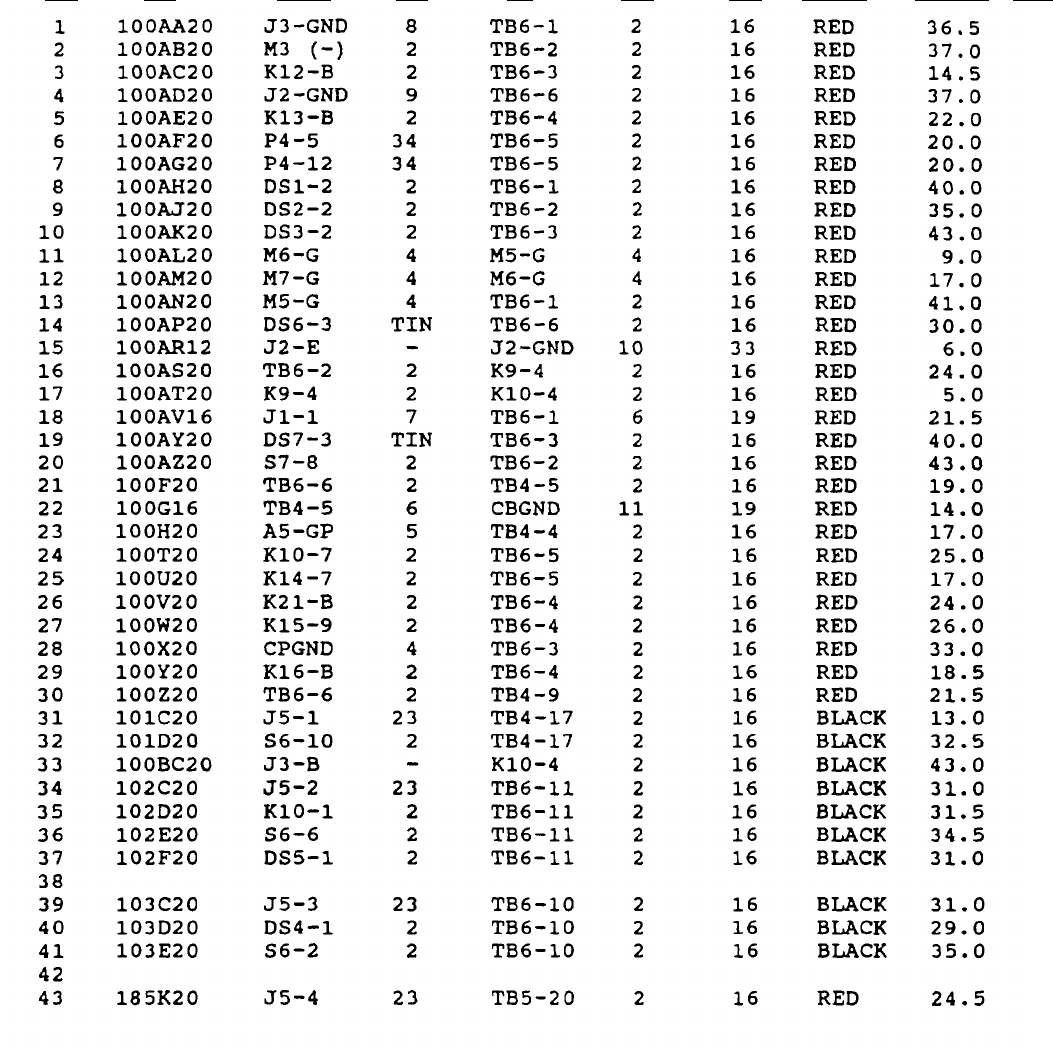

Control Box Harness Assembly............................................................ 8-1 8

Control Box Panels . ............................................................................ 9-1 9

Group 04 Air Intake/Exhaust System.

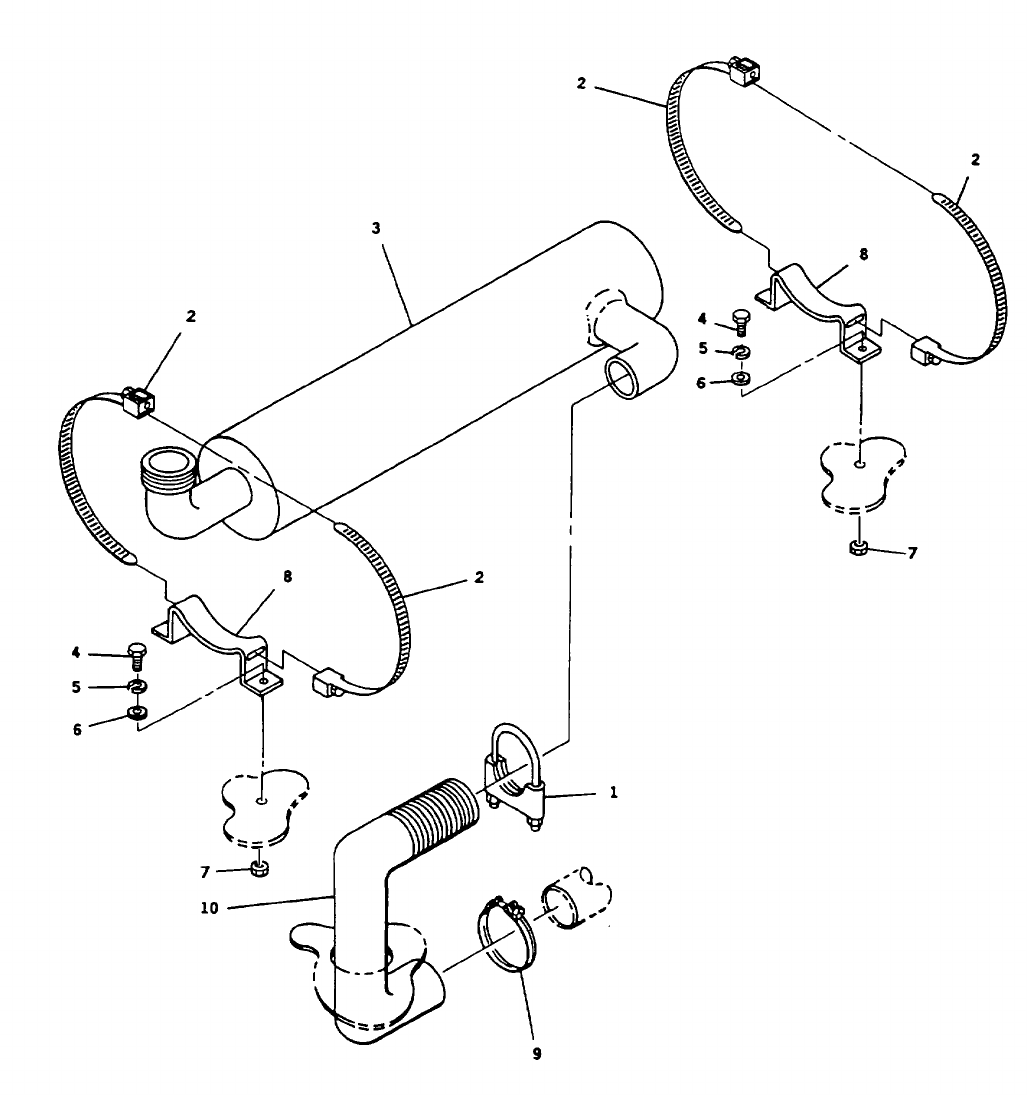

Muffler and Pipes ................................................................................ 10-1 10

Air Cleaner and Piping . ....................................................................... 11-1 11

Group 05 Coolant System ...................................................................................

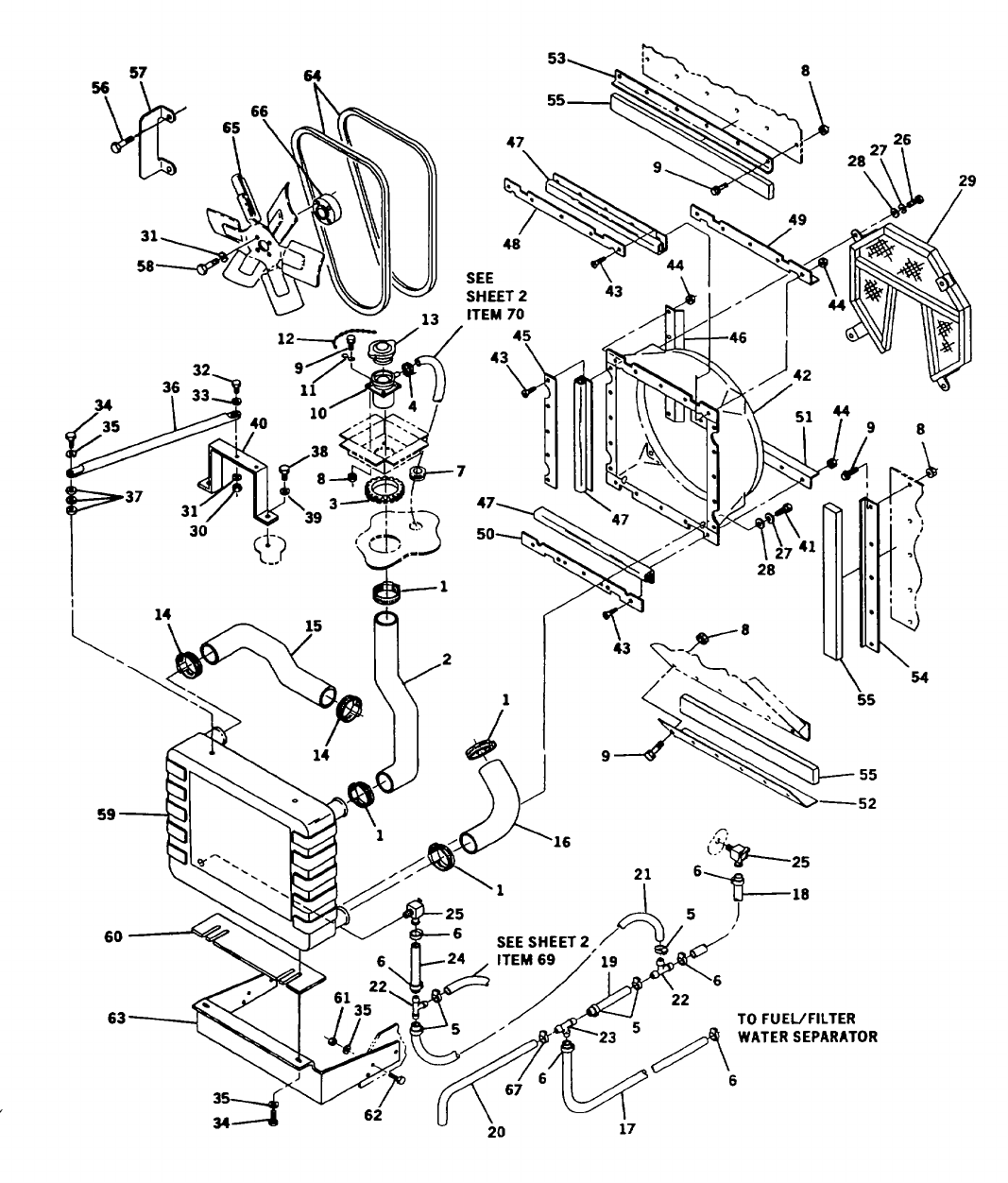

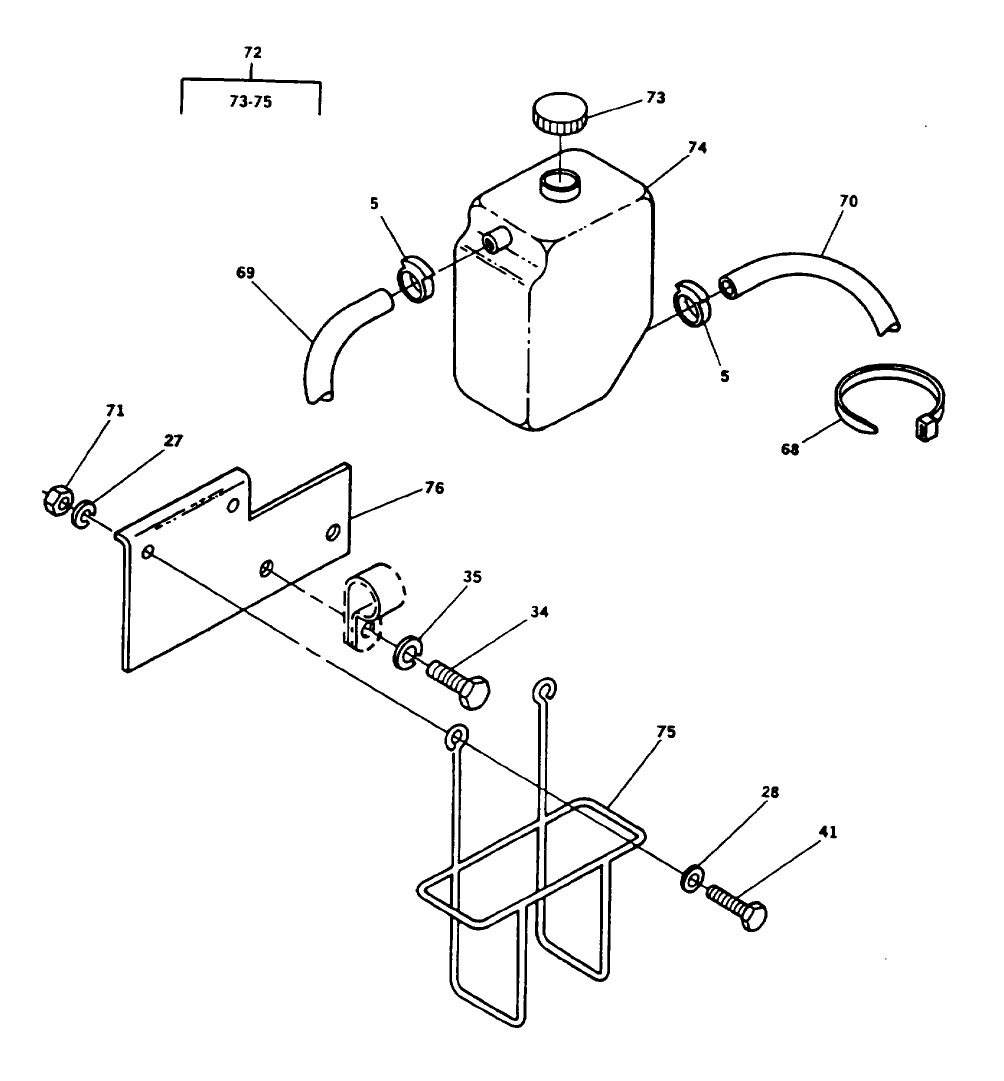

Coolant System . ................................................................................. 12-1 12

Group 06 Fuel System ........................................................................................

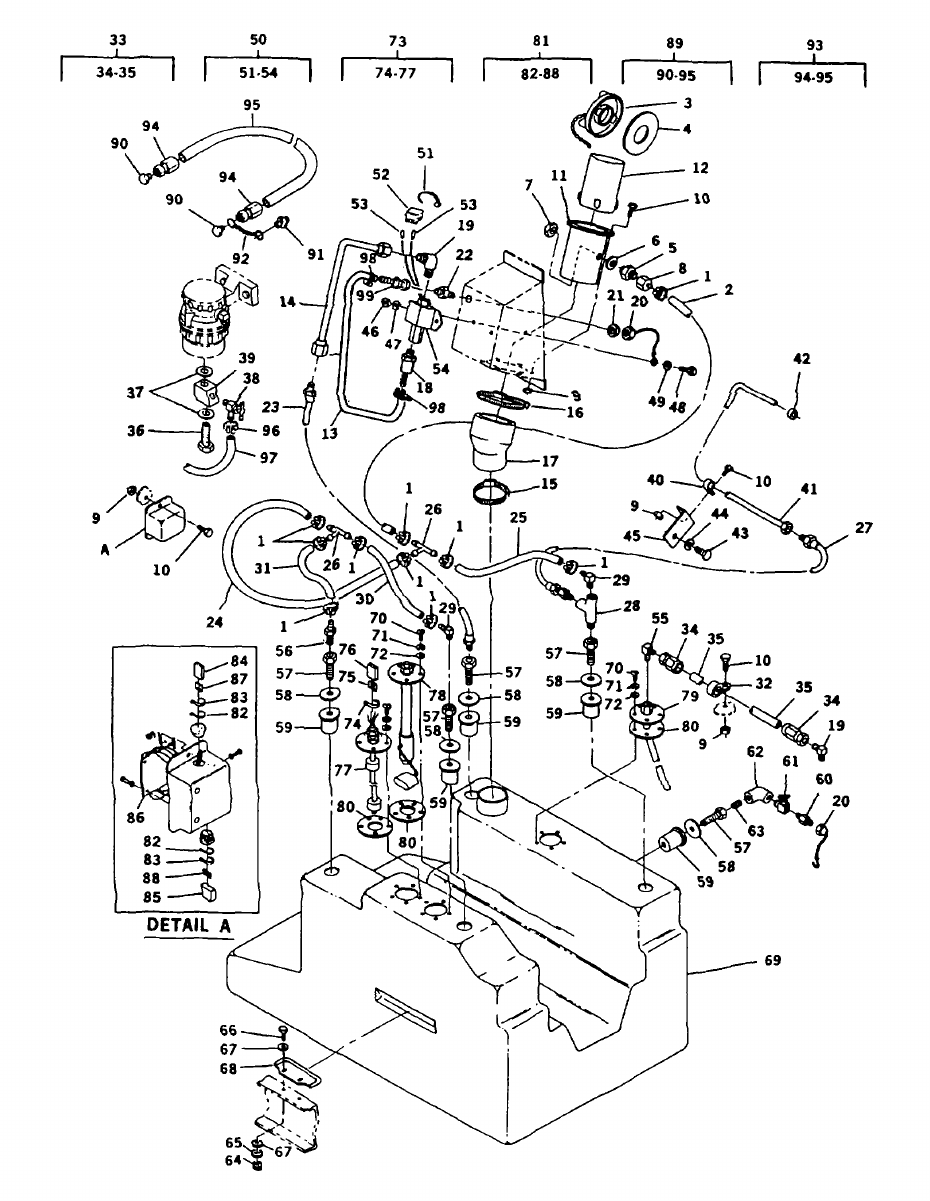

Fuel Tank, Lines and Fittings . ............................................................. 13-1 13

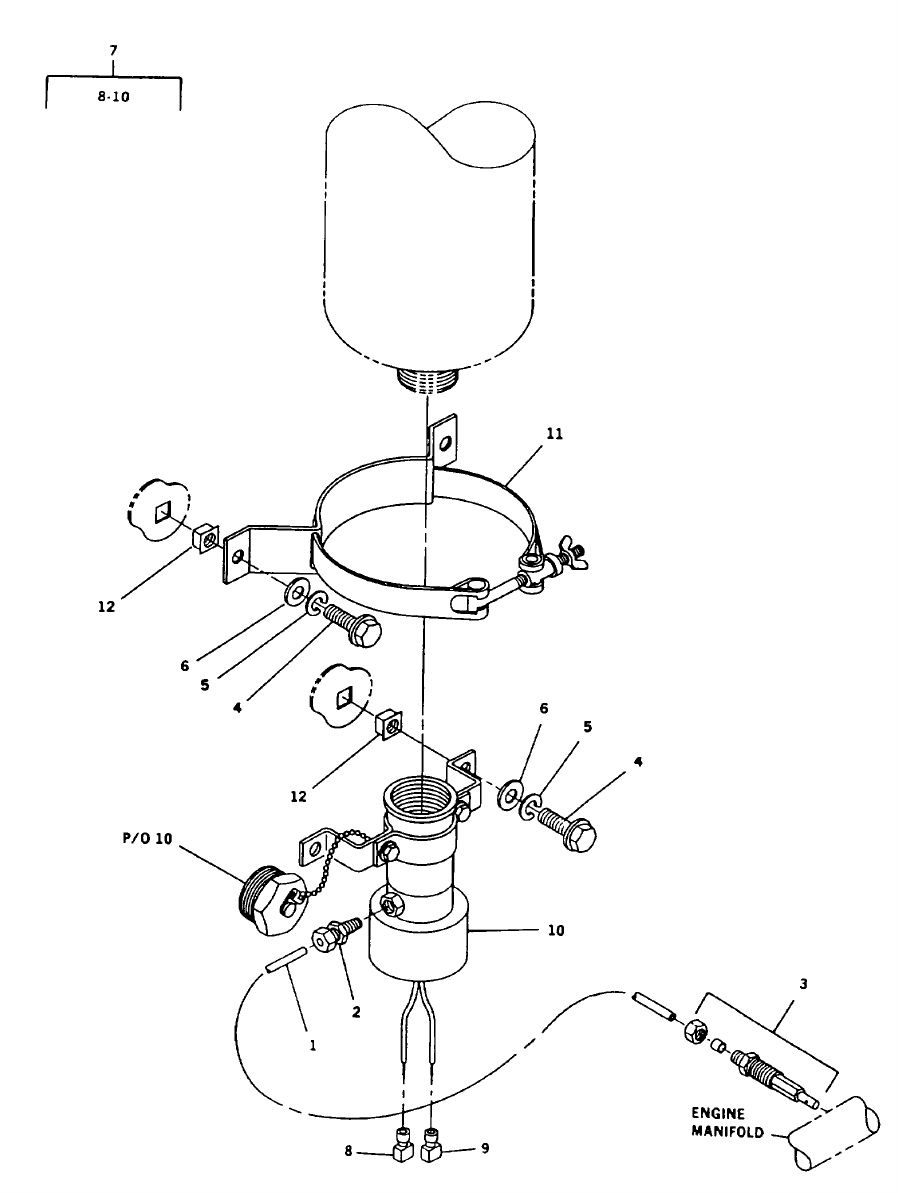

Ether Start Valve and Lines . ............................................................... 14-1 14

Group 07 Output Box Assembly . ........................................................................

Output Box Installation ........................................................................ 15-1 15

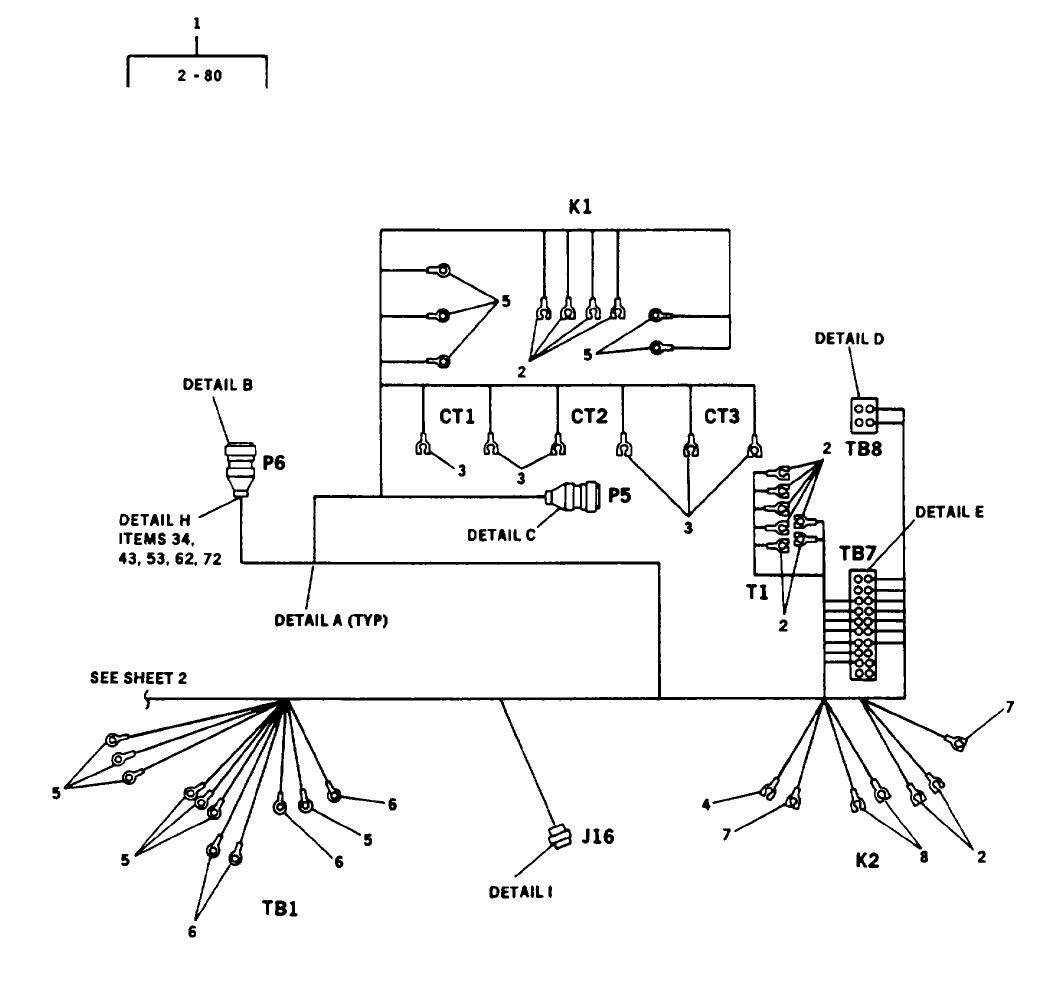

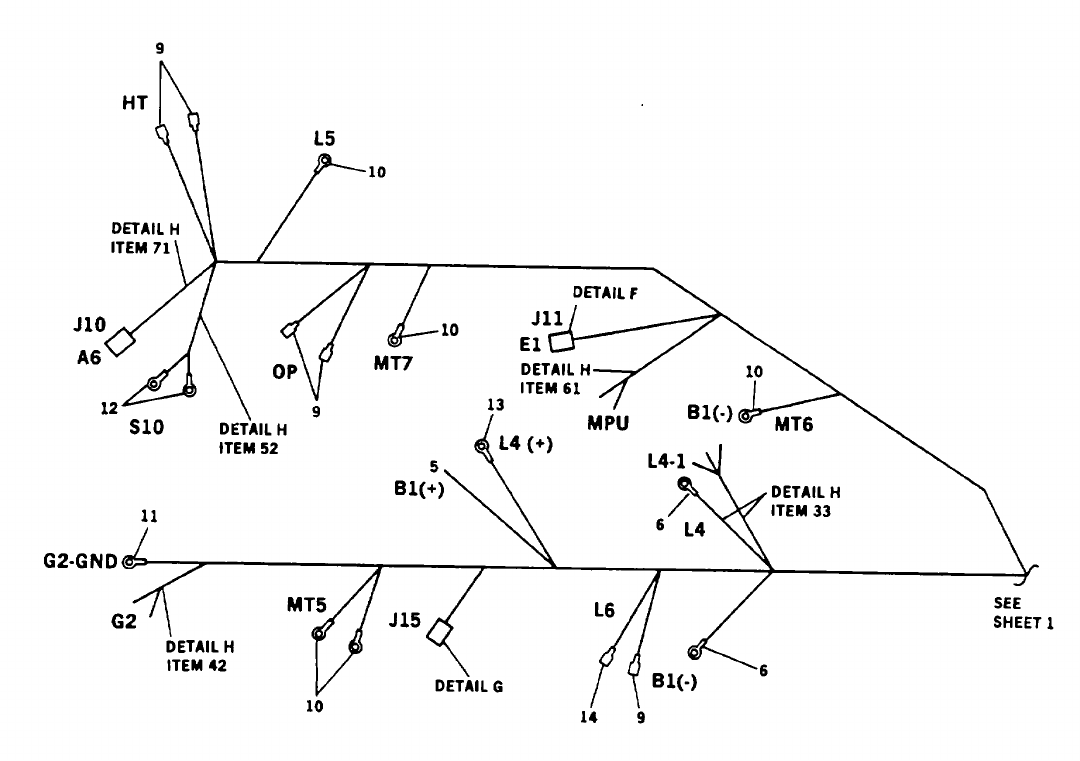

Engine/Output Box Harness

Assembly ...................................................................................... 16-1 16

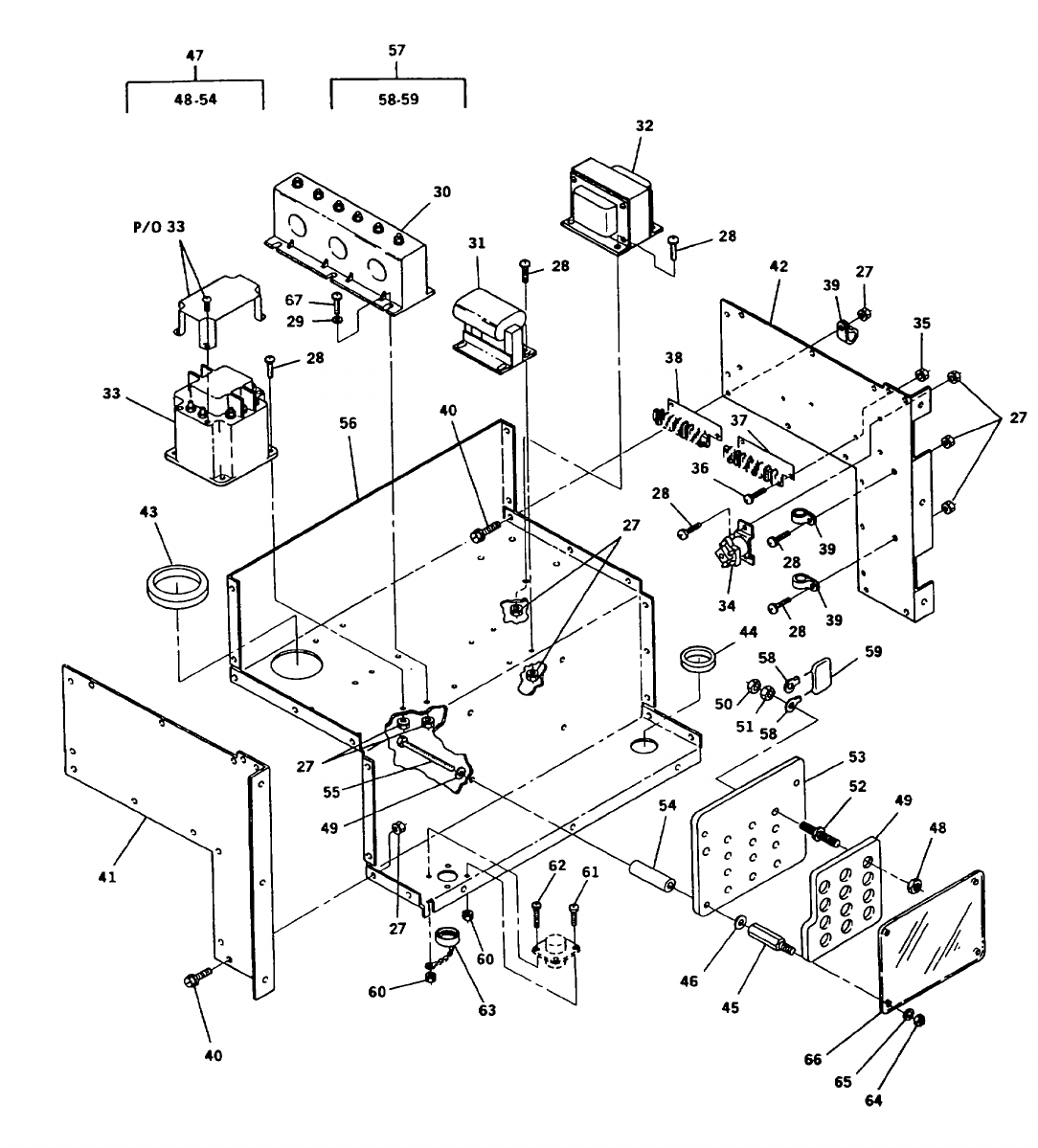

Output Box Assembly . ........................................................................ 17-1 17

Group 08 Output Load Terminal Board................................................................

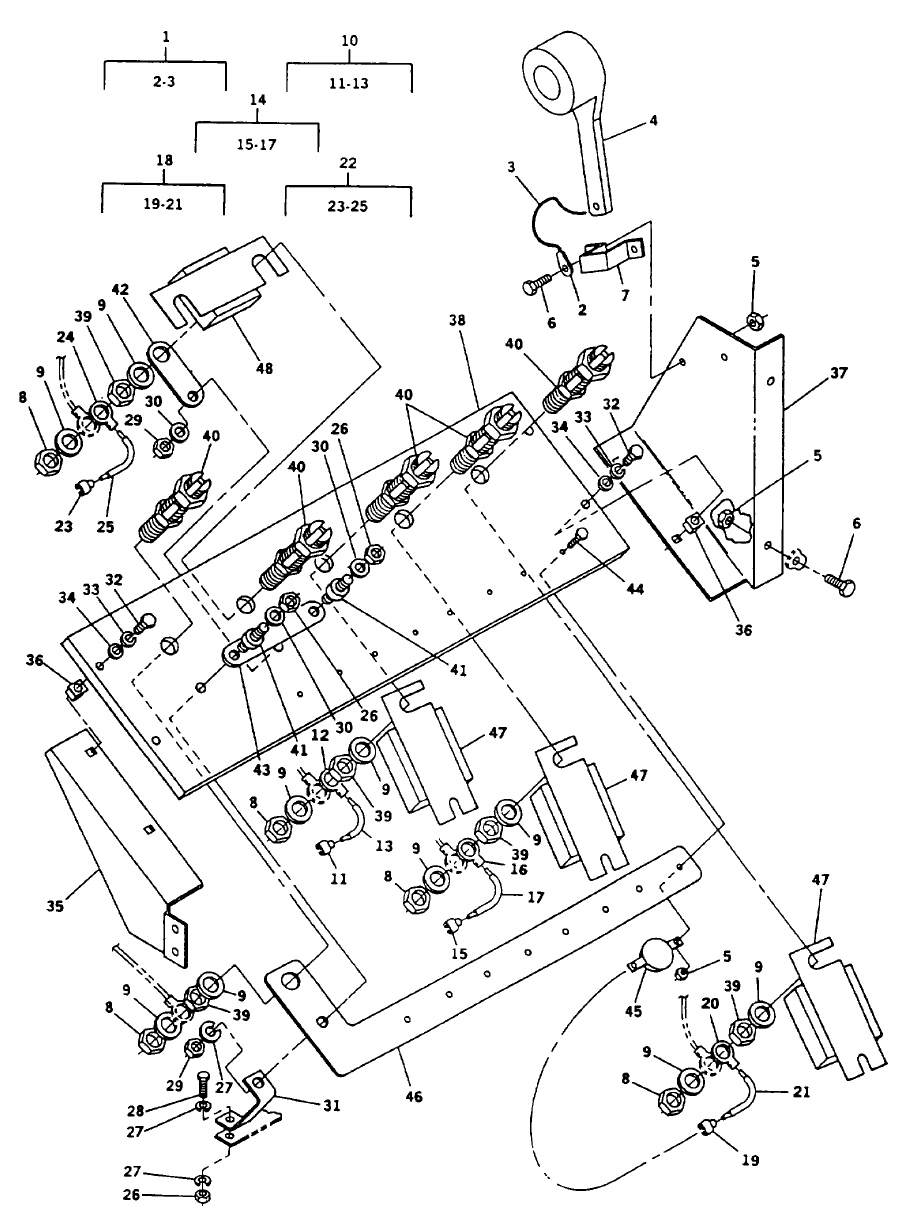

Load Terminal Board . ......................................................................... 18-1 18

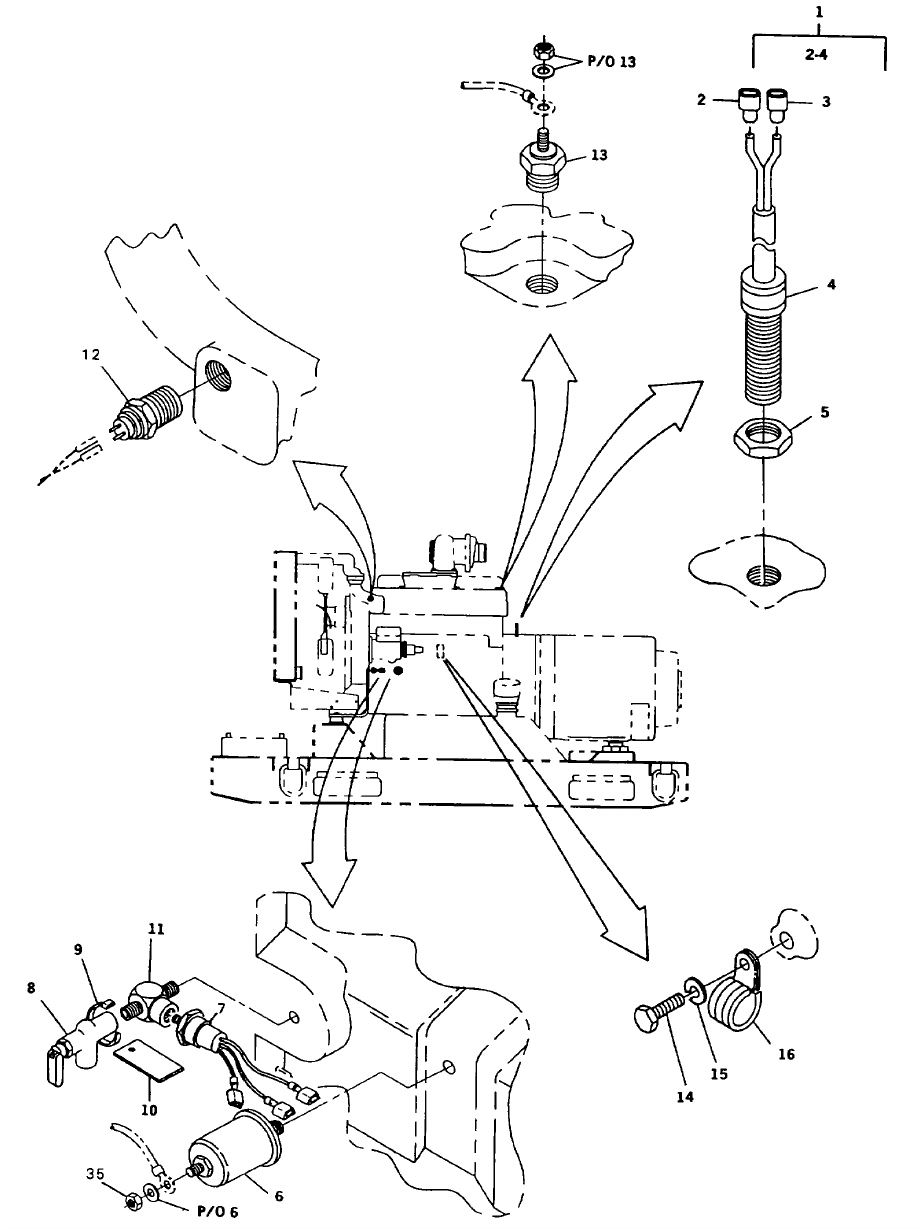

Group 09 Engine Accessories..............................................................................

Engine Accessories ............................................................................. 19-1 19

Group 10 Lubrication System ..............................................................................

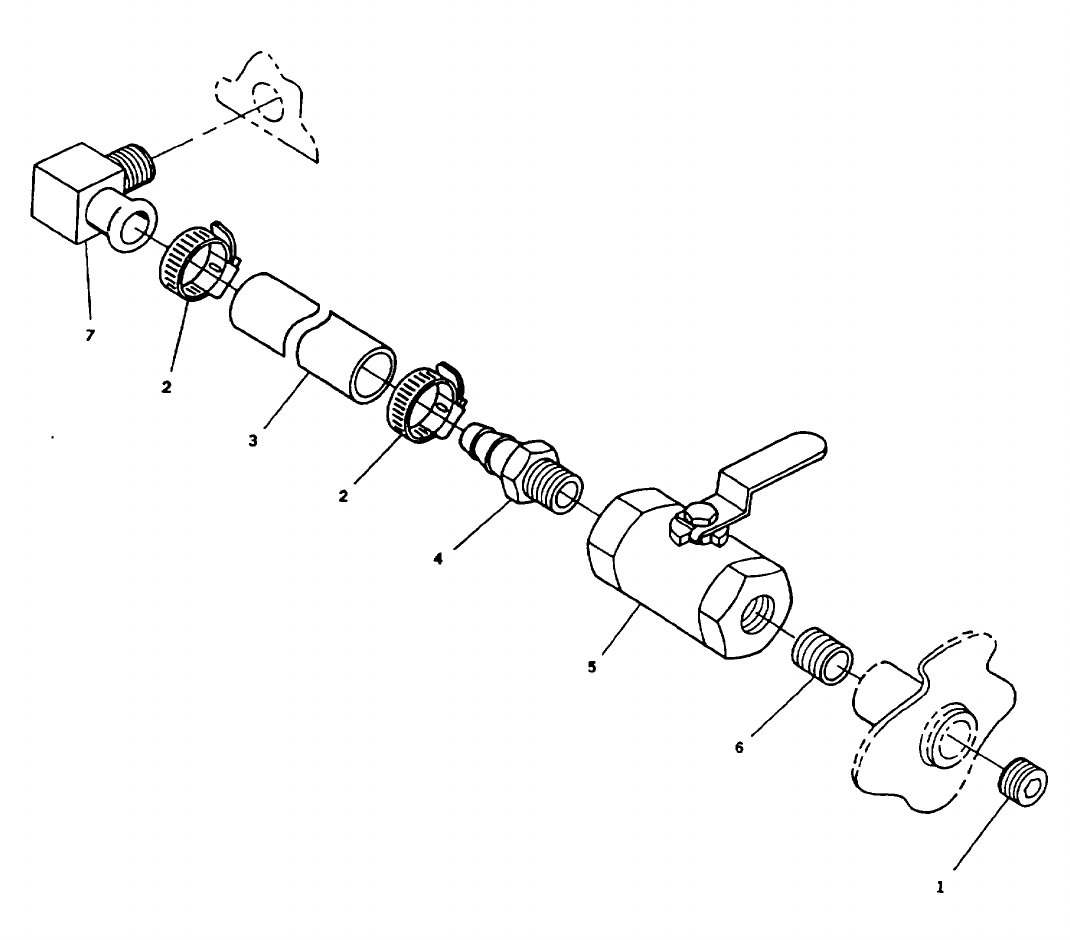

Oil Drain Line ...................................................................................... 20-1 20

Group 11 Generator Assembly ............................................................................

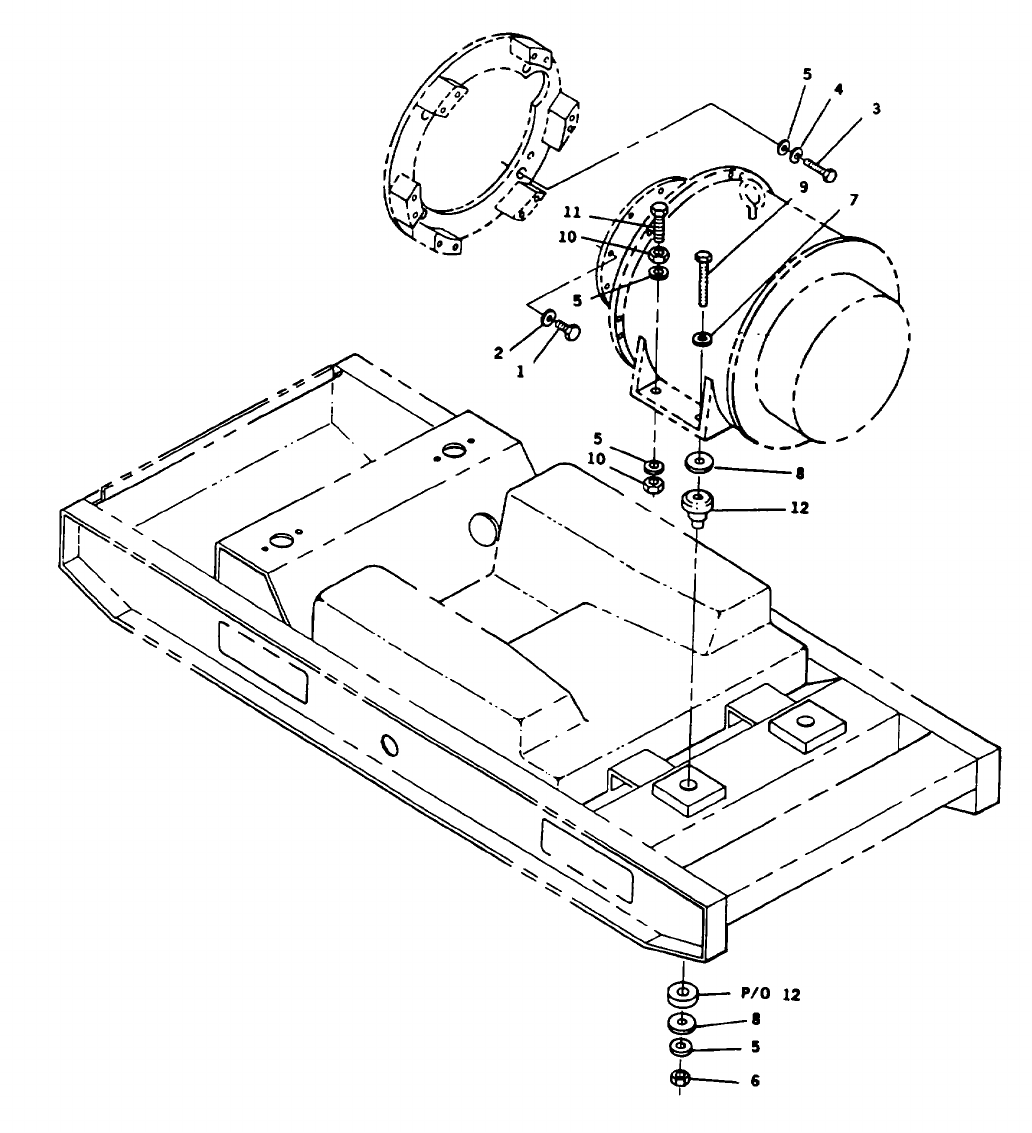

Generator Installation .......................................................................... 21-1 21

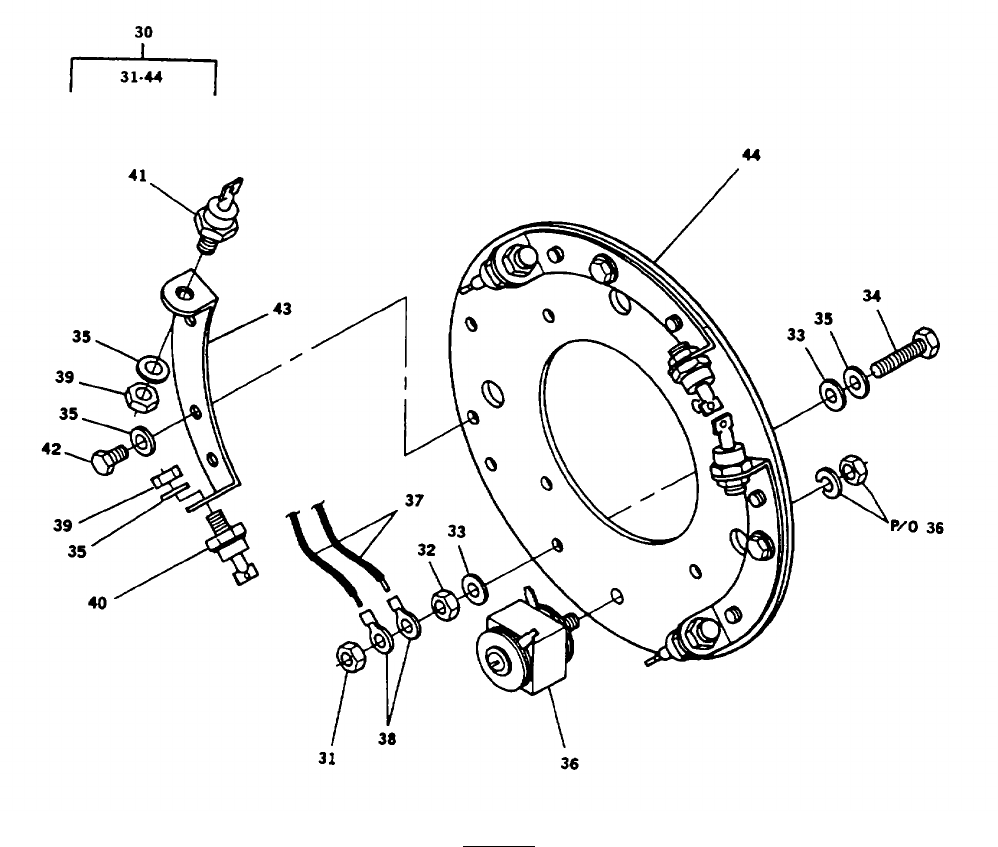

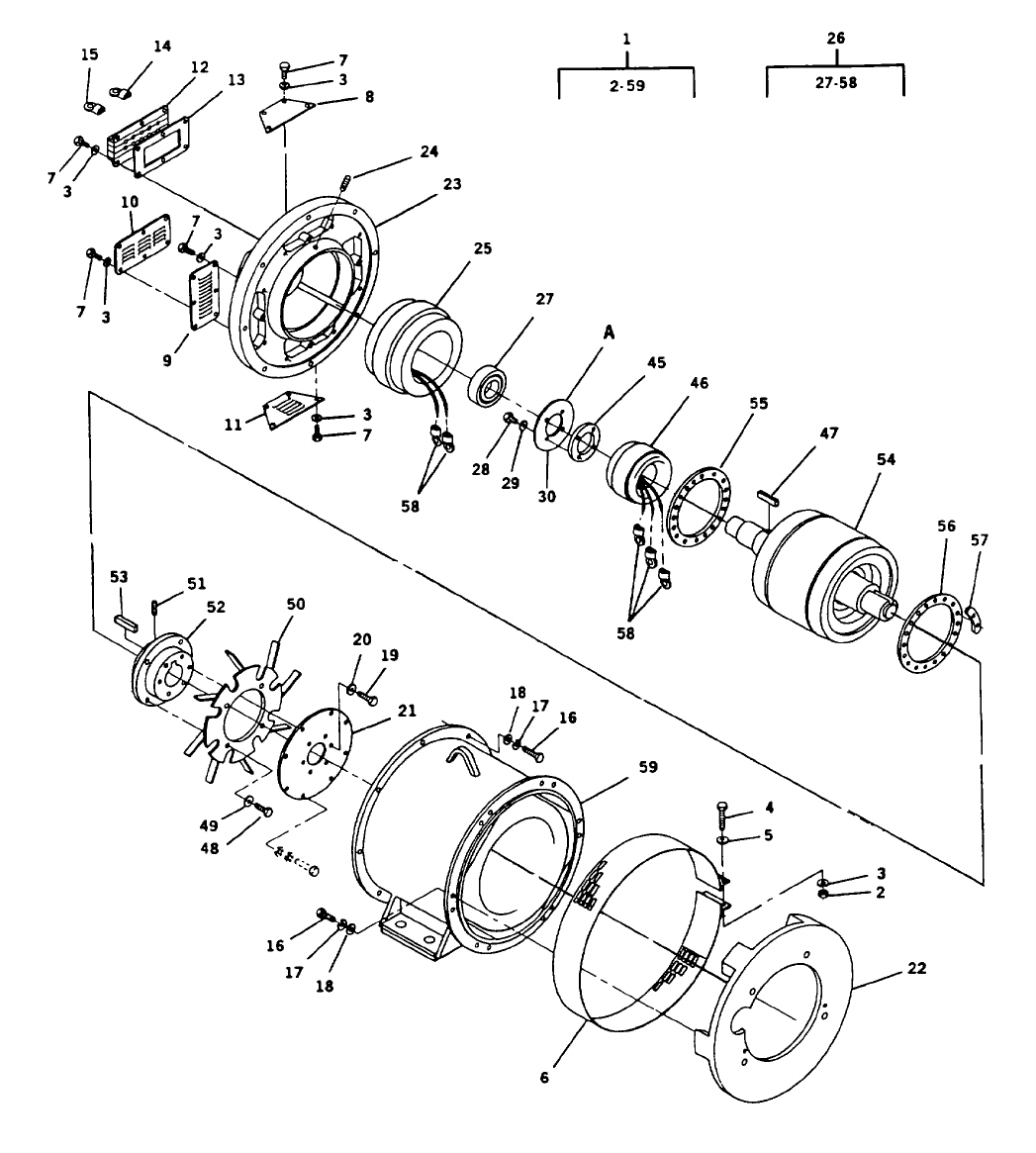

Generator Assembly, 50/60 Hz ............................................................ 22-1 22

Generator Assembly, 400 Hz ............................................................... 23-1 23

Group 12 Engine Assembly . ...............................................................................

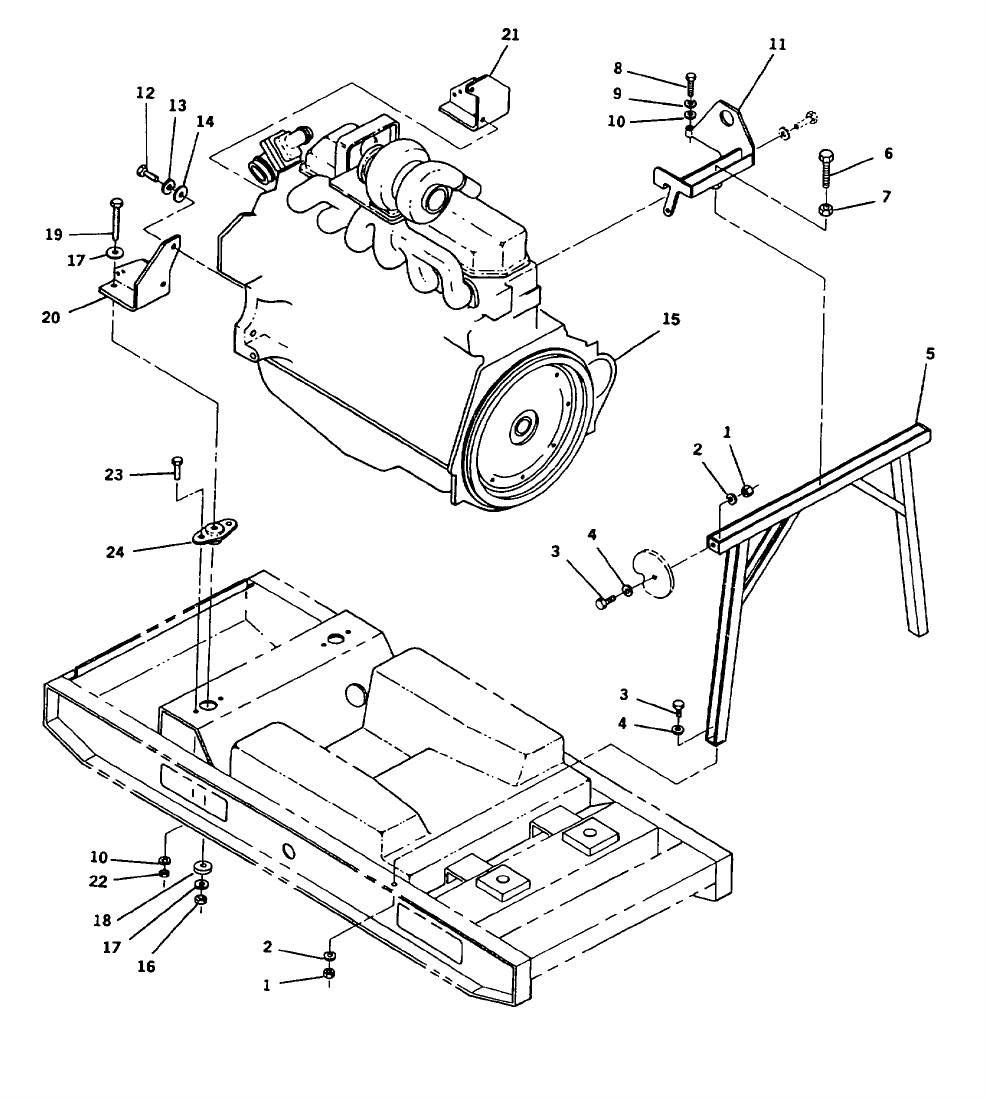

Engine Installation ............................................................................... 24-1 24

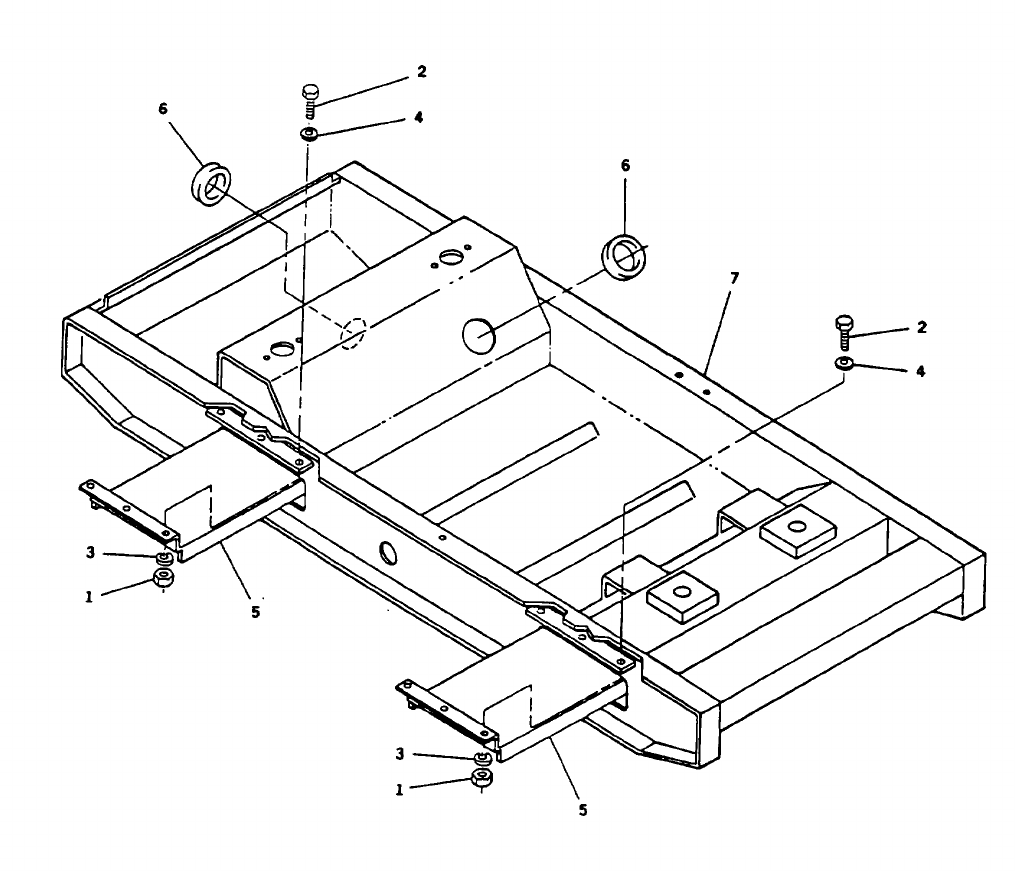

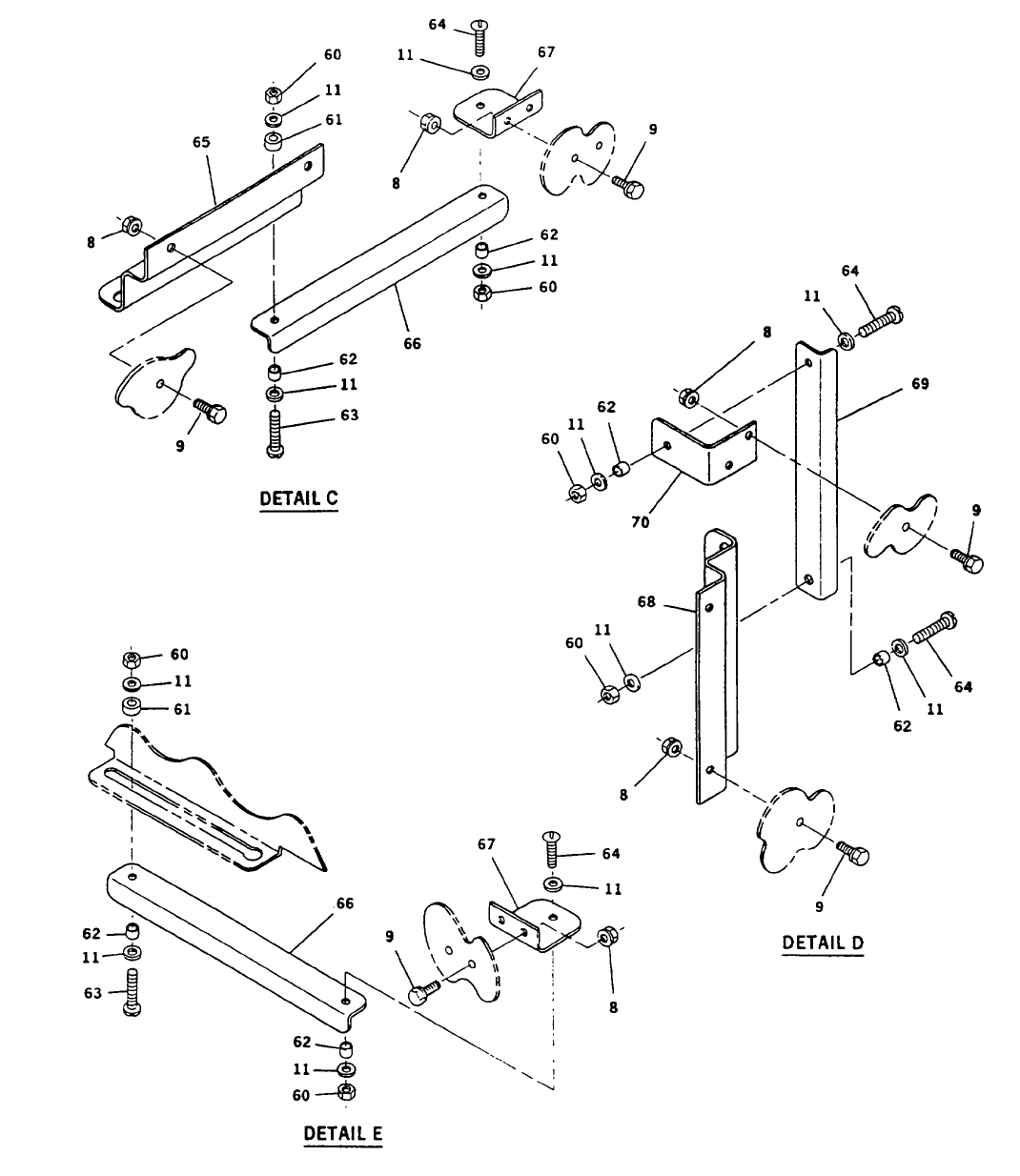

Group 13 Skid Base . ..........................................................................................

Skid Base . .......................................................................................... 25-1 25

Group 14 Bulk Items ........................................................................................... Bulk-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

TABLE OF CONTENTS - Continued Page Illus/

Figure

Section III. SPECIAL TOOLS LIST ....................................................................... 26-1

Section IV. CROSS REFERENCE INDEXES ........................................................ I-1

National Stock Number Index ........................................................ I-1

Part Number Index . ...................................................................... I-10

Figure and Item Number Index ...................................................... I-40

iii/iv (blank)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

UNIT, DIRECT SUPPORT, AND

GENERAL SUPPORT MAINTENANCE

REPAIR PARTS AND SPECIAL TOOLS LIST

SECTION I. INTRODUCTION

1. Scope.

This RPSTL lists and authorizes spares and repair parts; special tools; special test, measurement, and diagnostic

equipment (TMDE); and other special support equipment required for performance of unit, direct support, and general

support maintenance of the Generator Set. It authorizes the requisitioning, issue and disposition of spares, repair parts

and special tools as indicated by the source, maintenance and recoverability (SMR) codes.

2. General.

In addition to Section I, Introduction, this Repair Parts and Special Tools List is divided into the following sections:

a. Section II. Repair Parts List. A list of spares and repair parts authorized by this RPSTL for use in the

performance of maintenance. The list also includes parts which must be removed for replacement of the authorized

parts. Parts lists are composed of functional groups in ascending figure and item number sequence. Bulk materials are

listed in item name sequence. Repair parts kits are listed separately in their own functional group within Section II.

Repair parts for repairable special tools are also listed in this section. Items listed are shown on the associated

illustration(s)/figure(s).

b. Section III. Special Tools List. A list of special tools, special TMDE, and other special support equipment

authorized by this RPSTL (as indicated by Basis of Issue (BOI) information in DESCRIPTION AND USABLE ON CODE

column) for the performance of maintenance.

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

2. General. - (Continued)

c. Section IV. National Stock Number and Part Number Index. A list, in National Item Identification Number

(NIIN) sequence, of all national stock numbered items appearing in the listing, followed by a list in alphanumeric

sequence of all part numbers appearing in the listings. National stock numbers and part numbers are cross-referenced to

each illustration figure and item number appearance.

3. Explanation of Columns (Sections II and III).

a. ITEM NO. (Column (1). Indicates the number used to identify items called out in the illustration.

b. SMR CODE (Column (2). The Source, Maintenance, and Recoverability (SMR) code is a 5-position code

containing supply/requisitioning information, maintenance category authorization criteria, and disposition instruction, as

shown in the following breakout:

Source

Code Maintenance

Code Recoverability

Code

XX XX X

How you get an item. 3d position 4th position

Who can install, Who can do

replace or use complete

the item. Repair (see

note) on the

item.

Who determines

disposition action

on an unserviceable

the item.

*Complete Repair: Maintenance capacity, capability, and authority to perform all corrective maintenance tasks of the

"Repair" function in a use/user environment in order to restore serviceability to a failed item.

(1) Source Code. The source code tells you how to get an item needed for maintenance, repair, or overhaul of

an end item/equipment. Explanations of source codes follows:

two

positions

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

3. Explanation of Columns (Sections II and III). - (Continued)

Code Explanation

PB Stocked items; use the applicable NSN to request/re-

PC** equisition items with these source codes. They are

PD authorized to the category indicated by the code

PE entered in the 3rd position of the SMR code.

PG **NOTE: Items coded PC are subject to deterioration.

Code Explanation

Items with these codes are not to be requested/

KD requisitioned individually. They are part of a

KF kit which is authorized to the maintenance category

KB indicated in the 3rd position of the SMR code. The

complete kit must be requisitioned and applied.

Code Explanation

MO- (Made at org/ Items with these codes are not to be

AVUM Level) requested/requisitioned individually. They

MF- (Made at DS/ must be made from bulk material which is

AVIM Level) identified by the part number in the

MH- (Made at GS> DESCRIPTION AND USABLE ON CODE (UOC)

Level) column and listed in the Bulk Material

ML- (Made at Spe- group of the repair parts list in this

cialized Repair RPSTL. If the item is authorized to you

Activity (SRA) by the 3rd position code of the SMR

code,

MD- (Made at Depot) but the source code indicates it is made

at a higher level, order the item from

the higher level of maintenance.

AO- (Assembled by Items with these codes are not to be

org/AVUM Level) requested/requisitioned individually. The

AF- (Assembled by parts that make up the assembled item must

DS/AVIM Level) be requisitioned or fabricated and

AH- (Assembled by assembled at the level of maintenance

GS Category) indicated by the source code. If the 3rd

AL- (Assembled by position code of the SMR code authorizes

SRA) you to replace the item, but the source

AD- (Assembled by code indicates the item is assembled at a

Depot) higher level, order the item from the

higher level of maintenance.

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

3. Explanation of Columns (Sections II and III). - (Continued)

XA - Do not requisition an "XA"-coded item. Order its next higher assembly. (Also, refer to the NOTE below.)

XB - If an "XB" item is not available from salvage, order it using the FSCM and part number given.

XC - Installation drawing, diagram, instruction sheet, field service drawing, that is identified by manufacturer's part

number.

XD - Item is not stocked. Order an "XD"-coded item through normal supply channels using the FSCM and part number

given, if no NSN is available.

NOTE: Cannibalization or controlled exchange, when authorized, may be used as a source of supply for items

with the above source codes, except for those source coded "XA" or those aircraft support items restricted by

requirements of AR 700-42.

(2) Maintenance Code. Maintenance codes tell you the level(s) of maintenance authorized to USE and REPAIR

support items. The maintenance codes are entered in the 3rd and 4th positions of the SMR Code as follows:

(a) The maintenance code entered in the 3rd position tells you the lowest maintenance level authorized to

remove, replace, and use an item. The maintenance code entered in the 3rd position will indicate authorization to one of

the following levels of maintenance.

Code Application/Explanation

C-Crew or operator maintenance done within

organization or aviation unit maintenance.

O-Organizational or aviation unit category can

remove, replace, and use the item.

F-Direct support or aviation intermediate level

can remove, replace, and use the item.

H-General support level can remove, replace,

and use the item.

L-Specialized repair activity can remove,

replace, and use the item.

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

3. Explanation of Columns (Sections II and III). - (Continued)

Code Application/Explanation

D-Depot level can remove, replace, and use the item.

(b) The maintenance code entered in the 4th position tells whether or not the item is to be

repaired and identifies the lowest maintenance level with the capability to do complete repair (i. e. , perform all

authorized repair functions. ) (NOTE: Some limited repair may be done on the item at a lower level of maintenance, if

authorized by the Maintenance Allocation Chart (MAC) and SMR Codes.) This position will contain one of the following

maintenance codes.

Code Application/Explanation

O-Organizational or (aviation unit) is the lowest level that can do complete repair of the item.

F-Direct support or aviation intermediate is the lowest level that can do complete repair of the

item.

H-General support is the lowest level that can do complete repair of the item.

L-Specialized repair activity (designate the specialized repair activity) is the lowest level that can

do complete repair of the item.

D-Depot is the lowest level that can do complete repair of the item.

Z-Nonrepairable. No repair is authorized.

B-No repair is authorized. (No parts or special tools are authorized for the maintenance of a "B"

coded item). However, the item may be reconditioned by adjusting, lubricating, etc. , at the user

level.

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

3. Explanation of Columns (Sections II and III). (Continued)

(3) Recoverability Code. Recoverability codes are assigned to items to indicate the disposition

action on unserviceable items. The recoverability code is entered in the 5th position of the SMR Code as follows:

Recoverability Application/Explanation

Codes

Z-Nonrepairable item. When unserviceable, condemn and dispose of the item at the level of

maintenance shown in 3rd position of SMR Code.

O-Repairable item. When uneconomically repairable, condemn and dispose of the item at

organizational or aviation unit level.

F-Repairable item. When uneconomically repairable, condemn and dispose of the item at the direct

support or aviation intermediate level.

H-Repairable item. When uneconomically repairable, condemn and dispose of the item at the general

support level.

D-Repairable item. When beyond lower level repair capability, return to depot. Condemnation and

disposal of item not authorized below depot level.

L-Repairable item. Condemnation and disposal not authorized below specialized repair activity (SRA).

A-Item requires special handling or condemnation procedures because of specific reasons (e. g.,

precious metal content, high dollar value, critical material, or hazardous material). Refer to

appropriate manuals/directives for specific instructions.

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

3. Explanation of Columns (Sections II and III). - (Continued)

c. FSCM (Column (3)). The Federal Supply Code for Manufacturer (FSCM) is a 5-digit numeric code which

is used to identify the manufacturer, distributor, or Government agency, etc. , that supplies the item.

d. PART NUMBER (Column (4)). Indicates the primary number used by the manufacturer (individual,

company, firm, corporation, or Government activity), which controls the design and characteristics of the item by means

of its engineering drawings, specifications standards, and inspection requirements to identify an item or range of items.

NOTE: When you use a NSN to requisition an item, the item you receive may have a different part number from

the part ordered.

e. DESCRIPTION AND USABLE ON CODE (UOC) (Column (5)). This column includes the following

information:

(1) The Federal item name and, when required, a minimum description to identify the item.

(2) Items that are included in kits and sets are listed below the name of the kit or set.

(3) Spare/repair parts that make up an assembled item are listed immediately following the assembled

item line entry.

(4) Part numbers for bulk materials are referenced in this column in the line item entry for the item to be

manufactured/ fabricated.

(5) When the item is not used with all serial numbers of the same model, the effective serial numbers are

shown on the last line(s) of the description (before UOC).

(6) The UOC, when applicable (see paragraph 5, Special Information).

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

3. Explanation of Columns (Sections II and III). (Continued)

(7) In the Special Tools List section, the Basis of Issue (BOI) appears as the last line(s) in the entry for each

special tool, special TMDE, and other special support equipment. When density of equipments supported exceeds

density spread indicated in the BOI, the total authorization is increased proportionately.

(8) The statement "END OF FIGURE" appears just below the last item description in Column 5 for a given

figure in Section II.

f. QTY (Column (6)). The QTY (quantity per figure column) indicates the quantity of the item used in the

breakout shown on the illustration figure, which is prepared for a functional group, subfunctional group, or an assembly.

A "V" appearing in this column in lieu of a quantity may vary from application to application.

4. Explanation of Columns (Section IV).

a. NATIONAL STOCK NUMBER (NSN) INDEX.

(1) STOCK NUMBER Column. This column lists the NSN by National Item Identification Number (NIIN)

sequence. The NIIN consists of the last nine digits of the NSN

NSN

(i.e., 5305-01-674-1467). When using this column to locate an NIIN item, ignore the first 4 digits of the NSN. However,

the complete NSN should be used when ordering items by stock number.

(2) FIG. Column. This column lists the number of the figure where the item is identified/located. The

figures are in numerical order in Section II and Section III.

(3) ITEM Column. The item number identifies the item associated with the figure listed in the adjacent

FIG. Column. This item is also identified by the NSN listed on the same line.

b. PART NUMBER INDEX. Part numbers in this index are listed by part number in ascending alphanumeric

sequence (i. e. , vertical arrangement of letter and number combination which places the first letter or digit of each

group in order A through Z, followed by numbers 0 through 9 and each following letter or digit in like order).

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

4. Explanation of Columns (Section IV). - (Continued)

(1) FSCM Column. The Federal Supply Code for Manufacturer (FSCM) is a 5-digit numeric

code used to identify the manufacturer, distributor, or Government agency, etc. , that supplies the item.

(2) PART NUMBER Column. Indicates the primary number used by the manufacturer (individual,

firm, corporation, or Government activity), which controls the design and characteristics of the item by means of its

engineering drawings, specifications standards, and inspection requirements to identify an item or range of items.

(3) STOCK NUMBER Column. This column lists the NSN for the associated part number and

manufacturer identified in the PART NUMBER and FSCM columns to the left.

(4) FIG. Column. This column lists the number of the figure where the item is identified/located in

Section II and III.

(5) ITEM Column. The item number is that number assigned to the item as it appears in the figure

referenced in the adjacent figure number column.

5. Special Information.Use the following subparagraphs as applicable:

a. USABLE ON CODE. The usable on code appears in the lower left corner of the Description column heading.

Usable on codes are shown as "UOC: . . .applicable item description/nomenclature. Uncoded items are applicable to all

models. Identification of the usable on codes used in the RPSTL are:

Code Used On

EMM 60kW, 50/60 Hz Generator Set,

Model MEP-806A

EPC 60kW, 400 Hz Generator Set,

Model MEP-816A

b. FABRICATION INSTRUCTIONS. Bulk materials required to manufacture items are listed in the Bulk

Material Functional Group of this RPSTL. Part numbers for bulk materials are also referenced in the description column

of the line item entry for the item to be manufactured/fabricated. Detailed fabrication instructions for item source codes

to be manufactured or fabricated are found in TM 9-6115-645-24.

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

5. Special Information. - (Continued)

c. ASSEMBLY. INSTRUCTION. Detailed assembly instructions for items source coded to be assembled from

component spare/repair parts are found in TM 9-6115-645-24. Items that make up the assembly are listed immediately

following the assembly item entry or reference is made to an applicable figure.

d. KITS. Line item entries for repair parts kits appear throughout Section II.

e. ASSOCIATED PUBLICATIONS, The publication(s) listed below pertain to 60kW Generator Set, Model

MEP-806A and MEP-816A. and its components:

Publication Short Title

LO 9-6115-645-12 Lubrication Order, 60kW Generator Set

TM 9-6115-645-10 Operator's Manual, 60kW Generator Set

TM 9-6115-645-24 Maintenance Manual, 60kW Generator

Set

TM 9-2815-256-24 Maintenance Manual, Diesel Engine,

Model No. 6059T

TM 9-2815-256-24P RPSTL, Diesel Engine, Model No. 6059T

6. How to Iocate Repair Parts.

a. When National Stock Number or Part Number is Not Known.

(1) First. Using the Table of Contents, determine the assembly group or subassembly group to which the

item belongs. This is necessary since figures are prepared for assembly groups and subassembly groups, and listings

are divided into the same groups.

(2) Second. Find the figure covering the assembly group or subassembly group to which the item

belongs.

(3) Third. Identify the item on the figure and note the item number.

(4) Fourth. Refer to-the Repair Parts List for the figure to find the part number for the item number noted

on the figure.

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

6. How to Locate Repair Parts. - Continued

(5) Fifth. Refer to the Part Number Index to find the NSN, if assigned.

b. When National Stock Number or Part Number is Known.

(1) First. Using the Index of National Stock Numbers and Part Numbers, find the pertinent National Stock

Number or Part Number. The NSN index is in National Item Identification Number (NIIN) sequence (see 4. a(1l)). The

part numbers in the Part Number index are listed in ascending alphanumeric sequence (see 4. b). Both indexes cross-

reference you to the illustration figure and item number of the item you are looking for.

(2) Second. After finding the figure and item number, verify that the item is the one you're looking for, then

locate the item number in the repair parts list for the figure.

7. Abbreviations. (Abbreviations must be applicable to specific RPSTL and not listed in MIL-STD-12).

Abbreviations Explanation

AVIM Aviation Intermediate

Maintenance

AVUM Aviation Unit Maintenance

BOI Basis of Issue

DS Direct Support

GS General Support

MAC Maintenance Allocation

Chart

NIIN National Item

Identification Number

(consists of the last

9-digits of the NSN)

NSN National Stock Number

RPSTL Repair Parts and

Special Tools List

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

7. Abbreviations. - Continued

Abbreviations Explanation

SMR Source, Maintenance and

Recoverability Codes

SRA Specialized Repair Activity

TMDE Test, Measurement and

Diagnostic Equipment

UOC Usable on Code

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 1. Batteries and Cables (Sheet 1 of 2)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

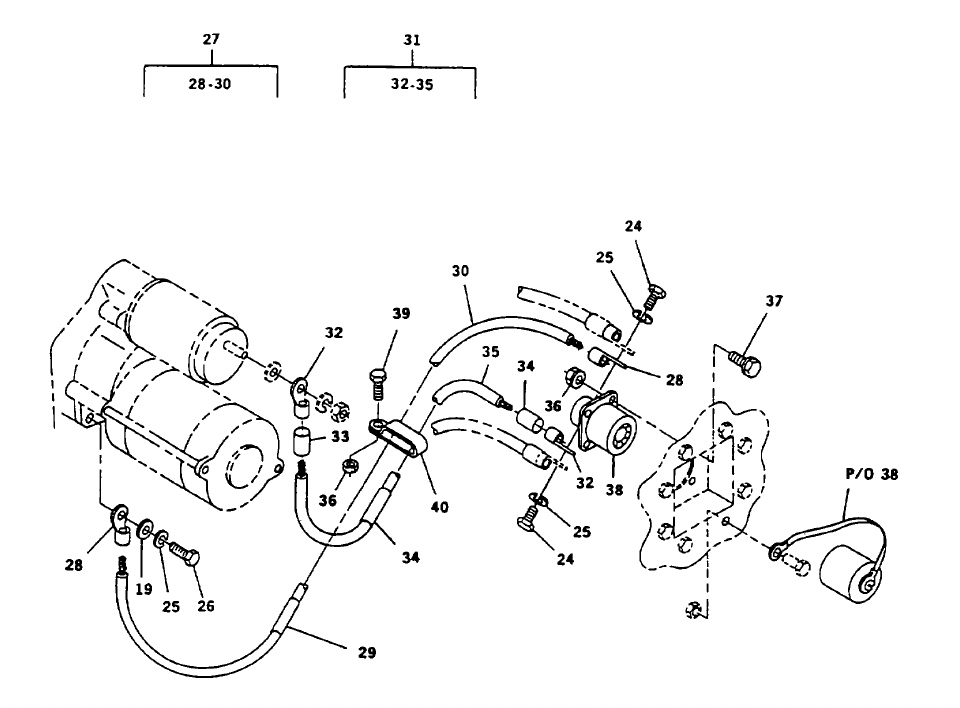

FIGURE 1. Batteries and Cables (Sheet 2 of 2)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 01 - D.C.ELECTRICAL

SYSTEM

FIG. 1 BATTERIES AND

CABLES

1PAOZA PAOZA PAOZA 96906 A52425-2 .TERMINAL,LUG NEGATIVE. 2 2

2PAOZZ PAOZZ PAOZZ 96906 A52425-1 .TERMINAL,LUG POSITIVE. 2 2

3AOOOO AOO AOOOO 30554 88-22127 .CABLE ASSY. BATTERY 1 1

4PAOZZ PAOZZ PAOZZ 98410 H-780-38 ..TERMINAL,LUG 2 2

5MOOZZ MOO MOOZZ 30554 88-22127-3 ..INSULATION,SLEEVING 2 2

MAKE FROM INSULATION,

SLEEVING, (WHITE), P IN

M23053/5-110-9 (81349), AS

REQUIRED.

6MOOZZ MOO MOOZZ 30554 88-22127-1 ..WIRE, ELECTRICAL MAKE 1 1

FROM CABLE, 1/0 AWG, PIN

J1127SGR1AWG BLK (81343),

47 INCHES REQUIRED.

7AOOOO AOO AOOOO 30554 88-22179 .LEAD,STORAGE,BATTER 1 1

8PAOZZ PAOZZ PAOZZ 98410 H-780-38 ..TERMINAL, LUG 2 2

9MOOZZ MOO MOOZZ 30554 88-22179-3 ..INSULATION,SLEEVING 2 2

MAKE FROM INSULATION,

SLEEVING, (RED), P/N

M23053/5-110-2 (81349), AS

REQUIRED.

10 MOOZZ MOO MOOZZ 30554 88-22179-4 ..INSULATION,SLEEVING 1 1

MAKE FROM INSULATION,

SLEEVING, (WHITE), P IN

M23053/5-110-9 (81349), AS

REQUIRED.

11 MOOZZ MOO MOOZZ 30554 88-22179-1 ..WIRE, ELECTRICAL MAKE 1 1

FROM CABLE, 1/0 AWG, P/N

J1127SGR1AWG BLK (81343),

14 INCHES REQUIRED.

12 AOOOO AOO AOOOO 30554 88-22207 .CABLE, BATTERY 1 1

13 PAOZZ PAOZZ PAOZZ 98410 H-780-38 ..TERMINAL,LUG 2 2

14 MOOZZ MOO MOOZZ 30554 88-22207-3 ..INSULATION,SLEEVING 2 2

MAKE FROM INSULATION,

SLEEVING, (RED), PIN

M23053/5-110-2 (81349), AS

REQUIRED.

15 MOOZZ MOO MOOZZ 30554 88-22207-4 ..INSULATION, SLEEVING 1 1

MAKE FROM INSULATION,

SLEEVING, (WHITE), P IN

M23053/5-110-9 (81349), AS

REQUIRED.

16 MOOZZ MOO MOOZZ 30554 88-22207-1 ..WIRE, ELECTRICAL MAKE 1 1

FROM CABLE, 1/0 AWG, PIN

J1127SGR1AWG BLK (81343),

15 INCHES REQUIRED.

1-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

17 PAOZZ PAOZZ PAOZZ 93568 10942521 .COVER,BATTERY TERMI 4 4

18 PAOZZ PAOZZ PAOZZ 96906 MS51971-3 .NUT,PLAIN,HEX 4 4

19 PAOZZ PAOZZ PAOZZ 96906 MS51412-7 .WASHER,FLAT 4 23

20 XDOZZ XB XBOZZ 30554 88-21684 .BATTERY HOLD DOWN 1 1

21 PAOZZ PAOZZ PAOZZ 30554 88-21685 .BOLT,HOOK 2 2

22 PAOZA PAOZA PAOZA 96906 MS52149-1 .BATTERY,STORAGE 2 2

23 XDOZZ XB XBOZZ 30554 88-21683 .TRAY, BATTERY 1 1

24 PAOZZ PAOZZ PAOZZ 80204 B1821BH038F063N .SCREW,CAP,HEXAGON H 2 2

25 PAOZZ PAOZZ PAOZZ 96906 MS35338-65 .WASHER,LOCK 4 35

26 PAOZZ PAOZZ PAOZZ 80204 B1821BH038C150N .SCREW,CAP,HEXAGON H 1 2

27 AOOOO AOO AOOOO 30554 88-22206 .CABLE ASSY, BATTERY 1 1

28 PAOZZ PAOZZ PAOZZ 98410 H-780-38 ..TERMINAL,LUG 2 2

29 MOOZZ MOO MOOZZ 30554 88-22206-3 ..INSULATION,SLEEVING 1 1

MAKE FROM INSULATION,

SLEEVING, (WHITE), P /N

M23053/5-110-9 (81349), AS

REQUIRED.

30 MOOZZ MOO MOOZZ 30554 88-22206-1 ..WIRE, ELECTRICAL MAKE 1 1

FROM CABLE, 1/0 AWG, PIN

J1127SGR1AWG BLK (81343),

59 INCHES REQUIRED.

31 AOOOO AOO AOOOO 30554 88-22208 .CABLE, BATTERY 1 1

32 PAOZZ PAOZZ PAOZZ 98410 H-780-38 ..TERMINAL,LUG 2 10

33 MOOZZ MOO MOOZZ 30554 88-22208-3 ..INSULATION,SLEEVING 1 2

MAKE FROM INSULATION,

SLEEVING, (RED), P/N

M23053/5-110-2 (81349), AS

REQUIRED.

34 MOOZZ MOO MOOZZ 30554 88-22208-4 ..INSULATION,SLEEVING 1 1

MAKE FROM INSULATION,

SLEEVING, (WHITE), P /N

M23053/5-110-9 (81349), AS

REQUIRED.

35 MOOZZ MOO MOOZZ 30554 88-22208-1 ..WIRE, ELECTRICAL MAKE 1 1

FROM CABLE, 1/0 AWG, P/N

J1127SGR1AWG BLK (81343),

57 INCHES REQUIRED.

36 PAOZZ PAOZZ PAOZZ 81205 2740-0003 .NUT,PLAIN,ASSEMBLED 5 438

37 PAOZZ PAOZZ PAOZZ 19207 12325869 .BOLT, MACHINE 4 355

38 PAOZZ PAOZZ PAOZZ 96906 MS52131 .CONNECTOR,RECEPTACL 1 1

39 PAOZZ PAOZZ PAOZZ 30554 88-20260-23 .SCREW, CAP, HEXAGON H 1 91

40 PAOZZ PAOZZ PAOZZ 96906 MS21334-31 .CLAMP, LOOP 1 1

END OF FIGURE

1-2

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

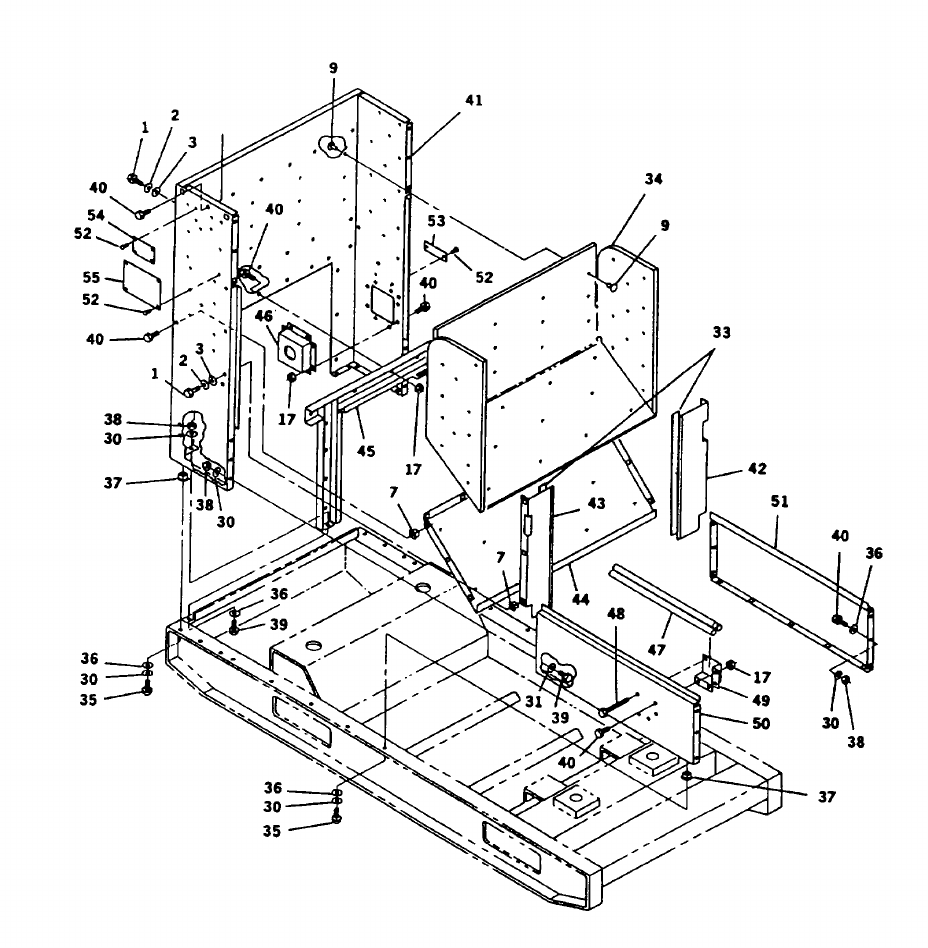

FIGURE 2. Access Doors and Covers (Sheet 1 of 4)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 2. Access Doors and Covers (Sheet 2 of 4)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 2. Access Doors and Covers (Sheet 3 of 4)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 2. Access Doors and Covers (Sheet 4 of 4)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 02 -HOUSING

FIG. 2 ACVESS DOORS AND

COVERS

1PAOZZ PAOZZ PAOZZ 83385 841-6-32 .NUT,PLAIN,ASSEMBLED 18 52

2PAOZZ PAOZZ PAOZZ 45722 P-15121-20 .SCREW,ASSEMBLED WAS 2 17

3PAOZZ PAOZZ PAOZZ 31827 MF6T-TPR87-B .BUMPER,NONMETALLIC 2 2

4MOOZZ MOO MOOZZ 30554 88-22705 .SEAL, DOOR MAKE FROM 1 1

SEAL, PIN 20941 (56329), AS

REQUIRED

5PAOZZ PAOZZ PAOZZ 30554 88-20260-23 .SCREW,CAP,HEXAGON H 8 91

6XDOZZ XB XBOZZ 1E045 CAT 380 . RETAINER, DOOR RING 1 1

7XDOZZ XB XBOZZ 1E045 CAT 370 RING, DOOR 1 1

8PAOZZ PAOZZ PAOZZ 81205 2740-0003 .NUT,PLAIN,ASSEMBLED 132 438

9PAOZZ PAOZZ PAOZZ 19207 12325869 .BOLT,MACHINE 88 355

10 PAOZZ PAOZZ PAOZZ 96906 MS35338-62 .WASHER,LOCK 20 103

11 PAOZZ PAOZZ PAOZZ 96906 MS51412-2 .WASHER,FLAT 34 138

12 XDOZZ XB XBOZZ 30554 88-21870 .TOP, CONTROL BOX 1 1

13 PAOZZ PAOZZ PAOZZ 30554 88-22793-4 .SCREW,MACHINE 56 58

14 MOOZZ MOOMOOZZ 30554 88-21877 .HINGE, DOOR, CONTRO 1 1

MAKE FROM HINGE, P/N

AA07060408 (03007), 2 8

INCHES REQUIRED.

15 PAOZZ PAOZZ PAOZZ 27182 S79SDTXXSXXX . HANDLE,DOOR 9 9

16 MOOZZ MOO MOOZZ 30554 88-22708 . SEAL,EMI MAKE FROM PIN 1 1

5798-190Z-3-75.0 (77824), AS

REQ

17 XDOZZ XB XBOZZ 30554 88-21875 .DOOR, CONTROL BOX 1 1

18 PAOZZ PAOZZ PAOZZ 96906 MS35338-63 .WASHER,LOCK 50 129

20 PAOZZ PAOZZ PAOZZ 96906 MS51412-4 .WASHER,FLAT 50 142

21 PAOZZ PAOZZ PAOZZ 30554 88-20260-31 .BOLT,MACHINE 26 40

22 XDOZZ XB XBOZZ 30554 88-22077 .STIFFENER ASSY, CON 1 1

23 PAOZZ PAOZZ PAOZZ 30554 88-22791-1 .SCREW,MACHINE 16 16

24 XDOZZ XB XBOZZ 30554 88-20123 PLATE, STRIKER 3 8

25 XDOZZ XB XBOZZ 30554 88-22461 .SUPPORT, DIAGRAM 1 1

26 XDOZZ XB XBOZZ 30554 88-22458 .BAFFLE, REAR RS 1 1

27 XDOZZ XB XBOZZ 02768 236-170406-04 .PIN-RIVET,GROOVED 52 434

28 MOOZZ MOO MOOZZ 30554 88-22616 .INSULATION, AIR BAF MAKE 2 2

FROM FOAM, SOUND

ABSORBING, PIN FF40J M02

(28818), CUT TO SIZE.

2-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

29 MOOZZ MOO MOOZZ 30554 88-22770 .INSULATION,DOOR BAF 1 2

REAR, RS, MAKE FROM P/N

FF40J M02 (28818), CUT TO

SIZE.

30 PBOZZ PBOZZ PBOZZ 78553 C7931-1032-3B .NUT, PLAIN, CLINCH 8 102

31 XDOZZ XB XBOZZ 30554 88-21721 .DOOR, REAR, RS 1 1

32 XDOZZ XB XBOZZ 30554 88-22501 .BRACKET, HOLDING RO 4 4

33 XDOZZ XB XBOZZ 30554 88-22472 .ROD, DOOR HOLDING 4 4

34 XDOZZ XB XBOZZ 30554 88-22500 .BRACKET, LATCH-HOLD 4 4

35 XDOZZ XB XBOZZ 30554 88-22443 .BAFFLE, FRONT DOOR, 2 2

36 MOOZZ MOO MOOZZ 30554 88-22610 .INSULATION, BAFFLE MAKE 2 2

FROM FOAM, SOUND

ABSORBING, P/N FF40J M02

(28818), CUT TO SIZE.

37 MOOZZ MOO MOOZZ 30554 88-22615 .INSULATION, BAFFLE 1 2

FRONT, RS, MAKE FROM PIN

FF40JM02 (28818), CUT TO

SIZE.

38 XDOZZ XB XBOZZ 30554 88-21885 .DOOR, FRONT, RS 1 1

39 XDOZZ XB XBOZZ 30554 88-21585 .DOOR, OUTPUT BOX 1 1

40 MFFZZ MOO MFFZZ 30554 88-21820 HINGE, DOOR, LOAD MAKE 1

FROM P/N AA06060406

(03007), 21.26 INCHES

REQUIRED.

41 XDOZZ XB XBOZZ 30554 88-21771 .DOOR, ACCESS LOAD T 1 1

42 MOOZZ MOO MOOZZ 30554 88-22769 .INSULATION, BAFFLE 1 1

FRONT, LS, MAKE FROM P/N

FF40J M02 (28818), CUT TO

SIZE.

43 XDOZZ XB XBOZZ 30554 88-22457 .BAFFLE, FRONT DOOR 1 1

44 MOOZZ MOO MOOZZ 30554 88-22609 .INSULATION,DOOR REAR, 1 1

LS, MAKE FROM P/N FF40J

M02 (28818), CUT TO SIZE.

45 XDOZZ XB XBOZZ 30554 88-21586 .DOOR, FRONT, LS 1 1

46 XDOZZ XB XBOZZ 30554 88-22444 .BAFFLE, REAR DOOR 1 1

47 XDOZZ XB XBOZZ 30554 88-21592 .DOOR, REAR, LS 1 1

48 PAOZZ PAOZZ PAOZZ 18876 PMS25086-001-01 .WASHER,SPLIT 2 4

49 PAOZZ PAOZZ PAOZZ 94222 85-16-400-16 .STUD,SELF-LOCKING 2 2

50 PBOZZ PBOZZ PBOZZ 94222 85-35-309-56 .RECEPTACLE,TURNLOCK 2 4

51 MOOZZ MOO MOOZZ 30554 88-21733 .HINGE, DOOR, AIR CL MAKE 1 1

FROM HINGE, PIN A703

(1E045), 8.75 INCHES REQ,

REMOVE PIN,REVERSE AND

PEEN.

52 XDOZZ XB XBOZZ 30554 88-22597 .DOOR, ACCESS, AIR C 1 1

2-2

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCMNUMBER USABLE ON CODE (UOC) QTY EQUIP

53 MOOZZ MOO MOOZZ 30554 88-22601 .INSULATION, DOOR MAKE 1 1

FROM P/N FF40JM02 (28818),

CUT TO SIZE.

54 PAOZZ PAOZZ PAOZZ 30554 88-21098 .HINGE,BUTT 12 12

55 XDOZZ XB XBOZZ 30554 88-22666 .PLATE, SPACER, HING 1 1

56 XDOZZ XB XBOZZ 30554 88-22063 .DOOR, BATTERY COMPA 1 1

57 MOOZZ MOO MOOZZ 30554 88-22499 .HINGE, DOCUMENT BOX 1 1

MAKE FROM PIN A703 (1E045)

14.25 INCHES REQUIRED,

REMOVE PIN, REVERSE AND

PEEN.

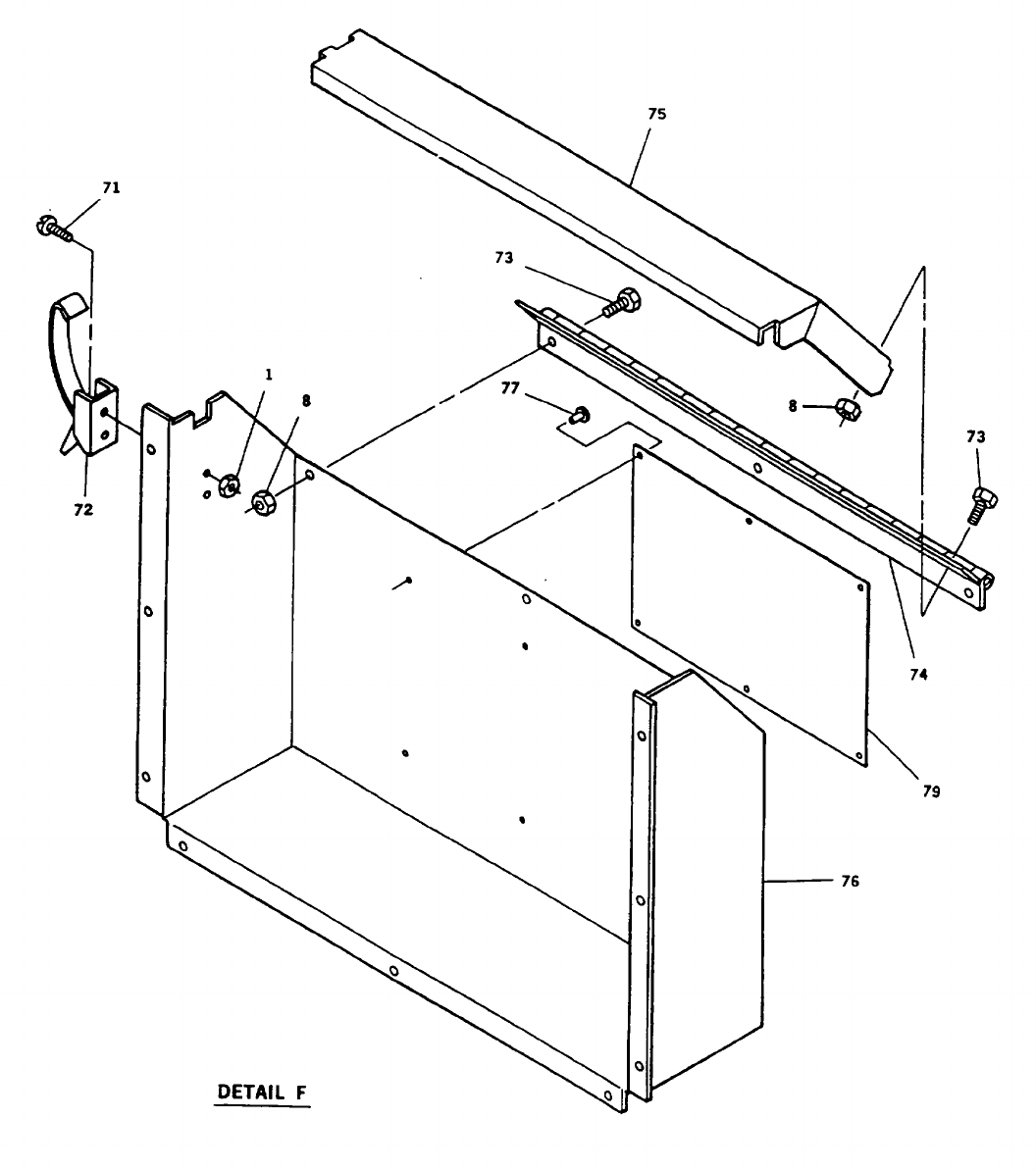

58 XDOZZ XB XBOZZ 30554 88-22497 .DOOR, DOCUMENT BOX 1 1

59 XDOZZ XB XBOZZ 30554 88-22496 .BOX, DOCUMENT 1 1

60 PAOZZ PAOZZ PAOZZ 08928 21NTE102 .NUT,SELF-LOCKING,HE 6 8

61 XDOZZ XB XBOZZ 30554 88-22483 .SPACER,SLEEVE 2 2

62 XDOZZ XB XBOZZ 30554 88-22482 .SPACER,RING 6 6

63 PAOZZ PAOZZ PAOZZ 96906 MS51493-3 .SCREW,MACHINE 2 2

64 PAOZZ PAOZZ PAOZZ 96906 MS51493-2 .SCREW,MACHINE 4 4

65 XDOZZ XB XBOZZ 30554 88-22478 .BRACKET, DOOR LINK 1 1

66 XDOZZ XB XBOZZ 30554 88-20461 .LINK, DOOR SUPPORT 2 2

67 XDOZZ XB XBOZZ 30554 88-22479 .SUPPORT, DOOR LINK 2 2

68 XDOZZ XB XBOZZ 30554 88-22474 .BRACKET, DOOR SUPPO 1 1

69 XDOZZ XB XBOZZ 30554 88-22476 .LINK, DOOR SUPPORT 1 1

70 XDOZZ XB XBOZZ 30554 88-22475 .ANGLE, DOOR SUPPORT 1 1

71 PAOZZ PAOZZ PAOZZ 45722 P-15121-17 .SCREW,ASSEMBLED WAS 2 2

72 PAOZZ PAOZZ PAOZZ 94222 97-50-170-11 CATCH,CLAMPING 1 1

73 PAOZZ PAOZZ PAOZZ 30554 88-20260-20 BOLT,MACHINE 6 15

74 MOOZZ MOO MOOZZ 30554 88-21815 .HINGE, STORAGE BOX 1 1

MAKE FROM P/N A703

(1E045), 16.75 INCHES

REQUIRED.

75 XDOZZ XB XBOZZ 30554 88-21814 .LID, STORAGE BOX 1 1

76 XDOZZ XB XBOZZ 30554 88-21813 .BOX, STORAGE 1 1

77 PAOZZ PAOZZ PAOZZ 78206 4-2ASD .RIVET,BLIND 60 86

78 MDOZZ MDO MDOZZ 30554 88-21671 PLATE, INSTRUCTION 1 1

OPERATING 60KW.

79 MDOZZ MDO MDOZZ 30554 88-21603 .PLATE, INSTRUCTION 1 1

BATTERY CONNECTION.

80 MDOZZ MDO MDOZZ 30554 88-21725 .PLATE, IDENTIFICATI WIRING 1 1

DIAGRAM.

81 MDOZZ MDO MDOZZ 30554 88-20110 .PLATE, IDENTIFICATI 1 1

CAUTION VOLTAGE

CONNECTION.

82 MDOZZ MDO MDOZZ 30554 88-20126 .PLATE, IDENTIFICATI 1 1

GROUNDING STUD.

2-3

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

83 MDOZZ MDO MDOZZ 30554 88-21726 PLATE, IDENTIFICATI 1 1

SCHEMATIC DIAGRAM.

84 MDOZZ MDOMDOZZ 30554 88-21634 PLATE, IDENTIFICATI FUEL 1 1

SYSTEM DIAGRAM.

85 MDOZZ MDO MDOZZ 30554 88-22738 PLATE, IDENTIFICATI 1 1

SWITCH BOX RECEPTACLE.

END OF FIGURE

2-4

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 3. Front Housing Panels (Sheet 1 of 2)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 3. Front Housing Panels (Sheet 2 of 2)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 02 - HOUSING

FIG. 3 FRONT HOUSING

PANELS

1PAOZZ PAOZZ PAOZZ 30554 88-20260-23 .SCREW, CAP, HEXAGON H 54 91

2PAOZZ PAOZZ PAOZZ 96906 MS35338-62 .WASHER, LOCK 53 103

3PAOZZ PAOZZ PAOZZ 96906 MS51412-2 .WASHER, FLAT 53 138

4PAOZZ PAOZZ PAOZZ 30554 88-22430 .BRACKET, MOUNTING 1 1

5PAOZZ PAOZZ PAOZZ 30554 88-22429 .COVER, EXHAUST 1 1

6PAOZZ PAOZZ PAOZZ 19207 12325869 .BOLT, MACHINE 126 355

7PBOZZ PBOZZ PBOZZ 78553 C7931-1032-3B .NUT, PLAIN, CLINCH 70 102

8XDOZZ XB XBOZZ 30554 88-22036 .HOUSING, TOP 1 1

9PAOZZ PAOZZ PAOZZ 02768 236-170406-04 .PIN-RIVET, GROOVED 256 382

10 MOOZZ MOO MOOZZ 30554 88-22602 .INSULATION, TOP FRO 1 1

MAKE FROM FOAM, SOUND

ABSORBING, PIN FF40J M02

(28818), CUT TO SIZE.

11 MOOZZ MOO MOOZZ 30554 88-22603 .INSULATION, TOP CENT 6 6

MAKE FROM FOAM, SOUND

ABSORBING, PIN FF40J M02

(28818), CUT TO SIZE.

12 MOOZZ MOO MOOZZ 30554 88-22604 .INSULATION, TOP CENT 1 1

MAKE FROM FOAM, SOUND

ABSORBING, P/N FF40J M02

(28818), CUT TO SIZE.

13 MOOZZ MOO MOOZZ 30554 88-22605 .INSULATION, TOP REAR 3 3

MAKE FROM FOAM, SOUND

ABSORBING, PIN FF40J M02

(28818), CUT TO SIZE.

14 MOOZZ MOO MOOZZ 30554 88-22611 .INSULATION, TOP, SIDE 2 2

MAKE FROM FOAM, SOUND

ABSORBING, P/N FF40J M02

(28818), CUT TO SIZE.

15 XDOZZ XB XBOZZ 30554 88-22114 .STIFFENER, ROOF 1 1

16 XDOZZ XB XBOZZ 30554 88-22055 .CHANNEL, AIR DUCT 2 2

17 PAOZZ PAOZZ PAOZZ 81205 2740-0003 .NUT, PLAIN, ASSEMBLED 84 438

18 XDOZZ XB XBOZZ 30554 88-21963 .DEFLECTOR, AIR, UPPE 1 1

19 XDOZZ XB XBOZZ 30554 88-21988 .PANEL, FILL RADIATO 1 1

20 XDOZZ XB XBOZZ 30554 88-22420 .BRACKET, SUPPORT OU 1 1

21 XDOZZ XB XBOZZ 30554 88-22702 .ANGLE, SUPPORT 1 1

22 XDOZZ XB XBOZZ 30554 88-21990 .PANEL, DUCT REAR 1 1

23 XDOZZ XB XBOZZ 30554 88-21905 .PANEL, TOP RS 1 1

24 XDOZZ XB XBOZZ 30554 88-22062 .PANEL, TOP LS 1 1

25 XDOZZ XB XBOZZ 30554 88-21989 .FLOOR, DUCT 1 1

26 PAOZZ PAOZZ PAOZZ 02768 354-0250303-0075 .CLIP, SPLIT TUBULAR 34 34

3-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

27 MOOZZ MOO MOOZZ 30554 88-22599 .INSULATION, FLOOR MAKE 1 1

FROM FOAM, SOUND

ABSORBING, P/N FF40J M02

(28818), CUT TO SIZE.

28 MOOZZ MOO MOOZZ 30554 88-22600 .SOUND CONTROLLING B 1 1

MAKE FROM P/N FF40J M02

(28818), CUT TO SIZE

29 PAOZZ PAOZZ PAOZZ 30554 88-20260-30 .SCREW, CAP, HEXAGON H 4 5

30 PAOZZ PAOZZ PAOZZ 96906 MS35338-63 WASHER, LOCK 36 129

31 PAOZZ PAOZZ PAOZZ 96906 MS51412-4 .WASHER, FLAT 20 142

32 XDOZZ XB XBOZZ 30554 88-22085 .PANEL, FRONT FLOOR 1 1

33 MOOZZ MOO MOOZZ 30554 88-21608-154 .SEAL, RUBBER MAKE FROM 1 2

P/N MIL-R-6130 TYII GRA

(81349), AS REQUIRED.

34 XDOZZ XB XBOZZ 30554 88-22596 .INSULATION PANEL, VE 1 1

MAKE FROM P/N FF40J MO2

(28818), CUT TO SIZE.

35 PAOZZ PAOZZ PAOZZ 30554 88-20260-34 .SCREW, CAP HEXAGON 18 32

36 PAOZZ PAOZZ PAOZZ 96906 MS51412-5 .WASHER, FLAT 16 26

37 PAOZZ PAOZZ PAOZZ 30554 88-22790-1 .NUT, PLAIN, HEXAGON 14 111

38 PAOZZ PAOZZ PAOZZ 78553 C7988-1420-3B .RETAINER, NUT AND BO 18 36

39 PAOZZ PAOZZ PAOZZ 24617 274825 .SCREW, CAP, HEXAGON H 2 34

40 PAOZZ PAOZZ PAOZZ 30554 88-20260-31 .BOLT, MACHINE 12 40

41 XDOZZ XB XBOZZ 30554 88-22033 .HOUSING, FRONT 1 1

42 XDOZZ XB XBOZZ 30554 88-21689 .PANEL, RADIATOR LS 1 1

43 XDOZZ XB XBOZZ 30554 88-21690 .PANEL, RADIATOR RS 1 1

44 XDOZZ XB XBOZZ 30554 88-21682 .PANEL, AIR DEFLECTO 1 1

45 XDOZZ XB XBOZZ 30554 88-22514 .CHANNEL, SUPPORT 1 1

46 XDOZZ XB XBOZZ 30554 88-21952 .BOX, SLAVE RECEPTAC 1 1

47 PAOZZ PAOZZ PAOZZ 81349 W-R-550 .ROD, GROUND 1 1

48 PAOZZ PAOZZ PAOZZ 80204 B1821BH025C200N .SCREW, CAP, HEXAGON H 2 2

49 XDOZZ XB XBOZZ 30554 88-21889 .SUPPORT, GROUND ROD 1 1

50 XDOZZ XB XBOZZ 30554 88-22030 .SILL, DOOR LS 1 1

51 XDOZZ XB XBOZZ 30554 88-21888 .SILL, DOOR RS 1 1

52 PAOZZ PAOZZ PAOZZ 81349 M24243/1A402 RIVET, BLIND 10 10

53 MDOZZ MDO MDOZZ 30554 88-20075 PLATE, IDENTIFICATI 1 1

54 MDOZZ MDO MDOZZ 30554 R8-20063-09 PLATE, IDENTIFICATI 60 HZ. 1 1

UOC: EMM

54 MDOZZ MDO MDOZZ 30554 88-20063-10 PLATE, IDENTIFICATI 400HZ. 1 1

UOC: EPC

55 MDOZZ MDO MDOZZ 30554 88-21821-05 PLATE, IDENTIFICATI SET 1 1

RATING.

UOC: EMM

3-2

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

55 MDOZZ MDO MDOZZ 30554 88-21821-06 PLATE, IDENTIFICATI SET 1 1

RATING.

UOC: EPC

56 PAOZZ PAOZZ PAOZZ 30554 88-20260-22 .SCREW, CAP, HEXAGON H 46 46

END OF FIGURE

3-3

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 4. Rear Housing Panels

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 02 - HOUSING

FIG. 4 REAR HOUSING

PANELS

1PAOZZ PAOZZ PAOZZ 81205 2740-0003 .NUT, PLAIN, ASSEMBLED 60 438

2PAOZZ PAOZZ PAOZZ 19207 12325869 .BOLT, MACHINE 60 355

3XDOZZ XB XBOZZ 30554 88-22050 .BAFFLE, AIR INTAKE 1 1

4PAOZZ PAOZZ PAOZZ 02768 236-170406-04 .PIN-RIVET, GROOVED 126 382

5MOOZZMOO MOOZZ 30554 88-22592 .INSULATION, INTAKE MAKE 1 1

FROM FOAM, SOUND

ABSORBING, P/N FF40J M02

(28818), CUT TO SIZE.

6MOOZZ MOO MOOZZ 30554 88-22637 INSULATION, REAR LS MAKE 1 1

FROM FOAM, SOUND

ABSORBING, P/N FF40J M02

(28818), CUT TO SIZE.

7XDOZZ XB XBOZZ 30554 88-22448 .BRACKET, SUPPORT 1 1

8XDOZZ XB XBOZZ 30554 88-22043 .PANEL, FILLER NECK 1 1

9XDOZZ XB XBOZZ 30554 88-22495 .TOP, BOX DOCUMENT 1 1

10 PAOZZ PAOZZ PAOZZ 30554 88-20260-34 .SCREW, CAP HEXAGON 14 32

11 PAOZZ PAOZZ PAOZZ 96906 MS35338-63 .WASHER, LOCK 20 129

12 PAOZZ PAOZZ PAOZZ 96906 MS51412-4 .WASHER, FLAT 20 142

13 XDOZZ XB XBOZZ 30554 88-22046 PANEL, REAR, LS 1 1

14 PAOZZ PAOZZ PAOZZ 78553 C7988-1420-3B .RETAINER, NUT AND BO 9 36

15 PAOZZ PAOZZ PAOZZ 30554 88-20260-23 .SCREW, CAP, HEXAGON H 17 91

16 PAOZZ PAOZZ PAOZZ 96906 MS35338-62 .WASHER, LOCK 17 103

17 PAOZZ PAOZZ PAOZZ 96906 MS51412-2 .WASHER, FLAT 17 138

18 PAOZZ PAOZZ PAOZZ 24617 274825 .SCREW, CAP, HEXAGON H 6 34

19 PAOZZ PAOZZ PAOZZ 30554 88-22790-1 .NUT, PLAIN, HEXAGON 11 111

20 XDOZZ XB XBOZZ 30554 88-21978 .PANEL, REAR 1 1

21 MOOZZ MOO MOOZZ 30554 88-22598 .INSULATION, REAR MAKE 1 1

FROM FOAM, SOUND

ABSORBING, P/N FF40J M02

(28818), CUT TO SIZE.

22 PBOZZ PBOZZ PBOZZ 78553 C7931-1032-3B .NUT, PLAIN, CLINCH 17 102

23 XDOZZ XB XBOZZ 30554 88-21964 .BOX, LOAD TERMINAL 1 1

24 PBOZZ PBOZZ PBOZZ 30554 69-583 .COVER, ACCESS 1 1

25 PAOZZ PAOZZ PAOZZ 83879 BBL300 .BUSHING, ELECTRICAL 1 1

26 PAOZZ PAOZZ PAOZZ 30554 88-20218 .COVER, ELECTRICAL CO 1 1

27 XDOZZ XB XBOZZ 30554 88-21954 .PANEL, RS 1 1

28 MOOZZ MOO MOOZZ 30554 88-22614 .INSULATION, PANEL R MAKE 1 1

FROM FOAM, SOUND

ABSORBING, P/N FF40J M02

(28818), CUT TO SIZE.

4-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

29 MOOZZ MOO MOOZZ 30554 88-22612 .INSULATION, BAFFLE MAKE 1 1

FROM FOAM, SOUND

ABSORBING, PIN FF40J M02

(28818), CUT TO SIZE.

30 XDOZZ XB XBOZZ 30554 88-21997 .BAFFLE, AIR INTAKE R 1 1

31 XDOZZ XB XBOZZ 30554 88-21956 .SILL, OUTPUT BOX 1 1

32 XDOZZ XB XBOZZ 30554 88-21770 .SILL, LOAD TERMINAL 1 1

33 XDOZZ XB XBOZZ 30554 88-21955 .POST, CORNER, REAR 1 1

34 PAOZZ PAOZZ PAOZZ 81349 M24243/1A402 RIVET, BLIND 8 84

35 MDOZZ MDO MDOZZ 30554 88-20102 PLATE, IDENTIFICATIO 1 1

EXTERNAL FUEL SUPPLY.

36 MDOZZ MDO MDOZZ 30554 88-21719 PLATE, IDENTIFICATI LIFTING 1 1

AND TIEDOWN DIAGRAM.

37 PAOZZ PAOZZ PAOZZ 97403 13214E3291-3 .NUT, PLAIN, HEXAGON 4 4

38 PAOZZ PAOZZ PAOZZ 30554 69-662-35 .SCREW, ASSEMBLED 4 4

39 PAOZZ PAOZZ PAOZZ 96906 MS51412-5 .WASHER, FLAT 10 10

END OF FIGURE

4-2

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

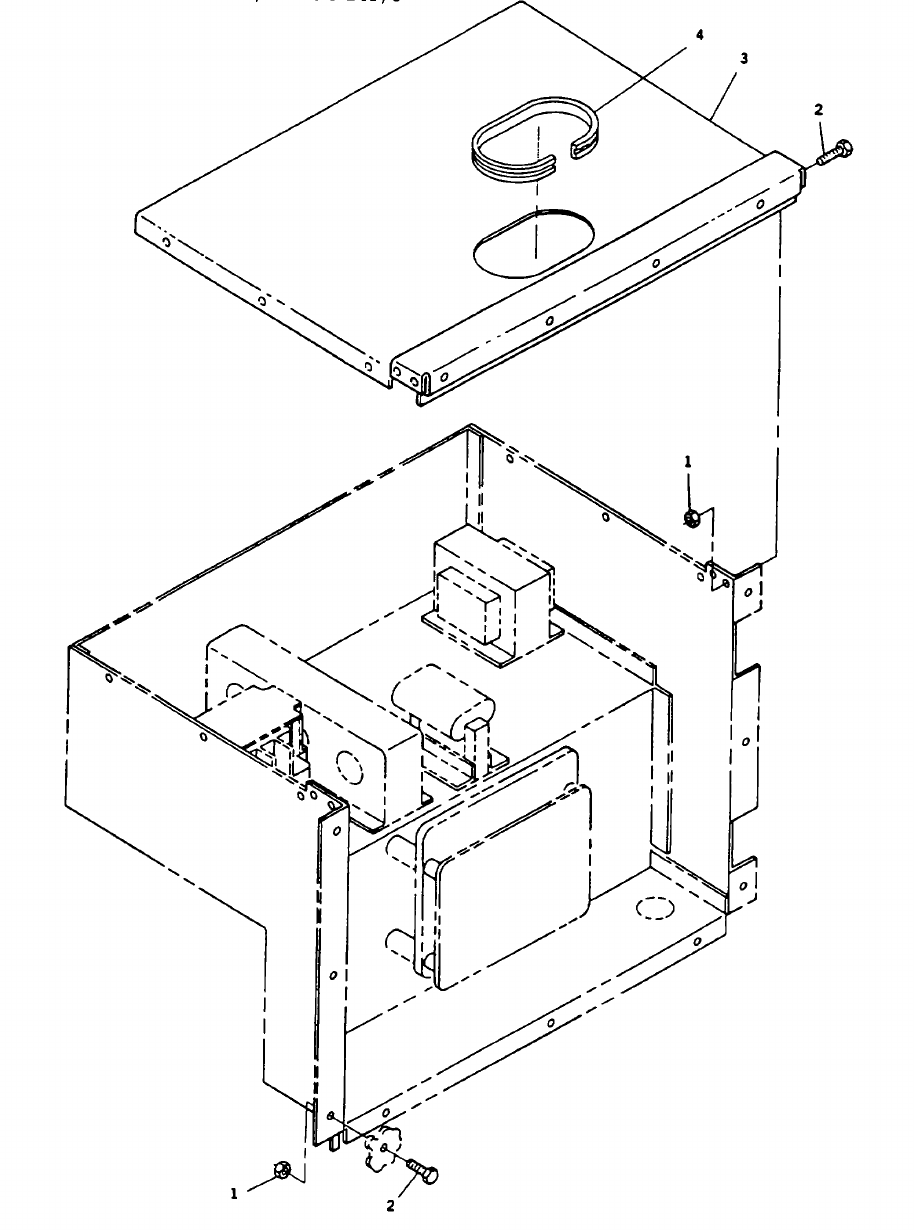

FIGURE 5. Control Box Installation

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 03 - CONTROL BOX

ASSEMBLY

FIG. 5 CONTROL BOX

INSTALLATION

1PAOZZ PAOZZ PAOZZ 81205 2740-0003 .NUT, PLAIN, ASSEMBLED 15 438

2PAOZZ PAOZZ PAOZZ 19207 12325869 .BOLT, MACHINE 5 355

3PAOZZ PAOZZ PAOZZ 30554 88-20260-23 .SCREW, CAP, HEXAGON H 10 91

4PAOZZ PAOZZ PAOZZ 96906 MS35338-62 .WASHER, LOCK 13 103

5PAOZZ PAOZZ PAOZZ 96906 MS51412-2 .WASHER, FLAT 13 138

6PBOFF PBOFF PBOFF 30554 88-22139 .CONTROL BOX, GENERAT 1 1

UOC: EMM

6PBOFF PBOFF PBOFF 30554 88-22140 .CONTROL BOX, GENERAT 1 1

UOC: EPC

END OF FIGURE

5-1

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 6. Control Panel Switches and Indicators (Sheet 1 of 2)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 6. Control Panel Switches and Indicators (Sheet 2 of 2)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 03 - CONTROL BOX

ASSEMBLY

FIG. 6 CONTROL PANEL

SWITCHES/INDICATORS

1PAOZZ PAOZZ PAOZZ 71744 6S6/30V ..LAMP, INCANDESCENT 3 3

GREEN.

2PAOZZ PAOZZ PAOZZ 83330 47-0901-2900-201 ..LIGHT, PANEL 3 3

3PAOZZ PAOZZ PAOZZ 96906 A50452-1 ..LAMP, INCANDESCENT 2 2

4PAOZZ PAOZZ PAOZZ 72619 51-3502-0137-203 ..LIGHT, INDICATOR 2 2

5PAOZZ PAOZZ PAOZZ 80063 A3029220-1 ..LIGHT EMITTING DIOD 1 1

GREEN.

6PAOZZ PAOZZ PAOZZ 83330 521-9208 ..LIGHT EMITTING DIOD 1 1

YELLOW.

7PAOZZ PAOZZ PAOZZ 96906 MS25041-5 ..LIGHT, INDICATOR 2 2

8PAOZZ PAOZZ PAOZZ 83385 841-6-32 ..NUT, PLAIN, ASSEMBLED 8 52

9PAOZZ PAOZZ PAOZZ 73734 3145 ..SCREW, MACHINE 8 8

10 PAOZZ PAOZZ PAOZZ 96906 MS91528-2K2B ..KNOB 2 2

11 PAOZZ PAOZZ PAOZZ 81640 8906K4523 ..SWITCH, TOGGLE 1 1

12 PAOZZ PAOZZ PAOZZ 10983 C10-C57410E ..SWITCH, ROTARY 1 1

13 MOOZZ MOO MOOZZ 30554 88-22139-105 ..INSULATION, SLEEVING 2 3

MAKE FROM P/N M23053/5-

105-0 (81349), AS R EQUIRED.

14 MOOZZ MOO MOOZZ 30554 88-22629-078 ..MARKER, IDENTIFICATI 1 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

15 MOOZZ MOO MOOZZ 30554 88-22629-079 ..MARKER, IDENTIFICATI 1 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

16 MOOZZ MOO MOOZZ 30554 88-22629-080 ..MARKER, IDENTIFICATI 1 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

17 PAOZZ PAOZZ PAOZZ 81349 RV4SAYSD502A ..RESISTOR, VARIABLE, N 1 1

18 PAOZZ PAOZZ PAOZZ 60886 AYW401-R ..SWITCH, PUSH-PULL 1 1

19 PAOZZ PAOZZ PAOZZ 81640 8906K4533 ..SWITCH, TOGGLE 2 2

20 PAOZZ PAOZZ PAOZZ 96906 MS25224-1 ..GUARD, SWITCH 1 1

21 PAOZZ PAOZZ PAOZZ 81640 8906K4519 ..SWITCH, TOGGLE AC 1 1

CIRCUIT INTERRUPTER.

22 PAOZZ PAOZZ PAOZZ 10983 C11-C57420E ..SWITCH, ROTARY 1 1

23 PAOZZ PAOZZ PAOZZ 81640 88-22141 ..SWITCH, TOGGLE 1 1

6-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

24 PAOZZ PAOZZ PAOZZ 81349 RV4NAYSD103A ..RESISTOR, VARIABLE, N 10K 1 1

OHMS, USED WITH VOLTAGE

REGULATOR, P/N 122-3056

(36024).

UOC: EMM

24 PAOZZ PAOZZ PAOZZ 81349 RV4NAYSD203A ..RESISTOR, VARIABLE, N 20K 1 1

OHMS, USED WITH VOLTAGE

REGULATOR P/N 19880-002

(60177).

UOC: EMM

24 PAOZZ PAOZZ PAOZZ 81349 RV4NAYSD203A RESISTOR, VARIABLE, N 1 2

USED WITH VOLTAGE

REGULATOR P/N19890-003

UOC: EPC

25 XDOZZ XB XBOZZ 99017 SC-1/4-4 ..CAP, SLEEVE 2 2

26 PAOZZ PAOZZPAOZZ 30554 69-599 ..VOLTMETER 1 1

27 PAOZZ PAOZZ PAOZZ 06555 88-21103 ..METER, SPECIAL SCALE 1 1

28 PAOZZ PAOZZ PAOZZ 06555 940107 ..INDICATOR, TEMPERATU 1 1

29 PAOZZ PAOZZ PAOZZ 06555 940109 ..GAGE, PRESSURE, DIAL 1 1

30 PAOZZ PAOZZ PAOZZ 74400 15001 ..METER, TIME TOTALIZI 1 1

31 PAOZZ PAOZZ PAOZZ 30554 69-574 ..AMMETER 1 1

32 PAOZZ PAOZZ PAOZZ 15309 369-093 ..METER, ELECTRICAL FR 1 1

UOC EPC

32 PAOZZ PAOZZ PAOZZ 15309 88-21072 ..METER, ELECTRICAL 1 1

UOC: EMM

33 PAOZZ PAOZZ PAOZZ 30554 69-597 ..METER, ELECTRICAL FR 1 1

CURRENT.

UOC: EMM

33 PAOZZ PAOZZ PAOZZ 30554 69-598 ..AMMETER CURRENT. 1 1

UOC: EPC

34 PAOZZ PAOZZ PAOZZ 30554 70-4012 ..WATTMETER 1 1

35 PAOZZ PAOZZ PAOZZ 96906 MS51412-20 .WASHER, FLAT 3 3

END OF FIGURE

6-2

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 7. Control Box Assembly (Sheet 1 of 2)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

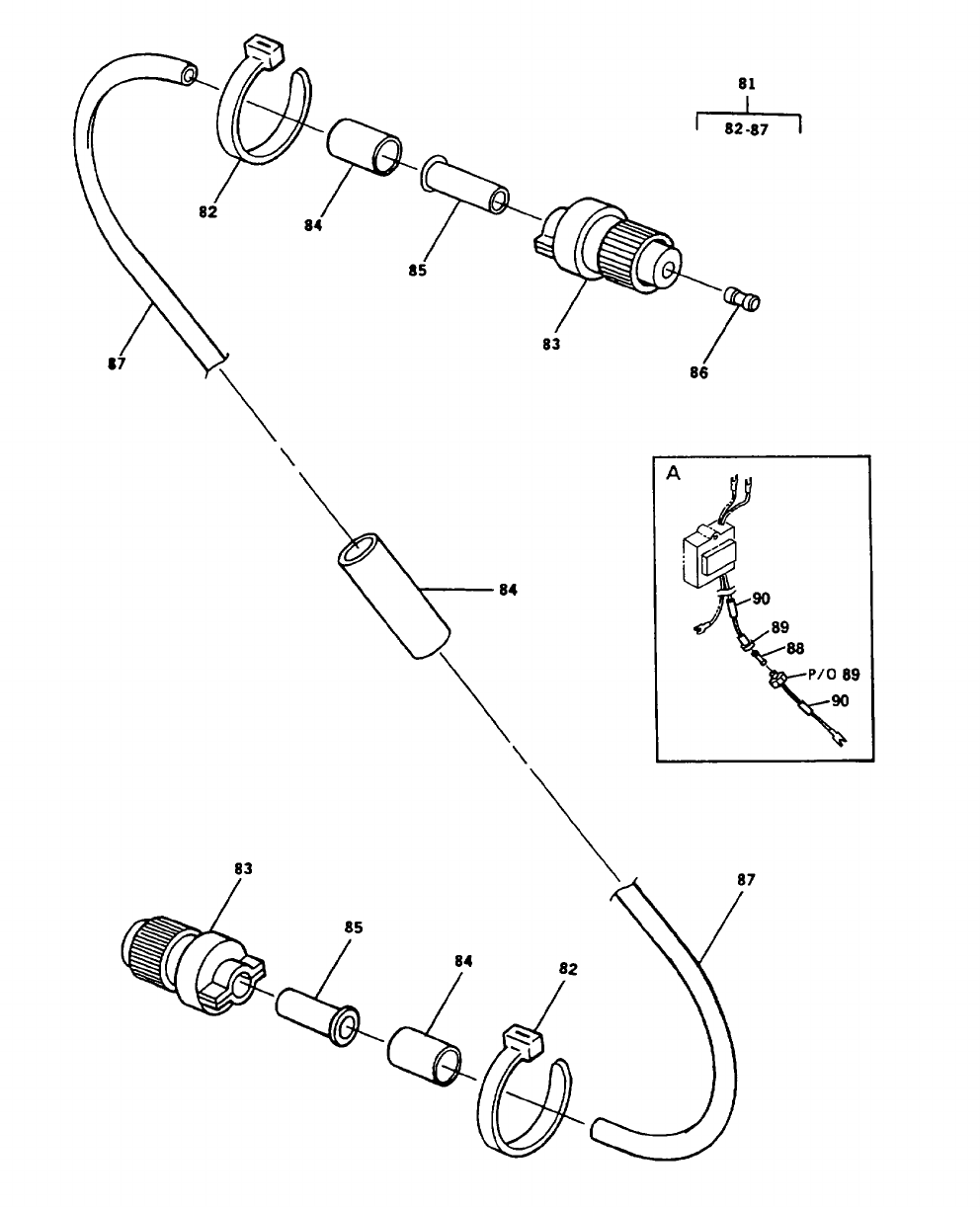

FIGURE 7. Control Box Assembly (Sheet 2 of 2)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 03- CONTROL BOX

ASSEMBLY

FIG. 7 CONTROL BOX

ASSEMBLY

1PAOZZ PAOZZ PAOZZ 81349 RV4LAYSA502A ..RESISTOR, VARIABLE, N 1 1

2PAOZZ PAOZZ PAOZZ 81640 8906K4750 ..SWITCH, TOGGLE 1 1

FREQUENCY SELECT.

UOC: EMM

3AOOOO AOO AOOOO 36024 122-3066-1 ..RESISTOR ASSY 1 1

UOC: EMM

3AOOOO AOO AOOOO 60177 122-3066-2 ..RESISTOR ASSY 1 1

UOC: EMM

4PAOZZ PAOZZ PAOZZ 00779 52949 ...TERMINAL, LUG PART OF 2 795

RESISTOR ASSY, P/N 122-

3066-1.

UOC: EMM

4PAOZZ PAOZZ PAOZZ 00779 52949 ...TERMINAL, LUG PART OF 2 795

RESISTOR ASSY, P/N 122-

3066-2 (60177)

UOC: EMM

5PAOZZ PAOZZ PAOZZ 81349 RC32GF100J ...RESISTOR, FIXED, COMP 1 1

PART OF RESISTOR ASSY,

P/N 122-3066-2 (60177)

UOC: EMM

5PAOZZ PAOZZ PAOZZ 81349 RCR32G302JS ...RESISTOR, FIXED, COMP 1 1

PART OF RESISTOR ASSY,

P/N 122-3066-1 (360 24).

UOC: EMM

6PAOZZ PAOZZ PAOZZ 44655 REL5R0 ..RESISTOR, VARIABLE, W 1 1

7PAOZZ PAOZZ PAOZZ 81640 8906K4526 SWITCH, TOGGLE 1 1

OVERSPEED RESET.

8PAOZA PAOZA PAOZA 77342 W23X1A1G7.5 ..CIRCUIT BREAKER 1 1

9PAOZZ PAOZZ PAOZZ 81349 F03A125V30A ..FUSE, CARTRIDGE 1 1

10 PAOZZ PAOZZ PAOZZ 81349 FHN26G1 ..FUSEHOLDER, EXTRACTO 1 1

11 MOOZZ MOO MOOZZ 30554 88-22139-105 ..INSULATION, SLEEVING 1 1

MAKE FROM P/N M23053/5-

105-0 (81349), AS R EQUIRED.

12 MOOZZ MOO MOOZZ 30554 88-22629-041 ..MARKER, IDENTIFICATI 1 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

13 MOOZZ MOO MOOZZ 30554 88-22629-040 ..MARKER, IDENTIFICATI 1 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

14 PAOZZ PAOZZ PAOZZ 78189 61-101041-90-0142B- ..SCREW, ASSEMBLED WAS 46 46

0542B

7-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

15 XDOZZ XB XBOZZ 30554 88-21593 ..BRACKET, CONTROLS 1 1

UOC: EMM

15 XDOZZ XB XBOZZ 30554 88-21976 ..BRACKET, CONTROL 1 1

UOC: EPC

16 PAOZZ PAOZZ PAOZZ 78553 C7941-1032-3B ..NUT, PLAIN, SQUARE 46 46

17 PAOZZ PAOZZ PAOZZ 83385 841-6-32 ..NUT, PLAIN, ASSEMBLED 24 52

18 PAOZZ PAOZZ PAOZZ 45722 P-15121-20 ..SCREW, ASSEMBLED WAS 15 17

19 PAOZZ PAOZZ PAOZZ 74545 5211 ..PLATE, WALL, ELECTRIC 1 1

UOC: EMM

20 PAOZZ PAOZZ PAOZZ 74545 CR15 ..CONNECTOR BODY, RECE 1 1

UOC: EMM

21 PAOZZ PAOZZ PAOZZ 96906 MS3367-5-9 ..STRAP, TIEDOWN, ELECT 10 426

22 PAOOO PAOOO PAOOO 60177 19450-2 ..INTERRUPTER, GROUND, 1 1

WHEN REPLACING, USE P/N

19990-2 (60177). NO IN-LINE

FUSE REQUIRED.

UOC: EMM

22 PAOZO PAOZO PAOZO 60177 29100 ..INTERRUPTER, GROUND, 1 1

WHEN REPLACING, USE P/N

19990-2 (60177). NO IN-LINE

FUSE REQUIRED.

UOC: EPC

22 PAOZZ PAOZZ PAOZZ 60177 19990-1 ..INTERRUPTER, GROUND 1 1

23 PAOZZ PAOZZ PAOZZ 96906 MS35206-329 ...SCREW, MACHINE 2 2

24 PAOZZ PAOZZ PAOZZ 96906 MS21044N06 ...NUT, SELF-LOCKING, HE 2 2

25 PAOZZ PAOZZ PAOZZ 98410 BB-8194-08 ...TERMINAL, LUG #8, 16-14 2 5

AWG.

26 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ...TERMINAL, LUG #6, 16-14 2 48

AWG.

UOC: EMM

27 PAOZZ PAOZZ PAOZZ 81205 2740-0003 ..NUT, PLAIN, ASSEMBLED 14 438

28 PAOZZ PAOZZ PAOZZ 19207 12325869 ..BOLT, MACHINE 6 355

29 PAOZZ PAOZZ PAOZZ 96906 MS27183-8 ..WASHER, FLAT 6 6

30 PBOZZ PBOZZ PBOZZ 60177 19330-100 ..INDICATOR, FAULT LOC 1 1

31 PAOZZ PAOZZ PAOZZ 60177 19280 ..TRANSDUCER, MOTIONAL 1 1

UOC: EMM

31 PAOZZ PAOZZ PAOZZ 60177 19290 TRANSDUCER, MOTIONAL 1 1

UOC: EPC

32 PAOZZ PAOZZ PAOZZ 78189 511-081800-00 ..NUT, PLAIN, ASSEMBLED 2 7

33 PAOZZ PAOZZ PAOZZ 45722 P15121-37 ..SCREW, ASSEMBLED WAS 2 2

34 PBOZZ PBOZZ PBOZZ 53498 871-92UU-NGEC ..SHUNT, INSTRUMENT 1 1

35 PAOZZ PAOZZ PAOZZ 60177 19210 ..RELAY, ELECTROMAGNET 1 1

36 PAOZZ PAOZZ PAOZZ 30554 88-21141 ..RELAY, ELECTROMAGNET 1 1

37 PAOZZ PAOZZ PAOZZ 77342 KUP14D15-24VDC ..RELAY, ELECTROMAGNET 8 8

38 XDOZZ XB XBOZZ 77342 20C318 ..CLIP, SPRING TENSION 8 8

7-2

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

39 PAOZZ PAOZZ PAOZZ 96906 MS35198-46 ..SCREW, MACHINE 1 1

40 PAOZA PAOZA PAOZA 77342 24A071 . MOUNTING CLIP 4 4

41 PAOZZ PAOZZ PAOZZ 77342 40G432 . INSULATOR 4 4

42 PAOZZ PAOZZ PAOZZ 61964 MK2PSAC120 ..RELAY, ELECTROMAGNE 1 1

UOC: EMM

42 PAOZZ PAOZZ PAOZZ 77342 R10-T1P2-115V ..RELAY, ELECTROMAGNET 1 1

UOC: EPC

43 XDOZZ XB XBOZZ 61964 PFC-A1 ..CLIP, RELAY SOCKET 2 2

44 PAOZZ PAOZZ PAOZZ 30554 69-662-35 ..SCREW, ASSEMBLED WAS 4 26

45 XDOZZ XB XBOZZ 30554 88-20258 ..TRACK, SOCKET MOUNT 2 2

46 MOOZZ MOO MOOZZ 30554 88-22629-021 ..MARKER, IDENTIFICATI 1 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

47 PAOZZ PAOZZ PAOZZ 60177 19300 ..TRANSDUCER, MOTIONAL 1 1

48 PAOZZ PAOZZ PAOZZ 60177 19250 ..RELAY, ELECTROMAGNET 1 1

49 PAOZZ PAOZZ PAOZZ 60177 19240 ..RELAY, ELECTROMAGNET 1 1

50 PBFZZ PBOZZ PBFZZ 30554 88-21856 ..GOVERNOR, DIESEL ENG 1 1

50 PBFZZ PBOZZ PBFZZ 30554 88-21857 ..GOVERNOR, DIESEL ENG 1 1

UOC: EPC

51 AOOOO AOO AOOOO 30554 88-22631 ..RESISTOR ASSY, VOLT 1 1

52 PAOZZ PAOZZ PAOZZ 00779 52949 ..TERMINAL, LUG 2 2

53 PAOZZ PAOZZ PAOZZ 09214 V47ZA7 ...RESISTOR, VOLTAGE SE 1 1

54 PAOZZ PAOZZ PAOZZ 96906 MS25043-18DA ..COVER, ELECTRICAL CO 1 1

55 PAOZZ PAOZZ PAOZZ 36024 122-3056 ..REGULATOR, VOLTAGE 1 1

PART OF KIT P/N 88-22562-1

(36024)

UOC: EMM

55 PAOZZ PAOZZ PAOZZ 60177 19880-002 ..REGULATOR, VOLTAGE 1 1

PART OF KIT P/N 88-22571-2

(36024)

UOC: EMM

55 PAOZZ PAOZZ PAOZZ 60177 19890-003 ..REGULATOR, VOLTAGE 1 1

PART OF KIT P/N 88-22562-2

(36024)

UOC: EPC

56 PAOZZ PAOZZ PAOZZ 45722 P15121-22 ..SCREW, ASSEMBLED WAS 7 7

57 XDOZZ XB XBOZZ 9R803 3300-22-XP-74 ..MARKER, STRIP 2 2

58 XDOZZ XB XBOZZ 9R803 3300-12-XP-74 ..MARKER, STRIP 1 1

59 XDOZZ XB XBOZZ 9R803 330JS ..CONTACT, ELECTRICAL 1 2

60 PBFZZ PBOZZ PBFZZ 60177 19310 ..SENSOR, ELECTRICAL L 1 1

61 AOOOO AOO AOOOO 30554 88-22106 ..RESISTOR, DIODE ASS 1 1

62 PAOZZ PAOZZ PAOZZ 78189 511-041800-00-0211- ...NUT, PLAIN, ASSEMBLED 18 52

0511

7-3

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

63 PAOZZ PAOZZ PAOZZ 45722 P15121-5 ...SCREW, ASSEMBLED WAS 18 24

64 PAOZZ PAOZZ PAOZZ 91637 HLM-20-10Z7R50J ...RESISTOR, FIXED, WIRE 3 3

65 PAOZZ PAOZZ PAOZZ 91637 HLM-20-10Z-40R0J ...RESISTOR, FIXED, WIRE 1 1

66 PAOZZ PAOZZPAOZZ 91637 HLM-10-10Z1301J ...RESISTOR, FIXED, WIRE 1 1

67 PAOZZ PAOZZ PAOZZ 91637 HLM20-10Z 3.OK ...RESISTOR, FIXED, WIRE 2 2

OHM 5%

68 PAOZZ PAOZZ PAOZZ 91637 HLM-20-10Z5001J ...RESISTOR, FIXED, WIRE 2 2

69 PAOZZ PAOZZ PAOZZ 80131 1N5406 ..SEMICONDUCTOR DEVIC 4 7

70 PAOZZ PAOZZ PAOZZ 30554 88-20299 ...SCREW, ASSEMBLED WAS 8 8

71 PAOZZ PAOZZ PAOZZ 18310 1127-38-0516 ...TERMINAL, STUD 8 8

72 MOOZZ MOO MOOZZ 30554 88-22106-11 ..WIRE, ELECTRIC MAKE 1 1

FROM P/N M5086/2-20-9

(81349), AS REQ UIRED.

73 XDOZZ XB XBOZZ 30554 88-21971 ..BRACKET, BURDEN RES 1 1

74 PAOZZ PAOZZ PAOZZ 30554 69-662-68 ..SCREW, ASSEMBLED WAS 2 2

75 PAOZZ PAOZZ PAOZZ 78189 511-041800-00-0211- ..NUT, PLAIN, ASSEMBLED 4 52

0511

76 PAOZZ PAOZZ PAOZZ 45722 P15121-5 ..SCREW, ASSEMBLED WAS 3 24

77 PAOZZ PAOZZ PAOZZ 45722 P-15121-7 . SCREW, ASSEMBLED WAS 1 2

78 PAOZZ PAOZZ PAOZZ 80064 2601167 . COVER, ELECTRICAL CO 1 1

79 PAOZZ PAOZZ PAOZZ 96906 MS51007-12 ..GASKET 1 1

80 PAOZZ PAOZZ PAOZZ 96906 MS51007-6 ...GASKET 1 1

81 MFOFF MFOFF MFOFF 30554 88-22209 CABLE ASSEMBLY 1 1

82 PAOZZ PAOZZ PAOZZ 96906 MS3367-1-9 ..STRAP, TIEDOWN, ELECT 2 2

83 PAOZA PAOZA PAOZA 96906 MS3106F18-11S .CONNECTOR, PLUG, ELEC 2 2

84 MOOZZ MOO MOOZZ 30554 88-22209-7 .INSULATION, SLEEVING 3 3

MAKE FROM P/N M23053/5-

108-9 (81349), AS REQUIRED

REQUIRED.

85 PAOZZ PAOZZ PAOZZ 96906 MS3420-10 .BUSHING, NONMETALLIC 2 1

86 PAOZZ PAOZZ PAOZZ 96906 MS25251-12 .PLUG, END SEAL, ELECT 1 1

87 MOOZZ MOO MOOZZ 30554 88-21995 .CABLE, MULTICONDUCTO 1 1

MAKE FROM P/N 8407 (70903),

AS REQUIRED.

88 PAOZZ PAOZZ PAOZZ 81349 F03A250V10AS ..FUSE, CARTRIDGE, FOUND 1 1

ON DRAWING 88-22825

89 PAOZZ PAOZZ PAOZZ 75915 150145 ..FUSEHOLDER, EXTRACTO, 1 1

FOUND ON DRAWING 88-

22825

90 PAOZZ PAOZZ PAOZZ 59730 RBB25 ..SPLICE, CONDUCTOR, 1 1

FOUND ON DRAWING 88-

22825

END OF FIGURE

7-4

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

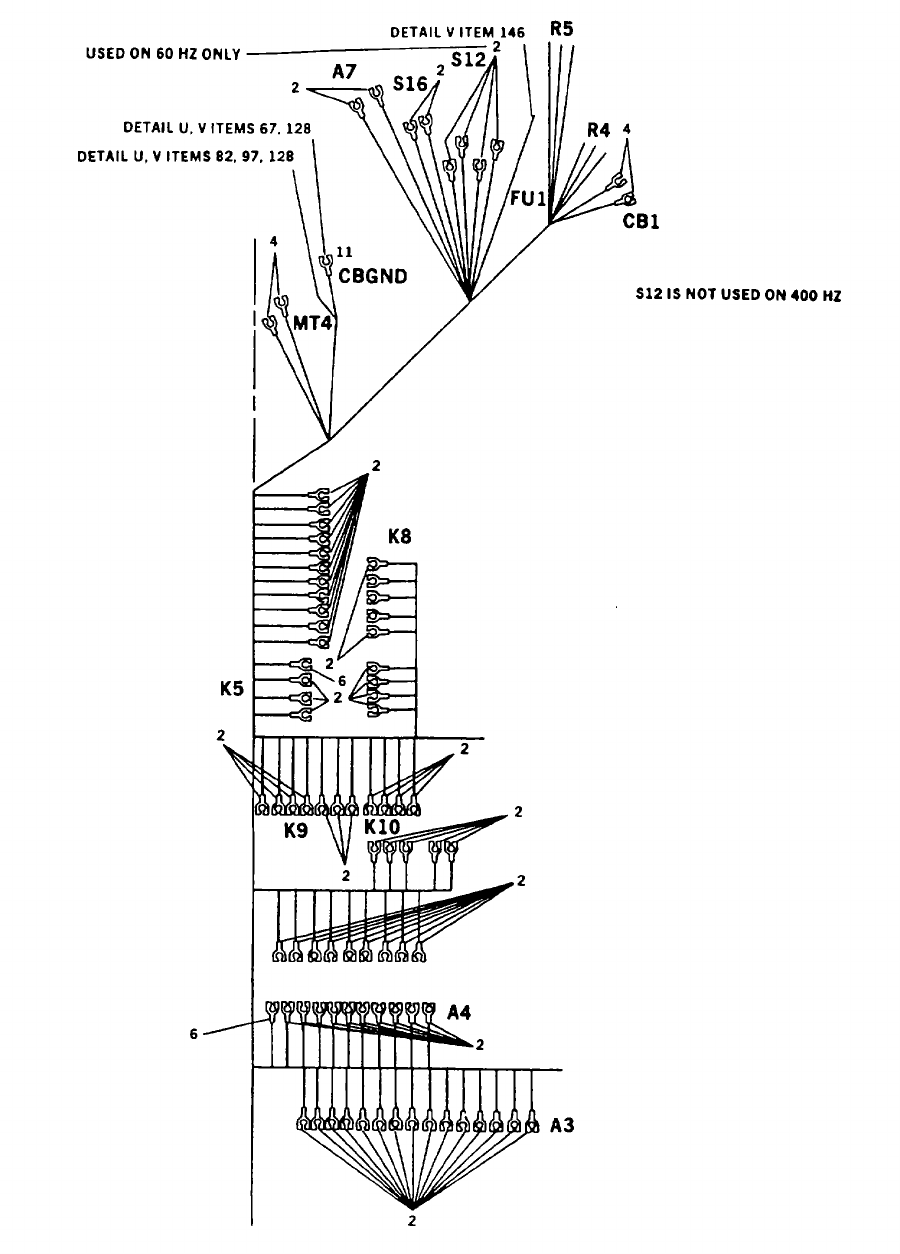

FIGURE 8. Control Box Harness Assembly (Sheet 1 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 8. Control Box Harness Assembly (Sheet 2 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

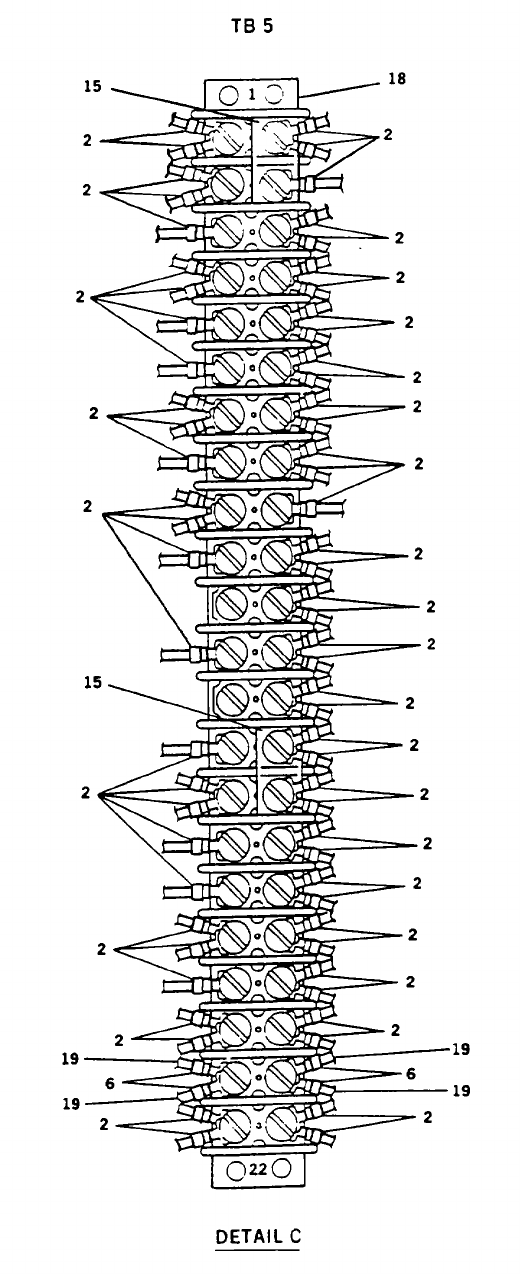

FIGURE 8. Control Box Harness Assembly (Sheet 3 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

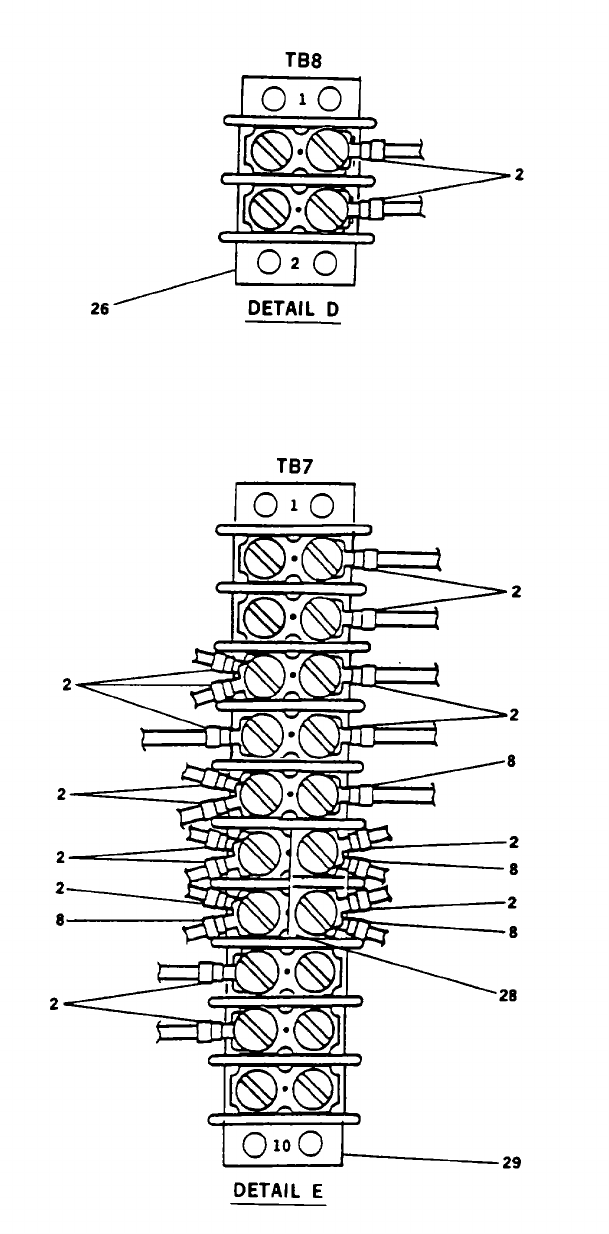

FIGURE 8. Control Box Harness Assembly (Sheet 4 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 8. Control Box Harness Assembly (Sheet 5 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

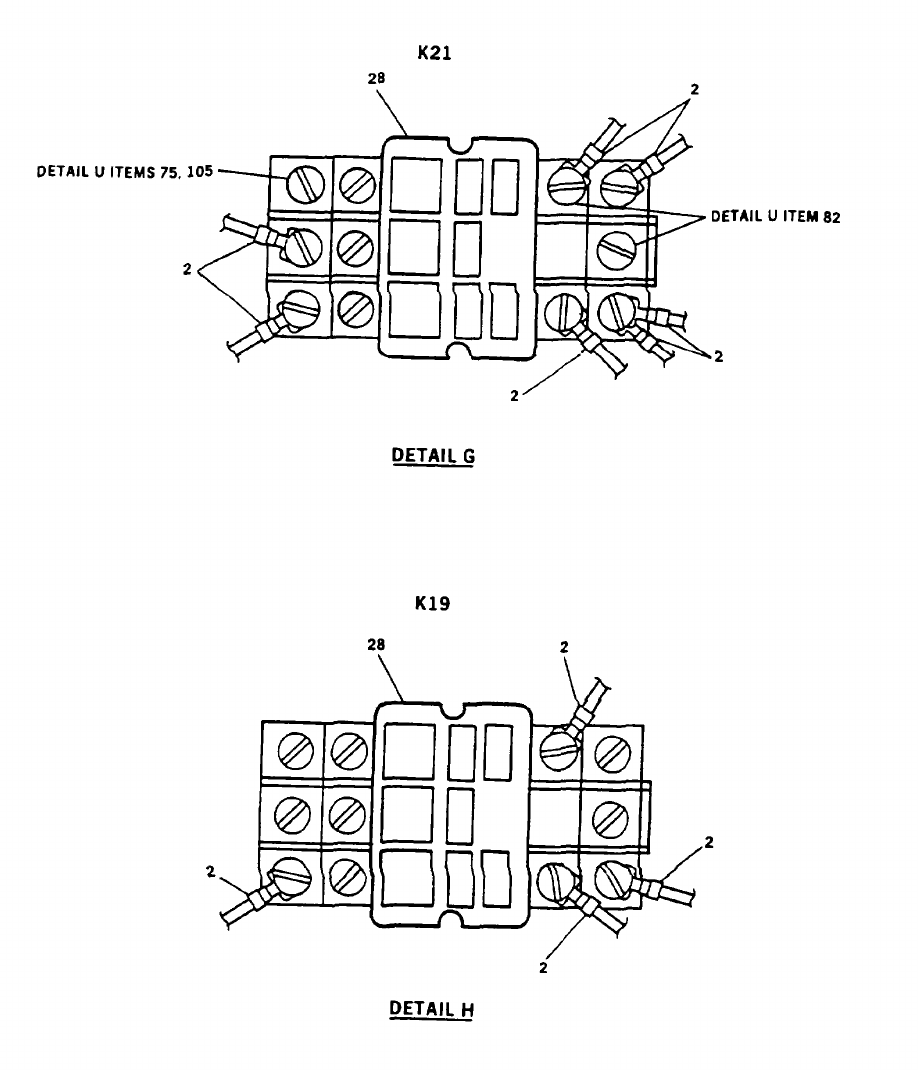

FIGURE 8. Control Box Harness Assembly (Sheet 6 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 8. Control Box Harness Assembly (Sheet 7 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 8. Control Box Harness Assembly (Sheet 8 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

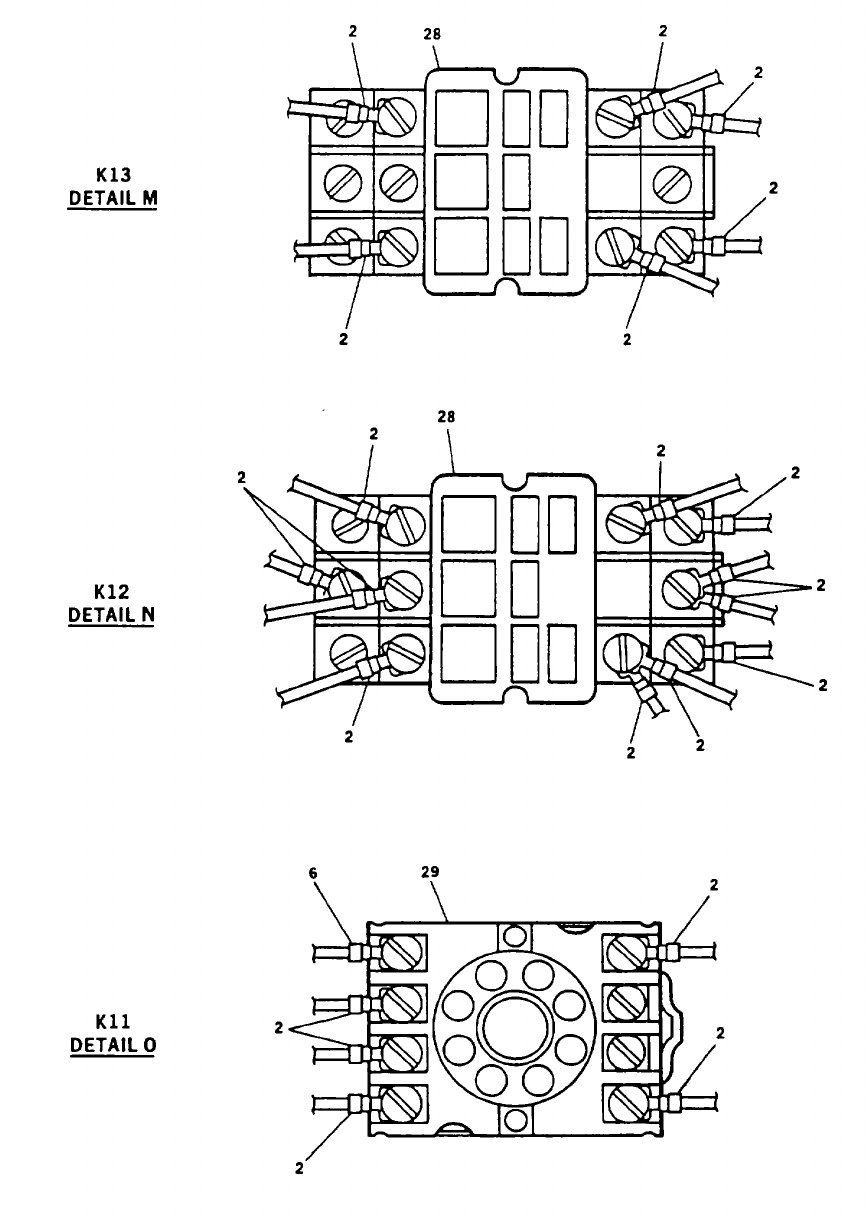

FIGURE 8. Control Box Harness Assembly (Sheet 9 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 8. Control Box Harness Assembly (Sheet 10 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 8. Control Box Harness Assembly (Sheet 11 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

Figure 8. Control Box Harness Assembly (Sheet 12 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

Figure 8. Control Box Harness Assembly (Sheet 13 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

Figure 8. Control Box Harness Assembly (Sheet 14 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

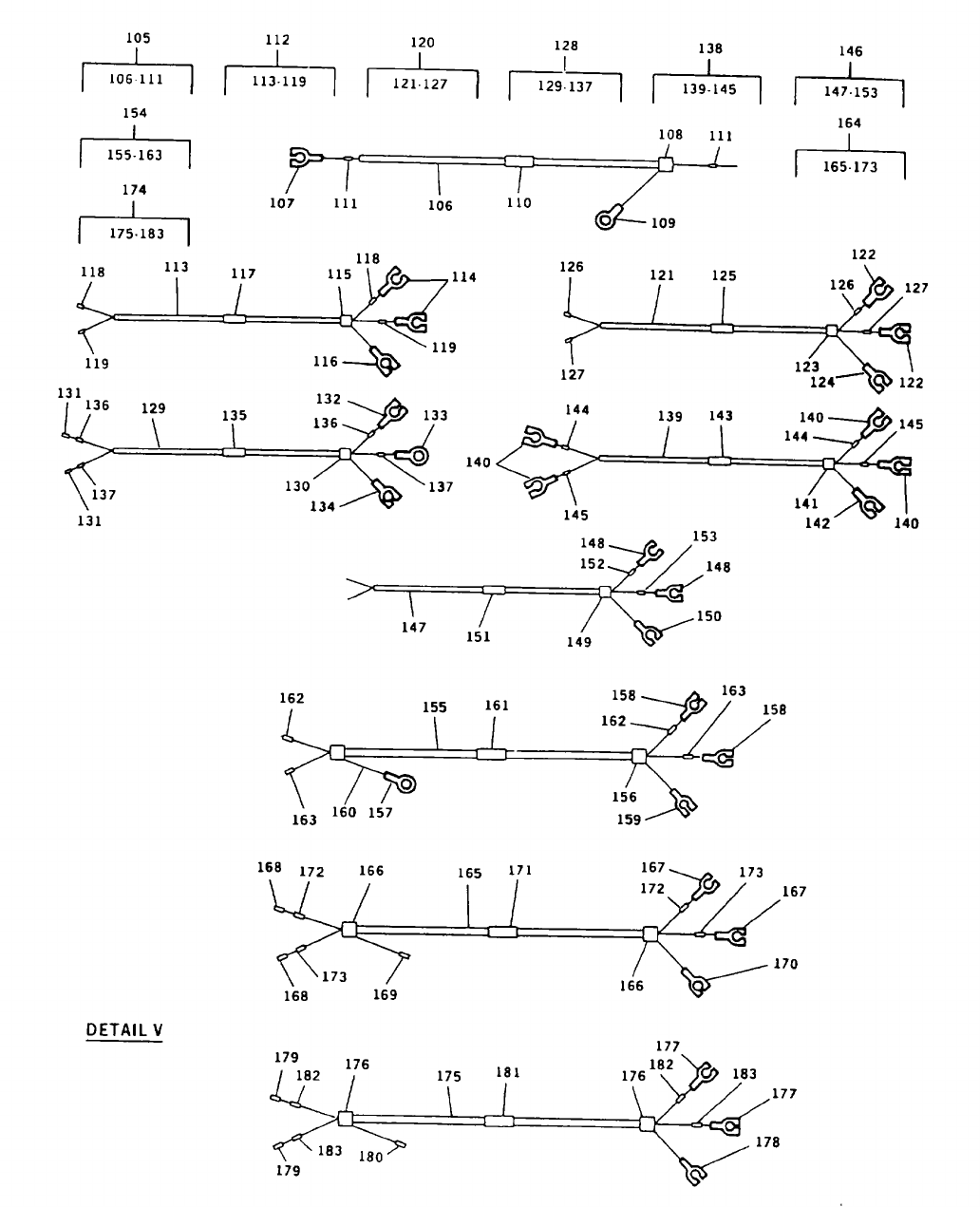

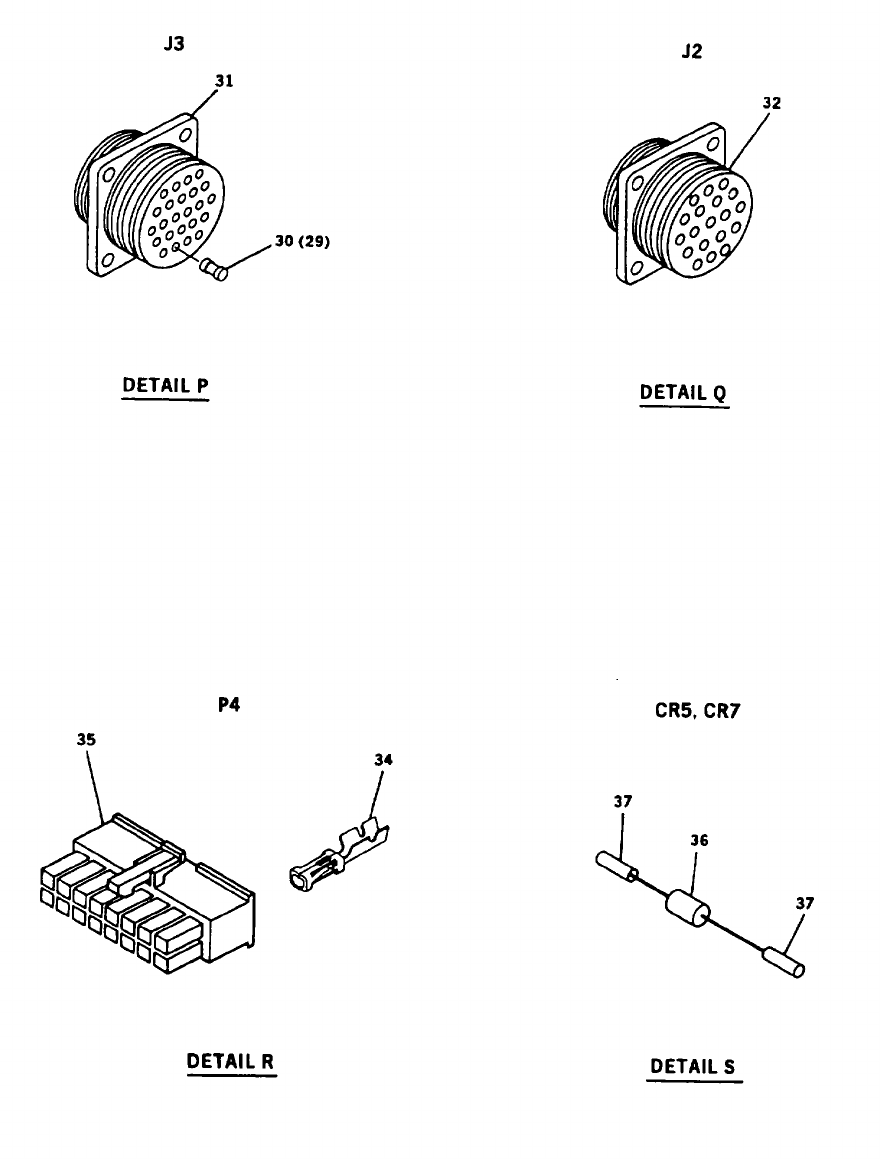

Figure 8. Control Box Harness Assembly (Sheet 15 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

Figure 8. Control Box Harness Assembly (Sheet 16 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

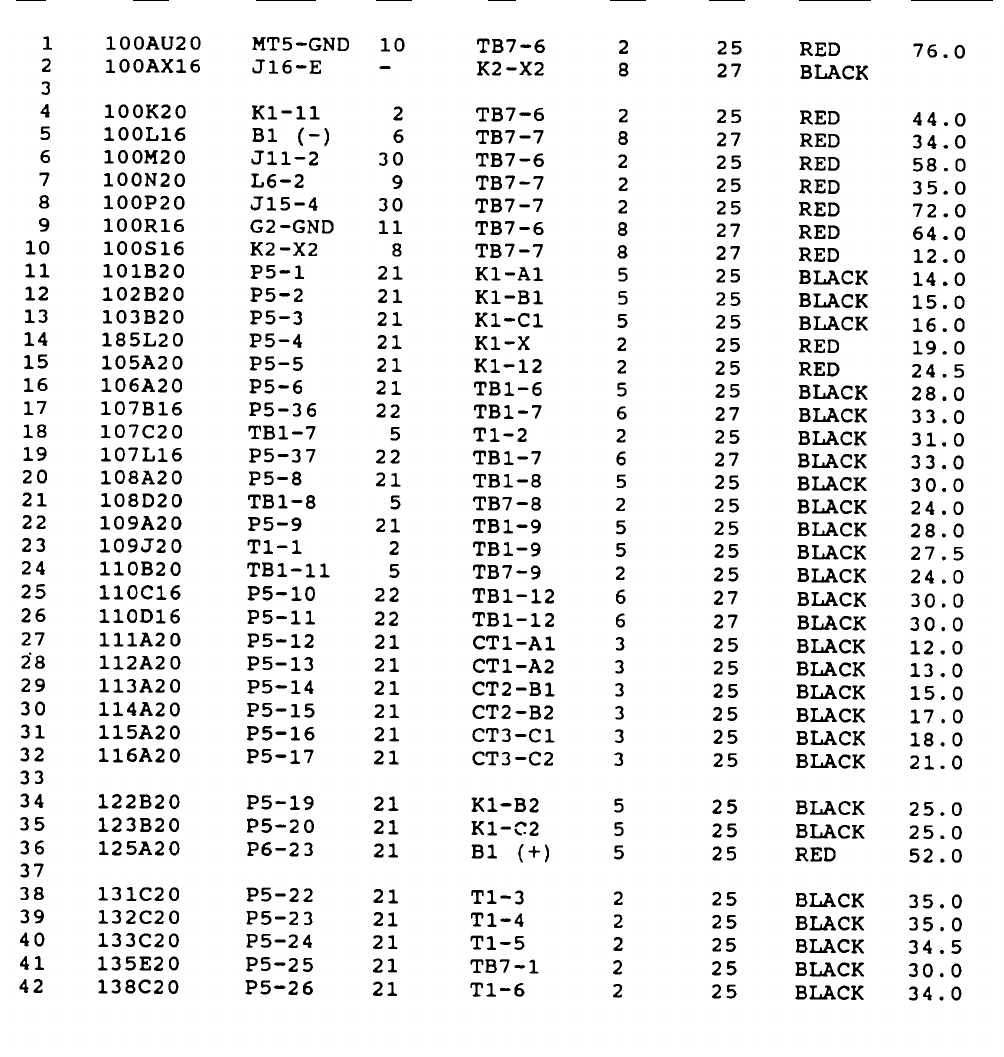

Figure. 8 - WIRE LIST TABLE

WIRE WIRE FIG.8 FIG.8 FIG.8

REF MARKING ITEM ITEM ITEM MARKING WIRE

NO. NO. FROM NO. TO NO. NO. COLOR LENGTH UOC

Figure 8. Control Box Harness Assembly (Sheet 17 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

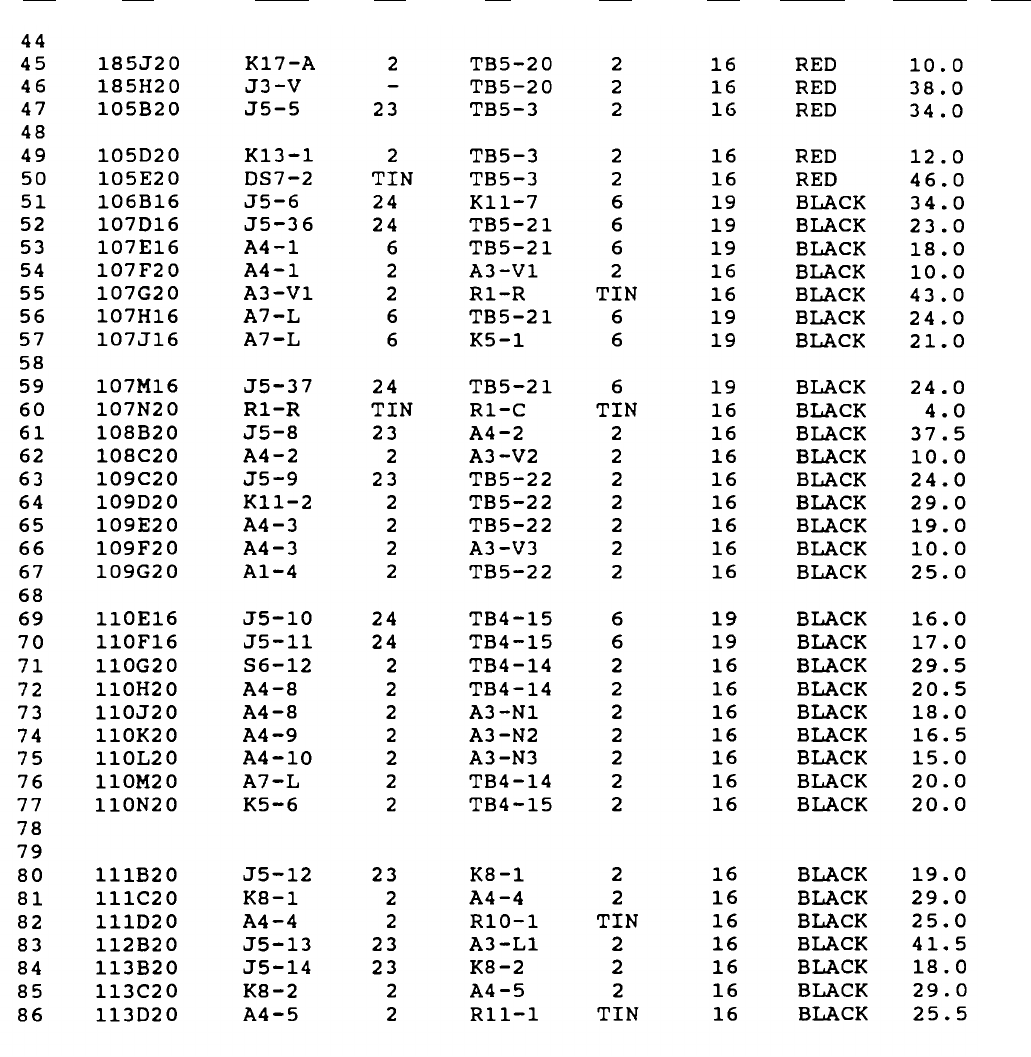

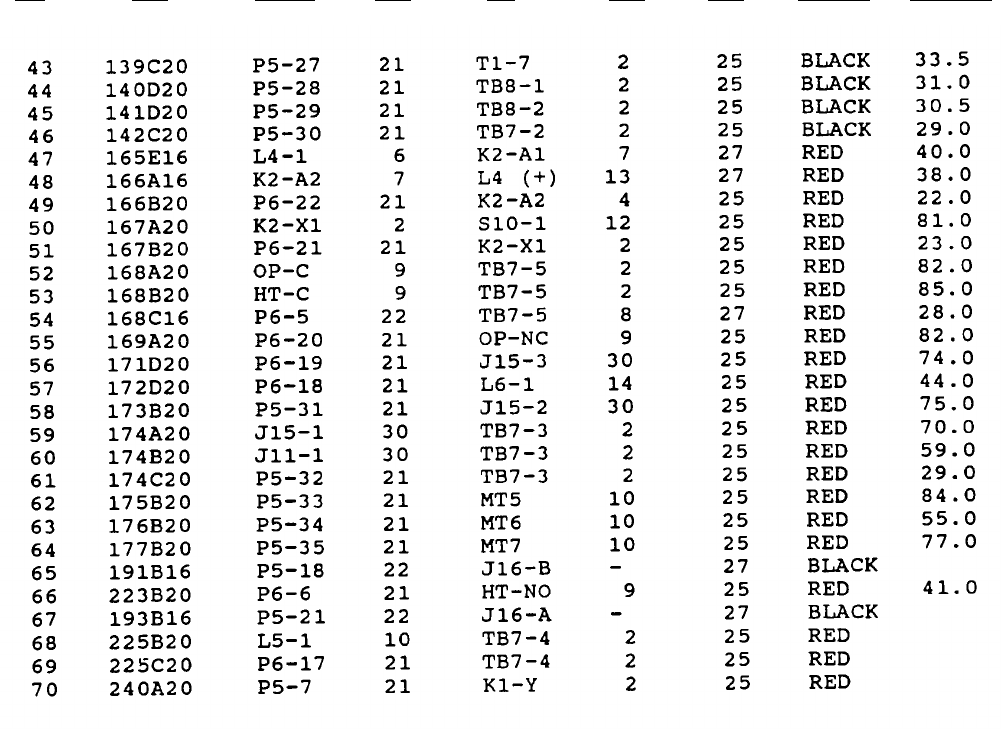

Figure. 8 - WIRE LIST TABLE

WIRE WIRE FIG.8 FIG.8 FIG.8

REF MARKING ITEM ITEM ITEM MARKING WIRE

NO. NO. FROM NO. TO NO. NO. COLOR LENGTH UOC

Figure 8. Control Box Harness Assembly (Sheet 18 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

Figure 8 - WIRE LIST TABLE

WIRE WIRE FIG.8 FIG.8 FIG.8

REF MARKING ITEM ITEM ITEM MARKING WIRE

NO. NO. FROM NO. TO NO. NO. COLOR LENGTH UOC

Figure 8. Control Box Harness Assembly (Sheet 19 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

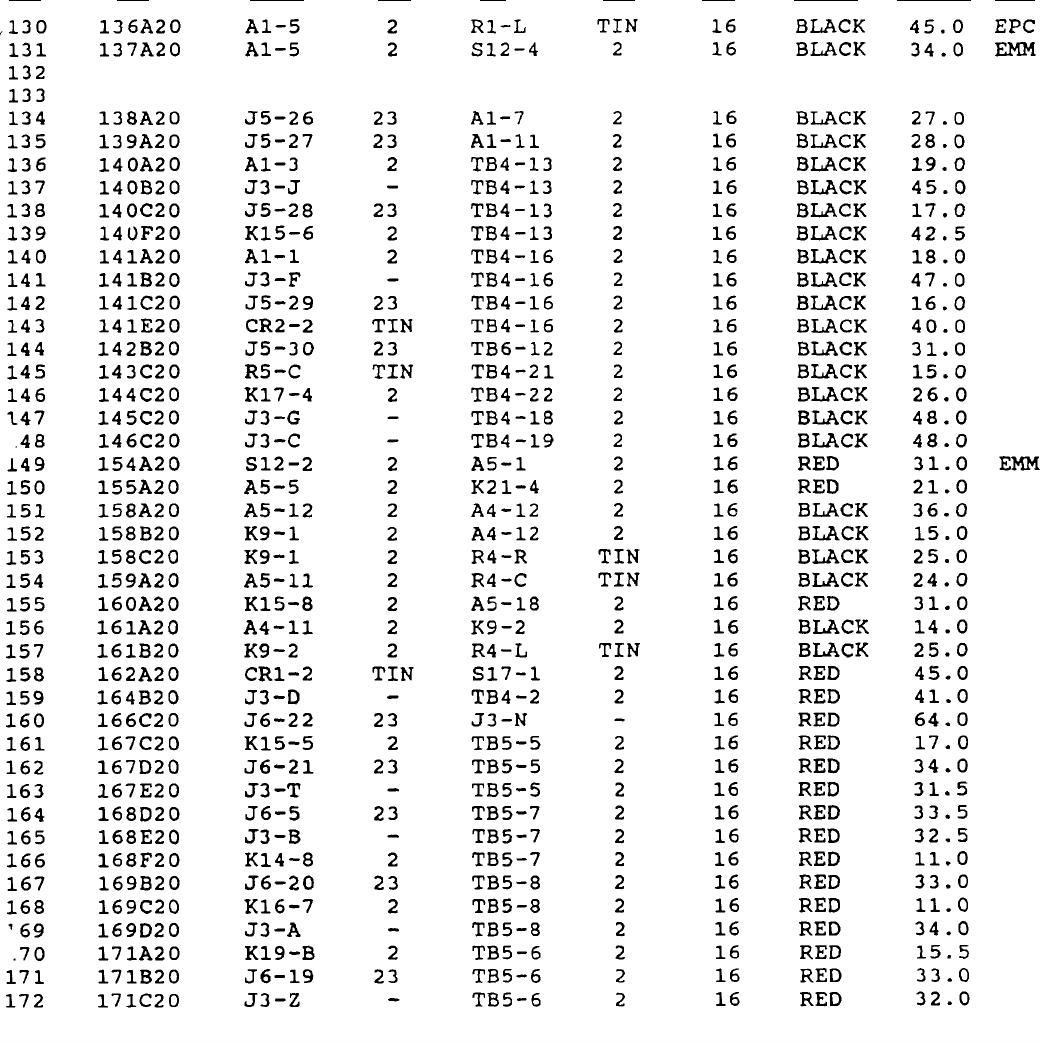

Figure 8 - WIRE LIST TABLE

WIRE WIRE FIG.8 FIG.8 FIG.8

REF MARKING ITEM ITEM ITEM MARKING WIRE

NO. NO. FROM NO. TO NO. NO. COLOR LENGTH UOC

Figure 8. Control Box Harness Assembly (Sheet 20 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

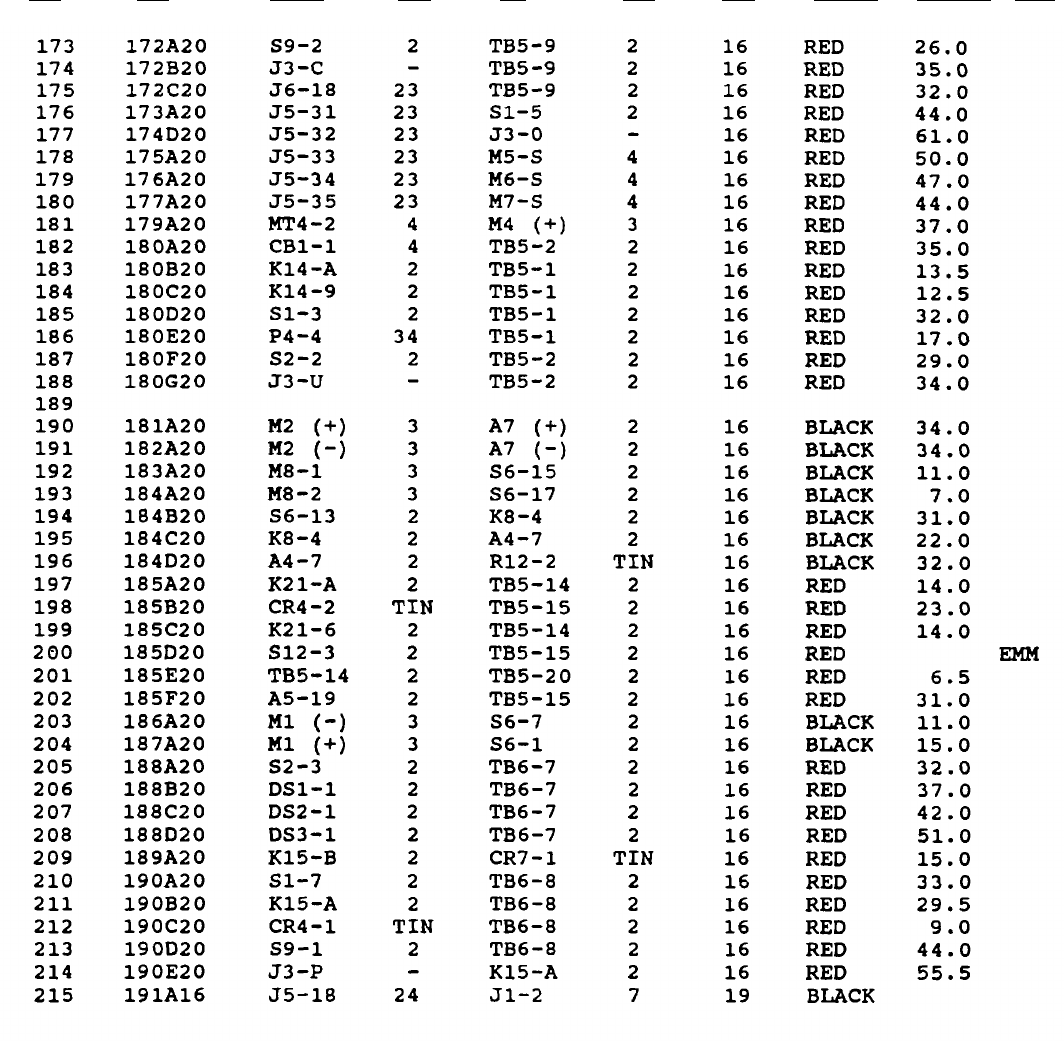

Figure 8 - WIRE LIST TABLE

WIRE WIRE FIG.8 FIG.8 FIG.8

REF MARKING ITEM ITEM ITEM MARKING WIRE

NO. NO. FROM NO. TO NO. NO. COLOR LENGTH UOC

Figure 8. Control Box Harness Assembly (Sheet 21 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

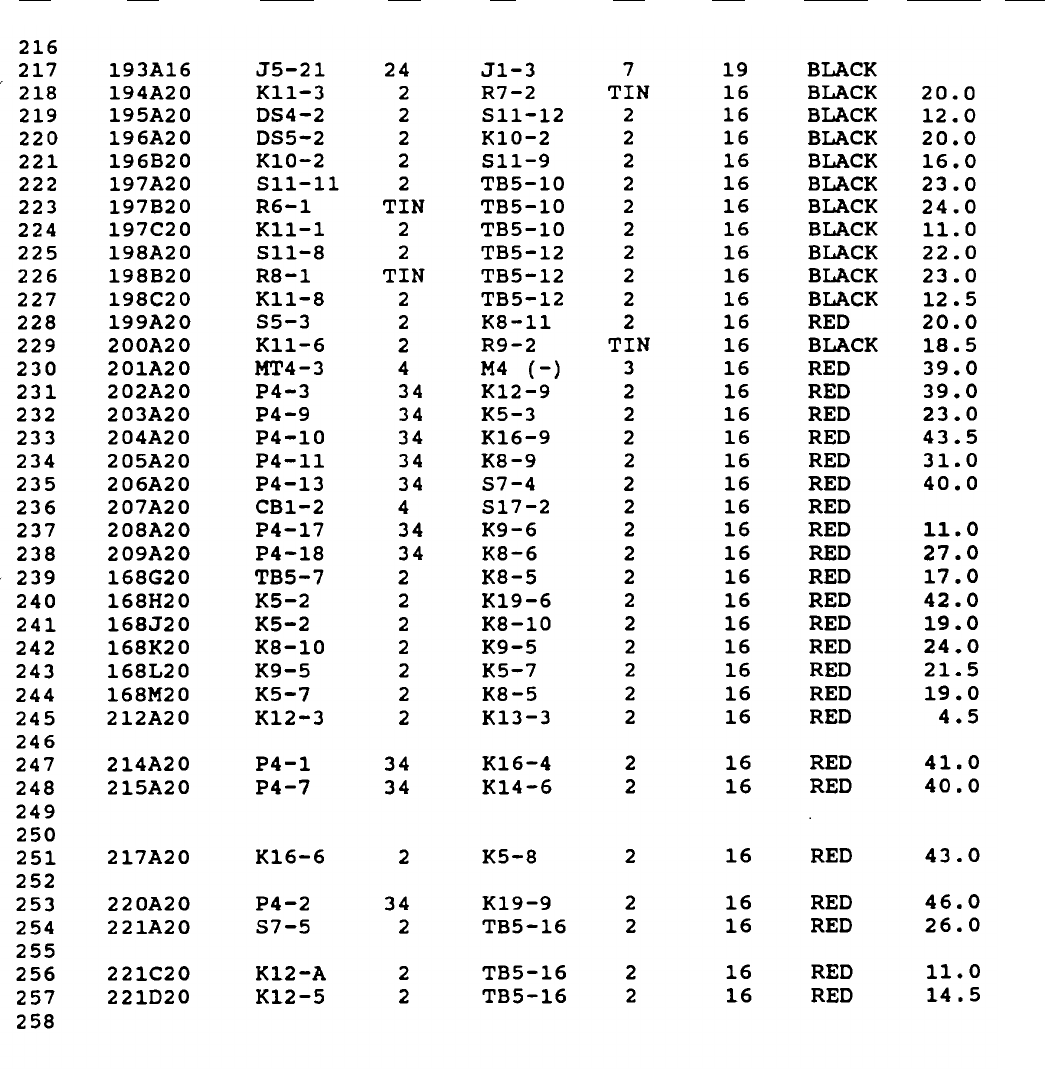

Figure 8 - WIRE LIST TABLE

WIRE WIRE FIG.8 FIG.8 FIG.8

REF MARKING ITEM ITEM ITEM MARKING WIRE

NO. NO. FROM NO. TO NO. NO. COLOR LENGTH UOC

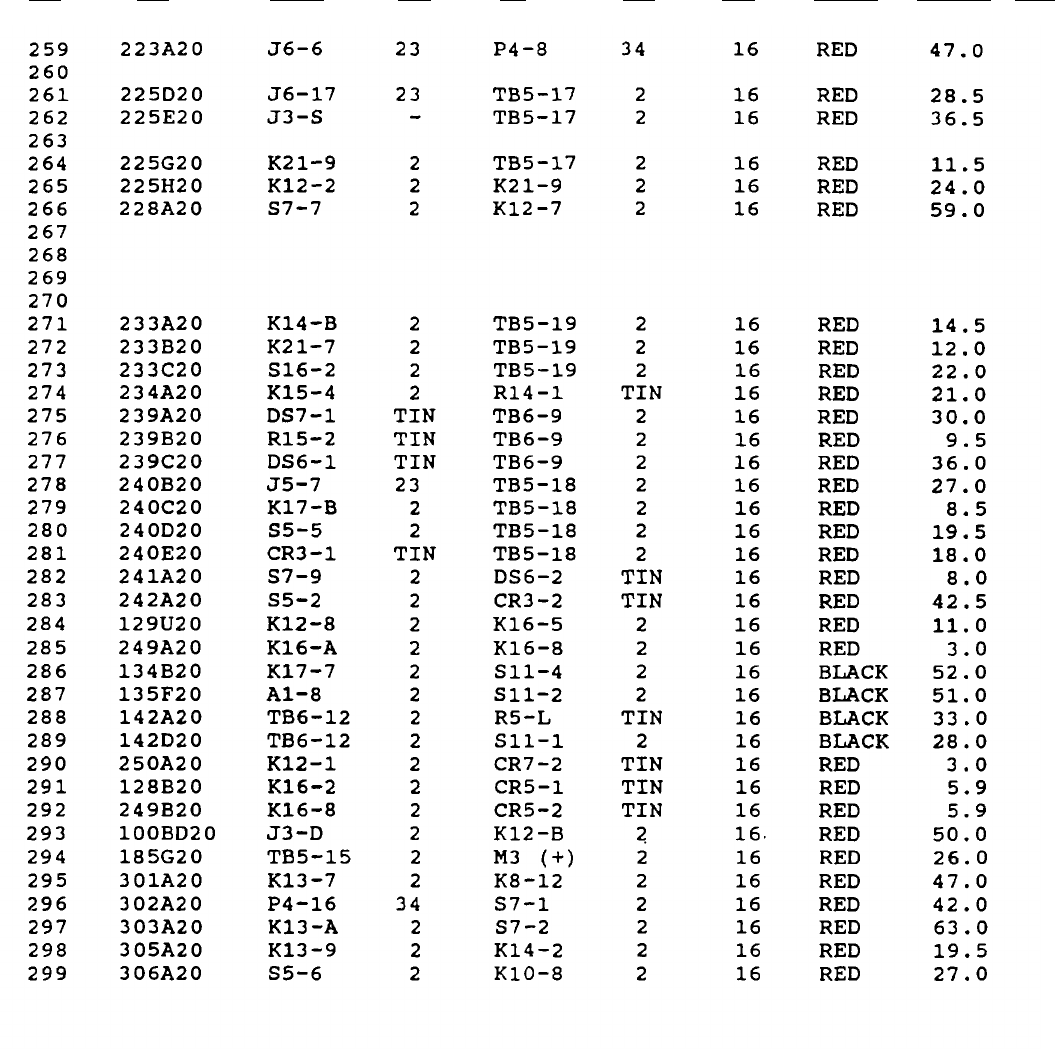

Figure 8. Control Box Harness Assembly (Sheet 22 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

Figure 8 - WIRE LIST TABLE

WIRE WIRE FIG.8 FIG.8 FIG.8

REF MARKING ITEM ITEM ITEM MARKING WIRE

NO. NO. FROM NO. TO NO. NO. COLOR LENGTH UOC

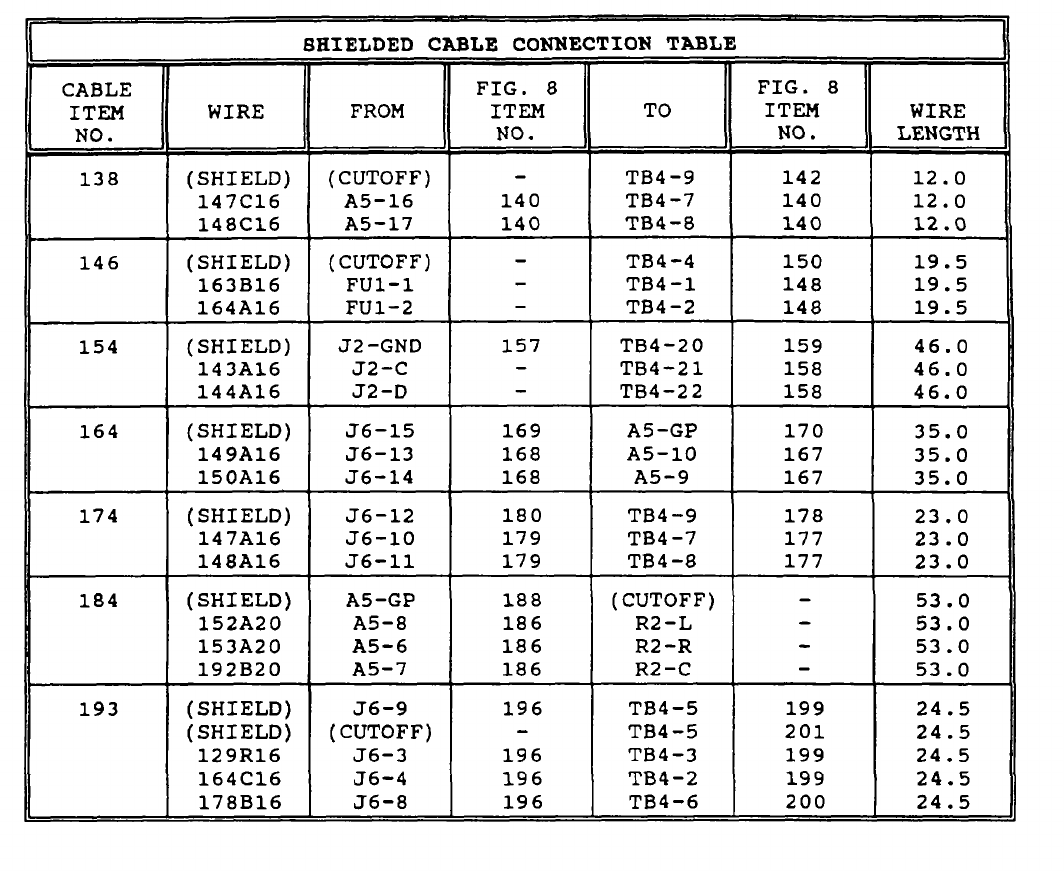

Figure 8. Control Box Harness Assembly (Sheet 23 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

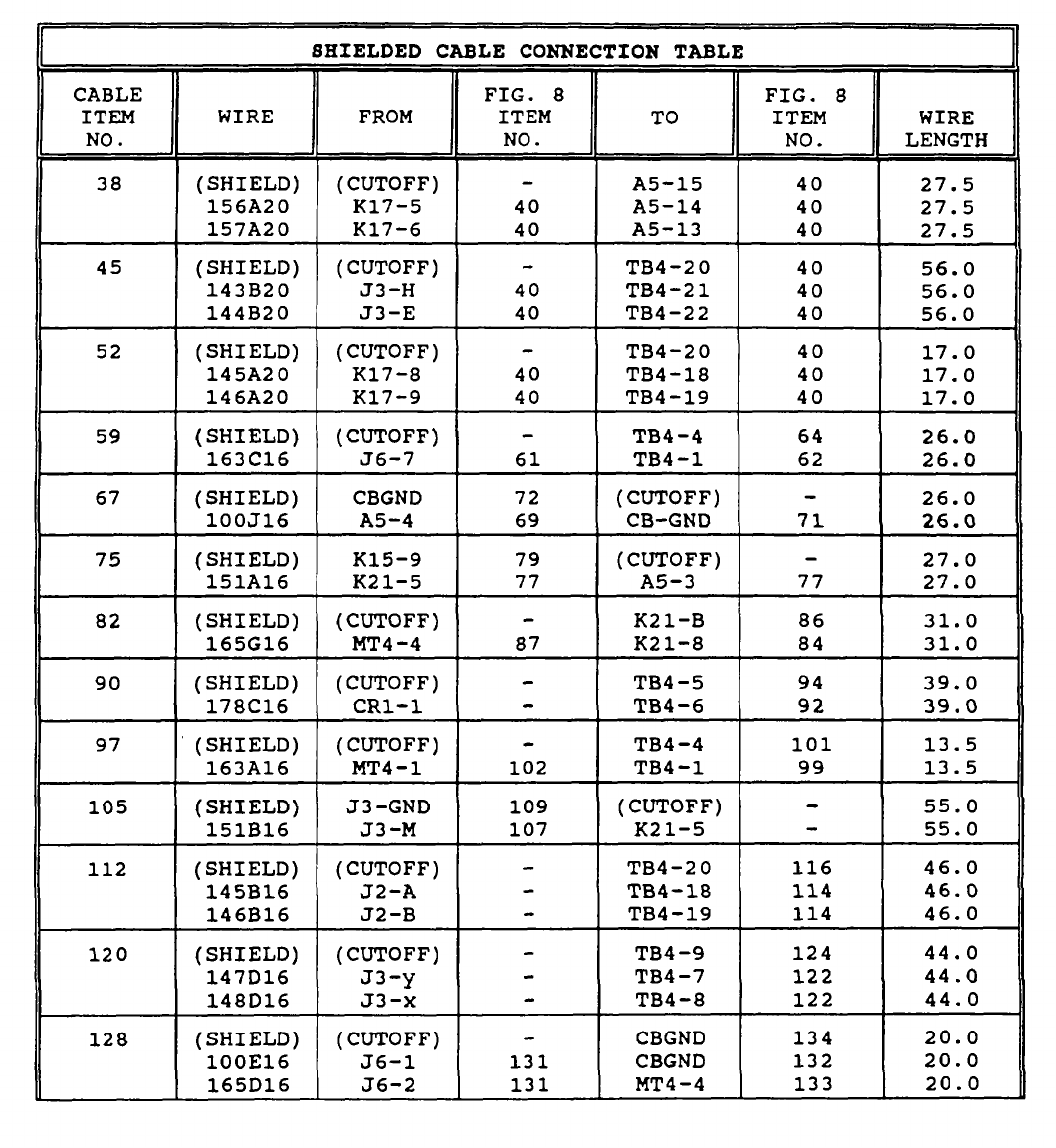

Figure 8. Control Box Harness Assembly (Sheet 24 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

Figure 8. Control Box Harness Assembly (Sheet 25 of 25)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 03 - CONTROL BOX

ASSEMBLY

FIG. 8 CONTROL BOX

HARNESS ASSEMBLY

1PBOFF PBOOO PBOFF 30554 88-22067 ..WIRE HARNESS, BRANCH 1 1

UOC: EMM

1PBOFZ PBOFZ PBOFZ 30554 88-22665 ..WIRE HARNESS, BRANCH 1 1

UOC: EPC

2PAOZZ PAOZZ PAOZZ 00779 52949 ...TERMINAL, LUG #6, 22-18 369 795

AWG.

UOC: EMM

2PAOZZ PAOZZ PAOZZ 00779 52949 ...TERMINAL, LUG 363 433

UOC: EPC

3PAOZZ PAOZZ PAOZZ 96906 MS25036-150 ...TERMINAL, LUG 10 10

4PAOZZ PAOZZ PAOZZ 98410 AA-8714-08 ...TERMINAL, LUG #8, 22-18 18 23

AWG.

5PAOZZ PAOZZ PAOZZ 98410 AA-8715-10 ...TERMINAL, LUG#10, 22-18 1 11

AWG.

6PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ...TERMINAL, LUG#6, 16-14 13 48

AWG.

7PAOZZ PAOZZ PAOZZ 98410 BB-8194-08 ...TERMINAL, LUG 3 5

8PAOZZ PAOZZ PAOZZ 96906 MS25036-149 ...TERMINAL, LUG 1 2

9PAOZZ PAOZZ PAOZZ 96906 MS25036-148 ...TERMINAL, LUG 1 1

10 PAOZZ PAOZZ PAOZZ 98410 C-836-04 ...TERMINAL, LUG 1 1

11 PAOZZ PAOZZ PAOZZ 98410 BB-8717-10 ...TERMINAL, LUG#10, 16-14 1 6

AWG.

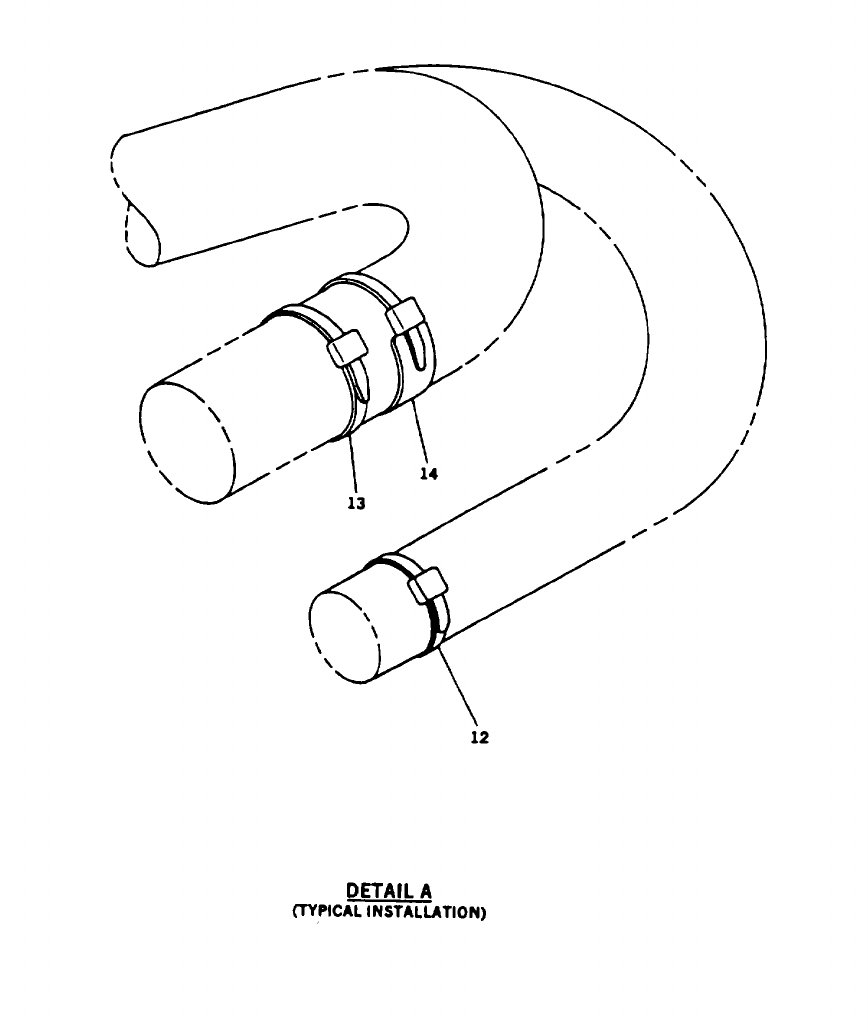

12 PAOZZ PAOZZ PAOZZ 96906 MS3367-5-9 ...STRAP, TIEDOWN, ELECT V V

13 PAOZZ PAOZZ PAOZZ 96906 MS3367-1-9 ...STRAP, TIEDOWN, ELECT V V

14 PAOZZ PAOZZ PAOZZ 96906 MS3367-5-9 ...STRAP, TIEDOWN, ELECT 1 1

15 XDOZZ XB XBOZZ 9R803 330JS ...CONTACT, ELECTRICAL 11 13

16 MOOZZ MOO MOOZZ 30554 88-22067-17 ...WIRE, ELECTRIC MAKE 1 1

FROM P/N M5086/2-20-9

(81349), AS REQUIRED.

17 XDOZZ XB XBOZZ 9R803 3300-12 ...TERMINAL BLOCK TB6. 1 1

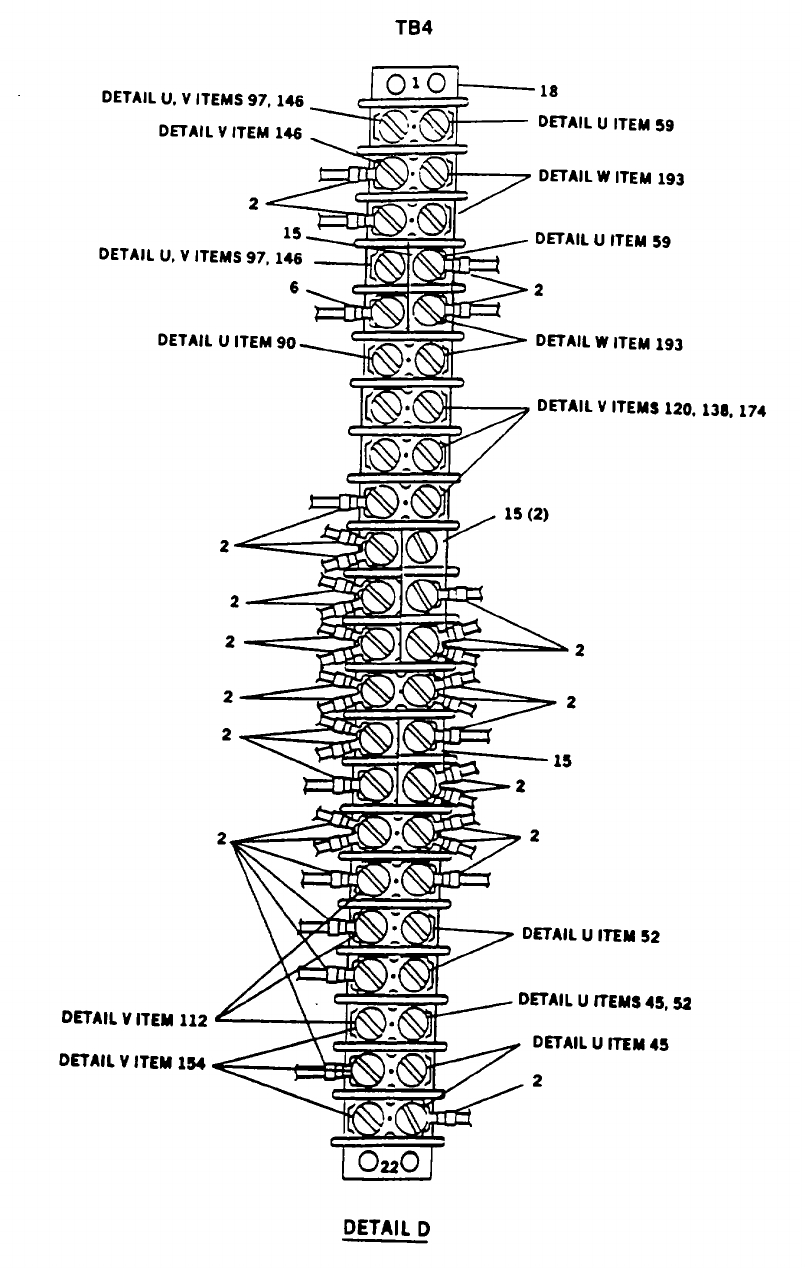

18 XDOZZ XB XBOZZ 9R803 3300-22 ...TERMINAL BLOCK TB4 2 2

AND TB5.

19 MOOZZ MOO MOOZZ 30554 88-22067-18 ...WIRE, ELECTRIC MAKE 1 1

FROM P/N M5086/2-16-9

(81349), AS REQUIRED.

REQUIRED.

20 PAOZZ PAOZZ PAOZZ 78189 511-041800-00-0211- ...NUT, PLAIN, ASSEMBLED 4 34

0511

21 PAOZZ PAOZZ PAOZZ 45722 P15121-11 ...SCREW, ASSEMBLED WAS 4 8

22 PAOZZ PAOZZ PAOZZ 00779 206512-1 ...CLAMP, CABLE, ELECTRI 2 2

8-1

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

23 PAOZZ PAOZZ PAOZZ 00779 66400-4 ...CONTACT, ELECTRICAL 39 42

24 PAOZA PAOZA PAOZA 00779 66099-4 ...CONTACT, ELECTRICAL 5 15

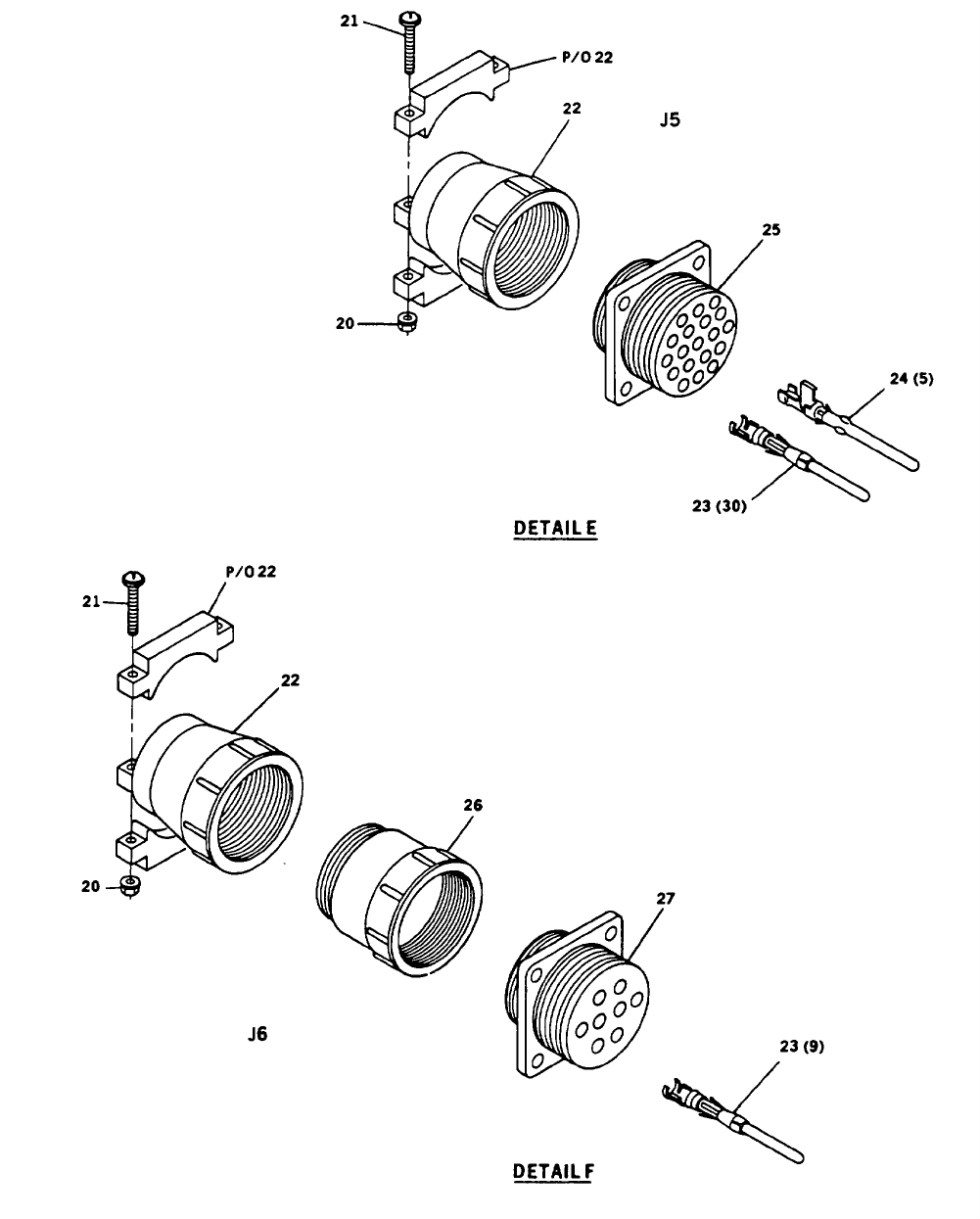

25 PAOZZ PAOZZ PAOZZ 97539 206151-1 ...CONNECTOR BODY, RECE 1 1

J5.

26 PAOZZ PAOZZ PAOZZ 00779 207055-1 ...EXTENSION, ELECTRICA 1 1

J6.

27 PAOZZ PAOZZ PAOZZ 97539 206838-1 ...CONNECTOR BODY, RECE 1 1

J6.

28 PAOZZ PAOZZ PAOZZ 77342 27E893 ...SOCKET, PLUG-IN ELEC 8 8

K12-K21.

29 PAOZZ PAOZZPAOZZ 30554 88-21897-1 ...SOCKET, PLUG-IN ELEC 1 1

K11.

30 PAOZZ PAOZZ PAOZZ 96906 MS25251-16 ...PLUG, END SEAL, ELECT 29 29

31 PAOZZ PAOZZ PAOZZ 11083 5R7840 ...CONNECTOR, RECEPTACL 1 1

J3.

32 PAOZA PAOZA PAOZA 96906 MS3452W1-8-11P ...CONNECTOR, RECEPTACL 1 1

J2.

33 MOOZZ MOO MOOZZ 30554 88-22067-19 ...WIRE, ELECTRIC MAKE 1 1

FROM P/N M5086/2-12-9

(81349), AS REQUIRED.

UIRED.

34 PAOZZ PAOZZ PAOZZ 49956 G435720-1 ...CONTACT, ELECTRICAL 18 18

35 PAOZZ PAOZZ PAOZZ 27264 39-01-2180 ...CONNECTOR BODY, PLUG 1 1

P4.

36 PAFZZ PAOZZ PAFZZ 80131 1N5406 ...SEMICONDUCTOR DEVIC 2 7

CR5 & CR7.

37 MOOZZ MOO MOOZZ 30554 88-22067-62 ...INSULATION, SLEEVING 4 4

MAKE FROM P/N M23053/5-

104-0 (81349), 2 INCHES

REQUIRE CHES REQUIRED.

38 AFFFF AOO AFFFF 30554 88-22098-1 ...CABLE ASSY, SHIELDED 1 1

39 MFFZZ MOO MFFZZ 30554 88-22098-1-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-20TE2T14

(81349), 27.5 INCHES

REQUIRED.

40 PAOZZ PAOZZ PAOZZ 00779 52949 ....TERMINAL, LUG #6, 22-18 5 432

AWG.

41 PAFZZ PAOZZ PAFZZ 81349 M83519/2-3 ....SPLICE, CONDUCTOR 1 4

CUT WIRE LEAD TO 3

INCHES.

42 MFFZZ MOO MFFZZ 30554 88-22629-004 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

43 MFFZZ MOO MFFZZ 30554 88-22629-002 ....MARKER, ID, WIRE MAKE 2 2

FROM P/N M23053/5-105-9

(81349), 1.25 INCHES

REQUIRED.

8-2

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

44 MFFZZ MOO MFFZZ 30554 88-22629-005 ....MARKER, IDENTIFICATI 2 2

MAKE FROM PIN M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

45 AFFFF AOO AFFFF 30554 88-22098-2 ...CABLE ASSY, SHIELDED 1 1

46 MFFZZ MOO MFFZZ 30554 88-22098-2-1 ....CABLE, SHIELDED MAKE 1 1

FROM PIN M27500-20TE2T14

(81349), 56 INCHES

REQUIRED.

47 PAOZZ PAOZZ PAOZZ 00779 52949 ....TERMINAL, LUG #6, 22-18 3 432

AWG.

48 PAFZZ PAOZZ PAFZZ 81349 M83519/2-3 ....SPLICE, CONDUCTOR 1 4

CUT WIRE LEAD TO 4

INCHES.

49 MFFZZ MOO MFFZZ 30554 88-22629-006 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

50 MFFZZ MOO MFFZZ 30554 88-22629-007 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

51 MFFZZ MOO MFFZZ 30554 88-22629-008 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

52 AFFFF AOO AFFFF 30554 88-22098-3 ...CABLE ASSY, SHIELDED 1 1

53 MFFZZ MOO MFFZZ 30554 88-22098-3-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-20TE2T14

(81349), 17 INCHES

REQUIRED.

54 PAOZZ PAOZZ PAOZZ 00779 52949 ....TERMINAL, LUG #6, 22-18 5 432

AWG.

55 PAFZZ PAOZZ PAFZZ 81349 M83519/2-3 ....SPLICE, CONDUCTOR 1 4

CUT WIRE LEAD TO 4

INCHES.

56 MFFZZ MOO MFFZZ 30554 88-22629-009 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

57 MFFZZ MOO MFFZZ 30554 88-22629-010 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

58 MFFZZ MOO MFFZZ 30554 88-22629-011 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

59 AFFFF AOO AFFFF 30554 88-22099-1 ...CABLE ASSY, SHIELDED 1 1

8-3

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

60 MFFZZ MOO MFFZZ 30554 88-22099-1-1 ....CABLE, SHIELDED MAKE 1 1

FROM PIN M27500-16TE1T14

(81349), 26 INCHES

REQUIRED.

61 PAOZA PAOZA PAOZA 00779 66099-4 CONTACT, ELECTRICAL 1 15

62 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ....TERMINAL, LUG #6, 16-14 1 48

AWG.

63 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 4

INCHES.

64 PAOZZ PAOZZ PAOZZ 00779 52949 ....TERMINAL, LUG #6, 22-18 1 6

AWG.

65 MFFZZ MOO MFFZZ 30554 88-22629-012 ....MARKER, IDENTIFICATI 1 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

66 MFFZZ MOO MFFZZ 30554 88-22629-013 ....MARKER, IDENTIFICATI 2 2

MAKE FROM PIN M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

67 AFFFF AOO AFFFF 30554 88-22099-2 ...CABLE ASSY, SHIELDED 1 1

68 MFFZZ MOO MFFZZ 30554 88-22099-2-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-16TE1T14

81349), 26 1 INCHES

REQUIRED.

69 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ....TERMINAL, LUG #6, 16-14 1 48

AWG.

70 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 2

INCHES.

71 PAOZZ PAOZZ PAOZZ 98410 BB-8717-10 ....TERMINAL, LUG #10, 16- 1 6

14 AWG.

72 PAOZZ PAOZZ PAOZZ 98410 AA-8715-10 TERMINAL, LUG #10, 22- 1 11

18 AWG.

73 MFFZZ MOO MFFZZ 30554 88-22629-014 ....MARKER, IDENTIFICATI 1 1

MAKE FROM PIN M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

74 MFFZZ MOO MFFZZ 30554 88-22629-015 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

75 AFFFF AOO AFFFF 30554 88-22099-3 ...CABLE ASSY, SHIELDED 1 1

76 MFFZZ MOO MFFZZ 30554 88-22099-3-1 CABLE, SHIELDED MAKE 1 1

FROM PIN M27500-16TE1T14

(81349), 27 INCHES

REQUIRED.

77 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ....TERMINAL, LUG #6, 16-14 2 48

AWG.

8-4

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

78 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 3

INCHES.

79 PAOZZ PAOZZ PAOZZ 00779 52949 ....TERMINAL, LUG #6, 22-18 1 2

AWG.

80 MFFZZ MOO MFFZZ 30554 88-22629-016 ....MARKER, IDENTIFICATI 1 1

MAKE FROM PIN M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

81 MFFZZ MOO MFFZZ 30554 88-22629-017 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

82 AFFFF AOO AFFFF 30554 88-22099-4 ...CABLE ASSY, SHIELDED 1 1

83 MFFZZ MOO MFFZZ 30554 88-22099-4-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-16TE1T14

(81349), 30 INCHES REQD

INCHES REQUIRED.

84 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ....TERMINAL, LUG #6, 16-14 1 48

AWG.

85 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 3

INCHES.

86 PAOZZ PAOZZ PAOZZ 00779 52949 ....TERMINAL, LUG #6, 22-18 1 2

AWG.

87 PAOZZ PAOZZ PAOZZ 96906 MS25036-154 ....TERMINAL, LUG 1 4

88 MFFZZ MOO MFFZZ 30554 88-22629-018 ....MARKER, IDENTIFICATI 1 1

MAKE FROM PIN M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

89 MFFZZ MOO MFFZZ 30554 88-22629-019 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

90 AFFFF AOOAFFFF 30554 88-22099-5 ...CABLE ASSY, SHIELDED 1 1

91 MFFZZ MOO MFFZZ 30554 88-22099-5-1 ....CABLE, SHIELDED MAKE 1 1

FROM PIN M27500-16TE1T14

(81349), 39 INCHES

REQUIRED.

92 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ....TERMINAL, LUG #6, 16-14 1 48

AWG.

93 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 4

INCHES.

94 PAOZZ PAOZZ PAOZZ 00779 52949 ....TERMINAL, LUG #6, 22-18 1 2

AWG.

95 MFFZZ MOO MFFZZ 30554 88-22629-020 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

8-5

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

96 MFFZZ MOO MFFZZ 30554 88-22629-021 ....MARKER, IDENTIFICATI I 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

97 AFFFF AOO AFFFF 30554 88-22099-6 ...CABLE ASSY, SHIELDED 1 1

98 MFFZZ MOO MFFZZ 30554 88-22099-6-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-16TE1T14

(81349), 13.5 INCHES

REQUIRED.

99 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ....TERMINAL, LUG #6, 16-14 1 48

AWG.

100 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 4

INCHES.

101 PAOZZ PAOZZ PAOZZ 00779 52949 ....TERMINAL, LUG #6, 22-18 1 2

AWG.

102 PAOZZ PAOZZ PAOZZ 96906 MS25036-154 ....TERMINAL, LUG 1 4

103 MFFZZ MOO MFFZZ 30554 88-22629-022 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

104 MFFZZ MOO MFFZZ 30554 88-22629-023 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

105 AFFFF AOO AFFFF 30554 88-22100 ...CABLE ASSY, SHIELDED 1 1

106 MFFZZ MOO MFFZZ 30554 88-22100-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-16TEIT14

(81349), 55 INCHES

REQUIRED.

107 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ....TERMINAL, LUG #6, 16-14 1 48

AWG.

108 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 6

INCHES.

109 PAOZZ PAOZZ PAOZZ 96906 MS25036-149 ....TERMINAL, LUG 1 2

110 MFFZZ MOO MFFZZ 30554 88-22629-025 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

111 MFFZZ MOO MFFZZ 30554 88-22629-026 ....MARKER, IDENTIFICATI 2 2

MAKE FROM PIN M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

112 AFFFF AOO AFFFF 30554 88-22101-1 ...CABLE ASSY, SHIELDED 1 1

113 MFFZZ MOO MFFZZ 30554 88-22101-1-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/M M27500-16TE2T14

(81349), 46 INCHES

REQUIRED.

8-6

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

114 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ....TERMINAL, LUG#6, 16-14 2 48

AWG.

115 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 4

INCHES.

116 PAOZZ PAOZZ PAOZZ 00779 52949 ....TERMINAL, LUG#6, 22-18 1 2

AWG.

117 MFFZZ MOO MFFZZ 30554 88-22629-027 ....MARKER, IDENTIFICATI 1 1

MAKE FROM PIN M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

118 MFFZZ MOO MFFZZ 30554 88-22629-028 ....MARKER, IDENTIFICATI 2 2

MAKE FROM PIN M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

119 MFFZZ MOO MFFZZ 30554 88-22629-029 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

120 AFFFF AOO AFFFF 30554 88-22101-2 ...CABLE ASSY, SHIELDED 1 1

121 MFFZZ MOO MFFZZ 30554 88-22101-2-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-16TE2T14

(81349), 44 INCHES

REQUIRED.

122 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ....TERMINAL, LUG #6, 16-14 2 48

AWG.

123 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 4

INCHES.

124 PAOZZ PAOZZ PAOZZ 00779 52949 ....TERMINAL, LUG #6, 22-18 1 2

AWG.

125 MFFZZ MOO MFFZZ 30554 88-22629-030 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

126 MFFZZ MOO MFFZZ 30554 88-22629-031 ....MARKER, IDENTIFICATI 2 2

MAKE FROM PIN M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

127 MFFZZ MOO MFFZZ 30554 88-22629-032 ....MARKER, IDENTIFICATI 2 2

MAKE FROM PIN M23053/5-

105-9 (81349), 1 25 INCHES

REQUIRED.

128 AFFFF AOO AFFFF 30554 88-22101-3 ...CABLE ASSY, SHIELDED 1 1

129 MFFZZ MOO MFFZZ 30554 88-22101-3-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-16TE2T14

(81349), 20 INCHES

REQUIRED.

8-7

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

130 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 4

INCHES.

131 PAOZA PAOZA PAOZA 00779 66099-4 ....CONTACT, ELECTRICAL 2 15

132 PAOZZ PAOZZ PAOZZ 98410 BB-8717-10 ....TERMINAL, LUG #10, 16- 1 6

14 AWG.

133 PAOZZ PAOZZ PAOZZ 96906 MS25036-154 ....TERMINAL, LUG 1 4

134 PAOZZ PAOZZ PAOZZ 98410 AA-8715-10 ....TERMINAL, LUG#10, 22- 1 11

18 AWG.

135 MFFZZ MOO MFFZZ 30554 88-22629-033 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

136 MFFZZ MOO MFFZZ 30554 88-22629-034 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

137 MFFZZ MOO MFFZZ 30554 88-22629-035 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

138 AFFFF AOO AFFFF 30554 88-22101-4 ...CABLE ASSY, SHIELDED 1 1

139 MFFZZ MOO MFFZZ 30554 88-22101-4-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-16TE2T14

(81349), 12 INCHES

REQUIRED.

140 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ....TERMINAL, LUG #6, 16-14 4 48

AWG.

141 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 4

INCHES.

142 PAOZZ PAOZZ PAOZZ 00779 52949 ....TERMINAL, LUG #6, 22-18 1 2

AWG.

143 MFFZZ MOO MFFZZ 30554 88-22629-036 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

144 MFFZZ MOO MFFZZ 30554 88-22629-037 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

145 MFFZZ MOO MFFZZ 30554 88-22629-038 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

146 AFFFF AOO AFFFF 30554 88-22101-5 ...CABLE ASSY, SHIELDED 1 1

147 MFFZZ MOO MFFZZ 30554 88-22101-5-1 ....CABLE;SHIELDED MAKE 1 1

FROM PIN M27500-16TE2T14

(81349), 19.5 INCHES

REQUIRED.

8-8

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

148 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ....TERMINAL, LUG #6, 16-14 2 48

AWG.

149 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 4

INCHES.

150 PAOZZ PAOZZ PAOZZ 00779 52949 ....TERMINAL, LUG #6, 22-18 1 2

AWG.

151 MFFZZ MOO MFFZZ 30554 88-22629-039 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

152 MFFZZ MOO MFFZZ 30554 88-22629-040 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED

153 MFFZZ MOO MFFZZ 30554 88-22629-041 ....MARKER, IDENTIFICATI 1 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

154 AFFFF AOO AFFFF 30554 88-22102-1 ...CABLE ASSY, SHIELDED 1 1

155 MFFZZ MOO MFFZZ 30554 88-22102-1-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-16TE2T14

(81349), 46 INCHES

REQUIRED.

156 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 4

INCHES.

157 PAOZZ PAOZZ PAOZZ 96906 MS25036-152 ....TERMINAL, LUG 1 1

158 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ....TERMINAL, LUG #6, 16-14 1 48

AWG.

159 PAOZZ PAOZZ PAOZZ 00779 52949 ....TERMINAL, LUG #6, 22-18 1 2

AWG.

160 MFFZZ MOO MFFZZ 30554 88-22102-1-12 ....INSULATION, SLEEVING 1 1

MAKE FROM P/N M23053/5-

105-0 (81349), 4 IN CHES

REQUIRED.

161 MFFZZ MOO MFFZZ 30554 88-22629-053 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

162 MFFZZ MOO MFFZZ 30554 88-22629-054 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

163 MFFZZ MOO MFFZZ 30554 88-22629-055 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

164 AFFFF AOO AFFFF 30554 88-22102-2 ...CABLE ASSY, SHIELDED 1 1

8-9

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

165 MFFZZ MOO MFFZZ 30554 88-22102-2-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-16TE2T14

(81349), 35 INCHES

REQUIRED.

166 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 2 24

CUT WIRE LEAD TO 6 INCHES

FOR WIRE TERMINA TING AT

A5-GP. CUT WIRE LEAD TO 7

INCHES F

167 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ....TERMINAL, LUG #6, 16-14 2 48

AWG.

168 PAOZA PAOZA PAOZA 00779 66099-4 ....CONTACT, ELECTRICAL 2 15

169 PAOZZ PAOZZ PAOZZ 00779 66400-4 ....CONTACT, ELECTRICAL 1 42

170 PAOZZ PAOZZ PAOZZ 98410 AA-8715-10 ....TERMINAL, LUG#10, 22- 1 11

18 AWG.

171 MFFZZ MOO MFFZZ 30554 88-22629-056 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

172 MFFZZ MOO MFFZZ 30554 88-22629-057 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

173 MFFZZ MOO MFFZZ 30554 88-22629-058 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

174 AFFFF AOO AFFFF 30554 88-22102-3 ...CABLE ASSY, SHIELDED 1 1

175 MFFZZ MOO MFFZZ 30554 88-22102-3-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-16TE2T14

(81349), 23 INCHES

REQUIRED.

176 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 2 24

CUT WIRE LEAD TO 4 INCHES

FOR WIRE TERMINATING AT

TB4-9. CUT WIRE LEAD TO 7

INCHES F

177 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ....TERMINAL, LUG #6, 16-14 2 48

AWG.

178 PAOZZ PAOZZ PAOZZ 00779 52949 ....TERMINAL, LUG #6, 22-18 1 2

AWG.

179 PAOZA PAOZA PAOZA 00779 66099-4 ....CONTACT, ELECTRICAL 2 15

180 PAOZZ PAOZZ PAOZZ 00779 66400-4 ....CONTACT, ELECTRICAL 1 42

181 MFFZZ MOO MFFZZ 30554 88-22629-059 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 125 INCHES

REQUIRED.

8-10

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

182 MFFZZ MOO MFFZZ 30554 88-22629-060 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

183 MFFZZ MOO MFFZZ 30554 88-22629-061 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

184 AFFFF AOO AFFFF 30554 88-22104 ...CABLE ASSY, SHIELDED 1 1

185 MFFZZ MOO MFFZZ 30554 88-22104-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-20TE3T14

(81349), 53 INCHES

REQUIRED.

186 PAOZZ PAOZZ PAOZZ 98410 AA-8704-06 ....TERMINAL, LUG #6, 22-18 3 432

AWG.

187 PAFZZ PAOZZ PAFZZ 81349 M83519/2-3 SPLICE, CONDUCTOR 1 4

CUT WIRE LEAD TO 7

INCHES.

188 PAOZZ PAOZZ PAOZZ 98410 AA-8715-10 ....TERMINAL, LUG #10, 22- 1 11

18 AWG.

189 MFFZZ MOO MFFZZ 30554 88-22629-077 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

190 MFFZZ MOO MFFZZ 30554 88-22629-078 ....MARKER, IDENTIFICATI 1 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

191 MFFZZ MOO MFFZZ 30554 88-22629-079 ....MARKER, IDENTIFICATI 1 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

192 MFFZZ MOO MFFZZ 30554 88-22629-080 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

193 AFFFF AOO AFFFF 30554 88-22105 ...CABLE ASSY, SHIELDED 1 1

194 MFFZZ MOO MFFZZ 30554 88-22105-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-16TE2T14

(81349), 24.5 INCHES

REQUIRED.

195 MFFZZ MOO MFFZZ 30554 88-22105-2 ...CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-16TE1T14

(81349), 23.5 INCHES

REQUIRED.

196 PAOZA PAOZA PAOZA 00779 66099-4 ...CONTACT, ELECTRICAL 3 15

197 PAFZZ PAOZZ PAFZZ 81349 M83519/2-2 ...SPLICE, CONDUCTOR 1 1

CUT WIRE LEAD TO 4

INCHES.

8-11

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

198 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 2 24

CUT WIRE LEAD TO 7 INCHES

FOR WIRE TERMINA TING AT

J6-9. CUT WIRE LEAD TO 4

INCHES FO

199 PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ....TERMINAL, LUG #6, 16-14 3 48

AWG.

200 PAOZZ PAOZZ PAOZZ 00779 52949 ....TERMINAL, LUG #6, 22-18 1 2

AWG.

201 PAOZZ PAOZZ PAOZZ 00779 66400-4 ....CONTACT, ELECTRICAL 1 42

202 MFFZZ MOO MFFZZ 30554 88-22629-081 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

203 MFFZZ MOO MFFZZ 30554 88-22629-082 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

204 MFFZZ MOO MFFZZ 30554 88-22629-083 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

205 MFFZZ MOO MFFZZ 30554 88-22629-084 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

END OF FIGURE

8-12

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

Figure 9. Control Box Panel

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 03 - CONTROL BOX

ASSEMBLY

FIG. 9 CONTROL BOX PANELS

1PAOZZ PAOZZ PAOZZ 78189 511-081800-00 ..NUT, PLAIN, ASSEMBLED 1 7

2PAOZZ PAOZZ PAOZZ 96906 MS35198-42 ..SCREW, MACHINE 1 1

3AOOOO AOO AOOOO 30554 88-22120 ..HOLDER, CONTROL PAN 1 1

4MOOZZ MOO MOOZZ 30554 88-22120-4 ...INSULATION, SLEEVING 1 1

MAKE FROM P/N M23053/5-

104-0 (81349), AS REQUIRED.

5PAOZZ PAOZZ PAOZZ 96906 MS87006-13 ...HOOK, CHAIN, S 1 1

6PAOZZ PAOZZ PAOZZ 96906 MS20659-144 ...TERMINAL, LUG 1 2

7MOOZZ MOO MOOZZ 30554 88-22120-2 ...ROPE, FIBROUS MAKE 1 1

FROM P/N 1-41NDIA (72205), .

25 X 11 INCHES REQUIRED

8PAOZZ PAOZZ PAOZZ 18876 PMS25086-001-01 ..WASHER, SPLIT 2 4

9PAOZZ PAOZZ PAOZZ 94222 85-46-103-39 ..WASHER, FLAT 2 2

10 PAOZZ PAOZZ PAOZZ 94222 85-12-460-16 ..STUD, TURNLOCK FASTE 2 2

11 PAOZZ PAOZZ PAOZZ 81205 2740-0003 ..NUT, PLAIN, ASSEMBLED 36 438

12 PAOZZ PAOZZ PAOZZ 19207 12325869 ..BOLT, MACHINE 23 355

13 PAOZZ PAOZZ PAOZZ 78553 C7931-1032-3B ..NUT, PLAIN, CLINCH 7 15

14 XDOZZ XB XBOZZ 30554 88-21868 ..PANEL, CONTROL BOX 1 1

LEFT SIDE.

15 XDOZZ XB XBOZZ 30554 88-21869 ..PANEL, CONTROL BOX 1 1

RIGHT SIDE.

16 PAOZZ PAOZZ PAOZZ 94222 85-35-309-56 ..RECEPTACLE, TURNLOCK 2REF

17 PAOZZ PAOZZ PAOZZ 96906 MS21333-76 ..CLAMP, LOOP 1 1

18 PAOZZ PAOZZ PAOZZ 96906 MS21333-75 ..CLAMP, LOOP 1 1

19 XDOZZ XB XBOZZ 30554 88-21980 ..BRACKET, HARNESS SU 1 1

20 XDOZZ XB XBOZZ 30554 88-22045 ..PANEL, CONTROL 1 1

21 MOOZZ MOO MOOZZ 30554 88-21876 ..HINGE, CONTROL PANE 1 1

MAKE FROM PIN Z60960

(03007), 21.75 INCHES

REQUIRED.

22 PAOZZ PAOZZ PAOZZ 83385 841-6-32 ..NUT, PLAIN, ASSEMBLED 2 2

23 PAOZZ PAOZZ PAOZZ 30554 88-22791-2 ..SCREW, MACHINE 2 2

24 XDOZZ XB XBOZZ 30554 88-21874 ..ANGLE, LATCH 1 1

25 XDOZZ XB XBOZZ 30554 88-21873 ..FRAME, CONTROL PANE 1 1

26 XDOZZ XB XBOZZ 30554 88-21871 ..BOTTOM, CONTROL BOX 1 1

27 XDOZZ XB XBOZZ 30554 88-22772 ..BAFFLE, CONTROL BOX 1 1

28 MDOZZ MDO MDOZZ 30554 88-22774 COVER, VENT 1 1

UOC EPC

29 PAOZZ PAOZZ PAOZZ 81349 M24243/1A402 RIVET, BLIND 6 84

30 MDOZZ MDO MDOZZ 30554 88-20074 PLATE, IDENTIFICATI 1 1

PARALLELING RECEPTACLE=

9-1

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

31 MDOZZ MDO MDOZZ 30554 88-20197 PLATE, INSTRUCTION 1 1

DIAGNOSTICS RECEPTACLE.

32 MDOZZ MDO MDOZZ 30554 88-20073 PLATE, IDENTIFICATI 1 1

CONVENIENCE RECEPTACLE.

UOC: EMM

32 MDOZZ MDO MDOZZ 30554 88-22737 PLATE, IDENTIFICATI 1 1

CONVENIENCE RECEPTACLE.

UOC: EPC

33 PAOZZ PAOZZ PAOZZ 96906 MS35198-46 ...SCREW, MACHINE 1 1

END OF FIGURE

9-2

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 10. Muffler and Pipes

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC)QTY EQUIP

GROUP 04 - AIR

INTAKE/EXHAUST SYSTEM

FIG. 10 MUFFLER AND PIPES

1PAOZZ PAOZZ PAOZZ 01652 U350Z .CLAMP, LOOP 1 1

2PAOZZ PAOZZ PAOZZ 96906 MS35842-16 .CLAMP, HOSE 4 9

3PAOZZ PAOZZ PAOZZ 30554 88-21961 .MUFFLER, EXHAUST 1 1

4PAOZZ PAOZZ PAOZZ 24617 274825 .SCREW, CAP, HEXAGON H 4 34

5PAOZZ PAOZZ PAOZZ 96906 MS35338-63 .WASHER, LOCK 4 129

6PAOZZ PAOZZ PAOZZ 96906 MS51412-4 .WASHER, FLAT 4 142

7PAOZZ PAOZZ PAOZZ 30554 88-22790-1 .RETAINER, NUT AND BO 4 111

8PAOZZ PAOZZ PAOZZ 30554 88-21712 .HANGER, ENGINE EXHAU 2 2

9PAOZZ PAOZZ PAOZZ 01652 U350PHB CLAMP, HOSE 1 1

10 PAOZZ PAOZZ PAOZZ 18265 P21-2638 .PIPE, EXHAUST 1 1

END OF FIGURE

10-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 11. Air Cleaner and Piping

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a.b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 04 - AIR

INTAKE/EXHAUST SYSTEM

FIG. 11 AIR CLEANER AND

PIPING

1PAOZZ PAOZZ PAOZZ 66295 60HS .CLAMP, HOSE 4 9

2PAOZZ PAOZZ PAOZZ 98441 38300-1-56-48RE .HOSE, PREFORMED 1 1

3PAOZZ PAOZZ PAOZZ 96906 MS35842-11 .CLAMP, HOSE 2 4

4MOOZZ MOO MOOZZ 81349 M6000-F-00100 .HOSE, NONMETALLIC 1 1

5PAOOO PAOOO PAOOO 76700 73509-A .BREATHER 1 1

6PAOZZ PAOZZ PAOZZ 76700 Q-01434 ..NUT, PLAIN, WING 1 1

7PAOZZ PAOZZ PAOZZ 76700 Q-01582 ..WASHER, FLAT 1 1

8XAOZZ XA XAOZZ 30554 88-22109-3 ..CAP 1 1

9PAOZZ PAOZZ PAOZZ 30554 88-22743 ..WASHER, FLAT 1 1

10 XAOZZ XA XAOZZ 30554 88-22109-6 ..BODY 1 1

11 PAOZZ PAOZZ PAOZZ 79396 42841 .FILTER ELEMENT, FLUI 1 1

12 PAOZZ PAOZZ PAOZZ 30554 88-21969 .TUBE, BENT, METALLIC 1 1

13 PAOZZ PAOZZ PAOZZ 18265 P109331-016-700 .HOSE, PREFORMED 45 1 1

DEGREE.

14 PAOZZ PAOZZ PAOZZ 18265 RBX00-6379 .INDICATOR, PRESSURE 1 1

15 PAOZZ PAOZZ PAOZZ 30554 88-22790-1 .NUT, PLAIN, HEXAGON 4 111

16 PAOZZ PAOZZ PAOZZ 96906 MS35338-63 .WASHER, LOCK 4 129

17 PAOZZ PAOZZ PAOZZ 24617 274825 .SCREW, CAP, HEXAGON H 4 34

18 PAOZZ PAOZZ PAOZZ 96906 MS51412-4 .WASHER, FLAT 4 142

19 XDOZZ XB XBOZZ 30554 88-21743 .SUPPORT, AIR CLEANE 1 1

20 PAOZZ PAOZZ PAOZZ 30554 88-22790-3 .NUT, PLAIN, HEXAGON 4 20

21 PAOZZ PAOZZ PAOZZ 96906 MS35338-65 .WASHER, LOCK 4 35

22 PAOZZ PAOZZ PAOZZ 80204 B1821BH038C075N .SCREW, CAP, HEXAGON H 4 28

23 XDOOZ XDOOZ XDOOZ 18265 FHG08-0511 .AIR CLEANER 1 1

24 XDOZZ XB XBOZZ 18265 P11-9711 ..COVER, FLUID FILTER 1 1

25 XDOZZ XB XBOZZ 18265 P10-1870 ..NUT, PLAIN, WING 1 1

26 PAOZZ PAOZZ PAOZZ 18265 P18-2059 ..FILTER ELEMENT, AIR 1 1

27 PAOZZ PAOZZ PAOZZ 18265 P10-6593 ..VALVE, VACUATOR 1 1

28 XAOZZ XA XAOZZ 30554 88-21046-3 ..CANNISTER, AIR CLEA 1 1

END OF FIGURE

11-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 12. Coolant System (Sheet 1 of 2)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 12. Coolant System (Sheet 2 of 2)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 05 - COOLANT

SYSTEM

FIG. 12 COOLANT SYSTEM

1PAOZZ PAOZZ PAOZZ 01276 FF9311-36 .CLAMP, HOSE 4 4

2PAOZZ PAOZZ PAOZZ 30554 88-21986 .HOSE, PREFORMED 1 1

RADIATOR FILLER.

3PAOZZ PAOZZ PAOZZ 96906 MS21266-2N .GROMMET, NONMETALLIC 1 1

4PAOZZ PAOZZ PAOZZ 81343 SAE J1508-06 .CLAMP, HOSE 1 3

5PAOZZ PAOZZ PAOZZ 28520 2326 .CLAMP, HOSE 7 11

6PAOZZ PAOZZ PAOZZ 30554 88-22554-3 .CLAMP, HOSE 8 8

7PAOZZ PAOZZ PAOZZ 96906 MS35489-20 .GROMMET, NONMETALLIC 1 1

8PAOZZ PAOZZ PAOZZ 81205 2740-0003 .NUT, PLAIN, ASSEMBLED 1 438

9PAOZZ PAOZZ PAOZZ 19207 12325869 .BOLT, MACHINE 4 355

10 XDOZZ XB XBOZZ 41197 PR27334-B2 .NECK, FILL, RADIATO 1 1

11 PAOZZ PAOZZ PAOZZ 96906 MS87006-11 .HOOK, CHAIN, S 1 1

12 MOOZZ MOO MOOZZ 30554 88-21608-283 .CHAIN RADIATOR CAP, 1 1

MAKE FROM P/N

RRC271TY2CL6 ( 81348), 6.5

INCHES REQUIRED.

13 XCOZZ XCOZZ XCOZZ 30554 88-22533 .CAP, FILLER OPENING 1 1

ORDER CAP NSN 5340-01-

340-8706 P/N AX-2950 (78225)

AND SOLDER TAB P/N 5413-

28 (86928) PER TM9-6115-645-

14 PAOZZ PAOZZ PAOZZ 56161 10503979 .CLAMP, HOSE 2 2

15 PAOZZ PAOZZ PAOZZ 30554 88-21911 .HOSE, PREFORMED 1 1

RADIATOR, UPPER.

16 PAOZZ PAOZZ PAOZZ 30554 88-21908 .HOSE, AIR DUCT RADIATOR, 1 1

LOWER.

17 MOOZZ MOO MOOZZ 30554 88-21608-98 .HOSE, DRAIN MAKE FROM 1 1

P/N 483666 (02280), 72.0

INCHES REQURIED

18 MOOZZ MOO MOOZZ 30554 88-22302-8 .HOSE, DRAIN MAKE FROM 1 1

P/N 483666 (02280), 28 INCHES

REQURIED

19 MOOZZ MOO MOOZZ 30554 88-22302-4 .HOSE, DRAIN MAKE FROM 1 2

P/N 55-1986-19 (99739), .375

ID X .688 OD X 3.0 INCHES

LONG.

20 MOOZZ MOO MOOZZ 30554 88-21608-63 .HOSE MAKE FROM P/N 1 2

M6000-C-02500 (81349), 12.0

INCHES REQUIRED.

21 MOOZZ MOO MOOZZ 30554 88-22302-5 .HOSE, DRAIN MAKE FROM 2 1

P/N 55-1986-19 (99739), .375

ID X .688 OD X 34.0 INCHES

LONG.

12-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. cd. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

22 PAOZZ PAOZZ PAOZZ 79470 1945 .TEE, HOSE 2 3

23 PAOZZ PAOZZ PAOZZ 79740 1908 .TEE, HOSE 1 1

24 MOOZZ MOO MOOZZ 30554 88-22752-1 .HOSE, DRAIN MAKE FROM 1 1

HOSE, P/N 483666 (02280), 3.0

INCHES REQUIRED

25 PBOZZ PBOZZ PBOZZ 99739 52487 .COCK, DRAIN 1 2

26 PAOZZ PAOZZ PAOZZ 80204 B1821BH025C075N .SCREW, CAP, HEXAGON H 4 4

27 PAOZZ PAOZZ PAOZZ 96906 MS35338-44 .WASHER, LOCK 10 40

28 PAOZZ PAOZZ PAOZZ 96906 MS51412-4 .WASHER, FLAT 10 142

29 XDOZZ XB XBOZZ 30554 88-22516 .FAN GUARD 1 1

30 PAOZZ PAOZZ PAOZZ 30554 88-22790-2 .NUT, PLAIN, HEXAGON 2 14

31 PAOZZ PAOZZ PAOZZ 96906 MS35338-64 .WASHER, LOCK 6 18

32 PAOZZ PAOZZ PAOZZ 80204 B1821BH031C100N .BOLT, MACHINE 2 14

33 PAOZZ PAOZZ PAOZZ 96906 MS51412-25 .WASHER, FLAT 2 14

34 PAOZZ PAOZZ PAOZZ 80204 B1821BH0380150N .SCREW, CAP, HEXAGON H 6 6

35 PAOZZ PAOZZ PAOZZ 96906 MS35338-65 .WASHER, LOCK 12 35

36 XDOZZ XBXBOZZ 30554 88-22613 .TIE ROD, RADIATOR U 2 2

37 PAOZZ PAOZZ PAOZZ 96906 MS27183-14 .WASHER, FLAT 6 6

38 PAOZZ PAOZZ PAOZZ 80204 B1821BH050C100N .SCREW, CAP, HEXAGON H 2 8

39 PAOZZ PAOZZ PAOZZ 96906 MS35338-67 .WASHER, LOCK 2 16

40 XDOZZ XB XBOZZ 30554 88-21710 .SUPPORT, RADIATOR 1 1

41 PAOZZ PAOZZ PAOZZ 80204 B1821BH025C075N .SCREW, CAP, HEXAGON H 12 22

42 XDOZZ XB XBOZZ 30554 88-21697 .SHROUD, FAN 1 1

43 PAOZZ PAOZZ PAOZZ 96906 MS51481-06 .SCREW, MACHINE 20 20

44 PAOZZ PAOZZ PAOZZ 08928 21NTE82 .NUT, SELF-LOCKING, HE 22 22

45 XDOZZ XB XBOZZ 30554 88-22713 .SUPPORT, SIDE RADIAT 2 2

46 XDOZZ XB XBOZZ 30554 88-22714 .STIFFENER, SIDE RADI 2 2

47 XDOZZ XB XBOZZ 30554 88-22712 .SEAL, RADIATOR 8.88 FEET 1 1

REQUIRED.

48 XDOZZ XB XBOZZ 30554 88-22715 .SUPPORT, RADIATOR SE 1 1

49 XDOZZ XB XBOZZ 30554 88-22716 .STIFFENER RADIATOR 1 1

50 XDOZZ XB XBOZZ 30554 88-22749 .STIFFENER, LOWER RAD 1 1

51 XDOZZ XB XBOZZ 30554 88-22750 .SUPPORT, LOWER RADIA 1 1

52 XDOZZ XB XBOZZ 30554 88-22731 .SUPPORT, LOWER FRONT 1 1

53 XDOZZ XB XBOZZ 30554 88-22732 .SUPPORT, UPPER FRONT 1 1

54 XDOZZ XB XBOZZ 30554 88-22733 .SUPPORT, SIDE FRONT 2 2

55 MOOZZ MOO MOOZZ 30554 88-21608-154 .SEAL, RUBBER MAKE FROM 1 2

P/N MIL-R-6130TYII GR A

(81349), AS REQUIRED.

56 PAOZZ PAOZZ PAOZZ 80204 B1821BH038C350N .SCREW, CAP, HEXAGON H 1 1

57 XDOZZ XB XBOZZ 30554 88-22529 .GUARD 1 1

58 PAOZZ PAOZZ PAOZZ 80204 B1821BH031C225N .BOLT, MACHINE 4 4

12-2

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

59 PAOZZ PAOZZ PAOZZ 30554 88-21051 .RADIATOR, ENGINE COO 1 1

60 PAOZZ PAOZZ PAOZZ 30554 88-22703 .SPACER, SPECIAL SHAP 1 1

61 PAOZZ PAOZZ PAOZZ 96906 MS51967-8 .NUT, PLAIN, HEXAGON 6 6

62 PAOZZ PAOZZ PAOZZ 80204 B1821BH038C125N .SCREW, CAP, HEXAGON H 6 6

63 XDOZZ XB XBOZZ 30554 88-22066 .SUPPORT, RADIATOR 1 1

64 PAOZZ PAOZZPAOZZ 20796 L451 .BELT, V 1 1

65 PBOZZ PBOZZ PBOZZ 51377 4035-35828-119 .IMPELLER, FAN, AXIAL 1 1

66 XDOZZ XB XBOZZ 30554 88-22434 .SPACER, FAN BLADE 1 1

67 PAOZZ PAOZZ PAOZZ 28520 2318 .CLAMP, HOSE 1 1

68 PAOZZ PAOZZ PAOZZ 96906 MS3367-1-9 .STRAP, TIEDOWN, ELECT 1 2

69 MOOZZ MOO MOOZZ 30554 88-22302-12 .HOSE, DRAIN MAKE FROM 1 1

PIN 55-1986-19 (99739), .375

ID X .688 OD X 53.0 INCHES

LONG.

70 MOOZZ MOO MOOZZ 30554 88-22302-9 .HOSE, DRAIN MAKE FROM 1 1

PIN 55-1986-19 (99739), .375

ID X .688 OD X 65.0 INCHES

LONG.

71 PAOZZ PAOZZ PAOZZ 30554 88-22790-1 .NUT, PLAIN, HEXAGON 8 111

72 PBOZZ PBOZZ PBOZZ 0SK27 111 TANK, RADIATOR, OVERF 1 1

73 XAOZZ XA XAOZZ 30554 88-20468-1 ..CAP 1 1

74 XAOZZ XA XAOZZ 30554 88-20468-2 ..BOTTLE 1 1

75 XAOZZ XA XAOZZ 30554 88-20468-3 .CAGE, BOTTLE 1 1

76 XDOZZ XB XBOZZ 30554 88-22544 BRACKET, OVERFLOW 1 1

END OF FIGURE

12-3

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 13. Fuel Tank, Lines and Fittings

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 06 - FUEL SYSTEM

FIG. 13 FUEL TANK, LINES,

AND FITTINGS

1PAOZZ PAOZZ PAOZZ 05657 A8 .CLAMP, HOSE 10 10

2MOOZZ MOO MOOZZ 30554 88-21608-107 .HOSE MAKE FROM PIN 1 1

483666 (02280), 2 INCHES

REQUIRED

3PAOZZ PAOZZ PAOZZ 96906 MS35645-1 .CAP, FILLER OPENING 1 1

4PAOZZ PAOZZ PAOZZ 96906 MS35643-1 .GASKET 1 1

5XDOZZ XB XBOZZ 80204 4-2 140137 .REDUCER, PIPE 1 1

6PAOZZ PAOZZ PAOZZ 96906 MS51412-8 .WASHER, FLAT 1 1

7PAOZZ PAOZZ PAOZZ 79470 C3059X2 .SEAL NUT, PIPE 1 1

8PAOZZ PAOZZ PAOZZ 36378 1001547-01 .ADAPTER, STRAIGHT, PI 1 1

9PAOZZ PAOZZ PAOZZ 81205 2740-0003 .NUT, PLAIN, ASSEMBLED 10 438

10 PAOZZ PAOZZ PAOZZ 30554 88-20260-20 .SCREW, MACHINE 9 15

11 XDOZZ XB XBOZZ 30554 88-21892 .FILLER NECK, FUELT 1 1

12 XDOZZ XB XBOZZ 30554 88-21893 .TUBE, FILLER NECK 1 1

13 MOOZZ MOO MOOZZ 19099 88-21608-285 .HOSE, NONMETALLIC MAKE 1 1

FROM PIN 33H581 (80244) 11

INCHES REQUIRED

14 XDOZZ XB XBOZZ 30554 88-22112 .TUBE ASSY, OUTLET 1 1

15 PAOZZ PAOZZ PAOZZ 96906 MS35842-15 .CLAMP, HOSE 1 4

16 PAOZZ PAOZZ PAOZZ 75160 C16054 .CLAMP, HOSE 1 1

17 PBOZZ PBOZZ PBOZZ 30554 88-22069 .HOSE, PREFORMED 1 1

18 PAOZZ PAOZZ PAOZZ 30554 88-22755 .FILTER BODY, FLUID 1 1

19 XDOZZ XB XBOZZ 96906 MS51504A4 .ELBOW, PIPE TO TUBE 1 2

20 PAOZZ PAOZZ PAOZZ 93742 69-539-2 .CAP, TUBE INCLUDES 2 2

ATTACHING CHAIN.

21 PAOZZ PAOZZ PAOZZ 96906 MS51860-54 .LOCKNUT, TUBE FITTIN 2 2

22 PAOZZ PAOZZ PAOZZ 96906 MS51520A5 .ADAPTER, STRAIGHT, TU 1 1

23 PAOZZ PAOZZ PAOZZ 79470 00904E-504-J04 .HOSE ASSEMBLY 1 1

01075

24 MOOZZ MOO MOOZZ 30554 88-21608-66 HOSE MAKE FROM PIN 1 1

483666 (02280), 27.5 INCHES

REQUIRED

25 MOOZZ MOO MOOZZ 30554 88-21608-147 .HOSE MAKE FROM P/N 1 1

483666 (02280), 23.75 INCHES

REQUIRED

26 XDOZZ XB XBOZZ 79470 1064X6 .TEE, HOSE 2 2

27 PAOZZ PAOZZ PAOZZ 98441 204P4-P54-JM4-27 .HOSE ASSEMBLY, NONME 1 1

28 PAOZZ PAOZZ PAOZZ 81343 4-4-4140424C .TEE, PIPE 1 1

29 PAOZZ PAOZZ PAOZZ 79470 1069X6 .ELBOW, PIPE TO HOSE 1 1

13-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. cd. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

30 MOOZZ MOO MOOZZ 30554 88-21608-102 .HOSE MAKE FROM P/N 1 1

483666 (02280), 27 INCHES

REQUIRED

31 MOOZZ MOO MOOZZ 30554 88-21608-104 .HOSE, DRAIN MAKE FROM 1 1

P/N 483666 (02280), 9 INCHES

REQUIRED

32 PAOZZ PAOZZ PAOZZ 96906 MS21919WDF-12 .CLAMP, LOOP 1 2

33 AOOZZ AOOZZ AOOZZ 30554 88-20191-7 .HOSE ASSEMBLY 1 1

34 PAOZZ PAOZZ PAOZZ 96906 MS24587-4 ..ADAPTER, STRAIGHT, TU 2 2

35 MOOZZ MOO MOOZZ 30554 88-20191-7-2 ..HOSE, RUBBER MAKE 1 1

FROM P/N M8794-4 (81349),

78 0 INCHES REQUIRED.

36 PAOZZ PAOZZ PAOZZ 30554 88-22745 .SCREW, FUEL, DRAIN 1 1

37 PAOZZ PAOZZ PAOZZ 30554 88-22746 .WASHER, FLAT 1 1

38 PAOZZ PAOZZ PAOZZ 79470 131-60408 .VALVE, ANGLE 1 1

39 XDOZZ XB XBOZZ 30554 88-22734 .ADAPTER, FUEL FITTI 1 1

40 PAOZZ PAOZZ PAOZZ 96906 MS21919WDF-4 .CLAMP, LOOP 1 1

41 XDOZZ XB XBOZZ 30554 88-22076-2 .TUBE ASSEMBLY 1 1

42 PAOZA PAOZA PAOZA 30327 60FL-04 .SLEEVE, COMPRESSION, 1 1

43 PAOZZ PAOZZ PAOZZ 80204 B1821BH031C050N .BOLT, MACHINE 1 1

44 PAOZZ PAOZZ PAOZZ 96906 MS35338-45 .WASHER, LOCK 1 40

45 XDOZZ XB XBOZZ 30554 88-22335 .BRACKET, TUBE SUPPO 1 1

46 PAOZZ PAOZZ PAOZZ 30554 88-22790-1 .NUT, PLAIN, HEXAGON 2 111

47 PAOZZ PAOZZ PAOZZ 96906 MS35338-63 .WASHER, LOCK 2 129

48 PAOZZ PAOZZ PAOZZ 30554 88-20260-31 .BOLT, MACHINE 2 40

49 PAOZZ PAOZZ PAOZZ 96906 MS51412-4 .WASHER, FLAT 2 142

50 AOOOO AOO AOOOO 30554 88-22546 .PUMP ASSEMBLY, FUEL 1 1

51 PAOZZ PAOZZ PAOZZ 65664 L-7-50-9 ..STRAP, TIEDOWN, ELECT 1 2

52 PAOZA PAOZA PAOZA 27264 03-09-2022 ..CONNECTOR, PLUG, ELEC 1 2

53 PAOZZ PAOZZ PAOZZ 27264 02-09-2103 ..CONTACT, ELECTRICAL 2 12

54 PAOZZ PAOZZ PAOZZ 30554 88-21738 ..PUMP, FUEL, ELECTRICA 1 1

55 XDOZZ XB XBOZZ 79470 1069X6 .ELBOW, PIPE TO HOSE 2 2

56 XDOZZ XB XBOZZ 49078 125HBL-4-4 .ADAPTER, NPT BARB 2 2

57 PAOZZ PAOZZ PAOZZ 30554 88-21117 .ADAPTER, STRAIGHT, FL 5 5

58 PAOZZ PAOZZ PAOZZ 30554 88-21166 .WASHER, FLAT 5 5

59 PAOZZ PAOZZ PAOZZ 07707 WELL-NUT A3816 .BUSHING, RUBBER 5 5

60 PAOZZ PAOZZ PAOZZ 96906 MS51500A5-4 .ADAPTER, STRAIGHT, PI 1 1

61 PAOZZ PAOZZ PAOZZ 93061 NV108P-4 .COCK, SHUTOFF, SCREW 1 1

62 PAOZZ PAOZZ PAOZZ 81343 4-4-130238 .ELBOW, PIPE 90 DEGREE. 1 1

63 PAOZZ PAOZZ PAOZZ 96906 MS51846-20 .NIPPLE, PIPE 1 1

64 PAOZZ PAOZZ PAOZZ 30554 88-22790-2 .NUT, PLAIN, HEXAGON 4 14

65 PAOZZ PAOZZ PAOZZ 96906 MS35338-64 .WASHER, LOCK 4 18

13-2

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

66 PAOZZ PAOZZ PAOZZ 80204 B1821BH031C100N .BOLT, MACHINE 4 6

67 PAOZZ PAOZZ PAOZZ 96906 MS51412-25 .WASHER, FLAT 4 6

68 XDOZZ XB XBOZZ 30554 88-21854 .HOLDDOWN, FUEL TANK 2 2

69 PBOZZ PBOZZ PBOZZ 30554 88-21045 .TANK, FUEL, ENGINE 1 1

70 PAOZZ PAOZZ PAOZZ 96906 MS51492-14 .SCREW, MACHINE 15 15

71 PAOZZ PAOZZ PAOZZ 96906 MS35338-43 .WASHER, LOCK 15 15

72 PAOZZ PAOZZ PAOZZ 96906 MS51412-2 .WASHER, FLAT 15 142

73 AOOOZ AOOOZ AOOOZ 30554 88-22549 .SWITCH, LIQUID LEVEL 1 1

74 PAOZZ PAOZZ PAOZZ 96906 MS3367-1-9 .STRAP, TIEDOWN, ELECT 1 2

75 PAOZZ PAOZZ PAOZZ 27264 02-09-2103 .CONTACT, ELECTRICAL 4 12

76 PAOZZ PAOZZ PAOZZ 27264 1490P1 ..CONNECTOR BODY, PLUG 1 2

77 PAOZZ PAOZZ PAOZZ 30554 88-21121-3 ..SWITCH, LIQUID LEVEL 1 1

78 PAOZZ PAOZZ PAOZZ 06555 127679 .SWITCH, LIQUID LEVEL 1 1

79 XDOZZ XB XBOZZ 30554 88-21852 .TUBE ASSY, PICKUP 1 1

80 PAOZZ PAOZZ PAOZZ 30554 88-20286 .GASKET 3 3

81 PAOZZ PAOZZ PAOZZ 30554 88-20492 .SWITCH, LIQUID 1 1

82 PAOZZ PAOZZ PAOZZ 96906 MS3367-4-9 .STRAP, TIEDOWN, ELECT 6 6

83 PAOZZ PAOZZ PAOZZ 06383 PLT1M-M .STRAP, TIEDOWN, ELECT 2 10

84 PAOZZ PAOZZ PAOZZ 27264 03-09-1042 ..CONNECTOR BODY, PLUG 1 2

85 PAOZZ PAOZZ PAOZZ 27264 1490P1 ..CONNECTOR BODY, PLUG 1 1

86 XDOZZ XB XBOZZ 30554 88-20493 ..PRINTED CIRCUIT BOA 1 1

87 PAOZZ PAOZZ PAOZZ 27264 02-09-2103 ...CONTACT, ELECTRICAL 4 12

MALE.

88 PAOZZ PAOZZ PAOZZ 27264 02-09-1104 ...CONTACT, ELECTRICAL 4 12

FEMALE.

89 PAOZZ PAOZZ PAOZZ 01276 FA1493FFF3000 HOSE ASSEMBLY, NONME 1 1

90 PAOZZ PAOZZ PAOZZ 81349 M5501/8-F6 .PLUG, PROTECTIVE, DUS 2 2

91 PAOZZ PAOZZ PAOZZ 01276 202712-5-B .NIPPLE, TUBE 1 1

92 MOOZZ MOO MOOZZ 30554 69-668-2 .CHAIN, WELDLESS MAKE 1 1

FROM PIN RRC271TY2CL6

(81348), 13 LINKS REQUIRED.

93 PAOZZ PAOZZ PAOZZ 96906 MS28741-5-2992 .HOSE ASSEMBLY, NONME 1 1

94 PAOZZ PAOZZ PAOZZ 00624 4411-55 ..ADAPTER, STRAIGHT, TU 2 2

95 MOOZZ MOO MOOZZ 30554 MS28741-5-2992-2 ..HOSE, NONMETALLIC 1 1

MAKE FROM HOSE PIN

M8794-5 (81349), 299 INCHES

REQUIRED.

96 PAOZZ PAOZZ PAOZZ 28520 2314 .CLAMP, HOSE 1 1

97 MOOZZ MOO MOOZZ 30554 88-21608-98 .HOSE, DRAIN MAKE FROM 1 1

PIN M6000-0-02500 (81349),

72.0 INCHES REQUIRED.

98 PAOZZ PAOZZ PAOZZ 81343 SAE J1508-06 .CLAMP, HOSE 2 3

99 PAOZZ PAOZZ PAOZZ 5U990 205-605 .ADAPTER, STRAIGHT, TU 1 1

13-3

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 14. Ether Start Valve and Lines

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 06 - FUEL SYSTEM

FIG. 14 ETHER START VALVE

AND LINES

1MOOZZ MOO MOOZZ 30554 71-4925 .TUBE, ETHER MAKE FROM 1 1

P/N TD2-03420 (83616), 36

INCHES RE QUIRED.

2PAOZZ PAOZZ PAOZZ 18163 S3-1-8X1-8 .ADAPTER, STRAIGHT, PI 1 1

3PAOZZ PAOZZ PAOZZ 50999 31-65 .NOZZLE, FUEL INJECTI 1 1

4PAOZZ PAOZZ PAOZZ 24617 274825 .SCREW, CAP, HEXAGON H 4 34

5PAOZZ PAOZZ PAOZZ 96906 MS35338-63 WASHER, LOCK 4 129

6PAOZZ PAOZZ PAOZZ 96906 MS51412-4 .WASHER, FLAT 4 142

7AOOOO AOO AOOOO 30554 88-22553 .SOLENOID ASSEMBLY 1 1

8PAOZZ PAOZZ PAOZZ 59730 RA2573 ..TERMINAL, QUICK DISC 1 7

9PAOZZ PAOZZ PAOZZ 59730 RA25177 ..TERMINAL, QUICK DISC 1 3

10 PAOZZ PAOZZ PAOZZ 78280 QS-4-2TC ..VALVE, SOLENOID 1 1

11 XDOZZ XB XBOZZ 78280 LP2299 .CLAMP, ASSEMBLY 1 1

12 PAOZZ PAOZZ PAOZZ 78553 C7988-1420-3B .RETAINER, NUT AND BO 4 36

END OF FIGURE

14-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 15. Output Box Installation

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 07 - OUTPUT BOX

ASSEMBLY

FIG. 15 OUTPUT BOX

INSTALLATION

1PAOZZ PAOZZ PAOZZ 81205 2740-0003 .NUT, PLAIN, ASSEMBLED 19 438

2PAOZZ PAOZZ PAOZZ 19207 12325869 .BOLT, MACHINE 19 355

3XDOZZ XB XBOZZ 30554 88-22701 .OUTPUT BOX, TOP 1 1

4MOOZZ MOO MOOZZ 30554 88-21608-301 .EDGING, RUBBER MAKE 1 1

FROM PIN ZX-4134 (1X968),

AS REQD.

END OF FIGURE

15-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 16. Engine/Output Box Harness Assembly (Sheet 1 of 8)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 16. Engine/Output Box Harness Assembly (Sheet 2 of 8)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 16. Engine/Output Box Harness Assembly (Sheet 3 of 8)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 16. Engine/Output Box Harness Assembly (Sheet 4 of 8)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 16. Engine/output Box Harness Assembly (sheet 5 of 8)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIG. 16 - WIRE LIST TABLE

WIRE WIRE FIG.16 FIG.16 FIG.16

REF MARKING ITEM ITEM ITEM MARKING WIRE

NO.NO. FROM NO. TO NO. NO. COLOR LENGTH

FIGURE 16. Engine/Output Box Harness Assembly (Sheet 6 of 8)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIG. 16 - WIRE LIST TABLE

WIRE WIRE FIG.16 FIG.16 FIG.16

REF MARKING ITEM ITEM ITEM MARKING WIRE

NO.NO. FROM NO. TO NO. NO. COLOR LENGTH

FIGURE 16. Engine/Output Box Harness Assembly (Sheet 7 of 8)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

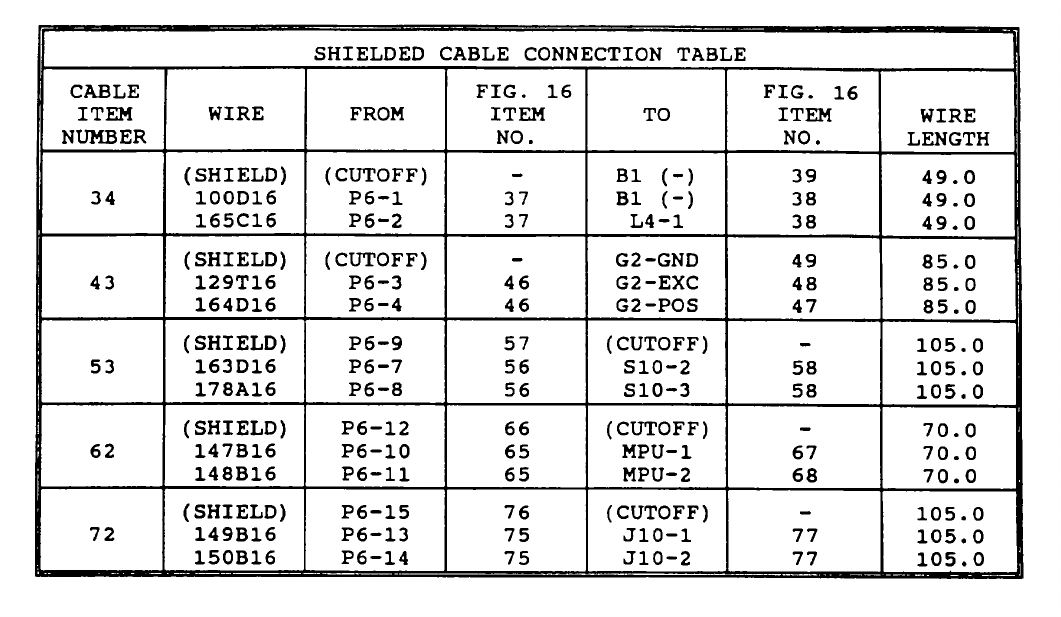

FIGURE 16. Engine/Output Box Harness Assembly (Sheet 8 of 8)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 07 - OUTPUT BOX

ASSEMBLY

FIG. 16 ENGINE/OUTPUT BOX

HARNESS ASSY

1PBFFF PBOOO PBFFF 30554 88-22166 ..WIRING HARNESS BRAN 1 1

2PAOZZ PAOZZ PAOZZ 00779 52949 ...TERMINAL, LUG #6, 22-18 31 432

AWG.

3PAOZZ PAOZZ PAOZZ 98410 AA-8714-08 ...TERMINAL, LUG #8, 22-18 6 23

AWG.

4PAOZZ PAOZZ PAOZZ 98410 AA-8715-10 ...TERMINAL, LUG#10, 22-18 1 11

AWG.

5PAOZZ PAOZZ PAOZZ 96906 MS25036-105 .TERMINAL, LUG 13 14

6PAOZZ PAOZZ PAOZZ 96906 MS25036-110 ..TERMINAL, LUG 6 8

7PAOZZ PAOZZ PAOZZ 98410 BB-8717-10 .TERMINAL, LUG #10, 16-14 2 6

AWG

8PAOZZ PAOZZ PAOZZ 98410 BB-8707-06 ...TERMINAL, LUG #6, 16-14 6 48

AWG.

9PAOZZ PAOZZ PAOZZ 59730 RA2573 ...TERMINAL, QUICK DISC 5 7

10 PAOZZ PAOZZ PAOZZ 96906 MS25036-103 ...TERMINAL, LUG 5 6

11 PAOZZ PAOZZ PAOZZ 96906 MS25036-108 ...TERMINAL, LUG 1 2

12 PAOZZ PAOZZ PAOZZ 96906 MS25036-101 ...TERMINAL, LUG 1 1

13 PAOZZ PAOZZ PAOZZ 96906 MS25036-153 ...TERMINAL, LUG 1 1

14 PAOZZ PAOZZ PAOZZ 59730 RA25177 ...TERMINAL, QUICK DISC 1 3

15 PAOZZ PAOZZ PAOZZ 96906 MS3367-5-9 .STRAP, TIEDOWN, ELECT V V

16 PAOZZ PAOZZ PAOZZ 96906 MS3367-1-9 ...STRAP, TIEDOWN, ELECT V V

17 PAOZZ PAOZZ PAOZZ 96906 MS3368-1-9A ...STRAP, TIEDOWN, ELECT 1 1

18 PAOZZ PAOZZ PAOZZ 78189 511-041800-00-0211 ..NUT, PLAIN, ASSEMBLED 4 34

0511

19 PAOZZ PAOZZ PAOZZ 45722 P15121-11 ..SCREW, ASSEMBLED WAS 4 8

20 PAOZZ PAOZZ PAOZZ 97539 206138-1 ...ADAPTER, CABLE CLAMP 2 2

21 PAOZA PAOZA PAOZA 00779 66331-8 ...CONTACT, ELECTRICAL 41 44

22 PAOZA PAOZA PAOZA 00779 66100-8 ...CONTACT, ELECTRICAL 7 15

23 PAOZA PAOZA PAOZA 00779 206837-1 ...CONNECTOR BODY, PLUG 1 1

P6.

24 PAOZZ PAOZZ PAOZZ 36378 1003318-01 ...CONNECTOR BODY, PLUG 1 1

P5.

25 MOOZZ MOO MOOZZ 30554 88-22166-18 ...WIRE, ELECTRIC MAKE 1 1

FROM P/N M5086/2-20-9

(81349), AS REQ UIRED.

26 XDOZZ XB XBOZZ 9R803 3300-2 ... TERMINAL BLOCK TB8. 1 1

27 MOOZZ MOO MOOZZ 30554 88-22166-19 ...WIRE, ELECTRIC MAKE 1 1

FROM PIN M5086/2-16-9

(81349), AS REQ UIRED.

16-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

28 XDOZZ XB XBOZZ 9R803 330JS ...CONTACT, ELECTRICAL 1 13

29 XDOZZ XB XBOZZ 9R803 3300-10 ...TERMINAL BLOCK TB7 1 1

30 PAOZZ PAOZZ PAOZZ 27264 02-09-1104 .CONTACT, ELECTRICAL 6 12

31 PAOZZ PAOZZ PAOZZ 27264 03-09-1022 ...CONNECTOR BODY, RECE 2 2

J10 AND J11.

32 PAOZZ PAOZZ PAOZZ 27264 03-09-1042 ..CONNECTOR BODY, PLUG 1 2

J15.

33 PAOZA PAOZA PAOZA 96906 MS3452W18-11P ..CONNECTOR, RECEPTACL 1 1

34 AFFFF AOO AFFFF 30554 88-22101-8 ...CABLE ASSY, SHIELDED 1 1

35 MFFZZ MOO MFFZZ 30554 88-22101-8-1 ....CABLE, SHIELDED MAKE 1 1

FROM M27500-16TE2T14

(81349), 49.0 INCHES

REQUIRED.

36 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 4.5

INCHES.

37 PAOZA PAOZA PAOZA 00779 66100-8 ....CONTACT, ELECTRICAL 2 15

38 PAOZZ PAOZZ PAOZZ 96906 MS25036-110 ....TERMINAL, LUG 2 8

39 PAOZZ PAOZZ PAOZZ 96906 MS25036-105 ....TERMINAL, LUG 1 14

40 MFFZZ MOO MFFZZ 30554 88-22629-043 ....MARKER, IDENTIFICATI 1 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

41 MFFZZ MOO MFFZZ 30554 88-22629-044 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

42 MFFZZ MOO MFFZZ 30554 88-22629-048 ....MARKER, IDENTIFICATI 2 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

43 AFFFF AOO AFFFF 30554 88-22101-9 ...CABLE ASSY, SHIELDED 1 1

44 MFFZZ MOO MFFZZ 30554 88-22101-9-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-16TE2T14

(81349), 85.0 INCHES

REQUIRED.

45 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 6.5

INCHES.

46 PAOZA PAOZA PAOZA 00779 66100-8 ....CONTACT, ELECTRICAL 2 15

47 PAOZZ PAOZZ PAOZZ 96906 MS25036-154 ....TERMINAL, LUG 1 4

48 PAOZZ PAOZZ PAOZZ 96906 MS25036-108 ....TERMINAL, LUG 1 2

49 PAOZZ PAOZZ PAOZZ 96906 MS25036-103 ....TERMINAL, LUG 1 6

50 MFFZZ MOO MFFZZ 30554 88-22629-046 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

16-2

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

51 MFFZZ MOOMFFZZ 30554 88-22629-047 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

52 MFFZZ MOO MFFZZ 30554 88-22629-049 ....MARKER, IDENTIFICATI 2 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

53 AFFFF AOO AFFFF 30554 88-22103-4 ...CABLE ASSY, SHIELDED 1 1

54 MFFZZ MOO MFFZZ 30554 88-22103-4-1 ....CABLE, SHIELDED MAKE 1 1

FROM P/N M27500-16TE2T14

(81349), 105 INCHES

REQUIRED.

55 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 7.0

INCHES.

56 PAOZA PAOZA PAOZA 00779 66100-8 ....CONTACT, ELECTRICAL 2 15

57 PAOZA PAOZA PAOZA 00779 66331-8 ...CONTACT, ELECTRICAL 1 44

58 PAOZZ PAOZZ PAOZZ 96906 MS25036-106 ....TERMINAL, LUG 2 2

59 MFFZZ MOO MFFZZ 30554 88-22629-063 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

60 MFFZZ MOO MFFZZ 30554 88-22629-064 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

61 MFFZZ MOO MFFZZ 30554 88-22629-071 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

62 AFFFF AOO AFFFF 30554 88-22103-5 ...CABLE ASSY, SHIELDED 1 1

63 MFFZZ MOO MFFZZ 30554 88-22103-5-1 ....CABLE, SHIELDED MAKE 1 1

FROM M27500-16TE2T14

(81349), 70 INCH ES

REQUIRED.

64 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 7.0

INCHES.

65 PAOZA PAOZA PAOZA 00779 66100-8 ....CONTACT, ELECTRICAL 2 15

66 PAOZA PAOZA PAOZA 00779 66331-8 ....CONTACT, ELECTRICAL 1 44

67 PAOZZ PAOZZ PAOZZ 15912 RB2573 ....TERMINAL, QUICK DISC 1 5

68 PAOZZ PAOZZ PAOZZ 59730 RB25177 ....TERMINAL, QUICK DISC 1 1

69 MFFZZ MOO MFFZZ 30554 88-22629-066 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED

16-3

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

70 MFFZZ MOO MFFZZ 30554 88-22629-067 ....MARKER, IDENTIFICATI 2 2

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

71 MFFZZ MOO MFFZZ 30554 88-22629-072 ....MARKER, IDENTIFICATI 1 1

MAKE FROM P/N M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

72 AFFFF AOO AFFFF 30554 88-22103-6 ...CABLE ASSY, SHIELDED 1 1

73 MFFZZ MOO MFFZZ 30554 88-22103-6-1 ..CABLE, SHIELDED MAKE 1 1

FROM PIN M27500-16TE2T14

(81349), 105 INCHES

REQUIRED.

74 PAFZZ PAOZZ PAFZZ 81349 M83519/2-4 ....SPLICE, CONDUCTOR 1 24

CUT WIRE LEAD TO 7.0

INCHES.

75 PAOZA PAOZA PAOZA 00779 66100-8 ....CONTACT, ELECTRICAL 2 15

76 PAOZA PAOZA PAOZA 00779 66331-8 ....CONTACT, ELECTRICAL 1 44

77 PAOZZ PAOZZ PAOZZ 27264 02-09-1104 ....CONTACT, ELECTRICAL 2 5

78 MFFZZ MOO MFFZZ 30554 88-22629-069 ....MARKER, IDENTIFICATI 2 2

MAKE FROM PIN M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

79 MFFZZ MOO MFFZZ 30554 88-22629-070 ....MARKER, IDENTIFICATI 2 2

MAKE FROM PIN M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

80 MFFZZ MOO MFFZZ 30554 88-22629-073 ....MARKER, IDENTIFICATI 1 1

MAKE FROM PIN M23053/5-

105-9 (81349), 1.25 INCHES

REQUIRED.

END OF FIGURE

16-4

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

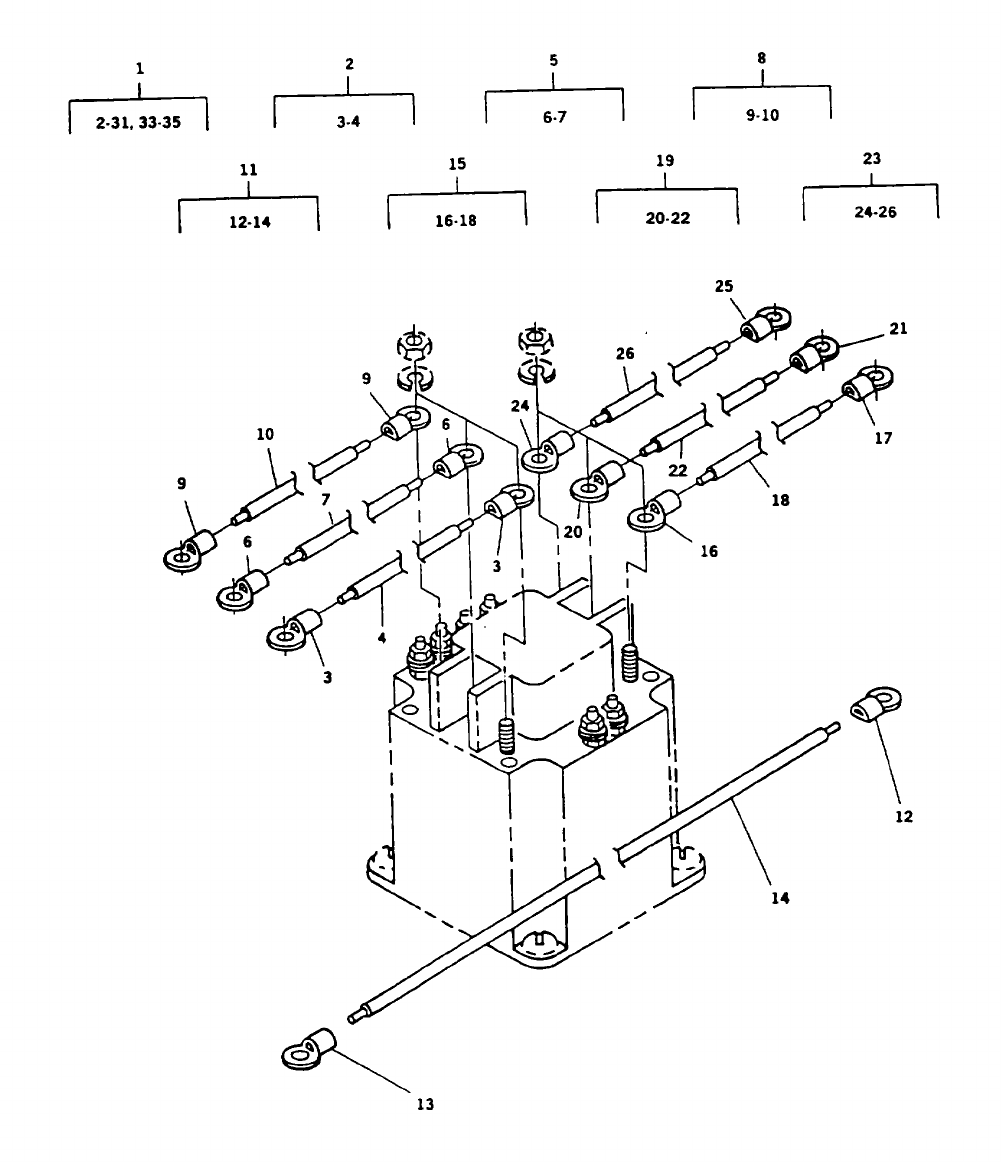

FIGURE 17. Output Box Assembly (Sheet 1 of 2)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 17. Output Box Assembly (Sheet 2 of 2)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 07 - OUTPUT BOX

ASSEMBLY

FIG. 17 OUTPUT BOX

ASSEMBLY

1XDOOO XB XBOOO 30554 88-21579 .OUTPUT BOX ASSY 60 HZ 1 1

UOC: EMM

1XDOOO XB XBOOO 30554 88-21584 OUTPUT BOX ASSY 400 HZ 1 1

UOC: EPC

2AOOOO AOO AOOOO 30554 88-22128-1 ..CABLE ASSY, AC POWE 1 1

3PAOZZ PAOZZ PAOZZ 96906 MS25036-136 ...TERMINAL, LUG 2 10

4MOOZZ MOO MOOZZ 30554 88-22128-1-1 ...WIRE, ELECTRIC MAKE 1 1

FROM 2/0 GA, PIN M5086/2-02-

9 (81349), 16.5 INCHES

REQUIRED.

5AOOOO AOO AOOOO 30554 88-22128-2. .CABLE ASSY, AC POWE 1 1

6PAOZZ PAOZZ PAOZZ 96906 MS25036-136 ...TERMINAL, LUG 2 10

7MOOZZ MOO MOOZZ 30554 88-22128-2-1 ...WIRE, ELECTRIC MAKE 1 1

FROM 2/0 GA, PIN M5086/2-02-

9 (81349), 19.0 INCHES

REQUIRED.

8AOOOO AOO AOOOO 30554 88-22128-3. .CABLE ASSY, AC POWE 1 1

9PAOZZ PAOZZ PAOZZ 96906 MS25036-136 ...TERMINAL, LUG 2 10

10 MOOZZ MOO MOOZZ 30554 88-22128-3-1 .WIRE, ELECTRIC MAKE 1 1

FROM 2/0 GA, P/N M5086/2-02-

9 (81349), 22.5 INCHES

REQUIRED.

11 AOOOO AOO AOOOO 30554 88-22128-4. .CABLE ASSY, AC POWE 1 1

12 PAOZZ PAOZZ PAOZZ 96906 MS25036-136 ...TERMINAL, LUG 1 10

13 PAOZZ PAOZZ PAOZZ 98410 J-787-34 ...TERMINAL, LUG 1 4

14 MOOZZ MOO MOOZZ 30554 88-22128-4-1 ...WIRE, ELECTRIC MAKE 1 1

FROM 2/0 GA, P/N M5086/2-02-

9 (81349), 51.0 INCHES

REQUIRED.

15 AOOOO AOO AOOOO 30554 88-22128-5 ..CABLE ASSY, AC POWE 1 1

16 PAOZZ PAOZZ PAOZZ 96906 MS25036-136 ...TERMINAL, LUG 1 10

17 PAOZZ PAOZZ PAOZZ 98410 J-787-34 ..TERMINAL, LUG 1 4

18 MOOZZ MOO MOOZZ 30554 88-22128-5-1 ...WIRE, ELECTRIC MAKE 1 1

FROM 2/0 GA, P/N M5086/2-02-

9 (81349) , 38.0 INCHES

REQUIRED.

19 AOOOO AOO AOOOO 30554 88-22128-6 ..CABLE ASSY, AC POWE 1 1

20 PAOZZ PAOZZ PAOZZ 96906 MS25036-136 ...TERMINAL, LUG 1 10

21 PAOZZ PAOZZ PAOZZ 98410 J-787-34 ...TERMINAL, LUG 1 4

22 MOOZZ MOO MOOZZ 30554 88-22128-6-1 ..WIRE, ELECTRIC MAKE 1 1

FROM 2/0 GA, P/N M5086/2-02-

9 (81349), 44.0 INCHES

REQUIRED.

17-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

23 AOOOO AOO AOOOO 30554 88-22128-7 ...CABLE ASSY, AC POWE 1 1

24 PAOZZ PAOZZ PAOZZ 96906 MS25036-136 ..TERMINAL, LUG 1 10

25 PAOZZ PAOZZ PAOZZ 98410 J-787-34 ...TERMINAL, LUG 1 4

26 MOOZZ MOO MOOZZ 30554 88-22128-7-1 ...WIRE, ELECTRIC MAKE 1 1

FROM 2/0 G A, P/N M5086/2-02-

9 (81349), 47.0 INCHES

REQUIRED.

27 PAOZZ PAOZZ PAOZZ 81205 2740-0003 ..NUT, PLAIN, ASSEMBLED 40 438

28 PAOZZ PAOZZ PAOZZ 45722 P15121-64 ..SCREW, ASSEMBLED WAS 16 24

29 PAOZZ PAOZZ PAOZZ 96906 MS27183-42 ..WASHER, FLAT 6 169

30 PAOZZ PAOZZ PAOZZ 60177 19390 ..TRANSFORMER, CURRENT 1 1

31 PAOZZ PAOZZ PAOZZ 30554 88-21015 ..TRANSFORMER, POWER 1 1

32 PAOZZ PAOZZ PAOZZ 60177 17910 ..TRANSFORMER, POWER 1 1

UOC: EMM

32 PAOZZ PAOZZ PAOZZ 60177 17910 ..TRANSFORMER, POWER 1 2

UOC: EPC

32 PAOZZ PAOZZ PAOZZ 7P399 A1616A ..TRANSFORMER, POWER 1 1

UOC: EMM

33 PAOZZ PAOZZ PAOZZ 7E656 JCG-6008A ..CONTACTOR, MAGNETIC 1 1

34 PAOZZ PAOZZ PAOZZ 81640 SM50D8 ..RELAY, ELECTROMAGNET 1 1

50 AMP, VDC.

35 PAOZZ PAOZZ PAOZZ 78189 511-081800-00 ..NUT, PLAIN, ASSEMBLED 4 7

36 PAOZZ PAOZZ PAOZZ 30554 69-662-36 ..SCREW, ASSEMBLED WAS 4 4

37 XDOZZ XB XBOZZ 9R803 3300-10-XP-74 ..MARKER, STRIP 1 1

38 XDOZZ XB XBOZZ 9R803 3300-2-XP-74 ..MARKER, STRIP 1 1

39 PAOZZ PAOZZ PAOZZ 96906 MS21333-76 ..CLAMP, LOOP 3 3

40 PAOZZ PAOZZ PAOZZ 30554 69-692-5 ...TERMINAL, STUD 20 385

41 XDOZZ XB XBOZZ 30554 88-21932 ..PANEL, OUTPUT BOX L 1 1

42 XDOZZ XB XBOZZ 30554 88-22060 ..PANEL, OUTPUT BOX R 1 1

43 PAOZZ PAOZZ PAOZZ 76385 Z3170 ..GROMMET, NONMETALLIC 1 1

44 PAOZZ PAOZZ PAOZZ 96906 MS35489-27 ..GROMMET, NONMETALLIC 1 1

45 PAOZZ PAOZZ PAOZZ 30554 72-2098-2 ..POST, ELECTRICAL-MEC 4 4

46 PAOZZ PAOZZ PAOZZ 96906 MS51412-4 ..WASHER, FLAT 8 142

47 PAOZZ PAOZZ PAOZZ 30554 88-22437 ..TERMINAL BOARD, ASSE 1 1

48 PAOZZ PAOZZ PAOZZ 30554 88-22790-1 ...NUT, SELF-LOCKING, HE 12 111

49 PAOZZ PAOZZ PAOZZ 30554 88-22436 ...TERMINAL BOARD 1 5

50 PAOZZ PAOZZ PAOZZ 08928 21NTE616 ...NUT, SELF-LOCKING, HE 13 13

51 PAOZZ PAOZZ PAOZZ 96906 MS35691-20 ...NUT, PLAIN, HEXAGON 13 13

52 PAOZZ PAOZZ PAOZZ 30554 72-2236 ...TERMINAL, STUD 13 15

53 XDOZZ XB XBOZZ 30554 72-2213 ...TERMINAL BOARD 1 1

54 XDOZZ XB XBOZZ 30554 88-21669 ..MOUNT, RECONNECTION 4 4

55 PAOZZ PAOZZ PAOZZ 80204 B1821BH025C275N ..SCREW, CAP, HEXAGON H 4 4

17-2

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

56 XDOZZ XB XBOZZ 30554 88-22039 .. PANEL, OUTPUT BOX R 1 1

57 AOOOZ AOOOZ AOOOZ 30554 88-22758 CAPACITOR ASSY, EMI 3 6

58 PAOZZ PAOZZ PAOZZ 98410 AA-8704-06 ..TERMINAL, LUG 2 6

59 PAOZZ PAOZZ PAOZZ 30554 88-22758 ..CAPACITOR, FIXED, MET 3 6

60 PAOZZ PAOZZ PAOZZ 78189 511-041800-00-0211- NUT, PLAIN, ASSEMBLED 4 34

0511

61 PAOZZ PAOZZ PAOZZ 45722 P15121-5 ..SCREW, ASSEMBLED WAS 3 24

62 PAOZZ PAOZZ PAOZZ 30554 69-662-7 ..SCREW, ASSEMBLED WAS 1 2

63 XDOZZ XB XBOZZ 96906 MS25043-18DA ..COVER, ELECTRICAL CO 1 1

64 PAOZZ PAOZZ PAOZZ 96906 MS51922-2 NUT, SELF-LOCKING, HE 4 4

65 PAOZZ PAOZZ PAOZZ 96906 MS27183-10 WASHER, FLAT 4 4

66 PAOZZ PAOZZ PAOZZ 30554 88-22436 TERMINAL BOARD 4 5

67 PAOZZ PAOZZ PAOZZ 30554 69-662-65 ..SCREW, CAPTIVE 6 6

XCOOO XC 36024 88-22562-1 ..VOLTAGE, REG KIT 1 1

UOC: EMM

RESISTOR,

VARIABLE (1) 6-24

RESISTOR ASSY (1) 7-3

VOLTAGE

REGULATOR (1) 7-55

TRANSFORMER,

POWER (1) 17-32

XCOOO XC 60177 88-22562-2 ..VOLTAGE, REG KIT 1 1

UOC: EMC

RESISTOR,

VARIABLE (1) 6-24

RESISTOR ASSY (1) 7-3

VOLTAGE

REGULATOR (1) 7-55

TRANSFORMER,

POWER (1) 1 7-32

XCOOO XC 60177 88-22571-2 ..VOLTAGE, REG KIT 1 1

UOC: EPC

RESISTOR,

VARIABLE (1) 6-24

VOLTAGE

REGULATOR (1) 7-55

TRANSFORMER,

POWER (1) 17-32

END OF FIGURE

NOTE: VOLTAGE REGULATOR KIT PARTS

ARE NOT INTERCHANGEABLE.

17-3

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 18. Load Terminal Board

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 08 - OUTPUT LOAD

TERMINAL BOARD

FIG. 18 LOAD TERMINAL

BOARD

1AOOZZ AOOZZ AOOZZ 30554 88-22469 .CORD, LOAD, WRENCH 1 1

2PAOZZ PAOZZ PAOZZ 96906 MS20659-144 ..TERMINAL, LUG #4 AWG, 1 2

#10 STUD SIZE.

3MOOZZ MOO MOOZZ 30554 88-22469-2 ..ROPE, FIBROUS MAKE 1 1

FROM PIN 1-41INDIA (72205),

30.0 INCHES REQUIRED

4PAOZZ PAOZZ PAOZZ 30554 88-21148 .WRENCH, BOX 1 1

5PAOZZ PAOZZ PAOZZ 81205 2740-0003 .NUT, PLAIN, ASSEMBLED 14 438

6PAOZZ PAOZZ PAOZZ 19207 12325869 .BOLT, MACHINE 4 355

7XDOZZ XB XBOZZ 30554 88-22136 .BRACKET, WRENCH 1 1

8PAOZZ PAOZZ PAOZZ 08928 21NTE813 .NUT, SELF-LOCKING, HE 5 5

9PAOZZ PAOZZ PAOZZ 80205 NAS1149C1290R .WASHER, FLAT 10 10

10 AOOOO AOO AOOOO 30554 88-20305-6 .WIRE, VARISTOR (L1) 1 1

11 PAOZZ PAOZZ PAOZZ 15912 RB2573 ..TERMINAL, QUICK DISC 1 5

12 PAOZZ PAOZZ PAOZZ 00779 322724 ..TERMINAL, LUG 1 4

13 MOOZZ MOO MOOZZ 30554 88-20305-6-1 ..WIRE, ELECTRIC MAKE 1 1

FROM P/N M5086/2-16-9

(81349), 6 INCH ES

REQUIRED.

14 AOOOO AOO AOOOO 30554 88-20305-7 .WIRE, VARISTOR (L2) 1 1

15 PAOZZ PAOZZ PAOZZ 15912 RB2573 ..TERMINAL, QUICK DISC 1 5

16 PAOZZ PAOZZ PAOZZ 00779 322724 ..TERMINAL, LUG 1 4

17 MOOZZ MOO MOOZZ 30554 88-20305-7-1 ..WIRE, ELECTRIC MAKE 1 1

FROM PIN M5086/2-16-9

(81349), 6 INCH ES

REQUIRED.

18 AOOOO AOO AOOOO 30554 88-20305-8 .WIRE, VARISTOR (L3) 1 1

19 PAOZZ PAOZZ PAOZZ 15912 RB2573 ..TERMINAL, QUICK DISC 1 5

20 PAOZZ PAOZZ PAOZZ 00779 322724 ..TERMINAL, LUG 1 4

21 MOOZZ MOO MOOZZ 30554 88-20305-8-1 ..WIRE, ELECTRIC MAKE 1 1

FROM PIN M5086/2-16-9

(81349), 6 INCH ES

REQUIRED.

22 AOOOO AOO AOOOO 30554 88-20305-9 .WIRE, VARISTOR (LO) 1 1

23 PAOZZ PAOZZ PAOZZ 15912 RB2573 ..TERMINAL, QUICK DISC 1 5

24 PAOZZ PAOZZ PAOZZ 00779 322724 ..TERMINAL, LUG 1 4

25 MOOZZ MOO MOOZZ 30554 88-20305-9-1 ..WIRE, ELECTRIC MAKE 1 1

FROM P/N M5086/2-16-9

(81349), 6 INCH ES

REQUIRED.

26 PAOZZ PAOZZ PAOZZ 30554 88-21930-1 .NUT, SELF-LOCKING, HE 3 15

18-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

27 PAOZZ PAOZZ PAOZZ 30554 88-22792-2 .WASHER, LOCK 3 3

28 PAOZZ PAOZZ PAOZZ 80204 B1821BH038C100N .SCREW, CAP, HEXAGON H 1 17

29 PAOZZ PAOZZ PAOZZ 08928 22NTE616 .NUT, SELF-LOCKING, HE 2 2

30 PAOZZ PAOZZ PAOZZ 81348 FF-W-92 TYPE A .WASHER, FLAT 3 3

CLE GRI

31 XDOZZ XB XBOZZ 30554 88-22343 .STRAP, GROUND 1 1

32 PAOZZ PAOZZ PAOZZ 80204 B1821BH025C125N .SCREW, CAP, HEXAGON H 4 4

33 PAOZZ PAOZZ PAOZZ 96906 MS35338-63 .WASHER, LOCK 4 129

34 PAOZZ PAOZZ PAOZZ 96906 MS51412-4 .WASHER, FLAT 4 142

35 XDOZZ XB XBOZZ 30554 88-21957 .SUPPORT, LOAD BOARD 1 1

36 PAOZZ PAOZZ PAOZZ 78553 C7988-1420-3B .RETAINER, NUT AND BO 4 36

37 XDOZZ XB XBOZZ 30554 88-21958 .SUPPORT, LOAD BOARD 1 1

38 XDOZZ XB XBOZZ 30554 88-21668 .BOARD, LOAD TERMINA 1 1

39 PAOZZ PAOZZ PAOZZ 30554 88-22336-2 .NUT, PLAIN, HEXAGON 5 5

40 PAOZZ PAOZZ PAOZZ 96906 MS39347-6 .TERMINAL, STUD 5 5

41 PAOZZ PAOZZ PAOZZ 30554 72-2236 .TERMINAL, STUD 2 15

42 XDOZZ XB XBOZZ 30554 88-22163-2 .BAR, BUS GROUND 1 1

43 XDOZZ XB XBOZZ 30554 88-22146 .BUS, BAR 1 1

44 PAOZZ PAOZZ PAOZZ 30554 88-20260-25 .SCREW, CAP, HEXAGON H 8 8

45 PAOZZ PAOZZ PAOZZ 81483 40-1389 .RESISTOR, VOLTAGE SE 4 4

46 XDOZZ XB XBOZZ 30554 88-21775 .BAR, GROUND PLANE 1 1

47 PAOZZ PAOZZ PAOZZ 30554 88-22763 .FILTER ASSY L1, L2, AND L3, 3 3

50/60HZ

UOC: EMM

47 PAOZZ PAOZZ PAOZZ 30554 88-22806 .FILTER ASSY L1, L2, AND L3, 3 3

400 HZ

UOC: EPC

48 PAOZZ PAOZZ PAOZZ 30554 88-22764 ..FILTER ASSY LO TO GND, 1 1

50/60 HZ.

UOC: EMM

48 PAOZZ PAOZZ PAOZZ 30554 88-22808 .FILTER ASSY LO TO GND, 1 1

400 HZ

UOC: EPC

END OF FIGURE

18-2

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 19. Engine Accessories (Sheet 1 of 3)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

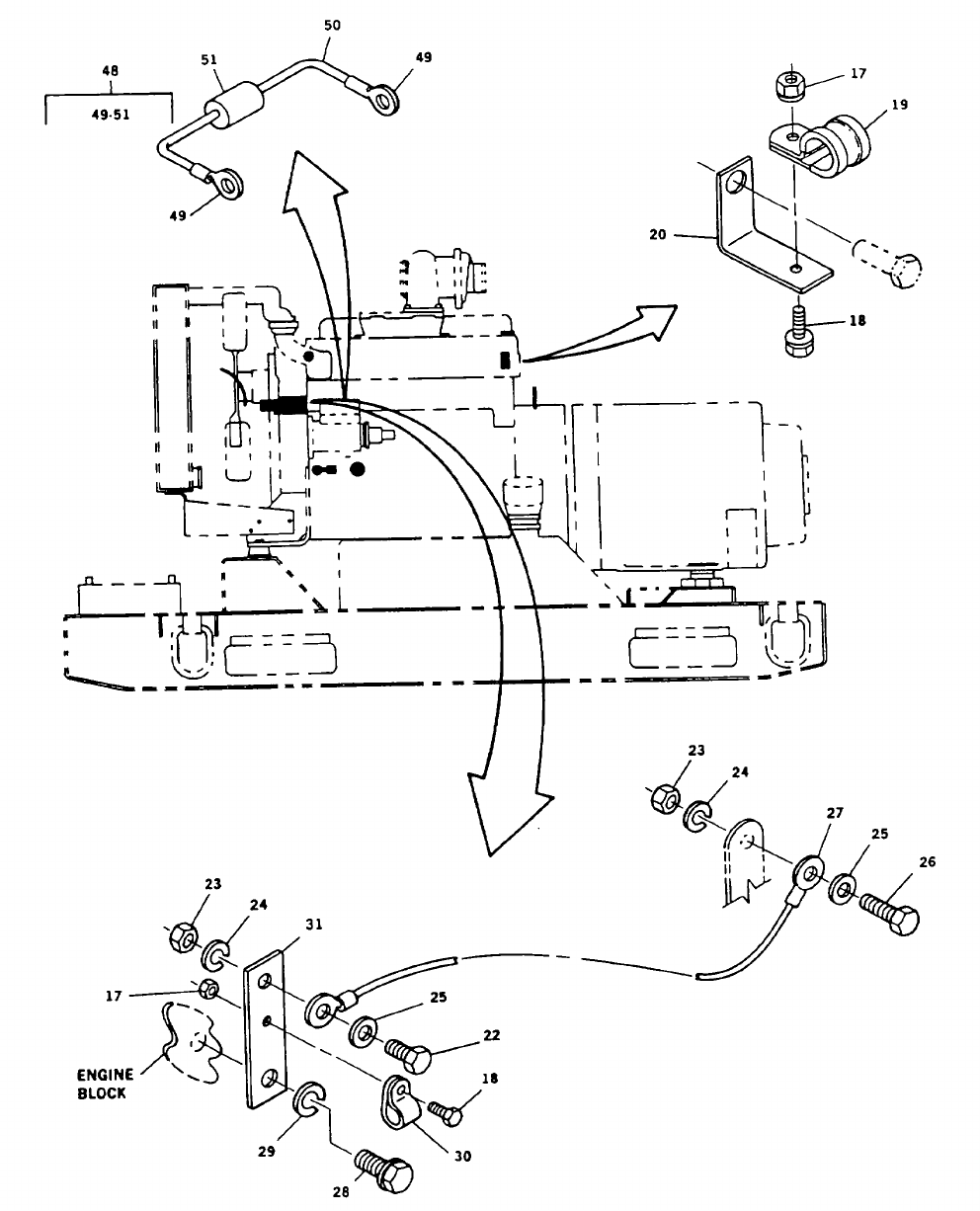

FIGURE 19. Engine Accessories (Sheet 2 of 3)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

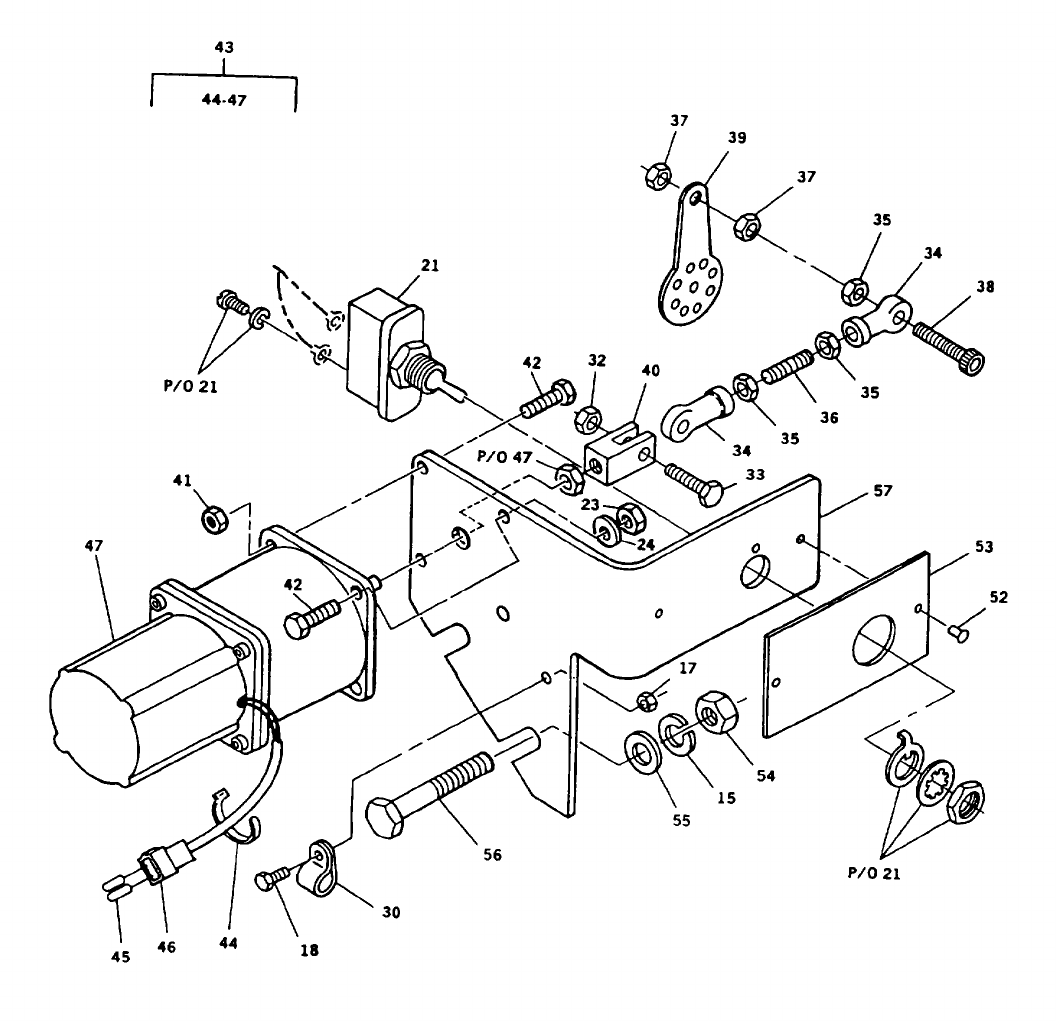

FIGURE 19. Engine Accessories (Sheet 3 of 3)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PARTDESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 09 - ENGINE

ACCESSORIES

FIG. 19 ENGINE

ACCESSORIES

1AOOOZ AOOOZ AOOOZ 30554 88-22550 .TRANSDUCER, MOTIONAL 1 1

2PAOZZ PAOZZ PAOZZ 59730 RA2573 ..TERMINAL, QUICK DISC 1 7

3PAOZZ PAOZZ PAOZZ 59730 RA25177 ..TERMINAL, QUICK DISC 1 3

4PAOZZ PAOZZ PAOZZ 05624 DYNT-17200-1 ..TRANSDUCER, MOTIONAL 1 1

5PAOZZ PAOZZ PAOZZ 35311 SF2755 .NUT, PLAIN, HEXAGON 1 2

6PAOZZ PAOZZ PAOZZ 34623 5965573-B .SWITCH, PRESSURE 1 1

INCLUDES NUT AND WASHER

FOR ELECTRICAL LEA D

CONNECTOR.

7PAOZZ PAOZZ PAOZZ 30554 88-21126 .SWITCH, PRESSURE 1 1

8PAOZZ PAOZZ PAOZZ 70411 SP2529VT .VALVE, CHECK 1 1

9PAOZZ PAOZZ PAOZZ 96906 MS3367-1-9 .STRAP, TIEDOWN, ELECT 1 2

10 MDOZZ MDO MDOZZ 30554 88-22481 .PLATE, IDENTIFICATI OIL 1 1

SAMPLE VALVE.

11 PBOZZ PBOZZ PBOZZ 01276 2256-2-2S .TEE, PIPE 1 1

12 PAOZZ PAOZZ PAOZZ 55443 TM-511C3-225N0 .SWITCH, THERMOSTATIC 1 1

13 PAOZZ PAOZZ PAOZZ 06555 127341 .RESISTOR, THERMAL 1 1

INCLUDES NUT AND WASHER

FOR ELECTRICAL LEA D

CONNECTOR.

14 PAOZZ PAOZZ PAOZZ 96906 MS90725-60 .SCREW, CAP, HEXAGON H 1 1

15 PAOZZ PAOZZ PAOZZ 96906 MS35338-65 .WASHER, LOCK 3 35

16 PAOZZ PAOZZ PAOZZ 96906 MS21333-121 .CLAMP, LOOP 1 1

17 PAOZZ PAOZZ PAOZZ 81205 2740-0003 .NUT, PLAIN, ASSEMBLED 3 438

18 PAOZZ PAOZZ PAOZZ 19207 12325869 .BOLT, MACHINE 3 355

19 PAOZZ PAOZZ PAOZZ 96906 MS21919WDF-12 .CLAMP, LOOP 1 2

20 XDOZZ XB XBOZZ 30554 88-22462 .BRACKET 1 1

21 PAOZZ PAOZZ PAOZZ 81640 8906K4522 .SWITCH, TOGGLE DEAD 1 1

CRANK, INCLUDES ALL

ASSOCIATED HARDWARE.

22 PAOZZ PAOZZ PAOZZ 30554 88-20260-33 .BOLT, MACHINE 1 40

23 PAOZZ PAOZZ PAOZZ 30554 88-22790-1 .NUT, PLAIN, HEXAGON 5 111

24 PAOZZ PAOZZ PAOZZ 96906 MS35338-63 .WASHER, LOCK 5 129

25 PAOZZ PAOZZ PAOZZ 96906 MS51412-4 .WASHER, FLAT 2 142

26 PAOZZ PAOZZ PAOZZ 30554 88-20260-32 .SCREW, CAP, HEXAGON H 1 40

27 PAOZZ PAOZZ PAOZZ 55175 2065-SN-3W/315-S- .WIRE ROPE ASSEMBLY, 1 1

260 X 12.00

28 PAOZZ PAOZZ PAOZZ 80204 B1821BH056C100N .SCREW, CAP, HEXAGON H 1 1

29 PAOZZ PAOZZ PAOZZ 96906 MS35338-68 .WASHER, LOCK 1 1

19-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

30 PAFZZ PAOZZ PAFZZ 96906 MS21919-8 .CLAMP, LOOP 2 2

31 XDOZZ XB XBOZZ 30554 88-22162 .BRACKET, FUEL LEVER1 1

32 PRFZZ PRFZZ PRFZZ 96906 MS21044N3 .NUT, SELF-LOCKING, HE 1 2

33 PAFZZ PAOZZ PAFZZ 30554 88-20260-23 .SCREW, CAP, HEXAGON H 1 46

34 PAFZZ PAOZZ PAFZZ 73134 HF3C BEARING, PLAIN, ROD E 2 2

35 PAFZZ PAOZZ PAFZZ 96906 MS35650-103 NUT, PLAIN, HEXAGON 4 6

36 XDFZZ XB XBFZZ 30554 88-22739 ROD, THREADED 1 1

37 PAFZZ PAOZZ PAFZZ 81205 2740-0003 NUT, PLAIN, ASSEMBLED 2 2

38 XDFZZ XB XBFZZ 36024 122-8567 .SCREW, SOCKET HEAD 1 1

39 XDFZZ XB XBFZZ 8K442 DYNK 221 .LEVER, FUEL PUMP, STR 1 1

40 PAFZZ PAOZZ PAFZZ 30554 88-22168 .CLEVIS, ROD END 1 1

41 PAFZZ PAOZZ PAFZZ 96906 MS51922-3 NUT, PLAIN, HEXAGON 1 1

42 PAFZZ PAOZZ PAFZZ 80204 B1821BH025C100N .SCREW, CAP, HEXAGON H 4 6

43 AFFFF AOO AFFFF 30554 88-22551 .ACTUATOR ASSY 1 1

44 PAFZZ PAOZZ PAFZZ 96906 MS3367-1-9 .STRAP, TIEDOWN, ELECT 1 2

45 PAFZZ PAOZZ PAFZZ 27264 02-09-2103 .CONTACT, ELECTRICAL 2 12

46 PAFZA PAFZA PAFZA 27264 03-09-2022 .CONNECTOR, PLUG, ELEC 1 2

47 PAFZZ PAOZZ PAFZZ 30554 88-21060 .ACTUATOR, ELECTRO-ME 1 1

48 AOOOO AOO AOOOO 30554 88-22418-2 .DIODE ASSEMBLY 1 1

49 PAOZZ PAOZZ PAOZZ 96906 MS25036-103 ..TERMINAL, LUG 2 6

50 MOOZZ MOO MOOZZ 30554 88-22418-2-2 ..INSULATION, SLEEVING 2 2

MAKE FROM P/N M23053/5-

104-0 (81349), AS REQUIRED.

51 PAOZZ PAOZZ PAOZZ 80131 1N5406 ..SEMICONDUCTOR DEVIC 1 7

52 PAOZZ PAOZZ PAOZZ 81349 M24243/1A402 .RIVET, BLIND 2 84

53 MDOZZ MDO MDOZZ 30554 88-21776 .PLATE, IDENTIFICATI DEAD 1 1

CRANK.

54 PAFZZ PAOZZ PAFZZ 30554 88-22790-3 .NUT, PLAIN, HEXAGON 2 14

55 PAFZZ PAOZZ PAFZZ 96906 MS51412-7 .WASHER, FLAT 2 10

56 PAFZZ PAOZZ PAFZZ 30554 88-22782 .SCREW, CAP, HEXAGON H 2 2

57 XDFZZ XB XBFZZ 30554 88-21703 .BRACKET, ACTUATOR 1 1

END OF FIGURE

19-2

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 20. Oil Drain Line

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4)(5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 10 - LUBRICATION

SYSTEM

FIG. 20 OIL DRAIN LINE

1XDOZZ XB XBOZZ 15235 PLG2 .PLUG, PIPE 1 1

2PAOZZ PAOZZ PAOZZ 96906 MS35842-11 .CLAMP, HOSE 2 4

3MOOZZ MOO MOOZZ 30554 88-21608-110 .HOSE, DRAIN MAKE FROM 1 1

P/N 208-12 (98411) 6 INCHES

REQUIRED.

4PBOZZ PBOZZ PBOZZ 30327 KF.12-12PS .ADAPTER, STRAIGHT, PI 1 1

5PAOZZ PAOZZ PAOZZ 93061 V500P-12 .VALVE, BALL 1 1

6XDOZZ XB XBOZZ 30554 72-5304 .NIPPLE, TUBE 1 1

7XDOZZ XB XBOZZ 72582 8929749 .ELBOW, PIPE TO HOSE 1 1

END OF FIGURE

20-1

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 21. Generator Installation

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODEUSMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 11 - GENERATOR

ASSEMBLY

FIG. 21 GENERATOR

INSTALLATION

1PAFZZ PAOZZ PAFZZ 80204 B1821BH038C088N .SCREW, CAP, HEXAGON H 8 8

2PAFZZ PAOZZ PAFZZ 30554 88-22194 .WASHER, FLAT 8 8

3PAFZZ PAOZZ PAFZZ 80204 B1821BH063C350N .SCREW, CAP, HEXAGON H 4 4

4PAFZZ PAOZZ PAFZZ 96906 MS35338-69 .WASHER, LOCK 4 8

5PAFZZ PAOZZ PAFZZ 96906 MS51412-11 .WASHER, FLAT 6 10

6PAFZZ PAOZZ PAFZZ 96906 MS51943-13 .NUT, SELF-LOCKING, HE 4 4

7PAFZZ PAOZZ PAFZZ 92830 B1875-127 .WASHER, BEVEL 2 2

8PAFZZ PAOZZ PAFZZ 30554 88-20247-3 .WASHER, FLAT 4 4

9PAFZZ PAOZZ PAFZZ 80204 B1821BH063C475N .SCREW, CAP, HEXAGON H 4 4

10 PAFZZ PAOZZ PAFZZ 96906 MS35691-1006 .NUT, PLAIN, HEXAGON 4 4

11 PAFZZ PAOZZ PAFZZ 30554 88-22530 .SCREW, CAP, HEXAGON H 2 2

12 XDFZZ XB XBFZZ 81860 RB-X87 .MOUNT, RESILIENT 2 2

INCLUDES TOP AND BOTTOM

COMPONENTS.

END OF FIGURE

21-1

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 22. Generator Assembly, 50/60 Hz (Sheet 1 of 2)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

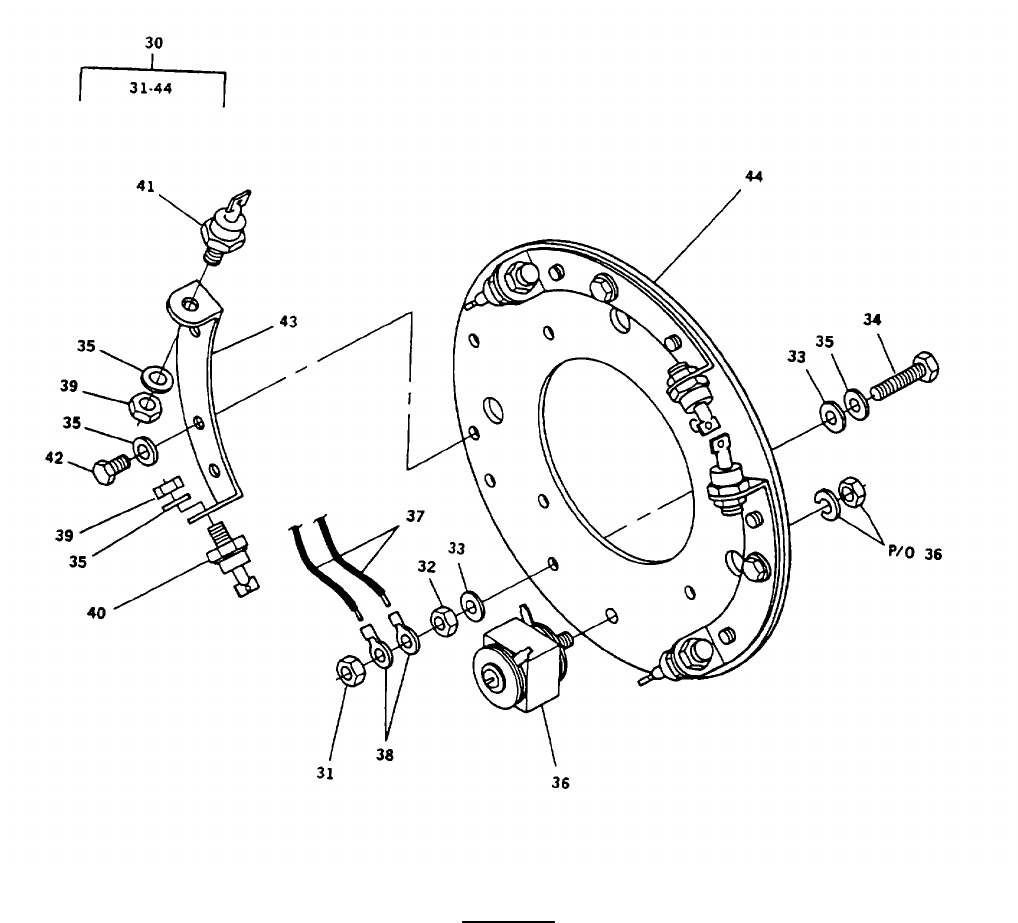

DETAIL A

FIGURE 22. Generator Assembly, 50/60 Hz (Sheet 2 of 2)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 11 -GENERATOR

ASSEMBLY

FIG. 22 GENERATOR

ASSEMBLY, 50 /1 60 HZ

1PBFFF PBOOO PBFFF 30554 88-21009 .GENERATOR, ALTERNATI 60 1 1

HZ.

UOC: EMM

2PAFZZ PAOZZ PAFZZ 96906 MS51967-2 ..NUT, PLAIN, HEXAGON 2 8

UOC: EMM

3PAFZZ PAOZZ PAFZZ 96906 MS35338-44 ..WASHER, LOCK 30 60

UOC: EMM

4PAFZZ PAOZZ PAFZZ 80204 B1821BH025C150N ..SCREW, CAP, HEXAGON H 2 2

UOC: EMM

5XDFZZ XB XBFZZ 96906 MS27183-49 ..WASHER, FLAT 2 12

UOC: EMM

6XDFZZ XB XBFZZ 30554 88-21613 ..COVER, BAND 1 1

UOC: EMM

7 PAFZZ PAOZZ PAFZZ 96906 MS90725-3 ..SCREW, CAP, HEXAGON H 32 32

UOC: EMM

8XDFZZ XB XBFZZ 30554 88-21629 ..COVER, PLATE 1 1

UOC: EMM

9XDFZZ XB XBFZZ 30554 88-21630 ..COVER, PLATE 2 2

UOC: EMM

10 XDFZZ XB XBFZZ 30554 88-21631 ..COVER, PLATE 1 1

UOC: EMM

11 XDFZZ XB XBFZZ 30554 88-21621 ..COVER, PLATE 1 1

UOC: EMM

12 XDFZZ XB XBFZZ 30554 88-21628 ..LEAD CLAMP ASSEMBLY 1 1

UOC EMM

13 PAFZZ PAOZZ PAFZZ 30554 88-21636 ..GASKET 1 2

UOC: EMM

14 PAFZZ PAOZZ PAFZZ 96906 MS20659-165 ..TERMINAL, LUG 2 4

UOC: EMM

15 PAFZZ PAOZZ PAFZZ 96906 MS25036-125 ..TERMINAL, LUG 10 20

UOC: EMM

16 PAFZZ PAOZZ PAFZZ 80204 B1821BH038F125N ..SCREW, CAP, HEXAGON H 20 42

UOC: EMM

17 PAFZZ PAOZZ PAFZZ 96906 MS35338-46 ..WASHER, LOCK 20 40

UOC: EMM

18 PAOZZ PAOZZ PAOZZ 96906 MS27183-13 ..WASHER, FLAT 20 40

UOC: EMM

19 PAFZZ PAOZZ PAFZZ 2V263 GM9409533 ..BOLT, SELF-LOCKING 6 12

UOC: EMM

20 PAFZZ PAOZZ PAFZZ 30554 88-22673 ..WASHER, FLAT 6 12

UOC: EMM

21 XDFZZ XB XBFZZ 30554 88-21616 ..DISC, COUPLING 4 4

UOC: EMM

22-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

22 XDFZZ XB XBFZZ 30554 88-21615 ..ADAPTER 1 1

UOC: EMM

23 XDFFF XB XDFFF 30554 88-21622 ..ENDBELL 1 1

UOC: EMM

24 PAFZZ PAOZZ PAFZZ 30554 88-21657-1 ..SCREW, CAP, SOCKET H 8 16

UOC: EMM

25 XDFZZ XB XBFZZ 30554 88-21626 ..STATOR CORE, EXCITER 1 1

UOC: EMM

26 XDFFF XB XDFFF 30554 88-21612 ..ROTOR ASSY 60 HZ. 1 1

UOC: EMM

27 PAFZZ PAOZZ PAFZZ 21335 312KDD ...BEARING, BALL, ANNULA 1 1

UOC: EMM

28 PAFZZ PAOZZ PAFZZ 96906 MS90725-5 ...SCREW, CAP, HEXAGON H 4 4

UOC: EMM

29 PAFZZ PAOZZ PAFZZ 96906 MS35333-135 WASHER, LOCK 4 8

UOC: EMM

30 XDFFZ PAOZZ PAFZZ 30554 88-21624 . ...RECTIFIER ASSEMBLY, 1 1

UOC: EMM

31 PAFZZ PAOZZ PAFZZ 96906 MS35691-1 ...NUT, PLAIN, HEXAGON 2 4

UOC: EMM

32 PAFZZ PAOZZ PAFZZ 96906 MS51967-2 ...NUT, PLAIN, HEXAGON 2 8

UOC: EMM

33 XDFZZ XB XBFZZ 96906 MS27183-49. ...WASHER, FLAT 4 12

UOC: EMM

34 PAFZZ PAOZZ PAFZZ 80204 B1821BH025C100N ...SCREW, CAP, HEXAGON 2 22

UOC: EMM

35 PAFZZ PAOZZ PAFZZ 96906 MS35333-40 ....WASHER, LOCK 17 34

UOC: EMM

36 PAFZZ PAOZZ PAFZZ 59656 SD4258 ...SEMICONDUCTOR DEVIC 1 1

INCLUDES MOUNTING

HARDWARE.

UOC: EMM

37 MFFZZ MOO MFFZZ 30554 88-21624-6 ....EXCITER LEAD MAKE 2 2

FROM P/N 88-20444-3 (30554),

AS REQUIRED.

UOC: EMM

38 PAFZZ PAOZZ PAFZZ 96906 MS25036-157 ....TERMINAL, LUG 4 8

UOC: EMM

39 PAFZZ PAOZZ PAFZZ 88044 AN315-4 ....NUT, PLAIN, HEXAGON 6 12

UOC: EMM

40 PAFZZ PAOZZ PAFZZ 59993 85HFR60 ....SEMICONDUCTOR DEVIC 3 6

85A, 600 V AND REV. POL.

UOC: EMM

41 PAFZZ PAOZZ PAFZZ 59993 85HF60 ....SEMICONDUCTOR DEVIC 3 6

85A, 600 V.

UOC: EMM

22-2

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

42 PAFOZ PAFOZ PAFOZ 96906 MS90725-3 ....SCREW, CAP, HEXAGON 9 9

UOC: EMM

43 XDFZZ XB XBFZZ 30554 88-21829 ....PLATE, MOUNTING 3 3

UOC: EMM

44 XAFZZ XA XAFZZ 30554 88-21828 ....PLATE, INSULATING 1 1

UOC: EMM

45 XAFZZ XA XAFZZ 30554 88-21619 ...RECTIFIER HUB 1 1

UOC EMM

46 XDFFF XB XDFFF 30554 88-21625 ...ROTOR CORE, EXCITER 1 1

UOC: EMM

47 XDFZZ XB XBFZZ 30554 88-21655-2 ...KEY, SQUARE 1 1

UOC: EMM

48 PAFZZ PAOZZ PAFZZ 96906 MS90725-113 ...SCREW, CAP, HEXAGON H 4 8

UOC: EMM

49 PAFZZ PAOZZ PAFZZ 30554 88-21663 ...WASHER, CONCAVE 4 8

UOC: EMM

50 XDFZZ XB XBFZZ 30554 88-21618 ...FAN 1 1

UOC: EMM

51 XDFZZ XB XBFZZ 30554 88-21657-5 ...SCREW, SET, HEX 1 1

UOC: EMM

52 XDFZZ XB XBFZZ 30554 88-21632 ...HUB, DRIVE 1 1

UOC: EMM

53 XDFZZ XB XBFZZ 30554 88-21916 ...KEY, SQUARE 1 1

UOC: EMM

54 XDFZZ XB XBFZZ 30554 88-22198 ...ROTOR CORE, MAIN 1 1

UOC: EMM

55 PAFZZ PAOZZ PAFZZ 96906 MS25036-112 ...TERMINAL, LUG 5 5

UOC: EMM

56 XDFZZ XB XBFZZ 30554 88-21610 ..FRAME STATOR 1 1

UOC: EMM

END OF FIGURE

22-3

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 23. Generator Assembly, 400 Hz (Sheet 1 of 2)

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

DETAIL A

FIGURE 23. Generator Assembly, 400 Hz (Sheet 2 of 2)

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 11 - GENERATOR

ASSEMBLY

FIG. 23 GENERATOR

ASSEMBLY, 400 HZ

1PBFFF PBOOO PBFFF 30554 88-21010 .GENERATOR ALTERNATO 1 1

400 HZ.

UOC: EPC

2PAFZZ PAOZZ PAFZZ 96906 MS51967-2 ..NUT, PLAIN, HEXAGON 2 8

UOC: EPC

3PAFZZ PAOZZ PAFZZ 96906 MS35338-44 ..WASHER, LOCK 30 60

UOC: EPC

4PAFZZ PAOZZ PAFZZ 80204 B1821BH025C150N ..SCREW, CAP, HEXAGON H 2 2

UOC: EPC

5XDFZZ XB XBFZZ 96906 MS27183-49 ..WASHER, FLAT 2 12

UOC: EPC

6XDFZZ XB XBFZZ 30554 88-21613 ..COVER, BAND 1 1

UOC: EPC

7PAFZZ PAOZZ PAFZZ 96906 MS90725-3 ..SCREW, CAP, HEXAGON H 32 42

UOC: EPC

8XDFZZ XB XBFZZ 30554 88-21629 ..COVER, PLATE 1 1

UOC: EPC

9XDFZZ XB XBFZZ 30554 88-21630 ..COVER, PLATE 2 2

UOC: EPC

10 XDFZZ XB XBFZZ 30554 88-21631 ..COVER, PLATE 1 1

UOC: EPC

11 XDFZZ XB XBFZZ 30554 88-21621 ..COVER, PLATE 1 1

UOC: EPC

12 XDFZZ XB XBFZZ 30554 88-21628 ..LEAD CLAMP ASSEMBLY 1 1

UOC: EPC

13 PAFZZ PAOZZ PAFZZ 30554 88-21636 ..GASKET 1 1

UOC: EPC

14 PAFZZ PAOZZ PAFZZ 96906 MS20659-165 ..TERMINAL, LUG 2 2

UOC: EPC

15 PAFZZ PAOZZ PAFZZ 96906 MS25036-125 ..TERMINAL, LUG 10 10

UOC: EPC

16 PAFZZ PAOZZ PAFZZ 80204 B1821BH038F125N ..SCREW, CAP, HEXAGON H 20 42

UOC: EPC

17 PAFZZ PAOZZ PAFZZ 96906 MS35338-46 ..WASHER, LOCK 20 40

UOC: EPC

18 PAFZZ PAOZZ PAFZZ 96906 MS27183-13 ..WASHER, FLAT 20 40

UOC: EPC

19 PAFZZ PAOZZ PAFZZ 2V263 GM9409533 ..SCREW, MACHINE 6 6

UOC: EPC

20 PAFZZ PAOZZ PAFZZ 30554 88-22673 ..WASHER, FLAT 6 6

UOC: EPC

21 XDFZZ XB XBFZZ 30554 88-21616 ..DISC, COUPLING 4 4

UOC: EPC

23-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

22 XDFZZ XB XBFZZ 30554 88-21615 ..ADAPTER 1 1

UOC: EPC

23 XDFZZ XB XBFZZ 30554 88-21622 ..ENBELL 1 1

UOC: EPC

24 PAFZZ PAOZZ PAFZZ 30554 88-21657-1 ..SCREW, CAP, SOCKET H 8 8

UOC: EPC

25 XDFZZ XB XBFZZ 30554 88-21626 ..STATOR CORE, EXCITER 1 1

UOC: EPC

26 PBFFH PBFFH PBFFH 36156 777056-0A ..RECTIFIER ASSEMBLY 400 1 1

HZ.

UOC: EPC

27 PAFZZ PAOZZ PAFZZ 21335 312KDD ...BEARING, BALL, ANNULA 1 1

UOC: EPC

28 PAFZZ PAOZZ PAFZZ 96906 MS90725-5 ...SCREW, CAP, HEXAGON H 4 4

UOC: EPC

29 PAFZZ PAOZZ PAFZZ 96906 MS35333-135 ...WASHER, LOCK 4 4

UOC: EPC

30 XDFZZ XB XBFZZ 30554 88-21624 ...RECTIFIER ASSEMBLY, 1 1

UOC: EPC

31 PAFZZ PAOZZ PAFZZ 96906 MS35691-1 ....NUT, PLAIN, HEXAGON 2 2

UOC: EPC

32 PAFZZ PAOZZ PAFZZ 96906 MS51967-2 ....NUT, PLAIN, HEXAGON 2 8

UOC: EPC

33 XDFZZ XB XBFZZ 96906 MS27183-49 ....WASHER, FLAT 4 12

UOC: EPC

34 PAFZZ PAOZZ PAFZZ 80204 B1821BH025C100N ....SCREW, CAP, HEXAGON 2 8

UOC: EPC

35 PAFZZ PAOZZ PAFZZ 96906 MS35333-40 ....WASHER, LOCK 17 17

UOC: EPC

36 PAFZZ XB XBFZZ 59656 SD4258 ....SEMICONDUCTOR DEVIC 1 1

INCLUDES MOUNTING

HARDWARE.

UOC: EPC

37 MFFZZ MOO MFFZZ 30554 88-21624-6 ....EXCITER LEAD0000000 2 2

MAKE FROM P/N UL STYLE

1015 (81349), AS REQUIRED.

UOC: EPC

38 PAFZZ PAOZZ PAFZZ 96906 MS25036-157 ....TERMINAL, LUG 4 4

UOC: EPC

39 PAFZZ PAOZZ PAFZZ 88044 AN315-4 ....NUT, PLAIN, HEXAGON 6 6

UOC: EPC

40 PAFZZ PAOZZ PAFZZ 59993 85HFR60 ....SEMICONDUCTOR DEVIC 3 3

85A, 600V REV. POL.

UOC: EPC

41 PAFZZ PAOZZ PAFZZ 59993 85HF60 ....SEMICONDUCTOR DEVIC 3 3

85A, 600V.

UOC: EPC

23-2

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

42 PAFZZ PAOZZ PAFZZ 96906 MS90725-3 ....SCREW, CAP, HEXAGON 9 9

UOC: EPC

43 XAFZZ XA XAFZZ 30554 88-21829 ....PLATE, MOUNTING 3 3

UOC: EPC

44 XAFZZ XA XAFZZ 30554 88-21828 ....PLATE, INSULATING 1 1

UOC: EPC

45 XDFZZ XB XBFZZ 30554 88-21619 ...RECTIFIER HUB 1 1

UOC: EPC

46 XAFFF XA XAFFF 30554 88-21625 ...ROTOR CORE, EXCITER 1 1

UOC: EPC

47 XAFZZ XA XAFZZ 30554 88-21655-2 ...KEY, SQUARE 1 1

UOC: EPC

48 PAFZZ PAOZZ PAFZZ 96906 MS90725-113 ...SCREW, CAP, HEXAGON H 4 4

UOC: EPC

49 PAFZZ PAOZZ PAFZZ 30554 88-21663 ..WASHER, SPRING TENSI 4 4

UOC: EPC

50 XDFZZ XB XBFZZ 30554 88-22230 ...FAN 1 1

UOC: EPC

51 PAFZZ PAOZZ PAFZZ 30554 88-21657-5 ...SETSCREW 8 8

UOC: EPC

52 XAFZZ XA XAFZZ 30554 88-21632 ... HUB, DRIVE 4 4

UOC: EPC

53 XAFZZ XA XAFZZ 30554 88-21916 ...KEY, SQUARE 1 1

UOC: EPC

54 XDFZZ XB XBFZZ 30554 88-21810 ...ROTOR CORE, MAIN WO 1 1

UOC: EPC

55 XDFZZ XB XBFZZ 30554 88-21812-1 ...PLATE, BALANCE 1 1

UOC: EPC

56 XDFZZ XB XBFZZ 30554 88-21812-2 ...PLATE, BALANCE 1 1

UOC: EPC

57 XDFZZ XB XBFZZ 30554 88-22239 ...BALANCE, WEIGHT 8 8

UOC: EPC

58 PAFZZ PAOZZ PAFZZ 96906 MS25036-112 ..TERMINAL, LUG 5 5

UOC: EMM

59 XDFZZ XB XBFZZ 30554 88-21924 ..FRAME STATOR ASSY 1 1

UOC: EPC

END OF FIGURE

23-3

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 24. Engine Installation

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 12 - ENGINE

ASSEMBLY

FIG. 24 ENGINE

INSTALLATION

1PAFZZ PAOZZ PAFZZ 30554 88-22790-2 .NUT, PLAIN, HEXAGON 8 111

2PAFZZ PAOZZ PAFZZ 96906 MS35338-64 .WASHER, LOCK 8 129

3PAFZZ PAOZZ PAFZZ 80204 B1821BH031C100N .BOLT, MACHINE 8 14

4PAFZZ PAOZZ PAFZZ 96906 MS51412-25 .WASHER, FLAT 8 14

5XDFZZ XB XBFZZ 30554 88-21991 .SUPPORT, ENGINE REA 1 1

6PAFZZ PAOZZ PAFZZ 80204 B1821BH063F400N .BOLT, MACHINE 1 1

7PAFZZ PAOZZ PAFZZ 30554 88-22790-6 .NUT, PLAIN, HEXAGON 1 1

8PAOZZ PAOZZ PAOZZ 80204 B1821BH038C150N .SCREW, CAP, HEXAGON H 1 2

9PAOZZ PAOZZ PAOZZ 96906 MS35338-65 .WASHER, LOCK 1 35

10 PAFZZ PAOZZ PAFZZ 96906 MS51412-7 .WASHER, FLAT 5 10

11 XDFZZ XB XBFZZ 30554 88-21993 .STRAP, ENGINE LIFTI 1 1

12 PAFZZ PAOZZ PAFZZ 80204 B1821BH063C150N .SCREW, CAP, HEXAGON H 4 4

13 PAFZZPAOZZ PAFZZ 96906 MS35338-69 .WASHER, LOCK 4 8

14 PAFZZ PAOZZ PAFZZ 96906 MS51412-11 .WASHER, FLAT 4 10

15 PBFHH PBFHH PBFHH 30554 88-21013 .TURBOSUPERCHARGER, E 1 1

16 PAFZZ PAOZZ PAFZZ 96906 MS51943-9 .NUT, SELF-LOCKING, HE 2 2

17 PAFZZ PAOZZ PAFZZ 96906 MS51412-9 .WASHER, FLAT 4 8

18 PAFZZ PAOZZ PAFZZ 30554 88-20247-2 .WASHER, FLAT 2 2

19 PAFZZ PAOZZ PAFZZ 80204 B1821BH050C300N .SCREW, CAP, HEXAGON H 2 2

20 XDFZZ XB XBFZZ 30554 88-22020 .SUPPORT, ENGINE LS 1 1

21 XDFZZ XB XBFZZ 30554 88-22021 .SUPPORT, ENGINE RS 1 1

22 PAFZZ PAOZZ PAFZZ 96906 MS51943-5 .NUT, SELF-LOCKING, HE 4 4

23 PAFZZ PAOZZ PAFZZ 80204 B1821BH038C100N .SCREW, CAP, HEXAGON H 4 8

24 PBFZZ PBOZZ PBFZZ 18625 25553-4 .MOUNT, RESILIENT 2 2

END OF FIGURE

24-1

ARMY TM-9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

FIGURE 25. Skid Base

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 13 - SKID BASE

FIG. 25 SKID BASE

1PAOZZ PAOZZ PAOZZ 30554 88-22790-3 .NUT, PLAIN, HEXAGON 12 20

2PAOZZ PAOZZ PAOZZ 80204 B1821BH038C100N .SCREW, CAP, HEXAGON H 12 17

3PAOZZ PAOZZ PAOZZ 96906 MS35338-65 .WASHER, LOCK 12 35

4PAOZZ PAOZZ PAOZZ 96906 MS51412-7 .WASHER, FLAT 12 23

5XDOZZ XB XBOZZ 30554 88-21823 .GUIDE, FORK LIFT. 2 2

6PAOZZ PAOZZ PAOZZ 70485 2774 .GROMMET, NONMETALLIC 2 2

7XDFZZ XB XBFZZ 30554 88-22009 .SKID BASE ASSY 1 1

END OF FIGURE

25-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

(1) (2) (3) (4) (5) (6) (7)

SMR CODE USMC

a. b. c. d. QTY

ITEM AIR PART DESCRIPTION AND PER

NO. ARMY FORCE NAVY USMC FSCM NUMBER USABLE ON CODE (UOC) QTY EQUIP

GROUP 14 - BULK ITEMS

FIG. BULK

1PAOZZ PAOZZ PAOZZ 70903 8407 .CABLE, POWER, ELECTRI 1 1

2PAFZZ PAOZZ PAFZZ 81349 M27500-16TE1T14 .CABLE, POWER, ELECTRI 1 1

3PAFZZ PAOZZ PAFZZ 81349 M27500-16TE2T14 .CABLE, POWER, ELECTRI 1 1

4PAOZZ PAOZZ PAOZZ 81349 M27500-20TE2T14 .CABLE, SPECIAL PURPO 1 1

5PAFZZ PAOZZ PAFZZ 81349 M27500-20TE3T14 .CABLE, SPECIAL PURPO 1 1

6PAOZZ PAOZZ PAOZZ 81348 RRC271TY2CL6 .CHAIN, ZINC 1 1

7PAOZZ PAOZZ PAOZZ 03007 AA07060408 HINGE, BUTT 1 1

8PAOZZ PAOZZ PAOZZ 03007 Z60690 HINGE, BUTT 1 1

9PAOZZ PAOZZ PAOZZ 1E045 A703 HINGE, BUTT 1 1

10 PAOZZ PAOZZ PAOZZ 03007 AA07060406 .HINGE, BUTT 1 1

11 PAOZZ PAOZZ PAOZZ 00624 303-5 .HOSE ASSEMBLY, NONME 1 1

12 PAOZZ PAOZZ PAOZZ 98441 208-12 .HOSE, NONMETALLIC 1 1

13 PAOZZ PAOZZ PAOZZ 02280 483666 .HOSE, NONMETALLIC 1 1

14 PAOZZ PAOZZ PAOZZ 81349 M8794-16 .HOSE, NONMETALLIC 1 1

NUMBER 4.

15 PAOZZ PAOZZ PAOZZ 81349 M6000-C-02500 .HOSE, NONMETALLIC 1 1

16 PAOZZ PAOZZ PAOZZ 80244 33H581 .HOSE, NONMETALLIC 1 1

17 PAOZZ PAOZZ PAOZZ 81349 M23053/5-110-9 .INSULATION SLEEVING 1 1

18 PAOZZ PAOZZ PAOZZ 81349 M23053/5-110-2 .INSULATION SLEEVING 1 1

19 PAOZZ PAOZZ PAOZZ 81349 M23053/5-105-0 .INSULATION SLEEVING 1 1

20 PAOZZ PAOZZ PAOZZ 81349 M23053/5-108-9 .INSULATION SLEEVING 1 1

21 PAOZZ PAOZZ PAOZZ 81349 M23053/5-104-0 INSULATION SLEEVING 1 1

22 PAOZZ PAOZZ PAOZZ 81349 M23053/5-105-9 .INSULATION SLEEVING 1 1

23 PAOZZ PAOZZ PAOZZ 72205 1-41NDIA .ROPE, FIBROUS 1 1

24 PAOZZ PAOZZ PAOZZ 77824 5798-190Z-3-75.0 .SEAL, NONMETALLIC 1 1

25 PAOZZ PAOZZ PAOZZ 56329 20941 .SEAL, NONMETALLIC SP 1 1

26 PAOZZ PAOZZ PAOZZ 1X968 ZX-4134 SEAL, NONMETALLIC SP 1 1

27 PAOZZ PAOZZ PAOZZ 81349 MIL-R-6130 TYII GRA .TAPE, ADHESIVE, RUBBE 1 1

28 PAOZZ PAOZZ PAOZZ 83616 TD2-03420 .TUBING, NONMETALLIC 1 1

29 PAOZZ PAOZZ PAOZZ 80203 J1127SGR1AWGBLK .WIRE, ELECTRICAL 1 1

30 PAOZZ PAOZZ PAOZZ 30554 88-20444-3 .WIRE, ELECTRICAL 1 1

31 PAFZZ PAOZZ PAFZZ 96906 MS25471-16 .WIRE, ELECTRICAL 1 1

32 PAOZZ PAOZZ PAOZZ 81349 M5086/2-12-9 .WIRE, ELECTRICAL 12 GA. 1 1

33 PAOZZ PAOZZ PAOZZ 81349 M5086/2-20-9 .WIRE, ELECTRICAL 1 1

34 PAOZZ PAOZZ PAOZZ 81349 M5086/2-16-9 .WIRE, ELECTRICAL 1 1

35 PAFZZ PAOZZ PAFZZ 81349 M5086/2-02-9 .WIRE, ELECTRICAL 1 1

END OF FIGURE

BULK -1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER FIG. ITEM STOCK NUMBER FIG. ITEM

6625-00-003-0975 6 34 23 42

6625-00-004-8066 6 33 5305-00-068-0501 22 28

5310-00-011-5093 1 25 23 28

11 21 5305-00-068-0508 12 26

12 35 12 41

19 15 5305-00-068-0509 18 32

24 9 5305-00-068-0510 18 28

25 3 24 23

5310-00-011-6120 12 31 25 2

24 2 5305-00-068-0511 12 62

5310-00-011-6121 12 39 5305-00-071-2066 12 38

5310-00-011-6123 21 4 5305-00-071-2075 24 19

24 13 5305-00-071-2509 22 4

5310-00-014-5850 17 29 23 4

9320-00-019-5710 BULK 23 5305-00-071-2511 3 48

4720-00-021-3320 13 89 5305-00-071-2514 17 55

5940-00-025-1821 17 13 5975-00-074-2072 7 82

17 17 8 13

17 21 12 68

17 25 13 51

5305-00-036-6902 17 36 13 74

5305-00-036-6972 2 2 16 16

7 18 19 9

5305-00-038-3103 4 38 19 44

7 44 5325-00-074-3301 12 3

5305-00-038-3145 7 33 5330-00-079-7840 7 80

4730-00-041-2526 13 29 5310-00-080-6004 12 37

13 55 6625-00-081-5840 6 33

5310-00-044-6477 12 33 5310-00-081-8087 7 24

13 67 5970-00-082-3942 BULK 18

24 4 5970-00-082-3948 BULK 16

5310-00-045-3296 13 71 5310-00-087-7493 22 18

5340-00-050-2740 9 18 23 18

5310-00-052-3632 4 37 5925-00-089-3031 7 8

7 32 6645-00-089-8842 6 30

9 1 5905-00-104-8343 7 5

17 35 5905-00-106-9354 7 5

5310-00-063-7360 2 1 5975-00-111-3208 7 21

6 8 8 12

7 17 8 14

9 22 16 15

4730-00-063-7919 13 1 5940-00-113-0954 22 14

3120-00-065-0505 19 34 23 14

5305-00-068-0500 22 7 5940-00-113-8184 8 3

22 42 5940-00-113-9828 8 9

23 7 5940-00-113-9835 17 3

I-1

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER FIG. ITEM STOCK NUMBER FIG. ITEM

17 6 5306-00-226-4827 12 32

17 9 13 66

17 12 24 3

17 16 5306-00-226-4834 12 58

17 20 6 24

17 24 5905-00-227-6844 6 24

5940-00-115-2677 9 6 5940-00-230-0515 8 87

18 2 8 102

2590-00-141-9758 13 3 8 133

5940-00-143-4771 16 10 16 47

16 49 5935-00-233-3990 7 83

19 49 4720-00-235-4131 BULK 10

5940-00-143-4773 16 55940-00-237-2704 17 40

16 39 18 40

5940-00-143-4774 16 13 5920-00-242-2706 7 89

5940-00-143-4777 22 38 5920-00-243-3787 7 88

23 38 5310-00-243-5912 22 39

5940-00-143-4780 16 11 23 39

16 48 5975-00-257-8055 4 25

5940-00-143-4793 16 65305-00-269-3211 19 14

16 38 5305-00-269-3233 1 24

5940-00-143-4794 22 55 5305-00-269-3238 22 16

23 58 23 16

5305-00-150-3408 7 23 5310-00-274-8710 2 10

3110-00-155-6298 22 27 3 2

23 27 4 16

5999-00-163-4078 8 24 5 4

8 61 5310-00-274-8715 2 19

8 131 3 30

8 168 4 11

8 179 10 5

8 196 11 16

5310-00-167-0809 18 9 13 47

4730-00-177-6166 13 28 14 5

5305-00-191-6226 17 28 18 33

4730-00-209-1570 13 7 19 24

5305-00-211-9344 2 71 5940-00-283-5280 16 58

5305-00-218-4864 7 56 5340-00-286-9420 13 40

4730-00-222-1837 13 63 5340-00-286-9425 13 32

5305-00-224-1092 7 63 19 19

7 76 4730-00-288-9928 14 2

17 61 5325-00-290-1960 17 44

5305-00-225-3843 19 42 5961-00-295-5757 7 69

22 34 8 36

23 34 19 51

5306-00-226-4822 13 43 5340-00-297-0312 3 38

I-2

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER FIG. ITEM STOCK NUMBER FIG. ITEM

4 14 4730-00-613-6468 13 62

14 12 5940-00-615-6073 8 157

18 36 5930-00-615-6731 6 20

5935-00-315-9563 13 84 4730-00-620-6904 13 60

16 32 5999-00-626-3538 13 53

5325-00-319-0547 25 6 13 75

5325-00-351-4543 17 43 13 87

5310-00-407-9566 13 44 19 45

13 65 5310-00-637-9541 22 17

5340-00-420-9813 14 11 23 17

5945-00-458-3351 7 37 4730-00-647-3207 13 19

5940-00-478-0037 7 90 5365-00-663-2125 7 85

5935-00-482-7721 13 52 5330-00-684-7851 13 4

19 46 5340-00-724-7038 9 17

5935-00-483-0259 13 76 17 39

13 85 5305-00-724-7247 21 3

5306-00484-5730 2 21 5305-00-724-7265 21 9

3 40 5305-00-725-2317 1 26

13 48 24 8

4020-00-523-9641 BULK 19 5975-00-727-5153 13 82

3030-00-528-3771 12 64 13 83

5905-00-539-2479 7 1 5310-00-732-0558 12 61

5905-00-539-2573 6 17 5310-00-761-6882 22 2

5920-00-539-6920 7 9 22 32

5305-00-543-4372 11 22 23 2

5310-00-550-1130 22 35 23 32

23 35 4030-00-780-9350 9 5

6145-00-553-0829 BULK 26 5305-00-781-3927 12 56

5905-00-556-3350 6 24 4820-00-785-8153 13 61

5940-00-557-1629 8 8 4720-00-804-9249 BULK 24

8 109 5310-00-809-4058 17 65

5940-00-557-4338 22 15 5310-00-809-8546 7 29

23 15 4730-00-812-1333 13 20

5355-00-559-8943 6 10 5970-00-812-2969 BULK 17

5935-00-565-9503 7 86 5940-00-813-0698 16 12

6145-00-567-7412 BULK 15970-00-822-2775 BULK 13

6145-00-578-6600 BULK 30 5310-00-822-8525 2 48

6145-00-578-6605 BULK 29 9 8

6145-00-578-7514 BULK 27 5935-00-823-5322 8 30

5310-00-582-5965 12 27 6210-00-831-8247 6 4

22 3 5310-00-836-3520 7 62

23 3 7 75

6210-00-583-9349 6 7 8 20

4720-00-595-1088 BULK 11 16 18

5340-00-598-0597 19 30 17 60

5940-00-606-4970 17 53 4730-00-842-2200 13 34

I-3

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER FIG. ITEM STOCK NUMBER FIG. ITEM

4730-00-842-2201 13 94 5310-01-012-3595 1 36

5310-00-851-2674 22 31 2 8

23 31 3 17

6145-00-851-8505 BULK 28 4 1

4730-00-852-6951 13 42 5 1

6625-00-869-3141 6 31 7 27

6625-00-869-3144 6 26 9 11

5310-00-877-5797 19 32 12 8

5975-00-879-7234 7 19 13 9

5920-00-892-9311 7 10 15 1

5310-00-903-8595 2 30 17 27

3 7 18 5

4 22 19 17

9 13 19 37

4730-00-908-3193 12 14 5935-01-014-4920 16 20

4730-00-908-3194 11 3 5935-01-014-7861 8 25

20 2 5320-01-019-5694 2 77

4730-00-908-3195 12 4 3 52

13 98 4 34

4730-00-908-6293 11 1 9 29

13 15 19 52

4730-00-908-6294 10 2 5940-01-020-2021 7 4

13 16 7 52

4730-00-909-8627 12 1 8 2

5330-00-914-7651 7 79 8 2

5310-00-918-6921 17 51 8 40

5340-00-929-1794 1 40 8 47

5310-00-929-1807 17 64 8 54

6210-00-935-6919 6 2 8 64

5305-00-943-5926 19 28 8 79

5975-00-944-1499 16 17 8 86

5975-00-952-1791 3 47 8 94

5970-00-954-1622 BULK 15 8 101

5940-00-954-3558 7 71 8 116

5305-00-954-5629 9 2 8 124

5305-00-954-5638 7 39 8 142

9 33 8 150

5340-00-954-6014 19 16 8 159

5305-00-958-0999 6 9 8 178

5310-00-965-1820 19 41 8 200

5970-00-978-7677 BULK 14 16 2

5310-00-988-2652 19 35 4730-01-020-5607 13 21

5940-01-003-8579 17 52 5935-01-023-5445 16 24

18 41 5905-01-037-6442 7 53

4820-01-008-2922 20 5 5999-01-039-8438 13 88

5935-01-012-1273 16 31 16 30

I-4

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER FIG. ITEM STOCK NUMBER FIG. ITEM

16 77 8 201

5305-01-056-1501 3 39 4730-01-123-8618 13 22

4 18 4730-01-126-2173 13 91

10 4 5940-01-126-3973 14 9

11 17 16 14

14 4 19 3

19 26 6145-01-128-2979 BULK 5

5905-01-063-9644 18 45 6145-01-129-9955 BULK 4

4810-01-067-8276 14 10 4730-01-134-9827 13 8

5310-01-073-3667 21 10 5940-01-135-7080 8 197

5980-01-076-8659 6 5 5940-01-135-7081 8 41

5935-01-078-0355 8 22 8 48

5310-01-078-2992 22 29 8 55

23 29 8 187

5340-01-078-9038 7 40 5940-01-135-7082 8 63

5310-01-081-1284 19 29 8 70

5940-01-082-3321 16 67 8 78

18 11 8 85

18 15 8 93

18 19 8 100

18 23 8 108

5340-01-086-2049 13 90 8 115

5935-01-101-7828 16 23 8 123

5935-01-102-0366 8 27 8 130

5935-01-102-7124 8 31 8 141

5310-01-103-6042 2 20 8 149

3 31 8 156

4 12 8 166

10 6 8 176

11 18 8 198

12 28 16 36

13 49 16 45

14 6 16 55

17 46 16 64

18 34 16 74

19 25 5940-01-139-0853 16 68

6145-01-104-5076 BULK 25305-01-140-9118 21 1

5935-01-104-6137 8 26 5935-01-154-6264 8 32

5930-01-107-6474 19 6 16 33

5940-01-112-9746 14 8 5306-01-156-7663 1 37

16 9 2 9

19 2 3 6

5935-01-114-5354 7 78 4 2

5999-01-119-6236 8 23 5 2

8 169 7 28

8 180 9 12

I-5

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER FIG. ITEM STOCK NUMBER FIG. ITEM

12 9 5310-01-267-1685 13 6

15 2 5970-01-280-0362 7 41

18 6 2920-01-298-6321 23 26

19 18 4730-01-301-4257 20 4

5340-01-157-9475 4 24 5325-01-301-7903 2 50

5325-01-161-2654 9 10 9 16

5305-01-165-1254 13 70 5310-01-307-7914 6 35

5999-01-170-0558 16 21 4730-01-314-8846 20 1

16 57 5999-01-320-7853 8 34

16 66 5305-01-325-8388 22 48

16 76 23 48

2940-01-174-4181 11 24 5310-01-333-1883 22 5

4720-01-174-4983 BULK 12 22 33

5935-01-175-8419 7 54 23 5

17 63 23 33

5305-01-187-5878 7 14 5305-01-334-8683 2 64

17 67 4730-01-335-9621 20 7

5310-01-190-4614 11 25 5905-01-336-7533 7 6

4820-01-192-7676 11 27 2930-01-353-7057 12 72

5980-01-198-311 6 6 6110-01-363-0494 7 55

6240-01-204-3165 6 1 5310-01-365-3190 24 18

5305-01-204-4683 7 77 5310-01-365-4381 9 9

17 62 5310-01-365-4386 21 7

6140-01-210-1964 1 22 5310-01-365-5788 18 8

6145-01-213-5495 BULK 35305-01-365-6313 1 39

4720-01-215-0816 13 93 2 5

5340-01-222-4225 17 45 3 1

5310-01-231-7459 24 16 4 15

5310-01-234-9415 3 36 5 3

4 39 19 33

5310-01-234-9416 2 11 5305-01-365-6314 18 44

3 3 2940-01-365-6535 13 18

4 17 5905-01-365-6585 7 65

5 5 5310-01-365-8138 13 58

13 72 5310-01-365-8139 21 8

4730-01-236-1186 19 11 5305-01-365-9390 7 70

5310-01-242-2679 21 5 5930-01-365-9613 7 7

24 14 5930-01-365-9614 19 21

5310-01-249-0904 24 22 5925-01-365-9757 7 22

5310-01-257-7590 1 19 5945-01-365-9953 17 34

19 55 5945-01-365-9954 7 42

24 10 5930-01-366-0048 6 23

25 4 4730-01-366-0163 12 67

5940-01-259-2190 7 25 6625-01-366-0192 6 32

8 7 6625-01-366-0193 6 27

5310-01-266-4641 24 17 5999-01-366-2621 7 59

I-6

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER FIG. ITEM STOCK NUMBER FIG. ITEM

8 15 5340-01-367-2331 3 26

16 28 5935-01-367-4422 8 28

5945-01-366-2725 7 35 5330-01-367-6329 BULK 21

5945-01-366-2726 7 36 5340-01-367-6703 BULK 7

5945-01-366-2727 7 48 4720-01-367-7446 13 27

5945-01-366-2728 7 49 5935-01-367-7814 7 20

5330-01-366-2836 13 80 6625-01-367-8436 7 60

5305-01-366-3501 21 11 6110-01-367-8922 17 33

5320-01-366-4394 2 27 5340-01-367-8956 3 4

3 9 5940-01-367-9569 8 11

4 4 8 71

5310-01-366-4412 17 50 8 132

18 29 16 7

5306-01-366-4527 1 21 6695-01-367-9722 7 47

2950-01-366-5271 24 15 6620-01-368-1531 6 29

5310-01-366-5365 18 39 5120-01-368-1646 18 4

5310-01-366-5372 21 2 5905-01-368-2538 7 64

5310-01-366-5373 22 20 5905-01-368-2539 7 66

23 20 5905-01-368-2540 7 68

5310-01-366-5374 22 49 5340-01-368-2855 19 40

23 49 5930-01-368-2891 6 19

2930-01-366-6108 12 65 5930-01-368-2892 7 2

5905-01-366-7074 7 67 5930-01-368-2893 6 21

5306-01-366-7075 19 22 5950-01-368-2915 17 30

2815-01-366-7235 11 5 17 32

2910-01-366-7293 13 54 5950-01-368-3006 17 32

2930-01-366-7295 12 59 5930-01-368-5161 6 12

5330-01-366-7743 22 13 5310-01-368-5891 11 6

23 13 5310-01-368-5969 11 7

5999-01-366-7952 16 22 5340-01-368-6048 2 54

16 37 5340-01-368-6063 12 13

16 46 5940-01-368-6774 8 10

16 56 5940-01-368-6775 18 12

16 65 18 16

16 75 18 20

5310-01-366-8134 7 16 18 24

2910-01-366-8984 13 78 6695-01-368-7114 7 31

5935-01-366-9934 8 35 2910-01-368-7459 13 69

4820-01-367-1836 19 8 2990-01-368-7674 10 10

5961-01-367-1969 22 36 2990-01-368-7694 10 3

23 36 6625-01-368-7973 6 32

2910-01-367-2057 14 3 5306-01-368-8041 2 73

5305-01-367-2118 22 19 13 10

23 19 2910-01-368-9883 7 50

5305-01-367-2314 8 21 4720-01-369-0020 12 2

16 19 4720-01-369-0021 12 15

I-7

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER FIG. ITEM STOCK NUMBER FIG. ITEM

6620-01-369-0432 11 14 4730-01-371-8124 13 26

5945-01-369-0791 7 42 6695-01-372-2583 19 1

5940-01-369-1588 8 186 19 4

17 58 9905-01-372-7986 9 31

5305-01-369-2166 3 29 4720-01-373-0526 12 16

5940-01-369-2267 7 26 2910-01-373-2591 7 50

8 6 5307-01-374-4451 2 49

8 62 5961-01-375-0813 22 41

8 69 23 41

8 77 4720-01-375-1930 11 13

8 84 5305-01-375-7131 7 74

8 92 5905-01-376-0985 19 13

8 99 5930-01-376-2001 6 11

8 107 5310-01-376-4773 11 9

8 114 9905-01-377-5094 4 35

8 122 4130-01-378-1130 11 26

8 140 4730-01-378-5224 13 96

8 148 5930-01-378-6921 19 7

8 158 5305-01-378-7899 3 56

8 167 5961-01-378-8090 22 40

8 177 23 40

8 199 5930-01-379-0644 6 18

16 8 5340-01-379-0893 2 15

5940-01-369-2269 8 4 4720-01-379-5027 BULK 9

16 3 5365-01-381-3773 12 60

5940-01-369-2270 8 5 4820-01-381-5079 12 25

8 72 5925-01-381-5199 7 22

8 134 6625-01-381-7445 7 30

8 170 6625-01-381-8195 7 34

8 188 5305-01-381-9970 3 35

16 4 4 10

5940-01-369-2872 1 4 5950-01-382-3371 17 31

1 8 5305-01-382-5060 22 51

1 13 23 51

1 28 5999-01-382-8223 1 17

1 32 5935-01-383-2612 8 29

5940-01-369-2877 17 49 6110-01-383-4422 5 6

4010-01-3694759 19 27 6150-01-383-6528 16 1

4710-01-369-4815 11 12 5940-01-384-0384 17 47

4720-01-369-5042 13 17 5910-01-384-1745 17 57

6685-01-369-6549 6 28 17 59

5330-01-369-8947 BULK 22 5305-01-384-6661 19 38

6695-01-369-9312 7 31 6110-01-384-7063 7 55

4720-01-369-9366 11 2 6110-01-384-7352 7 55

4730-01-370-5426 12 5 5340-01-385-2171 BULK 8

5340-01-370-8349 7 38 5365-01-385-5692 13 59

I-8

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER FIG. ITEM STOCK NUMBER FIG. ITEM

5930-01-386-0540 6 22

4720-01-386-1872 13 23

4730-01-387-7158 13 57

6110-01-387-9167 5 6

2920-01-388-2776 4 26

6150-01-388-7754 8 1

2910-01-389-2195 19 47

2990-01-389-3003 3 5

2990-01-390-4457 10 8

6680-01-392-8821 13 81

6150-01-395-6521 8 1

5930-01-395-6537 19 12

5310-01-395-8744 13 37

5340-01-396-0454 2 72

5340-01-396-0710 21 12

5310-01-396-5836 12 44

6115-01-397-2106 22 1

5305-01-398-4030 13 36

5330-01-398-6319 BULK 20

5305-01-406-1192 2 63

5310-01-406-1672 2 60

6150-01-406-9533 7 81

2940-01-406-9542 11 11

4730-01-407-0649 13 99

5950-01-407-6597 17 32

2910-01-417-2208 13 77

6140-01-418-6342 1 7

5310-01-429-2038 1 18

5365-01-431-4540 2 61

5365-01-431-4603 2 62

I-9

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

79470 00904E-504-J04-01075 4720-01-386-1872 13 23

27264 02-09-1104 5999-01-039-8438 13 88

16 30

16 77

27264 02-09-2103 5999-00-626-3538 13 53

13 75

13 87

19 45

27264 03-09-1022 5935-01-012-1273 16 31

27264 03-09-1042 5935-00-315-9563 13 84

16 32

27264 03-09-2022 5935-00-482-7721 13 52

19 46

72205 1-41NDIA 4020-00-523-9641 BULK 19

36378 1001547-01 4730-01-134-9827 13 8

36378 1003318-01 5935-01-023-5445 16 24

56161 10503979 4730-00-908-3193 12 14

79470 1064X6 4730-01-371-8124 13 26

79470 1069X6 4730-00-041-2526 13 29

13 55

93568 10942521 5999-01-382-8223 1 17

0SK27 111 2930-01-353-7057 12 72

18310 1127-38-0516 5940-00-954-3558 7 71

36024 122-3056 6110-01-363-0494 7 55

36024 122-3066-1 - - - 7 3

60177 122-3066-2 - - - 7 3

36024 122-8567 5305-01-384-6661 19 38

19207 12325869 5306-01-156-7663 1 37

2 9

3 6

4 2

5 2

7 28

9 12

12 9

15 2

18 6

19 18

49078 125HBL-4-4 - - - 13 56

06555 127341 5905-01-376-0985 19 13

06555 127679 2910-01-366-8984 13 78

79470 131-60408 - -- 13 38

97403 13214E3291-3 5310-00-052-3632 4 37

27264 1490P1 5935-00-483-0259 13 76

I-10

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

13 85

74400 15001 6645-00-089-8842 6 30

75915 150145 5920-00-242-2706 7 89

17 32

60177 17910 5950-01-368-3006 17 32

79740 1908 - - - 12 23

60177 19210 5945-01-366-2725 7 35

60177 19240 5945-01-366-2728 7 49

60177 19250 5945-01-366-2727 7 48

60177 19280 6695-01-368-7114 7 31

60177 19290 6695-01-369-9312 7 31

60177 19300 6695-01-367-9722 7 47

60177 19310 6625-01-367-8436 7 60

60177 19330-100 6625-01-381-7445 7 30

60177 19390 5950-01-368-2915 17 30

79470 1945 - - - 12 22

60177 19450-2 5925-01-365-9757 7 22

60177 19880-002 6110-01-384-7063 7 55

60177 19890-003 6110-01-384-7352 7 55

60177 19990-1 - - - 7 22

80131 1N5406 5961-00-295-5757 7 69

8 36

19 51

01276 202712-5-B 4730-01-126-2173 13 91

98441 204P4-P54-JM4-27 4720-01-367-7446 13 27

5U990 205-605 4730-01-407-0649 13 99

97539 206138-1 5935-01-014-4920 16 20

97539 206151-1 5935-01-014-7861 8 25

55175 2065-SN-3W/315-S-260 X 12.00 4010-01-369-4759 19 27

00779 206512-1 5935-01-078-0355 8 22

00779 206837-1 5935-01-101-7828 16 23

97539 206838-1 5935-01-102-0366 8 27

00779 207055-1 5935-01-104-6137 8 26

98441 208-12 4720-00-235-4131 BULK 10

56329 20941 5330-01-367-6329 BULK 21

77342 20C318 5340-01-370-8349 7 38

08928 21NTE102 5310-01-406-1672 2 60

08928 21NTE616 5310-01-366-4412 17 50

08928 21NTE813 5310-01-365-5788 18 8

08928 21NTE82 5310-01-396-5836 12 44

01276 2256-2-2S 4730-01-236-1186 19 11

08928 22NTE616 5310-01-366-4412 18 29

28520 2314 4730-01-378-5224 13 96

28520 2318 4730-01-366-0163 12 67

I-11

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

28520 2326 4730-01-370-5426 12 5

02768 236-170406-04 5320-01-366-4394 2 27

3 9

4 4

77342 24A071 5340-01-078-9038 7 40

18625 25553-4 - - - 24 24

80064 2601167 5935-01-114-5354 7 78

81205 2740-0003 5310-01-012-3595 1 36

2 8

3 17

4 1

5 1

7 27

9 11

12 8

13 9

15 1

17 27

18 5

19 17

19 37

24617 274825 5305-01-056-1501 3 39

4 18

10 4

11 17

14 4

70485 2774 5325-00-319-0547 25 6

77342 27E893 5935-01-367-4422 8 28

60177 29100 5925-01-381-5199 7 22

00624 303-5 4720-01-379-5027 BULK 9

50999 31-65 2910-01-367-2057 14 3

21335 312KDD 3110-00-155-6298 22 27

23 27

73734 3145 5305-00-958-0999 6 9

00779 322724 5940-01-368-6775 18 12

18 16

18 20

18 24

9R803 3300-10 - - - 16 29

9R803 3300-1 0-XP-74 - - - 17 37

9R803 3300-12 - - - 8 17

9R803 3300-12-XP-74 - - - 7 58

9R803 3300-2 - - - 16 26

9R803 3300-2-XP-74 - - - 17 38

I-12

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

9R803 3300-22 - - - 8 18

9R803 3300-22-XP-74 - - - 7 57

9R803 330JS 5999-01-366-2621 7 59

8 15

16 28

02768 354-0250303-0075 5340-01-367-2331 3 26

15309 369-093 6625-01-368-7973 6 32

98441 38300-1-56-48RE 4720-01-369-9366 11 2

27264 39-01-2180 5935-01-366-9934 8 35

80204 4-2 140137 - - - 13 5

78206 4-2ASD 5320-01-019-5694 2 77

81343 4-4-1302384730-00-613-6468 13 62

81343 4-4-4140424C 4730-00-177-6166 13 28

81483 40-1389 5905-01-063-9644 18 45

51377 4035-35828-119 2930-01-366-6108 12 65

77342 40G432 5970-01-280-0362 7 41

79396 42841 2940-01-406-9542 11 11

00624 4411-55 4730-00-842-2201 13 94

83330 47-0901-2900-201 6210-00-935-6919 6 2

72619 51-3502-0137-203 6210-00-831-8247 6 4

78189 511-041800-00-0211-0511 5310-00-836-3520 7 62

7 75

8 20

16 18

17 60

78189 511-081800-00 5310-00-052-3632 7 32

9 1

17 35

83330 521-9208 5980-01-198-6311 6 6

74545 5211 5975-00-879-7234 7 19

99739 52487 4820-01-381-5079 12 25

00779 52949 5940-01-020-2021 7 4

7 52

8 2

8 40

8 47

8 54

8 64

8 79

8 86

8 94

8 101

8 116

I-13

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

8 124

8 142

8 150

8 159

8 178

8 200

16 2

77824 5798-190Z-3-75.0 5330-01-398-6319 BULK 20

34623 5965573-B 5930-01-107-6474 19 6

11083 5R7840 5935-01-102-7124 8 31

30327 60FL-04 4730-00-852-6951 13 42

66295 60HS 4730-00-908-6293 11 1

78189 61-101041-90-0142B-0542B 5305-01-187-5878 7 14

00779 66099-4 5999-00-163-4078 8 24

8 61

8 131

8 168

8 179

8 196

00779 66100-8 5999-01-366-7952 16 22

16 37

16 46

16 56

16 65

16 75

00779 66331-8 5999-01-170-0558 16 21

16 57

16 66

16 76

00779 66400-4 5999-01-119-6236 8 23

8 169

8 180

8 201

93742 69-539-2 4730-00-812-1333 13 20

30554 69-574 6625-00-869-3141 6 31

30554 69-583 5340-01-157-9475 4 24

30554 69-597 6625-00-004-8066 6 33

30554 69-598 6625-00-081-5840 6 33

30554 69-599 6625-00-869-3144 6 26

30554 69-662-35 5305-00-038-3103 4 38

7 44

30554 69-662-36 5305-00-036-6902 17 36

30554 69-662-65 5305-01-187-5878 17 67

30554 69-662-68 5305-01-375-7131 7 74

I - 14

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

30554 69-662-7 5305-.01-204-4683 17 62

30554 69-668-2 - - - 13 92

30554 69-692-5 5940-00-237-2704 17 40

71744 6S6/30V 6240-01-204-3165 6 1

30554 70-4012 6625-00-003-0975 6 34

30554 71-4925 - - - 14 1

30554 72-2098-2 5340-01-222-4225 17 45

30554 72-2213 5940-00-606-4970 17 53

30554 72-2236 5940-01-003-8579 17 52

18 41

30554 72-5304 - - 20 6

76700 73509-A 2815-01-366-7235 11 5

36156 777056-0A 2920-01-298-6321 23 26

70903 8407 6145-00-567-7412 BULK 1

83385 841-6-32 5310-00-063-7360 2 1

6 8

7 17

9 22

94222 85-12-460-16 5325-01-161-2654 9 10

94222 85-16-400-16 5307-01-374-4451 2 49

94222 85-35-309-56 5325-01-301-7903 2 50

9 16

94222 85-46-103-39 5310-01-365-4381 9 9

59993 85HF60 5961-01-375-0813 22 41

23 41

59993 85HFR60 5961-01-378-8090 22 40

23 40

53498 871-92UU-NGEC 6625-01-381-8195 7 34

30554 88-20063-09 - - - 3 54

30554 88-20063-10 - - - 3 54

30554 88-20073 - - - 9 32

30554 88-20074 - - - 9 30

30554 88-20075 - - - 3 53

30554 88-20102 9905-01-377-5094 4 35

30554 88-20110 - - - 2 81

30554 88-20123 - - - 2 24

30554 88-20126 - - - 2 82

30554 88-20191-7 - - - 13 33

30554 88-20191-7-2 - - - 13 35

30554 88-20197 9905-01-372-7986 9 31

30554 88-20218 2920-01-388-2776 4 26

30554 88-20247-2 5310-01-365-3190 24 18

30554 88-20247-3 5310-01-365-8139 21 8

30554 88-20258 - - - 7 45

I - 15

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

30554 88-20260-20 5306-01-368-8041 2 73

13 10

30554 88-20260-22 5305-01-378-7899 3 56

30554 88-20260-23 5305-01-365-6313 1 39

2 5

3 1

4 15

5 3

19 33

30554 88-20260-25 5305-01-365-6314 18 44

30554 88-20260-30 5305-01-369-2166 3 29

30554 88-20260-31 5306-00484-5730 2 21

3 40

13 48

30554 88-20260-32 5305-01-056-1501 19 26

30554 88-20260-33 5306-01-366-7075 19 22

30554 88-20260-34 5305-01-381-9970 3 35

4 10

30554 88-20286 5330-01-366-2836 13 80

30554 88-20299 5305-01-365-9390 7 70

30554 88-20305-6 - - - 18 10

30554 88-20305-6-1 - - - 18 13

30554 88-20305-7 - - - 18 14

30554 88-20305-7-1 - - - 18 17

30554 88-20305-8 - - - 18 18

30554 88-20305-8-1 - - - 18 21

30554 88-20305-9 - - - 18 22

30554 88-20305-9-1 - - - 18 25

30554 88-20461 - - - 2 66

30554 88-20468-1 - - - 12 73

30554 88-20468-2 - - - 12 74

30554 88-20468-3 - - - 12 75

30554 88-20492 6680-01-392-8821 13 81

30554 88-20493 - - - 13 86

30554 88-21009 6115-01-397-2106 22 1

30554 88-21010 - - -23 1

30554 88-21013 2950-01-366-5271 24 15

30554 88-21015 5950-01-382-3371 17 31

30554 88-21045 2910-01-368-7459 13 69

30554 88-21046-3 - - - 11 28

30554 88-21051 2930-01-366-7295 12 59

30554 88-21060 2910-01-389-2195 19 47

15309 88-21072 6625-01-366-0192 6 32

30554 88-21098 5340-01-368-6048 2 54

I - 16

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

06555 88-21103 6625-01-366-0193 6 27

30554 88-21117 4730-01-387-7158 13 57

30554 88-21121-3 2910-01-417-2208 13 77

30554 88-21126 5930-01-378-6921 19 7

30554 88-21141 5945-01-366-2726 7 36

30554 88-21148 5120-01-368-1646 18 4

30554 88-21166 5310-01-365-8138 13 58

30554 88-21579 - - - 17 1

30554 88-21584 - - - 17 1

30554 88-21585 - - - 2 39

30554 88-21586 - - - 2 45

30554 88-21592 - - - 2 47

30554 88-21593 - - - 7 15

30554 88-21603 - - - 2 79

30554 88-21608-102 - - - 13 30

30554 88-21608-104 - - - 13 31

30554 88-21608-107 - - - 13 2

30554 88-21608-110 -- - 20 3

30554 88-21608-147 - - - 13 25

30554 88-21608-154 - - - 3 33

- - - 12 55

30554 88-21608-283 - - - 12 12

19099 88-21608-285 - - - 13 13

30554 88-21608-301 - - - 15 4

30554 88-21608-63 - - - 12 20

30554 88-21608-66 - - - 13 24

30554 88-21608-98 - - - 12 17

13 97

30554 88-21610 - - - 22 56

30554 88-21612 - - - 22 26

30554 88-21613 - - - 22 6

23 6

30554 88-21615 - - - 22 22

23 22

30554 88-21616 - - - 22 21

23 21

30554 88-21618 - - - 22 50

30554 88-21619 - - - 22 45

23 45

30554 88-21621 - - - 22 11

23 11

30554 88-21622 - - - 22 23

23 23

30554 88-21624 - - - 22 30

I - 17

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

23 30

30554 88-21624-6 - - - 22 37

23 37

30554 88-21625 - - - 22 46

23 46

30554 88-21626 - - - 22 25

23 25

30554 88-21628 - - - 22 12

23 12

30554 88-21629 - - - 22 8

23 8

30554 88-21630 - - - 22 9

23 9

30554 88-21631 - - - 22 10

23 10

30554 88-21632 - - - 22 52

23 52

30554 88-21634 - - - 2 84

30554 88-21636 5330-01-366-7743 22 13

23 13

30554 88-21655-2 - - - 22 47

23 47

30554 88-21657-1 22 24

23 24

30554 88-21657-5 5305-01-382-5060 22 51

23 51

30554 88-21663 5310-01-366-5374 22 49

23 49

30554 88-21668 - - - 18 38

30554 88-21669 - - - 17 54

30554 88-21671 - - - 2 78

30554 88-21682 - - - 3 44

30554 88-21683 - - - 1 23

30554 88-21684 - - - 1 20

30554 88-21685 5306-01-366-4527 1 21

30554 88-21689 - - - 3 42

30554 88-21690 - - - 3 43

30554 88-21697 - - - 12 42

30554 88-21703 - - - 19 57

30554 88-21710 - - - 12 40

30554 88-21712 2990-01-390-4457 10 8

30554 88-21719 - - - 4 36

30554 88-21721 - - - 2 31

30554 88-21725 - - - 2 80

I - 18

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

30554 88-21726 - - - 2 83

30554 88-21733 - - - 2 51

30554 88-21738 2910-01-366-7293 13 54

30554 88-21743 - - - 11 19

30554 88-21770 - - - 4 32

30554 88-21771 - - - 2 41

30554 88-21775 - - - 18 46

30554 88-21776 - - - 19 53

30554 88-21810 - - - 23 54

30554 88-21812-1 - - - 23 55

30554 88-21812-2 - - - 23 56

30554 88-21813 - - - 2 76

30554 88-21814 - - - 2 75

30554 88-21815 - - - 2 74

30554 88-21820 - - - 2 40

30554 88-21821-05 - - - 3 55

30554 88-21821-06 - - - 3 55

30554 88-21823 - - - 25 5

30554 88-21828 - - - 22 44

23 44

30554 88-21829 - - - 22 43

23 43

30554 88-21852 - - - 13 79

30554 88-21854 - - - 13 68

30554 88-21856 2910-01-368-9883 7 50

30554 88-21857 2910-01-373-2591 7 50

30554 88-21868 - - - 9 14

30554 88-21869 - - - 9 15

30554 88-21870 - - - 2 12

30554 88-21871 - - - 9 26

30554 88-21873 - - - 9 25

30554 88-21874 - - - 9 24

30554 88-21875 - - - 2 17

30554 88-21876 - - - 9 21

30554 88-21877 - - - 2 14

30554 88-21885 -- - 2 38

30554 88-21888 - - - 3 51

30554 88-21889 - - - 3 49

30554 88-21892 - - - 13 11

30554 88-21893 - -- 13 12

30554 88-21897-1 5935-01-383-2612 8 29

30554 88-21905 - - - 3 23

30554 88-21908 4720-01-373-0526 12 16

30554 88-21911 4720-01-369-0021 12 15

I - 19

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

30554 88-21916 - - - 22 53

- - - 23 53

30554 88-21924 - - - 23 58

30554 88-21930-1 - - - 18 26

30554 88-21932 -- - 17 41

30554 88-21952 - - - 3 46

30554 88-21954 - - - 4 27

30554 88-21955 - - - 4 33

30554 88-21956 - - - 4 31

30554 88-21957 - - - 18 35

30554 88-21958 - - - 18 37

30554 88-21961 2990-01-368-7694 10 3

30554 88-21963 - - - 3 18

30554 88-21964 - - - 4 23

30554 88-21969 4710-01-369-4815 11 12

30554 88-21971 - - - 7 73

30554 88-21976 - - - 7 15

30554 88-21978 - - - 4 20

30554 88-21980 - - - 9 19

30554 88-21986 4720-01-369-0020 12 2

30554 88-21988 - - - 3 19

30554 88-21989 - - - 3 25

30554 88-21990 - - - 3 22

30554 88-21991 - - - 24 5

30554 88-21993 - - - 24 11

30554 88-21995 - - - 7 87

30554 88-21997 - - - 4 30

30554 88-22009 - - - 25 7

30554 88-22020 - - - 24 20

30554 88-22021 - - - 24 21

30554 88-22030 - - - 3 50

30554 88-22033 - - - 3 41

30554 88-22036 - - - 3 8

30554 88-22039 - - - 17 56

30554 88-22043 - - - 4 8

30554 88-22045 - - - 9 20

30554 88-22046 - - - 4 13

30554 88-22050 - - - 4 3

30554 88-22055 - - - 3 16

30554 88-22060 - - - 17 42

30554 88-22062 - - - 3 24

30554 88-22063 - - - 2 56

30554 88-22066 - - - 12 63

30554 88-22067 6150-01-395-6521 8 1

I - 20

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

30554 88-22067-17 - - - 8 16

30554 88-22067-18 - - - 8 19

30554 88-22067-19 - - - 8 33

30554 88-22067-62 - - - 8 37

30554 88-22069 4720-01-369-5042 13 17

30554 88-22076-2 - - - 13 41

30554 88-22077 - - - 2 22

30554 88-22085 - - - 3 32

30554 88-22098-1 - - - 8 38

30554 88-22098-1-1 - - - 8 39

30554 88-22098-2 - - - 8 45

30554 88-22098-2-1 - - - 8 46

30554 88-22098-3 - -- 8 52

30554 88-22098-3-1 - - - 8 53

30554 88-22099-1 - - - 8 59

30554 88-22099-1-1 - - - 8 60

30554 88-22099-2 - - - 8 67

30554 88-22099-2-1 - - - 8 68

30554 88-22099-3 - - - 8 75

30554 88-22099-3-1 - - - 8 76

30554 88-22099-4 - - - 8 82

30554 88-22099-4-1 - - - 8 83

30554 88-22099-5 - - - 8 90

30554 88-22099-5-1 - - - 8 91

30554 88-22099-6 - - - 8 97

30554 88-22099-6-1 - - - 8 98

30554 88-22100 - - - 8 105

30554 88-22100-1 - - - 8 106

30554 88-22101-1 - - - 8 112

30554 88-22101-1-1 - - - 8 113

30554 88-22101-2 - - - 8 120

30554 88-22101-2-1 - - - 8 121

30554 88-22101-3 - - - 8 128

30554 88-22101-3-1 - - - 8 129

30554 88-22101-4 - - - 8 138

30554 88-22101-4-1 - - - 8 139

30554 88-22101-5 - - - 8 146

30554 88-22101-5-1 - - - 8 147

30554 88-22101-8 - - - 16 34

30554 88-22101-8-1 - - - 16 35

30554 88-22101-9 - - - 16 43

30554 88-22101-9-1 - - - 16 44

30554 88-22102-1 - - - 8 154

30554 88-22102-1-1 - - - 8 155

I - 21

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

30554 88-22102-1-12 - - - 8 160

30554 88-22102-2 - - - 8 164

30554 88-22102-2-1 - - - 8 165

30554 88-22102-3 - - - 8 174

30554 88-22102-3-1 - - - 8 175

30554 88-221034 - - - 16 53

30554 88-221034-1 - - - 16 54

30554 88-22103-5 - - - 16 62

30554 88-22103-5-1 - - - 16 63

30554 88-22103-6 - - - 16 72

30554 88-22103-6-1 - - - 16 73

30554 88-22104 - - - 8 184

30554 88-22104-1 - - - 8 185

30554 88-22105 - - - 8 193

30554 88-22105-1 - - - 8 194

30554 88-22105-2 - - - 8 195

30554 88-22106 - - - 7 61

30554 88-22106-11 - - - 7 72

30554 88-22109-3 - - - 11 8

30554 88-22109-6 - - - 11 10

30554 88-22112 - - - 13 14

30554 88-22114 - - - 3 15

30554 88-22120 - - - 9 3

30554 88-22120-2 - - - 9 7

30554 88-22120-4 - - - 9 4

30554 88-22127 - - - 1 3

30554 88-22127-1 - - - 1 6

30554 88-22127-3 - - - 1 5

30554 88-22128-1 - - -17 2

30554 88-22128-1-1 - - - 17 4

30554 88-22128-2 - - - 17 5

30554 88-22128-2-1 - - - 17 7

30554 88-22128-3 - - - 17 8

30554 88-22128-3-1 - - - 17 10

30554 88-22128-4 - - - 17 11

30554 88-22128-4-1 - - - 17 14

30554 88-22128-5 - - - 17 15

30554 88-22128-5-1 - - - 17 18

30554 88-22128-6 - - - 17 19

30554 88-22128-6-1 - - - 17 22

30554 88-22128-7 - - - 17 23

30554 88-22128-7-1 - - - 17 26

30554 88-22136 - - - 18 7

30554 88-22139 6110-01-383-4422 5 6

I - 22

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

30554 88-22139-105 - - - 6 13

7 11

30554 88-22140 6110-01-387-9167 5 6

81640 88-22141 5930-01-366-0048 6 23

30554 88-22146 - - - 18 43

30554 88-22162 - - - 19 31

30554 88-22163-2 - - - 18 42

30554 88-22166 6150-01-383-6528 16 1

30554 88-22166-18 - - - 16 25

30554 88-22166-19 - - - 16 27

30554 88-22168 5340-01-368-2855 19 40

30554 88-22179 6140-01-418-6342 1 7

30554 88-22179-1 - - - 1 11

30554 88-22179-3 - - - 1 9

30554 88-22179-4 - - - 1 10

30554 88-22194 5310-01-366-5372 21 2

30554 88-22198 - - - 22 54

30554 88-22206 - - - 1 27

30554 88-22206-1 - - - 1 30

30554 88-22206-3 - - - 1 29

30554 88-22207 - - - 1 12

30554 88-22207-1 - - - 1 16

30554 88-22207-3 - - - 1 14

30554 88-22207-4 - - - 1 15

30554 88-22208 - - - 1 31

30554 88-22208-1 - - - 1 35

30554 88-22208-3 - - 1 33

30554 88-222084 - - - 1 34

30554 88-22209 6150-01-406-9533 7 81

30554 88-22209-7 - - - 7 84

30554 88-22230 - - - 23 50

30554 88-22239 - - - 23 57

30554 88-22302-12 - - - 12 69

30554 88-22302-4 - - - 12 19

30554 88-22302-5 - - - 12 21

30554 88-22302-8 - - - 12 18

30554 88-22302-9 - - - 12 70

30554 88-22335 - - - 13 45

30554 88-22336-2 5310-01-366-5365 18 39

30554 88-22343 - - - 18 31

30554 88-22418-2 - - - 19 48

30554 88-22418-2-2 - - - 19 50

30554 88-22420 - - - 3 20

30554 88-22429 2990-01-389-3003 3 5

I - 23

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

30554 88-22430 5340-01-367-8956 3 4

30554 88-22434 - - - 12 66

30554 88-22436 5940-01-369-2877 17 49

17 66

30554 88-22437 5940-01-384-0384 17 47

30554 88-22443 - - - 2 35

30554 88-22444 - - - 2 46

30554 88-22448 - - - 4 7

30554 88-22457 - - - 2 43

30554 88-22458 - - - 2 26

30554 88-22461 - - - 2 25

30554 88-22462 - - - 19 20

30554 88-22469 - - - 18 1

30554 88-22469-2 - - - 18 3

30554 88-22472 - - - 2 33

30554 88-22474 - - - 2 68

30554 88-22475 - - - 2 70

30554 88-22476 - - - 2 69

30554 88-22478 - - - 2 65

30554 88-22479 - - - 2 67

30554 88-22481 - - - 19 10

30554 88-22482 5365-01-431-4603 2 62

30554 88-22483 5365-01-431-4540 2 61

30554 88-22495 - - - 4 9

30554 88-22496 - - - 2 59

30554 88-22497 - - - 2 58

30554 88-22499 - - - 2 57

30554 88-22500 - - - 2 34

30554 88-22501 - - - 2 32

30554 88-22514 - - - 3 45

30554 88-22516 - - - 12 29

30554 88-22529 - - - 12 57

30554 88-22530 5305-01-366-3501 21 11

30554 88-22533 5340-01-368-6063 12 13

30554 88-22544 - - - 12 76

30554 88-22546 - - - 13 50

30554 88-22549 - - - 13 73

30554 88-22550 6695-01-372-2583 19 1

30554 88-22551 - - - 19 43

30554 88-22553 - - - 14 7

30554 88-22554-3 - - - 12 6

30554 88-22592 - - - 4 5

30554 88-22596 - - - 3 34

30554 88-22597 - - - 2 52

I -24

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

30554 88-22598 - - - 4 21

30554 88-22599 - - - 3 27

30554 88-22600 - - - 3 28

30554 88-22601 - - - 2 53

30554 88-22602 - - - 3 10

30554 88-22603 - - - 3 11

30554 88-22604 - - - 3 12

30554 88-22605 - - - 3 13

30554 88-22609 -- - 2 44

30554 88-22610 - - - 2 36

30554 88-22611 - - - 3 14

30554 88-22612 - - - 4 29

30554 88-22613 - - - 12 36

30554 88-22614 - - - 4 28

30554 88-22615 - - - 2 37

30554 88-22616 - - - 2 28

30554 88-22629-002 - - - 8 43

30554 88-22629-004 - - - 8 42

30554 88-22629-005 - - - 8 44

30554 88-22629-006 - - - 8 49

30554 88-22629-007 - - - 8 50

30554 88-22629-008 - - - 8 51

30554 88-22629-009 - - - 8 56

30554 88-22629-010 - - - 8 57

30554 88-22629-011 - - - 8 58

30554 88-22629-012 - - - 8 65

30554 88-22629-013 - - - 8 66

30554 88-22629-014 - - - 8 73

30554 88-22629-015 - - - 8 74

30554 88-22629-016 -- - 8 80

30554 88-22629-017 - - - 8 81

30554 88-22629-018 - - - 8 88

30554 88-22629-019 - - - 8 89

30554 88-22629-020 - - - 8 95

30554 88-22629-021 - - - 7 46

8 96

30554 88-22629-022 - - - 8 103

30554 88-22629-023 - - - 8 104

30554 88-22629-025 - - - 8 110

30554 88-22629-026 - - - 8 111

30554 88-22629-027 - - - 8 117

30554 88-22629-028 - - - 8 118

30554 88-22629-029 - - - 8 119

30554 88-22629-030 - - - 8 125

I- 25

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

30554 88-22629-031 - - - 8 126

30554 88-22629-032 - - - 8 127

30554 88-22629-033 - - - 8 135

30554 88-22629-034 - - - 8 136

30554 88-22629-035 - - - 8 137

30554 88-22629-036 - - - 8 143

30554 88-22629-037 - - - 8 144

30554 88-22629-038 - - - 8 145

30554 88-22629-039 - - - 8 151

30554 88-22629-040 - - - 7 13

8 152

30554 88-22629-041 - - - 7 12

8 153

30554 88-22629-043 - - - 16 40

30554 88-22629-044 - - - 16 41

30554 88-22629-046 - - - 16 50

30554 88-22629-047 - - - 16 51

30554 88-22629-048 - - - 16 42

30554 88-22629-049 - - - 16 52

30554 88-22629-053 - - - 8 161

30554 88-22629-054 - - - 8 162

30554 88-22629-055 - - - 8 163

30554 88-22629-056 - - - 8 171

30554 88-22629-057 - - - 8 172

30554 88-22629-058 - - - 8 173

30554 88-22629-059 - - - 8 181

30554 88-22629-060 - - - 8 182

30554 88-22629-061 - - - 8 183

30554 88-22629-063 - - - 16 59

30554 88-22629-064 - - - 16 60

30554 88-22629-066 - - - 16 69

30554 88-22629-067 - - - 16 70

30554 88-22629-069 - - - 16 78

30554 88-22629-070 - - - 16 79

30554 88-22629-071 - - - 16 61

30554 88-22629-072 - - - 16 71

30554 88-22629-073 - - - 16 80

30554 88-22629-077 - - - 8 189

30554 88-22629-078 - - - 6 14

- - - 8 190

30554 88-22629-079 - - - 6 15

8 191

30554 88-22629-080 - - - 6 16

8 192

I - 26

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

30554 88-22629-081 - - - 8 202

30554 88-22629-082 - - - 8 203

30554 88-22629-083 - - - 8 204

30554 88-22629-084 - - - 8 205

30554 88-22631 - - - 7 51

30554 88-22637 - - - 4 6

30554 88-22665 6150-01-388-7754 8 1

30554 88-22666 - - - 2 55

30554 88-22673 5310-01-366-5373 22 20

23 20

30554 88-22701 - - - 15 3

30554 88-22702 - - - 3 21

30554 88-22703 5365-01-381-3773 12 60

30554 88-22705 - - - 2 4

30554 88-22708 - - - 2 16

30554 88-22712 - - - 12 47

30554 88-22713 - - - 12 45

30554 88-22714 - - - 12 46

30554 88-22715 - - - 12 48

30554 88-22716 - - - 12 49

30554 88-22731 - - - 12 52

30554 88-22732 - - - 12 53

30554 88-22733 - - - 12 54

30554 88-22734 - - - 13 39

30554 88-22737 - - - 9 32

30554 88-22738 - - - 2 85

30554 88-22739 - - - 19 36

30554 88-22743 5310-01-376-4773 11 9

30554 88-22745 5305-01-398-4030 13 36

30554 88-22746 5310-01-395-8744 13 37

30554 88-22749 - - - 12 50

30554 88-22750 - - - 12 51

30554 88-22752-1 - - - 12 24

30554 88-22755 2940-01-365-6535 13 18

30554 88-22758 5910-01-384-1745 17 57

17 59

30554 88-22763 - - - 18 47

30554 88-22764 - - - 18 48

30554 88-22769 - - - 2 42

30554 88-22770 - - - 2 29

30554 88-22772 - - - 9 27

30554 88-22774 - - - 9 28

30554 88-22782 - - - 19 56

30554 88-22790-1 - - - 2 18

I - 27

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

3 37

4 19

10 7

11 15

12 71

13 46

17 48

19 23

30554 88-22790-2 - - - 12 30

13 64

24 1

30554 88-22790-3 - - - 11 20

1 9 54

25 1

30554 88-22790-6 - - - 24 7

30554 88-22791-1 - - - 2 23

30554 88-22791-2 - - - 9 23

30554 88-22792-2 - - - 18 27

30554 88-22793-4 - - - 2 13

30554 88-22806 - - - 18 47

30554 88-22808 - - - 18 48

81640 8906K4519 5930-01-368-2893 6 21

81640 8906K4522 5930-01-365-9614 19 21

81640 8906K4523 5930-01-376-2001 6 11

81640 8906K4526 5930-01-365-9613 7 7

81640 8906K4533 5930-01-368-2891 6 19

81640 8906K4750 5930-01-368-2892 7 2

72582 8929749 4730-01-335-9621 20 7

06555 940107 6685-01-369-6549 6 28

06555 940109 6620-01-368-1531 6 29

94222 97-50-170-11 5340-01-396-0454 2 72

7P399 A1616A 5950-01-407-6597 17 32

80063 A3029220-1 5980-01-076-8659 6 5

96906 A50452-1 - - - 6 3

96906 A52425-1 - - - 1 2

96906 A52425-2 - - - 1 1

05657 A8 4730-00-063-7919 13 1

98410 AA-8704-06 5940-01-369-1588 8 186

17 58

98410 AA-8714-08 5940-01-369-2269 8 4

16 3

98410 AA-8715-10 5940-01-369-2270 8 5

8 72

8 134

I - 28

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

8 170

8 188

16 4

03007 AA07060408 5340-01-367-6703 BULK 7

88044 AN315-4 5310-00-243-5912 22 39

23 39

60886 AYW401-R 5930-01-379-0644 6 18

80204 B1821BH025C075N 5305-00-068-0508 12 26

12 41

80204 B1821BH025C100N 5305-00-225-3843 19 42

22 34

23 34

80204 B1821BH025C125N 5305-00-068-0509 18 32

80204 B1821BH025C150N 5305-00-071-2509 22 4

23 4

80204 B1821BH025C200N 5305-00-071-2511 3 48

80204 B1821BH025C275N 5305-00-071-2514 17 55

80204 B1821BH031C050N 5306-00-226-4822 13 43

80204 B1821BH031C100N 5306-00-226-4827 12 32

13 66

24 3

80204 B1821BH031C225N 5306-00-226-4834 12 58

80204 B1821BH0380150N - - - 12 34

80204 B1821BH038C075N 5305-00-543-4372 11 22

80204 B1821BH038C088N 5305-01-140-9118 21 1

80204 B1821BH038C100N 5305-00-068-0510 18 28

24 23

25 2

80204 B1821BH038C125N 5305-00-068-0511 12 62

80204 B1821BH038C150N 5305-00-725-2317 1 26

24 8

80204 B1821BH038C350N 5305-00-781-3927 12 56

80204 B1821BH038F063N 5305-00-269-3233 1 24

80204 B1821BH038F125N 5305-00-269-3238 22 16

23 16

80204 B1821BH050C100N 5305-00-071-2066 12 38

80204 B1821BH050C300N 5305-00-071-2075 24 19

80204 B1821BH056C100N 5305-00-943-5926 19 28

80204 B1821BH063C150N - - - 24 12

80204 B1821BH063C350N 5305-00-724-7247 21 3

80204 B1821BH063C475N 5305-00-724-7265 21 9

80204 B1821BH063F400N - - - 24 6

92830 B1875-127 5310-01-365-4386 21 7

98410 BB-8194-08 5940-01-259-2190 7 25

I-29

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

8 7

98410 BB-8707-06 5940-01-369-2267 7 26

8 6

8 62

8 69

8 77

8 84

8 92

8 99

8 107

8 114

8 122

8 140

8 148

8 158

8 167

8 177

8 199

16 8

98410 BB-8717-10 5940-01-367-9569 8 11

8 71

8 132

16 7

83879 BBL300 5975-00-257-8055 4 25

98410 C-836-04 5940-01-368-6774 8 10

10983 C10-C57410E 5930-01 368-5161 6 12

10983 C11-C57420E 5930-01;386-0540 6 22

75160 C16054 4730-00-908-6294 13 16

79470 C3059X2 4730-00-209-1570 13 7

78553 C7931-1032-3B 5310-00-903-8595 2 30

3 7

4 22

9 13

78553 C7941-1032-3B 5310-01-366-8134 7 16

78553 C7988-1420-3B 5340-00-297-0312 3 38

4 14

14 12

18 36

1E045 CAT 370 2 7

1E045 CAT 380 2 6

74545 CR15 5935-01-367-7814 7 20

8K442 DYNK 221 19 39

05624 DYNT-1 7200-1 6695-01-372-2583 19 4

81349 F03A125V30A 5920-00-539-6920 7 9

I-30

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

81349 F03A250V10AS 5920-00-243-3787 7 88

01276 FA1493FFF3000 4720-00-021-3320 13 89

81348 FF-W-92 TYPE A CLE GRI - - - 18 30

01276 FF9311-36 4730-00-909-8627 12 1

18265 FHG08-0511 - - - 11 23

81349 FHN26G1 5920-00-892-9311 7 10

49956 G435720-1 5999-01-320-7853 8 34

2V263 GM9409533 5305-01-367-2118 22 19

23 19

98410 H-780-38 5940-01-369-2872 1 4

1 8

1 13

1 28

1 32

73134 HF3C 3120-00-065-0505 19 34

91637 HLM-10-10Z1301J 5905-01-368-2539 7 66

91637 HLM-20-10Z-40R0J 5905-01-365-6585 7 65

91637 HLM-20-10Z5001J 5905-01-368-2540 7 68

91637 HLM-20-10Z7R50J 5905-01-368-2538 7 64

91637 HLM20-10Z 3.0K OHM 5% 5905-01-366-7074 7 67

98410 J-787-34 5940-00-025-1821 17 13

17 17

17 21

17 25

80203 J1127SGR1AWGBLK - - - BULK 25

7E656 JCG-6008A 6110-01-367-8922 17 33

30327 KF12-12PS 4730-01-301-4257 20 4

77342 KUP14D15-24VDC 5945-00-458-3351 7 37

65664 L-7-50-9 5975-00-074-2072 13 51

20796 L451 3030-00-528-3771 12 64

78280 LP2299 5340-00-420-9813 14 11

81349 M23053/5-104-0 5970-00-812-2969 BULK 17

81349 M23053/5-105-0 5970-00-954-1622 BULK 15

81349 M23053/5-105-9 5970-00-082-3942 BULK 18

81349 M23053/5-108-9 5970-00-082-3948 BULK 16

81349 M23053/5-110-2 5970-00-978-7677 BULK 14

81349 M23053/5-110-9 5970-00-822-2775 BULK 13

81349 M24243/1A402 5320-01-019-5694 3 52

4 34

9 29

19 52

81349 M27500-16TE1T14 6145-01-104-5076 BULK 2

81349 M27500-16TE2T14 6145-01-213-5495 BULK 3

81349 M27500-20TE2T14 6145-01-129-9955 BULK 4

I-31

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

81349 M27500-20TE3T14 6145-01-128-2979 BULK 5

81349 M5086/2-02-9 6145-00-578-6600 BULK 30

81349 M5086/2-12-9 6145-00-578-7514 BULK 27

81349 M5086/2-16-9 6145-00-578-6605 BULK 29

81349 M5086/2-20-9 6145-00-851-8505 BULK 28

81349 M5501/8-F6 5340-01-086-2049 13 90

81349 M6000-C-02500 4720-01-174-4983 BULK 12

81349 M6000-F-00100 - - - 11 4

81349 M83519/2-2 5940-01-135-7080 8 197

81349 M83519/2-3 5940-01-135-7081 8 41

8 48

8 55

8 187

81349 M83519/2-4 5940-01-135-7082 8 63

8 70

8 78

8 85

8 93

8 100

8 108

8 115

8 123

8 130

8 141

8 149

8 156

8 166

8 176

8 198

16 36

16 45

16 55

16 64

16 74

81349 M8794-16 4720-00-595-1088 BULK 11

31827 MF6T-TPR87-B - - - 2 3

81349 MIL-R-6130 TYII GRA 9320-00-019-5710 BULK 23

61964 MK2PSAC 120 5945-01-365-9954 7 42

96906 MS20659-144 5940-00-115-2677 9 6

18 2

96906 MS20659-165 5940-00-113-0954 22 14

23 14

96906 MS21044N06 5310-00-081-8087 7 24

96906 MS21044N3 5310-00-877-5797 19 32

I-32

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

96906 MS21266-2N 5325-00-074-3301 12 3

96906 MS21333-121 5340-00-954-6014 19 16

96906 MS21333-75 5340-00-050-2740 9 18

96906 MS21333-76 5340-00-724-7038 9 17

17 39

96906 MS21334-31 5340-00-929-1794 1 40

96906 MS21919-8 5340-00-598-0597 19 30

96906 MS21919WDF-12 5340-00-286-9425 13 32

19 19

96906 MS21919WDF-4 5340-00-286-9420 13 40

96906 MS24587-4 4730-00-842-2200 13 34

96906 MS25036-101 5940-00-813-0698 16 12

96906 MS25036-103 5940-00-143-4771 16 10

16 49

19 49

96906 MS25036-105 5940-00-143-4773 16 5

16 39

96906 MS25036-106 5940-00-283-5280 16 58

96906 MS25036-108 5940-00-143-4780 16 11

16 48

96906 MS25036-110 5940-00-143-4793 16 6

16 38

96906 MS25036-112 5940-00-143-4794 22 55

23 58

96906 MS25036-125 5940-00-557-4338 22 15

23 15

96906 MS25036-136 5940-00-113-9835 17 3

17 6

17 9

17 12

17 16

17 20

17 24

96906 MS25036-148 5940-00-113-9828 8 9

96906 MS25036-149 5940-00-557-1629 8 8

8 109

96906 MS25036-150 5940-00-113-8184 8 3

96906 MS25036-152 5940-00-615-6073 8 157

96906 MS25036-153 5940-00-143-4774 16 13

96906 MS25036-154 5940-00-230-0515 8 87

8 102

8 133

16 47

96906 MS25036-157 5940-00-143-4777 22 38

I-33

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

23 38

96906 MS25041-5 6210-00-583-9349 6 7

96906 MS25043-18DA 5935-01-175-8419 7 54

17 63

96906 MS25224-1 5930-00-615-6731 6 20

96906 MS25251-12 5935-00-565-9503 7 86

96906 MS25251-16 5935-00-823-5322 8 30

96906 MS25471-16 6145-00-553-0829 BULK 26

96906 MS27183-10 5310-00-809-4058 17 65

96906 MS27183-13 5310-00-087-7493 22 18

23 18

96906 MS27183-14 5310-00-080-6004 12 37

96906 MS27183-42 5310-00-014-5850 17 29

96906 MS27183-49 5310-01-333-1883 22 5

22 33

23 5

23 33

96906 MS27183-8 5310-00-809-8546 7 29

96906 MS28741-5-2992 4720-01-215-0816 13 93

30554 MS28741-5-2992-2 - - - 13 95

96906 MS3106F18-11S 5935-00-233-3990 7 83

96906 MS3367-1-9 5975-00-074-2072 7 82

8 13

12 68

13 74

16 16

19 9

19 44

96906 MS3367-4-9 5975-00-727-5153 13 82

96906 MS3367-5-9 5975-00-111-3208 7 21

8 12

8 14

16 15

96906 MS3368-1-9A 5975-00-944-1499 16 17

96906 MS3420-10 5365-00-663-2125 7 85

96906 MS3452W18-11P 5935-01-154-6264 8 32

16 33

96906 MS35198-42 5305-00-954-5629 9 2

96906 MS35198-46 5305-00-954-5638 7 39

9 33

96906 MS35206-329 5305-00-150-3408 7 23

96906 MS35333-135 5310-01-078-2992 22 29

23 29

96906 MS35333-40 5310-00-550-1130 22 35

I-34

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

23 35

96906 MS35338-43 5310-00-045-3296 13 71

96906 MS35338-44 5310-00-582-5965 12 27

22 3

23 3

96906 MS35338-45 5310-00-407-9566 13 44

96906 MS35338-46 5310-00-637-9541 22 17

23 17

96906 MS35338-62 5310-00-274-8710 2 10

3 2

4 16

5 4

96906 MS35338-63 5310-00-274-8715 2 19

3 30

4 11

10 5

11 16

13 47

14 5

18 33

19 24

96906 MS35338-64 5310-00-011-6120 12 31

13 65

24 2

96906 MS35338-65 5310-00-011-5093 1 25

11 21

12 35

19 15

24 9

25 3

96906 MS35338-67 5310-00-011-6121 12 39

96906 MS35338-68 5310-01-081-1284 19 29

96906 MS35338-69 5310-00-011-6123 21 4

24 13

96906 MS35489-20 - - - 12 7

96906 MS35489-27 5325-00-290-1960 17 44

96906 MS35643-1 5330-00-684-7851 13 4

96906 MS35645-1 2590-00-141-9758 13 3

96906 MS35650-103 5310-00-988-2652 19 35

96906 MS35691-1 5310-00-851-2674 22 31

23 31

96906 MS35691-1006 5310-01-073-3667 21 10

96906 MS35691-20 5310-00-918-6921 17 51

96906 MS35842-11 4730-00-908-3194 11 3

I-35

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

20 2

96906 MS35842-15 4730-00-908-6293 13 15

96906 MS35842-16 4730-00-908-6294 10 2

96906 MS39347-6 5940-00-237-2704 18 40

96906 MS51007-12 5330-00-914-7651 7 79

96906 MS51007-6 5330-00-079-7840 7 80

96906 MS51412-11 5310-01-242-2679 21 5

24 14

96906 MS51412-2 5310-01-234-9416 2 11

3 3

4 17

5 5

13 72

96906 MS51412-20 5310-01-307-7914 6 35

96906 MS51412-255310-00-044-6477 12 33

13 67

24 4

96906 MS51412-4 5310-01-103-6042 2 20

3 31

4 12

10 6

11 18

12 28

13 49

14 6

17 46

18 34

19 25

96906 MS51412-5 5310-01-234-9415 3 36

4 39

96906 MS51412-7 5310-01-257-7590 1 19

19 55

24 10

25 4

96906 MS51412-8 5310-01-267-1685 13 6

96906 MS51412-9 5310-01-266-4641 24 17

96906 MS51481-06 - - - 12 43

96906 MS51492-14 5305-01-165-1254 13 70

96906 MS51493-2 5305-01-334-8683 2 64

96906 MS51493-3 5305-01-406-1192 2 63

96906 MS51500A5-4 4730-00-620-6904 13 60

96906 MS51504A4 4730-00-647-3207 13 19

96906 MS51520A5 4730-01-123-8618 13 22

96906 MS51846-20 4730-00-222-1837 13 63

I-36

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

96906 MS51860-54 4730-01-020-5607 13 21

96906 MS51922-2 5310-00-929-1807 17 64

96906 MS51922-3 5310-00-965-1820 19 41

96906 MS51943-13 - - - 21 6

96906 MS51943-5 5310-01-249-0904 24 22

96906 MS51943-9 5310-01-231-7459 24 16

96906 MS51967-2 5310-00-761-6882 22 2

22 32

23 2

23 32

96906 MS51967-8 5310-00-732-0558 12 61

96906 MS51971-3 5310-01429-2038 1 18

96906 MS52131 - - - 1 38

96906 MS52149-1 6140-01-210-1964 1 22

96906 MS87006-11 - - - 12 11

96906 MS87006-13 4030-00-780-9350 9 5

96906 MS90725-113 5305-01-325-8388 22 48

23 48

96906 MS90725-3 5305-00-068-0500 22 7

22 42

23 7

23 42

96906 MS90725-5 5305-00-068-0501 22 28

23 28

96906 MS90725-60 5305-00-269-3211 19 14

96906 MS91528-2K2B 5355-00-559-8943 6 10

80205 NAS1149C1290R 5310-00-167-0809 18 9

93061 NV108P-4 4820-00-785-8153 13 61

45722 P-15121-17 5305-00-211-9344 2 71

45722 P-15121-20 5305-00-036-6972 2 2

7 18

45722 P-15121-7 5305-01-204-4683 7 77

18265 P10-1870 5310-01-190-4614 11 25

18265 P10-6593 4820-01-192-7676 11 27

18265 P109331-016-700 4720-01-375-1930 11 13

18265 P11-9711 2940-01-174-4181 11 24

45722 P15121-11 5305-01-367-2314 8 21

16 19

45722 P15121-22 5305-00-218-4864 7 56

45722 P15121-37 5305-00-038-3145 7 33

45722 P15121-5 5305-00-224-1092 7 63

7 76

17 61

45722 P15121-64 5305-00-191-6226 17 28

I-37

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

18265 P18-2059 4130-01-378-1130 11 26

18265 P21-2638 2990-01-368-7674 10 10

61964 PFC-A1 - - - 7 43

15235 PLG2 4730-01-314-8846 20 1

06383 PLT1M-M 5975-00-727-5153 13 83

18876 PMS25086-001-01 5310-00-822-8525 2 48

9 8

41197 PR27334-B2 - - - 12 10

76700 Q-01434 5310-01-368-5891 11 6

76700 Q-01582 5310-01-368-5969 11 7

78280 QS-4-2TC 4810-01-067-8276 14 10

77342 R10-T1P2-115V 5945-01-369-0791 7 42

59730 RA25177 5940-01-126-3973 14 9

16 14

19 3

59730 RA2573 5940-01-112-9746 14 8

16 9

19 2

81860 RB-X87 5340-01-396-0710 21 12

59730 RB25177 5940-01-139-0853 16 68

15912 RB2573 5940-01-082-3321 16 67

18 11

18 15

18 19

18 23

59730 RBB25 5940-00-478-0037 7 90

18265 RBX00-6379 6620-01-369-0432 11 14

81349 RC32GF100J 5905-00-104-8343 7 5

81349 RCR32G302JS 5905-00-106-9354 7 5

44655 REL5R0 5905-01-336-7533 7 6

81348 RRC271TY2CL6 - - - BULK 6

81349 RV4LAYSA502A 5905-00-539-2479 7 1

81349 RV4NAYSD103A 5905-00-556-3350 6 24

6 24

81349 RV4NAYSD203A 5905-00-227-6844 6 24

81349 RV4SAYSD502A 5905-00-539-2573 6 17

18163 S3-1-8X1-8 4730-00-288-9928 14 2

27182 S79SDTXXSXXX 5340-01-379-0893 2 15

81343 SAE J1508-06 4730-00-908-3195 12 4

13 98

99017 SC-1/4-4 - - - 6 25

59656 SD4258 5961-01-367-1969 22 36

23 36

35311 SF2755 - - - 19 5

I-38

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FSCM PART NUMBER STOCK NUMBER FIG. ITEM

81640 SM50D8 5945-01-365-9953 17 34

70411 SP2529VT 4820-01-367-1836 19 8

83616 TD2-03420 4720-00-804-9249 BULK 24

55443 TM-511 C3-225N0 5930-01-395-6537 19 12

01652 U350PHB - - - 10 9

01652 U350Z - - - 10 1

09214 V47ZA7 5905-01-037-6442 7 53

93061 V500P-12 4820-01-008-2922 20 5

81349 W-R-550 5975-00-952-1791 3 47

77342 W23X1A1G7.5 5925-00-089-3031 7 8

07707 WELL-NUT A3816 5365-01-385-5692 13 59

76385 Z3170 5325-00-351-4543 17 43

03007 Z60690 5340-01-385-2171 BULK 8

1X968 ZX-4134 5330-01-369-8947 BULK 22

I-39

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

1 1 - - - 96906 A52425-2

1 2 - - - 96906 A52425-1

1 3 - - - 30554 88-22127

1 4 5940-01-369-2872 98410 H-780-38

1 5 - - - 30554 88-22127-3

1 6 - - - 30554 88-22127-1

1 7 6140-01.418-6342 30554 88-22179

1 8 5940-01-369-2872 98410 H-780-38

1 9 - - - 30554 88-22179-3

1 10 - - - 30554 88-22179-4

1 11 - - - 30554 88-22179-1

1 12 - - - 30554 88-22207

1 13 5940-01-369-2872 98410 H-780-38

1 14 - - - 30554 88-22207-3

1 15 - - - 30554 88-22207-4

1 16 - - - 30554 88-22207-1

1 17 5999-01-382-8223 93568 10942521

1 18 5310-01-429-2038 96906 MS51971-3

1 19 5310-01-257-7590 96906 MS51412-7

1 20 - - - 30554 88-21684

1 21 5306-01-366-4527 30554 88-21685

1 22 6140-01-210-1964 96906 MS52149-1

1 23 - - - 30554 88-21683

1 24 5305-00-269-3233 80204 B1821BH038F063N

1 25 5310-00-011-5093 96906 MS35338-65

1 26 5305-00-725-2317 80204 B1821BH038C150N

1 27 - - - 30554 88-22206

1 28 5940-01-369-2872 98410 H-780-38

1 29 - - - 30554 88-22206-3

1 30 - - - 30554 88-22206-1

1 31 - - - 30554 88-22208

1 32 5940-01-369-2872 98410 H-780-38

1 33 - - - 30554 88-22208-3

1 34 - - - 30554 88-22208-4

1 35 - - - 30554 88-22208-1

1 36 5310-01-012-3595 81205 2740-0003

1 37 5306-01-156-7663 19207 12325869

1 38 - - - 96906 MS52131

1 39 5305-01-365-6313 30554 88-20260-23

1 40 5340-00-929-1794 96906 MS21334-31

2 1 5310-00-063-7360 83385 841-6-32

2 2 5305-00-036-6972 45722 P-15121-20

2 3 - - - 31827 MF6T-TPR87-B

2 4 - - - 30554 88-22705

I-40

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

2 5 5305-01-365-6313 30554 88-20260-23

2 6 - - - 1E045 CAT 380

2 7 - - - 1E045 CAT 370

2 8 5310-01-012-3595 81205 2740-0003

2 9 5306-01-156-7663 19207 12325869

2 10 5310-00-274-8710 96906 MS35338-62

2 11 5310-01-234-9416 96906 MS51412-2

2 12 - - - 30554 88-21870

2 13 - - - 30554 88-22793-4

2 14 - - - 30554 88-21877

2 15 5340-01-379-0893 27182 S79SDTXXSXXX

2 16 - - - 30554 88-22708

2 17 - - - 30554 88-21875

2 18 - - - 30554 88-22790-1

2 19 5310-00-274-8715 96906 MS35338-63

2 20 5310-01-103-6042 96906 MS51412-4

2 21 5306-00-484-5730 30554 88-20260-31

2 22 - - - 30554 88-22077

2 23 - - - 30554 88-22791-1

2 24 - - - 30554 88-20123

2 25 - - - 30554 88-22461

2 26 - - - 30554 88-22458

2 27 5320-01-366-4394 02768 236-170406-04

2 28 - - - 30554 88-22616

2 29 - - - 30554 88-22770

2 30 5310-00-903-8595 78553 C7931-1032-3B

2 31 - - - 30554 88-21721

2 32 - - - 30554 88-22501

2 33 - - - 30554 88-22472

2 34 - - - 30554 88-22500

2 35 - - - 30554 88-22443

2 36 - - - 30554 88-22610

2 37 - - - 30554 88-22615

2 38 - - - 30554 88-21885

2 39 - - - 30554 88-21585

2 40 - - - 30554 88-21820

2 41 - - - 30554 88-21771

2 42 - - - 30554 88-22769

2 43 - - - 30554 88-22457

2 44 - - - 30554 88-22609

2 45 - - - 30554 88-21586

2 46 - - - 30554 88-22444

2 47 - - - 30554 88-21592

2 48 5310-00-822-8525 18876 PMS25086-001-01

I-41

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

2 49 5307-01-374-4451 94222 85-16-400-16

2 50 5325-01-301-7903 94222 85-35-309-56

2 51 - - - 30554 88-21733

2 52 - - - 30554 88-22597

2 53 - - - 30554 88-22601

2 54 5340-01-368-6048 30554 88-21098

2 55 - - - 30554 88-22666

2 56 - - - 30554 88-22063

2 57 - - - 30554 88-22499

2 58 - - - 30554 88-22497

2 59 - - - 30554 88-22496

2 60 5310-01-406-1672 08928 21NTE102

2 61 5365-01-431-4540 30554 88-22483

2 62 5365-01-431-4603 30554 88-22482

2 63 5305-01-406-1192 96906 MS51493-3

2 64 5305-01-334-8683 96906 MS51493-2

2 65 - - - 30554 88-22478

2 66 - - - 30554 88-20461

2 67 - - - 30554 88-22479

2 68 - - - 30554 88-22474

2 69 - - - 30554 88-22476

2 70 - - - 30554 88-22475

2 71 5305-00-211-9344 45722 P-15121-17

2 72 5340-01-396-0454 94222 97-50-170-11

2 73 5306-01-368-8041 30554 88-20260-20

2 74 - - - 30554 88-21815

2 75 - - - 30554 88-21814

2 76 - - - 30554 88-21813

2 77 5320-01-019-5694 78206 4-2ASD

2 78 - - - 30554 88-21671

2 79 - - - 30554 88-21603

2 80 - - - 30554 88-21725

2 81 - - - 30554 88-20110

2 82 - - - 30554 88-20126

2 83 - - - 30554 88-21726

2 84 - - - 30554 88-21634

2 85 - - - 30554 88-22738

3 1 5305-01-365-6313 30554 88-20260-23

3 2 5310-00-274-8710 96906 MS35338-62

3 3 5310-01-234-9416 96906 MS51412-2

3 4 5340-01-367-8956 30554 88-22430

3 5 2990-01-389-3003 30554 88-22429

3 6 5306-01-156-7663 19207 12325869

3 7 5310-00-903-8595 78553 C7931-1032-3B

I-42

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

3 8 30554 88-22036

3 9 5320-01-366-4394 02768 236-170406-04

3 10 - - - 30554 88-22602

3 11 - - - 30554 88-22603

3 12 - - - 30554 88-22604

3 13 - - - 30554 88-22605

3 14 - - - 30554 88-22611

3 15 - - - 30554 88-22114

3 16 - - - 30554 88-22055

3 17 5310-01-012-3595 81205 2740-0003

3 18 - - - 30554 88-21963

3 19 - - - 30554 88-21988

3 20 - - - 30554 88-22420

3 21 - - - 30554 88-22702

3 22 - - - 30554 88-21990

3 23 - - - 30554 88-21905

3 24 - - - 30554 88-22062

3 25 - - - 30554 88-21989

3 26 5340-01-367-2331 02768 354-0250303-0075

3 27 - - - 30554 88-22599

3 28 - - - 30554 88-22600

3 29 5305-01-369-2166 30554 88-20260-30

3 30 5310-00-274-8715 96906 MS35338-63

3 31 5310-01-103-6042 96906 MS51412-4

3 32 - - - 30554 88-22085

3 33 - - - 30554 88-21608-154

3 34 - - - 30554 88-22596

3 35 5305-01-381-9970 30554 88-20260-34

3 36 5310-01-234-9415 96906 MS51412-5

3 37 - - - 30554 88-22790-1

3 38 5340-00-297-0312 78553 C7988-1420-3B

3 39 5305-01-056-1501 24617 274825

3 40 5306-00-484-5730 30554 88-20260-31

3 41 - - - 30554 88-22033

3 42 - - - 30554 88-21689

3 43 - - - 30554 88-21690

3 44 - - - 30554 88-21682

3 45 - - - 30554 88-22514

3 46 - - - 30554 88-21952

3 47 5975-00-952-1791 81349 W-R-550

3 48 5305-00-071-2511 80204 B1821BH025C200N

3 49 - - - 30554 88-21889

3 50 - - - 30554 88-22030

3 51 - - - 30554 88-21888

I-43

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

3 52 5320-01-019-5694 81349 M24243/1A402

3 53 - - - 30554 88-20075

3 54 - - - 30554 88-20063-10

3 54 - - - 30554 88-20063-09

3 55 - - - 30554 88-21821-06

3 55 - - - 30554 88-21821-05

3 56 5305-01-378-7899 30554 88-20260-22

4 1 5310-01-012-3595 81205 2740-0003

4 2 5306-01-156-7663 19207 12325869

4 3 - - - 30554 88-22050

4 4 5320-01-366-4394 02768 236-170406-04

4 5 - - - 30554 88-22592

4 6 - - - 30554 88-22637

4 7 - - - 30554 88-22448

4 8 - - - 30554 88-22043

4 9 - - - 30554 88-22495

4 10 5305-01-381-9970 30554 88-20260-34

4 11 5310-00-274-8715 96906 MS35338-63

4 12 5310-01-103-6042 96906 MS51412-4

4 13 - - - 30554 88-22046

4 14 5340-00-297-0312 78553 C7988-1420-3B

4 15 5305-01-365-6313 30554 88-20260-23

4 16 5310-00-274-8710 96906 MS35338-62

4 17 5310-01-234-9416 96906 MS51412-2

4 18 5305-01-056-1501 24617 274825

4 19 - - - 30554 88-22790-1

4 20 - - - 30554 88-21978

4 21 - - - 30554 88-22598

4 22 5310-00-903-8595 78553 C7931-1032-3B

4 23 - - - 30554 88-21964

4 24 5340-01-157-9475 30554 69-583

4 25 5975-00-257-8055 83879 BBL300

4 26 2920-01-388-2776 30554 88-20218

4 27 - - - 30554 88-21954

4 28 - - - 30554 88-22614

4 29 - - - 30554 88-22612

4 30 - - - 30554 88-21997

4 31 - - - 30554 88-21956

4 32 - - - 30554 88-21770

4 33 - - - 30554 88-21955

4 34 5320-01-019-5694 81349 M24243/1A402

4 35 9905-01-377-5094 30554 88-20102

4 36 - - - 30554 88-21719

4 37 5310-00-052-3632 97403 13214E3291-3

I-44

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

4 38 5305-00-038-3103 30554 69-662-35

4 39 5310-01-234-9415 96906 MS51412-5

5 1 5310-01-012-3595 81205 2740-0003

5 2 5306-01-156-7663 19207 12325869

5 3 5305-01-365-6313 30554 88-20260-23

5 4 5310-00-274-8710 96906 MS35338-62

5 5 5310-01-234-9416 96906 MS51412-2

5 6 6110-01-383-4422 30554 88-22139

5 6 6110-01-387-9167 30554 88-22140

6 1 6240-01-204-3165 71744 6S6/30V

6 2 6210-00-935-6919 83330 47-0901-2900-201

6 3 - - - 96906 A50452-1

6 4 6210-00-831-8247 72619 51-3502-0137-203

6 5 5980-01-076-8659 80063 A3029220-1

6 6 5980-01-198-6311 83330 521-9208

6 7 6210-00-583-9349 96906 MS25041-5

6 8 5310-00-063-7360 83385 841-6-32

6 9 5305-00-958-0999 73734 3145

6 10 5355-00-559-8943 96906 MS91528-2K2B

6 11 5930-01-376-2001 81640 8906K4523

6 12 5930-01-368-5161 10983 C10-C57410E

6 13 - - - 30554 88-22139-105

6 14 - - - 30554 88-22629-078

6 15 - - - 30554 88-22629-079

6 16 - - - 30554 88-22629-080

6 17 5905-00-539-2573 81349 RV4SAYSD502A

6 18 5930-01-379-0644 60886 AYW401-R

6 19 5930-01-368-2891 81640 8906K4533

6 20 5930-00-615-6731 96906 MS25224-1

6 21 5930-01-368-2893 81640 8906K4519

6 22 5930-01-386-0540 10983 C11-C57420E

6 23 5930-01-366-0048 81640 88-22141

6 24 5905-00-556-3350 81349 RV4NAYSD103A

6 24 5905-00-227-6844 81349 RV4NAYSD203A

6 25 - - - 99017 SC-1/4-4

6 26 6625-00-869-3144 30554 69-599

6 27 6625-01-366-0193 06555 88-21103

6 28 6685-01-369-6549 06555 940107

6 29 6620-01-368-1531 06555 940109

6 30 6645-00-089-8842 74400 15001

6 31 6625-00-869-3141 30554 69-574

6 32 6625-01-368-7973 15309 369-093

6 32 6625-01-366-0192 15309 88-21072

I-45

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

6 33 6625-00-081-5840 30554 69-598

6 33 6625-00-004-8066 30554 69-597

6 34 6625-00-003-0975 30554 70-4012

6 35 5310-01-307-7914 96906 MS51412-20

7 1 5905-00-539-2479 81349 RV4LAYSA502A

7 2 5930-01-368-2892 81640 8906K4750

7 3 - - - 36024 122-3066-1

7 3 - - - 60177 122-3066-2

7 4 5940-01-020-2021 00779 52949

7 5 5905-00-104-8343 81349 RC32GF100J

7 5 5905-00-106-9354 81349 RCR32G302JS

7 6 5905-01-336-7533 44655 REL5R0

7 7 5930-01-365-9613 81640 8906K4526

7 8 5925-00-089-3031 77342 W23X1A1G7.5

7 9 5920-00-539-6920 81349 F03A125V30A

7 10 5920-00-892-9311 81349 FHN26G1

7 11 - - - 30554 88-22139-105

7 12 - - - 30554 88-22629-041

7 13 - - - 30554 88-22629-040

7 14 5305-01-187-5878 78189 61-101041-90-0142B-

0542B

7 15 - - - 30554 88-21976

7 15 - - - 30554 88-21593

7 16 5310-01-366-8134 78553 C7941-1032-3B

7 17 5310-00-063-7360 83385 841-6-32

7 18 5305-00-036-6972 45722 P-15121-20

7 19 5975-00-879-7234 74545 5211

7 20 5935-01-367-7814 74545 CR15

7 21 5975-00-111-3208 96906 MS3367-5-9

7 22 - - - 60177 19990-1

7 22 5925-01-381-5199 60177 29100

7 22 5925-01-365-9757 60177 19450-2

7 23 5305-00-150-3408 96906 MS35206-329

7 24 5310-00-081-8087 96906 MS21044N06

7 25 5940-01-259-2190 98410 BB-8194-08

7 26 5940-01-369-2267 98410 BB-8707-06

7 27 5310-01-012-3595 81205 2740-0003

7 28 5306-01-156-7663 19207 12325869

7 29 5310-00-809-8546 96906 MS27183-8

7 30 6625-01-381-7445 60177 19330-100

7 31 6695-01-368-7114 60177 19280

7 31 6695-01-369-9312 60177 19290

7 32 5310-00-052-3632 78189 511-081800-00

7 33 5305-00-038-3145 45722 P15121-37

7 34 6625-01-381-8195 53498 871-92UU-NGEC

I-46

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

7 35 5945-01-366-2725 60177 19210

7 36 5945-01-366-2726 30554 88-21141

7 37 5945-00-458-3351 77342 KUP14D15-24VDC

7 38 5340-01-370-8349 77342 20C318

7 39 5305-00-954-5638 96906 MS3519846

7 40 5340-01-078-9038 77342 24A071

7 41 5970-01-280-0362 77342 40G432

7 42 5945-01-365-9954 61964 MK2PSAC120

7 42 5945-01-369-0791 77342 R10-T1 P2-115V

7 43 - - - 61964 PFC-A1

7 44 5305-00-038-3103 30554 69-662-35

7 45 - - - 30554 88-20258

7 46 - - - 30554 88-22629-021

7 47 6695-01-367-9722 60177 19300

7 48 5945-01-366-2727 60177 19250

7 49 5945-01-366-2728 60177 19240

7 50 2910-01-373-2591 30554 88-21857

7 50 2910-01-368-9883 30554 88-21856

7 51 - - - 30554 88-22631

7 52 5940-01-020-2021 00779 52949

7 53 5905-01-037-6442 09214 V47ZA7

7 54 5935-01-175-8419 96906 MS25043-18DA

7 55 6110-01-363-0494 36024 122-3056

7 55 6110-01-384-7352 60177 19890-003

7 55 6110-01-384-7063 60177 19880-002

7 56 5305-00-218-4864 45722 P15121-22

7 57 - - - 9R803 3300-22-XP-74

7 58 - - - 9R803 3300-12-XP-74

7 59 5999-01-366-2621 9R803 330JS

7 60 6625-01-367-8436 60177 19310

7 61 - - - 30554 88-22106

7 62 5310-00-836-3520 78189 511-041800-00-0211-

0511

7 63 5305-00-224-1092 45722 P15121-5

7 64 5905-01-368-2538 91637 HLM-20-10Z7R50J

7 65 5905-01-365-6585 91637 HLM-20-10Z-40R0J

7 66 5905-01-368-2539 91637 HLM-10-10Z1301J

7 67 5905-01-366-7074 91637 HLM20-10Z 3.0K OHM 5%

7 68 5905-01-368-2540 91637 HLM-20-10Z5001J

7 69 5961-00-295-5757 80131 1 N5406

7 70 5305-01-365-9390 30554 88-20299

7 71 5940-00-954-3558 18310 1127-38-0516

7 72 - - - 30554 88-22106-11

7 73 - - - 30554 88-21971

7 74 5305-01-375-7131 30554 69-662-68

I-47

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

7 75 5310-00-836-3520 78189 511-041800-00-0211-

0511

7 76 5305-00-224-1092 45722 P15121-5

7 77 5305-01-204-4683 45722 P-15121-7

7 78 5935-01-114-5354 80064 2601167

7 79 5330-00-914-7651 96906 MS51007-12

7 80 5330-00-079-7840 96906 MS51007-6

7 81 6150-01-406-9533 30554 88-22209

7 82 5975-00-074-2072 96906 MS3367-1-9

7 83 5935-00-233-3990 96906 MS3106F18-11S

7 84 - - - 30554 88-22209-7

7 85 5365-00-663-2125 96906 MS3420-10

7 86 5935-00-565-9503 96906 MS25251-12

7 87 - - - 30554 88-21995

7 88 5920-00-243-3787 81349 F03A250V10AS

7 89 5920-00-242-2706 75915 150145

7 90 5940-00-478-0037 59730 RBB25

8 1 6150-01-388-7754 30554 88-22665

8 1 6150-01-395-6521 30554 88-22067

8 2 5940-01-020-2021 00779 52949

8 3 5940-00-113-8184 96906 MS25036-150

8 4 5940-01-369-2269 98410 AA-8714-08

8 5 5940-01-369-2270 98410 AA-8715-10

8 6 5940-01-369-2267 98410 BB-8707-06

8 7 5940-01-259-2190 98410 BB-8194-08

8 8 5940-00-557-1629 96906 MS25036-149

8 9 5940-00-113-9828 96906 MS25036-148

8 10 5940-01-368-6774 98410 C-836-04

8 11 5940-01-367-9569 98410 BB-8717-10

8 12 5975-00-111-3208 96906 MS3367-5-9

8 13 5975-00-074-2072 96906 MS3367-1-9

8 14 5975-00-111-3208 96906 MS3367-5-9

8 15 5999-01-366-2621 9R803 330JS

8 16 - - - 30554 88-22067-17

8 17 - - - 9R803 3300-12

8 18 - - - 9R803 3300-22

8 19 - - - 30554 88-22067-18

8 20 5310-00-836-3520 78189 511-041800-00-0211-511

8 21 5305-01-367-2314 45722 P15121-11

8 22 5935-01-078-0355 00779 206512-1

8 23 5999-01-119-6236 00779 66400-4

8 24 5999-00-163-4078 00779 66099-4

8 25 5935-01-014-7861 97539 206151-1

8 26 5935-01-104-6137 00779 207055-1

I-48

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

8 27 5935-01-102-0366 97539 206838-1

8 28 5935-01-367-4422 77342 27E893

8 29 5935-01-383-2612 30554 88-21897-1

8 30 5935-00-823-5322 96906 MS25251-16

8 31 5935-01-102-7124 11083 5R7840

8 32 5935-01-154-6264 96906 MS3452W18-11 P

8 33 - - - 30554 88-22067-19

8 34 5999-01-320-7853 49956 G435720-1

8 35 5935-01-366-9934 27264 39-01-2180

8 36 5961-00-295-5757 80131 1N5406

8 37 - - - 30554 88-22067-62

8 38 - - - 30554 88-22098-1

8 39 - - - 30554 88-22098-1-1

8 40 5940-01-020-2021 00779 52949

8 41 5940-01-135-7081 81349 M83519/2-3

8 42 - - - 30554 88-22629-004

8 43 - - - 30554 88-22629-002

8 44 - - - 30554 88-22629-005

8 45 - - - 30554 88-22098-2

8 46 - - - 30554 88-22098-2-1

8 47 5940-01-020-2021 00779 52949

8 48 5940-01-135-7081 81349 M83519/2-3

8 49 - - - 30554 88-22629-006

8 50 - - - 30554 88-22629-007

8 51 - - - 30554 88-22629-008

8 52 - - - 30554 88-22098-3

8 53 - - - 30554 88-22098-3-1

8 54 5940-01-020-2021 00779 52949

8 55 5940-01-135-7081 81349 M83519/2-3

8 56 - - - 30554 88-22629-009

8 57 - - - 30554 88-22629-010

8 58 - - - 30554 88-22629-011

8 59 - - - 30554 88-22099-1

8 60 - - - 30554 88-22099-1-1

8 61 5999-00-163-4078 00779 66099-4

8 62 5940-01-369-2267 98410 BB-8707-06

8 63 5940-01-135-7082 81349 M83519/2-4

8 64 5940-01-020-2021 00779 52949

8 65 - - - 30554 88-22629-012

8 66 - - - 30554 88-22629-013

8 67 - - - 30554 88-22099-2

8 68 - - - 30554 88-22099-2-1

8 69 5940-01-369-2267 98410 BB-8707-06

8 70 5940-01-135-7082 81349 M83519/2-4

I-49

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

8 71 5940-01-367-9569 98410 BB-8717-10

8 72 5940-01-369-2270 98410 AA-8715-10

8 73 - - - 30554 88-22629-014

8 74 - - - 30554 88-22629-015

8 75 - - - 30554 88-22099-3

8 76 - - - 30554 88-22099-3-1

8 77 5940-01-369-2267 98410 BB-8707-06

8 78 5940-01-135-7082 81349 M83519/2-4

8 79 5940-01-020-2021 00779 52949

8 80 - - - 30554 88-22629-016

8 81 - - - 30554 88-22629-017

8 82 - - - 30554 88-22099-4

8 83 - - - 30554 88-22099-4-1

8 84 5940-01-369-2267 98410 BB-8707-06

8 85 5940-01-135-7082 81349 M83519/2-4

8 86 5940-01-020-2021 00779 52949

8 87 5940-00-230-0515 96906 MS25036-154

8 88 - - - 30554 88-22629-018

8 89 - - - 30554 88-22629-019

8 90 - - - 30554 88-22099-5

8 91 - - - 30554 88-22099-5-1

8 92 5940-01-369-2267 98410 BB-8707-06

8 93 5940-01-135-7082 81349 M83519/2-4

8 94 5940-01-020-2021 00779 52949

8 95 - - - 30554 88-22629-020

8 96 - - - 30554 88-22629-021

8 97 - - - 30554 88-22099-6

8 98 - - - 30554 88-22099-6-1

8 99 5940-01-369-2267 98410 BB-8707-06

8 100 5940-01-135-7082 81349 M83519/2-4

8 101 5940-01-020-2021 00779 52949

8 102 5940-00-230-0515 96906 MS25036-154

8 103 - - - 30554 88-22629-022

8 104 - - - 30554 88-22629-023

8 105 - - - 30554 88-22100

8 106 - - - 30554 88-22100-1

8 107 5940-01-369-2267 98410 BB-8707-06

8 108 5940-01-135-7082 81349 M83519/2-4

8 109 5940-00-557-1629 96906 MS25036-149

8 110 - - - 30554 88-22629-025

8 111 - - - 30554 88-22629-026

8 112 - - - 30554 88-22101-1

8 113 - - - 30554 88-22101-1-1

8 114 5940-01-369-2267 98410 BB-8707-06

I-50

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

8 115 5940-01-135-7082 81349 M83519/2-4

8 116 5940-01-020-2021 00779 52949

8 117 - - - 30554 88-22629-027

8 118 - - - 30554 88-22629-028

8 119 - - - 30554 88-22629-029

8 120 - - - 30554 88-22101-2

8 121 - - - 30554 88-22101-2-1

8 122 5940-01-369-2267 98410 BB-8707-06

8 123 5940-01-135-7082 81349 M83519/2-4

8 124 5940-01-020-2021 00779 52949

8 125 - - - 30554 88-22629-030

8 126 - - - 30554 88-22629-031

8 127 - - - 30554 88-22629-032

8 128 - - - 30554 88-22101-3

8 129 - - - 30554 88-22101-3-1

8 130 5940-01-135-7082 81349 M83519/2-4

8 131 5999-00-163-4078 00779 66099-4

8 132 5940-01-367-9569 98410 BB-8717-10

8 133 5940-00-230-0515 96906 MS25036-154

8 134 5940-01-369-2270 98410 AA-8715-10

8 135 - - - 30554 88-22629-033

8 136 - - - 30554 88-22629-034

8 137 - - - 30554 88-22629-035

8 138 - - - 30554 88-22101-4

8 139 - - - 30554 88-22101-4-1

8 140 5940-01-369-2267 98410 BB-8707-06

8 141 5940-01-135-7082 81349 M83519/2-4

8 142 5940-01-020-2021 00779 52949

8 143 - - - 30554 88-22629-036

8 144 - - - 30554 88-22629-037

8 145 - - - 30554 88-22629-038

8 146 - - - 30554 88-22101-5

8 147 - - - 30554 88-22101-5-1

8 148 5940-01-369-2267 98410 BB-8707-06

8 149 5940-01-135-7082 81349 M83519/2-4

8 150 5940-01-020-2021 00779 52949

8 151 - - - 30554 88-22629-039

8 152 - - - 30554 88-22629-040

8 153 - - - 30554 88-22629-041

8 154 - - - 30554 88-22102-1

8 155 - - - 30554 88-22102-1-1

8 156 5940-01-135-7082 81349 M83519/2-4

8 157 5940-00-615-6073 96906 MS25036-152

8 158 5940-01-369-2267 98410 BB-8707-06

I-51

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

8 159 5940-01-020-2021 00779 52949

8 160 - - - 30554 88-22102-1-12

8 161 - - - 30554 88-22629-053

8 162 - - - 30554 88-22629-054

8 163 - - - 30554 88-22629-055

8 164 - - - 30554 88-22102-2

8 165 - - - 30554 88-22102-2-1

8 166 5940-01-135-7082 81349 M83519/2-4

8 167 5940-01-369-2267 98410 BB-8707-06

8 168 5999-00-163-4078 00779 66099-4

8 169 5999-01-119-6236 00779 66400-4

8 170 5940-01-369-2270 98410 AA-8715-10

8 171 - - - 30554 88-22629-056

8 172 - - - 30554 88-22629-057

8 173 - - - 30554 88-22629-058

8 174 - - - 30554 88-22102-3

8 175 - - - 30554 88-22102-3-1

8 176 5940-01-135-7082 81349 M83519/2-4

8 177 5940-01-369-2267 98410 BB-8707-06

8 178 5940-01-020-2021 00779 52949

8 179 5999-00-163-4078 00779 66099-4

8 180 5999-01-119-6236 00779 66400-4

8 181 - - - 30554 88-22629-059

8 182 - - - 30554 88-22629-060

8 183 - - - 30554 88-22629-061

8 184 - - - 30554 88-22104

8 185 - - - 30554 88-22104-1

8 186 5940-01-369-1588 98410 AA-8704-06

8 187 5940-01-135-7081 81349 M83519/2-3

8 188 5940-01-369-2270 98410 AA-8715-10

8 189 - - - 30554 88-22629-077

8 190 - - - 30554 88-22629-078

8 191 - - - 30554 88-22629-079

8 192 - - - 30554 88-22629-080

8 193 - - - 30554 88-22105

8 194 - - - 30554 88-22105-1

8 195 - - - 30554 88-22105-2

8 196 5999-00-163-4078 00779 66099-4

8 197 5940-01-135-7080 81349 M83519/2-2

8 198 5940-01-135-7082 81349 M83519/2-4

8 199 5940-01-369-2267 98410 BB-8707-06

8200' 5940-01-020-2021 00779 52949

8 201 5999-01-119-6236 00779 66400-4

8 202 - - - 30554 88-22629-081

I-52

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

8 203 - - - 30554 88-22629-082

8 204 - - - 30554 88-22629-083

8 205 - - - 30554 88-22629-084

9 1 5310-00-052-3632 78189 511-081800-00

9 2 5305-00-954-5629 96906 MS35198-42

9 3 - - - 30554 88-22120

9 4 - - - 30554 88-22120-4

9 5 4030-00-780-9350 96906 MS87006-13

9 6 5940-00-115-2677 96906 MS20659-144

9 7 - - - 30554 88-22120-2

9 8 5310-00-822-8525 18876 PMS25086-001-01

9 9 5310-01-365-4381 94222 85-46-103-39

9 10 5325-01-161-2654 94222 85-12-460-16

9 11 5310-01-012-3595 81205 2740-0003

9 12 5306-01-156-7663 19207 12325869

9 13 5310-00-903-8595 78553 C7931-1032-3B

9 14 - - - 30554 88-21868

9 15 - - - 30554 88-21869

9 16 5325-01-301-7903 94222 85-35-309-56

9 17 5340-00-724-7038 96906 MS21333-76

9 18 5340-00-050-2740 96906 MS21333-75

9 19 - - - 30554 88-21980

9 20 - - - 30554 88-22045

9 21 - - - 30554 88-21876

9 22 5310-00-063-7360 83385 841-6-32

9 23 - - - 30554 88-22791-2

9 24 - - - 30554 88-21874

9 25 - - - 30554 88-21873

9 26 - - - 30554 88-21871

9 27 - - - 30554 88-22772

9 28 - - - 30554 88-22774

9 29 5320-01-019-5694 81349 M24243/1A402

9 30 - - - 30554 88-20074

9 31 9905-01-372-7986 30554 88-20197

9 32 - - - 30554 88-22737

9 32 - - - 30554 88-20073

9 33 5305-00-954-5638 96906 MS35198-46

10 1 - - - 01652 U350Z

10 2 4730-00-908-6294 96906 MS35842-16

10 3 2990-01-368-7694 30554 88-21961

10 4 5305-01-056-1501 24617 274825

10 5 5310-00-274-8715 96906 MS35338-63

10 6 5310-01-103-6042 96906 MS51412-4

10 7 - - - -30554 88-22790-1

I-53

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

10 8 2990-01-390-4457 30554 88-21712

10 9 - - - 01652 U350PHB

10 10 2990-01-368-7674 18265 P21-2638

11 1 4730-00-908-6293 66295 60HS

11 2 4720-01-369-9366 98441 38300-1-56-48RE

11 3 4730-00-908-3194 96906 MS35842-11

11 4 - - - 81349 M6000-F-00100

11 5 2815-01-366-7235 76700 73509-A

11 6 5310-01-368-5891 76700 Q-01434

11 7 5310-01-368-5969 76700 Q-01582

11 8 - - - 30554 88-22109-3

11 9 5310-01-376-4773 30554 88-22743

11 10 - - - 30554 88-22109-6

11 11 2940-01-406-9542 79396 42841

11 12 4710-01-369-4815 30554 88-21969

11 13 4720-01-375-1930 18265 P109331-016-700

11 14 6620-01-369-0432 18265 RBX00-6379

11 15 - - - 30554 88-22790-1

11 16 5310-00-274-8715 96906 MS35338-63

11 17 5305-01-056-1501 24617 274825

11 18 5310-01-103-6042 96906 MS51412-4

11 19 - - - 30554 88-21743

11 20 - - - 30554 88-22790-3

11 21 5310-00-011-5093 96906 MS35338-65

11 22 5305-00-543-4372 80204 B1821BH038C075N

11 23 - - - 18265 FHG08-0511

11 24 2940-01-174-4181 18265 P11-9711

11 25 5310-01-1904614 18265 P10-1870

11 26 4130-01-378-1130 18265 P18-2059

11 27 4820-01-192-7676 18265 P10-6593

11 28 - - - 30554 88-21046-3

12 1 4730-00-909-8627 01276 FF9311-36

12 2 4720-01-369-0020 30554 88-21986

12 3 5325-00-074-3301 96906 MS21266-2N

12 4 4730-00-908-3195 81343 SAE J1508-06

12 5 4730-01-370-5426 28520 2326

12 6 - - - 30554 88-22554-3

12 7 - - - 96906 MS35489-20

12 8 5310-01-012-3595 81205 2740-0003

12 9 5306-01-156-7663 19207 12325869

12 10 - - - 41197 PR27334-B2

12 11 - - - 96906 MS87006-11

12 12 - - - 30554 88-21608-283

12 13 5340-01-368-6063 30554 88-22533

I-54

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

12 14 4730-00-908-3193 56161 10503979

12 15 4720-01-369-0021 30554 88-21911

12 16 4720-01-373-0526 30554 88-21908

12 17 - - - 30554 88-21608-98

12 18 - - - 30554 88-22302-8

12 19 - - - 30554 88-22302-4

12 20 - - - 30554 88-21608-63

12 21 - - - 30554 88-22302-5

12 22 - - - 79470 1945

12 23 - - - 79740 1908

12 24 - - - 30554 88-22752-1

12 25 4820-01-381-5079 99739 52487

12 26 5305-00-068-0508 80204 B1821BH025C075N

12 27 5310-00-582-5965 96906 MS35338-44

12 28 5310-01-103-6042 96906 MS51412-4

12 29 - - - 30554 88-22516

12 30 - - - 30554 88-22790-2

12 31 5310-00-011-6120 96906 MS35338-64

12 32 5306-00-226-4827 80204 B1821BH031C100N

12 33 5310-00-044-6477 96906 MS51412-25

12 34 - - - 80204 B1821BH0380150N

12 35 5310-00-011-5093 96906 MS35338-65

12 36 - - - 30554 88-22613

12 37 5310-00-080-6004 96906 MS27183-14

12 38 5305-00-071-2066 80204 B1821BH050C100N

12 39 5310-00-011-6121 96906 MS35338-67

12 40 - - - 30554 88-21710

12 41 5305-00-068-0508 80204 B1821BH025C075N

12 42 - - - 30554 88-21697

12 43 - - - 96906 MS51481-06

12 44 5310-01-396-5836 08928 21NTE82

12 45 - - - 30554 88-22713

12 46 - - - 30554 88-22714

12 47 - - - 30554 88-22712

12 48 - - - 30554 88-22715

12 49 - - - 30554 88-22716

12 50 - - - 30554 88-22749

12 51 - - - 30554 88-22750

12 52 - - - 30554 88-22731

12 53 - - - 30554 88-22732

12 54 - - - 30554 88-22733

12 55 - - - 30554 88-21608-154

12 56 5305-00-781-3927 80204 B1821BH038C350N

12 57 30554 88-22529

I-55

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

12 58 5306-00-226-4834 80204 B1821BH031C225N

12 59 2930-01-366-7295 30554 88-21051

12 60 5365-01-381-3773 30554 88-22703

12 61 5310-00-732-0558 96906 MS51967-8

12 62 5305-00-068-0511 80204 B1821BH038C125N

12 63 - - - 30554 88-22066

12 64 3030-00-528-3771 20796 L451

12 65 2930-01-366-6108 51377 4035-35828-119

12 66 - - - 30554 88-22434

12 67 4730-01-366-0163 28520 2318

12 68 5975-00-074-2072 96906 MS3367-1-9

12 69 - - - 30554 88-22302-12

12 70 - - - 30554 88-22302-9

12 71 - - - 30554 88-22790-1

12 72 2930-01-353-7057 0SK27 111

12 73 - - - 30554 88-20468-1

12 74 - - - 30554 88-20468-2

12 75 - - - 30554 88-20468-3

12 76 - - - 30554 88-22544

13 1 4730-00-063-7919 05657 A8

13 2 - - - 30554 88-21608-107

13 3 2590-00-141-9758 96906 MS35645-1

13 4 5330-00-684-7851 96906 MS35643-1

13 5 - - - 80204 4-2 140137

13 6 5310-01-267-1685 96906 MS51412-8

13 7 4730-00-209-1570 79470 C3059X2

13 8 4730-01-134-9827 36378 1001547-01

13 9 5310-01-012-3595 81205 2740-0003

13 10 5306-01-368-8041 30554 88-20260-20

13 11 - - - 30554 88-21892

13 12 - - - 30554 88-21893

13 13 - - - 19099 88-21608-285

13 14 - - - 30554 88-22112

13 15 4730-00-908-6293 96906 MS35842-15

13 16 4730-00-908-6294 75160 C16054

13 17 4720-01-369-5042 30554 88-22069

13 18 2940-01-365-6535 30554 88-22755

13 19 4730-00-647-3207 96906 MS51504A4

13 20 4730-00-812-1333 93742 69-539-2

13 21 4730-01-020-5607 96906 MS51860-54

13 22 4730-01-123-8618 96906 MS51520A5

13 23 4720-01-386-1872 79470 00904E-504-J04-01075

13 24 - - - 30554 88-21608-66

13 25 - - - 30554 88-21608-147

I-56

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

13 26 4730-01-371-8124 79470 1064X6

13 27 4720-01-367-7446 98441 204P4-P54-JM4-27

13 28 4730-00-177-6166 81343 4-4-4140424C

13 29 4730-00-041-2526 79470 1069X6

13 30 - - - 30554 88-21608-102

13 31 - - - 30554 88-21608-104

13 32 5340-00-286-9425 96906 MS21919WDF-12

13 33 - - - 30554 88-20191-7

13 34 4730-00-842-2200 96906 MS24587-4

13 35 - - - 30554 88-20191-7-2

13 36 5305-01-398-4030 30554 88-22745

13 37 5310-01-395-8744 30554 88-22746

13 38 - - - 79470 131-60408

13 39 - - - 30554 88-22734

13 40 5340-00-286-9420 96906 MS21919WDF-4

13 41 - - - 30554 88-22076-2

13 42 4730-00-852-6951 30327 60FL-04

13 43 5306-00-226-4822 80204 B1821BH031C050N

13 44 5310-00-407-9566 96906 MS35338-45

13 45 - - - 30554 88-22335

13 46 - - - 30554 88-22790-1

13 47 5310-00-274-8715 96906 MS35338-63

13 48 5306-00-484-5730 30554 88-20260-31

13 49 5310-01-103-6042 96906 MS51412-4

13 50 - - - 30554 88-22546

13 51 5975-00-074-2072 65664 L-7-50-9

13 52 5935-00-482-7721 27264 03-09-2022

13 53 5999-00-626-3538 27264 02-09-2103

13 54 2910-01-366-7293 30554 88-21738

13 55 4730-00-041-2526 79470 1069X6

13 56 - - - 49078 125HBL4-4

13 57 4730-01-387-7158 30554 88-21117

13 58 5310-01-365-8138 30554 88-21166

13 59 5365-01-385-5692 07707 WELL-NUT A3816

13 60 4730-00-620-6904 96906 MS51500A5-4

13 61 4820-00-785-8153 93061 NV108P-4

13 62 4730-00-613-6468 81343 4-4-130238

13 63 4730-00-222-1837 96906 MS51846-20

13 64 - - - 30554 88-22790-2

13 65 5310-00-407-9566 96906 MS35338-64

13 66 5306-00-226-4827 80204 B1821BH031C100N

13 67 5310-00-044-6477 96906 MS51412-25

13 68 - - - 30554 88-21854

13 69 2910-01-368-7459 30554 88-21045

I-57

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

PART NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

13 70 5305-01-165-1254 96906 MS51492-14

13 71 5310-00-045-3296 96906 MS35338-43

13 72 5310-01-234-9416 96906 MS51412-2

13 73 - - - 30554 88-22549

13 74 5975-00-074-2072 96906 MS3367-1-9

13 75 5999-00-626-3538 27264 02-09-2103

13 76 5935-00-483-0259 27264 1490P1

13 77 2910-01-417-2208 30554 88-21121-3

13 78 2910-01-366-8984 06555 127679

13 79 - - - 30554 88-21852

13 80 5330-01-366-2836 30554 88-20286

13 81 6680-01-392-8821 30554 88-20492

13 82 5975-00-727-5153 96906 MS3367-4-9

13 83 5975-00-727-5153 06383 PLT1M-M

13 84 5935-00-315-9563 27264 03-09-1042

13 85 5935-00-483-0259 27264 1490P1

13 86 - - - 30554 88-20493

13 87 5999-00-626-3538 27264 02-09-2103

13 88 5999-01-039-8438 27264 02-09-1104

13 89 4720-00-021-3320 01276 FA1493FFF3000

13 90 5340-01-086-2049 81349 M5501/8-F6

13 91 4730-01-126-2173 01276 202712-5-B

13 92 - - - 30554 69-668-2

13 93 4720-01-215-0816 96906 MS28741-5-2992

13 94 4730-00-842-2201 00624 4411-55

13 95 - - - 30554 MS28741-5-2992-2

13 96 4730-01-378-5224 28520 2314

13 97 - - - 30554 88-21608-98

13 98 4730-00-908-3195 81343 SAE J1508-06

13 99 4730-01-407-0649 5U990 205-605

14 1 - - - 30554 71-4925

14 2 4730-00-288-9928 18163 S3-1-8X1-8

14 3 2910-01-367-2057 50999 31-65

14 4 5305-01-056-1501 24617 274825

14 5 5310-00-274-8715 96906 MS35338-63

14 6 5310-01-103-6042 96906 MS51412-4

14 7 - - - 30554 88-22553

14 8 5940-01-112-9746 59730 RA2573

14 9 5940-01-126-3973 59730 RA25177

14 10 4810-01-067-8276 78280 QS-4-2TC

14 11 5340-00-420-9813 78280 LP2299

14 12 5340-00-297-0312 78553 C7988-1420-3B

15 1 5310-01-012-3595 81205 2740-0003

15 2 5306-01-156-7663 19207 12325869

I-58

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

15 3 - - - 30554 88-22701

15 4 - - - 30554 88-21608-301

16 1 6150-01-383-6528 30554 88-22166

16 2 5940-01-020-2021 00779 52949

16 3 5940-01-369-2269 98410 AA-8714-08

16 4 5940-01-369-2270 98410 AA-8715-10

16 5 5940-00-143-4773 96906 MS25036-105

16 6 5940-00-143-4793 96906 MS25036-110

16 7 5940-01-367-9569 98410 BB-8717-10

16 8 5940-01-369-2267 98410 BB-8707-06

16 9 5940-01-112-9746 59730 RA2573

16 10 5940-00-143-4771 96906 MS25036-103

16 11 5940-00-143-4780 96906 MS25036-108

16 12 5940-00-813-0698 96906 MS25036-101

16 13 5940-00-143-4774 96906 MS25036-153

16 14 5940-01-126-3973 59730 RA25177

16 15 5975-00-111-3208 96906 MS3367-5-9

16 16 5975-00-074-2072 96906 MS3367-1-9

16 17 5975-00-944-1499 96906 MS3368-1-9A

16 18 5310-00-836-3520 78189 511-041800-00-0211-0511

16 19 5305-01-367-2314 45722 P15121-11

16 20 5935-01-014-4920 97539 206138-1

16 21 5999-01-170-0558 00779 66331-8

16 22 5999-01-366-7952 00779 66100-8

16 23 5935-01-101-7828 00779 206837-1

16 24 5935-01-023-5445 36378 1003318-01

16 25 - - - 30554 88-22166-18

16 26 - - - 9R803 3300-2

16 27 - - - 30554 88-22166-19

16 28 5999-01-366-2621 9R803 330JS

16 29 - - - 9R803 3300-10

16 30 5999-01-039-8438 27264 02-09-1104

16 31 5935-01-012-1273 27264 03-09-1022

16 32 5935-00-315-9563 27264 03-09-1042

16 33 5935-01-154-6264 96906 MS3452W18-11P

16 34 - - - 30554 88-22101-8

16 35 - - -30554 88-22101-8-1

16 36 5940-01-135-7082 81349 M83519/2-4

16 37 5999-01-366-7952 00779 66100-8

16 38 5940-00-143-4793 96906 MS25036-110

16 39 5940-00-143-4773 96906 MS25036-105

16 40 30554 88-22629-043

16 41 30554 88-22629-044

16 42 30554 88-22629-048

I- 59

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

16 43 - - - 30554 88-22101-9

16 44 - - - 30554 88-22101-9-1

16 45 5940-01-135-7082 81349 M83519/2-4

16 46 5999-01-366-7952 00779 66100-8

16 47 5940-00-230-0515 96906 MS25036-154

16 48 5940-00-143-4780 96906 MS25036-108

16 49 5940-00-143-4771 96906 MS25036-103

16 50 - - - 30554 88-22629-046

16 51 - - - 30554 88-22629-047

16 52 - - - 30554 88-22629-049

16 53 - - - 30554 88-22103-4

16 54 - - - 30554 88-22103-4-1

16 55 5940-01-135-7082 81349 M83519/2-4

16 56 5999-01-366-7952 00779 66100-8

16 57 5999-01-170-0558 00779 66331-8

16 58 5940-00-283-5280 96906 MS25036-106

16 59 - - - 30554 88-22629-063

16 60 - - - 30554 88-22629-064

16 61 - - - 30554 88-22629-071

16 62 - - - 30554 88-22103-5

16 63 - - - 30554 88-22103-5-1

16 64 5940-01-135-7082 81349 M83519/2-4

16 65 5999-01-366-7952 00779 66100-8

16 66 5999-01-170-0558 00779 66331-8

16 67 5940-01-082-3321 15912 RB2573

16 68 5940-01-139-0853 59730 RB25177

16 69 - - - 30554 88-22629-066

16 70 - - - 30554 88-22629-067

16 71 - - - 30554 88-22629-072

16 72 - - - 30554 88-22103-6

16 73 - - - 30554 88-22103-6-1

16 74 5940-01-135-7082 81349 M83519/2-4

16 75 5999-01-366-7952 00779 66100-8

16 76 5999-01-170-0558 00779 66331-8

16 77 5999-01-039-8438 27264 02-09-1104

16 78 - - - 30554 88-22629-069

16 79 - - - 30554 88-22629-070

16 80 - - - 30554 88-22629-073

17 1 - - - 30554 88-21584

17 1 - - - 30554 88-21579

17 2 - - - 30554 88-22128-1

17 3 5940-00-113-9835 96906 MS25036-136

17 4 30554 88-22128-1-1

17 5 30554 88-22128-2

I- 60

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

17 65940-00-113-9835 96906 MS25036-136

17 7 - - - 30554 88-22128-2-1

17 8 - - - 30554 88-22128-3

17 9 5940-00-113-9835 96906 MS25036-136

17 10 - - - 30554 88-22128-3-1

17 11 - - - 30554 88-22128-4

17 12 5940-00-113-9835 96906 MS25036-136

17 13 5940-00-025-1821 98410 J-787-34

17 14 - - - 30554 88-22128-4-1

17 15 - - - 30554 88-22128-5

17 16 5940-00-113-9835 96906 MS25036-136

17 17 5940-00-025-1821 98410 J-787-34

17 18 - - - 30554 88-22128-5-1

17 19 - - - 30554 88-22128-6

17 20 5940-00-113-9835 96906 MS25036-136

17 21 5940-00-025-1821 98410 J-787-34

17 22 - - - 30554 88-22128-6-1

17 23 - - - 30554 88-22128-7

17 24 5940-00-113-9835 96906 MS25036-136

17 25 5940-00-025-1821 98410 J-787-34

17 26 - - - 30554 88-22128-7-1

17 27 5310-01-012-3595 81205 2740-0003

17 28 5305-00-191-6226 45722 P15121-64

17 29 5310-00-014-5850 96906 MS27183-42

17 30 5950-01-368-2915 60177 19390

17 31 5950-01-382-3371 30554 88-21015

17 32 5950-01-407-6597 7P399 A1616A

17 32 5950-01-368-3006 60177 17910

17 33 6110-01-367-8922 7E656 JCG-6008A

17 34 5945-01-365-9953 81640 SM50D8

17 35 5310-00-052-3632 78189 511-081800-00

17 36 5305-00-036-6902 30554 69-662-36

17 37 - - - 9R803 3300-10-XP-74

17 38 - - - 9R803 3300-2-XP-74

17 39 5340-00-724-7038 96906 MS21333-76

17 40 5940-00-237-2704 30554 69-692-5

17 41 - - - 30554 88-21932

17 42 - - - 30554 88-22060

17 43 5325-00-351-4543 76385 Z3170

17 44 5325-00-290-1960 96906 MS35489-27

17 45 5340-01-222-4225 30554 72-2098-2

17 46 5310-01-103-6042 96906 MS51412-4

17 47 5940-01-384-0384 30554 88-22437

I - 61

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

17 48 - - - 30554 88-22790-1

17 49 5940-01-369-2877 30554 88-22436

17 50 5310-01-366-4412 08928 21NTE616

17 51 5310-00-918-6921 96906 MS35691-20

17 52 5940-01-003-8579 30554 72-2236

17 53 5940-00-606-4970 30554 72-2213

17 54 - - - 30554 88-21669

17 55 5305-00-071-2514 80204 B1821BH025C275N

17 56 - - - 30554 88-22039

17 57 5910-01-384-1745 30554 88-22758

17 58 5940-01-369-1588 98410 AA-8704-06

17 59 5910-01-384-1745 30554 88-22758

17 60 5310-00-836-3520 78189 511-041800-00-0211-0511

17 61 5305-00-224-1092 45722 P15121-5

17 62 5305-01-204-4683 30554 69-662-7

17 63 5935-01-175-8419 96906 MS25043-18DA

17 64 5310-00-929-1807 96906 MS51922-2

17 65 5310-00-809-4058 96906 MS27183-10

17 66 - - - 30554 88-22436

17 67 5305-01-187-5878 30554 69-662-65

18 1 - - - 30554 88-22469

18 2 5940-00-115-2677 96906 MS20659-144

18 3 - - - 30554 88-22469-2

18 4 5120-01-368-1646 30554 88-21148

18 5 5310-01-012-3595 81205 2740-0003

18 6 5306-01-156-7663 19207 12325869

18 7 - - - 30554 88-22136

18 8 5310-01-365-5788 08928 21NTE813

18 9 5310-00-167-0809 80205 NAS1149C1290R

18 10 - - - 30554 88-20305-6

18 11 5940-01-082-3321 15912 RB2573

18 12 5940-01-368-6775 00779 322724

18 13 - - - 30554 88-20305-6-1

18 14 - - -30554 88-20305-7

18 15 5940-01-082-3321 15912 RB2573

18 16 5940-01-368-6775 00779 322724

18 17 - - - 30554 88-20305-7-1

18 18 - - - 30554 88-20305-8

18 19 5940-01-082-3321 15912 RB2573

18 20 5940-01-368-6775 00779 322724

18 21 - - - 30554 88-20305-8-1

18 22 - - - 30554 88-20305-9

18 23 5940-01-082-3321 15912 RB2573

18 24 5940-01-368-6775 00779 322724

I - 62

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

18 25 - -- 30554 88-20305-9-1

18 26 - -- 30554 88-21930-1

18 27 - -- 30554 88-22792-2

18 28 5305-00-068-0510 80204 B1821BH038C100N

18 29 5310-01-366-4412 08928 22NTE616

18 30 - -- 81348 FF-W-92 TYPE A CLE GRI

18 31 - -- 30554 88-22343

18 32 5305-00-068-0509 80204 B1821BH025C125N

18 33 5310-00-274-8715 96906 MS35338-63

18 34 5310-01-103-6042 96906 MS51412-4

18 35 - - - 30554 88-21957

18 36 5340-00-297-0312 78553 C7988-1420-3B

18 37 - -- 30554 88-21958

18 38 - - - 30554 88-21668

18 39 5310-01-366-5365 30554 88-22336-2

18 40 5940-00-237-2704 96906 MS39347-6

18 41 5940-01-003-8579 30554 72-2236

18 42 - -- 30554 88-22163-2

18 43 - -- 30554 88-22146

18 44 5305-01-365-6314 30554 88-20260-25

18 45 5905-01-063-9644 81483 40-1389

18 46 - -- 30554 88-21775

18 47 - -- 30554 88-22806

18 47 - -- 30554 88-22763

18 48 - -- 30554 88-22808

18 48 - -- 30554 88-22764

19 1 6695-01-372-2583 30554 88-22550

19 2 5940-01-112-9746 59730 RA2573

19 3 5940-01-126-3973 59730 RA25177

19 4 6695-01-372-2583 05624 DYNT-17200-1

19 5 - - - 35311 SF2755

19 6 5930-01-107-6474 34623 5965573-B

19 7 5930-01-378-6921 30554 88-21126

19 8 4820-01-367-1836 70411 SP2529VT

19 9 5975-00-074-2072 96906 MS3367-1-9

19 10 - - - 30554 88-22481

19 11 4730-01-236-1186 01276 2256-2-2S

19 12 5930-01-395-6537 55443 TM-511C3-225N0

19 13 5905-01-376-0985 06555 127341

19 14 5305-00-269-3211 96906 MS90725-60

19 15 5310-00-011-5093 96906 MS35338-65

19 16 5340-00-954-6014 96906 MS21333-121

19 17 5310-01-012-3595 81205 2740-0003

19 18 5306-01-156-7663 19207 12325869

I - 63

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

19 20 - - - 30554 88-22462

19 21 5930-01-365-9614 81640 8906K4522

19 22 5306-01-366-7075 30554 88-20260-33

19 23 - - - 30554 88-22790-1

19 24 5310-00-274-8715 96906 MS35338-63

19 25 5310-01-103-6042 96906 MS51412-4

19 26 5305-01-056-1501 30554 88-20260-32

19 27 4010-01-369-4759 55175 2065-SN-3W/315-S-260 X

12.00

19 28 5305-00-943-5926 80204 B1821BH056C100N

19 29 5310-01-081-1284 96906 MS35338-68

19 30 5340-00-598-0597 96906 MS21919-8

19 31 - - - 30554 88-22162

19 32 5310-00-877-5797 96906 MS21044N3

19 33 5305-01-365-6313 30554 88-20260-23

19 34 3120-00-065-0505 73134 HF3C

19 35 5310-00-988-2652 96906 MS35650-103

19 36 - - - 30554 88-22739

19 37 5310-01-012-3595 81205 2740-0003

19 38 5305-01-384-6661 36024 122-8567.

19 39 - - - 8K442 DYNK 221

19 40 5340-01-368-2855 30554 88-22168

19 41 5310-00-965-1820 96906 MS51922-3

19 42 5305-00-225-3843 80204 B1821BH025C100N

19 43 - - - 30554 88-22551

19 44 5975-00-074-2072 96906 MS3367-1-9

I - 64

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

19 45 5999-00-626-3538 27264 02-09-2103

19 46 5935-00-482-7721 27264 03-09-2022

19 47 2910-01-389-2195 30554 88-21060

19 48 - - - 30554 88-22418-2

19 49 5940-00-143-4771 96906 MS25036-103

19 50 - - - 30554 88-22418-2-2

19 51 5961-00-295-5757 80131 1N5406

19 52 5320-01-019-5694 81349 M24243/1A402

19 53 - - - 30554 88-21776

19 54 - - - 30554 88-22790-3

19 55 5310-01-257-7590 96906 MS51412-7

19 56 - - - 30554 88-22782

19 57 - - - 30554 88-21703

20 1 4730-01-314-8846 15235 PLG2

20 2 4730-00-908-3194 96906 MS35842-11

20 3 - - - 30554 88-21608-110

20 4 4730-01-301-4257 30327 KF12-12PS

20 5 4820-01-008-2922 93061 V500P-12

I- 65

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

20 30554 72-5304

20 7 4730-01-335-9621 72582 8929749

21 1 5305-01-140-9118 80204 B1821BH038C088N

21 2 5310-01-366-5372 30554 88-22194

21 3 5305-00-724-7247 80204 B1821BH063C350N

21 4 5310-00-011-6123 96906 MS35338-69

21 5 5310-01-242-2679 96906 MS51412-11

21 6 - - - 96906 MS51943-13

21 7 5310-01-365-4386 92830 B1875-127

21 8 5310-01-365-8139 30554 88-20247-3

21 9 5305-00-724-7265 80204 B1821BH063C475N

21 10 5310-01-073-3667 96906 MS35691-1006

21 11 5305-01-366-3501 30554 88-22530

21 12 5340-01-396-0710 81860 RB-X87

22 1 6115-01-397-2106 30554 88-21009

22 2 5310-00-761-6882 96906 MS51967-2

22 3 5310-00-582-5965 96906 MS35338-44

22 4 5305-00-071-2509 80204 B1821BH025C150N

22 5 5310-01-333-1883 96906 MS27183-49

22 6 - - - 30554 88-21613

22 7 5305-00-068-0500 96906 MS90725-3

22 8 - - - 30554 88-21629

22 9 - - - 30554 88-21630

22 10 - - - 30554 88-21631

22 11 - - - 30554 88-21621

22 12 - - - 30554 88-21628

22 13 5330-01-366-7743 30554 88-21636

22 14 5940-00-113-0954 96906 MS20659-165

22 15 5940-00-557-4338 96906 MS25036-125

22 16 5305-00-269-3238 80204 B1821BH038F125N

22 17 5310-00-637-9541 96906 MS35338-46

22 18 5310-00-087-7493 96906 MS27183-13

22 19 5305-01-367-2118 2V263 GM9409533

22 20 5310-01-366-5373 30554 88-22673

22 21 - - - 30554 88-21616

22 22 - - - 30554 88-21615

22 23 - - - 30554 88-21622

22 24 - - - 30554 88-21657-1

22 25 - - - 30554 88-21626

22 26 - - - 30554 88-21612

22 27 3110-00-155-6298 21335 312KDD

22 28 5305-00-068-0501 96906 MS90725-5

22 29 5310-01-078-2992 96906 MS35333-135

22 30 30554 88-21624

I - 66

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

22 31 5310-00-851-2674 96906 MS35691-1

22 32 5310-00-761-6882 96906 MS51967-2

22 33 5310-01-333-1883 96906 MS27183-49

22 34 5305-00-225-3843 80204 B1821BH025C100N

22 35 5310-00-550-1130 96906 MS35333-40

22 36 5961-01-367-1969 59656 SD4258

22 37 - - - 30554 88-21624-6

22 38 5940-00-143-4777 96906 MS25036-157

22 39 5310-00-243-5912 88044 AN315-4

22 40 5961-01-378-8090 59993 85HFR60

22 41 5961-01-375-0813 59993 85HF60

22 42 5305-00-068-0500 96906 MS90725-3

22 43 - - - 30554 88-21829

22 44 - - - 30554 88-21828

22 45 - - - 30554 88-21619

22 46 - - - 30554 88-21625

22 47 - - - 30554 88-21655-2

22 48 5305-01-325-8388 96906 MS90725-113

22 49 5310-01-366-5374 30554 88-21663

22 50 30554 88-21618

22 51 5305-01-382-5060 30554 88-21657-5

22 52 - - - 30554 88-21632

22 53 - - - 30554 88-21916

22 54 - - - 30554 88-22198

22 55 5940-00-143-4794 96906 MS25036-112

22 56 - - - 30554 88-21610

23 1 - - - 30554 88-21010

23 2 5310-00-761-6882 96906 MS51967-2

23 3 5310-00-582-5965 96906 MS35338-44

23 4 5305-00-071-2509 80204 B1821BH025C150N

23 5 5310-01-333-1883 96906 MS27183-49

23 6 - - - 30554 88-21613

23 7 5305-00-068-0500 96906 MS90725-3

23 8 - - - 30554 88-21629

23 9 - - - 30554 88-21630

23 10 - - - 30554 88-21631

23 11 - - - 30554 88-21621

23 12 - - - 30554 88-21628

23 13 5330-01-366-7743 30554 88-21636

23 14 5940-00-113-0954 96906 MS20659-165

23 15 5940-00-557-4338 96906 MS25036-125

23 16 5305-00-269-3238 80204 B1821BH038F125N

23 17 5310-00-637-9541 96906 MS35338-46

23 18 5310-00-087-7493 96906 MS27183-13

I- 67

23 19 5305-01-367-2118 2V263 GM9409533

23 20 5310-01-366-5373 30554 88-22673

23 21 - - - 30554 88-21616

23 22 - - - 30554 88-21615

23 23 - - - 30554 88-21622

23 24 - - - 30554 88-21657-1

23 25 - - - 30554 88-21626

23 26 2920-01-298-6321 36156 777056-OA

23 27 3110-00-155-6298 21335 312KDD

23 28 5305-00-068-0501 96906 MS90725-5

23 29 5310-01-078-2992 96906 MS35333-135

23 30 - - - 30554 88-21624

23 31 5310-00-851-2674 96906 MS35691-1

23 32 5310-00-761-6882 96906 MS51967-2

23 33 5310-01-333-1883 96906 MS27183.49

23 34 5305-00-225-3843 80204 B1821BH025C100N

23 35 5310-00-550-1130 96906 MS35333-40

23 36 5961-01-367-1969 59656 SD4258

23 37 - - - 30554 88-21624-6

23 38 5940-00-143-4777 96906 MS25036-157

23 39 5310-00-243-5912 88044 AN315-4

23 40 5961-01-378-8090 59993 85HFR60

23 41 5961-01-375-0813 59993 85HF60

23 42 5305-00-068-0500 96906 MS90725-3

23 43 - - - 30554 88-21829

23 44 - - - 30554 88-21828

23 45 - - - 30554 88-21619

23 46 - - - 30554 88-21625

23 47 - - - 30554 88-21655-2

23 48 5305-01-325-8388 96906 MS90725-113

23 49 5310-01-366-5374 30554 88-21663

23 50 - - - 30554 88-22230

23 51 5305-01-382-5060 30554 88-21657-5

23 52 - - - 30554 88-21632

23 53 - - - 30554 88-21916

23 54 - - - 30554 88-21810

23 55 - - - 30554 88-21812-1

23 56 - - - 30554 88-21812-2

23 57 - - - 30554 88-22239

23 58 5940-00-143-4794 96906 MS25036-112

23 58 - - - 30554 88-21924

24 1 - - - 30554 88-22790-2

24 2 5310-00-011-6120 96906 MS35338-64

24 3 5306-00-226-4827 80204 B1821BH031C100N

I- 68

24 4 5310-00-044-6477 96906 MS51412-25

24 5 - - - 30554 88-21991

24 6 - - - 80204 B1821BH063F400N

24 7 - - - 30554 88-22790-6

24 8 5305-00-725-2317 80204 B1821BH038C150N

24 9 5310-00-011-5093 96906 MS35338-65

24 10 5310-01-257-7590 96906 MS51412-7

24 11 - - - 30554 88-21993

24 12 - - - 80204 B1821BH063C150N

24 13 5310-00-011-6123 96906 MS35338-69

24 14 5310-01-242-2679 96906 MS51412-11

24 15 2950-01-366-5271 30554 88-21013

24 16 5310-01-231-7459 96906 MS51943-9

24 17 5310-01-266-4641 96906 MS51412-9

24 18 5310-01-365-3190 30554 88-20247-2

24 19 5305-00-071-2075 80204 B1821BH050C300N

24 20 - - - 30554 88-22020

24 21 - - - 30554 88-22021

24 22 5310-01-249-0904 96906 MS51943-5

24 23 5305-00-068-0510 80204 B1821BH038C100N

24 24 - - - 18625 25553-4

25 1 - - - 30554 88-22790-3

25 2 5305-00-068-0510 80204 B1821BH038C100N

25 3 5310-00-011-5093 96906 MS35338-65

25 4 5310-01-257-7590 96906 MS51412-7

25 5 - - - 30554 88-21823

25 6 5325-00-319-0547 70485 2774

25 7 - - - 30554 88-22009

BULK 16145-00-567-7412 70903 8407

BULK 26145-01-104-5076 81349 M27500-16TE1T14

BULK 36145-01-213-5495 81349 M27500-16TE2T14

BULK 46145-01-129-9955 81349 M27500-20TE2T14

BULK 56145-01-128-2979 81349 M27500-20TE3T14

BULK 6- - - 81348 RRC271TY2CL6

BULK 75340-01-367-6703 03007 AA07060408

BULK 85340-01-385-2171 03007 Z60690

BULK 9- - - 1E045 A703

BULK 10 - - - 03007 AA07060406

BULK 11 4720-01-379-5027 00624 303-5

BULK 12 4720-00-235-4131 98441 208-12

BULK 13 - - - 02280 483666

BULK 14 4720-00-595-1088 81349 M8794-16

BULK 15 4720-01-174-4983 81349 M6000-C-02500

BULK 16 - - - 80244 33H581

I - 69

ARMY TM 9-6115-645-24P

AIR FORCE TO 35C2-3-444-14

MARINE CORPS TM 09244A/09245A-24P/3

SECTION IV CROSS REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

FIG. ITEM STOCK NUMBER FSCM PART NUMBER

BULK 17 5970-00-822-2775 81349 M23053/5-110-9

BULK 18 5970-00-978-7677 81349 M23053/5-110-2

BULK 19 5970-00-954-1622 81349 M23053/5-105-0

BULK 20 5970-00-082-3948 81349 M23053/5-108-9

BULK 21 5970-00-812-2969 81349 M23053/5-104-0

BULK 22 5970-00-082-3942 81349 M23053/5-105-9

BULK 23 4020-00-523-9641 72205 1-41NDIA

BULK 24 5330-01-398-6319 77824 5798-190Z-3-75.0

BULK 25 5330-01-367-6329 56329 20941

BULK 26 5330-01-369-8947 1X968 ZX-4134

BULK 27 9320-00-019-5710 81349 MIL-R-6130 TYII GRA

BULK 28 4720-00-804-9249 83616 TD2-03420

BULK 29 - - - 80203 J1127SGR1AWGBLK

BULK 30 - - - 30554 88-20444-3

BULK 31 6145-00-553-0829 96906 MS25471-16

BULK 32 6145-00-578-7514 81349 M5086/2-12-9

BULK 33 6145-00-851-8505 81349 M5086/2-20-9

BULK 34 6145-00-578-6605 81349 M5086/2-16-9

BULK 35 6145-00-578-6600 81349 M5086/2-02-9

I -70

These are the Instructions for sending an electronic 2028

The following format must be used if submitting an electronic 2028. The subject line must be exactly the same and all

fields must be included; however only the following fields are mandatory: 1, 3, 4, 5, 6, 7, 8, 9, 10, 13, 15, 16, 17, and 27.

From: "Whomever" <whomever@avma27.army.mil>

To: mpmt%avma28@st-louis-emh7.army.mil

Subject: DA Form 2028

1. From: Joe Smith

2. Unit: home

3. Address: 4300 Park

4. City: Hometown

5. St: MO

6. Zip: 77777

7. Date Sent: 19-OCT-93

8. Pub no: 55-2840-229-23

9. Pub Title: TM

10. Publication Date: 04-JUL-85

11. Change Number: 7

12. Submitter Rank: MSG

13. Submitter FName: Joe

14. Submitter MName: T

15. Submitter LName: Smith

16. Submitter Phone: 123-123-1234

17. Problem: 1

18. Page: 2

19. Paragraph: 3

20. Line: 4

21. NSN: 5

22. Reference: 6

23. Figure: 7

24. Table: 8

25. Item: 9

26. Total: 123

27. Text:

This is the text for the problem below line 27.

* U.S. GOVERNMENT PRINTING OFFICE: 1997 455-024/0016

The Metric System and Equivalents

Linear Measure Liquid Measure

1 centiliter = 10 milliters = .34 fl. ounce

1 centimeter = 10 millimeters = .39 inch 1 deciliter = 10 centiliters = 3.38 fl. ounces

1 decimeter = 10 centimeters = 3.94 inches 1 liter = 10 deciliters = 33.81 fl. ounces

1 meter = 10 decimeters = 39.37 inches 1 dekaliter = 10 liters = 2.64 gallons

1 dekameter = 10 meters = 32.8 feet 1 hectoliter = 10 dekaliters = 26.42 gallons

1 hectometer = 10 dekameters = 328.08 feet 1 kiloliter = 10 hectoliters = 264.18 gallons

1 kilometer = 10 hectometers = 3,280.8 feet Square Measure

Weights 1 sq. centimeter = 100 sq. millimeters = .155 sq. inch

1 centigram = 10 milligrams = .15 grain 1 sq. decimeter = 100 sq. centimeters = 15.5 sq. inches

1 decigram = 10 centigrams = 1.54 grains 1 sq. meter (centare) = 100 sq. decimeters = 10.76 sq. feet

1 gram = 10 decigram = .035 ounce 1 sq. dekameter (are) = 100 sq. meters = 1,076.4 sq. feet

1 decagram = 10 grams = .35 ounce 1 sq. hectometer (hectare) = 100 sq. dekameters = 2.47 acres

1 hectogram = 10 decagrams = 3.52 ounces 1 sq. kilometer = 100 sq. hectometers = .386 sq. mile

1 kilogram = 10 hectograms = 2.2 pounds

1 quintal = 100 kilograms = 220.46 pounds Cubic Measure

1 metric ton = 10 quintals = 1.1 short tons 1 cu. centimeter = 1000 cu. millimeters = .06 cu. inch

1 cu. decimeter = 1000 cu. centimeters = 61.02 cu. inches

1 cu. meter = 1000 cu. decimeters = 35.31 cu. feet

Approximate Conversion Factors

To change To Multiply by To change To Multiply by

inches centimeters 2.540 ounce-inches Newton-meters .007062

feet meters .305 centimeters inches .394

yards meters .914 meters feet 3.280

miles kilometers 1.609 meters yards 1.094

square inches square centimeters 6.451 kilometers miles .621

square feet square meters .093 square centimeters square inches .155

square yards square meters .836 square meters square feet 10.764

square miles square kilometers 2.590 square meters square yards 1.196

acres square hectometers .405 square kilometers square miles .386

cubic feet cubic meters .028 square hectometers acres 2.471

cubic yards cubic meters .765 cubic meters cubic feet 35.315

fluid ounces milliliters 29,573 cubic meters cubic yards 1.308

pints liters .473 milliliters fluid ounces .034

quarts liters .946 liters pints 2.113

gallons liters 3.785 liters quarts 1.057

ounces grams 28.349 liters gallons .264

pounds kilograms .454 grams ounces .035

short tons metric tons .907 kilograms pounds 2.205

pound-feet Newton-meters 1.356 metric tons short tons 1.102

pound-inches Newton-meters .11296

Temperature (Exact)

°FFahrenheit 5/9 (after Celsius °C

temperature subtracting 32) temperature

PIN: 062445-000

25562 TM 9 6115 645 24P GENERATOR SET, TACTICAL QUIET 60KW, 50/60/400 HZ (NSN 01 274 7390) (MEP 806A) (6115 7395) 816A) {TO 35C2 3 444 14; 09244A/09245A 24P/3}

Navigation menu

Versions of this User Manual:

Views

Navigation
